10.0mm Elliptical Ripple Linear TIR LED Lenses | Carclo Optics

Carclo Optics 10510

10.0mm Elliptical Ripple Linear TIR LED Lenses

Part number

10510

Dimensions

10.0mm

Drawing Number

60525

Optic type

TIR LED Lenses

Finish

Ripple Linear

Beam type

Elliptical

Applications

Architectural

Landscape & Garden

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

89.5%

FWHM:

45 x 19°

Cd/Im:

3.1


,


Download

IES

Cree JK2835 6V White

Eff:

88.5%

FWHM:

44 x 21.5°

Cd/Im:

2.7


,


Download

IES

Cree XLamp CSP XD16 Cool White

Eff:

89.5%

FWHM:

44 x 18°

Cd/Im:

2.9


,


Download

IES

Cree XLamp CSP XD16 Premium White

Eff:

90.5%

FWHM:

45 x 16.5°

Cd/Im:

3.6


,


Download

IES

Cree XLamp XB-D White

Eff:

85.6%

FWHM:

44.7 x 20.7°

Cd/Im:

3.0

Spot Image

Cross Section

Download

ies

Cree XLamp XB-H White

Eff:

88.5%

FWHM:

43 x 20.5°

Cd/Im:

2.6

Carclo Optics - 10510 10mm Spot Image Cree XLamp XB-H

Carclo Optics - 10510 10mm Horizontal Cross Section Cree XLamp XB-H

,

Carclo Optics - 10510 10mm Vertical Cross Section Cree XLamp XB-H

Download

IES

Cree XLamp XE-G Blue

Eff:

90.0%

FWHM:

46 x 14°

Cd/Im:

3.9


,


Download

IES

Cree XLamp XE-G Green

Eff:

90.0%

FWHM:

46 x 14°

Cd/Im:

3.7


,


Download

IES

Cree XLamp XE-G Red

Eff:

88.5%

FWHM:

45 x 14°

Cd/Im:

3.9


,


Download

IES

Cree XLamp XE-G White

Eff:

89.5%

FWHM:

45 x 14.5°

Cd/Im:

3.8


,


Download

IES

Cree XLamp XP-C White

Eff:

87.8%

FWHM:

46.2 x 12.5°

Cd/Im:

5.0

Spot Image

Cross Section

Download

ies

Cree XLamp XP-E White

Eff:

88.1%

FWHM:

43 x 16°

Cd/Im:

3.5

Spot Image

Cross Section

Download

ies

Cree XLamp XP-E2 White

Eff:

90.5%

FWHM:

45 x 14.5°

Cd/Im:

4.0


,


Download

IES

Cree XLamp XP-G White

Eff:

86.5%

FWHM:

43.6 x 23.3°

Cd/Im:

2.6

Spot Image

Cross Section

Download

ies

Cree XLamp XP-G3 White

Eff:

87.0%

FWHM:

43 x 25°

Cd/Im:

2.2

Carclo Optics - 10510 10mm Spot Image Cree XLamp XP-G3

Carclo Optics - 10510 10mm Horizontal Cross Section Cree XLamp XP-G3

,

Carclo Optics - 10510 10mm Vertical Cross Section Cree XLamp XP-G3

Download

IES

Cree XLamp XP-G4 White

Eff:

88.5%

FWHM:

42 x 22°

Cd/Im:

2.6


,


Download

IES

Cree XLamp XQ-A Blue

Eff:

90.5%

FWHM:

49 x 9.6°

Cd/Im:

5.6

Carclo Optics - 10510 10mm Spot Image Cree XLamp XQ-A_Blue

Carclo Optics - 10510 10mm Horizontal Cross Section Cree XLamp XQ-A_Blue

,

Carclo Optics - 10510 10mm Vertical Cross Section Cree XLamp XQ-A_Blue

Download

IES

Cree XLamp XQ-A Green

Eff:

90.5%

FWHM:

48 x 9.9°

Cd/Im:

5.5

Carclo Optics - 10510 10mm Spot Image Cree XLamp XQ-A_Green

Carclo Optics - 10510 10mm Horizontal Cross Section Cree XLamp XQ-A_Green

,

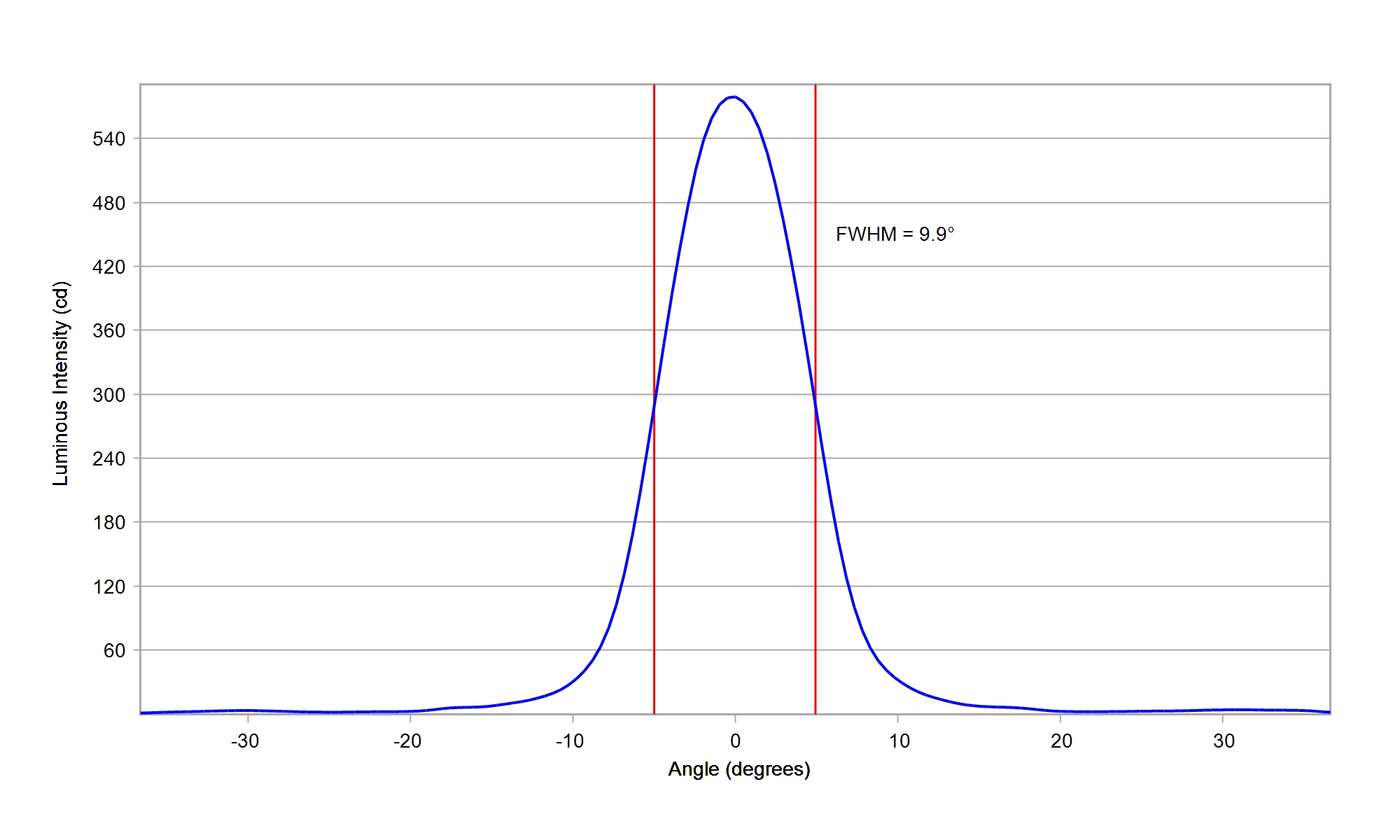

Carclo Optics - 10510 10mm Vertical Cross Section Cree XLamp XQ-A_Green

Download

IES

Cree XLamp XQ-A Red

Eff:

91.0%

FWHM:

47 x 10°

Cd/Im:

5.4

Carclo Optics - 10510 10mm Spot Image Cree XQ-A Red

Carclo Optics - 10510 10mm Horizontal Cross Section Cree XLamp XQ-A_Red

,

Carclo Optics - 10510 10mm Vertical Cross Section Cree XLamp XQ-A_Red

Download

IES

Cree XLamp XQ-A White

Eff:

90.5%

FWHM:

48 x 9.5°

Cd/Im:

5.6

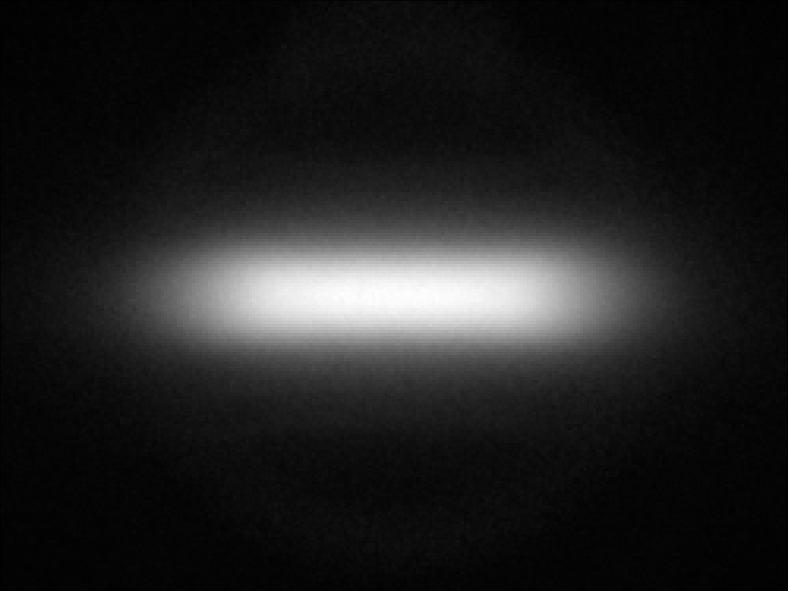

Carclo Optics - 10510 10mm Spot Image Cree XQ-A

Carclo Optics - 10510 10mm Horizontal Cross Section Cree XLamp XQ-A

,

Carclo Optics - 10510 10mm Vertical Cross Section Cree XLamp XQ-A

Download

IES

Cree XLamp XQ-E HI Blue

Eff:

89.5%

FWHM:

48 x 12°

Cd/Im:

4.0

Carclo Optics - 10510 10mm Spot Image Cree XLamp XQ-E_HI_Blue

Carclo Optics - 10510 10mm Horizontal Cross Section Cree XLamp XQ-E_HI_Blue

,

Carclo Optics - 10510 10mm Vertical Cross Section Cree XLamp XQ-E_HI_Blue

Download

IES

Cree XLamp XQ-E HI Green

Eff:

89.5%

FWHM:

47 x 12°

Cd/Im:

4.0

Carclo Optics - 10510 10mm Spot Image Cree XLamp XQ-E_HI_Green

Carclo Optics - 10510 10mm Horizontal Cross Section Cree XLamp XQ-E_HI_Blue

,

Carclo Optics - 10510 10mm Vertical Cross Section Cree XLamp XQ-E_HI_Green

Download

IES

Cree XLamp XQ-E HI Red

Eff:

90.5%

FWHM:

47 x 12°

Cd/Im:

4.1

Carclo Optics - 10510 10mm Spot Image Cree XLamp XQ-E HI Red

Carclo Optics - 10510 10mm Horizontal Cross Section Cree XLamp XQ-E_HI_Red

,

Carclo Optics - 10510 10mm Vertical Cross Section Cree XLamp XQ-E_HI_Red

Download

IES

Cree XLamp XQ-E HI White

Eff:

90.5%

FWHM:

47 x 11.5°

Cd/Im:

5.0


,


Download

IES

Cree XLamp XQ-E HD White

Eff:

90.0%

FWHM:

46 x 14°

Cd/Im:

4.0

Carclo Optics - 10510 10mm Spot Image Cree XLamp XQ-E

Carclo Optics - 10510 10mm Horizontal Cross Section Cree XLamp XQ-E

,

Carclo Optics - 10510 10mm Vertical Cross Section Cree XLamp XQ-E

Download

IES

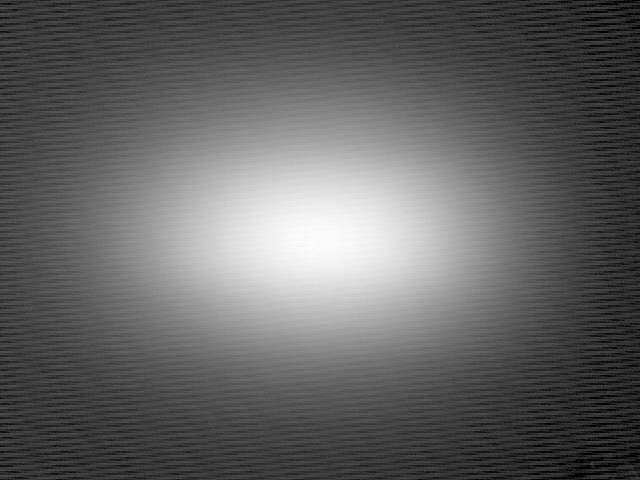

Everlight Shuen White

Eff:

82.6%

FWHM:

45.1 x 25.2°

Cd/Im:

2.3

Spot Image

Cross Section

Download

ies

Lite-On R38386AS - S R38 IR

Eff:

87.0%

FWHM:

45.5 x 26.0°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

ies

LUMILEDS LUXEON 2835C 6V White

Eff:

89.0%

FWHM:

44 x 20°

Cd/Im:

2.7


,


Download

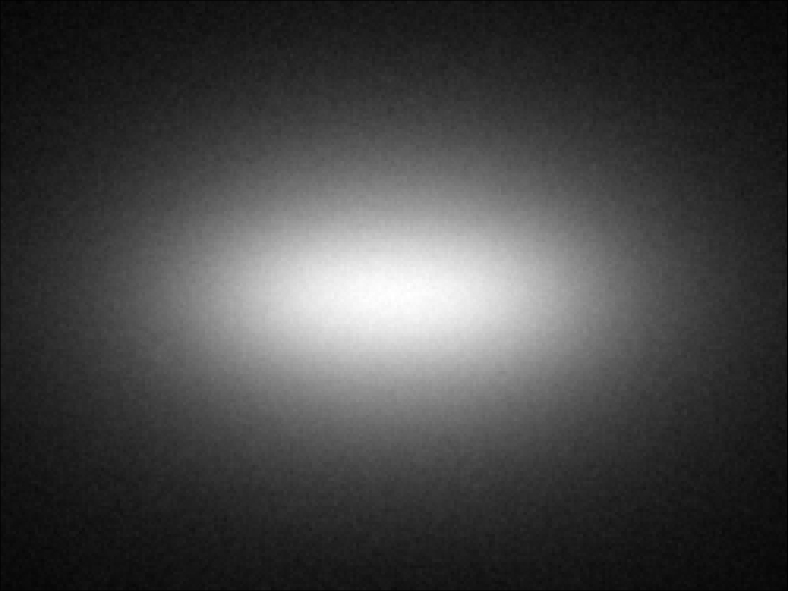

LUMILEDS LUXEON 2835E 9V White

Eff:

89.0%

FWHM:

44 x 19.5°

Cd/Im:

2.8


,


Download

LUMILEDS LUXEON 2835N 3V White

Eff:

88.5%

FWHM:

44 x 21°

Cd/Im:

2.5


,


Download

LUMILEDS LUXEON 2835S 3V White

Eff:

88.5%

FWHM:

43 x 22.5°

Cd/Im:

2.5


,


Download

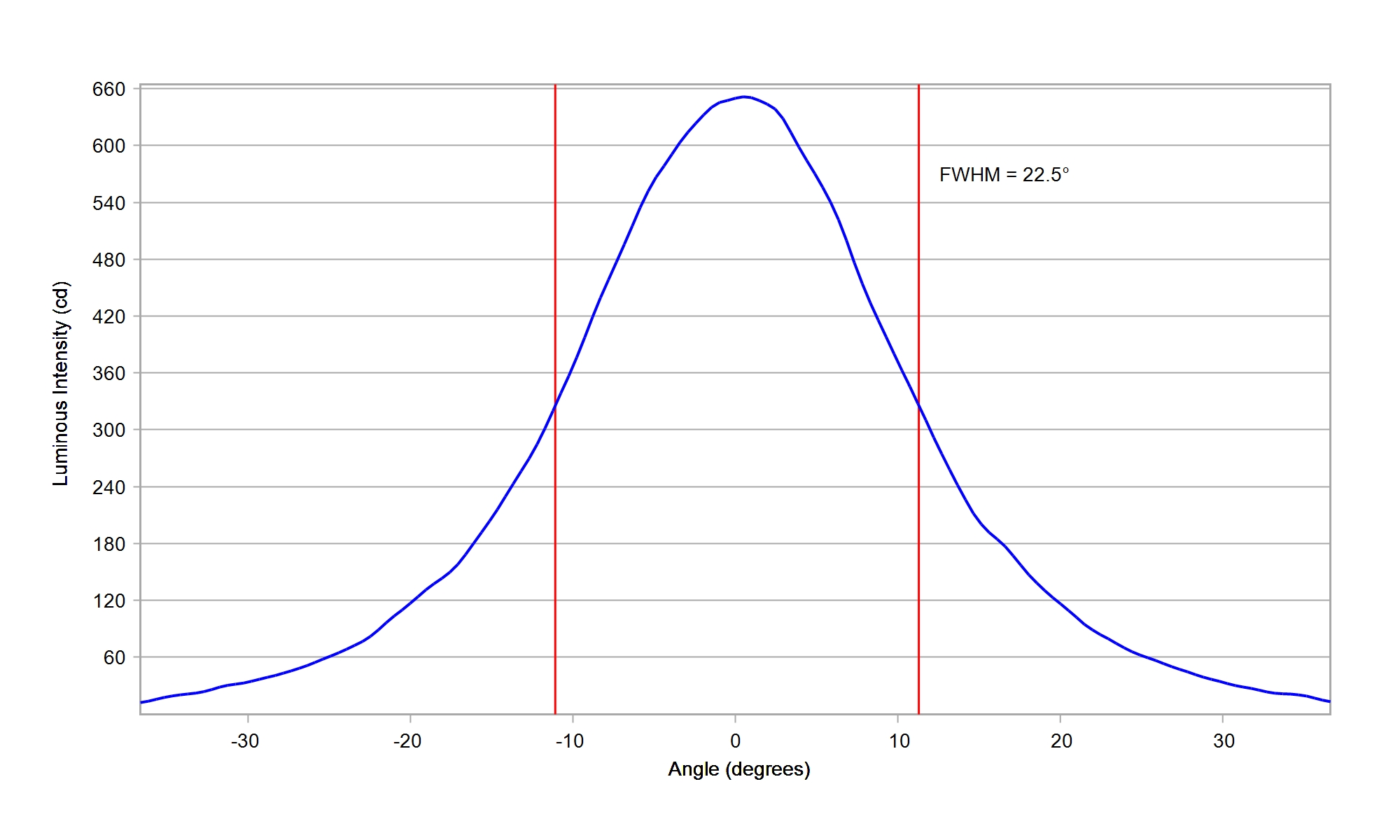

LUMILEDS LUXEON 2835S 6V White

Eff:

88.5%

FWHM:

44 x 22.5°

Cd/Im:

2.6


,


Download

LUMILEDS LUXEON 3014 White

Eff:

90.5%

FWHM:

46 x 12.5°

Cd/Im:

4.0


,


Download

IES

LUMILEDS LUXEON 3030 2D White

Eff:

89.5%

FWHM:

44 x 20°

Cd/Im:

2.9


,


Download

LUMILEDS LUXEON 3030 HE Plus White

Eff:

88.5%

FWHM:

44 x 22°

Cd/Im:

2.7

Carclo Optics - 10510 10mm Spot Image Luxeon 3030 HE Plus

Carclo Optics - 10510 10mm Horizontal Cross Section Luxeon 3030 HE Plus

,

Carclo Optics - 10510 10mm Vertical Cross Section Luxeon 3030 HE Plus

Download

IES

LUMILEDS LUXEON 3535 HV White

Eff:

83.7%

FWHM:

53 X 23.6°

Cd/Im:

1.7

carclo optics - simulated spot image

carclo optics - horizontal simulated cross section

,

carclo optics - simulated vertical cross section

Download

ies

LUMILEDS LUXEON 3535 L White

Eff:

89.5%

FWHM:

45 x 19°

Cd/Im:

3.1


,


Download

IES

LUMILEDS LUXEON C Lime

Eff:

87.0%

FWHM:

45 x 15.5°

Cd/Im:

3.7


,


Download

IES

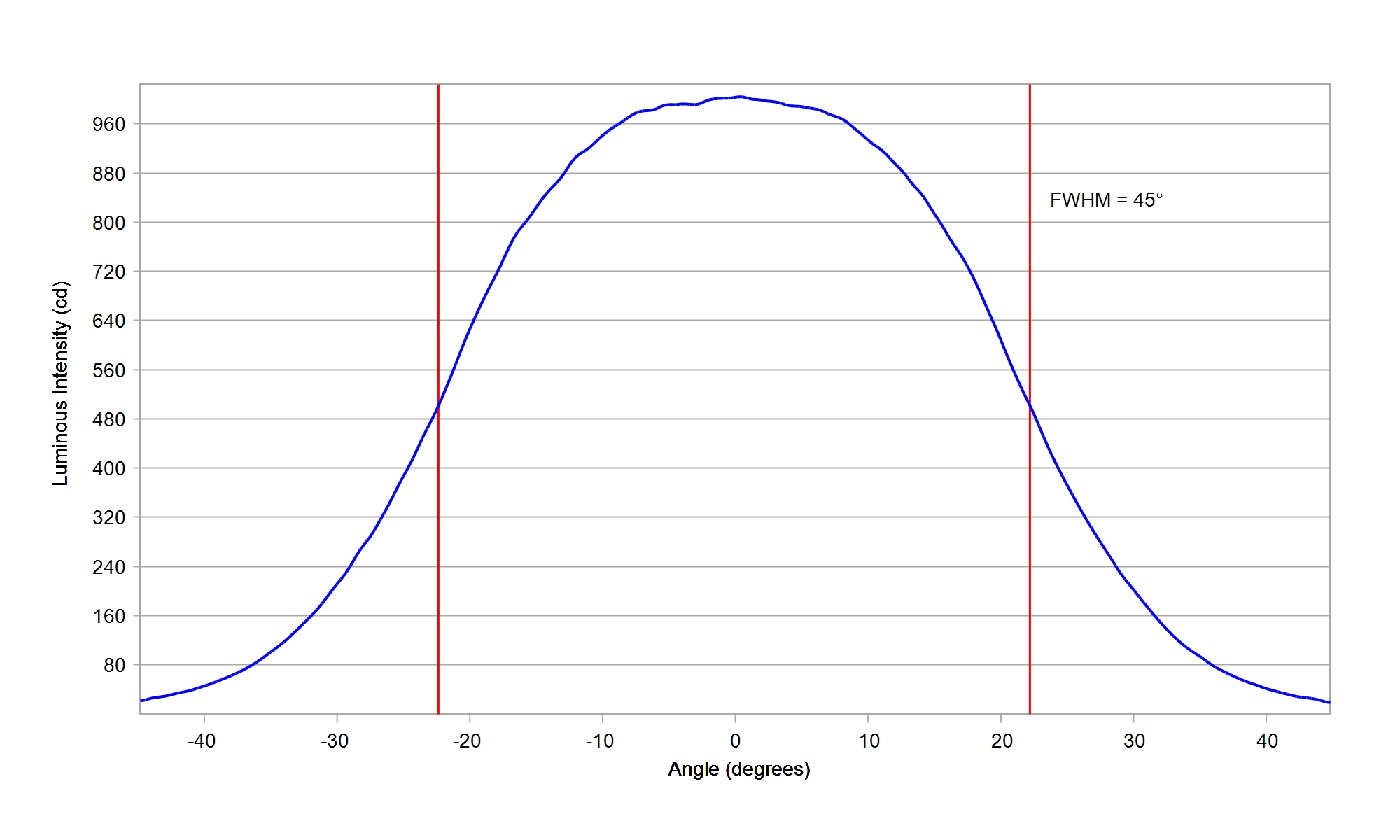

LUMILEDS LUXEON C White

Eff:

86.5%

FWHM:

45 x 15°

Cd/Im:

3.6


,


Download

LUMILEDS LUXEON CZ White

Eff:

91.0%

FWHM:

47 x 11.5°

Cd/Im:

5.1


,


Download

IES

LUMILEDS LUXEON HL1Z CSP White

Eff:

90.0%

FWHM:

45 x 17.5°

Cd/Im:

3.3


,


Download

IES

LUMILEDS LUXEON HL2Z White

Eff:

88.5%

FWHM:

43 x 21.5°

Cd/Im:

2.6

Carclo Optics – 10510 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 10510 Horizontal Lumileds Luxeon HL2Z - Cross-Section

,

Carclo Optics – 10510 Vertical Lumileds Luxeon HL2Z - Cross-Section

Download

IES

LUMILEDS LUXEON IR 2720

Eff:

91.5%

FWHM:

44 x 17°

Ipk/W:

3.6


,


Download

IES

LUMILEDS LUXEON IR Compact 850nm

Eff:

91.5%

FWHM:

44 x 14.5°

Ipk/W:

3.8


,


Download

IES

LUMILEDS LUXEON IR Domed 150 Degree

Eff:

91.5%

FWHM:

42 x 17°

Ipk/W:

3.6


,


Download

IES

LUMILEDS LUXEON MZ White

Eff:

86.5%

FWHM:

43 x 34°

Cd/Im:

1.5


,

Download

IES

LUMILEDS LUXEON Rebel ES White

Eff:

83.0%

FWHM:

44.0 x 24.4°

Cd/Im:

2.5

Spot Image

Cross Section

Download

ies

LUMILEDS LUXEON Rebel White

Eff:

84.3%

FWHM:

46 x 16°

Cd/Im:

3.1

Spot Image

Cross Section

Download

ies

LUMILEDS LUXEON Rubix Blue

Eff:

91.0%

FWHM:

47 x 12°

Cd/Im:

5.1


,


Download

IES

LUMILEDS LUXEON Rubix Green

Eff:

91.0%

FWHM:

47 x 12°

Cd/Im:

4.9


,


Download

IES

LUMILEDS LUXEON Rubix Red

Eff:

92.0%

FWHM:

46 x 11.5°

Cd/Im:

5.5


,


Download

IES

LUMILEDS LUXEON Rubix Royal Blue

Eff:

90.5%

FWHM:

48 x 11.5°

Cd/Im:

5.1


,


Download

IES

LUMILEDS LUXEON Rubix White

Eff:

91.0%

FWHM:

46 x 12.5°

Cd/Im:

4.7


,


Download

IES

LUMILEDS LUXEON TX White

Eff:

83.0%

FWHM:

49.6 x 26.4°

Cd/Im:

1.5

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

ies

LUMILEDS LUXEON Z White

Eff:

90.5%

FWHM:

47 x 12°

Cd/Im:

5.0


,

Download

IES

Luminus Devices SST 10-B-B130 Blue

Eff:

89.0%

FWHM:

46 x 16.5°

Cd/Im:

3.5


,


Download

IES

Luminus Devices SST 10-B-B90 Blue

Eff:

88.0%

FWHM:

46 x 19°

Cd/Im:

3.0


,


Download

IES

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

91.0%

FWHM:

43 x 18°

Cd/Im:

3.6


,


Download

IES

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

89.5%

FWHM:

44 x 19.5°

Cd/Im:

3.1


,


Download

IES

Luminus Devices SST 10-G-B130 Green

Eff:

90.5%

FWHM:

45 x 17°

Cd/Im:

3.7


,


Download

IES

Luminus Devices SST 10-G-B90 Green

Eff:

89.0%

FWHM:

44 x 19.5°

Cd/Im:

3.0


,


Download

IES

Luminus Devices SST 10-IR-B130 940nm

Eff:

92.0%

FWHM:

41 x 19.5°

Ipk/W:

3.5


,


Download

IES

Luminus Devices SST 10-IR-B90 940nm

Eff:

91.0%

FWHM:

42 x 21.5°

Ipk/W:

3.0


,


Download

IES

Luminus Devices SST 10-IRD-B130 810nm

Eff:

92.5%

FWHM:

42 x 17.5°

Ipk/W:

3.6


,


Download

IES

Luminus Devices SST 10-IRD-B90 810nm

Eff:

91.0%

FWHM:

43 x 20°

Ipk/W:

3.1


,


Download

IES

Luminus Devices SST 20-WxH White Hi CRI

Eff:

89.5%

FWHM:

44 x 19°

Cd/Im:

3.0


,


Download

IES

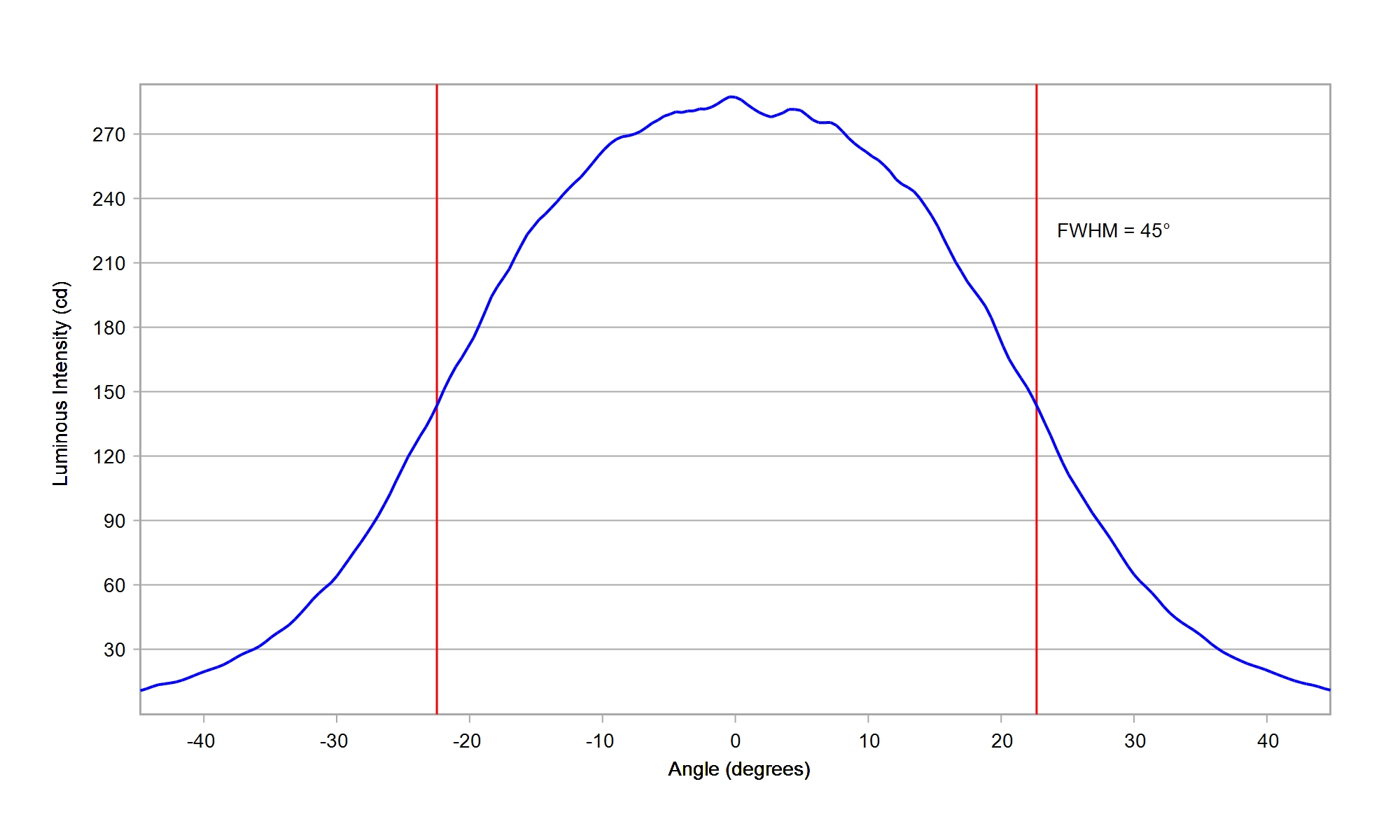

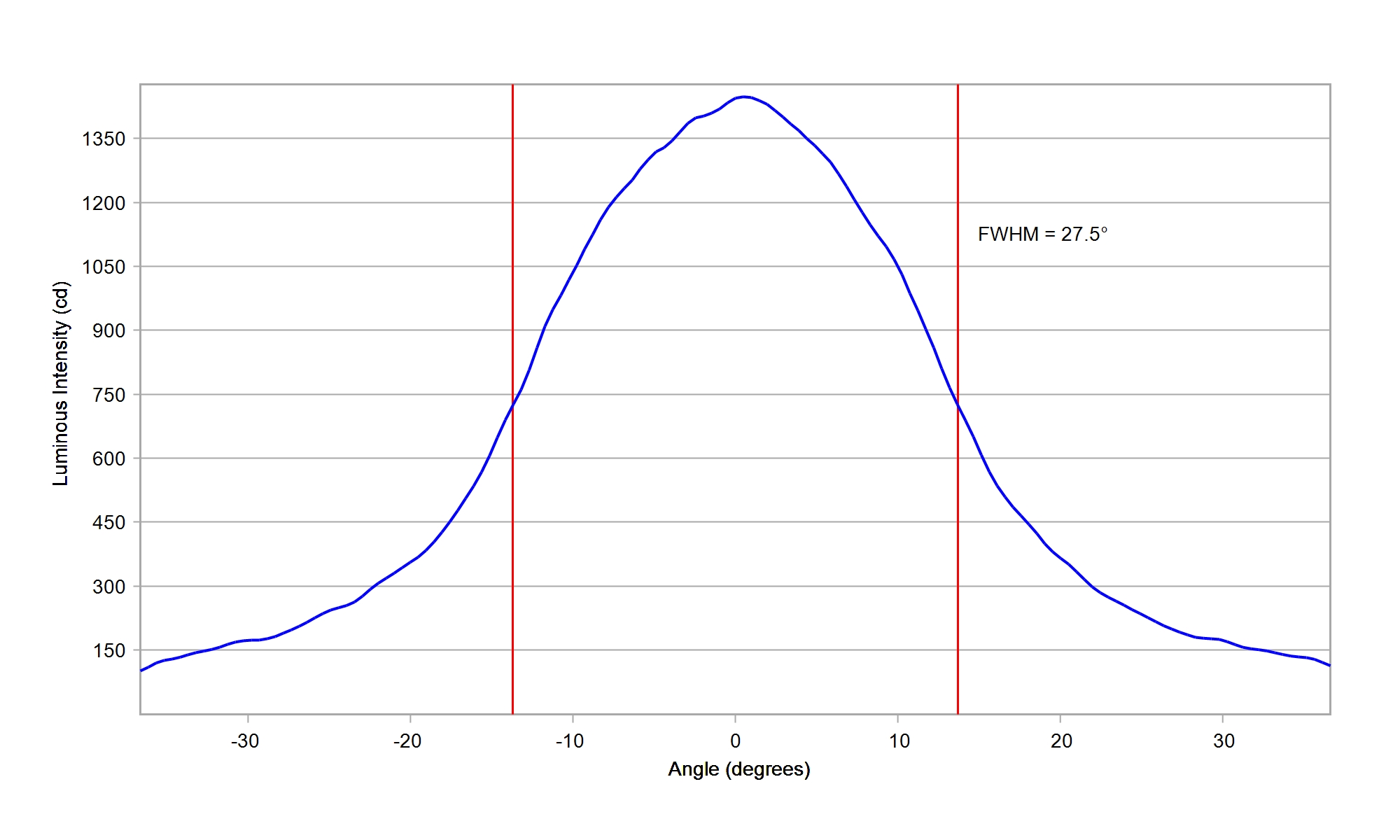

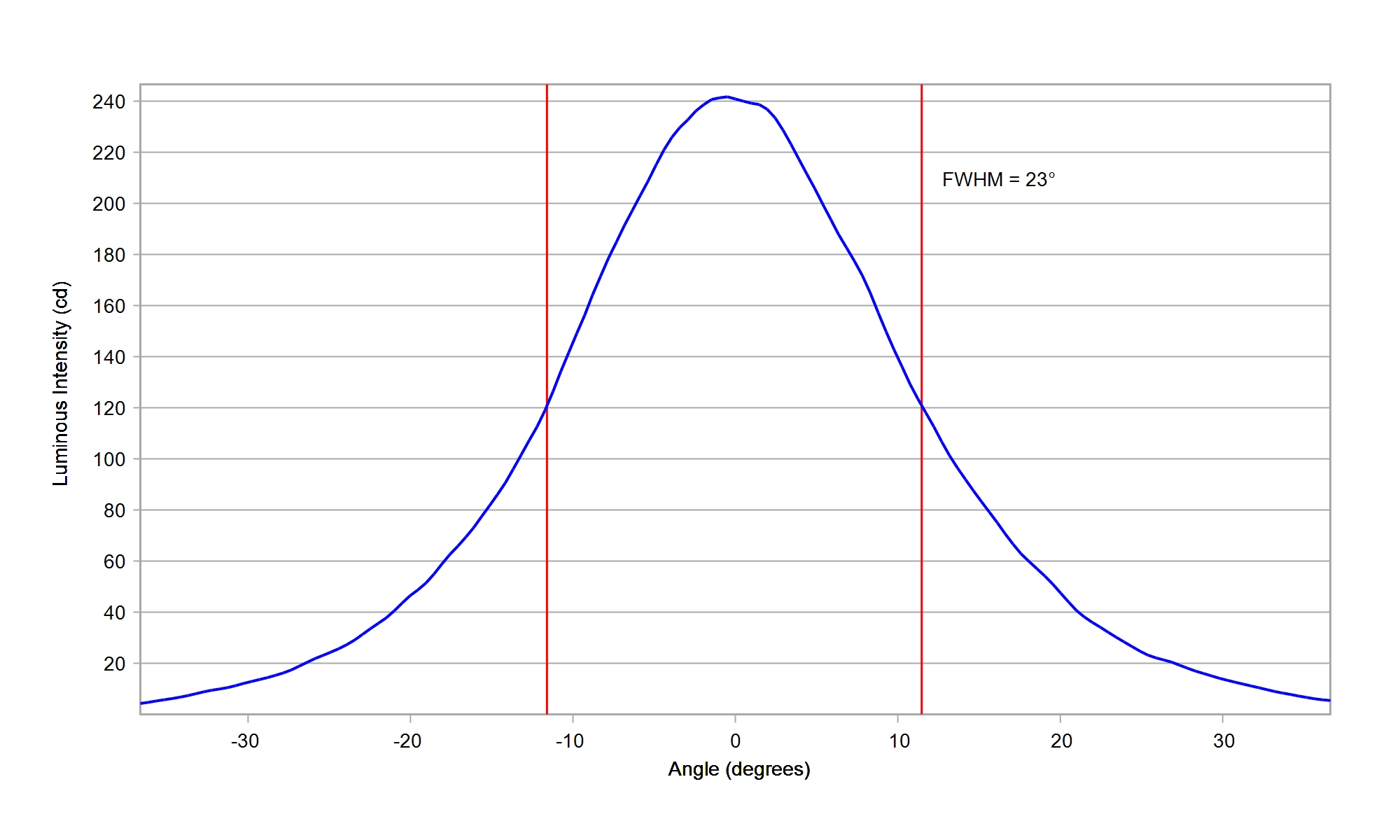

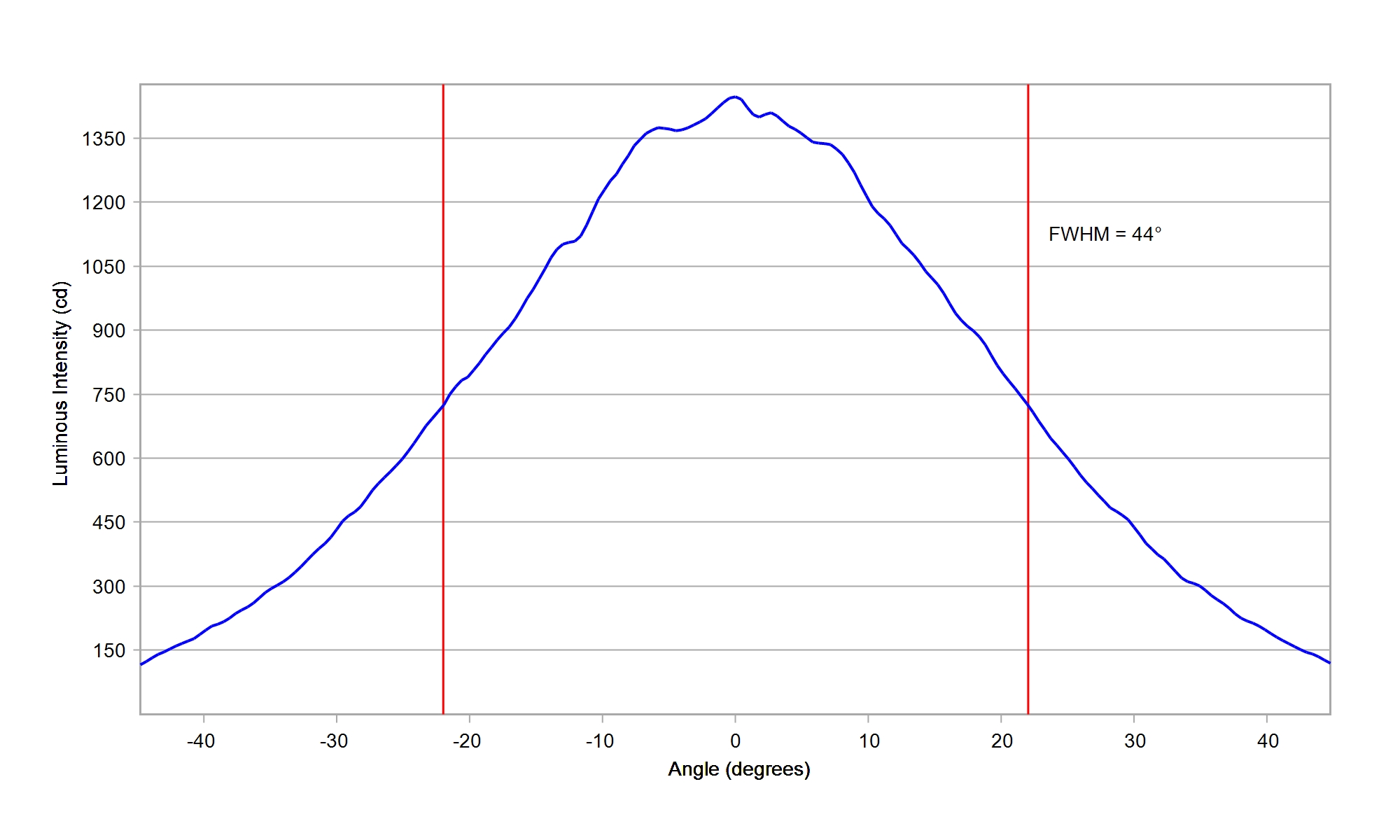

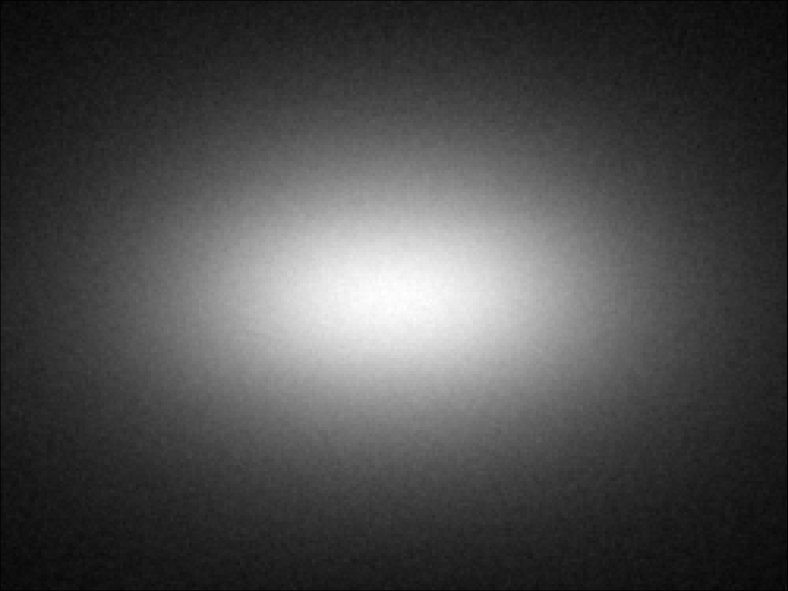

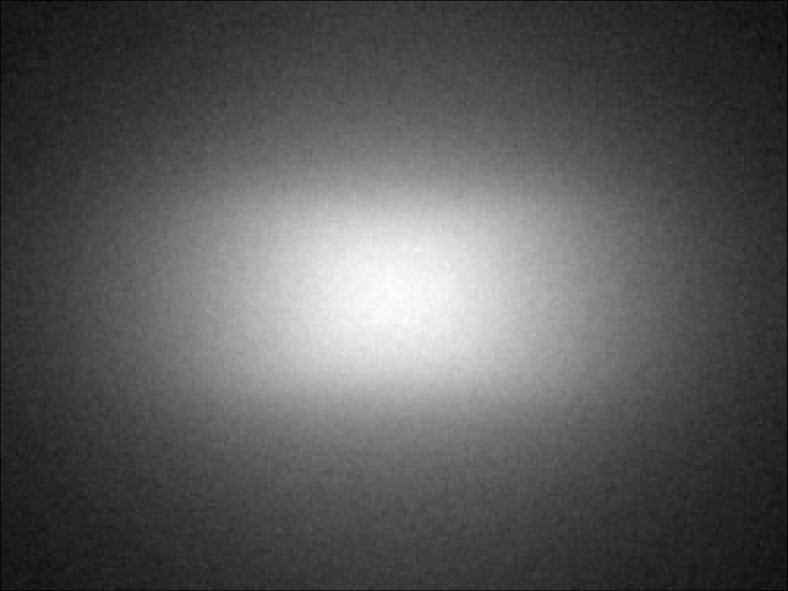

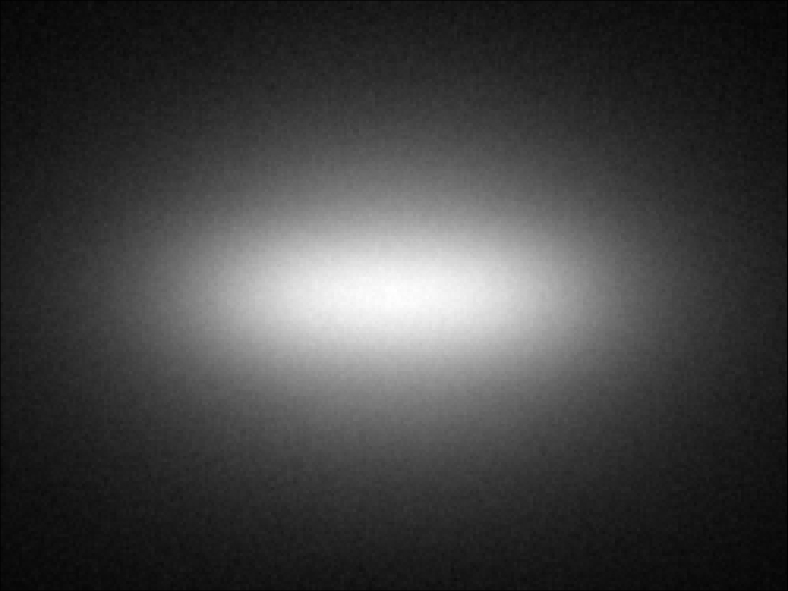

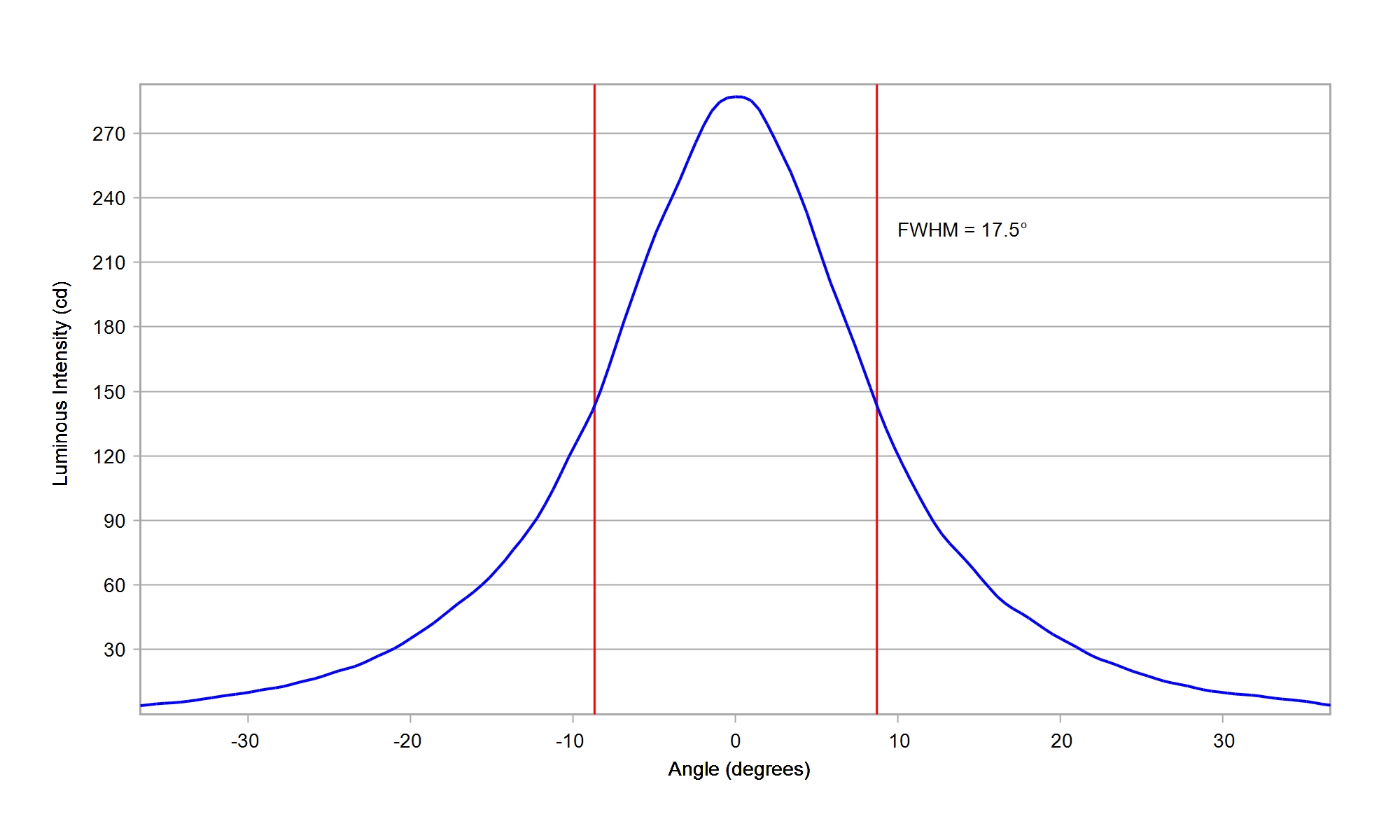

Nichia 757 White

Eff:

88.5%

FWHM:

44 x 22°

Cd/Im:

2.6


,


Download

IES

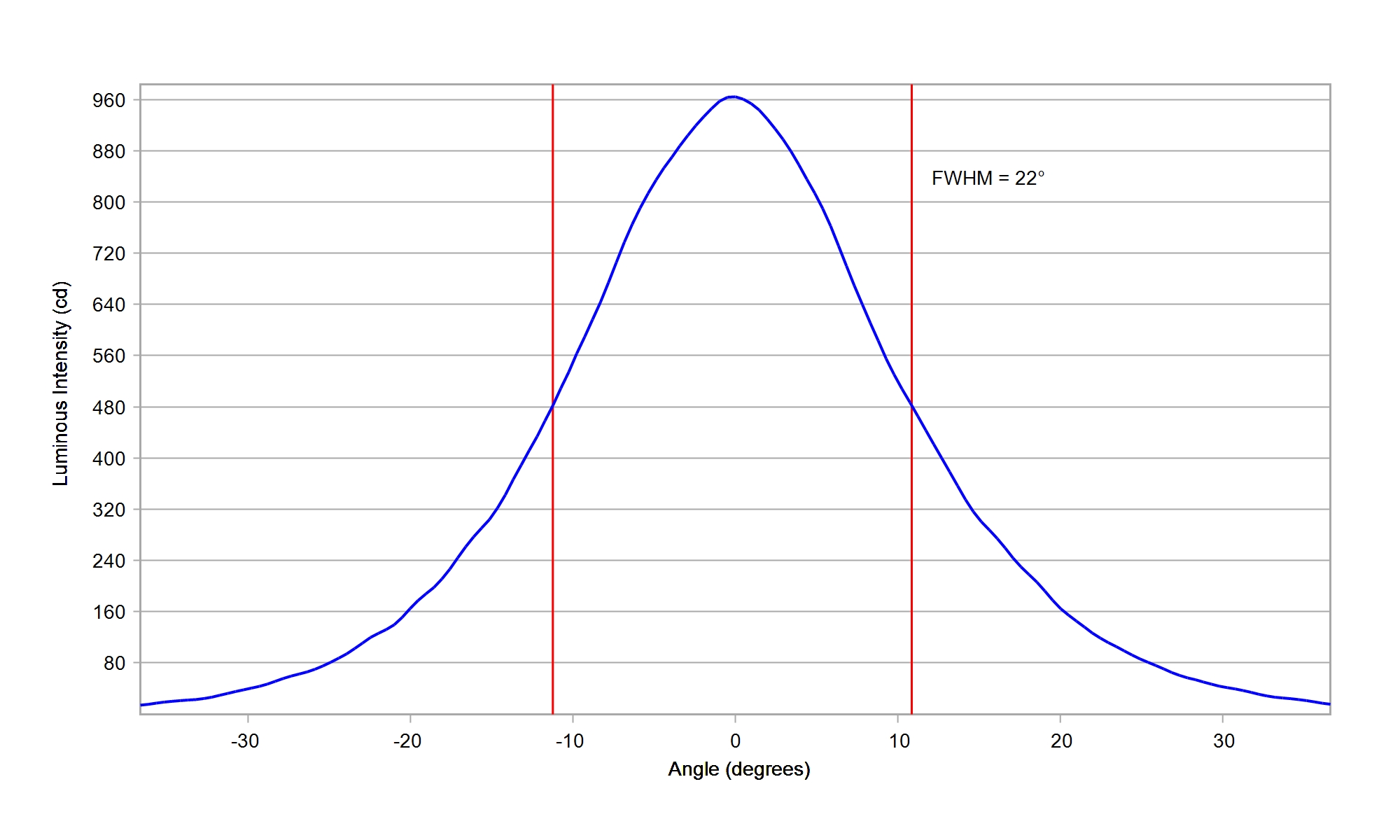

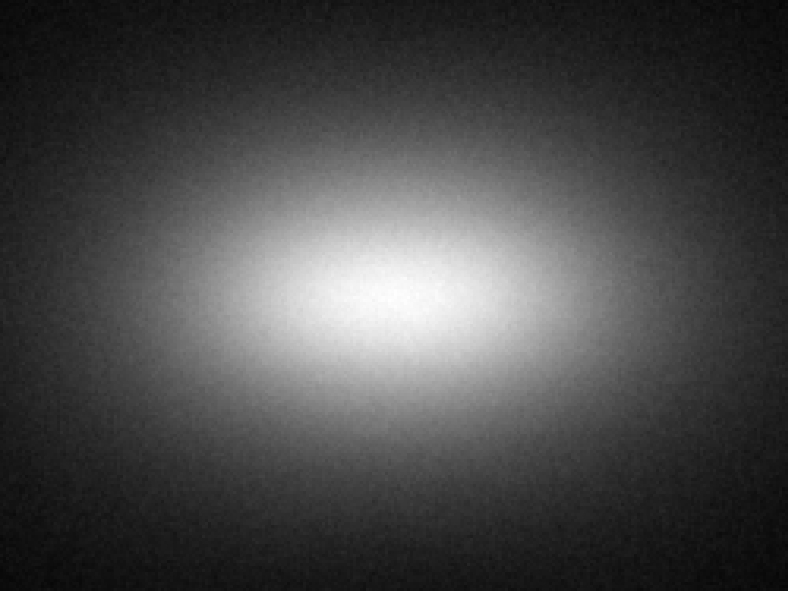

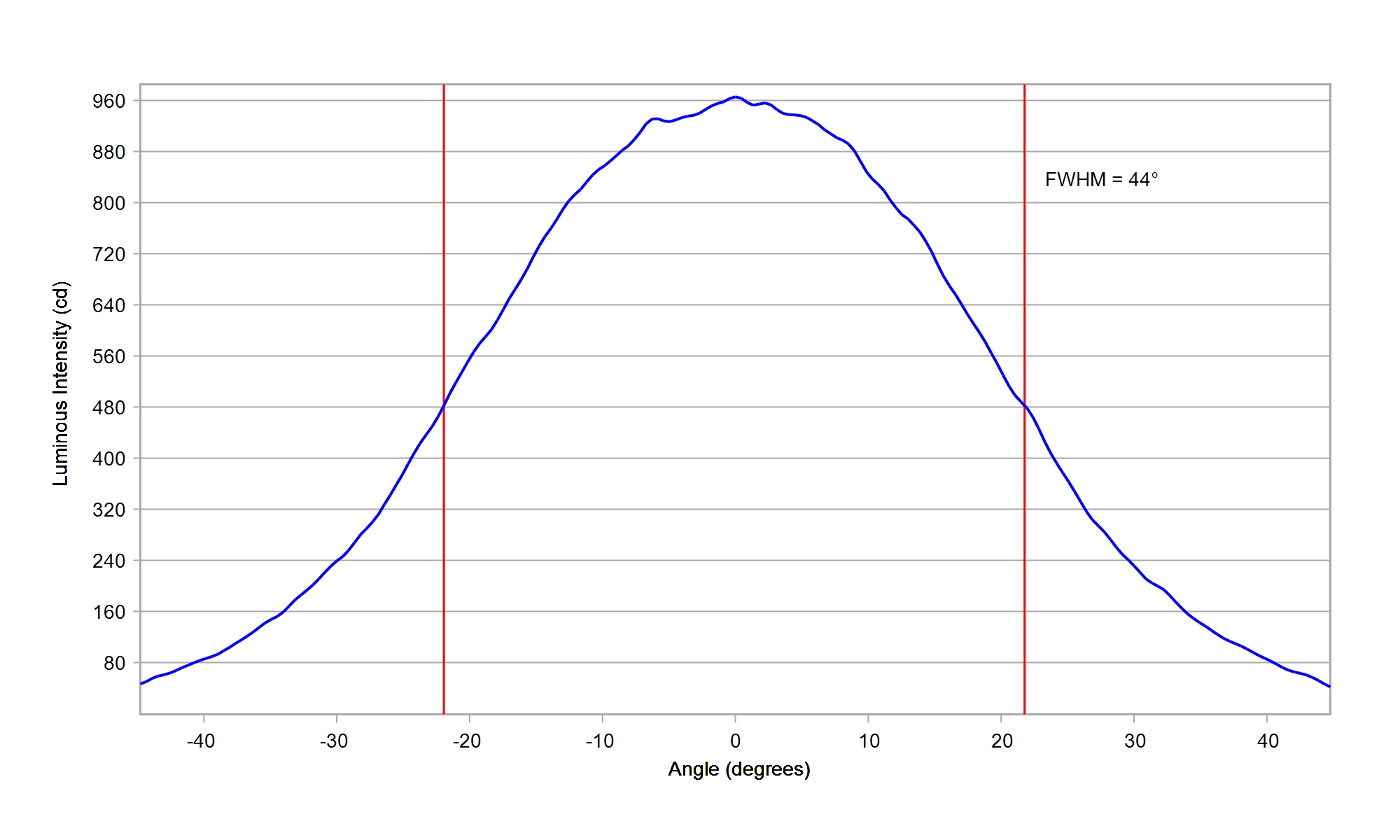

Nichia 757G White

Eff:

88.0%

FWHM:

42 x 24.5°

Cd/Im:

2.5


,


Download

IES

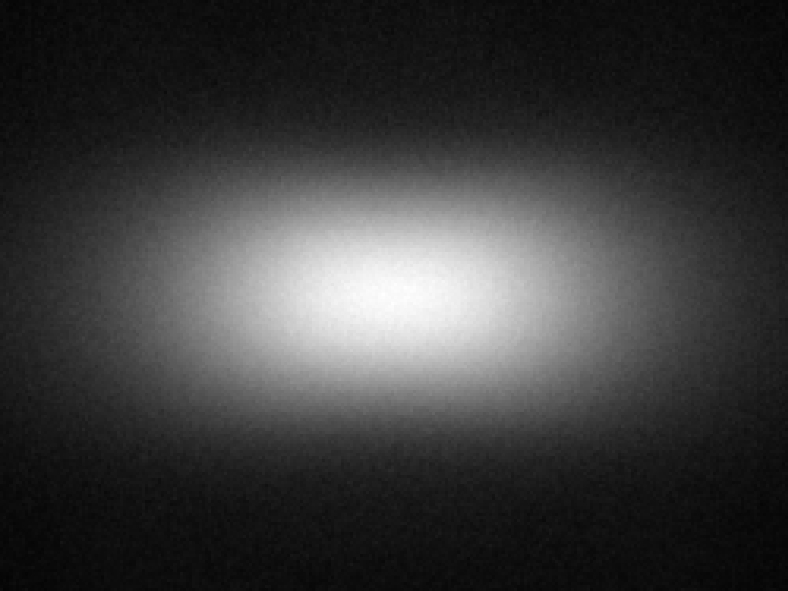

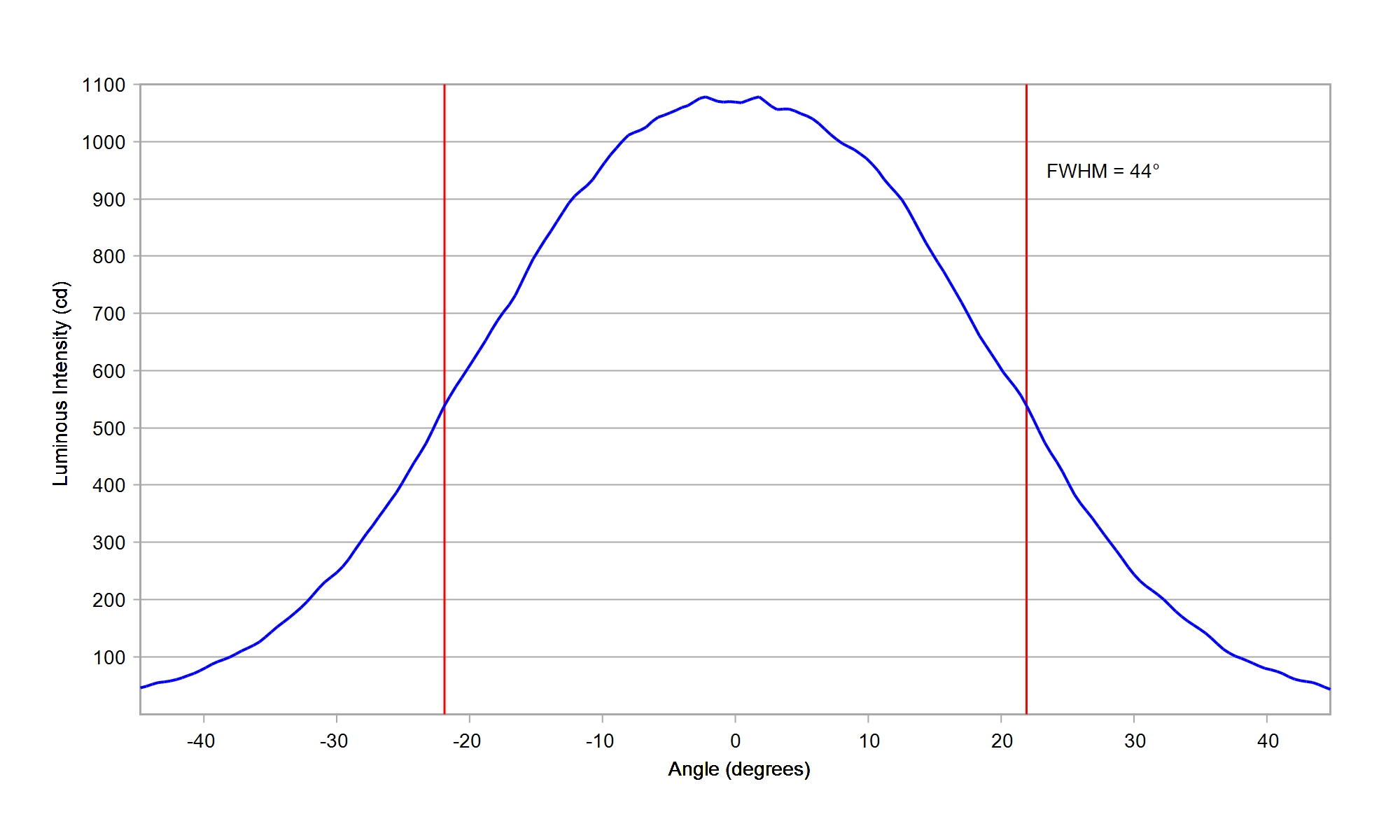

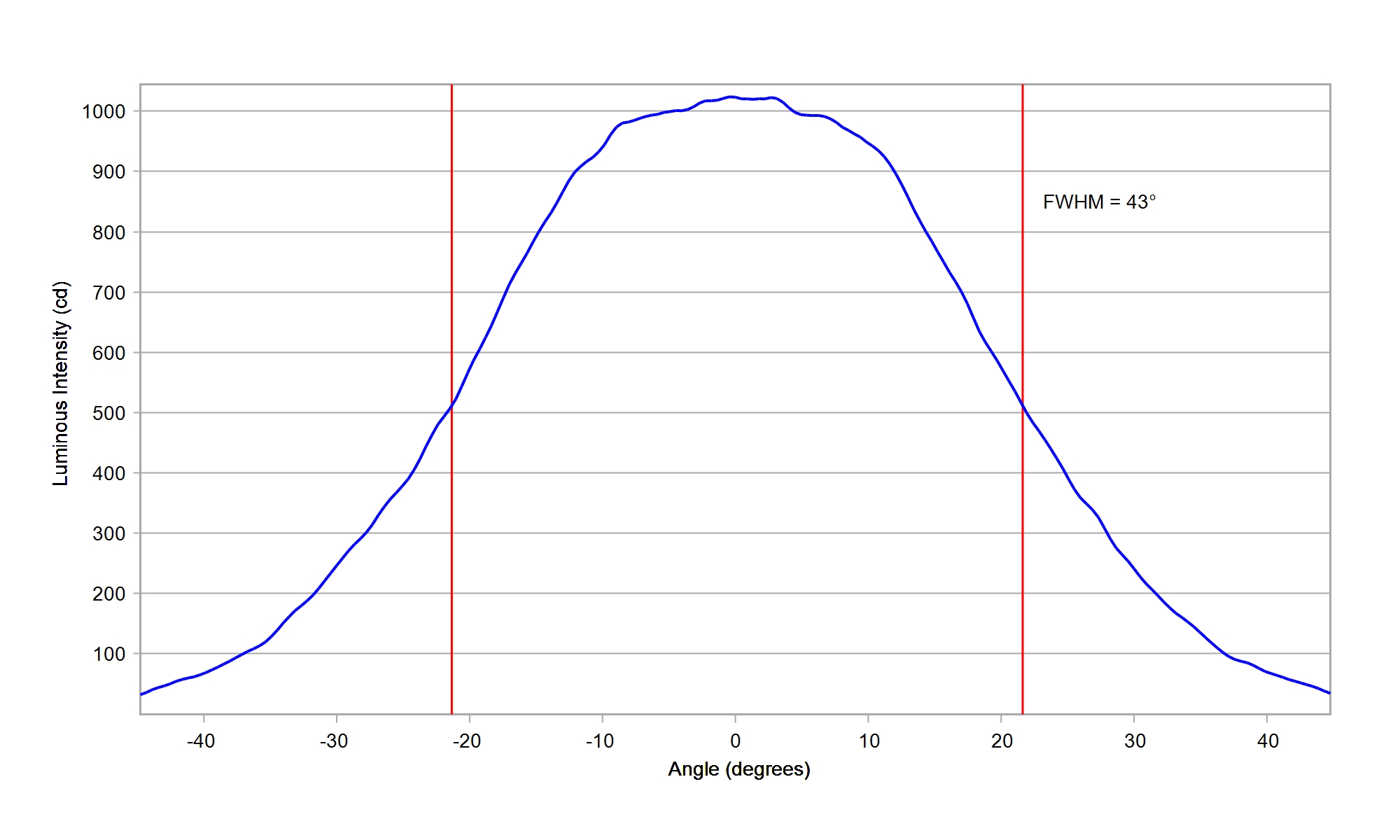

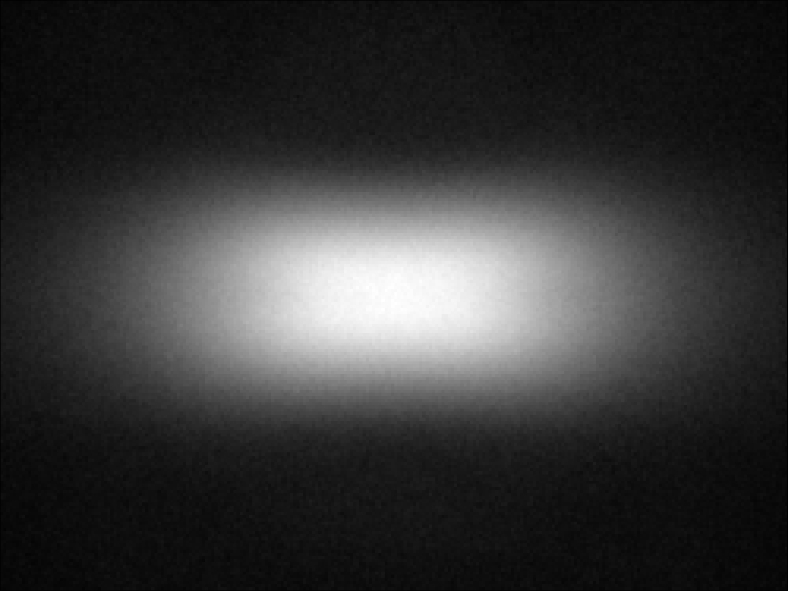

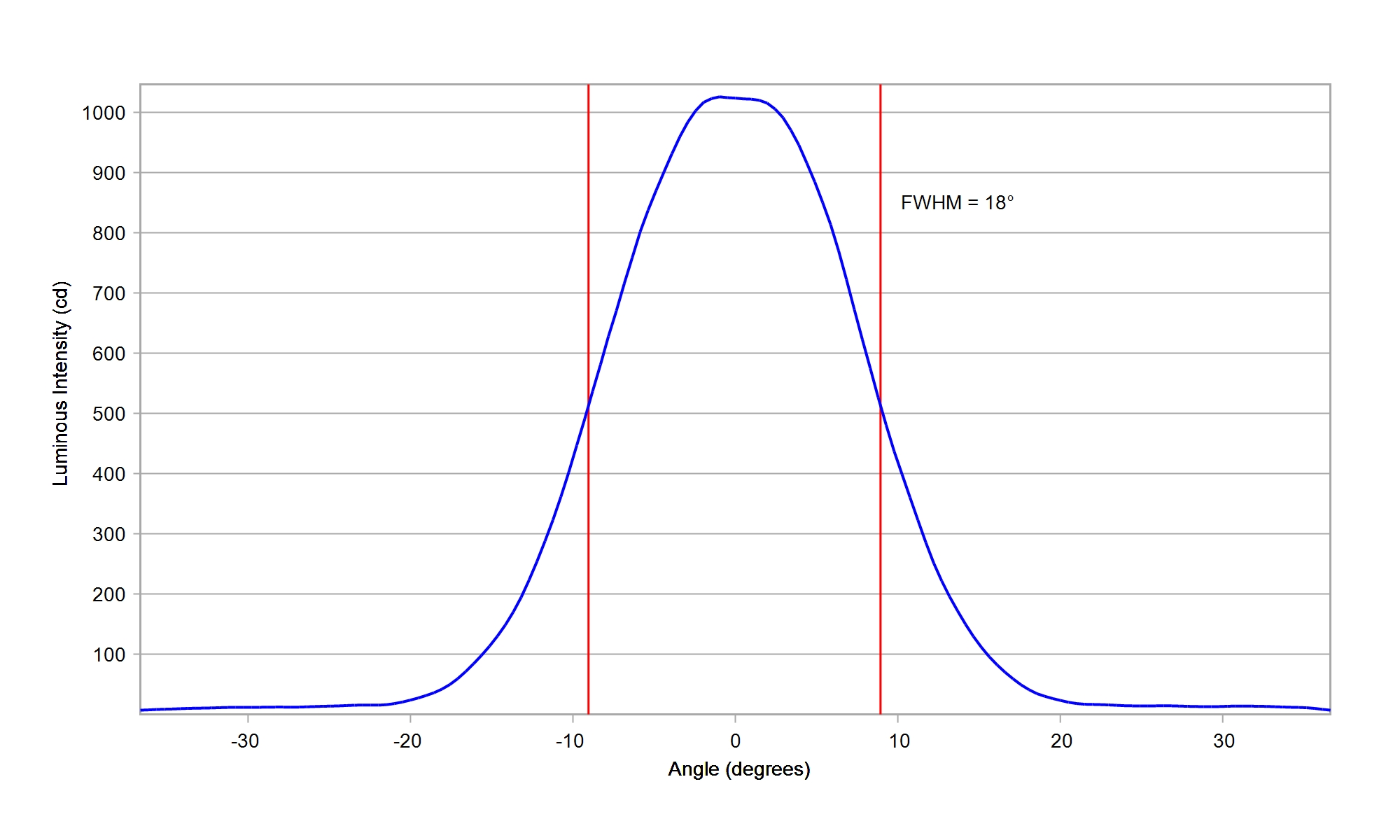

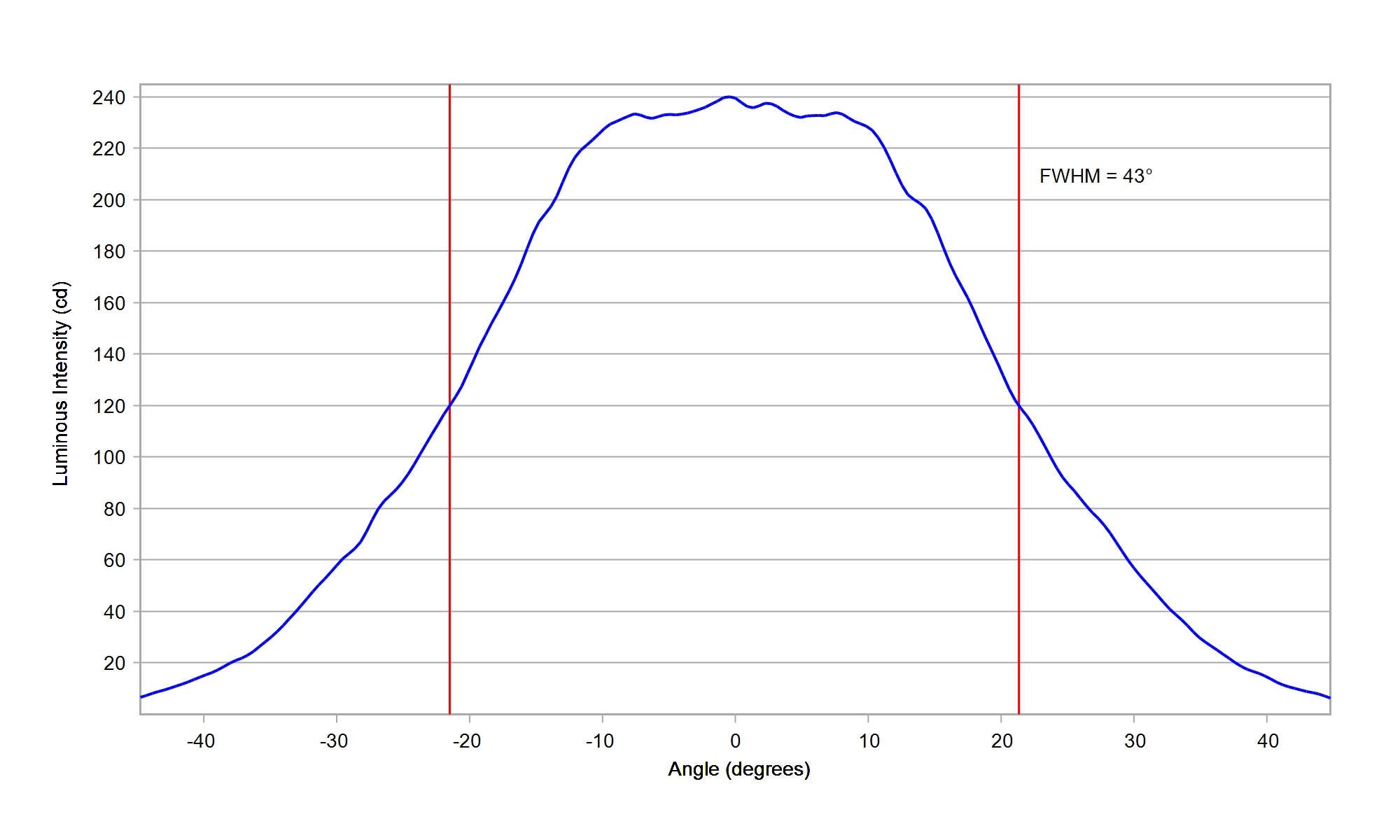

Nichia NCSW CSP E17A White

Eff:

89.0%

FWHM:

43 x 20.5°

Cd/Im:

2.8


,


Download

IES

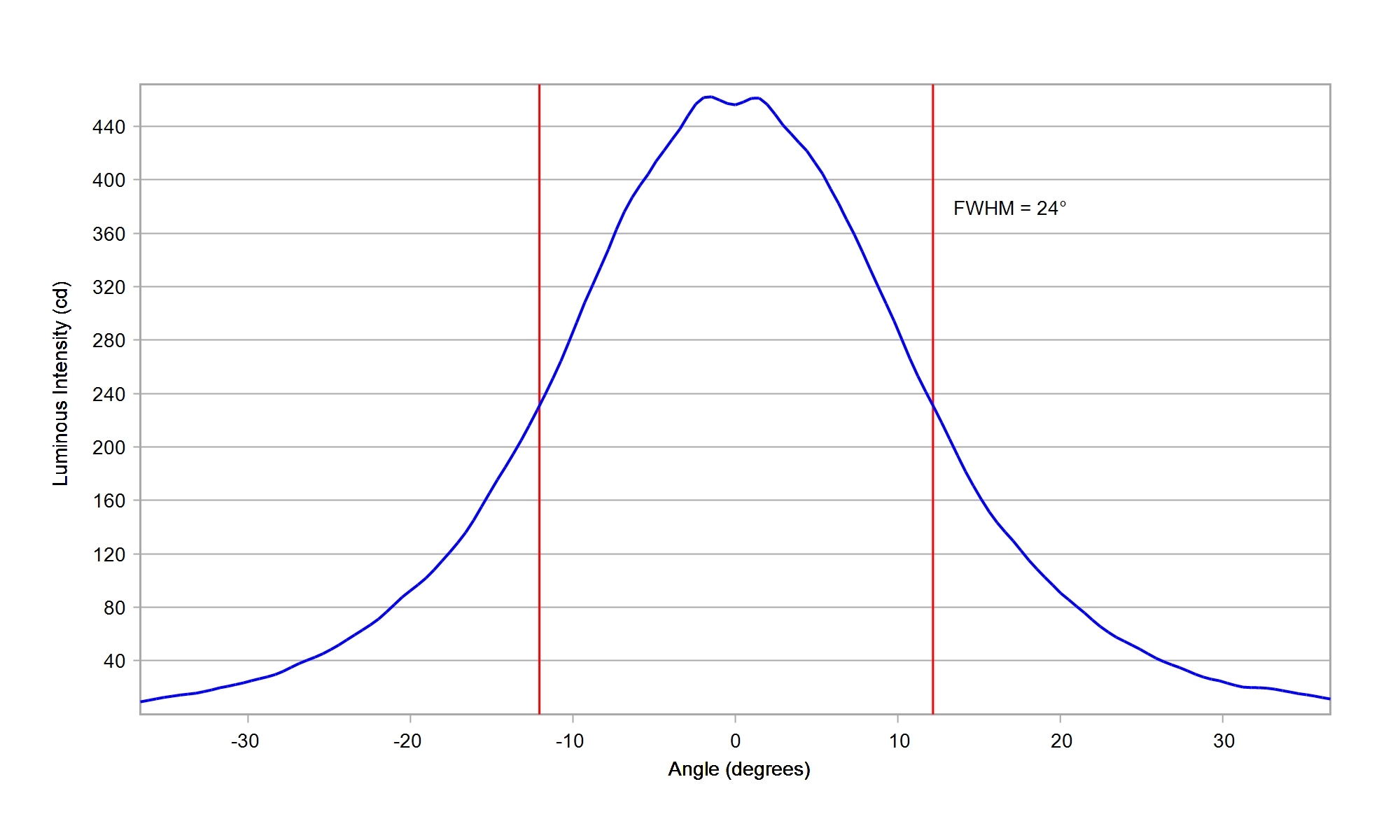

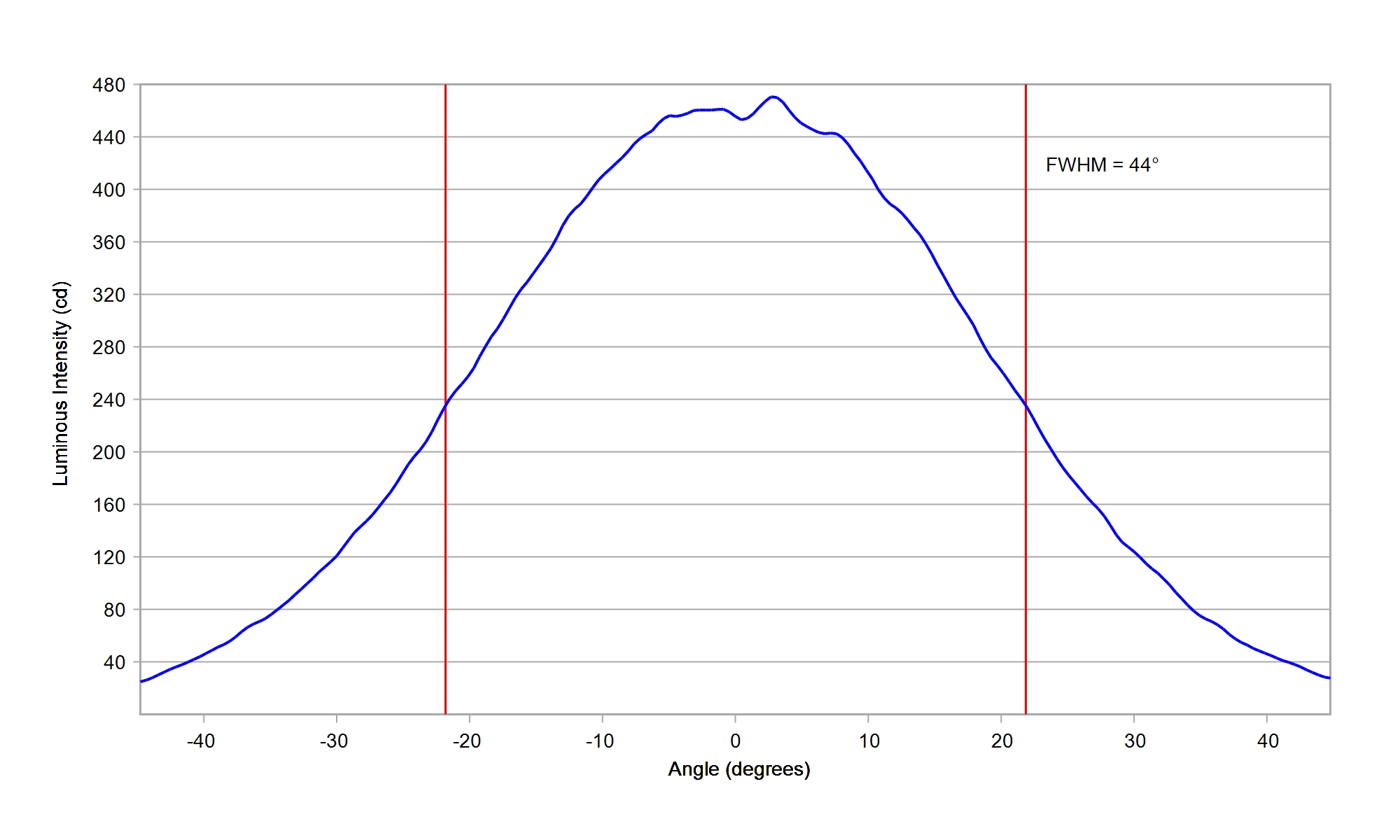

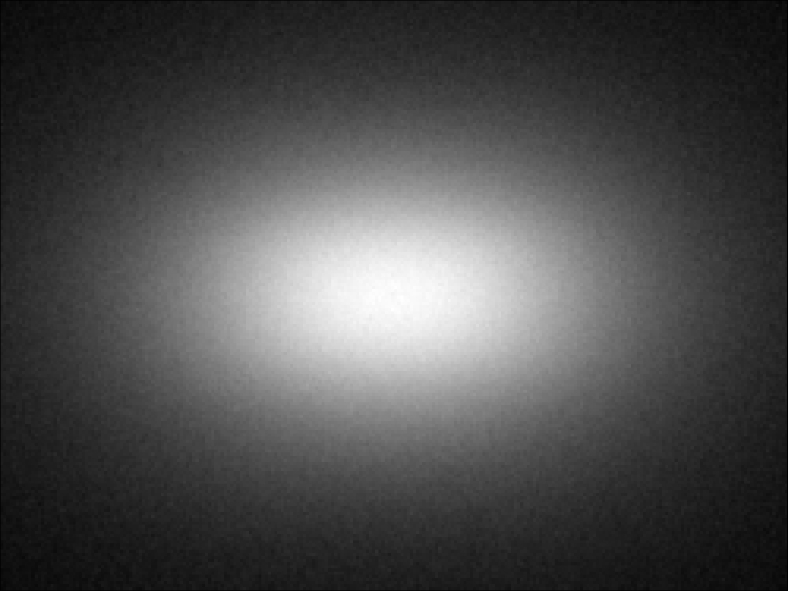

Nichia NF2W 385AR-V2 White

Eff:

88.5%

FWHM:

43 x 24°

Cd/Im:

2.4


,


Download

IES

Nichia NVSL 219B White

Eff:

88.5%

FWHM:

44 x 18.5°

Cd/Im:

3.2


,


Download

IES

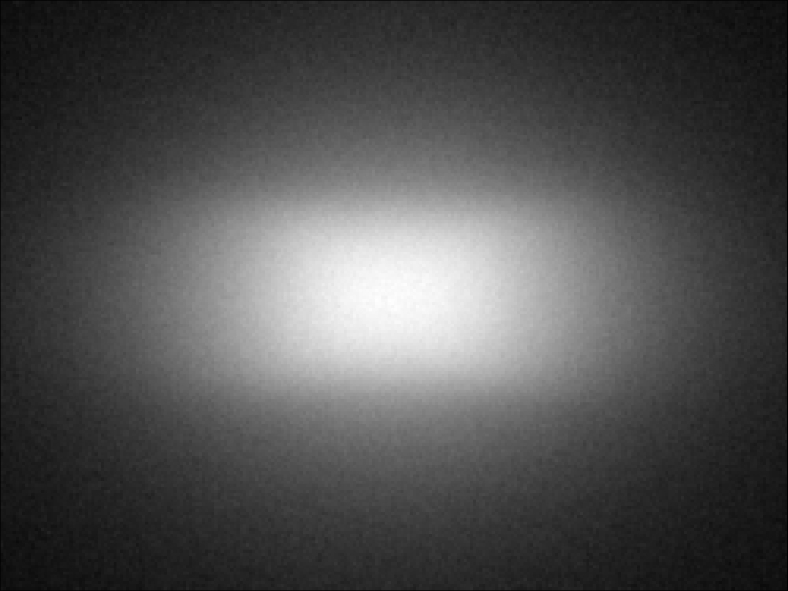

Nichia NVSW 219C White

Eff:

87.5%

FWHM:

42 x 24.5°

Cd/Im:

2.5


,


Download

IES

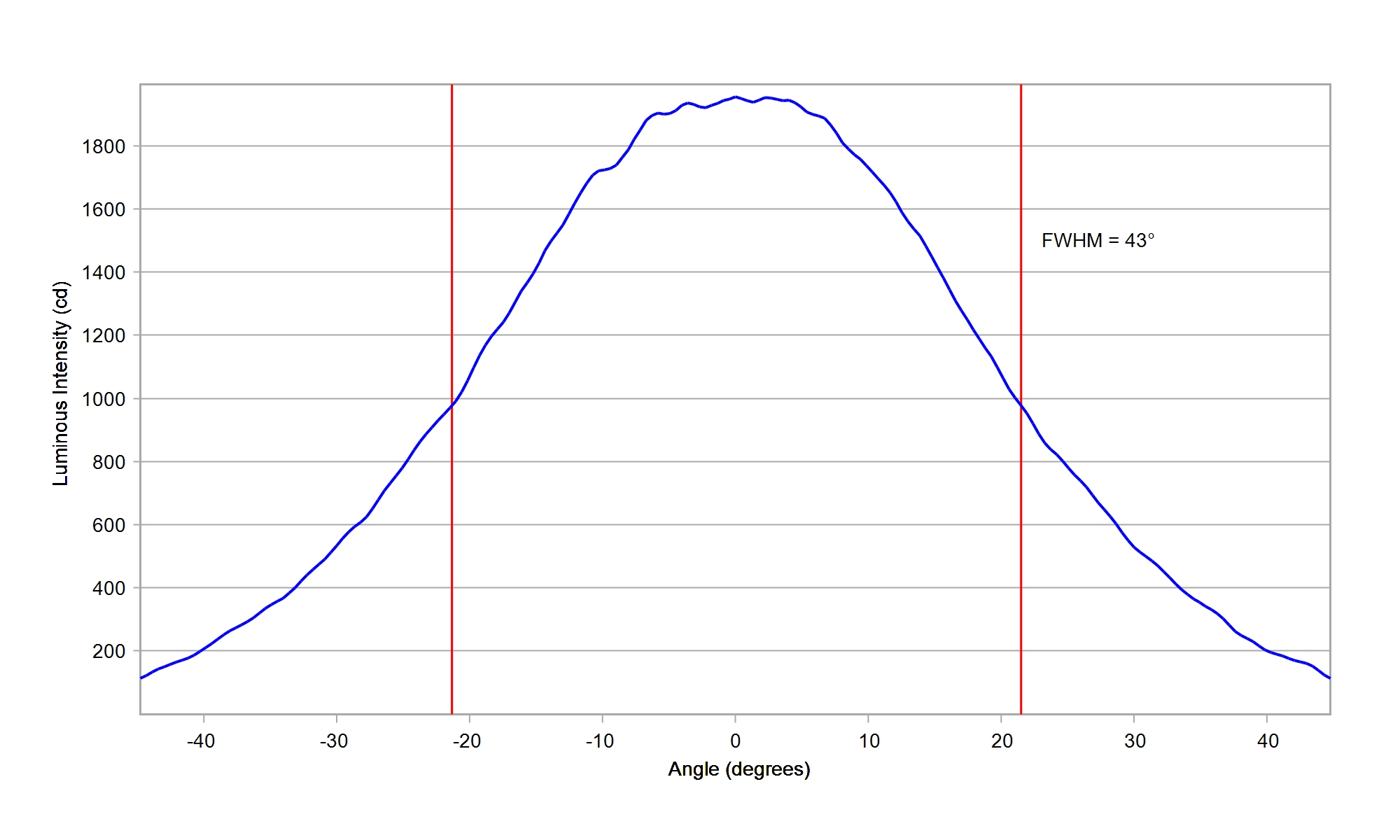

Nichia NVSW 219F White

Eff:

87.5%

FWHM:

43 x 24°

Cd/Im:

2.3

Carclo Optics – 10510 Nichia NVSW 219F White - Spot Image

Carclo Optics – 10510 Horizontal Nichia NVSW 219F White - Cross-Section

,

Carclo Optics – 10510 Vertical Nichia NVSW 219F White - Cross-Section

Download

IES

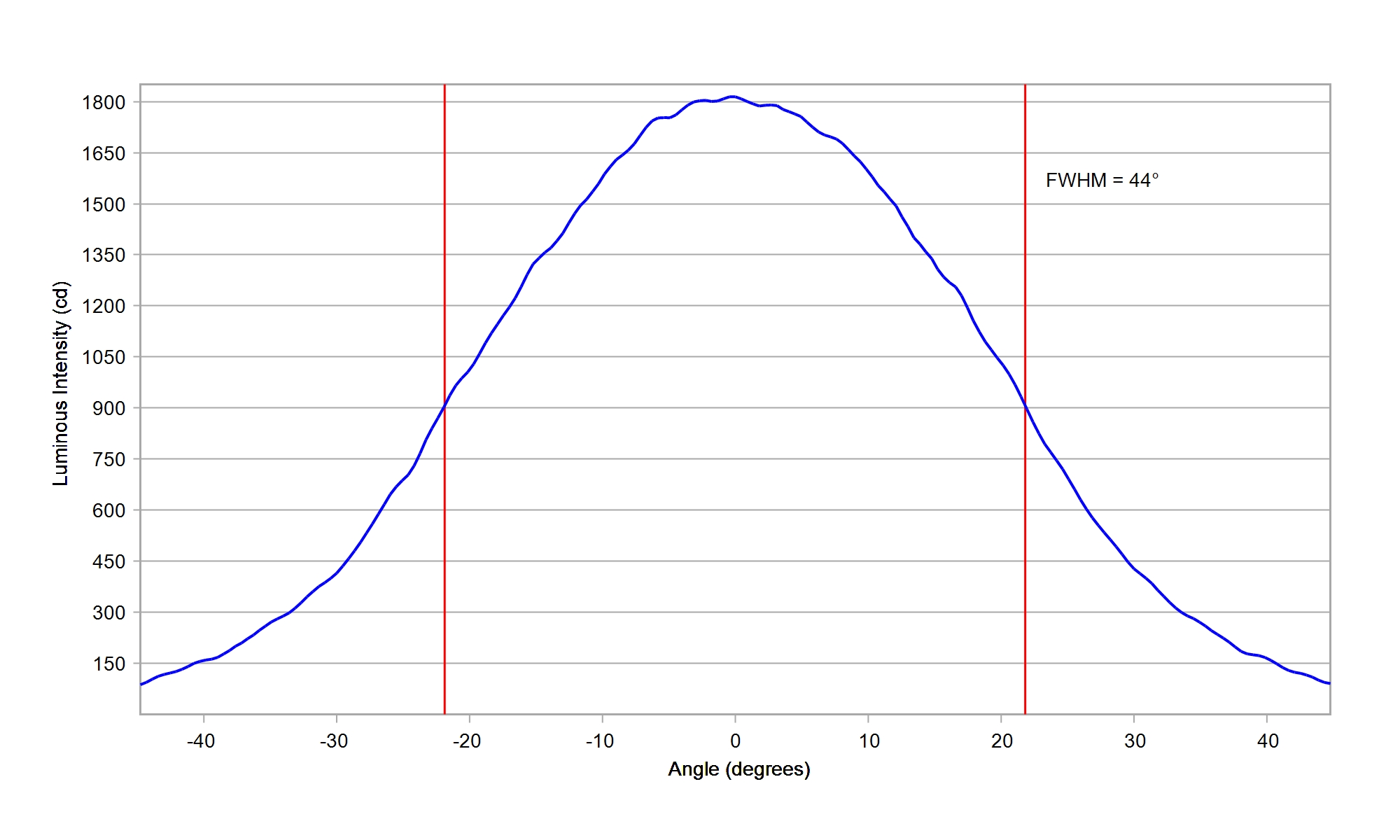

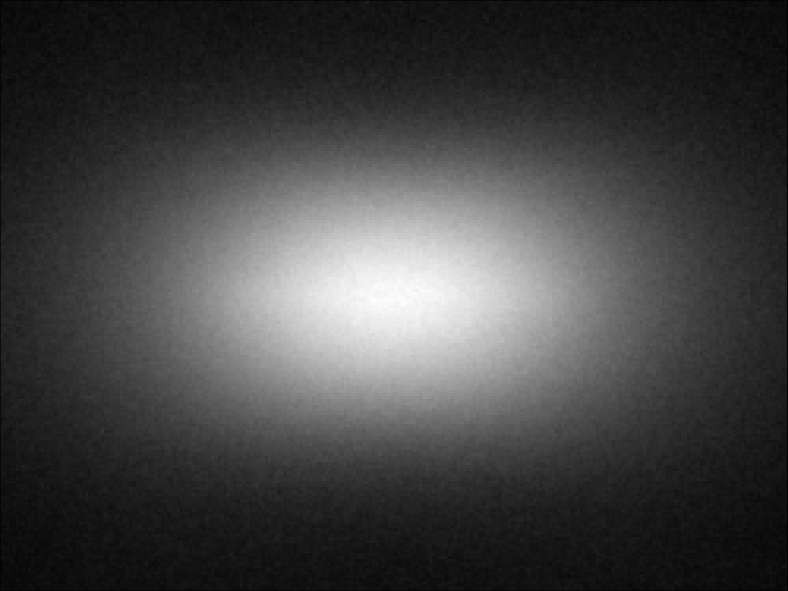

Nichia NVSW CSP E21A White

Eff:

88.0%

FWHM:

43 x 22.5°

Cd/Im:

2.7


,


Download

IES

Nichia Top Emitting NCSL 119-H3 White

Eff:

81.4%

FWHM:

44.7 x 21.7°

Cd/Im:

2.3

Spot Image

Cross Section

Download

ies

Osram Led Engin LuxiGen LZ1 00R702 IR940nm

Eff:

91.0%

FWHM:

40 x 24.5°

Ipk/W:

2.8


,


Download

IES

Osram OS DURIS E 2835 Gen2

Eff:

89.0%

FWHM:

45 x 18.5°

Cd/Im:

2.9



,


Download

IES

Osram OS DURIS E 2835 White

Eff:

89.0%

FWHM:

45 x 19.5°

Cd/Im:

2.7


,


Download

IES

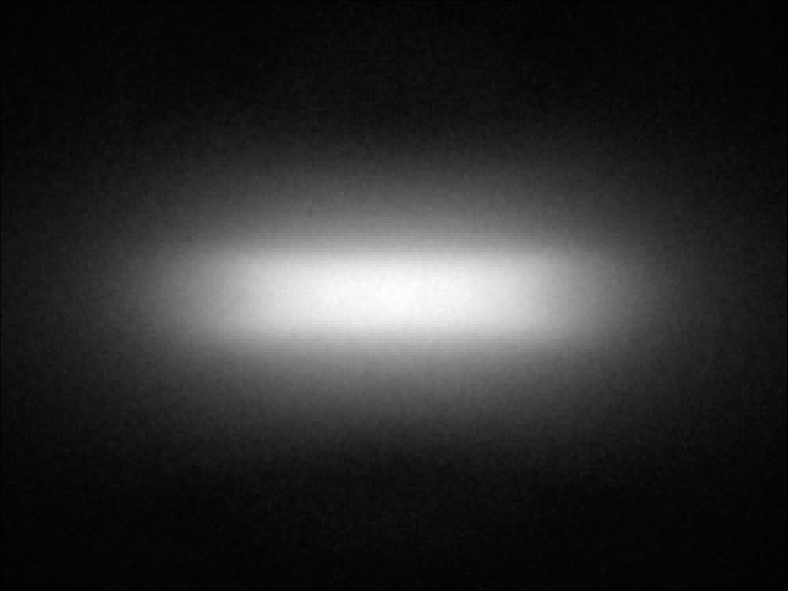

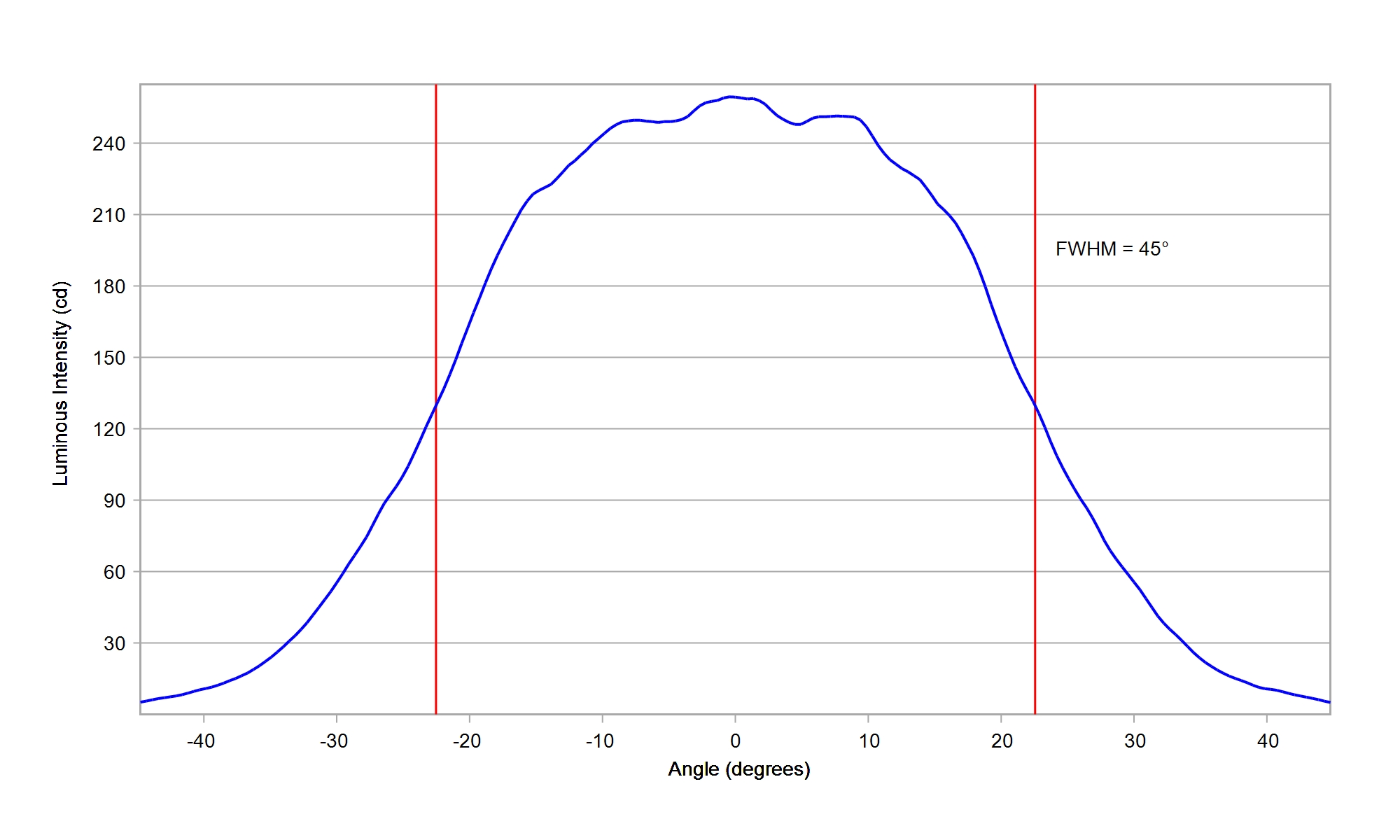

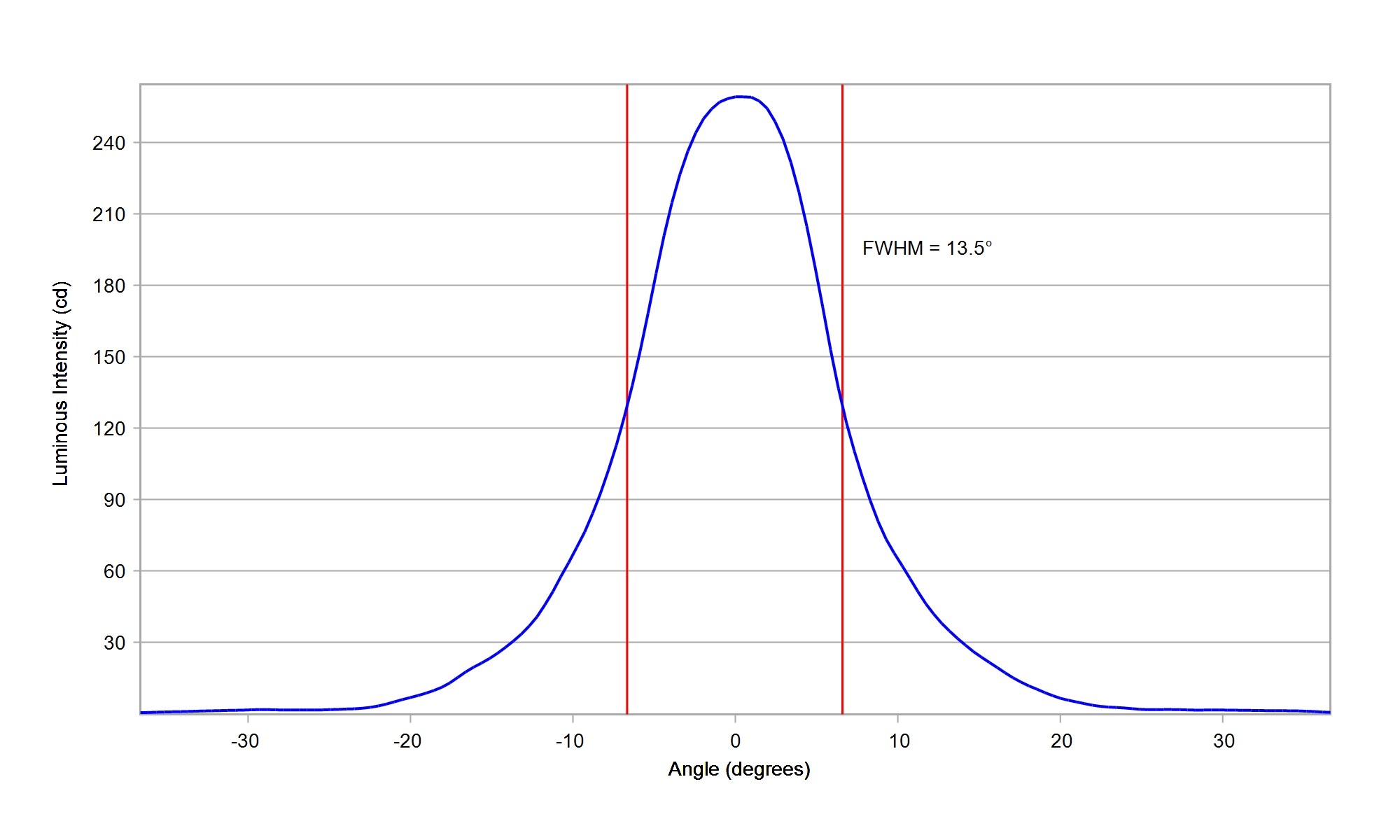

Osram OS DURIS E2 White

Eff:

90.5%

FWHM:

45 x 13.5°

Cd/Im:

4.1


,


Download

IES

Osram OS DURIS E3 White

Eff:

90.0%

FWHM:

47 x 14.5°

Cd/Im:

3.9


,


Download

IES

Osram OS DURIS S2 White

Eff:

88.5%

FWHM:

45 x 16.5°

Cd/Im:

3.0


,


Download

IES

Osram OS DURIS S5 Deep Blue

Eff:

83.5%

FWHM:

55.0 x 23°

Cd/Im:

1.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

ies

Osram OS DURIS S5 Green

Eff:

89.0%

FWHM:

45 x 19.5°

Cd/Im:

2.8


,


Download

IES

Osram OS DURIS S5 Red

Eff:

90.0%

FWHM:

44 x 18°

Cd/Im:

3.3


,


Download

IES

Osram OS DURIS S5 White

Eff:

89.0%

FWHM:

44 x 22°

Cd/Im:

2.8


,


Download

IES

Osram OS OSCONIQ C 2424 White

Eff:

89.5%

FWHM:

44 x 19°

Cd/Im:

3.1


,


Download

IES

Osram OS OSLON Black SFH 4716AS IR

Eff:

89.5%

FWHM:

54 x 22°

Ipk/W:

2.0

Carclo Optics – 10510 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

Carclo Optics – 10510 Horizontal Cross Section OSRAM OS Oslon Black IR SFH 4716AS

,

Carclo Optics – 10510 Vertical Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

ies

Osram OS OSLON Boost HM KW CELMM1.TG

Eff:

91.0%

FWHM:

48 x 9.4°

Cd/Im:

5.9


,


Download

IES

Osram OS OSLON Pure 1010 CSP GG VJLPE1.F3 Green

Eff:

90.0%

FWHM:

42 x 18°

Cd/Im:

2.9


,


Download

IES

Osram OS OSLON Square Flat White

Eff:

89.0%

FWHM:

45 x 16°

Cd/Im:

3.3


,


Download

IES

Osram OS OSLON Square Gen 3 White

Eff:

88.5%

FWHM:

43 x 21.5°

Cd/Im:

2.7


,


Download

IES

Osram OS OSLON Square Gen 5 GW CSSRM3

Eff:

88.5%

FWHM:

43 x 22°

Cd/Im:

2.8



,


Download

IES

Osram OS OSLON Square White

Eff:

89.0%

FWHM:

43 x 20°

Cd/Im:

3.0


,


Download

IES

Osram OS OSLON SSL 150 degree White

Eff:

90.0%

FWHM:

45 x 15°

Cd/Im:

4.1


,


Download

IES

Osram OS OSLON SSL 80 White

Eff:

85.5%

FWHM:

44.8 x 19.7°

Cd/Im:

3.2

Spot Image

Cross Section

Download

ies

Osram OS OSLON SSL 80 GH CS8PM1.24 Hyper Red

Eff:

89.0%

FWHM:

44 x 19.5°

Ipk/W:

3.1


,


Download

IES

Osram OS OSLON SSL 80 GT CS8PM1.13 True Green

Eff:

89.0%

FWHM:

43 x 21.5°

Cd/Im:

2.7



,


Download

IES

Osram OS OSLON SSL 80 GW CS8PM1.PM White

Eff:

89.0%

FWHM:

45 x 18°

Cd/Im:

3.3


,


Download

IES

Samsung 2835 LM281B+ White

Eff:

87.5%

FWHM:

44 x 22.5°

Cd/Im:

2.3



,


Download

Samsung 3030 LM301B White

Eff:

88.5%

FWHM:

44 x 20°

Cd/Im:

2.9


,


Download

IES

Samsung 3535 LH351B White

Eff:

88.5%

FWHM:

43 x 24.5°

Cd/Im:

2.8


,


Download

IES

Samsung 3535 LH351Z White

Eff:

84.0%

FWHM:

53.7 x 24.3°

Cd/Im:

1.6

carclo simulated spot image

carclo simulated horizontal cross section

,

carclo simulated vertical cross section

Download

ies

Samsung CSP LH231B White

Eff:

87.5%

FWHM:

44 x 27°

Cd/Im:

2.0


,


Download

IES

Seoul MidPower MJT3030 White

Eff:

83.5%

FWHM:

51 x 25°

Cd/Im:

1.5

carclo optics - simulated spot image

carclo optics - horizontal simulated cross section

,

carclo optics - simulated vertical cross section

Download

ies

Seoul STW8 C2SB-NT White

Eff:

88.5%

FWHM:

44 x 22°

Cd/Im:

2.6


,


Download

IES

Seoul STWS C2PB-E0 White

Eff:

88.5%

FWHM:

44 x 21.5°

Cd/Im:

2.5


,


Download

IES

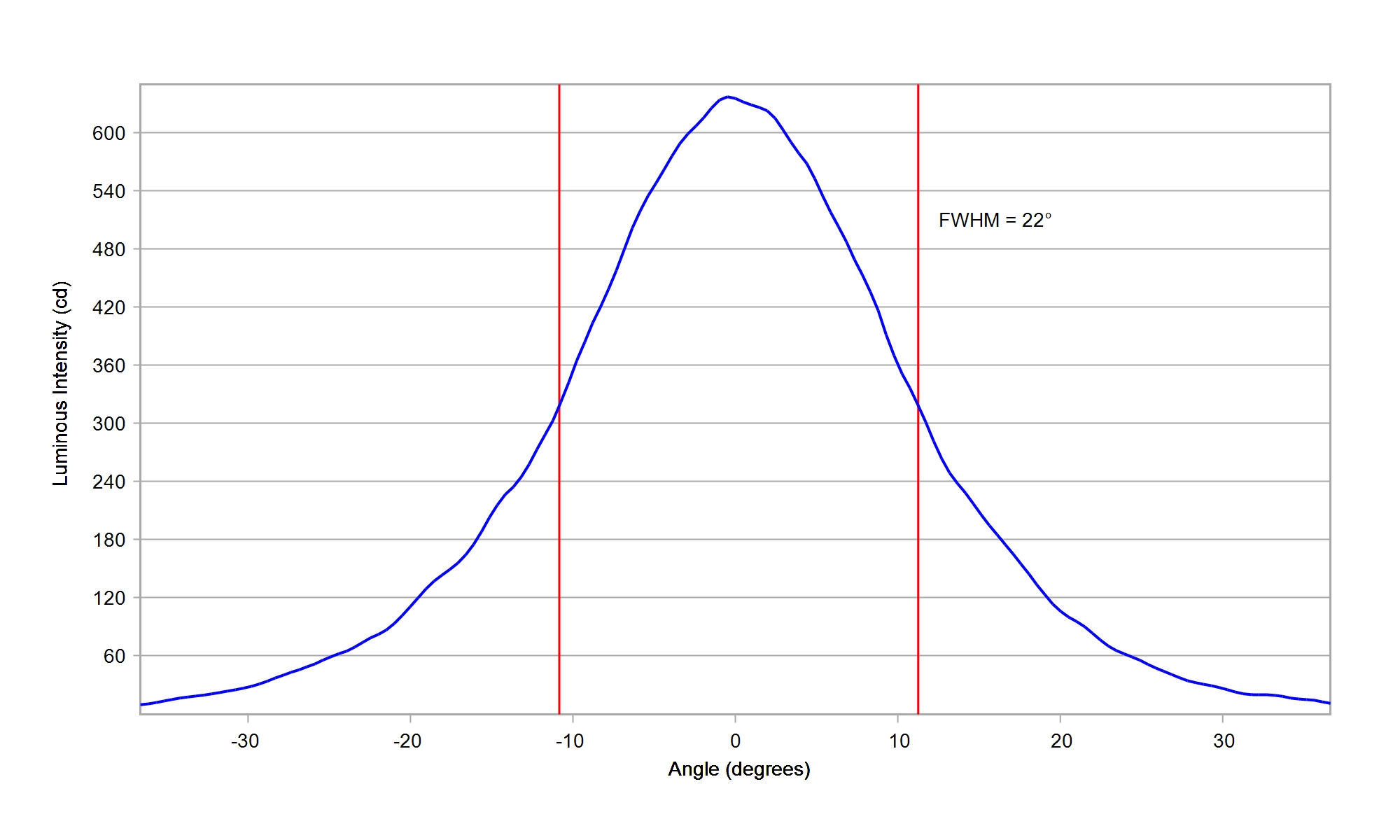

Seoul SunLike STW9 C2SB-S

Eff:

89.0%

FWHM:

43 x 22°

Cd/Im:

2.8


,


Download

IES

Seoul Z - Power Z5 M1 White

Eff:

89.0%

FWHM:

42 x 21.5°

Cd/Im:

2.8


,


Download

IES

Seoul Z - Power Z5 M4 White

Eff:

88.0%

FWHM:

43 x 25°

Cd/Im:

2.4


,


Download

IES

Seoul Z - Power Z5 White

Eff:

84.3%

FWHM:

44.5 x 16.2°

Cd/Im:

3.7

Spot Image

Cross Section

Download

ies

Stanley FWR1108MS IR 755nm

Eff:

92.5%

FWHM:

43 x 16.5°

Ipk/W:

3.8


,


Download

Toshiba TL 1L2 White

Eff:

82.0%

FWHM:

50.9 x 27°

Cd/Im:

1.5

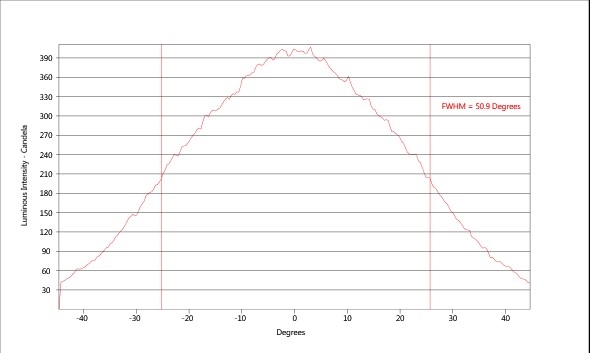

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

ies

Toshiba TL 1L4 White

Eff:

83.0%

FWHM:

48.9 x 27.6°

Cd/Im:

1.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

ies
