10.0mm Narrow Spot Plain TIR LED Lenses

Part number

10507

Dimensions

10.0mm

Drawing Number

60522

Optic type

TIR LED Lenses

Finish

Plain

Beam type

Narrow Spot

Applications

Architectural

Landscape & Garden

Downloads

Request a sample

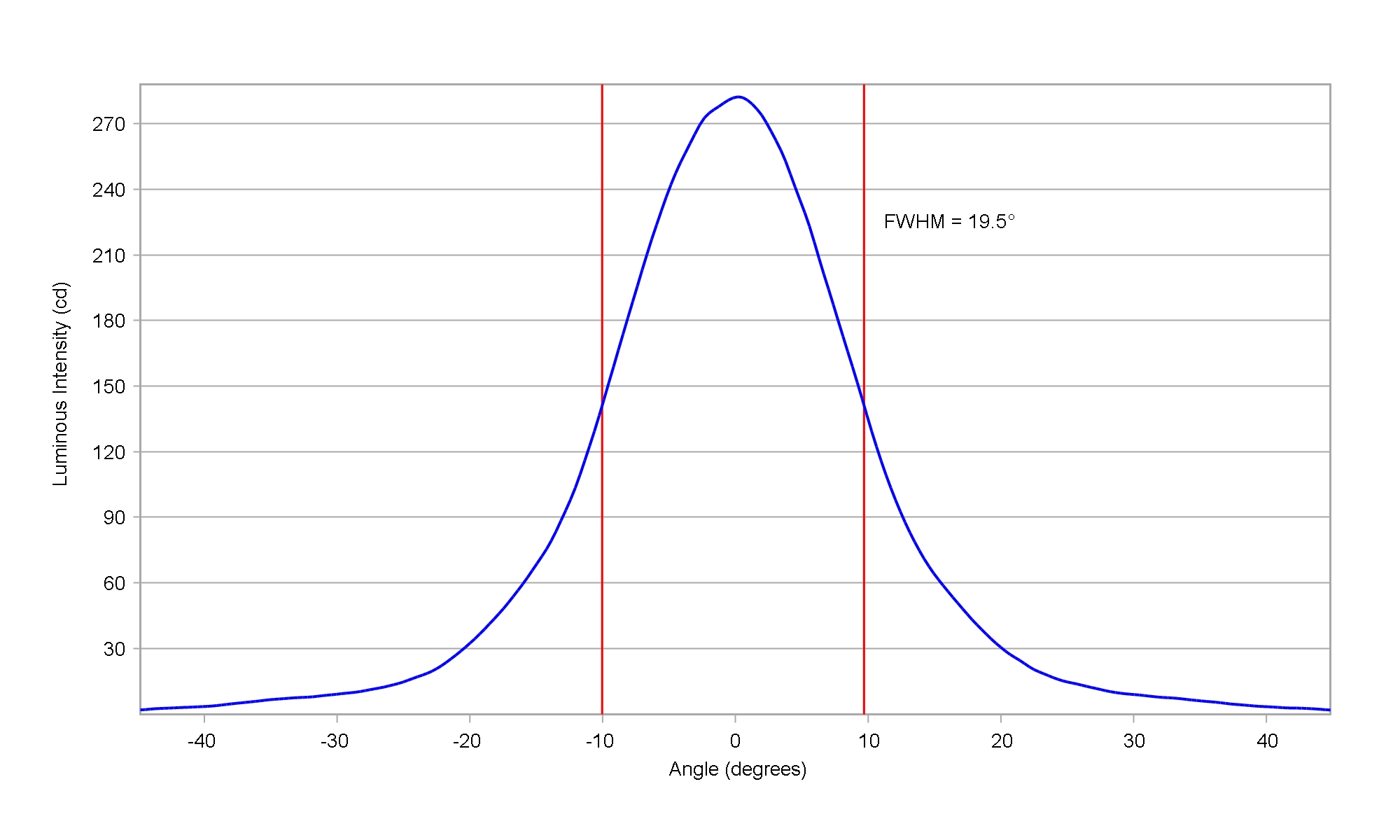

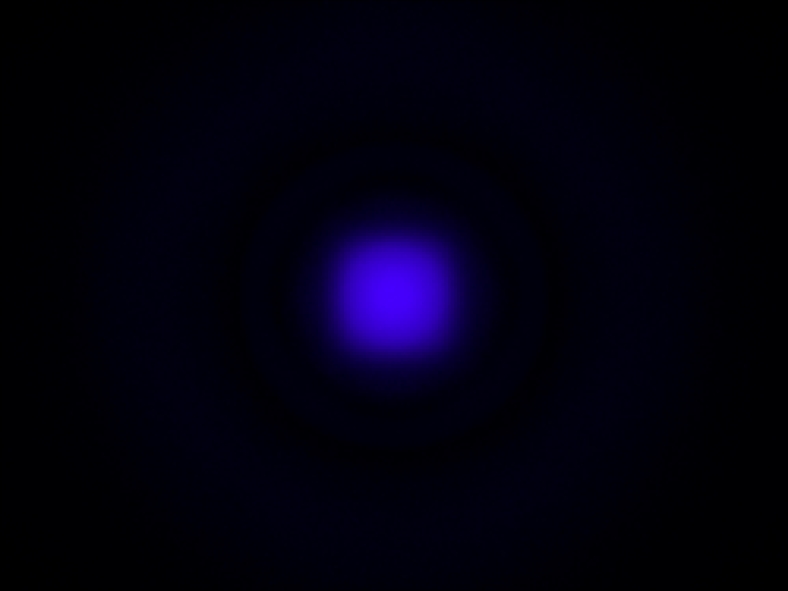

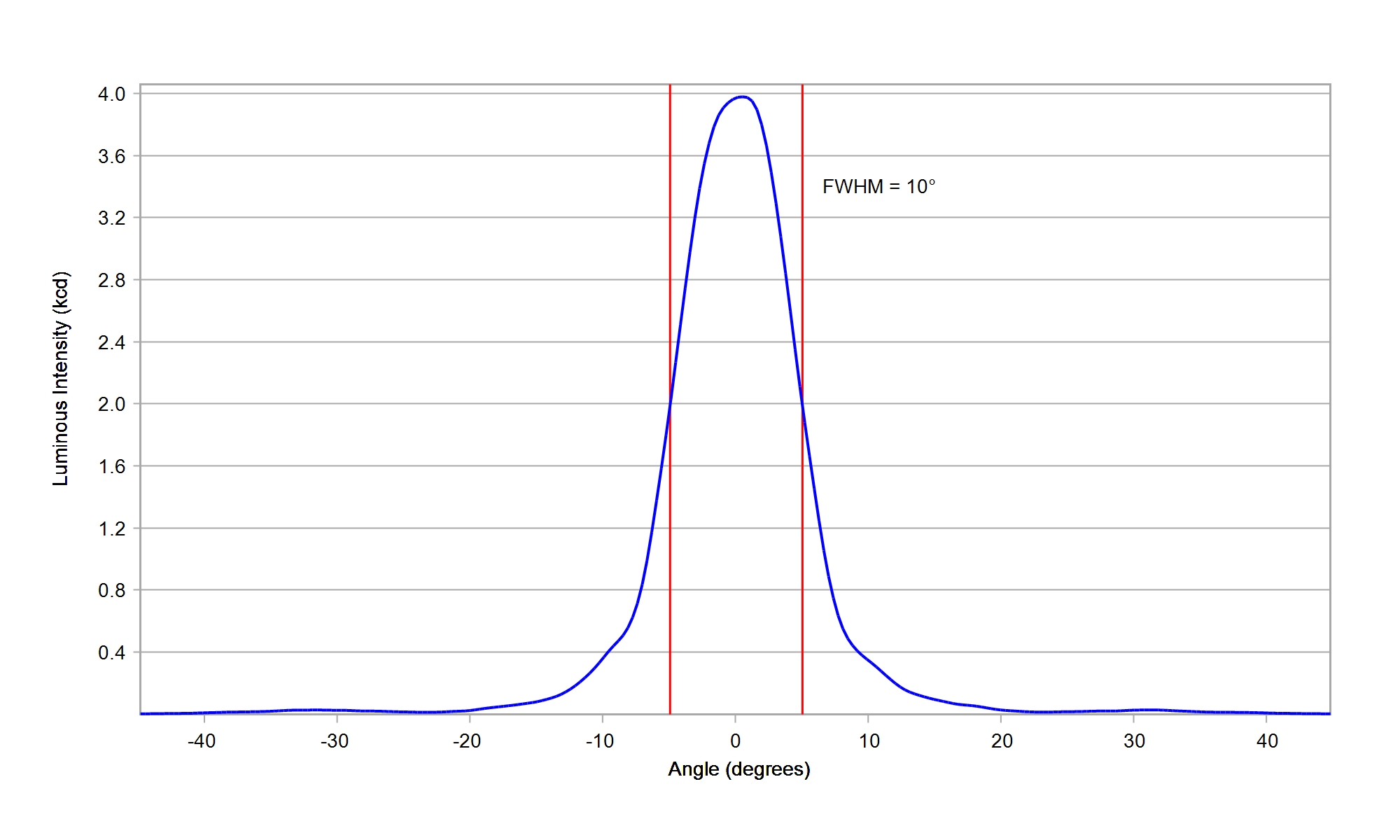

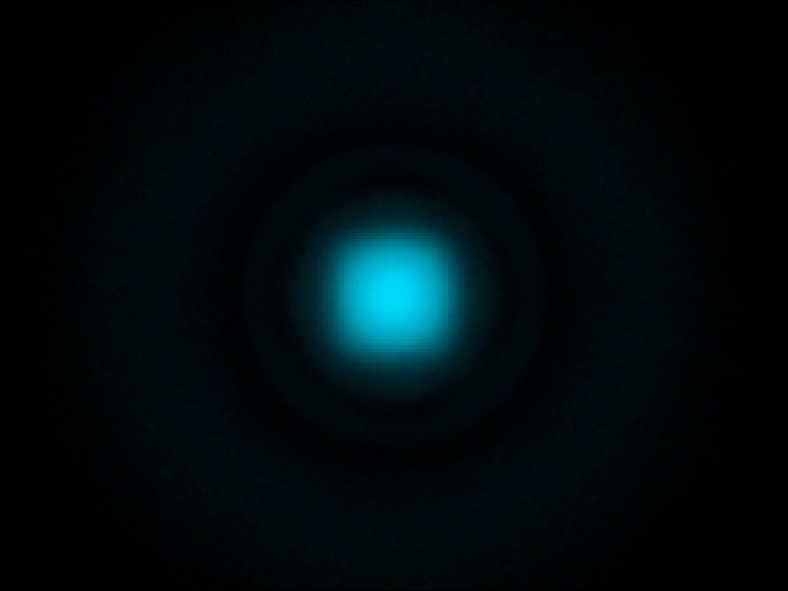

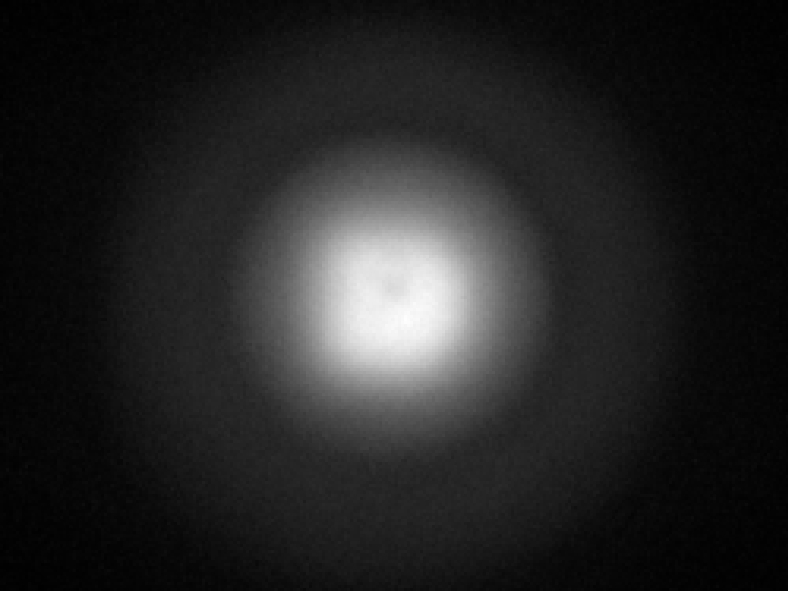

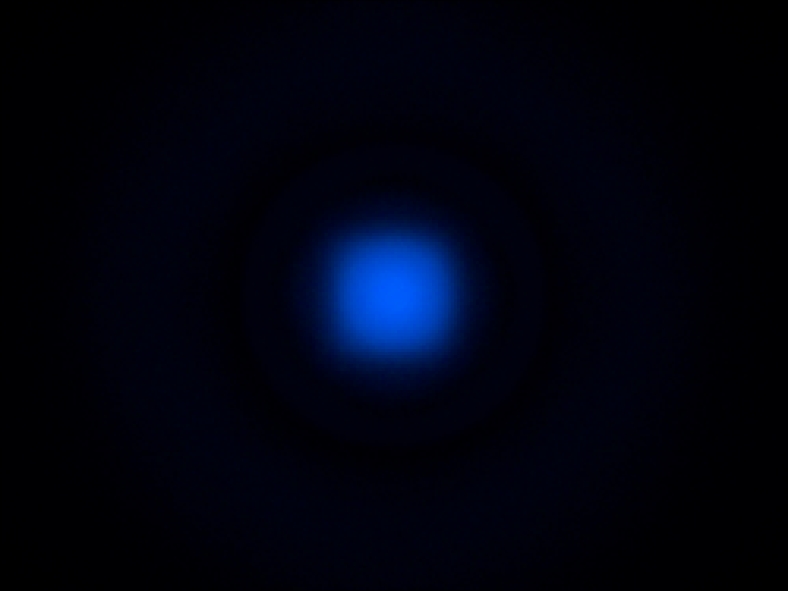

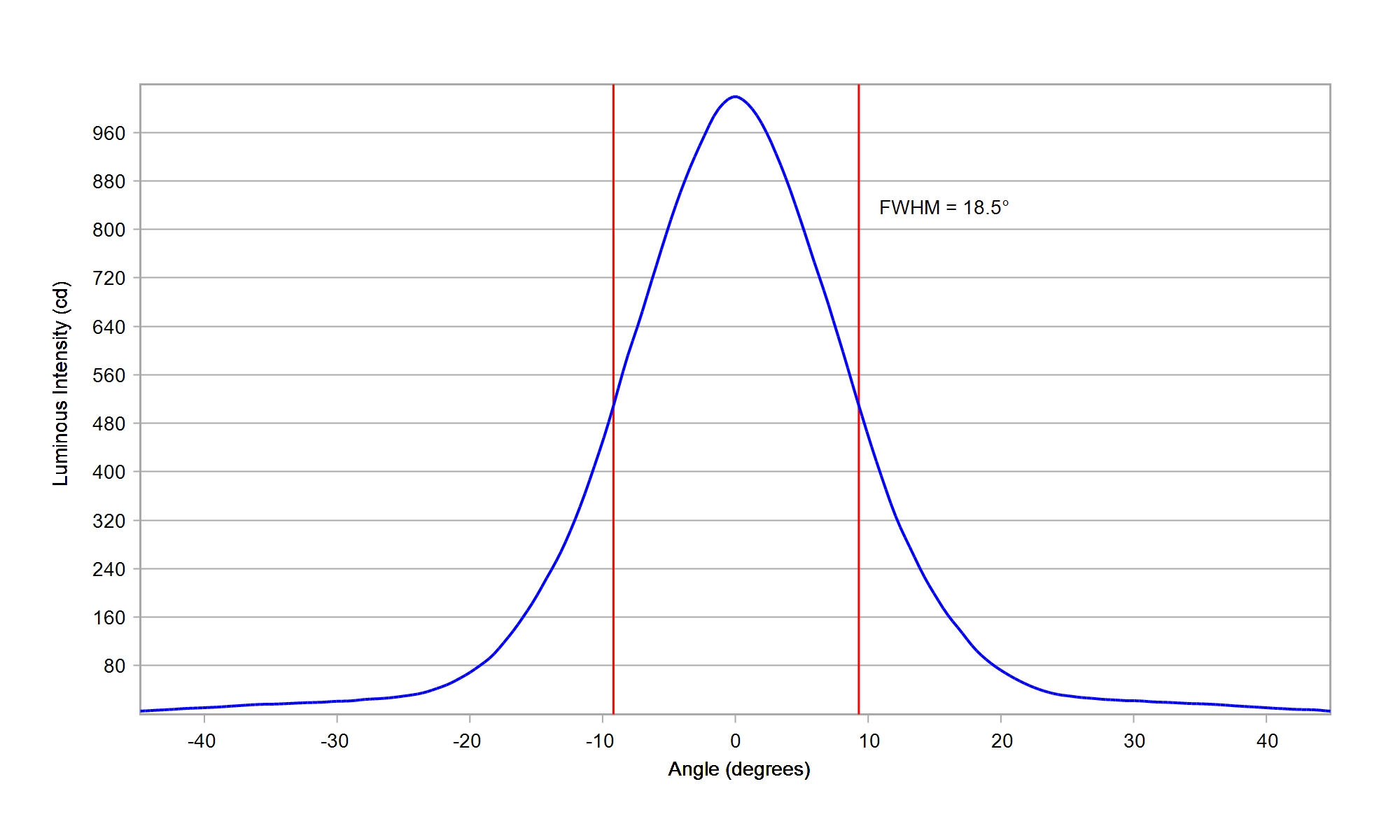

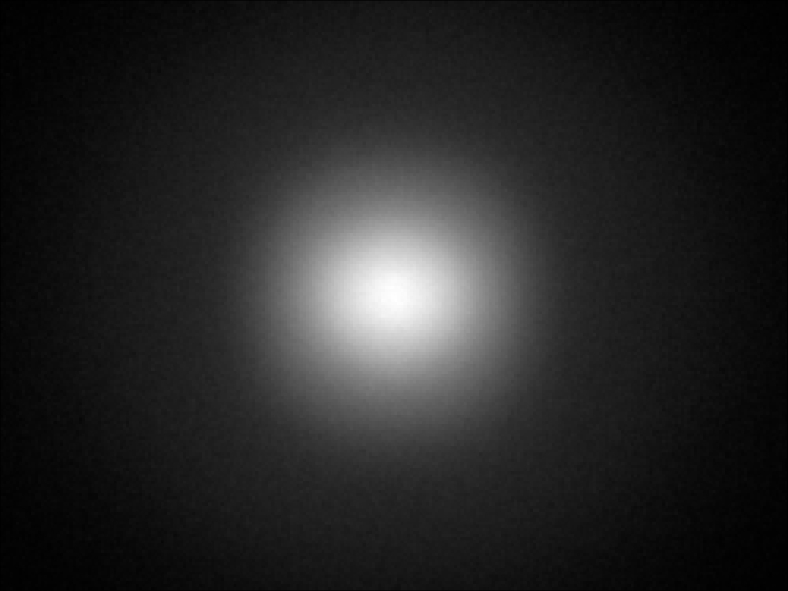

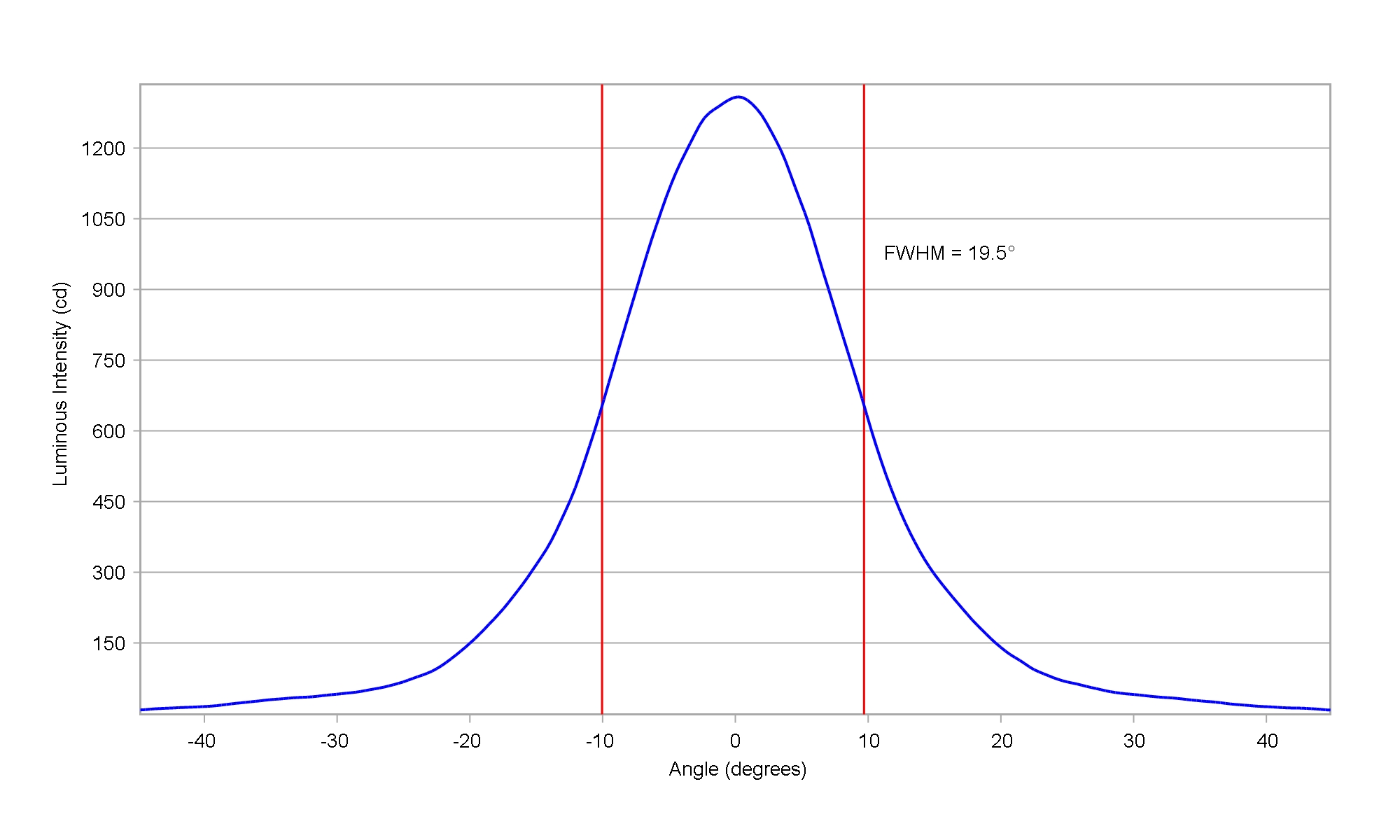

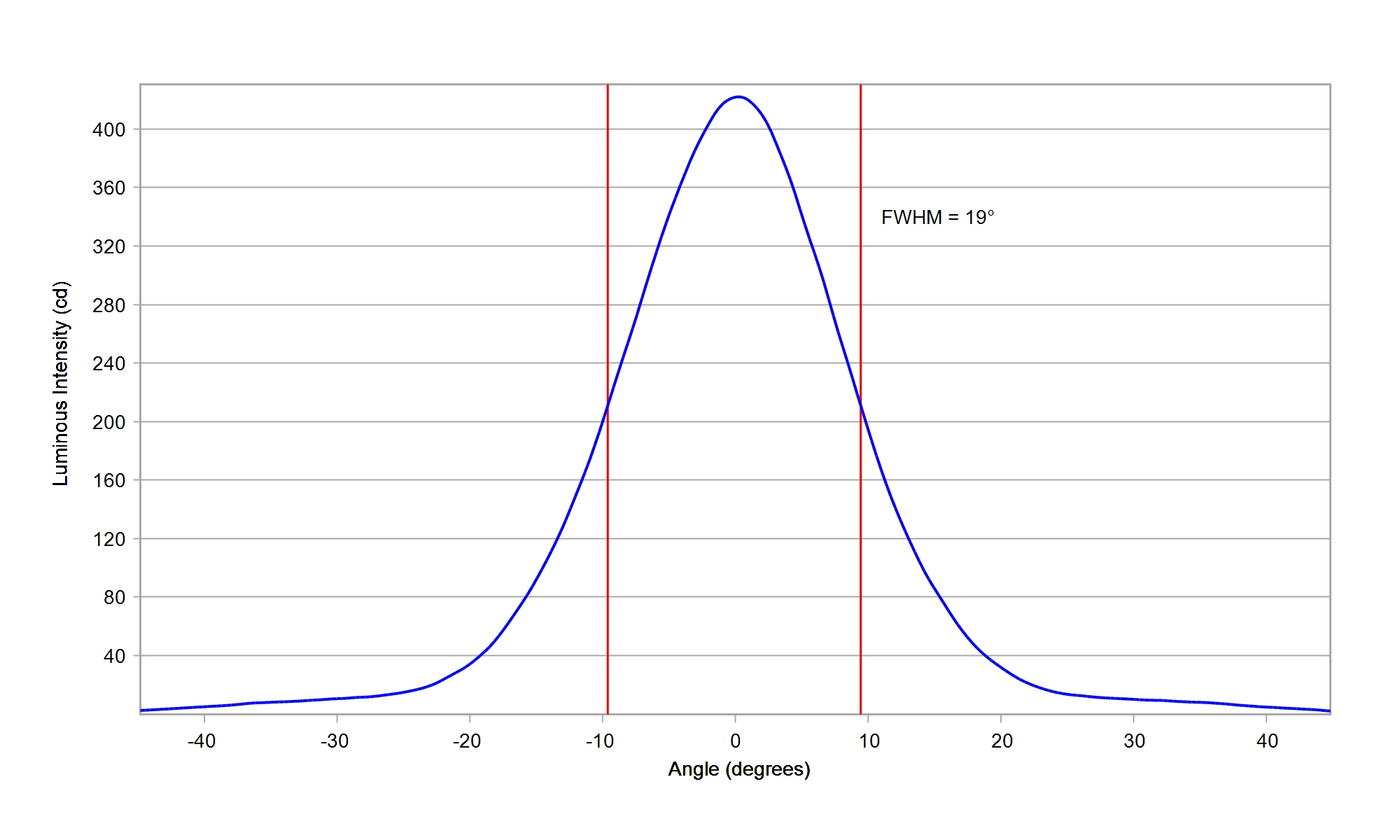

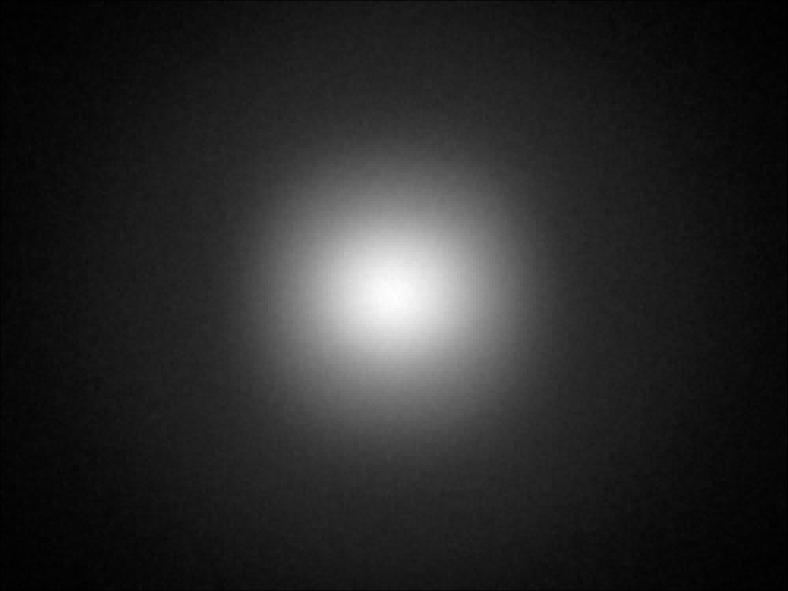

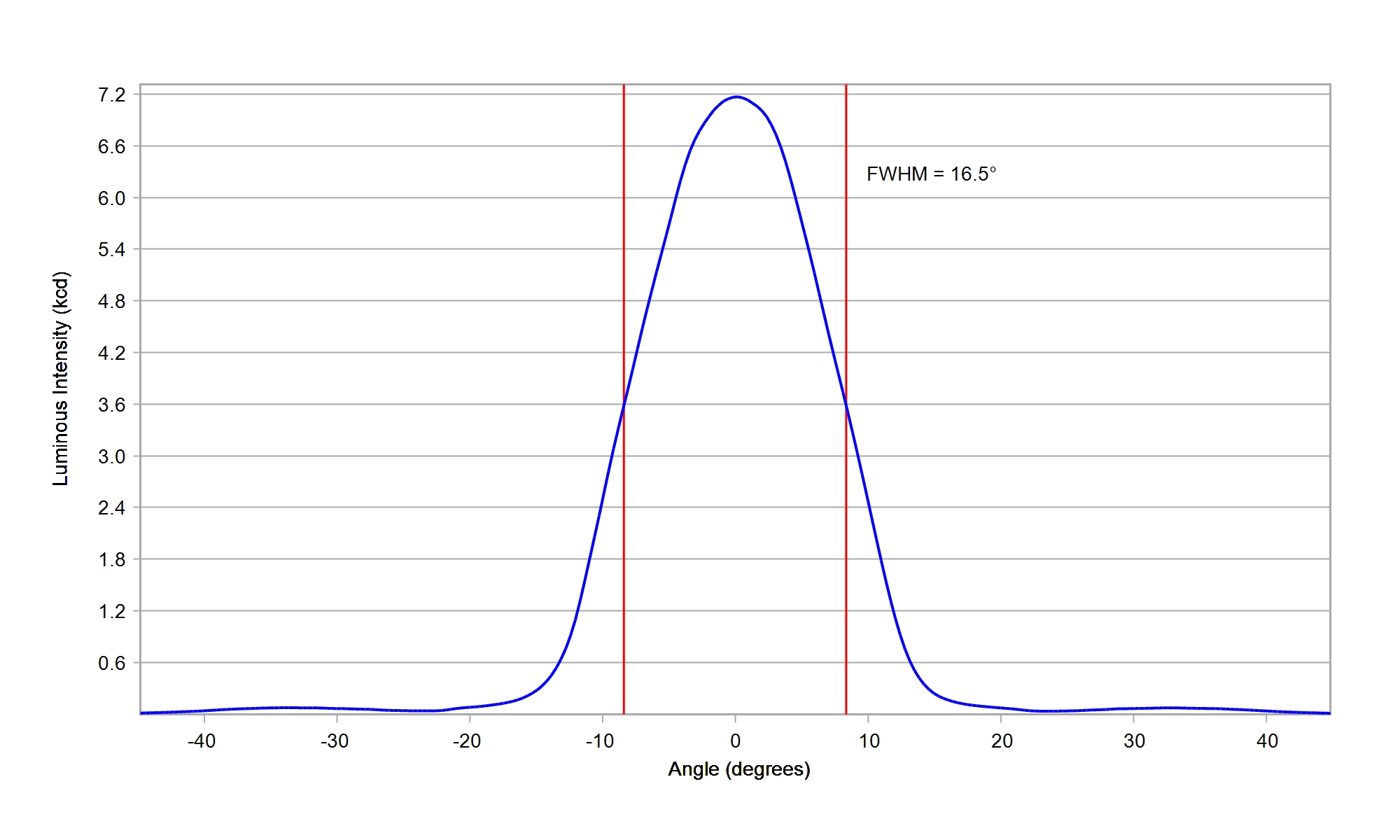

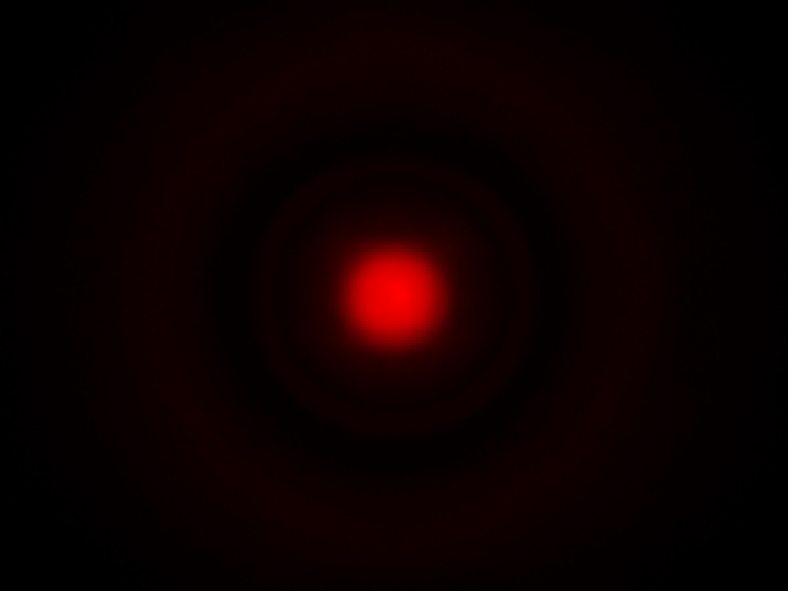

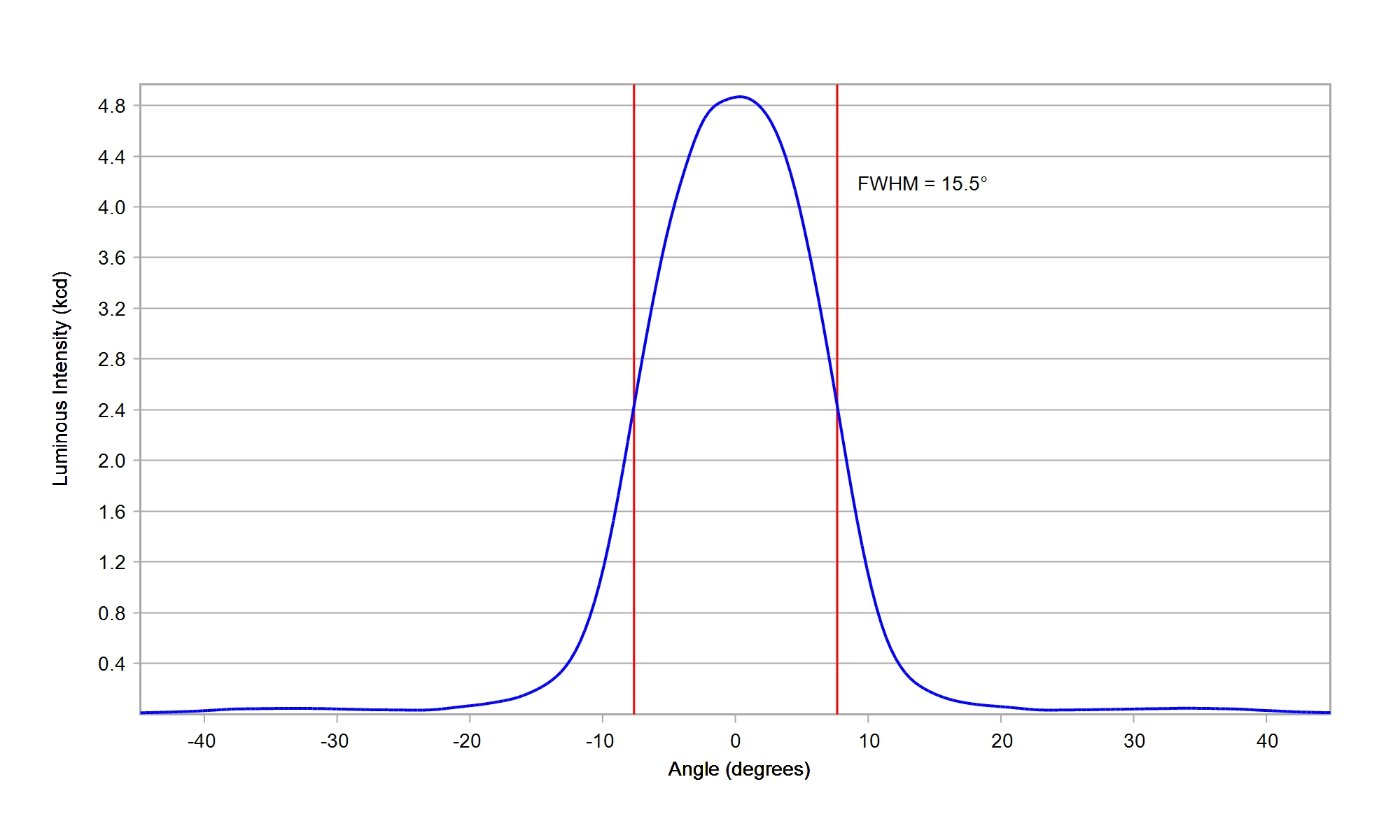

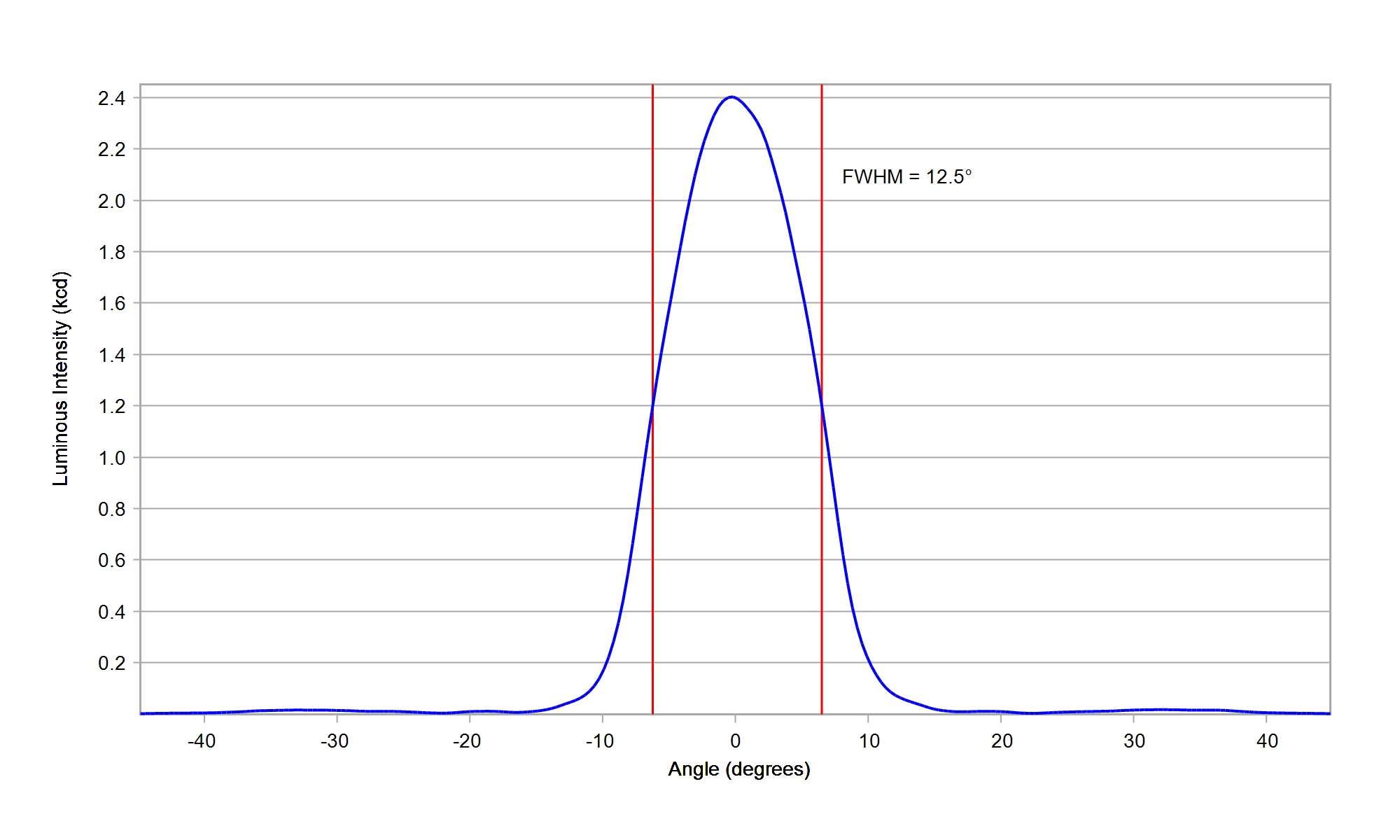

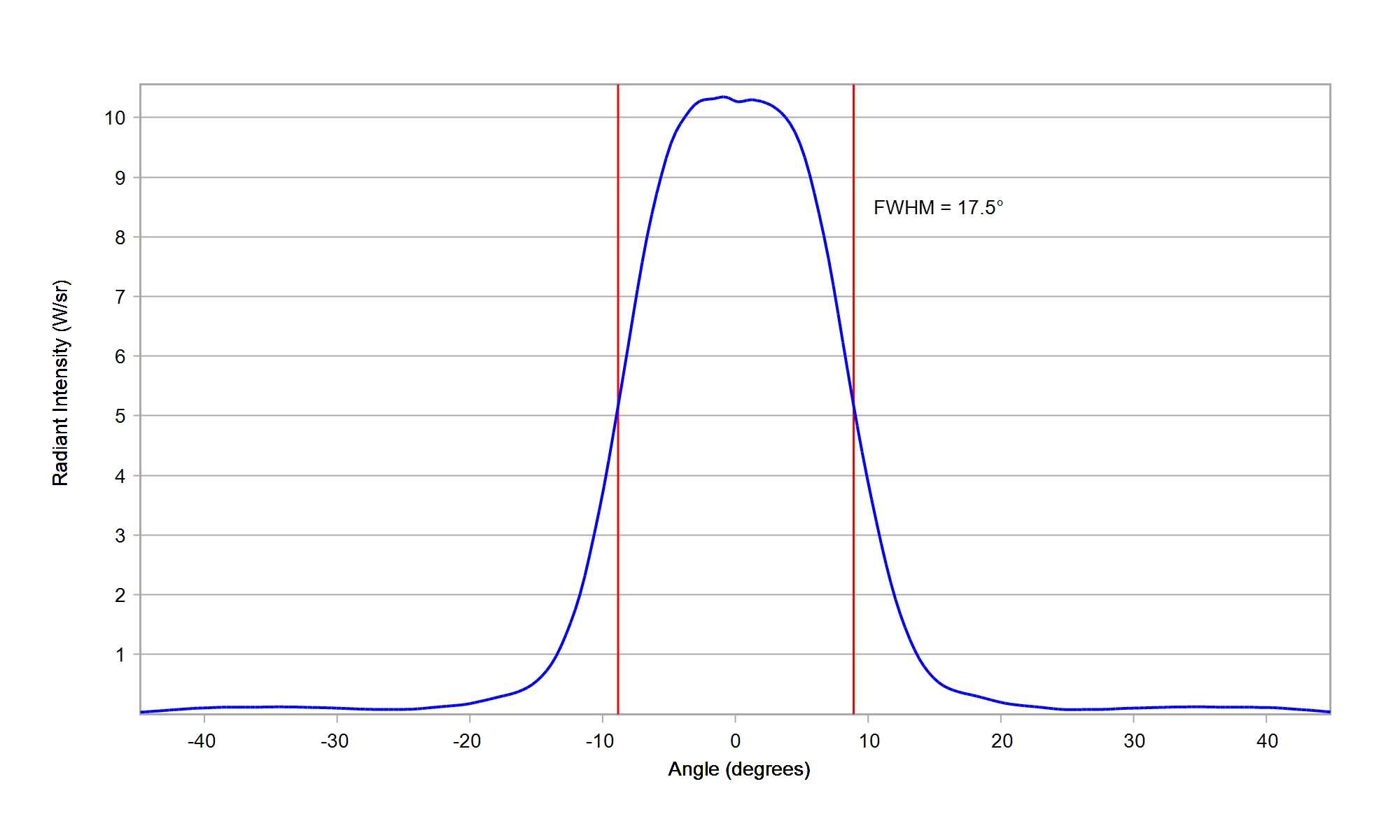

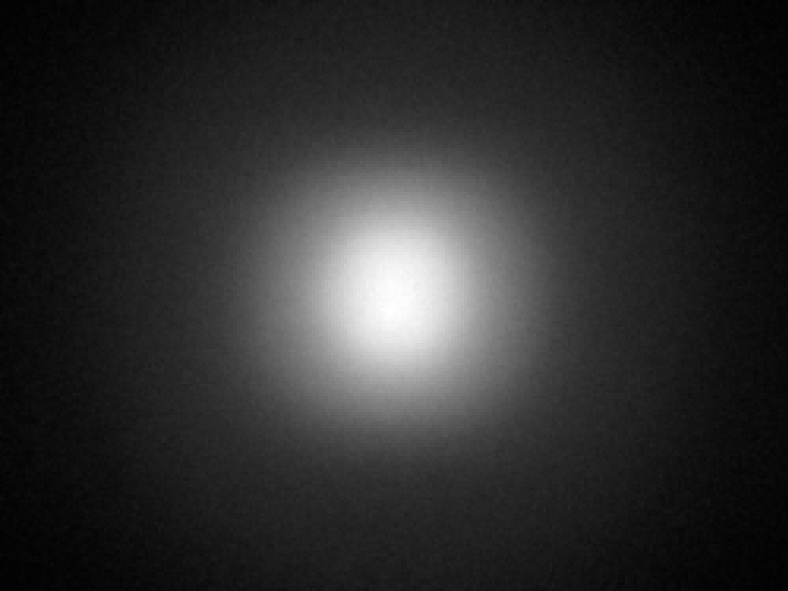

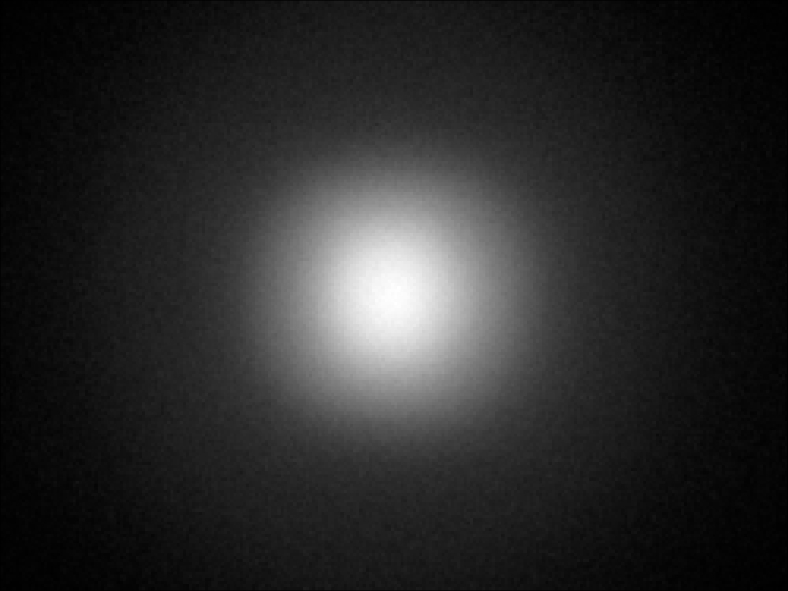

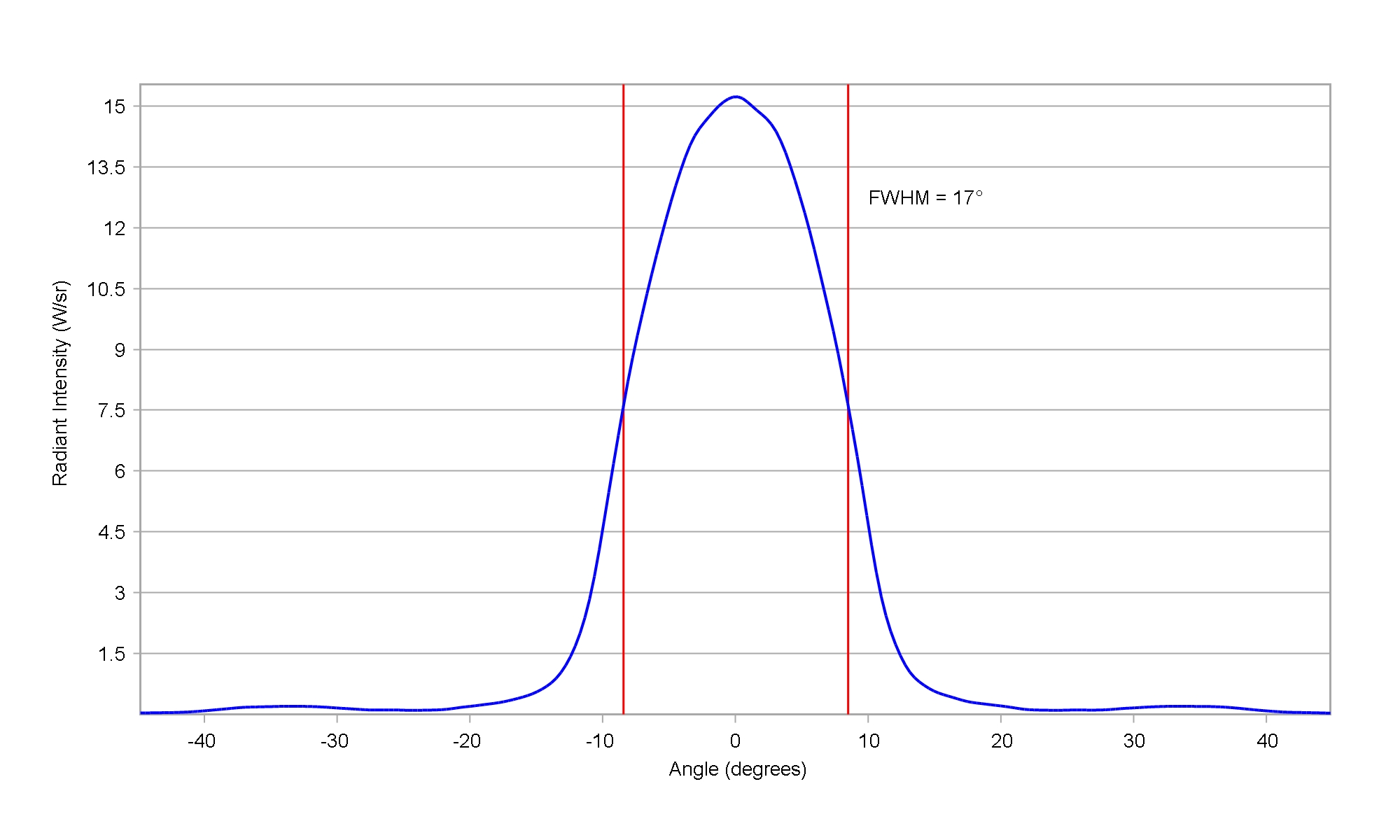

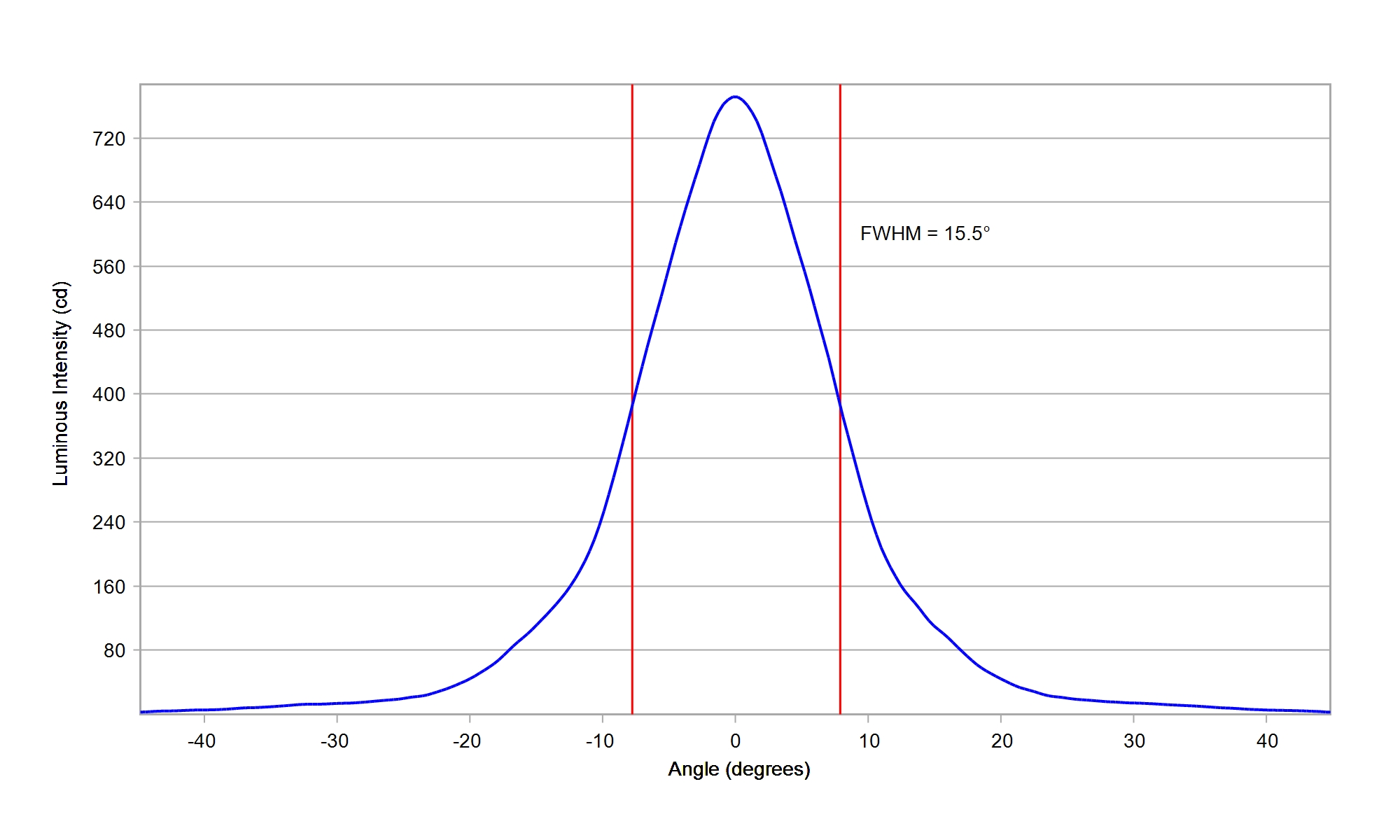

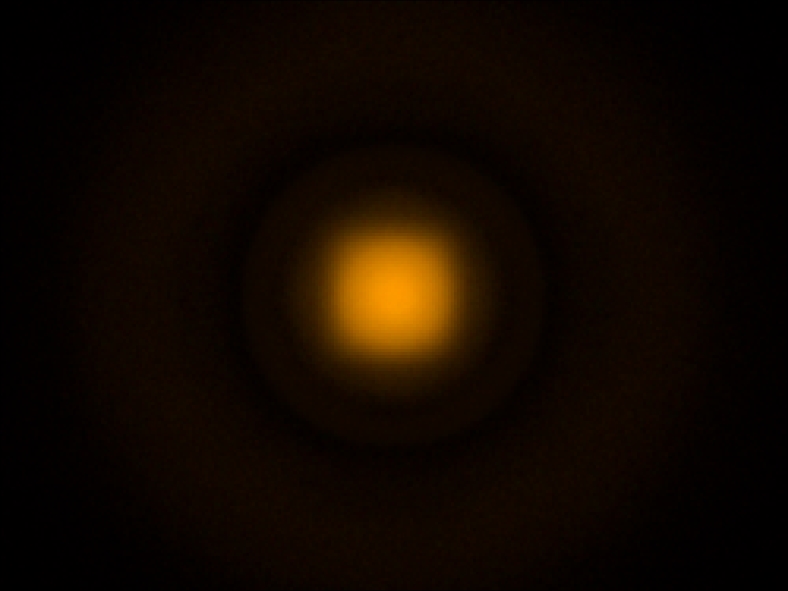

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

93.0%

FWHM:

16 x 17.5°

Cd/Im:

7.2

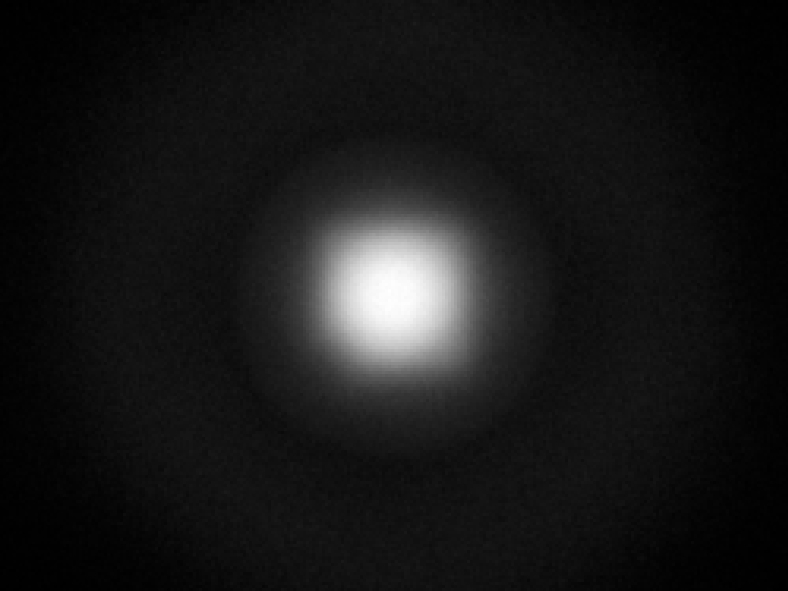

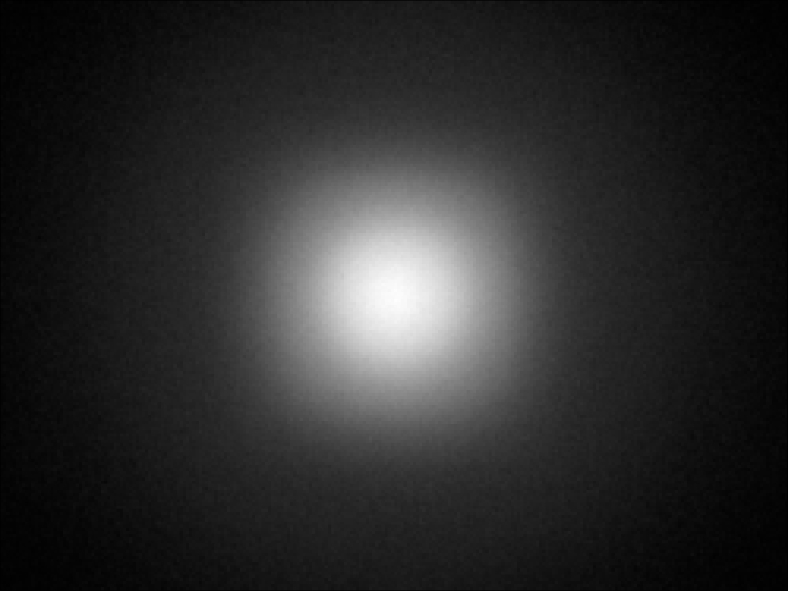

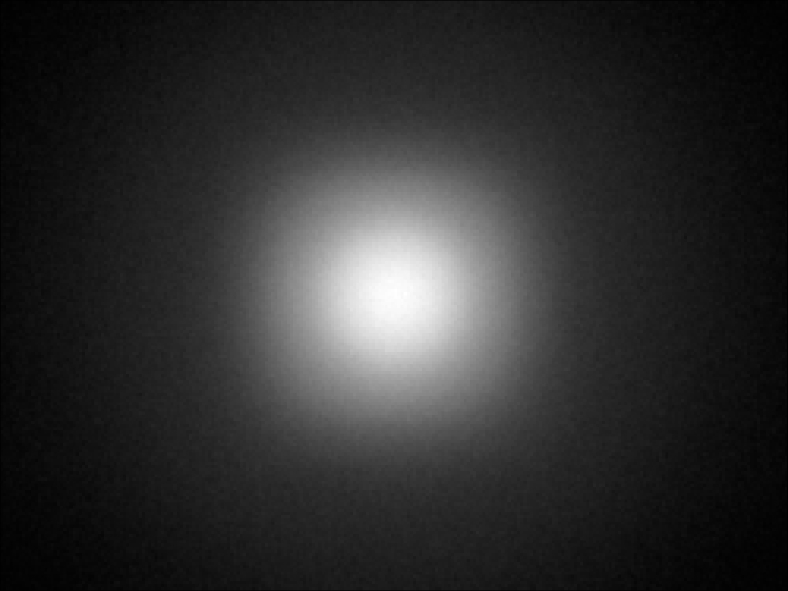

Carclo Optics - 10507 10mm Spot Image Bridgelux 3030 Gen2

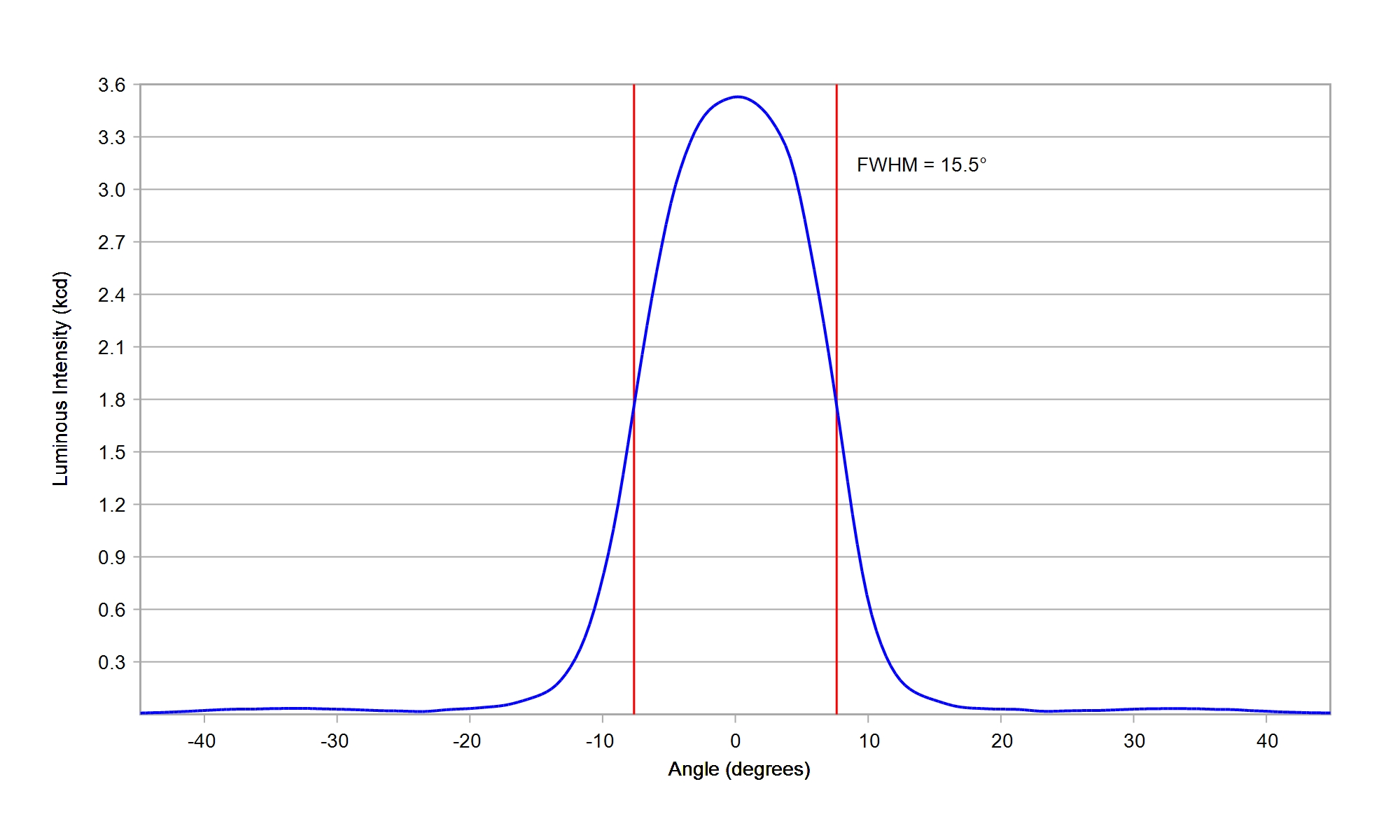

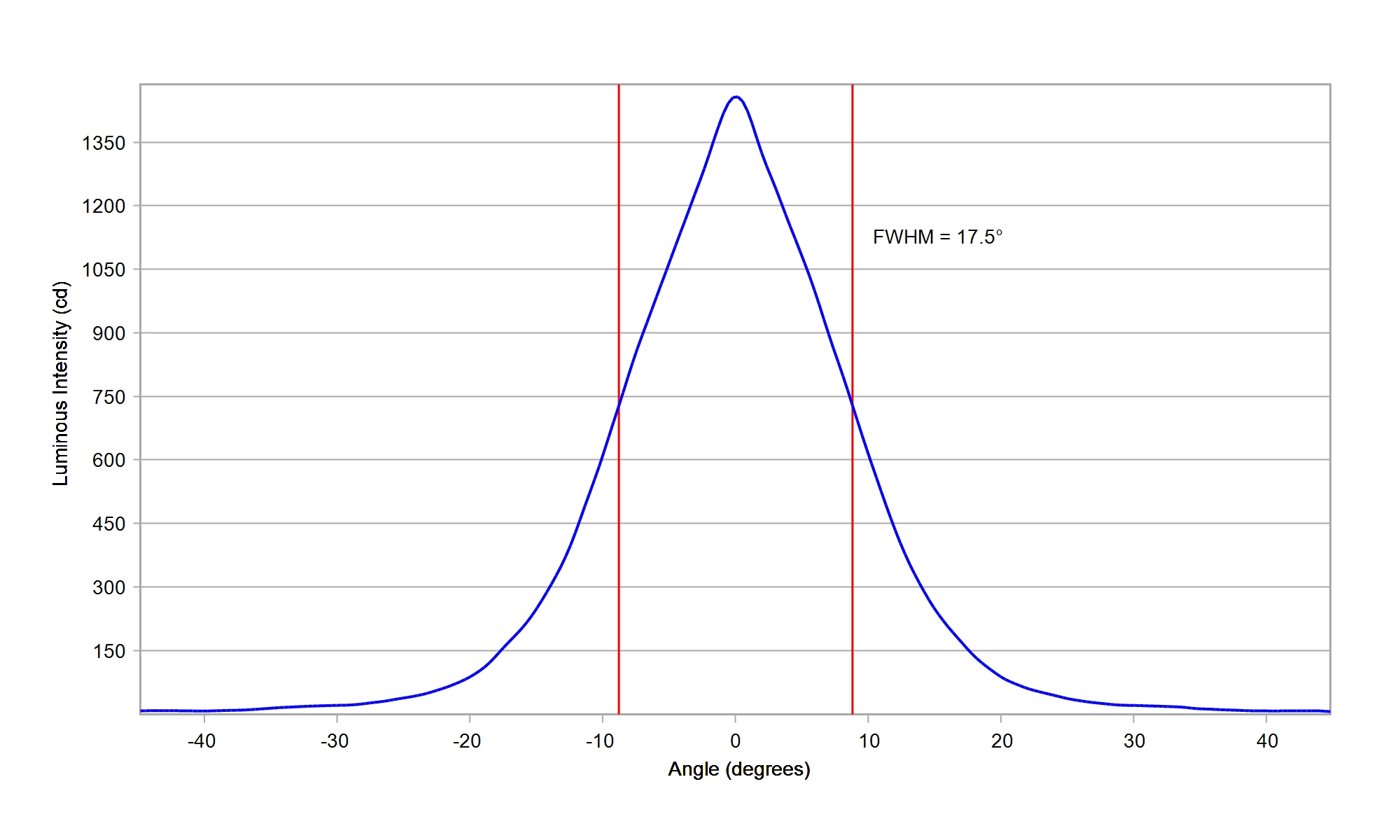

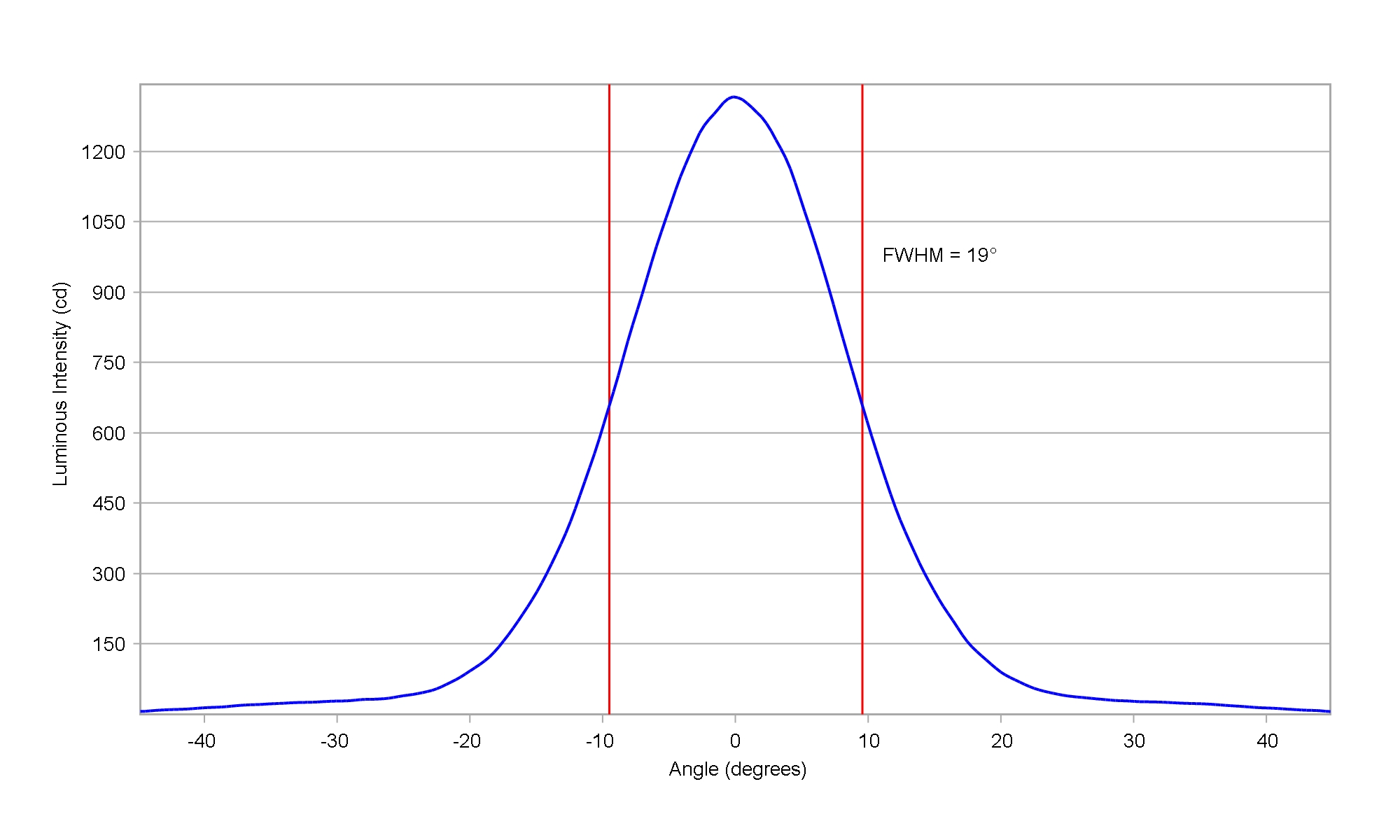

Carclo Optics - 10507 10mm Cross Section Bridgelux 3030 Gen2

Download

ies

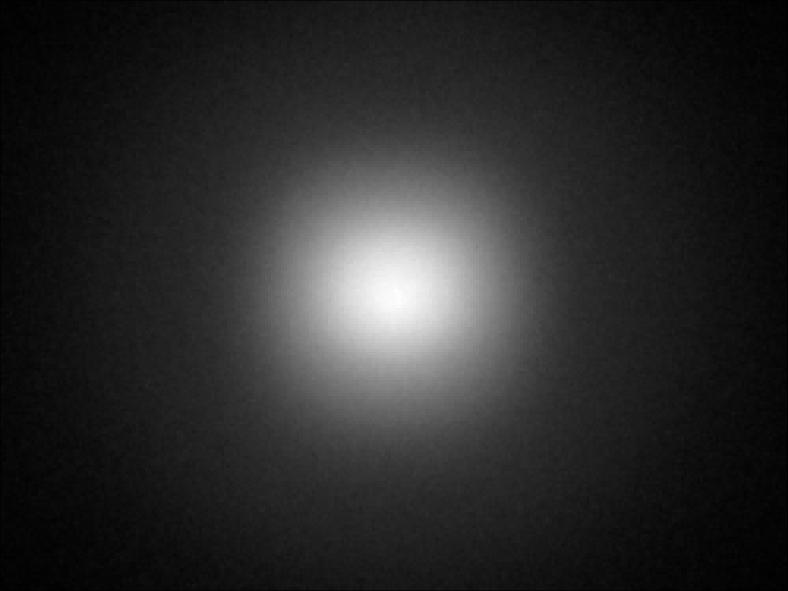

Cree JB3030 3V White

Eff:

91.5%

FWHM:

21.0°

Cd/Im:

4.5

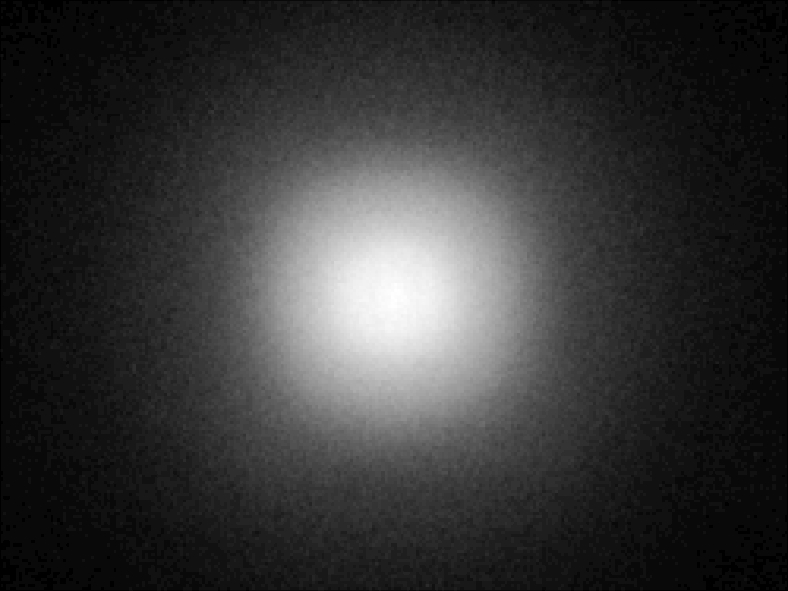

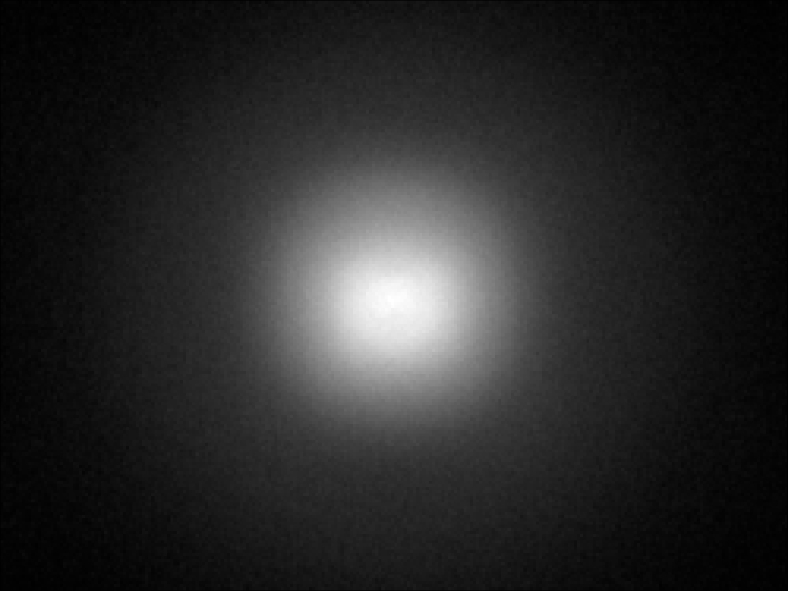

Carclo Optics - 10507 Spot Image Cree JB3030 3V White

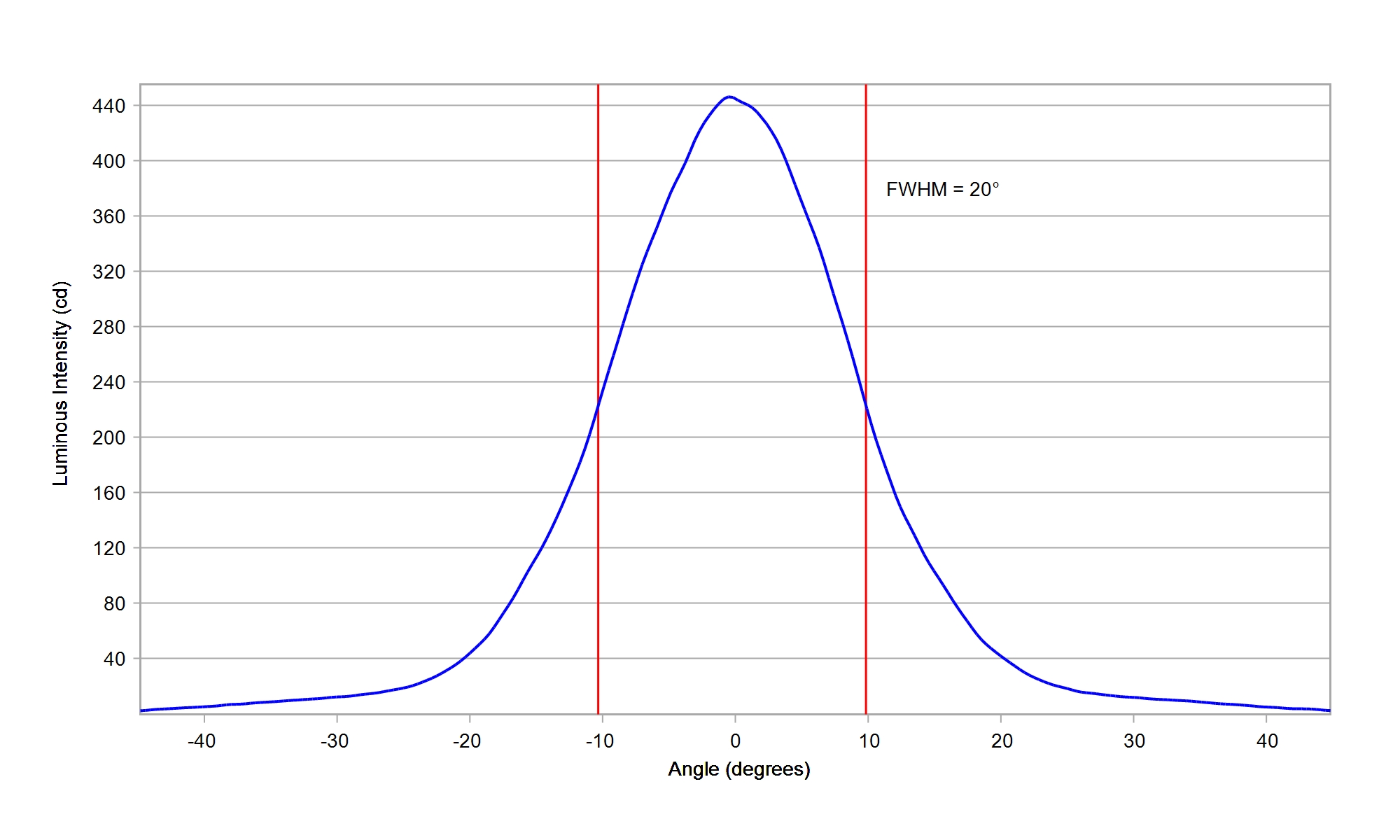

Carclo Optics - 10507 Cross Section Cree JB3030 3V White

Download

ies

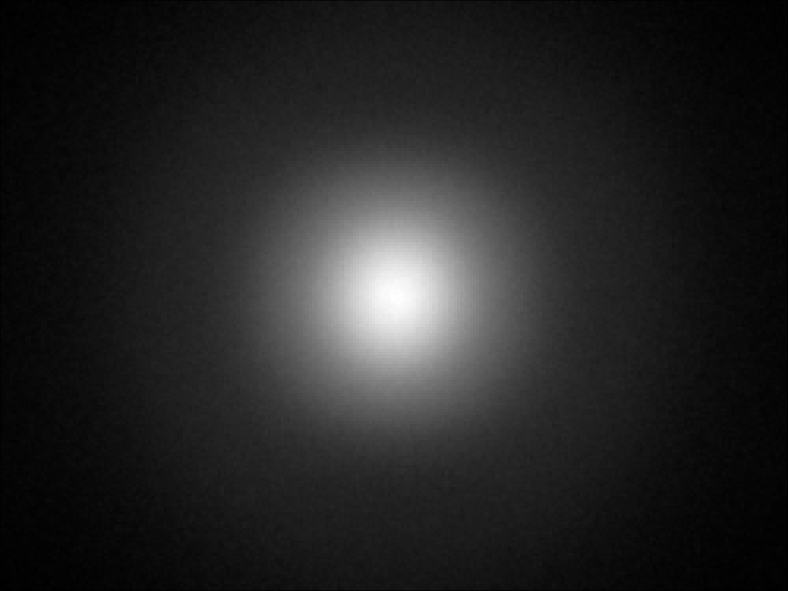

Cree JK2835 6V White

Eff:

91.5%

FWHM:

20°

Cd/Im:

5.4

Download

ies

Cree XLamp CSP XD16 Cool White

Eff:

92.5%

FWHM:

17.0°

Cd/Im:

5.9

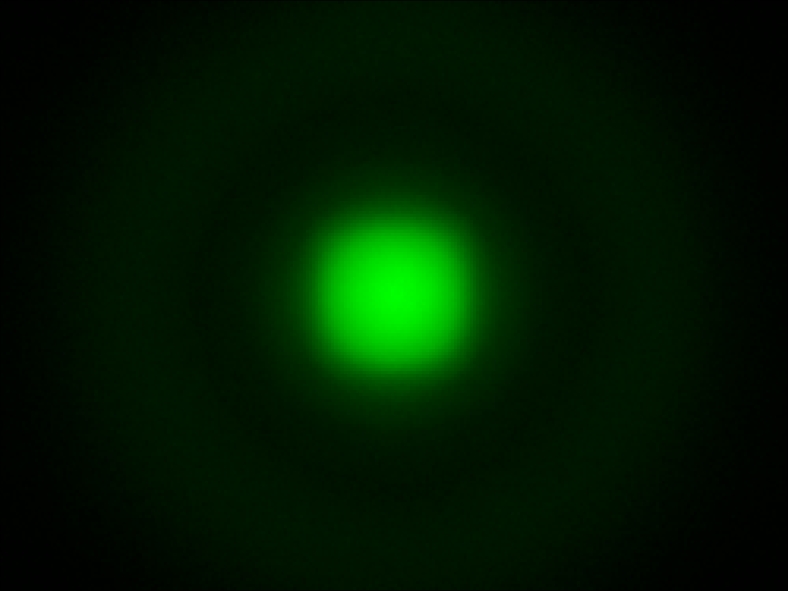

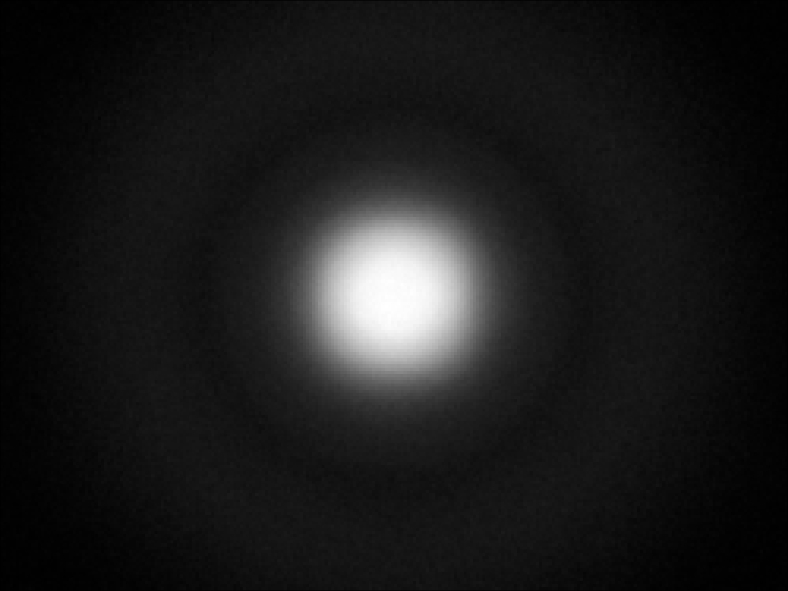

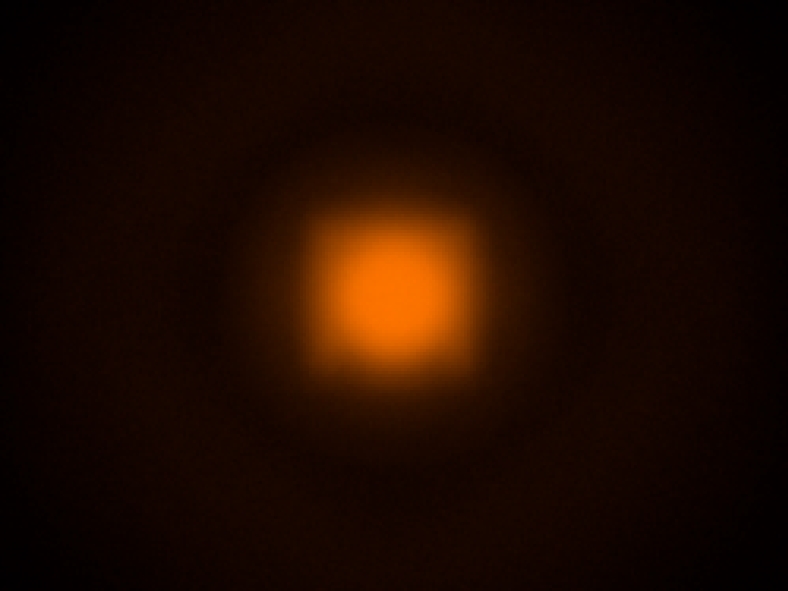

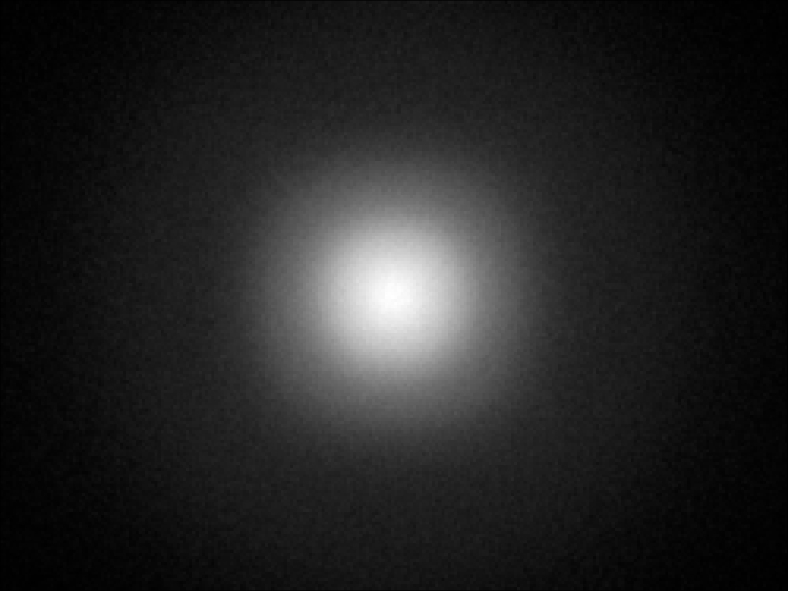

Carclo Optics - Simulated Spot Image

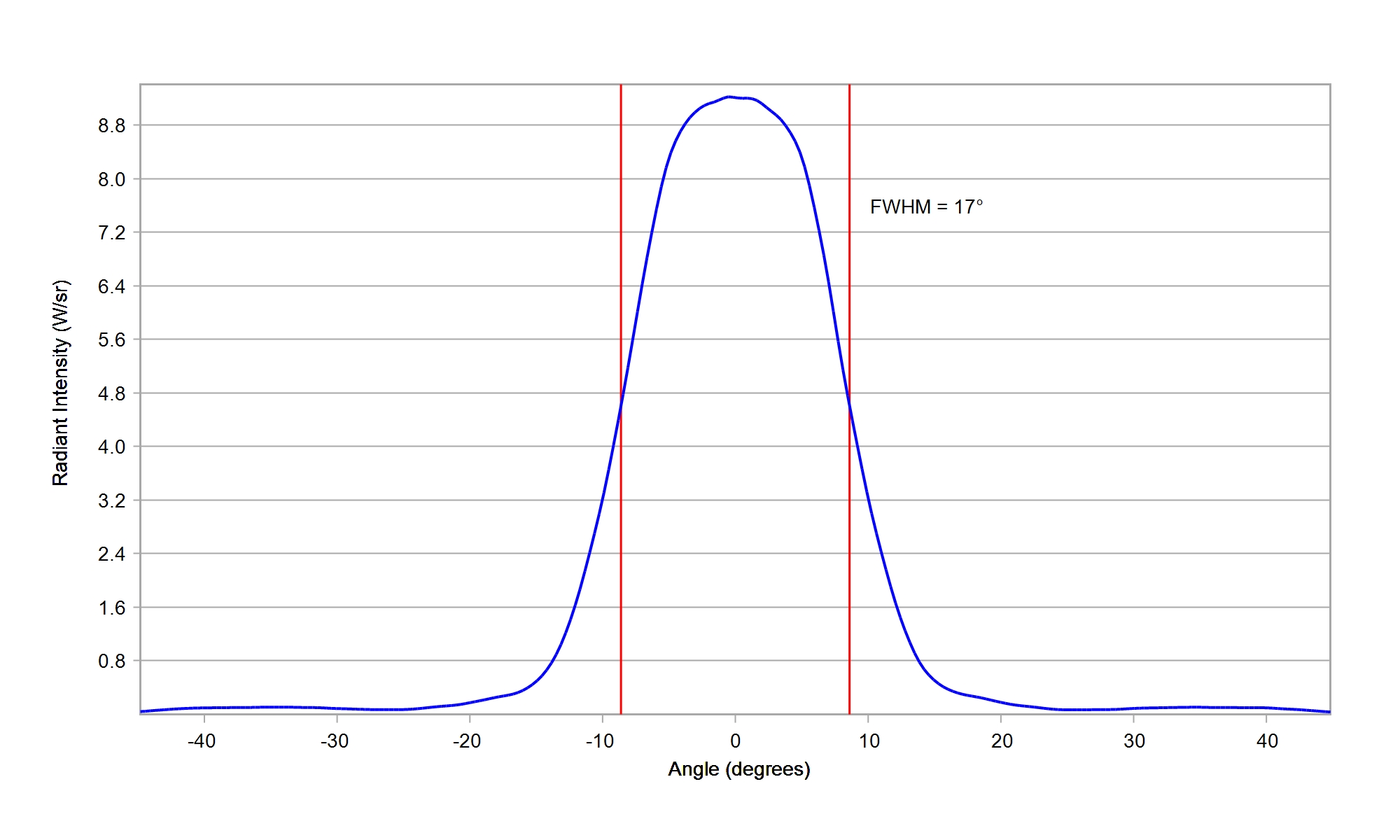

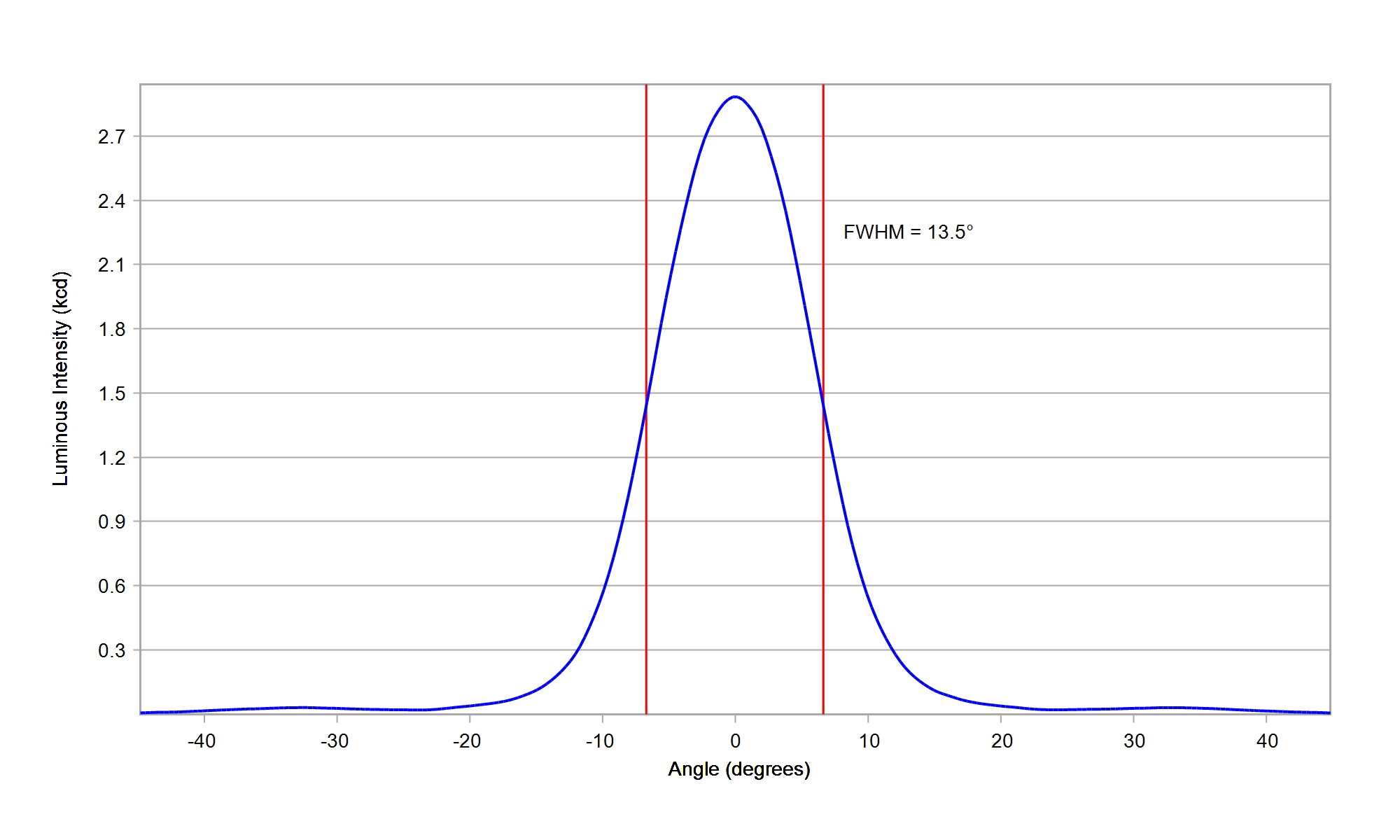

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp CSP XD16 Premium White

Eff:

91.0%

FWHM:

16°

Cd/Im:

9.6

Download

IES

Cree XLamp XB-D White

Eff:

89.7%

FWHM:

19.5°

Cd/Im:

7.1

Spot Image

Cross Section

Download

ies

Cree XLamp XB-H White

Eff:

92.0%

FWHM:

21.5°

Cd/Im:

5.3

Carclo Optics - 10507 10mm Spot Image Cree XLamp XB-H

Carclo Optics - 10507 10mm Cross Section Cree XLamp XB-H

Download

ies

Cree XLamp XE-G Blue

Eff:

89.0%

FWHM:

14°

Cd/Im:

11.9

Download

ies

Cree XLamp XE-G Green

Eff:

89.0%

FWHM:

14°

Cd/Im:

11.3

Download

ies

Cree XLamp XE-G Red

Eff:

87.0%

FWHM:

13.5°

Cd/Im:

12.0

Download

ies

Cree XLamp XE-G White

Eff:

89.0%

FWHM:

14°

Cd/Im:

11.3

Download

ies

Cree XLamp XP-C White

Eff:

91.7%

FWHM:

10.7°

Cd/Im:

21.0

Spot Image

Cross Section

Download

ies

Cree XLamp XP-E White

Eff:

88.7%

FWHM:

16.4°

Cd/Im:

9.8

Download

ies

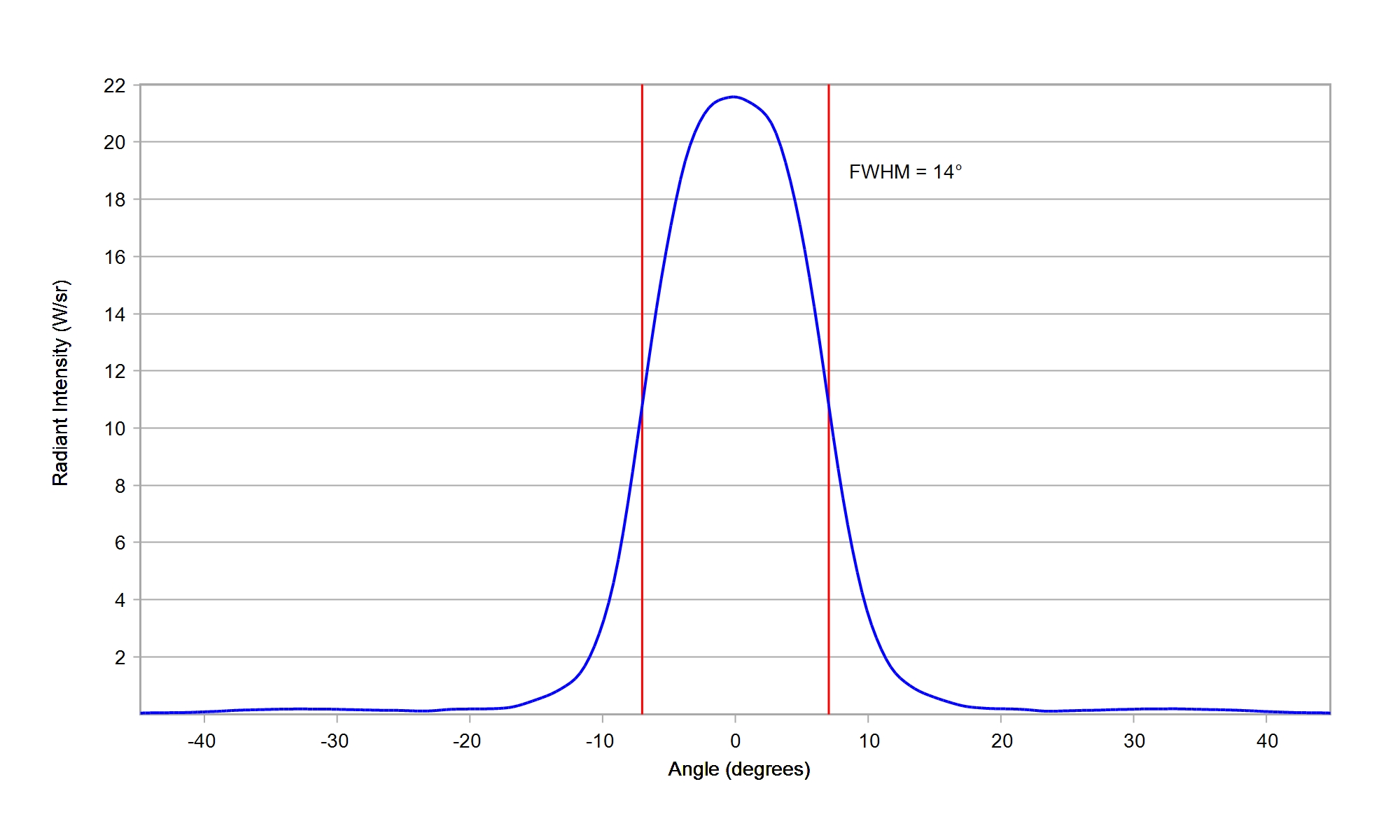

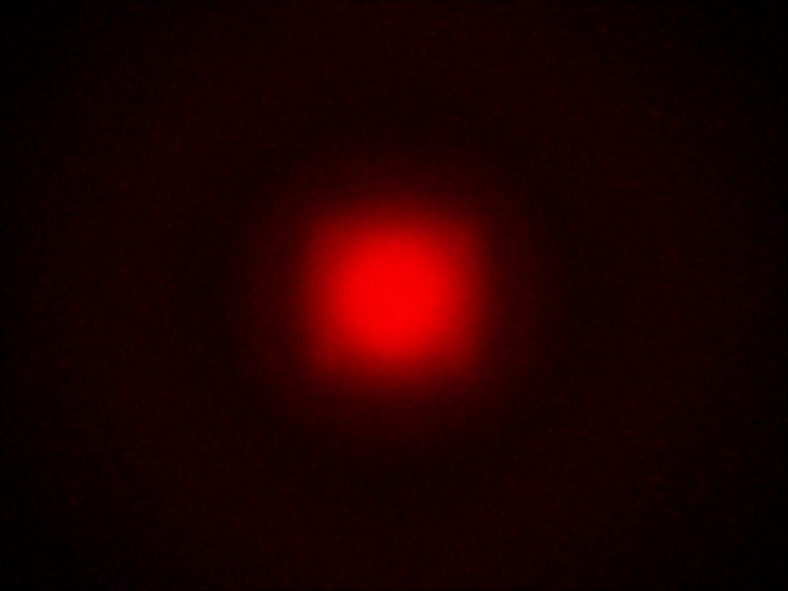

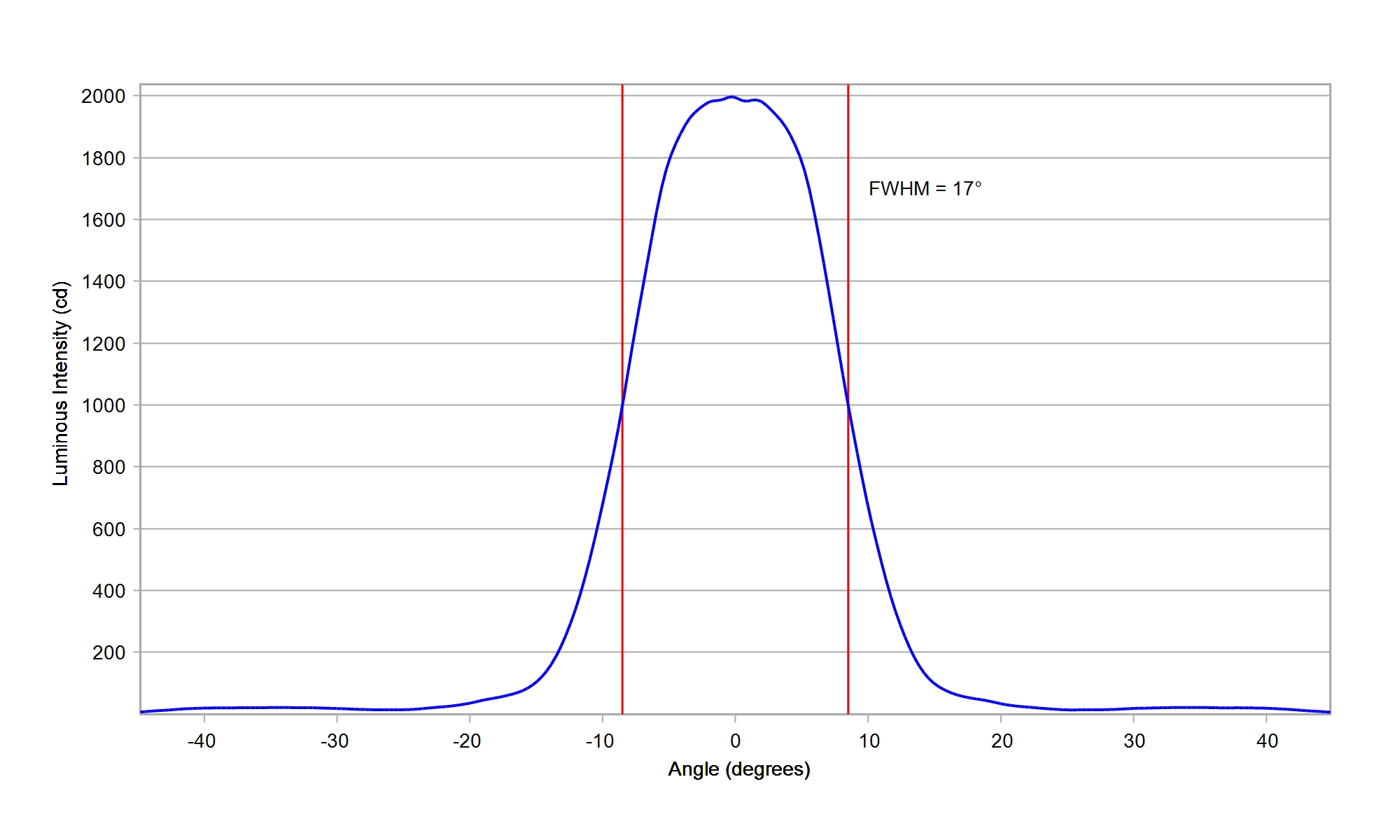

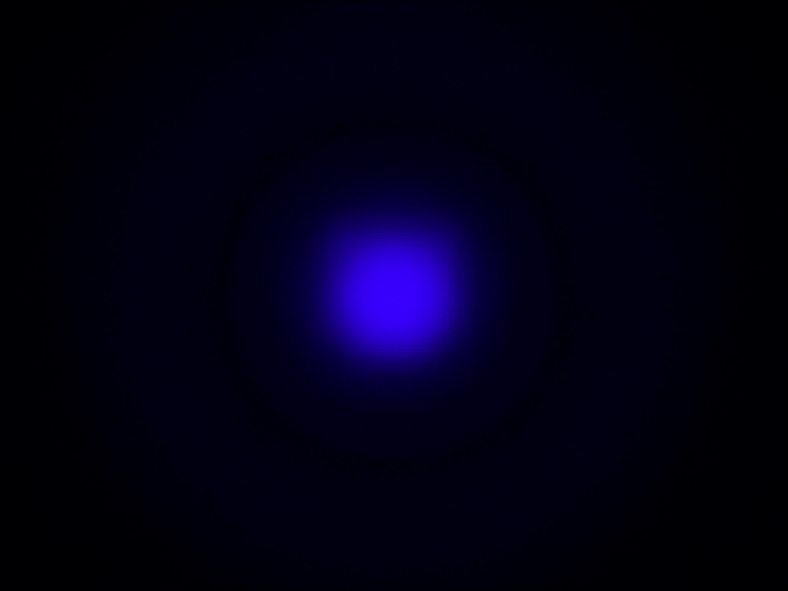

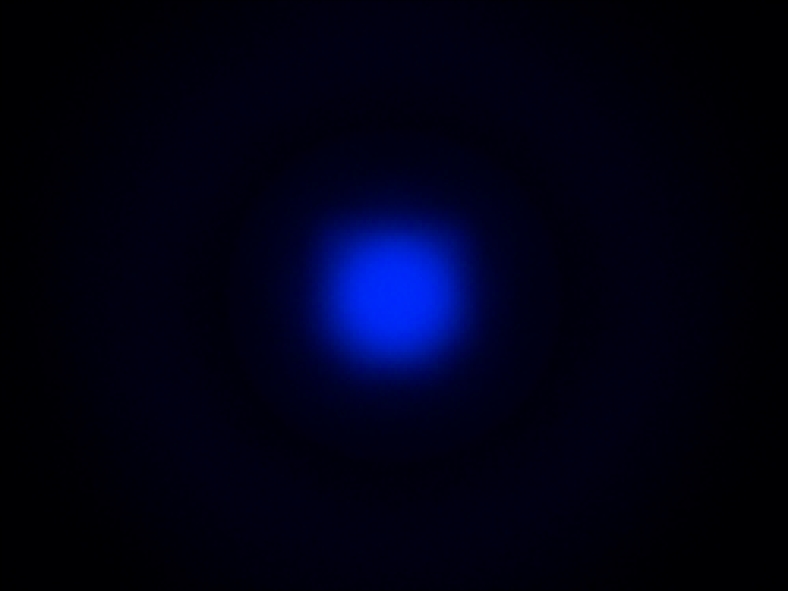

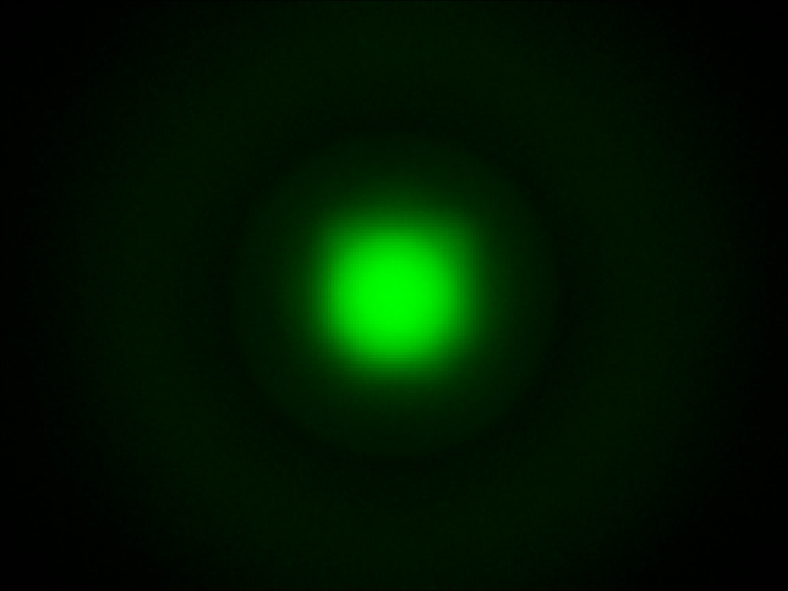

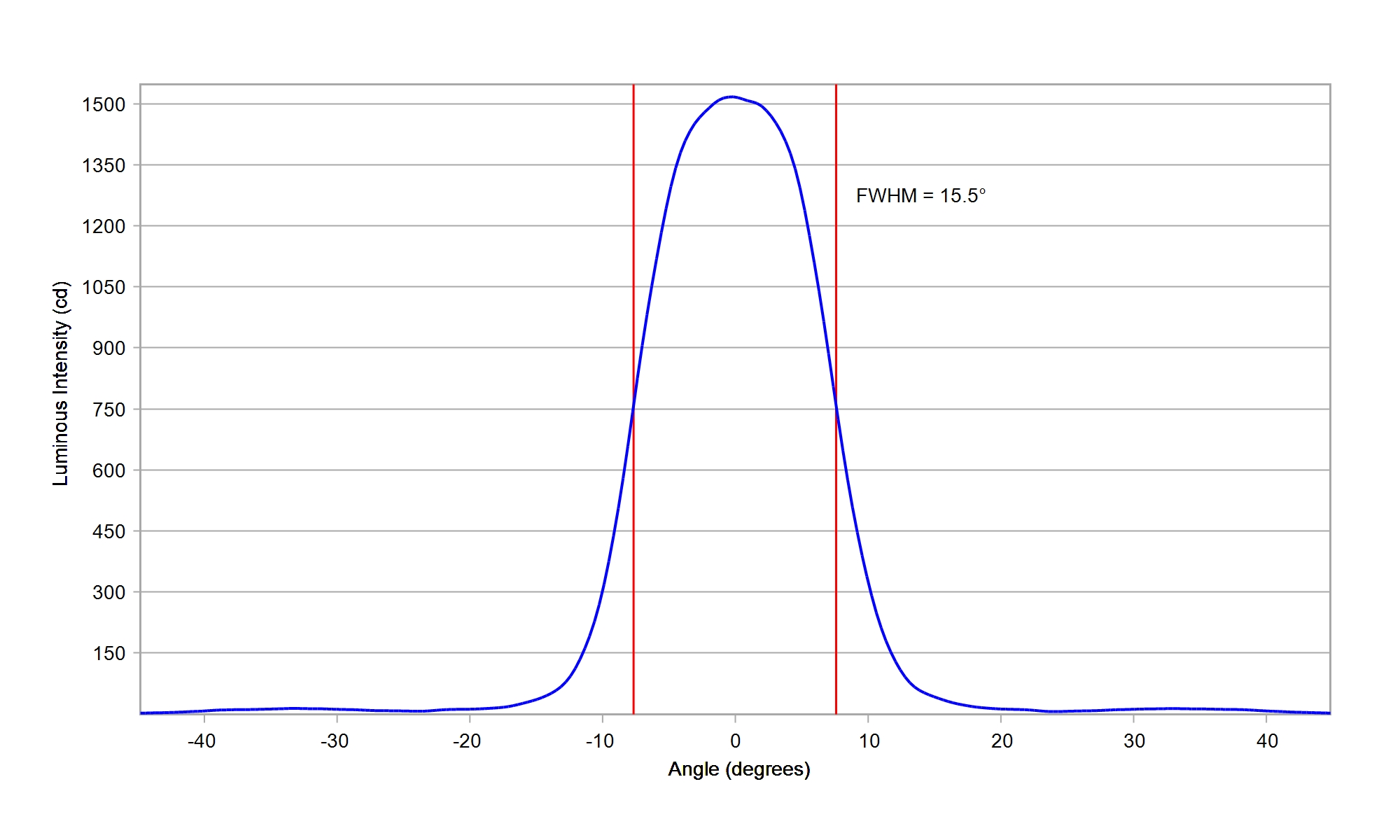

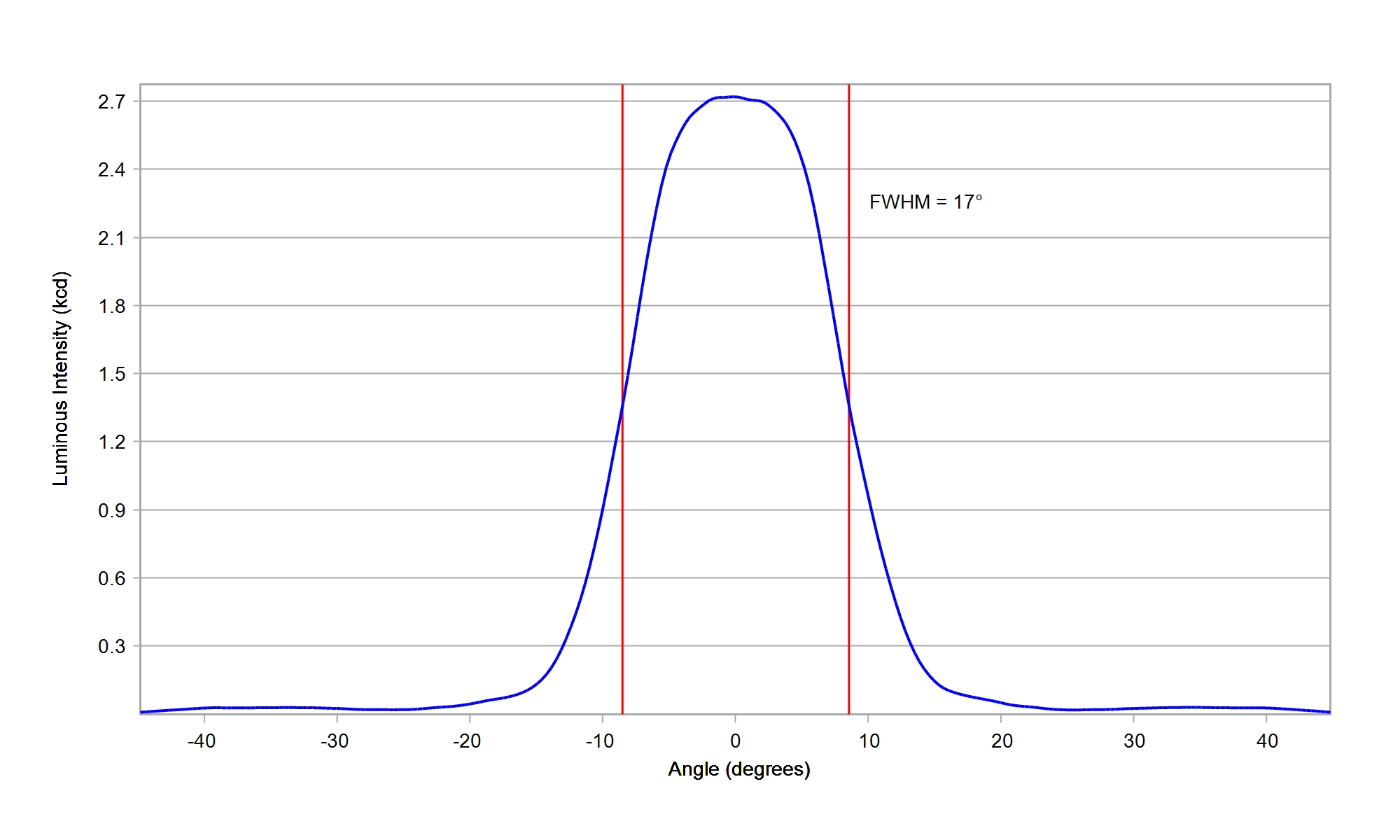

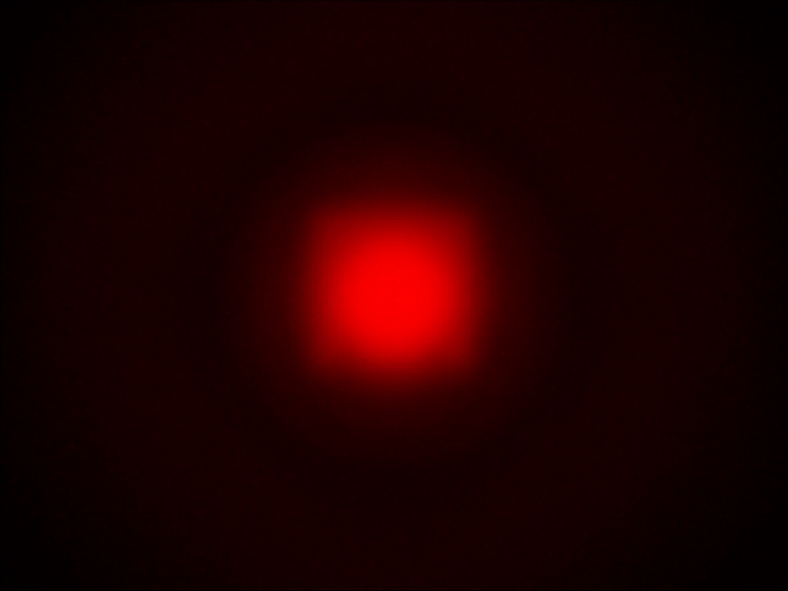

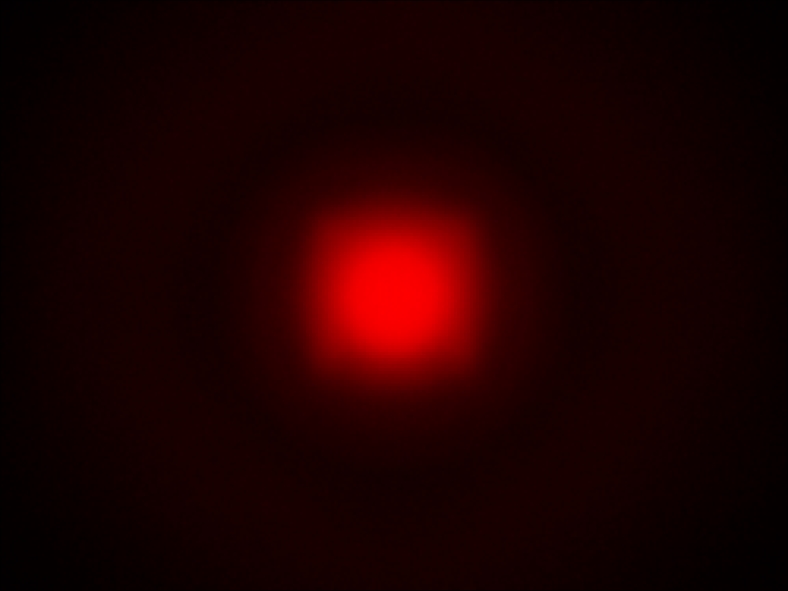

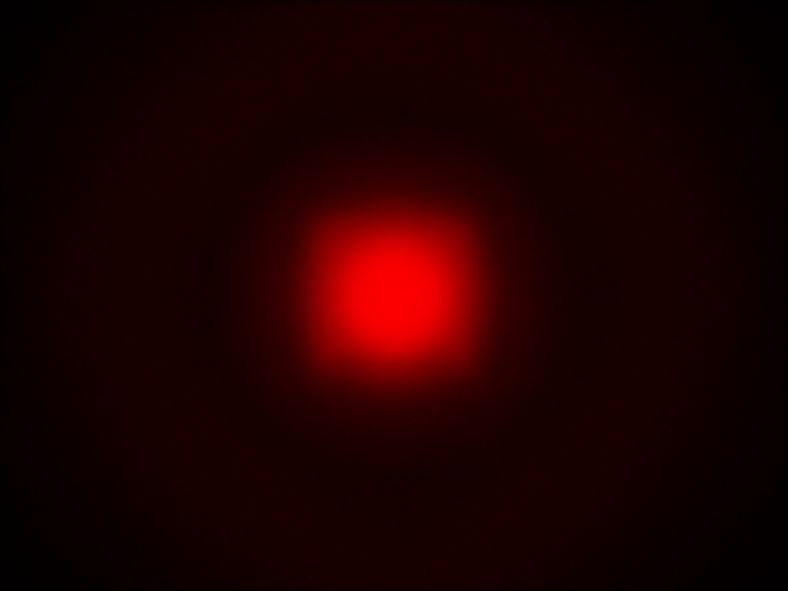

Cree XLamp XP-E2 White

Eff:

89.0%

FWHM:

14.5°

Cd/Im:

11.1

Download

ies

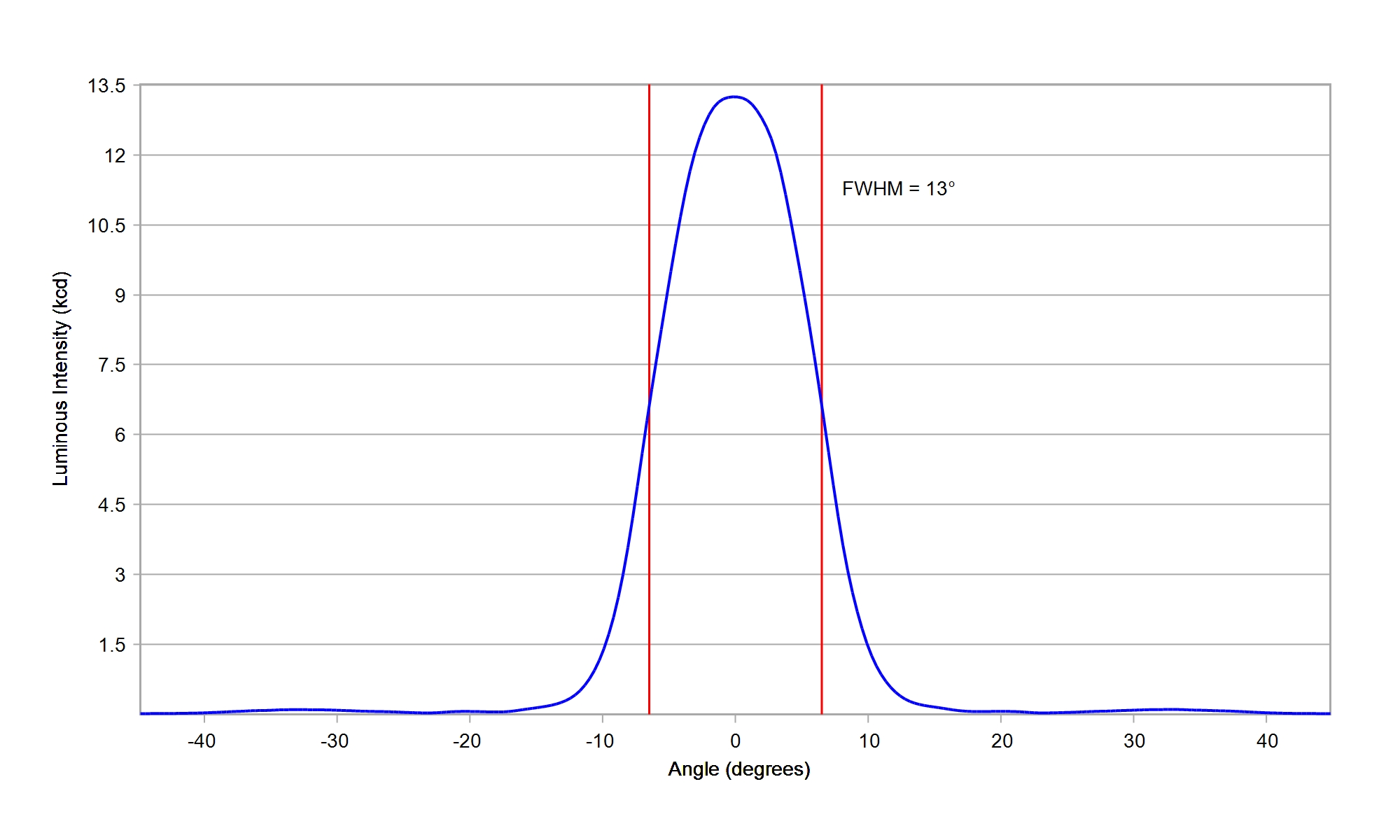

Cree XLamp XP-G White

Eff:

91.0%

FWHM:

23.0°

Cd/Im:

4.3

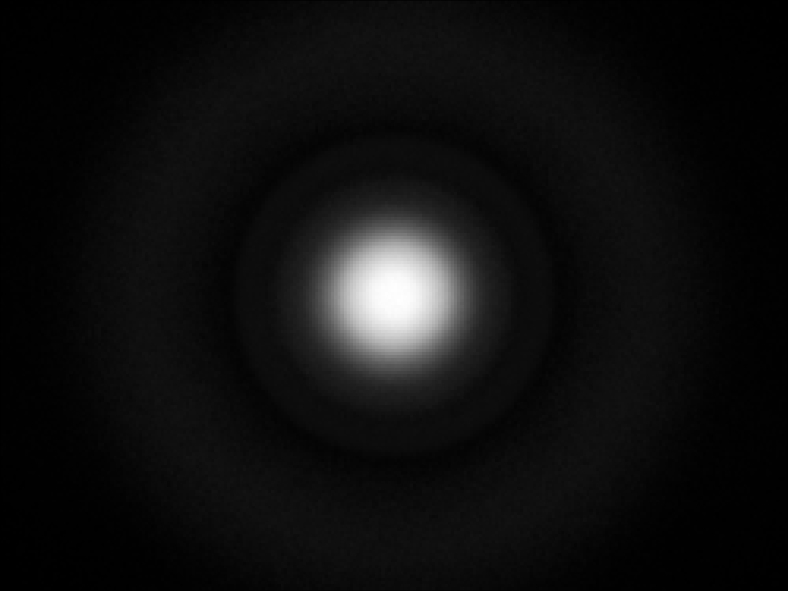

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XP-G2 White

Eff:

91.5%

FWHM:

21.5°

Cd/Im:

4.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XP-G3 White

Eff:

91.0%

FWHM:

26.0°

Cd/Im:

3.1

Carclo Optics - Simulated spot image

Carclo Optics - Simulated Cross Section

Download

ies

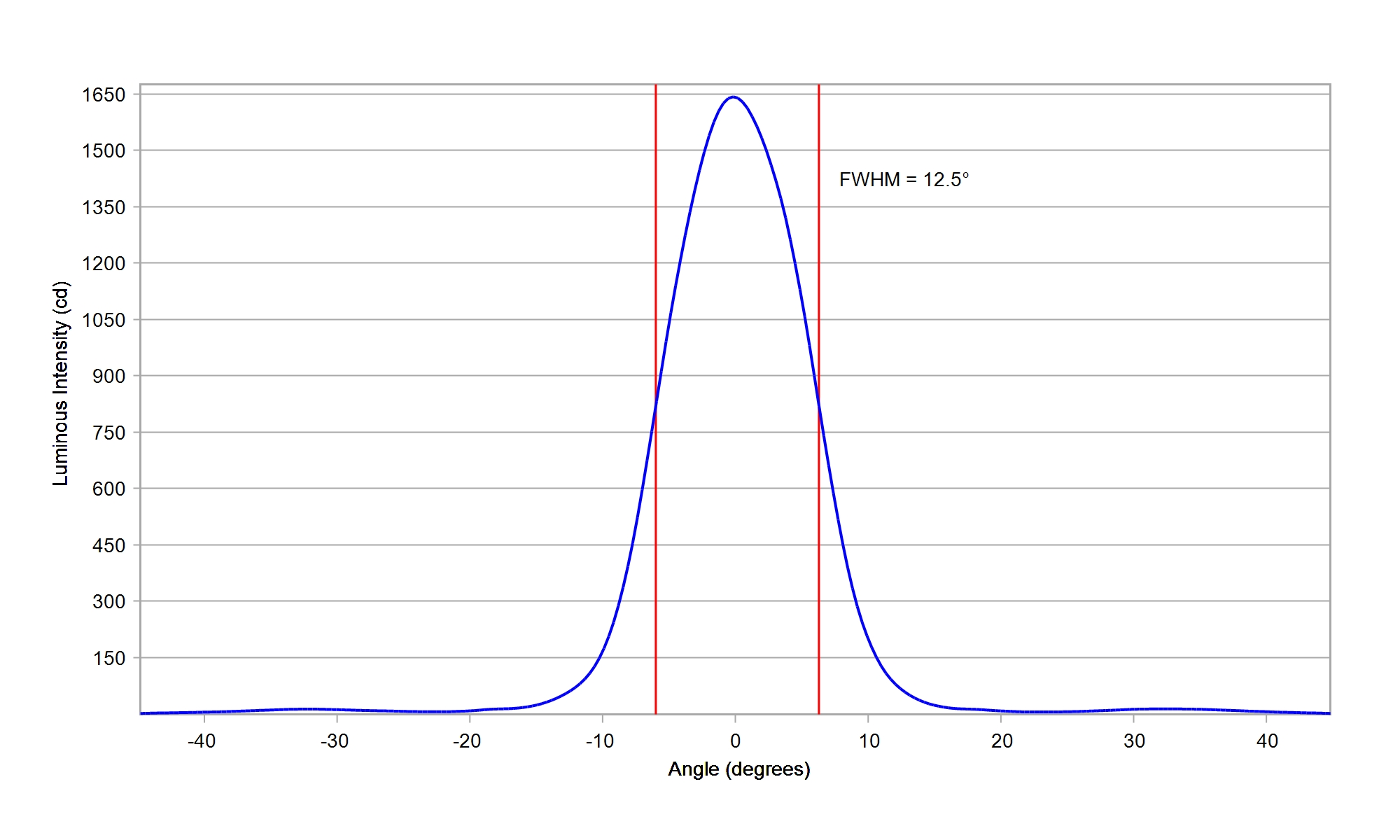

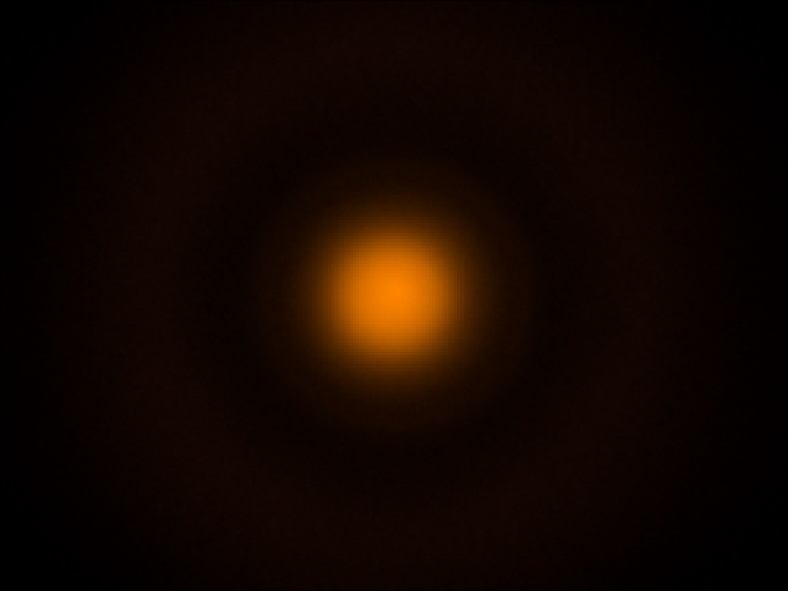

Cree XLamp XQ-A Blue

Eff:

91.0%

FWHM:

10.5°

Cd/Im:

24.5

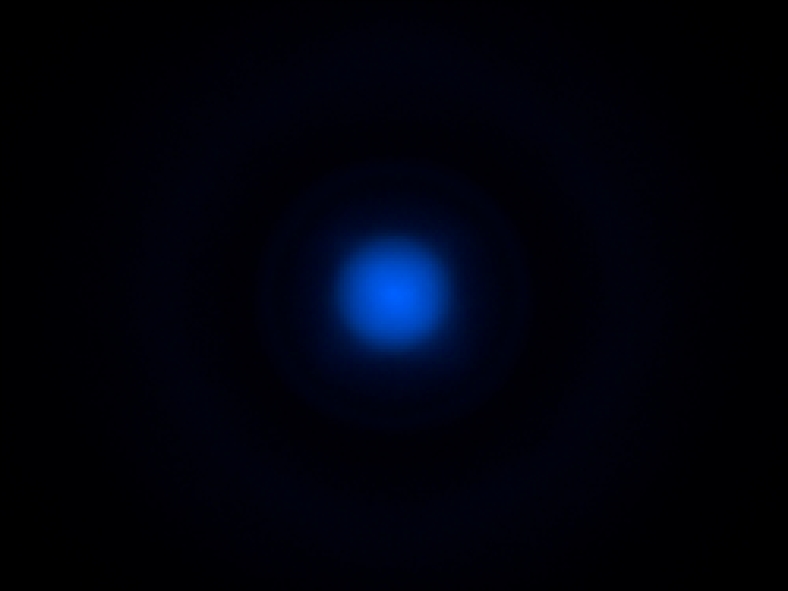

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-A Green

Eff:

91.0%

FWHM:

10.5°

Cd/Im:

23.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-A Red

Eff:

91.0%

FWHM:

10.5°

Cd/Im:

22.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-A White

Eff:

91.0%

FWHM:

10.0°

Cd/Im:

24.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

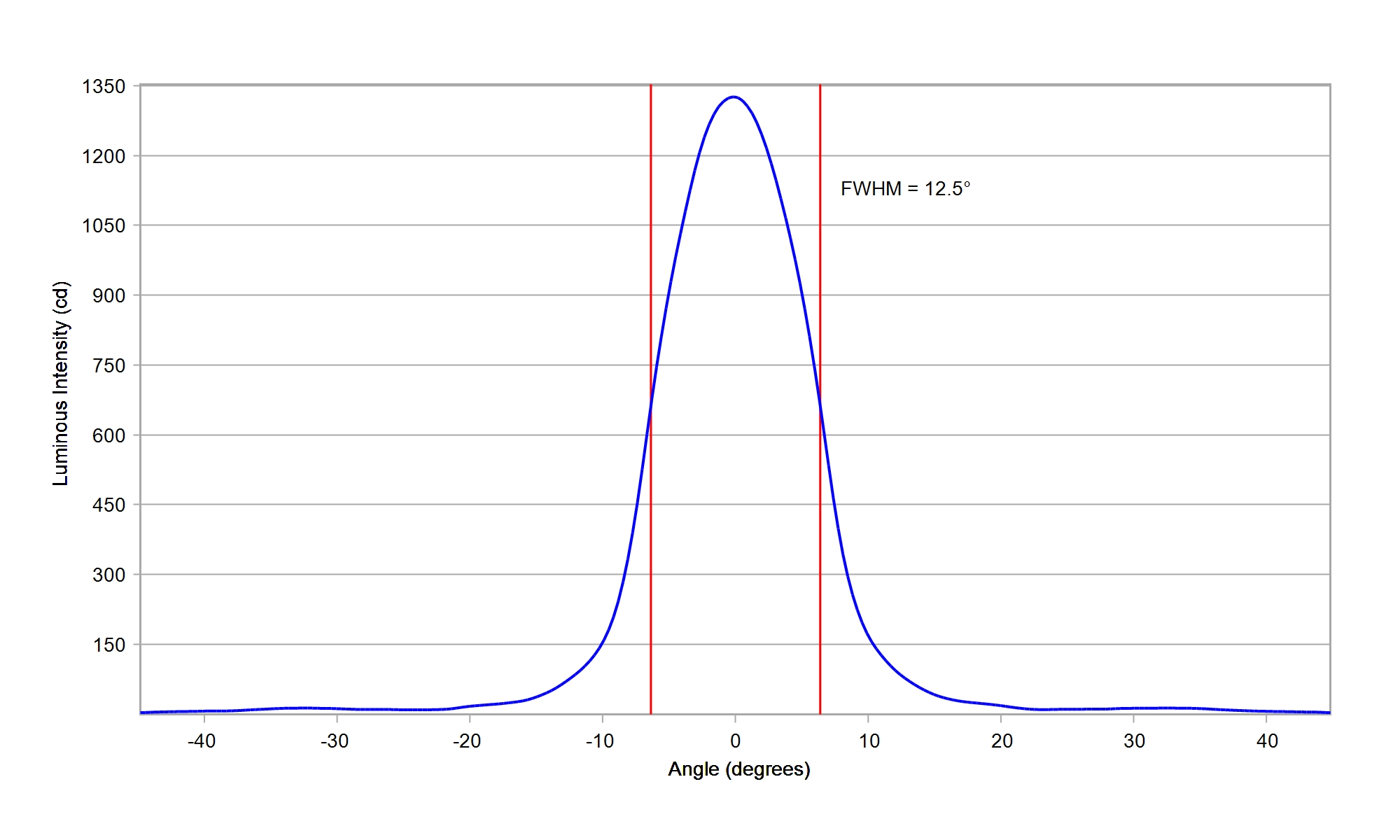

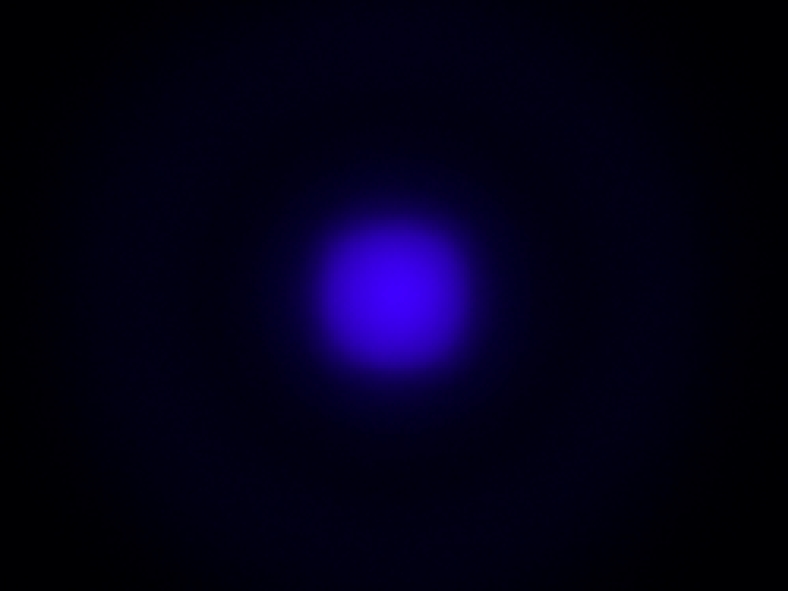

Cree XLamp XQ-E HI Blue

Eff:

91.5%

FWHM:

12.0°

Cd/Im:

13.8

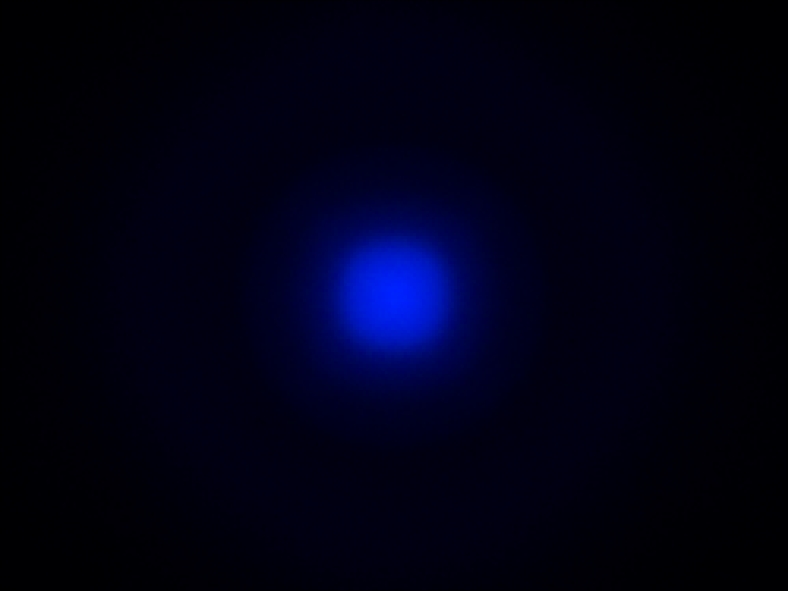

Carclo Optics - Simulated Spot Image

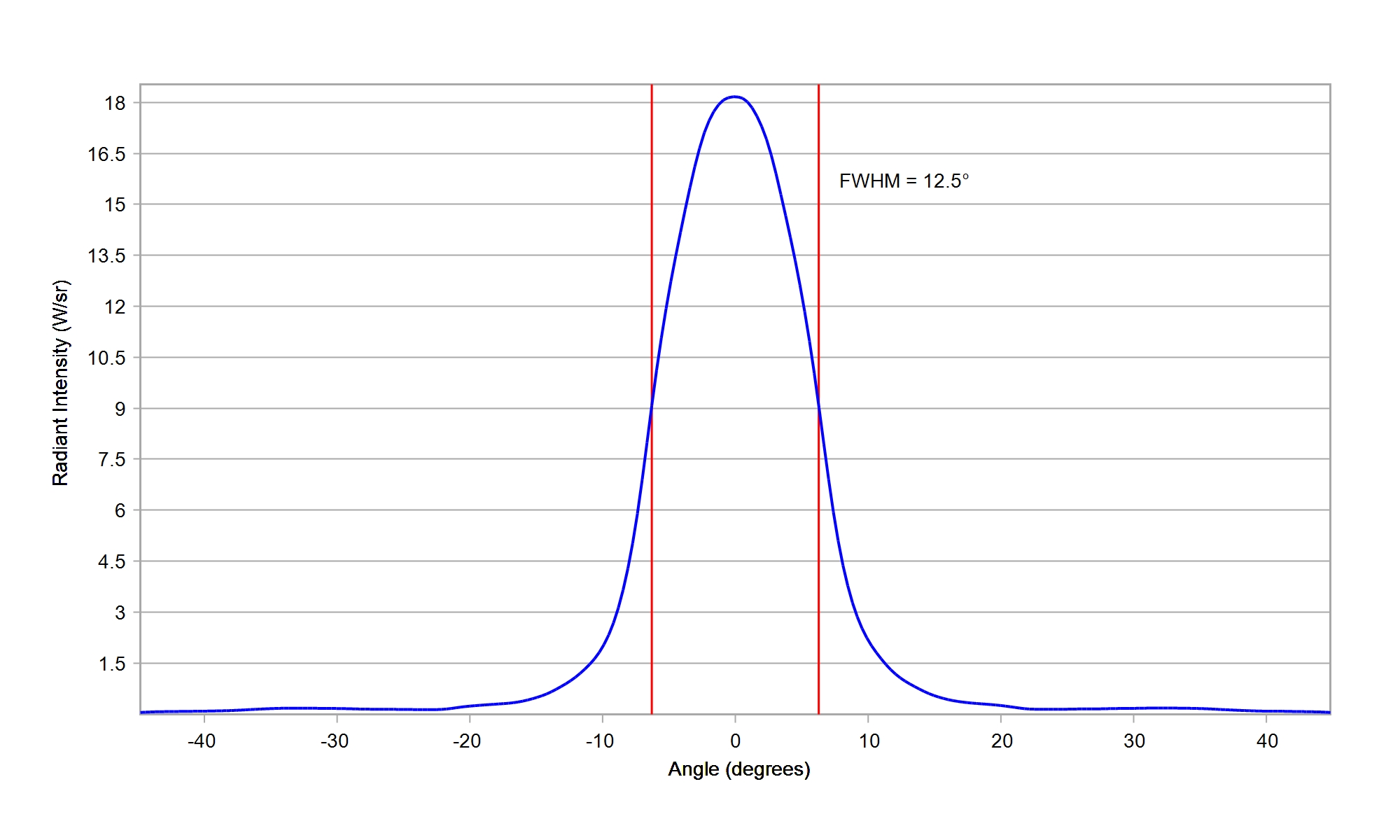

Carclo Optics - Simulated Cross Section

Download

ies

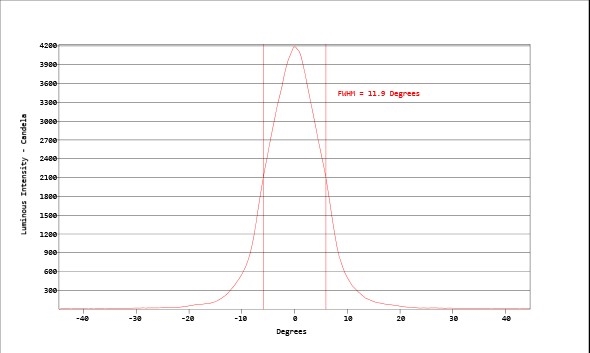

Cree XLamp XQ-E HI Green

Eff:

92.0%

FWHM:

12.0°

Cd/Im:

13.8

Carclo Optics - Simulated Spot Image

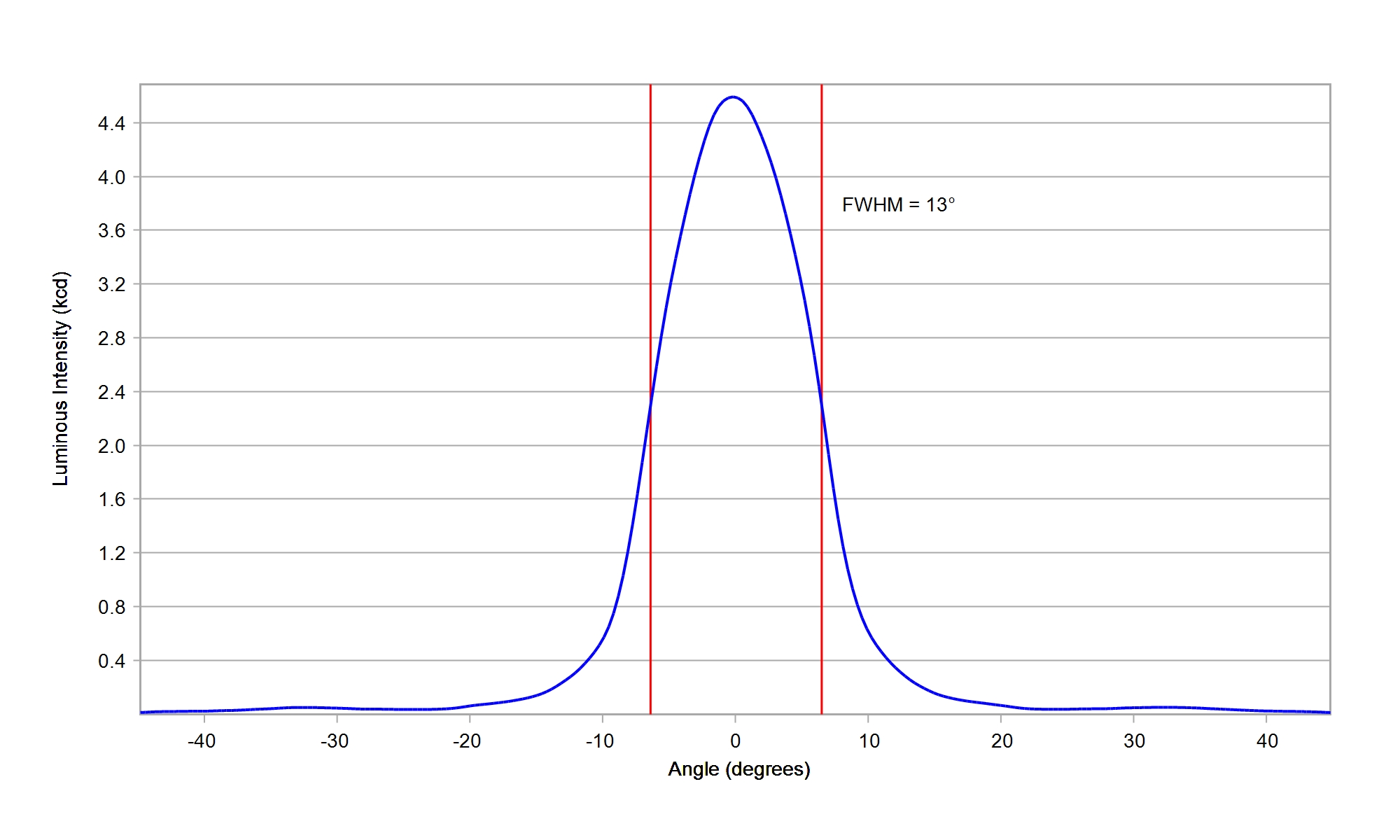

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-E HI Red

Eff:

92.0%

FWHM:

11.5°

Cd/Im:

15.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

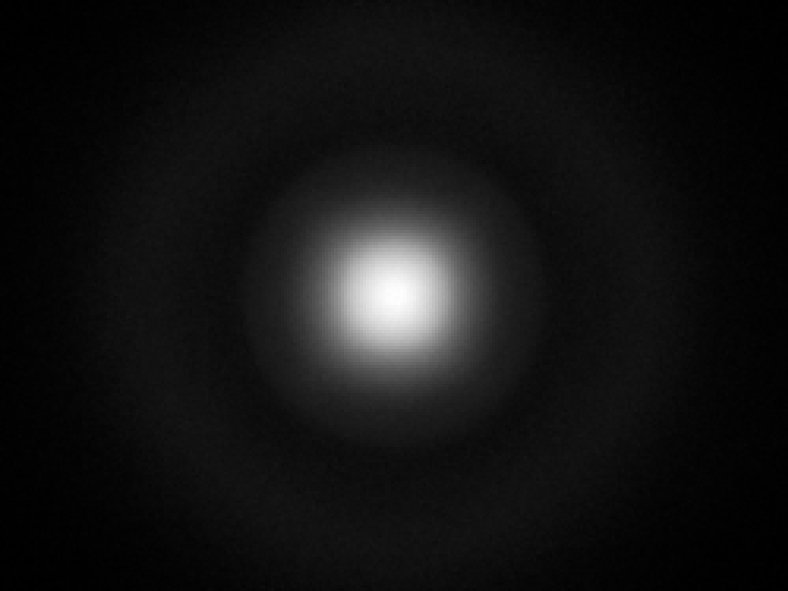

Cree XLamp XQ-E HI White

Eff:

91.5%

FWHM:

11°

Cd/Im:

17.7

Carclo Optics - Simulated Spot Image

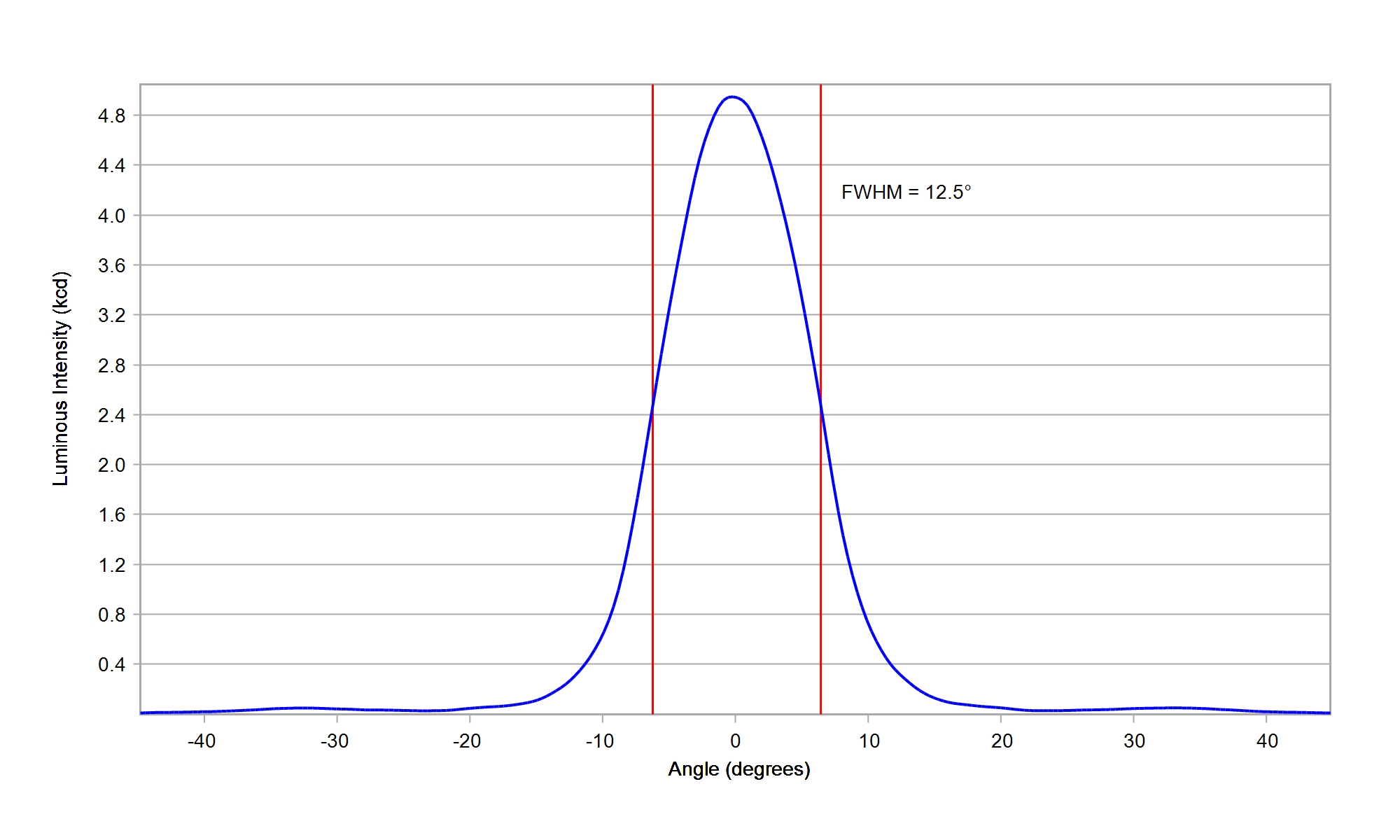

Carclo Optics - Simulated Cross Section

Download

ies

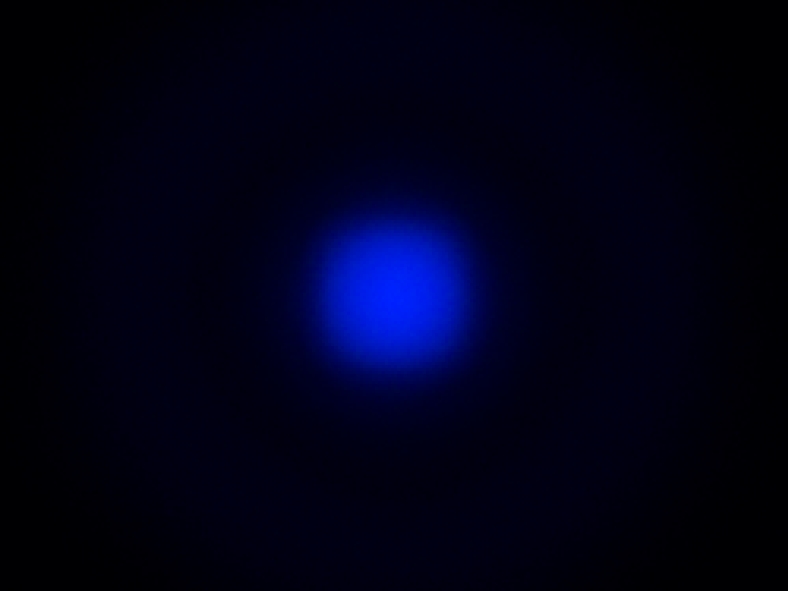

Cree XLamp XQ-E HD White

Eff:

90.5%

FWHM:

14.5°

Cd/Im:

10.2

Carclo Optics - Simulated Spot Image

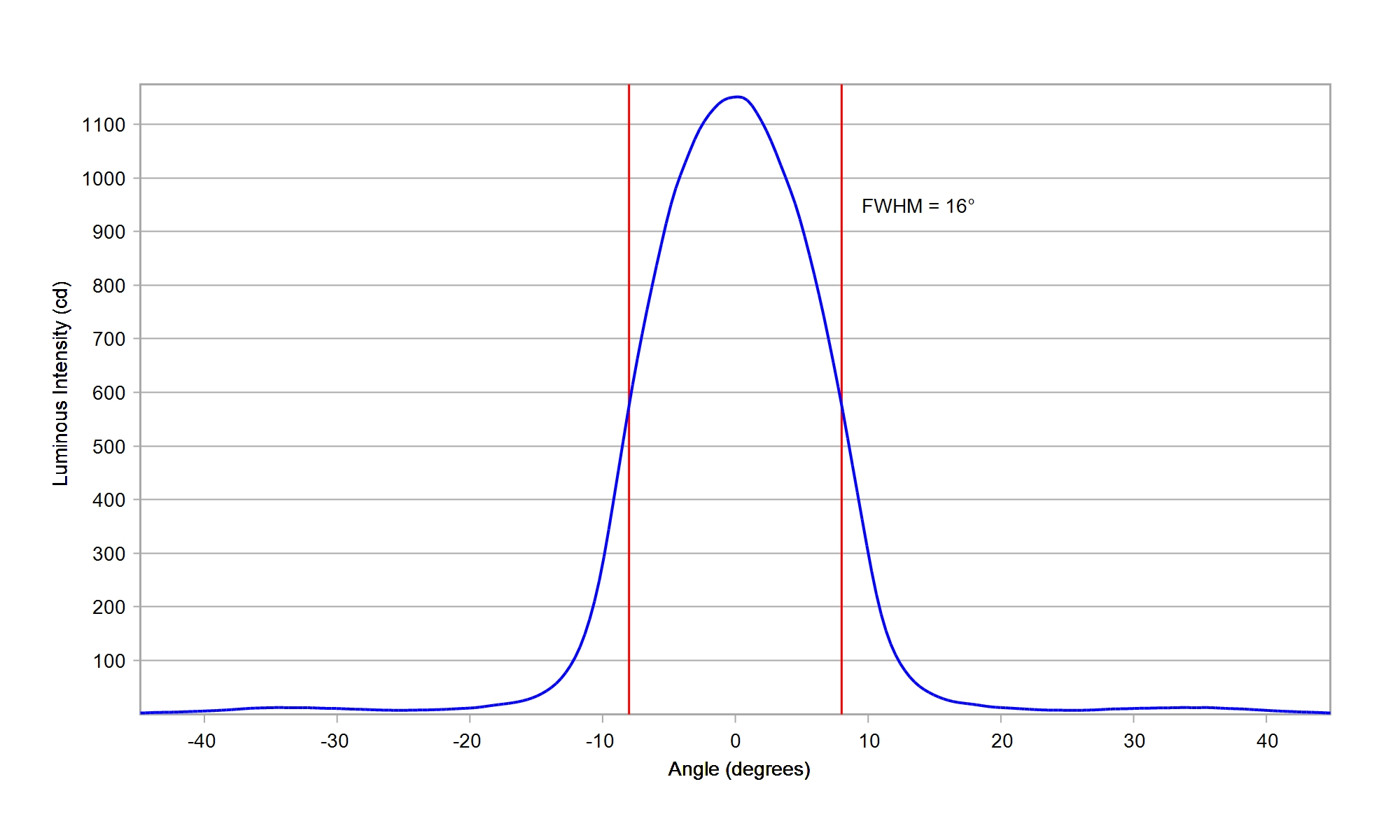

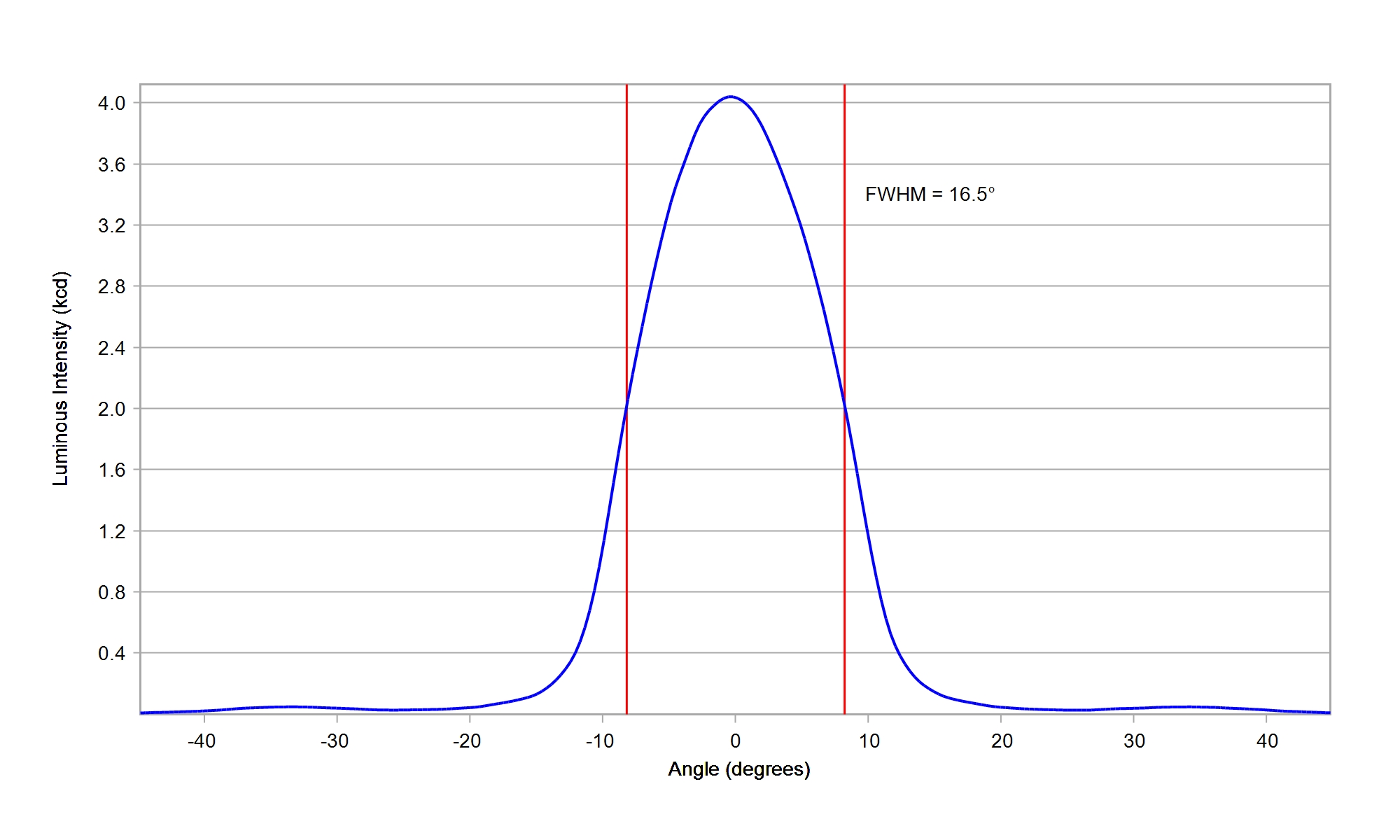

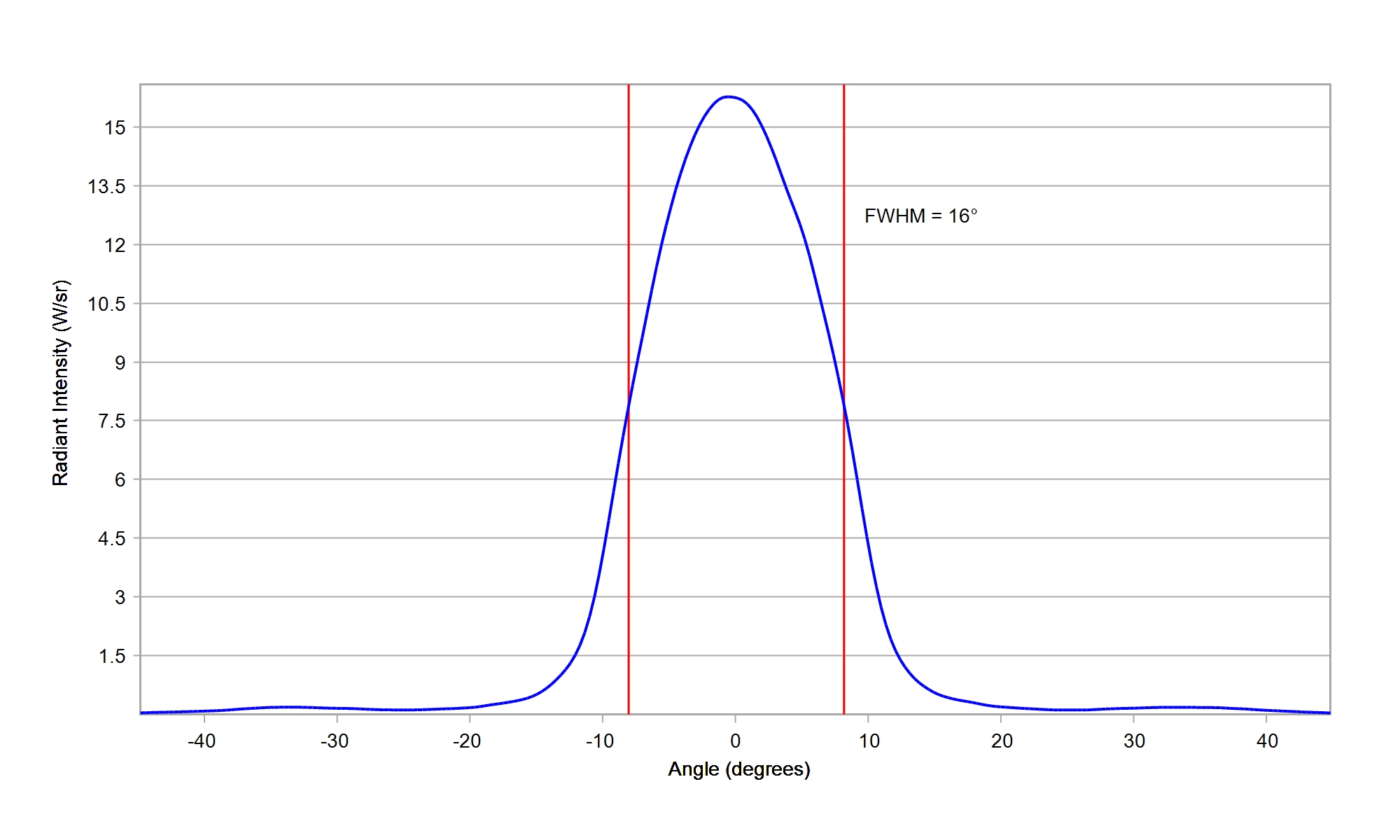

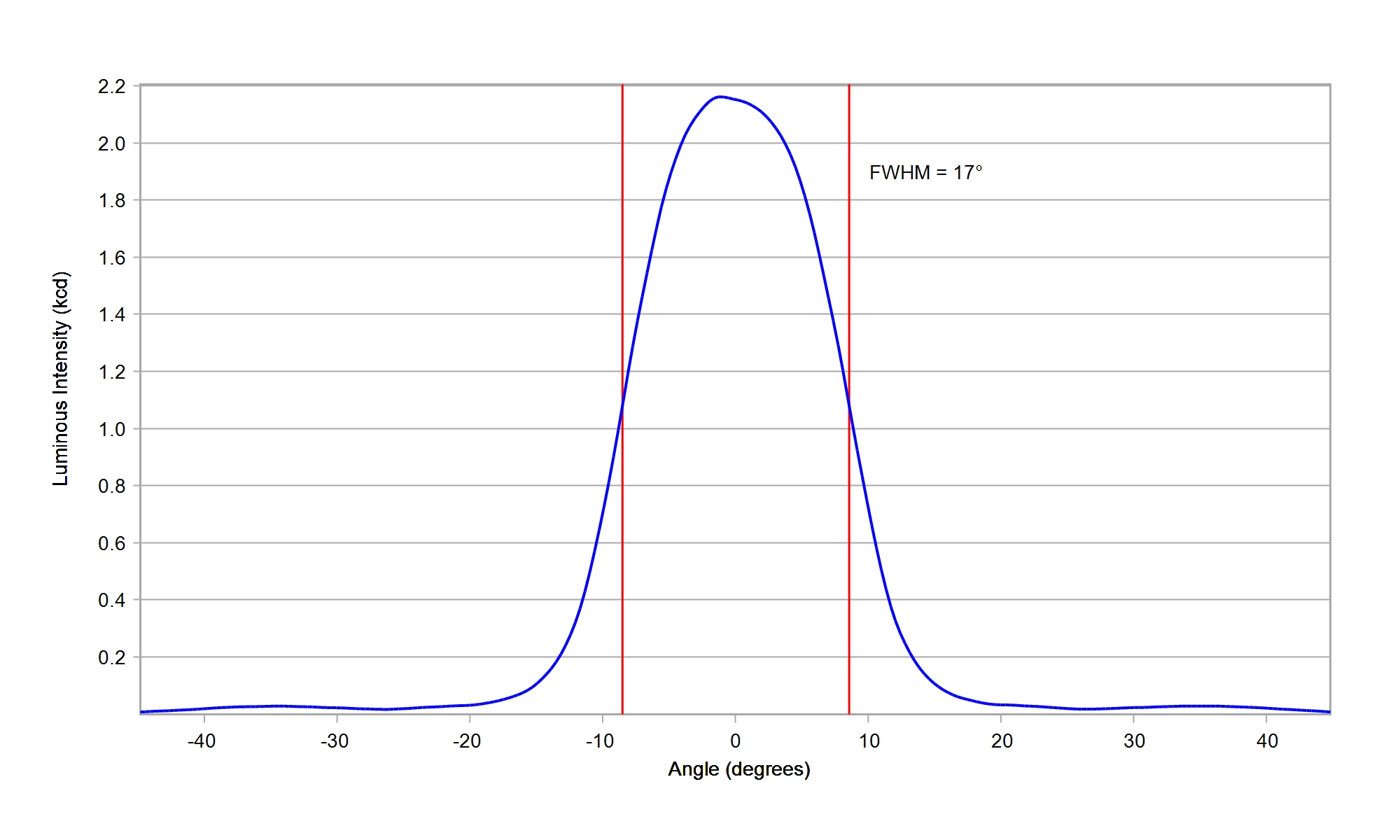

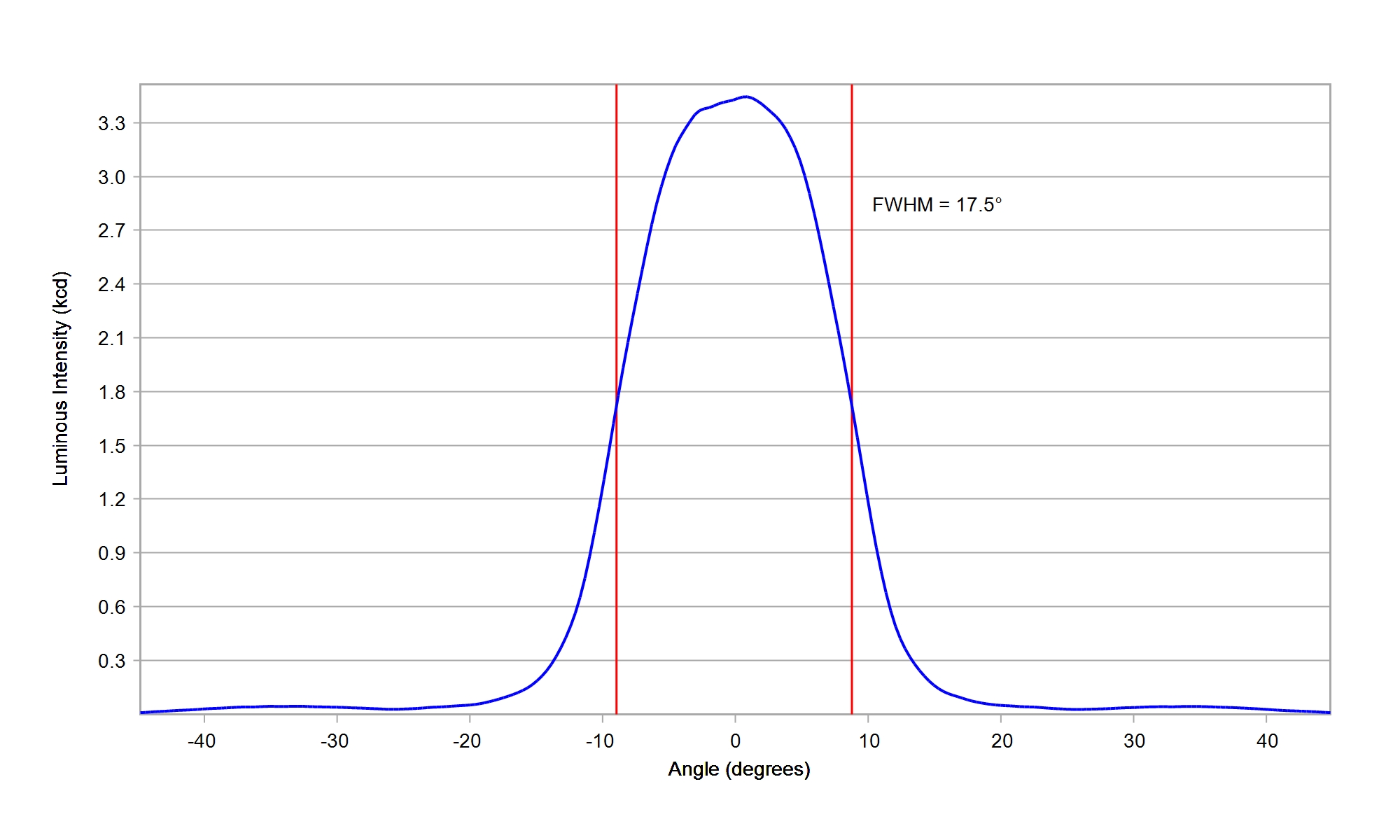

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XT-E White

Eff:

90.5%

FWHM:

21.5°

Cd/Im:

4.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Everlight Shuen White

Eff:

86.2%

FWHM:

20.9°

Cd/Im:

4.6

Spot Image

Cross Section

Download

ies

Lite-On R38386AS - S R38 IR

Eff:

93.0%

FWHM:

26.5°

Cd/Im:

4.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

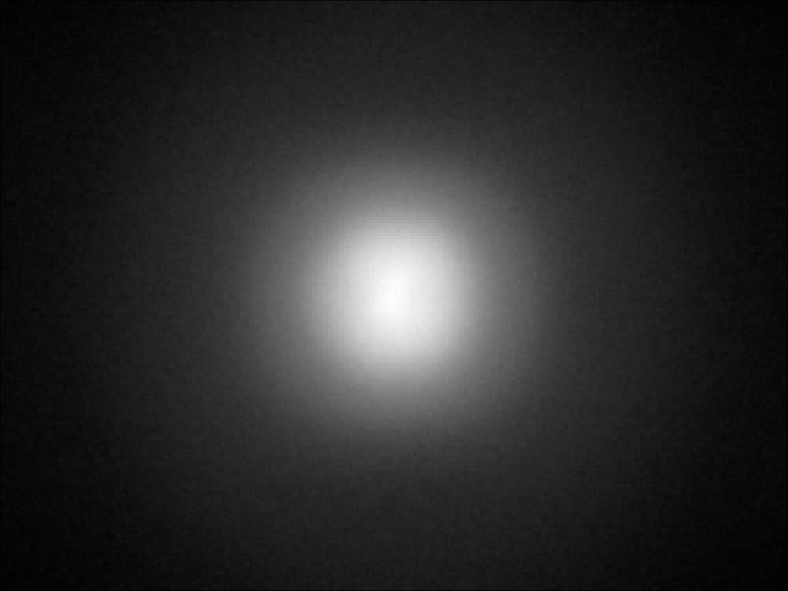

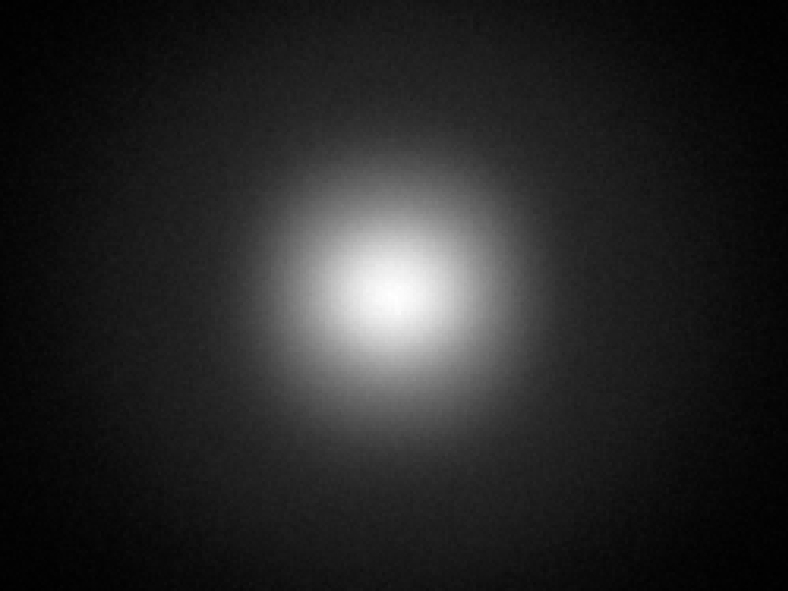

LUMILEDS LUXEON 3014 White

Eff:

91.0%

FWHM:

11.5°

Cd/Im:

15.2

Download

IES

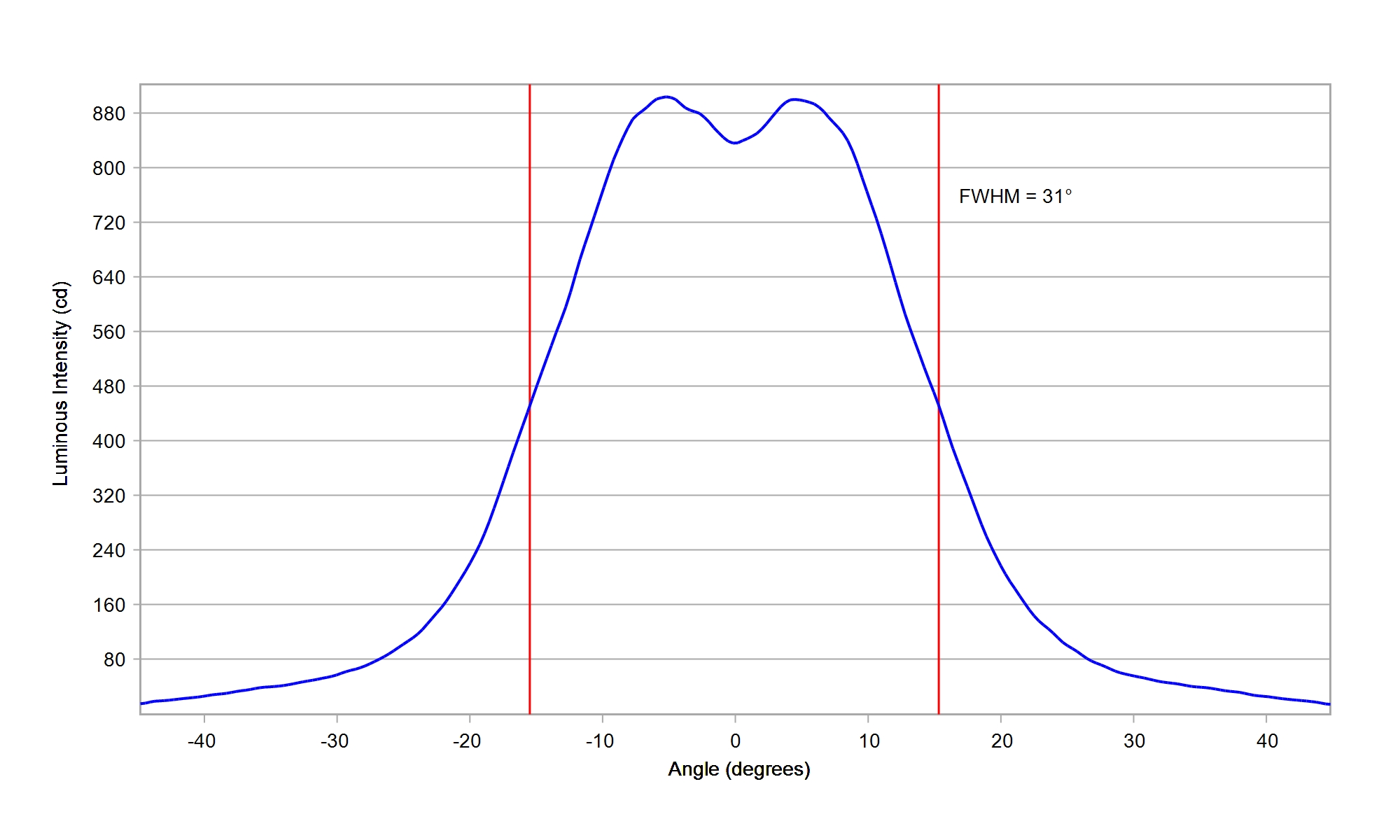

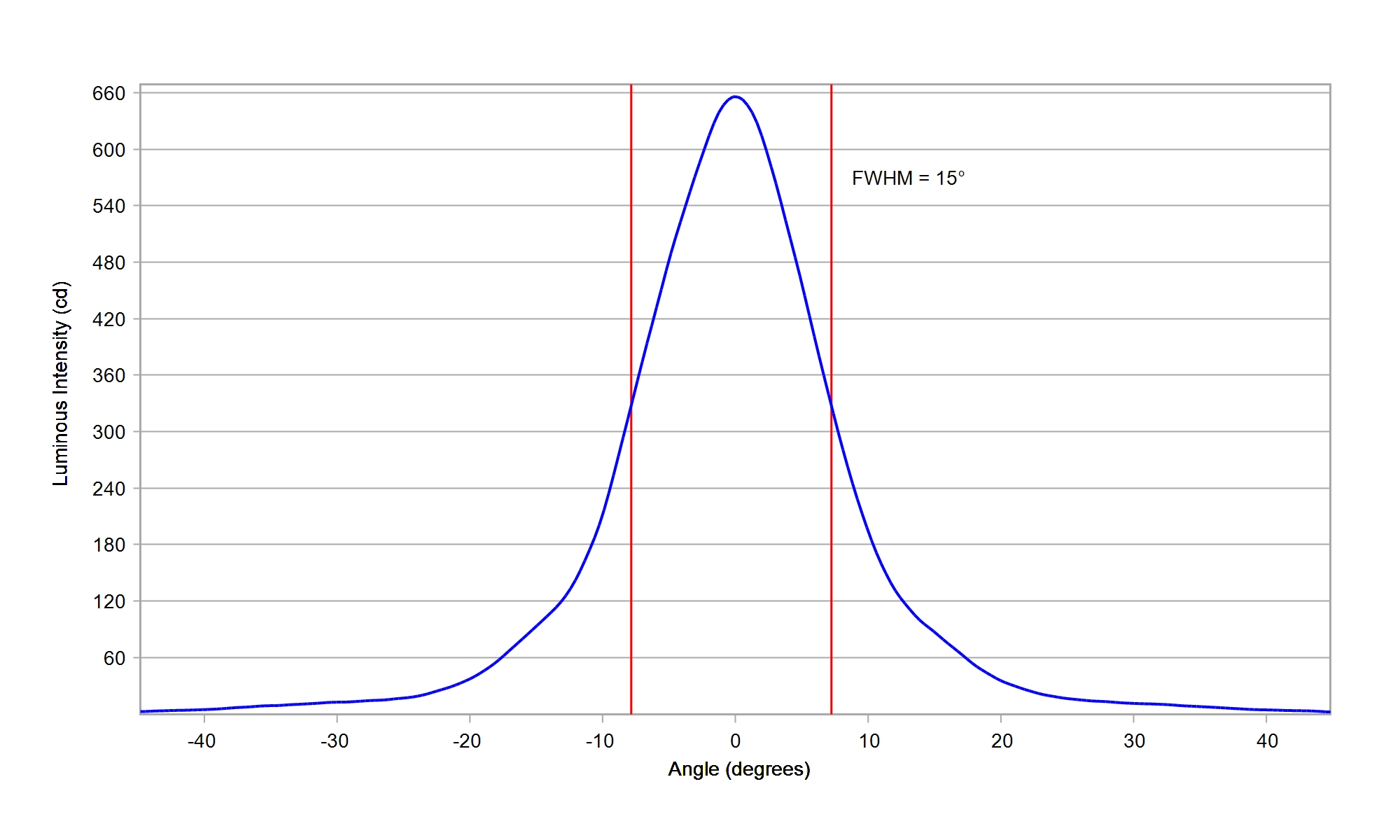

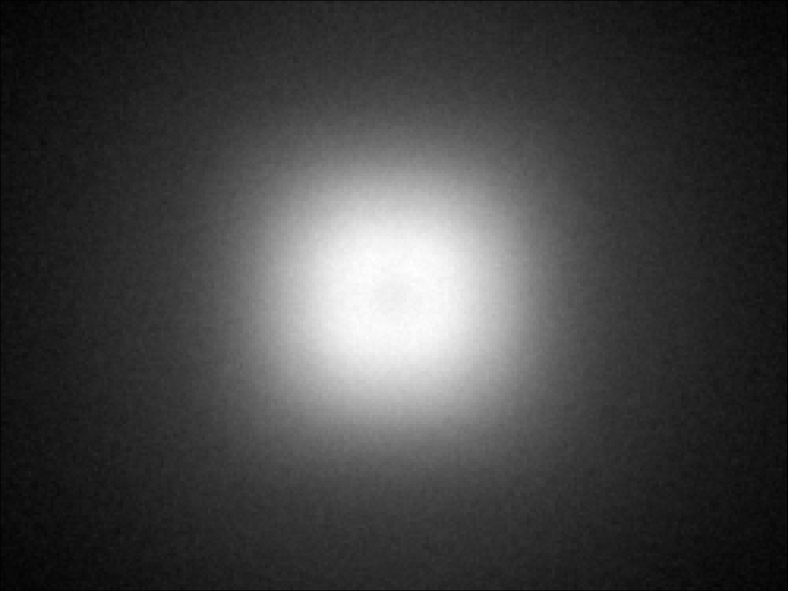

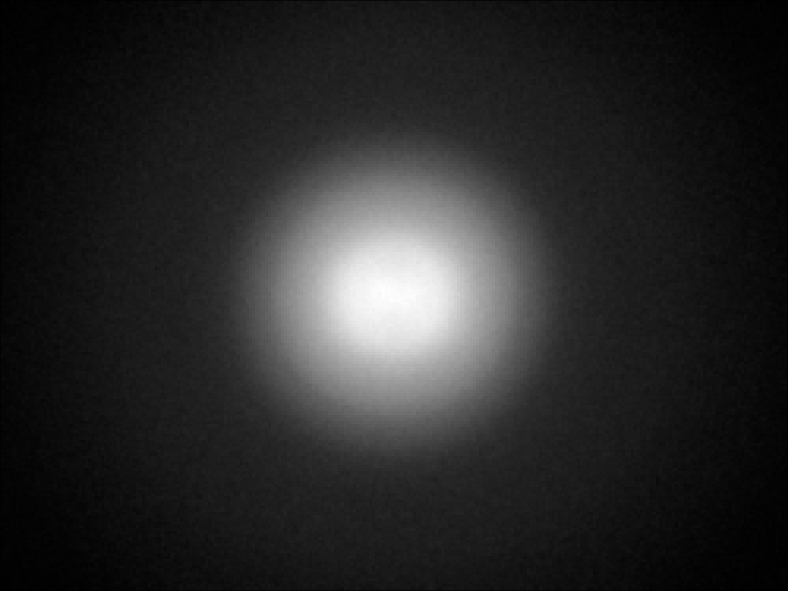

LUMILEDS LUXEON 3030 HE Plus White

Eff:

93.0%

FWHM:

20°

Cd/Im:

5.4

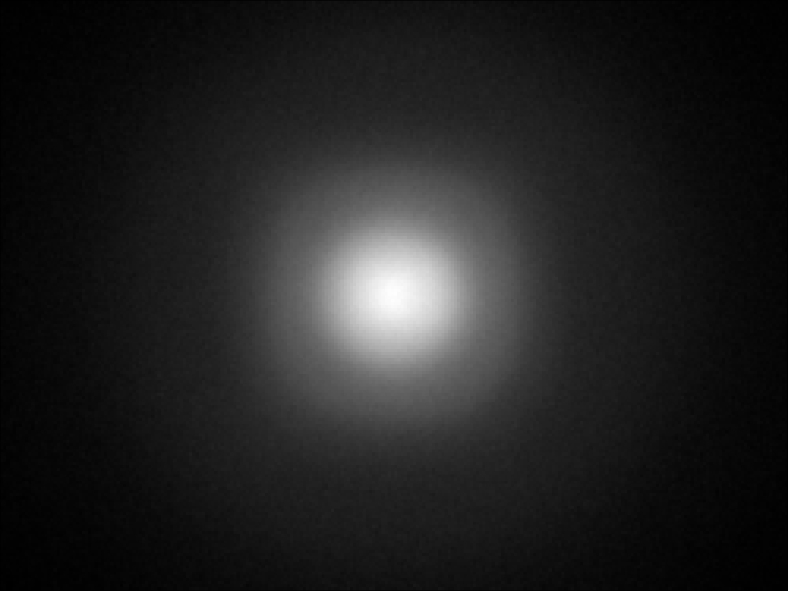

Carclo Optics – 10507 – Luxeon_3030_HE_Plus_spot-image

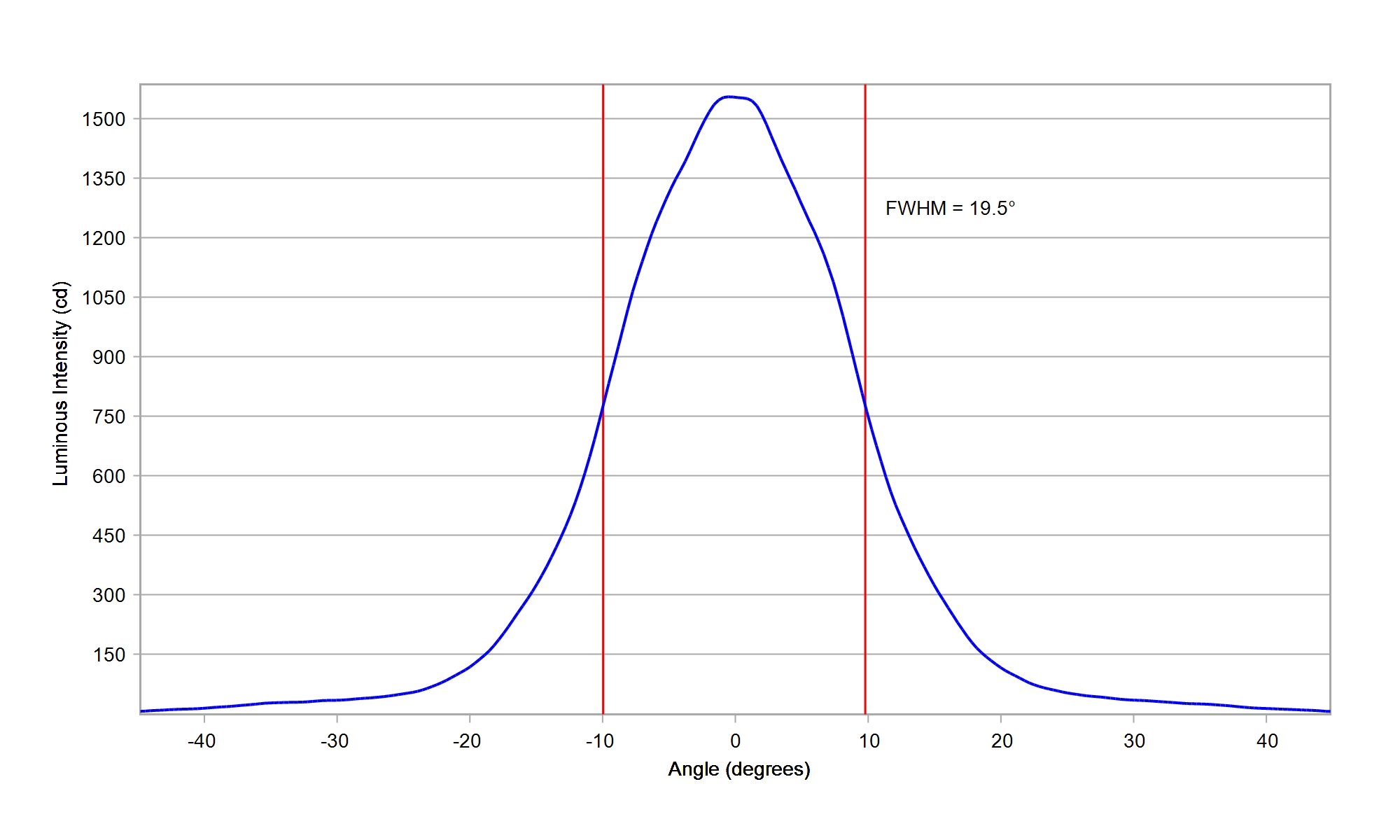

Carclo Optics – 10507 – Luxeon_3030_HE_Plus_cross vertical section

Download

ies

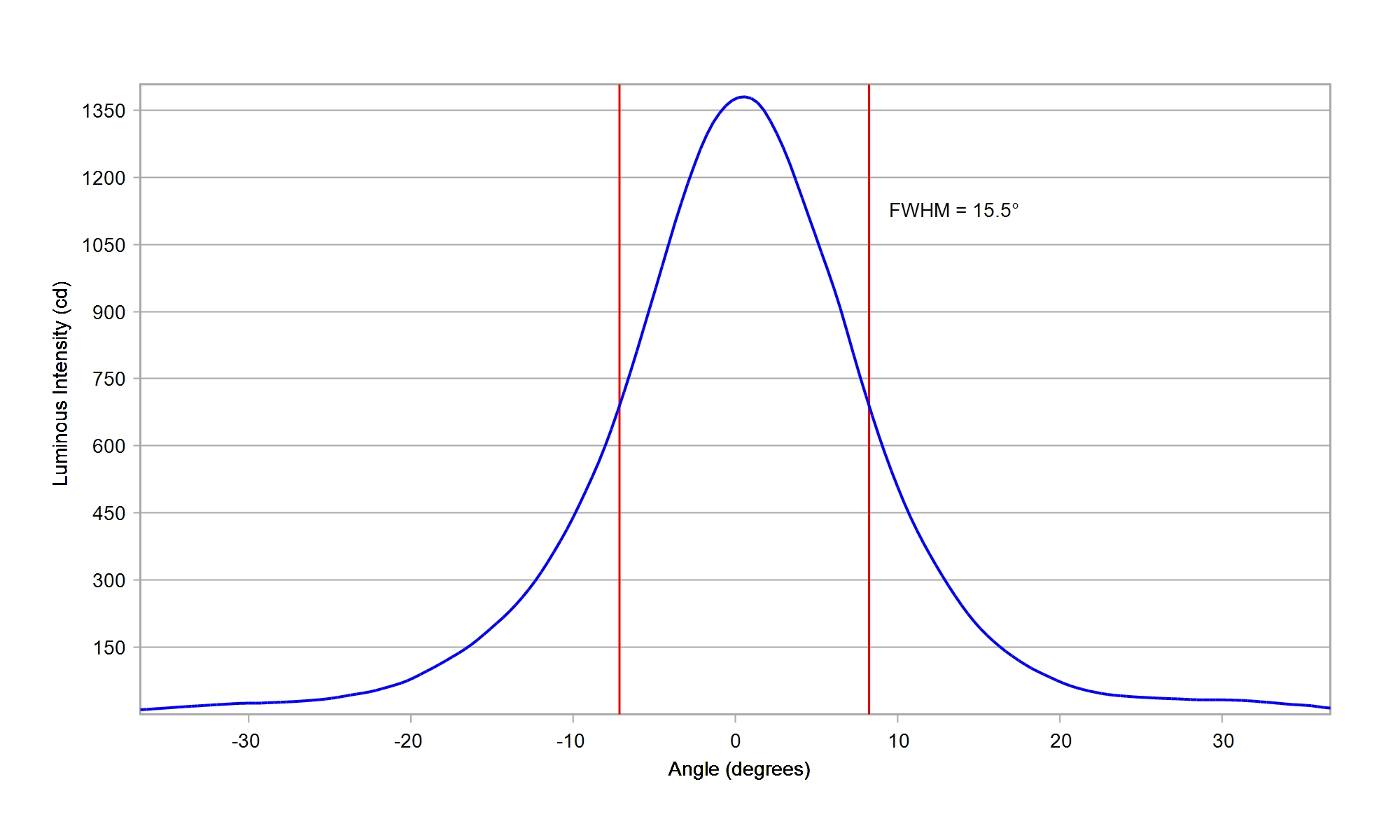

LUMILEDS LUXEON 3030 LUXEON White

Eff:

90.5%

FWHM:

21.5°

Cd/Im:

4.8

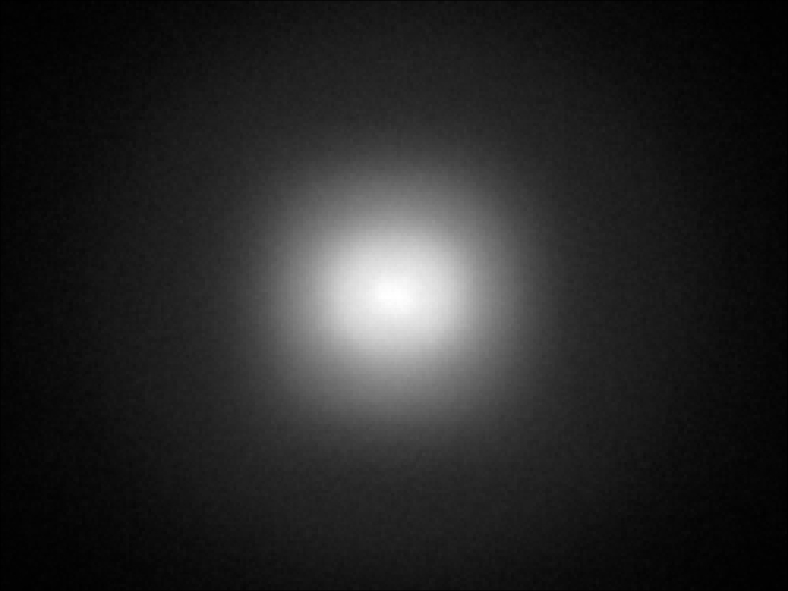

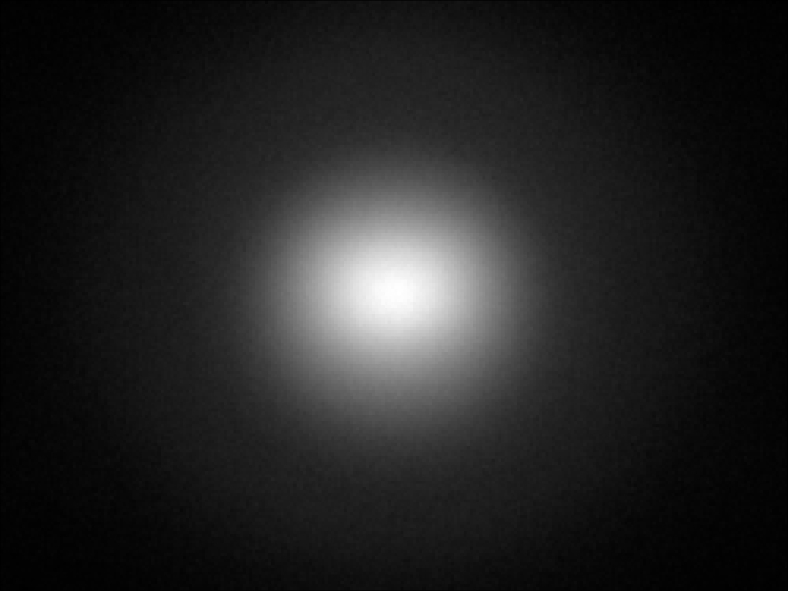

Carclo Optics - Simulated Spot Image

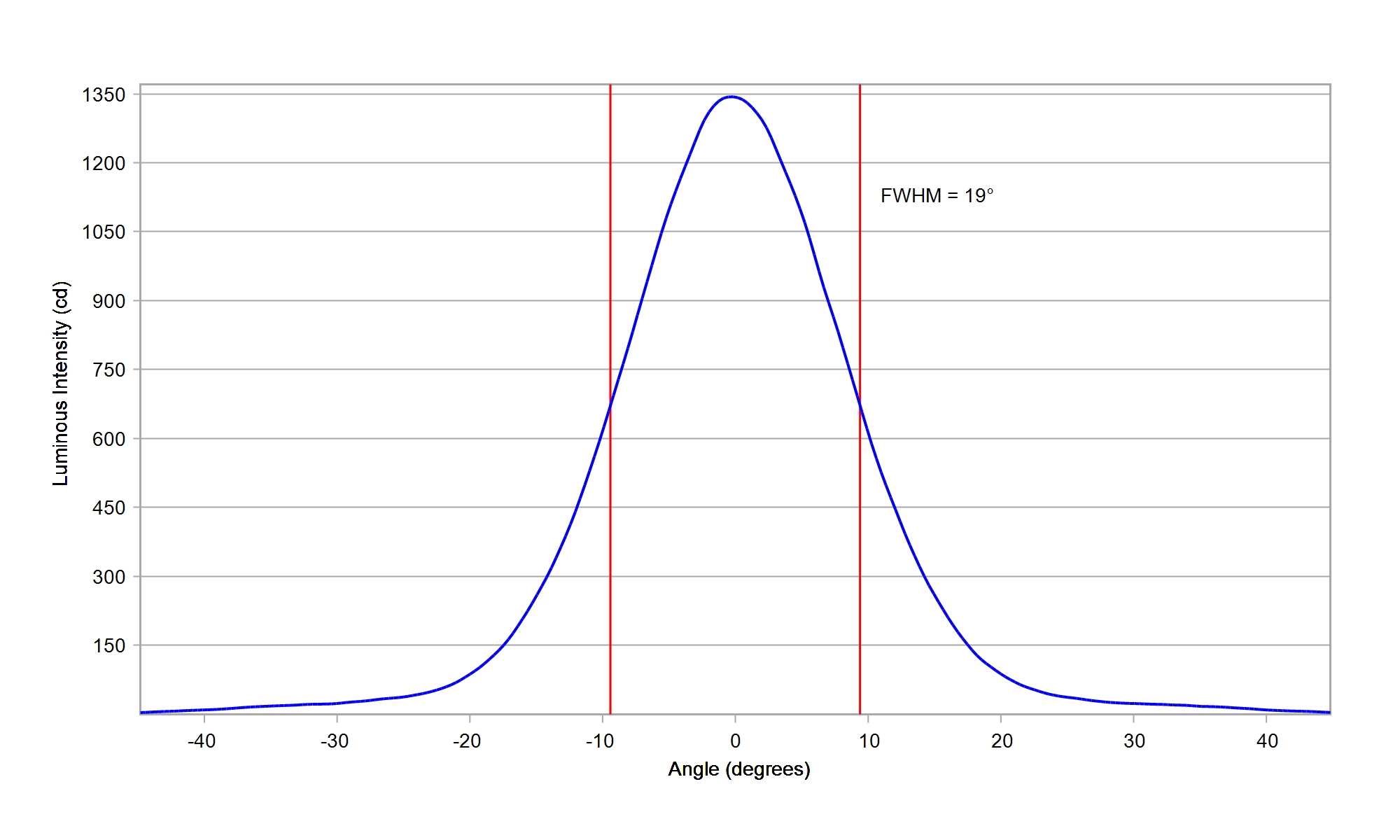

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON 3535 HV White

Eff:

88.5%

FWHM:

17°

Cd/Im:

5.9

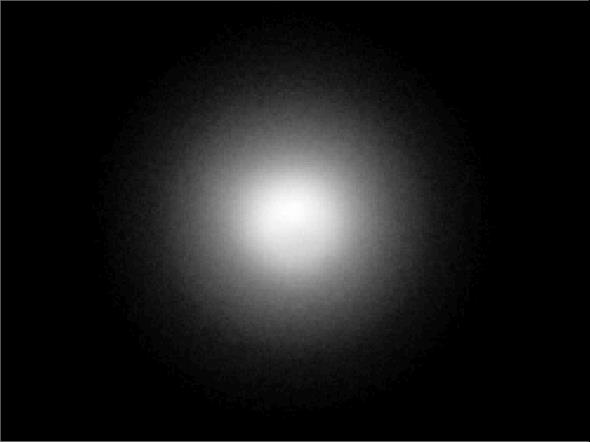

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

ies

LUMILEDS LUXEON 3535 L White

Eff:

91.5%

FWHM:

17.0°

Cd/Im:

6.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON C Blue

Eff:

85.5%

FWHM:

15.5°

Cd/Im:

7.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON C Lime

Eff:

87.5%

FWHM:

16.0°

Cd/Im:

8.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON C Red

Eff:

84.5%

FWHM:

16.5°

Cd/Im:

6.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON C White

Eff:

85.9%

FWHM:

14.2°

Cd/Im:

12.6

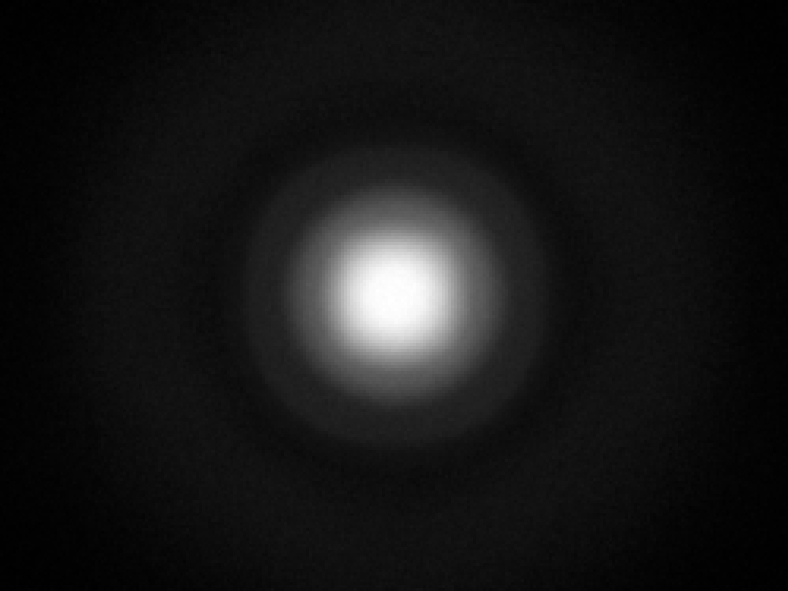

Spot Image

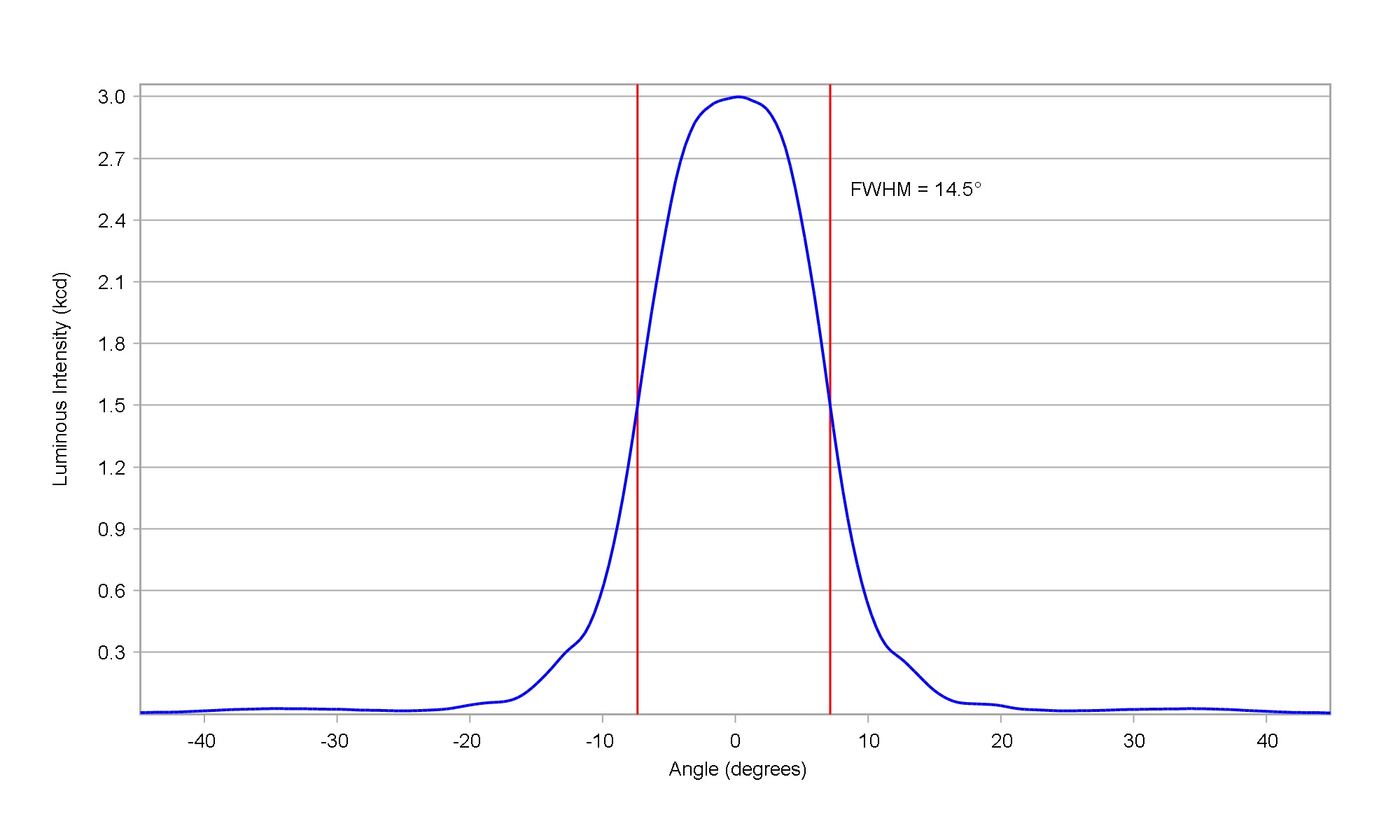

Cross Section

Download

ies

LUMILEDS LUXEON CSP 10 White

Eff:

88.5%

FWHM:

17.3°

Cd/Im:

3.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON CZ White

Eff:

92.5%

FWHM:

11.5°

Cd/Im:

18.2

Carclo Optics 10507 Spot Image Luxeon CZ 5M CW

Carclo Optics 10507 Cross Section Luxeon CZ 5M CW

Download

ies

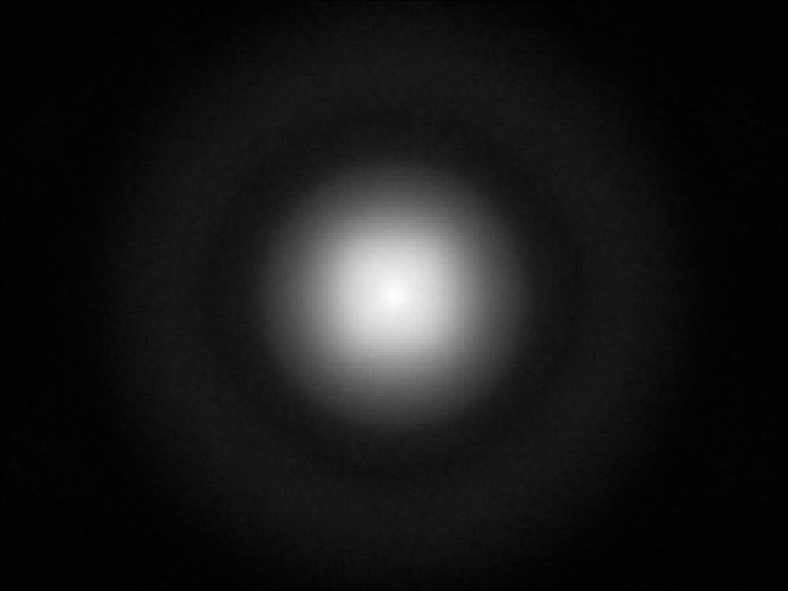

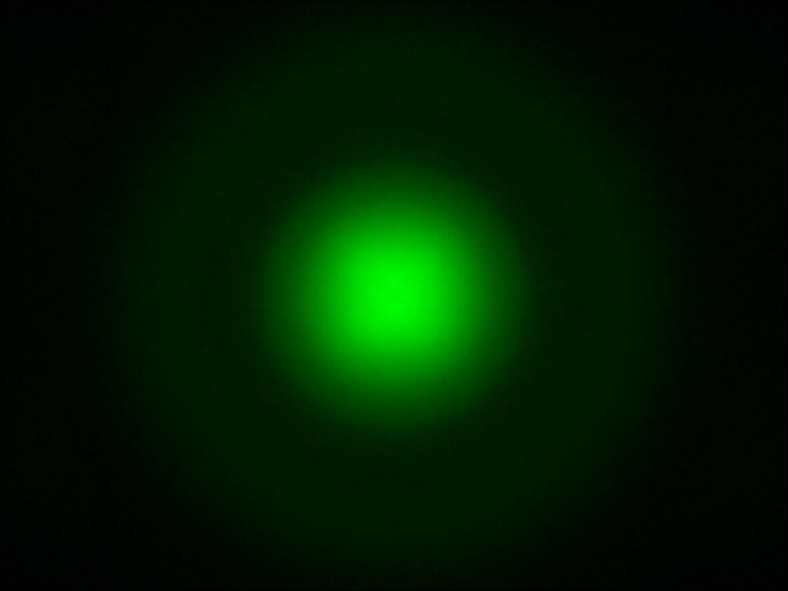

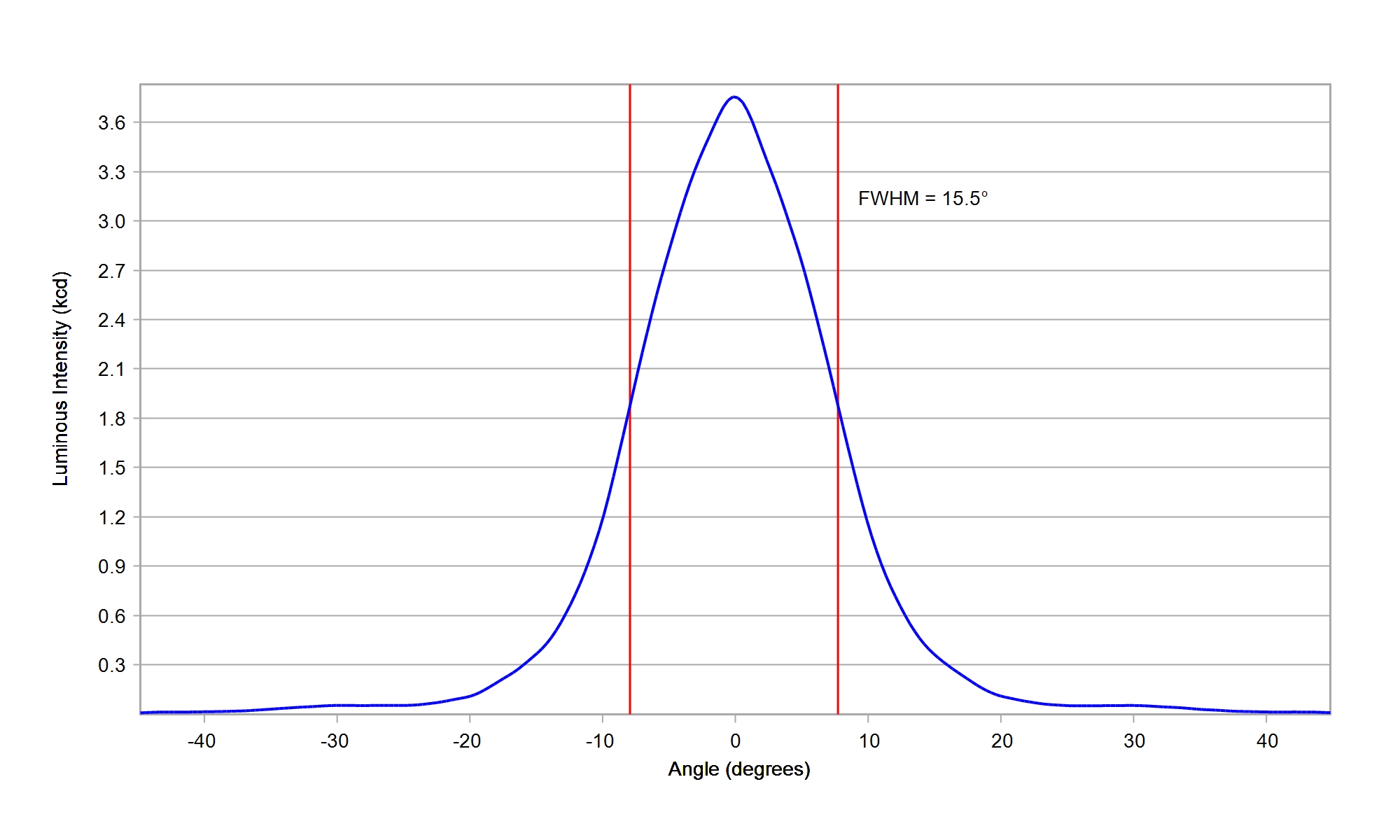

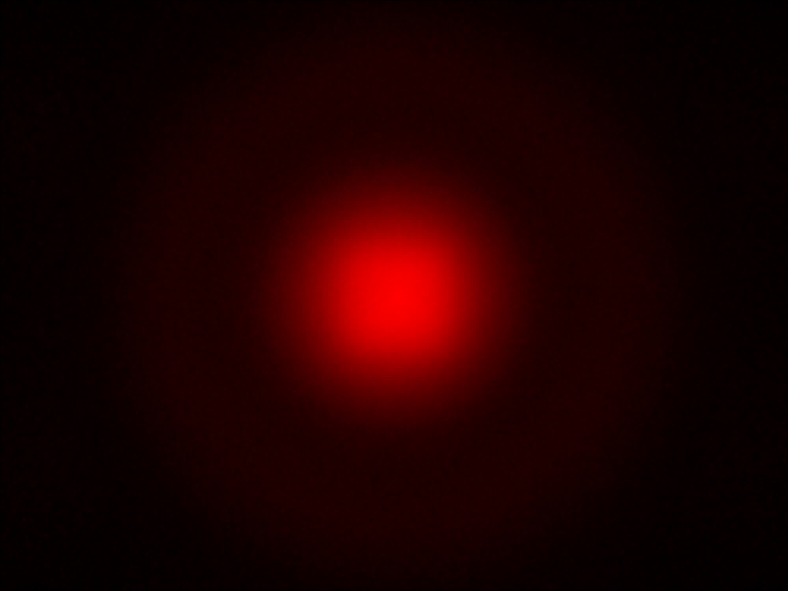

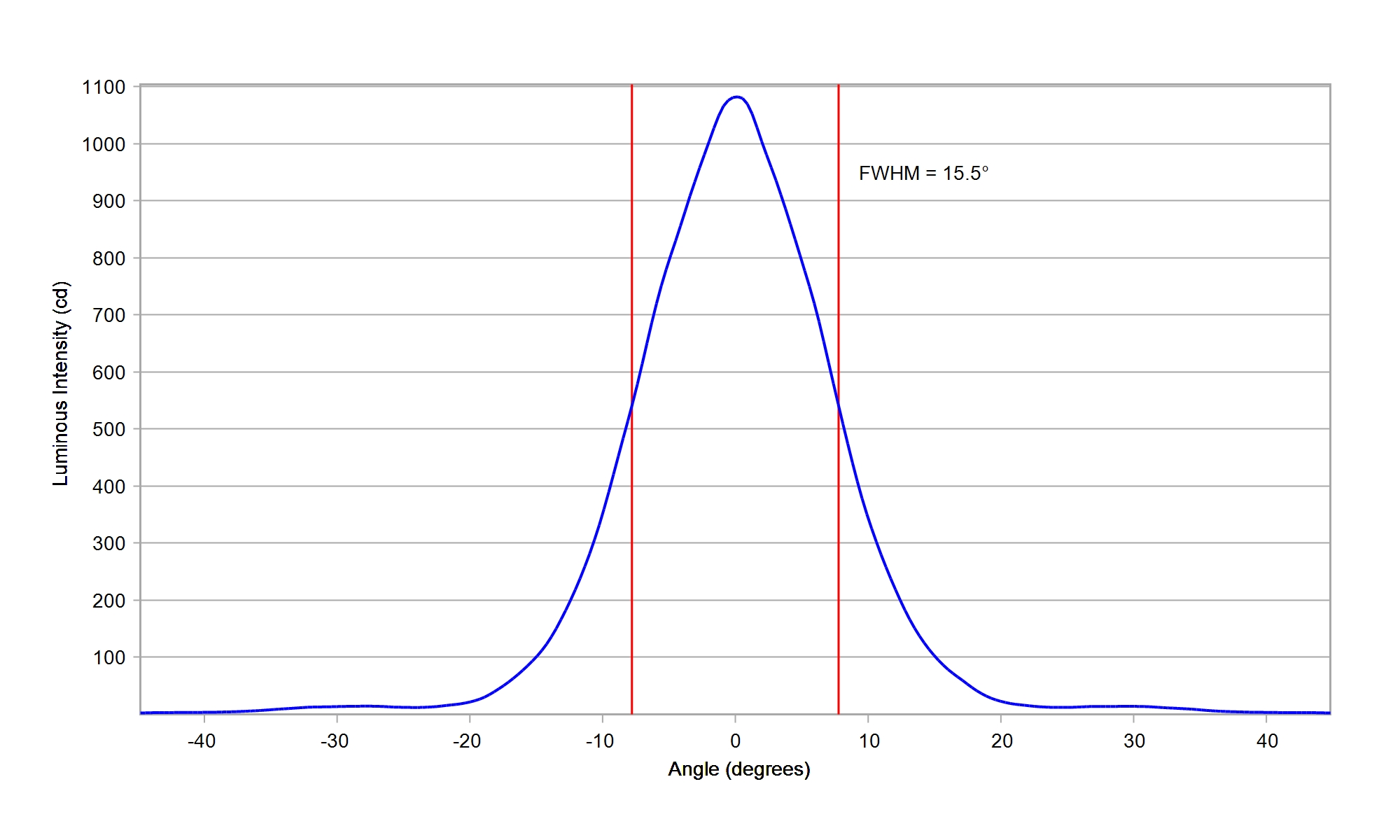

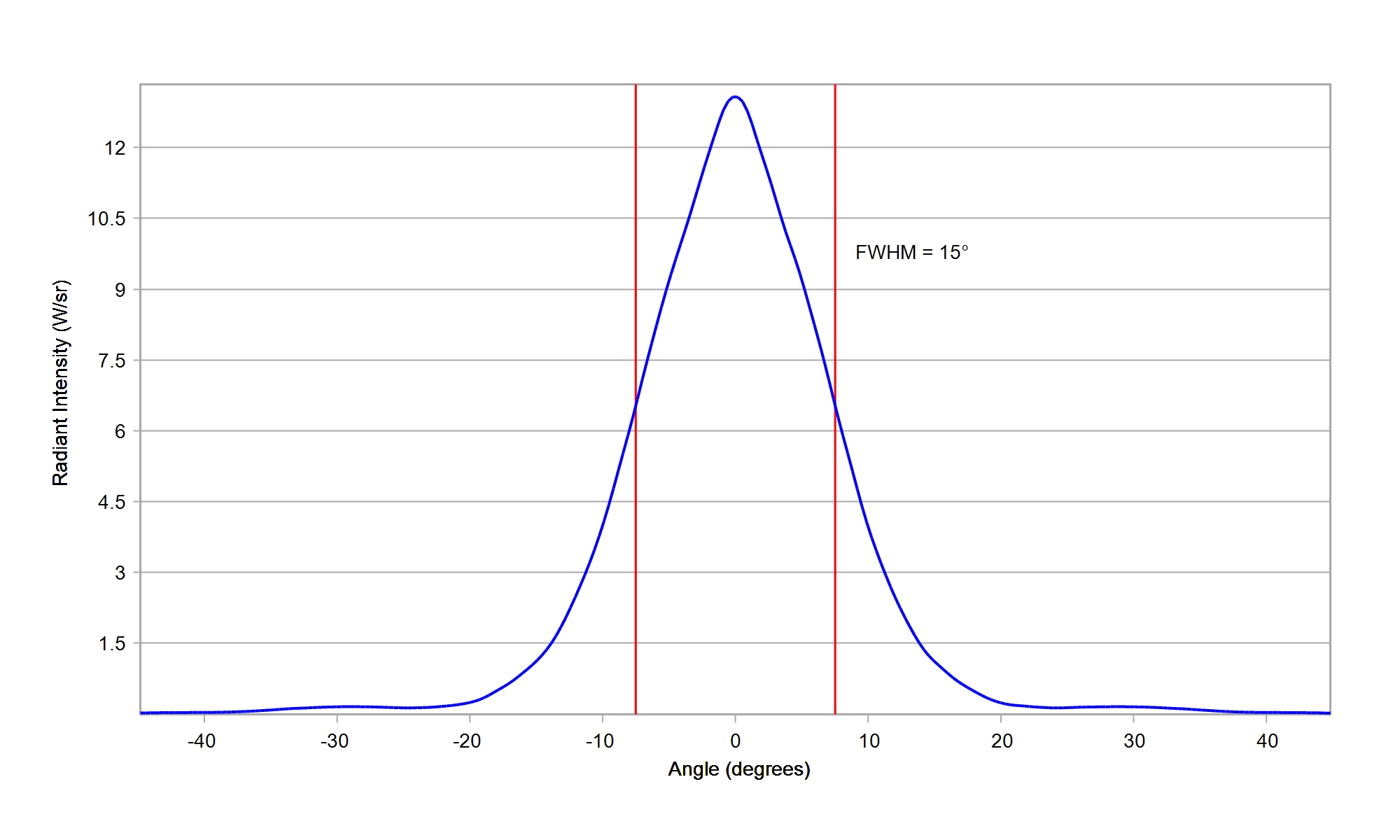

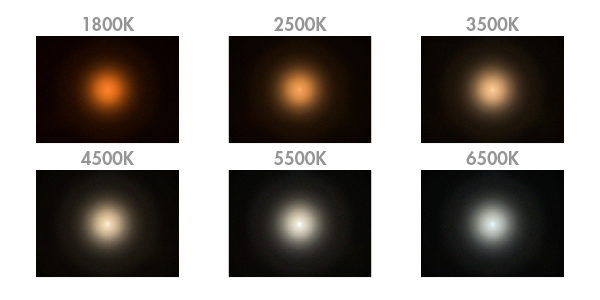

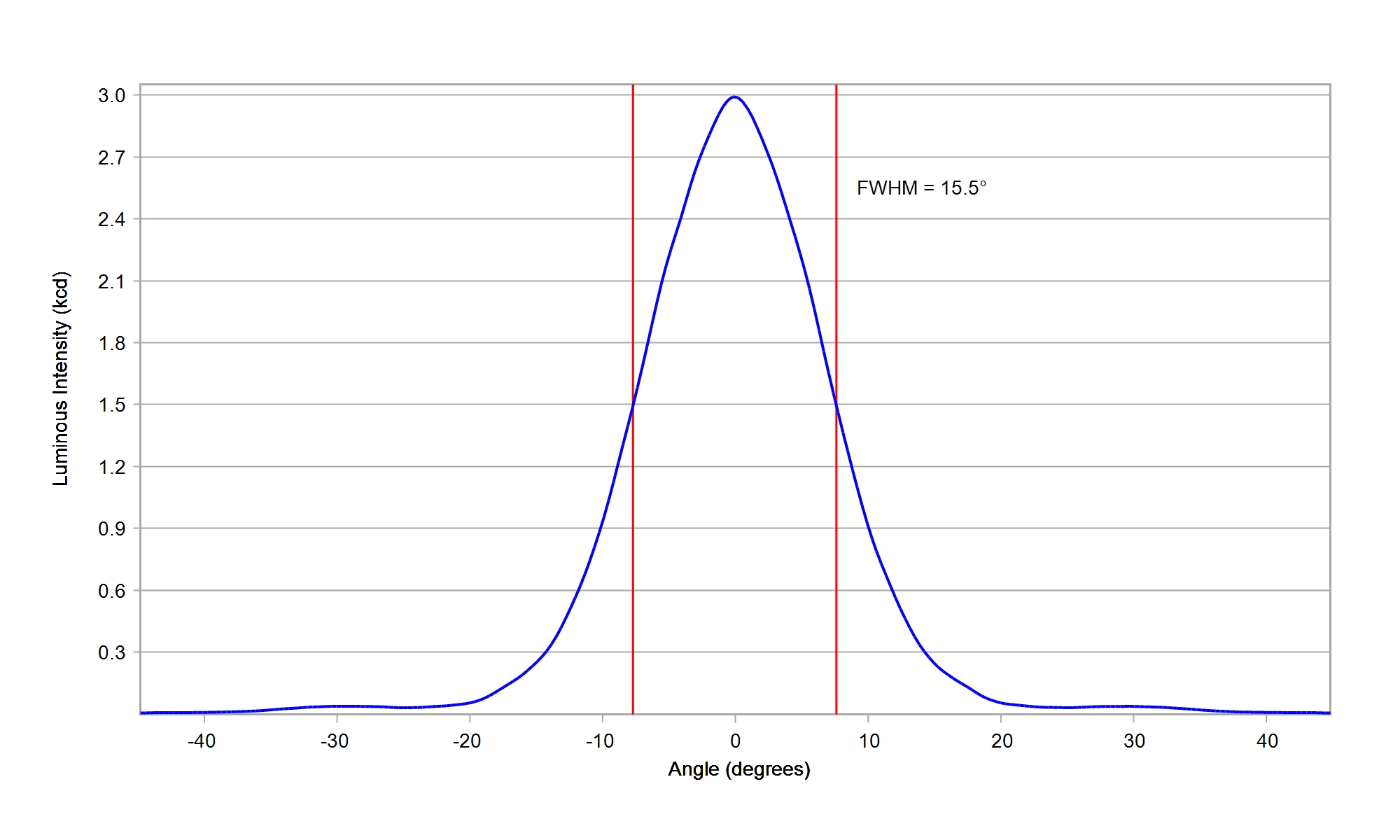

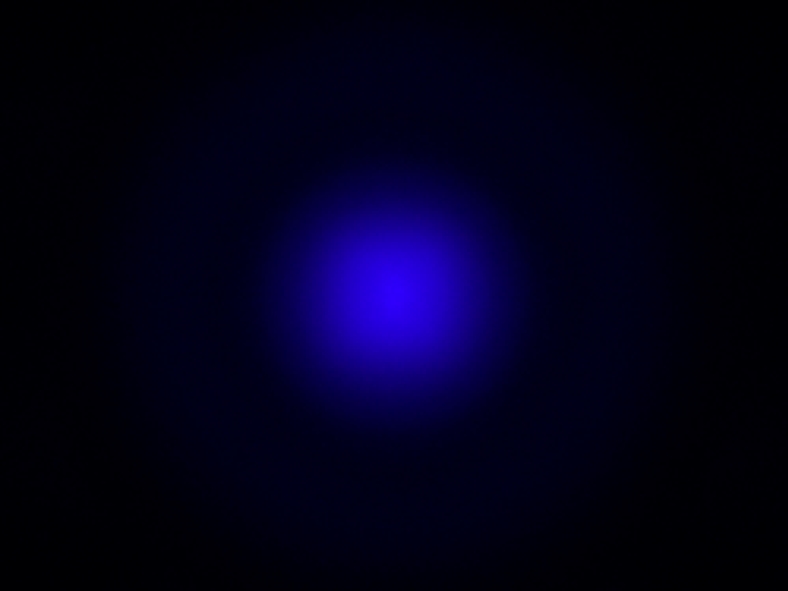

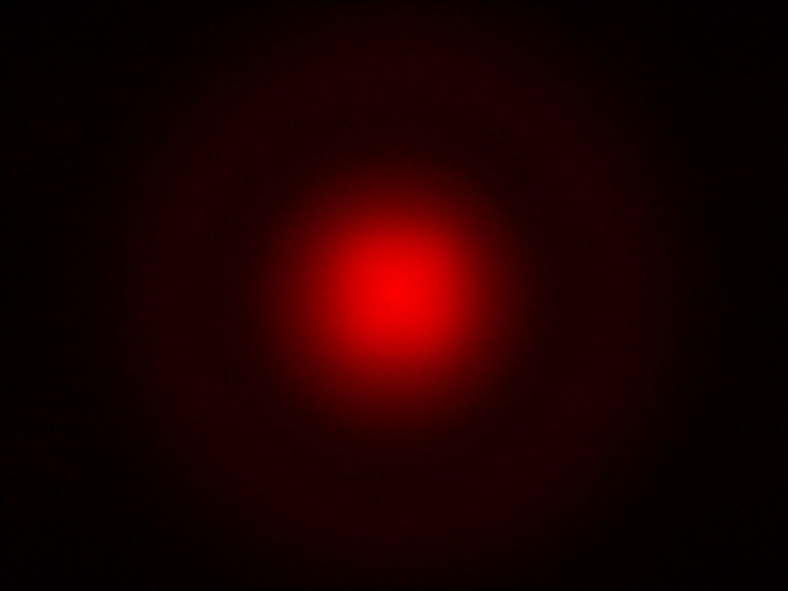

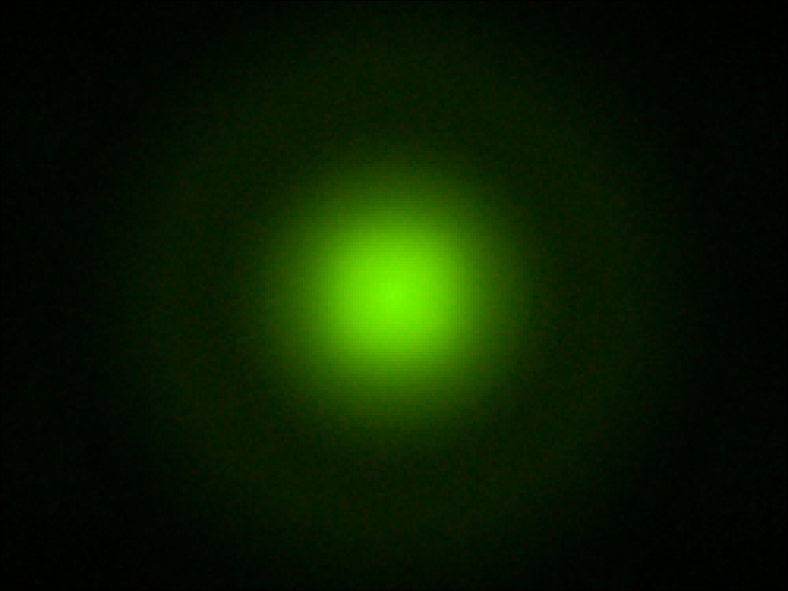

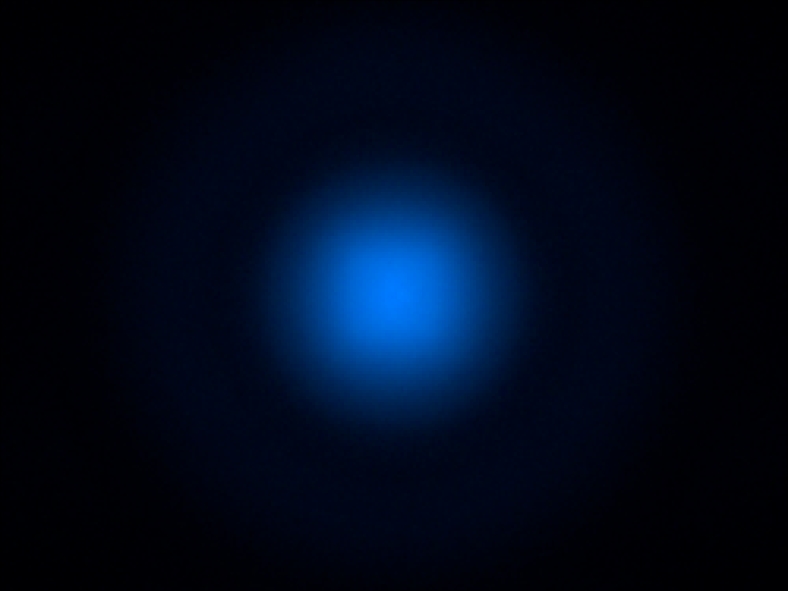

LUMILEDS LUXEON HL1Z CSP White

Eff:

92.5%

FWHM:

16°

Cd/Im:

9.2

Download

ies

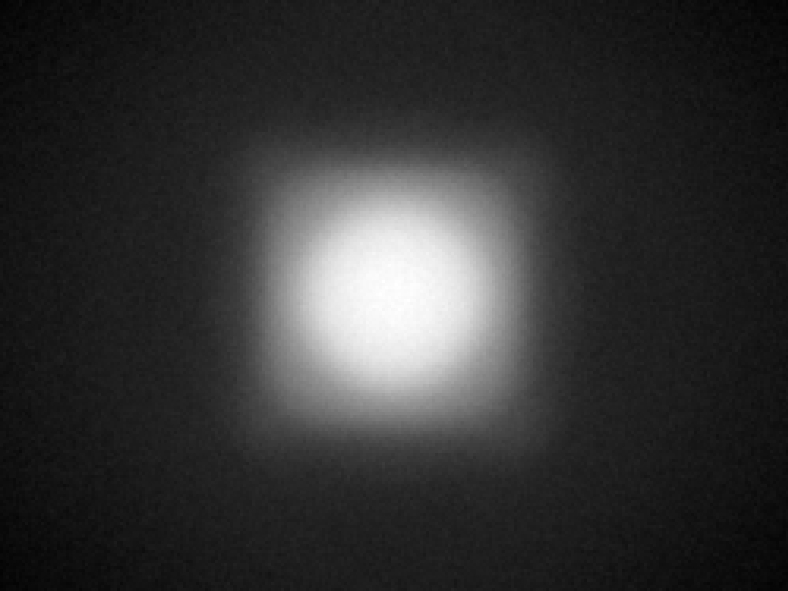

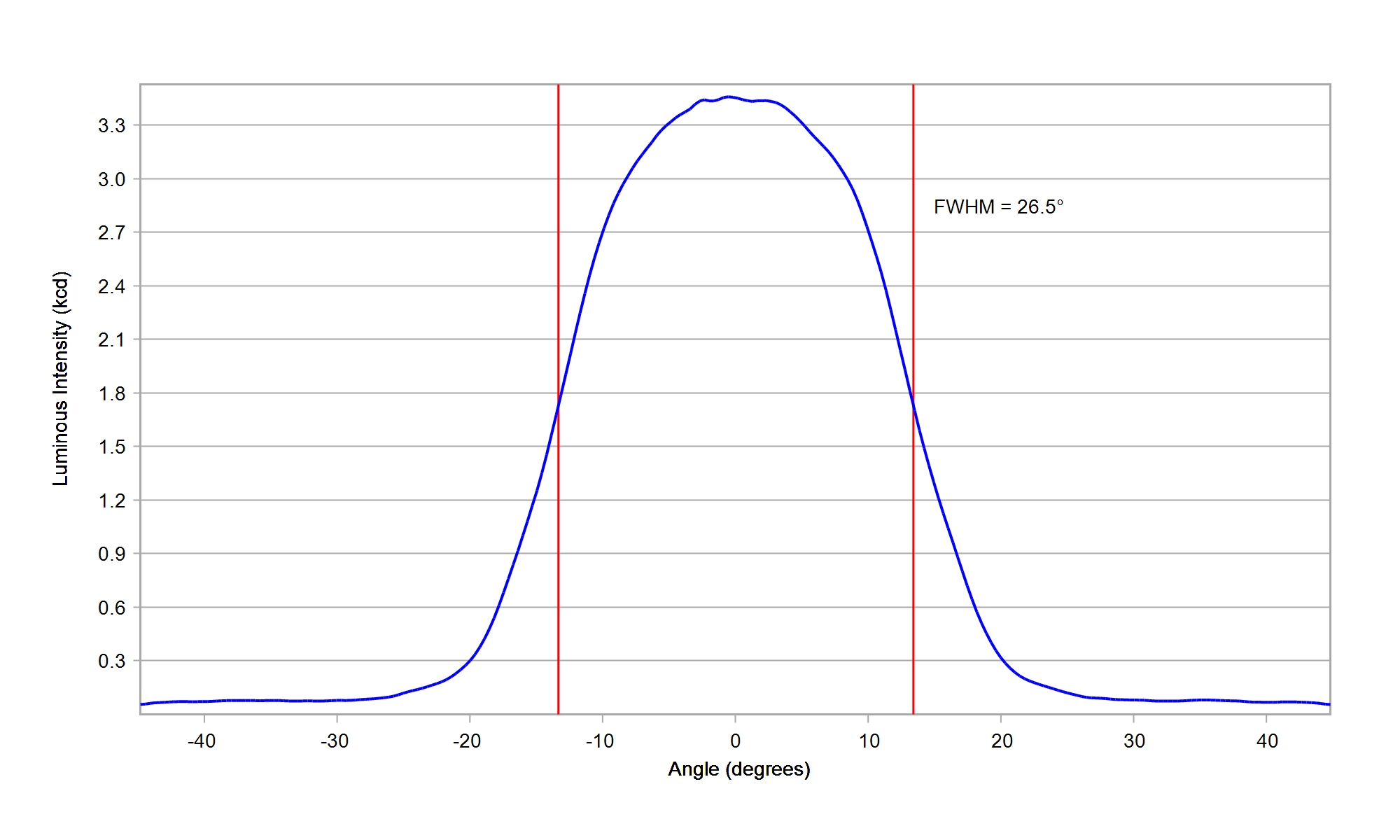

LUMILEDS LUXEON HL2X White

Eff:

91.5%

FWHM:

25.5°

Cd/Im:

4.0

Download

ies

LUMILEDS LUXEON HL2Z White

Eff:

91.5%

FWHM:

19°

Cd/Im:

5.7

Carclo Optics – 10507 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 10507 Lumileds Luxeon HL2Z - Cross-Section

Download

ies

LUMILEDS LUXEON IR 2720

Eff:

94.5%

FWHM:

17.0°

Cd/Im:

8.9

Carclo Optics - 10507 10mm Triple Spot Image LuxeonIR 2720

Carclo Optics - 10507 10mm Triple Cross Section LuxeonIR 2720

Download

ies

LUMILEDS LUXEON IR Compact 850nm

Eff:

94.0%

FWHM:

14.5°

Ipk/W:

10.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON IR Domed 150 Degree

Eff:

93.0%

FWHM:

17.5°

Cd/Im:

7.2

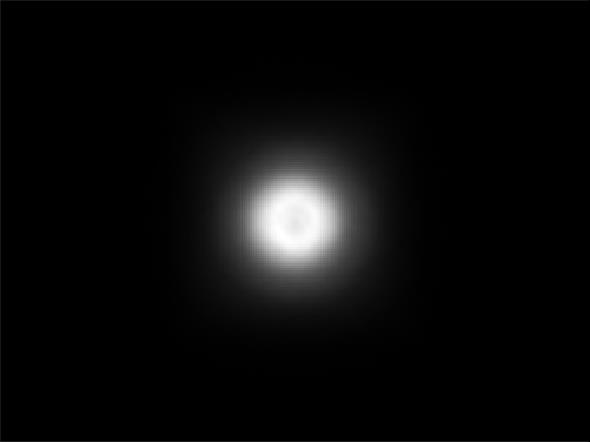

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON MZ White

Eff:

92.0%

FWHM:

32.5°

Cd/Im:

1.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON Q White

Eff:

89.0%

FWHM:

22.0°

Cd/Im:

4.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON R White

Eff:

91.0%

FWHM:

23.5°

Cd/Im:

3.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON Rebel ES White

Eff:

90.0%

FWHM:

23.5°

Cd/Im:

4.0

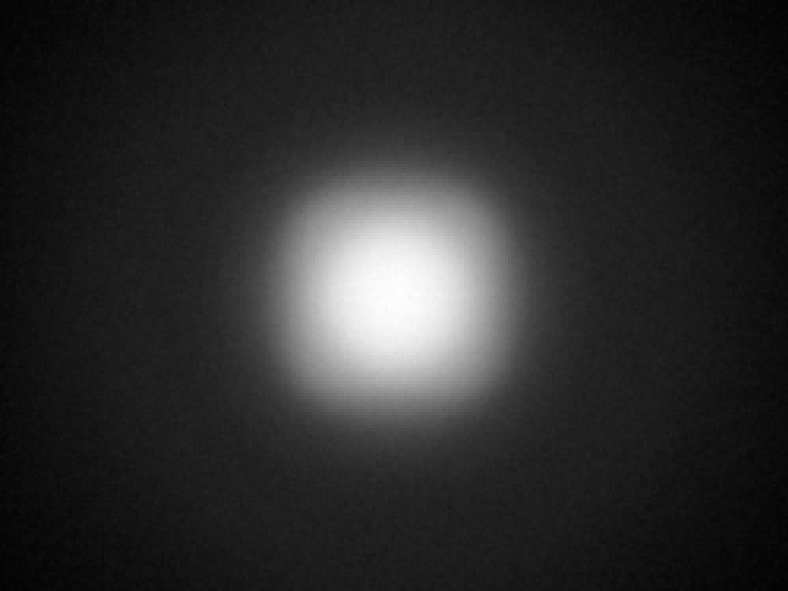

Carclo Optics - Simulated Spot Image

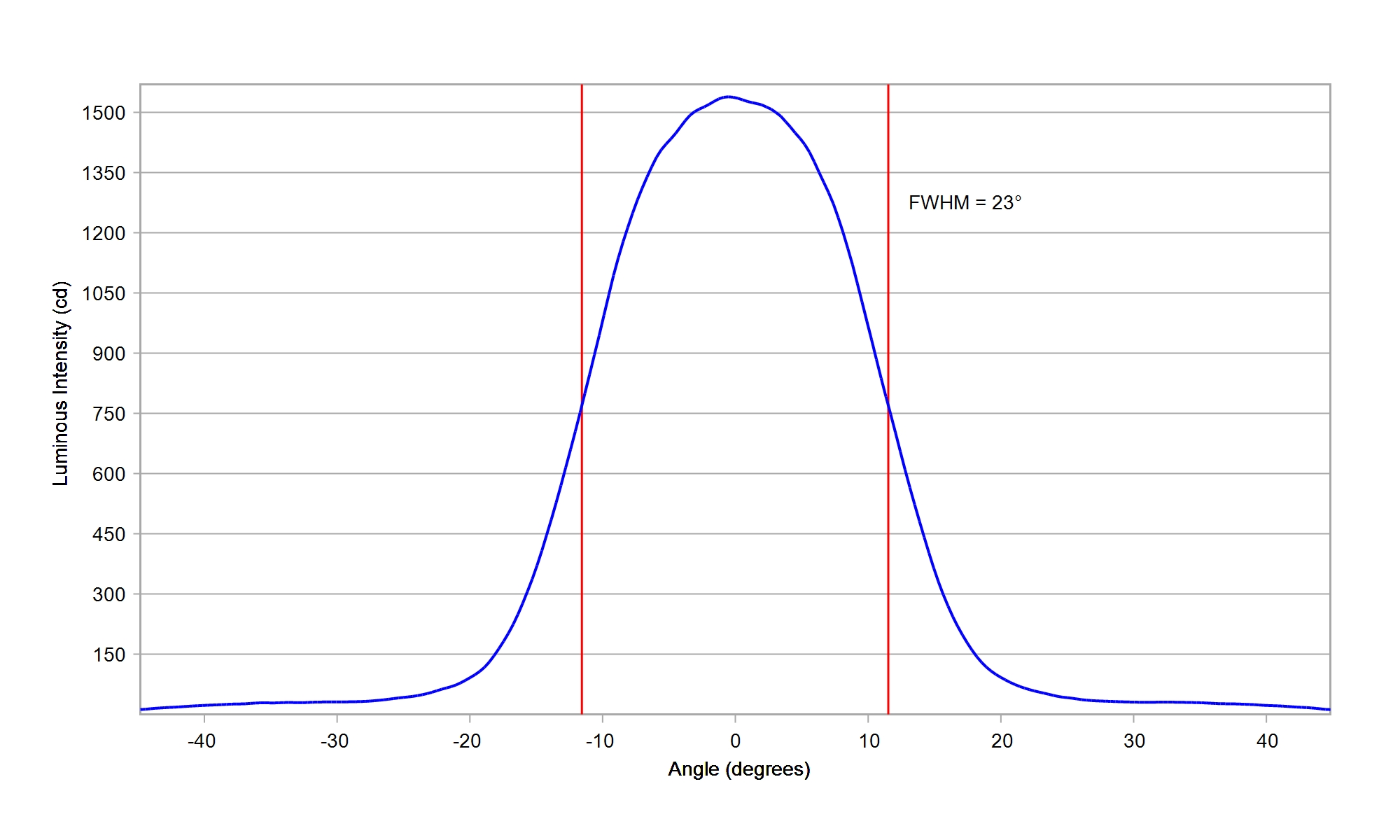

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON Rebel White

Eff:

89.6%

FWHM:

18.4°

Cd/Im:

6.5

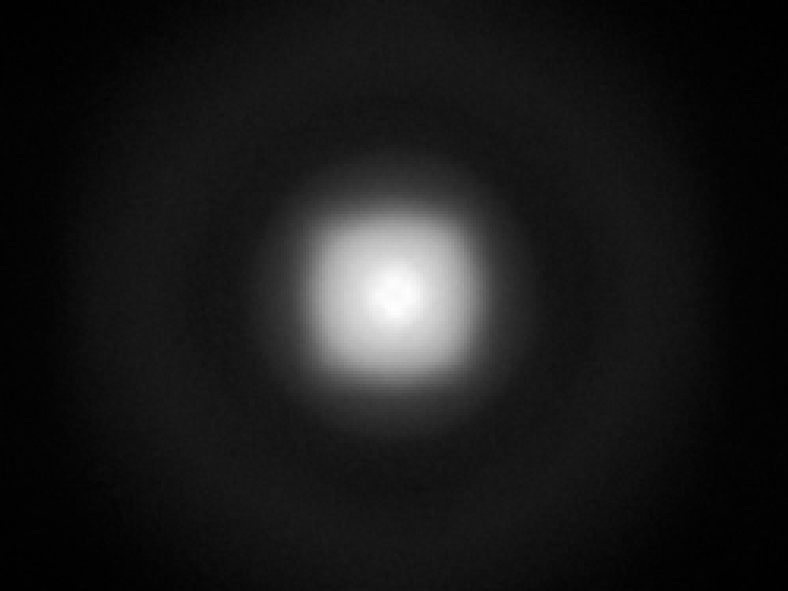

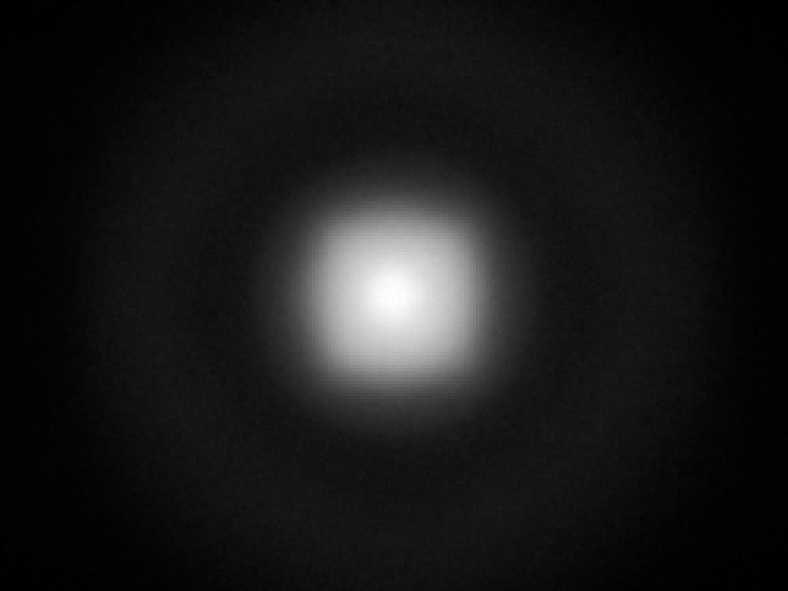

Spot Image

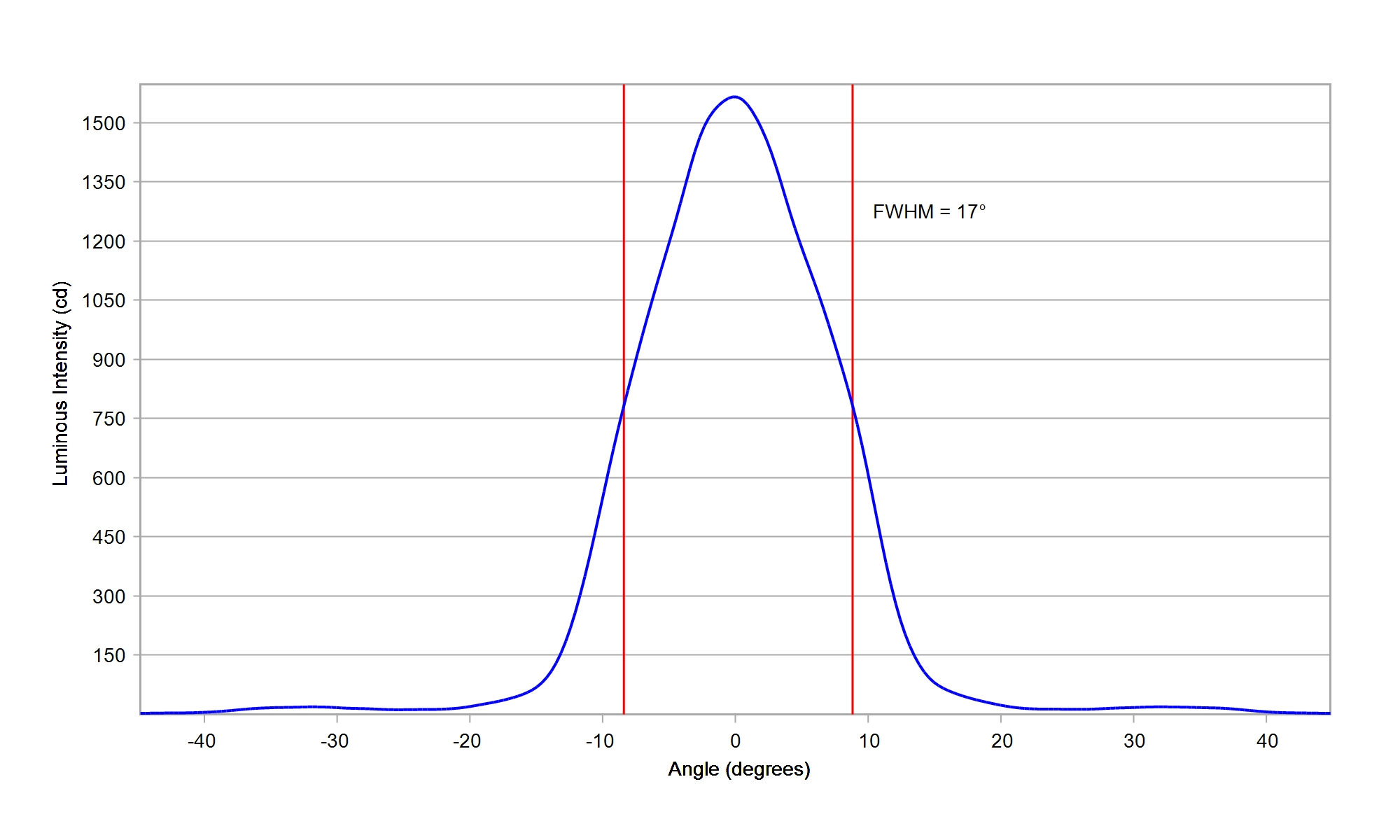

Cross Section

Download

ies

LUMILEDS LUXEON Rubix Blue

Eff:

89.0%

FWHM:

11.5°

Cd/Im:

18.3

Carclo Optics - 10507 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics - 10507 Cross Section Lumileds Luxeon Rubix Blue

Download

ies

LUMILEDS LUXEON Rubix Green

Eff:

89.5%

FWHM:

11.5°

Cd/Im:

18.2

Carclo Optics – 10507 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 10507 Cross Section Lumileds Luxeon Rubix Green

Download

ies

LUMILEDS LUXEON Rubix Red

Eff:

90.5%

FWHM:

11°

Cd/Im:

20.6

Carclo Optics – 10507 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 10507 Cross Section Lumileds Luxeon Rubix Red

Download

ies

LUMILEDS LUXEON Rubix Royal Blue

Eff:

88.5%

FWHM:

11.5°

Cd/Im:

19.5

Carclo Optics – 10507 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 10507 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

ies

LUMILEDS LUXEON Rubix White

Eff:

89.5%

FWHM:

12.0°

Cd/Im:

17.1

Carclo Optics - 10507 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 10507 Cross Section Lumileds Luxeon Rubix White

Download

ies

LUMILEDS LUXEON T White

Eff:

91.5%

FWHM:

23.4°

Cd/Im:

3.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON TX White

Eff:

91.0%

FWHM:

22.5°

Cd/Im:

4.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON Z ES White

Eff:

89.0%

FWHM:

16°

Cd/Im:

8.7

Spot Image

Cross Section

Download

ies

LUMILEDS LUXEON Z White

Eff:

91.0%

FWHM:

11°

Cd/Im:

18.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Luminus Devices SST 10-B-B130 Blue

Eff:

91.5%

FWHM:

17.5°

Cd/Im:

0.9

Carclo Optics - 10507 Luminus_SST-10_B_B130 - spot image

Carclo Optics - 10507 Luminus_SST-10_B_B130 - cross section image

Download

ies

Luminus Devices SST 10-B-B90 Blue

Eff:

90.5%

FWHM:

18°

Cd/Im:

7.8

Carclo Optics - 10507 Luminus_SST-10_B_B90 - spot - image

Carclo Optics - 10507 Luminus_SST-10_G_B130 - cross -vertical- section- image

Download

ies

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

93.0%

FWHM:

18.5°

Cd/Im:

6.9

Carclo Optics – 10507 Luminus_SST-10_DR_B130- Spot - image

Carclo Optics – 10507 Luminus_SST-10_DR_B130- Cross section – image

Download

ies

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

92.5%

FWHM:

19.5°

Cd/Im:

7.1

Carclo Optics - 10507 Luminus_SST-10_DR_B90 - Spot Image

Carclo Optics - 10507 Luminus_SST-10_DR_B90 - Cross section image

Download

ies

Luminus Devices SST 10-G-B130 Green

Eff:

92.5%

FWHM:

18°

Cd/Im:

9.2

Carclo Optics - 10507-Luminus_SST-10_G_B130 - Spot - image

Carclo Optics - 10507-Luminus_SST-10_G_B130 - cross - section - image

Download

ies

Luminus Devices SST 10-G-B90 Green

Eff:

91.5%

FWHM:

19.0°

Cd/Im:

7.6

Carclo Optics - 10507 Luminus_SST-10_G_B90- Spot - image

Carclo Optics - 10507 Luminus_SST-10_G_B90- Cross - image

Download

ies

Luminus Devices SST 10-IR-B130 940nm

Eff:

92.5%

FWHM:

20.0°

Ipk/W:

7.1

Carclo Optics - 10507 Spot Image Luminus SST-10-IR-B130

Carclo Optics - 10507 Cross Section Luminus SST-10-IR-B130

Download

ies

Luminus Devices SST 10-IR-B90 940nm

Eff:

91.5%

FWHM:

22.5°

Ipk/W:

6.3

Carclo Optics - 10507 Spot Image Luminus SST-10-IR-B90

Carclo Optics - 10507 Cross Section Luminus SST-10-IR-B90

Download

ies

Luminus Devices SST 10-IRD-B130 810nm

Eff:

93.0%

FWHM:

18°

Ipk/W:

8.4


Download

ies

Luminus Devices SST 10-IRD-B90 810nm

Eff:

91.5%

FWHM:

20°

Ipk/W:

7.9


Download

ies

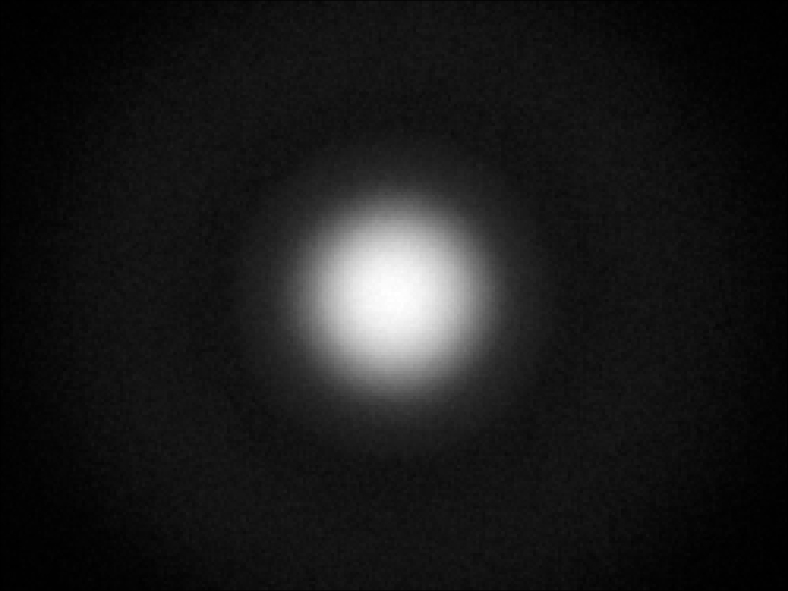

Luminus Devices SST 20-WxH White Hi CRI

Eff:

92.5%

FWHM:

18.5°

Cd/Im:

6.5

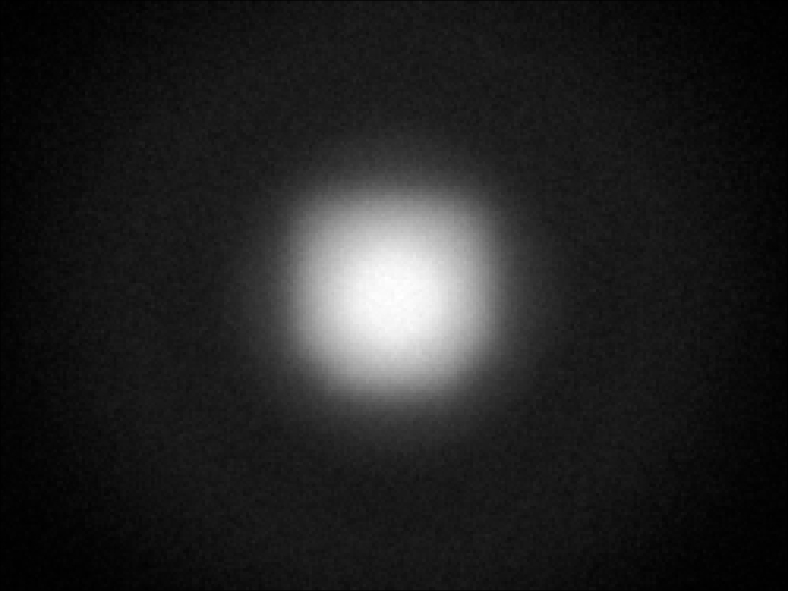

Carclo Optics – 10507 - Luxeon_SST_20_W_spot-image

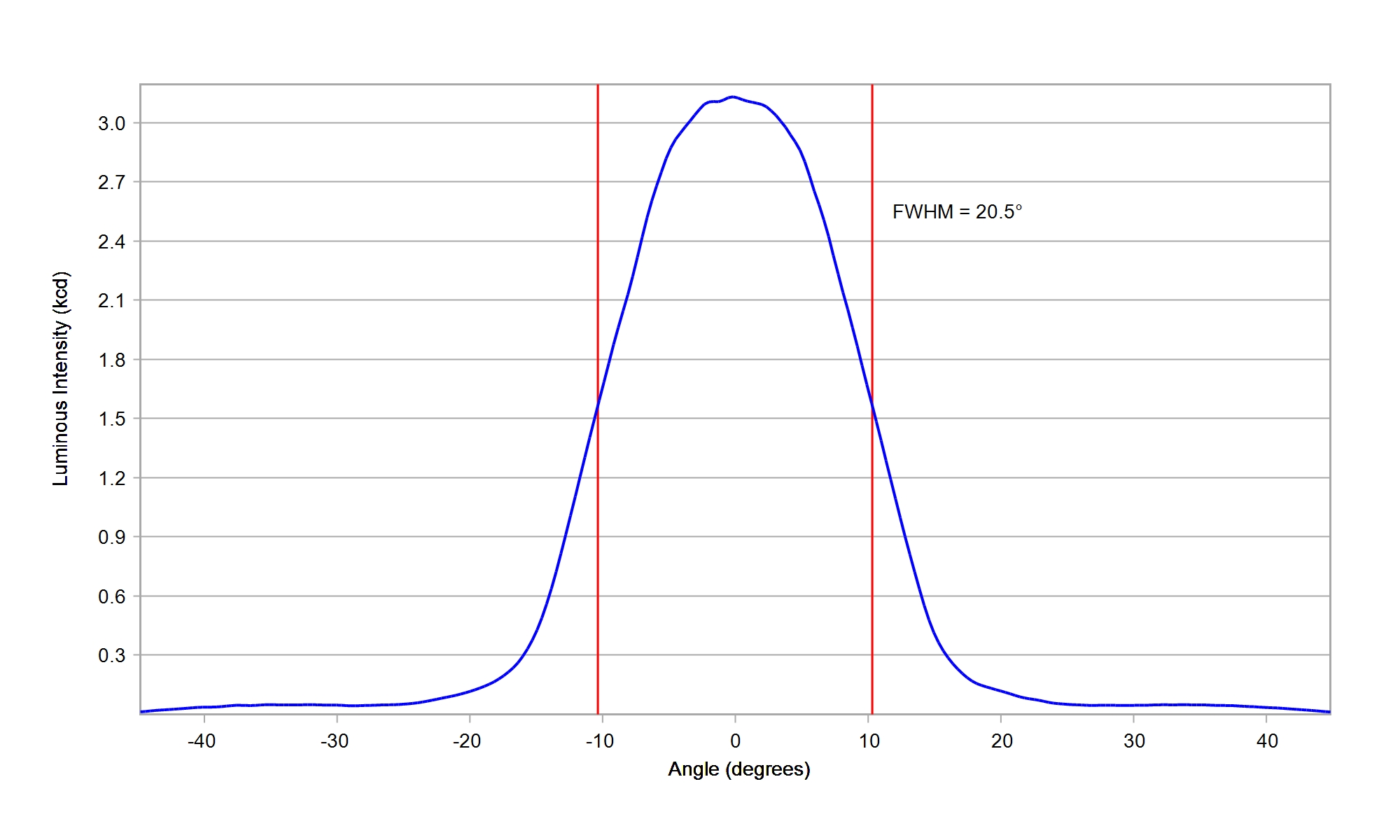

Carclo Optics – 10507 - Luxeon_SST_20_W_cross vertical section

Download

ies

Nichia 757 White

Eff:

90.0%

FWHM:

19.5°

Cd/Im:

4.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia 757G White

Eff:

92.5%

FWHM:

21°

Cd/Im:

4.9

Carclo Optics 10507 10mm Simulated Spot Image Nichia 757G-MT

Carclo Optics 10507 10mm Horizontal Cross Section Nichia 757G-MT

Download

ies

Nichia 757G White

Eff:

92.0%

FWHM:

20.0°

Cd/Im:

4.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NCSW CSP E17A White

Eff:

92.0%

FWHM:

21.0°

Cd/Im:

4.9

Carclo Optics - Simulated Spot Image

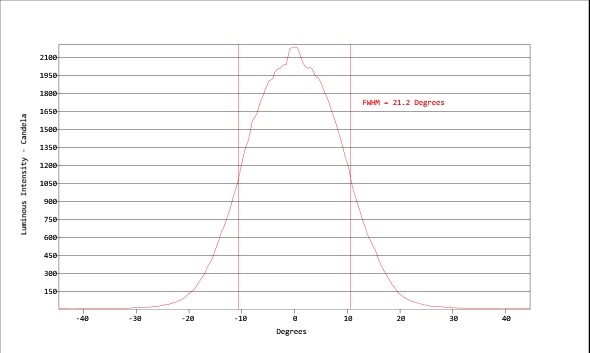

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NF2W 385AR-V2 White

Eff:

92.0%

FWHM:

25°

Cd/Im:

3.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NVSL 219B White

Eff:

90.5%

FWHM:

18.0°

Cd/Im:

6.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NVSW 219C White

Eff:

90.5%

FWHM:

25.5°

Cd/Im:

3.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NVSW 219F White

Eff:

89.0%

FWHM:

26°

Cd/Im:

4.1

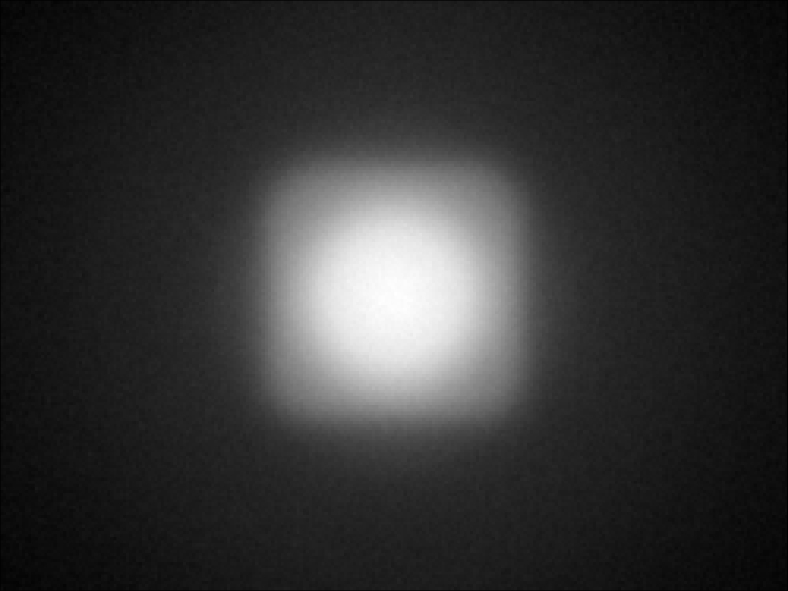

Carclo Optics – 10507 Nichia NVSW 219F White - Spot Image

Carclo Optics – 10507 Nichia NVSW 219F White - Cross-Section

Download

ies

Nichia NVSW 319A White

Eff:

90.0%

FWHM:

29.0°

Cd/Im:

2.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia Top Emitting NCSL 119-H3 White

Eff:

84.6%

FWHM:

16.2°

Cd/Im:

7.5

Spot Image

Cross Section

Download

ies

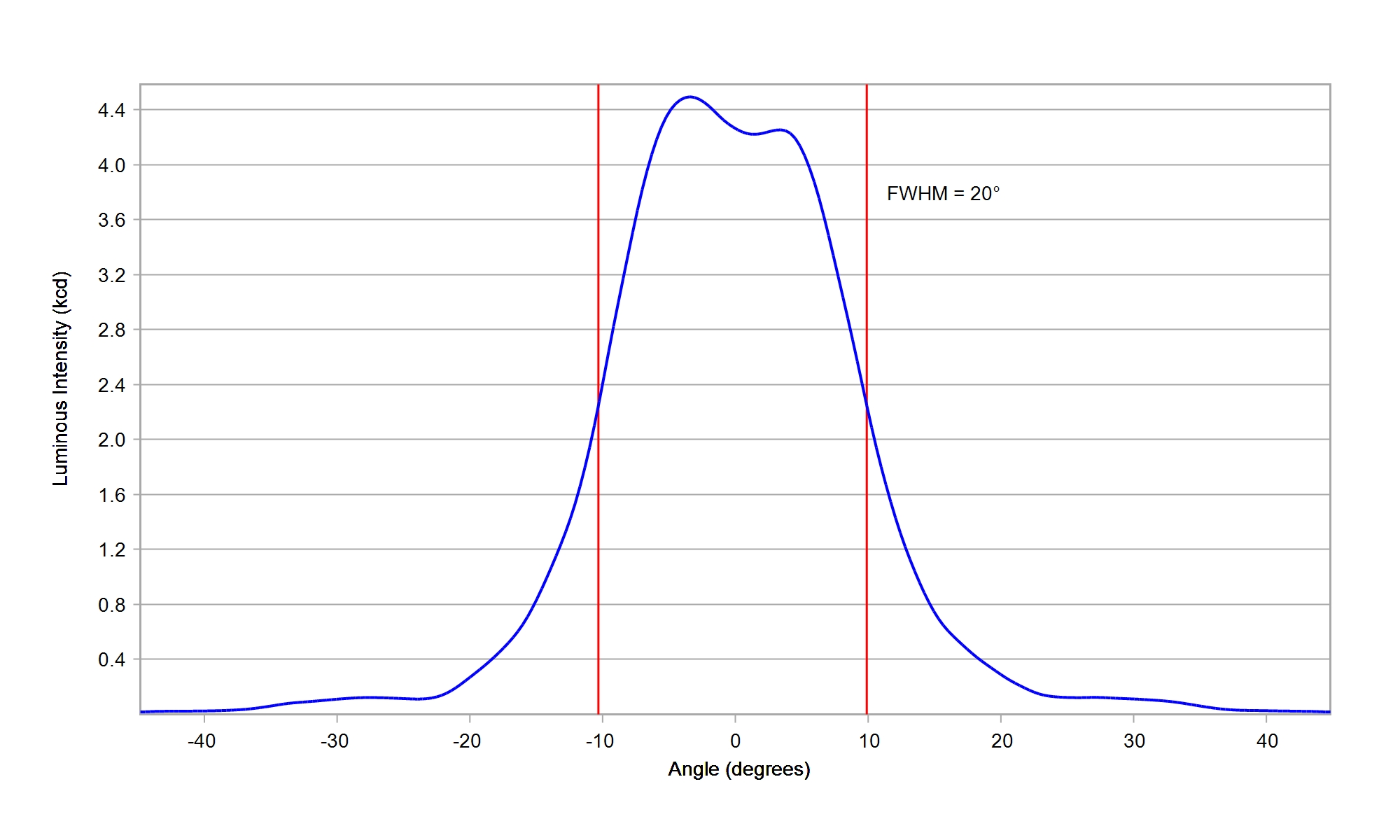

Osram OS DURIS E 2835 Gen2

Eff:

93.0%

FWHM:

17°

Cd/Im:

6.7

Carclo Optics - 10507 10mm Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 10507 10mm Cross Section Osram DURIS E 2835 Gen2

Download

ies

Osram OS DURIS E 2835 White

Eff:

91.5%

FWHM:

18.5°

Cd/Im:

5.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS DURIS E2 White

Eff:

91.5%

FWHM:

13.0°

Cd/Im:

14.6

Carclo Optics - Simulated Spot Image

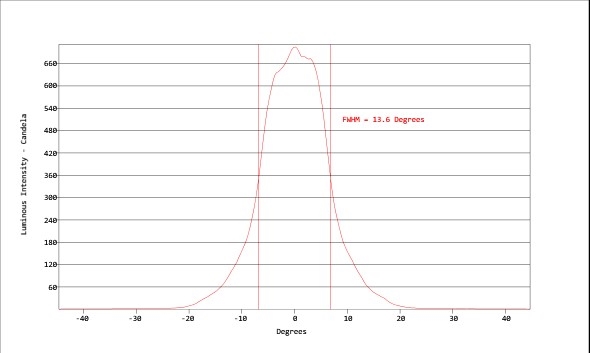

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS DURIS E3 White

Eff:

91.0%

FWHM:

8.6°

Cd/Im:

13.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS DURIS S2 White

Eff:

91.5%

FWHM:

14.5°

Cd/Im:

7.1

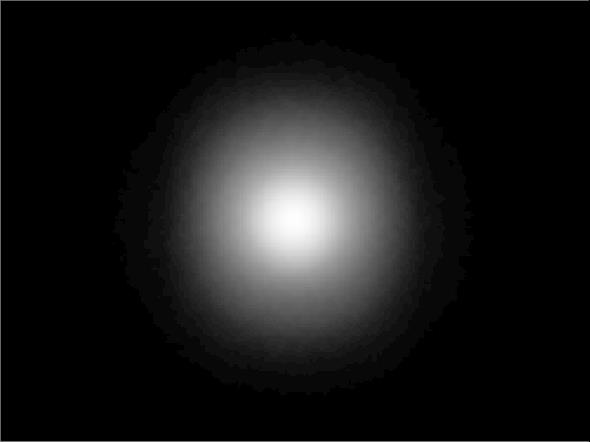

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS DURIS S5 Deep Blue

Eff:

91.5%

FWHM:

21.0 x 17.5°

Cd/Im:

5.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

ies

Osram OS DURIS S5 Green

Eff:

92.0%

FWHM:

17°

Cd/Im:

6.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS DURIS S5 Red

Eff:

92.5%

FWHM:

16.0°

Cd/Im:

7.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS DURIS S5 White

Eff:

92.0%

FWHM:

18.75°

Cd/Im:

4.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

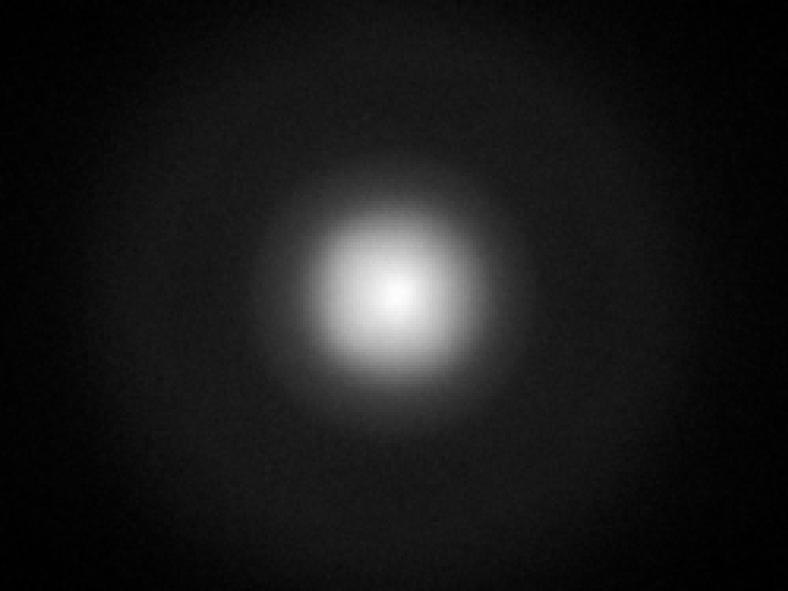

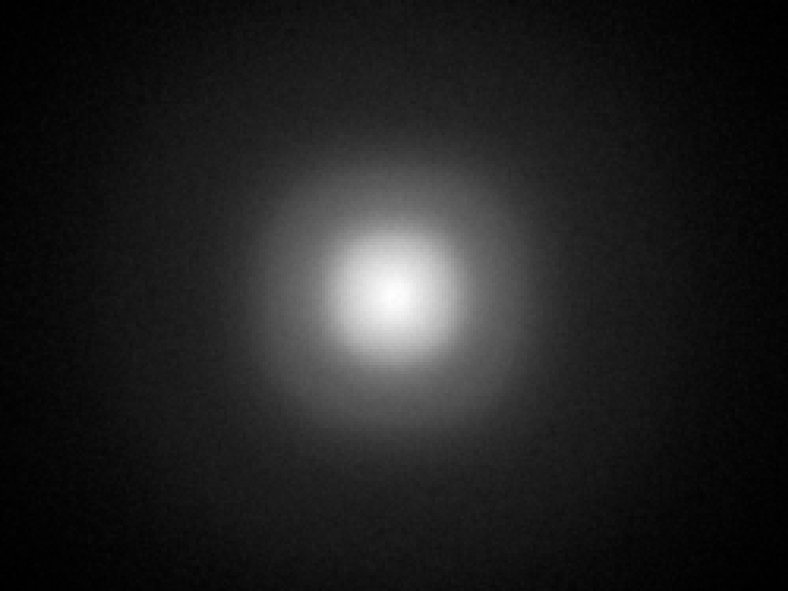

Osram OS OSCONIQ C 2424 White

Eff:

93.0%

FWHM:

17.5°

Cd/Im:

7.3

Carclo Optics - 10507 SPOT IMAGE OSCONIQ C2424

Carclo Optics - 10507 CROSS SECTION OSCONIQ C2424

Download

ies

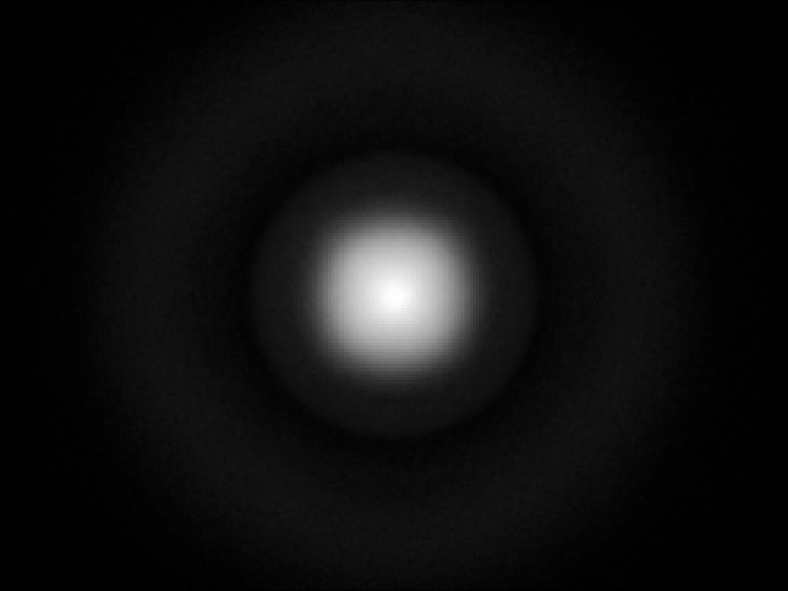

Osram OS OSLON Black SFH 4716AS IR

Eff:

93.0%

FWHM:

14°

Ipk/W:

11.4

Carclo Optics – 10507 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

Carclo Optics – 10507 Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

ies

Osram OS OSLON Boost HM KW CELMM1.TG

Eff:

90.5%

FWHM:

9°

Cd/Im:

31.4

Carclo Optics – 10507 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 10507 – Osram_Oslon_Boost_KW_CELMM1_TG_cross vertical section

Download

ies

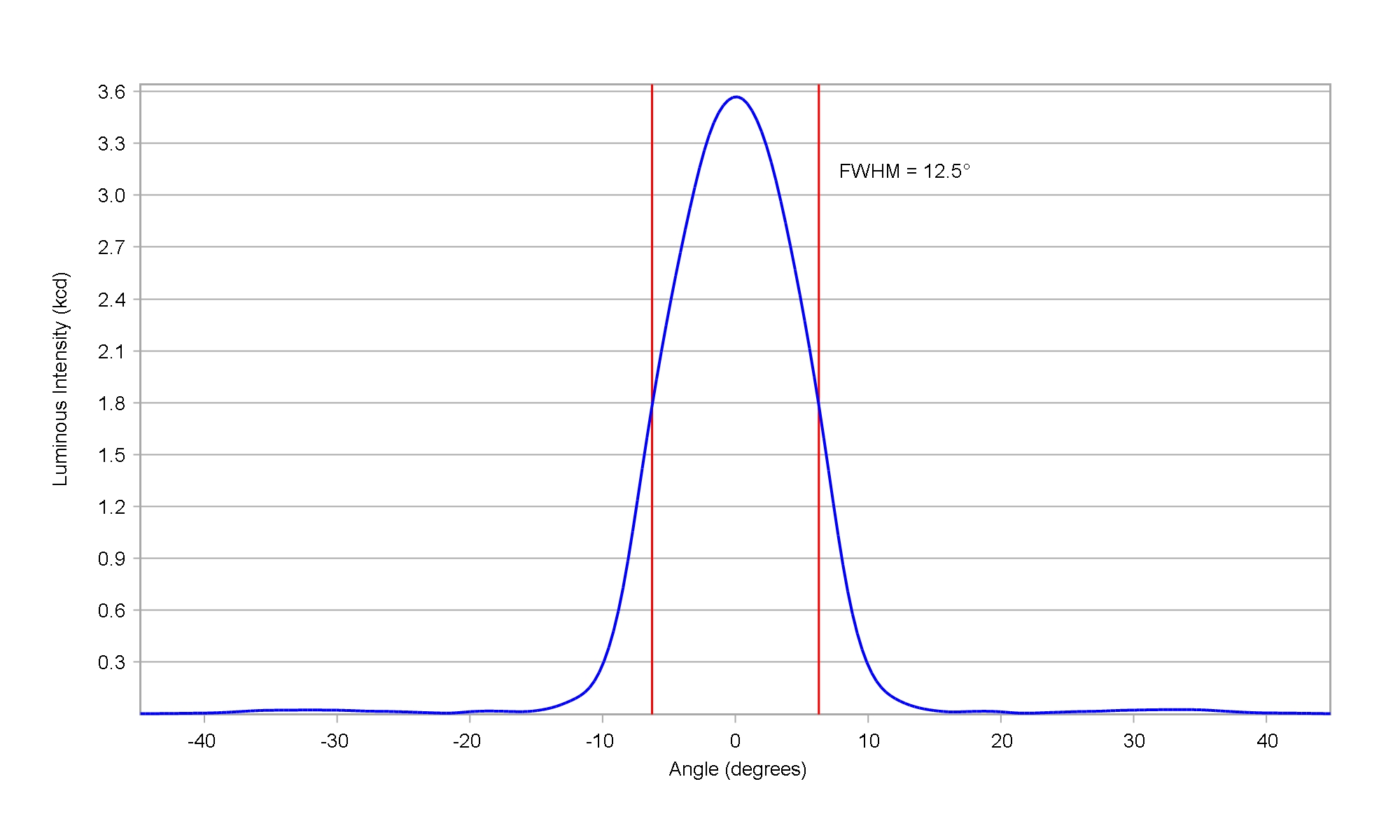

Osram OS OSLON Square Flat White

Eff:

91.5%

FWHM:

15.5°

Cd/Im:

8.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS OSLON Square Gen 3 White

Eff:

86.8%

FWHM:

20.4°

Cd/Im:

5.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS OSLON Square Gen 5 GW CSSRM3

Eff:

92.0%

FWHM:

22.5°

Cd/Im:

4.8

Carclo Optics - 10507 10mm Spot Image Oslon Square Gen 5

Carclo Optics - 10507 10mm Cross Section Oslon Square Gen 5

Download

ies

Osram OS OSLON Square White

Eff:

91.0%

FWHM:

21°

Cd/Im:

5.1

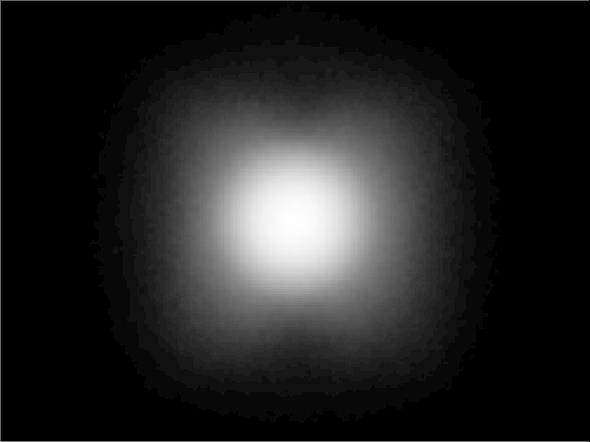

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

90.0%

FWHM:

14°

Cd/Im:

11.6

Carclo Optics – 10507 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Carclo Optics – 10507 Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Download

ies

Osram OS OSLON SSL 150 degree White

Eff:

90.0%

FWHM:

15.1°

Cd/Im:

12.0

Spot Image

Cross Section

Download

ies

Osram OS OSLON SSL 80 White

Eff:

88.0%

FWHM:

19.5°

Cd/Im:

8.5

Download

ies

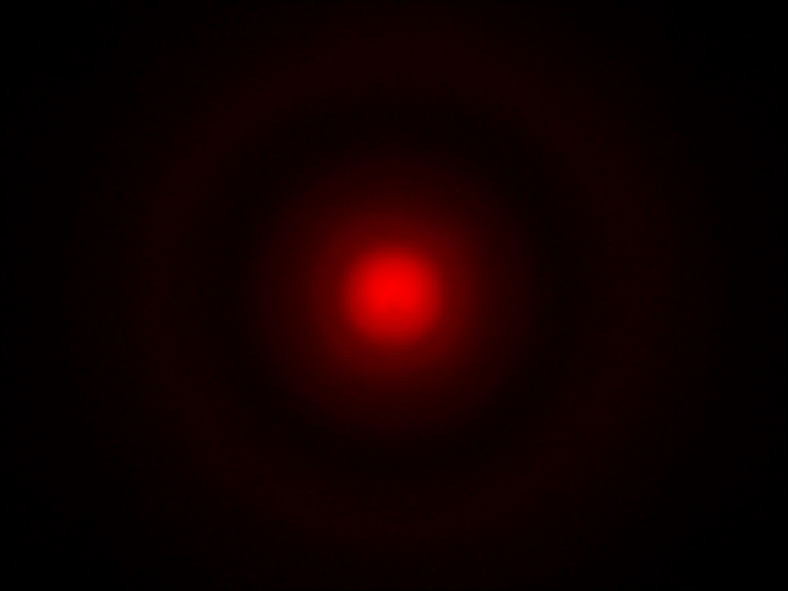

Osram OS OSLON SSL 80 GH CS8PM1.24 Hyper Red

Eff:

90.0%

FWHM:

19.5°

Ipk/W:

7.4


Download

IES

Osram OS OSLON SSL 80 GT CS8PM1.13 True Green

Eff:

90.0%

FWHM:

21.5°

Cd/Im:

6.1



Download

IES

Osram OS OSLON SSL 80 GW CS8PM1.PM White

Eff:

90.0%

FWHM:

17.5°

Cd/Im:

8.6


Download

IES

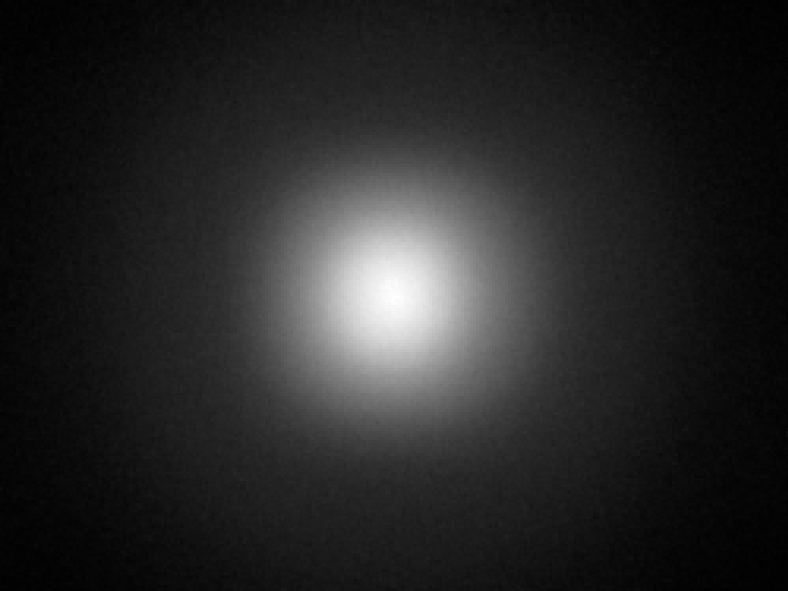

Samsung 3030 LM301B White

Eff:

91.0%

FWHM:

18°

Cd/Im:

6.8

Download

ies

Samsung 3535 LH351B White

Eff:

92.5%

FWHM:

25.5°

Cd/Im:

3.5

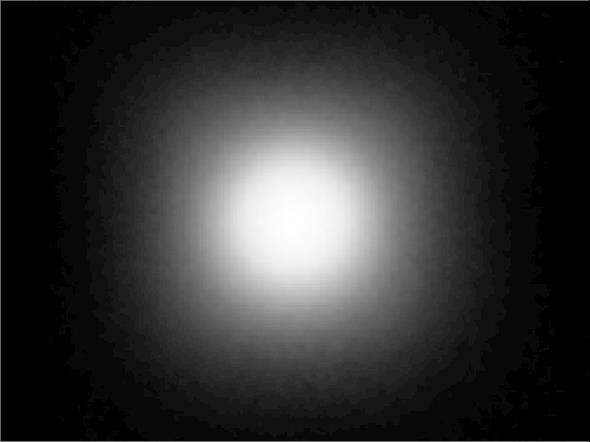

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Samsung 3535 LH351Z White

Eff:

86.7%

FWHM:

20.5°

Cd/Im:

5.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Samsung CSP LH151B White

Eff:

92.0%

FWHM:

18°

Cd/Im:

6.7

Carclo Optics – 10507 – Samsung_LH151B_spot-image

Carclo Optics – 10507 – Samsung_LH151B_cross section

Download

ies

Samsung CSP LH181B White

Eff:

93.5%

FWHM:

20.5°

Cd/Im:

4.5

Carclo Optics -10507 Spot Image - Samsung LH181B_4000K

Carclo Optics -10507 Cross Section - Samsung LH181B_4000K

Download

ies

Samsung CSP LM101B White

Eff:

93.0%

FWHM:

20°

Cd/Im:

5.9

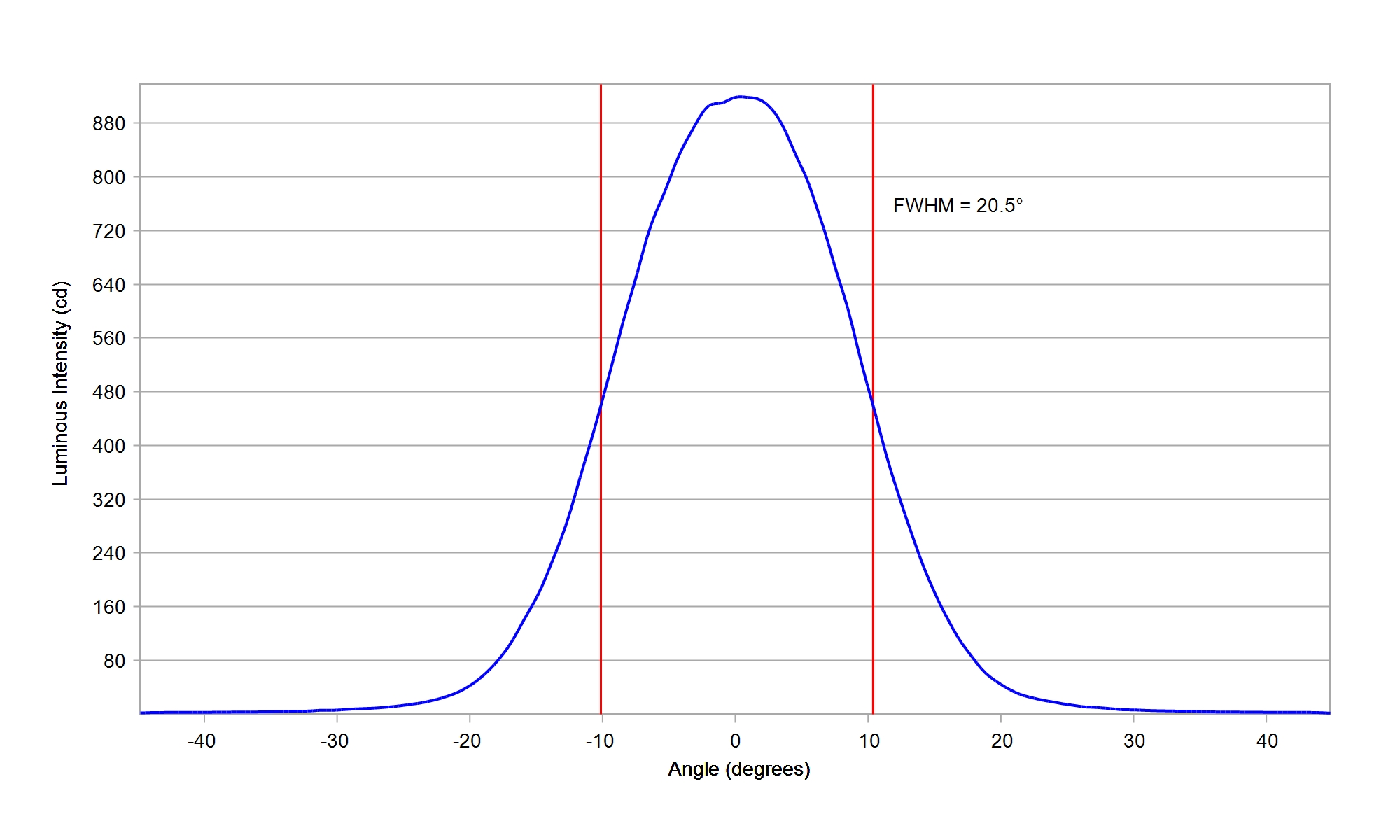

Carclo Optics -10507 Spot Image - Samsung LM101B 5000K

Carclo Optics -10507 Cross Section Image - Samsung LM101B 5000K

Download

ies

Seoul MidPower MJT3030 White

Eff:

88.6%

FWHM:

16.8°

Cd/Im:

5.6

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

ies

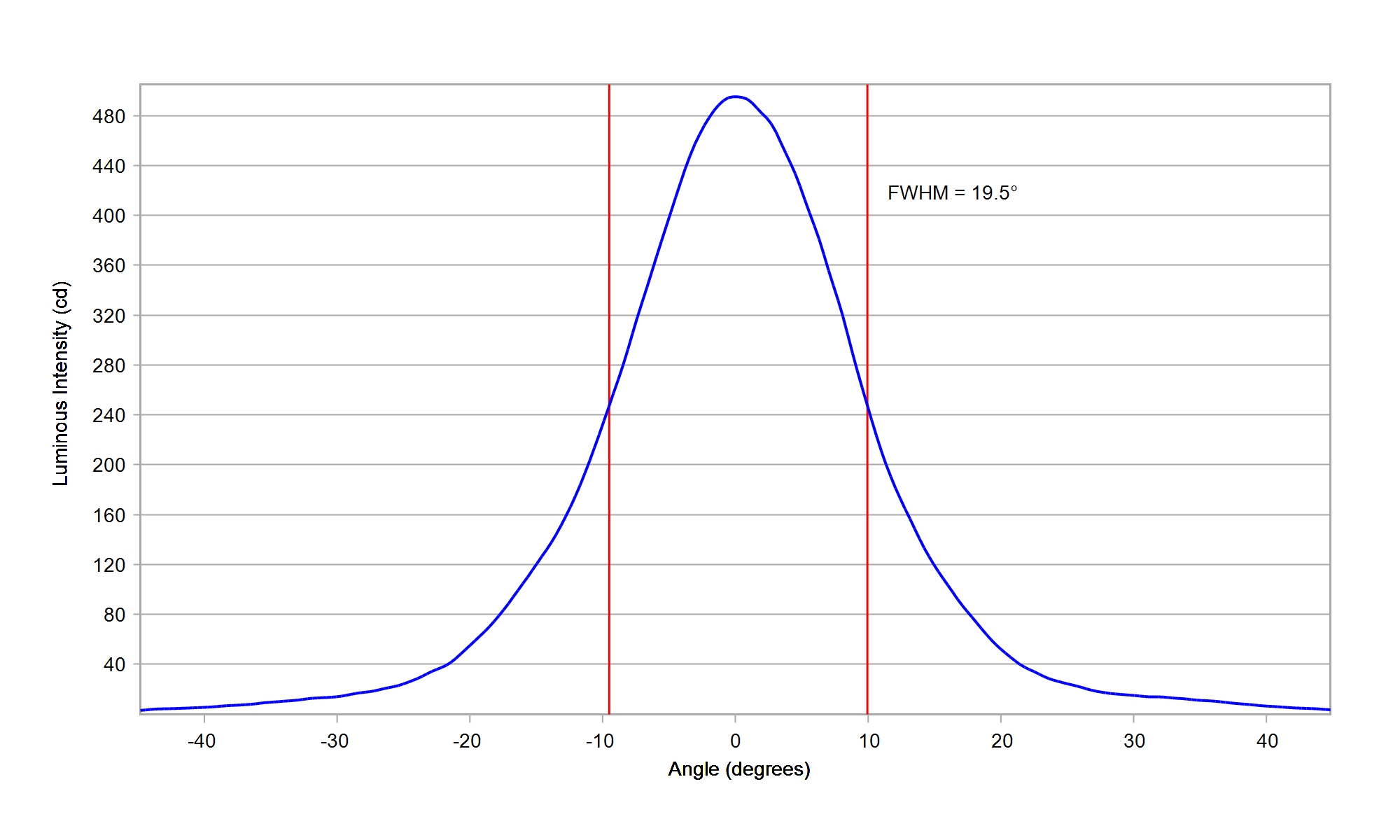

Seoul STW8 C2SB-NT White

Eff:

91.0%

FWHM:

19.0°

Cd/Im:

5.4

Carclo Optics - 10507 Spot Image Seoul STW8 C2SB-NT

Carclo Optics - 10507 Cross Section Seoul STW8 C2SB-NT

Download

ies

Seoul STWS C2PB-E0 White

Eff:

91.5%

FWHM:

19.0°

Cd/Im:

5.3

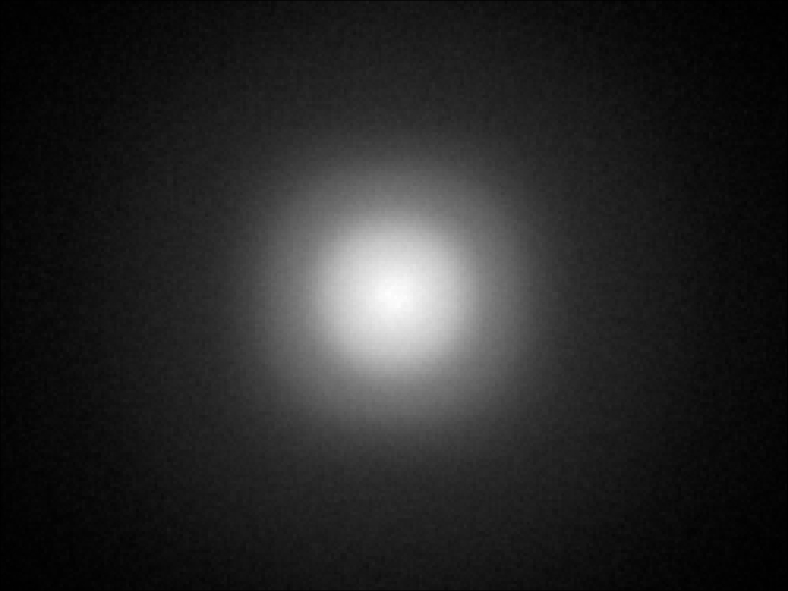

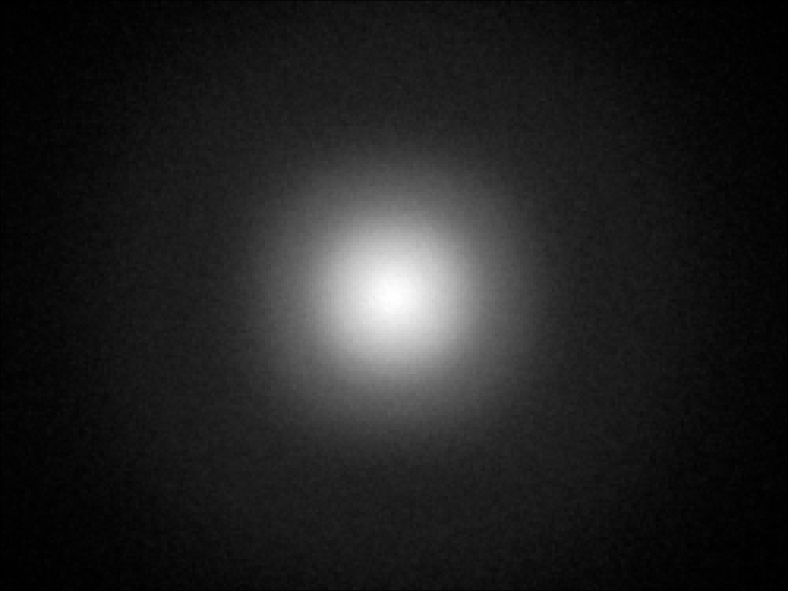

Carclo Optics - 10507 Spot Image STWS C2PB-E0

Carclo Optics - 10507 Cross Section STWS C2PB-E0

Download

ies

Seoul SunLike STW9 C2SB-S

Eff:

93.0%

FWHM:

18°

Cd/Im:

6.0

Carclo Optics - 10507 10mm Spot Image Seoul Sunlike 3030

Carclo Optics - 10507 10mm Cross Section Seoul Sunlike 3030

Download

ies

Seoul Z - Power Z5 M1 White

Eff:

87.0%

FWHM:

21.9°

Cd/Im:

4.6

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

ies

Seoul Z - Power Z5 M4 White

Eff:

90.0%

FWHM:

26°

Cd/Im:

3.9

Carclo Optics – 10507 Seoul Z-Power Z5 - Spot Image

Carclo Optics – 10507 Seoul Z-Power Z5 - Cross-Section

Download

ies

Seoul Z - Power Z5 P0 White

Eff:

86.7%

FWHM:

17.7°

Cd/Im:

6.6

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

ies

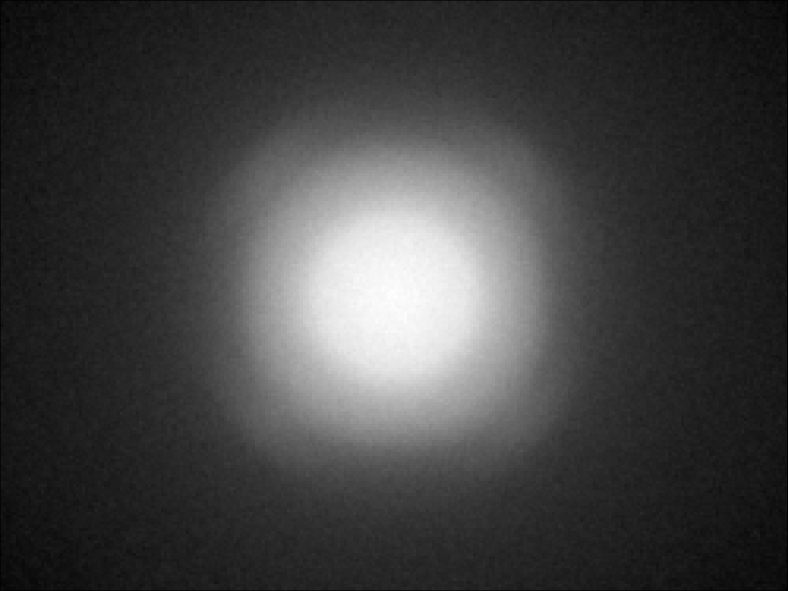

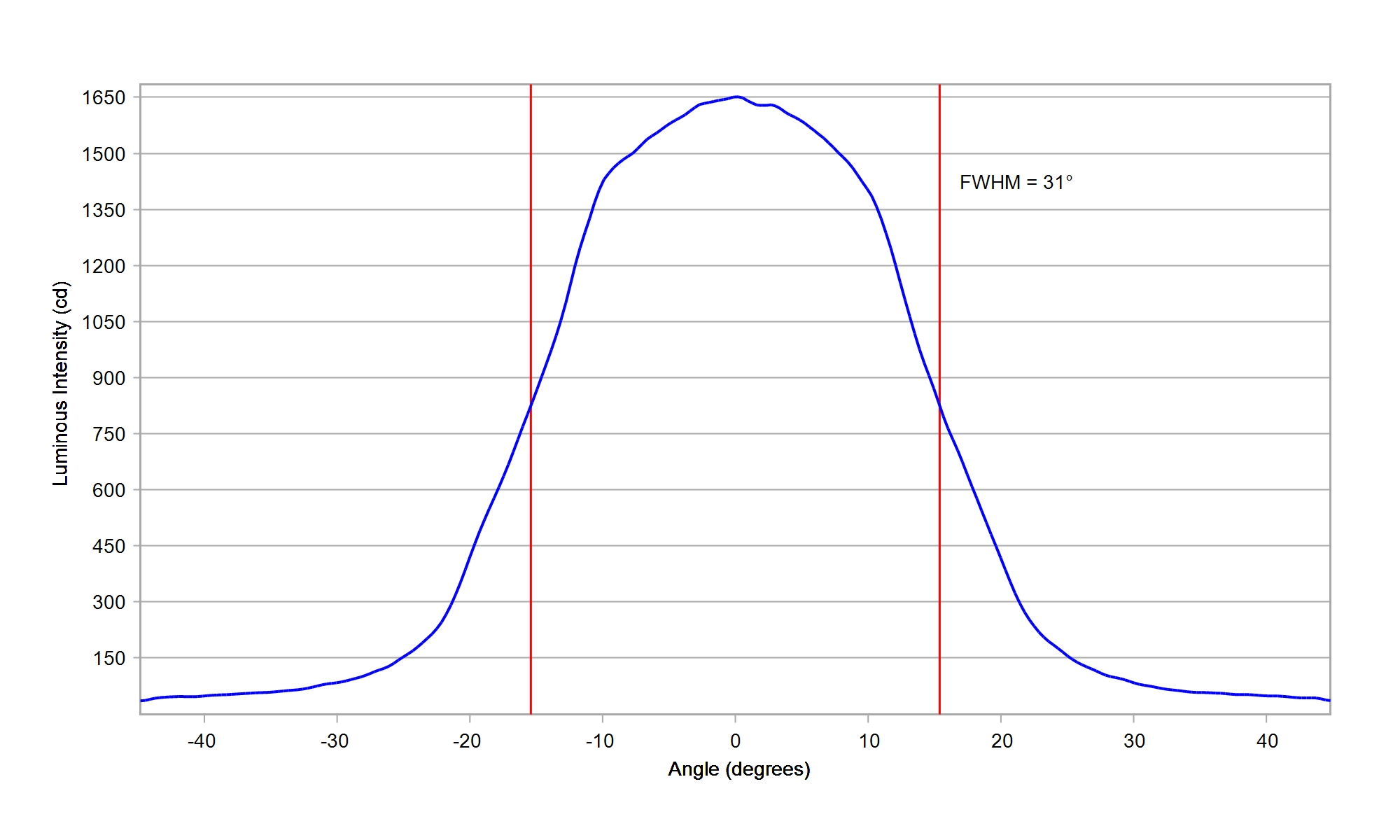

Seoul Z - Power Z5 White

Eff:

84.4%

FWHM:

15.1°

Cd/Im:

12.6

Download

ies

Toshiba TL 1L2 White

Eff:

85.0%

FWHM:

22.7°

Cd/Im:

4.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Toshiba TL 1L4 White

Eff:

86.0%

FWHM:

21.8°

Cd/Im:

4.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies
