Carclo Optics 10417

10.0mm Medium Spot Top Lens TIR LED Lenses

Part number

10417

Dimensions

10.0mm

Drawing Number

60553

Optic type

TIR LED Lenses

Finish

Top Lens

Beam type

Medium Spot

Applications

Architectural

Landscape & Garden

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

91.5%

FWHM:

15 x 18°

Cd/Im:

7.6

Carclo Optics - 10417 10mm Spot Image Bridgelux 3030 Gen2

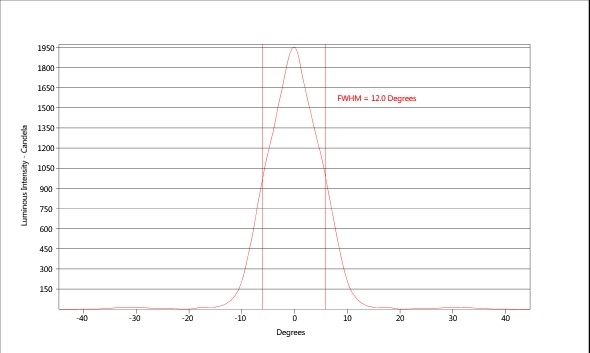

Carclo Optics - 10417 10mm Vertical Cross Section Bridgelux 3030 Gen2

Download

IES

Cree JB3030 3V White

Eff:

91.5%

FWHM:

21.0°

Cd/Im:

4.5

Carclo Optics - 10417 Spot Image Cree JB3030 3V White

Carclo Optics - 10417 Cross Section Cree JB3030 3V White

Download

IES

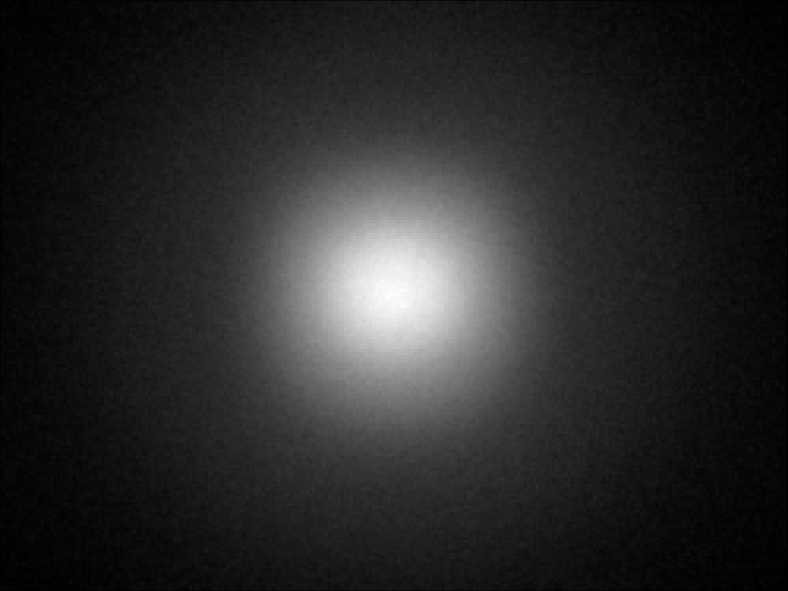

Cree JK2835 6V White

Eff:

91.5%

FWHM:

20°

Cd/Im:

5.4

Download

IES

Cree XLamp CSP XD16 Cool White

Eff:

91.0%

FWHM:

17.0°

Cd/Im:

6.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp CSP XD16 Premium White

Eff:

91.0%

FWHM:

16°

Cd/Im:

9.6

Download

IES

Cree XLamp XB-D White

Eff:

84.2%

FWHM:

18.6°

Cd/Im:

7.9

Spot Image

Cross Section

Download

ies

Cree XLamp XB-H White

Eff:

89.5%

FWHM:

22°

Cd/Im:

5.7

Carclo Optics - 10417 10mm Spot Image Cree XLamp XB-H

Carclo Optics - 10417 10mm Cross Section Cree XLamp XB-H

Download

IES

Cree XLamp XE-G Blue

Eff:

89.0%

FWHM:

14°

Cd/Im:

11.9

Download

IES

Cree XLamp XE-G Green

Eff:

89.0%

FWHM:

14°

Cd/Im:

11.3

Download

IES

Cree XLamp XE-G Red

Eff:

87.0%

FWHM:

13.5°

Cd/Im:

12.0

Download

IES

Cree XLamp XE-G White

Eff:

89.0%

FWHM:

14°

Cd/Im:

11.3

Download

IES

Cree XLamp XP-C White

Eff:

87.4%

FWHM:

10.4°

Cd/Im:

22.7

Spot Image

Cross Section

Download

ies

Cree XLamp XP-E White

Eff:

88.7%

FWHM:

16.4°

Cd/Im:

9.8

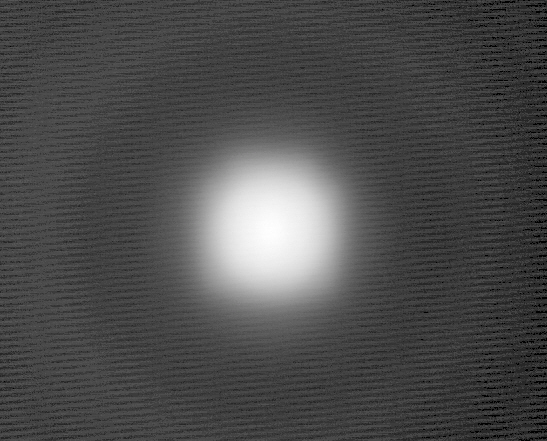

Spot Image

Cross Section

Download

ies

Cree XLamp XP-E2 White

Eff:

89.0%

FWHM:

14.5°

Cd/Im:

11.1

Download

IES

Cree XLamp XP-G White

Eff:

87.3%

FWHM:

24°

Cd/Im:

4.9

Spot Image

Cross Section

Download

ies

Cree XLamp XP-G2 White

FWHM:

22.8°

Cd/Im:

6.2

Spot Image

Cross Section

Download

ies

Cree XLamp XP-G3 White

Eff:

86.0%

FWHM:

24.5°

Cd/Im:

3.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XP-G4 White

Eff:

90.5%

FWHM:

24°

Cd/Im:

4.9

Download

IES

Cree XLamp XQ-A Blue

Eff:

89.0%

FWHM:

9.7°

Cd/Im:

26.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-A Green

Eff:

89.5%

FWHM:

9.7°

Cd/Im:

26.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-A Red

Eff:

89.5%

FWHM:

10.0°

Cd/Im:

24.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-A White

Eff:

86.0%

FWHM:

10.9°

Cd/Im:

22.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Blue

Eff:

89.5%

FWHM:

11.5`°

Cd/Im:

14.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Green

Eff:

90.0%

FWHM:

11.5°

Cd/Im:

14.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Red

Eff:

90.5%

FWHM:

11.5°

Cd/Im:

16.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI White

Eff:

87.0%

FWHM:

10.8°

Cd/Im:

15.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HD White

Eff:

87.0%

FWHM:

15°

Cd/Im:

9.3

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XT-E White

FWHM:

21.55°

Cd/Im:

5.6

Spot Image

Cross Section

Download

ies

Everlight Shuen White

Eff:

85.0%

FWHM:

21.1°

Cd/Im:

5.2

Spot Image

Cross Section

Download

ies

LG Innotek 3535LG White

FWHM:

23.4°

Cd/Im:

2.1

Spot Image

Cross Section

Download

ies

Lite-On R38386AS - S R38 IR

Eff:

91.0%

FWHM:

24.0°

Cd/Im:

4.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 2835C 6V White

Eff:

91.0%

FWHM:

19°

Cd/Im:

6.2

Download

LUMILEDS LUXEON 2835E 9V White

Eff:

91.0%

FWHM:

18.5°

Cd/Im:

6.5

Download

LUMILEDS LUXEON 2835N 3V White

Eff:

91.0%

FWHM:

18°

Cd/Im:

5.7

Download

LUMILEDS LUXEON 2835S 3V White

Eff:

91.0%

FWHM:

19.5°

Cd/Im:

5.0

Download

LUMILEDS LUXEON 2835S 6V White

Eff:

91.0%

FWHM:

19.5°

Cd/Im:

5.0

Download

LUMILEDS LUXEON 3014 White

Eff:

91.0%

FWHM:

11.5°

Cd/Im:

15.2

Download

IES

LUMILEDS LUXEON 3030 2D White

Eff:

91.5%

FWHM:

19 x 15.5°

Cd/Im:

6.7


,


Download

LUMILEDS LUXEON 3030 HE Plus White

Eff:

91.0%

FWHM:

19.5°

Cd/Im:

5.7

Carclo Optics – 10417 – Luxeon_3030_HE_Plus_spot-image

Carclo Optics – 10417 – Luxeon_3030_HE_Plus_cross vertical section

Download

IES

LUMILEDS LUXEON 3535 HV White

Eff:

87.2%

FWHM:

16°

Cd/Im:

6.3

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON 3535 L White

Eff:

87.0%

FWHM:

16°

Cd/Im:

6.4

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON C Lime

Eff:

83.0%

FWHM:

15.0°

Cd/Im:

8.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C White

Eff:

83.5%

FWHM:

14.5°

Cd/Im:

9.7

Download

LUMILEDS LUXEON CZ White

Eff:

90.0%

FWHM:

11°

Cd/Im:

19.3

Carclo Optics 10417 Spot Image Luxeon CZ CW

Carclo Optics 10417 Cross Section Luxeon CZ CW

Download

IES

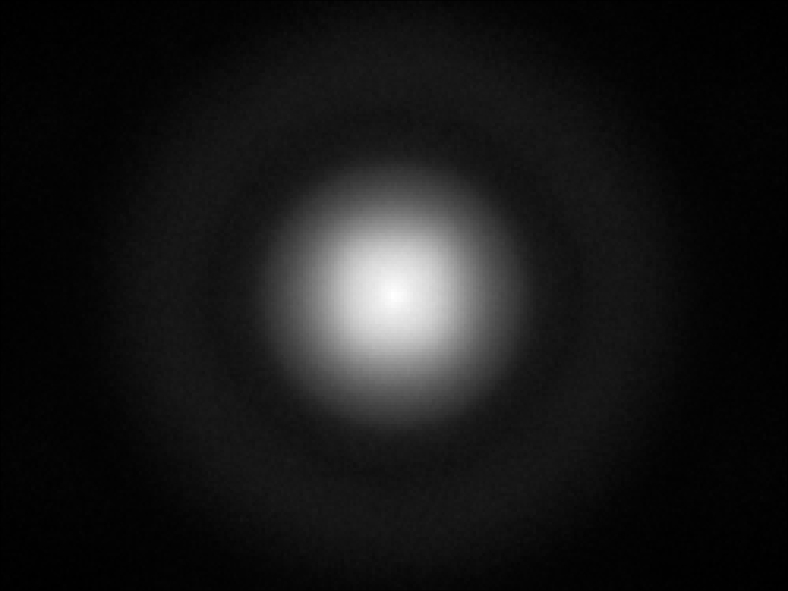

LUMILEDS LUXEON HL1Z CSP White

Eff:

92.5%

FWHM:

16°

Cd/Im:

9.2

Download

IES

LUMILEDS LUXEON HL2Z White

Eff:

91.5%

FWHM:

19°

Cd/Im:

5.7

Carclo Optics – 10417 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 10417 Lumileds Luxeon HL2Z - Cross-Section

Download

IES

LUMILEDS LUXEON IR 2720

Eff:

93.0%

FWHM:

16.0°

Ipk/W:

10.0

Carclo Optics - 10417 10mm Medium Spot Image Luxeon IR 2720

Carclo Optics - 10417 10mm Medium Cross Section Luxeon IR 2720

Download

IES

LUMILEDS LUXEON IR Compact 850nm

Eff:

91.0%

FWHM:

13.5°

Ipk/W:

11.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 150 Degree

Eff:

89.0%

FWHM:

17.0°

Cd/Im:

7.9

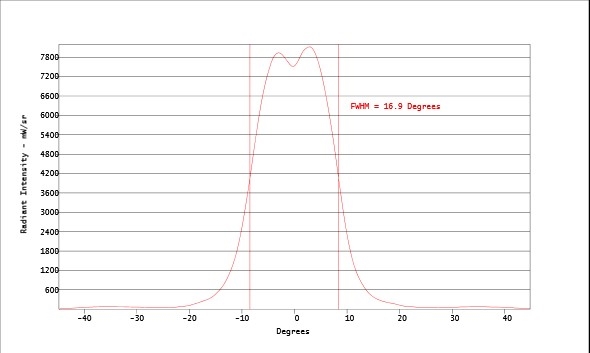

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON MZ White

Eff:

88.0%

FWHM:

31°

Cd/Im:

1.7

carclo simulated spot image

carclo simulated cross section

Download

IES

LUMILEDS LUXEON Rebel ES White

Eff:

86.2%

FWHM:

24.5°

Cd/Im:

4.9

Spot Image

Cross Section

Download

ies

LUMILEDS LUXEON Rebel White

Eff:

84.5%

FWHM:

17.7°

Cd/Im:

9.7

Spot Image

Cross Section

Download

ies

LUMILEDS LUXEON Rubix Blue

Eff:

89.0%

FWHM:

11.5°

Cd/Im:

18.3

Carclo Optics - 10417 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics - 10417 Cross Section Lumileds Luxeon Rubix Blue

Download

IES

LUMILEDS LUXEON Rubix Green

Eff:

89.5%

FWHM:

11.5°

Cd/Im:

18.2

Carclo Optics – 10417 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 10417 Cross Section Lumileds Luxeon Rubix Green

Download

IES

LUMILEDS LUXEON Rubix Red

Eff:

90.5%

FWHM:

11°

Cd/Im:

20.6

Carclo Optics – 10417 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 10417 Cross Section Lumileds Luxeon Rubix Red

Download

IES

LUMILEDS LUXEON Rubix Royal Blue

Eff:

88.5%

FWHM:

11.5°

Cd/Im:

19.5

Carclo Optics – 10417 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 10417 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

IES

LUMILEDS LUXEON Rubix White

Eff:

89.5%

FWHM:

12.0°

Cd/Im:

17.1

Carclo Optics - 10417 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 10417 Cross Section Lumileds Luxeon Rubix White

Download

IES

LUMILEDS LUXEON TX White

Eff:

86.2%

FWHM:

21.7°

Cd/Im:

4.7

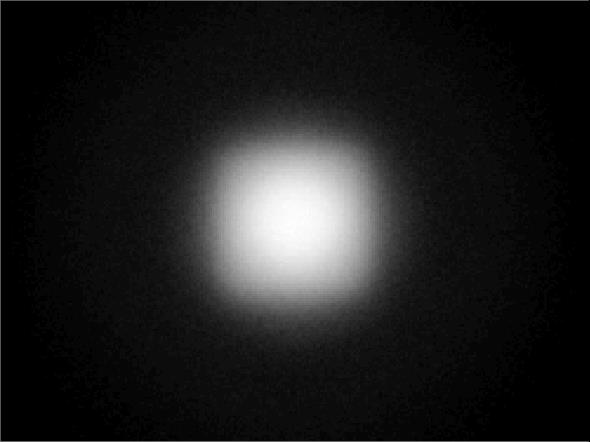

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON Z ES White

Eff:

89.0%

FWHM:

16°

Cd/Im:

8.3

Spot Image

Cross Section

Download

ies

LUMILEDS LUXEON Z White

Eff:

87.0%

FWHM:

12°

Cd/Im:

14.5

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Luminus Devices SST 10-B-B130 Blue

Eff:

90.0%

FWHM:

18°

Cd/Im:

9.5

Carclo Optics - 10417 Luminus_SST-10_B_B130 - spot image

Carclo Optics - 10417 Luminus_SST-10_B_B130 - cross section image

Download

IES

Luminus Devices SST 10-B-B90 Blue

Eff:

89.0%

FWHM:

18.5°

Cd/Im:

8.1

Carclo Optics - 10417 Luminus_SST-10_B_B90 - spot - image

Carclo Optics - 10417 Luminus_SST-10_B_B90 - cross-horizontal image

Download

IES

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

90.0%

FWHM:

18.5°

Cd/Im:

7.3

Carclo Optics – 10417 Luminus_SST-10_DR_B130- Spot - image

Carclo Optics – 10417 Luminus_SST-10_DR_B130- Cross section – image

Download

IES

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

90.0%

FWHM:

20.5°

Cd/Im:

7.7

Carclo Optics - 10417 Luminus_SST-10_DR_B90 - Spot Image

Carclo Optics - 10417 Luminus_SST-10_DR_B90 - Cross section vertical image

Download

IES

Luminus Devices SST 10-G-B130 Green

Eff:

91.0%

FWHM:

18°

Cd/Im:

9.7

Carclo Optics - 10417 Luminus_SST-10_G_B130 - spot - image

Carclo Optics - 10417 Luminus_SST-10_G_B130 - cross -section- image

Download

IES

Luminus Devices SST 10-G-B90 Green

Eff:

90.0%

FWHM:

19.5°

Cd/Im:

8.0

Carclo Optics - 10417 Luminus_SST-10_G_B90- Spot - image

Carclo Optics - 10510 Luminus_SST-10_G_B90- Cross section - image

Download

IES

Luminus Devices SST 10-IR-B130 940nm

Eff:

92.5%

FWHM:

20.0°

Ipk/W:

7.1

Carclo Optics - 10417 Spot Image Luminus SST-10-IR-B130

Carclo Optics - 10417 Cross Section Luminus SST-10-IR-B130

Download

IES

Luminus Devices SST 10-IR-B90 940nm

Eff:

91.5%

FWHM:

22.5°

Ipk/W:

6.3

Carclo Optics - 10417 Spot Image Luminus SST-10-IR-B90

Carclo Optics - 10417 Cross Section Luminus SST-10-IR-B90

Download

IES

Luminus Devices SST 10-IRD-B130 810nm

Eff:

93.0%

FWHM:

18°

Ipk/W:

8.4


Download

IES

Luminus Devices SST 10-IRD-B90 810nm

Eff:

91.5%

FWHM:

20°

Ipk/W:

7.9


Download

IES

Luminus Devices SST 20-WxH White Hi CRI

Eff:

91.0%

FWHM:

19°

Cd/Im:

6.8

Carclo Optics – 10417 - Luxeon_SST_20_W_spot-image

Carclo Optics – 10417 - Luxeon_SST_20_W_cross vertical section

Download

IES

Nichia 219 White

FWHM:

23.6°

Cd/Im:

5.1

Spot Image

Cross Section

Download

ies

Nichia 757 White

Eff:

88.0%

FWHM:

18°

Cd/Im:

4.1

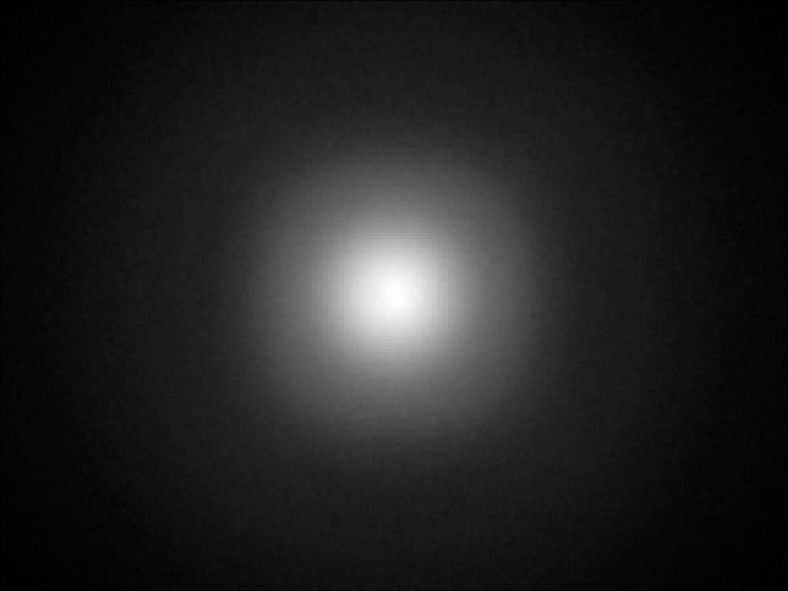

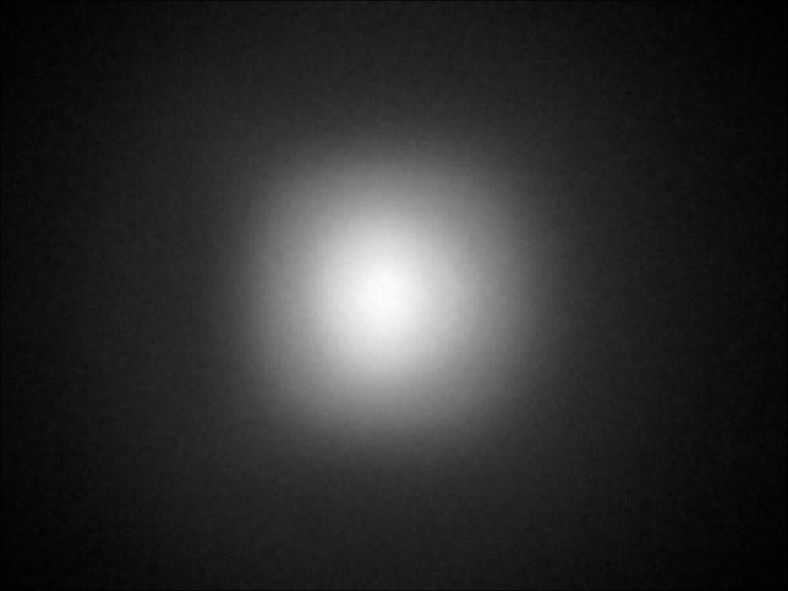

carclo optics - simulated spot image

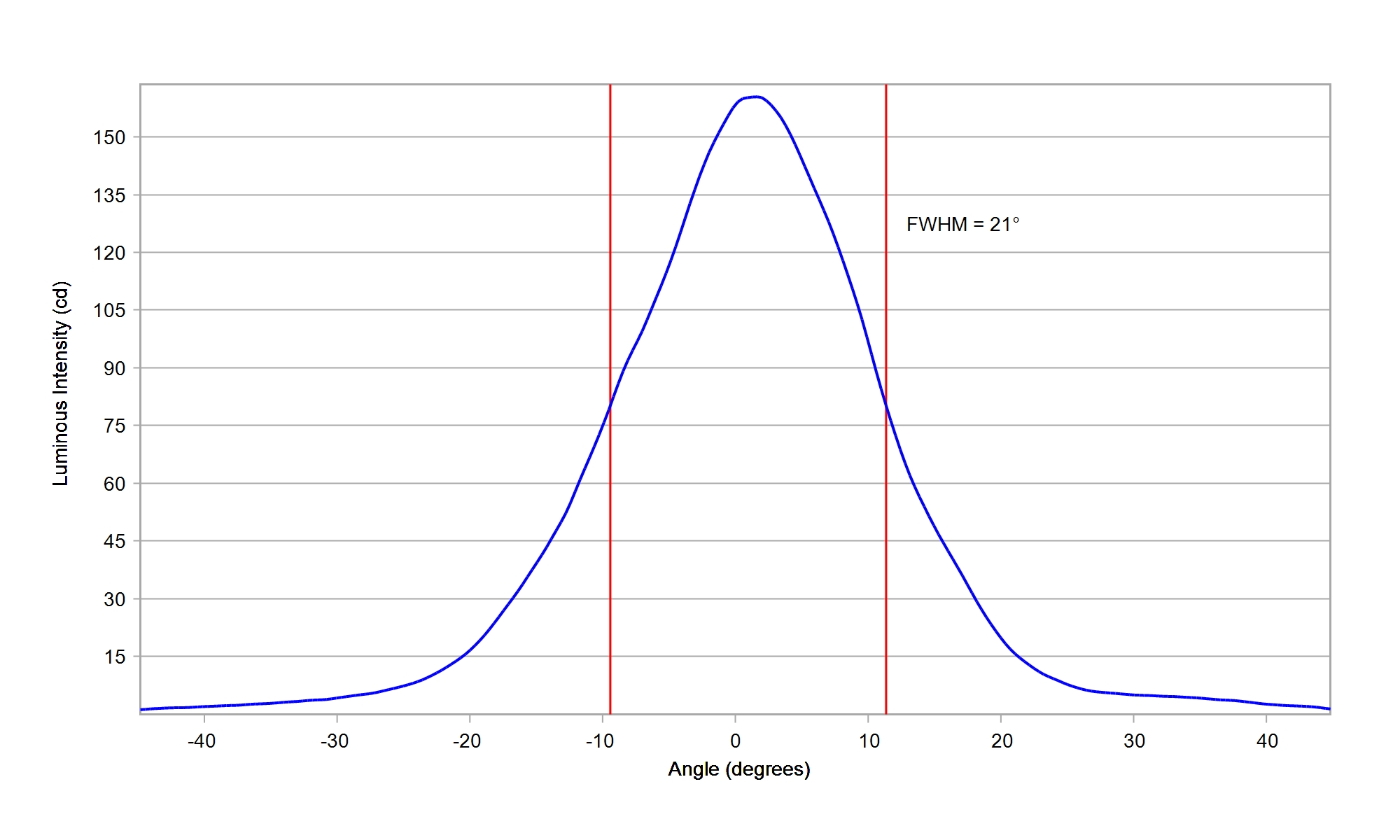

carclo optics - simulated cross section

Download

IES

Nichia 757G White

Eff:

90.5%

FWHM:

19.5°

Cd/Im:

4.5

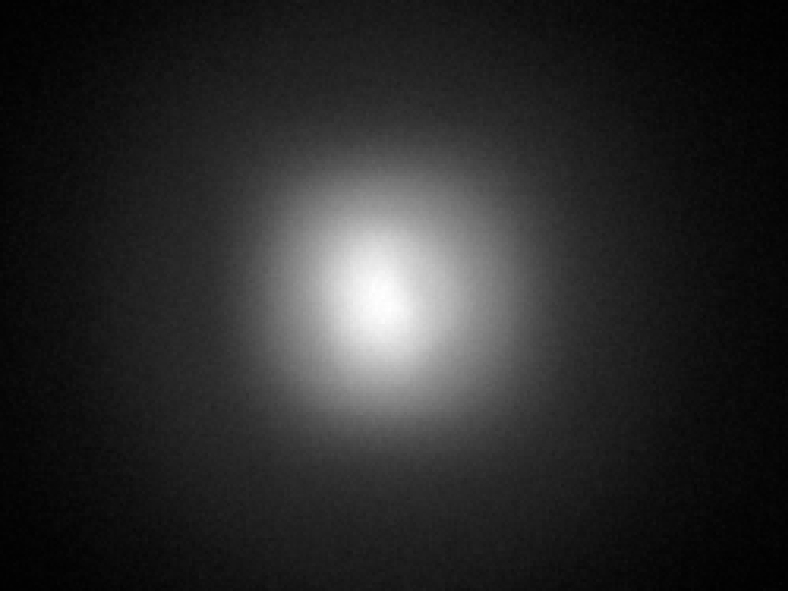

Carclo Optics - Simulated Spot Image

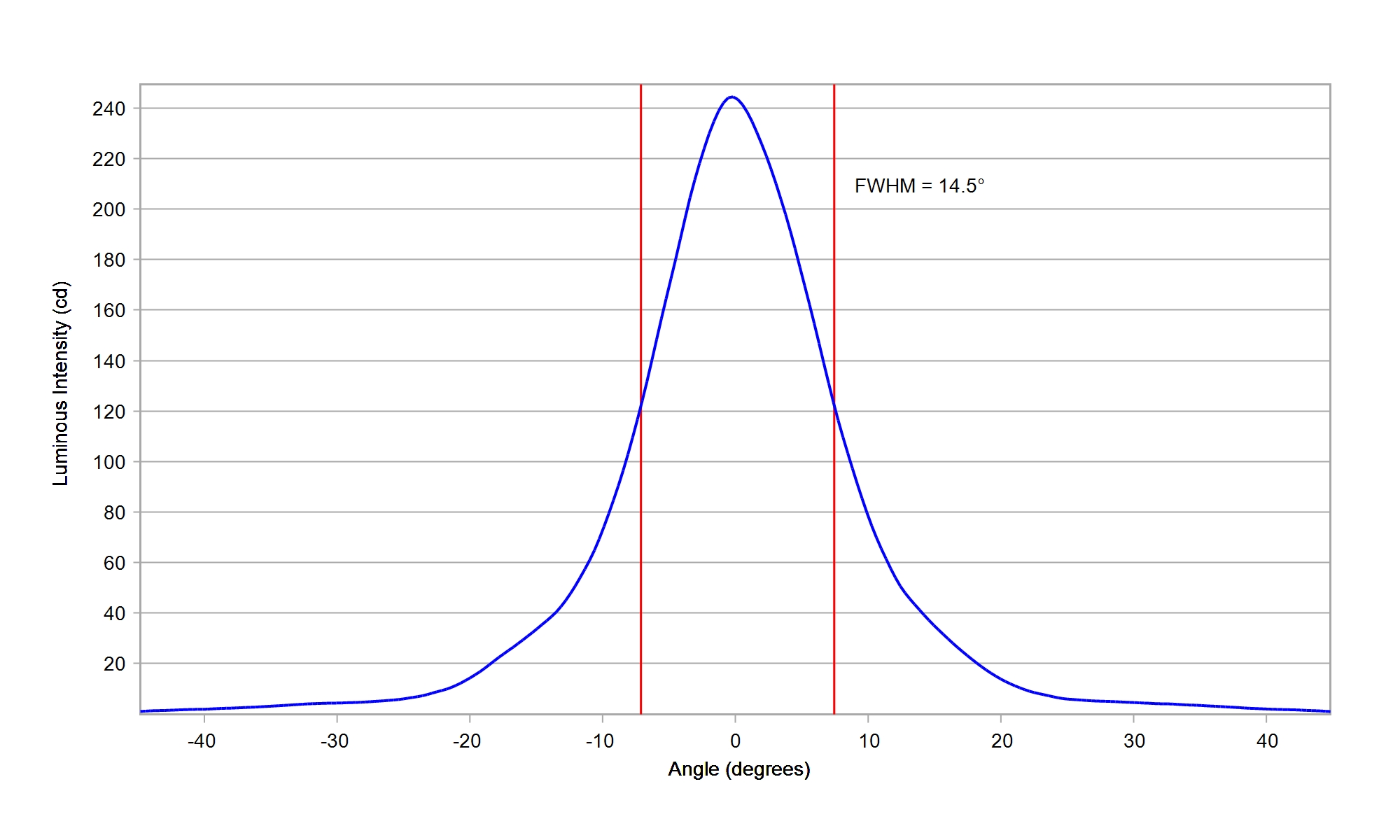

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NCSW CSP E17A White

Eff:

87.0%

FWHM:

20.8°

Cd/Im:

4.2

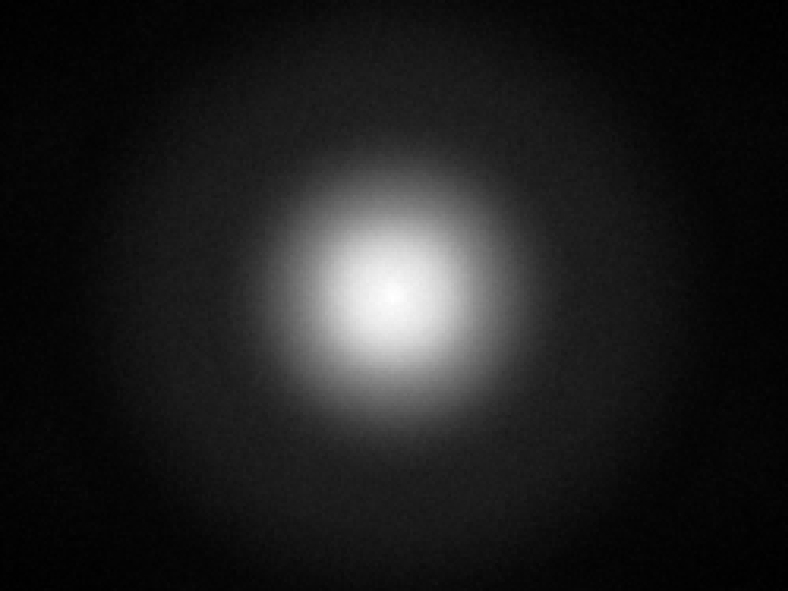

Carclo Optics - Simulated Spot Image

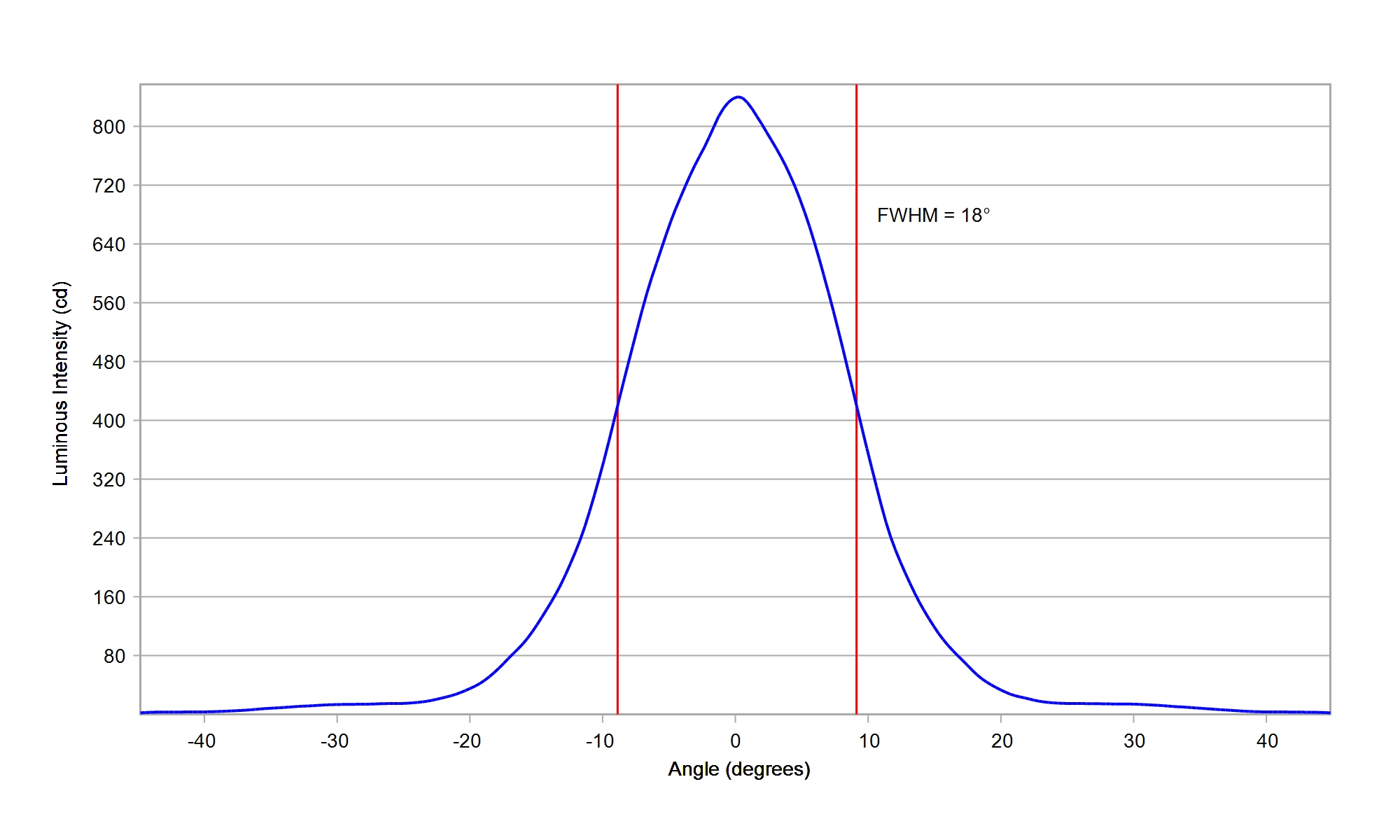

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NF2W 385AR-V2 White

Eff:

90.0%

FWHM:

25.0°

Cd/Im:

3.8

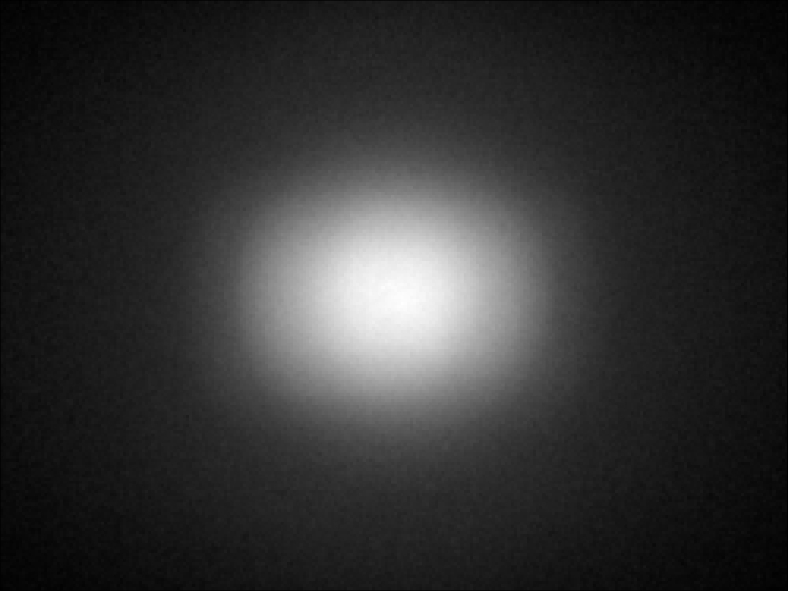

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSL 219B White

Eff:

88.5%

FWHM:

18.0°

Cd/Im:

6.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW 219C White

Eff:

89.0%

FWHM:

26.0°

Cd/Im:

3.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW 219F White

Eff:

89.0%

FWHM:

26°

Cd/Im:

4.1

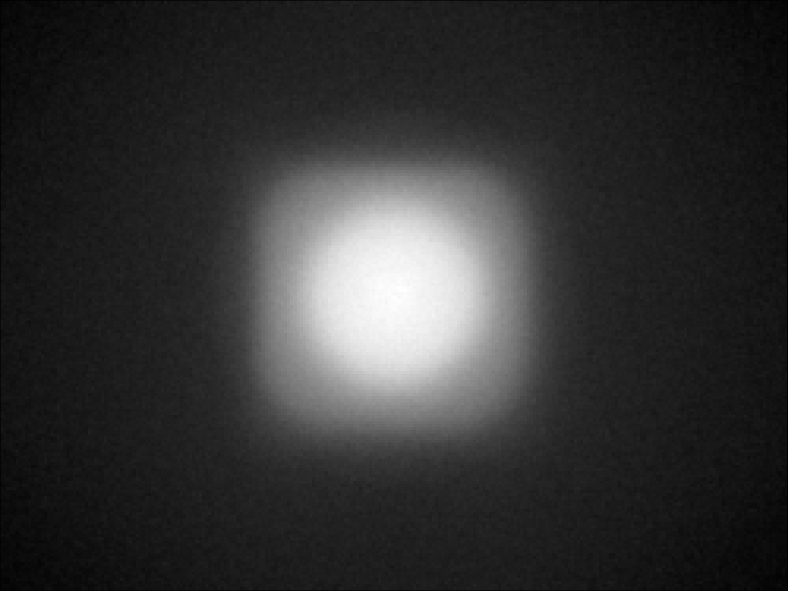

Carclo Optics – 10417 Nichia NVSW 219F White - Spot Image

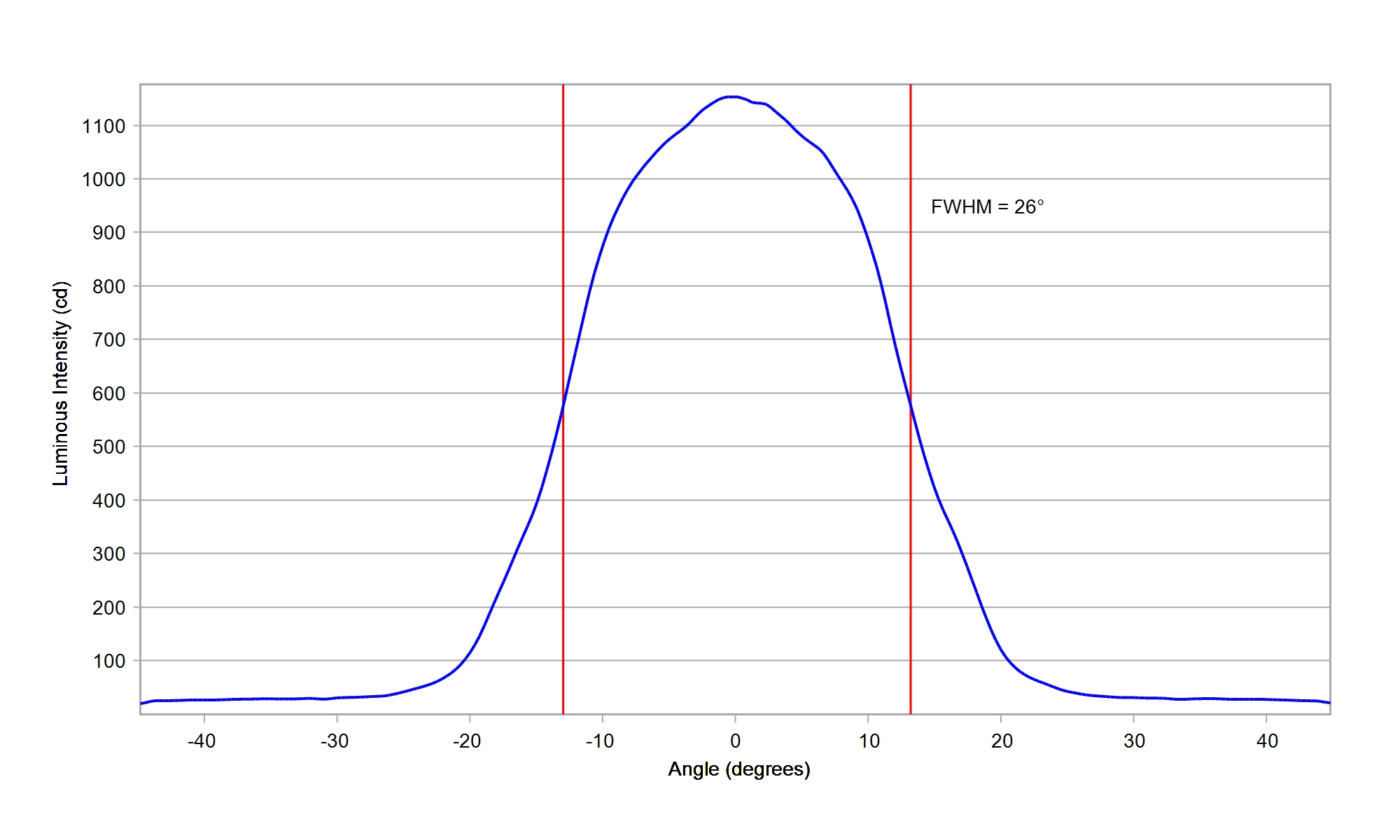

Carclo Optics – 10417 Nichia NVSW 219F White - Cross-Section

Download

IES

Nichia NVSW 319A White

Eff:

88.0%

FWHM:

29.0°

Cd/Im:

2.7

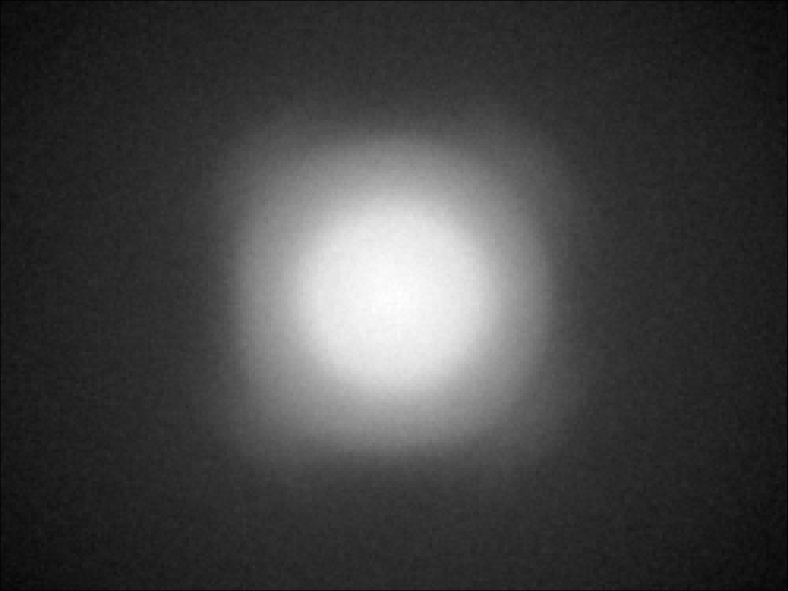

Carclo Optics - Simulated Spot Image

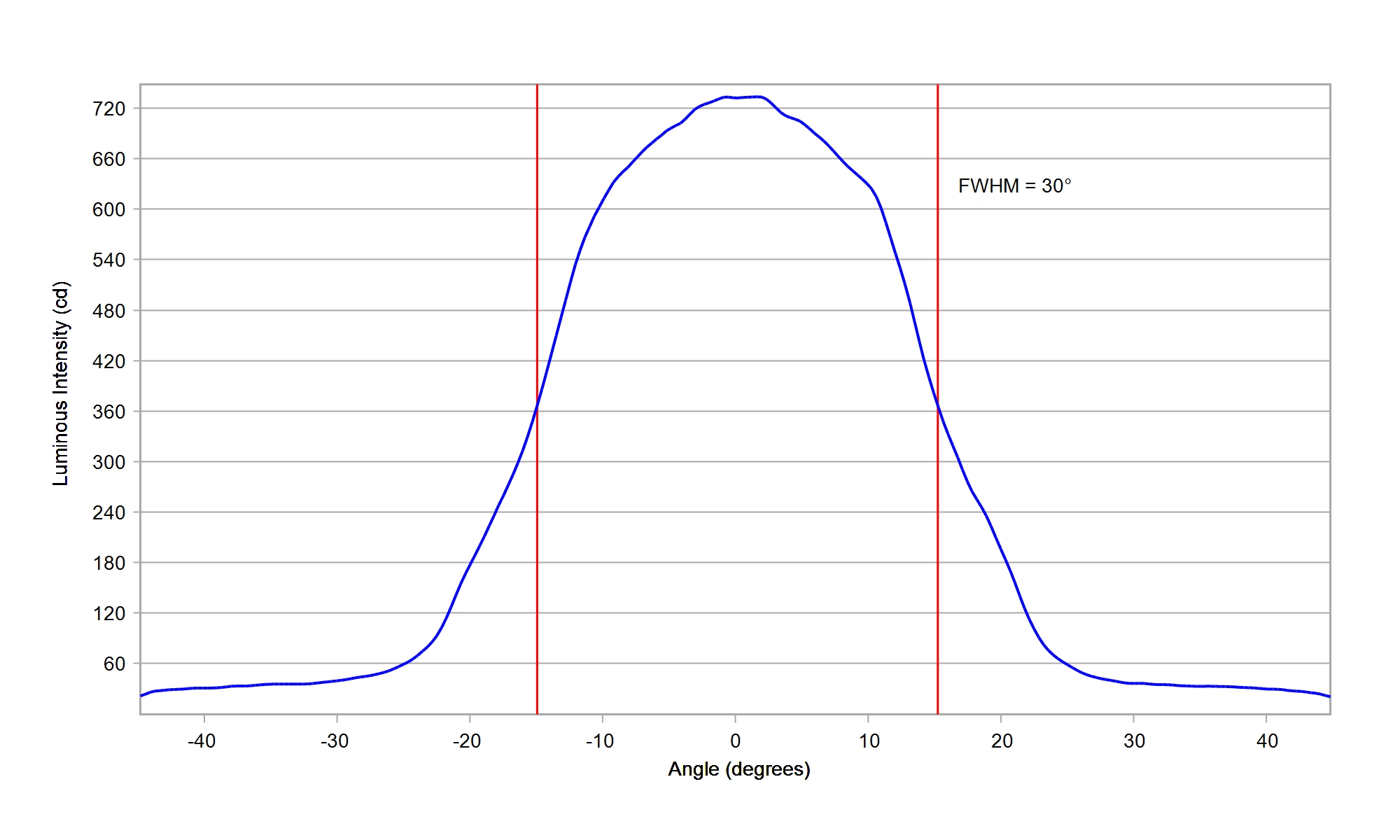

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW CSP E21A White

Eff:

87.0%

FWHM:

19.7°

Cd/Im:

4.2

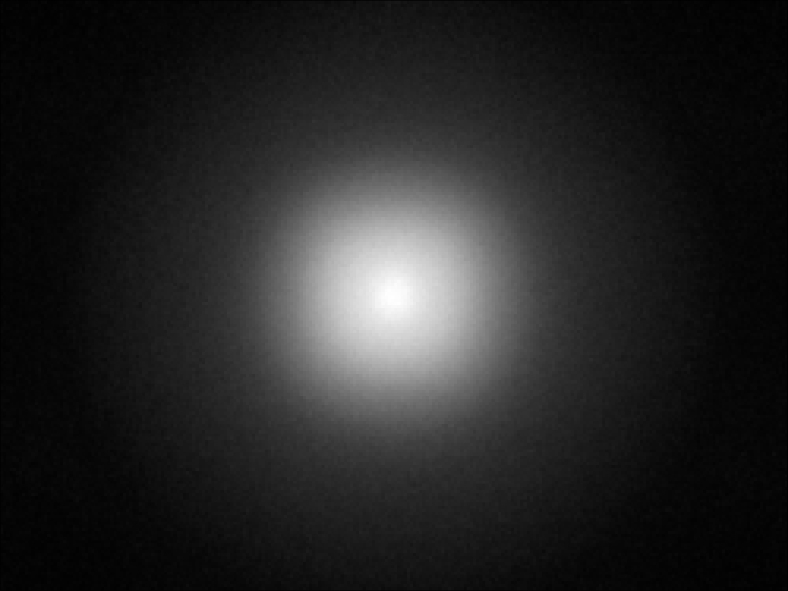

Carclo Optics - Simulated Spot Image

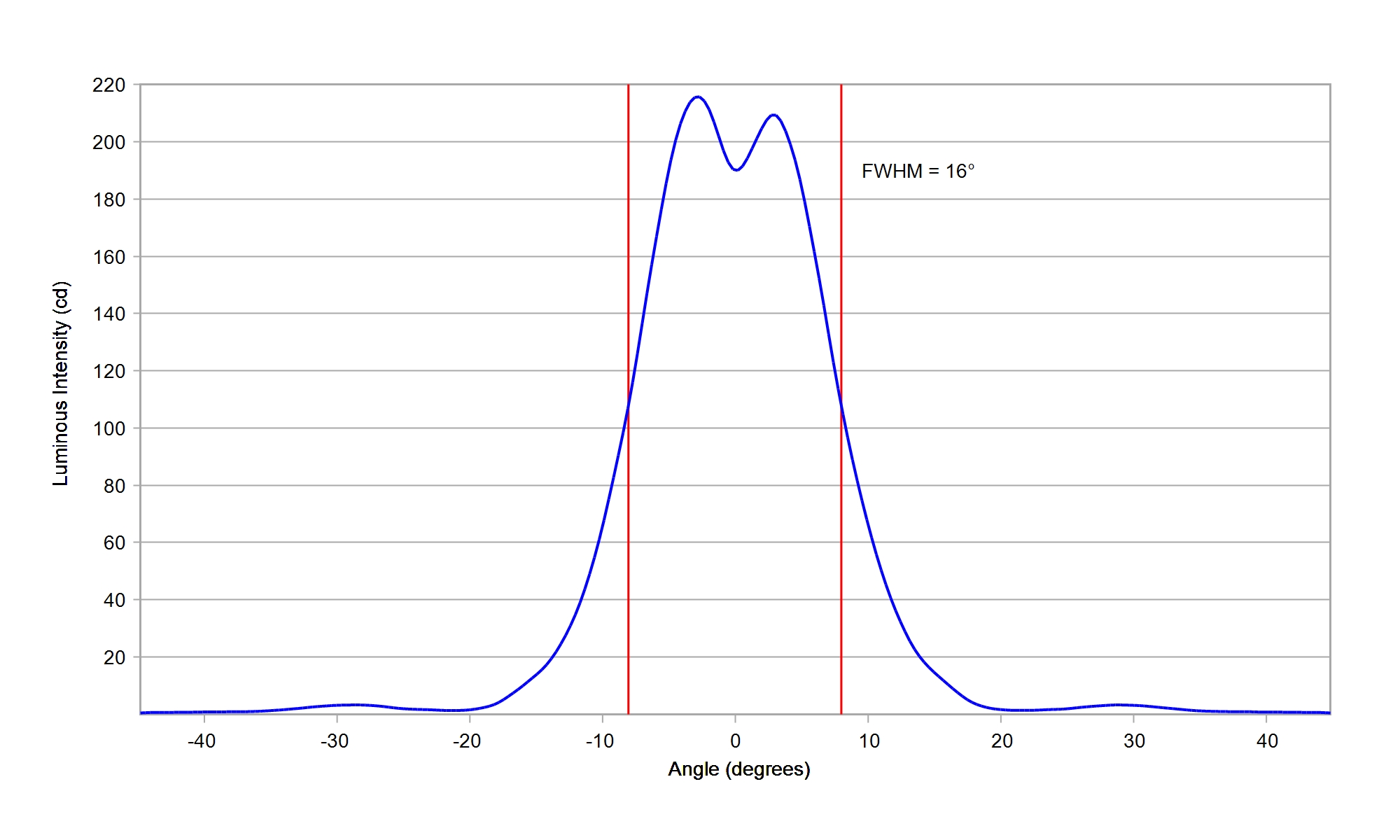

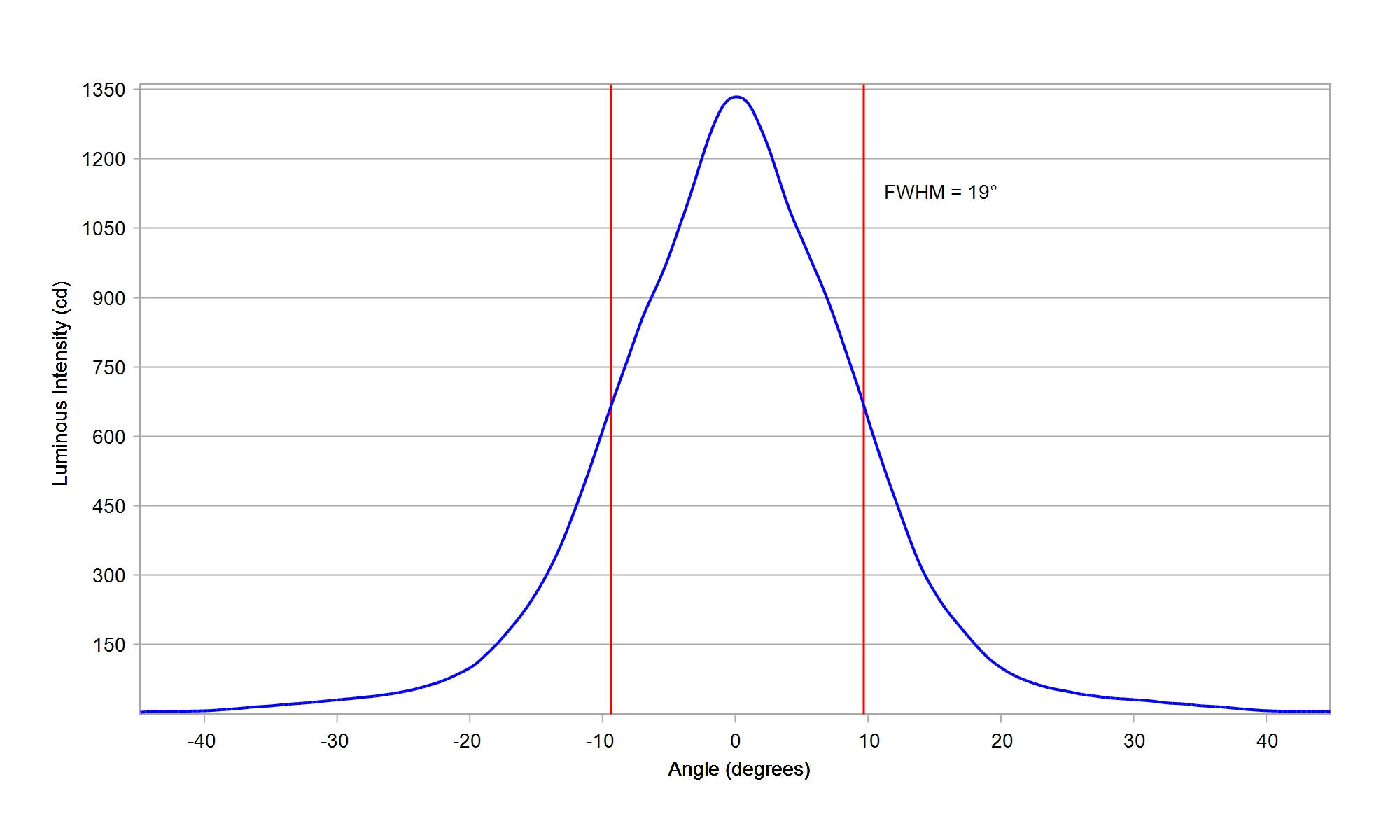

Carclo Optics - Simulated Cross Section

Download

IES

Nichia Top Emitting NCSL 119-H3 White

Eff:

82.6%

FWHM:

16.7°

Cd/Im:

7.7

Spot Image

Cross Section

Download

ies

Osram Led Engin LuxiGen LZ1 00R702 IR940nm

Eff:

92.0%

FWHM:

21.5°

Ipk/W:

5.4

Download

IES

Osram OS DURIS E 2835 Gen2

Eff:

91.5%

FWHM:

16°

Cd/Im:

7.2

Carclo Optics - 10417 10mm Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 10417 10mm Vertical Cross Section Osram DURIS E 2835 Gen2

Download

IES

Osram OS DURIS E 2835 White

Eff:

90.0%

FWHM:

18.5°

Cd/Im:

6.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS E2 White

Eff:

88.0%

FWHM:

15.4 x 12.3°

Cd/Im:

10.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS E3 White

Eff:

89.1%

FWHM:

8.6°

Cd/Im:

14.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section Image

Download

IES

Osram OS DURIS S2 White

Eff:

92.7%

FWHM:

13.6°

Cd/Im:

7.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 Deep Blue

Eff:

89.5%

FWHM:

18.0°

Cd/Im:

6.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 Green

Eff:

90.5%

FWHM:

17°

Cd/Im:

6.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 Red

Eff:

91.0%

FWHM:

16.0°

Cd/Im:

7.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 White

Eff:

88.0%

FWHM:

18.7°

Cd/Im:

4.7

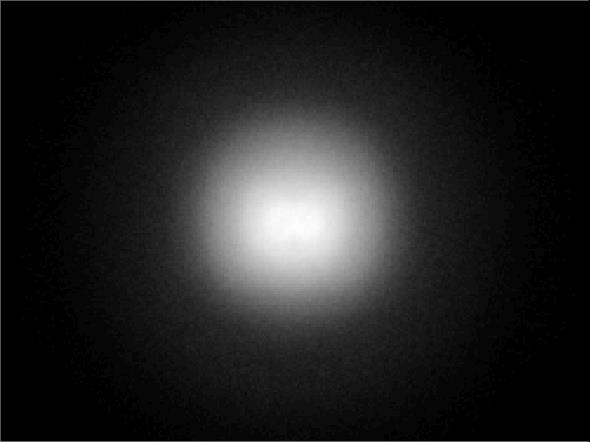

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS OSCONIQ C 2424 White

Eff:

91.5%

FWHM:

16.5°

Cd/Im:

7.6

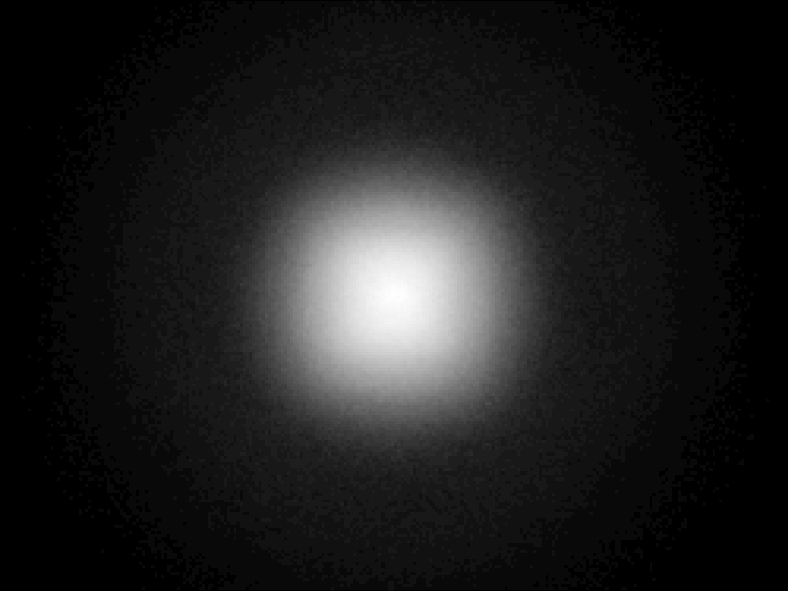

Carclo Optics - 10417 Spot Image OSCONIQ C2424

Carclo Optics - 10417 Cross Section OSCONIQ C2424

Download

IES

Osram OS OSLON Black SFH 4716AS IR

Eff:

93.0%

FWHM:

14°

Ipk/W:

11.4

Carclo Optics – 10417 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

Carclo Optics – 10417 Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

IES

Osram OS OSLON Black SFH 4725S IR

Eff:

92.5%

FWHM:

22°

Cd/Im:

6.0

Carclo Optics 10417 Spot Image Osram Oslon Black_IR_SFH_4725S

Carclo Optics 10417 Cross Section Image Osram Oslon Black_IR_SFH_4725S

Download

IES

Osram OS OSLON Boost HM KW CELMM1.TG

Eff:

90.5%

FWHM:

9°

Cd/Im:

31.4

Carclo Optics – 10417 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 10417 – Osram_Oslon_Boost_KW_CELMM1_TG_cross vertical section

Download

IES

Osram OS OSLON Square Flat White

Eff:

90.0%

FWHM:

15.0°

Cd/Im:

9.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS OSLON Square Gen 3 White

Eff:

86.8%

FWHM:

20.4°

Cd/Im:

5.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS OSLON Square Gen 5 GW CSSRM3

Eff:

90.5%

FWHM:

42 x 22.5°

Cd/Im:

2.7

Carclo Optics - 10417 10mm Spot Image Oslon Square Gen 5

Carclo Optics - 10417 10mm Cross Section Oslon Square Gen 5

Download

IES

Osram OS OSLON Square White

Eff:

86.0%

FWHM:

21°

Cd/Im:

5.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

90.0%

FWHM:

14°

Cd/Im:

11.6

Carclo Optics – 10417 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Carclo Optics – 10417 Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Download

IES

Osram OS OSLON SSL 150 degree White

Eff:

85.7%

FWHM:

14.3°

Cd/Im:

12.7

Spot Image

Cross Section

Download

ies

Osram OS OSLON SSL 80 White

Eff:

85.5%

FWHM:

18.5°

Cd/Im:

8.6

Spot Image

Cross Section

Download

ies

Osram OS OSLON SSL 80 GH CS8PM1.24 Hyper Red

Eff:

90.0%

FWHM:

19.5°

Ipk/W:

7.4


Download

IES

Osram OS OSLON SSL 80 GT CS8PM1.13 True Green

Eff:

90.0%

FWHM:

21.5°

Cd/Im:

6.1



Download

IES

Osram OS OSLON SSL 80 GW CS8PM1.PM White

Eff:

90.0%

FWHM:

17.5°

Cd/Im:

8.6


Download

IES

Samsung 2835 LM281B+ White

Eff:

91.0%

FWHM:

20°

Cd/Im:

4.5



Download

Samsung 3030 LM301B White

Eff:

91.0%

FWHM:

18°

Cd/Im:

6.8

Download

IES

Samsung 3535 LH351A White

FWHM:

22°

Cd/Im:

6.3

Spot Image

Cross Section

Download

ies

Samsung 3535 LH351B White

Eff:

86.7%

FWHM:

25°

Cd/Im:

3.7

carclo simulated spot image

carclo simulated cross section

Download

IES

Samsung 3535 LH351Z White

Eff:

86.5%

FWHM:

20.5°

Cd/Im:

5.9

carclo simulated spot image

carclo simulated cross section

Download

IES

Samsung CSP LH151B White

Eff:

92.0%

FWHM:

18°

Cd/Im:

6.7

Carclo Optics – 10417 – Samsung_LH151B_spot-image

Carclo Optics – 10417 – Samsung_LH151B_cross section

Download

IES

Samsung CSP LH181B White

Eff:

92.0%

FWHM:

20.5 °

Cd/Im:

4.9

Carclo Optics - 10417 Spot Image - Samsung LH181B_4000K

Carclo Optics - 10417 Cross Section - Samsung LH181B_4000K

Download

IES

Samsung CSP LM101B White

Eff:

92.0%

FWHM:

18°

Cd/Im:

6.7

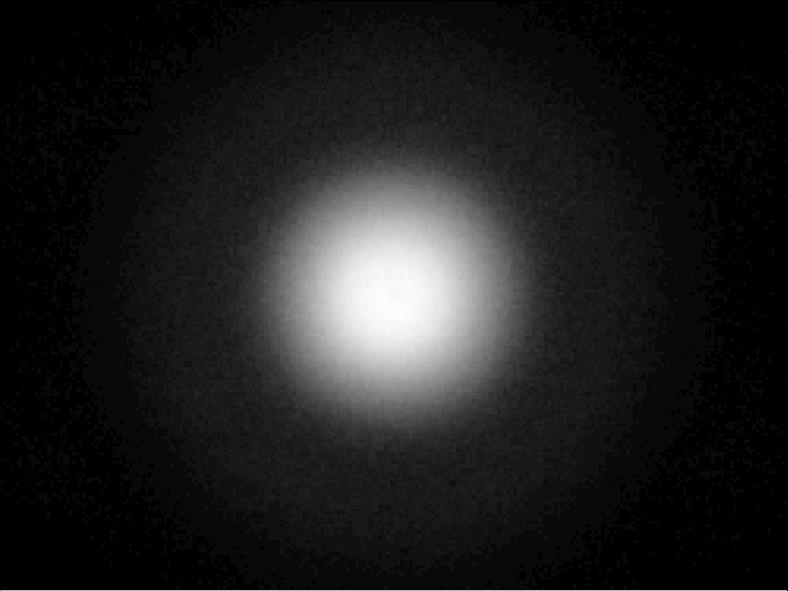

Carclo Optics -10417 Spot Image - Samsung LM101B 5000K

Carclo Optics -10417 Cross Section Image - Samsung LM101B 5000K

Download

IES

Seoul MidPower MJT3030 White

Eff:

87.0%

FWHM:

16°

Cd/Im:

6.0

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Seoul STW8 C2SB-NT White

Eff:

91.0%

FWHM:

19.0°

Cd/Im:

5.4

Carclo Optics - 10417 Spot Image Seoul STW8 C2SB-NT

Carclo Optics - 10417 Cross Section Seoul STW8 C2SB-NT

Download

IES

Seoul STWS C2PB-E0 White

Eff:

91.5%

FWHM:

19.0°

Cd/Im:

5.3

Carclo Optics - 10417 Spot Image STWS C2PB-E0

Carclo Optics - 10417 Cross Section STWS C2PB-E0

Download

IES

Seoul SunLike STW9 C2SB-S

Eff:

91.5%

FWHM:

17.5°

Cd/Im:

6.4

Carclo Optics - 10417 10mm Spot Image Seoul Sunlike 3030

Carclo Optics - 10417 10mm Cross Section Seoul Sunlike 3030

Download

IES

Seoul Z - Power Z5 M0 White

FWHM:

22.2°

Cd/Im:

6.0

Spot Image

Cross Section

Download

ies

Seoul Z - Power Z5 M1 White

Eff:

87.0%

FWHM:

21.9°

Cd/Im:

4.6

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Seoul Z - Power Z5 M4 White

Eff:

90.0%

FWHM:

26°

Cd/Im:

3.9

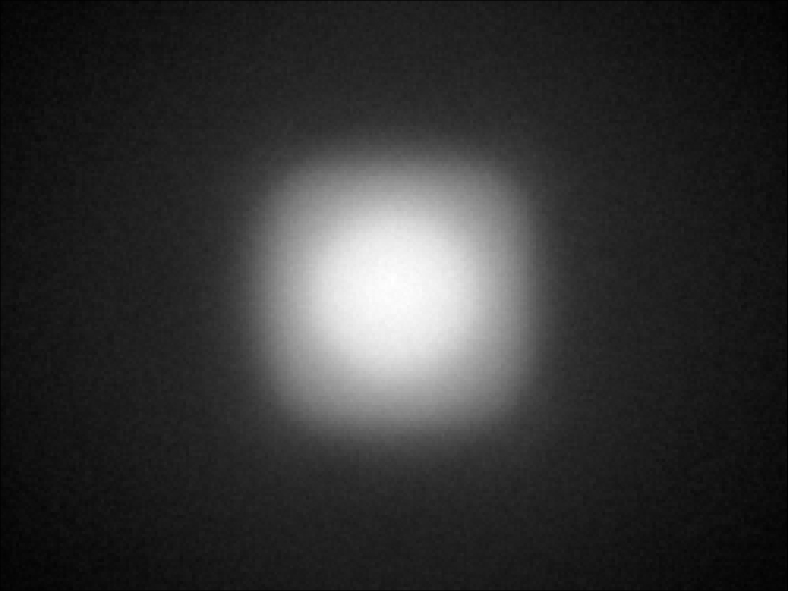

Carclo Optics – 10417 Seoul Z-Power Z5 - Spot Image

Carclo Optics – 10417 Seoul Z-Power Z5 - Cross-Section

Download

IES

Seoul Z - Power Z5 P0 White

FWHM:

18.3°

Cd/Im:

8.4

Download

ies

Seoul Z - Power Z5 White

Eff:

84.8%

FWHM:

15.8°

Cd/Im:

12.8

Spot Image

Cross Section

Download

ies

Stanley FWR1108MS IR 755nm

Eff:

92.5%

FWHM:

17°

Ipk/W:

9.3


Download

Toshiba TL 1L2 White

Eff:

85.0%

FWHM:

22.7°

Cd/Im:

4.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Toshiba TL 1L4 White

Eff:

86.0%

FWHM:

21.8°

Cd/Im:

4.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES
