10.0mm Elliptical Ripple Linear TIR LED Lenses | Carclo Optics

Carclo Optics 10415

10.0mm Elliptical Ripple Linear TIR LED Lenses

Part number

10415

Dimensions

10.0mm

Drawing Number

60518

Optic type

TIR LED Lenses

Finish

Ripple Linear

Beam type

Elliptical

Applications

Architectural

Landscape & Garden

Wide Area

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

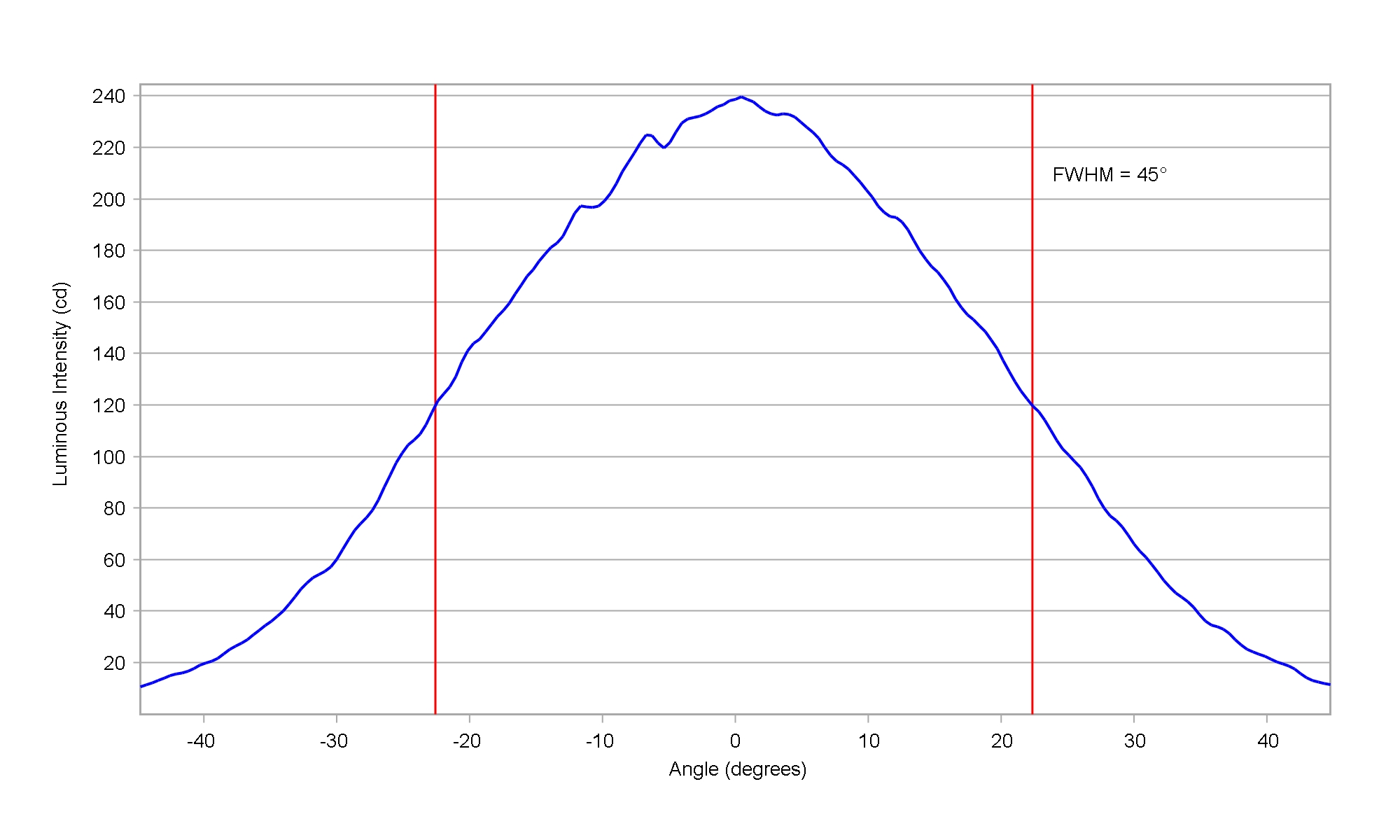

Bridgelux SMD 3030 Gen2 White

Eff:

88.0%

FWHM:

45 x 20°

Cd/Im:

2.9


,


Download

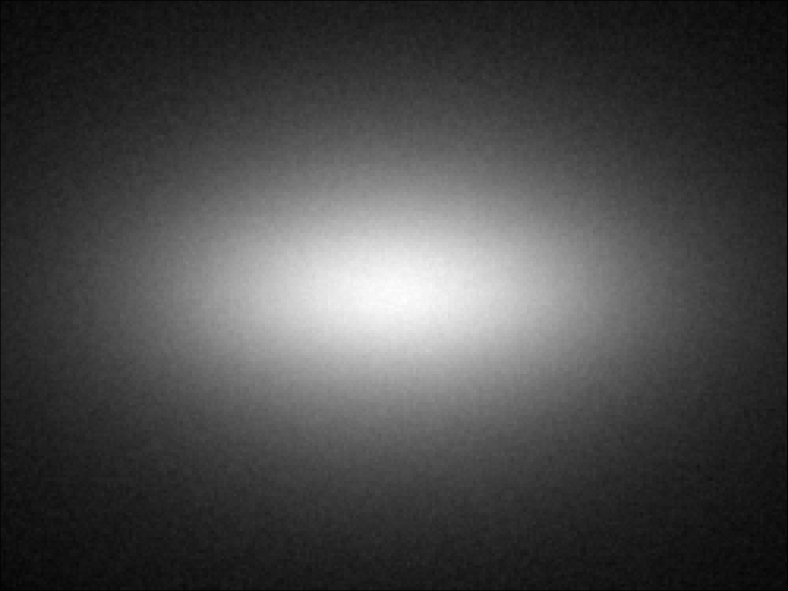

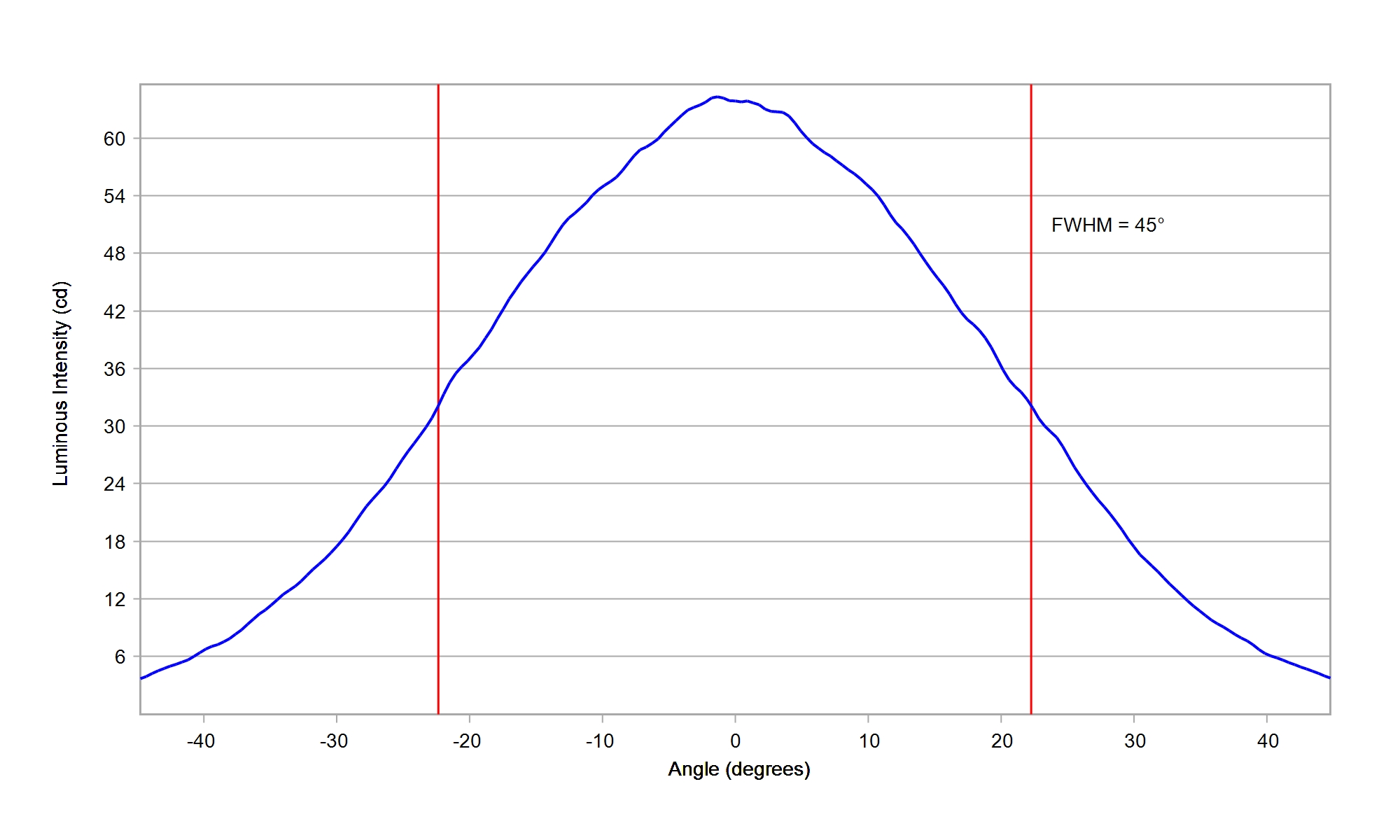

Cree JB2835B 3V G-Class White

Eff:

86.5%

FWHM:

45 x 20.5°

Cd/Im:

2.4


,


Download

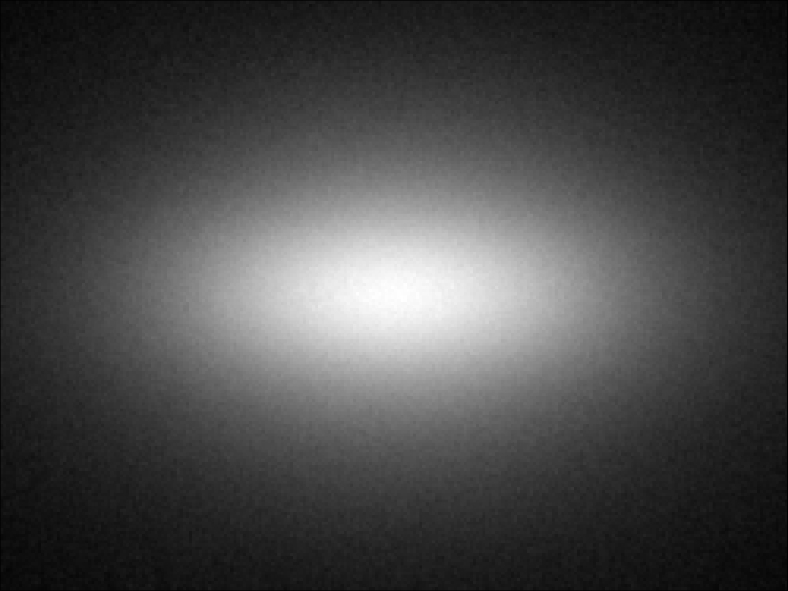

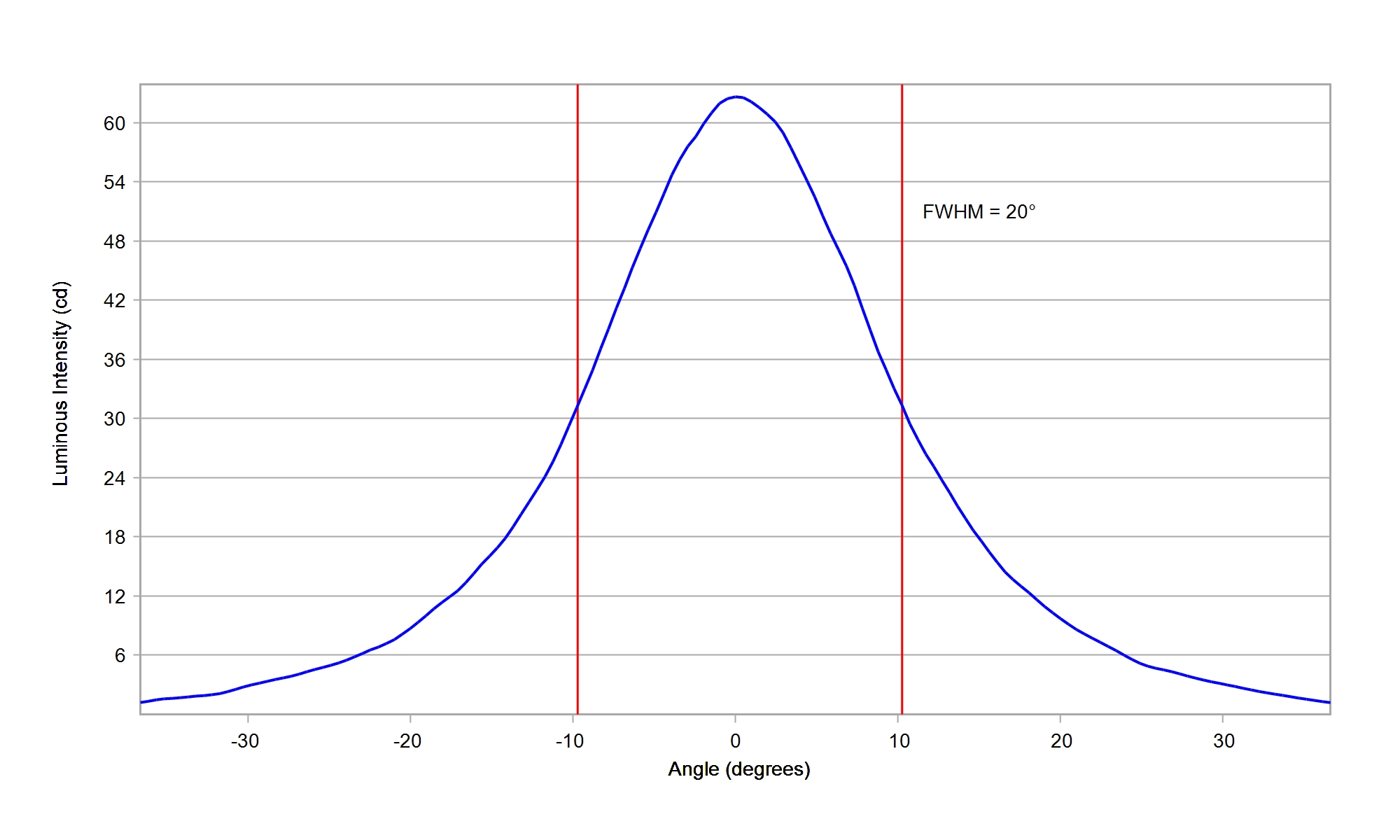

Cree JB2835B 3V J-Class White

Eff:

86.5%

FWHM:

44 x 20°

Cd/Im:

2.6


,


Download

Cree JB3030C 3V E-Class White

Eff:

85.5%

FWHM:

45 x 23°

Cd/Im:

2.2


,


Download

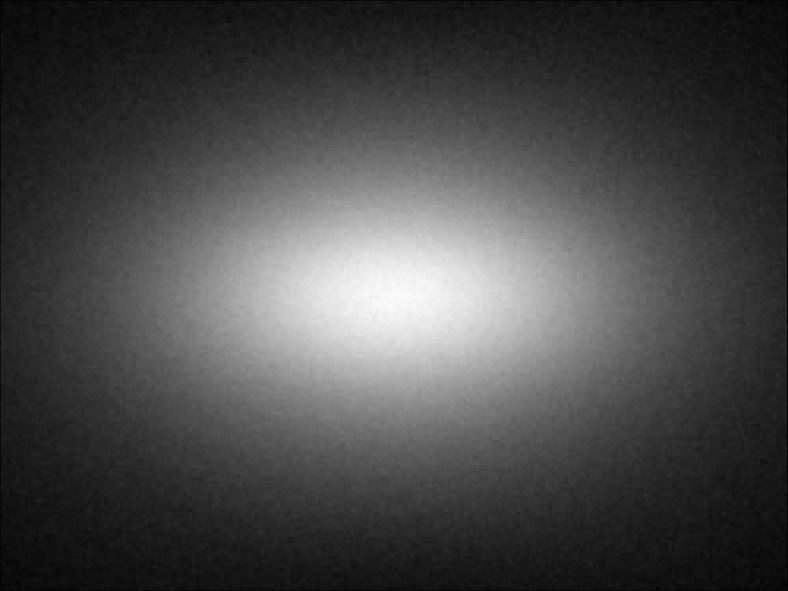

Cree JB3030C 3V F-Class White

Eff:

86.5%

FWHM:

44 x 22°

Cd/Im:

2.5


,


Download

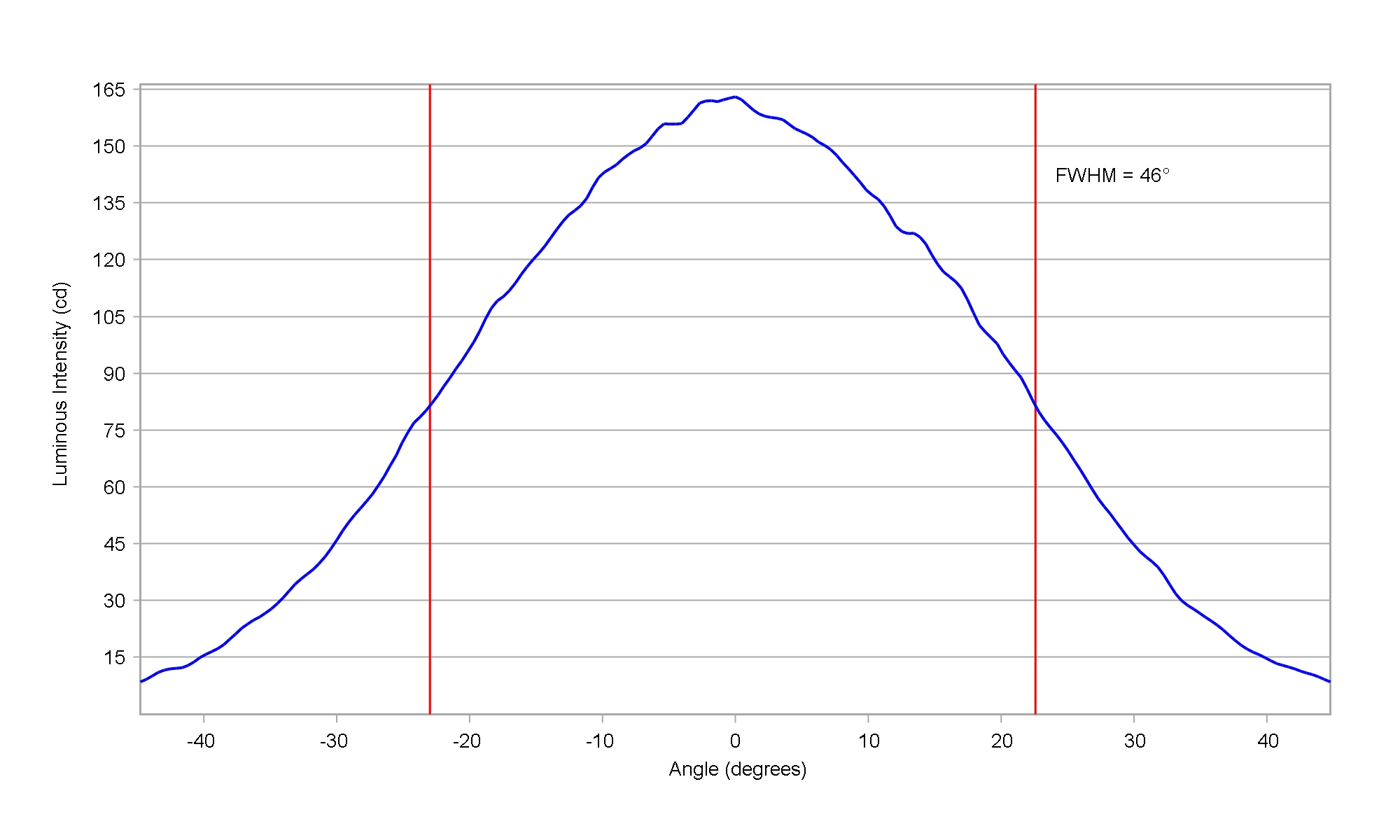

Cree JE2835 3V White

Eff:

87.0%

FWHM:

46 x 19°

Cd/Im:

2.6


,


Download

Cree JK2835 6V White

Eff:

87.0%

FWHM:

45 x 21.5°

Cd/Im:

2.5


,


Download

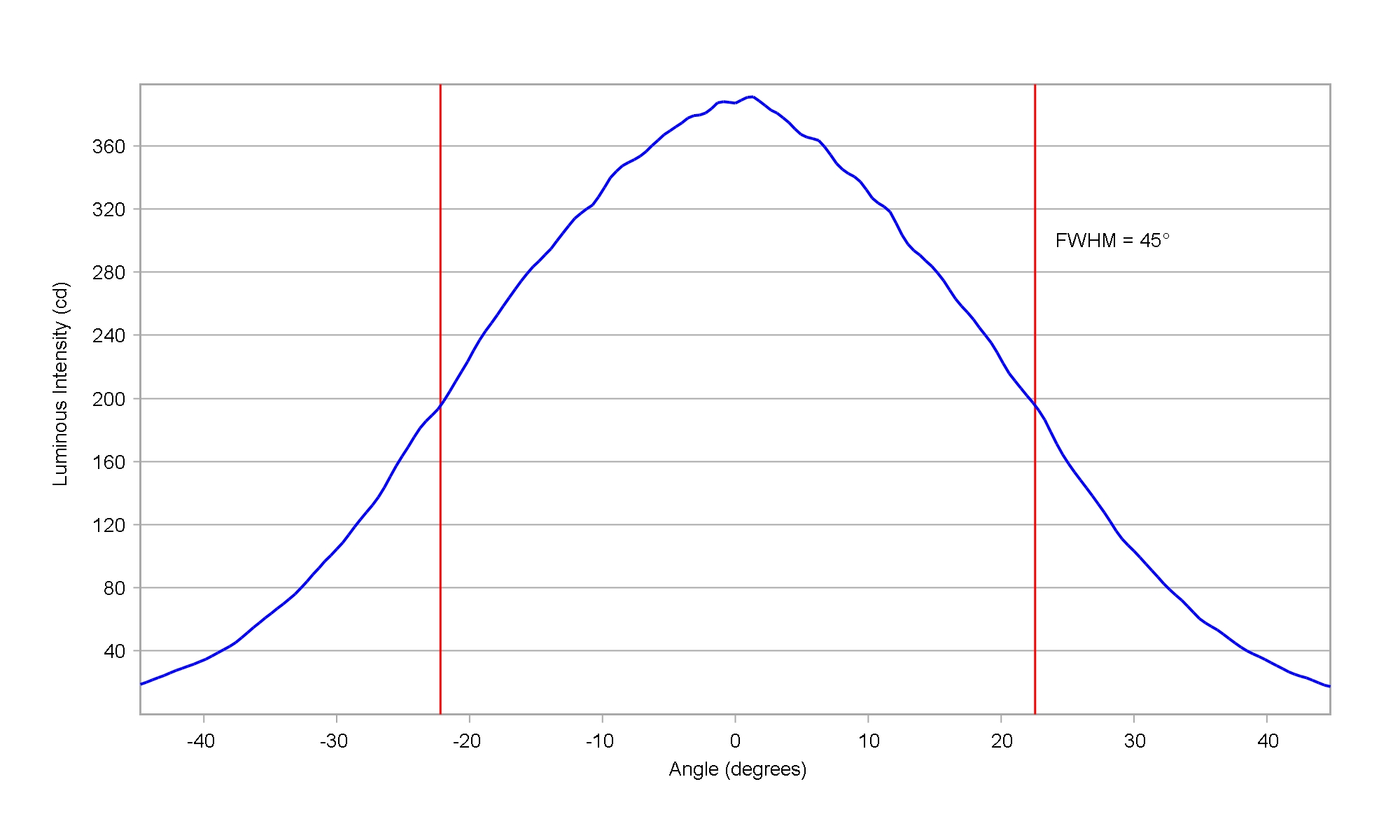

Cree XLamp CSP XD16 Cool White

Eff:

88.5%

FWHM:

45 x 18.5°

Cd/Im:

2.7


,


Download

Cree XLamp CSP XD16 Premium White

Eff:

88.5%

FWHM:

45 x 16.5°

Cd/Im:

3.4


,


Download

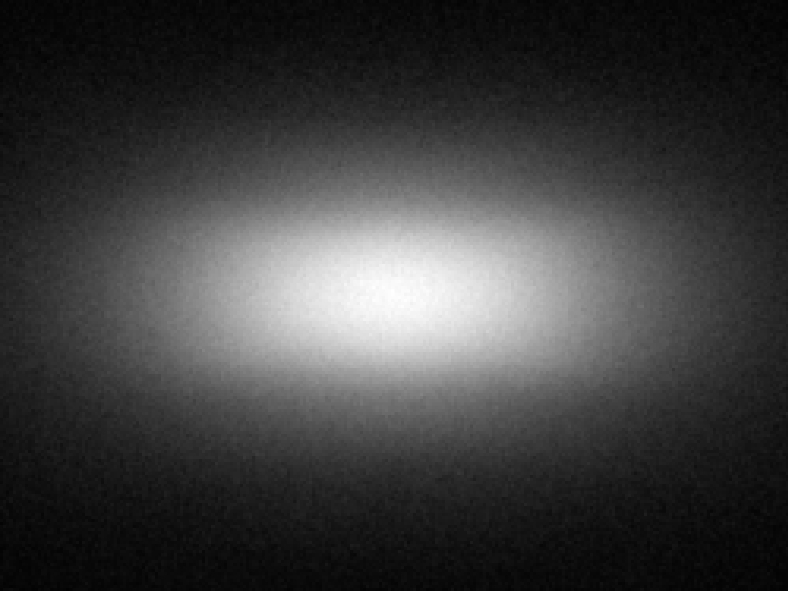

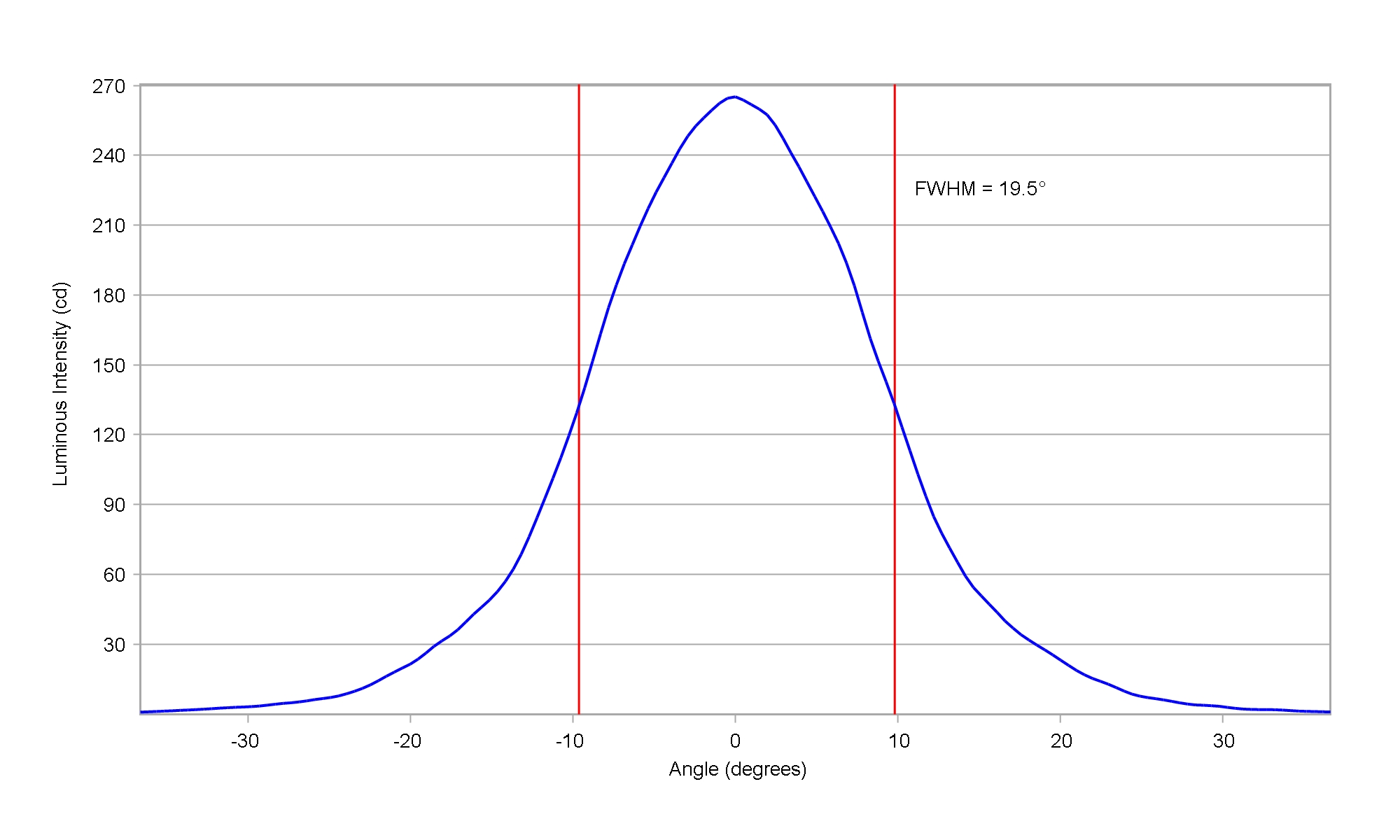

Cree XLamp XB-D White

Eff:

86.0%

FWHM:

44 x 19.5°

Cd/Im:

3.0


,

Download

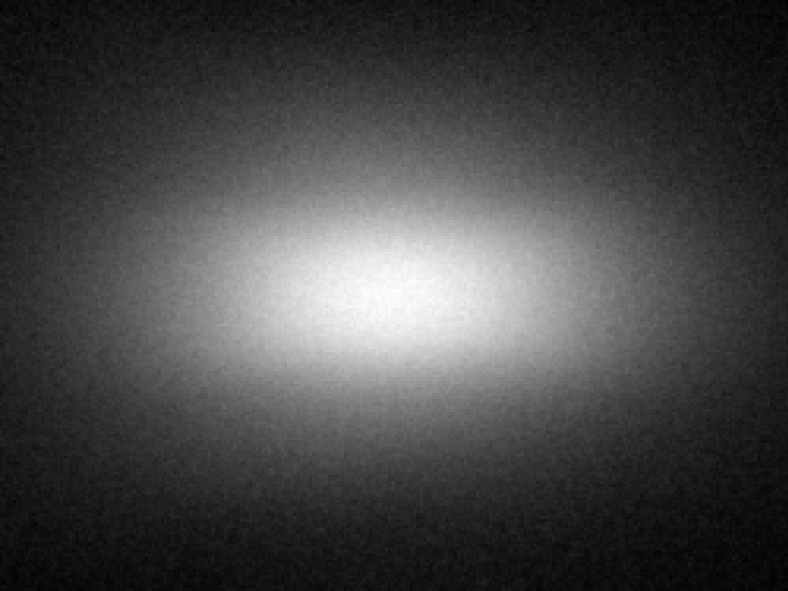

Cree XLamp XB-H White

Eff:

86.0%

FWHM:

44 x 21°

Cd/Im:

2.8


,

Download

Cree XLamp XE-G Blue

Eff:

87.0%

FWHM:

47 x 14°

Cd/Im:

3.8


,


Download

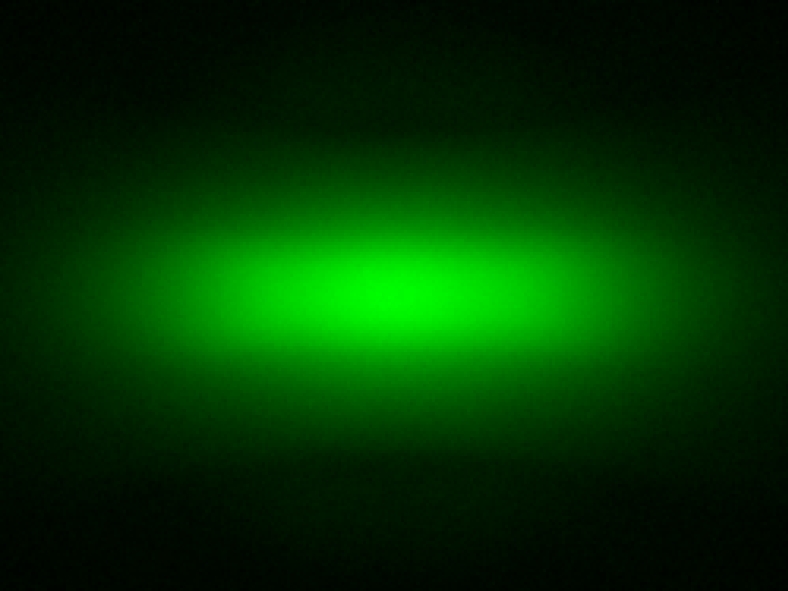

Cree XLamp XE-G Green

Eff:

88.5%

FWHM:

47 x 14.5°

Cd/Im:

3.7


,


Download

Cree XLamp XE-G Red

Eff:

87.0%

FWHM:

46 x 14.5°

Cd/Im:

3.8


,


Download

Cree XLamp XE-G White

Eff:

88.0%

FWHM:

46 x 14.5°

Cd/Im:

3.7


,


Download

Cree XLamp XP-C White

Eff:

87.8%

FWHM:

46.2 x 12.5°

Cd/Im:

5.0

Spot Image

Cross Section

Download

ies

Cree XLamp XP-E White

Eff:

88.1%

FWHM:

43 x 16°

Cd/Im:

3.5

Spot Image

Cross Section

Download

ies

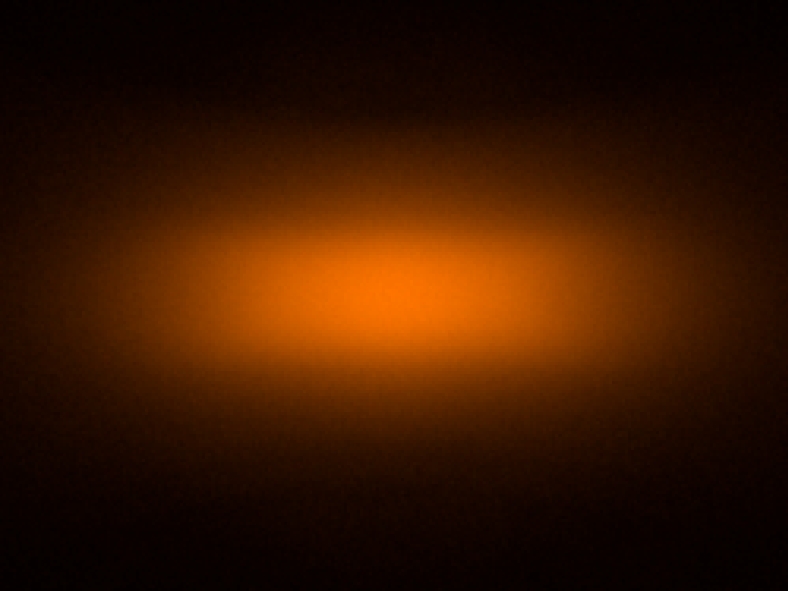

Cree XLamp XP-E2 Amber

Eff:

88.0%

FWHM:

44 x 17°

Cd/Im:

3.4


,


Download

Cree XLamp XP-E2 Blue

Eff:

88.5%

FWHM:

47 x 15°

Cd/Im:

3.8


,


Download

Cree XLamp XP-E2 Far Red

Eff:

89.5%

FWHM:

44 x 17°

Ipk/W:

3.4


,


Download

Cree XLamp XP-E2 Green

Eff:

88.5%

FWHM:

46 x 15°

Cd/Im:

3.8


,


Download

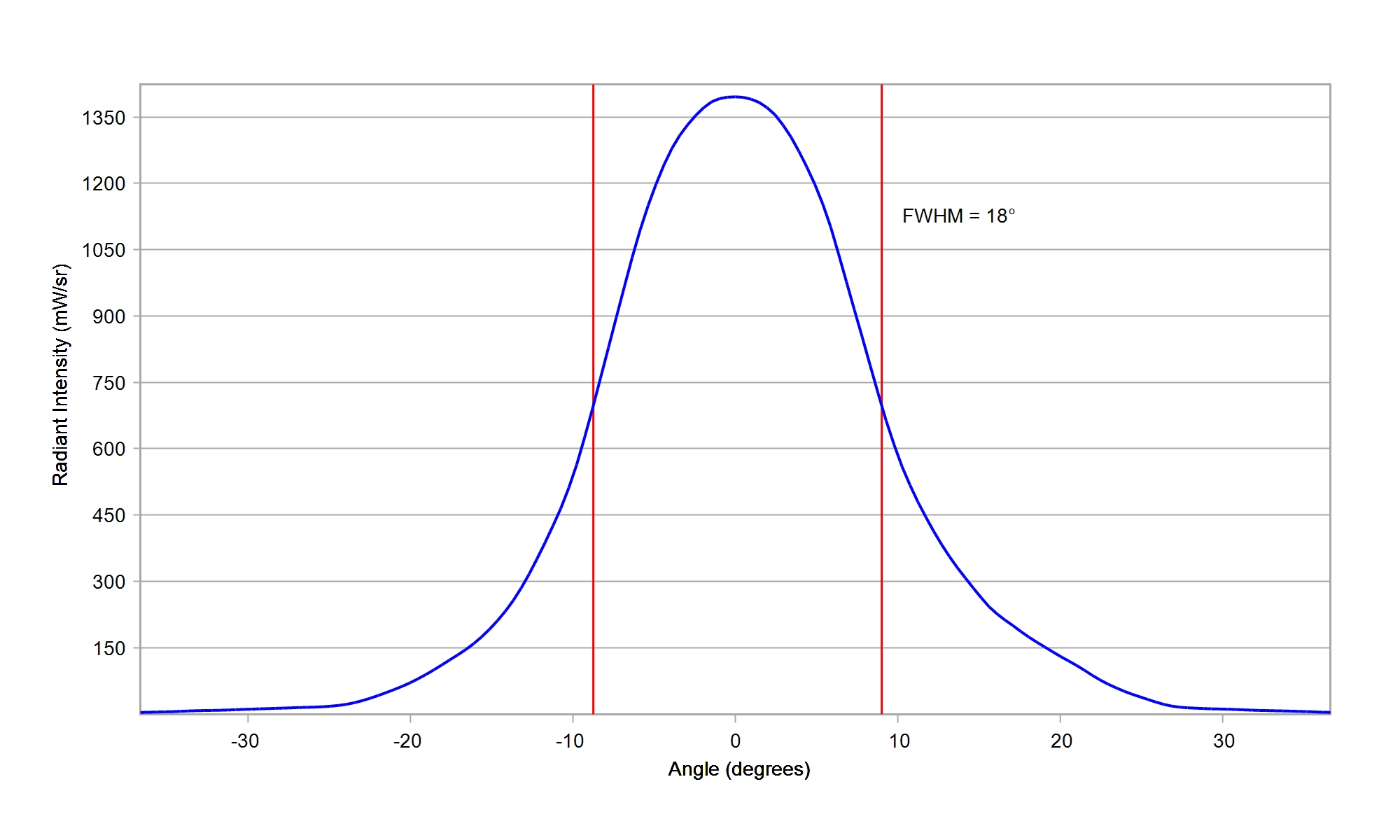

Cree XLamp XP-E2 Photo Red

Eff:

88.0%

FWHM:

44 x 18°

Ipk/W:

3.2


,


Download

Cree XLamp XP-E2 Red

Eff:

88.5%

FWHM:

44 x 17°

Cd/Im:

3.4


,


Download

Cree XLamp XP-E2 Red-Orange

Eff:

88.5%

FWHM:

44 x 17.5°

Cd/Im:

3.3


,


Download

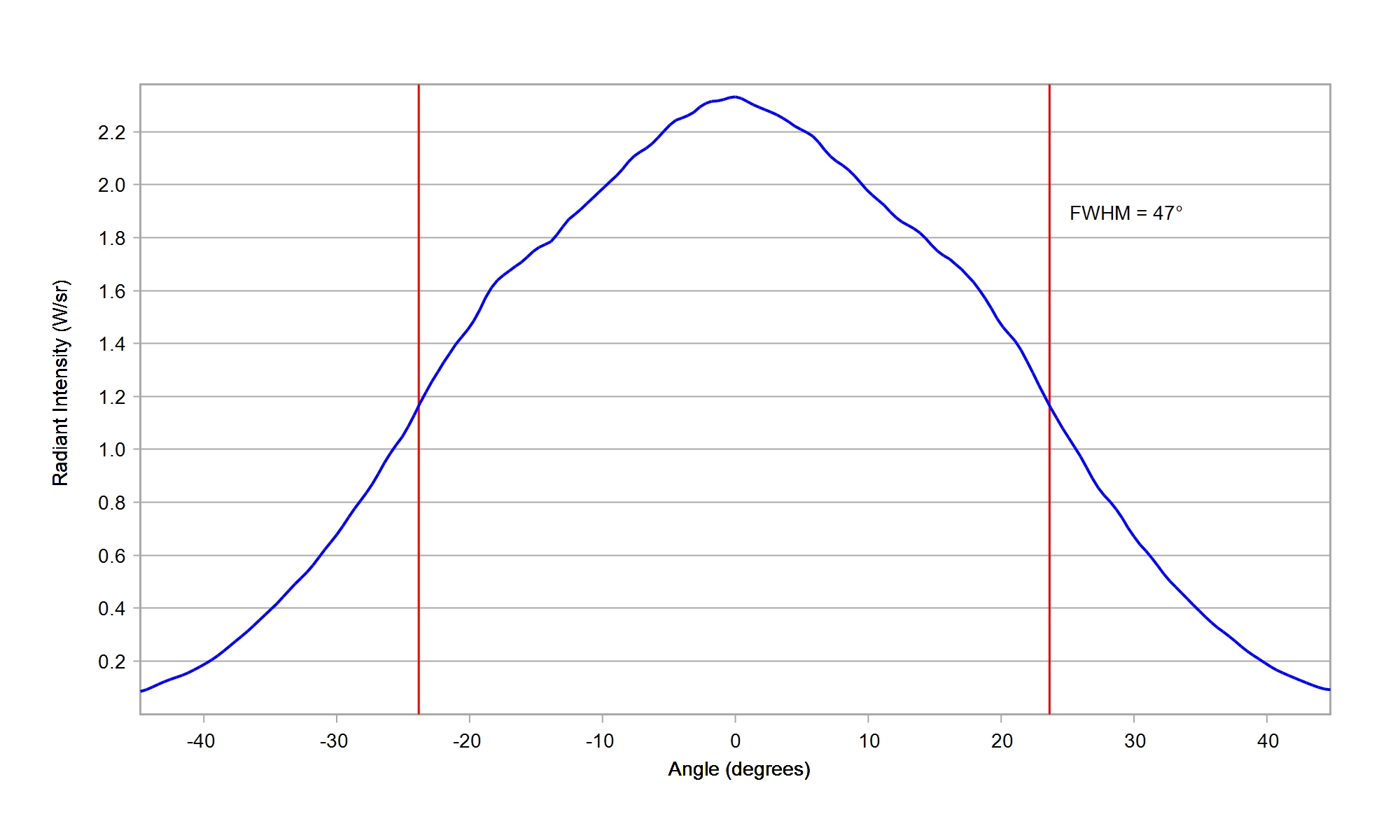

Cree XLamp XP-E2 Royal Blue

Eff:

87.5%

FWHM:

47 x 14.5°

Ipk/W:

3.7


,


Download

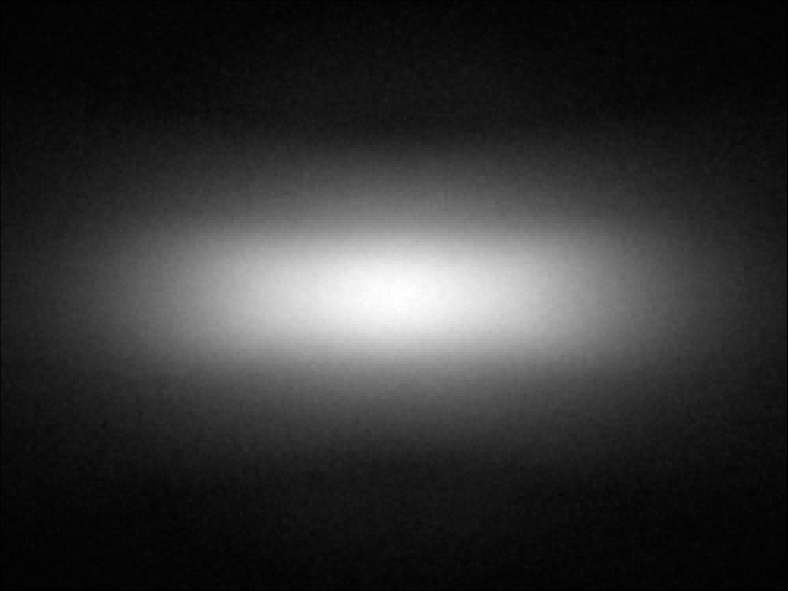

Cree XLamp XP-E2 White

Eff:

88.5%

FWHM:

46 x 15.5°

Cd/Im:

3.9


,


Download

Cree XLamp XP-G White

Eff:

86.5%

FWHM:

43.6 x 23.3°

Cd/Im:

2.6

Spot Image

Cross Section

Download

ies

Cree XLamp XP-G2 White

FWHM:

43.8 x 22.9°

Cd/Im:

3.0

Spot Image

Cross Section

Download

ies

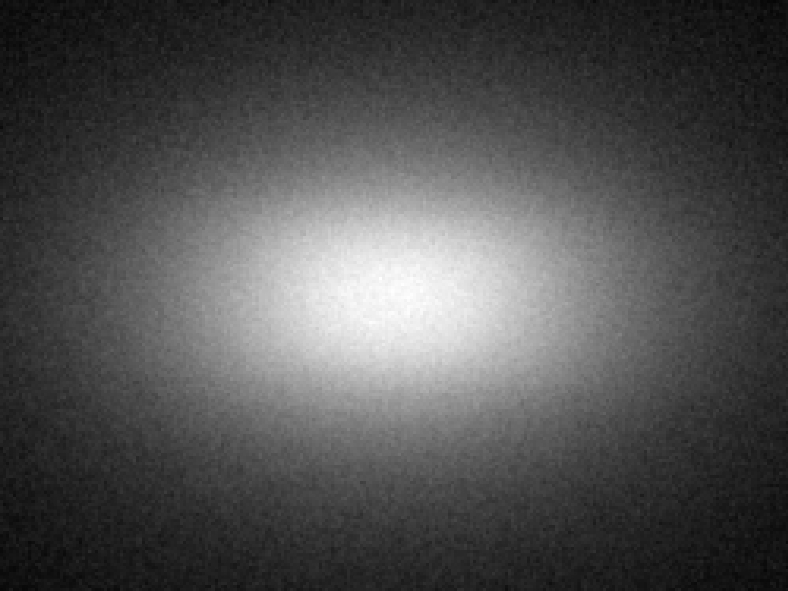

Cree XLamp XP-G3 White

Eff:

85.0%

FWHM:

44 x 25°

Cd/Im:

2.2


,


Download

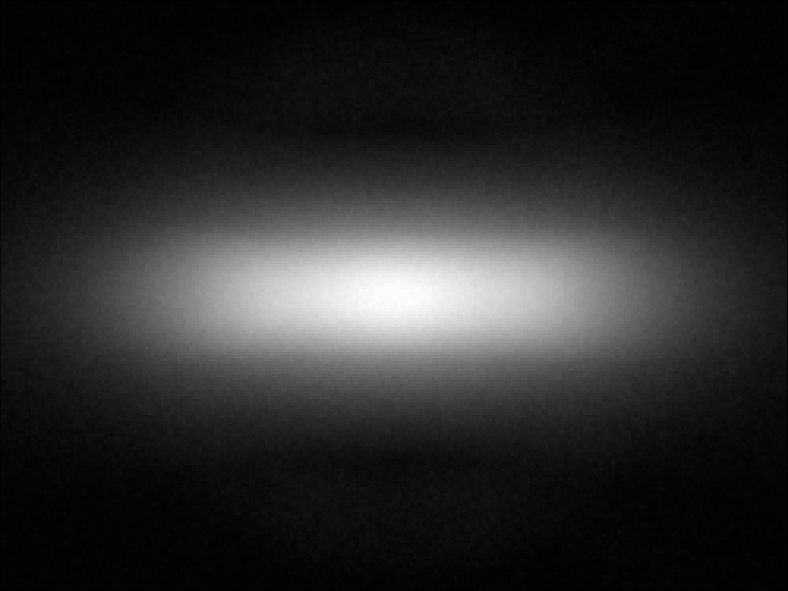

Cree XLamp XP-GR White

Eff:

89.0%

FWHM:

47 x 13°

Cd/Im:

4.5


,


Download

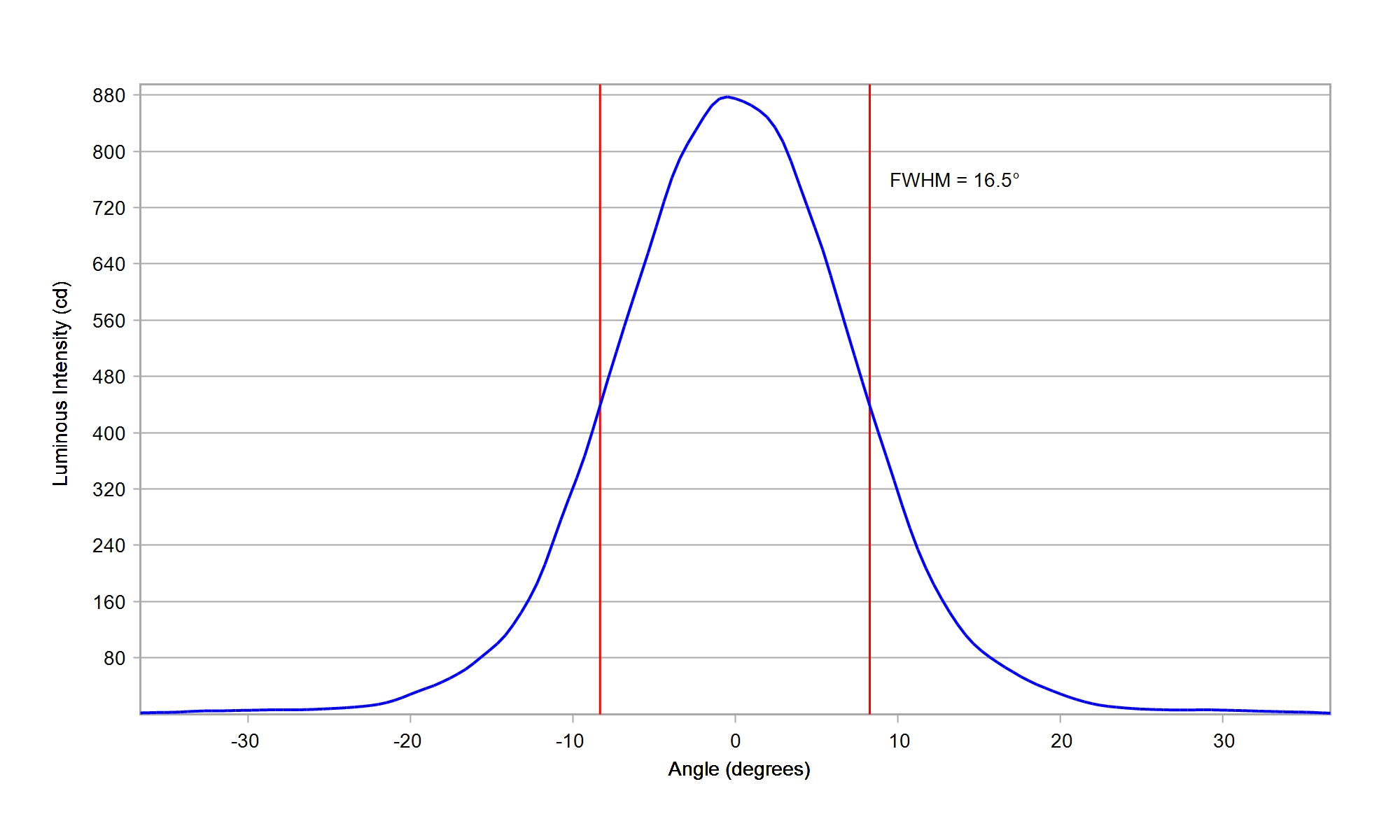

Cree XLamp XP-LR White

Eff:

88.5%

FWHM:

45 x 16.5°

Cd/Im:

3.8


,


Download

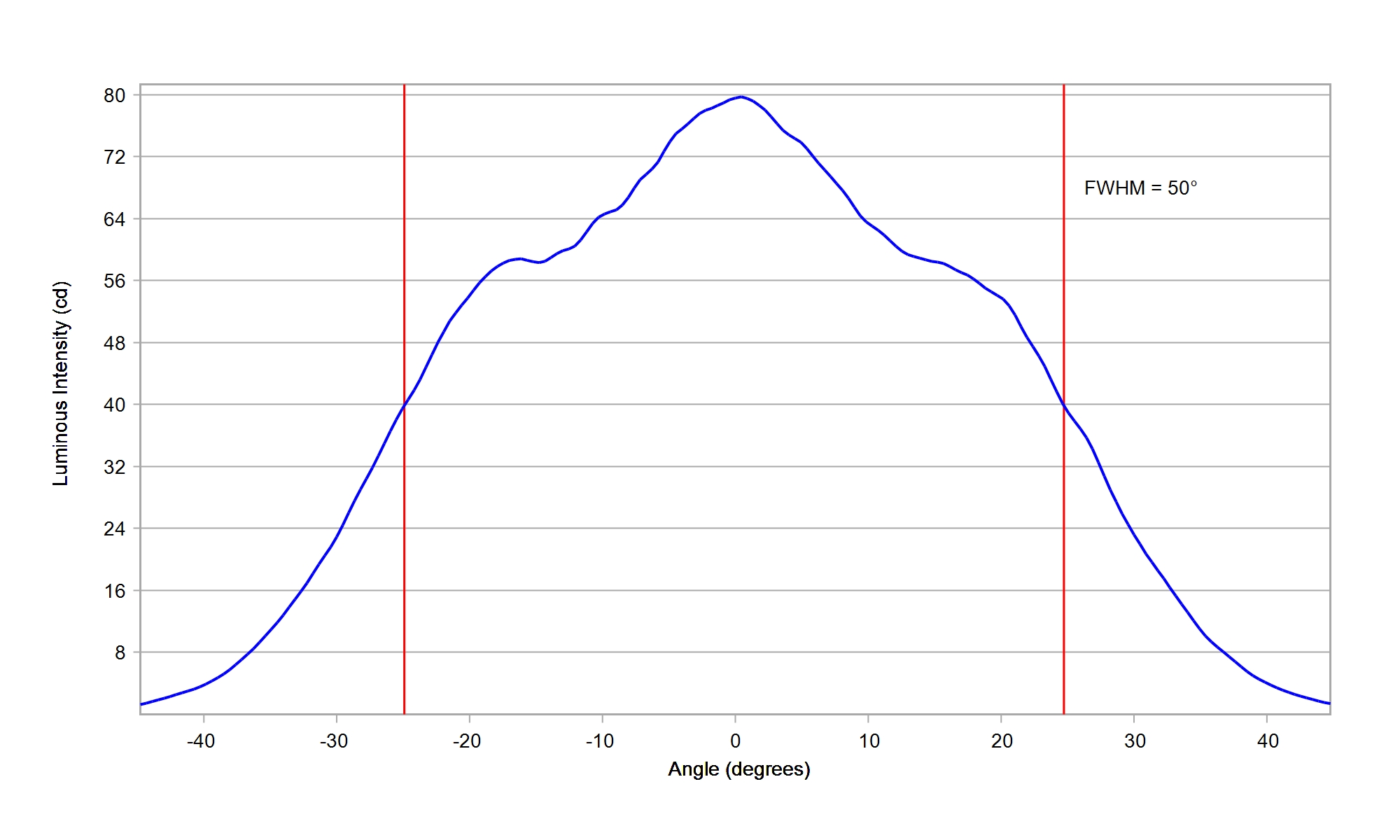

Cree XLamp XQ-A Blue

Eff:

89.5%

FWHM:

50 x 11.5°

Cd/Im:

5.2


,


Download

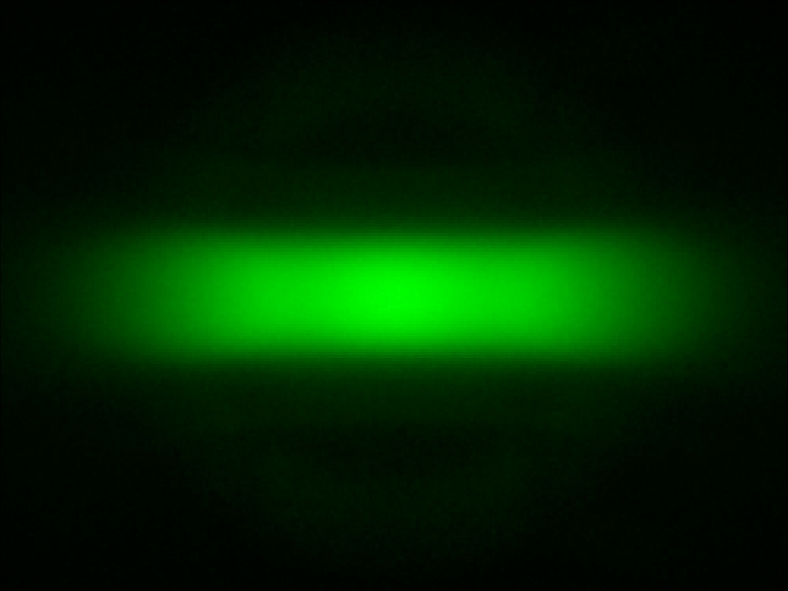

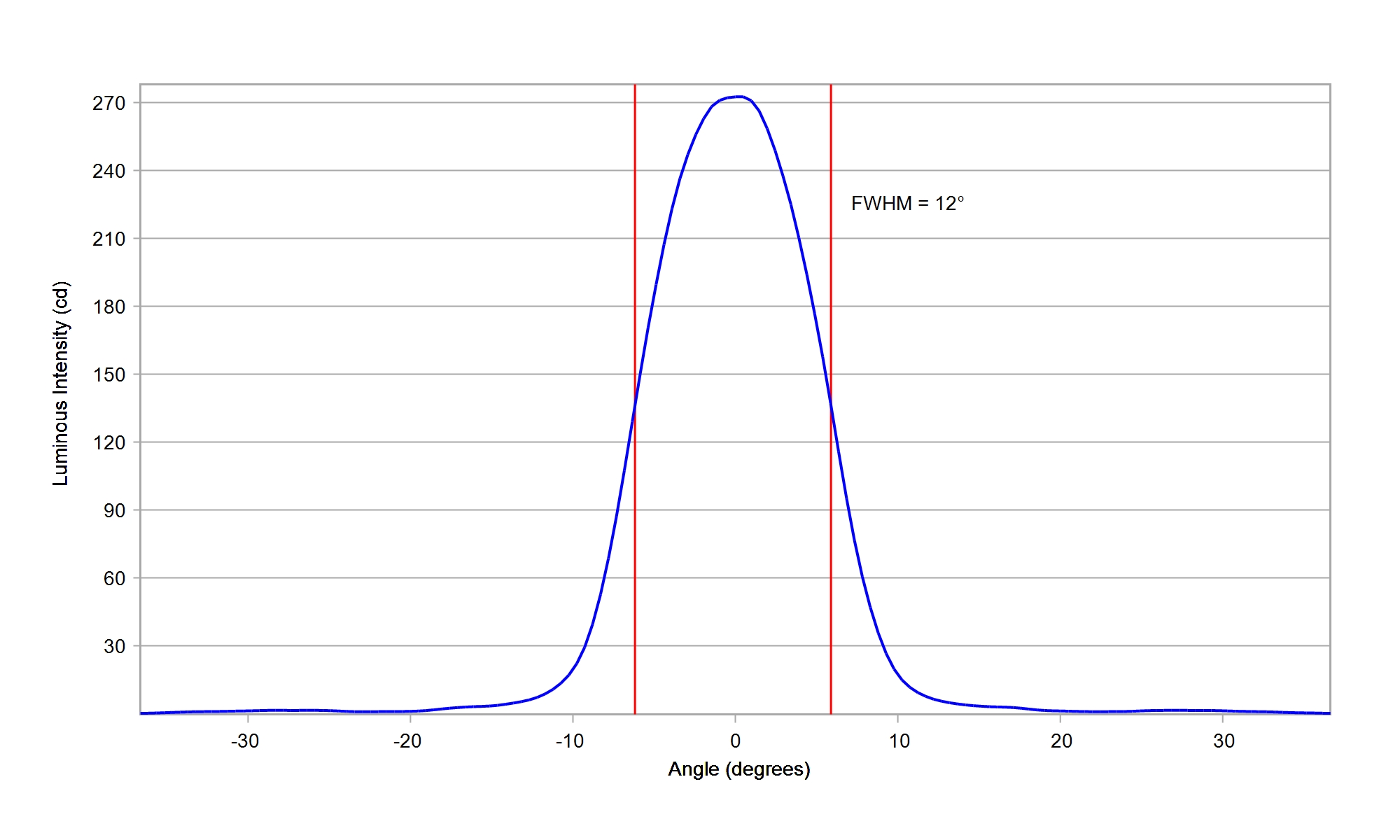

Cree XLamp XQ-A Green

Eff:

89.5%

FWHM:

49 x 12°

Cd/Im:

5.1


,


Download

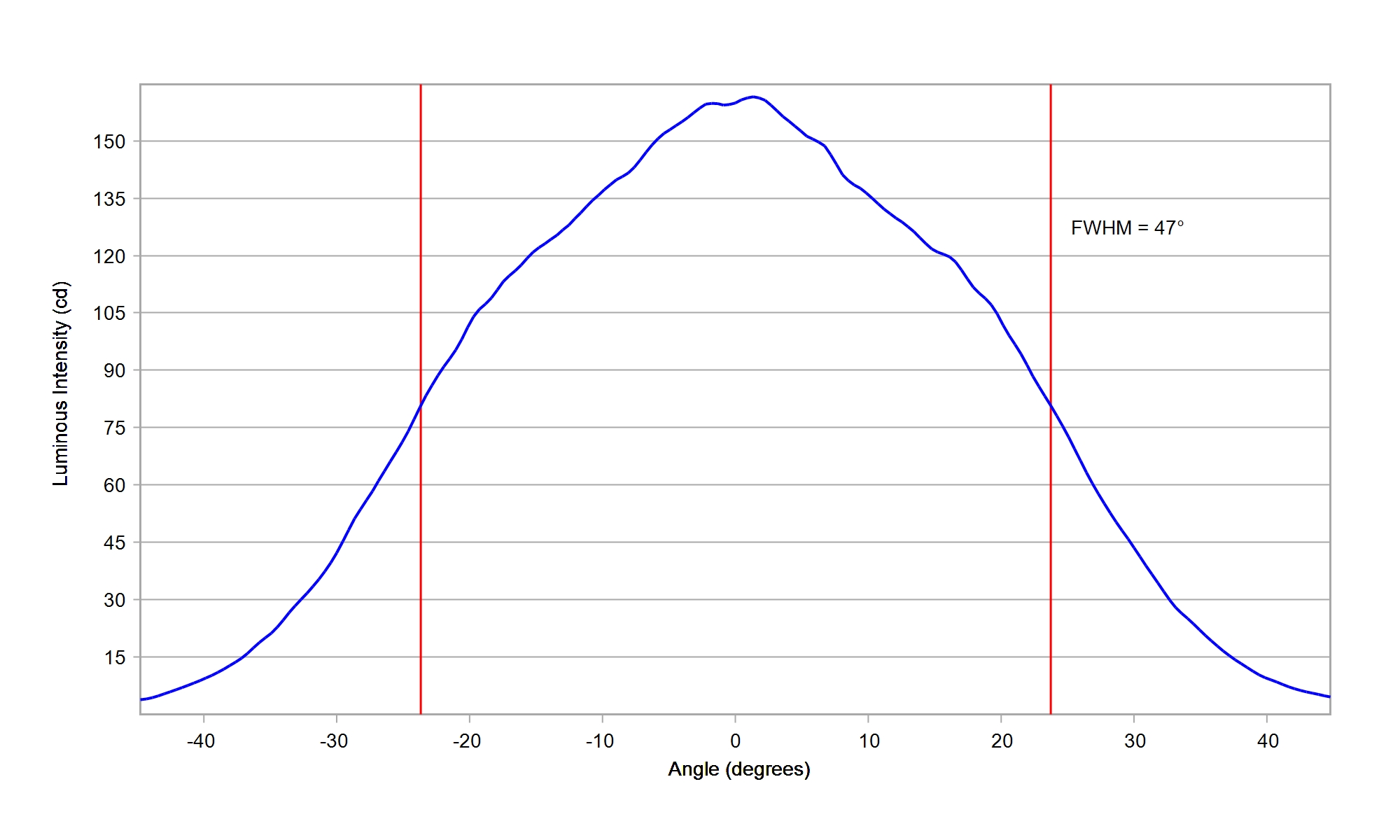

Cree XLamp XQ-A PC Amber

Eff:

89.0%

FWHM:

47 x 13.5°

Cd/Im:

4.2


,


Download

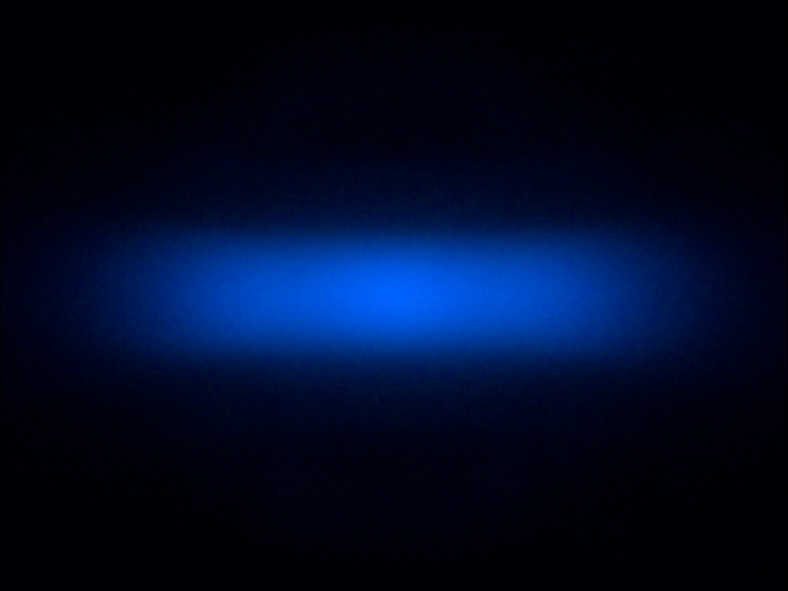

Cree XLamp XQ-A PC Blue

Eff:

89.0%

FWHM:

50 x 11.5°

Cd/Im:

5.2


,


Download

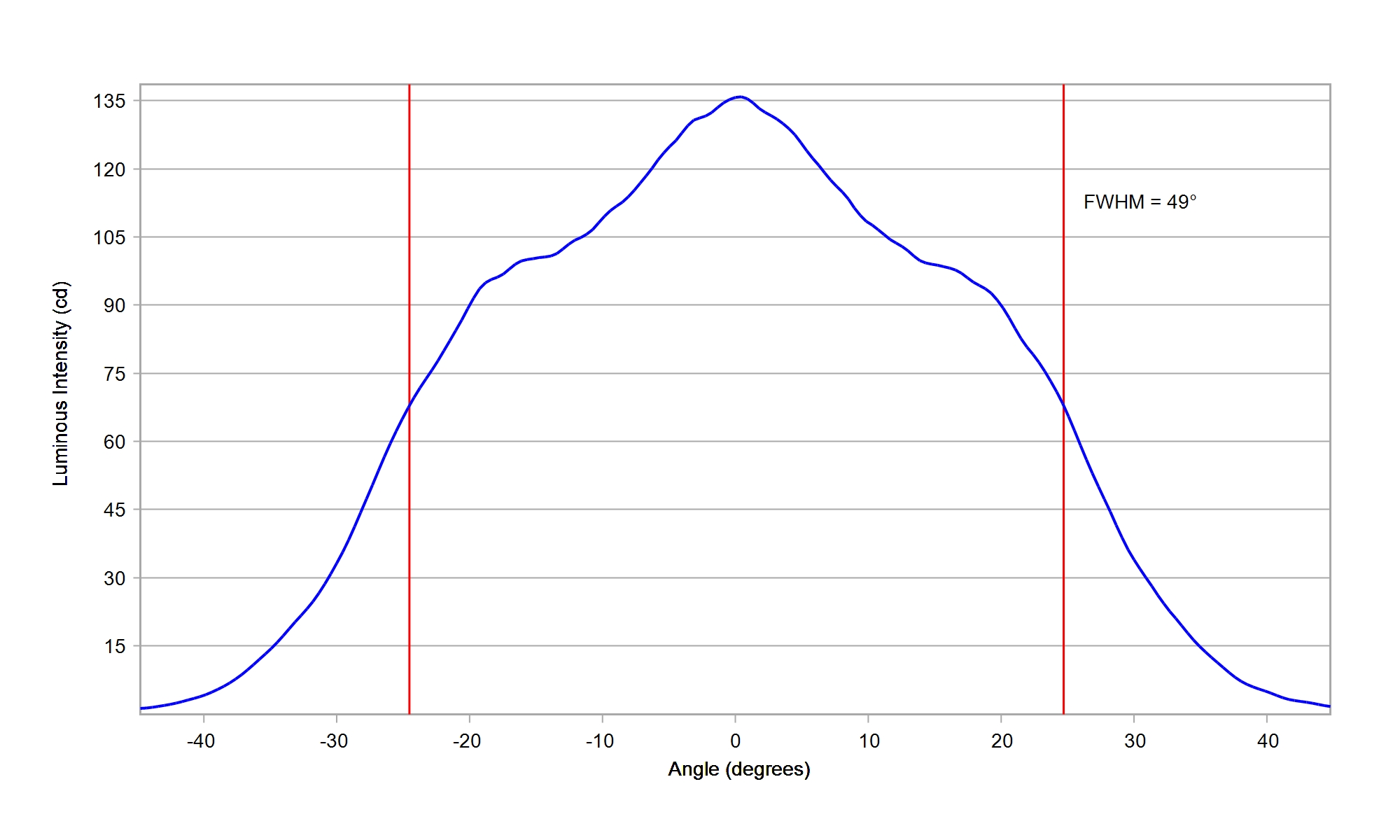

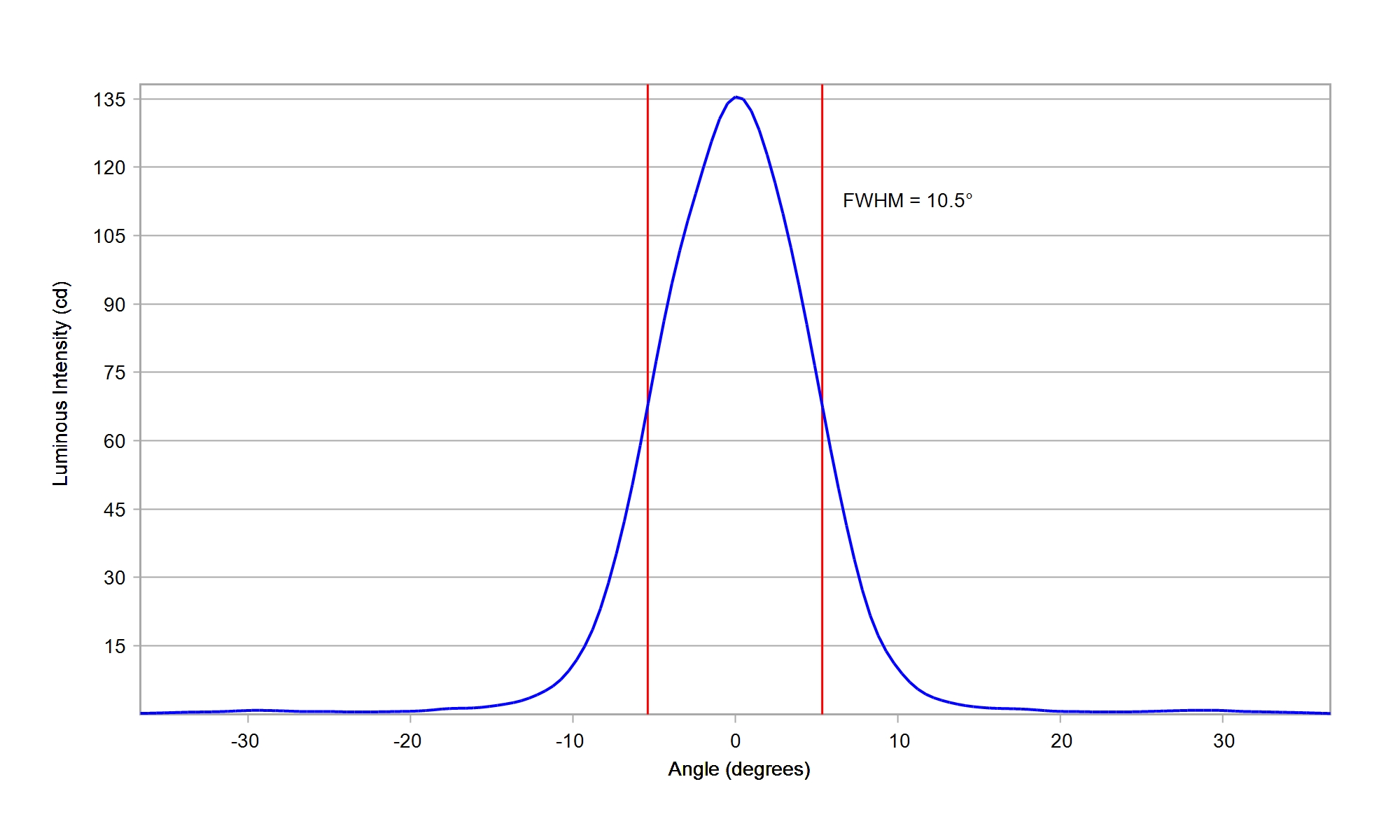

Cree XLamp XQ-A Red

Eff:

90.0%

FWHM:

49 x 10.5°

Cd/Im:

5.8


,


Download

Cree XLamp XQ-A Red-Orange

Eff:

90.0%

FWHM:

49 x 10.5°

Cd/Im:

5.8


,


Download

Cree XLamp XQ-A White

Eff:

89.0%

FWHM:

48 x 12°

Cd/Im:

4.6


,


Download

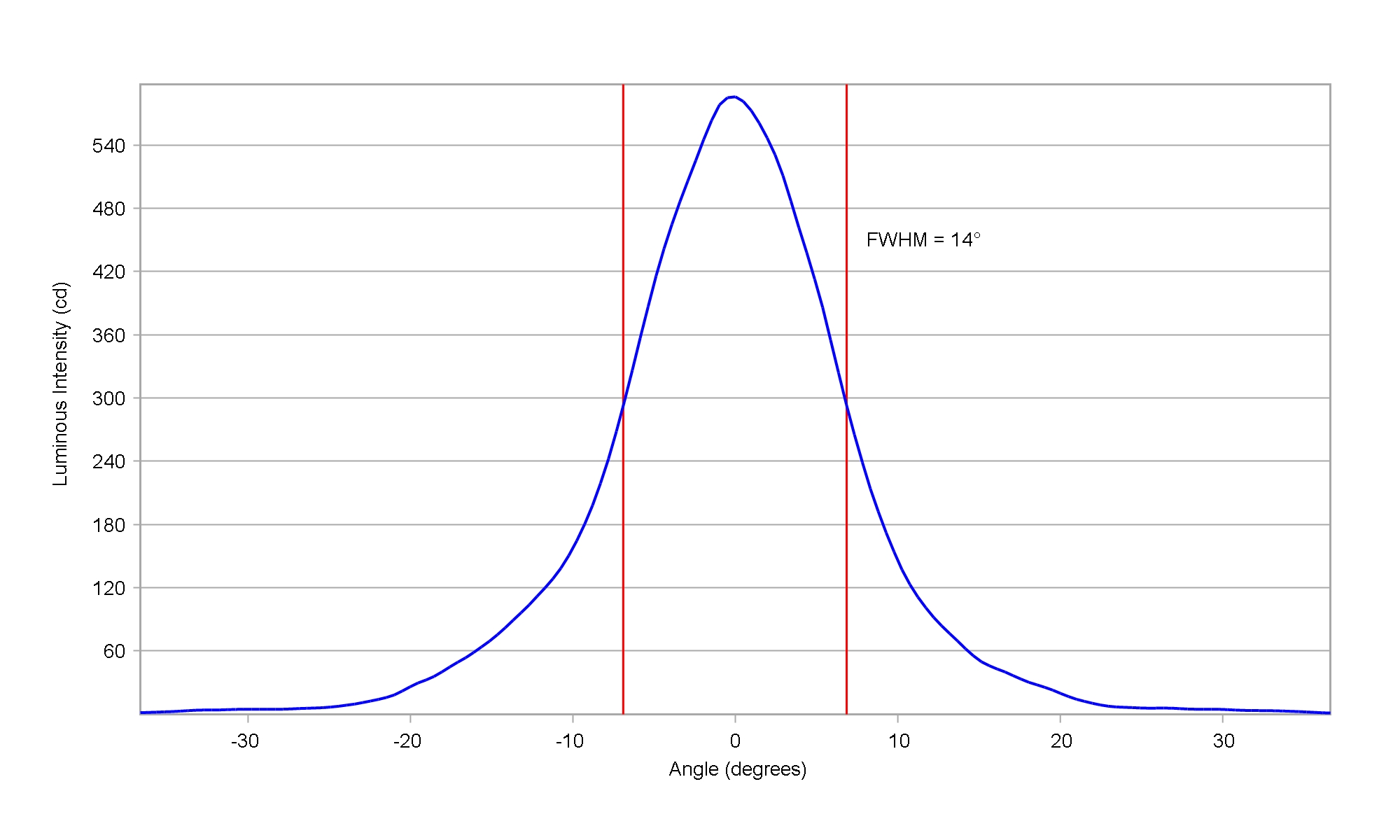

Cree XLamp XQ-E HD White

Eff:

88.5%

FWHM:

47 x 14°

Cd/Im:

4.4


,

Download

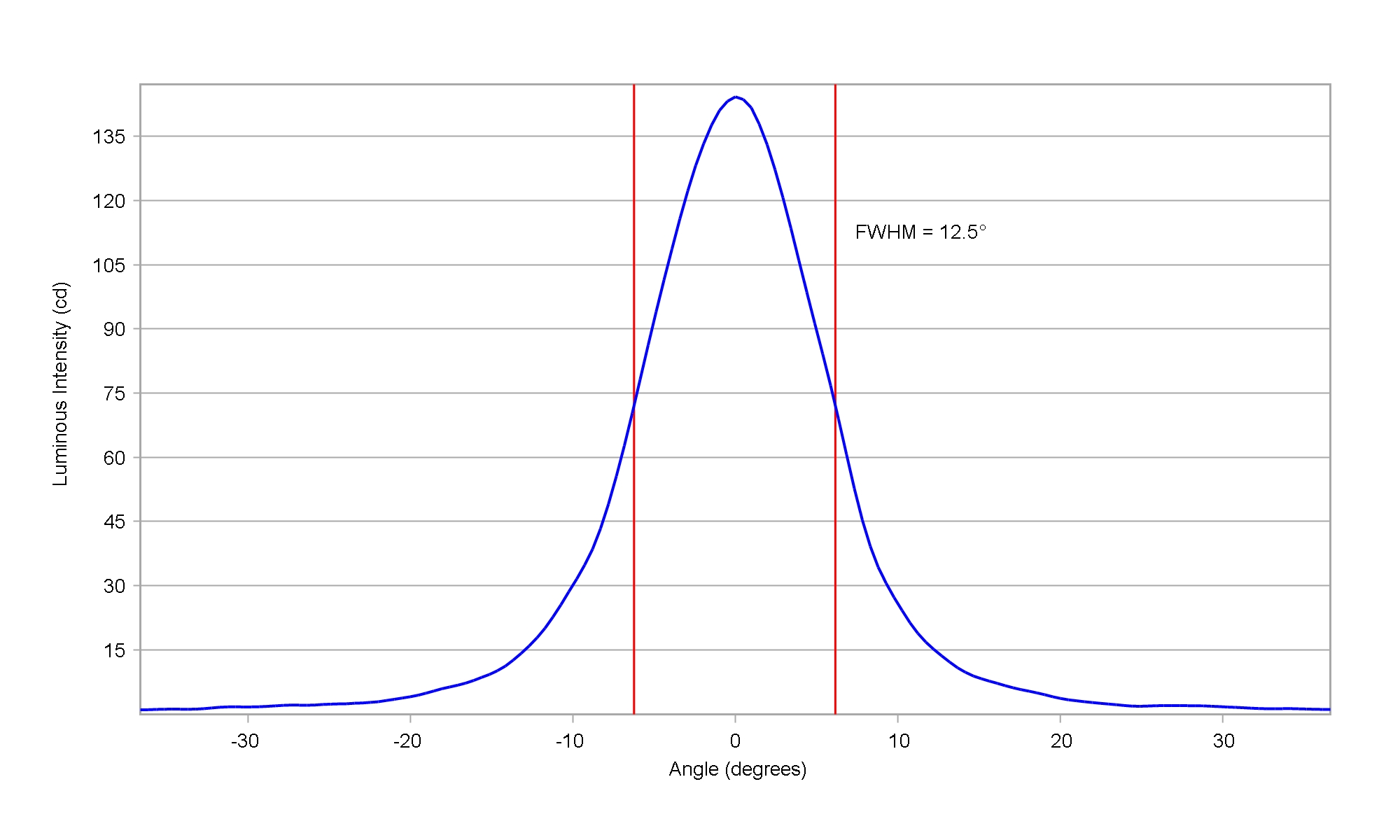

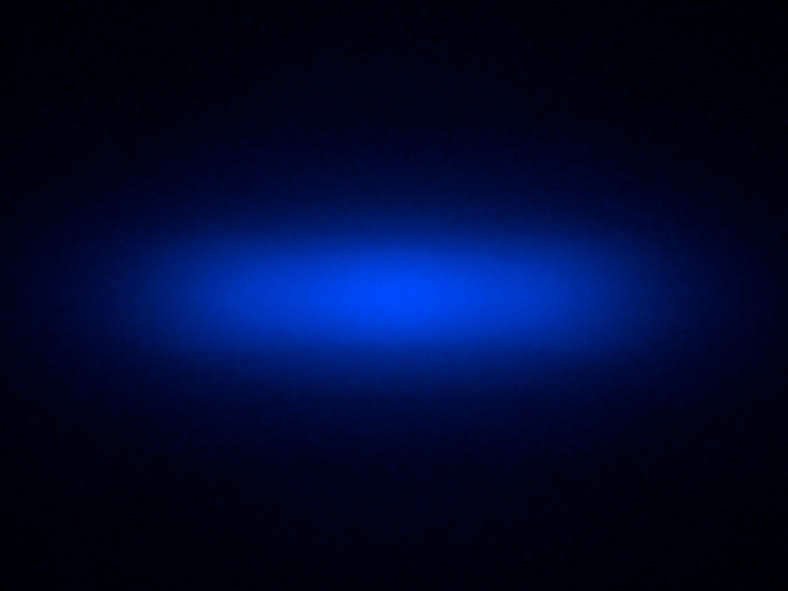

Cree XLamp XQ-E HI Blue

Eff:

89.0%

FWHM:

49 x 12.5°

Cd/Im:

4.2


,


Download

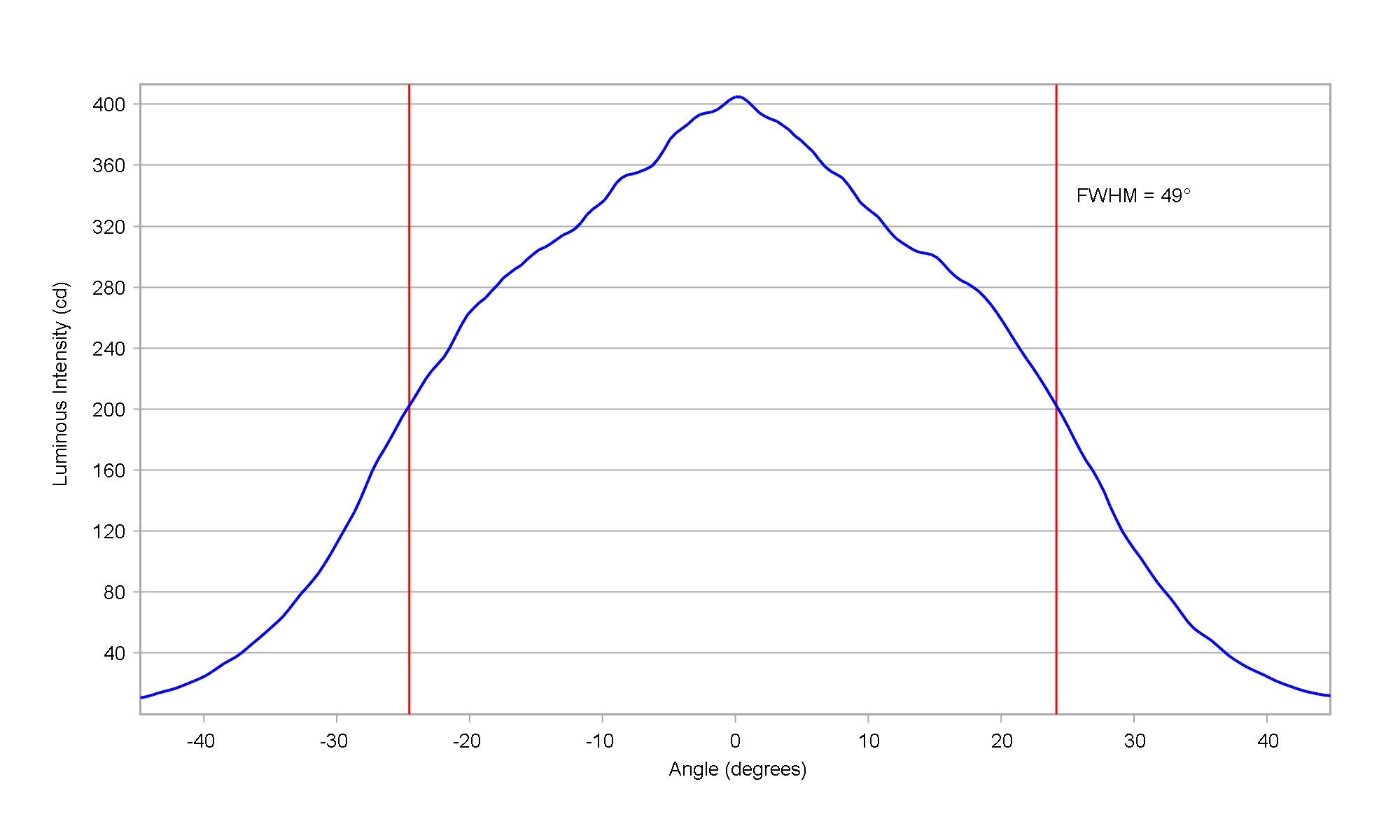

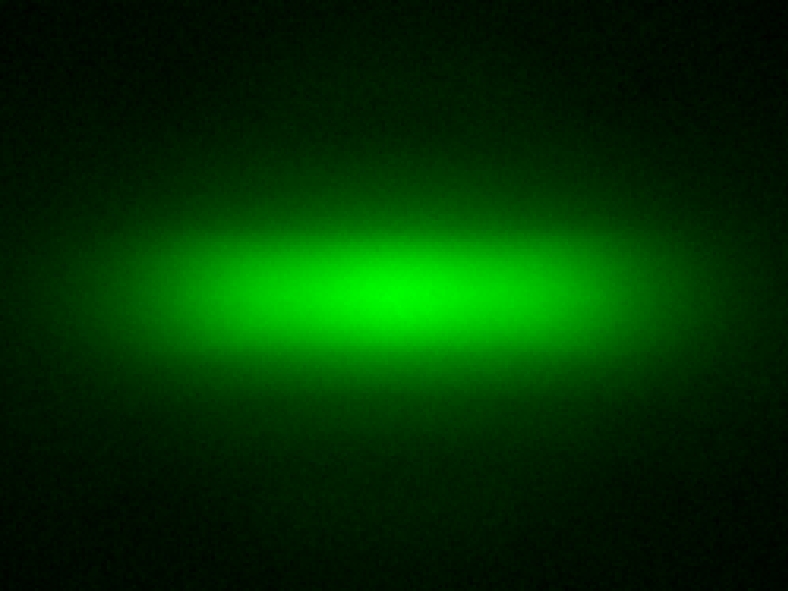

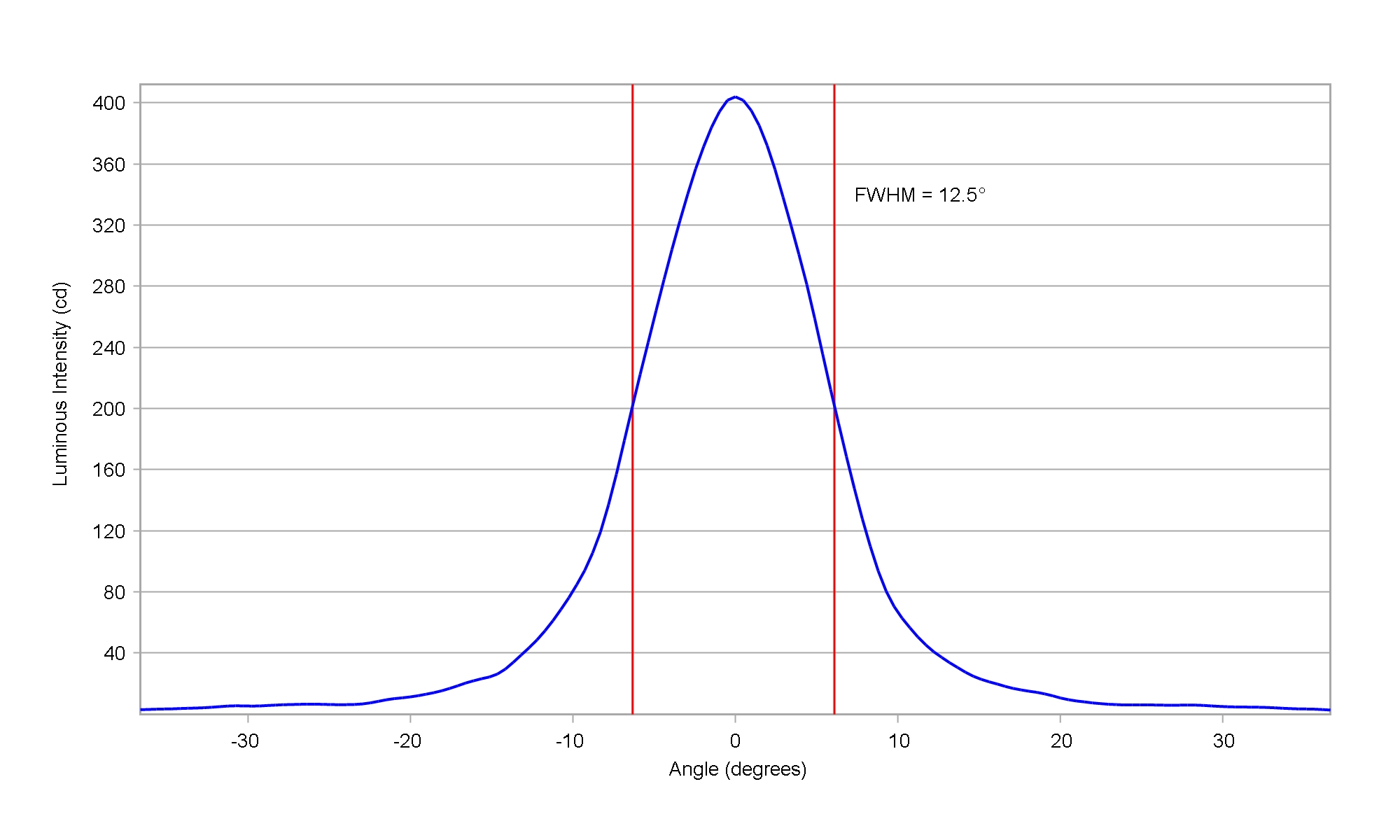

Cree XLamp XQ-E HI Green

Eff:

89.5%

FWHM:

49 x 12.5°

Cd/Im:

4.1


,


Download

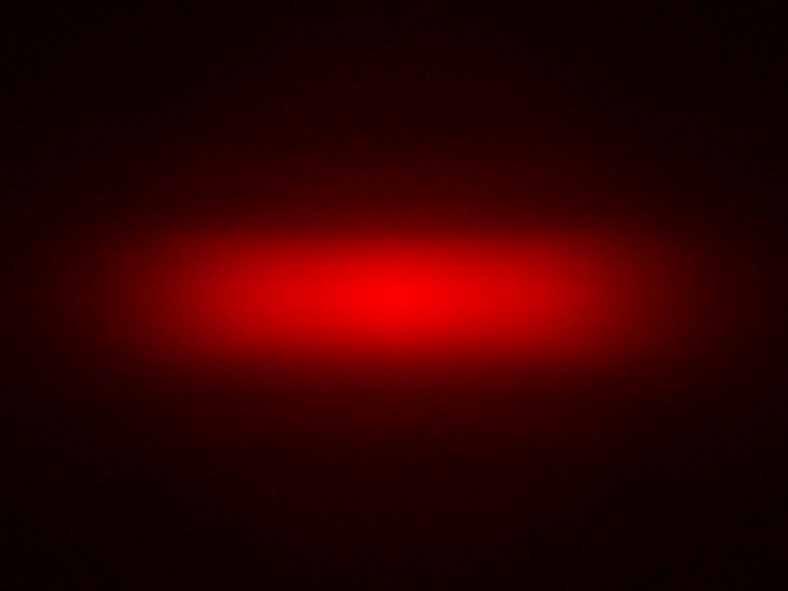

Cree XLamp XQ-E HI Red

Eff:

90.5%

FWHM:

48 x 12.5°

Cd/Im:

4.4


,


Download

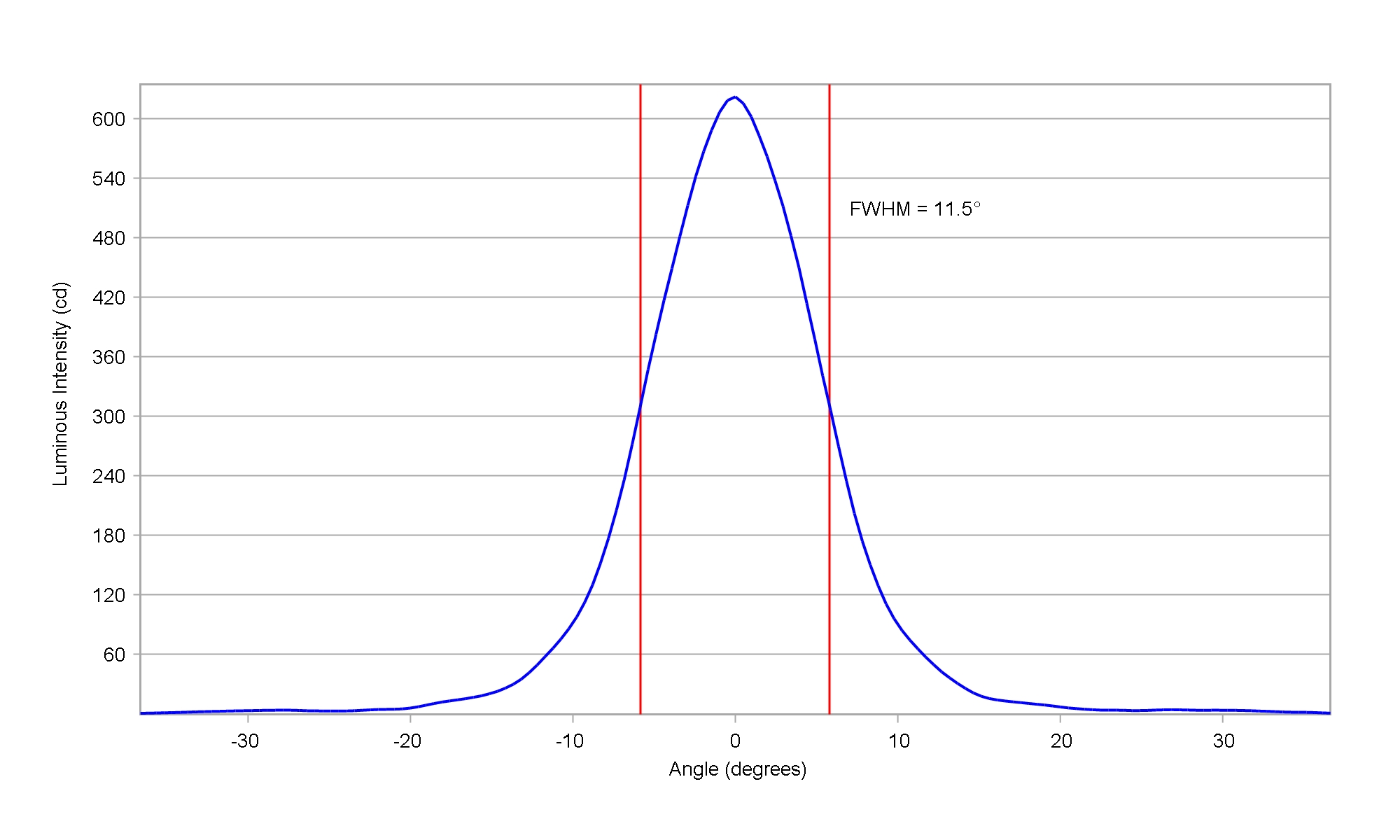

Cree XLamp XQ-E HI White

Eff:

89.5%

FWHM:

48 x 11.5°

Cd/Im:

5.1


,


Download

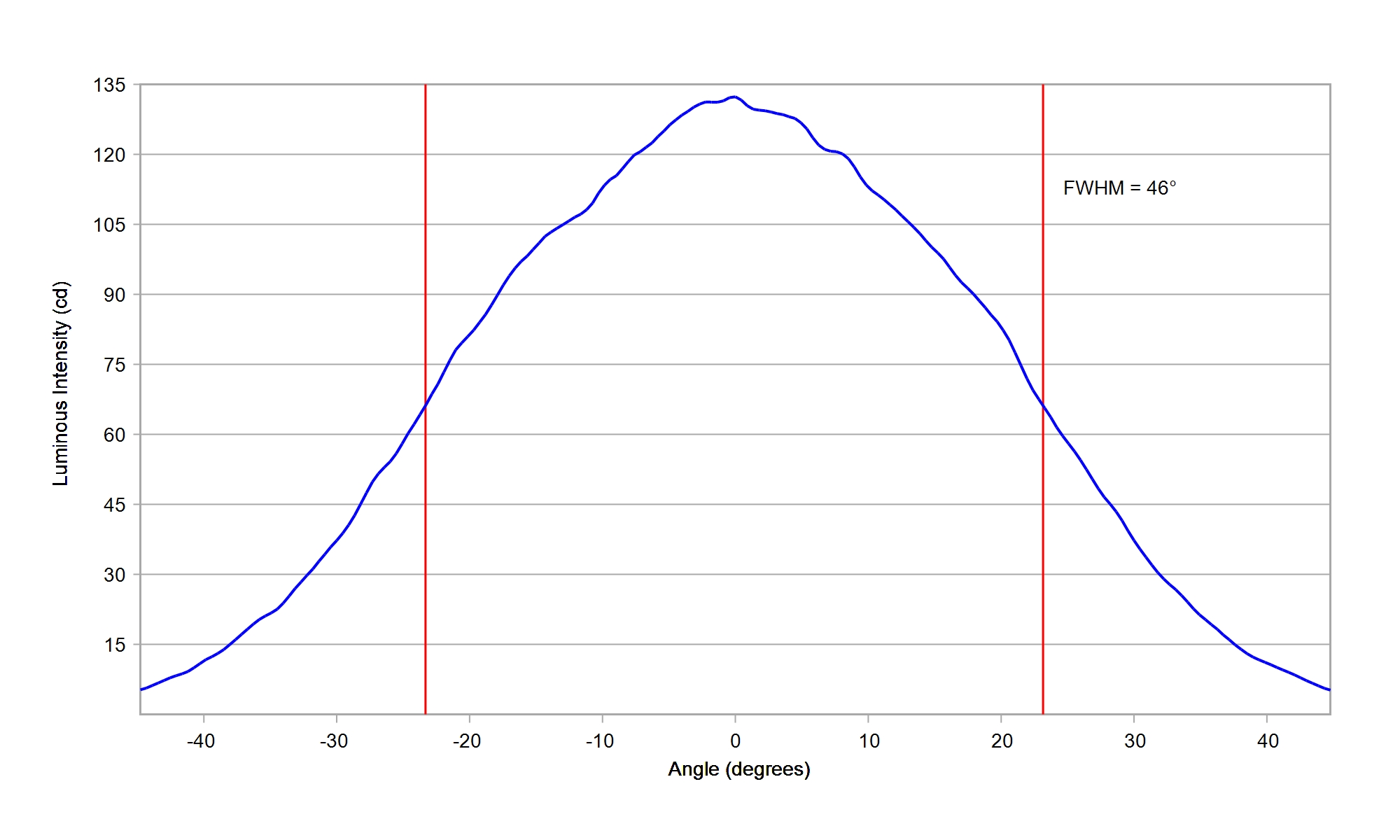

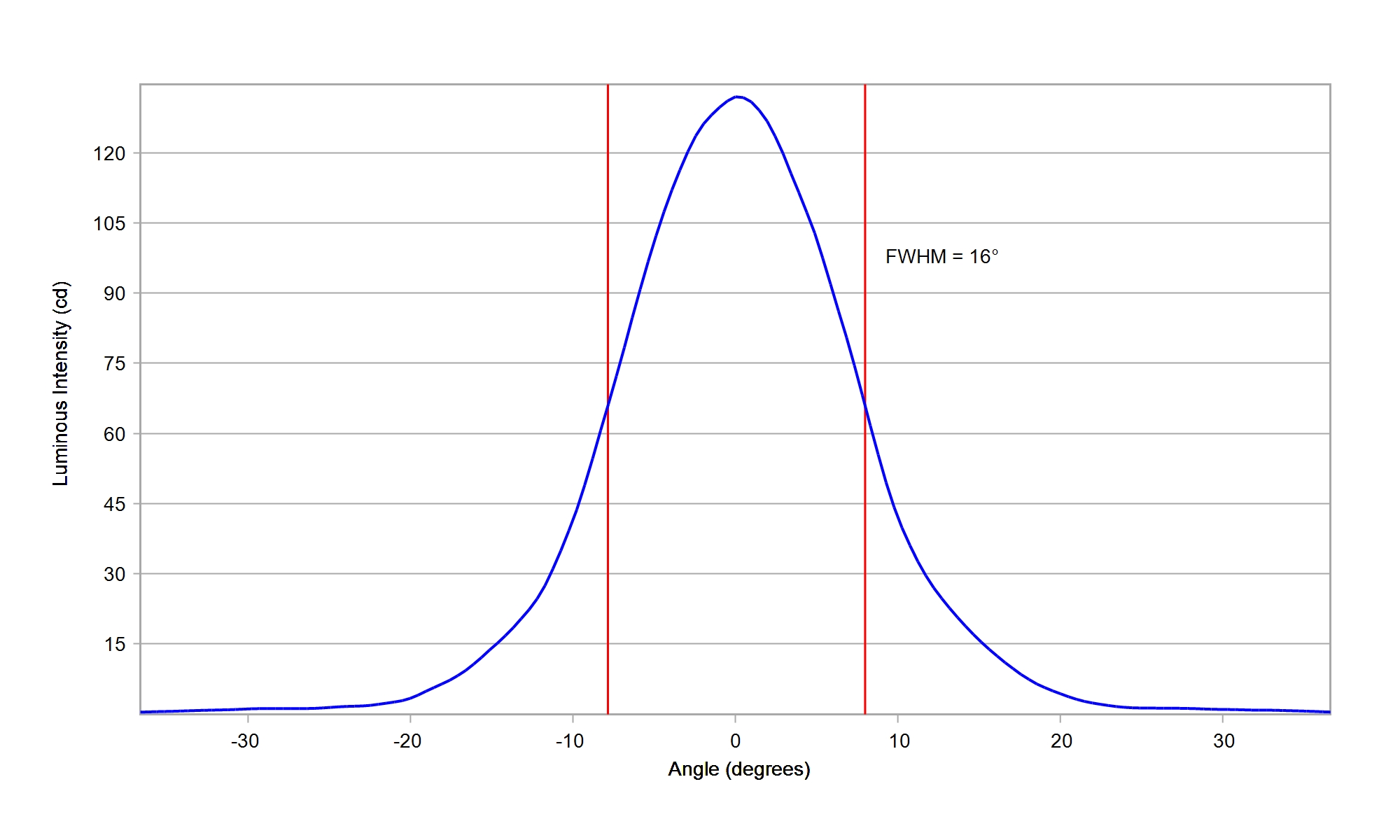

Cree XLamp XQ-E Plus HD Blue

Eff:

88.0%

FWHM:

46 x 16°

Cd/Im:

3.5


,


Download

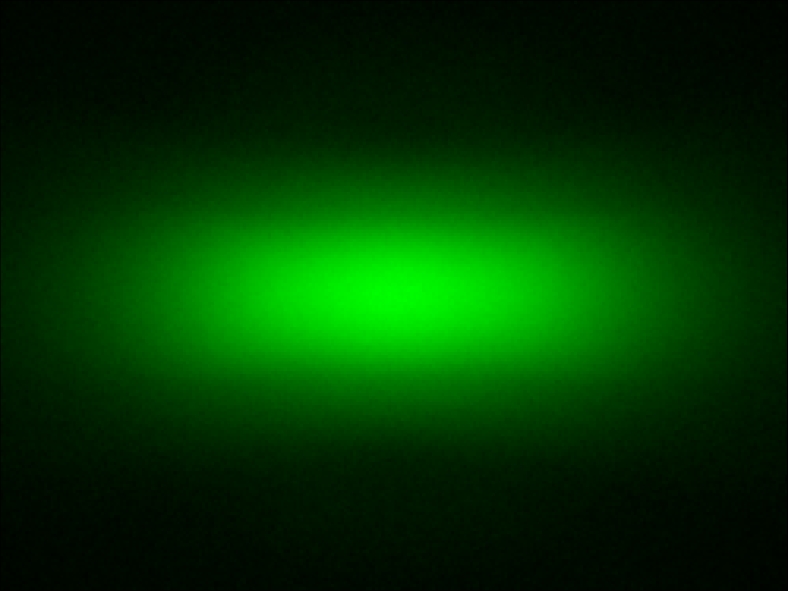

Cree XLamp XQ-E Plus HD Green

Eff:

88.0%

FWHM:

46 x 16.5°

Cd/Im:

3.4


,


Download

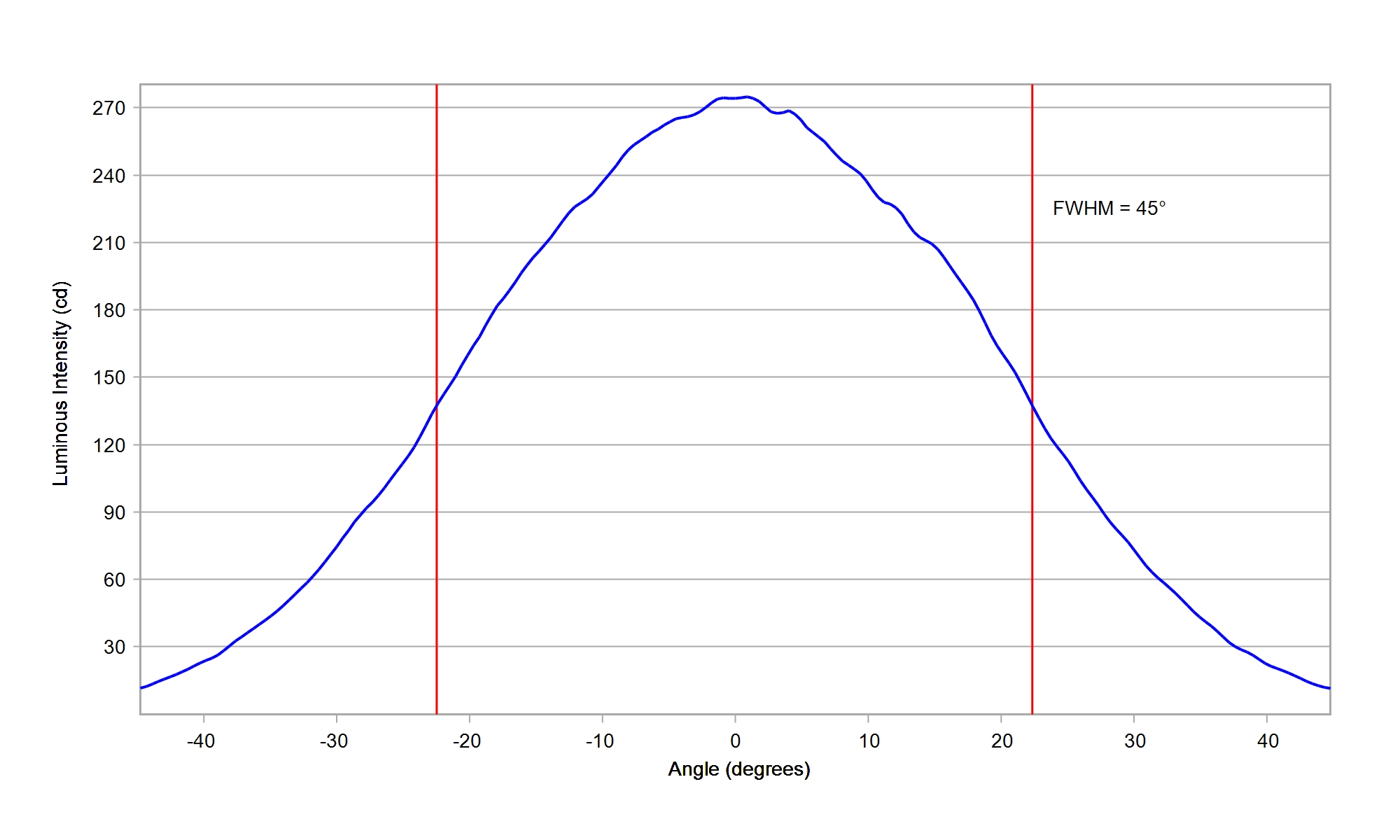

Cree XLamp XQ-E Plus HD PC Amber

Eff:

87.5%

FWHM:

45 x 17°

Cd/Im:

3.2


,


Download

Cree XLamp XQ-E Plus HD Royal Blue

Eff:

87.5%

FWHM:

47 x 16.5°

Ipk/W:

3.3

optic-10415-Cree-XQ-E-Plus-HD-RoyalBlue-cs-image-horizontal

,

optic-10415-Cree-XQ-E-Plus-HD-RoyalBlue-cs-image-vertical

Download

Cree XLamp XQ-E Plus HD White

Eff:

88.0%

FWHM:

45 x 17°

Cd/Im:

3.3


,


Download

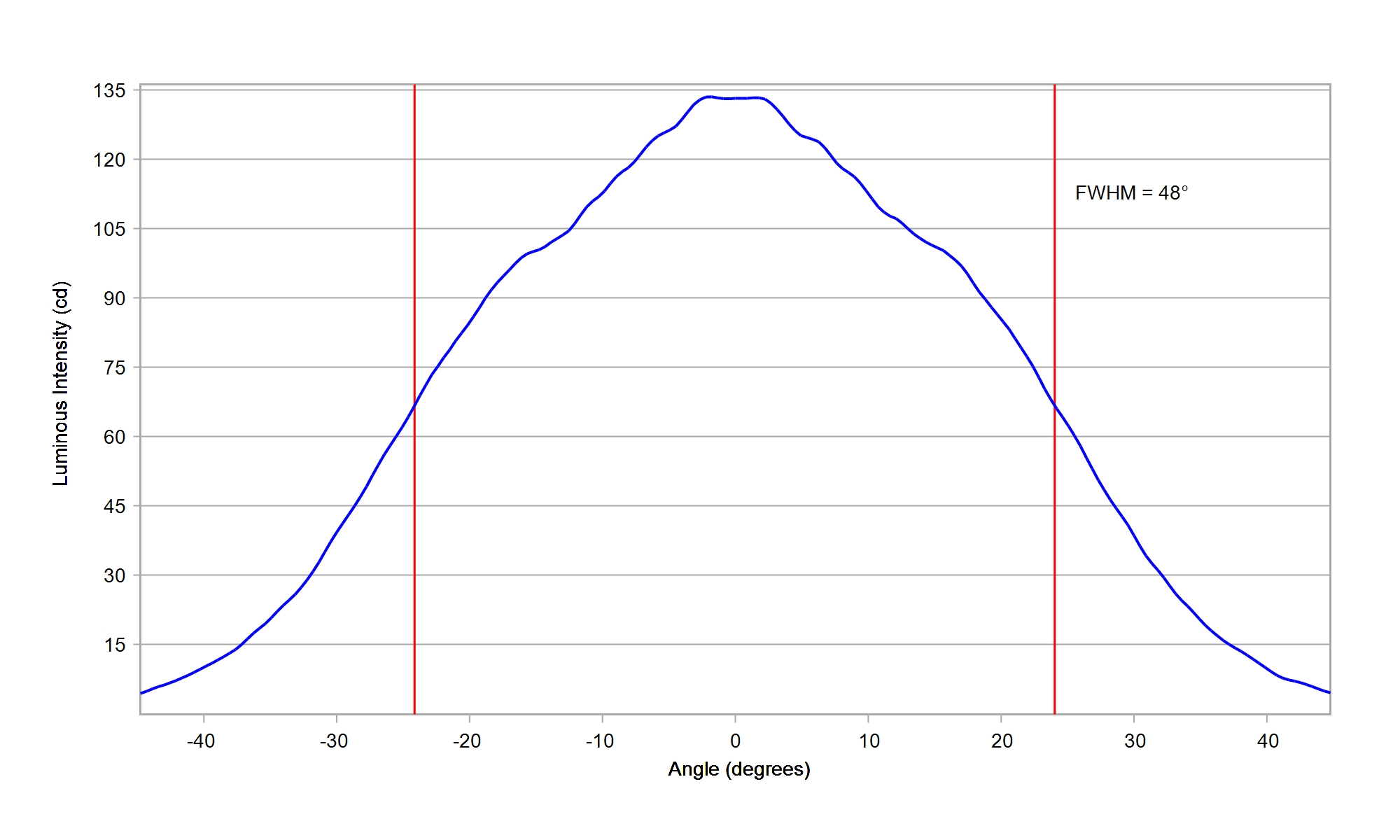

Cree XLamp XQ-E Plus HI Blue

Eff:

89.0%

FWHM:

48 x 14°

Cd/Im:

3.8


,


Download

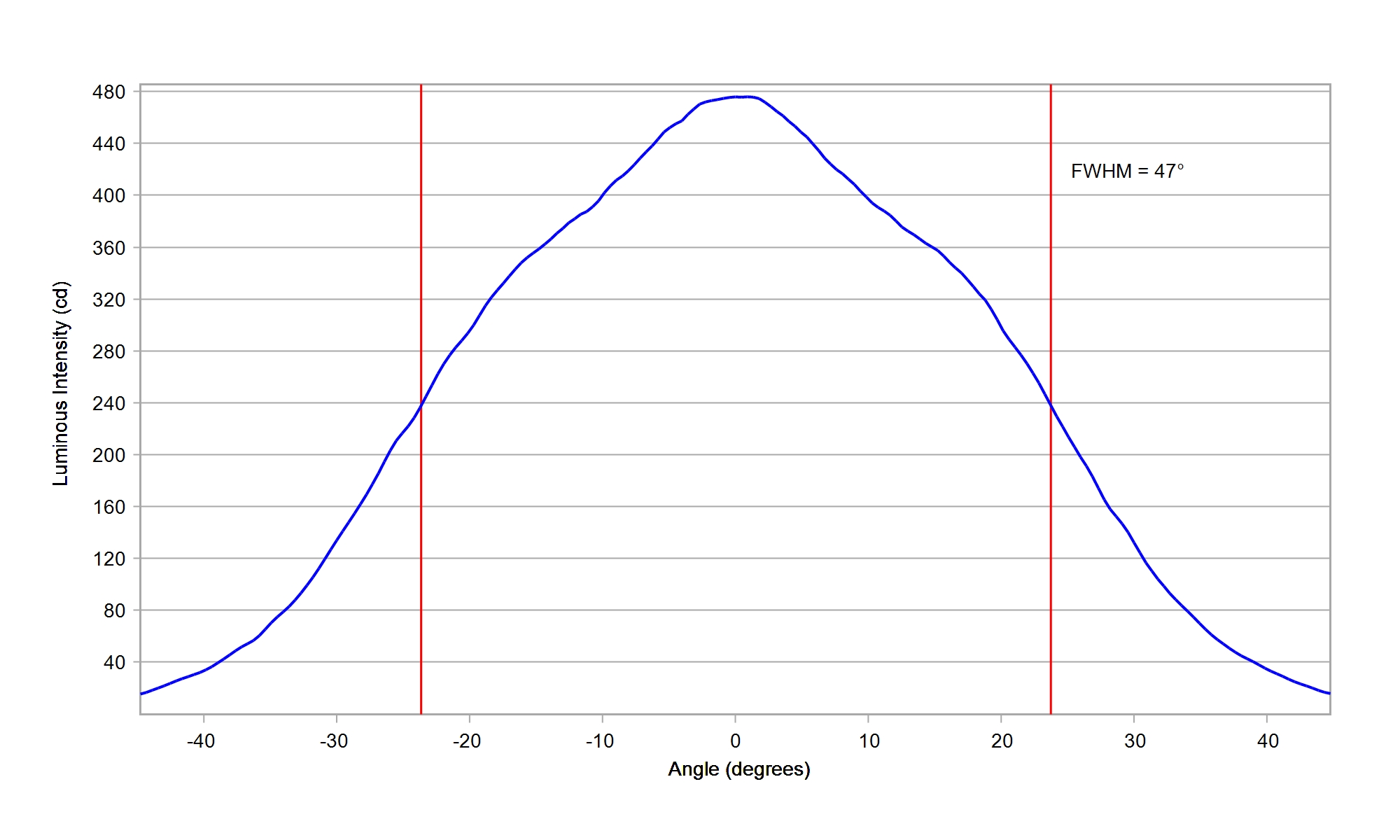

Cree XLamp XQ-E Plus HI Green

Eff:

89.0%

FWHM:

47 x 14°

Cd/Im:

3.7


,


Download

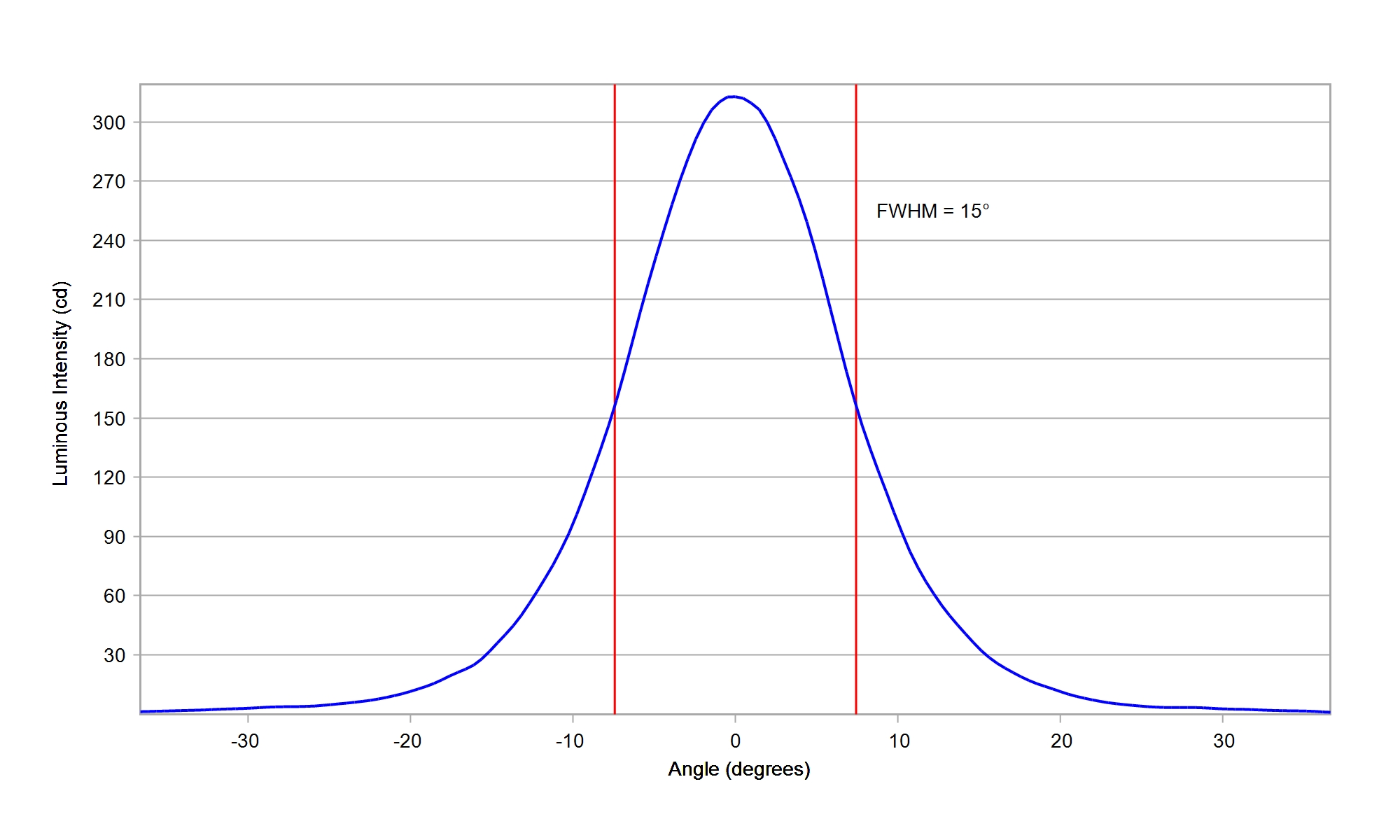

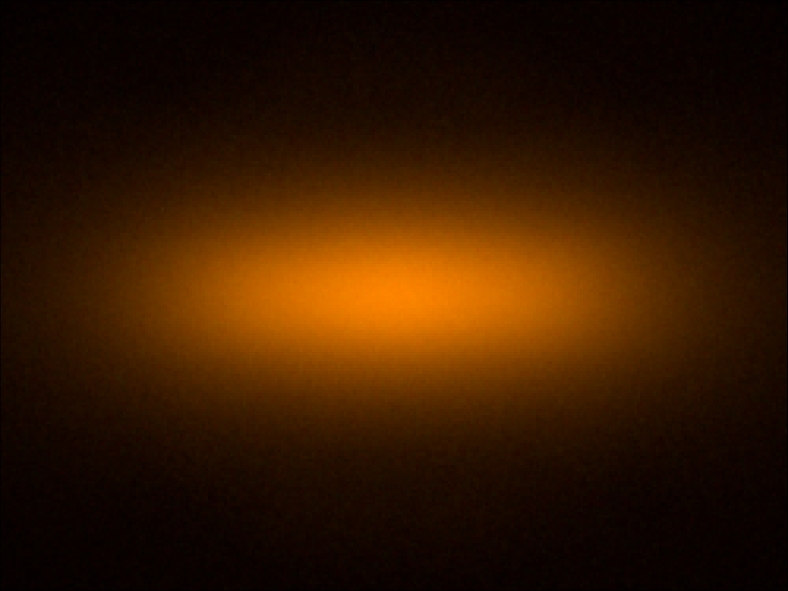

Cree XLamp XQ-E Plus HI PC Amber

Eff:

89.0%

FWHM:

47 x 15°

Cd/Im:

3.7


,


Download

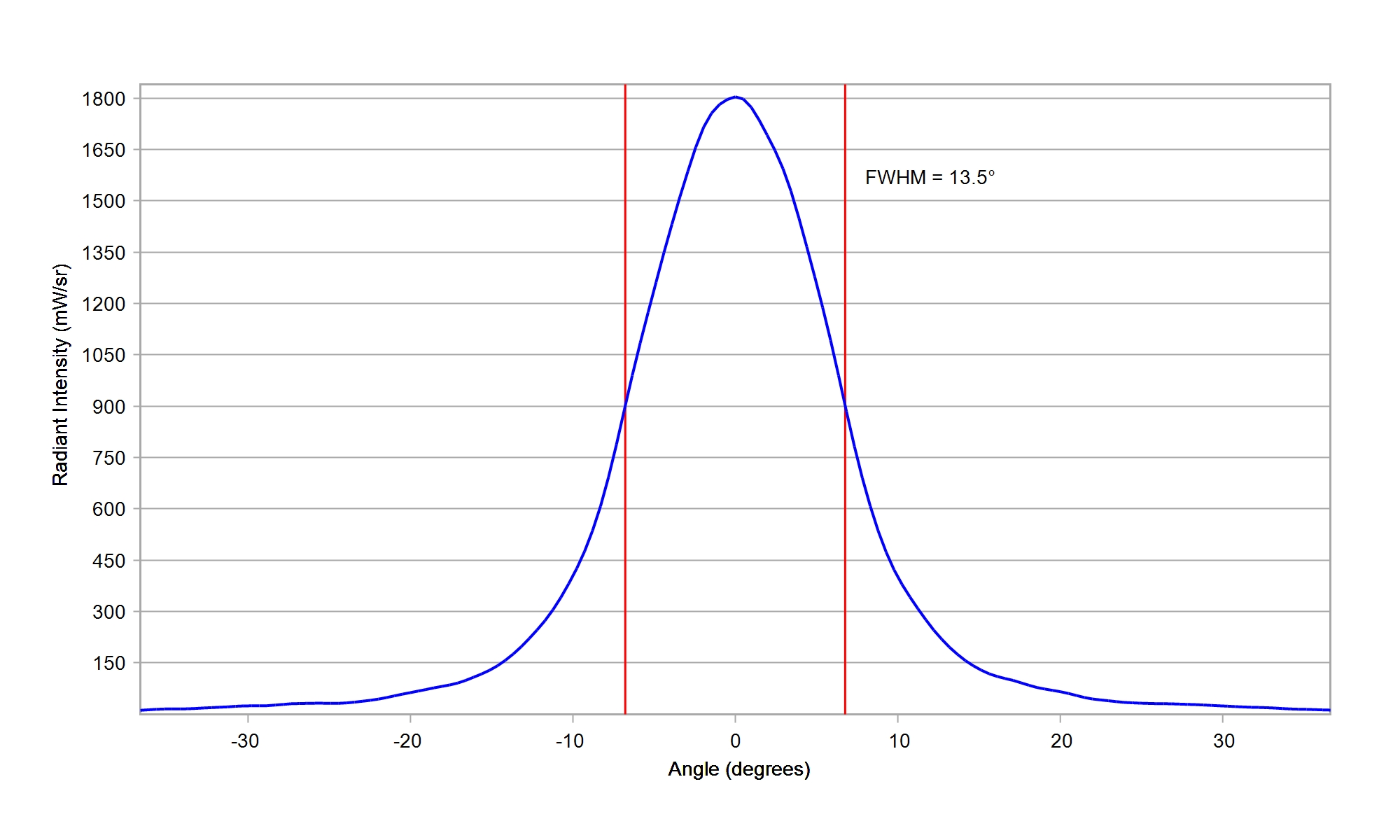

Cree XLamp XQ-E Plus HI Royal Blue

Eff:

88.5%

FWHM:

49 x 13.5°

Ipk/W:

3.6


,


Download

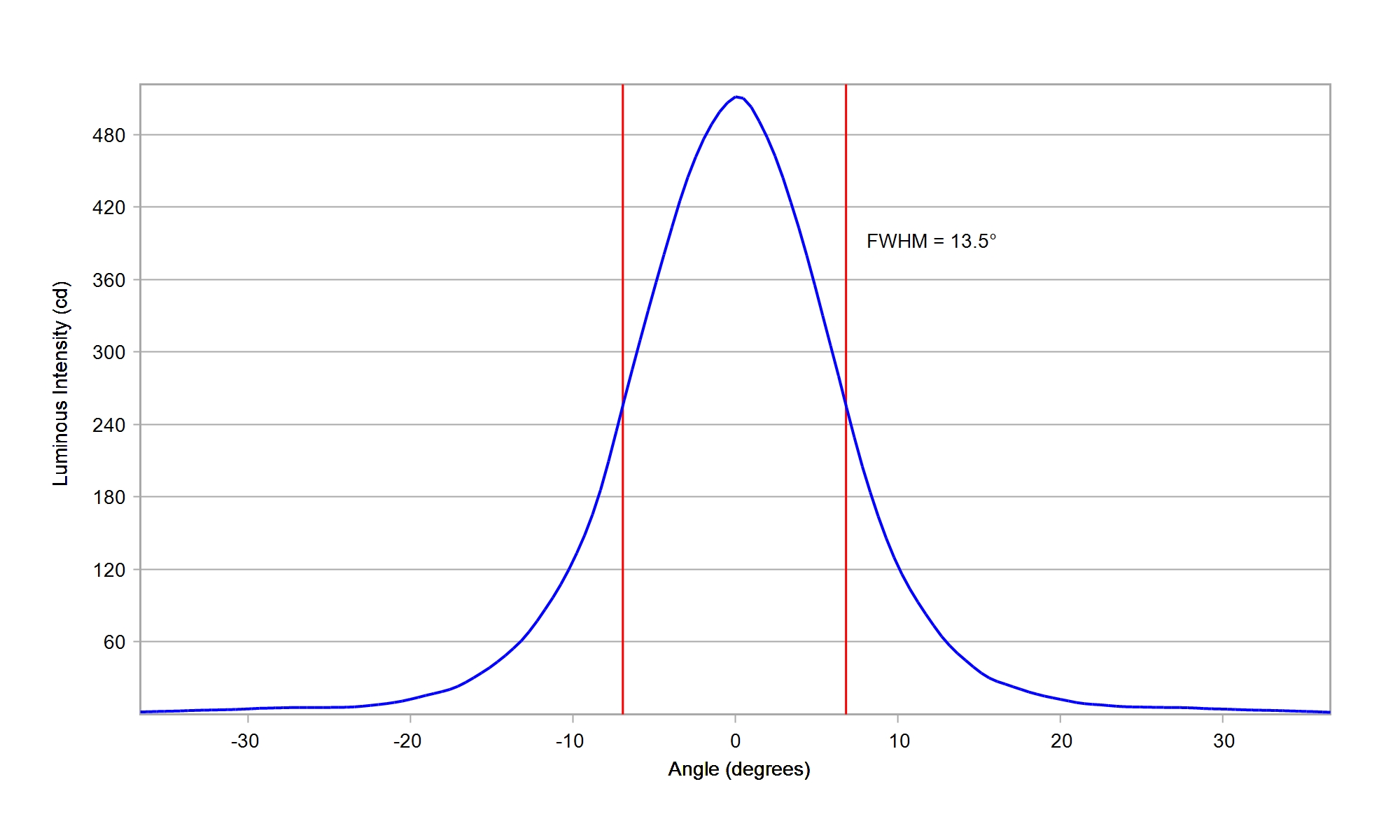

Cree XLamp XQ-E Plus HI White

Eff:

89.0%

FWHM:

47 x 13.5°

Cd/Im:

4.0


,


Download

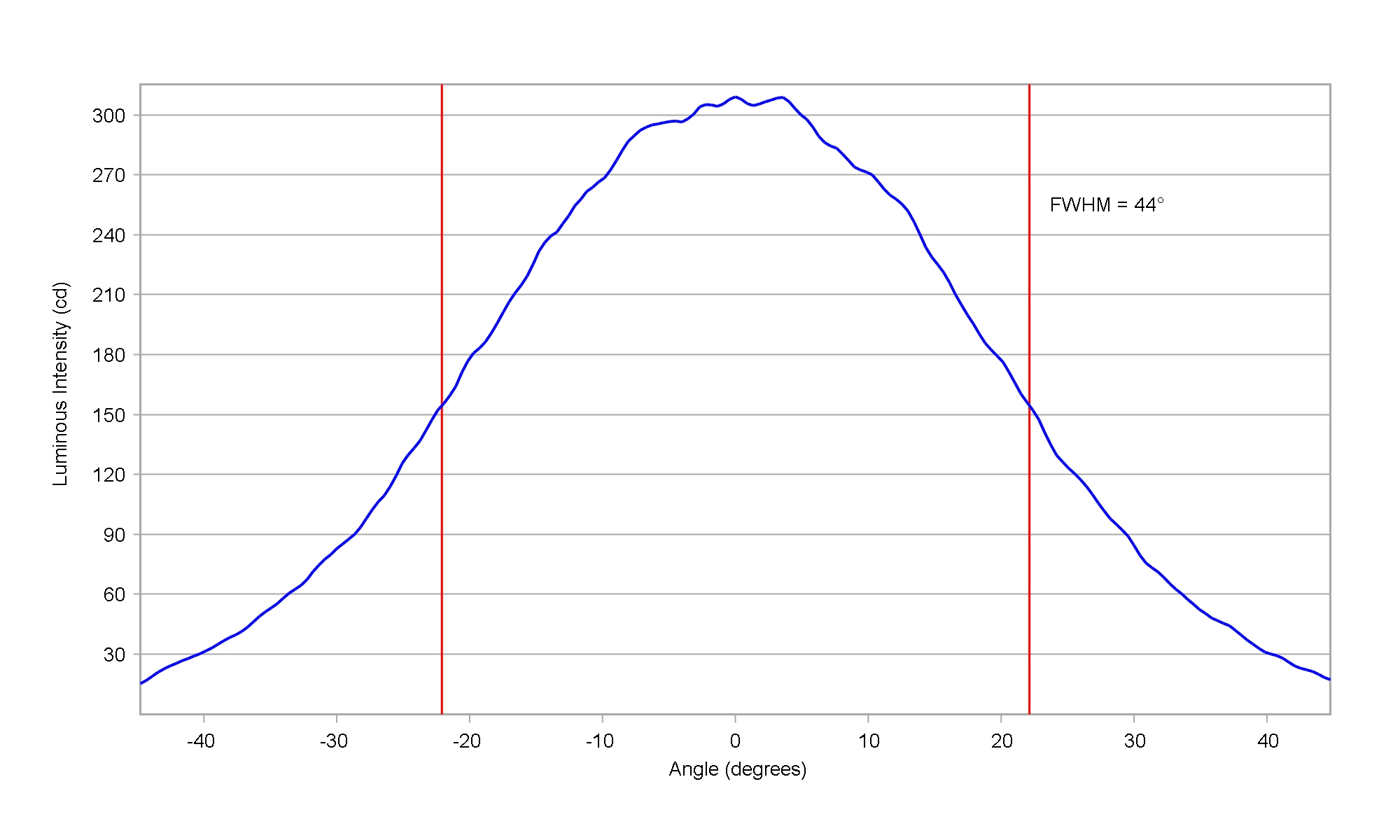

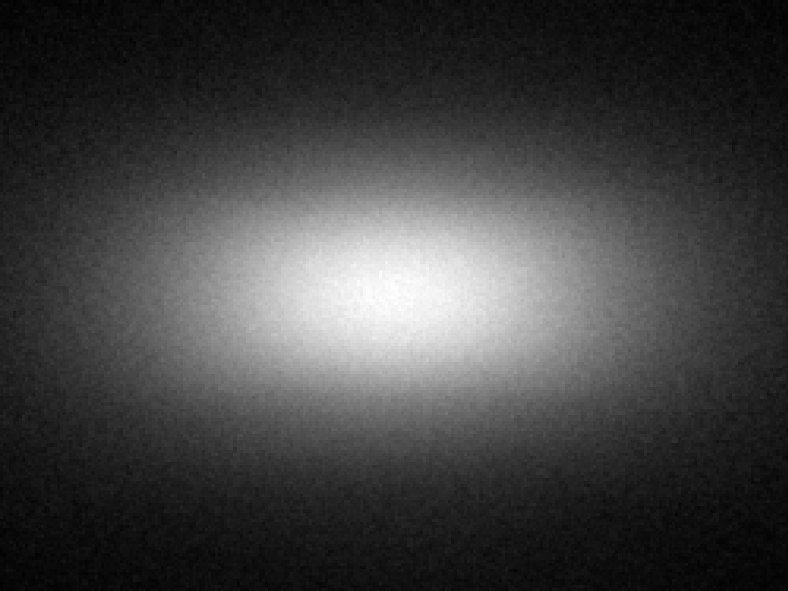

Cree XLamp XT-E White

Eff:

86.0%

FWHM:

44 x 21.5°

Cd/Im:

2.8


,

Download

Everlight Shuen White

Eff:

82.6%

FWHM:

45.1 x 25.2°

Cd/Im:

2.3

Spot Image

Cross Section

,

Cross Section

Download

ies

LG Innotek 3535LG White

FWHM:

44.9 x 24°

Cd/Im:

2.2

Spot Image

Cross Section

Download

ies

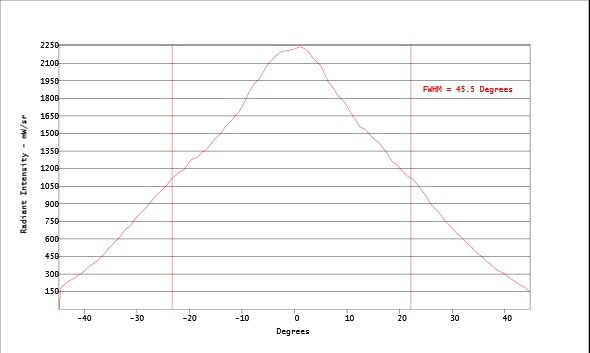

Lite-On R38386AS - S R38 IR

Eff:

87.0%

FWHM:

45.5 x 26.0°

Ipk/W:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON 3014 White

Eff:

88.5%

FWHM:

47 x 12.5°

Cd/Im:

4.4


,


Download

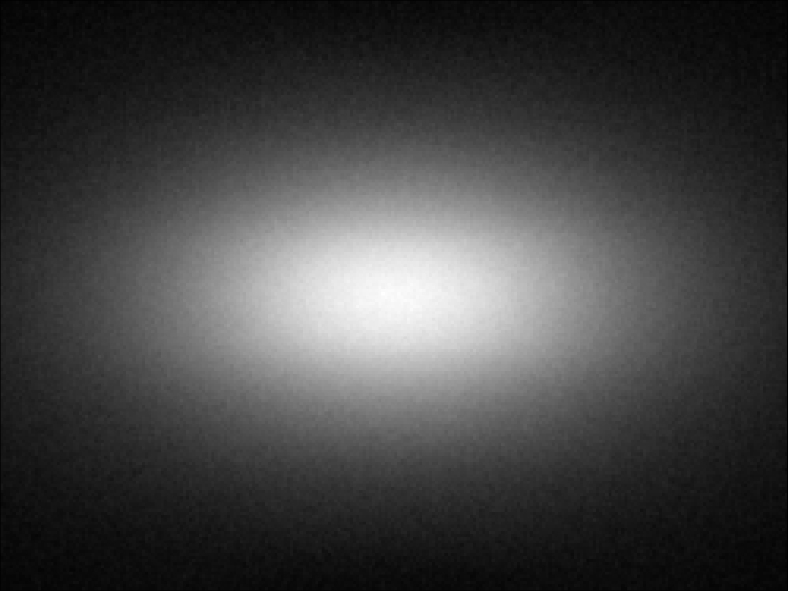

LUMILEDS LUXEON 3030 2D Plus Round White

Eff:

87.0%

FWHM:

43 x 21°

Cd/Im:

2.7


,


Download

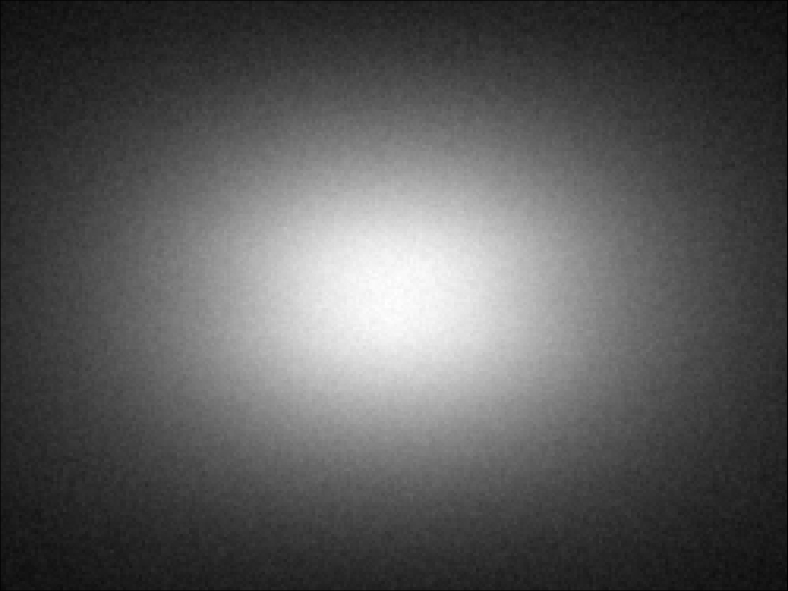

LUMILEDS LUXEON 3030 2D Plus Square White

Eff:

85.5%

FWHM:

43 x 31°

Cd/Im:

1.8


,


Download

LUMILEDS LUXEON 3030 2D Square White

Eff:

87.0%

FWHM:

45 x 19.5°

Cd/Im:

2.7


,


Download

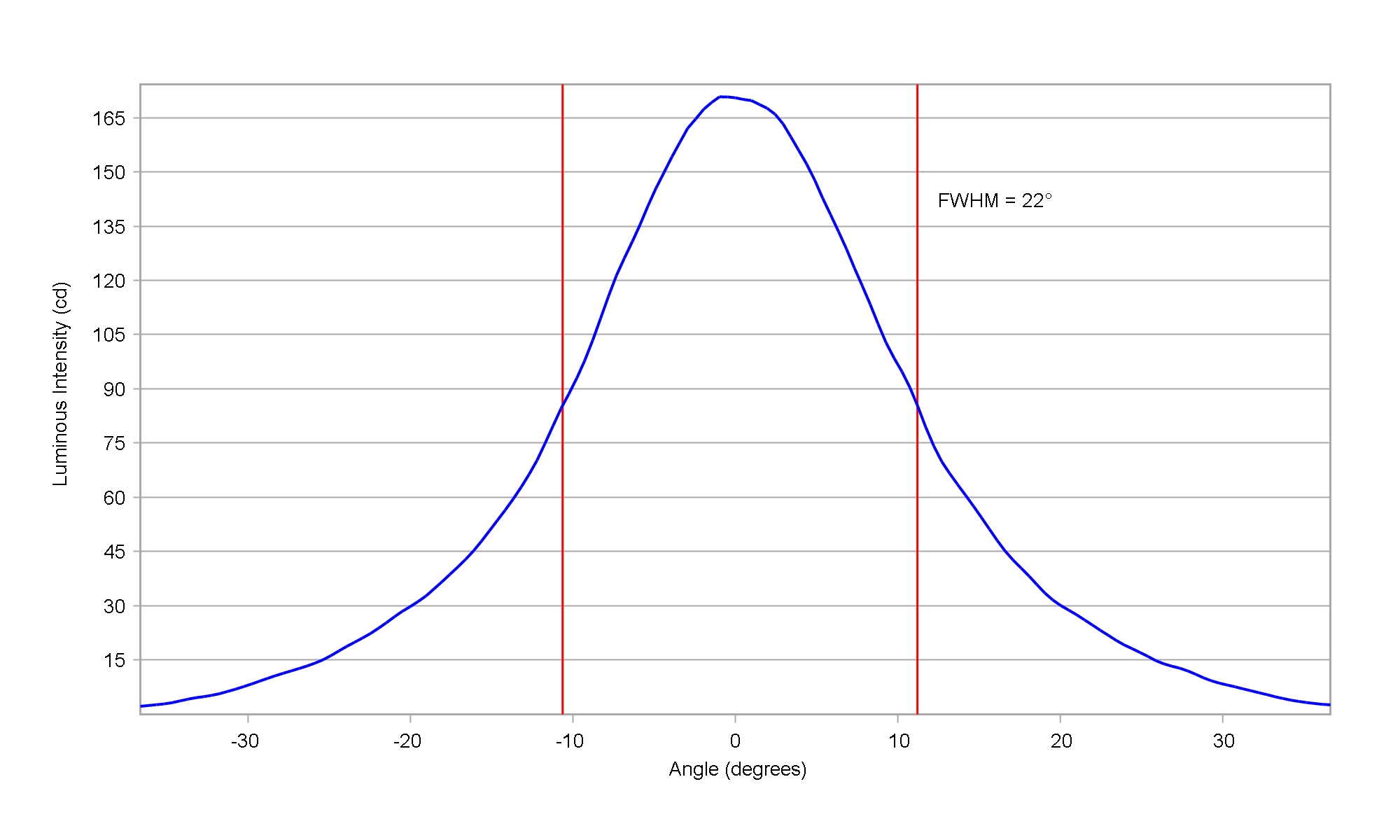

LUMILEDS LUXEON 3030 HE Plus White

Eff:

86.5%

FWHM:

45 x 22°

Cd/Im:

2.5


,


Download

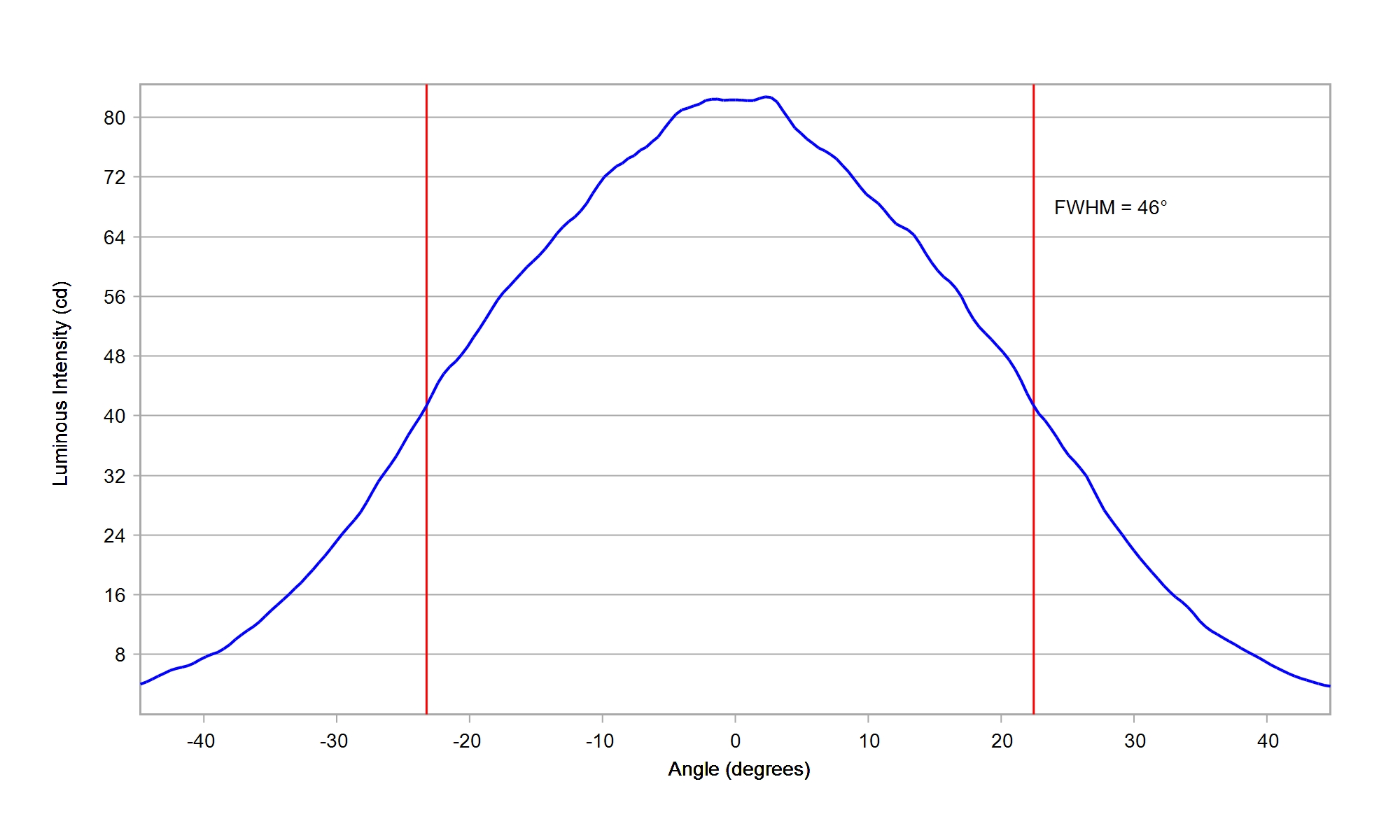

LUMILEDS LUXEON 3030 HE White

Eff:

87.0%

FWHM:

46 x 17.5°

Cd/Im:

2.9


,


Download

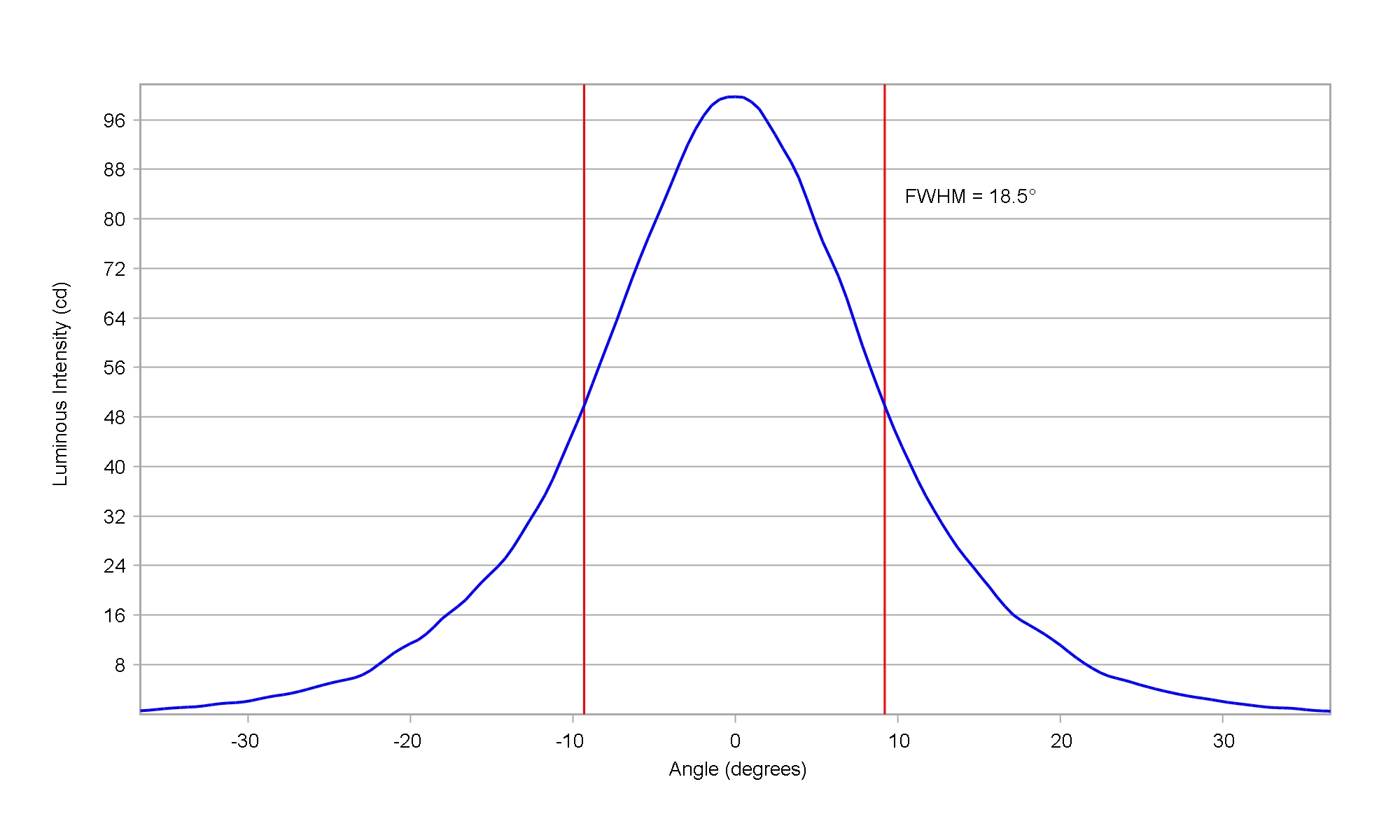

LUMILEDS LUXEON 3535 L White

Eff:

87.0%

FWHM:

45 x 18.5°

Cd/Im:

3.0


,


Download

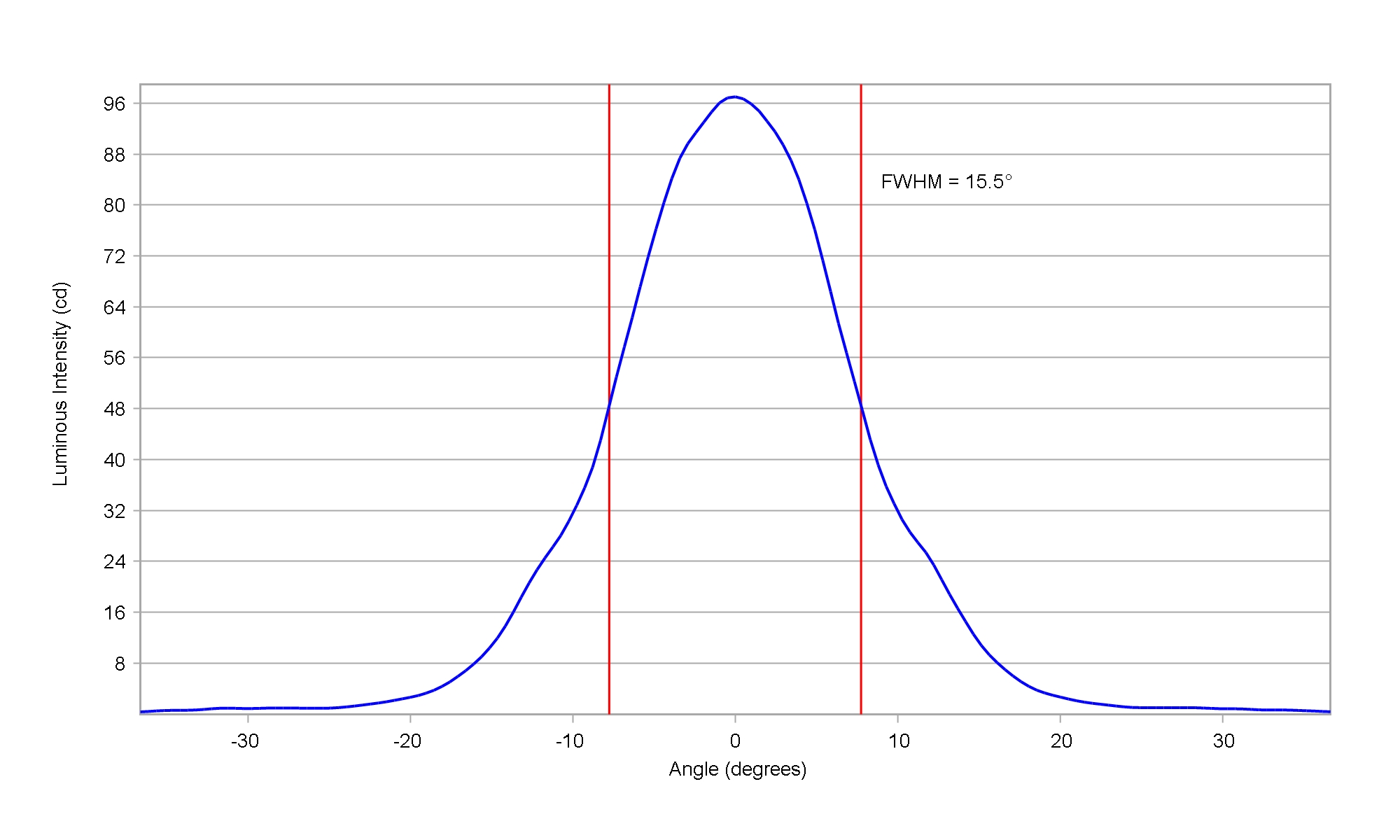

LUMILEDS LUXEON C Blue

Eff:

82.5%

FWHM:

46 x 15.5°

Cd/Im:

3.4


,


Download

LUMILEDS LUXEON C Lime

Eff:

84.5%

FWHM:

45 x 16°

Cd/Im:

3.6


,


Download

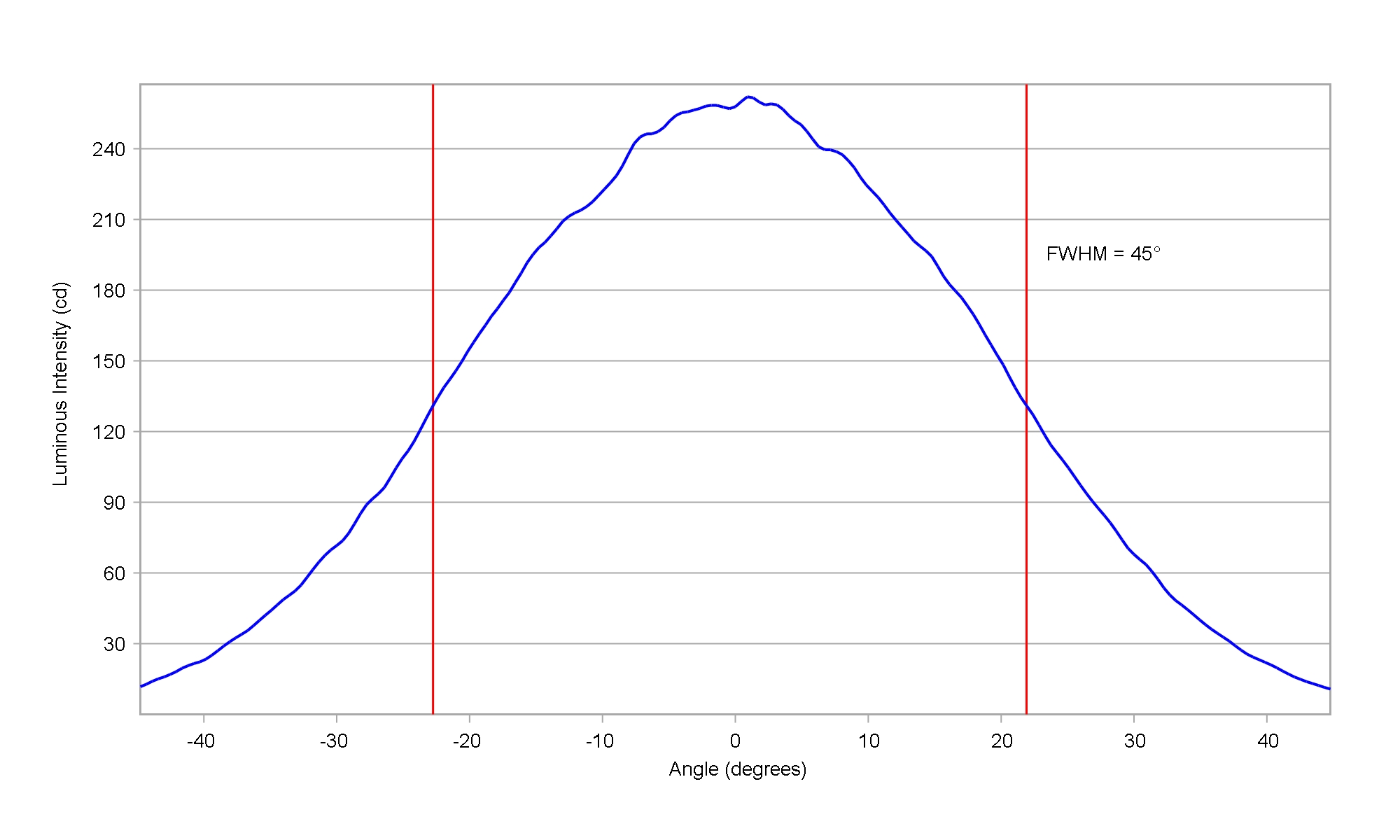

LUMILEDS LUXEON C PC Amber

Eff:

81.5%

FWHM:

45 x 17°

Cd/Im:

3.0


,


Download

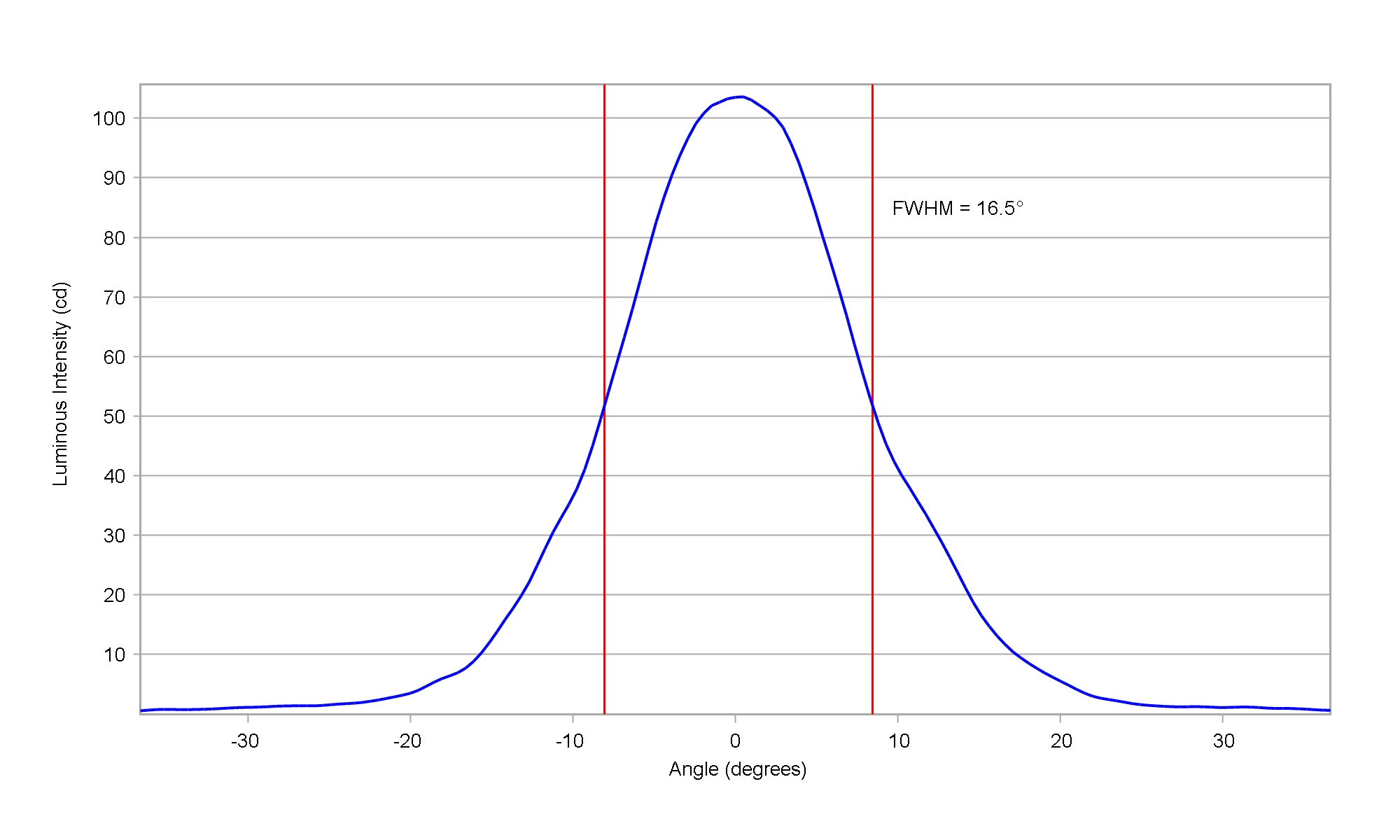

LUMILEDS LUXEON C Red

Eff:

82.0%

FWHM:

45 x 16.5°

Cd/Im:

3.3


,


Download

LUMILEDS LUXEON C White

Eff:

84.0%

FWHM:

46 x 15.5°

Cd/Im:

3.5


,


Download

LUMILEDS LUXEON CZ White

Eff:

89.5%

FWHM:

48 x 12°

Cd/Im:

5.4


,


Download

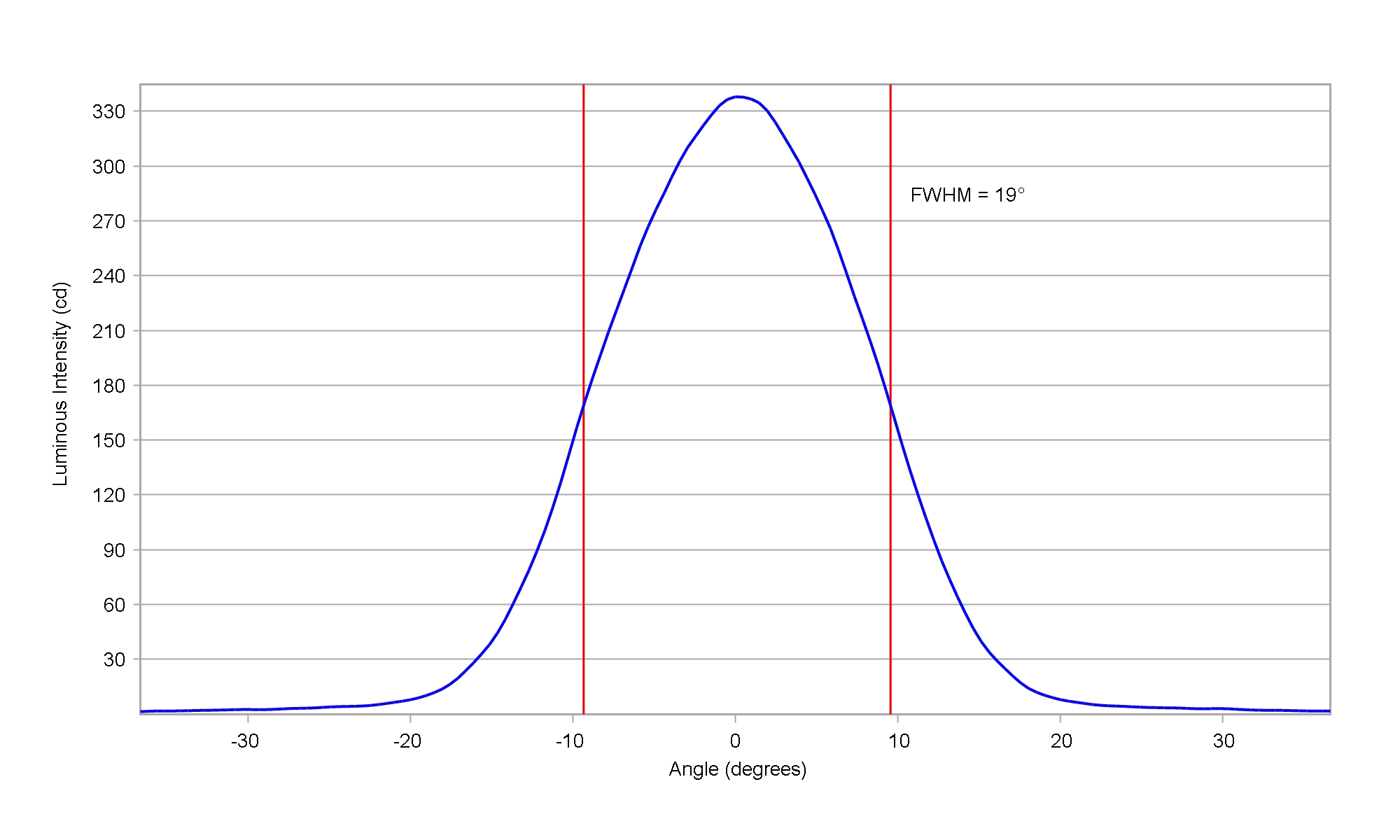

LUMILEDS LUXEON HL1Z Color Blue

Eff:

89.5%

FWHM:

46 x 19.5°

Cd/Im:

2.6


,


Download

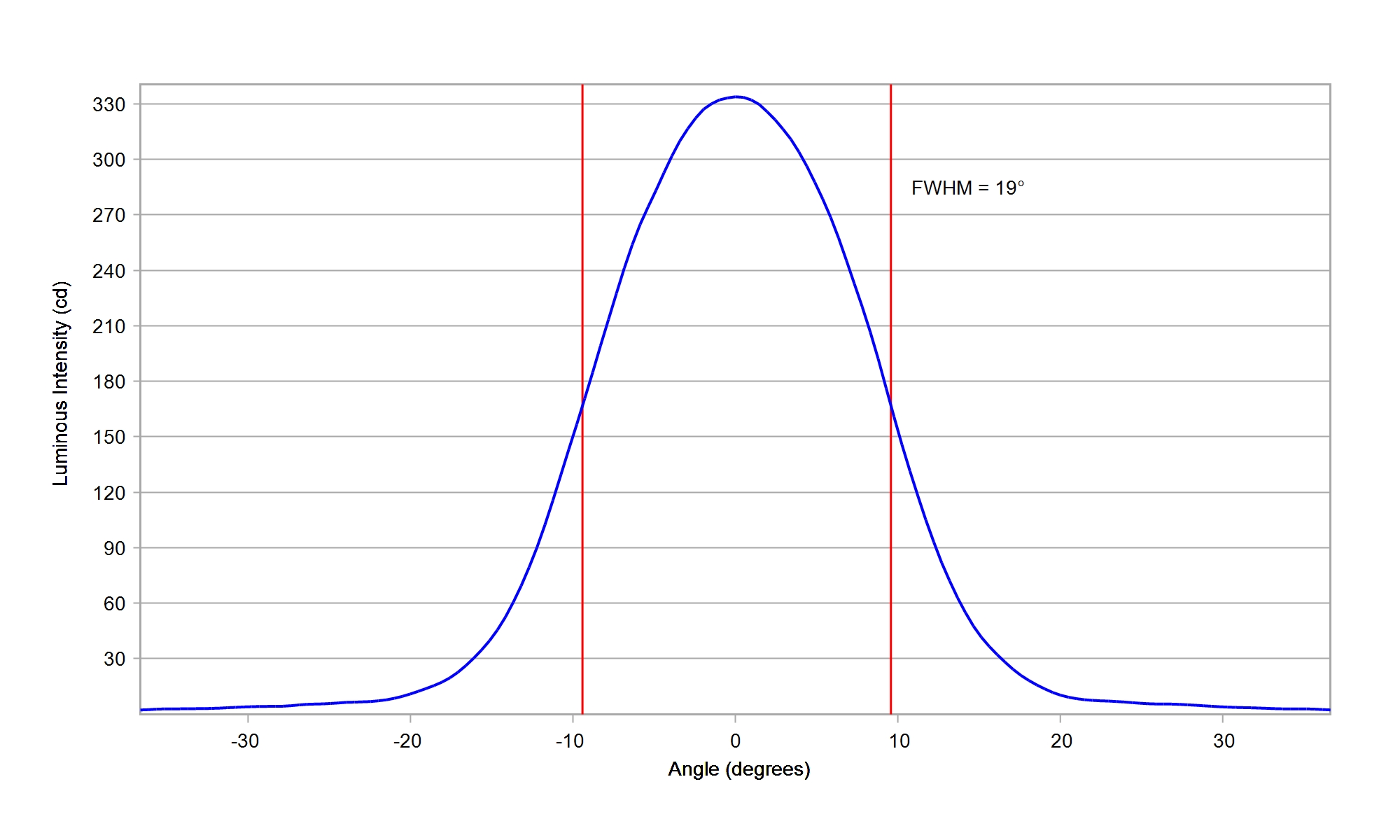

LUMILEDS LUXEON HL1Z Color Green

Eff:

89.5%

FWHM:

45 x 19°

Cd/Im:

2.6


,


Download

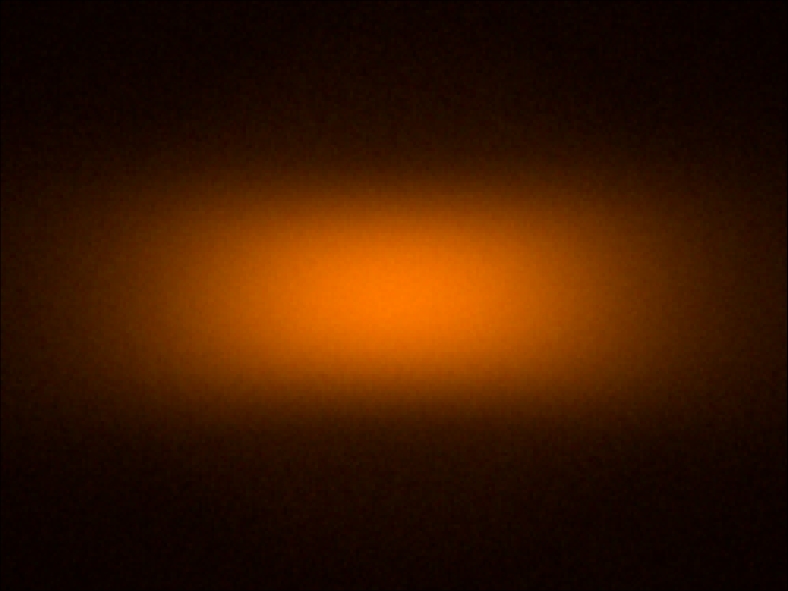

LUMILEDS LUXEON HL1Z Color PC Amber

Eff:

89.5%

FWHM:

45 x 18.5°

Cd/Im:

3.0


,


Download

LUMILEDS LUXEON HL1Z Color PC Green

Eff:

89.5%

FWHM:

45 x 19°

Cd/Im:

2.6


,


Download

LUMILEDS LUXEON HL1Z Color PC Red

Eff:

90.0%

FWHM:

44 x 19°

Cd/Im:

2.9


,


Download

LUMILEDS LUXEON HL1Z Color PC Red Orange

Eff:

90.0%

FWHM:

45 x 18.5°

Cd/Im:

3.0


,


Download

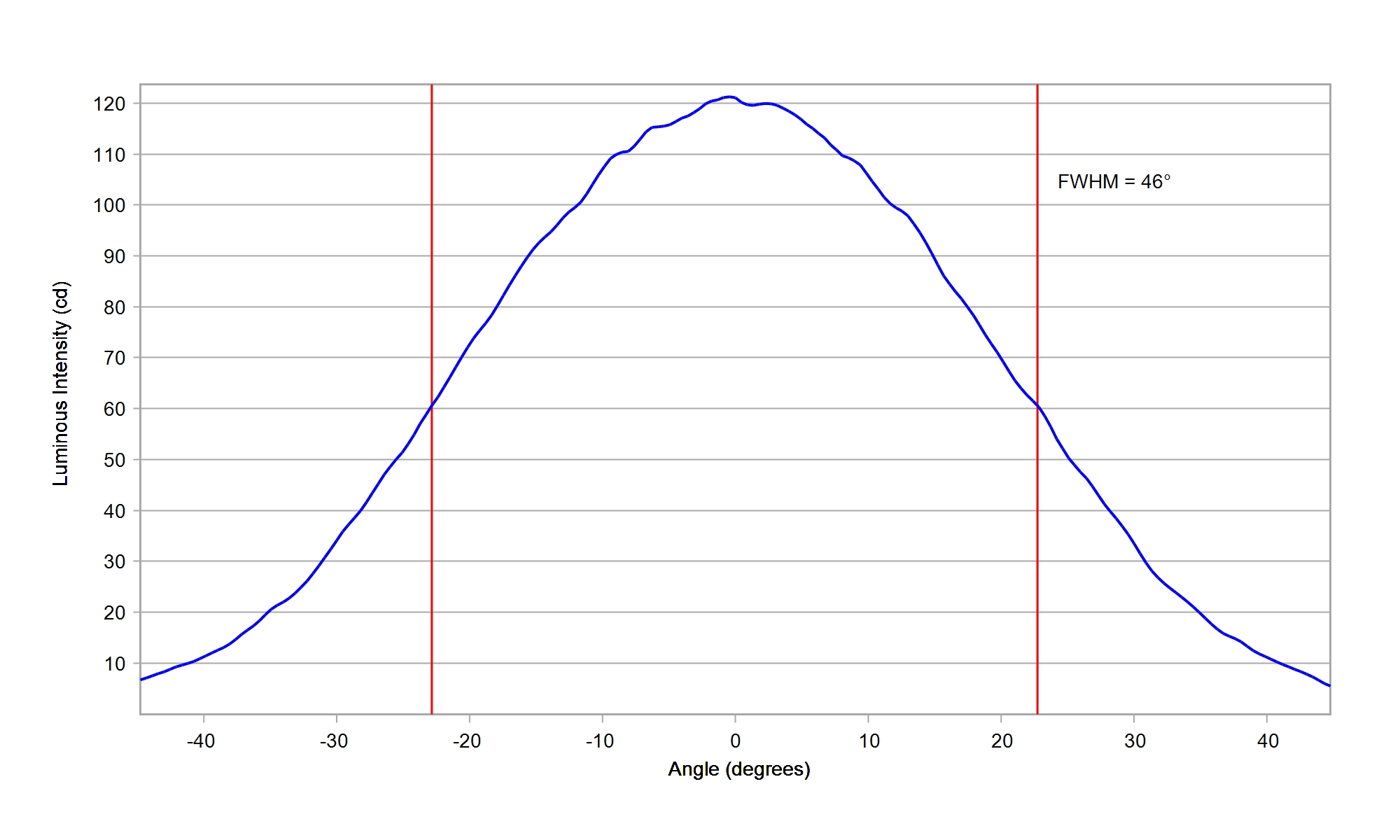

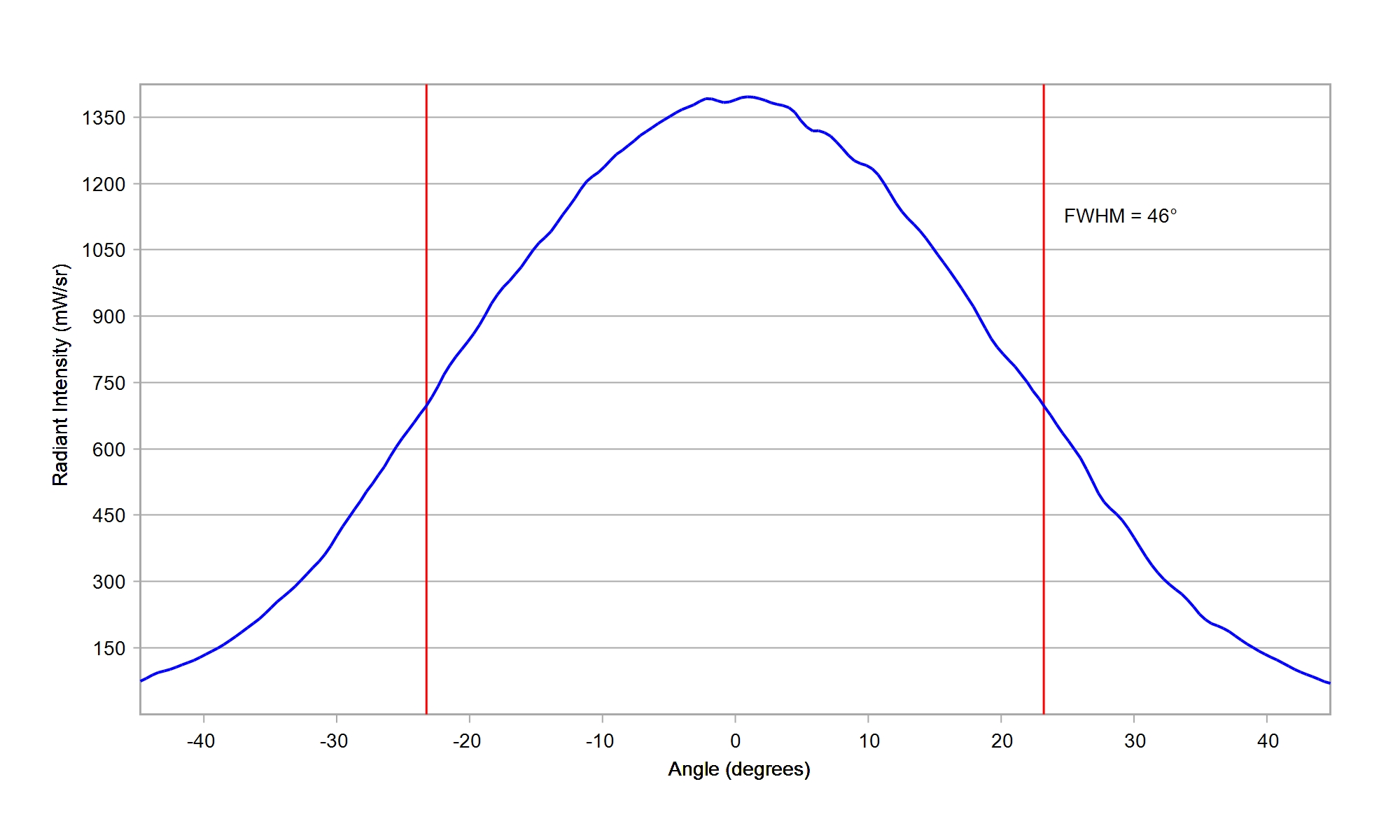

LUMILEDS LUXEON HL1Z Color Royal Blue

Eff:

89.0%

FWHM:

46 x 19°

Ipk/W:

2.6


,


Download

LUMILEDS LUXEON HL1Z CSP White

Eff:

89.5%

FWHM:

45 x 19°

Cd/Im:

3.1


,


Download

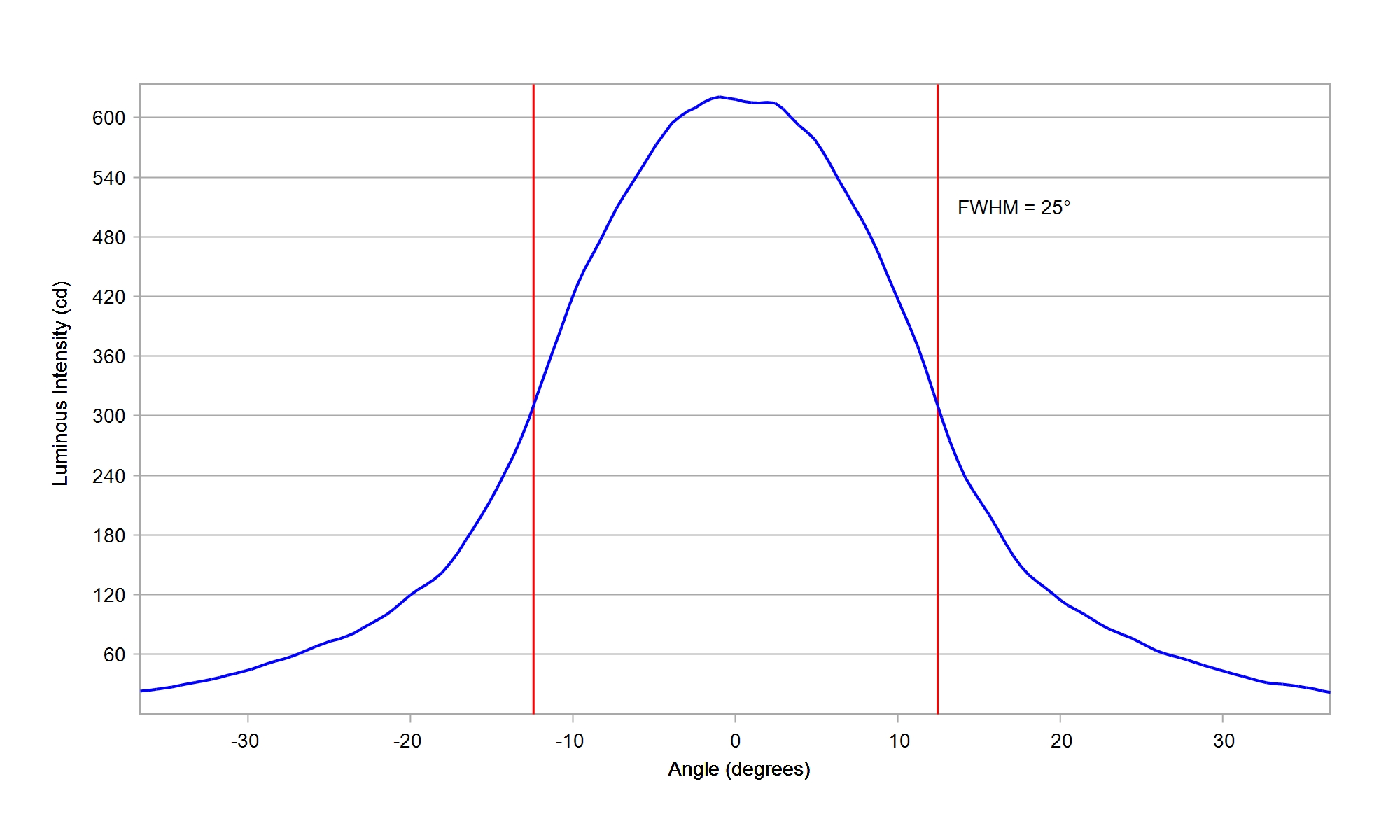

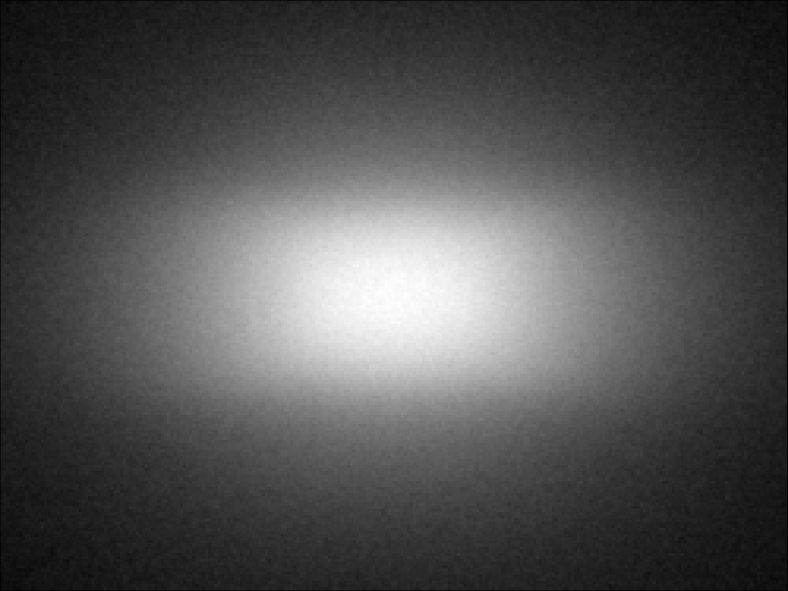

LUMILEDS LUXEON HL2X-V White

Eff:

85.5%

FWHM:

44 x 25°

Cd/Im:

2.1


,


Download

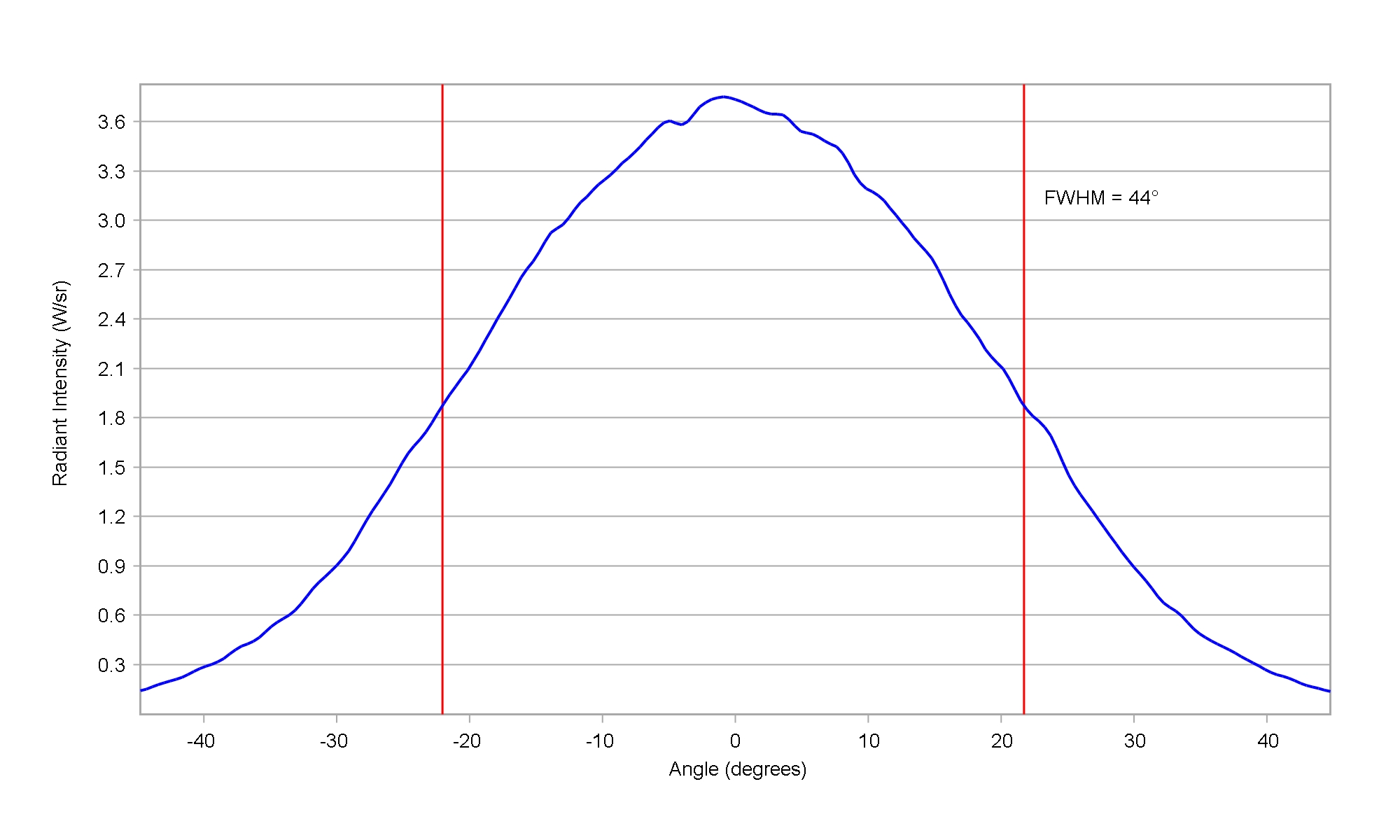

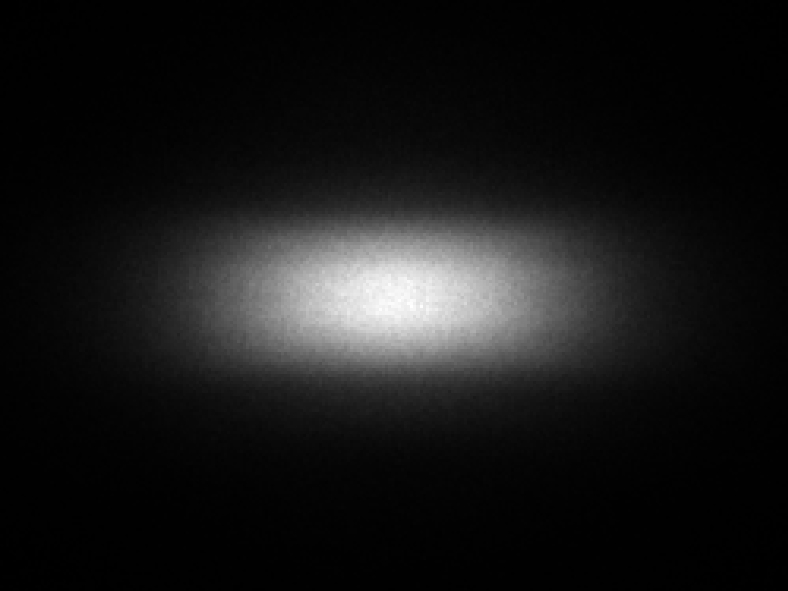

LUMILEDS LUXEON IR 2720

Eff:

90.5%

FWHM:

44 x 18°

Ipk/W:

3.5


,


Download

LUMILEDS LUXEON IR Compact 850nm

Eff:

91.0%

FWHM:

46 x 15°

Ipk/W:

3.7


,


Download

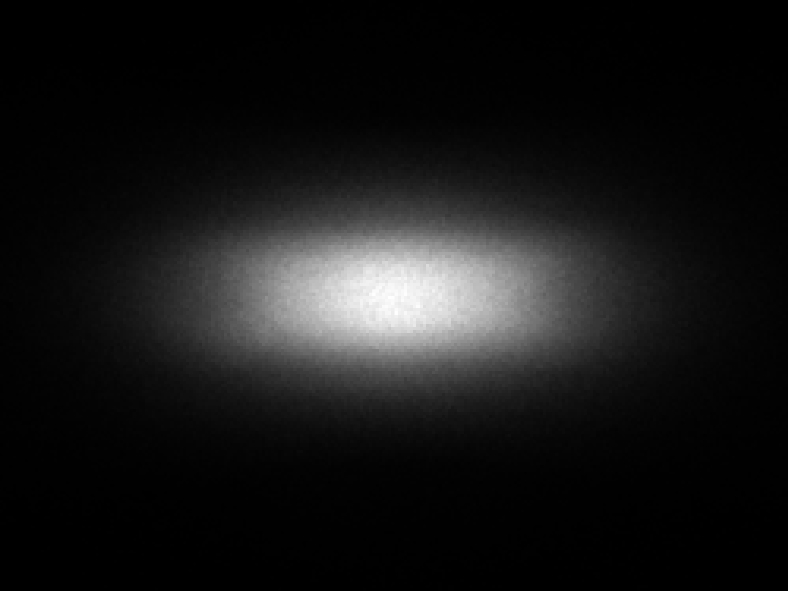

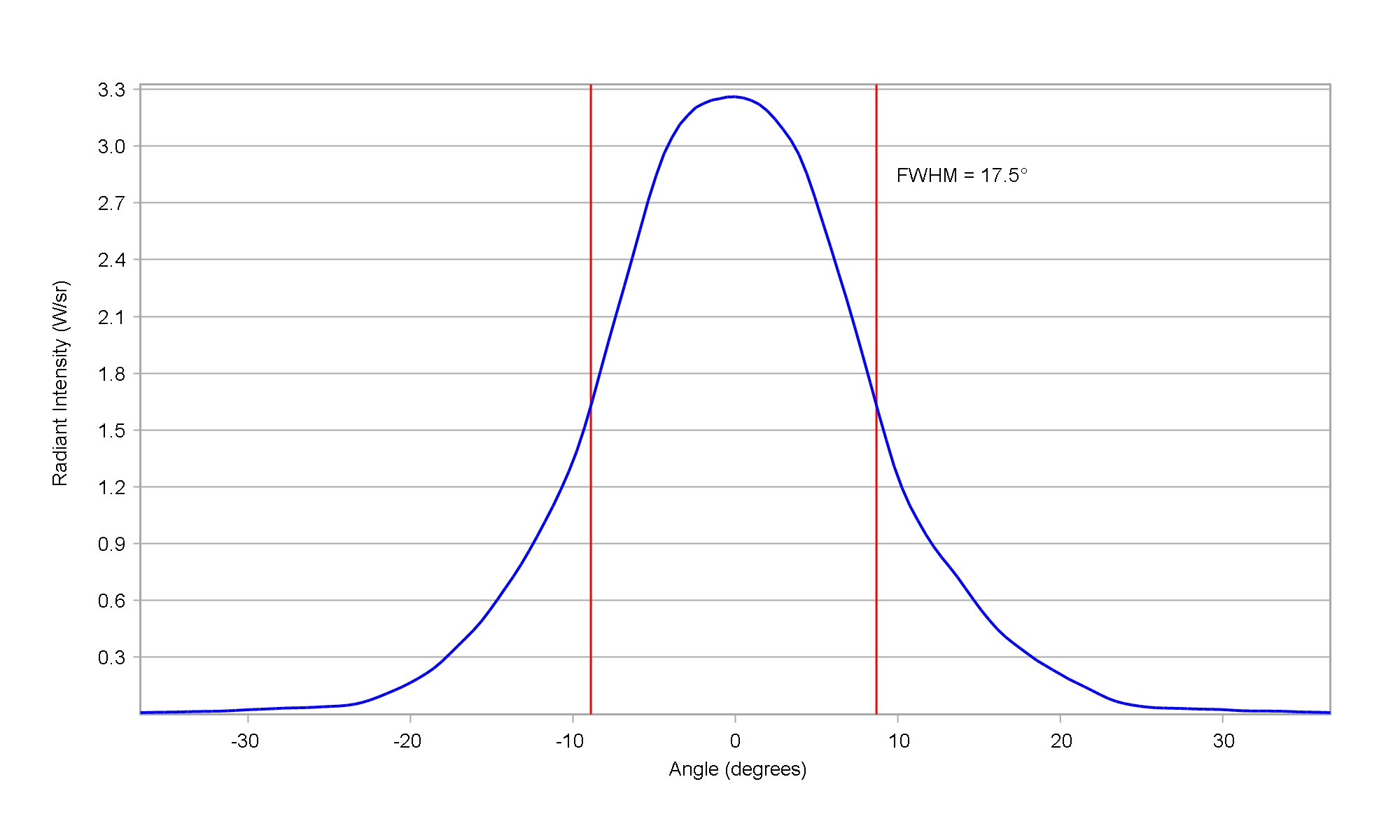

LUMILEDS LUXEON IR Domed 150 Degree

Eff:

89.5%

FWHM:

43 x 17.5°

Cd/Im:

1.8

Ipk/W:

3.5


,


Download

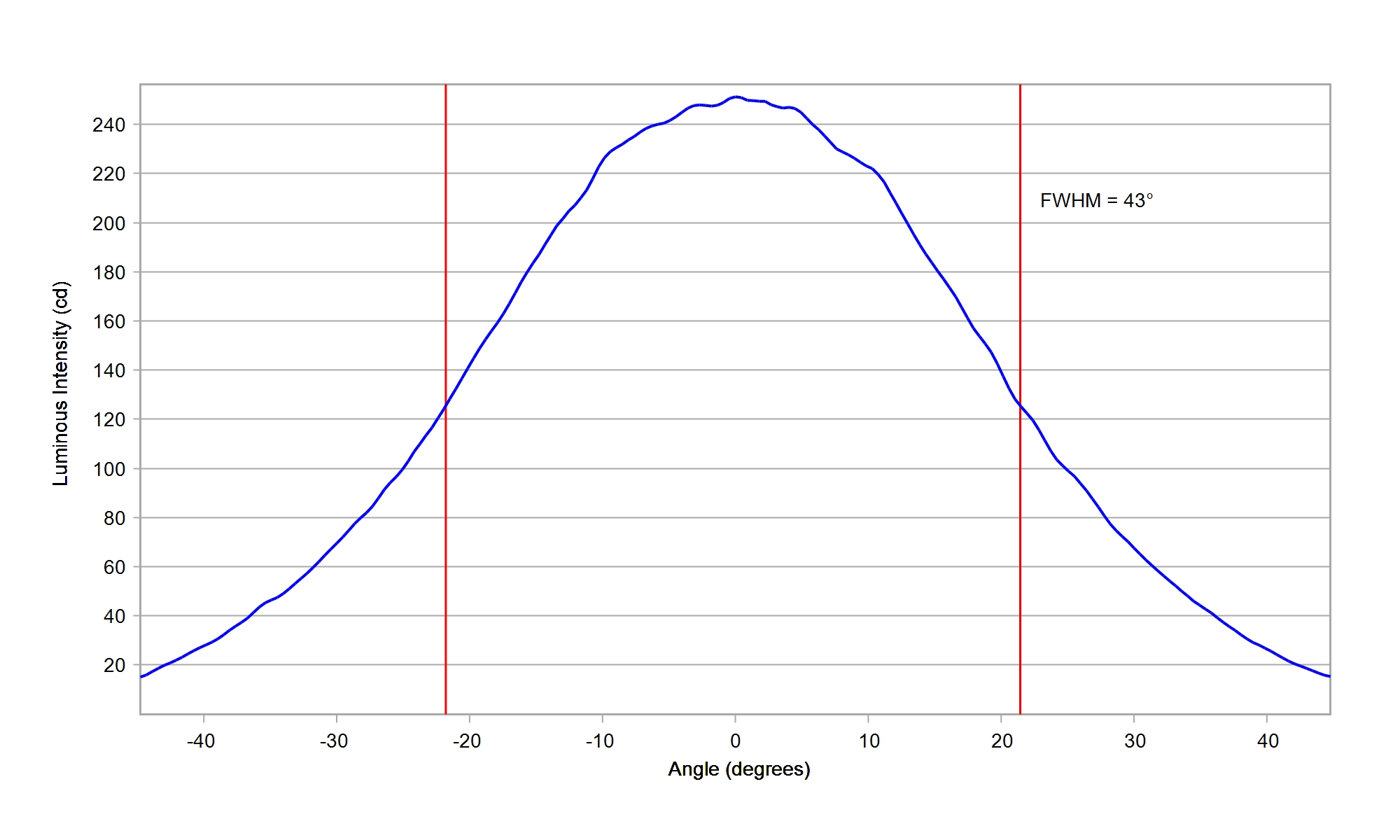

LUMILEDS LUXEON Rebel ES White

Eff:

85.5%

FWHM:

43 x 22.5°

Cd/Im:

2.4


,


Download

LUMILEDS LUXEON Rebel Plus White

Eff:

87.5%

FWHM:

45 x 18.5°

Cd/Im:

3.2


,


Download

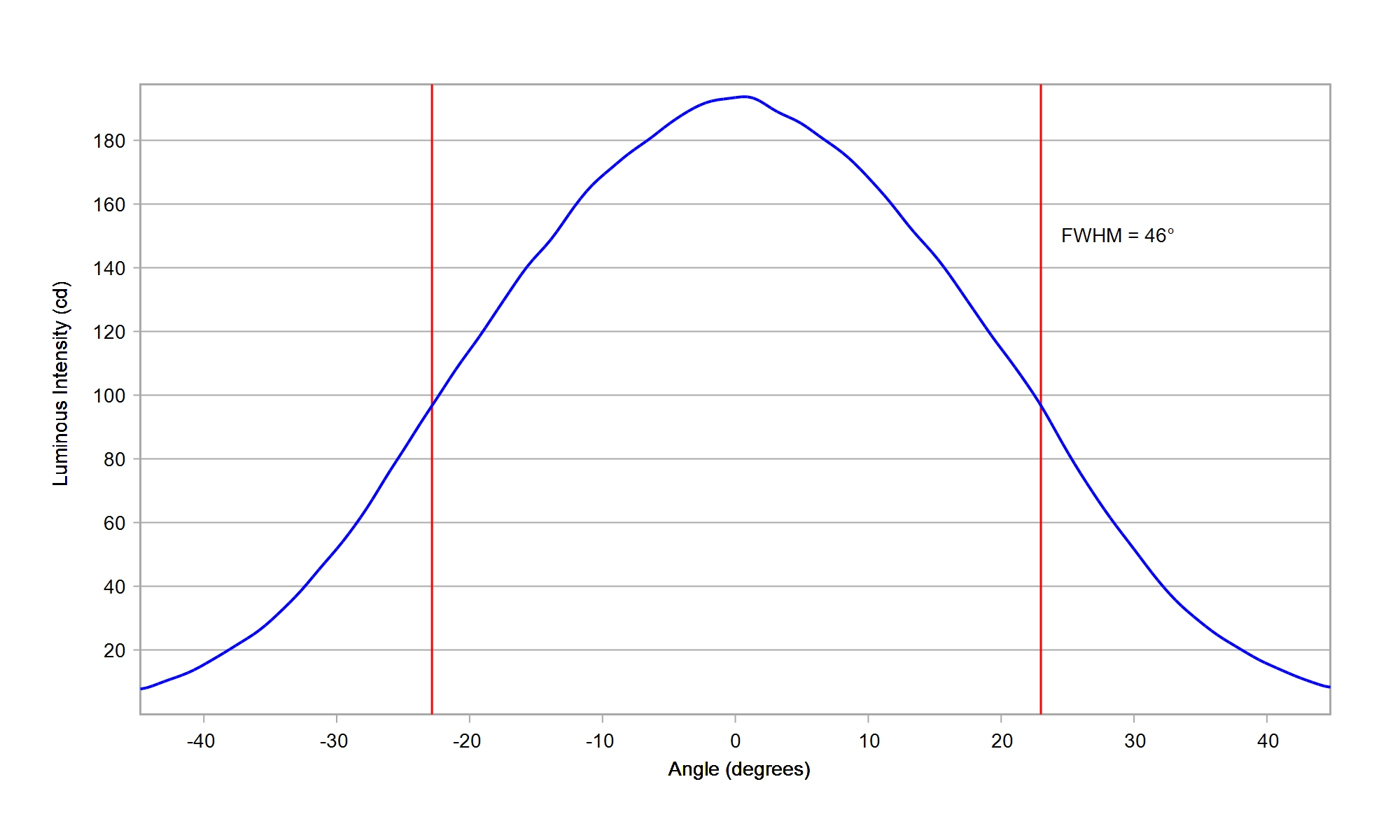

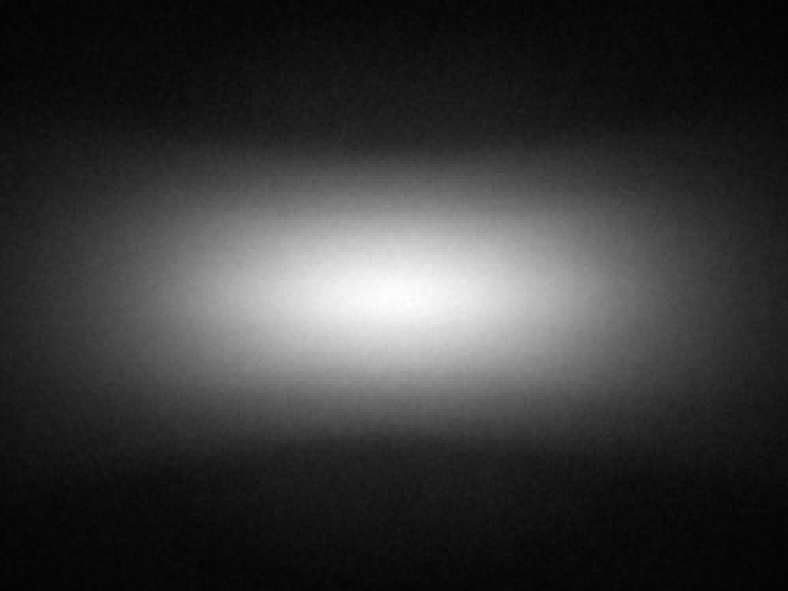

LUMILEDS LUXEON Rebel White

Eff:

87.5%

FWHM:

46 x 18°

Cd/Im:

3.2


,


Download

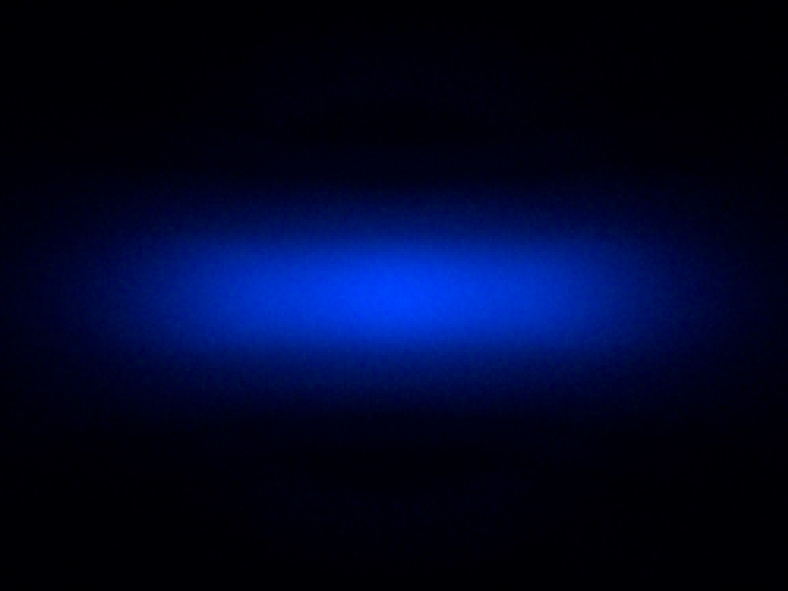

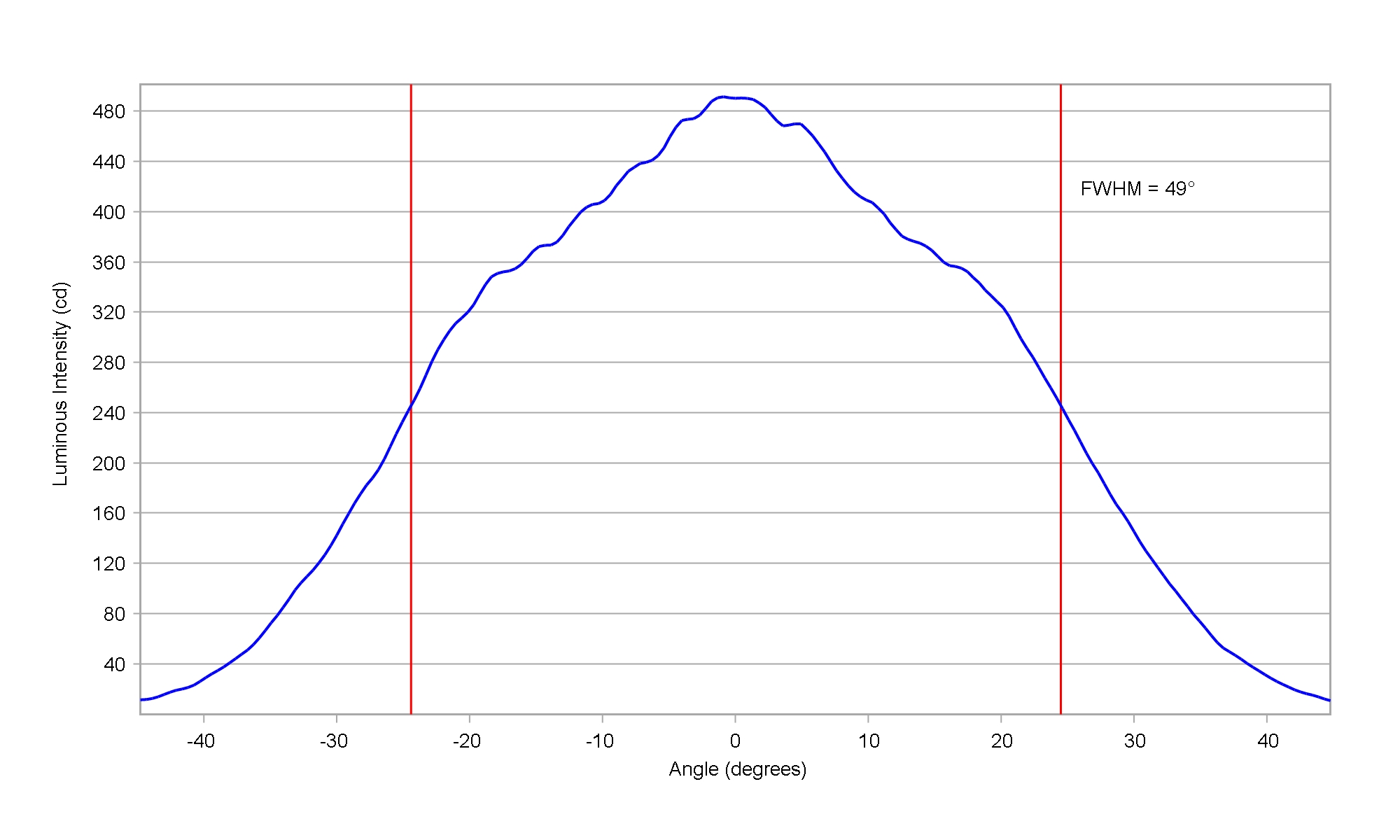

LUMILEDS LUXEON Rubix Blue

Eff:

89.5%

FWHM:

49 x 12°

Cd/Im:

5.4


,


Download

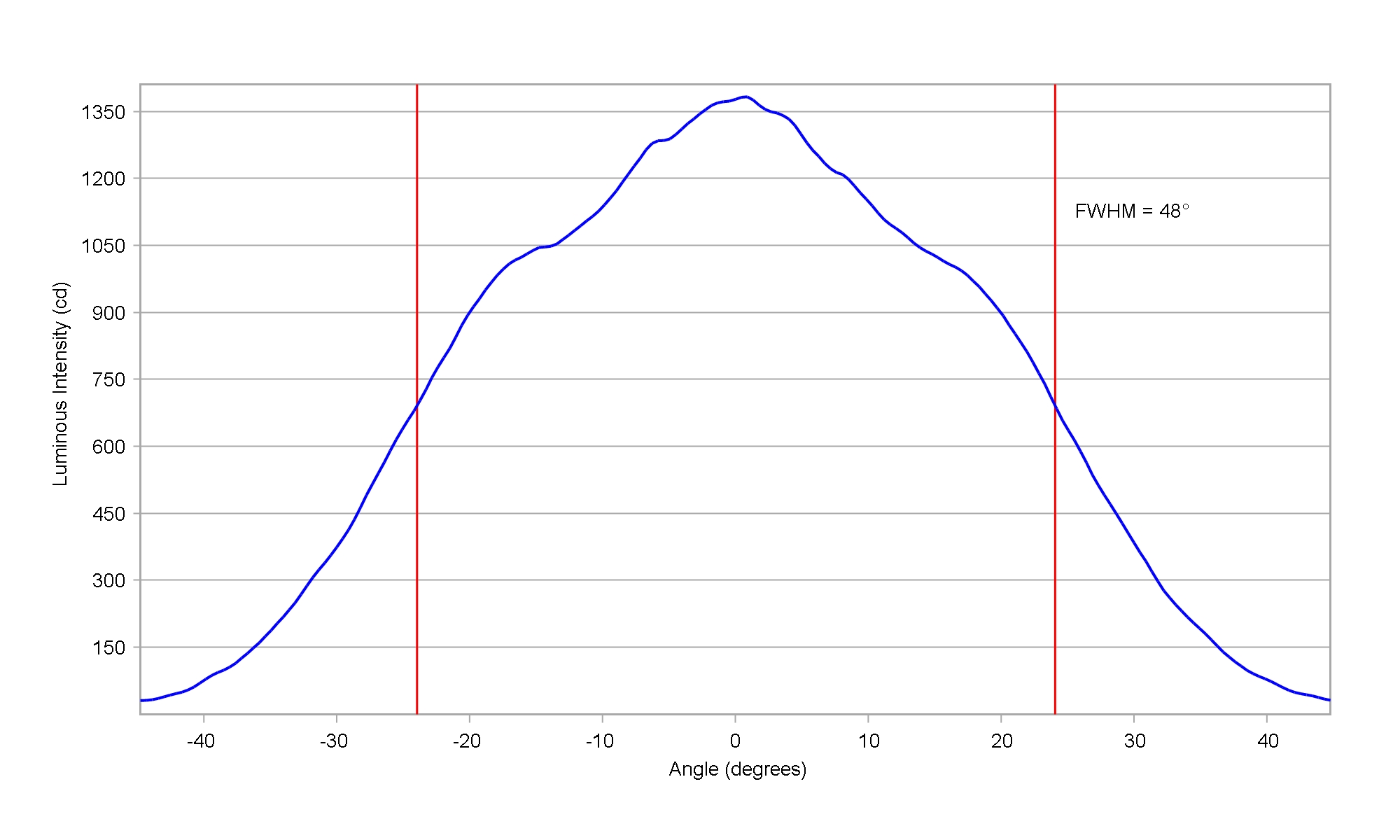

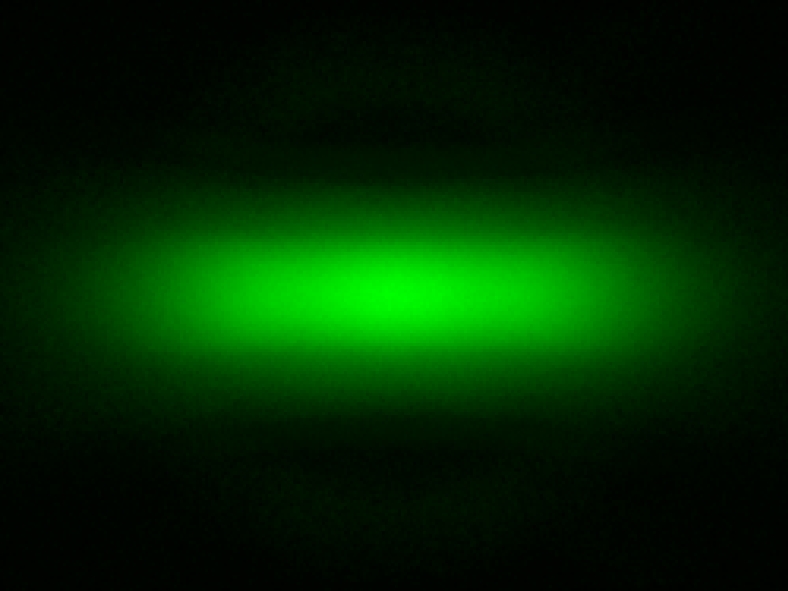

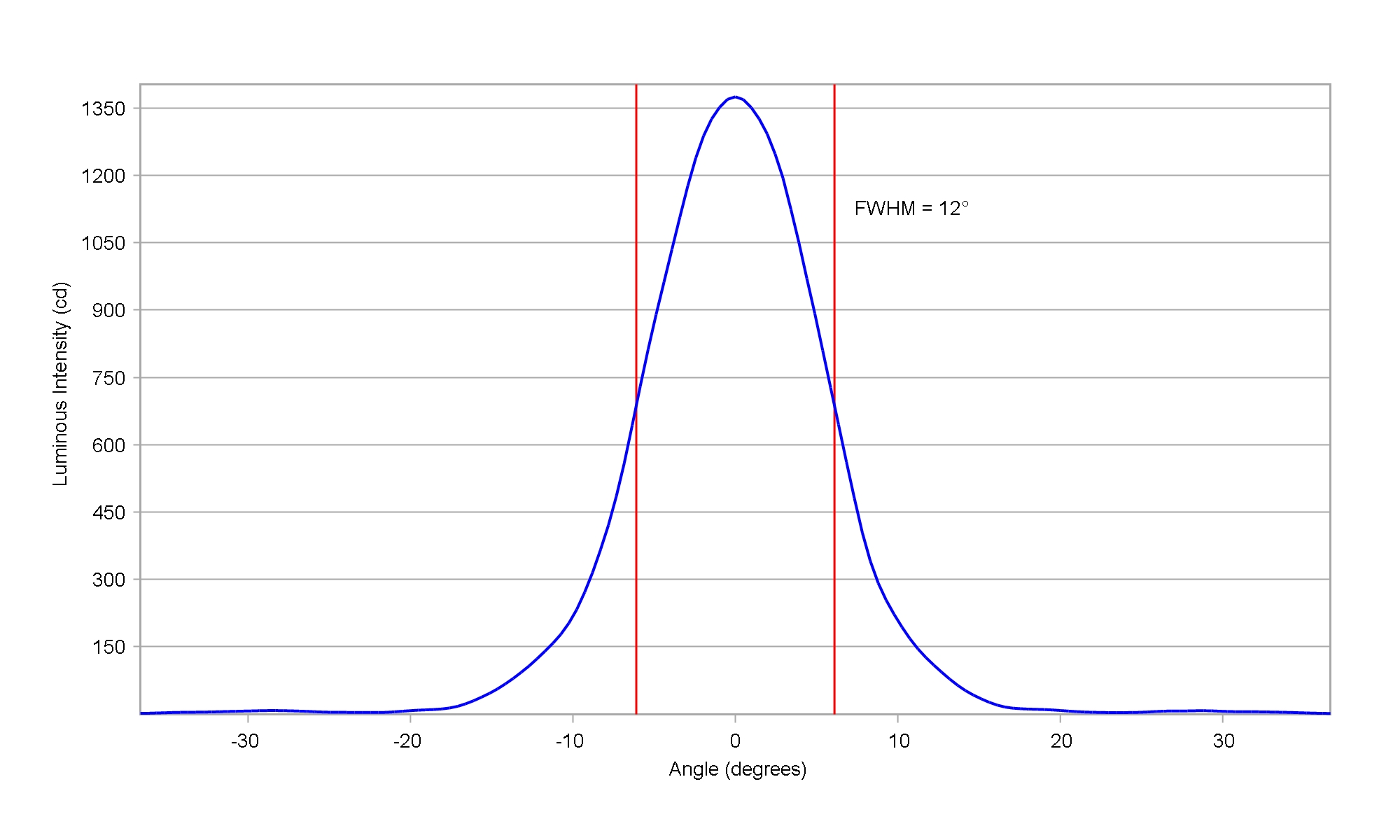

LUMILEDS LUXEON Rubix Green

Eff:

89.5%

FWHM:

48 x 12°

Cd/Im:

5.0


,


Download

LUMILEDS LUXEON Rubix Red

Eff:

90.5%

FWHM:

48 x 12°

Cd/Im:

5.5


,


Download

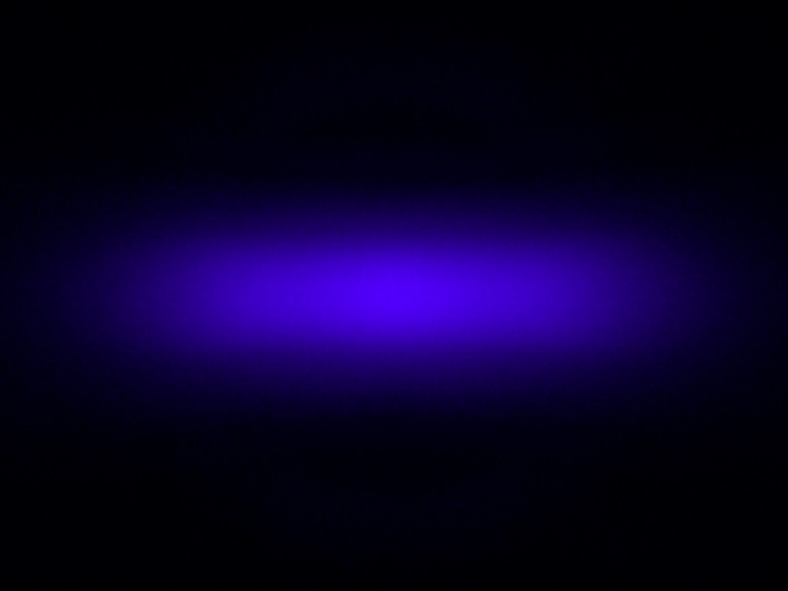

LUMILEDS LUXEON Rubix Royal Blue

Eff:

88.5%

FWHM:

50 x 12°

Ipk/W:

4.8


,


Download

LUMILEDS LUXEON Rubix White

Eff:

89.5%

FWHM:

48 x 12.5°

Cd/Im:

5.1


,


Download

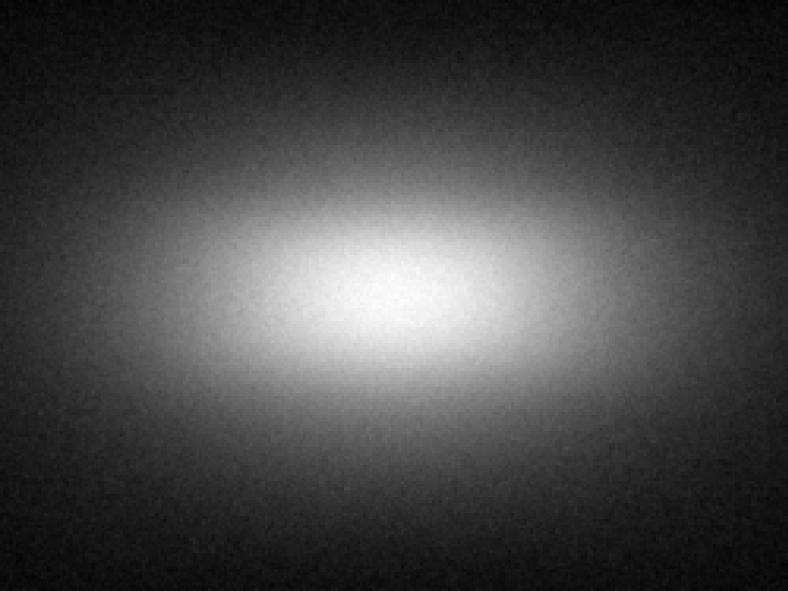

LUMILEDS LUXEON TX White

Eff:

86.5%

FWHM:

44 x 21.5°

Cd/Im:

2.7


,

Download

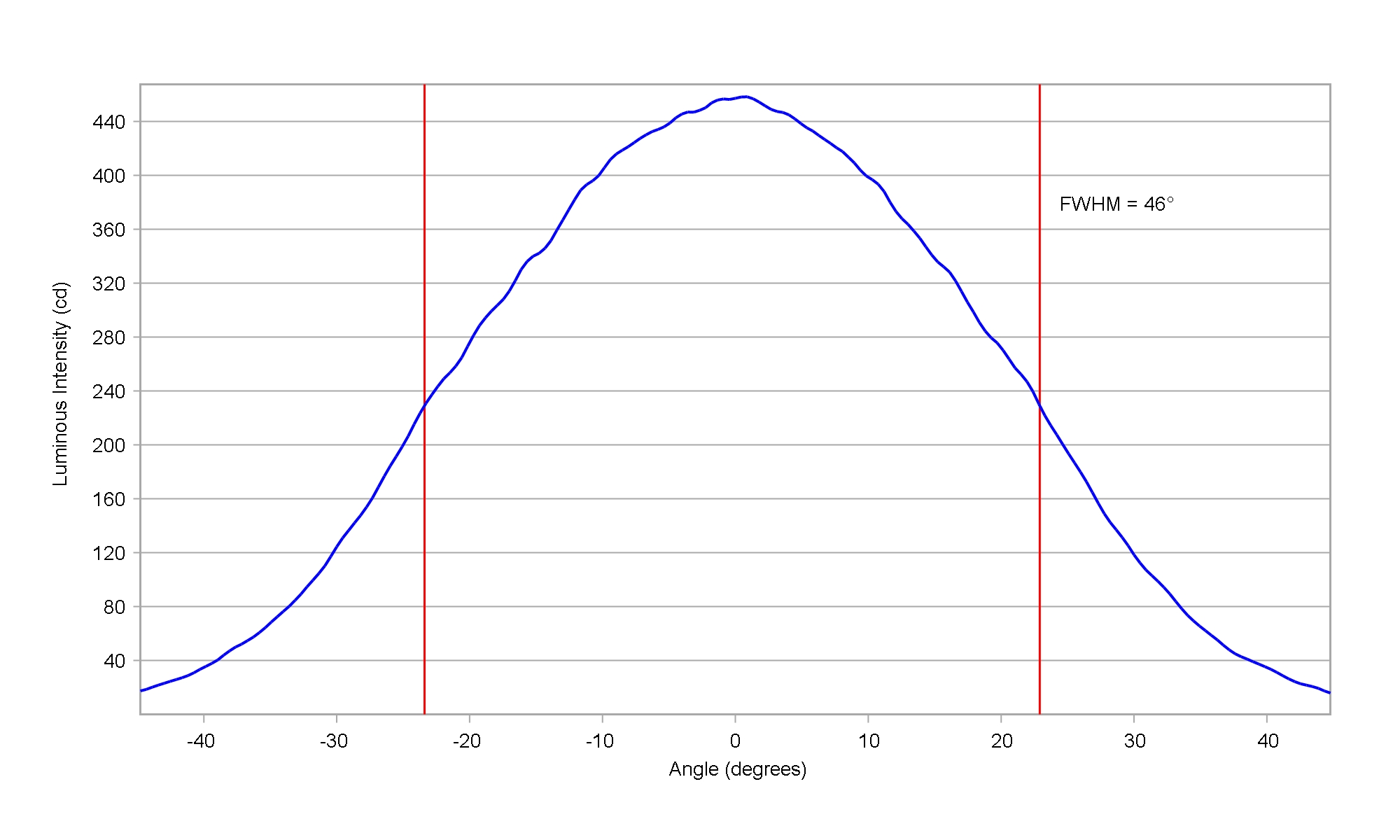

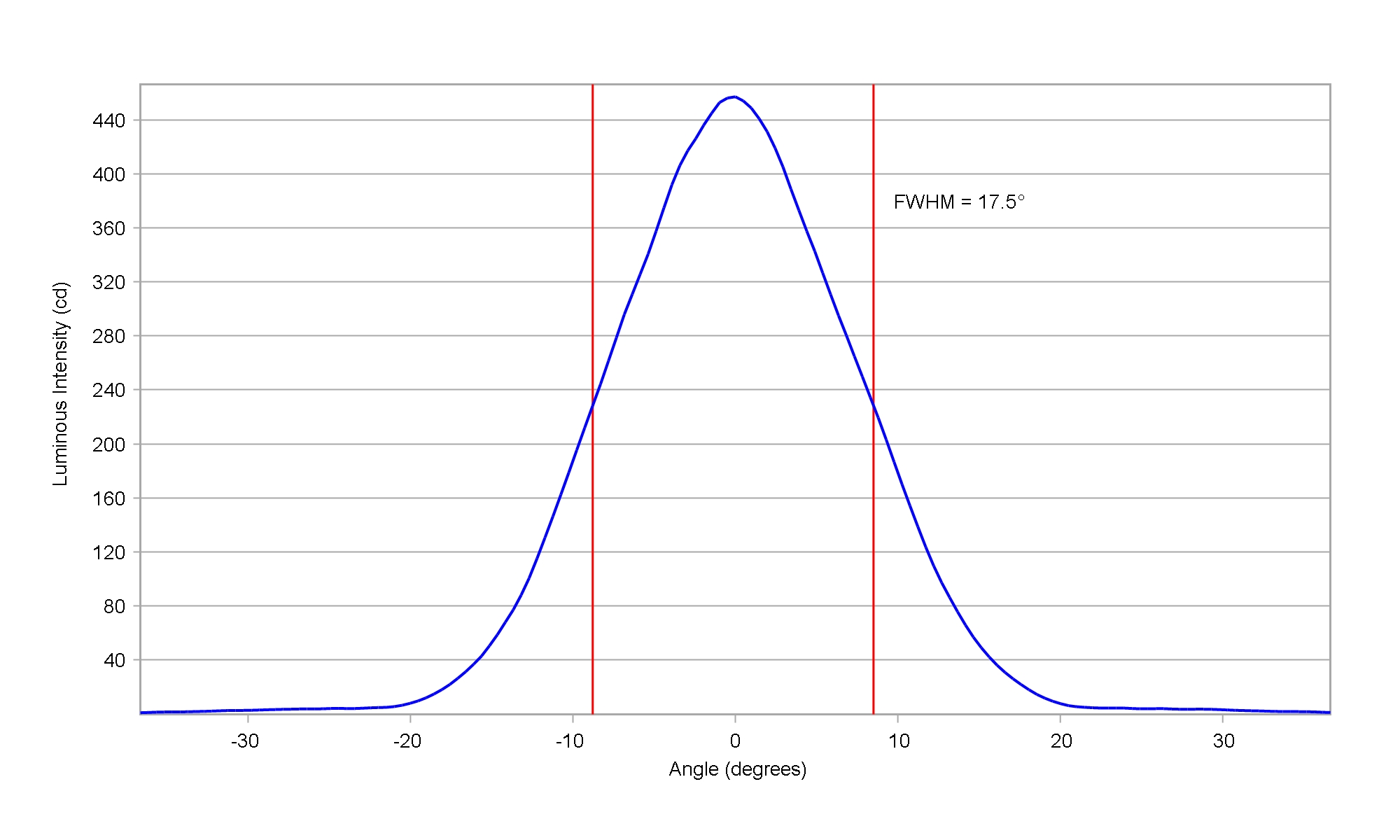

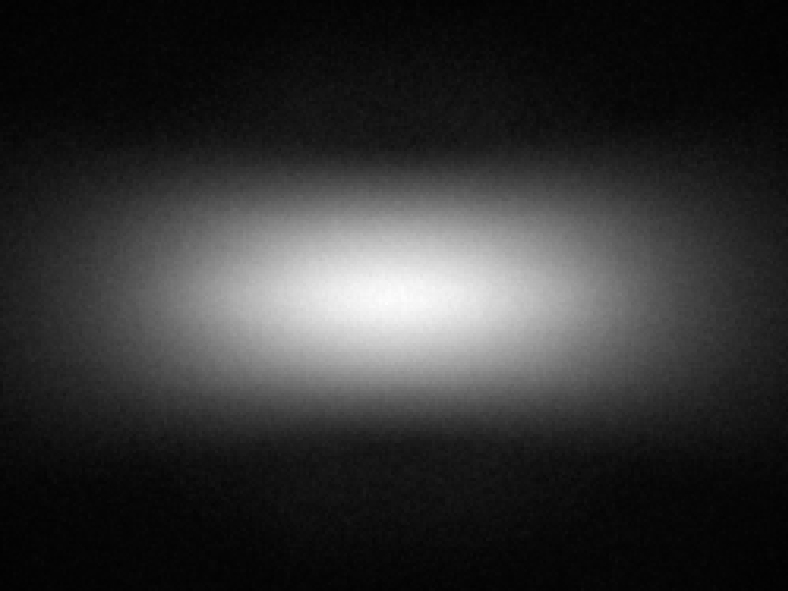

LUMILEDS LUXEON Z ES White

Eff:

89.0%

FWHM:

46 x 17.5°

Cd/Im:

3.6


,


Download

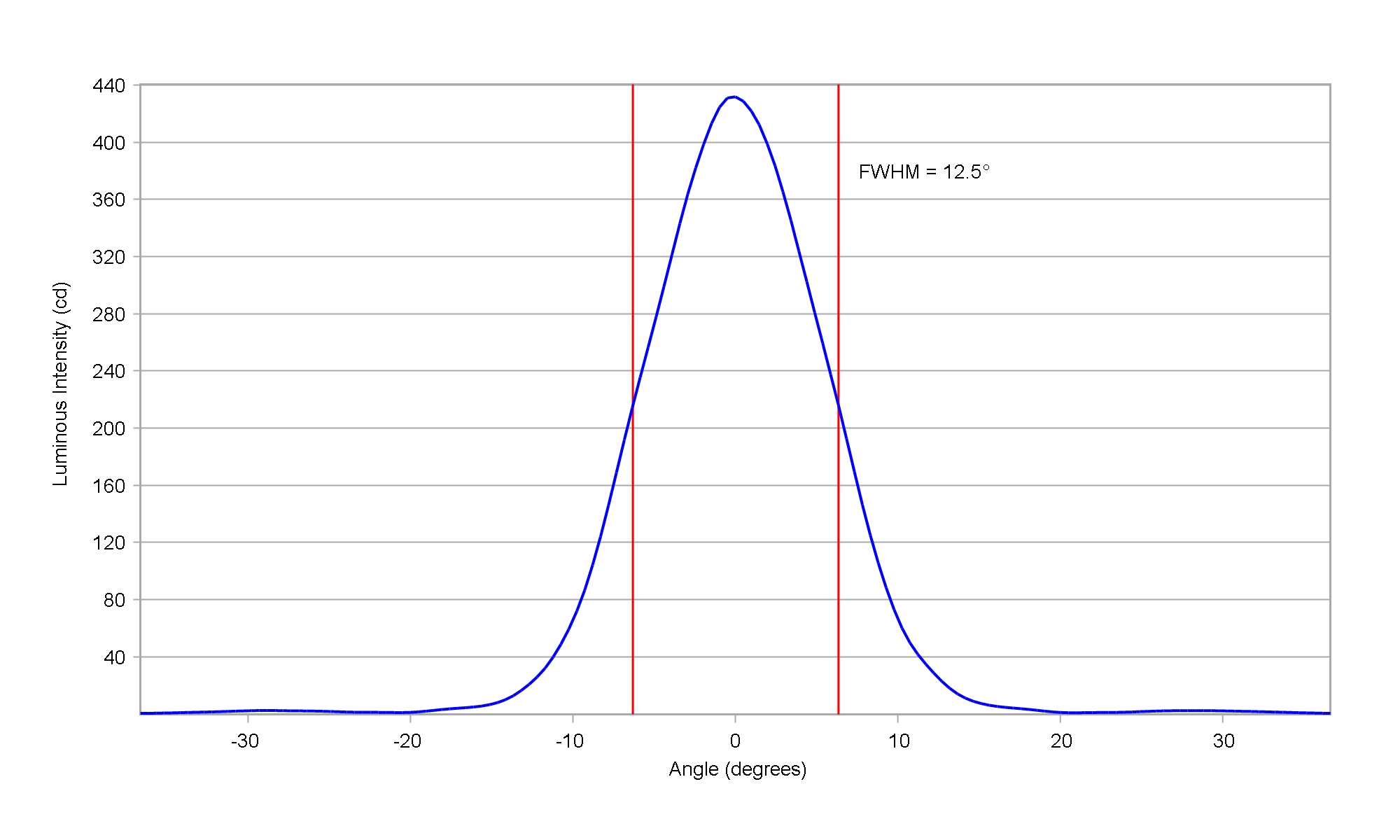

LUMILEDS LUXEON Z White

Eff:

89.5%

FWHM:

49 x 12.5°

Cd/Im:

4.7


,

Download

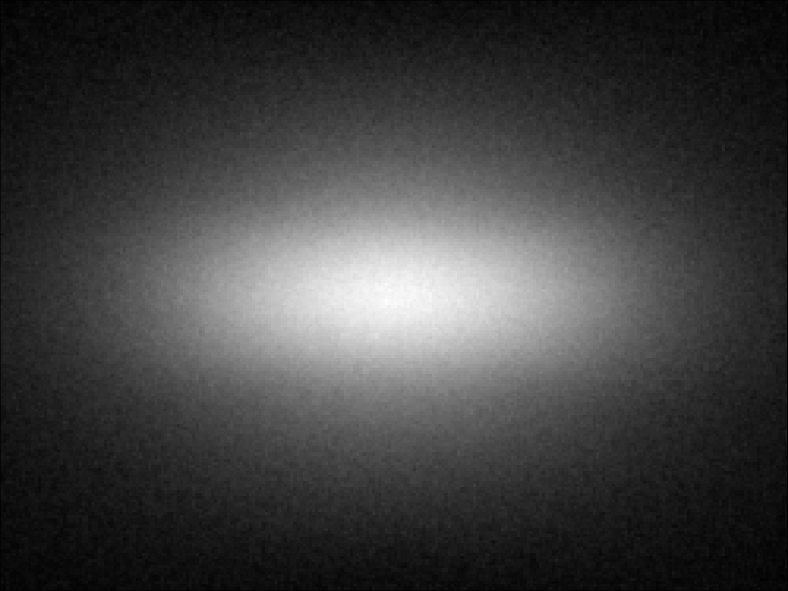

Luminus Devices MP-3030-11F2 White

Eff:

87.0%

FWHM:

45 x 18.5°

Cd/Im:

3.2


,


Download

Luminus Devices SST 10-B-B130 Blue

Eff:

87.5%

FWHM:

47 x 16.5°

Cd/Im:

3.6


,


Download

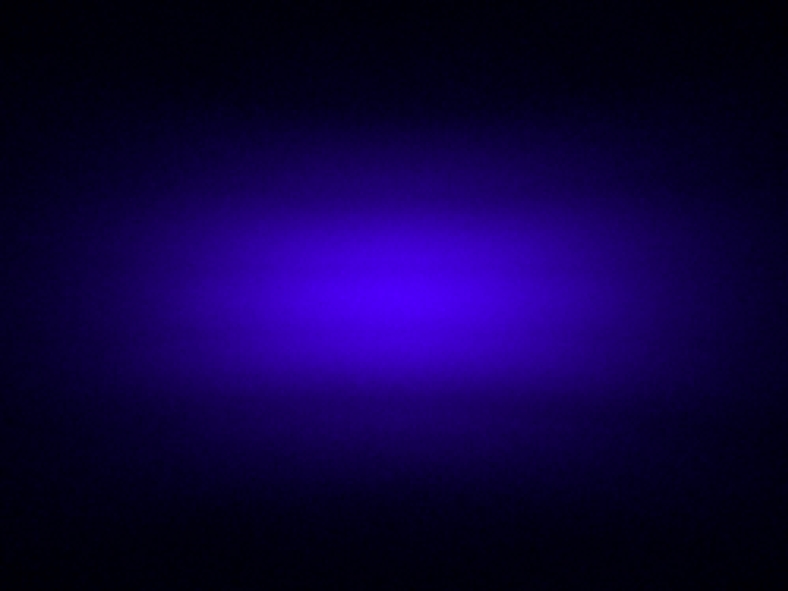

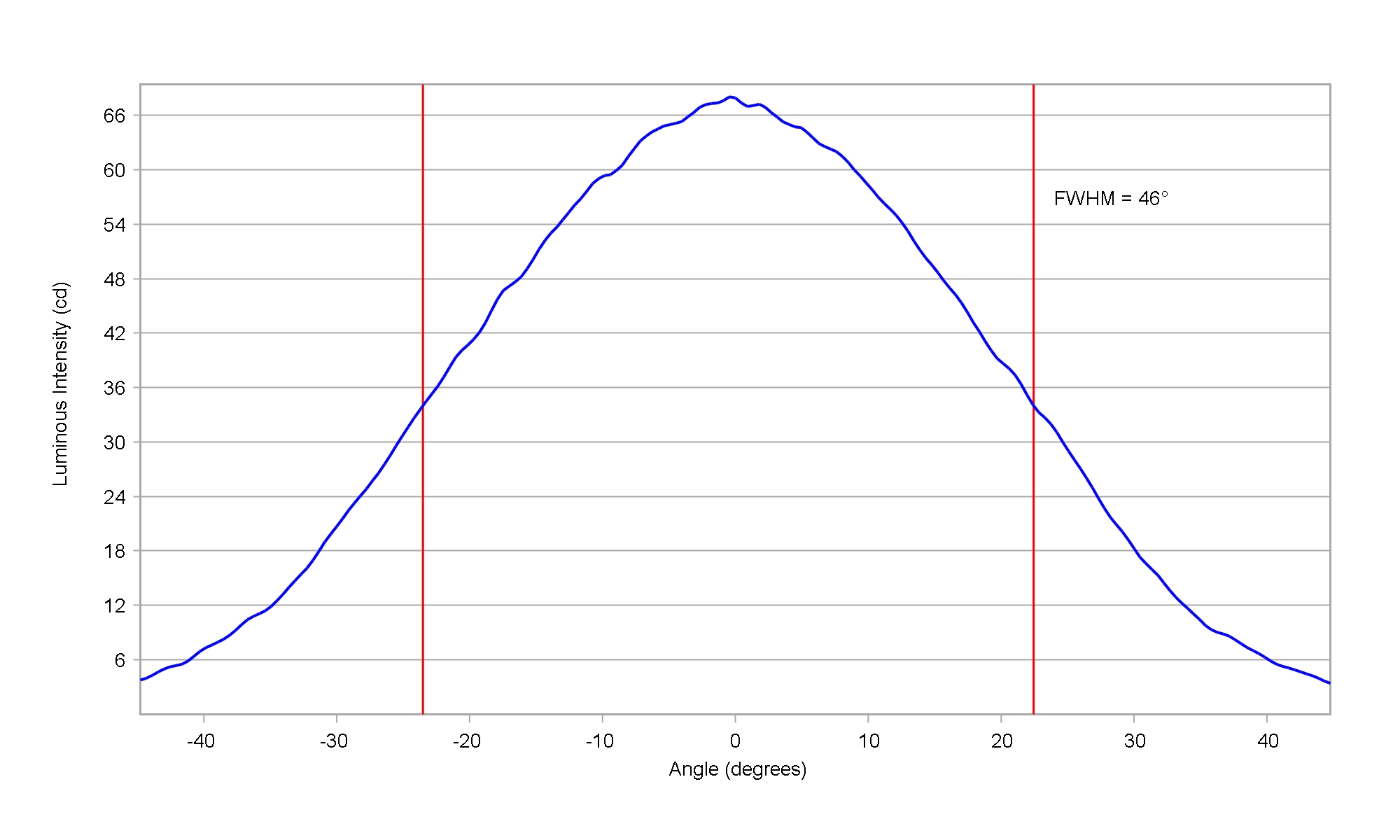

Luminus Devices SST 10-B-B90 Blue

Eff:

85.5%

FWHM:

46 x 19.5°

Cd/Im:

2.9


,


Download

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

89.0%

FWHM:

43 x 19°

Cd/Im:

3.3


,


Download

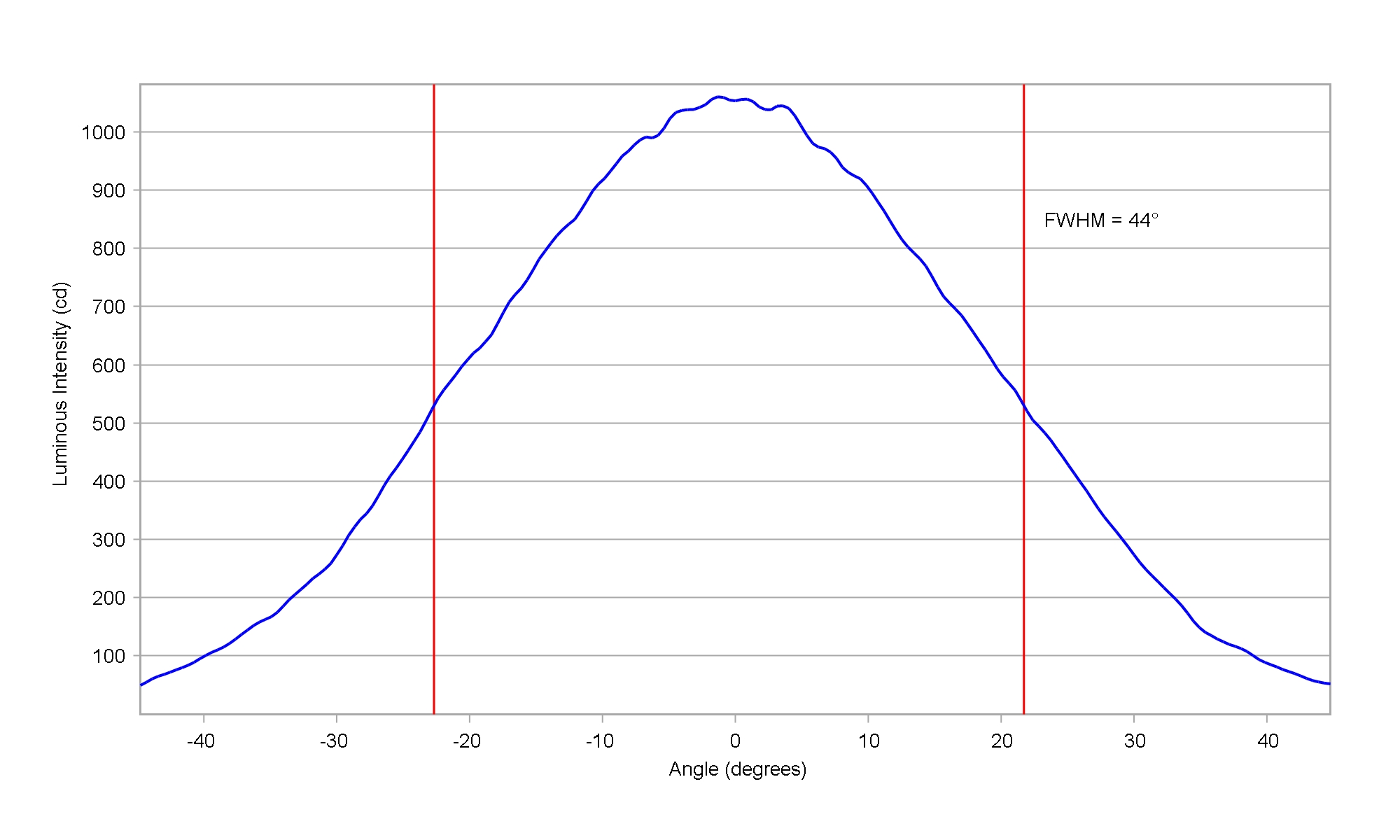

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

87.0%

FWHM:

44 x 19.5°

Cd/Im:

3.0


,


Download

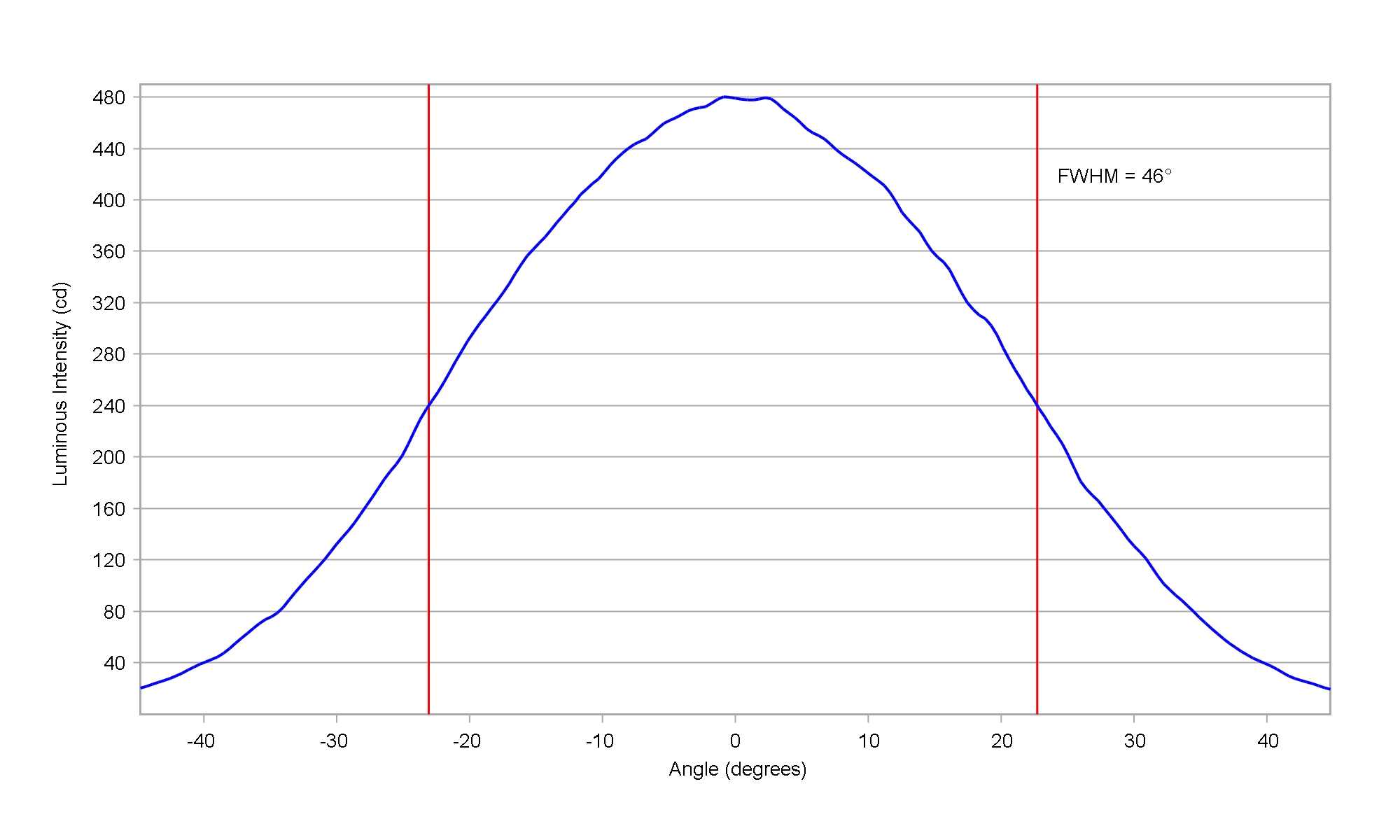

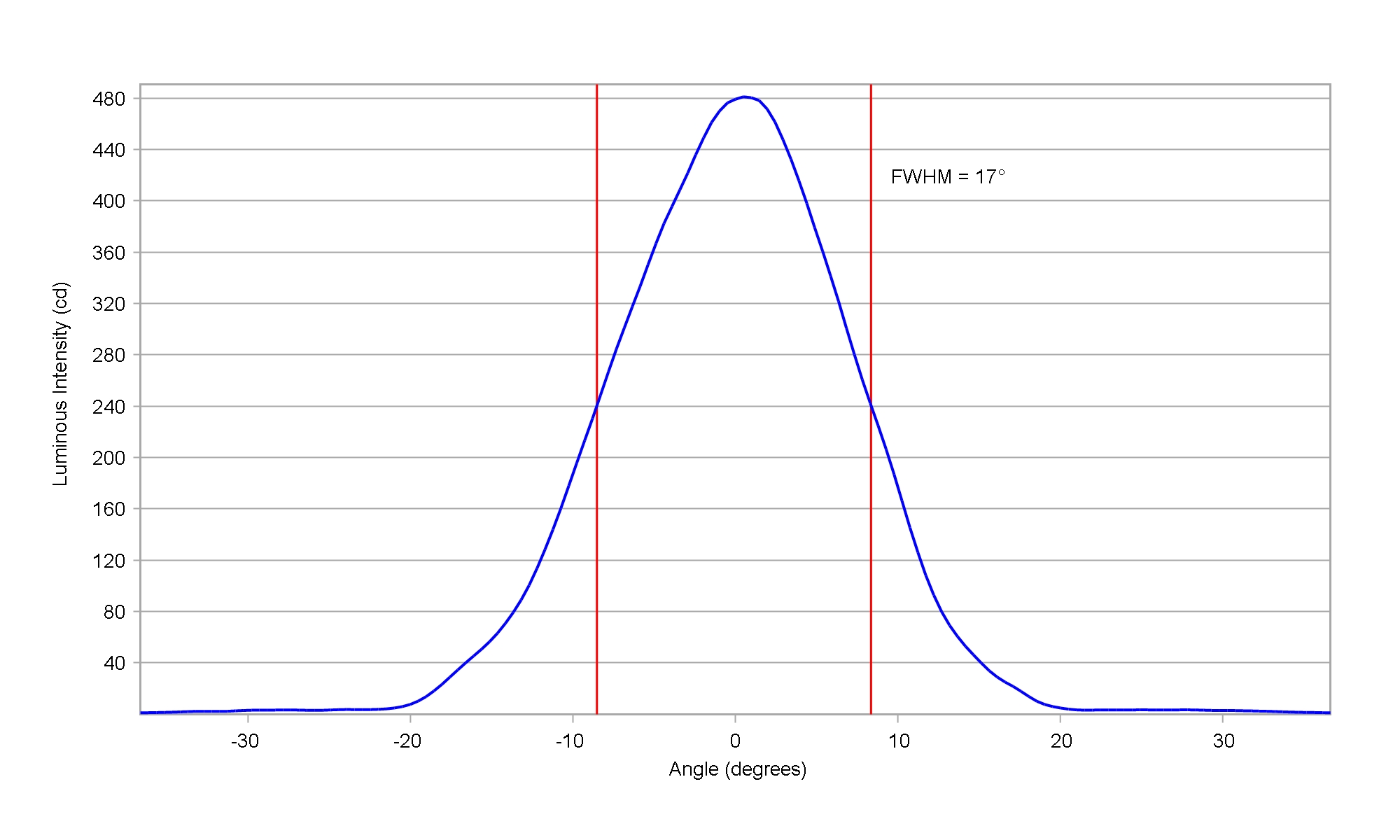

Luminus Devices SST 10-G-B130 Green

Eff:

88.5%

FWHM:

46 x 17°

Cd/Im:

3.8


,


Download

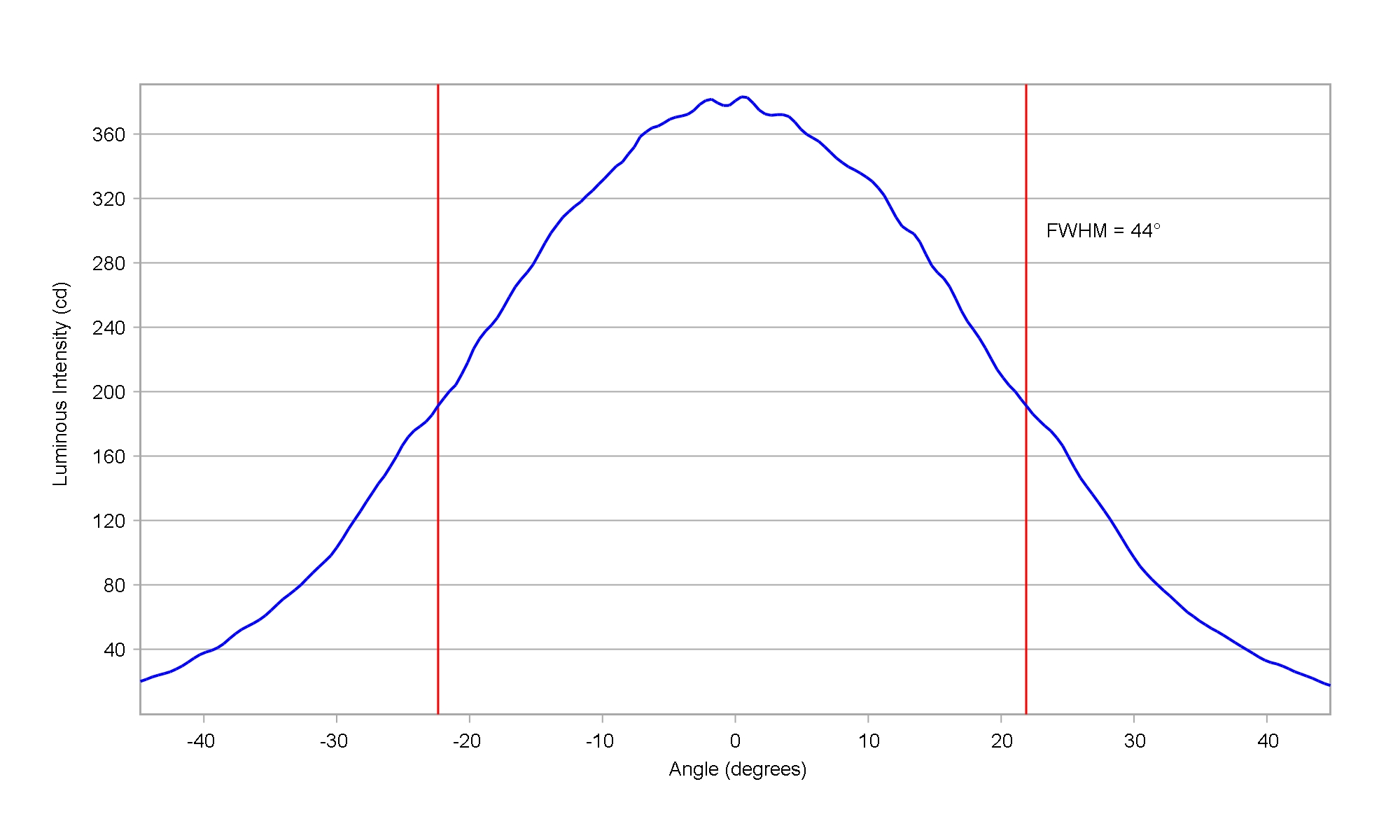

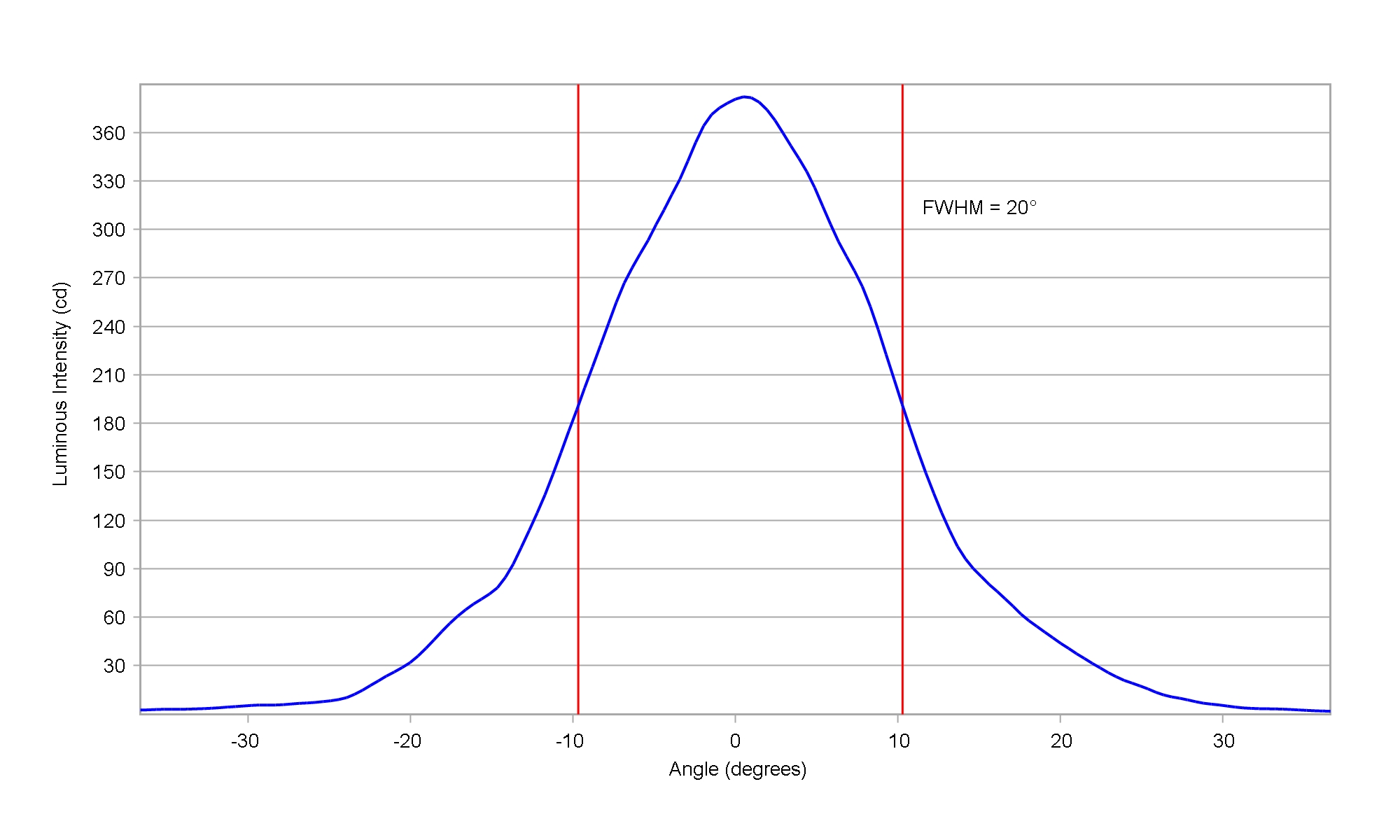

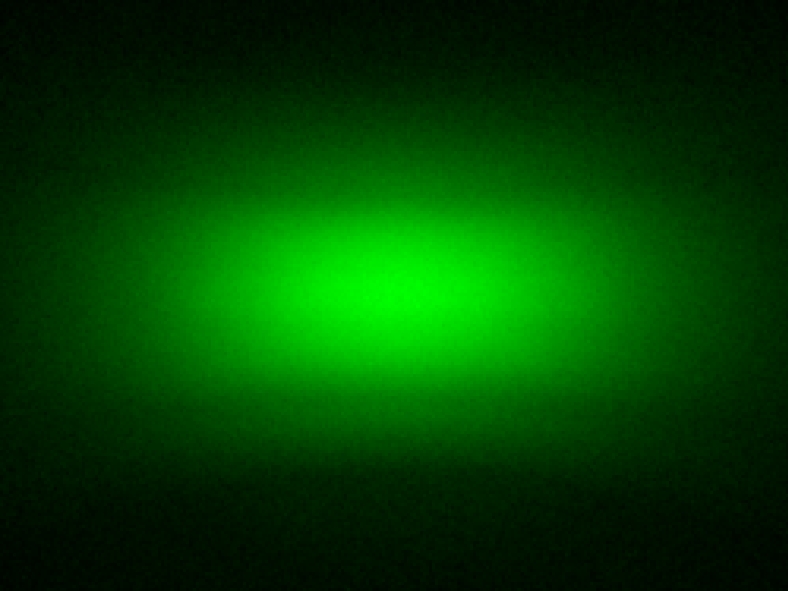

Luminus Devices SST 10-G-B90 Green

Eff:

86.5%

FWHM:

44 x 20°

Cd/Im:

2.9


,


Download

Luminus Devices SST 10-IR-B130 940nm

Eff:

90.0%

FWHM:

42 x 20°

Ipk/W:

3.2


,


Download

Luminus Devices SST 10-IR-B90 940nm

Eff:

88.5%

FWHM:

42 x 22°

Ipk/W:

2.7


,


Download

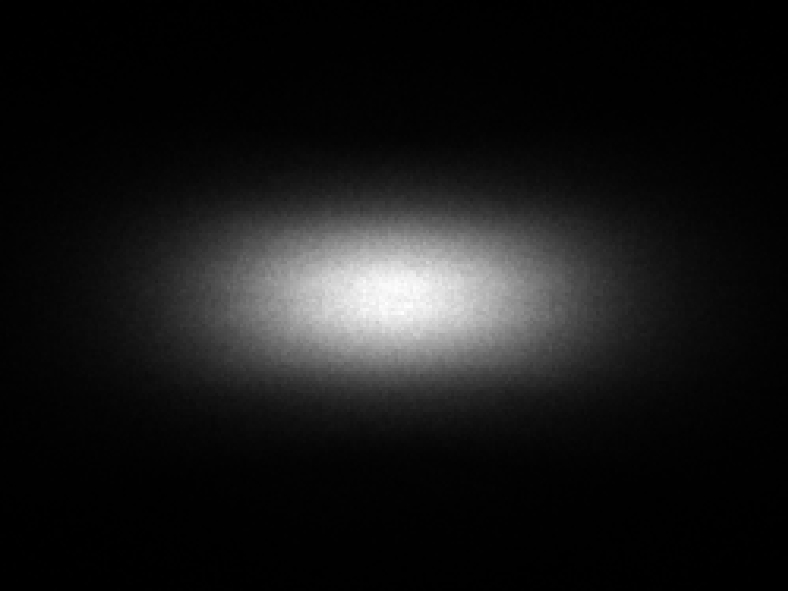

Luminus Devices SST 10-IRD-B130 810nm

Eff:

90.5%

FWHM:

44 x 19°

Ipk/W:

3.3


,


Download

Luminus Devices SST 10-IRD-B90 810nm

Eff:

88.5%

FWHM:

44 x 21°

Ipk/W:

3.0


,


Download

Luminus Devices SST 20-WxH White Hi CRI

Eff:

88.0%

FWHM:

45 x 20°

Cd/Im:

3.0


,


Download

Luminus Devices SST-12-WS Gen2 White

Eff:

88.0%

FWHM:

45 x 17.5°

Cd/Im:

3.9


,


Download

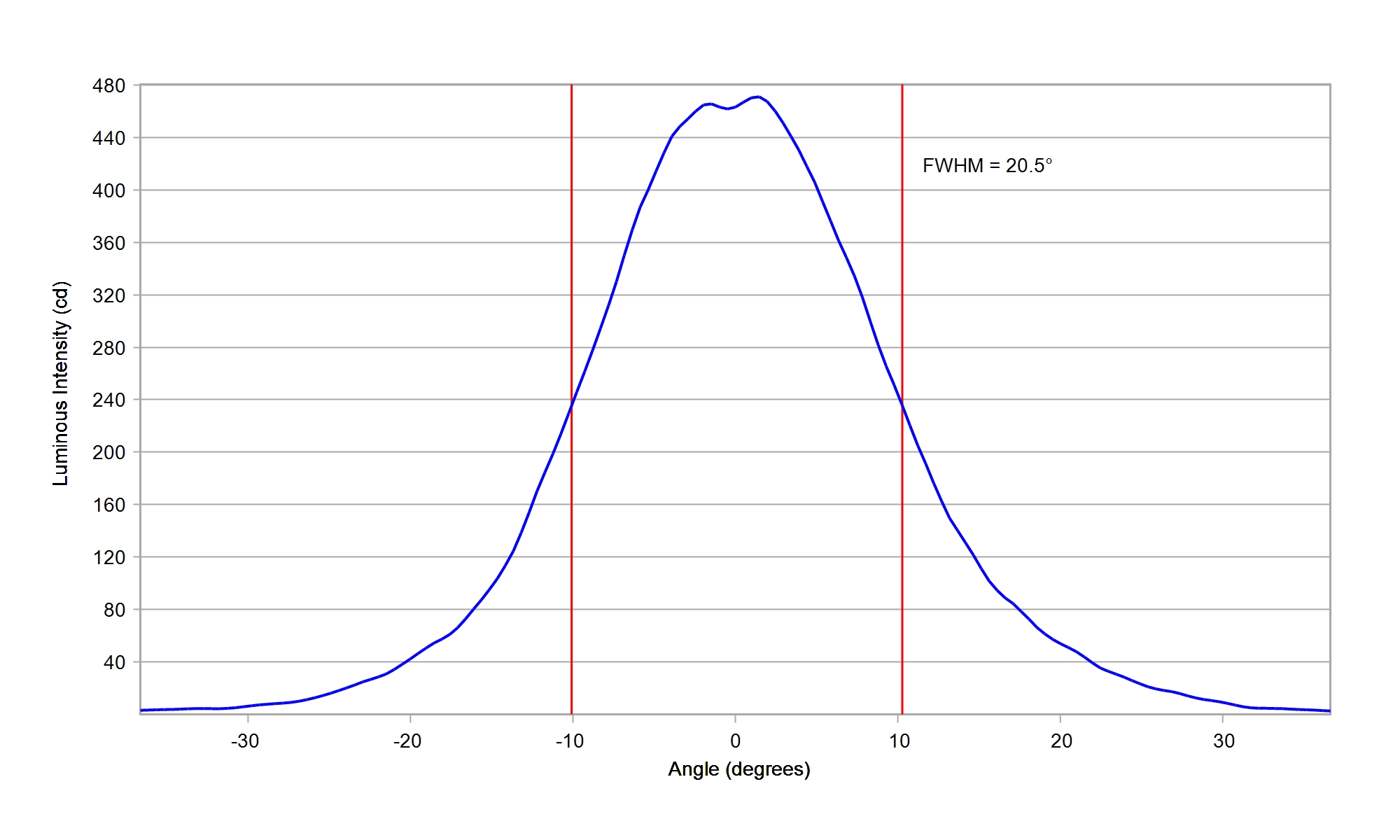

Luminus Devices SST-20-W Gen2 White

Eff:

87.5%

FWHM:

44 x 20.5°

Cd/Im:

3.0


,


Download

Nichia 219 White

FWHM:

44.3 X 25.7°

Cd/Im:

2.5

Spot Image

Cross Section

Download

ies

Nichia 757 White

Eff:

86.5%

FWHM:

44 x 23°

Cd/Im:

2.5


,


Download

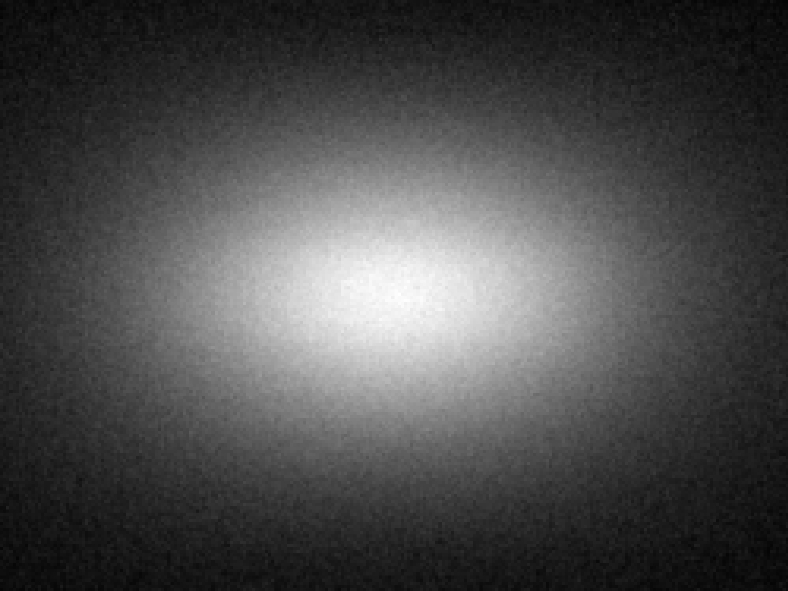

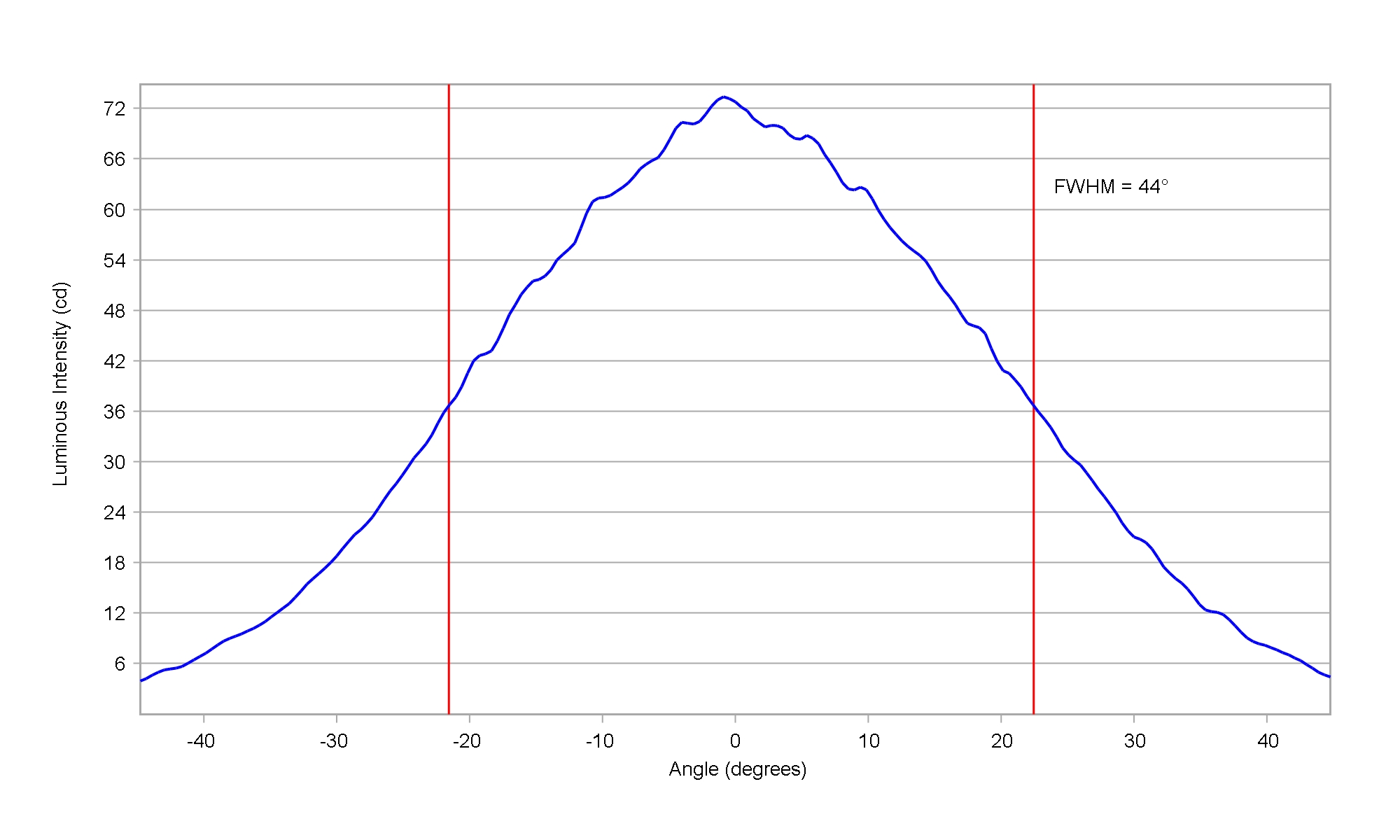

Nichia 757G White

Eff:

87.0%

FWHM:

44 x 23.5°

Cd/Im:

2.5


,


Download

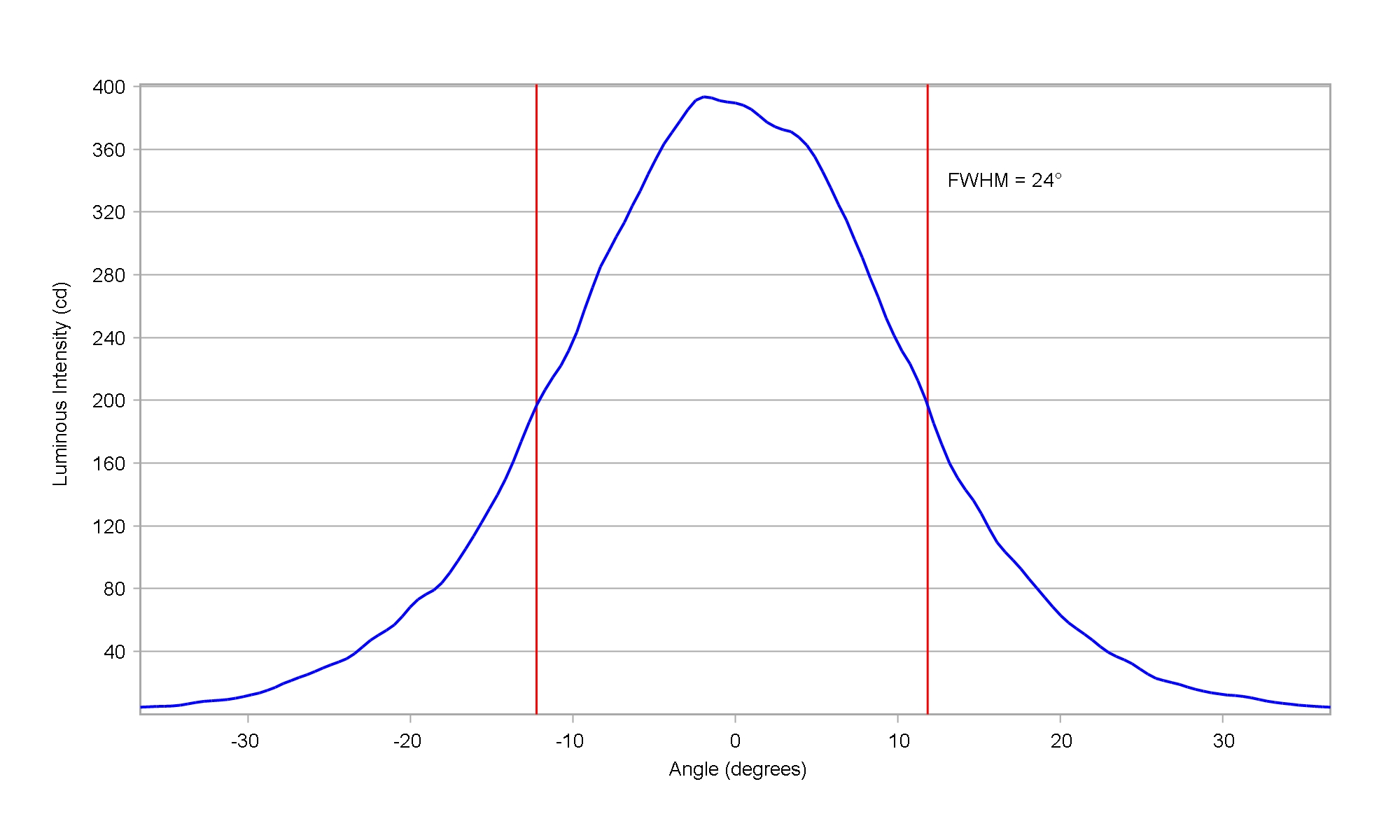

Nichia NF2W 385AR-V2 White

Eff:

86.0%

FWHM:

44 x 24°

Cd/Im:

2.4


,


Download

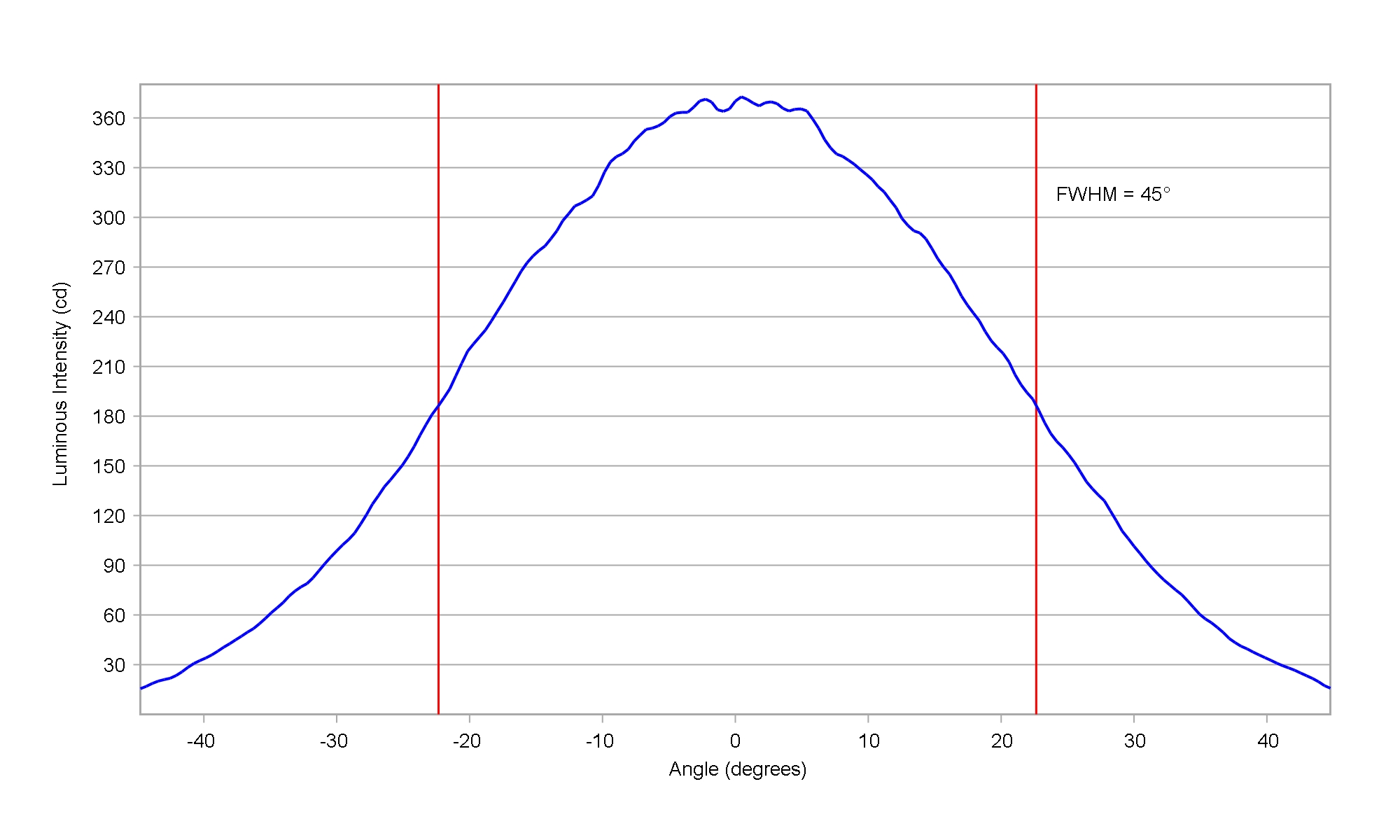

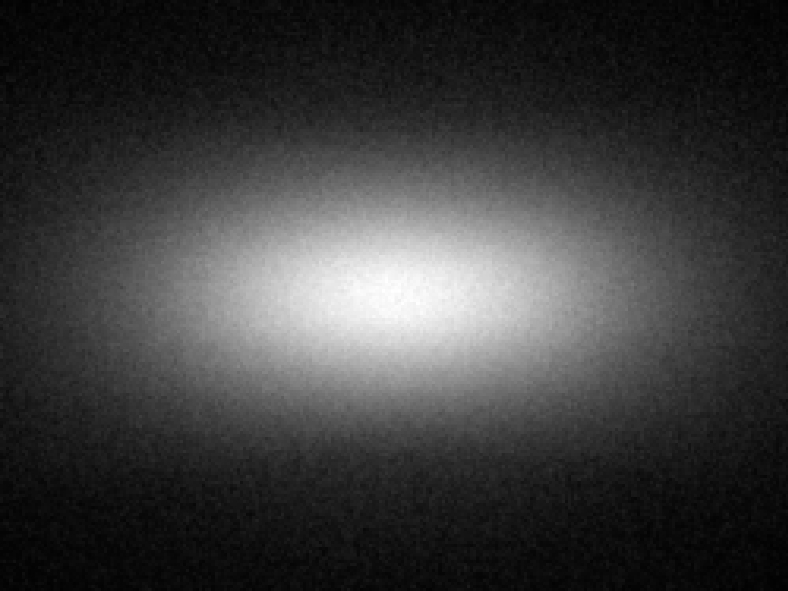

Nichia NVSL 219B White

Eff:

87.0%

FWHM:

45 x 18.5°

Cd/Im:

3.2


,


Download

Nichia NVSW 219F White

Eff:

85.5%

FWHM:

43 x 25°

Cd/Im:

2.1


,


Download

Nichia Top Emitting NCSL 119-H3 White

Eff:

81.4%

FWHM:

44.7 x 21.7°

Cd/Im:

2.3

Spot Image

Cross Section

Download

ies

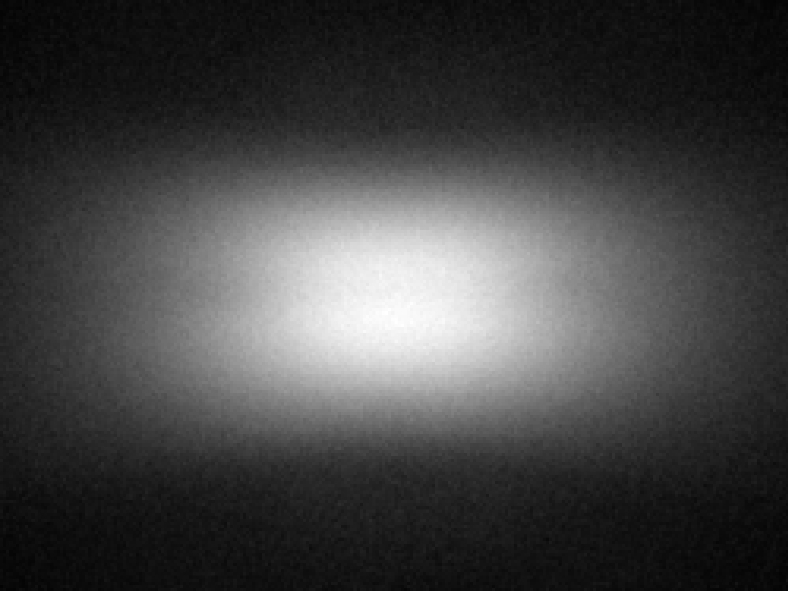

Osram LED ENGIN LuxiGen LZ1 00CW02 White

Eff:

87.0%

FWHM:

43 x 23.5°

Cd/Im:

2.5


,


Download

Osram DURIS E 2835 Gen2

Eff:

87.5%

FWHM:

46 x 19°

Cd/Im:

2.7



,


Download

Osram DURIS E 2835 White

Eff:

86.5%

FWHM:

45 x 18.5°

Cd/Im:

2.8


,


Download

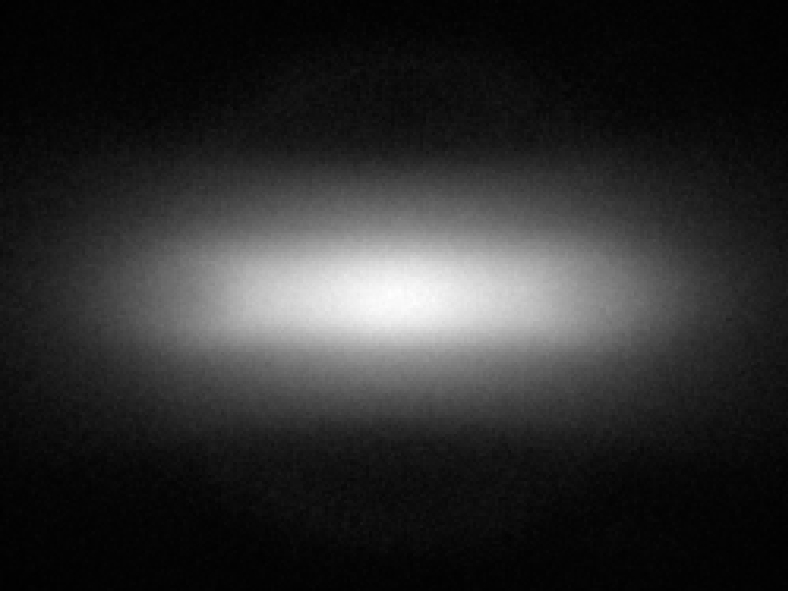

Osram DURIS E2 White

Eff:

89.0%

FWHM:

46 x 13.5°

Cd/Im:

4.1


,


Download

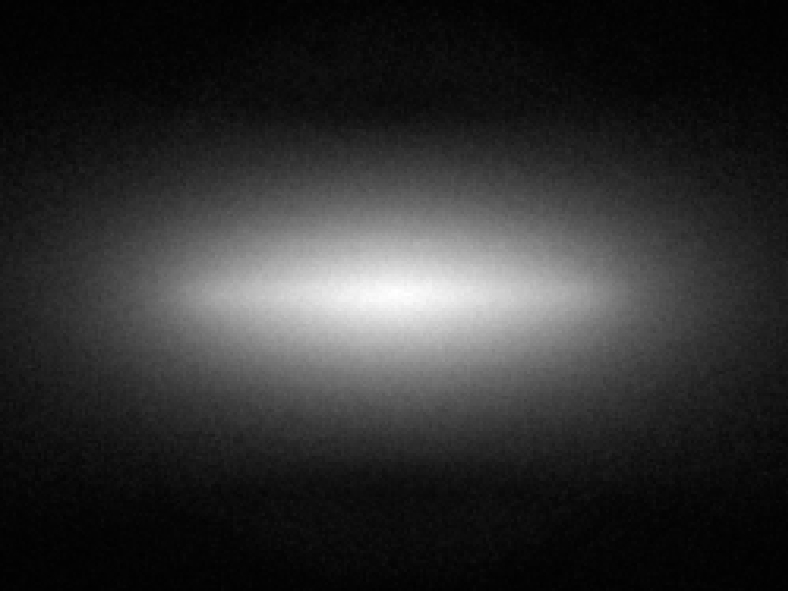

Osram DURIS E3 White

Eff:

87.5%

FWHM:

49 x 13.5°

Cd/Im:

4.2


,


Download

Osram DURIS S2 White

Eff:

88.0%

FWHM:

45 x 16.5°

Cd/Im:

3.1


,


Download

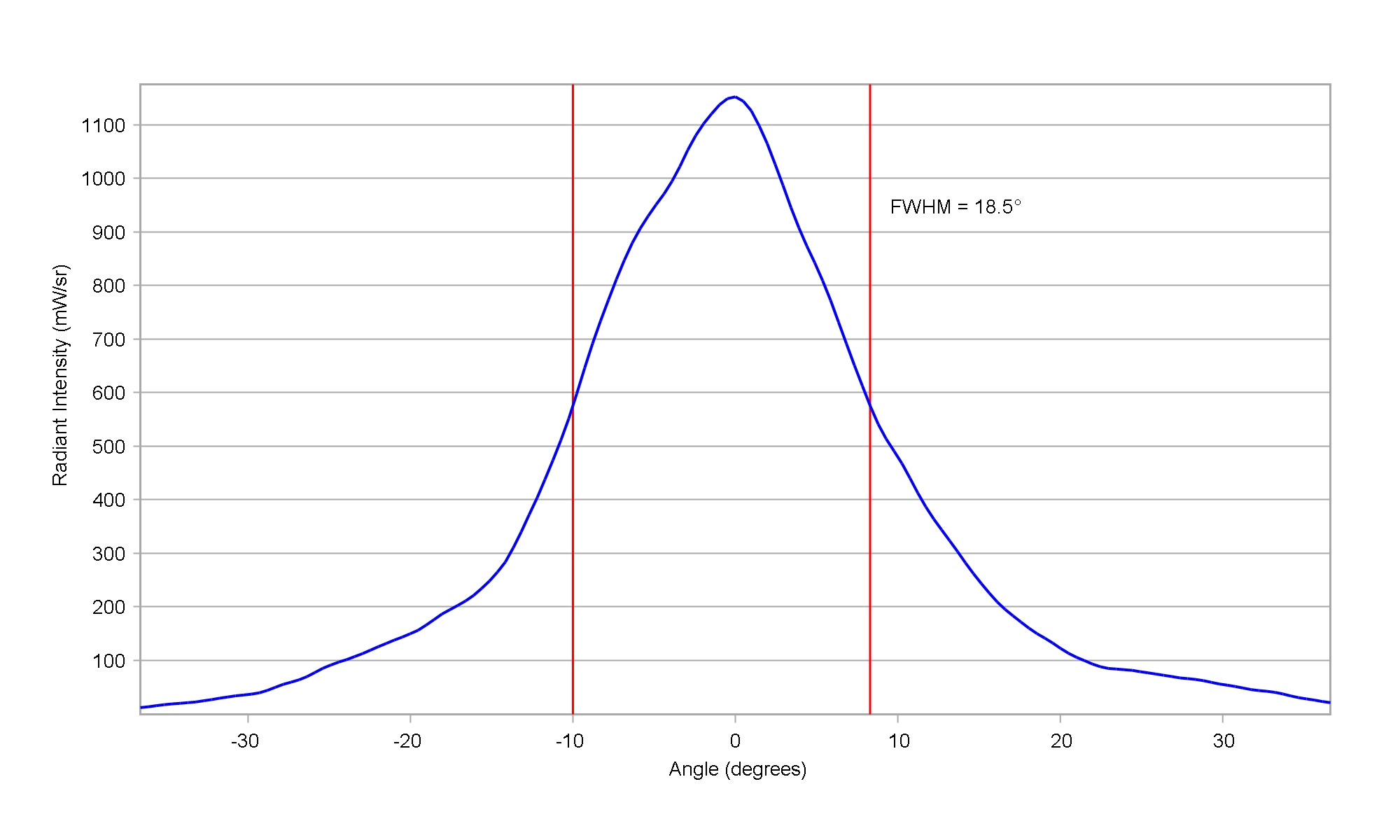

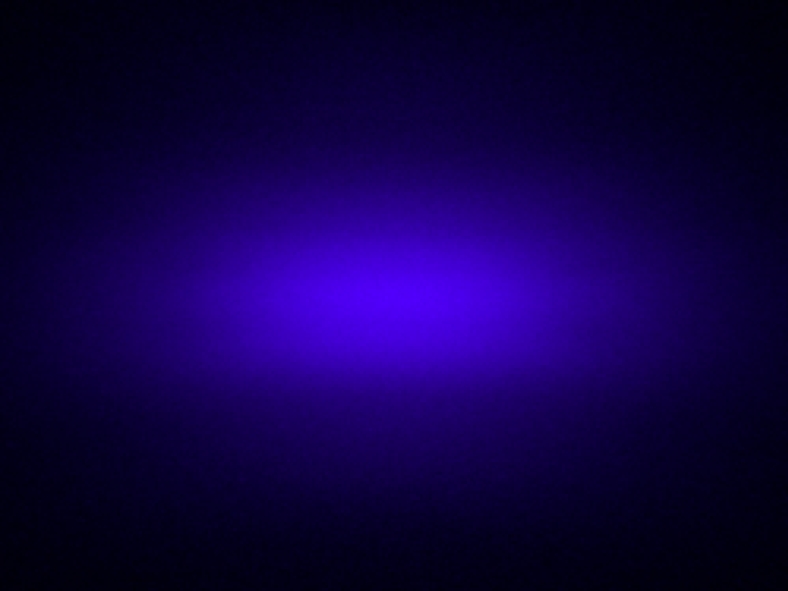

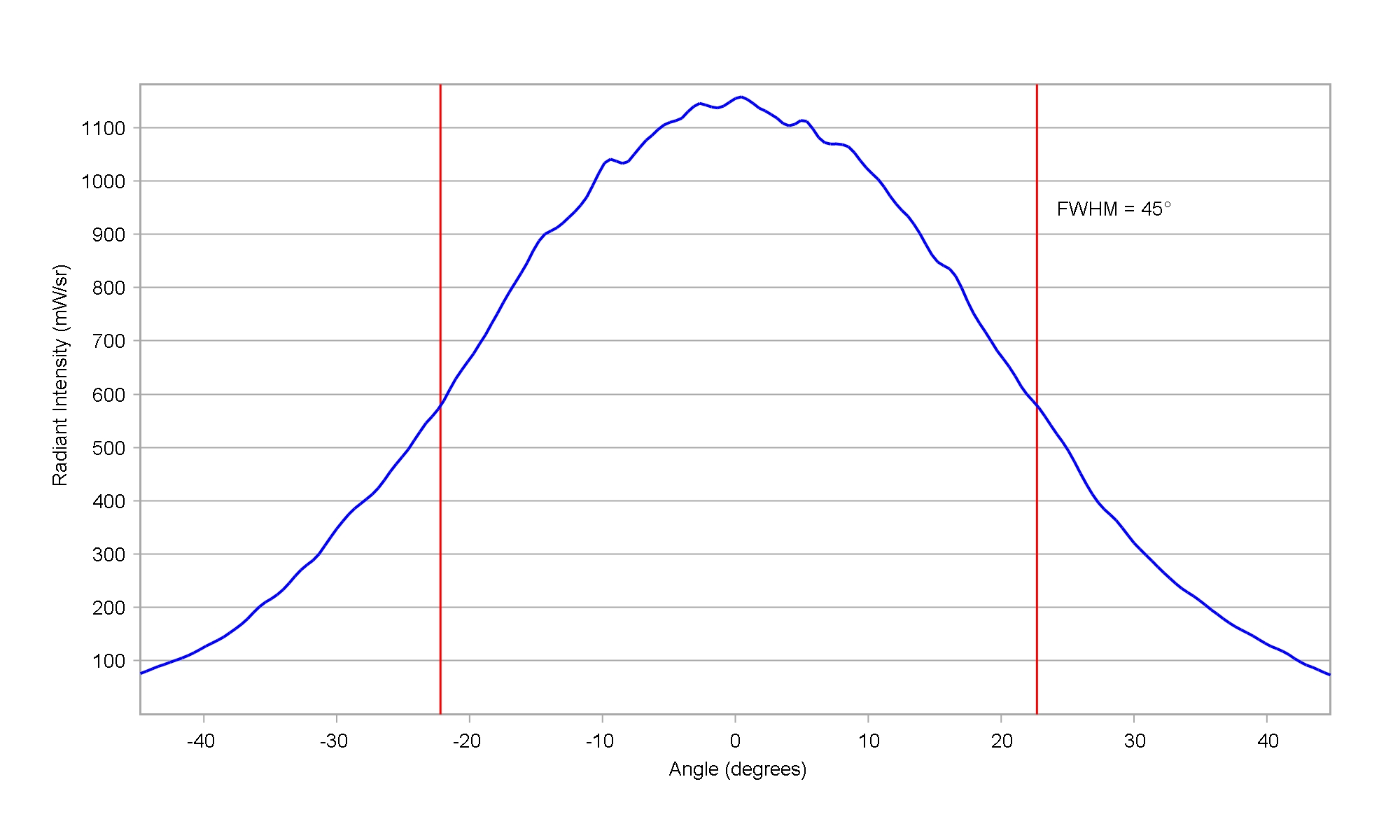

Osram DURIS S5 Deep Blue

Eff:

85.5%

FWHM:

45 x 18.5°

Cd/Im:

2.7

Ipk/W:

2.7


,


Download

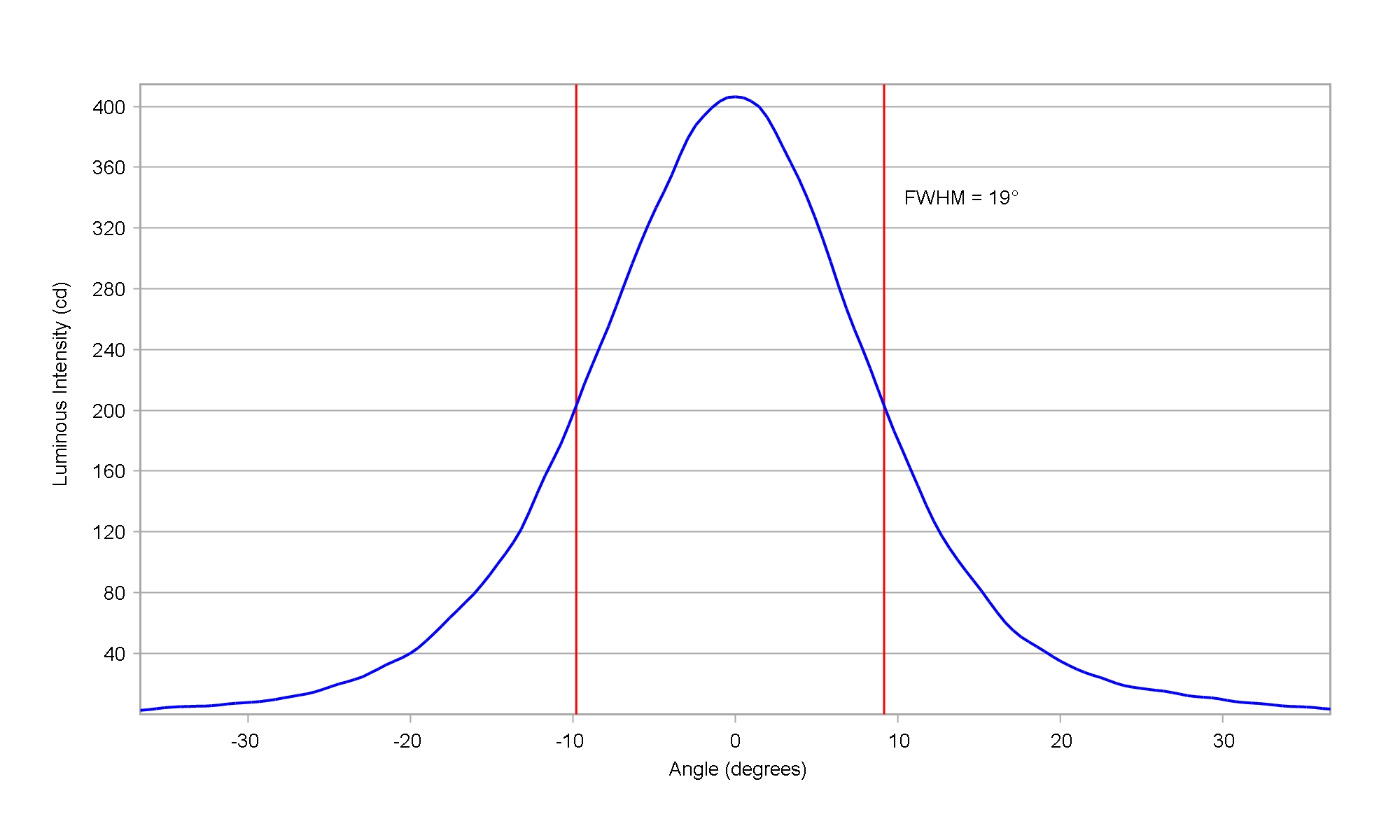

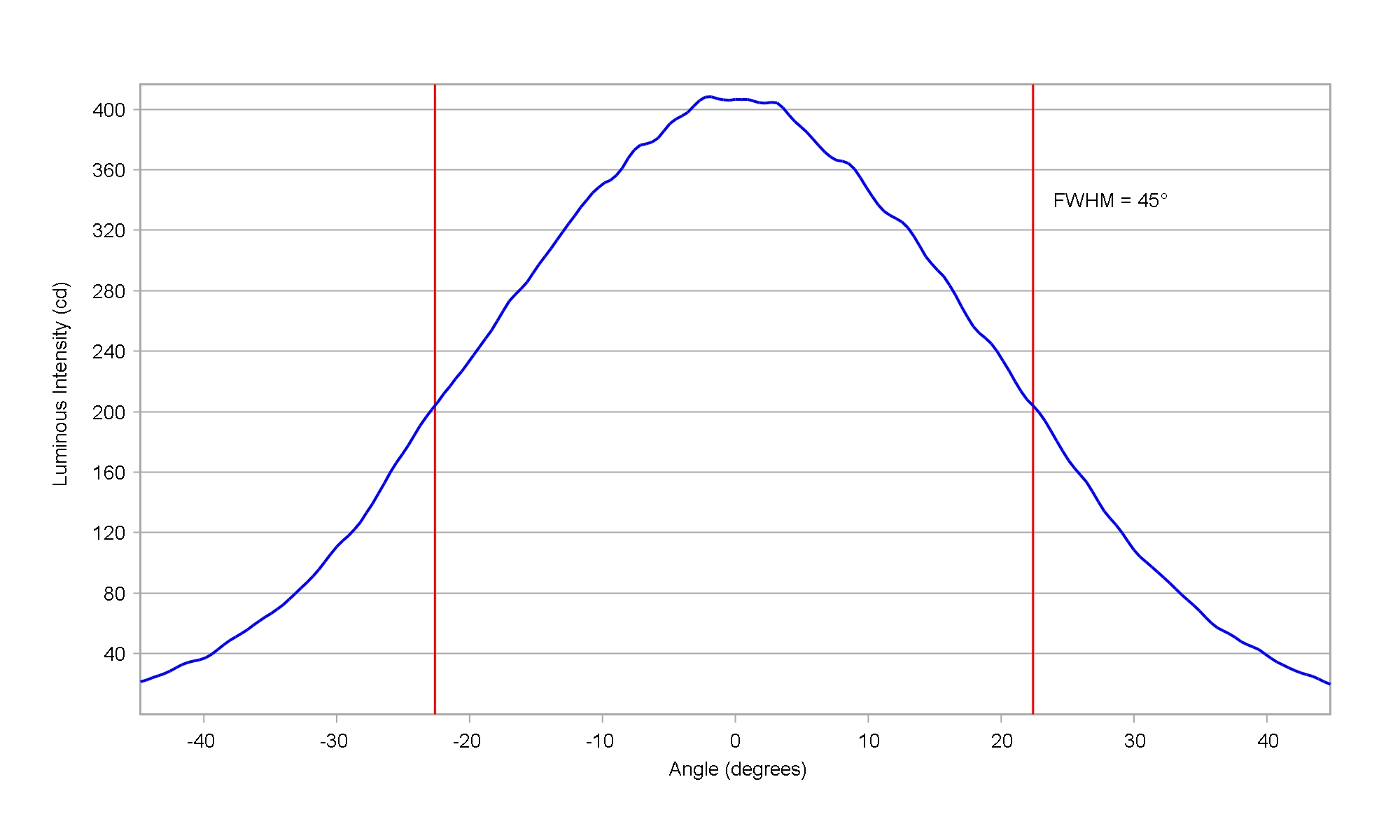

Osram DURIS S5 Green

Eff:

87.5%

FWHM:

45 x 19°

Cd/Im:

2.9


,


Download

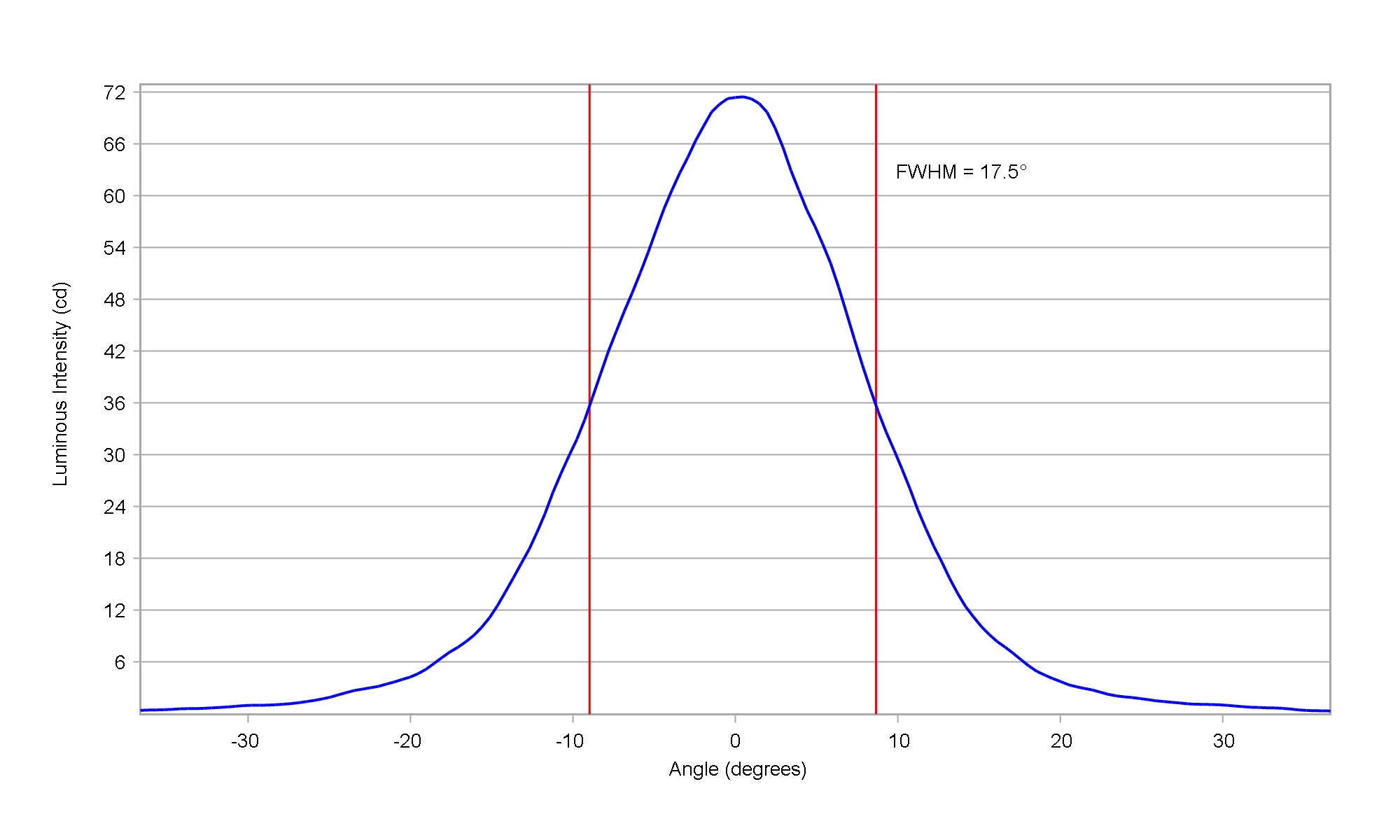

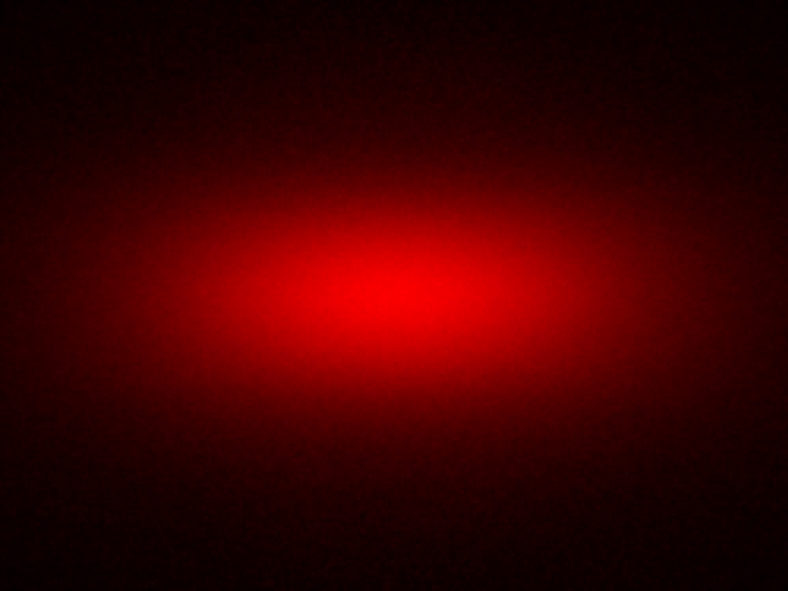

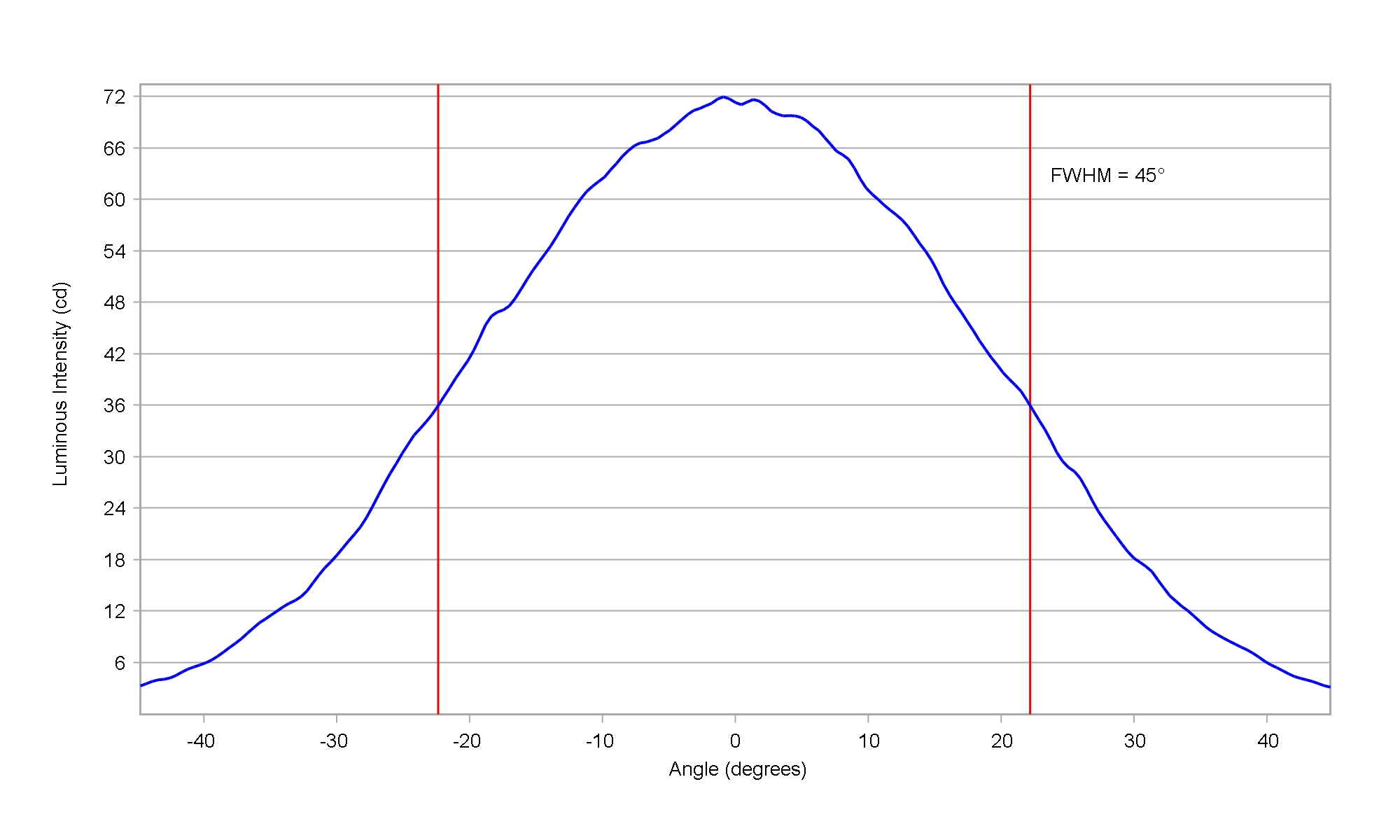

Osram DURIS S5 Red

Eff:

88.5%

FWHM:

45 x 17.5°

Cd/Im:

3.4


,


Download

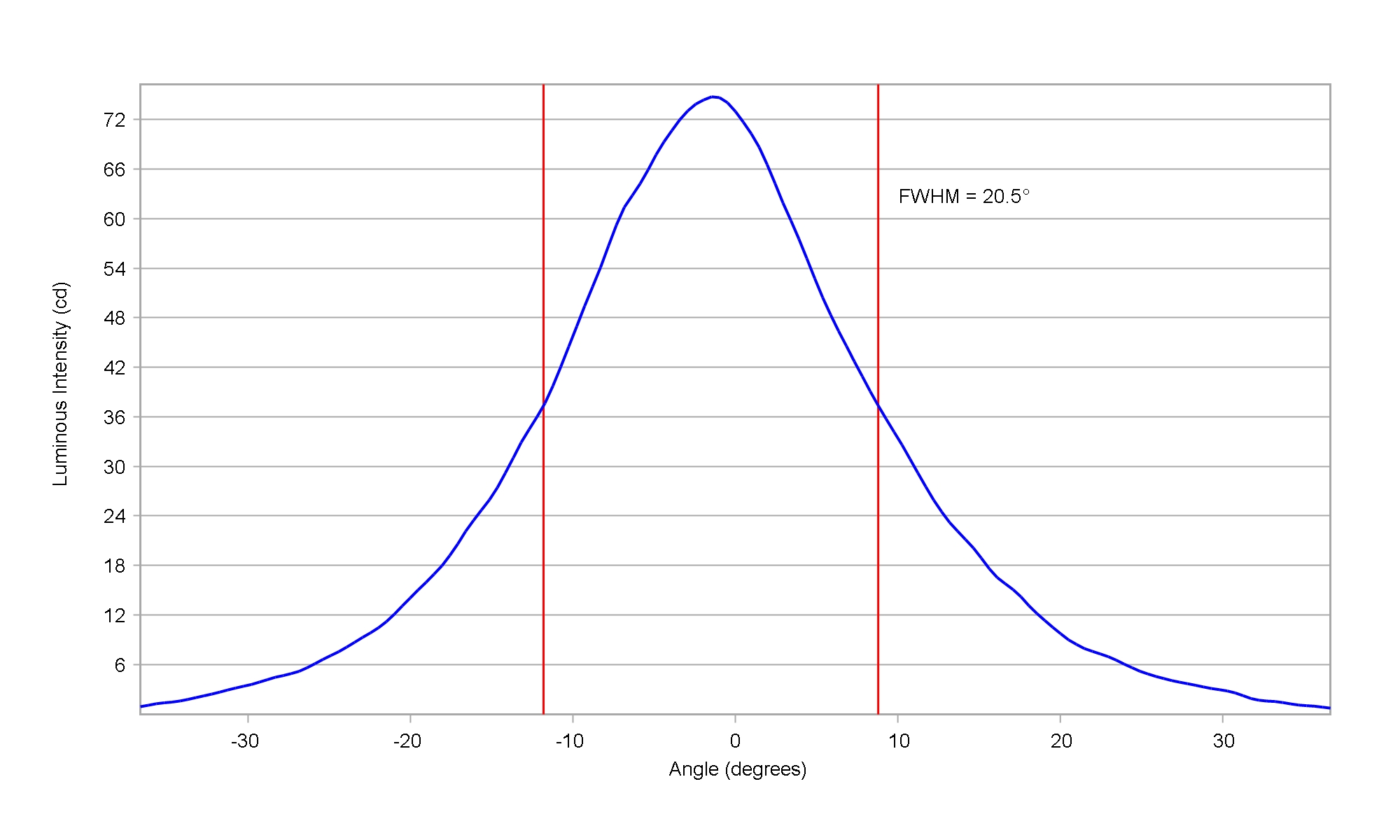

Osram DURIS S5 White

Eff:

87.0%

FWHM:

45 x 20.5°

Cd/Im:

2.6


,


Download

Osram OSCONIQ C 2424 White

Eff:

88.0%

FWHM:

45 x 20.5°

Cd/Im:

3.0


,


Download

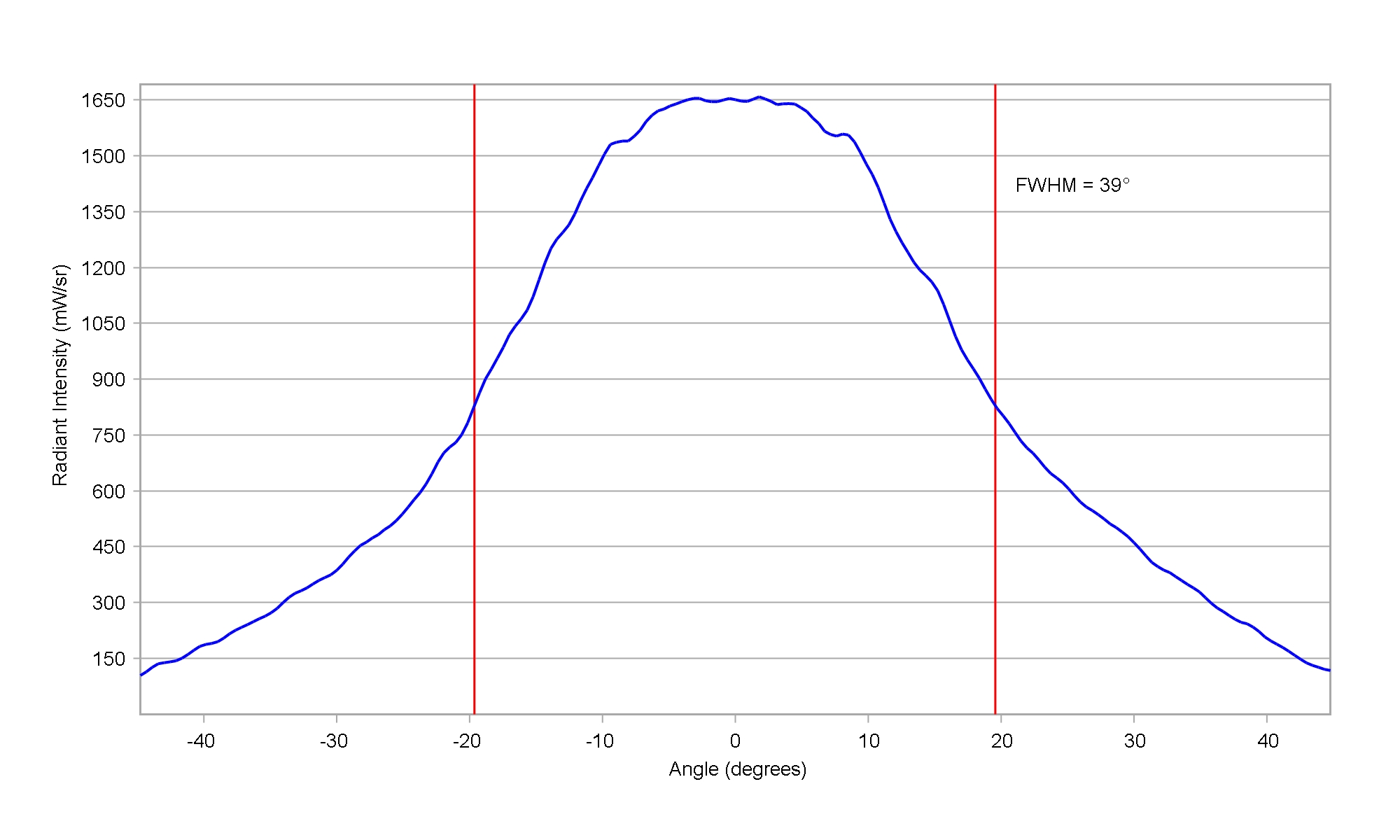

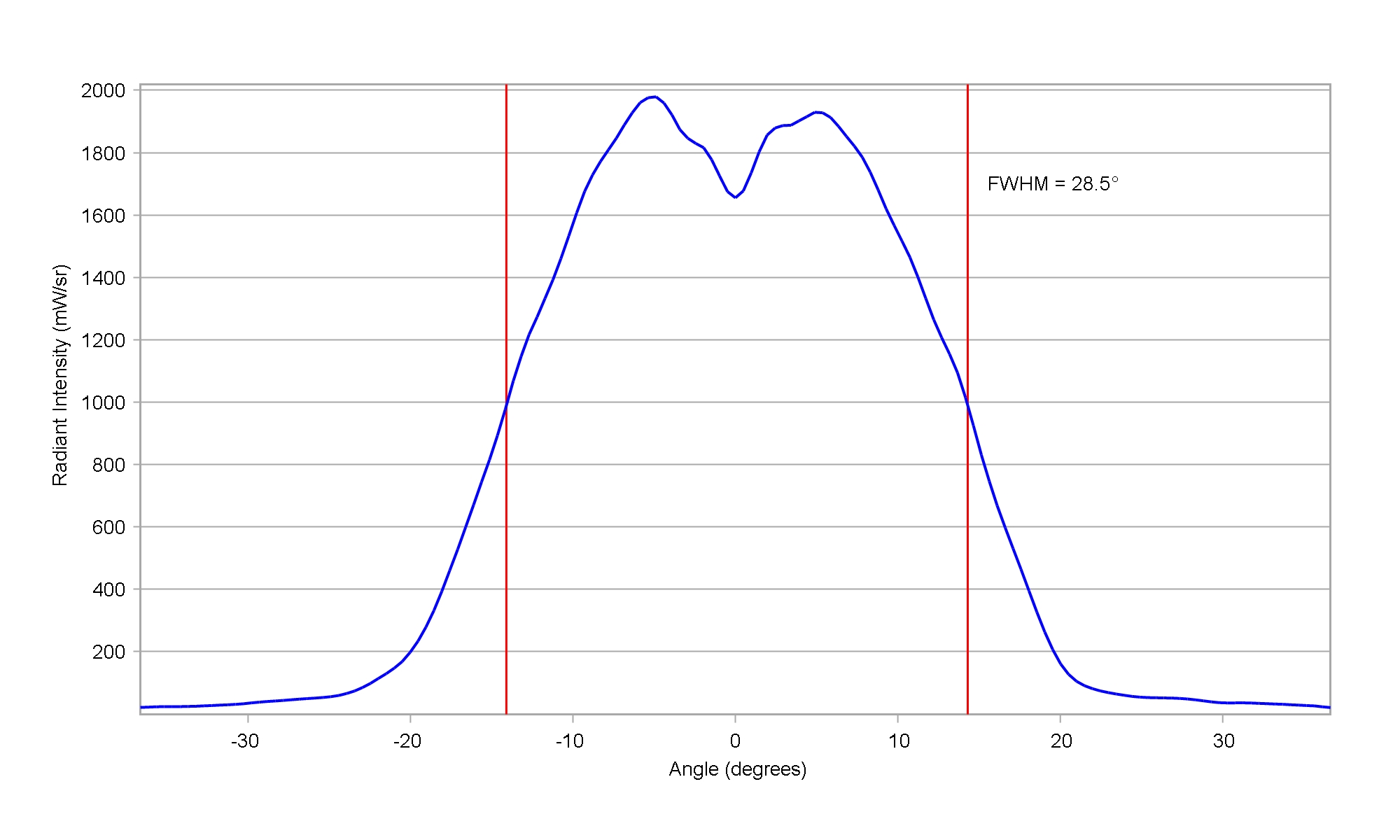

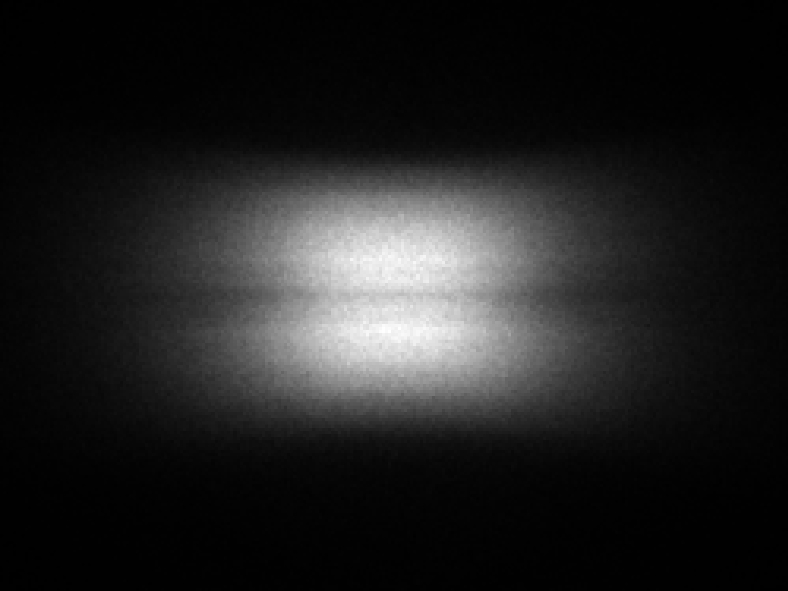

Osram OSLON Black SFH 4715AS IR

Eff:

88.5%

FWHM:

39 x 28.5°

Ipk/W:

2.2


,


Download

Osram OSLON Black SFH 4716AS IR

Eff:

90.5%

FWHM:

45 x 16°

Ipk/W:

3.9


,


Download

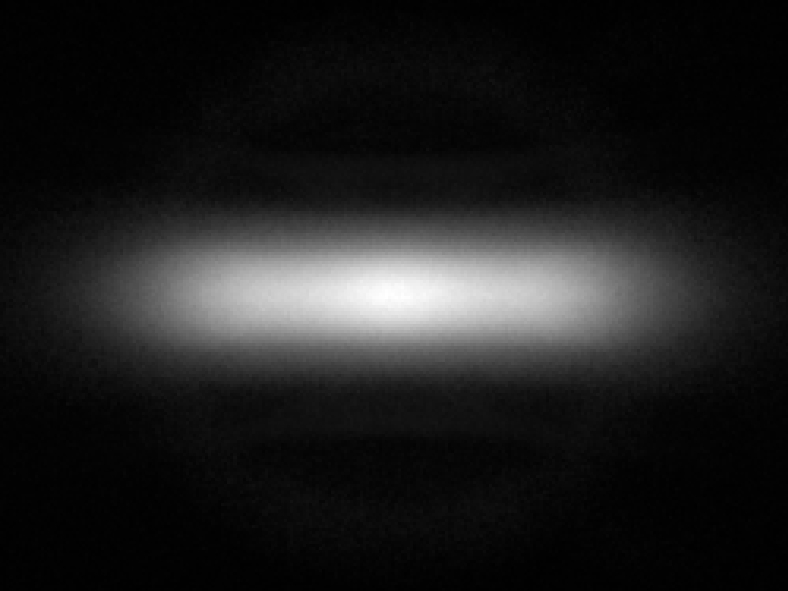

Osram OSLON Boost HM KW CELMM1.TG

Eff:

90.0%

FWHM:

50 x 9.8°

Cd/Im:

6.4


,


Download

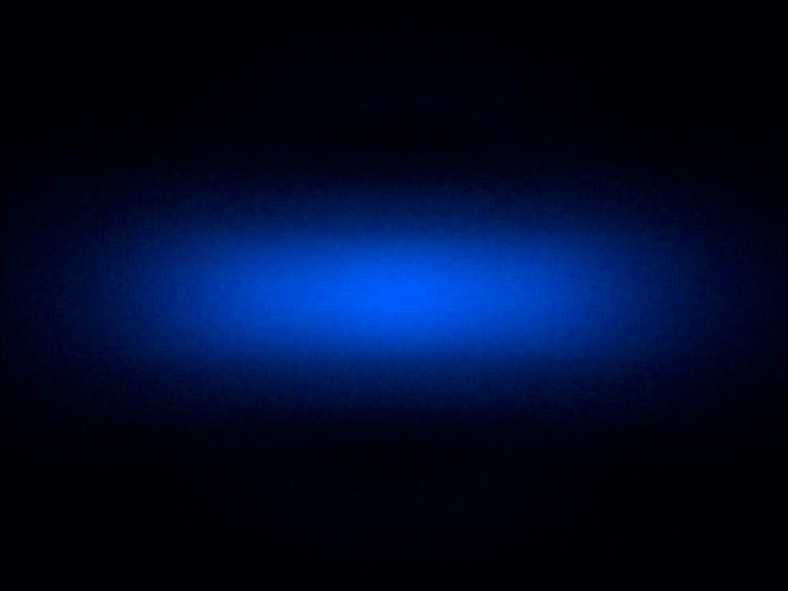

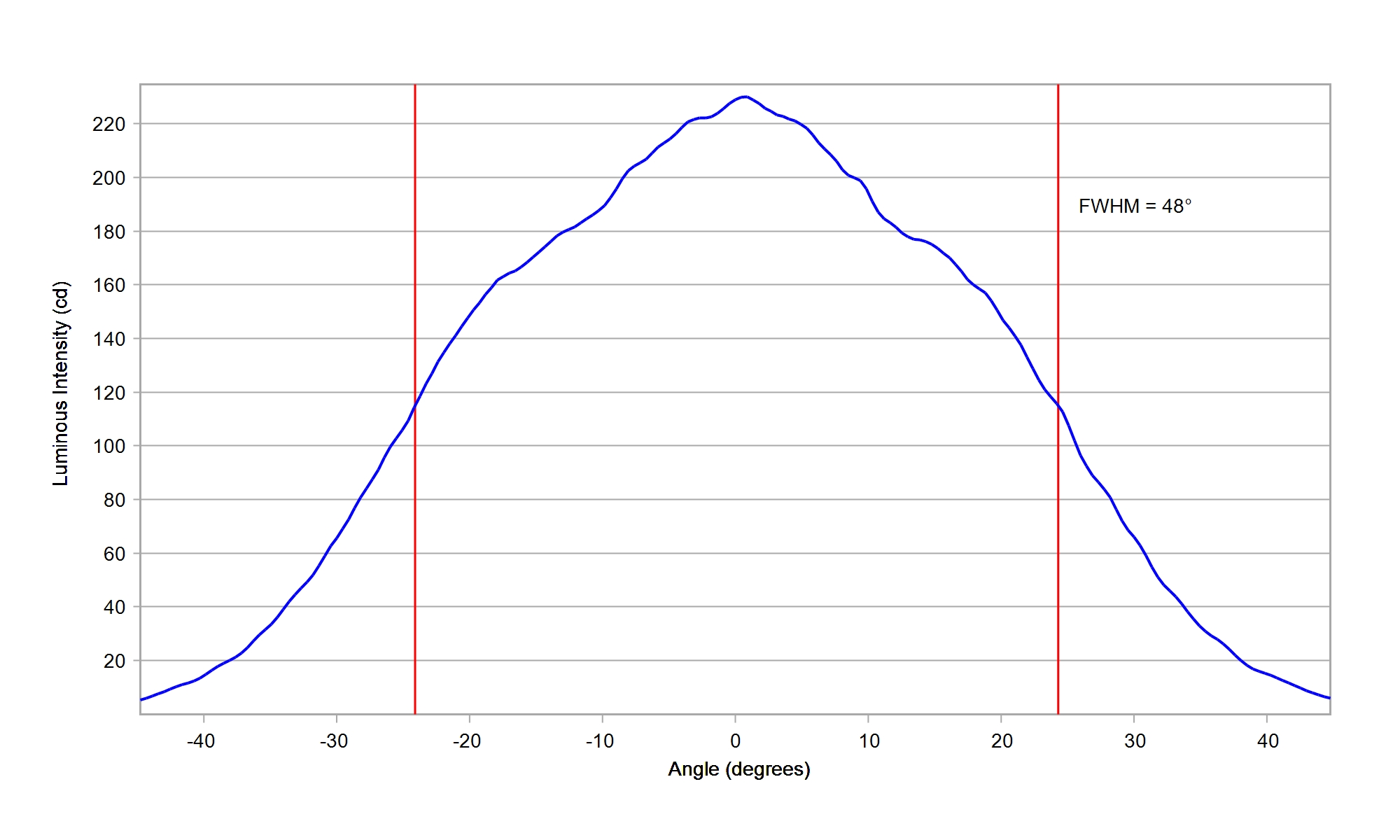

Osram OSLON Pure 1414 GB VJLPL1.F3 Blue

Eff:

89.0%

FWHM:

48 x 13°

Cd/Im:

5.3


,


Download

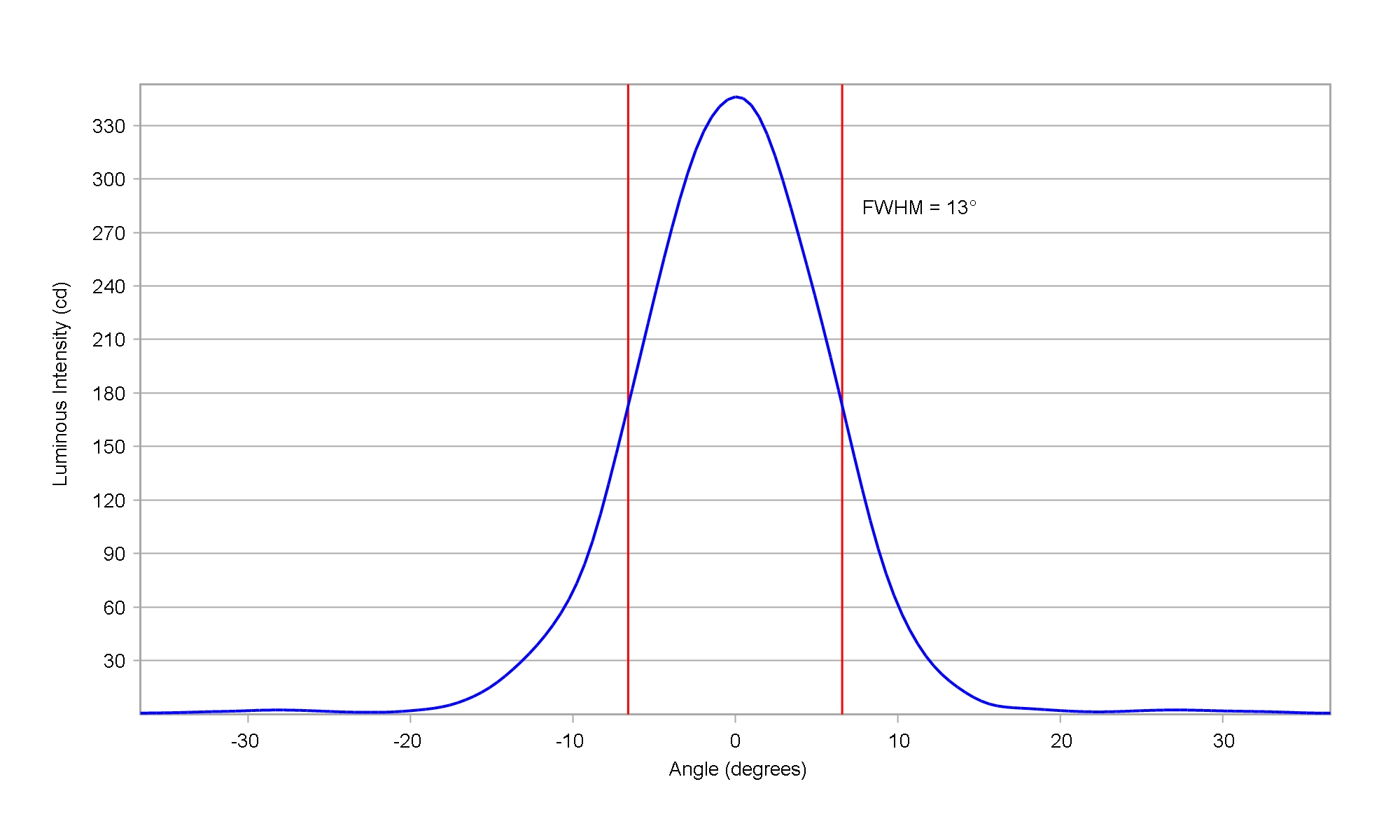

Osram OSLON Pure 1414 GC VJLPL1.13 Cyan

Eff:

89.5%

FWHM:

49 x 13°

Cd/Im:

4.7


,


Download

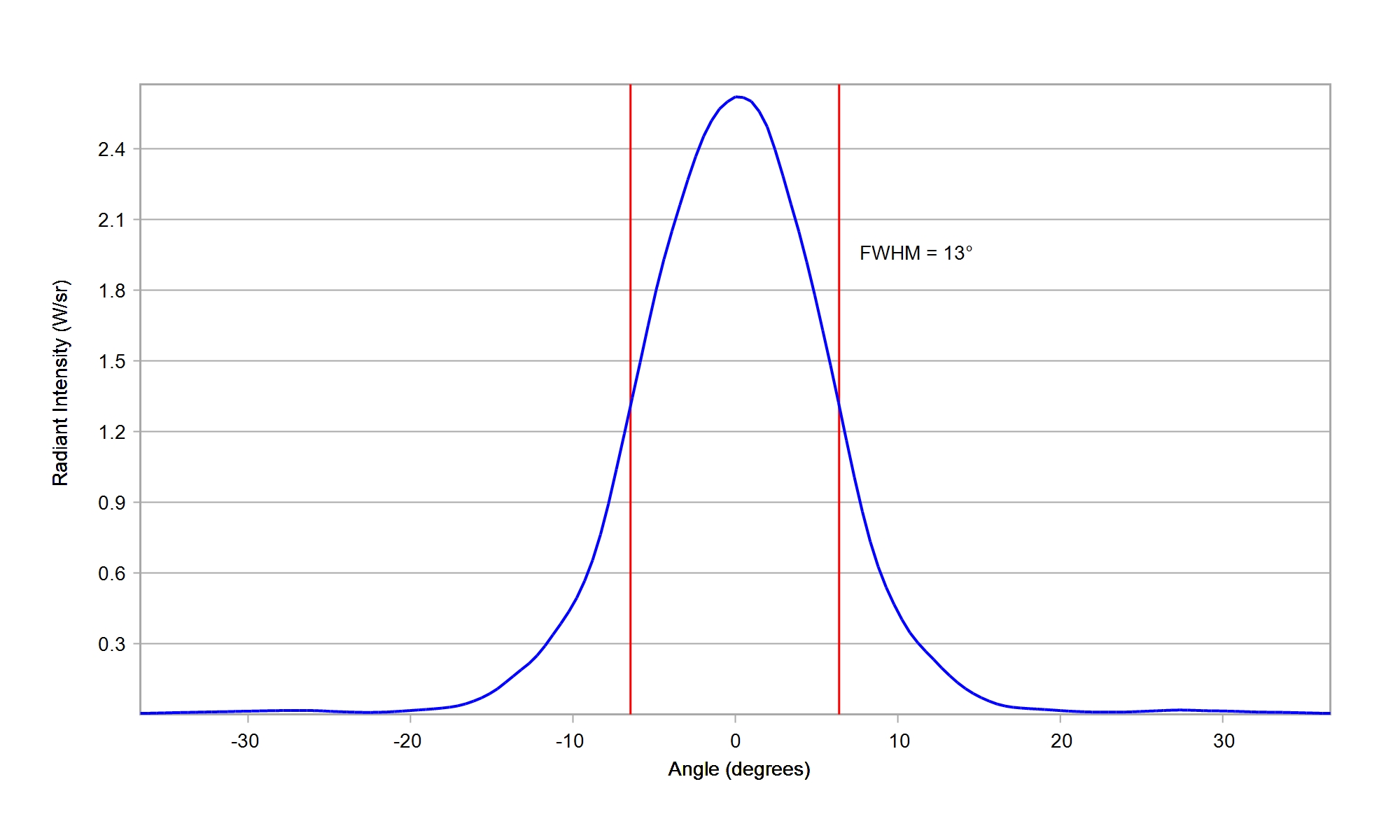

Osram OSLON Pure 1414 GD VJLPL1.14 Deep Blue

Eff:

88.5%

FWHM:

49 x 13°

Ipk/W:

4.6


,


Download

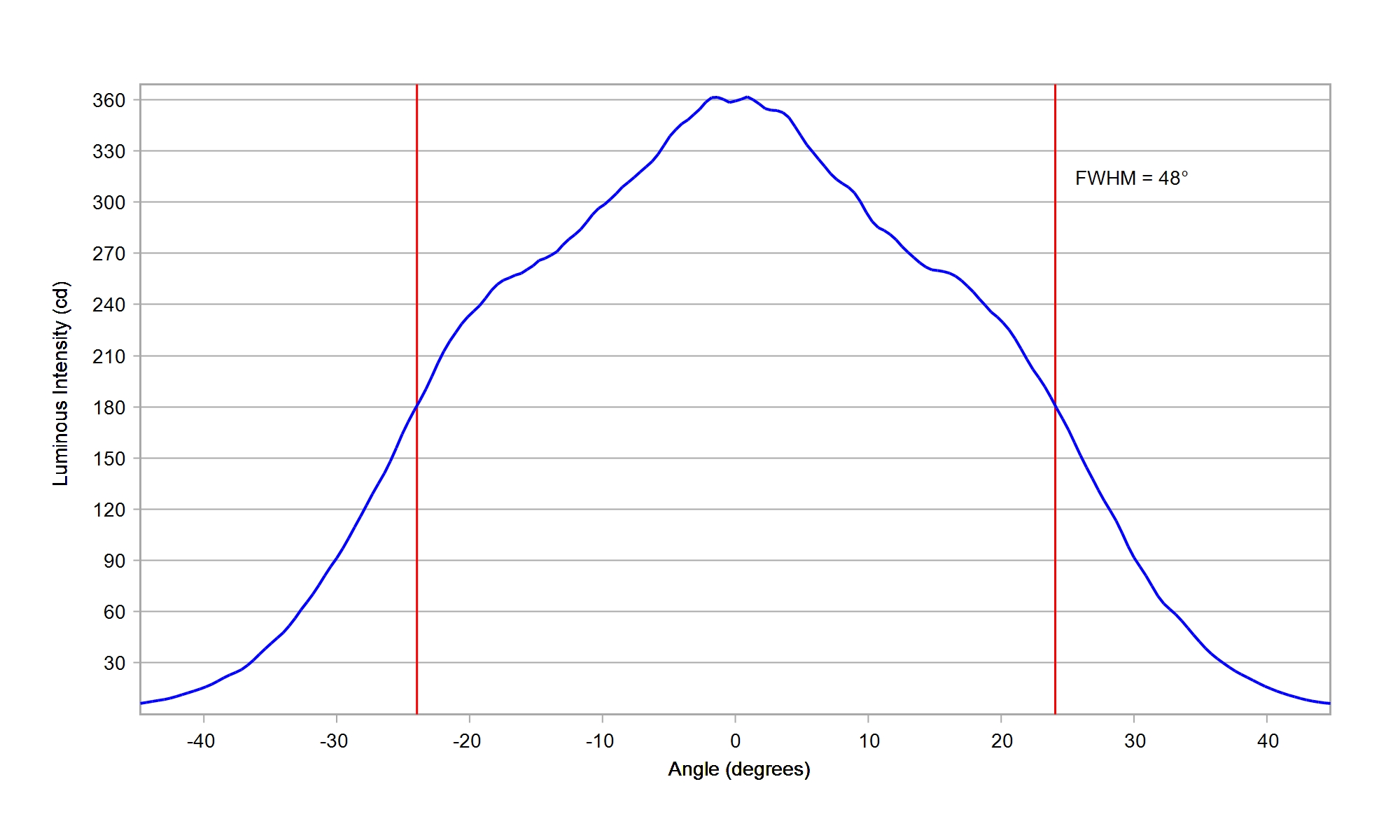

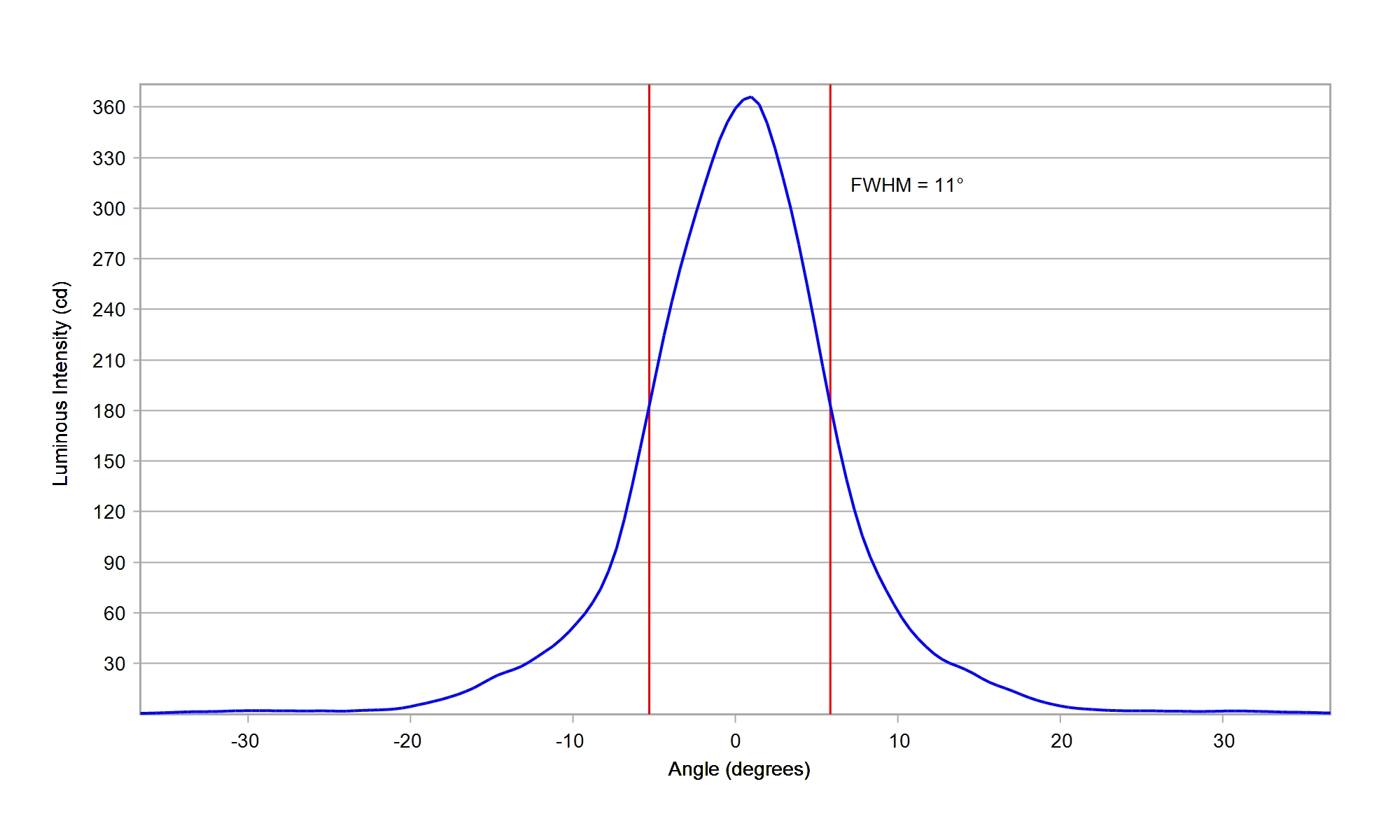

Osram OSLON Pure 1414 GR VJLPL1.23 Red

Eff:

90.0%

FWHM:

48 x 11°

Cd/Im:

4.9


,


Download

Osram OSLON Pure 1414 GT VJLPL1.13 True Green

Eff:

89.5%

FWHM:

48 x 13°

Cd/Im:

4.6


,


Download

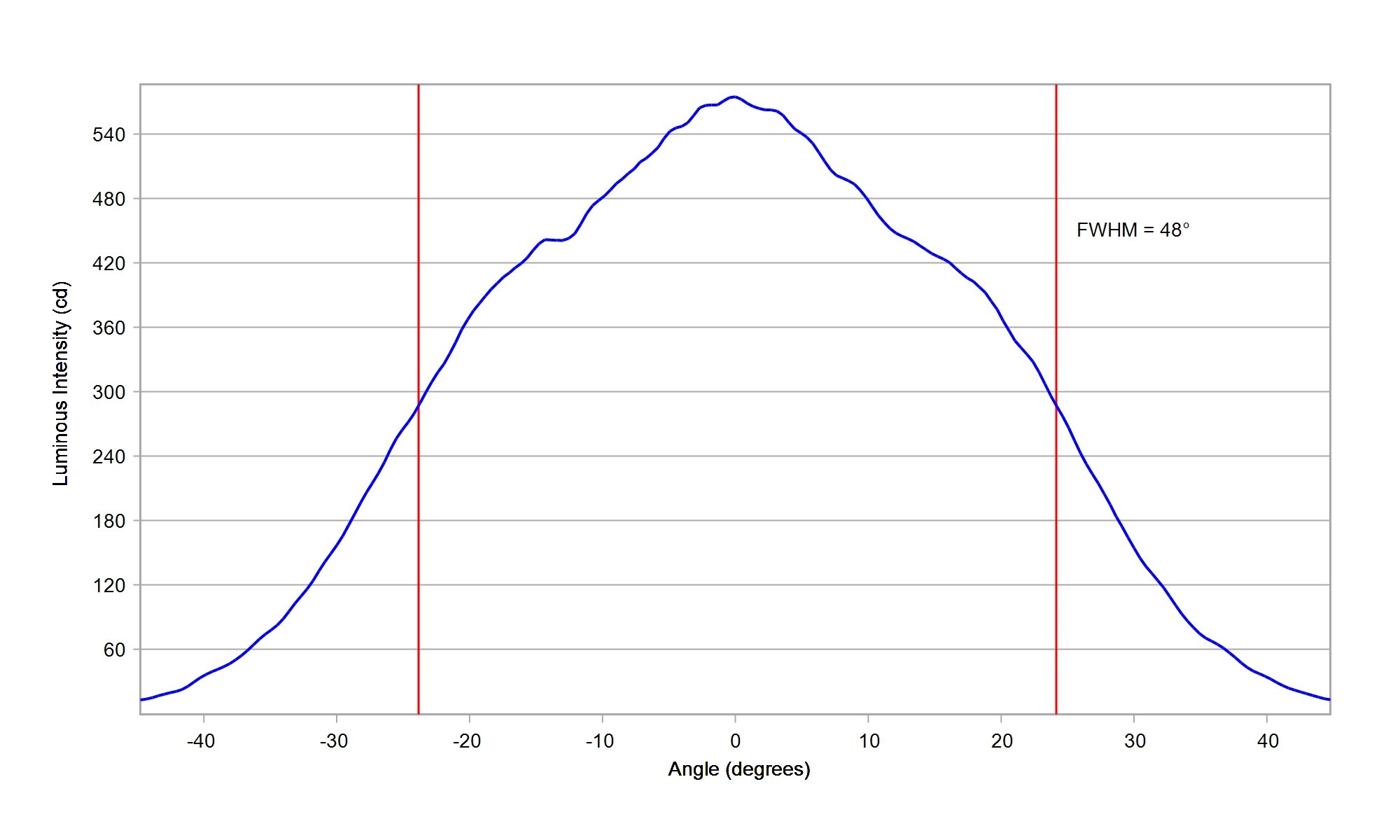

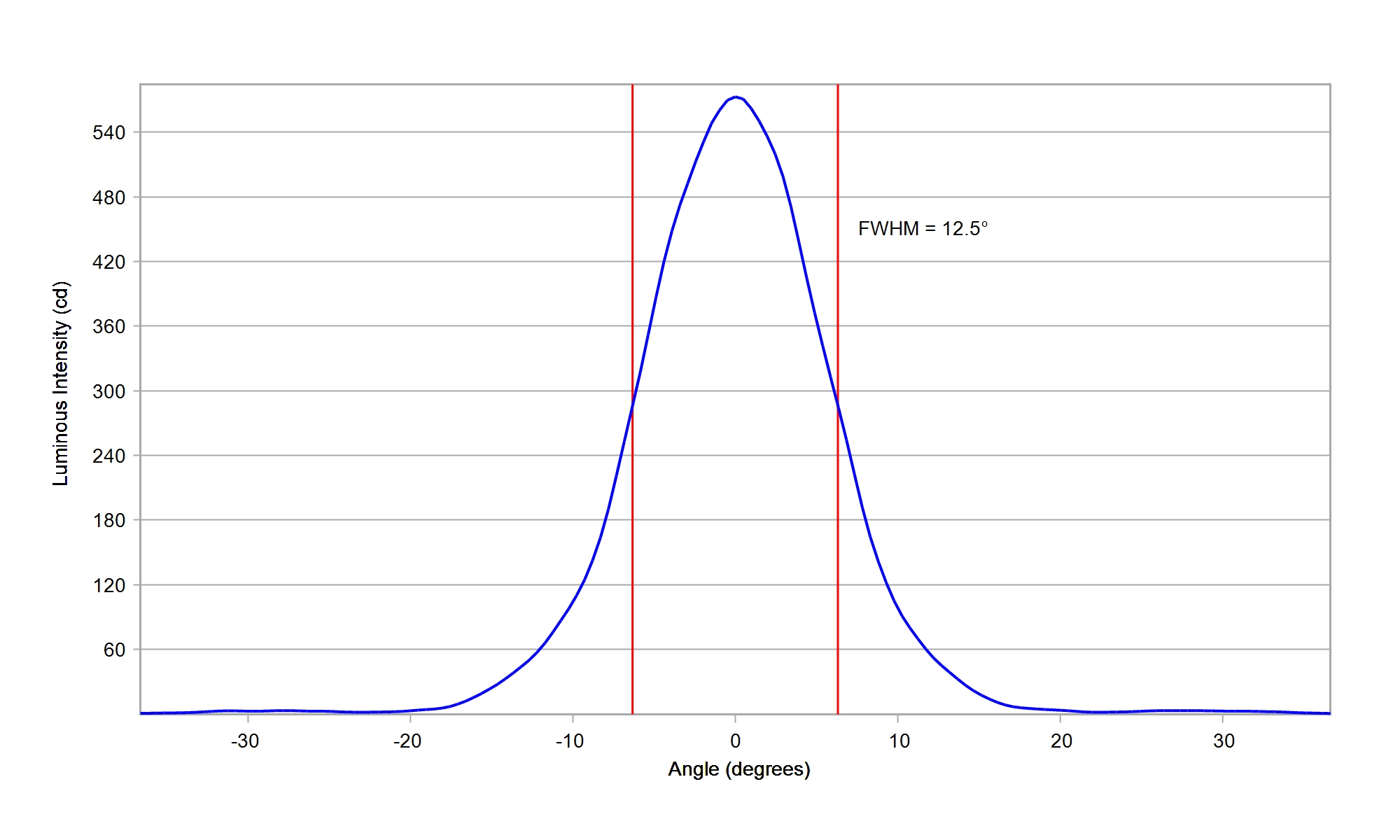

Osram OSLON Pure 1414 GV VJLPL1.F3 Verde

Eff:

89.5%

FWHM:

48 x 12.5°

Cd/Im:

5.1


,


Download

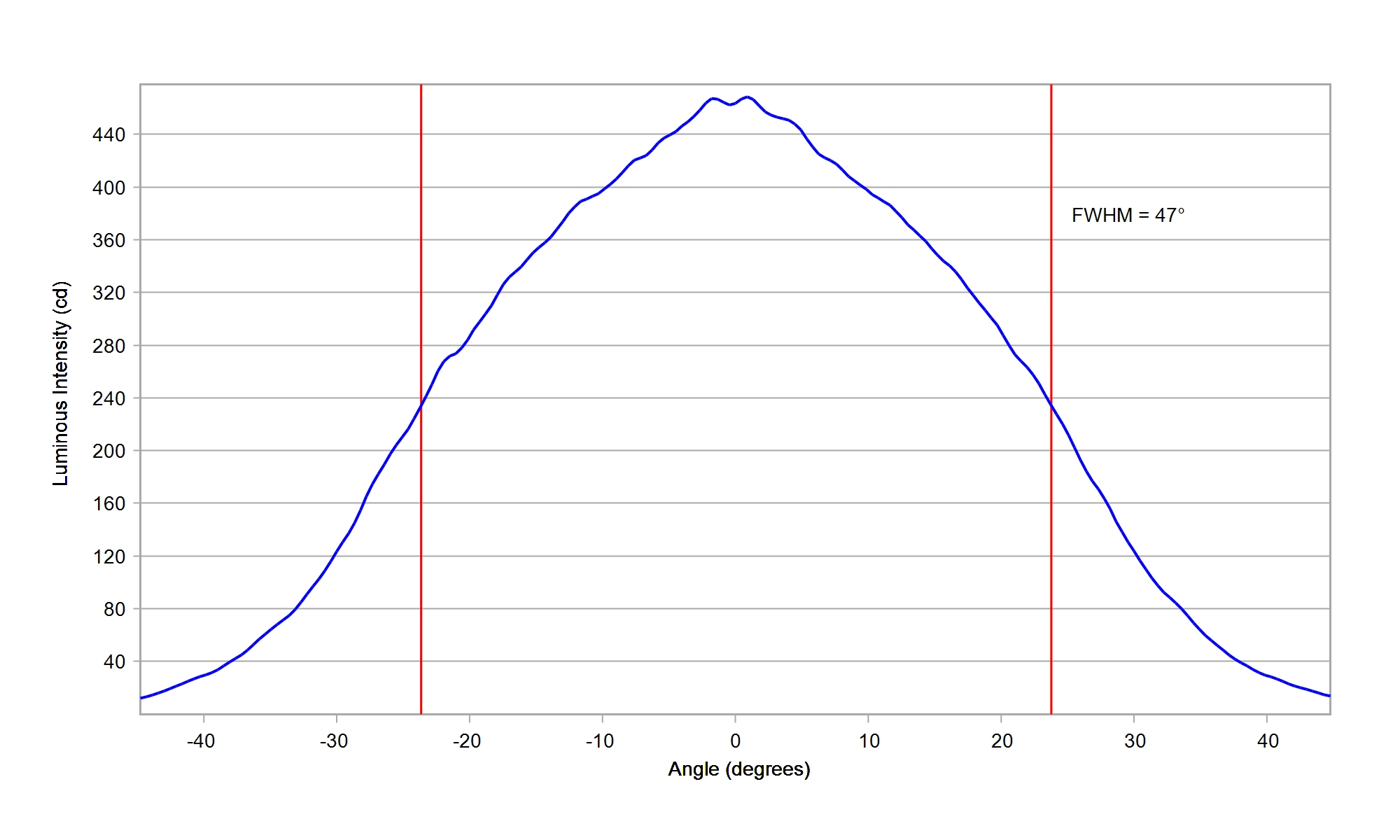

Osram OSLON Pure 1414 GW VJLPL1.CM White

Eff:

89.5%

FWHM:

47 x 14.5°

Cd/Im:

4.2


,


Download

Osram OSLON Pure 1414 GW VJLPL1.UL Green

Eff:

89.5%

FWHM:

48 x 13°

Cd/Im:

4.8


,


Download

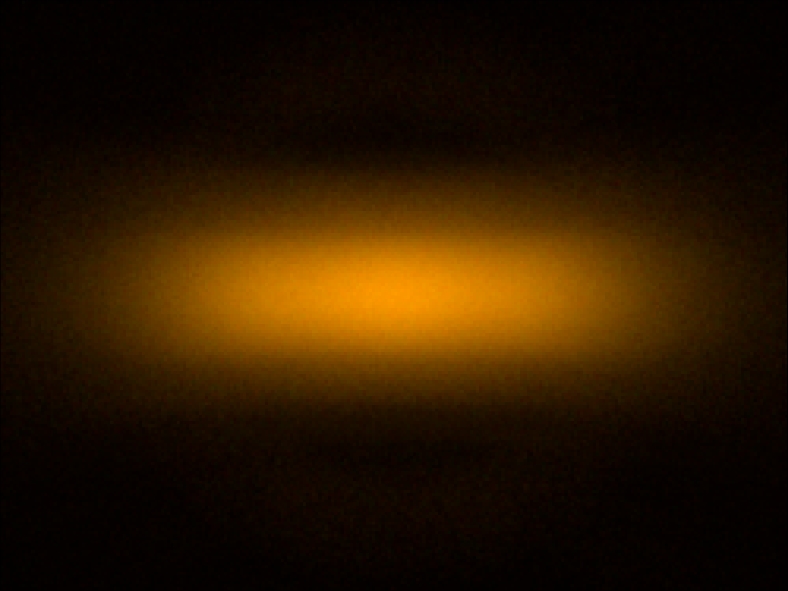

Osram OSLON Pure 1414 GY VJLPL1.F3 Yellow

Eff:

89.5%

FWHM:

47 x 13°

Cd/Im:

4.8


,


Download

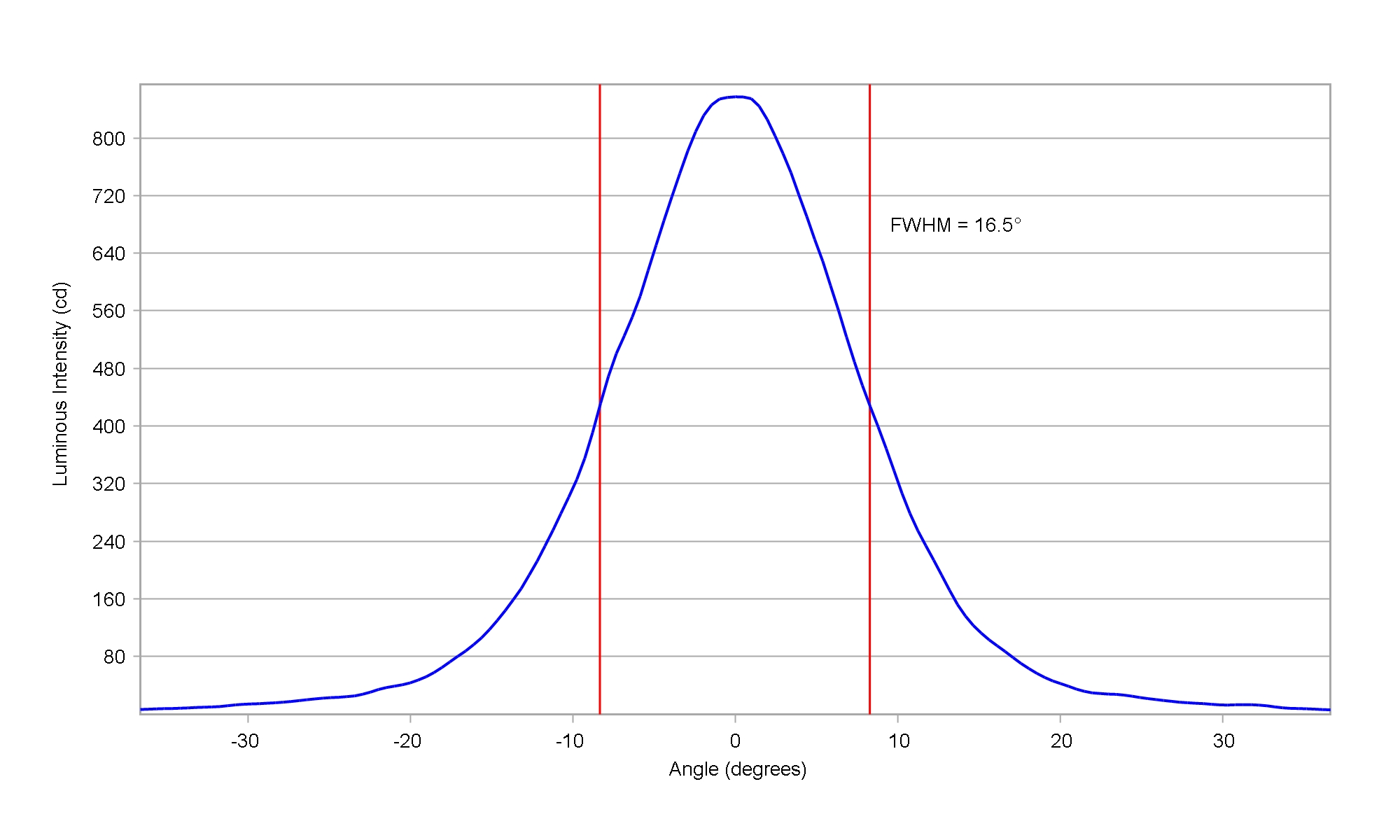

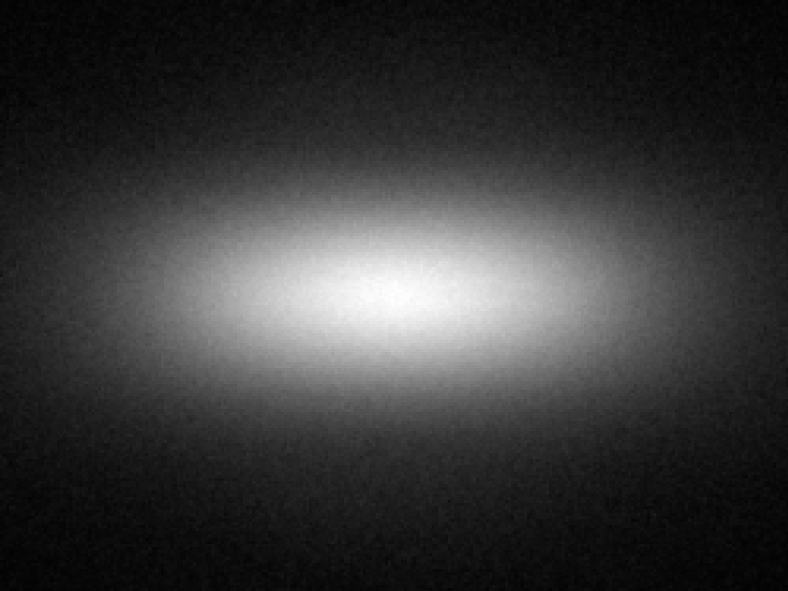

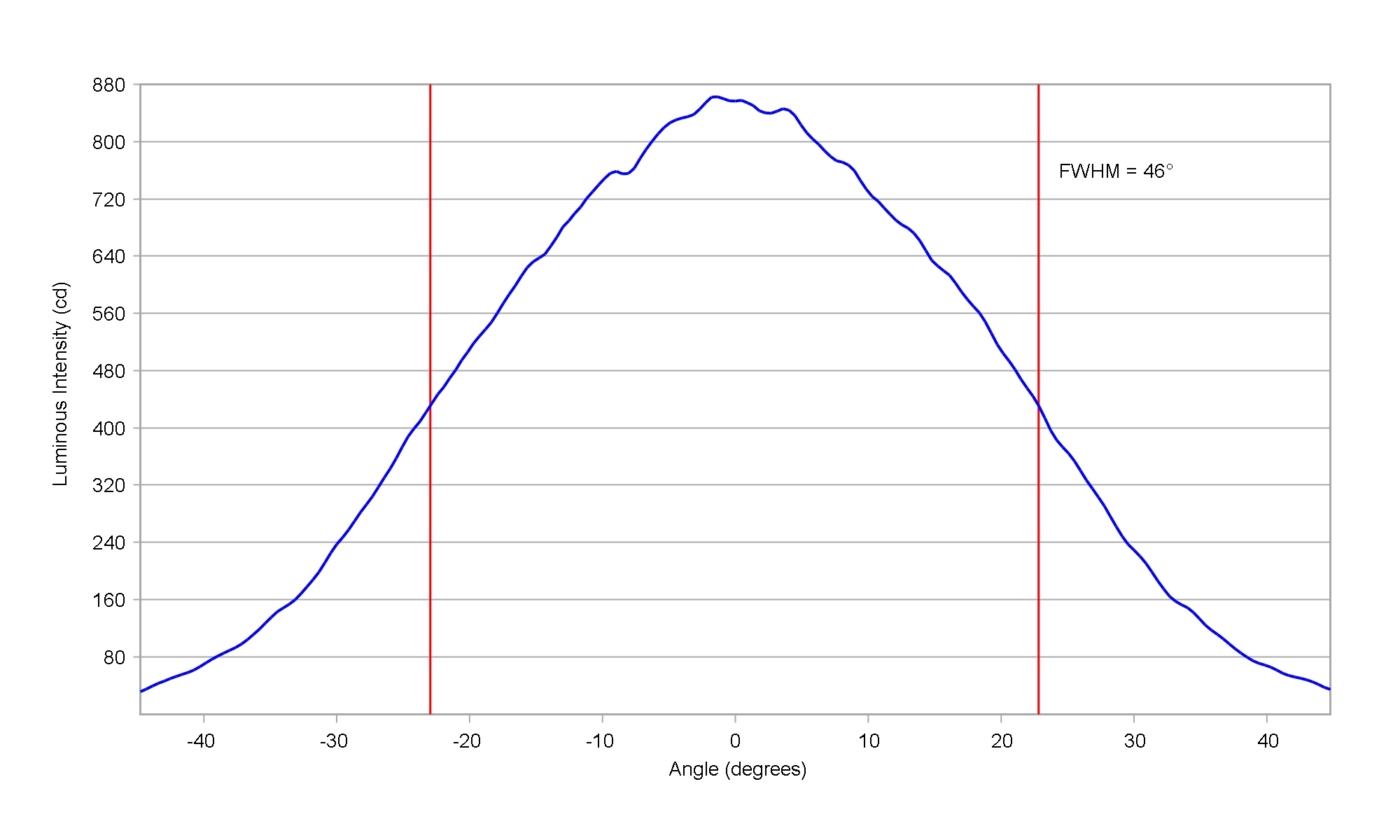

Osram OSLON Square Flat White

Eff:

88.0%

FWHM:

46 x 16.5°

Cd/Im:

3.5


,


Download

Osram OSLON Square Gen 3 White

Eff:

86.0%

FWHM:

43 x 22.5°

Cd/Im:

2.6


,


Download

Osram OSLON Square Gen 5 GW CSSRM3

Eff:

86.5%

FWHM:

43 x 22.5°

Cd/Im:

2.6



,


Download

Osram OSLON Square White

Eff:

83.0%

FWHM:

52 x 25.1°

Cd/Im:

1.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

88.5%

FWHM:

46 x 15.5°

Cd/Im:

4.0


,


Download

Osram OSLON SSL 150 degree White

Eff:

87.1%

FWHM:

45.5 x 16.3°

Cd/Im:

4.1

Spot Image

Cross Section

Download

ies

Osram OSLON SSL 80 White

Eff:

85.5%

FWHM:

44.8 x 19.7°

Cd/Im:

3.2

Spot Image

Cross Section

Download

ies

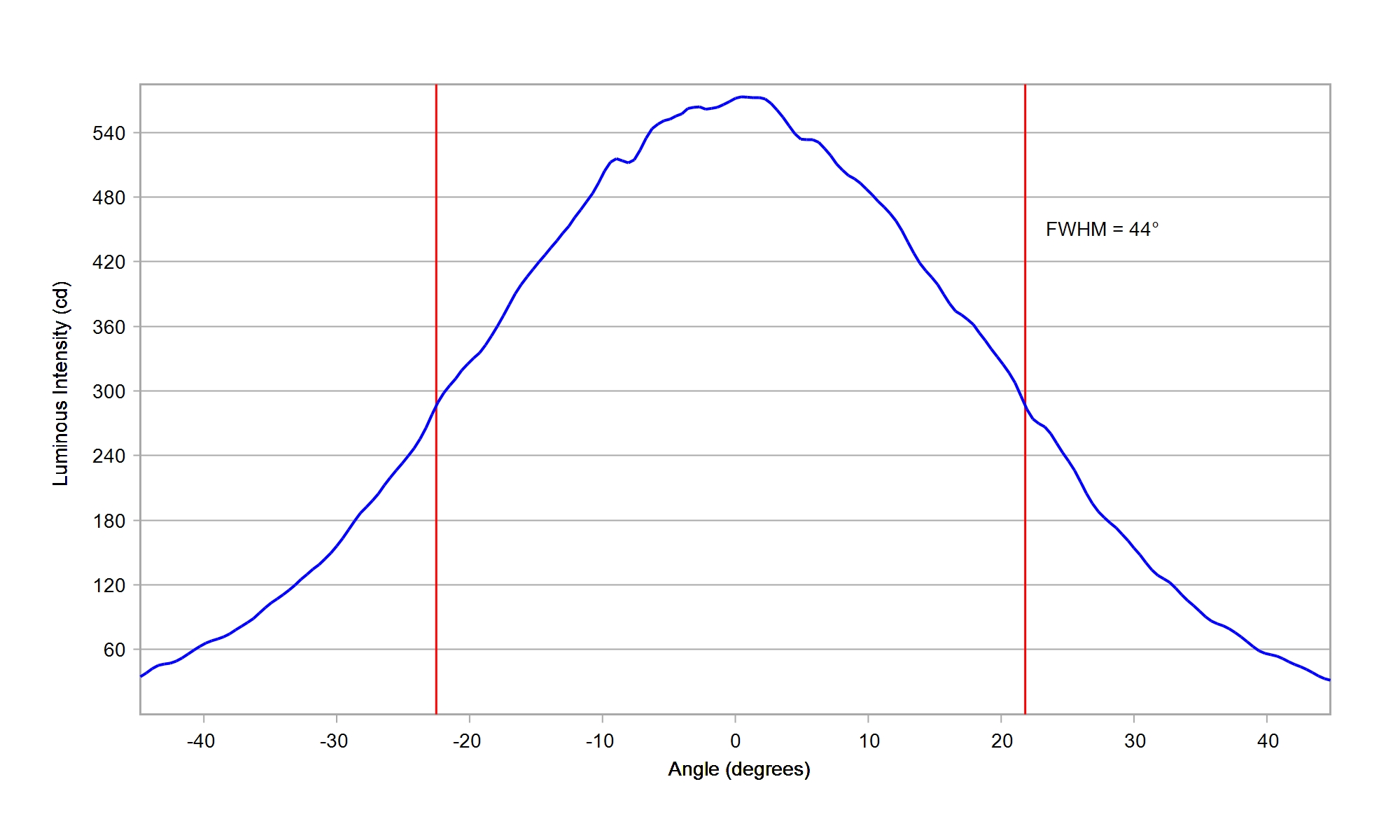

Osram OSCONIQ C 3030 GW PLTRA1.PM White

Eff:

87.0%

FWHM:

44 x 24°

Cd/Im:

2.3


,


Download

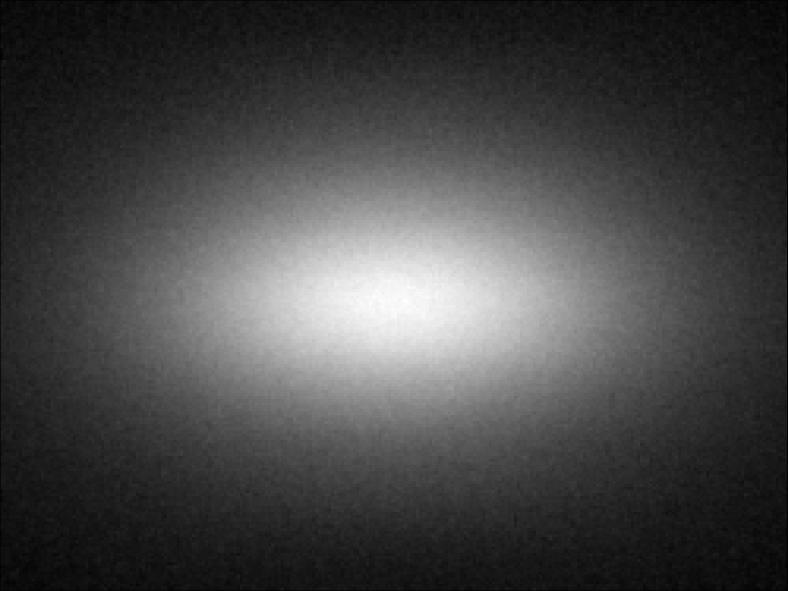

Osram OSCONIQ E 3030 GW QSLPS1.EM White

Eff:

87.0%

FWHM:

44 x 20.5°

Cd/Im:

2.5


,


Download

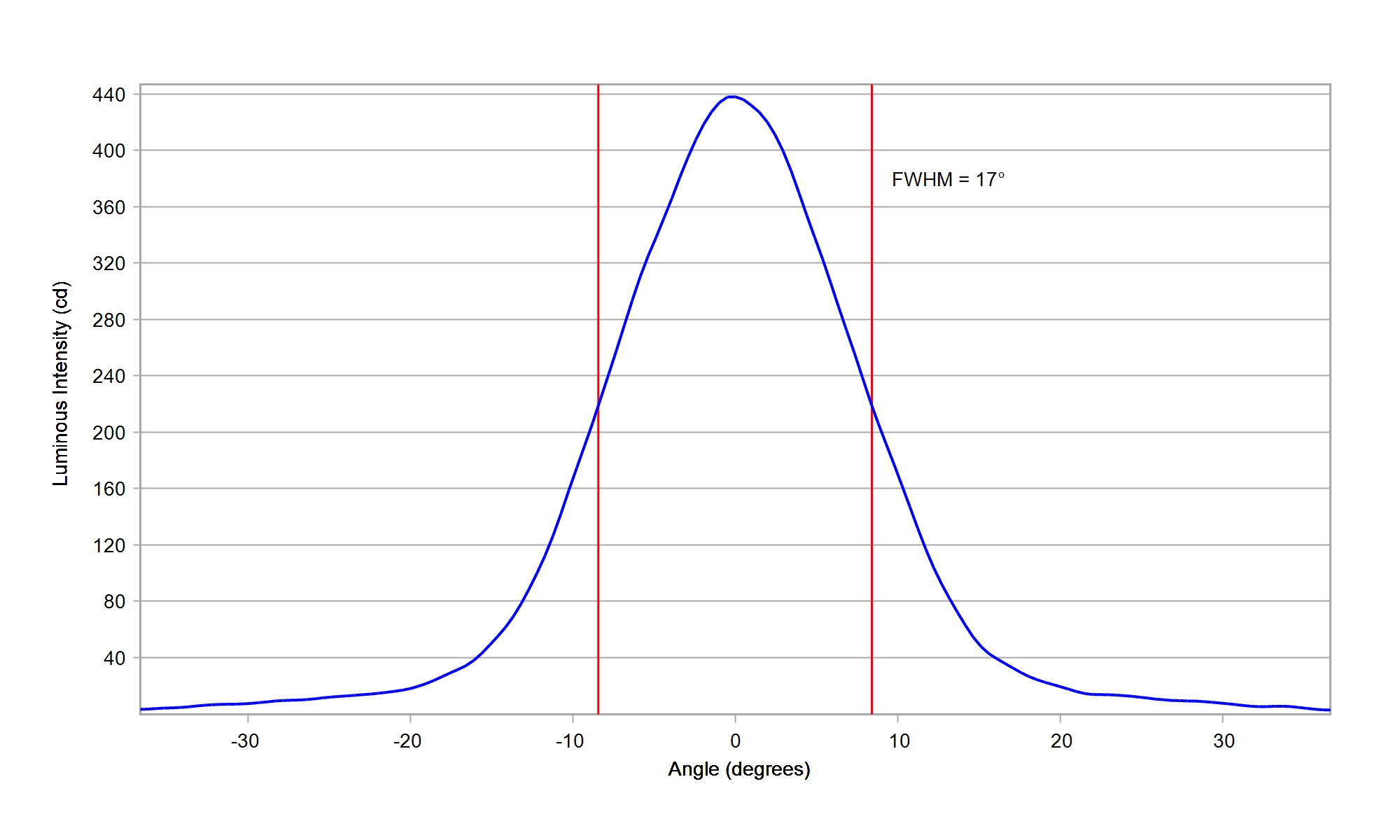

Osram OSCONIQ P 3030 GW QSSPA1.PM White

Eff:

88.0%

FWHM:

47 x 17°

Cd/Im:

3.5


,


Download

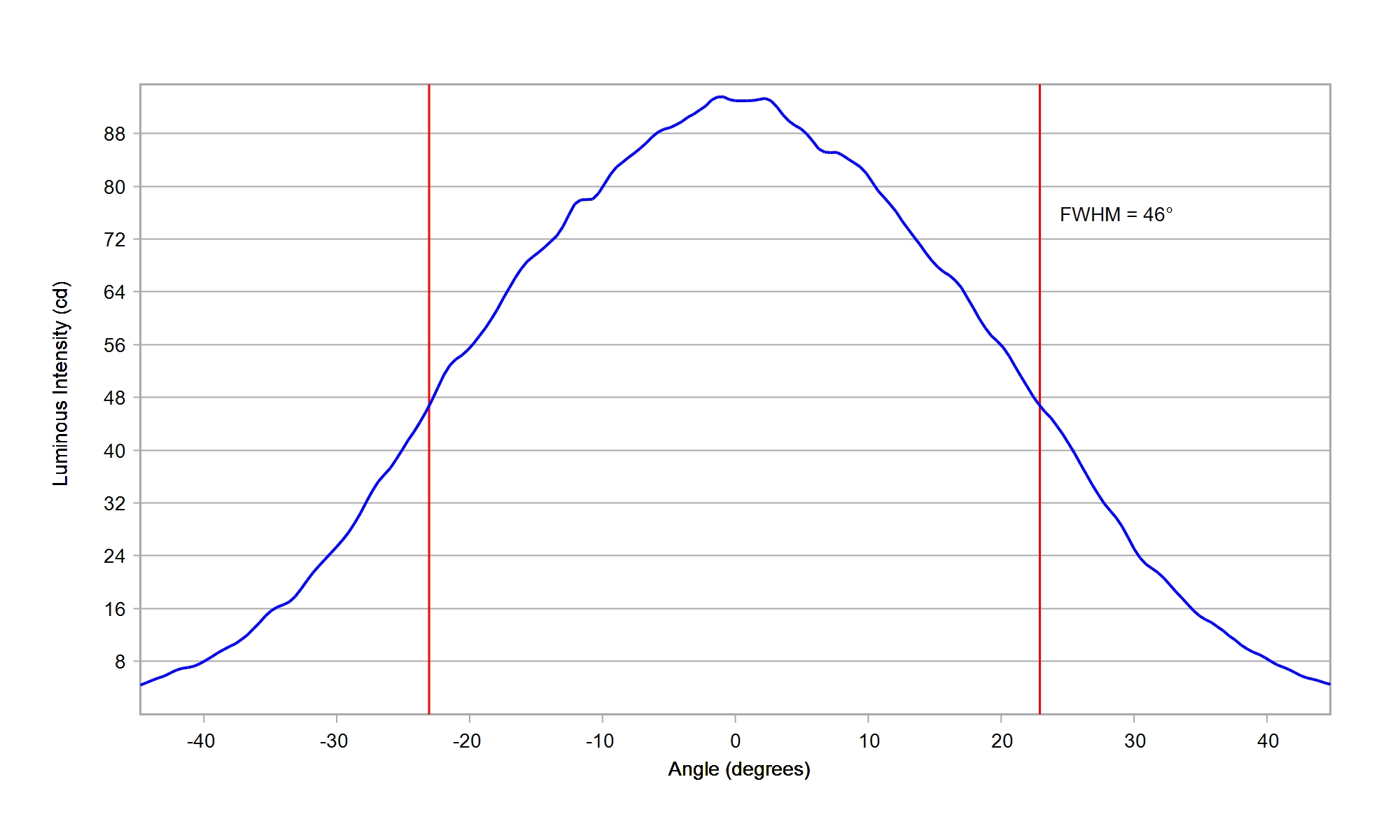

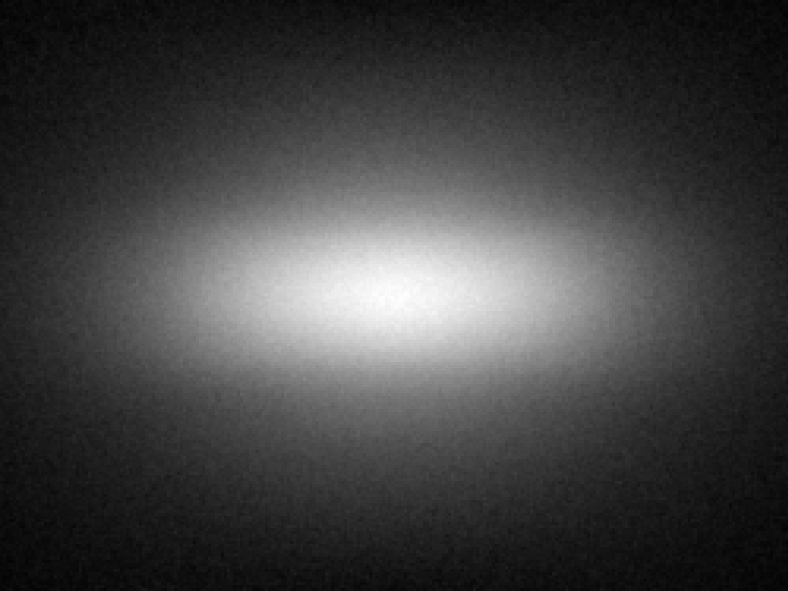

Osram OSCONIQ S 3030 GW QSLMS3.EM White

Eff:

87.0%

FWHM:

46 x 18°

Cd/Im:

3.0


,


Download

Osram OSLON Signal LUW CRBP.01 White

Eff:

88.0%

FWHM:

46 x 16°

Cd/Im:

3.9


,


Download

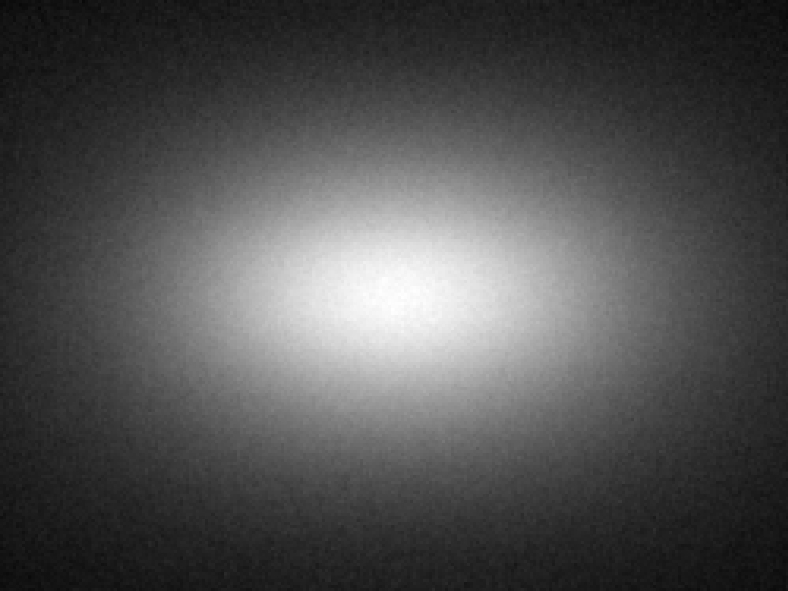

Samsung 2835 LM281B+ White

Eff:

86.5%

FWHM:

46 x 24°

Cd/Im:

2.1



,


Download

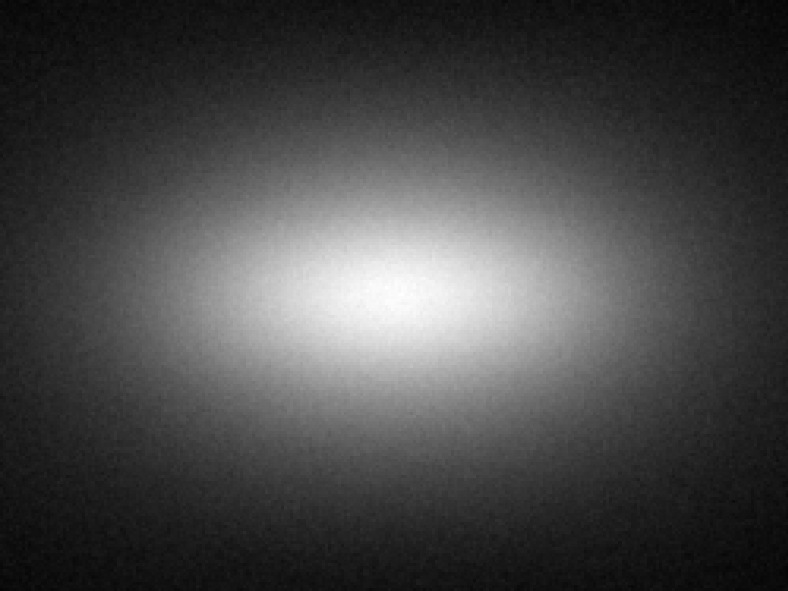

Samsung 2835 LM282B+ White

Eff:

87.0%

FWHM:

45 x 21°

Cd/Im:

2.6



,


Download

Samsung 3030 LM301B White

Eff:

86.5%

FWHM:

45 x 21°

Cd/Im:

2.5


,


Download

Samsung 3535 LH351A White

FWHM:

45.4 x 24.4°

Cd/Im:

2.8

Spot Image

Cross Section

Download

ies

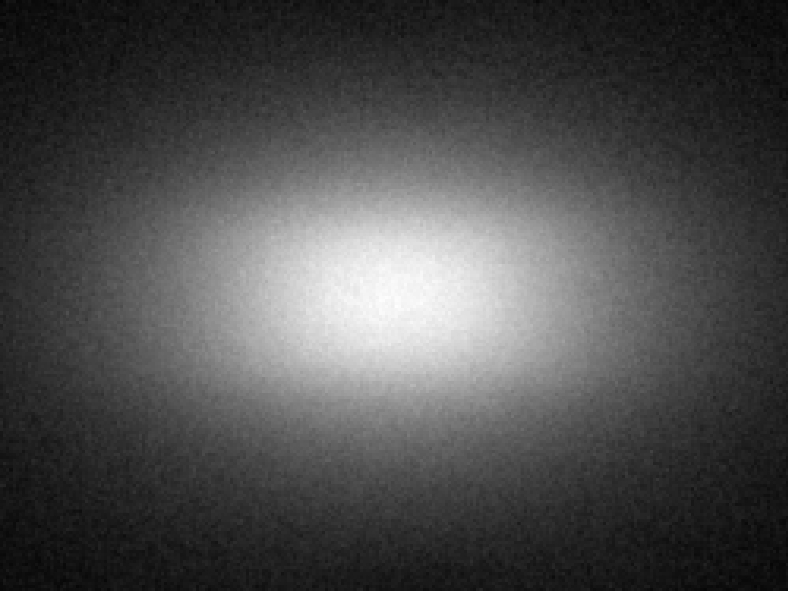

Samsung 3535 LH351B White

Eff:

86.0%

FWHM:

43 x 24.5°

Cd/Im:

2.4


,


Download

Samsung 3535 LH351Z White

Eff:

87.0%

FWHM:

44 x 20°

Cd/Im:

2.9


,


Download

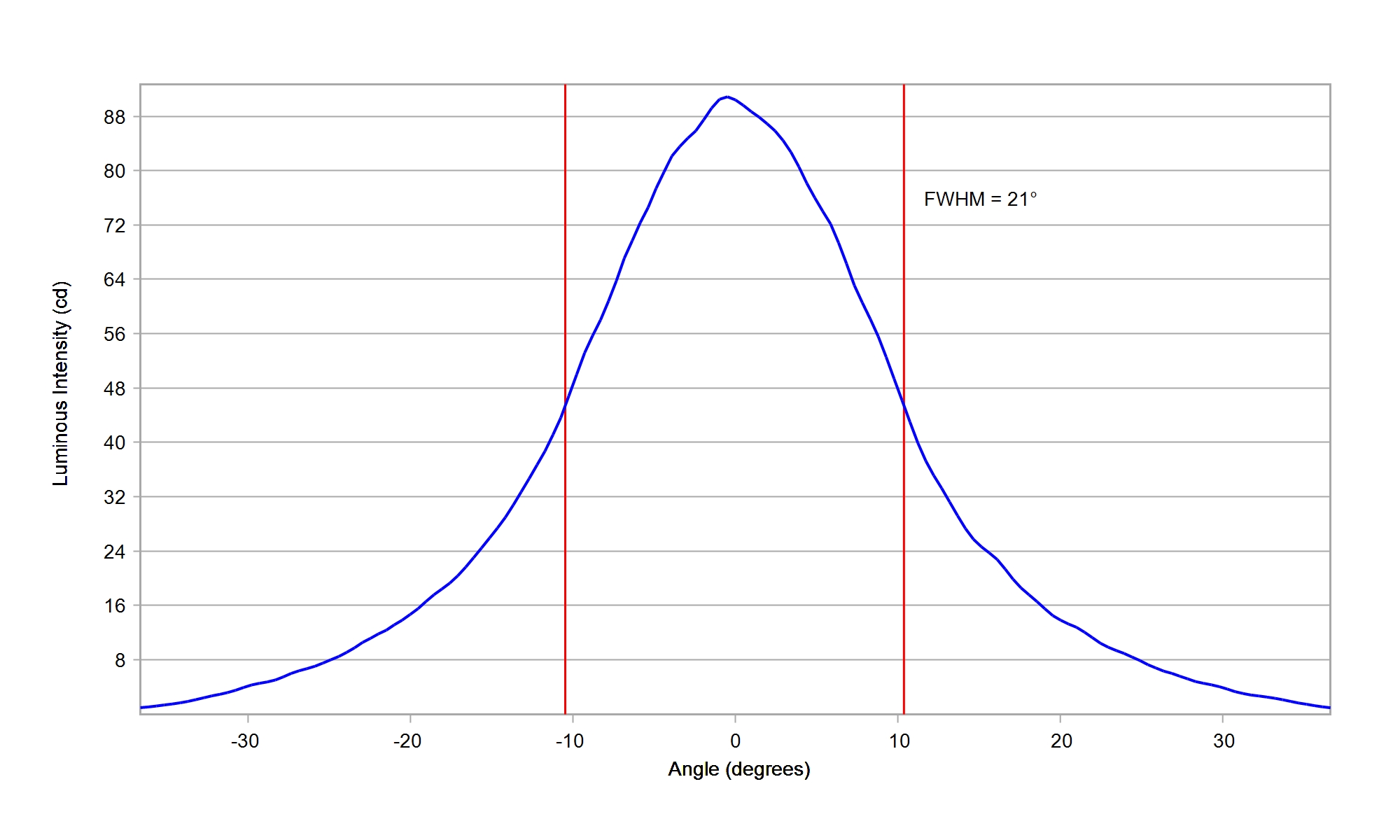

Seoul 3030 STW8C12E-E0 White

Eff:

87.0%

FWHM:

45 x 21°

Cd/Im:

2.6


,


Download

Seoul 3528 G STW8A2PD-G700 White

Eff:

86.5%

FWHM:

44 x 23°

Cd/Im:

2.4


,


Download

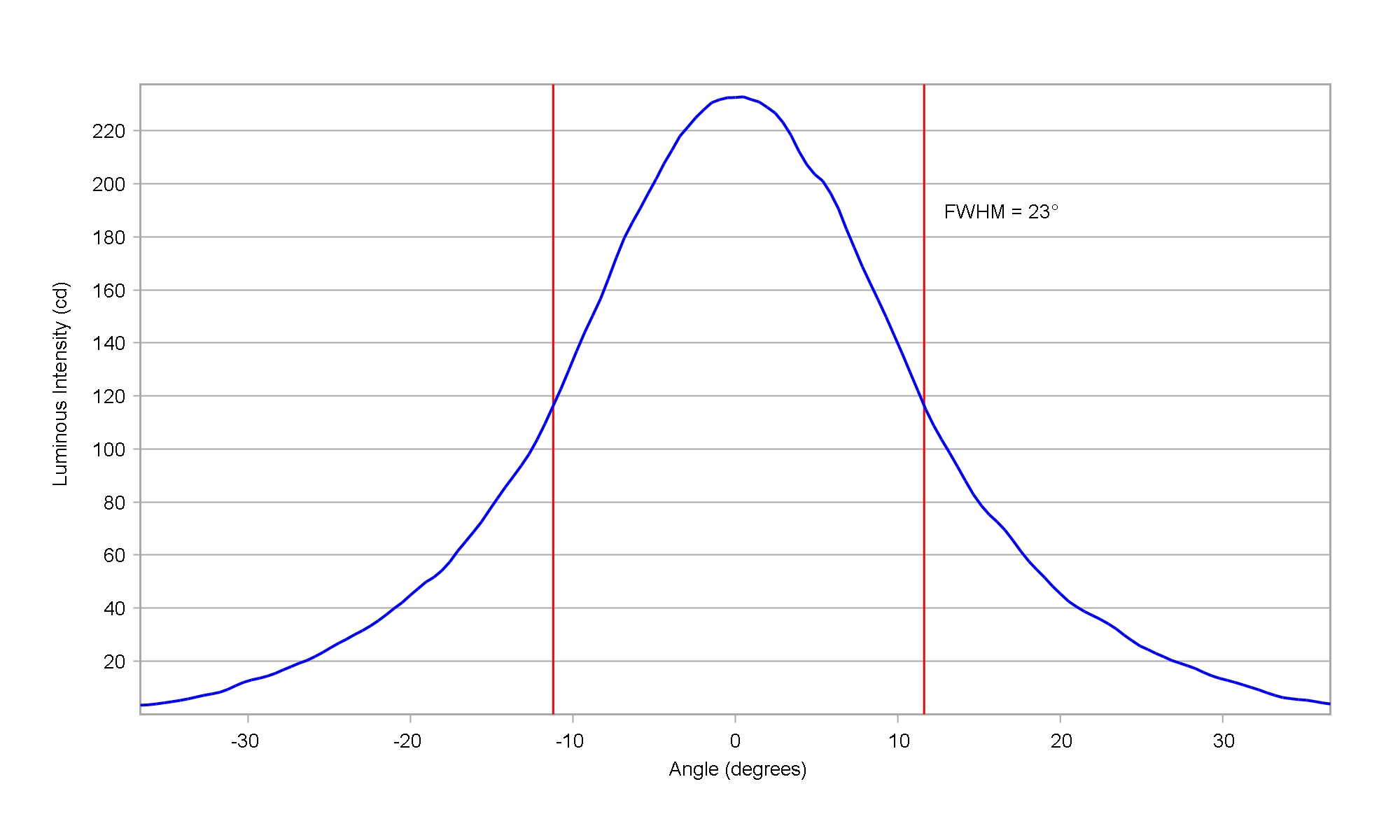

Seoul 3030 STW8C2SB-NT White

Eff:

86.5%

FWHM:

45 x 23°

Cd/Im:

2.5


,


Download

Seoul SunLike 3030 STWSC2PB-E0 White

Eff:

87.0%

FWHM:

44 x 23°

Cd/Im:

2.4


,


Download

Seoul SunLike 3030 STWSC12S-E1 White

Eff:

87.5%

FWHM:

45 x 18.5°

Cd/Im:

3.2


,


Download

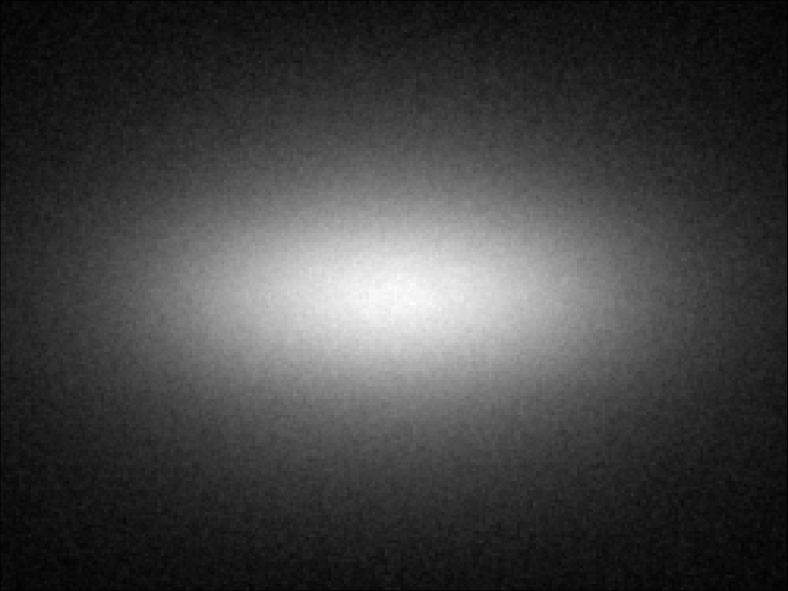

Seoul SunLike 3030 STWSC12S-E2 White

Eff:

87.0%

FWHM:

45 x 19°

Cd/Im:

3.1


,


Download

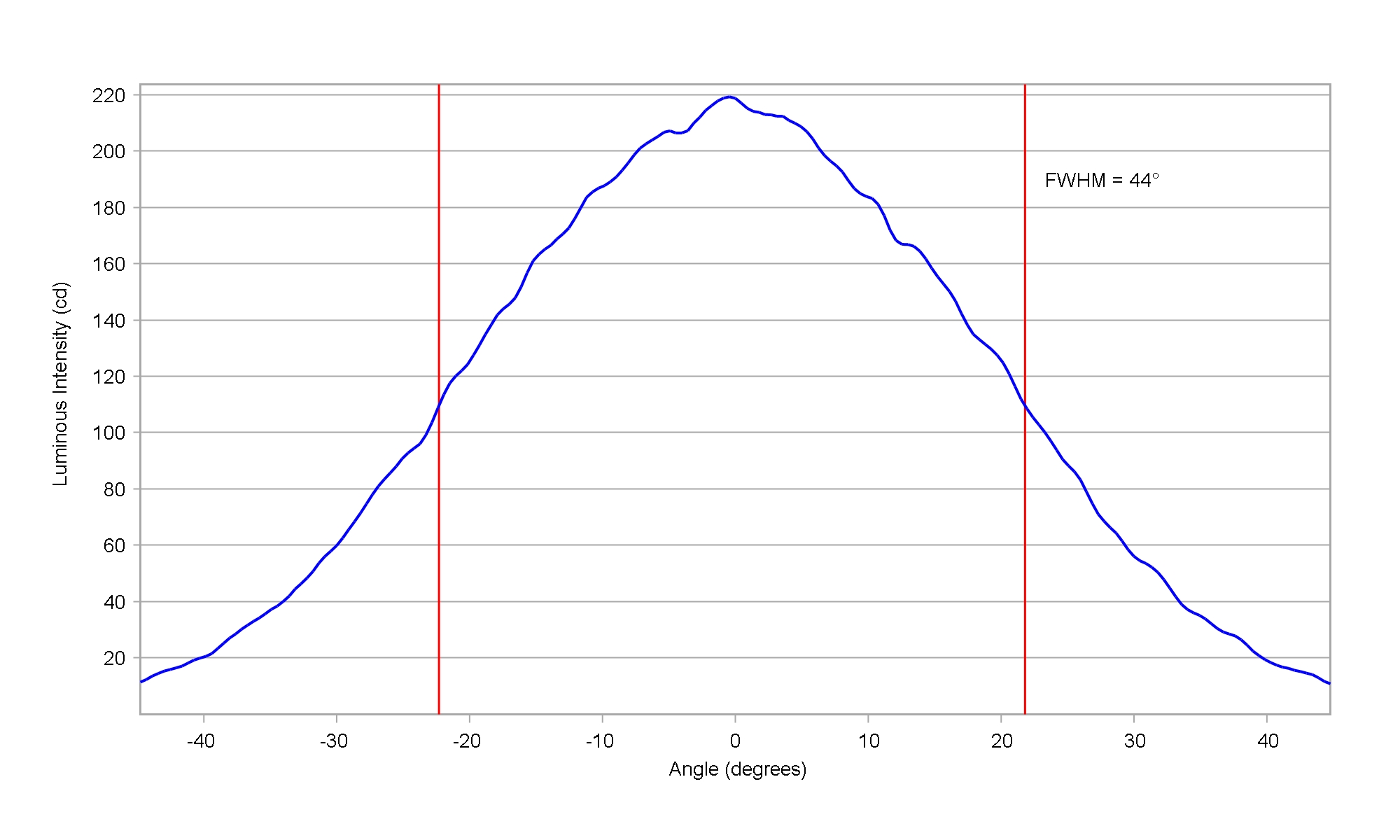

Seoul SunLike 3030 STW9C2SB-S White

Eff:

87.5%

FWHM:

44 x 22°

Cd/Im:

2.6


,


Download

Seoul Z - Power Z5-M0 White

FWHM:

43.3 X 22.1°

Cd/Im:

2.9

Spot Image

Cross Section

Download

ies

Seoul Z - Power Z5-M1 White

Eff:

87.0%

FWHM:

43 x 22.5°

Cd/Im:

2.6


,


Download

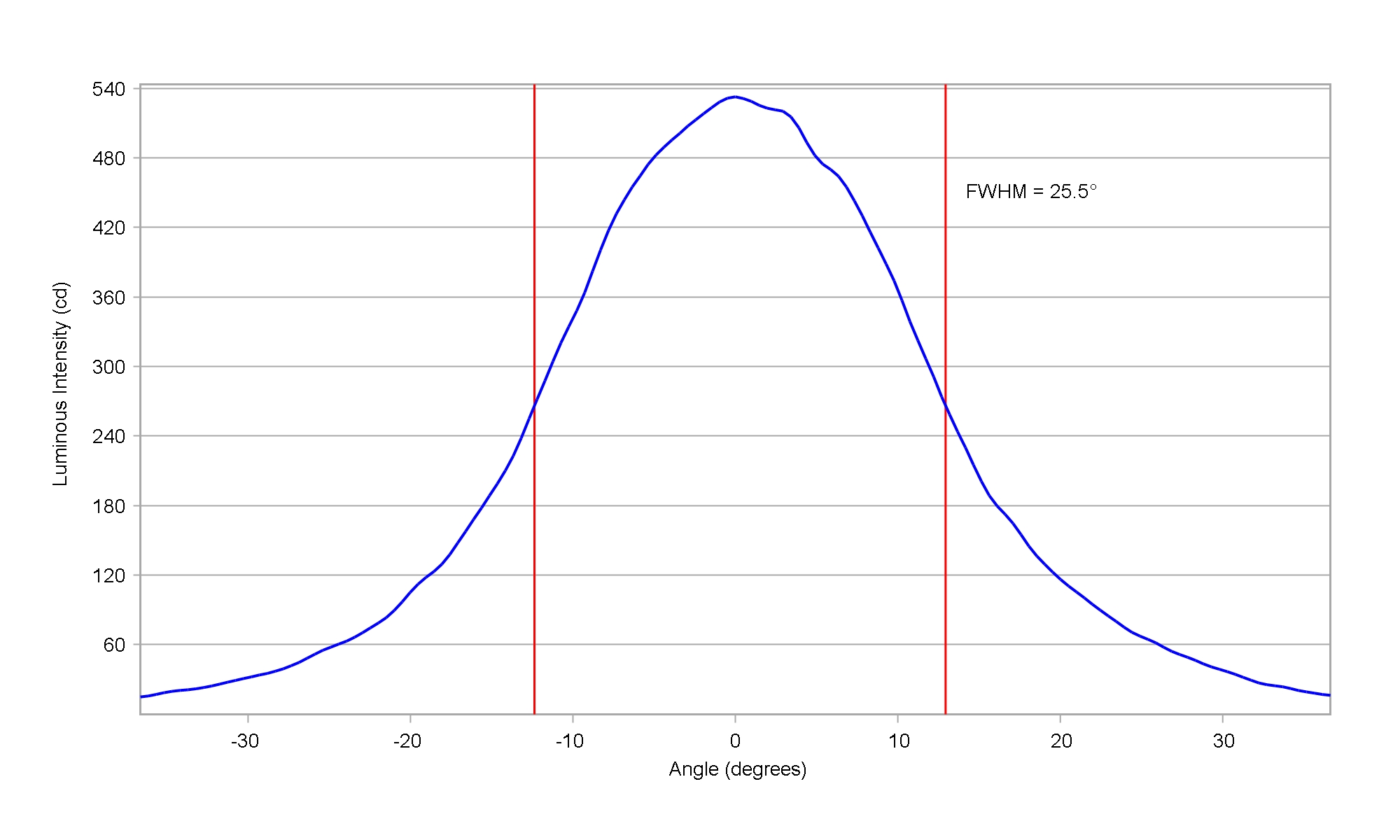

Seoul Z - Power Z5-M4 White

Eff:

85.5%

FWHM:

43 x 25.5°

Cd/Im:

2.2


,


Download

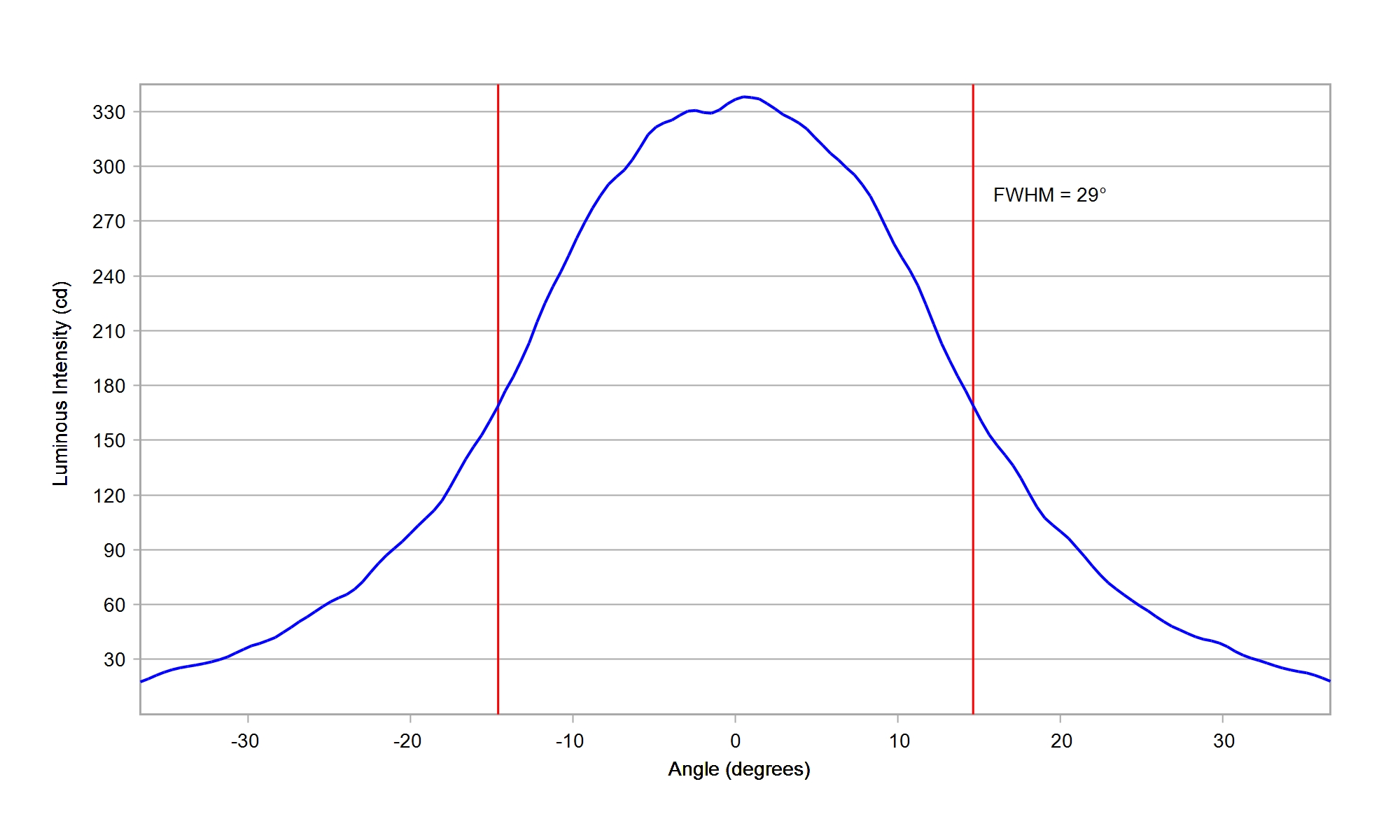

Seoul Z - Power Z5-M5 White

Eff:

85.0%

FWHM:

44 x 29°

Cd/Im:

1.7


,


Download

Seoul Z - Power Z5-P0 White

FWHM:

46.0 x 20.0°

Cd/Im:

3.2

Spot Image

Cross Section

Download

ies

Seoul Z - Power Z5-M White

Eff:

84.3%

FWHM:

44.5 x 16.2°

Cd/Im:

3.7

Spot Image

Cross Section

Download

ies

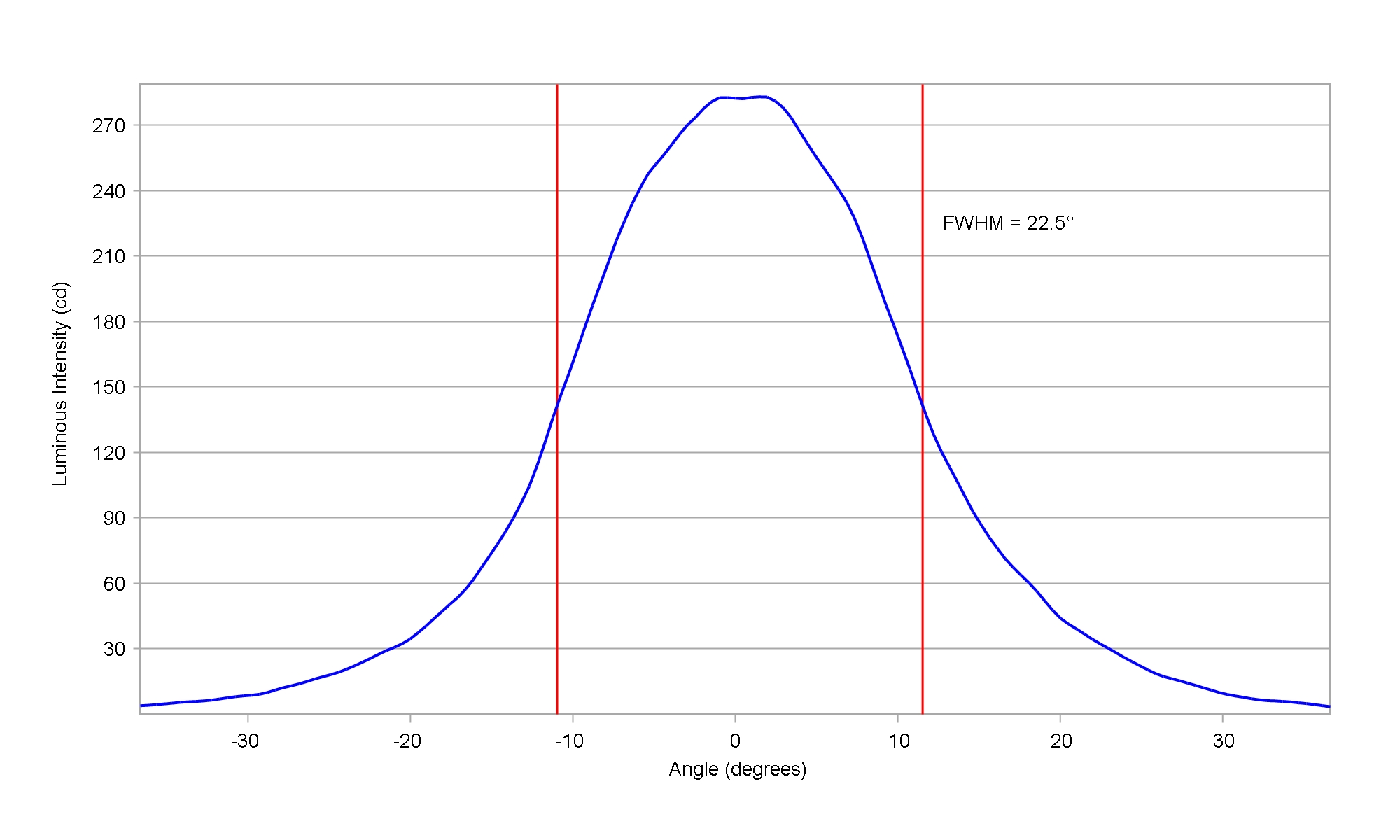

Toshiba TL 1L2 White

Eff:

86.0%

FWHM:

44 x 22.5°

Cd/Im:

2.4


,


Download

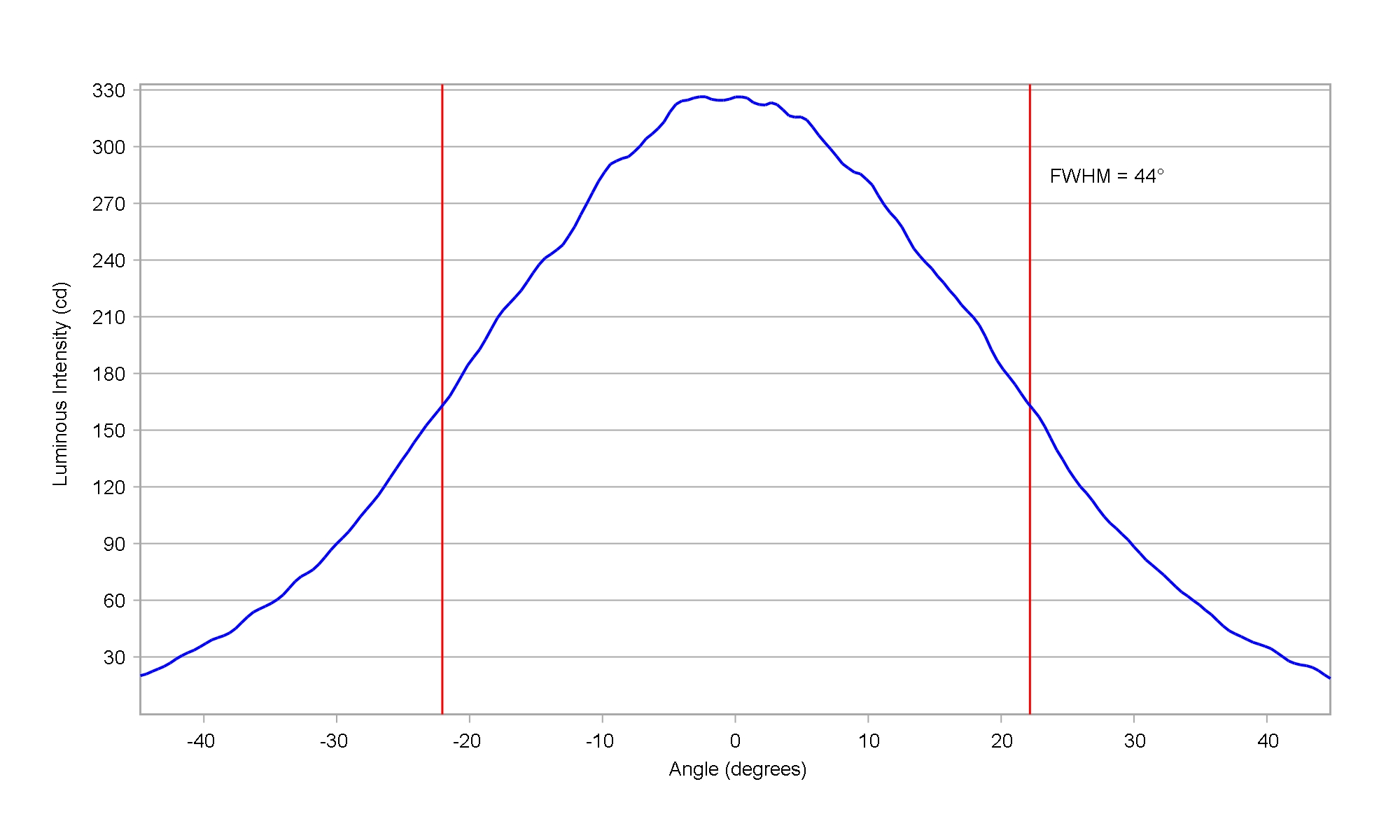

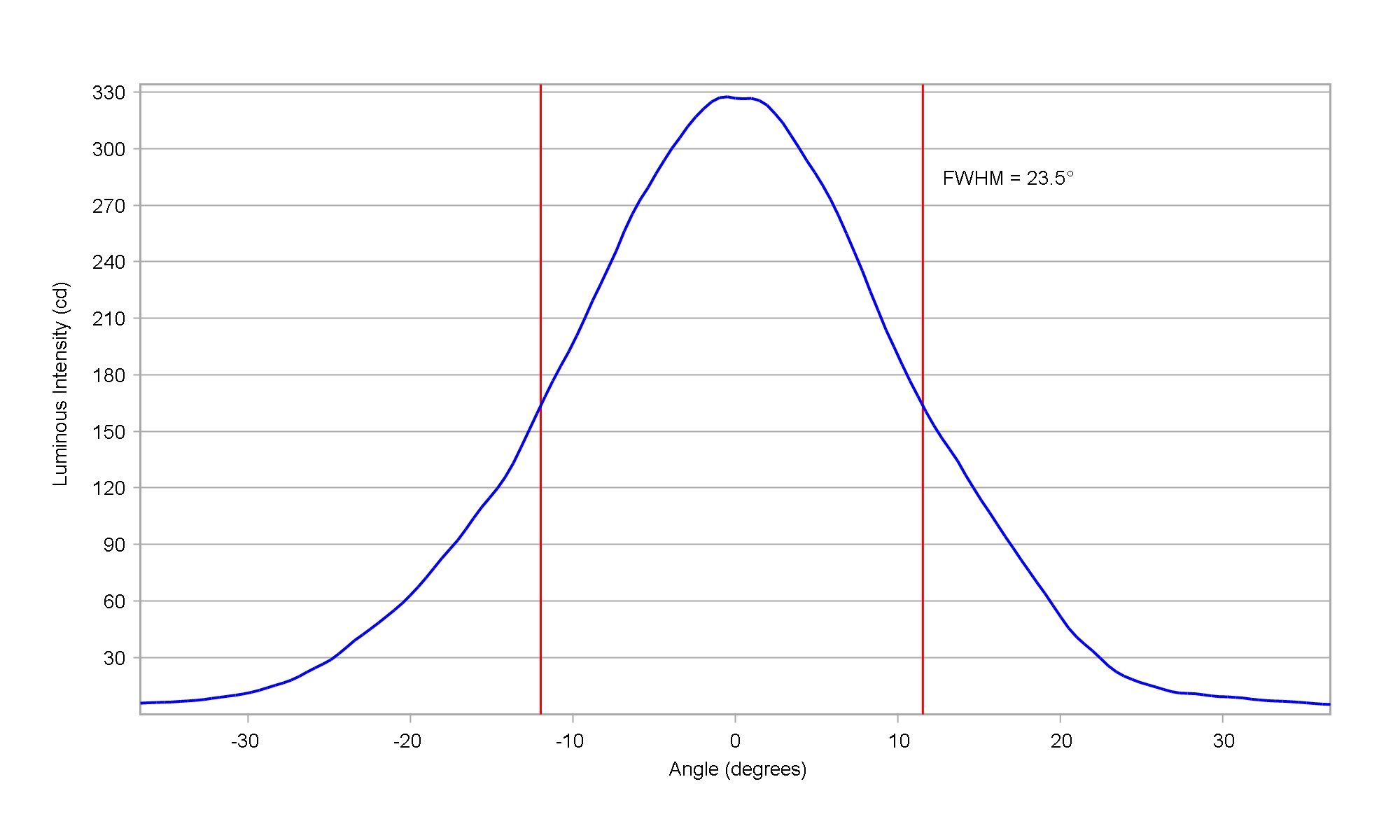

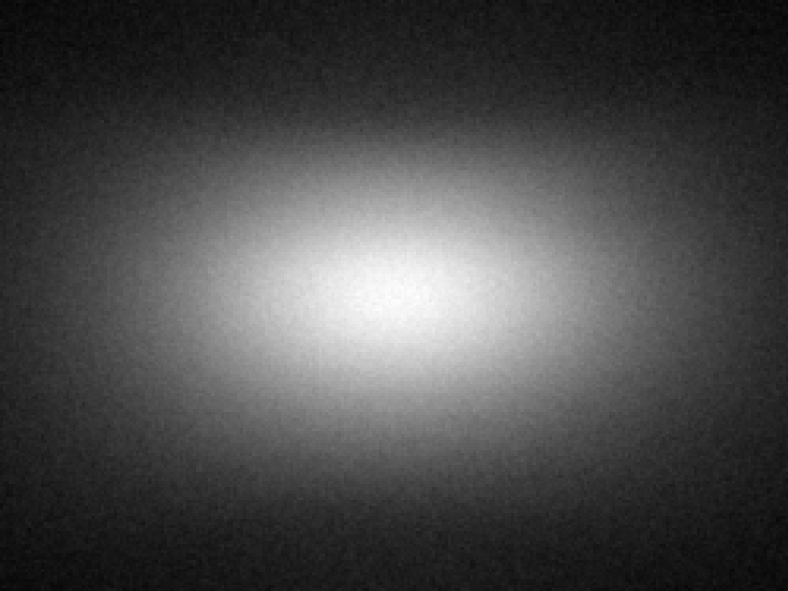

Toshiba TL 1L4 White

Eff:

86.0%

FWHM:

44 x 23.5°

Cd/Im:

2.4


,


Download
