10.0mm Elliptical Ripple Linear TIR LED Lenses | Carclo Optics

Carclo Optics 10415

10.0mm Elliptical Ripple Linear TIR LED Lenses

Part number

10415

Dimensions

10.0mm

Drawing Number

60518

Optic type

TIR LED Lenses

Finish

Ripple Linear

Beam type

Elliptical

Applications

Architectural

Landscape & Garden

Downloads

Request a sample

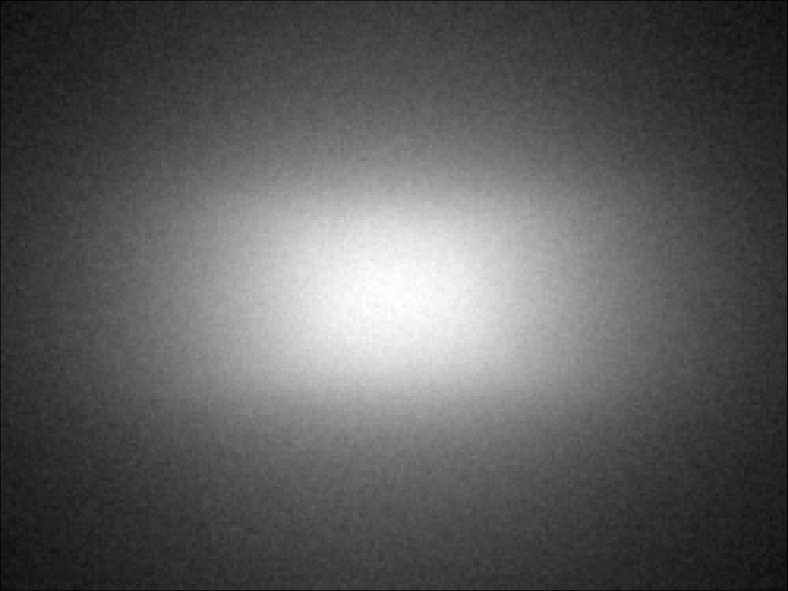

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

86.5%

FWHM:

53 x 26.5°

Cd/Im:

2.1

Carclo Optics - 10415 10mm Spot Image Bridgelux 3030 Gen2

Carclo Optics - 10415 10mm Cross Section Bridgelux 3030 Gen2

,

Carclo Optics - 10415 26.5mm Vertical Cross Section Cree XLamp XB-H

Download

IES

Cree XLamp CSP XD16 Cool White

Eff:

87.0%

FWHM:

54 X 24.0°

Cd/Im:

1.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XB-D White

Eff:

85.6%

FWHM:

20.7 x 44.7°

Cd/Im:

3.0

Spot Image

Cross Section

Download

ies

Cree XLamp XB-H White

Eff:

85.0%

FWHM:

52 x 27°

Cd/Im:

1.9

Carclo Optics - 10415 10mm Spot Image Cree XLamp XB-H

Carclo Optics - 10415 10mm Horizontal Cross Section Cree XLamp XB-H

,

Carclo Optics - 10415 10mm Vertical Cross Section Cree XLamp XB-H

Download

IES

Cree XLamp XP-C White

Eff:

87.8%

FWHM:

46.2 x 12.5°

Cd/Im:

5.0

Spot Image

Cross Section

Download

ies

Cree XLamp XP-E White

Eff:

88.1%

FWHM:

43 x 16°

Cd/Im:

3.5

Spot Image

Cross Section

Download

ies

Cree XLamp XP-E2 White

Eff:

88.0%

FWHM:

54 x 17°

Cd/Im:

3.4


,


Download

IES

Cree XLamp XP-G White

Eff:

86.5%

FWHM:

43.6 x 23.3°

Cd/Im:

2.6

Spot Image

Cross Section

Download

ies

Cree XLamp XP-G2 White

FWHM:

43.8 x 22.9°

Cd/Im:

3.0

Spot Image

Cross Section

Download

ies

Cree XLamp XP-G3 White

Eff:

81.0%

FWHM:

48 x 29.6°

Cd/Im:

1.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-A Blue

Eff:

87.5%

FWHM:

54.0 x 15.5°

Cd/Im:

3.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-A Green

Eff:

87.5%

FWHM:

53 x 16°

Cd/Im:

3.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

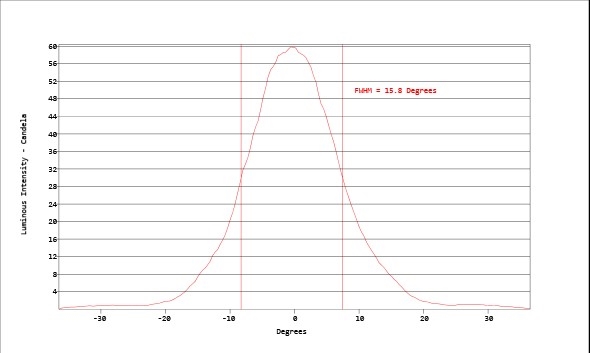

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-A Red

Eff:

87.5%

FWHM:

53.0 x 17.0°

Cd/Im:

3.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-A White

Eff:

86.0%

FWHM:

53 x 15.8°

Cd/Im:

3.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-E HI Blue

Eff:

86.5%

FWHM:

56.0 X 20.5°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-E HI Green

Eff:

87.0%

FWHM:

55 x 20.5°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-E HI Red

Eff:

87.5%

FWHM:

54 X 19.5°

Cd/Im:

2.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-E HI White

Eff:

86.0%

FWHM:

54.6 x 18.3°

Cd/Im:

2.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-E HD White

Eff:

86.0%

FWHM:

55x20°

Cd/Im:

1.9

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

Cree XLamp XT-E White

FWHM:

44.3 x 23.4°

Cd/Im:

2.7

Spot Image

Cross Section

Download

ies

Everlight Shuen White

Eff:

82.6%

FWHM:

45.1 x 25.2°

Cd/Im:

2.3

Spot Image

Cross Section

,

Cross Section

Download

ies

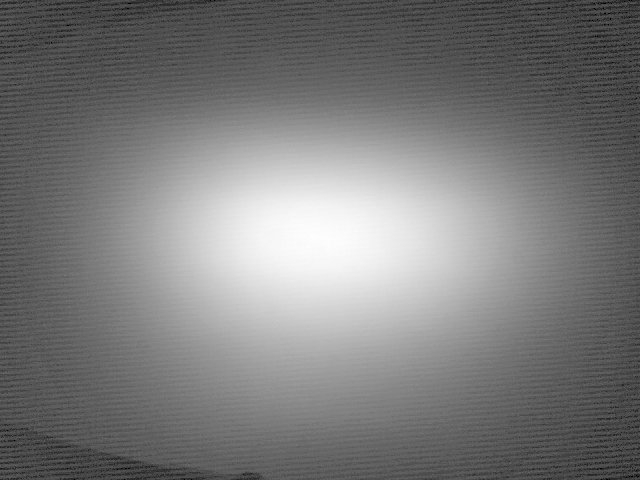

LG Innotek 3535LG White

FWHM:

44.9 x 24°

Cd/Im:

2.2

Spot Image

Cross Section

Download

ies

LUMILEDS LUXEON 3030 HE Plus White

Eff:

85.0%

FWHM:

49 x 28°

Cd/Im:

2.0

Carclo Optics – 10415 – Luxeon_3030_HE_Plus_spot-image

Carclo Optics – 10415 Horizontal – Luxeon_3030_HE_Plus_cross vertical section

,

Carclo Optics – 10415 Vertical – Luxeon_3030_HE_Plus_cross vertical section

Download

IES

LUMILEDS LUXEON 3030 LUXEON White

Eff:

82.0%

FWHM:

51.7 x 22.7°

Cd/Im:

1.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON 3535 HV White

Eff:

83.7%

FWHM:

53 X 23.6°

Cd/Im:

1.7

carclo optics - simulated spot image

carclo optics - horizontal simulated cross section

,

carclo optics - simulated vertical cross section

Download

IES

LUMILEDS LUXEON 3535 L White

Eff:

83.4%

FWHM:

51 X 24°

Cd/Im:

1.7

carclo optics - simulated spot image

carclo optics - horizontal simulated cross section

,

carclo optics - simulated vertical cross section

Download

IES

LUMILEDS LUXEON C Lime

Eff:

82.5%

FWHM:

55.0 x 23.0°

Cd/Im:

1.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON C White

Eff:

82.7%

FWHM:

46.3 x 13.6°

Cd/Im:

4.2

Spot Image

Cross Section

Download

ies

LUMILEDS LUXEON CSP 05 White

Eff:

86.0%

FWHM:

55 x 20.7°

Cd/Im:

1.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON CSP 10 White

Eff:

85.0%

FWHM:

55.3 x 22.9°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

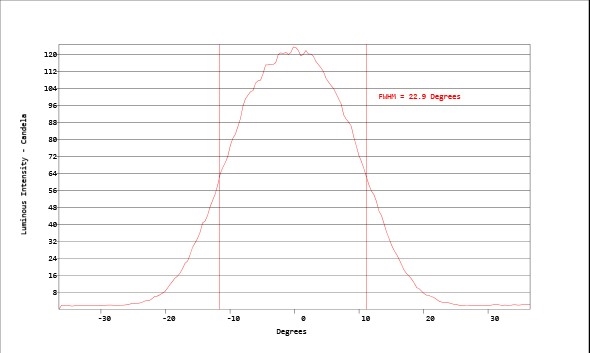

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON CZ White

Eff:

88.0%

FWHM:

55 x 20°

Cd/Im:

2.4

Carclo Optics 10415 Spot Image Luxeon CZ CW

Carclo Optics 10415 Cross Section Luxeon CZ CW

,

Carclo Optics 10415 Simulated Vertical Cross Section Luxeon CZ CW

Download

IES

LUMILEDS LUXEON IR 2720

Eff:

89.0%

FWHM:

54.0 / 22.5°

Ipk/W:

2.0

Carclo Optics - 10415 10mm Elliptical Ripple Spot Image Luxeon IR 2720

Carclo Optics - 10415 10mm Elliptical Ripple Cross Section Luxeon IR 2720

Download

IES

LUMILEDS LUXEON IR Compact 850nm

Eff:

89.5%

FWHM:

54 x 22°

Ipk/W:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 150 Degree

Eff:

88.0%

FWHM:

45 x 25°

Cd/Im:

1.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON MZ White

Eff:

81.7%

FWHM:

36 x 39°

Cd/Im:

1.0

carclo simulated spot image

carclo simulated cross section

Download

IES

LUMILEDS LUXEON Q White

Eff:

81.7%

FWHM:

50.9x27.7°

Cd/Im:

1.4

carclo optics - simulated spot image

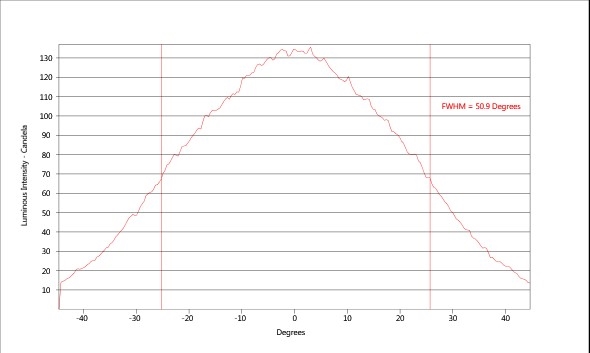

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

LUMILEDS LUXEON R White

Eff:

83.0%

FWHM:

44.0 x 24.4°

Cd/Im:

2.5

Spot Image

Cross Section

Download

ies

LUMILEDS LUXEON Rebel ES White

Eff:

83.0%

FWHM:

44 x 24.4°

Cd/Im:

2.5

Spot Image

Cross Section

Download

ies

LUMILEDS LUXEON Rebel White

Eff:

84.3%

FWHM:

46 x 16°

Cd/Im:

3.1

Spot Image

Cross Section

Download

ies

LUMILEDS LUXEON Rubix Blue

Eff:

88.0%

FWHM:

55 x 20°

Carclo Optics - 10415 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics - 10415 Horizontal Cross Section Lumileds Luxeon Rubix Blue

,

Carclo Optics - 10415 Vertical Cross Section Lumileds Luxeon Rubix Blue

Download

IES

LUMILEDS LUXEON Rubix Green

Eff:

88.0%

FWHM:

55 x 20.5°

Cd/Im:

2.4

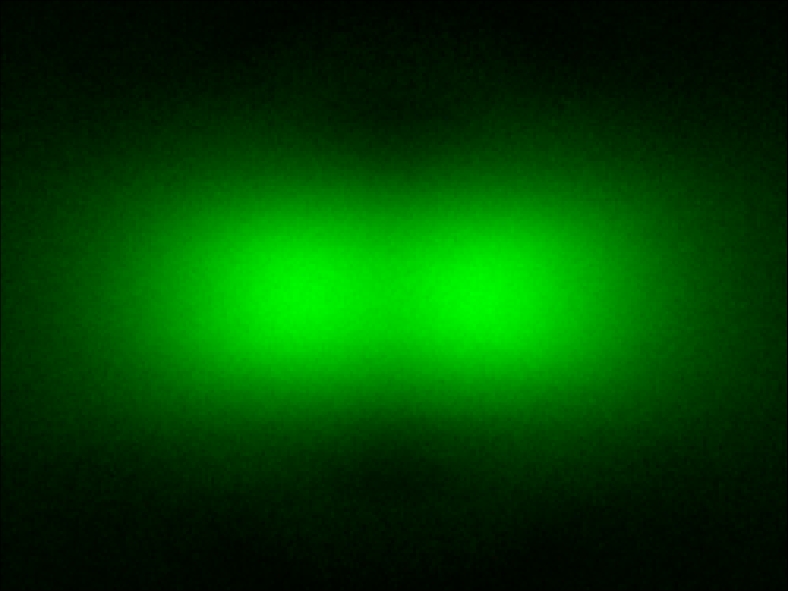

Carclo Optics – 10415 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 10415 Horizontal Cross Section Lumileds Luxeon Rubix Green

,

Carclo Optics – 10415 Vertical Cross Section Lumileds Luxeon Rubix Green

Download

IES

LUMILEDS LUXEON Rubix Red

Eff:

89.0%

FWHM:

54 x 19.5°

Cd/Im:

2.6

Carclo Optics – 10415 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 10415 Horizontal Cross Section Lumileds Luxeon Rubix Red

,

Carclo Optics – 10415 Vertical Cross Section Lumileds Luxeon Rubix Red

Download

IES

LUMILEDS LUXEON Rubix Royal Blue

Eff:

87.0%

FWHM:

55 x 20°

Cd/Im:

2.6

Carclo Optics – 10415 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 10415 Horizontal Cross Section Lumileds Luxeon Rubix Royal Blue

,

Carclo Optics – 10415 Vertical Cross Section Lumileds Luxeon Rubix Royal Blue

Download

IES

LUMILEDS LUXEON Rubix White

Eff:

88.0%

FWHM:

54 x 20.5°

Cd/Im:

2.4

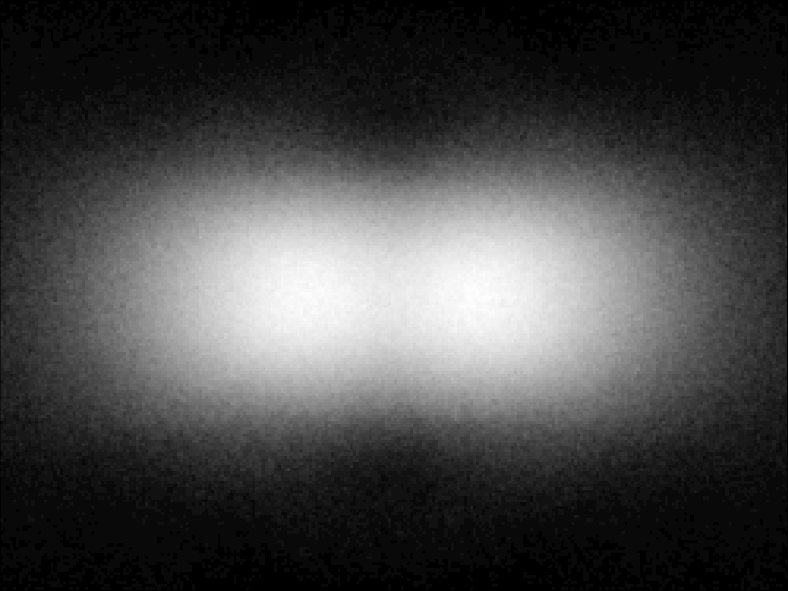

Carclo Optics - 10415 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 10415 Horizontal Cross Section Lumileds Luxeon Rubix White

,

Carclo Optics - 10415 Vertical Cross Section Lumileds Luxeon Rubix White

Download

IES

LUMILEDS LUXEON T White

Eff:

83.0%

FWHM:

44 x 24.4°

Cd/Im:

2.5

Spot Image

Cross Section

Download

ies

LUMILEDS LUXEON TX White

Eff:

83.0%

FWHM:

49.6 x 26.4°

Cd/Im:

1.5

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

LUMILEDS LUXEON Z ES White

FWHM:

42 x 17°

Cd/Im:

3.2

Spot Image

Cross Section

,

Cross Section

Download

ies

LUMILEDS LUXEON Z White

Eff:

86.0%

FWHM:

54.7 x 18.8°

Cd/Im:

2.3

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

Luminus Devices SST 10-B-B130 Blue

Eff:

85.5%

FWHM:

56 x 22.5°

Cd/Im:

2.0

Carclo Optics - 10415 Luminus_SST-10_B_B130 - spot image

Carclo Optics - 10415 Luminus_SST-10_B_B130 - cross section vertical image

,

Carclo Optics - 10415 Luminus_SST-10_B_B130 - cross section horizontal image

Download

IES

Luminus Devices SST 10-B-B90 Blue

Eff:

83.5%

FWHM:

52 x 25°

Cd/Im:

1.9

Carclo Optics - 10415 Luminus_SST-10_B_B90 - spot - image

Carclo Optics - 10415 Luminus_SST-10_B_B90 - cross-horizontal image

,

Carclo Optics - 10415 Luminus_SST-10_B_B90 - cross-vertical- image

Download

IES

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

87.0%

FWHM:

54 x 265°

Cd/Im:

1.9

Carclo Optics – 10415 Luminus_SST-10_DR_B130- Spot - image

Carclo Optics – 10415 Horizontal Luminus_SST-10_DR_B130- Cross section – image

,

Carclo Optics – 10415 Vertical Luminus_SST-10_DR_B130- Cross section – image

Download

IES

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

85.5%

FWHM:

47 x 27°

Cd/Im:

2.1

Carclo Optics - 10415 Luminus_SST-10_DR_B90 - Spot Image

Carclo Optics - 10415 Luminus_SST-10_DR_B90 - Cross section vertical image

Download

IES

Luminus Devices SST 10-G-B130 Green

Eff:

87.0%

FWHM:

55 x 22.5°

Cd/Im:

2.1

Carclo Optics - 10415 Luminus_SST-10_G_B130 - spot - image

Carclo Optics - 10415 Luminus_SST-10_G_B130 - cross -Horizontal- image

,

Carclo Optics - 10415 Luminus_SST-10_G_B130 - cross -vertical- image

Download

IES

Luminus Devices SST 10-G-B90 Green

Eff:

85.0%

FWHM:

49 x 25°

Cd/Im:

2.0

Carclo Optics - 10415 Luminus_SST-10_G_B90- Spot - image

Carclo Optics - 10623 Luminus_SST-10_G_B90- Cross section Horizontal - image

,

Carclo Optics - 10623 Luminus_SST-10_G_B90- Cross section Vertical - image

Download

IES

Luminus Devices SST 10-IR-B130 940nm

Eff:

88.5%

FWHM:

49 x 25°

Ipk/W:

2.3

Carclo Optics - 10415 Spot Image Luminus SST-10-IR-B130

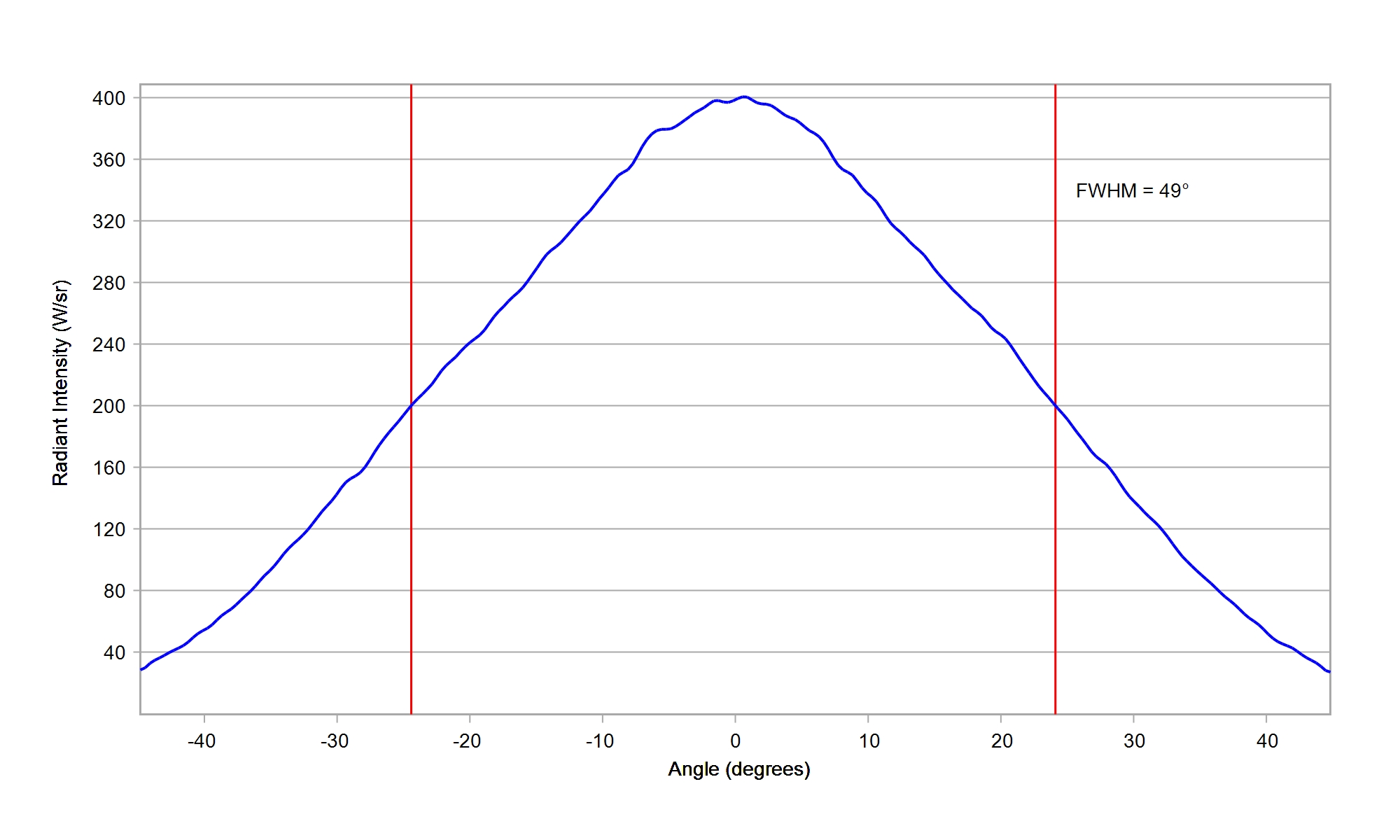

Carclo Optics - 10415 Horizontal Cross Section Luminus SST-10-IR-B130

,

Carclo Optics - 10415 Vertical Cross Section Luminus SST-10-IR-B130

Download

IES

Luminus Devices SST 10-IR-B90 940nm

Eff:

87.0%

FWHM:

41 x 27°

Ipk/W:

2.1

Carclo Optics - 10415 Spot Image Luminus SST-10-IR-B90

Carclo Optics - 10415 Horizontal Cross Section Luminus SST-10-IR-B90

,

Carclo Optics - 10415 Vertical Cross Section Luminus SST-10-IR-B90

Download

IES

Luminus Devices SST 20-WxH White Hi CRI

Eff:

86.5%

FWHM:

52 x 25.5°

Cd/Im:

1.9

Carclo Optics – 10415 - Luxeon_SST_20_W_spot-image

Carclo Optics – 10415 Horizontal - Luxeon_SST_20_W_cross vertical section

,

Carclo Optics – 10415 Vertical - Luxeon_SST_20_W_cross vertical section

Download

IES

Nichia 219 White

FWHM:

44.3 X 25.7°

Cd/Im:

2.5

Spot Image

Cross Section

Download

ies

Nichia 757 White

Eff:

83.5%

FWHM:

50 x 29°

Cd/Im:

1.3

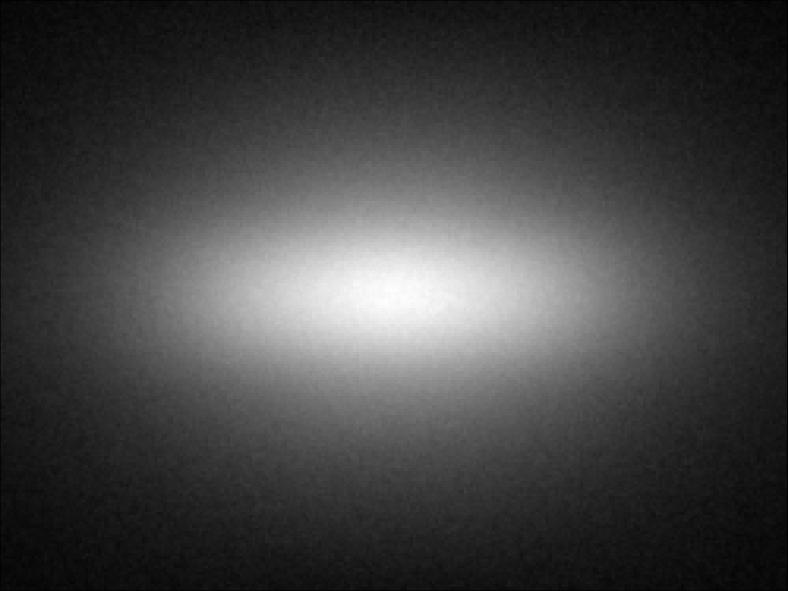

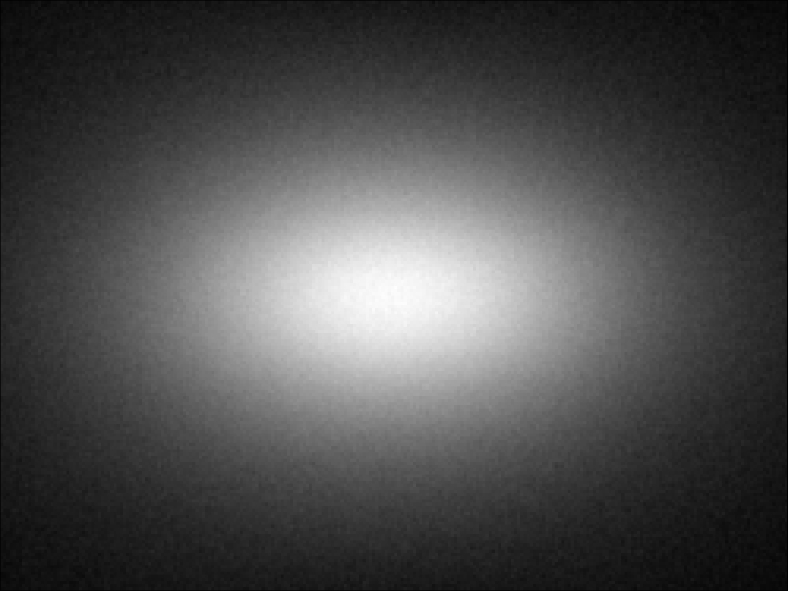

carclo optics - simulated spot image

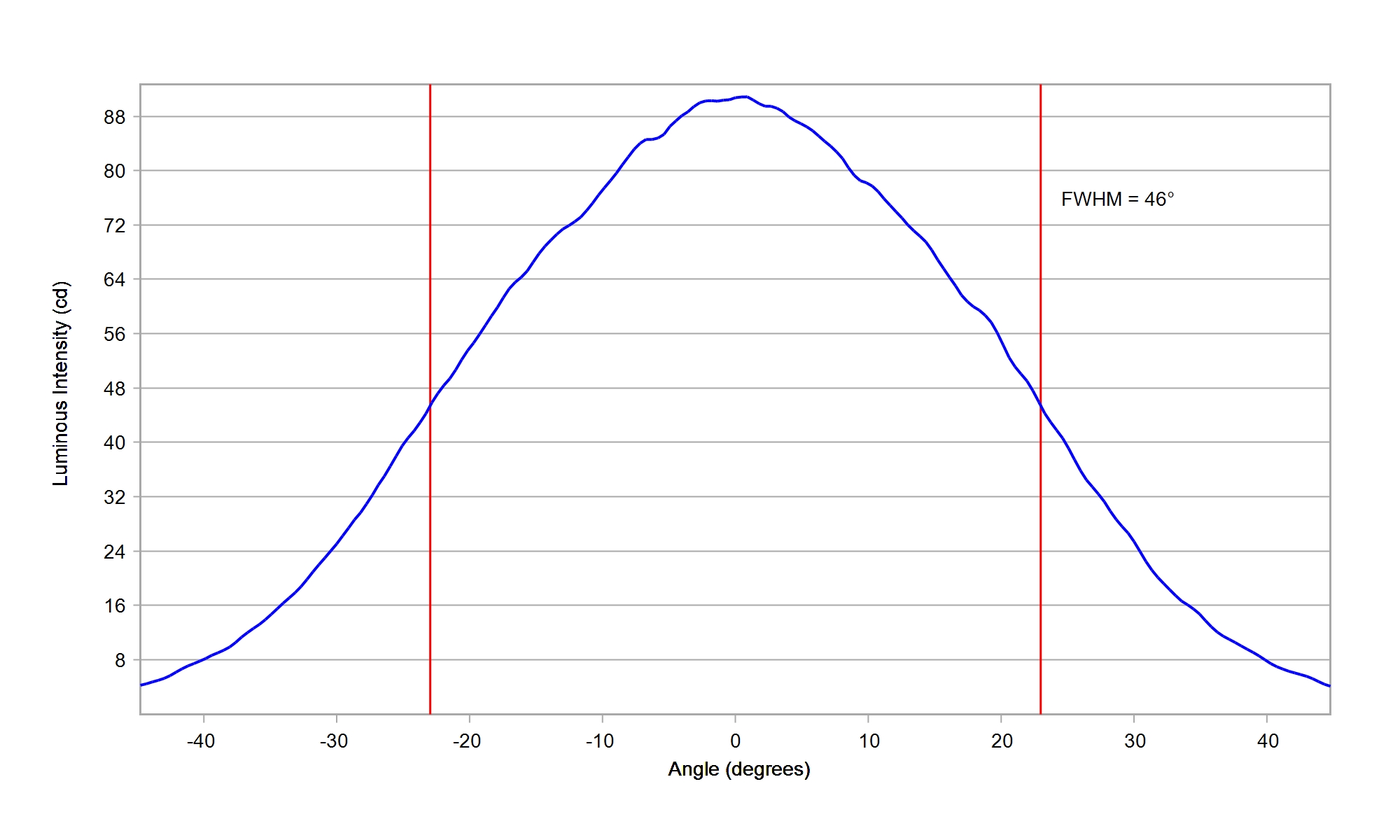

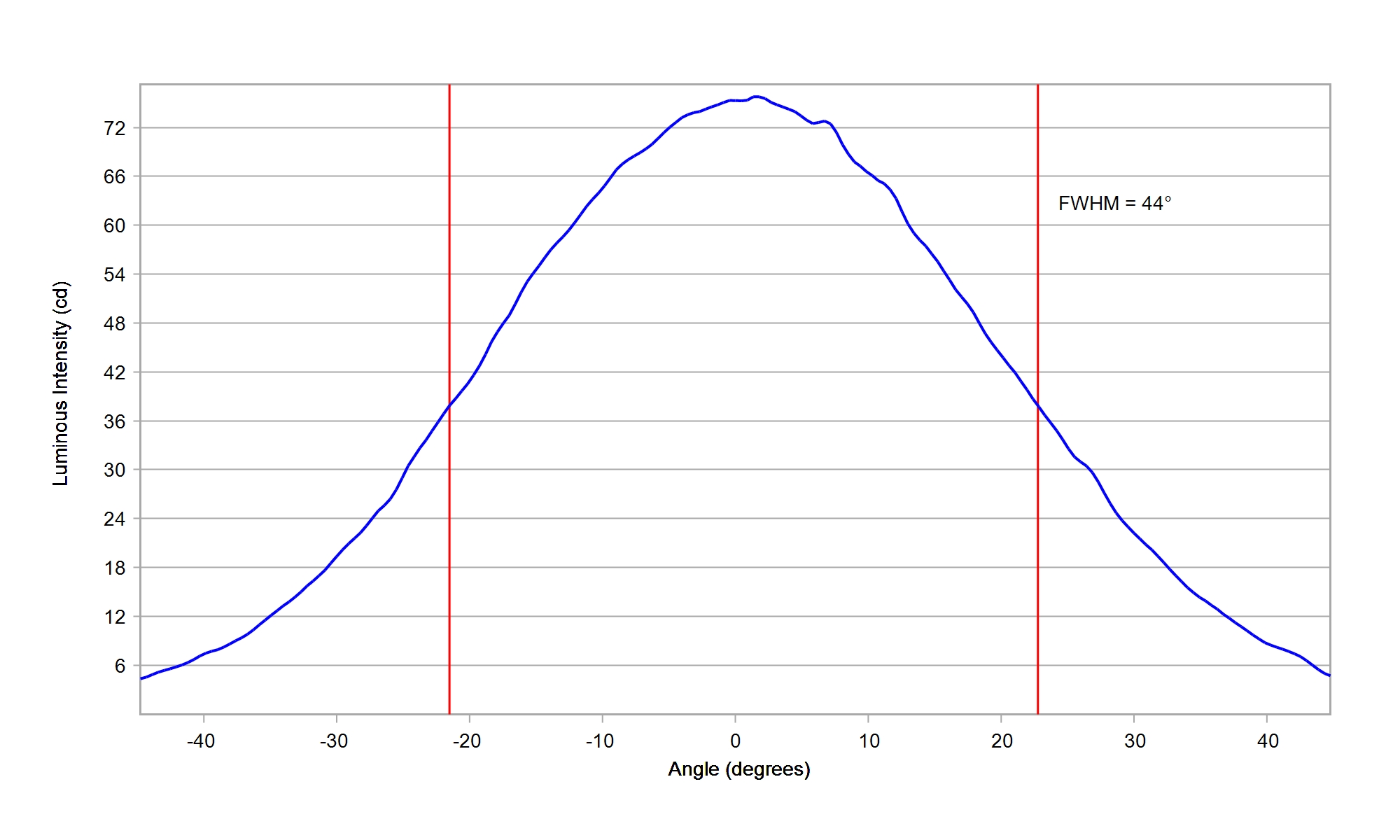

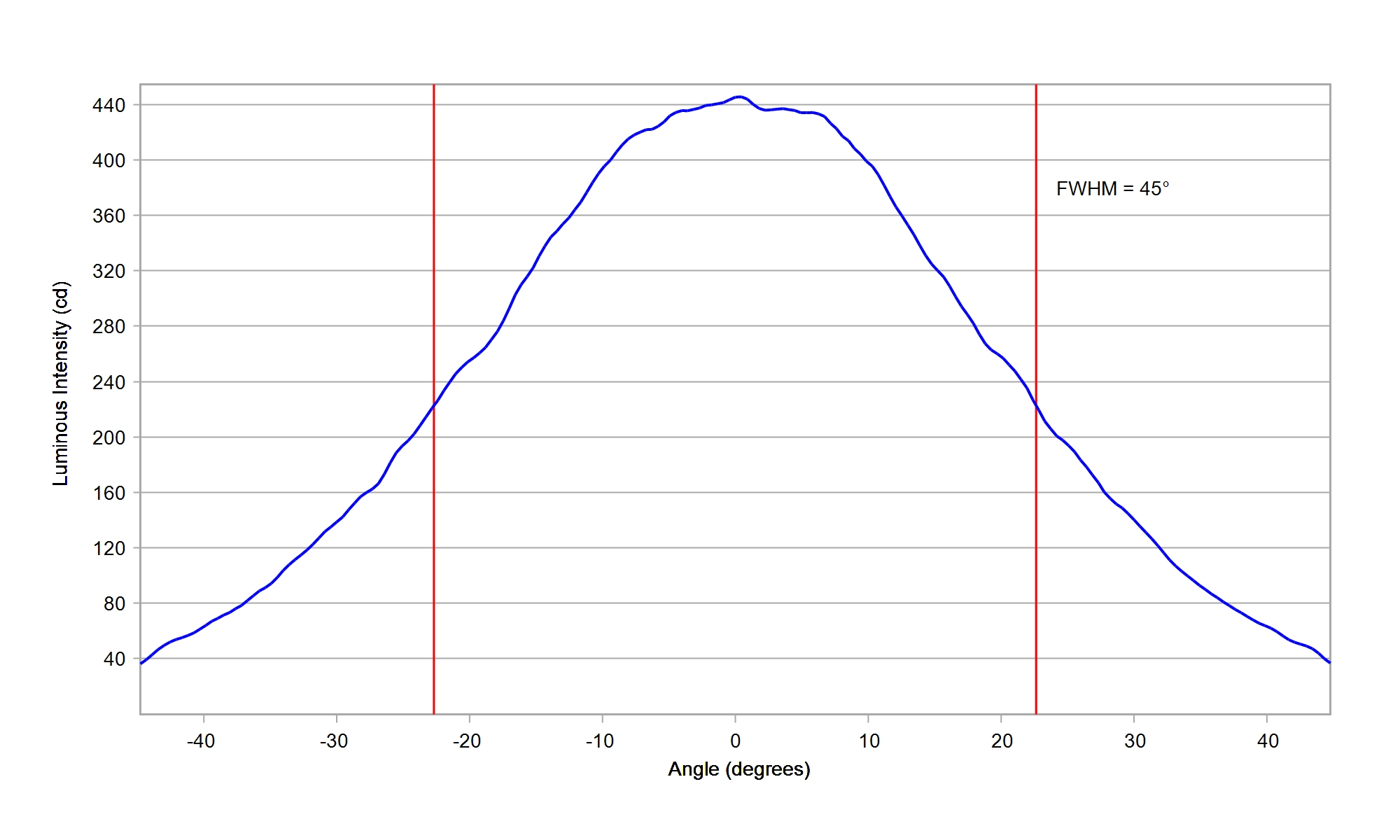

carclo optics - horizontal simulated cross section

,

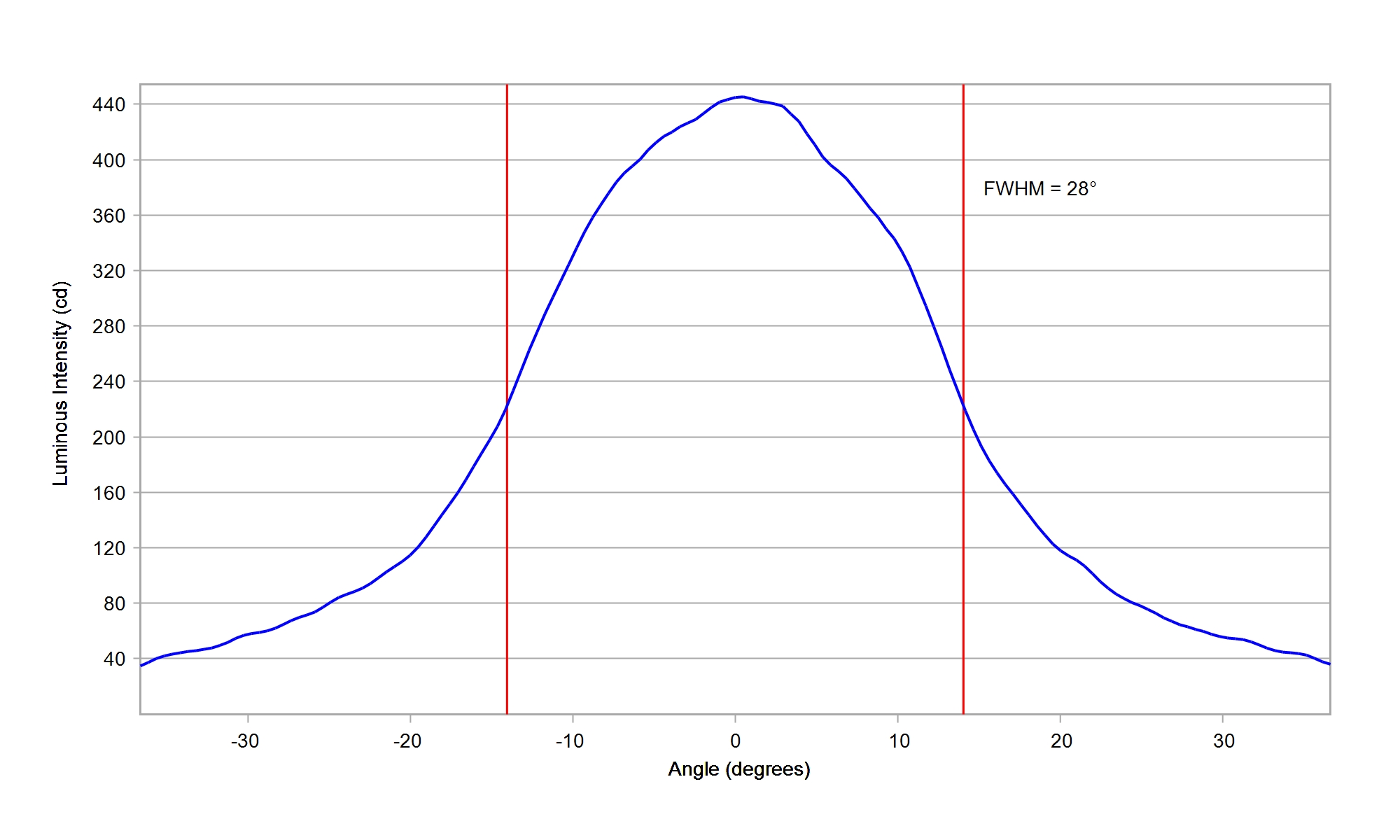

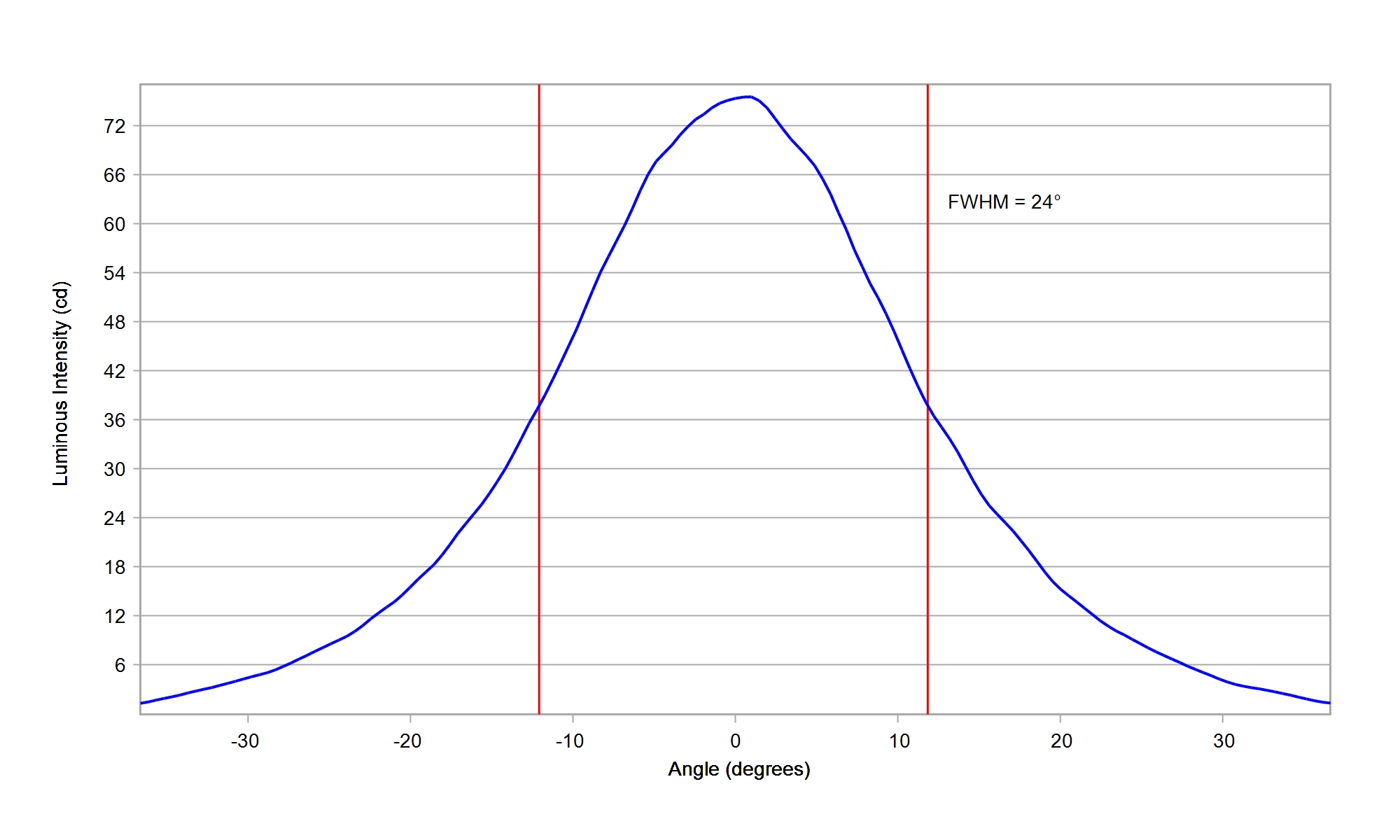

carclo optics - simulated vertical cross section

Download

IES

Nichia 757G White

Eff:

84.0%

FWHM:

48 x 29°

Cd/Im:

1.8

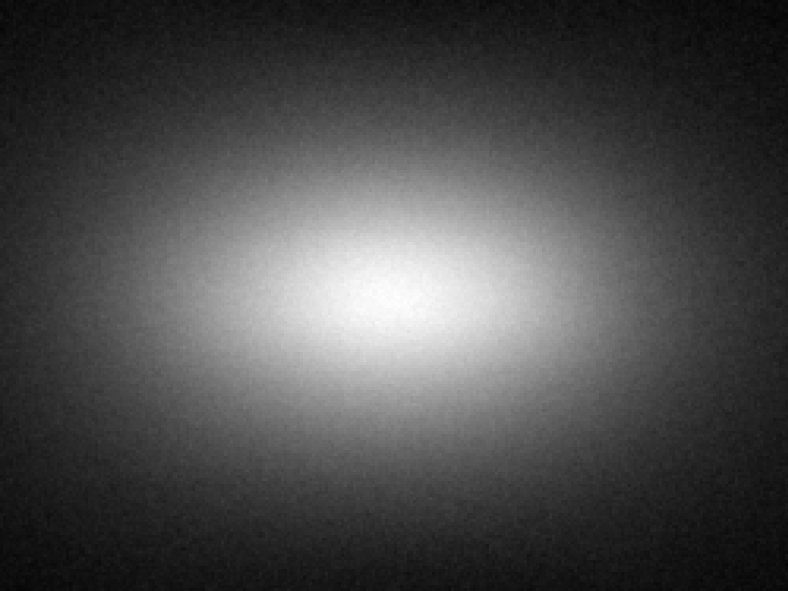

Carclo Optics 10415 10mm Simulated Spot Image Nichia 757G-MT

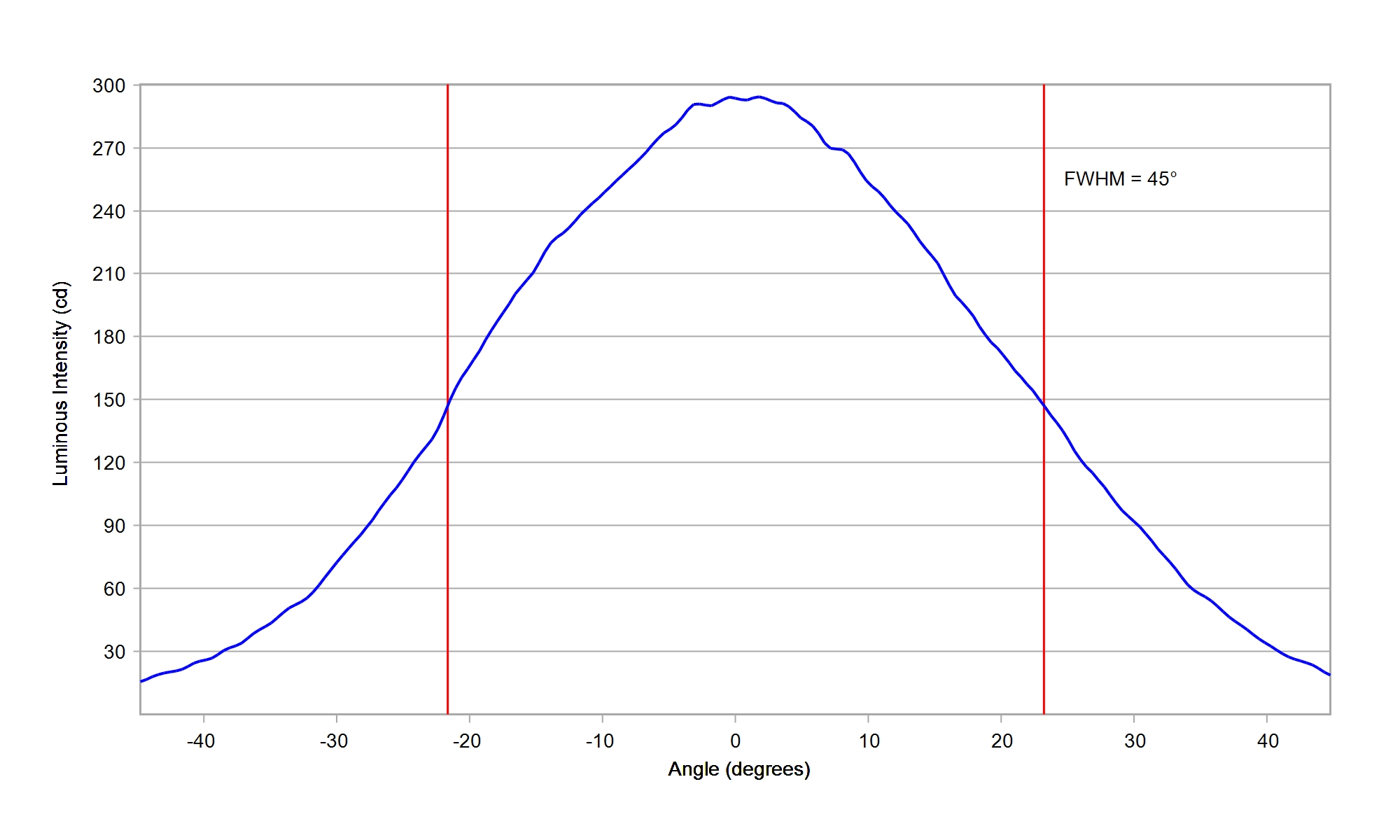

Carclo Optics 10624 10mm Cross Horizontal Section Nichia 757G-MT

,

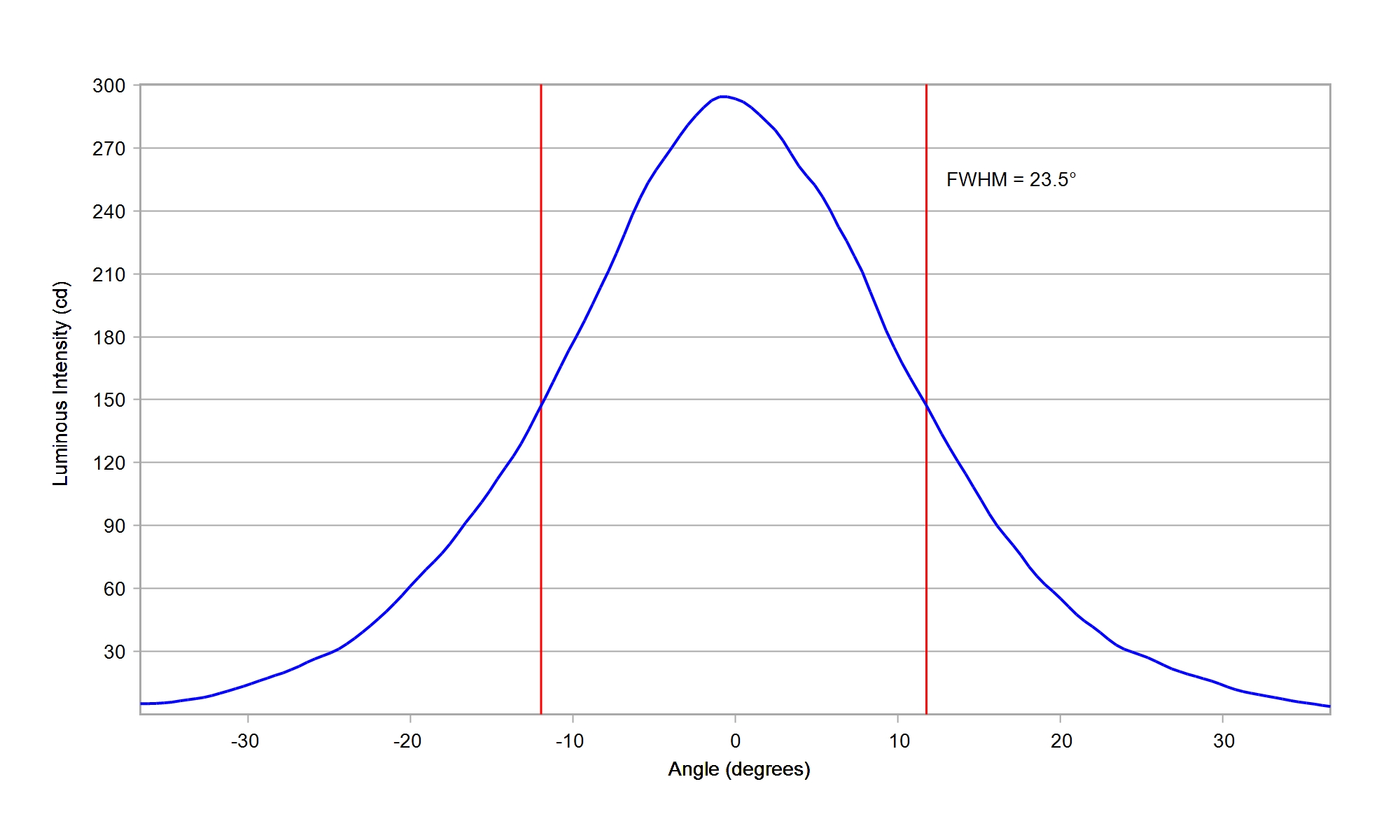

Carclo Optics 10624 10mm Cross Vertical Section Nichia 757G-MT

Download

IES

Nichia NCSW CSP E17A White

Eff:

85.0%

FWHM:

57 x 21°

Cd/Im:

1.5

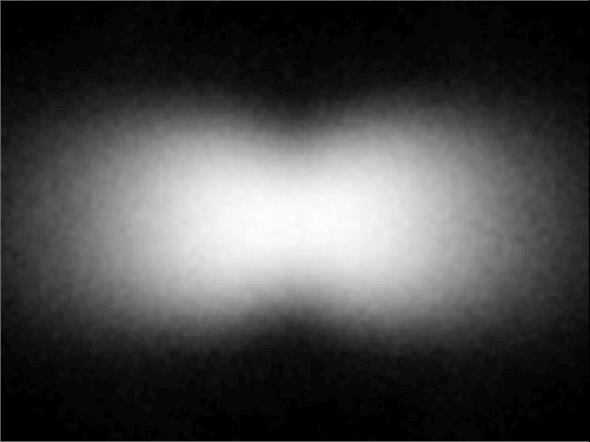

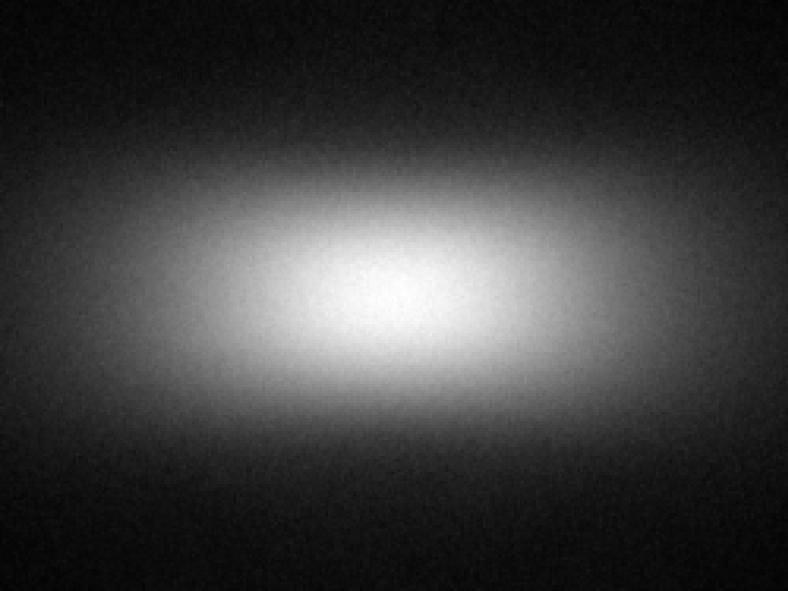

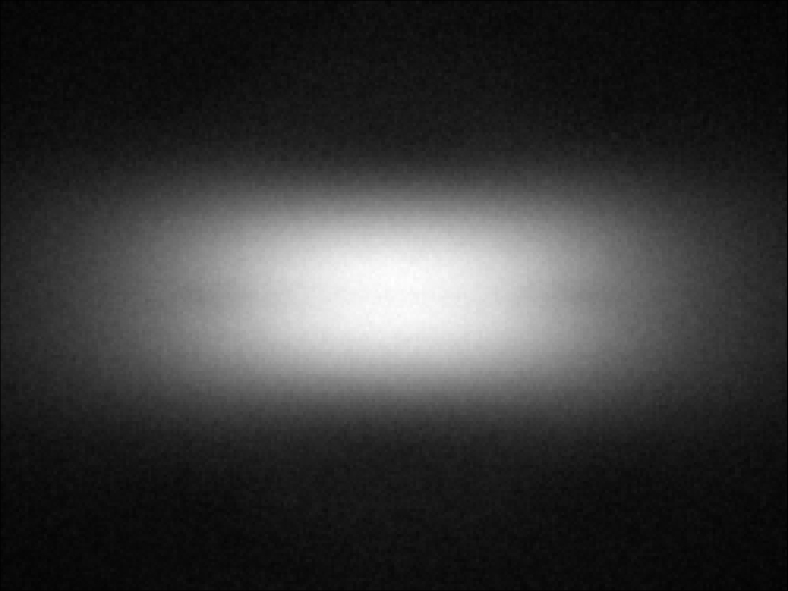

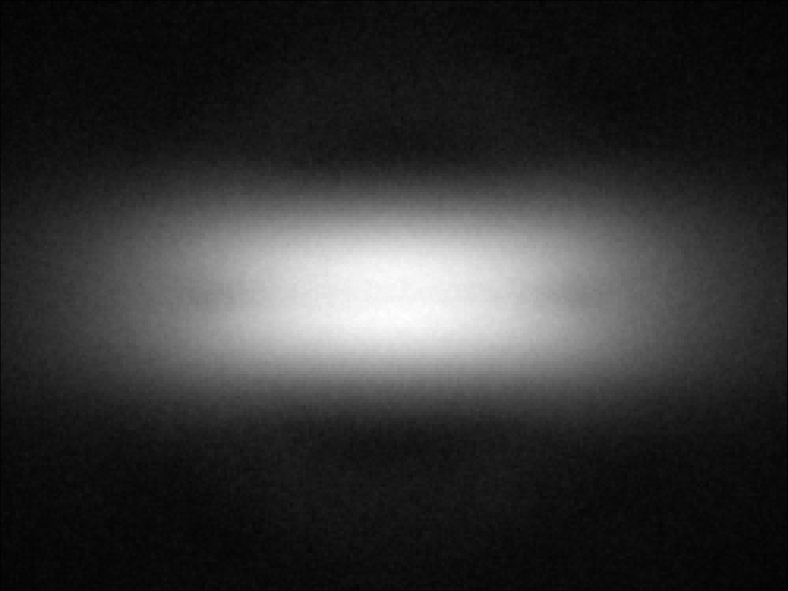

Carclo Optics - Simulated Spot Image

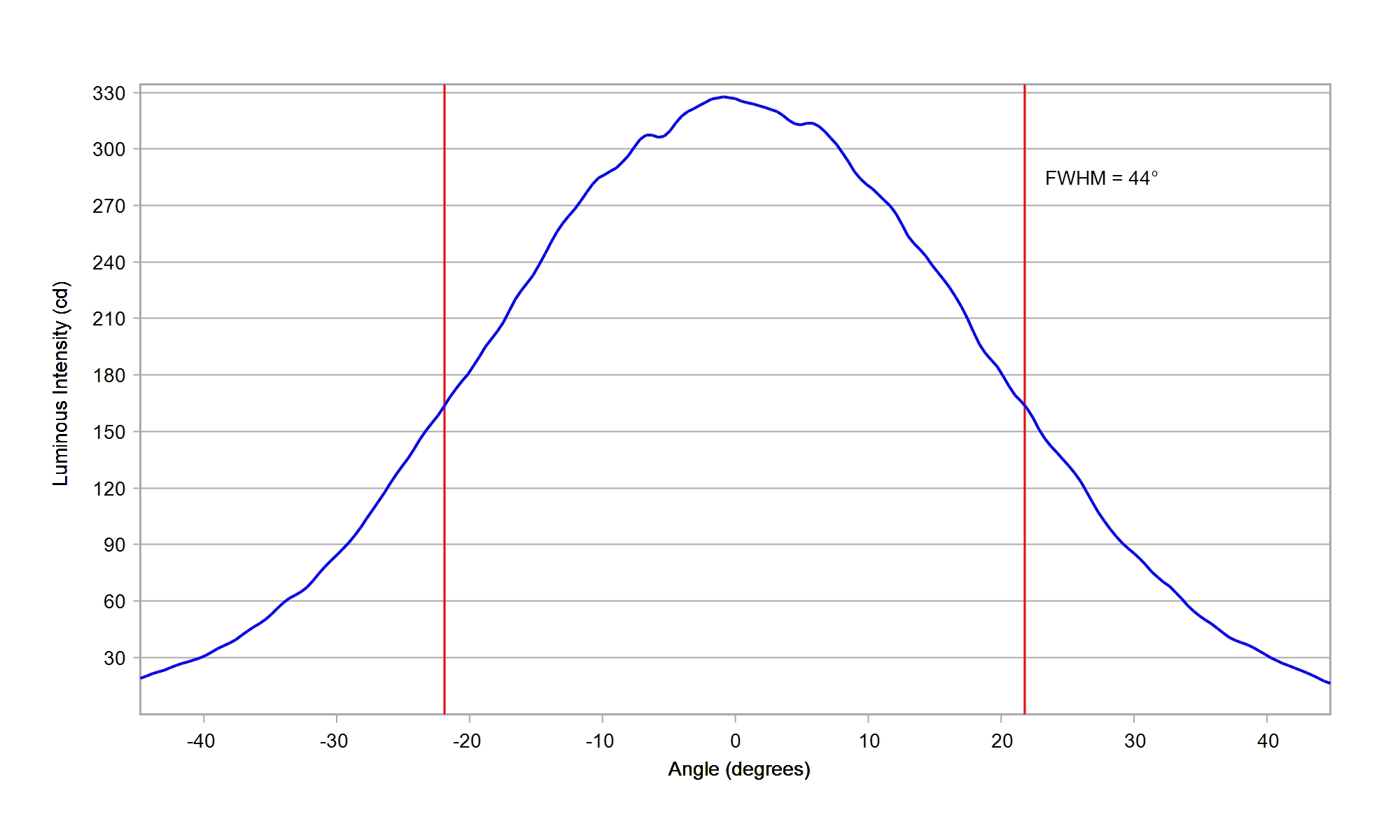

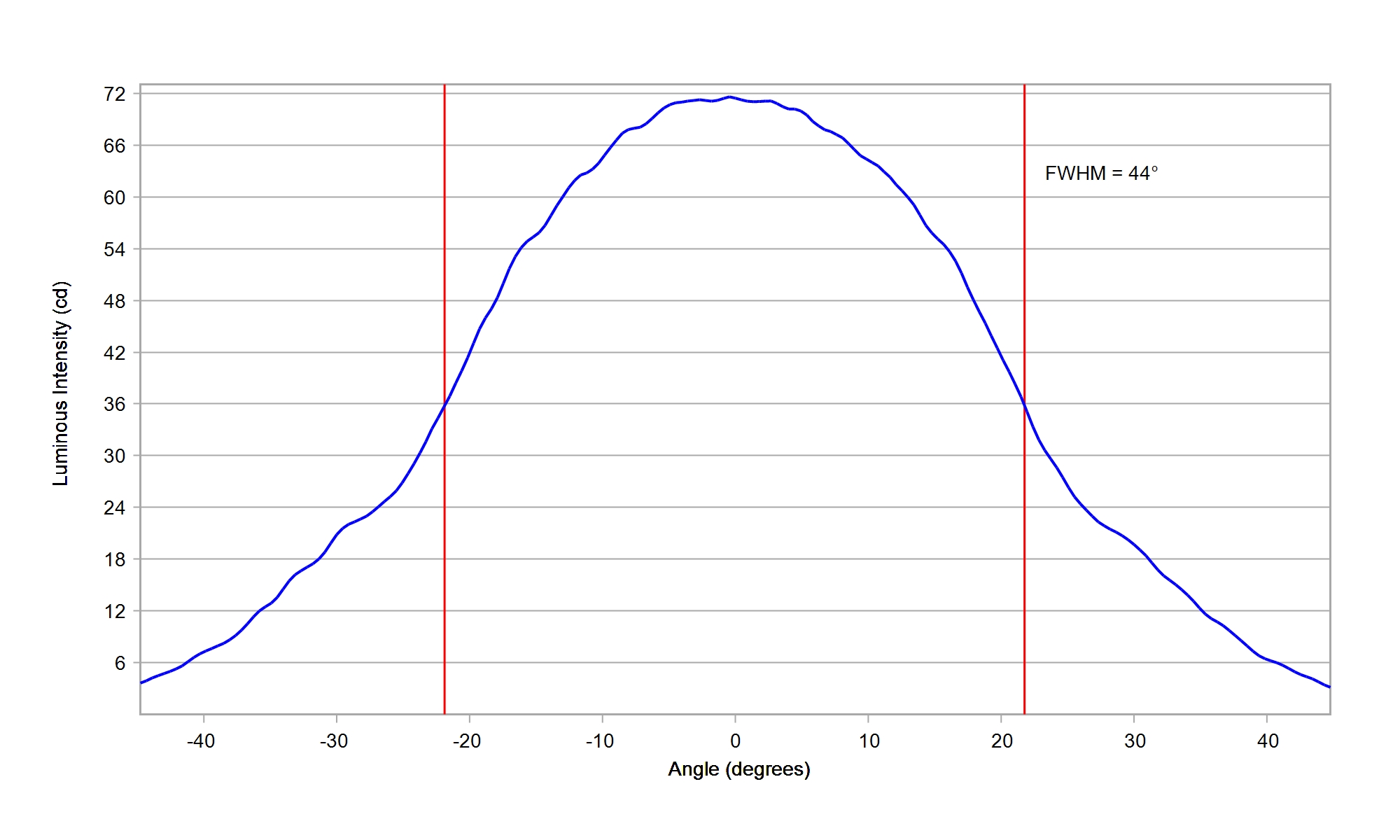

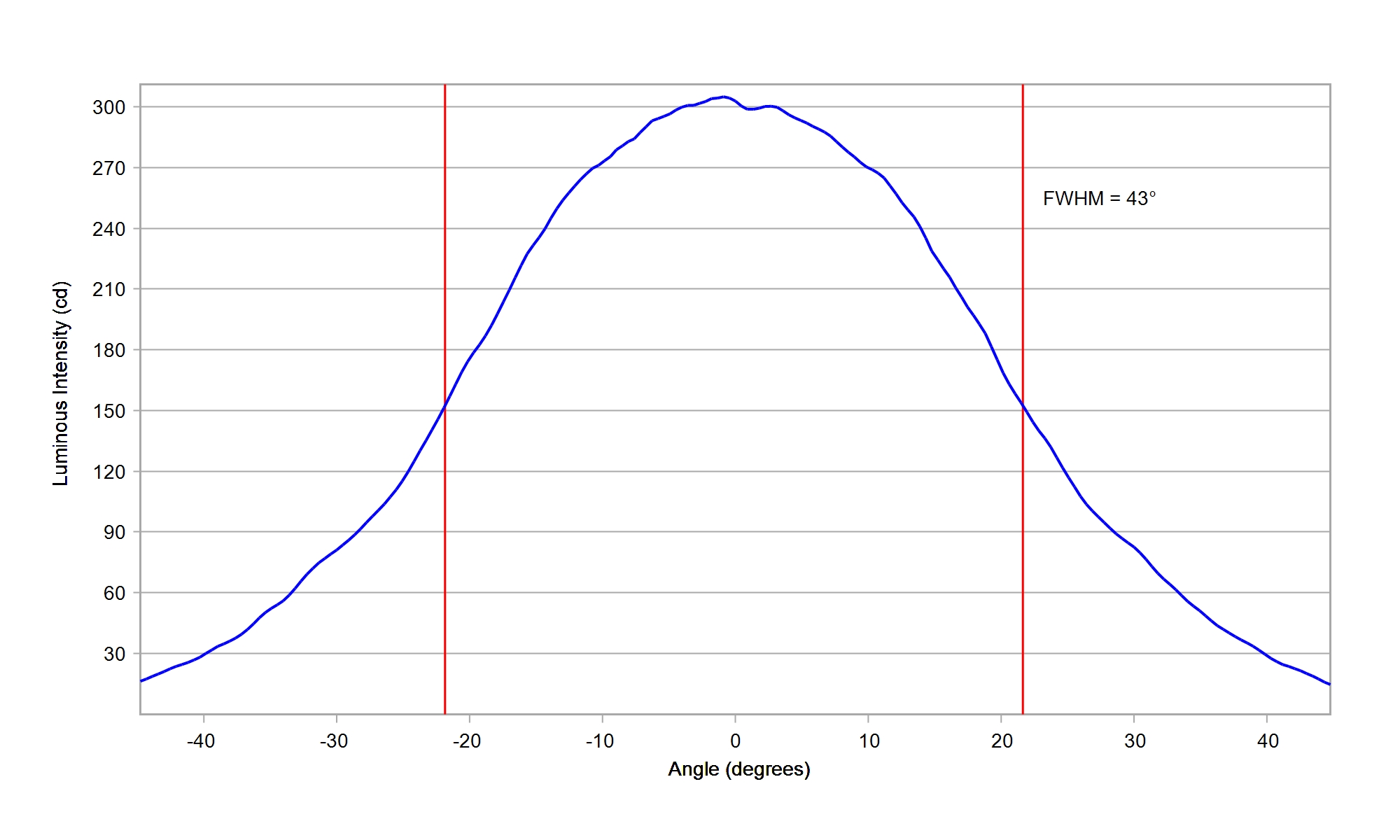

Carclo Optics - Simulated Horizontal Cross Section

,

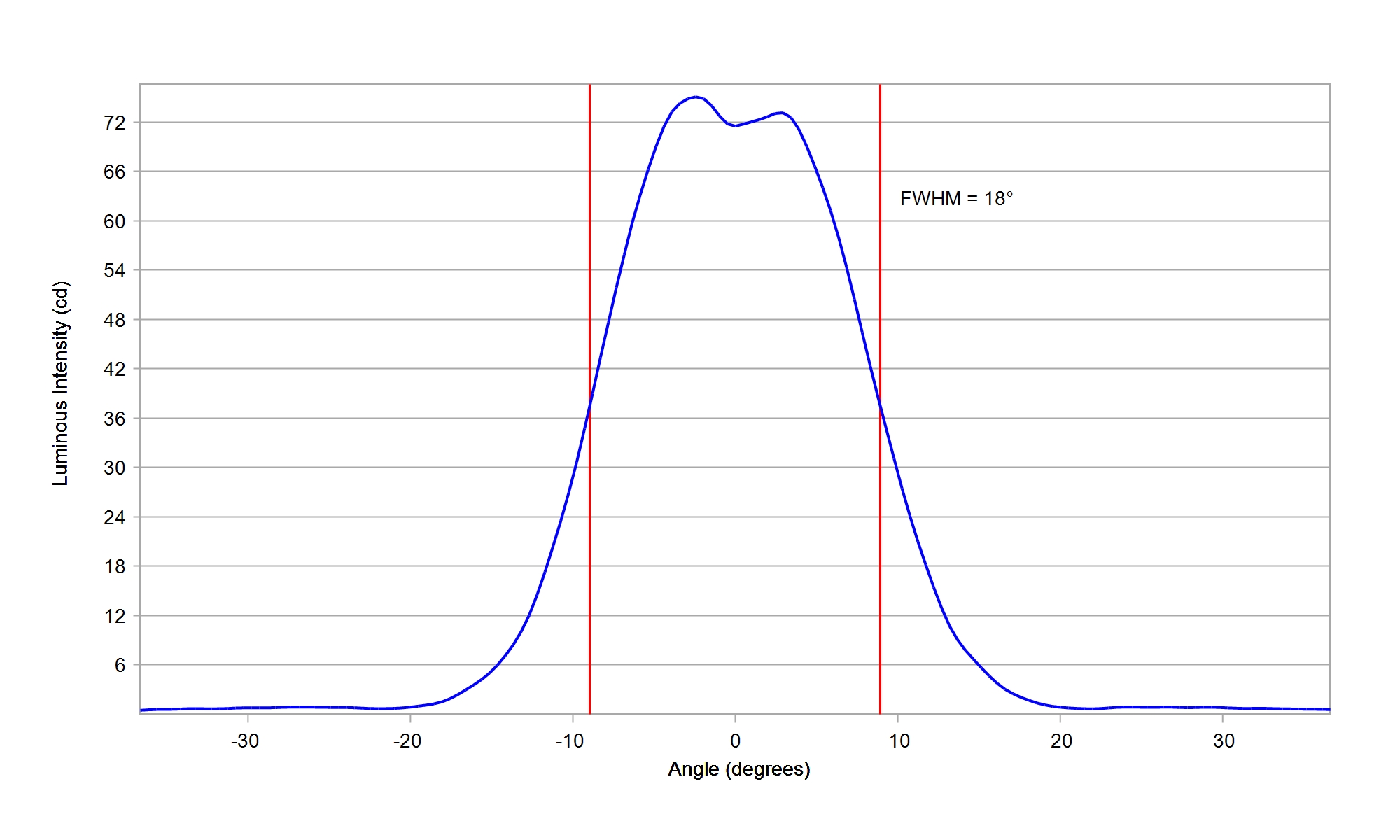

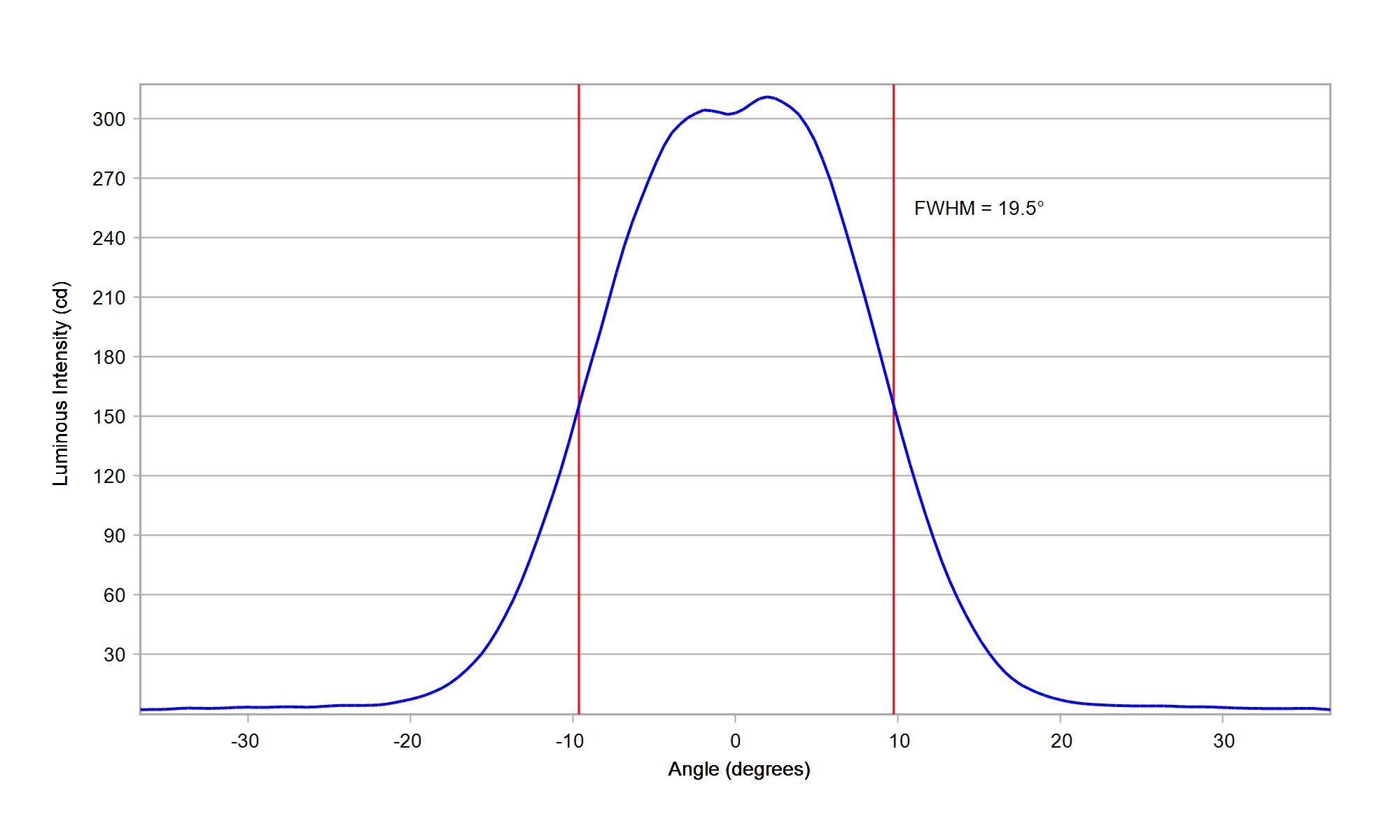

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NF2W 385AR-V2 White

Eff:

83.0%

FWHM:

48.0 x 27.5°

Cd/Im:

1.6

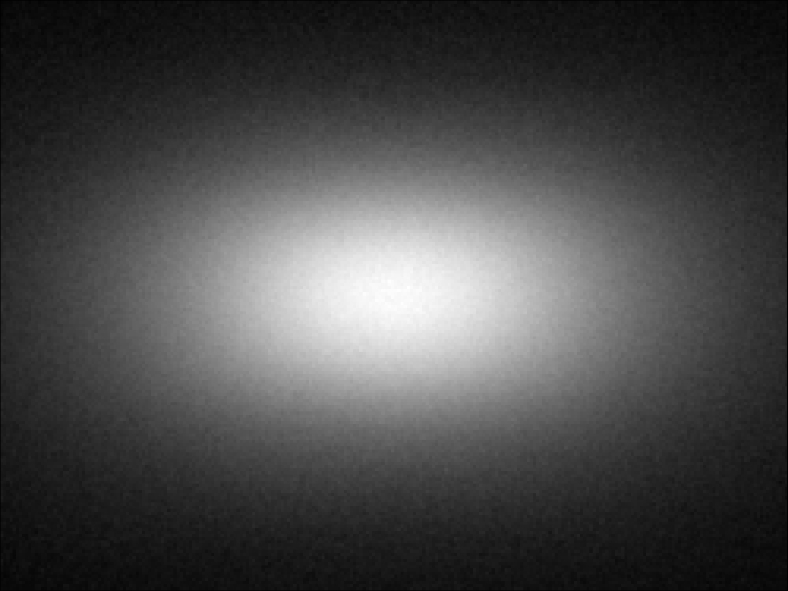

Carclo Optics - Simulated Spot Image

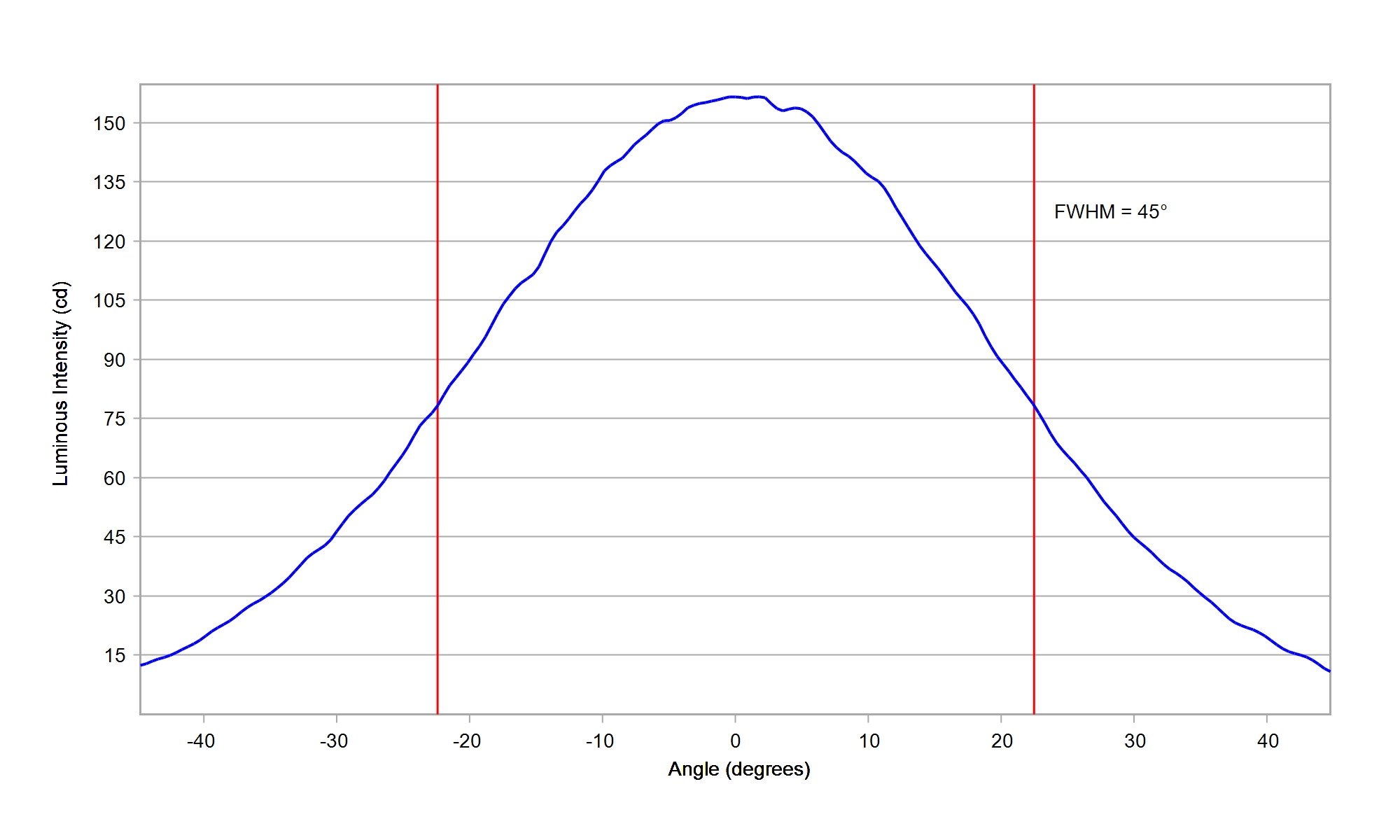

Carclo Optics - Simulated Horizontal Cross Section

,

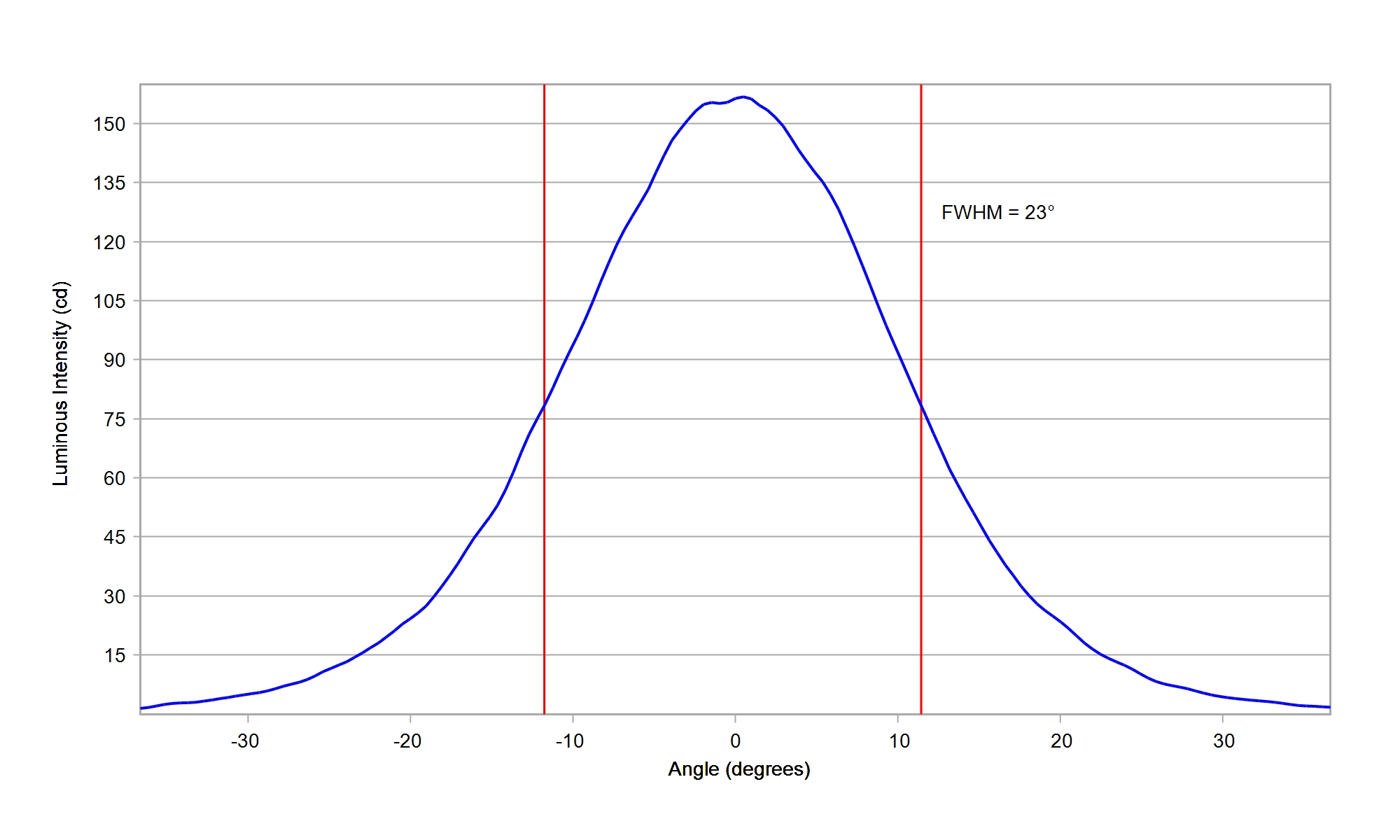

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NVSL 219B White

Eff:

84.5%

FWHM:

53 x 25.5°

Cd/Im:

1.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

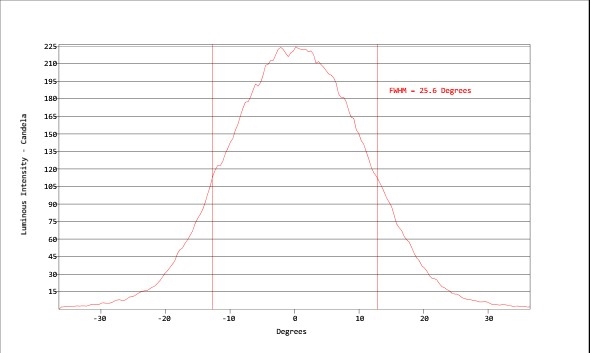

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NVSW 219F White

Eff:

84.0%

FWHM:

56 x 24.5°

Cd/Im:

1.6

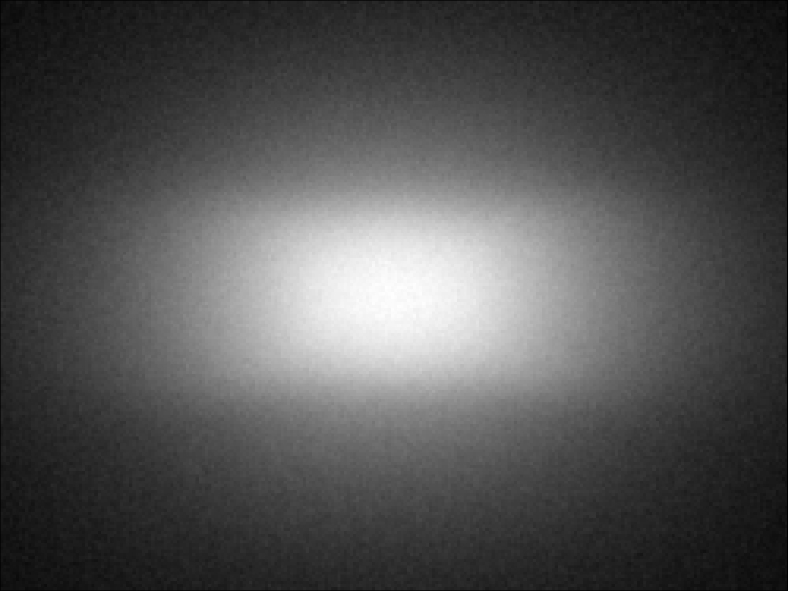

Carclo Optics – 10415 Nichia NVSW 219F White - Spot Image

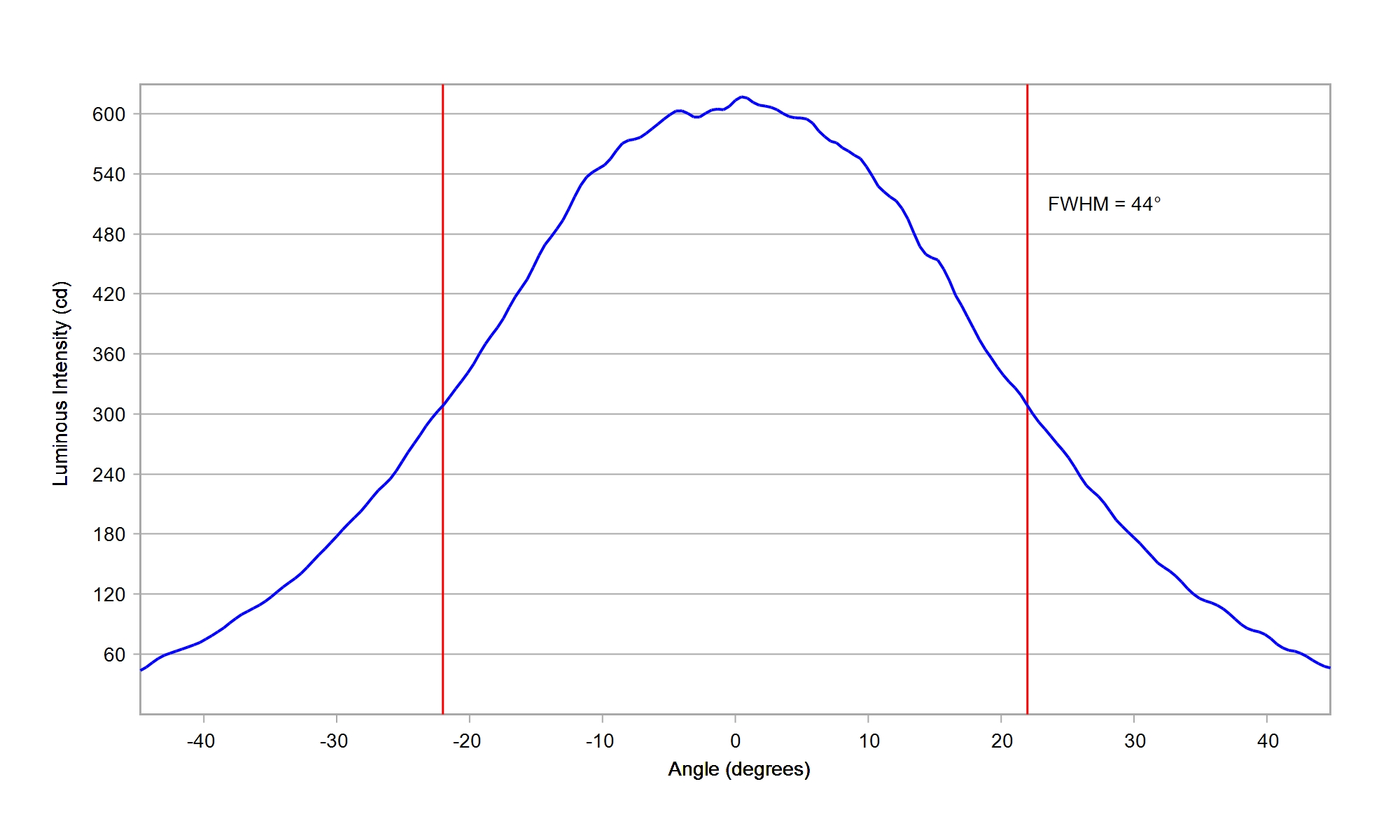

Carclo Optics – 10415 Horizontal Nichia NVSW 219F White - Cross-Section

,

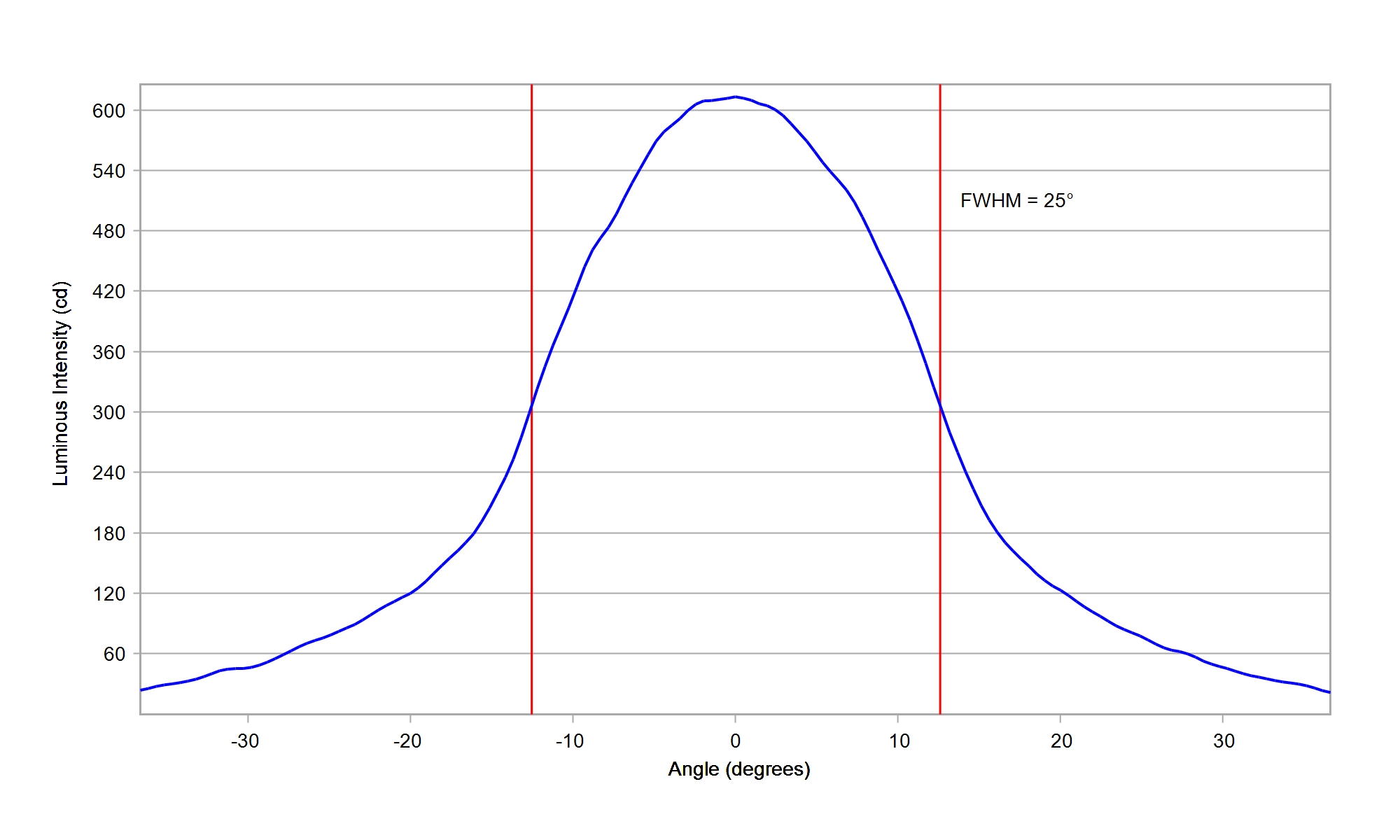

Carclo Optics – 10415 Vertical Nichia NVSW 219F White - Cross-Section

Download

IES

Nichia NVSW CSP E21A White

Eff:

84.0%

FWHM:

50.4 x 25.3°

Cd/Im:

1.4

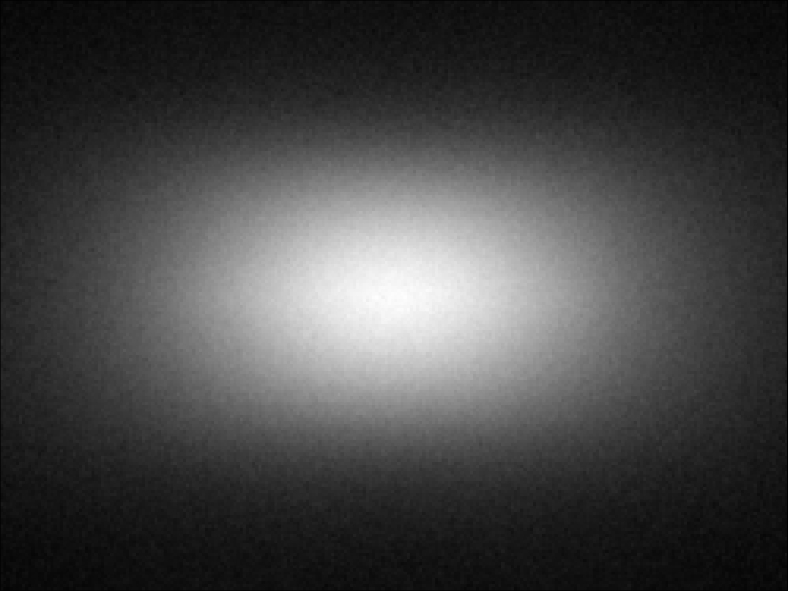

Carclo Optics - Simulated Spot Image

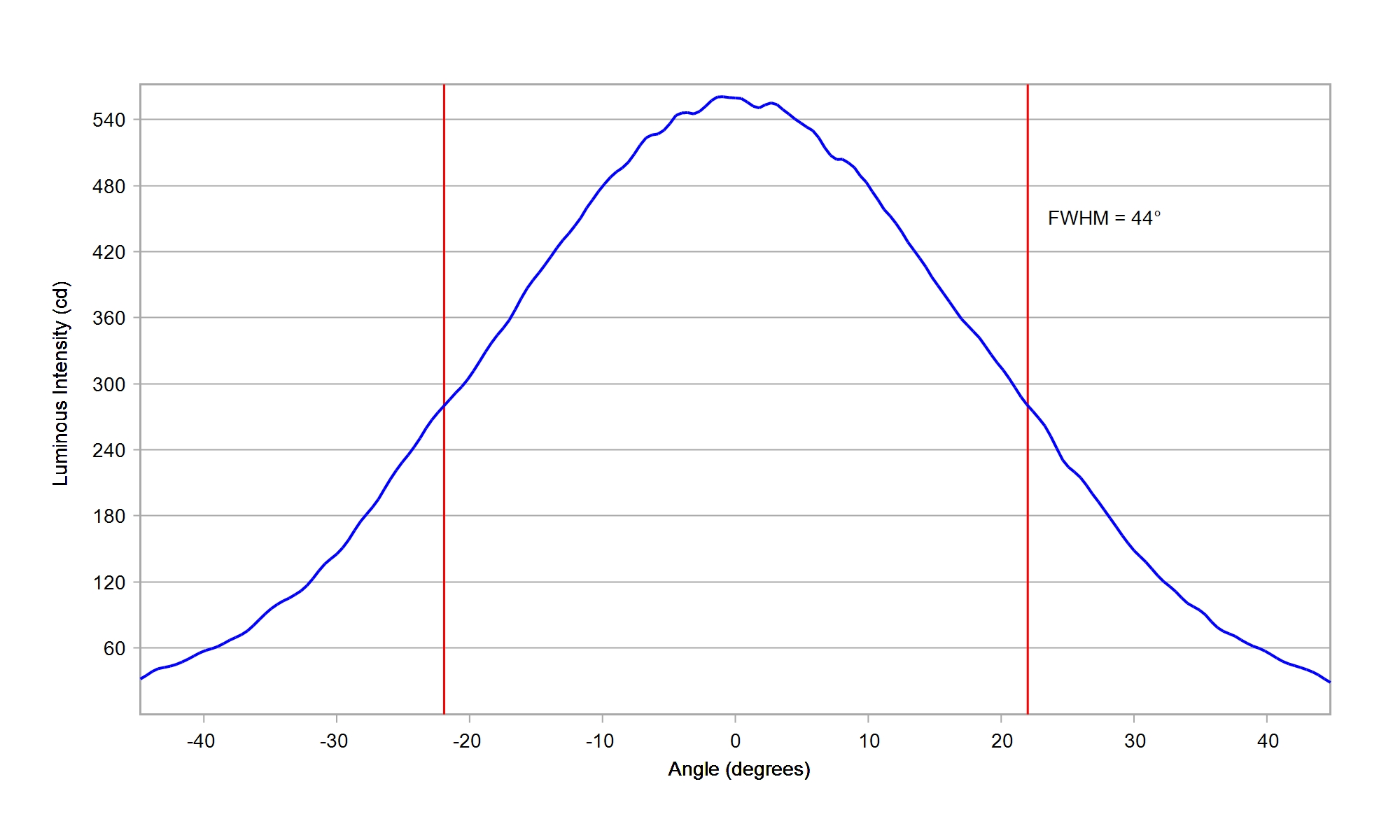

Carclo Optics - Simulated Horizontal Cross Section

Download

IES

Nichia Top Emitting NCSL 119-H3 White

Eff:

81.4%

FWHM:

44.7 x 21.7°

Cd/Im:

2.3

Spot Image

Cross Section

Download

ies

Osram OS DURIS E 2835 Gen2

Eff:

86.0%

FWHM:

55 x 25.5°

Cd/Im:

1.8

Carclo Optics - 10415 10mm Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 10415 10mm Horizontal Cross Section Osram DURIS E 2835 Gen2

,

Carclo Optics - 10415 10mm Vertical Cross Section Osram DURIS E 2835 Gen2

Download

IES

Osram OS DURIS E 2835 White

Eff:

84.0%

FWHM:

52 x 25°

Cd/Im:

1.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS E2 White

Eff:

86.0%

FWHM:

54.4 x 20.2°

Cd/Im:

2.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS E3 White

Eff:

87.6%

FWHM:

53.5x20.7°

Cd/Im:

2.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section Image

,

Carclo Optics - Simulated Vertical Cross Section Image

Download

IES

Osram OS DURIS S2 White

Eff:

90.3%

FWHM:

54.7x23.2°

Cd/Im:

1.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS S5 Deep Blue

Eff:

83.5%

FWHM:

55.0 x 23°

Cd/Im:

1.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS S5 Green

Eff:

85.0%

FWHM:

52 X 24°

Cd/Im:

1.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS S5 Red

Eff:

86.5%

FWHM:

52 x 22.5°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS S5 White

Eff:

84.0%

FWHM:

51 x 24°

Cd/Im:

1.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS OSCONIQ C 2424 White

Eff:

86.5%

FWHM:

54 x 26°

Cd/Im:

1.9

Carclo Optics - 10415 Spot Image OSCONIQ C2424

Carclo Optics - 10415 Horizontal Cross Section OSCONIQ C2424

,

Carclo Optics - 10415 Vertical Cross Section OSCONIQ C2424

Download

IES

Osram OS OSLON Black SFH 4716AS IR

Eff:

89.5%

FWHM:

54 x 22°

Ipk/W:

2.0

Carclo Optics – 10415 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

Carclo Optics – 10415 Horizontal Cross Section OSRAM OS Oslon Black IR SFH 4716AS

,

Carclo Optics – 10415 Vertical Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

IES

Osram OS OSLON Boost HM KW CELMM1.TG

Eff:

88.5%

FWHM:

53 x 17°

Cd/Im:

3.1

Carclo Optics – 10415 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 10415 Horizontal – Osram_Oslon_Boost_KW_CELMM1_TG_cross vertical section

,

Carclo Optics – 10415 Vertical – Osram_Oslon_Boost_KW_CELMM1_TG_cross vertical section

Download

IES

Osram OS OSLON Square Flat White

Eff:

86.0%

FWHM:

55x 23.5°

Cd/Im:

1.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS OSLON Square Gen 3 White

Eff:

83.3%

FWHM:

49.5 x 26.7°

Cd/Im:

1.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulation Vertical Cross Section

Download

IES

Osram OS OSLON Square Gen 5 GW CSSRM3

Eff:

84.5%

FWHM:

49.5 x 28°

Cd/Im:

1.9

Carclo Optics - 10415 10mm Spot Image Oslon Square Gen 5

Carclo Optics - 10415 10mm Horizontal Cross Section Oslon Square Gen 5

,

Carclo Optics - 10415 10mm Vertical Cross Section Oslon Square Gen 5

Download

IES

Osram OS OSLON Square White

Eff:

83.0%

FWHM:

52 x 25.1°

Cd/Im:

1.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

87.0%

FWHM:

55 x 22°

Cd/Im:

2.1

Carclo Optics – 10415 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Carclo Optics – 10415 Horizontal Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

,

Carclo Optics – 10415 Vertical Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Download

IES

Osram OS OSLON SSL 150 degree White

Eff:

87.1%

FWHM:

45.5 x 16.3°

Cd/Im:

4.1

Spot Image

Cross Section

Download

ies

Osram OS OSLON SSL 80 White

Eff:

85.5%

FWHM:

44.8 x 19.7°

Cd/Im:

3.2

Spot Image

Cross Section

Download

ies

Samsung 3030 LM301B White

Eff:

86.0%

FWHM:

55 x 23°

Cd/Im:

2.0


,


Download

IES

Samsung 3535 LH351A White

FWHM:

45.4 x 24.4°

Cd/Im:

2.8

Spot Image

Cross Section

Download

ies

Samsung 3535 LH351B White

Eff:

82.7%

FWHM:

50 x 28°

Cd/Im:

1.5

carclo simulated spot image

carclo simulated horizontal cross section

,

carclo simulated vertical cross section

Download

IES

Samsung 3535 LH351Z White

Eff:

84.0%

FWHM:

53.7 x 24.3°

Cd/Im:

1.6

carclo simulated spot image

carclo simulated horizontal cross section

,

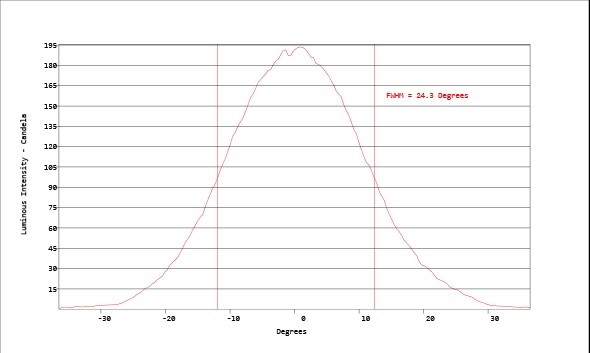

carclo simulated vertical cross section

Download

IES

Samsung CSP LH231B White

Eff:

86.0%

FWHM:

44.5 x 32°

Cd/Im:

1.6

Carclo Optics -10415 Spot Image - Samsung LH231B 5000K

Carclo Optics -10415 Cross Section Horizontal - Samsung LH231B 5000K

,

Carclo Optics -10415 Cross Section Vertical - Samsung LH231B 5000K

Download

IES

Seoul MidPower MJT3030 White

Eff:

83.5%

FWHM:

51 x 25°

Cd/Im:

1.5

carclo optics - simulated spot images

carclo optics - horizontal simulated cross section

,

carclo optics - simulated vertical cross section

Download

IES

Seoul STW8 C2SB-NT White

Eff:

85.0%

FWHM:

50 x 30°

Cd/Im:

1.8

Carclo Optics - 10415 Spot Image Seoul STW8 C2SB-NT

Carclo Optics - 10415 Horizontal Cross Section Seoul STW8 C2SB-NT

,

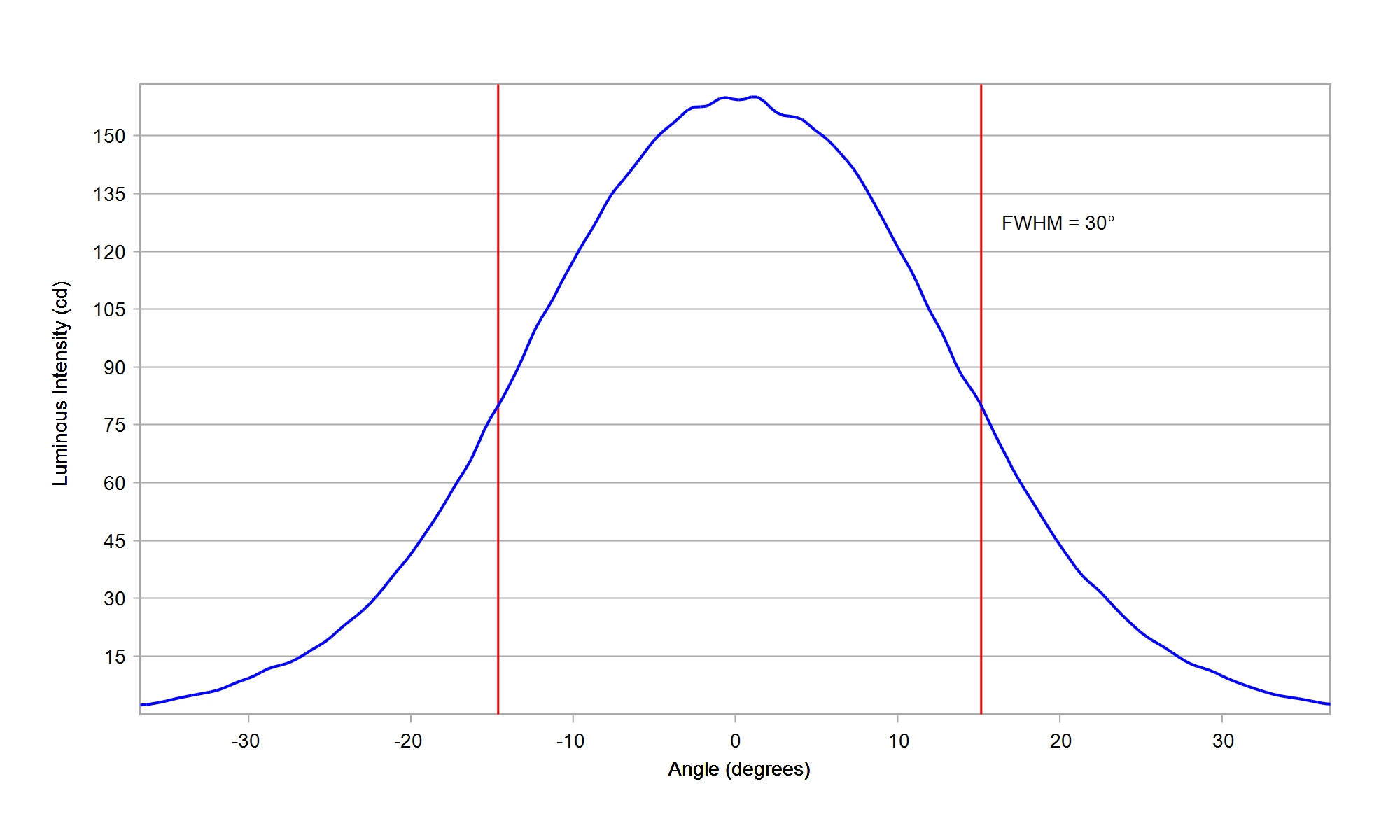

Carclo Optics - 10415 Vertical Cross Section Seoul STW8 C2SB-NT

Download

IES

Seoul STWS C2PB-E0 White

Eff:

85.0%

FWHM:

49 x 30°

Cd/Im:

1.8

Carclo Optics - 10415 Spot Image STWS C2PB-E0

Carclo Optics - 10415 Horizontal Cross Section STWS C2PB-E0

,

Carclo Optics - 10415 Vertical Cross Section STWS C2PB-E0

Download

IES

Seoul SunLike STW9 C2SB-S

Eff:

86.0%

FWHM:

51 x 28°

Cd/Im:

1.8

Carclo Optics - 10415 10mm Spot Image Seoul Sunlike 3030

Carclo Optics - 10415 10mm Horizontal Cross Section Seoul Sunlike 3030

,

Carclo Optics - 10415 10mm Vertical Cross Section Seoul Sunlike 3030

Download

IES

Seoul Z - Power Z5 M0 White

FWHM:

43.3 X 22.1°

Cd/Im:

2.9

Spot Image

Cross Section

Download

ies

Seoul Z - Power Z5 M1 White

Eff:

83.3%

FWHM:

48.5 x 27.7°

Cd/Im:

1.5

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

Seoul Z - Power Z5 M4 White

Eff:

83.0%

FWHM:

48 x 29°

Cd/Im:

1.7

Carclo Optics – 10415 Seoul Z-Power Z5 - Spot Image

Carclo Optics – 10415 Horizontal Seoul Z-Power Z5 - Cross-Section

,

Carclo Optics – 10415 Vertical Seoul Z-Power Z5 - Cross-Section

Download

IES

Seoul Z - Power Z5 P0 White

FWHM:

46.0 x 20.0°

Cd/Im:

3.2

Spot Image

Cross Section

Download

ies

Seoul Z - Power Z5 White

Eff:

84.3%

FWHM:

44.5 x 16.2°

Cd/Im:

3.7

Spot Image

Cross Section

Download

ies

Toshiba TL 1L2 White

Eff:

82.0%

FWHM:

50.9 x 27°

Cd/Im:

1.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Toshiba TL 1L4 White

Eff:

83.0%

FWHM:

48.9 x 27.6°

Cd/Im:

1.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES
