10.0mm Medium Spot Frosted TIR LED Lenses

Part number

10413

Dimensions

10.0mm

Drawing Number

60526

Optic type

TIR LED Lenses

Finish

Frosted

Beam type

Medium Spot

Applications

Architectural

Landscape & Garden

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

92.5%

FWHM:

29 x 30.5°

Cd/Im:

3.2

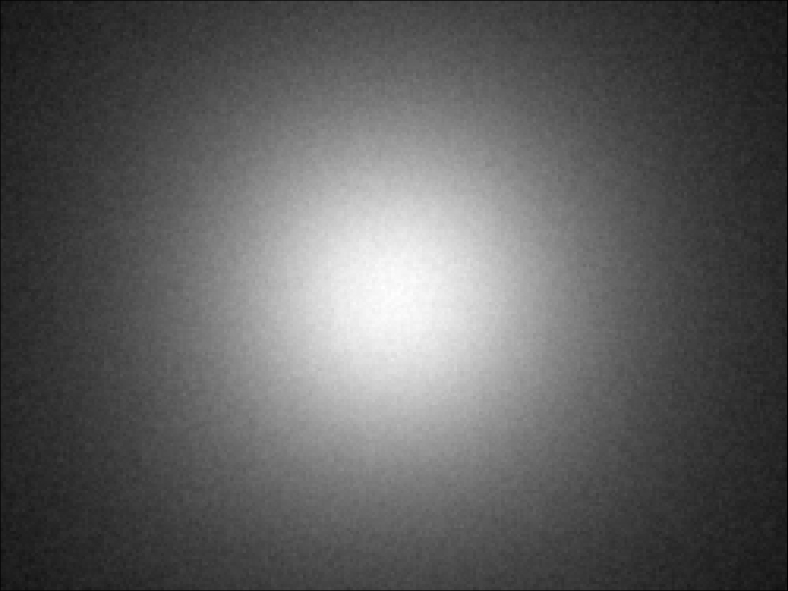

Carclo Optics - 10413 10mm Spot Image Bridgelux 3030 Gen2

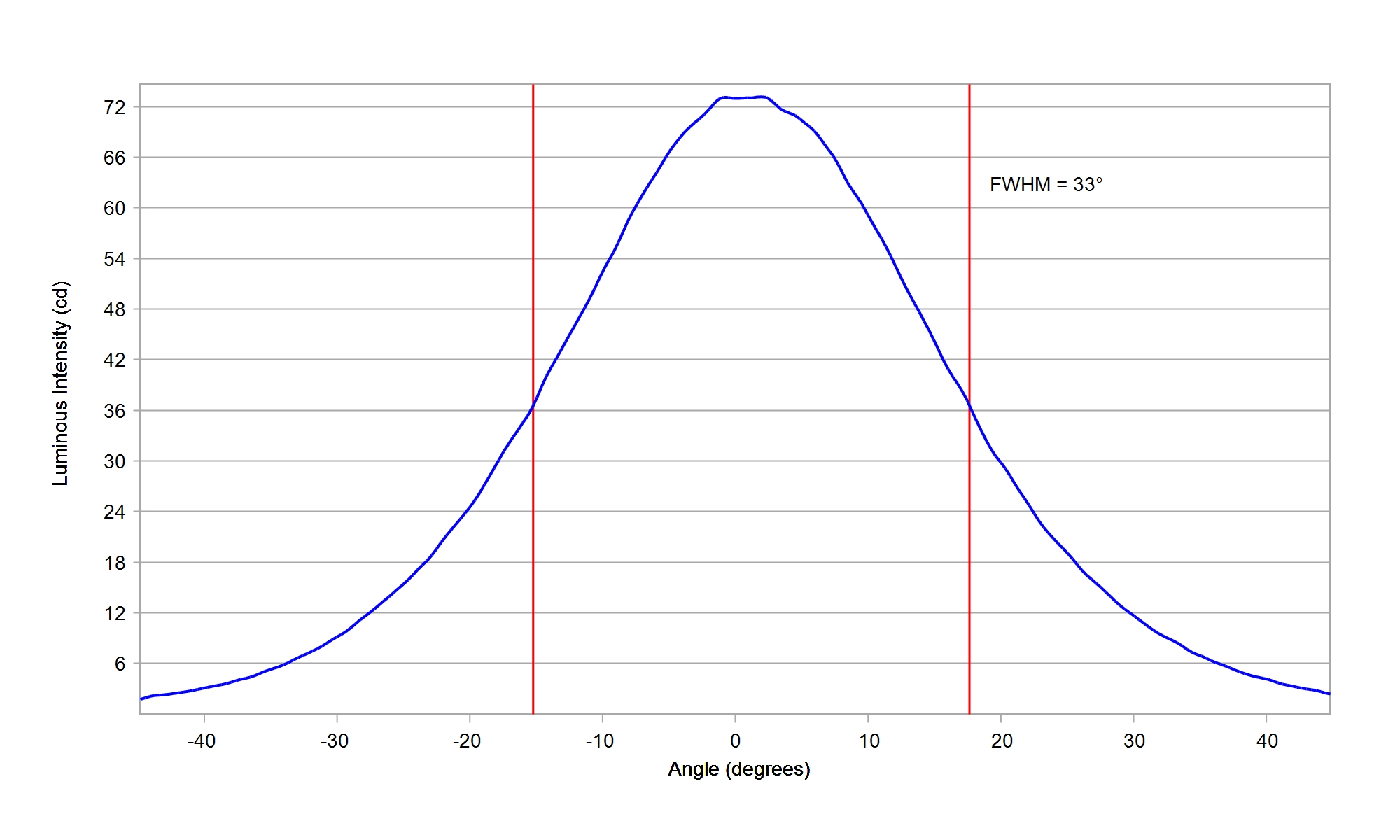

Carclo Optics - 10413 10mm Cross Section Bridgelux 3030 Gen2

Download

IES

Cree JB3030 3V White

Eff:

92.0%

FWHM:

33.0°

Cd/Im:

2.1

Carclo Optics - 10413 Spot Image Cree JB3030 3V White

Carclo Optics - 10413 Cross Section Cree JB3030 3V White

Download

IES

Cree JK2835 6V White

Eff:

92.0%

FWHM:

32°

Cd/Im:

2.4

Download

IES

Cree XLamp CSP XD16 Cool White

Eff:

92.5%

FWHM:

28°

Cd/Im:

2.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp CSP XD16 Premium White

Eff:

92.5%

FWHM:

27°

Cd/Im:

3.3

Download

IES

Cree XLamp XB-D White

Eff:

87.3%

FWHM:

26.8°

Cd/Im:

3.4

Spot Image

Cross Section

Download

ies

Cree XLamp XB-H White

Eff:

91.5%

FWHM:

30°

Cd/Im:

2.9

Carclo Optics - 10413 10mm Spot Image Cree XLamp XB-H

Carclo Optics - 10413 10mm Cross Section Cree XLamp XB-H

Download

IES

Cree XLamp XE-G Blue

Eff:

92.0%

FWHM:

26°

Cd/Im:

3.5

Download

IES

Cree XLamp XE-G Green

Eff:

92.0%

FWHM:

26°

Cd/Im:

3.4

Download

IES

Cree XLamp XE-G Red

Eff:

90.5%

FWHM:

26°

Cd/Im:

3.4

Download

IES

Cree XLamp XE-G White

Eff:

92.0%

FWHM:

26°

Cd/Im:

3.5

Download

IES

Cree XLamp XP-E White

Eff:

87.2%

FWHM:

25.9°

Cd/Im:

3.2

Spot Image

Cross Section

Download

ies

Cree XLamp XP-E2 White

Eff:

92.5%

FWHM:

26.5°

Cd/Im:

3.6

Download

IES

Cree XLamp XP-G White

Eff:

84.7%

FWHM:

30°

Cd/Im:

2.7

Spot Image

Cross Section

Download

ies

Cree XLamp XP-G2 White

Eff:

84.9%

FWHM:

28.9°

Cd/Im:

3.3

Spot Image

Cross Section

Download

ies

Cree XLamp XP-G3 White

Eff:

88.0%

FWHM:

30.5°

Cd/Im:

1.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XP-G4 White

Eff:

91.5%

FWHM:

31°

Cd/Im:

2.5

Download

IES

Cree XLamp XQ-A Blue

Eff:

91.0%

FWHM:

22.5°

Cd/Im:

3.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-A Green

Eff:

91.0%

FWHM:

23.0°

Cd/Im:

3.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-A Red

Eff:

91.0%

FWHM:

23.0°

Cd/Im:

3.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-A White

Eff:

88.0%

FWHM:

19.7°

Cd/Im:

4.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Blue

Eff:

91.5%

FWHM:

25.0°

Cd/Im:

3.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Green

Eff:

91.5%

FWHM:

24.5°

Cd/Im:

3.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Red

Eff:

91.5%

FWHM:

24.0°

Cd/Im:

3.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI White

Eff:

88.0%

FWHM:

21°

Cd/Im:

3.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HD White

Eff:

88.0%

FWHM:

24°

Cd/Im:

2.9

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XT-E White

FWHM:

29.6°

Cd/Im:

2.9

Spot Image

Cross Section

Download

ies

Everlight Shuen White

Eff:

82.3%

FWHM:

30.9°

Cd/Im:

2.5

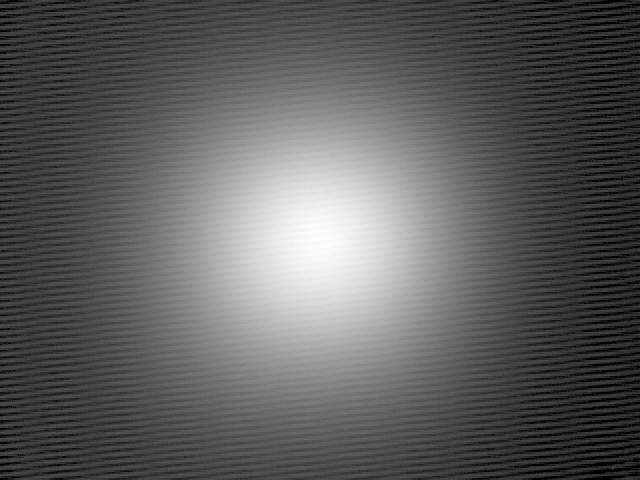

Spot Image

Cross Section

Download

ies

LG Innotek 3535LG White

Eff:

85.3%

FWHM:

29.5°

Cd/Im:

2.2

Spot Image

Cross Section

Download

ies

Lite-On R38386AS - S R38 IR

Eff:

92.5%

FWHM:

32.5°

Cd/Im:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 2835C 6V White

Eff:

92.5%

FWHM:

31°

Cd/Im:

2.6

Download

LUMILEDS LUXEON 2835E 9V White

Eff:

92.0%

FWHM:

31°

Cd/Im:

2.5

Download

LUMILEDS LUXEON 2835N 3V White

Eff:

92.0%

FWHM:

31°

Cd/Im:

2.3

Download

LUMILEDS LUXEON 2835S 3V White

Eff:

92.0%

FWHM:

32°

Cd/Im:

2.4

Download

LUMILEDS LUXEON 2835S 6V White

Eff:

92.0%

FWHM:

31°

Cd/Im:

2.3

Download

LUMILEDS LUXEON 3014 White

Eff:

92.5%

FWHM:

26°

Cd/Im:

3.5

Download

IES

LUMILEDS LUXEON 3030 2D White

Eff:

92.5%

FWHM:

31°

Cd/Im:

2.6

Download

LUMILEDS LUXEON 3030 HE Plus White

Eff:

92.0%

FWHM:

32°

Cd/Im:

2.5

Carclo Optics – 10413 – Luxeon_3030_HE_Plus_spot-image

Carclo Optics – 10413 – Luxeon_3030_HE_Plus_cross vertical section

Download

IES

LUMILEDS LUXEON 3535 HV White

Eff:

88.5%

FWHM:

26°

Cd/Im:

2.4

carclo optics - simulated spot image

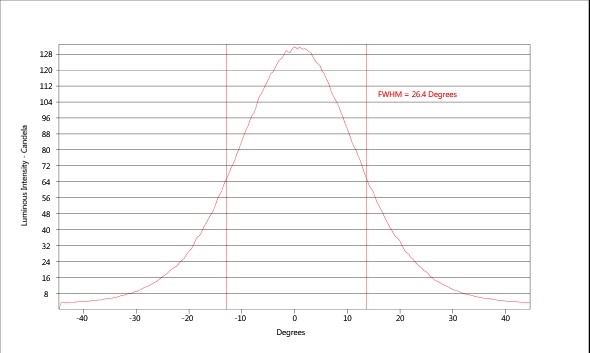

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON 3535 L White

Eff:

88.5%

FWHM:

27°

Cd/Im:

2.3

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON C Blue

Eff:

85.5%

FWHM:

27.0°

Cd/Im:

2.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Lime

Eff:

87.5%

FWHM:

26.5°

Cd/Im:

2.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Red

Eff:

84.5%

FWHM:

27.5°

Cd/Im:

2.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C White

Eff:

88.0%

FWHM:

27°

Cd/Im:

3.2

Download

LUMILEDS LUXEON CZ White

Eff:

92.5%

FWHM:

24°

Cd/Im:

4.3

Carclo Optics 10413 Spot Image Luxeon CZ CW

Carclo Optics 10413 Cross Section Luxeon CZ CW

Download

IES

LUMILEDS LUXEON HL1Z CSP White

Eff:

93.0%

FWHM:

27°

Cd/Im:

3.1

Download

IES

LUMILEDS LUXEON HL2Z White

Eff:

92.5%

FWHM:

31°

Cd/Im:

2.4

Carclo Optics – 10413 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 10413 Lumileds Luxeon HL2Z - Cross-Section

Download

IES

LUMILEDS LUXEON IR 2720

Eff:

94.0%

FWHM:

27.0°

Cd/Im:

3.2

Carclo Optics - 10413 10mm Medium Frosted Spot Image Luxeon IR 2720

Carclo Optics - 10413 10mm Medium Frosted Cross Section Luxeon IR 2720

Download

ies

LUMILEDS LUXEON IR Compact 850nm

Eff:

94.0%

FWHM:

25.5°

Ipk/W:

3.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 150 Degree

Eff:

93.0%

FWHM:

27.0°

Cd/Im:

3.0

Carclo Optics - Simulated Spot Image

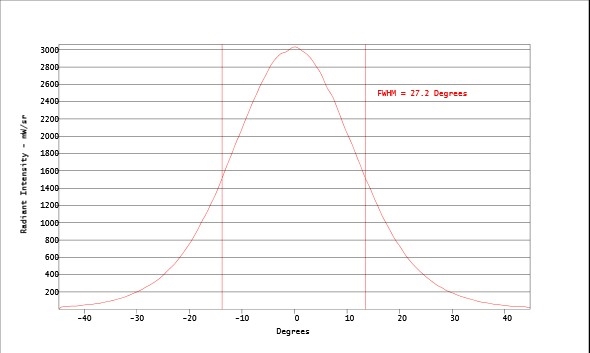

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON MZ White

Eff:

88.4%

FWHM:

28.1°

Cd/Im:

2.1

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON Rebel ES White

Eff:

82.0%

FWHM:

30.2°

Cd/Im:

2.6

Spot Image

Cross Section

Download

ies

LUMILEDS LUXEON Rebel White

Eff:

83.0%

FWHM:

29.8°

Cd/Im:

2.3

Spot Image

Cross Section

Download

ies

LUMILEDS LUXEON Rubix Blue

Eff:

92.5%

FWHM:

24°

Cd/Im:

4.4

Carclo Optics - 10413 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics - 10413 Cross Section Lumileds Luxeon Rubix Blue

Download

IES

LUMILEDS LUXEON Rubix Green

Eff:

92.5%

FWHM:

24°

Cd/Im:

4.2

Carclo Optics – 10413 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 10413 Cross Section Lumileds Luxeon Rubix Green

Download

IES

LUMILEDS LUXEON Rubix Red

Eff:

93.0%

FWHM:

24°

Cd/Im:

4.3

Carclo Optics – 10413 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 10413 Cross Section Lumileds Luxeon Rubix Red

Download

IES

LUMILEDS LUXEON Rubix Royal Blue

Eff:

92.0%

FWHM:

24°

Cd/Im:

4.3

Carclo Optics – 10413 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 10413 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

IES

LUMILEDS LUXEON Rubix White

Eff:

92.5%

FWHM:

24.5°

Cd/Im:

4.2

Carclo Optics - 10413 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 10413 Cross Section Lumileds Luxeon Rubix White

Download

IES

LUMILEDS LUXEON TX White

Eff:

88.1%

FWHM:

27.5°

Cd/Im:

2.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON Z ES White

FWHM:

25°

Cd/Im:

3.1

Spot Image

Cross Section

Download

ies

LUMILEDS LUXEON Z White

Eff:

88.0%

FWHM:

21.4°

Cd/Im:

3.7

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Luminus Devices SST 10-B-B130 Blue

Eff:

91.0%

FWHM:

27°

Cd/Im:

3.4

Carclo Optics - 10413 Luminus_SST-10_B_B130 - spot image

Carclo Optics - 10413 Luminus_SST-10_B_B130 - cross section image

Download

IES

Luminus Devices SST 10-B-B90 Blue

Eff:

90.0%

FWHM:

29°

Cd/Im:

3.0

Carclo Optics - 10413 Luminus_SST-10_B_B90 - spot - image

Carclo Optics - 10413 Luminus_SST-10_G_B130 - cross section- image

Download

IES

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

93.0%

FWHM:

27.5°

Cd/Im:

3.3

Carclo Optics – 10413 Luminus_SST-10_DR_B130- Spot - image

Carclo Optics – 10413 Luminus_SST-10_DR_B130- Cross section – image

Download

IES

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

92.0%

FWHM:

30°

Cd/Im:

2.8

Carclo Optics - 10413 Luminus_SST-10_DR_B90 - Spot Image

Carclo Optics - 10413 Luminus_SST-10_DR_B90 - Cross section image

Download

IES

Luminus Devices SST 10-G-B130 Green

Eff:

92.0%

FWHM:

27°

Cd/Im:

3.6

Carclo Optics - 10413 Luminus_SST-10_G_B130 - spot - image

Carclo Optics - 10413 Luminus_SST-10_G_B130 - cross - image

Download

IES

Luminus Devices SST 10-G-B90 Green

Eff:

91.0%

FWHM:

29°

Cd/Im:

2.9

Carclo Optics - 10413 Luminus_SST-10_G_B90- Spot - image

Carclo Optics - 10413 Luminus_SST-10_G_B90- Cross - image

Download

IES

Luminus Devices SST 10-IR-B130 940nm

Eff:

94.0%

FWHM:

28.5°

Ipk/W:

3.3

Carclo Optics - 10413 Spot Image Luminus SST-10-IR-B130

Carclo Optics - 10413 Cross Section Luminus SST-10-IR-B130

Download

IES

Luminus Devices SST 10-IR-B90 940nm

Eff:

93.0%

FWHM:

31.0°

Ipk/W:

2.8

Carclo Optics - 10413 Spot Image Luminus SST-10-IR-B90

Carclo Optics - 10413 Cross Section Luminus SST-10-IR-B90

Download

IES

Luminus Devices SST 10-IRD-B130 810nm

Eff:

94.5%

FWHM:

27.5°

Ipk/W:

3.4


Download

IES

Luminus Devices SST 10-IRD-B90 810nm

Eff:

93.0%

FWHM:

29.5°

Ipk/W:

2.9


Download

IES

Luminus Devices SST 20-WxH White Hi CRI

Eff:

92.0%

FWHM:

29°

Cd/Im:

2.9

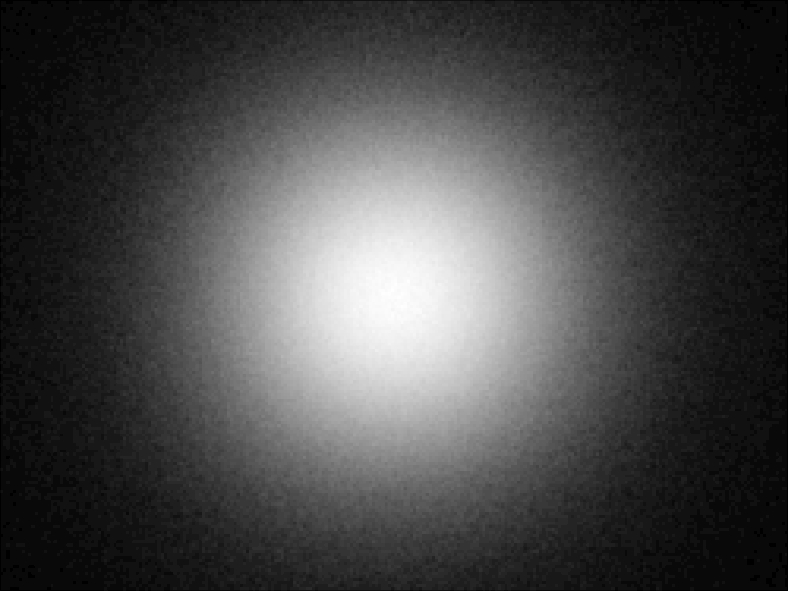

Carclo Optics – 10413 - Luxeon_SST_20_W_spot-image

Carclo Optics – 10413 - Luxeon_SST_20_W_cross vertical section

Download

IES

Nichia 219 White

Eff:

79.0%

FWHM:

30.9°

Cd/Im:

2.6

Spot Image

Cross Section

Download

ies

Nichia 757 White

Eff:

89.0%

FWHM:

29°

Cd/Im:

1.8

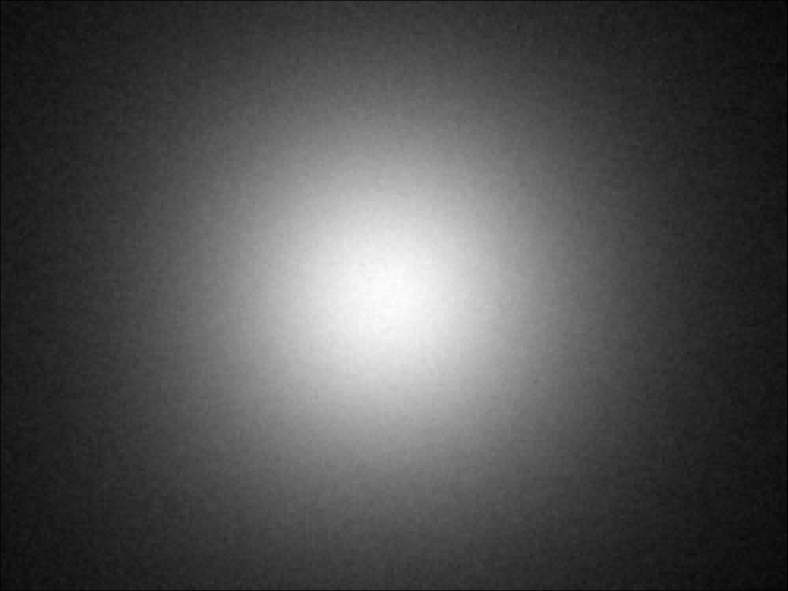

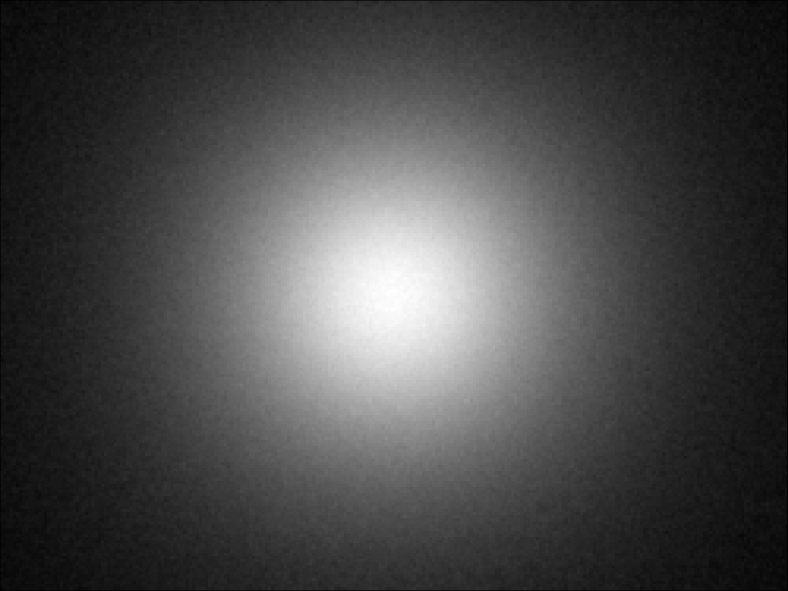

carclo optics - simulated spot image

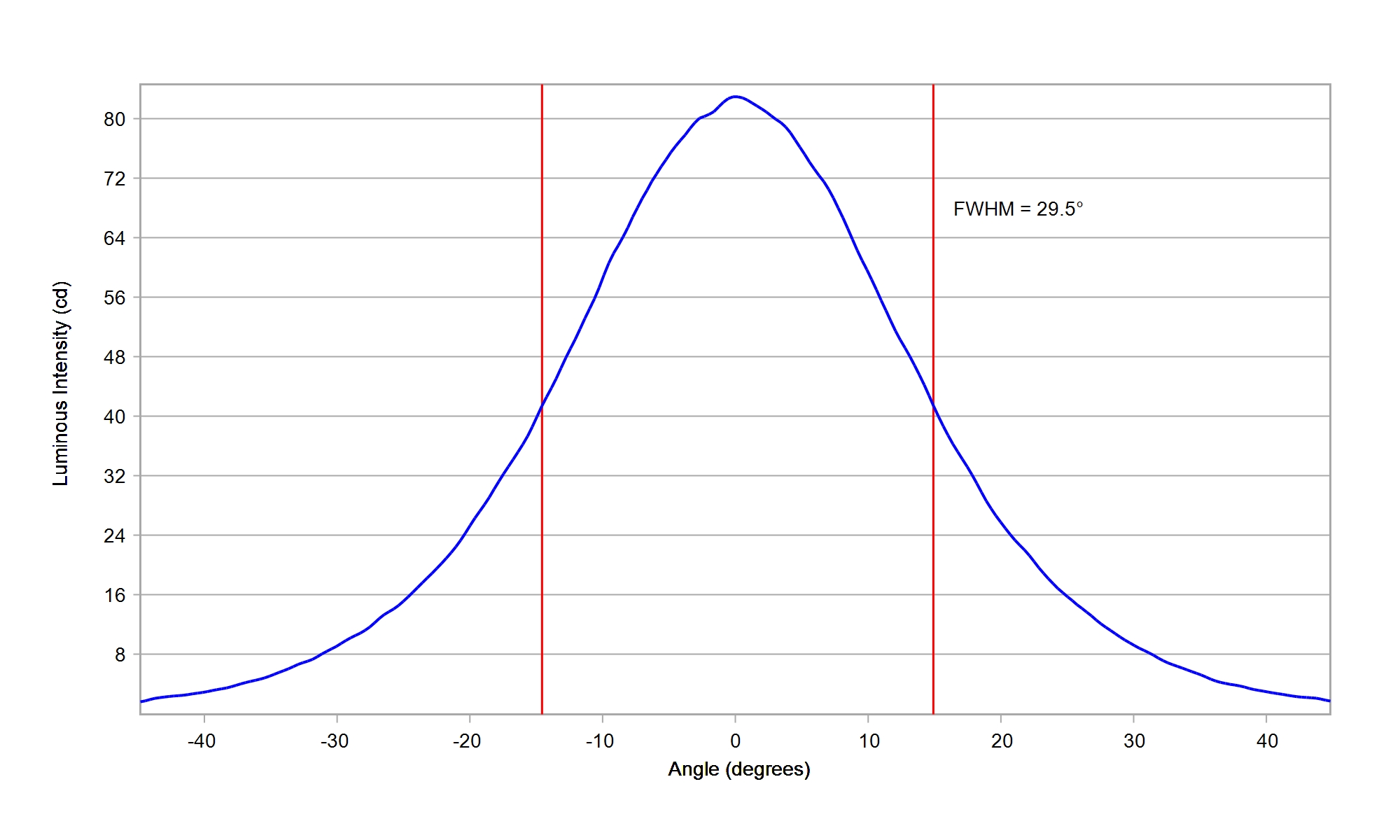

carclo optics - simulated cross section

Download

IES

Nichia 757G White

Eff:

92.0%

FWHM:

32°

Cd/Im:

2.3

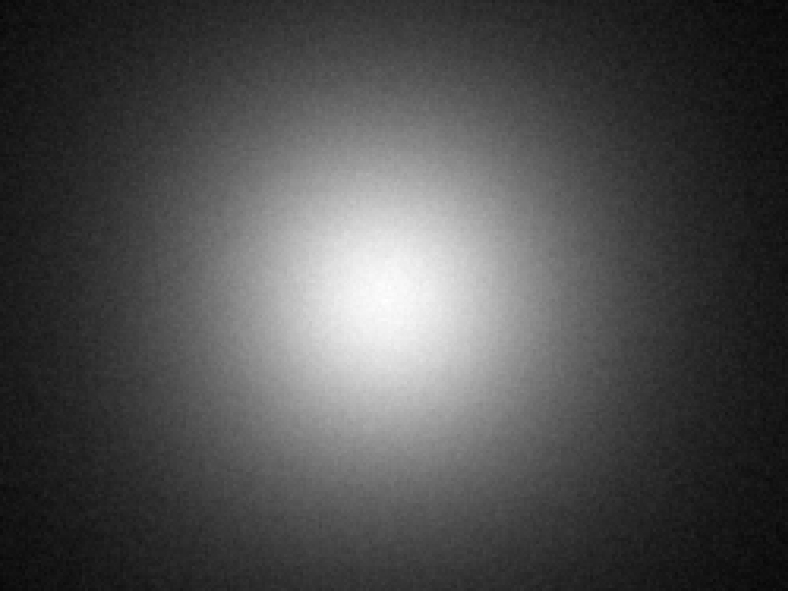

Carclo Optics 10413 10mm Simulated Spot Image Nichia 757G-MT

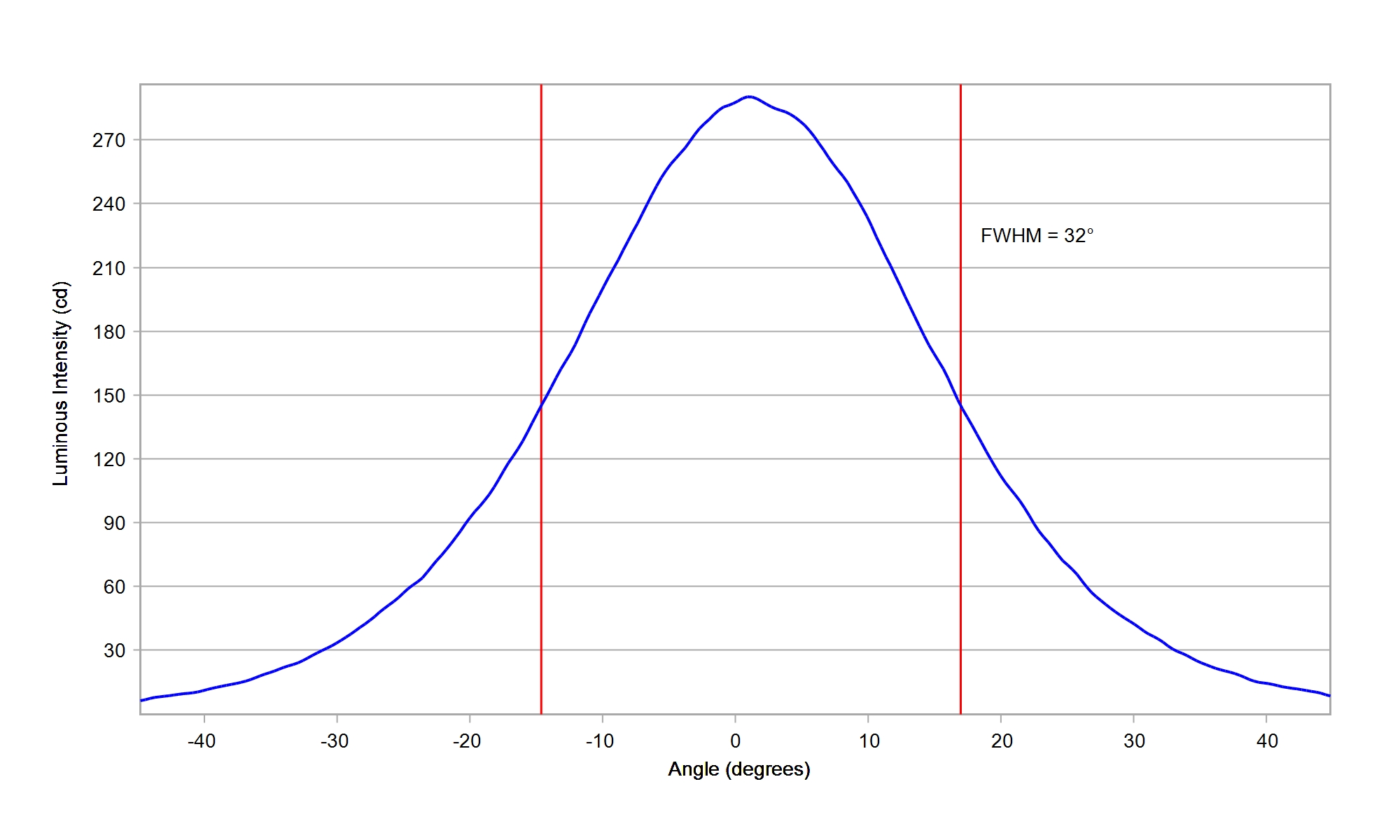

Carclo Optics 10413 10mm Cross Section Nichia 757G-MT

Download

IES

Nichia 757G White

Eff:

91.0%

FWHM:

32.5°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NCSW CSP E17A White

Eff:

87.0%

FWHM:

27.7°

Cd/Im:

2.0

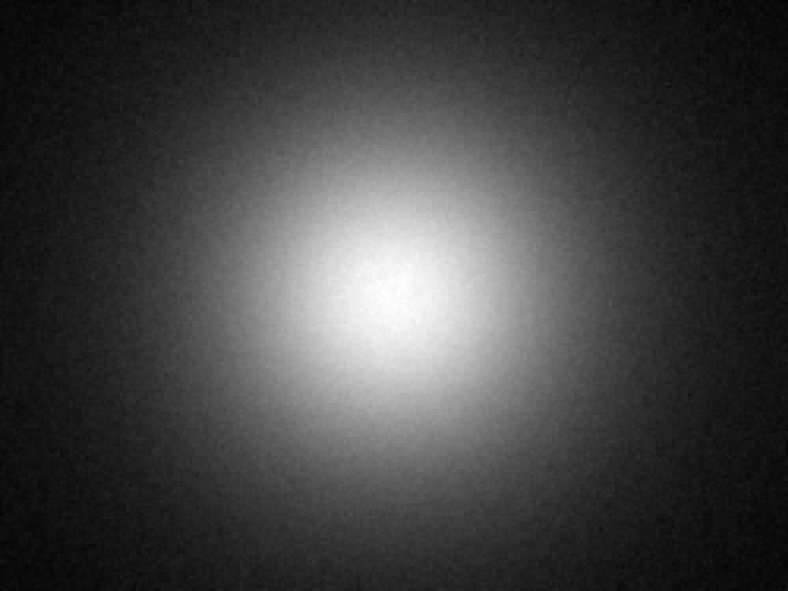

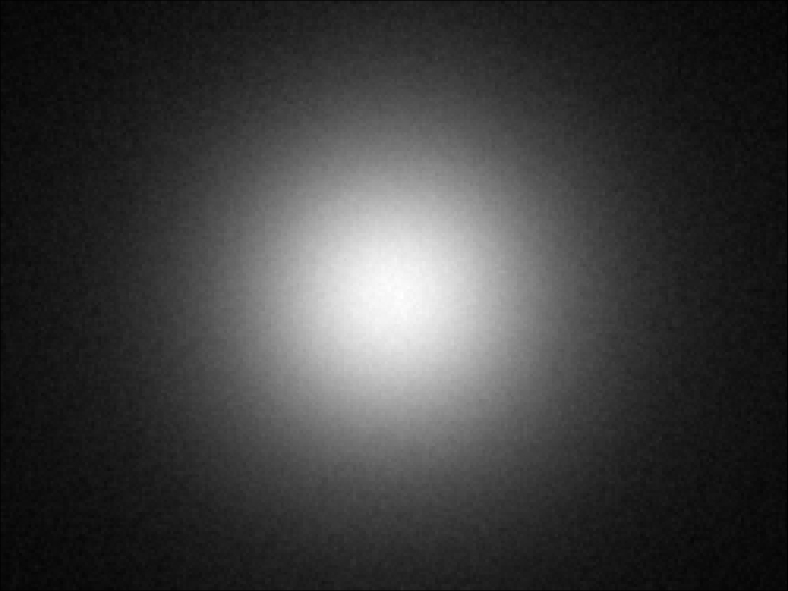

Carclo Optics - Simulated Spot Image

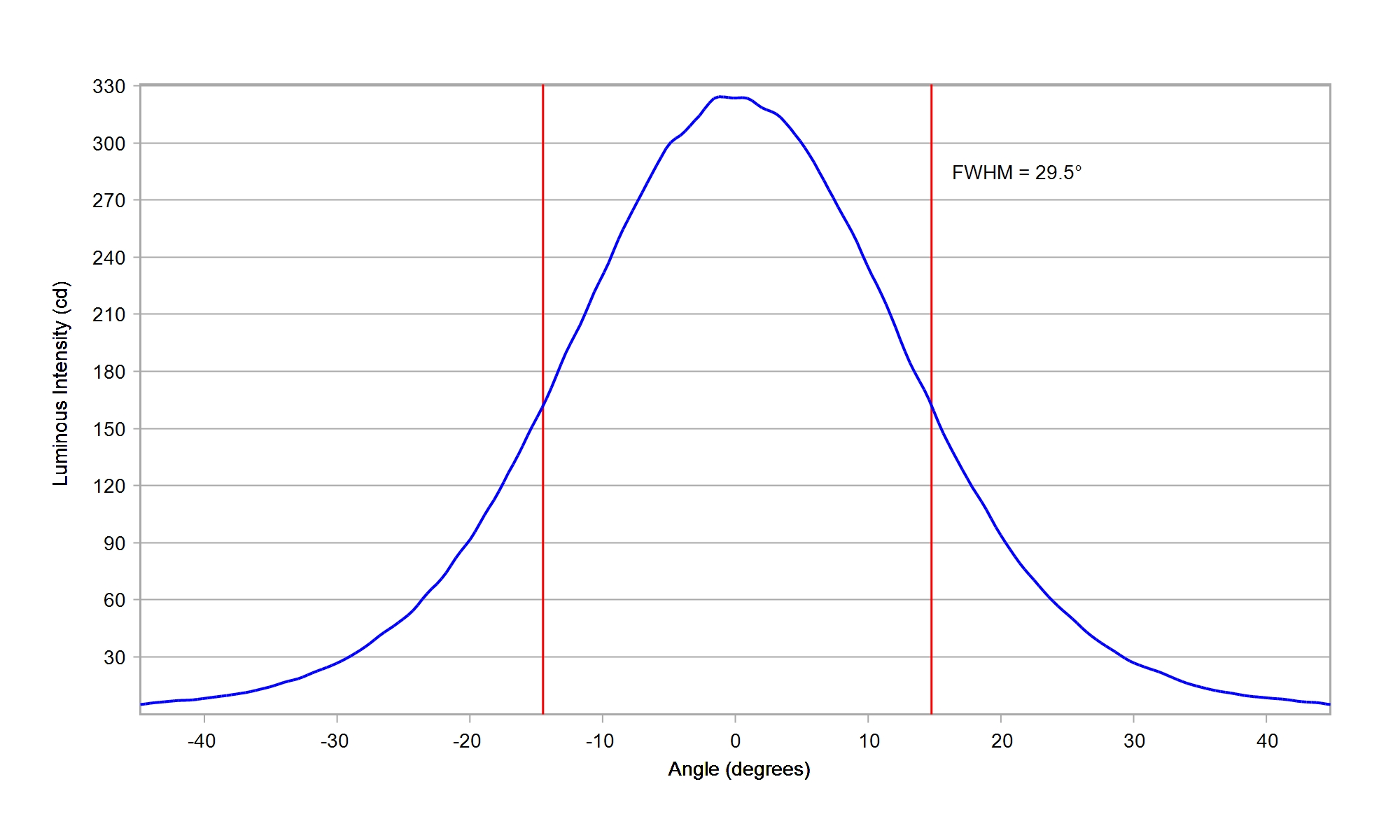

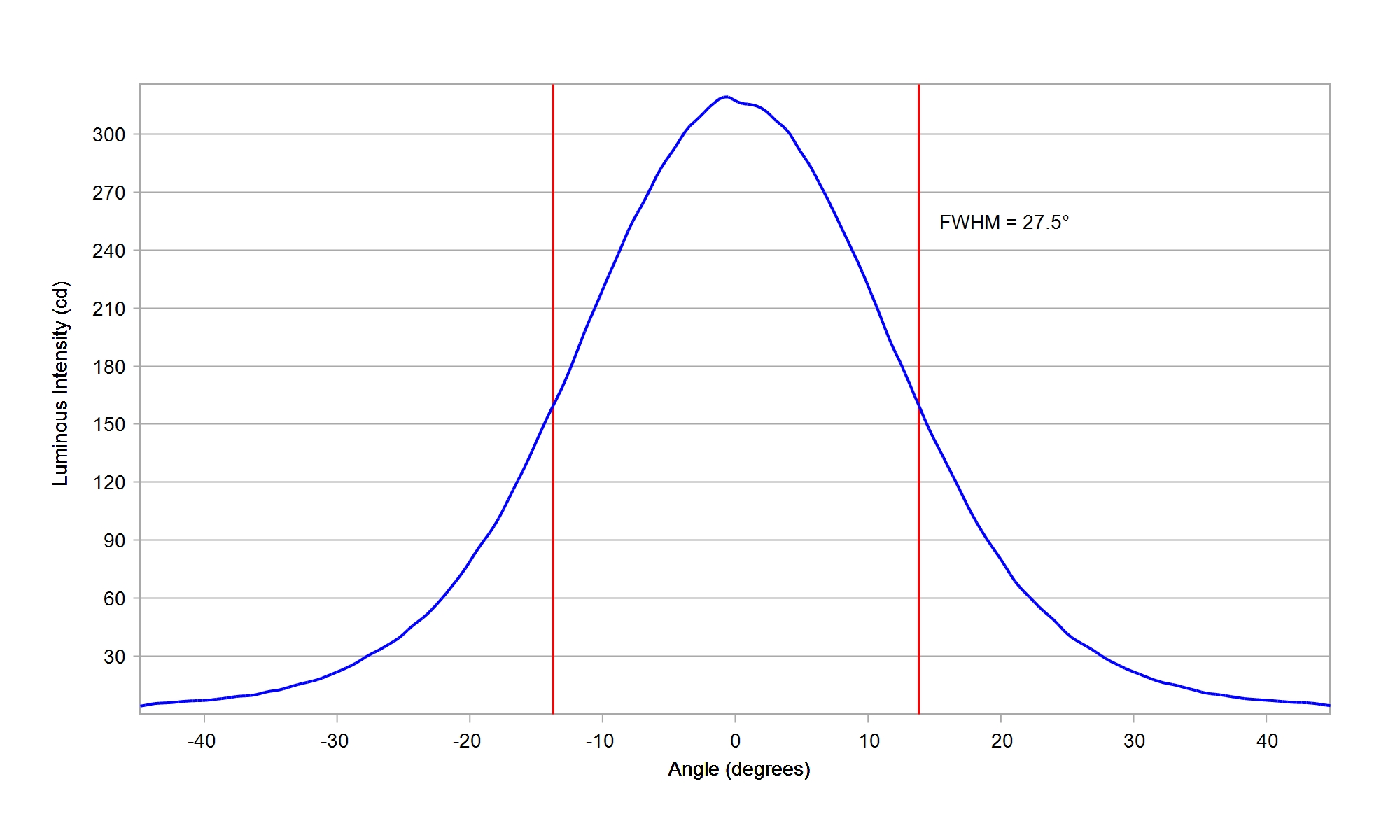

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NF2W 385AR-V2 White

Eff:

91.0%

FWHM:

34.5°

Cd/Im:

1.9

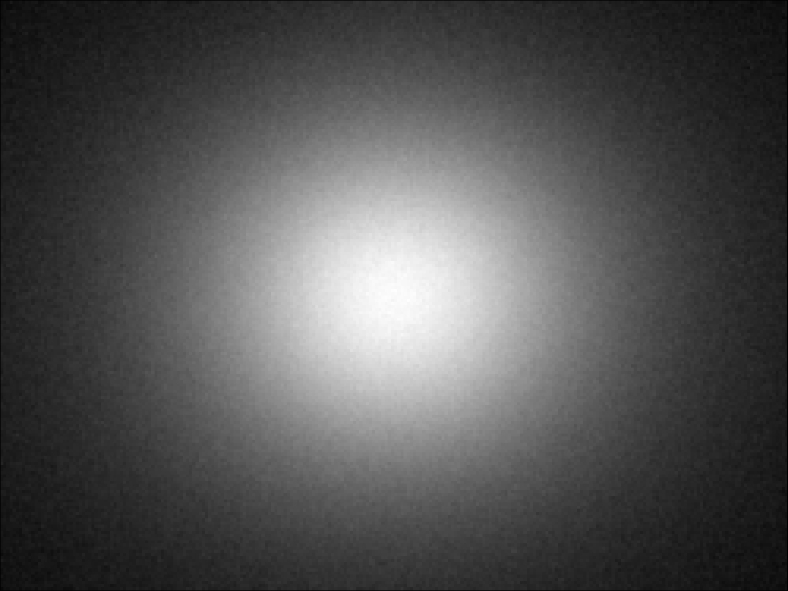

Carclo Optics - Simulated Spot Image

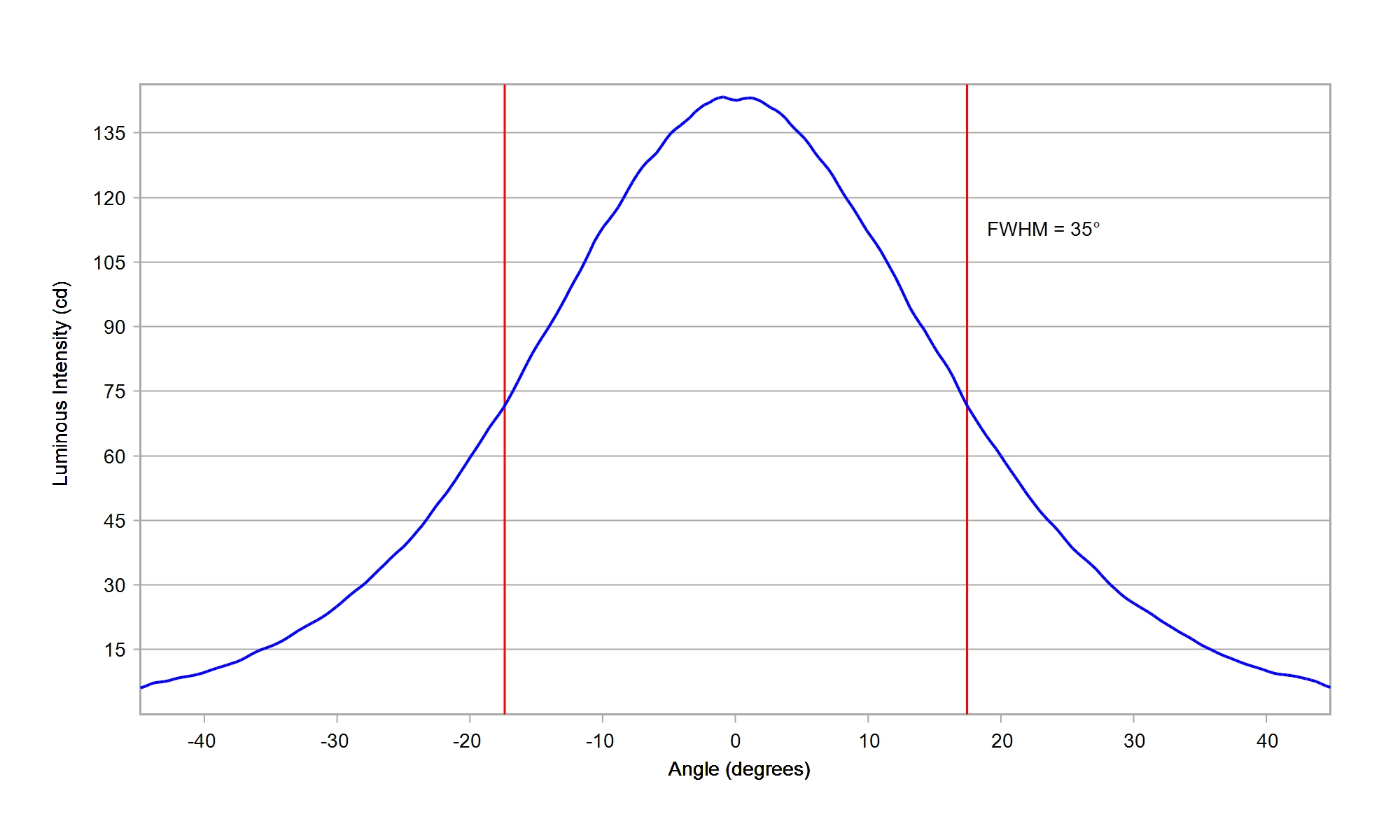

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSL 219B White

Eff:

90.0%

FWHM:

28.5°

Cd/Im:

2.5

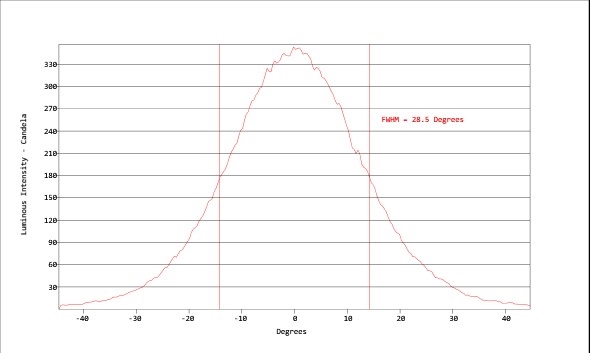

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW 219C White

Eff:

90.0%

FWHM:

32.5°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW 219F White

Eff:

91.5%

FWHM:

33°

Cd/Im:

2.3

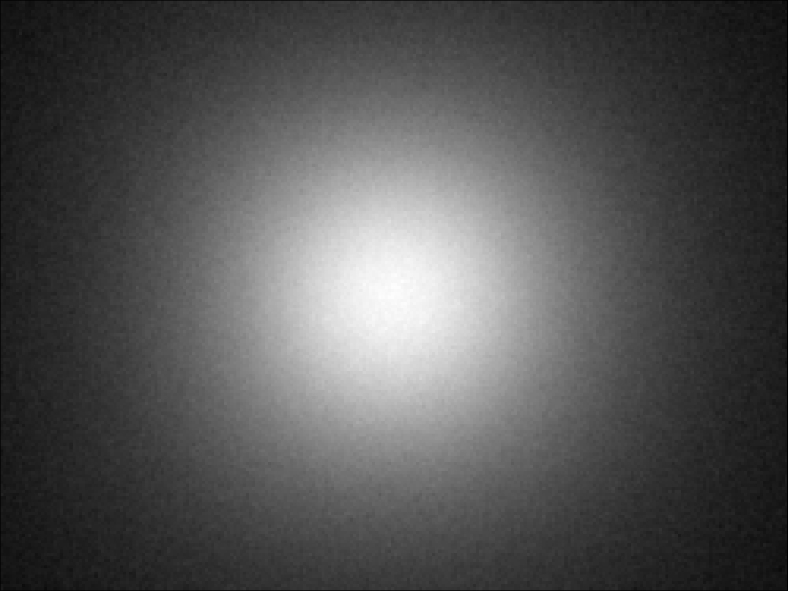

Carclo Optics – 10413 Nichia NVSW 219F White - Spot Image

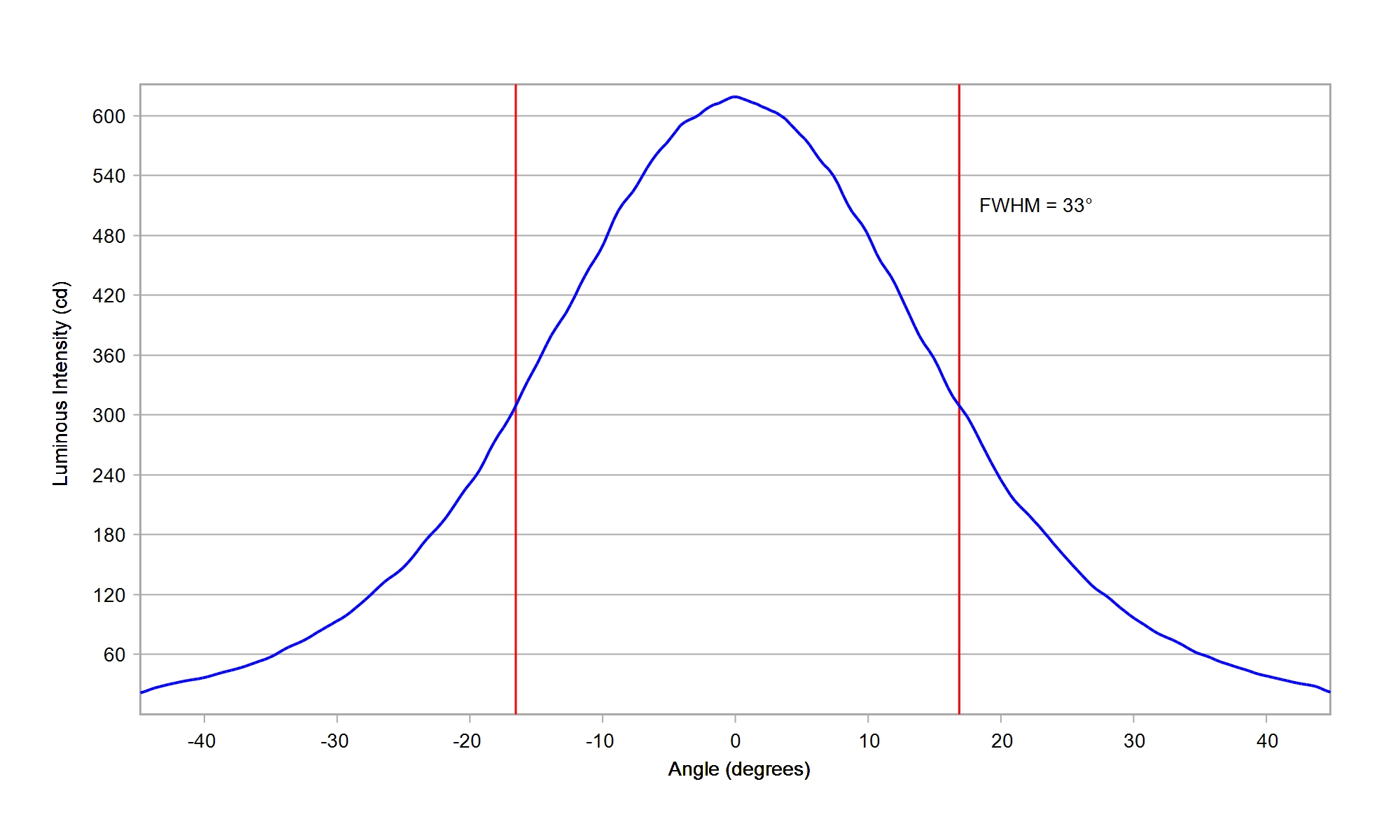

Carclo Optics – 10413 Nichia NVSW 219F White - Cross-Section

Download

IES

Nichia NVSW 319A White

Eff:

90.0%

FWHM:

35.0°

Cd/Im:

1.7

Carclo Optics - Simulated Spot Image

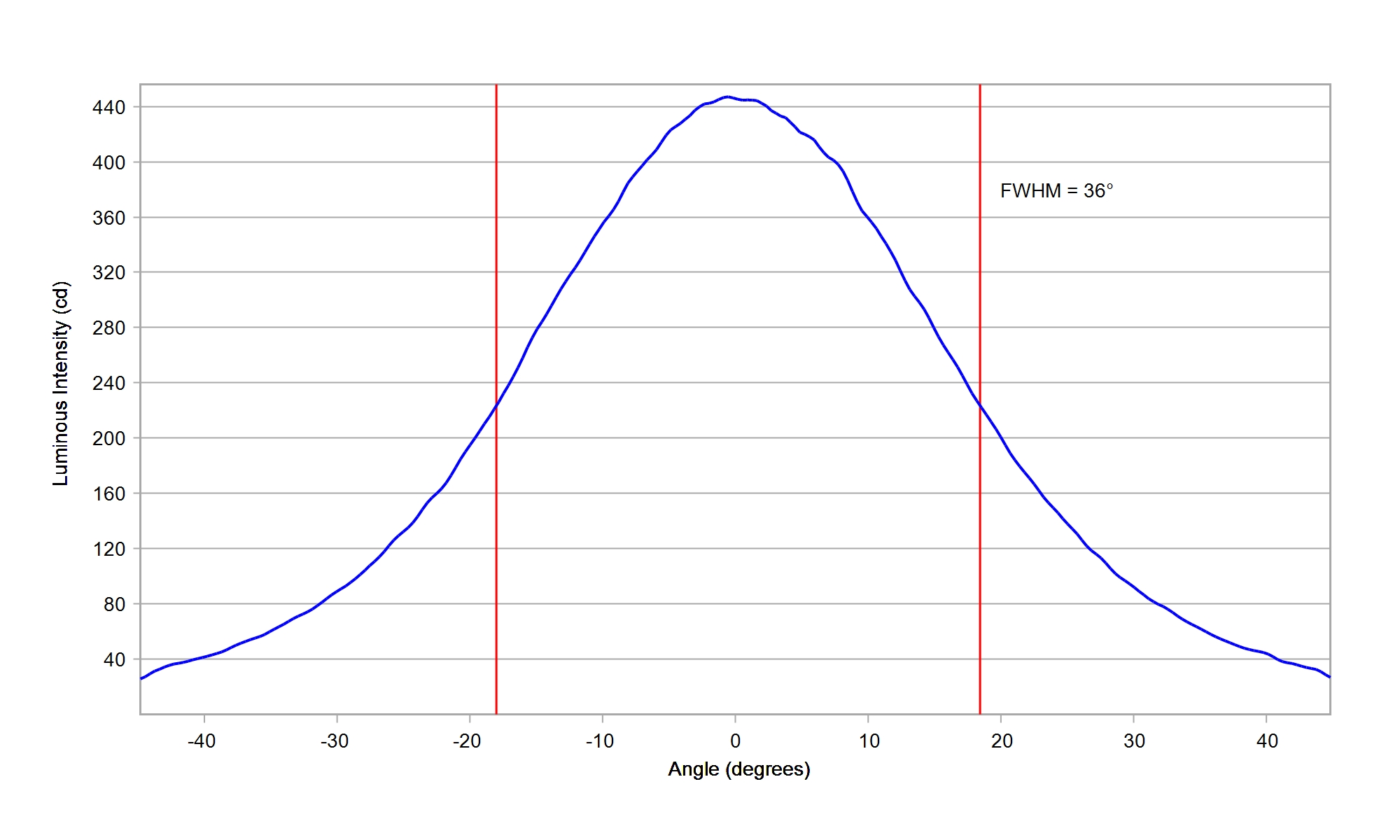

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW CSP E21A White

Eff:

88.0%

FWHM:

29.7°

Cd/Im:

1.7

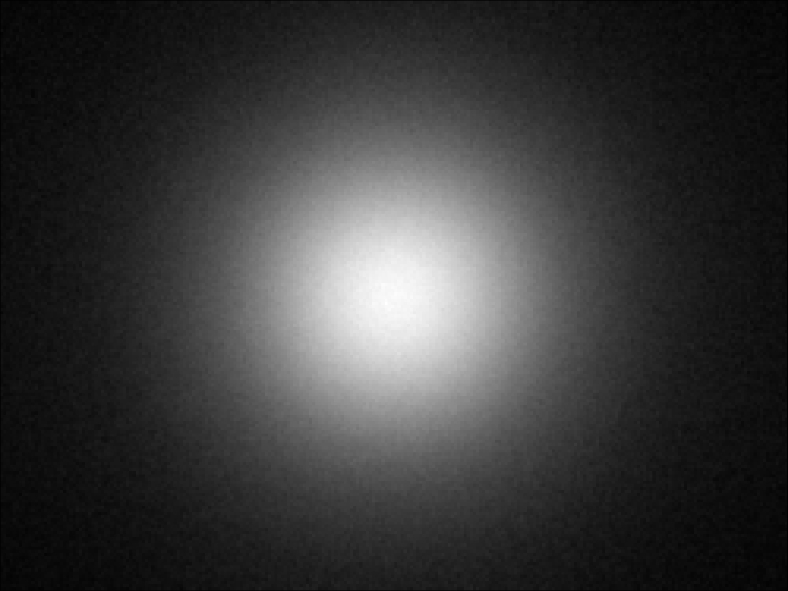

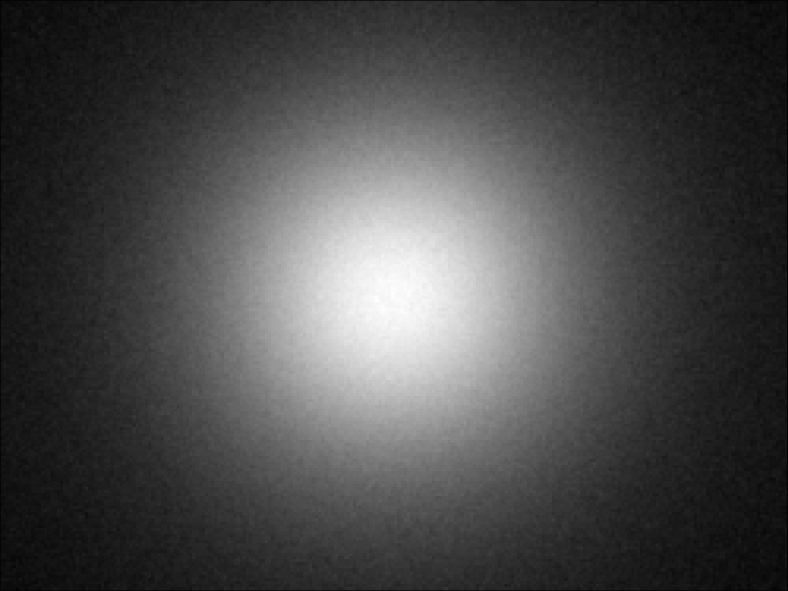

Carclo Optics - Simulated Spot Image

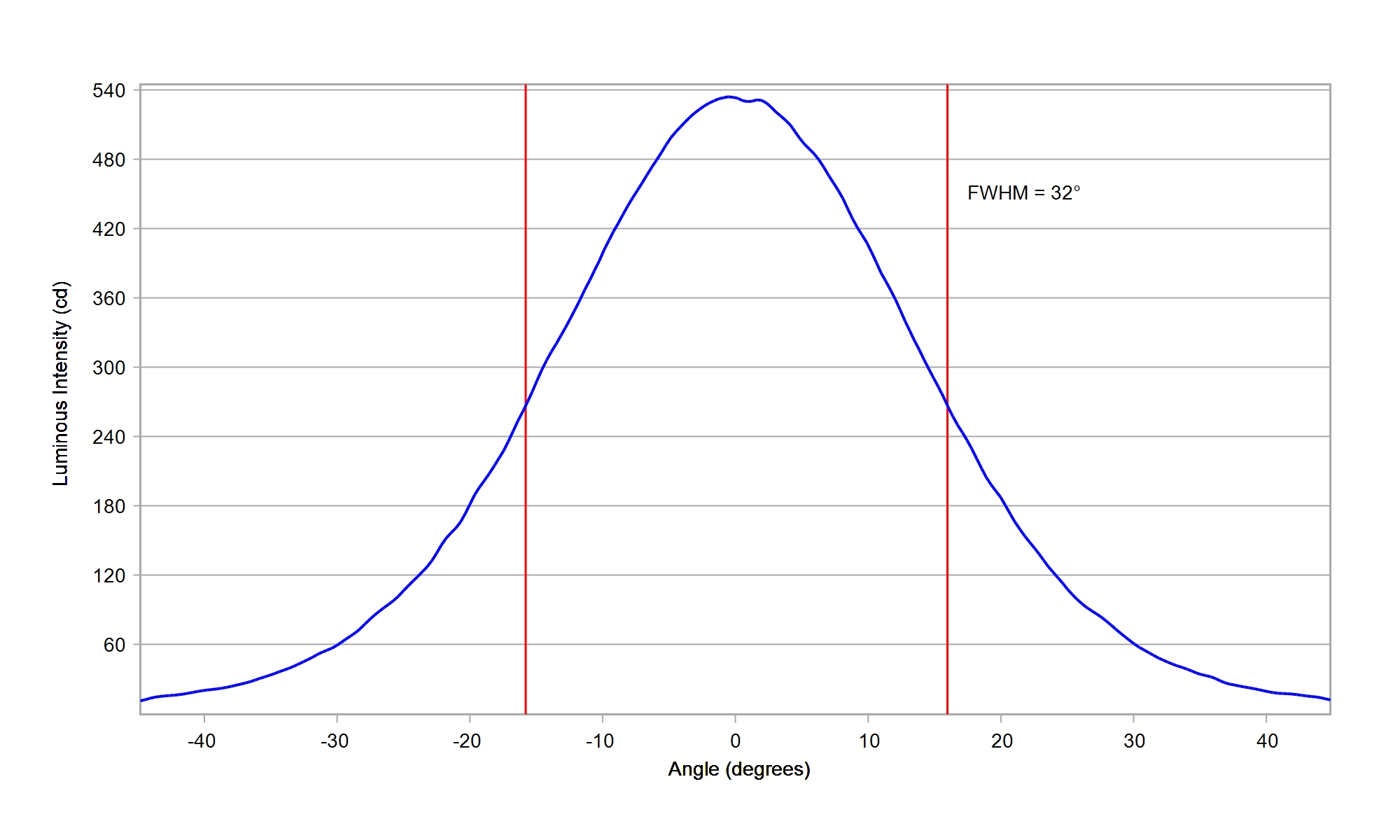

Carclo Optics - Simulated Cross Section

Download

IES

Nichia Top Emitting NCSL 119-H3 White

Eff:

79.8%

FWHM:

28.8°

Cd/Im:

2.6

Spot Image

Cross Section

Download

ies

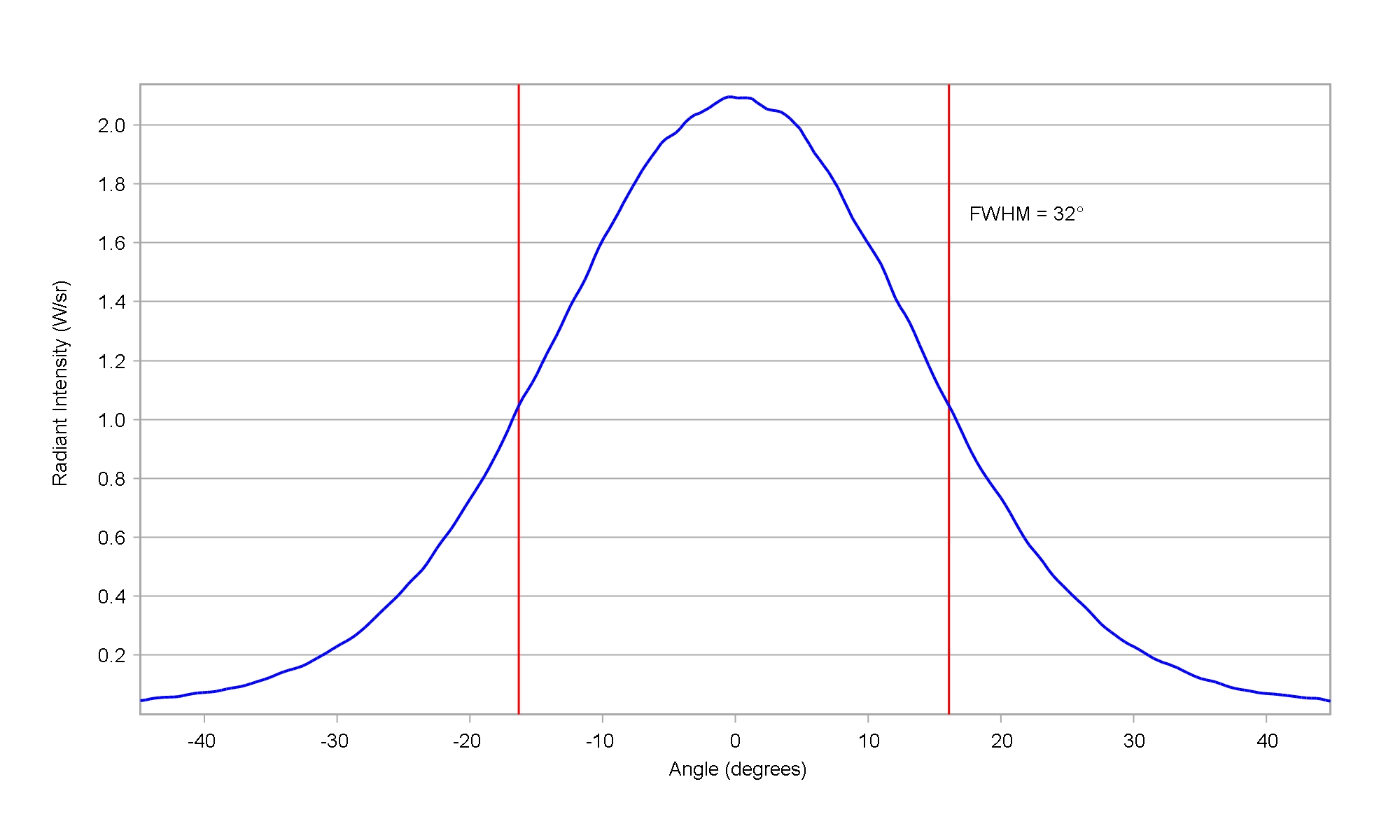

Osram Led Engin LuxiGen LZ1 00R702 IR940nm

Eff:

93.5%

FWHM:

32°

Ipk/W:

2.5

Download

IES

Osram OS DURIS E 2835 Gen2

Eff:

92.5%

FWHM:

29°

Cd/Im:

2.6

Carclo Optics - 10413 10mm Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 10413 10mm Cross Section Osram DURIS E 2835 Gen2

Download

IES

Osram OS DURIS E 2835 White

Eff:

91.0%

FWHM:

30.5°

Cd/Im:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS E2 White

Eff:

88.0%

FWHM:

23.2°

Cd/Im:

3.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS E3 White

Eff:

91.5%

FWHM:

23.6°

Cd/Im:

3.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section Image

Download

IES

Osram OS DURIS S2 White

Eff:

93.7%

FWHM:

25.0°

Cd/Im:

2.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 Deep Blue

Eff:

90.5%

FWHM:

31°

Cd/Im:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 Green

Eff:

91.5%

FWHM:

30°

Cd/Im:

2.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 Red

Eff:

92.0%

FWHM:

28.0°

Cd/Im:

2.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 White

Eff:

89.0%

FWHM:

28.2°

Cd/Im:

41.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS OSCONIQ C 2424 White

Eff:

92.5%

FWHM:

29°

Cd/Im:

2.9

Carclo Optics - 10413 Spot Image OSCONIQ C2424

Carclo Optics - 10413 Cross Section OSCONIQ C2424

Download

IES

Osram OS OSLON Black SFH 4716AS IR

Eff:

94.0%

FWHM:

26°

Ipk/W:

3.4

Carclo Optics – 10413 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

Carclo Optics – 10413 Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

IES

Osram OS OSLON Boost HM KW CELMM1.TG

Eff:

92.5%

FWHM:

23°

Cd/Im:

4.6

Carclo Optics – 10413 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 10413 – Osram_Oslon_Boost_KW_CELMM1_TG_cross section

Download

IES

Osram OS OSLON Square Flat White

Eff:

91.0%

FWHM:

27.5°

Cd/Im:

2.8

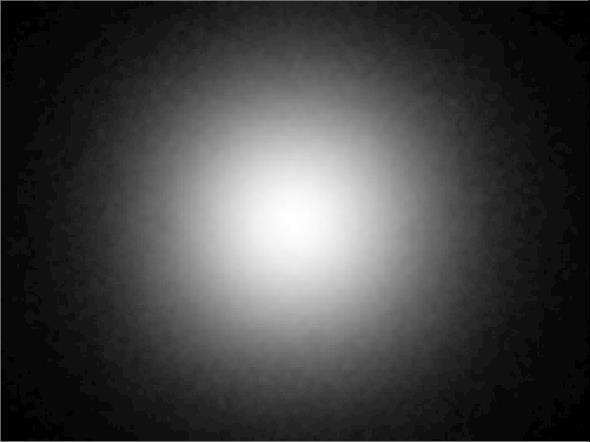

Carclo Optics - Simulated Spot Image

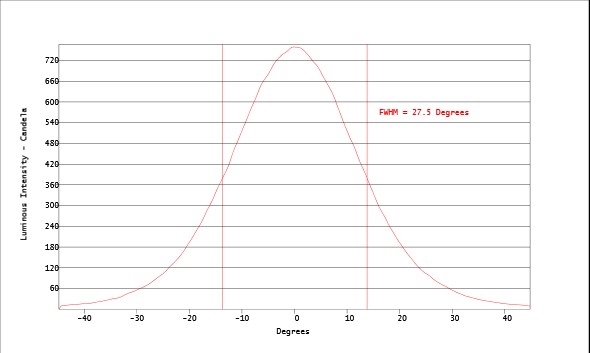

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS OSLON Square Gen 3 White

Eff:

88.3%

FWHM:

27.9°

Cd/Im:

2.2

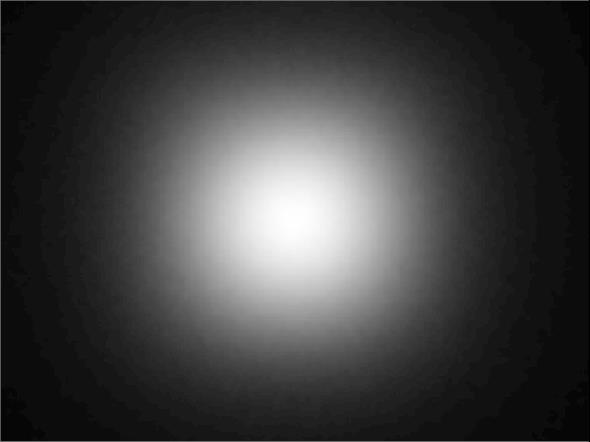

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS OSLON Square Gen 5 GW CSSRM3

Eff:

91.5%

FWHM:

31.5 x 31.0°

Cd/Im:

2.6

Carclo Optics - 10413 10mm Spot Image Oslon Square Gen 5

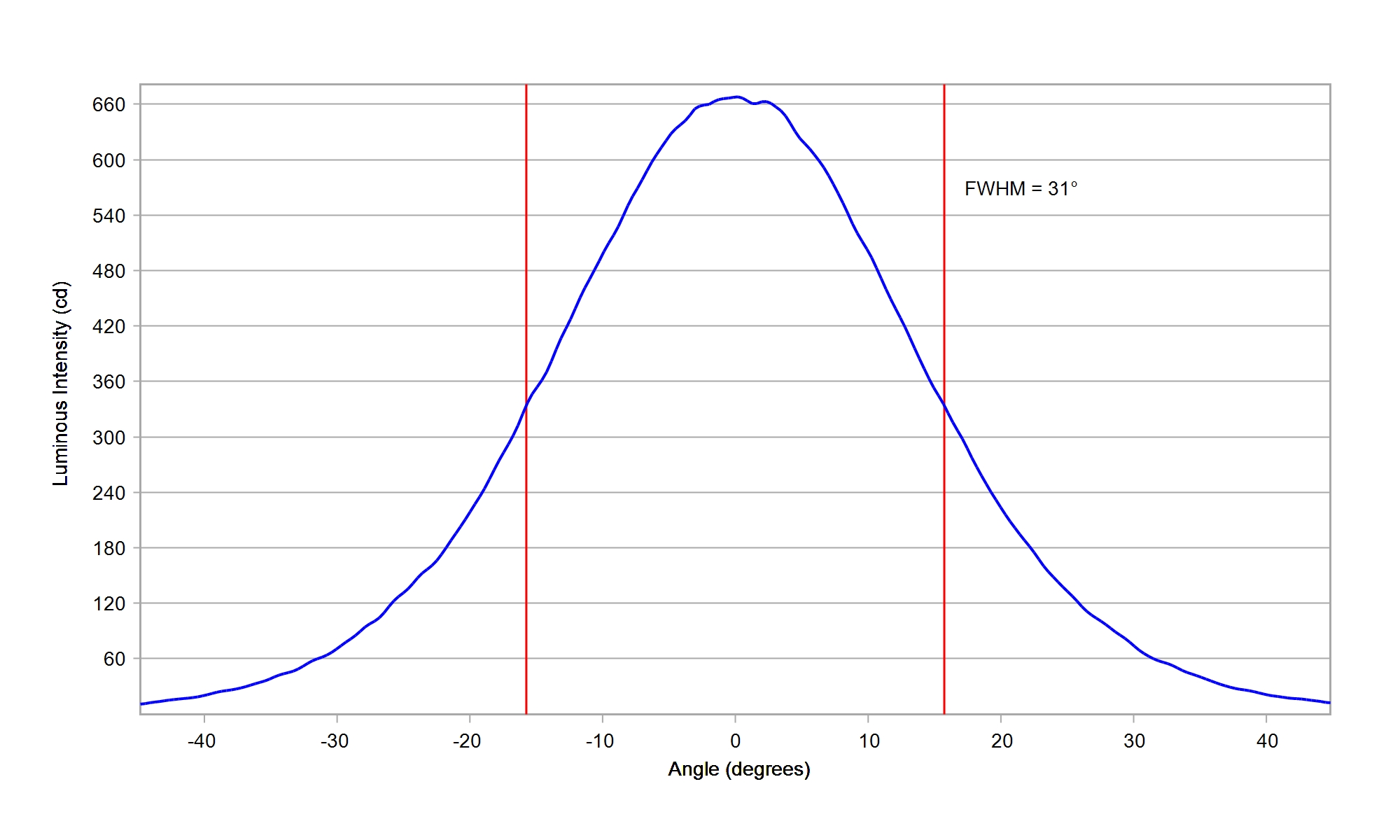

Carclo Optics - 10413 10mm Cross Section Oslon Square Gen 5

Download

IES

Osram OS OSLON Square White

Eff:

88.0%

FWHM:

26.9°

Cd/Im:

2.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

92.0%

FWHM:

26°

Cd/Im:

3.7

Carclo Optics – 10413 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Carclo Optics – 10413 Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Download

IES

Osram OS OSLON SSL 80 White

Eff:

83.5%

FWHM:

30°

Cd/Im:

2.7

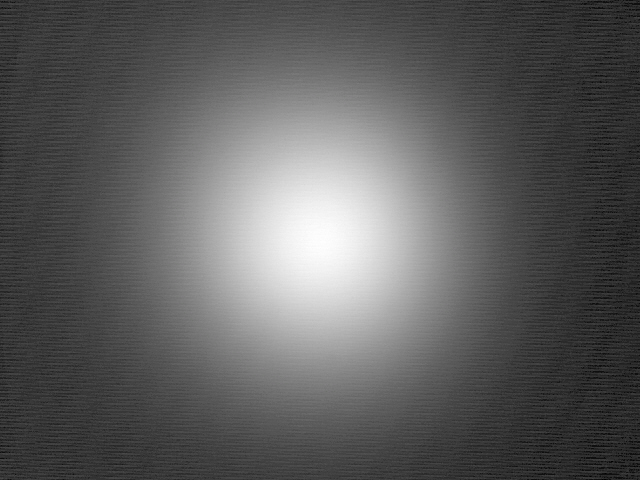

Spot Image

Cross Section

Download

ies

Osram OS OSLON SSL 80 GH CS8PM1.24 Hyper Red

Eff:

92.0%

FWHM:

29°

Ipk/W:

2.9


Download

IES

Osram OS OSLON SSL 80 GT CS8PM1.13 True Green

Eff:

92.0%

FWHM:

30°

Cd/Im:

2.7



Download

IES

Osram OS OSLON SSL 80 GW CS8PM1.PM White

Eff:

91.5%

FWHM:

28.5°

Cd/Im:

3.1


Download

IES

Samsung 2835 LM281B+ White

Eff:

92.0%

FWHM:

33°

Cd/Im:

2.2



Download

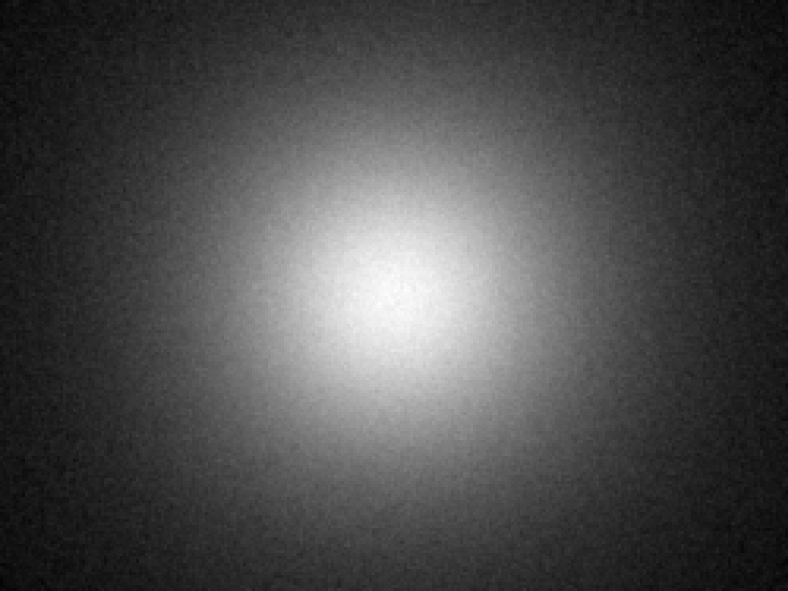

Samsung 3030 LM301B White

Eff:

92.0%

FWHM:

31°

Cd/Im:

2.8

Download

IES

Samsung 3535 LH351A White

FWHM:

30.5°

Cd/Im:

3.0

Spot Image

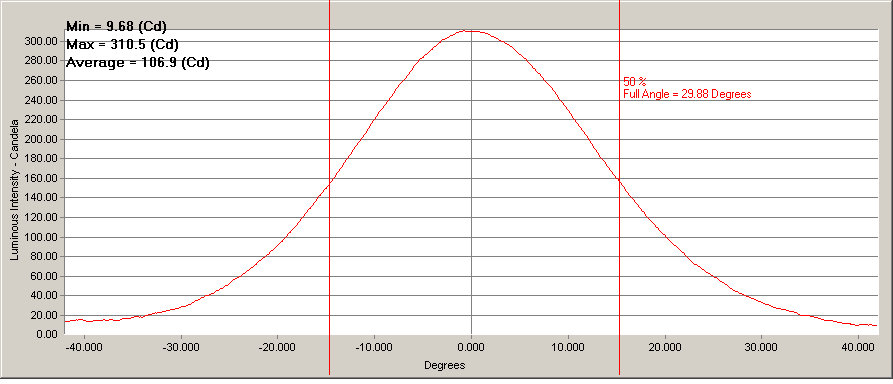

Cross Section

Download

ies

Samsung 3535 LH351B White

Eff:

88.0%

FWHM:

30°

Cd/Im:

1.9

carclo simulated spot image

carclo simulated cross section

Download

IES

Samsung 3535 LH351Z White

Eff:

27.8%

FWHM:

26°

Cd/Im:

2.5

carclo simulated spot image

carclo simulated cross section

Download

IES

Samsung CSP LH151B White

Eff:

92.5%

FWHM:

28.5°

Cd/Im:

3.0

Carclo Optics – 10413 – Samsung_LH151B_spot-image

Carclo Optics – 10413 – Samsung_LH151B_cross section

Download

IES

Samsung CSP LH181B White

Eff:

92.5%

FWHM:

33°

Cd/Im:

2.2

Carclo Optics -10413 Spot Image - Samsung LH181B_4000K

Carclo Optics -10413 Cross Section - Samsung LH181B_4000K

Download

IES

Samsung CSP LM101B White

Eff:

92.5%

FWHM:

28.5°

Cd/Im:

2.8

Carclo Optics -10413 Spot Image - Samsung LM101B 5000K

Carclo Optics -10413 Cross Section Image - Samsung LM101B 5000K

Download

IES

Seoul MidPower MJT3030 White

Eff:

88.6%

FWHM:

26°

Cd/Im:

2.2

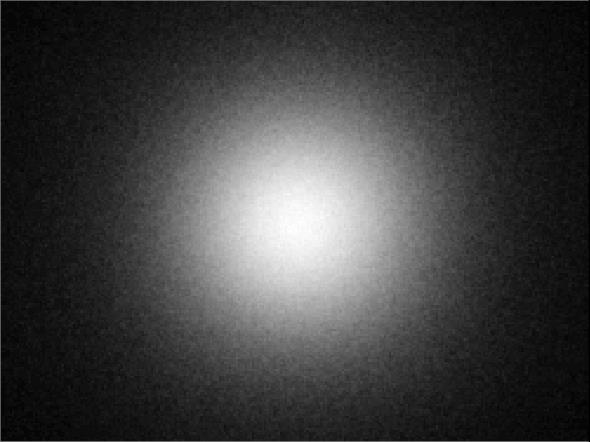

carclo optics - simulated spot image

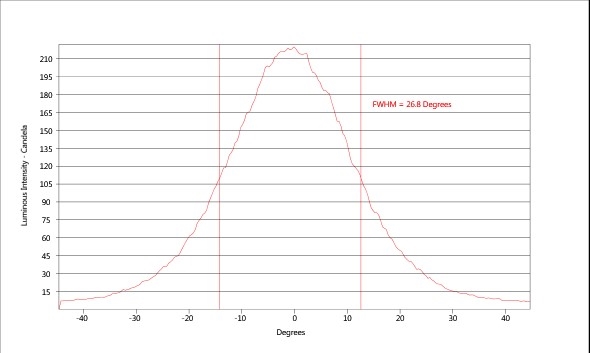

carclo optics - simulated cross section

Download

IES

Seoul STW8 C2SB-NT White

Eff:

92.0%

FWHM:

32.0°

Cd/Im:

2.5

Carclo Optics - 10413 Spot Image Seoul STW8 C2SB-NT

Carclo Optics - 10413 Cross Section Seoul STW8 C2SB-NT

Download

IES

Seoul STWS C2PB-E0 White

Eff:

92.0%

FWHM:

32.0°

Cd/Im:

2.5

Carclo Optics - 10413 Spot Image Seoul STWS C2PB-E0

Carclo Optics - 10413 Cross Section Seoul STWS C2PB-E0

Download

IES

Seoul SunLike STW9 C2SB-S

Eff:

92.0%

FWHM:

30°

Cd/Im:

2.6

Carclo Optics - 10413 10mm Spot Image Seoul Sunlike 3030

Carclo Optics - 10413 10mm Cross Section Seoul Sunlike 3030

Download

IES

Seoul Z - Power Z5 M0 White

Eff:

84.1%

FWHM:

28.1°

Cd/Im:

3.1

Spot Image

Cross Section

Download

ies

Seoul Z - Power Z5 M4 White

Eff:

91.5%

FWHM:

33°

Cd/Im:

2.2

Carclo Optics – 10413 Seoul Z-Power Z5 - Spot Image

Carclo Optics – 10413 Seoul Z-Power Z5 - Cross-Section

Download

IES

Seoul Z - Power Z5 P0 White

FWHM:

26.8°

Cd/Im:

3.4

Spot Image

Cross Section

Download

ies

Seoul Z - Power Z5 White

Eff:

82.8%

FWHM:

26°

Cd/Im:

3.4

Spot Image

Cross Section

Download

ies

Stanley FWR1108MS IR 755nm

Eff:

94.5%

FWHM:

26.5°

Ipk/W:

3.4


Download

Toshiba TL 1L2 White

Eff:

88.0%

FWHM:

27.8°

Cd/Im:

2.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Toshiba TL 1L4 White

Eff:

88.0%

FWHM:

29.4°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES
