Carclo Optics 10403
19.7mm 120 Degree Plain Bubble
Part number
10403
Dimensions
19.7mm
Drawing Number
60521
Optic type
Bubble
Finish
Plain
Beam type
120 Degree
Applications
Architectural
Industrial
Landscape & Garden
Office
Horticultural
Retail
Wide Area
Security
Humancentric
Emergency
Downloads

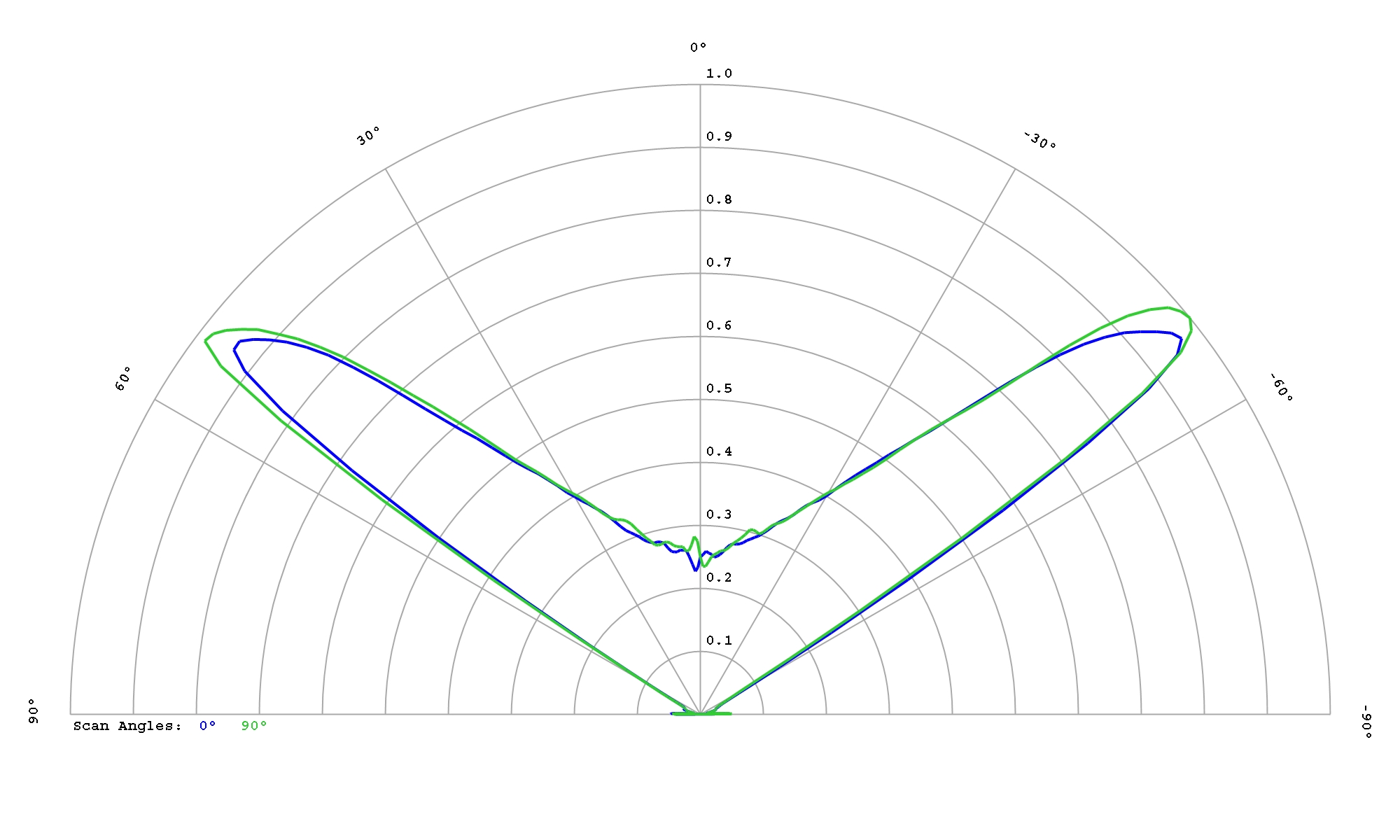

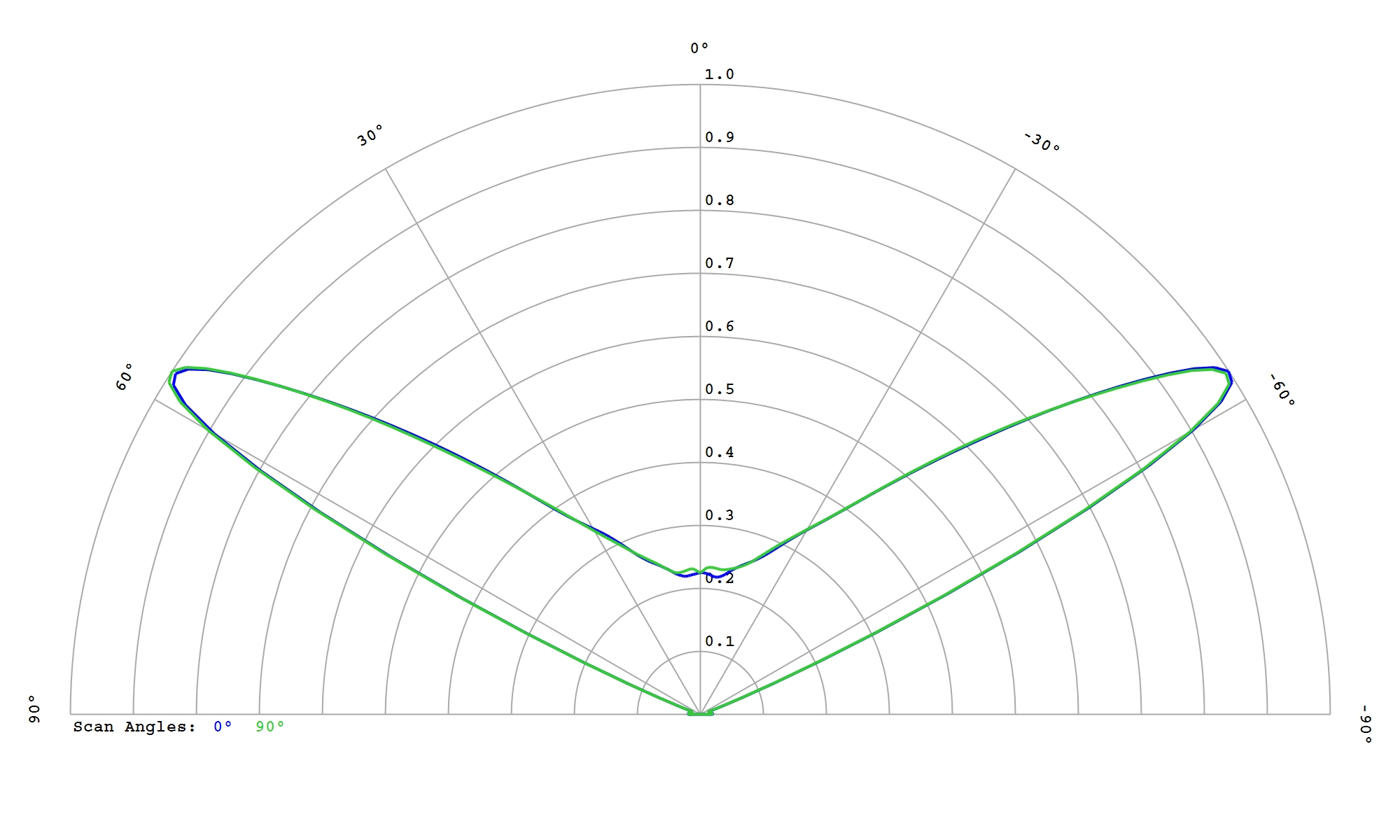

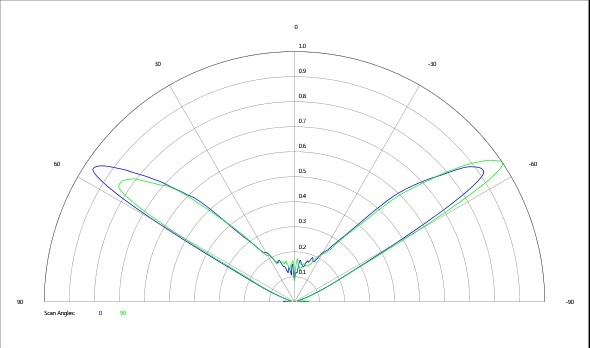

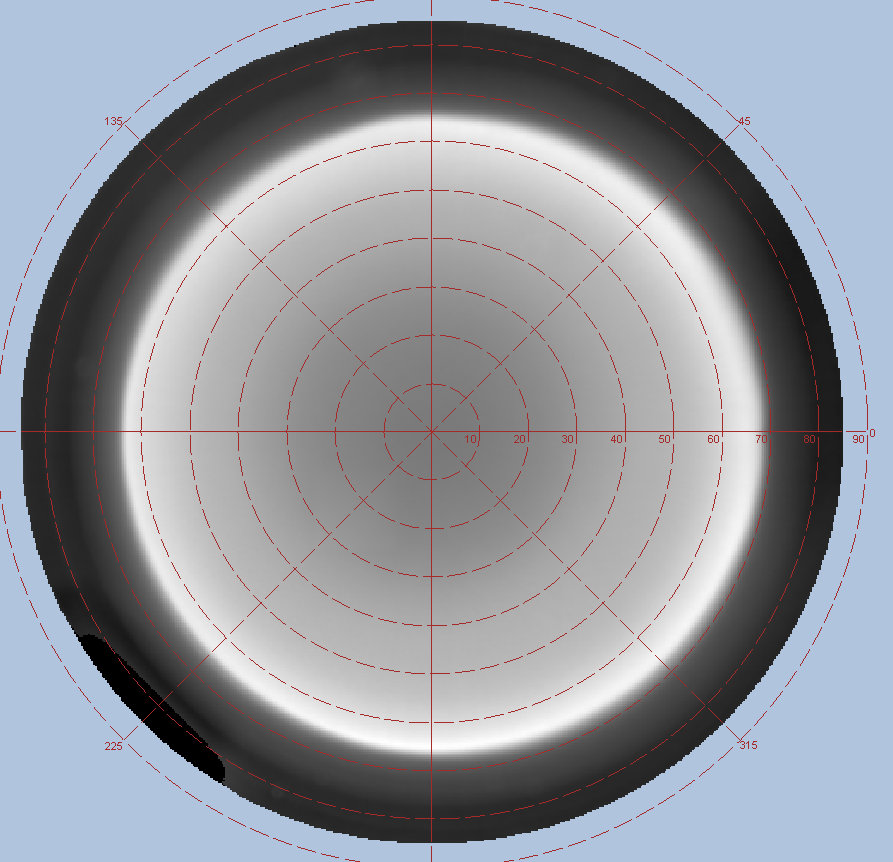

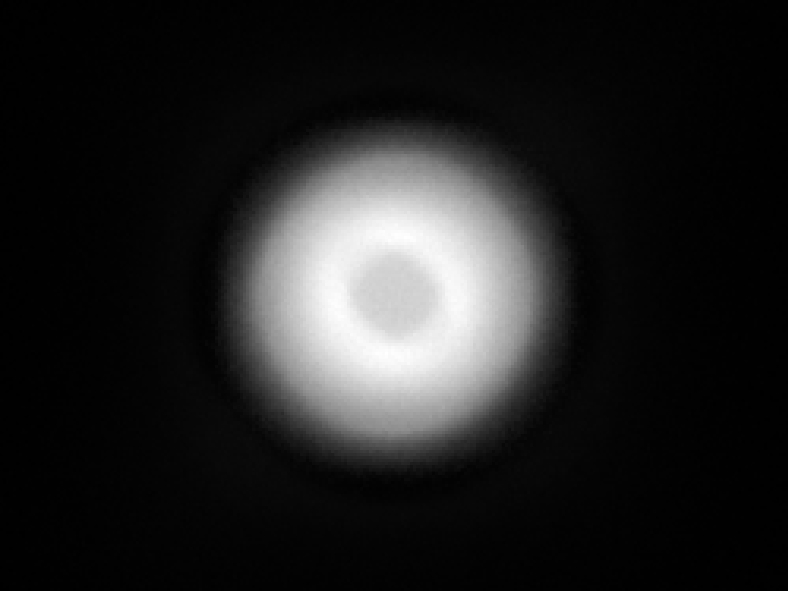

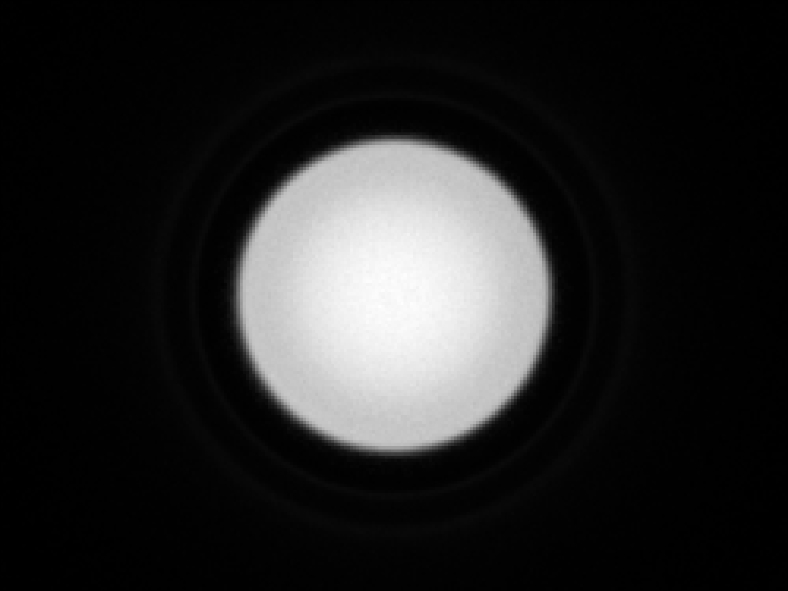

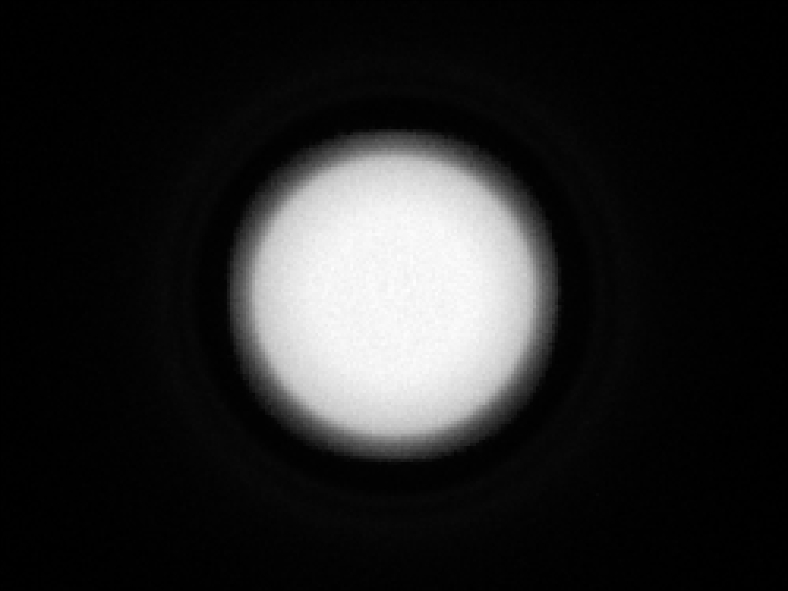

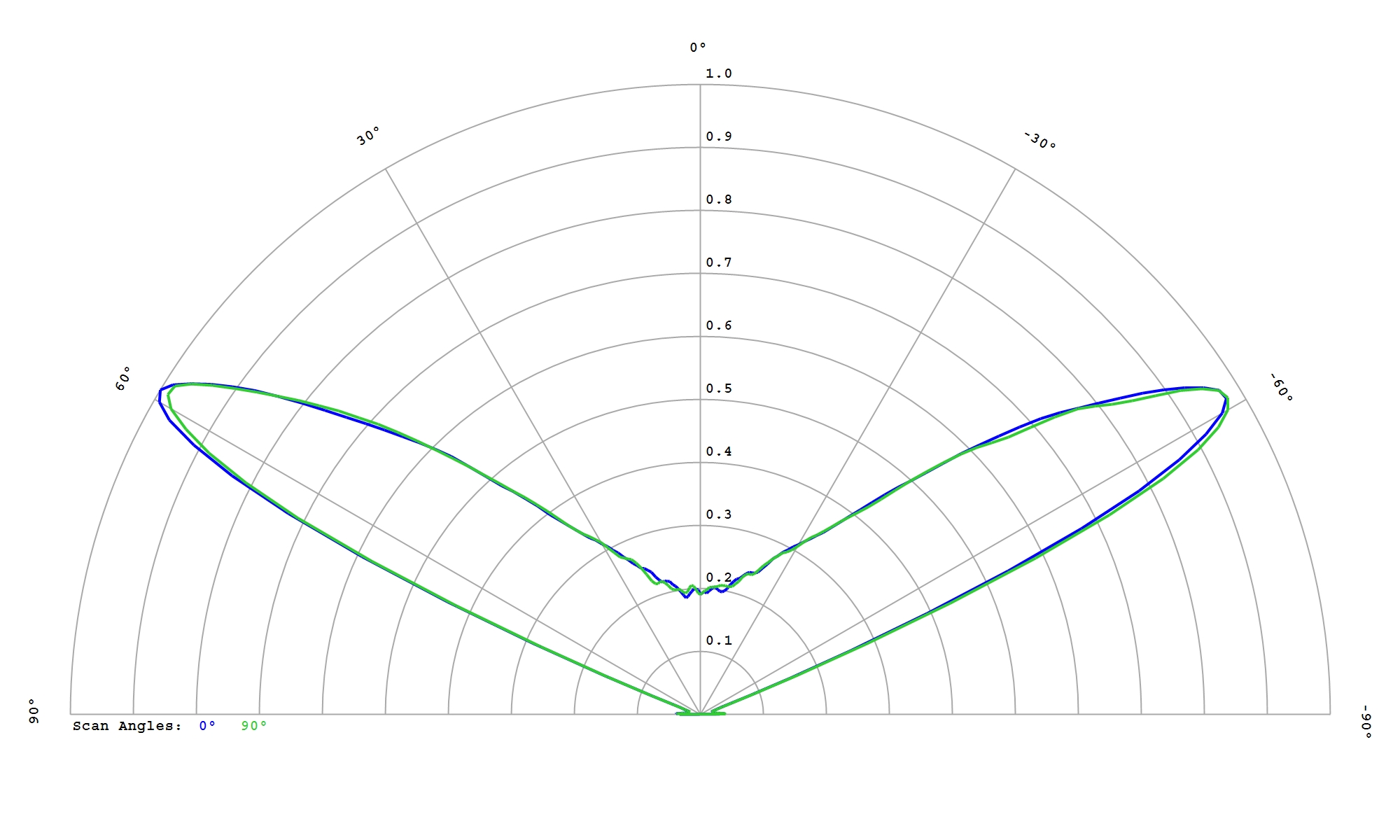

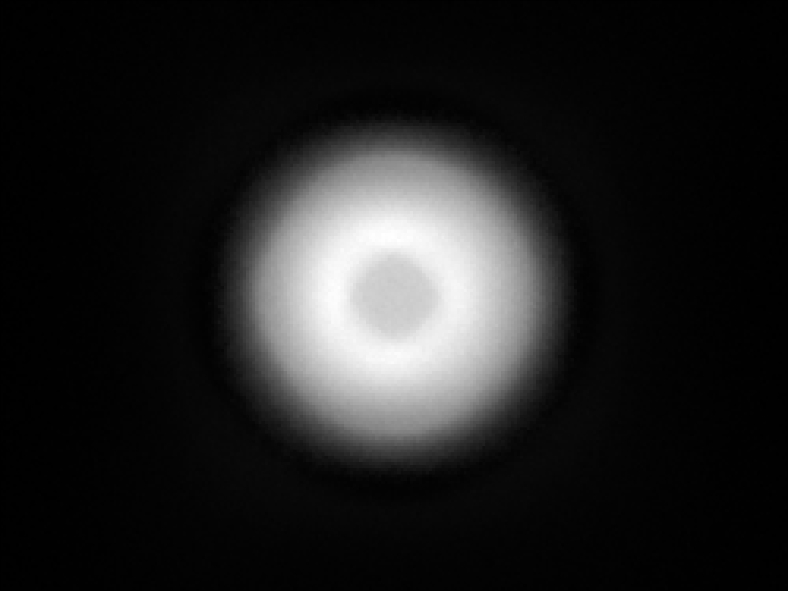

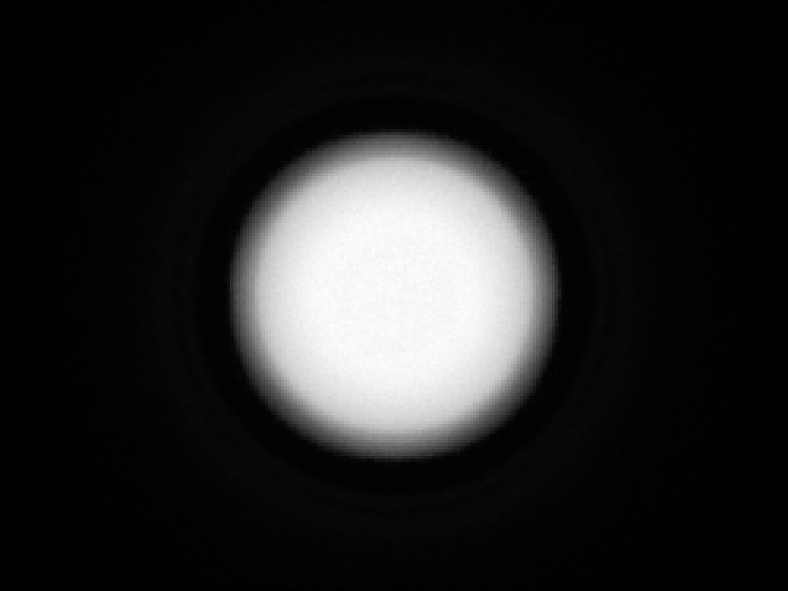

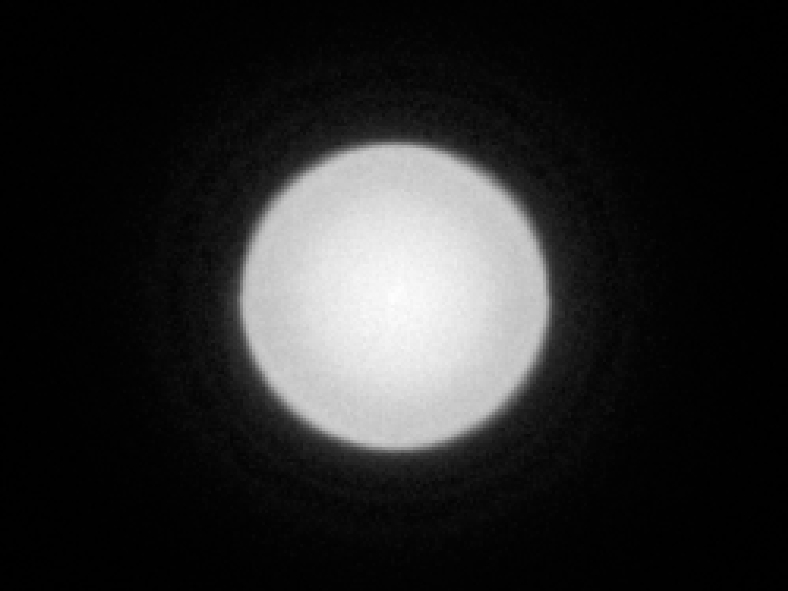

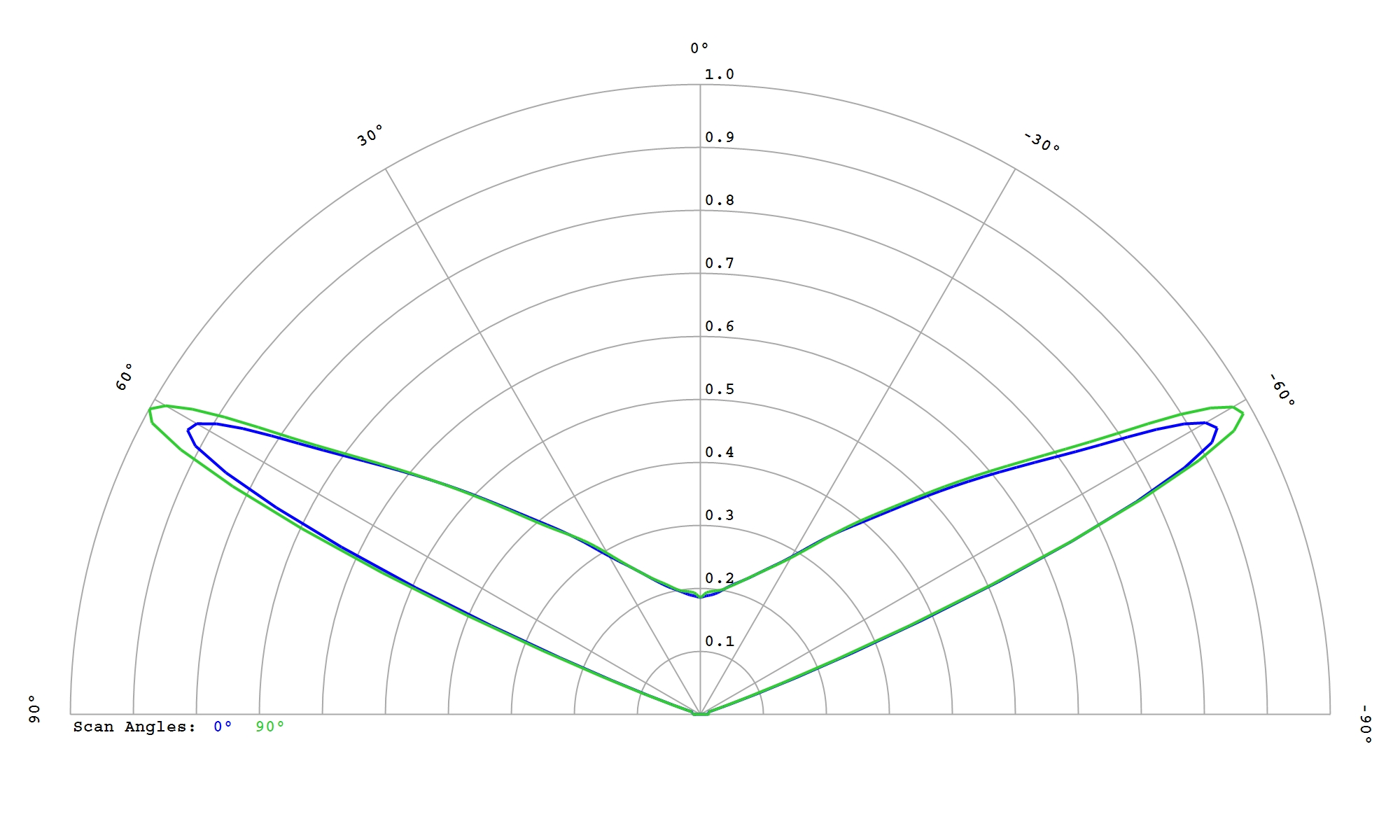

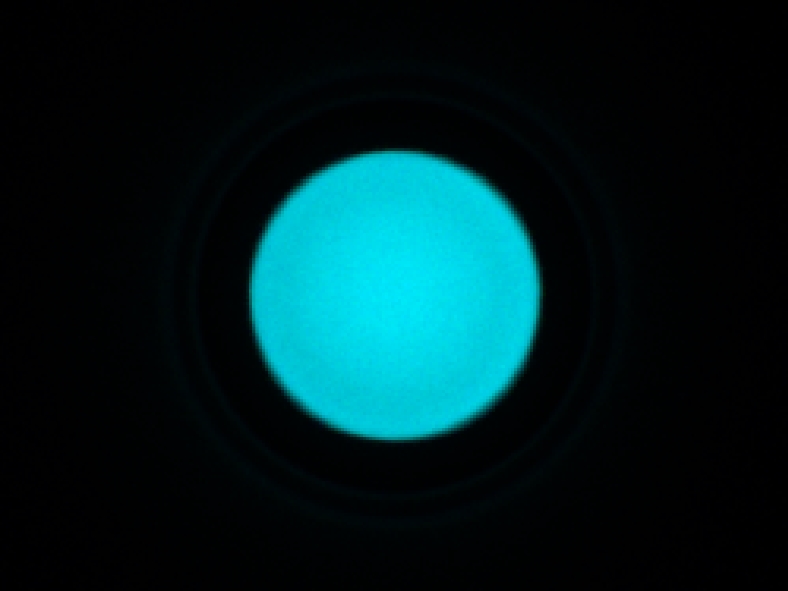

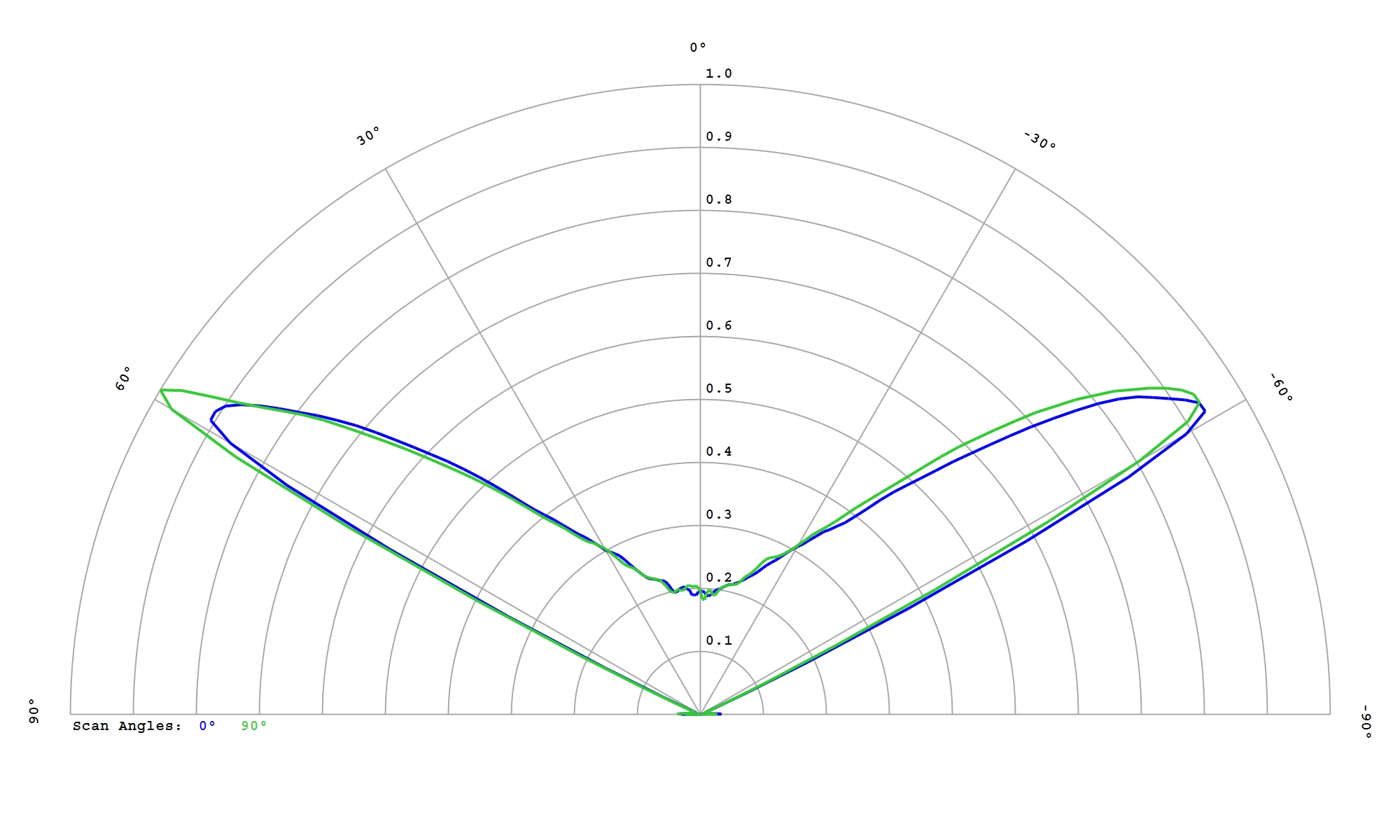

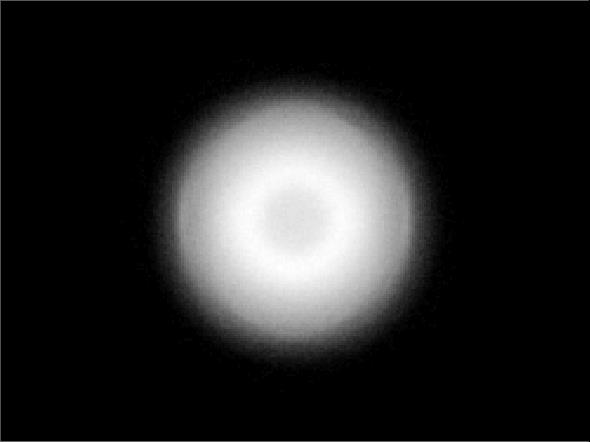

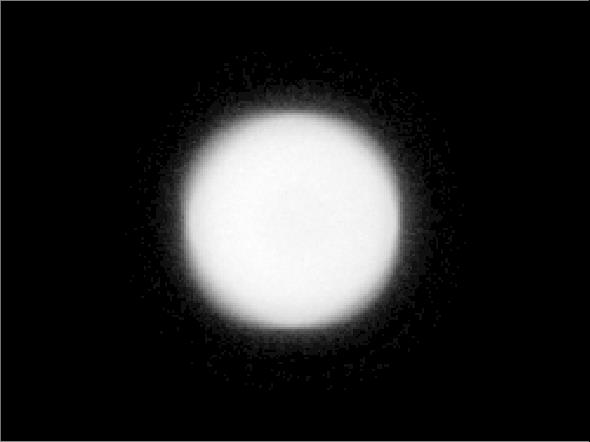

LEDs and Performances

Select and filter based on manufacturer(s)
Bridgelux SMD 3030 Gen2 White
Eff:
92.5%
FWHM:
122 x 124°
Cd/Im:
0.6
Download

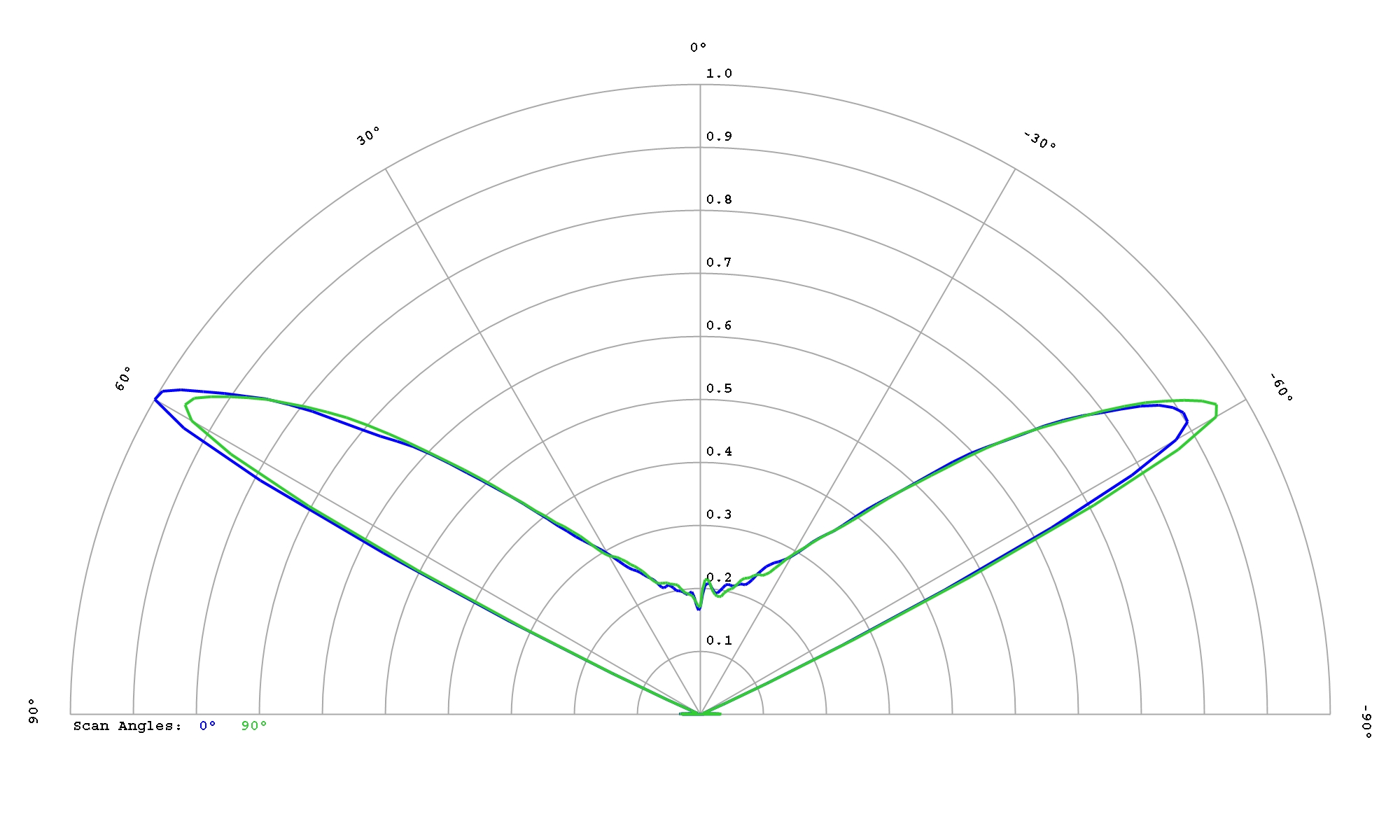

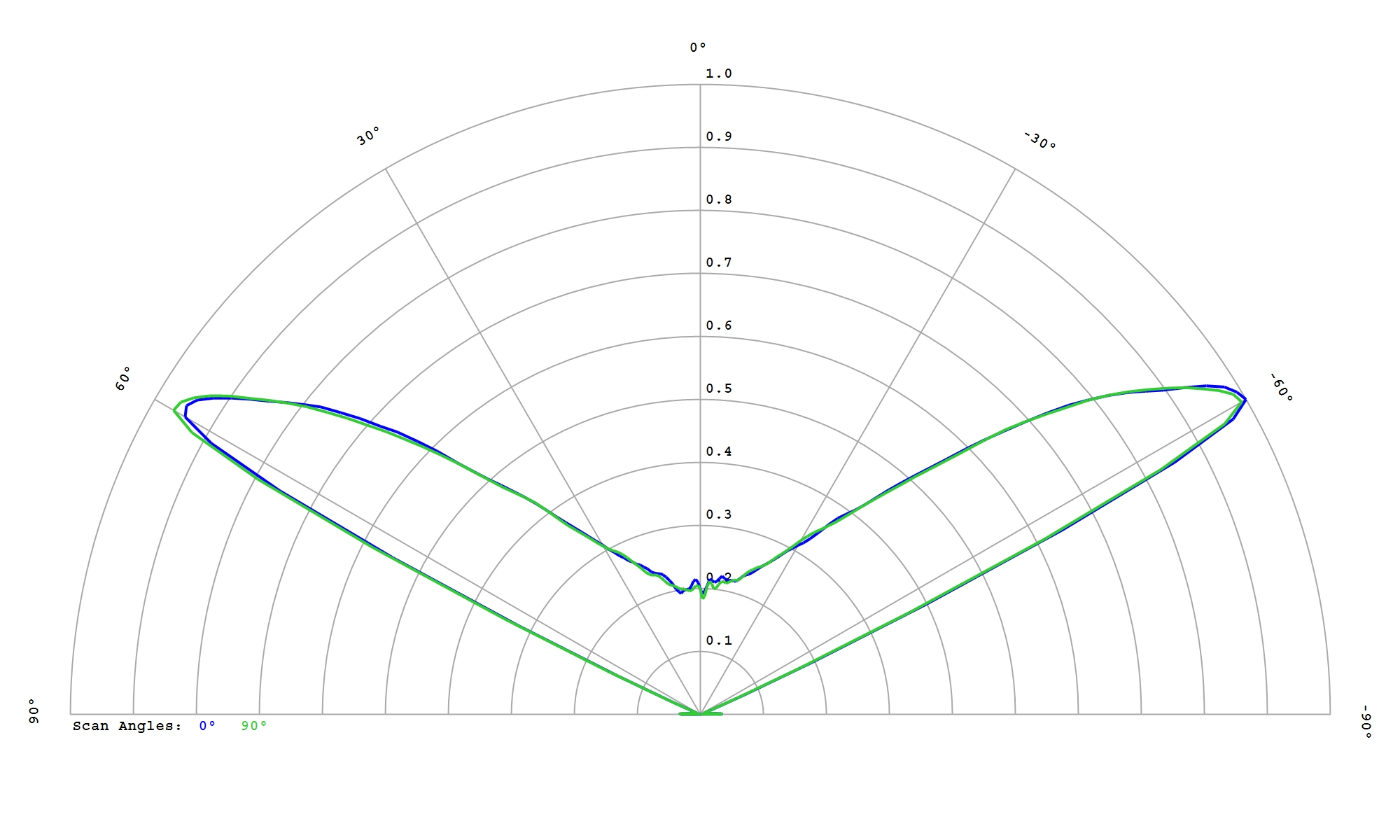

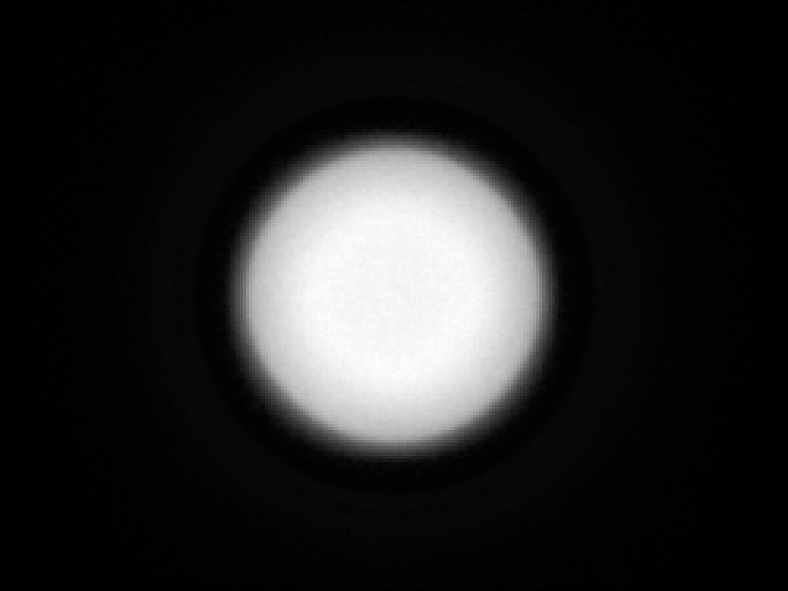

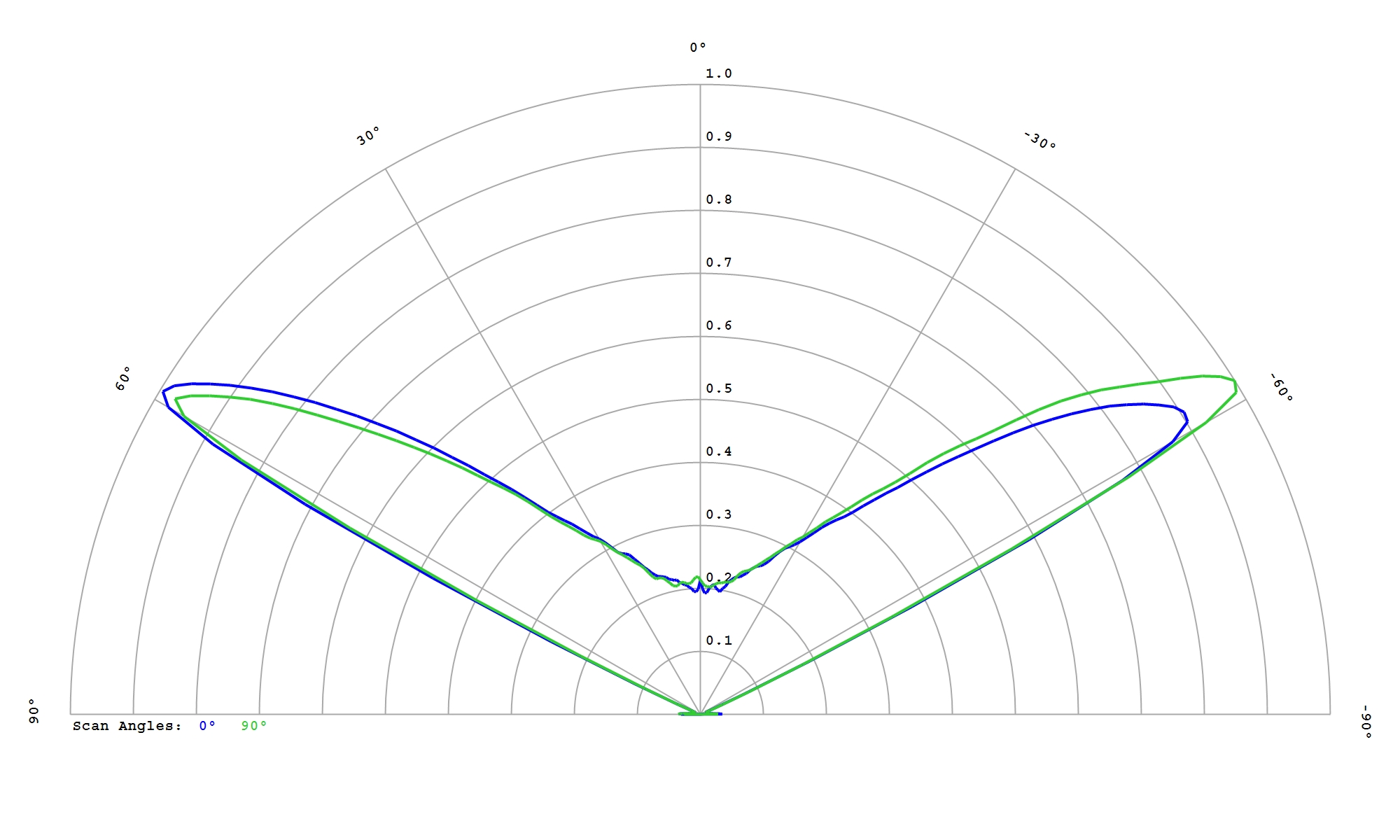

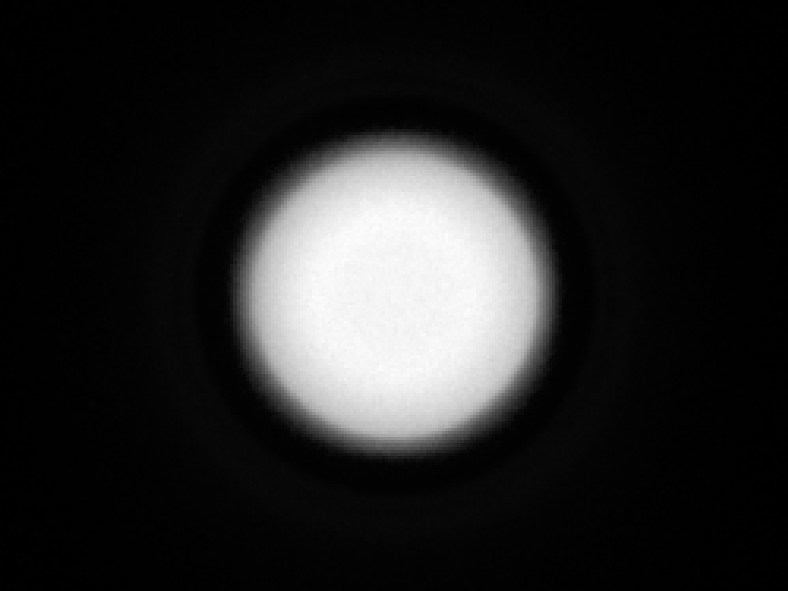

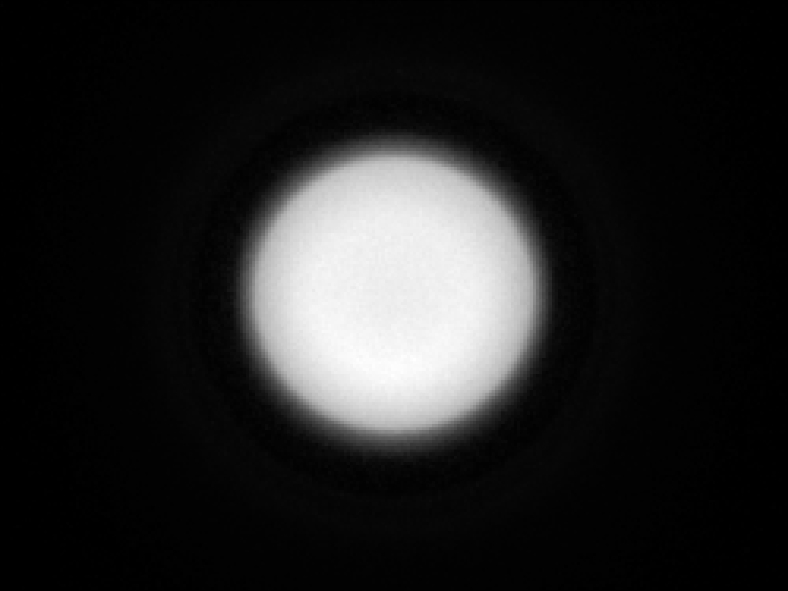

Cree JB3030 3V White
Eff:
92.5%
FWHM:
122°
Cd/Im:
0.5
Download

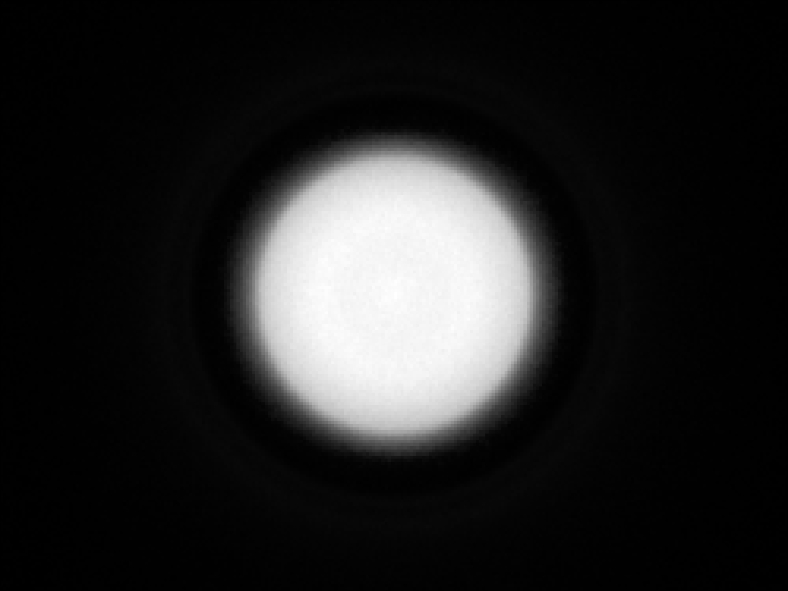

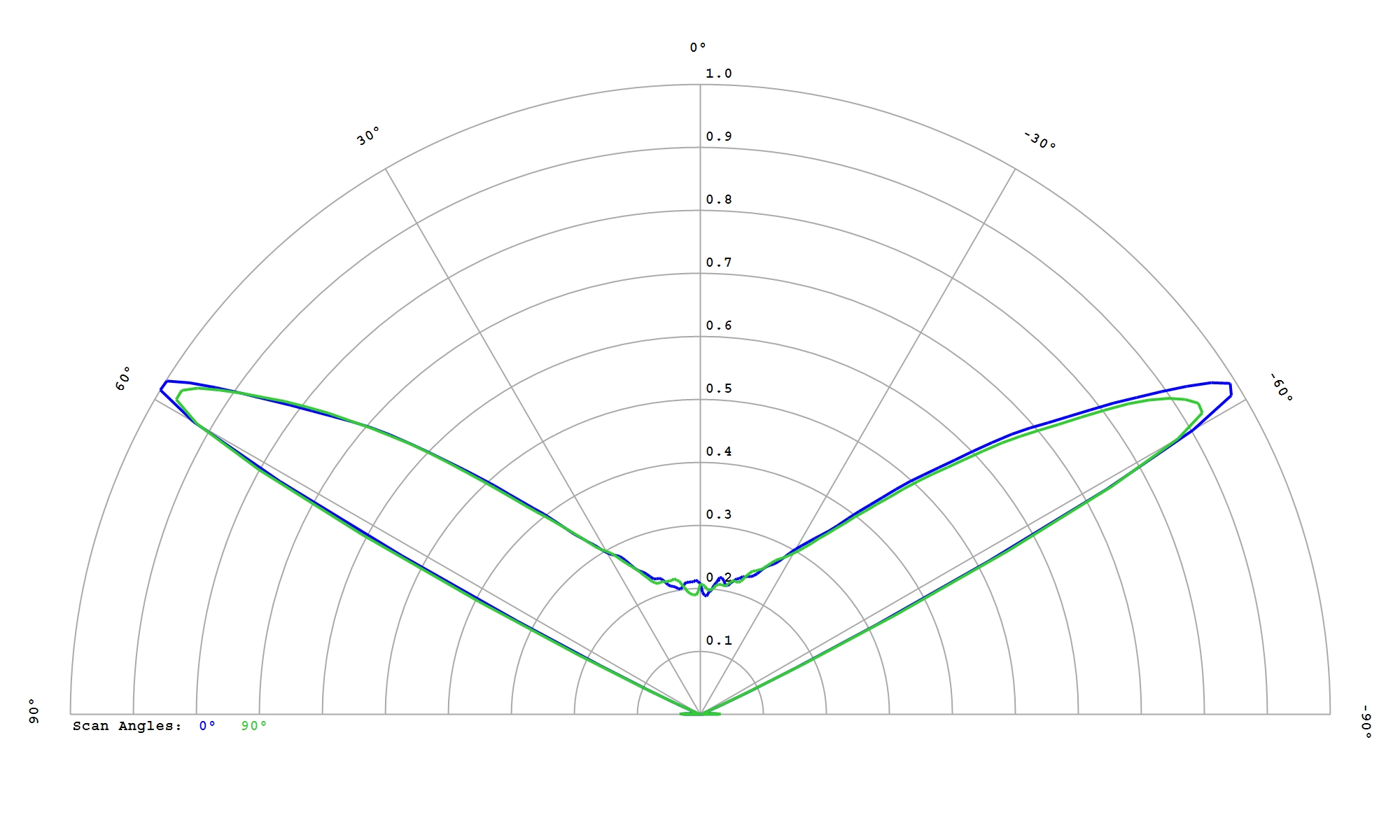

Cree JK2835 6V White
Eff:
92.5%
FWHM:
124°
Cd/Im:
0.5
Download
Cree JQ5050 9V White
Eff:
93.0%
FWHM:
126°
Cd/Im:
0.4
Download
Cree JR5050 24V White
Eff:
93.0%
FWHM:
125°
Cd/Im:
0.4
Download
Cree JR5050 36V White
Eff:
93.0%
FWHM:
125°
Cd/Im:
0.4
Download

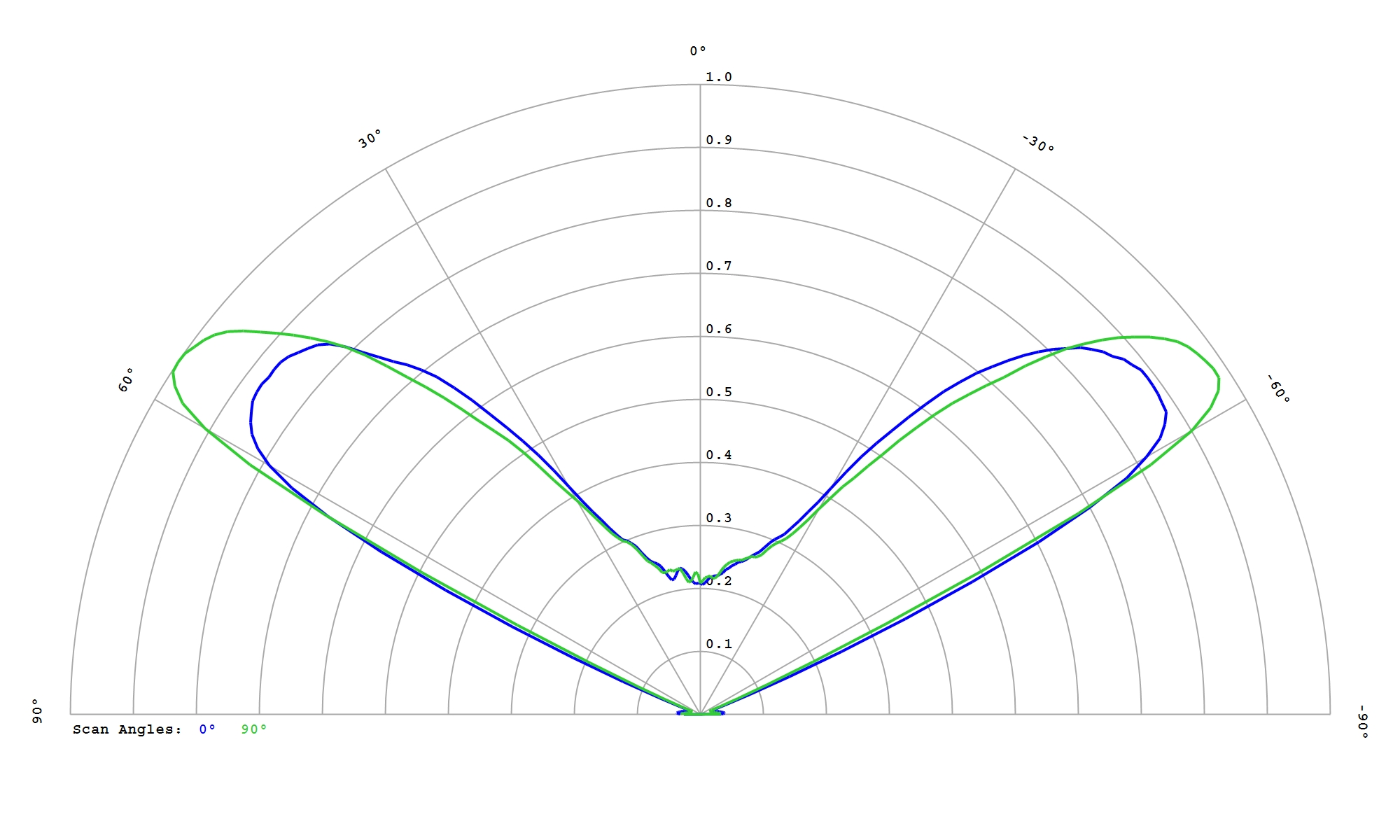

Cree JR5050 6V White
Eff:
93.0%
FWHM:
126°
Cd/Im:
0.4
Download
Cree XLamp CSP XD16 Cool White
Eff:
92.0%
FWHM:
125°
Cd/Im:
0.7
Download
Cree XLamp XB-H White
Eff:
91.5%
FWHM:
128°
Cd/Im:
0.4
Download

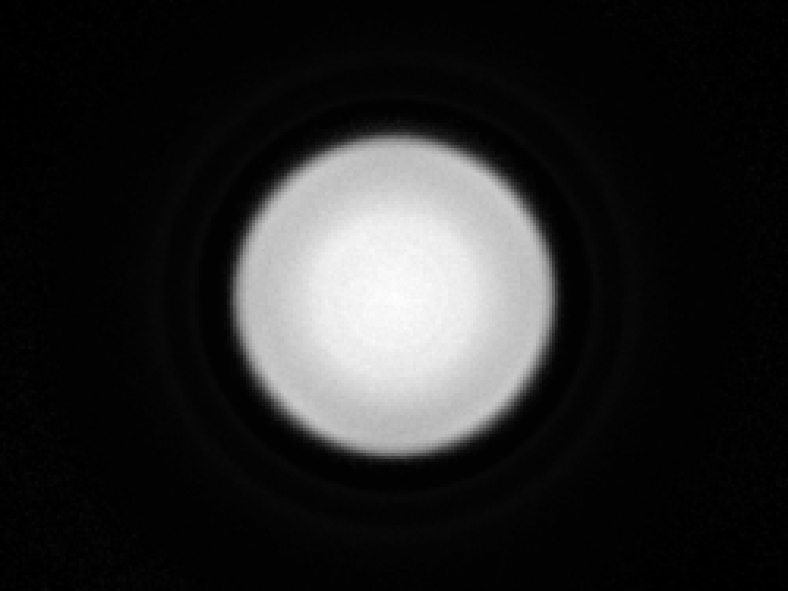

Cree XLamp XE-G White
Eff:
91.0%
FWHM:
129°
Cd/Im:
0.6
Download
Cree XLamp XH-B White
Eff:
86.0%
FWHM:
131.8°
Cd/Im:
0.4
Download
Cree XLamp XHP-50 Gen 2 White
Eff:
90.5%
FWHM:
135°
Cd/Im:
0.3
Download

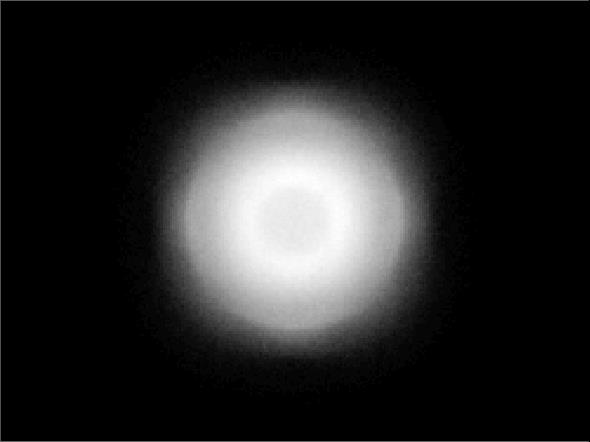

Cree XLamp XHP-50 White
Eff:
87.8%
FWHM:
130°
Cd/Im:
0.3
Download
Cree XLamp XHP35 HI White
Eff:
87.6%
FWHM:
129°
Cd/Im:
0.4
Download
Cree XLamp XHP35 White
Eff:
86.5%
FWHM:
129°
Cd/Im:
0.4
Download
Cree XLamp XHP35.2 HI White
Eff:
91.5%
FWHM:
130°
Cd/Im:
0.4
Download
Cree XLamp XHP35.2 White
Eff:
90.5%
FWHM:
131°
Cd/Im:
0.4
Download

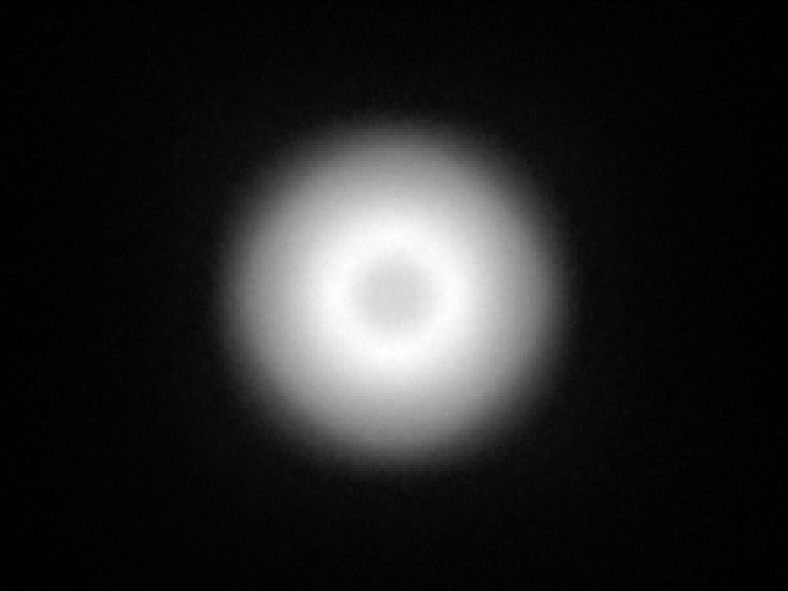

Cree XLamp XHP50.3 HI White
Eff:
92.0%
FWHM:
130°
Cd/Im:
0.4
Download
Cree XLamp XHP50.3 White
Eff:
90.5%
FWHM:
131°
Cd/Im:
0.4
Download
Cree XLamp XM-L White
Eff:
87.9%
FWHM:
130.2°
Cd/Im:
0.4
Download
Cree XLamp XM-L3 White
Eff:
91.0%
FWHM:
132°
Cd/Im:
0.5
Download
Cree XLamp XP-E White
Eff:
87.5%
FWHM:
127°
Cd/Im:
0.5
Download

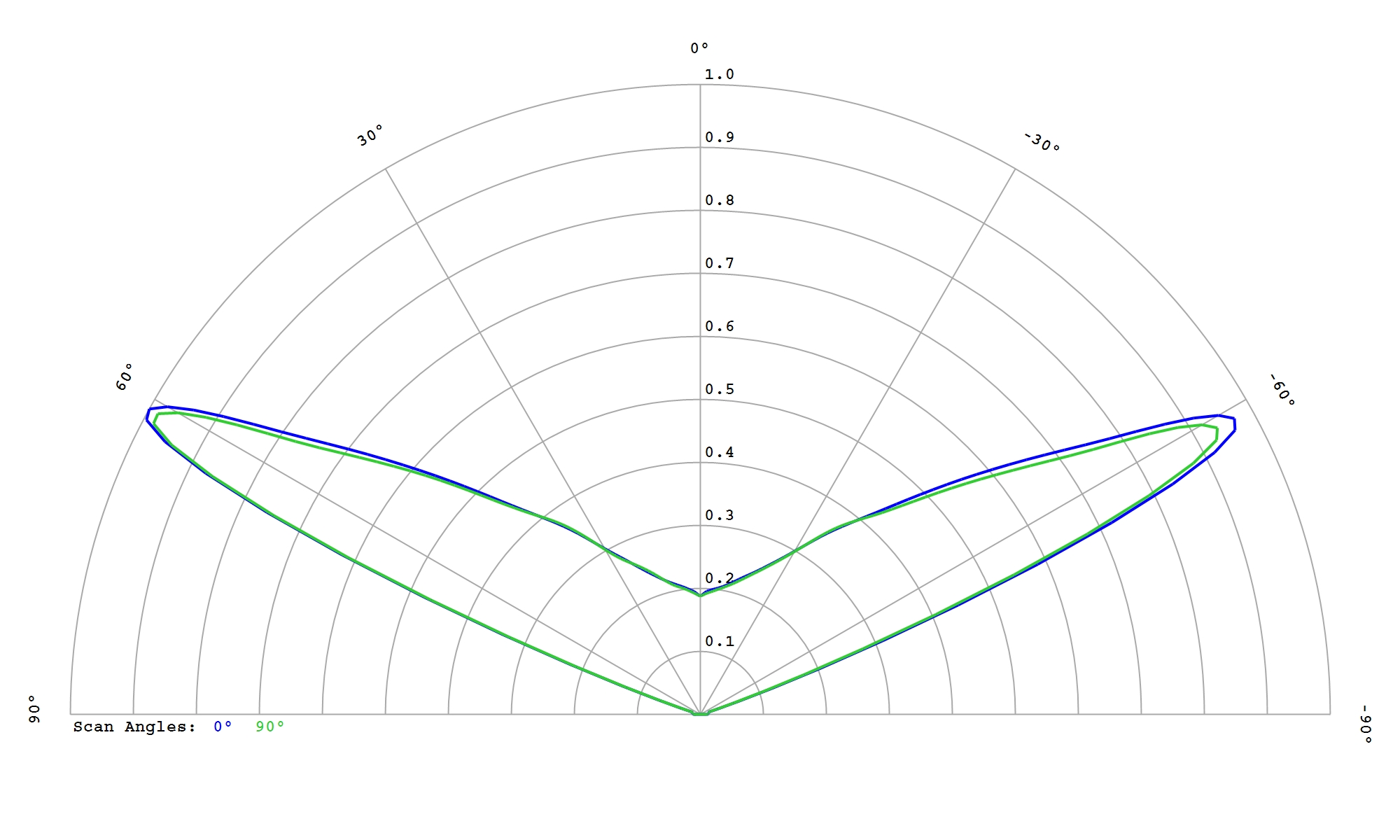

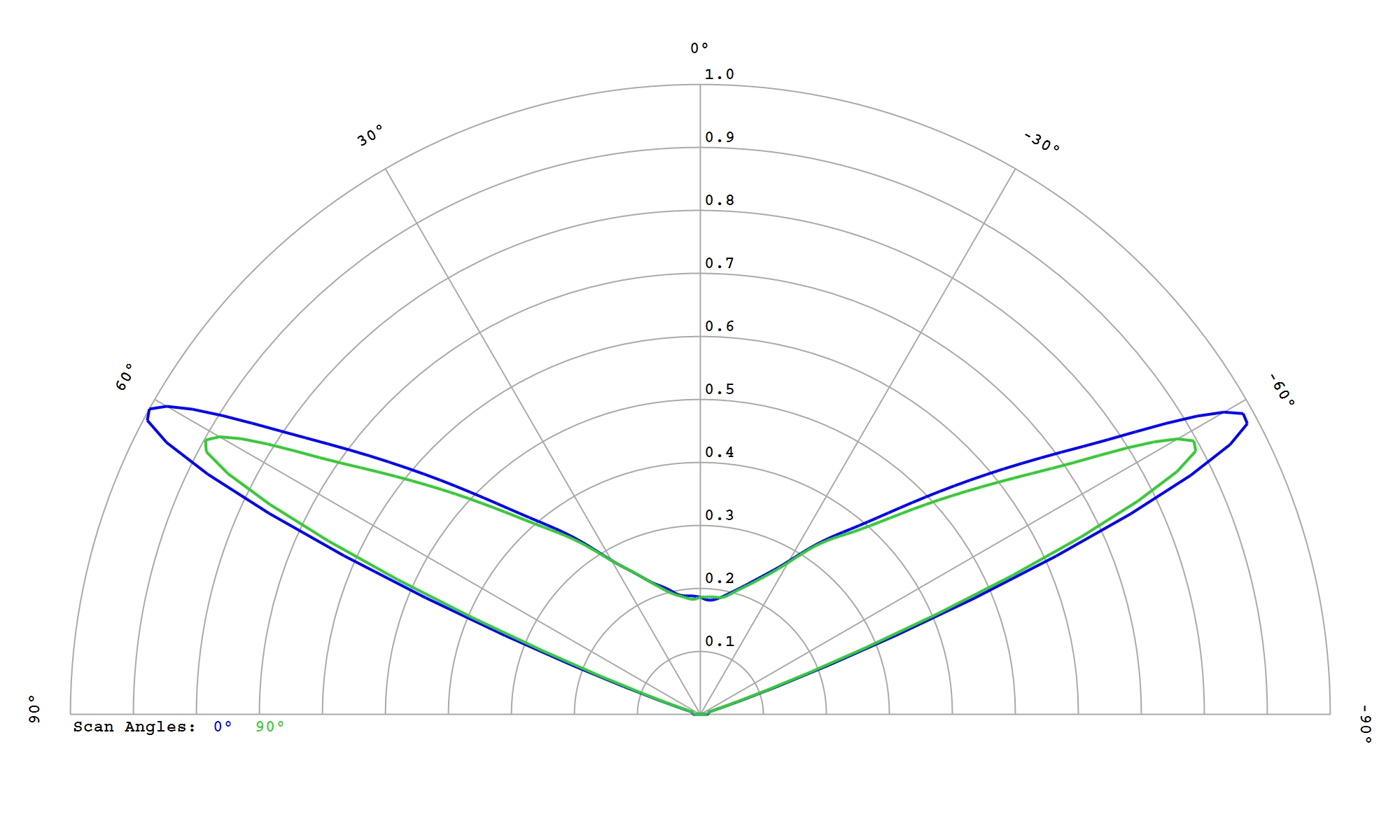

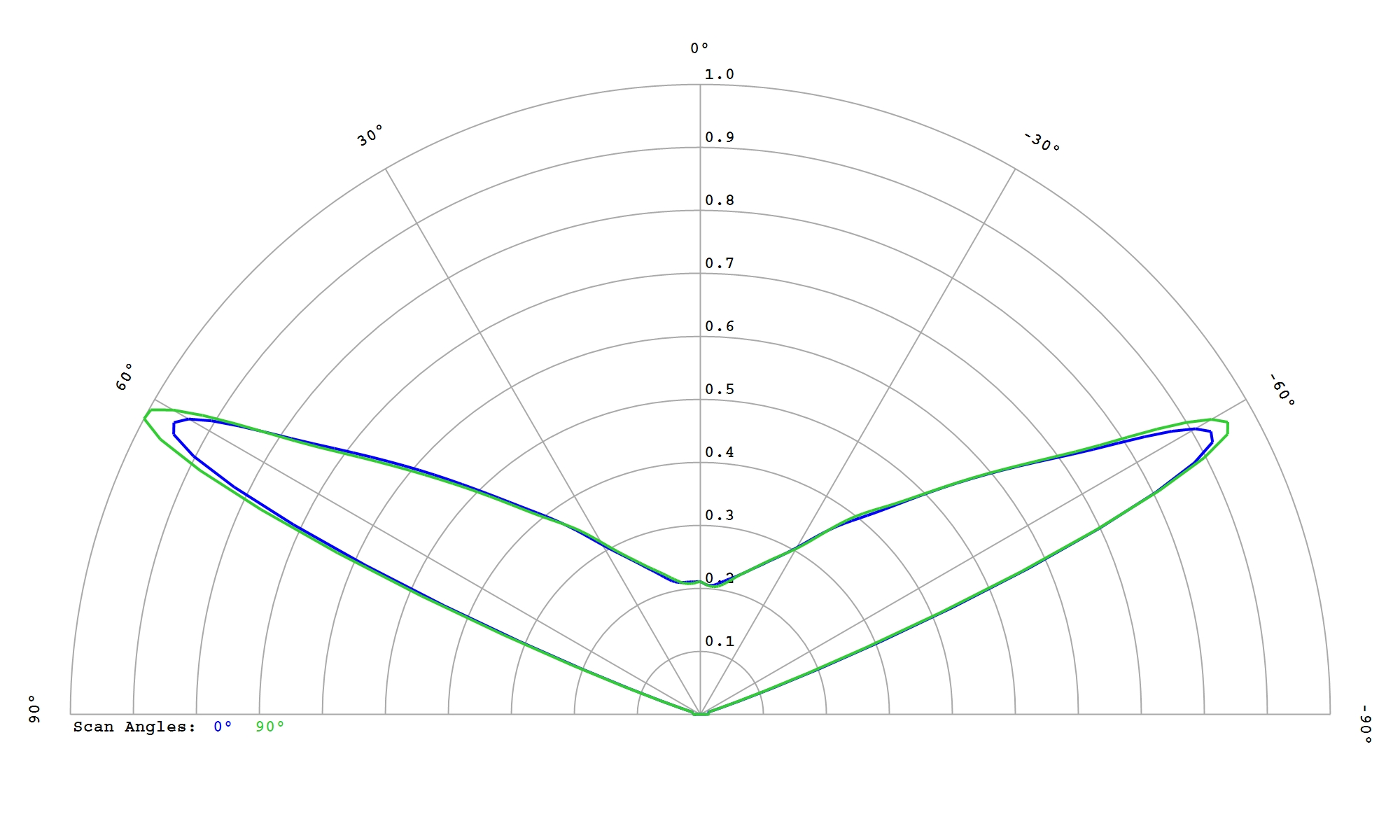

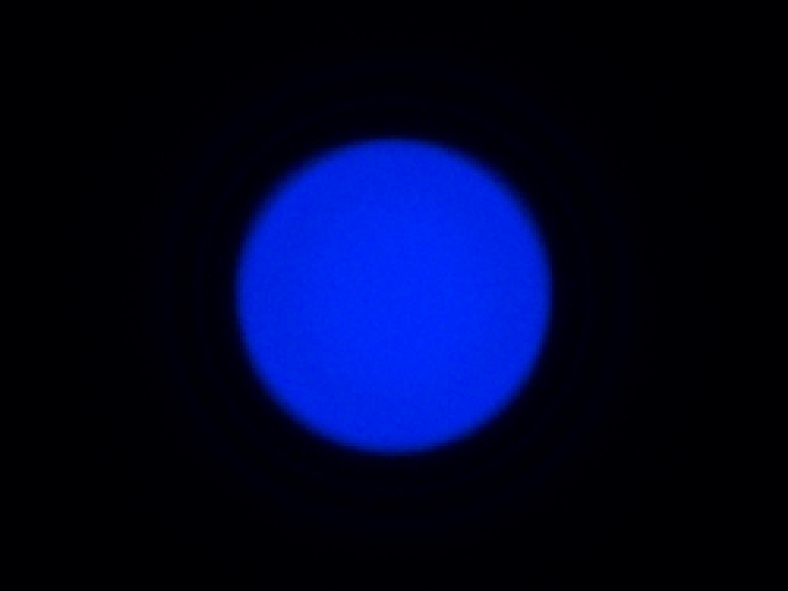

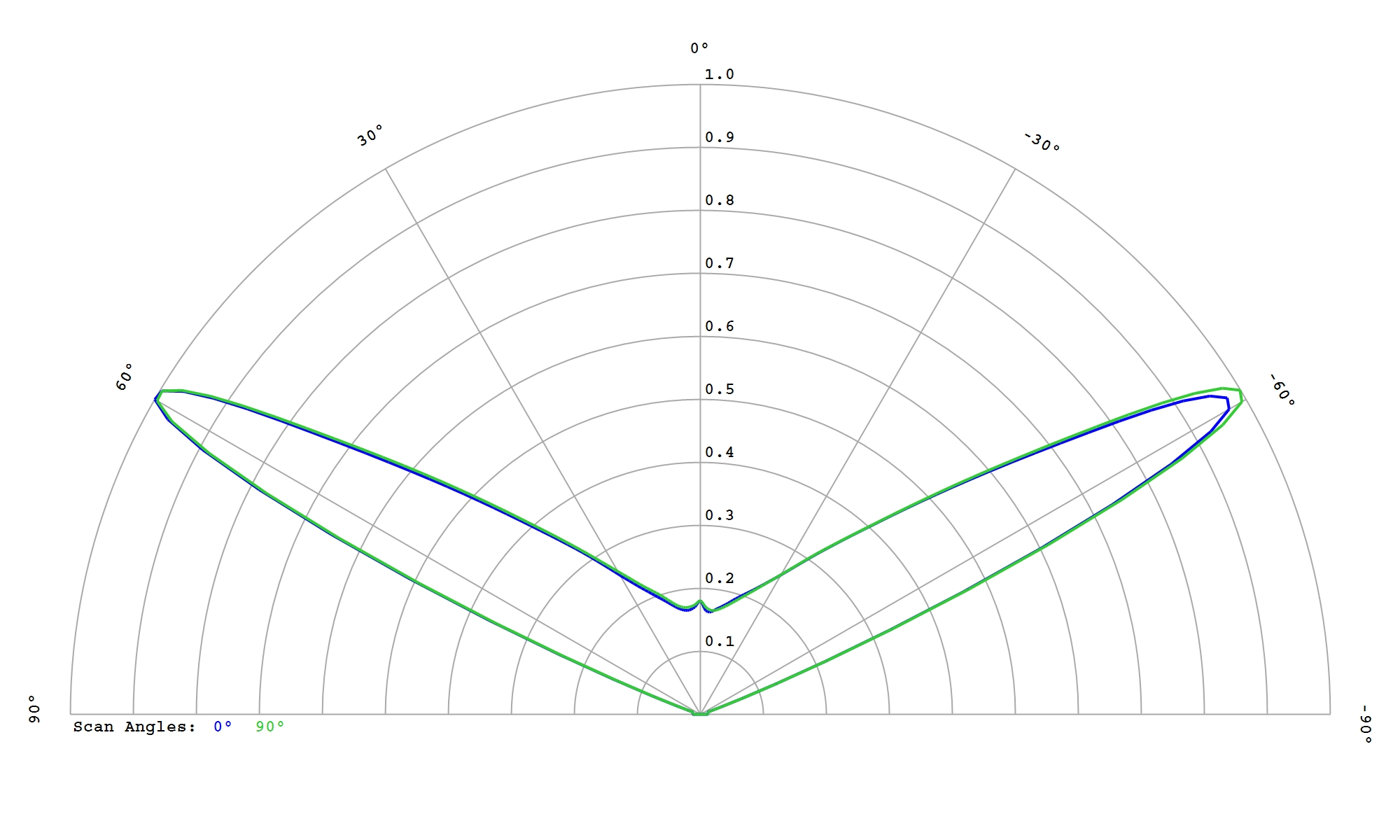

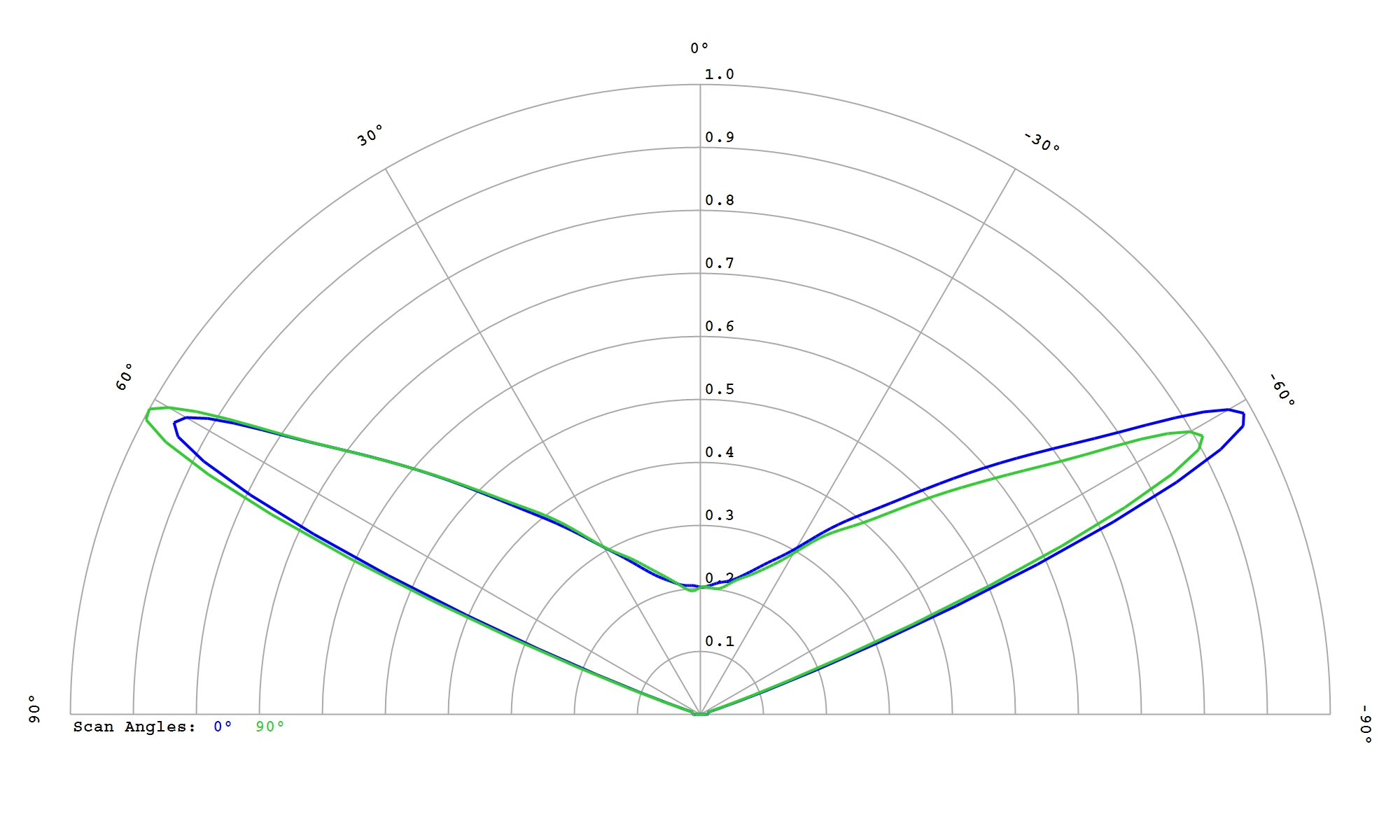

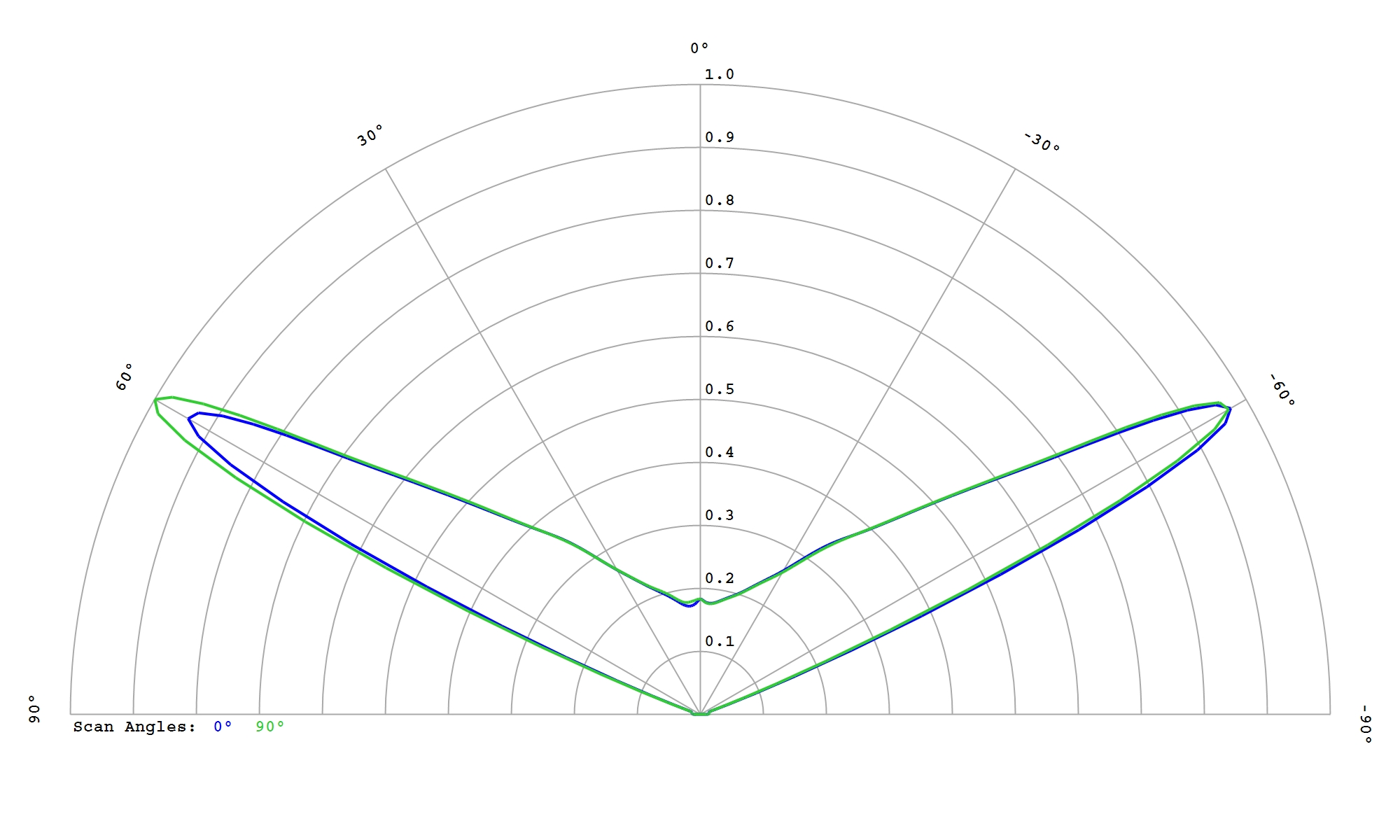

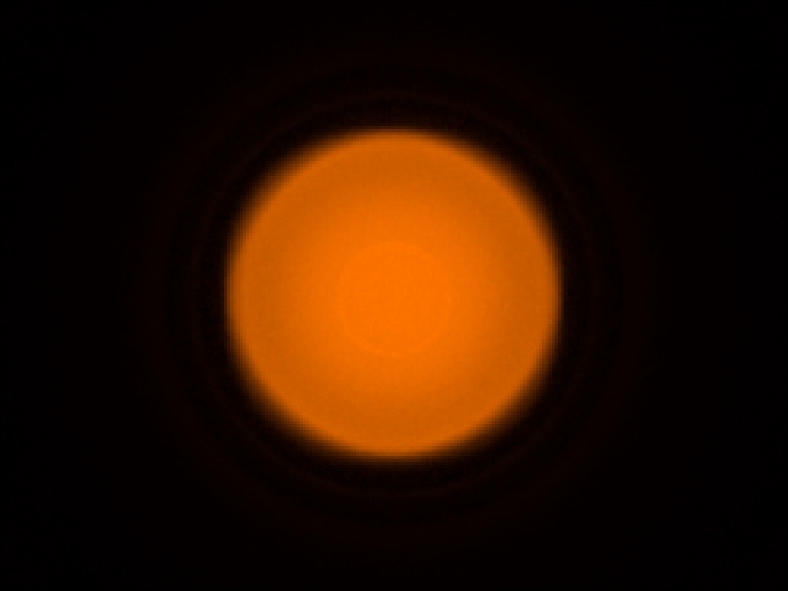

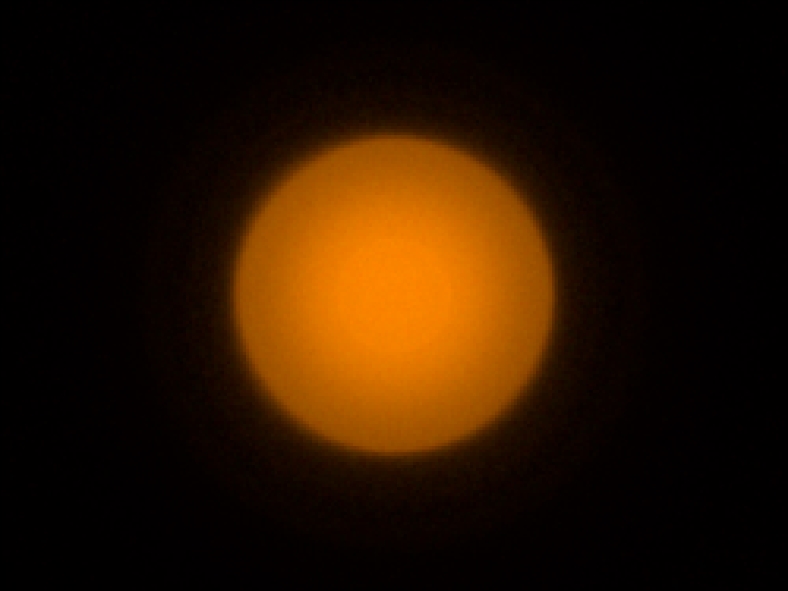

Cree XLamp XP-E2 Far Red
Eff:
92.0%
FWHM:
134°
Cd/Im:
0.8
Download

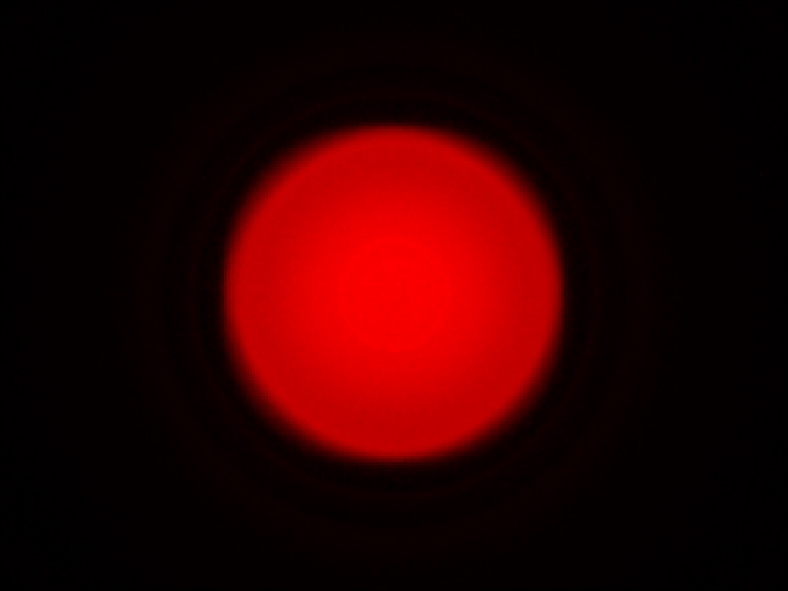

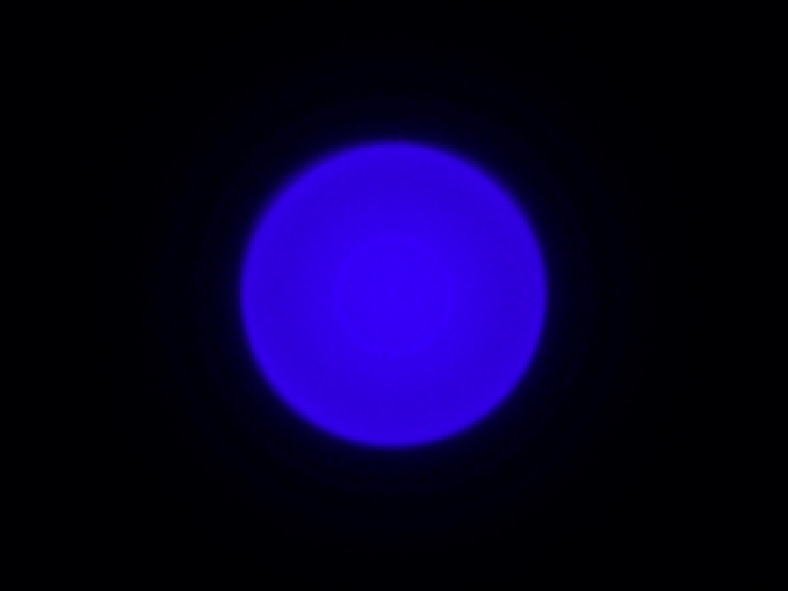

Cree XLamp XP-E2 White
Eff:
91.5%
FWHM:
131°
Cd/Im:
0.5
Download
Cree XLamp XP-G White
Eff:
87.0%
FWHM:
130°
Cd/Im:
0.5
Download
Cree XLamp XP-G2 White
Eff:
87.5%
FWHM:
130.8°
Cd/Im:
0.5
Download
Cree XLamp XP-G3 Photo Red
Eff:
92.5%
FWHM:
131°
Cd/Im:
0.6
Download
Cree XLamp XP-G3 Royal Blue
Eff:
89.0%
FWHM:
128°
Cd/Im:
0.5
Download
Cree XLamp XP-G3 White
Eff:
86.0%
FWHM:
129°
Cd/Im:
0.5
Download
Cree XLamp XP-L HI White
Eff:
87.7%
FWHM:
129.0°
Cd/Im:
0.4
Download
Cree XLamp XP-L White
Eff:
88.0%
FWHM:
131.6°
Cd/Im:
0.4
Download
Cree XLamp XP-L2 White
Eff:
90.5%
FWHM:
130°
Cd/Im:
0.4
Download

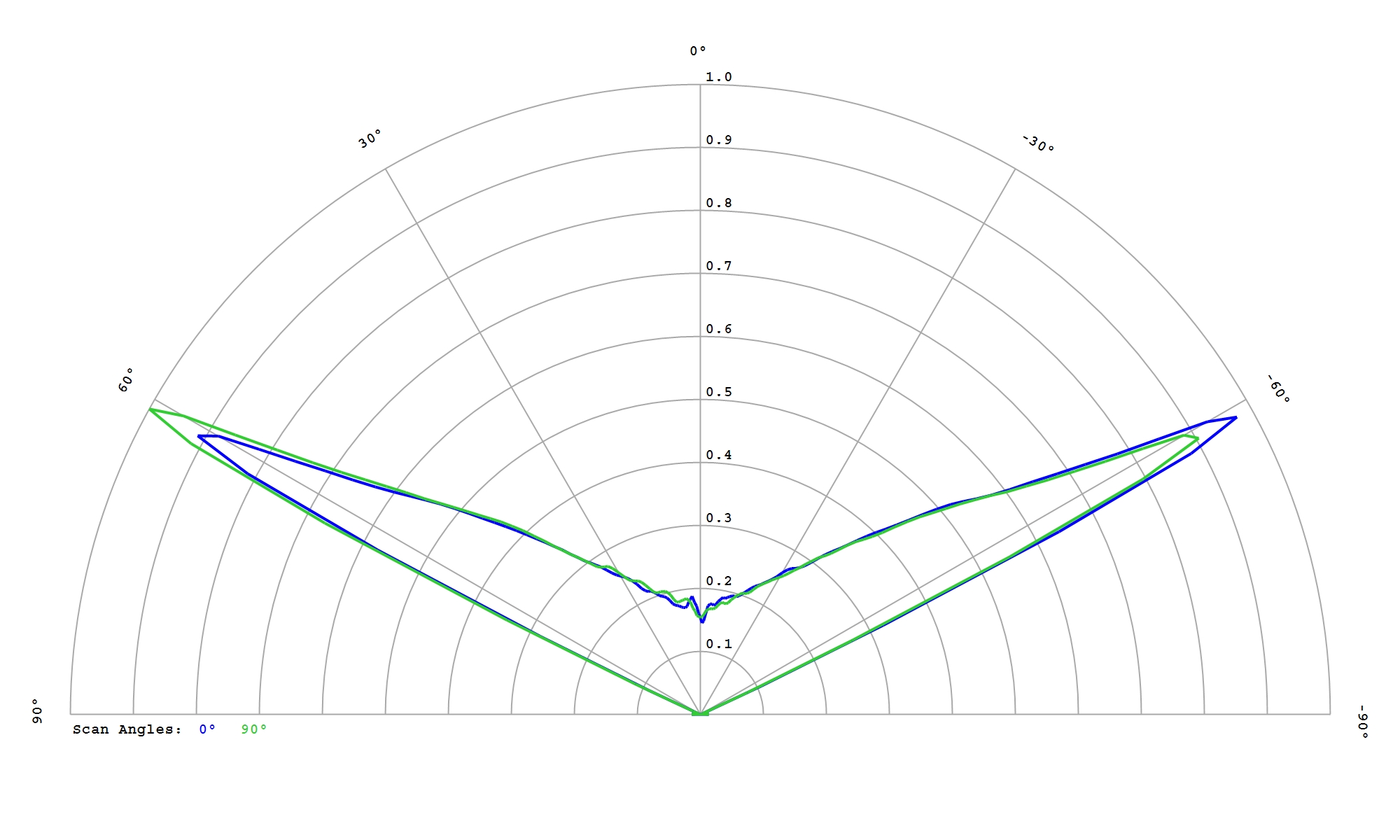

Cree XLamp XP-P White
Eff:
92.0%
FWHM:
126°
Cd/Im:
0.7
Download

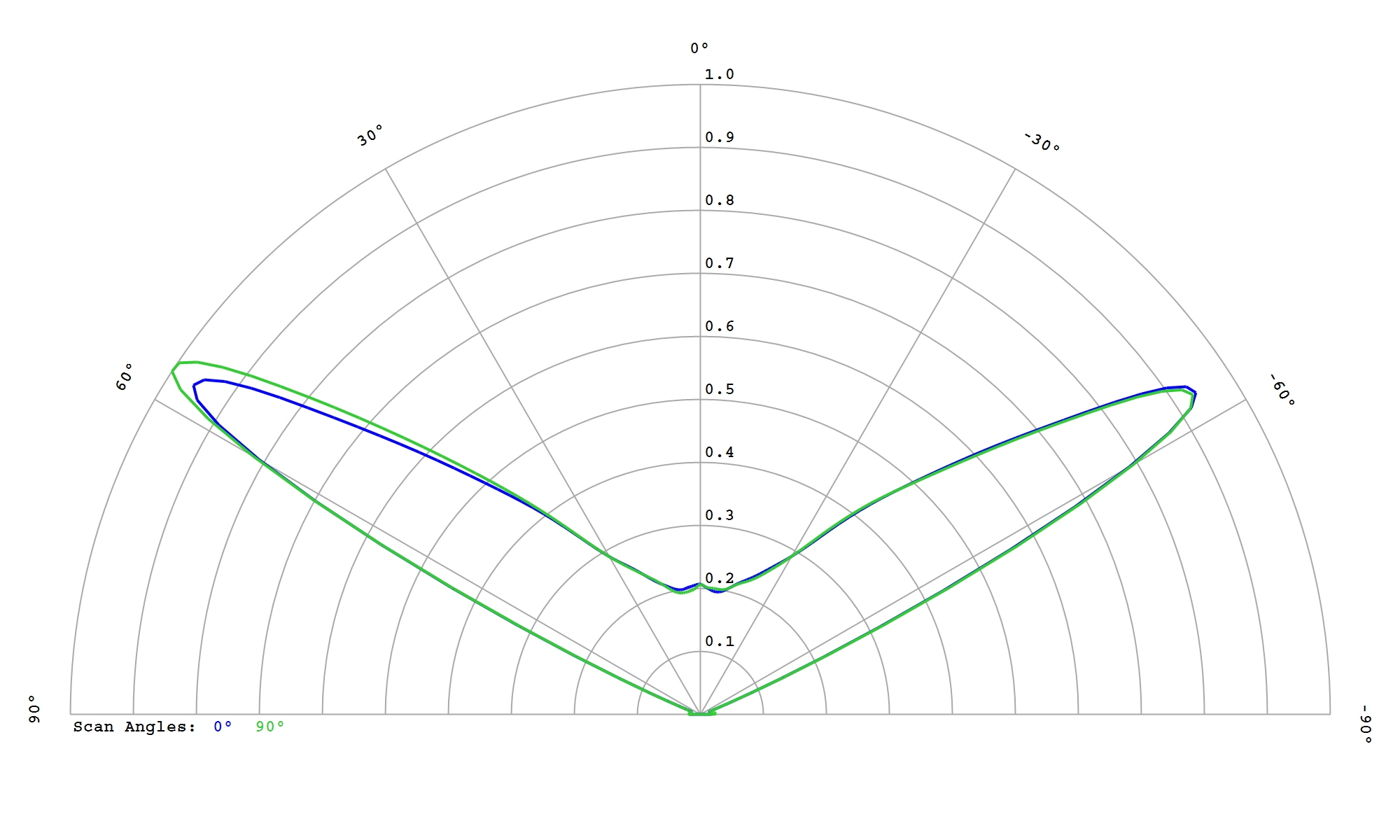

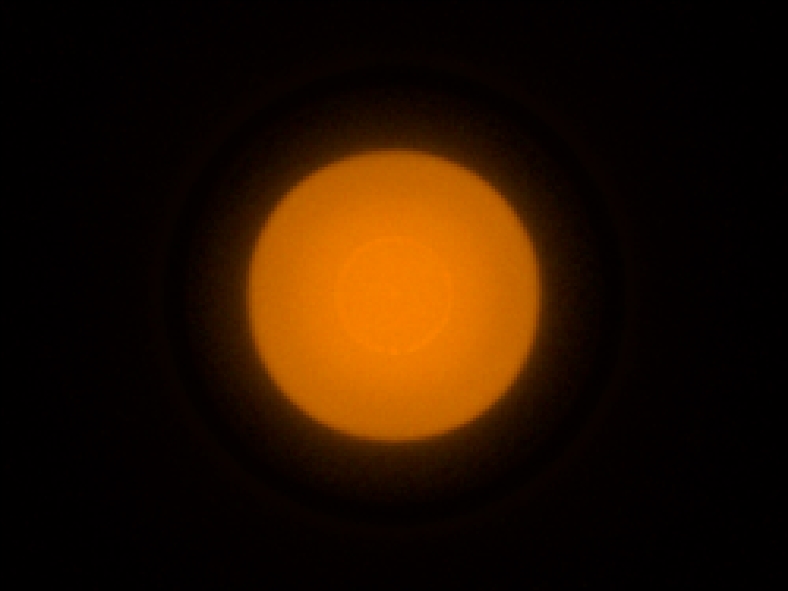

Cree XLamp XQ-A Blue
Eff:
91.0%
FWHM:
123°
Cd/Im:
0.8
Download

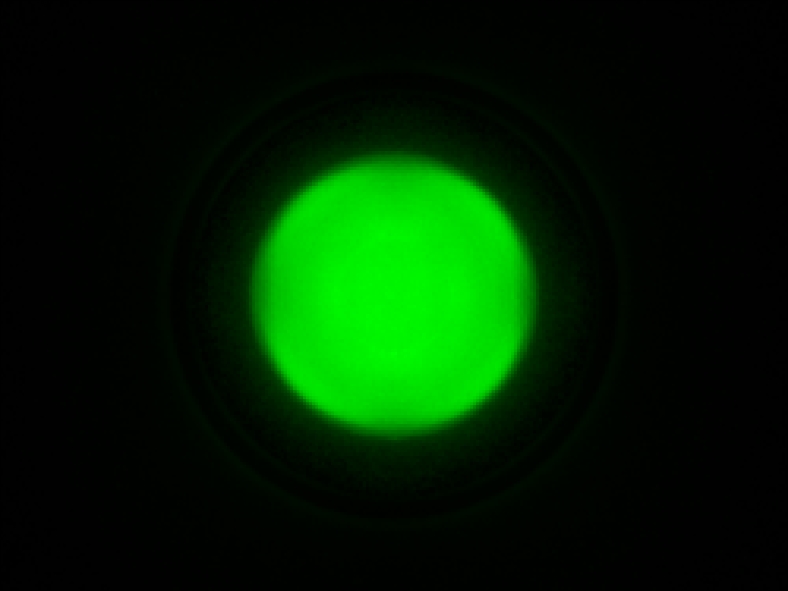

Cree XLamp XQ-A Green
Eff:
91.0%
FWHM:
124°
Cd/Im:
0.7
Download

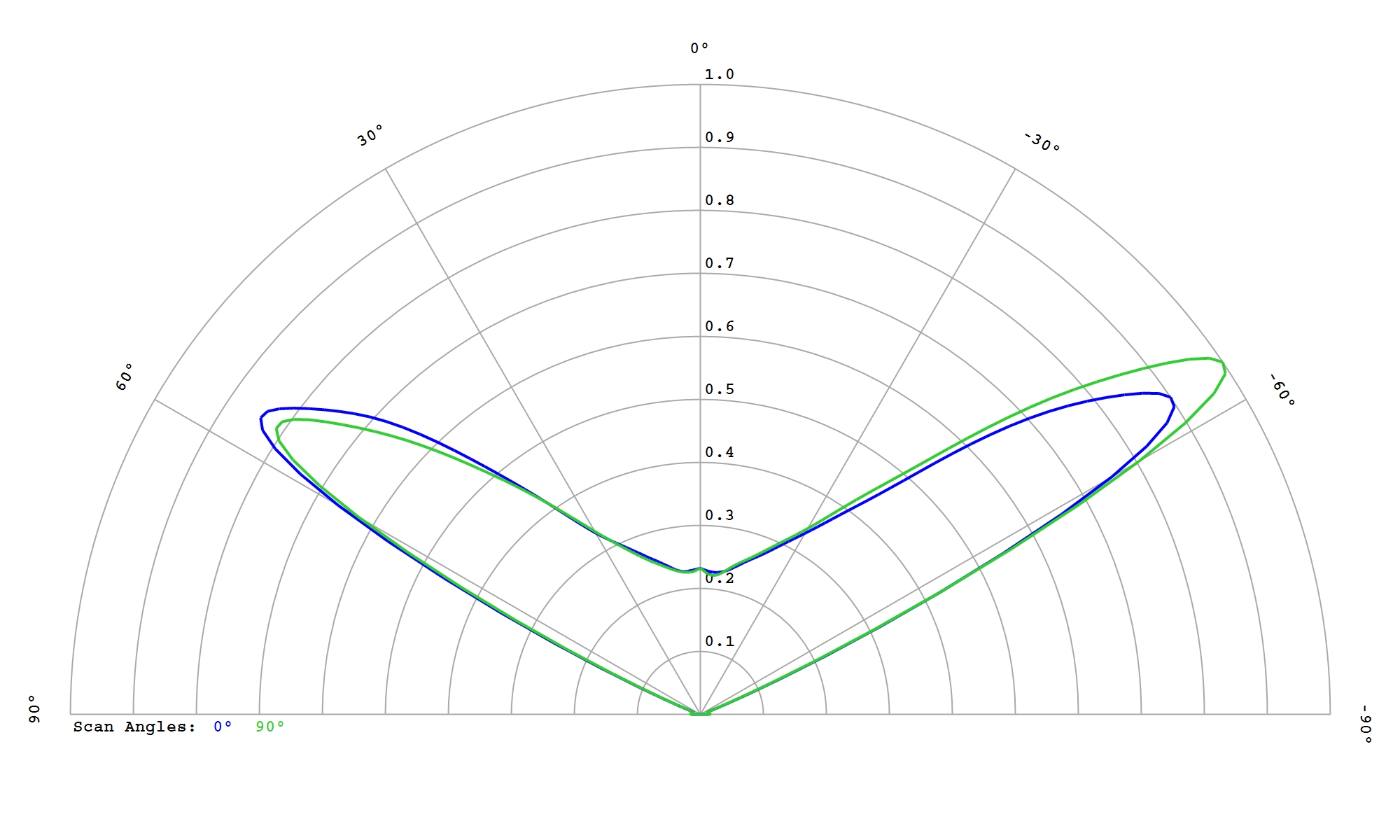

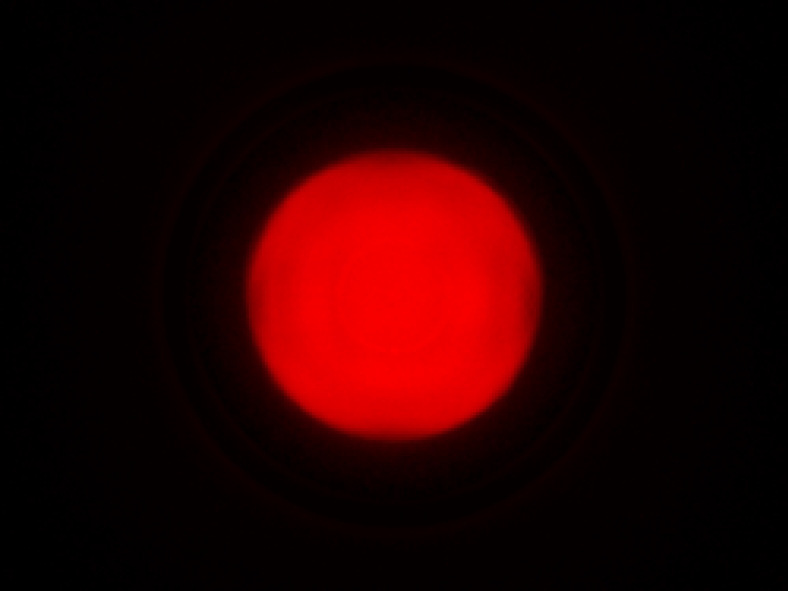

Cree XLamp XQ-A Red
Eff:
91.0%
FWHM:
123°
Cd/Im:
0.7
Download
Cree XLamp XQ-A White
Eff:
87.0%
FWHM:
123°
Cd/Im:
0.7
Download

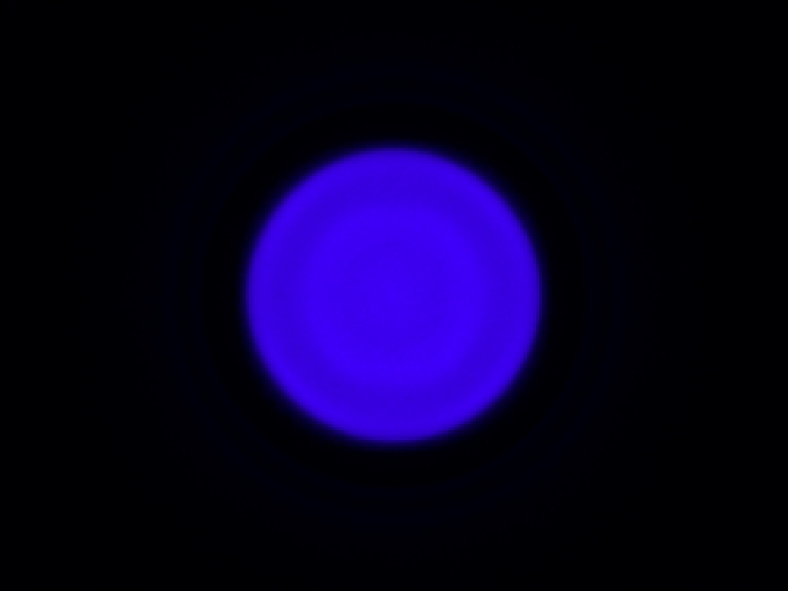

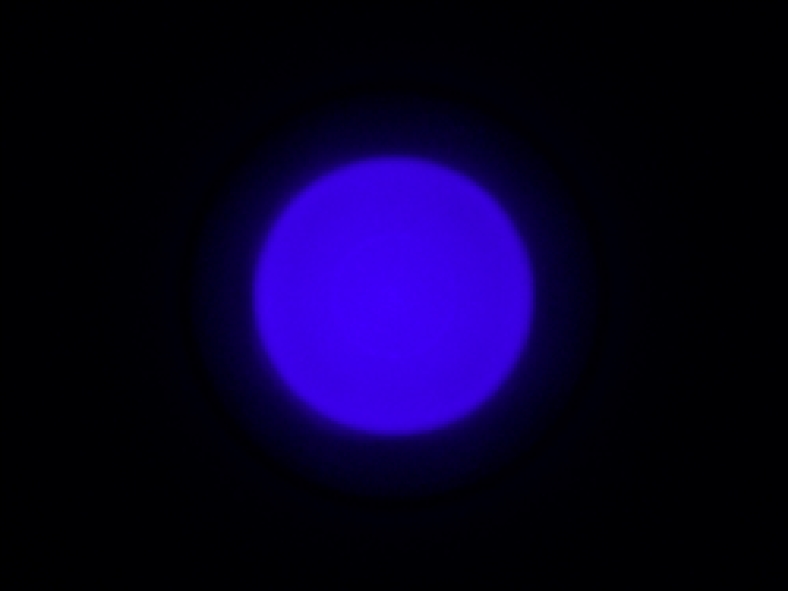

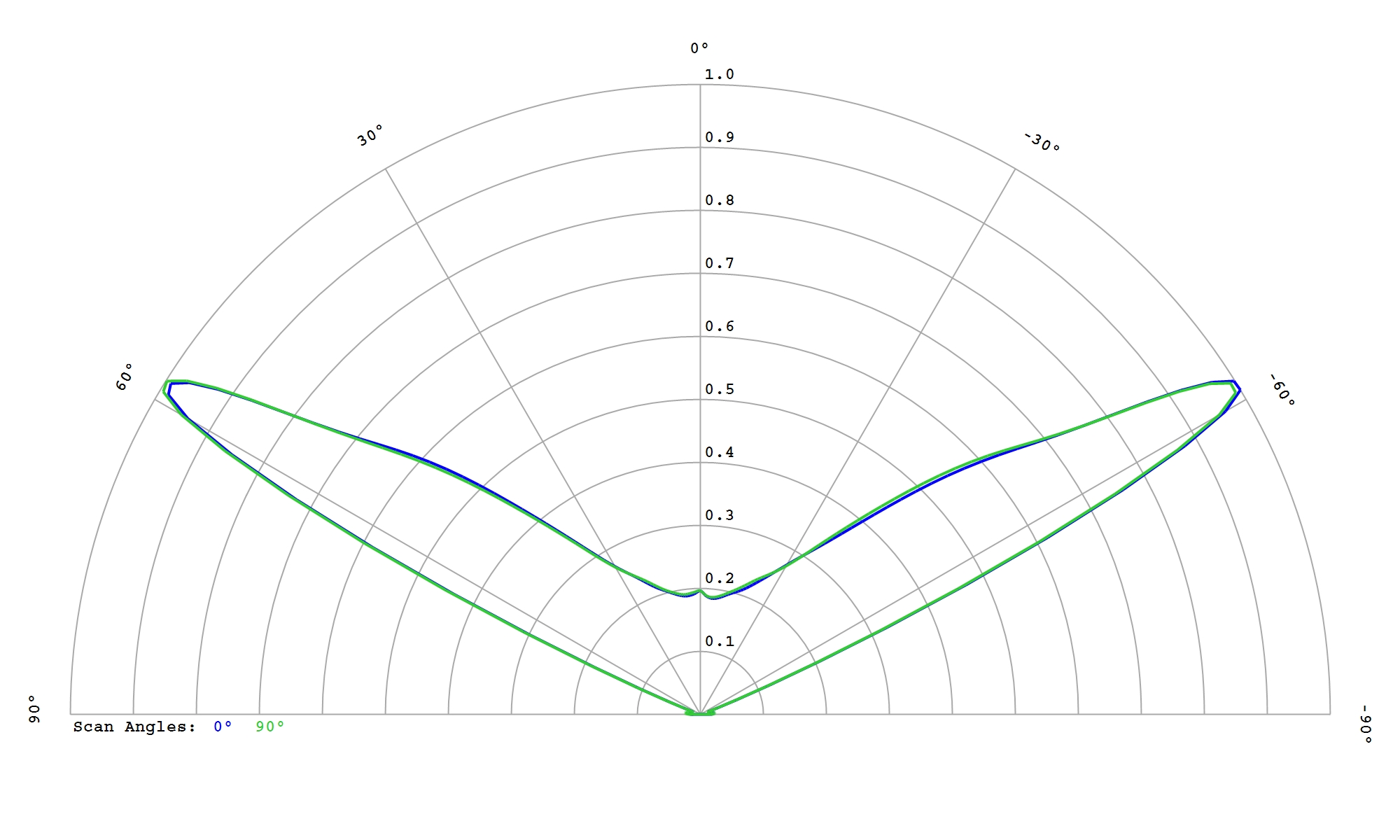

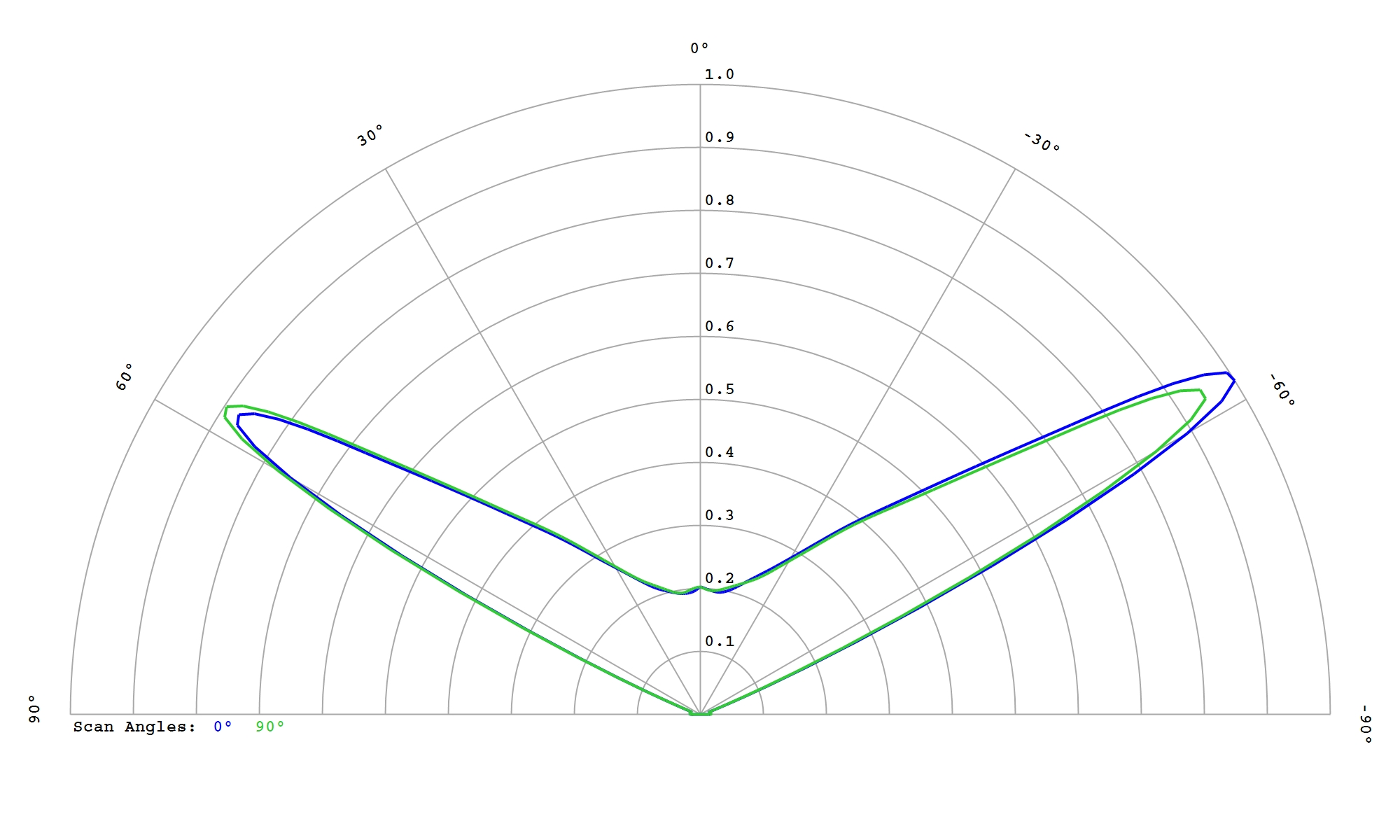

Cree XLamp XQ-E HI Blue
Eff:
91.0%
FWHM:
125°
Cd/Im:
0.7
Download

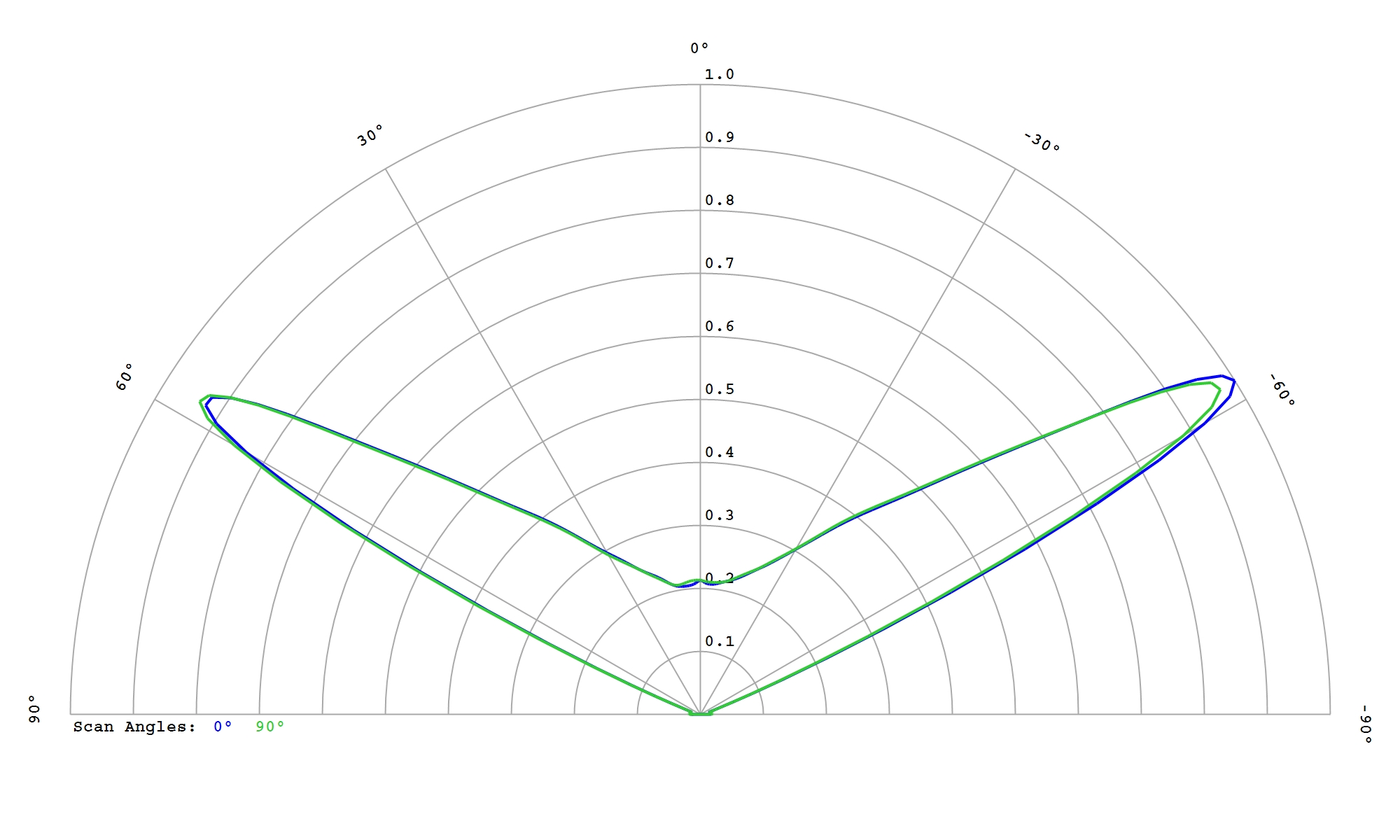

Cree XLamp XQ-E HI Green
Eff:
91.0%
FWHM:
125°
Cd/Im:
0.7
Download
Cree XLamp XQ-E HI Red
Eff:
91.5%
FWHM:
125°
Cd/Im:
0.7
Download

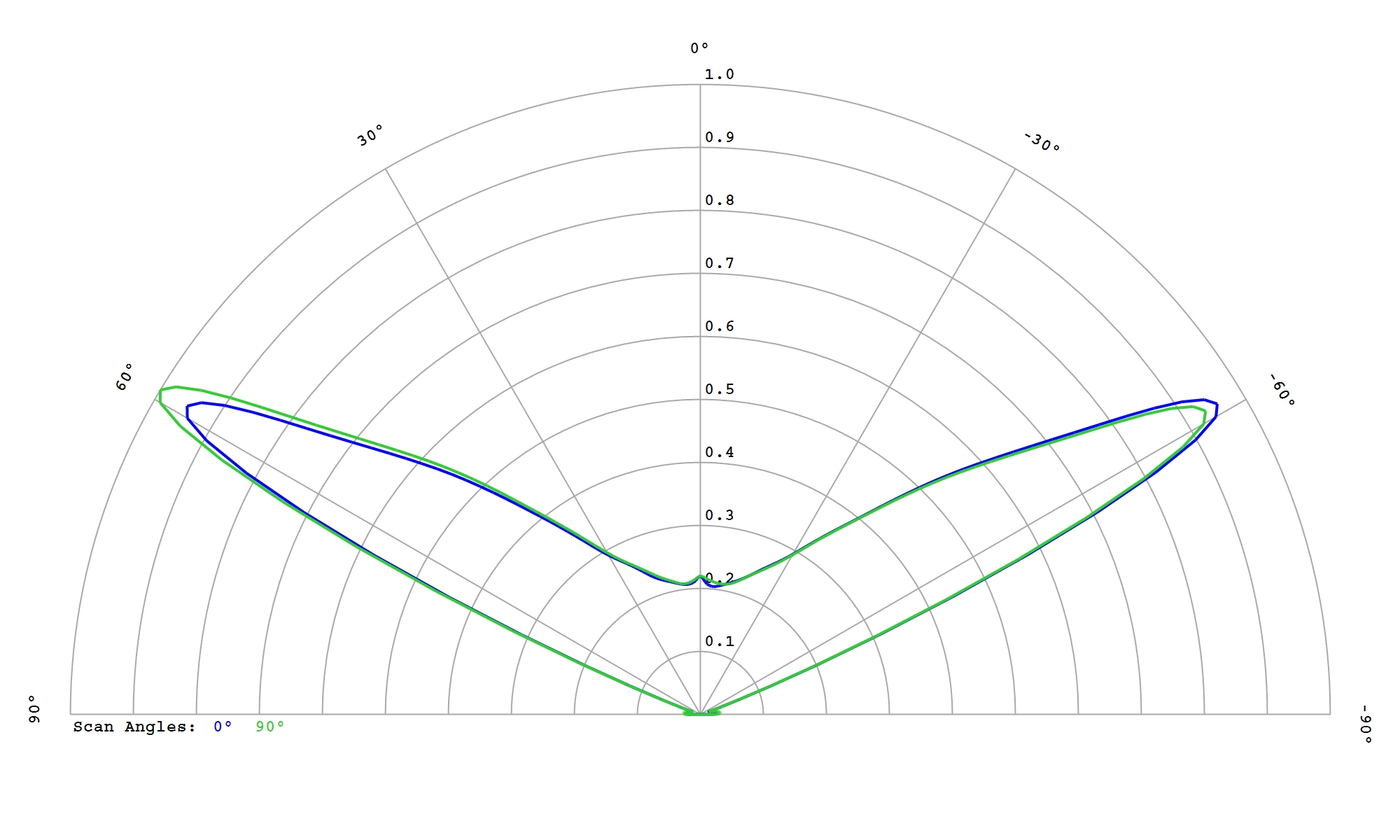

Cree XLamp XQ-E HI White
Eff:
87.0%
FWHM:
123°
Cd/Im:
0.7
Download

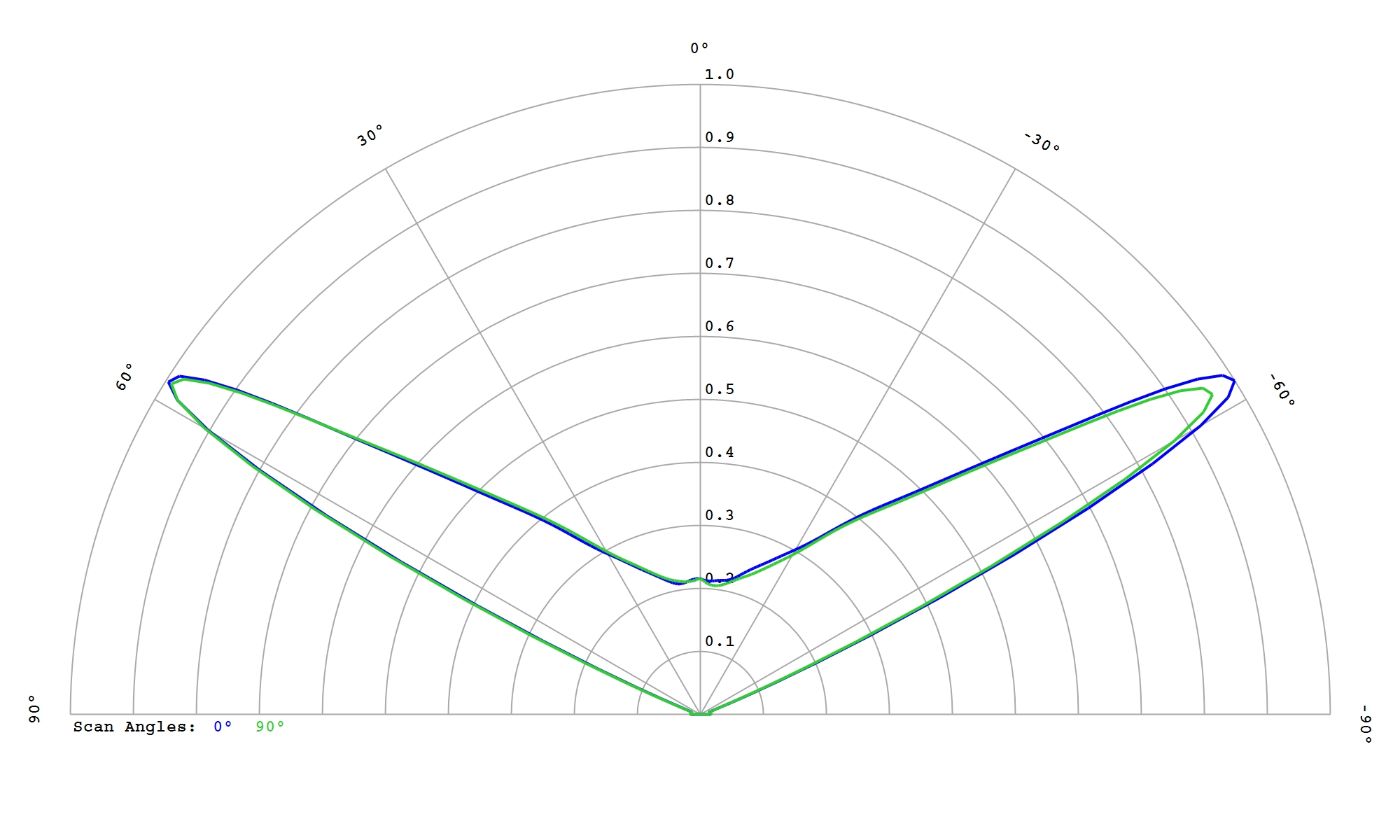

Cree XLamp XQ-E White
Eff:
87.0%
FWHM:
120°
Cd/Im:
0.6
Download

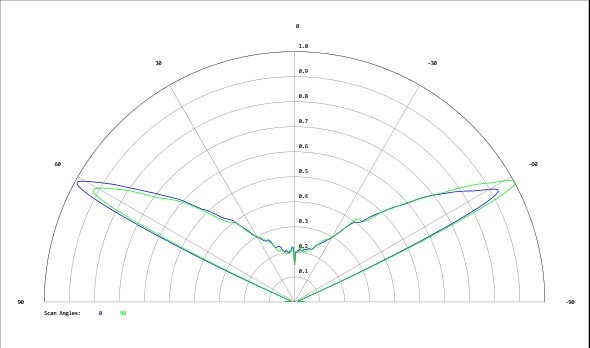

Cree XLamp XT-E HE White
Eff:
91.5%
FWHM:
129°
Cd/Im:
0.5
Download
Cree XLamp XT-E White
Eff:
86.5%
FWHM:
128.7°
Cd/Im:
0.5
Download

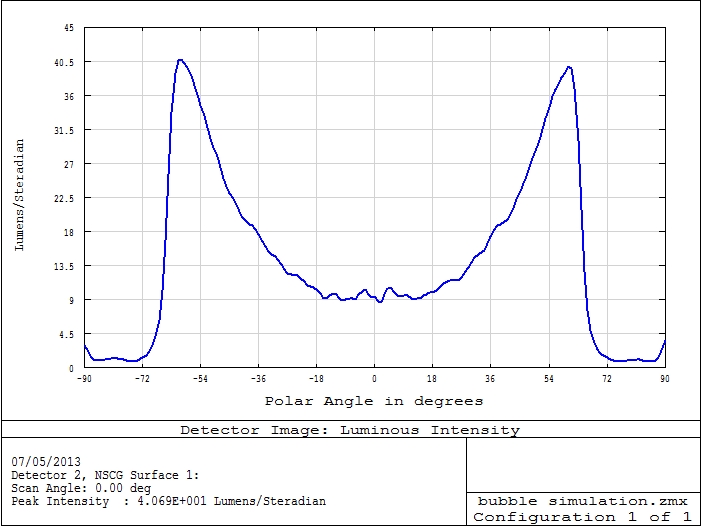

LG Innotek 3535LG White
Eff:
91.0%
FWHM:
120°
Cd/Im:
0.4
Download

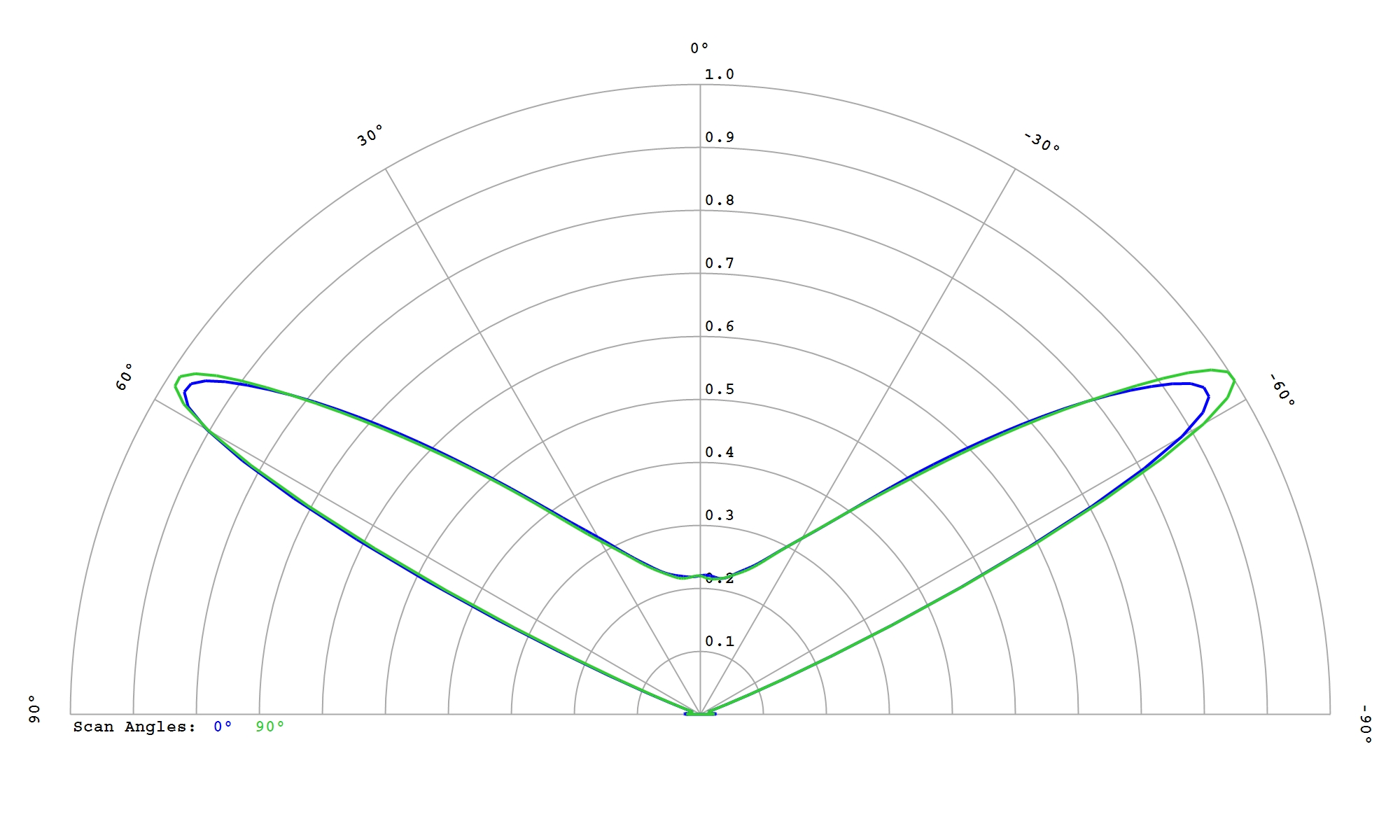

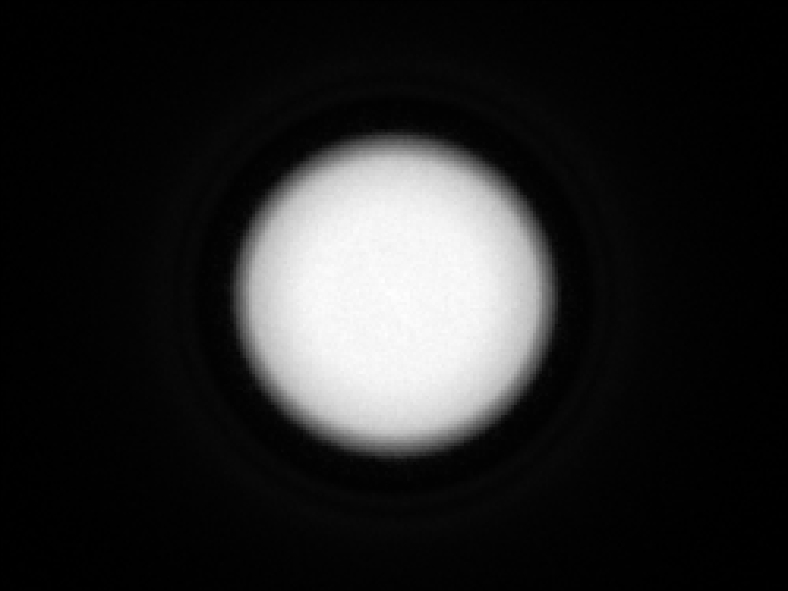

LUMILEDS LUXEON 3030 HE Plus White
Eff:
92.5%
FWHM:
125°
Cd/Im:
0.5
Download

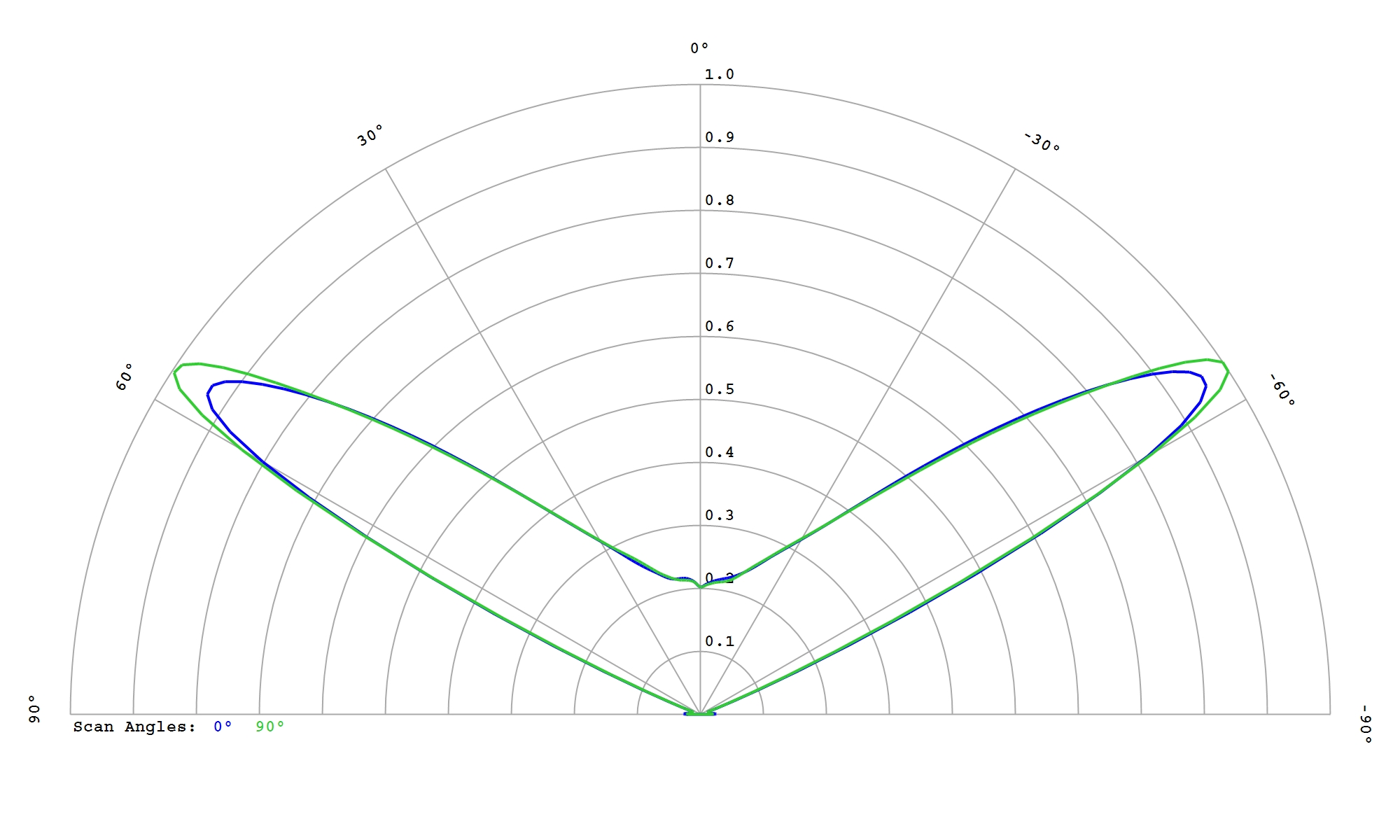

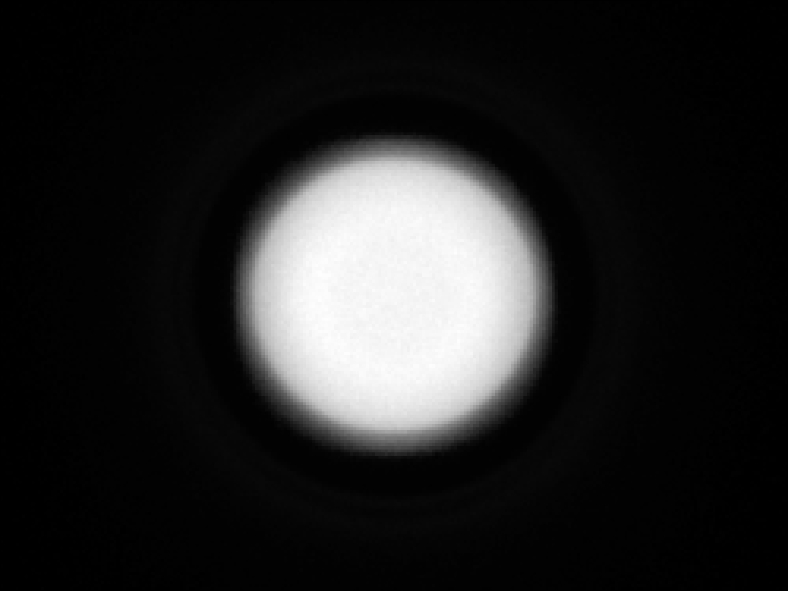

LUMILEDS LUXEON 3030 LUXEON White
Eff:
86.0%
FWHM:
121°
Cd/Im:
0.6
Download

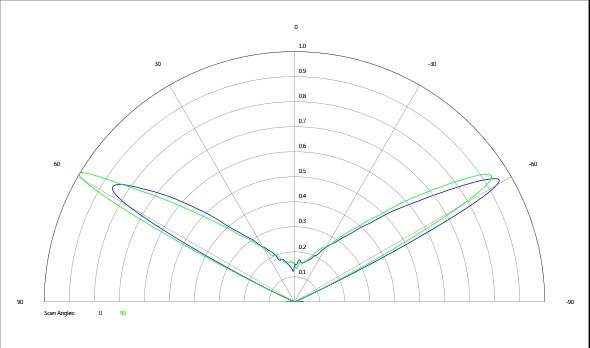

LUMILEDS LUXEON 3535 HV White
Eff:
88.0%
FWHM:
124°
Cd/Im:
0.5
Download
LUMILEDS LUXEON 3535 L White
Eff:
88.0%
FWHM:
125°
Cd/Im:
0.5
Download
LUMILEDS LUXEON 3535L Blue
Eff:
92.0%
FWHM:
127°
Cd/Im:
0.7
Download
LUMILEDS LUXEON 3535L Green
Eff:
92.0%
FWHM:
127°
Cd/Im:
0.6
Download
LUMILEDS LUXEON 3535L Red
Eff:
92.0%
FWHM:
125°
Cd/Im:
0.7
Download

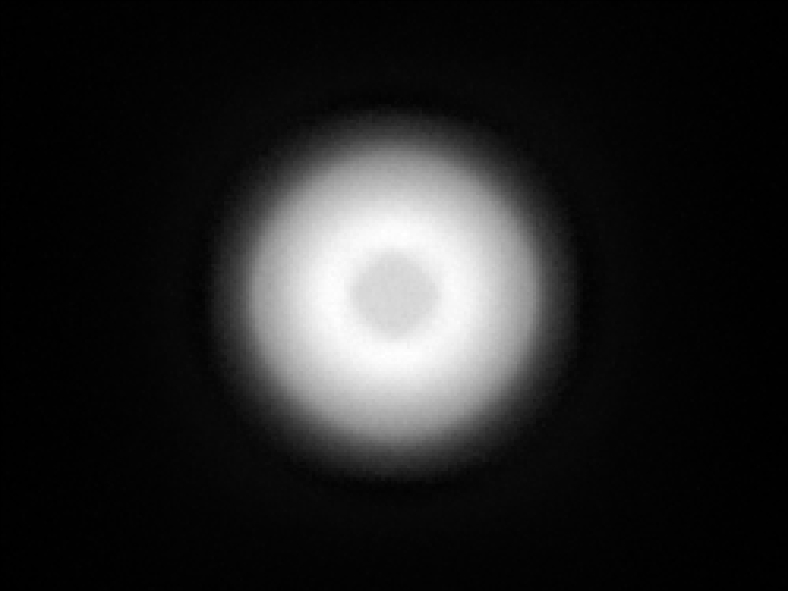

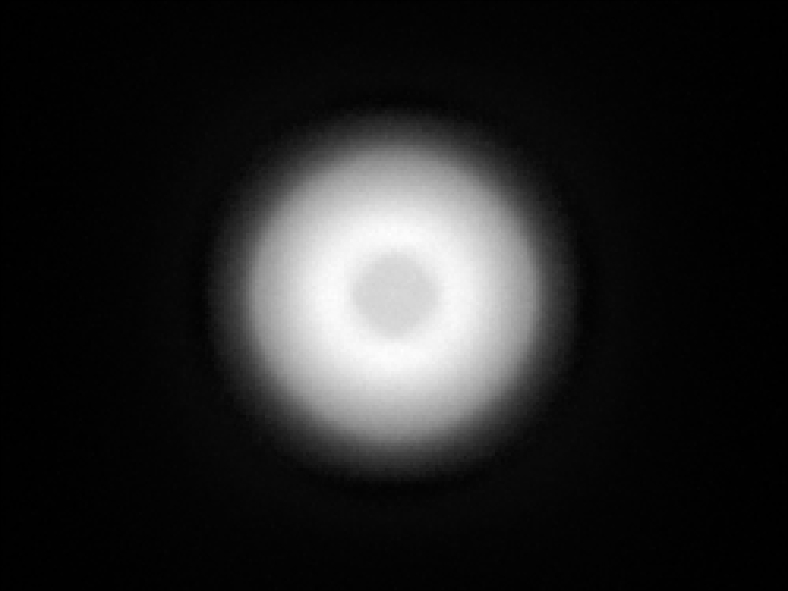

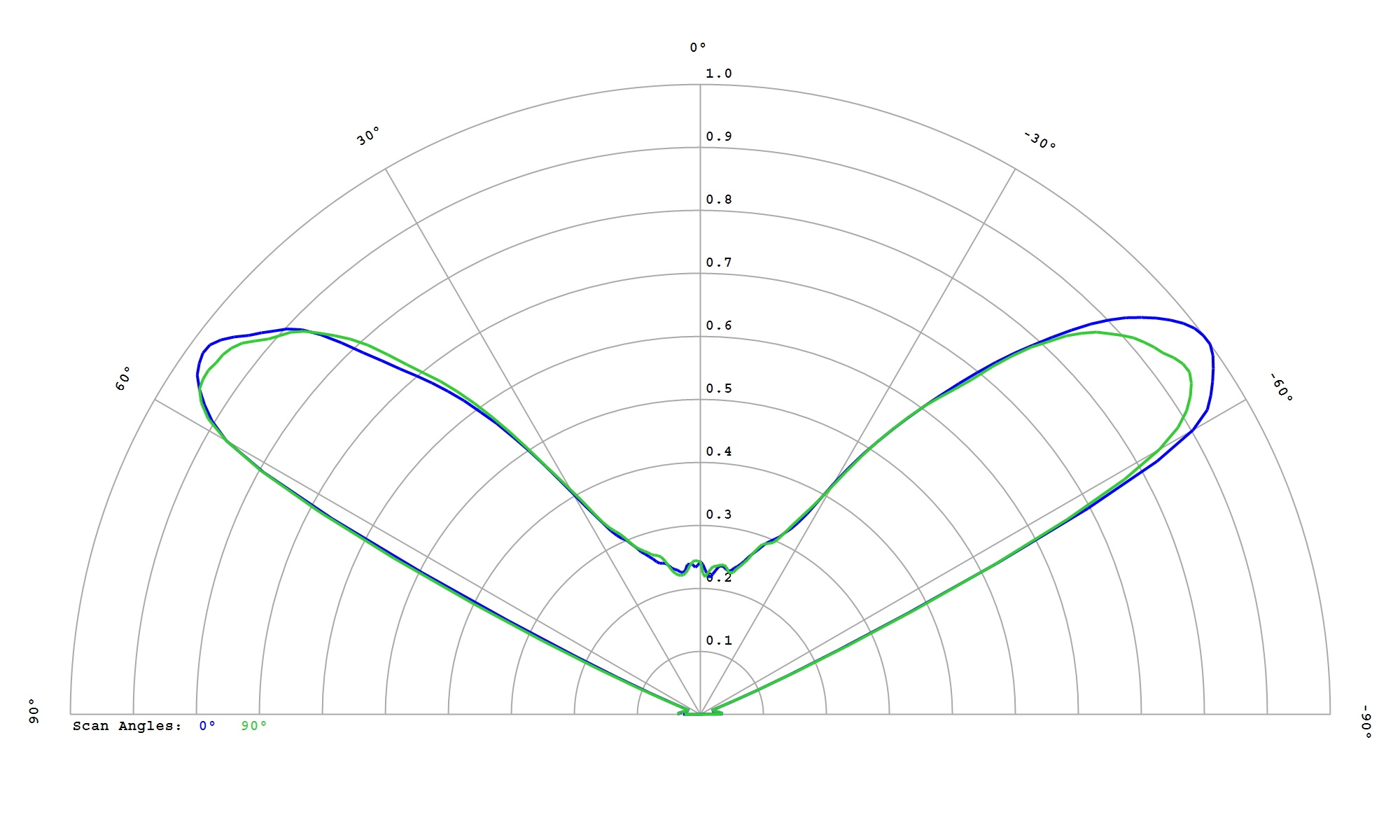

LUMILEDS LUXEON 5050 Round White
Eff:
92.5%
FWHM:
126°
Cd/Im:
0.4
Download
LUMILEDS LUXEON 5258 White
Eff:
88.5%
FWHM:
127.6°
Cd/Im:
0.4
Download
LUMILEDS LUXEON 7070 White
Eff:
93.0%
FWHM:
129°
Cd/Im:
0.3
Download
LUMILEDS LUXEON C Blue
Eff:
86.5%
FWHM:
131°
Cd/Im:
0.7
Download
LUMILEDS LUXEON C Lime
Eff:
88.0%
FWHM:
132°
Cd/Im:
0.6
Download
LUMILEDS LUXEON C Red
Eff:
86.0%
FWHM:
133°
Cd/Im:
0.6
Download
LUMILEDS LUXEON CSP 10 White
Eff:
86.0%
FWHM:
120 x 52.5°
Cd/Im:
0.6
Download
LUMILEDS LUXEON CZ White
Eff:
92.0%
FWHM:
126°
Cd/Im:
0.7
Download

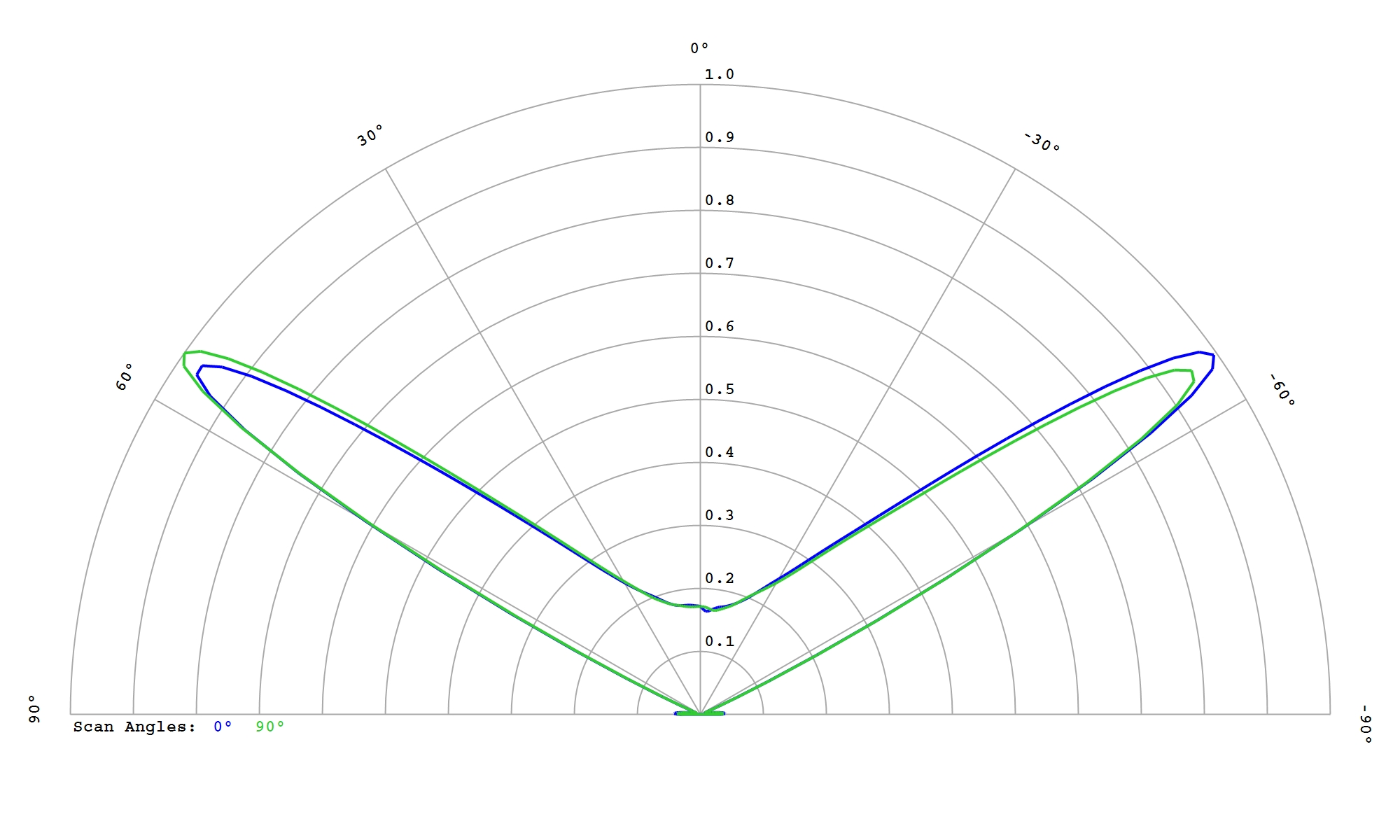

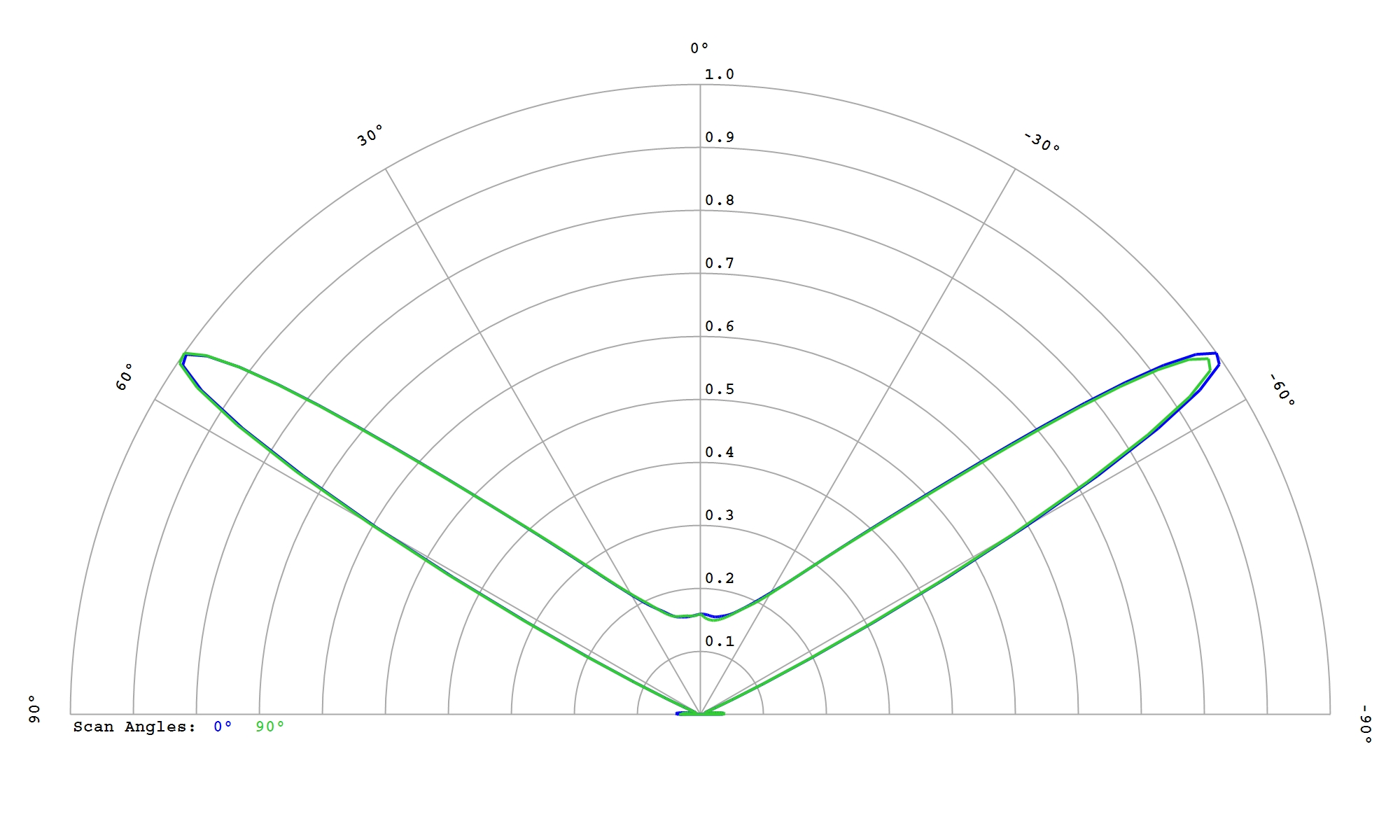

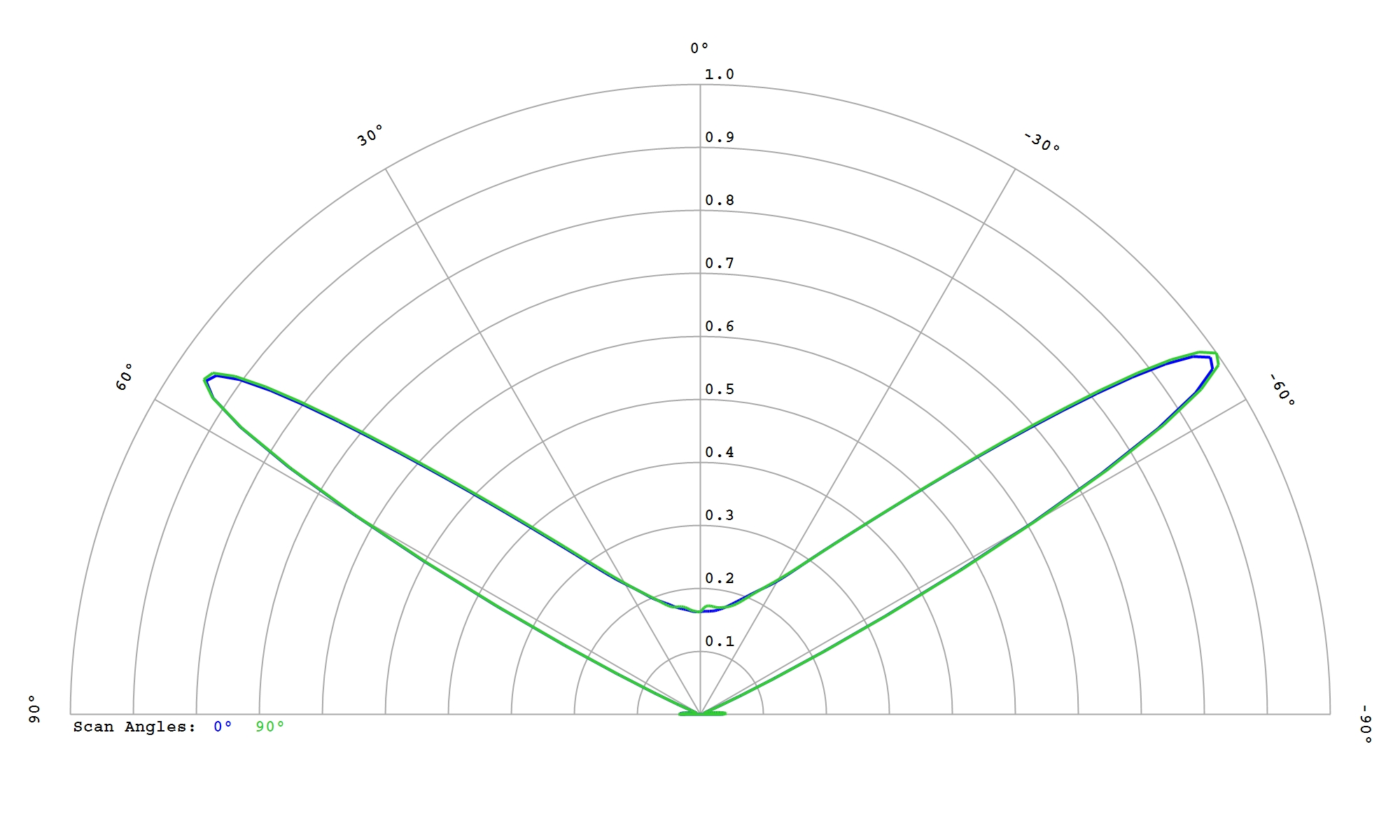

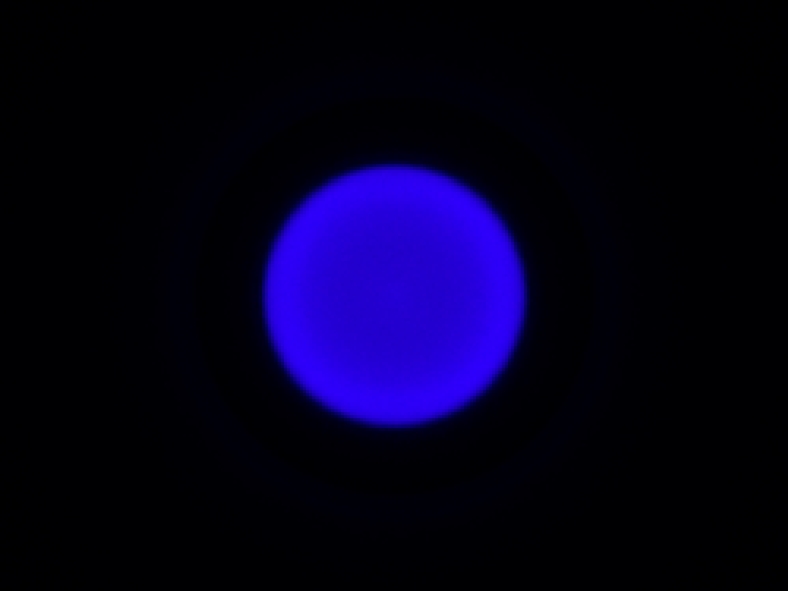

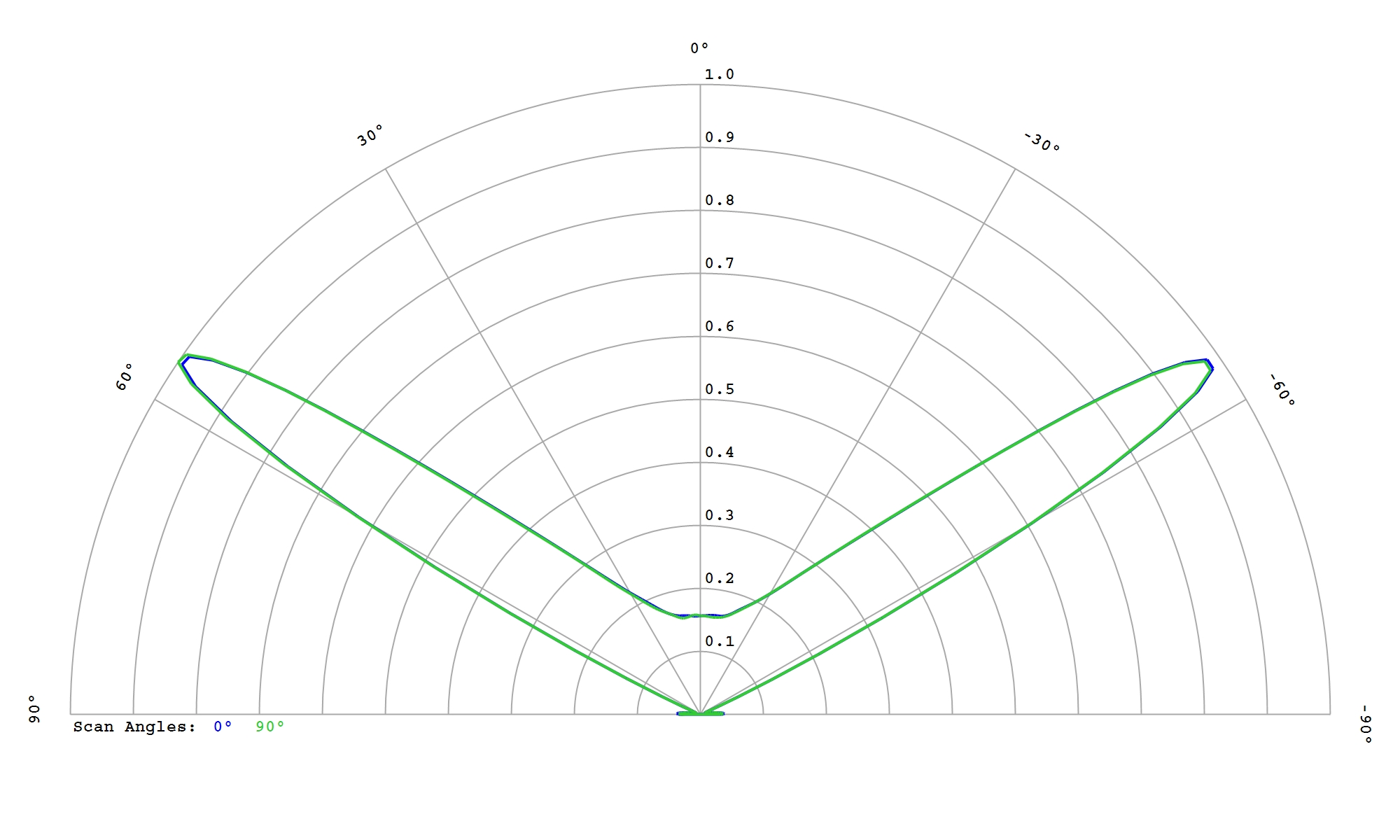

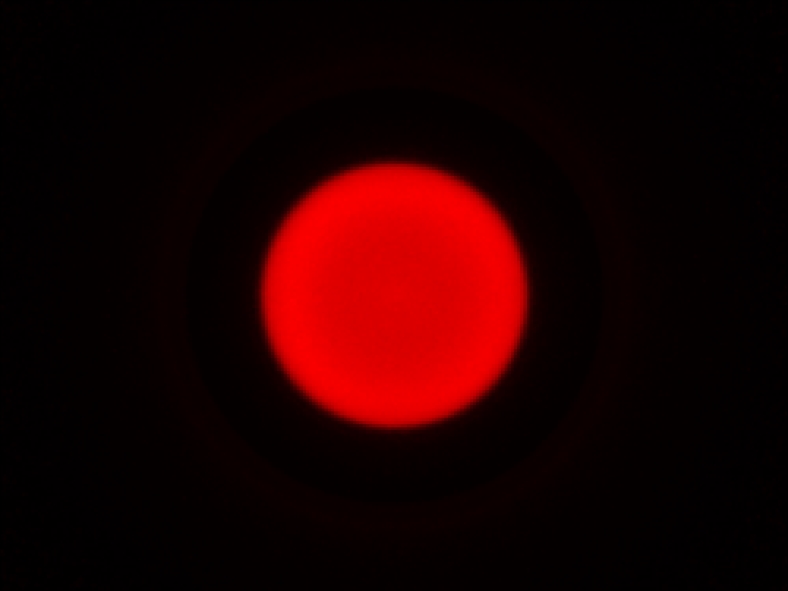

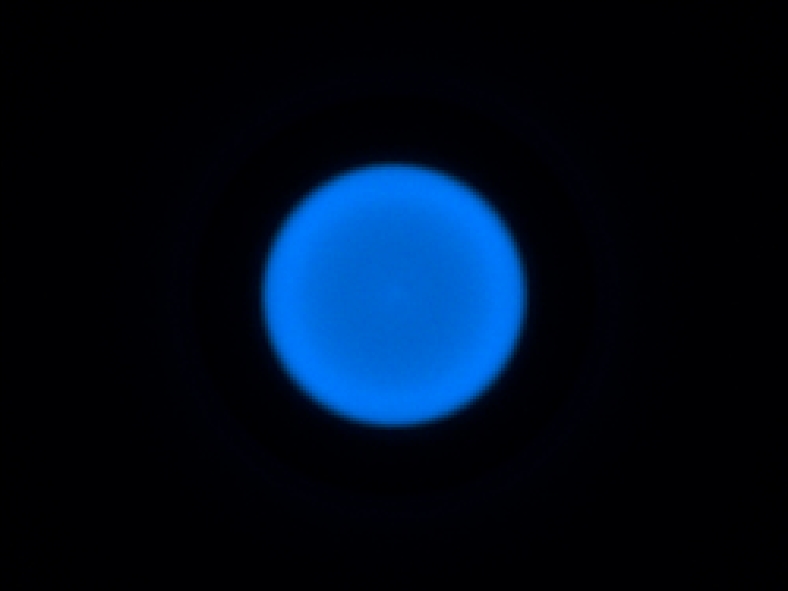

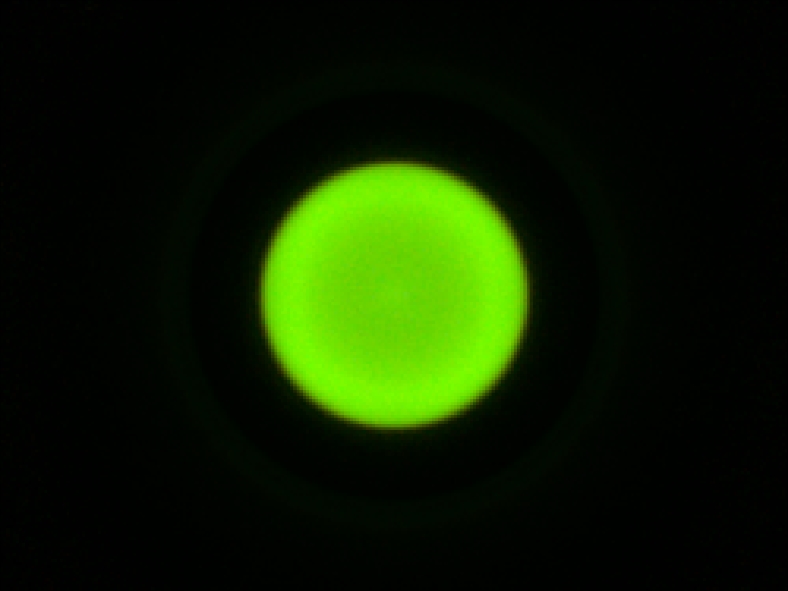

LUMILEDS LUXEON HL1Z CSP White
Eff:
92.0%
FWHM:
120°
Cd/Im:
0.7
Download

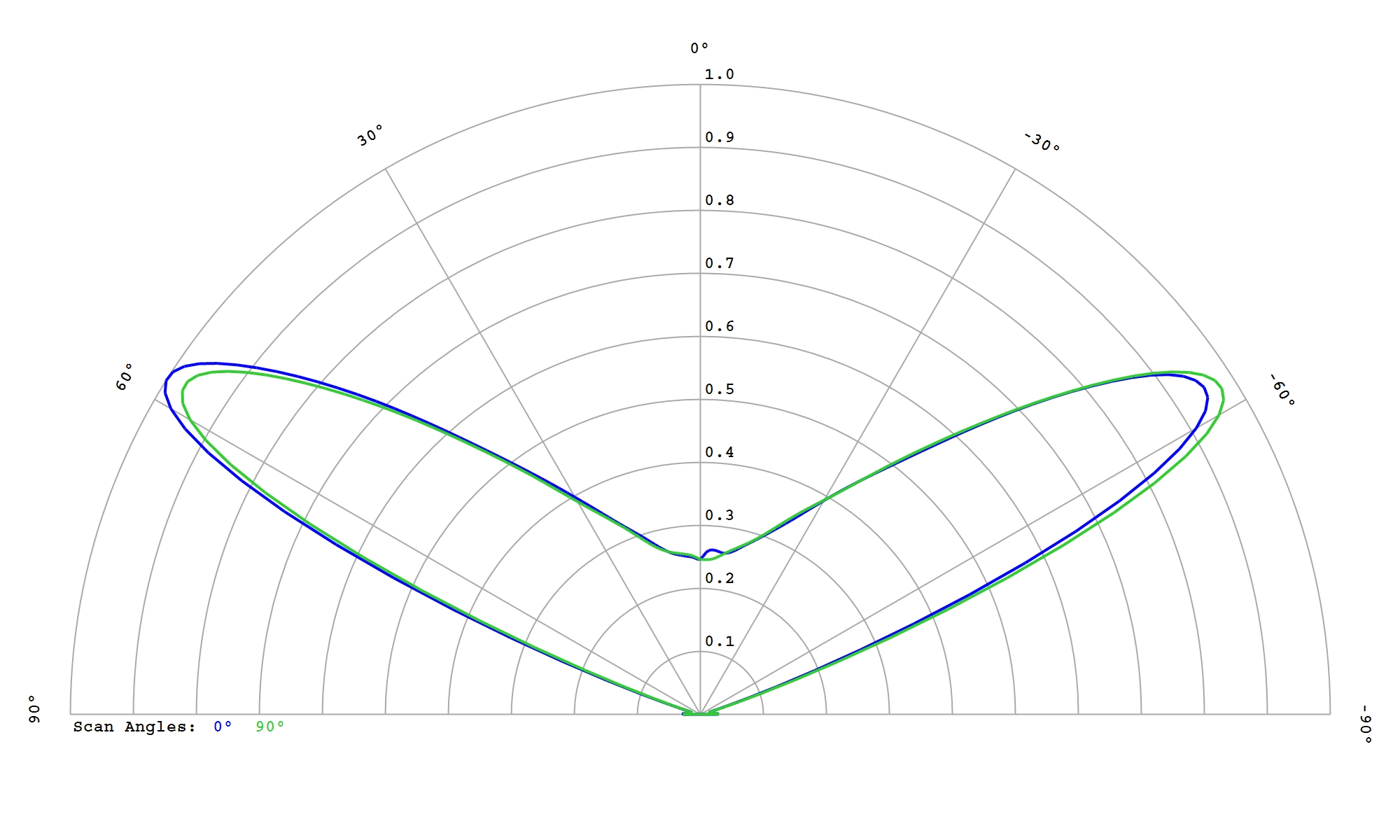

LUMILEDS LUXEON HL2X White
Eff:
91.5%
FWHM:
132°
Cd/Im:
0.4
Download
LUMILEDS LUXEON HL2X-P White
Eff:
91.5%
FWHM:
134°
Cd/Im:
0.4
Download
LUMILEDS LUXEON HL2Z White
Eff:
92.5%
FWHM:
122°
Cd/Im:
0.6
Download

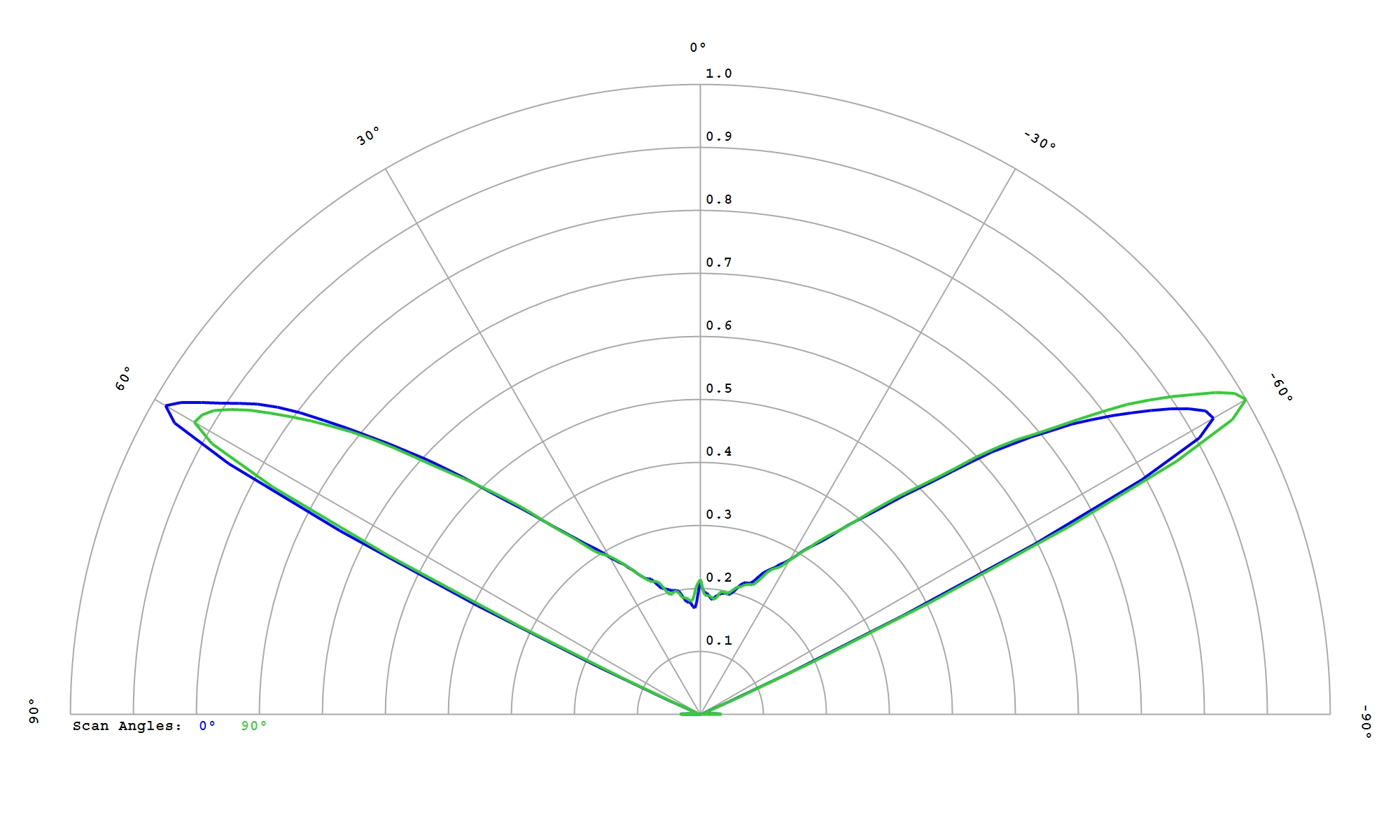

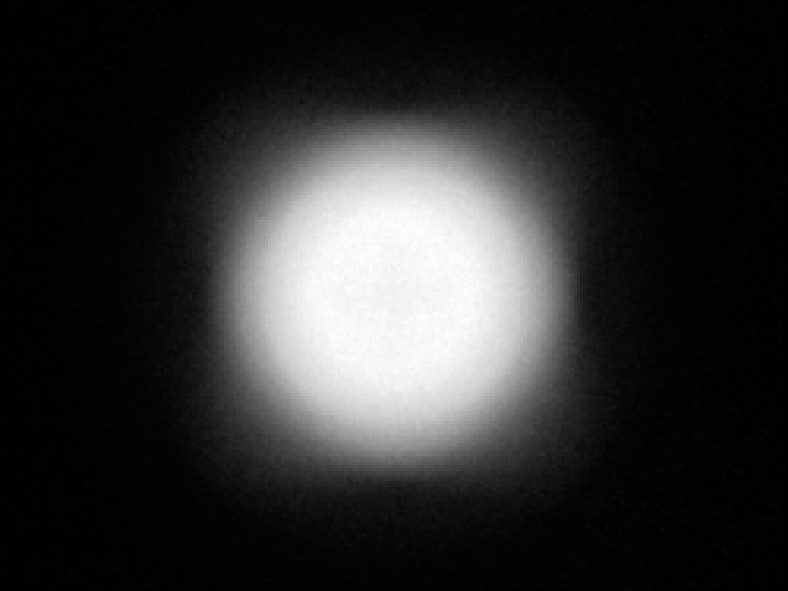

LUMILEDS LUXEON IR 2720
Eff:
94.5%
FWHM:
124.0°
Ipk/W:
0.6
Download
LUMILEDS LUXEON M White
Eff:
87.7%
FWHM:
131°
Cd/Im:
0.3
Download
LUMILEDS LUXEON MX White
Eff:
91.5%
FWHM:
129°
Cd/Im:
0.4
Download
LUMILEDS LUXEON MZ White
Eff:
88.3%
FWHM:
125.3°
Cd/Im:
0.4
Download
LUMILEDS LUXEON Q White
Eff:
86.4%
FWHM:
128.6°
Cd/Im:
0.5
Download
LUMILEDS LUXEON R White
Eff:
87.2%
FWHM:
124.3°
Cd/Im:
0.5
Download
LUMILEDS LUXEON Rebel ES White
Eff:
86.5%
FWHM:
126.6°
Cd/Im:
0.5
Download
LUMILEDS LUXEON Rebel White
Eff:
87.4%
FWHM:
124.3°
Cd/Im:
0.5
Download

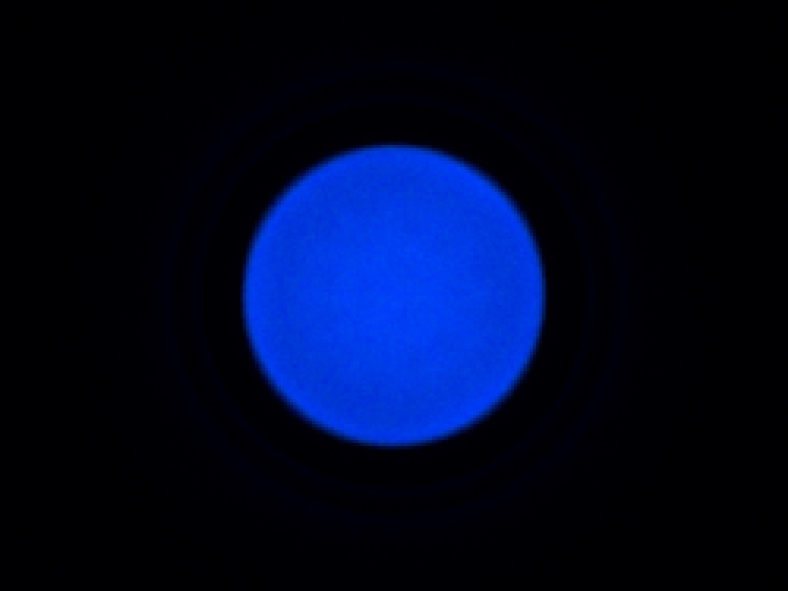

LUMILEDS LUXEON Rubix Blue
Eff:
92.0%
FWHM:
127°
Cd/Im:
0.8
Download
LUMILEDS LUXEON Rubix Green
Eff:
92.0%
FWHM:
127°
Cd/Im:
0.8
Download
LUMILEDS LUXEON Rubix Red
Eff:
93.0%
FWHM:
127°
Cd/Im:
0.7
Download

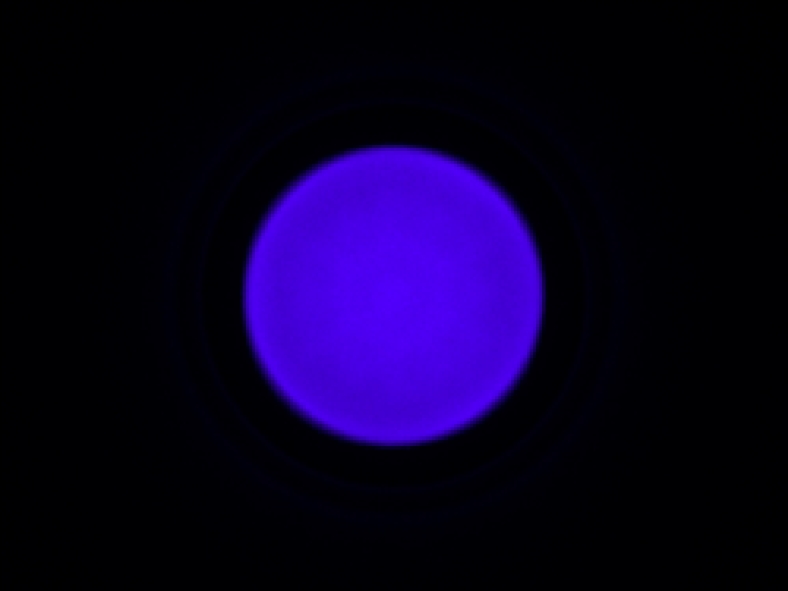

LUMILEDS LUXEON Rubix Royal Blue
Eff:
91.5%
FWHM:
126°
Cd/Im:
0.9
Download
LUMILEDS LUXEON Rubix White
Eff:
92.0%
FWHM:
127°
Cd/Im:
0.7
Download
LUMILEDS LUXEON SunPlus 20 Line Cool White
Eff:
90.5%
FWHM:
132°
Cd/Im:
0.6
Download
LUMILEDS LUXEON SunPlus 20 Line Deep Red
Eff:
85.5%
FWHM:
135°
Cd/Im:
0.5
Download
LUMILEDS LUXEON SunPlus 20 Line Far Red
Eff:
85.5%
FWHM:
135°
Cd/Im:
0.6
Download
LUMILEDS LUXEON SunPlus 20 Line Lime
Eff:
88.0%
FWHM:
132°
Cd/Im:
0.6
Download
LUMILEDS LUXEON SunPlus 20 Line Royal Blue
Eff:
86.0%
FWHM:
131°
Cd/Im:
0.7
Download
LUMILEDS LUXEON T White
Eff:
87.6%
FWHM:
126.3°
Cd/Im:
0.5
Download

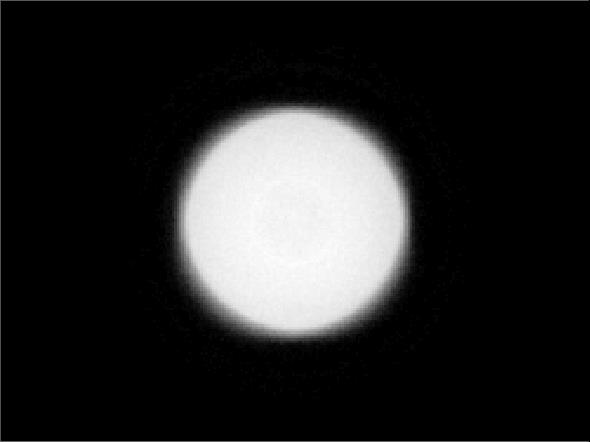

LUMILEDS LUXEON TX White
Eff:
87.3%
FWHM:
126.7°
Cd/Im:
0.6
Download
LUMILEDS LUXEON V White
Eff:
89.5%
FWHM:
128°
Cd/Im:
0.5
Download
LUMILEDS LUXEON V2 White
Eff:
91.5%
FWHM:
128°
Cd/Im:
0.5
Download
LUMILEDS LUXEON Z ES White
Eff:
87.7%
FWHM:
122°
Cd/Im:
0.6
Download
LUMILEDS LUXEON Z White
Eff:
87.4%
FWHM:
121.6°
Cd/Im:
0.7
Download

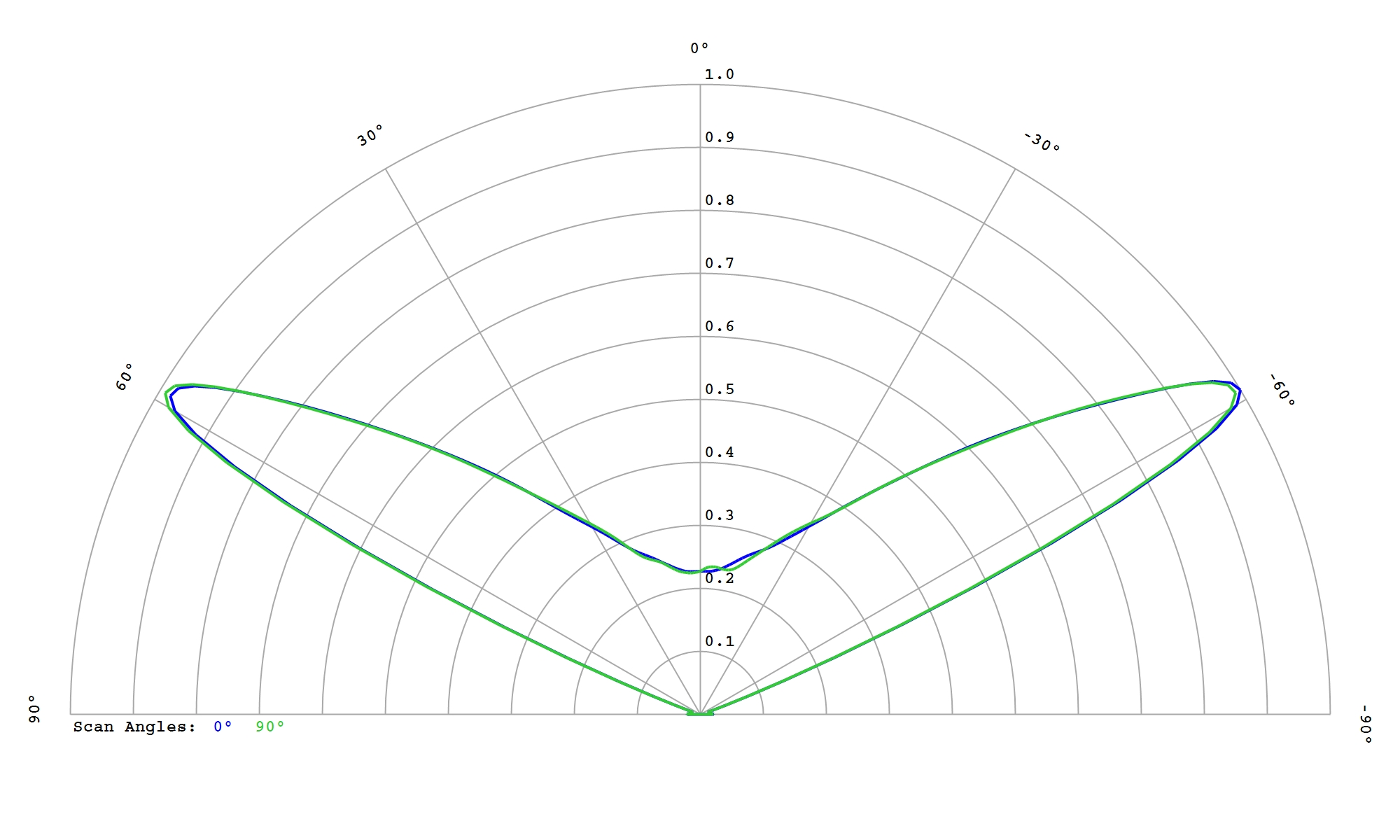

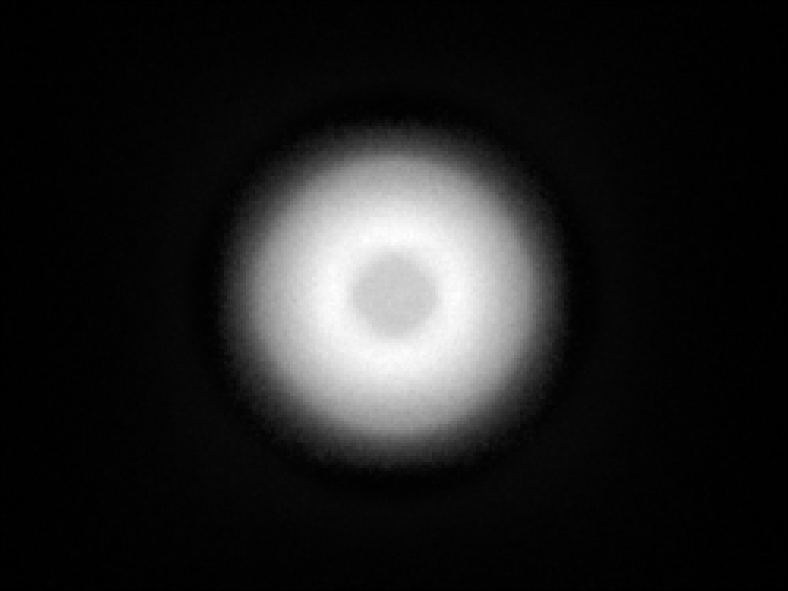

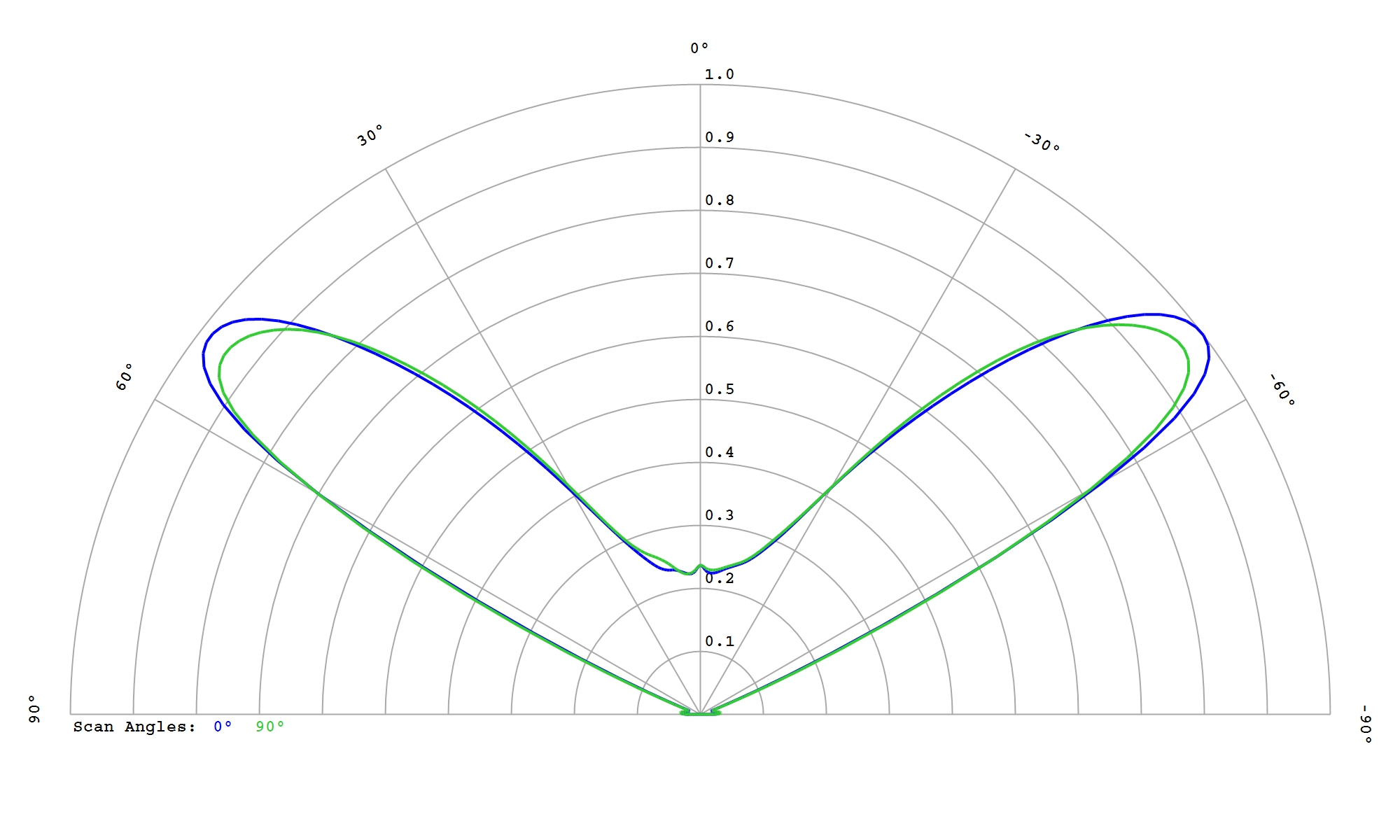

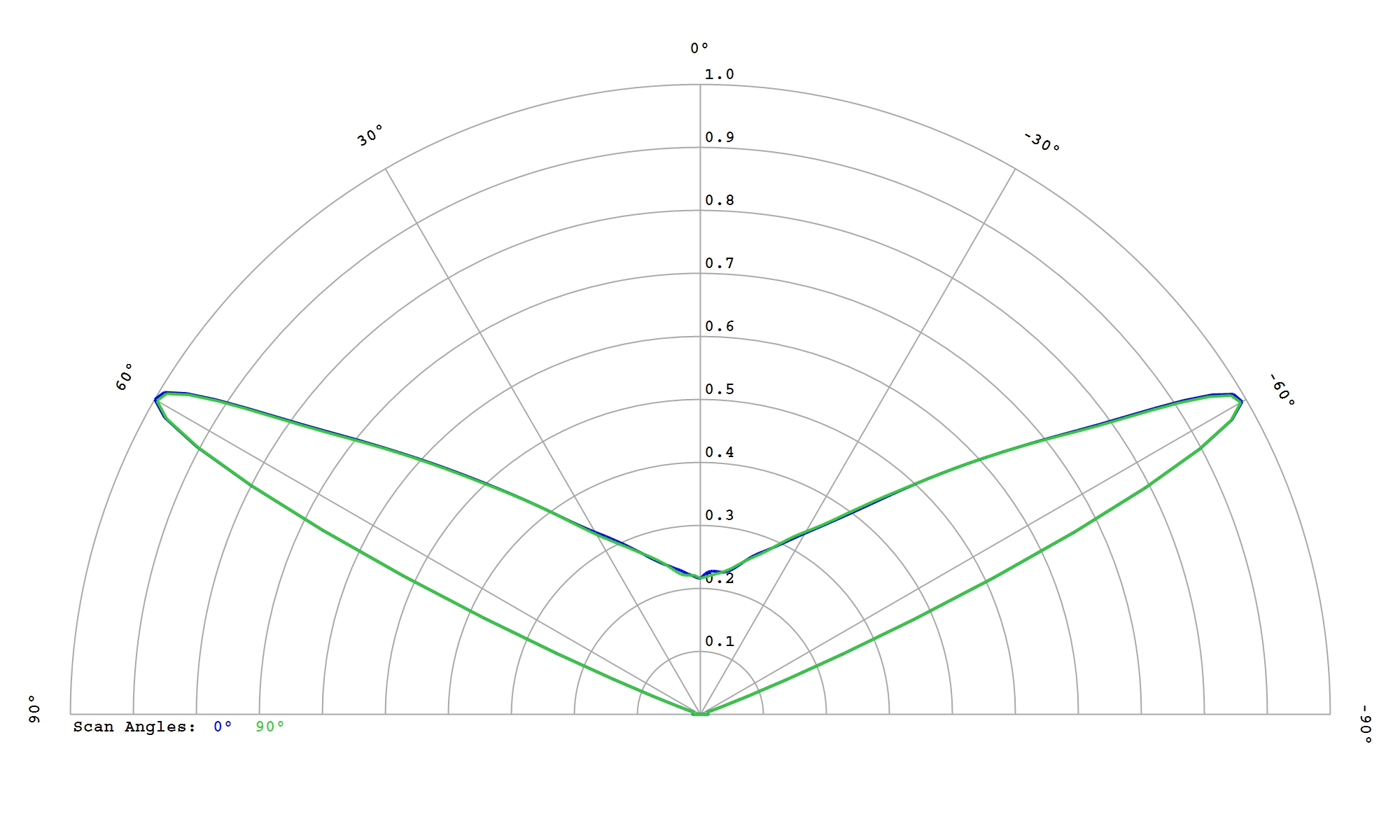

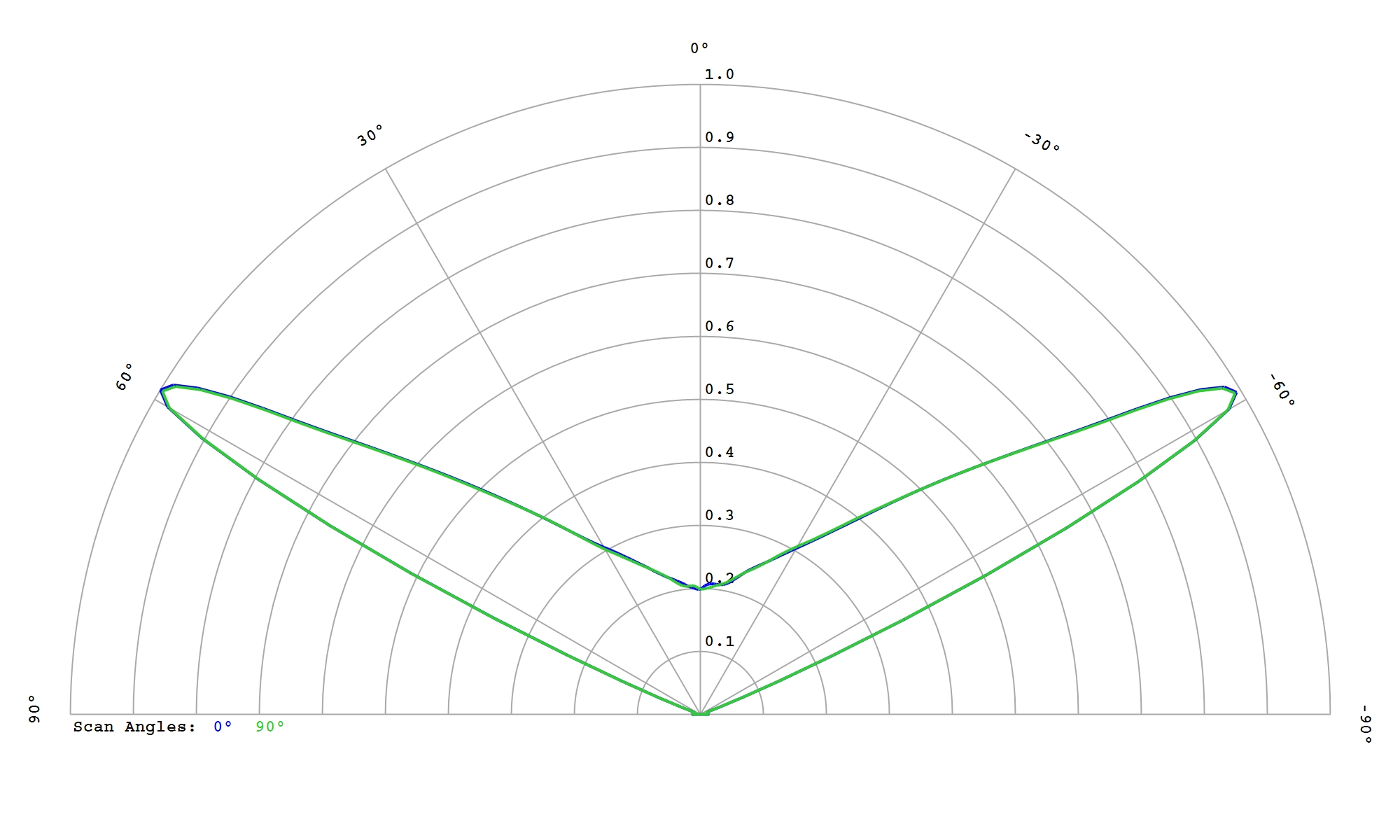

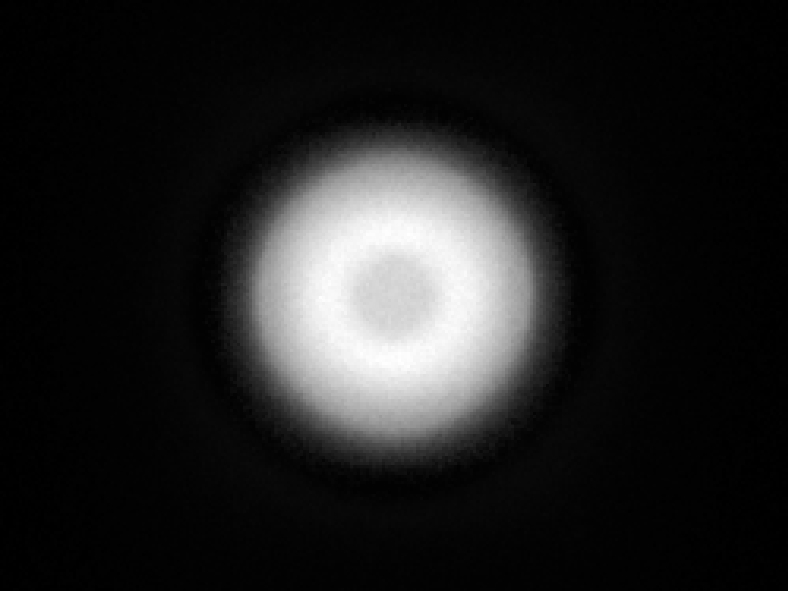

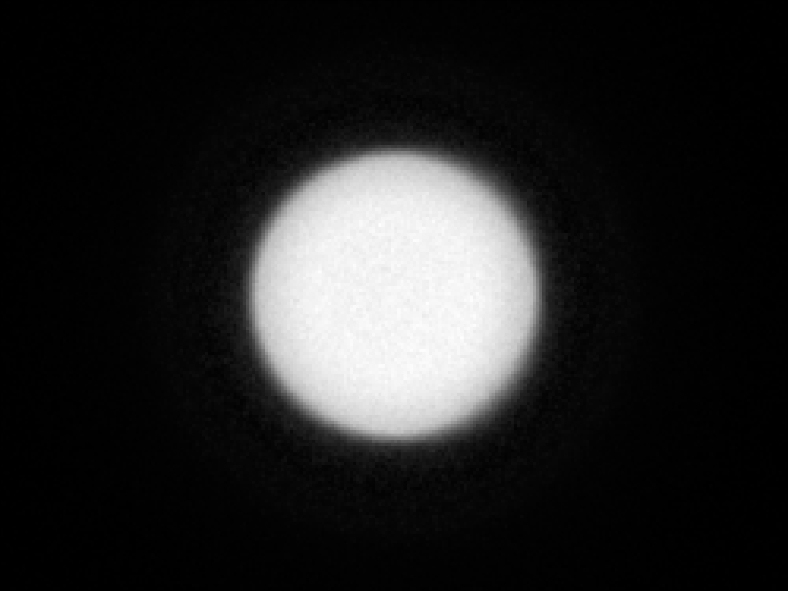

Luminus Devices SFT-40-WxS White
Eff:
92.0%
FWHM:
128°
Cd/Im:
0.5
Download
Luminus Devices SFT-70X-WxS White
Eff:
92.5%
FWHM:
129°
Cd/Im:
0.5
Download
Luminus Devices SST 05-IR-B40 850nm
Eff:
93.0%
FWHM:
115°
Ipk/W:
0.6
Download
Luminus Devices SST 10-B-B130 Blue
Eff:
90.5%
FWHM:
124°
Cd/Im:
0.9
Download

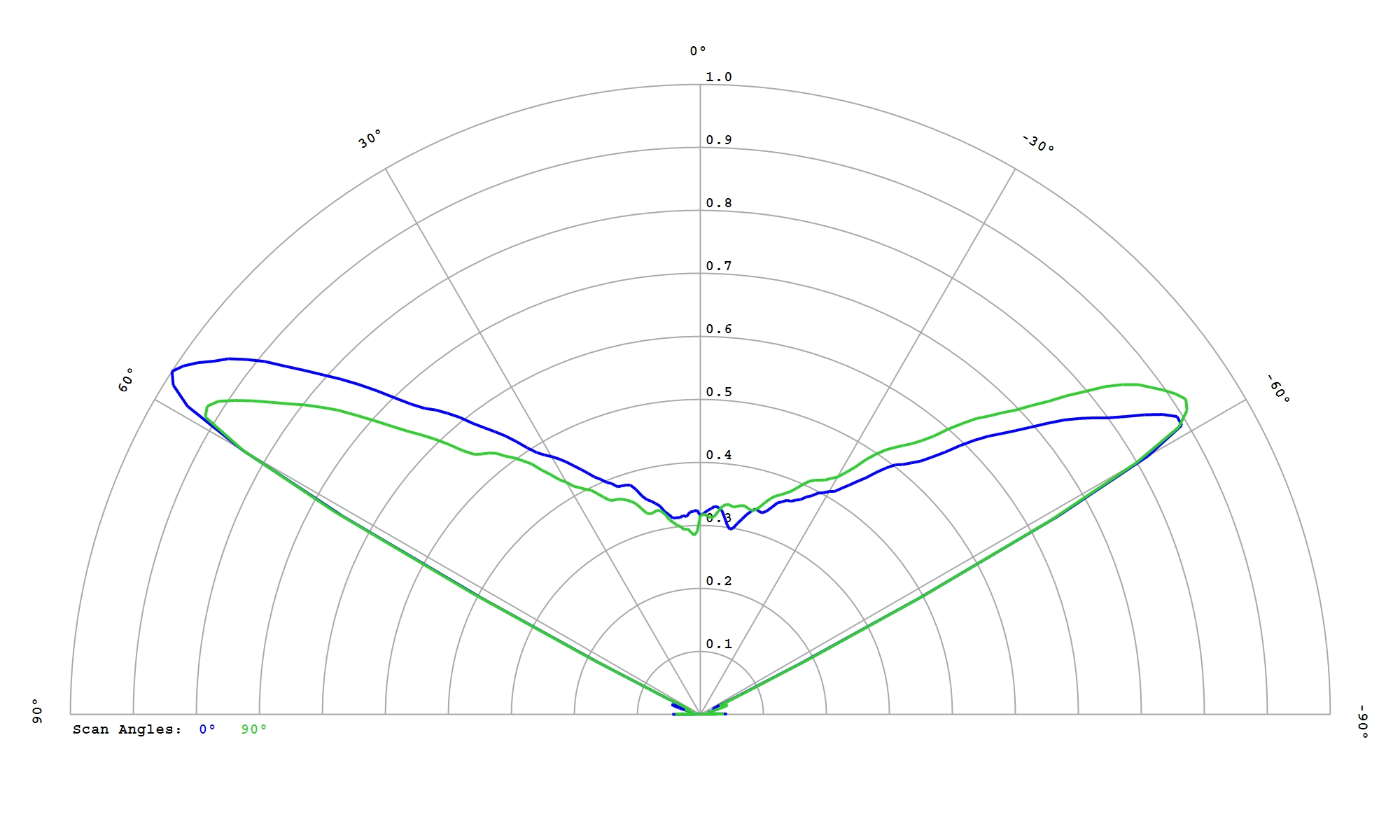

Luminus Devices SST 10-B-B90 Blue
Eff:
89.5%
FWHM:
123°
Cd/Im:
0.5
Download
Luminus Devices SST 10-DR-B130 Deep Red
Eff:
92.5%
FWHM:
130°
Cd/Im:
0.7
Download

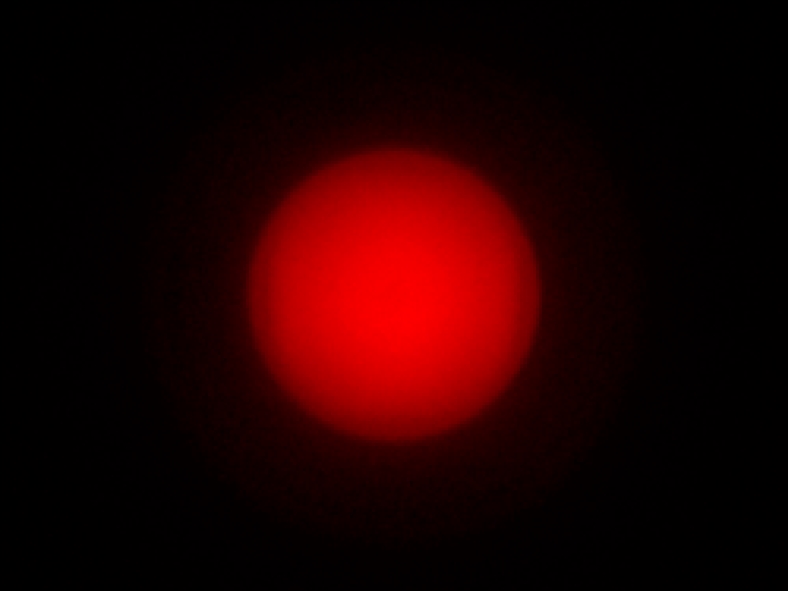

Luminus Devices SST 10-DR-B90 Deep Red
Eff:
91.5%
FWHM:
125°
Cd/Im:
0.4
Download

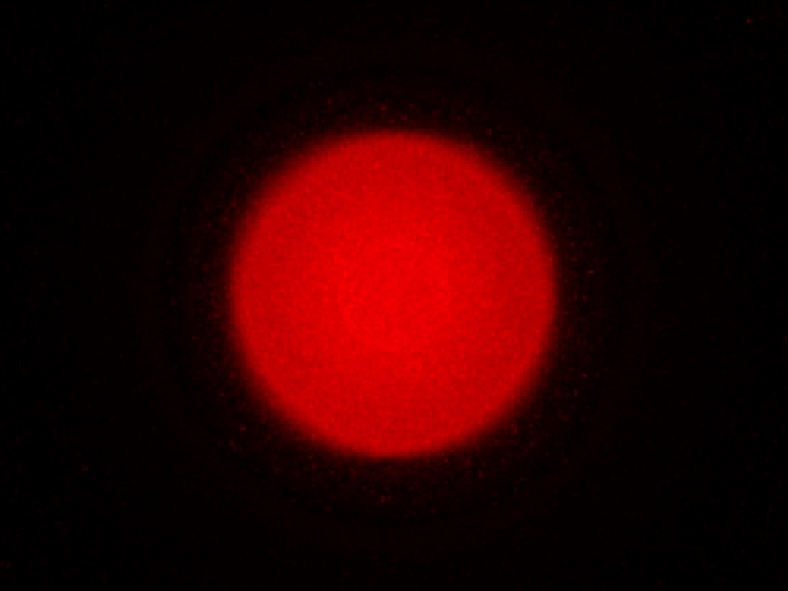

Luminus Devices SST 10-FR-B130 Far Red
Eff:
92.0%
FWHM:
130°
Cd/Im:
0.8
Download
Luminus Devices SST 10-FR-B90 Far Red
Eff:
91.5%
FWHM:
123°
Cd/Im:
1.4
Download
Luminus Devices SST 10-G-B130 Green
Eff:
92.0%
FWHM:
124°
Cd/Im:
0.8
Download

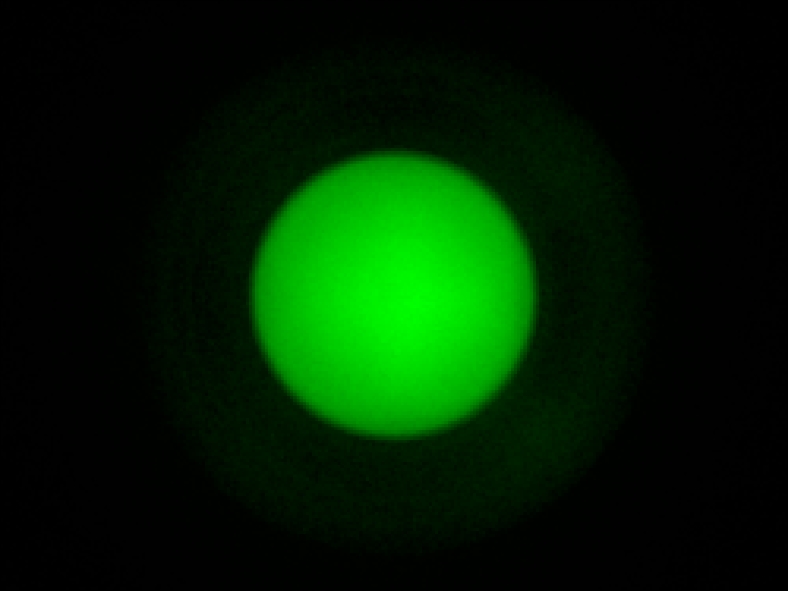

Luminus Devices SST 10-G-B90 Green
Eff:
91.0%
FWHM:
123°
Cd/Im:
0.5
Download
Luminus Devices SST 10-IR-B130 940nm
Eff:
94.5%
FWHM:
127°
Ipk/W:
0.5
Download
Luminus Devices SST 10-IR-B90 940nm
Eff:
93.5%
FWHM:
125°
Ipk/W:
0.4
Download
Luminus Devices SST 10-IRD-B130 810nm
Eff:
94.5%
FWHM:
126°
Ipk/W:
0.6
Download
Luminus Devices SST 10-IRD-B90 810nm
Eff:
93.5%
FWHM:
124°
Ipk/W:
0.4
Download

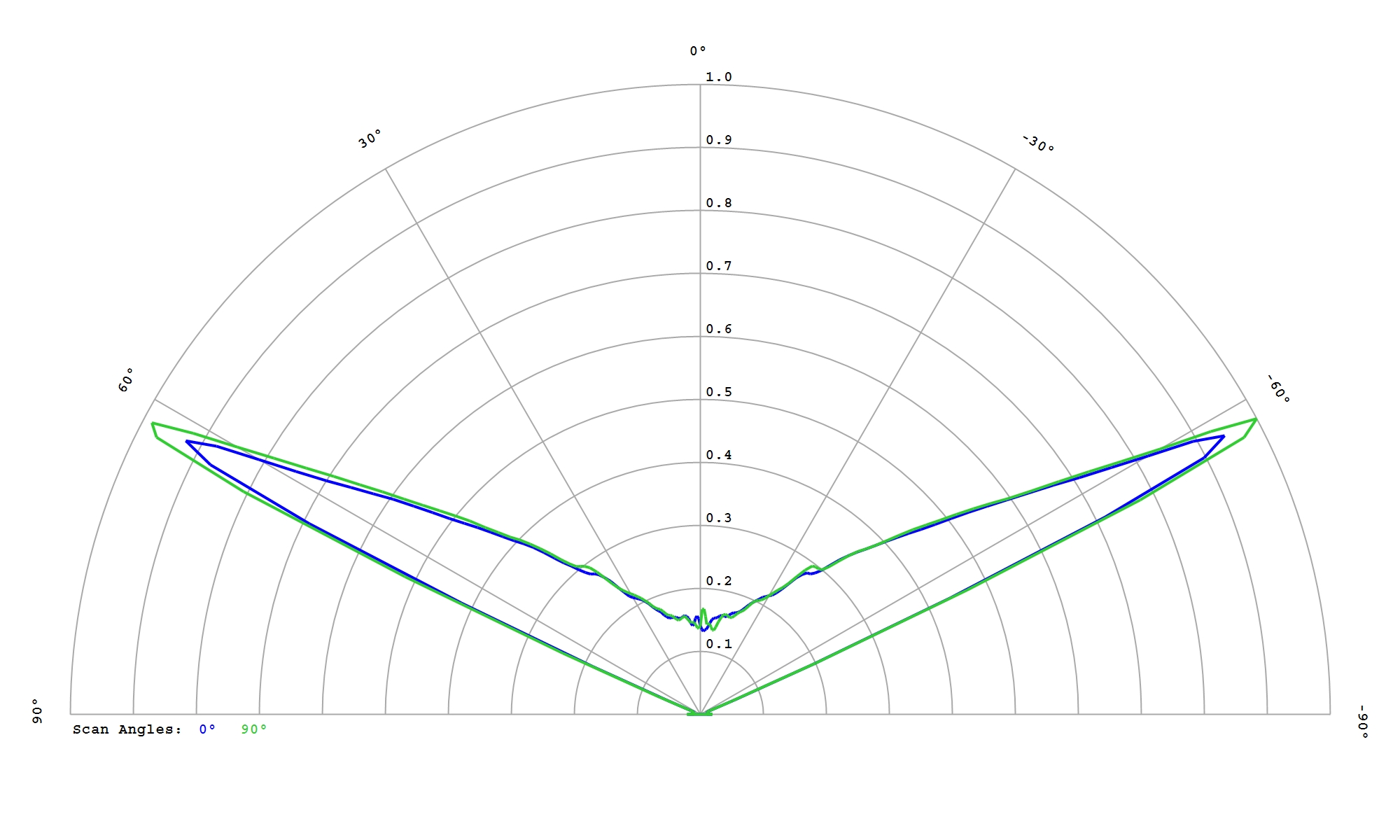

Luminus Devices SST 10-R-B130 Red
Eff:
92.5%
FWHM:
130°
Cd/Im:
0.7
Download
Luminus Devices SST 10-R-B90 Red
Eff:
91.5%
FWHM:
124°
Cd/Im:
0.4
Download
Luminus Devices SST 10-SB-B130 Sky Blue
Eff:
91.5%
FWHM:
124°
Cd/Im:
0.9
Download
Luminus Devices SST 10-SB-B90 Sky Blue
Eff:
90.5%
FWHM:
123°
Cd/Im:
0.5
Download

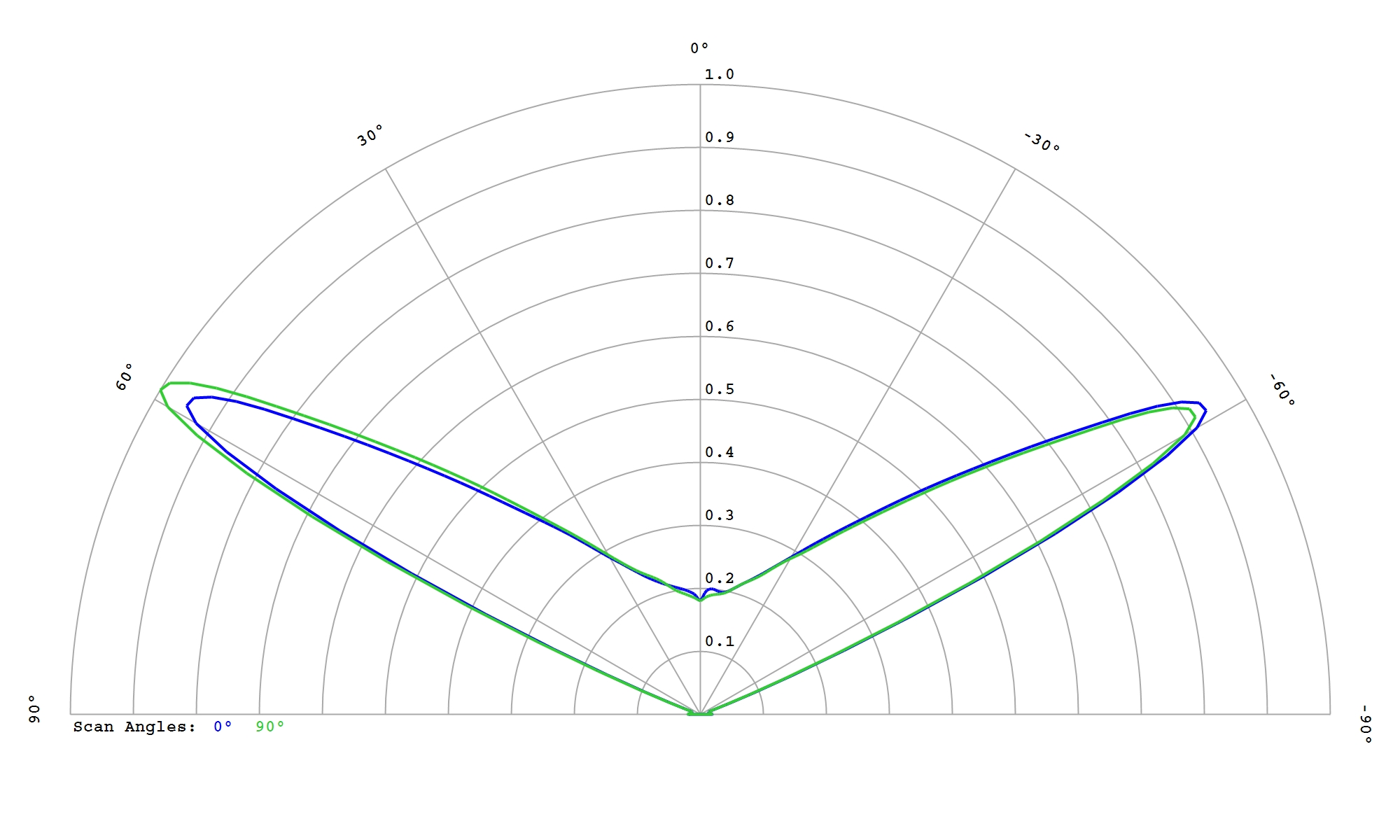

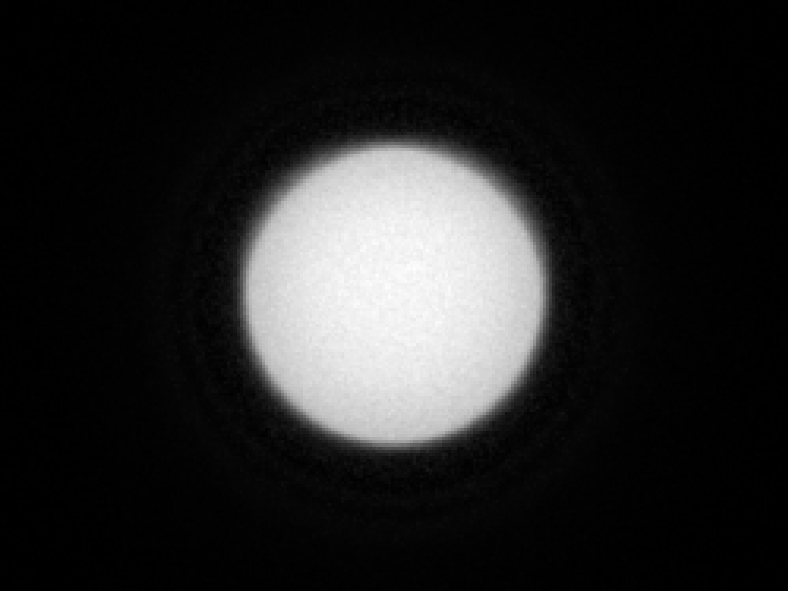

Luminus Devices SST 20-WxH White Hi CRI
Eff:
92.0%
FWHM:
125°
Cd/Im:
0.6
Download
Luminus Devices SST 40-W White
Eff:
91.5%
FWHM:
138°
Cd/Im:
0.4
Download
Luminus Devices SST-12-WxS White
Eff:
91.5%
FWHM:
128°
Cd/Im:
0.6
Download

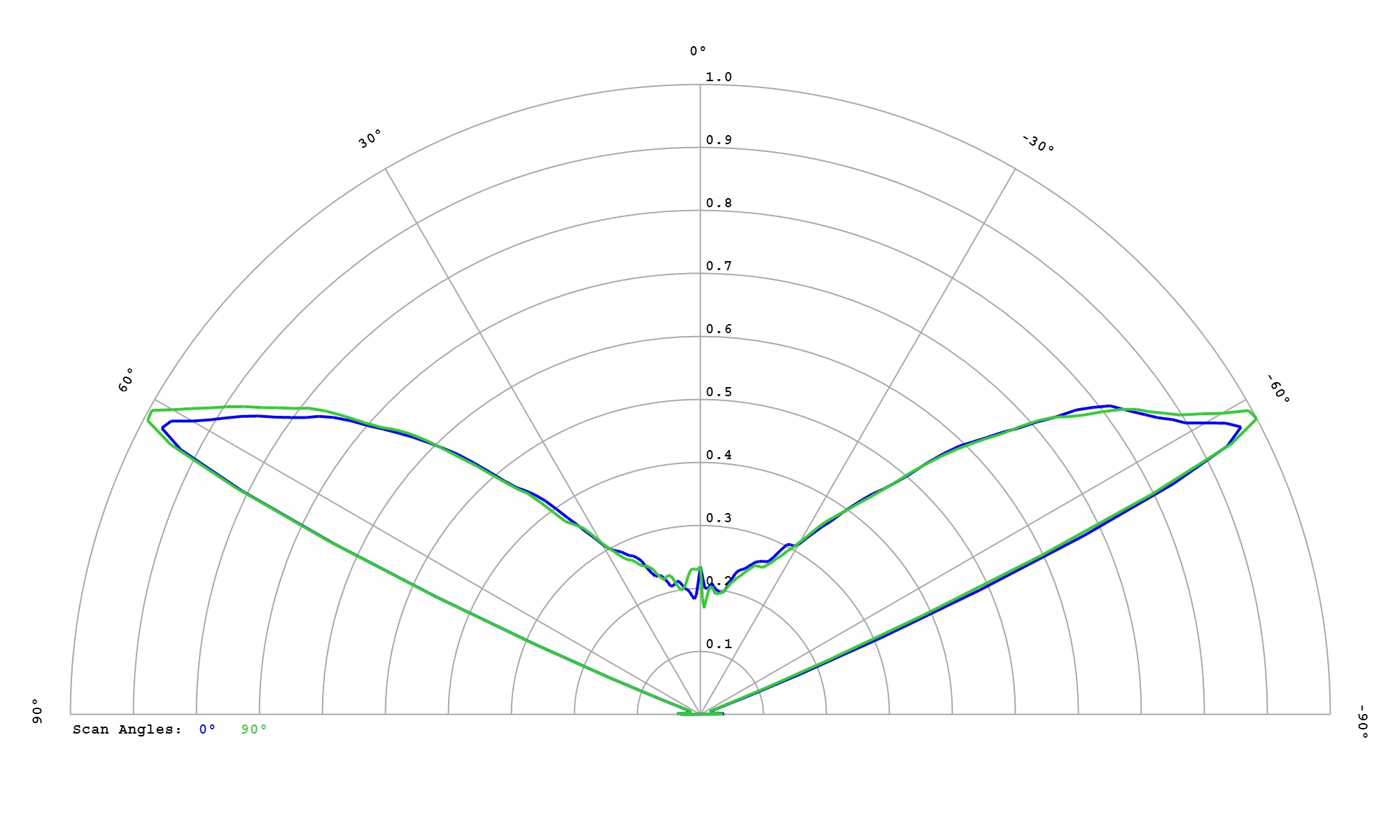

Luminus Devices SST-70X-W White
Eff:
92.5%
FWHM:
131°
Cd/Im:
0.4
Download
Nichia 219 White
Eff:
86.6%
FWHM:
125.4°
Cd/Im:
0.5
Download

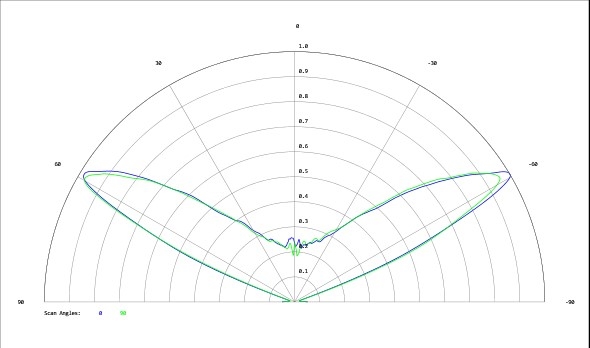

Nichia 229A White
Eff:
90.0%
FWHM:
132°
Cd/Im:
0.4
Download
Nichia 757 White
Eff:
88.2%
FWHM:
121.9°
Cd/Im:
0.6
Download
Nichia 757G White
Eff:
92.5%
FWHM:
125°
Cd/Im:
0.6
Download
Nichia 757G White
Eff:
92.0%
FWHM:
123°
Cd/Im:
0.6
Download
Nichia NCSW CSP E17A White
Eff:
91.5%
FWHM:
119°
Cd/Im:
0.8
Download
Nichia NF2W 385AR-V2 White
Eff:
92.0%
FWHM:
129°
Cd/Im:
0.5
Download

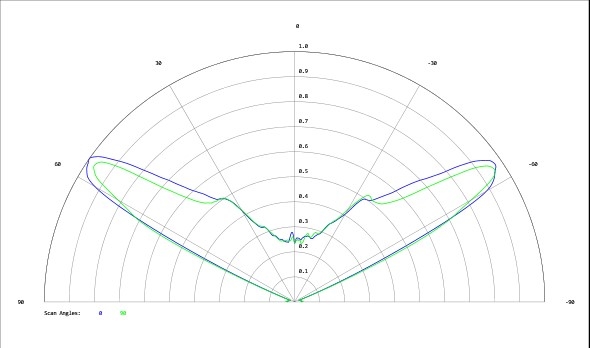

Nichia NFMW 481AR White
Eff:
83.5%
FWHM:
127°
Cd/Im:
0.4
Download
Nichia NFMW 484AR White
Eff:
92.5%
FWHM:
128°
Cd/Im:
0.4
Download
Nichia NFMW 486AR White
Eff:
92.5%
FWHM:
127°
Cd/Im:
0.4
Download
Nichia NFMW 488AR White
Eff:
92.5%
FWHM:
127 °
Cd/Im:
0.4
Download
Nichia NFSW CSP E11A White
Eff:
91.5%
FWHM:
118°
Cd/Im:
0.8
Download
Nichia NV4W 144AR White
Eff:
88.5%
FWHM:
133°
Cd/Im:
0.3
Download

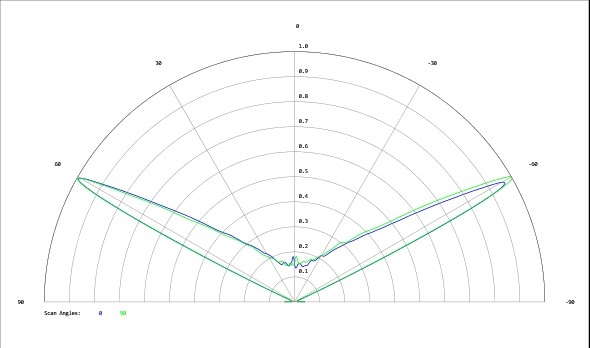

Nichia NVSL 219B White
Eff:
90.5%
FWHM:
126°
Cd/Im:
0.7
Download
Nichia NVSW 219C White
Eff:
91.0%
FWHM:
128°
Cd/Im:
0.5
Download
Nichia NVSW 219F White
Eff:
91.5%
FWHM:
131°
Cd/Im:
0.4
Download
Nichia NVSW 319A White
Eff:
90.5%
FWHM:
130°
Cd/Im:
0.5
Download

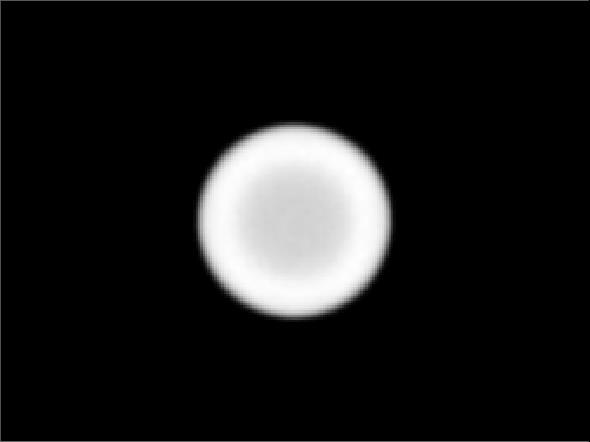

Nichia NVSW CSP E21A White
Eff:
86.0%
FWHM:
118°
Cd/Im:
0.7
Download
Osram OS DURIS E 2835 Gen2
Eff:
92.5%
FWHM:
123°
Cd/Im:
0.6
Download
Osram OS DURIS E 2835 White
Eff:
92.0%
FWHM:
125°
Cd/Im:
0.5
Download
Osram OS DURIS E2 White
Eff:
88.0%
FWHM:
121°
Cd/Im:
0.6
Download
Osram OS DURIS E3 White
Eff:
91.2%
FWHM:
132.7°
Cd/Im:
0.5
Download
Osram OS DURIS P10 White
Eff:
88.1%
FWHM:
130°
Cd/Im:
0.3
Download
Osram OS DURIS P8 White
Eff:
87.6%
FWHM:
123.4°
Cd/Im:
0.5
Download
Osram OS DURIS S2 White
Eff:
91.9%
FWHM:
125.1°
Cd/Im:
0.6
Download
Osram OS DURIS S5 Deep Blue
Eff:
91.5%
FWHM:
124°
Cd/Im:
0.7
Download
Osram OS DURIS S5 GP PSLM31.14 Purple
Eff:
93.0%
FWHM:
124°
Cd/Im:
0.6
Download

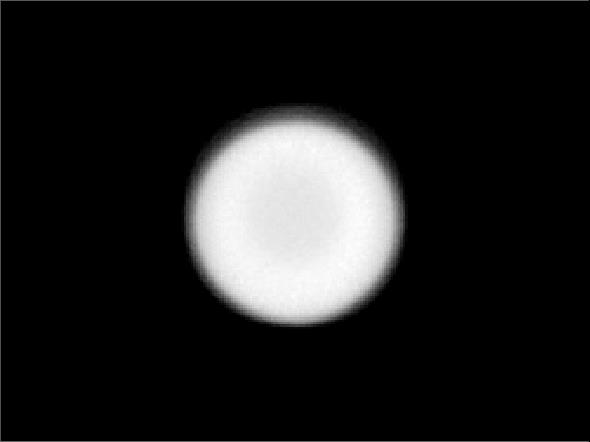

Osram OS DURIS S5 GP PSLR31.14 Purple
Eff:
93.0%
FWHM:
124°
Cd/Im:
0.6
Download

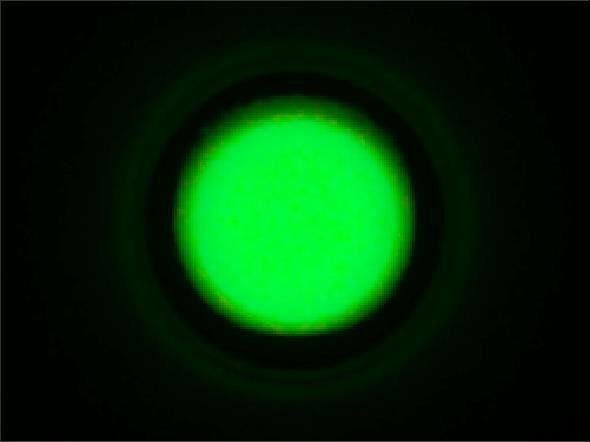

Osram OS DURIS S5 Green
Eff:
92.5%
FWHM:
124°
Cd/Im:
0.6
Download
Osram OS DURIS S5 Red
Eff:
93.0%
FWHM:
125°
Cd/Im:
0.6
Download
Osram OS DURIS S5 White
Eff:
88.0%
FWHM:
122.2°
Cd/Im:
0.5
Download

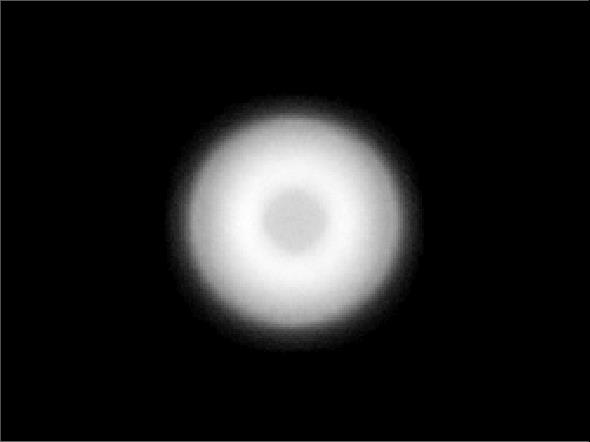

Osram OS DURIS S8 Gen2 White
Eff:
93.0%
FWHM:
124°
Cd/Im:
0.4
Download
Osram OS DURIS S8 Gen3 White
Eff:
93.0%
FWHM:
127°
Cd/Im:
0.4
Download

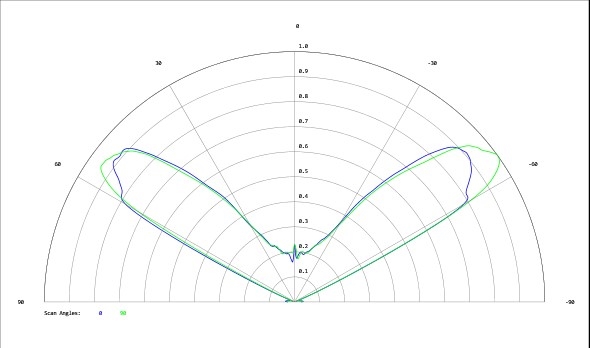

Osram OS DURIS S8 White
Eff:
93.0%
FWHM:
127°
Cd/Im:
0.4
Download

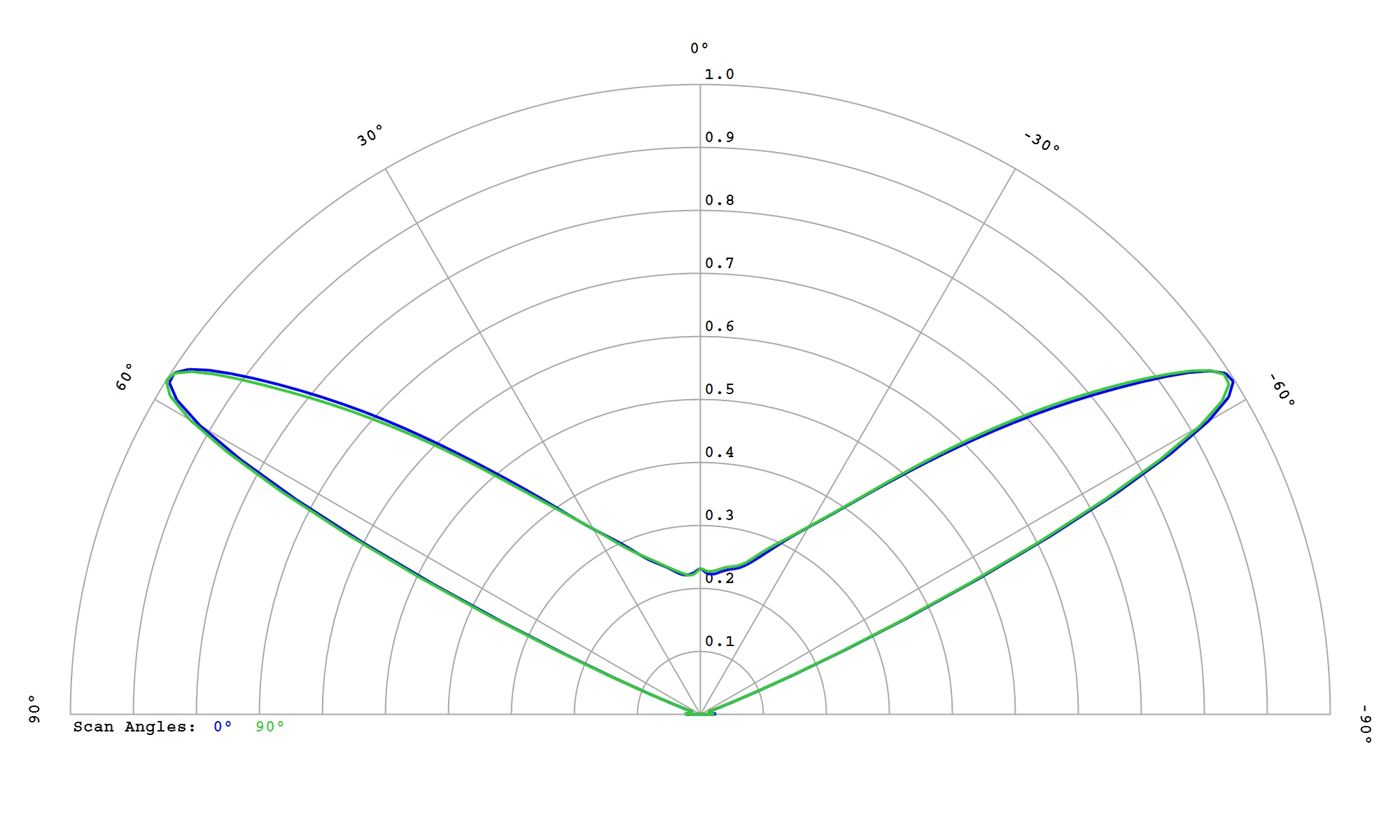

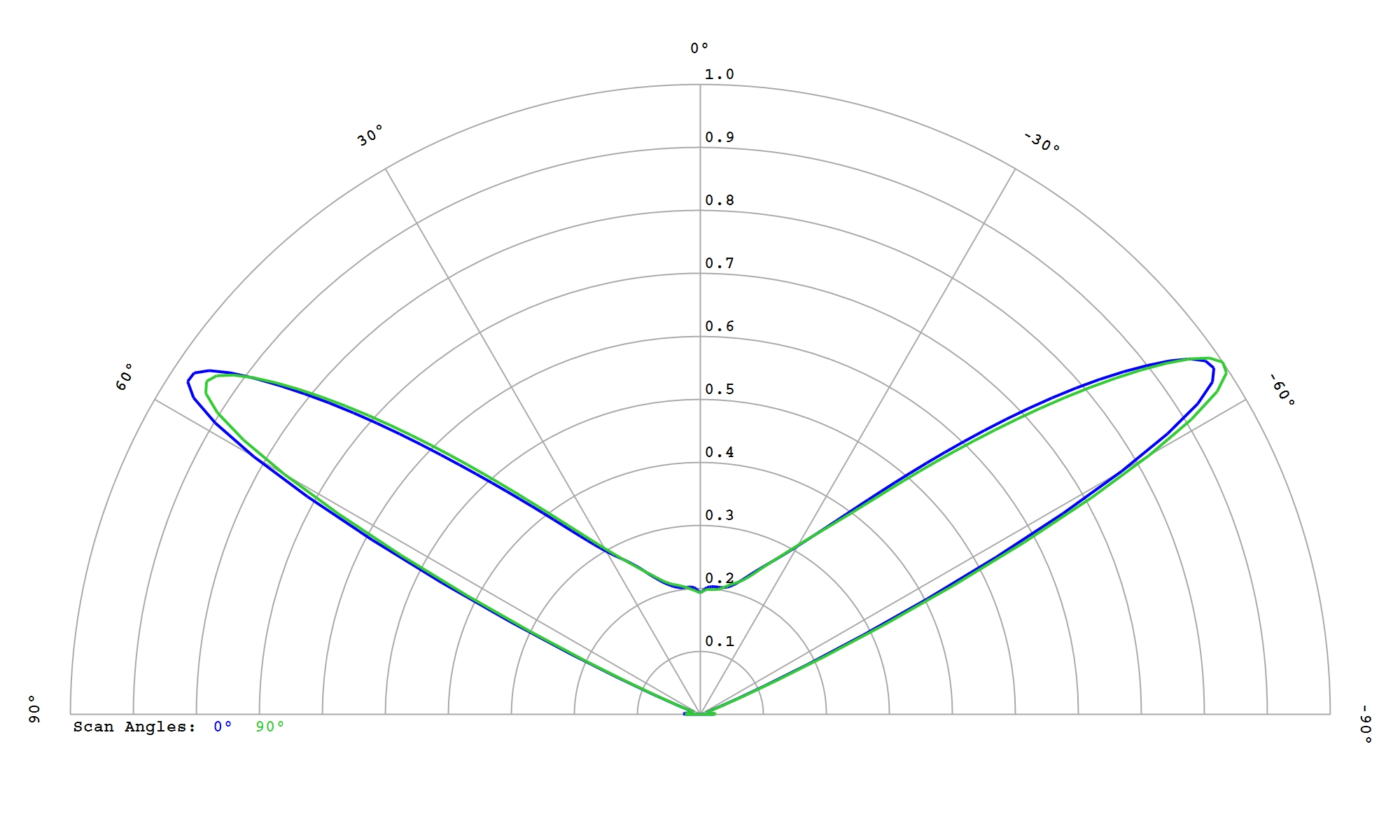

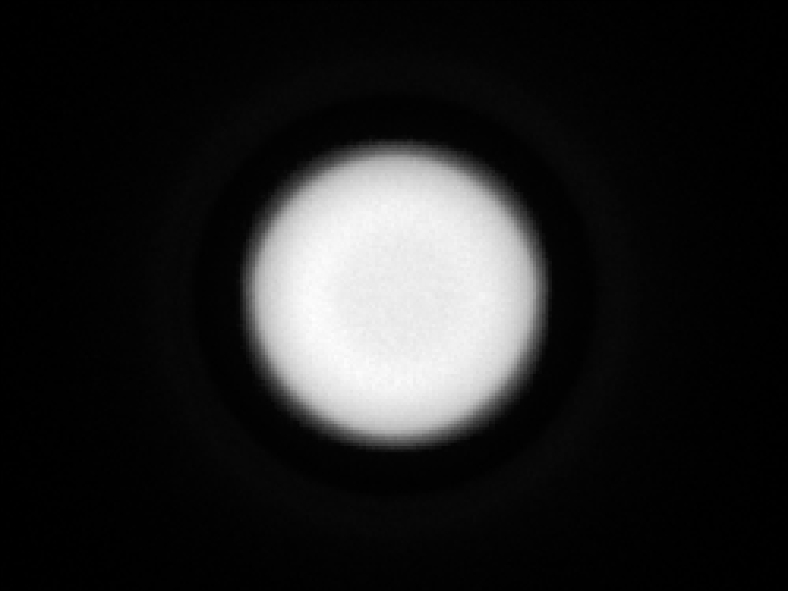

Osram OS OSCONIQ C 2424 White
Eff:
92.5%
FWHM:
123°
Cd/Im:
0.6
Download

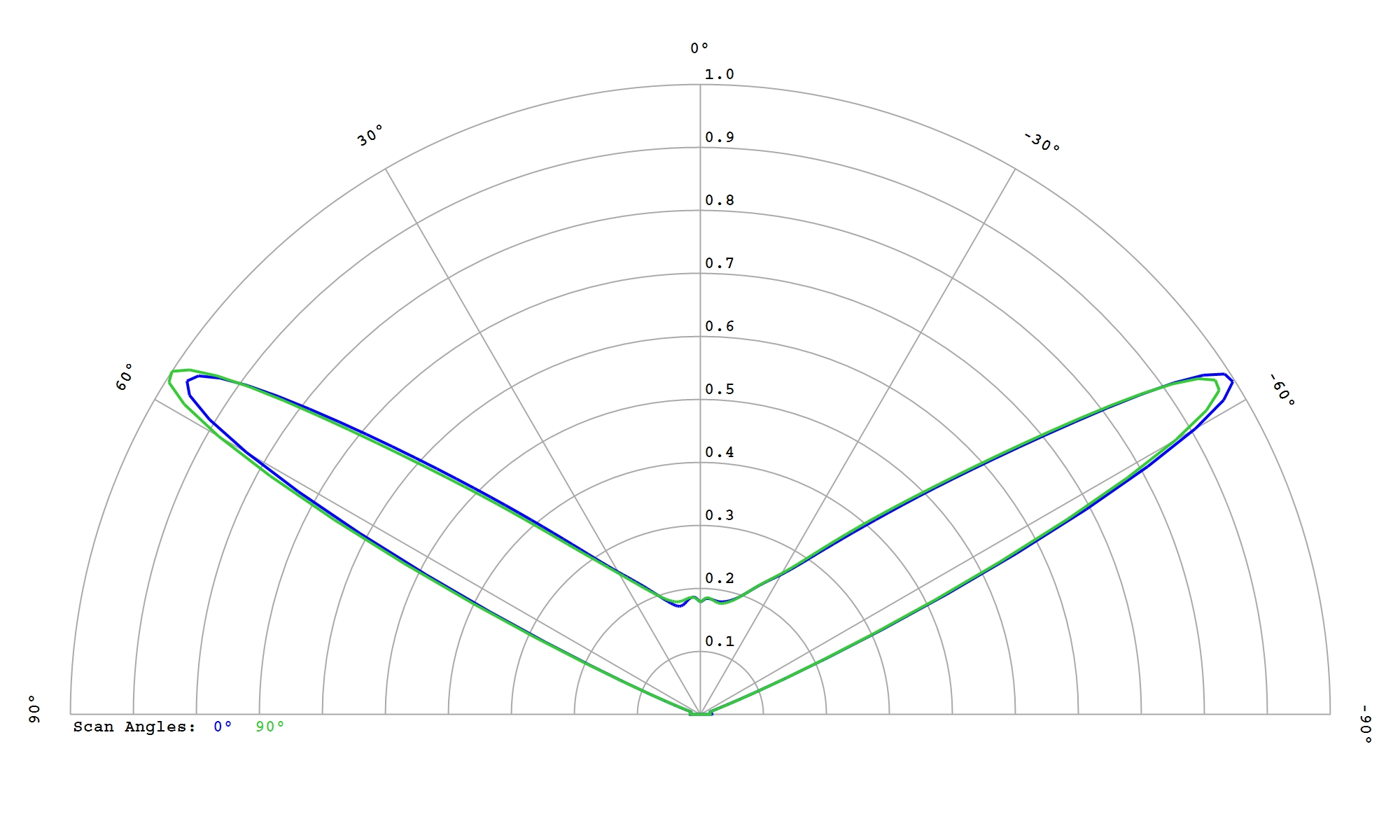

Osram OS OSCONIQ P3737 White
Eff:
90.0%
FWHM:
127°
Cd/Im:
0.4
Download
Osram OS OSCONIQ S 5050 GW Q9LR32.PM
Eff:
93.0%
FWHM:
127°
Cd/Im:
0.4
Download
Osram OS OSLON Black SFH 4716AS IR
Eff:
94.0%
FWHM:
125°
Ipk/W:
0.8
Download
Osram OS OSLON Black SFH 4725S IR
Eff:
94.5%
FWHM:
118°
Cd/Im:
0.5
Download
Osram OS OSLON Boost HM KW CELMM1.TG
Eff:
92.0%
FWHM:
125°
Cd/Im:
0.8
Download

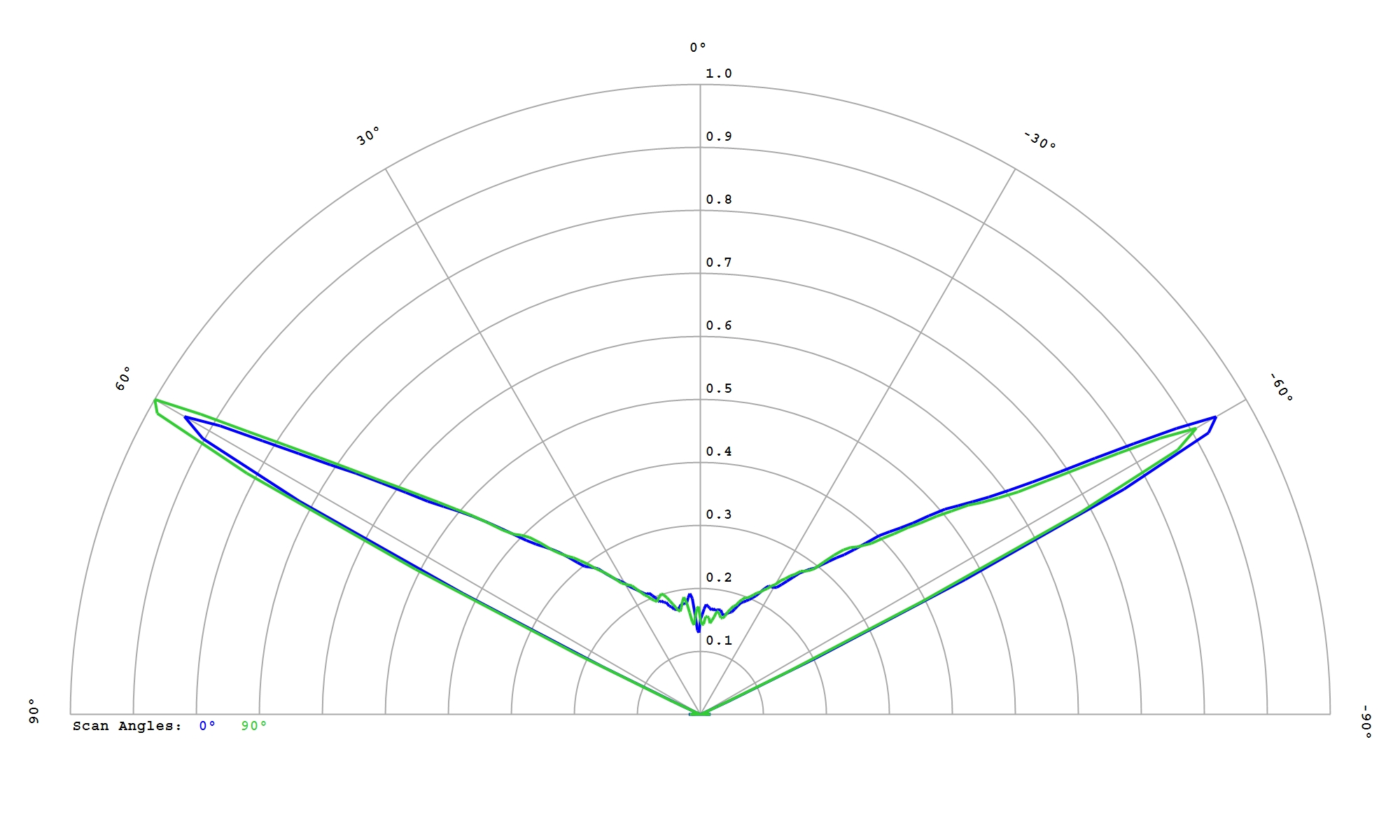

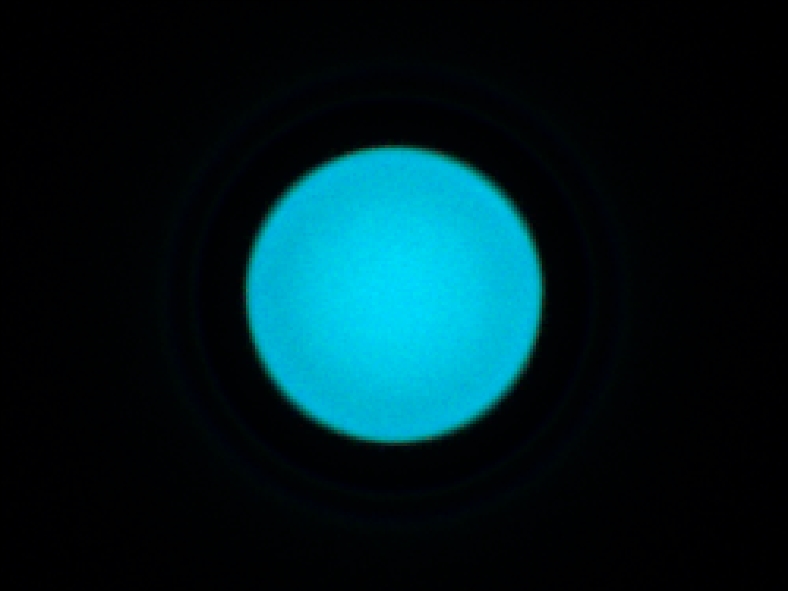

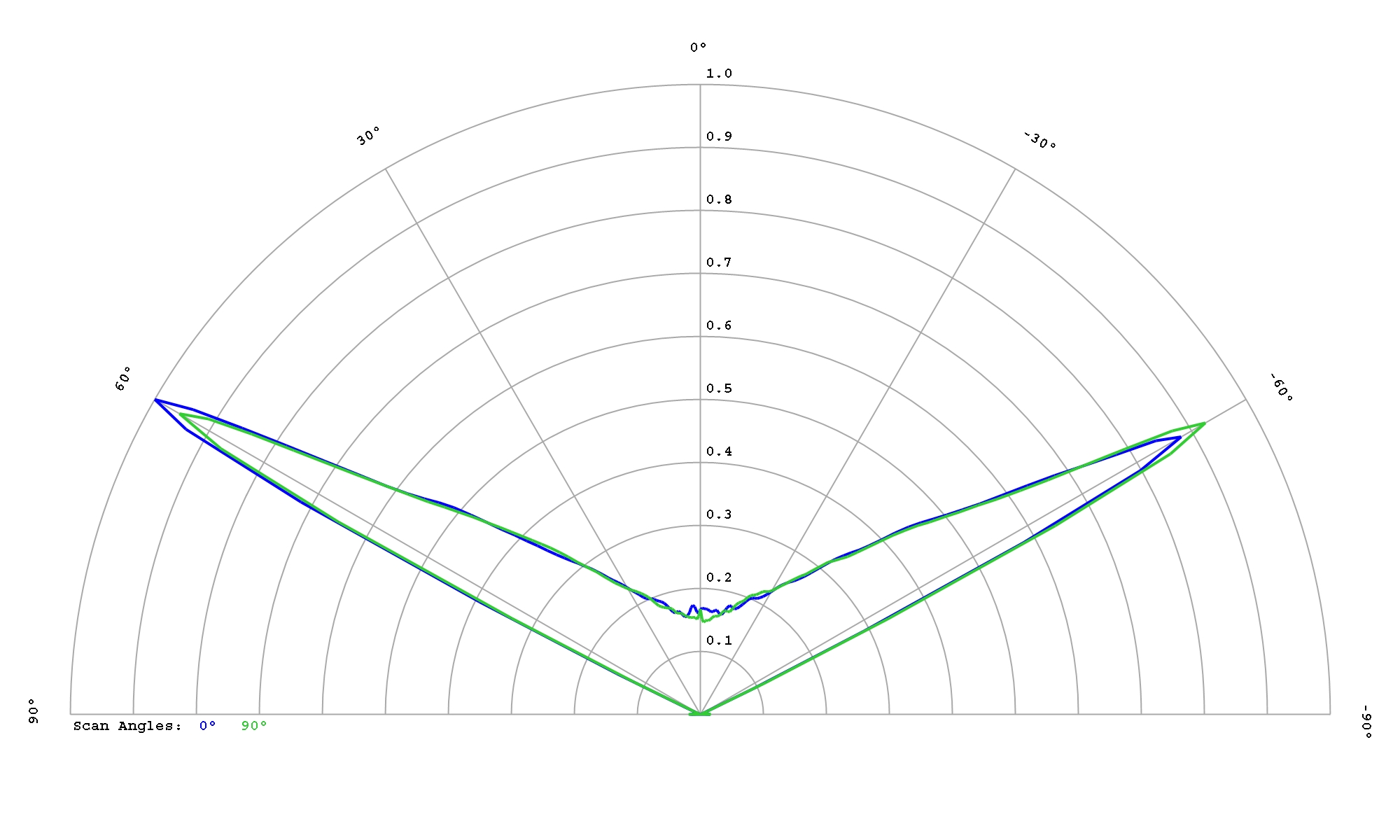

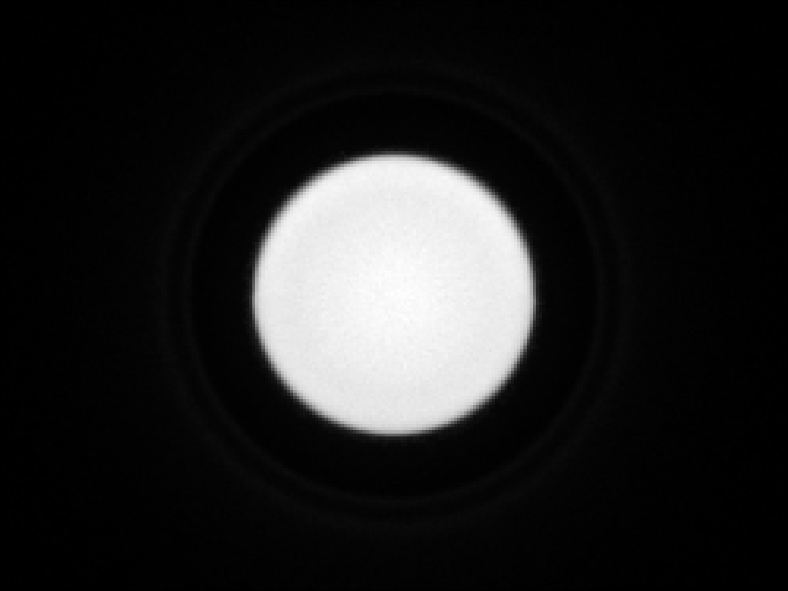

Osram OS OSLON Pure 1010 CSP GC VJLPE1.13 Cyan
Eff:
92.5%
FWHM:
115°
Cd/Im:
1.0
Download

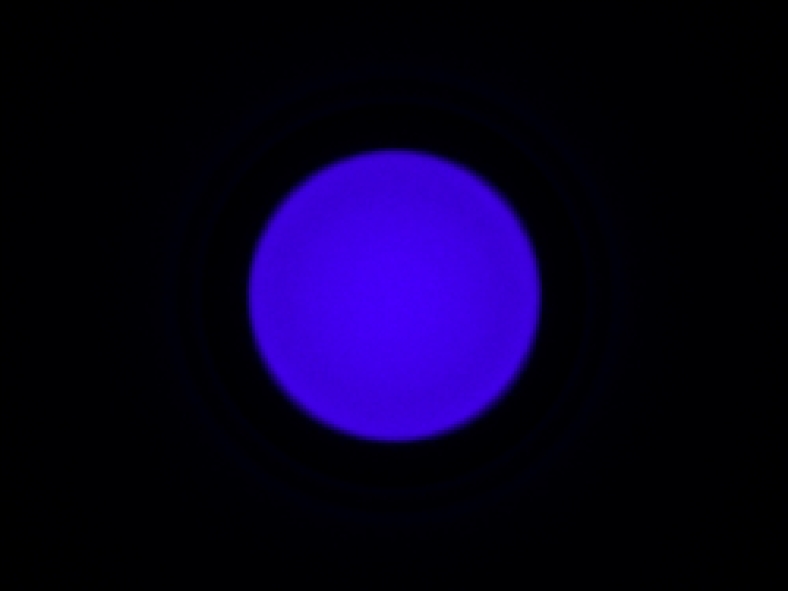

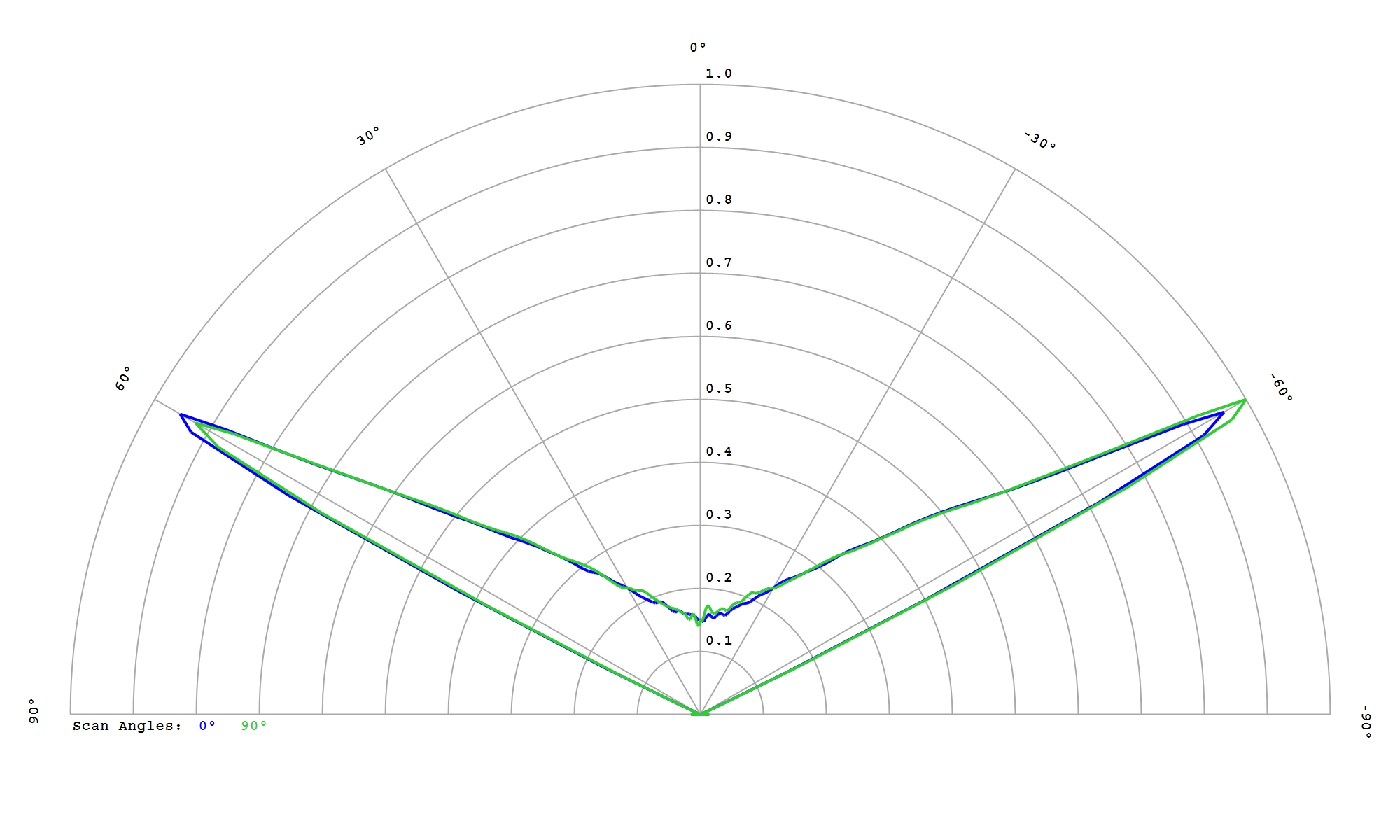

Osram OS OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue
Eff:
91.5%
FWHM:
115°
Ipk/W:
1.0
Download

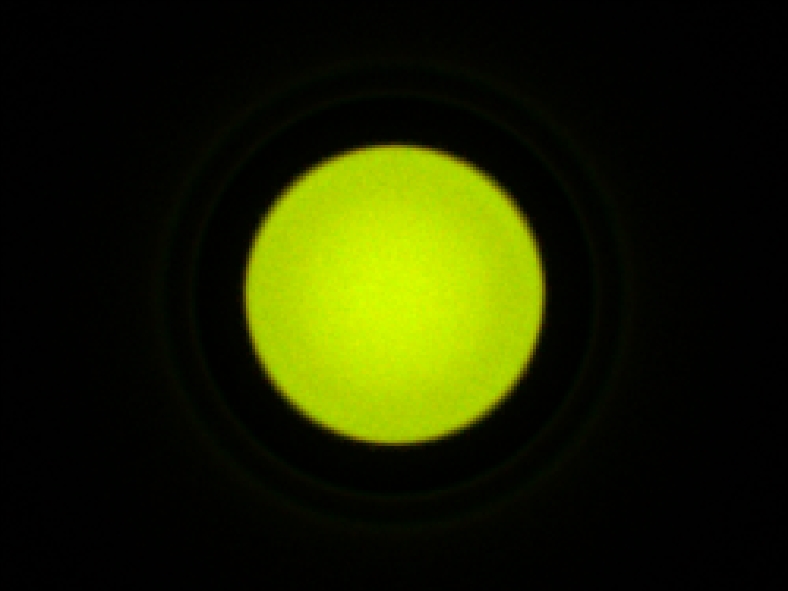

Osram OS OSLON Pure 1010 CSP GG VJLPE1.F3 Green
Eff:
92.5%
FWHM:
116°
Cd/Im:
0.9
Download
Osram OS OSLON Pure 1010 CSP GR VJLPE1.F3 Red
Eff:
92.5%
FWHM:
119°
Cd/Im:
0.9
Download

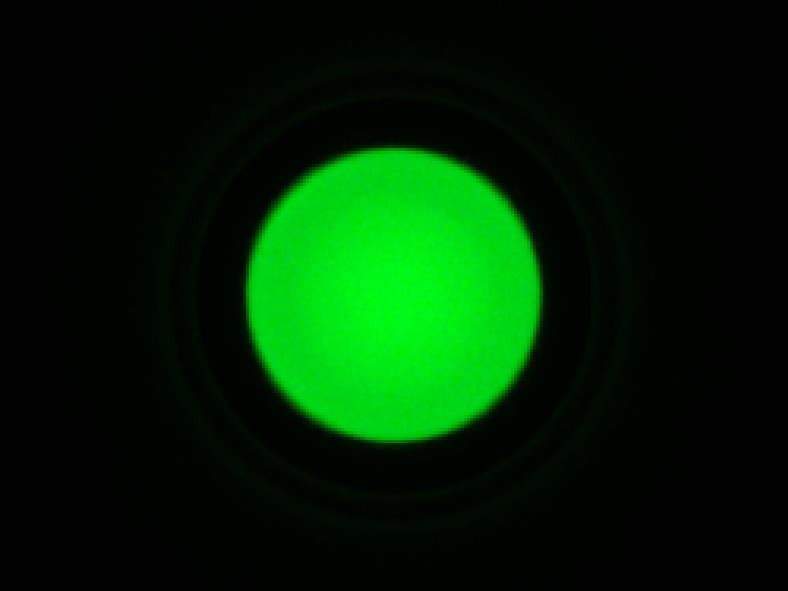

Osram OS OSLON Pure 1010 CSP GT VJLPE1.13 True Green
Eff:
92.5%
FWHM:
115°
Cd/Im:
1.0
Download
Osram OS OSLON Pure 1010 CSP GW VJLPE1.CM White
Eff:
92.0%
FWHM:
116°
Cd/Im:
0.9
Download

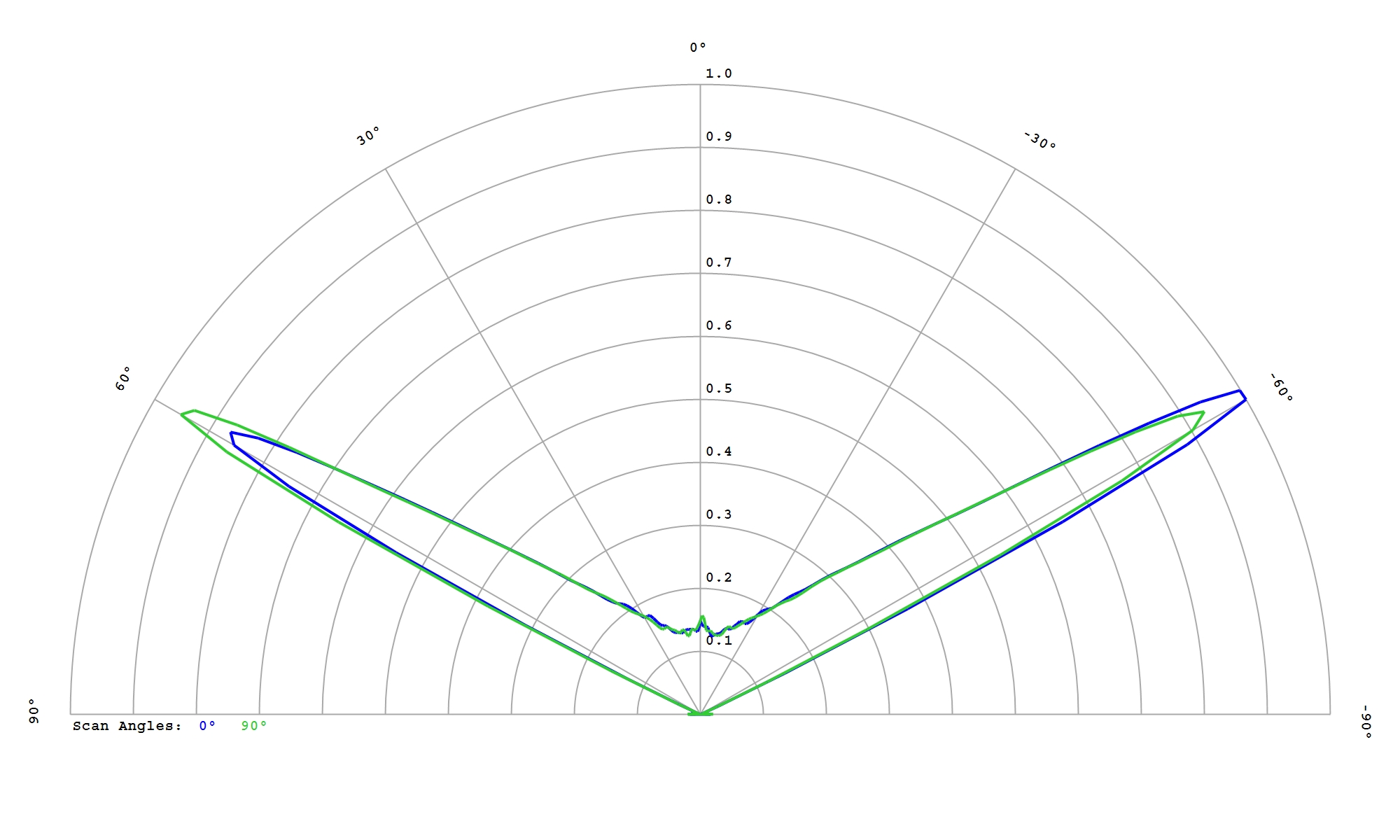

Osram OS OSLON Square Flat White
Eff:
92.0%
FWHM:
125°
Cd/Im:
0.6
Download

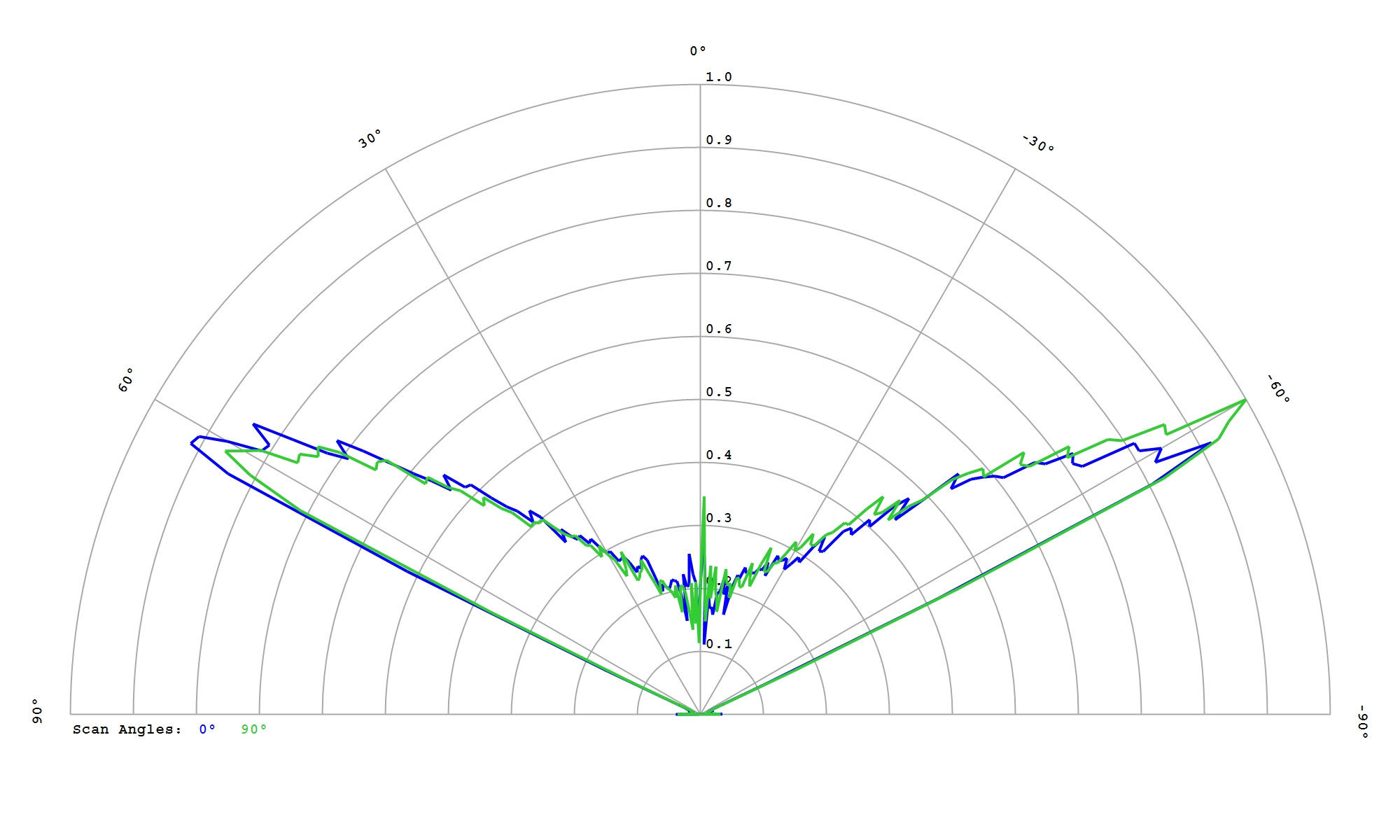

Osram OS OSLON Square Gen 5 GW CSSRM3
Eff:
92.0%
FWHM:
128°
Cd/Im:
0.5
Download
Osram OS OSLON Square White
Eff:
88.0%
FWHM:
125°
Cd/Im:
0.5
Download
Osram OS OSLON SSL 120 GD CSSPM1.14 Deep Blue
Eff:
90.5%
FWHM:
123°
Cd/Im:
0.8
Download
Osram OS OSLON SSL 120 GF CSSPM1.24 Far Red
Eff:
91.5%
FWHM:
124°
Cd/Im:
0.7
Download
Osram OS OSLON SSL 120 GH CSSPM1.24 Hyper Red
Eff:
92.0%
FWHM:
123°
Cd/Im:
0.7
Download
Osram OS OSLON SSL 150 degree GW CSHPM1.PM White
Eff:
92.0%
FWHM:
129°
Cd/Im:
0.6
Download
Osram OS OSLON SSL 150 degree White
Eff:
87.6%
FWHM:
124.4°
Cd/Im:
0.7
Download
Osram OS OSLON SSL 80 degree White
Eff:
87.4%
FWHM:
122.7°
Cd/Im:
0.4
Download
Osram OS OSTAR Stage LE-UW-S2WN
Eff:
92.5%
FWHM:
131°
Cd/Im:
0.4
Download
Plessey PLW 7070GA White
Eff:
91.5%
FWHM:
128°
Cd/Im:
0.4
Download

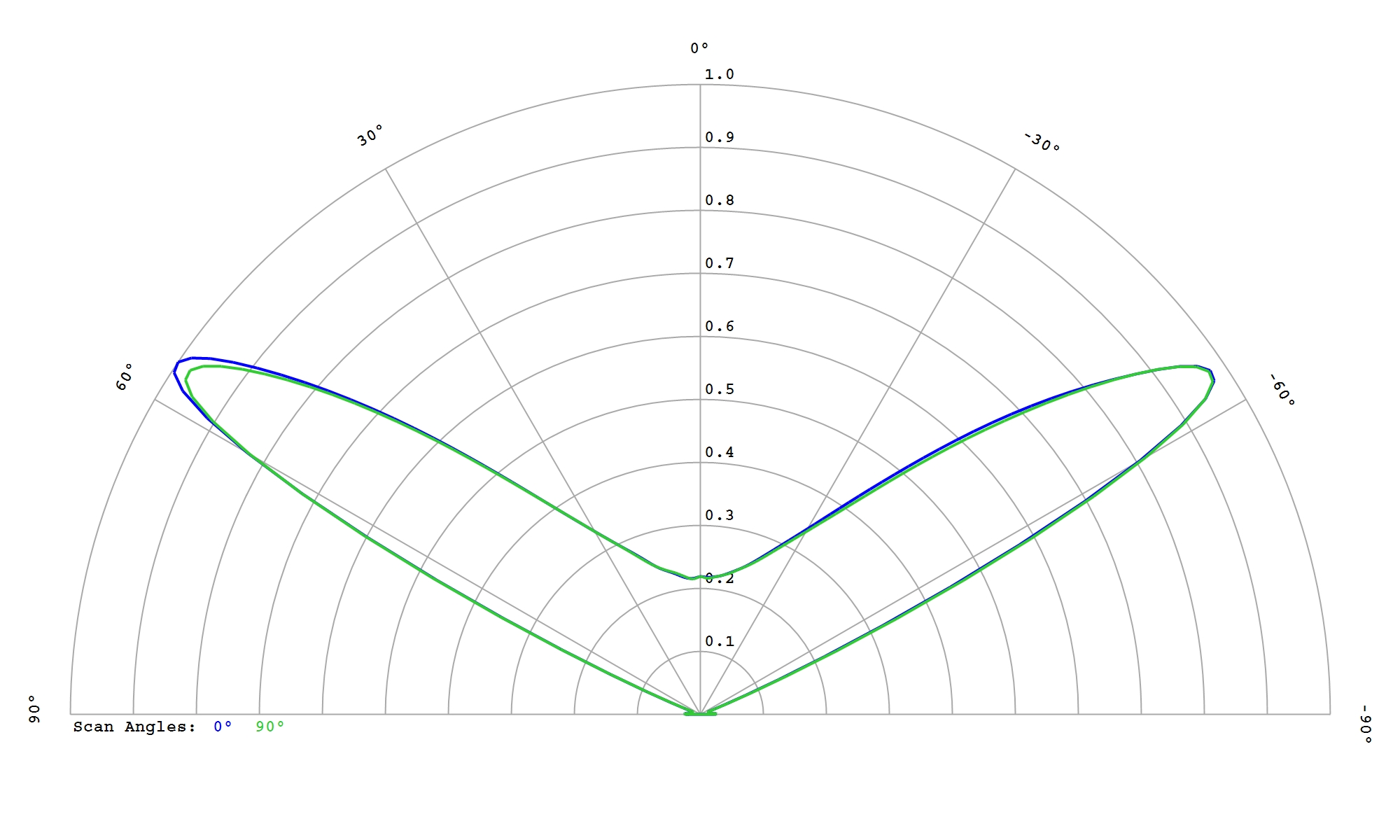

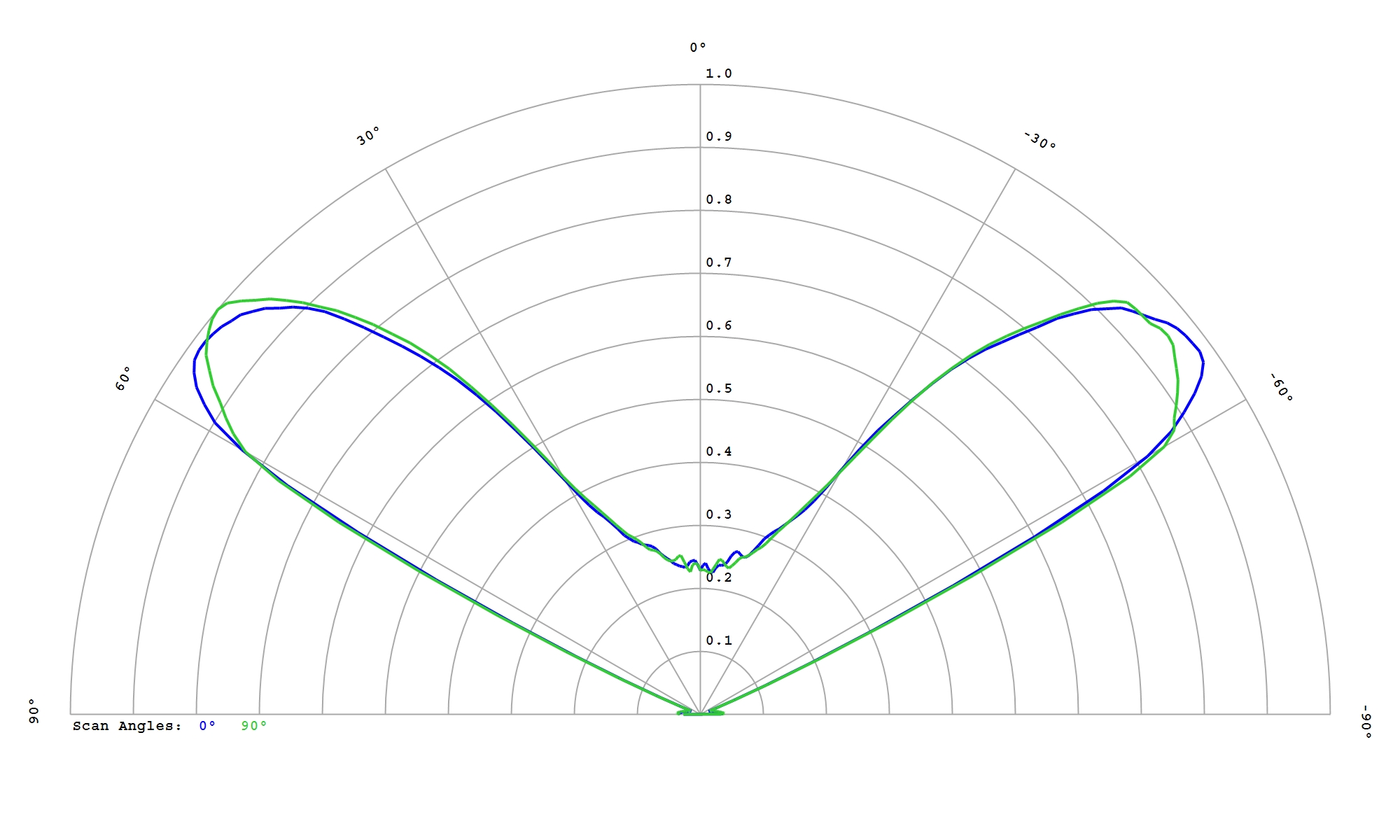

Samsung 3030 LM301B White
Eff:
92.5%
FWHM:
126°
Cd/Im:
0.5
Download
Samsung 3535 LH351B White
Eff:
87.4%
FWHM:
128°
Cd/Im:
0.4
Download
Samsung 3535 LH351D White
Eff:
92.5%
FWHM:
112°
Cd/Im:
0.6
Download
Samsung 3535 LH351H Blue
Eff:
91.5%
FWHM:
126°
Cd/Im:
0.7
Download
Samsung 3535 LH351H Deep Red
Eff:
92.5%
FWHM:
128°
Cd/Im:
0.7
Download
Samsung 3535 LH351H Red
Eff:
92.5%
FWHM:
124°
Cd/Im:
0.6
Download
Samsung 3535 LH351H-B White
Eff:
91.5%
FWHM:
131°
Cd/Im:
0.4
Download
Samsung 3535 LH351H-C White
Eff:
92.0%
FWHM:
130°
Cd/Im:
0.4
Download
Samsung 3535 LH351Z White
Eff:
87.5%
FWHM:
127°
Cd/Im:
0.4
Download
Samsung CSP LH151B White
Eff:
92.5%
FWHM:
119°
Cd/Im:
0.7
Download
Samsung CSP LH181B White
Eff:
92.5%
FWHM:
120°
Cd/Im:
0.6
Download
Samsung CSP LH231B White
Eff:
92.5%
FWHM:
121°
Cd/Im:
5.4
Download
Samsung CSP LM101B White
Eff:
92.5%
FWHM:
119 °
Cd/Im:
0.7
Download

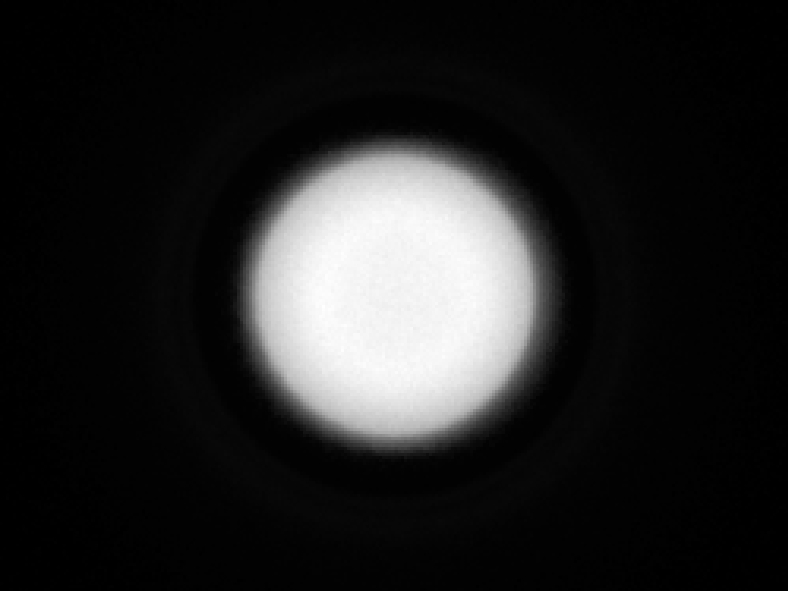

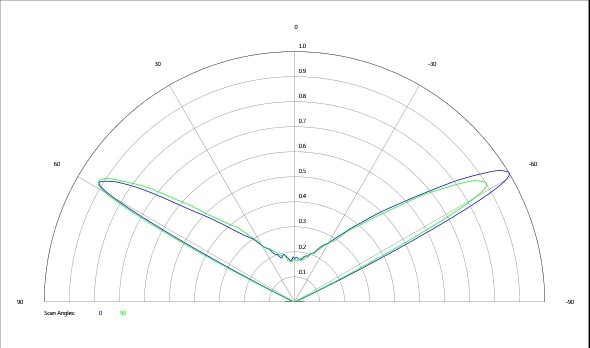

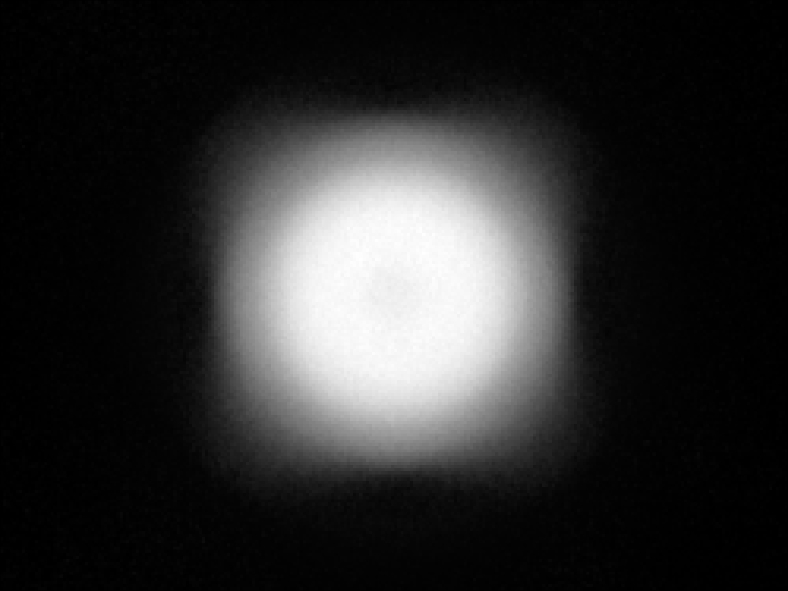

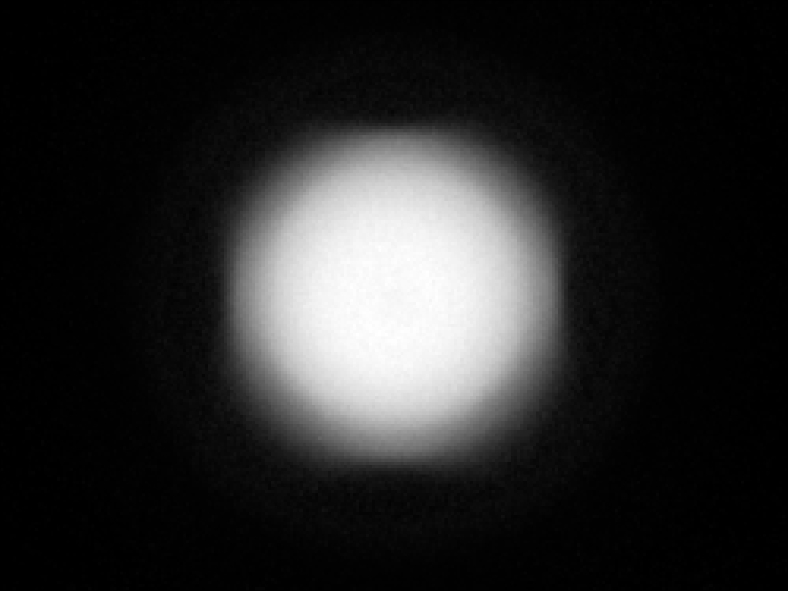

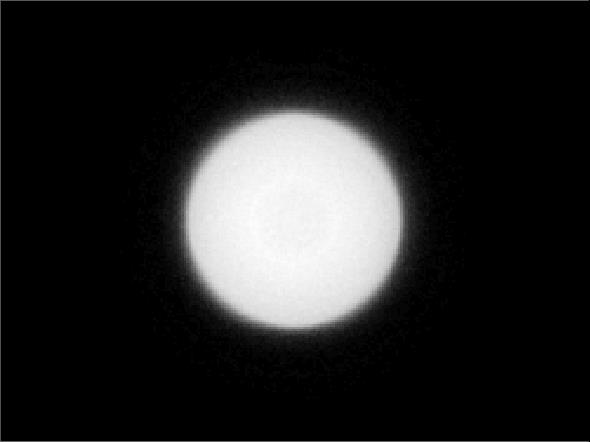

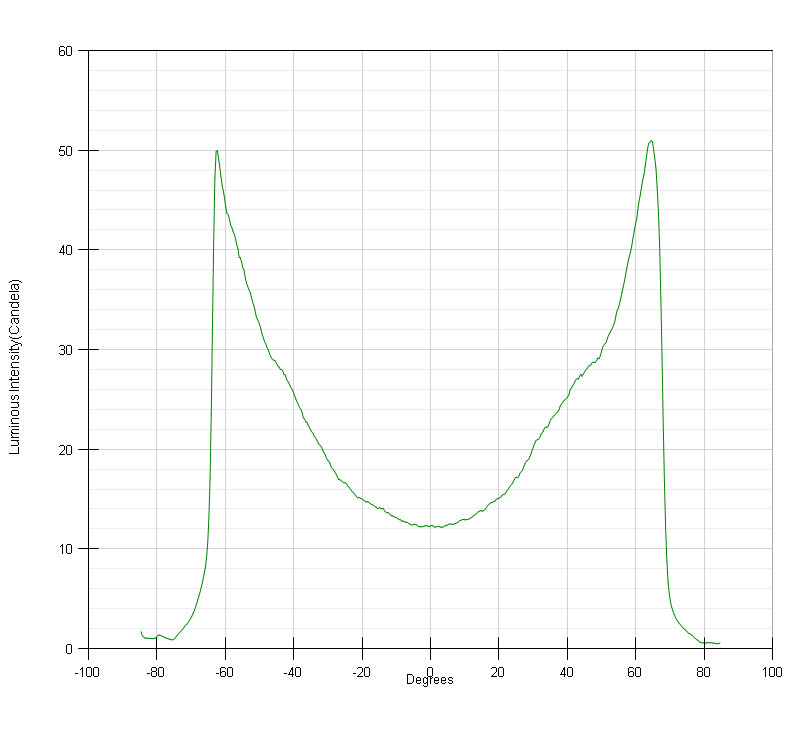

Seoul CSP SZ8Y11 White
Eff:
91.0%
FWHM:
120°
Cd/Im:
0.8
Download
Seoul CSP SZ8Y15 White
Eff:
92.0%
FWHM:
119°
Cd/Im:
0.9
Download
Seoul CSP SZ8Y19 White
Eff:
87.0%
FWHM:
120°
Cd/Im:
0.6
Download

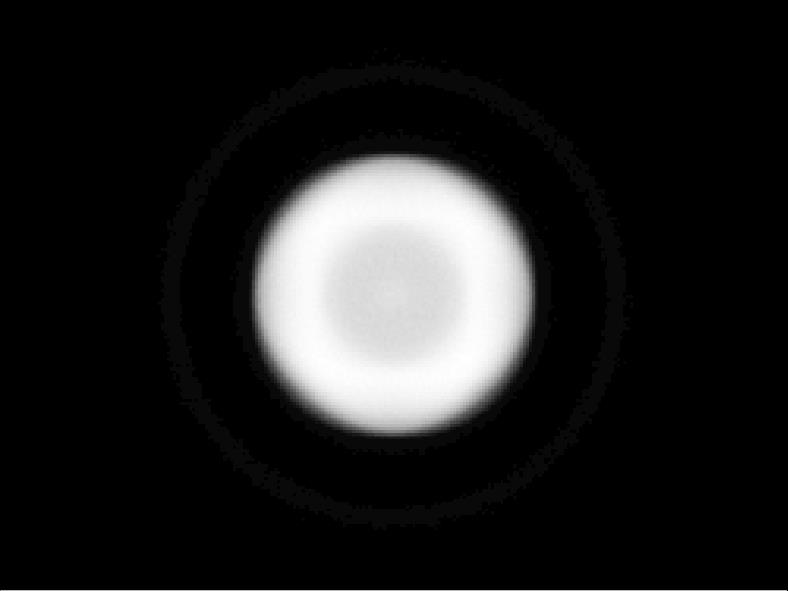

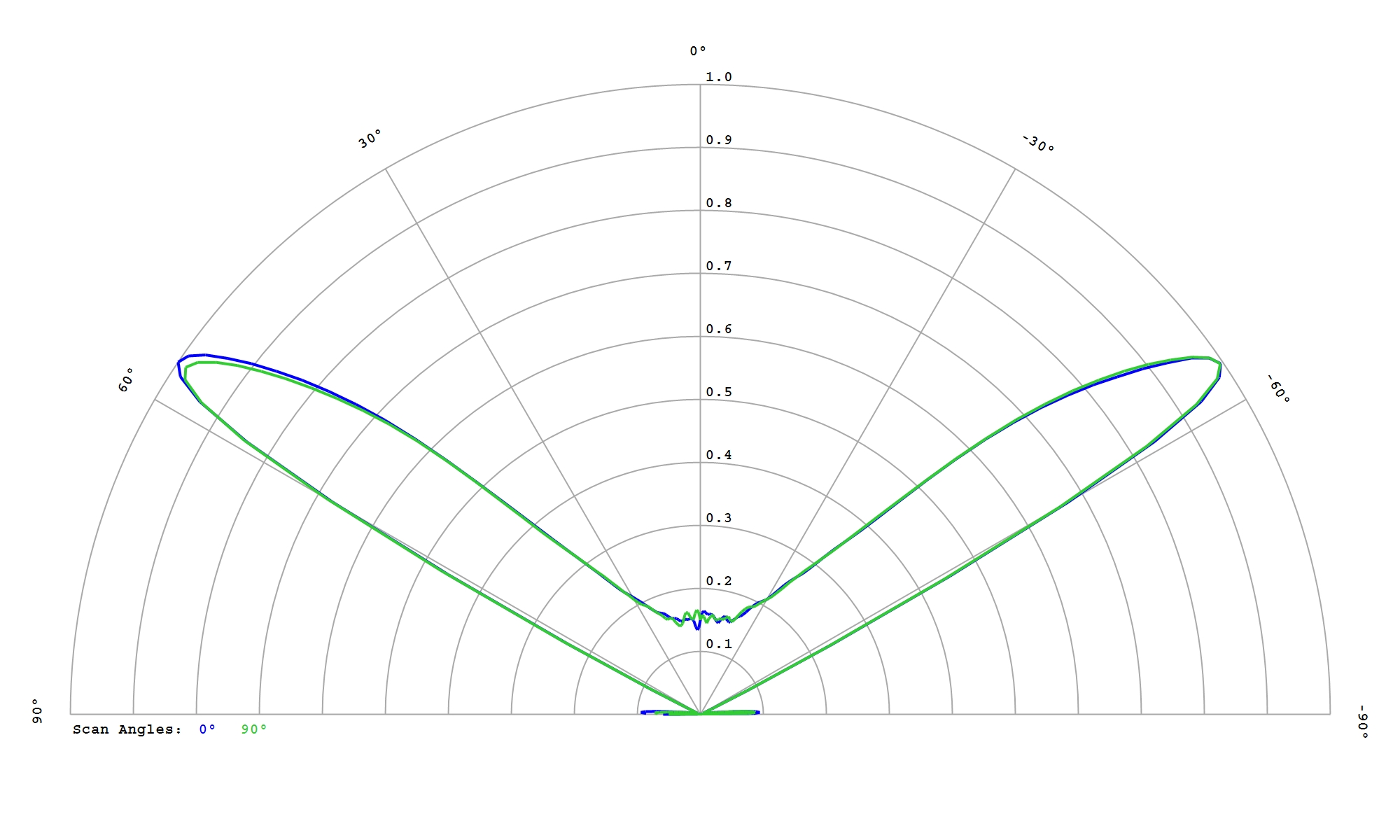

Seoul CSP SZ8Y22 White
Eff:
92.0%
FWHM:
122°
Cd/Im:
0.6
Download

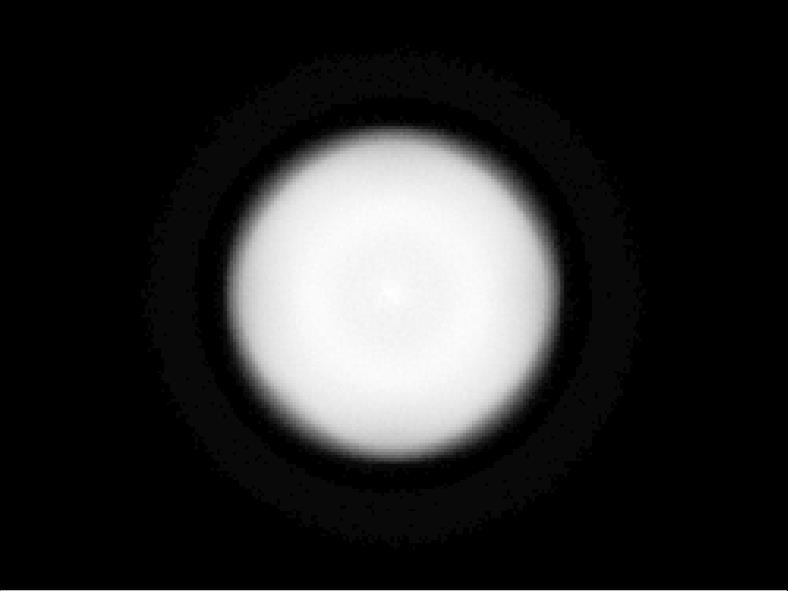

Seoul CSP SZ8Y22P White
Eff:
92.0%
FWHM:
129°
Cd/Im:
0.5
Download

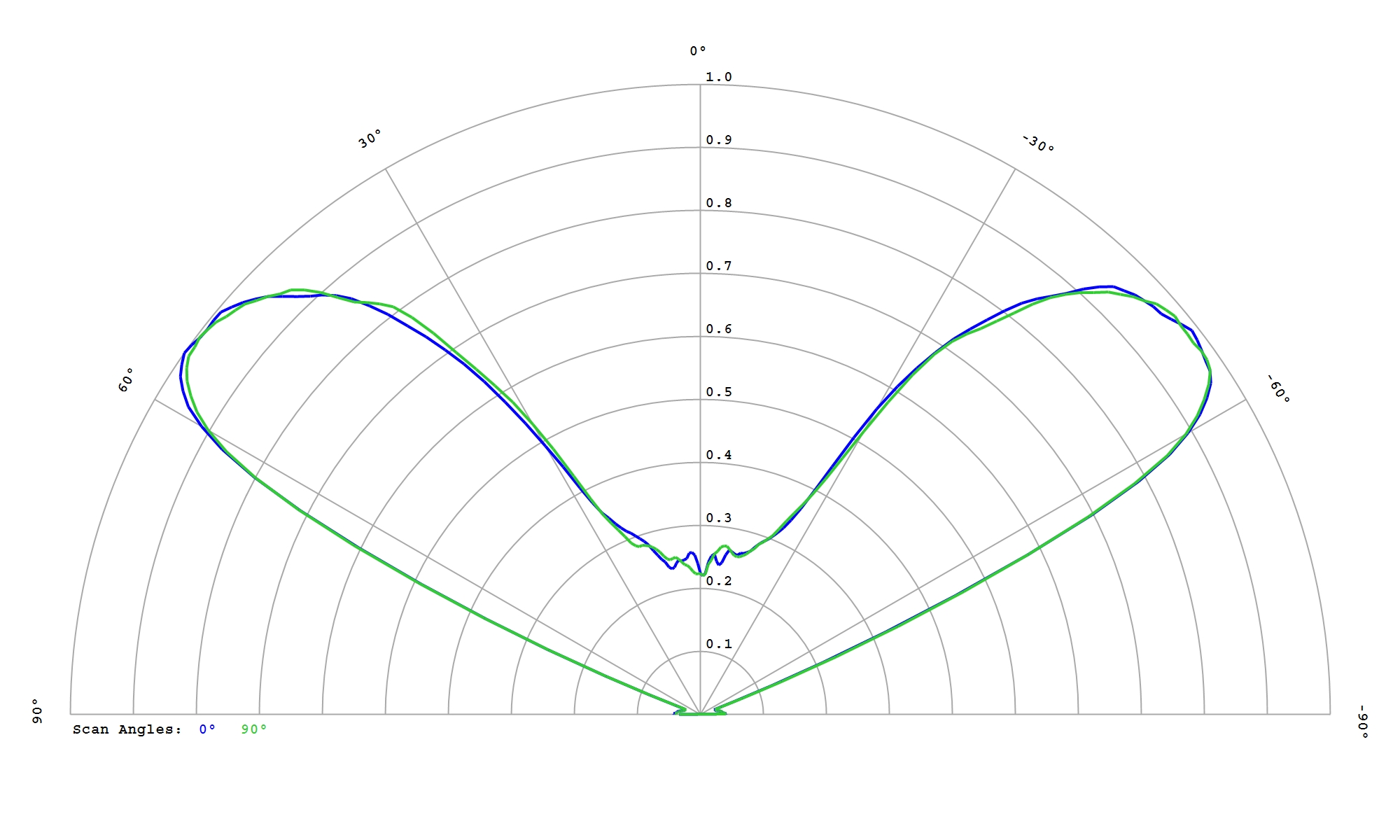

Seoul CSP SZ8Y50 White
Eff:
92.5%
FWHM:
130°
Cd/Im:
0.4
Download

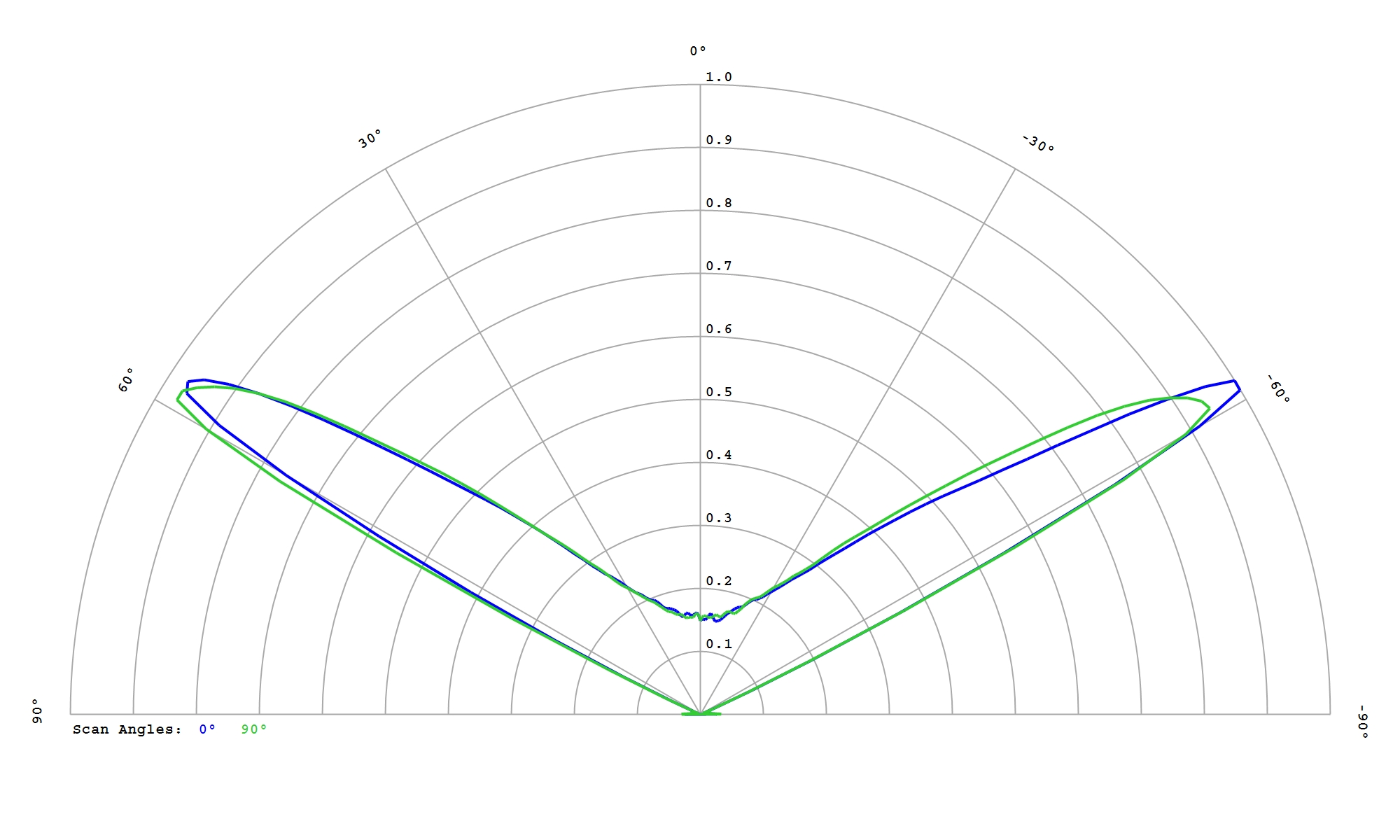

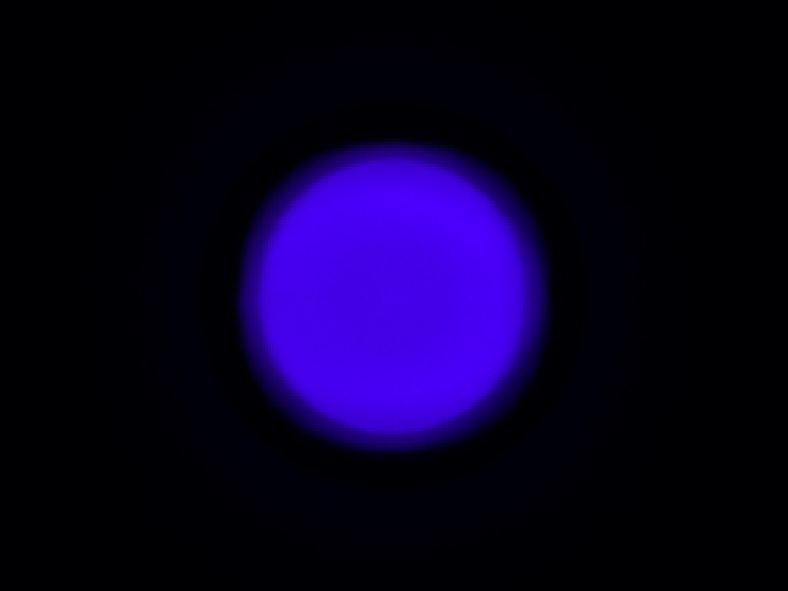

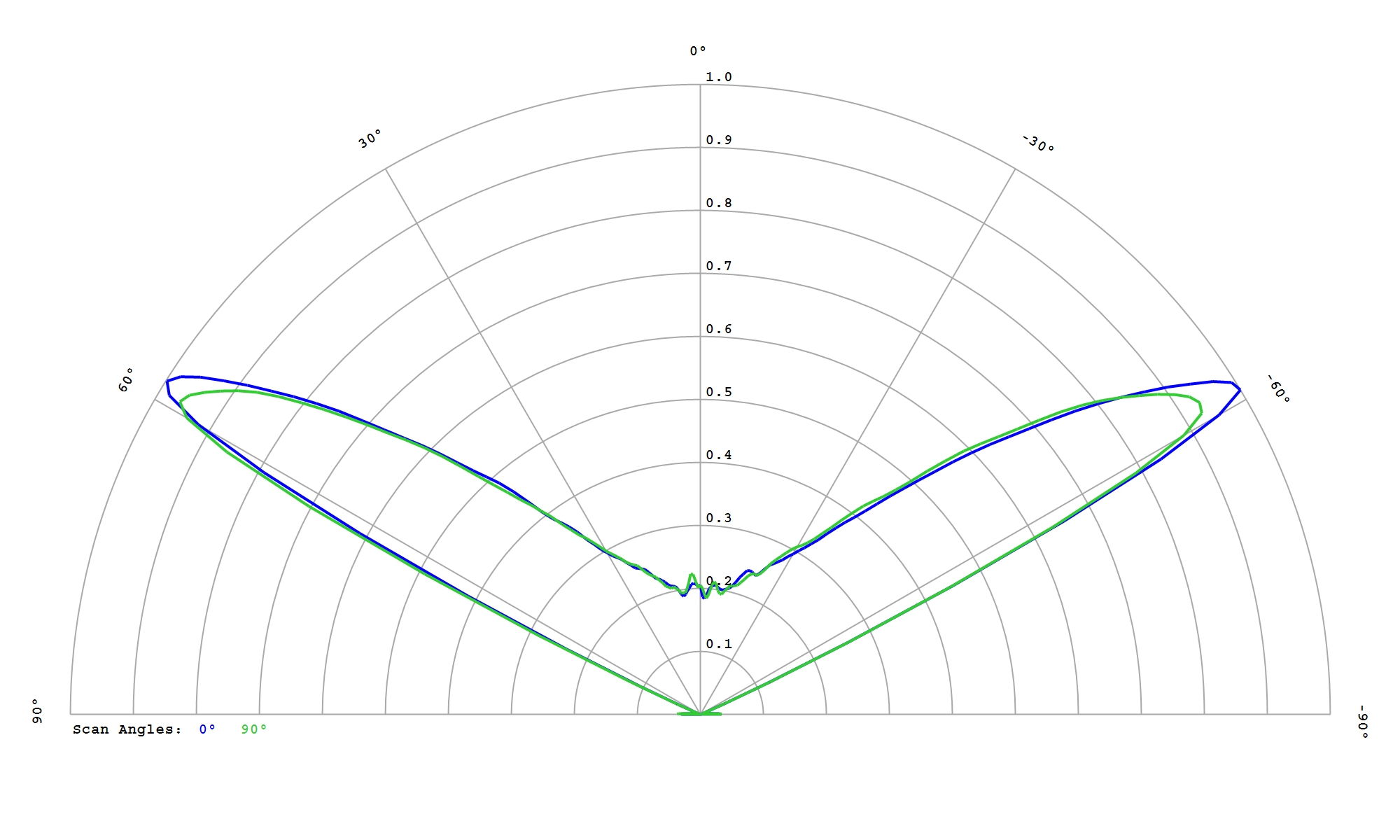

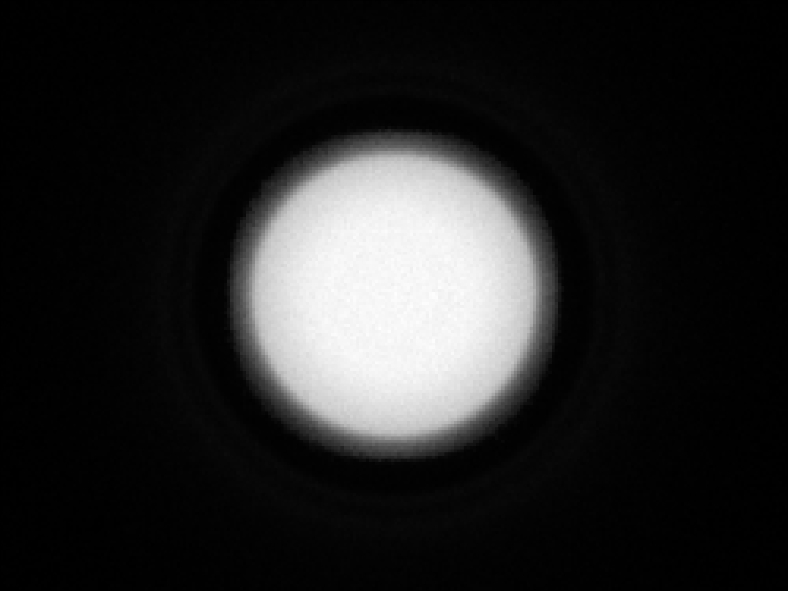

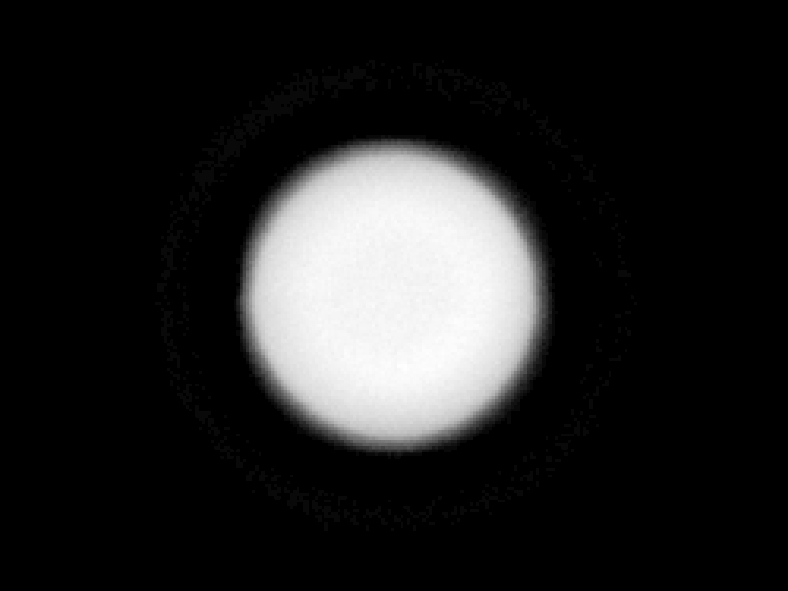

Seoul MidPower 3030 STB0C2PB Blue
Eff:
92.0%
FWHM:
124°
Cd/Im:
0.6
Download
Seoul MidPower 3030 STDRC12B Deep Red
Eff:
93.0%
FWHM:
117°
Cd/Im:
0.9
Download

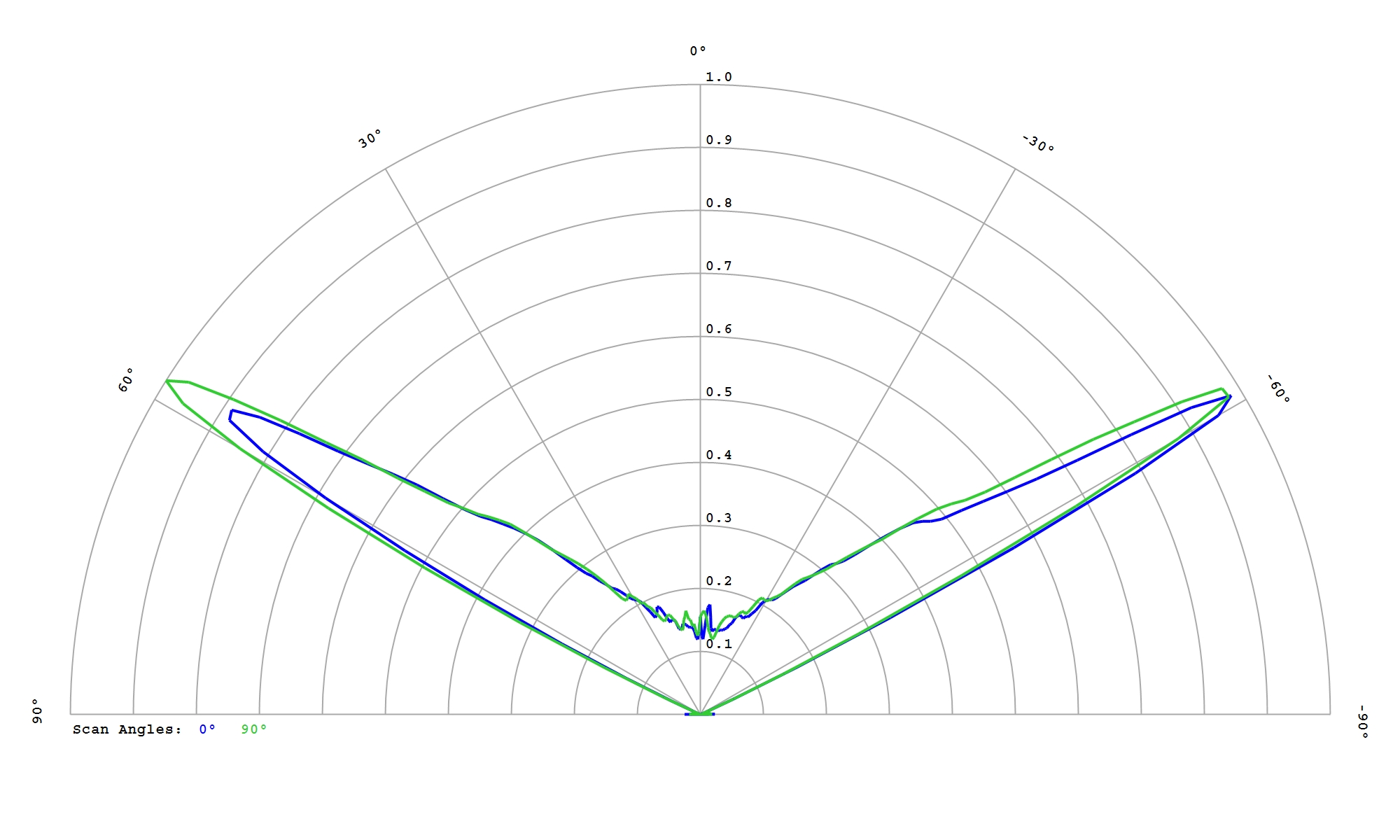

Seoul MidPower 3030 STFRC12B Far Red
Eff:
93.0%
FWHM:
123°
Cd/Im:
0.8
