11.0mm Linear Plain Strip

Part number

10398 (300mm)

Dimensions

11.0mm

Drawing Number

60547

Optic type

Linear

Finish

Plain

Beam type

Linear

Applications

Architectural

Landscape & Garden

Downloads

Request a sample

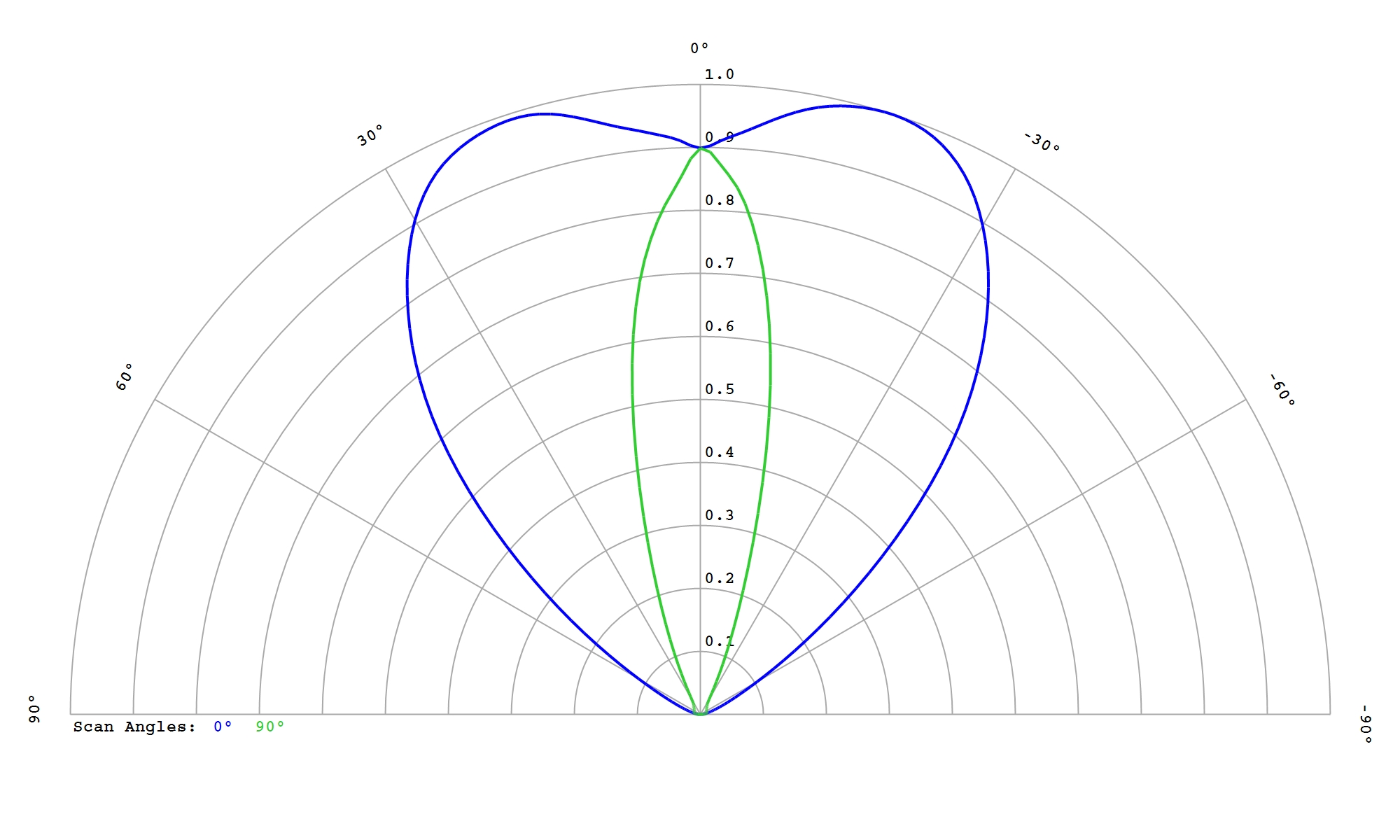

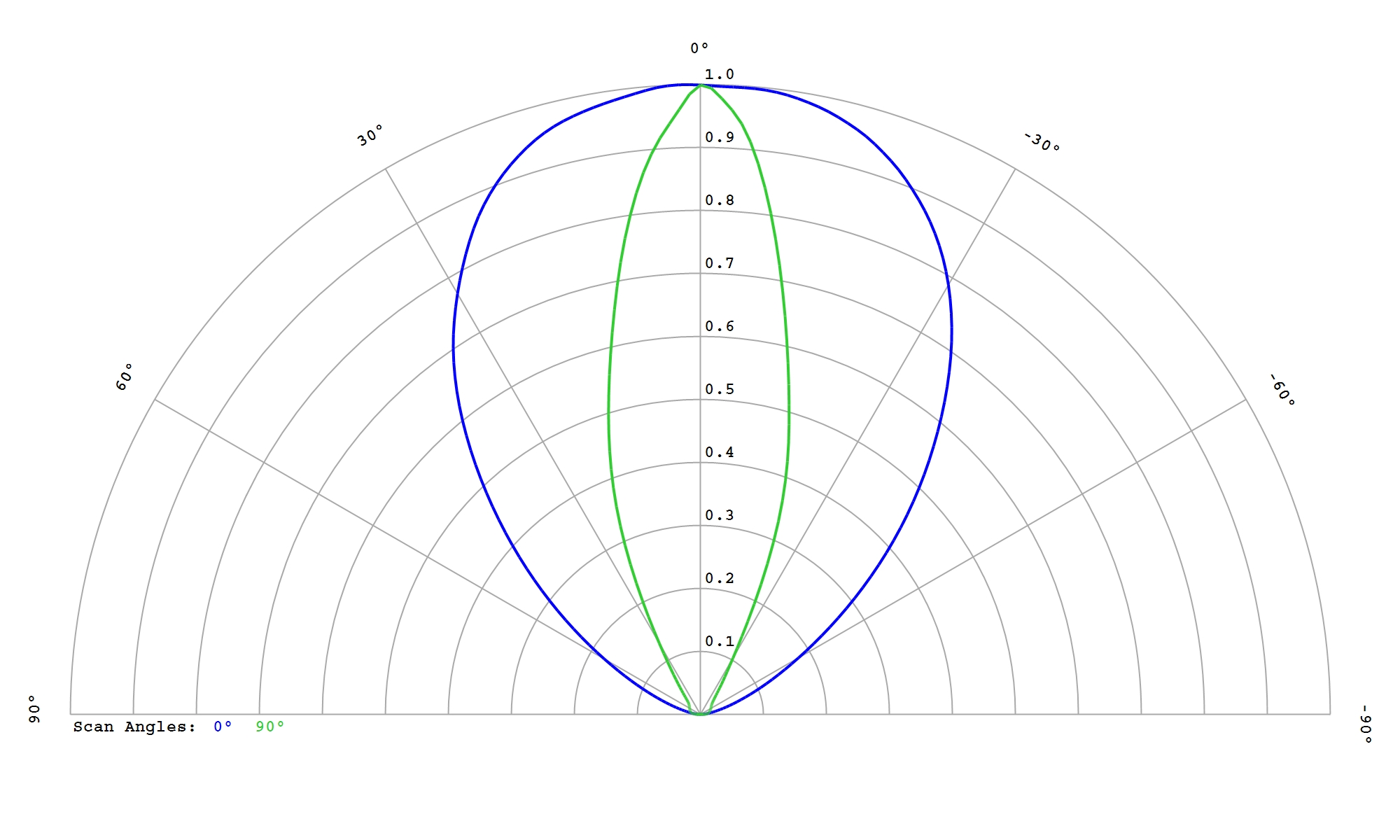

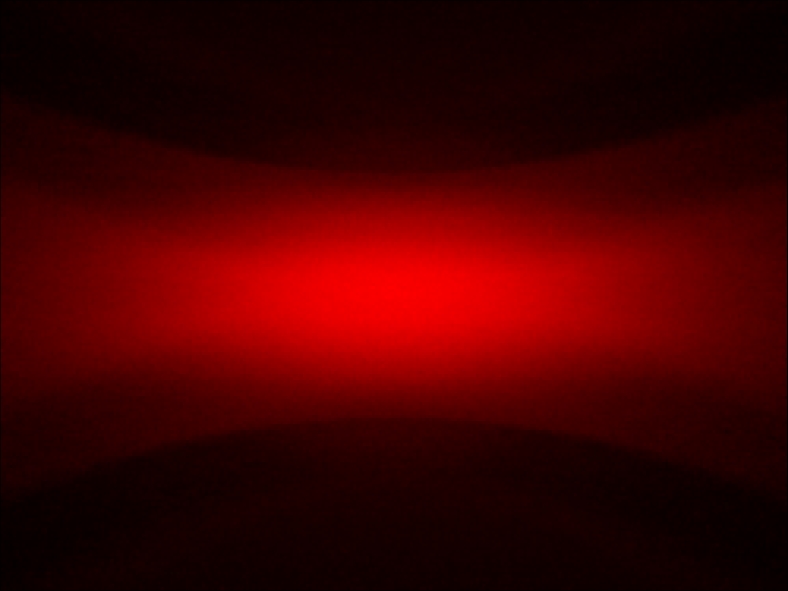

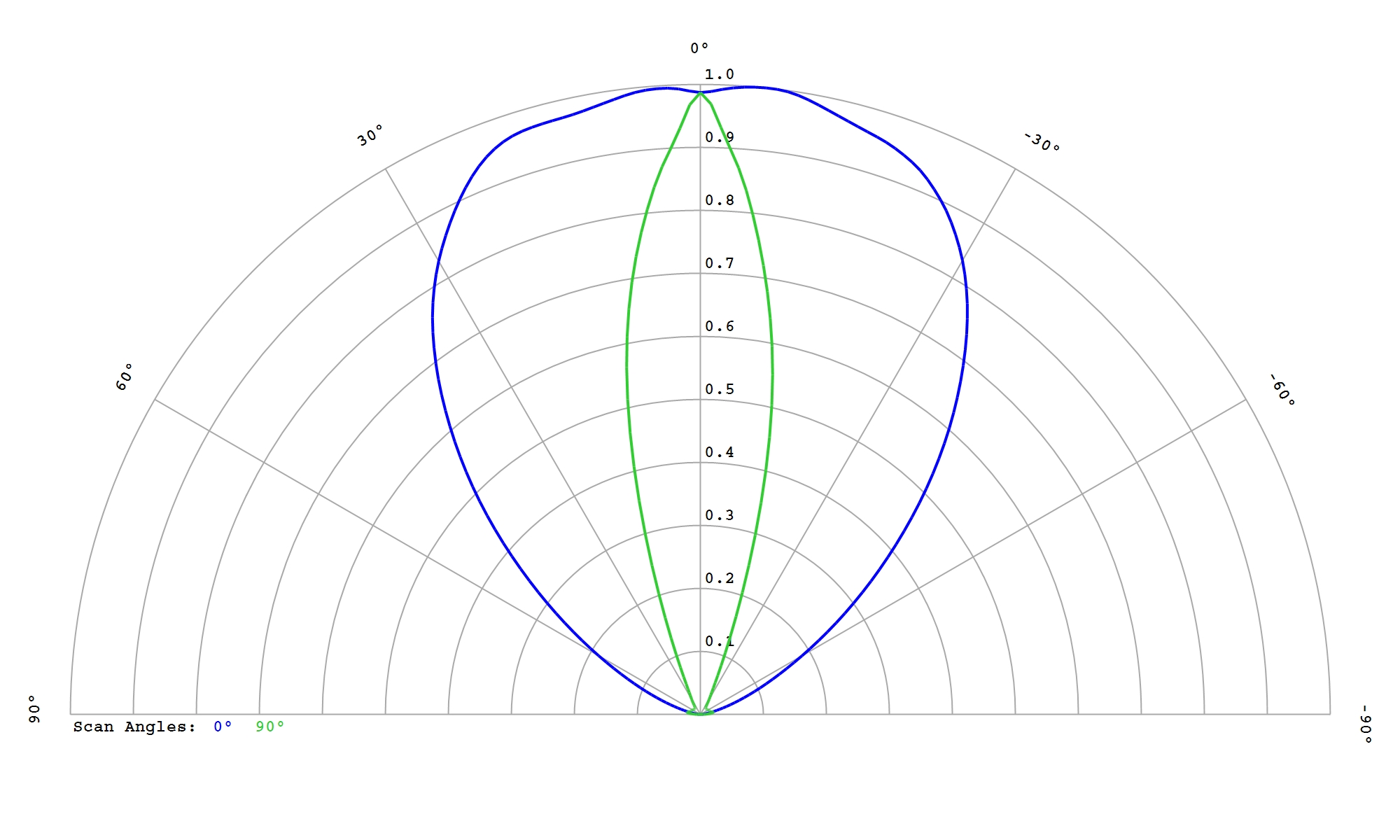

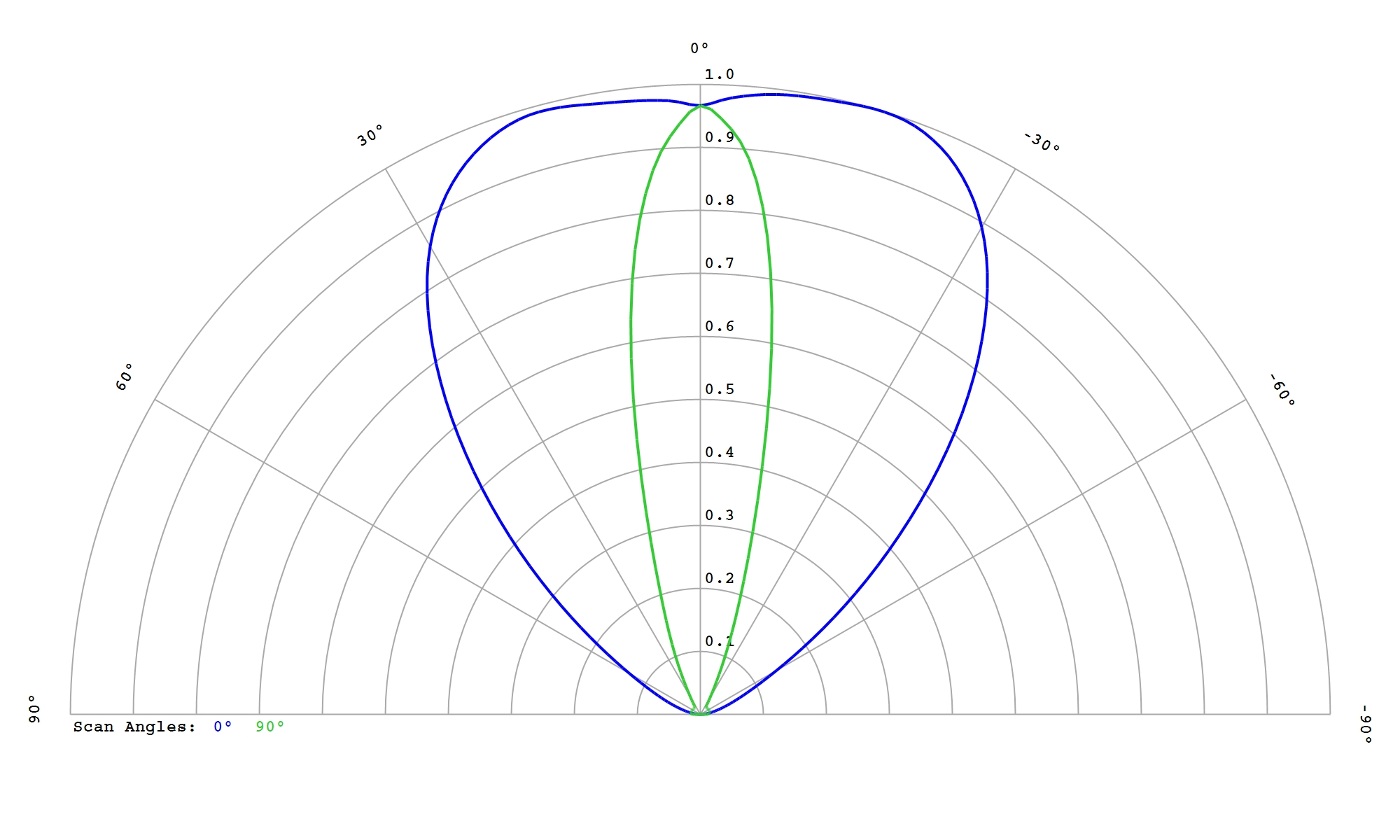

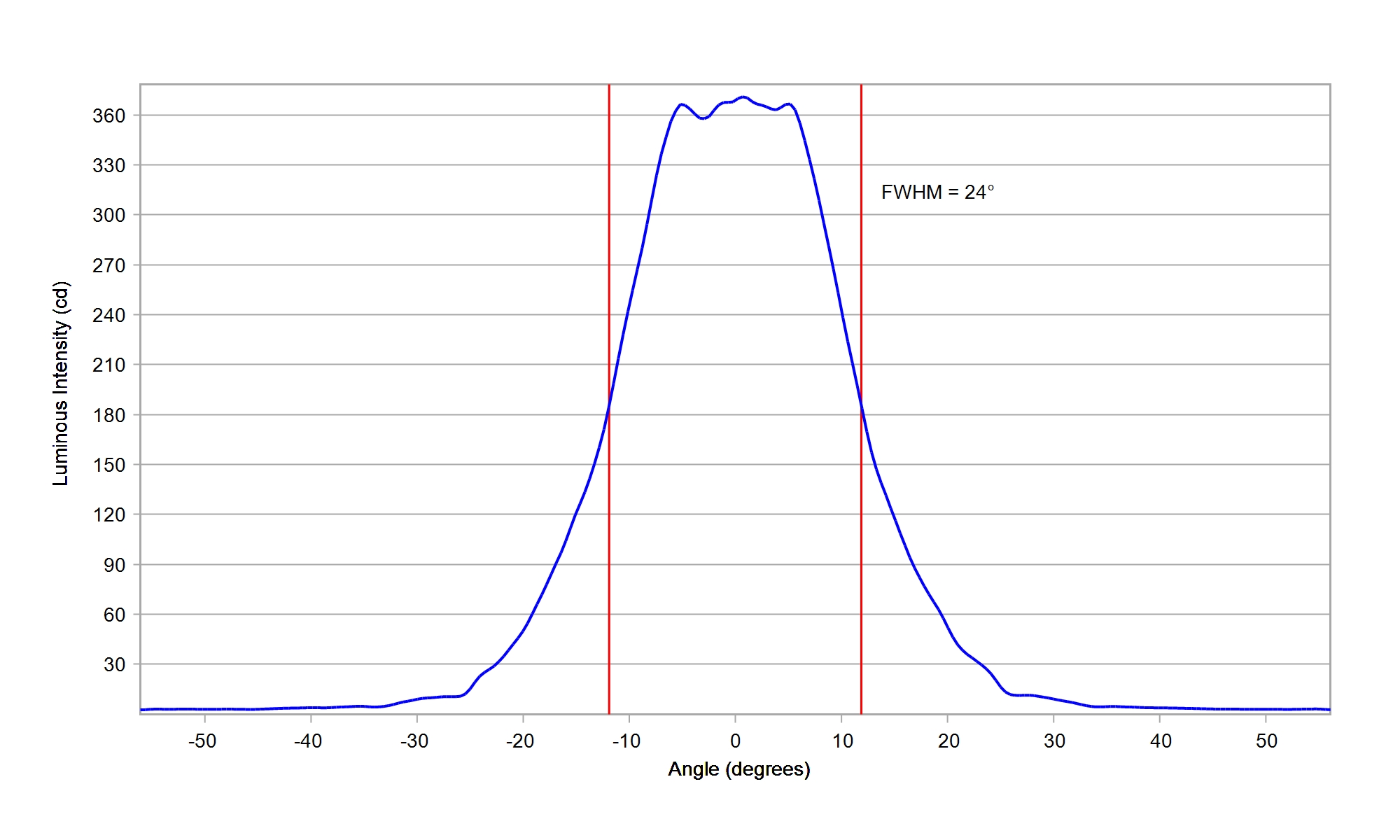

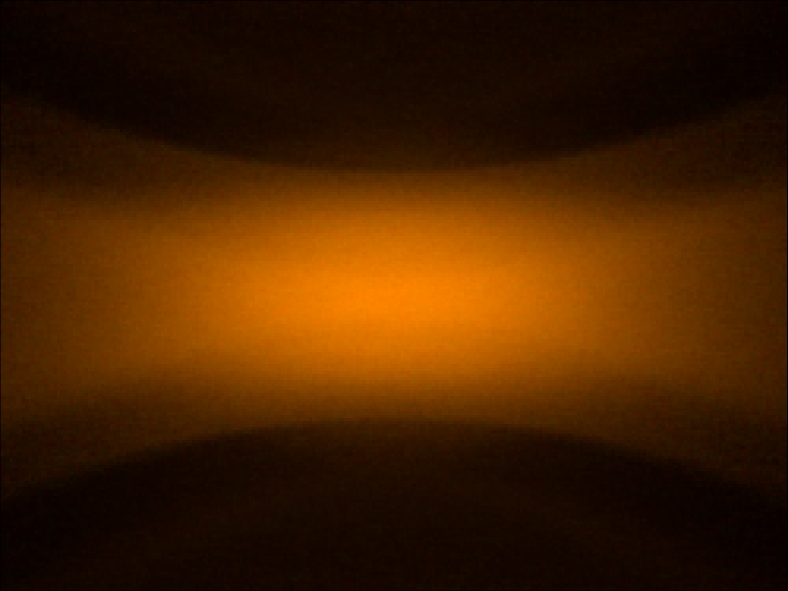

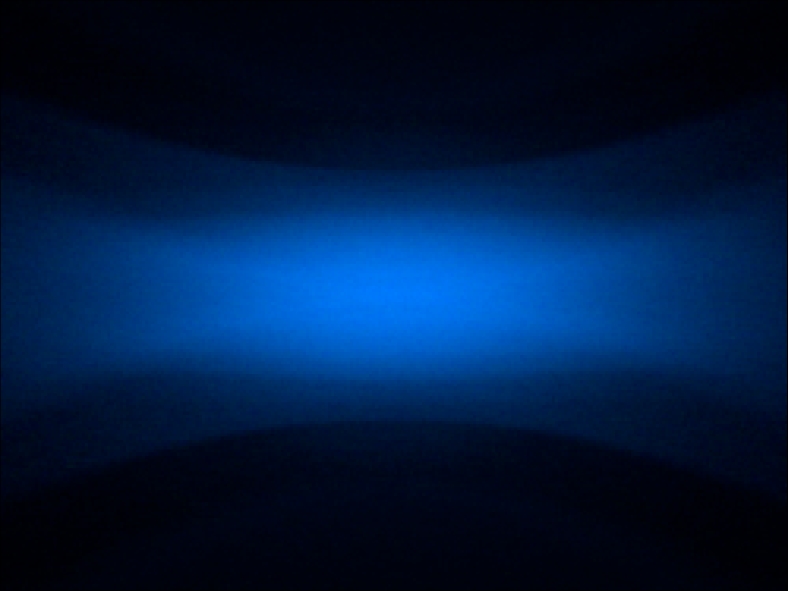

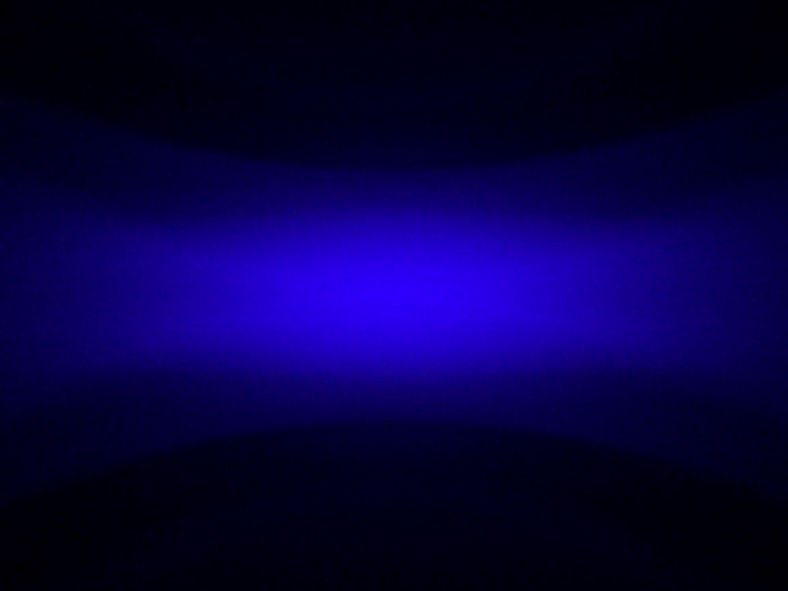

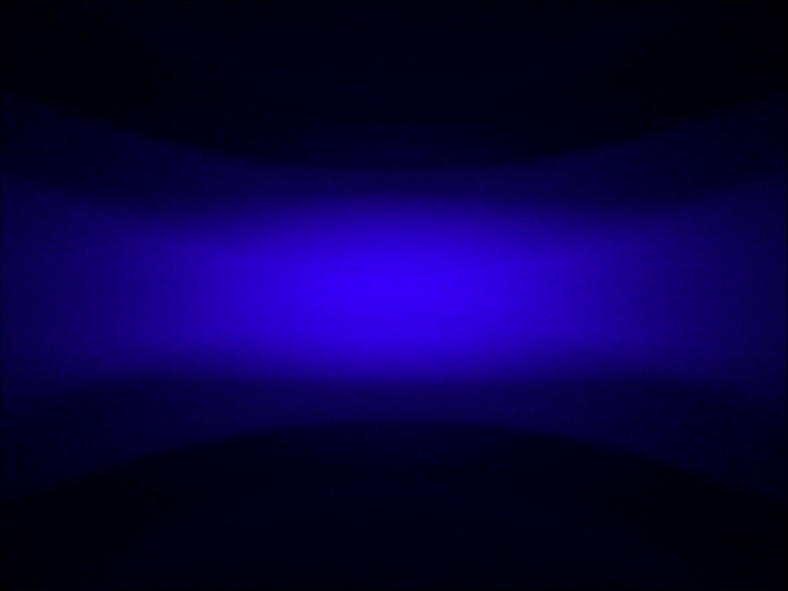

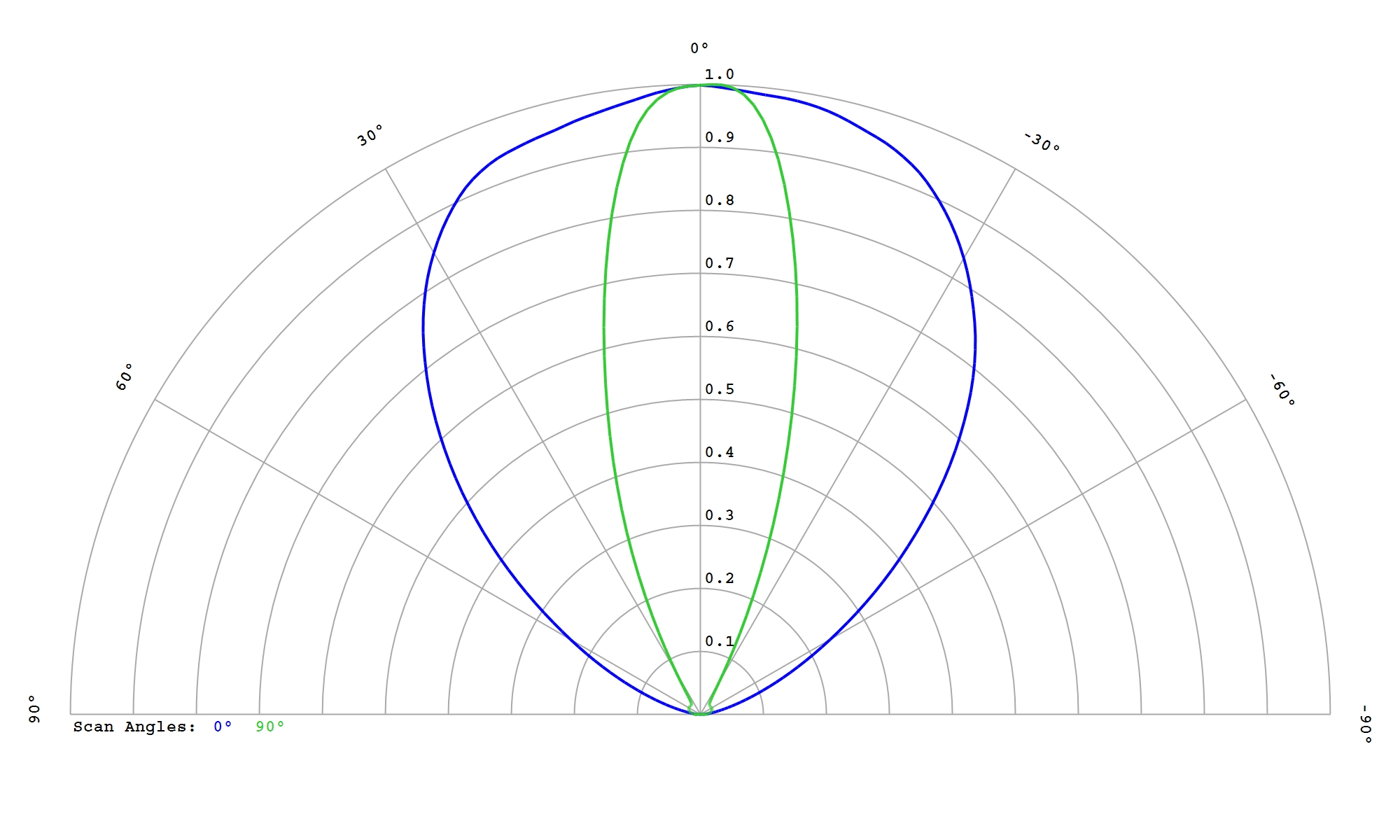

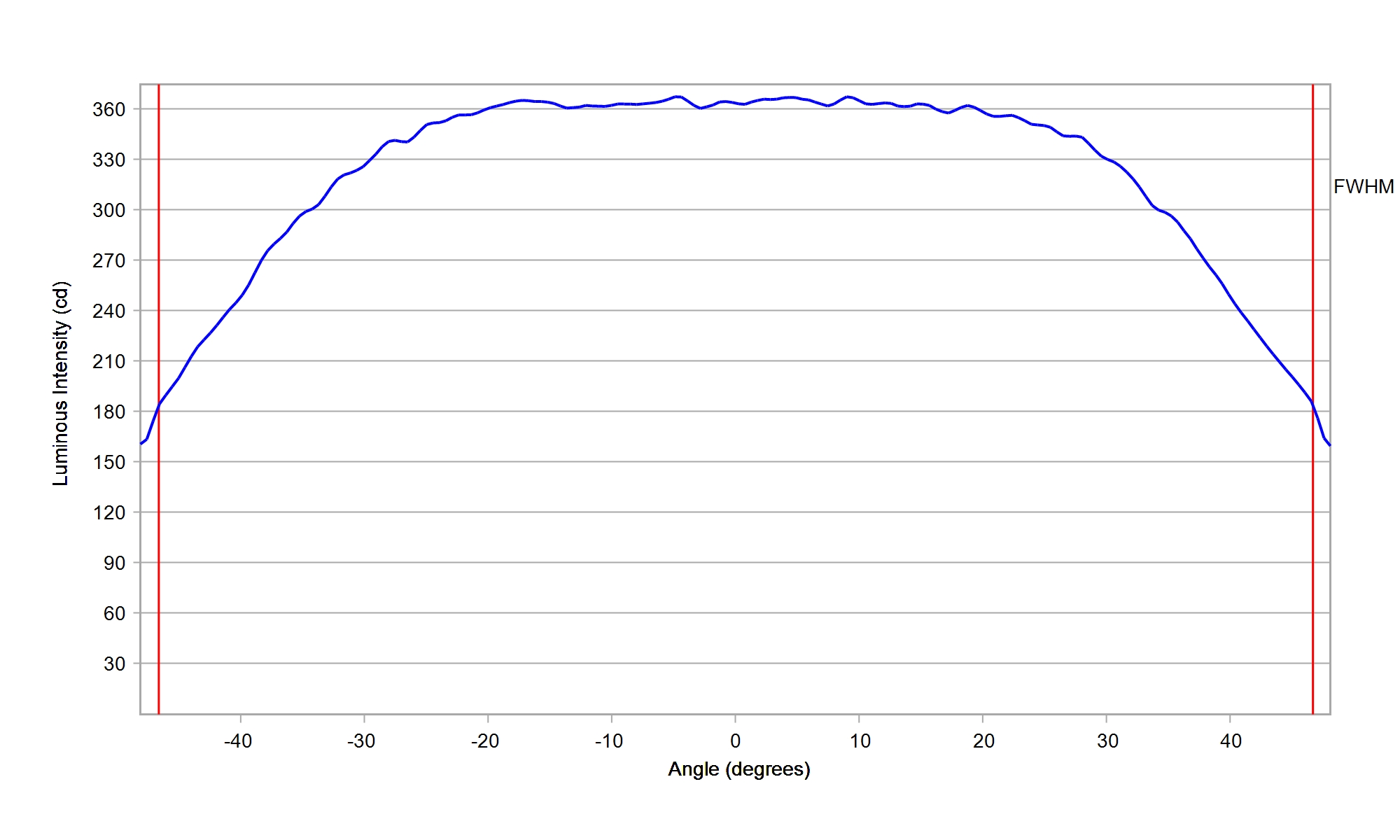

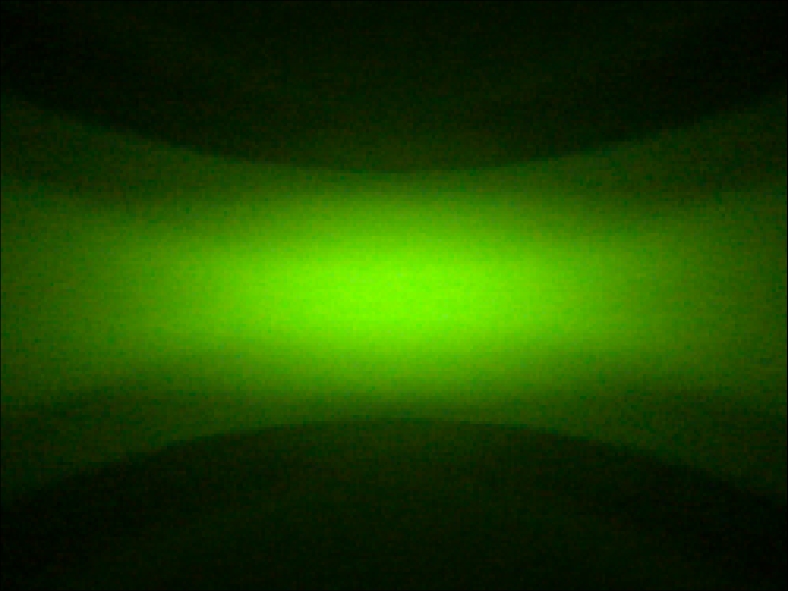

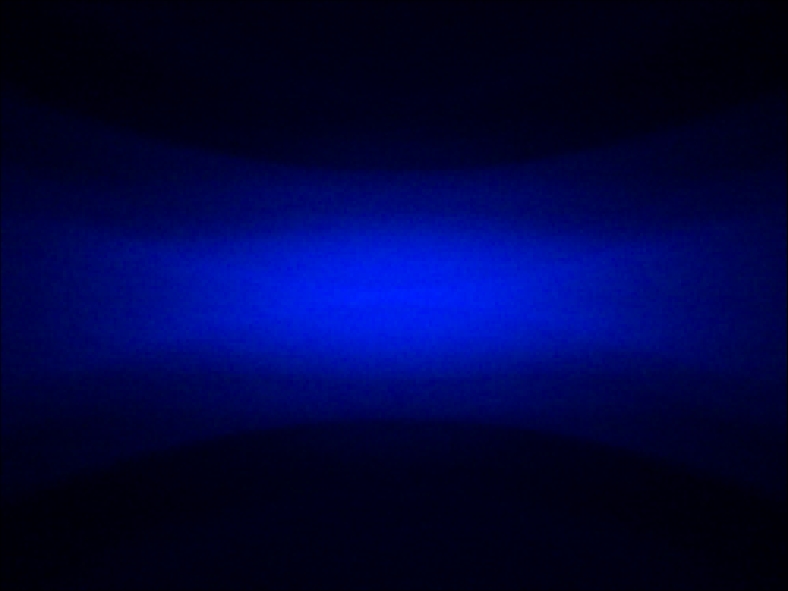

LEDs and Performances

Select and filter based on manufacturer(s)

Cree JB2835B 3V G-Class White

Eff:

92.5%

FWHM:

88 x 30°

Cd/Im:

1.4


Download

Cree JB2835B 3V J-Class White

Eff:

92.5%

FWHM:

91 x 31°

Cd/Im:

1.3


Download

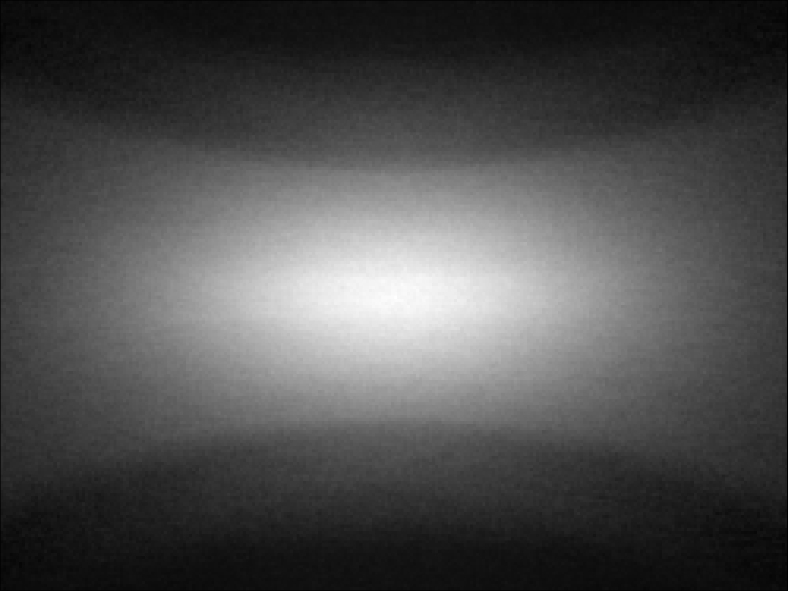

Cree JB3030C 3V E-Class White

Eff:

92.5%

FWHM:

89 x 33°

Cd/Im:

1.3


Download

Cree JB3030C 3V F-Class White

Eff:

92.5%

FWHM:

91 x 33°

Cd/Im:

1.2


Download

Cree JE2835 3V White

Eff:

92.5%

FWHM:

84 x 36°

Cd/Im:

1.2

Download

Cree XLamp CSP XD16 Premium White

Eff:

92.5%

FWHM:

94 x 31°

Cd/Im:

1.3

Download

IES

Cree XLamp XP-G4 White

Eff:

93.0%

FWHM:

85 x 38°

Cd/Im:

1.2

Download

IES

LUMILEDS LUXEON 2835C 6V White

Eff:

92.5%

FWHM:

89 x 29.5°

Cd/Im:

1.3

Download

LUMILEDS LUXEON 2835E 9V White

Eff:

92.5%

FWHM:

89 x 30°

Cd/Im:

1.3

Download

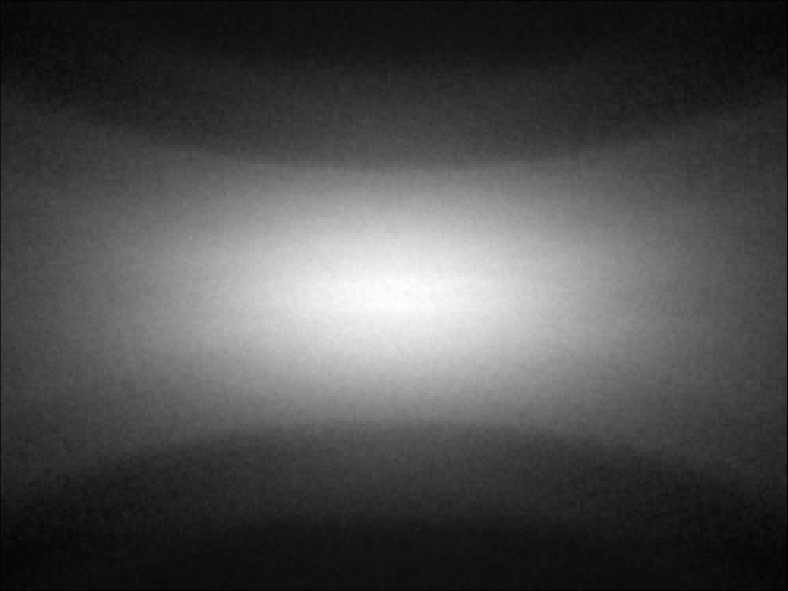

LUMILEDS LUXEON 2835N 3V White

Eff:

92.5%

FWHM:

89 x 35°

Cd/Im:

1.2

Download

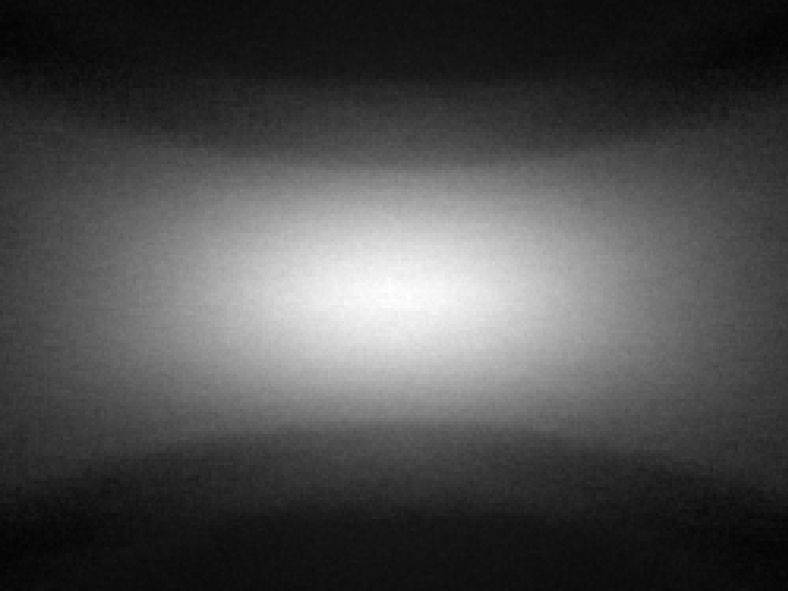

LUMILEDS LUXEON 2835S 3V White

Eff:

92.5%

FWHM:

89 x 34°

Cd/Im:

1.3

Download

LUMILEDS LUXEON 2835S 6V White

Eff:

92.5%

FWHM:

89 x 36°

Cd/Im:

1.2

Download

LUMILEDS LUXEON 3014 White

Eff:

93.0%

FWHM:

94 x 24°

Cd/Im:

1.8

Download

IES

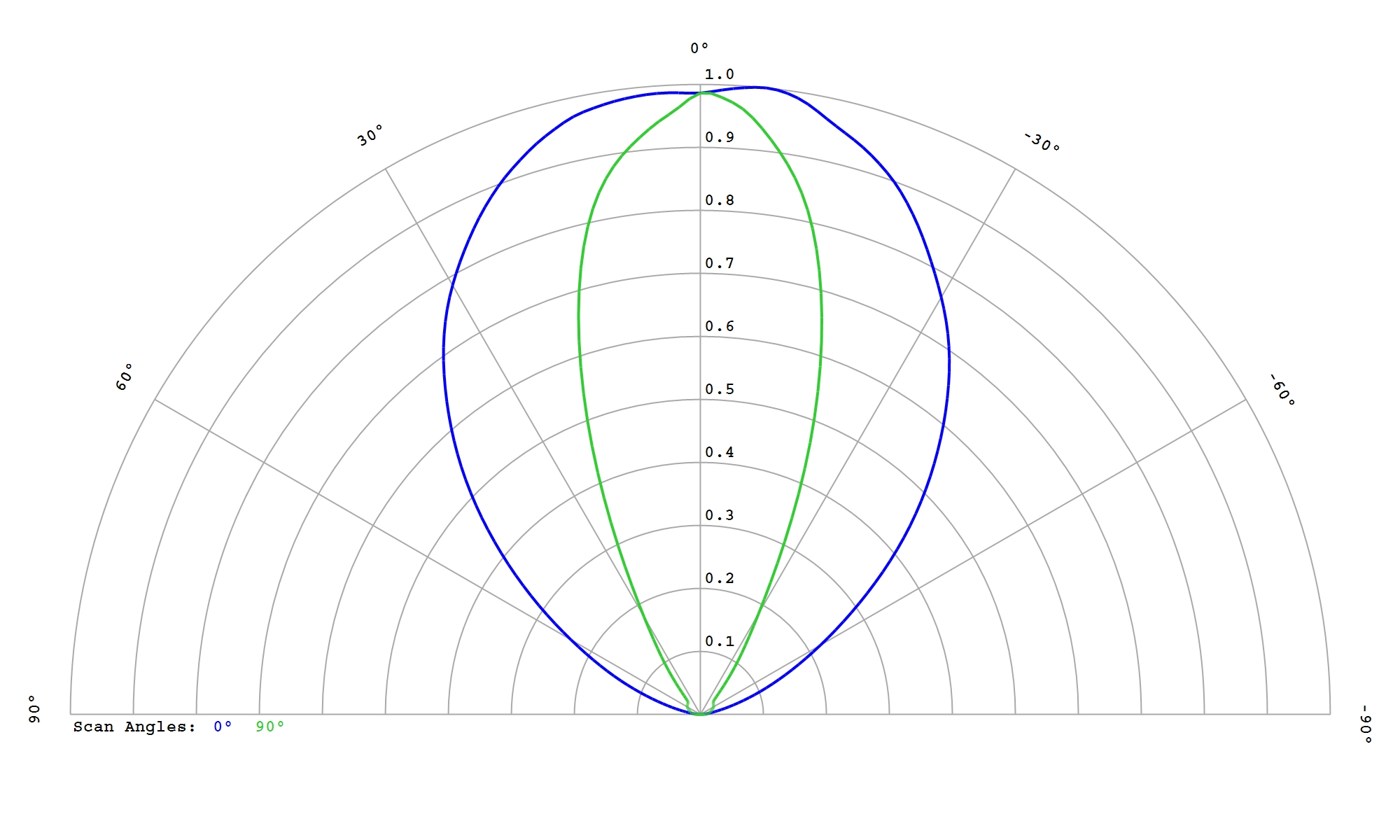

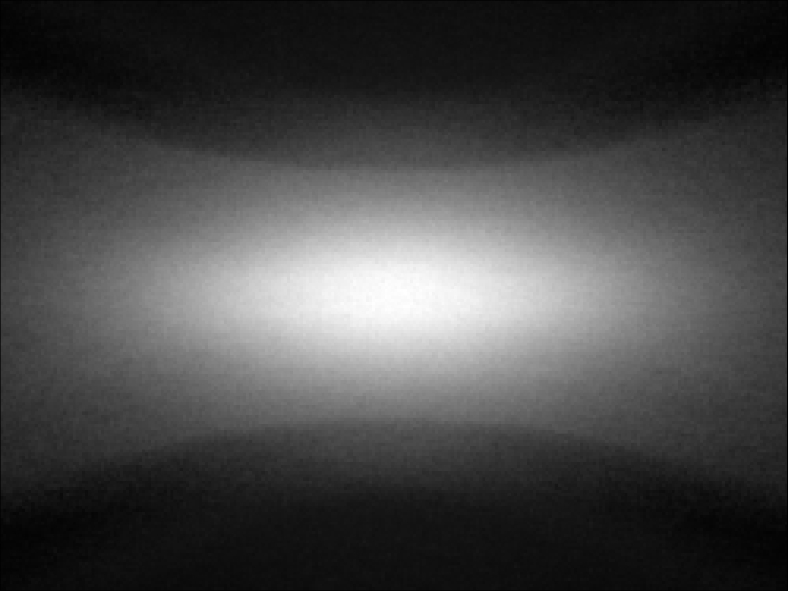

LUMILEDS LUXEON 3030 2D White

Eff:

93.0%

FWHM:

95 x 25°

Cd/Im:

1.5

Download

LUMILEDS LUXEON C White

Eff:

88.0%

FWHM:

97 x 20.5°

Cd/Im:

1.4

Download

Samsung 2835 LM281B+ White

Eff:

92.0%

FWHM:

88 x 33°

Cd/Im:

1.1



Download

Cree JK2835 6V White

Eff:

92.5%

FWHM:

90 x 31°

Cd/Im:

1.4

Download

ies

Cree XLamp XE-G White

Eff:

92.5%

FWHM:

94 x 28°

Cd/Im:

1.4

Download

ies

Cree XLamp XP-E White

Eff:

84.7%

FWHM:

27.2°

Cd/Im:

1.2

Download

ies

Cree XLamp XP-E2 Far Red

Eff:

79.2%

FWHM:

34.6 x 95.5°

Cd/Im:

1.2

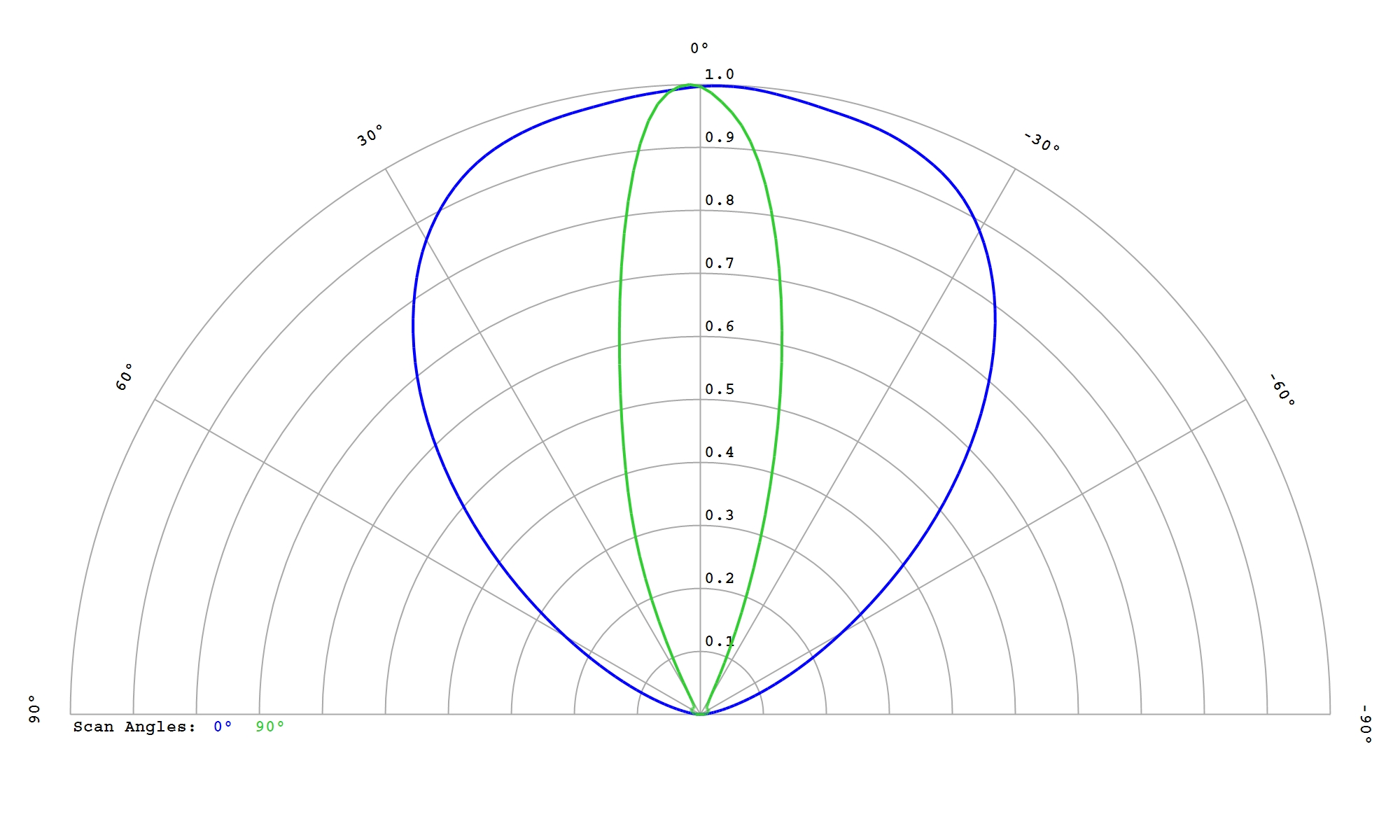

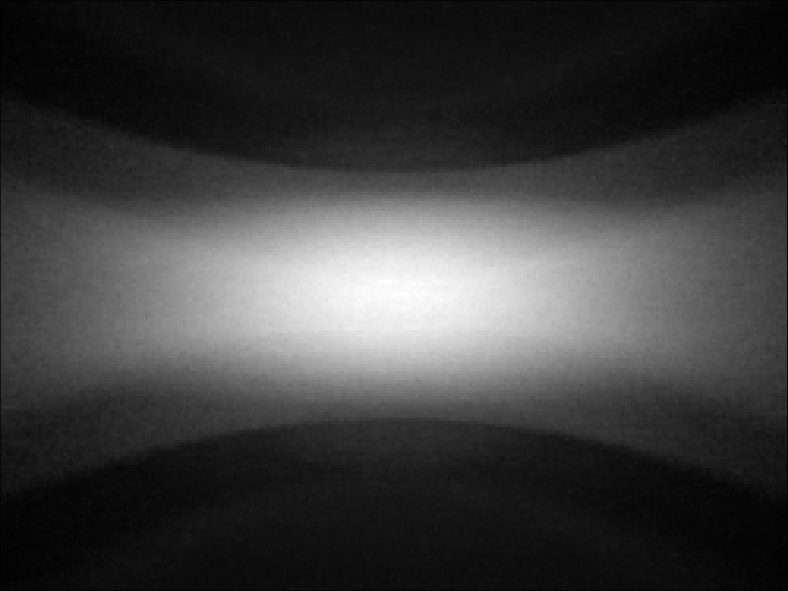

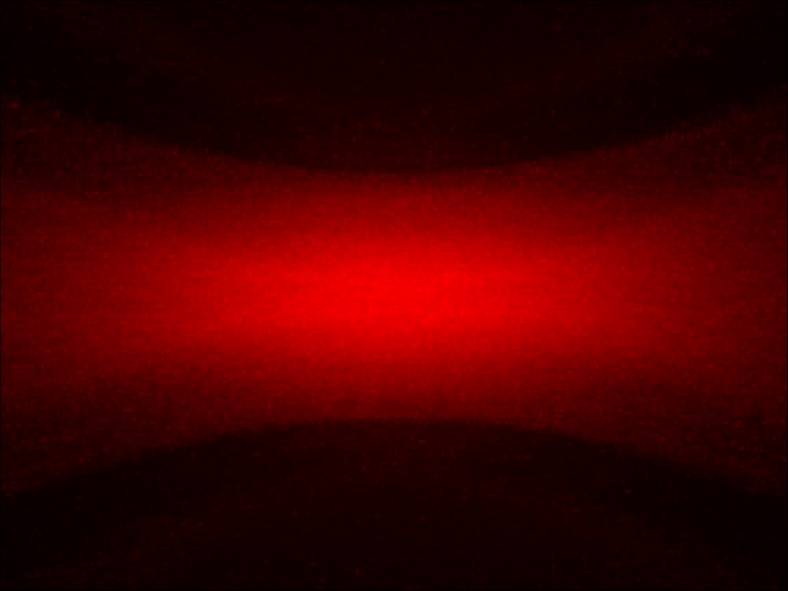

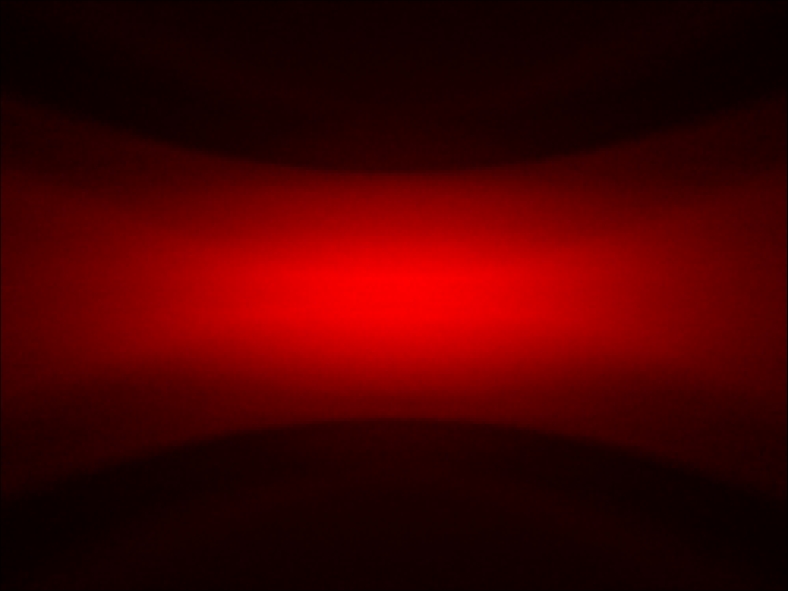

Carclo Optics – 10398 Cree Xlamp XP-E2 Far Red - Spot Image

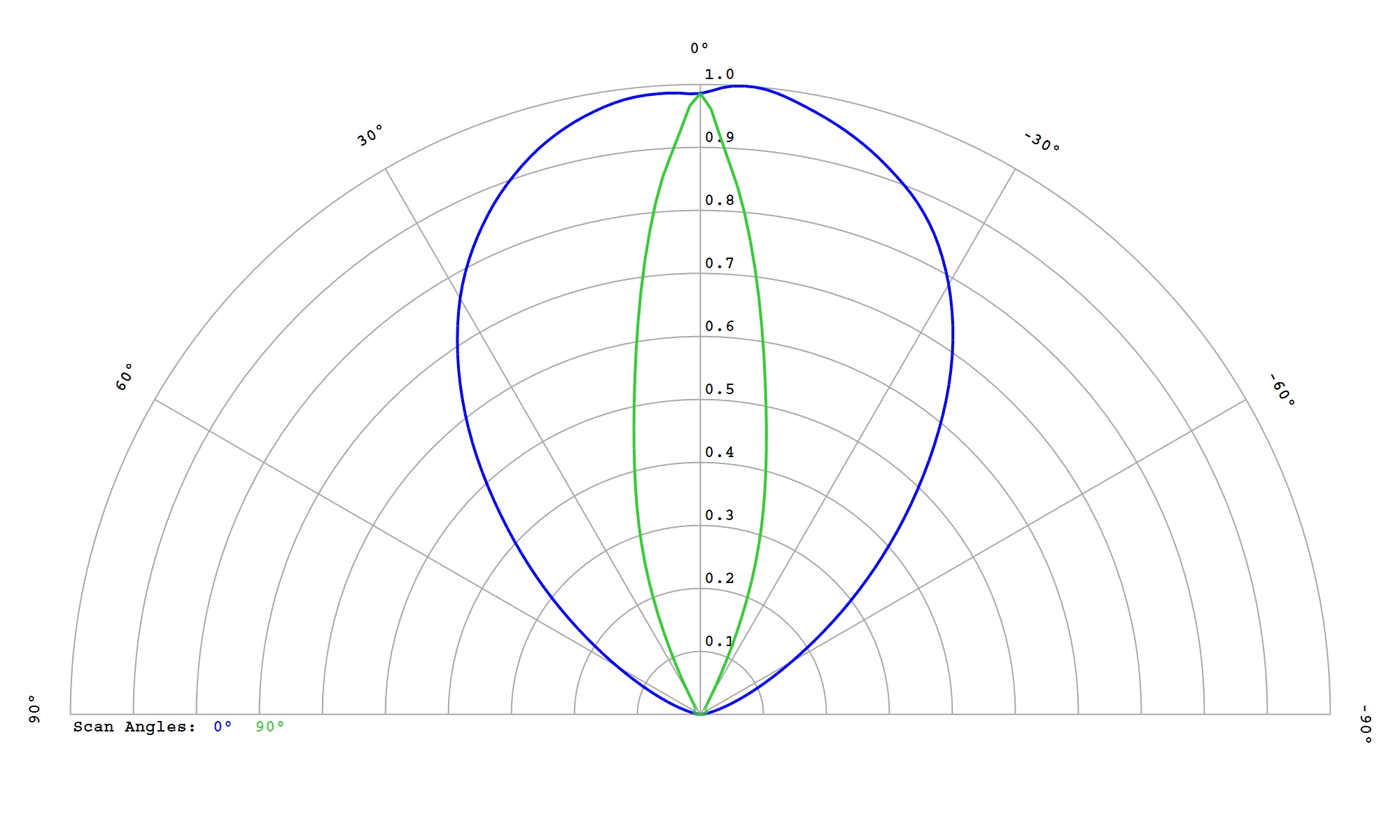

Carclo Optics – 10398 Cree Xlamp XP-E2 Far Red - Cross-Section

Download

IES

Cree XLamp XP-E2 White

Eff:

93.0%

FWHM:

92 x 27.5°

Cd/Im:

1.5

Download

ies

Cree XLamp XP-G3 Photo Red

Eff:

80.7%

FWHM:

39.3 x 95.6°

Cd/Im:

1.0

Carclo Optics – 10398 Cree Xlamp XP-G3 Photo Red - Spot Image

Carclo Optics – 10398 Cree Xlamp XP-G3 Photo Red - Cross-Section

Download

IES

Cree XLamp XP-G3 Royal Blue

Eff:

72.5%

FWHM:

43.8 x 98.5°

Cd/Im:

0.8

Carclo Optics – 10398 Cree Xlamp XP-G3 Royal Blue - Spot Image

Carclo Optics – 10398 Cree Xlamp XP-G3 Royal Blue - Cross-Section

Download

IES

LUMILEDS LUXEON HL1Z CSP White

Eff:

93.0%

FWHM:

96 x 26°

Cd/Im:

1.4

Download

ies

LUMILEDS LUXEON Rebel White

Eff:

84.3%

FWHM:

32°

Cd/Im:

1.1

Download

ies

LUMILEDS LUXEON SunPlus 20 Line Cool White

Eff:

82.6%

FWHM:

24.2 x 103.8°

Cd/Im:

1.5

Carclo Optics – 10398 Lumileds Luxeon SunPlus 20 Line – Cool White - Spot Image

Carclo Optics – 10398 Lumileds Luxeon SunPlus 20 Line – Cool White - Cross-Section

Download

IES

LUMILEDS LUXEON SunPlus 20 Line Deep Red

Eff:

78.3%

FWHM:

19.7 x 107.3°

Cd/Im:

1.5

Carclo Optics – 10398 Lumileds Luxeon SunPlus 20 Line – Deep Red - Spot Image

Carclo Optics – 10398 Lumileds Luxeon SunPlus 20 Line – Deep Red - Cross-Section

Download

IES

LUMILEDS LUXEON SunPlus 20 Line Far Red

Eff:

78.3%

FWHM:

19.7 x 107.3°

Cd/Im:

1.5

Carclo Optics – 10398 Lumileds Luxeon SunPlus 20 Line – Far Red - Spot Image

Carclo Optics – 10398 Lumileds Luxeon SunPlus 20 Line – Far Red - Cross-Section

Download

IES

LUMILEDS LUXEON SunPlus 20 Line Lime

Eff:

79.5%

FWHM:

24.4 x 104.8°

Cd/Im:

1.5

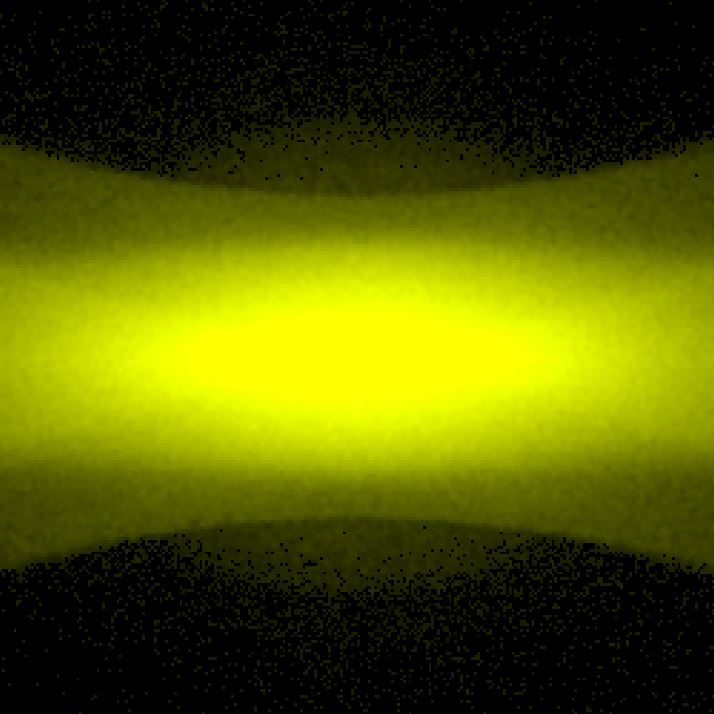

Carclo Optics – 10398 Lumileds Luxeon SunPlus 20 Line – Lime - Spot Image

Carclo Optics – 10398 Lumileds Luxeon SunPlus 20 Line – Lime - Cross-Section

Download

IES

LUMILEDS LUXEON SunPlus 20 Line Royal Blue

Eff:

75.8%

FWHM:

25.8 x 113.2°

Cd/Im:

1.4

Carclo Optics – 10398 Lumileds Luxeon SunPlus 20 Line – Royal Blue - Spot Image

Carclo Optics – 10398 Lumileds Luxeon SunPlus 20 Line – Royal Blue - Cross-Section

Download

IES

Luminus Devices SST 10-B-B130 Blue

Eff:

91.5%

FWHM:

92 x 31°

Cd/Im:

1.4

Carclo Optics – 10398 Luminus_SST-10_B_B130- Spot – image

Carclo Optics – 10398 Luminus_SST-10_B_B130- Cross section – image

Download

ies

Luminus Devices SST 10-B-B90 Blue

Eff:

91.5%

FWHM:

81 x 33°

Cd/Im:

1.4

Carclo Optics – 10398 Luminus_SST-10_B_B90- Spot – image

Carclo Optics – 10398 Luminus_SST-10_B_B90- Cross section – image

Download

ies

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

93.0%

FWHM:

88 x 28°

Cd/Im:

1.5

Carclo Optics – 10398 Luminus_SST-10_DR_B130- Spot – image

Carclo Optics – 10398 Luminus_SST-10_DR_B130- Cross section – image

Download

ies

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

93.5%

FWHM:

83 x 35°

Cd/Im:

1.3

Carclo Optics – 10398 Luminus_SST-10_DR_B90- Spot – image

Carclo Optics – 10398 Luminus_SST-10_DR_B90- Cross section – image

Download

ies

Luminus Devices SST 10-FR-B130 Far Red

Eff:

92.5%

FWHM:

86 x 23°

Cd/Im:

2.8

Carclo Optics – 10398 Luminus_SST-10_FR_B130- Spot – image

Carclo Optics – 10398 Luminus_SST-10_FR_B130- Cross section – image

Download

ies

Luminus Devices SST 10-FR-B90 Far Red

Eff:

93.0%

FWHM:

71 x 36°

Cd/Im:

2.2

Carclo Optics – 10398 Luminus_SST-10_FR_B90- Spot – image

Carclo Optics – 10398 Luminus_SST-10_FR_B90- Cross section – image

Download

ies

Luminus Devices SST 10-G-B130 Green

Eff:

92.5%

FWHM:

93 x 31°

Cd/Im:

1.3

Carclo Optics – 10398 Luminus_SST-10_G_B130- Spot – image

Carclo Optics – 10398 Luminus_SST-10_G_B130- Cross section – image

Download

ies

Luminus Devices SST 10-G-B90 Green

Eff:

92.5%

FWHM:

80 x 33°

Cd/Im:

1.3

Carclo Optics – 10398 Luminus_SST-10_G_B90- Spot – image

Carclo Optics – 10398 Luminus_SST-10_G_B90- Cross section – image

Download

ies

Luminus Devices SST 10-IRD-B130 810nm

Eff:

94.5%

FWHM:

89 x 27°

Ipk/W:

1.4


Download

ies

Luminus Devices SST 10-R-B130 Red

Eff:

92.5%

FWHM:

88 x 28°

Cd/Im:

1.4

Carclo Optics – 10398 Luminus_SST-10_R_B130- Spot – image

Carclo Optics – 10398 Luminus_SST-10_R_B130- Cross section – image

Download

ies

Luminus Devices SST 10-R-B90 Red

Eff:

93.0%

FWHM:

83 x 34°

Cd/Im:

1.3

Carclo Optics – 10398 Luminus_SST-10_R_B90- Spot – image

Carclo Optics – 10398 Luminus_SST-10_R_B90- Cross section – image

Download

ies

Luminus Devices SST 10-SB-B130 Sky Blue

Eff:

92.0%

FWHM:

93 x 25°

Cd/Im:

1.7

Carclo Optics – 10398 Luminus_SST-10_SB_B130- Spot – image

Carclo Optics – 10398 Luminus_SST-10_SB_B130- Cross section – image

Download

ies

Luminus Devices SST 10-SB-B90 Sky Blue

Eff:

92.0%

FWHM:

80 x 33°

Cd/Im:

1.4

Carclo Optics – 10398 Luminus_SST-10_SB_B90- Spot – image

Carclo Optics – 10398 Luminus_SST-10_SB_B90- Cross section – image

Download

ies

Nichia NFSW CSP E11A White

Eff:

92.0%

FWHM:

96 x 26°

Cd/Im:

1.4

Download

ies

Nichia NVSW CSP E21A White

Eff:

82.0%

FWHM:

21 x 84°

Cd/Im:

1.3

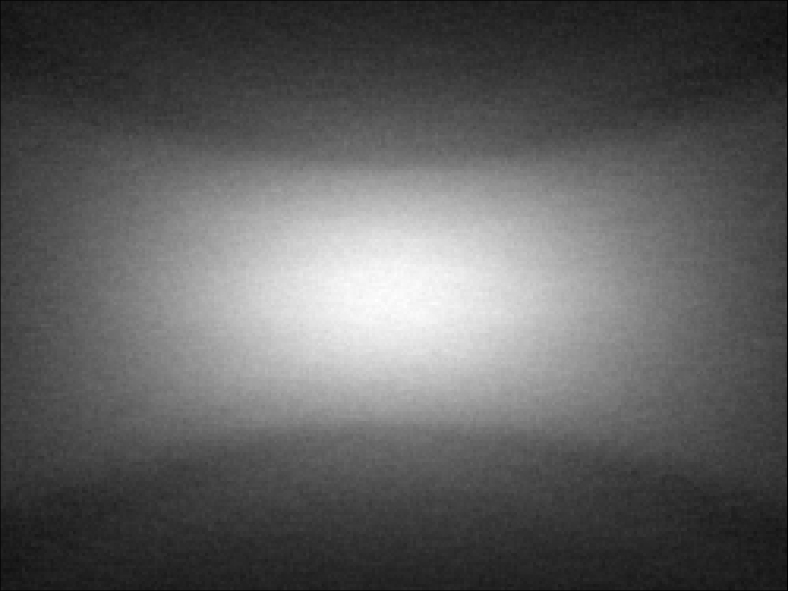

10398 Spot Image Nichia NVSW E21A

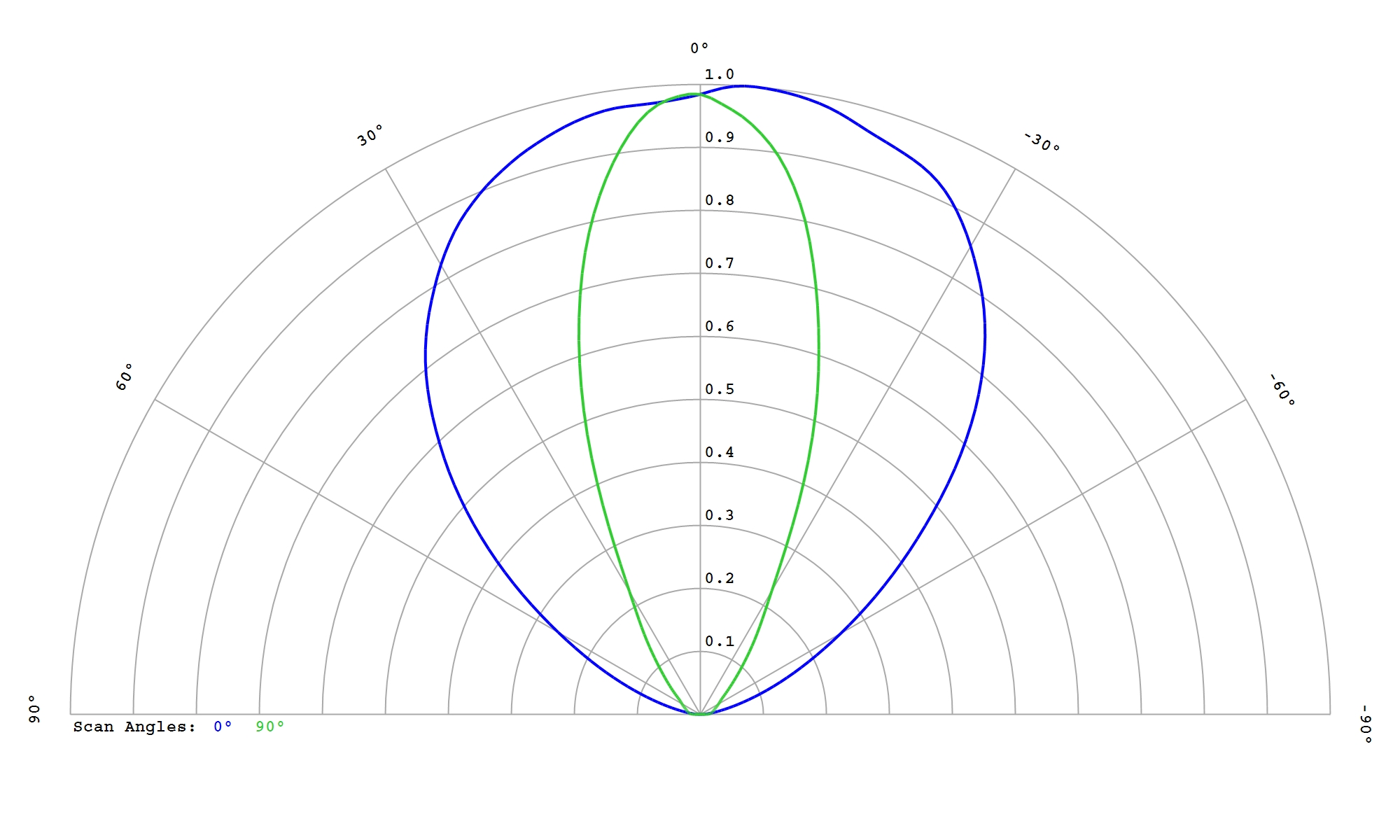

10398 Intensity Cross Section Nichia NVSW E21A

Download

ies

Osram OS DURIS S5 GP PSLM31.14 Purple

Eff:

93.0%

FWHM:

92 x 31°

Cd/Im:

1.3

Carclo Optics – 10398 Osram Duris S5 GP PSLM31.14 Purple - Spot Image

Carclo Optics – 10398 Osram Duris S5 GP PSLM31.14 Purple - Cross-Section

Download

14

Osram OS DURIS S5 GP PSLR31.14 Purple

Eff:

93.0%

FWHM:

91 x 31°

Cd/Im:

1.3

Carclo Optics – 10398 Osram Duris S5 GP PSLR31.14 Purple - Spot Image

Carclo Optics – 10398 Osram Duris S5 GP PSLR31.14 Purple - Cross-Section

Download

14

Osram OS OSLON SSL 120 GD CSSPM1.14 Deep Blue

Eff:

81.1%

FWHM:

24.4 x 87.2°

Cd/Im:

1.4

Carclo Optics – 10398 Osram Oslon SSL-120 GD CSSPM1.14 Deep Blue - Spot Image

Carclo Optics – 10398 Osram Oslon SSL-120 GD CSSPM1.14 Deep Blue - Cross-Section

Download

IES

Osram OS OSLON SSL 120 GF CSSPM1.24 Far Red

Eff:

82.8%

FWHM:

30.7 x 88.9°

Cd/Im:

1.3

Carclo Optics – 10398 Osram Oslon SSL-120 GF CSSPM1.24 Far Red - Spot Image

Carclo Optics – 10398 Osram Oslon SSL-120 GF CSSPM1.24 Far Red - Cross-Section

Download

IES

Osram OS OSLON SSL 120 GH CSSPM1.24 Hyper Red

Eff:

82.6%

FWHM:

24.2 x 91.1°

Cd/Im:

1.4

Carclo Optics – 10398 Osram Oslon SSL-120 GH CSSPM1.24 Hyper Red - Spot Image

Carclo Optics – 10398 Osram Oslon SSL-120 GH CSSPM1.24 Hyper Red - Cross-Section

Download

IES

Samsung 3030 LM301B White

Eff:

92.5%

FWHM:

90 x 30°

Cd/Im:

1.3

Download

ies

Samsung 3535 LH351H Blue

Eff:

91.5%

FWHM:

94 x 33°

Cd/Im:

1.1

Carclo Optics – 10398 Samsung_3535_LH351H_B - Spot – image

Carclo Optics – 10398 Samsung_3535_LH351H_B - Cross section – image

Download

ies

Samsung 3535 LH351H Deep Red

Eff:

93.0%

FWHM:

97 x 28.5°

Cd/Im:

1.3

Carclo Optics – 10398 Samsung_3535_LH351H_DR - Spot – image

Carclo Optics – 10398 Samsung_3535_LH351H_DR - Cross section – image

Download

ies

Samsung 3535 LH351H Red

Eff:

94.0%

FWHM:

86 x 31°

Cd/Im:

1.4

Carclo Optics – 10398 Samsung_3535_LH351H_R - Spot – image

Carclo Optics – 10398 Samsung_3535_LH351H_R - Cross section – image

Download

ies

Samsung 3535 LH351H-B White

Eff:

92.5%

FWHM:

89 x 39°

Cd/Im:

1.1

Carclo Optics – 10398 Samsung_3535_LH351H-B_White - Spot – image

Carclo Optics – 10398 Samsung_3535_LH351H-B_White - Cross section – image

Download

ies

Samsung 3535 LH351H-C White

Eff:

92.5%

FWHM:

84 x 39°

Cd/Im:

1.1

Carclo Optics – 10398 Samsung_3535_LH351H-C_White - Spot – image

Carclo Optics – 10398 Samsung_3535_LH351H-C_White - Cross section – image

Download

ies

Seoul MidPower 3030 STB0C2PB Blue

Eff:

92.0%

FWHM:

80 x 39°

Cd/Im:

1.0

Carclo Optics – 10398 SSC (Seoul)_MidPower_3030_STB0C2PB Blue - Spot – image

Carclo Optics – 10398 SSC (Seoul)_MidPower_3030_STB0C2PB Blue - Cross section – image

Download

ies

Seoul MidPower 3030 STDRC12B Deep Red

Eff:

93.0%

FWHM:

96 x 24.5°

Cd/Im:

1.3

Carclo Optics – 10398 SSC (Seoul)_MidPower_3030_ STDRC12B Deep Red - Spot – image

Carclo Optics – 10398 SSC (Seoul)_MidPower_3030_ STDRC12B Deep Red - Cross section – image

Download

ies

Seoul MidPower 3030 STFRC12B Far Red

Eff:

93.0%

FWHM:

103 x 25°

Cd/Im:

2.1

Carclo Optics – 10398 SSC (Seoul)_MidPower_3030_STFRC12B Far Red - Spot – image

Carclo Optics – 10398 SSC (Seoul)_MidPower_3030_STFRC12B Far Red - Cross section – image

Download

ies

Seoul Z - Power Z5 M4 White

Eff:

92.5%

FWHM:

87 x 41°

Cd/Im:

1.0

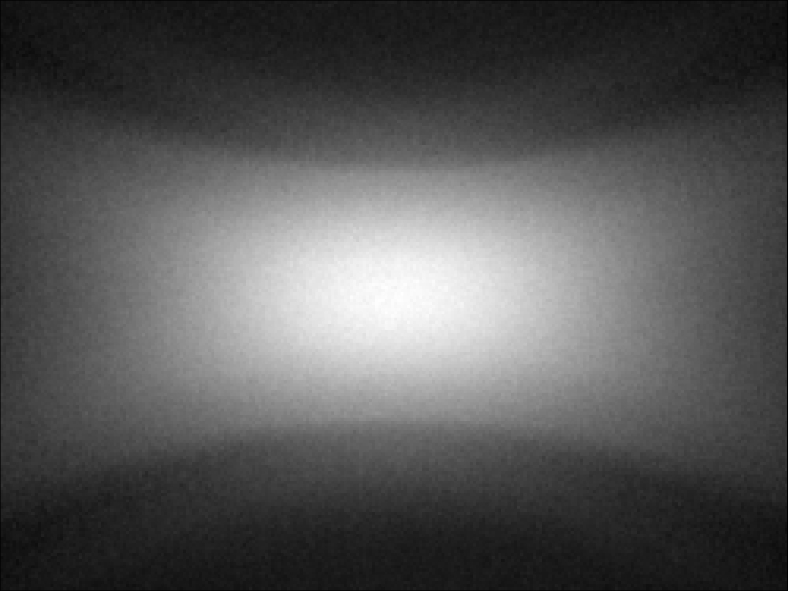

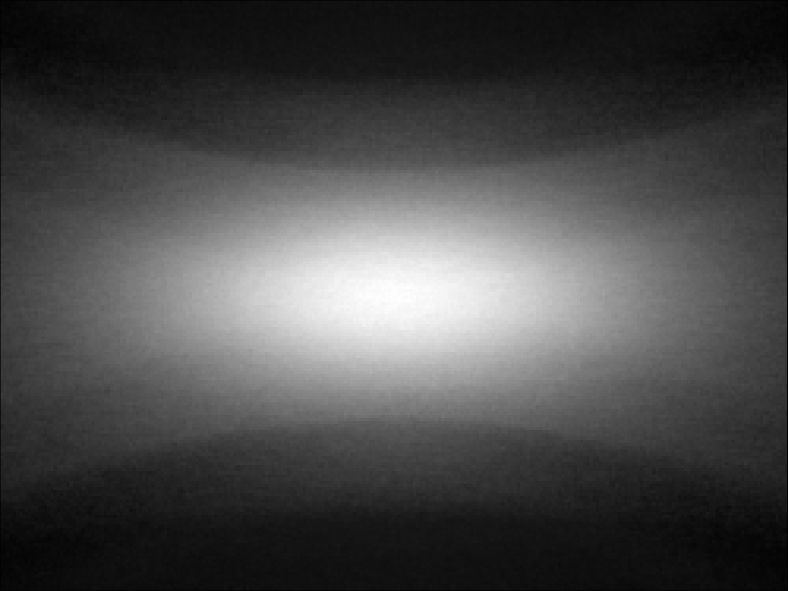

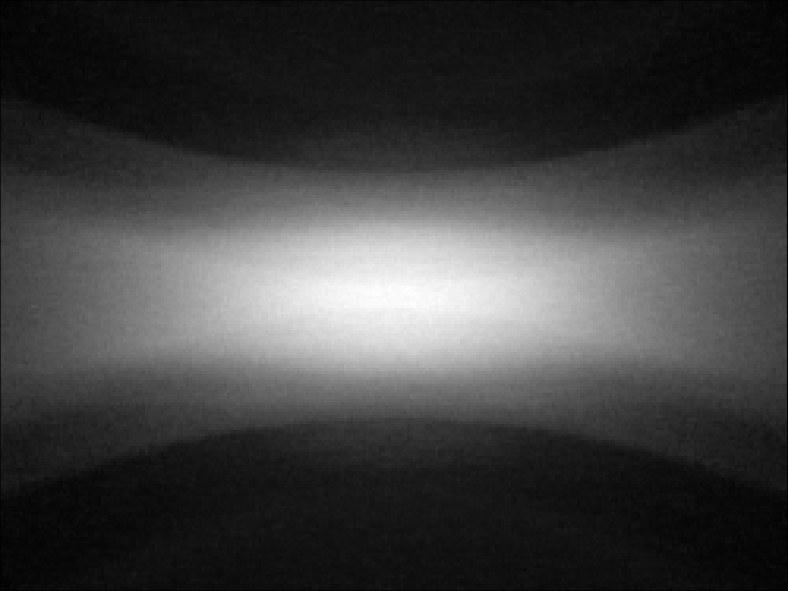

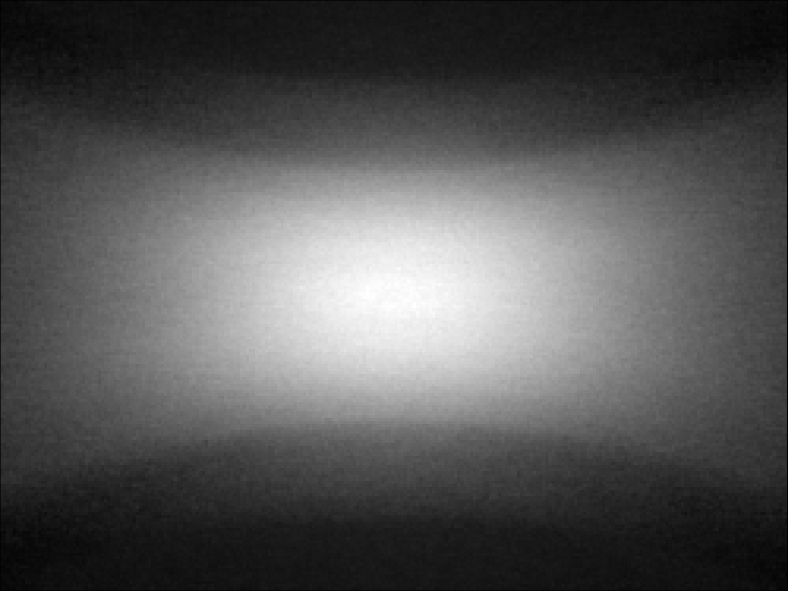

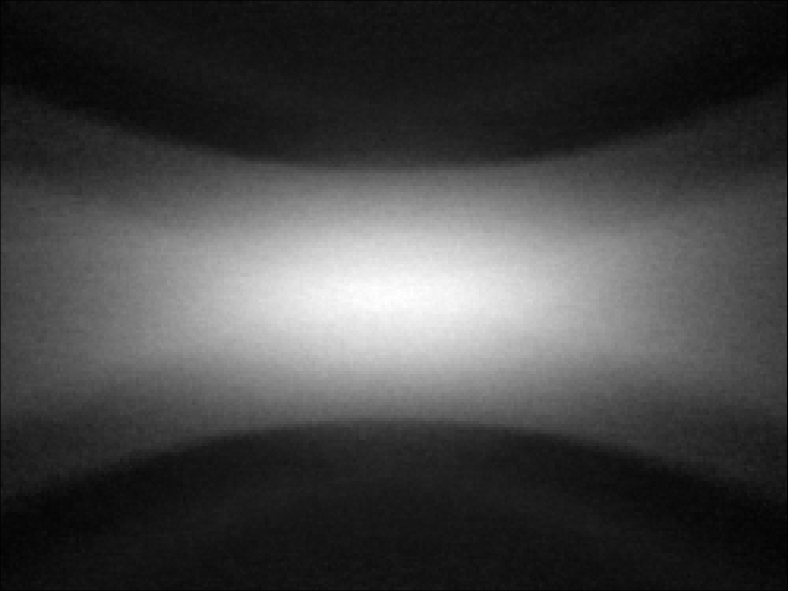

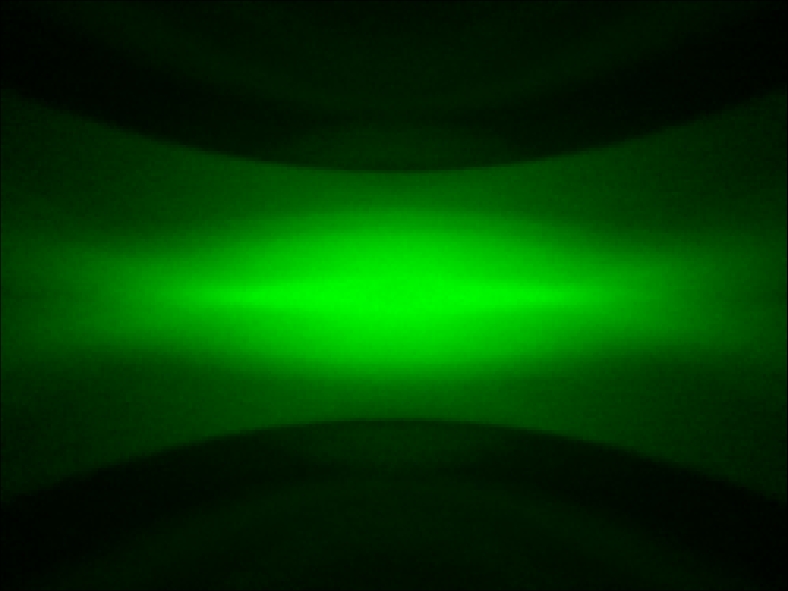

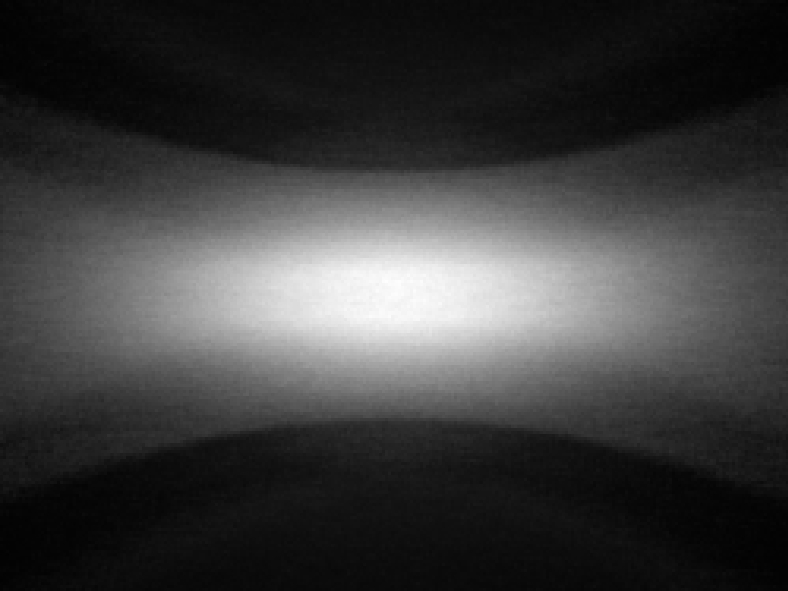

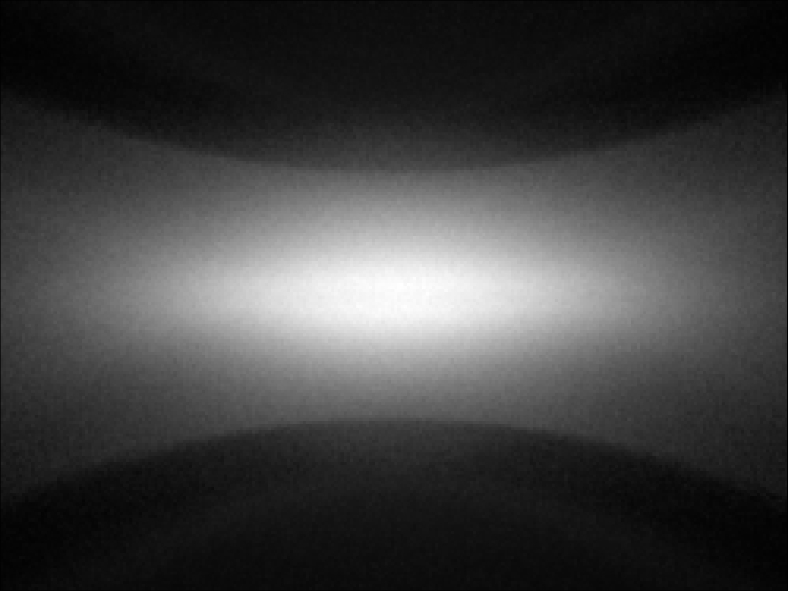

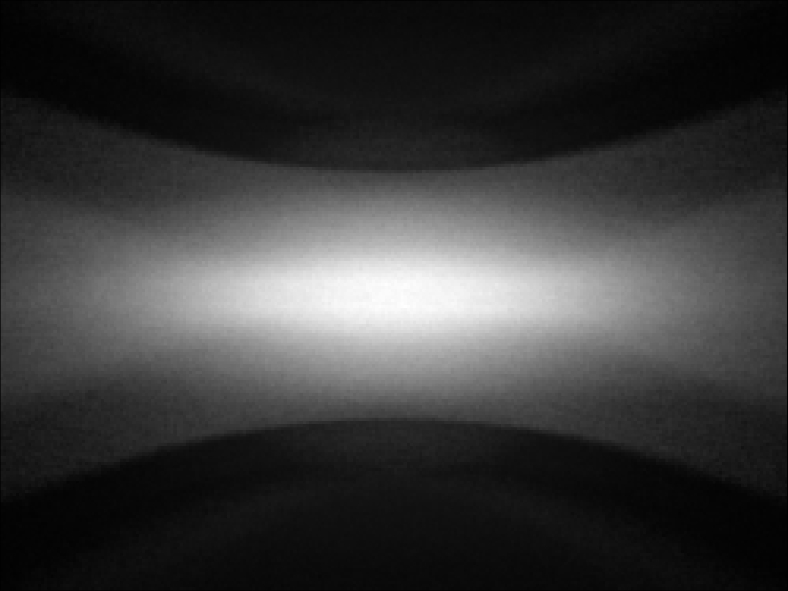

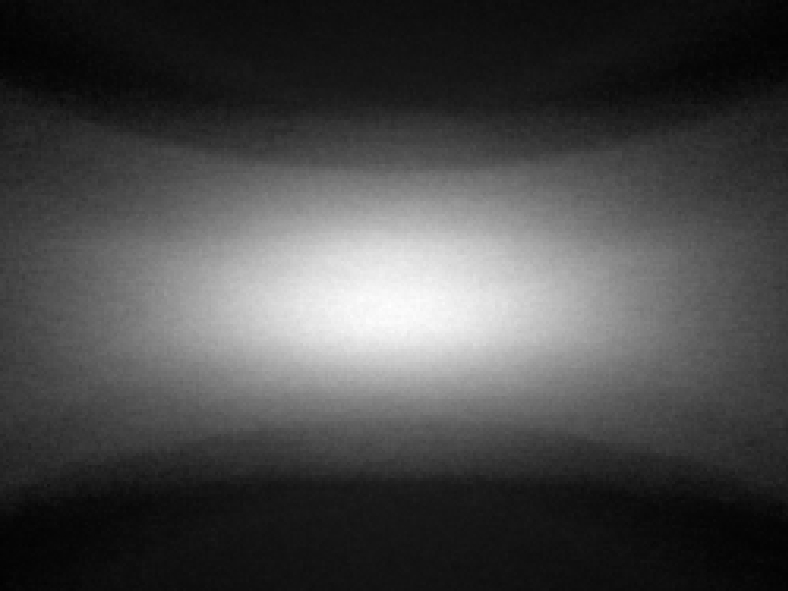

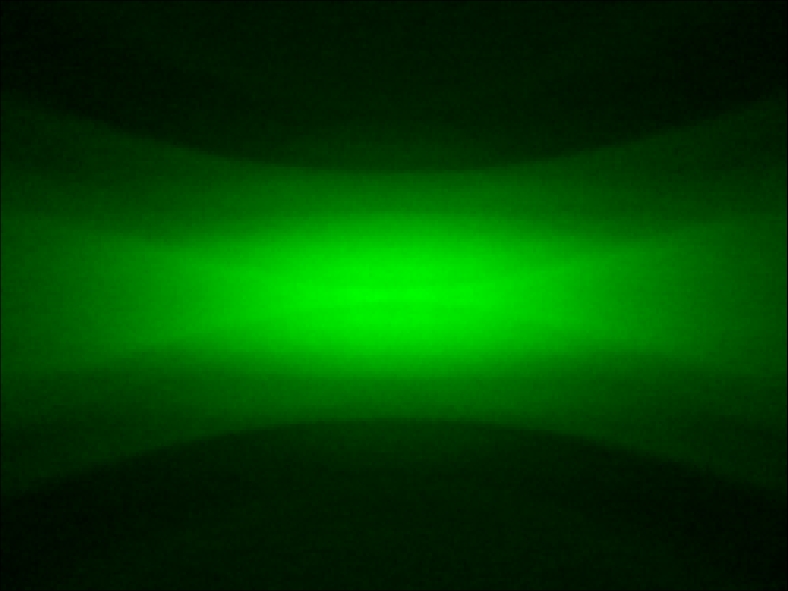

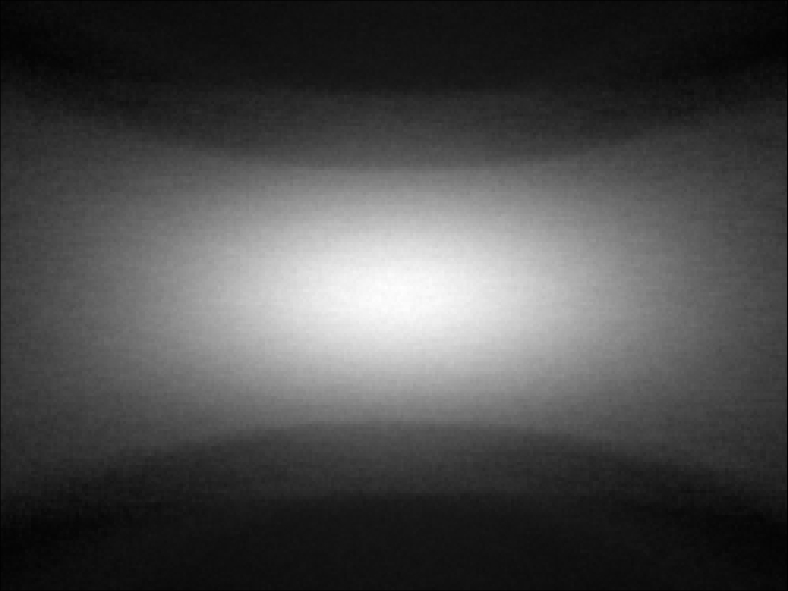

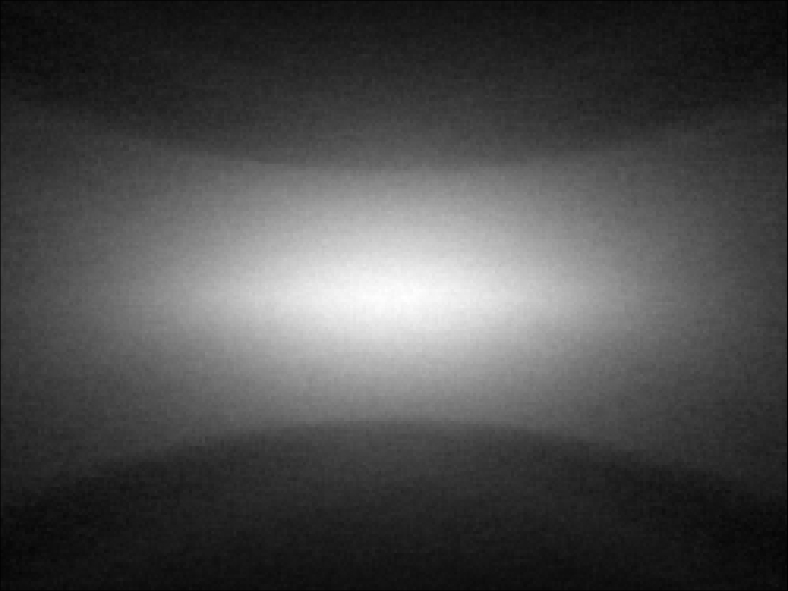

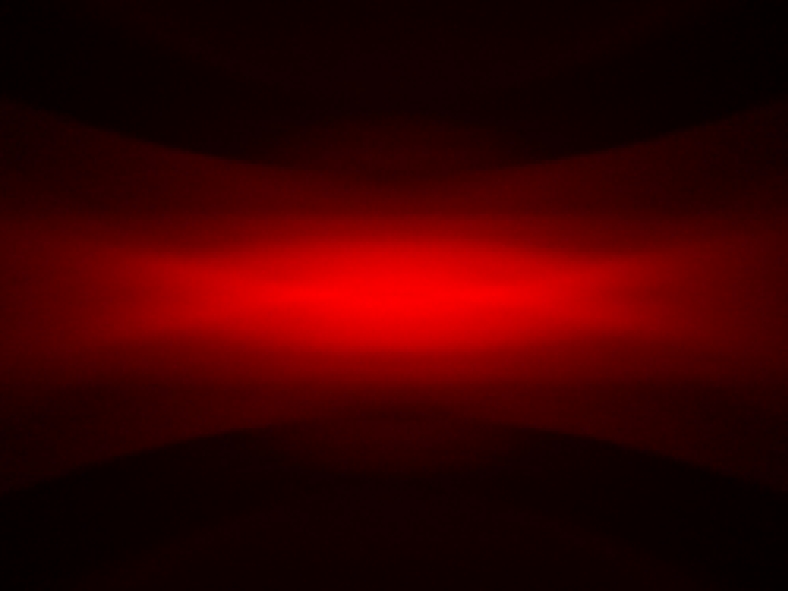

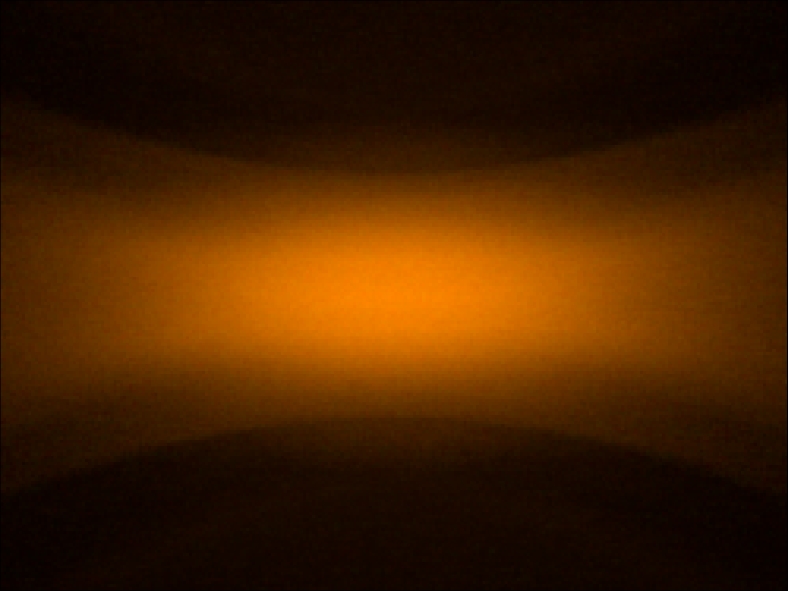

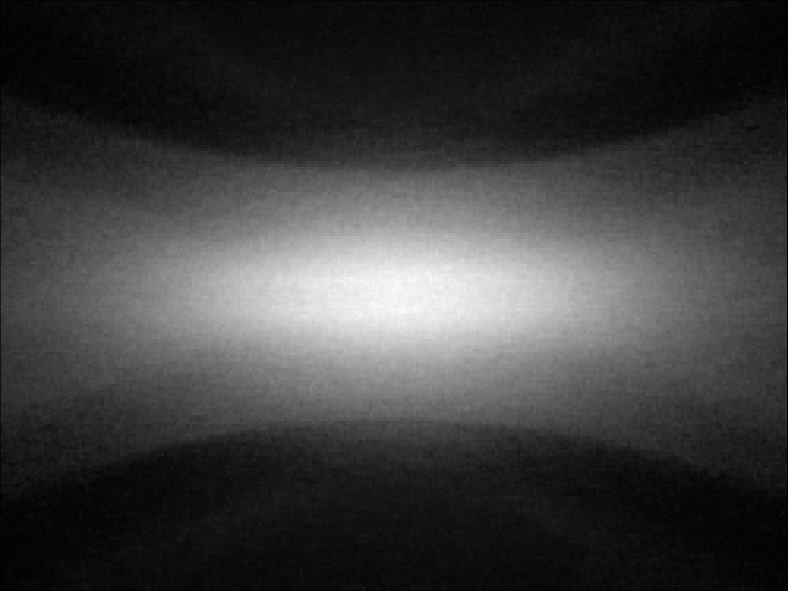

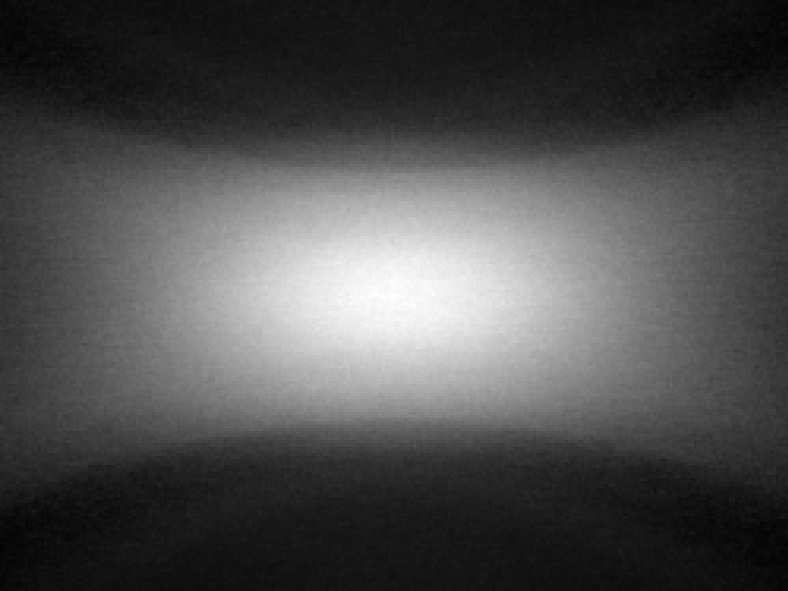

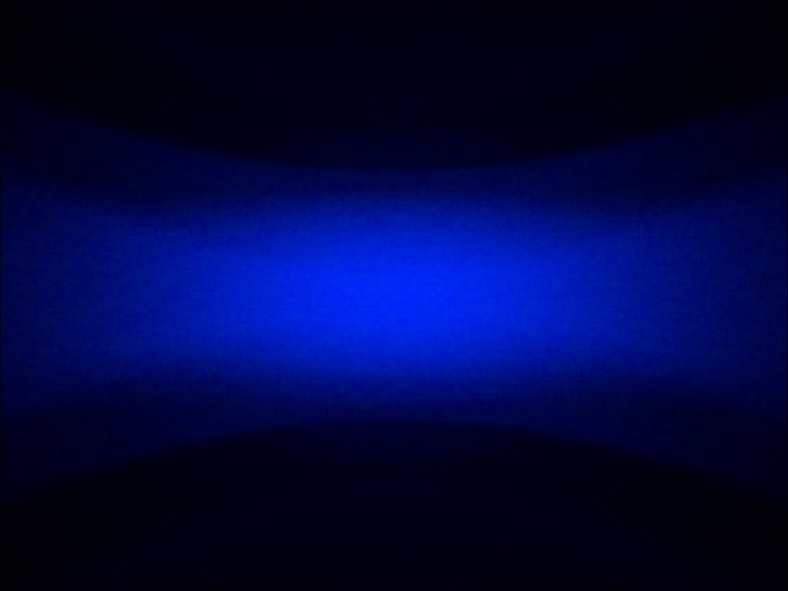

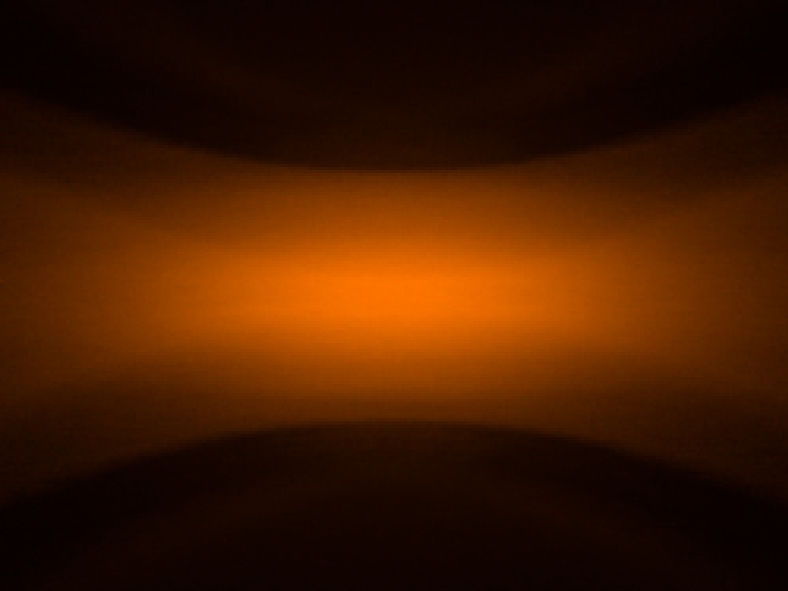

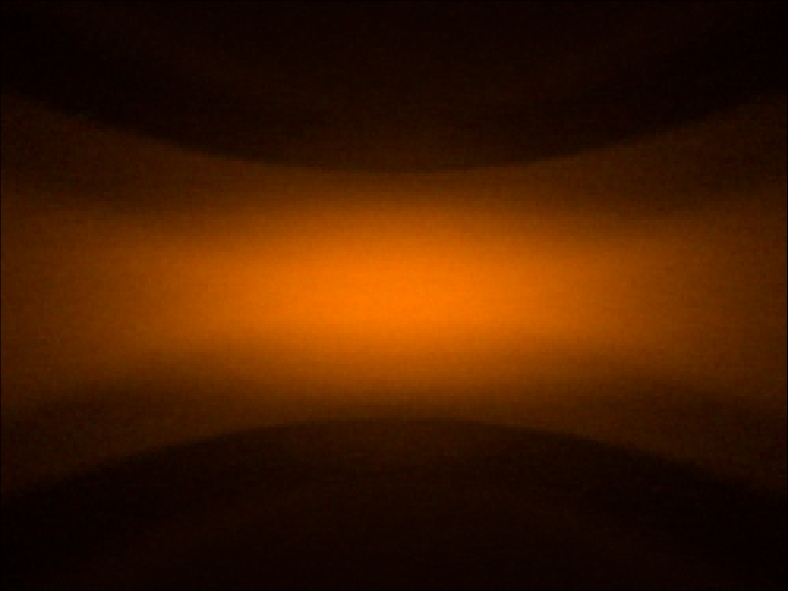

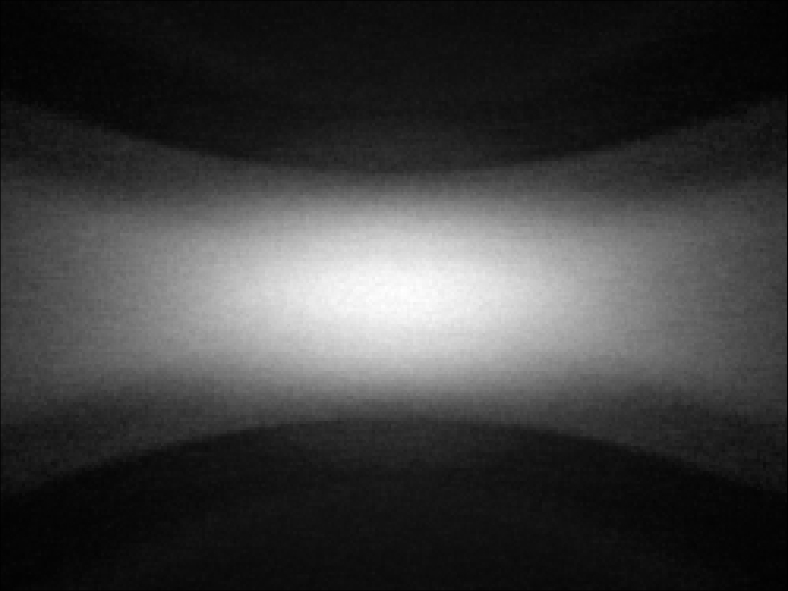

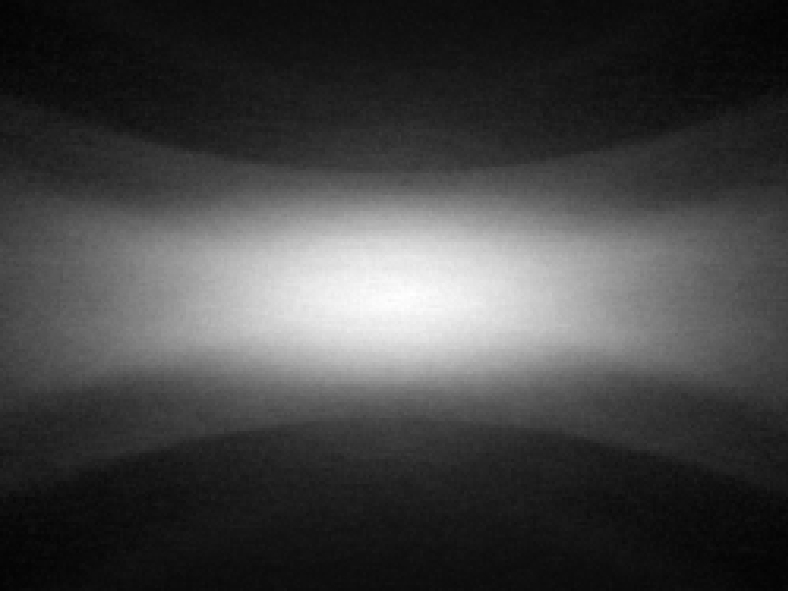

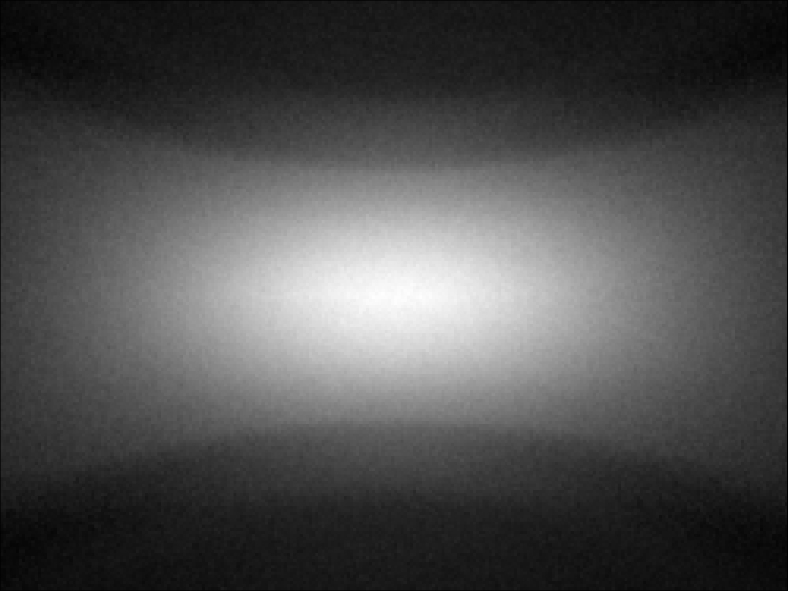

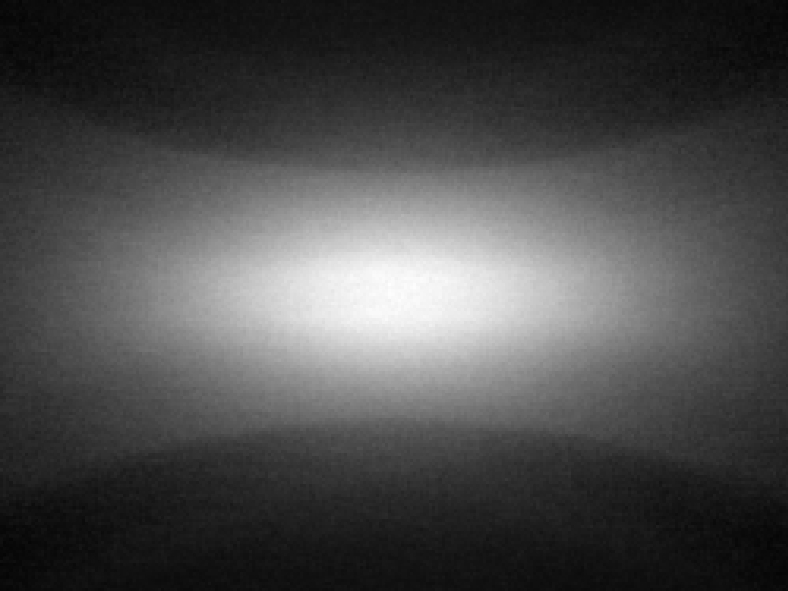

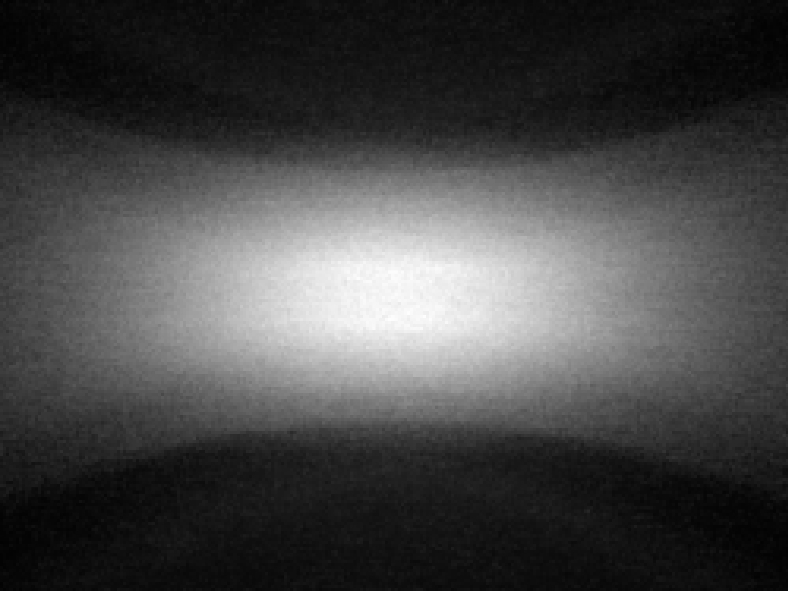

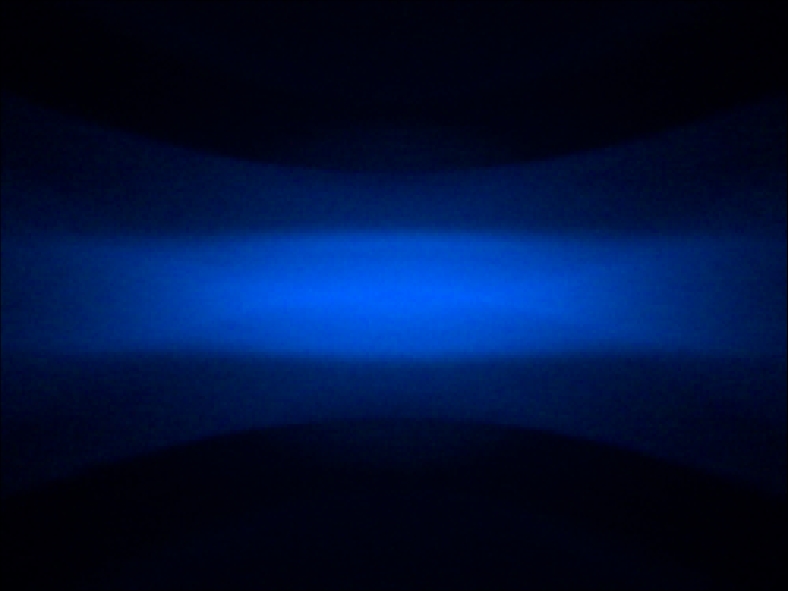

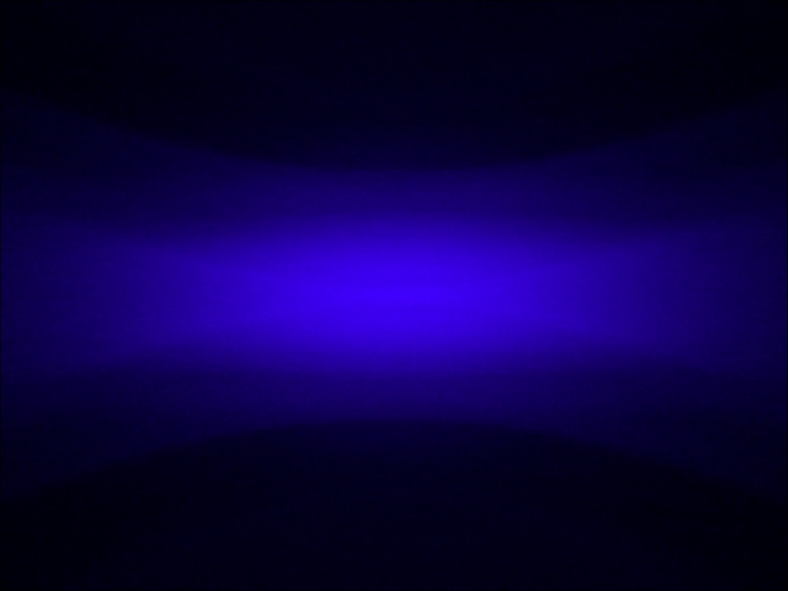

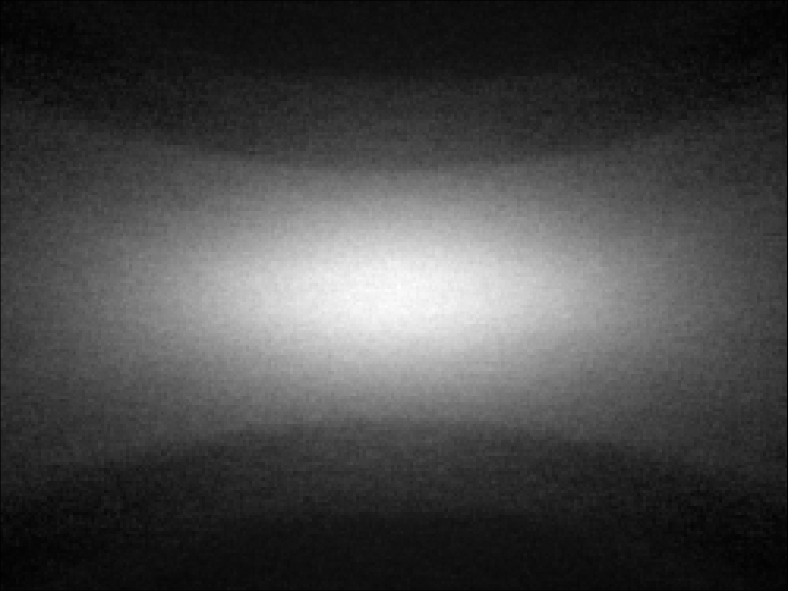

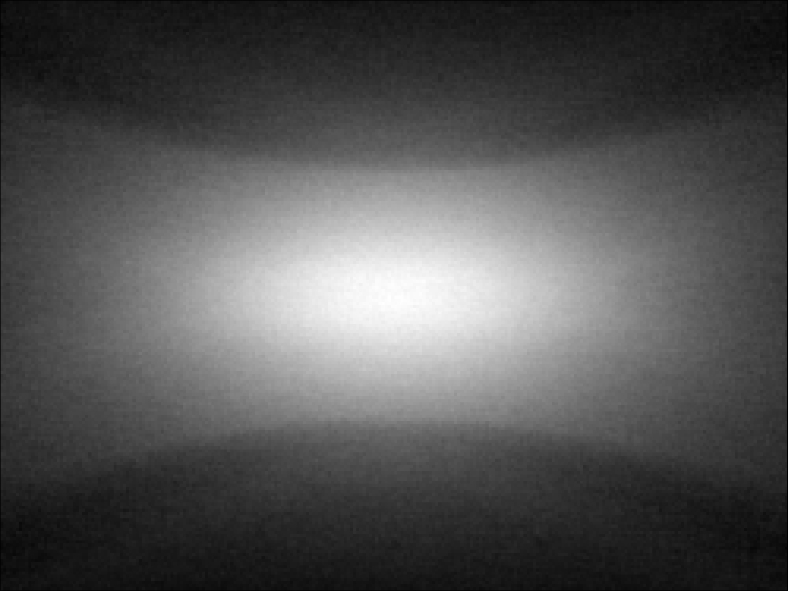

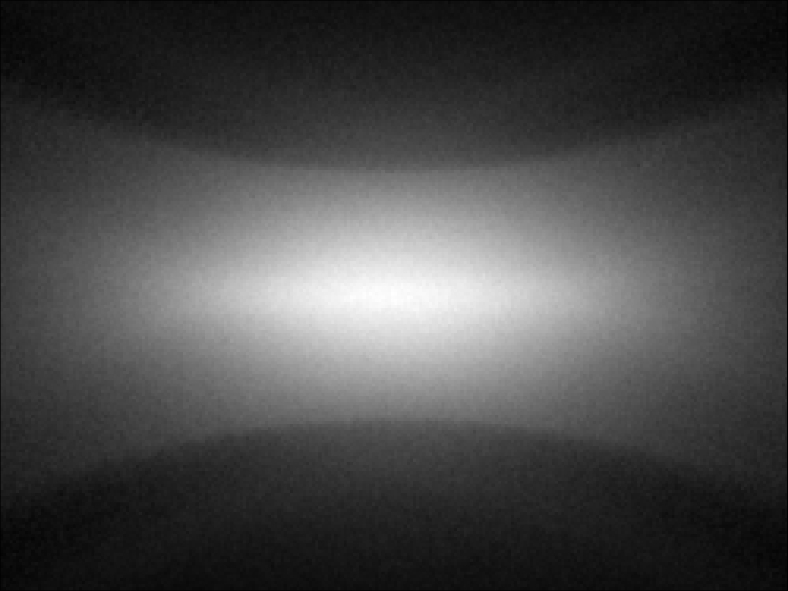

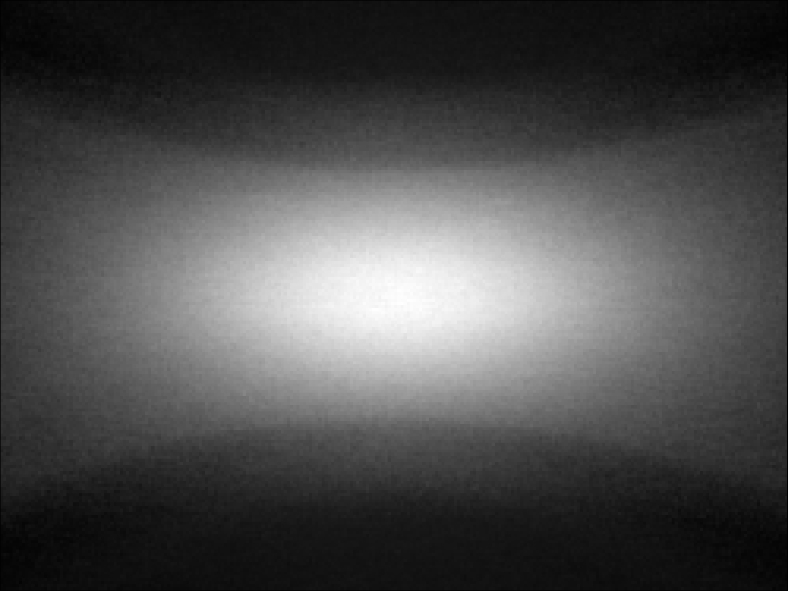

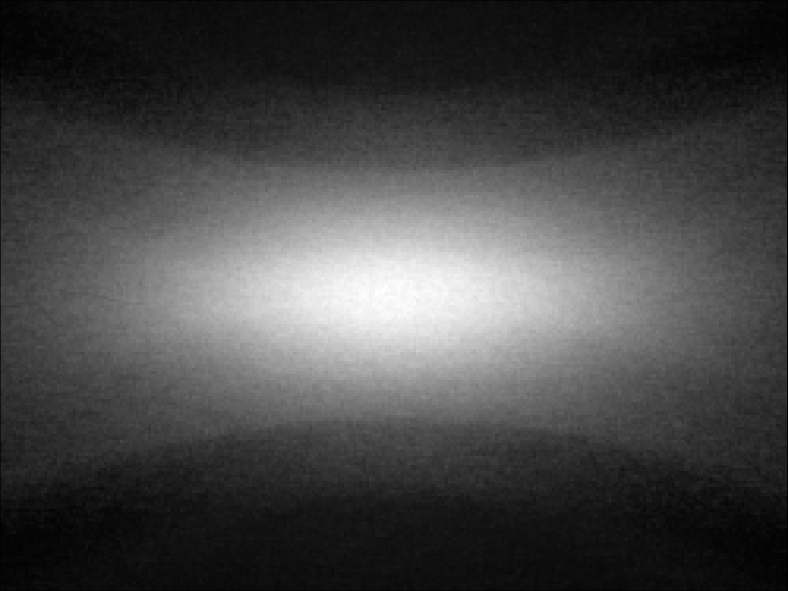

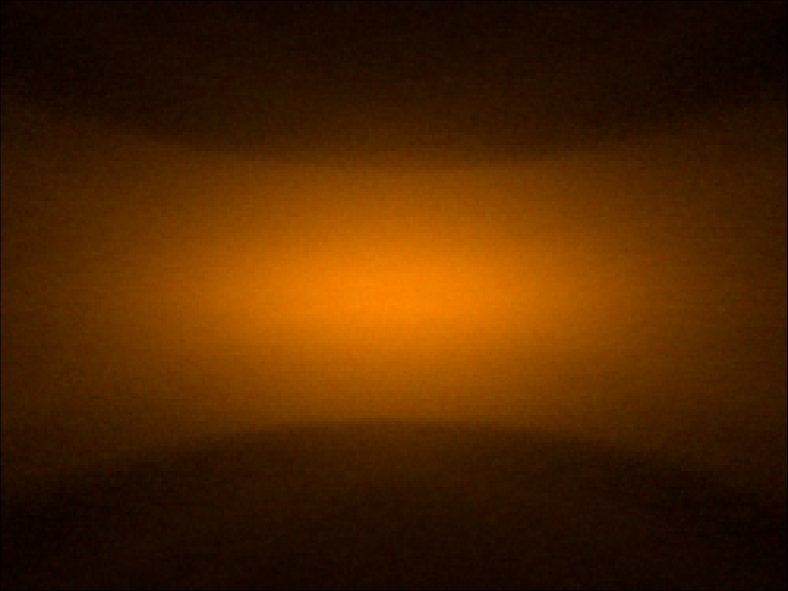

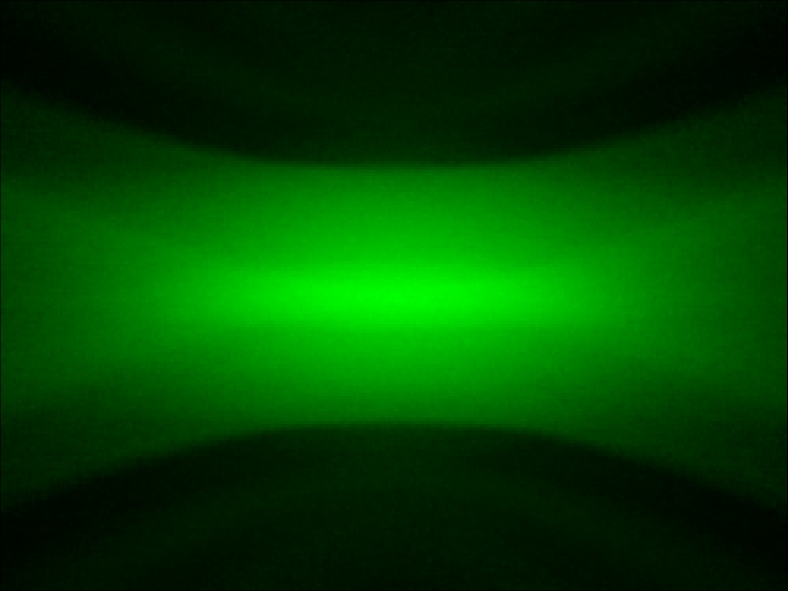

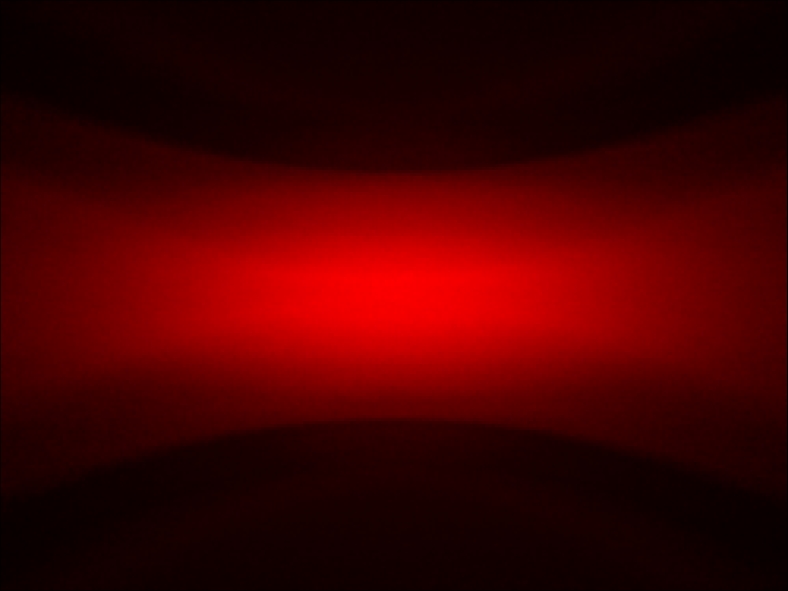

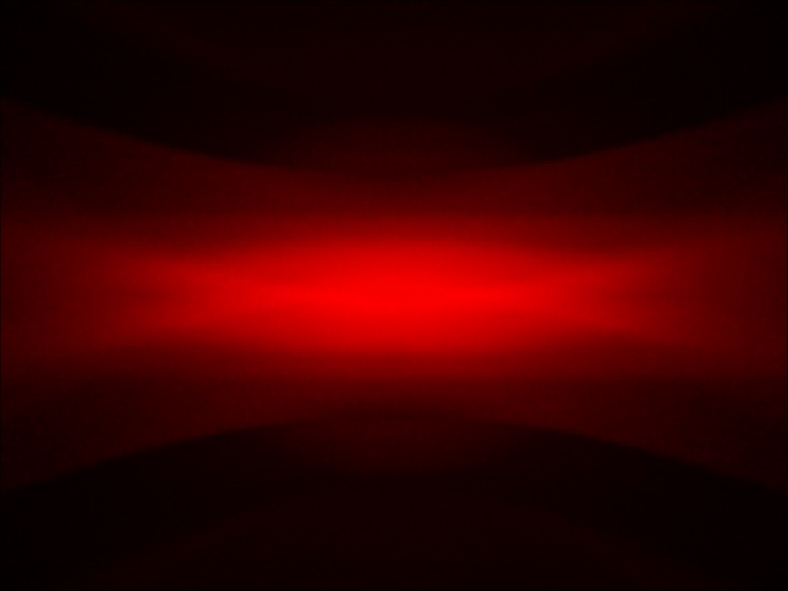

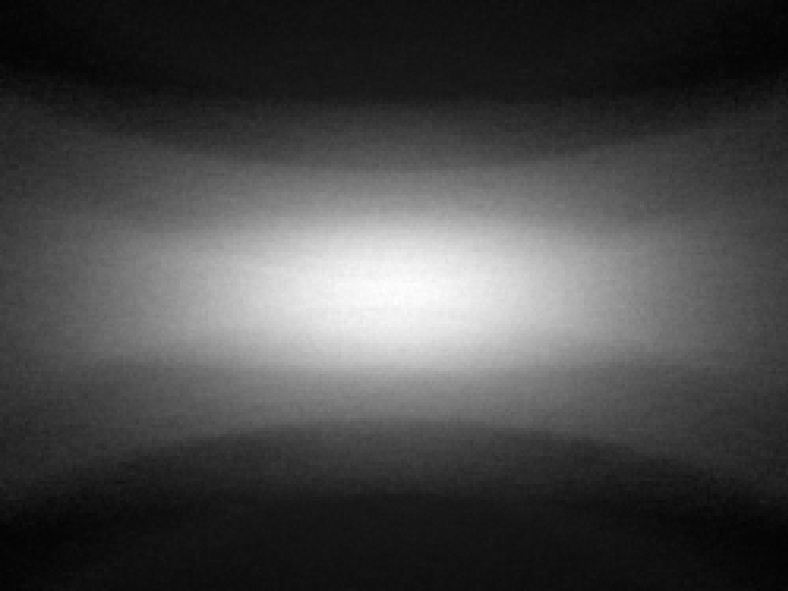

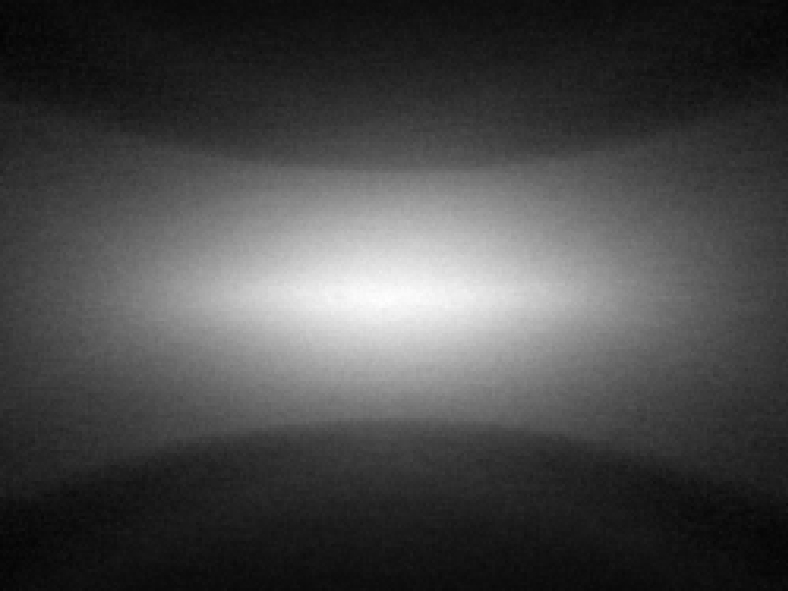

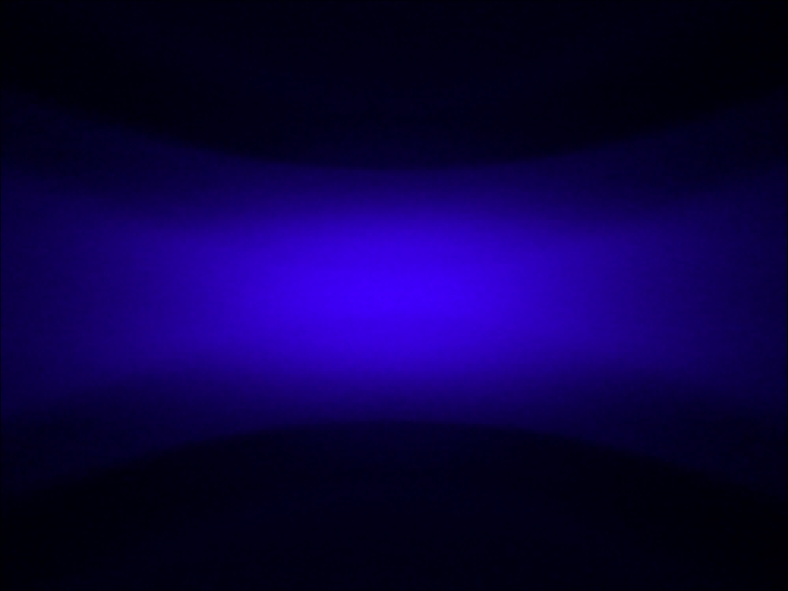

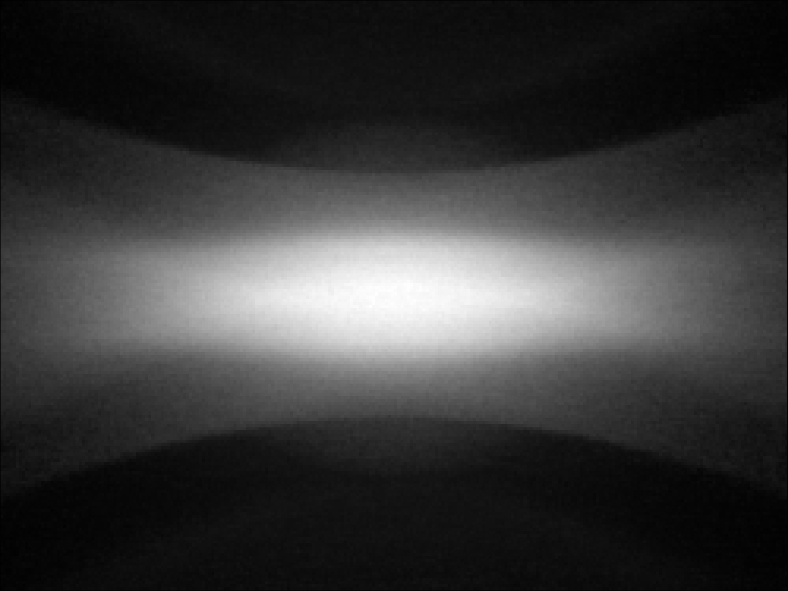

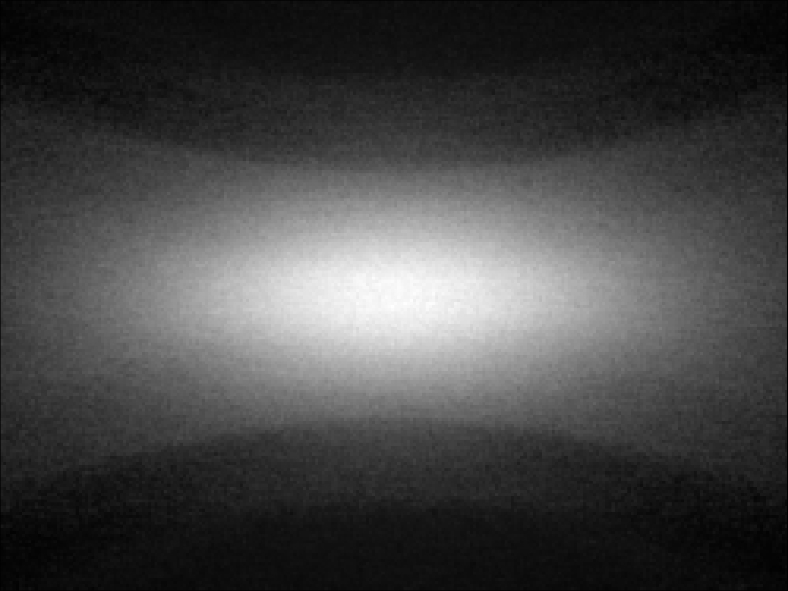

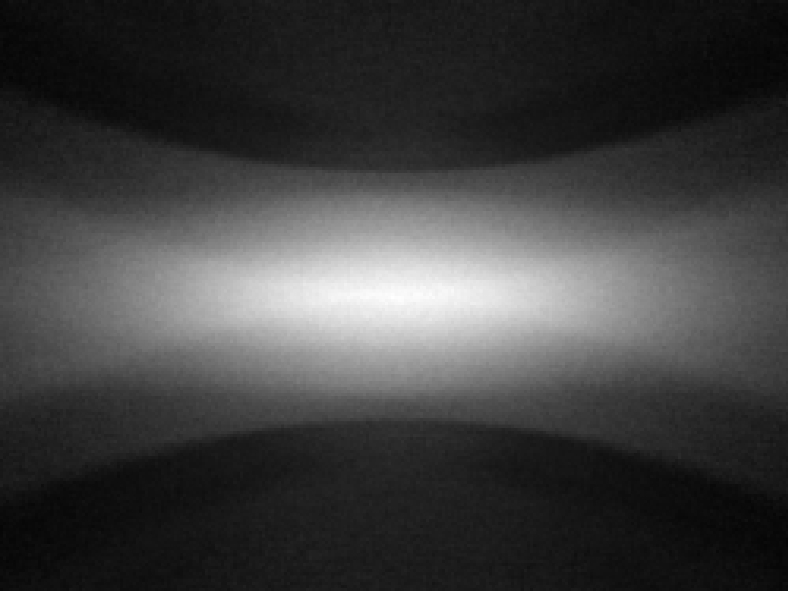

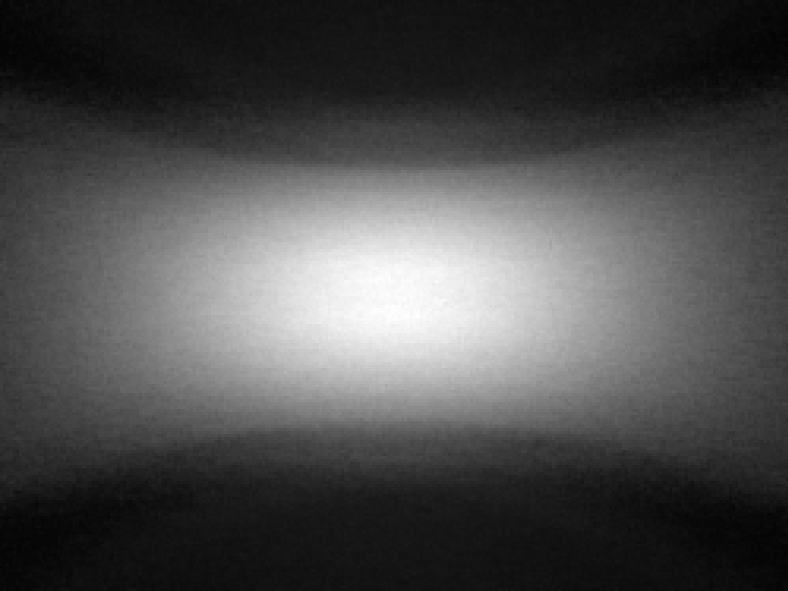

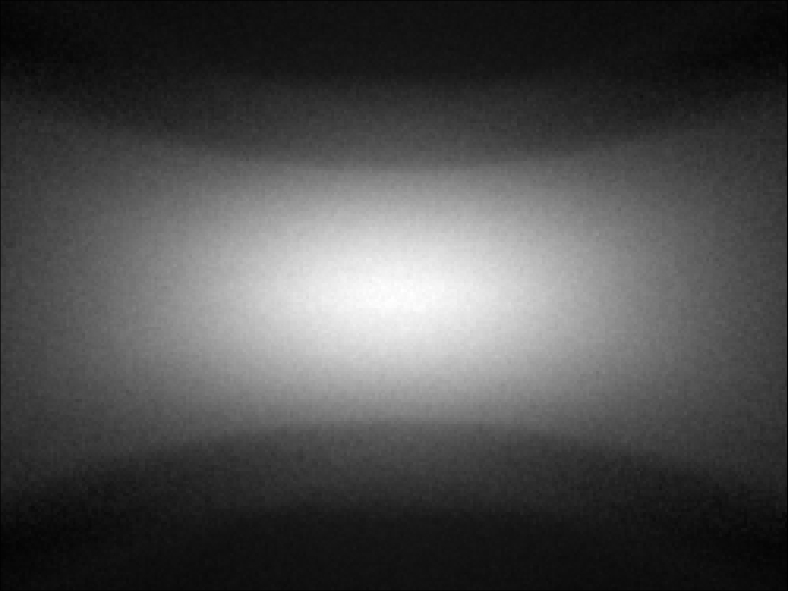

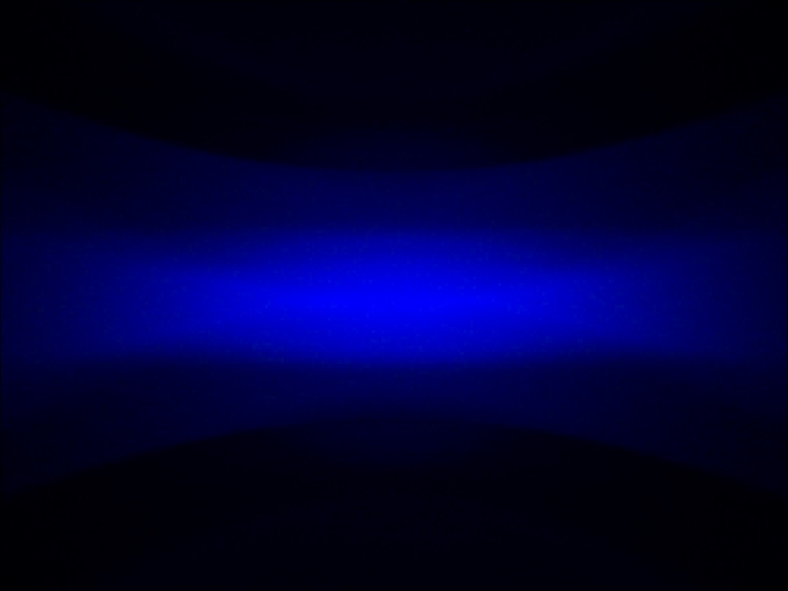

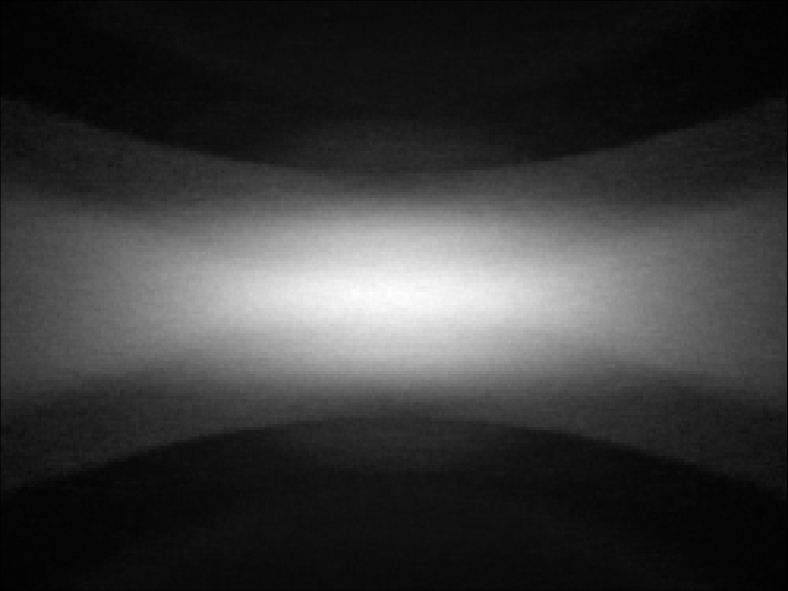

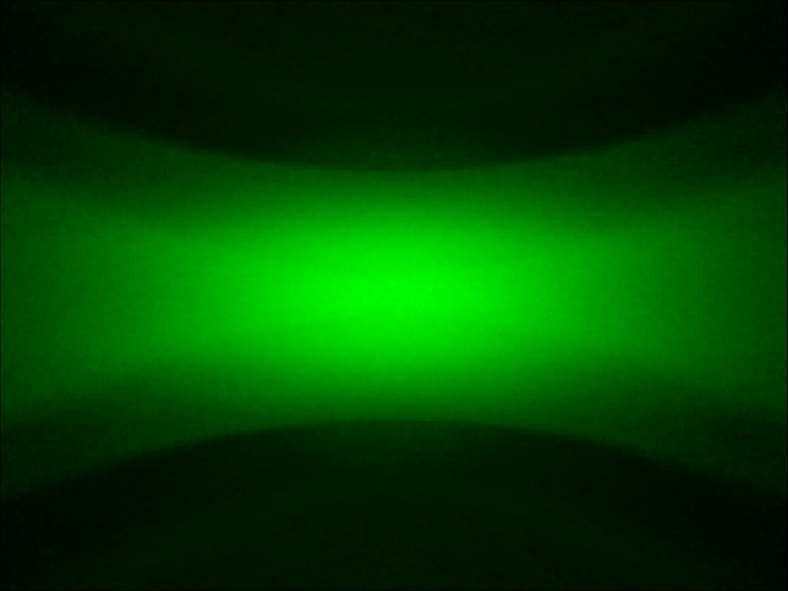

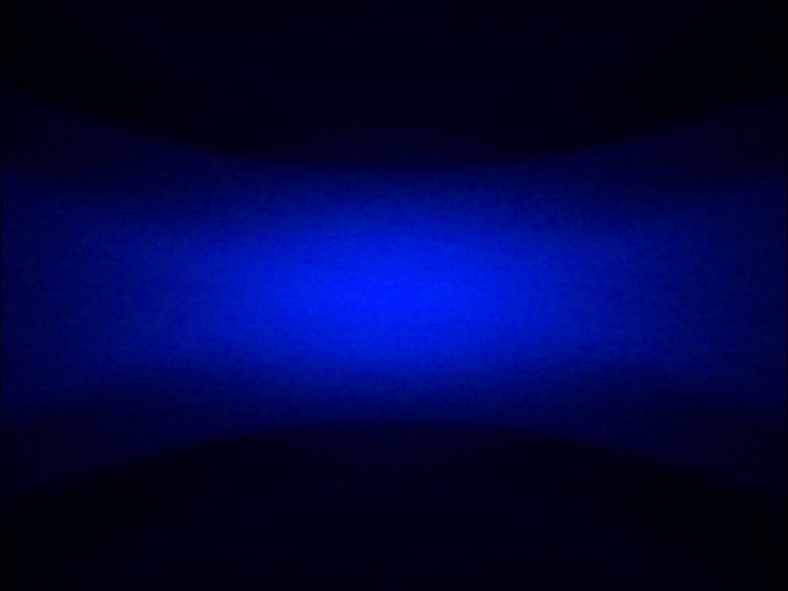

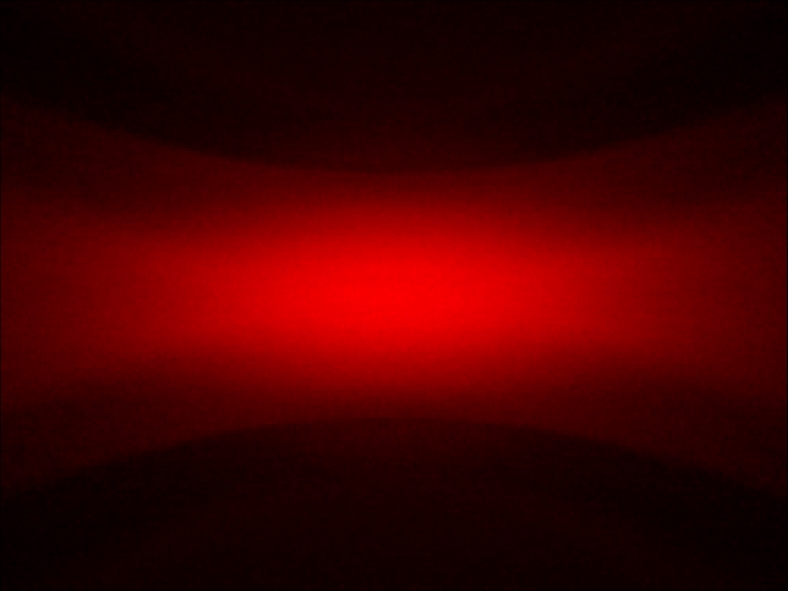

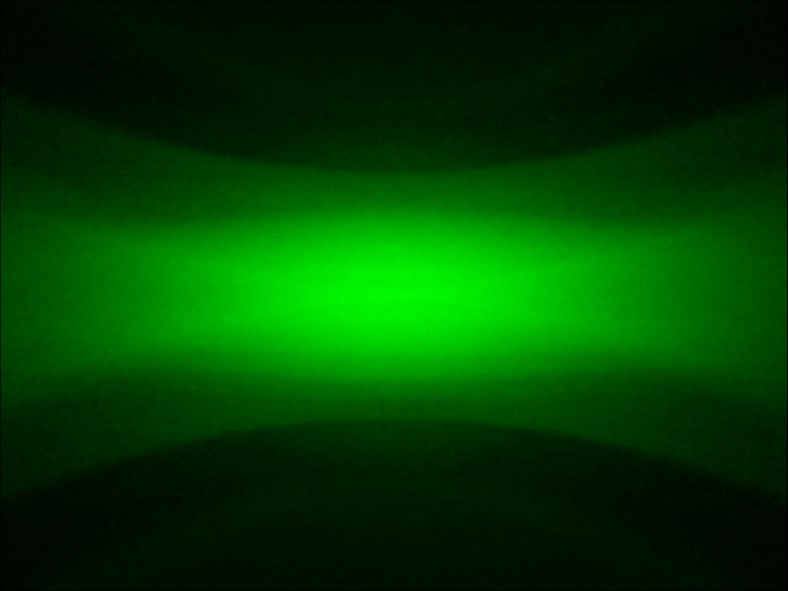

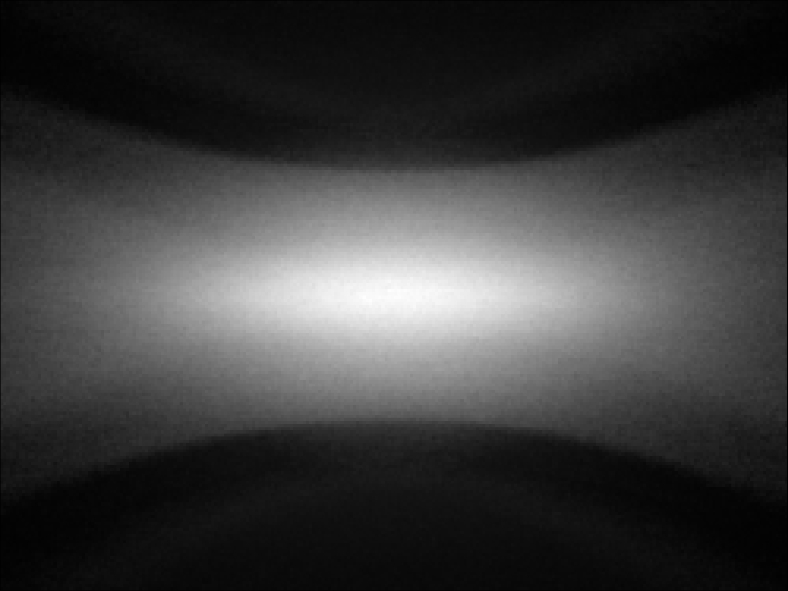

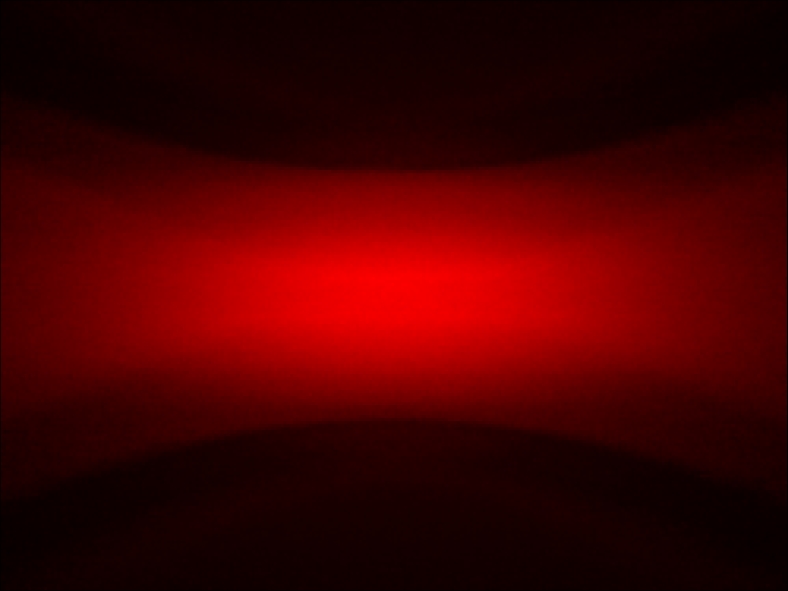

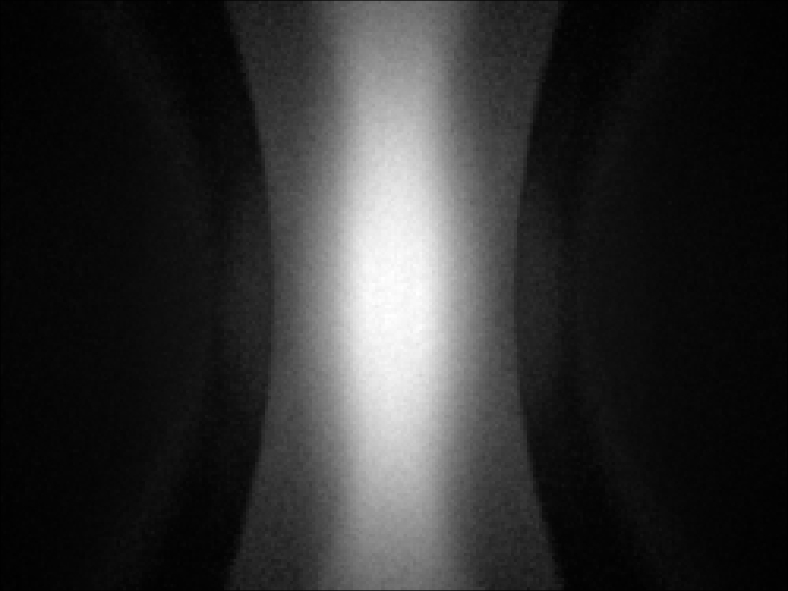

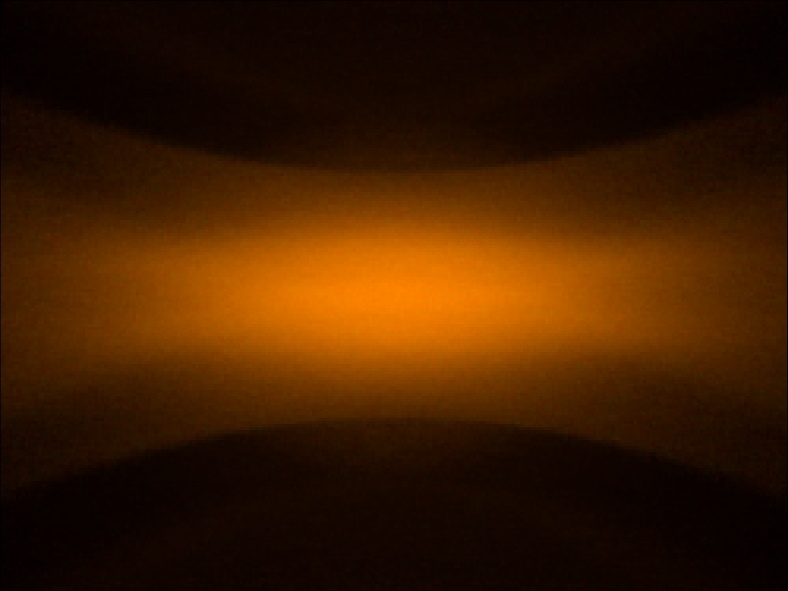

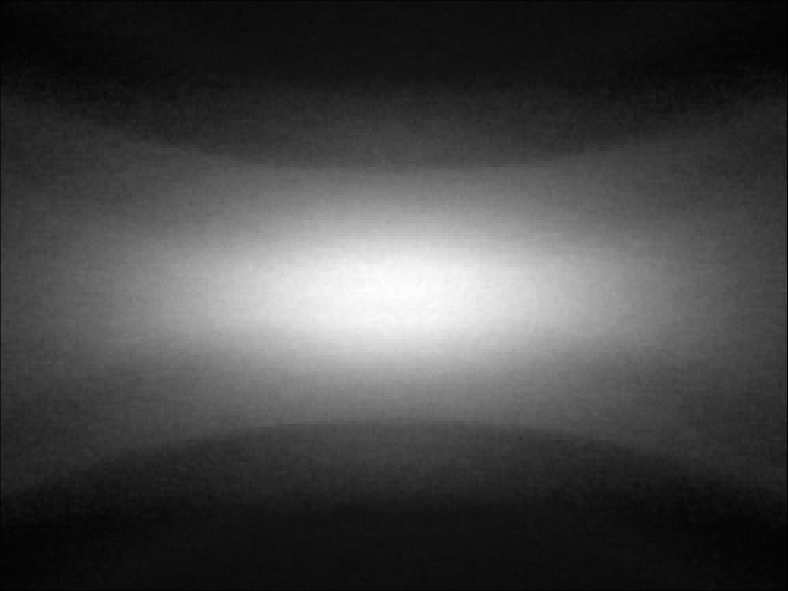

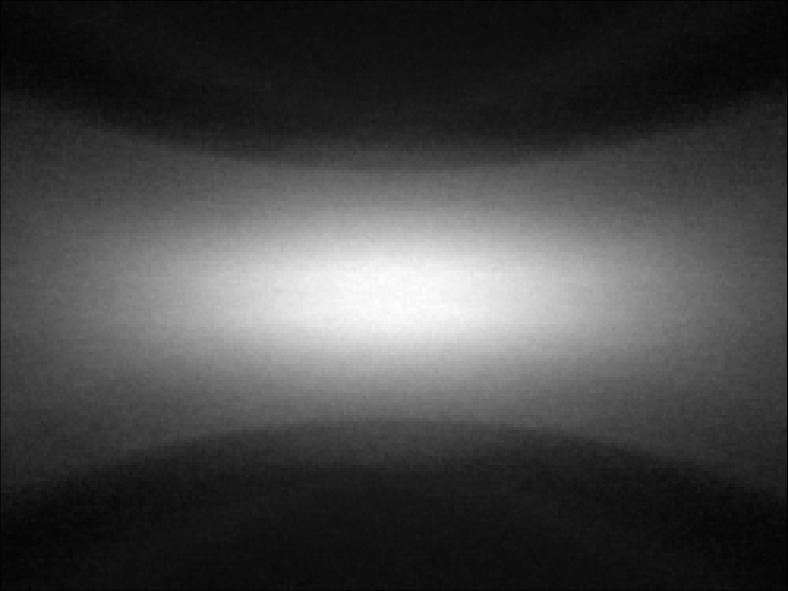

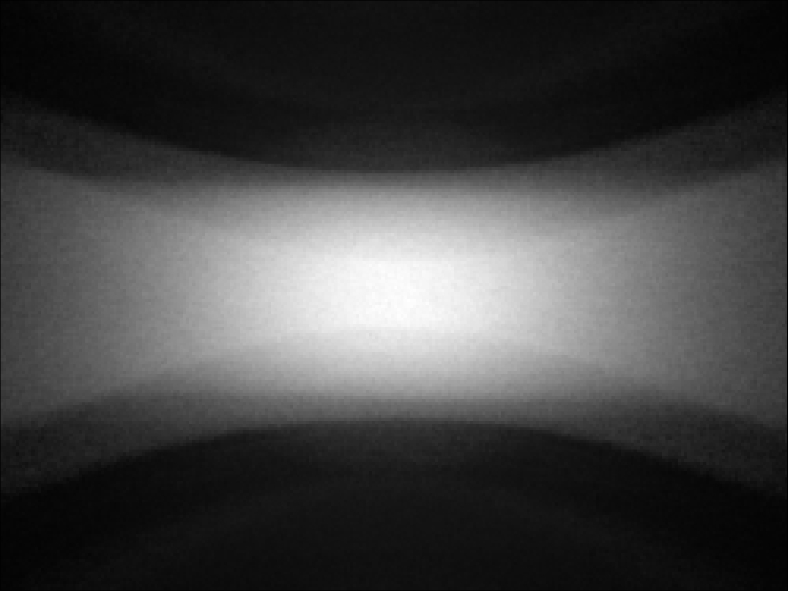

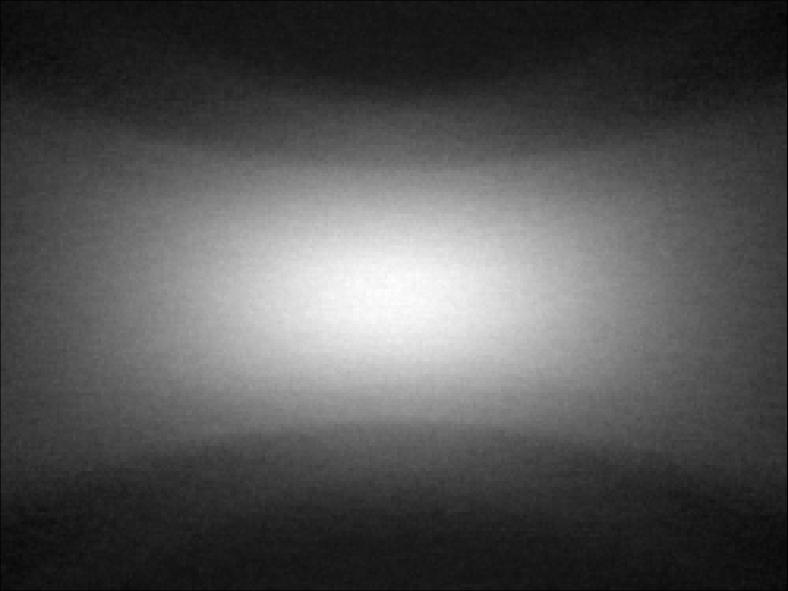

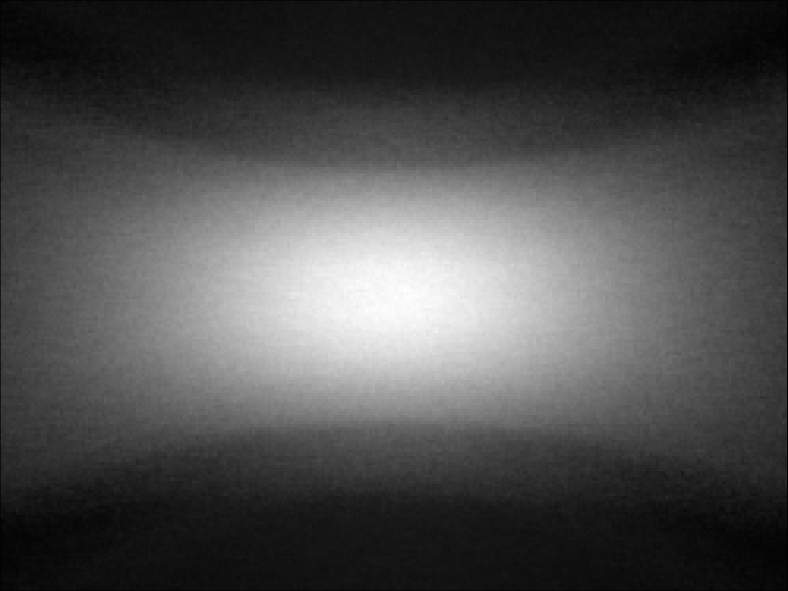

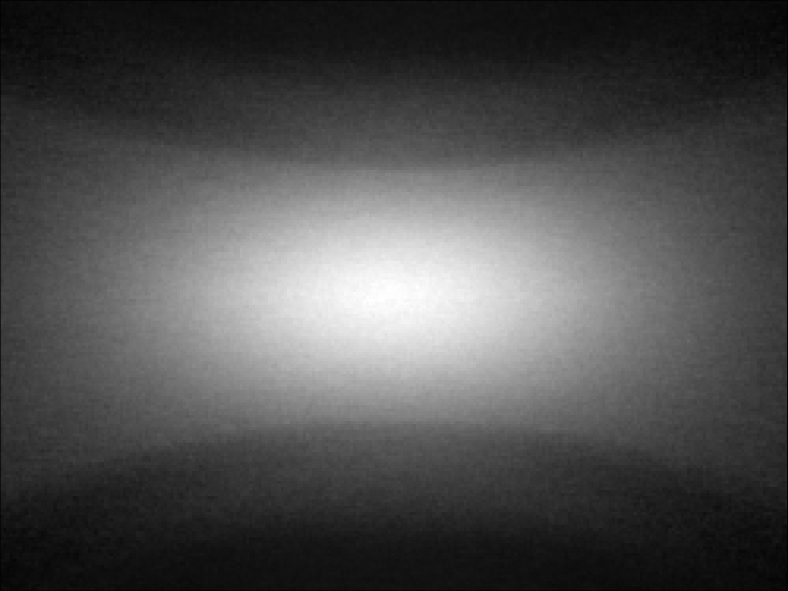

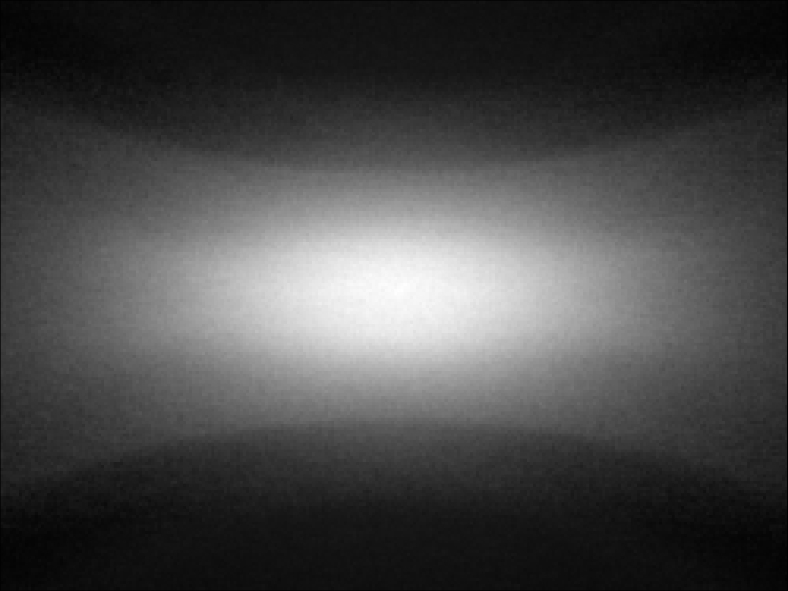

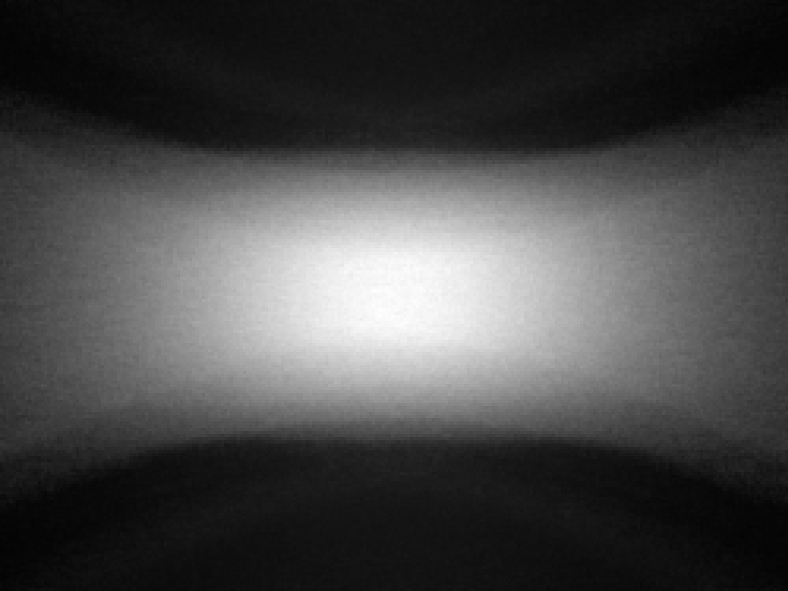

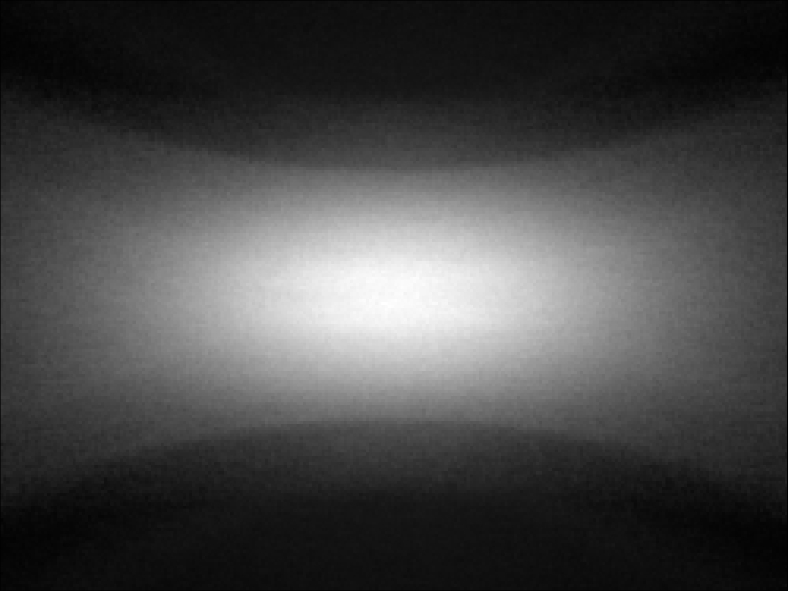

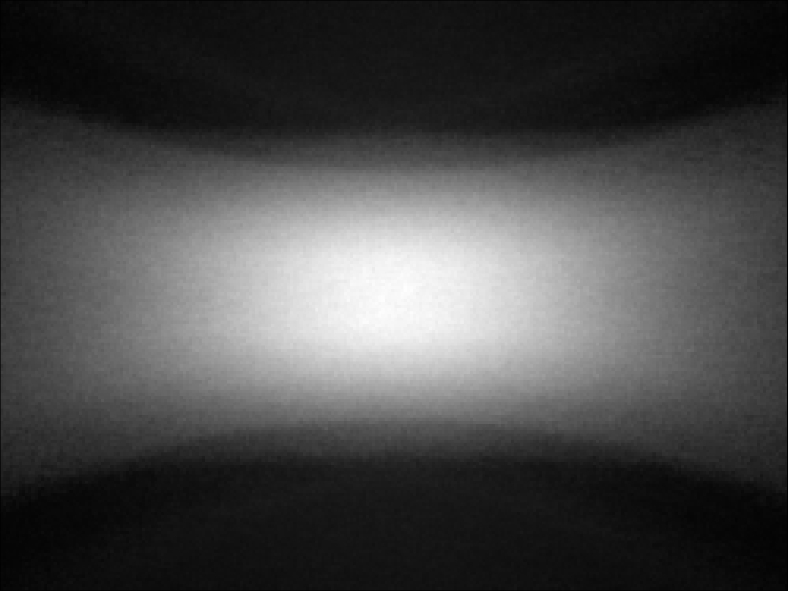

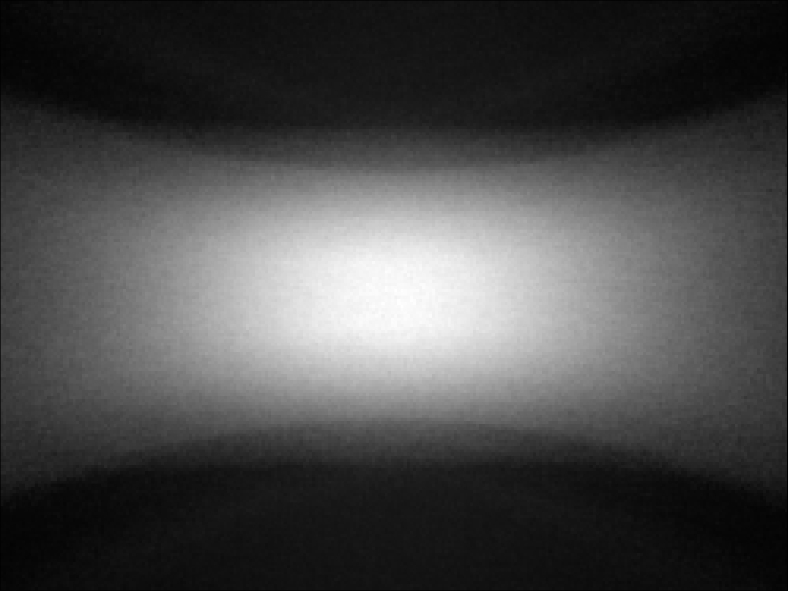

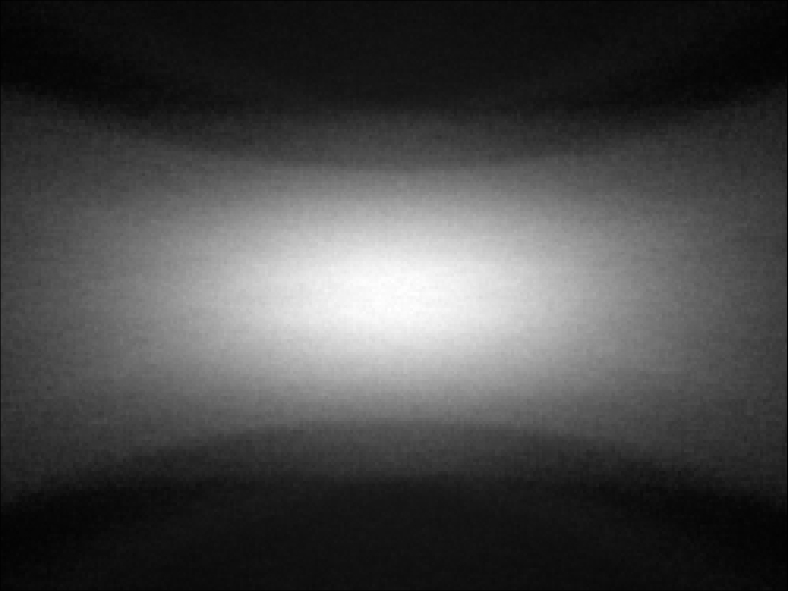

Carclo Optics – 10398 SSC (Seoul)_Z-Power_Z5 - Spot – image

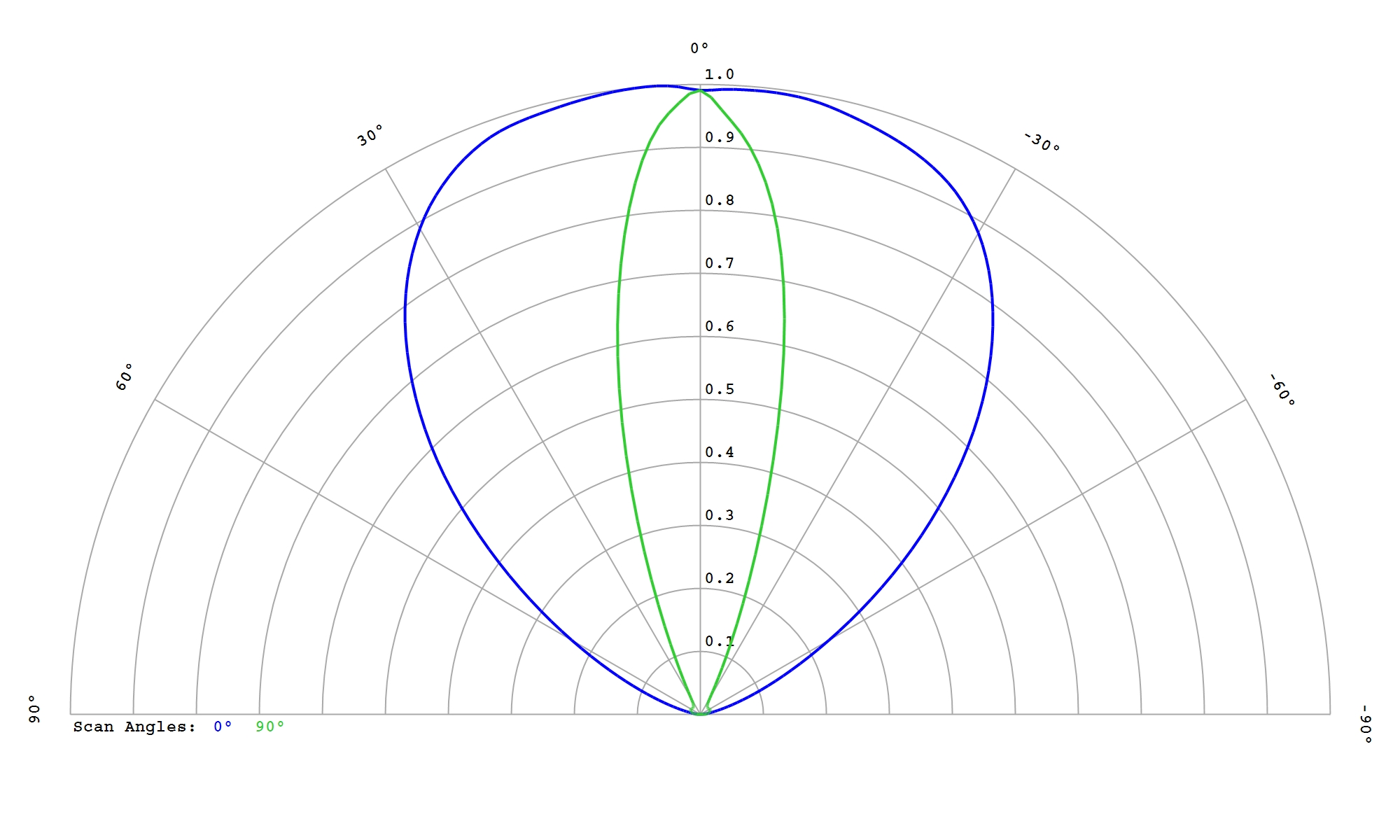

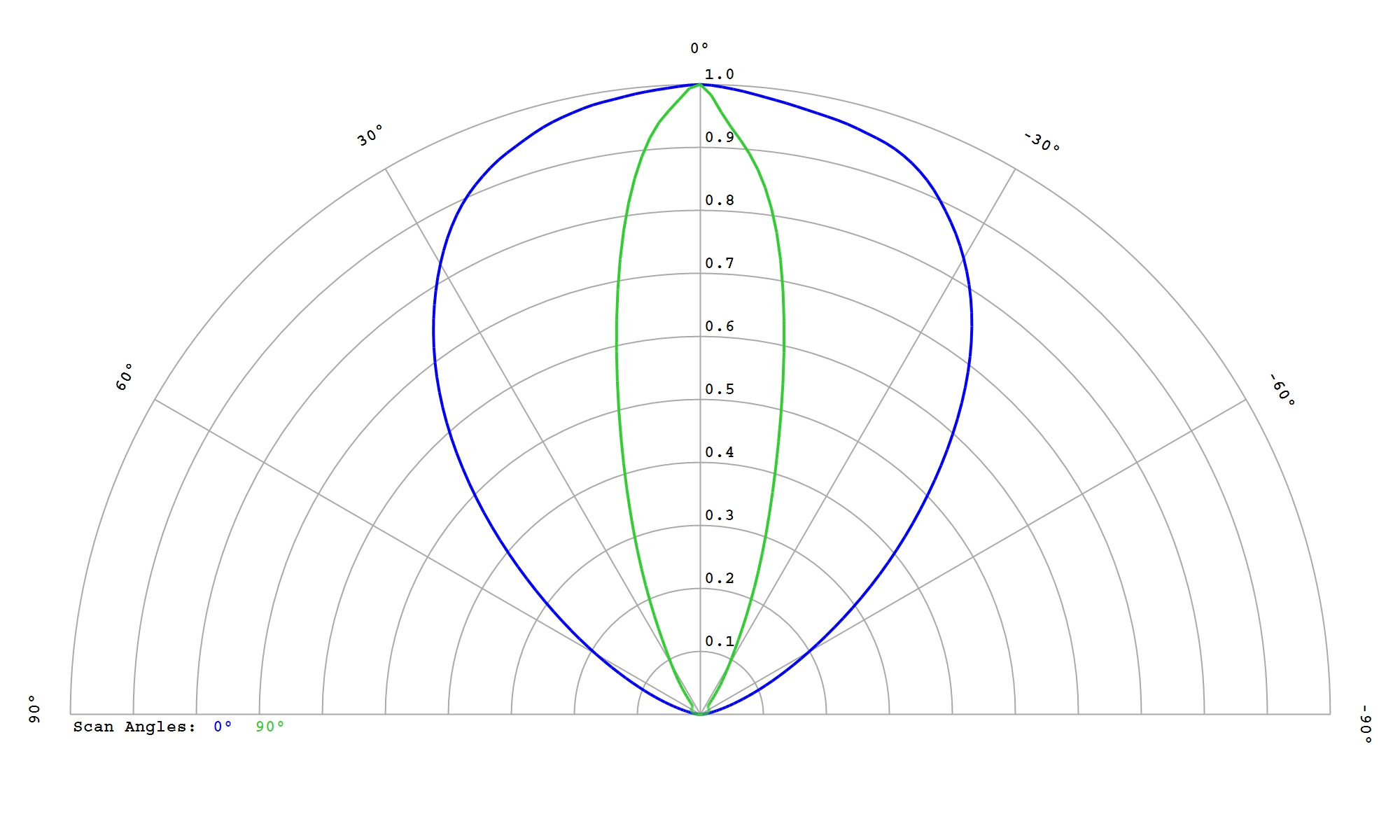

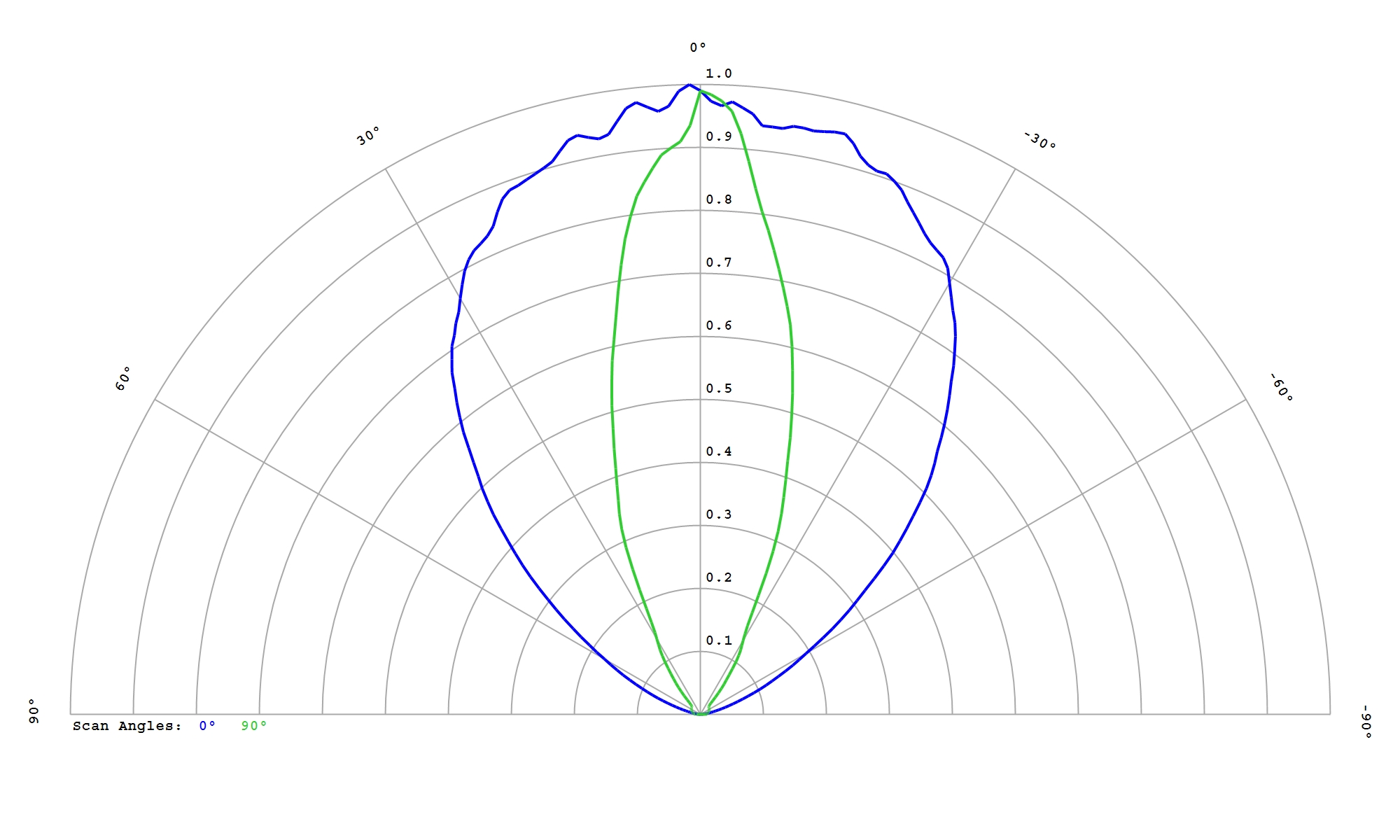

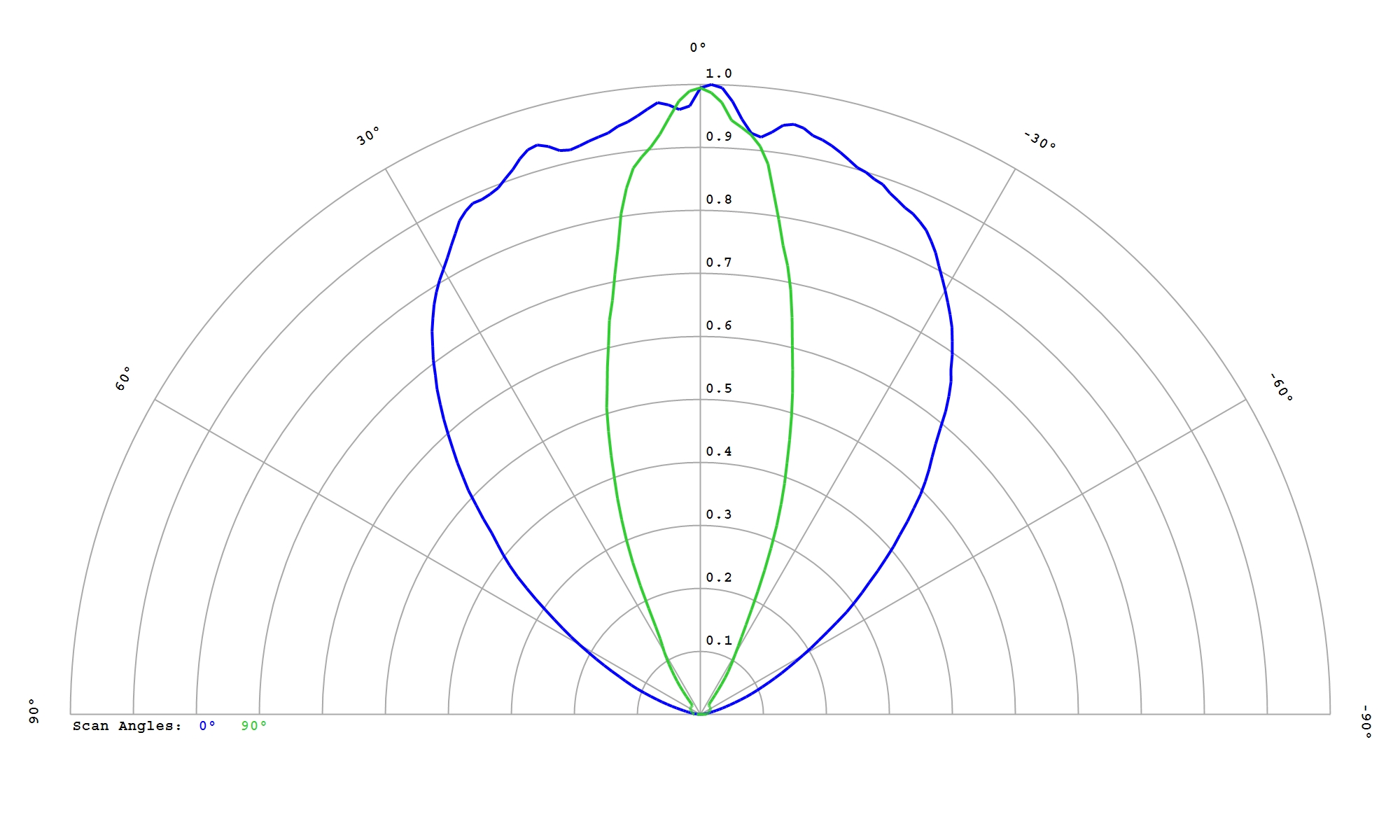

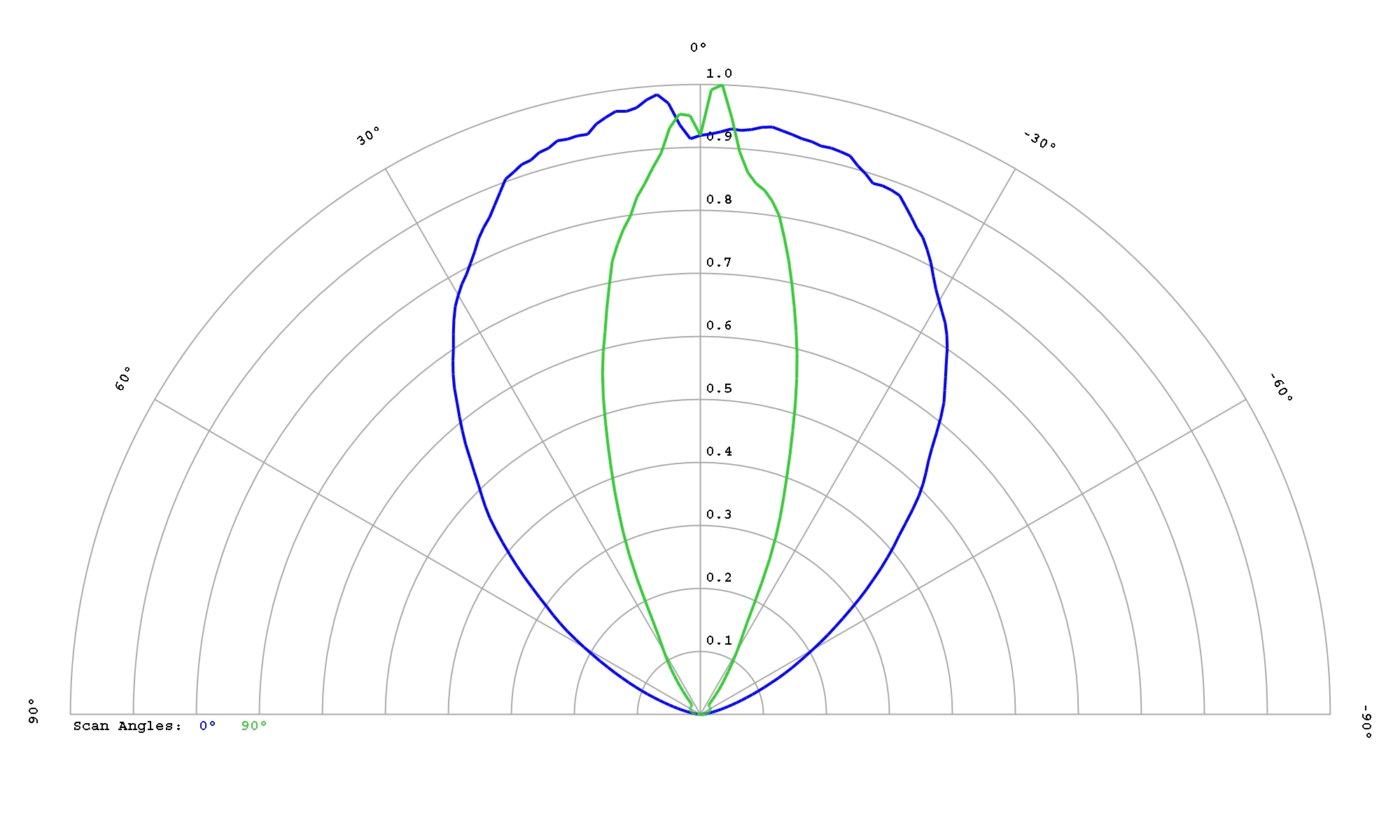

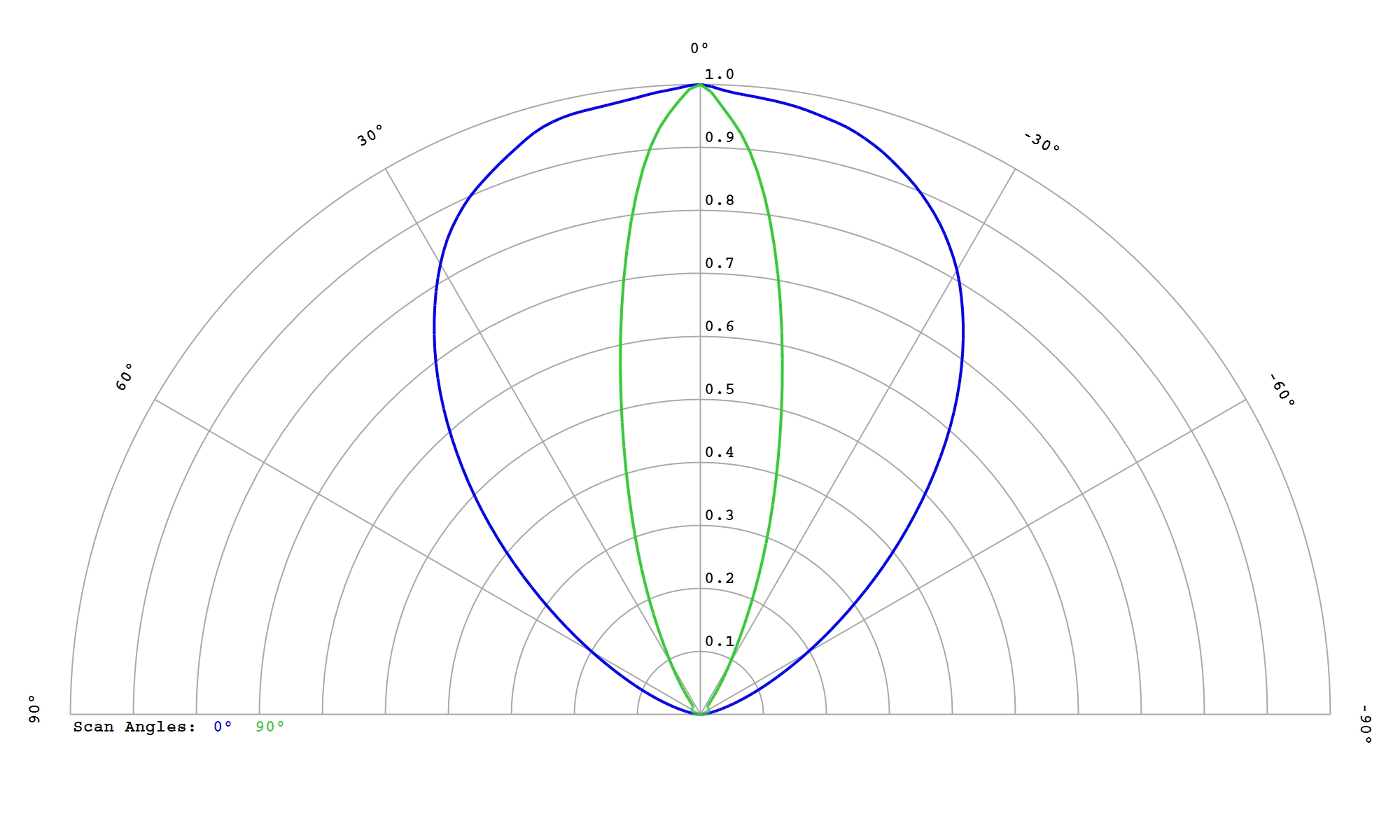

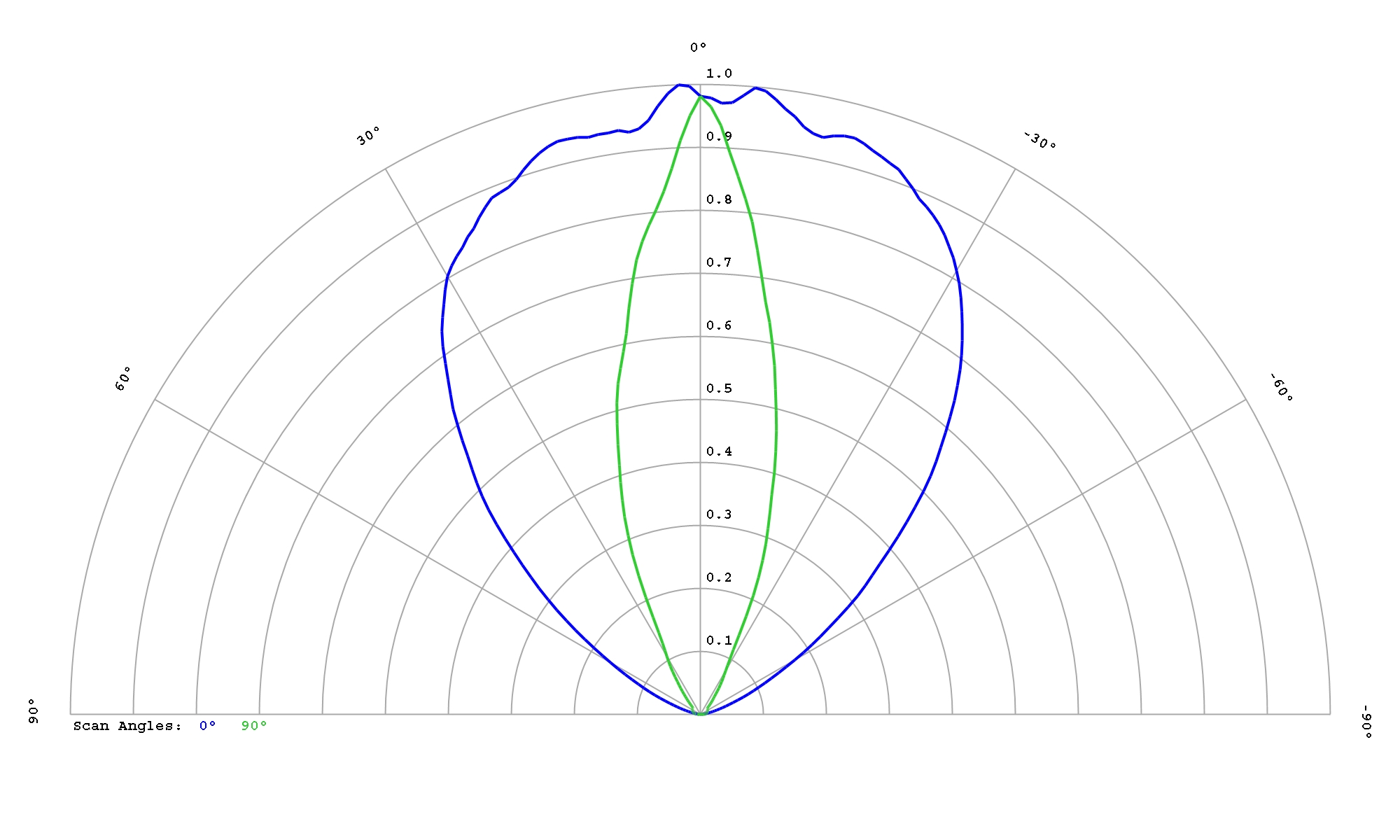

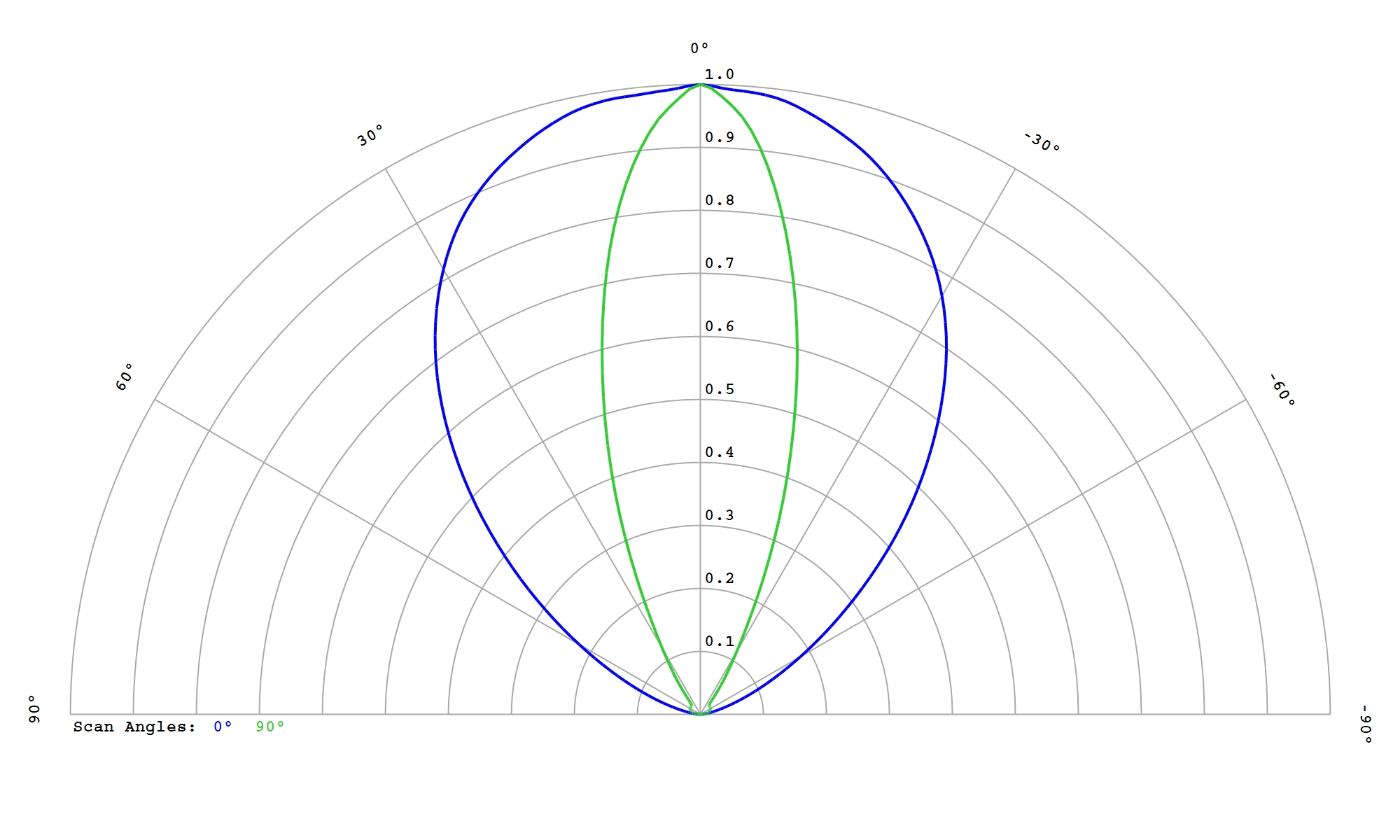

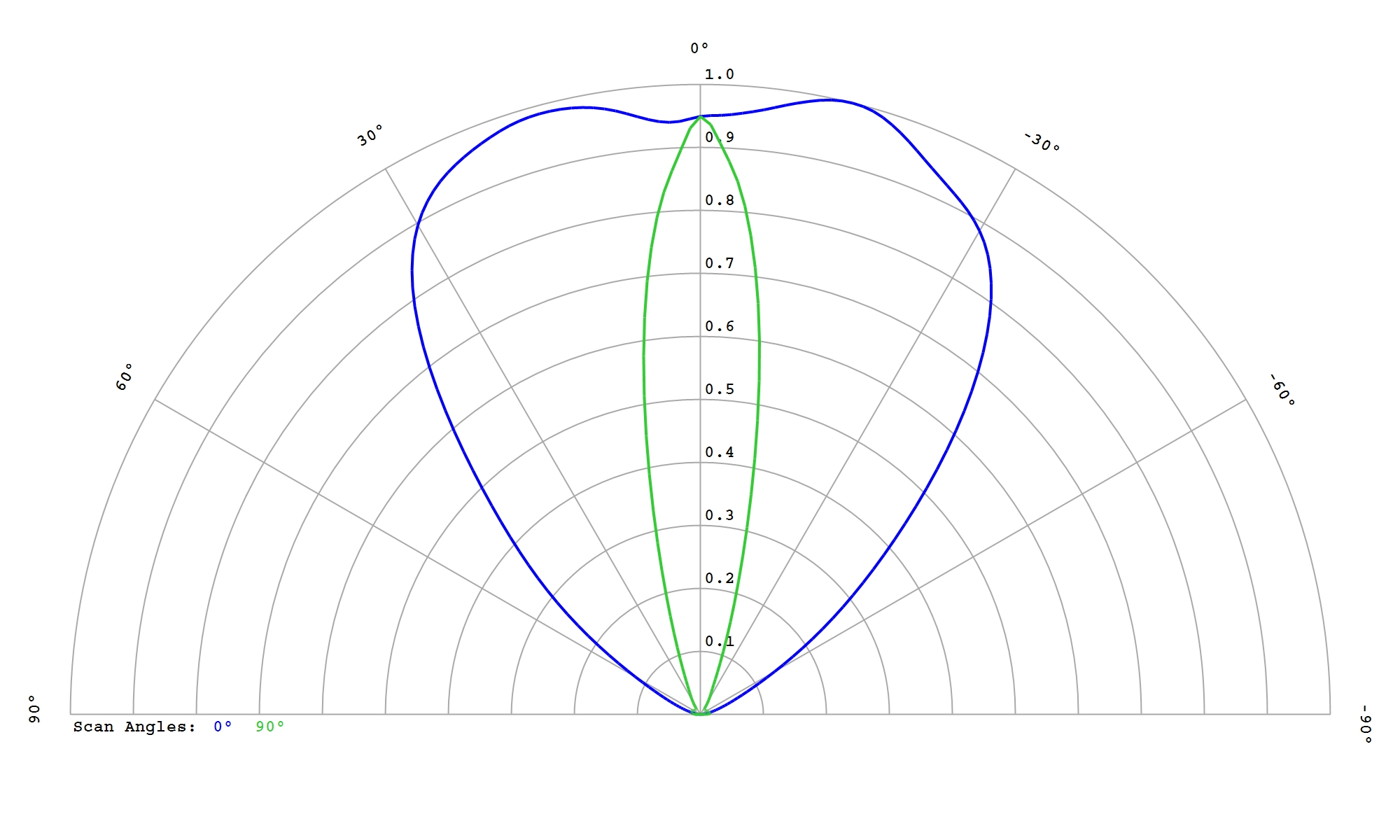

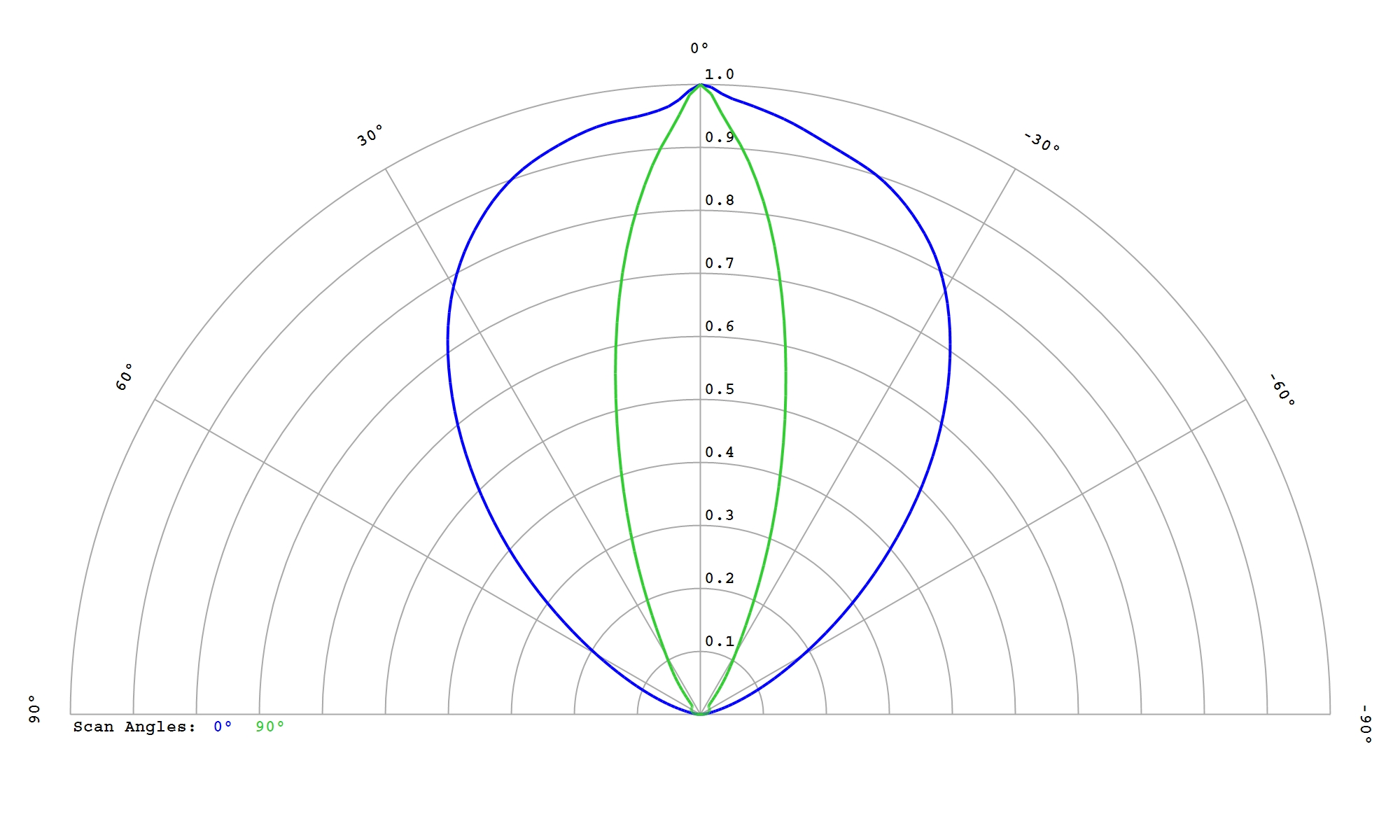

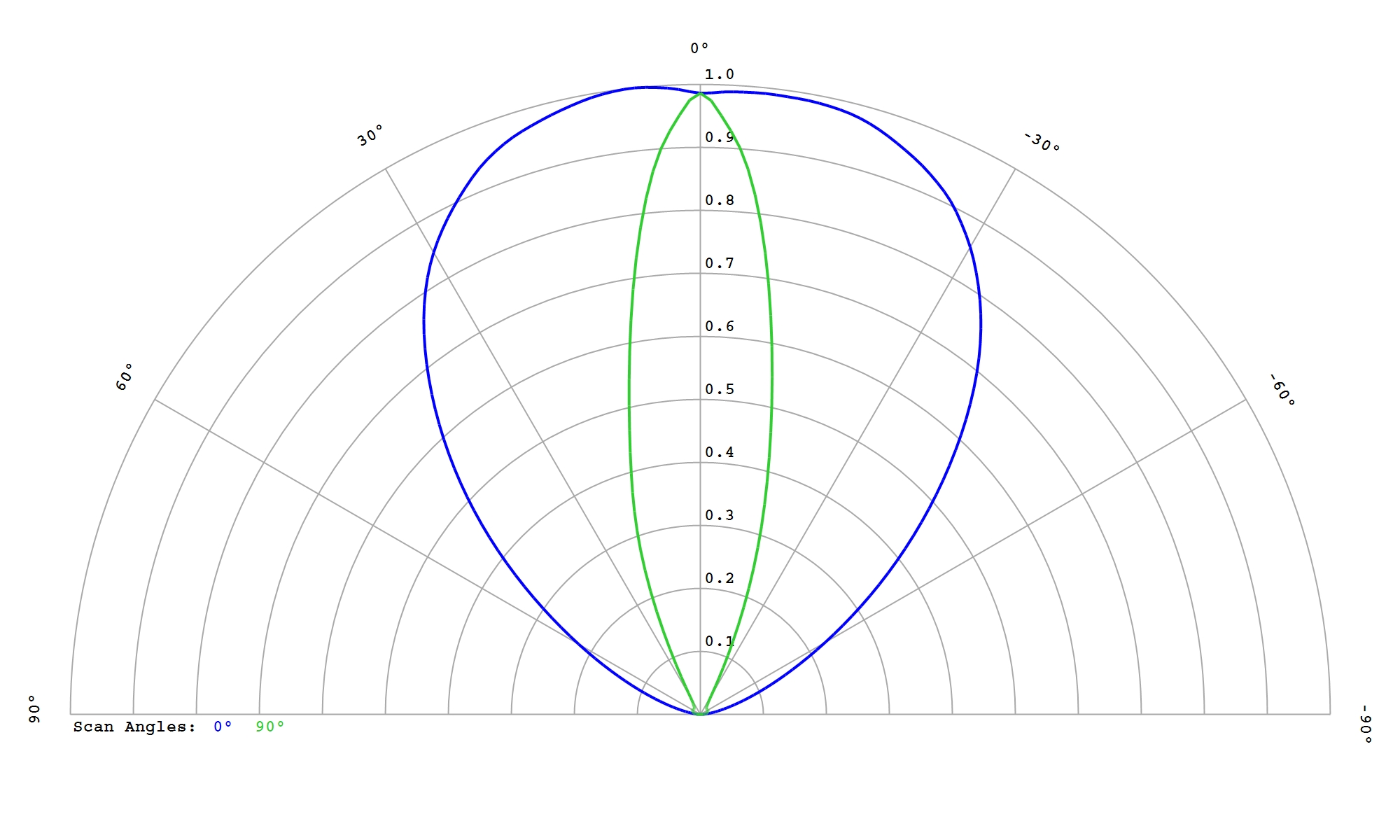

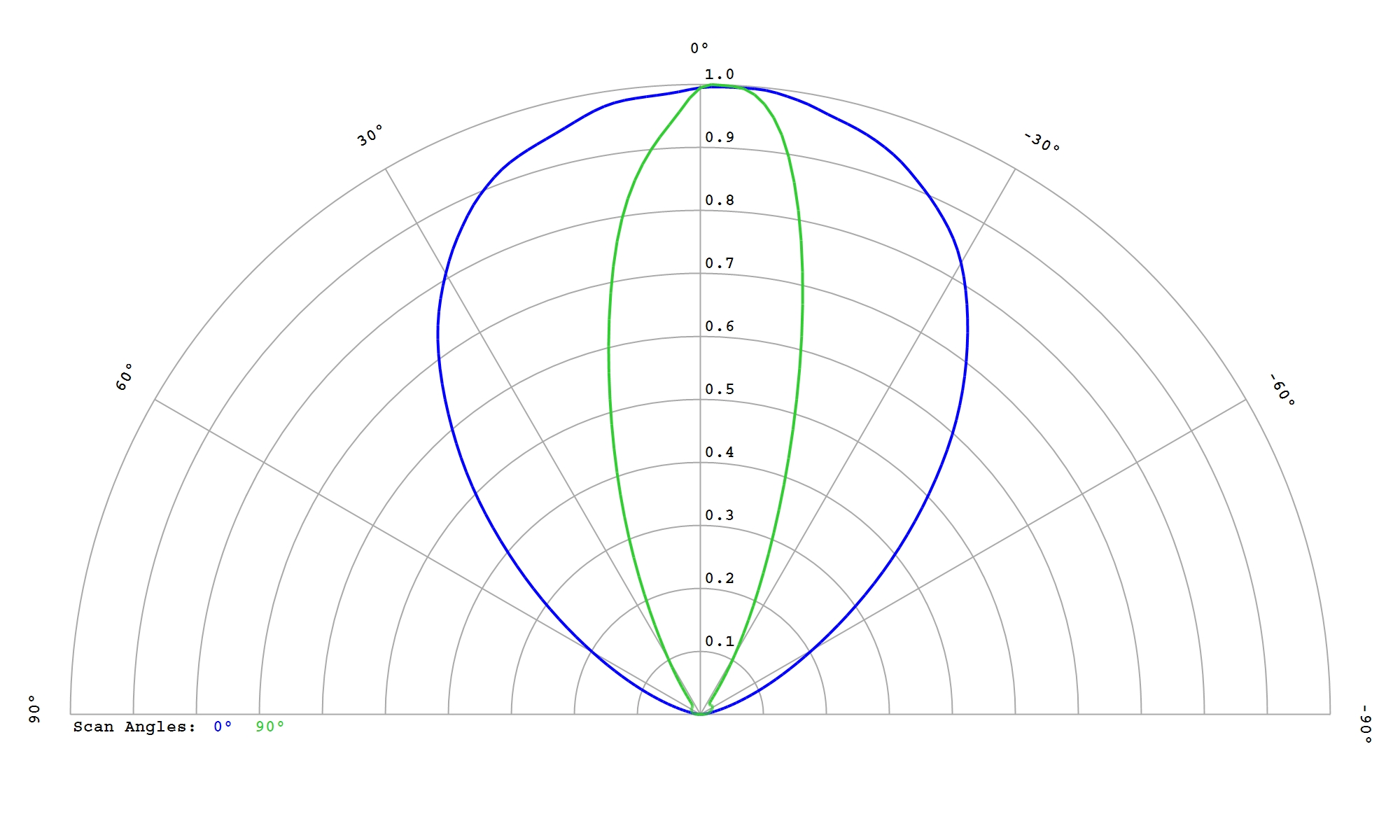

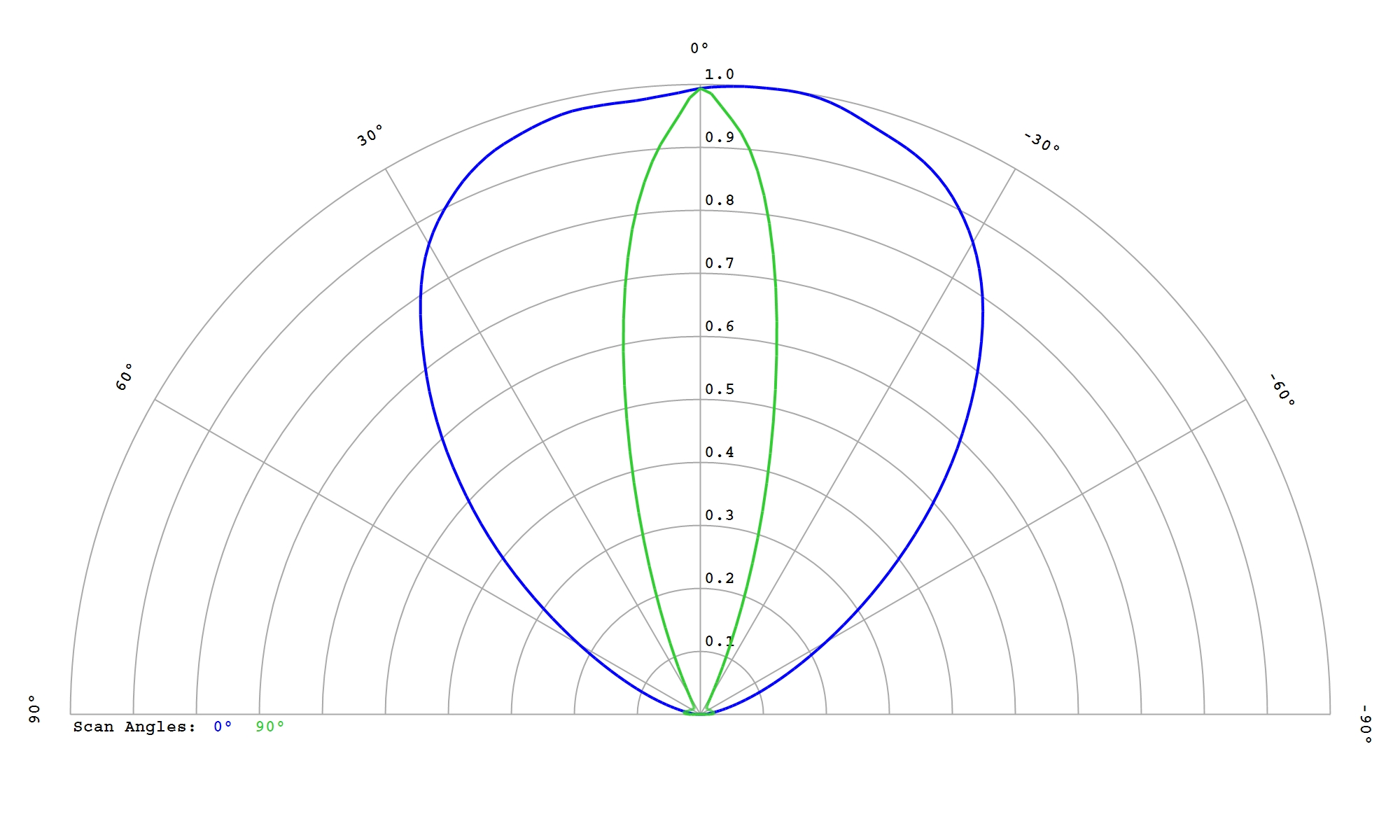

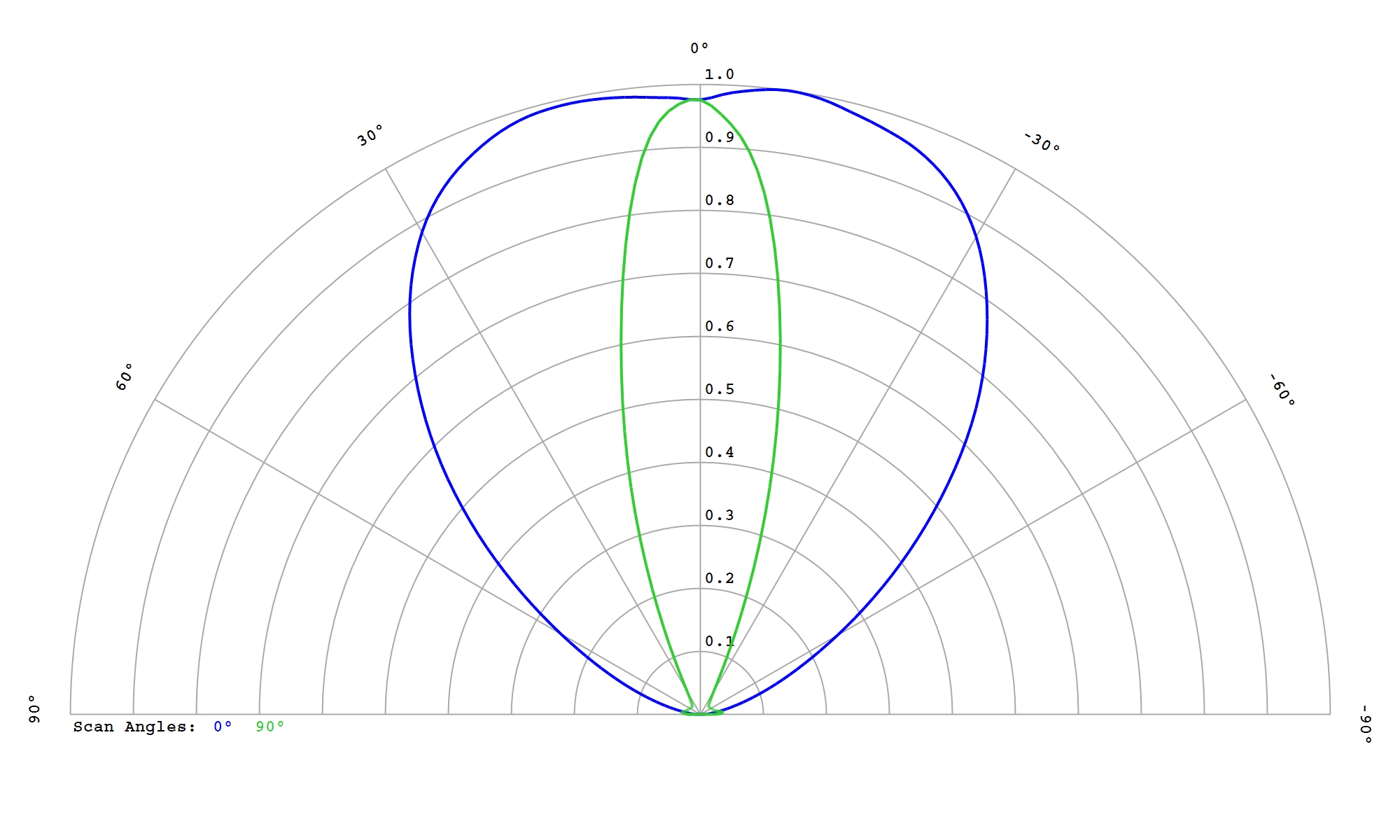

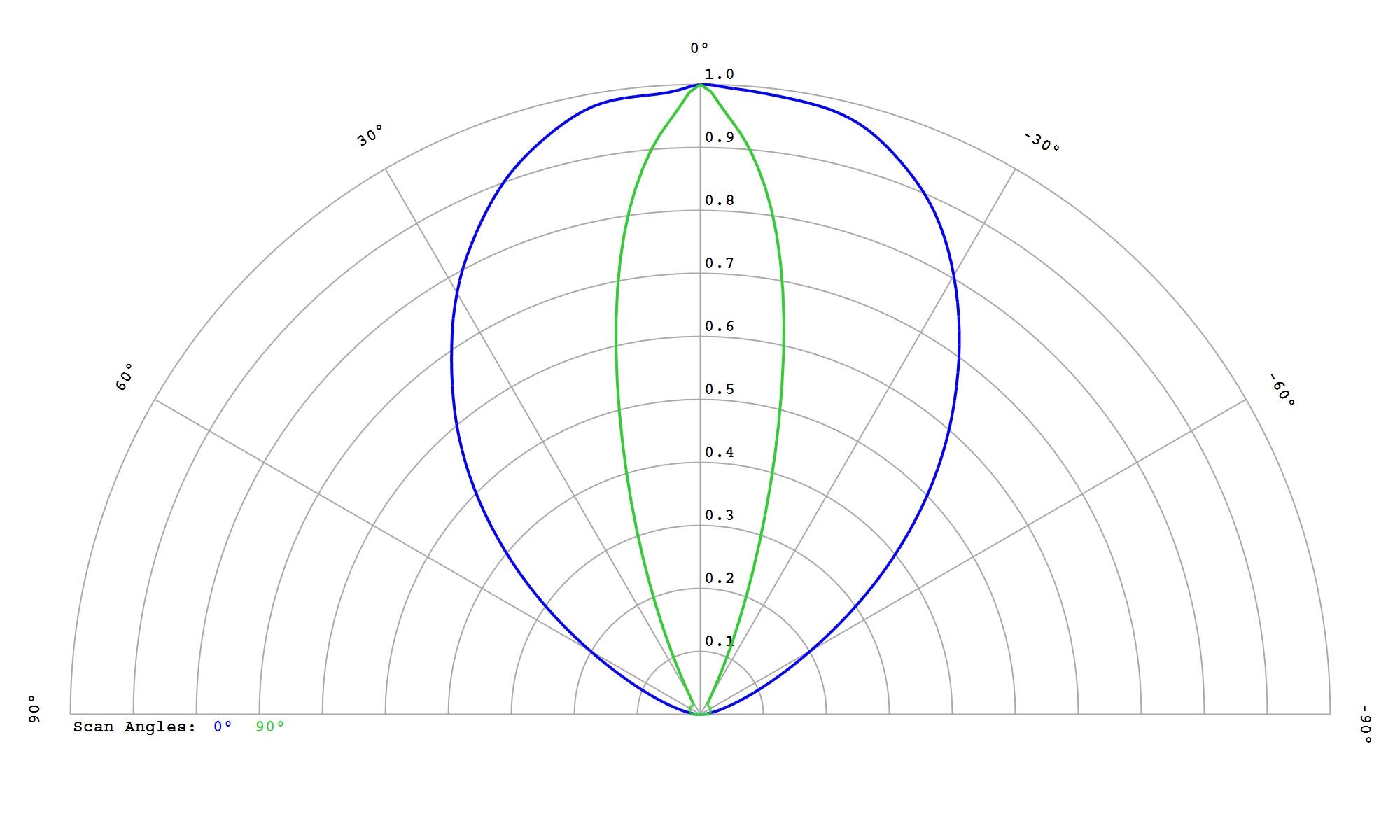

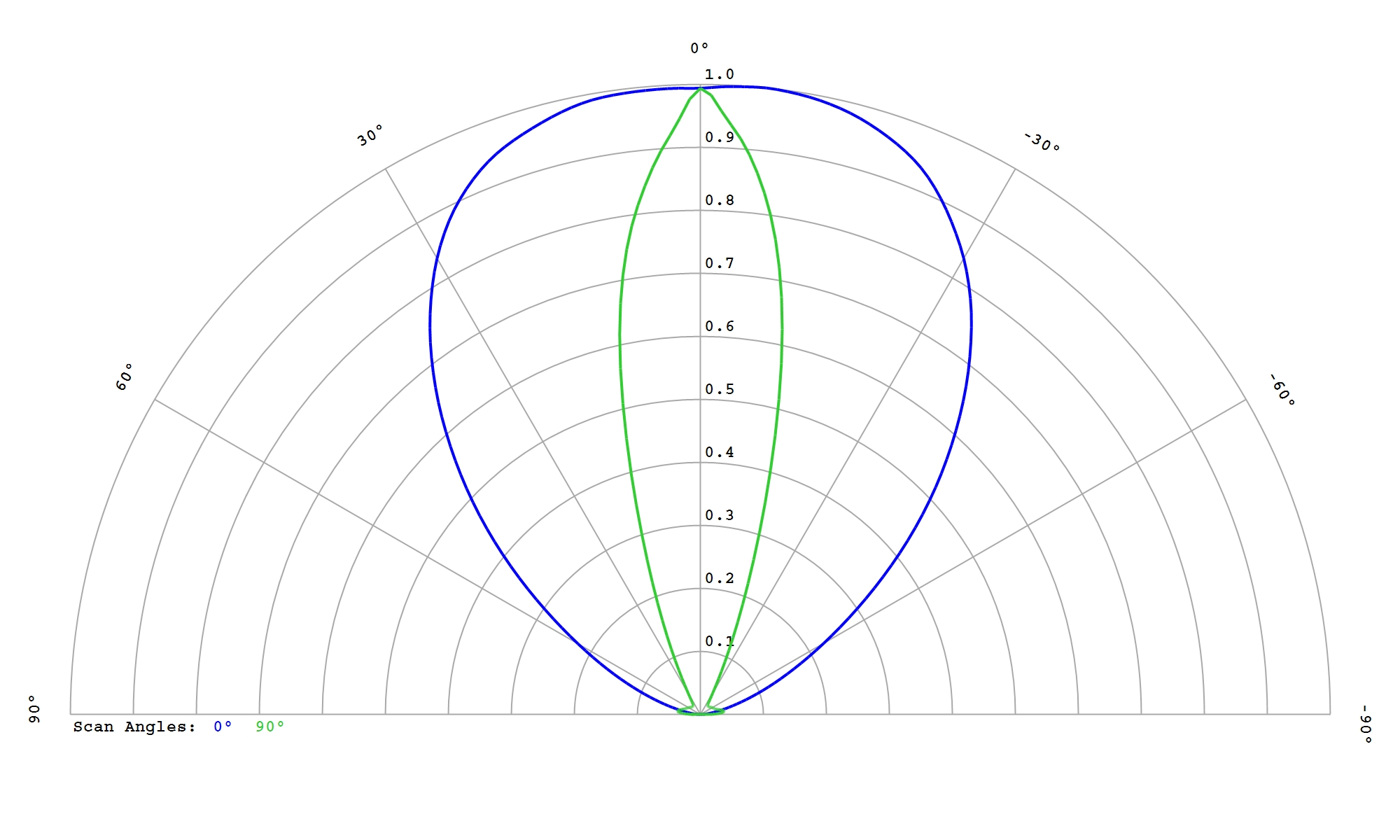

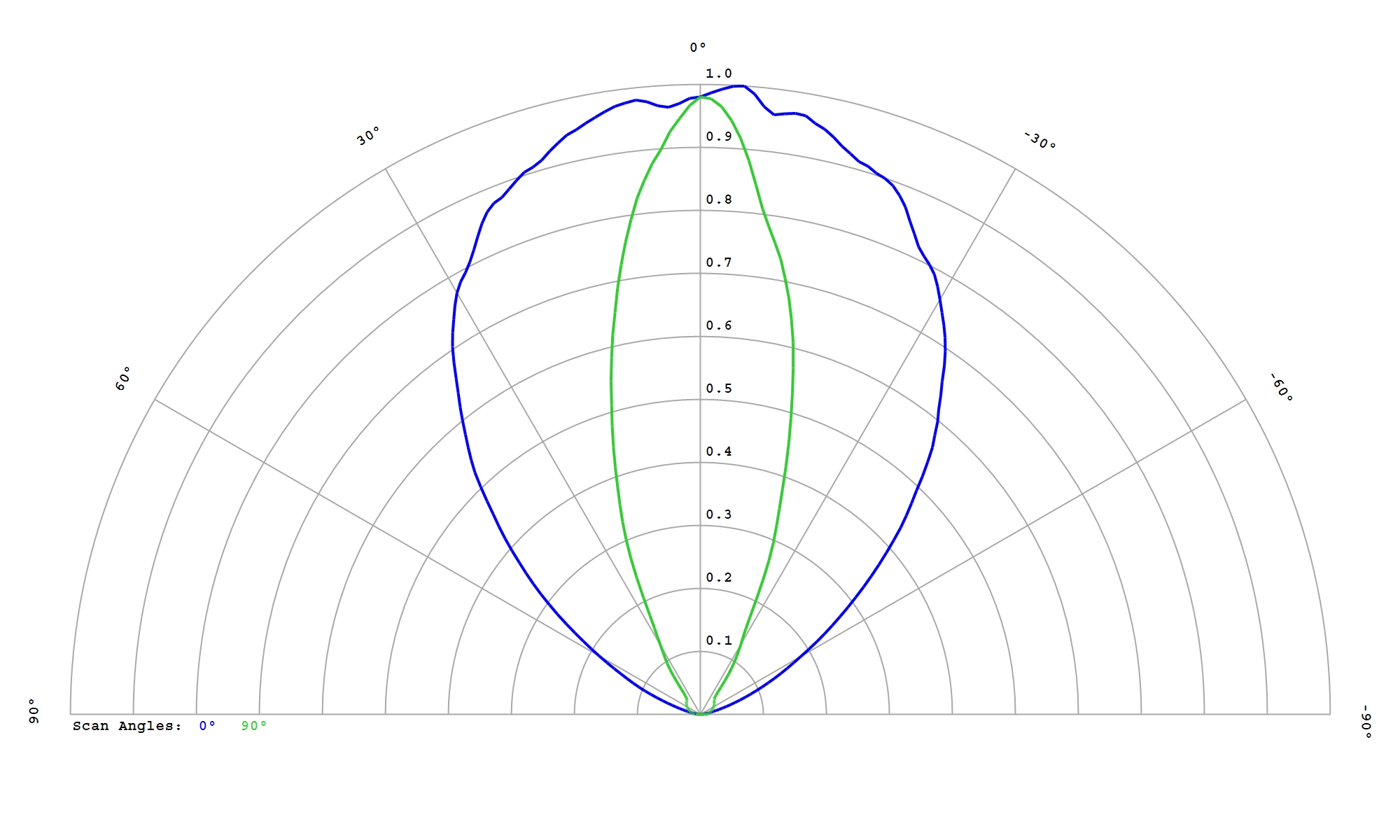

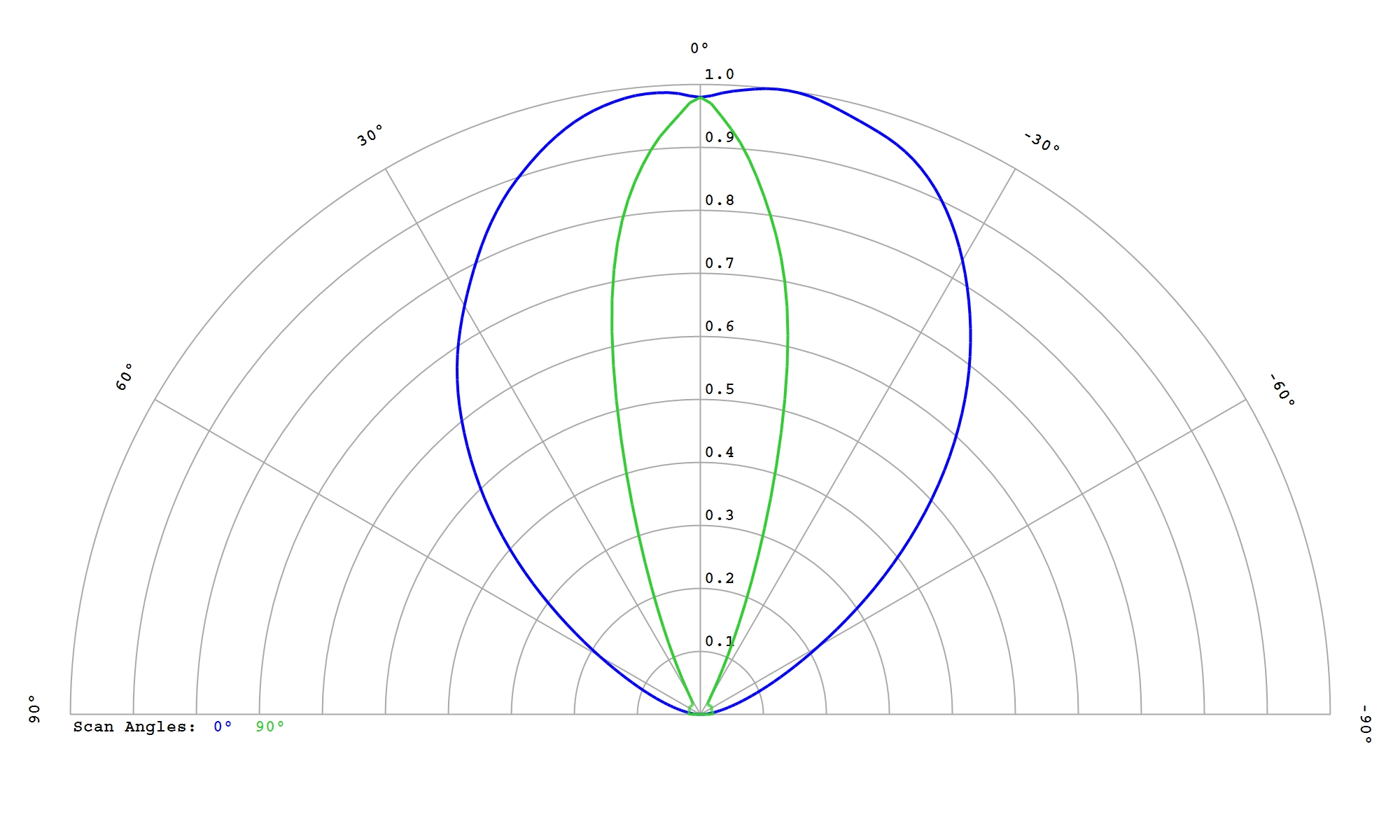

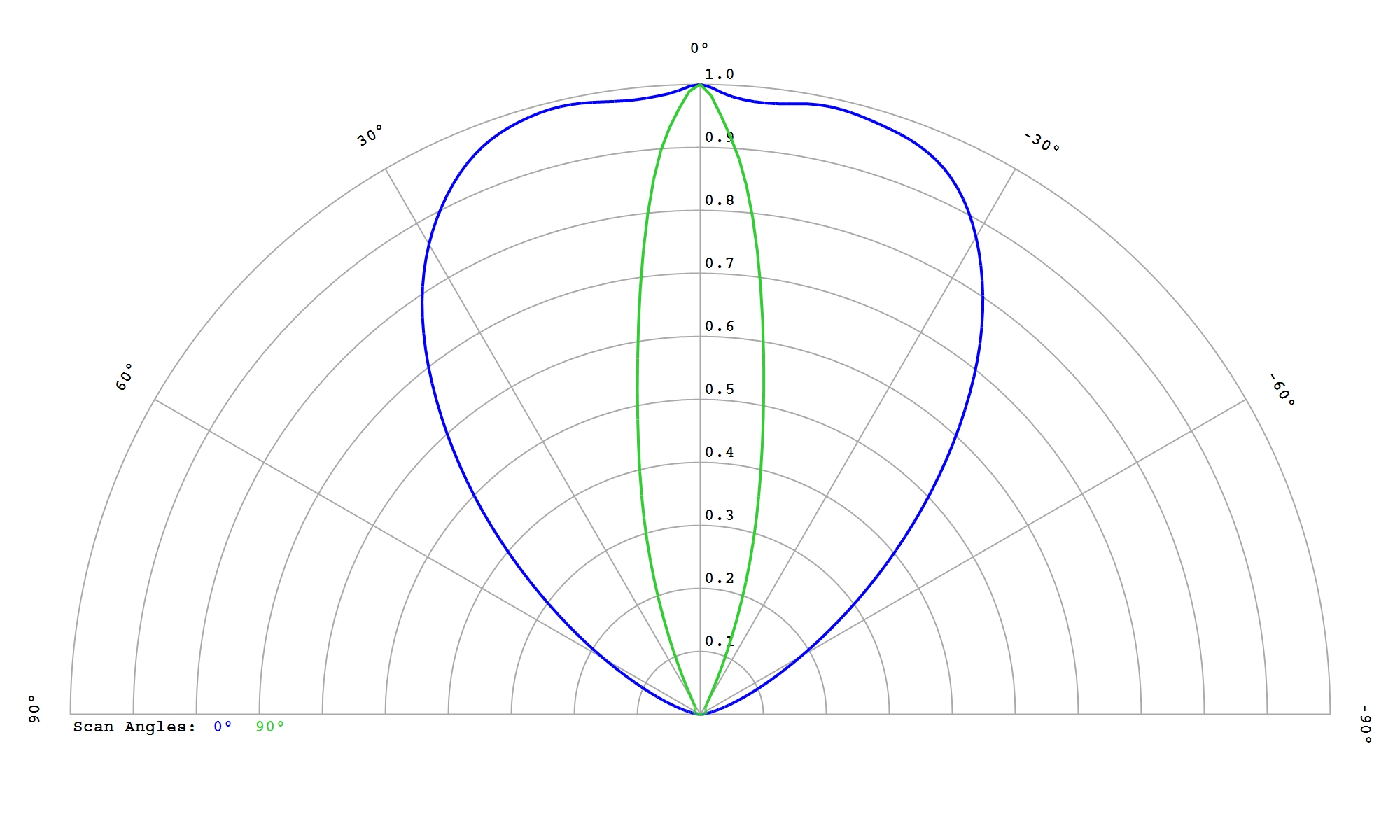

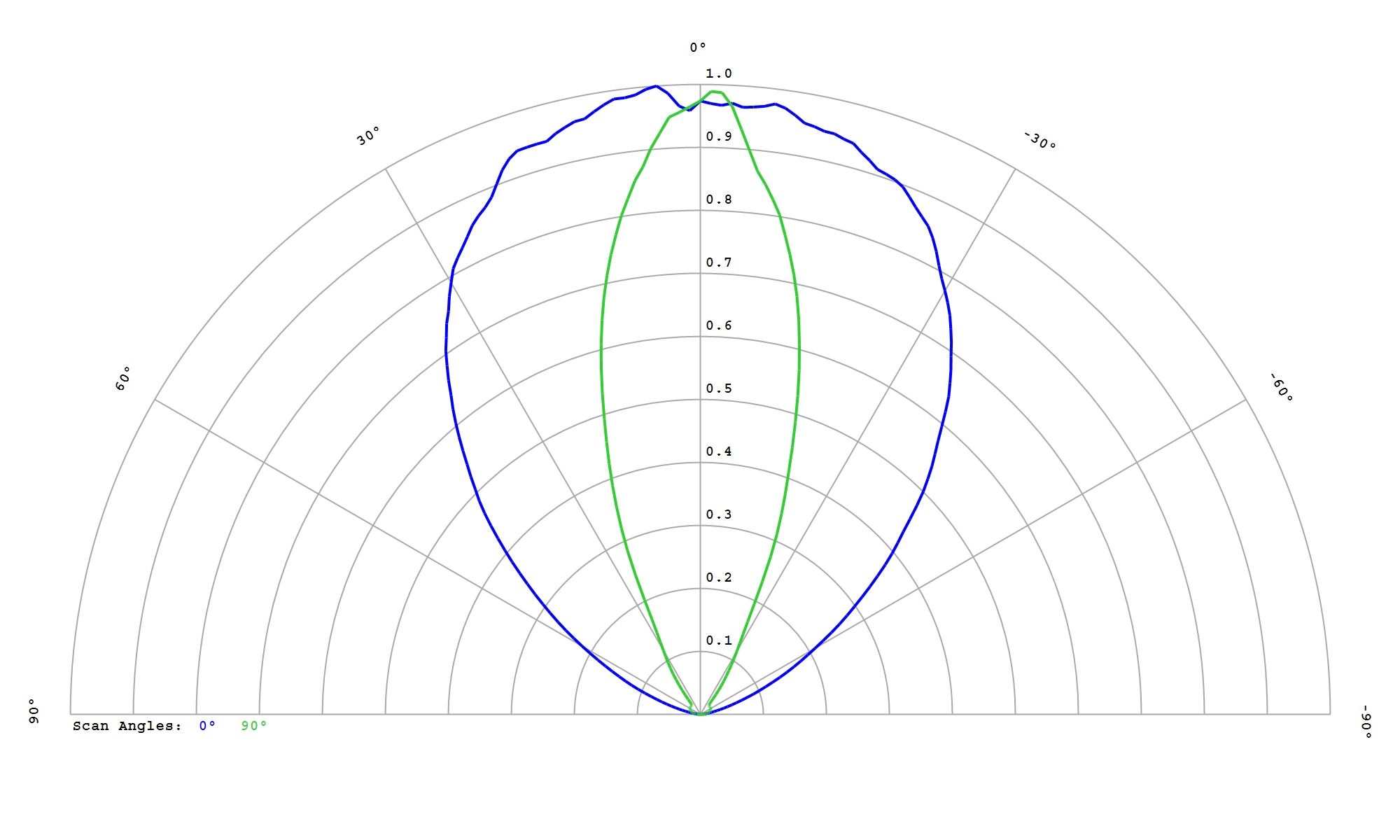

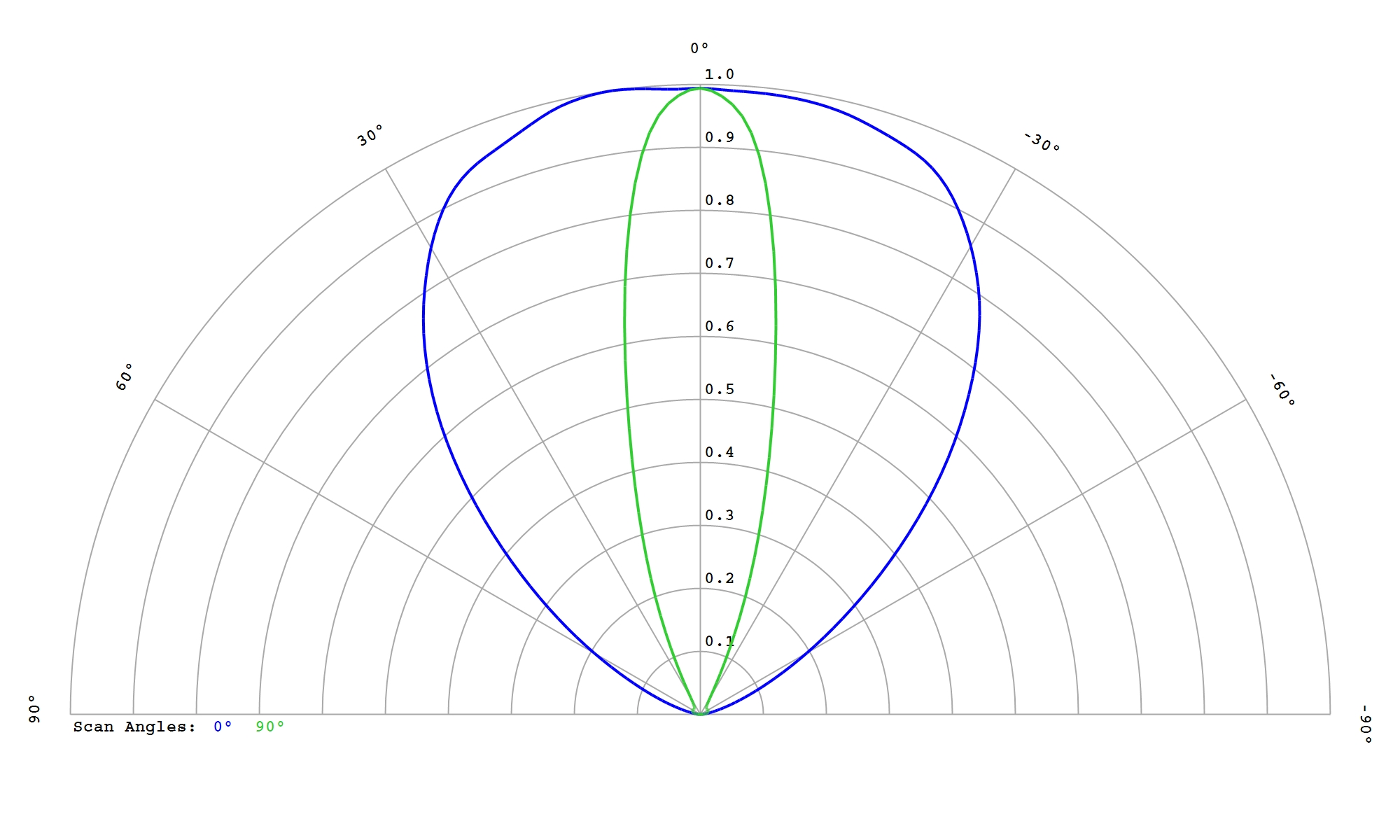

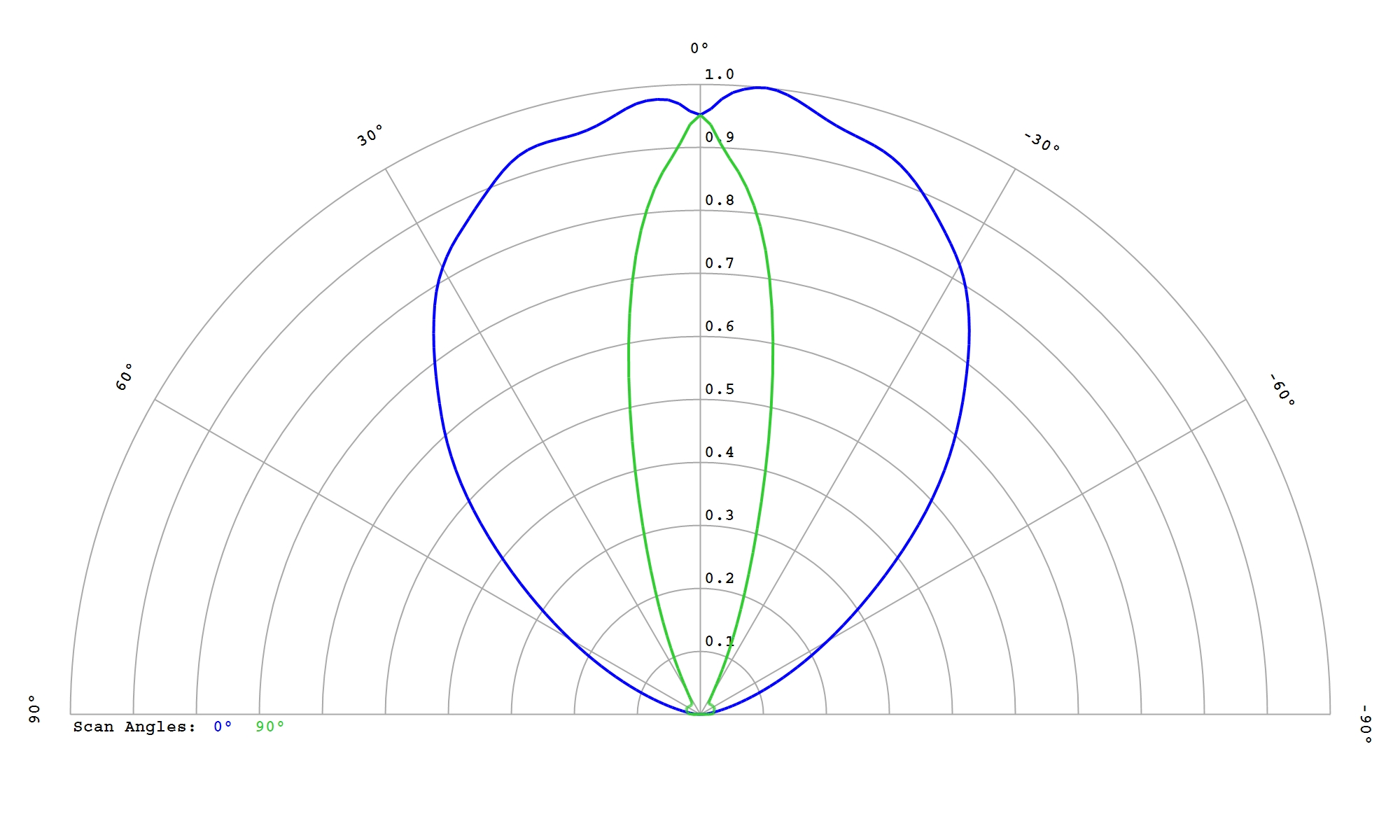

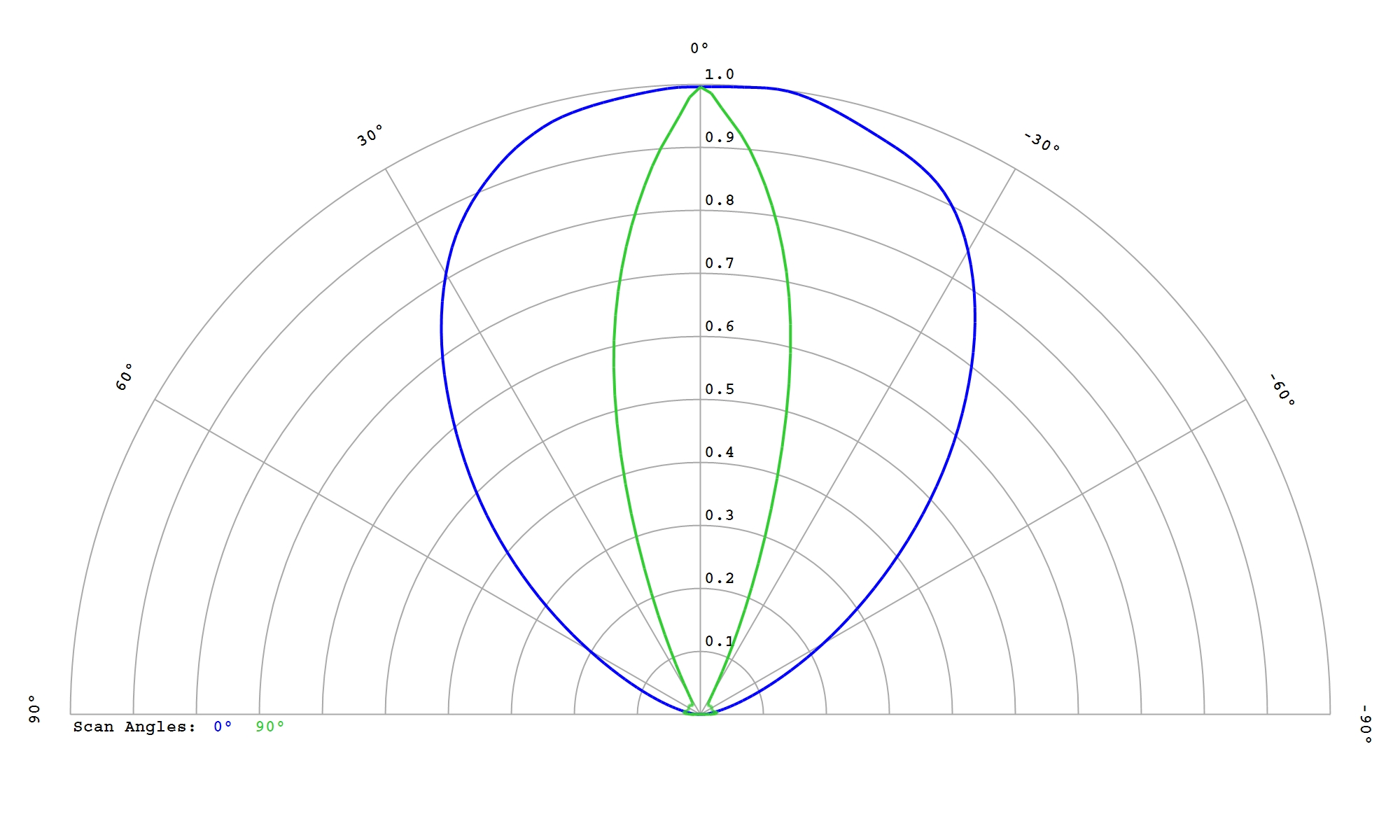

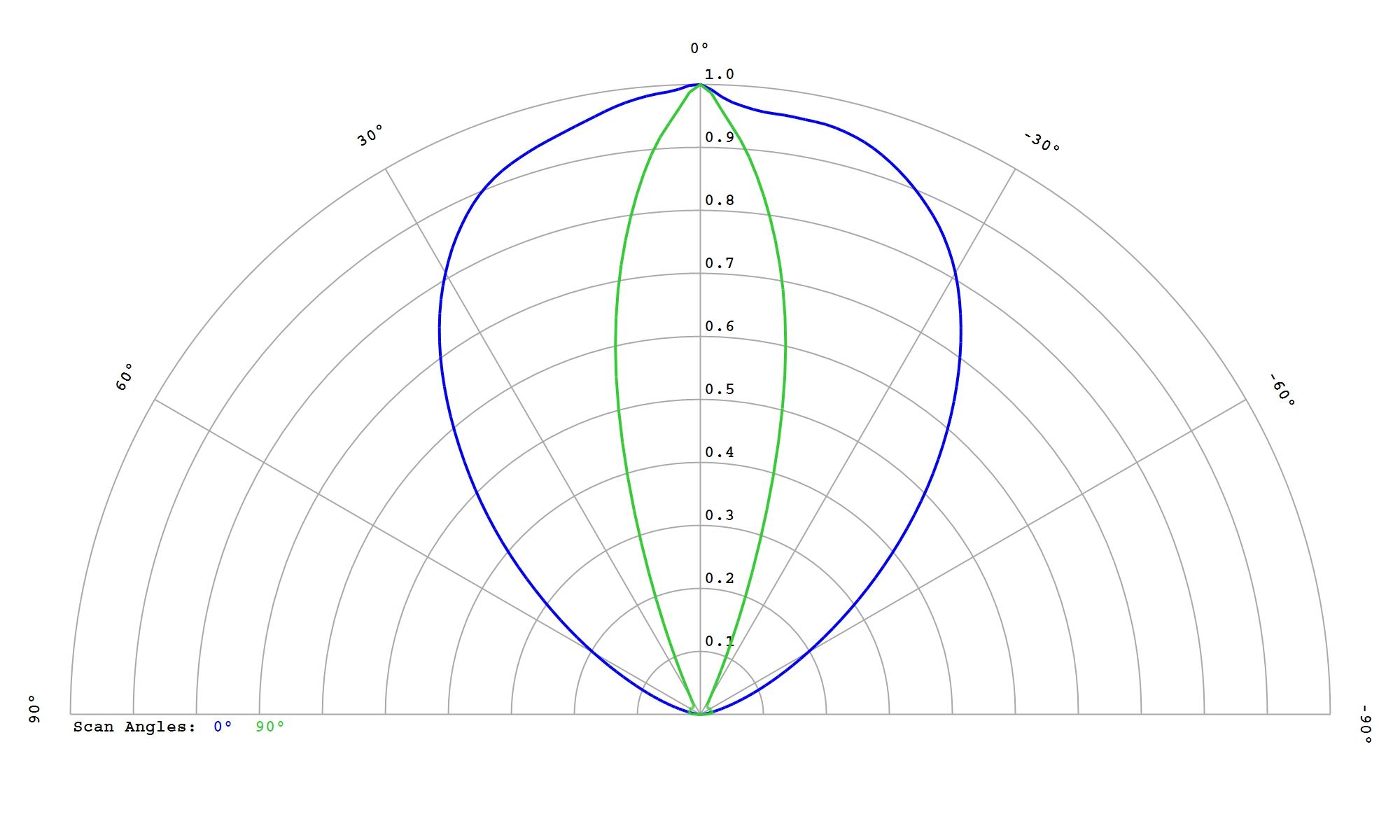

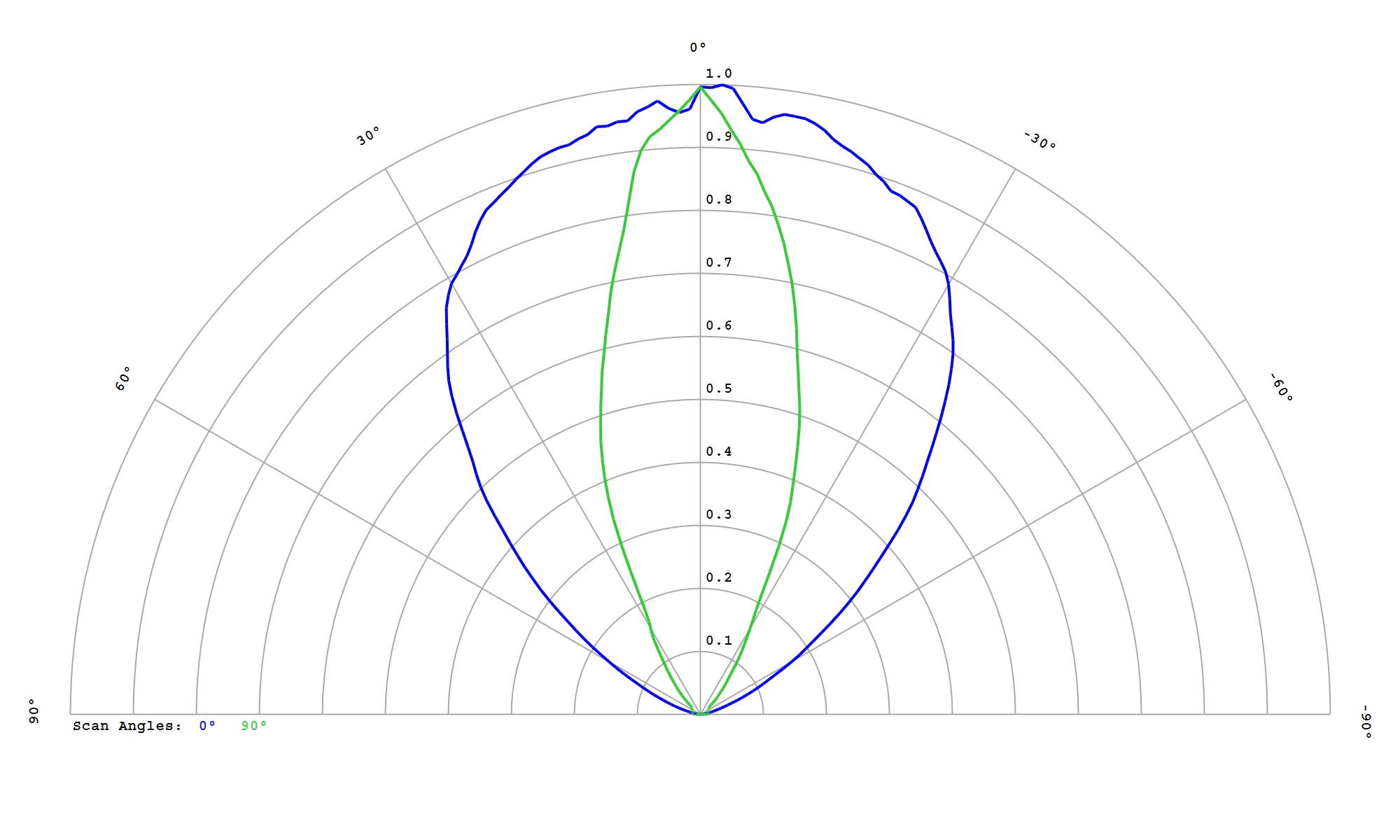

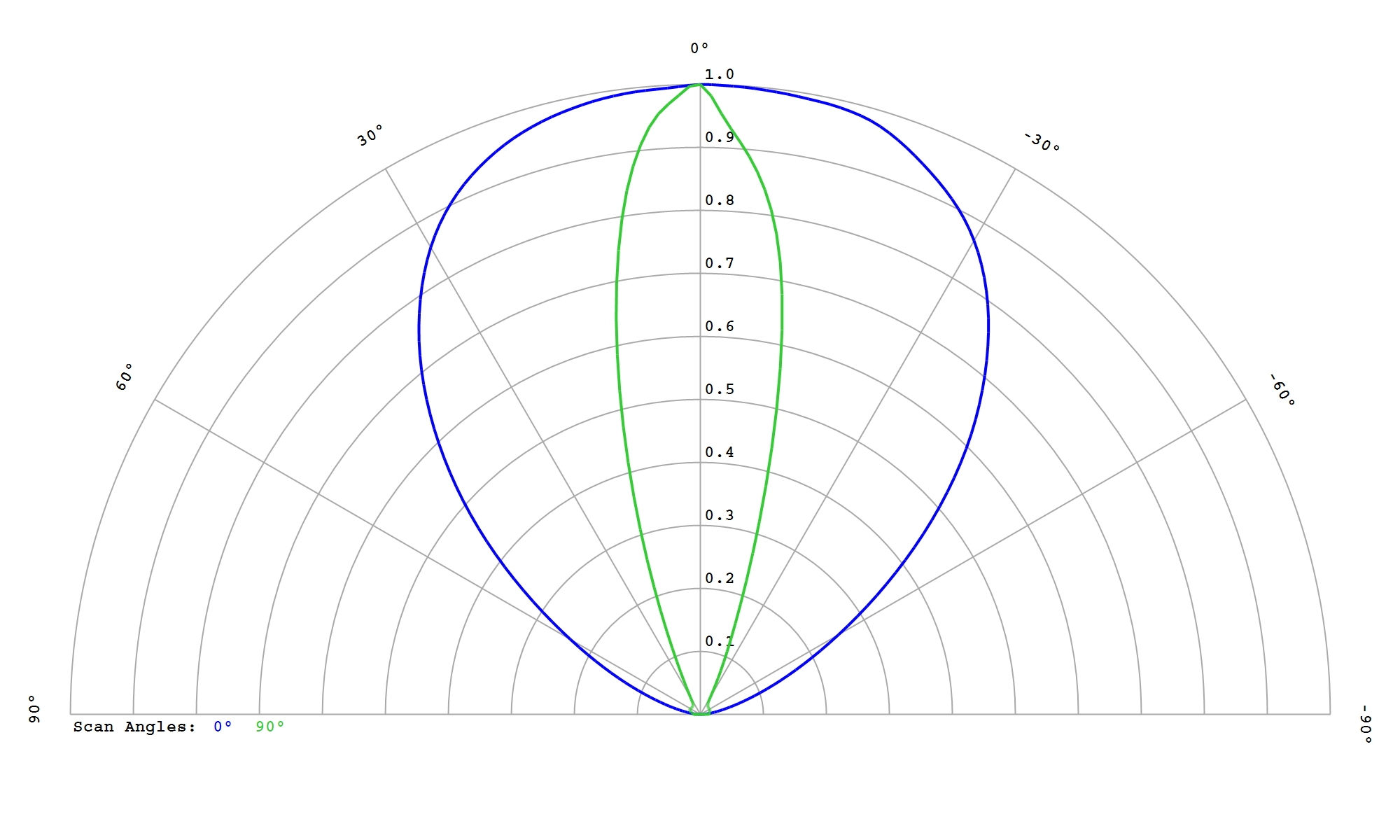

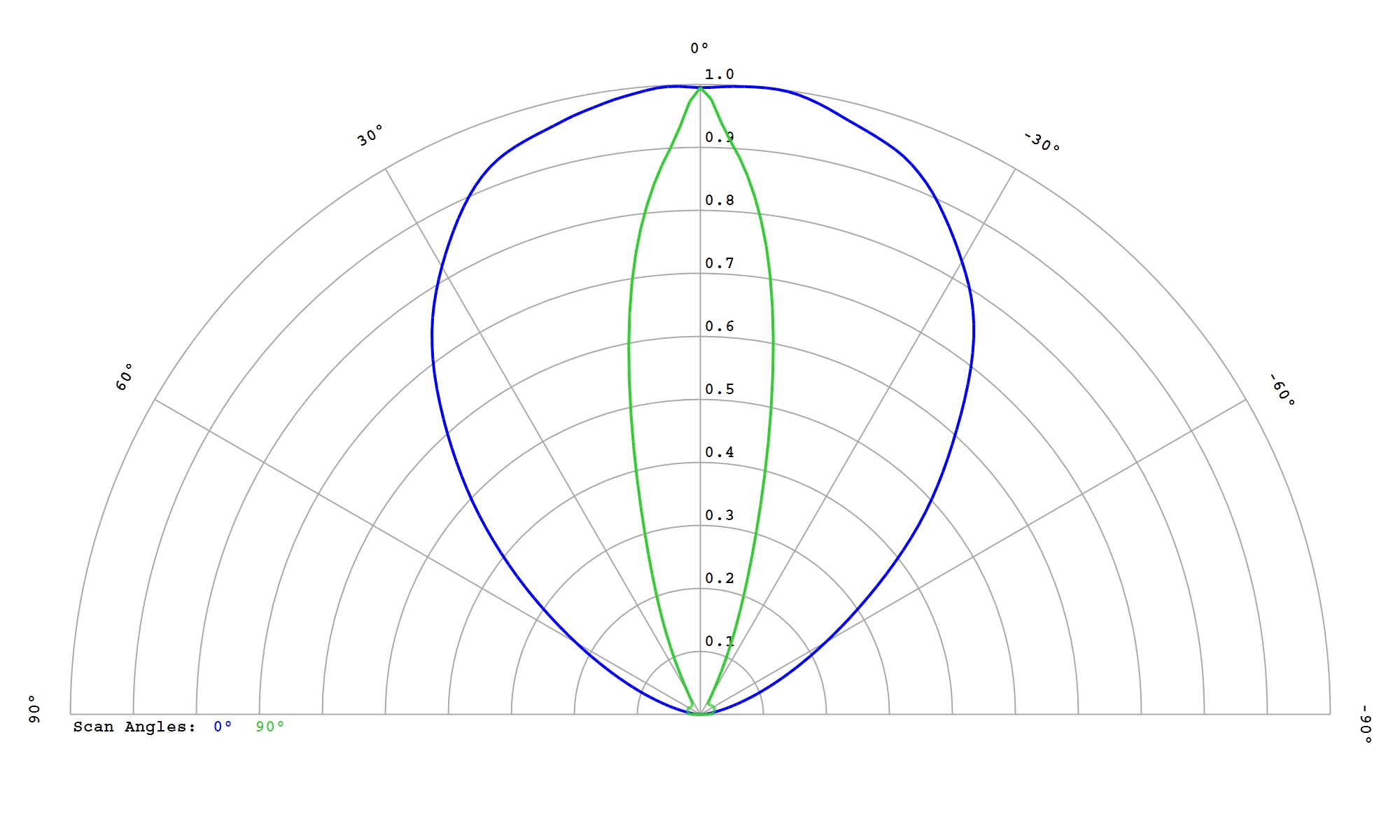

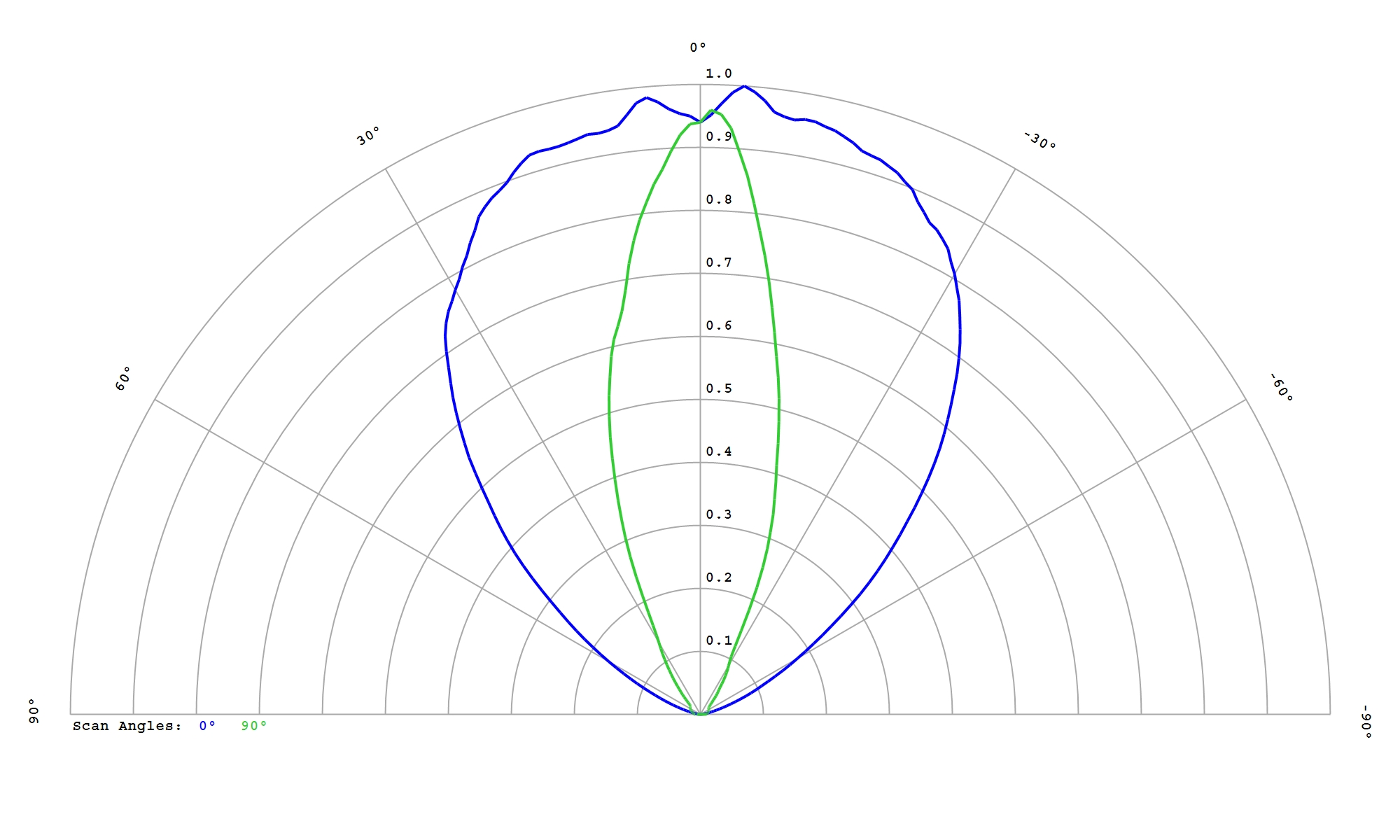

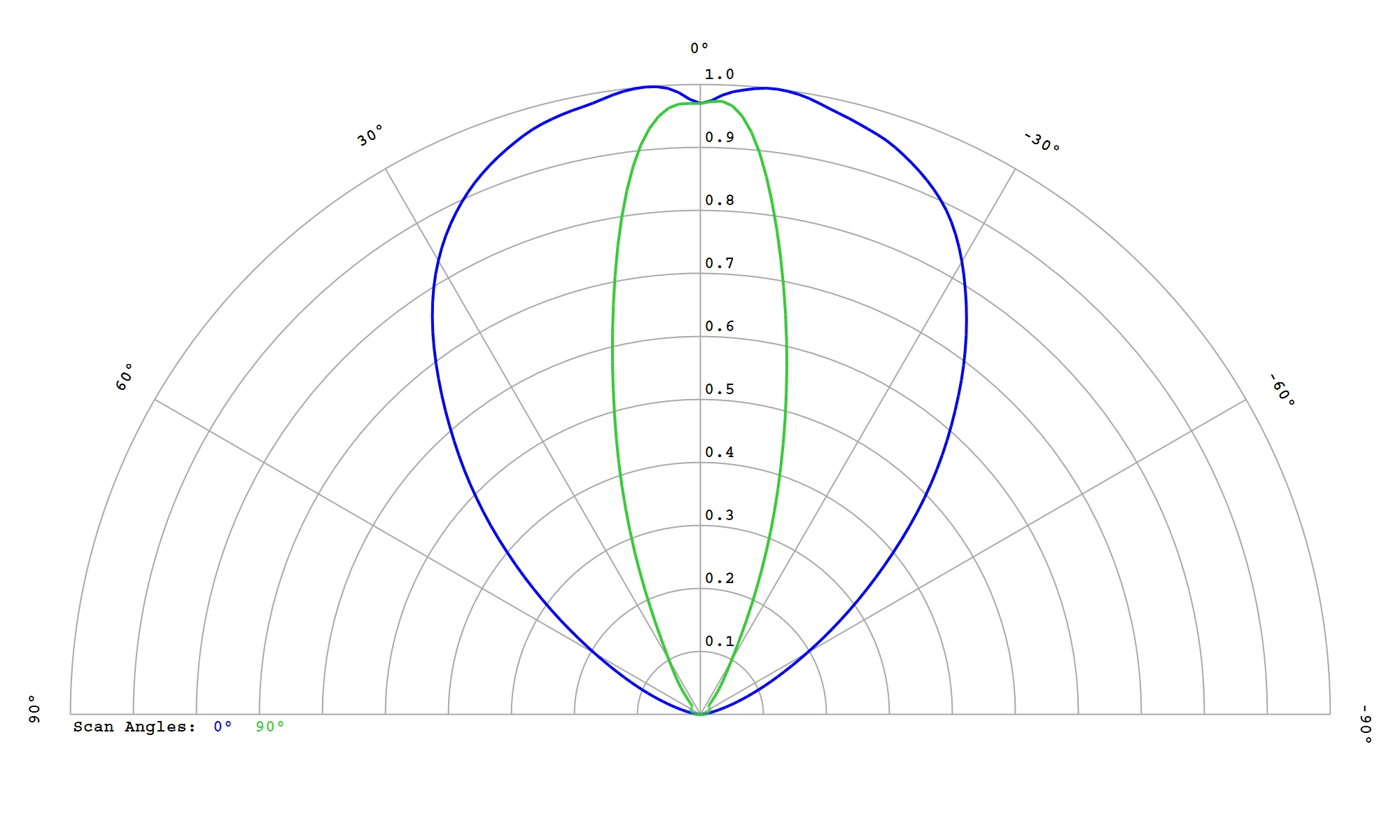

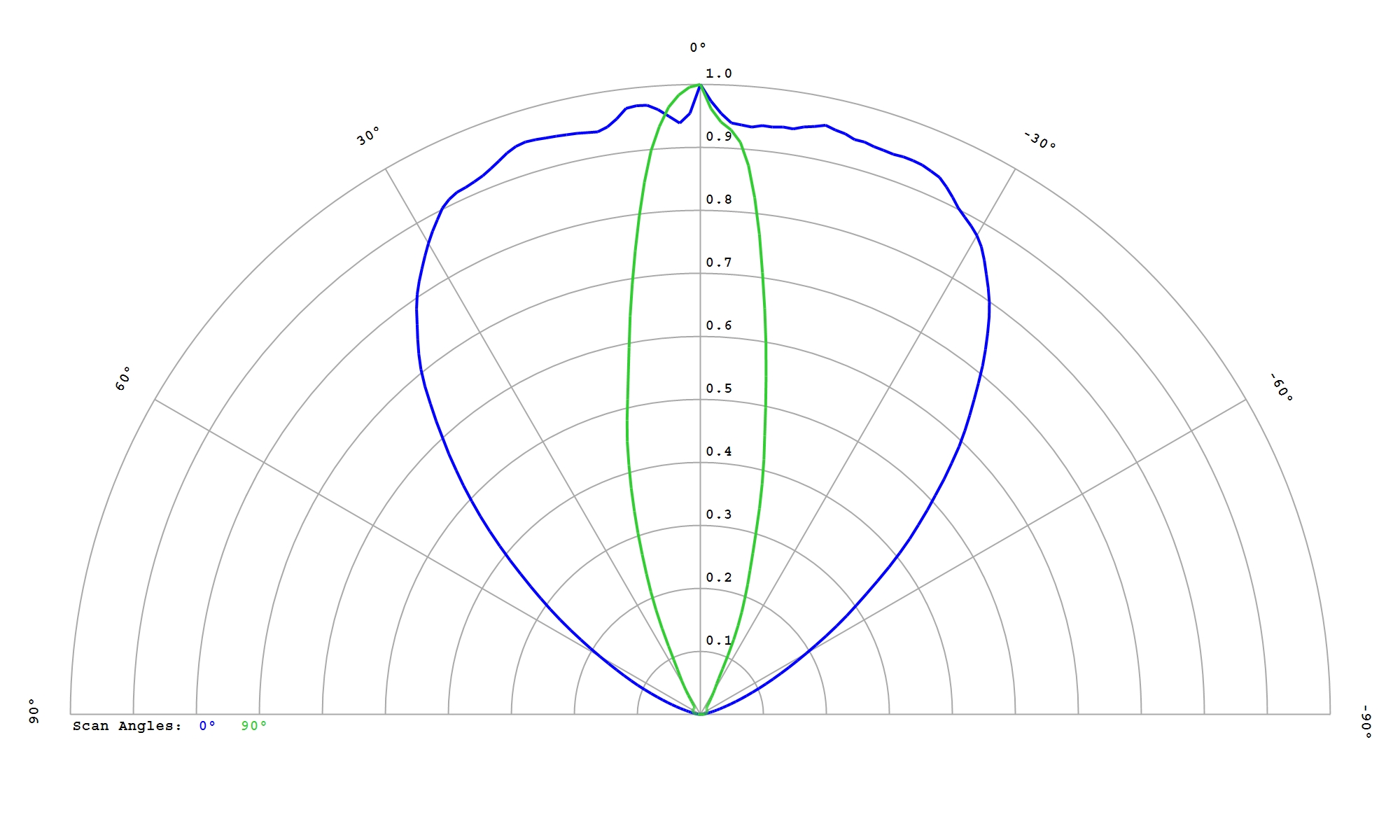

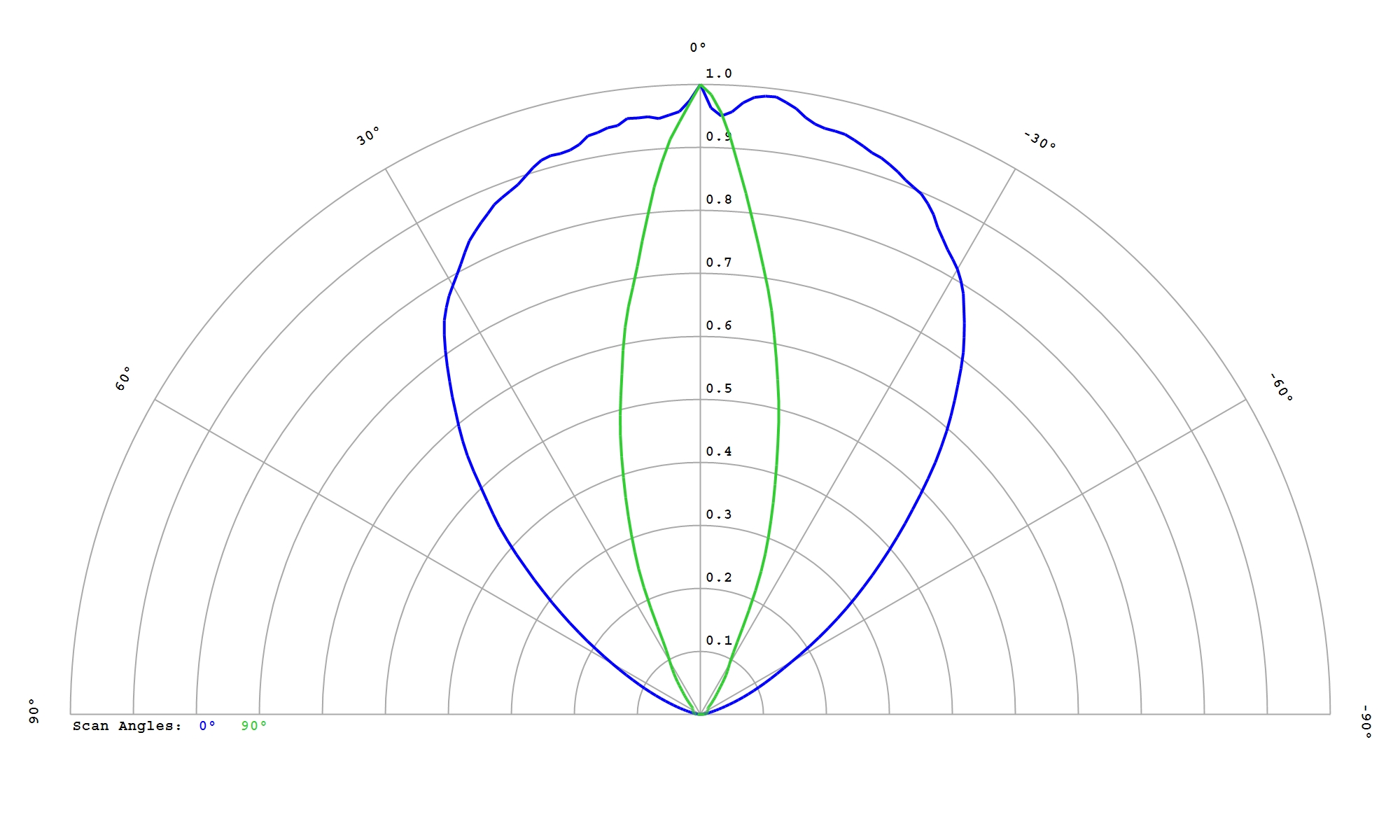

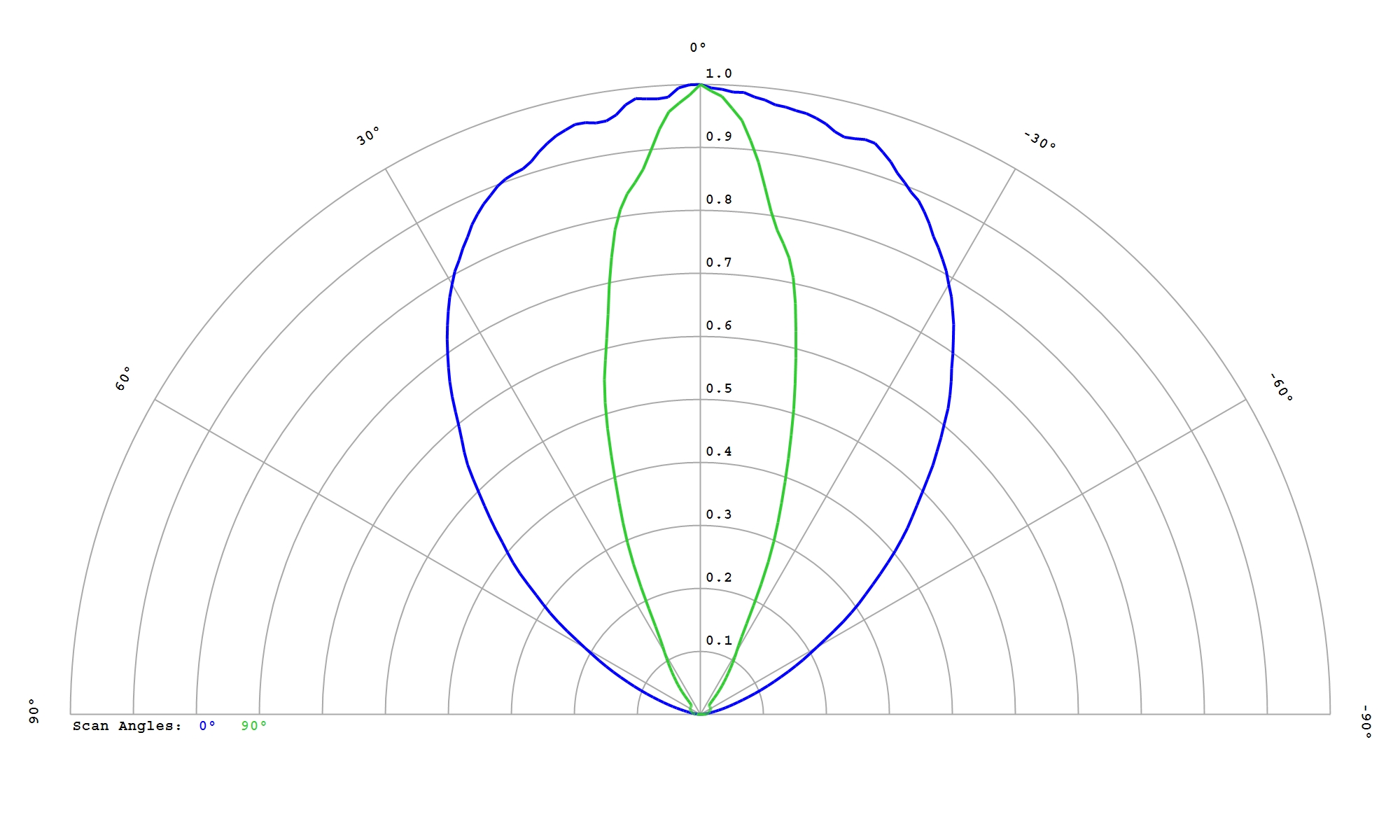

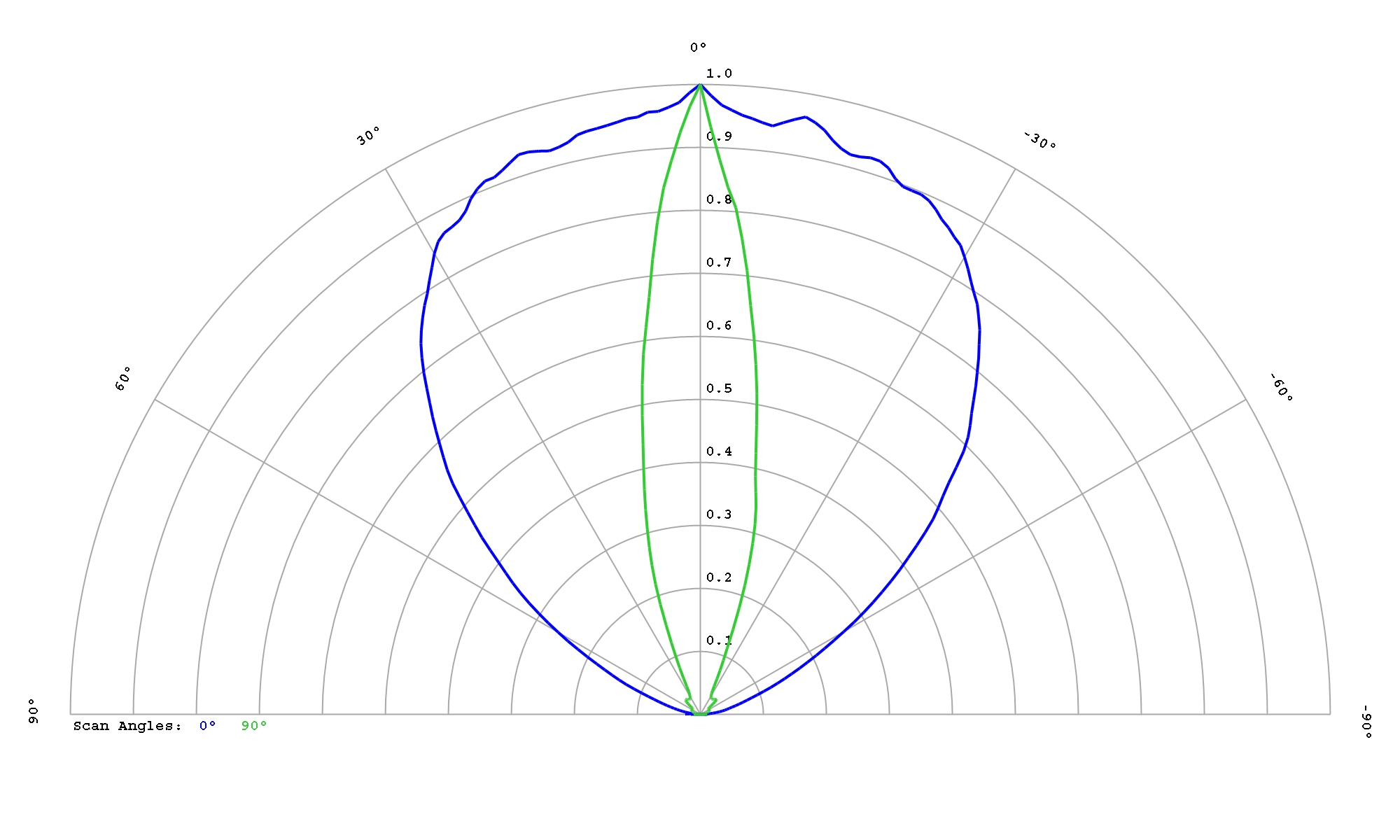

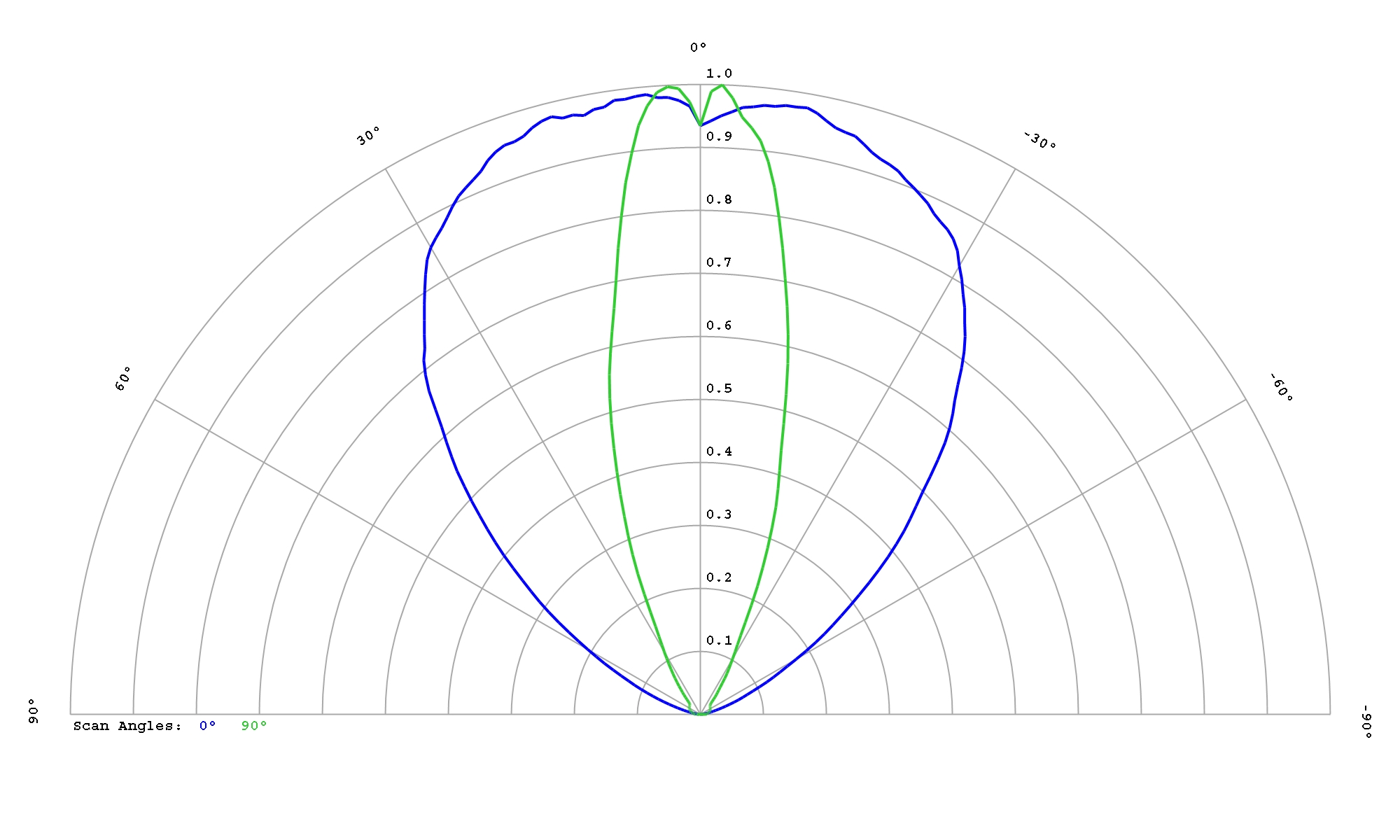

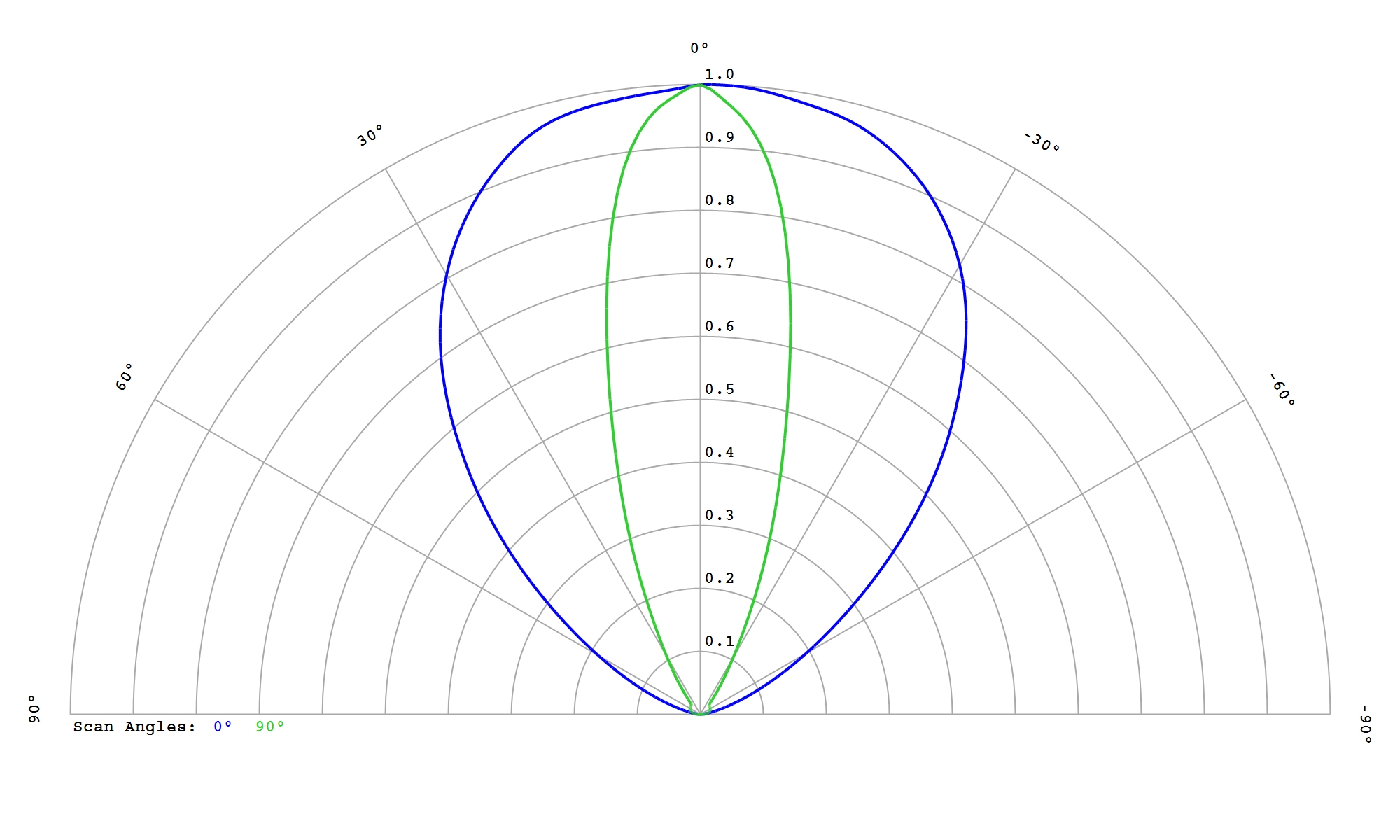

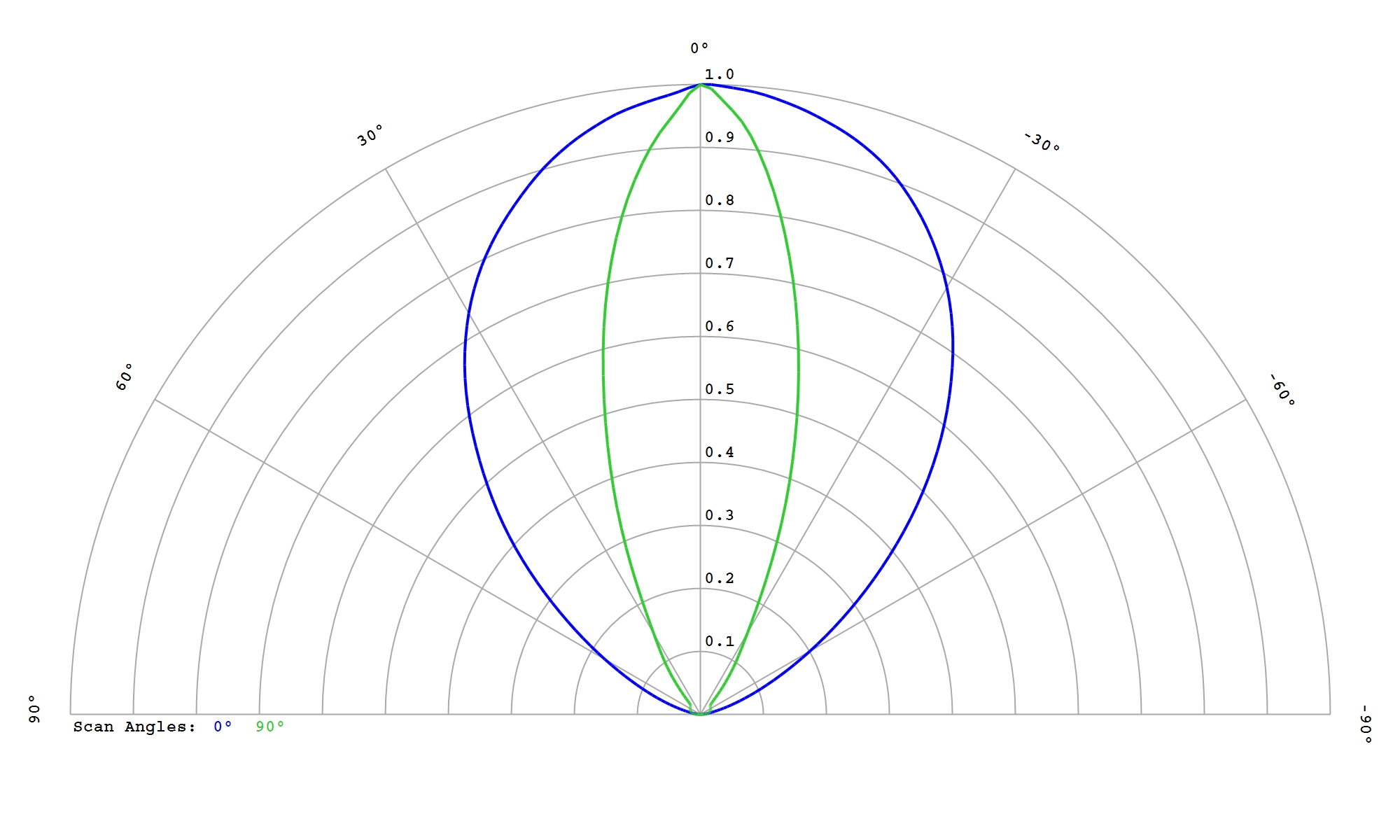

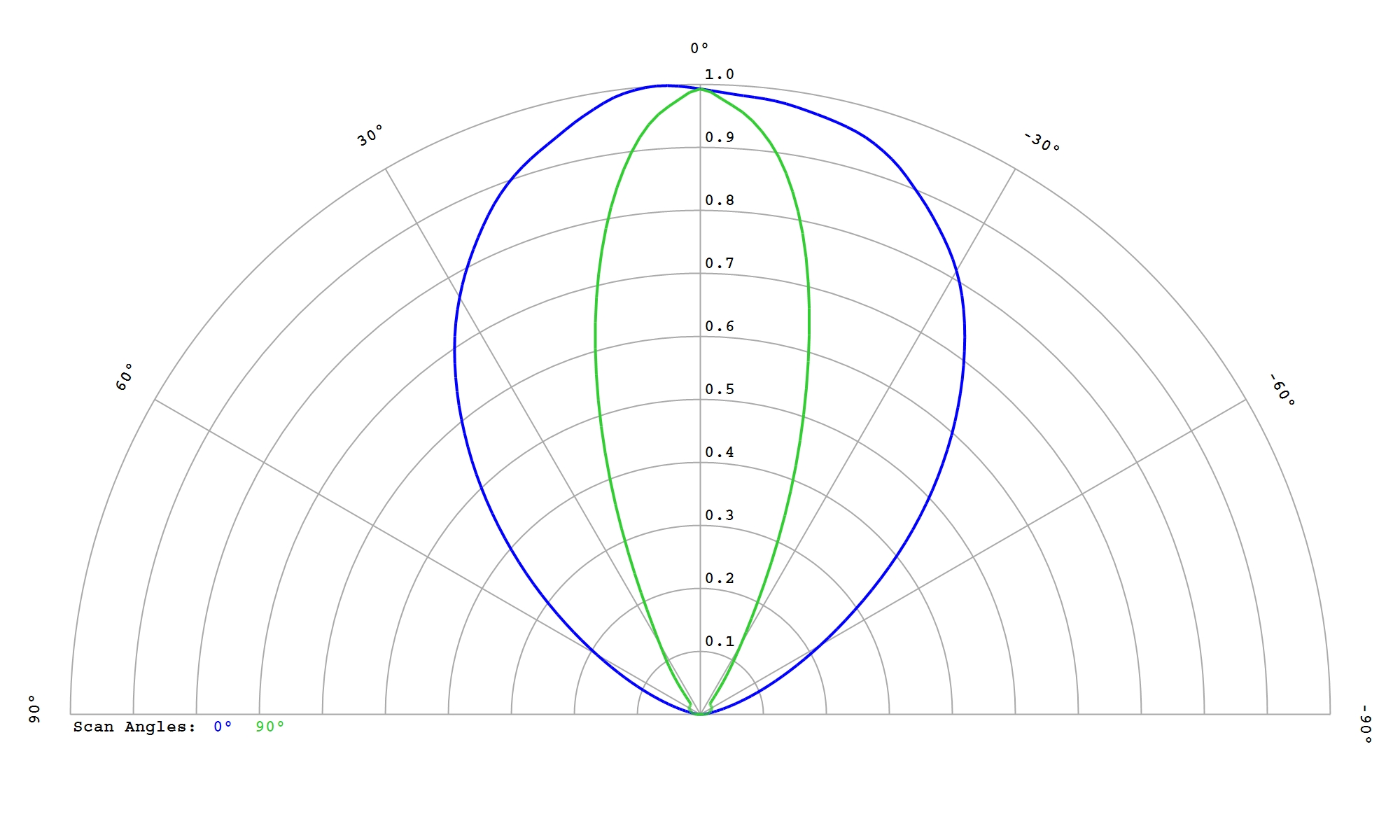

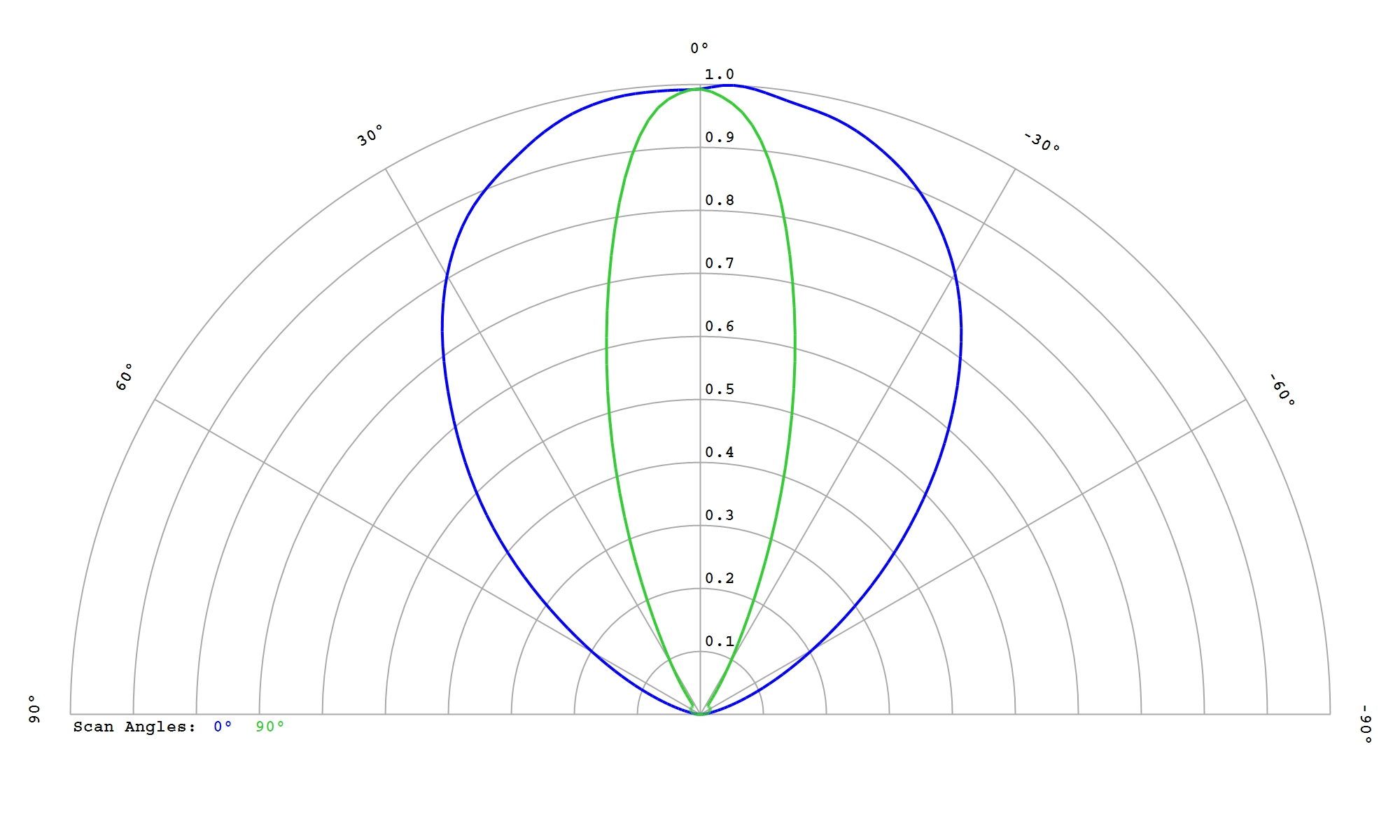

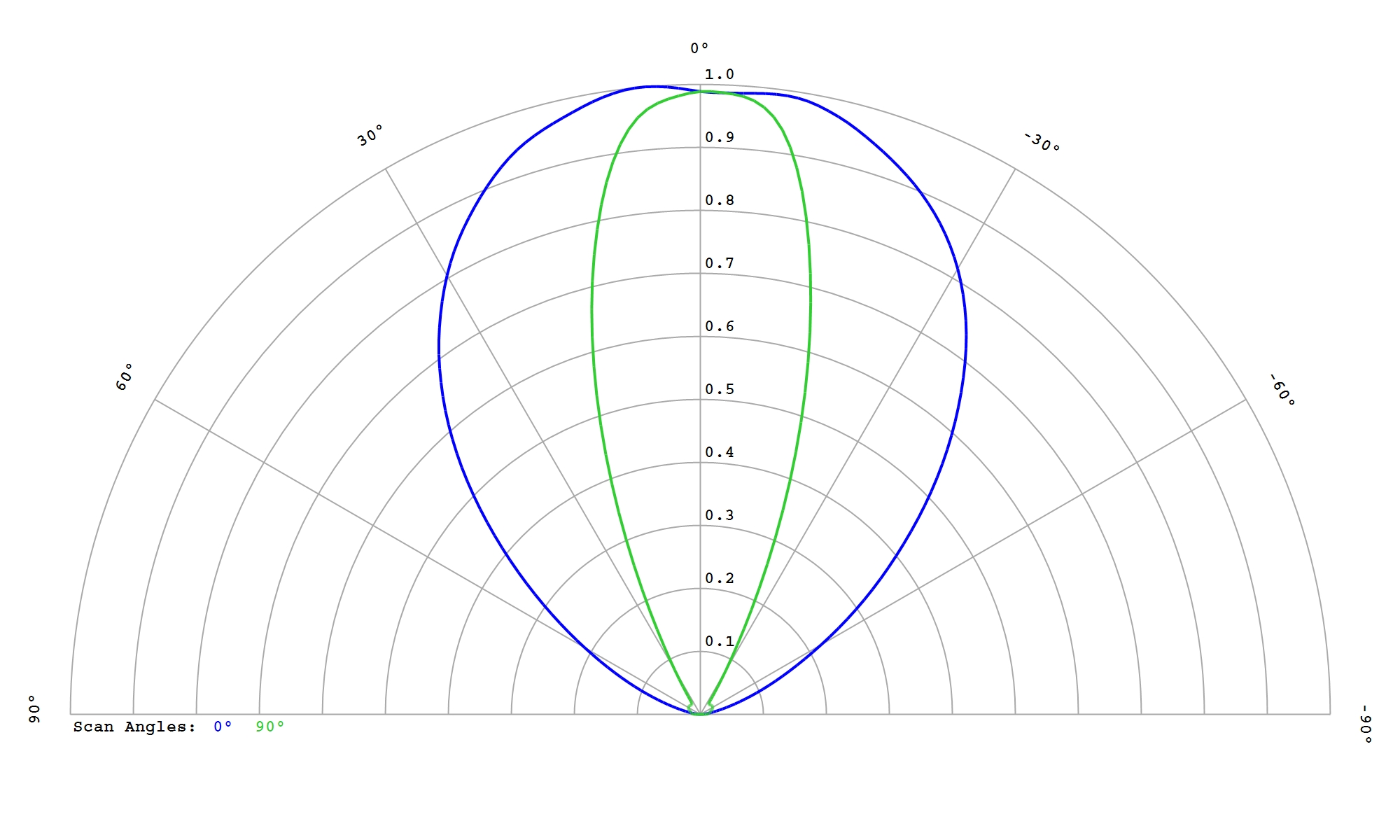

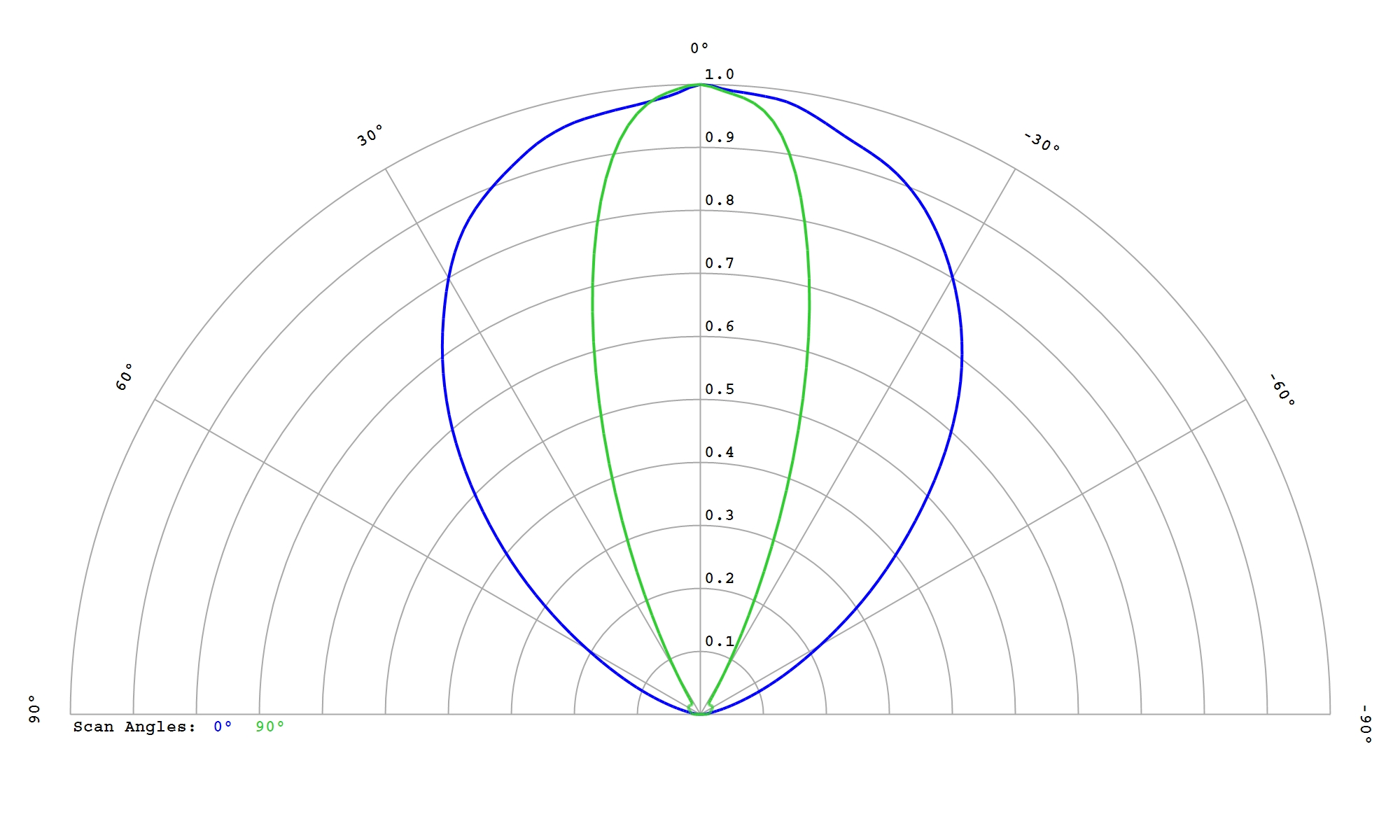

Carclo Optics – 10398 SSC (Seoul)_Z-Power_Z5 - Cross section – image

Download

ies
