Carclo Optics 10396
26.5mm Elliptical Orthog Ripple Linear TIR LED Lenses
Part number
10396
Dimensions
26.5mm
Drawing Number
60539
Optic type
TIR LED Lenses
Finish
Ripple Linear
Beam type
Elliptical Orthog
Applications
Architectural
Landscape & Garden
Downloads
PDF
IGS
Request a sample
Contact Sales

LEDs and Performances

Select and filter based on manufacturer(s)
Bridgelux SMD 3030 Gen2 White
Eff:
86.0%
FWHM:
8.7 x 48°
Cd/Im:
5.9
Carclo Optics - 10396 26.5mm Spot Image Bridgelux 3030 Gen2
Carclo Optics - 10396 26.5mm Horizontal Cross Section Bridgelux 3030 Gen2 , Carclo Optics - 10396 26.5mm Vertical Cross Section Bridgelux 3030 Gen2
Download
Details
Bridgelux SMD 3030 Gen2 White
Eff:
86.0%
FWHM:
8.7 x 48°
Cd/Im:
5.9
Carclo Optics - 10396 26.5mm Spot Image Bridgelux 3030 Gen2
Carclo Optics - 10396 26.5mm Horizontal Cross Section Bridgelux 3030 Gen2 , Carclo Optics - 10396 26.5mm Vertical Cross Section Bridgelux 3030 Gen2
Download
Details
Cree JB3030 3V White
Eff:
85.5%
FWHM:
10 x 47°
Cd/Im:
4.8

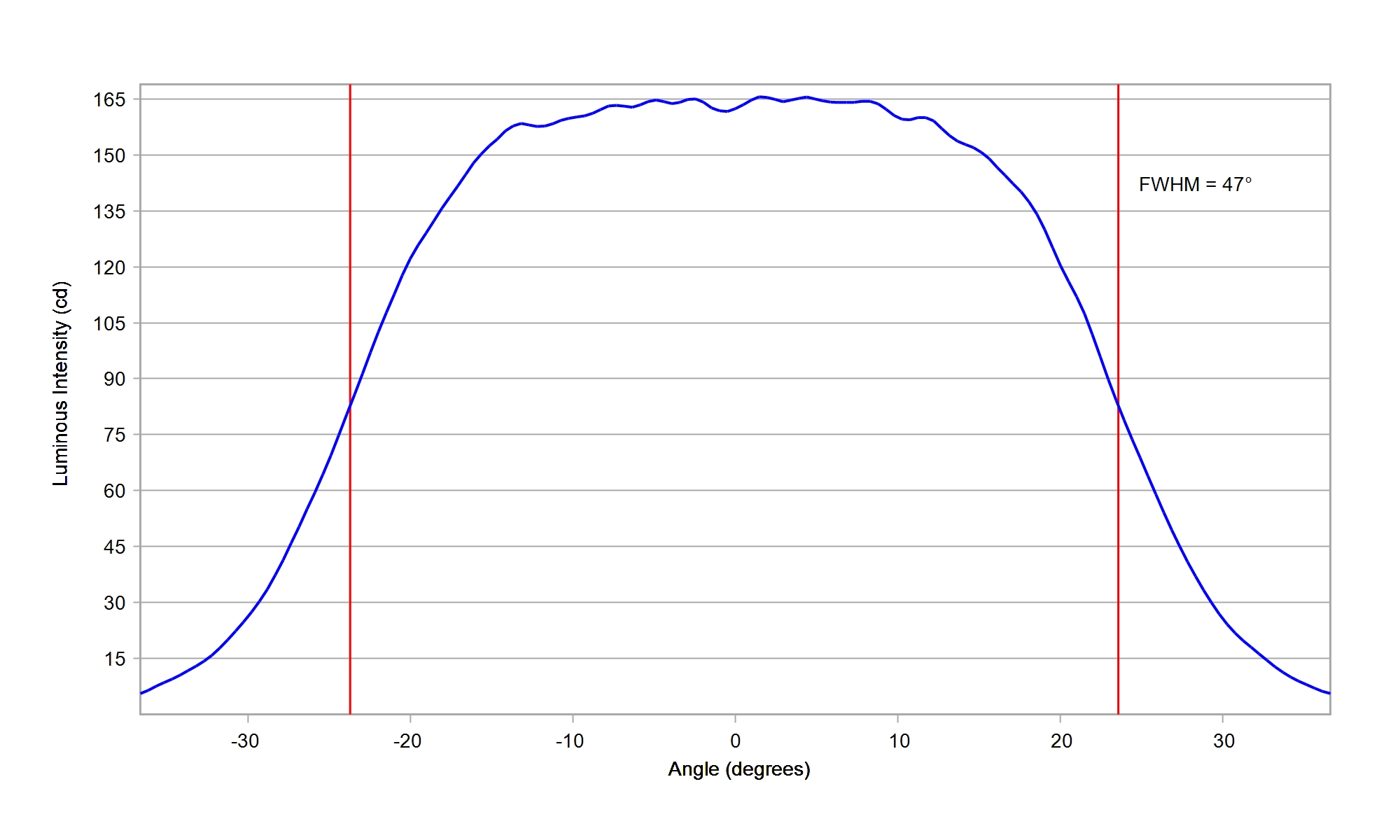

Carclo Optics - 10396 Spot Image Cree JB3030 3V White
Carclo Optics - 10396 Horizontal Cross Section Cree JB3030 3V White , Carclo Optics - 10396 Vertical Cross Section Cree JB3030 3V White
Download
Details
Cree JK2835 6V White
Eff:
85.5%
FWHM:
9.7 x 48°
Cd/Im:
5.1
optic-10396-Cree_JK2835-6V-cross-section-image-horizontal.jpg , optic-10396-Cree_JK2835-6V-cross-section-image-vertical.jpg
Download
Details
Cree JQ5050 9V White
Eff:
84.5%
FWHM:
18 x 44°
Cd/Im:
3.0
Carclo Optics - 10396 Spot Image Cree JQ5050 9V White
Carclo Optics - 10396 Horizontal Cross Section Cree JQ5050 9V White , Carclo Optics - 10396 Vertical Cross Section Cree JQ5050 9V White
Download
Details
Cree JR5050 24V White
Eff:
85.0%
FWHM:
16.5 x 44°
Cd/Im:
3.2
Carclo Optics - 10396 Spot Image Cree JR5050 24V White
Carclo Optics - 10396 Horizontal Cross Section Cree JR5050 24V White , Carclo Optics - 10396 Vertical Cross Section Cree JR5050 24V White
Download
Details
Cree JR5050 36V White
Eff:
85.0%
FWHM:
15.5 x 45°
Cd/Im:
3.4
Carclo Optics - 10396 Spot Image Cree JR5050 36V White
Carclo Optics - 10396 Horizontal Cross Section Cree JR5050 36V White , Carclo Optics - 10396 Vertical Cross Section Cree JR5050 36V White
Download
Details
Cree JR5050 6V White
Eff:
84.5%
FWHM:
16.5 x 44°
Cd/Im:
3.2
Carclo Optics - 10396 Spot Image Cree JR5050 6V White
Carclo Optics - 10396 Horizontal Cross Section Cree JR5050 6V White , Carclo Optics - 10396 Vertical Cross Section Cree JR5050 6V White
Download
Details
Cree JR5050C 6V E-Class White
Eff:
85.0%
FWHM:
16 x 45°
Cd/Im:
3.2
optic-10396-Cree_JR5050_6V_E-Class-cross-section-image-horizontal.jpg , optic-10396-Cree_JR5050_6V_E-Class-cross-section-image-vertical.jpg
Download
Details
Cree XLamp CSP XD16 Cool White
Eff:
84.0%
FWHM:
48.0 x 8.2°
Cd/Im:
5.5
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Cree XLamp CSP XD16 Premium White
Eff:
85.0%
FWHM:
7.8 x 49°
Cd/Im:
6.2
optic-10396-Cree_XD16-PW-cross-section-image-horizontal.jpg , optic-10396-Cree_XD16-PW-cross-section-image-vertical.jpg
Download
Details
Cree XLamp MH-B White
Eff:
82.7%
FWHM:
18.5x43°
Cd/Im:
2.6
carclo optics - simulated spot image
carclo optics - simulated cross section , carclo optics - simulated cross section
Download
Details
Cree XLamp XB-H White
Eff:
85.0%
FWHM:
8.8 x 48°
Cd/Im:
5.4
Carclo Optics - 10396 26.5mm Spot Image Cree XLamp XB-H
Carclo Optics - 10396 26.5mm Horizontal Cross Section Cree XLamp XB-H , Carclo Optics - 10396 26.5mm Vertical Cross Section Cree XLamp XB-H
Download
Details
Cree XLamp XE-G Blue
Eff:
85.0%
FWHM:
6.6 x 50°
Cd/Im:
6.9

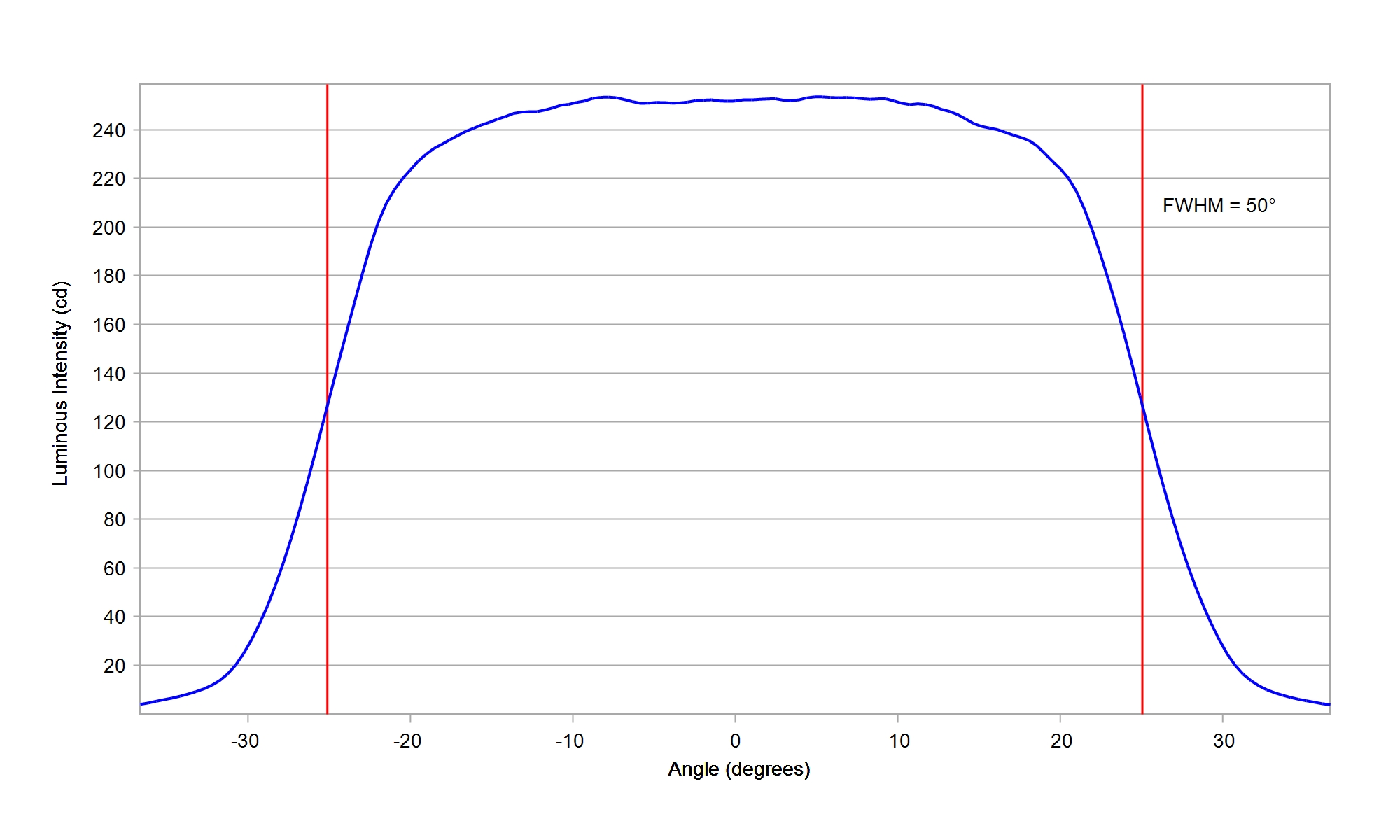

optic-10396-Cree-XEG-Blue-cross-section-image-horizontal.jpg , optic-10396-Cree-XEG-Blue-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XE-G Green
Eff:
85.0%
FWHM:
6.7 x 49°
Cd/Im:
6.9
optic-10396-Cree-XEG-Green-cross-section-image-horizontal.jpg , optic-10396-Cree-XEG-Green-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XE-G Red
Eff:
84.5%
FWHM:
7.1 x 48°
Cd/Im:
6.6
optic-10396-Cree-XEG-Red-cross-section-image-horizontal.jpg , optic-10396-Cree-XEG-Red-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XE-G White
Eff:
84.5%
FWHM:
7.1 x 49°
Cd/Im:
6.4
optic-10396-Cree-XEG-WarmWhite-cross-section-image-horizontal.jpg , optic-10396-Cree-XEG-WarmWhite-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XHP-50 Gen 2 White
Eff:
81.5%
FWHM:
19.0 x 41.5°
Cd/Im:
2.6
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Cree XLamp XHP-50 White
Eff:
83.0%
FWHM:
21 x 43°
Cd/Im:
2.4
carclo optics - simulated spot image

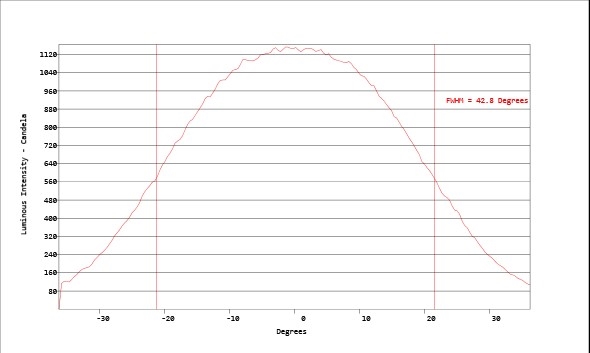

carclo optics - simulated horizontal cross section , carclo optics - simulated vertical cross section
Download
Details
Cree XLamp XHP-70 White
Eff:
81.0%
FWHM:
25.5 x 41°
Cd/Im:
1.9
Carclo Optics - 10396 Spot Image Cree XHP70
Carclo Optics - 10396 Horizontal Cross Section Cree XHP70 , Carclo Optics - 10396 Vertical Cross Section Cree XHP70
Download
Details
Cree XLamp XHP35 HI White
Eff:
83.7%
FWHM:
10x46.9°
Cd/Im:
4.6
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Cree XLamp XHP35 HD White
Eff:
83.0%
FWHM:
14 x 44.6°
Cd/Im:
3.4
Carclo Optics - Simulated Spot Image

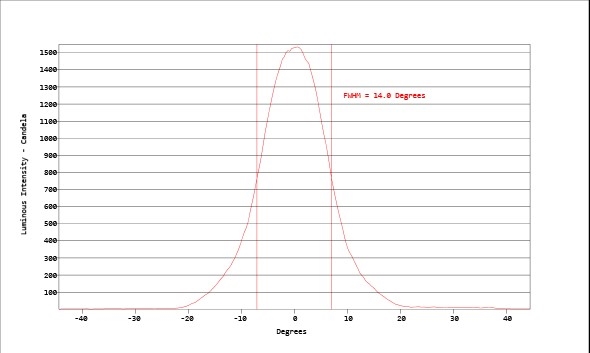

Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Cree XLamp XHP35.2 HI White
Eff:
84.0%
FWHM:
11.5 x 47°
Cd/Im:
4.1
Carclo Optics – 10396 Spot Image Cree XLamp XHP35.2 HI White
Carclo Optics – 10396 Horizontal Cross Section Cree XLamp XHP35.2 HI White , Carclo Optics – 10396 Vertical Cross Section Cree XLamp XHP35.2 HI White
Download
Details
Cree XLamp XHP35.2 HD White
Eff:
82.0%
FWHM:
16 x 45°
Cd/Im:
3.0
Carclo Optics - 10396 Spot Image Cree XLamp XHP35.2 White
Carclo Optics - 10396 Horizontal Cross Section Cree XLamp XHP35.2 White , Carclo Optics - 10396 Vertical Cross Section Cree XLamp XHP35.2 White
Download
Details
Cree XLamp XHP50.3 HI White
Eff:
82.5%
FWHM:
14.5 x 45°
Cd/Im:
3.4
optic-10396-Cree_XHP50.3 HI-spot-image.jpg
optic-10396-Cree_XHP50.3 HI-cross-section-image-horizontal.jpg , optic-10396-Cree_XHP50.3 HI-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XHP50.3 White
Eff:
81.0%
FWHM:
18 x 43°
Cd/Im:
2.8
optic-10396-Cree_XHP50.3-cross-section-image-horizontal.jpg , optic-10396-Cree_XHP50.3-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XHP70.2 White
Eff:
79.5%
FWHM:
25.5 x 41°
Cd/Im:
1.9
Carclo Optics – 10396 Cree Xlamp XHP70.2 - Spot Image
Carclo Optics – 10396 Horizontal Cree Xlamp XHP70.2 - Cross-Section , Carclo Optics – 10396 Vertical Cree Xlamp XHP70.2 - Cross-Section
Download
Details
Cree XLamp XM-L3 White
Eff:
83.5%
FWHM:
12.5 x 46°
Cd/Im:
3.8
Carclo Optics - 10396 Spot Image Cree XM-L3
Carclo Optics - 10396 Horizontal Cross Section Cree XM-L3 , Carclo Optics - 10396 Vertical Cross Section Cree XM-L3
Download
Details
Cree XLamp XP-E2 White
Eff:
85.5%
FWHM:
6.9 x 49°
Cd/Im:
6.9
optic-10396-Cree_XP-E2-cross-section-image-horizontal.jpg , optic-10396-Cree_XP-E2-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XP-G3 White
Eff:
84.0%
FWHM:
10.6 x 46.7°
Cd/Im:
4.4
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Cree XLamp XP-L HI White
Eff:
83.8%
FWHM:
9x47.7°
Cd/Im:
5.0
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Cree XLamp XP-L White
Eff:
84.0%
FWHM:
13.2x46.1°
Cd/Im:
3.6
carclo optics - simulated spot image
carclo optics - simulated horizontal cross section , carclo optics - simulated vertical cross section
Download
Details
Cree XLamp XP-L2 White
Eff:
82.5%
FWHM:
13.5 x 44.5°
Cd/Im:
3.6
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Cree XLamp XP-P White
Eff:
84.0%
FWHM:
5.8 x 48°
Cd/Im:
8.0
Carclo Optics – 10396 Cree Xlamp XP-P - Spot Image
Carclo Optics – 10396 Horizontal Cree Xlamp XP-P - Cross-Section , Carclo Optics – 10396 Vertical Cree Xlamp XP-P - Cross-Section
Download
Details

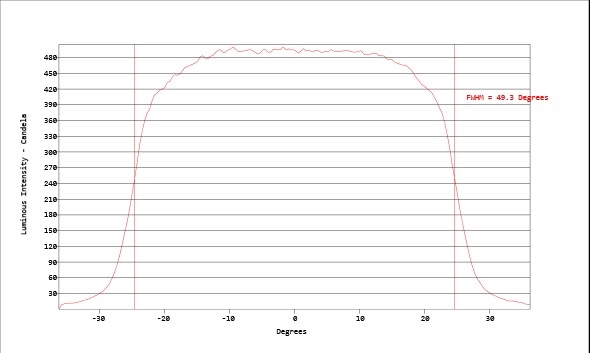

Cree XLamp XQ-A Blue
Eff:
84.0%
FWHM:
4.2 x 51.0°
Cd/Im:
9.3
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Cree XLamp XQ-A Green
Eff:
84.0%
FWHM:
4.5 x 50°
Cd/Im:
9.1
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Cree XLamp XQ-A Red
Eff:
84.0%
FWHM:
4.8 x 48.5°
Cd/Im:
9.2
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Cree XLamp XQ-A White
Eff:
84.0%
FWHM:
4.4 x 49.3°
Cd/Im:
8.8
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Cree XLamp XQ-E HI Blue
Eff:
83.0%
FWHM:
6.1 X 50.0°
Cd/Im:
6.6
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Cree XLamp XQ-E HI Green
Eff:
82.5%
FWHM:
6.4 x 49.0°
Cd/Im:
6.4
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Cree XLamp XQ-E HI Red
Eff:
83.0%
FWHM:
6.9 X 48.0°
Cd/Im:
6.2

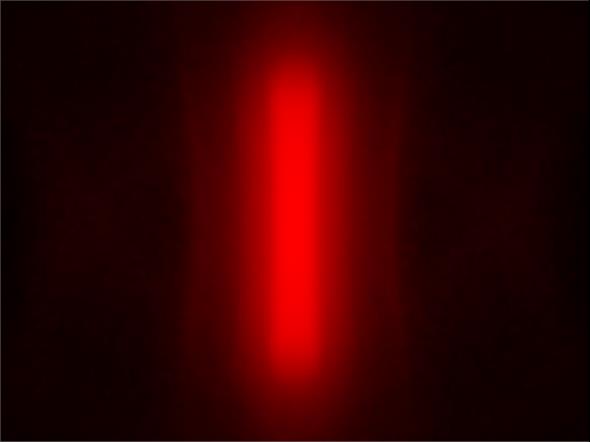

Carclo Optics - 10396 Spot Image Cree XQE-HI Red
Carclo Optics - 10396 Horizontal Cross Section Cree XQE-HI Red , Carclo Optics - 10396 Vertical Cross Section Cree XQE-HI Red
Download
Details
Cree XLamp XQ-E HI White
Eff:
84.0%
FWHM:
5.4 x 49.2°
Cd/Im:
7.3
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Cree XLamp XT-E HE White
Eff:
83.5%
FWHM:
9.7 x 47.0°
Cd/Im:
4.9
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Lite-On R38386AS - S R38 IR
Eff:
89.5%
FWHM:
8.0 x 46.5°
Cd/Im:
6.5
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
LUMILEDS LUXEON 3014 White
Eff:
86.0%
FWHM:
6 x 49°
Cd/Im:
7.3
optic-10396-LUXEON_3014-cross-section-image-horizontal.jpg , optic-10396-LUXEON_3014-cross-section-image-vertical.jpg
Download
Details

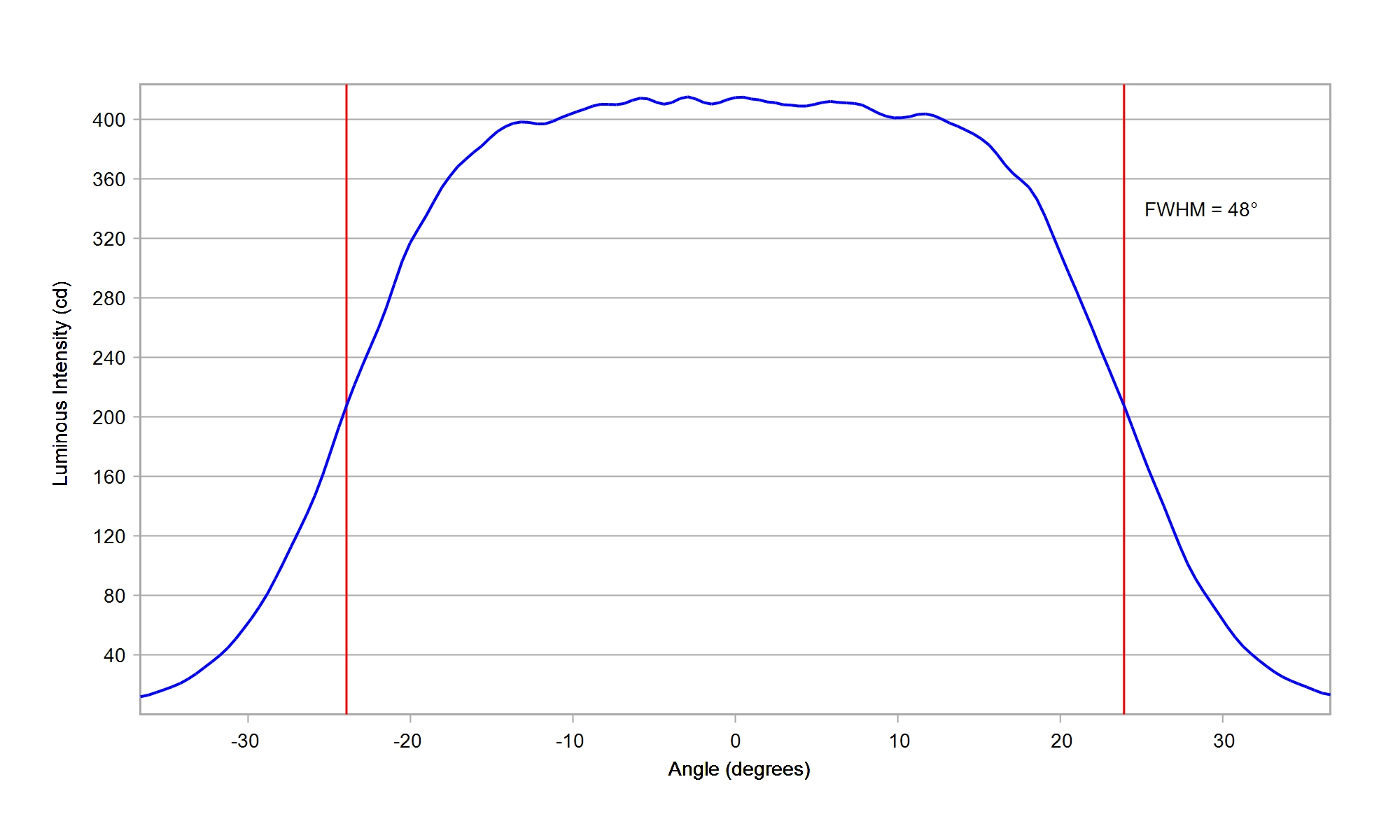

LUMILEDS LUXEON 3030 HE Plus White
Eff:
85.5%
FWHM:
9.5 x 48°
Cd/Im:
5.1
Carclo Optics – 10396 – Luxeon_3030_HE_Plus_spot-image
Carclo Optics – 10396 Horizontal – Luxeon_3030_HE_Plus_cross vertical section , Carclo Optics – 10396 Vertical – Luxeon_3030_HE_Plus_cross vertical section
Download
Details
LUMILEDS LUXEON 3030 LUXEON White
Eff:
82.0%
FWHM:
9.2 x 47.7°
Cd/Im:
4.9
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
LUMILEDS LUXEON 3535 HV White
Eff:
83.7%
FWHM:
8 x 48°
Cd/Im:
5.5
carclo optics - simulated spot image
carclo optics - simulated horizontal cross section , carclo optics - simulated vertical cross section
Download
Details
LUMILEDS LUXEON 3535 L White
Eff:
83.8%
FWHM:
8.4 x 48°
Cd/Im:
5.4
carclo optics - simulated spot image
carclo optics - simulated horizontal cross section , carclo optics - simulated vertical cross section
Download
Details
LUMILEDS LUXEON 3535L Blue
Eff:
84.0%
FWHM:
8.4 x 49°
Cd/Im:
5.3
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
LUMILEDS LUXEON 3535L Green
Eff:
84.5%
FWHM:
7.1 x 49.°
Cd/Im:
5.9
Carclo Optics - Simulated Spot Image

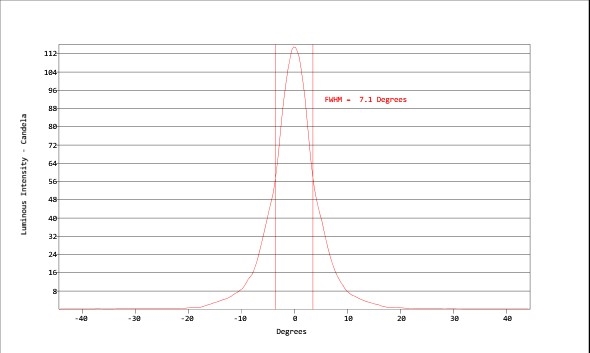

Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
LUMILEDS LUXEON 3535L Red
Eff:
84.5%
FWHM:
4.7 x 48.5°
Cd/Im:
8.0
Carclo Optics - Simulated Spot Image

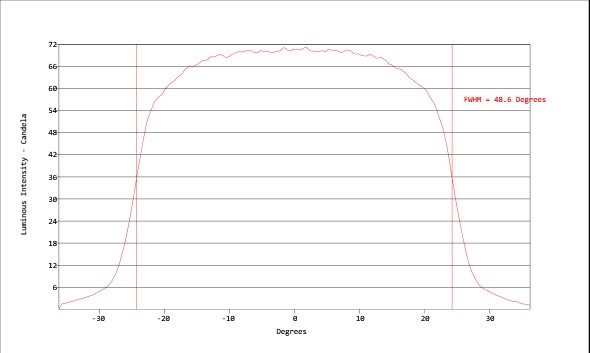

Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
LUMILEDS LUXEON 5050 Round White
Eff:
84.0%
FWHM:
16.0 X 43.0°
Cd/Im:
3.3
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
LUMILEDS LUXEON 5258 White
Eff:
83.0%
FWHM:
16.6x43.7°
Cd/Im:
2.9
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
LUMILEDS LUXEON C Blue
Eff:
78.5%
FWHM:
6.8 x 49.5°
Cd/Im:
6.1
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
LUMILEDS LUXEON C Lime
Eff:
80.5%
FWHM:
8.5 x 48.0°
Cd/Im:
5.4
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
LUMILEDS LUXEON C Red
Eff:
78.0%
FWHM:
7.3 x 47.5°
Cd/Im:
5.7
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
LUMILEDS LUXEON CSP 05 White
Eff:
80.0%
FWHM:
7.3 x 48.5°
Cd/Im:
5.3
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
LUMILEDS LUXEON CSP 10 White
Eff:
81.0%
FWHM:
9.9 x 47.5°
Cd/Im:
3.6
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
LUMILEDS LUXEON CZ White
Eff:
85.5%
FWHM:
49.5 x 5.9°
Cd/Im:
8.0
Carclo Optics 10396 Spot Image Luxeon CZ 5M
Carclo Optics 10396 Cross Section Horizontal Luxeon CZ 5M , Carclo Optics 10396 Cross Section Vertical Luxeon CZ 5M
Download
Details
LUMILEDS LUXEON HL1Z CSP White
Eff:
84.5%
FWHM:
8.2 x 49°
Cd/Im:
6.0
optic-10396-LUXEON_HL1Z-cross-section-image-horizontal.jpg , optic-10396-LUXEON_HL1Z-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON HL2X White
Eff:
85.0%
FWHM:
10.5 x 47°
Cd/Im:
4.7
Carclo Optics - 10396 Spot Image Luxeon HL2X
Carclo Optics - 10396 Horizontal Cross Section Luxeon HL2X , Carclo Optics - 10396 Vertical Cross Section Luxeon HL2X
Download
Details
LUMILEDS LUXEON HL2X-D White
Eff:
85.5%
FWHM:
12 x 46°
Cd/Im:
4.2
optic-10396-LUXEON_HL2X-D-cross-section-image-horizontal.jpg , optic-10396-LUXEON_HL2X-D-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON HL2X-P White
Eff:
85.0%
FWHM:
12 x 47°
Cd/Im:
4.2
optic-10396-Luxeon_HL2X-P-cross-section-image-horizontal.jpg , optic-10396-Luxeon_HL2X-P-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON HL2Z White
Eff:
84.0%
FWHM:
8.8 x 47°
Cd/Im:
5.6
Carclo Optics – 10396 Lumileds Luxeon HL2Z - Spot Image
Carclo Optics – 10396 Horizontal Lumileds Luxeon HL2Z - Cross-Section , Carclo Optics – 10396 Vertical Lumileds Luxeon HL2Z - Cross-Section
Download
Details
LUMILEDS LUXEON IR 2720
Eff:
90.0%
FWHM:
7.8 x 47°
Cd/Im:
6.6
Carclo Optics 10396 Spot Image Luxeon IR 2720
Carclo Optics 10396 Cross Section Horizontal image Luxeon IR 2720 , Carclo Optics 10396 Cross Section Vertical image Luxeon IR 2720
Download
Details
LUMILEDS LUXEON IR Compact 850nm
Eff:
89.0%
FWHM:
6.9 x 47.0°
Ipk/W:
7.0
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
LUMILEDS LUXEON IR Domed 60 Degree
Eff:
87.0%
FWHM:
10 x 46°
Cd/Im:
4.8
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
LUMILEDS LUXEON IR Domed 90 Degree
Eff:
88.5%
FWHM:
8.6 x 46.5°
Cd/Im:
6.0
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
LUMILEDS LUXEON MX White
Eff:
81.0%
FWHM:
20.5 x 42°
Cd/Im:
2.5
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
LUMILEDS LUXEON MZ White
Eff:
83.8%
FWHM:
15.6 x 45.8°
Cd/Im:
3.3
carclo optics - simulated spot image
carclo optics - simulated horizontal cross section , carclo optics - simulated vertical cross section
Download
Details
LUMILEDS LUXEON Q White
Eff:
81.9%
FWHM:
10.3x47.6°
Cd/Im:
4.2
carclo optics - simulated spot image
carclo optics - simulated horizontal cross section , carclo optics - simulated vertical cross section
Download
Details
LUMILEDS LUXEON Rubix Blue
Eff:
85.5%
FWHM:
6.6 x 50°
Cd/Im:
7.4
Carclo Optics – 10396 Spot Image Lumileds Luxeon Rubix Blue
Carclo Optics – 10396 Horizontal Cross Section Lumileds Luxeon Rubix Blue , Carclo Optics – 10396 Vertical Cross Section Lumileds Luxeon Rubix Blue
Download
Details
LUMILEDS LUXEON Rubix Green
Eff:
85.5%
FWHM:
7 x 49°
Cd/Im:
7.2
Carclo Optics – 10396 Spot Image Lumileds Luxeon Rubix Green
Carclo Optics – 10396 Horizontal Cross Section Lumileds Luxeon Rubix Green , Carclo Optics – 10396 Vertical Cross Section Lumileds Luxeon Rubix Green
Download
Details
LUMILEDS LUXEON Rubix Red
Eff:
87.0%
FWHM:
7.1 x 48°
Cd/Im:
7.2
Carclo Optics – 10396 Spot Image Lumileds Luxeon Rubix Red

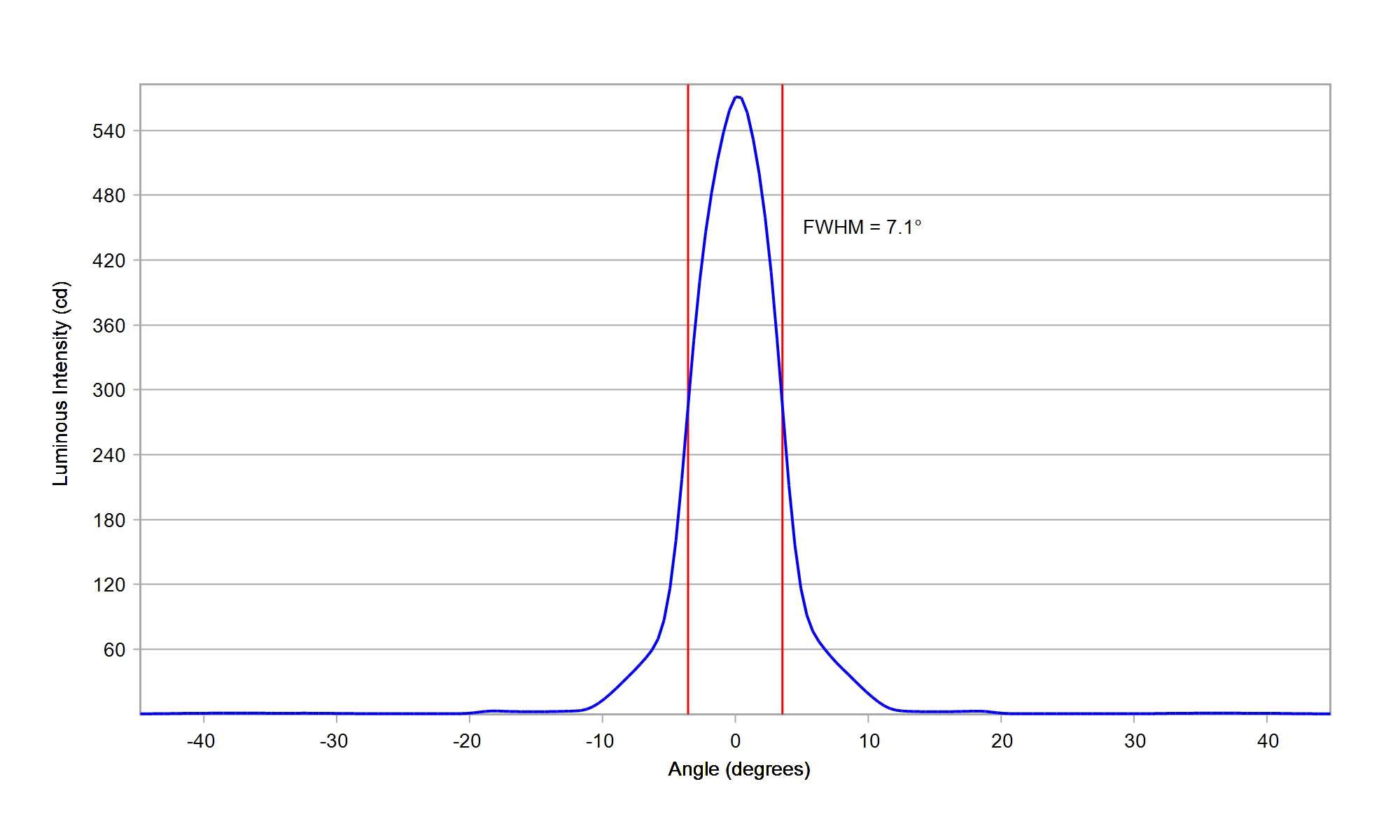

Carclo Optics – 10396 Horizontal Cross Section Lumileds Luxeon Rubix Red , Carclo Optics – 10396 Vertical Cross Section Lumileds Luxeon Rubix Red
Download
Details
LUMILEDS LUXEON Rubix Royal Blue
Eff:
84.5%
FWHM:
6.5 x 51°
Cd/Im:
7.3
Carclo Optics – 10396 Spot Image Lumileds Luxeon Rubix Royal Blue
Carclo Optics – 10396 Horizontal Cross Section Lumileds Luxeon Rubix Royal Blue , Carclo Optics – 10396 Vertical Cross Section Lumileds Luxeon Rubix Royal Blue
Download
Details
LUMILEDS LUXEON Rubix White
Eff:
85.0%
FWHM:
7.2 x 49°
Cd/Im:
7.0
Carclo Optics - 10396 Spot Image Lumileds Luxeon Rubix White
Carclo Optics - 10396 Horizontal Cross Section Lumileds Luxeon Rubix White , Carclo Optics - 10396 Vertical Cross Section Lumileds Luxeon Rubix White
Download
Details
LUMILEDS LUXEON TX White
Eff:
83.8%
FWHM:
10.0 x 47.4°
Cd/Im:
4.6
carclo optics - simulated spot image

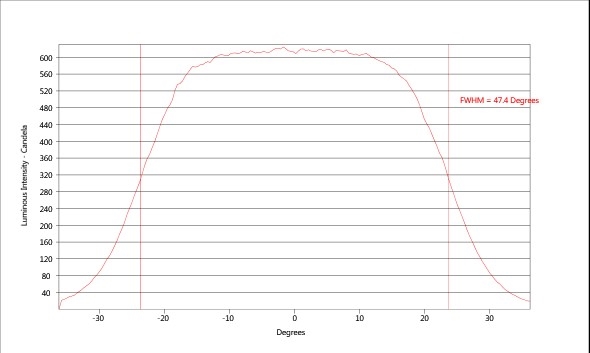

carclo optics - simulated horizontal cross section , carclo optics - simulated vertical cross section
Download
Details
LUMILEDS LUXEON TX White
Eff:
83.8%
FWHM:
10.0 x 47.4°
Cd/Im:
4.6
carclo optics - simulated spot image
carclo optics - simulated horizontal cross section , carclo optics - simulated vertical cross section
Download
Details
LUMILEDS LUXEON V White
Eff:
81.0%
FWHM:
14 x 45°
Cd/Im:
3.4
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
LUMILEDS LUXEON V2 White
Eff:
84.0%
FWHM:
47 x 11°
Cd/Im:
4.6
Carclo Optics 10396 Spot Image Luxeon V2

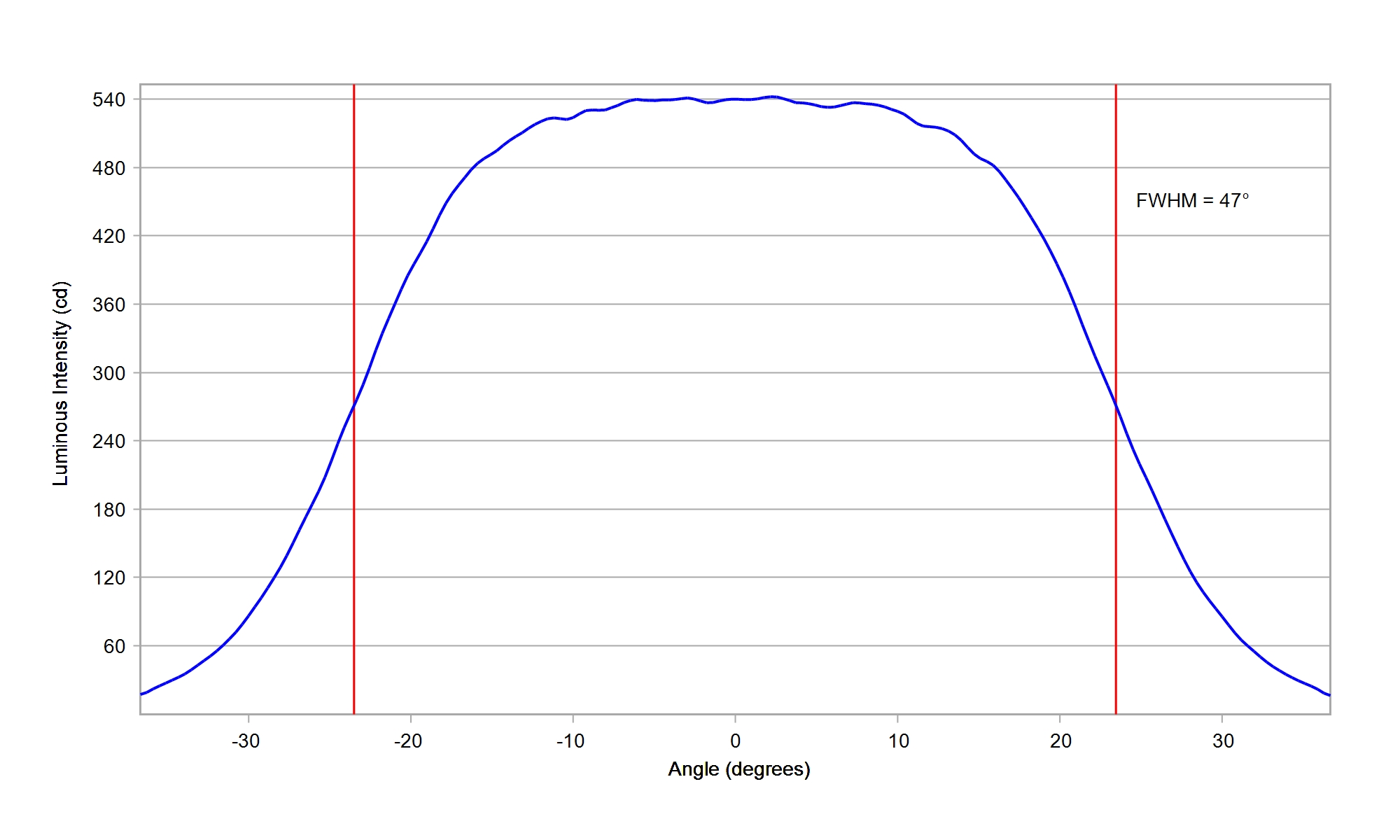

Carclo Optics 10396 Cross Section Horizontal Image Luxeon V2 , Carclo Optics 10396 Cross Section Vertical Image Luxeon V2
Download
Details
LUMILEDS LUXEON Z ES White
Eff:
83.8%
FWHM:
7 x 48°
Cd/Im:
6.4
carclo optics - simulated spot image
carclo optics - horizontal simulated cross section , carclo optics - simulated vertical cross section
Download
Details
LUMILEDS LUXEON Z White
Eff:
83.7%
FWHM:
5.9 x 49°
Cd/Im:
7.3
carclo optics - simulated spot image

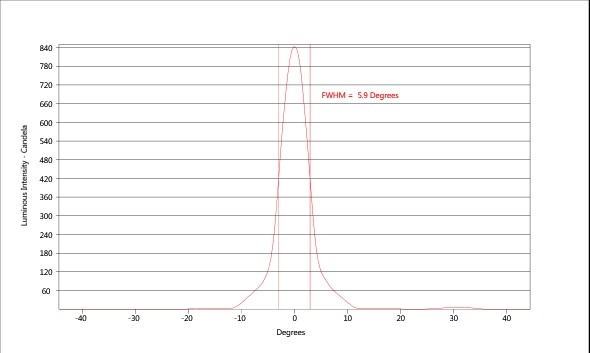

carclo optics - simulated horizontal cross section , carclo optics - simulated vertical cross section
Download
Details
Luminus Devices MP 7070-T200 White
Eff:
83.5%
FWHM:
22.5 x 43°
Cd/Im:
2.3
optic-10396-Luminus_MP-7070-T200-cross-section-image-horizontal.jpg , optic-10396-Luminus_MP-7070-T200-cross-section-image-vertical.jpg
Download
Details
Luminus Devices SFT-40-WxS White
Eff:
85.5%
FWHM:
8.5 x 48°
Cd/Im:
5.8

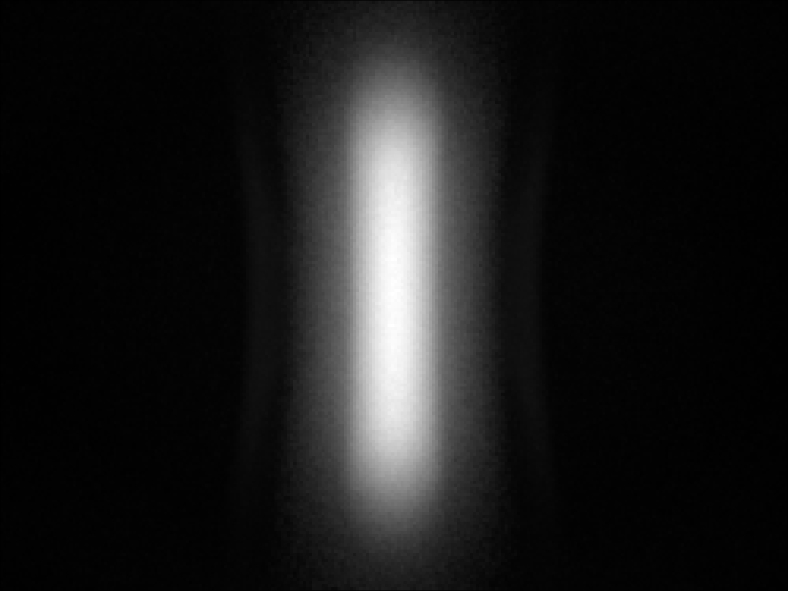

optic-10396-Luminus_SFT-40-WxS-cross-section-image-horizontal.jpg , optic-10396-Luminus_SFT-40-WxS-cross-section-image-vertical.jpg
Download
Details
Luminus Devices SFT-70X-WxS White
Eff:
85.5%
FWHM:
11.5 x 47°
Cd/Im:
4.5
optic-10396-Luminus_SFT-70X-W-cross-section-image-horizontal.jpg , optic-10396-Luminus_SFT-70X-W-cross-section-image-vertical.jpg
Download
Details
Luminus Devices SST 05-IR-B40 850nm
Eff:
88.5%
FWHM:
9.6 x 46°
Ipk/W:
5.2
Carclo Optics - 10396 Spot Image Luminus SST-05-IR-B40
Carclo Optics - 10396 Horizontal Cross Section Luminus SST-05-IR-B40 , Carclo Optics - 10396 Vertical Cross Section Luminus SST-05-IR-B40
Download
Details
Luminus Devices SST 10-B-B130 Blue
Eff:
82.0%
FWHM:
9.3 x 50°
Cd/Im:
5.2
Carclo Optics - 10396 Luminus_SST-10_B_B130 - Spot Image
Carclo Optics - 10396 Luminus_SST-10_B_B130 - Cross section horizontal image , Carclo Optics - 10396 Luminus_SST-10_B_B130 - Cross section vertical image
Download
Details
Luminus Devices SST 10-B-B90 Blue
Eff:
82.5%
FWHM:
8.5 x 50°
Cd/Im:
5.2
Carclo Optics - 10396 Luminus_SST-10_B_B90 - spot - image
Carclo Optics - 10396 Luminus_SST-10_B_B90 - cross section horizontal image , Carclo Optics - 10396 Luminus_SST-10_B_B90 - cross section vertical image
Download
Details
Luminus Devices SST 10-DR-B130 Deep Red
Eff:
86.5%
FWHM:
8.4 x 48°
Cd/Im:
6.1
Carclo Optics – 10396 Luminus_SST-10_DR_B130- Spot - image
Carclo Optics – 10396 Horizontal Luminus_SST-10_DR_B130- Cross section – image , Carclo Optics – 10396 Vertical Carclo Optics – 10396 Horizontal Luminus_SST-10_DR_B130- Cross section – imageLuminus_SST-10_DR_B130- Cross section – image
Download
Details
Luminus Devices SST 10-DR-B90 Deep Red
Eff:
86.5%
FWHM:
9 x 47 °
Cd/Im:
5.2
Carclo Optics - 10396 Luminus_SST-10_DR_B90 - Spot image
Carclo Optics - 10396 Luminus_SST-10_DR_B90 - Cross section horizontal image , Carclo Optics - 10396 Luminus_SST-10_DR_B90 - Cross section vertical image
Download
Details
Luminus Devices SST 10-G-B130 Green
Eff:
84.5%
FWHM:
9.9 x 49°
Cd/Im:
5.2
Carclo Optics - 10396 Luminus_SST-10_G_B130 - spot - image
Carclo Optics - 10396 Luminus_SST-10_G_B130 - cross section horizontal- image , Carclo Optics - 10396 Luminus_SST-10_G_B130 - cross section vertical- image
Download
Details
Luminus Devices SST 10-G-B90 Green
Eff:
84.5%
FWHM:
9.3 x 48°
Cd/Im:
5.1
Carclo Optics – 10396 Luminus_SST-10_G_B90- Spot - image
Carclo Optics – 10396 Horizontal Luminus_SST-10_G_B90- Cross section – image , Carclo Optics – 10396 Vertical Luminus_SST-10_G_B90- Cross section – image
Download
Details
Luminus Devices SST 10-IR-B130 940nm
Eff:
91.0%
FWHM:
8.3 x 46°
Ipk/W:
6.3
Carclo Optics - 10396 Spot Image Luminus SST-10-IR-B130
Carclo Optics - 10396 Horizontal Cross Section Luminus SST-10-IR-B130 , Carclo Optics - 10396 Vertical Cross Section Luminus SST-10-IR-B130
Download
Details
Luminus Devices SST 10-IR-B90 940nm
Eff:
89.5%
FWHM:
9 x 46°
Ipk/W:
5.5
Carclo Optics - 10396 Spot Image Luminus SST-10-IR-B90
Carclo Optics - 10396 Horizontal Cross Section Luminus SST-10-IR-B90 , Carclo Optics - 10396 Vertical Cross Section Luminus SST-10-IR-B90
Download
Details
Luminus Devices SST 10-IRD-B130 810nm
Eff:
90.5%
FWHM:
7.7 x 47°
Ipk/W:
6.8

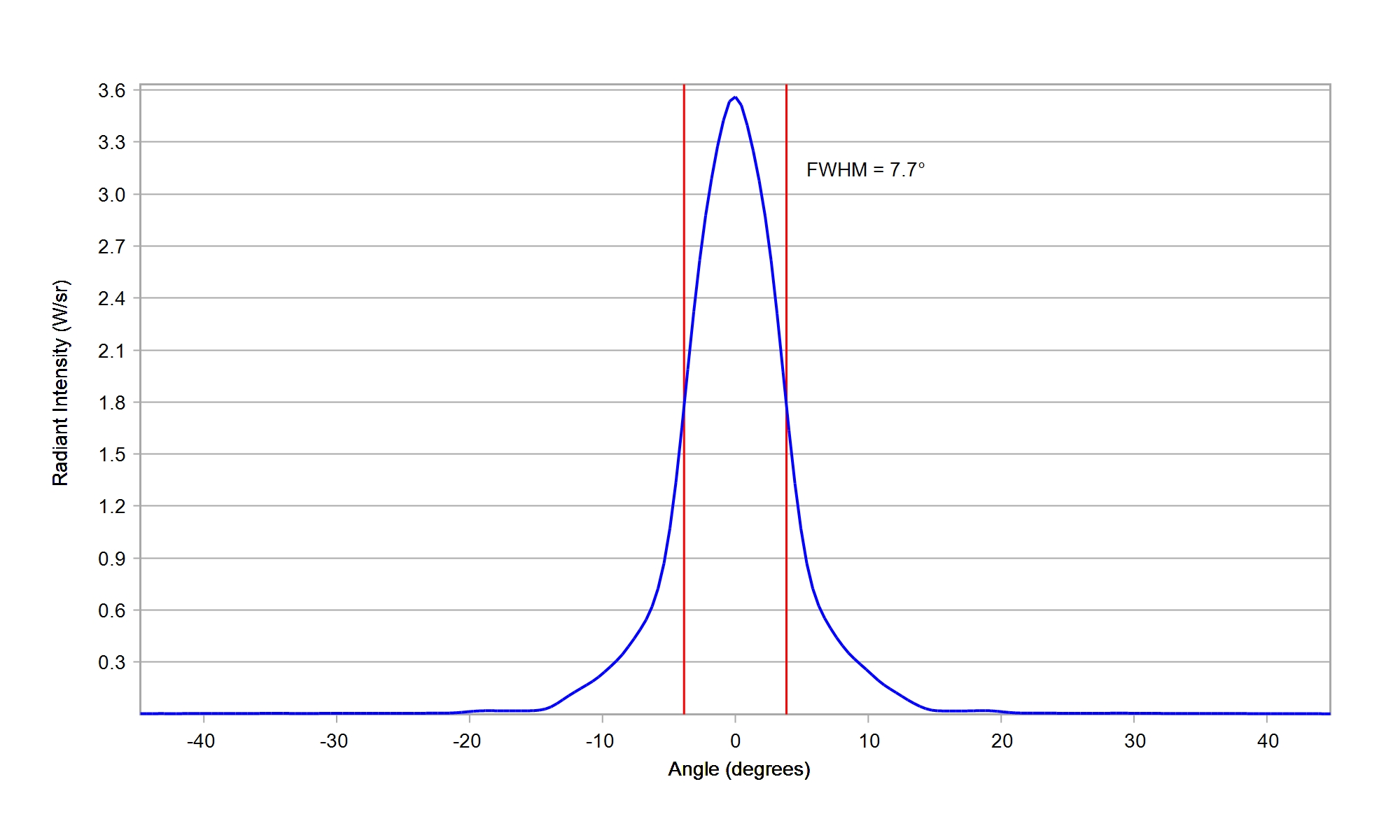

optic-10396-Luminus-SST-10-IRD-B130-cross-section-image-horizontal.jpg , optic-10396-Luminus-SST-10-IRD-B130-cross-section-image-vertical.jpg
Download
Details
Luminus Devices SST 10-IRD-B90 810nm
Eff:
89.5%
FWHM:
8.2 x 47°
Ipk/W:
5.9

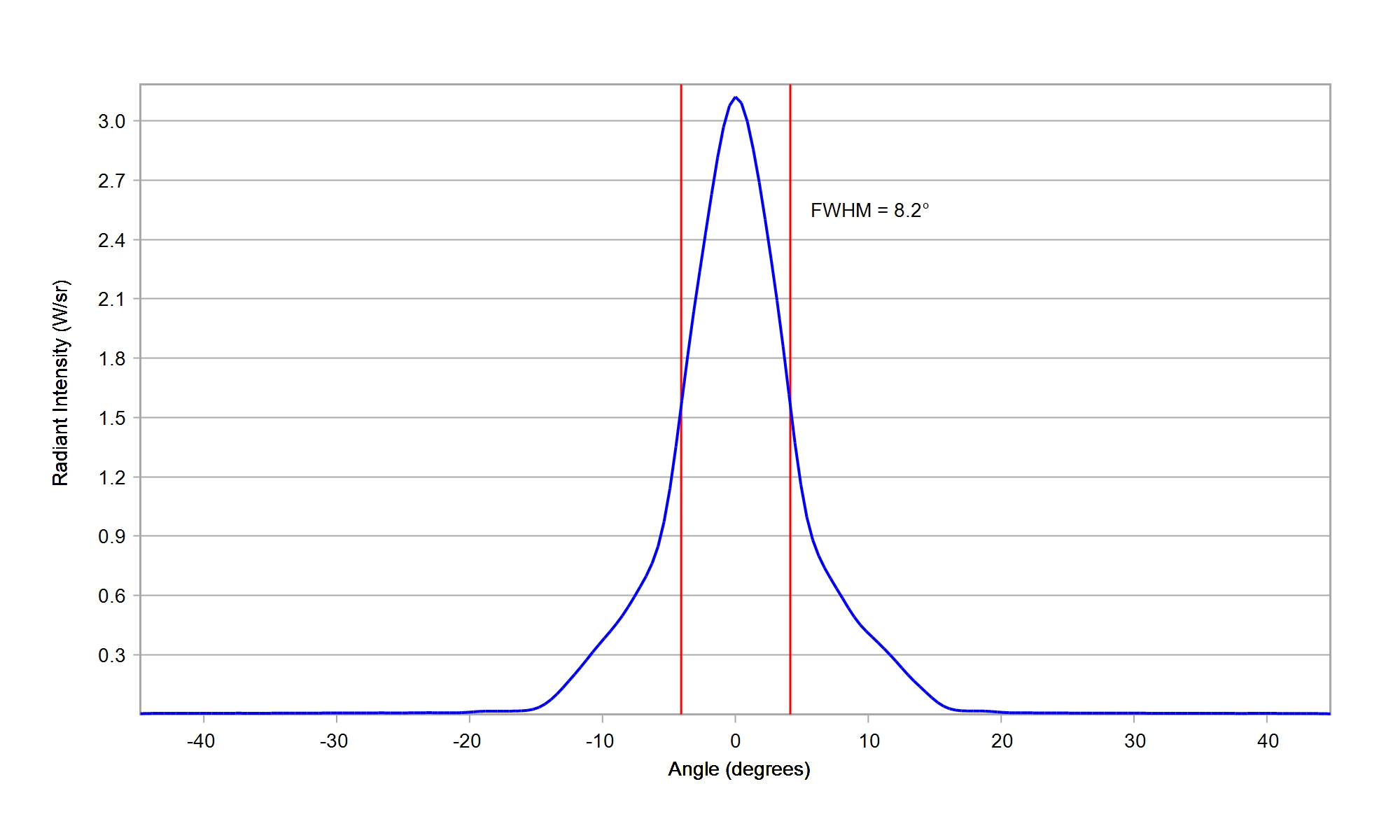

optic-10396-Luminus-SST-10-IRD-B90-cross-section-image-horizontal.jpg , optic-10396-Luminus-SST-10-IRD-B90-cross-section-image-vertical.jpg
Download
Details
Luminus Devices SST 20-WxH White Hi CRI
Eff:
84.5%
FWHM:
9.1 x 48°
Cd/Im:
5.4
Carclo Optics – 10396 - Luxeon_SST_20_W_spot-image
Carclo Optics – 10396 Horizontal - Luxeon_SST_20_W_cross vertical section , Carclo Optics – 10396 Vertical - Luxeon_SST_20_W_cross vertical section
Download
Details
Luminus Devices SST 40-W White
Eff:
84.5%
FWHM:
12.5 x 46°
Cd/Im:
4.0
Carclo Optics – 10396 - Luxeon_SST_40_W_spot-image
Carclo Optics – 10396 Horizontal - Luxeon_SST_40_W_cross vertical section , Carclo Optics – 10396 Vertical - Luxeon_SST_40_W_cross vertical section
Download
Details
Luminus Devices SST-12-WxS White
Eff:
85.0%
FWHM:
8.3 x 48°
Cd/Im:
6.0
optic-10396-Luminus_SST-12-cross-section-image-horizontal.jpg , optic-10396-Luminus_SST-12-cross-section-image-vertical.jpg
Download
Details
Luminus Devices SST-70X-W White
Eff:
84.0%
FWHM:
15 x 45°
Cd/Im:
3.4
optic-10396-Luminus_SST-70X-W-cross-section-image-horizontal.jpg , optic-10396-Luminus_SST-70X-W-cross-section-image-vertical.jpg
Download
Details
Nichia 229A White
Eff:
82.0%
FWHM:
14 x 45°
Cd/Im:
3.5
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Nichia 757G White
Eff:
84.5%
FWHM:
10.0 x 47.5°
Cd/Im:
5.1
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Nichia 757G White
Eff:
85.5%
FWHM:
10.5 x 47°
Cd/Im:
4.7

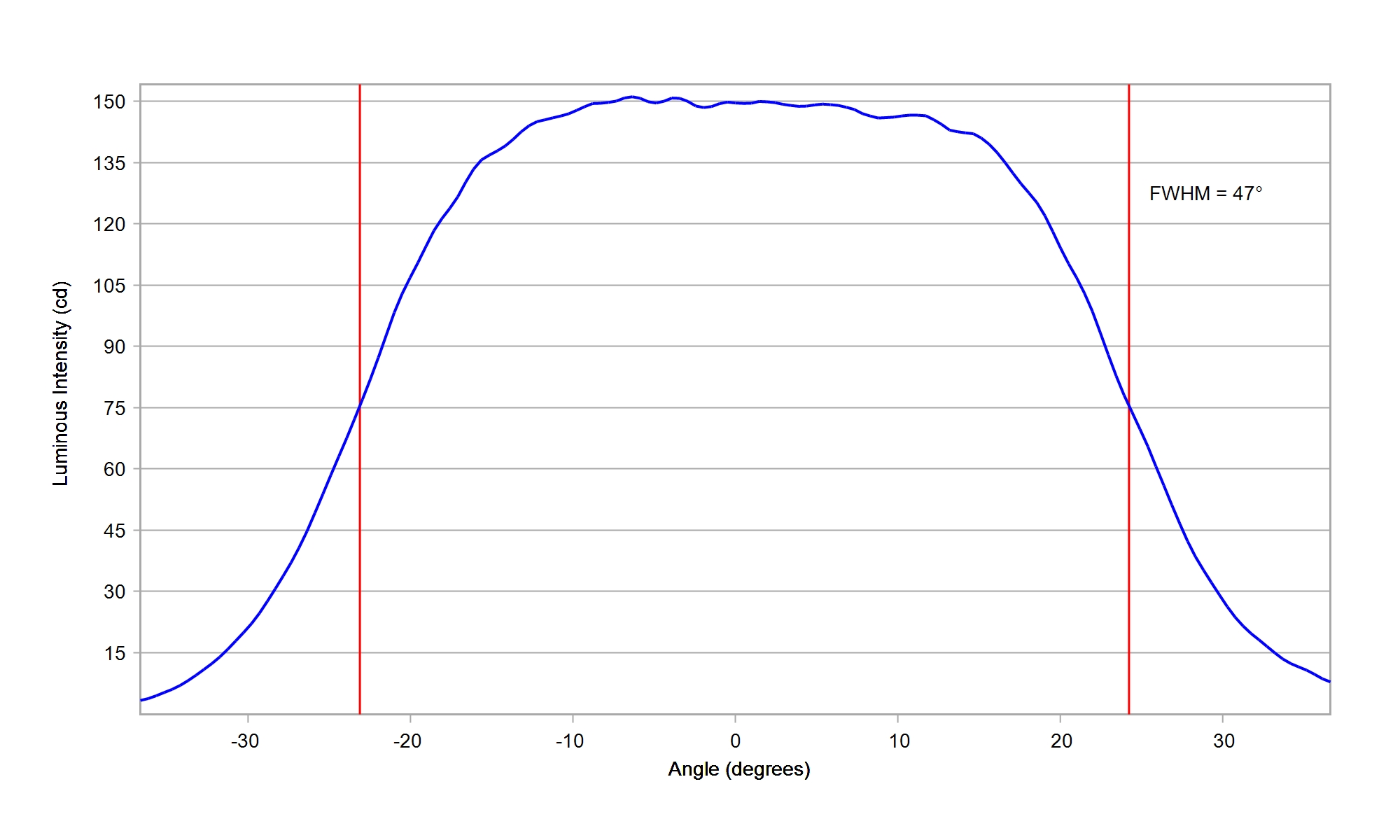

Carclo Optics 10396 Simulated Spot Image Nichia 757G-MT
Carclo Optics 10396 Simulated cross section horizontal Nichia 757G-MT , Carclo Optics 10396 Simulated cross section vertical Nichia 757G-MT
Download
Details
Nichia NCSW CSP E17A White
Eff:
83.5%
FWHM:
7.8 x 48.5°
Cd/Im:
6.1
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Nichia NF2W 385AR-V2 White
Eff:
84.0%
FWHM:
11 x 47°
Cd/Im:
4.5
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Nichia NFMW 484AR White
Eff:
84.0%
FWHM:
17.5 x 43.0°
Cd/Im:
3.0

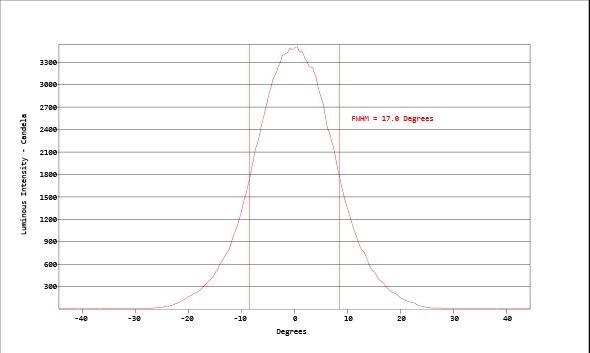

Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Nichia NFMW 486AR White
Eff:
84.0%
FWHM:
16.5 x 43.0°
Cd/Im:
3.2
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Nichia NFMW 488AR White
Eff:
83.5%
FWHM:
17.0 x 42.5 x 83°
Cd/Im:
3.1
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Nichia NFSW CSP E11A White
Eff:
82.5%
FWHM:
6.5 x 48°
Cd/Im:
7.1
optic-10396-Nichia_E11A-cross-section-image-horizontal.jpg , optic-10396-Nichia_E11A-cross-section-image-vertical.jpg
Download
Details
Nichia NV4W 144AR White
Eff:
80.5%
FWHM:
19 x 42°
Cd/Im:
2.6
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Nichia NV4W B35AM White
Eff:
83.5%
FWHM:
14 x 45°
Cd/Im:
3.7
Carclo Optics – 10396 Nichia NV4WB35AM - Spot Image
Carclo Optics – 10396 Horizontal Nichia NV4WB35AM - Cross-Section , Carclo Optics – 10396 Vertical Nichia NV4WB35AM - Cross-Section
Download
Details
Nichia NVSL 219B White
Eff:
82.0%
FWHM:
9.7 x 47.5°
Cd/Im:
4.9
Carclo Optics - Simulated Spot Image
Simulation Data
Download
Details
Nichia NVSW 219C White
Eff:
83.0%
FWHM:
11.0 x 47.0°
Cd/Im:
4.5
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Nichia NVSW 219F White
Eff:
83.0%
FWHM:
10.5 x 46°
Cd/Im:
4.7
Carclo Optics – 10396 Nichia NVSW 219F White - Spot Image
Carclo Optics – 10396 Horizontal Nichia NVSW 219F White - Cross-Section , Carclo Optics – 10396 Vertical Nichia NVSW 219F White - Cross-Section
Download
Details
Nichia NVSW 319A White
Eff:
82.0%
FWHM:
11.5 x 46.5°
Cd/Im:
4.1
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Nichia NVSW CSP E21A White
Eff:
83.0%
FWHM:
11 x 47.2°
Cd/Im:
4.5
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Osram OS DURIS E 2835 Gen2
Eff:
85.0%
FWHM:
10 x 48°
Cd/Im:
4.8
Carclo Optics - 10396 26.5mm Spot Image Osram DURIS E 2835 Gen2
Carclo Optics - 10396 26.5mm Horizontal Cross Section Osram DURIS E 2835 Gen2 , Carclo Optics - 10396 26.5mm Vertical Cross Section Osram DURIS E 2835 Gen2
Download
Details
Osram OS DURIS E 2835 White
Eff:
84.5%
FWHM:
9.5 x 47.0°
Cd/Im:
5.0
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Osram OS DURIS E2 White
Eff:
84.0%
FWHM:
5.78 x 49.2°
Cd/Im:
7.0
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Osram OS DURIS E3 White
Eff:
48.5%
FWHM:
6.1°
Cd/Im:
87.5
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Osram OS DURIS P10 White
Eff:
82.9%
FWHM:
19.7 x 42.7°
Cd/Im:
2.5

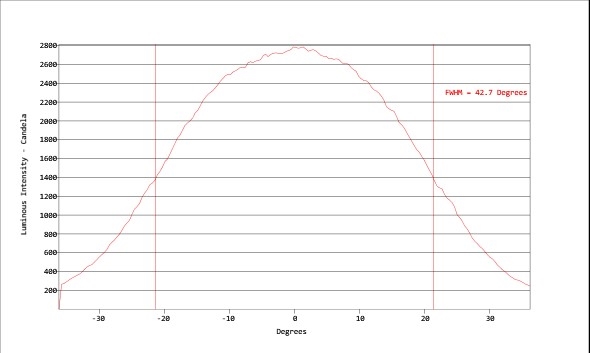

Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Osram OS DURIS P8 White
Eff:
83.5%
FWHM:
9.1 x 47.7°
Cd/Im:
5.1
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulation Vertical Cross Section
Download
Details
Osram OS DURIS S10 White
Eff:
81.5%
FWHM:
21.0 x 41.5°
Cd/Im:
2.3
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Osram OS DURIS S2 White
Eff:
87.9%
FWHM:
8.2x47.7°
Cd/Im:
5.7
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Osram OS DURIS S5 Deep Blue
Eff:
83.0%
FWHM:
9.9 x 49.5°
Cd/Im:
4.8
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Osram OS DURIS S5 Green
Eff:
85.5%
FWHM:
8.2 x 48.0°
Cd/Im:
5.6
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Osram OS DURIS S5 Red
Eff:
86.5%
FWHM:
7.9 x 47.5°
Cd/Im:
6.2
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Osram OS DURIS S5 White
Eff:
84.0%
FWHM:
8.6 X 47.8°
Cd/Im:
5.2
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Osram OS DURIS S8 Gen2 White
Eff:
87.0%
FWHM:
17.4 x 42.8°
Cd/Im:
3.0
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Osram OS DURIS S8 Gen3 White
Eff:
84.0%
FWHM:
21.5 x 42.5°
Cd/Im:
2.6
Carclo Optics - 10396 26.5mm Spot Image Oslon DURIS S8 Gen3
Carclo Optics - 10396 26.5mm Vertical Cross Section Oslon DURIS S8 Gen3 , Carclo Optics - 10396 26.5mm Vertical Cross Section Oslon DURIS S8 Gen3
Download
Details
Osram OS DURIS S8 White
Eff:
87.4%
FWHM:
17.8x42.7°
Cd/Im:
3.0

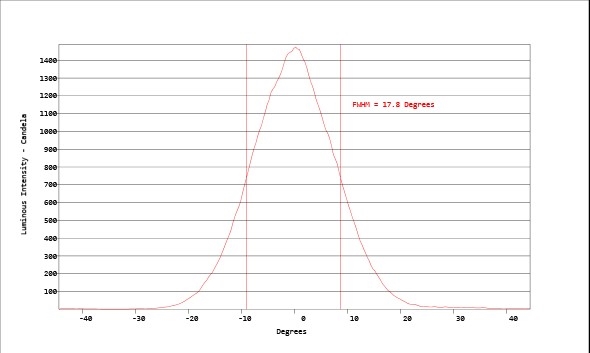

Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section Image , Carclo Optics - Simulated Vertical Cross Section Image
Download
Details
Osram OS Golden DRAGON Plus W5AM White
Eff:
85.0%
FWHM:
8x47°
Cd/Im:
6.4
Download
Details
Osram OS GOLDEN DRAGON W5SM White
Eff:
85.4%
FWHM:
8x48°
Cd/Im:
5.9
Download
Details
Osram OS OSCONIQ C 2424 White
Eff:
85.5%
FWHM:
8.5 x 48°
Cd/Im:
5.8
Carclo Optics -10396 Spot Image OSCONIQ C2424
Carclo Optics -10396 Horizontal Cross Section OSCONIQ C2424 , Carclo Optics -10396 Vertical Cross Section OSCONIQ C2424
Download
Details
Osram OS OSCONIQ P3737 White
Eff:
82.5%
FWHM:
46 x 13°
Cd/Im:
3.9
Carclo Optics 10396 Spot Image Osram Osconiq P3737
Carclo Optics 10396 Cross Section Horizontal Osram Osconiq P3737 , Carclo Optics 10396 Cross Section Vertical Osram Osconiq P3737
Download
Details
Osram OS OSCONIQ S 5050 GW Q9LR32.PM
Eff:
83.5%
FWHM:
19 x 44°
Cd/Im:
2.8
optic-10396-Osram_OSCONIQ_S_5050_GW_QP9LR32.PM-cross-section-image-horizontal.jpg , optic-10396-Osram_OSCONIQ_S_5050_GW_QP9LR32.PM-cross-section-image-vertical.jpg
Download
Details
Osram OS OSLON Black SFH 4715AS IR
Eff:
89.0%
FWHM:
9 x 47°
Ipk/W:
5.8
optic-10396-OslonBlack_SFH_4715AS-cross-section-image-horizontal.jpg , optic-10396-OslonBlack_SFH_4715AS-cross-section-image-vertical.jpg
Download
Details
Osram OS OSLON Black SFH 4716AS IR
Eff:
89.0%
FWHM:
7.1 x 47°
Ipk/W:
7.4
Carclo Optics – 10396 Spot Image OSRAM OS Oslon Black IR SFH 4716AS
Carclo Optics – 10396 Horizontal Cross Section OSRAM OS Oslon Black IR SFH 4716AS , Carclo Optics – 10396 Vertical Cross Section OSRAM OS Oslon Black IR SFH 4716AS
Download
Details
Osram OS OSLON Black SFH 4725S IR
Eff:
90.5%
FWHM:
8.2 X 46.5°
Cd/Im:
6.3
Carclo Optics 10396 Spot Image Osram Oslon Black_IR_SFH_4725S
Carclo Optics 10396 Cross Section Horizontal Osram Oslon Black_IR_SFH_4725S , Carclo Optics 10396 Cross Section Vertical Osram Oslon Black_IR_SFH_4725S
Download
Details
Osram OS OSLON Boost HM KW CELMM1.TG
Eff:
85.0%
FWHM:
7.3 x 49°
Cd/Im:
6.7
Carclo Optics – 10396 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image
Carclo Optics – 10396 Horizontal – Osram_Oslon_Boost_KW_CELMM1_TG_cross section , Carclo Optics – 10396 Vertical – Osram_Oslon_Boost_KW_CELMM1_TG_cross section
Download
Details
Osram OS OSLON Pure 1010 CSP GC VJLPE1.13 Cyan
Eff:
84.5%
FWHM:
5.6 x 49°
Cd/Im:
8.3
optic-10396-Oslon_Pure_1010_Cyan-cross-section-image-horizontal.jpg , optic-10396-Oslon_Pure_1010_Cyan-cross-section-image-vertical.jpg
Download
Details
Osram OS OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue
Eff:
82.0%
FWHM:
7.1 x 49°
Ipk/W:
6.6
optic-10396-Oslon_Pure_1010_DeepBlue-cross-section-image-horizontal.jpg , optic-10396-Oslon_Pure_1010_DeepBlue-cross-section-image-vertical.jpg
Download
Details
Osram OS OSLON Pure 1010 CSP GG VJLPE1.F3 Green
Eff:
83.5%
FWHM:
5.4 x 48°
Cd/Im:
8.4
optic-10396-Oslon_Pure_1010_PC_Green-cross-section-image-horizontal.jpg , optic-10396-Oslon_Pure_1010_PC_Green-cross-section-image-vertical.jpg
Download
Details
Osram OS OSLON Pure 1010 CSP GR VJLPE1.F3 Red
Eff:
84.0%
FWHM:
5.9 x 48°
Cd/Im:
8.0

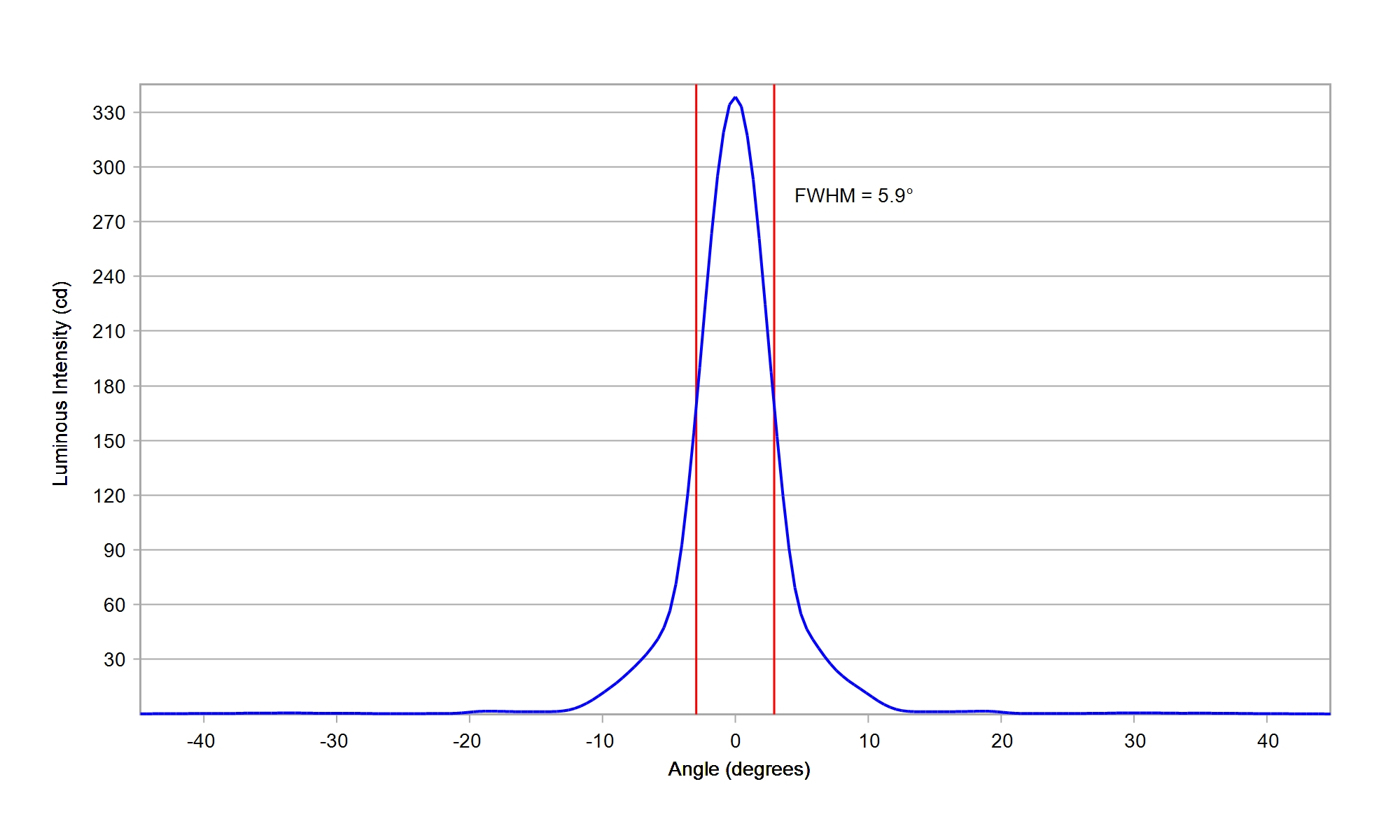

optic-10396-Oslon_Pure_1010_PC_Red-cross-section-image-horizontal.jpg , optic-10396-Oslon_Pure_1010_PC_Red-cross-section-image-vertical.jpg
Download
Details
Osram OS OSLON Pure 1010 CSP GT VJLPE1.13 True Green
Eff:
84.0%
FWHM:
5.8 x 49°
Cd/Im:
8.2
optic-10396-Oslon_Pure_1010_True_Green-cross-section-image-horizontal.jpg , optic-10396-Oslon_Pure_1010_True_Green-cross-section-image-vertical.jpg
Download
Details
Osram OS OSLON Pure 1010 CSP GW VJLPE1.CM White
Eff:
83.0%
FWHM:
7.3 x 48°
Cd/Im:
6.6
optic-10396-Oslon_Pure_1010_White_GW_VJLPE1_CM-cross-section-image-horizontal.jpg , optic-10396-Oslon_Pure_1010_White_GW_VJLPE1_CM-cross-section-image-vertical.jpg
Download
Details
Osram OS OSLON Square Flat White
Eff:
84.0%
FWHM:
10.5 x 48°
Cd/Im:
5.0
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Osram OS OSLON Square Gen 3 White
Eff:
83.7%
FWHM:
9.4 x 47.5°
Cd/Im:
4.9
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section ,
