Carclo Optics 10394
26.5mm Wide Spot Frosted TIR LED Lenses
Part number
10394
Dimensions
26.5mm
Drawing Number
60510
Optic type
TIR LED Lenses
Finish
Frosted
Beam type
Wide Spot
Applications
Architectural
Landscape & Garden
Downloads
PDF
IGS
Request a sample
Contact Sales

LEDs and Performances

Select and filter based on manufacturer(s)
Bridgelux SMD 3030 Gen2 White
Eff:
86.5%
FWHM:
27°
Cd/Im:
3.1
Carclo Optics - 10394 26.5mm Spot Image Bridgelux 3030 Gen2
Carclo Optics - 10394 26.5mm Cross Section Bridgelux 3030 Gen2
Download
Details

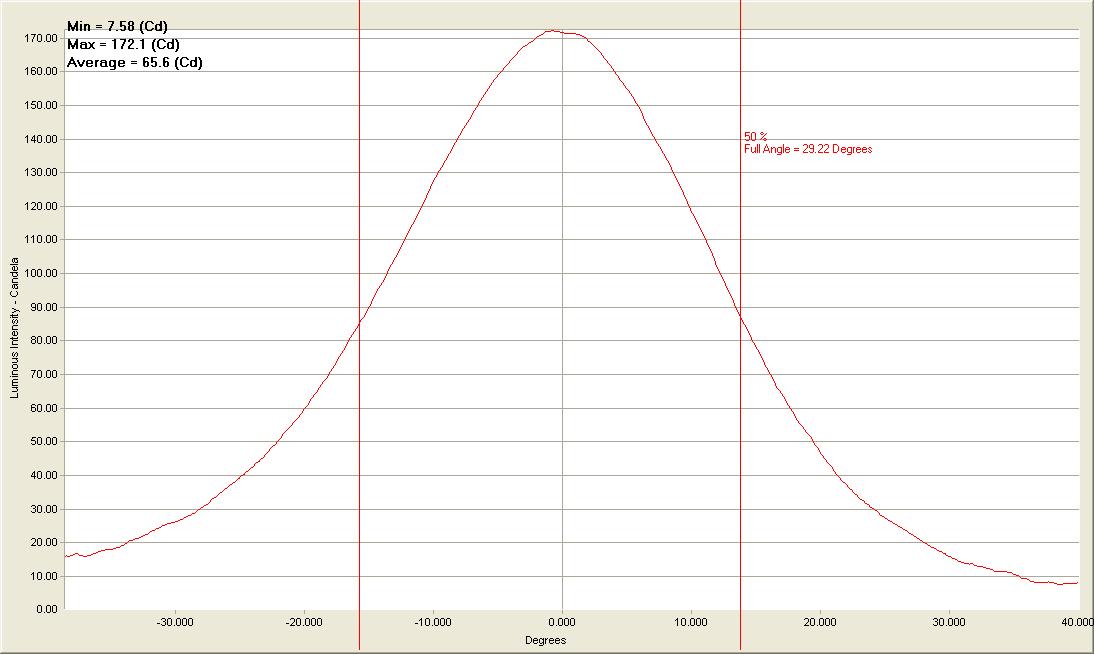

Broadcom Moonstone RGB
Eff:
84.7%
FWHM:
29.2°
Cd/Im:
2.2
Download
Details
Cree High Brightness CLR6A-TKW RGBW
Eff:
85.5%
FWHM:
31°
Cd/Im:
2.3
Download
Details
Cree High Brightness CLW6A-TKW RGBW
Eff:
86.5%
FWHM:
27.5°
Cd/Im:
2.9
Download
Details
Cree JB3030 3V White
Eff:
86.0%
FWHM:
28.0°
Cd/Im:
2.8
Carclo Optics - 10394 Spot Image Cree JB3030 3V White

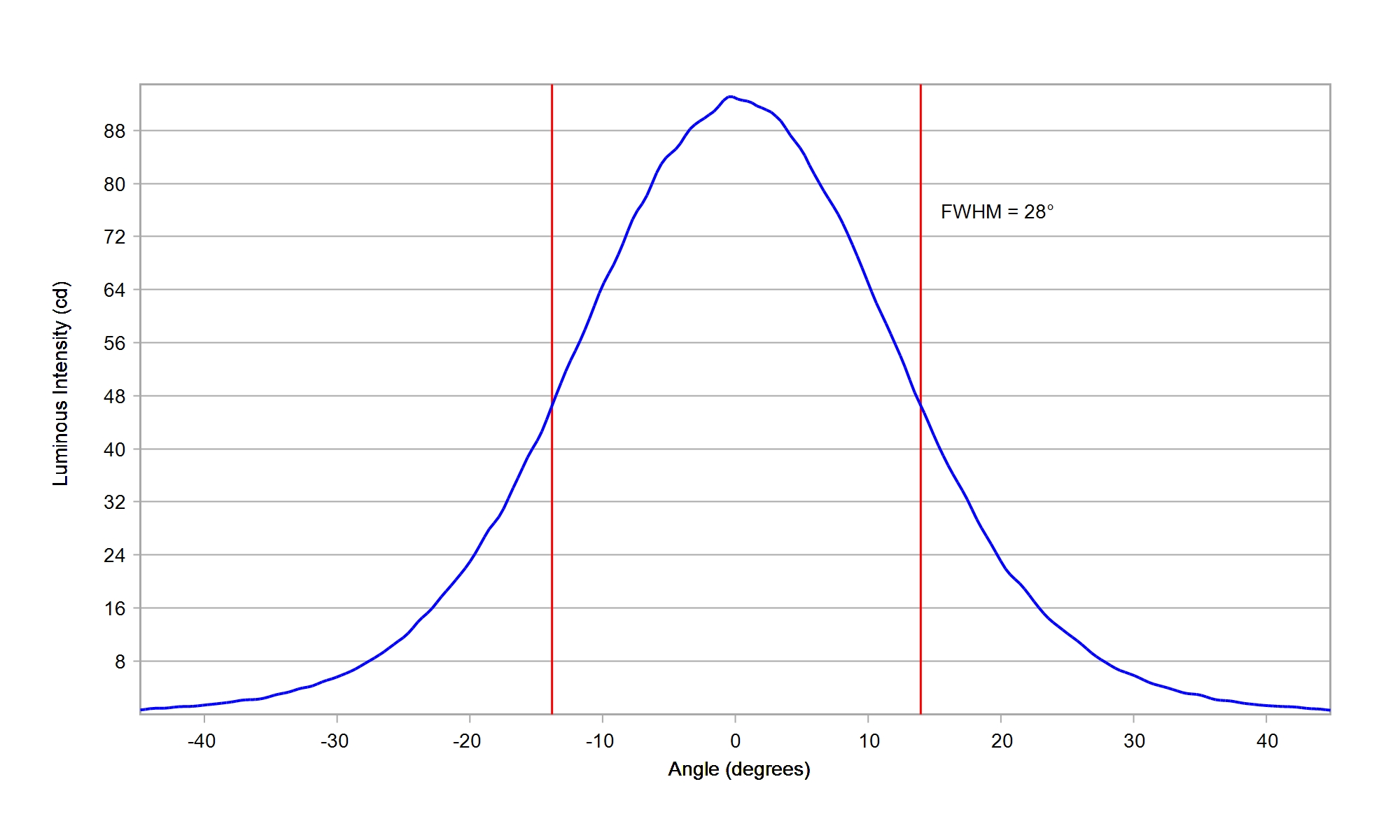

Carclo Optics - 10394 Cross Section Cree JB3030 3V White
Download
Details
Cree JK2835 6V White
Eff:
86.0%
FWHM:
27.5°
Cd/Im:
2.9
Download
Details
Cree JQ5050 9V White
Eff:
85.0%
FWHM:
35.0°
Cd/Im:
1.9
Carclo Optics - 10394 Spot Image Cree JQ5050 9V White

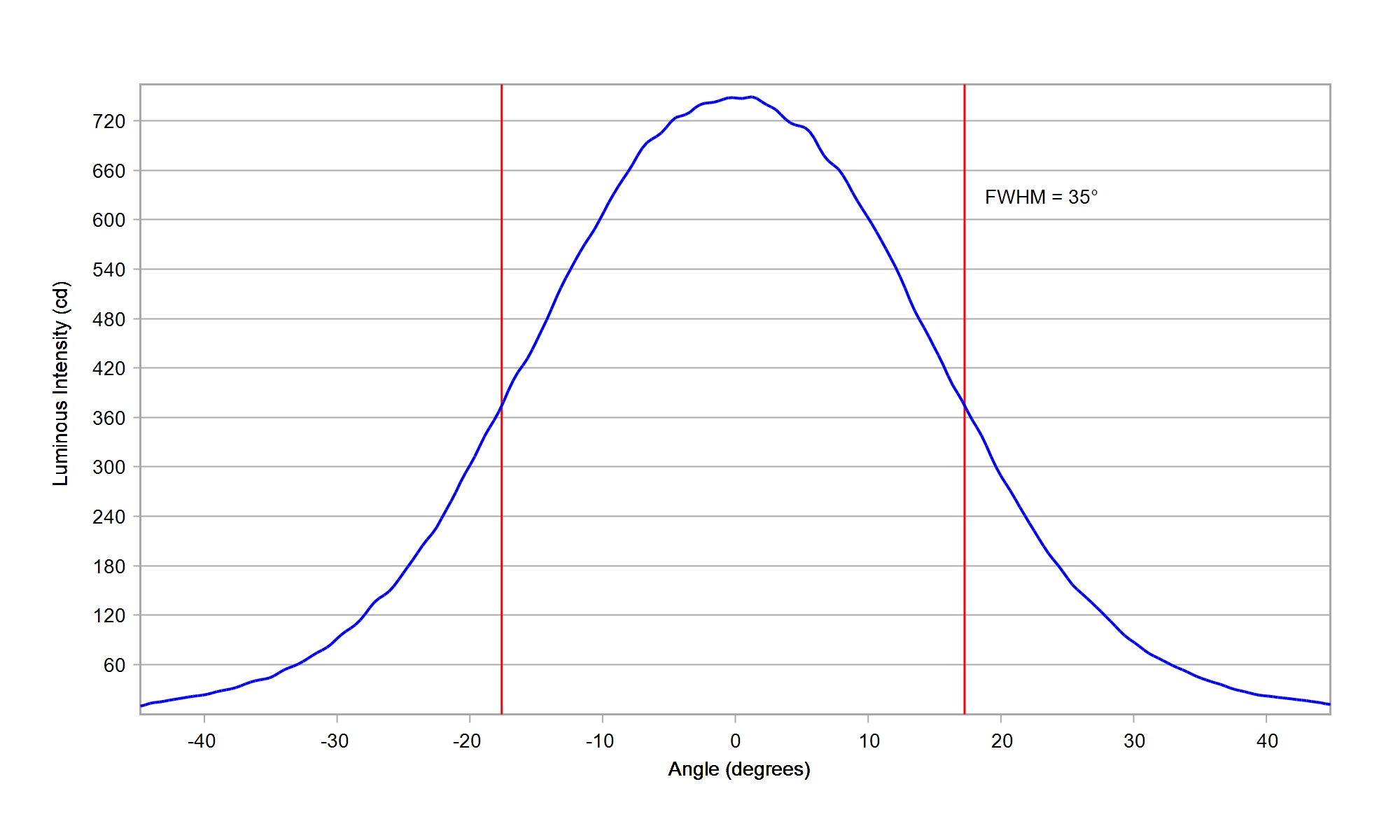

Carclo Optics - 10394 Cross Section Cree JQ5050 9V White
Download
Details
Cree JR5050 24V White
Eff:
85.5%
FWHM:
31.0°
Cd/Im:
2.3
Carclo Optics - 10394 Spot Image Cree JR5050 24V White
Carclo Optics - 10394 Cross Section Cree JR5050 24V White
Download
Details
Cree JR5050 36V White
Eff:
85.5%
FWHM:
31.0°
Cd/Im:
2.3

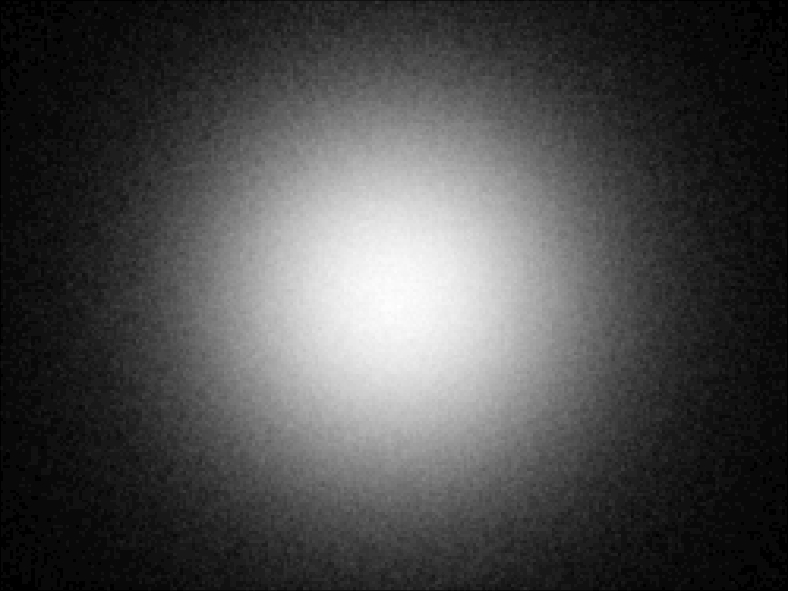

Carclo Optics - 10394 Spot Image Cree JR5050 36V White
Carclo Optics - 10394 Cross Section Cree JR5050 36V White
Download
Details
Cree JR5050 6V White
Eff:
85.0%
FWHM:
34.0°
Cd/Im:
2.0
Carclo Optics - 10394 Spot Image Cree JR5050 6V White
Carclo Optics - 10394 Cross Section Cree JR5050 6V White
Download
Details
Cree JR5050C 6V E-Class White
Eff:
85.5%
FWHM:
31°
Cd/Im:
2.3
Download
Details
Cree XLamp CSP XD16 Cool White
Eff:
85.0%
FWHM:
27°
Cd/Im:
3.0
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Cree XLamp CSP XD16 Premium White
Eff:
85.5%
FWHM:
26.5°
Cd/Im:
3.1
Download
Details

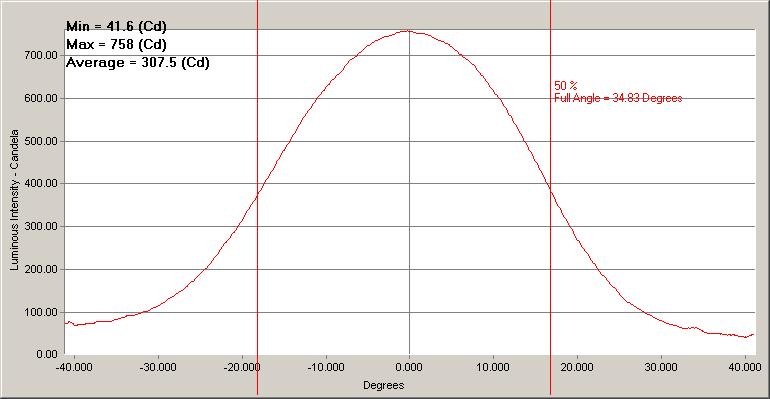

Cree XLamp MC-E RGBW
Eff:
83.9%
FWHM:
34.4°
Cd/Im:
3.4
Download
Details
Cree XLamp MC-E White
Eff:
83.5%
FWHM:
35°
Cd/Im:
2.2
Download
Details
Cree XLamp XB-H White
Eff:
85.5%
FWHM:
27°
Cd/Im:
3.1
Carclo Optics - 10394 26.5mm Spot Image Cree XLamp XB-H
Carclo Optics - 10394 26.5mm Cross Section Cree XLamp XB-H
Download
Details
Cree XLamp XE-G Blue
Eff:
86.0%
FWHM:
26°
Cd/Im:
3.2
Download
Details
Cree XLamp XE-G Green
Eff:
86.0%
FWHM:
26°
Cd/Im:
3.2
Download
Details
Cree XLamp XE-G Red
Eff:
85.5%
FWHM:
26.5°
Cd/Im:
3.1
Download
Details
Cree XLamp XE-G White
Eff:
85.0%
FWHM:
26.5°
Cd/Im:
3.0
Download
Details
Cree XLamp XHP-50 Gen 2 White
Eff:
83.0%
FWHM:
32.0°
Cd/Im:
2.0
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Cree XLamp XHP-50 White
Eff:
83.2%
FWHM:
35°
Cd/Im:
1.6
carclo optics - simulated spot image
carclo optics - simulated cross section
Download
Details
Cree XLamp XHP-70 White
Eff:
83.0%
FWHM:
38.0°
Cd/Im:
1.5
Carclo Optics - 10394 Spot Image Cree XHP70
Carclo Optics - 10394 Cross Section Cree XHP70
Download
Details
Cree XLamp XHP35 HI White
Eff:
83.3%
FWHM:
27°
Cd/Im:
2.8

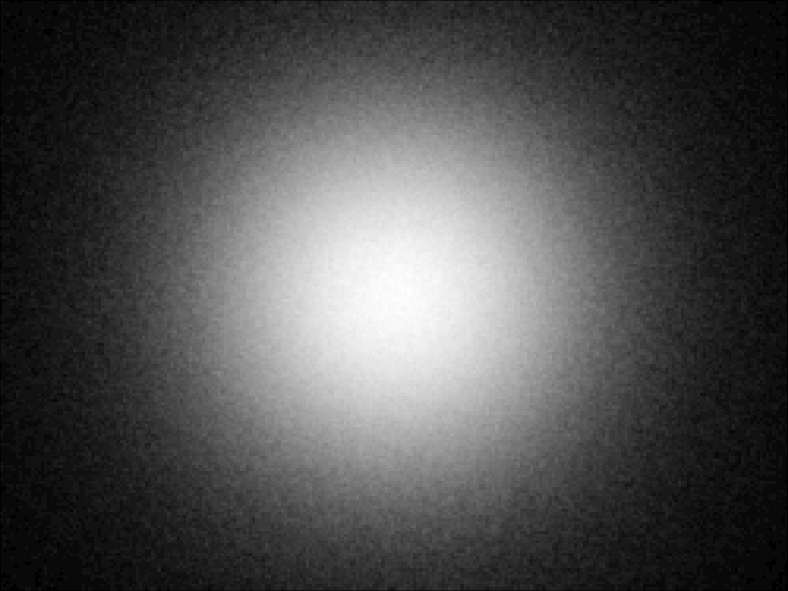

Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Cree XLamp XHP35 HD White
Eff:
83.0%
FWHM:
29.1°
Cd/Im:
2.3
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Cree XLamp XHP35.2 HI White
Eff:
85.0%
FWHM:
28.5°
Cd/Im:
2.6

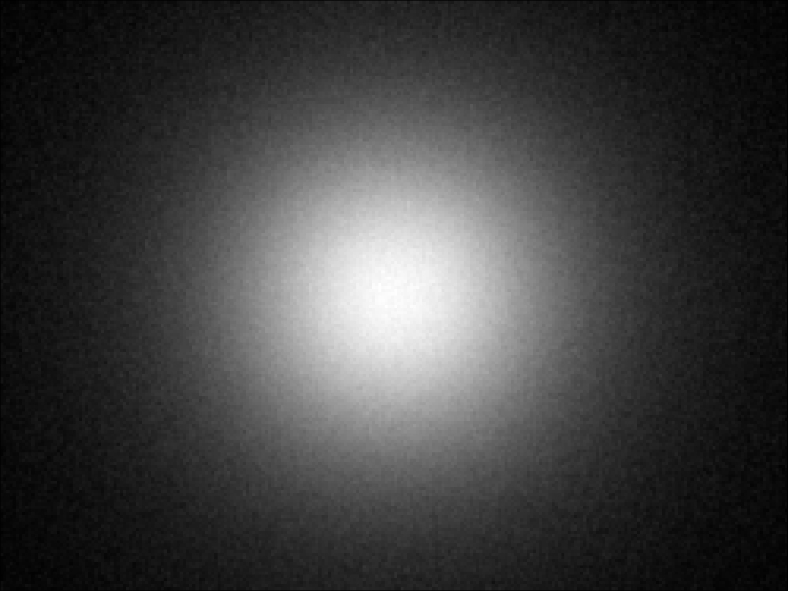

Carclo Optics – 10394 Spot Image Cree XLamp XHP35.2 HI White
Carclo Optics – 10394 Cross Section Cree XLamp XHP35.2 HI White
Download
Details
Cree XLamp XHP35.2 HD White
Eff:
83.0%
FWHM:
32.0°
Cd/Im:
2.1
Carclo Optics - 10394 Spot Image Cree XLamp XHP35.2 White
Carclo Optics - 10394 Cross Section Cree XLamp XHP35.2 White
Download
Details
Cree XLamp XHP50.3 HI White
Eff:
84.5%
FWHM:
30°
Cd/Im:
2.3
optic-10394-Cree_XHP50.3 HI-spot-image.jpg
optic-10394-Cree_XHP50.3 HI-cross-section-image.jpg
Download
Details
Cree XLamp XHP50.3 White
Eff:
83.5%
FWHM:
33°
Cd/Im:
2.0
Download
Details
Cree XLamp XHP70.2 White
Eff:
82.5%
FWHM:
38°
Cd/Im:
1.5
Carclo Optics – 10394 Cree Xlamp XHP70.2 - Spot Image
Carclo Optics – 10394 Cree Xlamp XHP70.2 - Cross-Section
Download
Details
Cree XLamp XM-L Color G2 HD RGBW
Eff:
86.0%
FWHM:
28.5°
Cd/Im:
2.6
Download
Details
Cree XLamp XM-L Color G2 HI RGBW
Eff:
85.0%
FWHM:
29.5°
Cd/Im:
2.4
Download
Details
Cree XLamp XM-L3 White
Eff:
84.5%
FWHM:
28.5°
Cd/Im:
2.7
Carclo Optics - 10394 Spot Image Cree XM-L3
Carclo Optics - 10394 Cross Section Cree XM-L3
Download
Details

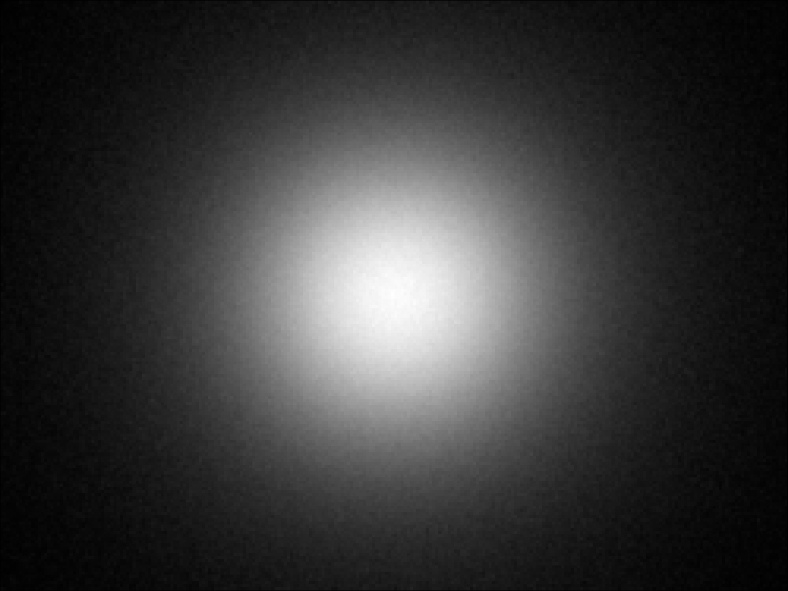

Cree XLamp XP-E2 White
Eff:
86.0%
FWHM:
26.5°
Cd/Im:
3.2
Download
Details
Cree XLamp XP-G3 White
Eff:
83.0%
FWHM:
26.9°
Cd/Im:
2.8
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details

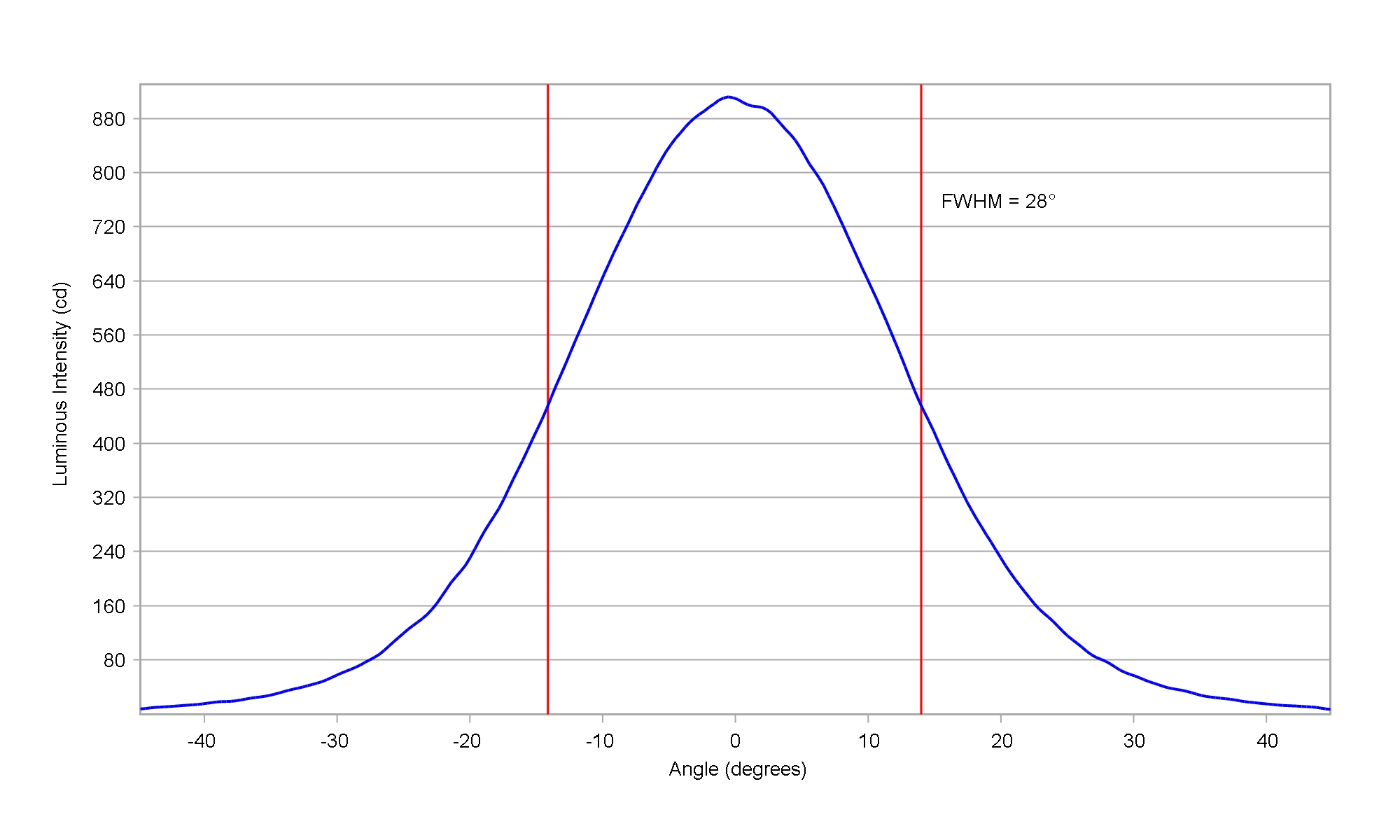

Cree XLamp XP-G4 White
Eff:
86.0%
FWHM:
28°
Cd/Im:
2.9
Download
Details
Cree XLamp XP-L HI White
Eff:
83.5%
FWHM:
26.6°
Cd/Im:
2.9
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Cree XLamp XP-L White
Eff:
83.4%
FWHM:
30°
Cd/Im:
2.3
carclo optics - simulated spot image
carclo optics - simulated cross section
Download
Details
Cree XLamp XP-L2 White
Eff:
83.5%
FWHM:
29.0°
Cd/Im:
2.5
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Cree XLamp XP-P White
Eff:
86.5%
FWHM:
25.5°
Cd/Im:
3.4
Carclo Optics – 10394 Cree Xlamp XP-P - Spot Image
Carclo Optics – 10394 Cree Xlamp XP-P - Cross-Section
Download
Details
Cree XLamp XQ-A Blue
Eff:
84.5%
FWHM:
25.5°
Cd/Im:
3.3

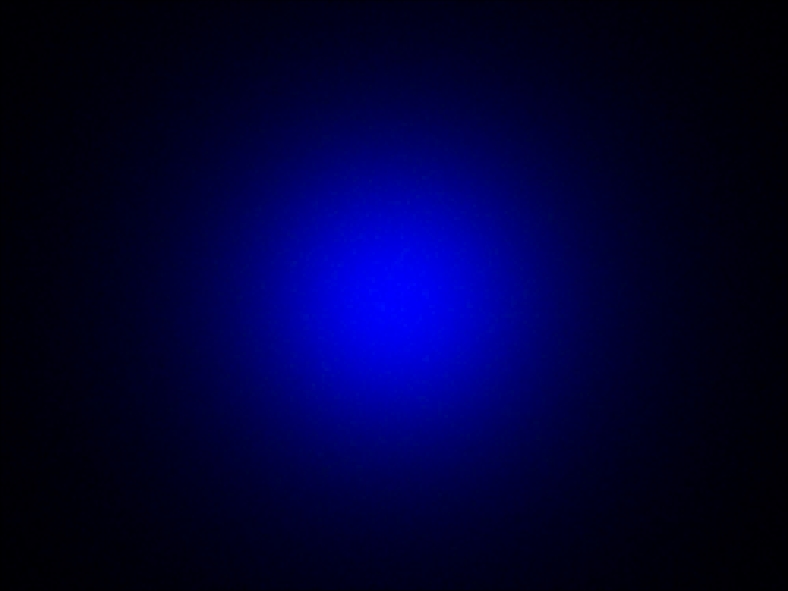

Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Cree XLamp XQ-A Green
Eff:
84.5%
FWHM:
25.0°
Cd/Im:
3.3

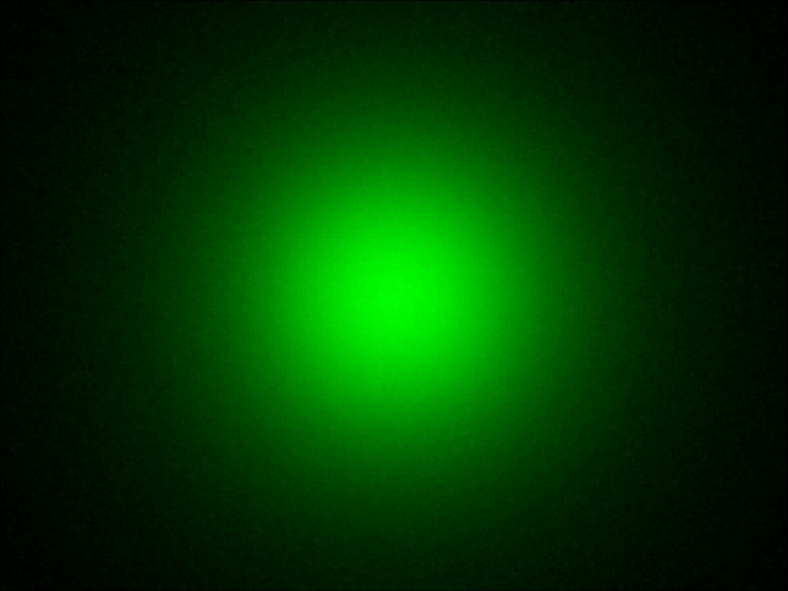

Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details

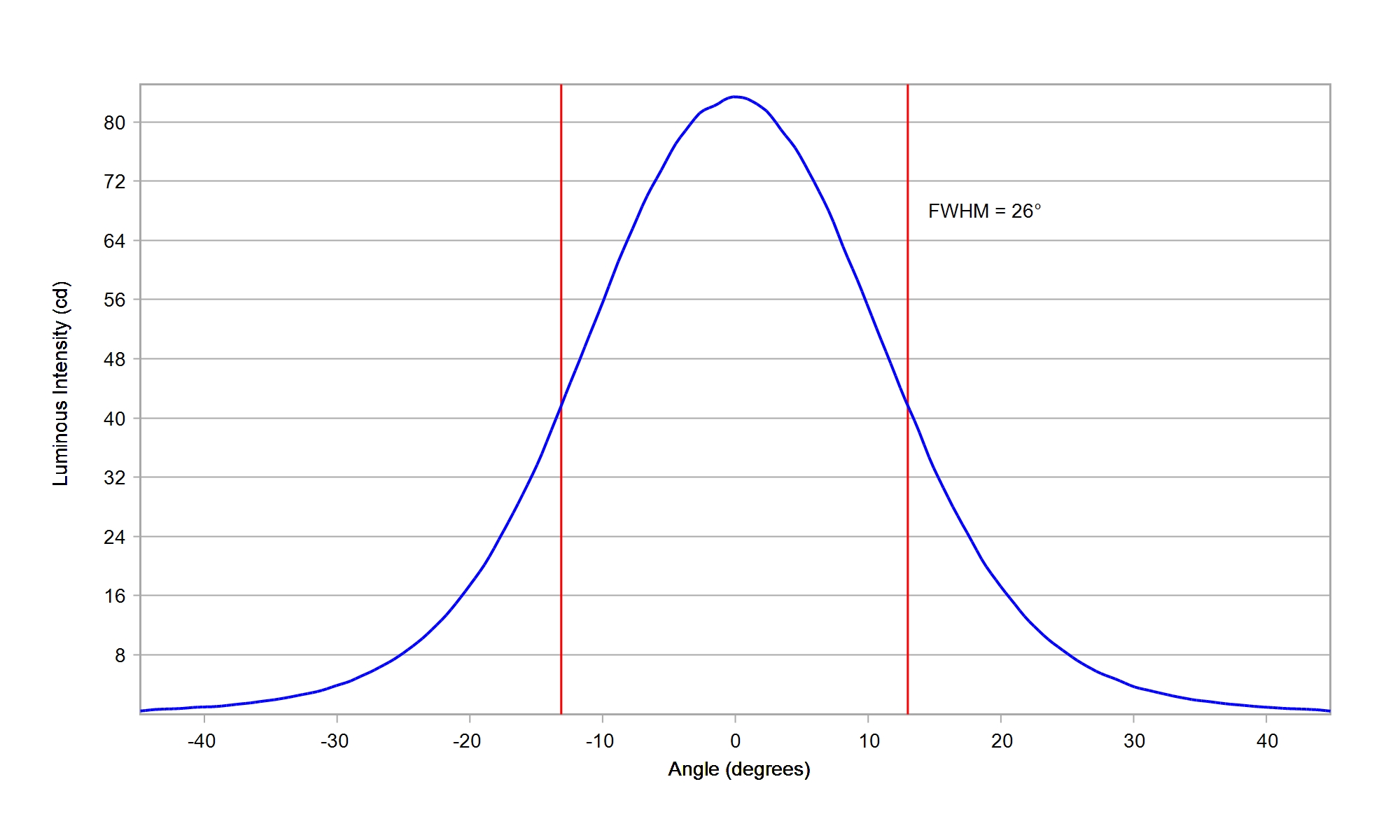

Cree XLamp XQ-A Red
Eff:
85.0%
FWHM:
25.5°
Cd/Im:
3.3
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Cree XLamp XQ-A White
Eff:
84.0%
FWHM:
25°
Cd/Im:
3.3

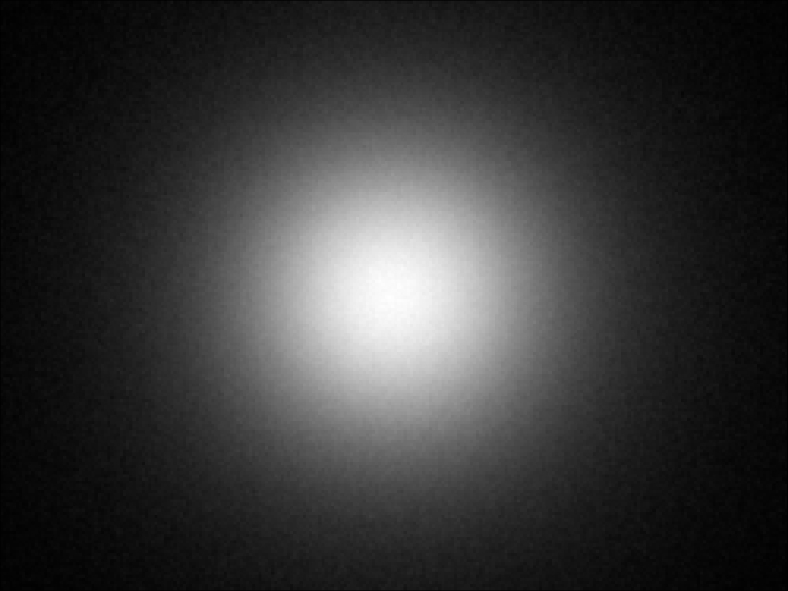

Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Cree XLamp XQ-E HI Blue
Eff:
83.5%
FWHM:
26.5°
Cd/Im:
3.0
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Cree XLamp XQ-E HI Green
Eff:
83.5%
FWHM:
27.0°
Cd/Im:
2.9
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Cree XLamp XQ-E HI Red
Eff:
84.0%
FWHM:
27.0°
Cd/Im:
2.9
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Cree XLamp XQ-E HI White
Eff:
84.0%
FWHM:
25°
Cd/Im:
3.1
Carclo Optics - Simulated Spot Image

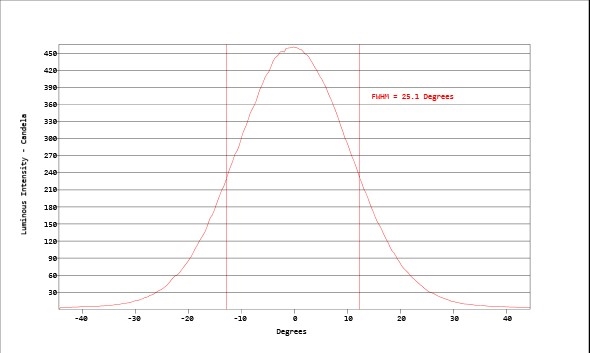

Carclo Optics - Simulated Cross Section
Download
Details
Cree XLamp XT-E HE White
Eff:
84.5%
FWHM:
27.5°
Cd/Im:
2.9
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
LEDEngin 10W White
Eff:
82.0%
FWHM:
34°
Cd/Im:
2.1
Download
Details
Lite-On R38386AS - S R38 IR
Eff:
90.5%
FWHM:
27.5°
Cd/Im:
3.3
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details

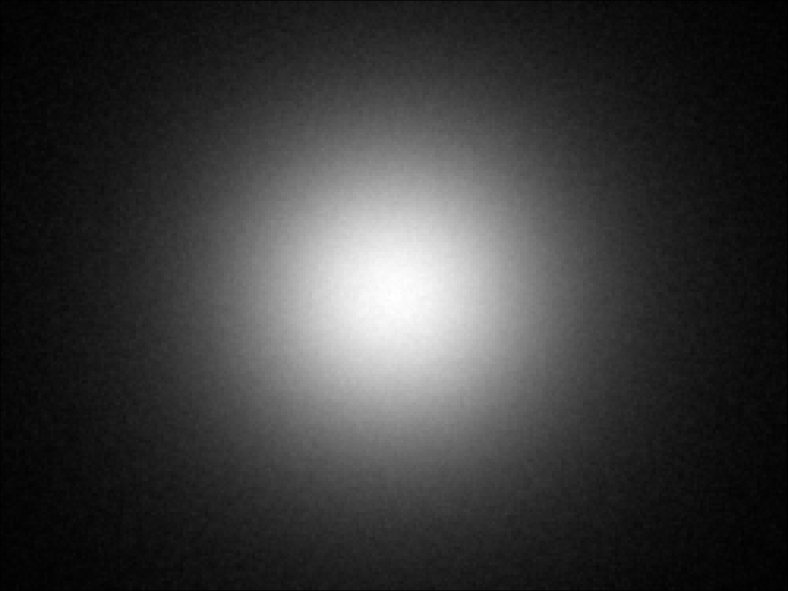

LUMILEDS LUXEON 2835C 6V White
Eff:
86.5%
FWHM:
27°
Cd/Im:
3.0
Download
Details
LUMILEDS LUXEON 2835E 9V White
Eff:
86.0%
FWHM:
28°
Cd/Im:
2.9
Download
Details
LUMILEDS LUXEON 2835N 3V White
Eff:
86.0%
FWHM:
28.5°
Cd/Im:
2.8
Download
Details
LUMILEDS LUXEON 2835S 3V White
Eff:
86.0%
FWHM:
28.5°
Cd/Im:
2.8
Download
Details
LUMILEDS LUXEON 2835S 6V White
Eff:
86.0%
FWHM:
28.5°
Cd/Im:
2.8
Download
Details
LUMILEDS LUXEON 3014 White
Eff:
86.5%
FWHM:
26°
Cd/Im:
3.3
Download
Details
LUMILEDS LUXEON 3030 2D White
Eff:
86.5%
FWHM:
26.5°
Cd/Im:
3.1
Download
Details
LUMILEDS LUXEON 3030 HE Plus White
Eff:
86.0%
FWHM:
27.5°
Cd/Im:
3.0
Carclo Optics – 10394– Luxeon_3030_HE_Plus_spot-image
Carclo Optics – 10394 – Luxeon_3030_HE_Plus_cross vertical section
Download
Details
LUMILEDS LUXEON 3535 HV White
Eff:
83.5%
FWHM:
25.7°
Cd/Im:
3.1
carclo optics - simulated spot image
carclo optics - simulated cross section
Download
Details
LUMILEDS LUXEON 3535 L White
Eff:
83.4%
FWHM:
26.3°
Cd/Im:
3.0
carclo optics - simulated spot image
carclo optics - simulated cross section
Download
Details
LUMILEDS LUXEON 3535L Blue
Eff:
85.0%
FWHM:
26.5°
Cd/Im:
3.0
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
LUMILEDS LUXEON 3535L Green
Eff:
85.5%
FWHM:
26°
Cd/Im:
3.5
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
LUMILEDS LUXEON 3535L Red
Eff:
85.5%
FWHM:
25.5°
Cd/Im:
3.3
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
LUMILEDS LUXEON 5050 HE 24V White
Eff:
85.0%
FWHM:
32°
Cd/Im:
2.2
Download
Details
LUMILEDS LUXEON 5050 HE 6V White
Eff:
85.0%
FWHM:
32°
Cd/Im:
2.2
Download
Details
LUMILEDS LUXEON 5050 Round 24V White
Eff:
85.5%
FWHM:
32°
Cd/Im:
2.2
Download
Details
LUMILEDS LUXEON 5050 Square 30V White
Eff:
85.5%
FWHM:
32°
Cd/Im:
2.2
Download
Details
LUMILEDS LUXEON 5050 Square 6V White
Eff:
85.0%
FWHM:
34°
Cd/Im:
2.0
Download
Details
LUMILEDS LUXEON 5050 Round 6V White
Eff:
84.5%
FWHM:
31.0°
Cd/Im:
2.3
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
LUMILEDS LUXEON 5052 RGBW
Eff:
84.0%
FWHM:
29.5°
Cd/Im:
2.5
Download
Details
LUMILEDS LUXEON C Blue
Eff:
79.5%
FWHM:
24.5°
Cd/Im:
3.1
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
LUMILEDS LUXEON C Lime
Eff:
80.5%
FWHM:
27.0°
Cd/Im:
2.8
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
LUMILEDS LUXEON C Red
Eff:
79.0%
FWHM:
24.5°
Cd/Im:
3.1
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
LUMILEDS LUXEON C White
Eff:
81.0%
FWHM:
27°
Cd/Im:
2.8
Download
Details
LUMILEDS LUXEON CZ White
Eff:
86.0%
FWHM:
26°
Cd/Im:
3.4
Carclo Optics 10394 Spot Image Luxeon CZ 5M
Carclo Optics 10394 Cross Section Luxeon CZ 5M
Download
Details
LUMILEDS LUXEON HL1Z CSP White
Eff:
85.5%
FWHM:
27°
Cd/Im:
3.0
Download
Details
LUMILEDS LUXEON HL2X White
Eff:
85.5%
FWHM:
28.0°
Cd/Im:
2.9

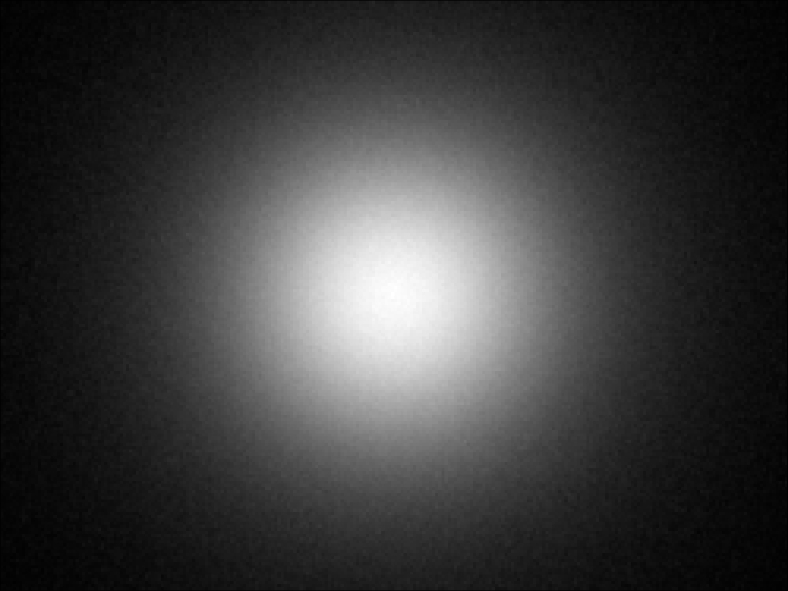

Carclo Optics - 10394 Spot Image Luxeon HL2X
Carclo Optics - 10394 Cross Section Luxeon HL2X
Download
Details

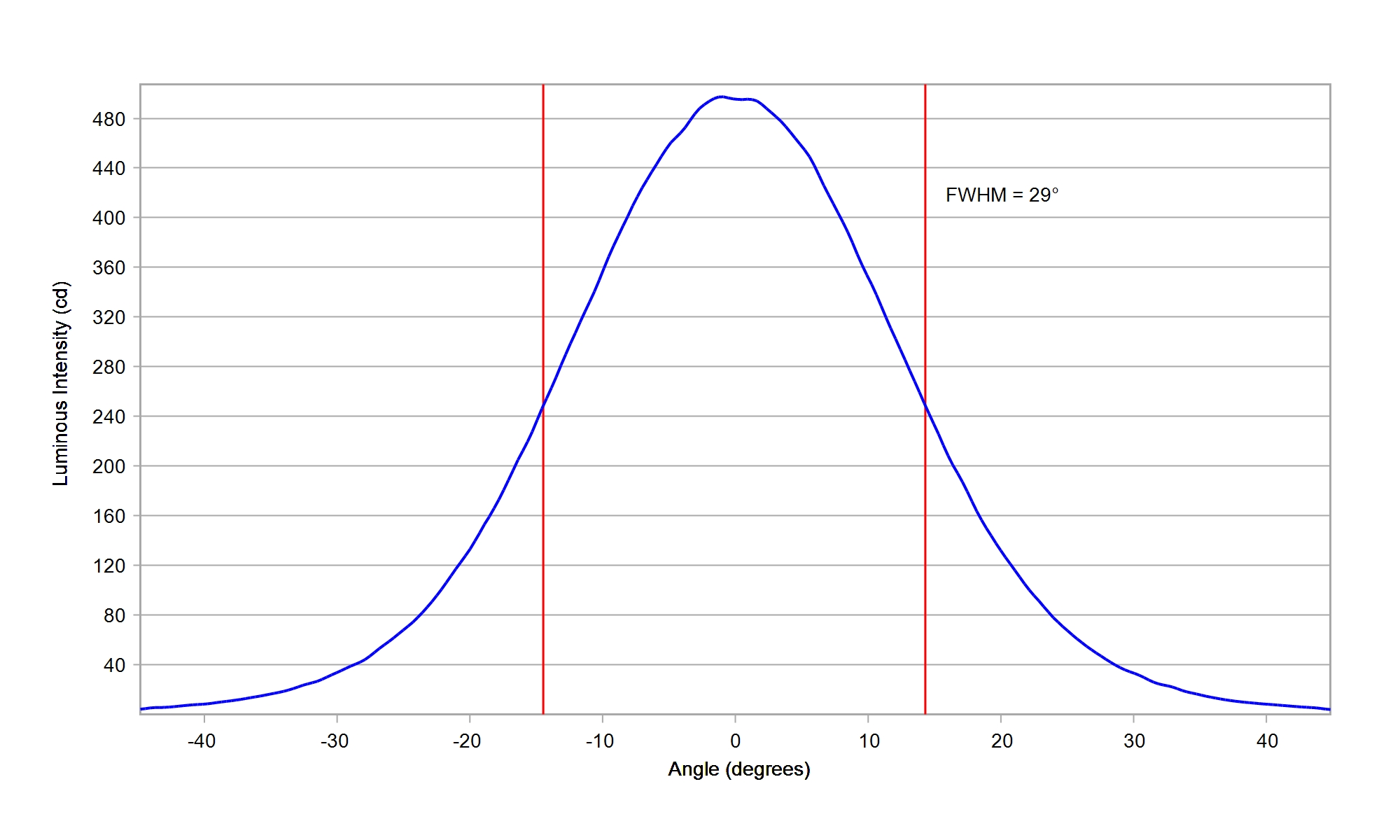

LUMILEDS LUXEON HL2X-D White
Eff:
86.0%
FWHM:
29°
Cd/Im:
2.7
Download
Details
LUMILEDS LUXEON HL2X-P White
Eff:
85.5%
FWHM:
29°
Cd/Im:
2.7
Download
Details
LUMILEDS LUXEON HL2Z White
Eff:
86.0%
FWHM:
27°
Cd/Im:
3.1
Carclo Optics – 10394 Lumileds Luxeon HL2Z - Spot Image
Carclo Optics – 10394 Lumileds Luxeon HL2Z - Cross-Section
Download
Details
LUMILEDS LUXEON IR 2720
Eff:
90.5%
FWHM:
27°
Cd/Im:
3.3
Carclo Optics 10394 Spot Image Luxeon IR 2720
Carclo Optics 10394 Cross Section image Luxeon IR 2720
Download
Details
LUMILEDS LUXEON IR Compact 850nm
Eff:
90.0%
FWHM:
25.5°
Ipk/W:
3.5
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details

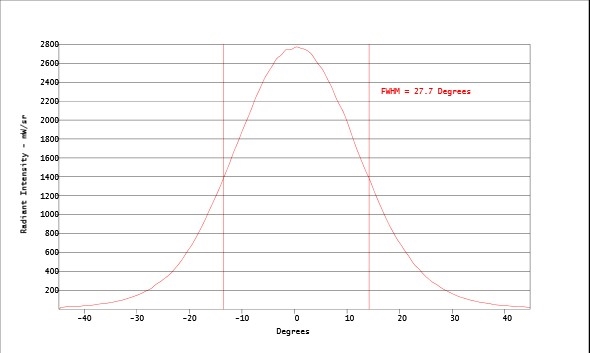

LUMILEDS LUXEON IR Domed 60 Degree
Eff:
88.0%
FWHM:
27.5°
Cd/Im:
3.1
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
LUMILEDS LUXEON IR Domed 90 Degree
Eff:
89.0%
FWHM:
27.0°
Cd/Im:
3.2
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
LUMILEDS LUXEON MX White
Eff:
82.0%
FWHM:
36°
Cd/Im:
1.7
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
LUMILEDS LUXEON MZ White
Eff:
83.2%
FWHM:
32.2°
Cd/Im:
2.0
carclo optics - simulated spot image
carclo optics - simulated cross section
Download
Details
LUMILEDS LUXEON Rubix Blue
Eff:
86.5%
FWHM:
26°
Cd/Im:
3.3

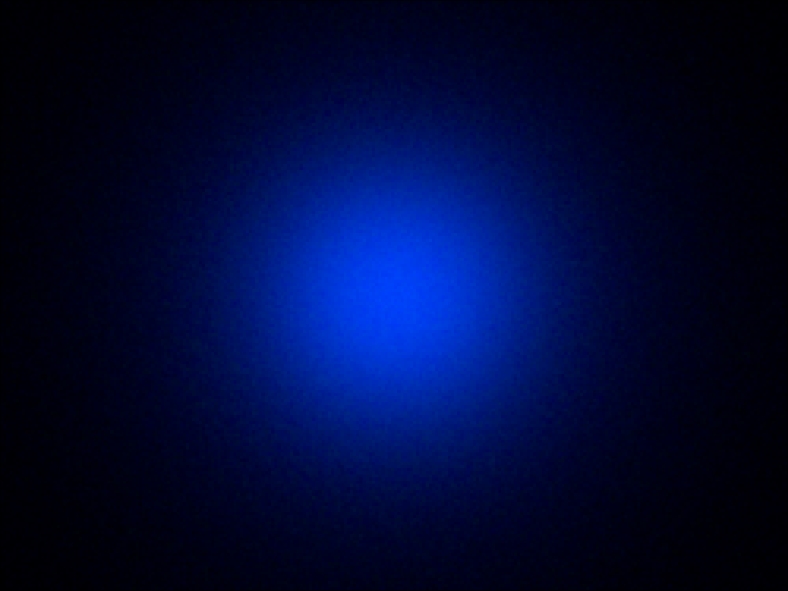

Carclo Optics – 10394 Spot Image Lumileds Luxeon Rubix Blue
Carclo Optics – 10394 Cross Section Lumileds Luxeon Rubix Blue
Download
Details
LUMILEDS LUXEON Rubix Green
Eff:
86.0%
FWHM:
26.5°
Cd/Im:
3.2

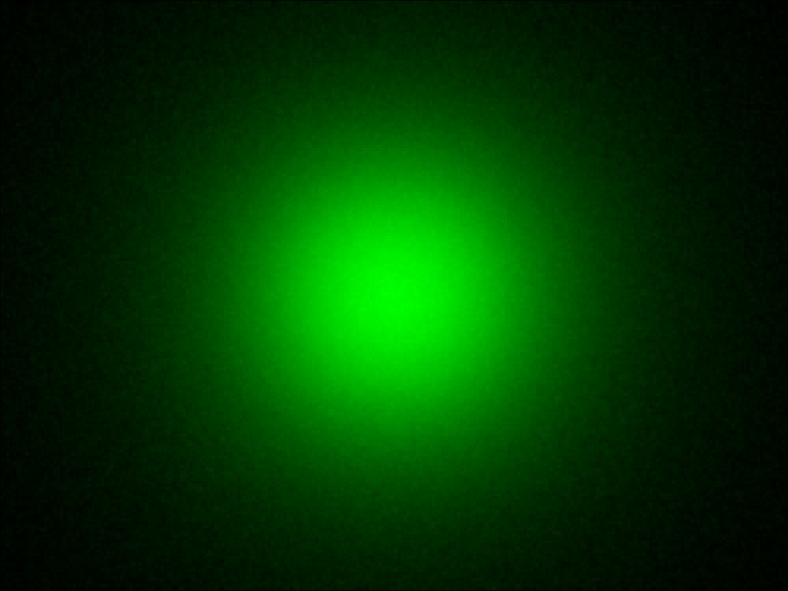

Carclo Optics – 10394 Spot Image Lumileds Luxeon Rubix Green
Carclo Optics – 10394 Cross Section Lumileds Luxeon Rubix Green
Download
Details
LUMILEDS LUXEON Rubix Red
Eff:
87.5%
FWHM:
26.5°
Cd/Im:
3.3
Carclo Optics – 10394 Spot Image Lumileds Luxeon Rubix Red
Carclo Optics – 10394 Cross Section Lumileds Luxeon Rubix Red
Download
Details
LUMILEDS LUXEON Rubix Royal Blue
Eff:
85.0%
FWHM:
26°
Cd/Im:
3.2
Carclo Optics – 10394 Spot Image Lumileds Luxeon Rubix Royal Blue
Carclo Optics – 10394 Cross Section Lumileds Luxeon Rubix Royal Blue
Download
Details
LUMILEDS LUXEON Rubix White
Eff:
86.0%
FWHM:
26.5°
Cd/Im:
3.2
Carclo Optics - 10394 Spot Image Lumileds Luxeon Rubix White
Carclo Optics - 10394 Cross Section Lumileds Luxeon Rubix White
Download
Details
LUMILEDS LUXEON TX White
Eff:
83.4%
FWHM:
27.7°
Cd/Im:
2.6
carclo optics - simulated spot image
carclo optics - simulated cross section
Download
Details
LUMILEDS LUXEON V White
Eff:
81.5%
FWHM:
31.0°
Cd/Im:
2.3
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
LUMILEDS LUXEON Z ES White
Eff:
83.7%
FWHM:
25°
Cd/Im:
3.2
carclo optics - simulated spot image
carclo optics - simulated cross section
Download
Details
LUMILEDS LUXEON Z White
Eff:
83.4%
FWHM:
25.4°
Cd/Im:
3.2
carclo optics - simulated spot image
carclo optics - simulated cross section
Download
Details
Luminus Devices MP 7070-T200 White
Eff:
84.5%
FWHM:
38°
Cd/Im:
1.6
Download
Details
Luminus Devices SFT-40-WxS White
Eff:
86.0%
FWHM:
26.5°
Cd/Im:
3.2
Download
Details
Luminus Devices SFT-70X-WxS White
Eff:
85.5%
FWHM:
29°
Cd/Im:
2.7
Download
Details
Luminus Devices SST 05-IR-B40 850nm
Eff:
89.5%
FWHM:
26.0°
Ipk/W:
3.4
Carclo Optics - 10394 Spot Image Luminus SST-05-IR-B40
Carclo Optics - 10394 Cross Section Luminus SST-05-IR-B40
Download
Details
Luminus Devices SST 10-B-B130 Blue
Eff:
82.5%
FWHM:
28°
Cd/Im:
2.8
Carclo Optics - 10394 Luminus_SST-10_B_B130 - Spot Image
Carclo Optics - 10394 Luminus_SST-10_B_B130 - Cross section image
Download
Details
Luminus Devices SST 10-B-B90 Blue
Eff:
83.0%
FWHM:
27.5°
Cd/Im:
2.8
Carclo Optics - 10394 Luminus_SST-10_B_B90 - spot - image
Carclo Optics - 10394 Luminus_SST-10_B_B90 - cross section image
Download
Details
Luminus Devices SST 10-DR-B130 Deep Red
Eff:
87.5%
FWHM:
26.5°
Cd/Im:
3.2
Carclo Optics – 10394 Luminus_SST-10_DR_B130- Spot - image
Carclo Optics – 10394 Luminus_SST-10_DR_B130- Cross section – image
Download
Details
Luminus Devices SST 10-DR-B90 Deep Red
Eff:
87.5%
FWHM:
28°
Cd/Im:
2.9
Carclo Optics - 10394 Luminus_SST-10_DR_B90 - Spot image
Carclo Optics - 10394 Luminus_SST-10_DR_B90 - Cross section image
Download
Details
Luminus Devices SST 10-G-B130 Green
Eff:
85.0%
FWHM:
28°
Cd/Im:
2.9
Carclo Optics - 10394 Luminus_SST-10_G_B130 - spot - image
Carclo Optics - 10394 Luminus_SST-10_G_B130 - cross section - image
Download
Details
Luminus Devices SST 10-G-B90 Green
Eff:
85.5%
FWHM:
28°
Cd/Im:
2.9
Carclo Optics – 10394 Luminus_SST-10_G_B90- Spot - image
Carclo Optics – 10394 Luminus_SST-10_G_B90- Cross section – image
Download
Details
Luminus Devices SST 10-IR-B130 940nm
Eff:
92.0%
FWHM:
26.0°
Ipk/W:
3.5
Carclo Optics - 10394 Spot Image Luminus SST-10-IR-B130
Carclo Optics - 10394 Cross Section Luminus SST-10-IR-B130
Download
Details
Luminus Devices SST 10-IR-B90 940nm
Eff:
90.5%
FWHM:
27.5°
Ipk/W:
3.1
Carclo Optics - 10394 Spot Image Luminus SST-10-IR-B90
Carclo Optics - 10394 Cross Section Luminus SST-10-IR-B90
Download
Details
Luminus Devices SST 10-IRD-B130 810nm
Eff:
91.5%
FWHM:
26°
Ipk/W:
3.5
Download
Details
Luminus Devices SST 10-IRD-B90 810nm
Eff:
90.5%
FWHM:
27.5°
Ipk/W:
3.1
Download
Details
Luminus Devices SST 20-WxH White Hi CRI
Eff:
85.0%
FWHM:
27.5°
Cd/Im:
2.9
Carclo Optics – 10394 - Luxeon_SST_20_W_spot-image
Carclo Optics – 10394 - Luxeon_SST_20_W_cross vertical section
Download
Details
Luminus Devices SST 40-W White
Eff:
85.5%
FWHM:
28°
Cd/Im:
2.8
Carclo Optics – 10394 - Luxeon_SST_40_W_spot-image
Carclo Optics – 10394 - Luxeon_SST_40_W_cross vertical section
Download
Details
Luminus Devices SST-12-WxS White
Eff:
85.5%
FWHM:
27°
Cd/Im:
3.1
Download
Details
Luminus Devices SST-50 White
Eff:
78.6%
FWHM:
33.6°
Cd/Im:
2.4
Download
Details
Luminus Devices SST-70X-W White
Eff:
85.0%
FWHM:
31°
Cd/Im:
2.4
Download
Details
Luminus Devices SST-90 White
Eff:
80.4%
FWHM:
40.8°
Cd/Im:
1.6
Download
Details
Nichia 229A White
Eff:
82.5%
FWHM:
29.0°
Cd/Im:
2.5
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Nichia 757G White
Eff:
85.0%
FWHM:
28.0°
Cd/Im:
2.9
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Nichia 757G White
Eff:
86.0%
FWHM:
28°
Cd/Im:
2.8
Carclo Optics 10394 Simulated Spot Image Nichia 757G-MT
Carclo Optics 10394 Simulated cross section vertical Nichia 757G-MT
Download
Details
Nichia NCSW CSP E17A White
Eff:
84.0%
FWHM:
26.5°
Cd/Im:
3.1
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Nichia NF2W 385AR-V2 White
Eff:
84.5%
FWHM:
28.0°
Cd/Im:
2.8
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Nichia NF2W 757G-MT Tunable
Eff:
86.0%
FWHM:
27°
Cd/Im:
3.0
Download
Details
Nichia NFMW 481AR White
Eff:
76.0%
FWHM:
31.5°
Cd/Im:
2.0
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Nichia NFMW 484AR White
Eff:
84.5%
FWHM:
32.0°
Cd/Im:
2.2
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details

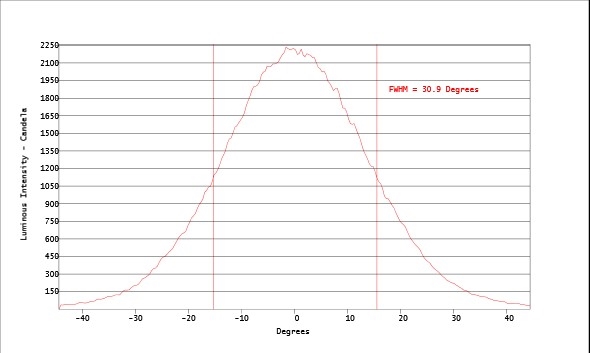

Nichia NFMW 486AR White
Eff:
84.5%
FWHM:
31.0°
Cd/Im:
2.3
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Nichia NFMW 488AR White
Eff:
84.5%
FWHM:
31.5°
Cd/Im:
2.2

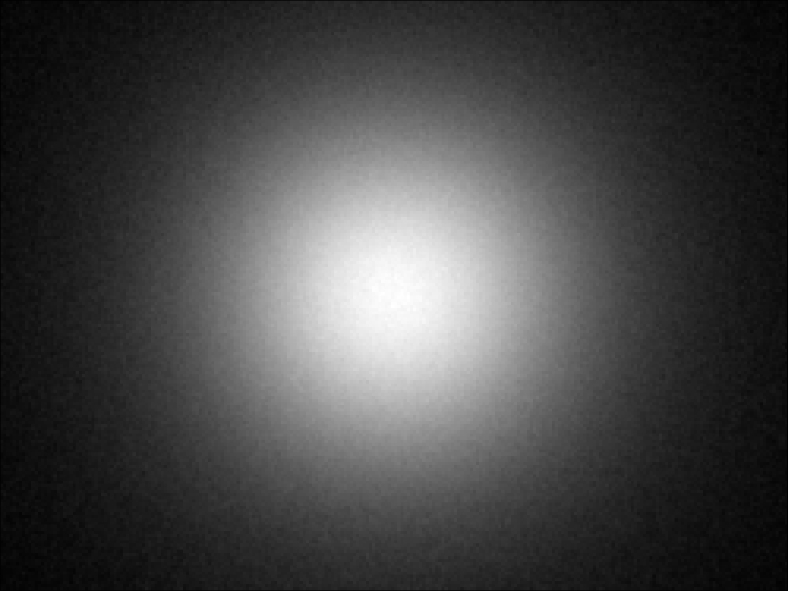

Carclo Optics - Simulated Spot Image

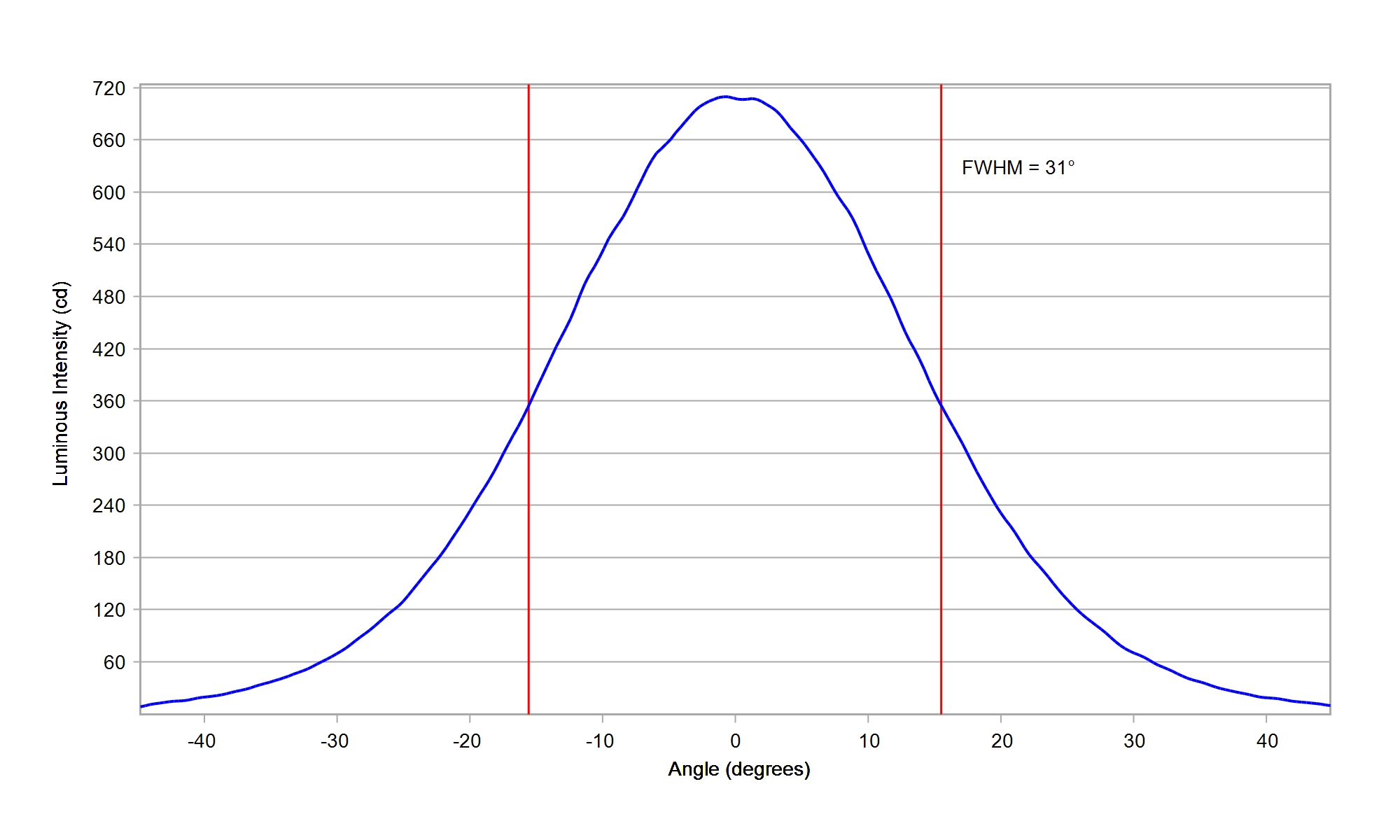

Carclo Optics - Simulated Cross Section
Download
Details
Nichia NFSW CSP E11A White
Eff:
84.5%
FWHM:
26.5°
Cd/Im:
3.1
Download
Details
Nichia NV4W 144AR White
Eff:
81.5%
FWHM:
31.0°
Cd/Im:
2.0

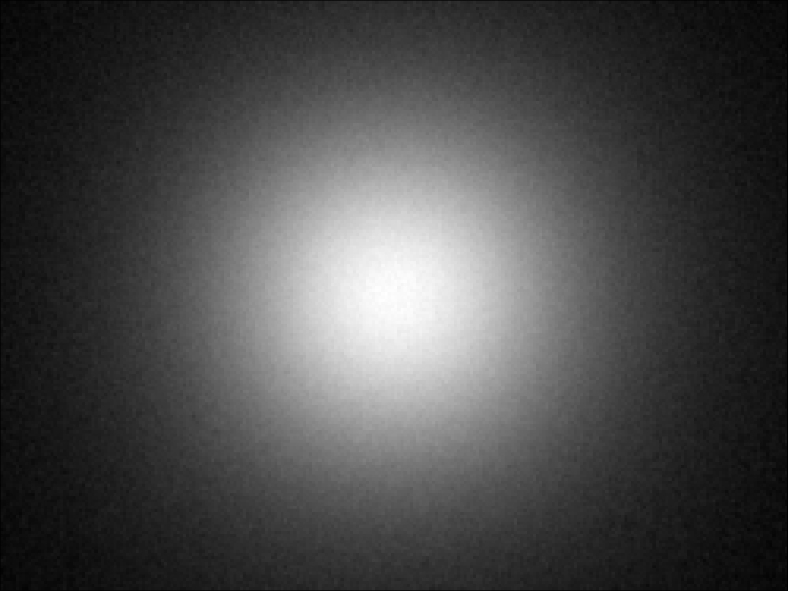

Carclo Optics - Simulated Spot Image

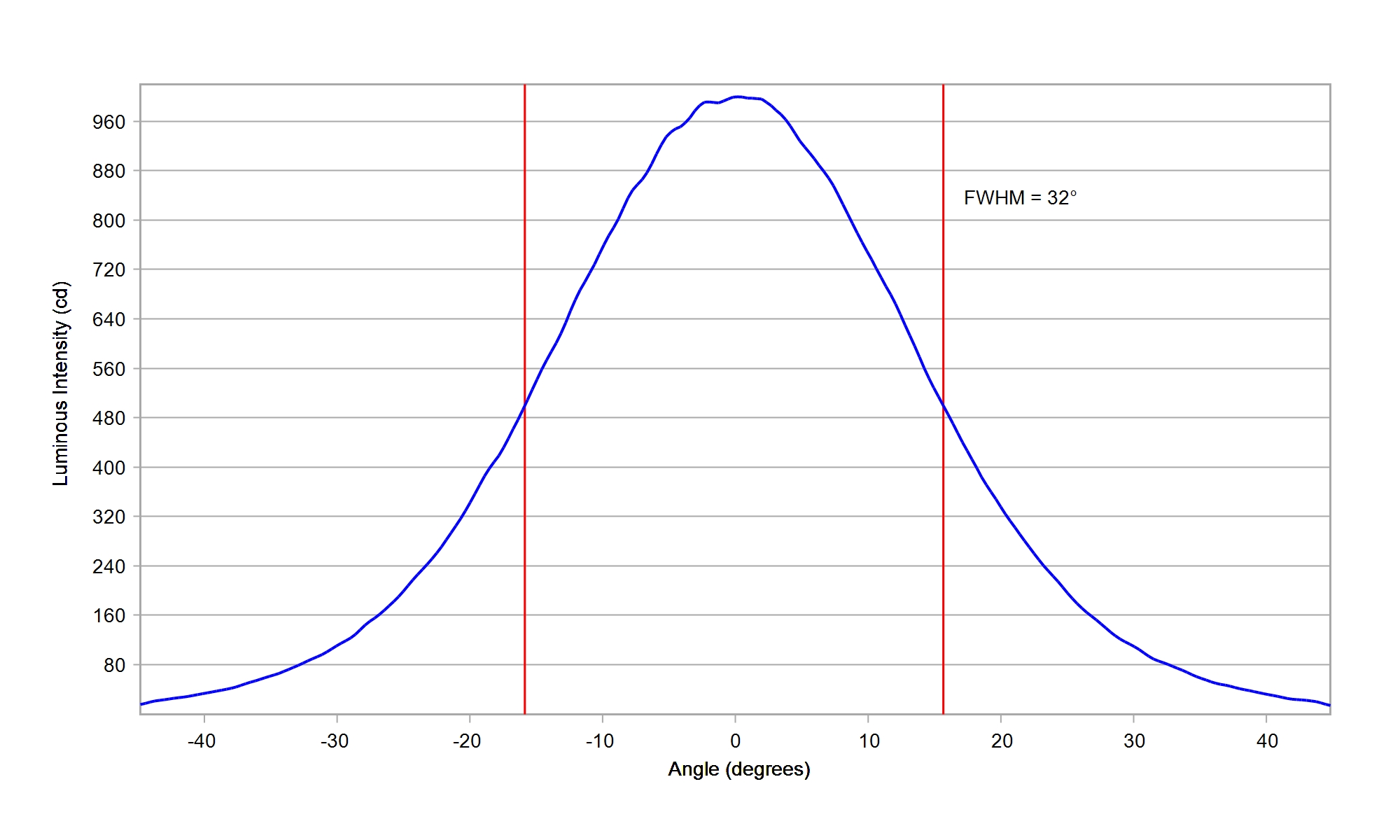

Carclo Optics - Simulated Cross Section
Download
Details
Nichia NV4W B35AM White
Eff:
85.5%
FWHM:
30°
Cd/Im:
2.5
Carclo Optics – 10394 Nichia NV4WB35AM - Spot Image
Carclo Optics – 10394 Nichia NV4WB35AM - Cross-Section
Download
Details
Nichia NVSL 219B White
Eff:
82.5%
FWHM:
28.5°
Cd/Im:
2.6
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Nichia NVSW 219C White
Eff:
83.5%
FWHM:
29.0°
Cd/Im:
2.7
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Nichia NVSW 219F White
Eff:
85.0%
FWHM:
27.5°
Cd/Im:
2.9
Carclo Optics – 10394 Nichia NVSW 219F White - Spot Image
Carclo Optics – 10394 Nichia NVSW 219F White - Cross-Section
Download
Details
Nichia NVSW 319A White
Eff:
83.0%
FWHM:
28.0°
Cd/Im:
2.6
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Nichia NVSW CSP E21A White
Eff:
82.0%
FWHM:
28.4°
Cd/Im:
2.5
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Nichia Top Emitting 083 White
Download
Details
Osram Led Engin LuxiGen LZ1 00R702 IR940nm
Eff:
91.0%
FWHM:
28.5°
Ipk/W:
3.0
Download
Details
Osram OS DURIS E 2835 Gen2
Eff:
85.5%
FWHM:
29°
Cd/Im:
2.8
Carclo Optics - 10394 26.5mm Spot Image Osram DURIS E 2835 Gen2
Carclo Optics - 10394 26.5mm Cross Section Osram DURIS E 2835 Gen2
Download
Details
Osram OS DURIS E 2835 White
Eff:
85.0%
FWHM:
28°
Cd/Im:
2.9
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Osram OS DURIS E 5050 GW J9LHS1.4M RGBW
Eff:
86.0%
FWHM:
30°
Cd/Im:
2.3
Download
Details
Osram OS DURIS E2 White
Eff:
84.0%
FWHM:
25.2°
Cd/Im:
3.2
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Osram OS DURIS E3 White
Eff:
87.2%
FWHM:
25.5°
Cd/Im:
3.3
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Osram OS DURIS P10 White
Eff:
83.1%
FWHM:
34.7°
Cd/Im:
1.7

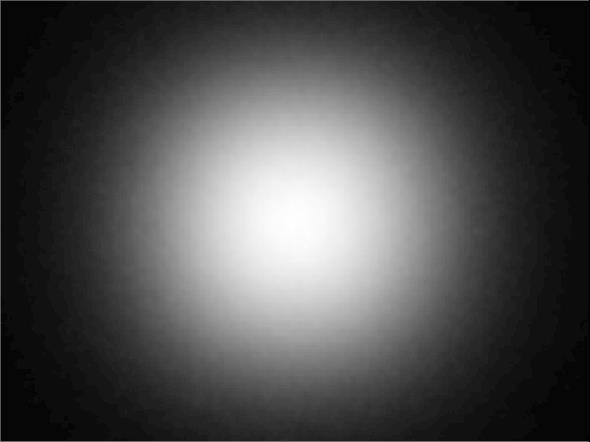

Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Osram OS DURIS P8 White
Eff:
83.2%
FWHM:
26.9°
Cd/Im:
2.8
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Osram OS DURIS S10 White
Eff:
83.0%
FWHM:
37.5°
Cd/Im:
1.5
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Osram OS DURIS S2 White
Eff:
87.6%
FWHM:
25.8°
Cd/Im:
3.1
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Osram OS DURIS S5 Deep Blue
Eff:
83.5%
FWHM:
28.5°
Cd/Im:
2.8
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Osram OS DURIS S5 Green
Eff:
86.0%
FWHM:
27.0°
Cd/Im:
3.1
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Osram OS DURIS S5 Red
Eff:
87.0%
FWHM:
26.5°
Cd/Im:
3.2
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Osram OS DURIS S5 White
Eff:
83.0%
FWHM:
26°
Cd/Im:
3.0
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Osram OS DURIS S8 Gen2 White
Eff:
87.0%
FWHM:
32.5°
Cd/Im:
2.1
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Osram OS DURIS S8 Gen3 White
Eff:
84.5%
FWHM:
36.5 x 36.0°
Cd/Im:
2.6
Carclo Optics - 10394 26.5mm Spot Image Oslon DURIS S8 Gen3
Carclo Optics - 10394 26.5mm Cross Section Oslon DURIS S8 Gen3
Download
Details
Osram OS DURIS S8 White
Eff:
87.1%
FWHM:
35.1°
Cd/Im:
1.9
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section Image
Download
Details
Osram OS Golden DRAGON Plus W5AM White
Eff:
0.0%
FWHM:
°
Cd/Im:
0.0
Download
Details
Osram OS GOLDEN DRAGON W5SM White
Eff:
80.6%
FWHM:
25.6°
Cd/Im:
3.6
Download
Details
Osram OS OSCONIQ C 2424 White
Eff:
86.5%
FWHM:
27.0°
Cd/Im:
3.1
Carclo Optics - 10394 Spot Image OSCONIQ C2424
Carclo Optics - 10394 Cross Section OSCONIQ C2424
Download
Details
Osram OS OSCONIQ P3737 White
Eff:
82.5%
FWHM:
30°
Cd/Im:
2.4
Carclo Optics 10394 Spot Image Osram Osconiq

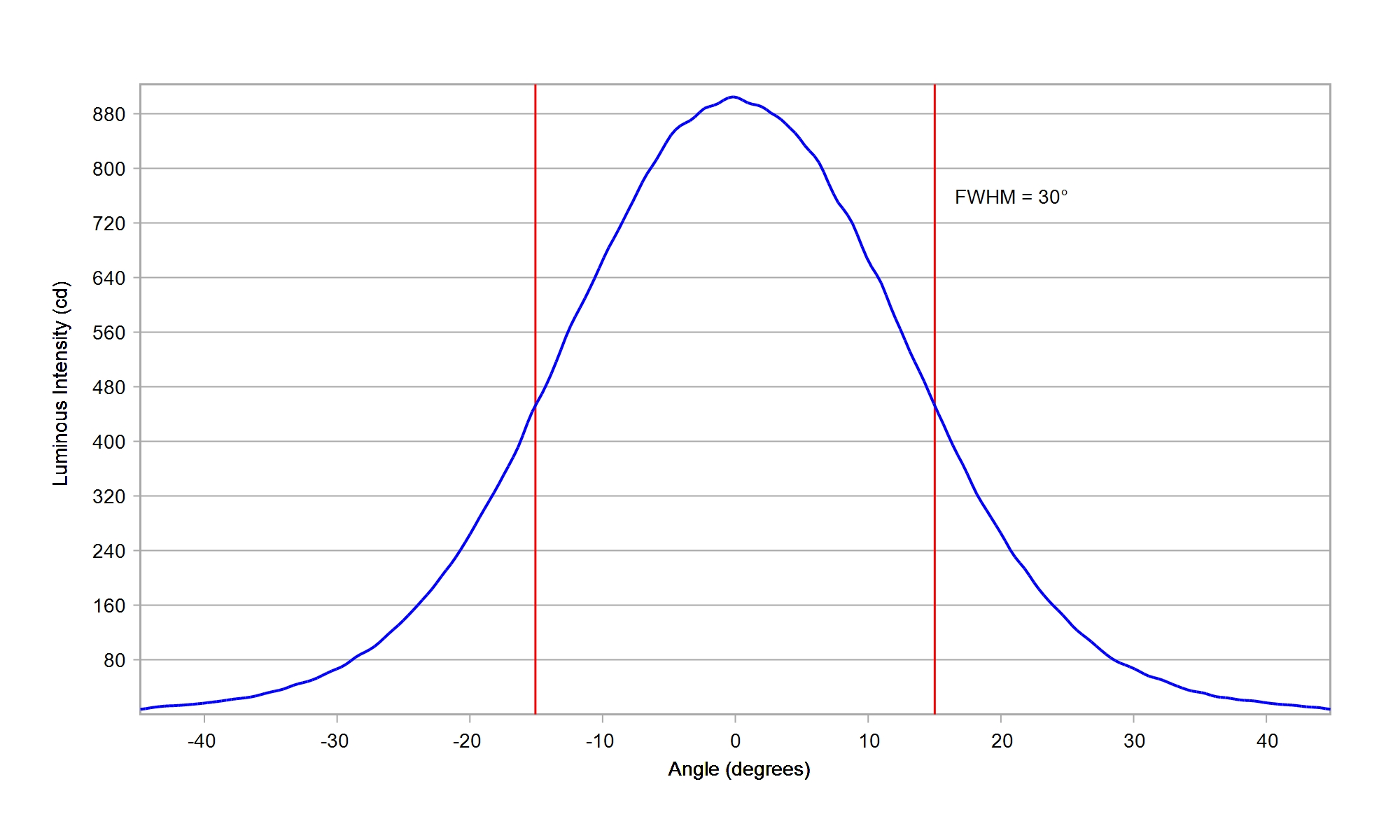

Carclo Optics 10394 Cross Section Osram Osconiq P3737
Download
Details
Osram OS OSCONIQ S 5050 GW Q9LR32.PM
Eff:
84.5%
FWHM:
35°
Cd/Im:
1.8
Download
Details
Osram OS OSLON Black SFH 4715AS IR
Eff:
89.5%
FWHM:
27.5°
Ipk/W:
3.1
Download
Details
Osram OS OSLON Black SFH 4716AS IR
Eff:
90.0%
FWHM:
24.5°
Ipk/W:
3.7
Carclo Optics – 10394 Spot Image OSRAM OS Oslon Black IR SFH 4716AS
Carclo Optics – 10394 Cross Section OSRAM OS Oslon Black IR SFH 4716AS
Download
Details
Osram OS OSLON Black SFH 4725S IR
Eff:
91.5%
FWHM:
27°
Cd/Im:
3.3
Carclo Optics 10394 Spot Image Osram Oslon Black_IR_SFH_4725S
Carclo Optics 10394 Cross Section Osram Oslon Black_IR_SFH_4725S
Download
Details
Osram OS OSLON Boost HM KW CELMM1.TG
Eff:
85.5%
FWHM:
26.5°
Cd/Im:
3.2
Carclo Optics – 10394 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image
Carclo Optics – 10394 – Osram_Oslon_Boost_KW_CELMM1_TG_cross section
Download
Details
Osram OS OSLON Pure 1010 CSP GC VJLPE1.13 Cyan
Eff:
87.0%
FWHM:
25.5°
Cd/Im:
3.4
Download
Details
Osram OS OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue
Eff:
84.0%
FWHM:
26.5°
Ipk/W:
3.1
Download
Details
Osram OS OSLON Pure 1010 CSP GG VJLPE1.F3 Green
Eff:
86.0%
FWHM:
25.5°
Cd/Im:
3.4
Download
Details
Osram OS OSLON Pure 1010 CSP GR VJLPE1.F3 Red
Eff:
86.5%
FWHM:
25°
Cd/Im:
3.5
Download
Details
Osram OS OSLON Pure 1010 CSP GT VJLPE1.13 True Green
Eff:
86.5%
FWHM:
26°
Cd/Im:
3.4
Download
Details
Osram OS OSLON Pure 1010 CSP GW VJLPE1.CM White
Eff:
85.0%
FWHM:
27°
Cd/Im:
3.1
Download
Details
Osram OS OSLON Square Flat White
Eff:
84.5%
FWHM:
28.5°
Cd/Im:
2.9
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Osram OS OSLON Square Gen 3 White
Eff:
83.4%
FWHM:
27.2°
Cd/Im:
2.8
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Osram OS OSLON Square Gen 5 GW CSSRM3
Eff:
85.5%
FWHM:
27°
Cd/Im:
3.0
Carclo Optics - 10394 26.5mm Spot Image Oslon Square Gen 5
Carclo Optics - 10394 26.5mm Cross Section Oslon Square Gen 5
Download
Details
Osram OS OSLON Square White
Eff:
83.0%
FWHM:
26.8°
Cd/Im:
2.8
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Osram OS OSLON SSL 150 degree GW CSHPM1.PM White
Eff:
86.0%
FWHM:
25°
Cd/Im:
3.4
Carclo Optics – 10394 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White
Carclo Optics – 10394 Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White
Download
Details
Osram OS OSLON SSL 80 GH CS8PM1.24 Hyper Red
Eff:
86.5%
FWHM:
27.5°
Ipk/W:
3.0
Download
Details
Osram OS OSLON SSL 80 GT CS8PM1.13 True Green
Eff:
86.5%
FWHM:
28.5°
Cd/Im:
2.8
Download
Details
Osram OS OSLON SSL 80 GW CS8PM1.PM White
Eff:
86.5%
FWHM:
27°
Cd/Im:
3.0
Download
Details
Osram OS OSTAR Lighting White
Eff:
78.7%
FWHM:
30.7°
Cd/Im:
2.8
Download
Details
Osram OS OSTAR Stage LE-UW-S2WN
Eff:
85.0%
FWHM:
28.5°
Cd/Im:
2.8
Carclo Optics – 10394 Osram Ostar Stage LE-UW-S2WN - Spot Image
Carclo Optics – 10394 Osram Ostar Stage LE-UW-S2WN - Cross-Section
Download
Details
Osram OS PLATINUM DRAGON W5SN White
Eff:
83.0%
FWHM:
25.8°
Cd/Im:
3.6
Download
Details
Plessey PLW 7070GA White
Eff:
83.0%
FWHM:
34°
Cd/Im:
1.8
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Samsung 2835 LM281B+ White
Eff:
85.5%
FWHM:
29°
Cd/Im:
2.7
Download
Details
Samsung 3030 LM301B White
Eff:
86.0%
FWHM:
28°
Cd/Im:
2.8
Download
Details
Samsung 3535 LH351B White
Eff:
83.0%
FWHM:
28°
Cd/Im:
2.6
carclo optics - simulated spot image
carclo optics - simulated cross section
Download
Details
Samsung 3535 LH351D White
Eff:
85.0%
FWHM:
28.5°
Cd/Im:
2.8
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Samsung 3535 LH351Z White
Eff:
83.5%
FWHM:
27°
Cd/Im:
2.9
carclo optics - simulated spot image
carclo optics - simulated cross section
Download
Details
Samsung 5050 LH502C White
Eff:
85.5%
FWHM:
31°
Cd/Im:
2.3
Download
Details
Samsung 5050 LH502D White
Eff:
86.0%
FWHM:
30°
Cd/Im:
2.4
Download
Details
Samsung 5050 LH508C White
Eff:
85.5%
FWHM:
31°
Cd/Im:
2.3
Download
Details
Samsung CSP LH151B White
Eff:
86.0%
FWHM:
25.5°
Cd/Im:
3.3
Carclo Optics – 10394 – Samsung_LH151B_spot-image
Carclo Optics – 10394 – Samsung_LH151B_cross section
Download
Details
Samsung CSP LH181B White
Eff:
86.0%
FWHM:
28°
Cd/Im:
2.9
Carclo Optics -10394 Sport Image - Samsung LH181B 4000K
Carclo Optics -10394 Cross Section - Samsung LH181B 4000K
Download
Details
Samsung CSP LH231B White
Eff:
85.5%
FWHM:
29 x 28.5°
Cd/Im:
2.8
Carclo Optics - 10394 Spot Image Samsung LH231B 5000K
Carclo Optics -10394 Cross Section - Samsung LH231B 5000K
Download
Details
Samsung CSP LM101B White
Eff:
86.0%
FWHM:
27°
Cd/Im:
3.1
Carclo Optics -10394 Sport Image - Samsung LM101B 5000K
Carclo Optics -10394 Cross Section Image - Samsung LM101B 5000K
Download
Details
Seoul Acrich A2000 White
Eff:
78.3%
FWHM:
29°
Cd/Im:
3.2
Download
Details
Seoul CSP SZ8Y11 White
Eff:
83.0%
FWHM:
26.5°
Cd/Im:
3.0
Carclo Optics -10394 Spot Image - Seoul Z8Y11
Carclo Optics -10394 Cross Section Image - Seoul Z8Y11
Download
Details
Seoul CSP SZ8Y15 White
Eff:
84.0%
FWHM:
25°
Cd/Im:
3.4

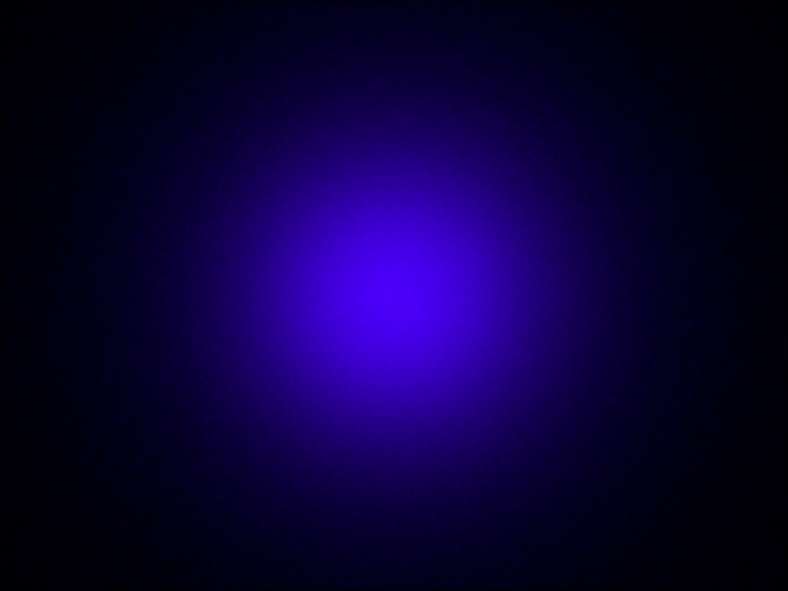

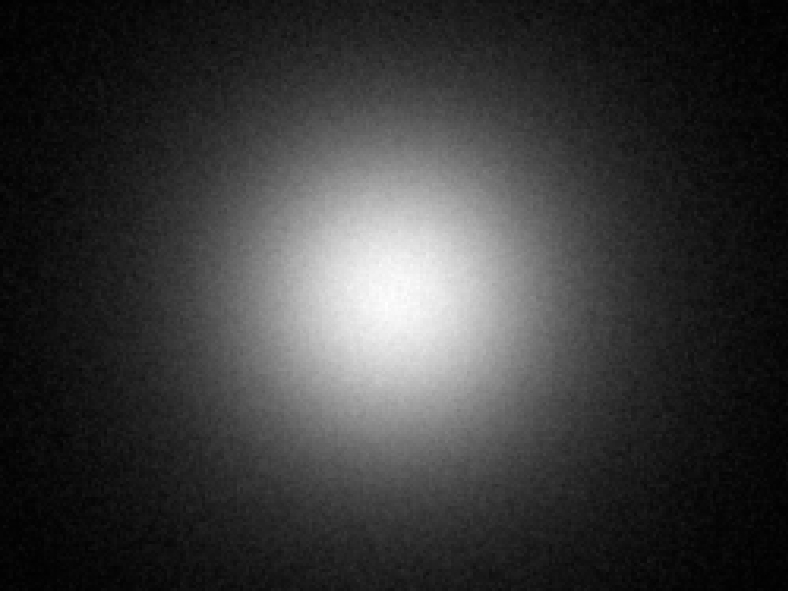

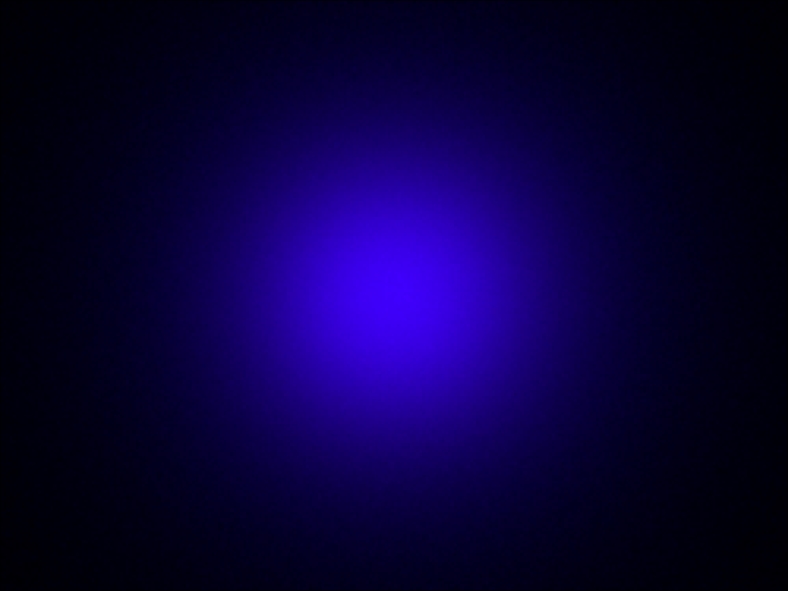

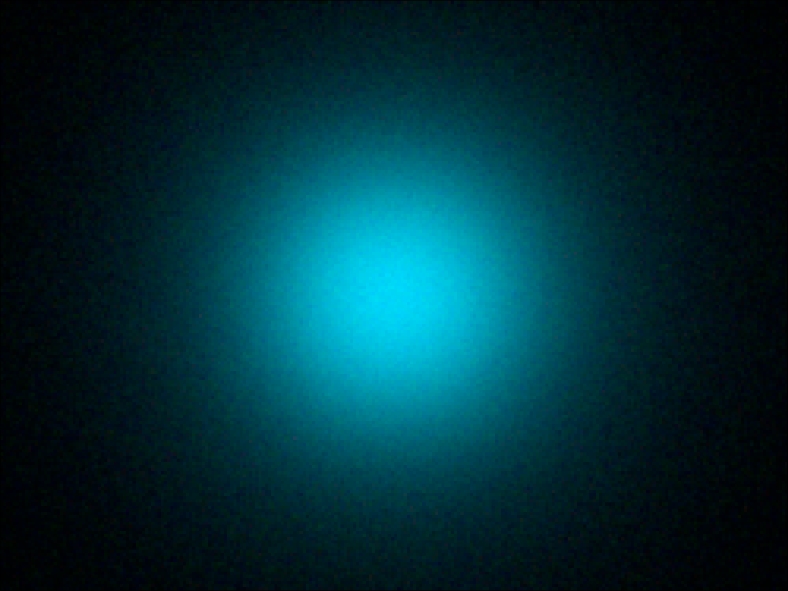

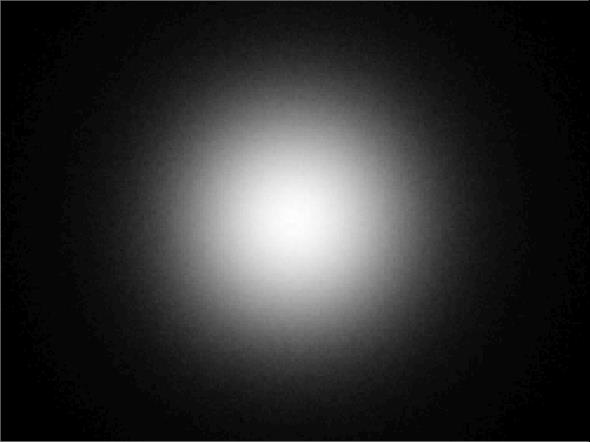

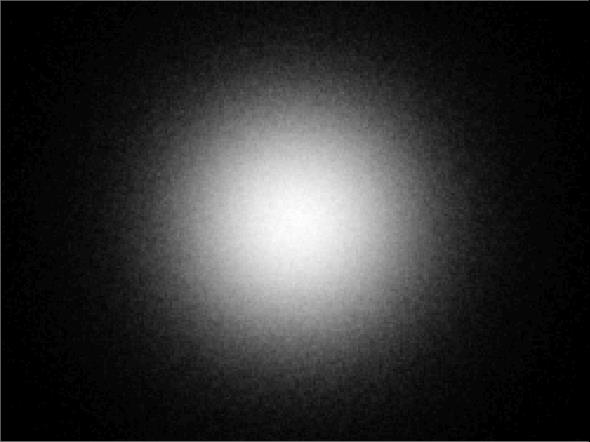

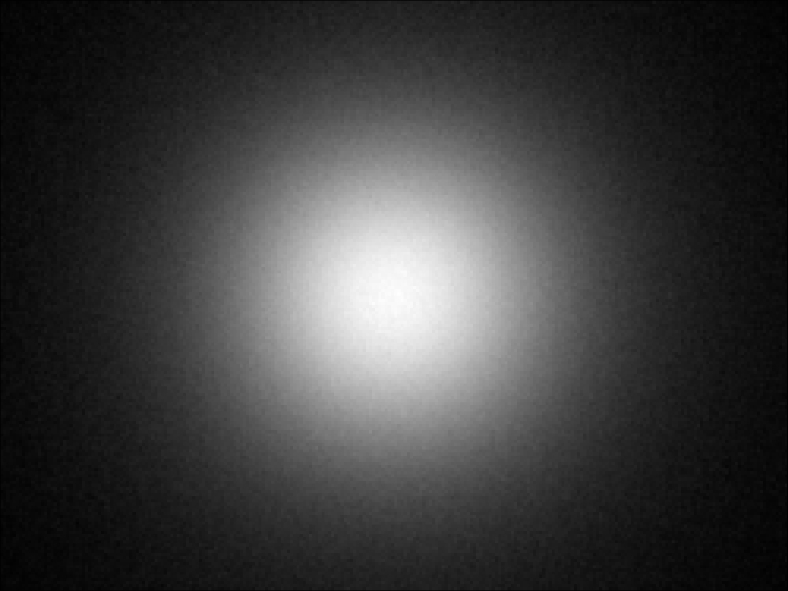

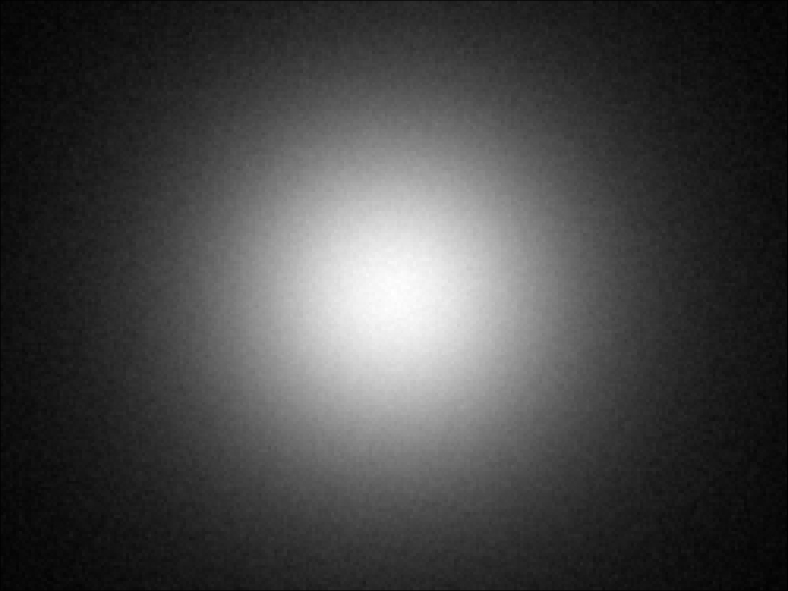

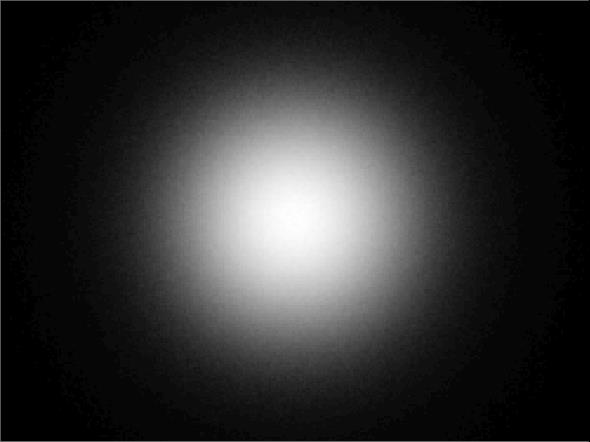

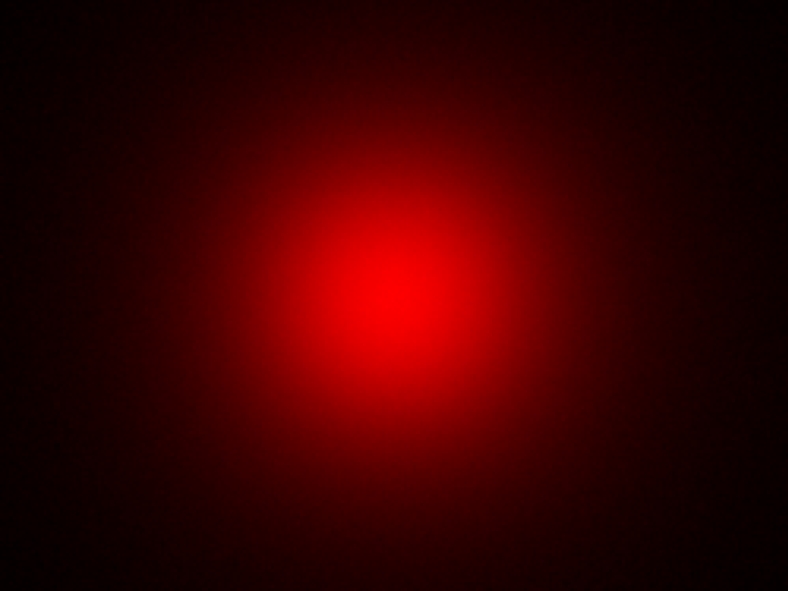

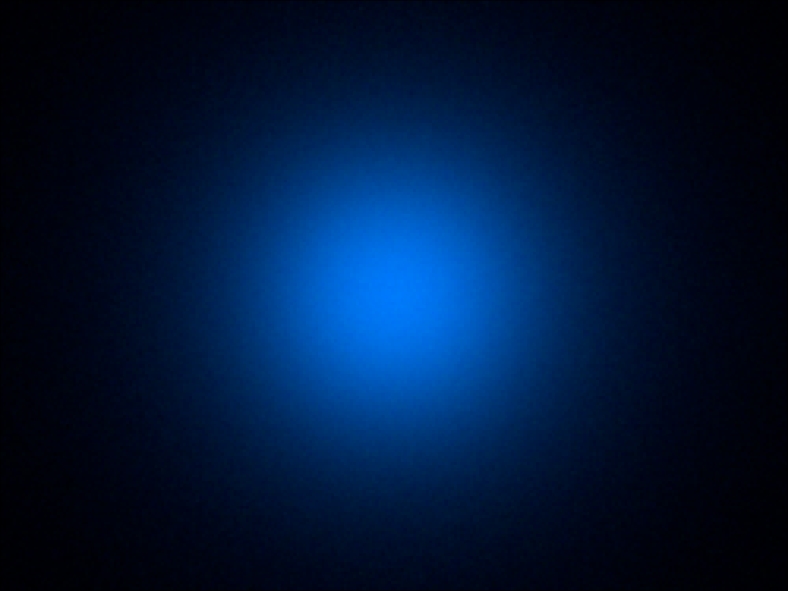

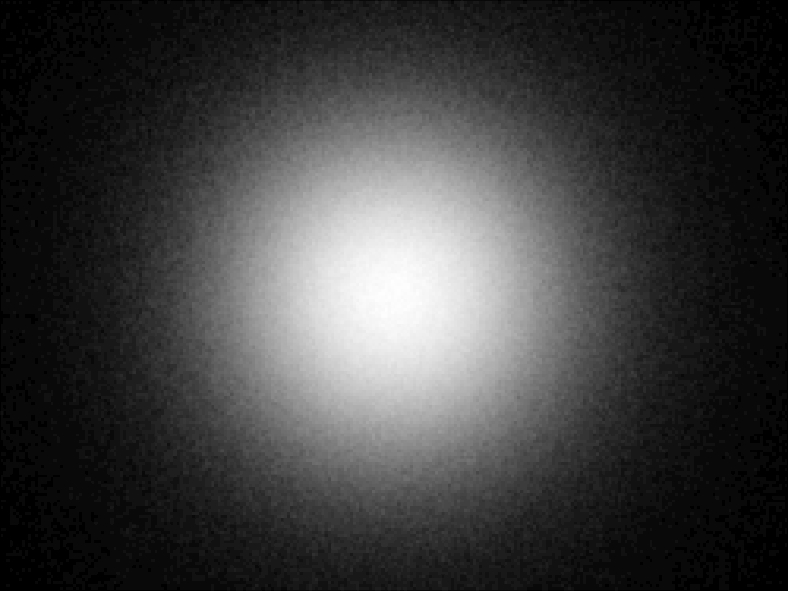

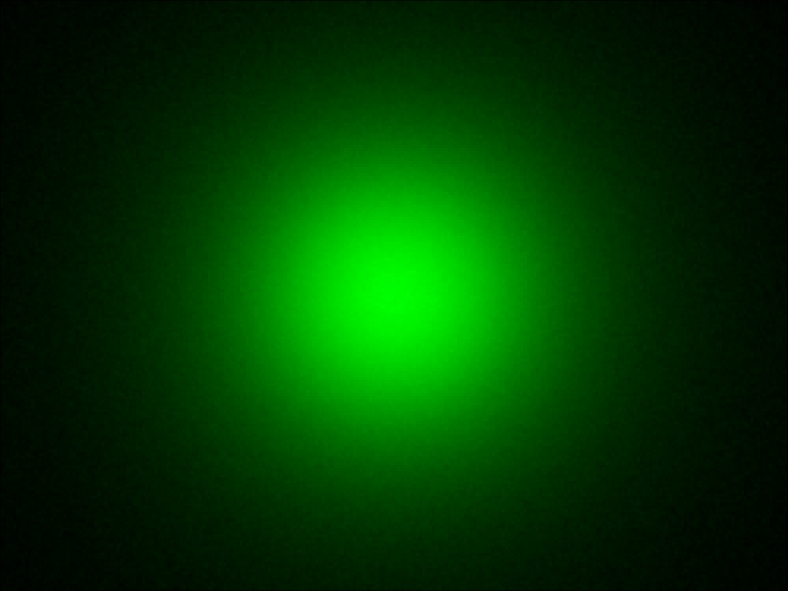

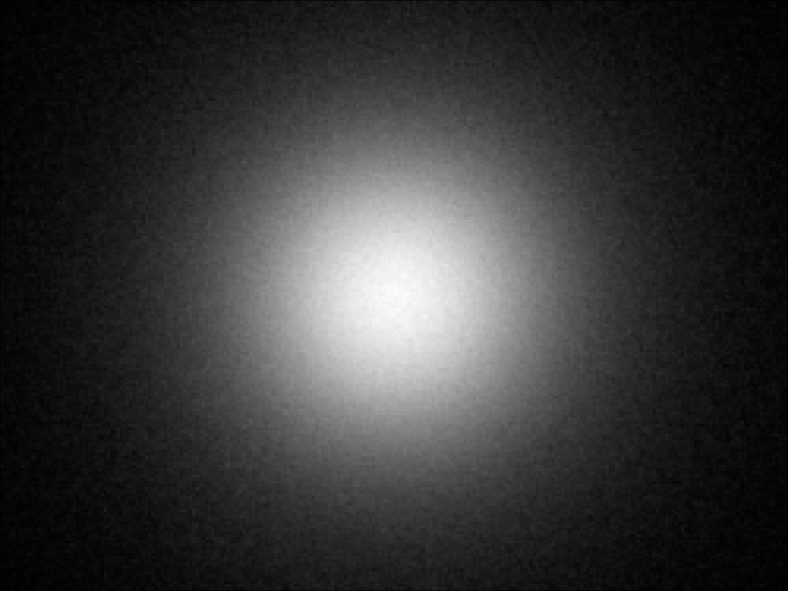

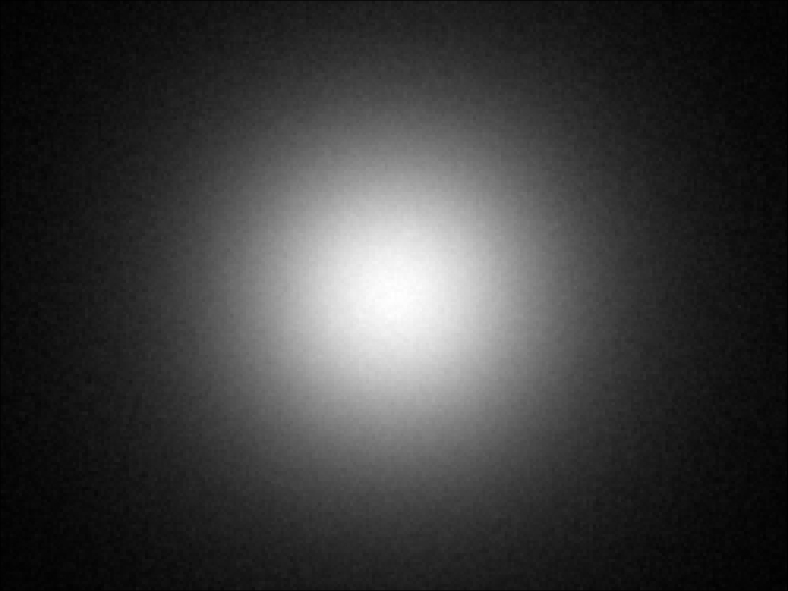

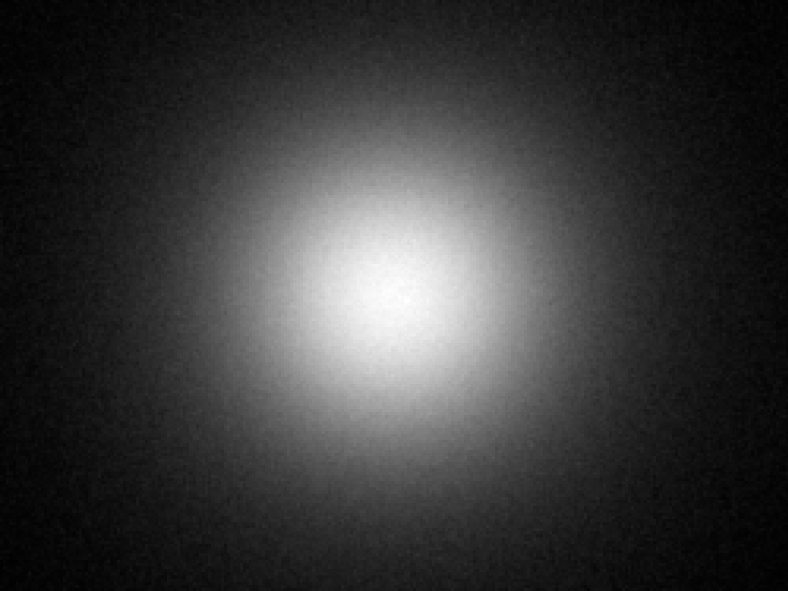

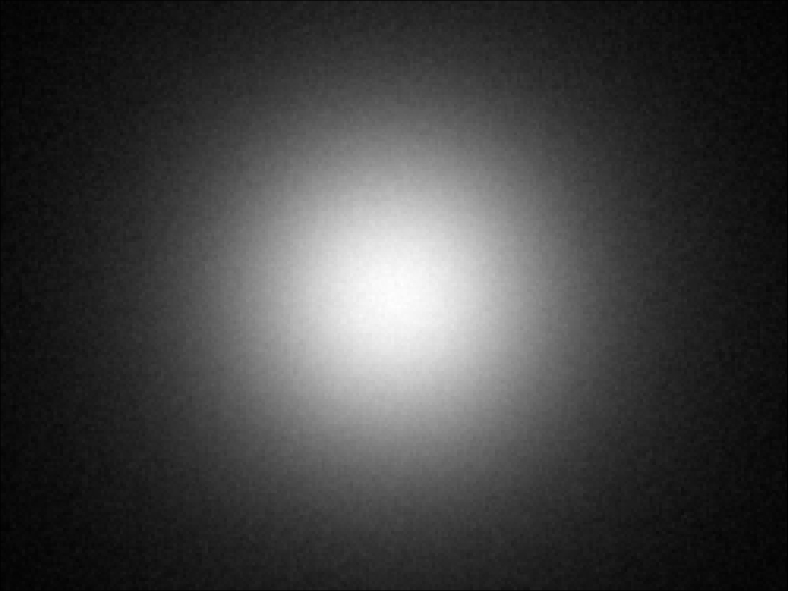

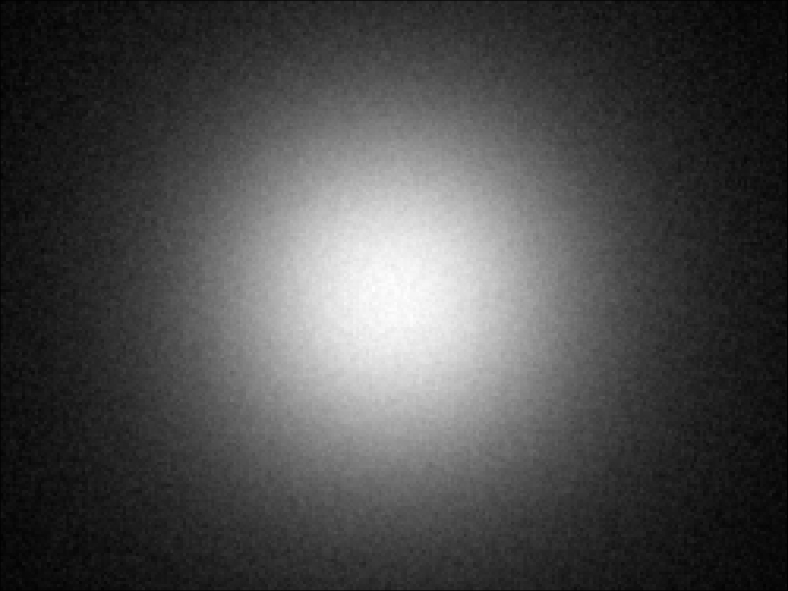

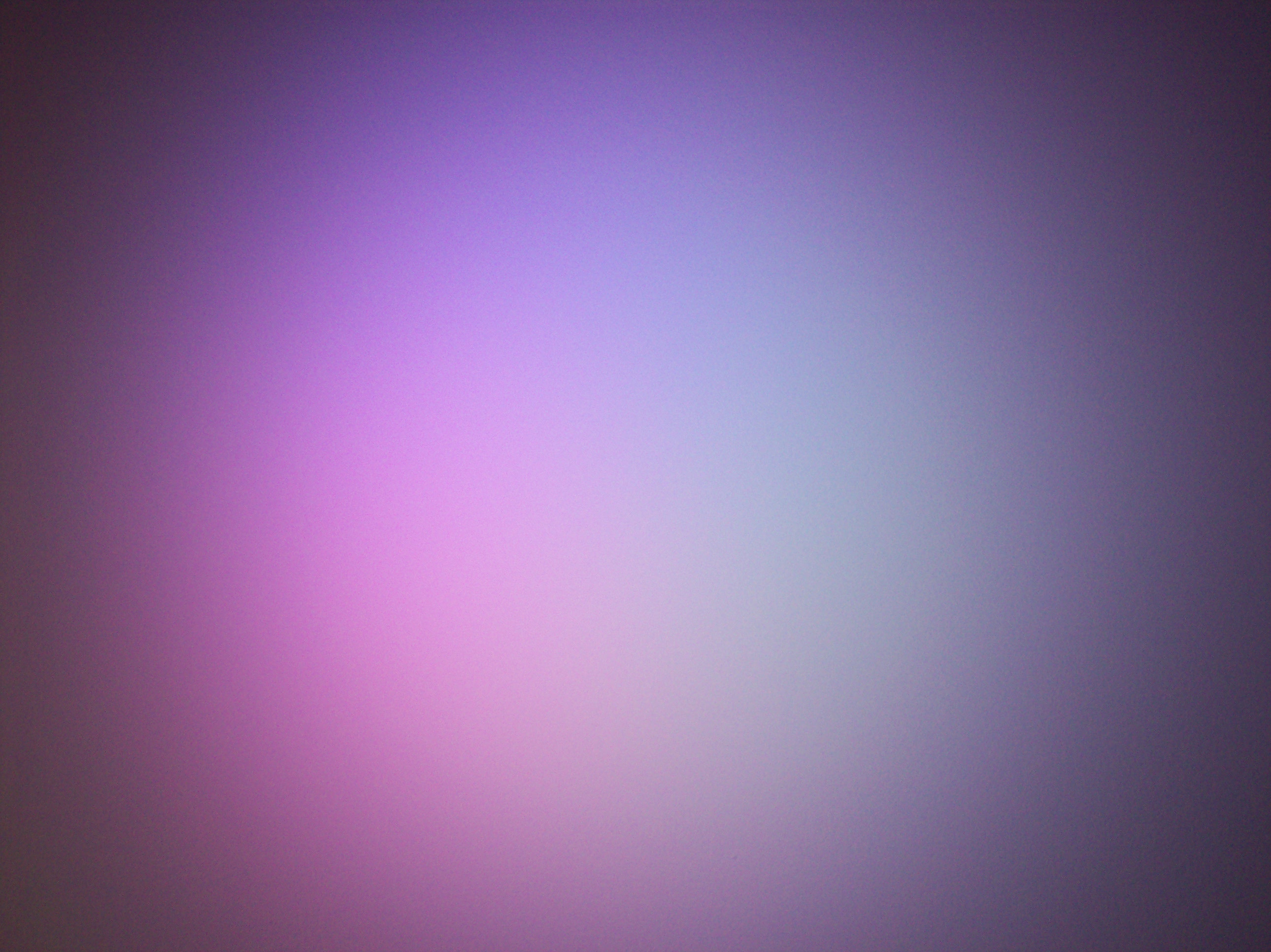

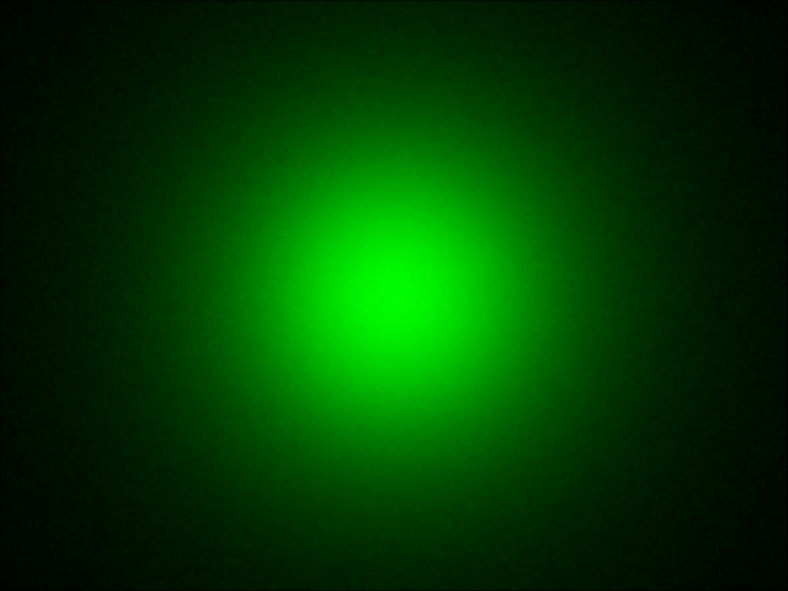

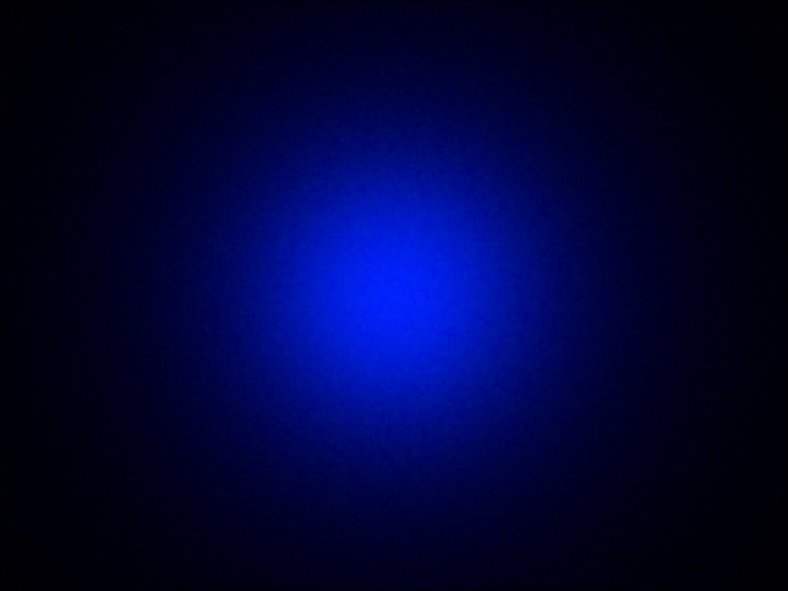

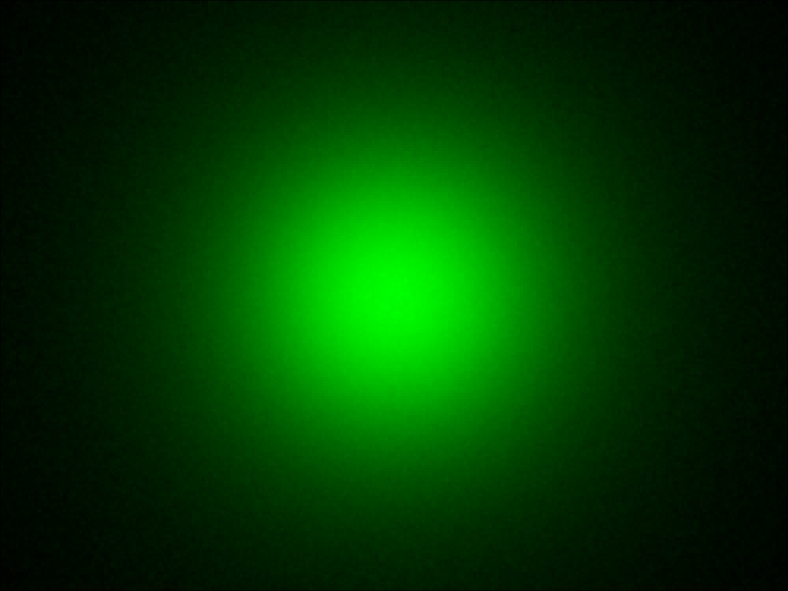

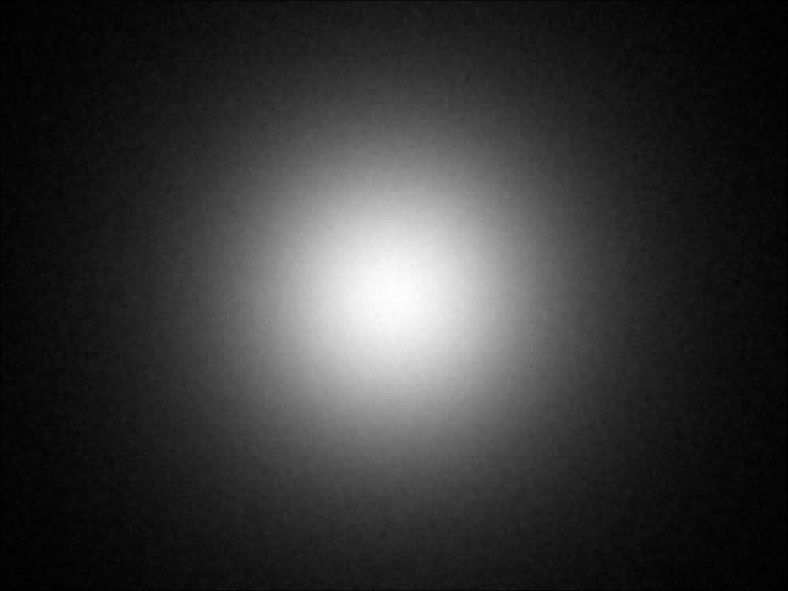

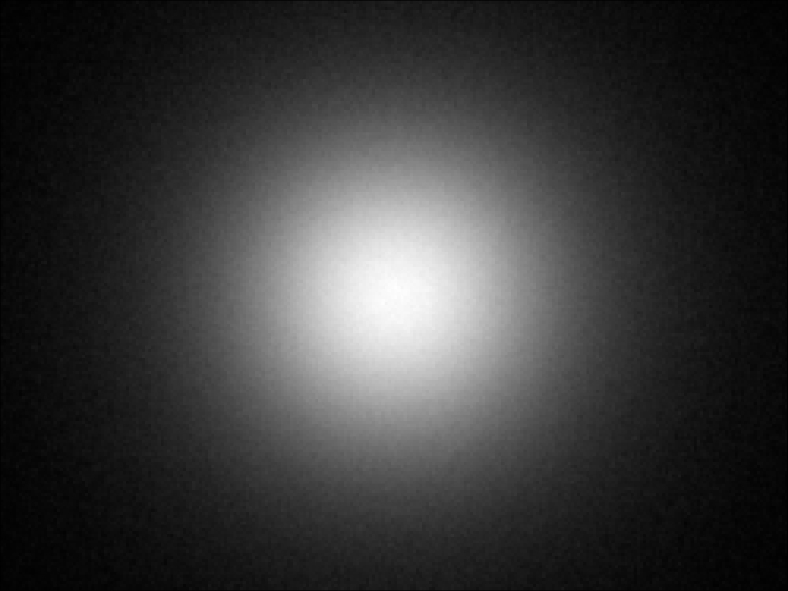

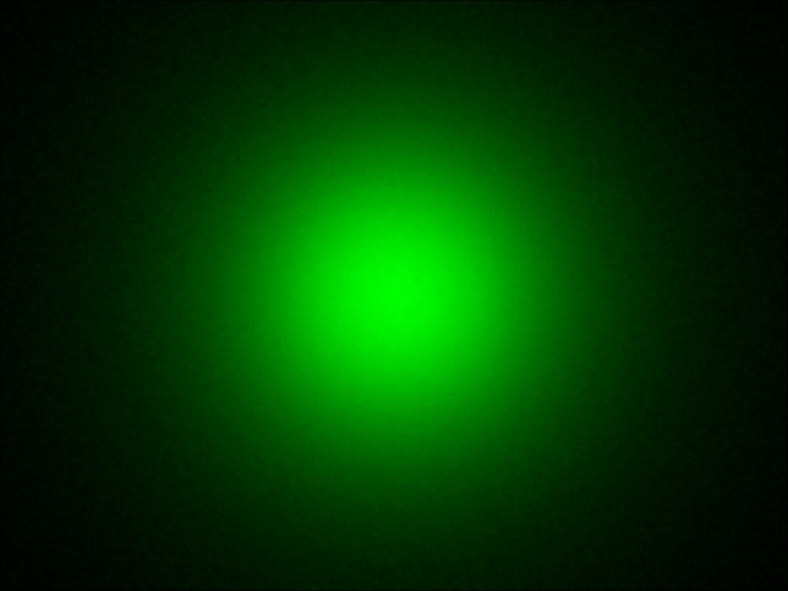

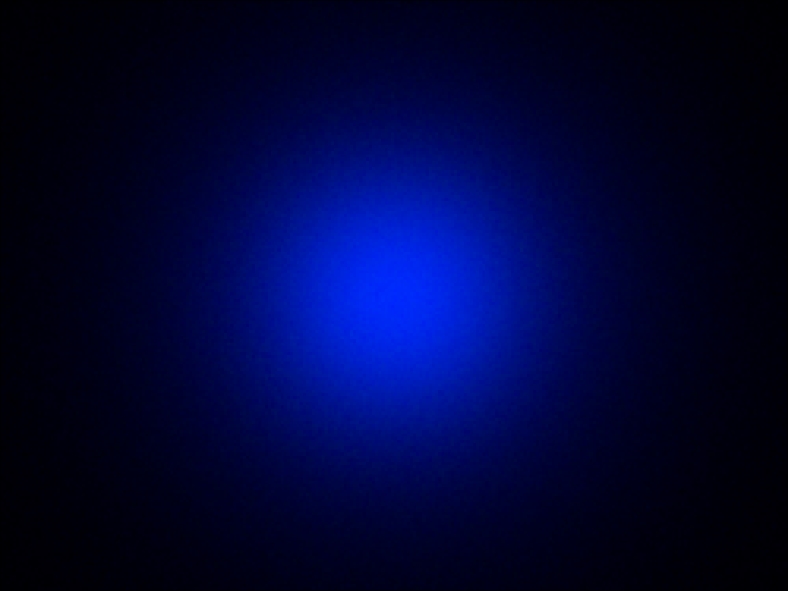

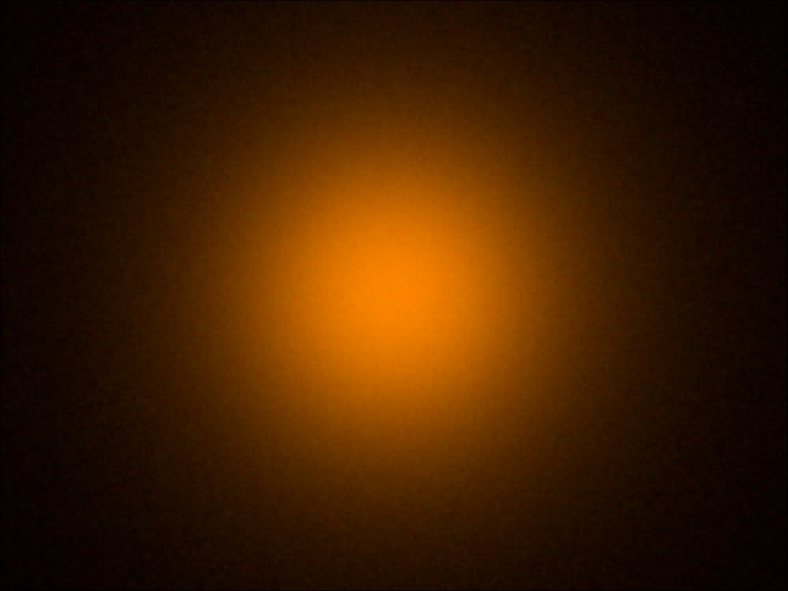

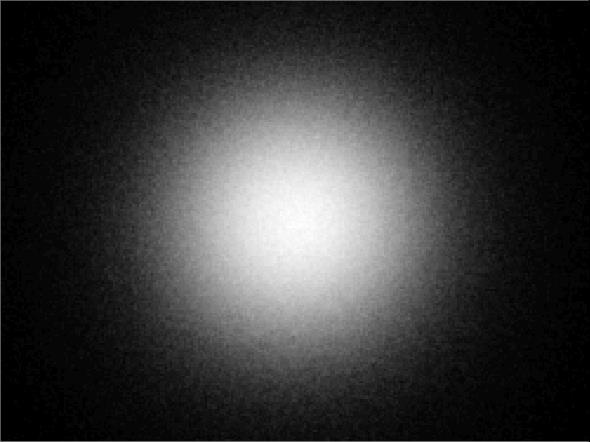

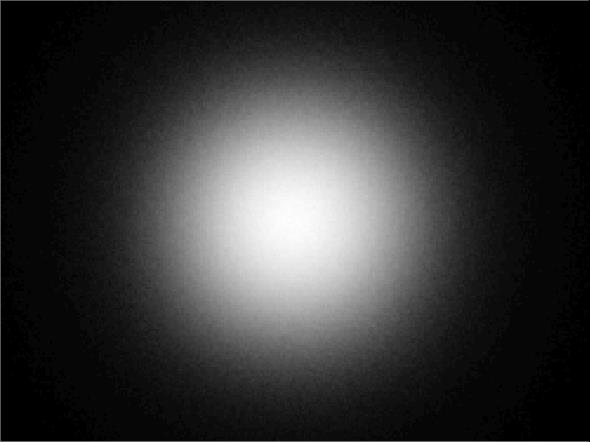

Carclo Optics - Simulated Spot Image

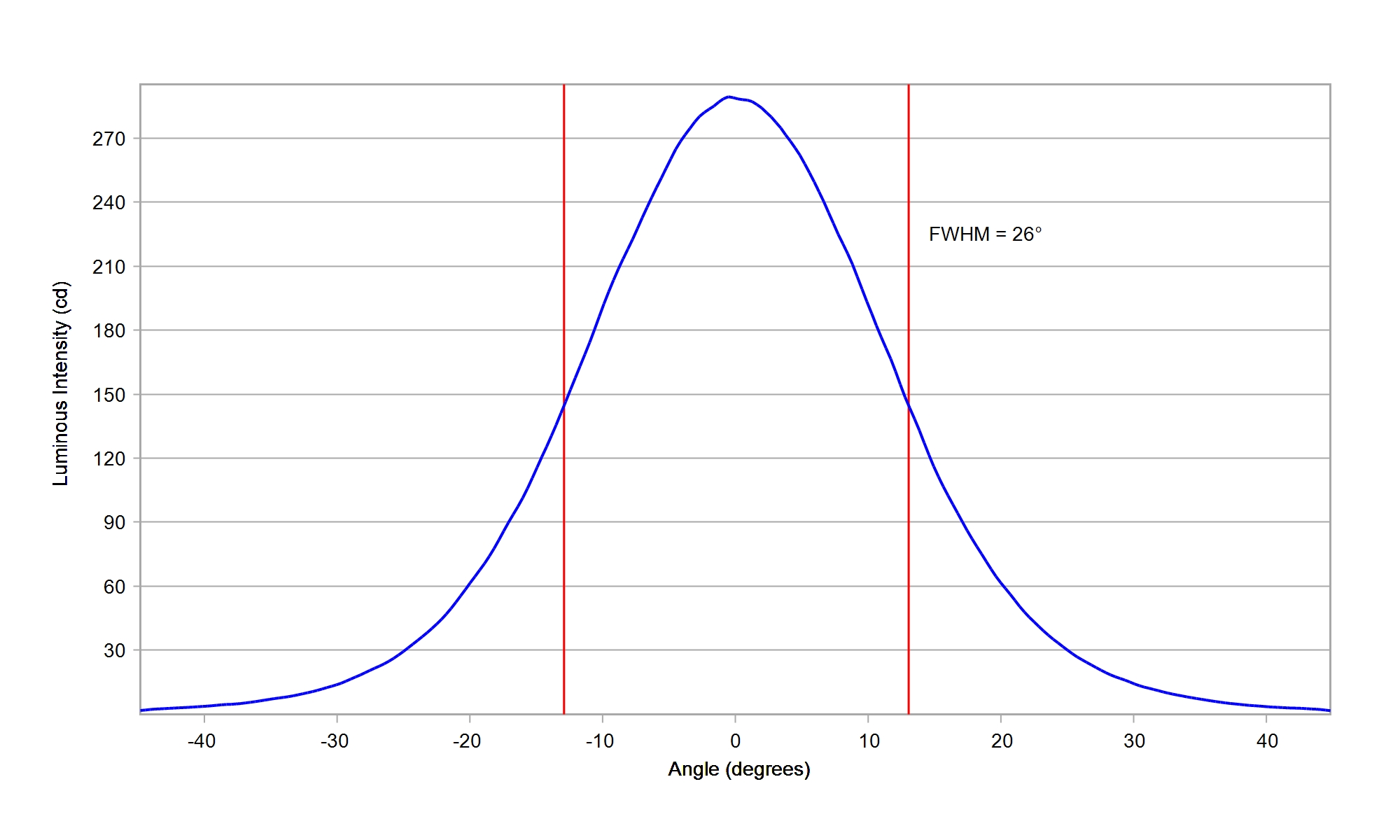

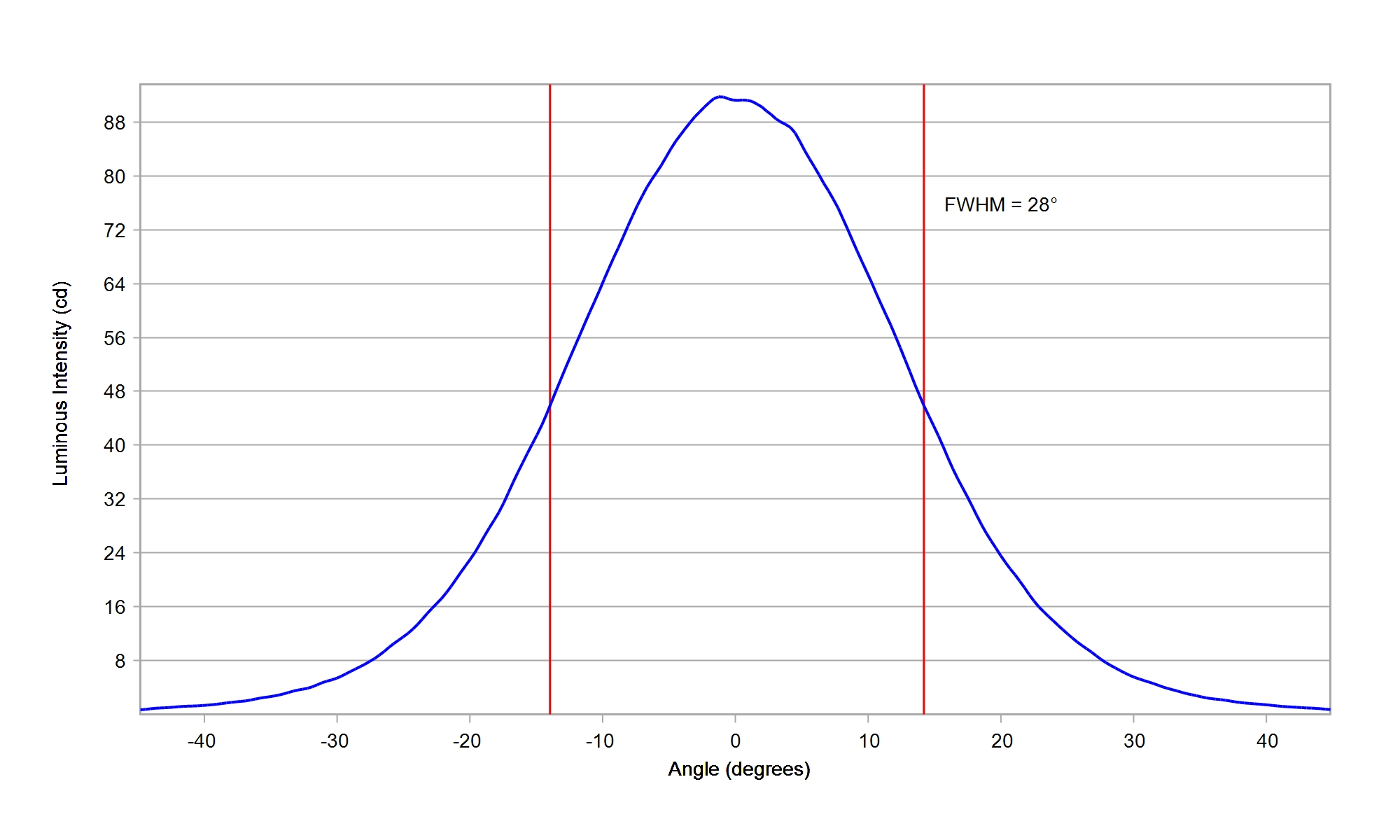

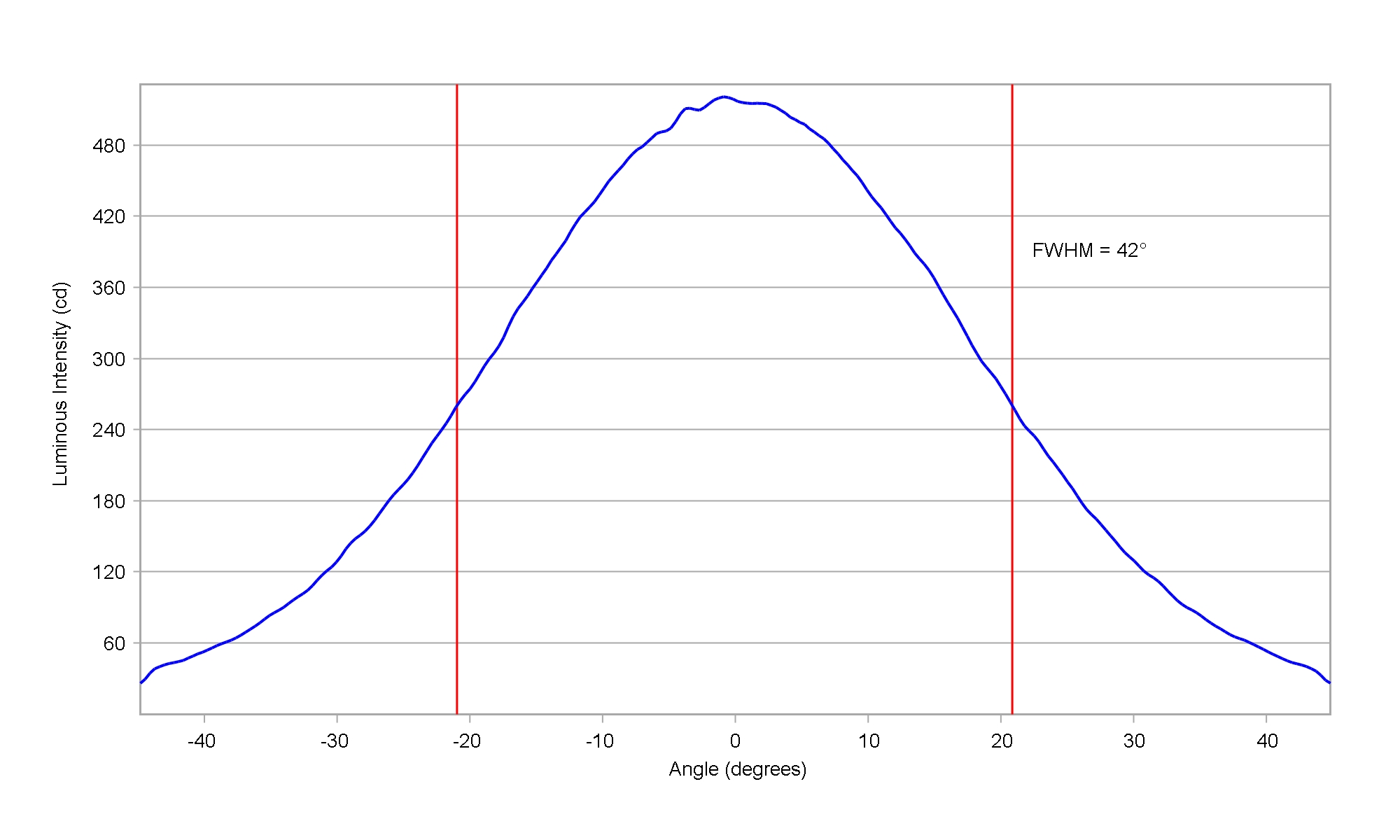

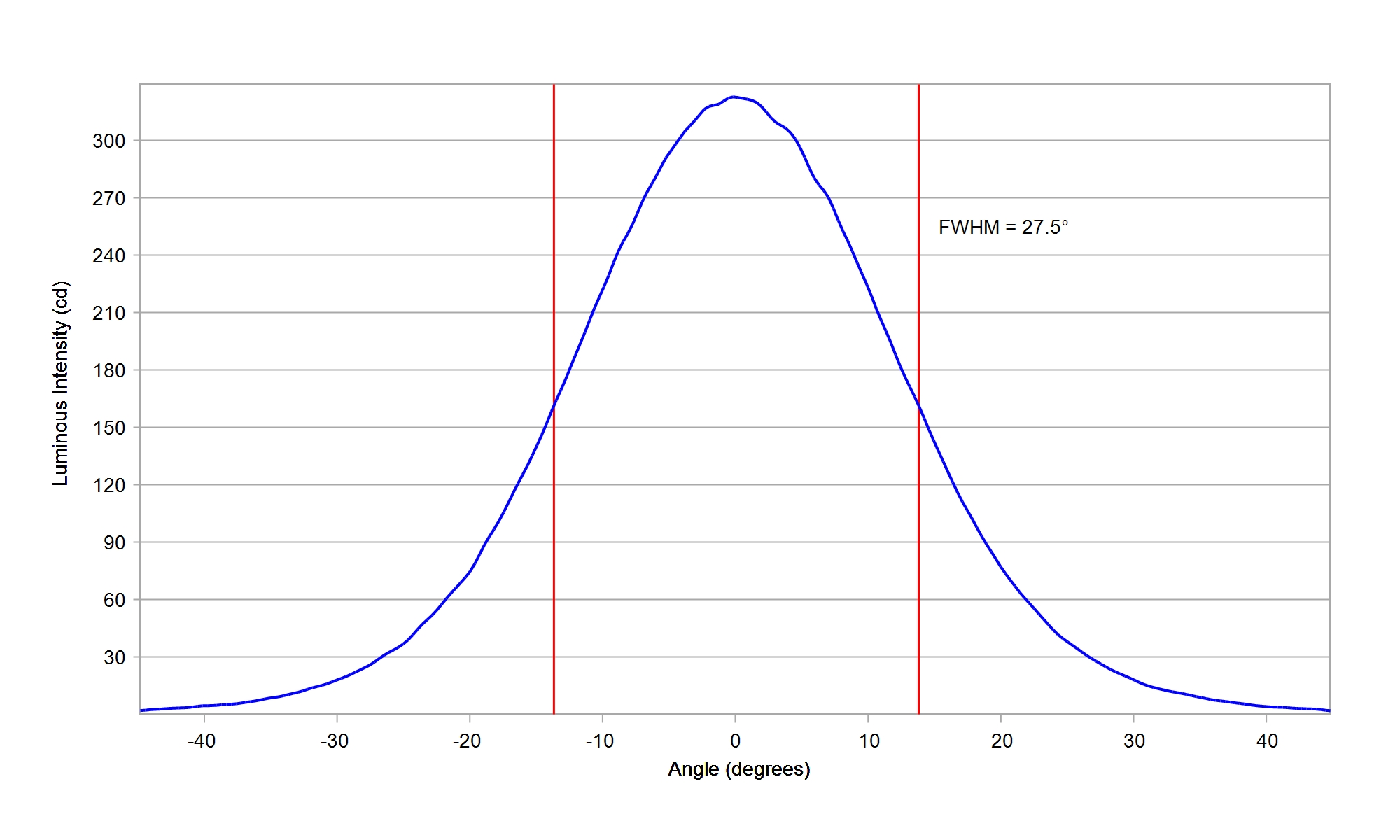

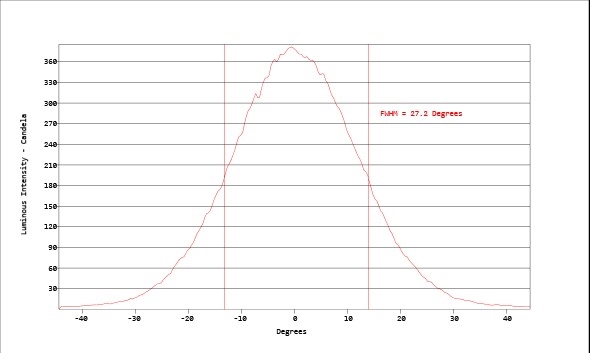

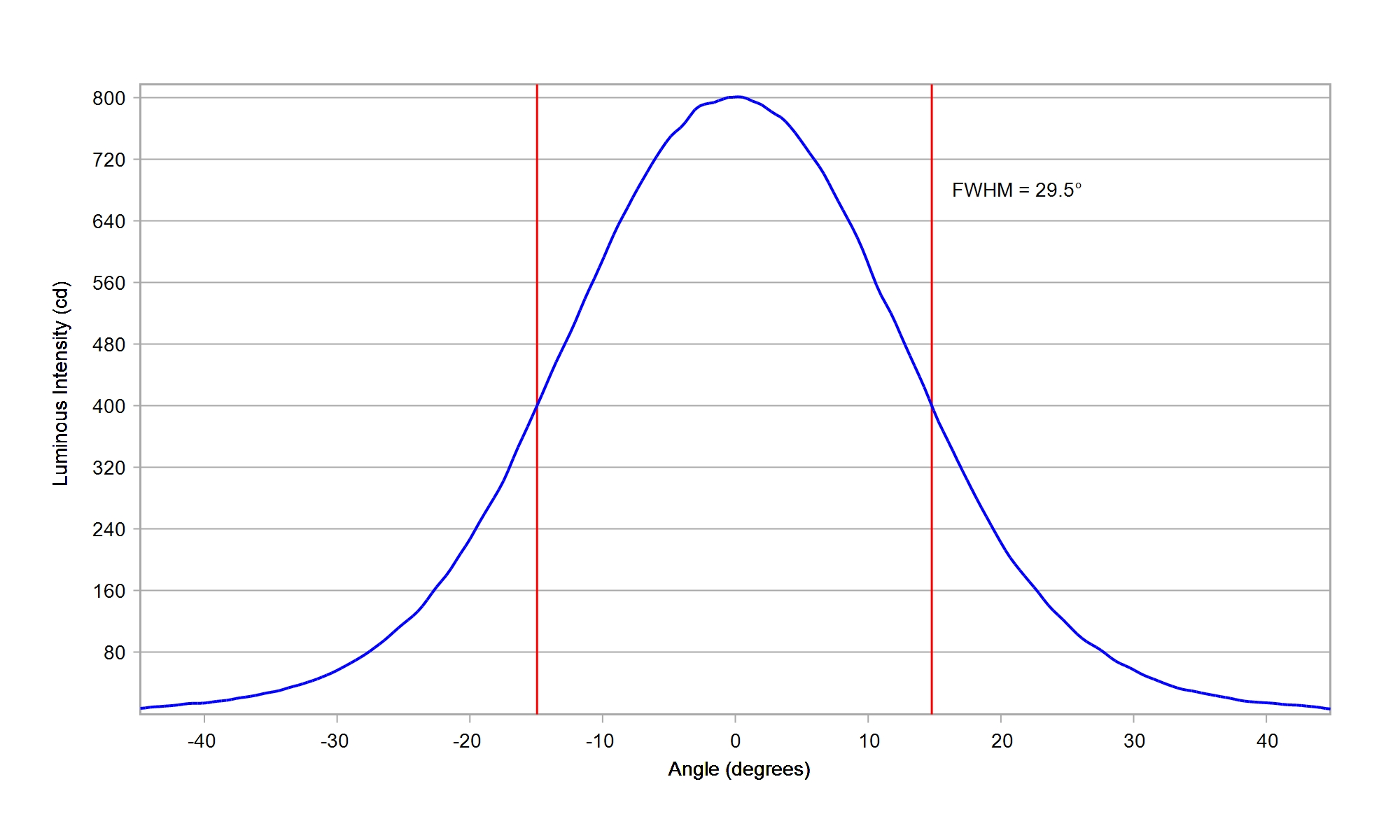

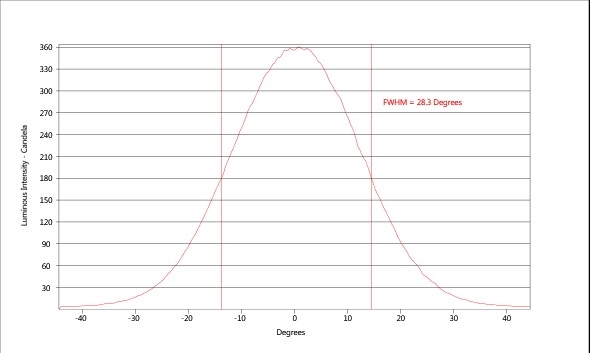

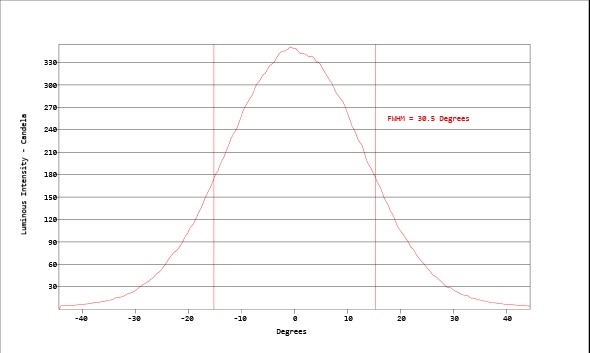

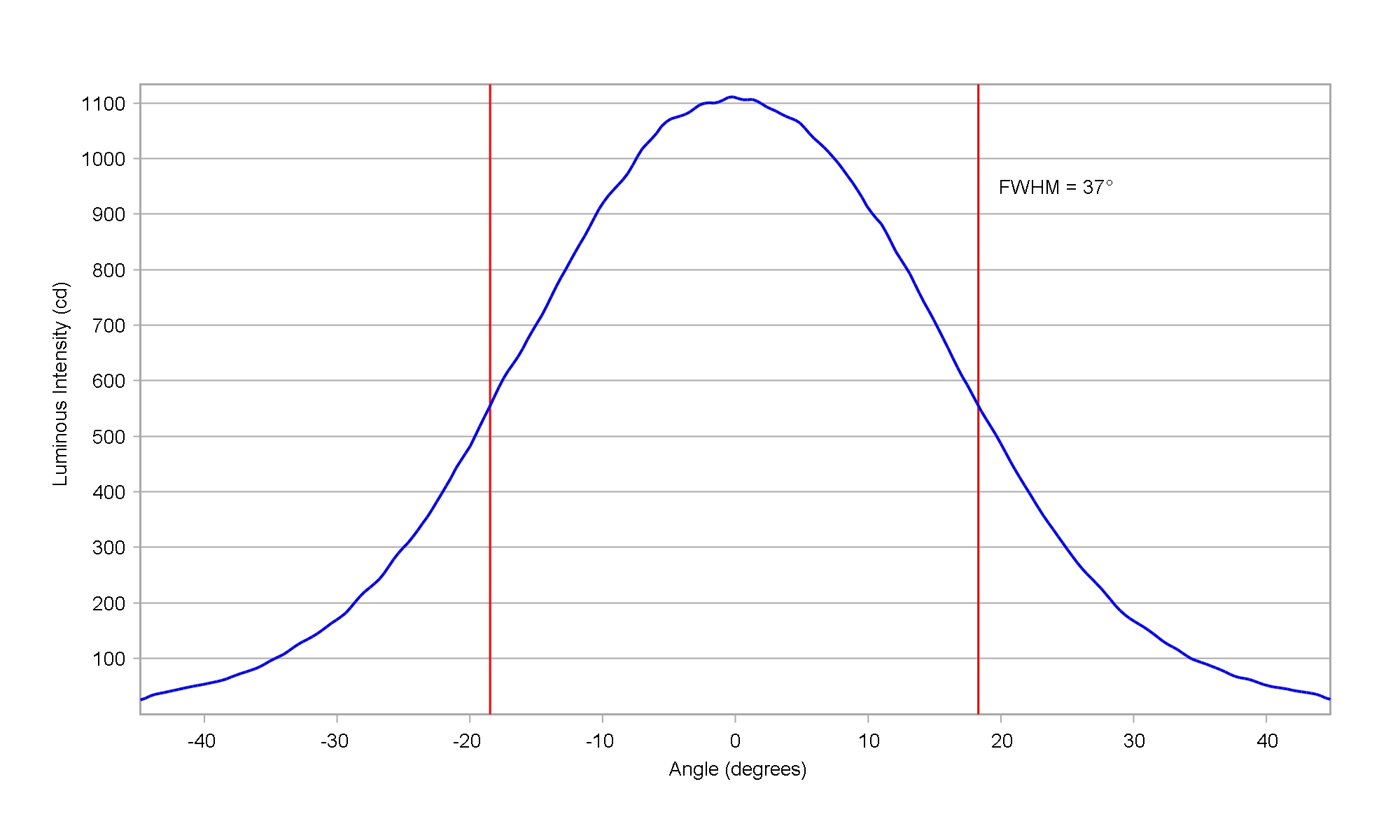

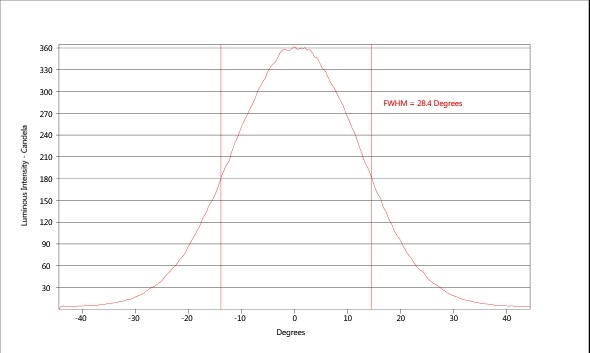

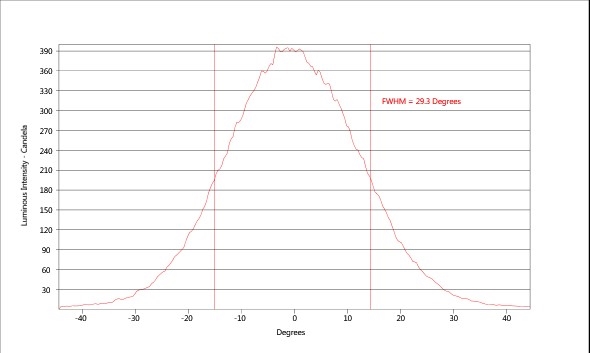

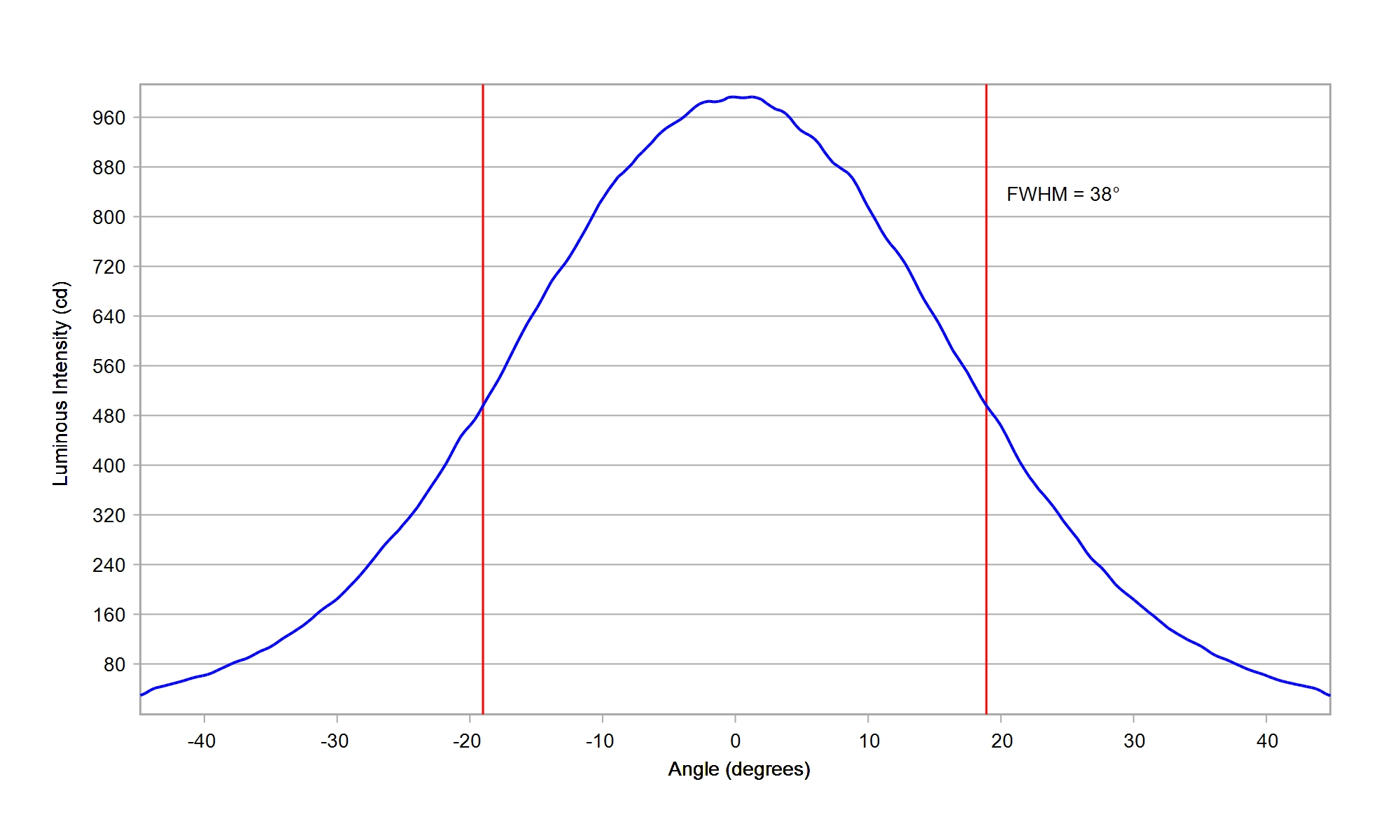

Carclo Optics - Simulated Cross Section
Download
Details
Seoul CSP SZ8Y19 White
Eff:
84.0%
FWHM:
27.1°
Cd/Im:
2.5
