26.5mm Narrow Spot Frosted TIR LED Lenses

Part number

10392

Dimensions

26.5mm

Drawing Number

60508

Optic type

TIR LED Lenses

Finish

Frosted

Beam type

Narrow Spot

Applications

Architectural

Landscape & Garden

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

87.5%

FWHM:

11.5°

Cd/Im:

15.1

Carclo Optics - 10392 26.5mm Spot Image Bridgelux 3030 Gen2

Carclo Optics - 10392 26.5mm Cross Section Bridgelux 3030 Gen2

Download

IES

Broadcom Moonstone RGB

Eff:

88.0%

FWHM:

15.9°

Cd/Im:

6.3

Download

ies

Broadcom Moonstone White

Eff:

83.1%

FWHM:

17.2°

Cd/Im:

6.0

Download

ies

Cree High Brightness CLW6A-TKW RGBW

Eff:

87.5%

FWHM:

14°

Cd/Im:

10.3

Download

IES

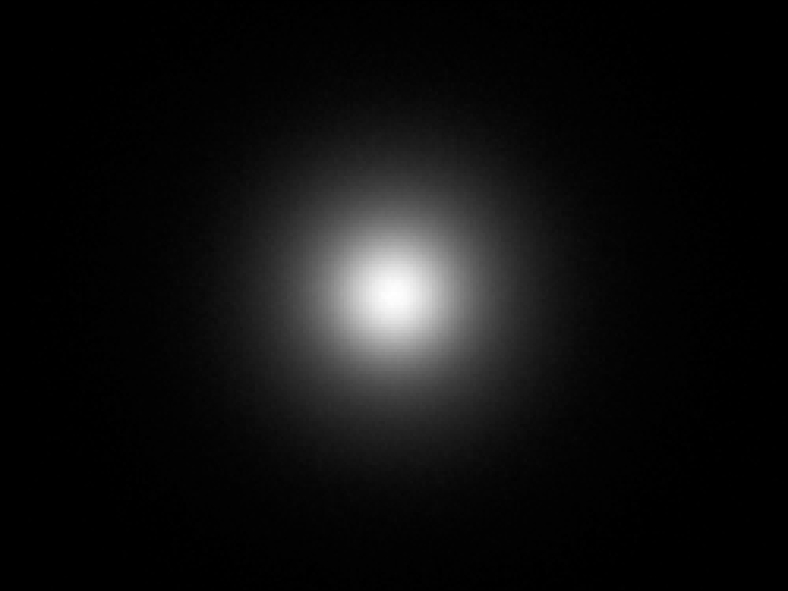

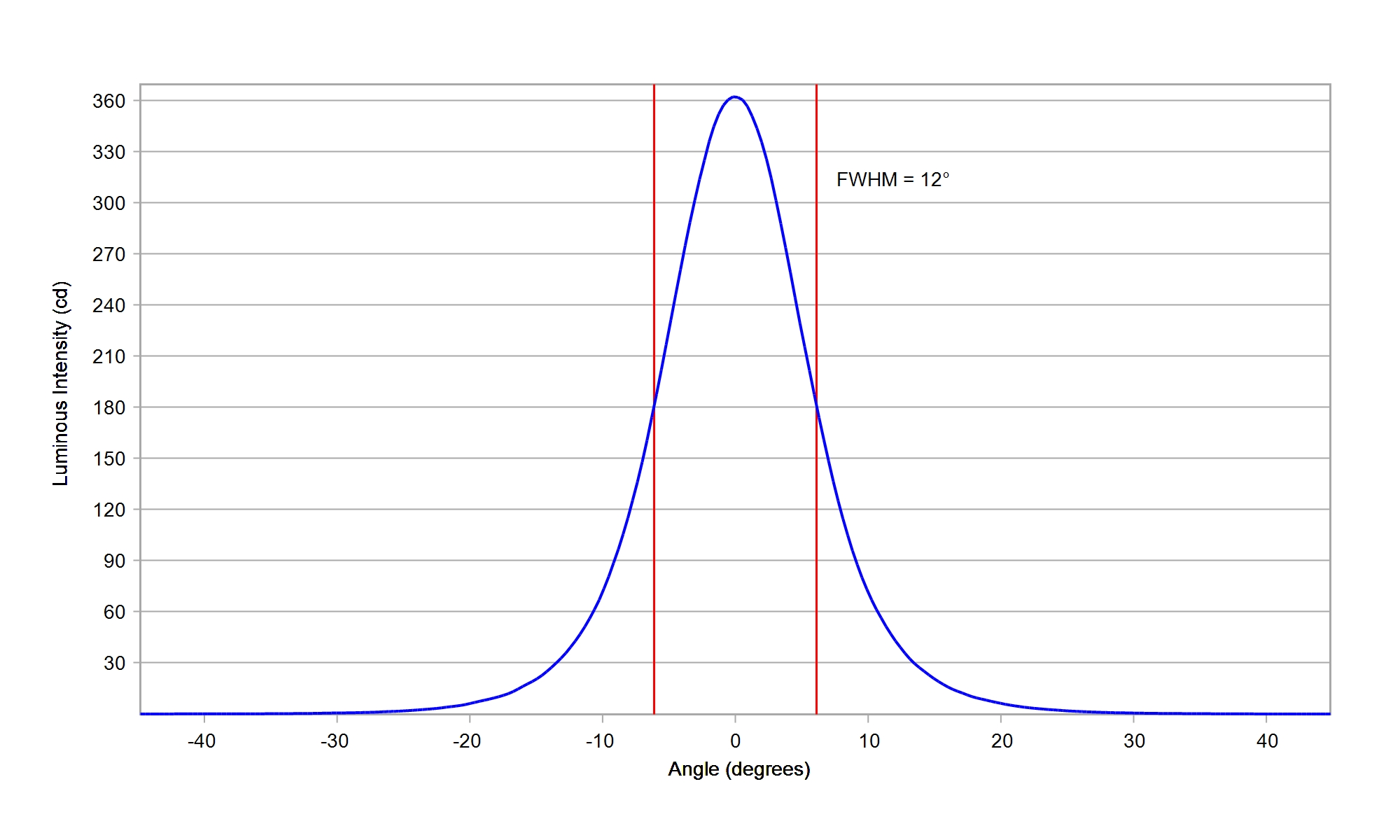

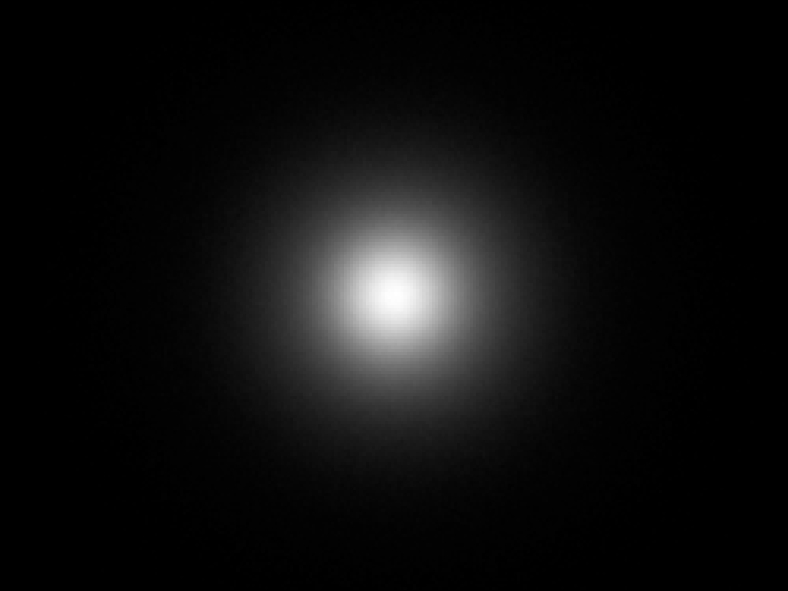

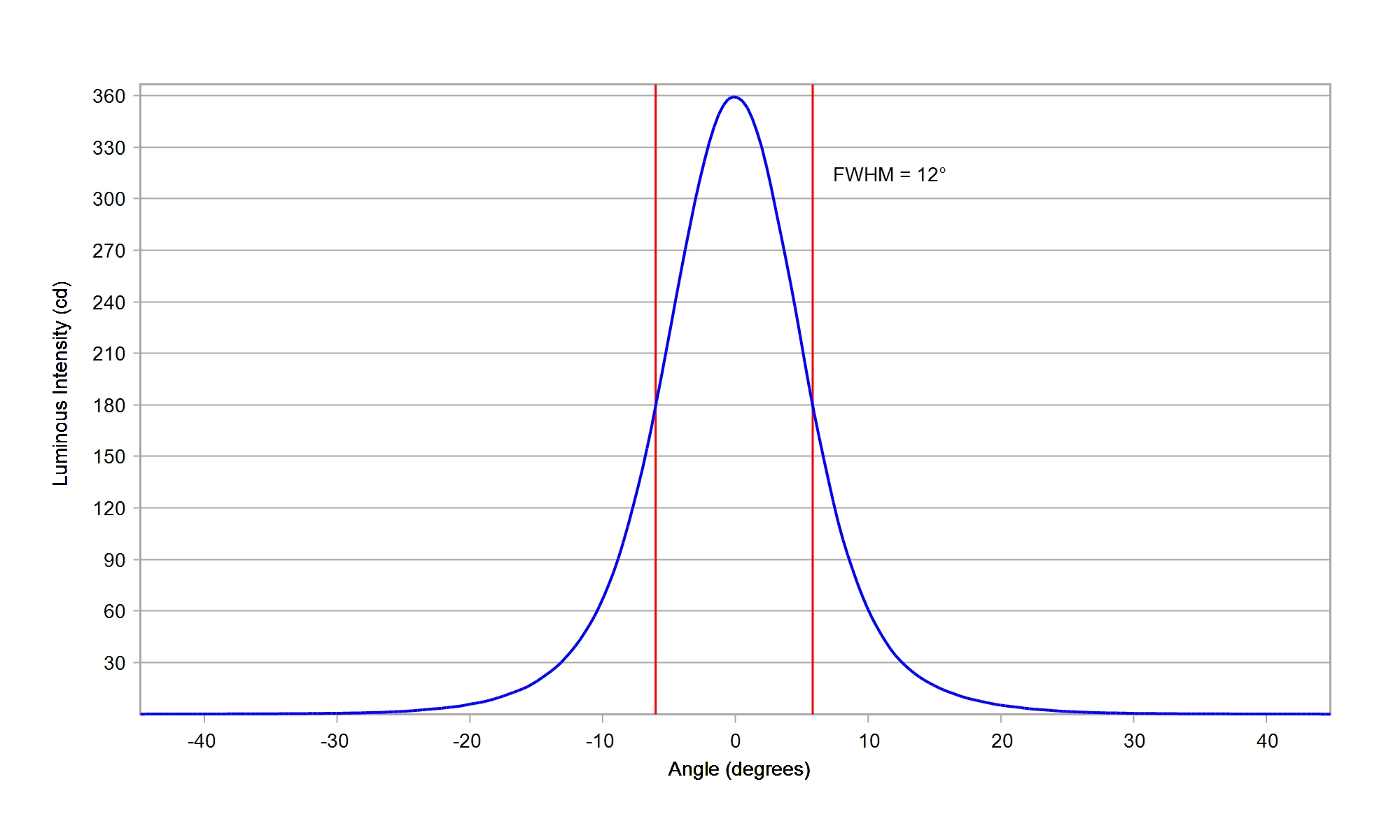

Cree JB2835B 3V G-Class White

Eff:

87.5%

FWHM:

12°

Cd/Im:

12.8


Download

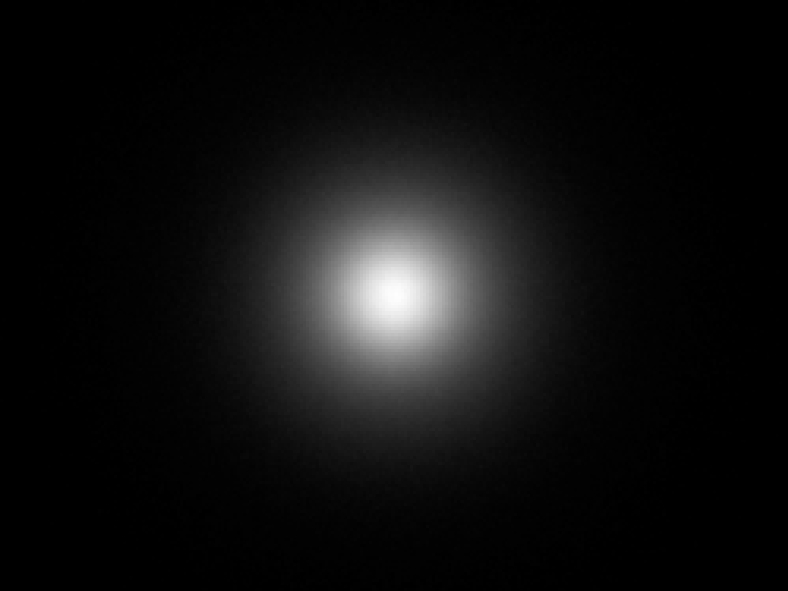

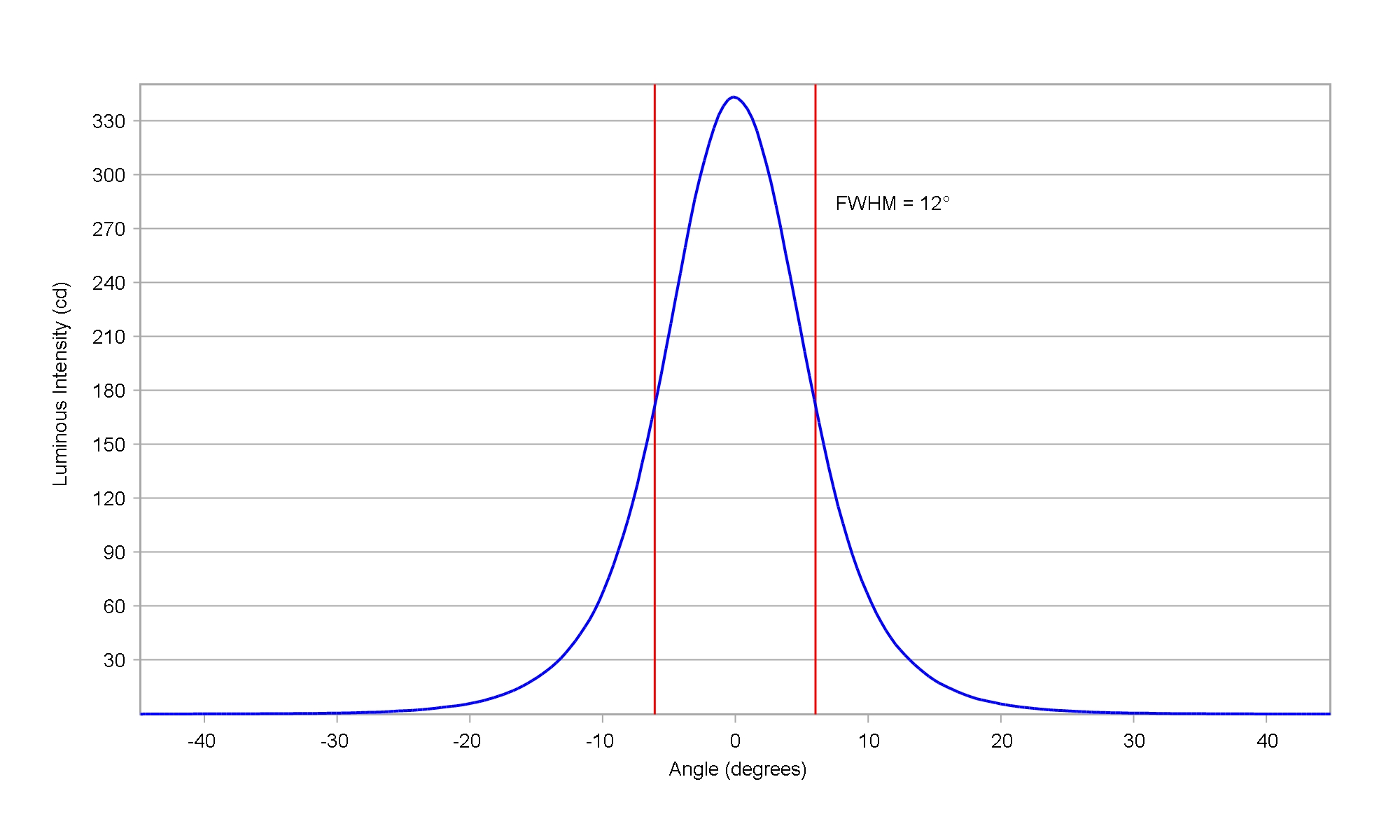

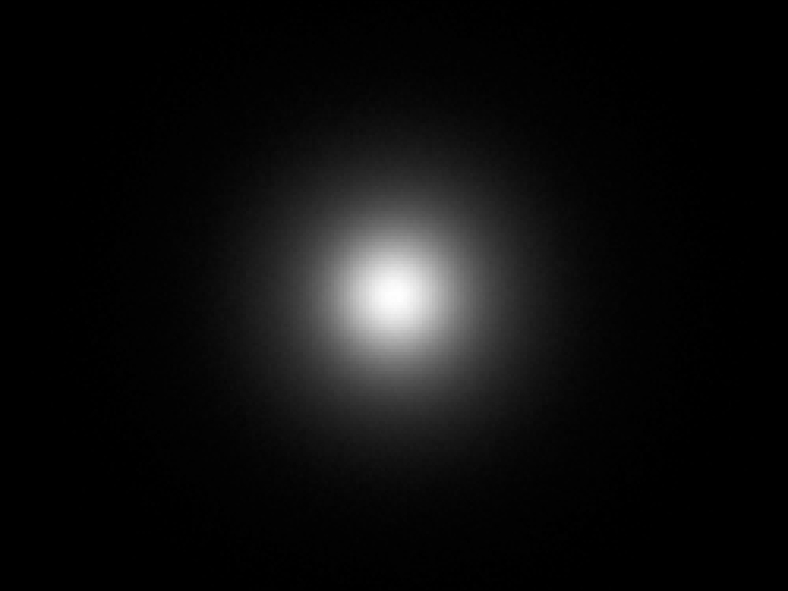

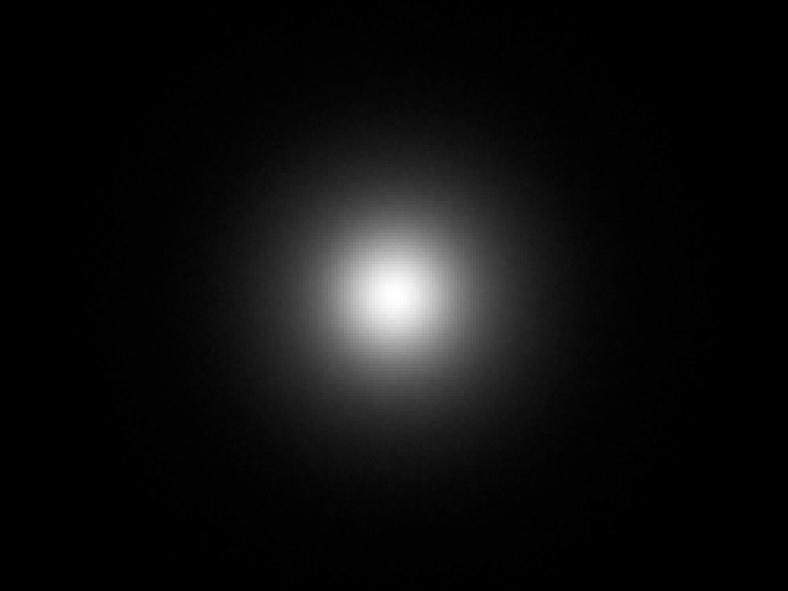

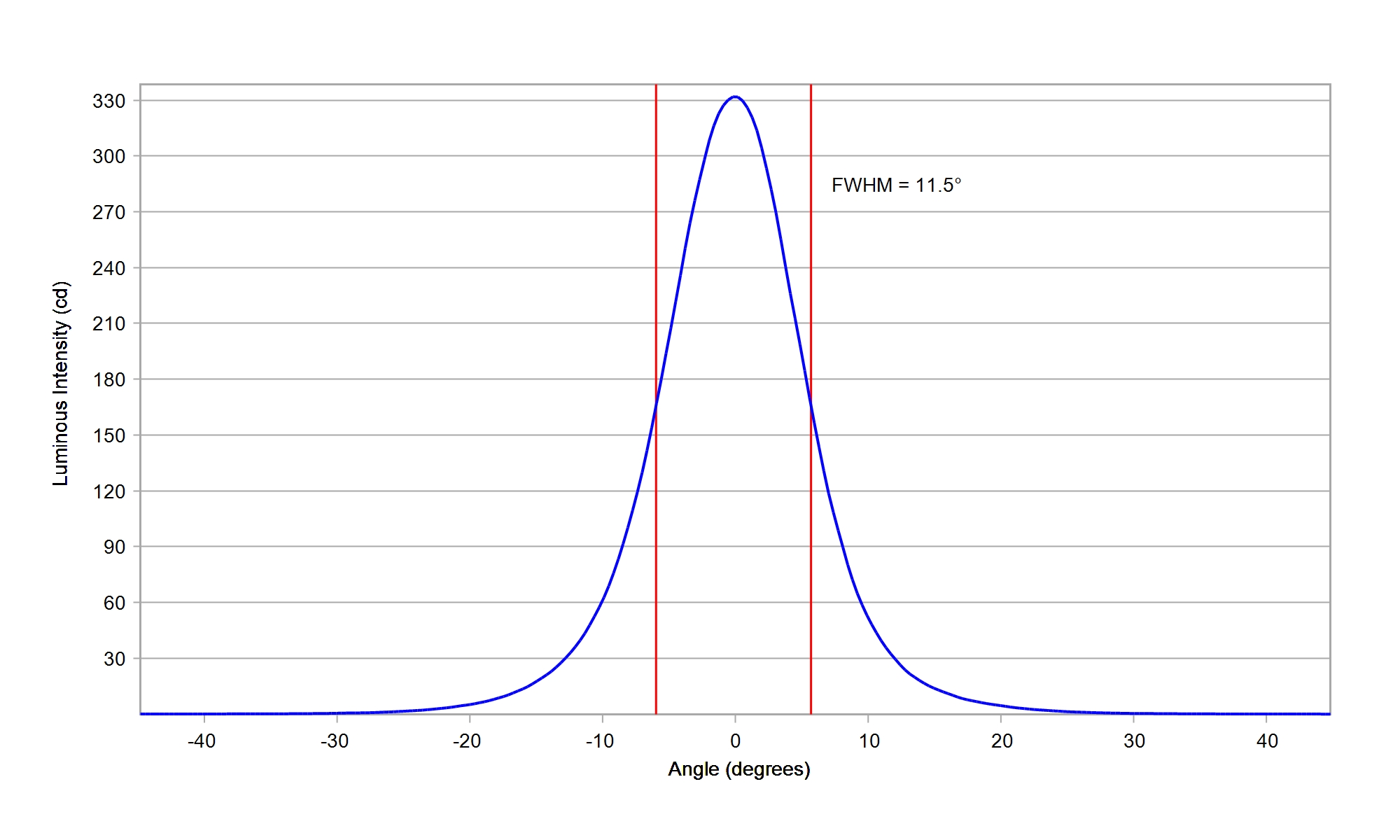

Cree JB2835B 3V J-Class White

Eff:

87.5%

FWHM:

12°

Cd/Im:

13.1


Download

Cree JB3030 3V P-Class White

Eff:

87.5%

FWHM:

13.0°

Cd/Im:

11.7

Carclo Optics - 10392 Spot Image Cree JB3030 3V White

Carclo Optics - 10392 Cross Section Cree JB3030 3V White

Download

IES

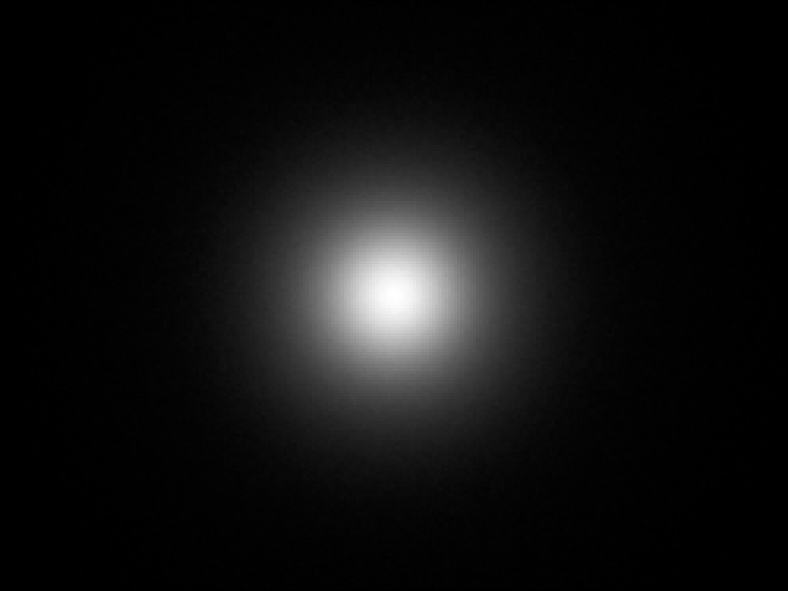

Cree JB3030C 3V E-Class White

Eff:

87.0%

FWHM:

12.5°

Cd/Im:

12.3


Download

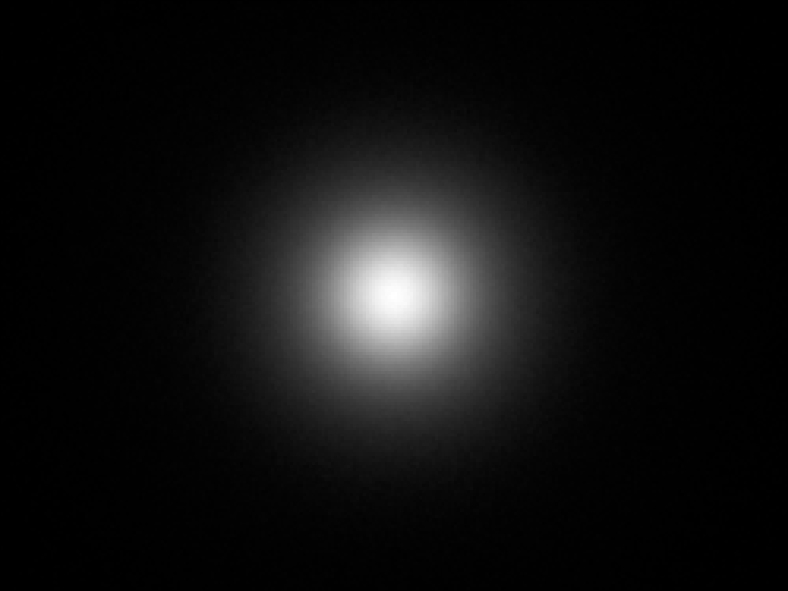

Cree JB3030C 3V F-Class White

Eff:

87.5%

FWHM:

12.5°

Cd/Im:

12.6


Download

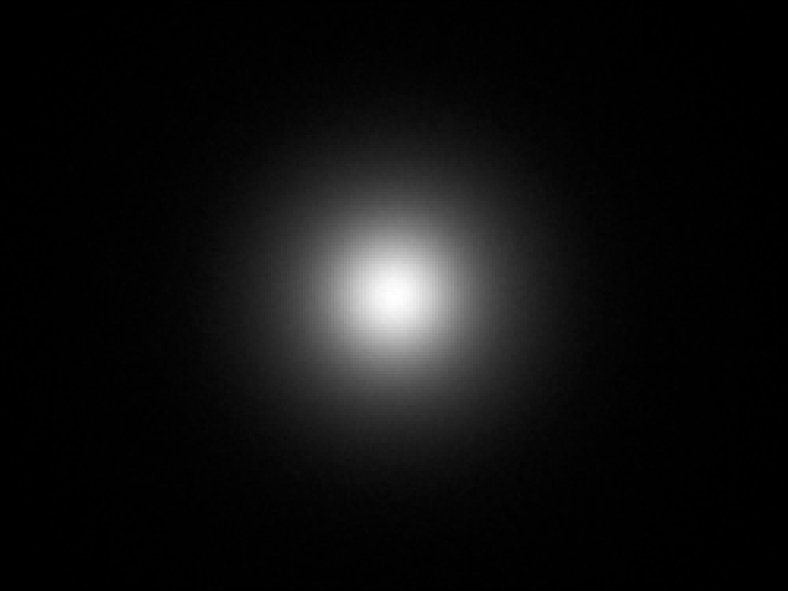

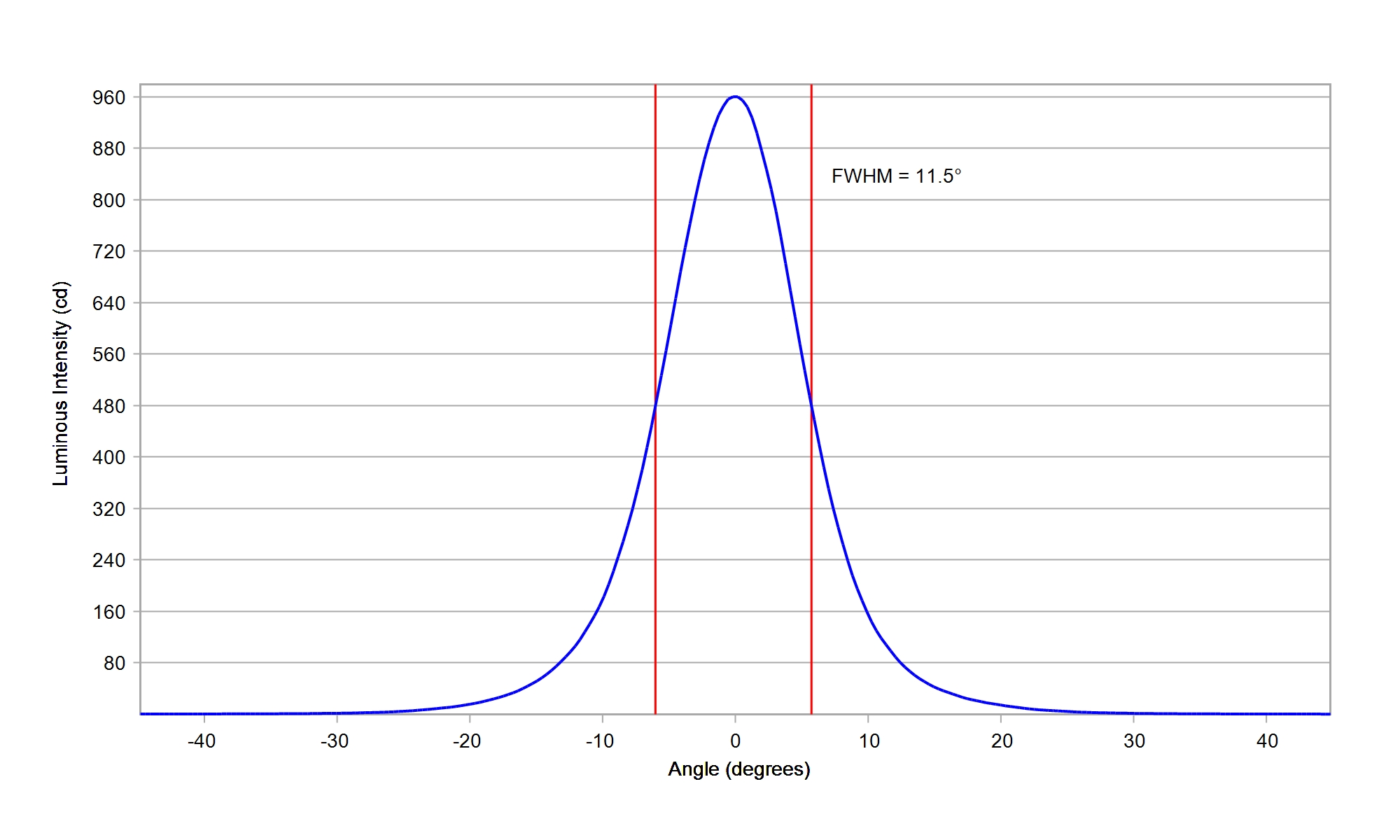

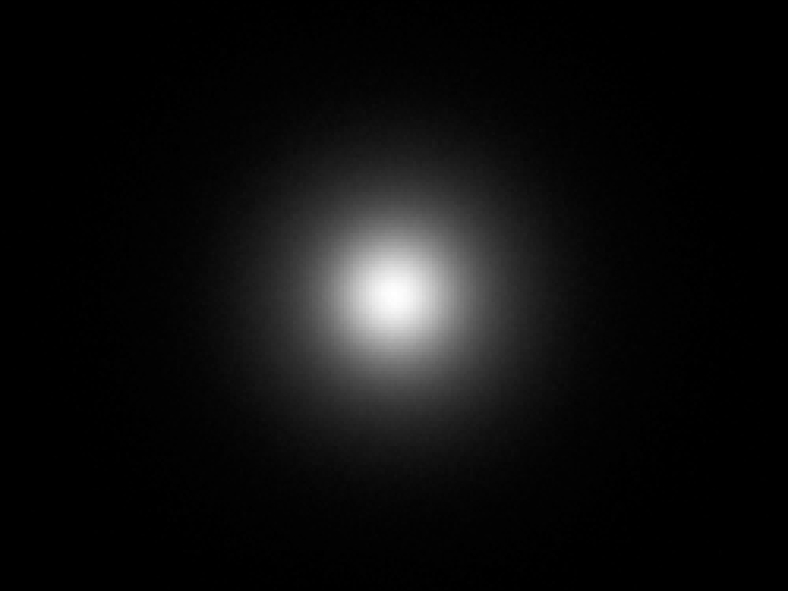

Cree JE2835 3V White

Eff:

87.5%

FWHM:

12°

Cd/Im:

13.1

Download

Cree JK2835 6V White

Eff:

87.5%

FWHM:

12.5°

Cd/Im:

12.9

Download

IES

Cree JQ5050 9V White

Eff:

87.0%

FWHM:

19.5°

Cd/Im:

5.7

Carclo Optics - 10392 Spot Image Cree JQ5050 9V White

Carclo Optics - 10392 Cross Section Cree JQ5050 9V White

Download

IES

Cree JR5050 24V White

Eff:

87.5%

FWHM:

18.0°

Cd/Im:

6.4

Carclo Optics - 10392 Spot Image Cree JR5050 24V White

Carclo Optics - 10392 Cross Section Cree JR5050 24V White

Download

IES

Cree JR5050 36V White

Eff:

87.5%

FWHM:

17.5°

Cd/Im:

7.0

Carclo Optics - 10392 Spot Image Cree JR5050 36V White

Carclo Optics - 10392 Cross Section Cree JR5050 36V White

Download

IES

Cree JR5050 6V White

Eff:

87.0%

FWHM:

18.5°

Cd/Im:

6.1

Carclo Optics - 10392 Spot Image Cree JR5050 6V White

Carclo Optics - 10392 Cross Section Cree JR5050 6V White

Download

IES

Cree JR5050C 6V E-Class White

Eff:

87.5%

FWHM:

18°

Cd/Im:

6.6


Download

IES

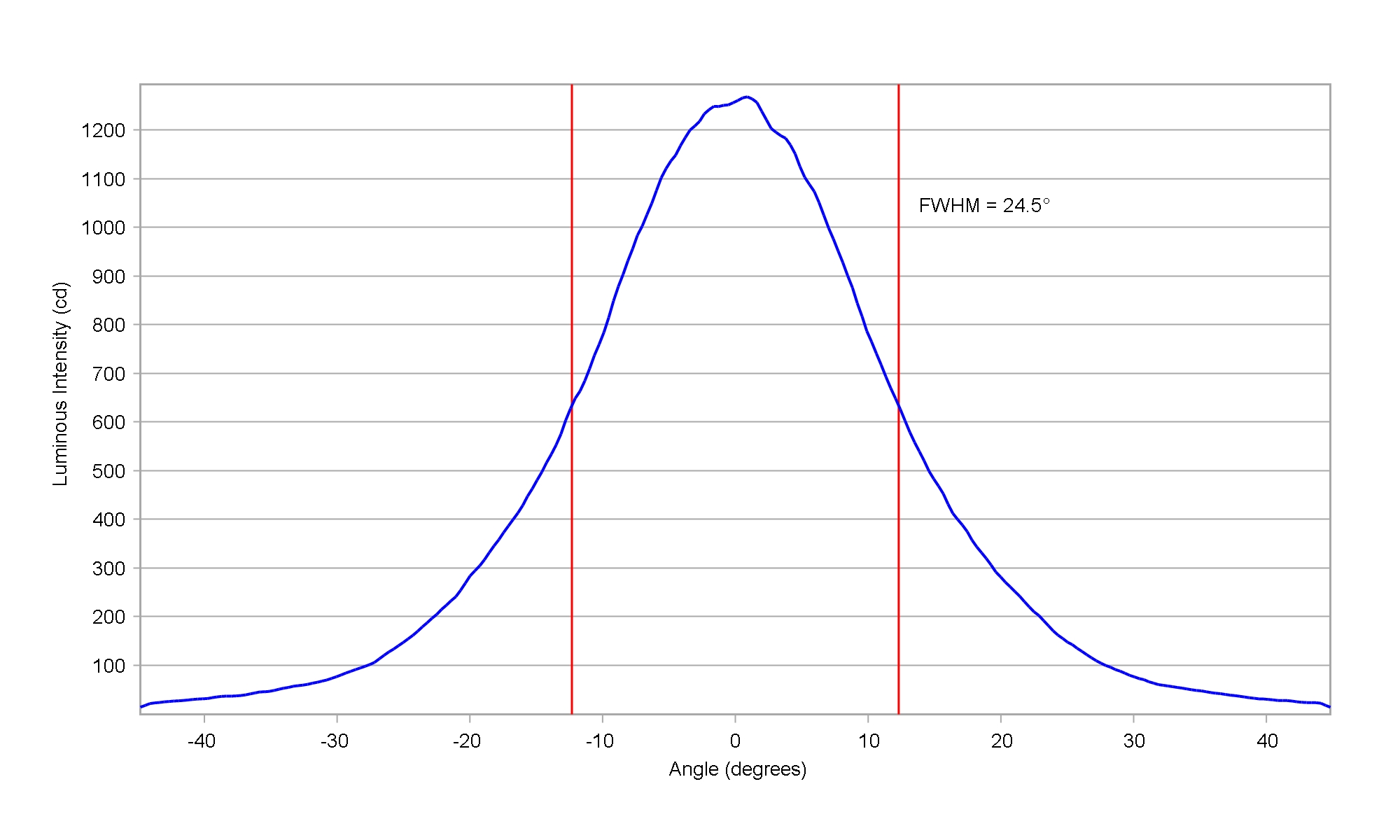

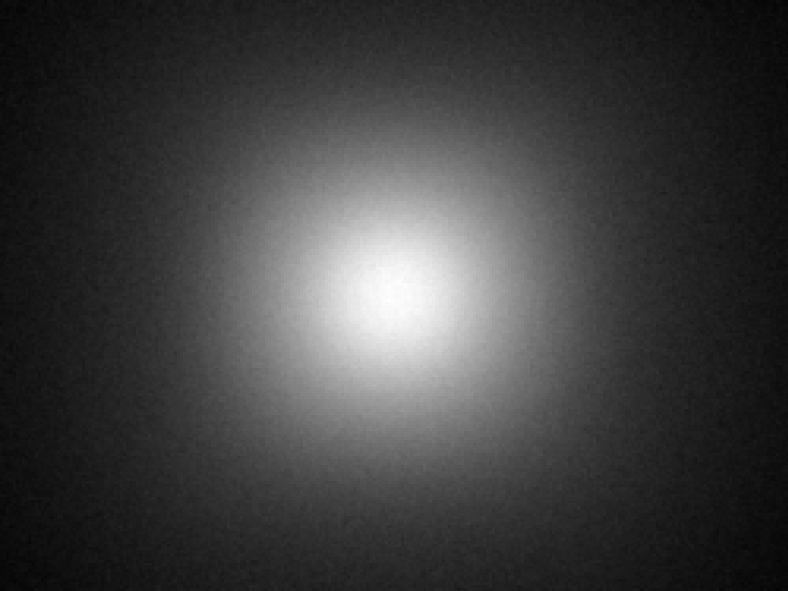

Cree JU7070B 12V K-Class White

Eff:

85.0%

FWHM:

24.5°

Cd/Im:

2.9

Download

Cree XLamp CSP XD16 Cool White

Eff:

86.0%

FWHM:

11.0°

Cd/Im:

13.8

Carclo Optics - Simulated Spot Image

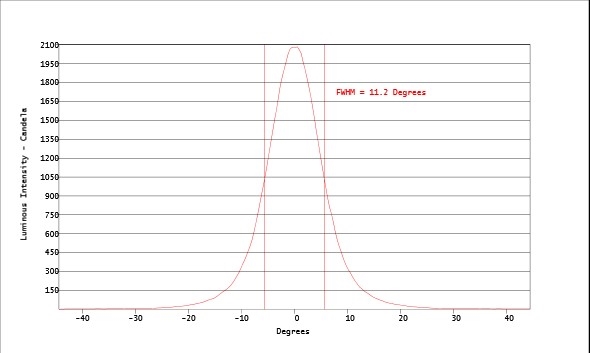

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp CSP XD16 Premium White

Eff:

87.0%

FWHM:

10.5°

Cd/Im:

16.8

Download

IES

Cree XLamp MC-E RGBW

Eff:

84.4%

FWHM:

18.8°

Cd/Im:

9.3

Download

ies

Cree XLamp MC-E White

Eff:

81.3%

FWHM:

18.7°

Cd/Im:

6.6

Download

ies

Cree XLamp MH-B White

Eff:

84.8%

FWHM:

19.3°

Cd/Im:

4.9

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XB-H White

Eff:

87.0%

FWHM:

12°

Cd/Im:

13.5

Carclo Optics - 10392 26.5mm Spot Image Cree XLamp XB-H

Carclo Optics - 10392 26.5mm Cross Section Cree XLamp XB-H

Download

IES

Cree XLamp XE-G Blue

Eff:

87.0%

FWHM:

10.5°

Cd/Im:

17.8

Download

IES

Cree XLamp XE-G Green

Eff:

87.0%

FWHM:

10.5°

Cd/Im:

17.7

Download

IES

Cree XLamp XE-G Red

Eff:

86.5%

FWHM:

10.5°

Cd/Im:

17.4

Download

IES

Cree XLamp XE-G White

Eff:

86.0%

FWHM:

10.5°

Cd/Im:

16.6

Download

IES

Cree XLamp XHP-50 Gen 2 White

Eff:

84.0%

FWHM:

21.0°

Cd/Im:

4.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP-50 White

Eff:

85.2%

FWHM:

20°

Cd/Im:

4.4

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XHP-70 White

Eff:

85.0%

FWHM:

27.0°

Cd/Im:

2.9

Carclo Optics - 10392 Spot Image Cree XHP70

Carclo Optics - 10392 Cross Section Cree XHP70

Download

IES

Cree XLamp XHP35 HI White

Eff:

84.4%

FWHM:

12.7°

Cd/Im:

11.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP35 HD White

Eff:

84.0%

FWHM:

15.6°

Cd/Im:

7.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP35.2 HI White

Eff:

86.5%

FWHM:

14°

Cd/Im:

9.8

Carclo Optics – 10392 Spot Image Cree XLamp XHP35.2 HI White

Carclo Optics – 10392 Cross Section Cree XLamp XHP35.2 HI White

Download

2-HI-WW

Cree XLamp XHP35.2 HD White

Eff:

84.5%

FWHM:

17.5°

Cd/Im:

6.2

Carclo Optics - 10392 Spot Image Cree XLamp XHP35.2 White

Carclo Optics - 10392 Cross Section Cree XLamp XHP35.2 White

Download

IES

Cree XLamp XHP50.3 HI White

Eff:

86.5%

FWHM:

16°

Cd/Im:

7.6

optic-10392-Cree_XHP50.3 HI-spot-image.jpg

optic-10392-Cree_XHP50.3 HI-cross-section-image.jpg

Download

IES

Cree XLamp XHP50.3 White

Eff:

85.5%

FWHM:

19.5°

Cd/Im:

5.3



Download

IES

Cree XLamp XHP70.2 White

Eff:

85.0%

FWHM:

26.5°

Cd/Im:

2.9

Carclo Optics – 10392 Cree Xlamp XHP70.2 - Spot Image

Carclo Optics – 10392 Cree Xlamp XHP70.2 - Cross-Section

Download

IES

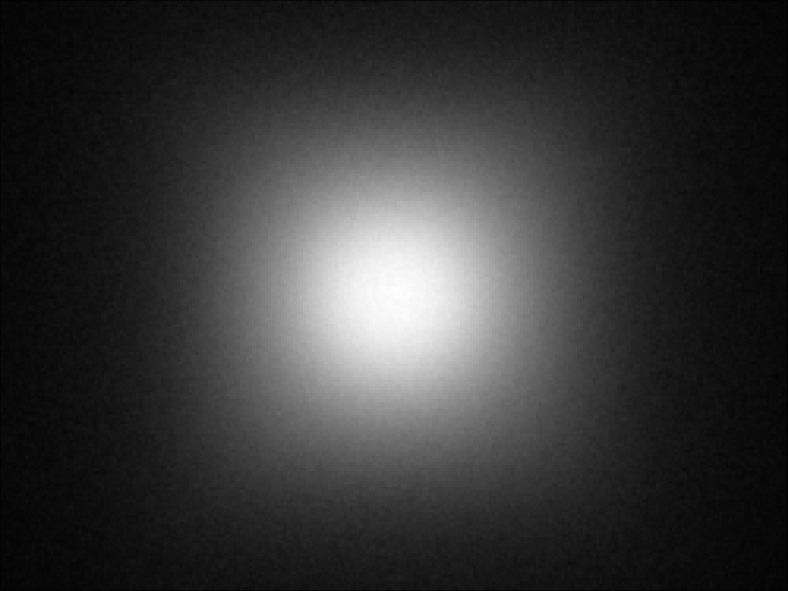

Cree XLamp XHP70.3 HD White

Eff:

85.0%

FWHM:

26°

Cd/Im:

3.1

Download

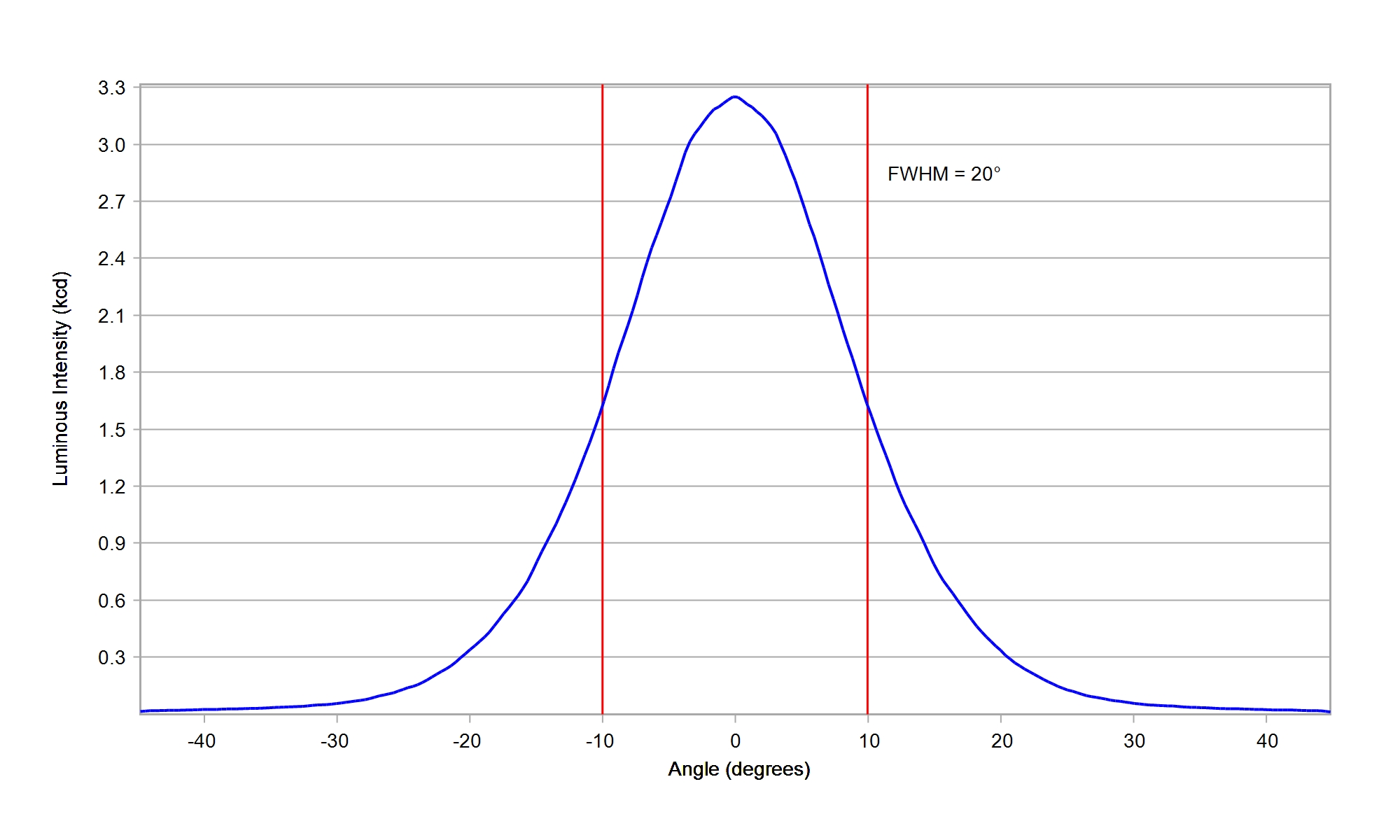

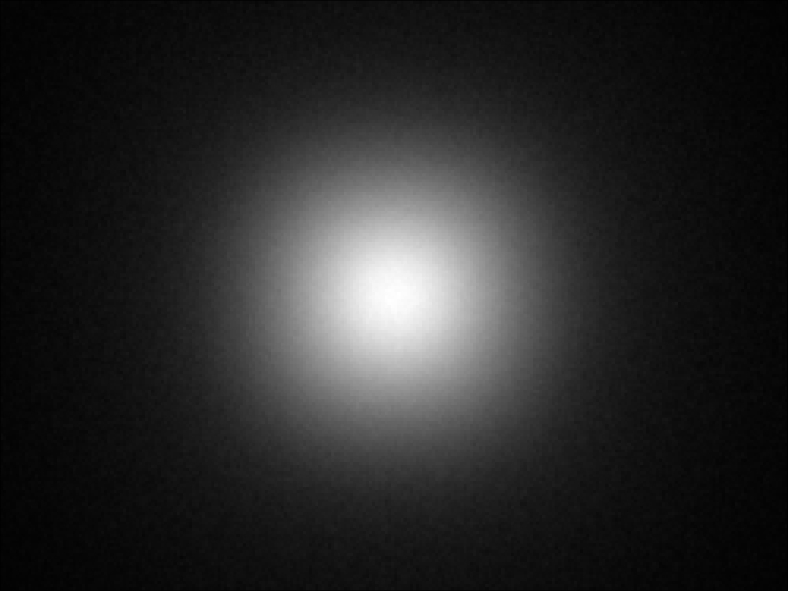

Cree XLamp XHP70.3 HI White

Eff:

85.5%

FWHM:

20°

Cd/Im:

4.8

Download

Cree XLamp XM-L Color G2 HI RGBW

Eff:

87.0%

FWHM:

14°

Cd/Im:

9.7

Download

IES

Cree XLamp XM-L3 White

Eff:

86.0%

FWHM:

15.0°

Cd/Im:

8.5

Carclo Optics - 10392 Spot Image Cree XM-L3

Carclo Optics - 10392 Cross Section Cree XM-L3

Download

IES

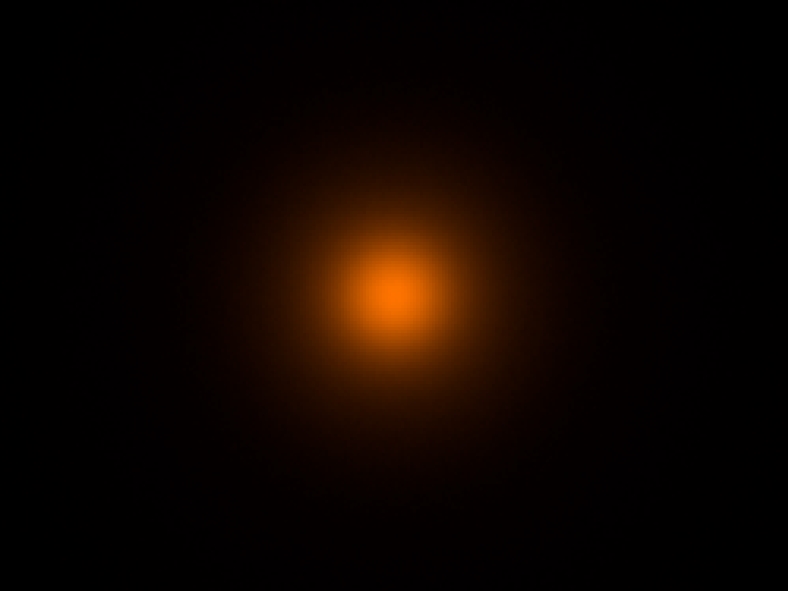

Cree XLamp XP-E2 Amber

Eff:

87.0%

FWHM:

10.5°

Cd/Im:

16.9

Download

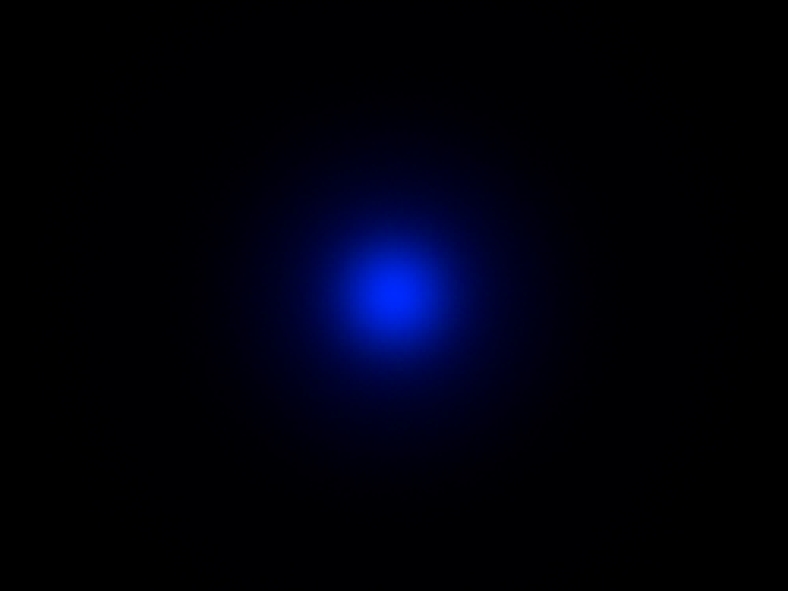

Cree XLamp XP-E2 Blue

Eff:

87.5%

FWHM:

10°

Cd/Im:

18.5

Download

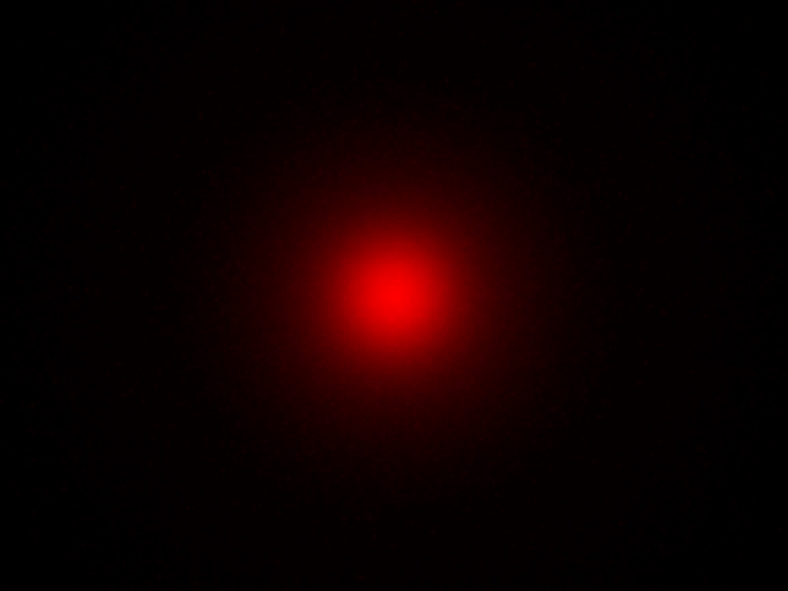

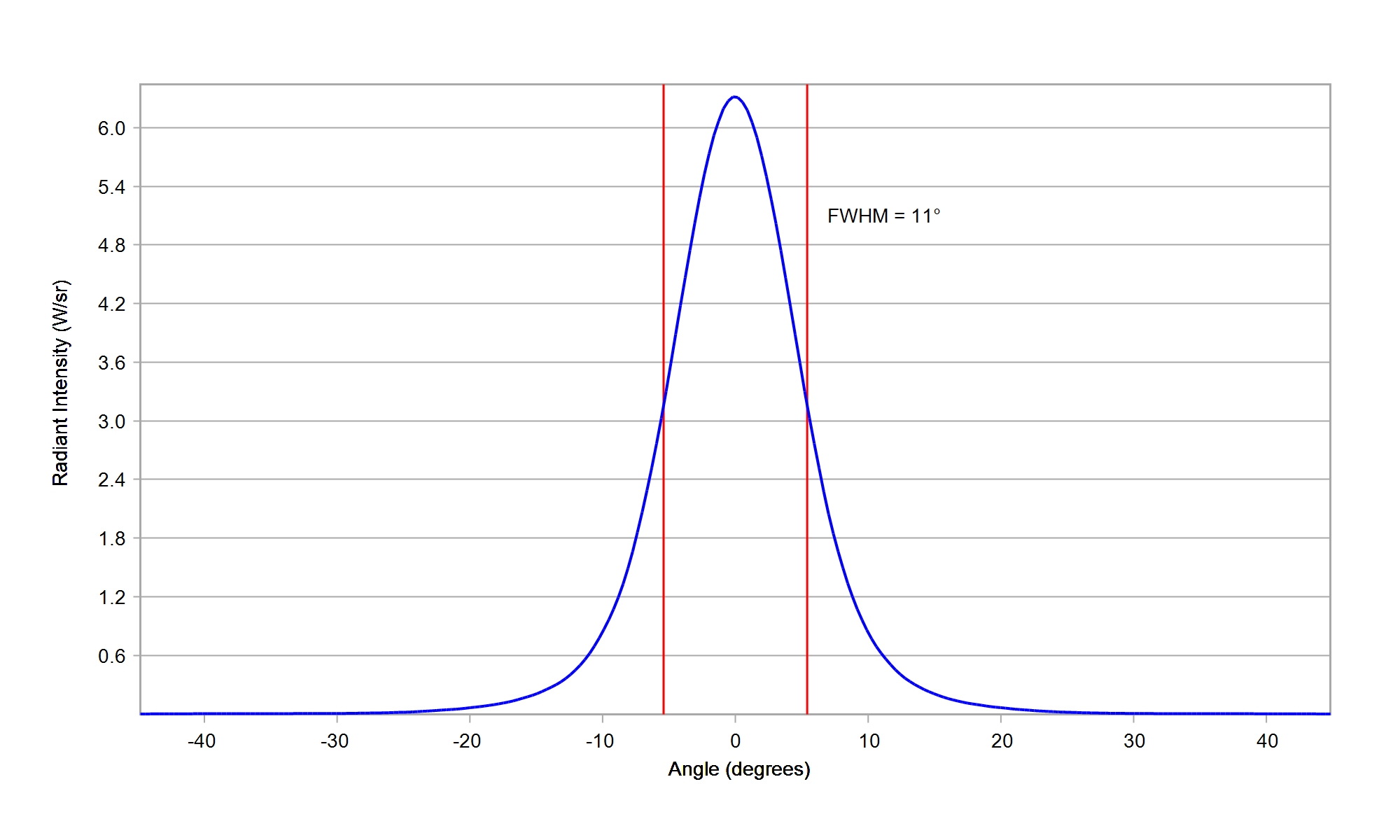

Cree XLamp XP-E2 Far Red

Eff:

91.0%

FWHM:

11°

Ipk/W:

17.2

Download

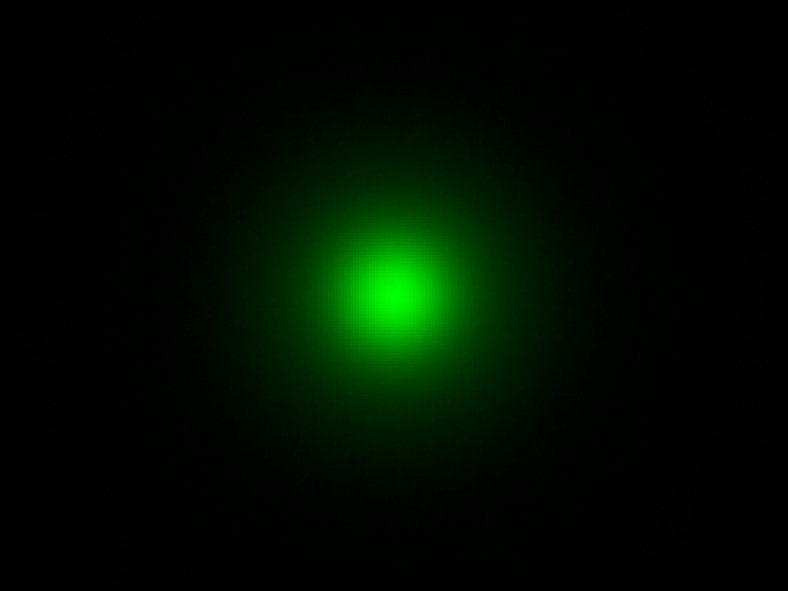

Cree XLamp XP-E2 Green

Eff:

87.0%

FWHM:

10.5°

Cd/Im:

18.2

Download

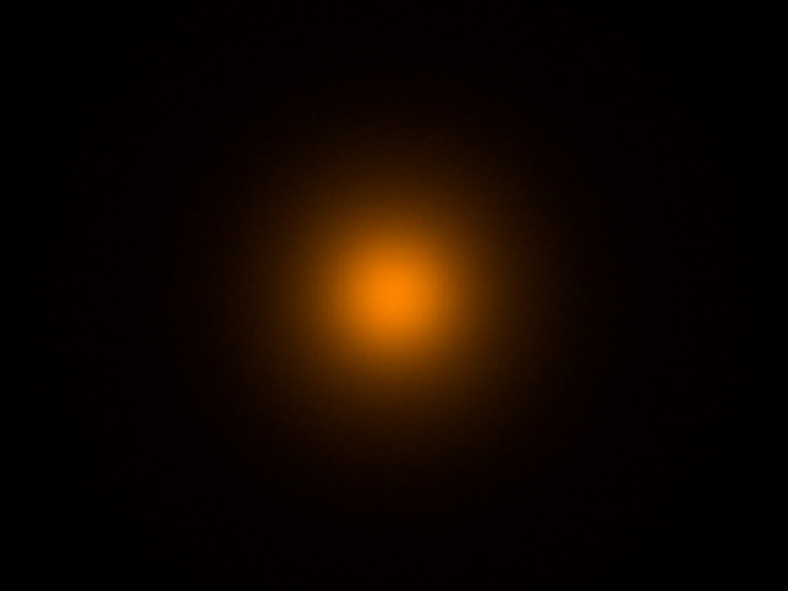

Cree XLamp XP-E2 PC Amber

Eff:

86.5%

FWHM:

12°

Cd/Im:

13.3


Download

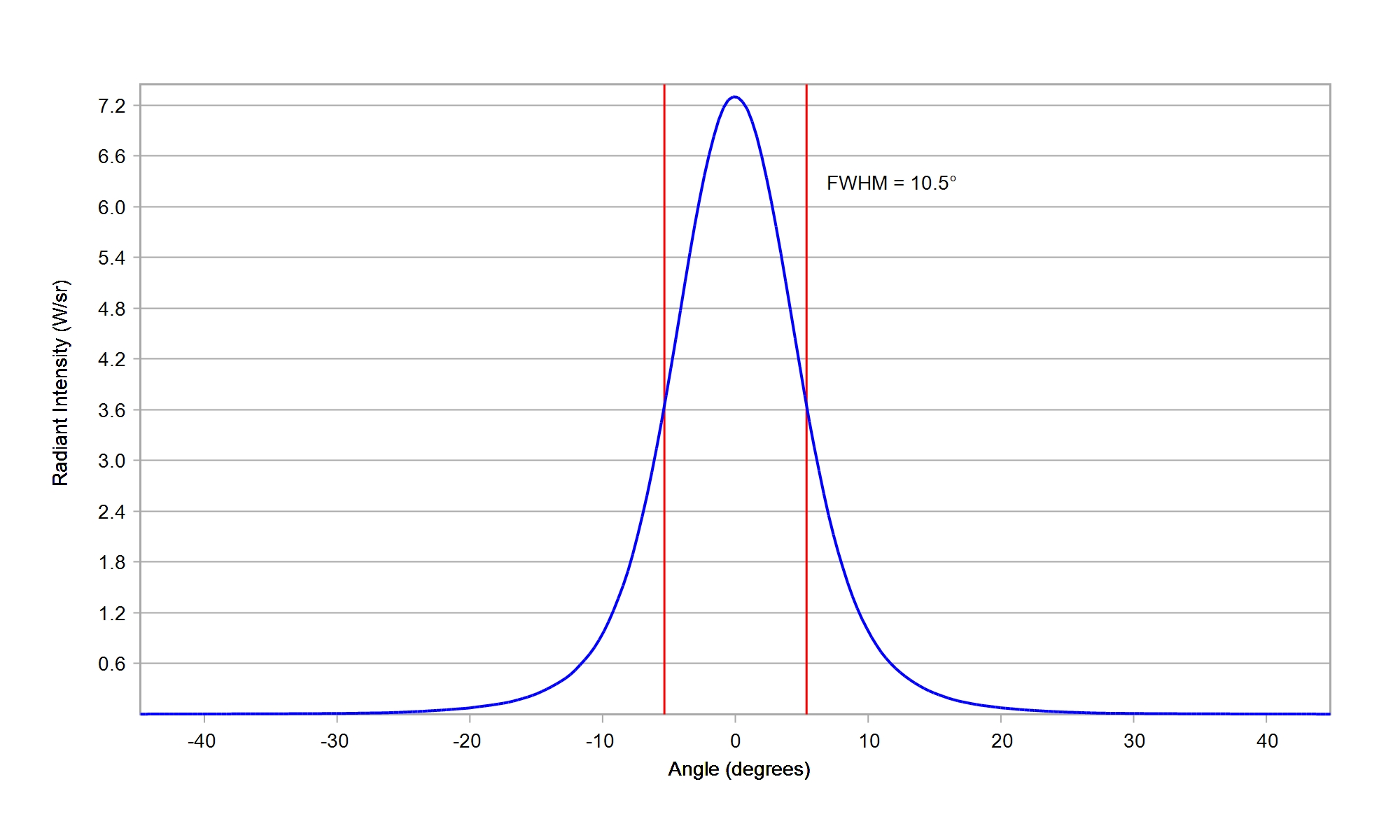

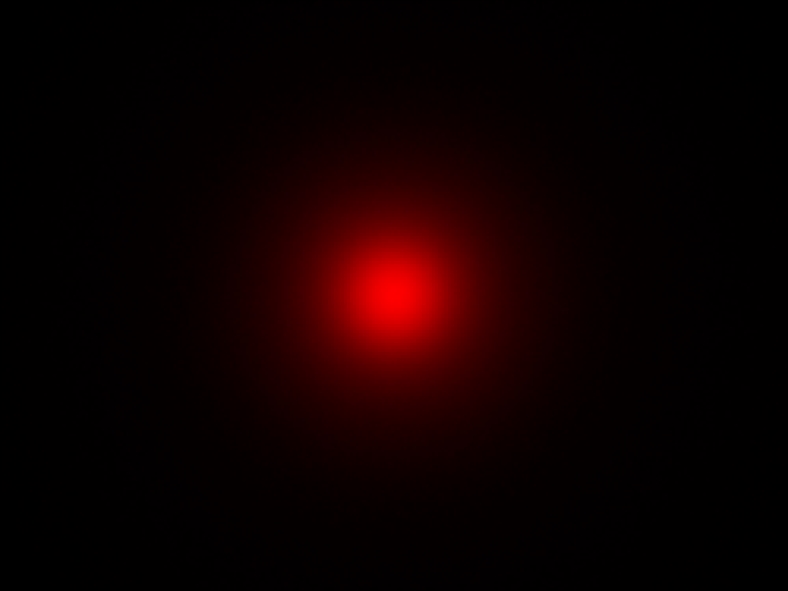

Cree XLamp XP-E2 Photo Red

Eff:

87.5%

FWHM:

10.5°

Ipk/W:

16.7


Download

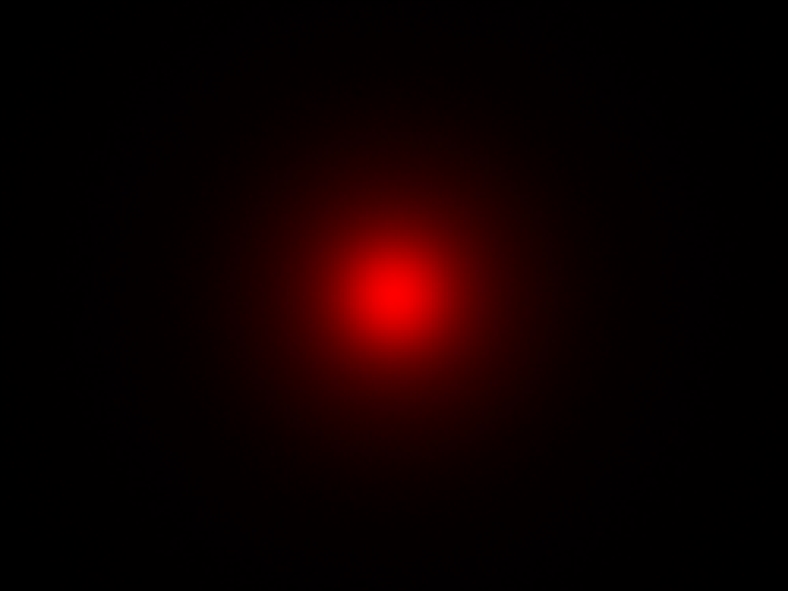

Cree XLamp XP-E2 Red

Eff:

88.5%

FWHM:

10.5°

Cd/Im:

17.3

Download

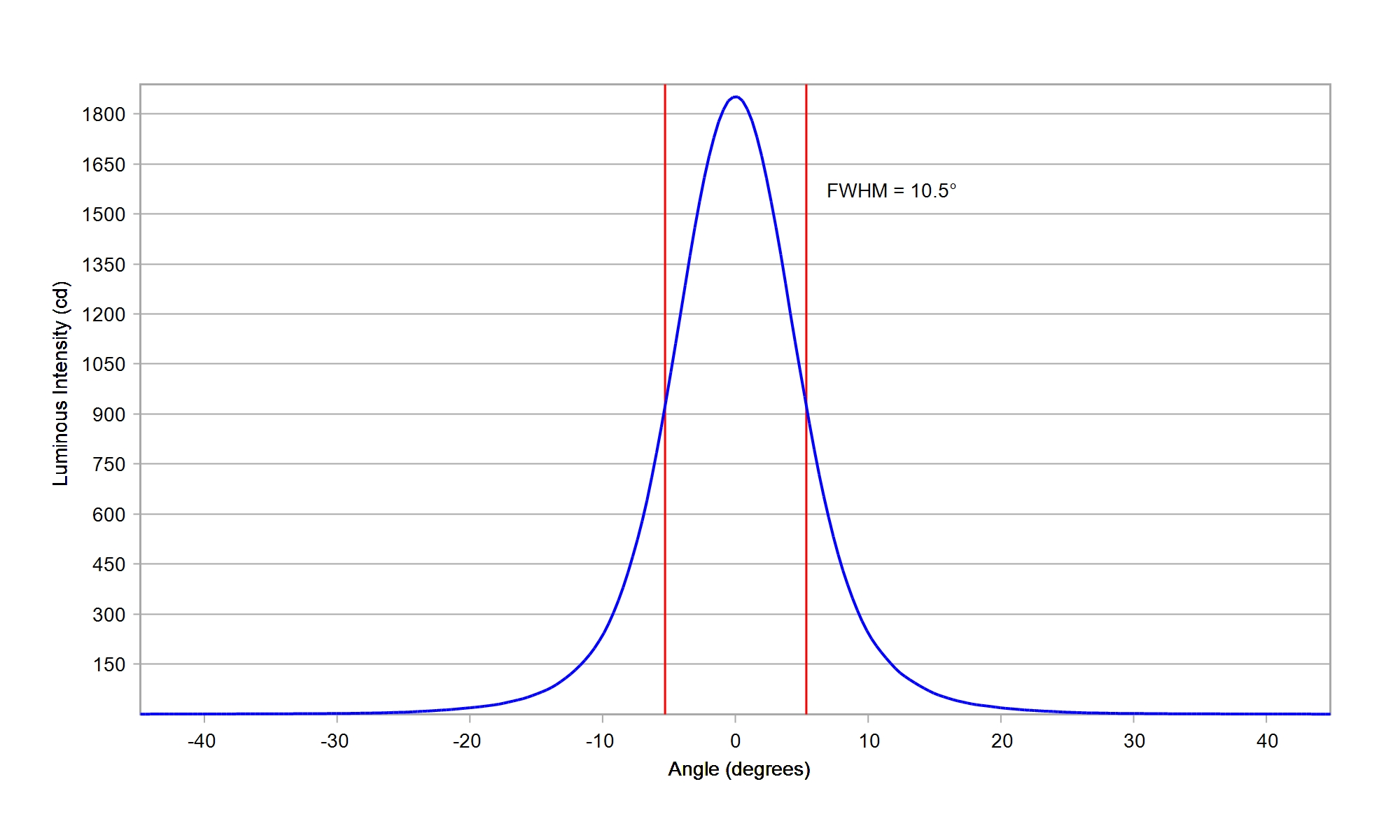

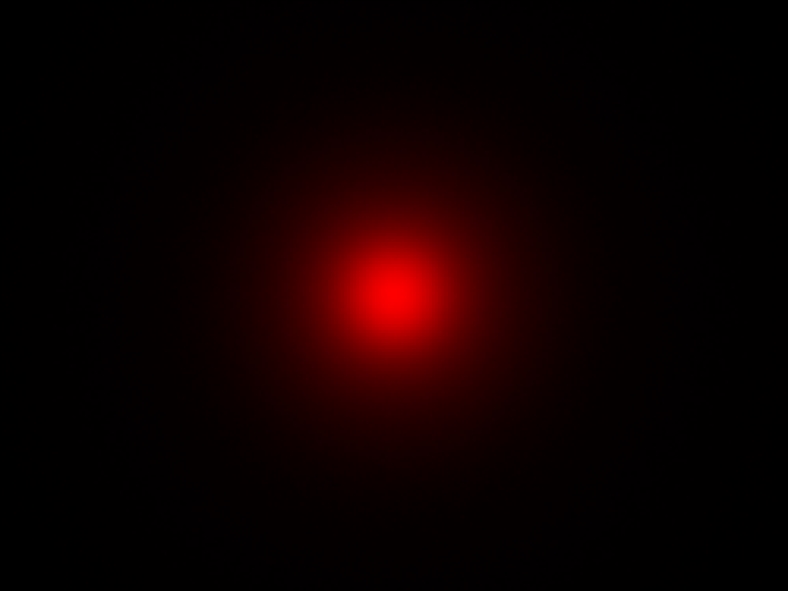

Cree XLamp XP-E2 Red-Orange

Eff:

88.5%

FWHM:

10.5°

Cd/Im:

17.2


Download

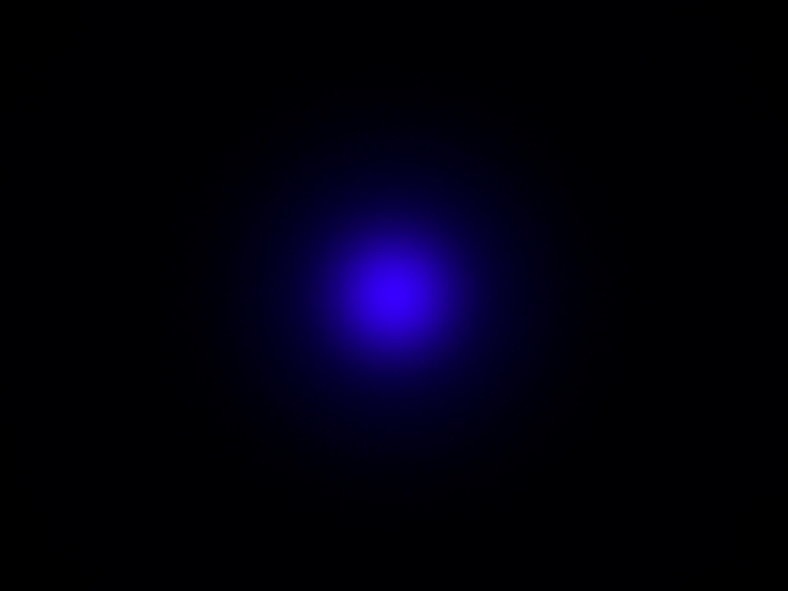

Cree XLamp XP-E2 Royal Blue

Eff:

85.0%

FWHM:

10.5°

Ipk/W:

16.6


Download

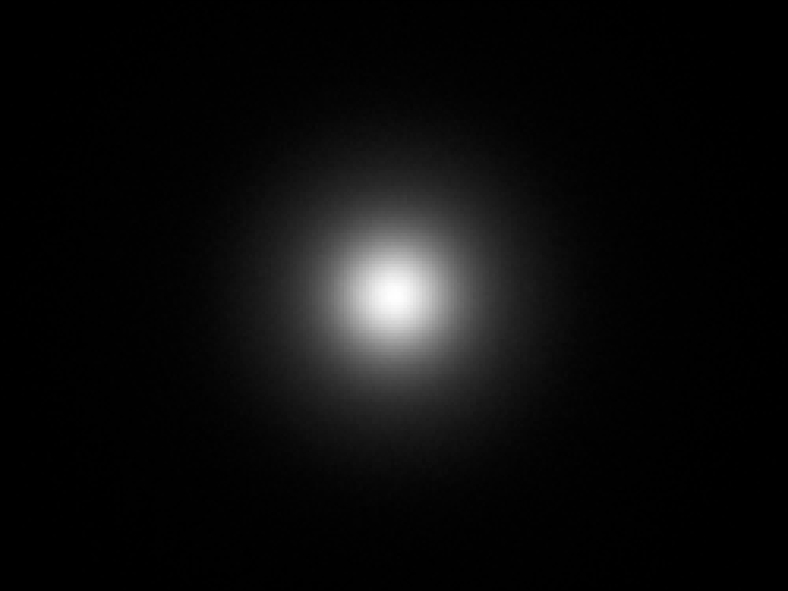

Cree XLamp XP-E2 White

Eff:

87.0%

FWHM:

10.5°

Cd/Im:

17.3

Download

Cree XLamp XP-G3 White

Eff:

84.0%

FWHM:

13.1°

Cd/Im:

10.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

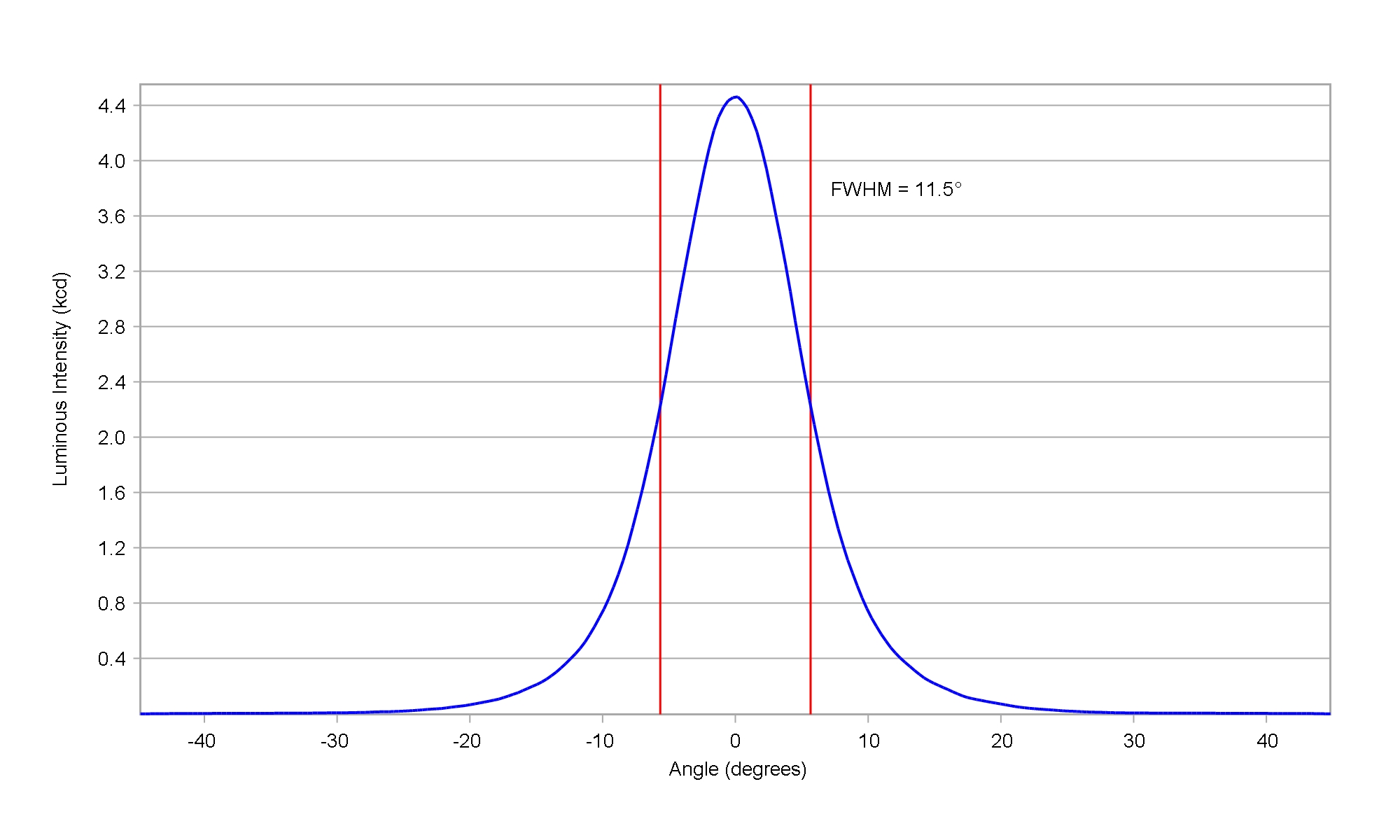

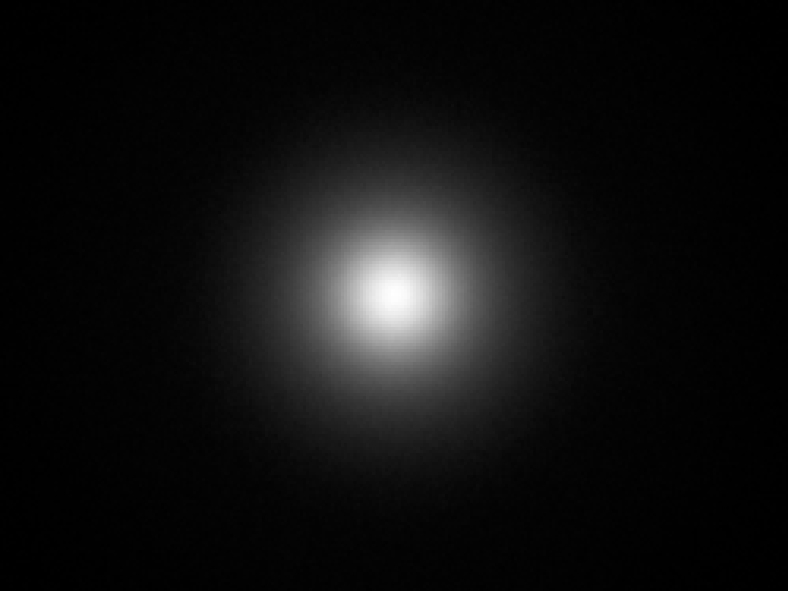

Cree XLamp XP-G4 HI White

Eff:

86.0%

FWHM:

11.5°

Cd/Im:

13.7

Download

Cree XLamp XP-G4 White

Eff:

87.5%

FWHM:

12.5°

Cd/Im:

13.1

Download

IES

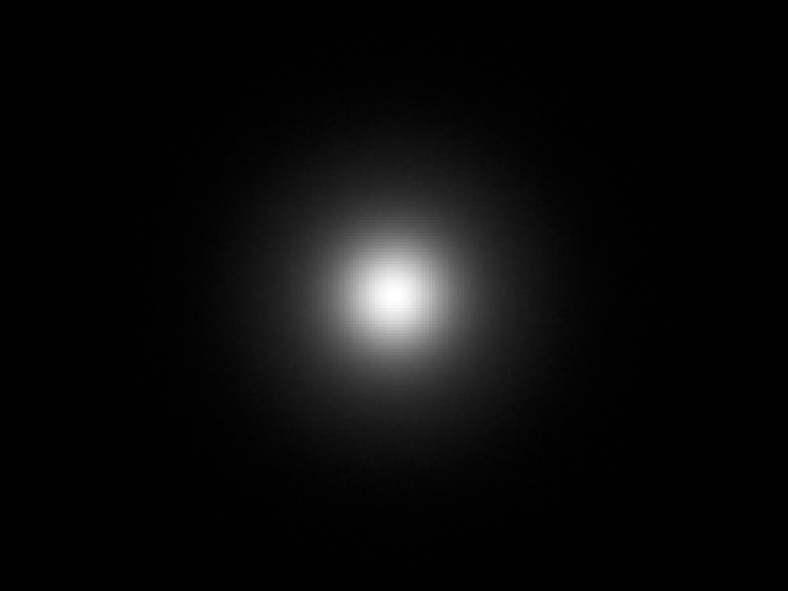

Cree XLamp XP-GR White

Eff:

87.0%

FWHM:

9.9°

Cd/Im:

19.4

Download

Cree XLamp XP-L HI White

Eff:

84.4%

FWHM:

11.9°

Cd/Im:

12.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XP-L White

Eff:

84.9%

FWHM:

14.6°

Cd/Im:

8.3

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XP-L2 White

Eff:

85.0%

FWHM:

15.5°

Cd/Im:

8.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

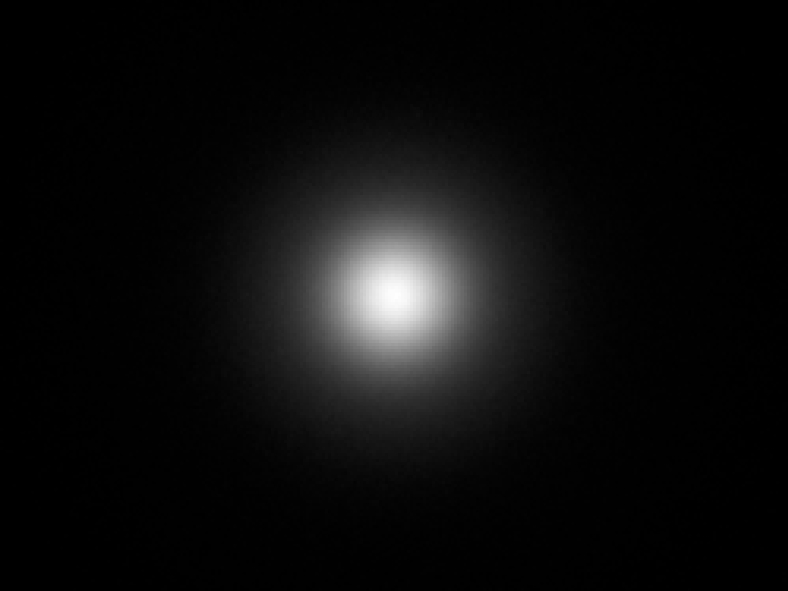

Cree XLamp XP-LR White

Eff:

87.5%

FWHM:

11°

Cd/Im:

16.7

Download

Cree XLamp XP-P White

Eff:

87.5%

FWHM:

9.9°

Cd/Im:

19.6

Carclo Optics – 10392 Cree Xlamp XP-P - Spot Image

Carclo Optics – 10392 Cree Xlamp XP-P - Cross-Section

Download

IES

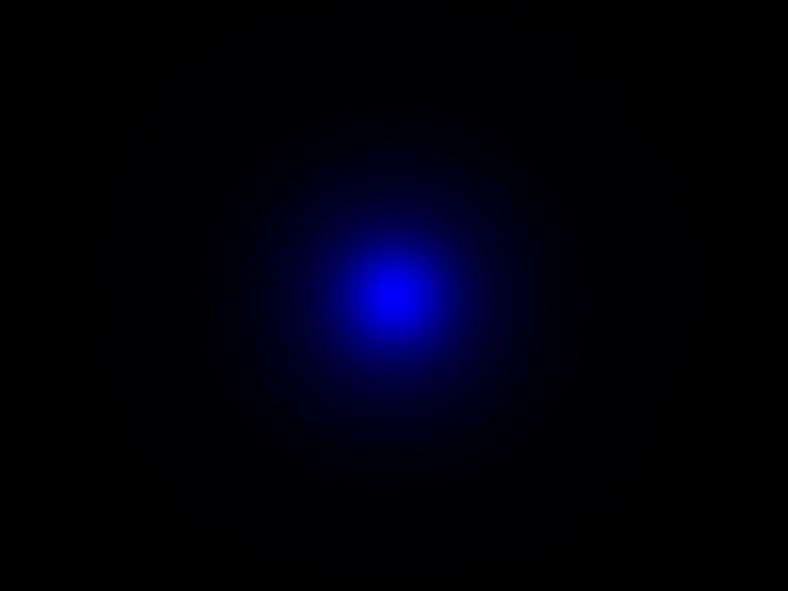

Cree XLamp XQ-A Blue

Eff:

87.0%

FWHM:

9.4°

Cd/Im:

20.8

Download

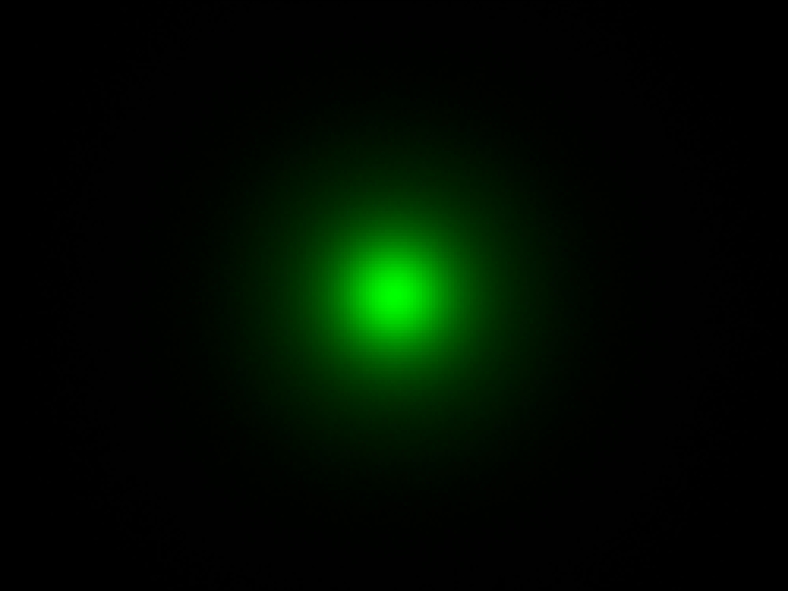

Cree XLamp XQ-A Green

Eff:

87.0%

FWHM:

9.6°

Cd/Im:

20.2

Download

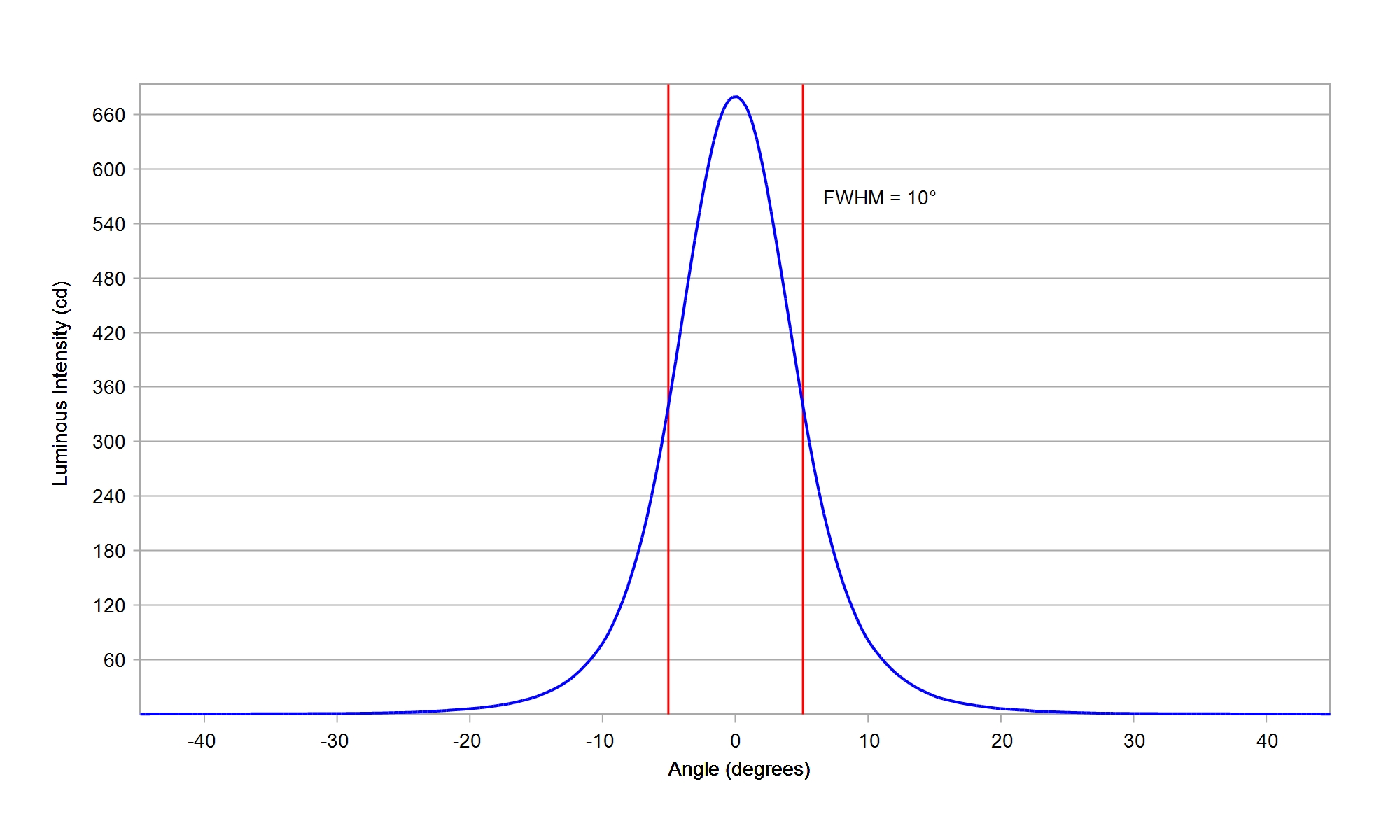

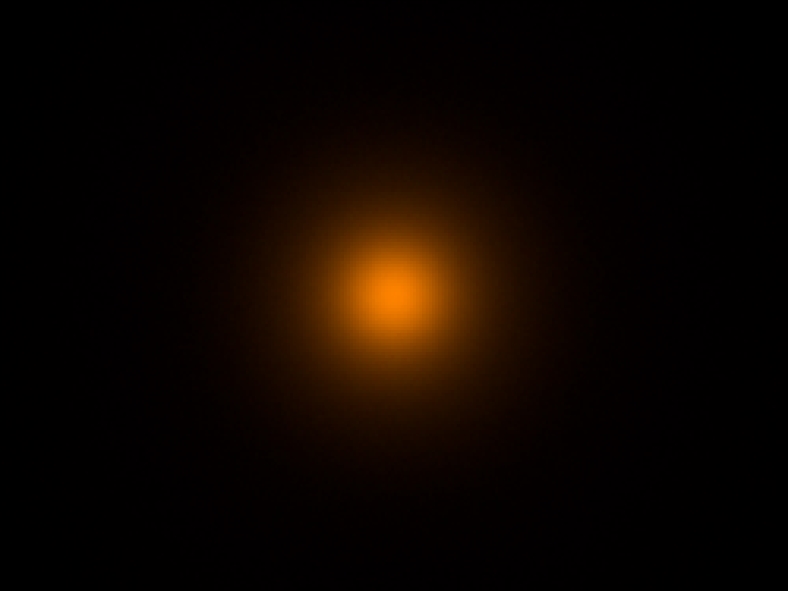

Cree XLamp XQ-A PC Amber

Eff:

86.5%

FWHM:

10°

Cd/Im:

17.9

Download

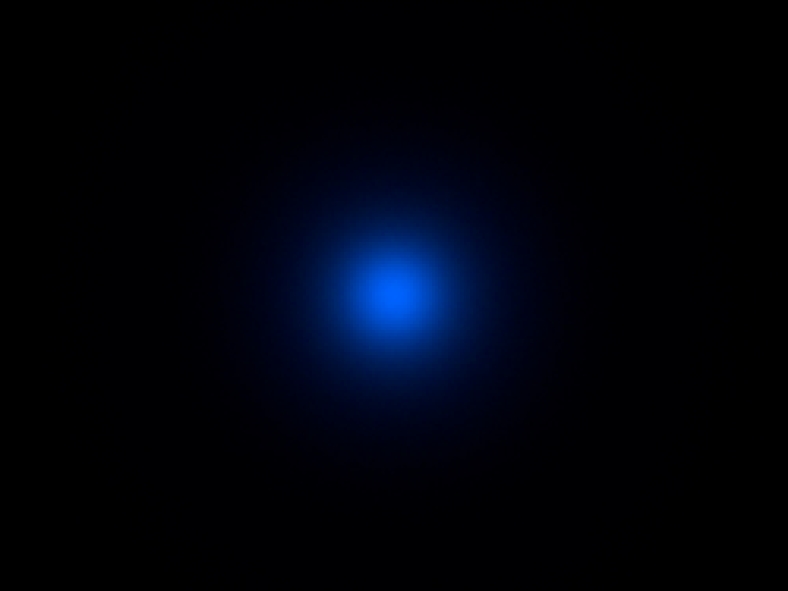

Cree XLamp XQ-A PC Blue

Eff:

86.5%

FWHM:

9.6°

Cd/Im:

19.7

Download

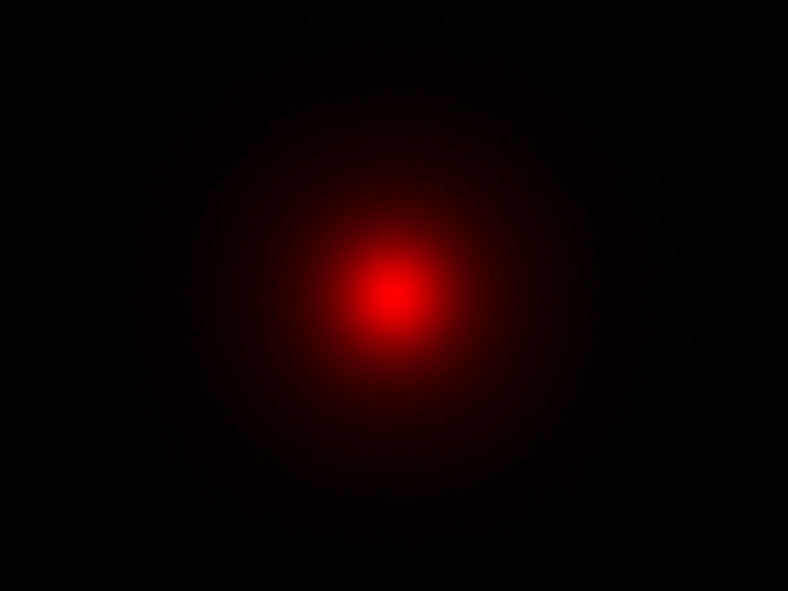

Cree XLamp XQ-A Red

Eff:

88.5%

FWHM:

9.5°

Cd/Im:

20.8

Download

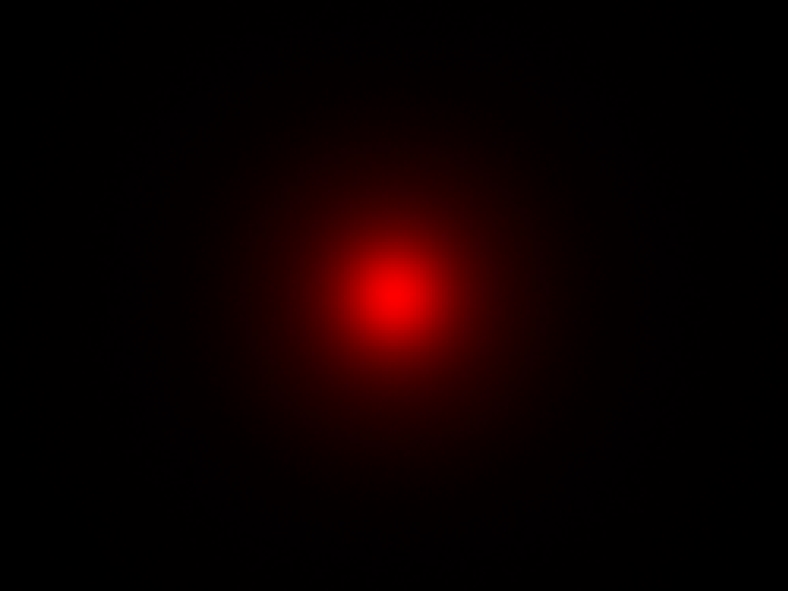

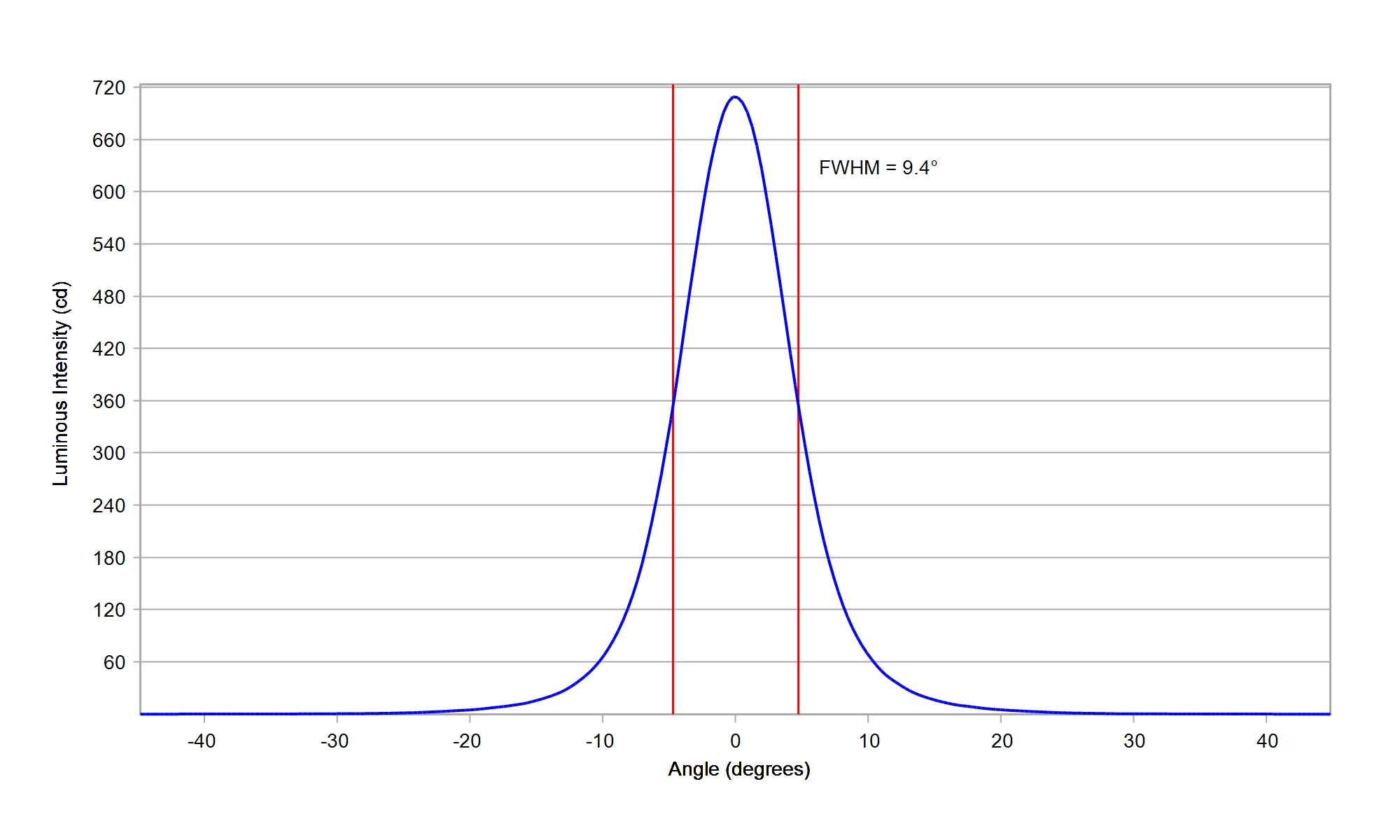

Cree XLamp XQ-A Red-Orange

Eff:

88.0%

FWHM:

9.4°

Cd/Im:

20.9


Download

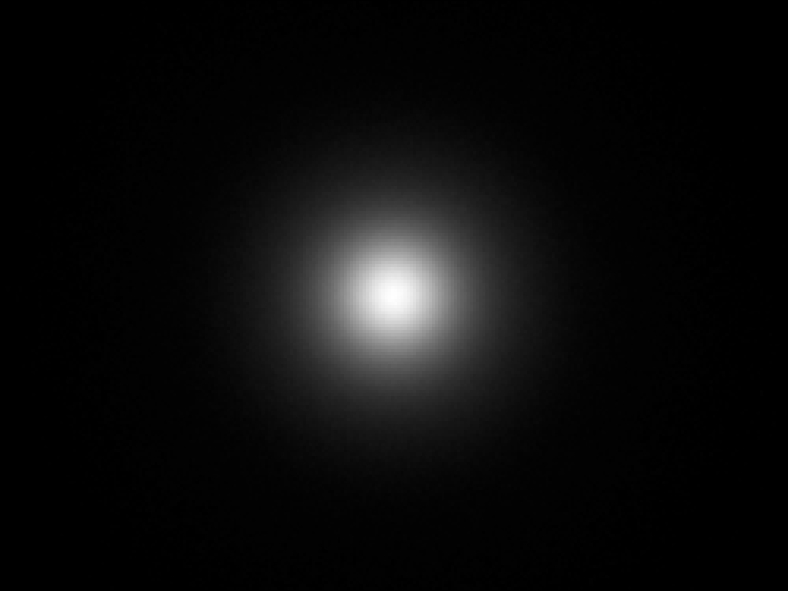

Cree XLamp XQ-A White

Eff:

86.5%

FWHM:

10°

Cd/Im:

18.1

Download

Cree XLamp XQ-E HI Blue

Eff:

85.0%

FWHM:

10°

Cd/Im:

16.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Green

Eff:

85.0%

FWHM:

10.0°

Cd/Im:

16.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Red

Eff:

85.0%

FWHM:

10.0°

Cd/Im:

16.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI White

Eff:

85.0%

FWHM:

10°

Cd/Im:

16.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

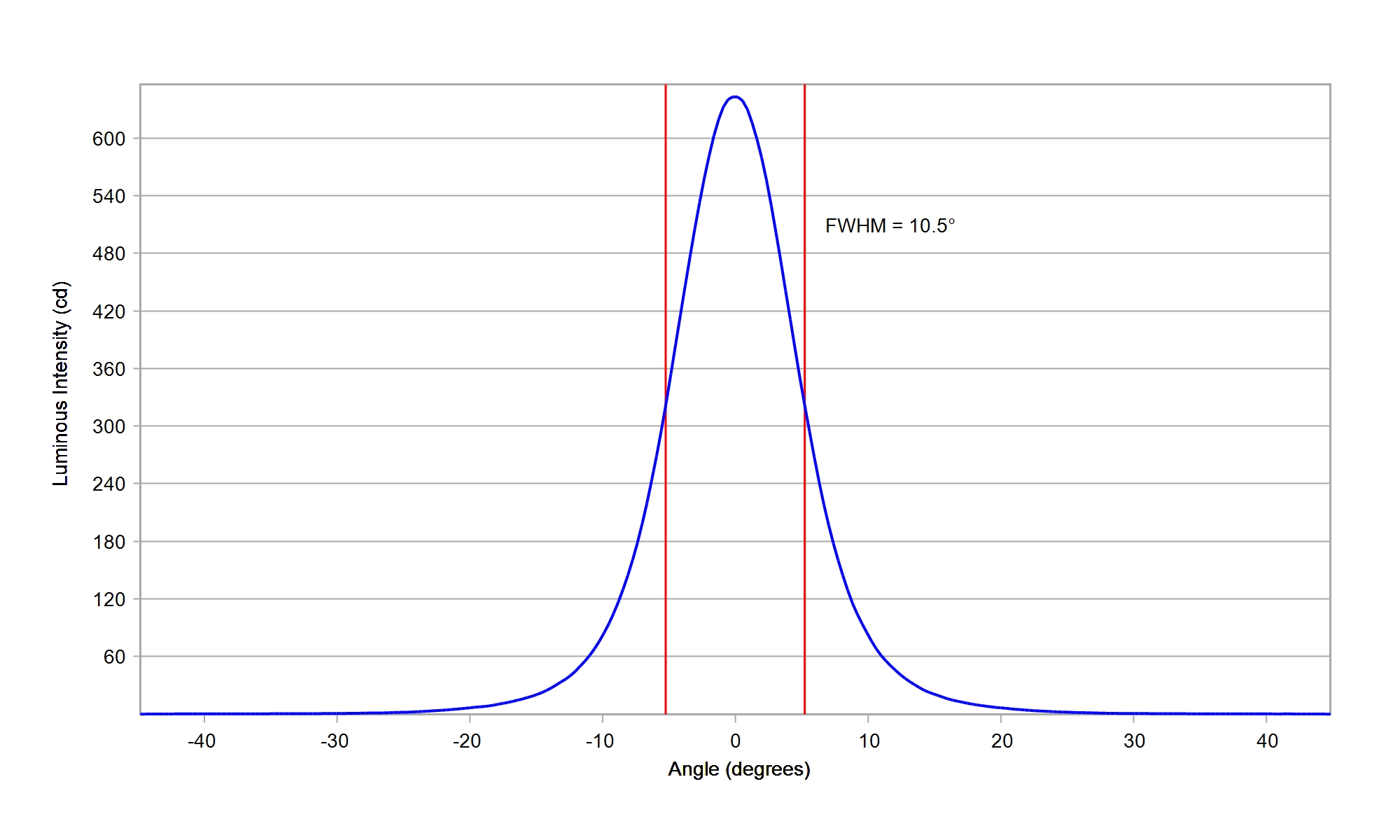

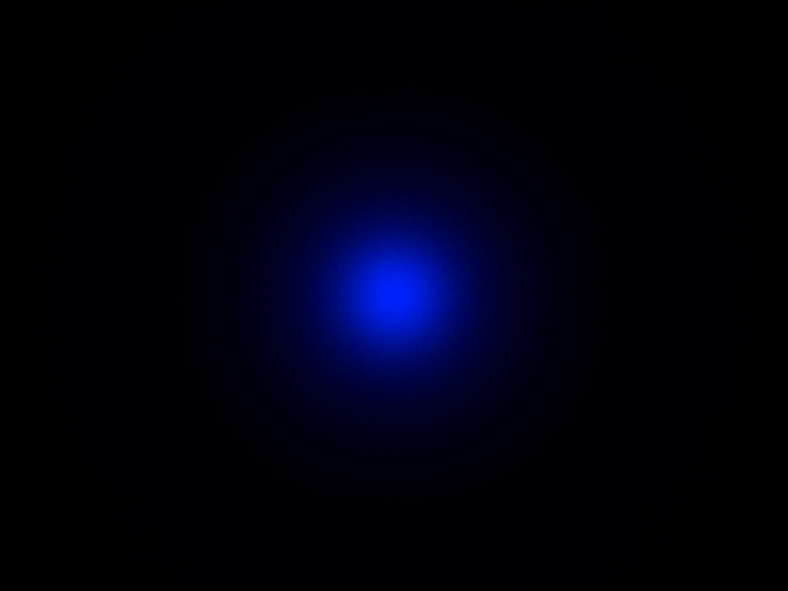

Cree XLamp XQ-E Plus HD Blue

Eff:

86.5%

FWHM:

10.5°

Cd/Im:

16.8


Download

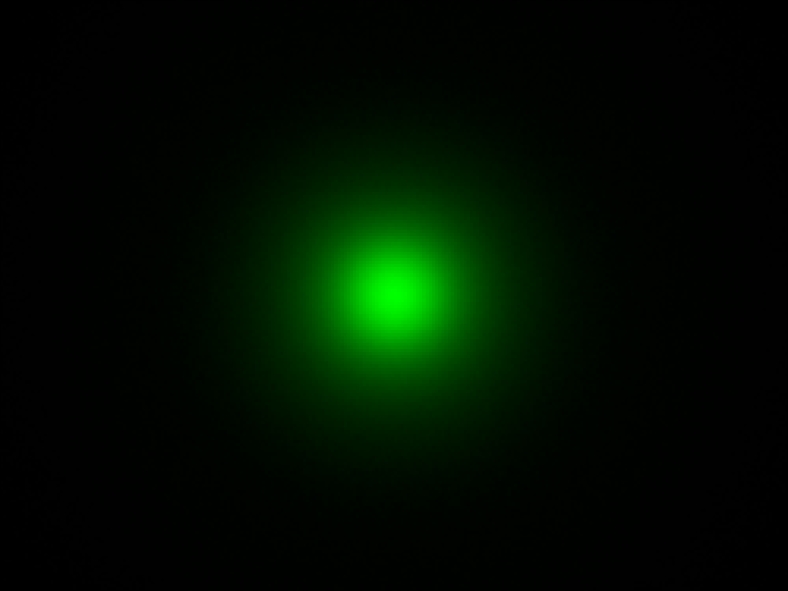

Cree XLamp XQ-E Plus HD Green

Eff:

86.5%

FWHM:

10.5°

Cd/Im:

16.5


Download

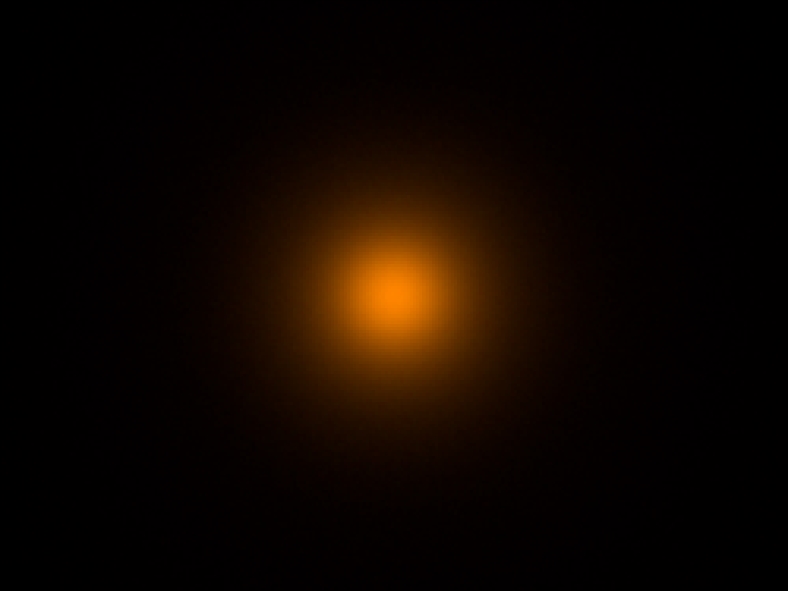

Cree XLamp XQ-E Plus HD PC Amber

Eff:

86.0%

FWHM:

11°

Cd/Im:

15.5


Download

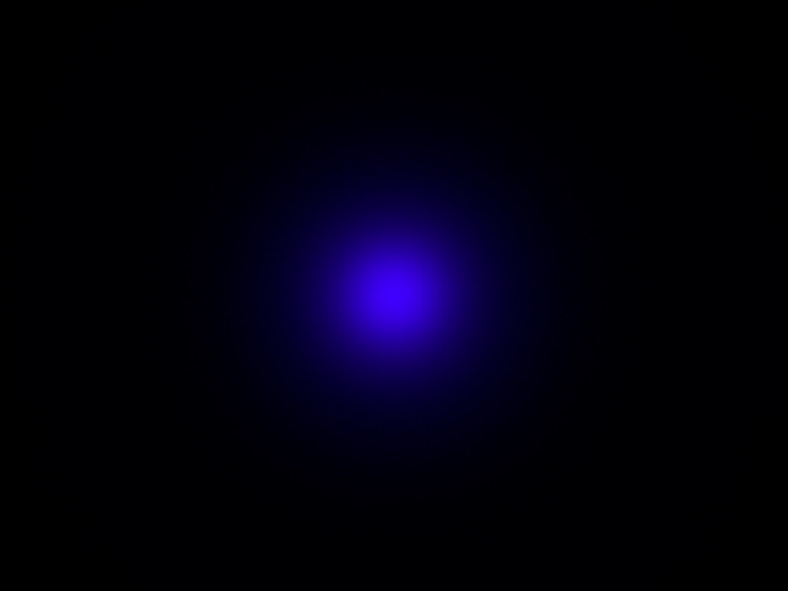

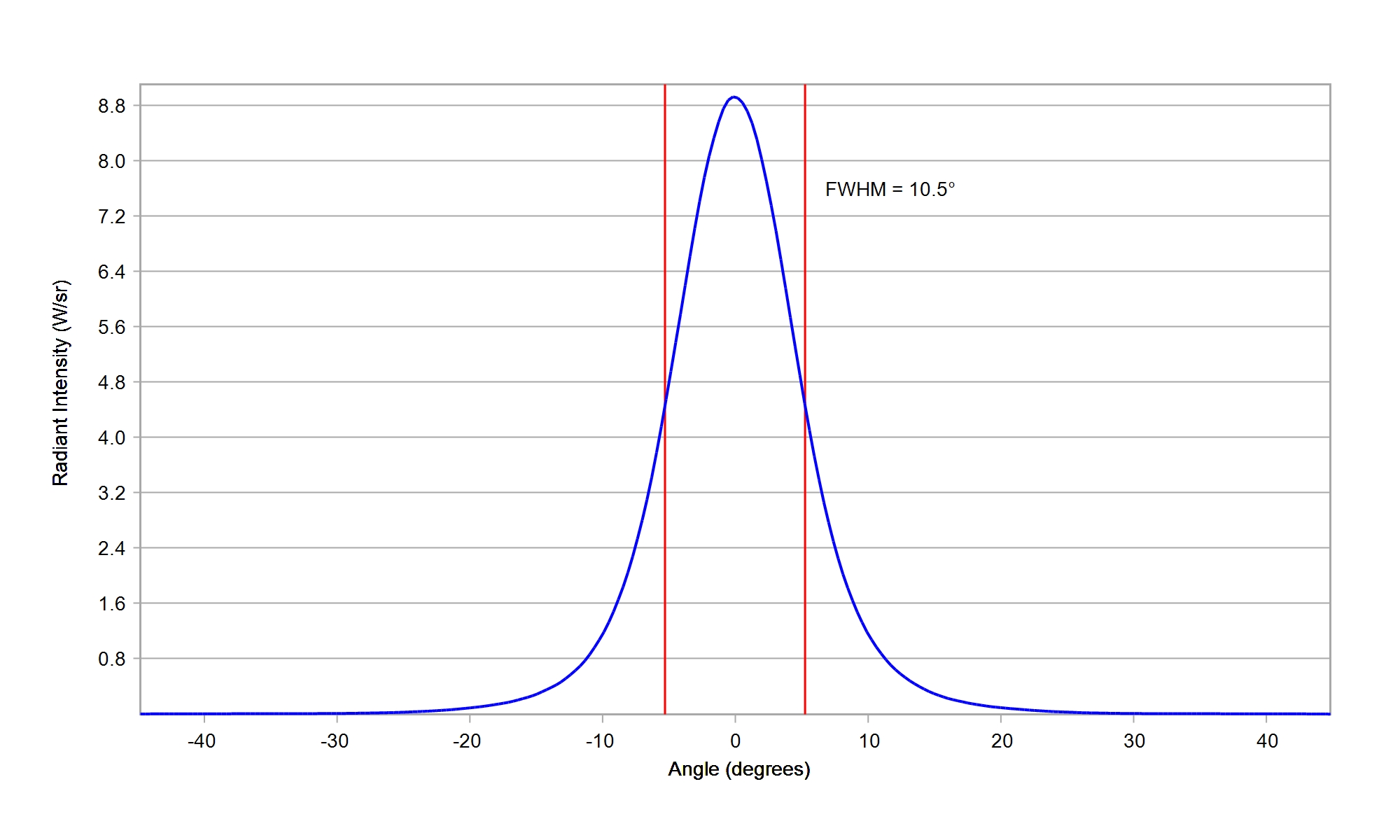

Cree XLamp XQ-E Plus HD Royal Blue

Eff:

85.0%

FWHM:

10.5°

Ipk/W:

16.3


Download

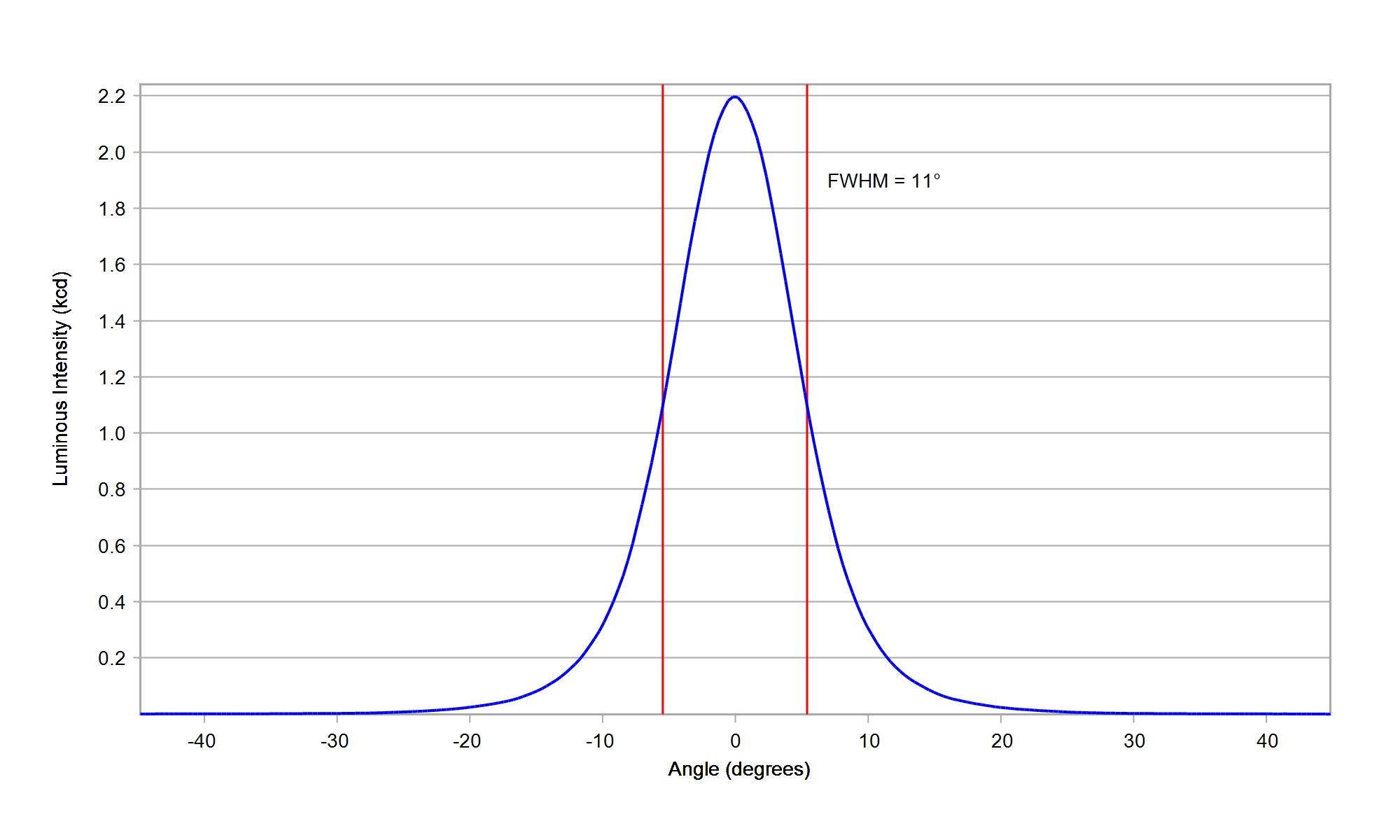

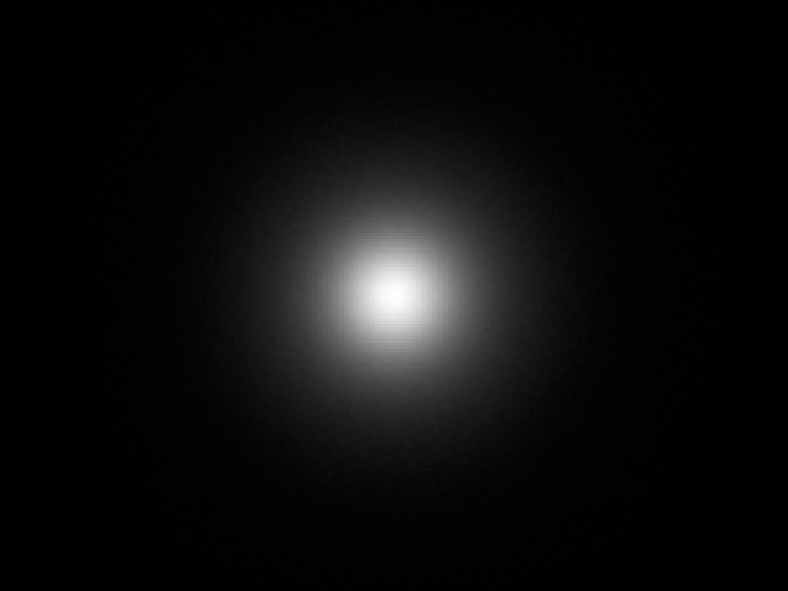

Cree XLamp XQ-E Plus HD White

Eff:

86.0%

FWHM:

11°

Cd/Im:

15.6


Download

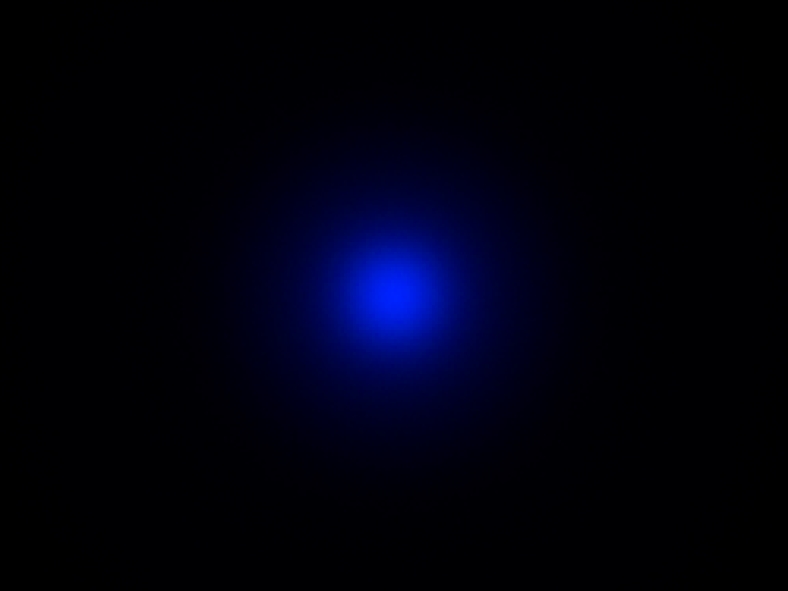

Cree XLamp XQ-E Plus HI Blue

Eff:

86.5%

FWHM:

10.5°

Cd/Im:

16.9


Download

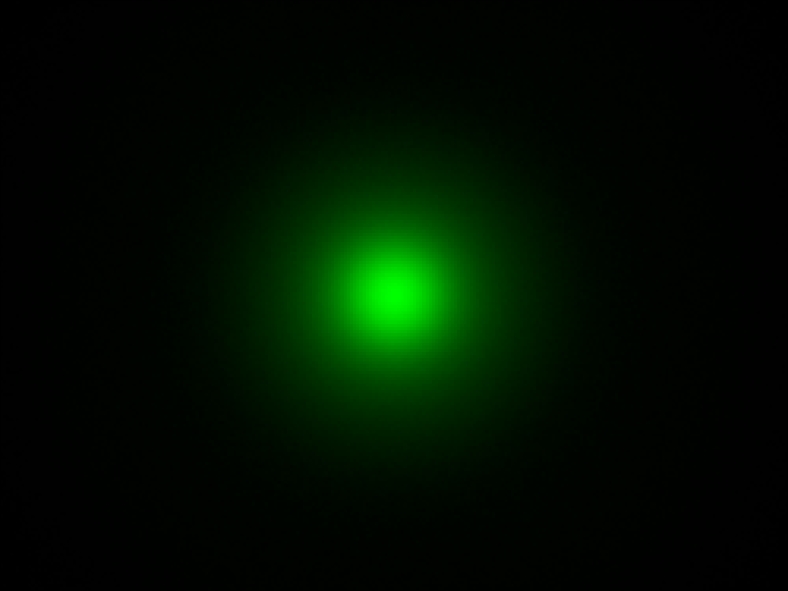

Cree XLamp XQ-E Plus HI Green

Eff:

86.5%

FWHM:

10.5°

Cd/Im:

16.5


Download

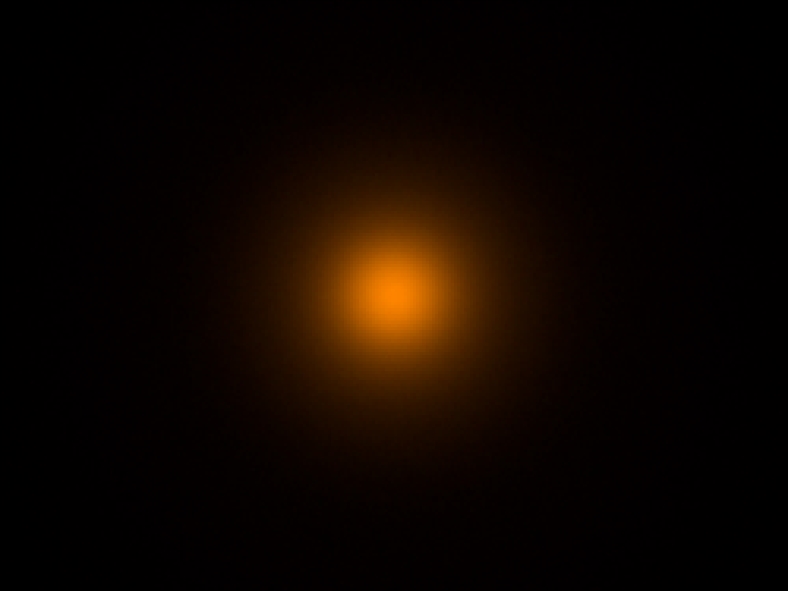

Cree XLamp XQ-E Plus HI PC Amber

Eff:

86.5%

FWHM:

10.5°

Cd/Im:

16.4


Download

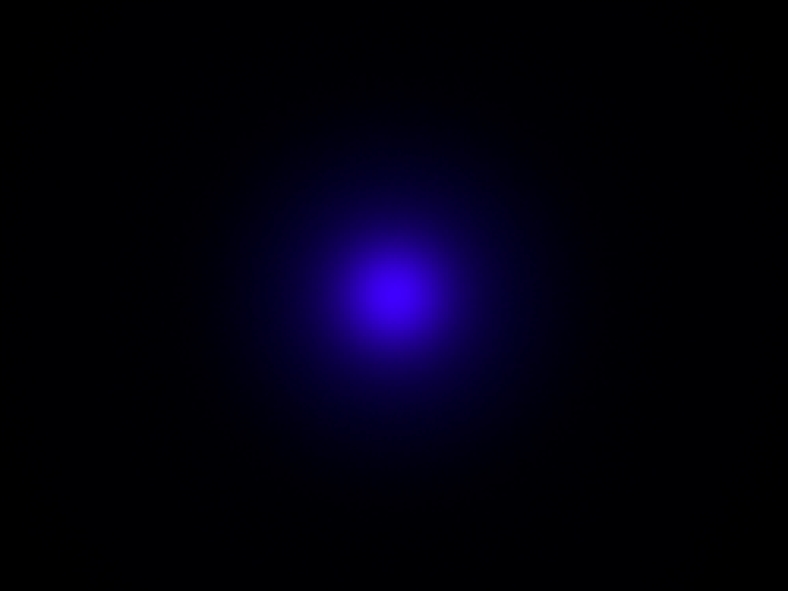

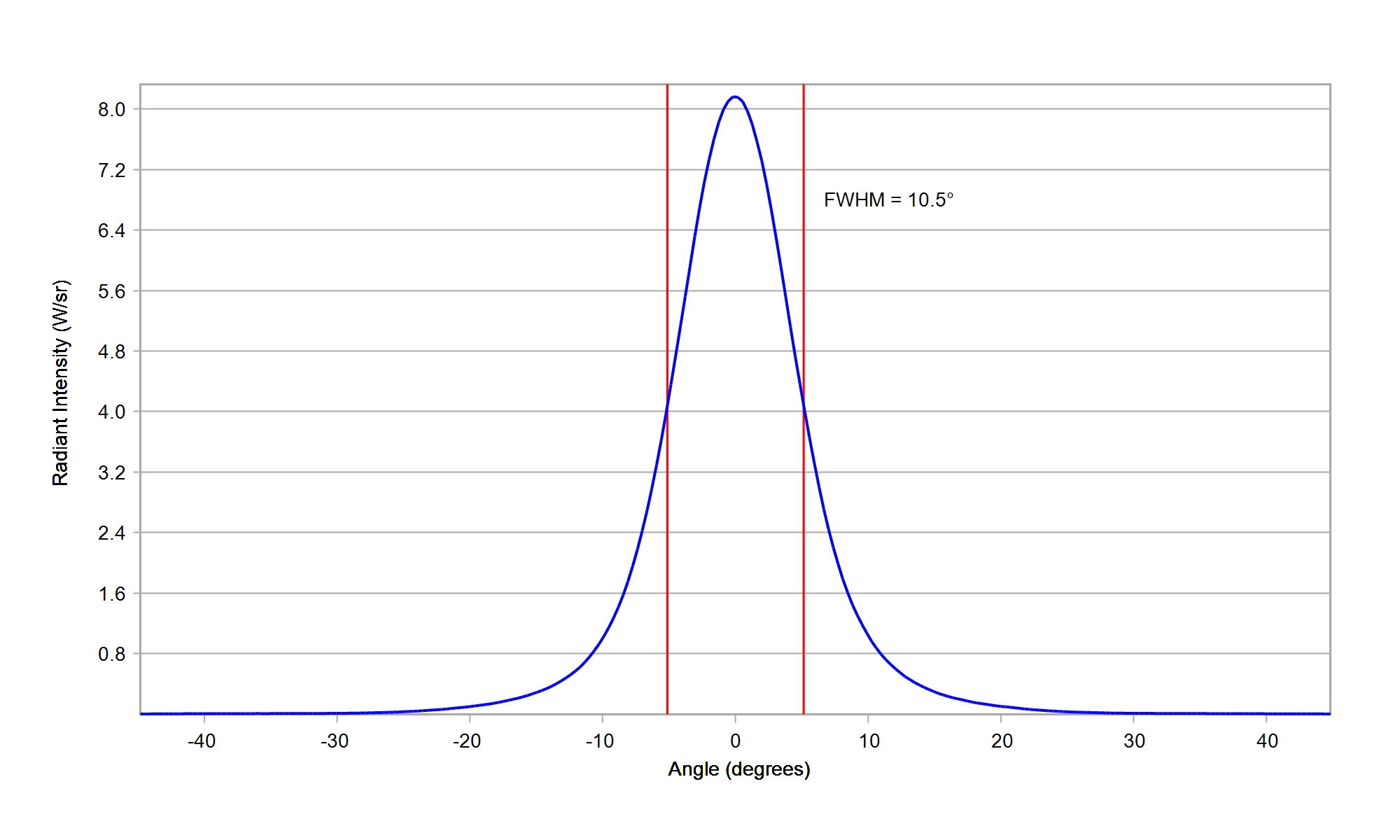

Cree XLamp XQ-E Plus HI Royal Blue

Eff:

85.0%

FWHM:

10.5°

Ipk/W:

16.3


Download

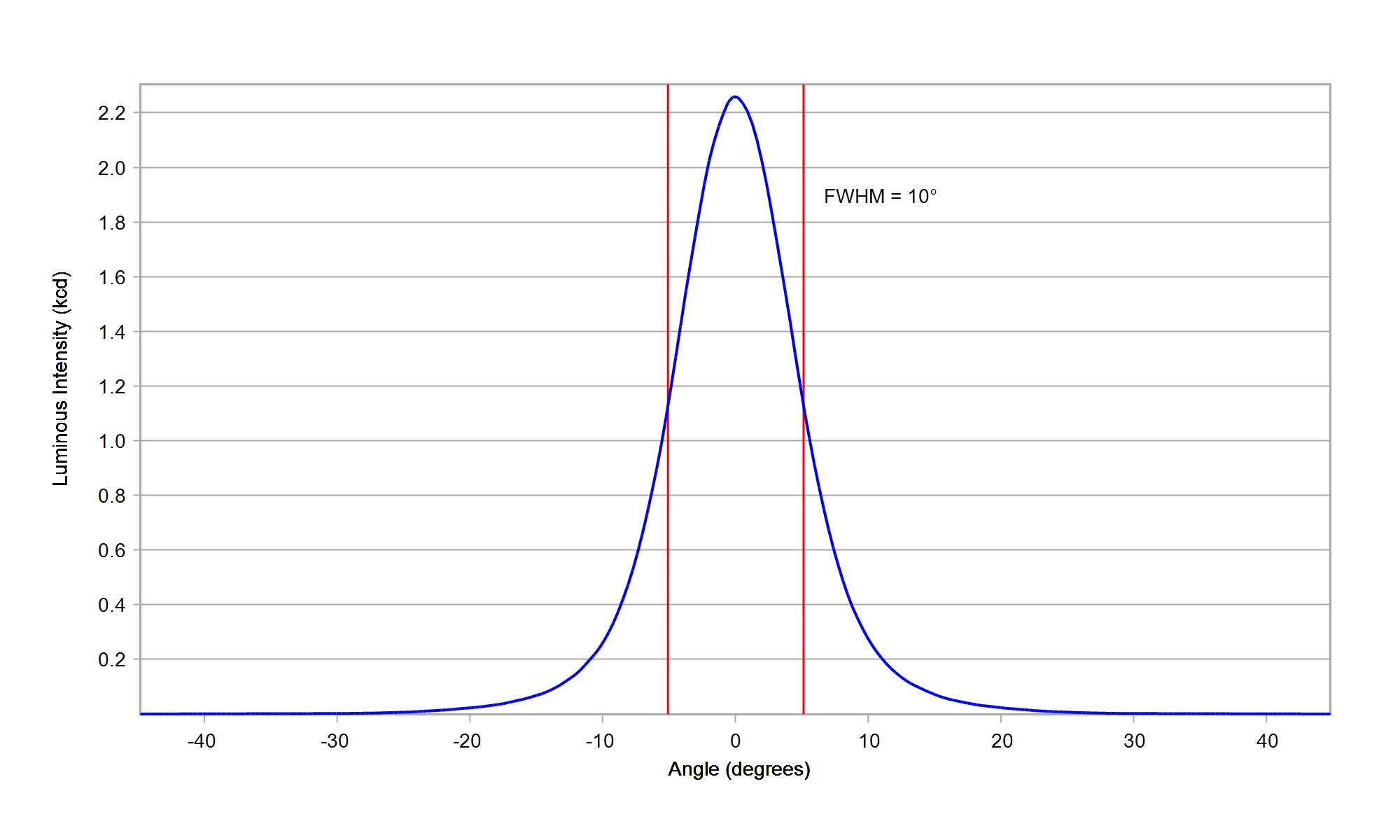

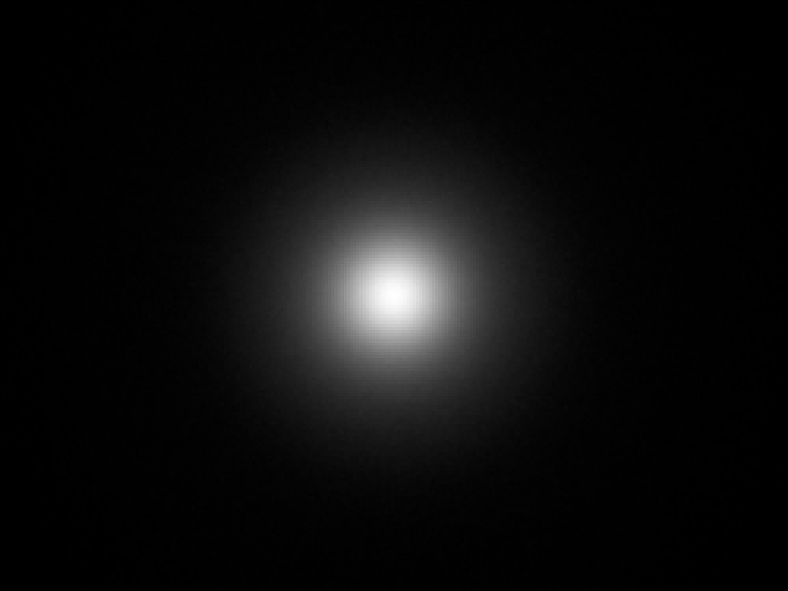

Cree XLamp XQ-E Plus HI White

Eff:

86.5%

FWHM:

10°

Cd/Im:

17.4


Download

Cree XLamp XT-E HE White

Eff:

85.5%

FWHM:

12.5°

Cd/Im:

12.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram LED ENGIN LuxiGen 10W LZ4-00CW10 White

Eff:

82.2%

FWHM:

19.3°

Cd/Im:

5.6

Download

ies

Lite-On R38386AS - S R38 IR

Eff:

91.5%

FWHM:

11.5°

Ipk/W:

15.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 2835C 6V White

Eff:

87.5%

FWHM:

12°

Cd/Im:

13.6

Download

LUMILEDS LUXEON 2835E 9V White

Eff:

87.5%

FWHM:

12°

Cd/Im:

13.2

Download

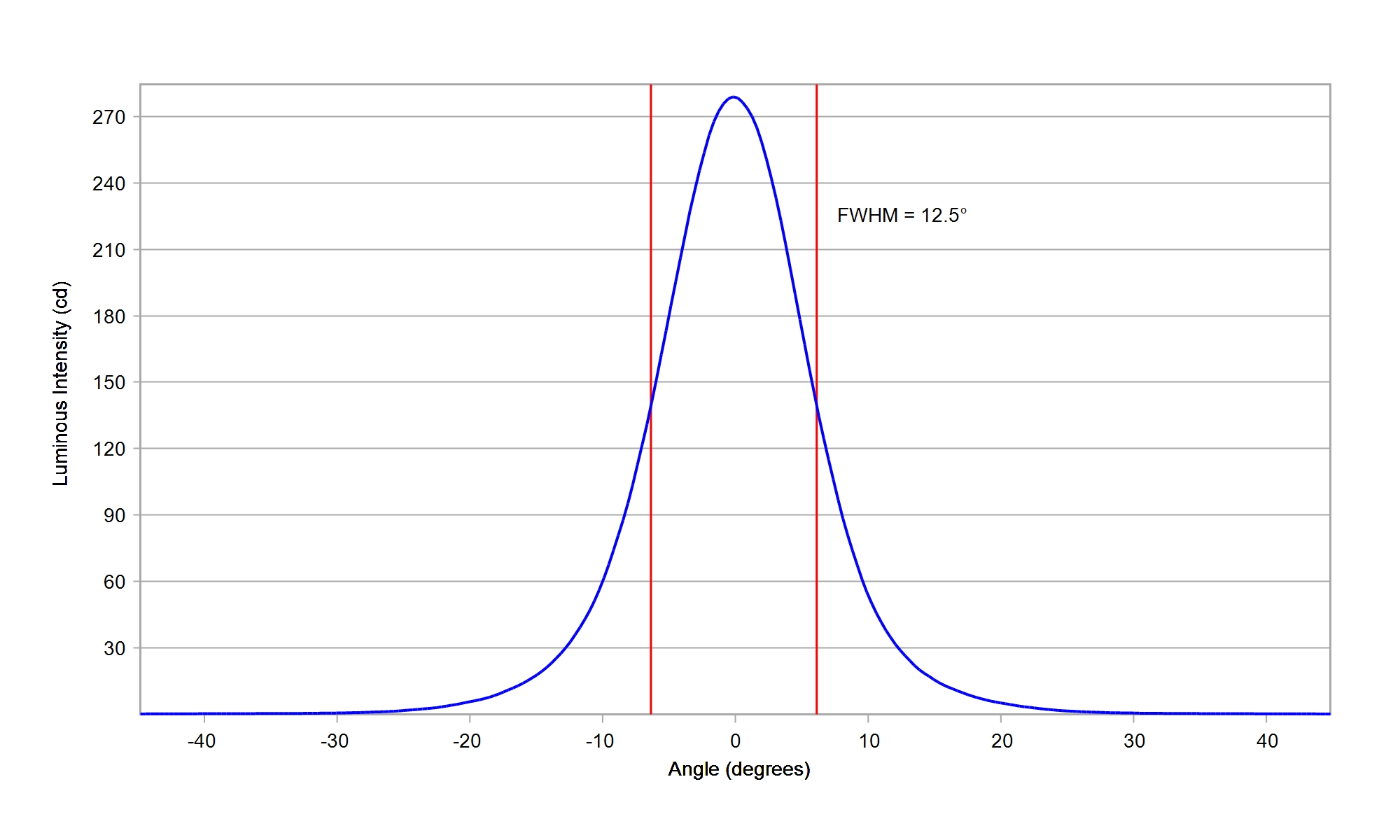

LUMILEDS LUXEON 2835N 3V White

Eff:

87.5%

FWHM:

12.5°

Cd/Im:

12.3

Download

LUMILEDS LUXEON 2835S 3V White

Eff:

87.5%

FWHM:

12.5°

Cd/Im:

12.2

Download

LUMILEDS LUXEON 2835S 6V White

Eff:

87.5%

FWHM:

12.5°

Cd/Im:

12.2

Download

LUMILEDS LUXEON 3014 White

Eff:

87.5%

FWHM:

10.5°

Cd/Im:

17.5

Download

IES

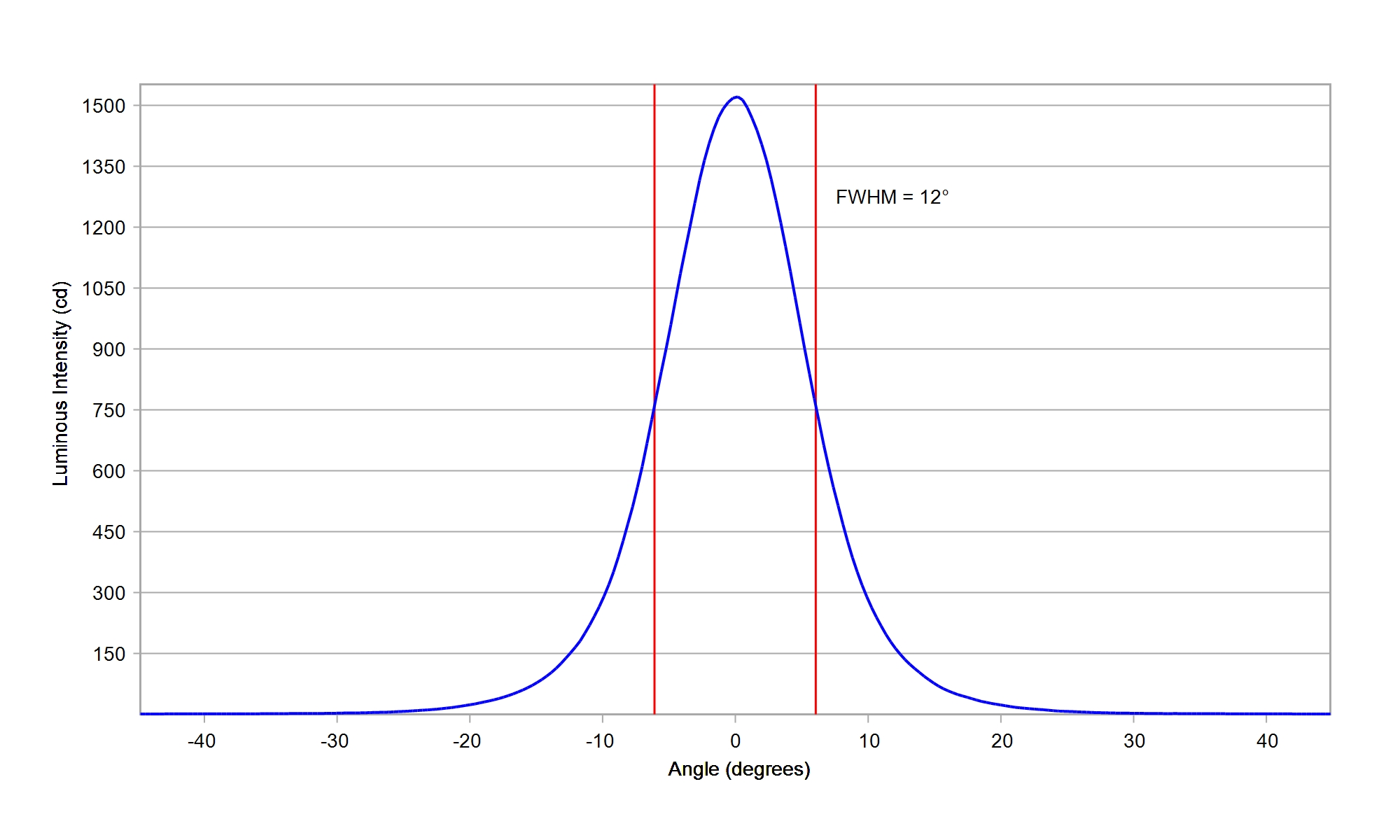

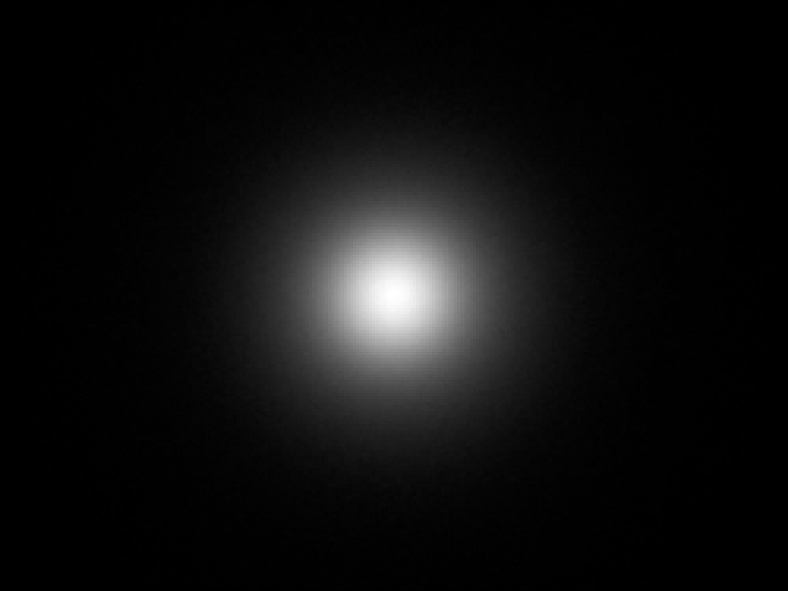

LUMILEDS LUXEON 3030 2D Plus Round White

Eff:

87.5%

FWHM:

12°

Cd/Im:

13.5


Download

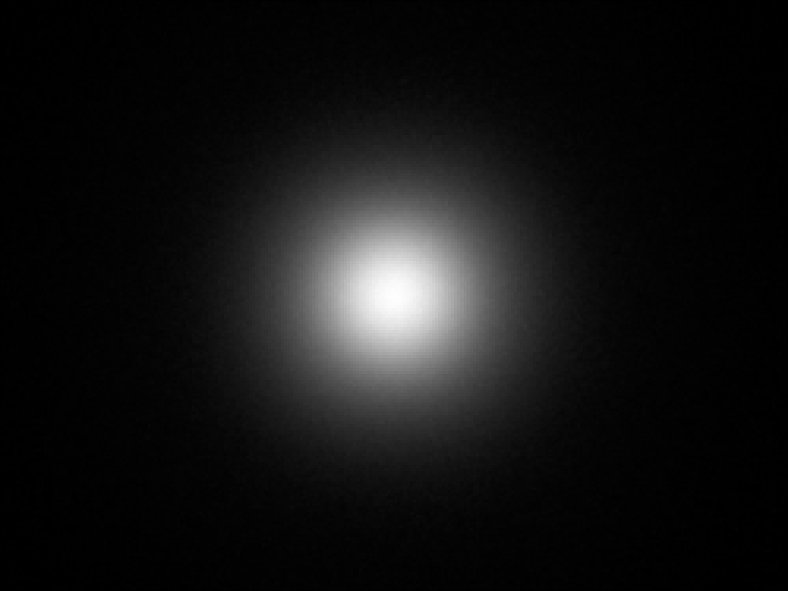

LUMILEDS LUXEON 3030 2D Plus Square White

Eff:

87.0%

FWHM:

14.5°

Cd/Im:

10.0


Download

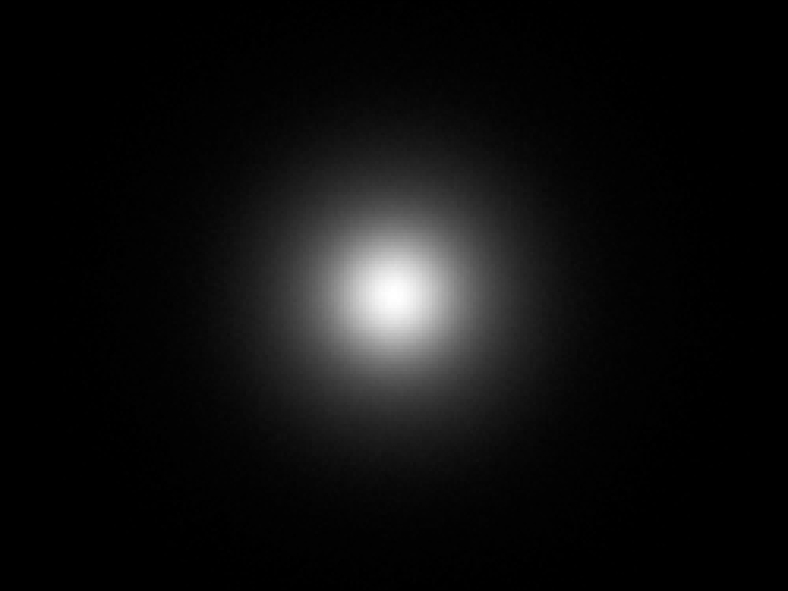

LUMILEDS LUXEON 3030 2D Square White

Eff:

87.5%

FWHM:

12°

Cd/Im:

13.7


Download

LUMILEDS LUXEON 3030 2D Round White

Eff:

87.5%

FWHM:

11.5°

Cd/Im:

14.8

Download

LUMILEDS LUXEON 3030 HE Plus White

Eff:

87.5%

FWHM:

12.5°

Cd/Im:

12.9

Carclo Optics – 10392– Luxeon_3030_HE_Plus_spot-image

Carclo Optics – 10392 – Luxeon_3030_HE_Plus_cross vertical section

Download

IES

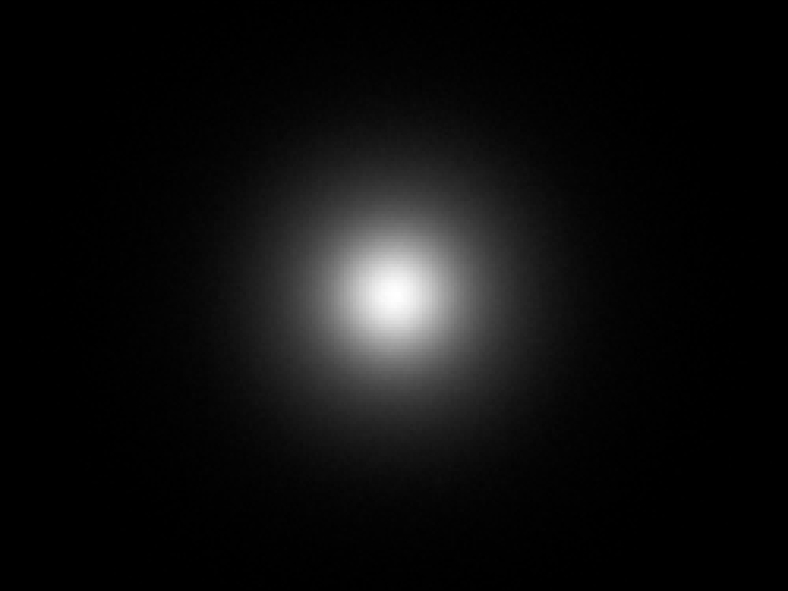

LUMILEDS LUXEON 3030 HE White

Eff:

87.5%

FWHM:

11.5°

Cd/Im:

14.2

Download

LUMILEDS LUXEON 3535 HV White

Eff:

84.3%

FWHM:

11.5°

Cd/Im:

13.0

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON 3535 L White

Eff:

84.3%

FWHM:

11.6°

Cd/Im:

13.0

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON 3535L Blue

Eff:

86.0%

FWHM:

11.5°

Cd/Im:

14.1

Carclo Optics - Simulated Spot Image

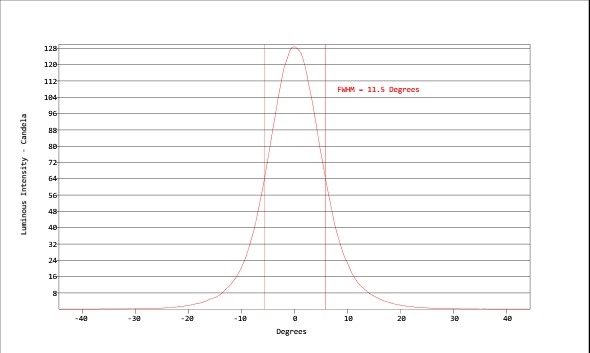

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 3535L Green

Eff:

86.5%

FWHM:

11.0°

Cd/Im:

14.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 3535L Red

Eff:

86.5%

FWHM:

10.0°

Cd/Im:

16.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

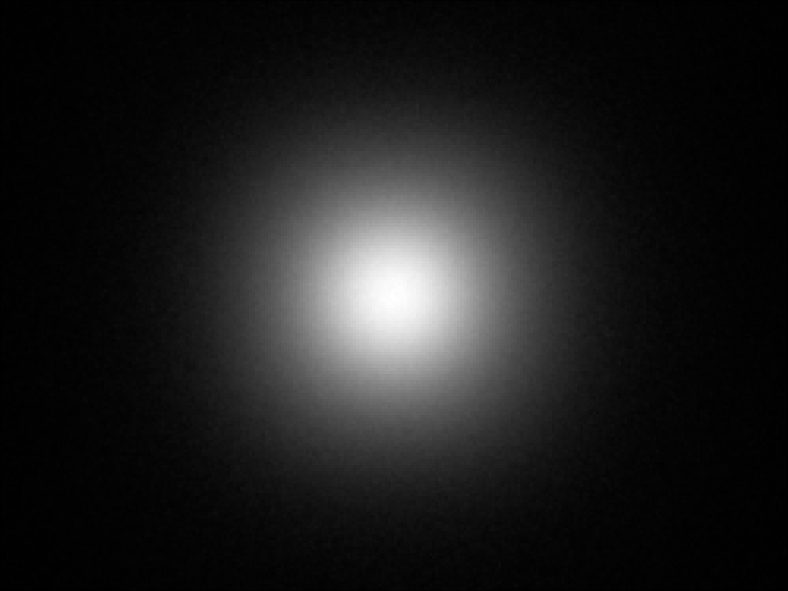

LUMILEDS LUXEON 5050 HE 24V White

Eff:

87.0%

FWHM:

18°

Cd/Im:

6.5

Download

LUMILEDS LUXEON 5050 HE 6V White

Eff:

87.0%

FWHM:

17.5°

Cd/Im:

6.5

Download

LUMILEDS LUXEON 5050 Round 24V White

Eff:

87.5%

FWHM:

18.5°

Cd/Im:

6.3


Download

LUMILEDS LUXEON 5050 Square 30V White

Eff:

87.5%

FWHM:

20.5°

Cd/Im:

5.3


Download

LUMILEDS LUXEON 5050 Square 6V White

Eff:

87.0%

FWHM:

18.5°

Cd/Im:

6.0


Download

LUMILEDS LUXEON 5050 Round 6V White

Eff:

86.5%

FWHM:

18.0°

Cd/Im:

6.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Blue

Eff:

80.0%

FWHM:

10.5°

Cd/Im:

14.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Lime

Eff:

82.0%

FWHM:

10.5°

Cd/Im:

15.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Red

Eff:

79.5%

FWHM:

11.0°

Cd/Im:

13.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

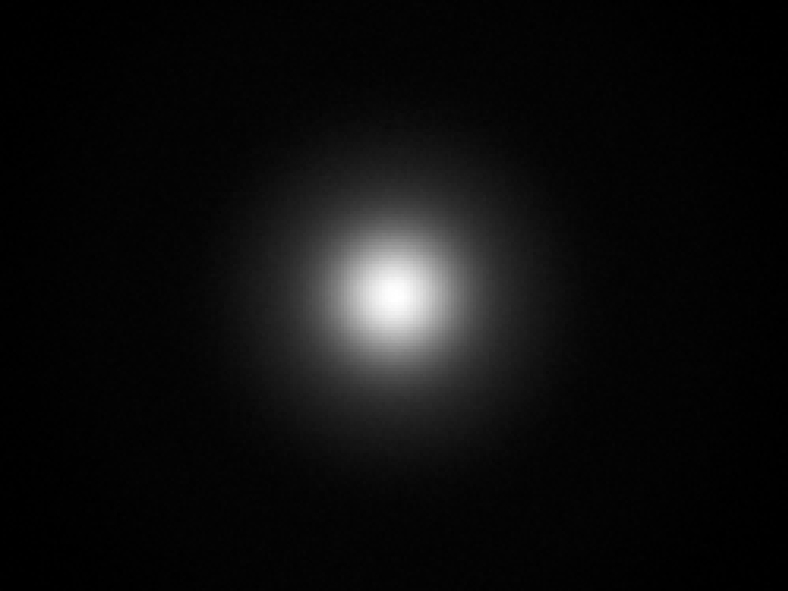

LUMILEDS LUXEON C White

Eff:

82.0%

FWHM:

11°

Cd/Im:

15.3

Download

LUMILEDS LUXEON CZ White

Eff:

87.0%

FWHM:

9.8 x 9.9°

Cd/Im:

20.0

Carclo Optics 10392 Spot Image Luxeon CZ 5M

Carclo Optics 10392 Cross Section Luxeon CZ 5M

Download

IES

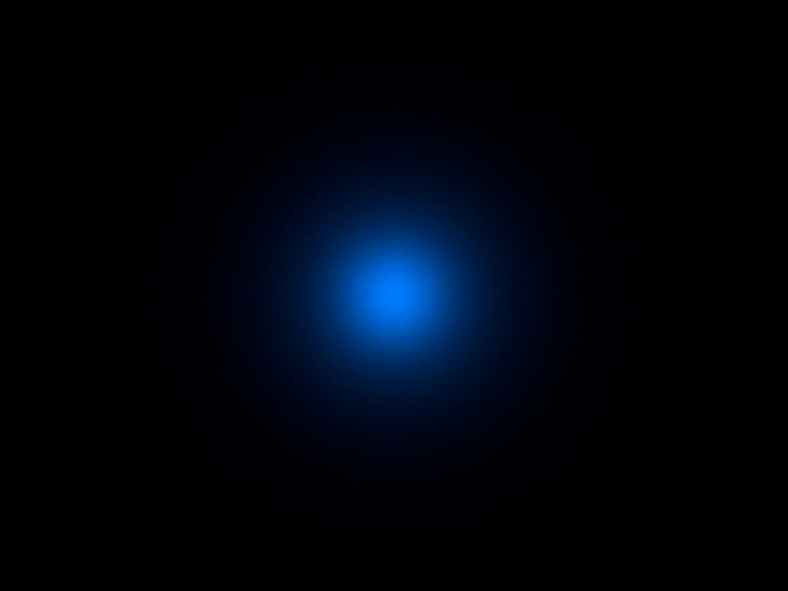

LUMILEDS LUXEON HL1Z Color Blue

Eff:

87.0%

FWHM:

10.5°

Cd/Im:

17.5

Download

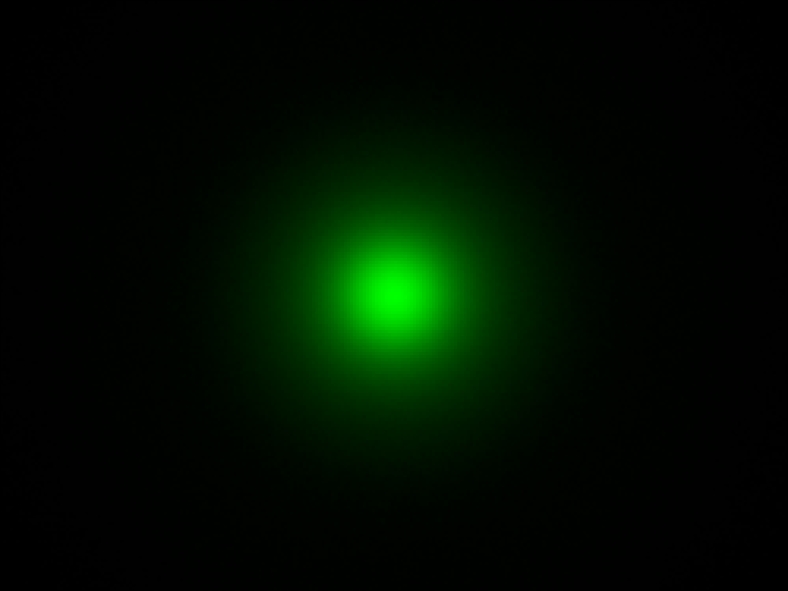

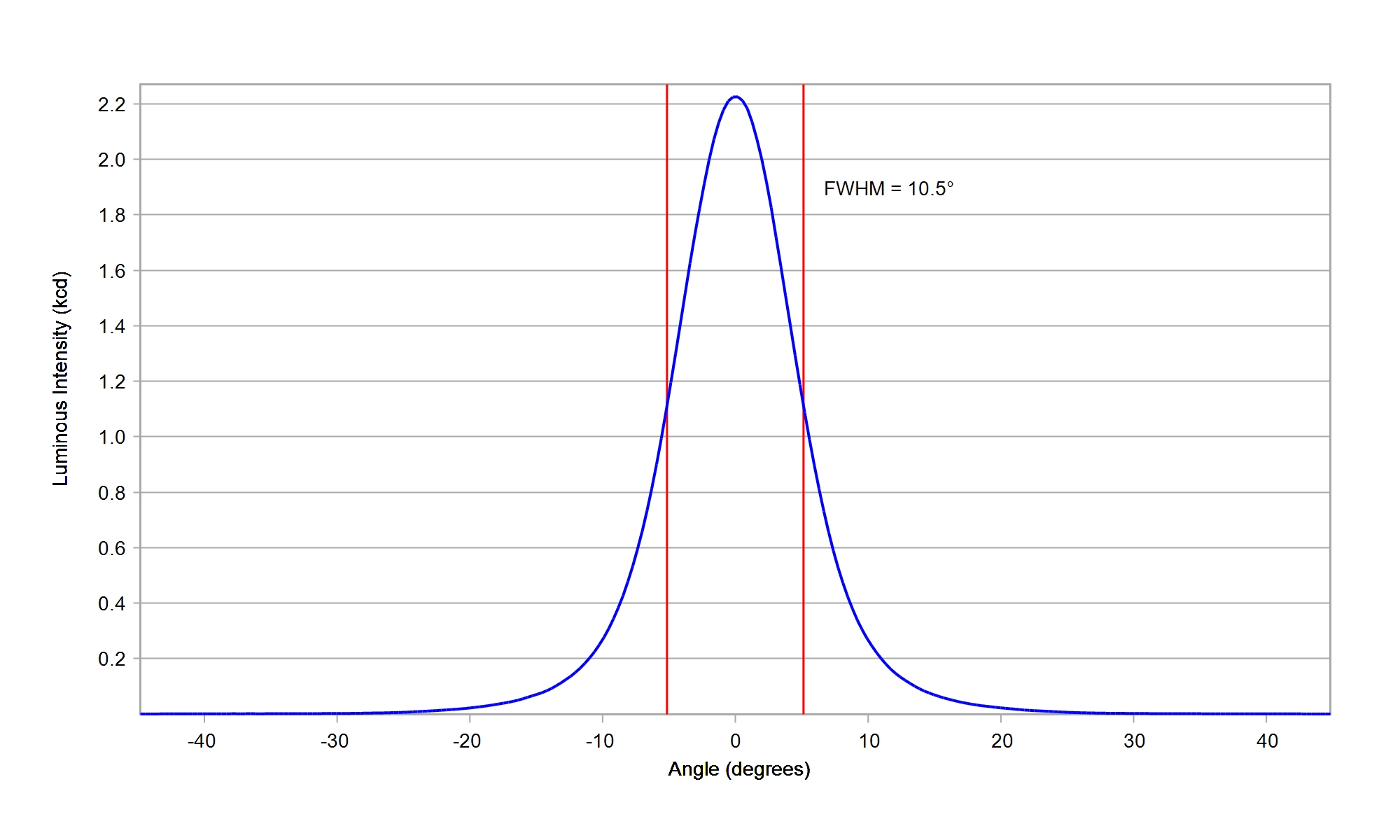

LUMILEDS LUXEON HL1Z Color Green

Eff:

86.5%

FWHM:

10.5°

Cd/Im:

17.3

Download

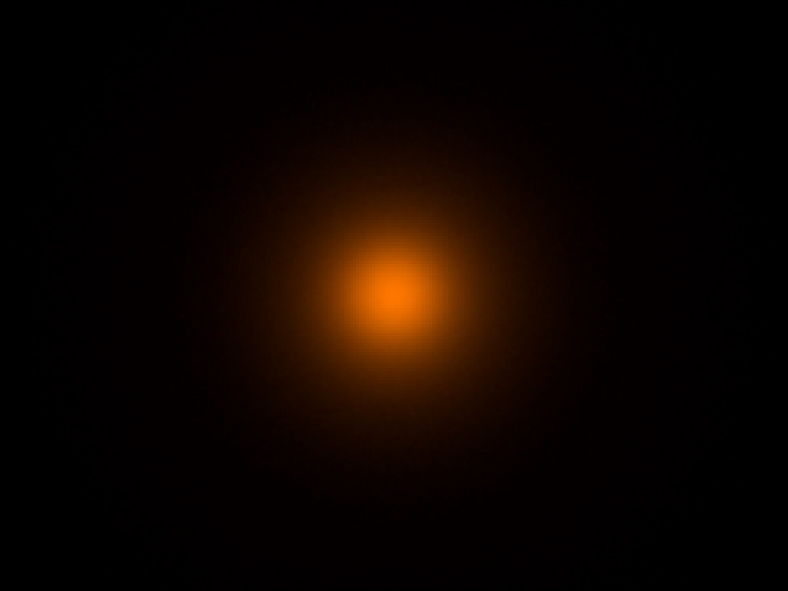

LUMILEDS LUXEON HL1Z Color PC Amber

Eff:

87.0%

FWHM:

10.5°

Cd/Im:

17.3


Download

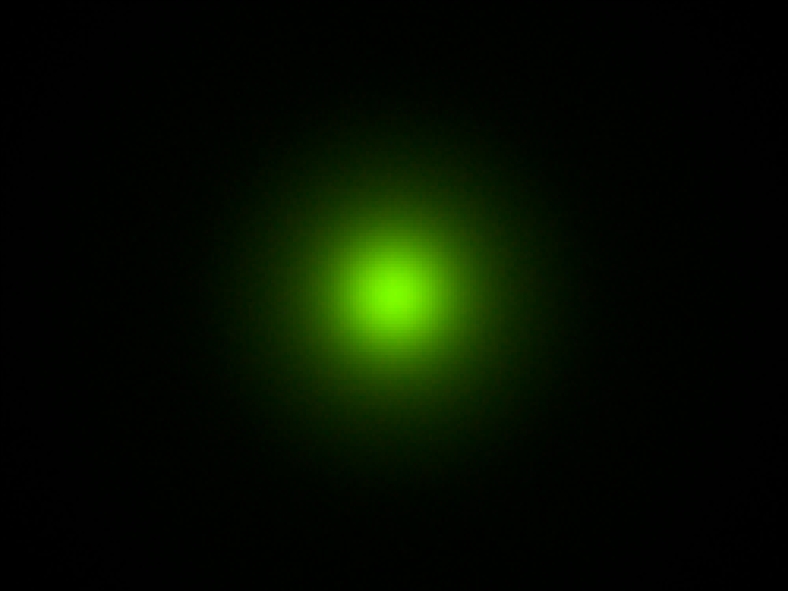

LUMILEDS LUXEON HL1Z Color PC Green

Eff:

86.0%

FWHM:

10.5°

Cd/Im:

16.1


Download

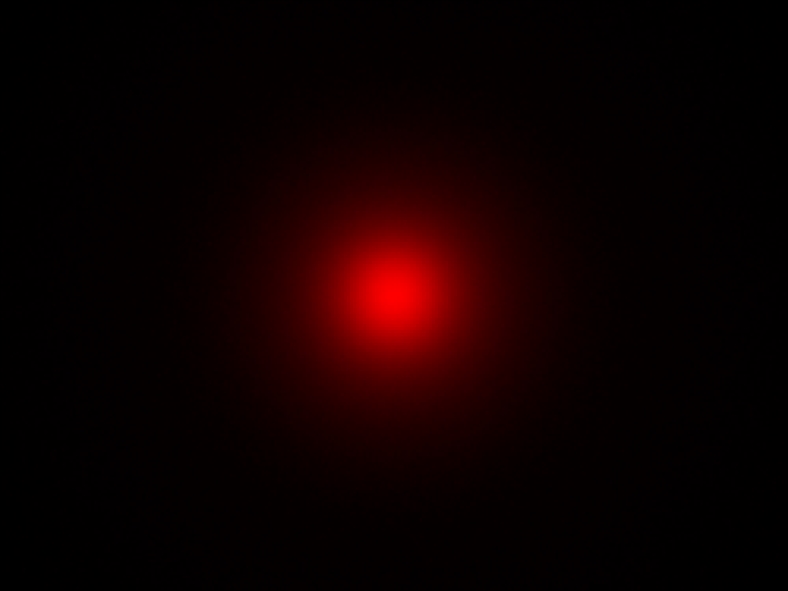

LUMILEDS LUXEON HL1Z Color PC Red

Eff:

87.5%

FWHM:

10.5°

Cd/Im:

17.2

Download

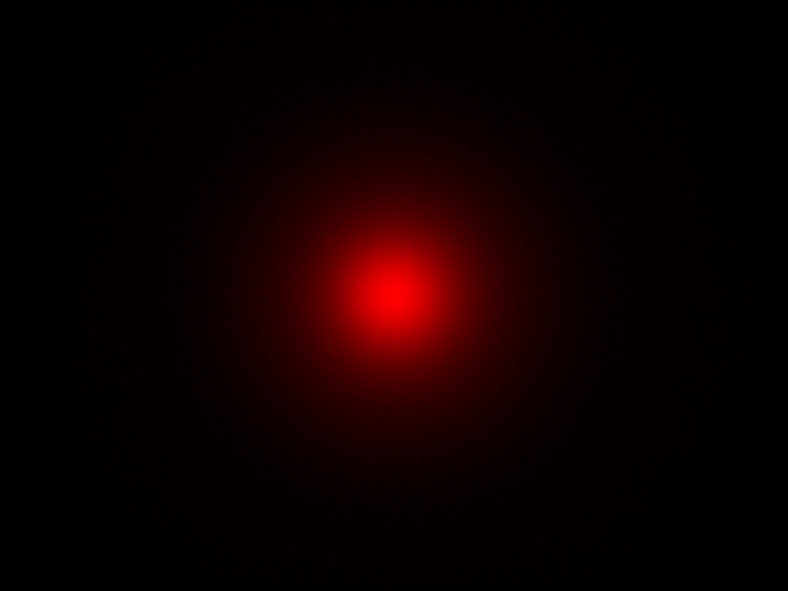

LUMILEDS LUXEON HL1Z Color PC Red Orange

Eff:

87.5%

FWHM:

10.5°

Cd/Im:

17.4


Download

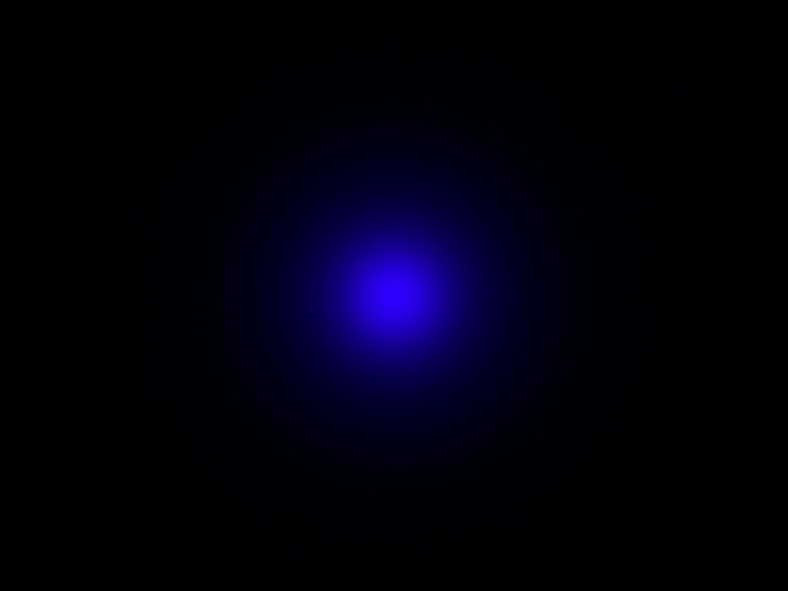

LUMILEDS LUXEON HL1Z Color Royal Blue

Eff:

85.5%

FWHM:

10.5°

Ipk/W:

17.2


Download

LUMILEDS LUXEON HL1Z CSP White

Eff:

86.5%

FWHM:

10.5°

Cd/Im:

17.1

Download

IES

LUMILEDS LUXEON HL2X White

Eff:

86.5%

FWHM:

13.0°

Cd/Im:

11.8

Carclo Optics - 10392 Spot Image Luxeon HL2X

Carclo Optics - 10392 Cross Section Luxeon HL2X

Download

IES

LUMILEDS LUXEON HL2X-D White

Eff:

87.0%

FWHM:

14.5°

Cd/Im:

10.1

Download

IES

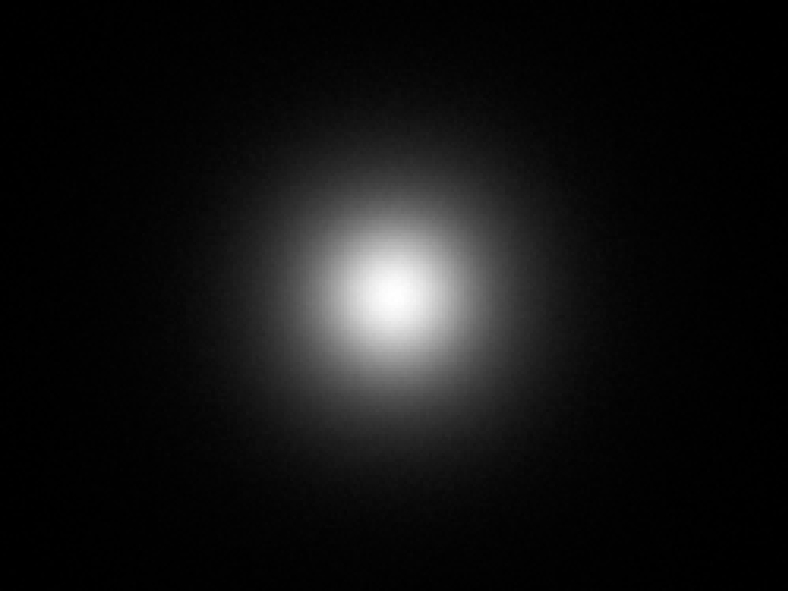

LUMILEDS LUXEON HL2X-E White

Eff:

87.0%

FWHM:

14°

Cd/Im:

10.3

Download

LUMILEDS LUXEON HL2X-P White

Eff:

87.0%

FWHM:

14°

Cd/Im:

10.3

Download

IES

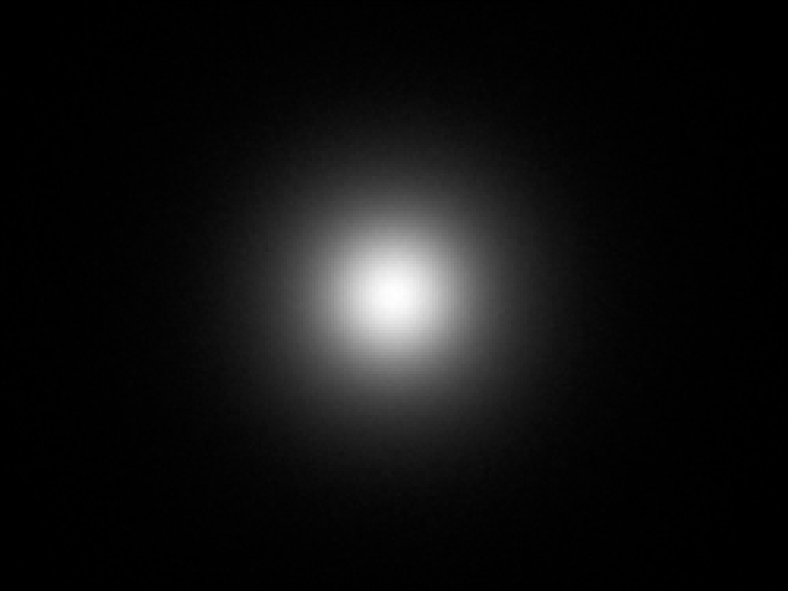

LUMILEDS LUXEON HL2X-V White

Eff:

87.0%

FWHM:

13°

Cd/Im:

11.7

Download

LUMILEDS LUXEON HL2Z White

Eff:

87.5%

FWHM:

11.5°

Cd/Im:

14.4

Carclo Optics – 10392 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 10392 Lumileds Luxeon HL2Z - Cross-Section

Download

IES

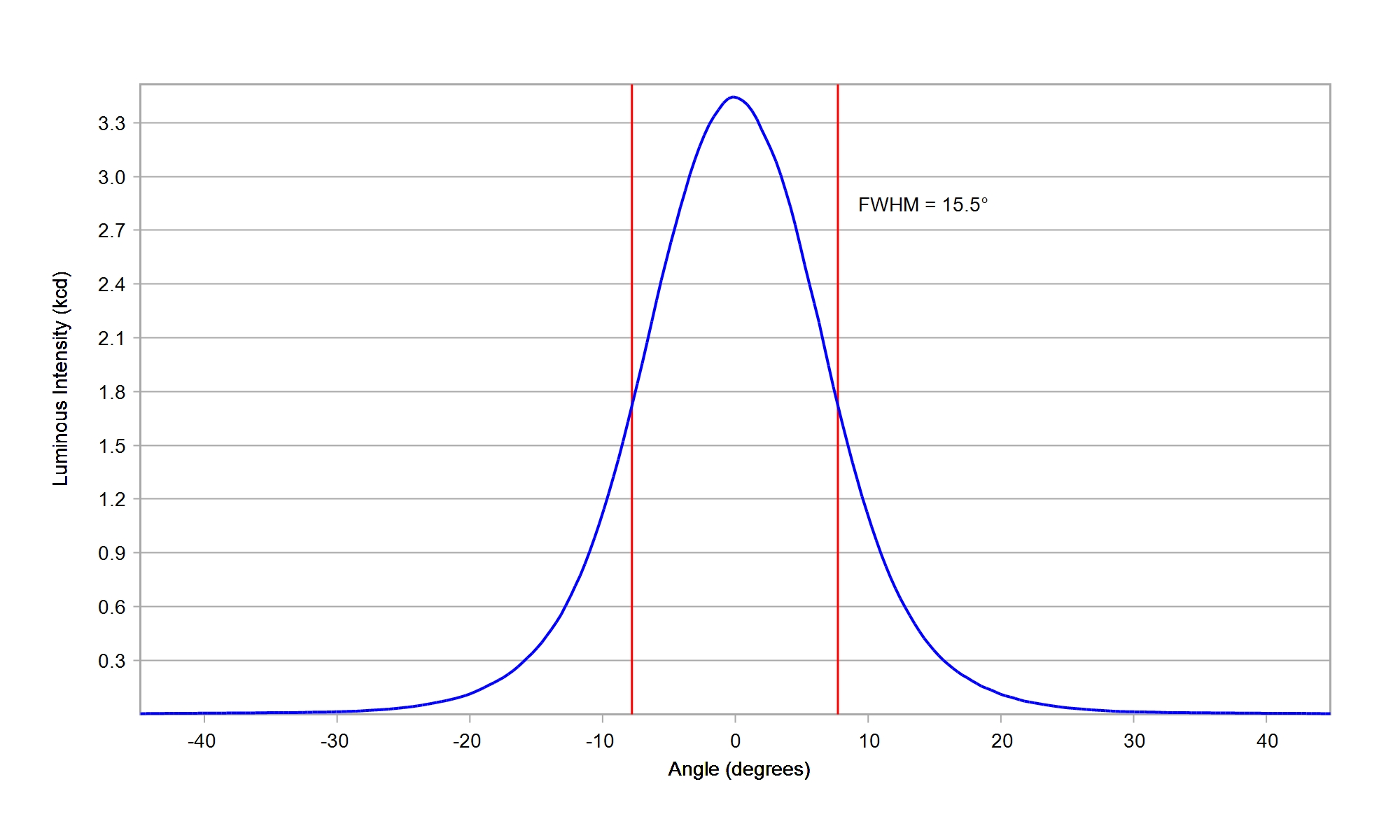

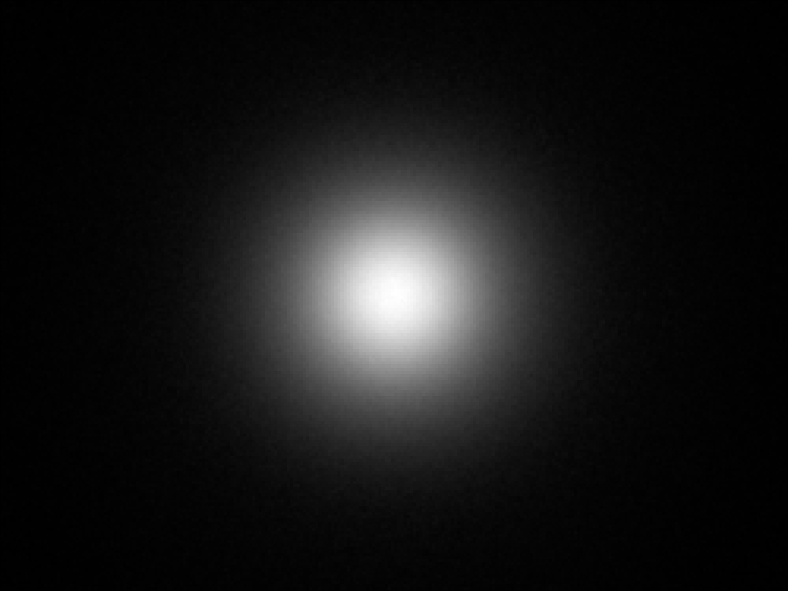

LUMILEDS LUXEON HL4X White

Eff:

86.5%

FWHM:

15.5°

Cd/Im:

8.4

Download

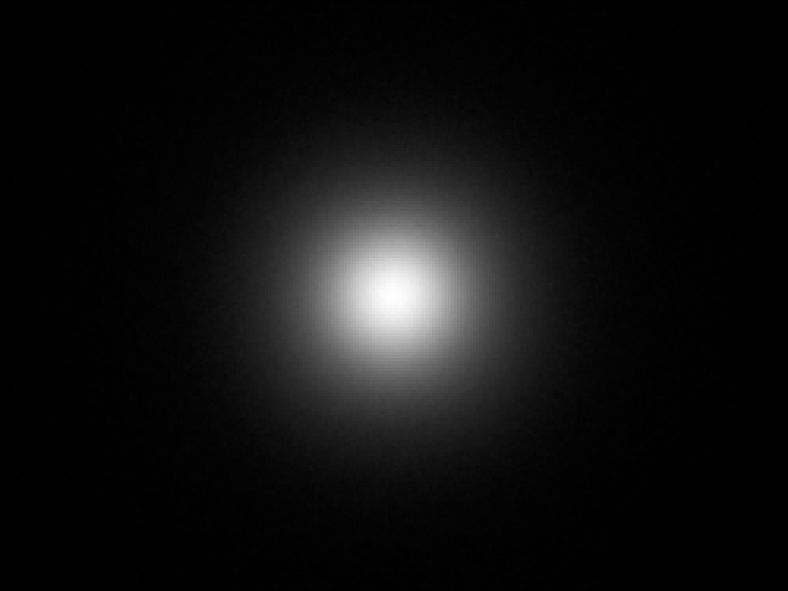

LUMILEDS LUXEON HL4Z White

Eff:

87.5%

FWHM:

12.5°

Cd/Im:

12.5

Download

LUMILEDS LUXEON IR 2720

Eff:

92.0%

FWHM:

11°

Ipk/W:

17.2

Carclo Optics 10392 Spot Image Luxeon IR 2720

Carclo Optics 10392 Cross Section image Luxeon IR 2720

Download

IES

LUMILEDS LUXEON IR Compact 850nm

Eff:

91.0%

FWHM:

10.5°

Ipk/W:

17.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 60 Degree

Eff:

89.5%

FWHM:

12.5°

Ipk/W:

12.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 90 Degree

Eff:

90.5%

FWHM:

11.5°

Ipk/W:

14.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON MX White

Eff:

84.5%

FWHM:

21.0°

Cd/Im:

4.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON MZ White

Eff:

85.0%

FWHM:

16.4°

Cd/Im:

7.0

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

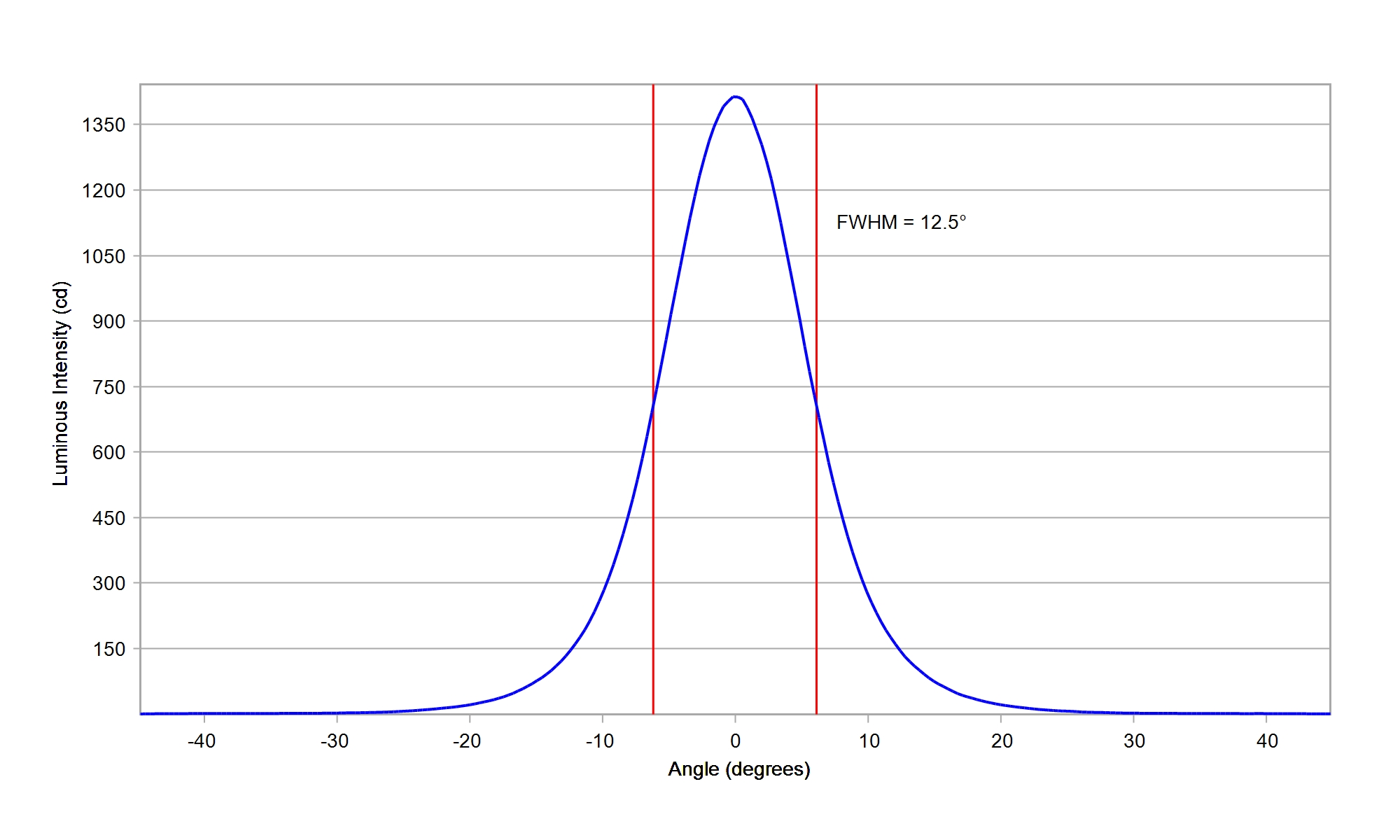

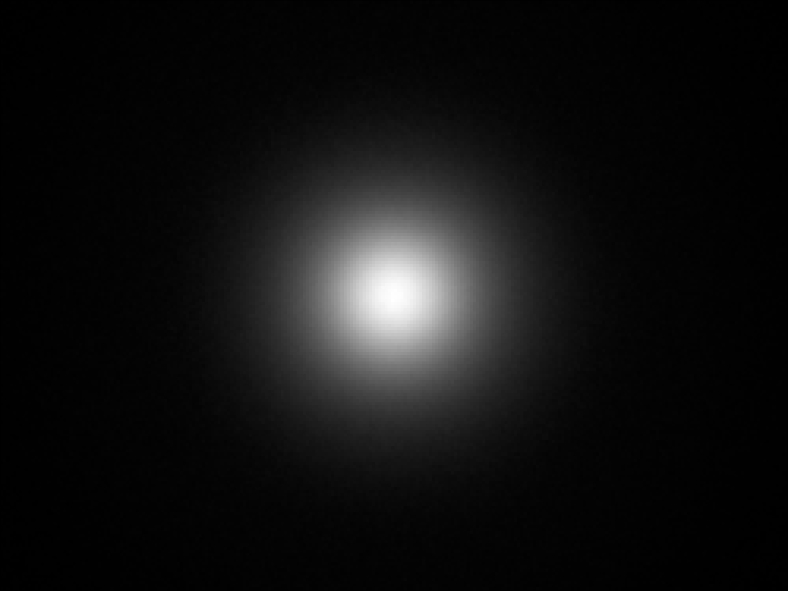

LUMILEDS LUXEON Rebel ES White

Eff:

85.5%

FWHM:

12.5°

Cd/Im:

12.5

Download

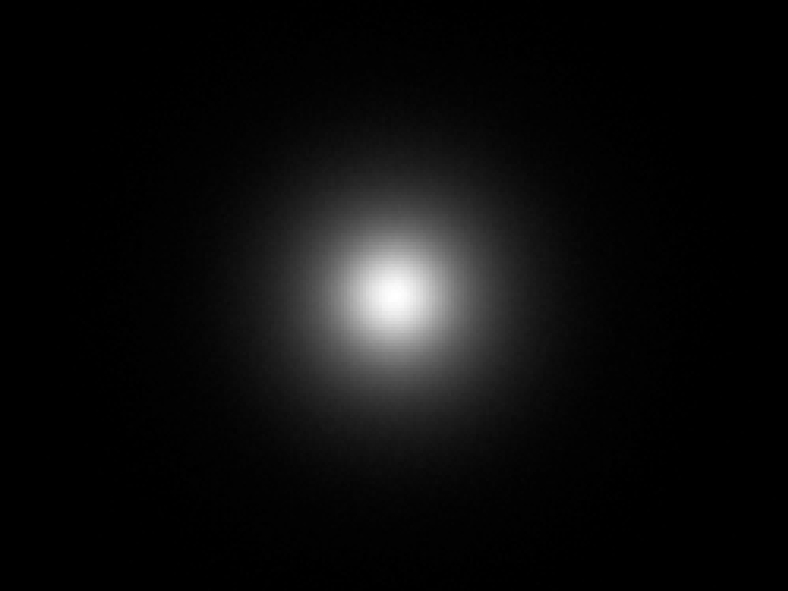

LUMILEDS LUXEON Rebel Plus White

Eff:

87.5%

FWHM:

10.5°

Cd/Im:

16.2

Download

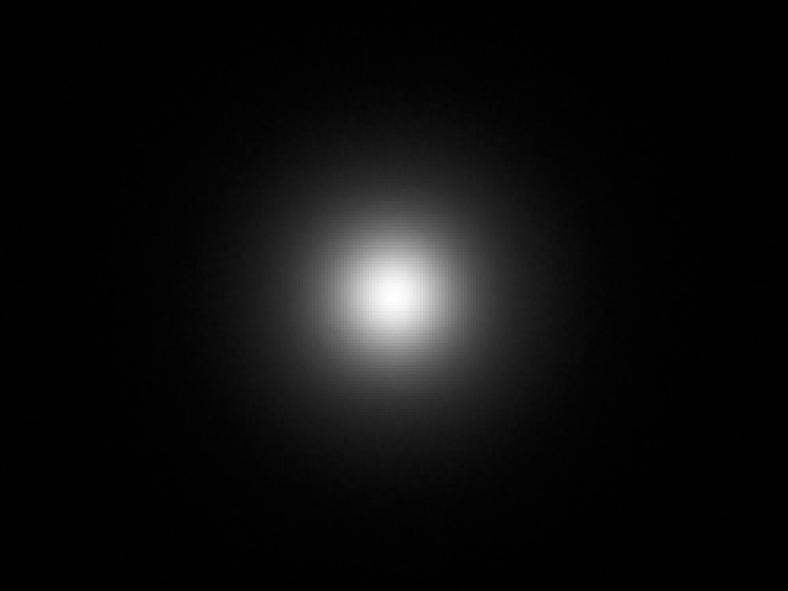

LUMILEDS LUXEON Rebel White

Eff:

86.5%

FWHM:

11°

Cd/Im:

16.2

Download

LUMILEDS LUXEON Rubix Blue

Eff:

87.5%

FWHM:

9.8°

Cd/Im:

20.3

Carclo Optics – 10392 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics – 10392 Cross Section Lumileds Luxeon Rubix Blue

Download

IES

LUMILEDS LUXEON Rubix Green

Eff:

87.0%

FWHM:

9.9°

Cd/Im:

19.9

Carclo Optics – 10392 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 10392 Cross Section Lumileds Luxeon Rubix Green

Download

IES

LUMILEDS LUXEON Rubix Red

Eff:

89.0%

FWHM:

9.9°

Cd/Im:

20.2

Carclo Optics – 10392 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 10392 Cross Section Lumileds Luxeon Rubix Red

Download

IES

LUMILEDS LUXEON Rubix Royal Blue

Eff:

86.0%

FWHM:

9.8°

Cd/Im:

19.8

Carclo Optics – 10392 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 10392 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

IES

LUMILEDS LUXEON Rubix White

Eff:

87.0%

FWHM:

10.0°

Cd/Im:

19.3

Carclo Optics - 10392 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 10392 Cross Section Lumileds Luxeon Rubix White

Download

IES

LUMILEDS LUXEON TX White

Eff:

84.4%

FWHM:

12.2°

Cd/Im:

11.7

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

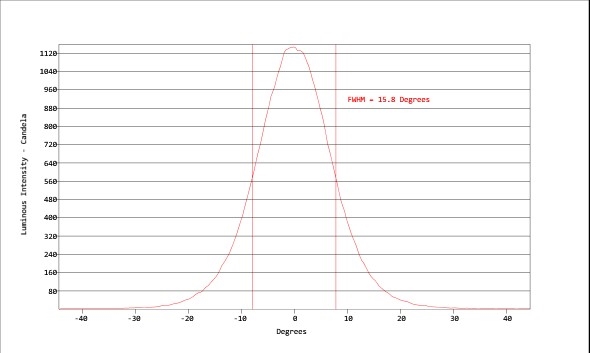

LUMILEDS LUXEON V White

Eff:

83.0%

FWHM:

16.0°

Cd/Im:

7.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON Z ES White

Eff:

84.3%

FWHM:

10.6°

Cd/Im:

15.3

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON Z White

Eff:

84.0%

FWHM:

9.9°

Cd/Im:

17.5

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Luminus Devices MP 7070-T200 White

Eff:

87.0%

FWHM:

24°

Cd/Im:

3.7


Download

IES

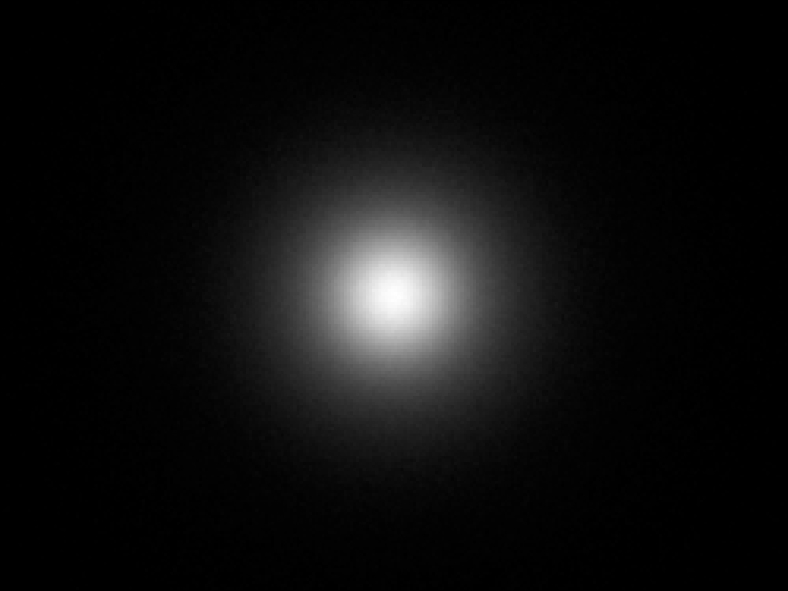

Luminus Devices MP-3030-11F2 White

Eff:

87.5%

FWHM:

11.5°

Cd/Im:

14.1


Download

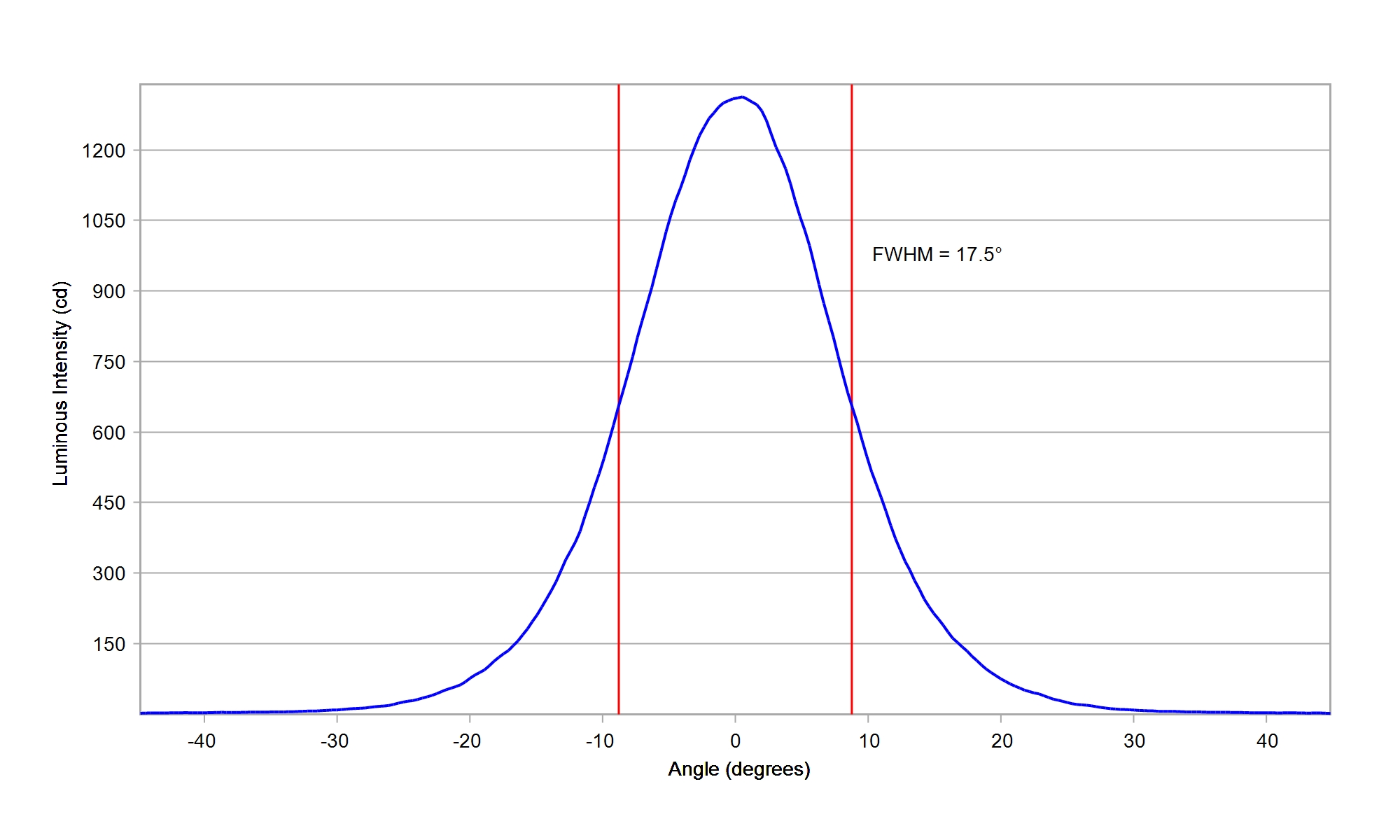

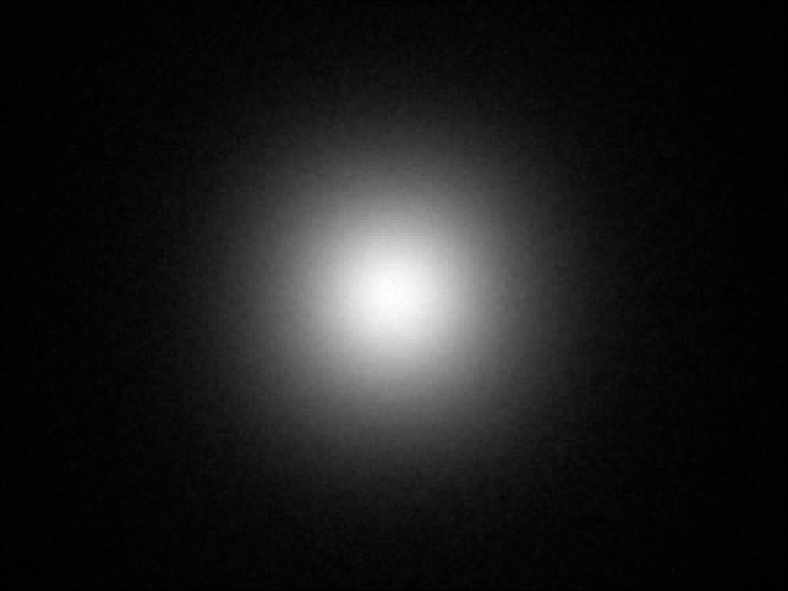

Luminus Devices MP-5050-240E White

Eff:

87.0%

FWHM:

17.5°

Cd/Im:

6.6


Download

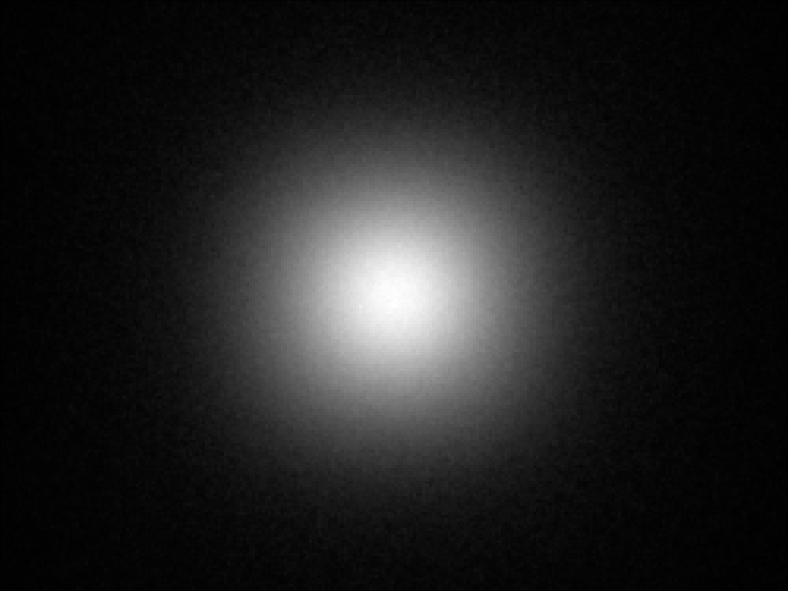

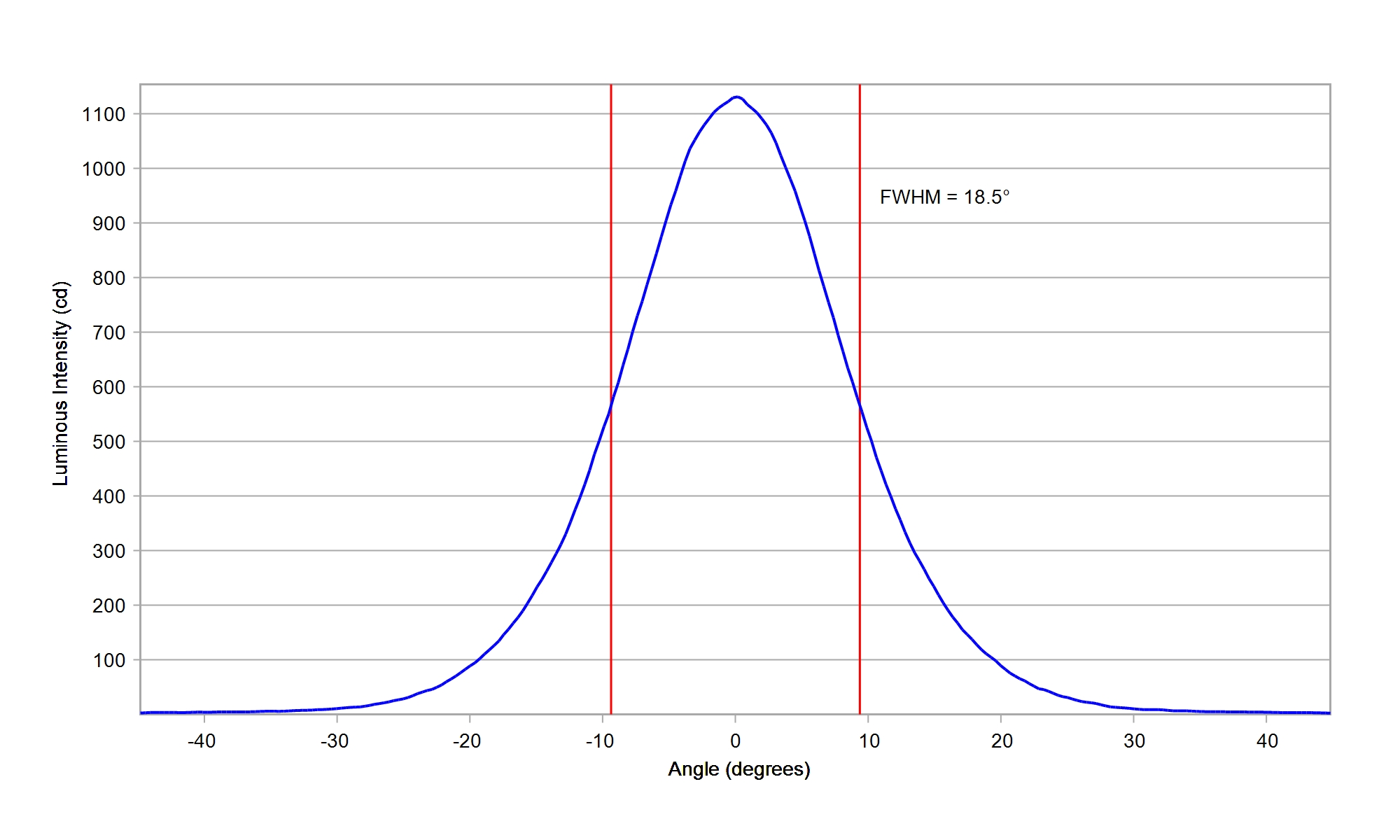

Luminus Devices MP-5050-810E White

Eff:

87.0%

FWHM:

18.5°

Cd/Im:

5.8


Download

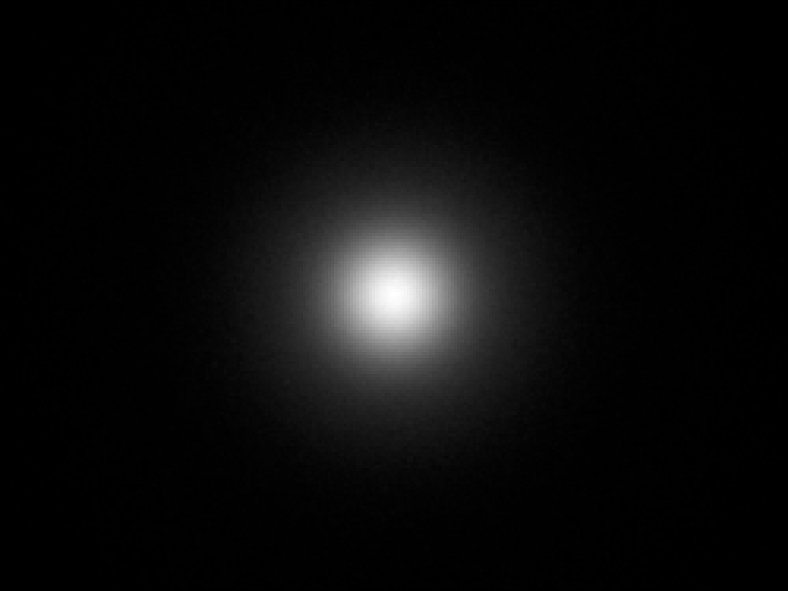

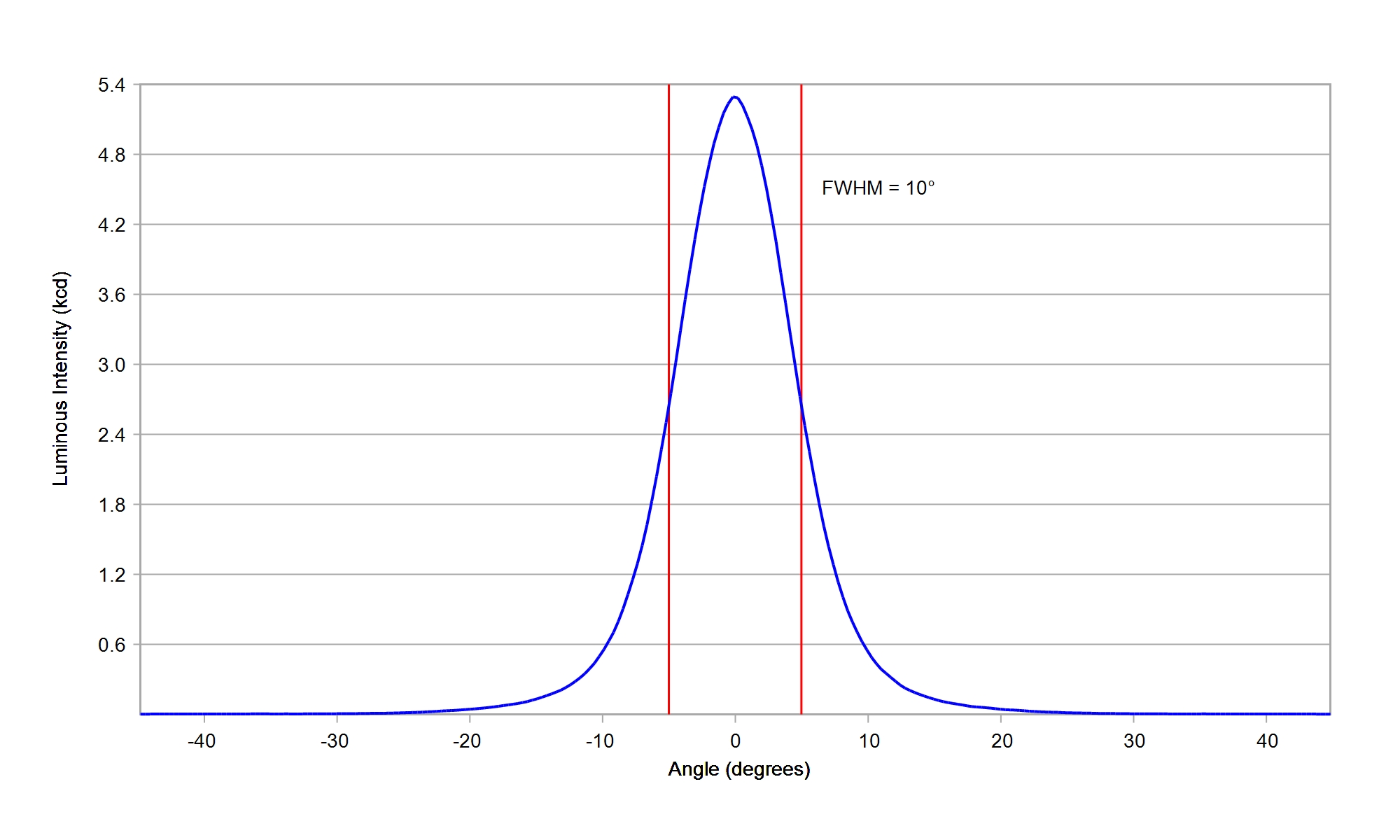

Luminus Devices SFT-12R-WES-A White

Eff:

87.5%

FWHM:

10°

Cd/Im:

19.3


Download

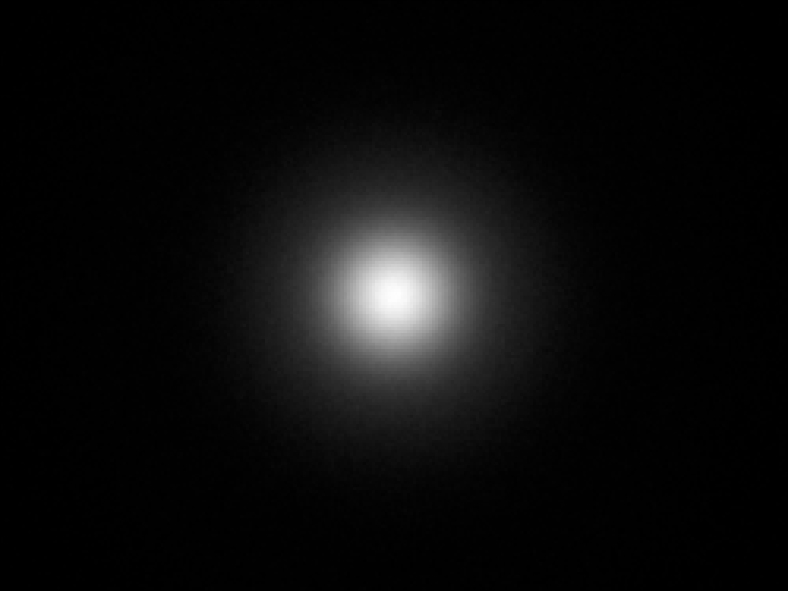

Luminus Devices SFT-12R-WES-F White

Eff:

87.0%

FWHM:

10°

Cd/Im:

18.4


Download

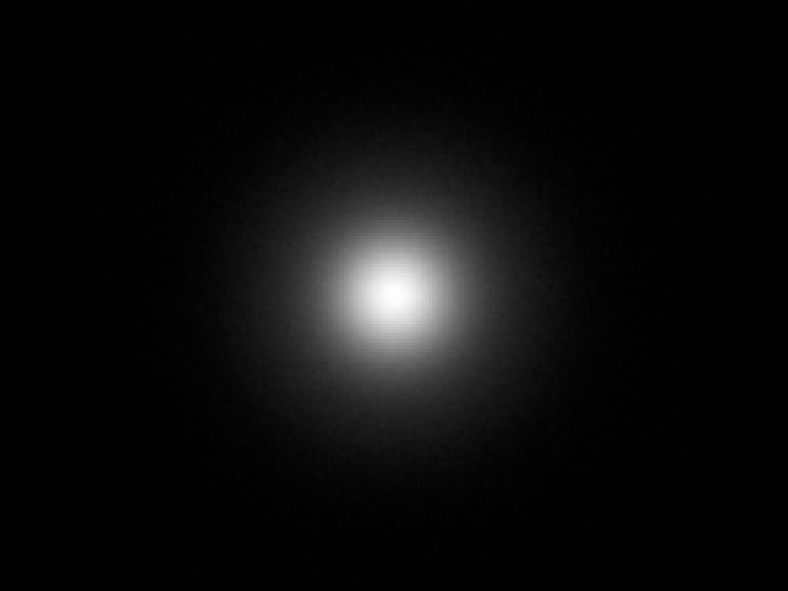

Luminus Devices SFT-25R-WES-A White

Eff:

87.5%

FWHM:

10.5°

Cd/Im:

17.3


Download

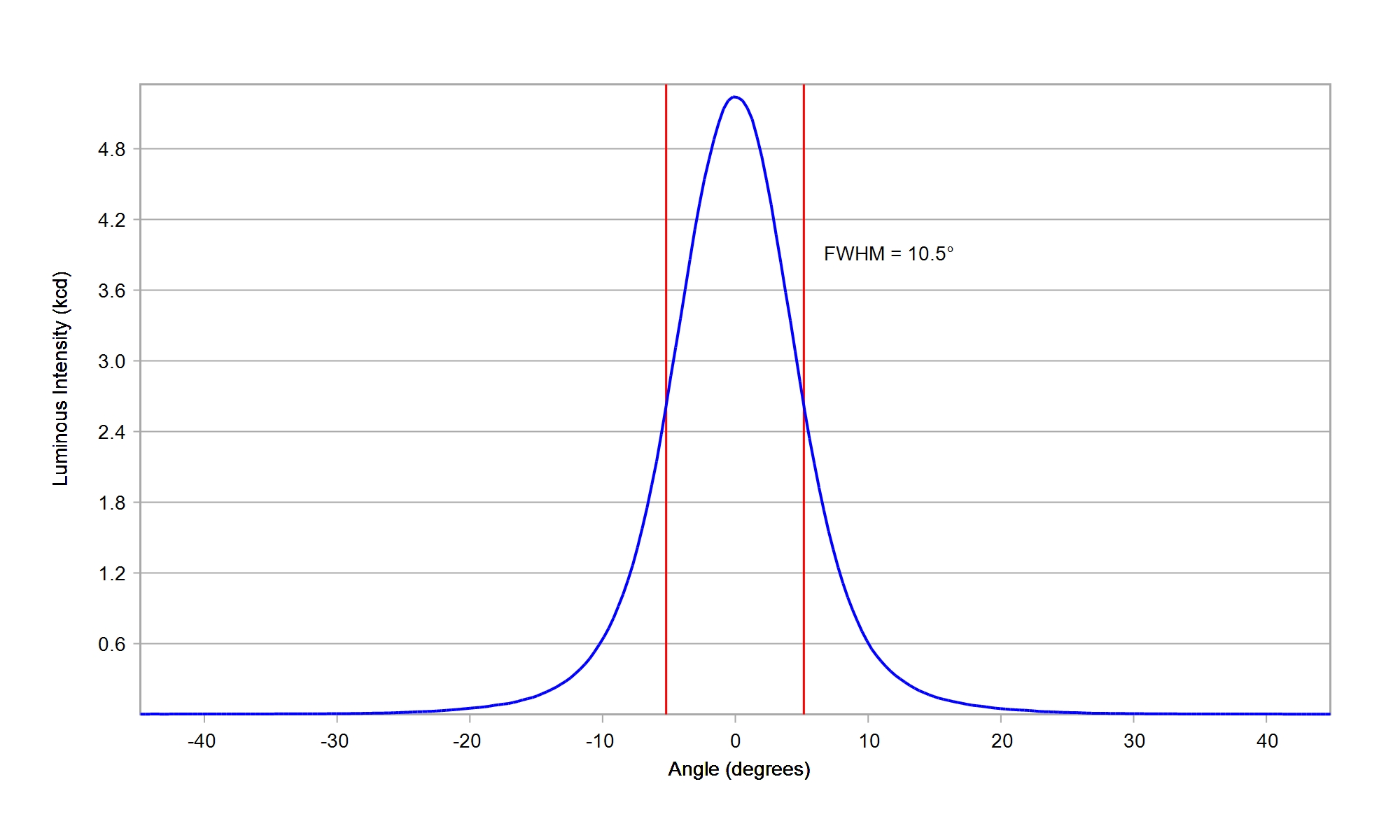

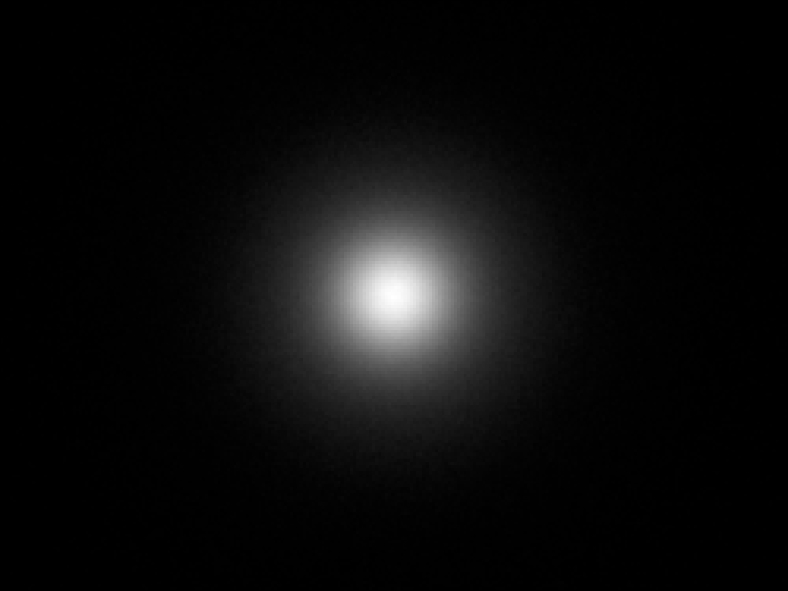

Luminus Devices SFT-25R-WES-F White

Eff:

87.5%

FWHM:

10.5°

Cd/Im:

17.9


Download

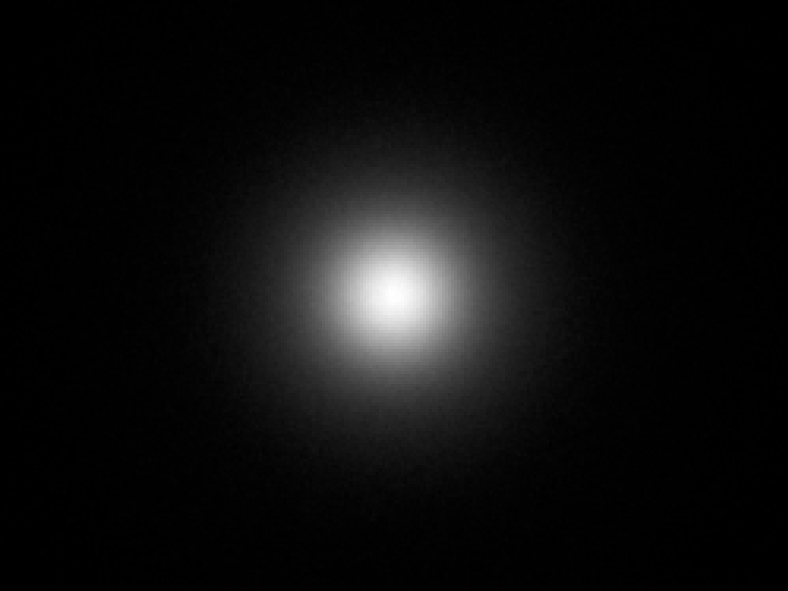

Luminus Devices SFT-40-W Gen2 White

Eff:

87.5%

FWHM:

11.5°

Cd/Im:

14.9


Download

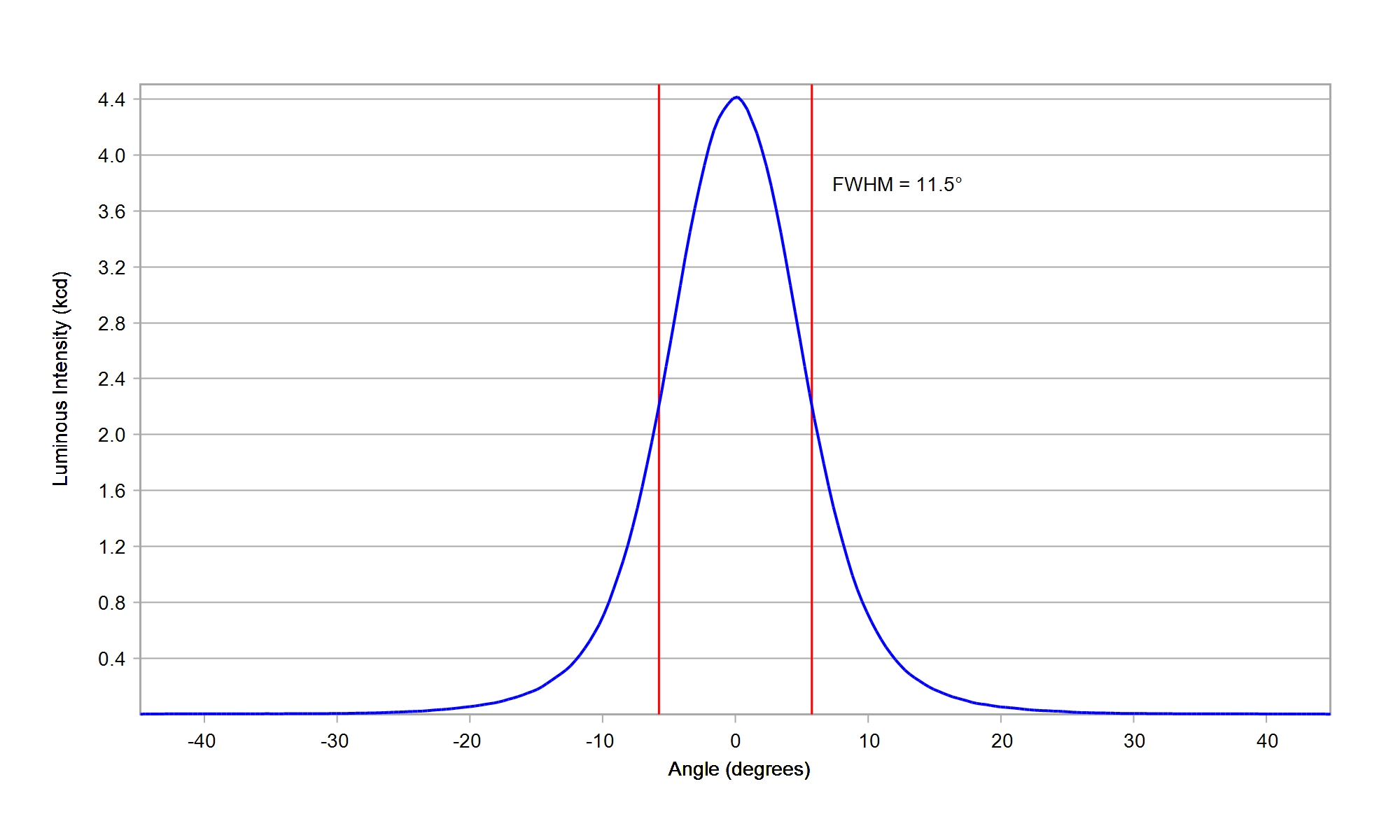

Luminus Devices SFT-40-WxS White

Eff:

87.5%

FWHM:

11.5°

Cd/Im:

15.3

Download

IES

Luminus Devices SFT-70X-WxS White

Eff:

87.0%

FWHM:

13.5°

Cd/Im:

11.3

Download

IES

Luminus Devices SST 05-IR-B40 850nm

Eff:

90.5%

FWHM:

12.0°

Ipk/W:

14.2

Carclo Optics - 10392 Spot Image Luminus SST-05-IR-B40

Carclo Optics - 10392 Cross Section Luminus SST-05-IR-B40

Download

IES

Luminus Devices SST 10-B-B130 Blue

Eff:

84.0%

FWHM:

11°

Cd/Im:

15.5

Carclo Optics - 10392 Luminus_SST-10_B_B130 - Spot Image

Carclo Optics - 10392 Luminus_SST-10_B_B130 - Cross section image

Download

IES

Luminus Devices SST 10-B-B90 Blue

Eff:

84.5%

FWHM:

11°

Cd/Im:

14.4

Carclo Optics - 10392 Luminus_SST-10_B_B90 - spot - image

Carclo Optics - 10392 Luminus_SST-10_B_B90 - cross section image

Download

IES

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

88.5%

FWHM:

11°

Cd/Im:

16.2

Carclo Optics – 10392 Luminus_SST-10_DR_B130- Spot - image

Carclo Optics – 10392 Luminus_SST-10_DR_B130- Cross section – image

Download

IES

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

88.5%

FWHM:

11.5°

Cd/Im:

14.2

Carclo Optics - 10392 Luminus_SST-10_DR_B90 - Spot image

Carclo Optics - 10392 Luminus_SST-10_DR_B90 - Cross section image

Download

IES

Luminus Devices SST 10-G-B130 Green

Eff:

86.5%

FWHM:

11.5°

Cd/Im:

15.5

Carclo Optics - 10392 Luminus_SST-10_G_B130 - spot - image

Carclo Optics - 10392 Luminus_SST-10_G_B130 - cross section - image

Download

IES

Luminus Devices SST 10-G-B90 Green

Eff:

86.5%

FWHM:

11.5°

Cd/Im:

14.5

Carclo Optics – 10392 Luminus_SST-10_G_B90- Spot - image

Carclo Optics – 10392 Luminus_SST-10_G_B90- Cross section – image

Download

IES

Luminus Devices SST 10-IR-B130 940nm

Eff:

92.5%

FWHM:

11.5°

Ipk/W:

16.0

Carclo Optics - 10392 Spot Image Luminus SST-10-IR-B130

Carclo Optics - 10392 Cross Section Luminus SST-10-IR-B130

Download

IES

Luminus Devices SST 10-IR-B90 940nm

Eff:

91.5%

FWHM:

11.5°

Ipk/W:

14.1

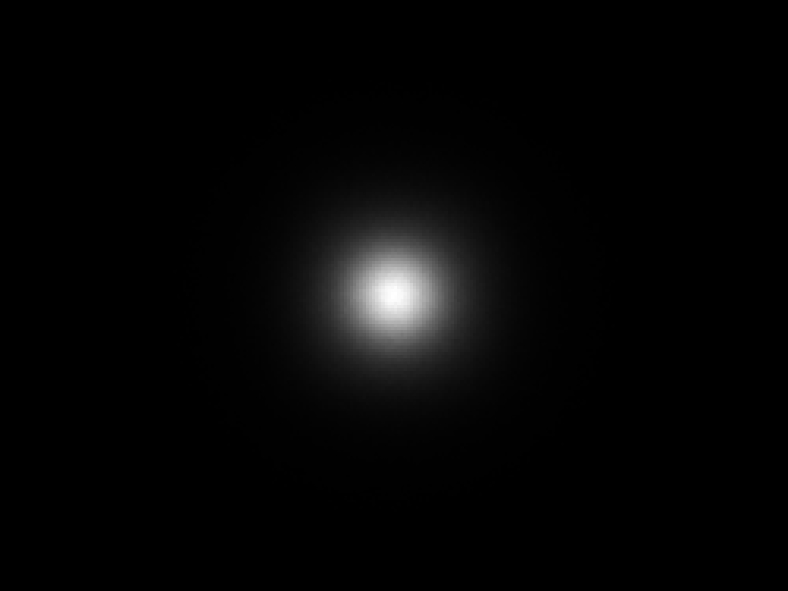

Carclo Optics - 10392 Spot Image Luminus SST-10-IR-B90

Carclo Optics - 10392 Cross Section Luminus SST-10-IR-B90

Download

IES

Luminus Devices SST 10-IRD-B130 810nm

Eff:

92.5%

FWHM:

11°

Ipk/W:

17.0


Download

IES

Luminus Devices SST 10-IRD-B90 810nm

Eff:

91.5%

FWHM:

11.5°

Ipk/W:

14.7


Download

IES

Luminus Devices SST 20-WxH White Hi CRI

Eff:

86.5%

FWHM:

11.5°

Cd/Im:

14.5

Carclo Optics – 10392 - Luxeon_SST_20_W_spot-image

Carclo Optics – 10392 - Luxeon_SST_20_W_cross vertical section

Download

IES

Luminus Devices SST 40-W White

Eff:

86.5%

FWHM:

15°

Cd/Im:

9.1

Carclo Optics – 10392 - Luxeon_SST_40_W_spot-image

Carclo Optics – 10392 - Luxeon_SST_40_W_cross vertical section

Download

IES

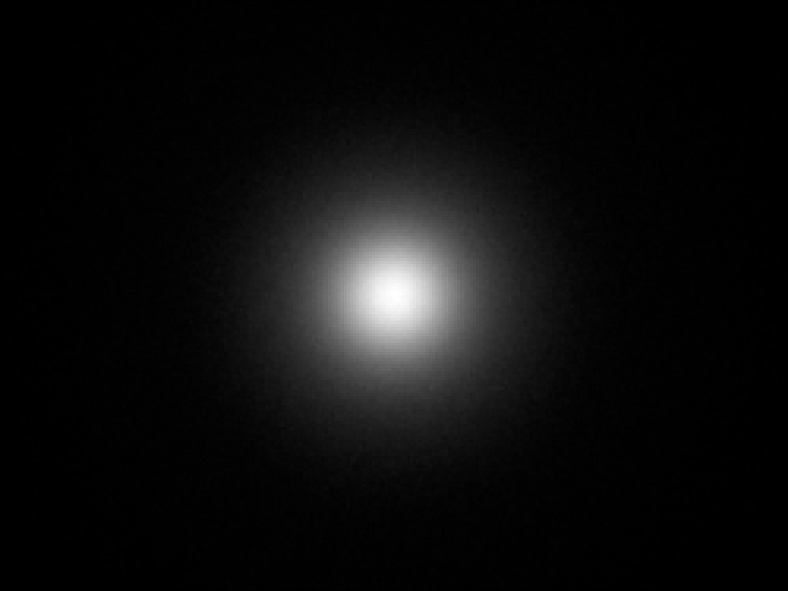

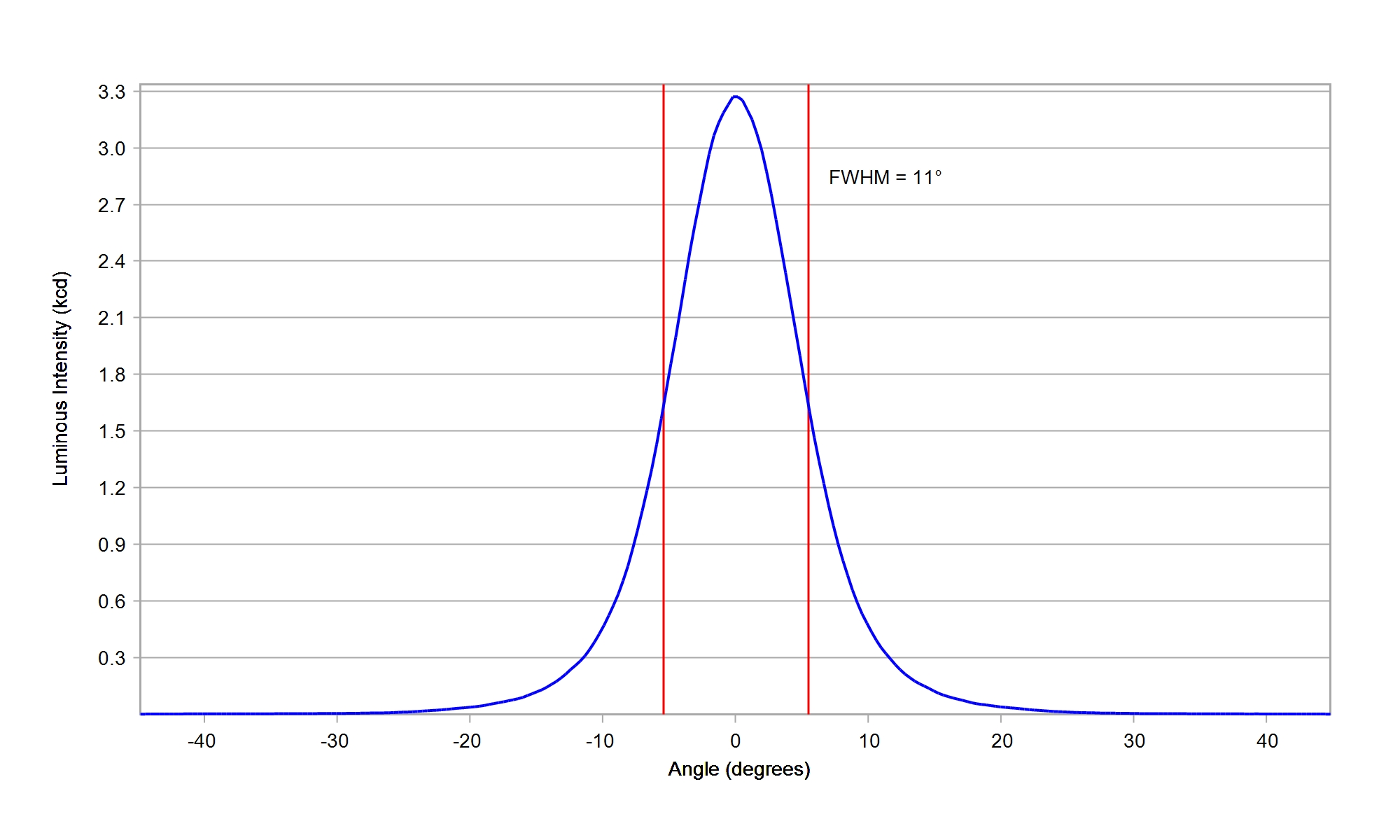

Luminus Devices SST-12-WS Gen2 White

Eff:

86.5%

FWHM:

11°

Cd/Im:

15.9


Download

Luminus Devices SST-12-WxS White

Eff:

86.5%

FWHM:

11°

Cd/Im:

16.2

Download

IES

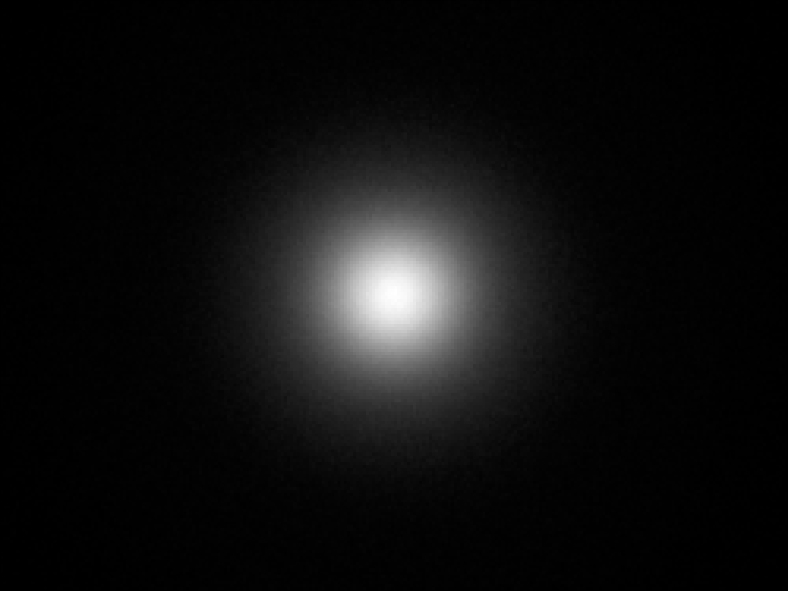

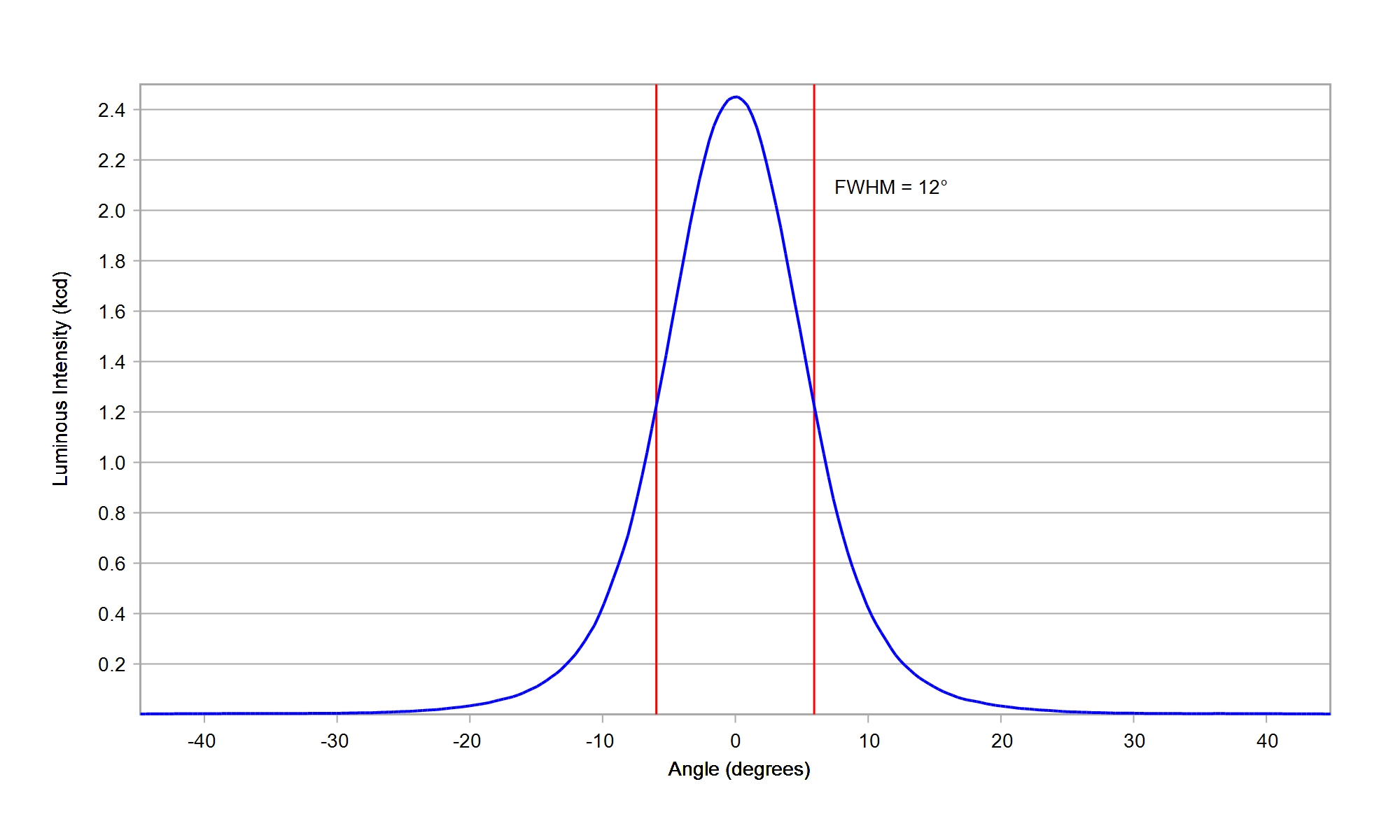

Luminus Devices SST-20-W Gen2 White

Eff:

86.5%

FWHM:

12°

Cd/Im:

13.8


Download

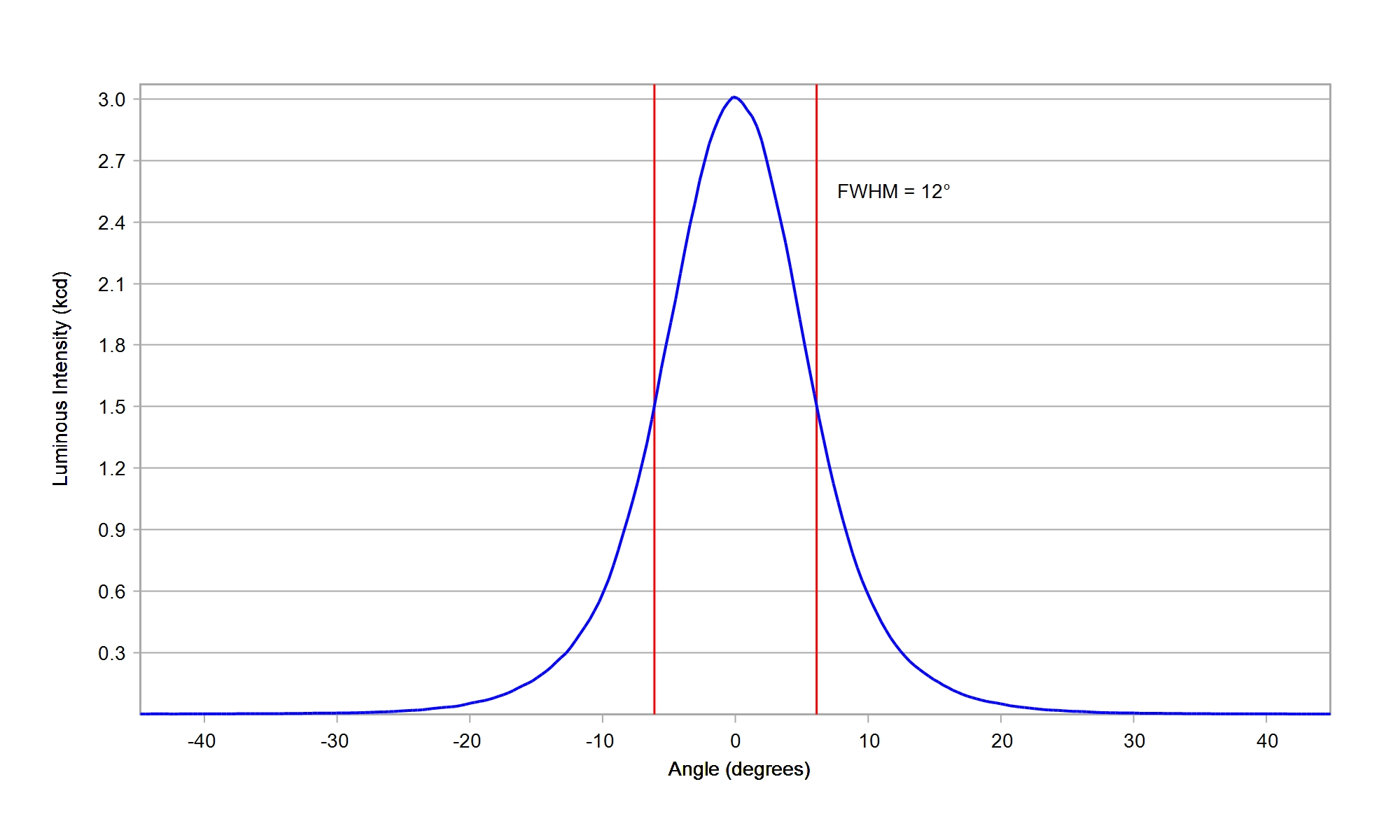

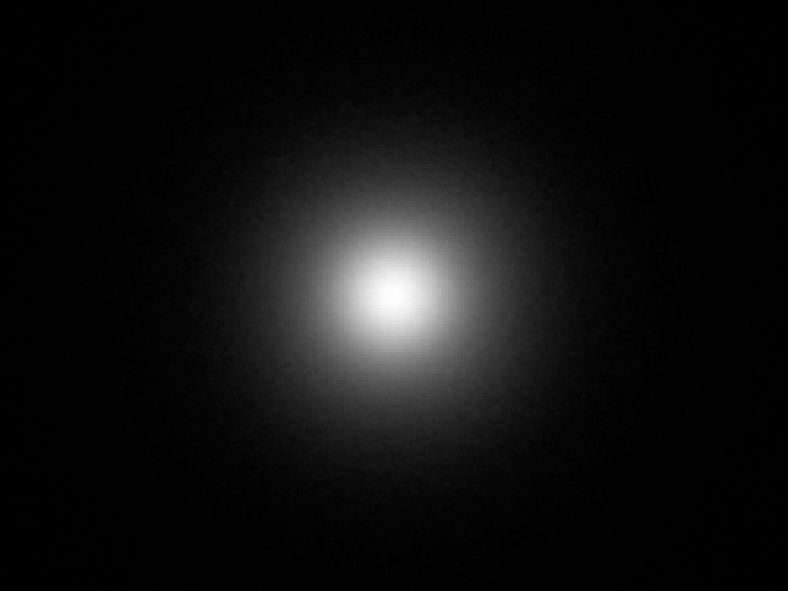

Luminus Devices SST-25-WES White

Eff:

87.0%

FWHM:

12°

Cd/Im:

12.6

Download

Luminus Devices SST-50 White

Eff:

80.7%

FWHM:

18.5°

Cd/Im:

7.0

Download

ies

Luminus Devices SST-70X-W White

Eff:

86.5%

FWHM:

17°

Cd/Im:

7.2

Download

IES

Luminus Devices SST-90 White

Eff:

82.1%

FWHM:

23.3°

Cd/Im:

4.0

Download

ies

Nichia 229A White

Eff:

84.0%

FWHM:

16°

Cd/Im:

7.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia 757G White

Eff:

86.5%

FWHM:

12.5°

Cd/Im:

12.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia 757G White

Eff:

87.5%

FWHM:

13°

Cd/Im:

11.9

Carclo Optics 10392 Simulated Spot Image Nichia 757G-MT

Carclo Optics 10392 Simulated cross section vertical Nichia 757G-MT

Download

IES

Nichia NCSW CSP E17A White

Eff:

85.5%

FWHM:

10.5°

Cd/Im:

16.5

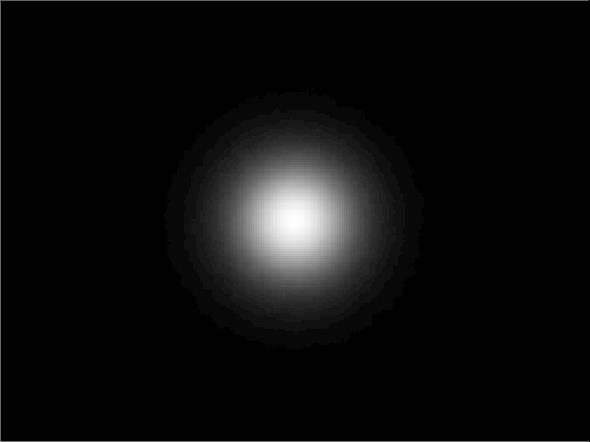

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NF2W 385AR-V2 White

Eff:

86.0%

FWHM:

13.0°

Cd/Im:

11.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NF2W 757G-MT Tunable

Eff:

87.5%

FWHM:

13°

Cd/Im:

12.1


Download

IES

Nichia NFMW 481AR White

Eff:

77.5%

FWHM:

18.0°

Cd/Im:

5.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFMW 484AR White

Eff:

86.5%

FWHM:

19.5°

Cd/Im:

5.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFMW 486AR White

Eff:

86.5%

FWHM:

18.5°

Cd/Im:

6.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFMW 488AR White

Eff:

86.5%

FWHM:

19.0°

Cd/Im:

6.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFSW CSP E11A White

Eff:

86.0%

FWHM:

9.9°

Cd/Im:

19.2

Download

IES

Nichia NV4W 144AR White

Eff:

83.0%

FWHM:

21.0°

Cd/Im:

4.7

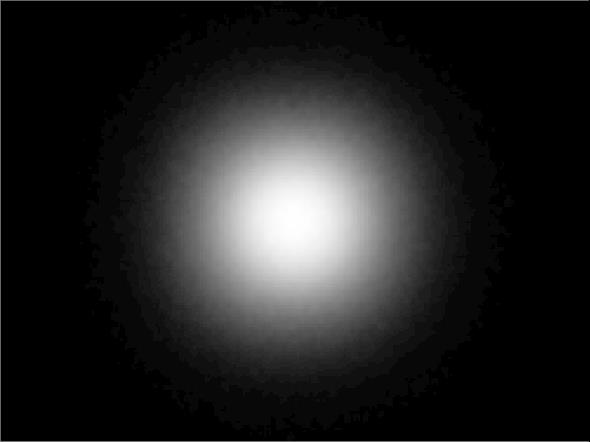

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NV4W B35AM White

Eff:

87.0%

FWHM:

15.5°

Cd/Im:

8.5

Carclo Optics – 10392 Nichia NV4WB35AM - Spot Image

Carclo Optics – 10392 Nichia NV4WB35AM - Cross-Section

Download

IES

Nichia NVSL 219B White

Eff:

84.0%

FWHM:

12.0°

Cd/Im:

12.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW 219C White

Eff:

85.0%

FWHM:

13.0°

Cd/Im:

11.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW 219F White

Eff:

86.5%

FWHM:

13°

Cd/Im:

11.8

Carclo Optics – 10392 Nichia NVSW 219F White - Spot Image

Carclo Optics – 10392 Nichia NVSW 219F White - Cross-Section

Download

IES

Nichia NVSW 319A White

Eff:

84.5%

FWHM:

14.0°

Cd/Im:

9.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW CSP E21A White

Eff:

83.0%

FWHM:

12.5°

Cd/Im:

12.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

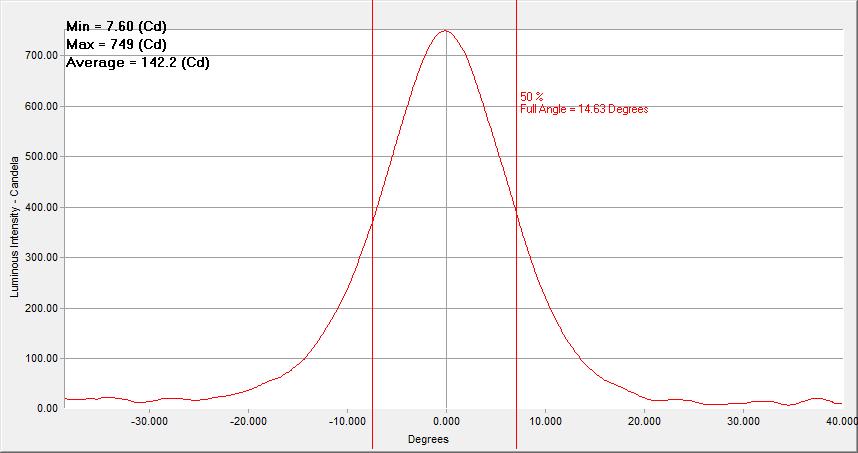

Nichia Top Emitting 083 White

Eff:

83.0%

FWHM:

14.6°

Cd/Im:

8.7

Download

ies

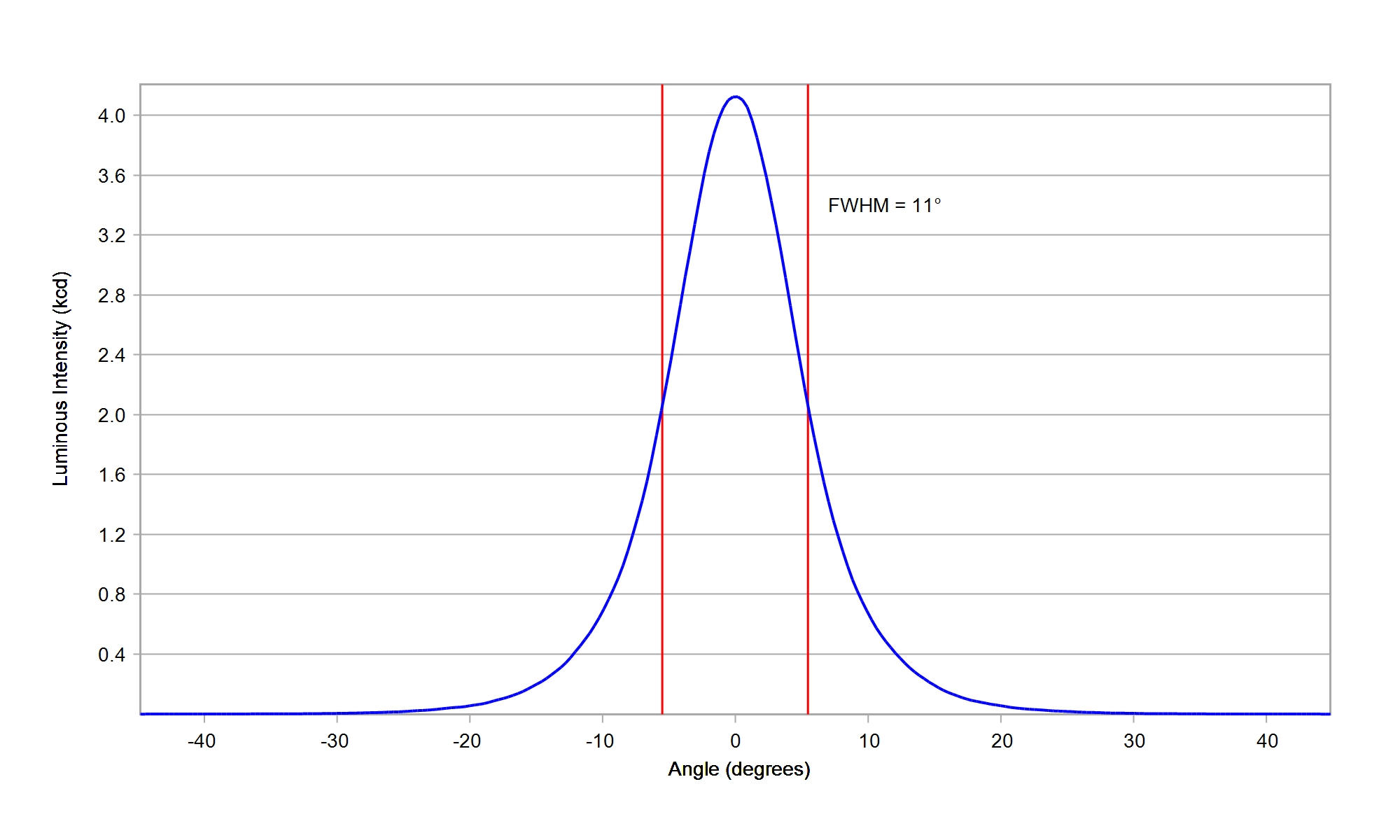

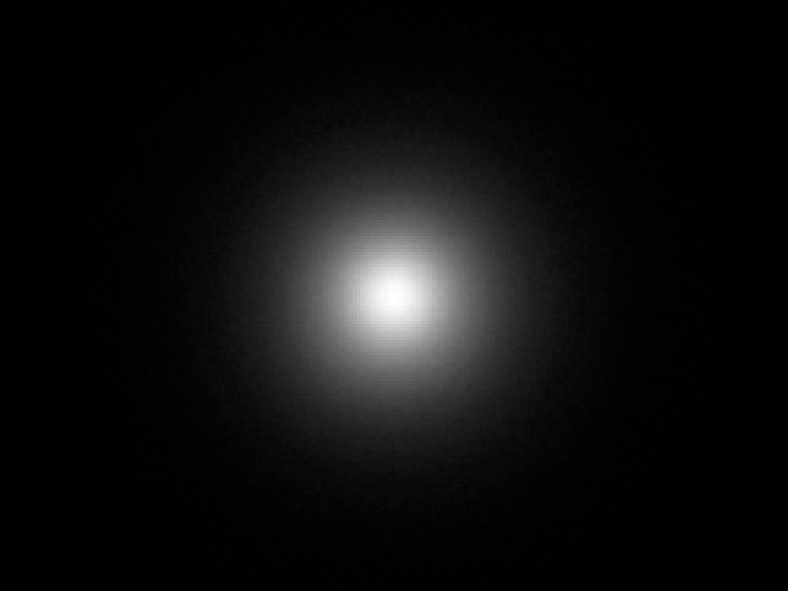

Osram LED ENGIN LuxiGen LZ1 00CW02 White

Eff:

88.0%

FWHM:

11°

Cd/Im:

14.9

Download

Osram LED ENGIN LuxiGen LZ1 00R702 IR940nm

Eff:

92.5%

FWHM:

11°

Ipk/W:

14.6

Download

IES

Osram DURIS E 2835 Gen2

Eff:

87.5%

FWHM:

12.5°

Cd/Im:

13.3

Carclo Optics - 10392 26.5mm Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 103921 26.5mm Cross Section Osram DURIS E 2835 Gen2

Download

IES

Osram DURIS E 2835 White

Eff:

86.5%

FWHM:

12°

Cd/Im:

13.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS E2 White

Eff:

84.0%

FWHM:

10.3°

Cd/Im:

16.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS E3 White

Eff:

88.0%

FWHM:

10.6°

Cd/Im:

15.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS P10 White

Eff:

85.1%

FWHM:

19.9°

Cd/Im:

4.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS P8 White

Eff:

84.2%

FWHM:

11.8°

Cd/Im:

12.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S10 White

Eff:

85.5%

FWHM:

22.5°

Cd/Im:

3.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

em_

Osram DURIS S2 White

Eff:

88.3%

FWHM:

11.8°

Cd/Im:

13.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S5 Deep Blue

Eff:

85.0%

FWHM:

12.5°

Cd/Im:

13.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S5 Green

Eff:

87.5%

FWHM:

11.5°

Cd/Im:

14.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S5 Red

Eff:

88.5%

FWHM:

11°

Cd/Im:

15.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S5 White

Eff:

84.0%

FWHM:

11.9°

Cd/Im:

12.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S8 Gen2 White

Eff:

88.0%

FWHM:

18.5°

Cd/Im:

6.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S8 Gen3 White

Eff:

86.5%

FWHM:

21.5 x 20.5°

Cd/Im:

4.9

Carclo Optics - 10392 26.5mm Spot Image Oslon DURIS S8 Gen3

Carclo Optics - 10392 26.5mm Cross Section Oslon DURIS S8 Gen3

Download

IES

Osram DURIS S8 White

Eff:

89.2%

FWHM:

19.8°

Cd/Im:

5.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section Image

Download

IES

Osram Golden DRAGON Plus W5AM White

Eff:

83.5%

FWHM:

11.8°

Cd/Im:

13.7

Osram GOLDEN DRAGON W5SM White

Eff:

83.1%

FWHM:

12.2°

Cd/Im:

12.8

Download

ies

Osram OSCONIQ C 2424 White

Eff:

87.5%

FWHM:

11.5°

Cd/Im:

15.4

Carclo Optics - 10392 Spot Image OSCONIQ C2424

Carclo Optics - 10392 Cross Section OSCONIQ C2424

Download

IES

Osram OSCONIQ P3737 White

Eff:

84.0%

FWHM:

15°

Cd/Im:

9.0

Carclo Optics 10392 Spot Image Osram Osconiq

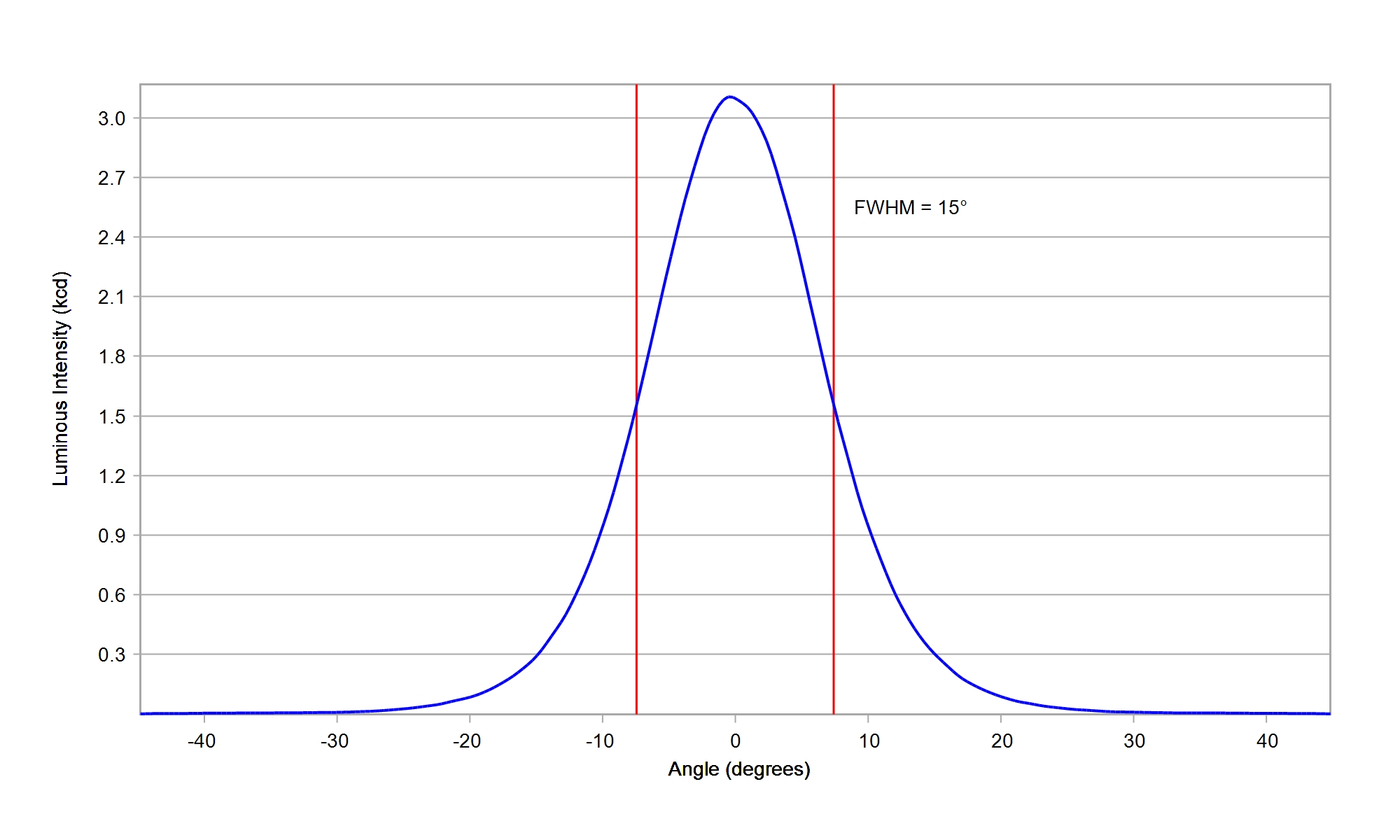

Carclo Optics 10392 Cross Section Osram Osconiq P3737

Download

IES

Osram OSCONIQ S 5050 GW Q9LR32.PM

Eff:

86.5%

FWHM:

19.5°

Cd/Im:

5.4



Download

IES

Osram OSLON Black SFH 4715AS IR

Eff:

91.0%

FWHM:

11°

Ipk/W:

15.2


Download

IES

Osram OSLON Black SFH 4716AS IR

Eff:

91.0%

FWHM:

10.5°

Ipk/W:

18.0

Carclo Optics – 10392 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

Carclo Optics – 10392 Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

IES

Osram OSLON Black SFH 4725S IR

Eff:

92.5%

FWHM:

11°

Ipk/W:

16.4

Carclo Optics 10392 Spot Image Osram Oslon Black_IR_SFH_4725S

Carclo Optics 10392 Cross Section Osram Oslon Black_IR_SFH_4725S

Download

IES

Osram OSLON Boost HM KW CELMM1.TG

Eff:

87.0%

FWHM:

9.8°

Cd/Im:

20.1

Carclo Optics – 10392 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 10392 – Osram_Oslon_Boost_KW_CELMM1_TG_cross section

Download

IES

Osram OSLON Pure 1010 CSP GC VJLPE1.13 Cyan

Eff:

88.0%

FWHM:

9.6°

Cd/Im:

20.9


Download

IES

Osram OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue

Eff:

85.5%

FWHM:

9.9°

Ipk/W:

19.6


Download

IES

Osram OSLON Pure 1010 CSP GG VJLPE1.F3 Green

Eff:

87.0%

FWHM:

9.7°

Cd/Im:

20.3


Download

IES

Osram OSLON Pure 1010 CSP GR VJLPE1.F3 Red

Eff:

87.5%

FWHM:

10°

Cd/Im:

19.2


Download

IES

Osram OSLON Pure 1010 CSP GT VJLPE1.13 True Green

Eff:

87.5%

FWHM:

9.6°

Cd/Im:

21.1


Download

IES

Osram OSLON Pure 1010 CSP GW VJLPE1.CM White

Eff:

86.5%

FWHM:

10°

Cd/Im:

19.3



Download

IES

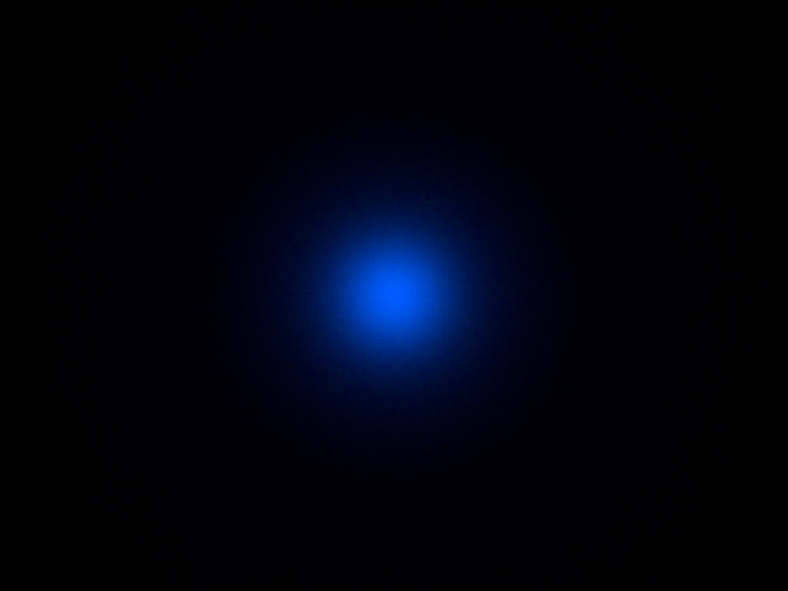

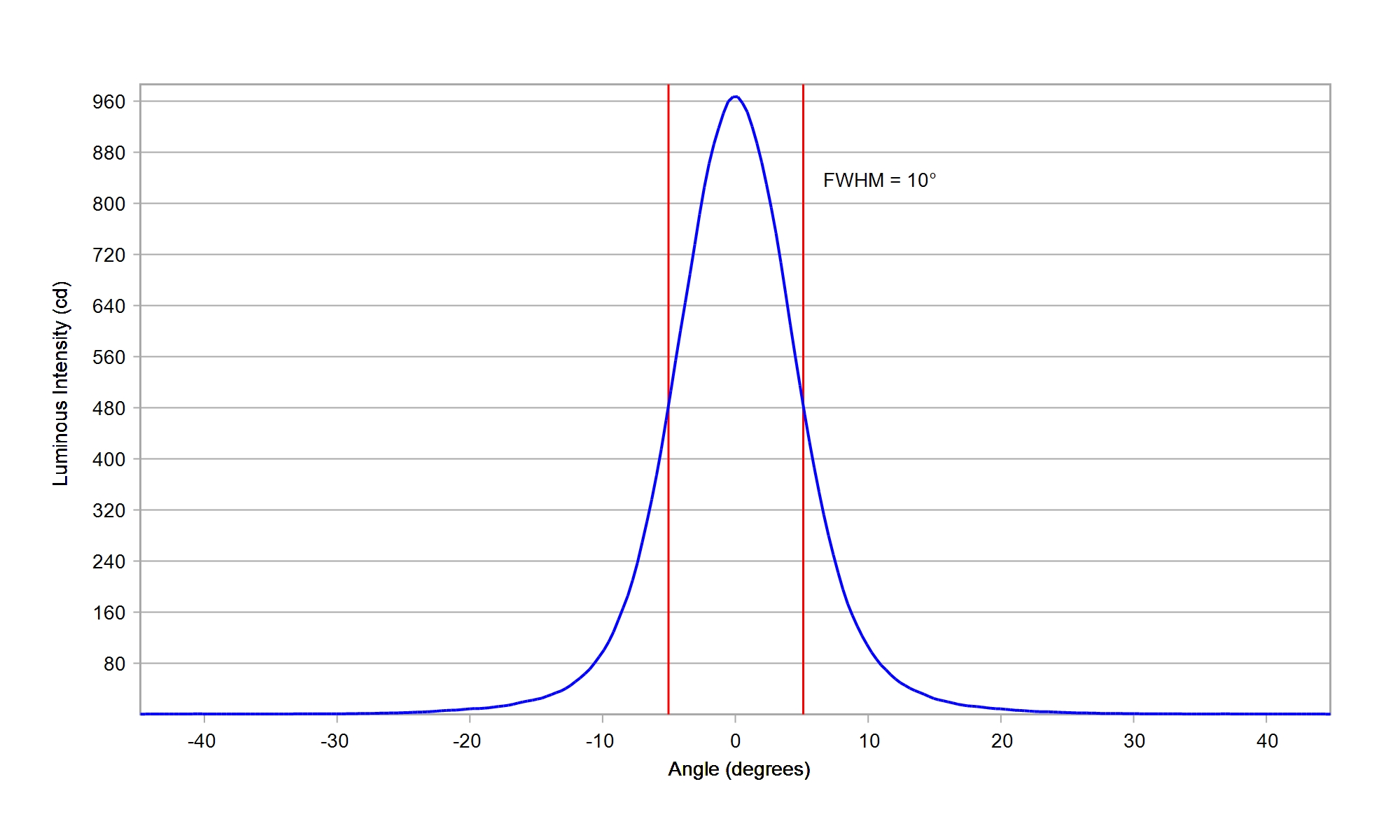

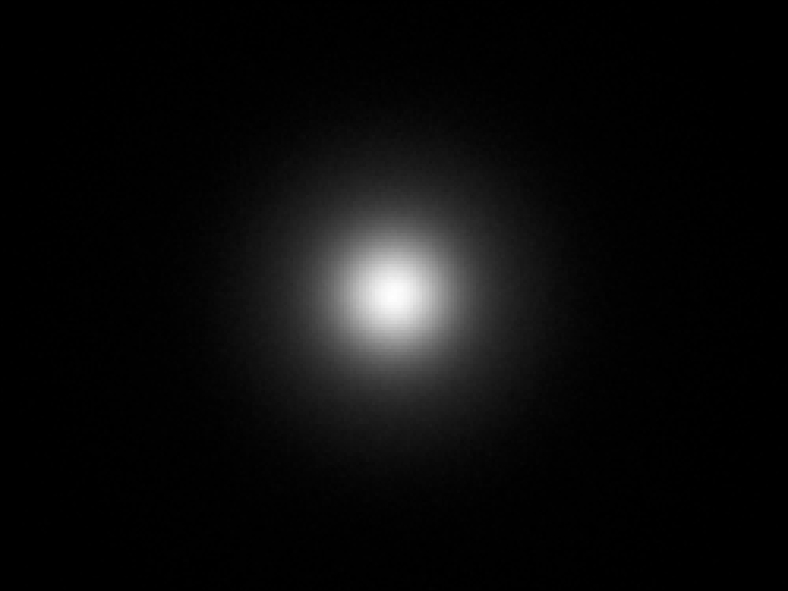

Osram OSLON Pure 1414 GB VJLPL1.F3 Blue

Eff:

87.5%

FWHM:

10°

Cd/Im:

18.9


Download

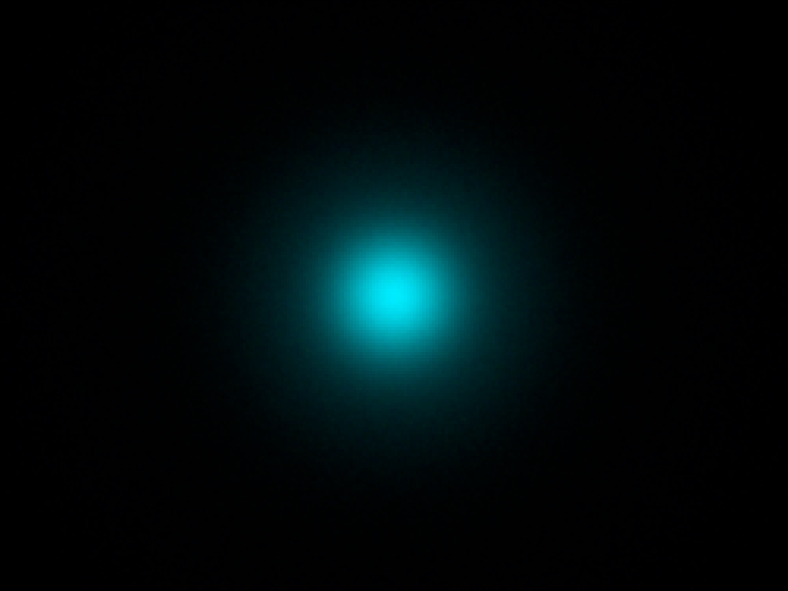

Osram OSLON Pure 1414 GC VJLPL1.13 Cyan

Eff:

88.0%

FWHM:

10.5°

Cd/Im:

18.7


Download

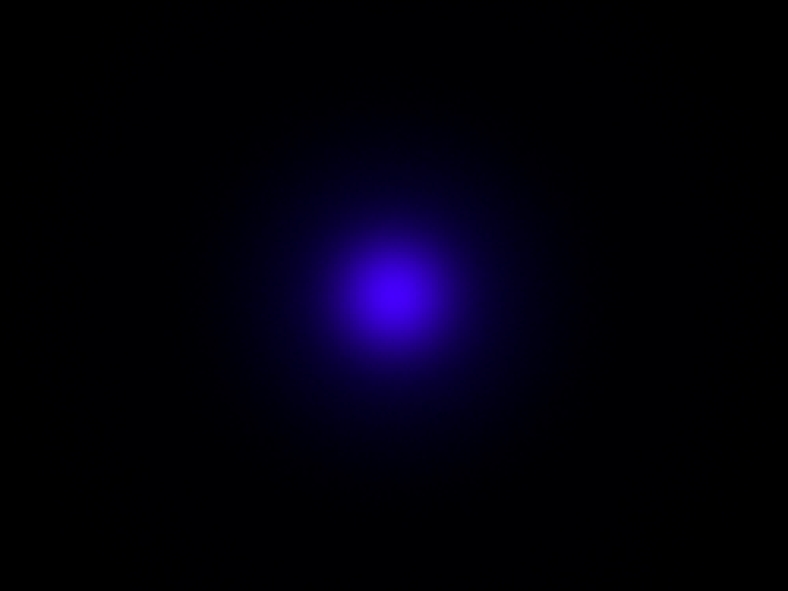

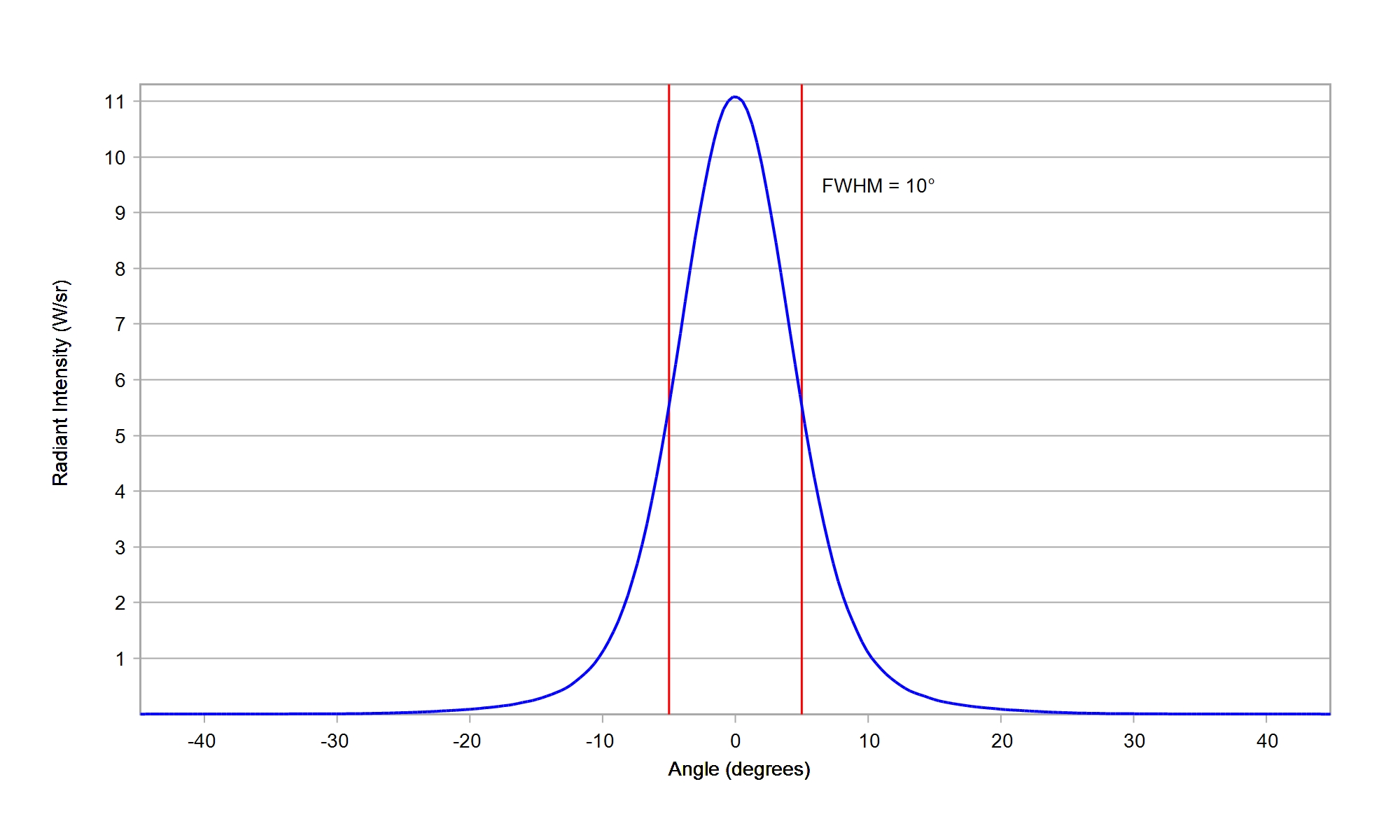

Osram OSLON Pure 1414 GD VJLPL1.14 Deep Blue

Eff:

85.5%

FWHM:

10°

Ipk/W:

19.0


Download

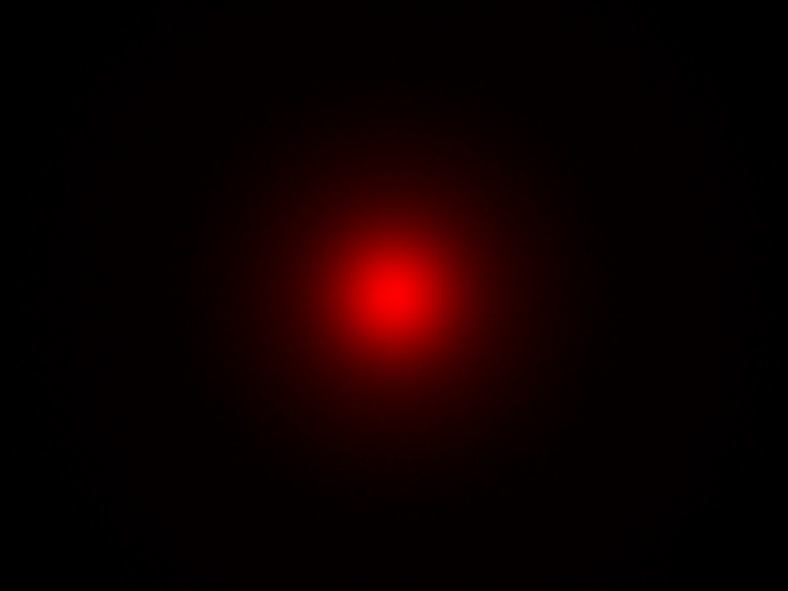

Osram OSLON Pure 1414 GR VJLPL1.23 Red

Eff:

87.5%

FWHM:

10°

Cd/Im:

18.5


Download

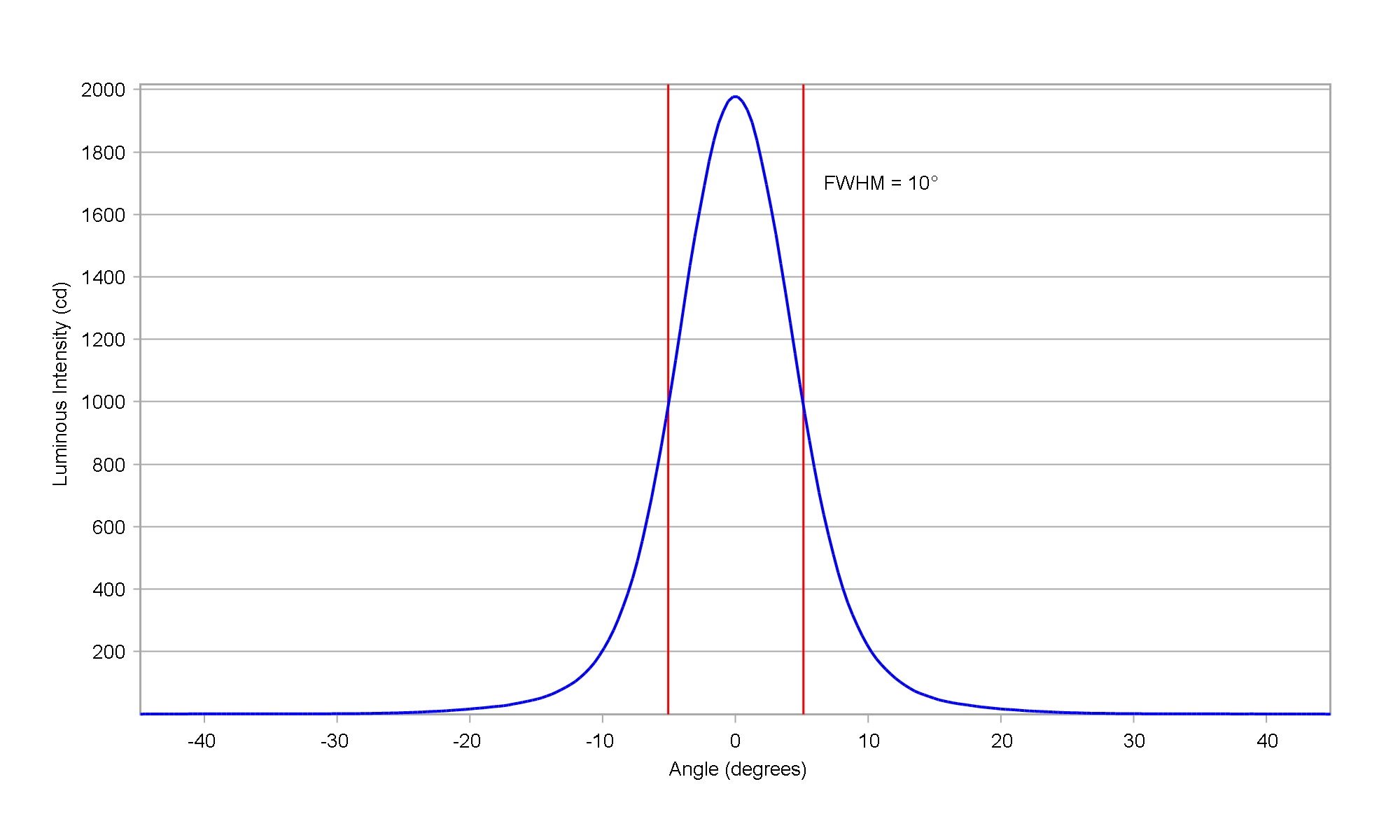

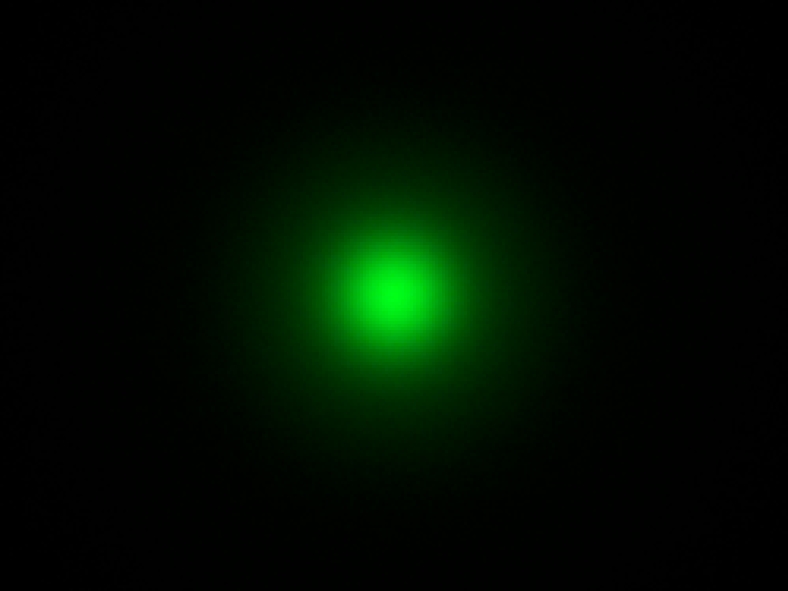

Osram OSLON Pure 1414 GT VJLPL1.13 True Green

Eff:

87.5%

FWHM:

10°

Cd/Im:

18.8


Download

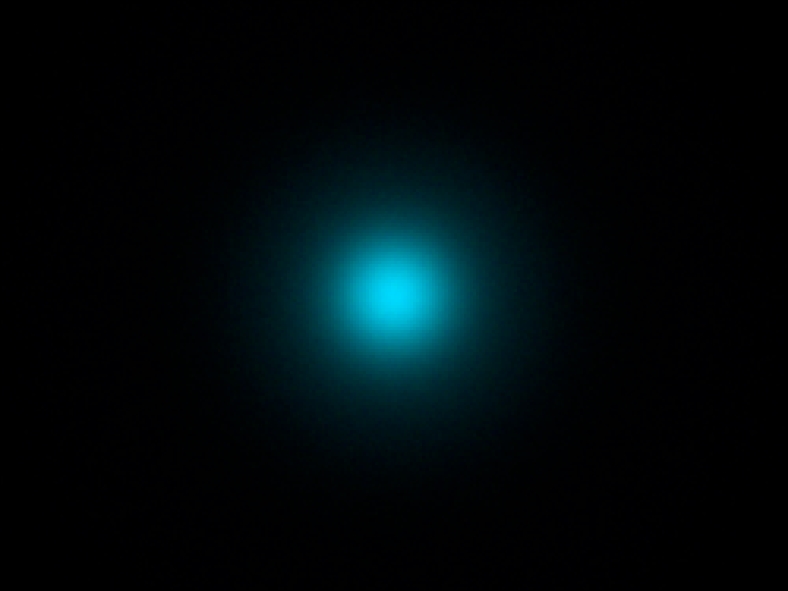

Osram OSLON Pure 1414 GV VJLPL1.F3 Verde

Eff:

87.5%

FWHM:

10°

Cd/Im:

19.0


Download

Osram OSLON Pure 1414 GW VJLPL1.CM White

Eff:

87.5%

FWHM:

10°

Cd/Im:

18.9

Download

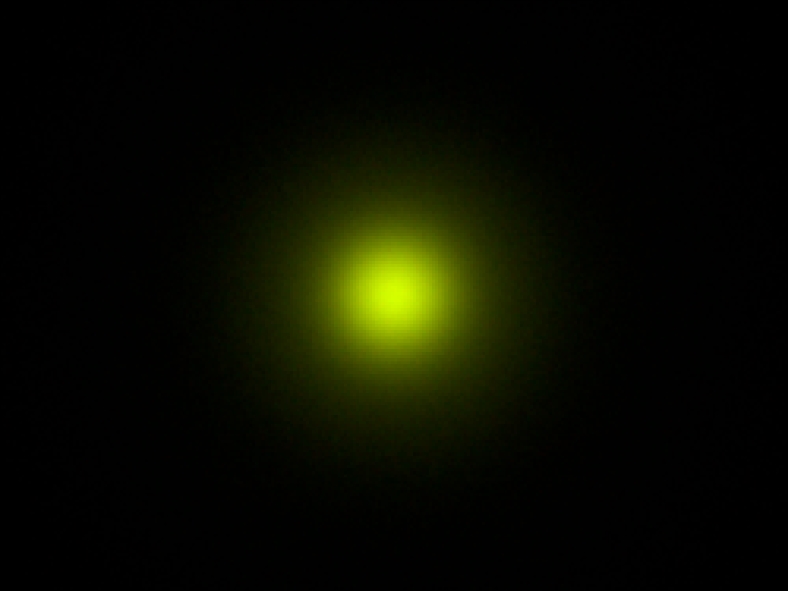

Osram OSLON Pure 1414 GW VJLPL1.UL Green

Eff:

87.0%

FWHM:

10°

Cd/Im:

18.8


Download

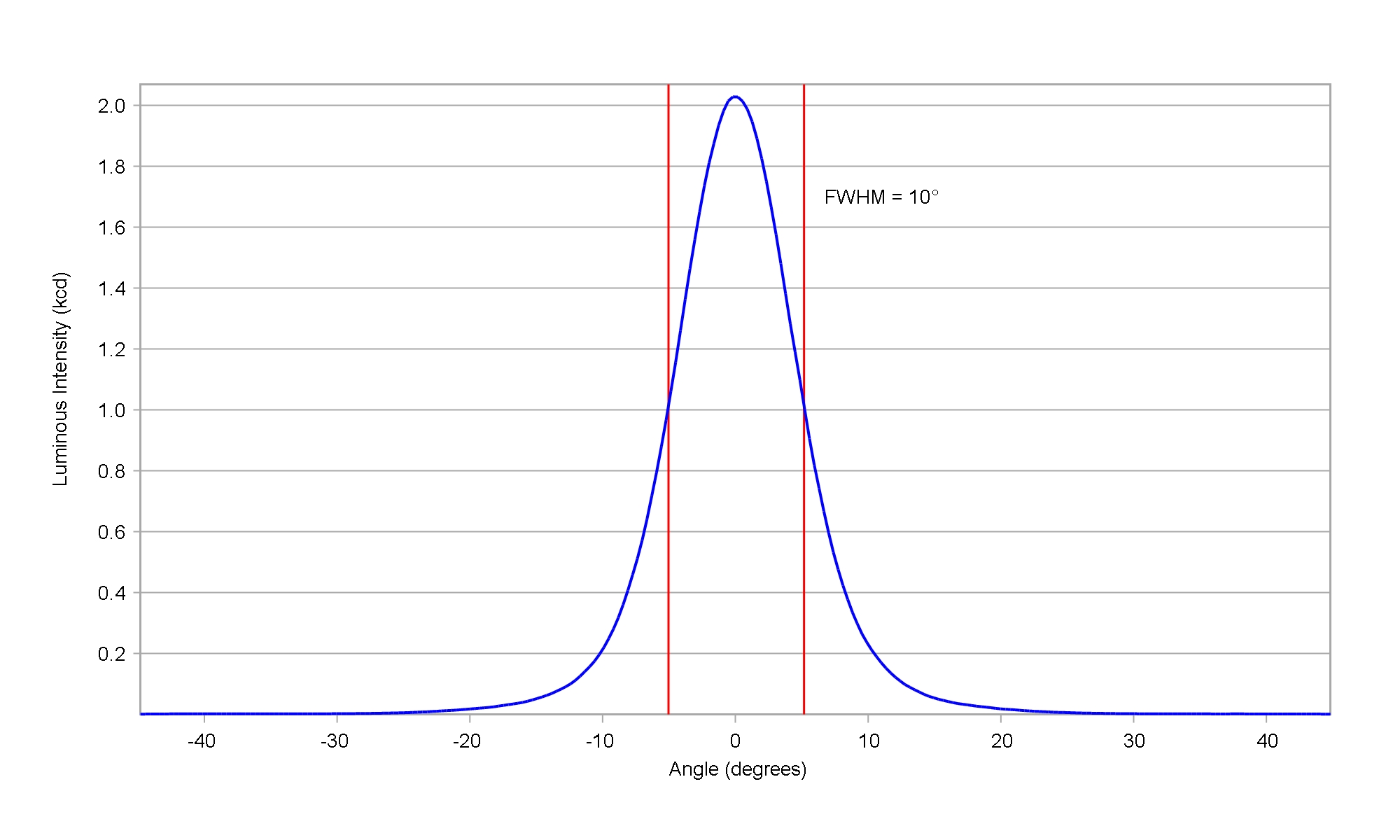

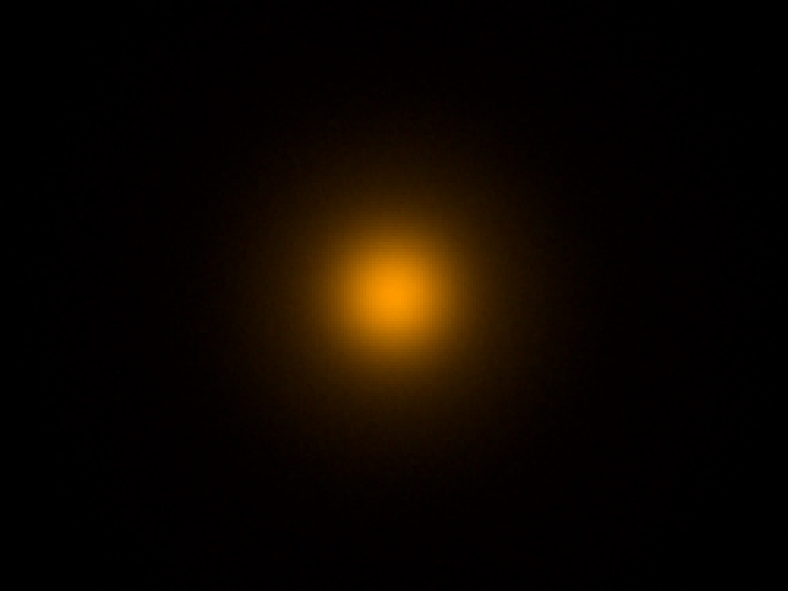

Osram OSLON Pure 1414 GY VJLPL1.F3 Yellow

Eff:

87.0%

FWHM:

10°

Cd/Im:

18.6


Download

Osram OSLON Square Flat White

Eff:

86.0%

FWHM:

12.0°

Cd/Im:

13.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OSLON Square Gen 3 White

Eff:

84.3%

FWHM:

11.9°

Cd/Im:

12.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OSLON Square Gen 5 GW CSSRM3

Eff:

87.0%

FWHM:

12°

Cd/Im:

13.2

Carclo Optics - 10392 26.5mm Spot Image Oslon Square Gen 5

Carclo Optics - 10392 26.5mm Cross Section Oslon Square Gen 5

Download

IES

Osram OSLON Square White

Eff:

83.0%

FWHM:

11.8°

Cd/Im:

12.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

87.0%

FWHM:

10.5°

Cd/Im:

17.1

Carclo Optics – 10392 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Carclo Optics – 10392 Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Download

IES

Osram OSLON SSL 80 GH CS8PM1.24 Hyper Red

Eff:

88.0%

FWHM:

11°

Ipk/W:

14.1


Download

IES

Osram OSLON SSL 80 GT CS8PM1.13 True Green

Eff:

88.0%

FWHM:

11.5°

Cd/Im:

13.3


Download

IES

Osram OSLON SSL 80 GW CS8PM1.PM White

Eff:

87.5%

FWHM:

11°

Cd/Im:

14.5


Download

IES

Osram OSTAR Lighting White

Eff:

81.4%

FWHM:

14.5°

Cd/Im:

9.7

Download

ies

Osram OSTAR Stage LE-UW-S2WN

Eff:

86.5%

FWHM:

13°

Cd/Im:

11.7

Carclo Optics – 10392 Osram Ostar Stage LE-UW-S2WN - Spot Image

Carclo Optics – 10392 Osram Ostar Stage LE-UW-S2WN - Cross-Section

Download

IES

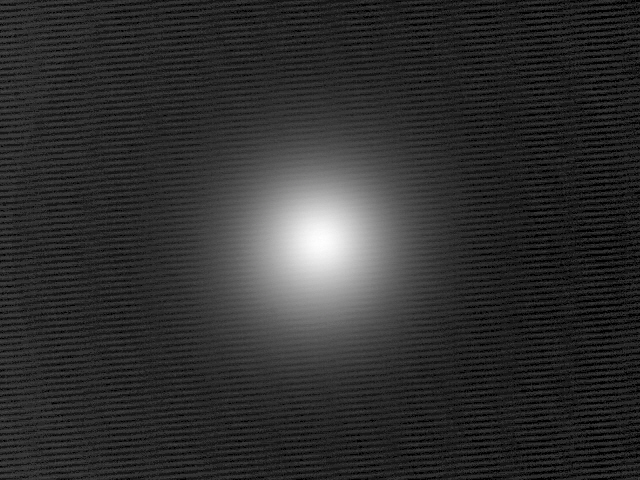

Osram PLATINUM DRAGON W5SN White

Eff:

82.9%

FWHM:

12.2°

Cd/Im:

13.0

Download

ies

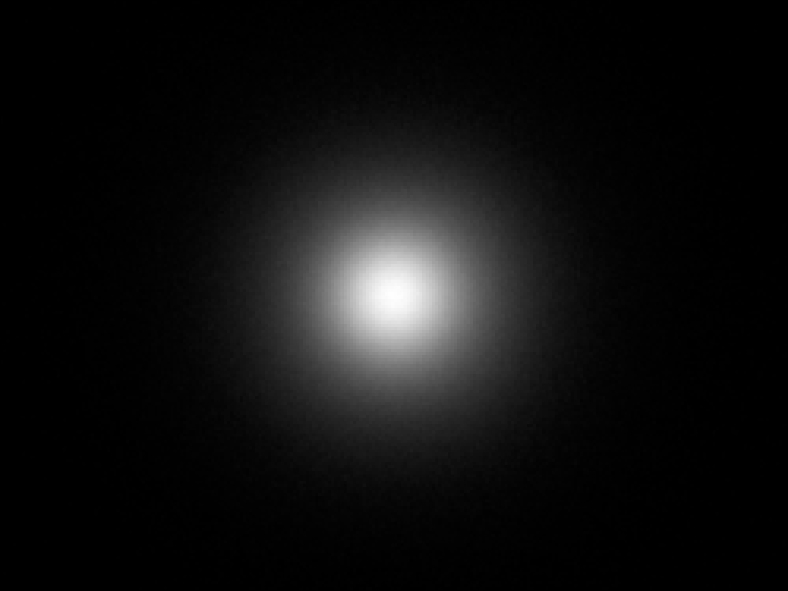

Osram OSCONIQ C 3030 GW PLTRA1.PM White

Eff:

87.5%

FWHM:

12.5°

Cd/Im:

12.6

Download

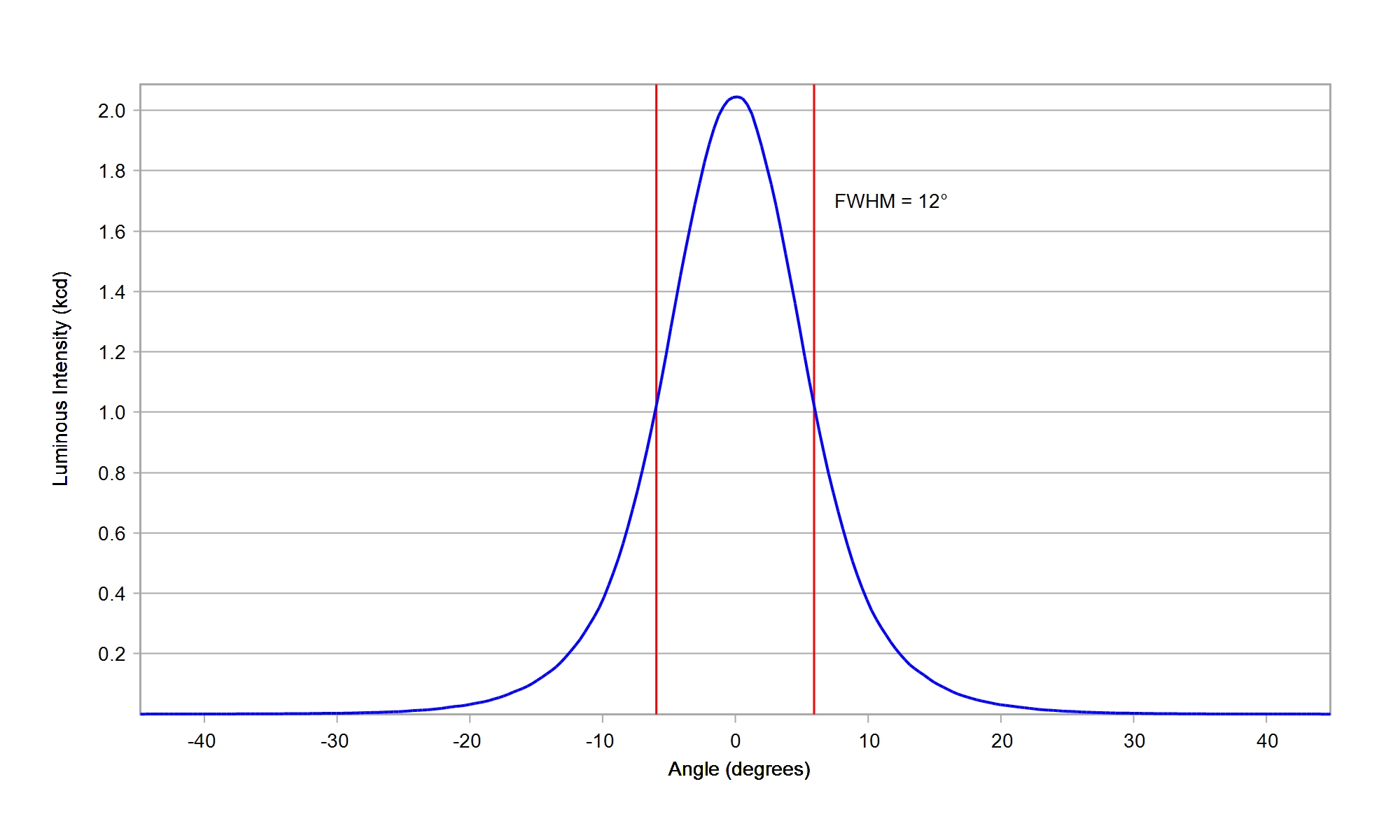

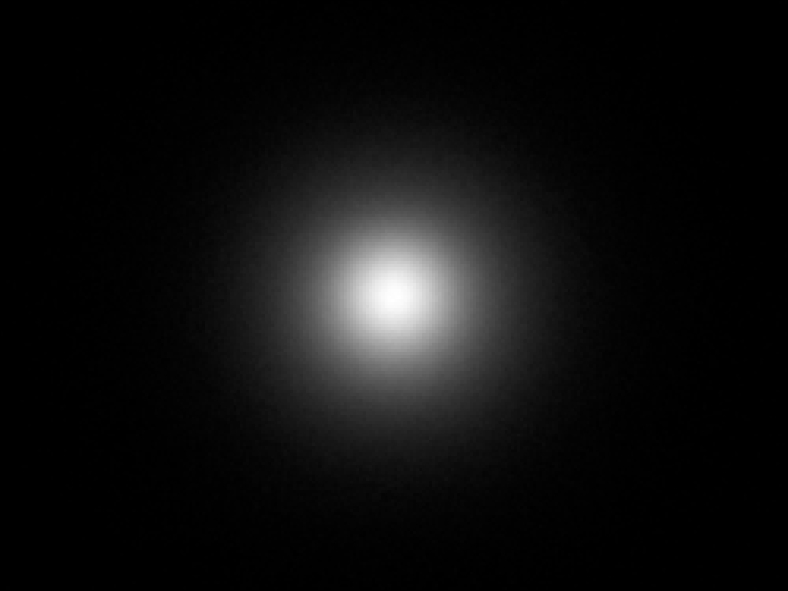

Osram OSCONIQ E 3030 GW QSLPS1.EM White

Eff:

87.5%

FWHM:

12°

Cd/Im:

13.6

Download

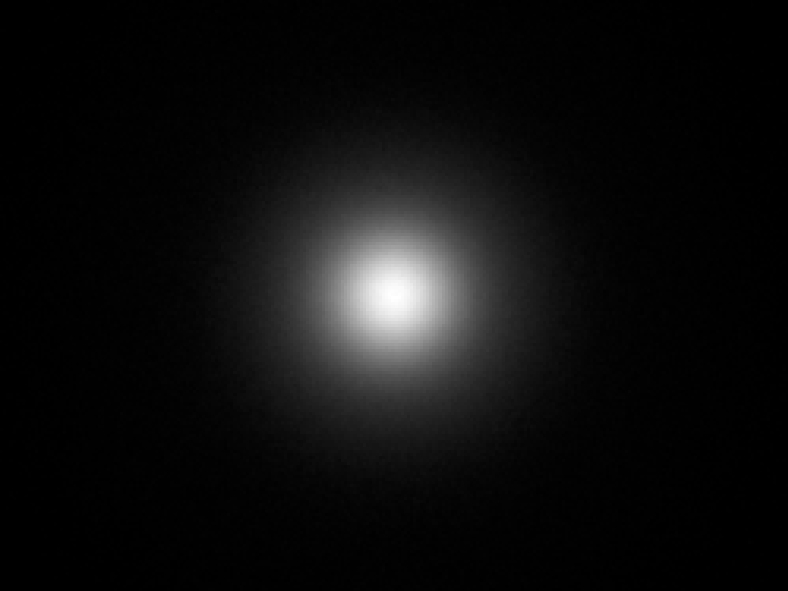

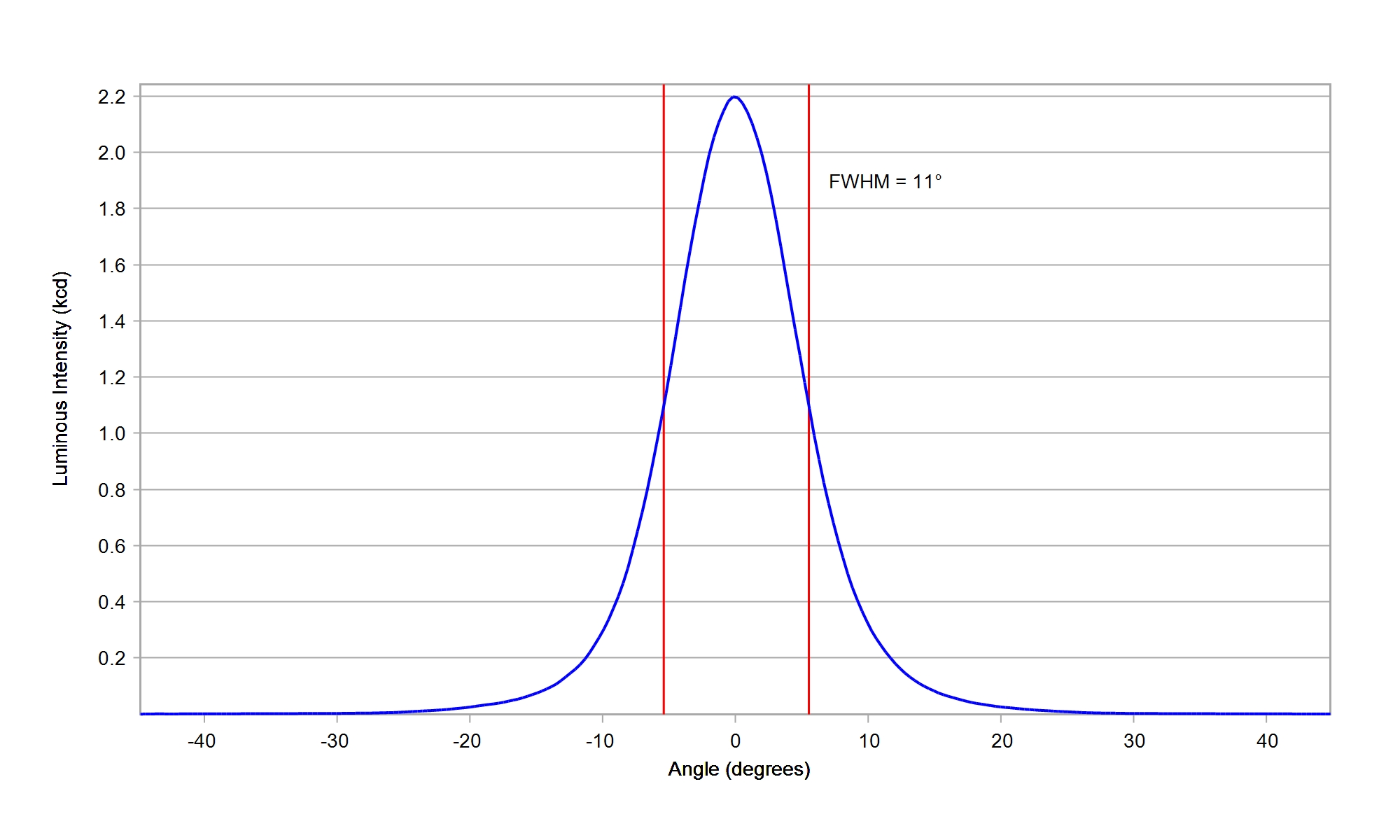

Osram OSCONIQ P 3030 GW QSSPA1.PM White

Eff:

86.5%

FWHM:

11°

Cd/Im:

15.8

Download

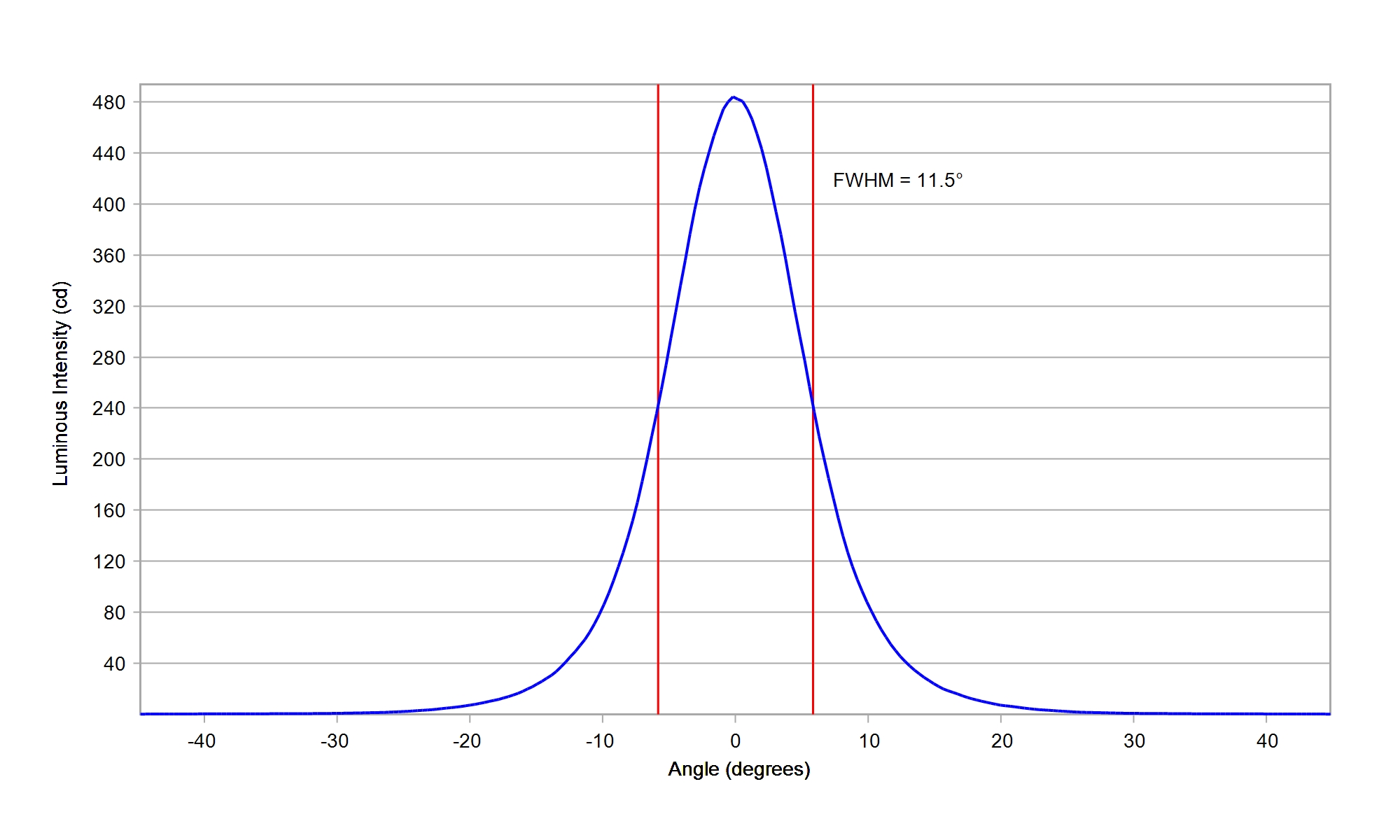

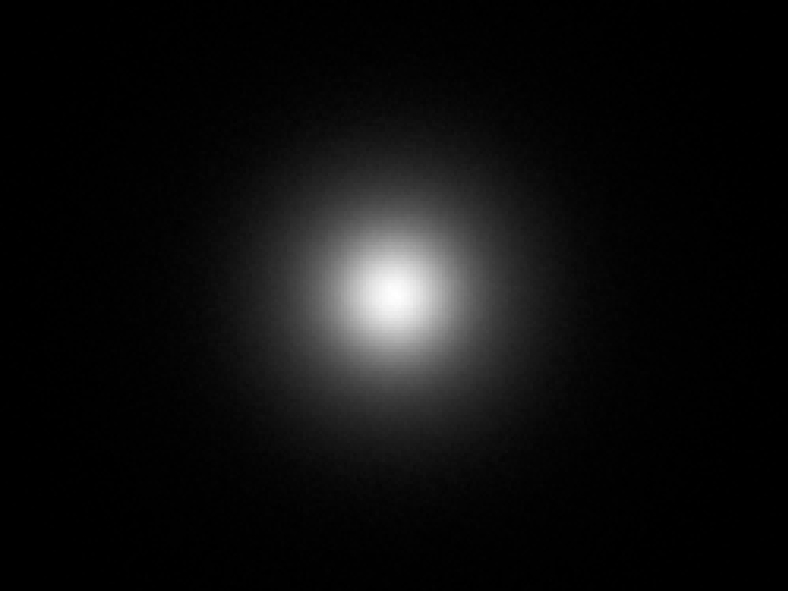

Osram OSCONIQ S 3030 GW QSLMS3.EM White

Eff:

87.5%

FWHM:

11.5°

Cd/Im:

14.1

Download

Plessey PLW 7070GA White

Eff:

85.0%

FWHM:

22.5°

Cd/Im:

4.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Samsung 2835 LM281B+ White

Eff:

87.0%

FWHM:

13°

Cd/Im:

11.4



Download

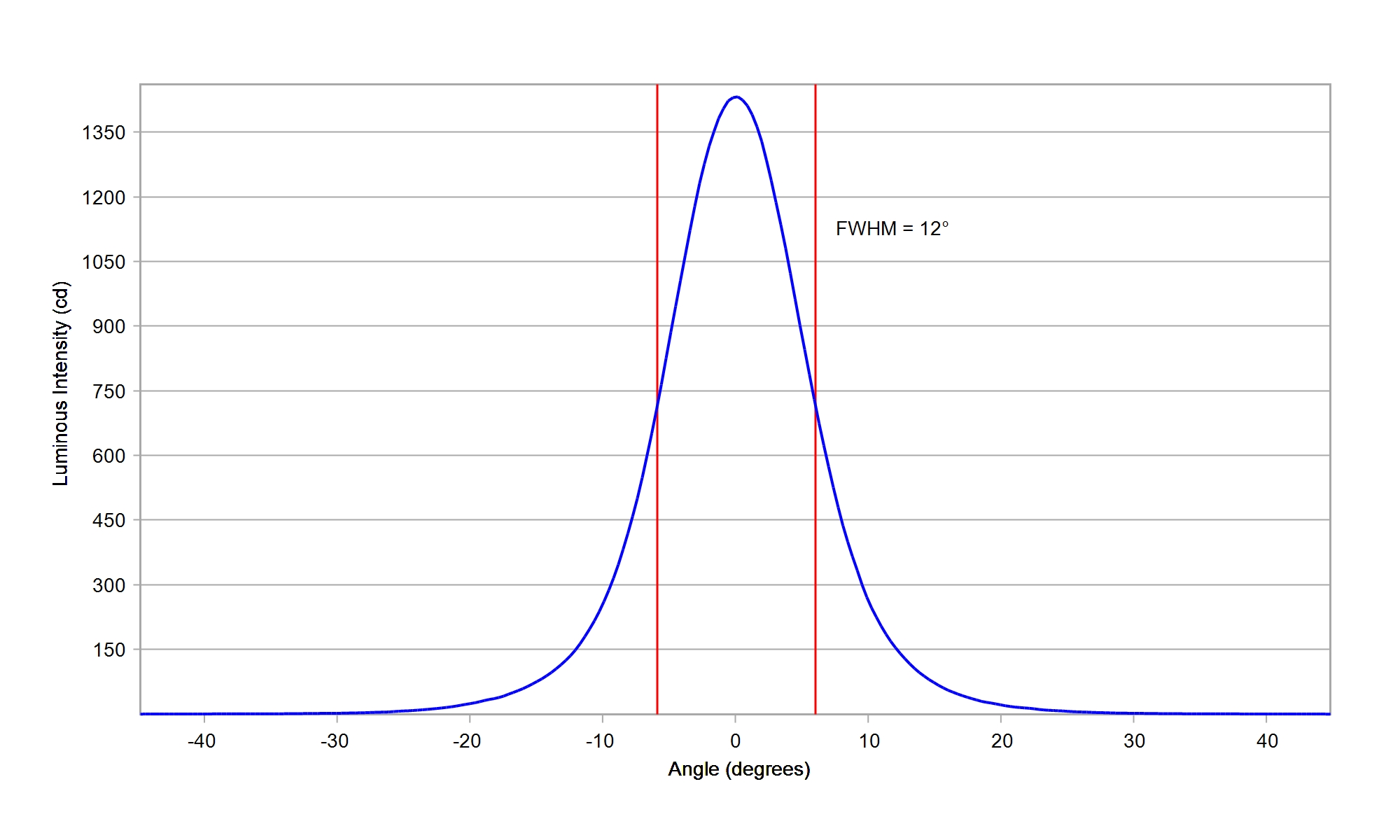

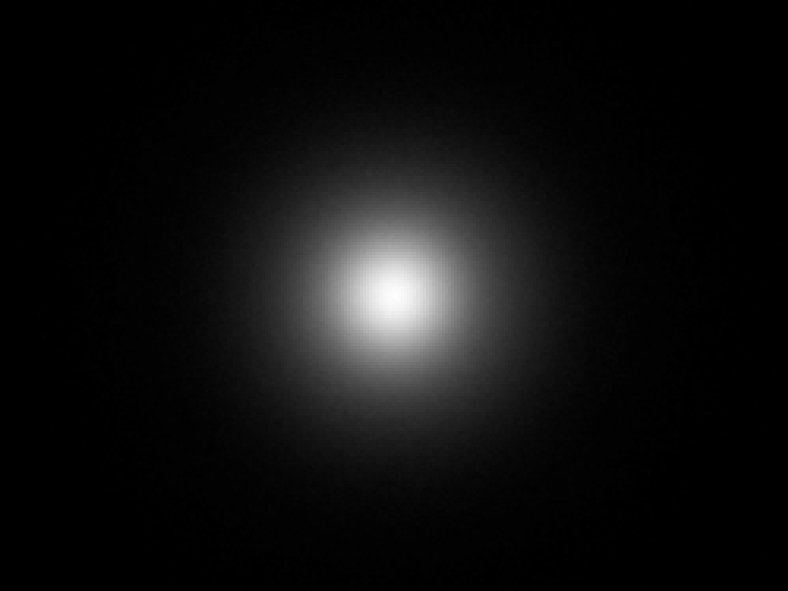

Samsung 2835 LM282B+ White

Eff:

87.5%

FWHM:

12°

Cd/Im:

13.6



Download

Samsung 3030 LM301B White

Eff:

87.5%

FWHM:

12.5°

Cd/Im:

12.7

Download

IES

Samsung 3535 LH351B White

Eff:

84.5%

FWHM:

13°

Cd/Im:

10.9

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Samsung 3535 LH351D White

Eff:

86.5%

FWHM:

15.5°

Cd/Im:

8.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Samsung 3535 LH351Z White

Eff:

84.4%

FWHM:

11.5°

Cd/Im:

13.4

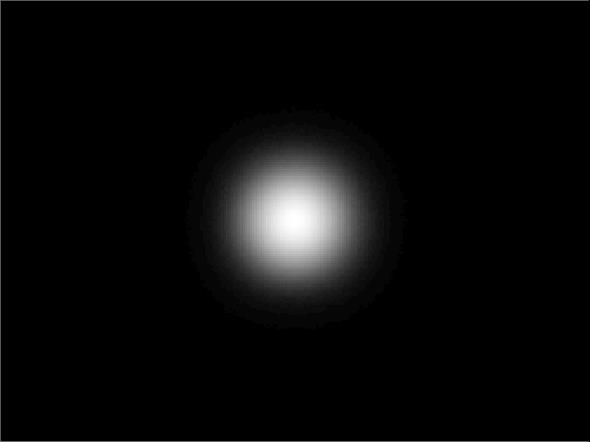

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Samsung 5050 LH502C White

Eff:

87.5%

FWHM:

19°

Cd/Im:

5.8


Download

IES

Samsung 5050 LH502D White

Eff:

87.5%

FWHM:

17.5°

Cd/Im:

6.6


Download

IES

Samsung 5050 LH508C White

Eff:

87.5%

FWHM:

19°

Cd/Im:

5.8


Download

IES

Samsung CSP LH151B White

Eff:

87.5%

FWHM:

10.5°

Cd/Im:

17.5

Carclo Optics – 10392 – Samsung_LH151B_spot-image

Carclo Optics – 10392 – Samsung_LH151B_cross section

Download

IES

Samsung CSP LH181B White

Eff:

87.5%

FWHM:

12.5°

Cd/Im:

13.2

Carclo Optics -10392 Sport Image - Samsung LH181B 4000K

Carclo Optics -10392 Cross Section - Samsung LH181B 4000K

Download

IES

Samsung CSP LH231B White

Eff:

87.0%

FWHM:

13.5°

Cd/Im:

11.0

Carclo Optics - 10392 Spot Image Samsung LH231B 5000K

Carclo Optics -10392 Cross Section - Samsung LH231B 5000K

Download

IES

Samsung CSP LM101B White

Eff:

87.0%

FWHM:

10.5°

Cd/Im:

17.1

Carclo Optics -10392 Sport Image - Samsung LM101B 5000K

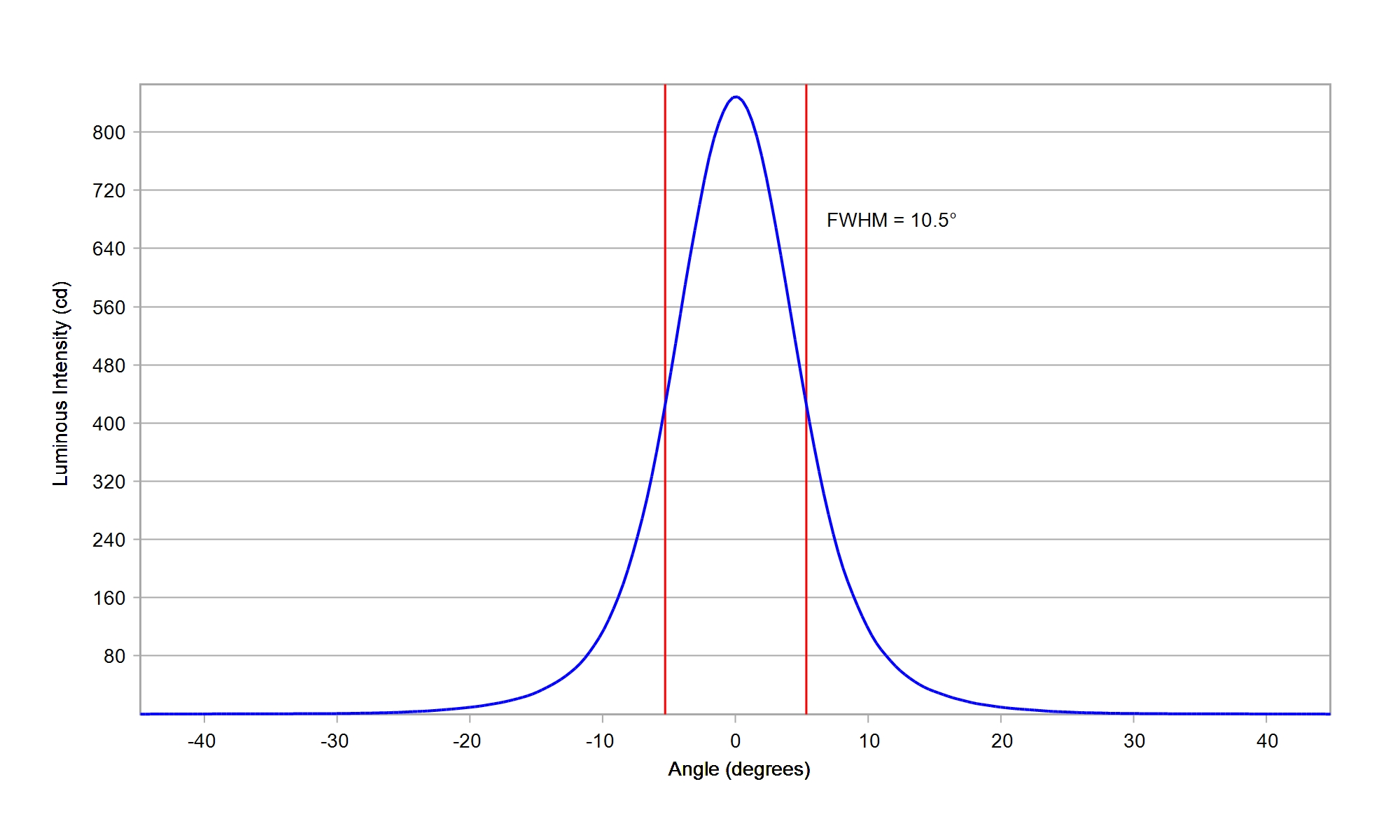

Carclo Optics -10392 Cross Section Image - Samsung LM101B 5000K

Download

IES

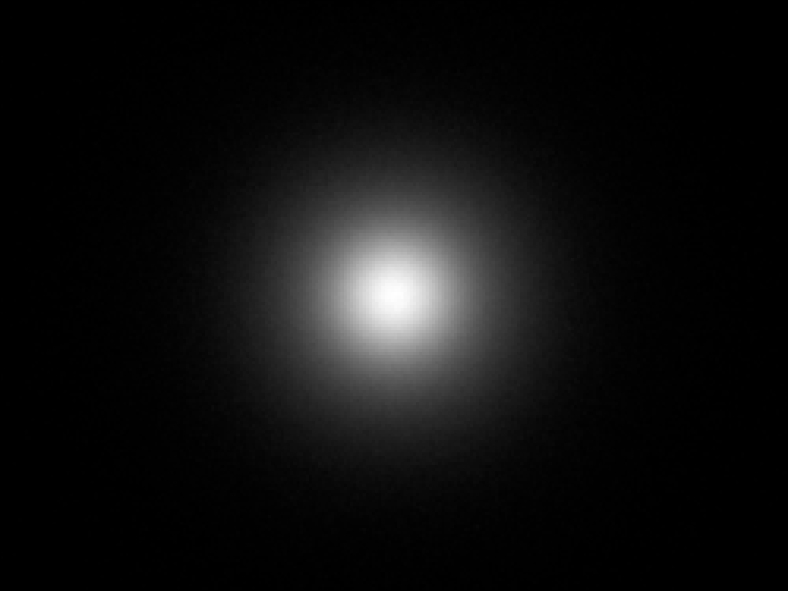

Seoul 3030 STW8C12E-E0 White

Eff:

87.5%

FWHM:

12°

Cd/Im:

13.3

Download

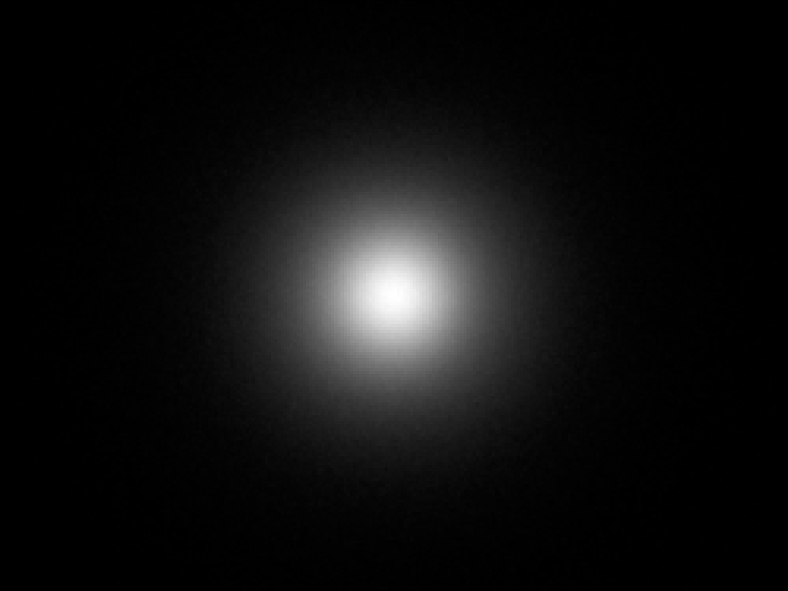

Seoul 3528 G STW8A2PD-G700 White

Eff:

87.5%

FWHM:

12.5°

Cd/Im:

12.8

Download

Seoul CSP SZ8Y11 White

Eff:

84.0%

FWHM:

11°

Cd/Im:

15.7

Carclo Optics -10392 Spot Image - Seoul Z8Y11

Carclo Optics -10392 Cross Section Image - Seoul Z8Y11

Download

IES

Seoul CSP SZ8Y15 White

Eff:

85.0%

FWHM:

10°

Cd/Im:

18.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Seoul CSP SZ8Y19 White

Eff:

85.0%

FWHM:

12.6°

Cd/Im:

10.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Seoul CSP SZ8Y22 White

Eff:

86.5%

FWHM:

13.5°

Cd/Im:

11.2

Carclo Optics -10392 Spot Image - Seoul SZ8Y22

Carclo Optics -10392 Cross Section Image - Seoul SZ8Y22

Download

IES

Seoul CSP SZ8Y22P White

Eff:

84.0%

FWHM:

13.5°

Cd/Im:

10.2

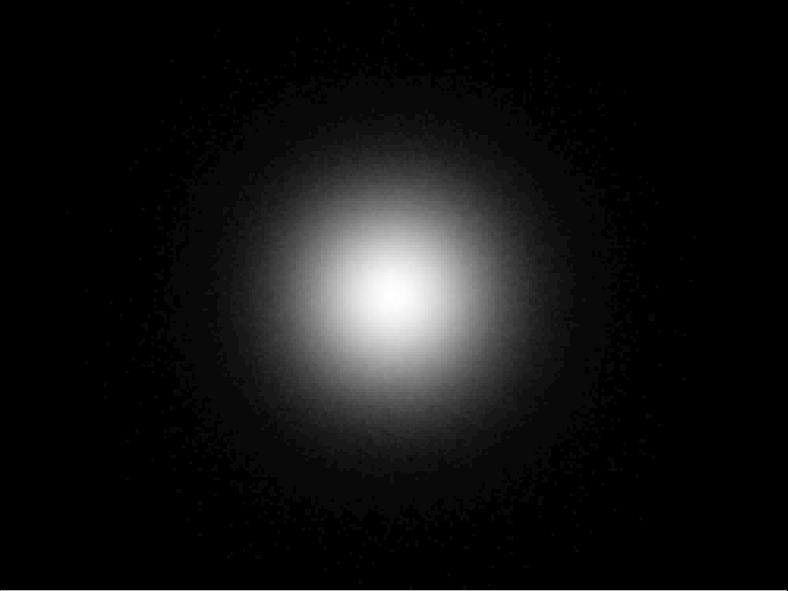

Carclo Optics - 10392 Spot Image - Seoul SZ8Y22P

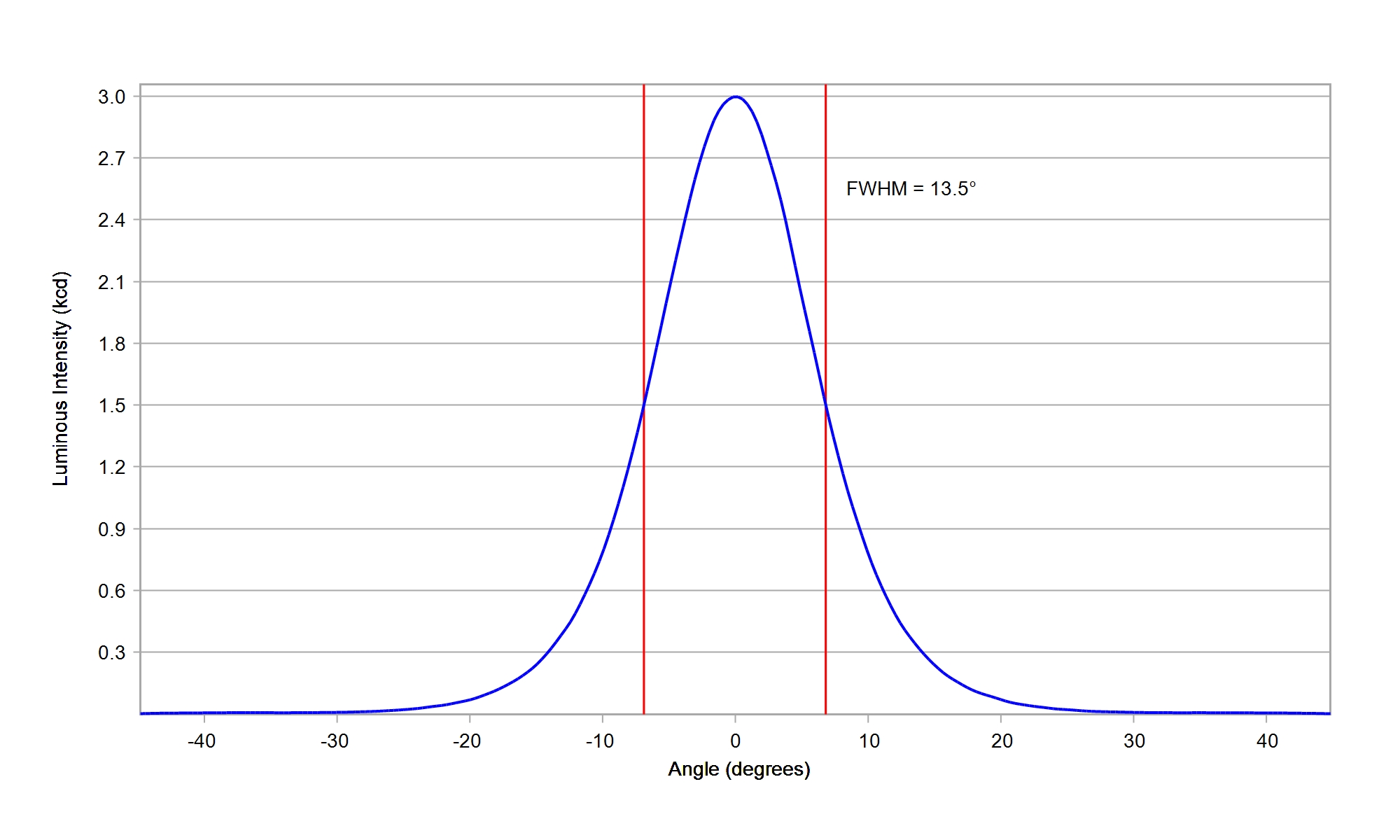

Carclo Optics - 10392 Cross Section - Seoul SZ8Y22P

Download

IES

Seoul CSP SZ8Y50 White

Eff:

87.0%

FWHM:

23°

Cd/Im:

4.3

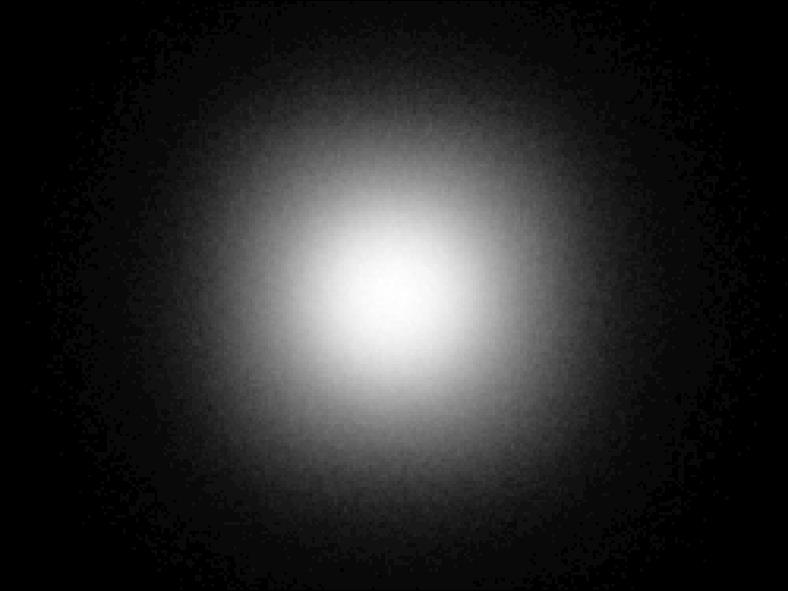

Carclo Optics - 10392 Spot Image - Seoul SSC SZ8Y50

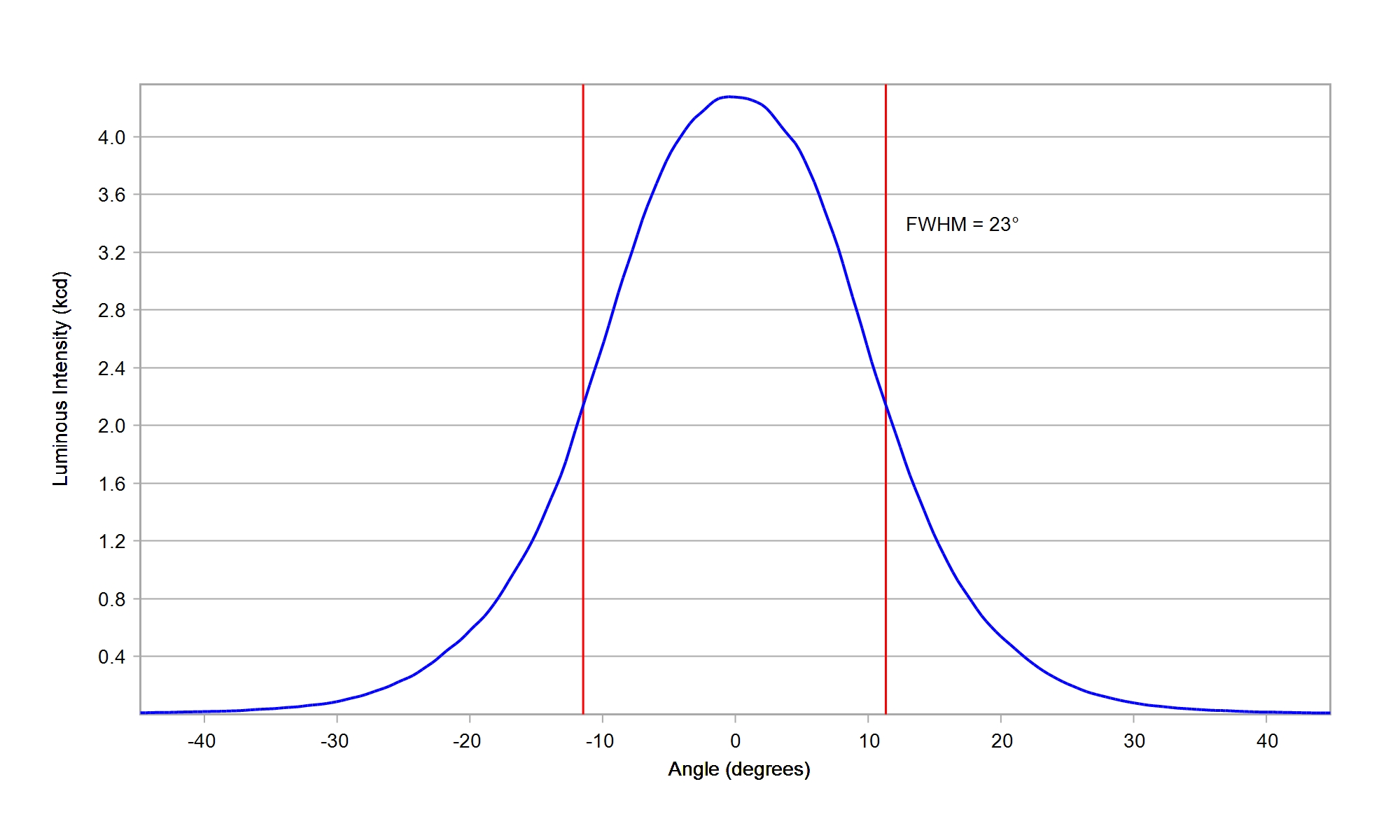

Carclo Optics - 10392 Cross section Image - Seoul SSC SZ8Y50

Download

IES

Seoul MidPower MJT3030 White

Eff:

84.0%

FWHM:

11.7°

Cd/Im:

12.5

carclo optics - simulated spot image

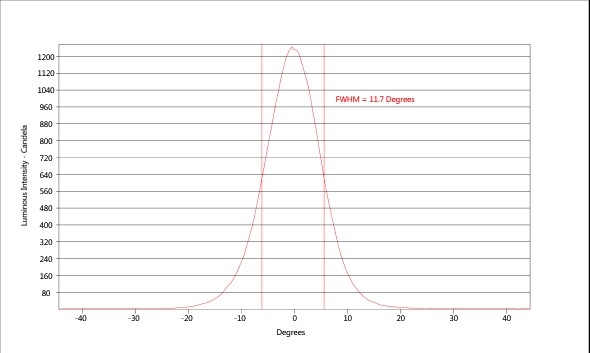

carclo optics - simulated cross section

Download

IES

Seoul MidPower MJT4040 White

Eff:

84.8%

FWHM:

14°

Cd/Im:

8.9

carclo optics - simulated spot image

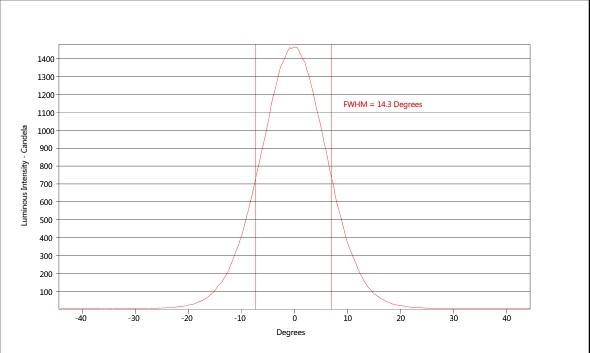

carclo optics - simulated cross section

Download

IES

Seoul MJT 5050 White

Eff:

84.5%

FWHM:

15.6°

Cd/Im:

7.5

Carclo Optics - Simulated Spot Image

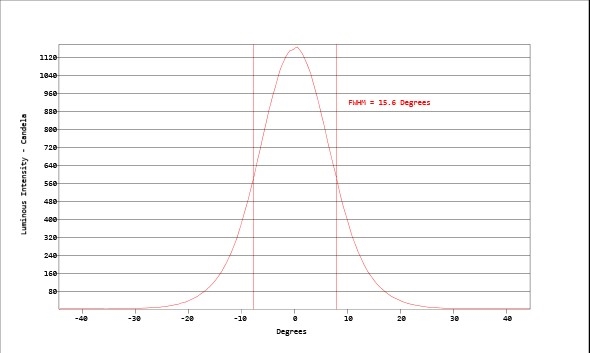

Carclo Optics - Simulated Cross Section

Download

IES

Seoul P4 White

Eff:

83.4%

FWHM:

13.7°

Cd/Im:

9.1

Carclo Optics - Simulated Spot Image

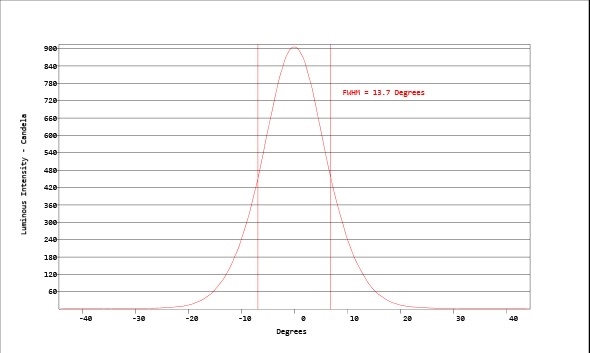

Carclo Optics - Simulated Cross Section Image

Download

IES

Seoul 3030 STW8C2SB-NT White

Eff:

87.5%

FWHM:

12.5°

Cd/Im:

12.7

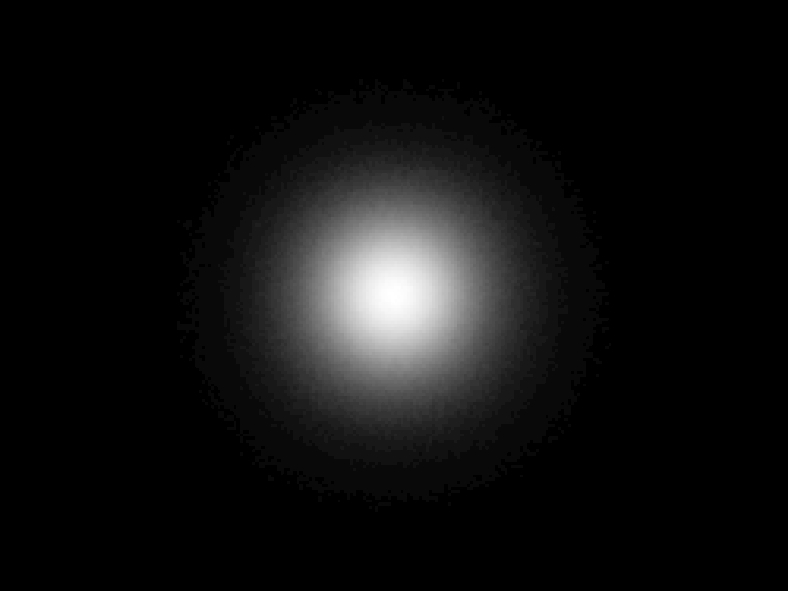

Carclo Optics - 10392 Spot Image Seoul STW8 C2SB-NT

Carclo Optics - 10392 Cross Section Seoul STW8 C2SB-NT

Download

IES

Seoul SunLike 3030 STWSC2PB-E0 White

Eff:

87.5%

FWHM:

12.5°

Cd/Im:

12.8

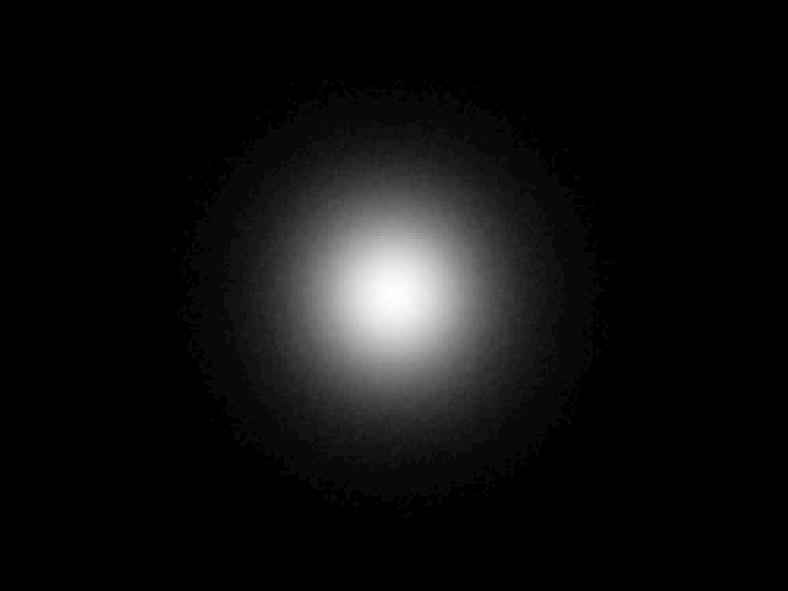

Carclo Optics - 10392 Spot Image STWS C2PB-E0

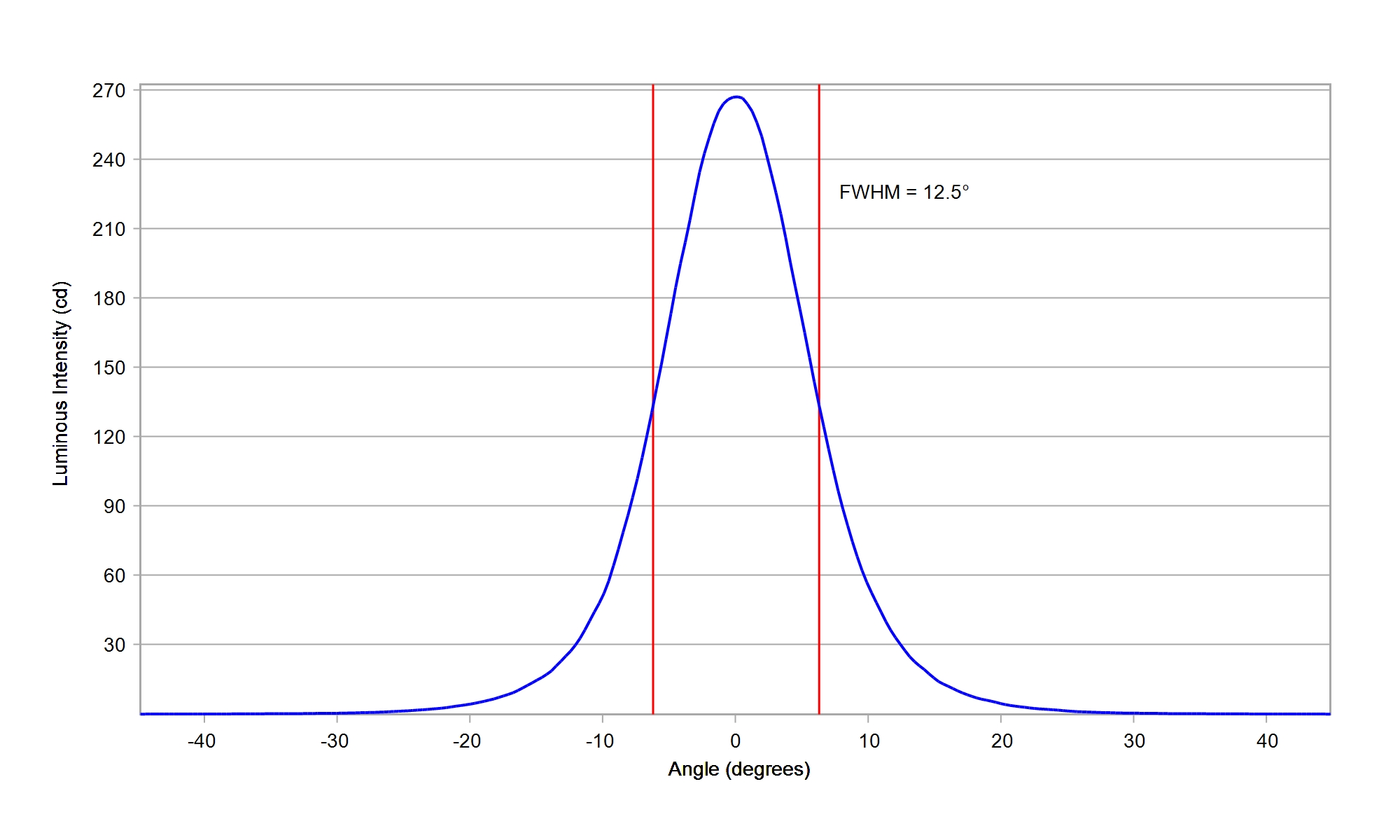

Carclo Optics - 10392 Cross Section STWS C2PB-E0

Download

IES

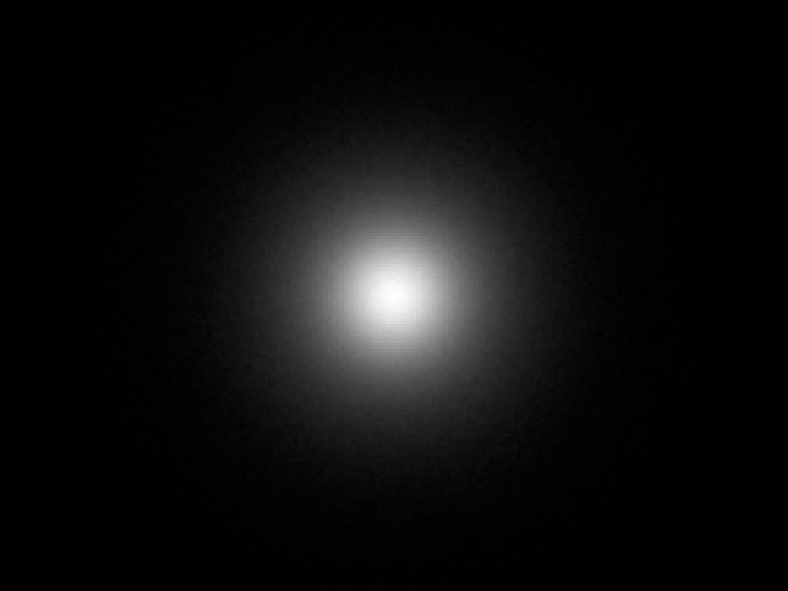

Seoul SunLike 3030 STWSC12S-E1 White

Eff:

87.5%

FWHM:

11.5°

Cd/Im:

14.6

Download

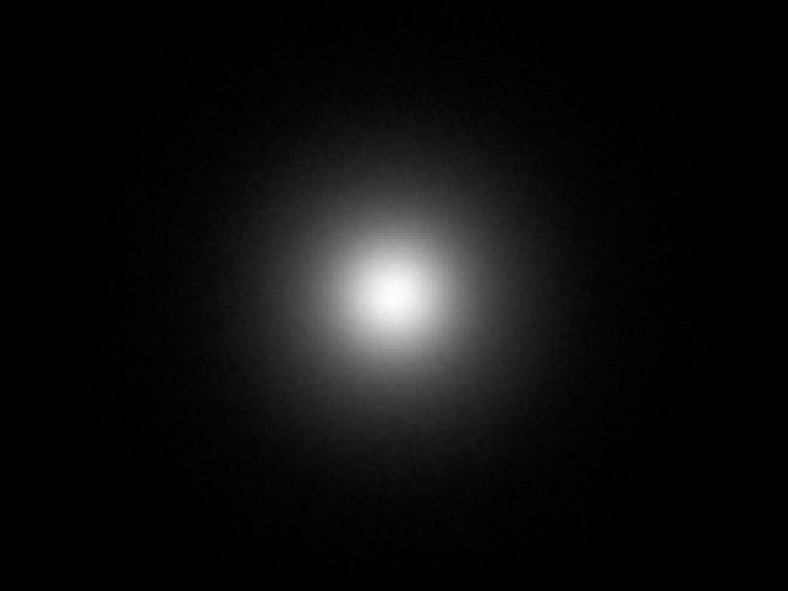

Seoul SunLike 3030 STWSC12S-E2 White

Eff:

87.5%

FWHM:

11.5°

Cd/Im:

14.0

Download

Seoul SunLike 3030 STW9C2SB-S White

Eff:

87.5%

FWHM:

12°

Cd/Im:

13.8

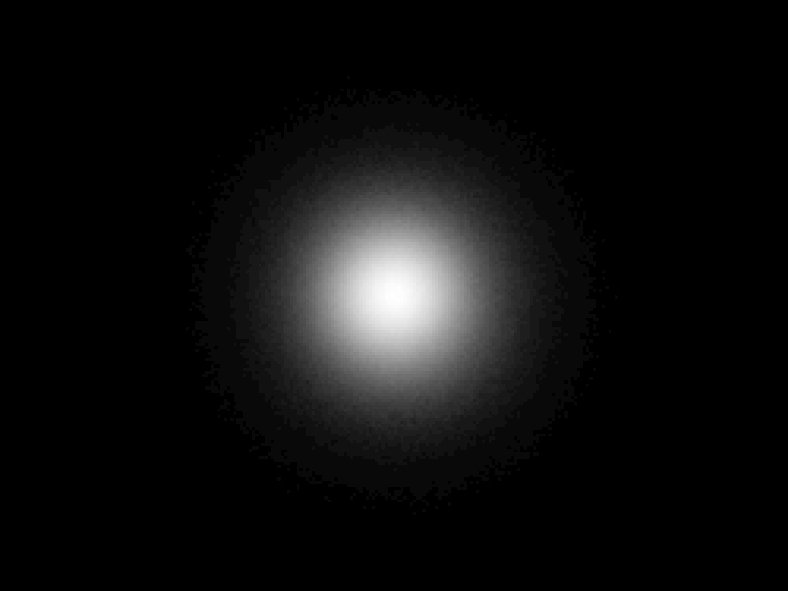

Carclo Optics - 10392 26.5mm Spot Image Seoul Sunlike 3030

Carclo Optics - 10392 26.5mm Cross Section Seoul Sunlike 3030

Download

IES

Seoul Z - Power Z5-M1 White

Eff:

84.6%

FWHM:

12.5°

Cd/Im:

11.4

carclo optics - simulated spot image

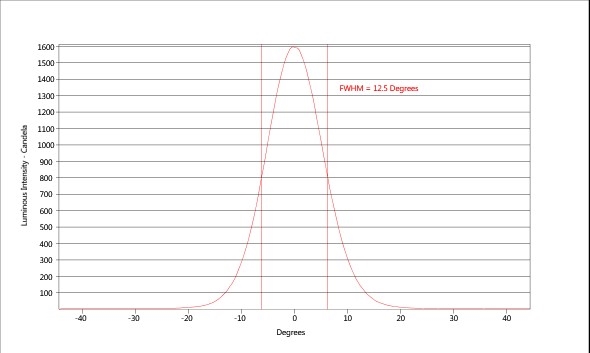

carclo optics - simulated cross section

Download

IES

Seoul Z - Power Z5-M1 White

Eff:

84.6%

FWHM:

12.5°

Cd/Im:

11.4

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Seoul Z - Power Z5-M4 White

Eff:

87.0%

FWHM:

13°

Cd/Im:

11.5

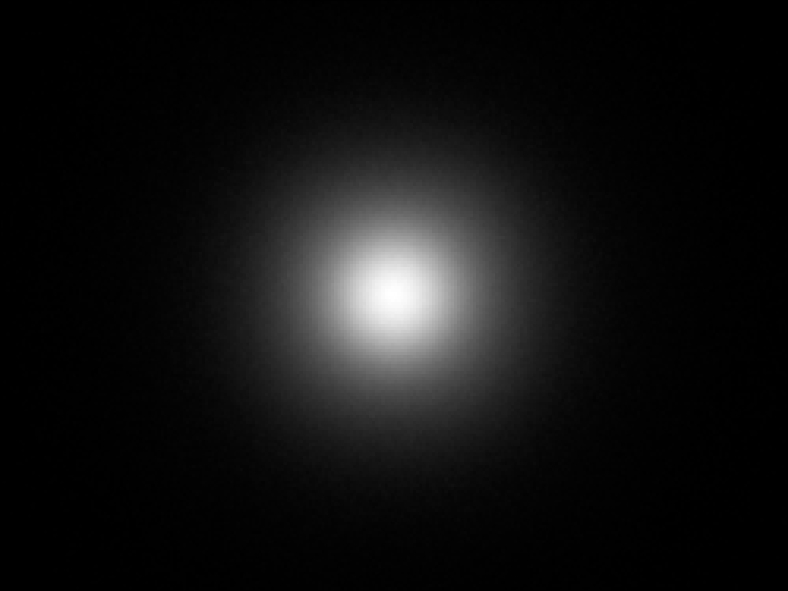

Carclo Optics – 10392 Seoul Z-Power Z5 - Spot Image

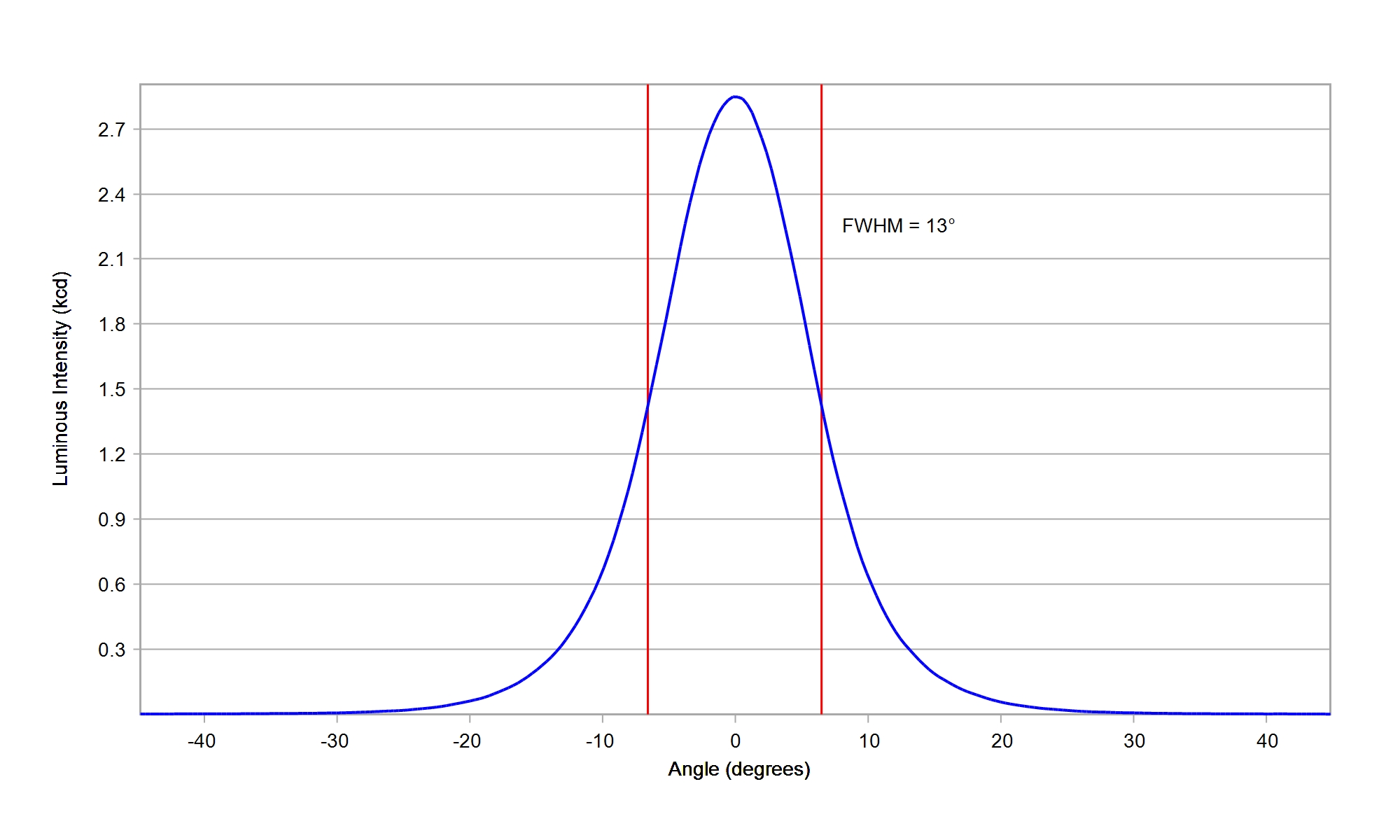

Carclo Optics – 10392 Seoul Z-Power Z5 - Cross-Section

Download

IES

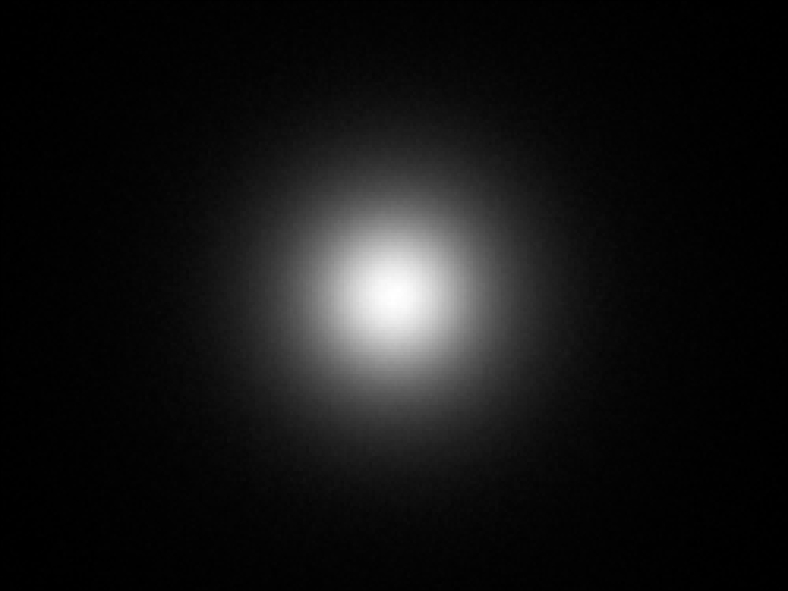

Seoul Z - Power Z5-M5 White

Eff:

86.5%

FWHM:

14.5°

Cd/Im:

9.6

Download

Stanley 6J White

Eff:

85.0%

FWHM:

19.0°

Cd/Im:

5.3

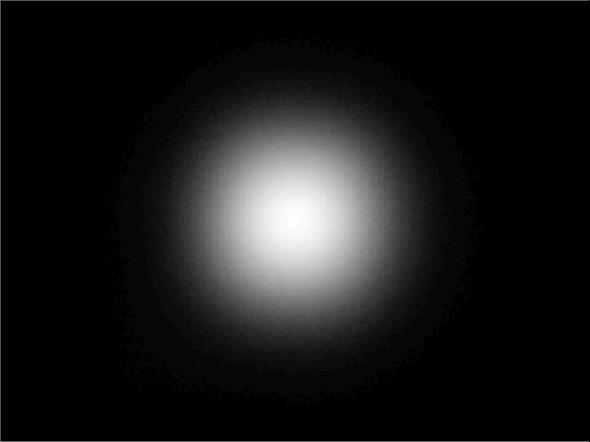

Carclo Optics - Simulated Spot Image

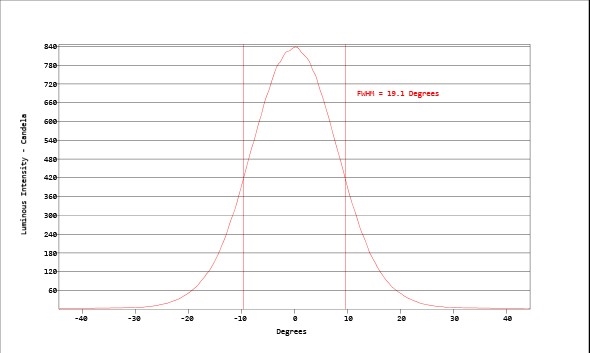

Carclo Optics - Simulated Cross Section

Download

IES

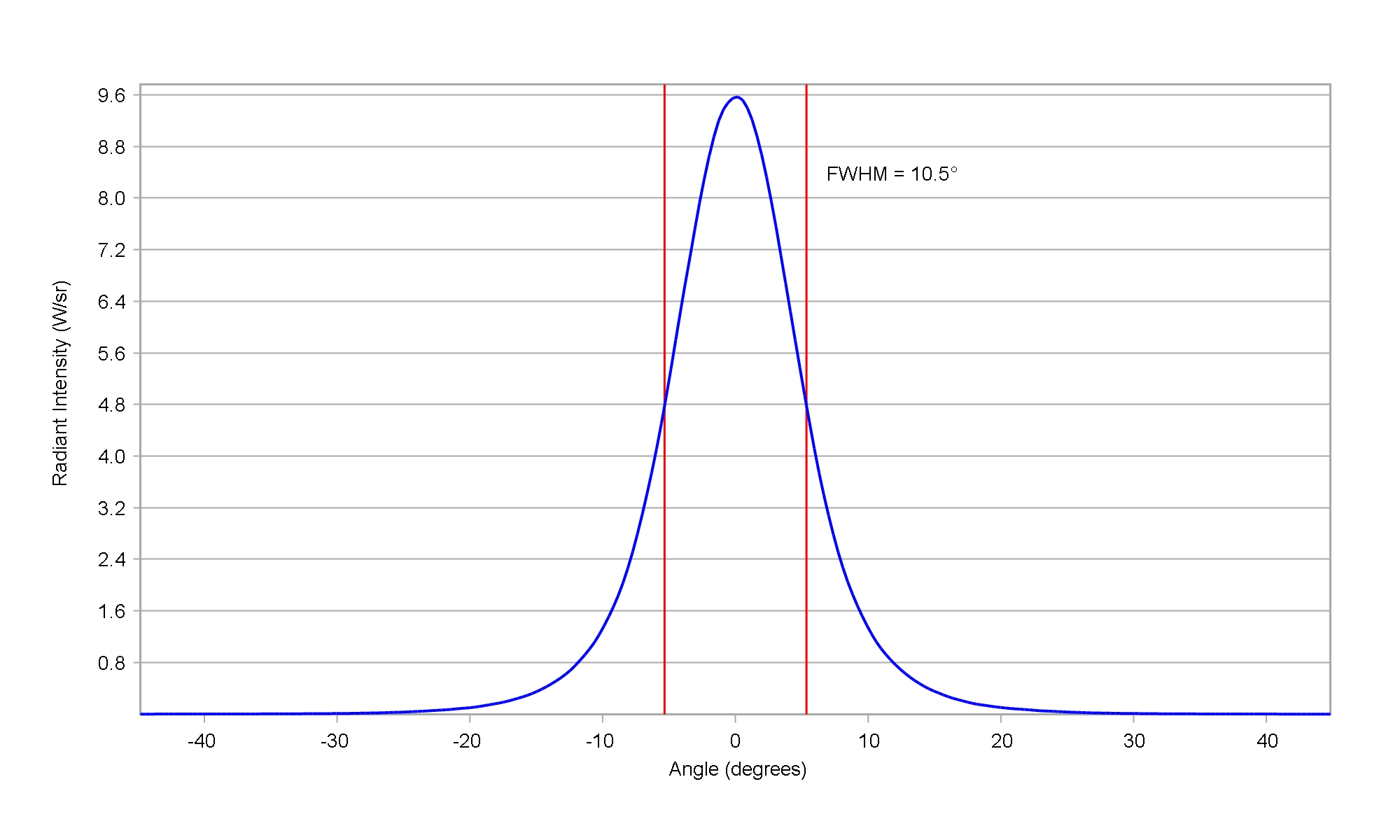

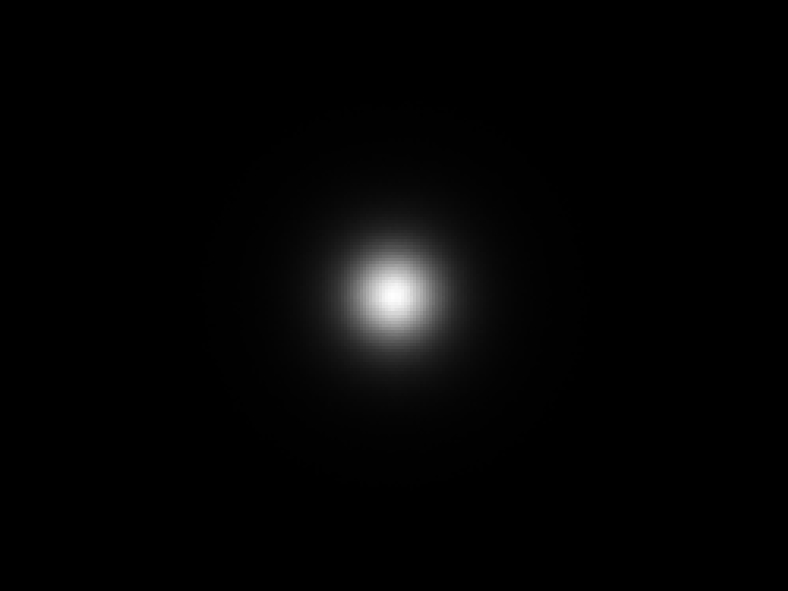

Stanley FWR1108MS IR 755nm

Eff:

92.5%

FWHM:

10.5°

Ipk/W:

17.2


Download

Toshiba TL 1L2 White

Eff:

84.0%

FWHM:

12.2°

Cd/Im:

11.8

Carclo Optics - Simulated Spot Image

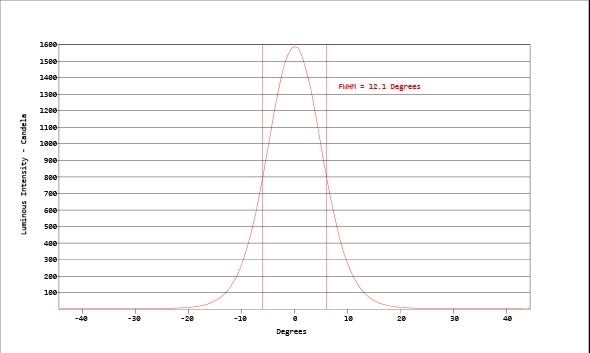

Carclo Optics - Simulated Cross Section

Download

IES

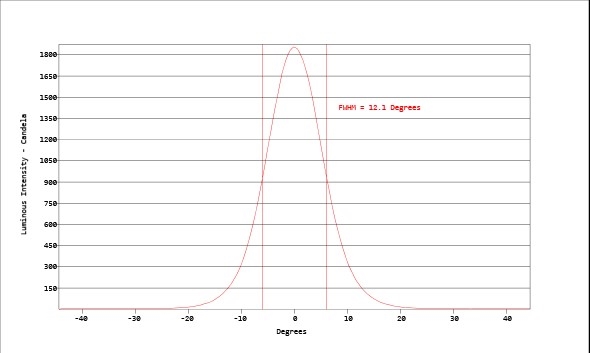

Toshiba TL 1L4 White

Eff:

84.0%

FWHM:

12.1°

Cd/Im:

11.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES
