17.0mm Elliptical Side Emitter | Carclo Optics

Carclo Optics 10267

17.0mm Elliptical Side Emitter

Part number

10267

Dimensions

17.0mm

Drawing Number

60465

Optic type

Side Emitter

Beam type

Elliptical

Applications

Architectural

Landscape & Garden

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

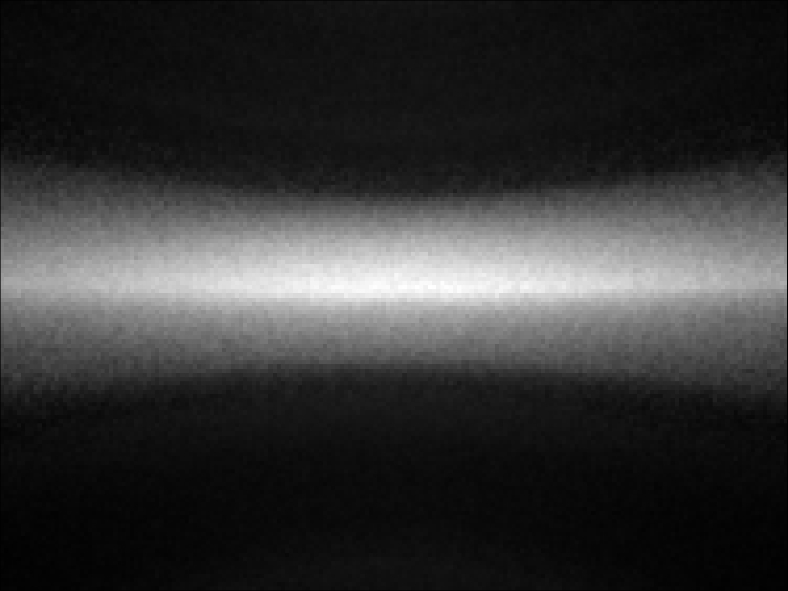

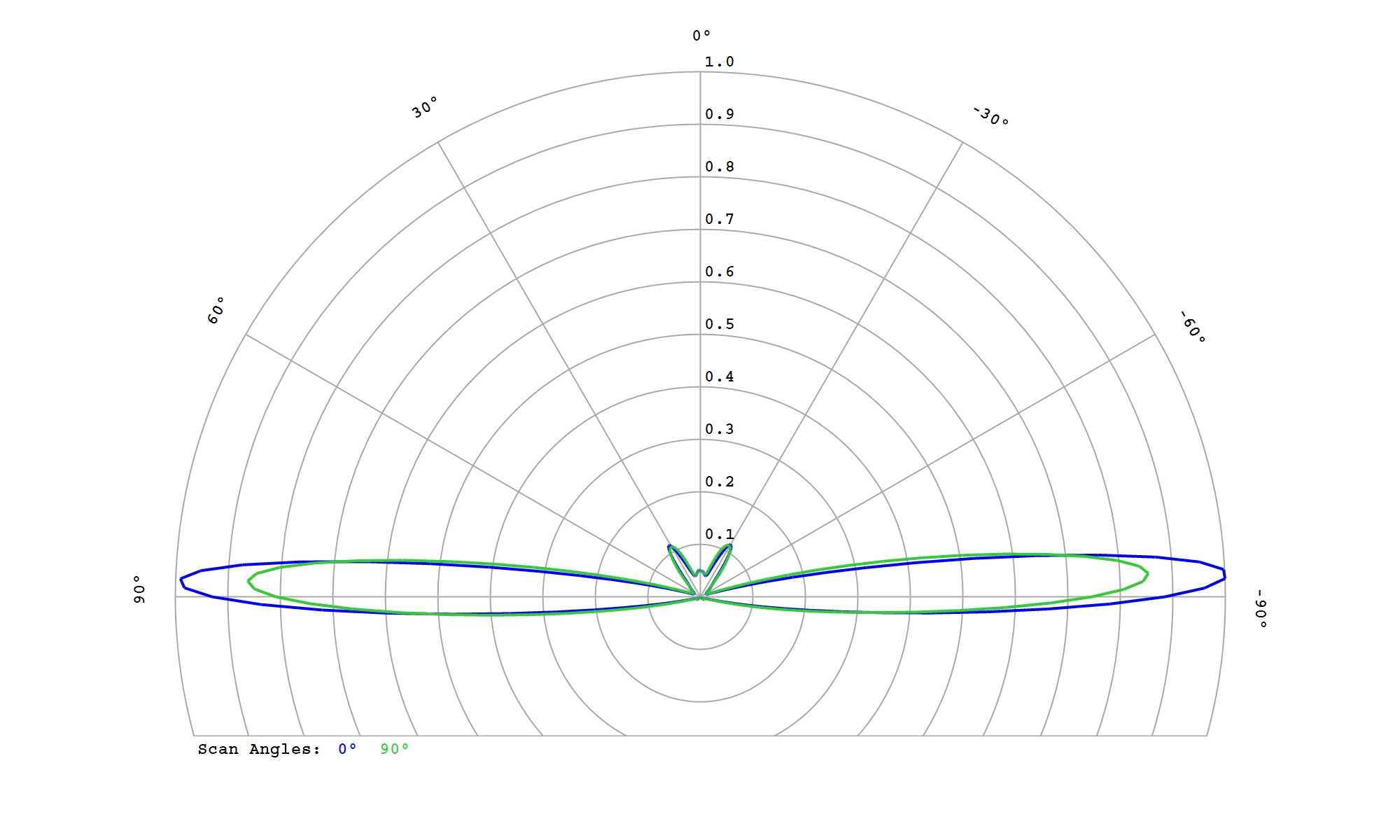

Bridgelux SMD 3030 Gen2 White

Eff:

92.5%

FWHM:

10.5 x 360°

Cd/Im:

0.9


Download

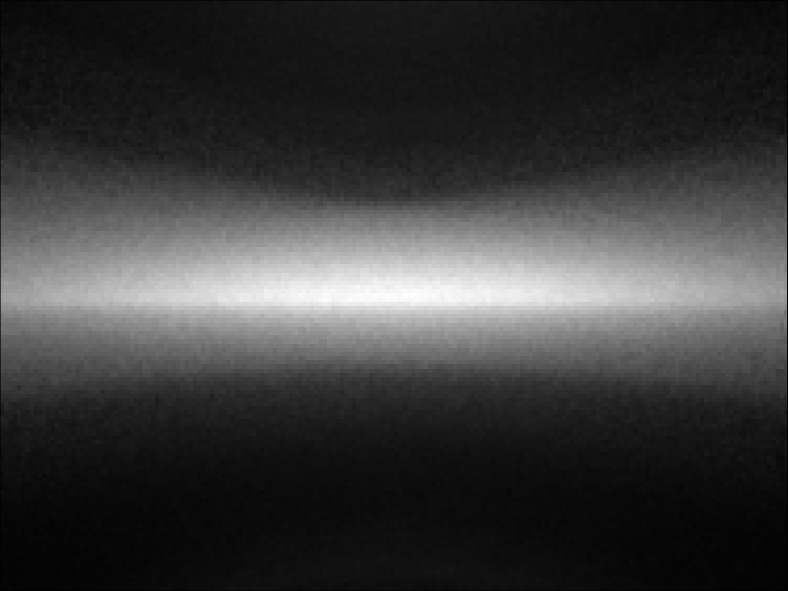

Cree JB3030C 3V E-Class White

Eff:

92.5%

FWHM:

10.5 x 360°

Cd/Im:

0.7


Download

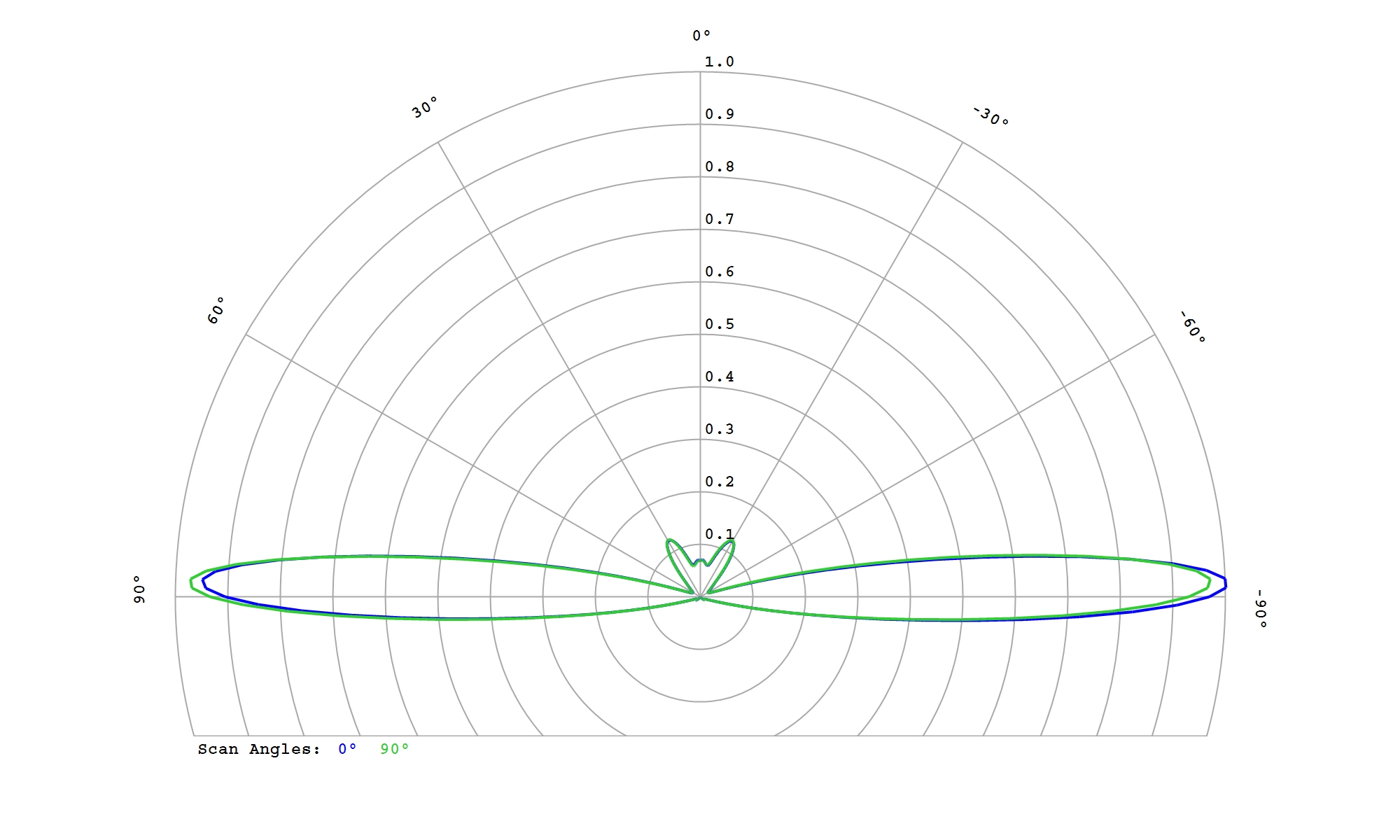

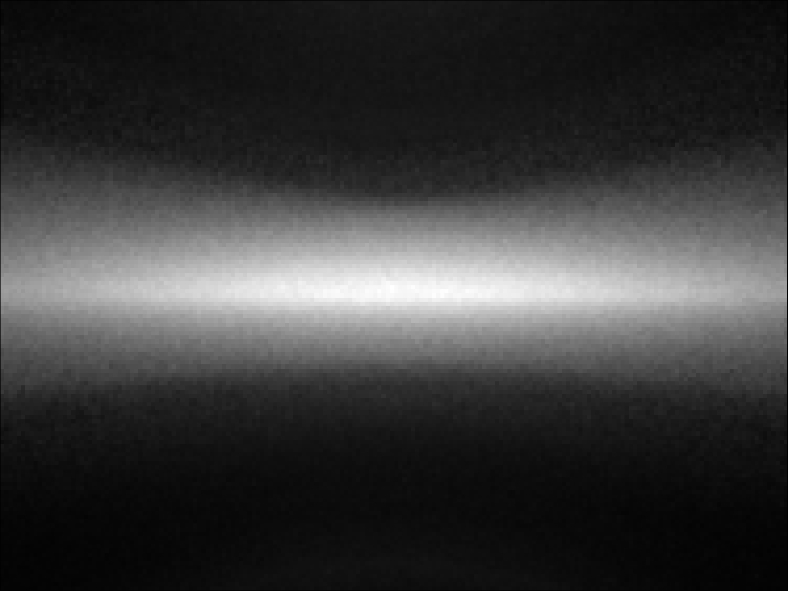

Cree JB3030C 3V F-Class White

Eff:

92.5%

FWHM:

10.5 x 360°

Cd/Im:

0.7


Download

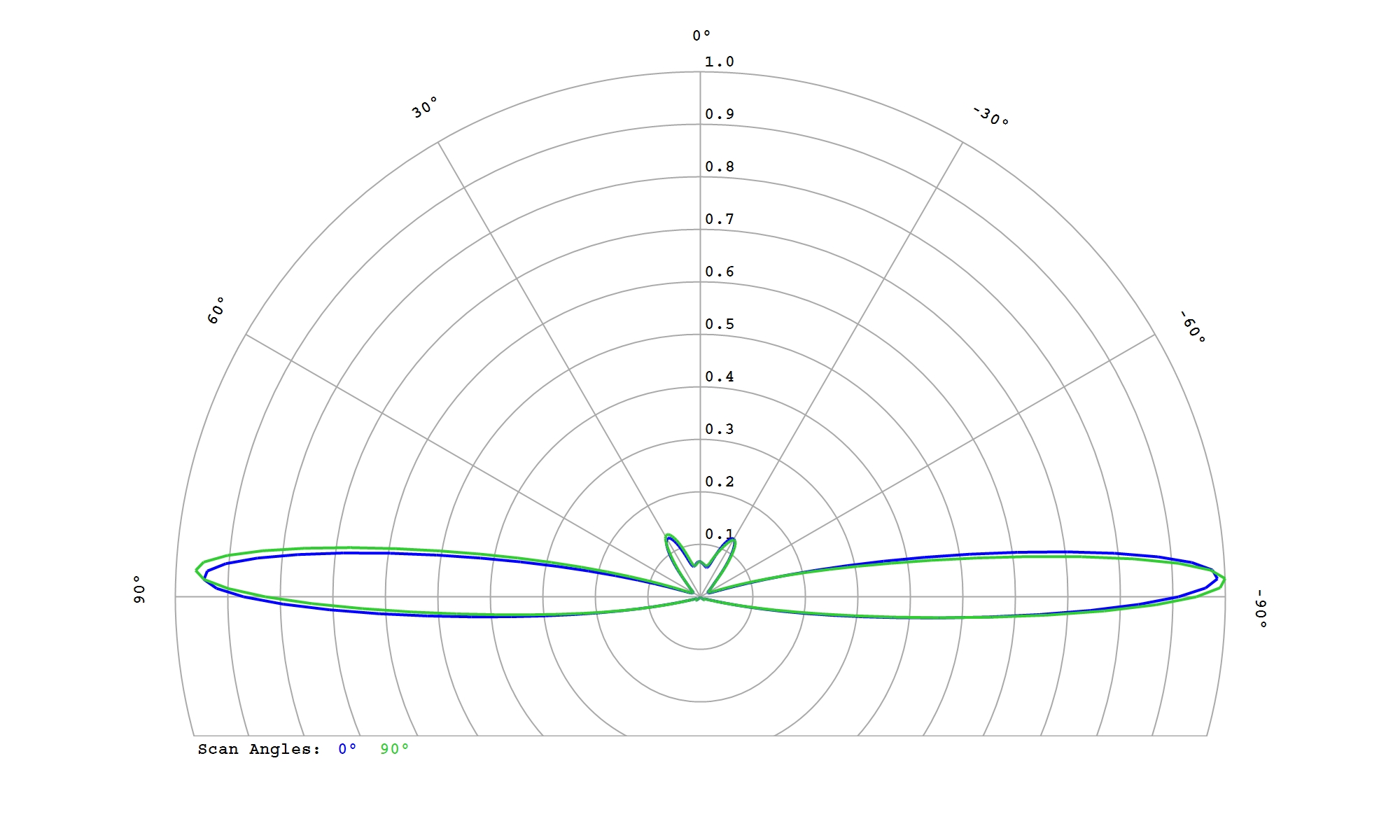

Cree JK2835 6V White

Eff:

92.5%

FWHM:

8.7 x 360°

Cd/Im:

0.7

Download

Cree XLamp CSP XD16 Premium White

Eff:

92.0%

FWHM:

7.3 x 360°

Cd/Im:

1.0

Download

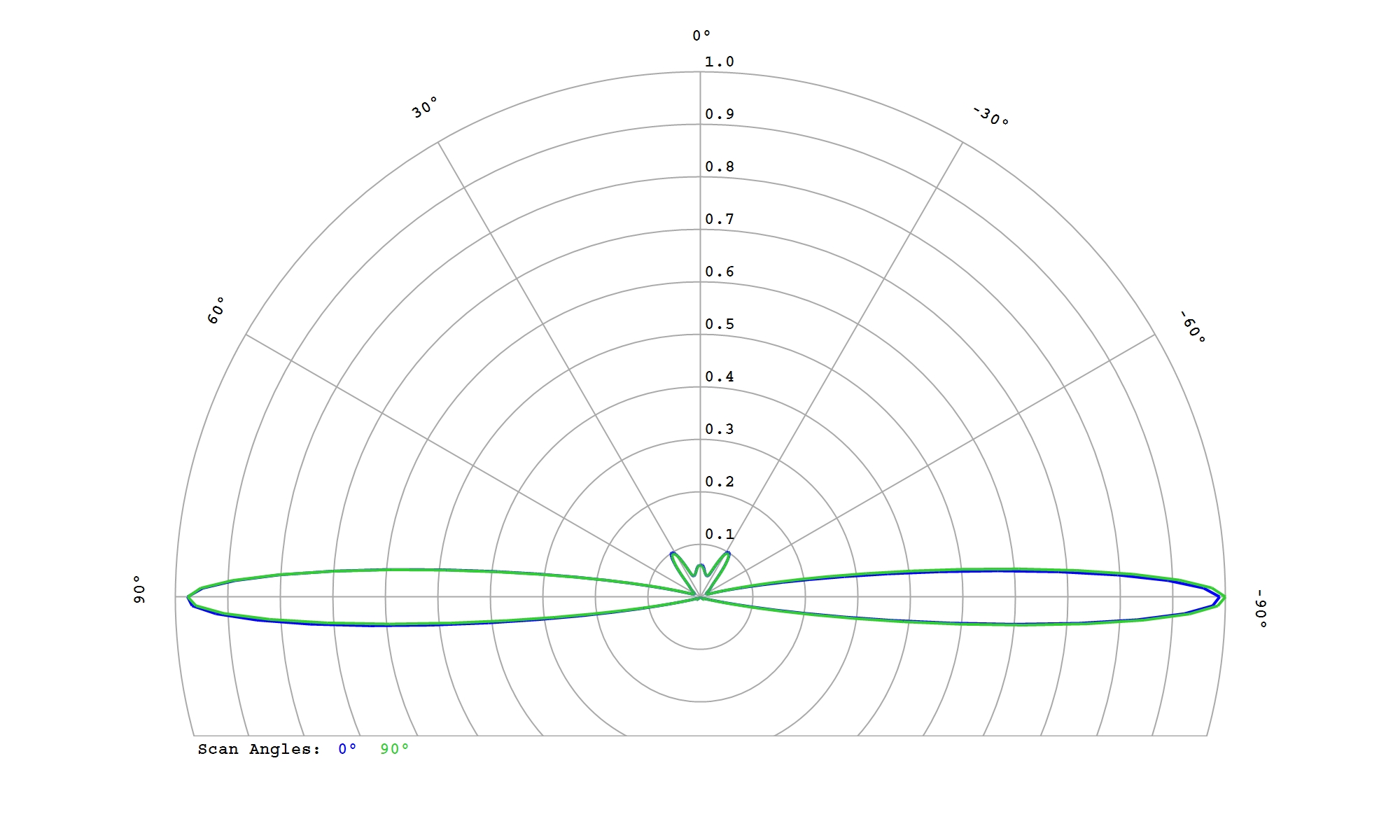

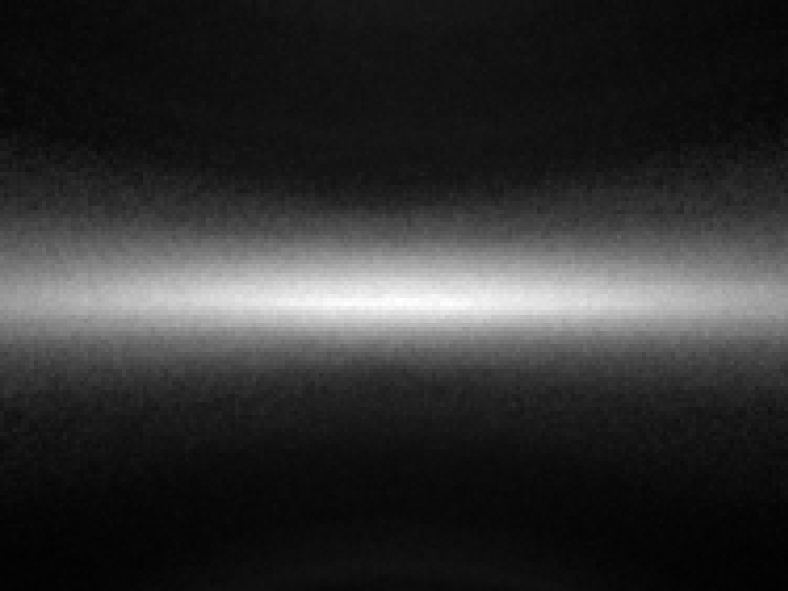

Cree XLamp XB-D White

Eff:

90.5%

FWHM:

8.5 x 360°

Cd/Im:

0.9

Download

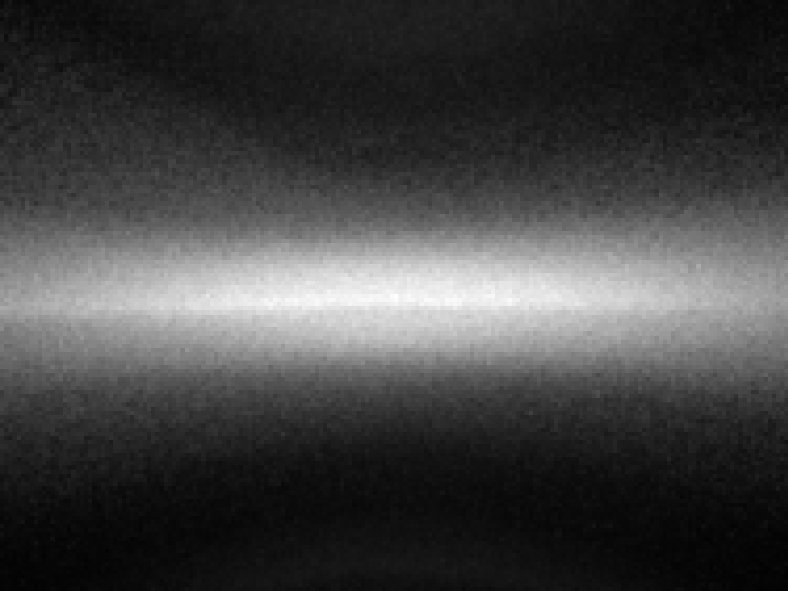

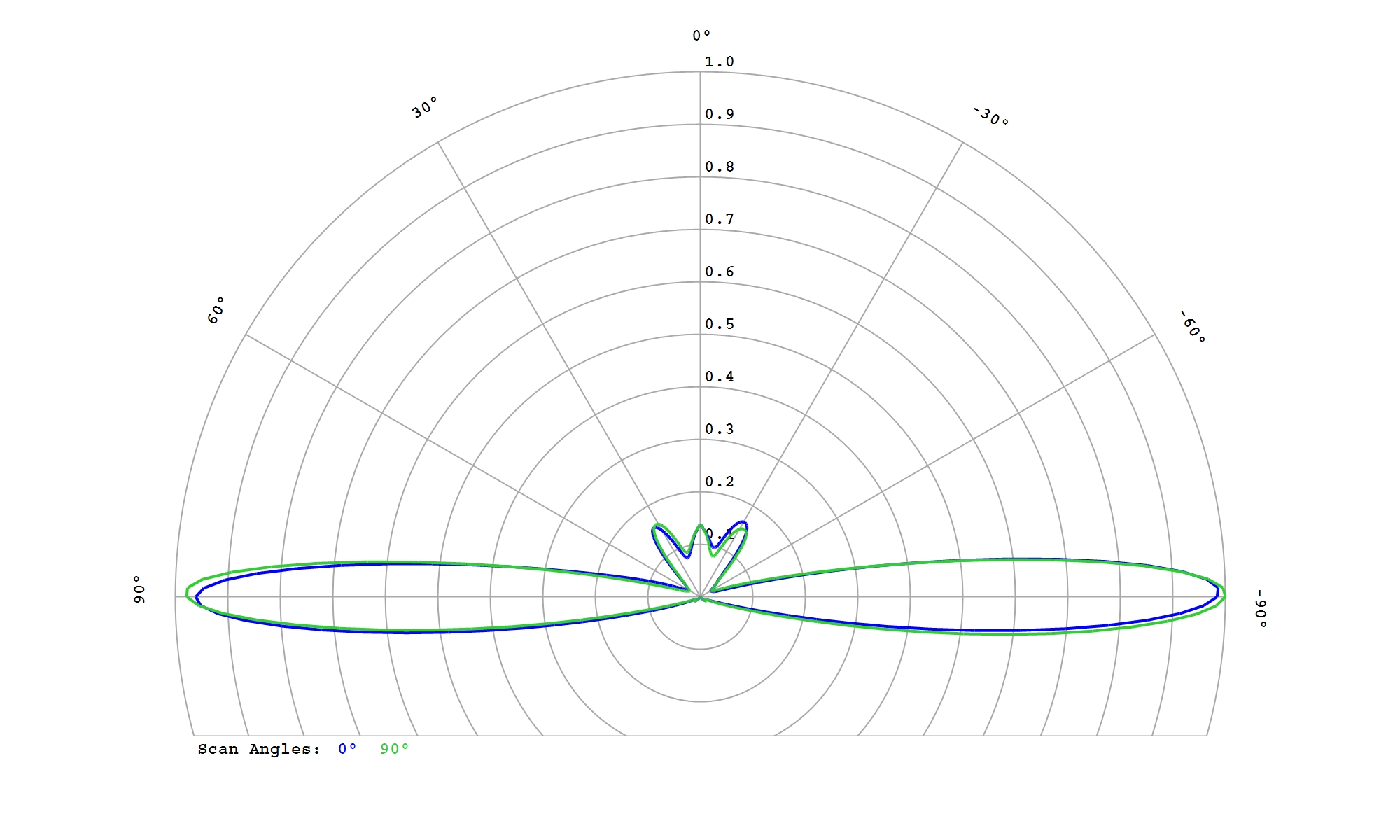

Cree XLamp XB-H White

Eff:

90.5%

FWHM:

14 x 360°

Cd/Im:

0.6

Download

Cree XLamp XHP35 HI White

Eff:

83.0%

FWHM:

12.9 x 360°

Cd/Im:

0.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP35 HD White

Eff:

74.0%

FWHM:

17 x 360°

Cd/Im:

0.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XP-E White

Eff:

95.5%

FWHM:

8.4 X 360°

Cd/Im:

1.4

Download

IES

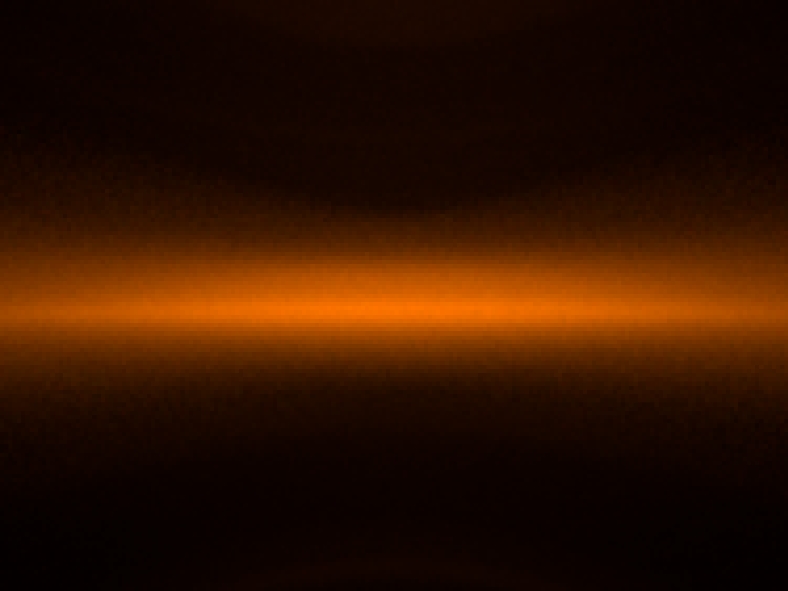

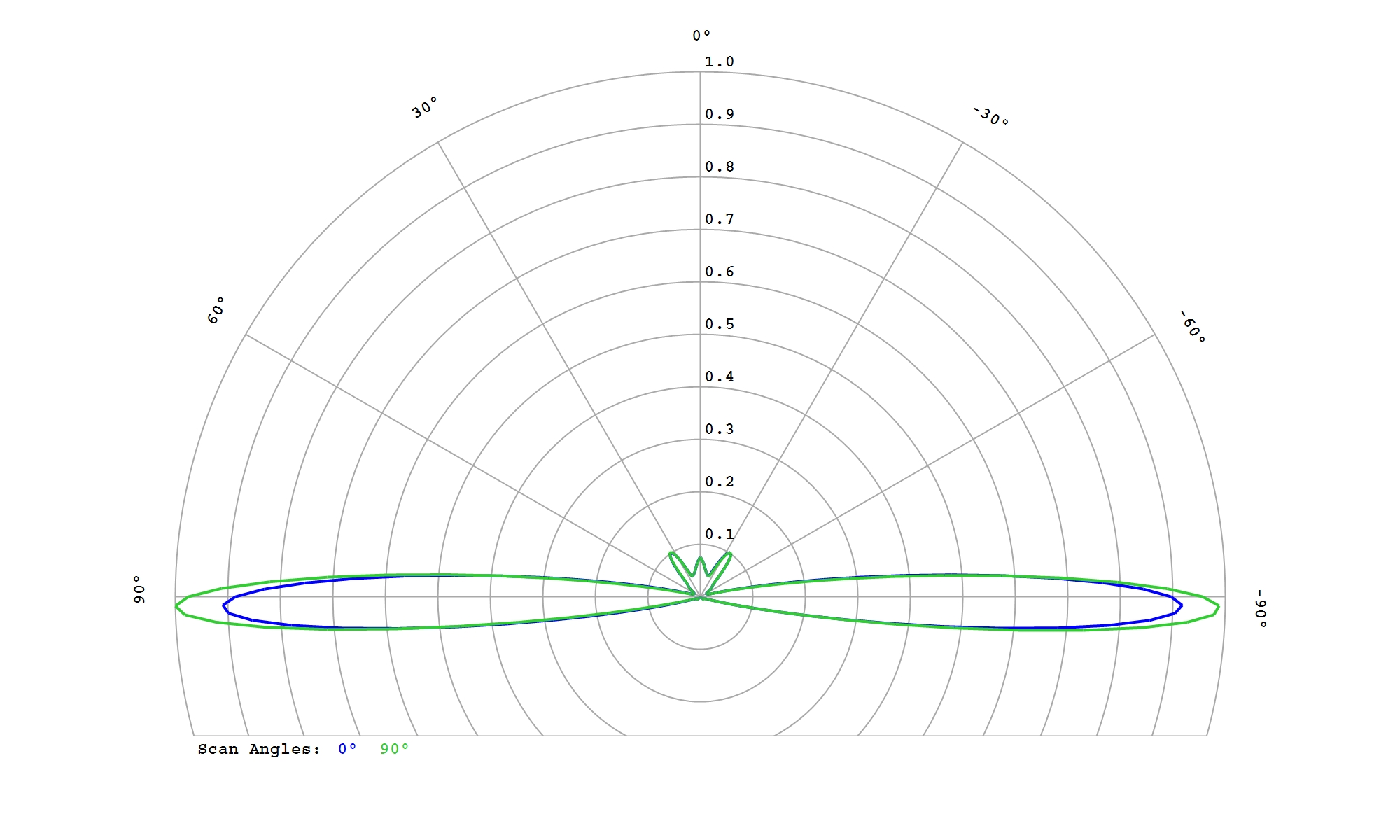

Cree XLamp XP-E2 Amber

Eff:

91.5%

FWHM:

8.2 x 360°

Cd/Im:

0.9

Download

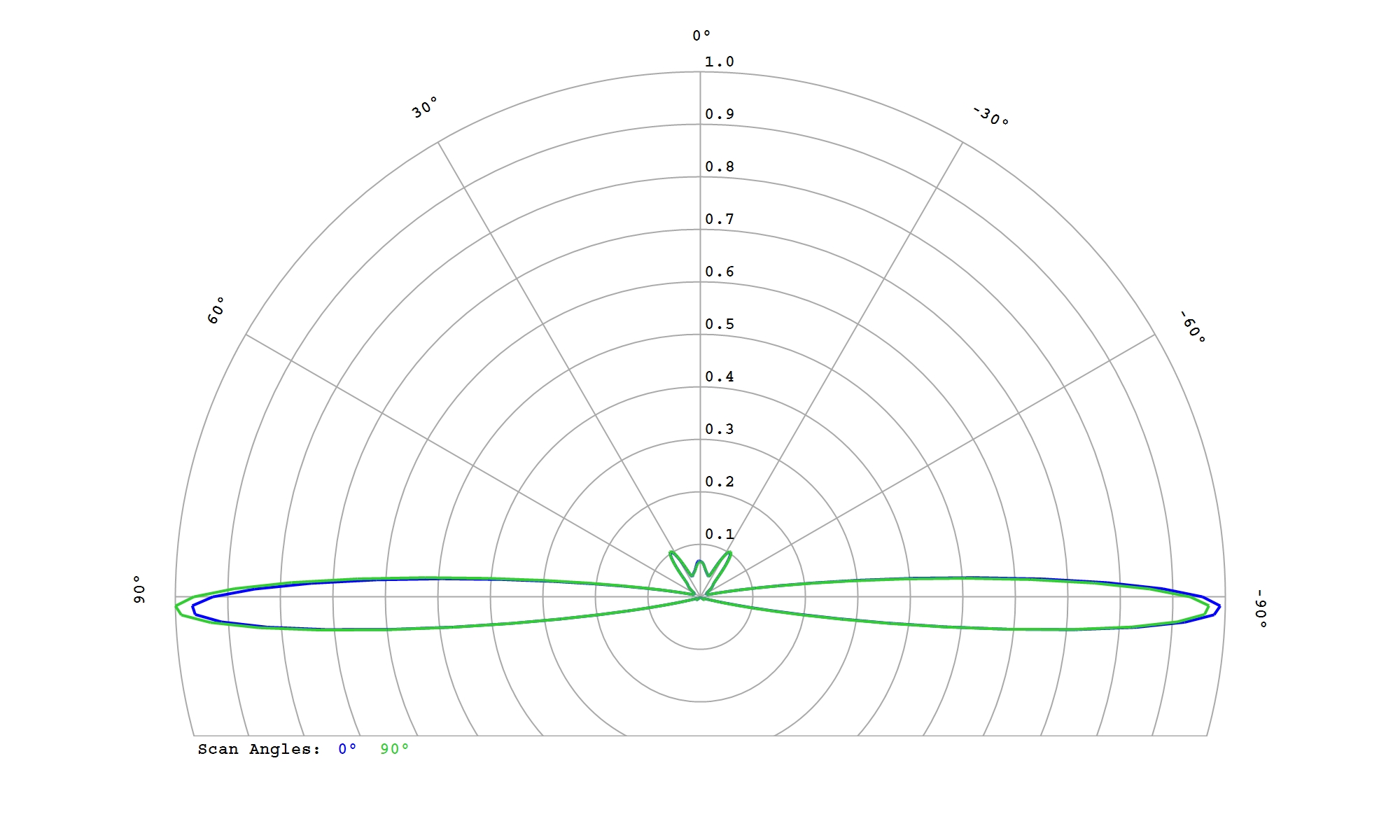

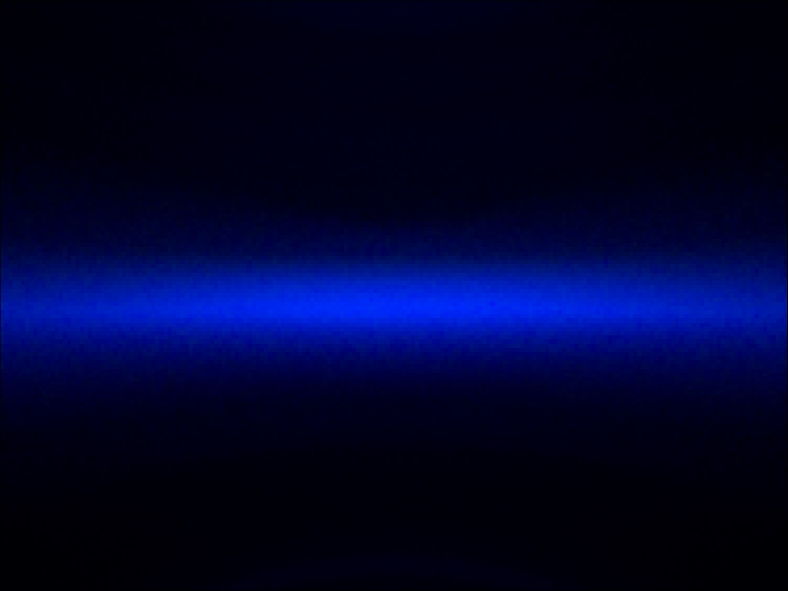

Cree XLamp XP-E2 Blue

Eff:

91.5%

FWHM:

7.8 x 360°

Cd/Im:

1.0

Download

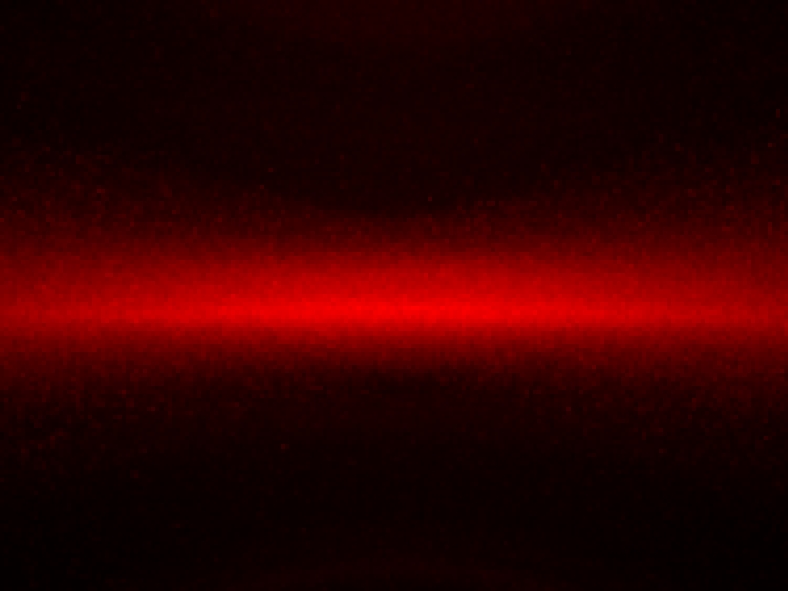

Cree XLamp XP-E2 Far Red

Eff:

93.0%

FWHM:

8.5 x 360°

Ipk/W:

0.9

Download

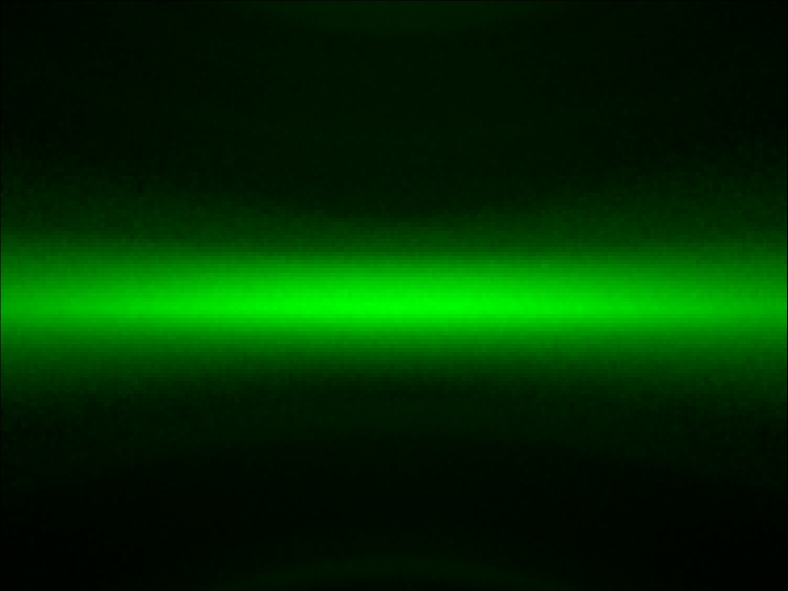

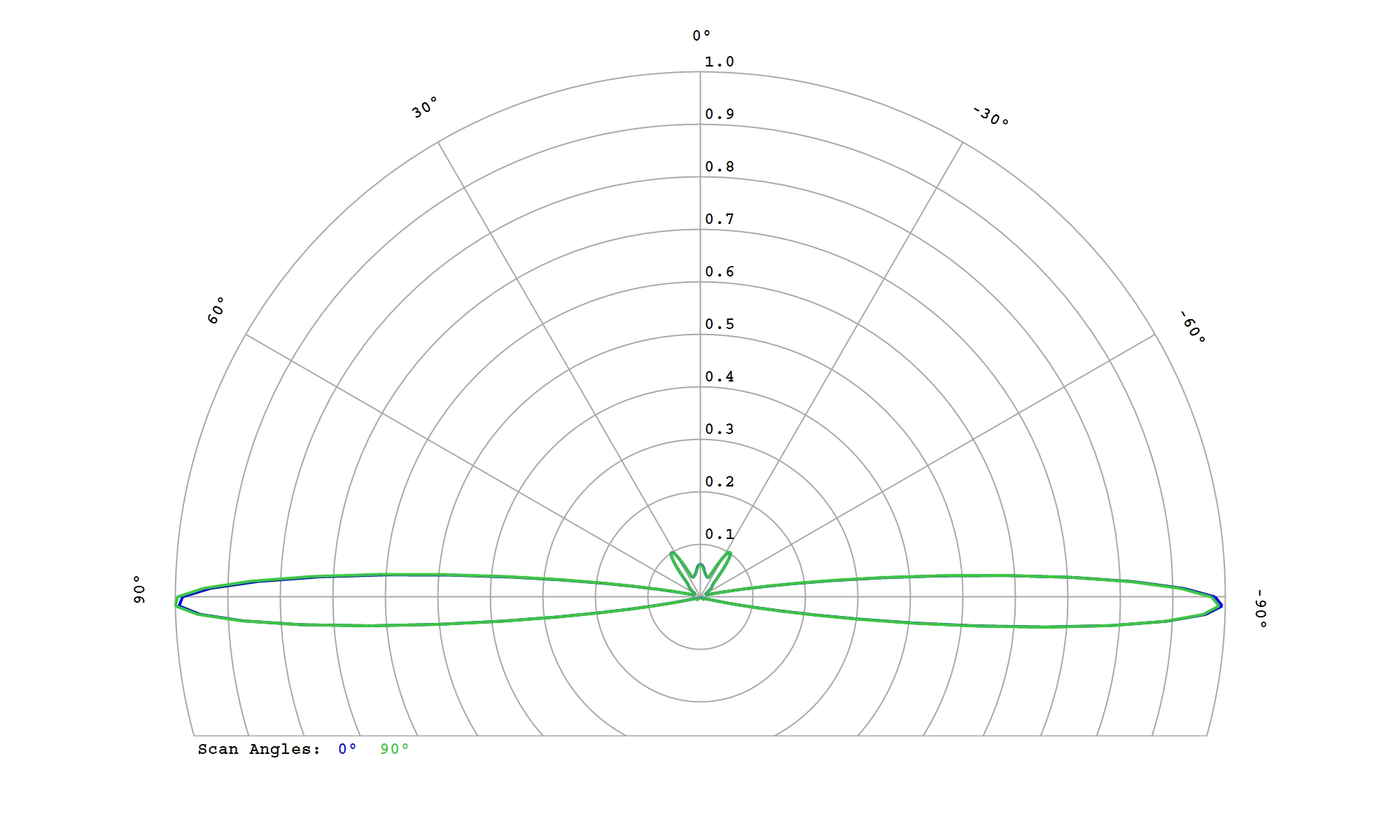

Cree XLamp XP-E2 Green

Eff:

92.0%

FWHM:

7.9 x 360°

Cd/Im:

1.0

Download

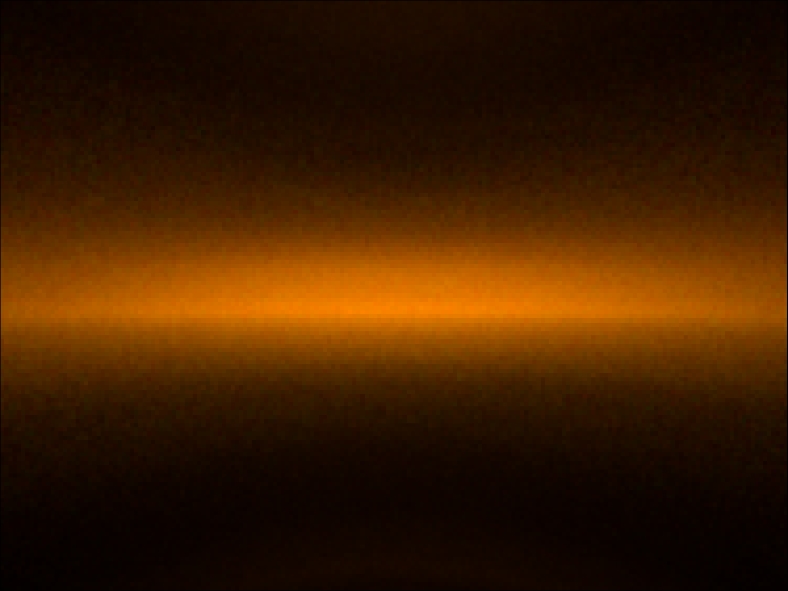

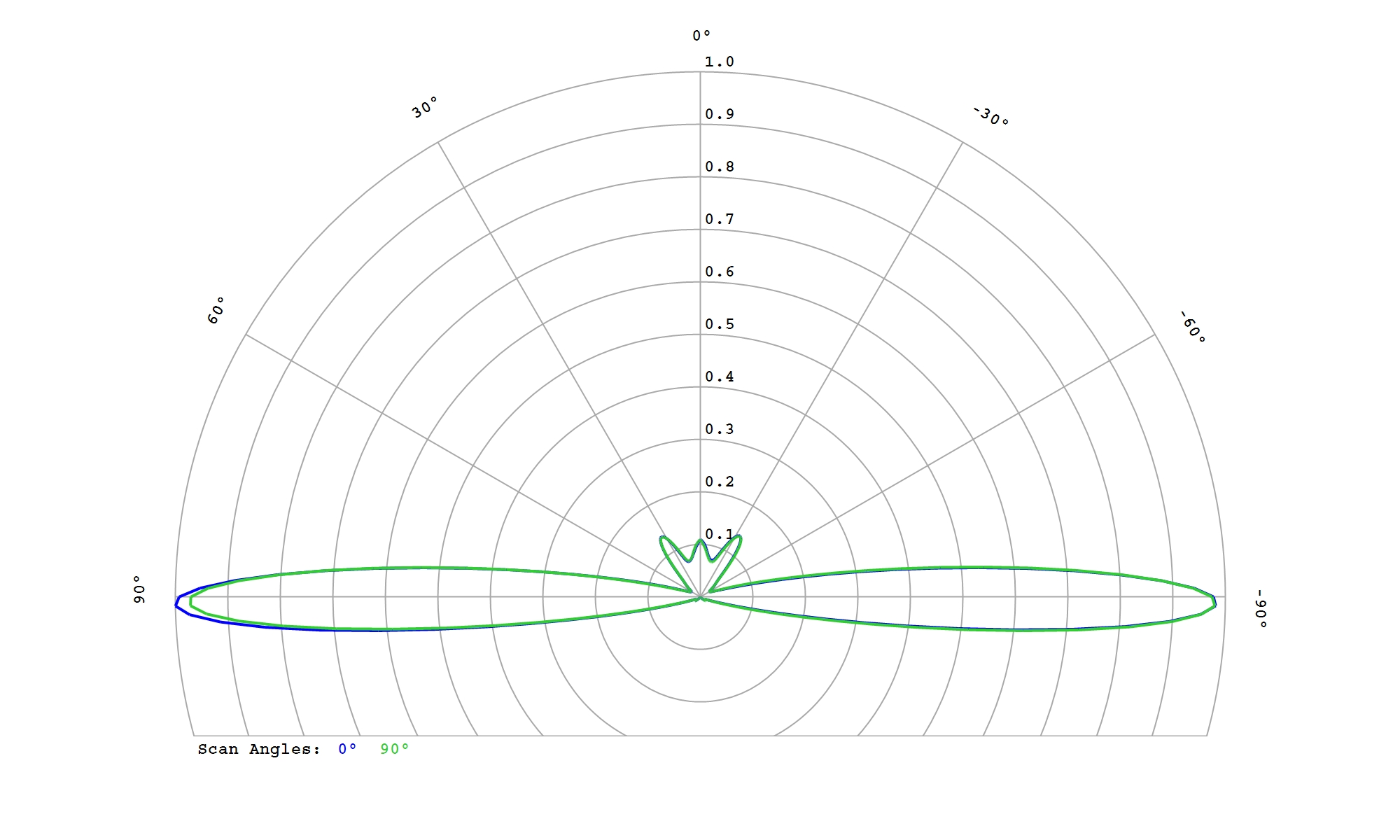

Cree XLamp XP-E2 PC Amber

Eff:

90.5%

FWHM:

10.5 x 360°

Cd/Im:

0.7


Download

Cree XLamp XP-E2 Photo Red

Eff:

91.5%

FWHM:

8.9 x 360°

Ipk/W:

0.9


Download

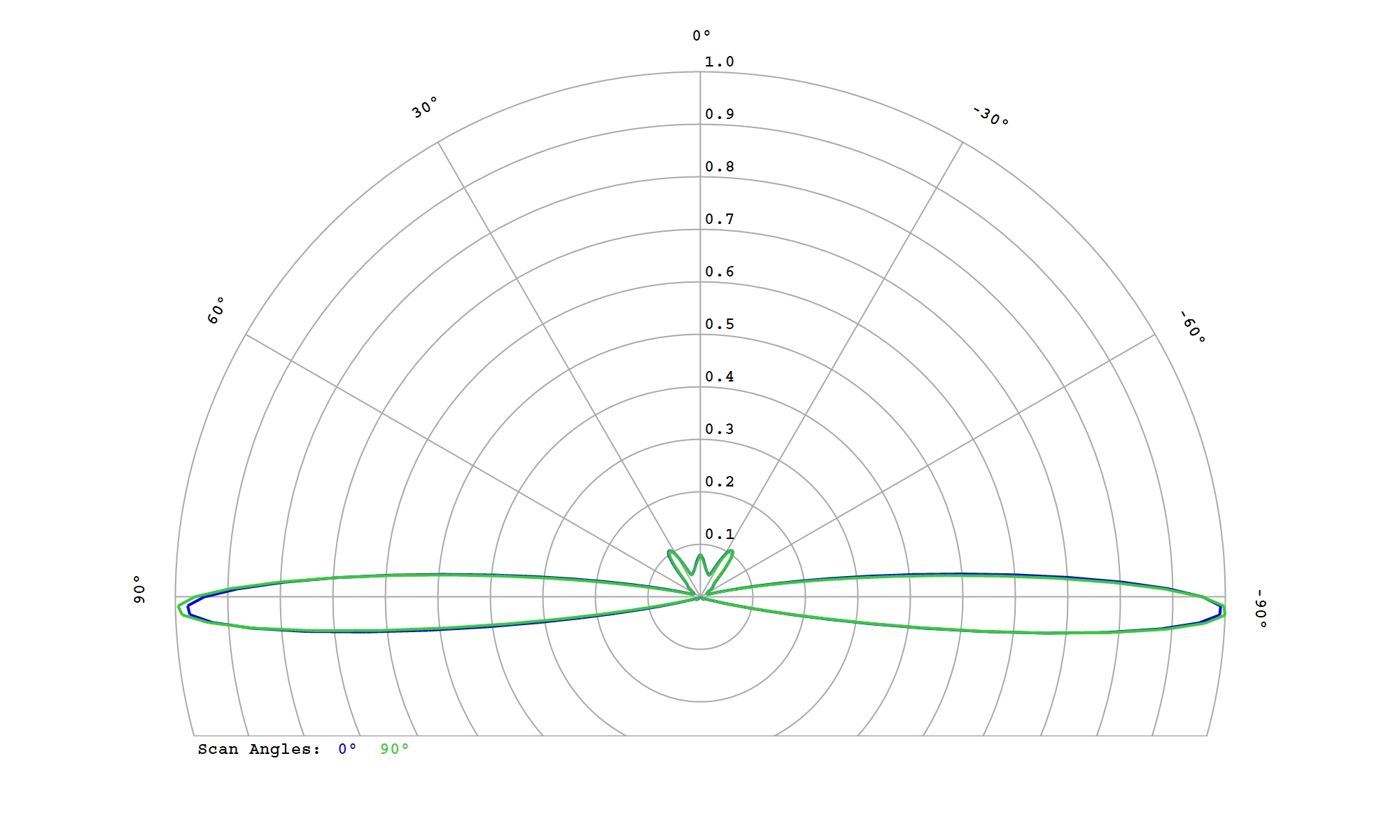

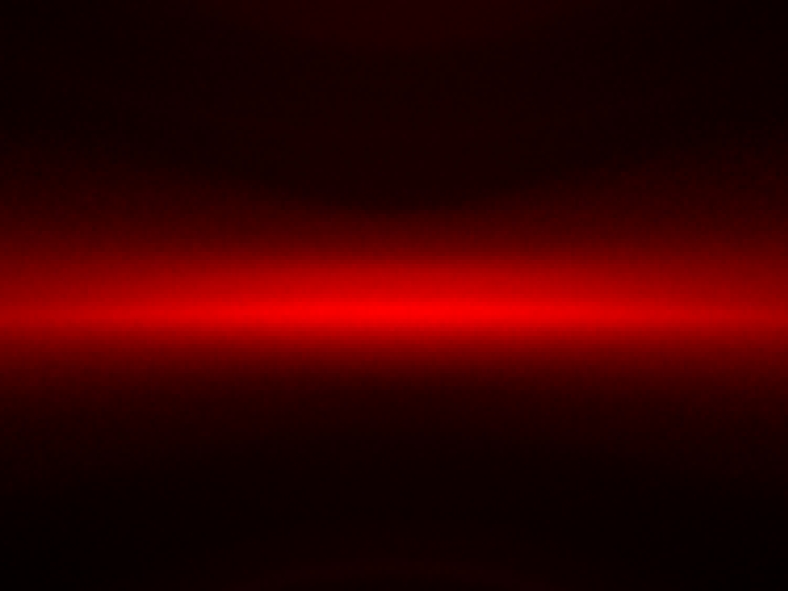

Cree XLamp XP-E2 Red

Eff:

91.5%

FWHM:

8.4 x 360°

Cd/Im:

0.9

Download

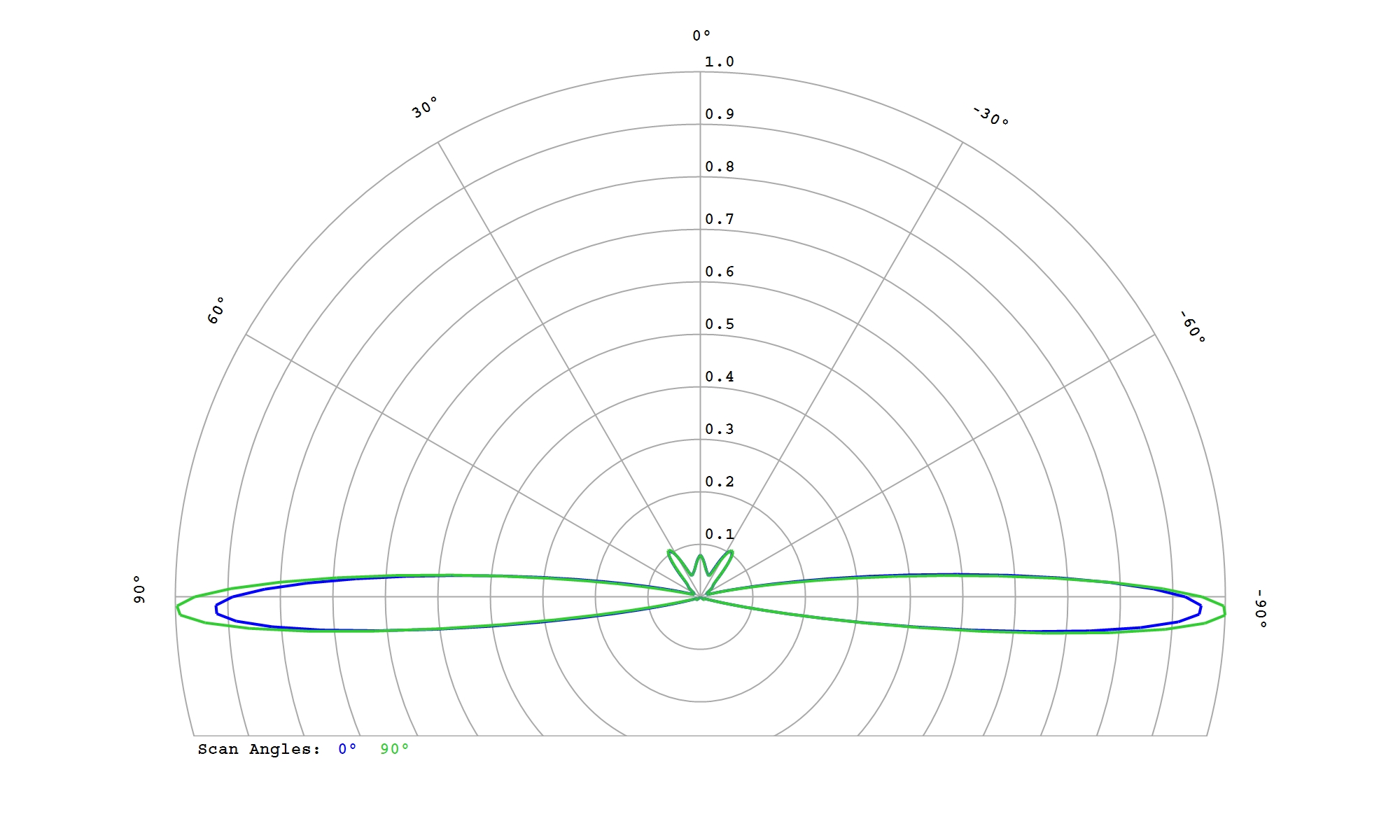

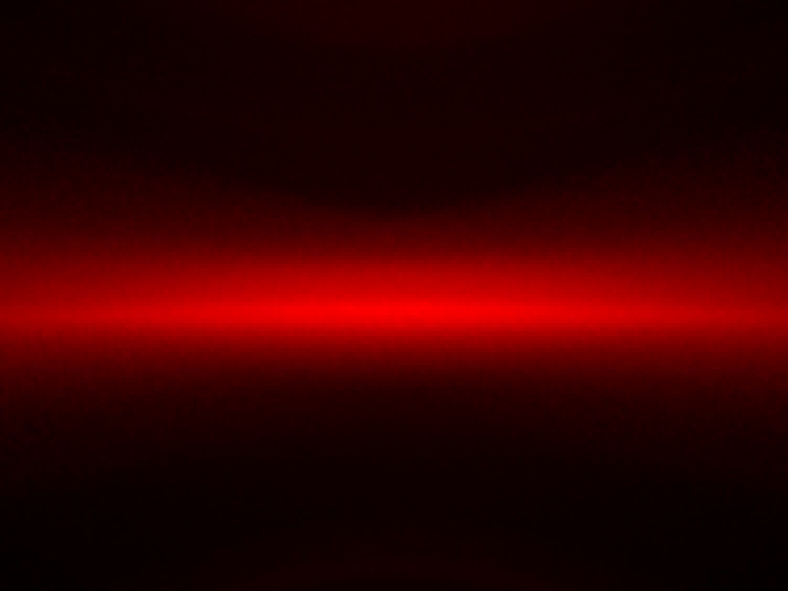

Cree XLamp XP-E2 Red-Orange

Eff:

91.5%

FWHM:

8.5 x 360°

Cd/Im:

0.9


Download

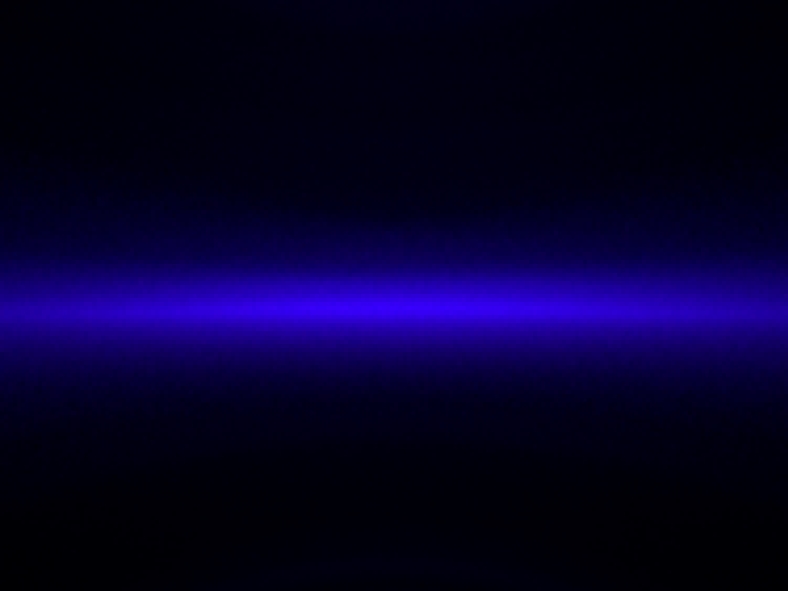

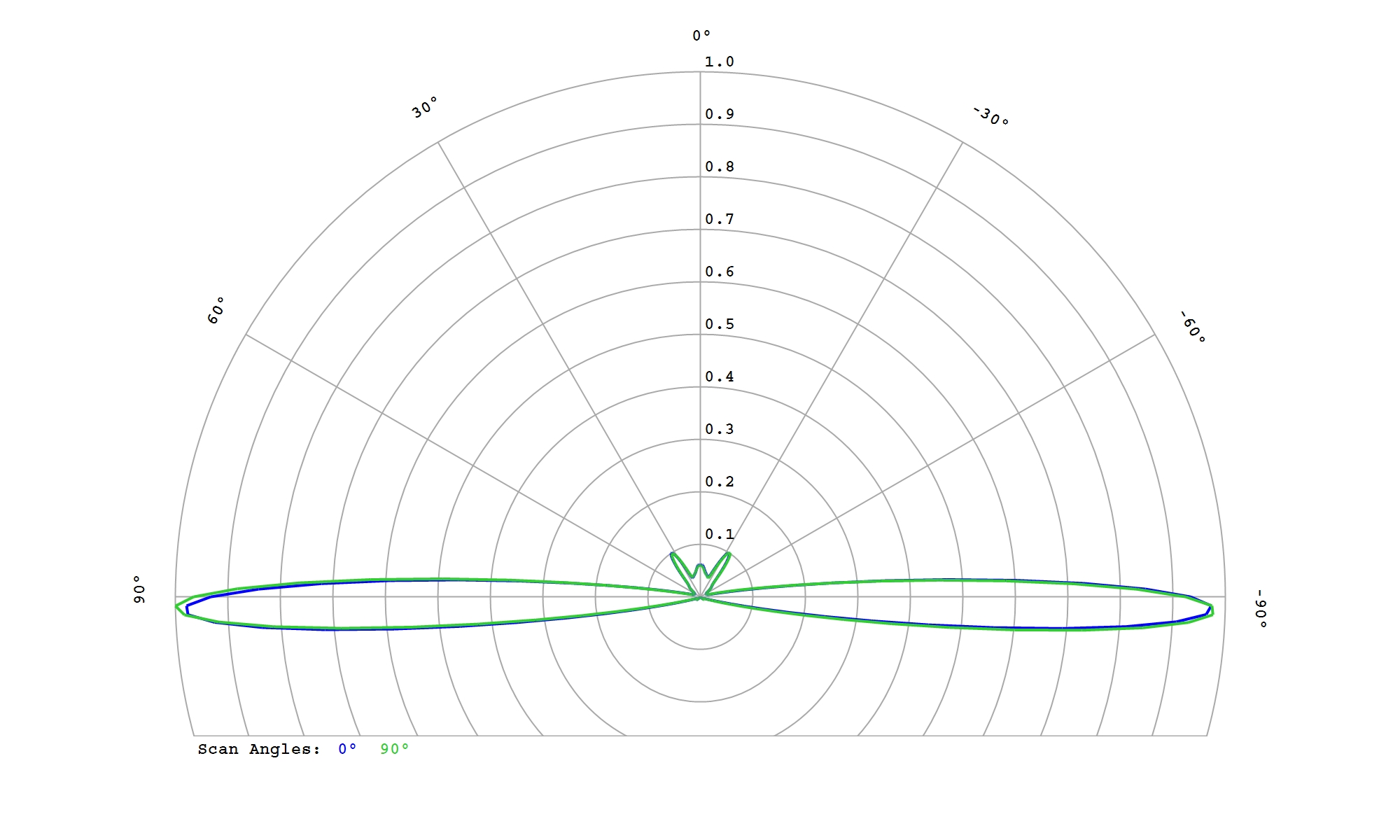

Cree XLamp XP-E2 Royal Blue

Eff:

90.5%

FWHM:

6.4 x 360°

Ipk/W:

1.1


Download

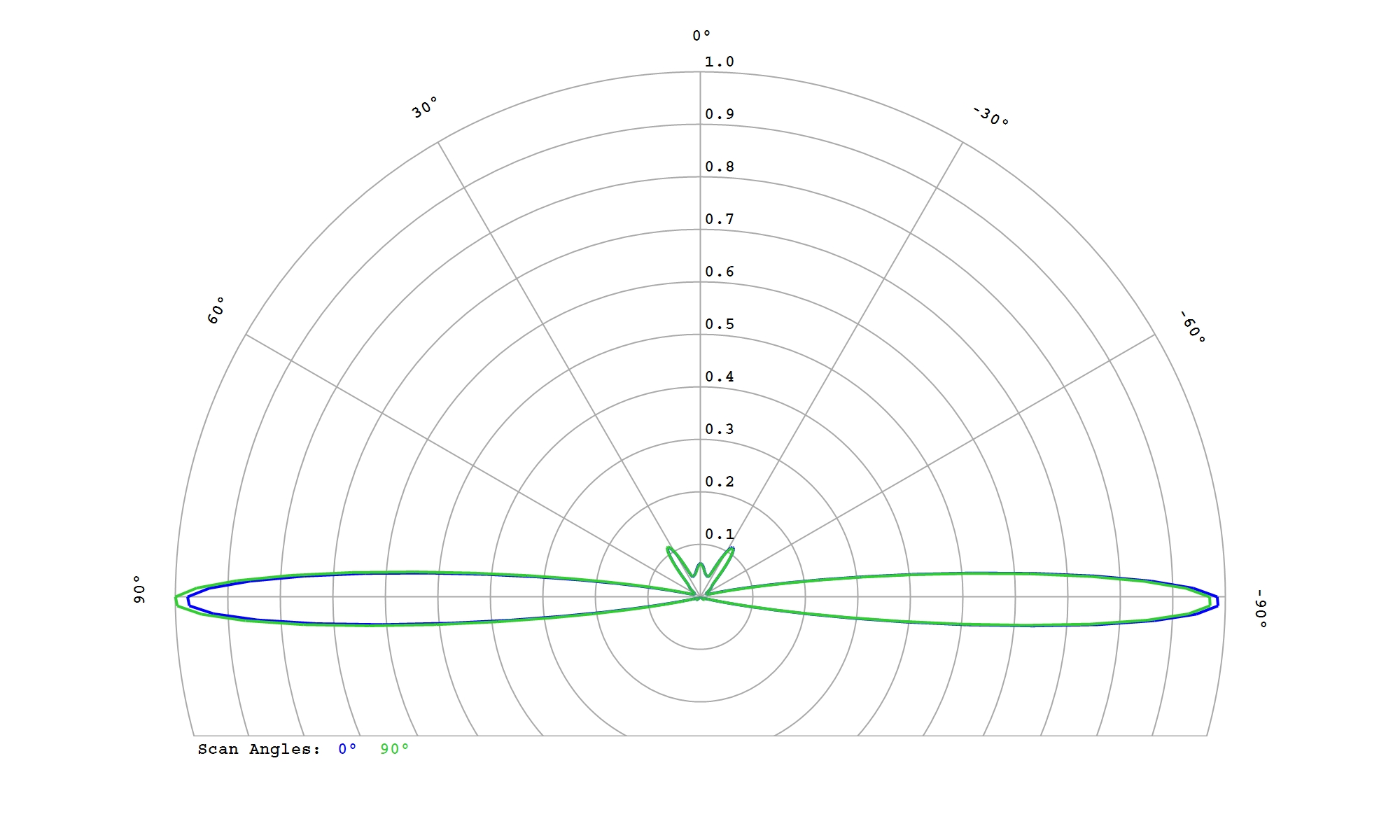

Cree XLamp XP-E2 White

Eff:

91.5%

FWHM:

8.4 x 360°

Cd/Im:

0.9

Download

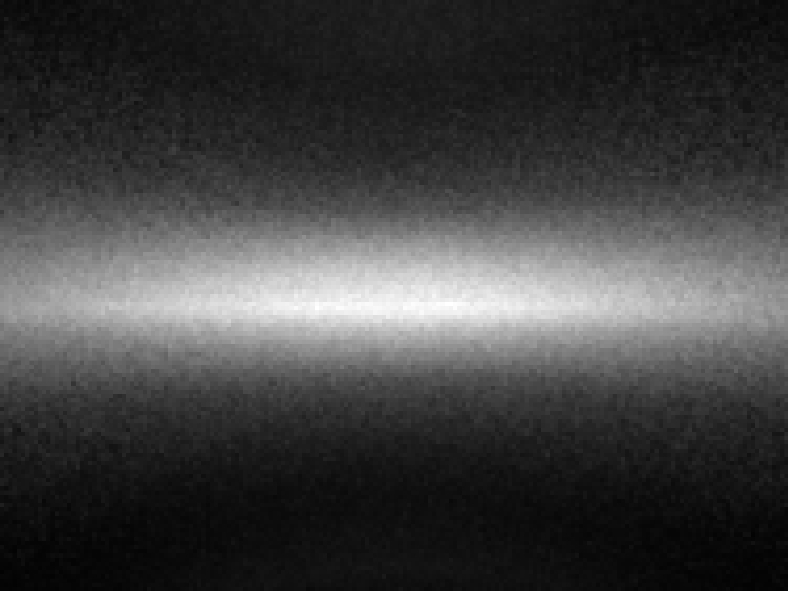

Cree XLamp XP-G3 White

Eff:

89.0%

FWHM:

12 x 360°

Cd/Im:

0.6

Download

Cree XLamp XQ-A Blue

Eff:

92.0%

FWHM:

6.9 x 360°

Cd/Im:

1.8

Download

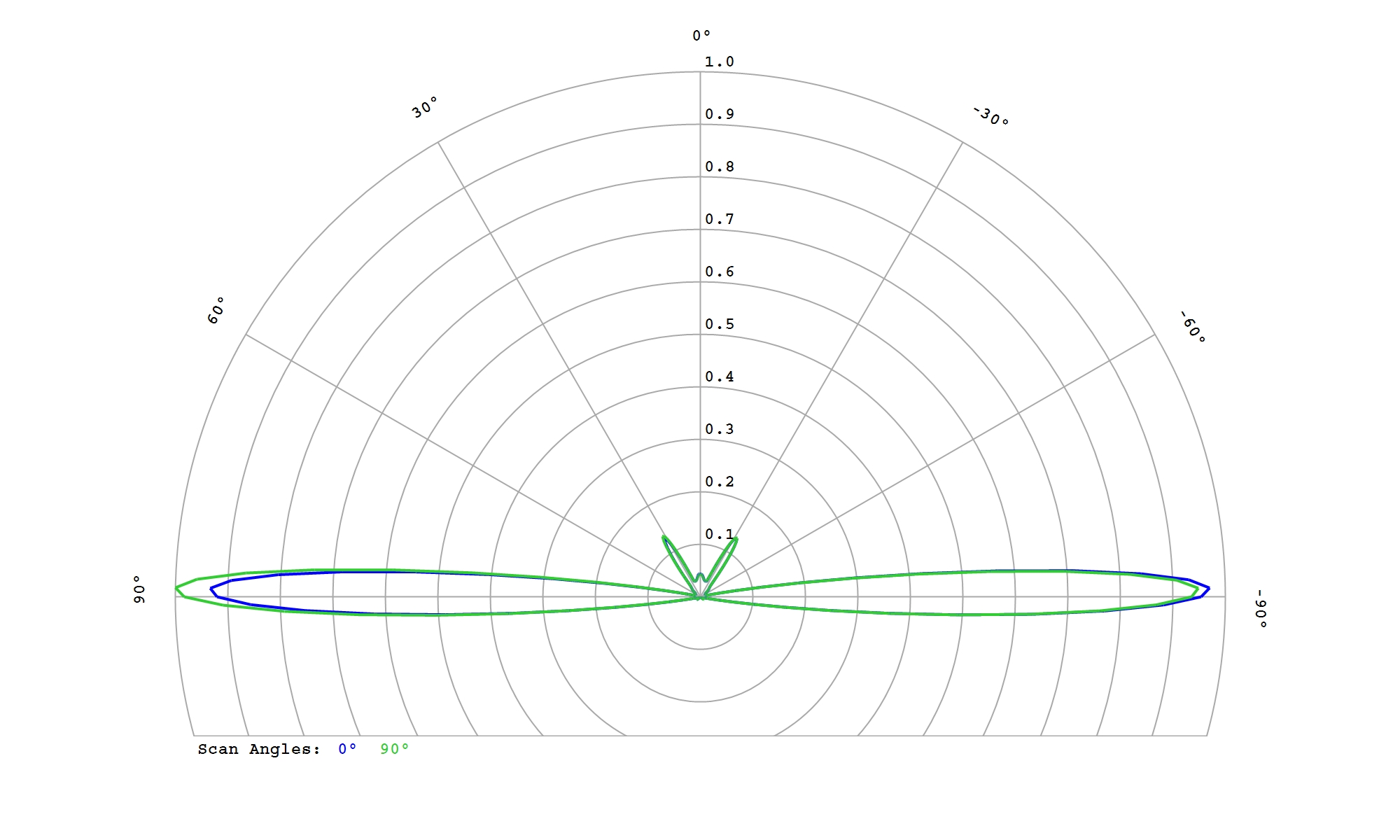

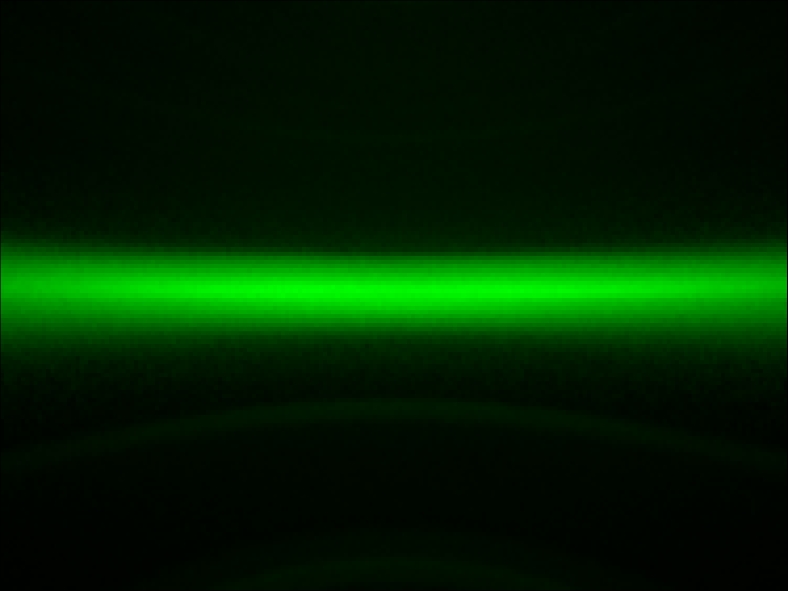

Cree XLamp XQ-A Green

Eff:

92.0%

FWHM:

6.4 x 360°

Cd/Im:

1.6

Download

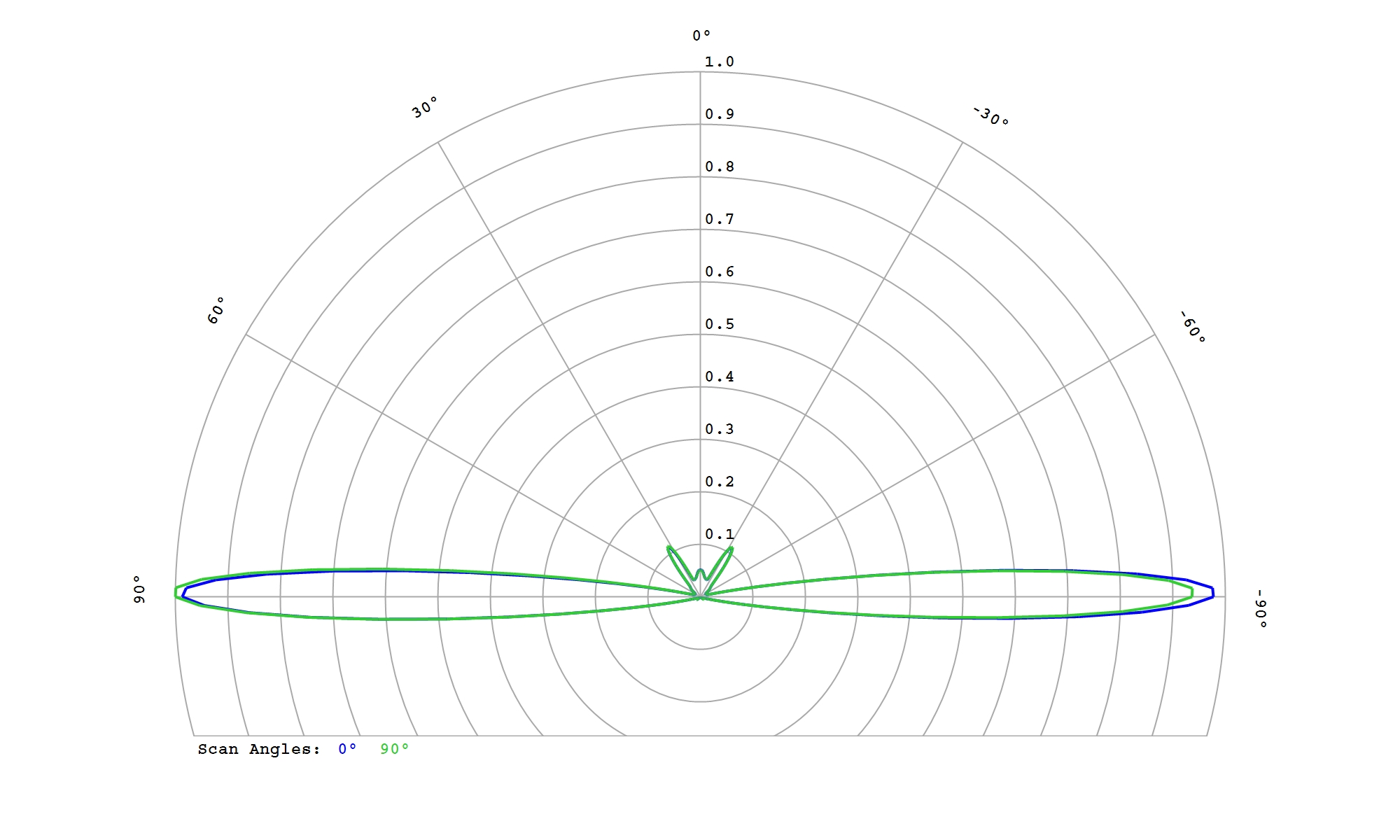

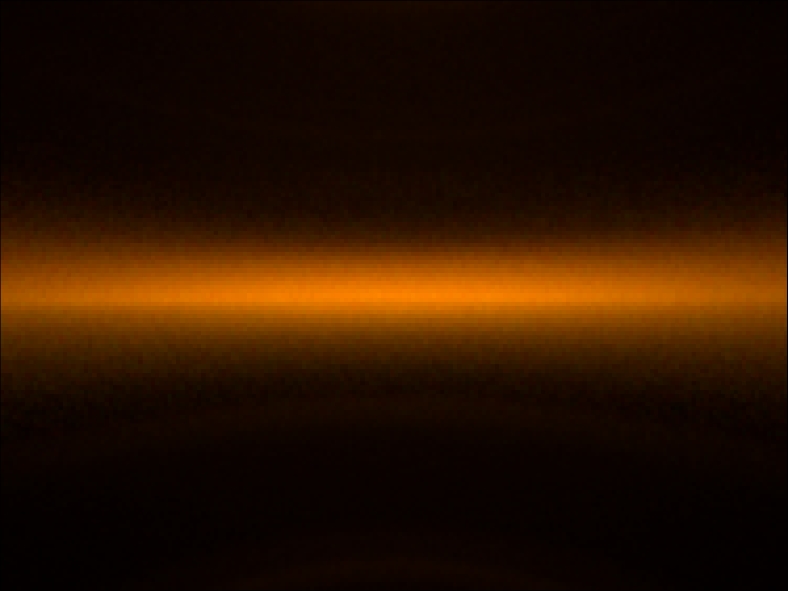

Cree XLamp XQ-A PC Amber

Eff:

91.0%

FWHM:

6.9 x 360°

Cd/Im:

1.1

Download

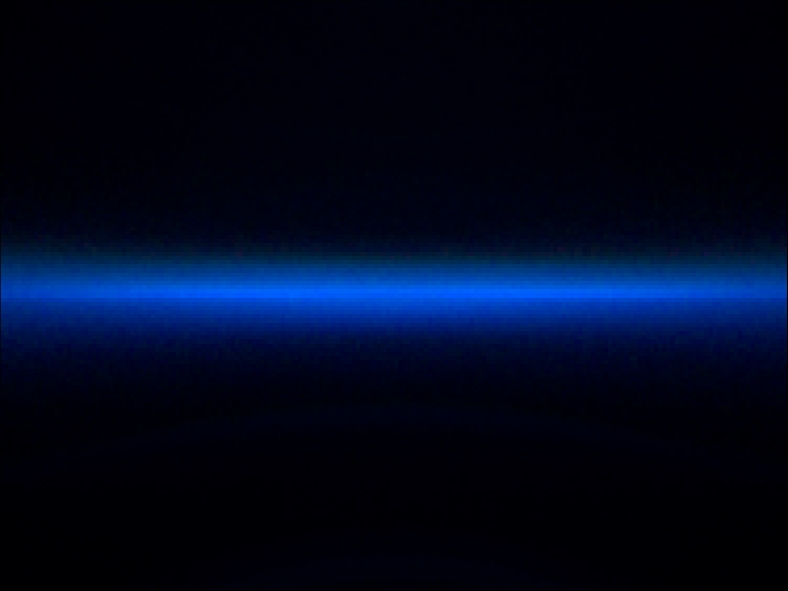

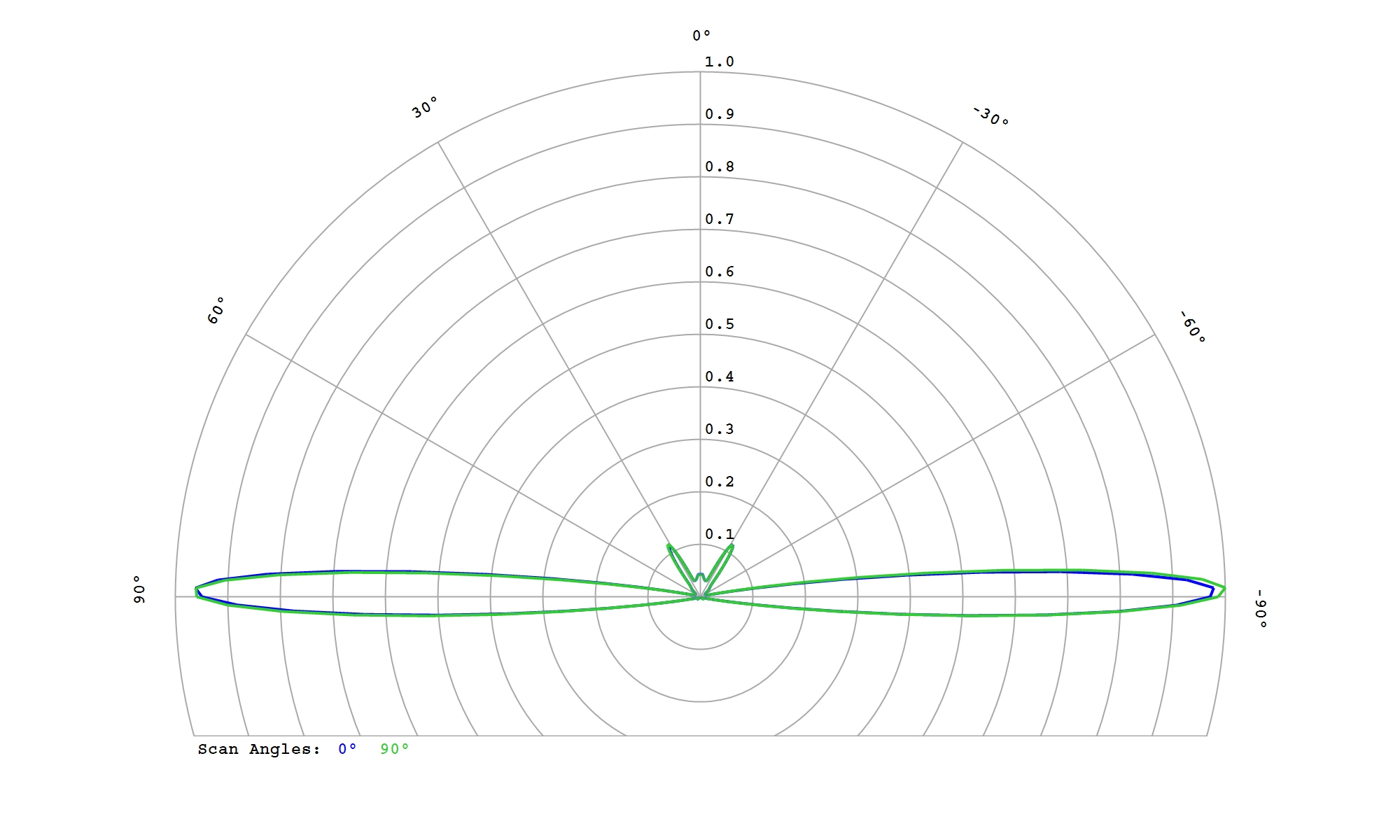

Cree XLamp XQ-A PC Blue

Eff:

91.0%

FWHM:

5.5 x 360°

Cd/Im:

1.7

Download

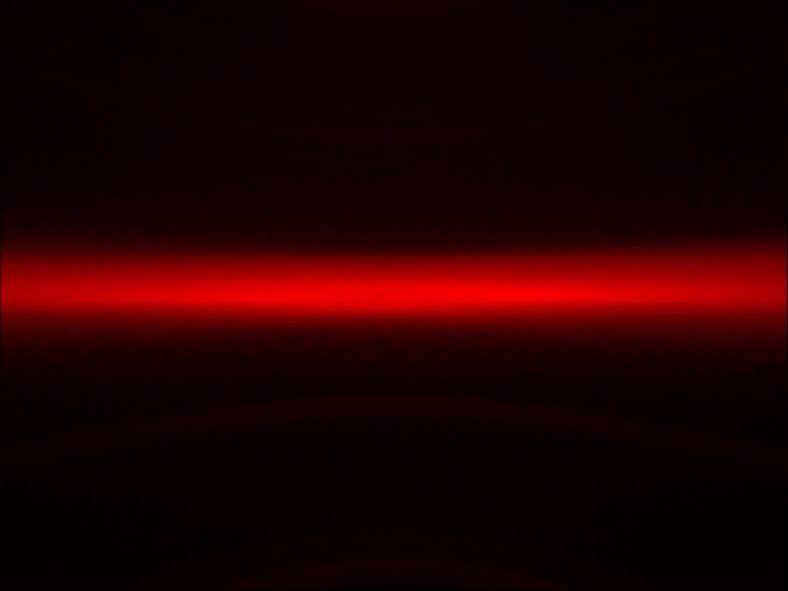

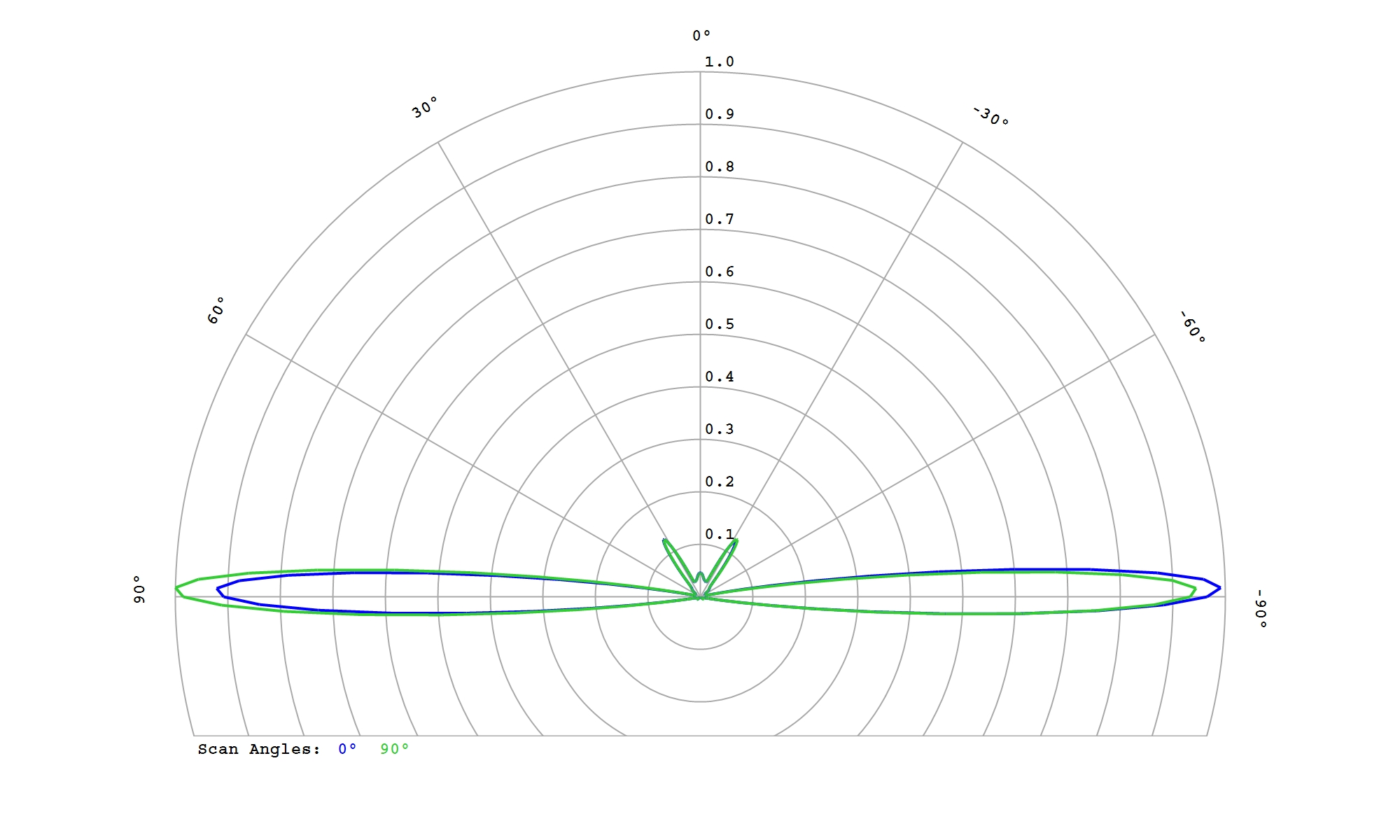

Cree XLamp XQ-A Red

Eff:

92.5%

FWHM:

6.1 x 360°

Cd/Im:

1.6

Download

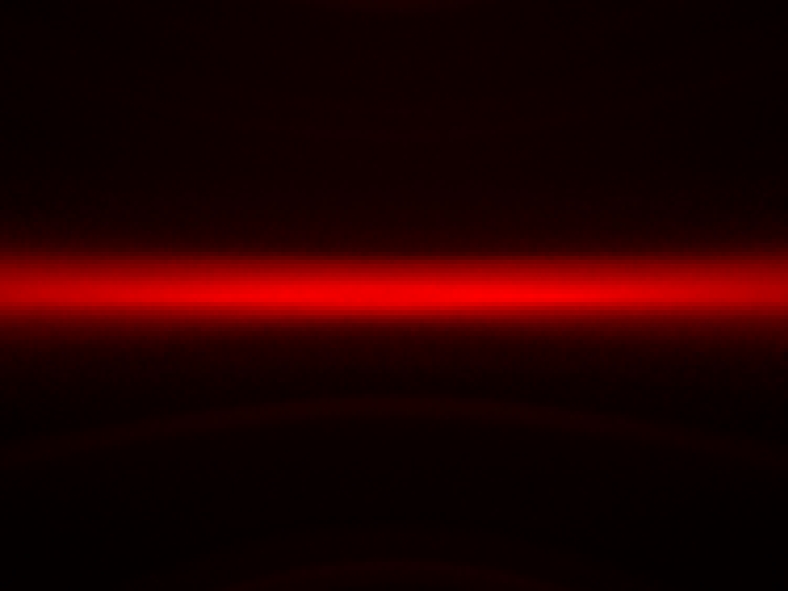

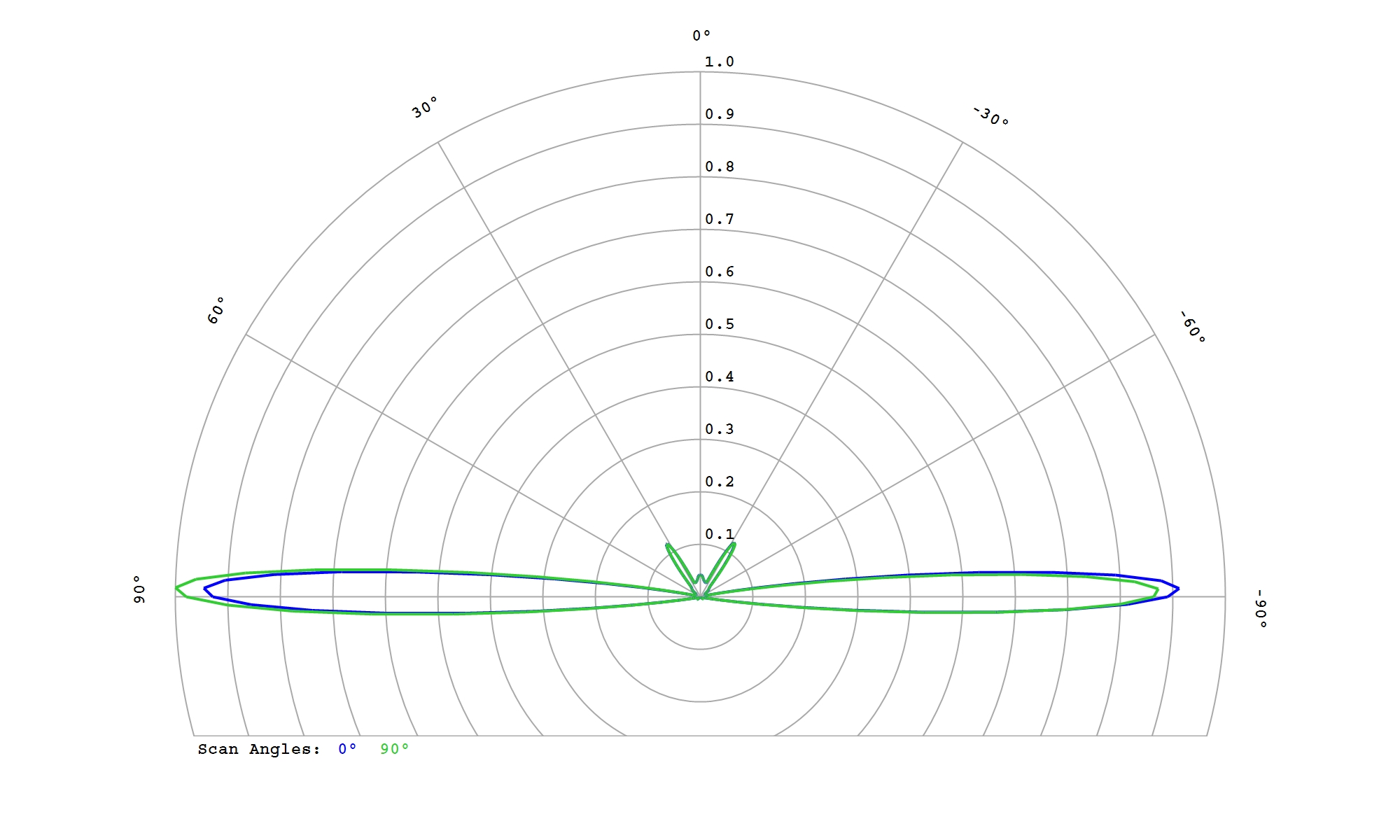

Cree XLamp XQ-A Red-Orange

Eff:

92.5%

FWHM:

5.7 x 360°

Cd/Im:

1.6


Download

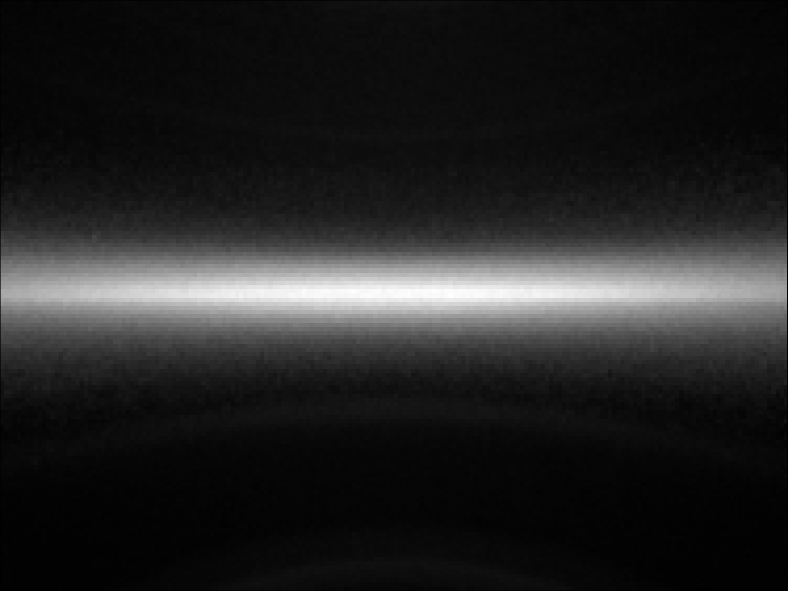

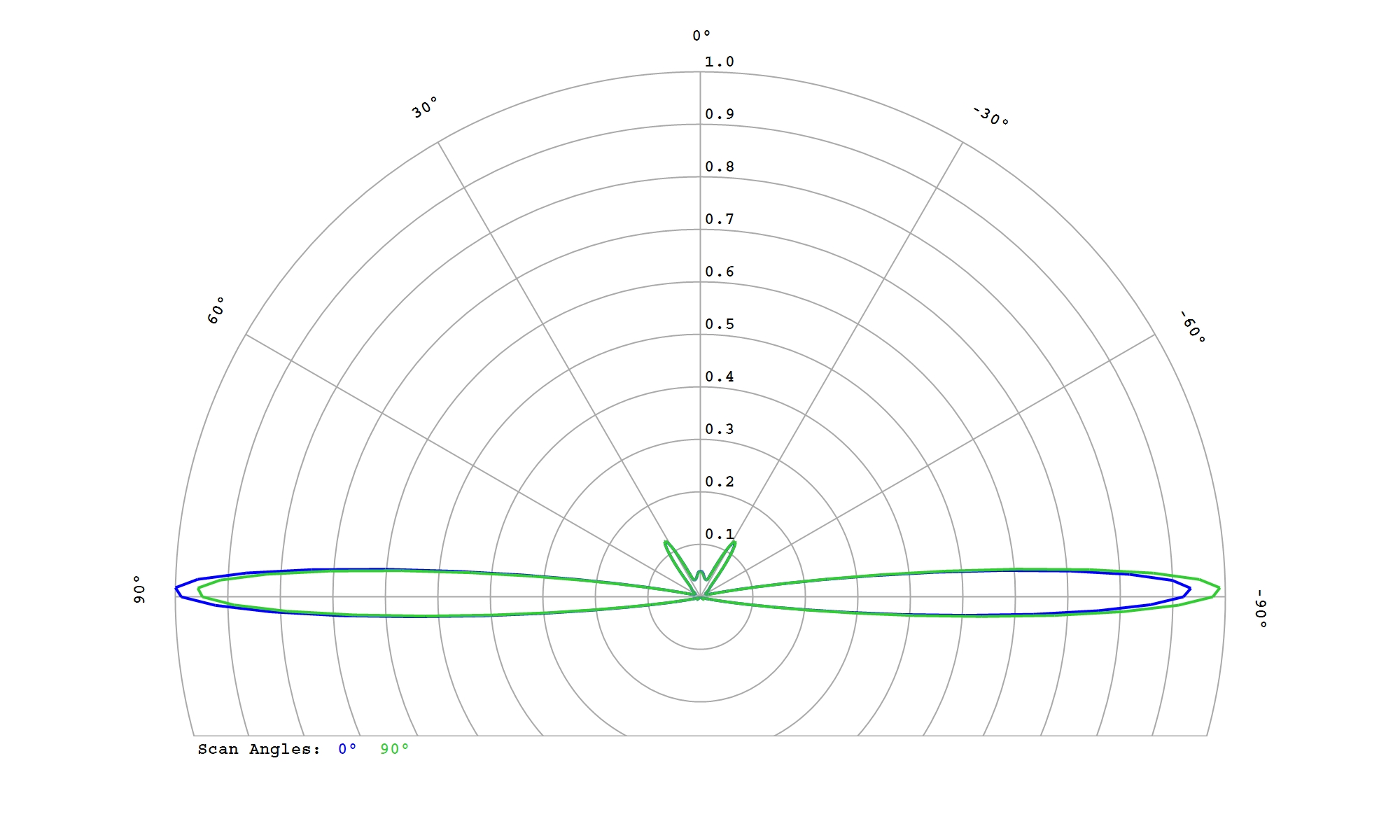

Cree XLamp XQ-A White

Eff:

91.0%

FWHM:

6.2 x 360°

Cd/Im:

1.3

Download

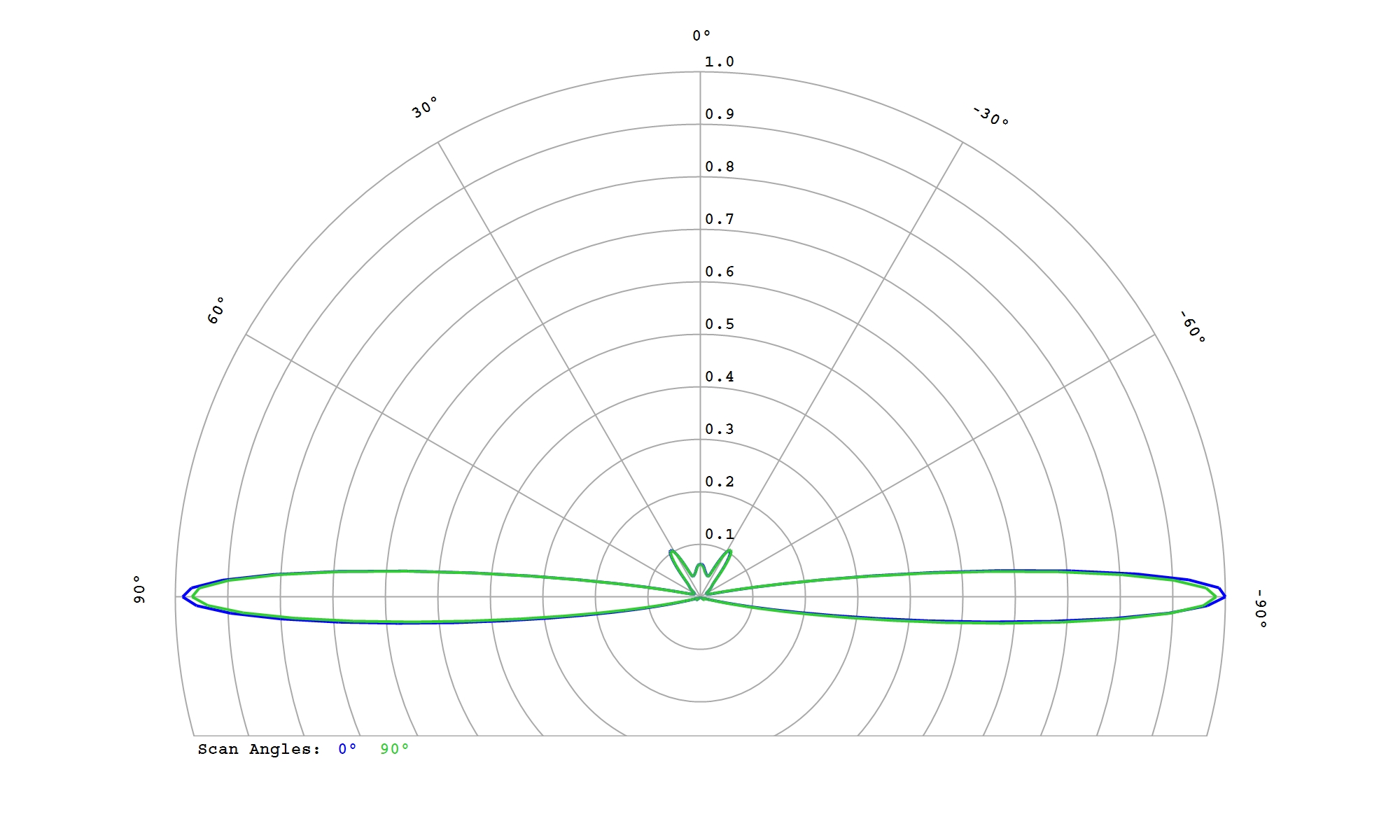

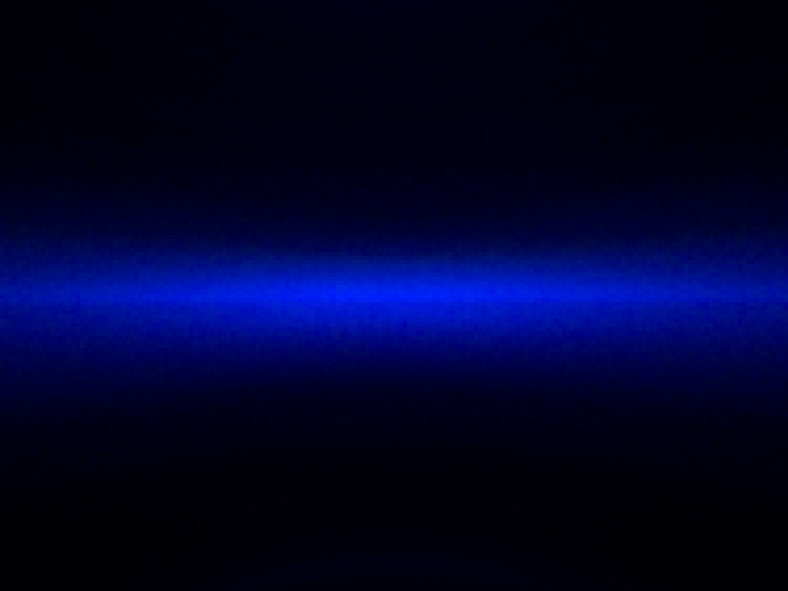

Cree XLamp XQ-E Plus HD Blue

Eff:

90.5%

FWHM:

7.6 x 360°

Cd/Im:

0.9


Download

Cree XLamp XQ-E Plus HD Green


Download

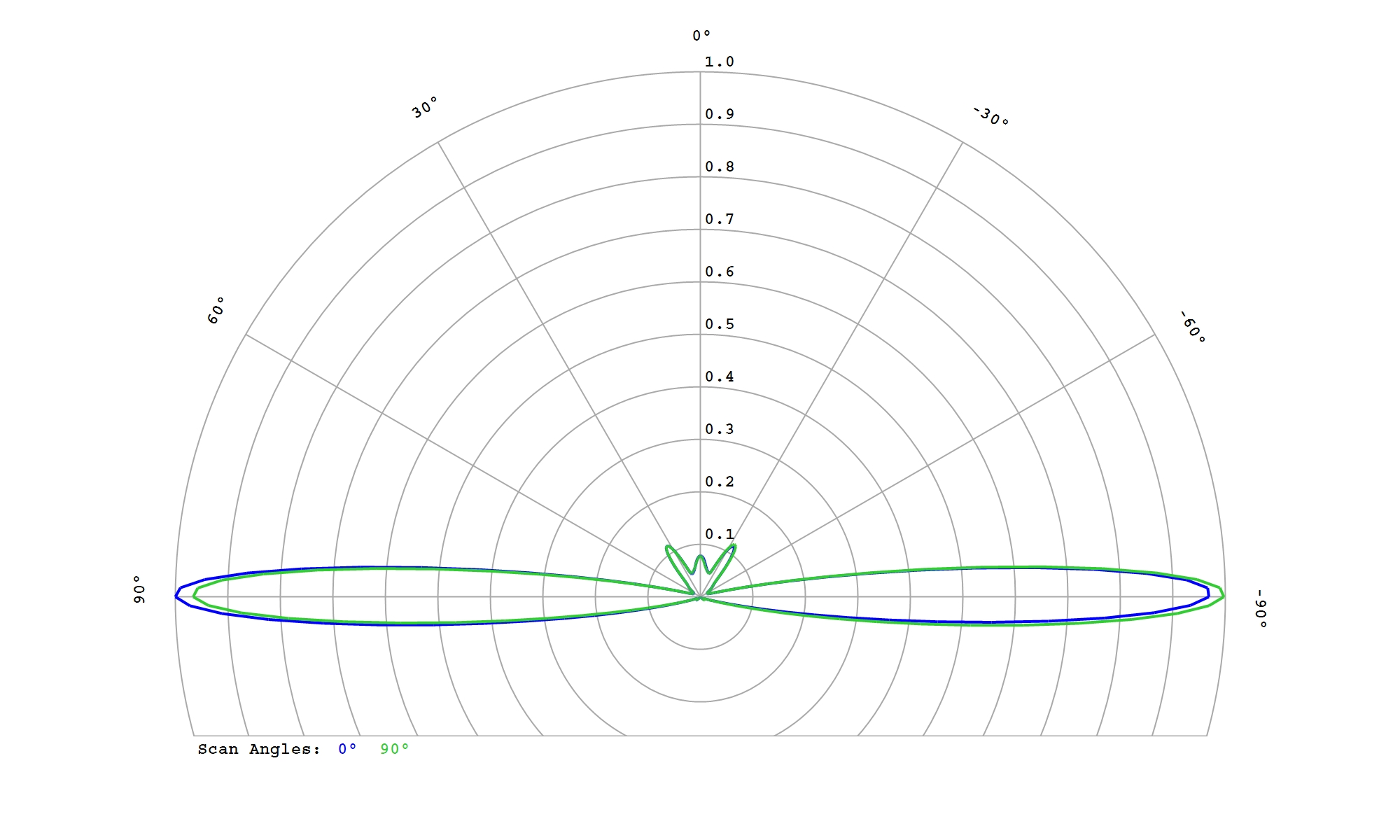

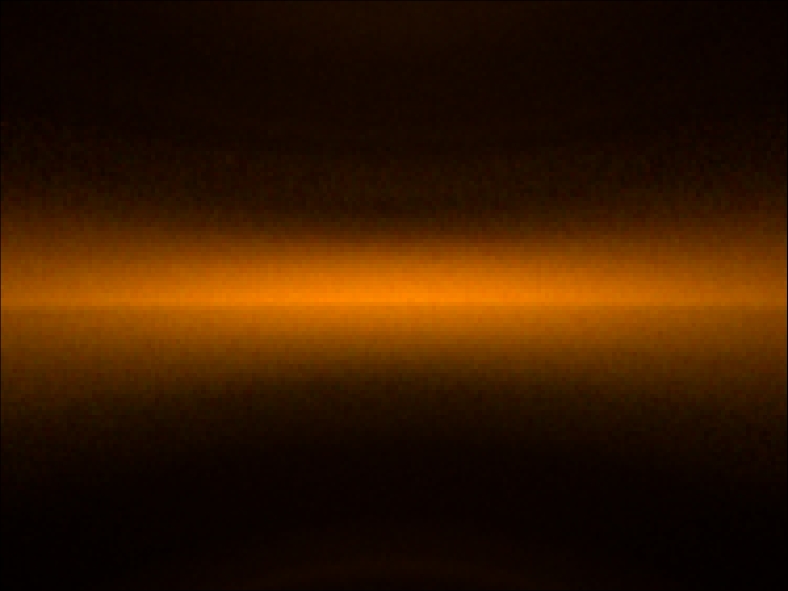

Cree XLamp XQ-E Plus HD PC Amber

Eff:

90.0%

FWHM:

9.2 x 360°

Cd/Im:

0.8


Download

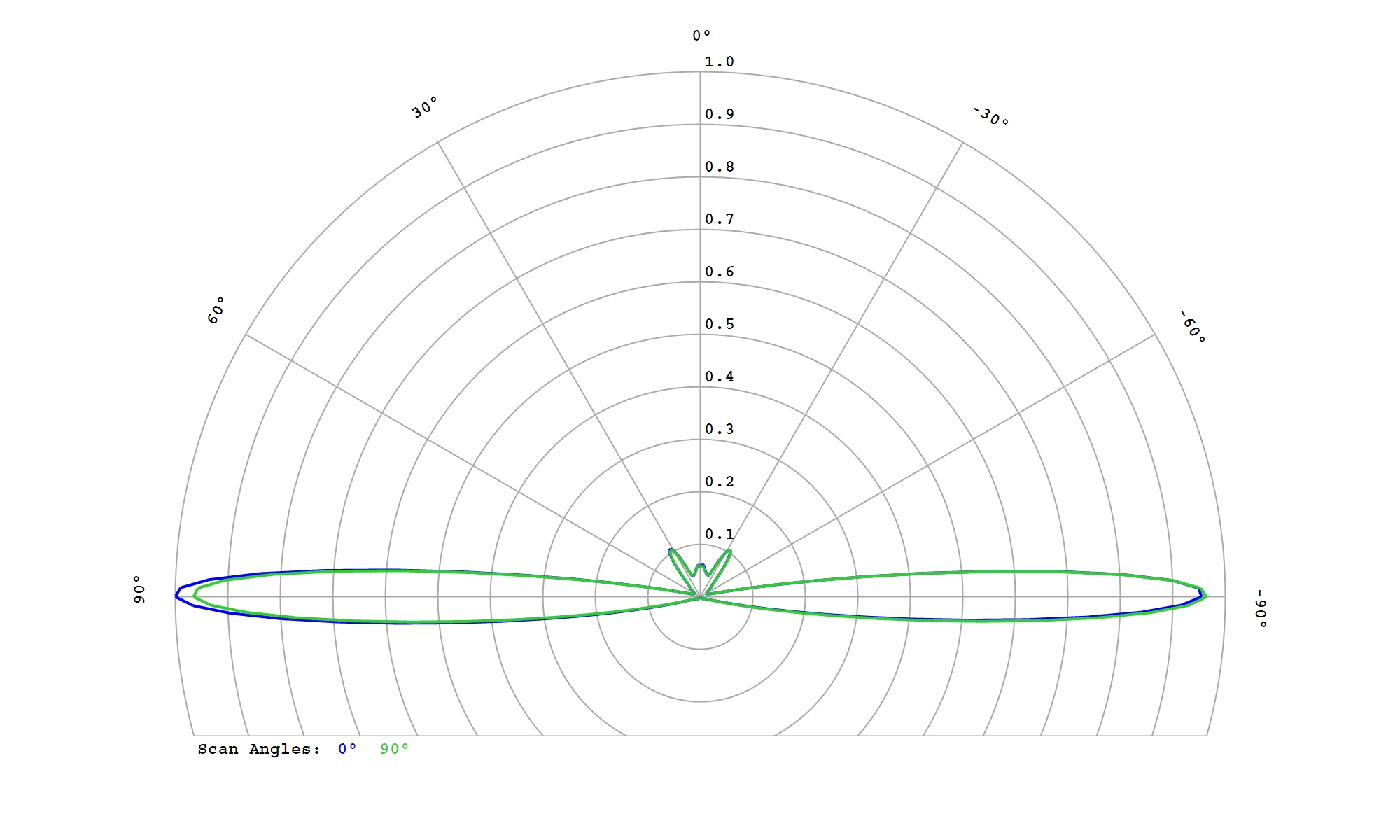

Cree XLamp XQ-E Plus HD Royal Blue

Eff:

89.5%

FWHM:

6.9 x 360°

Ipk/W:

0.9


Download

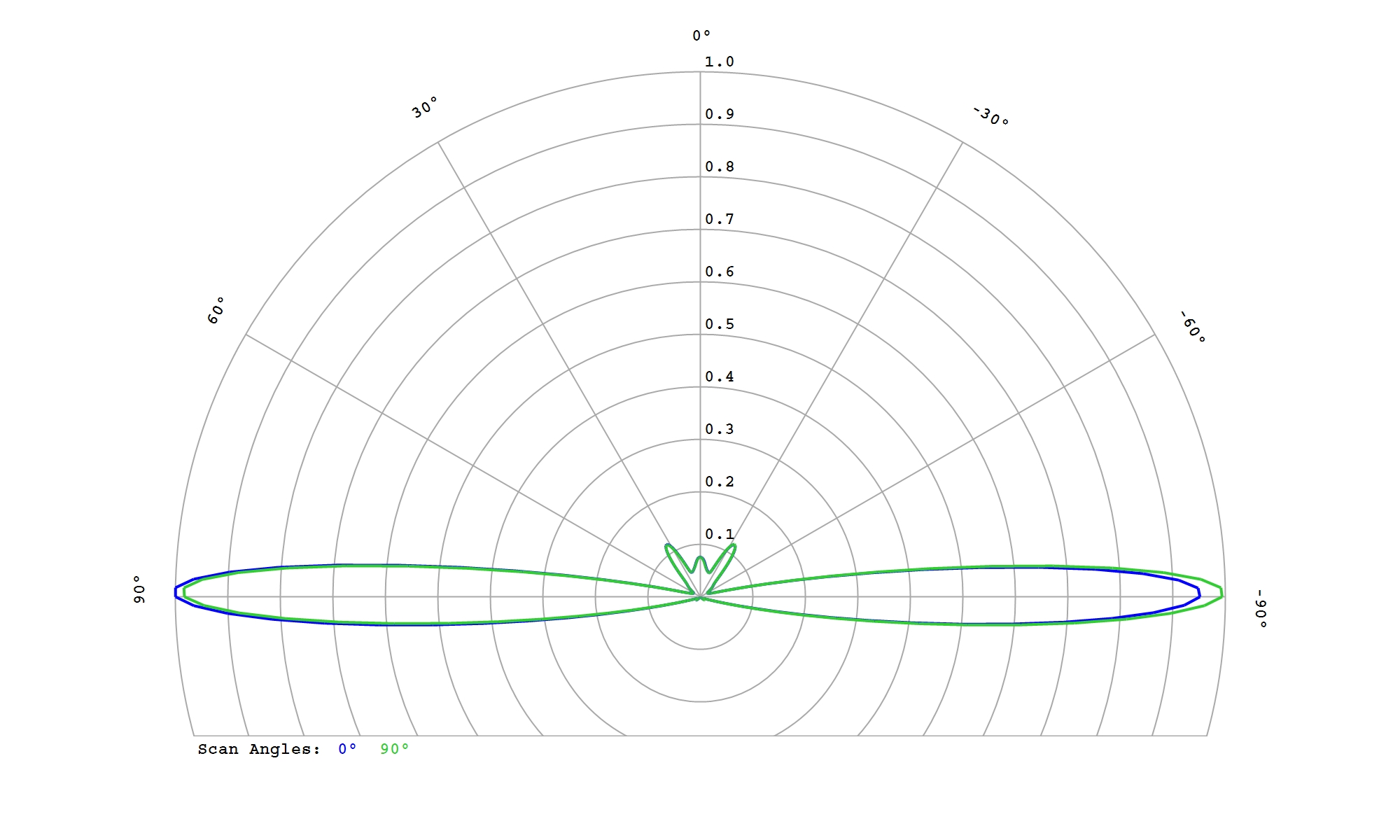

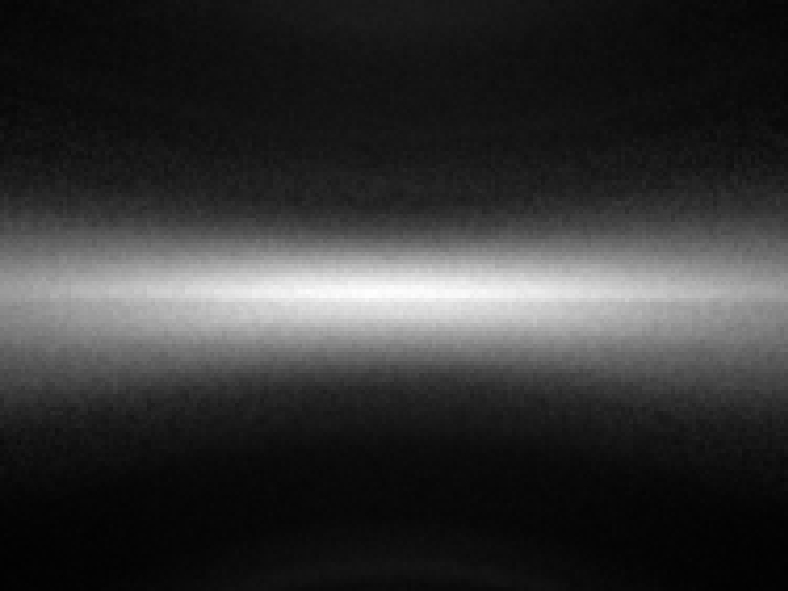

Cree XLamp XQ-E Plus HD White

Eff:

90.0%

FWHM:

9.6 x 360°

Cd/Im:

0.7


Download

Cree XLamp XQ-E Plus HI Blue

Eff:

90.0%

FWHM:

6.9 x 360°

Cd/Im:

1.1

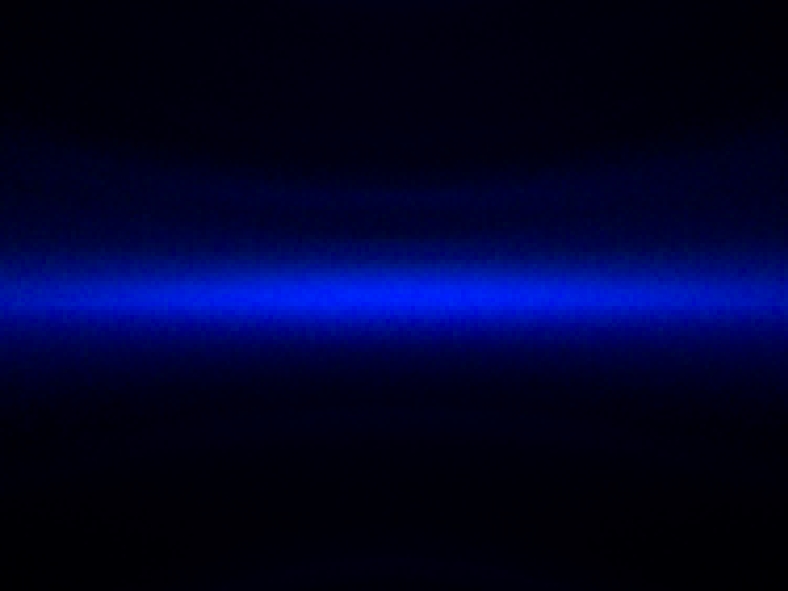

optic-10267-Cree XLamp XQ-E Plus HI Blue-spot-image.jpg

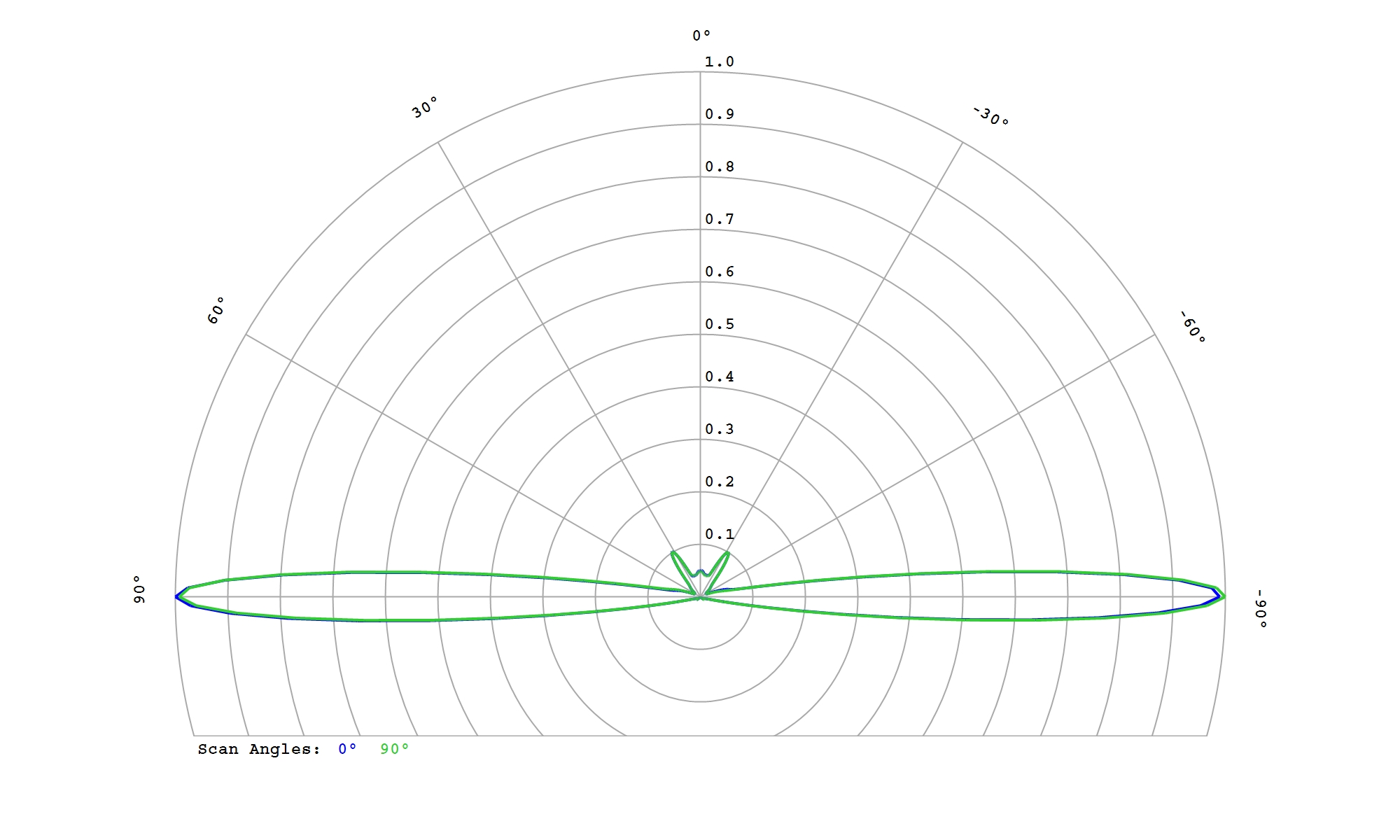

optic-10267-Cree XLamp XQ-E Plus HI Blue-cross-section-image.jpg

Download

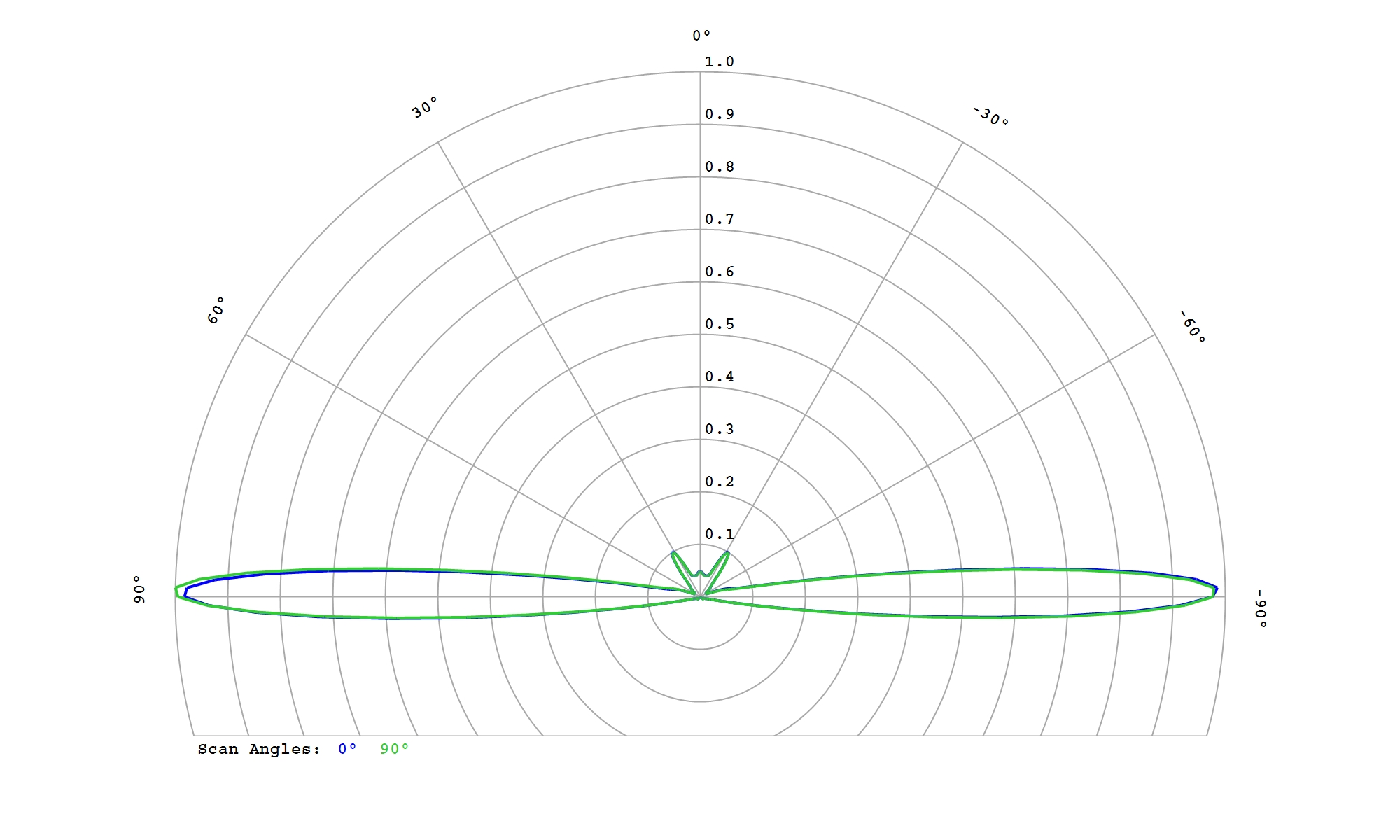

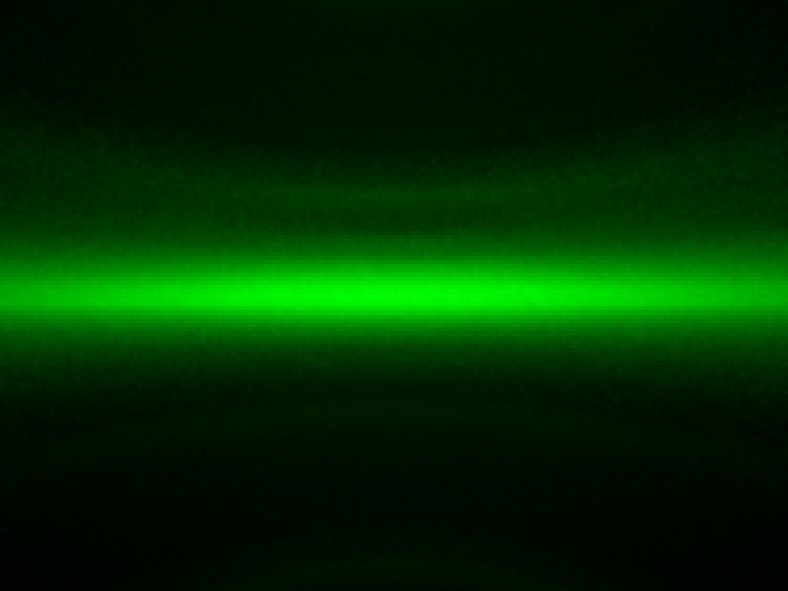

Cree XLamp XQ-E Plus HI Green

Eff:

90.0%

FWHM:

7.1 x 360°

Cd/Im:

1.1


Download

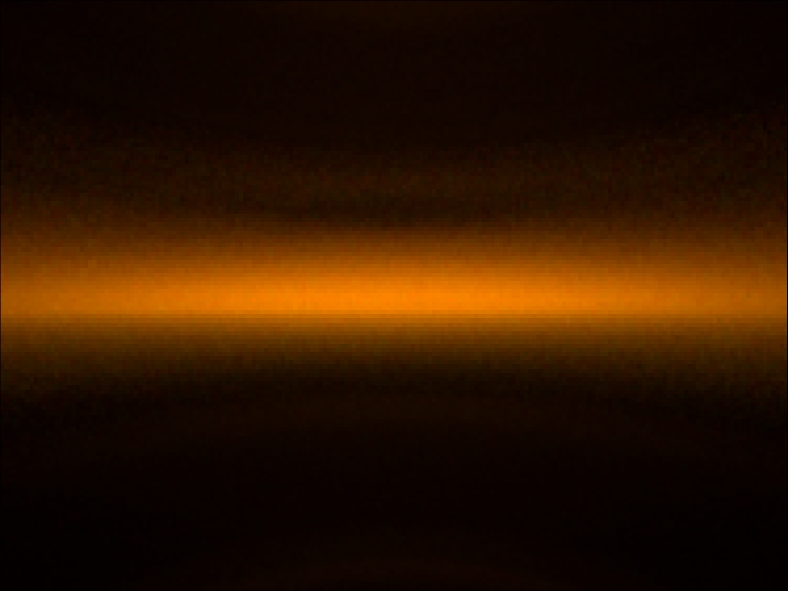

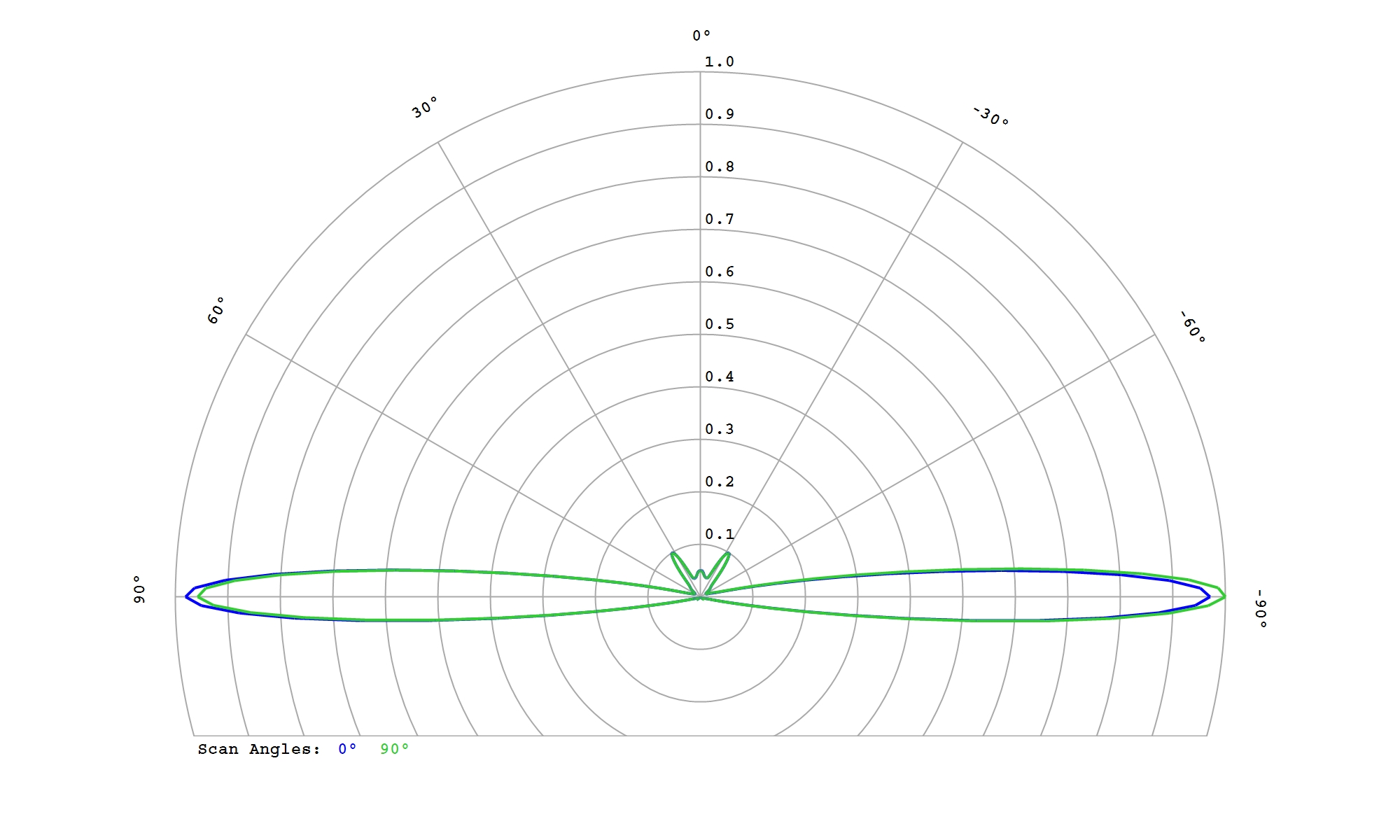

Cree XLamp XQ-E Plus HI PC Amber

Eff:

90.5%

FWHM:

8 x 360°

Cd/Im:

1.0


Download

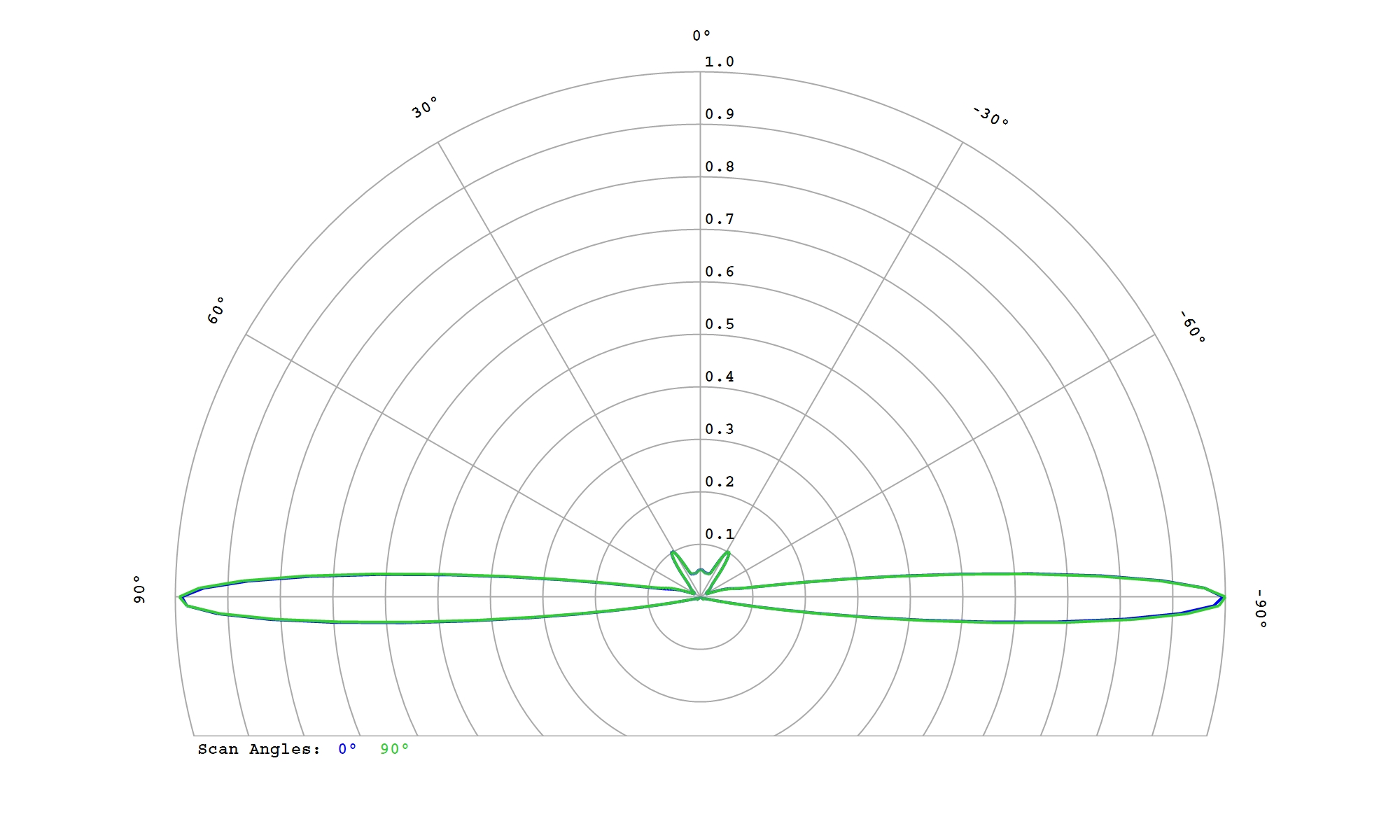

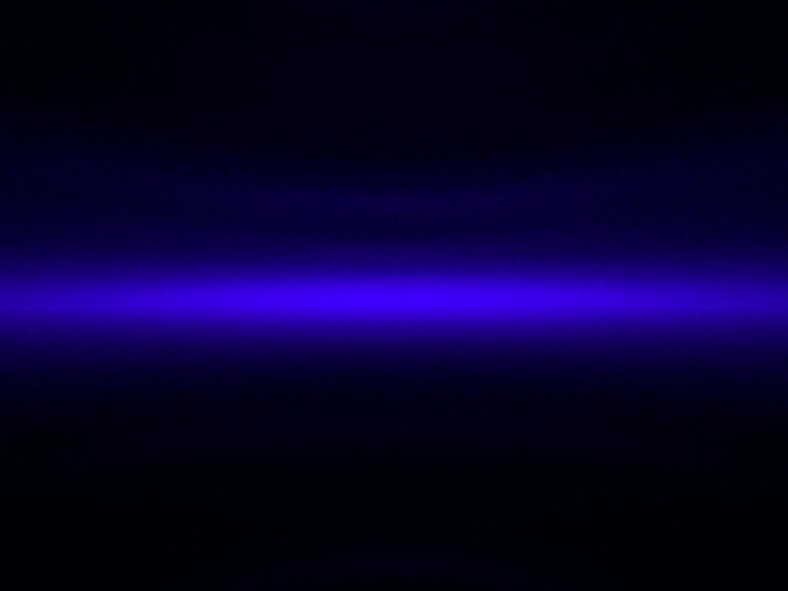

Cree XLamp XQ-E Plus HI Royal Blue

Eff:

89.0%

FWHM:

6.7 x 360°

Ipk/W:

1.1


Download

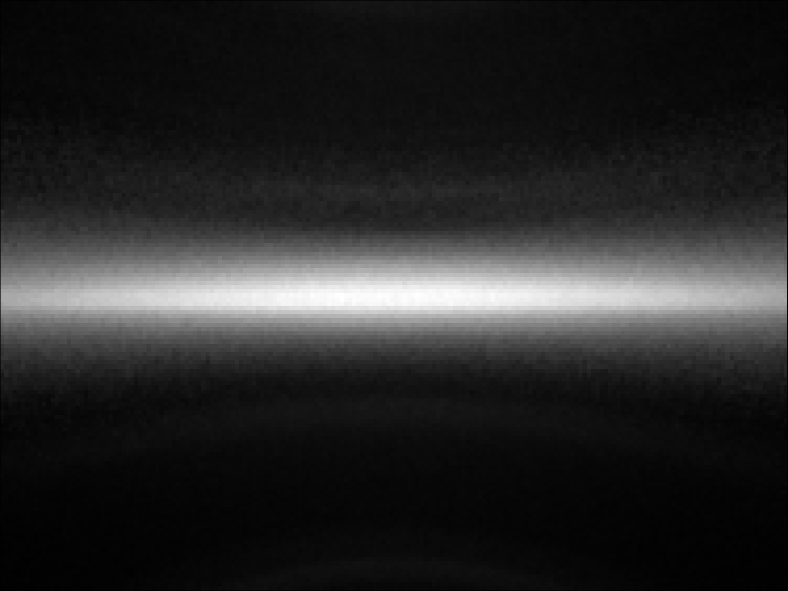

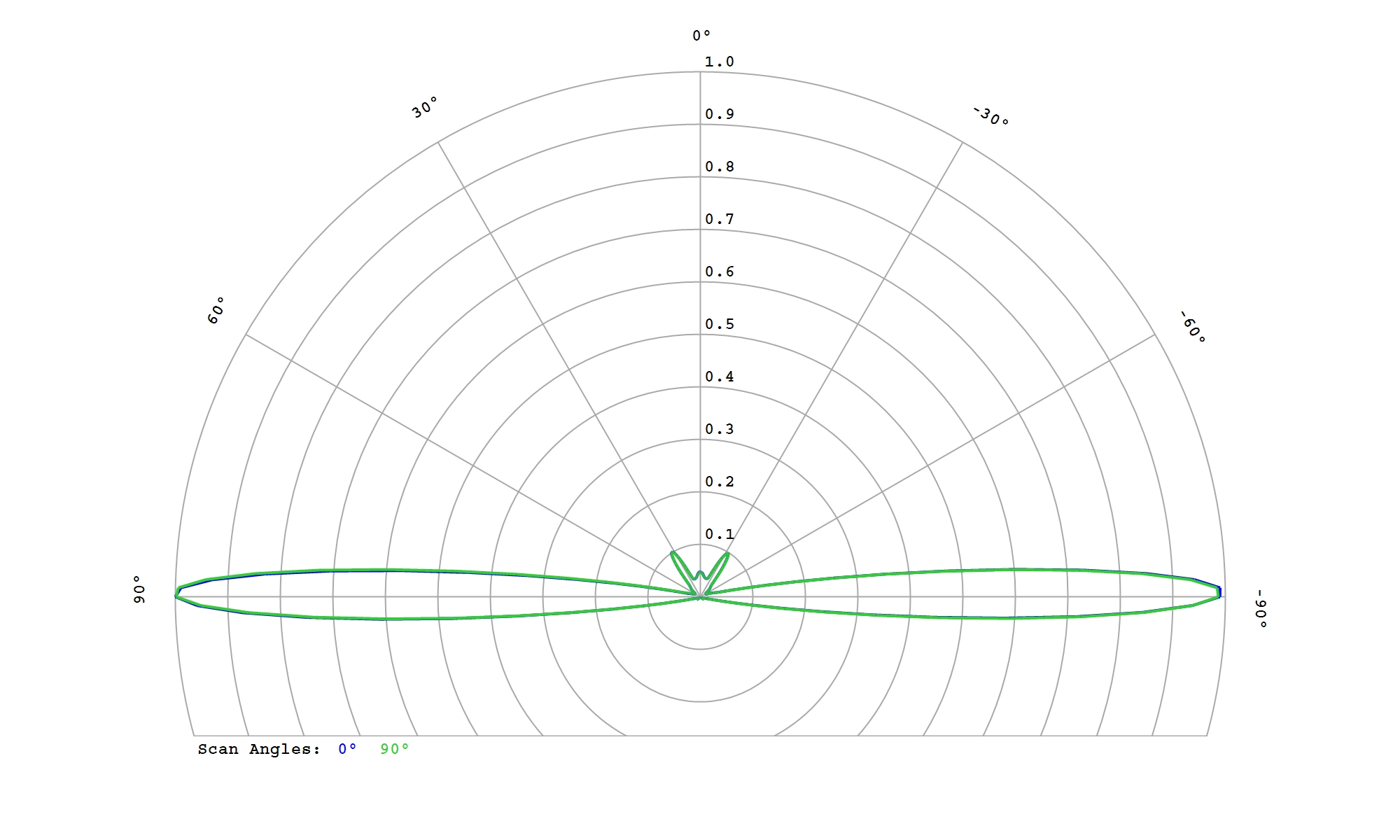

Cree XLamp XQ-E Plus HI White

Eff:

91.0%

FWHM:

6.9 x 360°

Cd/Im:

1.1


Download

Cree XLamp XT-E White

Eff:

95.0%

FWHM:

11.3 x 360°

Cd/Im:

1.3

Download

IES

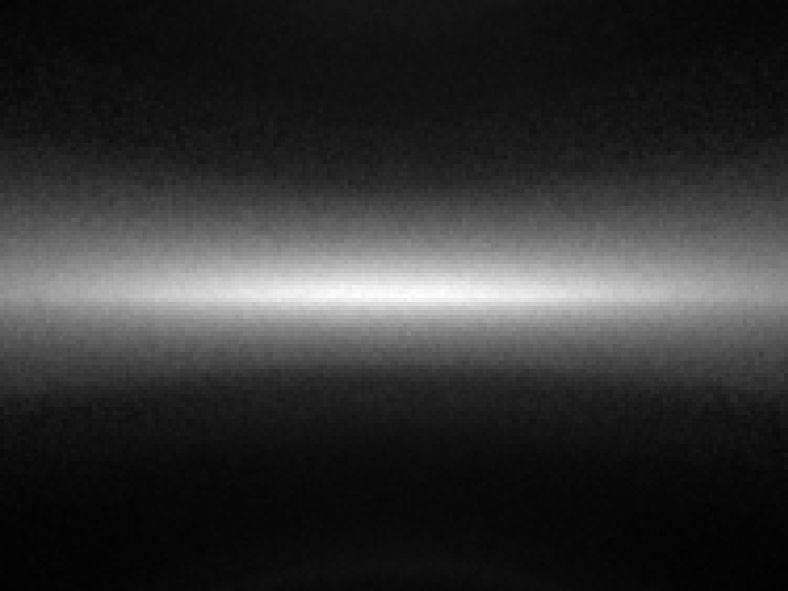

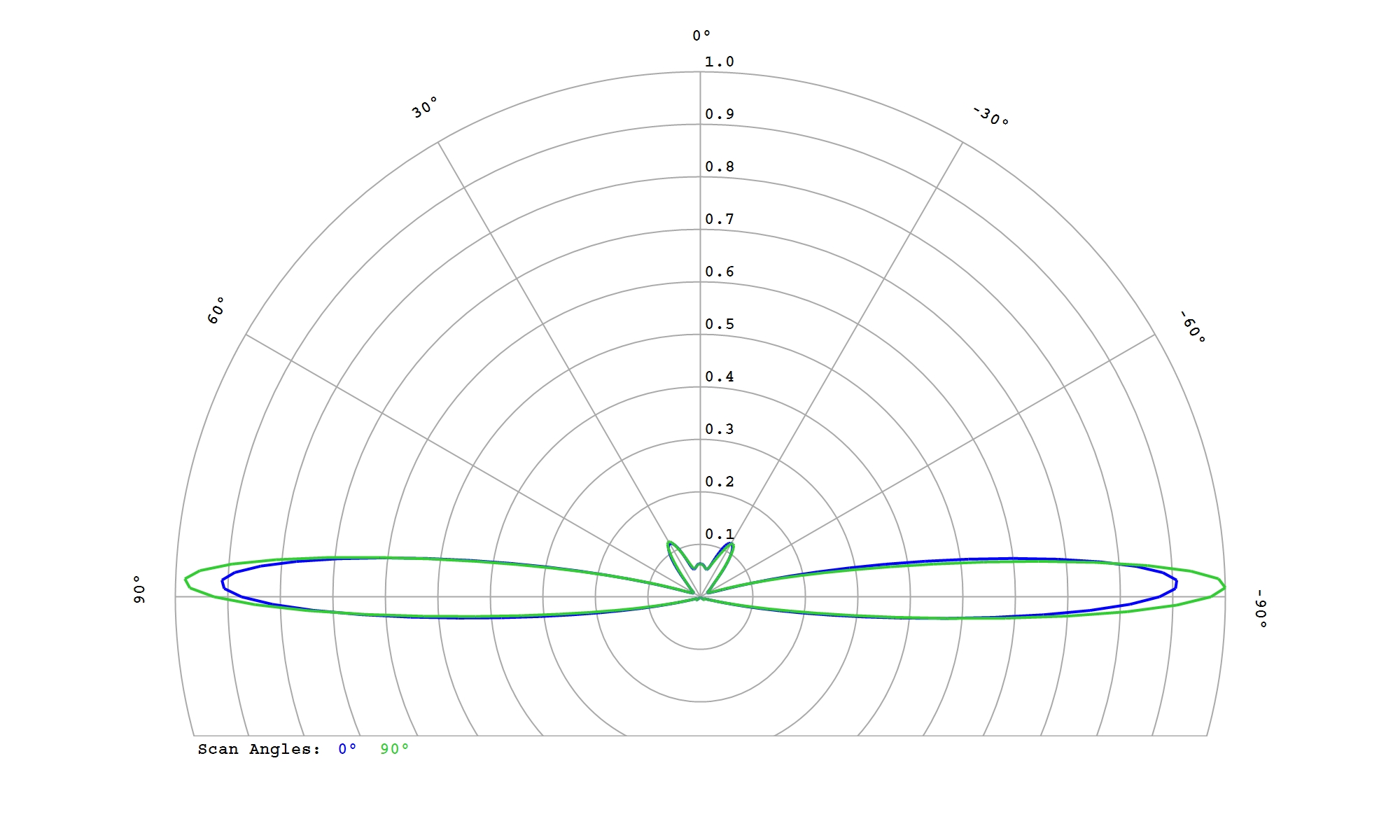

LUMILEDS LUXEON 2835C 6V White

Eff:

92.5%

FWHM:

7.9 x 360°

Cd/Im:

0.8

Download

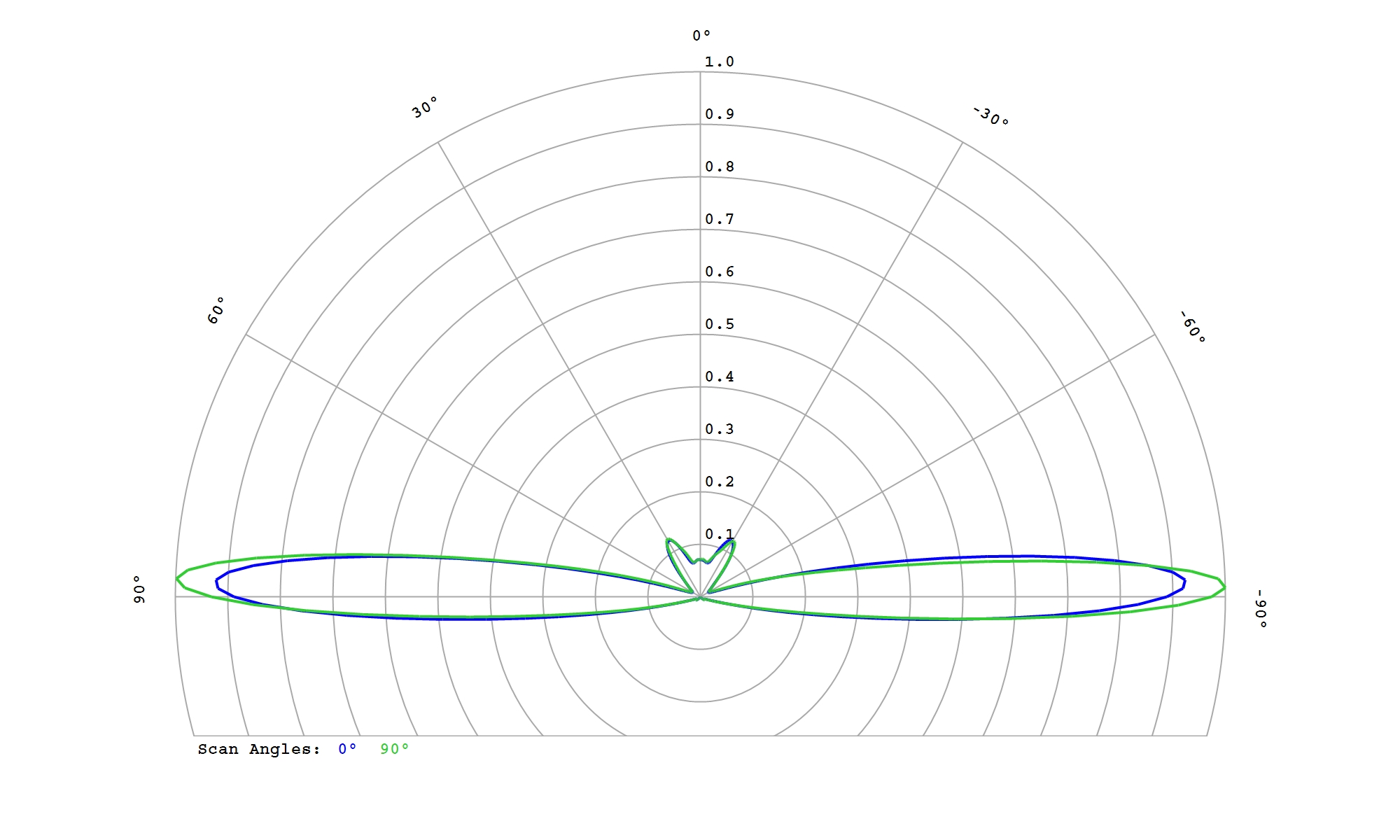

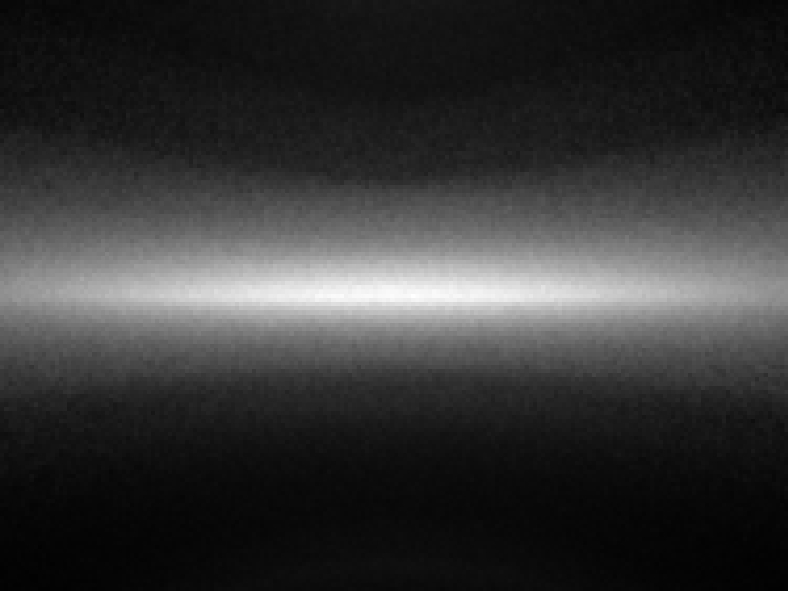

LUMILEDS LUXEON 2835N 3V White

Eff:

92.5%

FWHM:

8.2 x 360°

Cd/Im:

0.7

Download

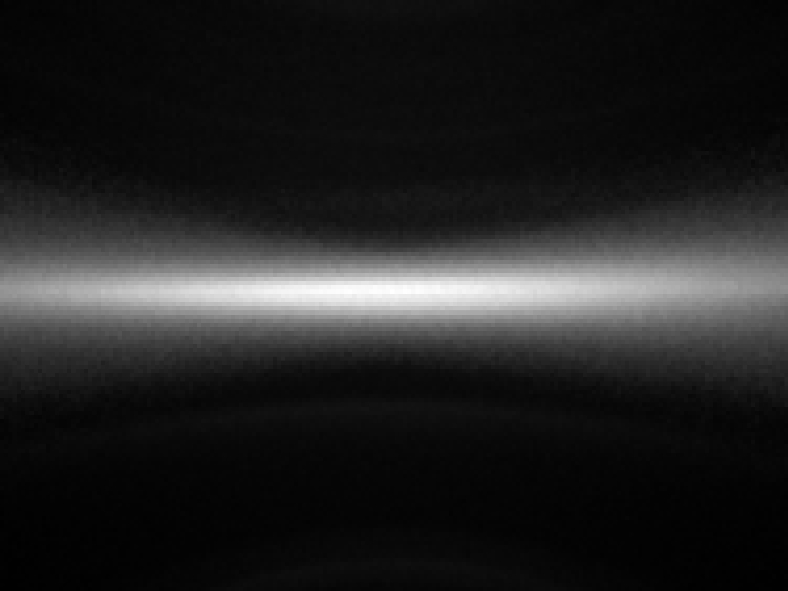

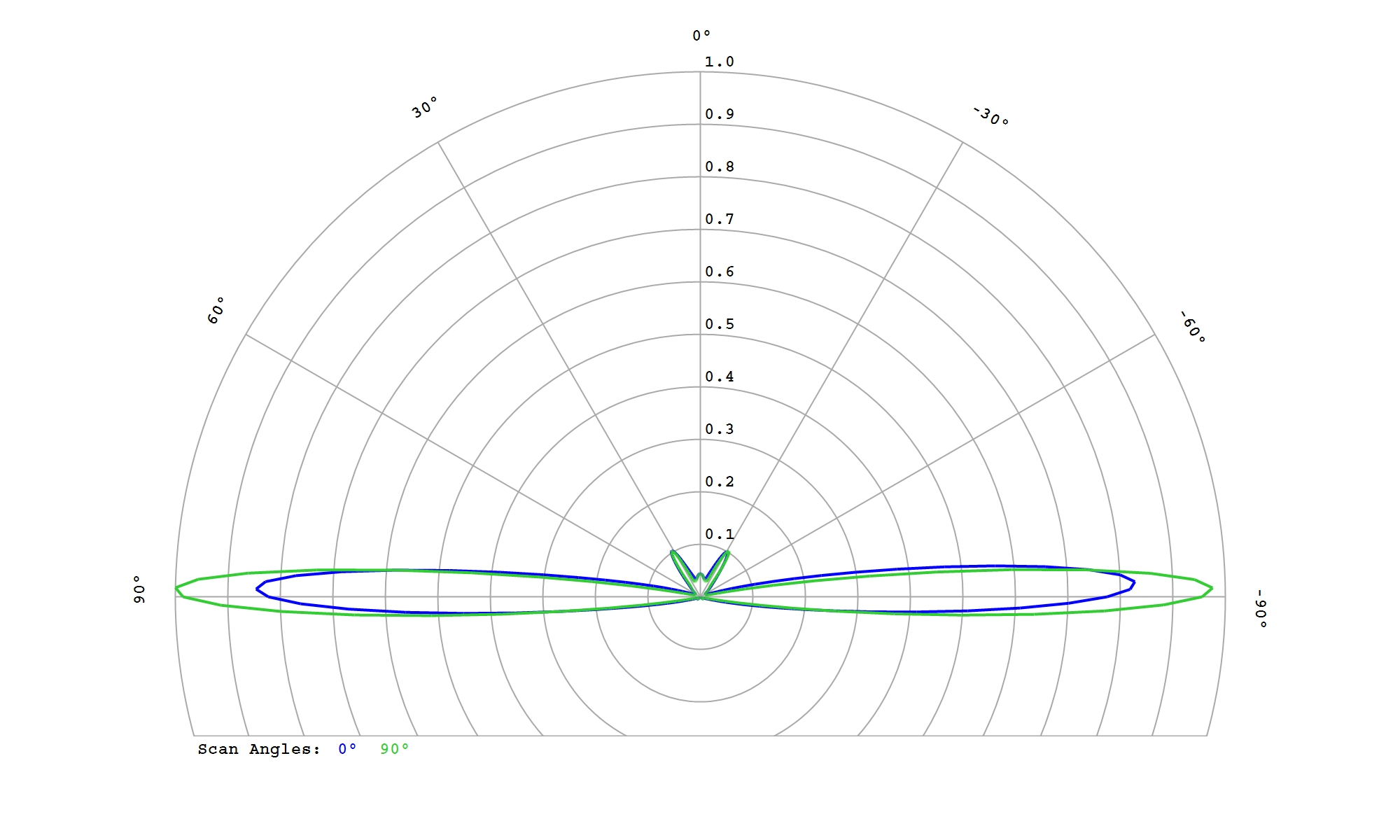

LUMILEDS LUXEON 3014 White

Eff:

92.5%

FWHM:

6.1 x 360°

Cd/Im:

1.2

Download

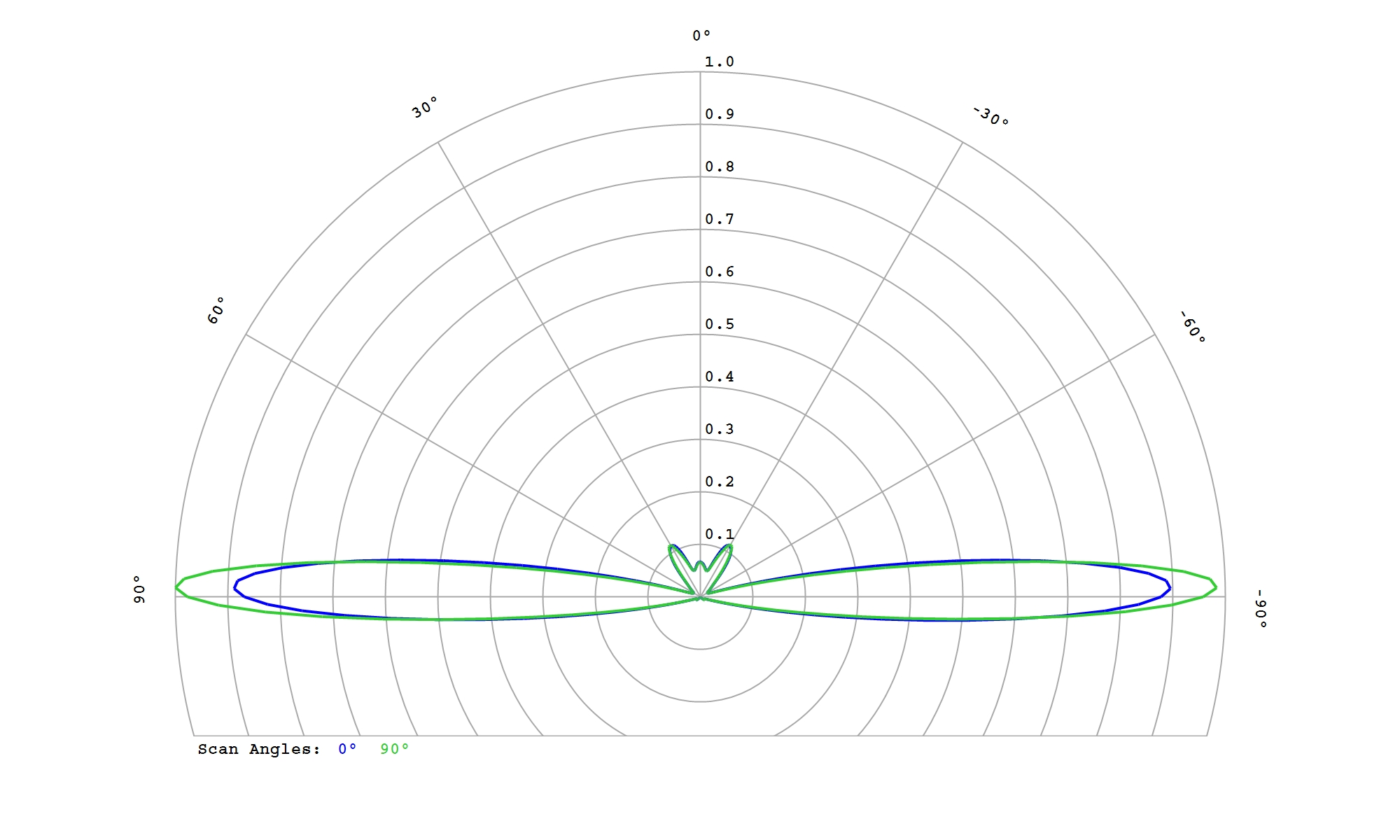

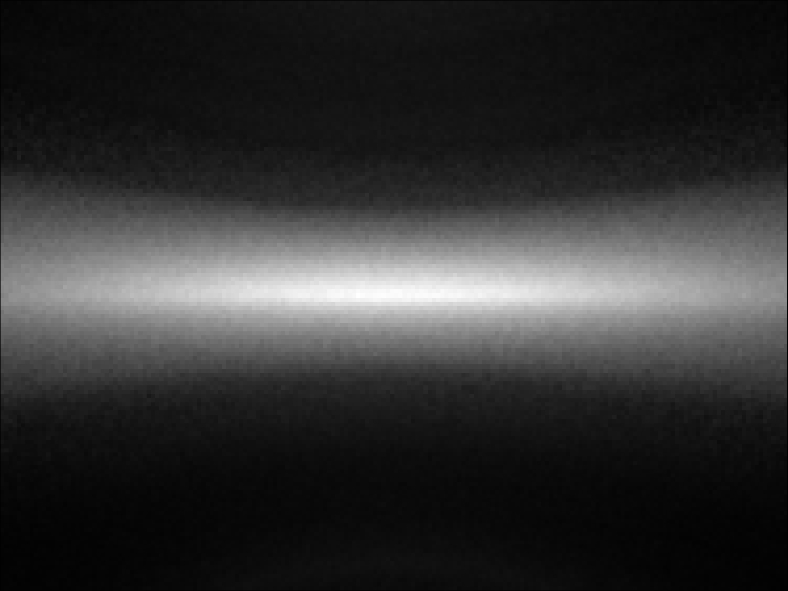

LUMILEDS LUXEON 3030 2D Plus Round White

Eff:

92.5%

FWHM:

8.3 x 360°

Cd/Im:

0.7


Download

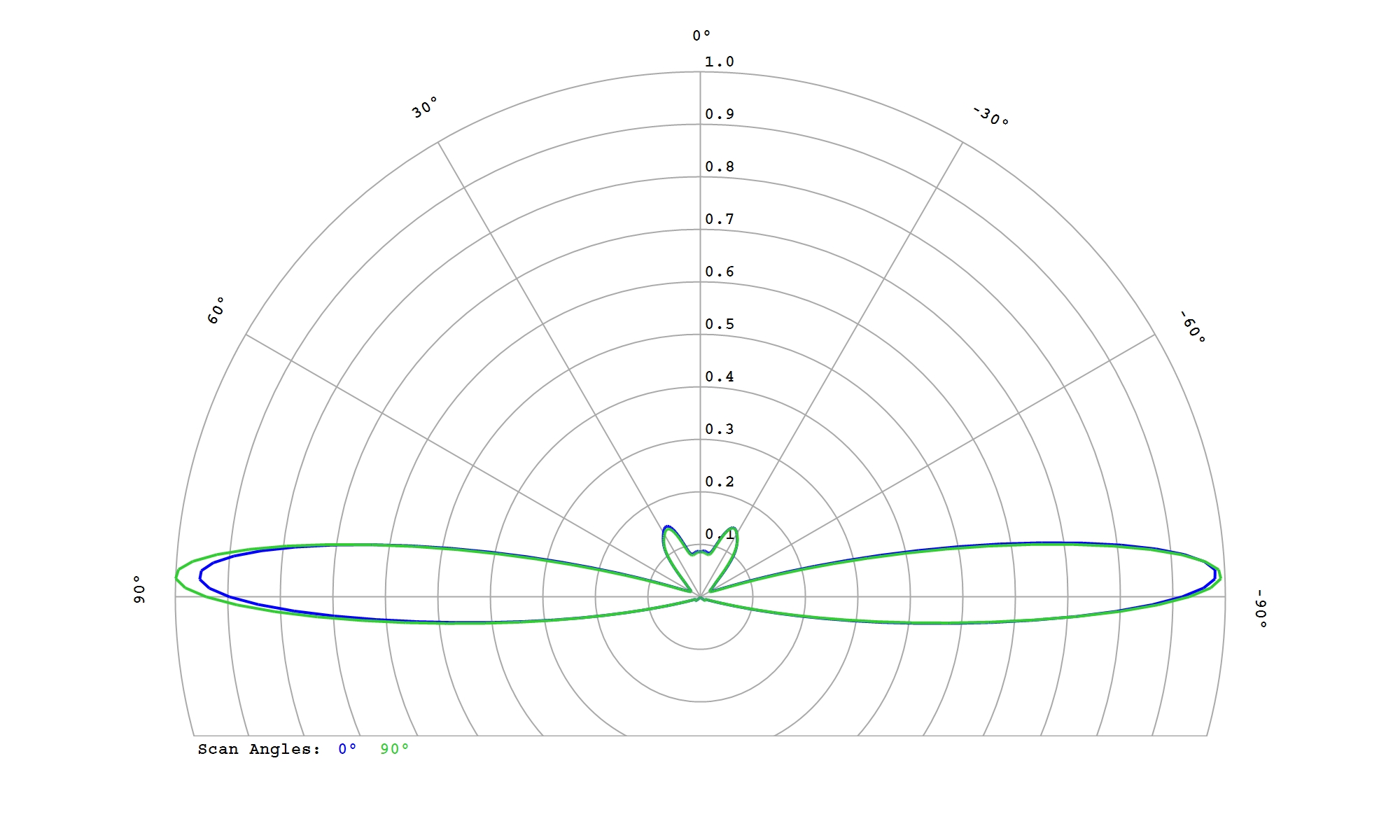

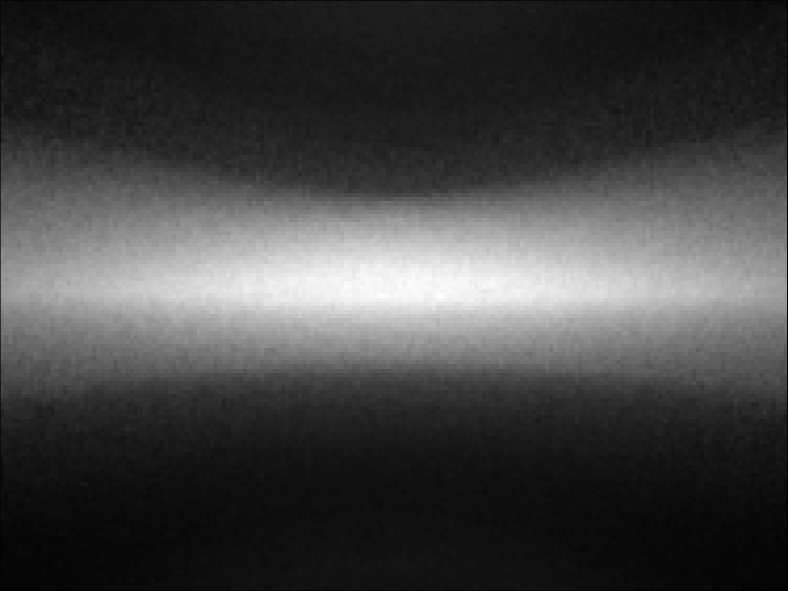

LUMILEDS LUXEON 3030 2D Plus Square White

Eff:

92.5%

FWHM:

14.5 x 360°

Cd/Im:

0.6


Download

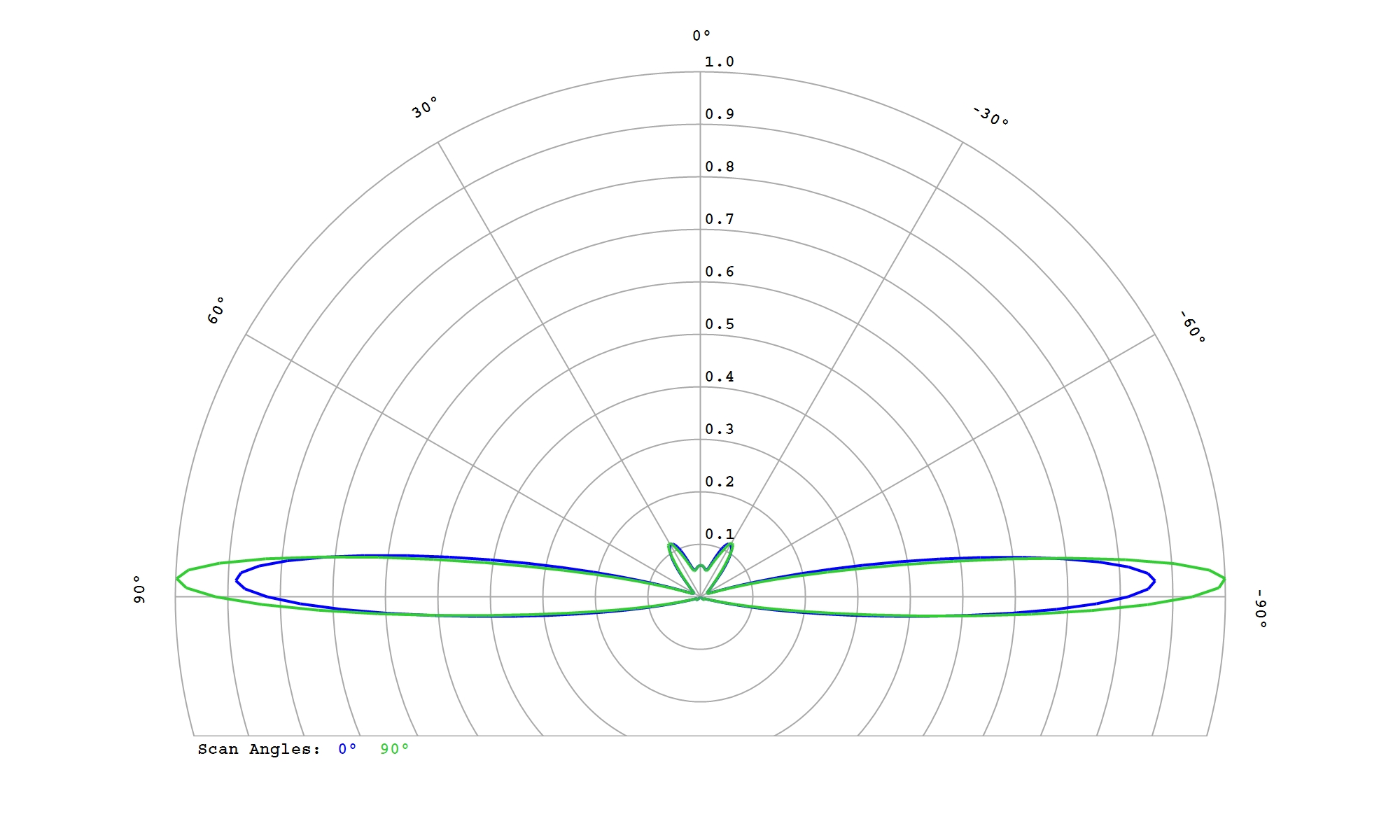

LUMILEDS LUXEON 3030 2D Square White

Eff:

92.5%

FWHM:

7.7 x 360°

Cd/Im:

0.8


Download

LUMILEDS LUXEON 3030 2D Round White

Eff:

92.5%

FWHM:

6.4 x 360°

Cd/Im:

1.0

Download

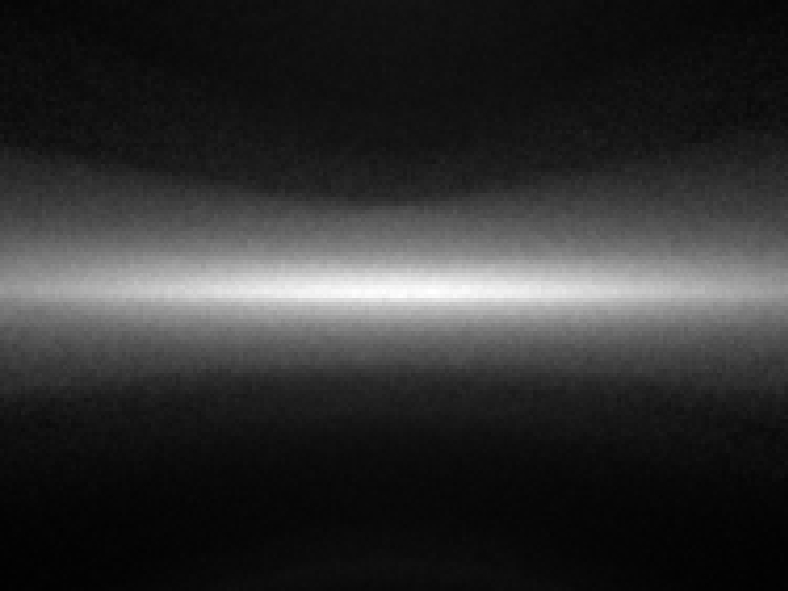

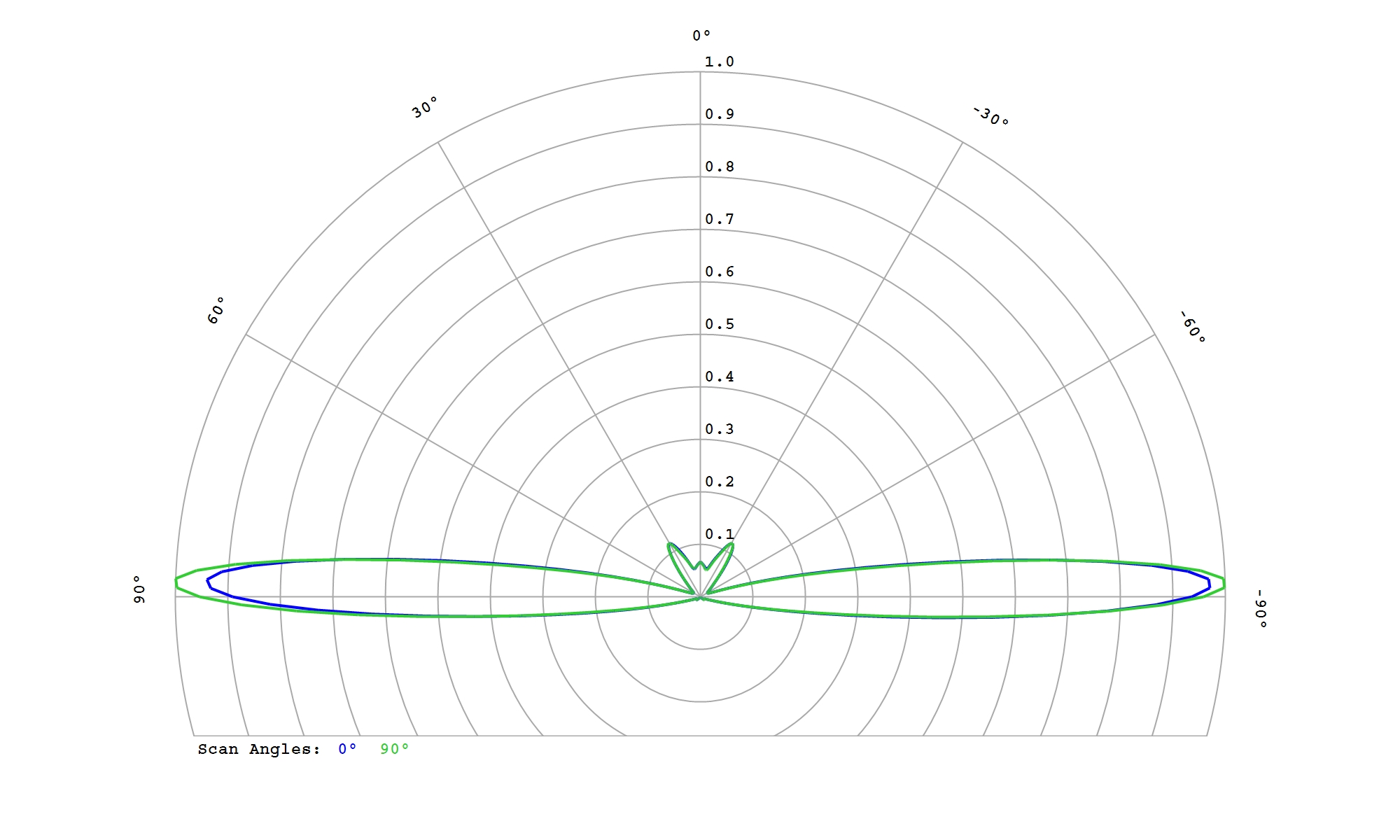

LUMILEDS LUXEON 3030 HE White

Eff:

92.5%

FWHM:

7.4 x 360°

Cd/Im:

0.8

Download

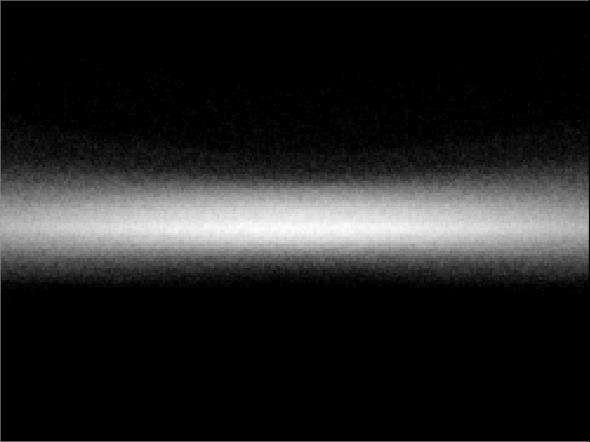

Eff:

80.8%

FWHM:

7.7°

Cd/Im:

1.0

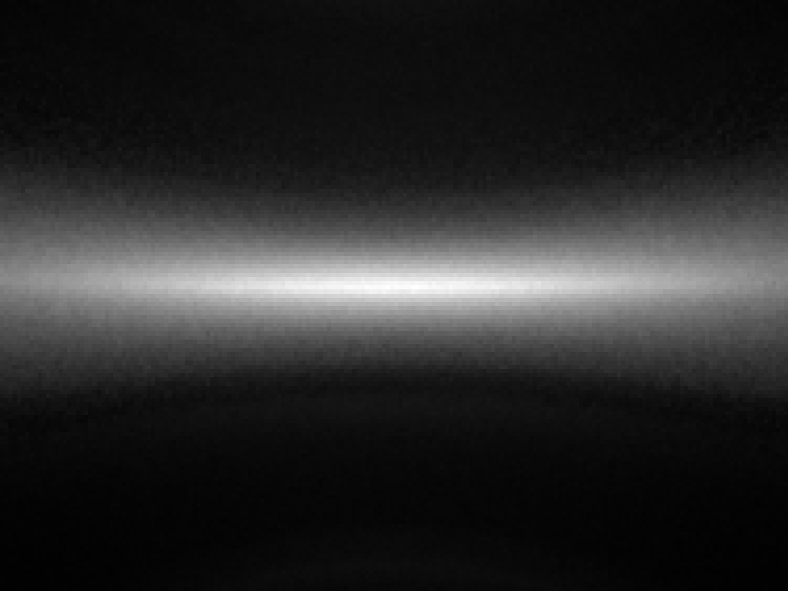

carclo optics - simulated spot image

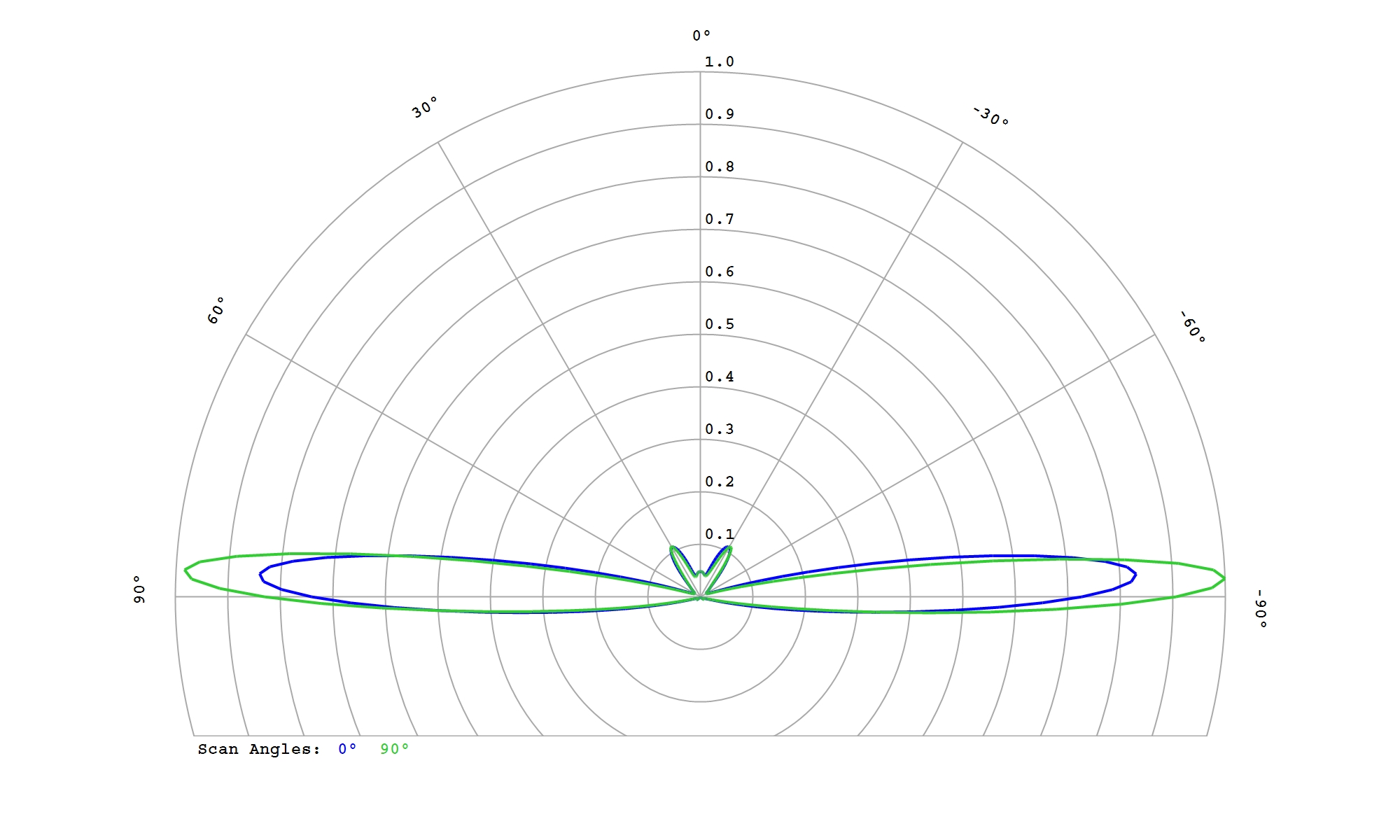

carclo optics - simulated cross section

Download

IES

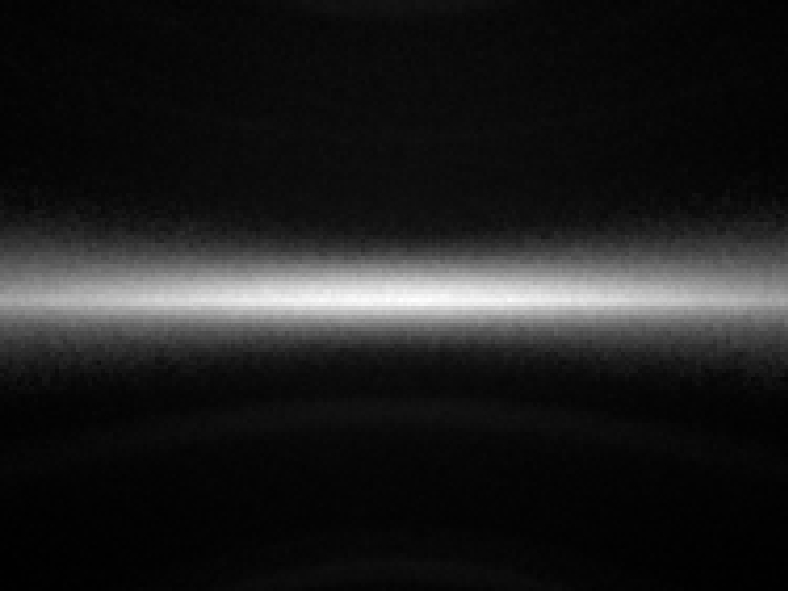

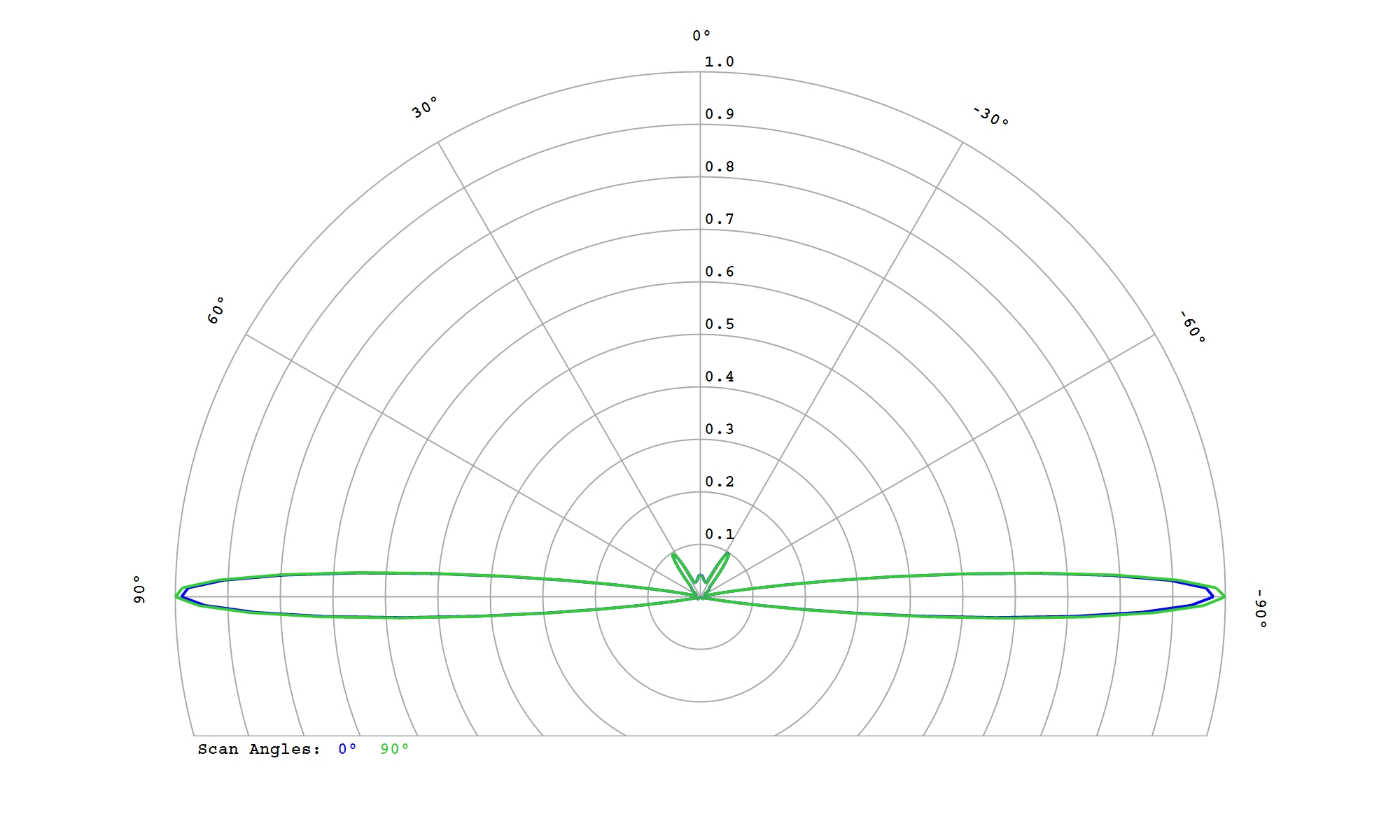

LUMILEDS LUXEON CZ White

Eff:

92.5%

FWHM:

5.7 x 360°

Cd/Im:

1.4

Download

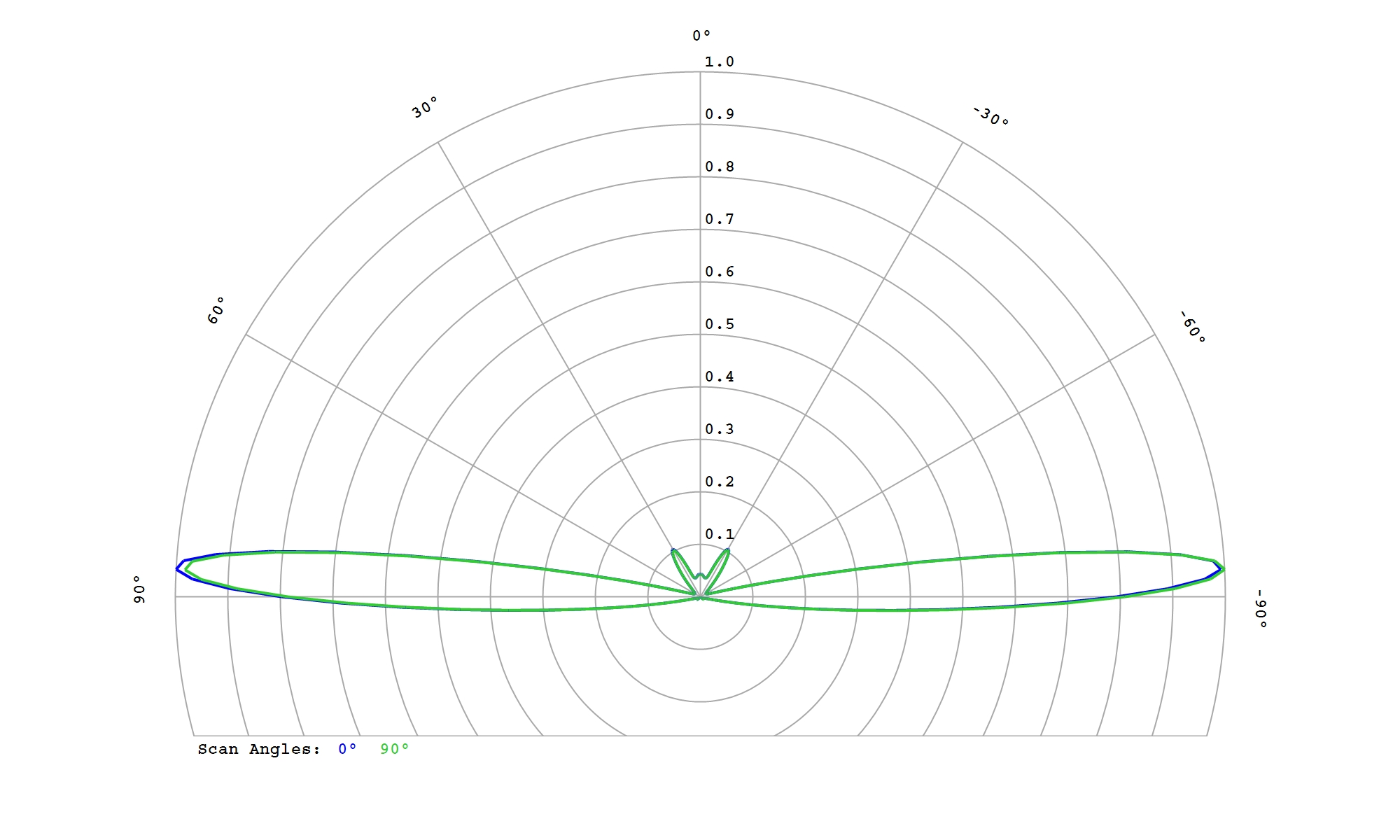

LUMILEDS LUXEON HL1Z Color Blue

Eff:

92.0%

FWHM:

7.6 x 360°

Cd/Im:

1.0

Download

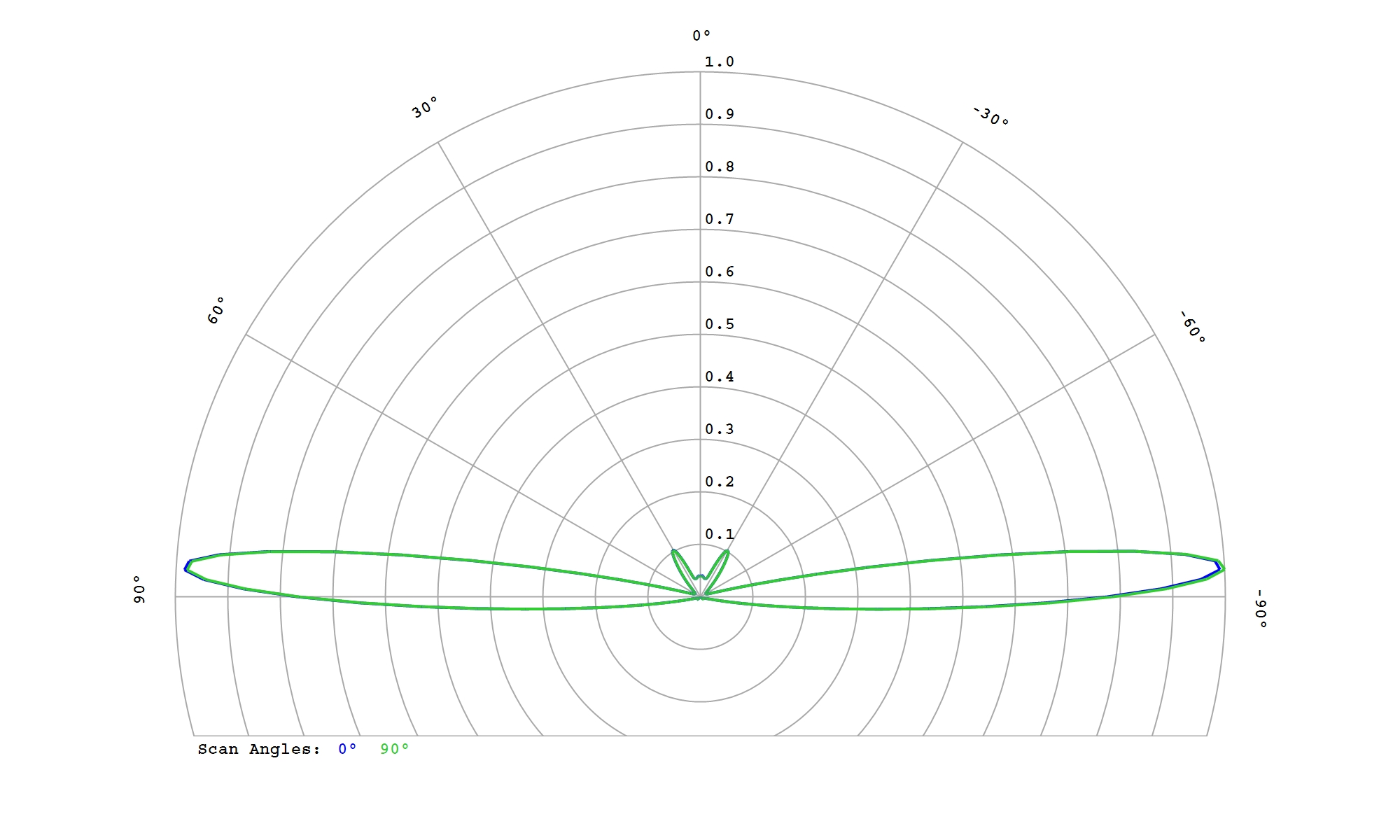

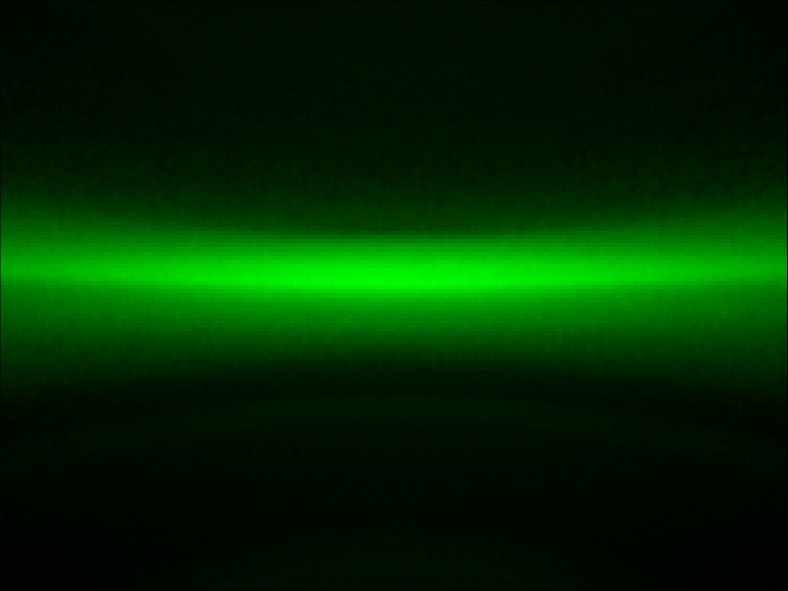

LUMILEDS LUXEON HL1Z Color Green

Eff:

92.0%

FWHM:

7.3 x 360°

Cd/Im:

1.1

Download

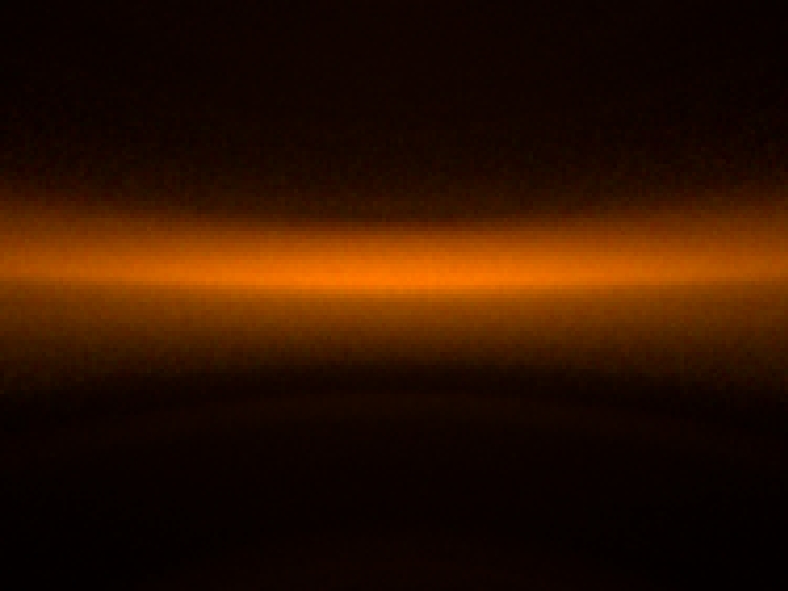

LUMILEDS LUXEON HL1Z Color PC Amber

Eff:

92.0%

FWHM:

8 x 360°

Cd/Im:

1.0


Download

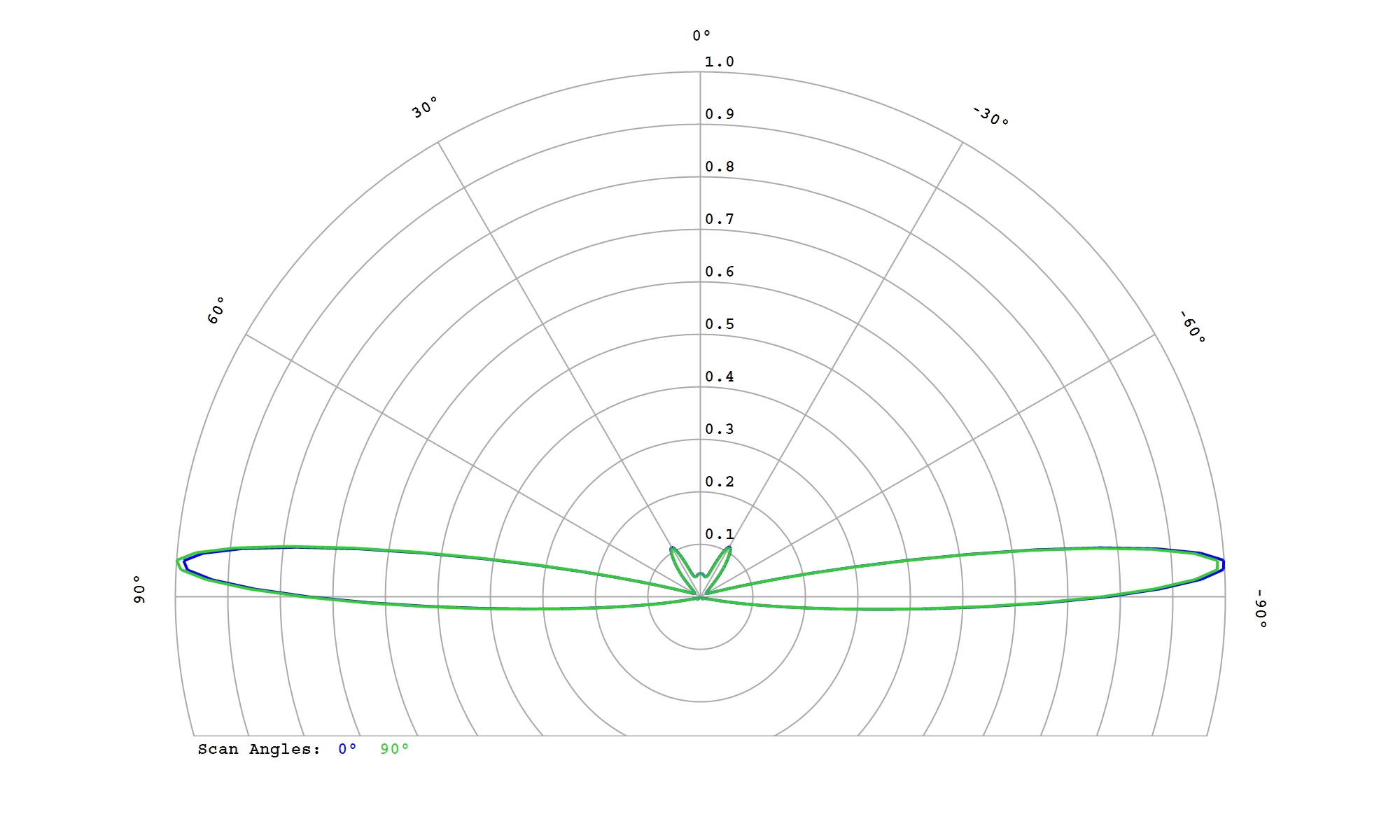

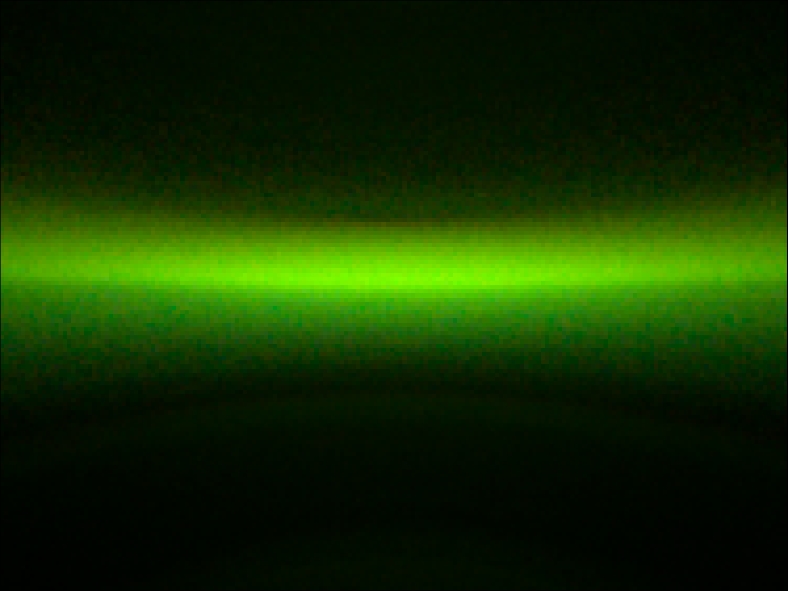

LUMILEDS LUXEON HL1Z Color PC Green

Eff:

91.5%

FWHM:

7.8 x 360°

Cd/Im:

0.9


Download

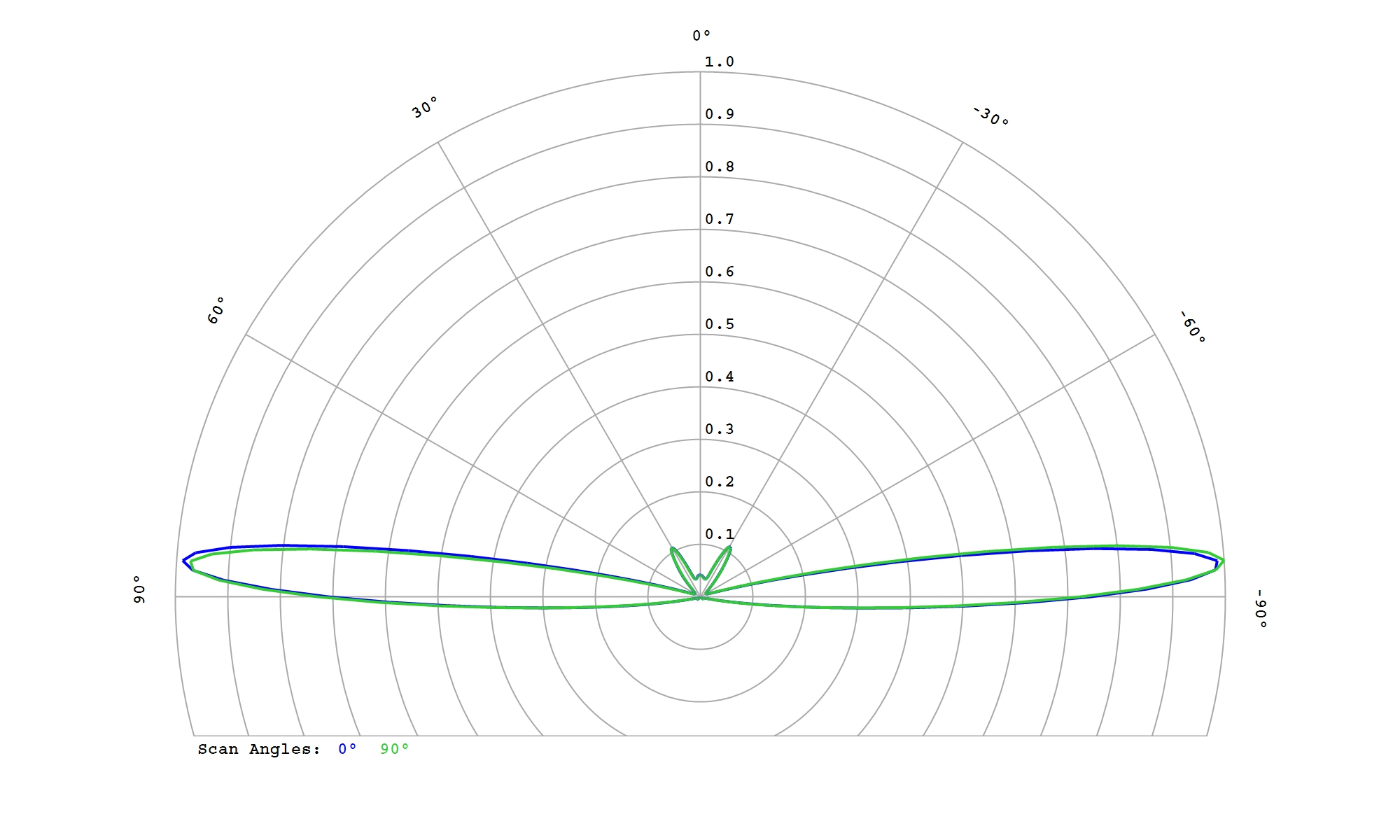

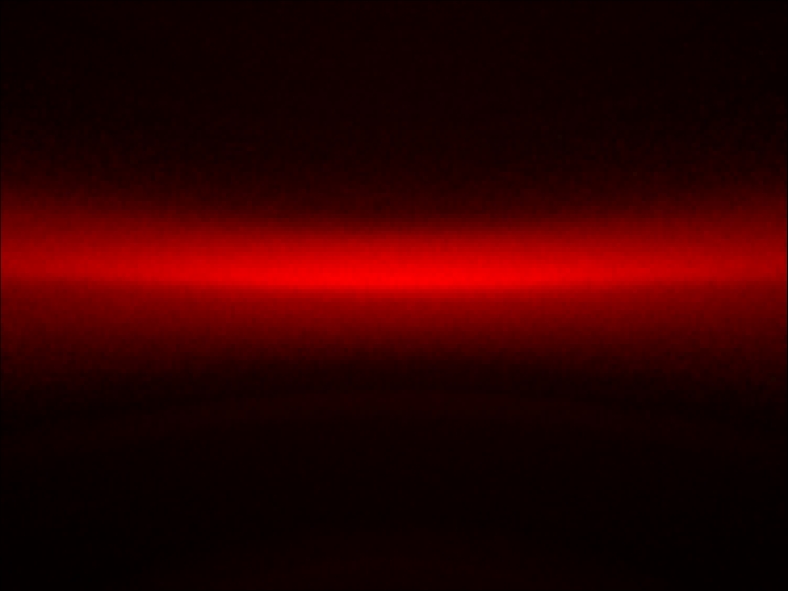

LUMILEDS LUXEON HL1Z Color PC Red

Eff:

92.5%

FWHM:

7.6 x 360°

Cd/Im:

1.0

Download

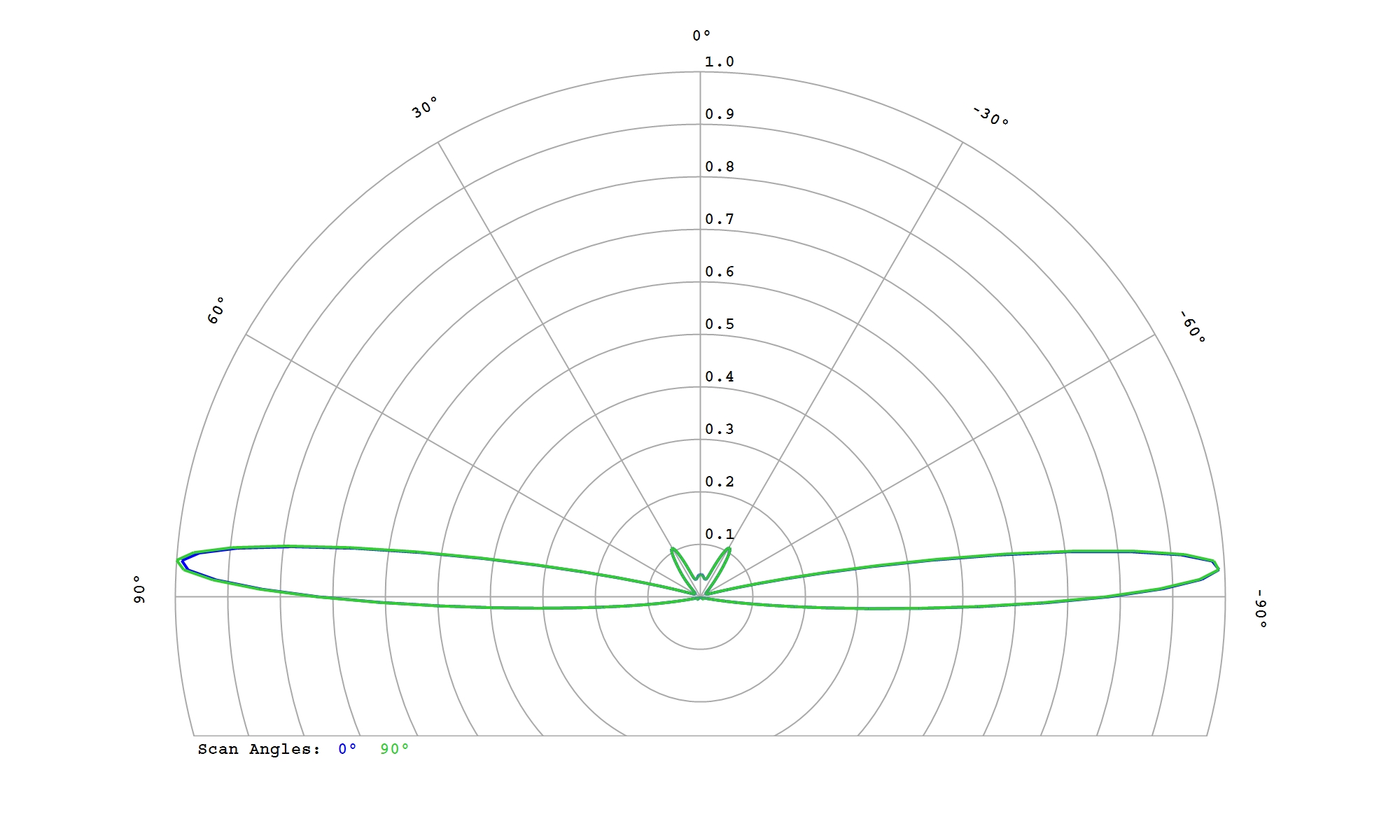

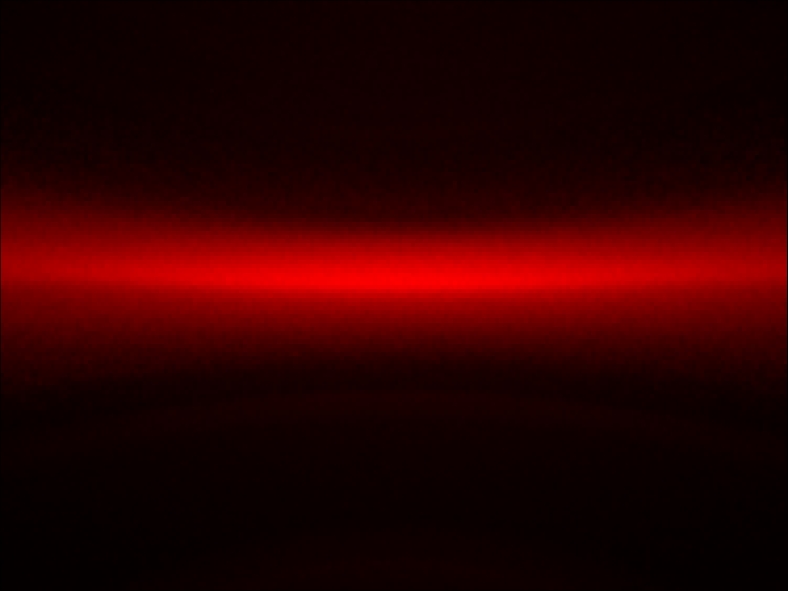

LUMILEDS LUXEON HL1Z Color PC Red Orange

Eff:

92.5%

FWHM:

7.2 x 360°

Cd/Im:

1.0


Download

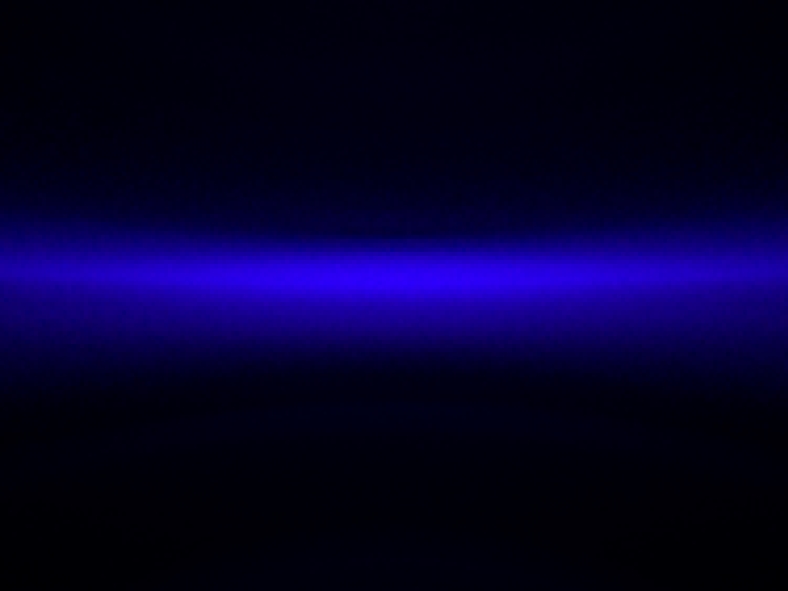

LUMILEDS LUXEON HL1Z Color Royal Blue

Eff:

91.5%

FWHM:

7.6 x 360°

Ipk/W:

1.0


Download

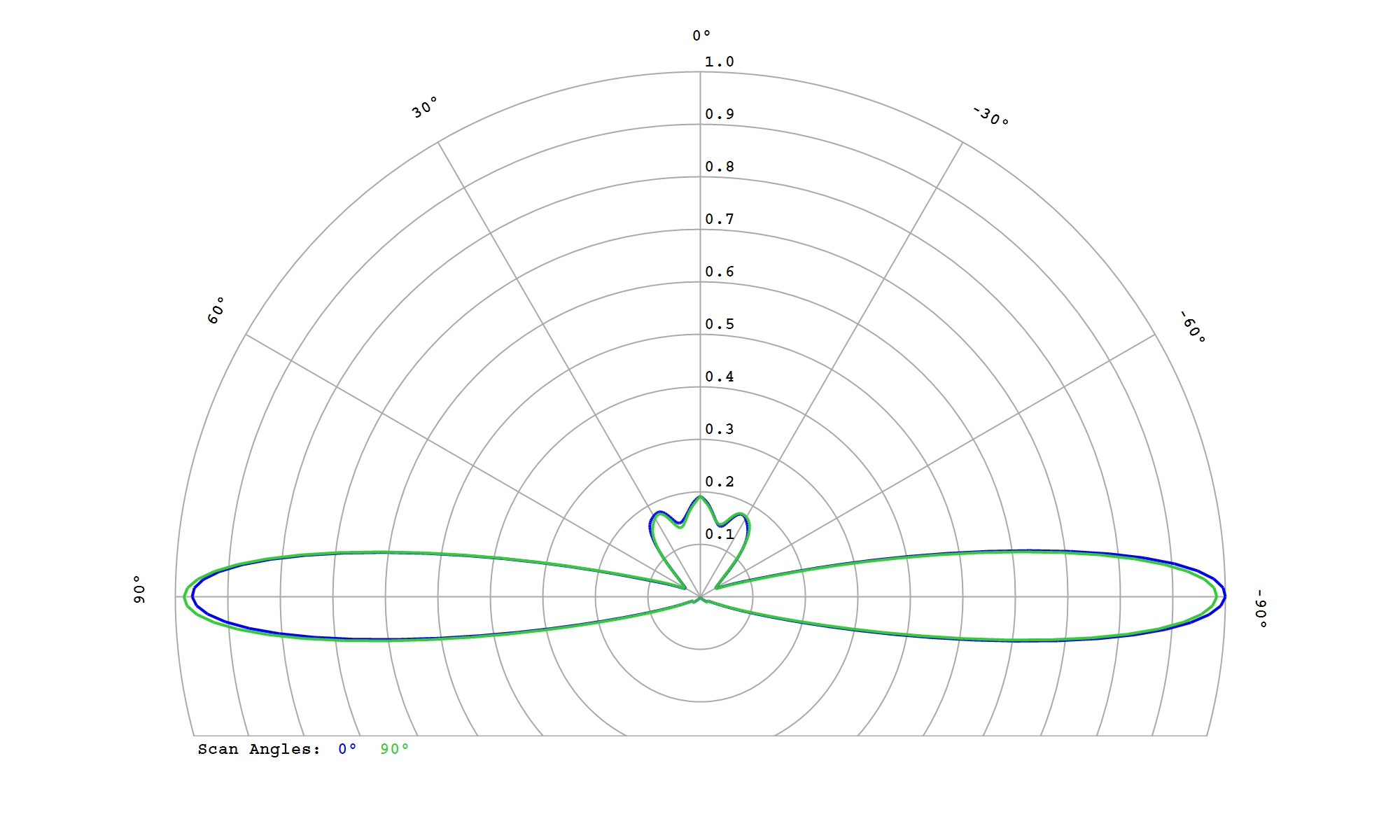

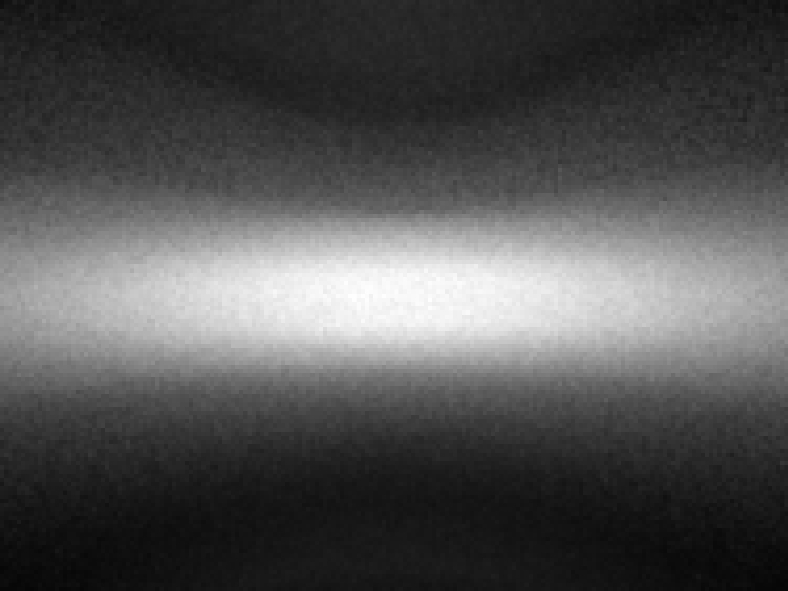

LUMILEDS LUXEON HL2X-E White

Eff:

90.0%

FWHM:

18 x 360°

Cd/Im:

0.4

Download

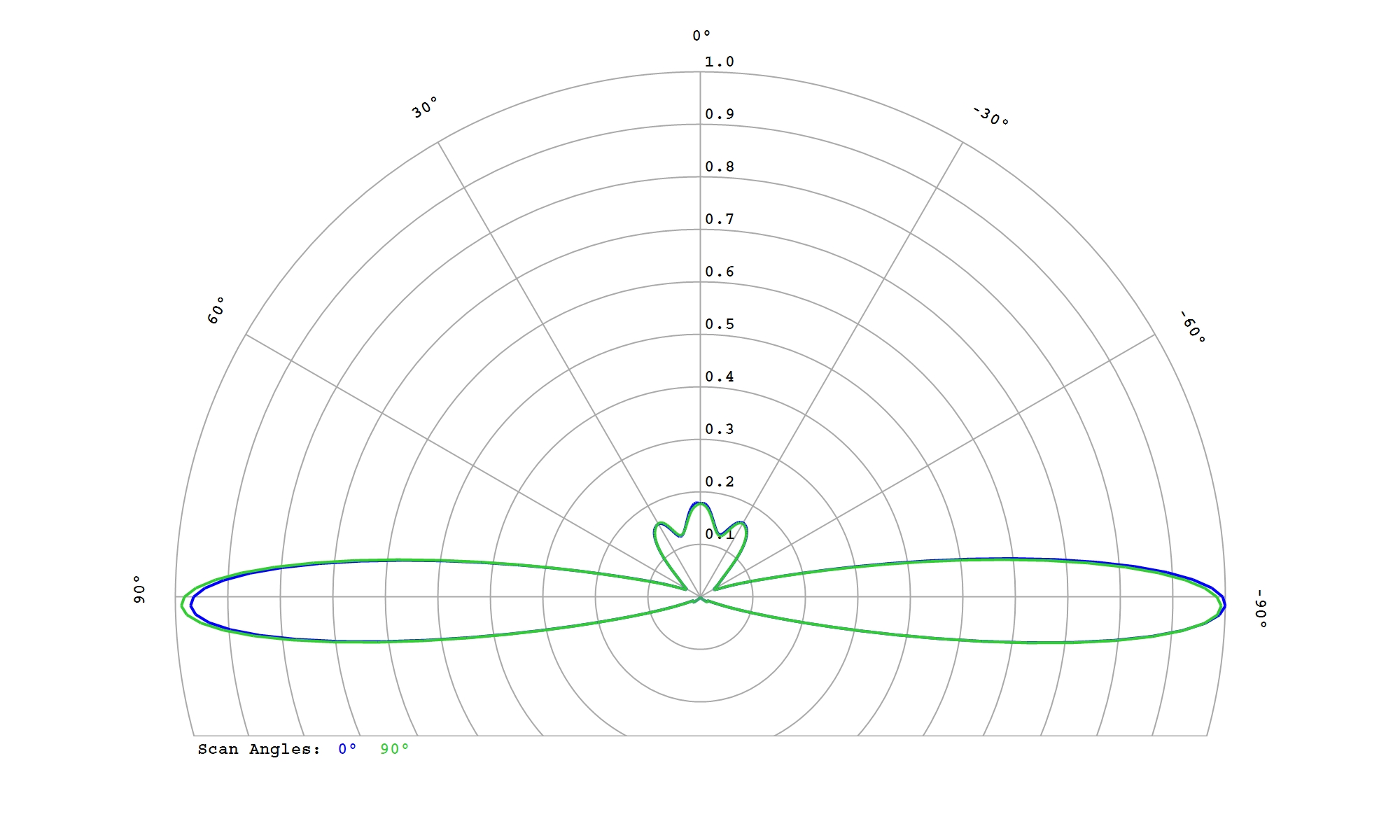

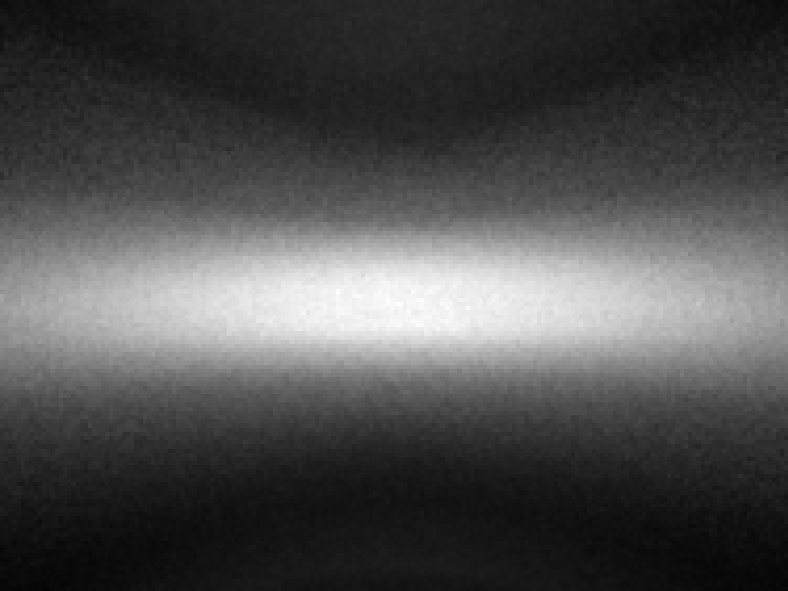

LUMILEDS LUXEON HL2X-V White

Eff:

89.5%

FWHM:

16.5 x 360°

Cd/Im:

0.5

Download

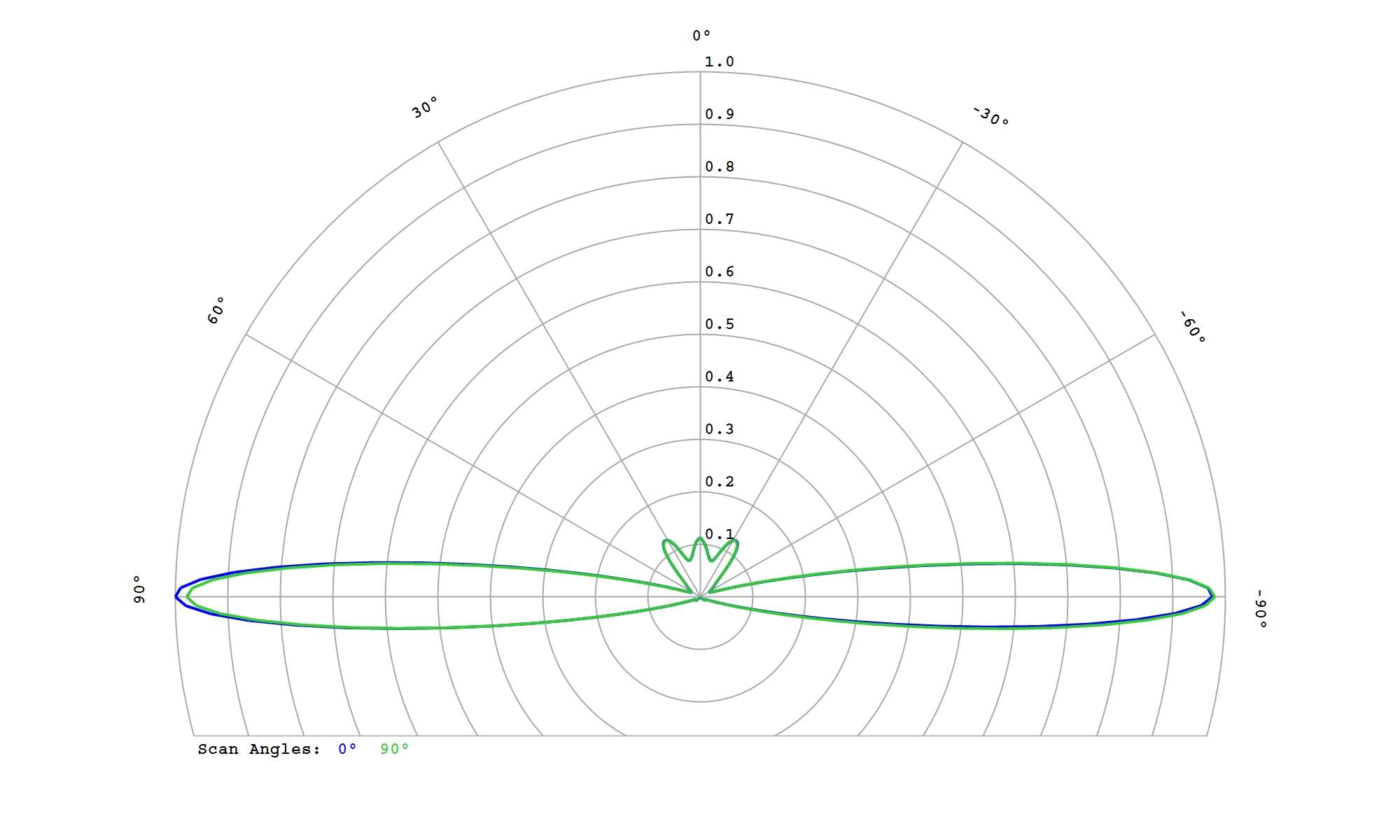

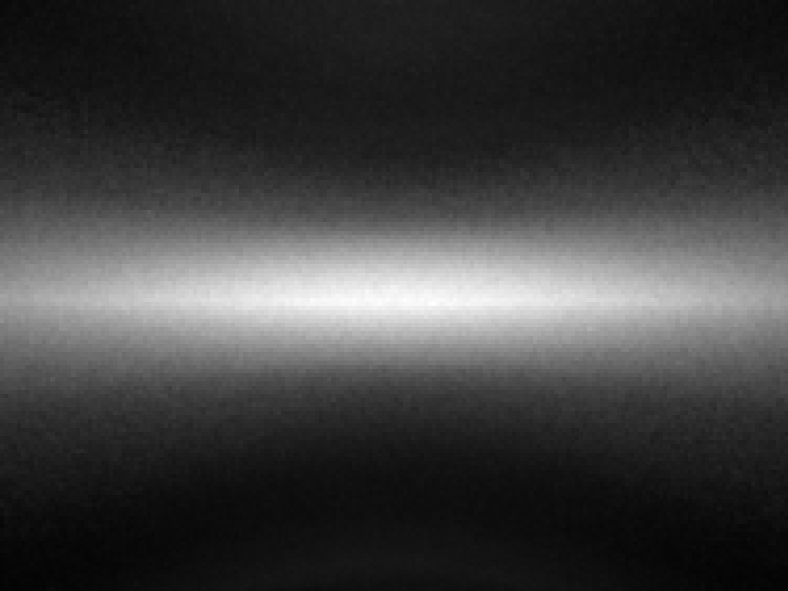

LUMILEDS LUXEON Rebel ES White

Eff:

90.5%

FWHM:

12 x 360°

Cd/Im:

0.6

Download

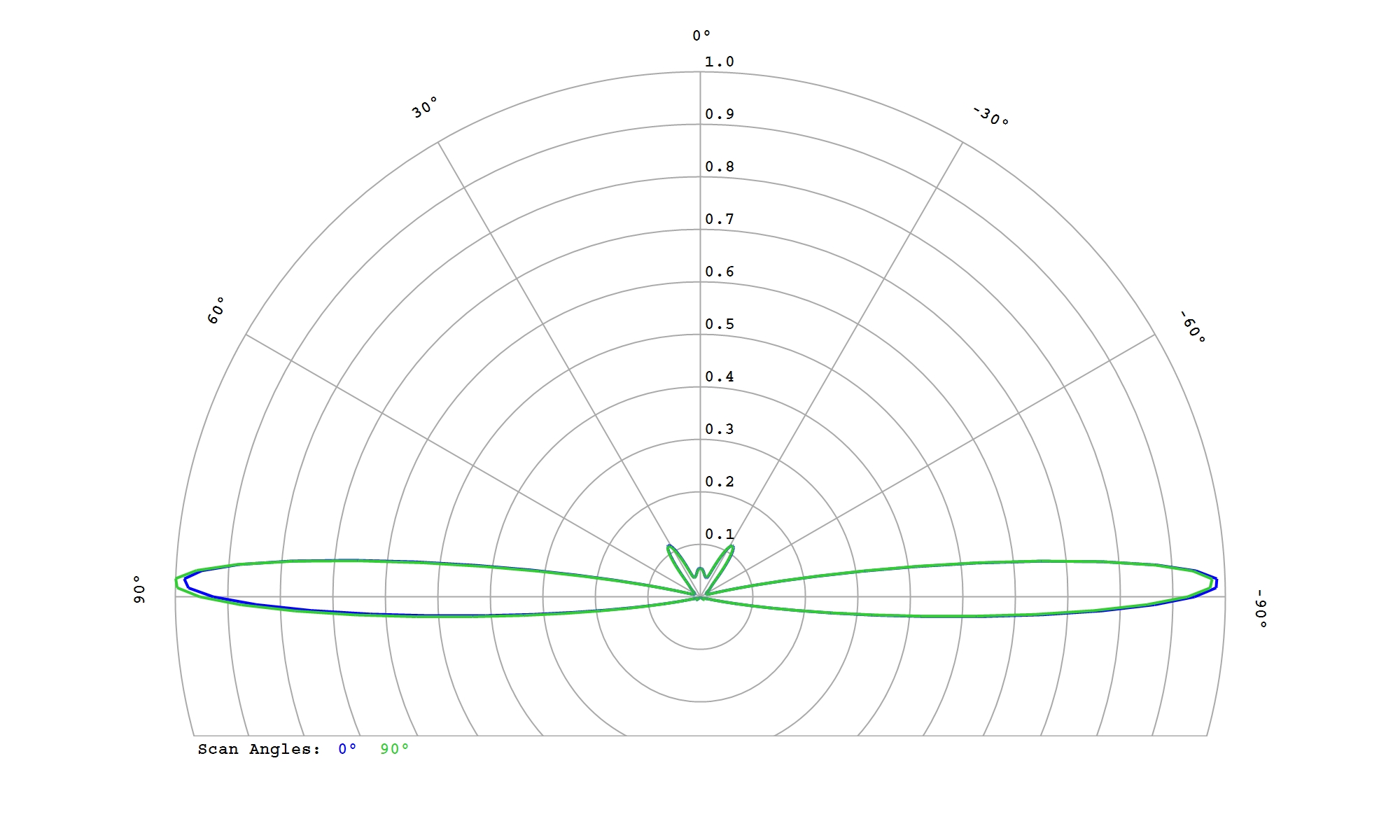

LUMILEDS LUXEON Rebel Plus White

Eff:

92.0%

FWHM:

8.4 x 360°

Cd/Im:

0.9

Download

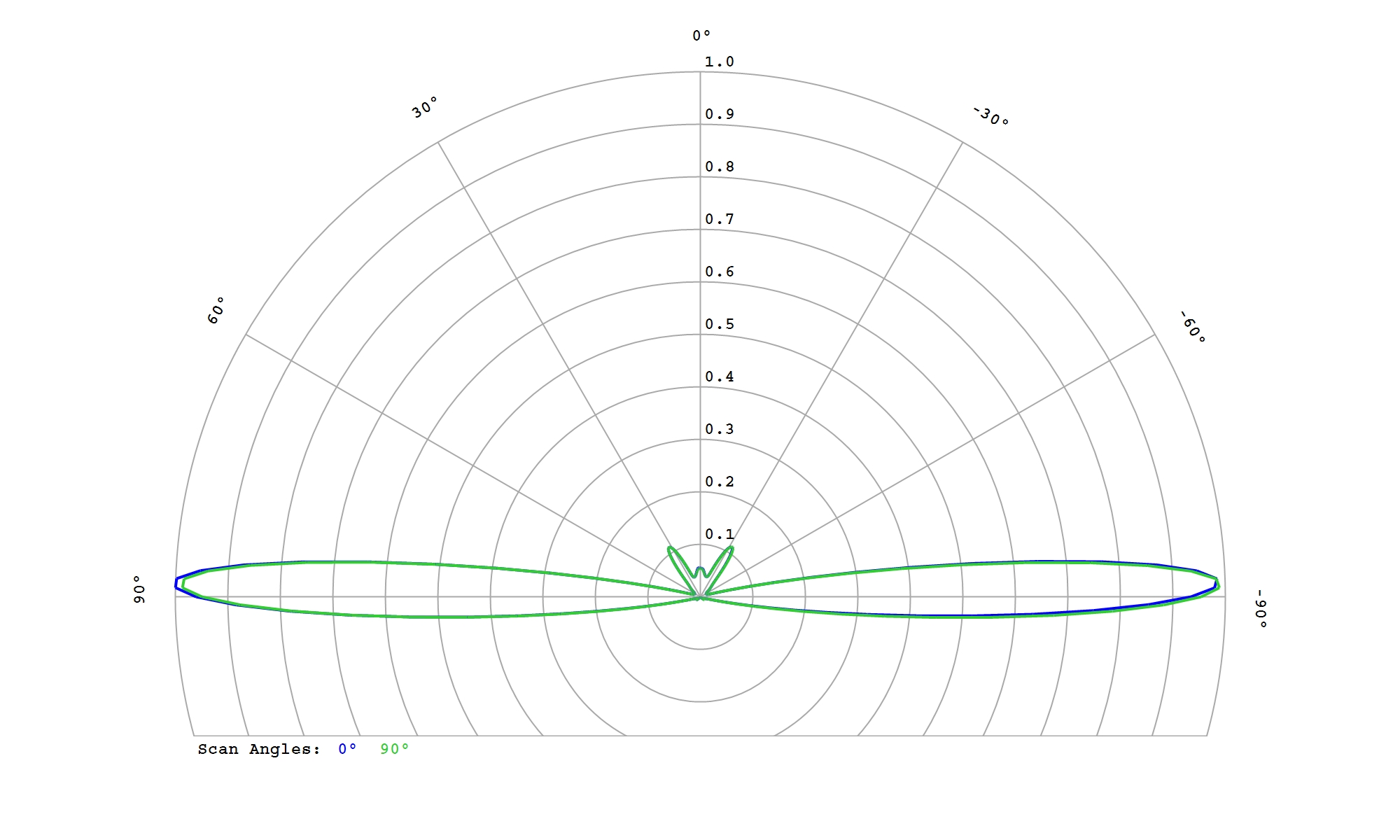

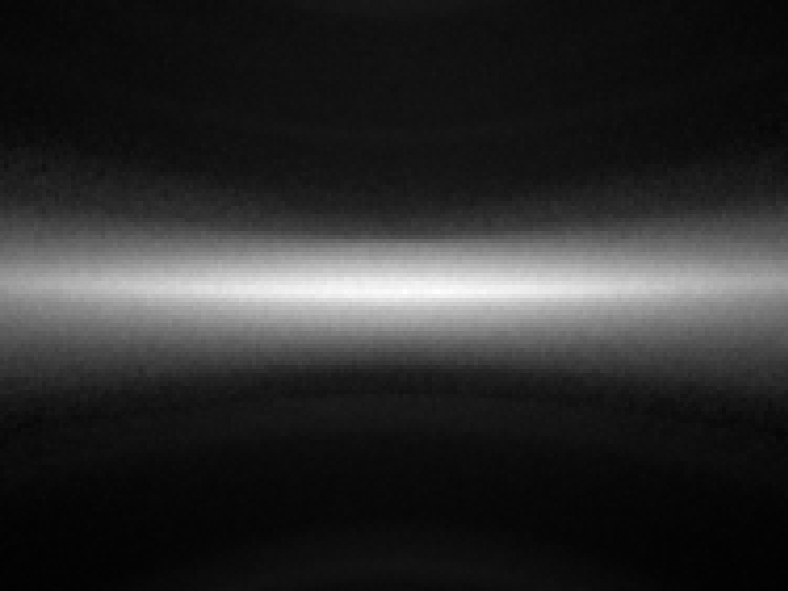

LUMILEDS LUXEON Rebel White

Eff:

92.0%

FWHM:

7.8 x 360°

Cd/Im:

0.9

Download

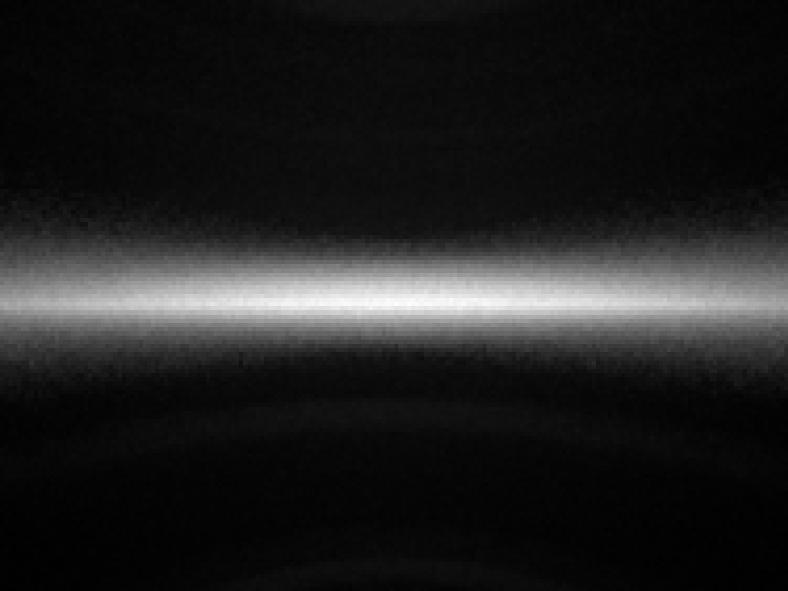

LUMILEDS LUXEON Rubix White

Eff:

92.5%

FWHM:

6 x 360°

Cd/Im:

1.4

Download

LUMILEDS LUXEON TX White

Eff:

82.8%

FWHM:

9.1 x 360°

Cd/Im:

0.7

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON Z ES White

Eff:

86.2%

FWHM:

7.8 x 360°

Cd/Im:

0.9

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON Z White

Eff:

92.5%

FWHM:

5.5 x 360°

Cd/Im:

1.5

Download

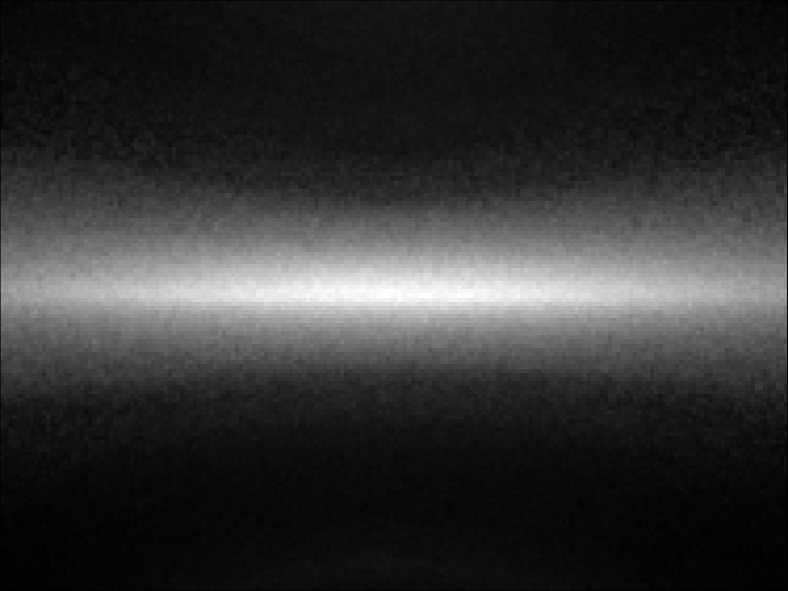

Luminus Devices MP-3030-11F2 White

Eff:

92.5%

FWHM:

8.3 x 360°

Cd/Im:

0.8


Download

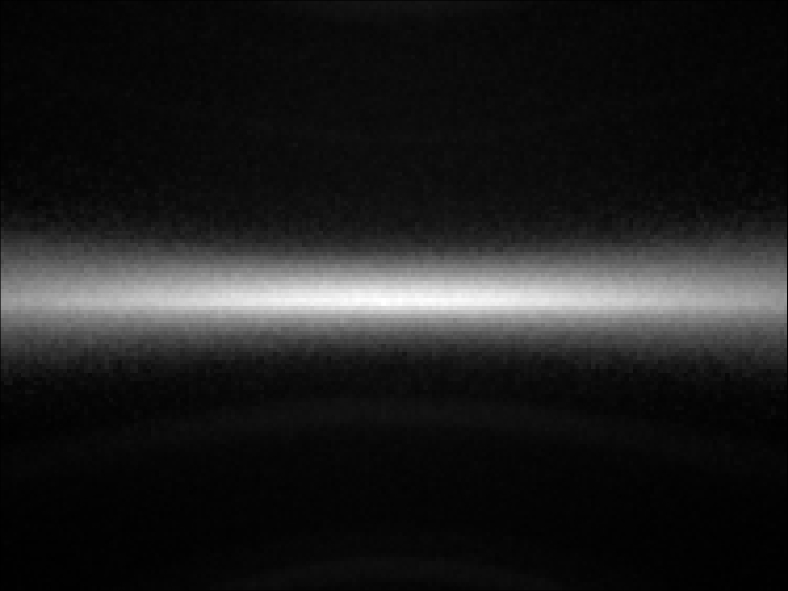

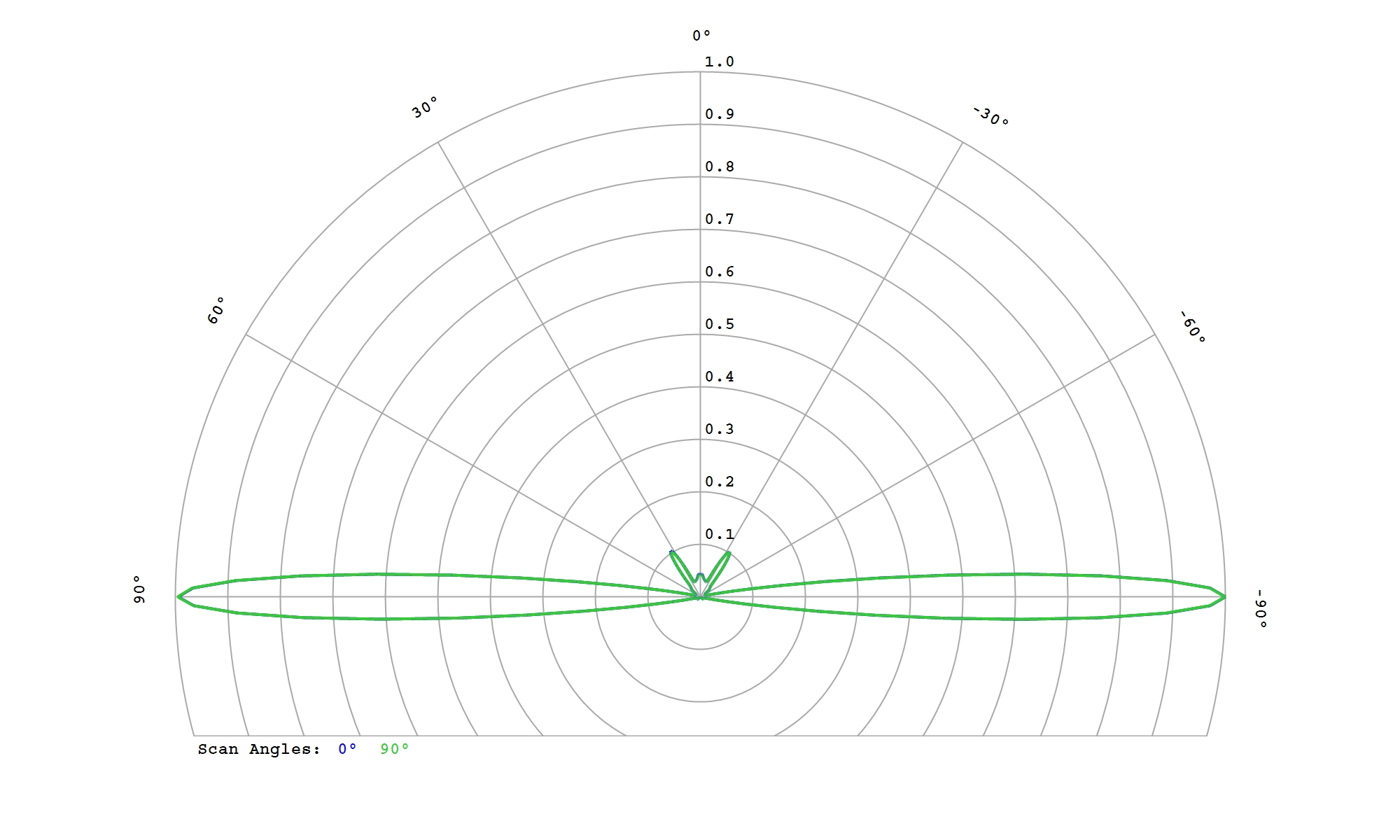

Luminus Devices SFT-12R-WES-A White

Eff:

92.5%

FWHM:

5.3 x 360°

Cd/Im:

1.2


Download

Luminus Devices SFT-25R-WES-A White

Eff:

92.5%

FWHM:

6.8 x 360°

Cd/Im:

1.0


Download

Luminus Devices SST 20-WxH White Hi CRI

Eff:

92.0%

FWHM:

8.6 x 360°

Cd/Im:

0.8

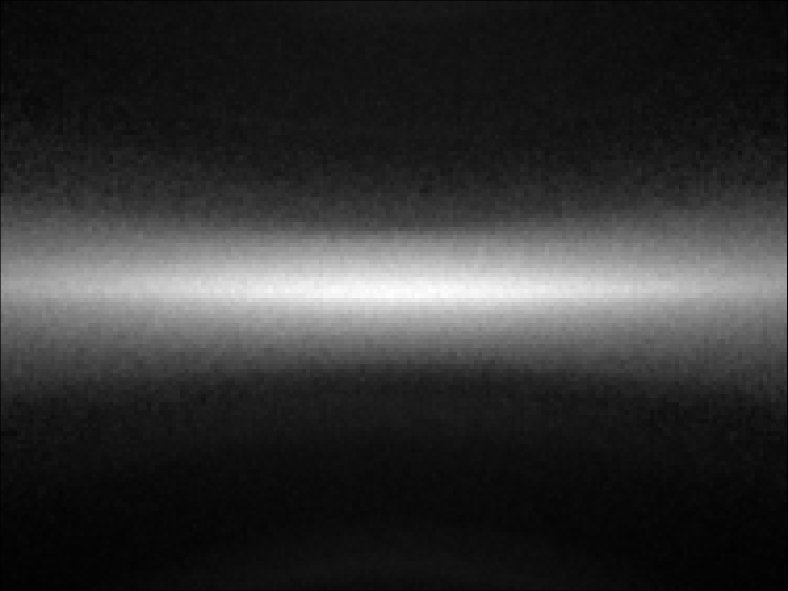

optic-10267-Luminus_SST-20-W-spot-image

Download

Luminus Devices SST-12-WS Gen2 White

Eff:

91.5%

FWHM:

7.1 x 360°

Cd/Im:

0.9


Download

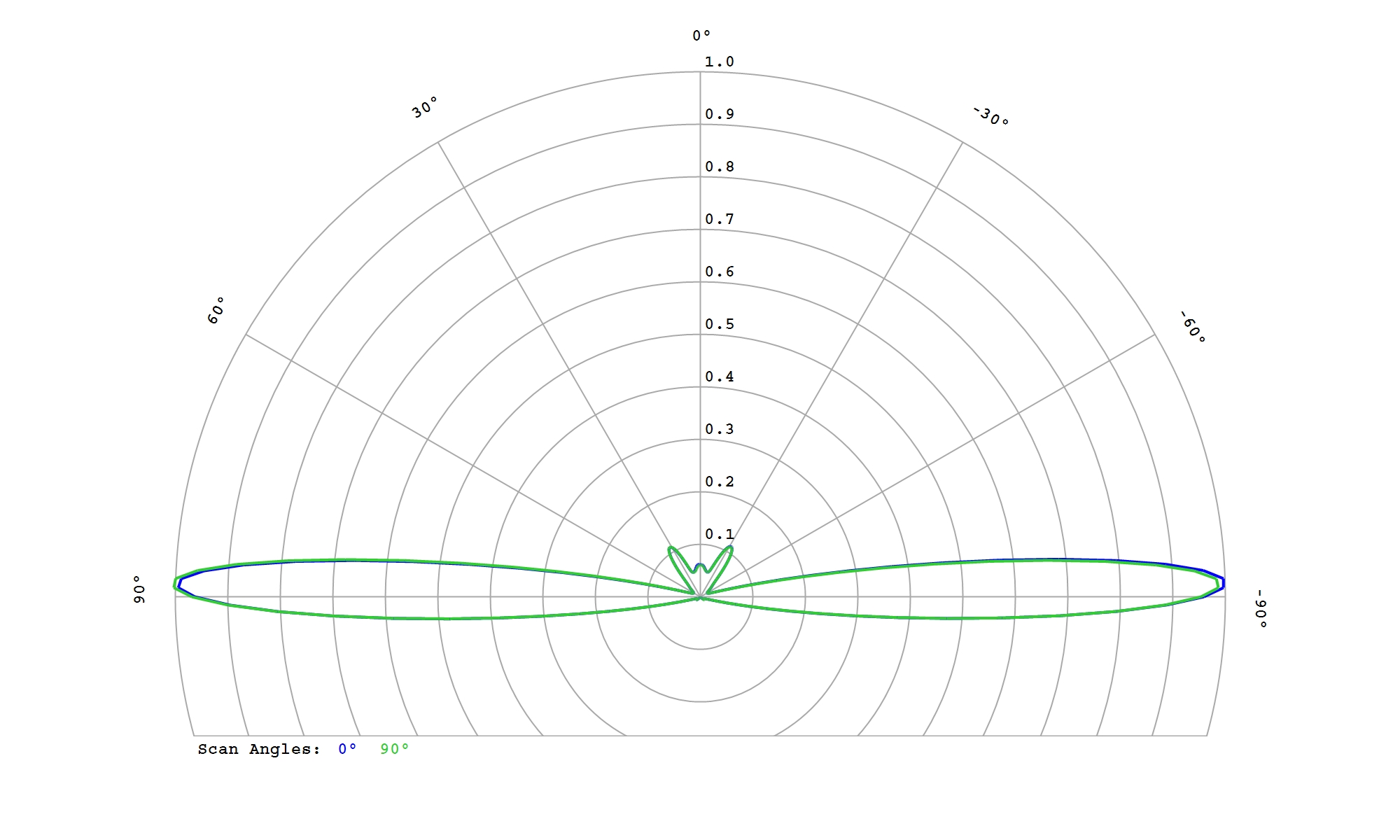

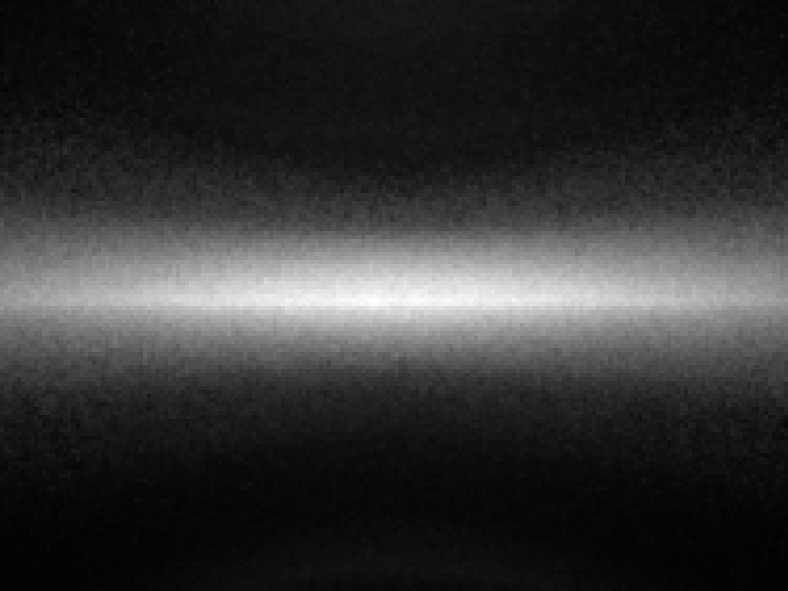

Luminus Devices SST-20-W Gen2 White

Eff:

92.0%

FWHM:

9.3 x 360°

Cd/Im:

0.8


Download

Nichia NCSW CSP E17A White

Eff:

92.0%

FWHM:

4.9 x 360°

Cd/Im:

1.0

Carclo Optics - 10267 side emitter Spot Image Nichia E17A

Carclo Optics - 10267 side emitter cross section Nichia E17A

Download

IES

Nichia NVSL 219B White

Eff:

91.5%

FWHM:

8.5 x 360°

Cd/Im:

0.9

spot image

cross section

Download

IES

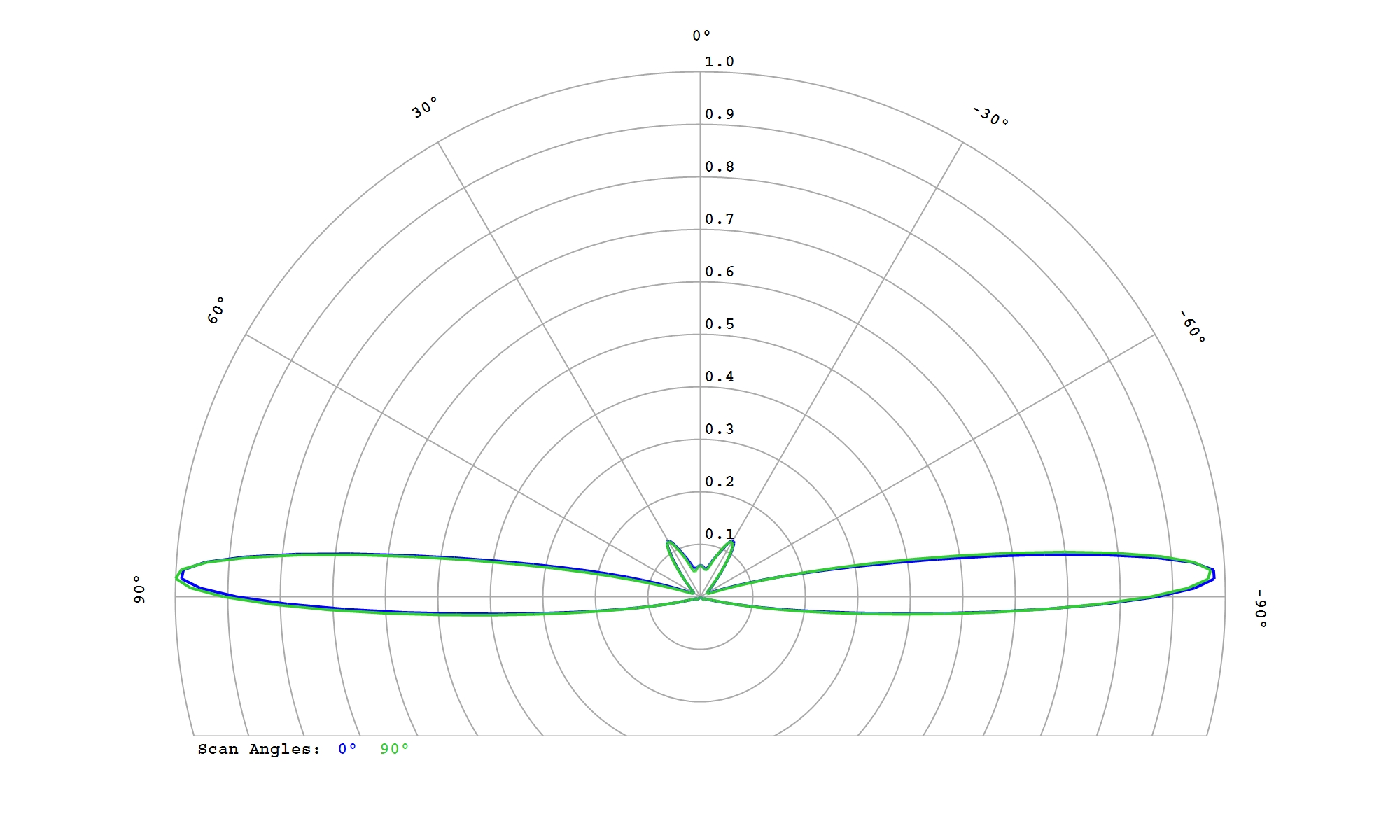

Osram DURIS E 2835 Gen2

Eff:

92.5%

FWHM:

8.9 x 360°

Cd/Im:

0.8



Download

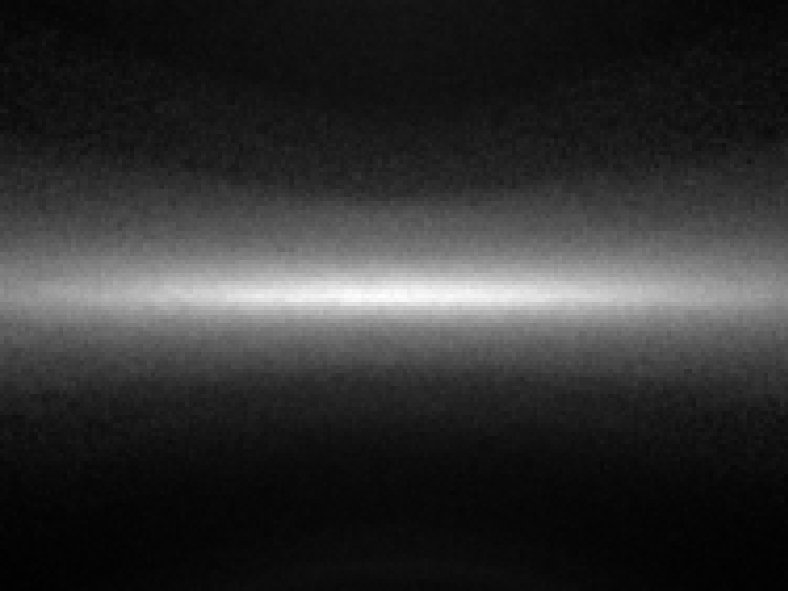

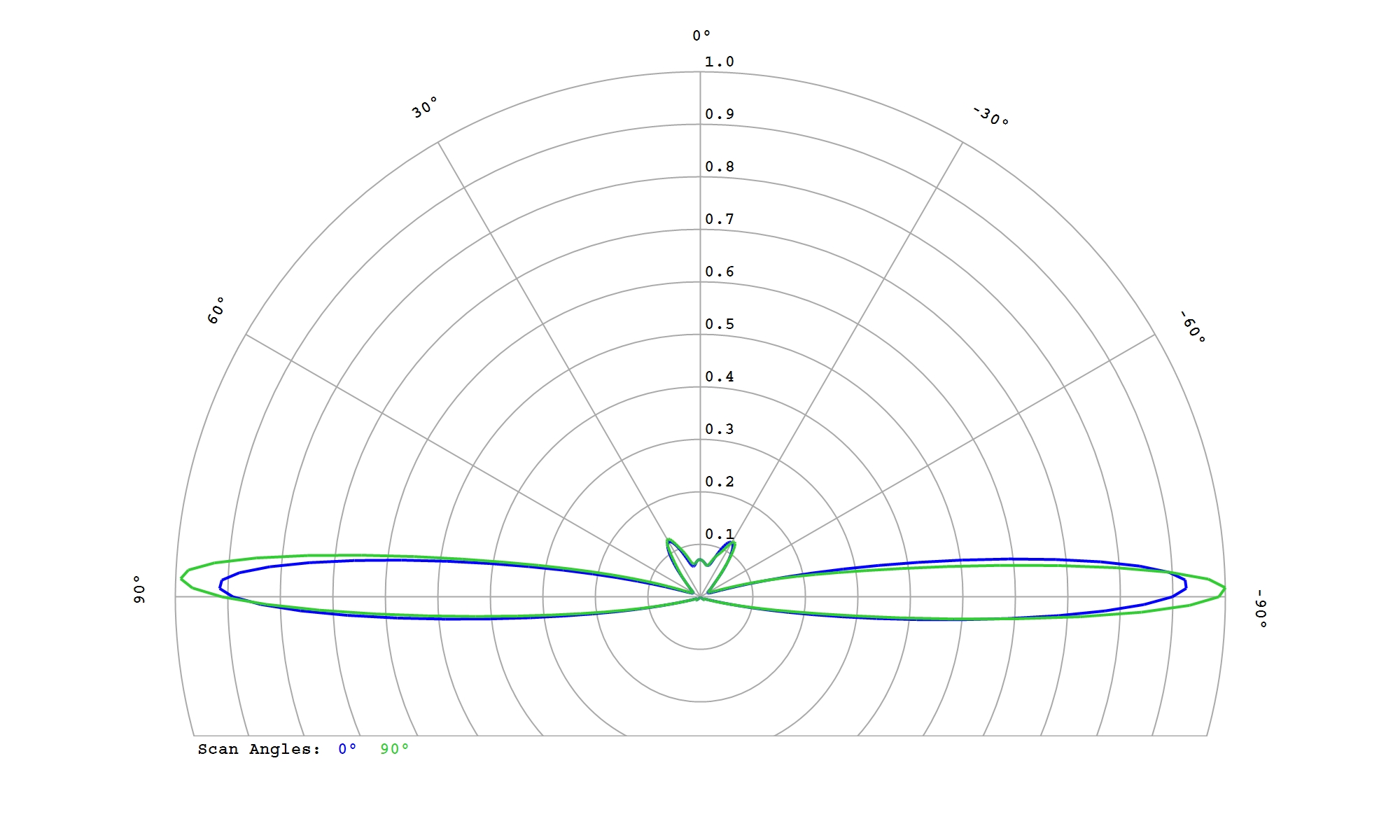

Osram DURIS E 2835 White

Eff:

92.5%

FWHM:

6.6 x 360°

Cd/Im:

0.8


Download

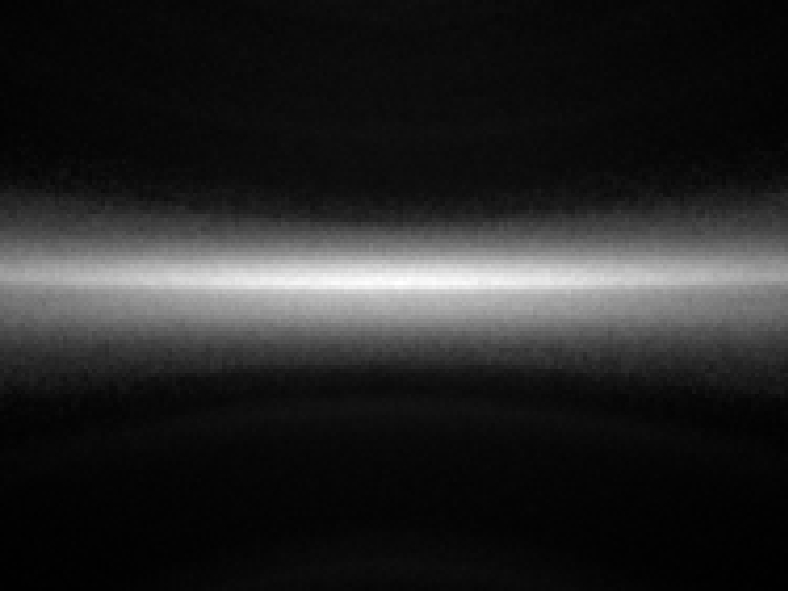

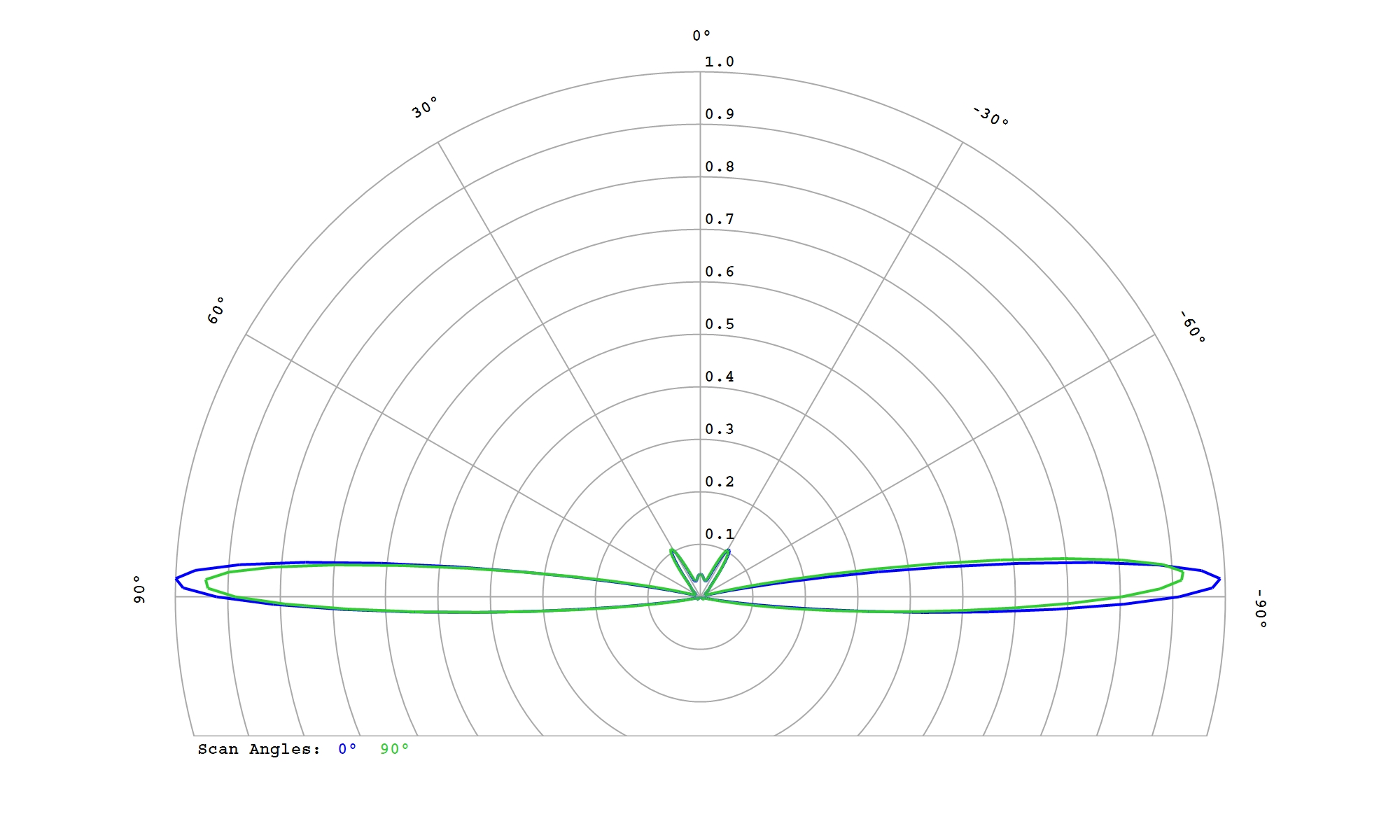

Osram DURIS E2 White

Eff:

92.5%

FWHM:

6.3 x 360°

Cd/Im:

1.3


Download

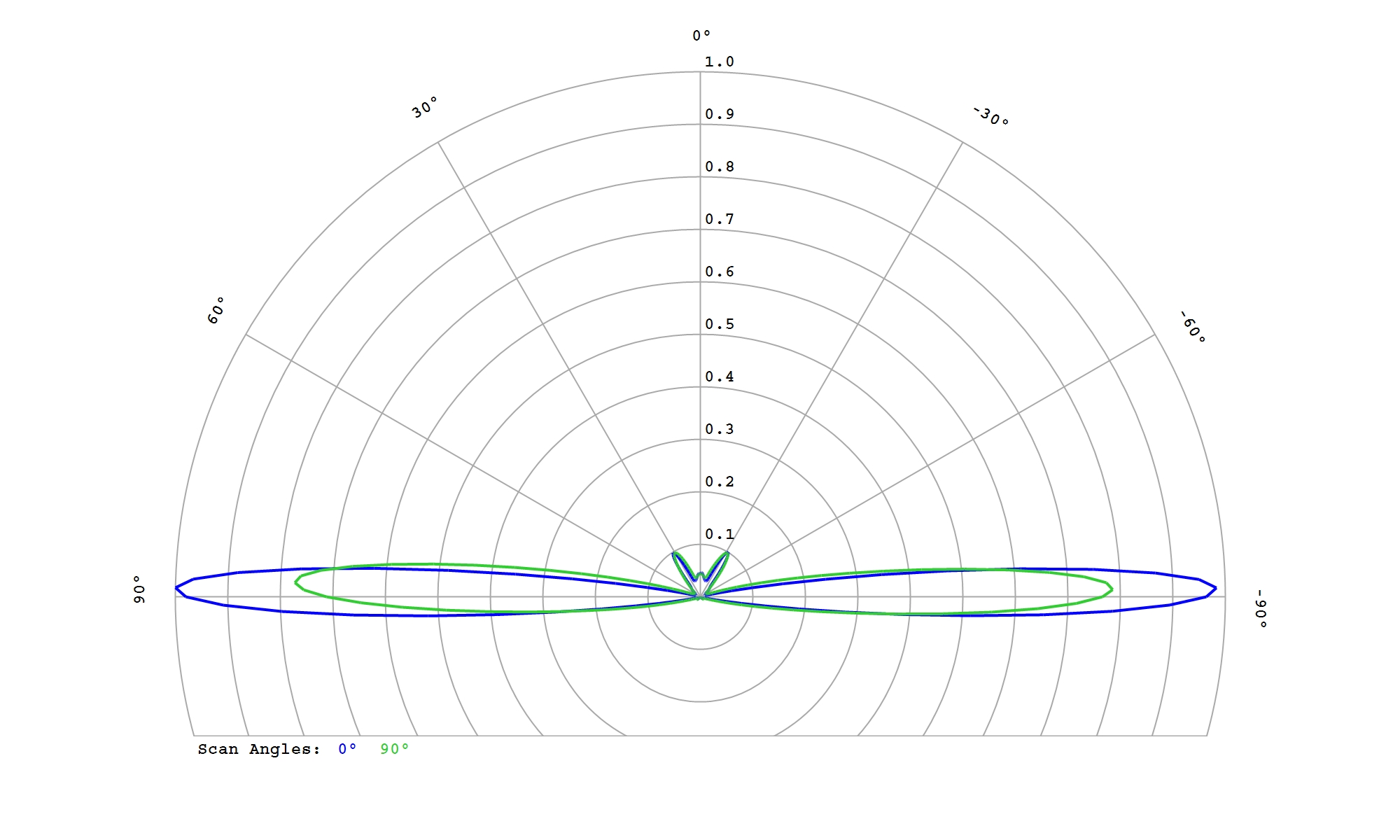

Osram DURIS E3 Gen2 White

Eff:

92.5%

FWHM:

7.8 x 360°

Cd/Im:

1.2

Download

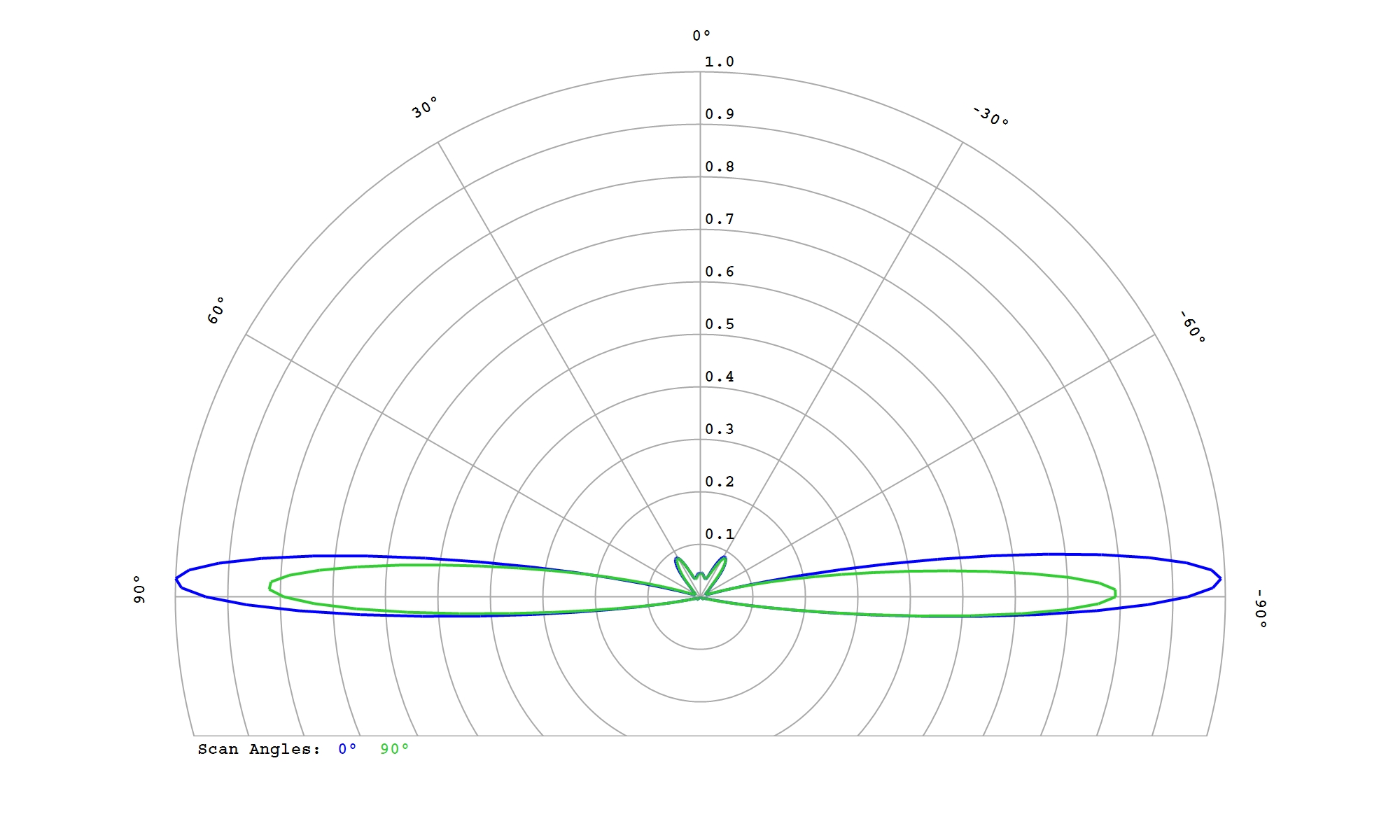

Osram DURIS S2 White

Eff:

93.0%

FWHM:

8.1 x 360°

Cd/Im:

0.8


Download

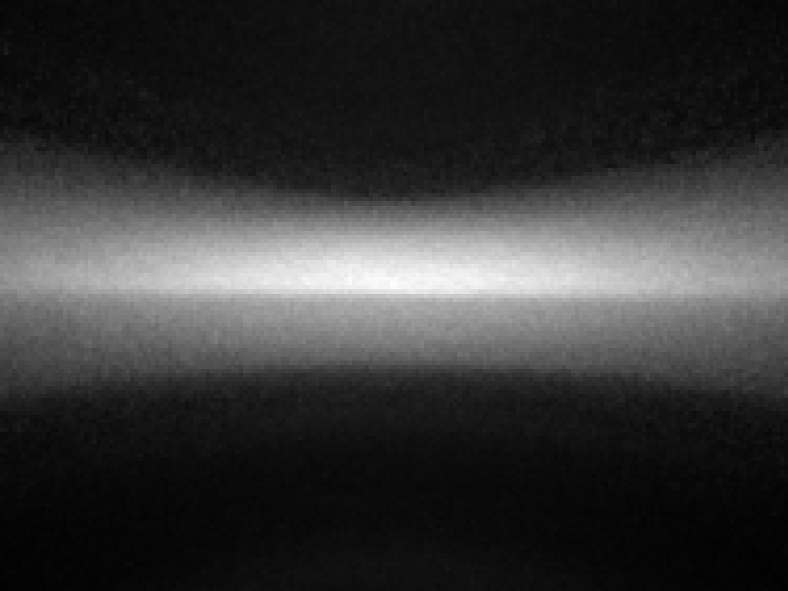

Osram DURIS S5 White

Eff:

92.5%

FWHM:

9.7 x 360°

Cd/Im:

0.8

Download

Osram OSLON Square White

Eff:

85.8%

FWHM:

8.8 x 360°

Cd/Im:

0.8

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

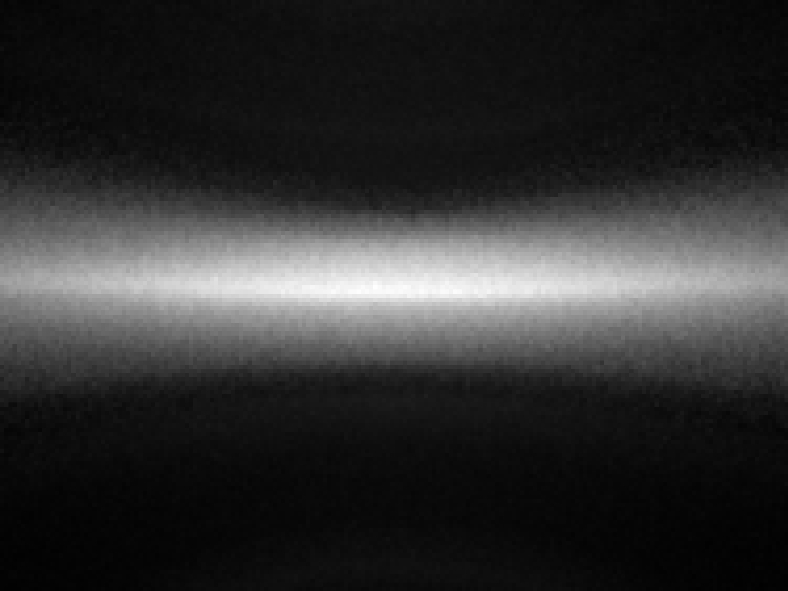

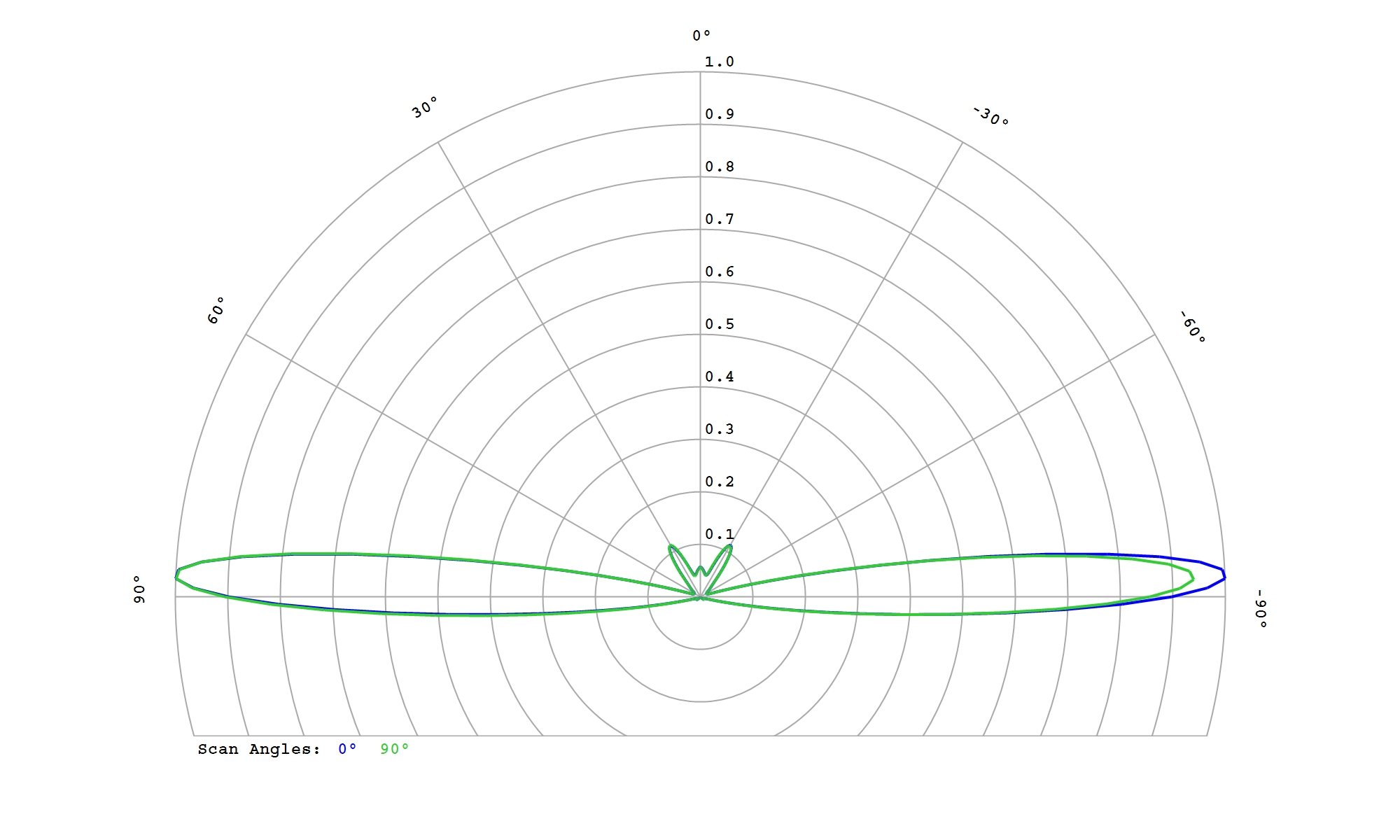

Osram OSCONIQ C 2424 White

Eff:

92.5%

FWHM:

9.2 x 360°

Cd/Im:

0.9


Download

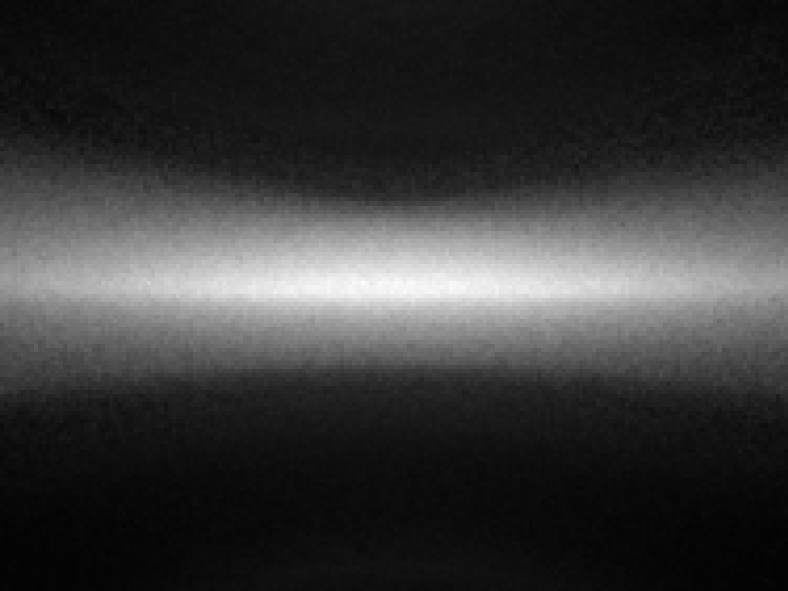

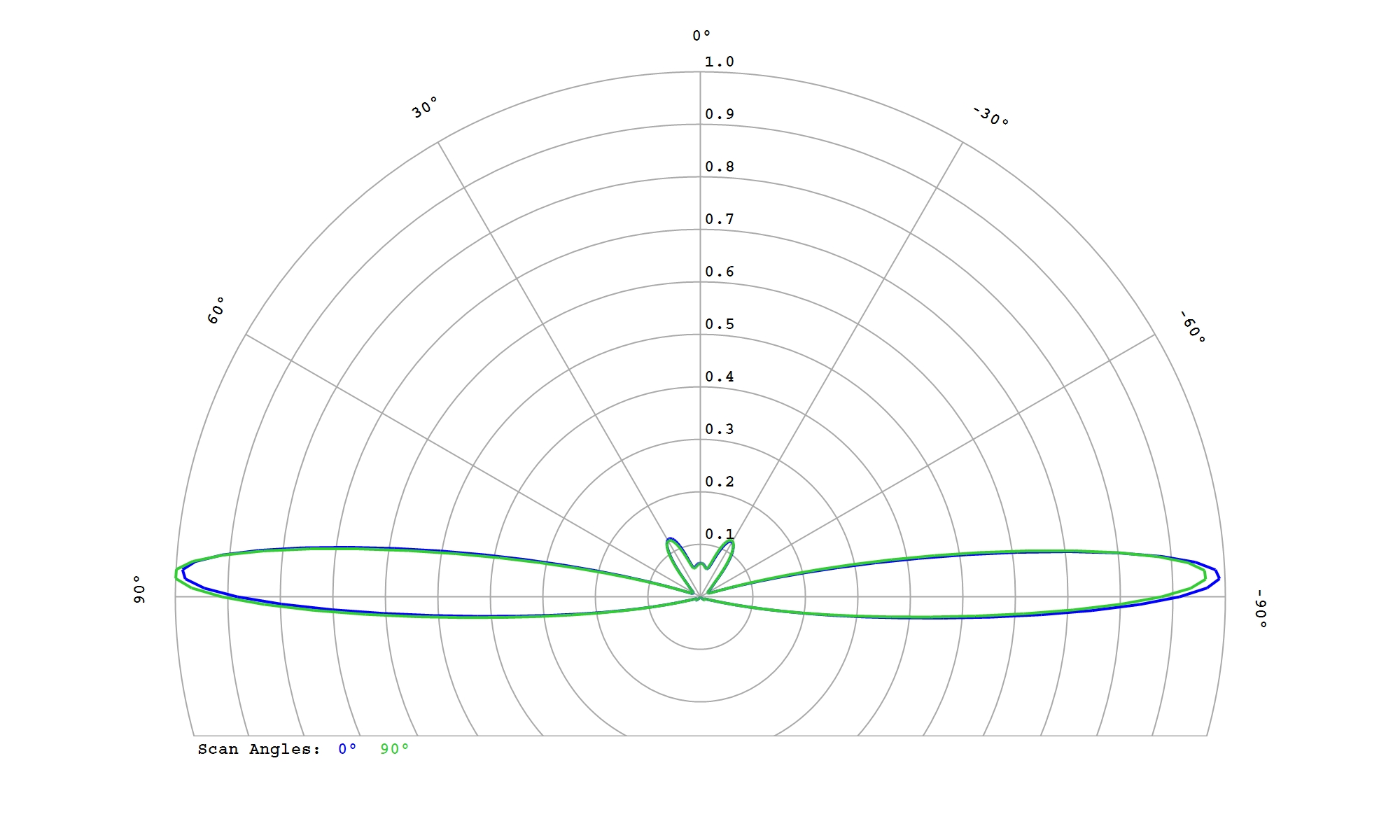

Osram OSCONIQ C 3030 GW PLTRA1.PM White

Eff:

92.5%

FWHM:

11 x 360°

Cd/Im:

0.7

Download

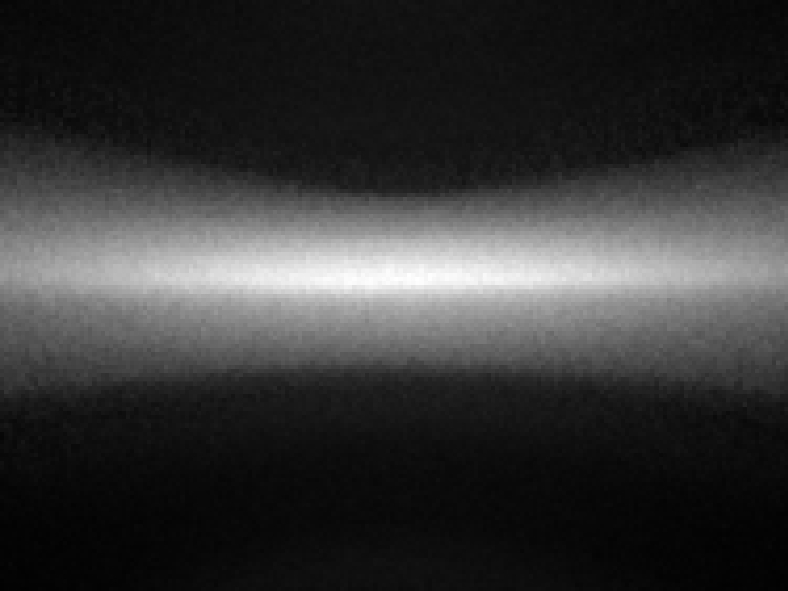

Osram OSCONIQ E 3030 GW QSLPS1.EM White

Eff:

92.5%

FWHM:

9.4 x 360°

Cd/Im:

0.8

Download

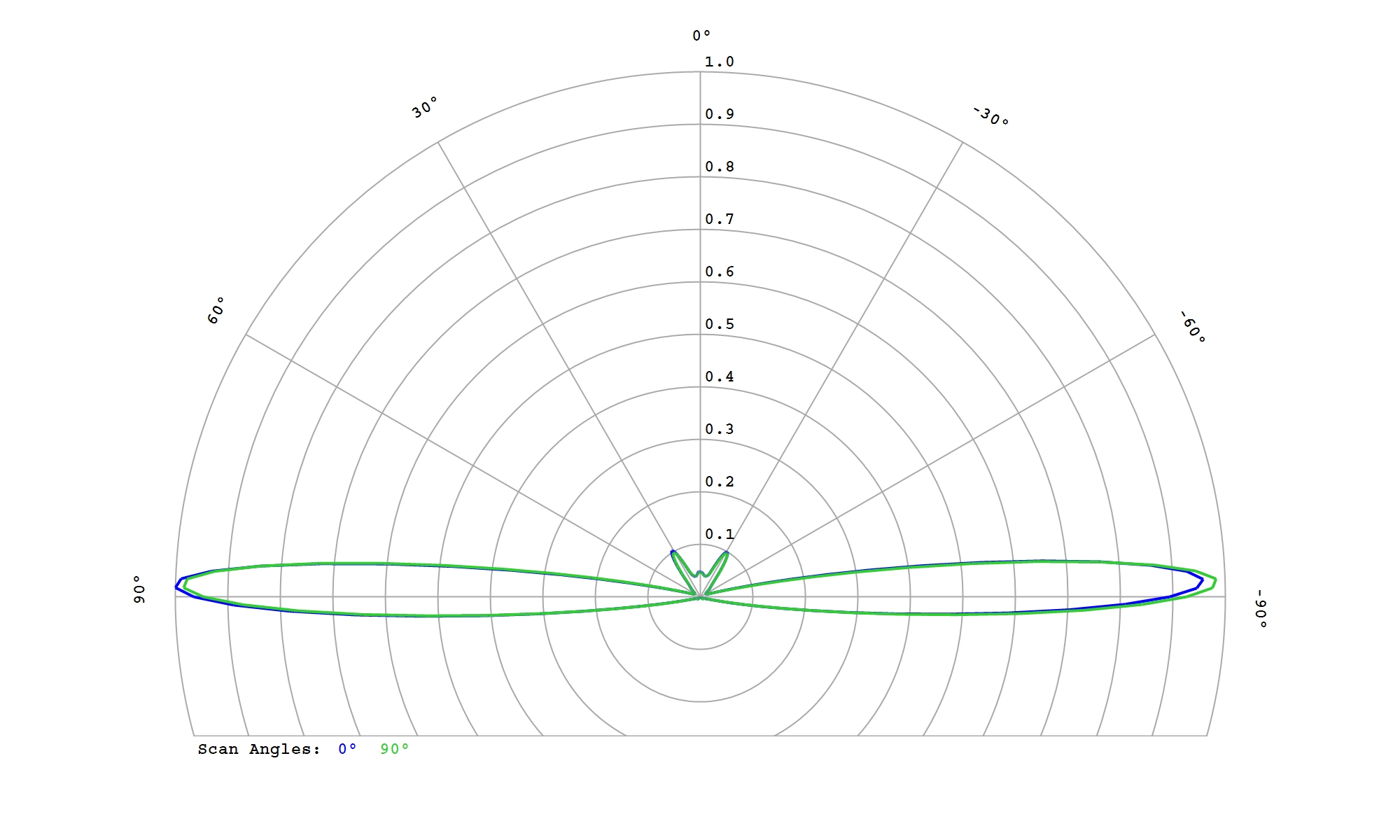

Osram OSCONIQ P 3030 GW QSSPA1.PM White

Eff:

92.5%

FWHM:

7.3 x 360°

Cd/Im:

1.0

Download

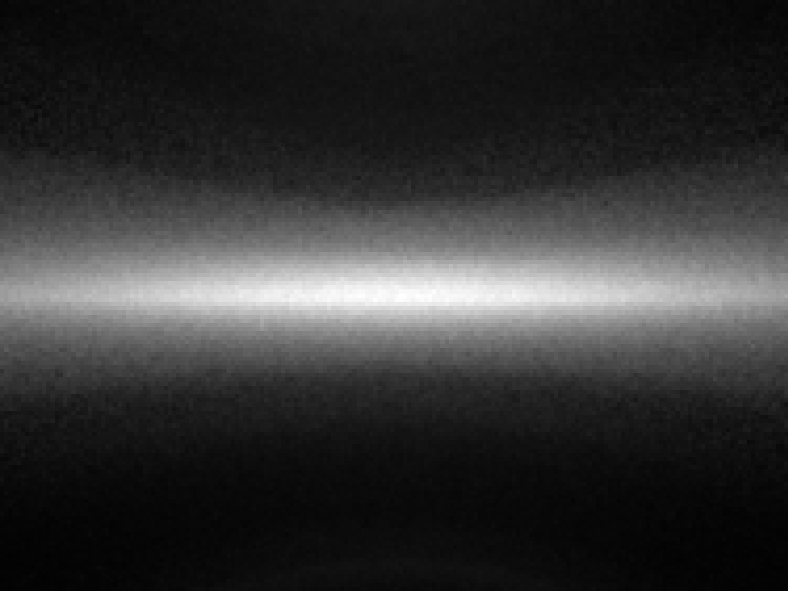

Osram OSCONIQ S 3030 GW QSLMS3.EM White

Eff:

92.5%

FWHM:

8.5 x 360°

Cd/Im:

0.8

Download

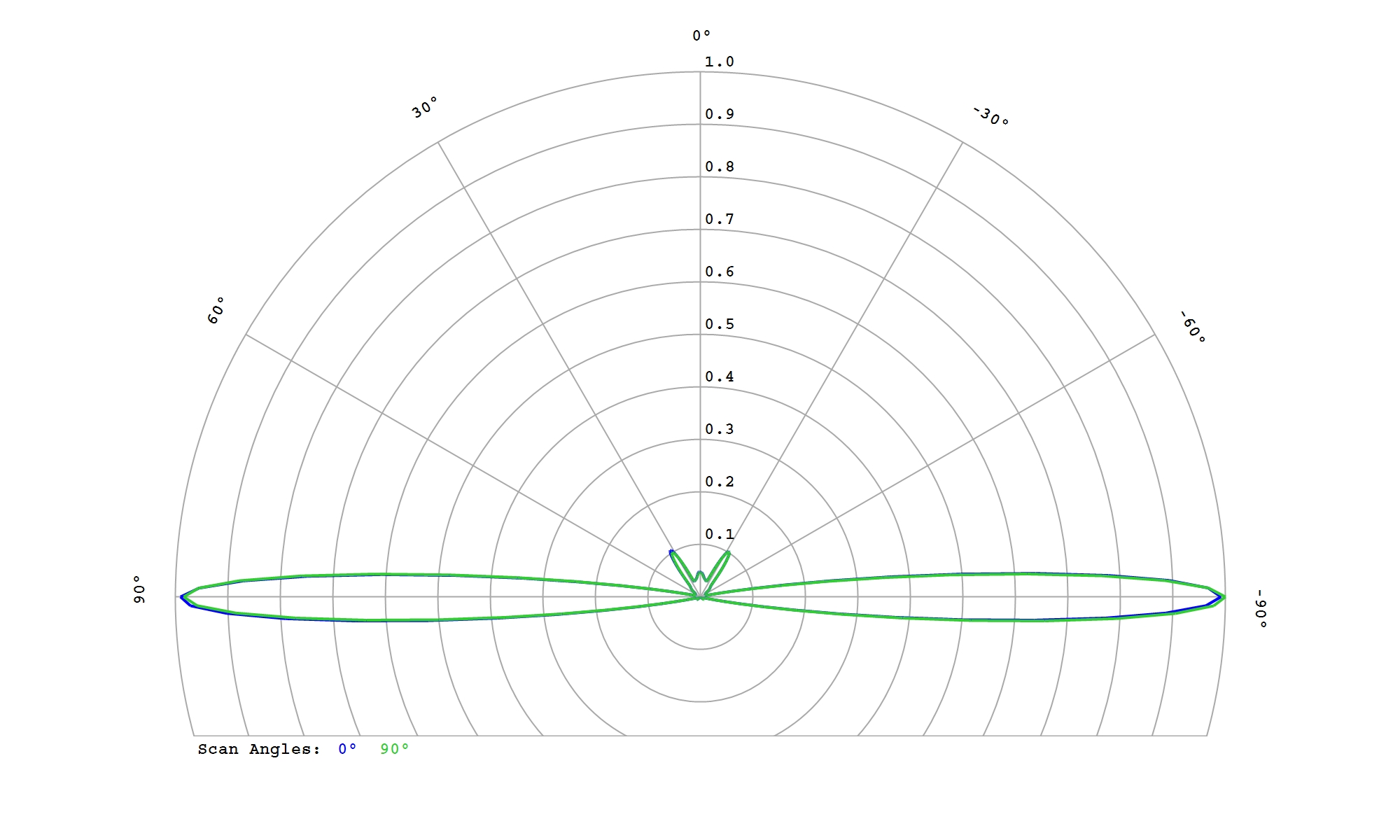

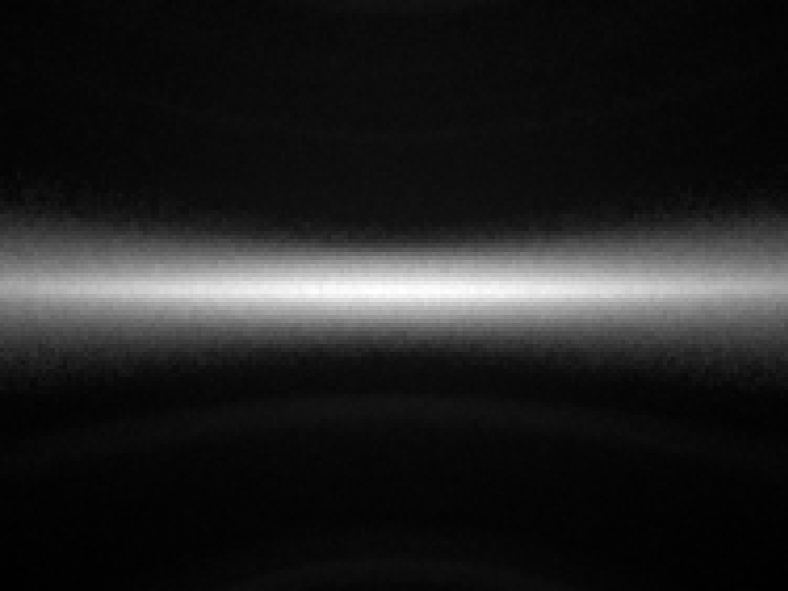

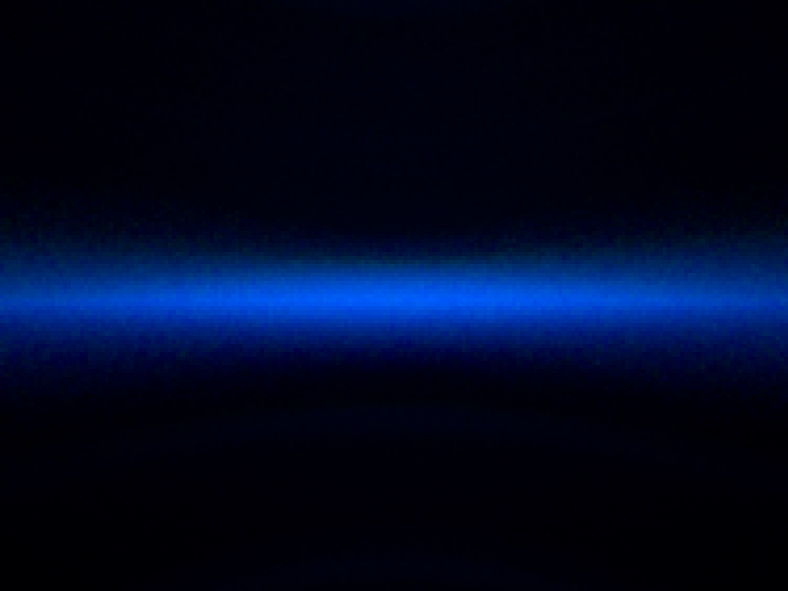

Osram OSLON Pure 1414 GB VJLPL1.F3 Blue

Eff:

92.5%

FWHM:

6.3 x 360°

Cd/Im:

1.3


Download

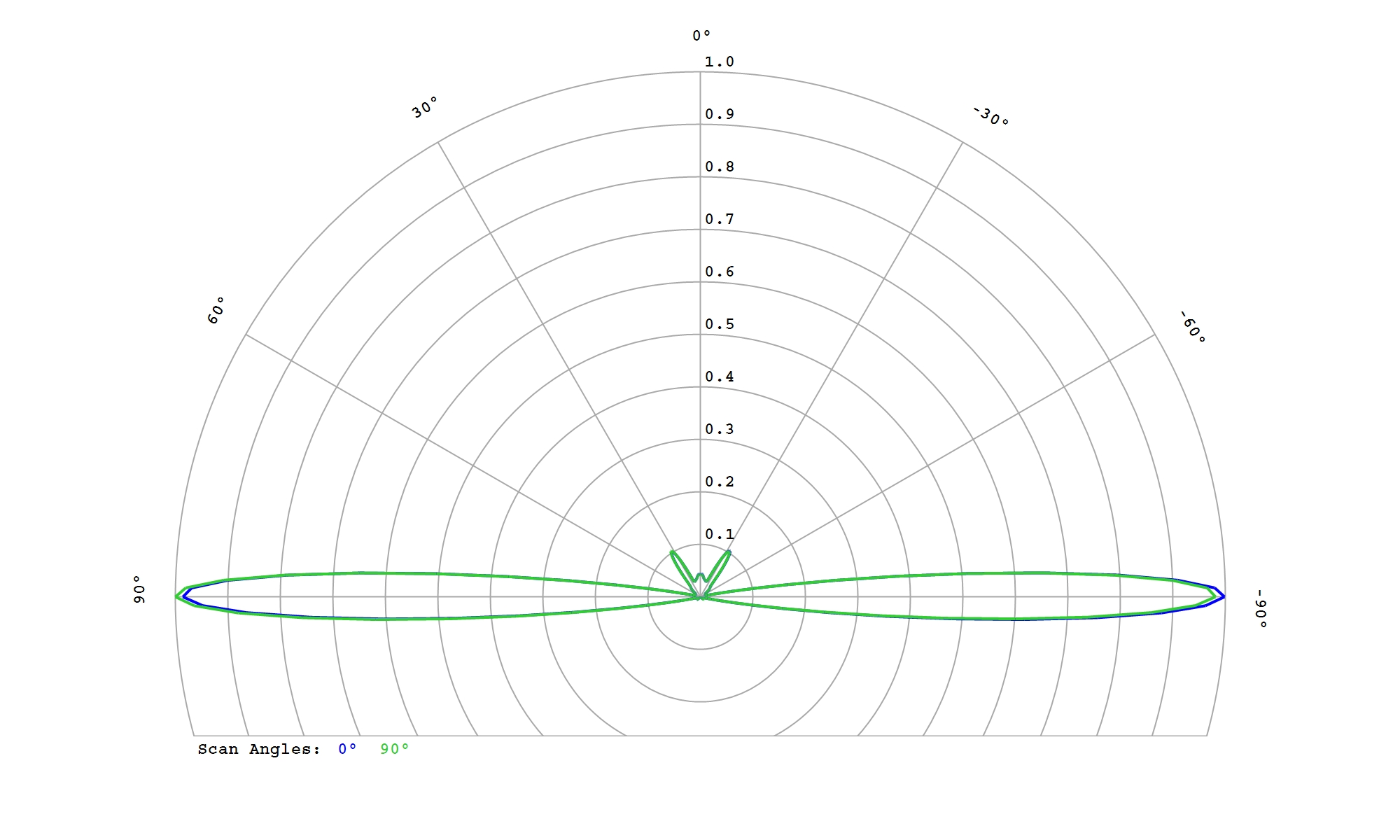

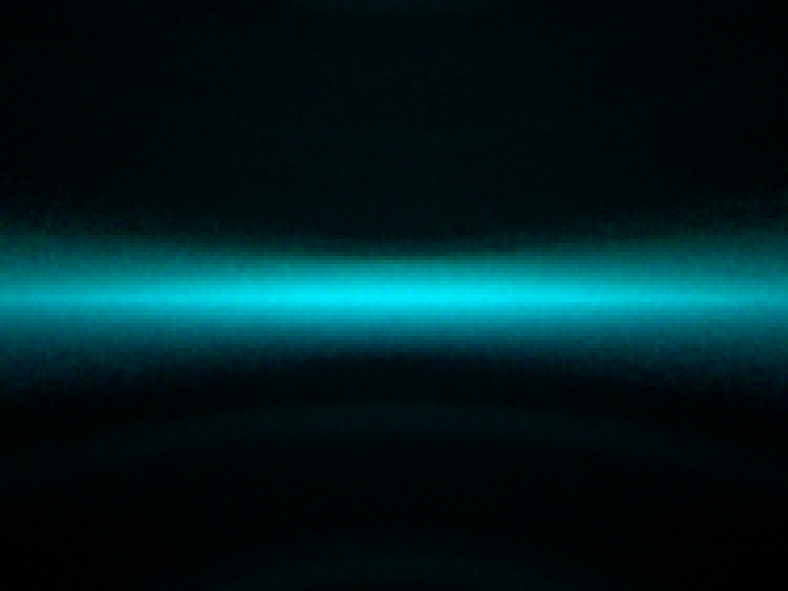

Osram OSLON Pure 1414 GC VJLPL1.13 Cyan

Eff:

92.5%

FWHM:

6.3 x 360°

Cd/Im:

1.4


Download

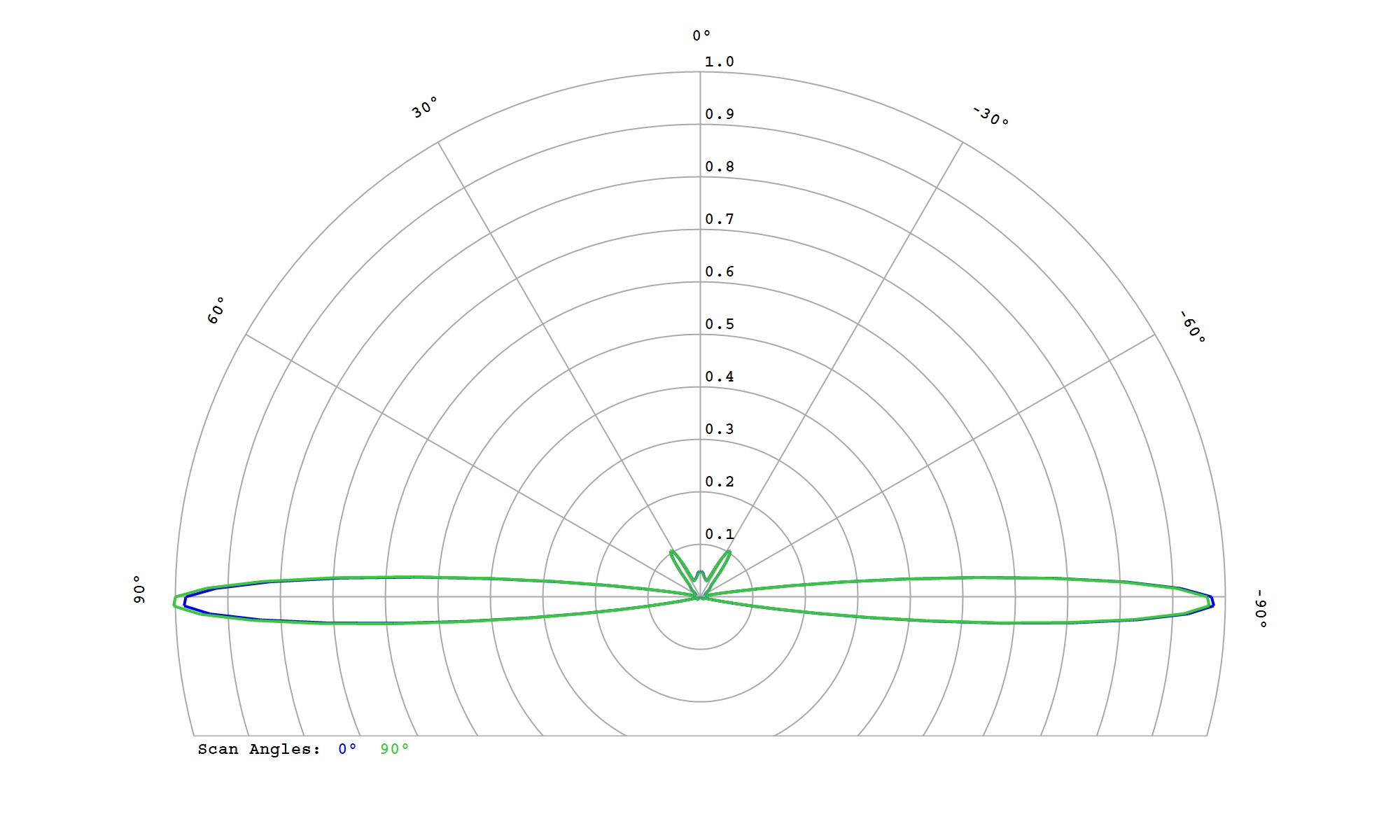

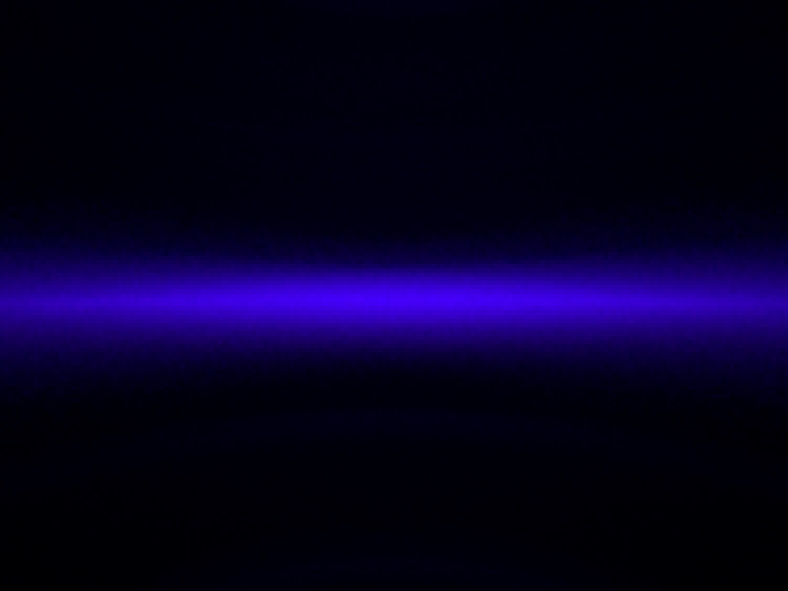

Osram OSLON Pure 1414 GD VJLPL1.14 Deep Blue

Eff:

91.5%

FWHM:

6.3 x 360°

Ipk/W:

1.2


Download

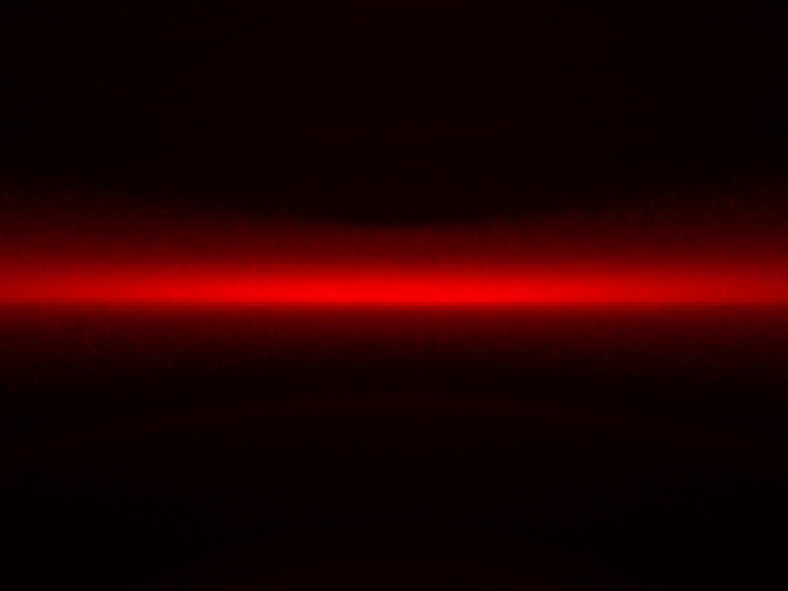

Osram OSLON Pure 1414 GR VJLPL1.23 Red

Eff:

94.0%

FWHM:

5.1 x 360°

Cd/Im:

1.5


Download

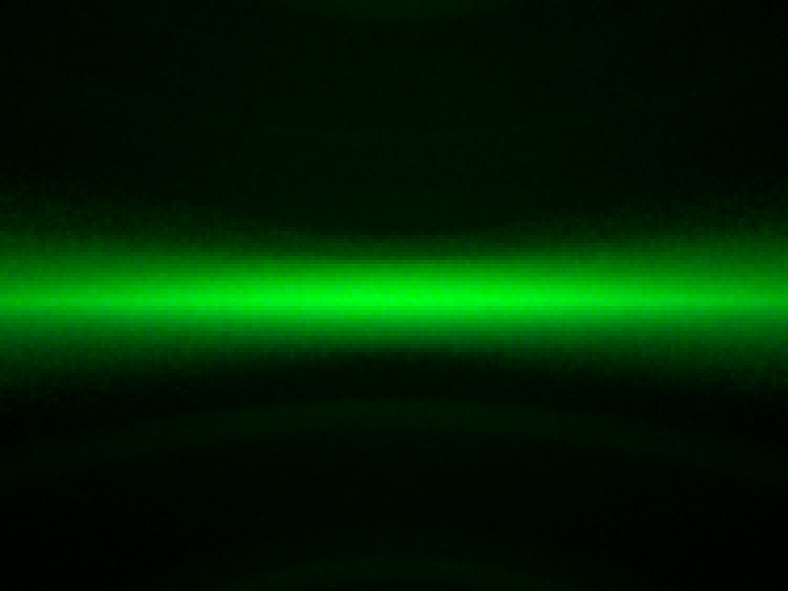

Osram OSLON Pure 1414 GT VJLPL1.13 True Green

Eff:

92.5%

FWHM:

6.5 x 360°

Cd/Im:

1.3


Download

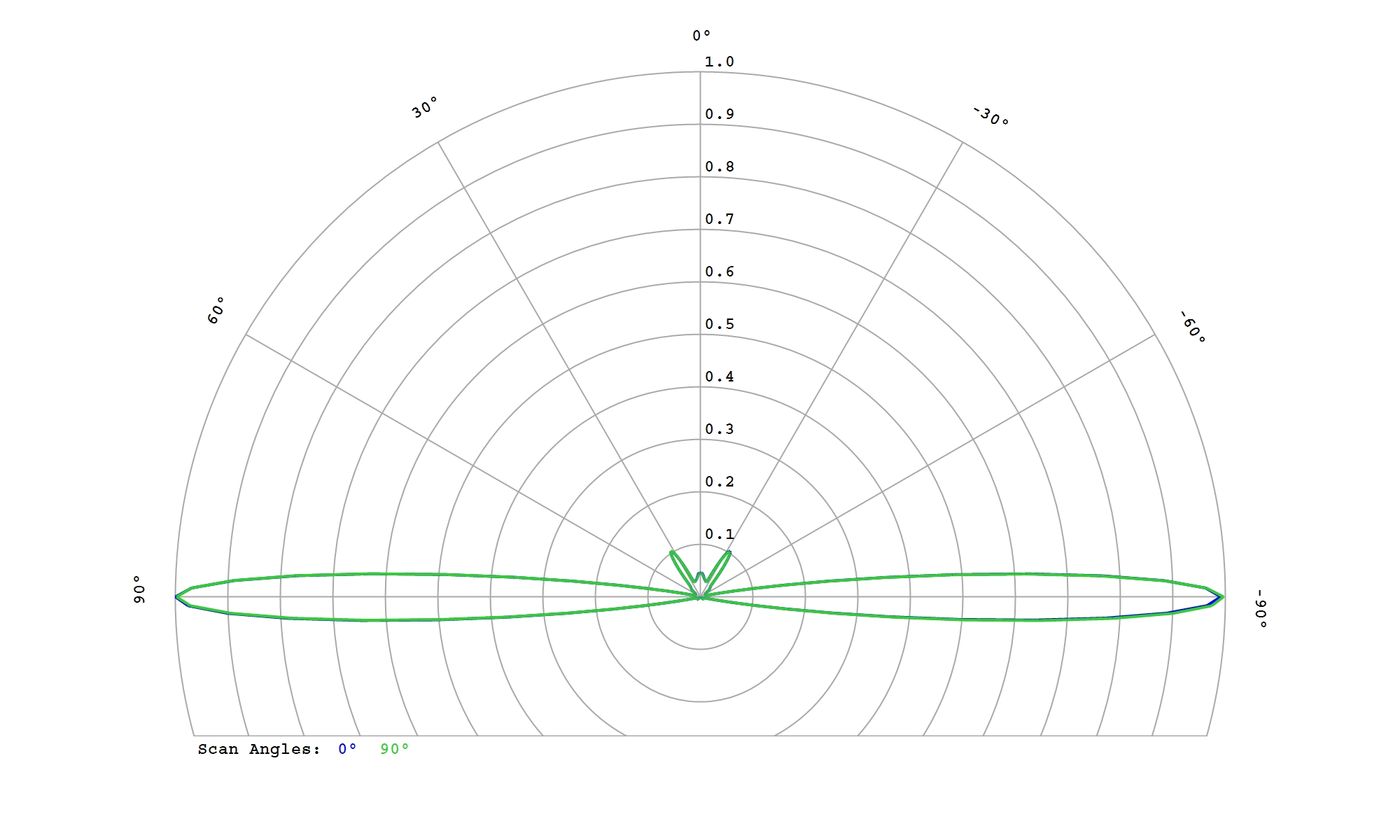

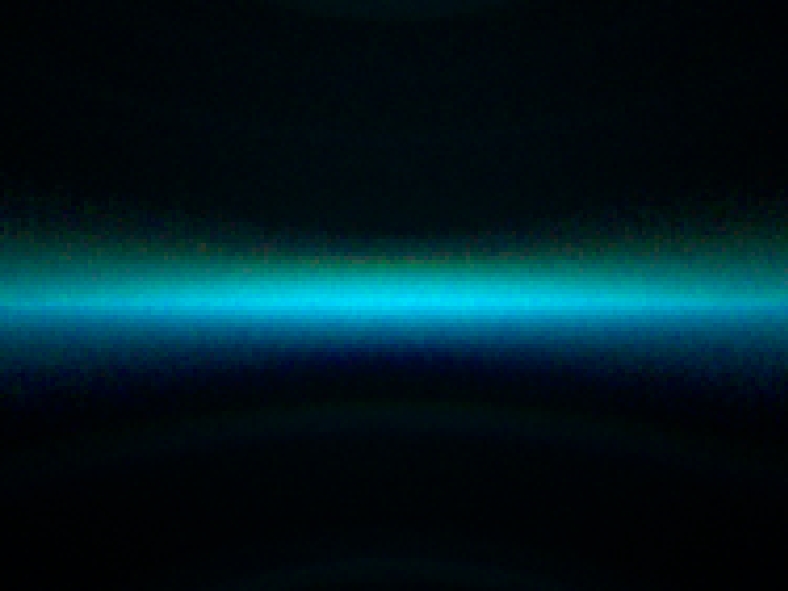

Osram OSLON Pure 1414 GV VJLPL1.F3 Verde

Eff:

92.5%

FWHM:

6.4 x 360°

Cd/Im:

1.3


Download

Osram OSLON Pure 1414 GW VJLPL1.CM White

Eff:

92.5%

FWHM:

6.2 x 360°

Cd/Im:

1.3

Download

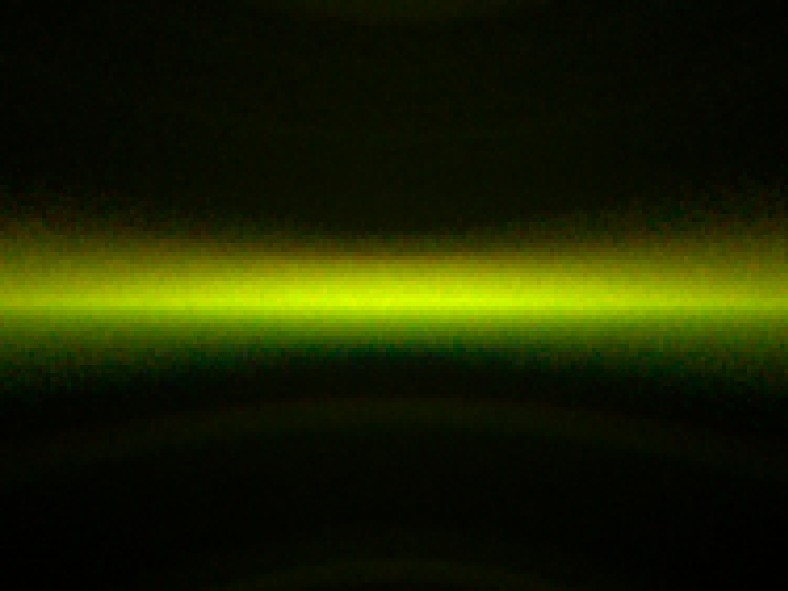

Osram OSLON Pure 1414 GW VJLPL1.UL Green

Eff:

92.5%

FWHM:

6.5 x 360°

Cd/Im:

1.3


Download

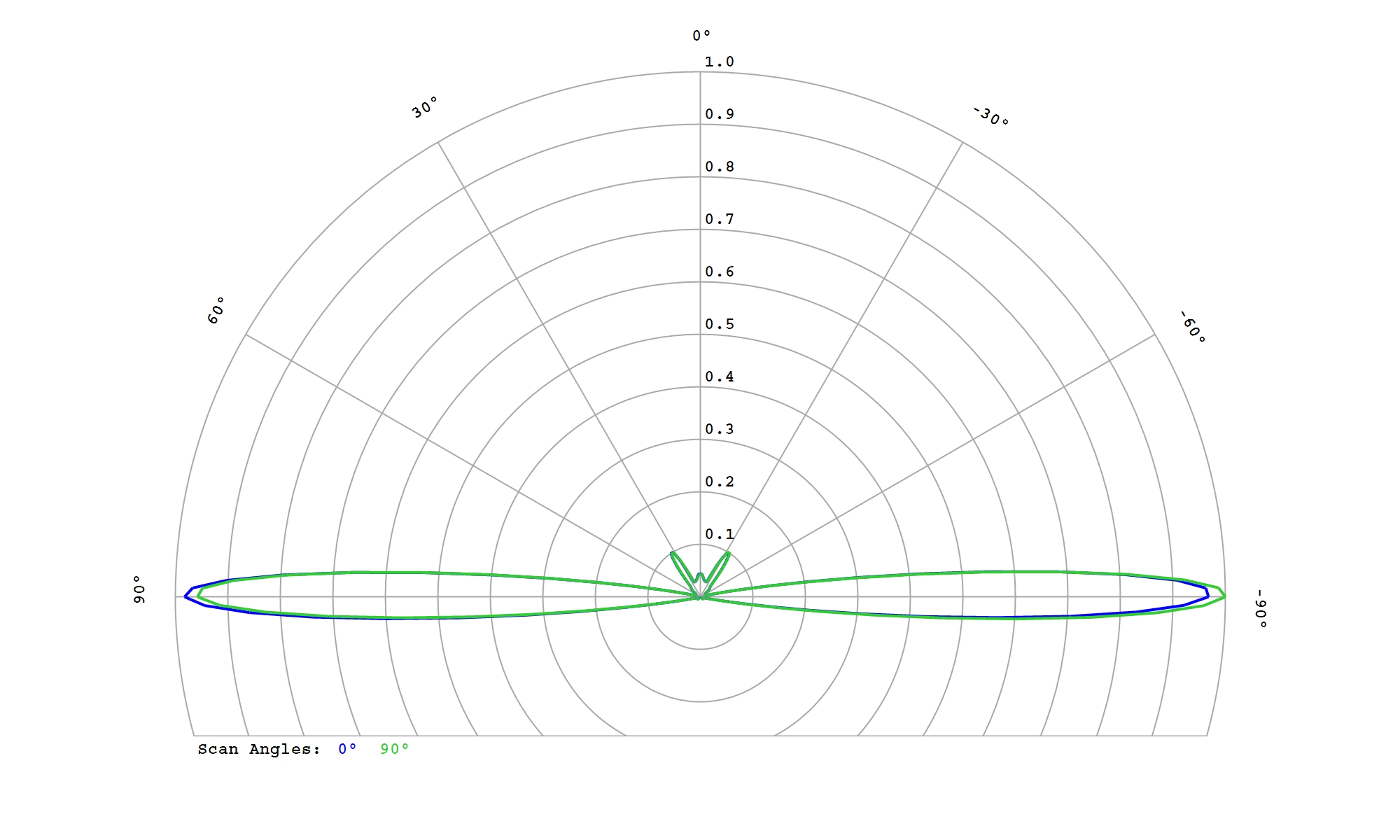

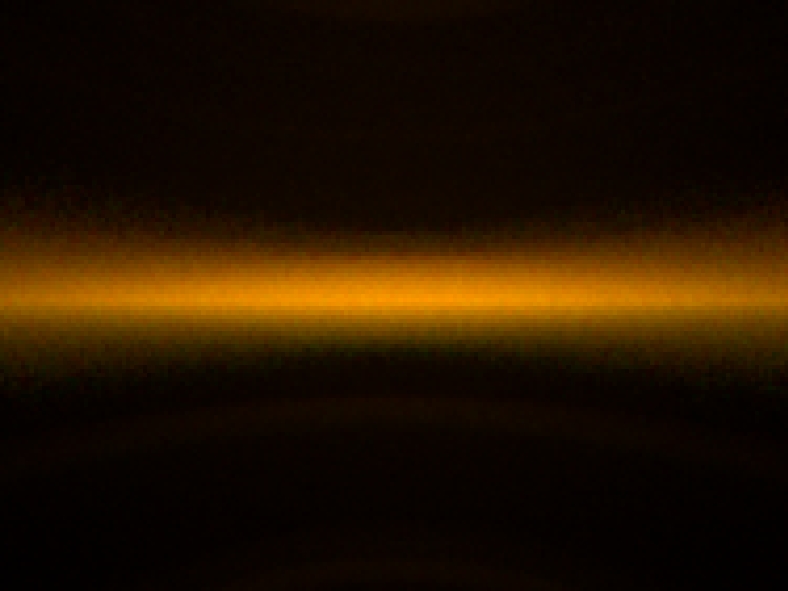

Osram OSLON Pure 1414 GY VJLPL1.F3 Yellow

Eff:

92.5%

FWHM:

6.4 x 360°

Cd/Im:

1.3


Download

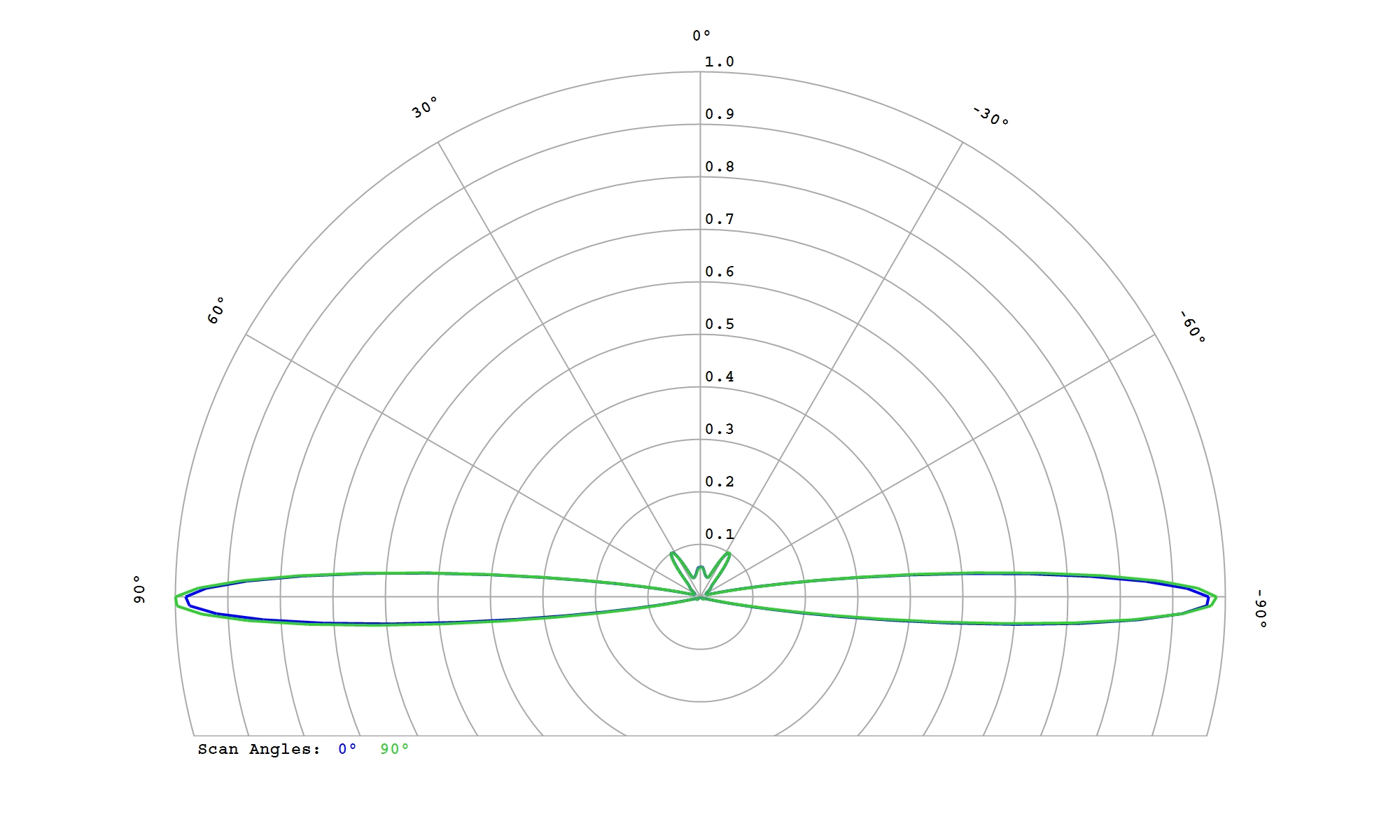

Osram OSLON Signal LUW CRBP.01 White

Eff:

92.5%

FWHM:

7.2 x 360°

Cd/Im:

1.1


Download

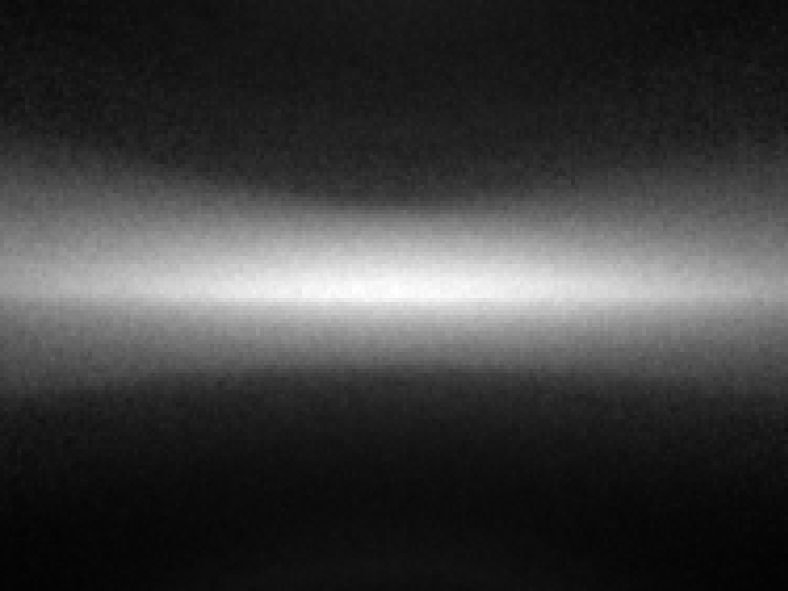

Samsung 2835 LM281B+ White

Eff:

90.5%

FWHM:

11.5 x 360°

Cd/Im:

0.6



Download

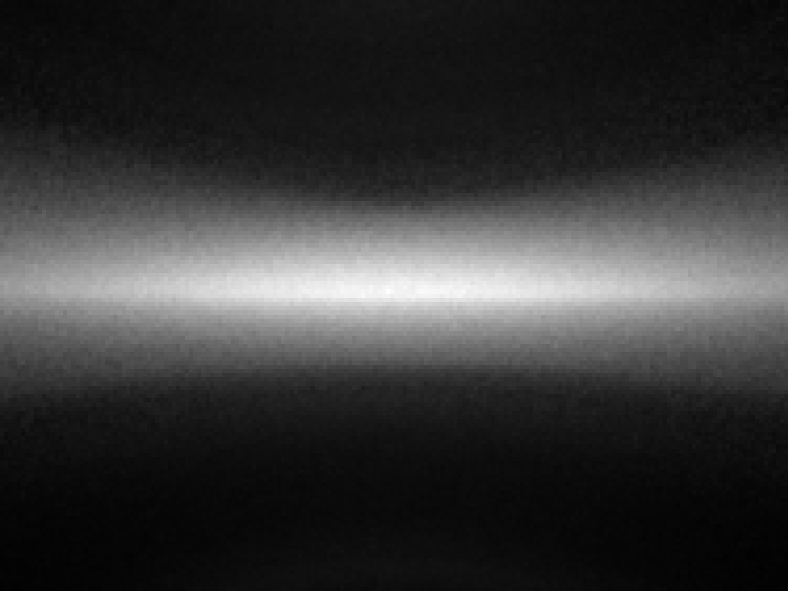

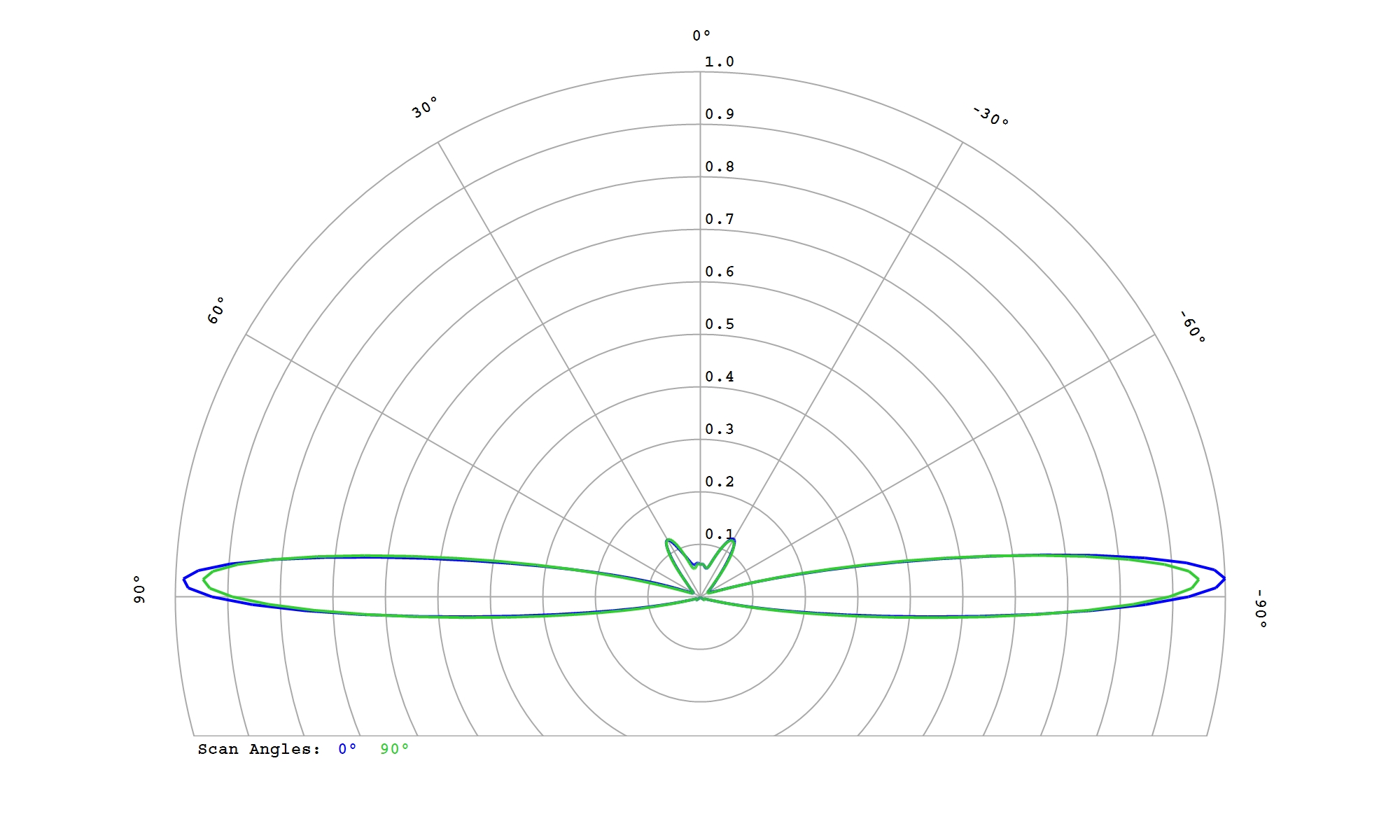

Samsung 2835 LM282B+ White

Eff:

92.5%

FWHM:

10.5 x 360°

Cd/Im:

0.7



Download

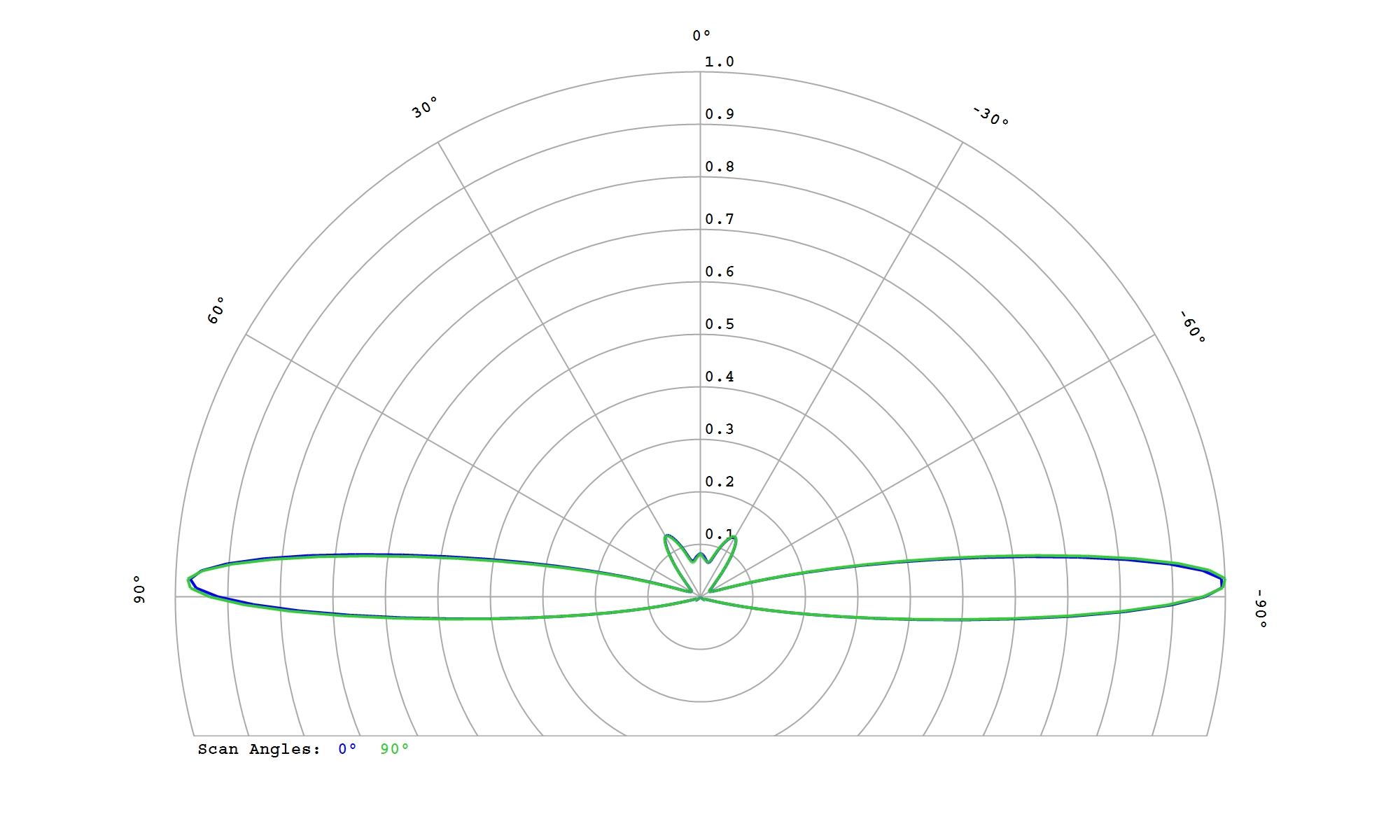

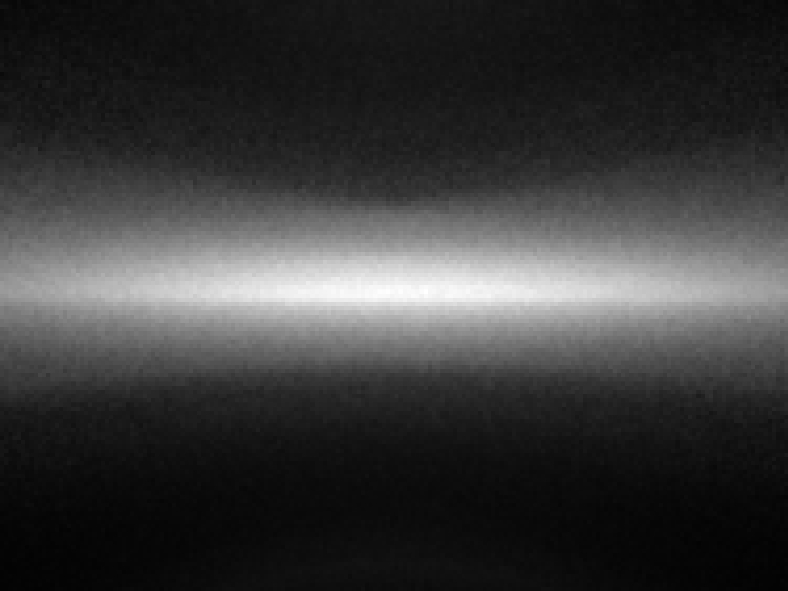

Samsung 3030 LM301B White

Eff:

92.0%

FWHM:

9.7 x 360°

Cd/Im:

0.7


Download

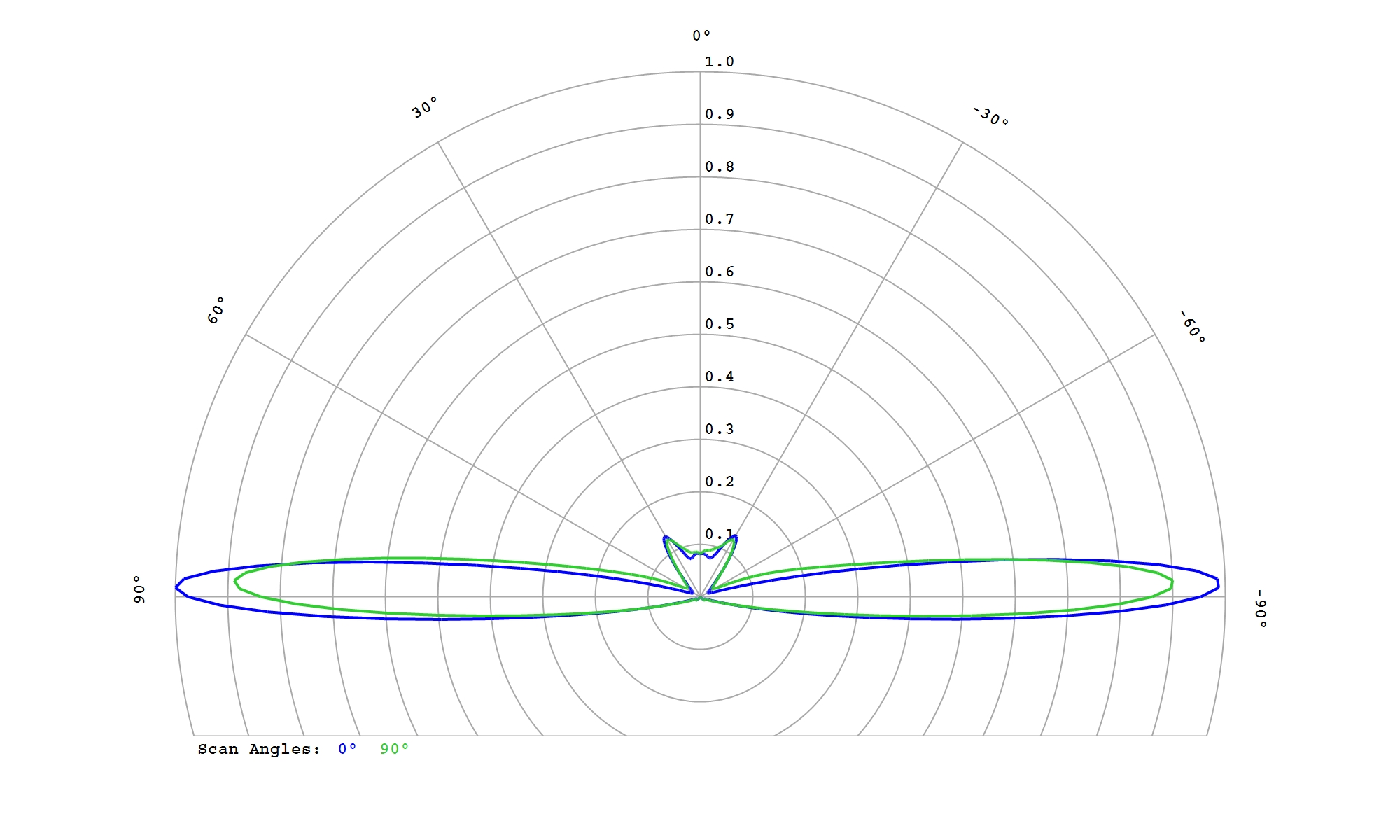

Samsung LM 561B White

Eff:

92.0%

FWHM:

9.1 x 360°

Cd/Im:

0.7

Download

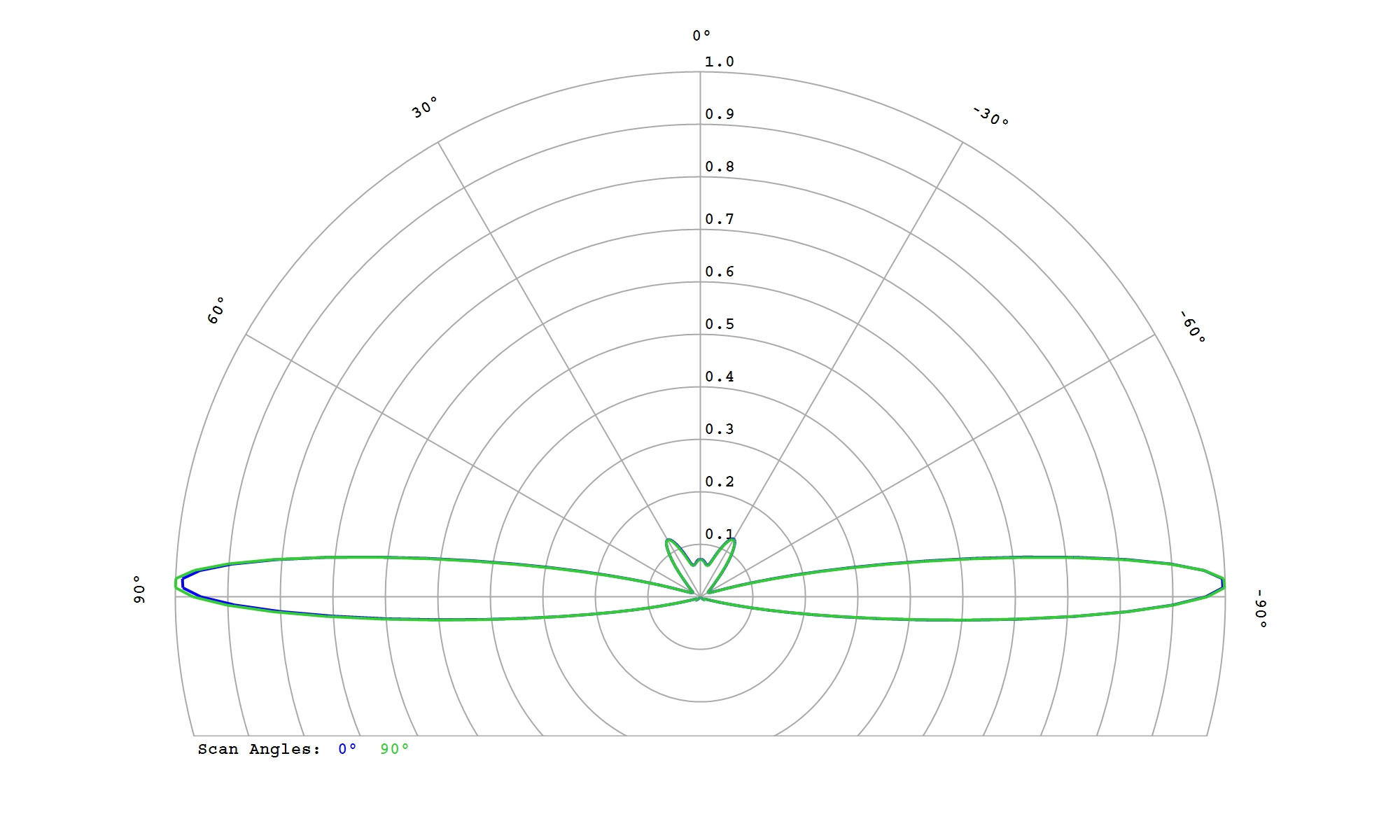

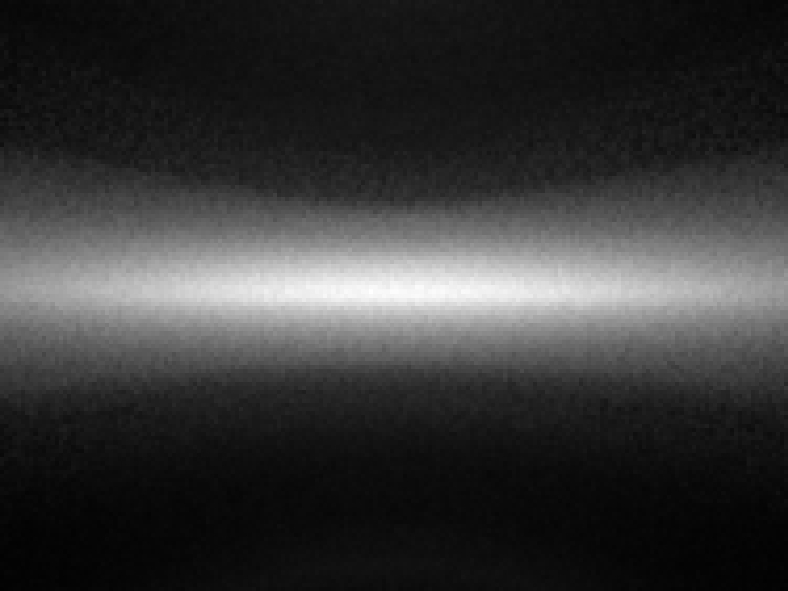

Seoul 3030 STW8C12E-E0 White

Eff:

92.5%

FWHM:

9.6 x 360°

Cd/Im:

0.7

Download

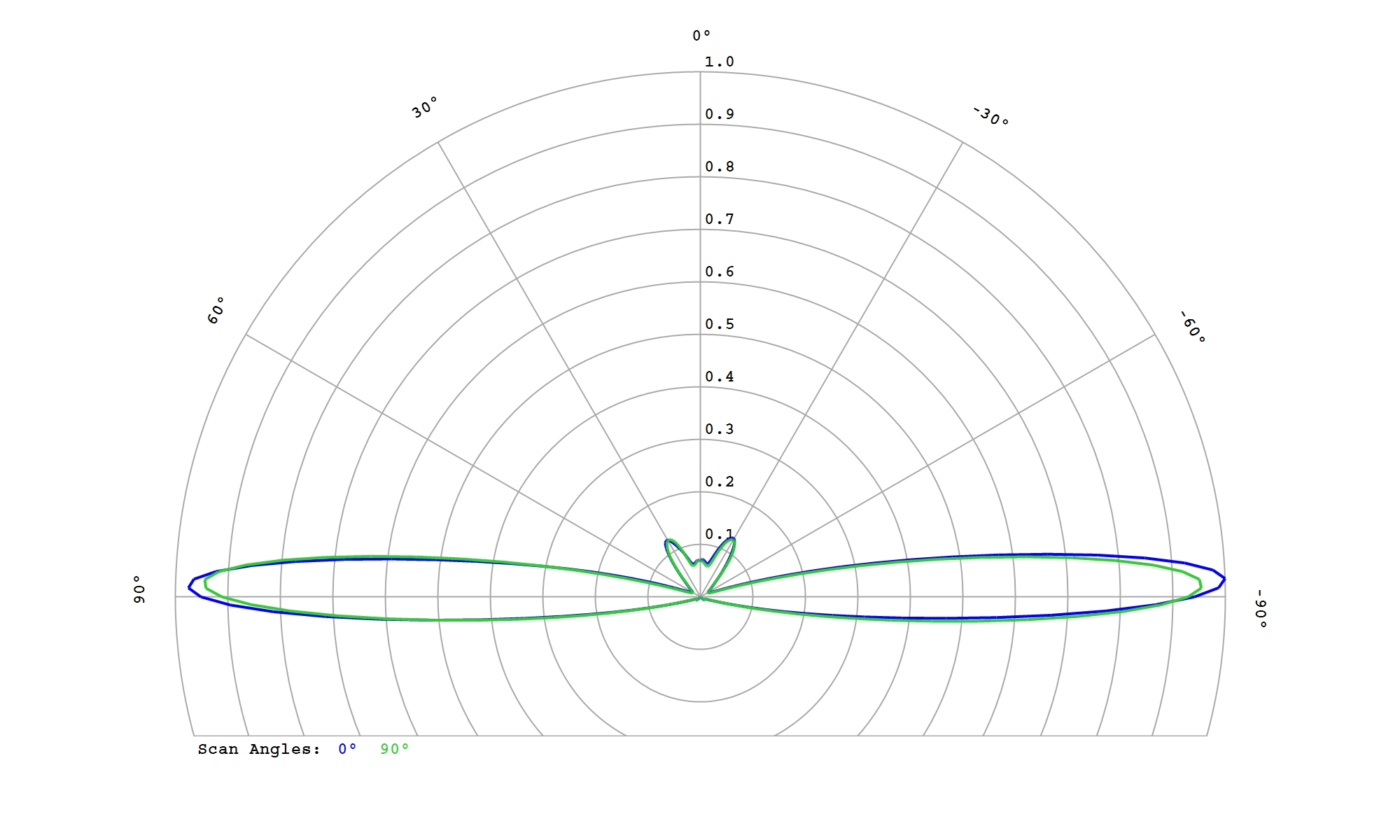

Seoul 3528 G STW8A2PD-G700 White

Eff:

92.5%

FWHM:

11.5 x 360°

Cd/Im:

0.7

Download

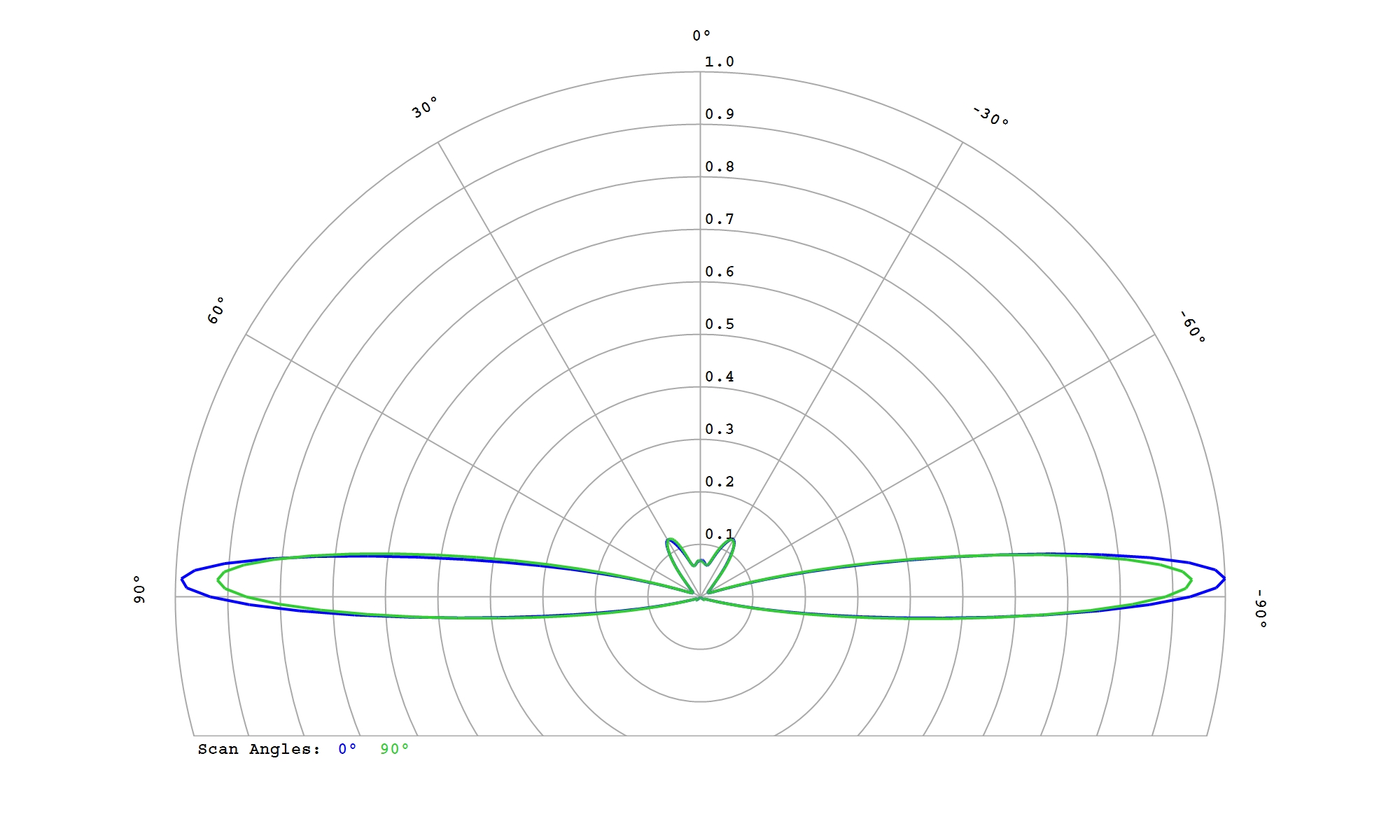

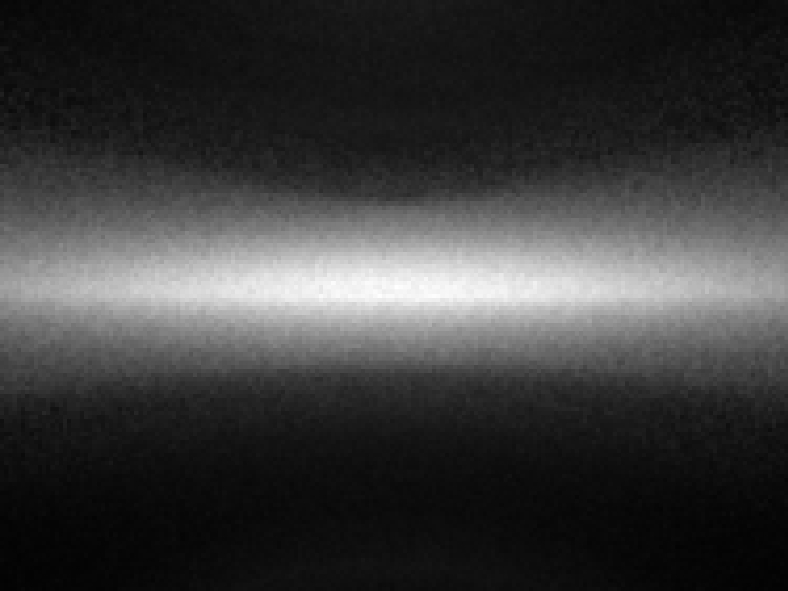

Seoul 3030 STW8C2SB-NT White

Eff:

92.5%

FWHM:

0 x 0°

Cd/Im:

0.7

Download

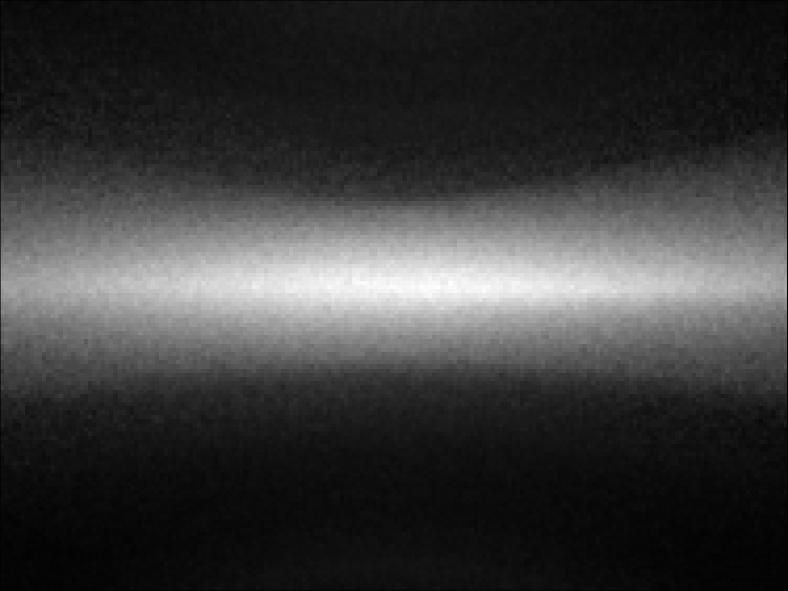

Seoul SunLike 3030 STWSC2PB-E0 White

Eff:

92.5%

FWHM:

0 x 0°

Cd/Im:

0.7


Download

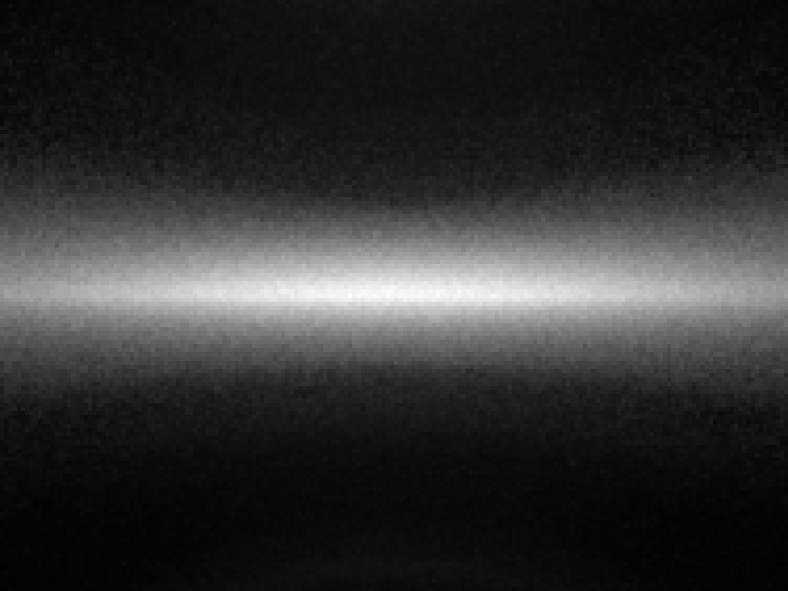

Seoul SunLike 3030 STWSC12S-E1 White

Eff:

92.5%

FWHM:

8.3 x 360°

Cd/Im:

0.8

Download

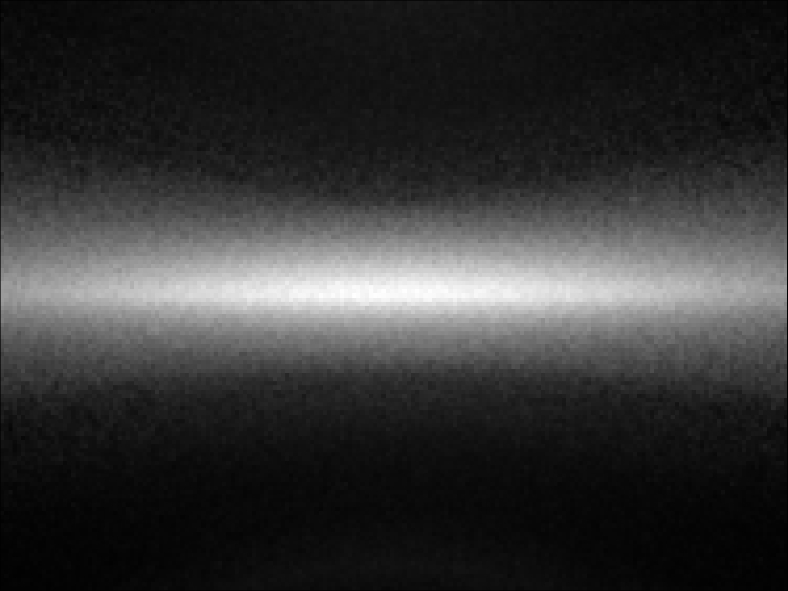

Seoul SunLike 3030 STWSC12S-E2 White

Eff:

92.5%

FWHM:

8.9 x 360°

Cd/Im:

0.8

Download

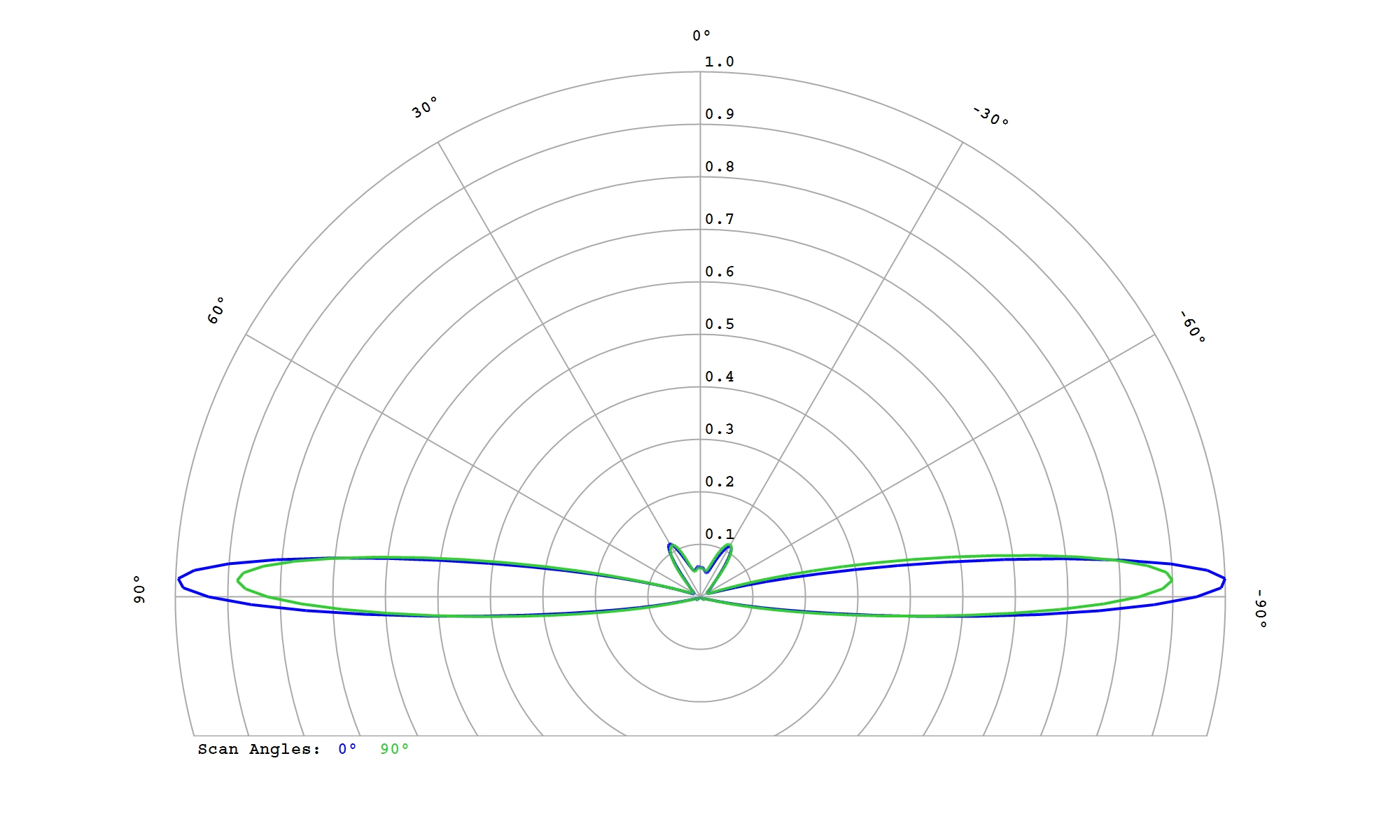

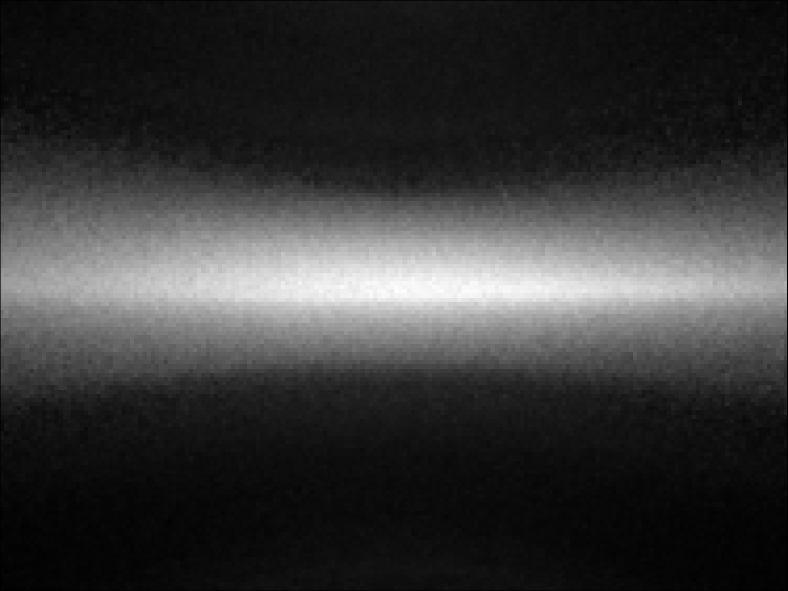

Seoul SunLike 3030 STW9C2SB-S White

Eff:

92.5%

FWHM:

0 x 0°

Cd/Im:

0.8


Download

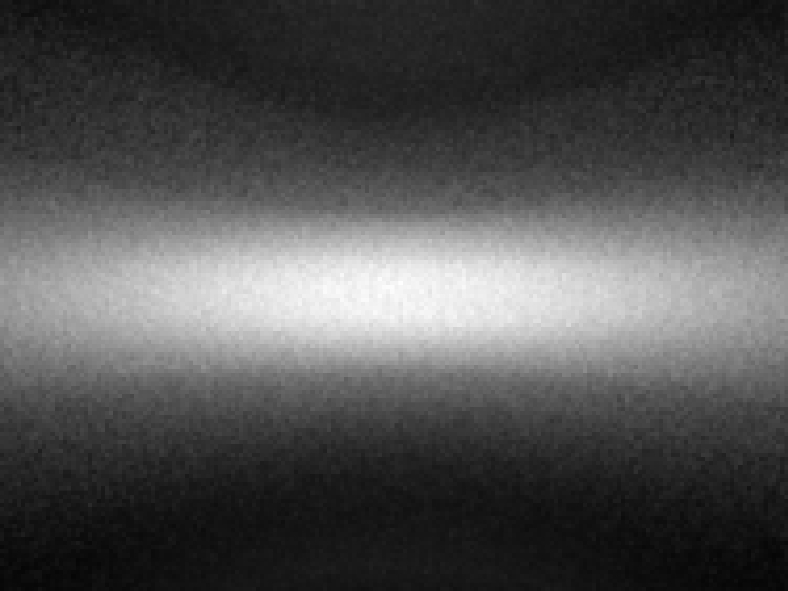

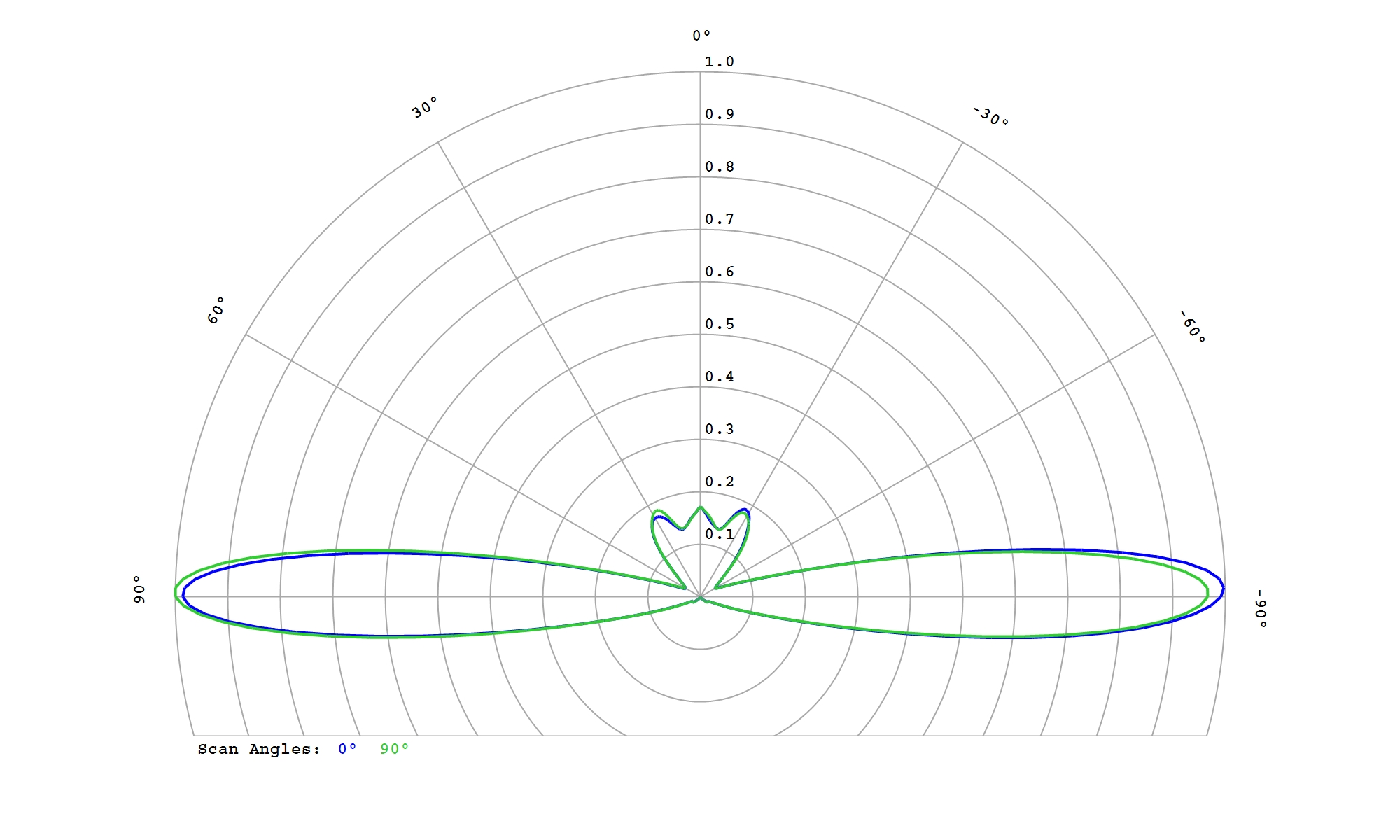

Seoul Z - Power Z5-M4 White

Eff:

91.0%

FWHM:

0 x 0°

Cd/Im:

0.4

Download

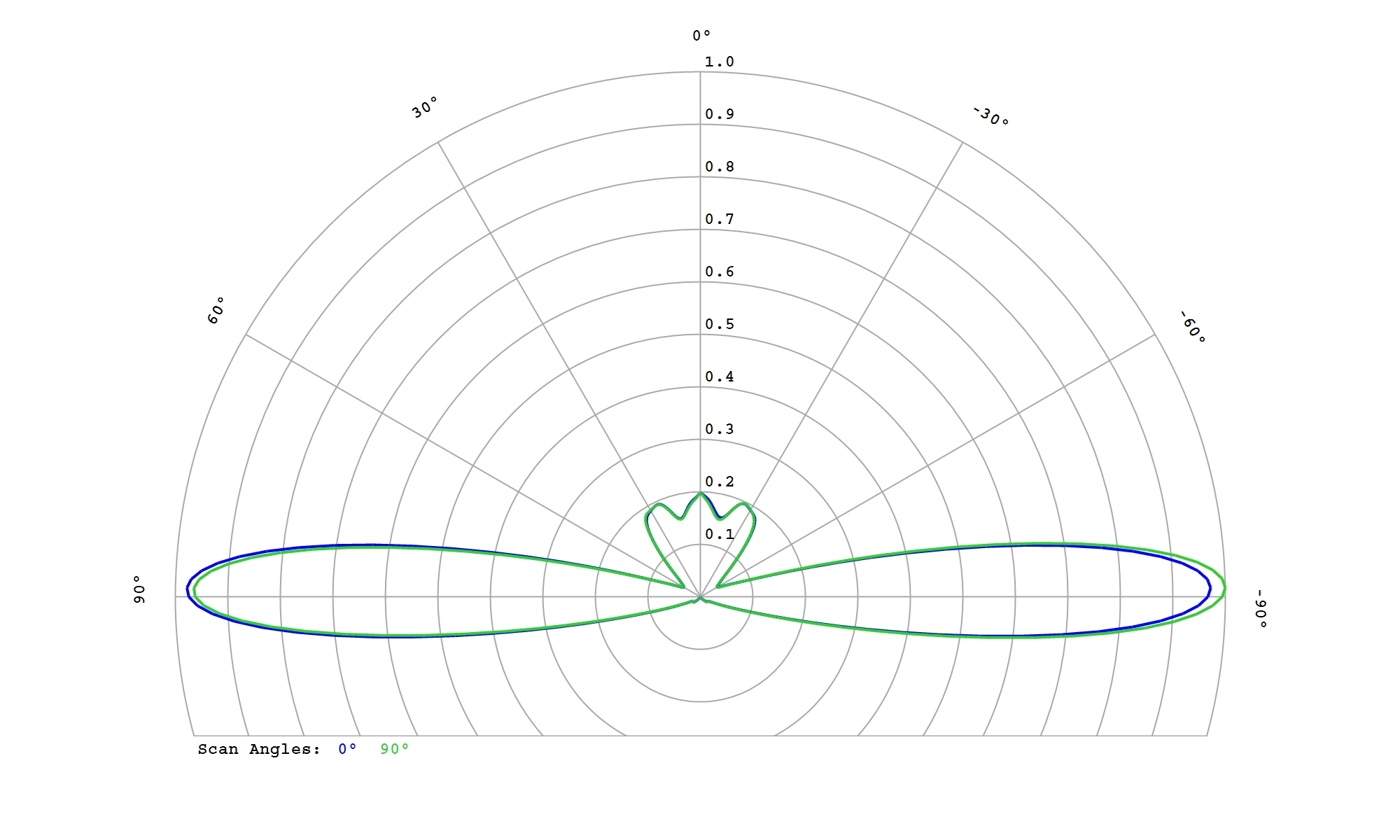

Seoul Z - Power Z5-M5 White

Eff:

89.5%

FWHM:

0 x 0°

Cd/Im:

0.4

Download
