26.5mm Wide Spot Frosted TIR LED Lenses

Part number

10260

Dimensions

26.5mm

Drawing Number

60463

Optic type

TIR LED Lenses

Finish

Frosted

Beam type

Wide Spot

Applications

Architectural

Landscape & Garden

Humancentric

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

85.5%

FWHM:

32 X 33°

Cd/Im:

2.3

Carclo Optics - 10260 26.5mm Spot Image Bridgelux 3030 Gen2

Carclo Optics - 10260 26.5mm Cross Section Bridgelux 3030 Gen2

Download

IES

Broadcom Jade White

Eff:

82.1%

FWHM:

28.1°

Cd/Im:

3.1

Download

ies

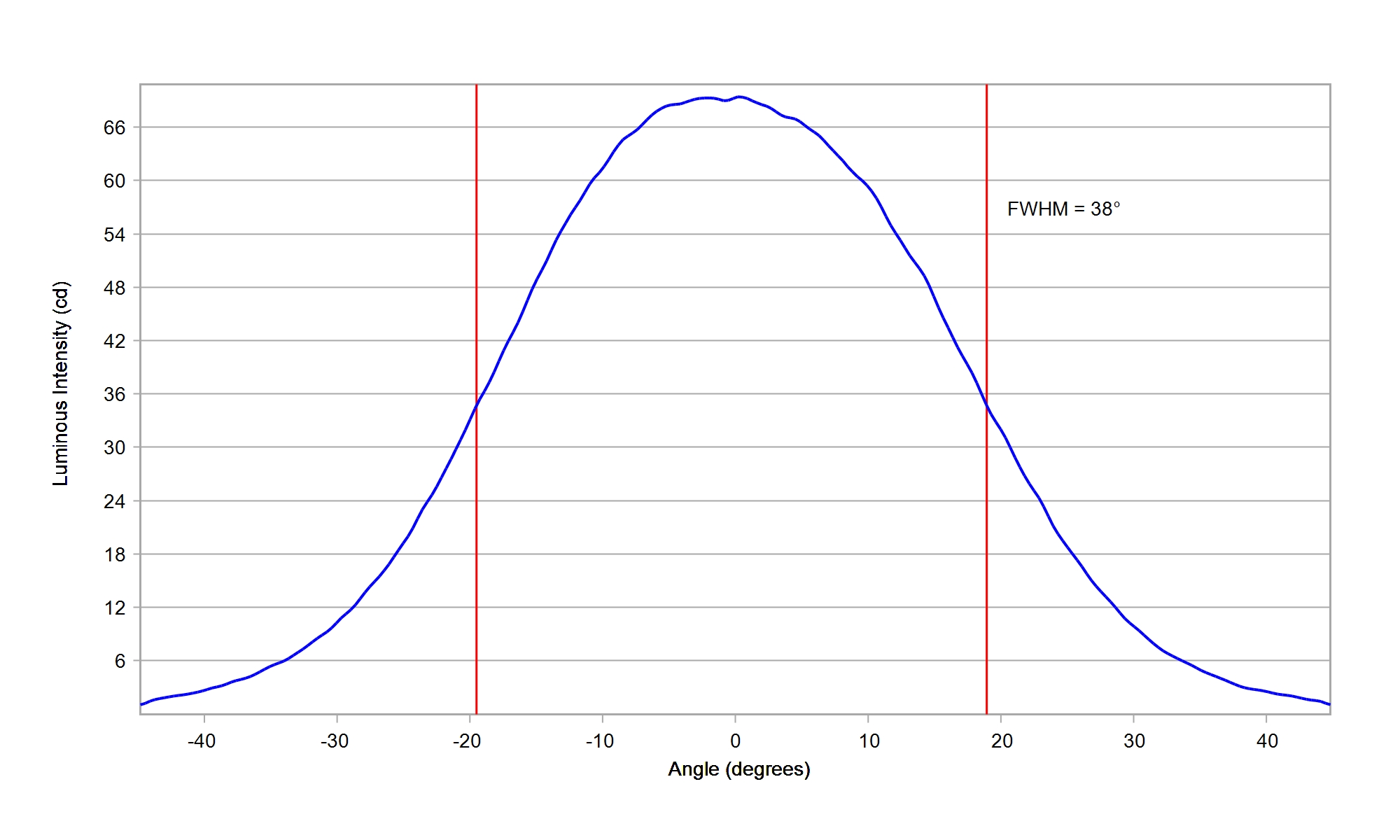

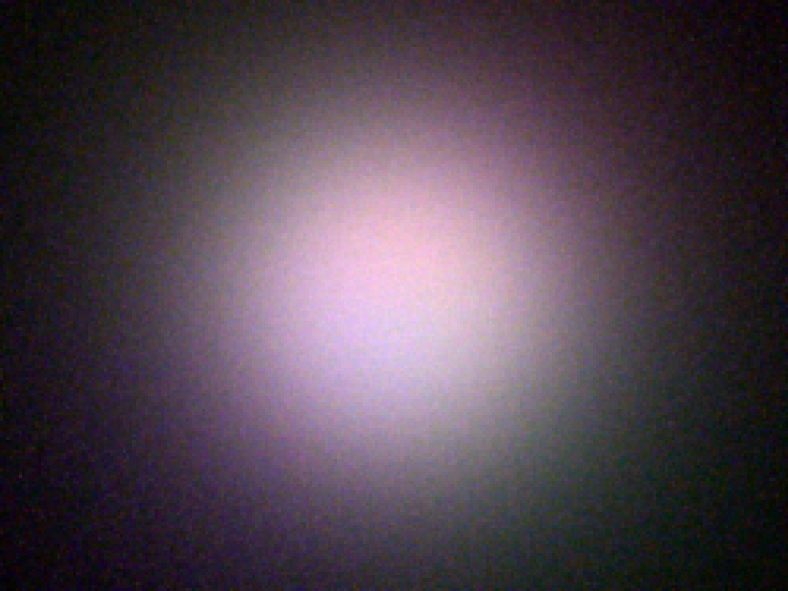

Cree High Brightness CLR6A-TKW RGBW

Eff:

84.5%

FWHM:

38°

Cd/Im:

1.7


Download

IES

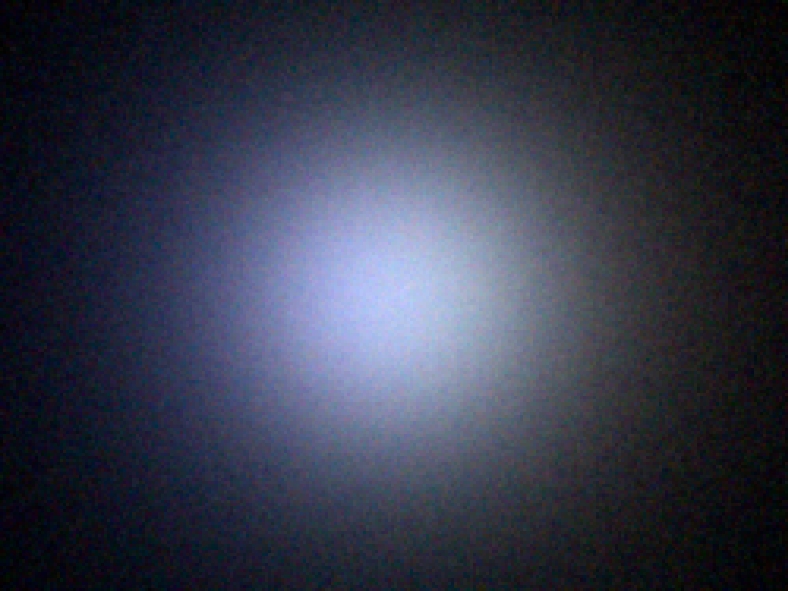

Cree High Brightness CLW6A-TKW RGBW

Eff:

85.0%

FWHM:

32°

Cd/Im:

2.2

Download

IES

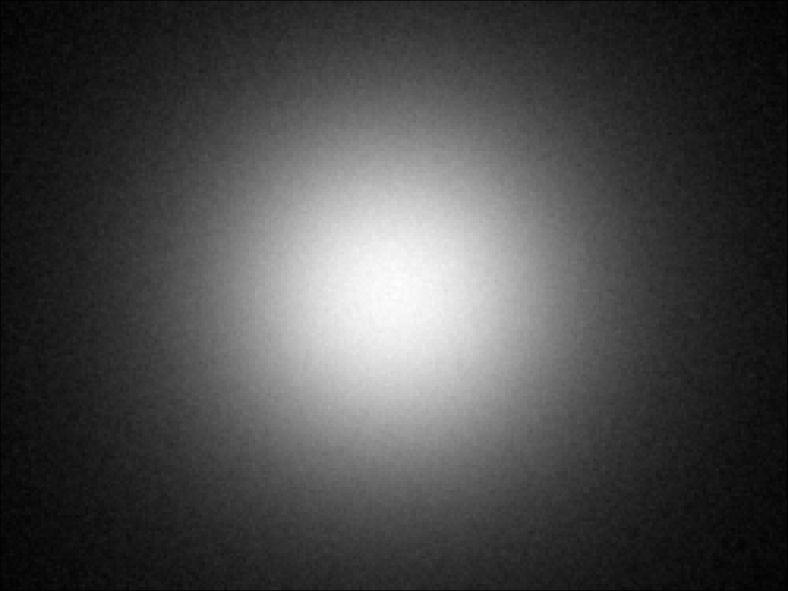

Cree JB2835B 3V G-Class White

Eff:

85.0%

FWHM:

33°

Cd/Im:

2.2


Download

Cree JB2835B 3V J-Class White

Eff:

85.0%

FWHM:

33°

Cd/Im:

2.2


Download

Cree JB3030 3V P-Class White

Eff:

84.5%

FWHM:

35.0°

Cd/Im:

2.0

Carclo Optics - 10260 Spot Image Cree JB3030 3V White

Carclo Optics - 10260 Cross Section Cree JB3030 3V White

Download

IES

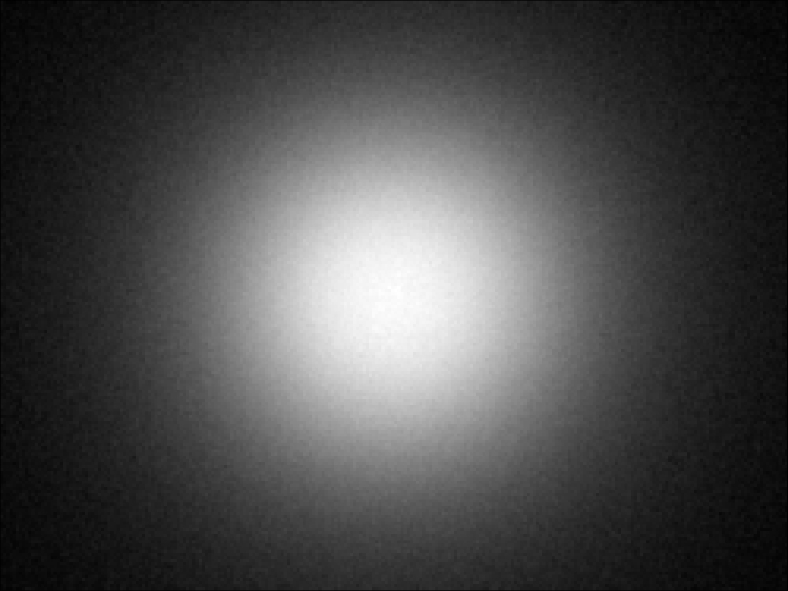

Cree JB3030C 3V E-Class White

Eff:

85.0%

FWHM:

34°

Cd/Im:

2.1


Download

Cree JB3030C 3V F-Class White

Eff:

85.0%

FWHM:

32°

Cd/Im:

2.2


Download

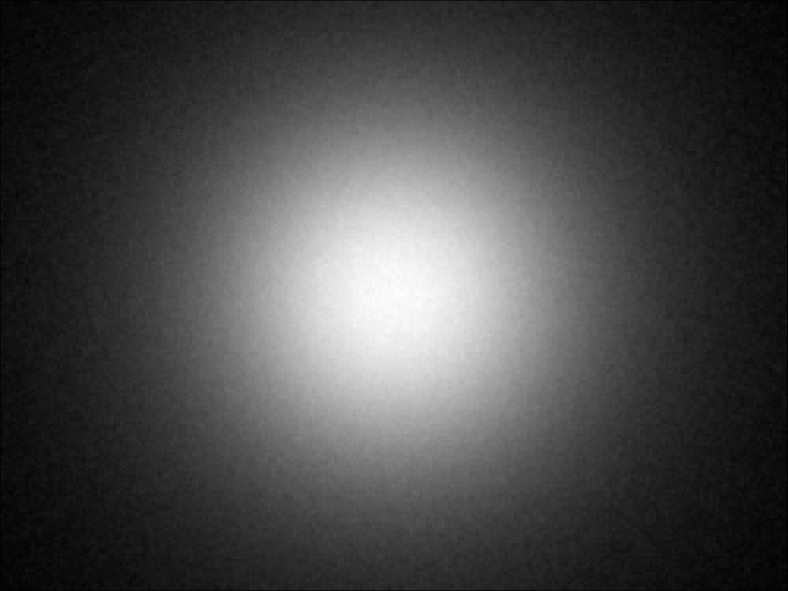

Cree JE2835 3V White

Eff:

85.0%

FWHM:

33°

Cd/Im:

2.2

Download

Cree JK2835 6V White

Eff:

85.0%

FWHM:

33°

Cd/Im:

2.2

Download

IES

Cree JQ5050 9V White

Eff:

83.0%

FWHM:

44.0°

Cd/Im:

1.3

Carclo Optics - 10260 Spot Image Cree JQ5050 9V White

Carclo Optics - 10260 Cross Section Cree JQ5050 9V White

Download

IES

Cree JR5050 24V White

Eff:

83.5%

FWHM:

36.0°

Cd/Im:

1.7

Carclo Optics - 10260 Spot Image Cree JR5050 24V White

Carclo Optics - 10260 Cross Section Cree JR5050 24V White

Download

IES

Cree JR5050 36V White

Eff:

84.0%

FWHM:

35.0°

Cd/Im:

1.8

Carclo Optics - 10260 Spot Image Cree JR5050 36V White

Carclo Optics - 10260 Cross Section Cree JR5050 36V White

Download

IES

Cree JR5050 6V White

Eff:

83.5%

FWHM:

37.0°

Cd/Im:

1.7

Carclo Optics - 10260 Spot Image Cree JR5050 6V White

Carclo Optics - 10260 Cross Section Cree JR5050 6V White

Download

IES

Cree JR5050C 6V E-Class White

Eff:

83.5%

FWHM:

38°

Cd/Im:

1.6


Download

IES

Cree JU7070B 12V K-Class White

Eff:

81.0%

FWHM:

52°

Cd/Im:

0.8

Download

Cree XLamp CSP XD16 Cool White

Eff:

83.5%

FWHM:

30.0°

Cd/Im:

2.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp CSP XD16 Premium White

Eff:

85.5%

FWHM:

33°

Cd/Im:

2.3

Download

IES

Cree XLamp MH-B White

Eff:

80.1%

FWHM:

39.1°

Cd/Im:

1.4

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp MK-R White

Eff:

81.5%

FWHM:

47.6°

Cd/Im:

1.5

Download

ies

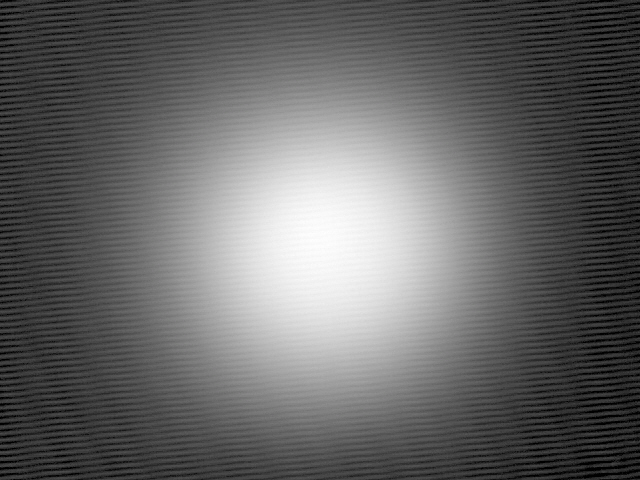

Cree XLamp MX-6 White

Eff:

76.8%

FWHM:

37°

Cd/Im:

2.0

Download

ies

Cree XLamp XB-D White

Eff:

80.0%

FWHM:

35.4°

Cd/Im:

2.3

Download

ies

Cree XLamp XB-H White

Eff:

85.0%

FWHM:

32°

Cd/Im:

2.2

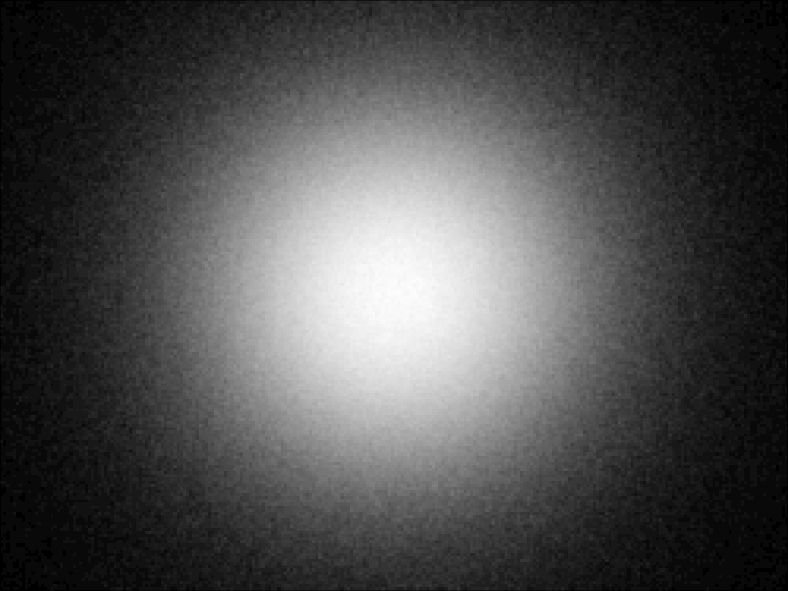

Carclo Optics - 10260 26.5mm Spot Image Cree XLamp XB-H

Carclo Optics - 10260 26.5mm Vertical Cross Section Cree XLamp XB-H

Download

IES

Cree XLamp XE-G Blue

Eff:

85.5%

FWHM:

32°

Cd/Im:

2.3

Download

IES

Cree XLamp XE-G Green

Eff:

85.0%

FWHM:

32°

Cd/Im:

2.3

Download

IES

Cree XLamp XE-G Red

Eff:

85.0%

FWHM:

32°

Cd/Im:

2.3

Download

IES

Cree XLamp XE-G White

Eff:

84.5%

FWHM:

32°

Cd/Im:

2.2

Download

IES

Cree XLamp XHP-50 Gen 2 White

Eff:

79.5%

FWHM:

35.0°

Cd/Im:

1.5

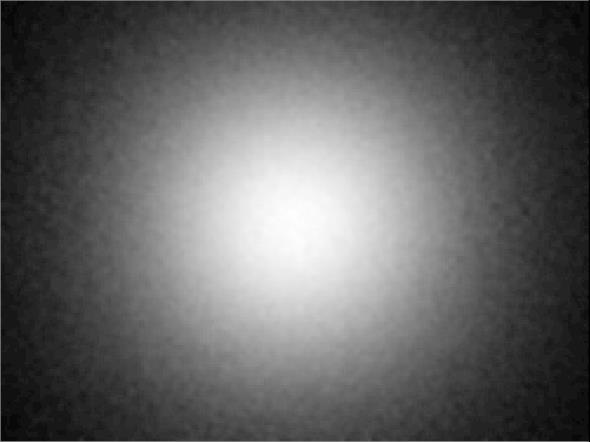

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP-50 White

Eff:

80.0%

FWHM:

44°

Cd/Im:

1.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XHP-70 White

Eff:

81.0%

FWHM:

46.0°

Cd/Im:

1.0

Carclo Optics - 10260 Spot Image Cree XHP70

Carclo Optics - 10260 Cross Section Cree XHP70

Download

IES

Cree XLamp XHP35 HI White

Eff:

82.0%

FWHM:

33.0°

Cd/Im:

2.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP35 HD White

Eff:

81.0%

FWHM:

33.1°

Cd/Im:

1.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP35.2 HI White

Eff:

83.5%

FWHM:

36°

Cd/Im:

1.8

Carclo Optics – 10260 Spot Image Cree XLamp XHP35.2 HI White

Carclo Optics – 10260 Cross Section Cree XLamp XHP35.2 HI White

Download

2-HI-WW

Cree XLamp XHP35.2 HD White

Eff:

82.0%

FWHM:

33.0°

Cd/Im:

1.8

Carclo Optics - 10260 Spot Image Cree XLamp XHP35.2 White

Carclo Optics - 10260 Cross Section Cree XLamp XHP35.2 White

Download

IES

Cree XLamp XHP50.3 HI White

Eff:

83.0%

FWHM:

34°

Cd/Im:

1.8

optic-10260-Cree_XHP50.3 HI-spot-image.jpg

optic-10260-Cree_XHP50.3 HI-cross-section-image.jpg

Download

IES

Cree XLamp XHP50.3 White

Eff:

81.0%

FWHM:

35°

Cd/Im:

1.6



Download

IES

Cree XLamp XHP70.2 White

Eff:

80.5%

FWHM:

46°

Cd/Im:

1.0

Carclo Optics – 10260 Cree Xlamp XHP70.2 - Spot Image

Carclo Optics – 10260 Cree Xlamp XHP70.2 - Cross-Section

Download

IES

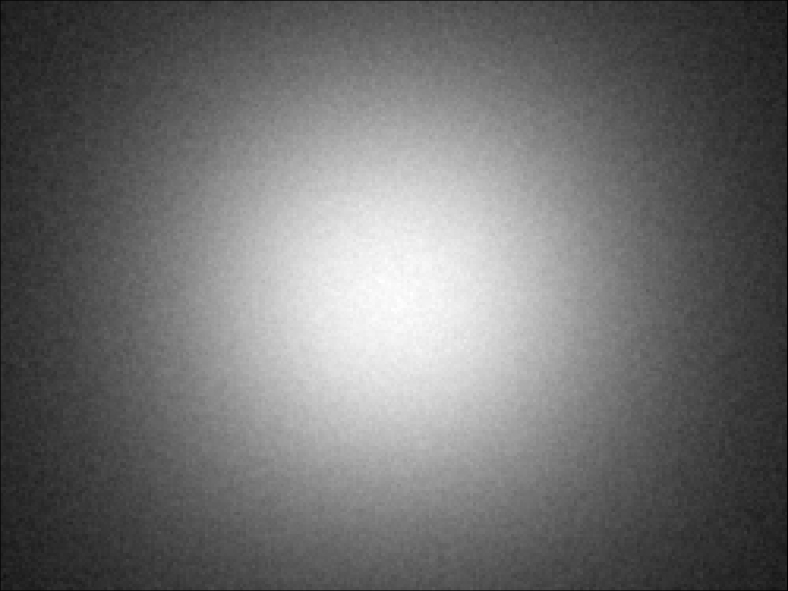

Cree XLamp XHP70.3 HD White

Eff:

80.5%

FWHM:

46°

Cd/Im:

1.0

Download

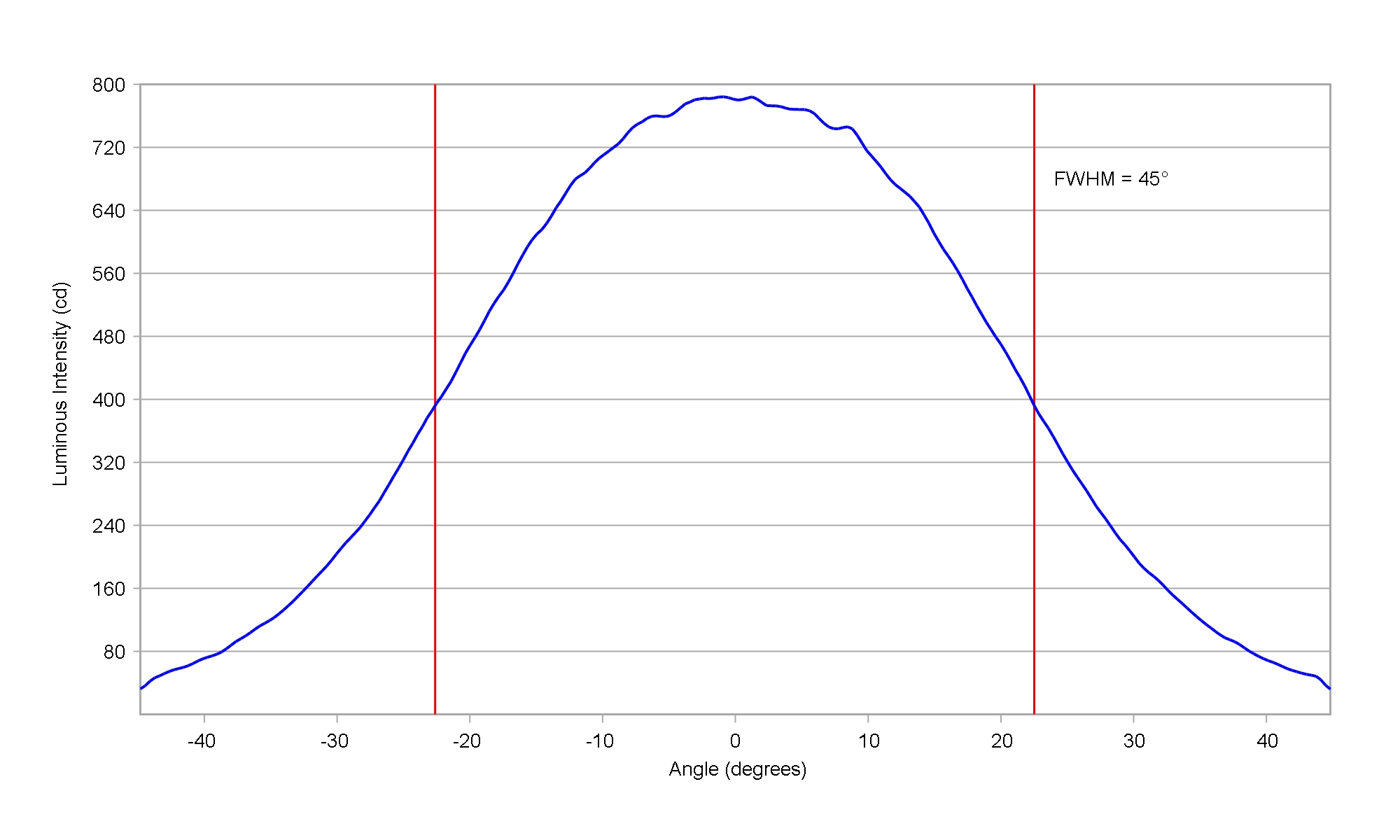

Cree XLamp XHP70.3 HI White

Eff:

82.0%

FWHM:

45°

Cd/Im:

1.2

Download

Cree XLamp XM-L Color G2 HD RGBW

Eff:

84.5%

FWHM:

35°

Cd/Im:

1.8

Download

IES

Cree XLamp XM-L Color G2 HI RGBW

Eff:

84.0%

FWHM:

36°

Cd/Im:

1.8

Download

IES

Cree XLamp XM-L White

Eff:

77.3%

FWHM:

35.7°

Cd/Im:

2.2

Download

ies

Cree XLamp XM-L2 White

FWHM:

35.5°

Cd/Im:

2.5

optic-10260-wide-frost-cree-XM-L2-white-spot-image

optic-10260-wide-frost-cree-XM-L2-white-cross-section-image

Download

ies

Cree XLamp XM-L3 White

Eff:

83.5%

FWHM:

32.0°

Cd/Im:

2.1

Carclo Optics - 10260 Spot Image Cree XM-L3

Carclo Optics - 10260 Cross Section Cree XM-L3

Download

IES

Cree XLamp XP-C White

Eff:

82.8%

FWHM:

35.2°

Cd/Im:

2.5

Download

ies

Cree XLamp XP-E White

Eff:

79.3%

FWHM:

32.2°

Cd/Im:

2.3

Download

ies

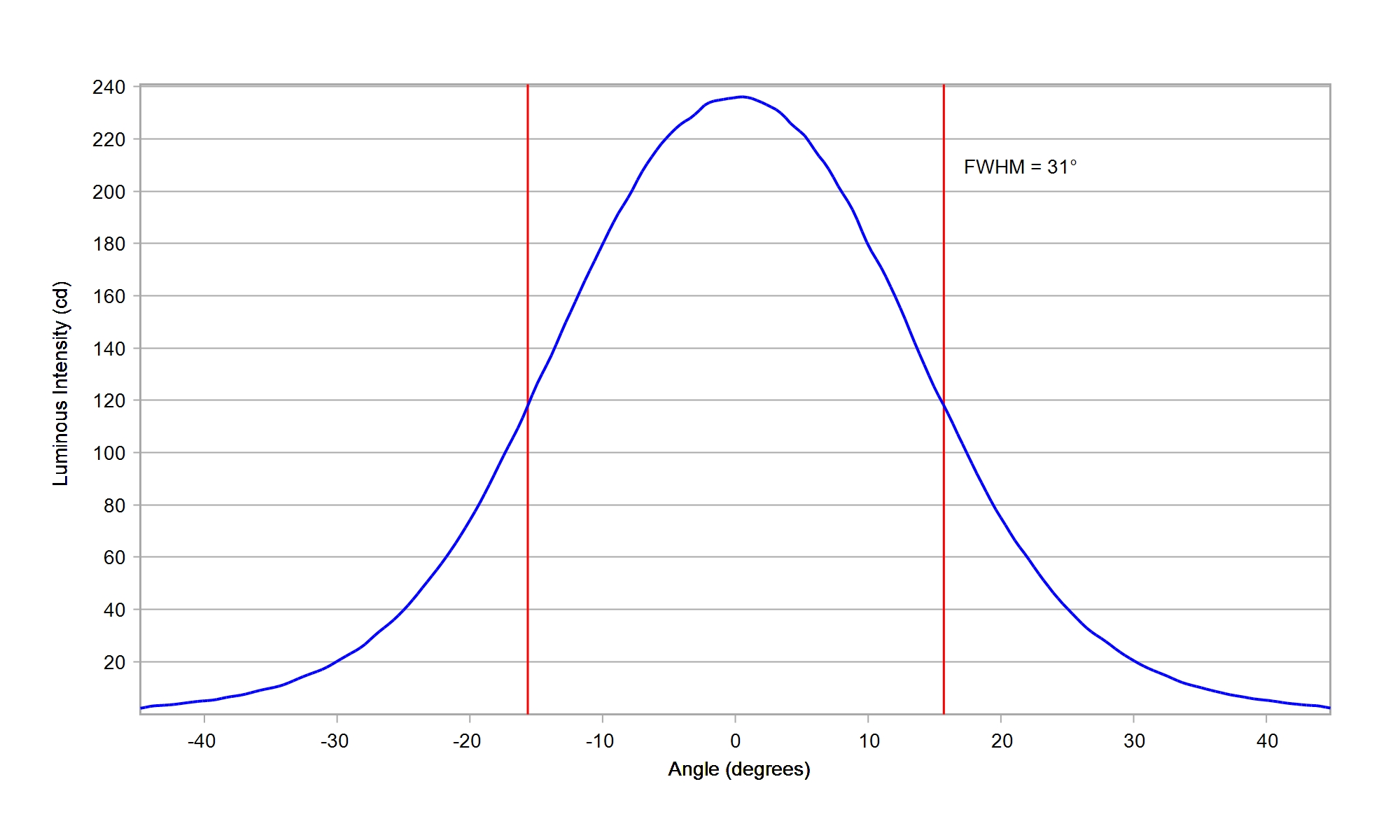

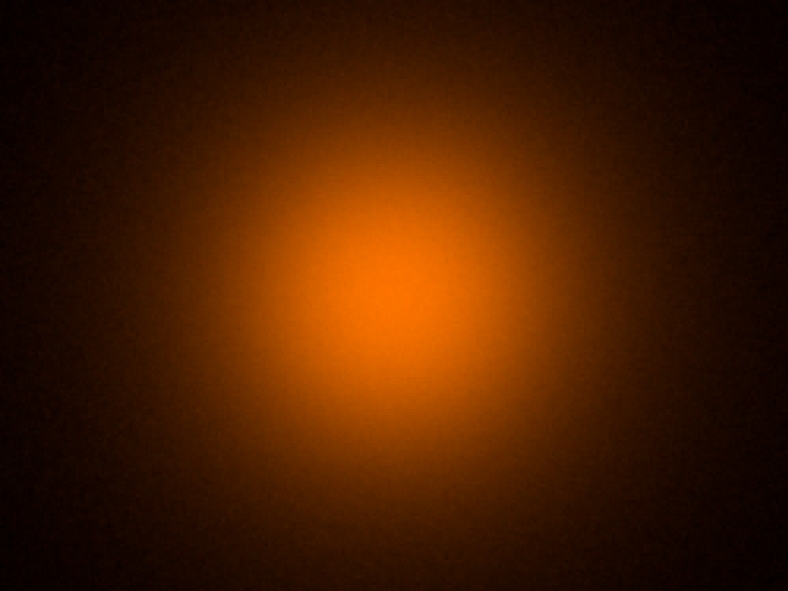

Cree XLamp XP-E2 Amber

Eff:

85.5%

FWHM:

31°

Cd/Im:

2.4

Download

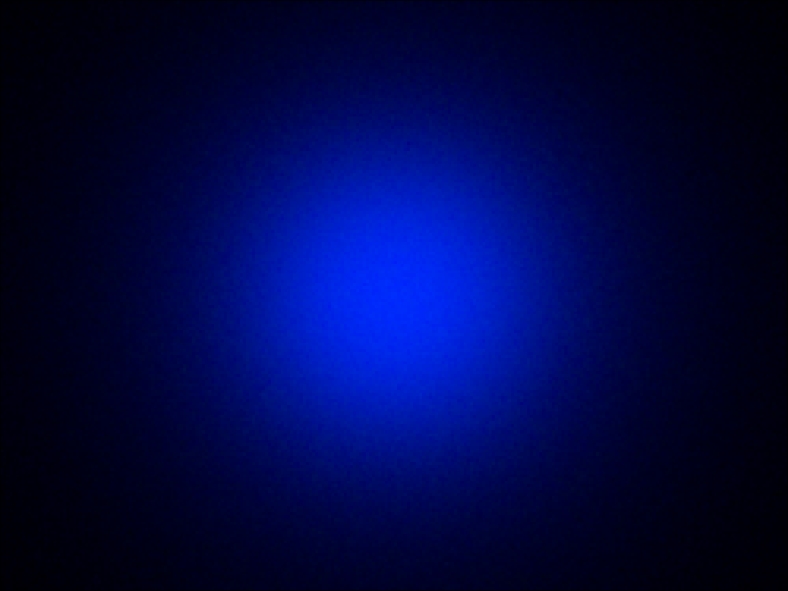

Cree XLamp XP-E2 Blue

Eff:

85.5%

FWHM:

32°

Cd/Im:

2.4

Download

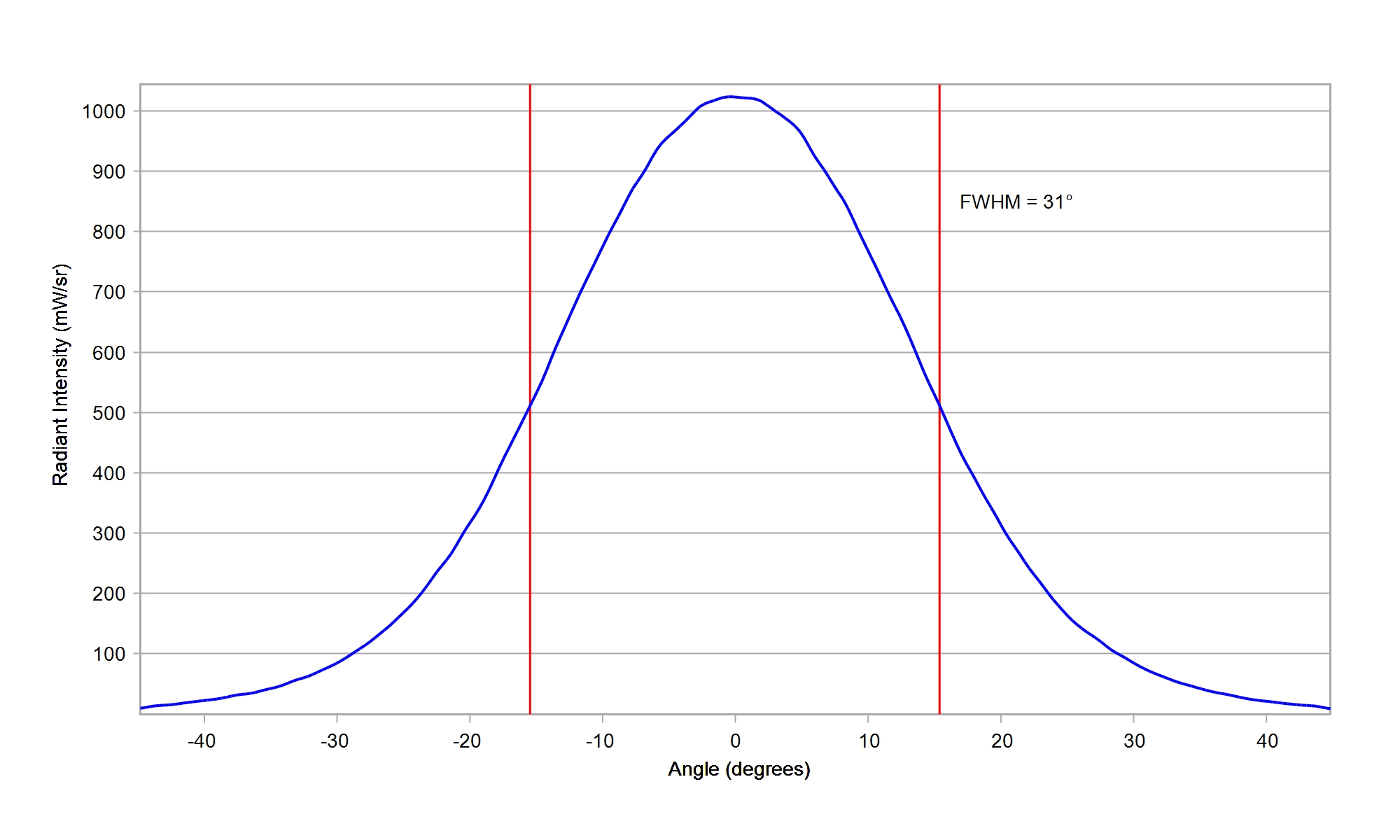

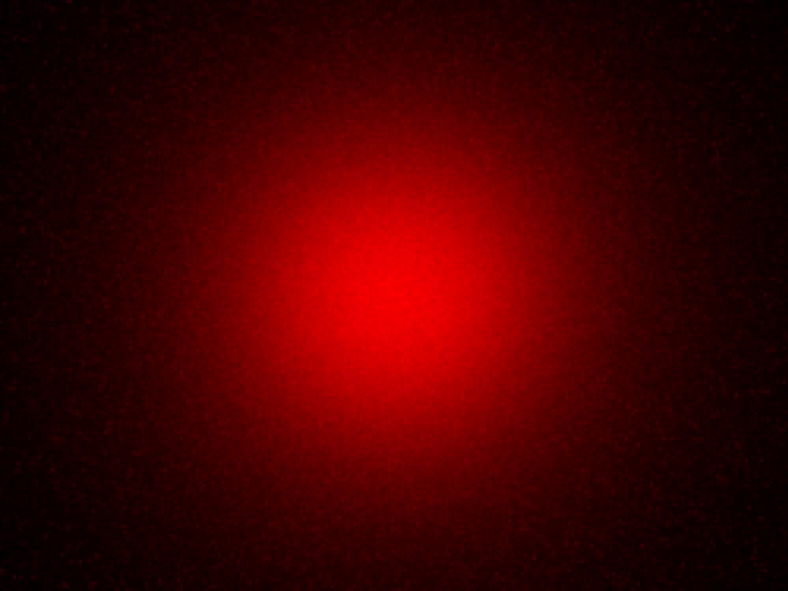

Cree XLamp XP-E2 Far Red

Eff:

90.0%

FWHM:

31°

Ipk/W:

2.6

Download

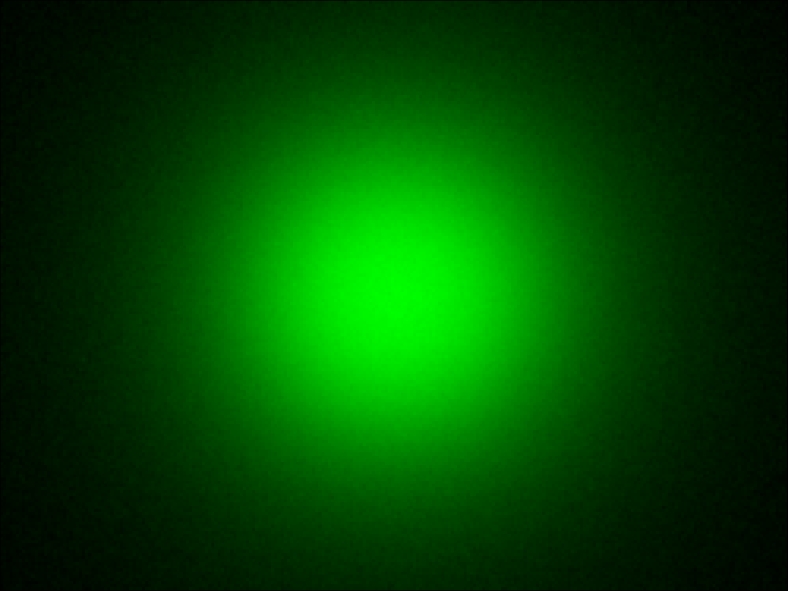

Cree XLamp XP-E2 Green

Eff:

85.5%

FWHM:

32°

Cd/Im:

2.3

Download

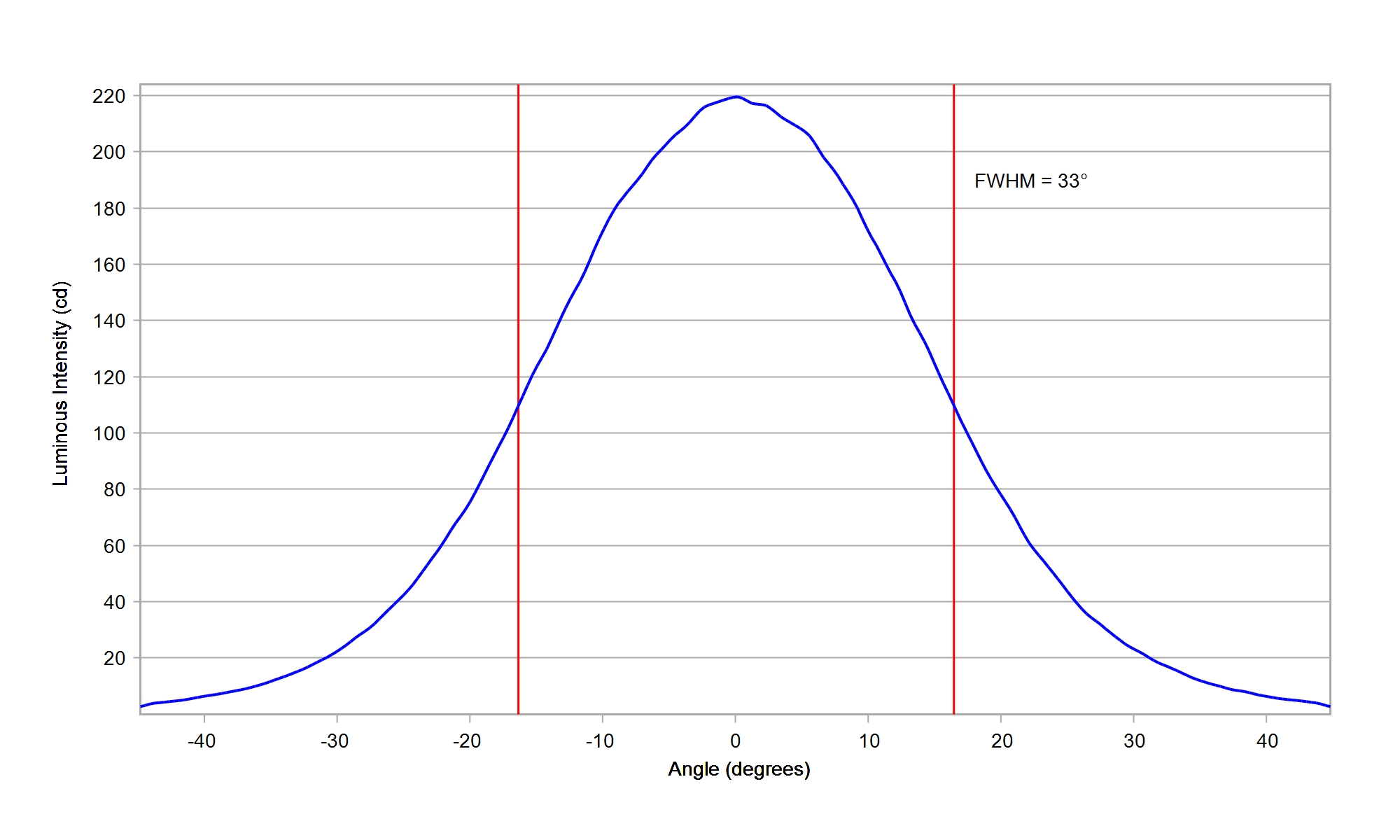

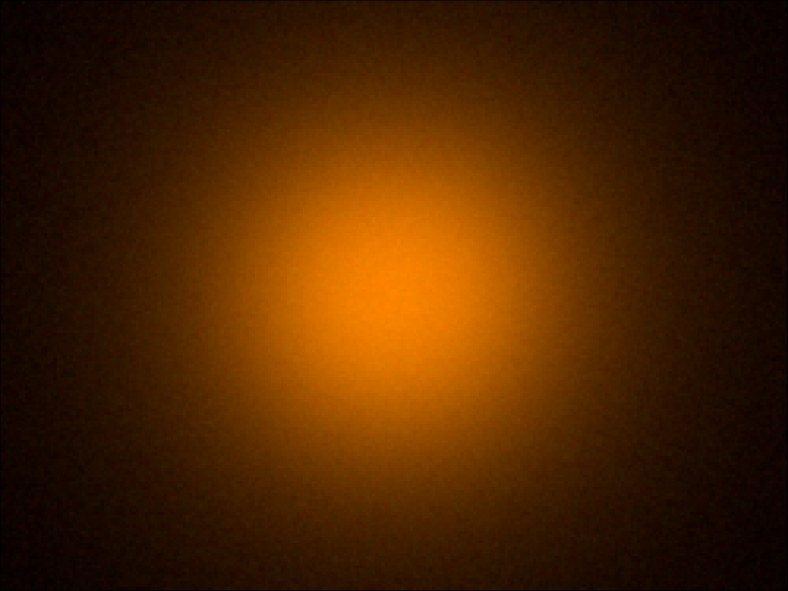

Cree XLamp XP-E2 PC Amber

Eff:

85.0%

FWHM:

33°

Cd/Im:

2.2


Download

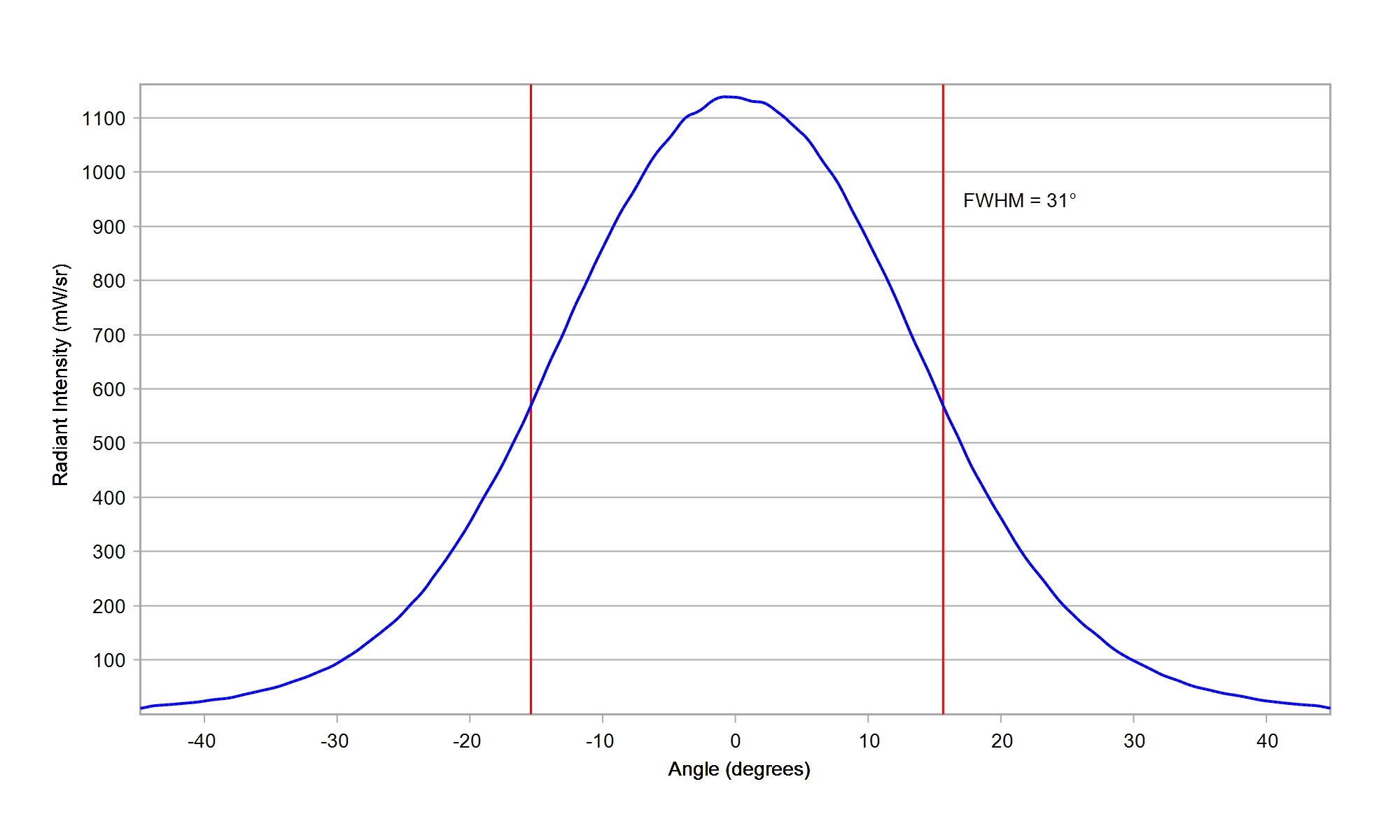

Cree XLamp XP-E2 Photo Red

Eff:

86.0%

FWHM:

31°

Ipk/W:

2.5


Download

Cree XLamp XP-E2 Red

Eff:

87.5%

FWHM:

31°

Cd/Im:

2.5

Download

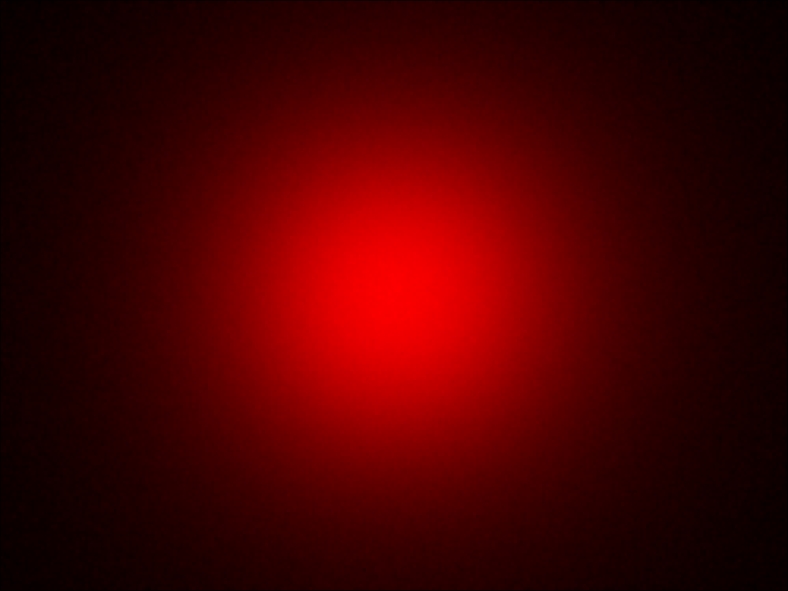

Cree XLamp XP-E2 Red-Orange

Eff:

87.0%

FWHM:

31°

Cd/Im:

2.5


Download

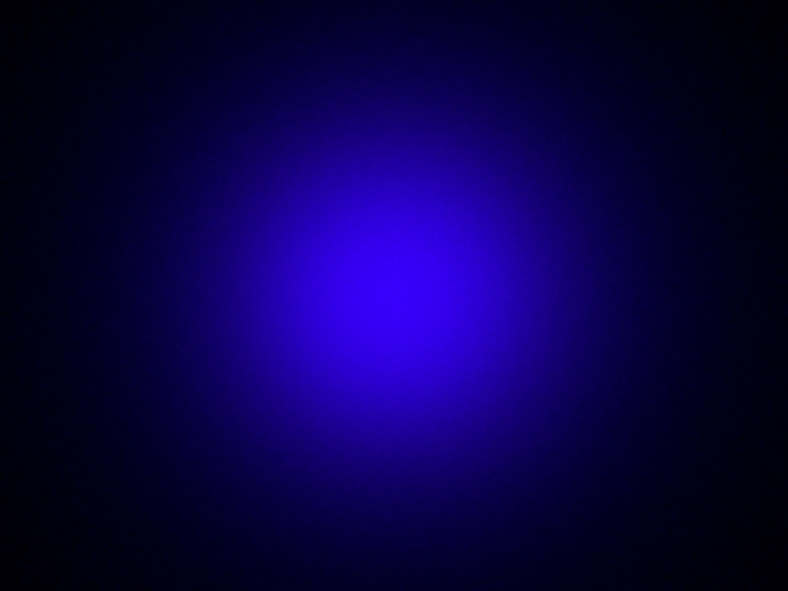

Cree XLamp XP-E2 Royal Blue

Eff:

84.0%

FWHM:

32°

Ipk/W:

2.3


Download

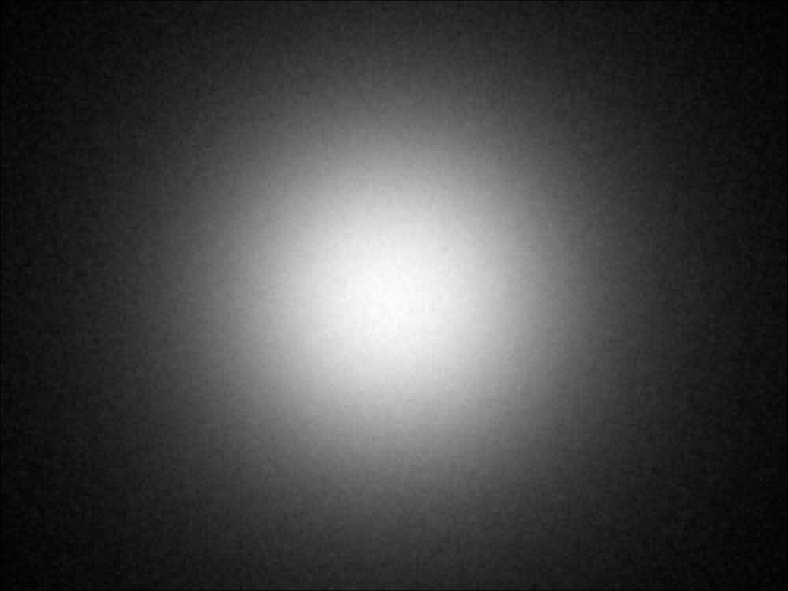

Cree XLamp XP-E2 White

Eff:

85.5%

FWHM:

33°

Cd/Im:

2.3

Download

Cree XLamp XP-G White

Eff:

77.9%

FWHM:

34°

Cd/Im:

2.4

Download

ies

Cree XLamp XP-G2 White

FWHM:

32.5°

Cd/Im:

2.9

10260 Spot

10260 Cross section plot

Download

ies

Cree XLamp XP-G3 White

Eff:

82.0%

FWHM:

33.0°

Cd/Im:

2.1

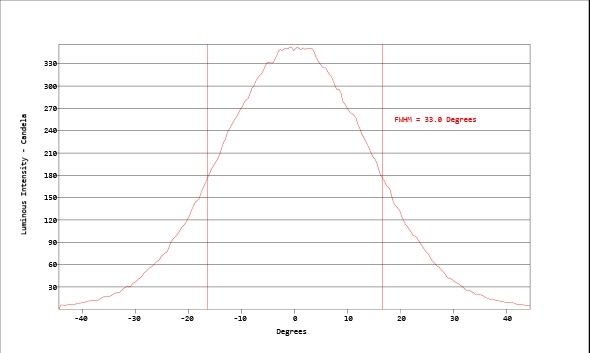

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

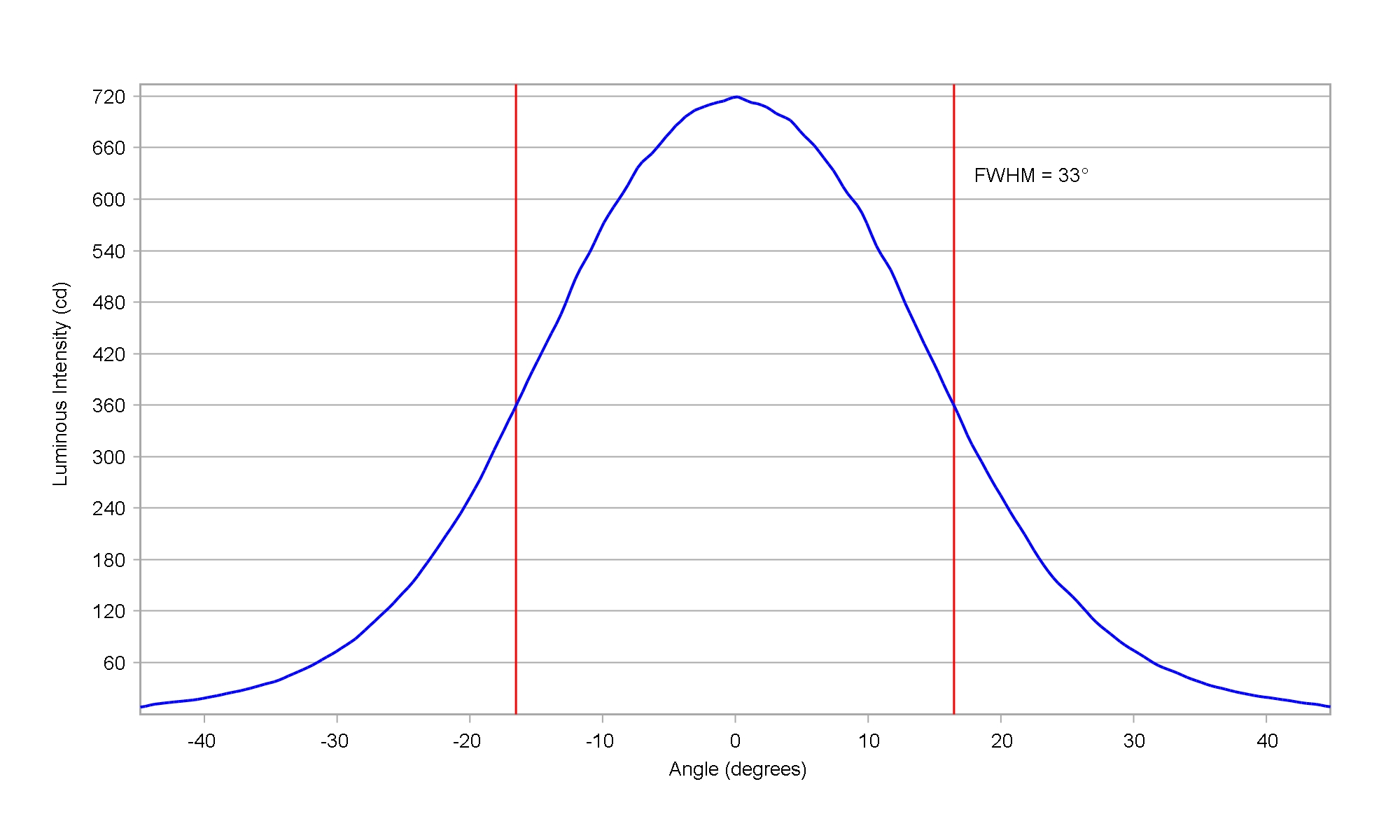

Cree XLamp XP-G4 HI White

Eff:

84.5%

FWHM:

33°

Cd/Im:

2.2

Download

Cree XLamp XP-G4 White

Eff:

85.5%

FWHM:

32°

Cd/Im:

2.2

Download

IES

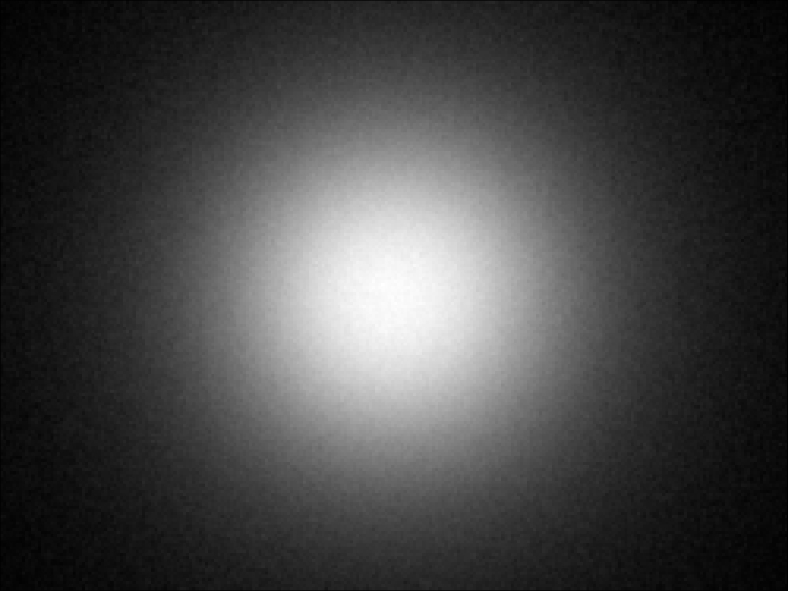

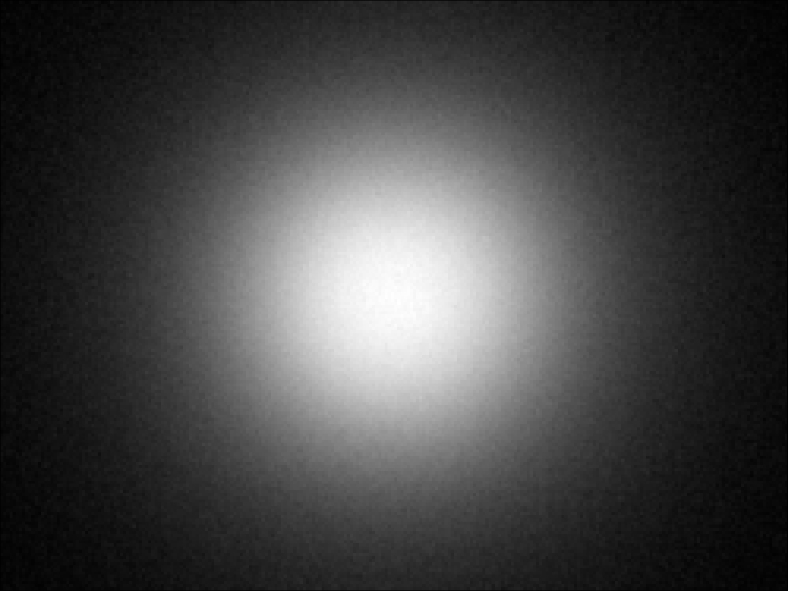

Cree XLamp XP-GR White

Eff:

85.5%

FWHM:

32°

Cd/Im:

2.4

Download

Cree XLamp XP-L HI White

Eff:

82.3%

FWHM:

32.7°

Cd/Im:

2.1

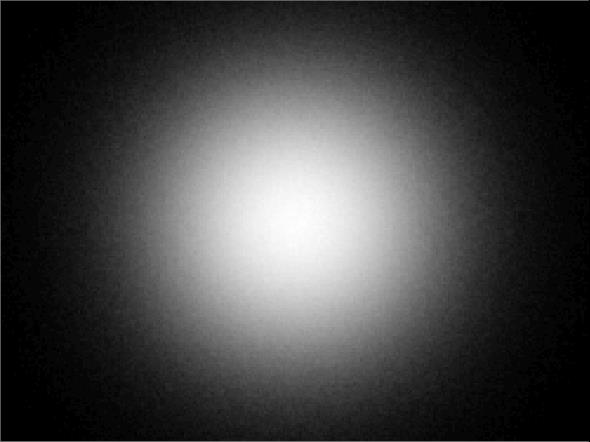

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XP-L White

Eff:

82.0%

FWHM:

33°

Cd/Im:

2.0

carclo optics - simulated spot image

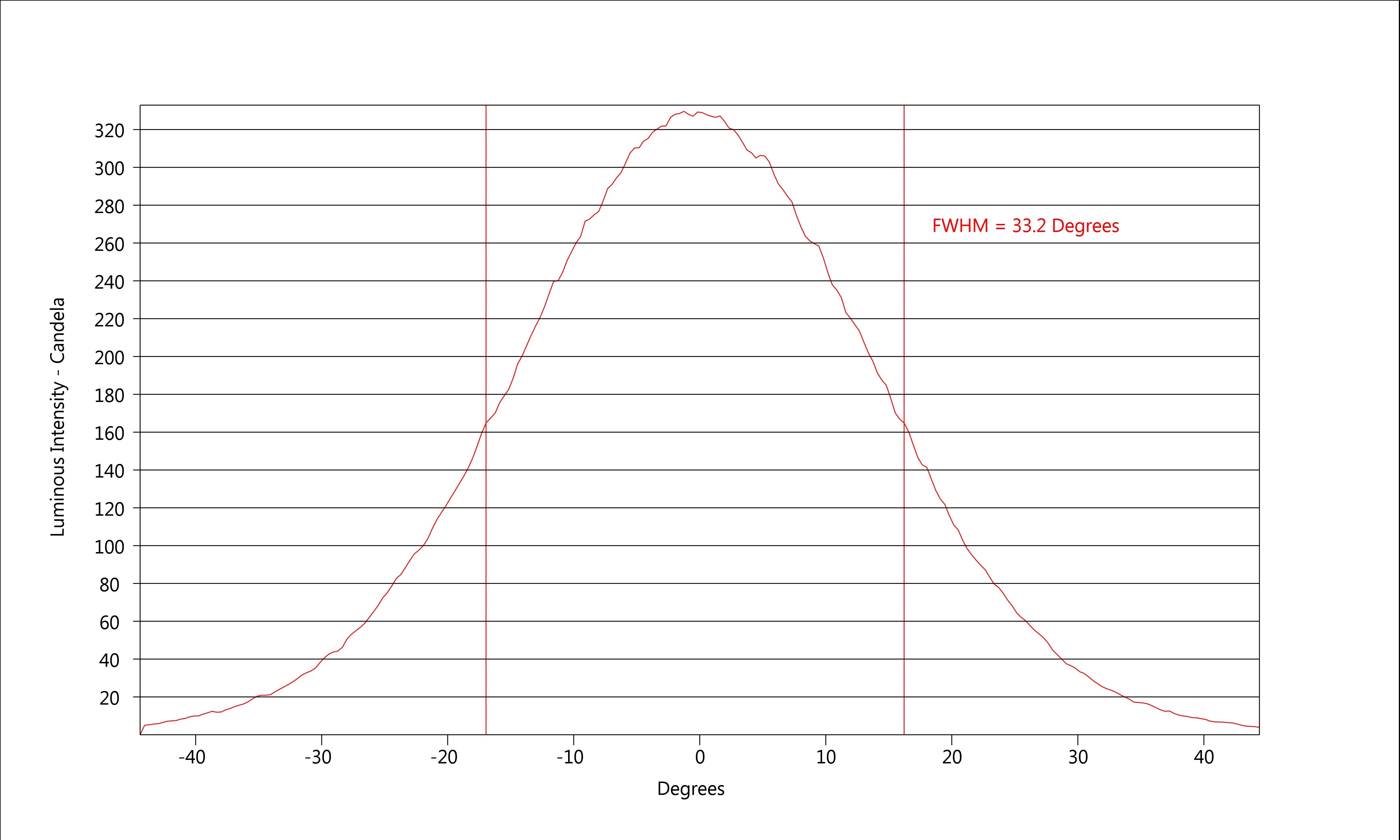

carclo optics - simulated cross section

Download

IES

Cree XLamp XP-L2 White

Eff:

82.5%

FWHM:

33.0°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

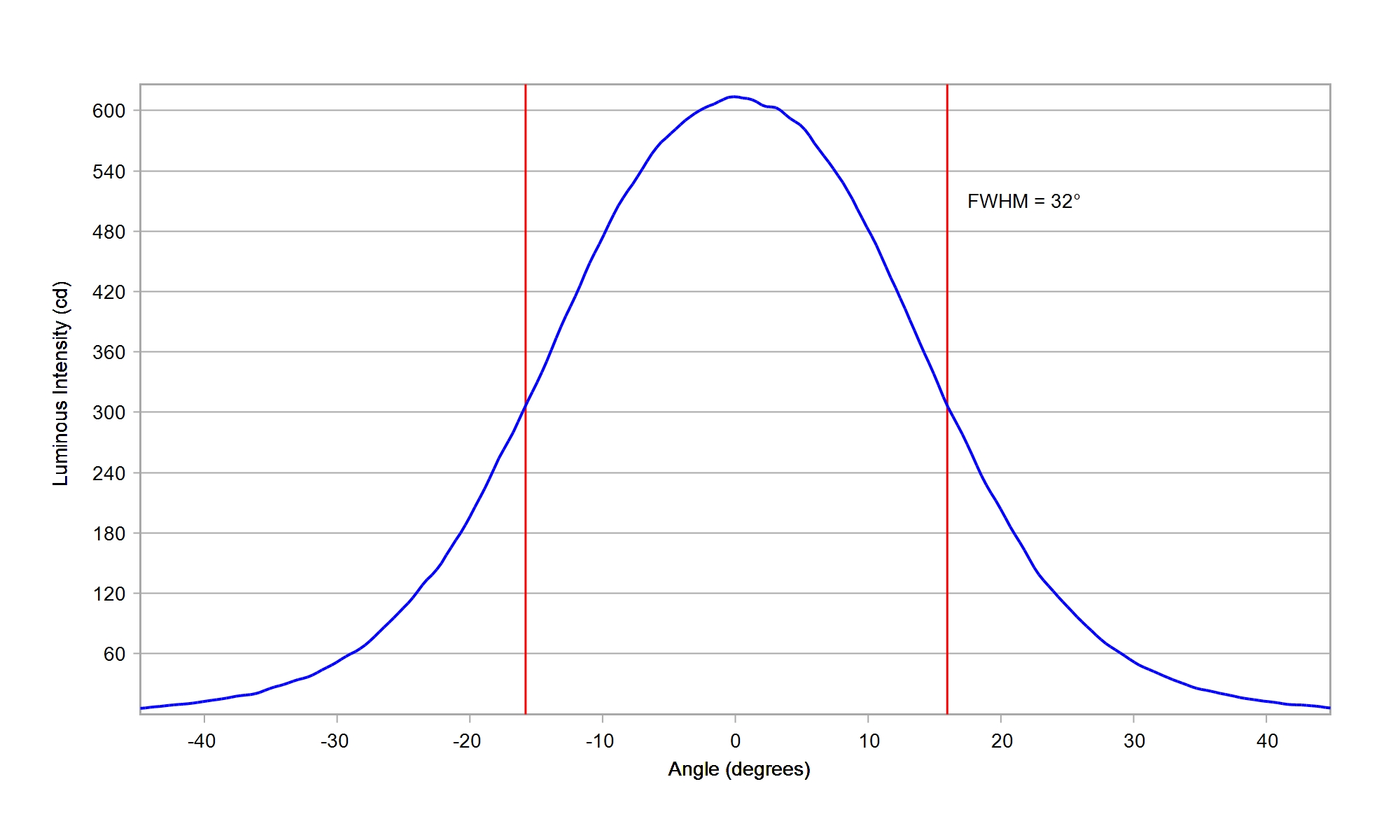

Cree XLamp XP-LR White

Eff:

85.5%

FWHM:

32°

Cd/Im:

2.4

Download

Cree XLamp XP-P White

Eff:

86.0%

FWHM:

31°

Cd/Im:

2.5

Carclo Optics – 10260 Cree Xlamp XP-P - Spot Image

Carclo Optics – 10260 Cree Xlamp XP-P - Cross-Section

Download

IES

Cree XLamp XQ-A Blue

Eff:

85.5%

FWHM:

31°

Cd/Im:

2.5

Download

Cree XLamp XQ-A Green

Eff:

85.5%

FWHM:

31°

Cd/Im:

2.4

Download

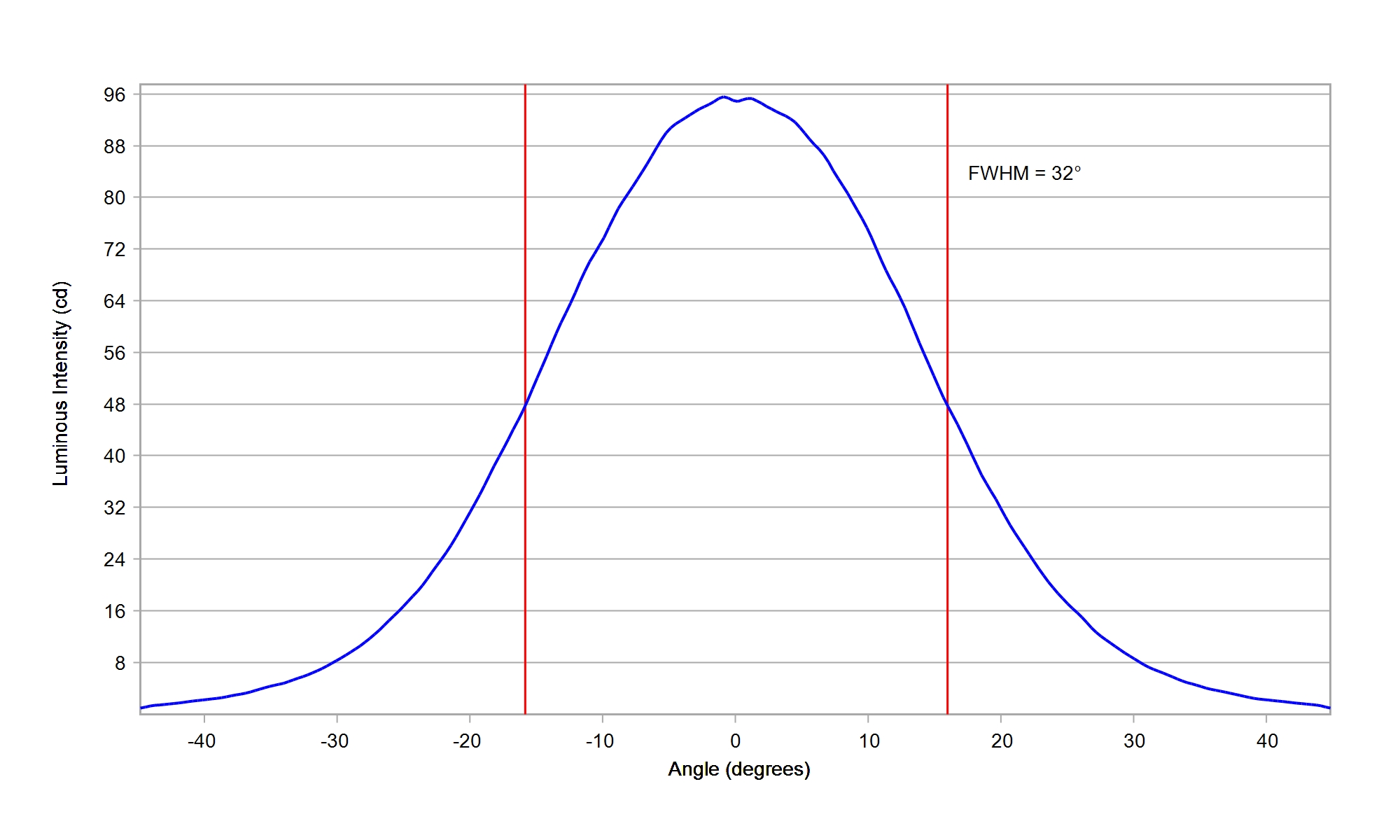

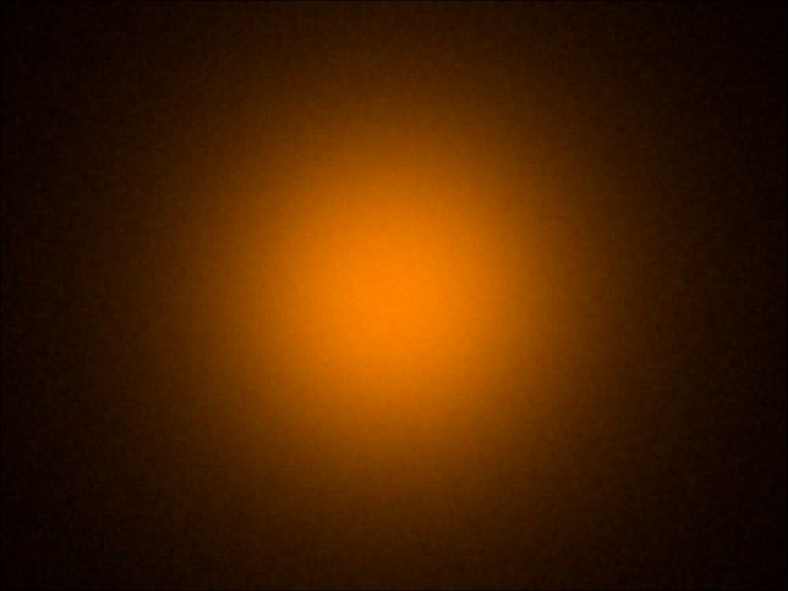

Cree XLamp XQ-A PC Amber

Eff:

85.0%

FWHM:

32°

Cd/Im:

2.3

Download

Cree XLamp XQ-A PC Blue

Eff:

85.0%

FWHM:

31°

Cd/Im:

2.5

Download

Cree XLamp XQ-A Red

Eff:

87.0%

FWHM:

32°

Cd/Im:

2.4

Download

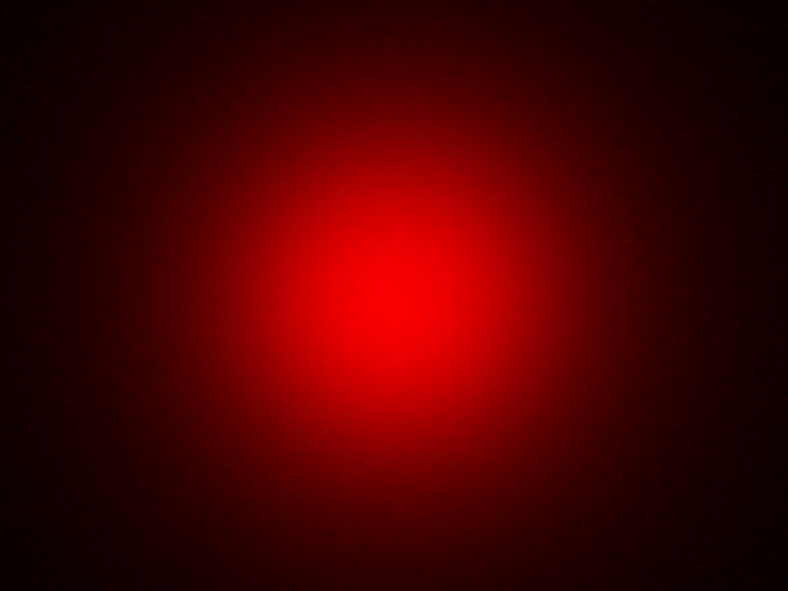

Cree XLamp XQ-A Red-Orange

Eff:

86.5%

FWHM:

32°

Cd/Im:

2.4


Download

Cree XLamp XQ-A White

Eff:

85.0%

FWHM:

33°

Cd/Im:

2.2

Download

Cree XLamp XQ-E HI Blue

Eff:

83.5%

FWHM:

33.0°

Cd/Im:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Green

Eff:

83.0%

FWHM:

33.0°

Cd/Im:

2.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Red

Eff:

83.5%

FWHM:

31.5°

Cd/Im:

2.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI White

Eff:

83.0%

FWHM:

31.4°

Cd/Im:

2.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

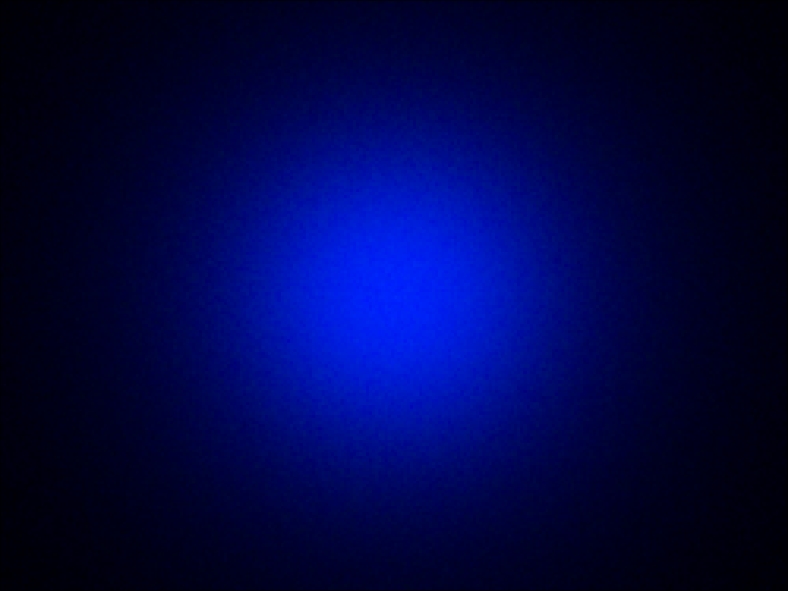

Cree XLamp XQ-E Plus HD Blue

Eff:

85.0%

FWHM:

32°

Cd/Im:

2.3


Download

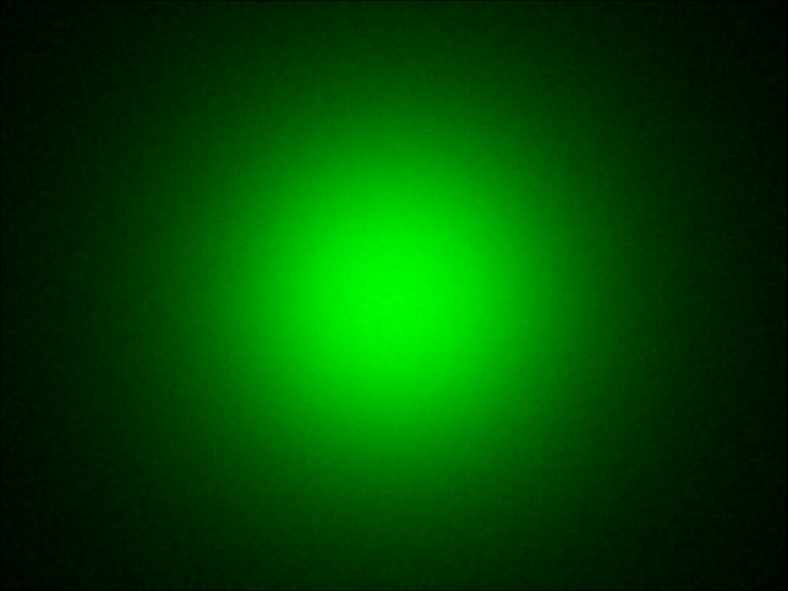

Cree XLamp XQ-E Plus HD Green

Eff:

85.0%

FWHM:

32°

Cd/Im:

2.3


Download

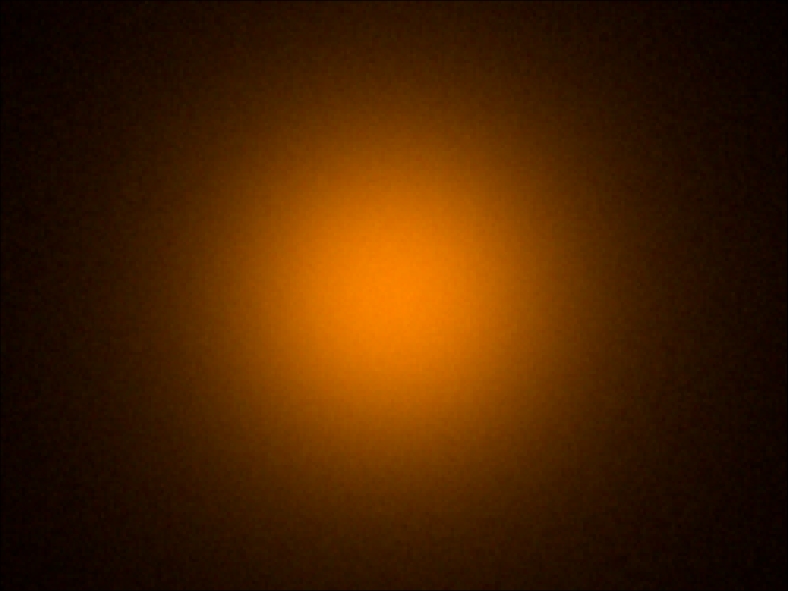

Cree XLamp XQ-E Plus HD PC Amber

Eff:

84.5%

FWHM:

31°

Cd/Im:

2.3


Download

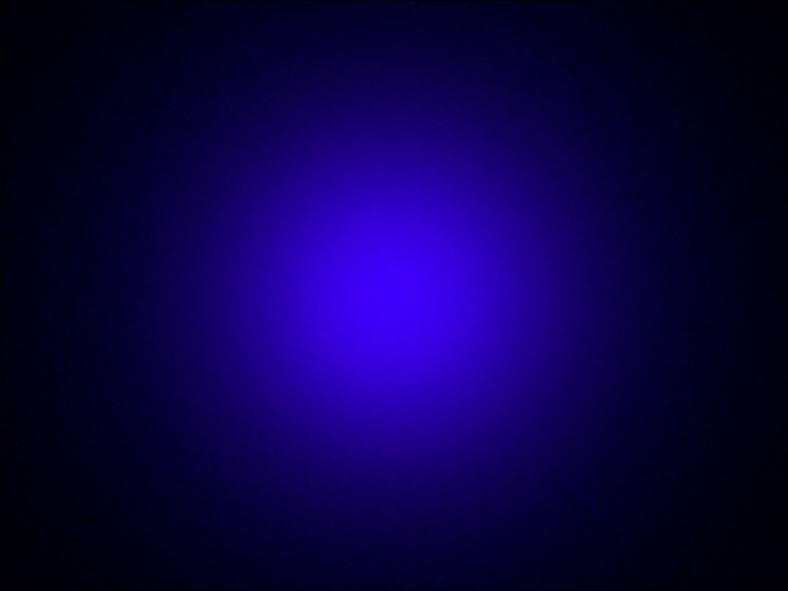

Cree XLamp XQ-E Plus HD Royal Blue

Eff:

83.5%

FWHM:

31°

Ipk/W:

2.3


Download

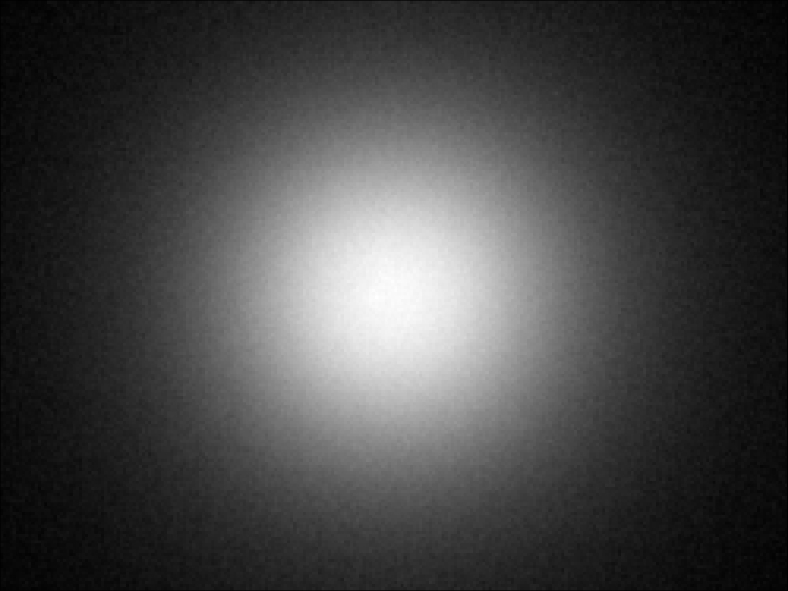

Cree XLamp XQ-E Plus HD White

Eff:

84.5%

FWHM:

31°

Cd/Im:

2.3


Download

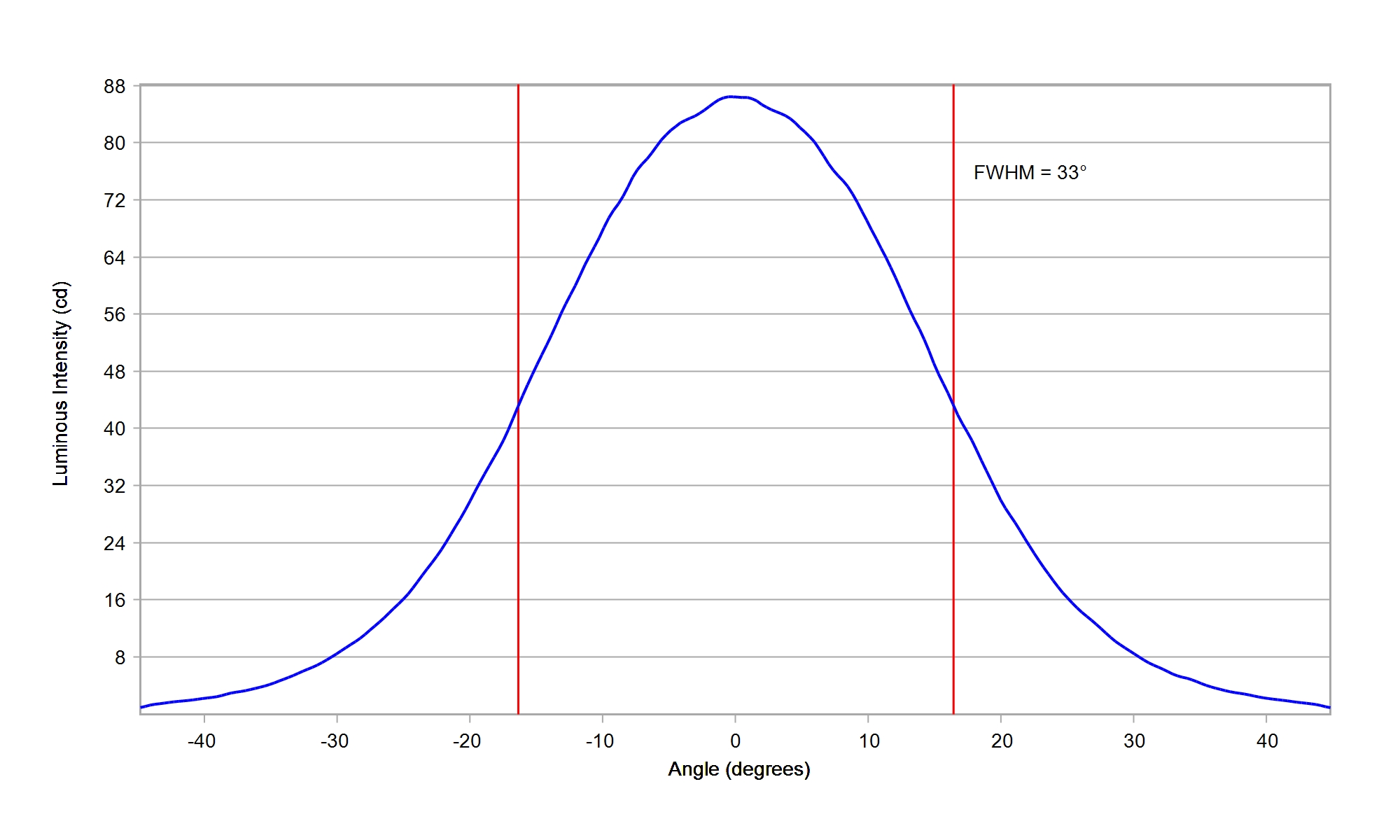

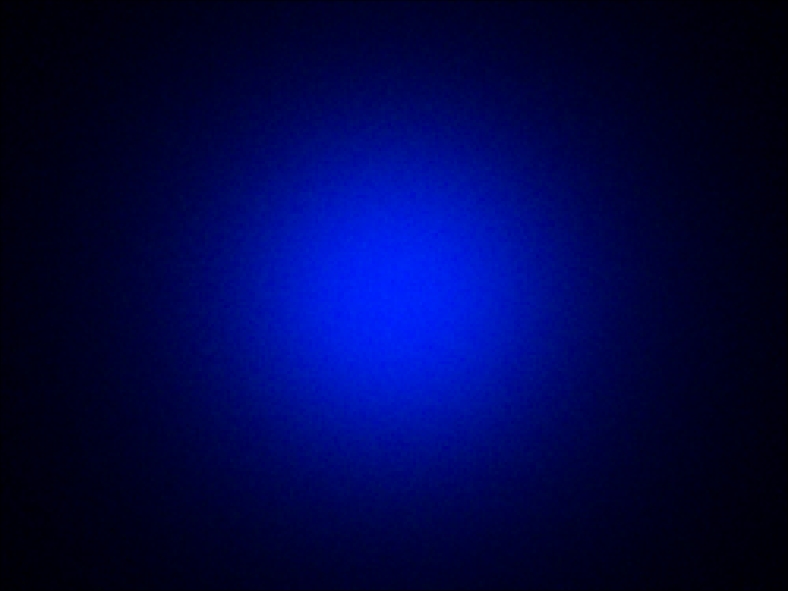

Cree XLamp XQ-E Plus HI Blue

Eff:

85.0%

FWHM:

33°

Cd/Im:

2.2


Download

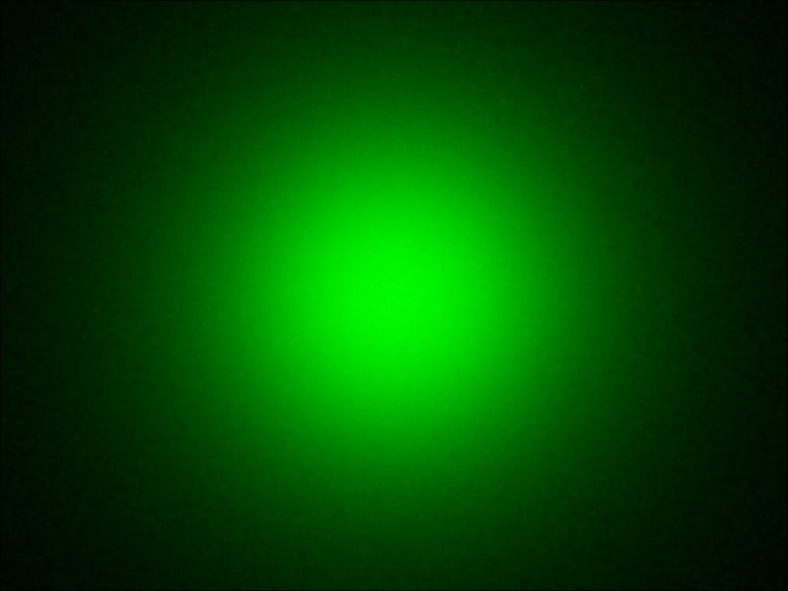

Cree XLamp XQ-E Plus HI Green

Eff:

84.5%

FWHM:

33°

Cd/Im:

2.2


Download

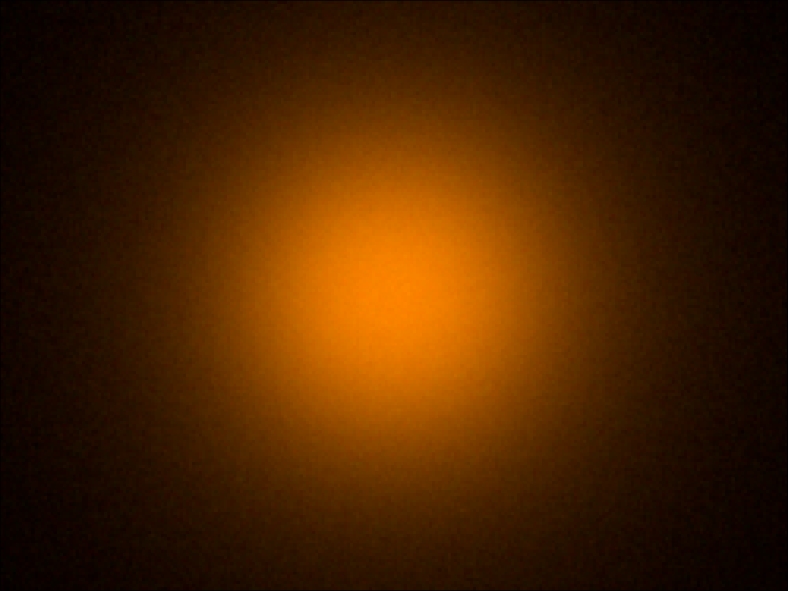

Cree XLamp XQ-E Plus HI PC Amber

Eff:

84.5%

FWHM:

32°

Cd/Im:

2.3


Download

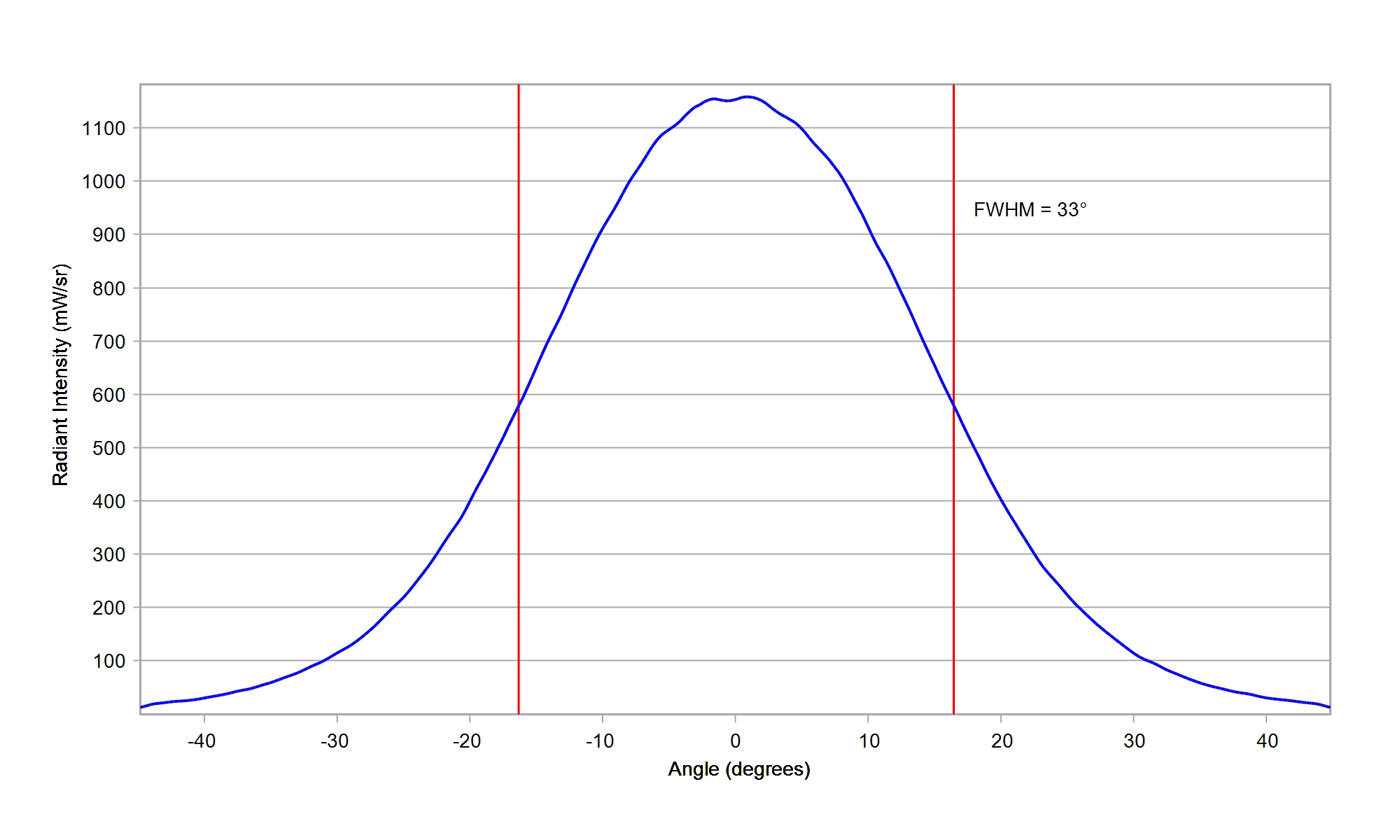

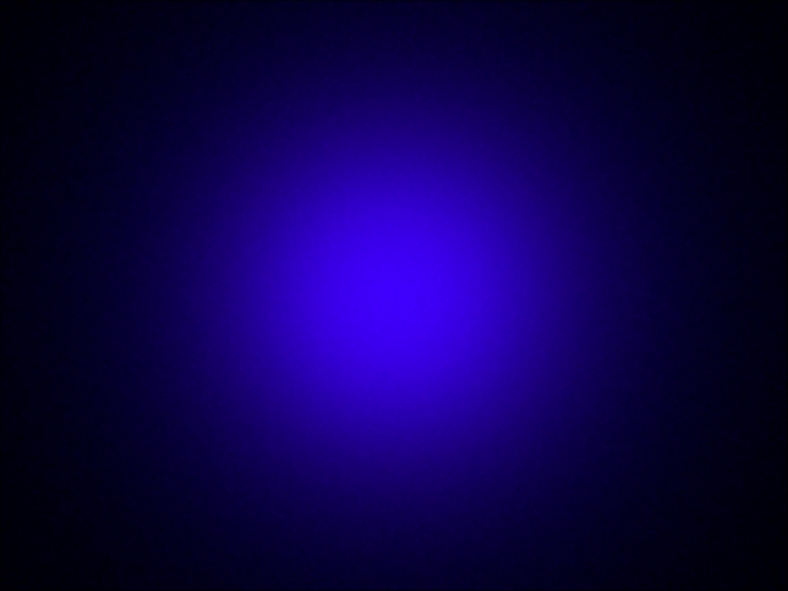

Cree XLamp XQ-E Plus HI Royal Blue

Eff:

83.0%

FWHM:

33°

Ipk/W:

2.1


Download

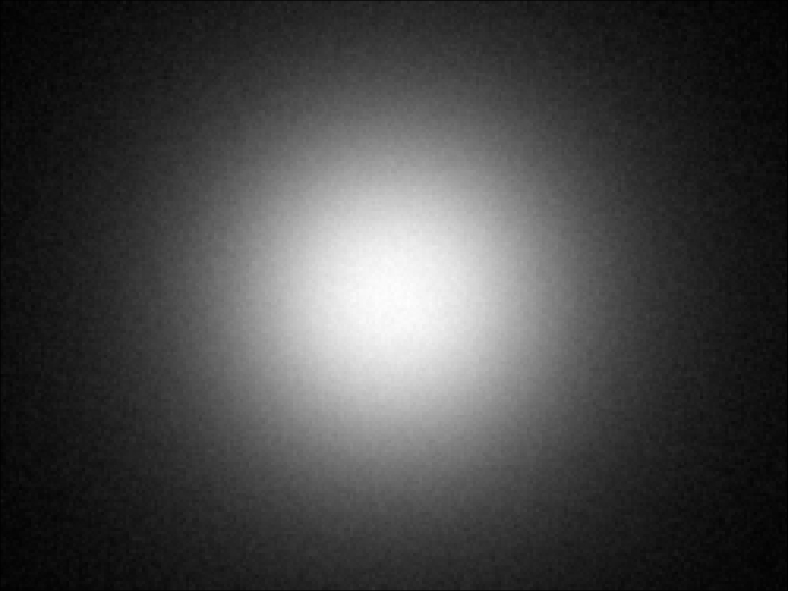

Cree XLamp XQ-E Plus HI White

Eff:

85.0%

FWHM:

32°

Cd/Im:

2.3


Download

Cree XLamp XR White

Eff:

84.1%

FWHM:

32.5°

Cd/Im:

2.2

Download

ies

Cree XLamp XR-C White

Eff:

82.2%

FWHM:

35.2°

Cd/Im:

2.2

Download

ies

Cree XLamp XR-E White

Eff:

81.8%

FWHM:

35.1°

Cd/Im:

2.1

Download

ies

Cree XLamp XT-E HE White

Eff:

86.5%

FWHM:

33.5°

Cd/Im:

2.2

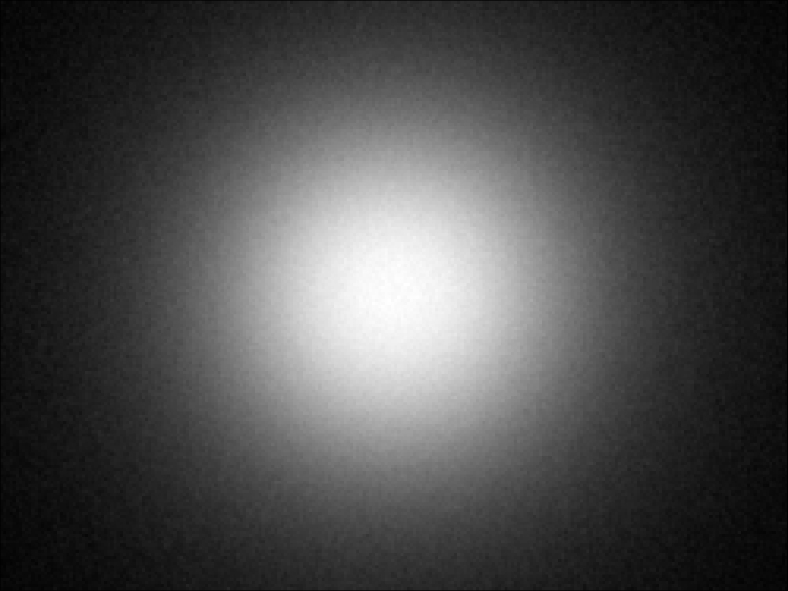

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XT-E White

FWHM:

32.5°

Cd/Im:

2.7

Download

ies

Everlight Shuen White

Eff:

81.0%

FWHM:

35.5°

Cd/Im:

2.2

Download

ies

Osram LED ENGIN LuxiGen 5W LZ1-00CW05 White

Eff:

76.7%

FWHM:

34.7°

Cd/Im:

2.0

Download

ies

LG Innotek 3535LG White

FWHM:

36.9°

Cd/Im:

2.3

Download

ies

Lite-On R38386AS - S R38 IR

Eff:

84.0%

FWHM:

33.5°

Ipk/W:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 2835C 6V White

Eff:

85.0%

FWHM:

34°

Cd/Im:

2.1

Download

LUMILEDS LUXEON 2835E 9V White

Eff:

85.5%

FWHM:

32°

Cd/Im:

2.3

Download

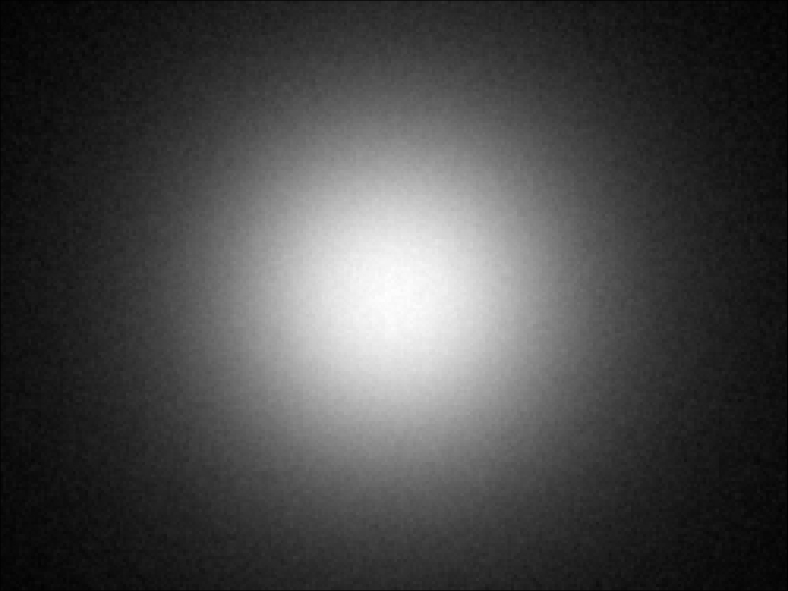

LUMILEDS LUXEON 2835N 3V White

Eff:

85.0%

FWHM:

32°

Cd/Im:

2.2

Download

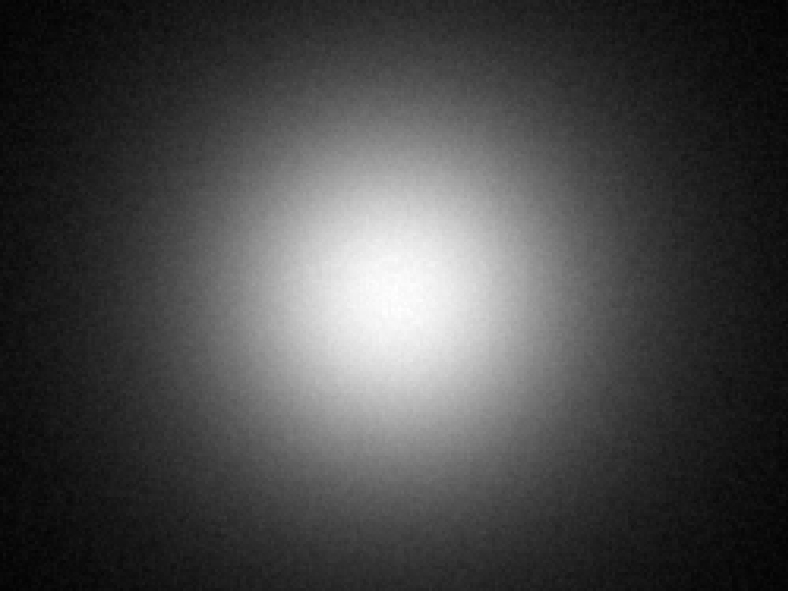

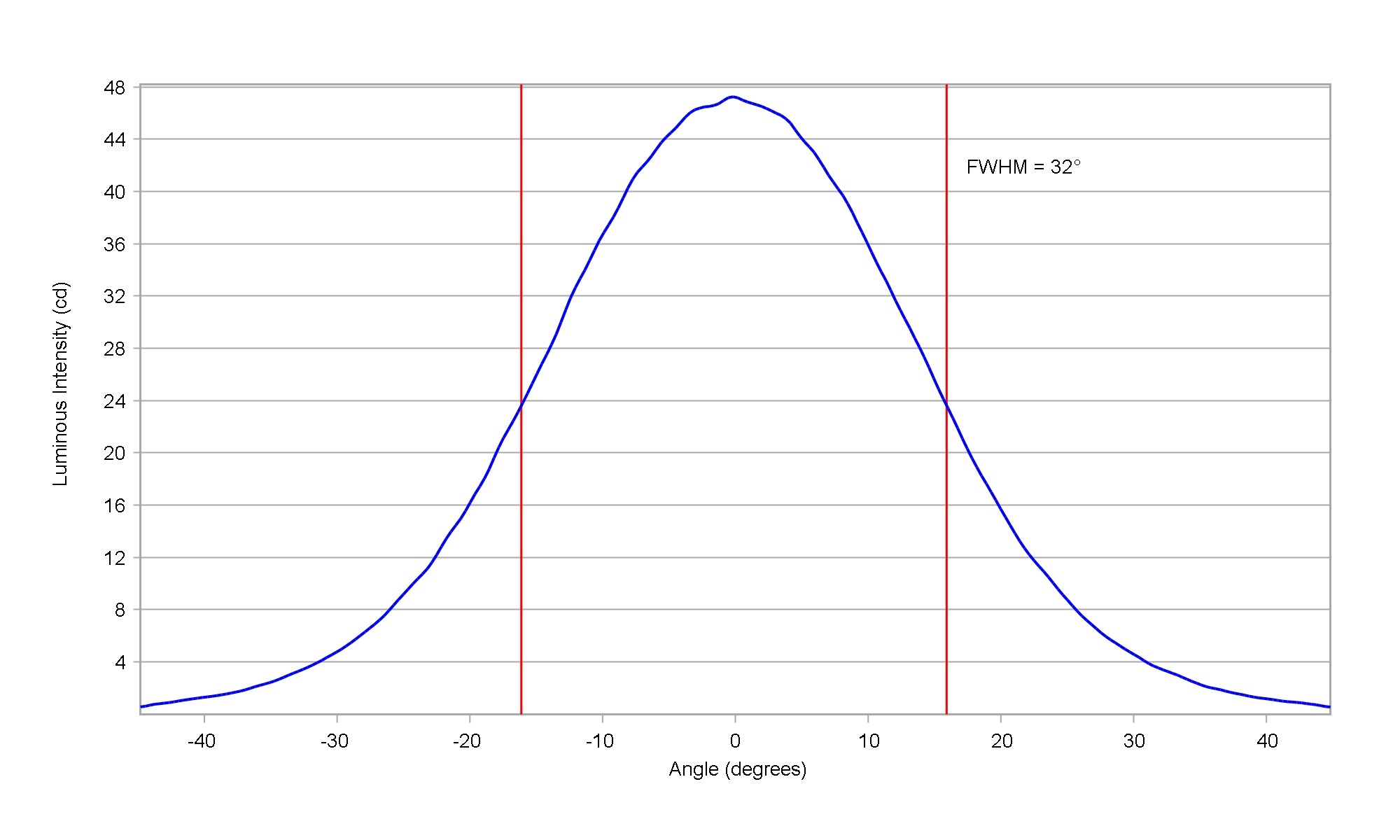

LUMILEDS LUXEON 2835S 3V White

Eff:

85.0%

FWHM:

32°

Cd/Im:

2.2

Download

LUMILEDS LUXEON 2835S 6V White

Eff:

85.0%

FWHM:

32°

Cd/Im:

2.2

Download

LUMILEDS LUXEON 3014 White

Eff:

86.0%

FWHM:

31°

Cd/Im:

2.4

Download

IES

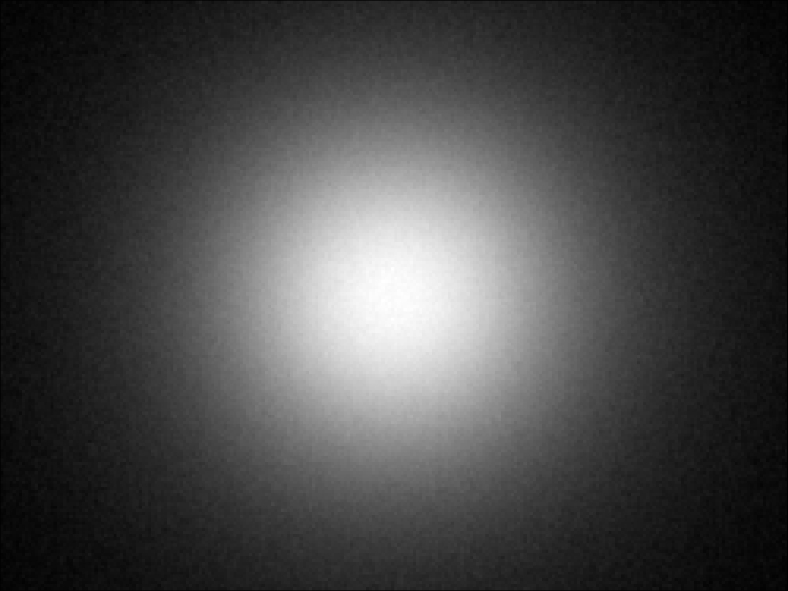

LUMILEDS LUXEON 3030 2D Plus Round White

Eff:

85.5%

FWHM:

32°

Cd/Im:

2.3


Download

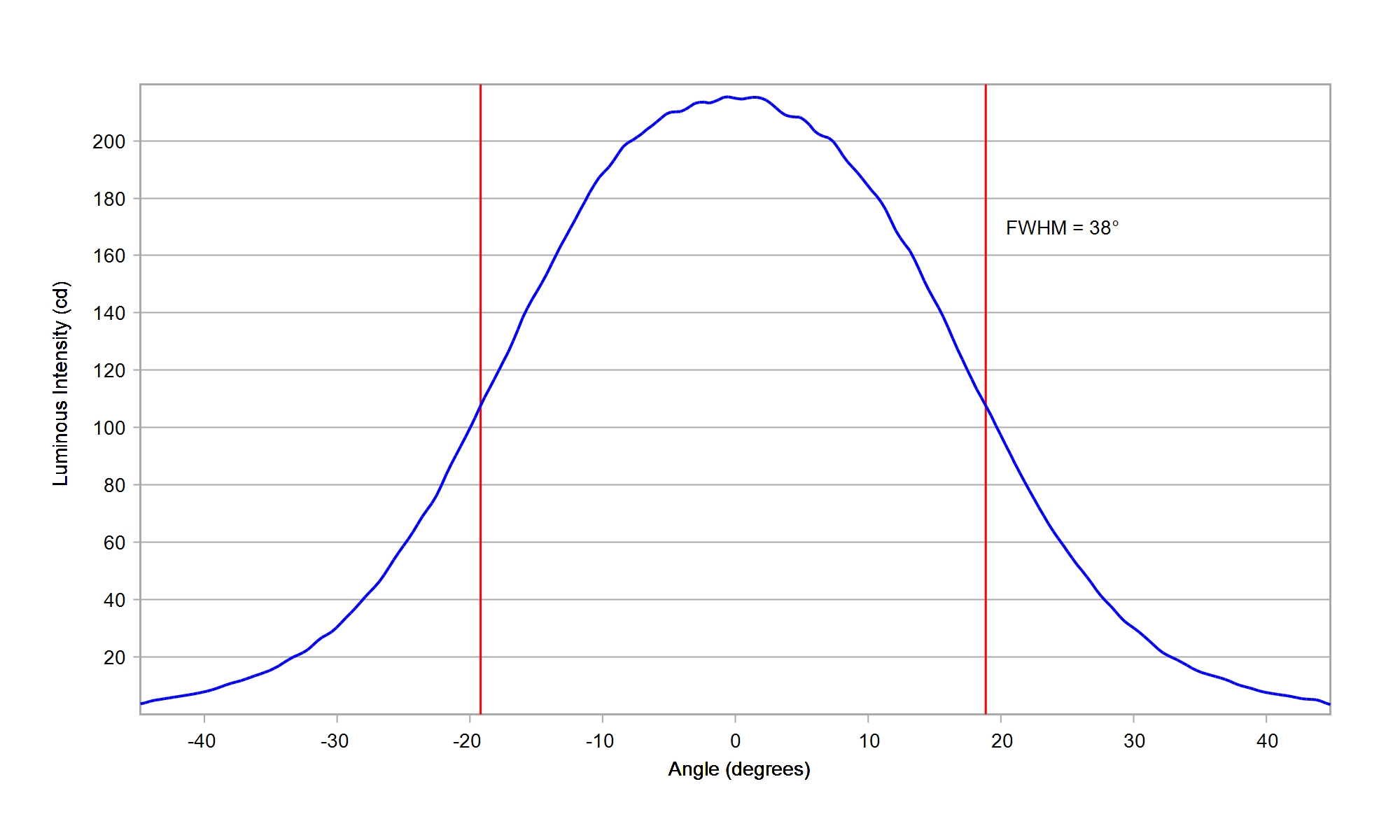

LUMILEDS LUXEON 3030 2D Plus Square White

Eff:

84.5%

FWHM:

38°

Cd/Im:

1.8


Download

LUMILEDS LUXEON 3030 2D Square White

Eff:

85.5%

FWHM:

33°

Cd/Im:

2.2


Download

LUMILEDS LUXEON 3030 2D Round White

Eff:

85.5%

FWHM:

31°

Cd/Im:

2.4

Download

LUMILEDS LUXEON 3030 HE Plus White

Eff:

85.0%

FWHM:

33°

Cd/Im:

2.2

Carclo Optics – 10260– Luxeon_3030_HE_Plus_spot-image

Carclo Optics – 10260 – Luxeon_3030_HE_Plus_cross vertical section

Download

IES

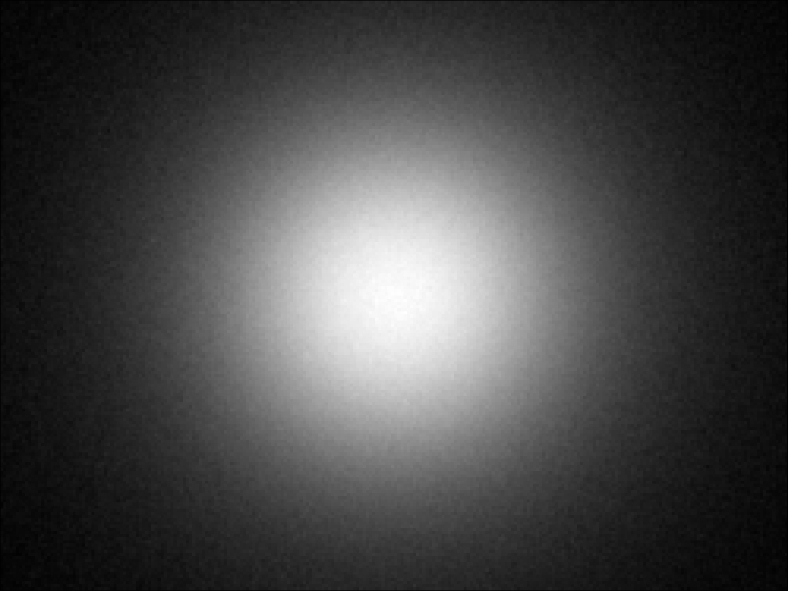

LUMILEDS LUXEON 3030 HE White

Eff:

85.5%

FWHM:

32°

Cd/Im:

2.3

Download

LUMILEDS LUXEON 3535 HV White

Eff:

82.3%

FWHM:

32°

Cd/Im:

2.2

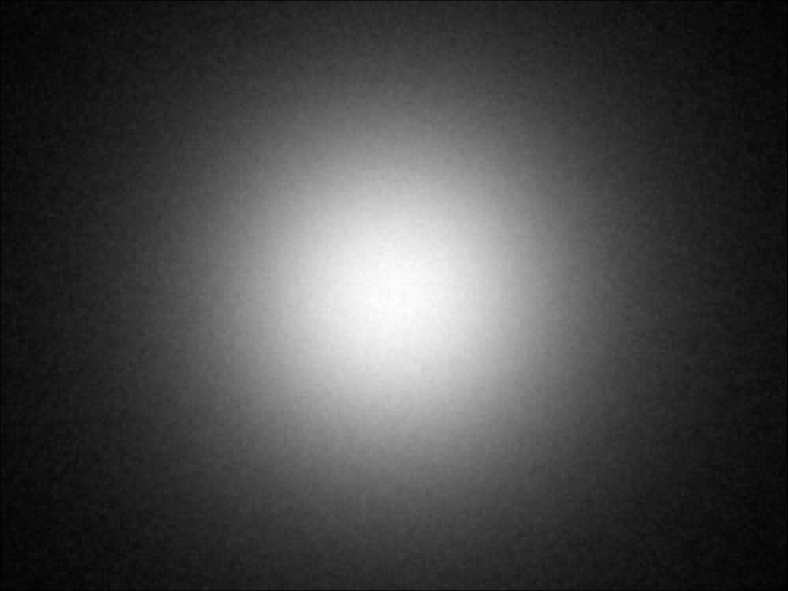

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON 3535 L White

Eff:

82.0%

FWHM:

33.6°

Cd/Im:

2.1

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON 3535L Blue

Eff:

84.5%

FWHM:

30.5°

Cd/Im:

2.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 3535L Green

Eff:

84.5%

FWHM:

30.0°

Cd/Im:

2.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 3535L Red

Eff:

84.5%

FWHM:

30.0°

Cd/Im:

2.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 5050 HE 24V White

Eff:

83.5%

FWHM:

40°

Cd/Im:

1.5

Download

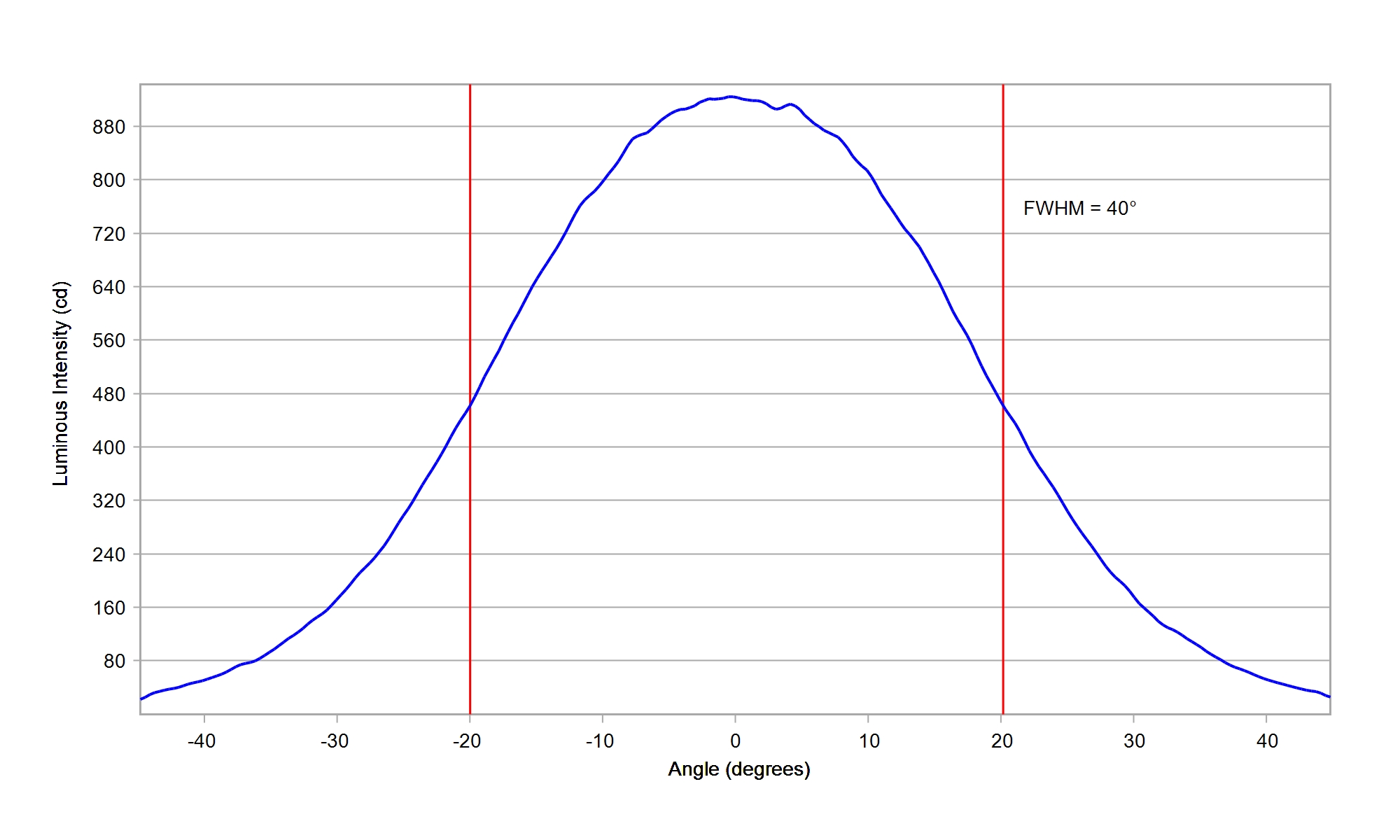

LUMILEDS LUXEON 5050 HE 6V White

Eff:

83.5%

FWHM:

40°

Cd/Im:

1.5

Download

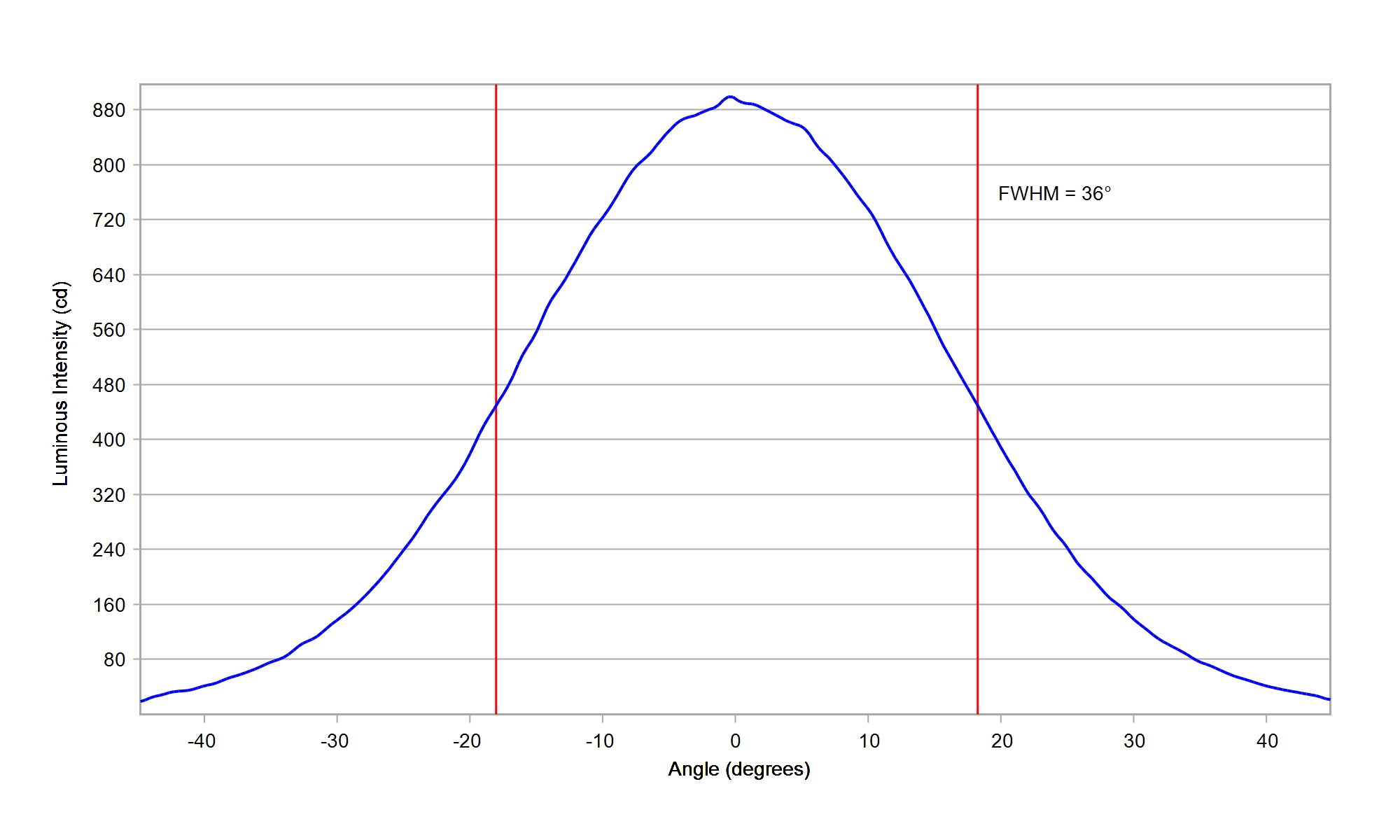

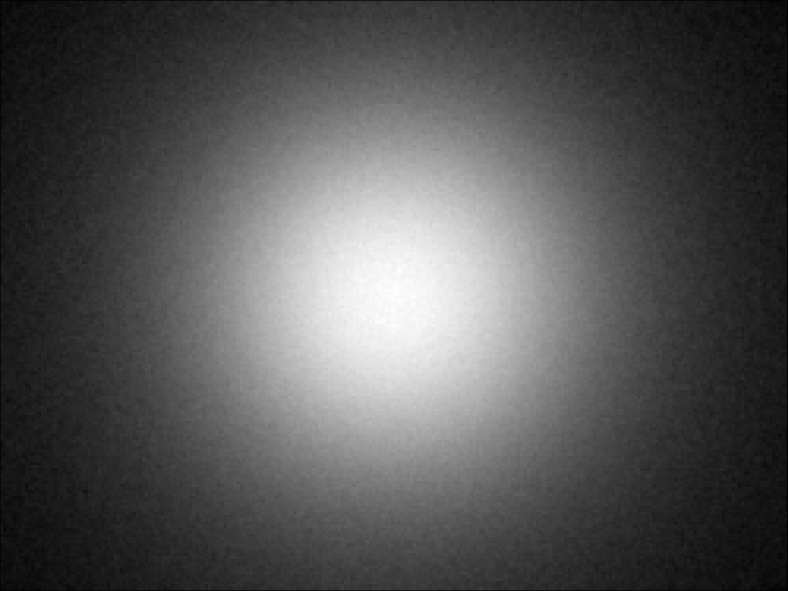

LUMILEDS LUXEON 5050 Round 24V White

Eff:

84.0%

FWHM:

36°

Cd/Im:

1.7


Download

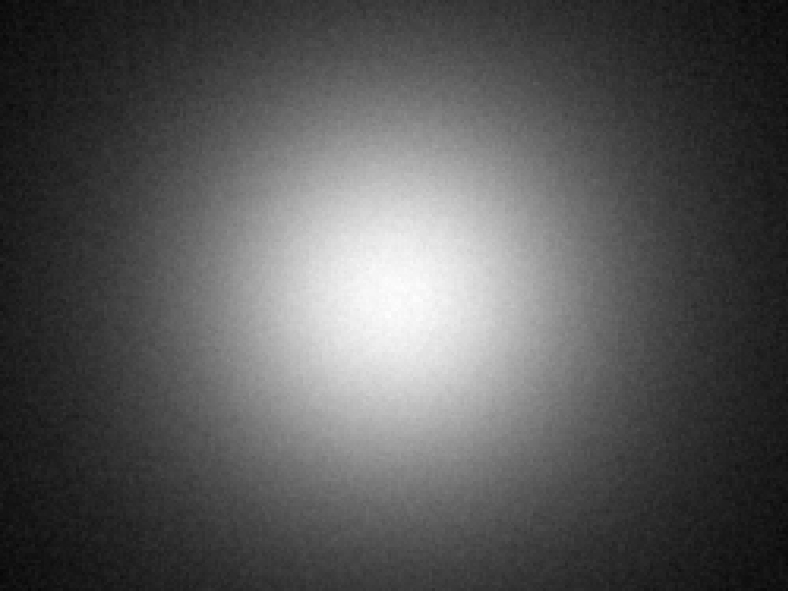

LUMILEDS LUXEON 5050 Square 30V White

Eff:

83.5%

FWHM:

37°

Cd/Im:

1.7


Download

LUMILEDS LUXEON 5050 Square 6V White

Eff:

84.0%

FWHM:

37°

Cd/Im:

1.7


Download

LUMILEDS LUXEON 5050 Round 6V White

Eff:

83.0%

FWHM:

35.0°

Cd/Im:

1.8

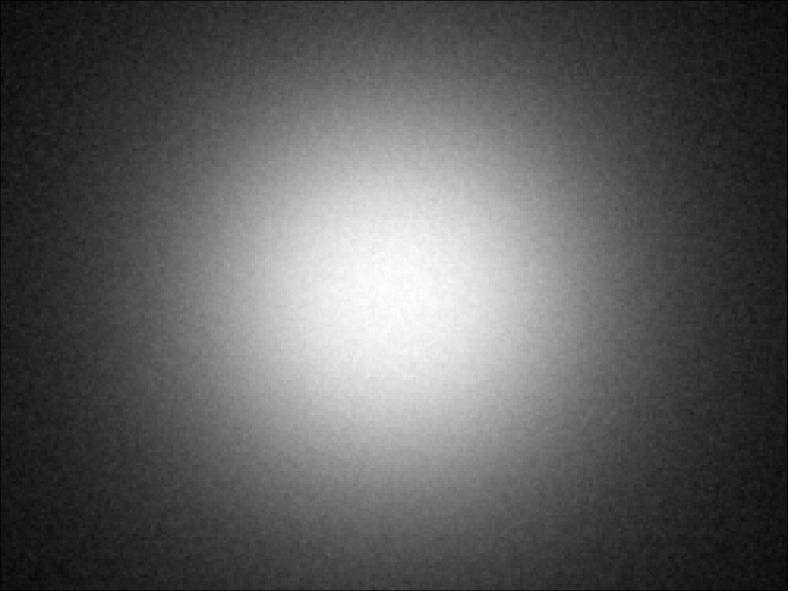

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 5052 RGBW

Eff:

82.5%

FWHM:

34°

Cd/Im:

1.9

Download

IES

LUMILEDS LUXEON C Blue

Eff:

79.5%

FWHM:

31.0°

Cd/Im:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Lime

Eff:

81.0%

FWHM:

28.5°

Cd/Im:

2.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Red

Eff:

79.0%

FWHM:

26.5°

Cd/Im:

2.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

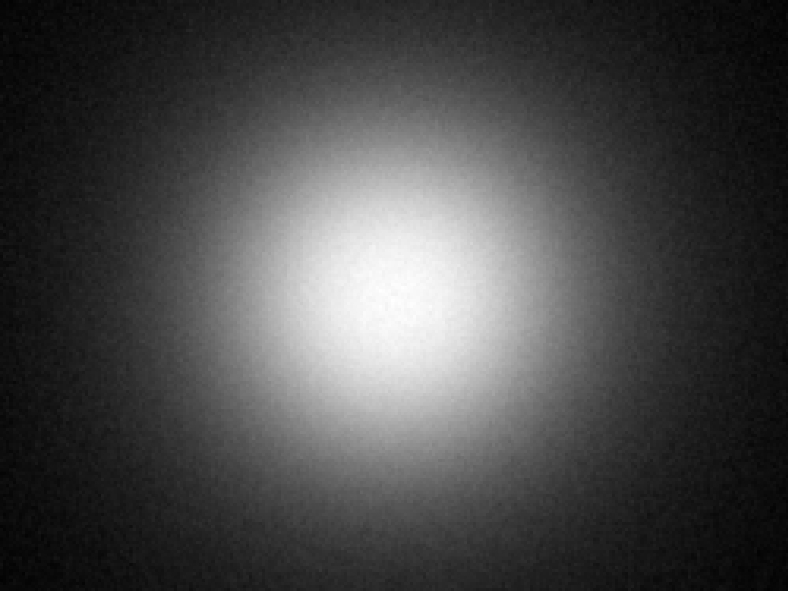

LUMILEDS LUXEON C White

Eff:

81.5%

FWHM:

34°

Cd/Im:

2.0

Download

LUMILEDS LUXEON CZ White

Eff:

84.5%

FWHM:

31.5 x 31°

Cd/Im:

2.4

Carclo Optics 10260 Spot Image Luxeon CZ 5M

Carclo Optics 10260 Cross Section Luxeon CZ 5M

Download

IES

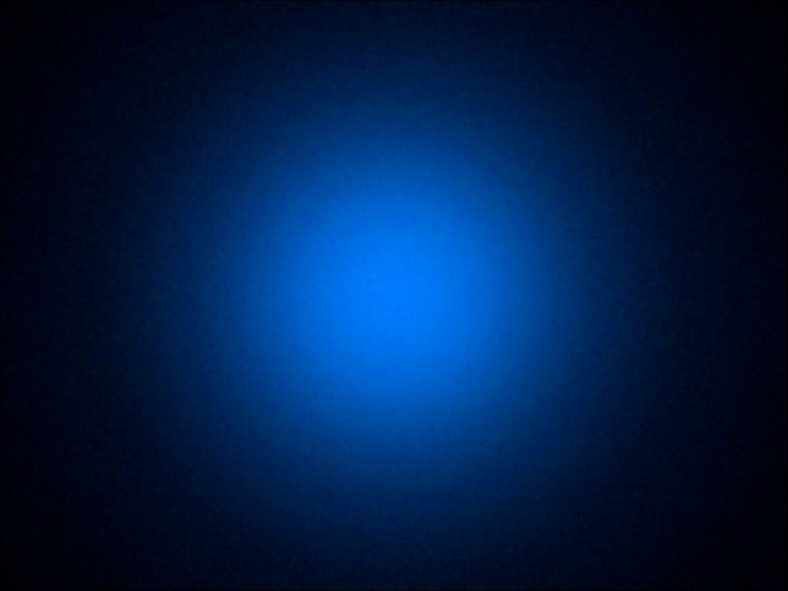

LUMILEDS LUXEON HL1Z Color Blue

Eff:

85.5%

FWHM:

32°

Cd/Im:

2.3

Download

LUMILEDS LUXEON HL1Z Color Green

Eff:

85.0%

FWHM:

32°

Cd/Im:

2.3

Download

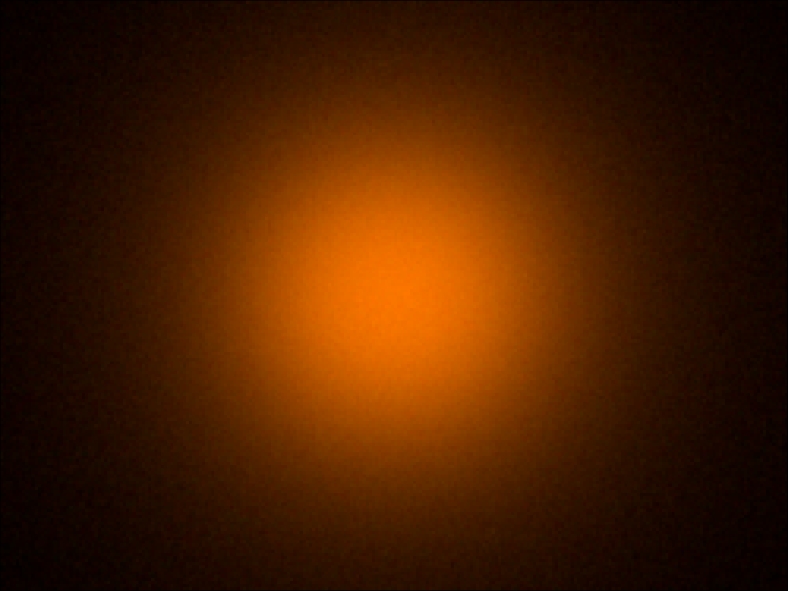

LUMILEDS LUXEON HL1Z Color PC Amber

Eff:

85.5%

FWHM:

32°

Cd/Im:

2.3


Download

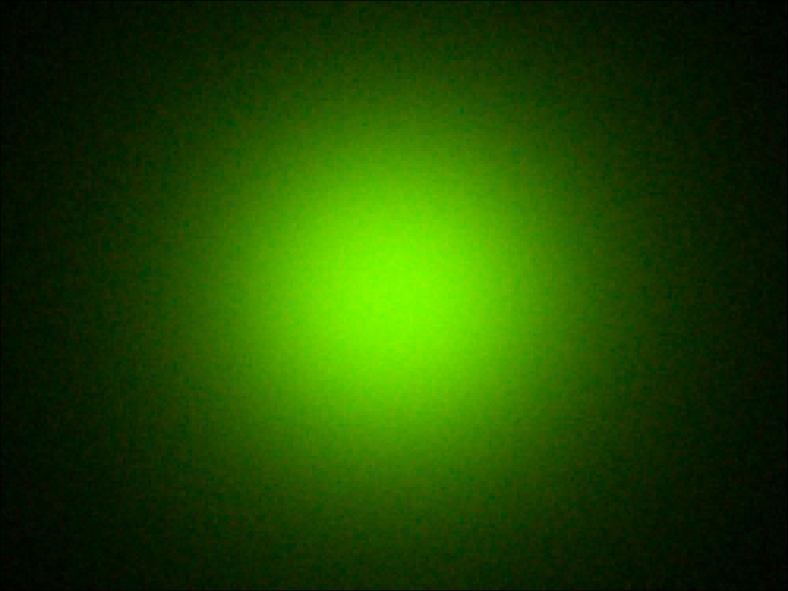

LUMILEDS LUXEON HL1Z Color PC Green

Eff:

84.5%

FWHM:

33°

Cd/Im:

2.2


Download

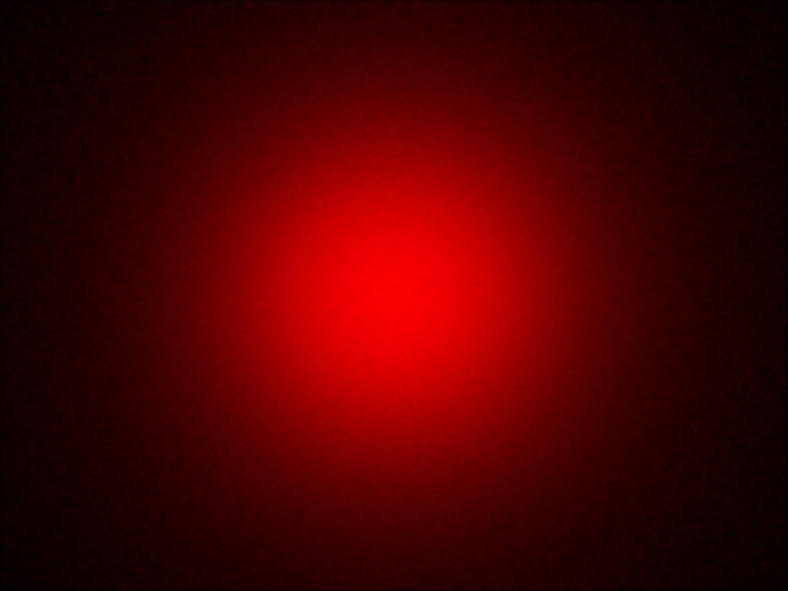

LUMILEDS LUXEON HL1Z Color PC Red

Eff:

86.0%

FWHM:

32°

Cd/Im:

2.3

Download

LUMILEDS LUXEON HL1Z Color PC Red Orange

Eff:

86.0%

FWHM:

32°

Cd/Im:

2.4


Download

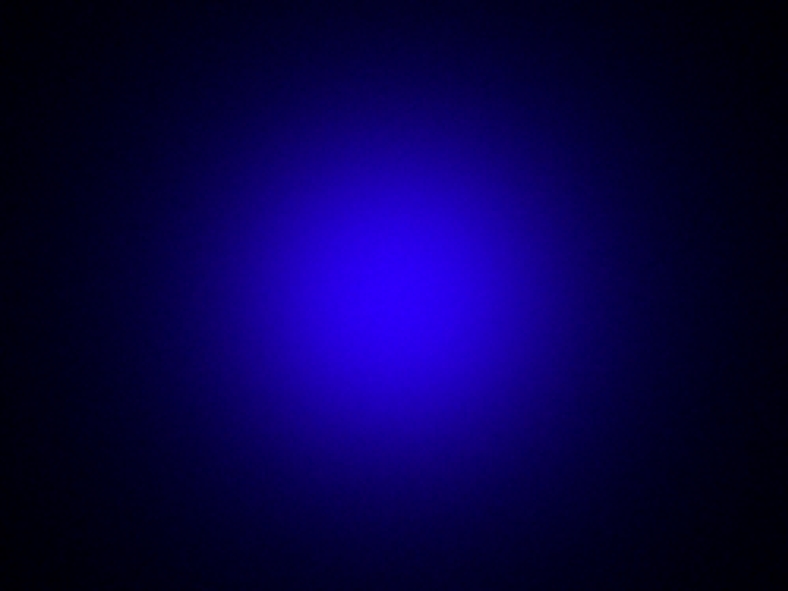

LUMILEDS LUXEON HL1Z Color Royal Blue

Eff:

84.0%

FWHM:

32°

Ipk/W:

2.3


Download

LUMILEDS LUXEON HL1Z CSP White

Eff:

85.5%

FWHM:

32°

Cd/Im:

2.4

Download

IES

LUMILEDS LUXEON HL2X White

Eff:

84.5%

FWHM:

32.0°

Cd/Im:

2.2

Carclo Optics - 10260 Spot Image Luxeon HL2X

Carclo Optics - 10260 Cross Section Luxeon HL2X

Download

IES

LUMILEDS LUXEON HL2X-D White

Eff:

85.0%

FWHM:

32°

Cd/Im:

2.1

Download

IES

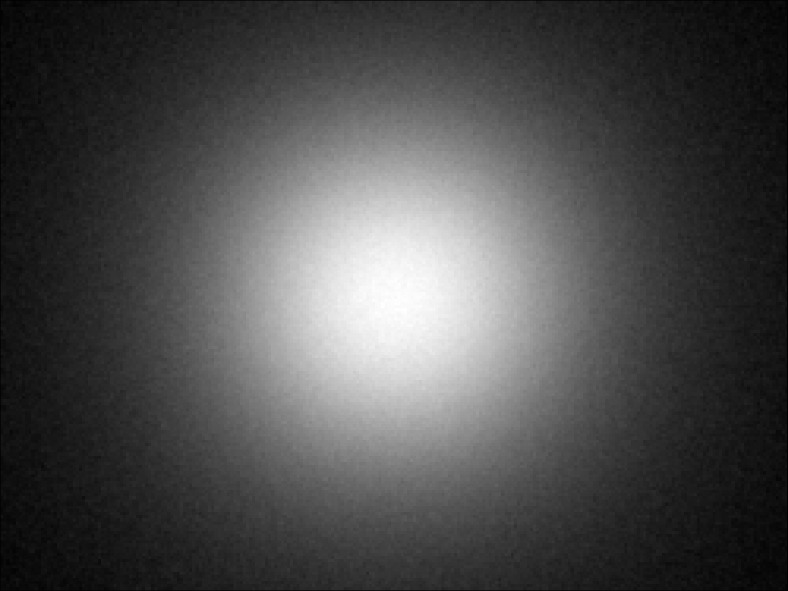

LUMILEDS LUXEON HL2X-E White

Eff:

85.0%

FWHM:

33°

Cd/Im:

2.1

Download

LUMILEDS LUXEON HL2X-P White

Eff:

84.5%

FWHM:

33°

Cd/Im:

2.1

Download

IES

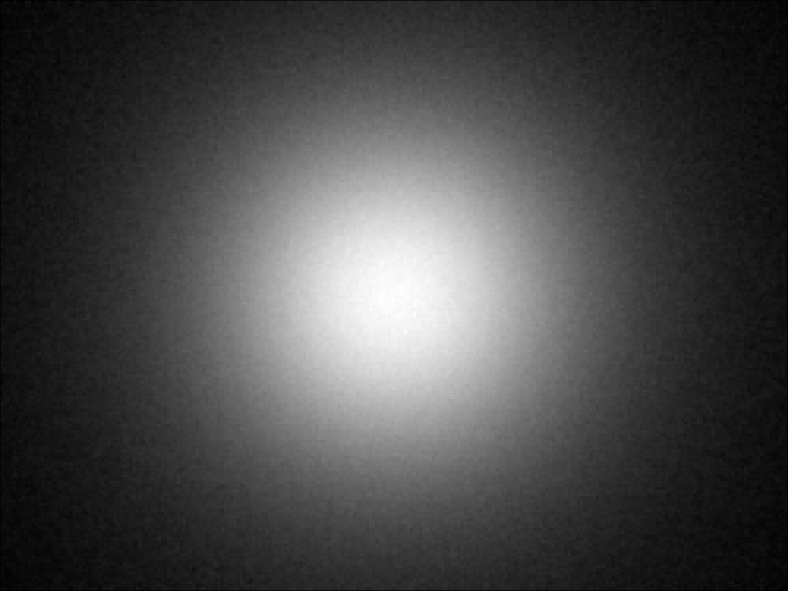

LUMILEDS LUXEON HL2X-V White

Eff:

85.0%

FWHM:

31°

Cd/Im:

2.3

Download

LUMILEDS LUXEON HL2Z White

Eff:

85.0%

FWHM:

32°

Cd/Im:

2.3

Carclo Optics – 10260 Lumileds Luxeon HL2Z - Spot Image

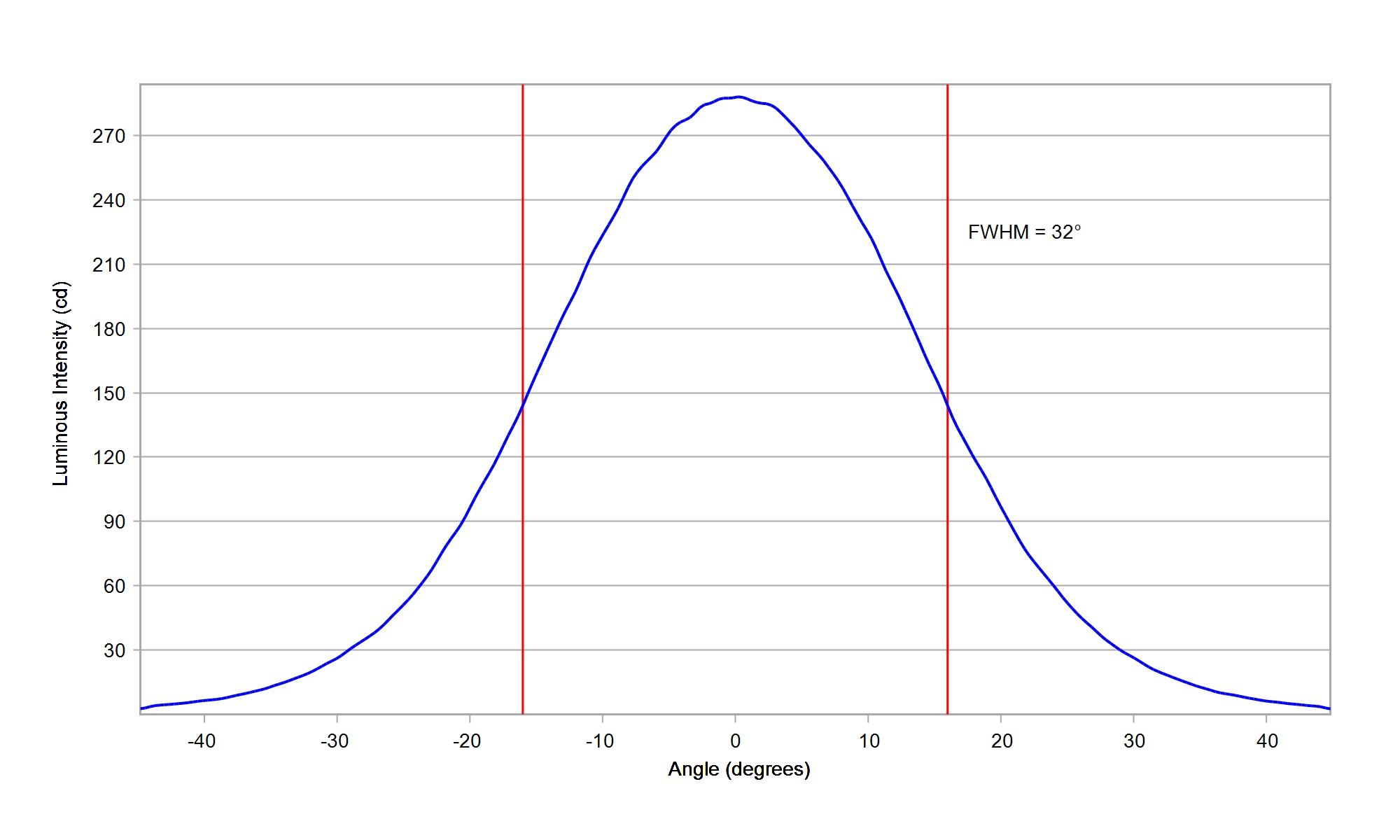

Carclo Optics – 10260 Lumileds Luxeon HL2Z - Cross-Section

Download

IES

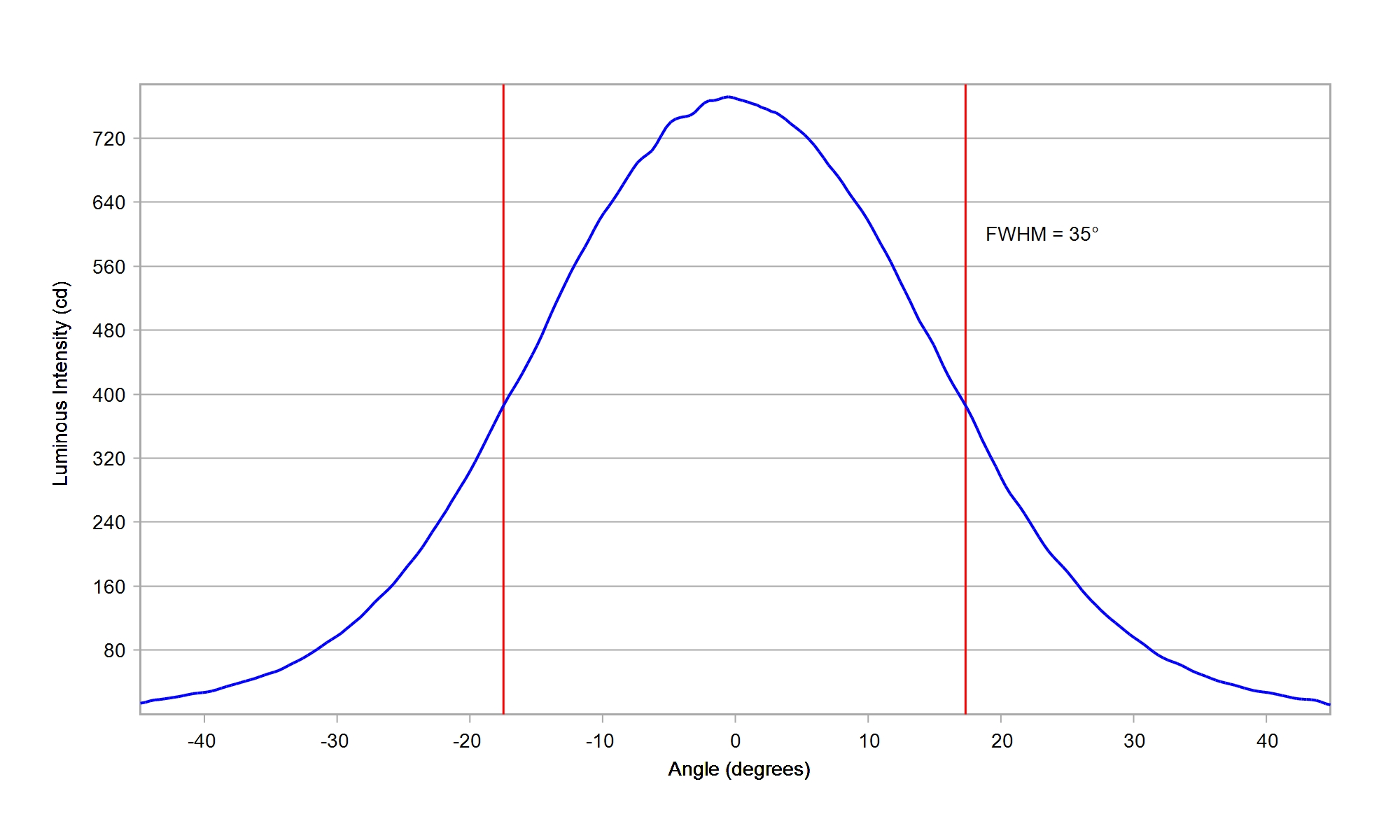

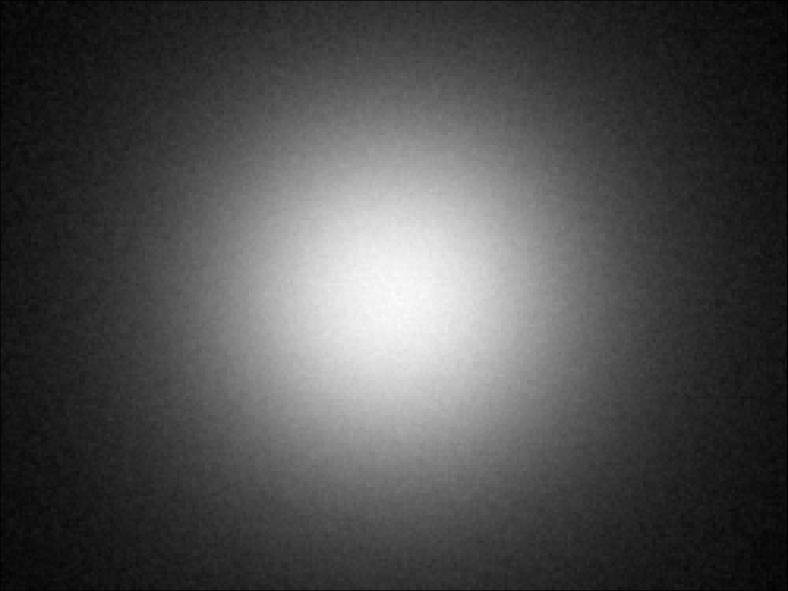

LUMILEDS LUXEON HL4X White

Eff:

84.0%

FWHM:

35°

Cd/Im:

1.9

Download

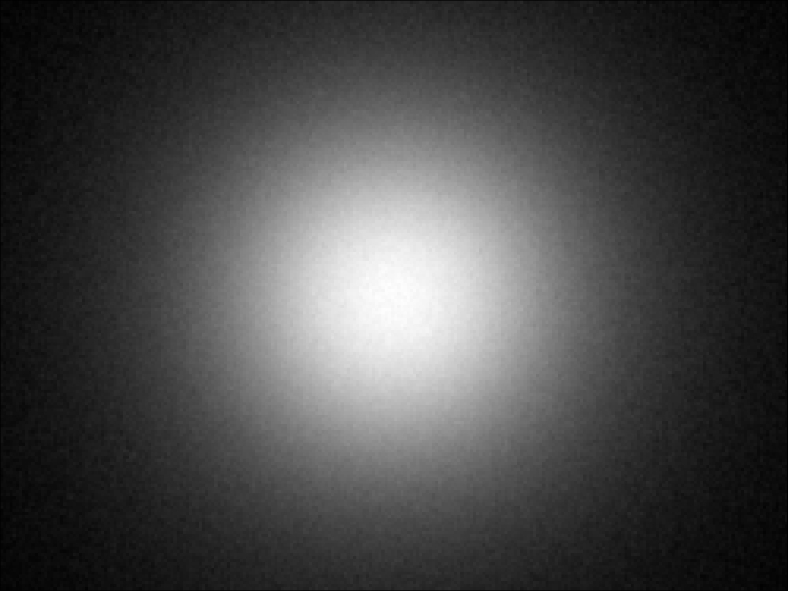

LUMILEDS LUXEON HL4Z White

Eff:

85.5%

FWHM:

32°

Cd/Im:

2.3

Download

LUMILEDS LUXEON IR 2720

Eff:

84.5%

FWHM:

32°

Ipk/W:

2.3

Carclo Optics 10260 Spot Image Luxeon IR 2720

Carclo Optics 10260 Cross Section image Luxeon IR 2720

Download

IES

LUMILEDS LUXEON IR Compact 850nm

Eff:

83.5%

FWHM:

30.0°

Ipk/W:

2.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 60 Degree

Eff:

81.5%

FWHM:

33.0°

Ipk/W:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 90 Degree

Eff:

82.5%

FWHM:

33.0°

Ipk/W:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON M White

FWHM:

49.9°

Cd/Im:

1.3

Download

ies

LUMILEDS LUXEON MX White

Eff:

80.5%

FWHM:

47.0°

Cd/Im:

1.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON MZ White

Eff:

80.5%

FWHM:

41.7°

Cd/Im:

1.4

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

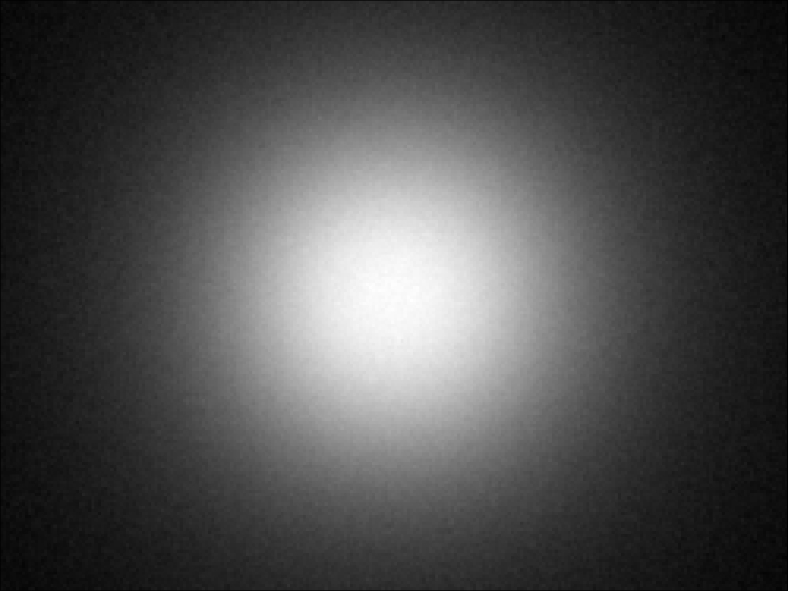

LUMILEDS LUXEON Rebel ES White

Eff:

84.0%

FWHM:

34°

Cd/Im:

2.0

Download

LUMILEDS LUXEON Rebel Plus White

Eff:

85.5%

FWHM:

32°

Cd/Im:

2.3

Download

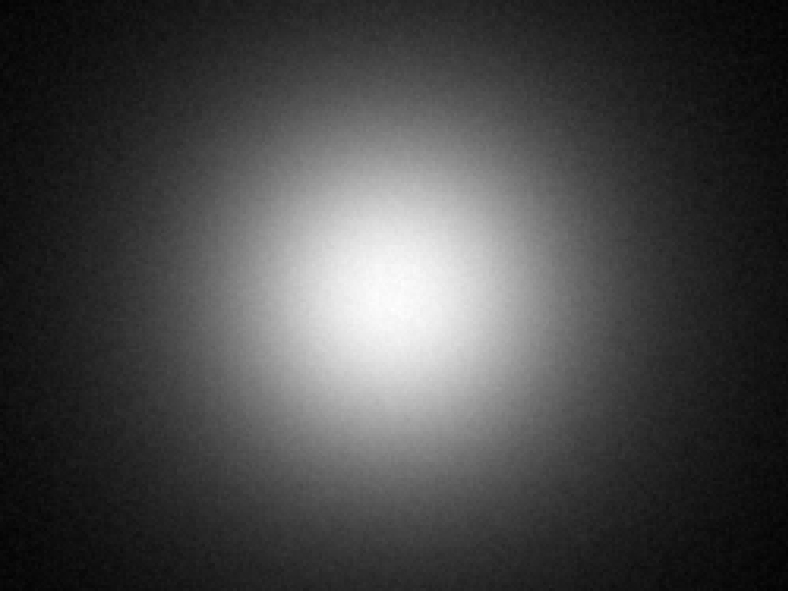

LUMILEDS LUXEON Rebel White

Eff:

85.0%

FWHM:

32°

Cd/Im:

2.3

Download

LUMILEDS LUXEON Rubix Blue

Eff:

86.5%

FWHM:

30°

Cd/Im:

2.5

Carclo Optics – 10260 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics – 10260 Cross Section Lumileds Luxeon Rubix Blue

Download

IES

LUMILEDS LUXEON Rubix Green

Eff:

86.0%

FWHM:

30°

Cd/Im:

2.5

Carclo Optics – 10260 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 10260 Cross Section Lumileds Luxeon Rubix Green

Download

IES

LUMILEDS LUXEON Rubix Red

Eff:

88.0%

FWHM:

30°

Cd/Im:

2.6

Carclo Optics – 10260 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 10260 Cross Section Lumileds Luxeon Rubix Red

Download

IES

LUMILEDS LUXEON Rubix Royal Blue

Eff:

85.0%

FWHM:

31°

Cd/Im:

2.5

Carclo Optics – 10260 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 10260 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

IES

LUMILEDS LUXEON Rubix White

Eff:

86.0%

FWHM:

30.0°

Cd/Im:

2.6

Carclo Optics - 10260 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 10260 Cross Section Lumileds Luxeon Rubix White

Download

IES

LUMILEDS LUXEON TX White

Eff:

82.0%

FWHM:

32.8°

Cd/Im:

2.1

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON V White

Eff:

81.5%

FWHM:

31.5°

Cd/Im:

2.0

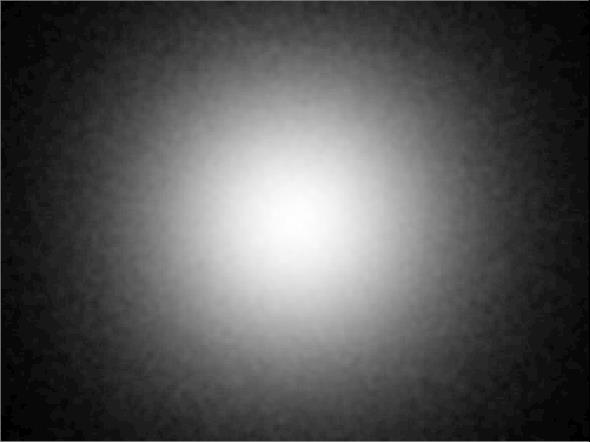

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON Z ES White

Eff:

82.6%

FWHM:

32.5°

Cd/Im:

2.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON Z RGBW

Eff:

75.3%

FWHM:

41.8°

Cd/Im:

1.8

10196 Limileds Luxeon Z RGBW Spot Image

LUMILEDS LUXEON Z White

Eff:

83.0%

FWHM:

32°

Cd/Im:

2.3

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Luminus Devices MP 7070-T200 White

Eff:

82.0%

FWHM:

50°

Cd/Im:

1.0


Download

IES

Luminus Devices MP-3030-11F2 White

Eff:

85.0%

FWHM:

34°

Cd/Im:

2.1


Download

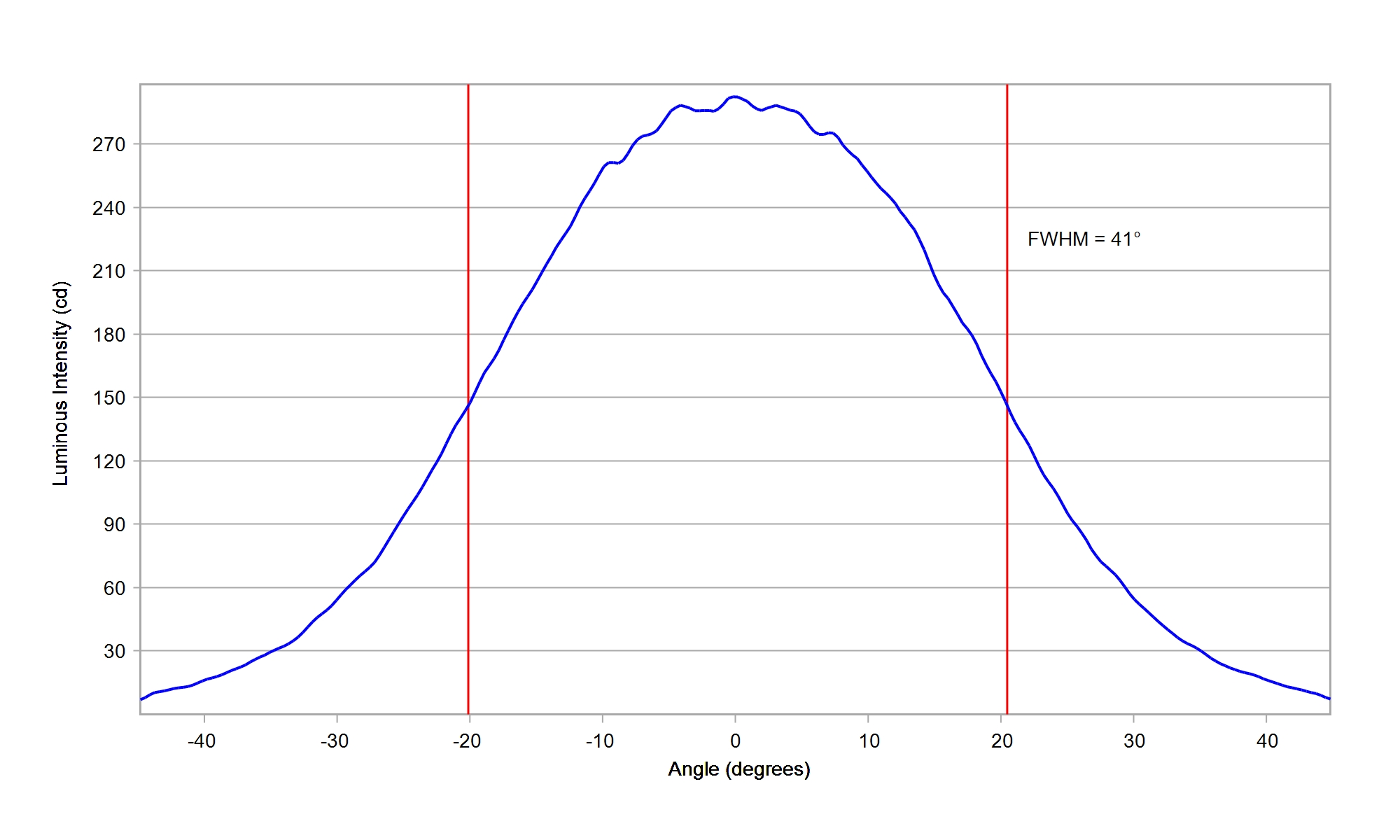

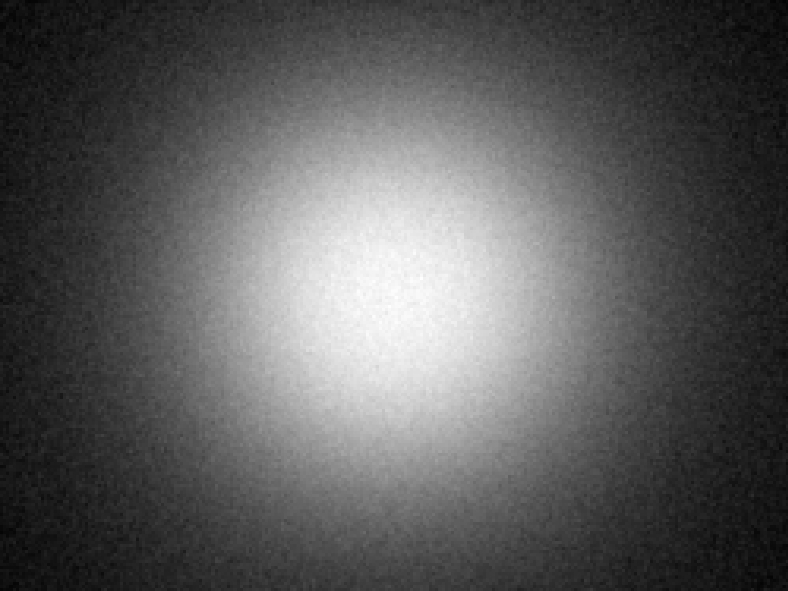

Luminus Devices MP-5050-240E White

Eff:

83.5%

FWHM:

41°

Cd/Im:

1.5


Download

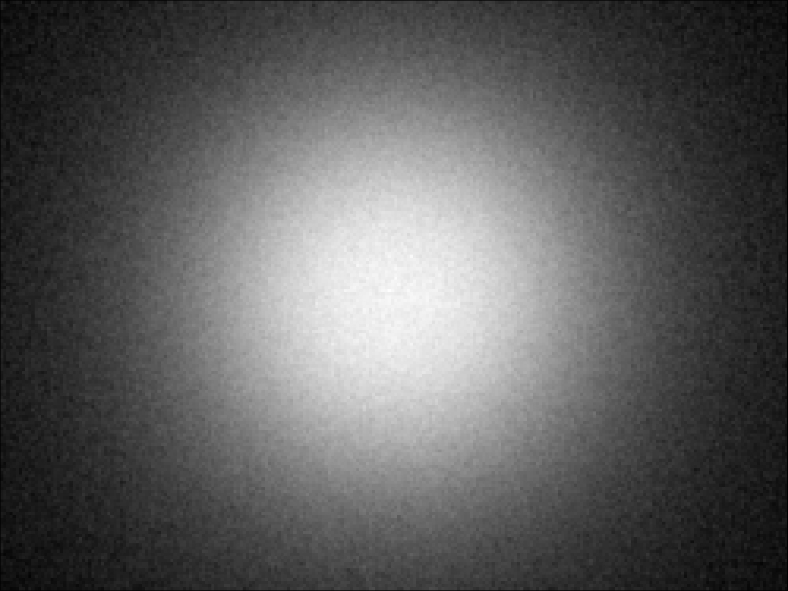

Luminus Devices MP-5050-810E White

Eff:

83.5%

FWHM:

42°

Cd/Im:

1.4


Download

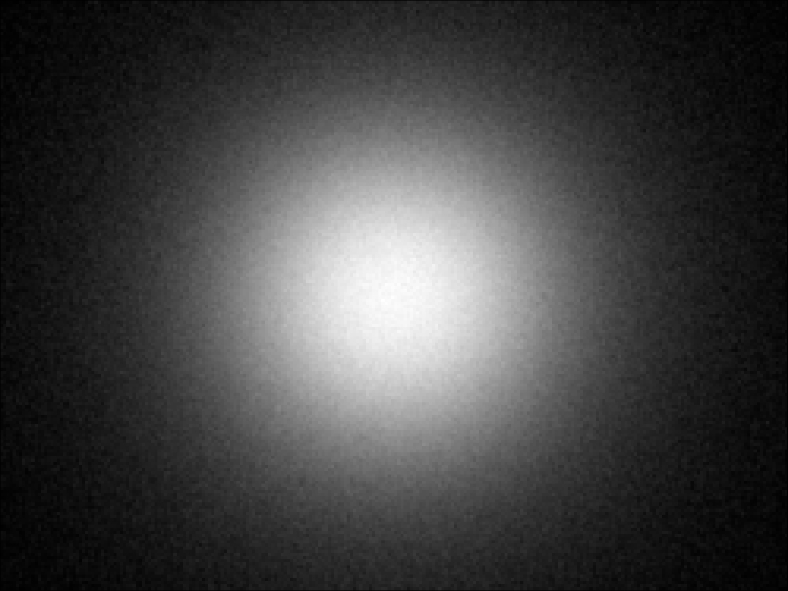

Luminus Devices SFT-12R-WES-A White

Eff:

86.0%

FWHM:

31°

Cd/Im:

2.5


Download

Luminus Devices SFT-12R-WES-F White

Eff:

85.5%

FWHM:

32°

Cd/Im:

2.4


Download

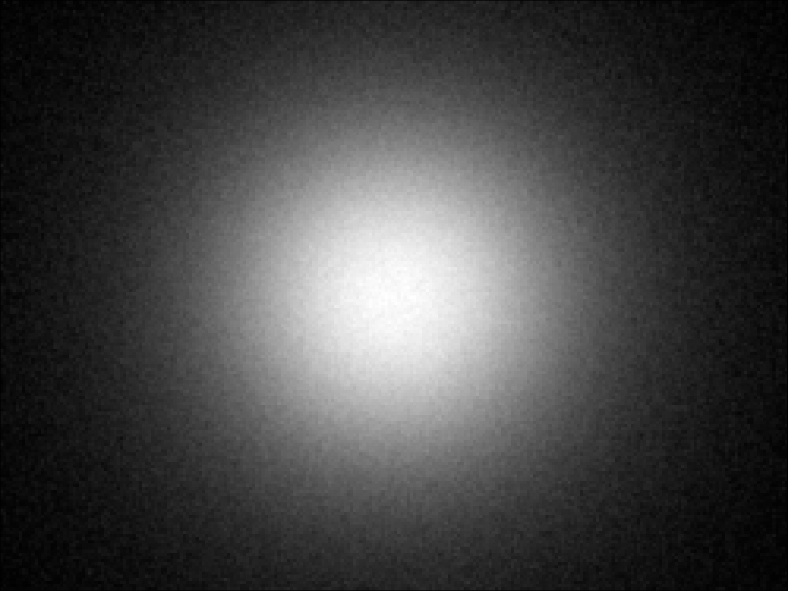

Luminus Devices SFT-25R-WES-A White

Eff:

85.5%

FWHM:

31°

Cd/Im:

2.4


Download

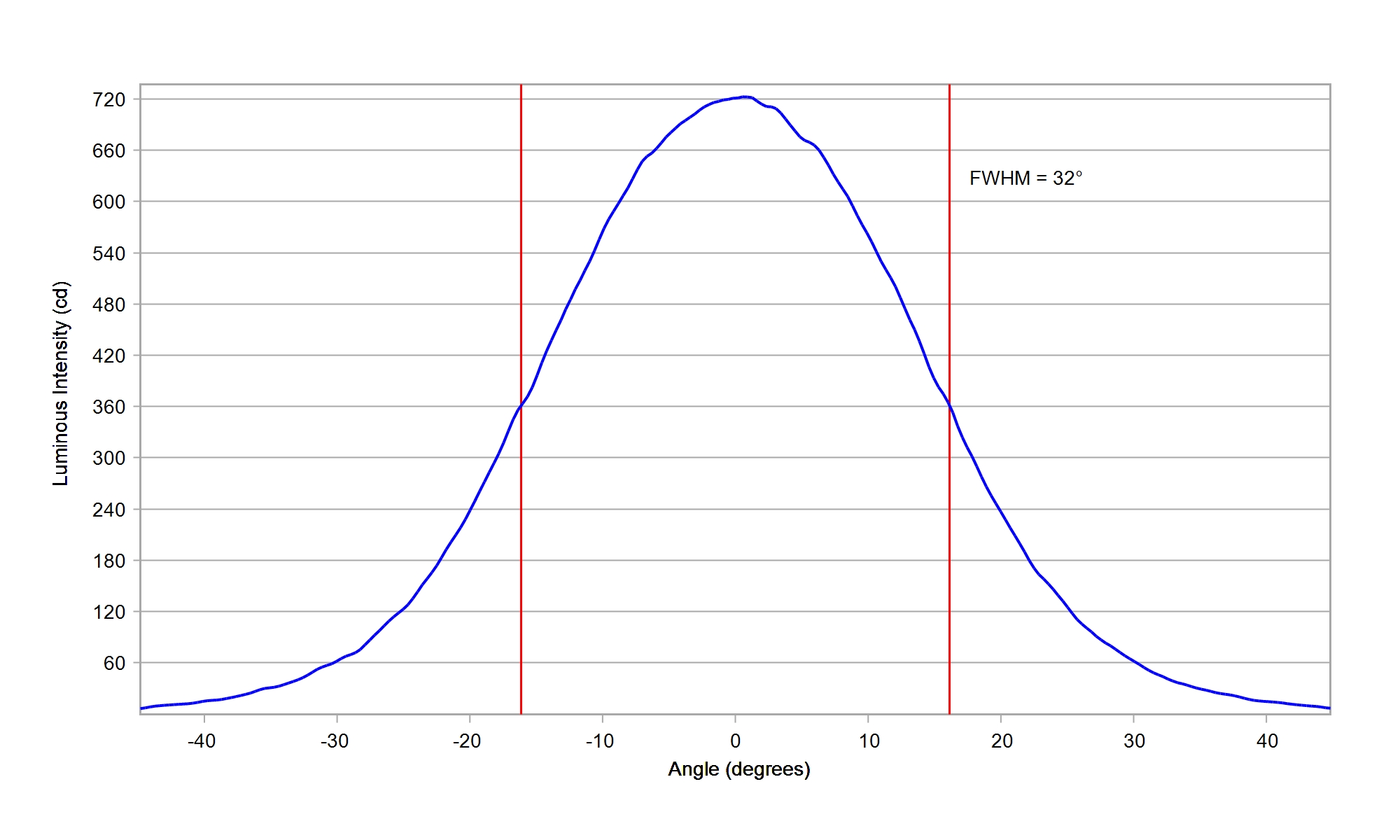

Luminus Devices SFT-25R-WES-F White

Eff:

85.5%

FWHM:

32°

Cd/Im:

2.4


Download

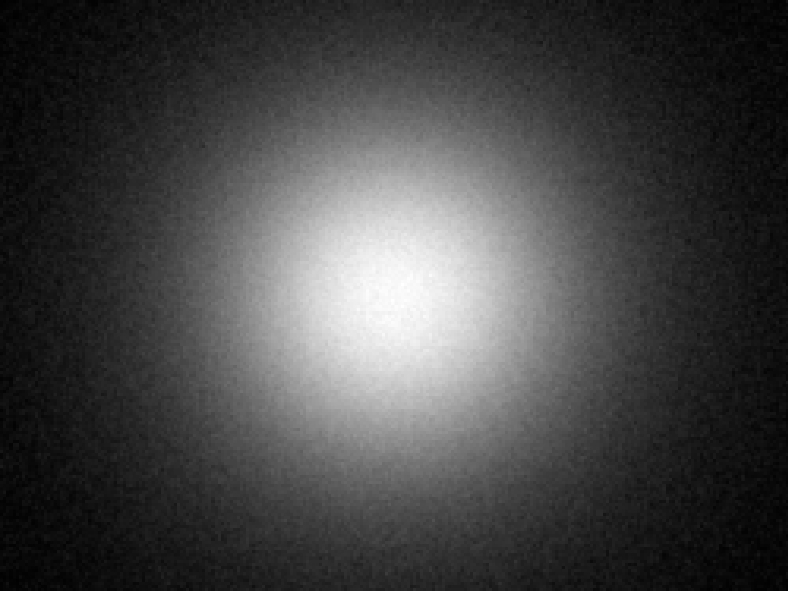

Luminus Devices SFT-40-W Gen2 White

Eff:

85.5%

FWHM:

32°

Cd/Im:

2.4


Download

Luminus Devices SFT-40-WxS White

Eff:

85.5%

FWHM:

32°

Cd/Im:

2.4

Download

IES

Luminus Devices SFT-70X-WxS White

Eff:

85.0%

FWHM:

31°

Cd/Im:

2.3

Download

IES

Luminus Devices SST 05-IR-B40 850nm

Eff:

89.0%

FWHM:

29.5°

Ipk/W:

2.7

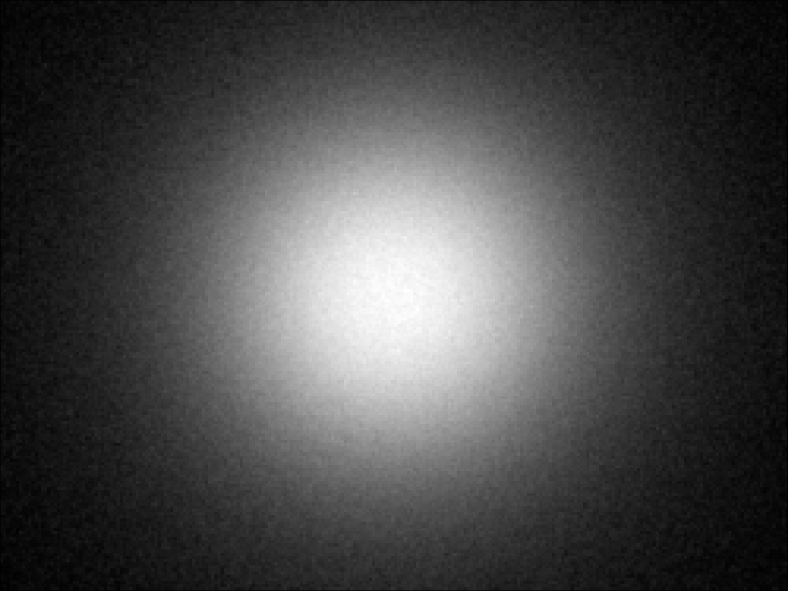

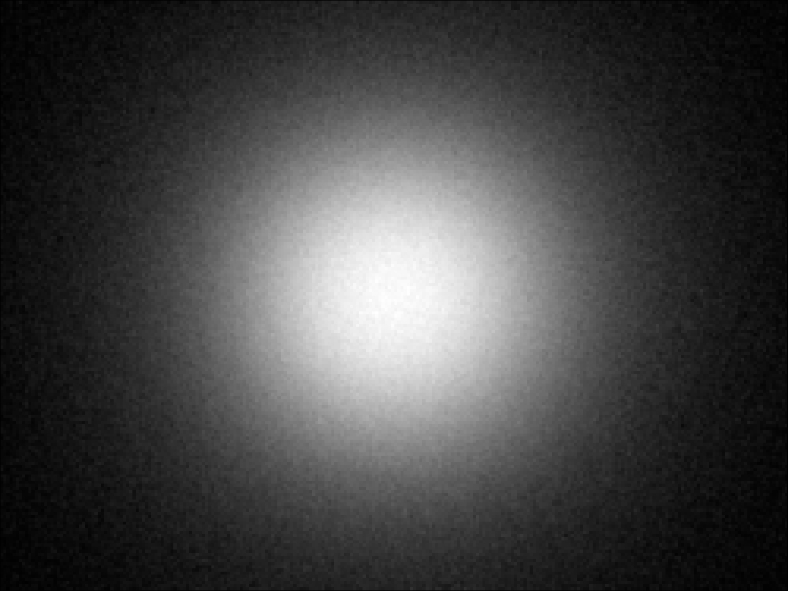

Carclo Optics - 10260 Spot Image Luminus SST-05-IR-B40

Carclo Optics - 10260 Cross Section Luminus SST-05-IR-B40

Download

IES

Luminus Devices SST 10-B-B130 Blue

Eff:

82.5%

FWHM:

33°

Cd/Im:

2.2

Carclo Optics - 10260 Luminus_SST-10_B_B130 - Spot Image

Carclo Optics - 10260 Luminus_SST-10_B_B130 - Cross section vertical image

Download

IES

Luminus Devices SST 10-B-B90 Blue

Eff:

82.0%

FWHM:

34°

Cd/Im:

2.0

Carclo Optics - 10260 Luminus_SST-10_B_B90 - spot - image

Carclo Optics - 10260 Luminus_SST-10_B_B90 - cross section image

Download

IES

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

87.5%

FWHM:

29.5°

Cd/Im:

2.6

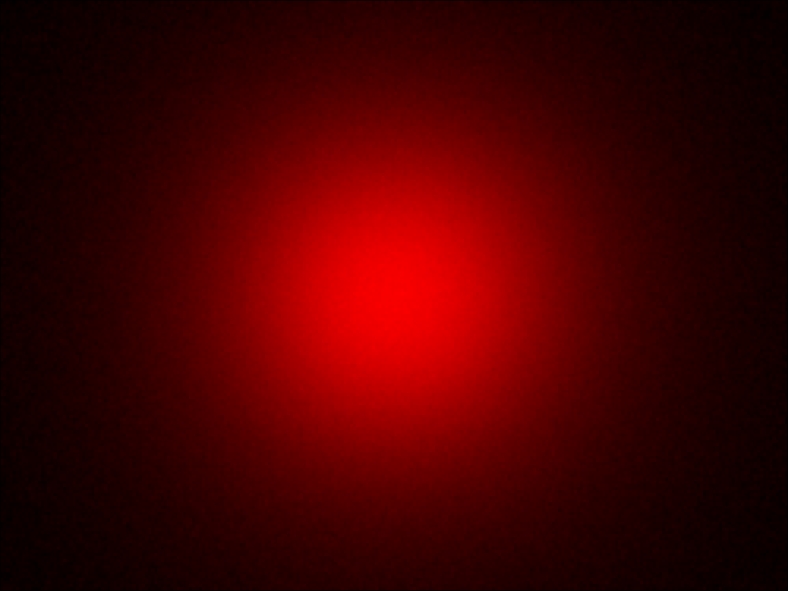

Carclo Optics – 10260 Luinus_SST-10_DR_B130- Spot - image

Carclo Optics – 10260 Luminus_SST-10_DR_B130- Cross section – image

Download

IES

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

86.5%

FWHM:

34°

Cd/Im:

2.1

Carclo Optics - 10260 Luminus_SST-10_DR_B90 - Spot image

Carclo Optics - 10260 Luminus_SST-10_DR_B90 - Cross section image

Download

IES

Luminus Devices SST 10-G-B130 Green

Eff:

85.5%

FWHM:

33°

Cd/Im:

2.3

arclo Optics - 10260 Luminus_SST-10_G_B130 - spot - image

Carclo Optics - 10260 Luminus_SST-10_G_B130 - cross - section - image

Download

IES

Luminus Devices SST 10-G-B90 Green

Eff:

84.5%

FWHM:

34°

Cd/Im:

2.0

Carclo Optics – 10260 Luminus_SST-10_G_B90- Spot - image

Carclo Optics – 10260 Luminus_SST-10_G_B90- Cross section – image

Download

IES

Luminus Devices SST 10-IR-B130 940nm

Eff:

91.5%

FWHM:

32.0°

Ipk/W:

2.4

Carclo Optics - 10260 Spot Image Luminus SST-10-IR-B130

Carclo Optics - 10260 Cross Section Luminus SST-10-IR-B130

Download

IES

Luminus Devices SST 10-IR-B90 940nm

Eff:

90.0%

FWHM:

33.0°

Ipk/W:

2.2

Carclo Optics - 10260 Spot Image Luminus SST-10-IR-B90

Carclo Optics - 10260 Cross Section Luminus SST-10-IR-B90

Download

IES

Luminus Devices SST 10-IRD-B130 810nm

Eff:

91.5%

FWHM:

30°

Ipk/W:

2.6


Download

IES

Luminus Devices SST 10-IRD-B90 810nm

Eff:

90.0%

FWHM:

33°

Ipk/W:

2.2


Download

IES

Luminus Devices SST 20-WxH White Hi CRI

Eff:

85.0%

FWHM:

31°

Cd/Im:

2.3

Carclo Optics – 10260 - Luxeon_SST_20_W_spot-image

Carclo Optic – 10260 - Luxeon_SST_20_W_cross vertical section

Download

IES

Luminus Devices SST 40-W White

Eff:

84.5%

FWHM:

32°

Cd/Im:

2.1

Carclo Optics – 10260 - Luxeon_SST_40_W_spot-image

Carclo Optics – 10260 - Luxeon_SST_40_W_cross vertical section

Download

IES

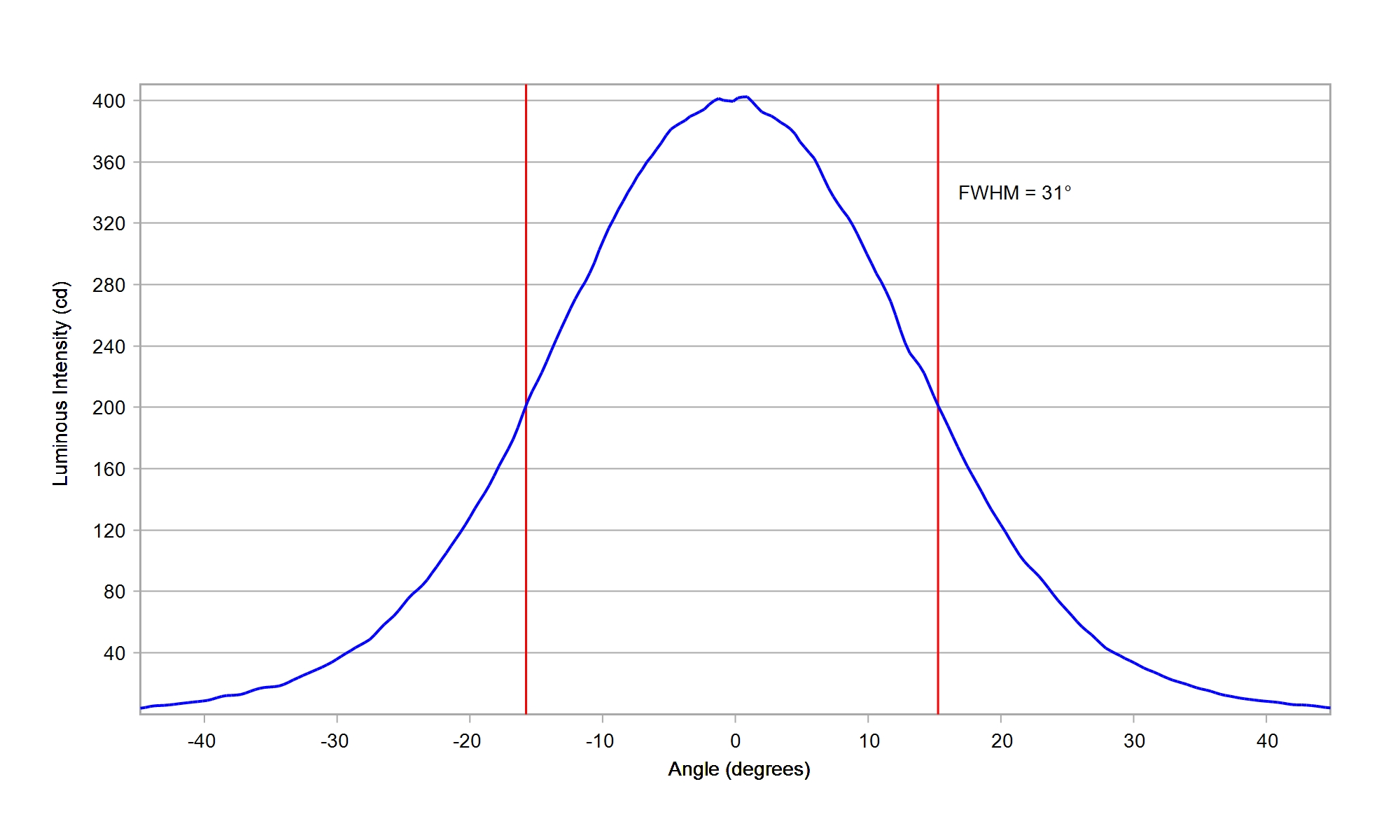

Luminus Devices SST-12-WS Gen2 White

Eff:

85.5%

FWHM:

31°

Cd/Im:

2.4


Download

Luminus Devices SST-12-WxS White

Eff:

85.0%

FWHM:

31°

Cd/Im:

2.4

Download

IES

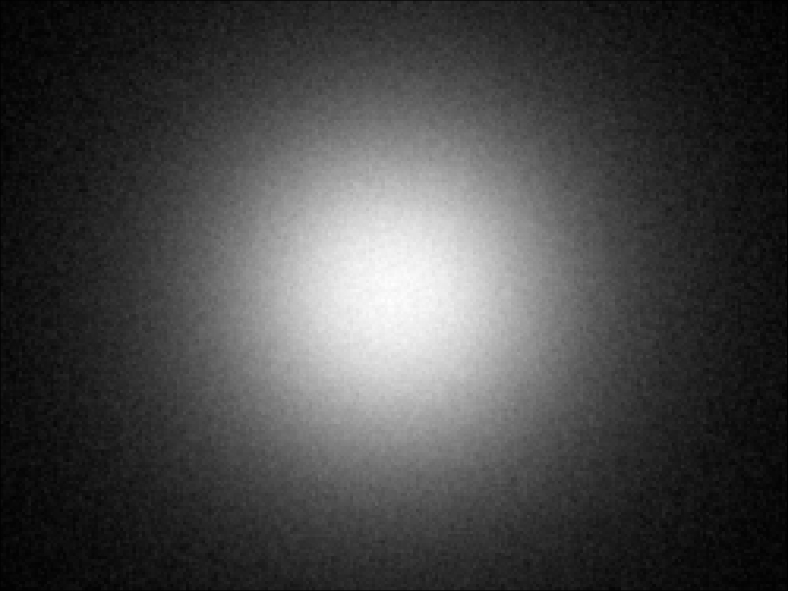

Luminus Devices SST-20-W Gen2 White

Eff:

85.0%

FWHM:

32°

Cd/Im:

2.3


Download

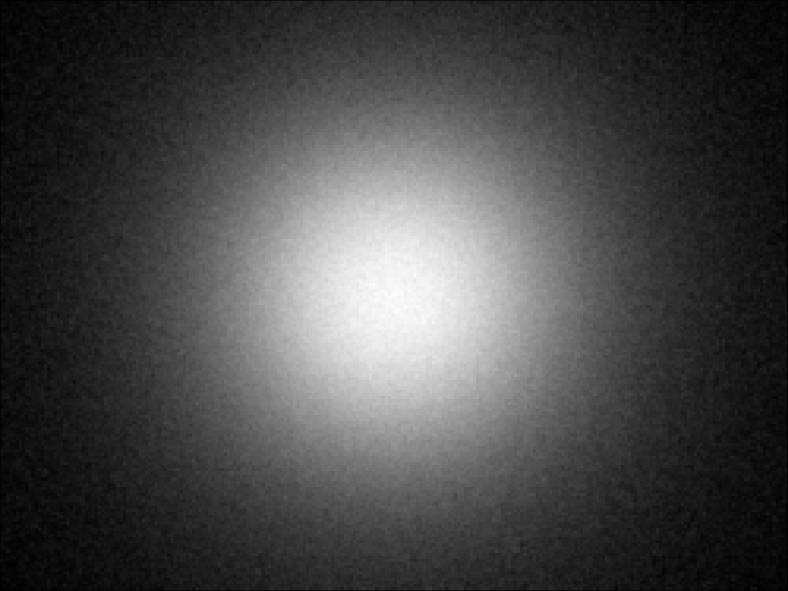

Luminus Devices SST-25-WES White

Eff:

85.0%

FWHM:

32°

Cd/Im:

2.2

Download

Luminus Devices SST-70X-W White

Eff:

84.5%

FWHM:

33°

Cd/Im:

2.0

Download

IES

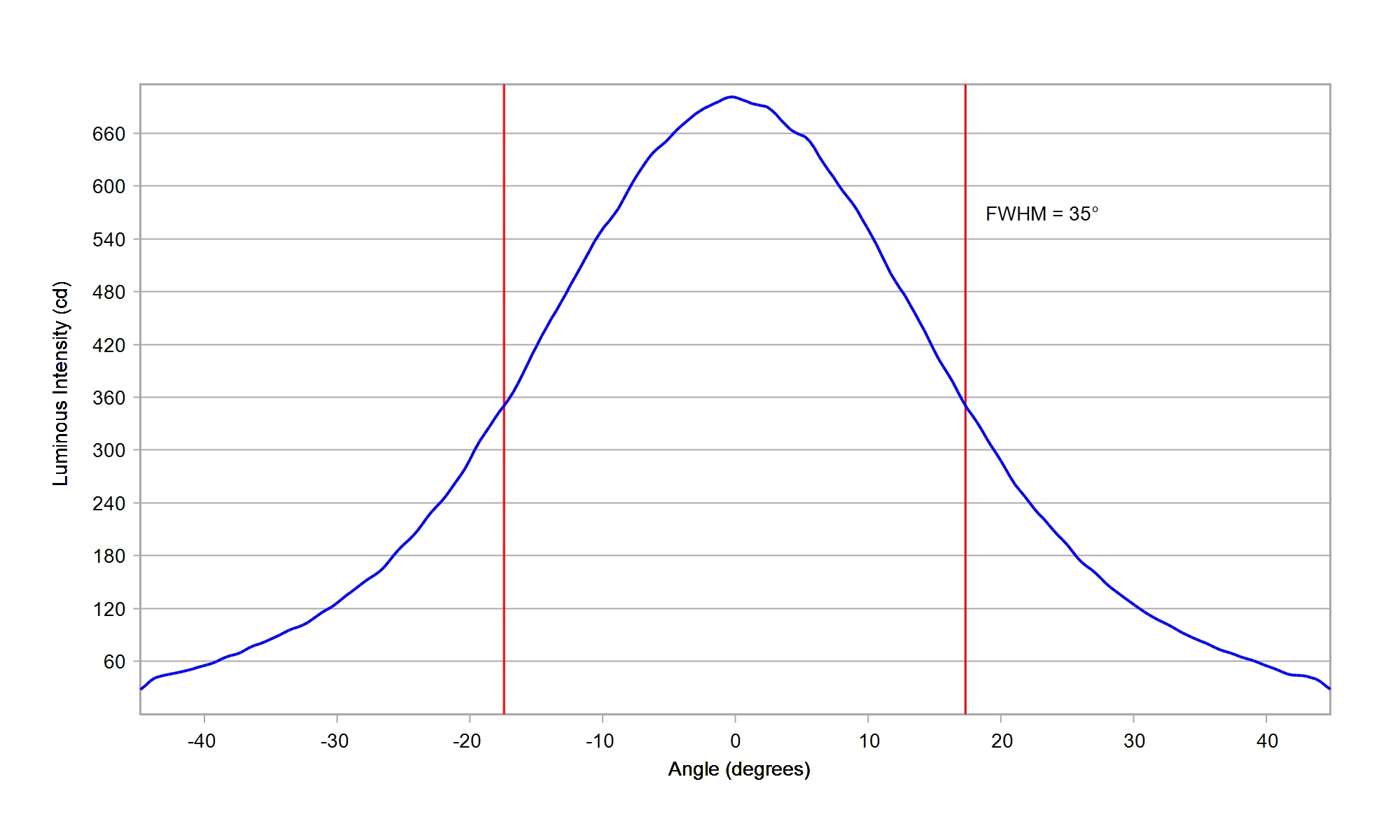

Nichia 144 Series NV4W144AR-V1 White

Eff:

78.0%

FWHM:

35°

Cd/Im:

1.5


Download

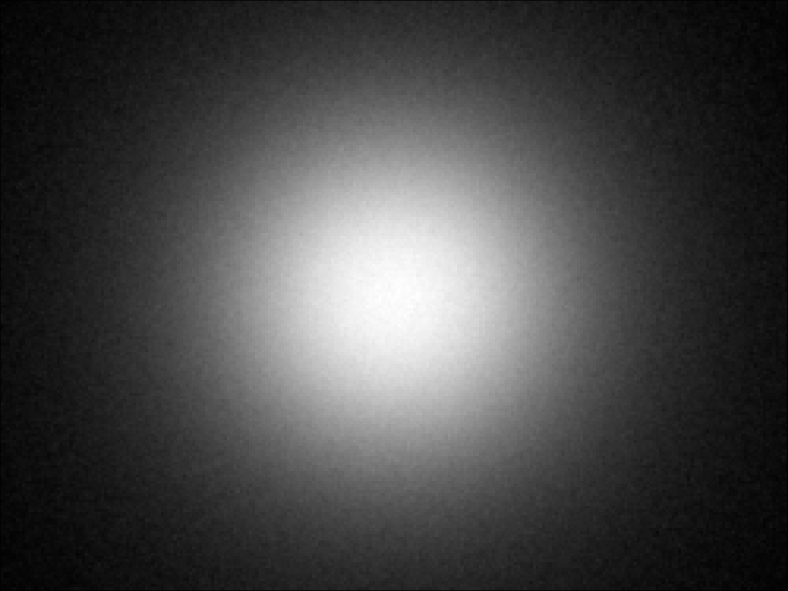

Nichia 19 Series NVSW219GF White

Eff:

85.5%

FWHM:

33°

Cd/Im:

2.3

Download

Nichia 19 Series NVSW219GL White

Eff:

84.5%

FWHM:

32°

Cd/Im:

2.2

Download

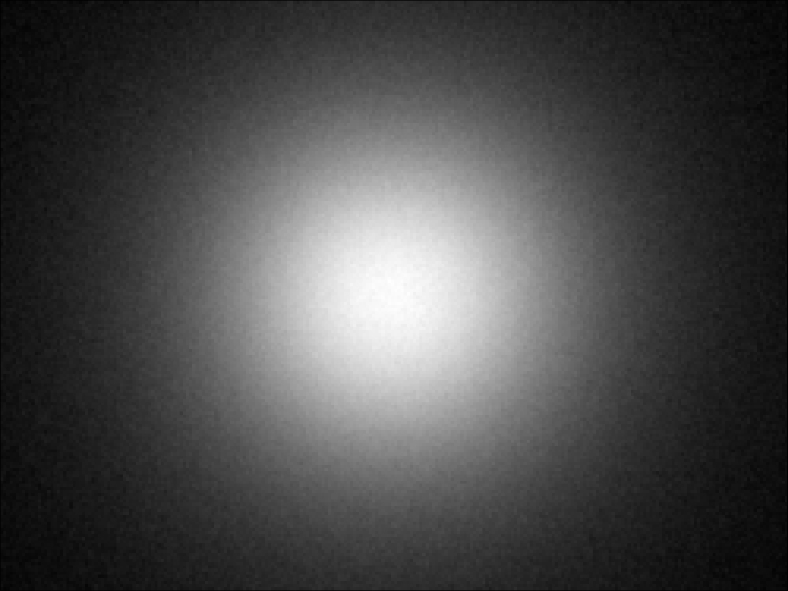

Nichia 19 Series NVSW519A-V1 White

Eff:

84.0%

FWHM:

32°

Cd/Im:

2.1

Download

Nichia 19 Series NVSW719AC White

Eff:

85.5%

FWHM:

34°

Cd/Im:

2.2

Download

Nichia 219 White

FWHM:

35.1°

Cd/Im:

2.7

Download

ies

Nichia 229A White

Eff:

82.0%

FWHM:

32.0°

Cd/Im:

2.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

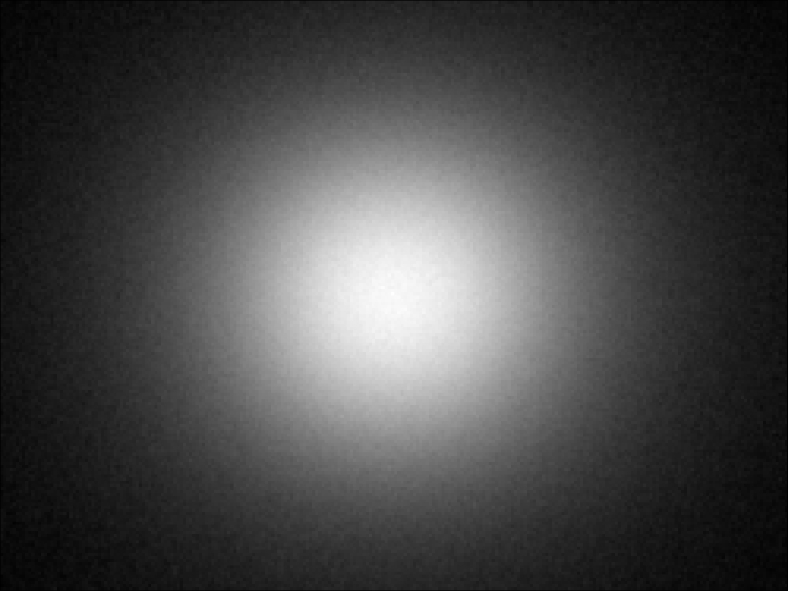

Nichia 385 Series NF2W385AR-V3 White

Eff:

85.0%

FWHM:

32°

Cd/Im:

2.3


Download

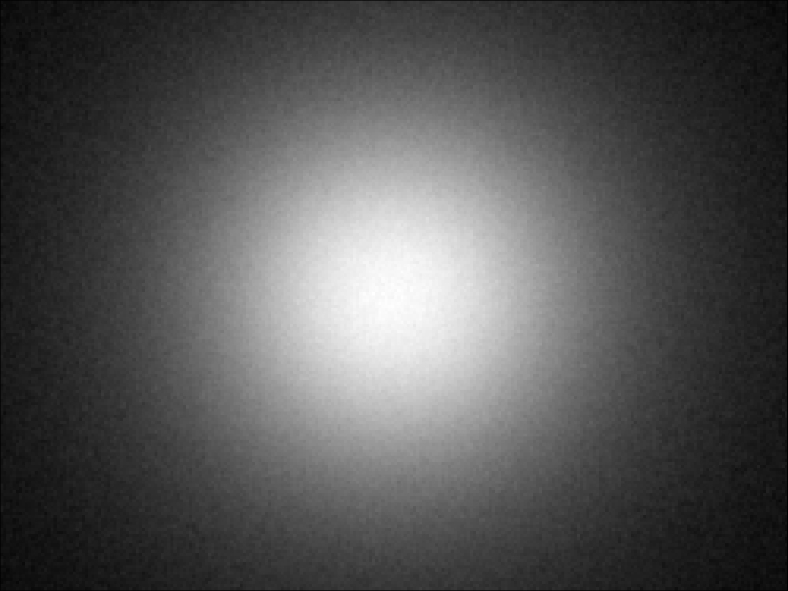

Nichia 48 Series NFMW486AM-V2 White

Eff:

84.0%

FWHM:

36°

Cd/Im:

1.7


Download

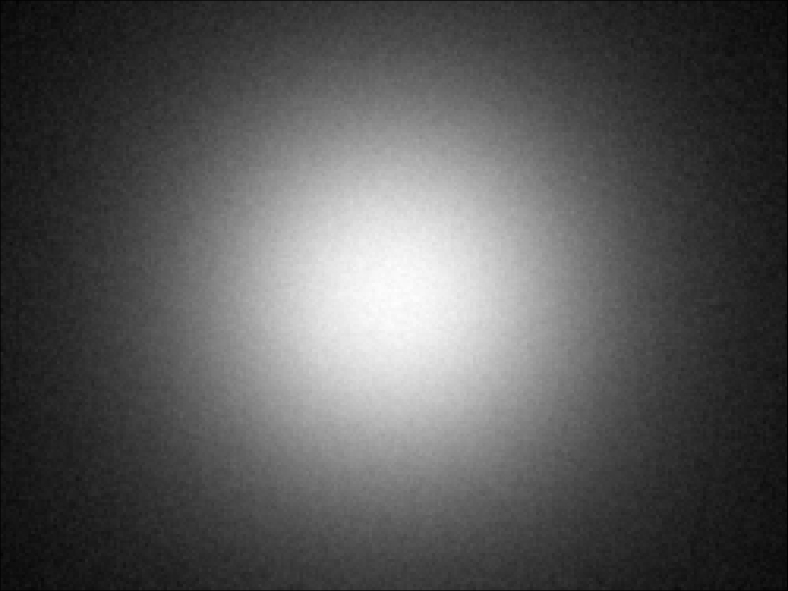

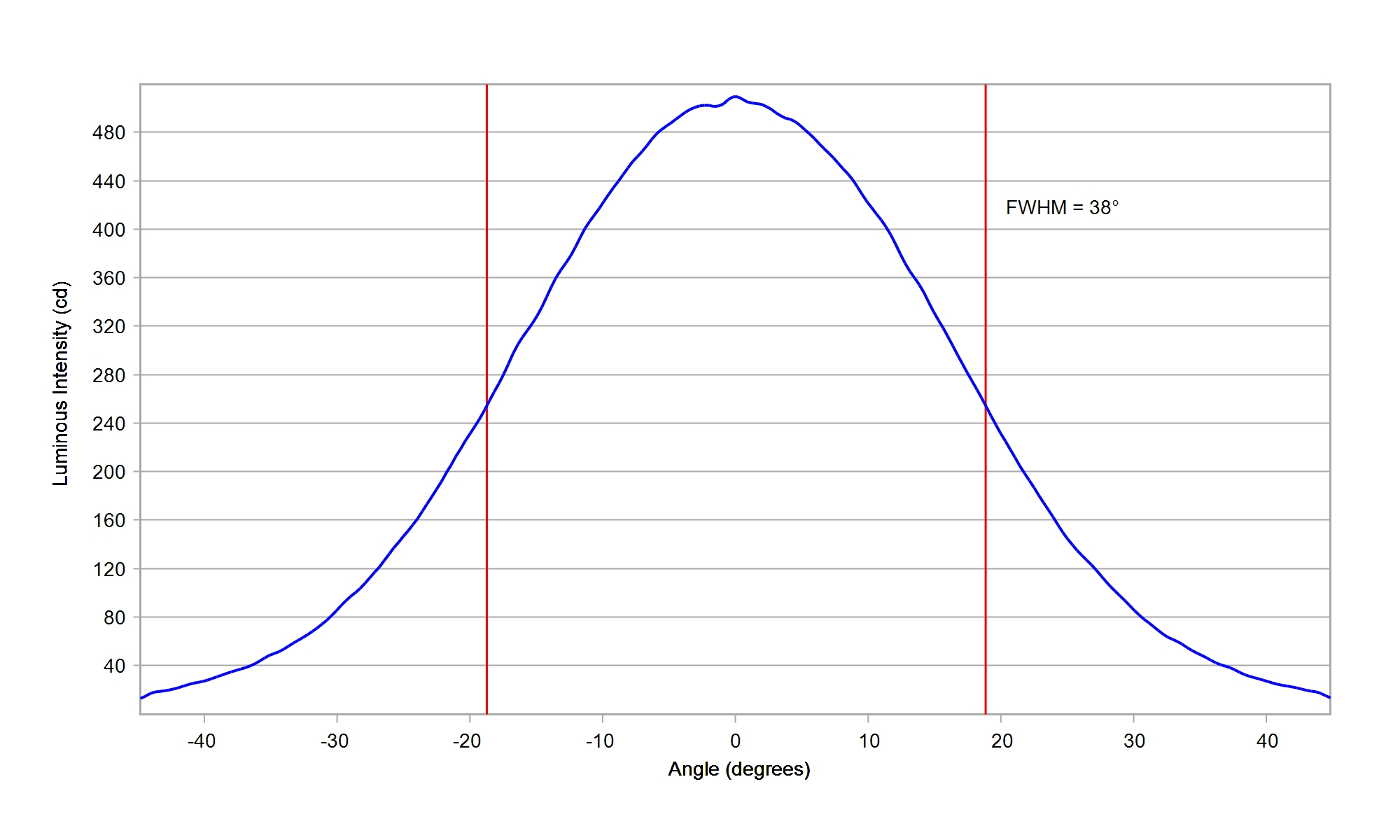

Nichia 48 Series NFMW488AR-V1 White

Eff:

83.5%

FWHM:

38°

Cd/Im:

1.6


Download

Nichia 757 Series NF2W757GR-V5 White

Eff:

85.0%

FWHM:

33°

Cd/Im:

2.2


Download

Nichia 757 Series NF2W757H-V3H5 White

Eff:

85.0%

FWHM:

33°

Cd/Im:

2.1


Download

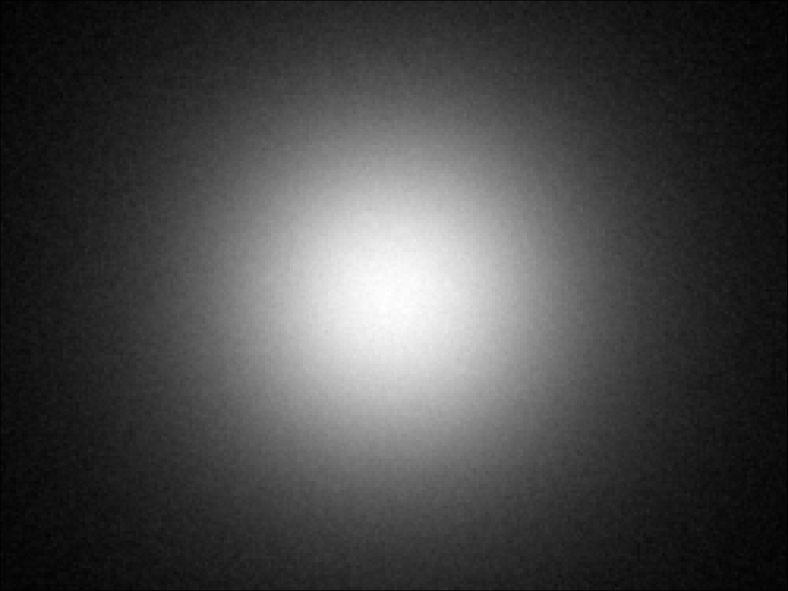

Nichia 757 Series NFSW757H-V2H6 White

Eff:

85.5%

FWHM:

32°

Cd/Im:

2.3


Download

Nichia 757G White

Eff:

85.0%

FWHM:

32°

Cd/Im:

2.2

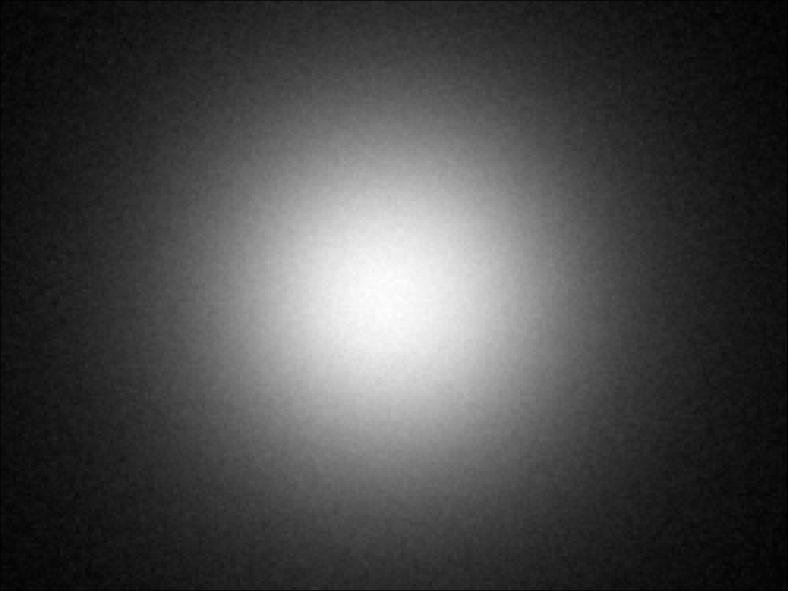

Carclo Optics 10260 Simulated Spot Image Nichia 757G-MT

Carclo Optics 10260 Simulated cross section Nichia 757G-MT

Download

IES

Nichia 757G White

Eff:

84.0%

FWHM:

31.5°

Cd/Im:

2.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

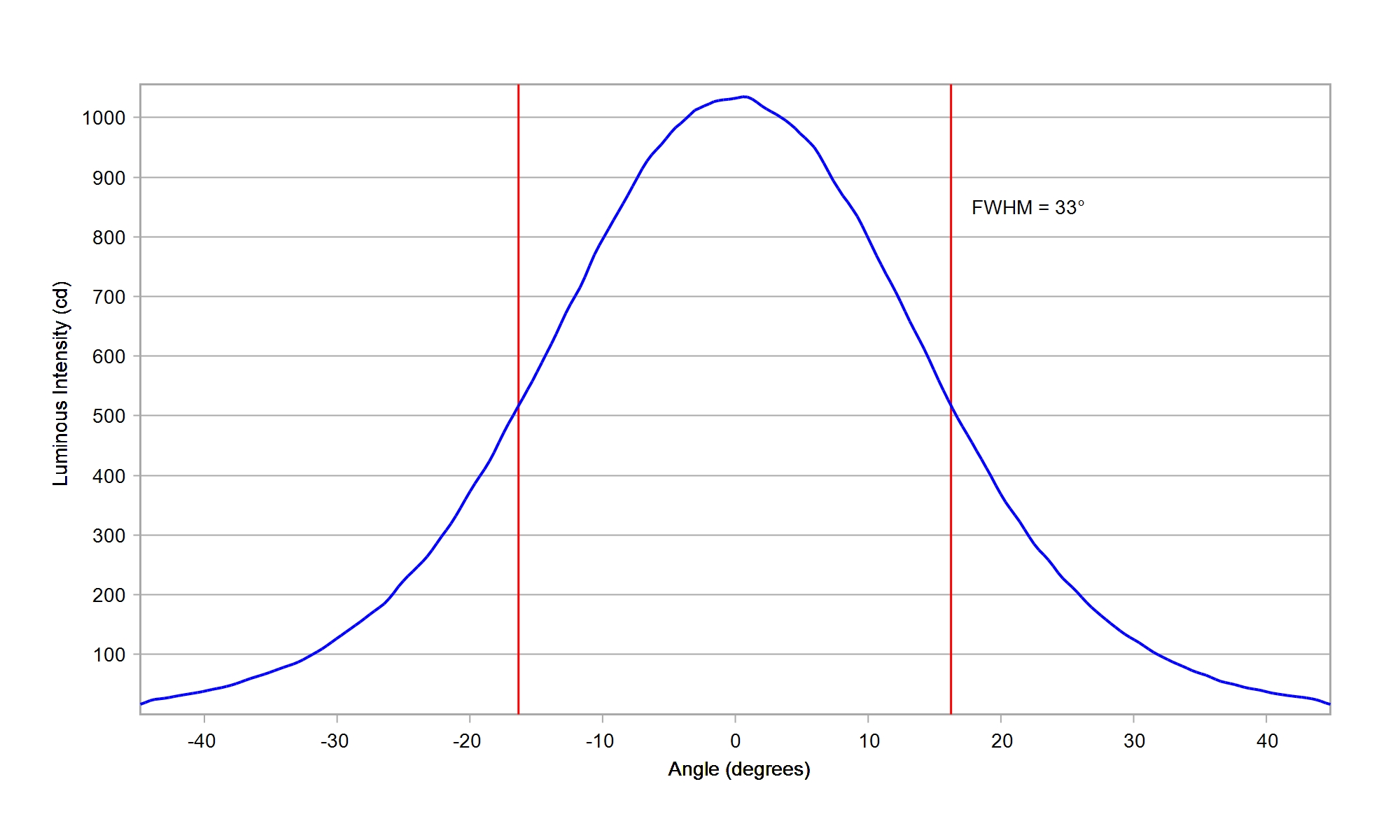

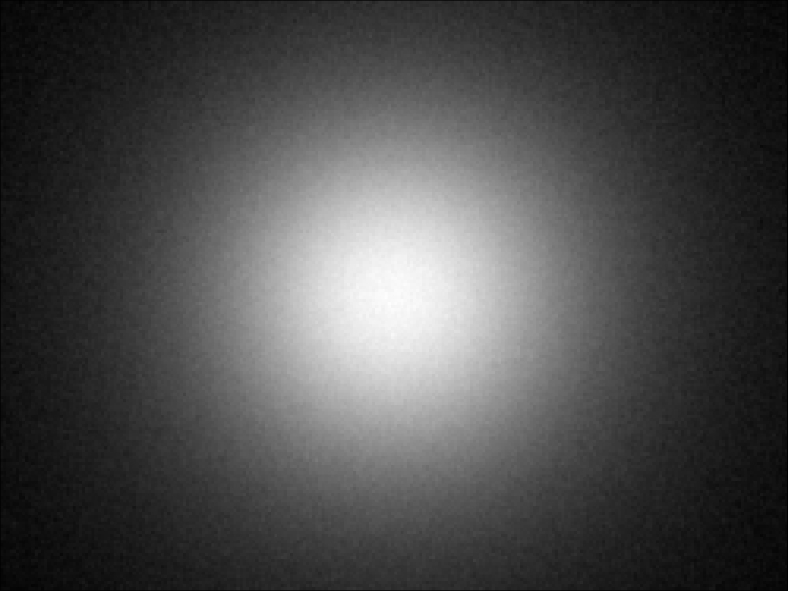

Nichia B35 Series NV4WB35AR White

Eff:

85.0%

FWHM:

33°

Cd/Im:

2.1

Download

Nichia NCSW CSP E17A White

Eff:

84.0%

FWHM:

31.0°

Cd/Im:

2.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NF2W 385AR-V2 White

Eff:

84.0%

FWHM:

33°

Cd/Im:

2.1

Carclo Optics - Simulated Spot Image

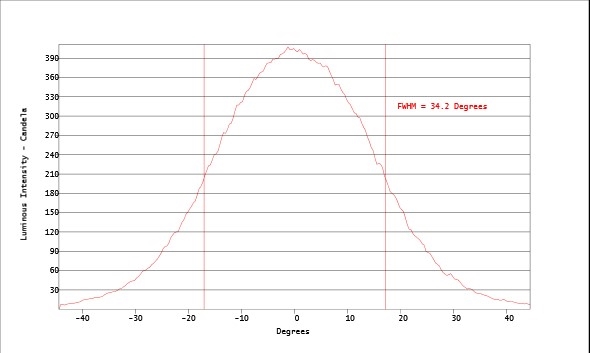

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NF2W 757G-MT Tunable

Eff:

85.0%

FWHM:

32°

Cd/Im:

2.2


Download

IES

Nichia NFMW 484AR White

Eff:

82.0%

FWHM:

42.5°

Cd/Im:

1.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFMW 486AR White

Eff:

82.5%

FWHM:

41°

Cd/Im:

1.5

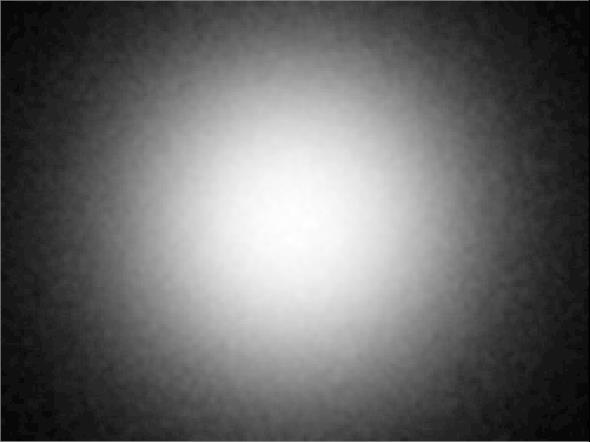

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFMW 488AR White

Eff:

82.0%

FWHM:

42.0°

Cd/Im:

1.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFSW CSP E11A White

Eff:

84.5%

FWHM:

32°

Cd/Im:

2.3

Download

IES

Nichia NV4W 144AR White

Eff:

78.0%

FWHM:

35.5 °

Cd/Im:

1.5

Carclo Optics - Simulated Spot Image

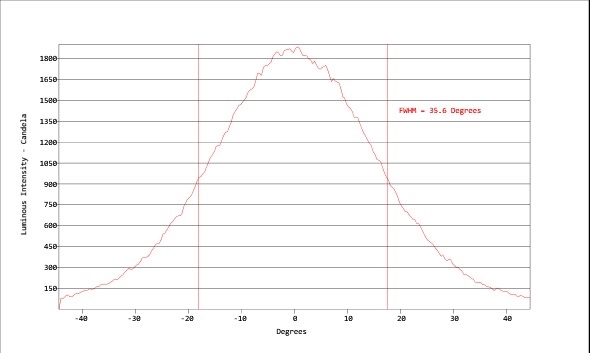

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NV4W B35AM White

Eff:

84.5%

FWHM:

32°

Cd/Im:

2.1

Carclo Optics – 10260 Nichia NV4WB35AM - Spot Image

Carclo Optics – 10260 Nichia NV4WB35AM - Cross-Section

Download

IES

Nichia NVSL 219B White

Eff:

83.0%

FWHM:

33.0°

Cd/Im:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW 219C White

Eff:

83.5%

FWHM:

31.0°

Cd/Im:

2.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW 219F White

Eff:

84.0%

FWHM:

33°

Cd/Im:

2.1

Carclo Optics – 10260 Nichia NVSW 219F White - Spot Image

Carclo Optics – 10260 Nichia NVSW 219F White - Cross-Section

Download

IES

Nichia NVSW 319A White

Eff:

82.5%

FWHM:

32.0°

Cd/Im:

2.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW CSP E21A White

Eff:

81.0%

FWHM:

32.3°

Cd/Im:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia Top Emitting NCSL 119-H3 White

Eff:

78.3%

FWHM:

35.2°

Cd/Im:

2.4

Download

ies

Nichia Top Emitting NFSW 036 White

Eff:

80.0%

FWHM:

31.2°

Cd/Im:

2.6

Download

ies

Nichia Top Emitting NS3W 183T White

Eff:

75.9%

FWHM:

43.1°

Cd/Im:

1.6

Download

ies

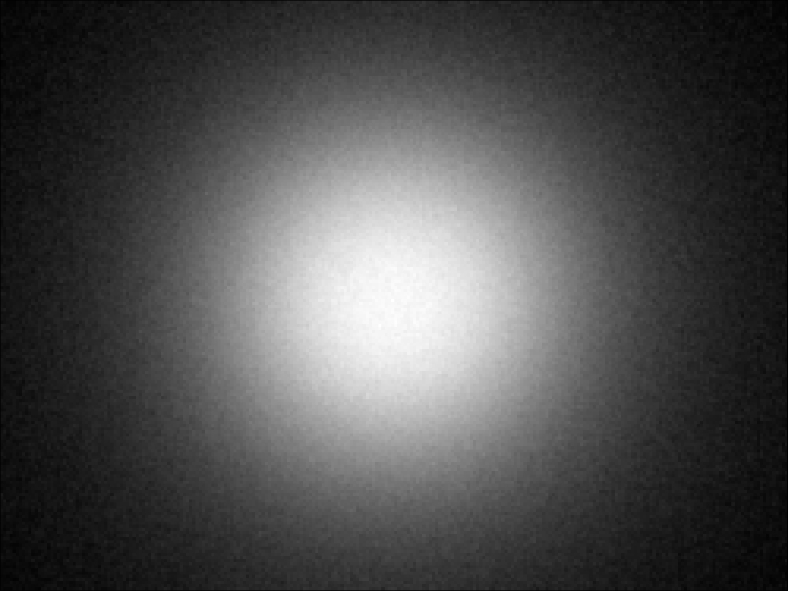

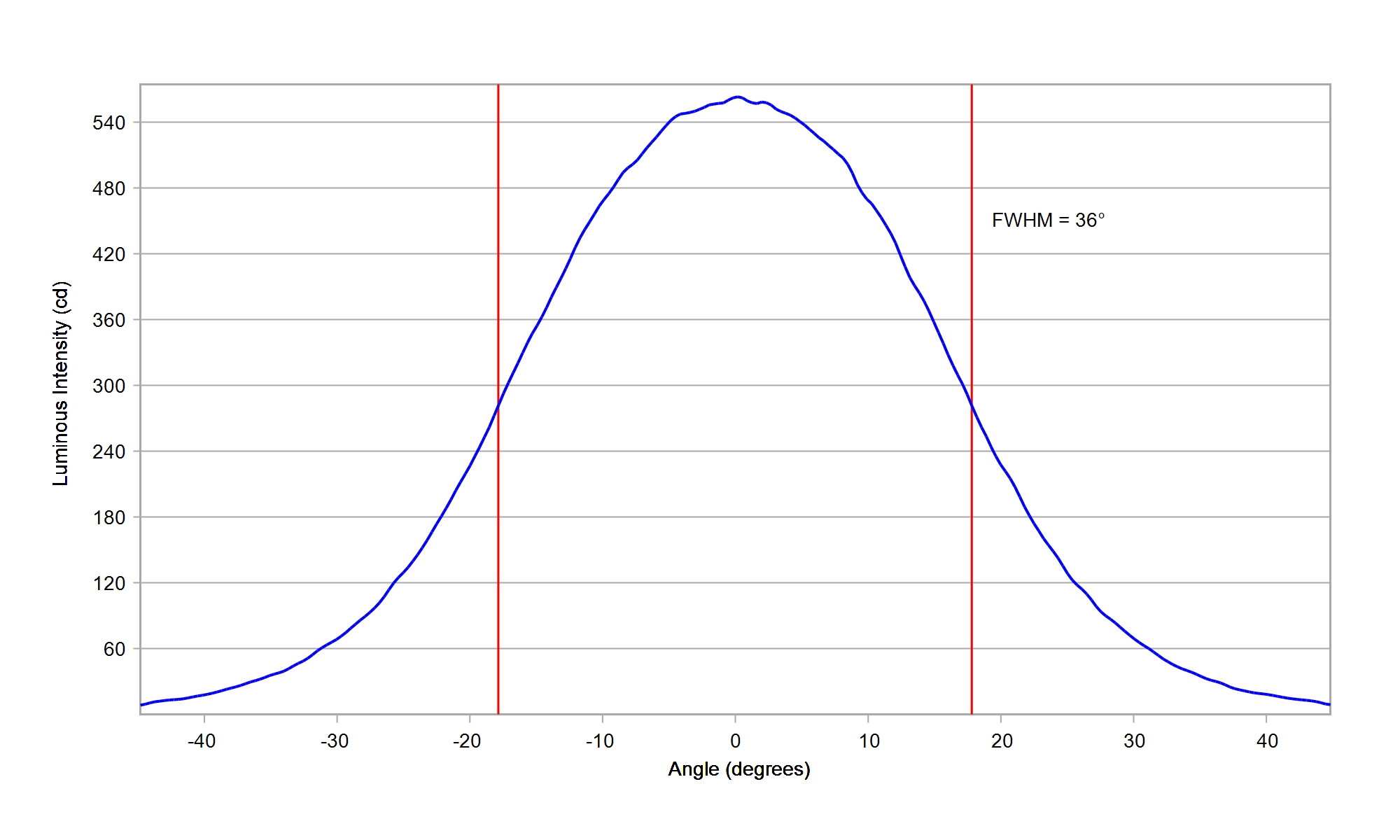

Osram LED ENGIN LuxiGen LZ1 00CW02 White

Eff:

85.5%

FWHM:

36°

Cd/Im:

2.0

Download

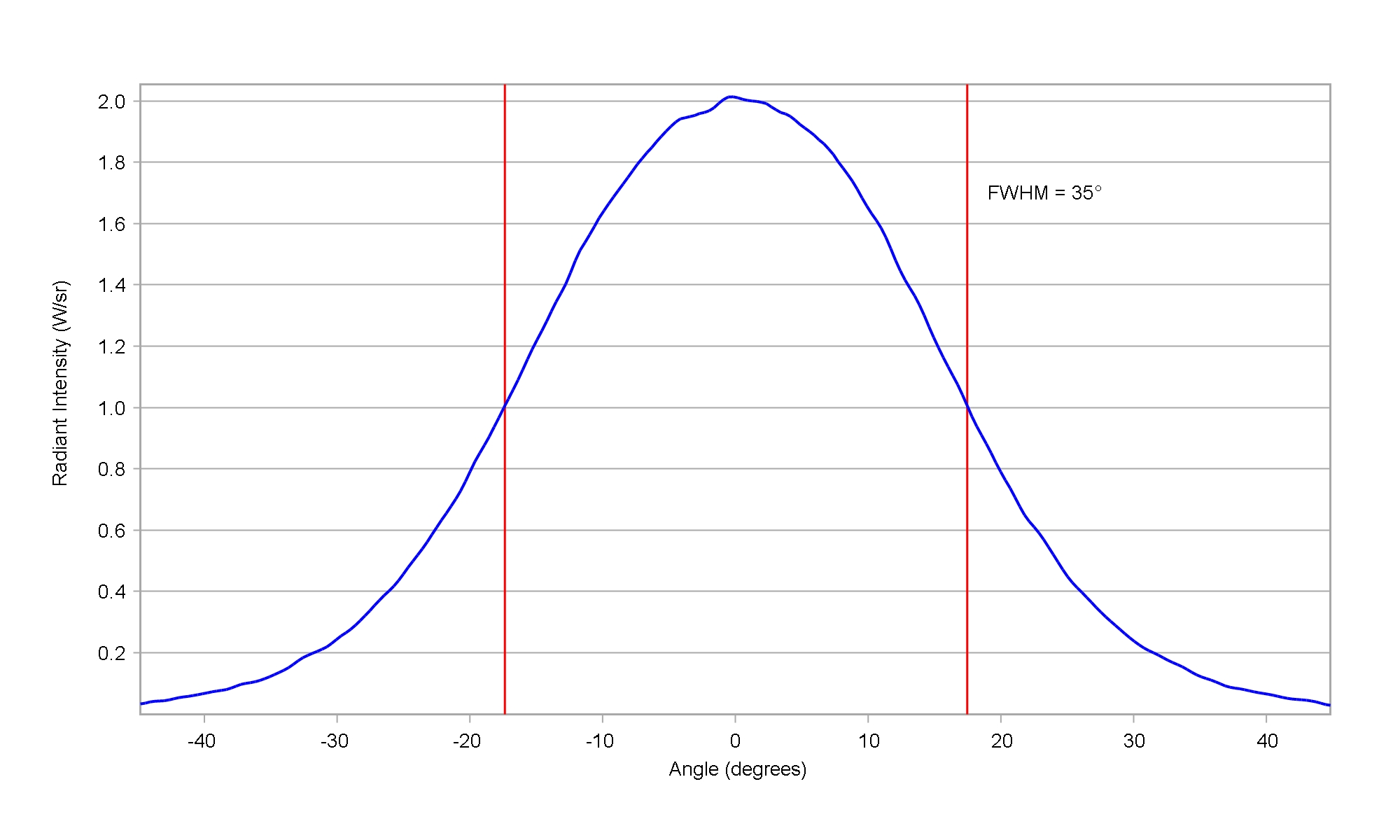

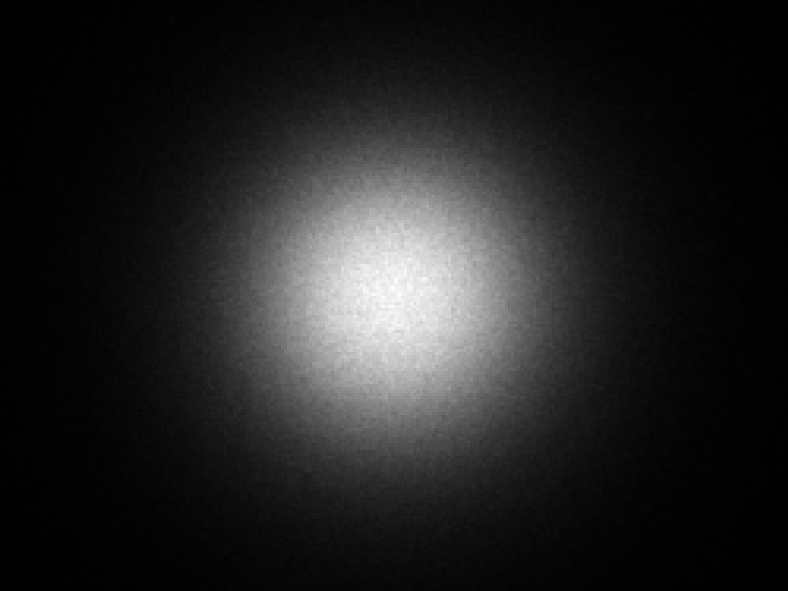

Osram LED ENGIN LuxiGen LZ1 00R702 IR940nm

Eff:

90.5%

FWHM:

35°

Ipk/W:

2.1

Download

IES

Osram DURIS E 2835 Gen2

Eff:

85.0%

FWHM:

33°

Cd/Im:

2.2

Carclo Optics - 10260 26.5mm Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 10260 26.5mm Vertical Cross Section Osram DURIS E 2835 Gen2

Download

IES

Osram DURIS E 2835 White

Eff:

84.0%

FWHM:

32.0°

Cd/Im:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS E 5050 GW J9LHS1.4M RGBW

Eff:

84.5%

FWHM:

36°

Cd/Im:

1.7

Download

IES

Osram DURIS E2 White

Eff:

83.0%

FWHM:

31°

Cd/Im:

2.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS E3 White

Eff:

86.6%

FWHM:

30.9°

Cd/Im:

2.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS P10 White

Eff:

80.3%

FWHM:

43.8°

Cd/Im:

1.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S10 White

Eff:

81.5%

FWHM:

46.0°

Cd/Im:

1.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

em_

Osram DURIS S2 White

Eff:

86.3%

FWHM:

33.4°

Cd/Im:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S5 Deep Blue

Eff:

84.0%

FWHM:

32.5°

Cd/Im:

2.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S5 Green

Eff:

84.0%

FWHM:

32.5°

Cd/Im:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S5 Red

Eff:

84.5%

FWHM:

32.0°

Cd/Im:

2.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S5 White

Eff:

82.0%

FWHM:

32.6°

Cd/Im:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S8 Gen2 White

Eff:

85.0%

FWHM:

37.2°

Cd/Im:

1.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S8 Gen3 White

Eff:

83.5%

FWHM:

39.5°

Cd/Im:

1.5

Carclo Optics - 10260 26.5mm Spot Image Oslon DURIS S8 Gen3

Carclo Optics - 10260 26.5mm Cross Section Oslon DURIS S8 Gen3

Download

IES

Osram DURIS S8 White

Eff:

84.2%

FWHM:

40.3°

Cd/Im:

1.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section Image

Download

IES

Osram OSCONIQ C 2424 White

Eff:

85.5%

FWHM:

33.0°

Cd/Im:

2.3

Carclo Optics - 10260 Spot Image OSCONIQ C2424

Carclo Optics - 10260 Cross Section OSCONIQ C2424

Download

IES

Osram OSCONIQ P3737 White

Eff:

81.5%

FWHM:

32.5°

Cd/Im:

2.1

Carclo Optics 10260 Spot Image Osram Osconiq

Carclo Optics 10260 Cross Section Osram Osconiq P3737

Download

IES

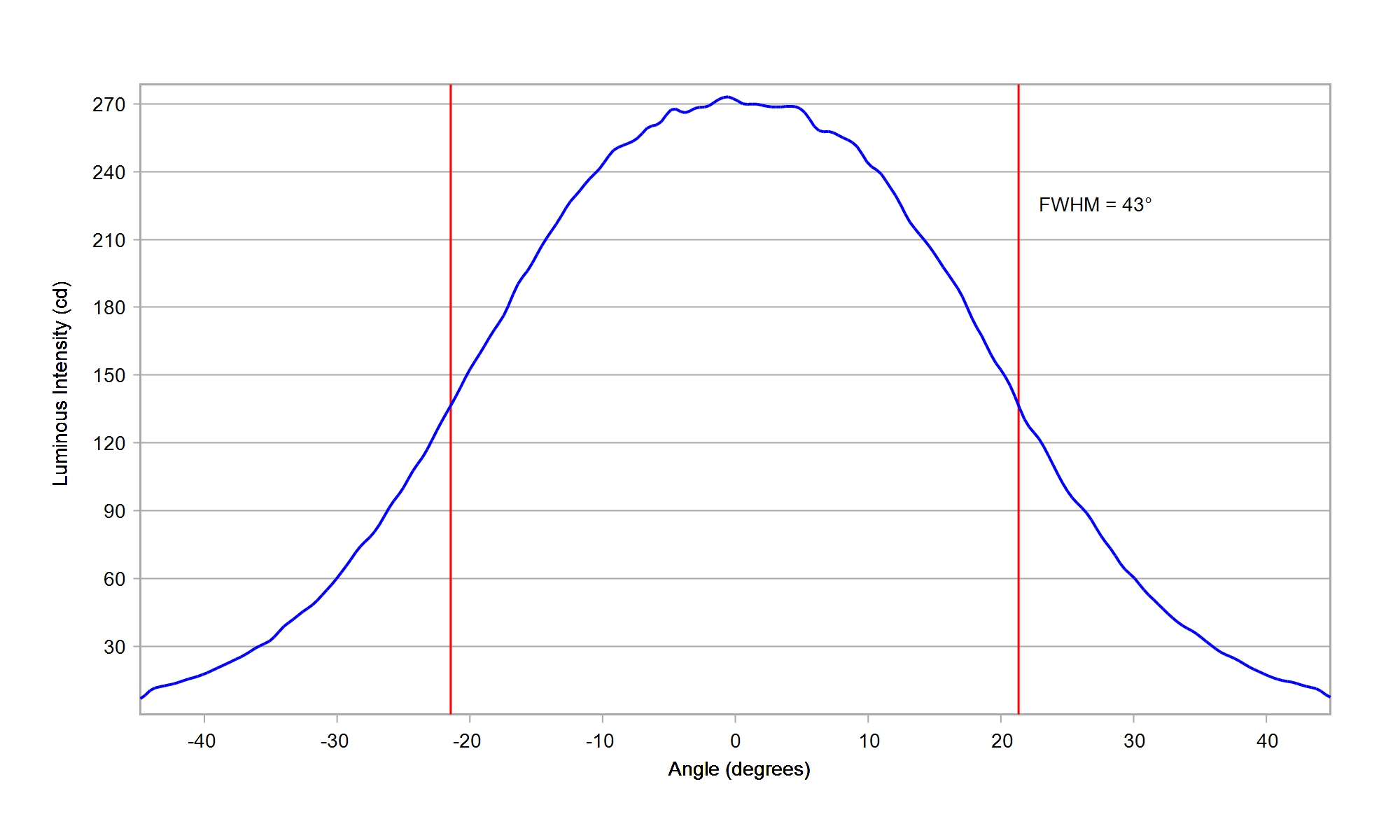

Osram OSCONIQ S 5050 GW Q9LR32.PM

Eff:

83.0%

FWHM:

43°

Cd/Im:

1.3



Download

IES

Osram OSLON Black SFH 4715AS IR

Eff:

89.0%

FWHM:

33°

Ipk/W:

2.3


Download

IES

Osram OSLON Black SFH 4716AS IR

Eff:

90.0%

FWHM:

30°

Ipk/W:

2.7

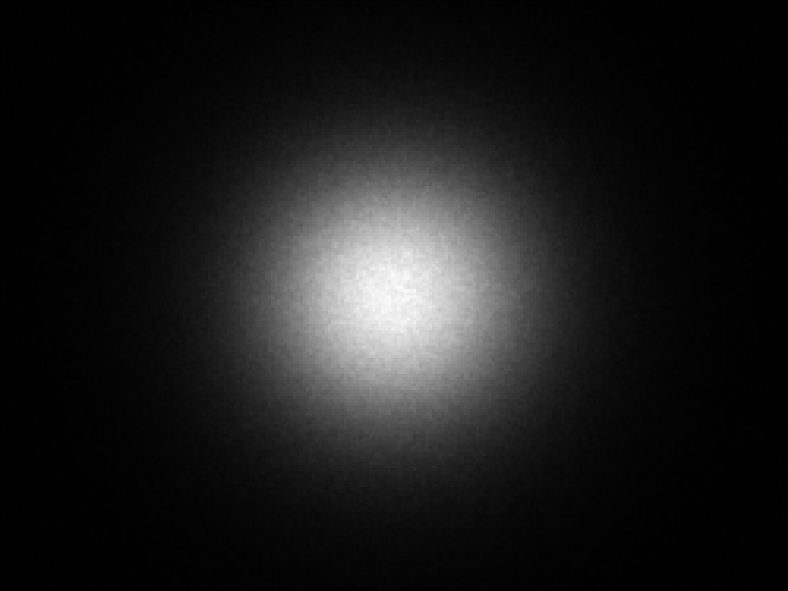

Carclo Optics – 10260 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

Carclo Optics – 10260 Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

IES

Osram OSLON Black SFH 4725S IR

Eff:

91.5%

FWHM:

32°

Ipk/W:

2.5

Carclo Optics 10260 Spot Image Osram Oslon Black_IR_SFH_4725S

Carclo Optics 10260 Cross Section Osram Oslon Black_IR_SFH_4725S

Download

IES

Osram OSLON Boost HM KW CELMM1.TG

Eff:

86.0%

FWHM:

31°

Cd/Im:

2.5

Carclo Optics – 10260 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 10260 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Download

IES

Osram OSLON Pure 1010 CSP GC VJLPE1.13 Cyan

Eff:

86.5%

FWHM:

31°

Cd/Im:

2.5


Download

IES

Osram OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue

Eff:

84.0%

FWHM:

31°

Ipk/W:

2.4


Download

IES

Osram OSLON Pure 1010 CSP GG VJLPE1.F3 Green

Eff:

86.0%

FWHM:

31°

Cd/Im:

2.5


Download

IES

Osram OSLON Pure 1010 CSP GR VJLPE1.F3 Red

Eff:

86.0%

FWHM:

33°

Cd/Im:

2.3


Download

IES

Osram OSLON Pure 1010 CSP GT VJLPE1.13 True Green

Eff:

86.0%

FWHM:

32°

Cd/Im:

2.4


Download

IES

Osram OSLON Pure 1010 CSP GW VJLPE1.CM White

Eff:

85.5%

FWHM:

31°

Cd/Im:

2.4



Download

IES

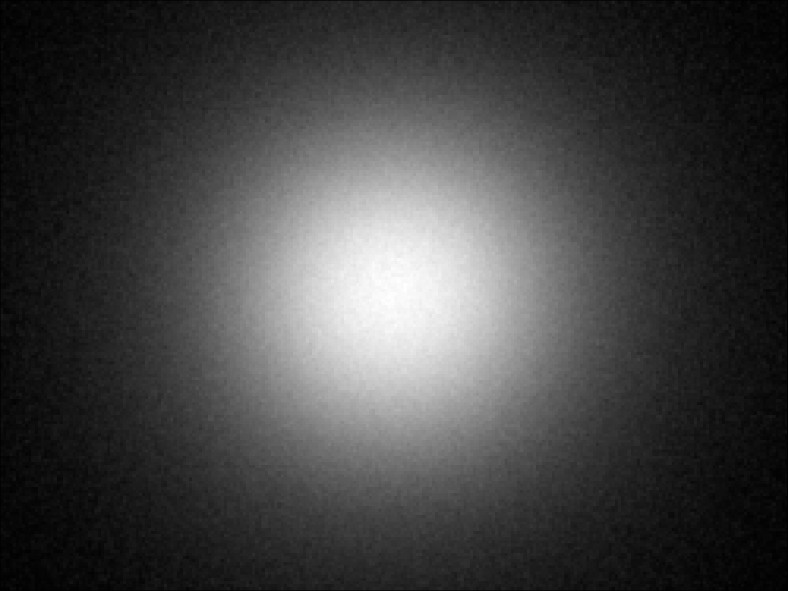

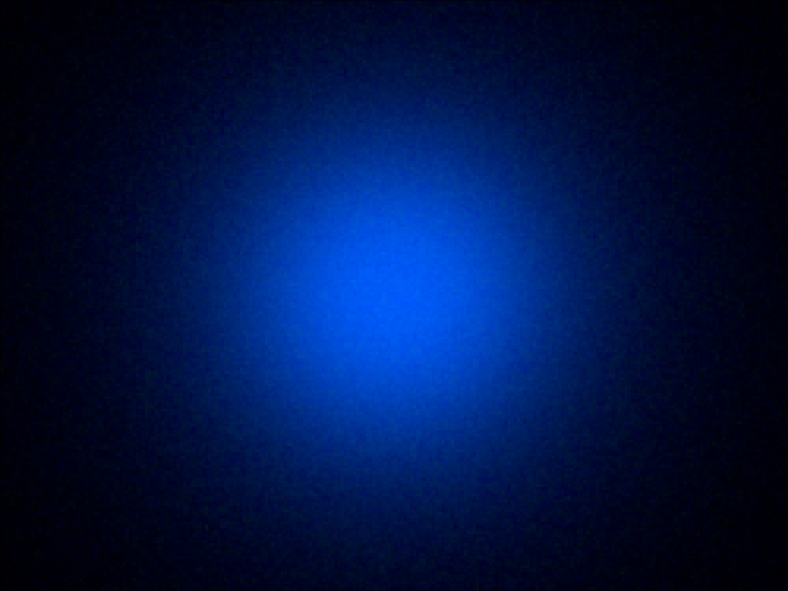

Osram OSLON Pure 1414 GB VJLPL1.F3 Blue

Eff:

86.0%

FWHM:

32°

Cd/Im:

2.4


Download

Osram OSLON Pure 1414 GC VJLPL1.13 Cyan

Eff:

86.5%

FWHM:

32°

Cd/Im:

2.4


Download

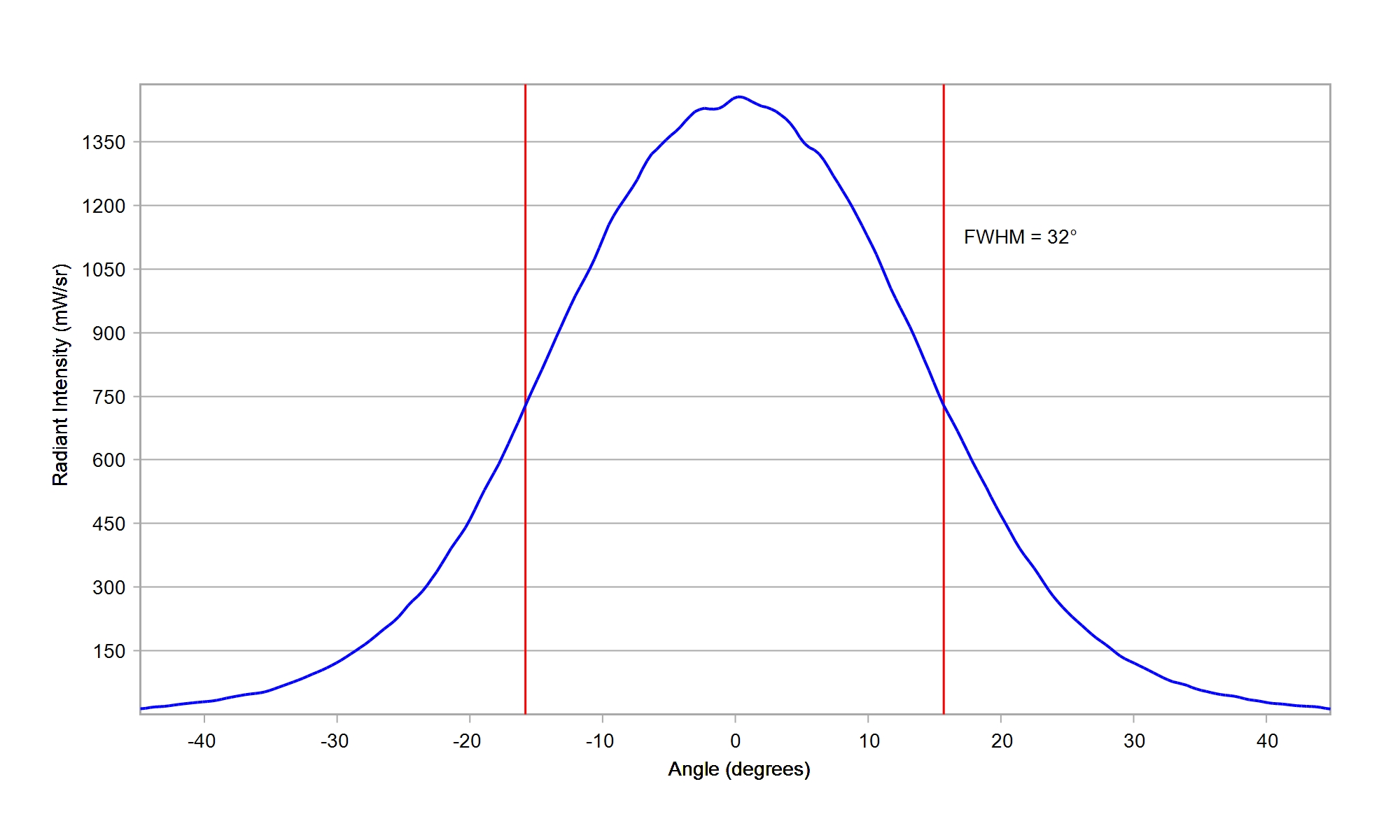

Osram OSLON Pure 1414 GD VJLPL1.14 Deep Blue

Eff:

84.0%

FWHM:

32°

Ipk/W:

2.4


Download

Osram OSLON Pure 1414 GR VJLPL1.23 Red

Eff:

87.0%

FWHM:

33°

Cd/Im:

2.3


Download

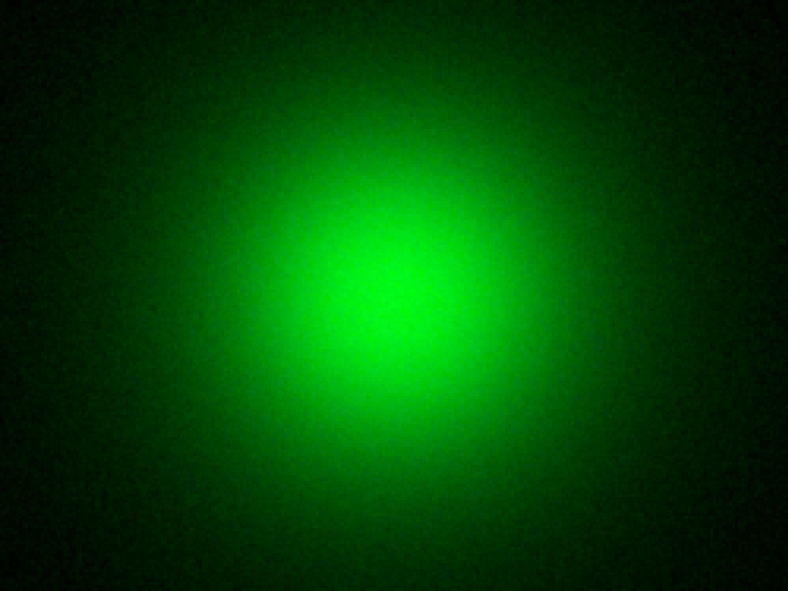

Osram OSLON Pure 1414 GT VJLPL1.13 True Green

Eff:

86.0%

FWHM:

32°

Cd/Im:

2.4


Download

Osram OSLON Pure 1414 GV VJLPL1.F3 Verde

Eff:

86.0%

FWHM:

31°

Cd/Im:

2.4


Download

Osram OSLON Pure 1414 GW VJLPL1.CM White

Eff:

86.0%

FWHM:

31°

Cd/Im:

2.5

Download

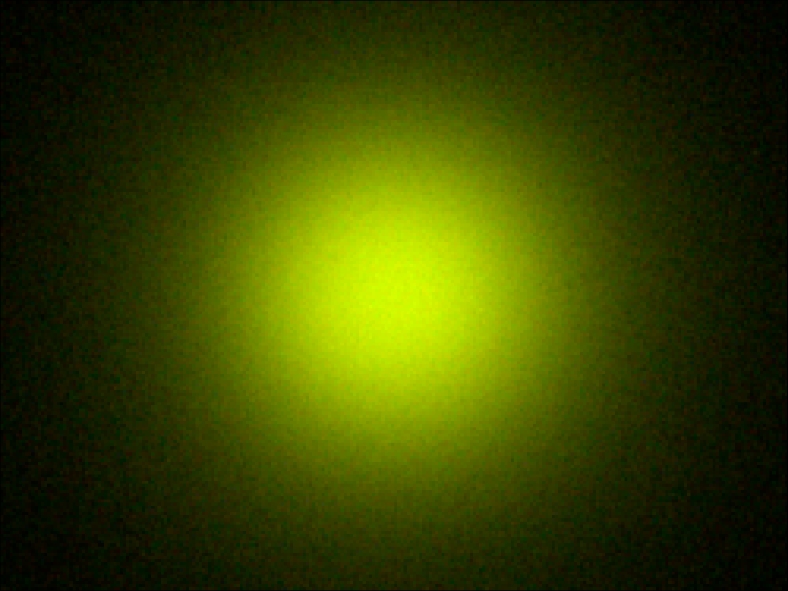

Osram OSLON Pure 1414 GW VJLPL1.UL Green

Eff:

86.0%

FWHM:

31°

Cd/Im:

2.5


Download

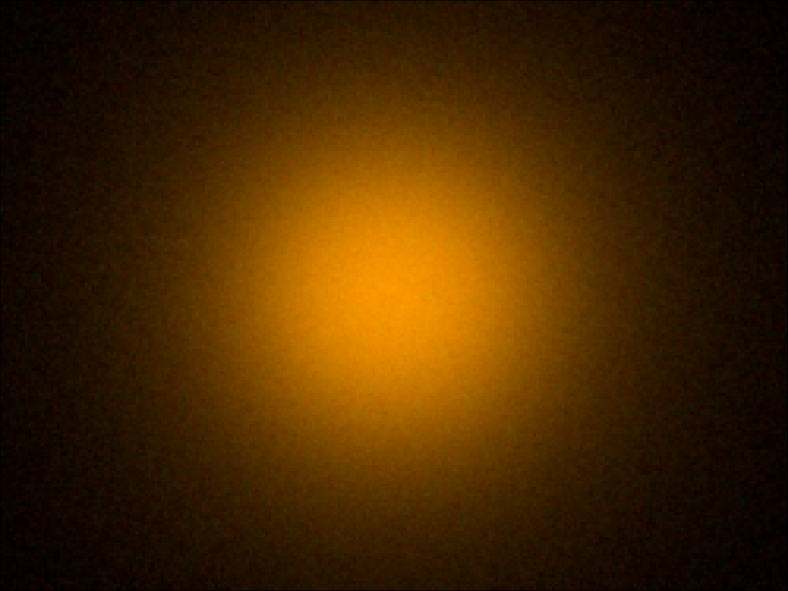

Osram OSLON Pure 1414 GY VJLPL1.F3 Yellow

Eff:

86.0%

FWHM:

32°

Cd/Im:

2.5


Download

Osram OSLON Square Flat White

Eff:

83.5%

FWHM:

66.5°

Cd/Im:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OSLON Square Gen 3 White

Eff:

82.5%

FWHM:

32.1°

Cd/Im:

2.2

Carclo Optics - Simulated Spot Image

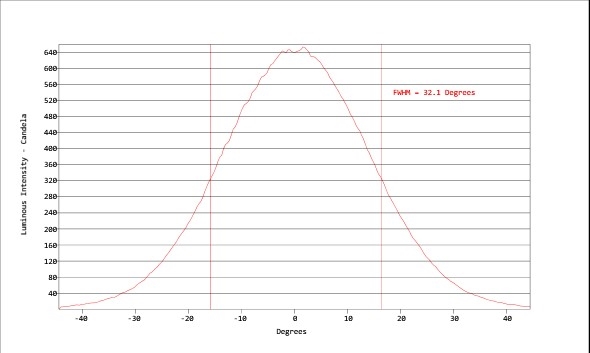

Carclo Optics - Simulated Cross Section

Download

IES

Osram OSLON Square Gen 5 GW CSSRM3

Eff:

85.0%

FWHM:

32°

Cd/Im:

2.2

Carclo Optics - 10260 26.5mm Spot Image Oslon Square Gen 5

Carclo Optics - 10260 26.5mm Cross Section Oslon Square Gen 5

Download

IES

Osram OSLON Square White

Eff:

83.0%

FWHM:

32°

Cd/Im:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

85.5%

FWHM:

30°

Cd/Im:

2.6

Carclo Optics – 10260 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Carclo Optics – 10260 Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Download

IES

Osram OSLON SSL 80 White

Eff:

82.1%

FWHM:

34.5°

Cd/Im:

2.3

Download

ies

Osram OSLON SSL 80 GH CS8PM1.24 Hyper Red

Eff:

86.0%

FWHM:

34°

Ipk/W:

2.1


Download

IES

Osram OSLON SSL 80 GT CS8PM1.13 True Green

Eff:

85.5%

FWHM:

35°

Cd/Im:

2.0



Download

IES

Osram OSLON SSL 80 GW CS8PM1.PM White

Eff:

85.5%

FWHM:

34°

Cd/Im:

2.1


Download

IES

Osram OSTAR Stage LE-UW-S2WN

Eff:

85.0%

FWHM:

31°

Cd/Im:

2.3

Carclo Optics – 10260 Osram Ostar Stage LE-UW-S2WN - Spot Image

Carclo Optics – 10260 Osram Ostar Stage LE-UW-S2WN - Cross-Section

Download

IES

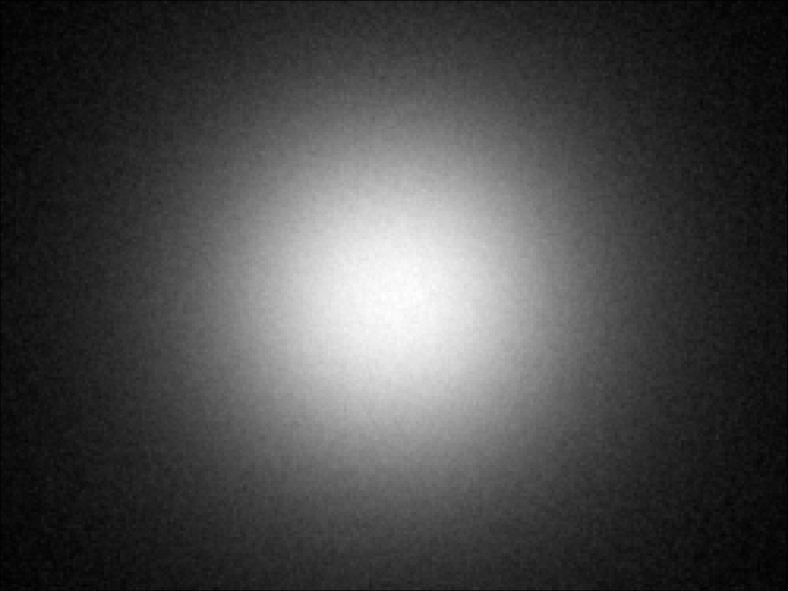

Osram OSCONIQ C 3030 GW PLTRA1.PM White

Eff:

85.0%

FWHM:

33°

Cd/Im:

2.2

Download

Osram OSCONIQ E 3030 GW QSLPS1.EM White

Eff:

85.0%

FWHM:

34°

Cd/Im:

2.1

Download

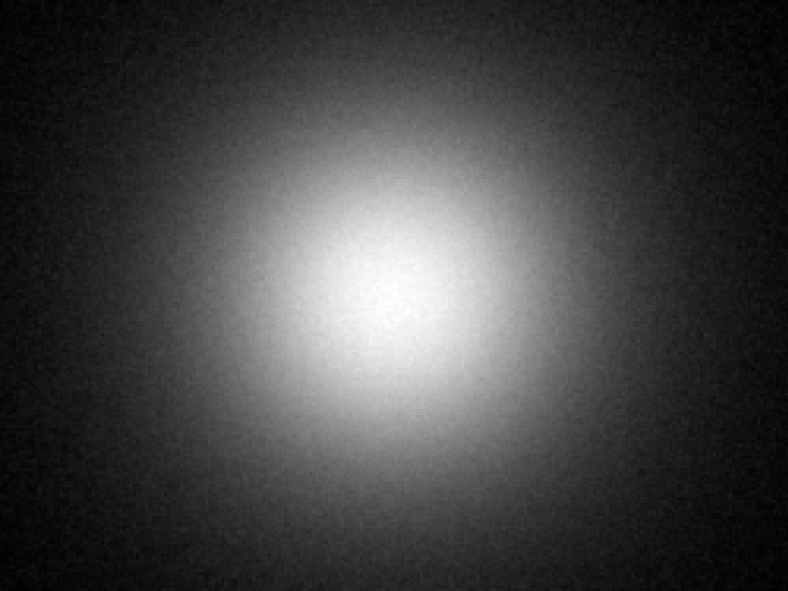

Osram OSCONIQ P 3030 GW QSSPA1.PM White

Eff:

85.5%

FWHM:

31°

Cd/Im:

2.4

Download

Osram OSCONIQ S 3030 GW QSLMS3.EM White

Eff:

85.5%

FWHM:

31°

Cd/Im:

2.3

Download

Plessey PLW 7070GA White

Eff:

80.0%

FWHM:

39.5°

Cd/Im:

1.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

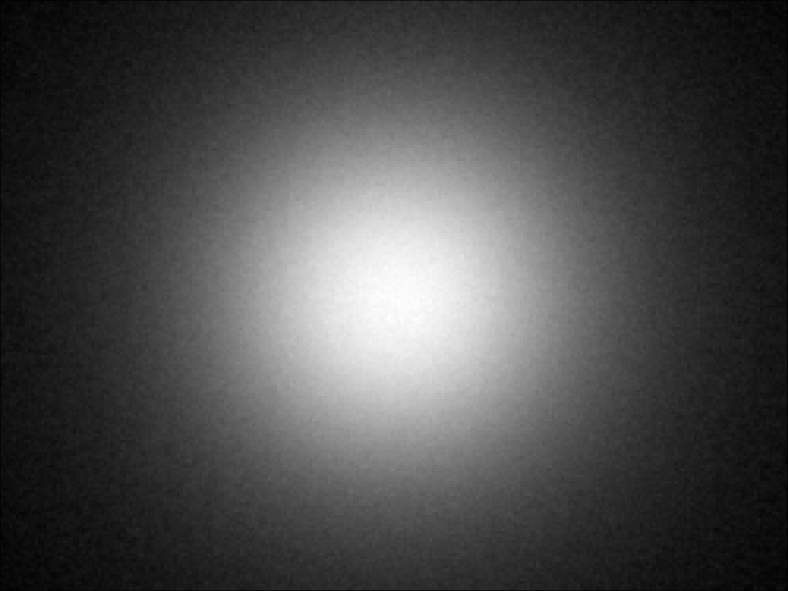

Samsung 2835 LM281B+ White

Eff:

84.0%

FWHM:

33°

Cd/Im:

2.1



Download

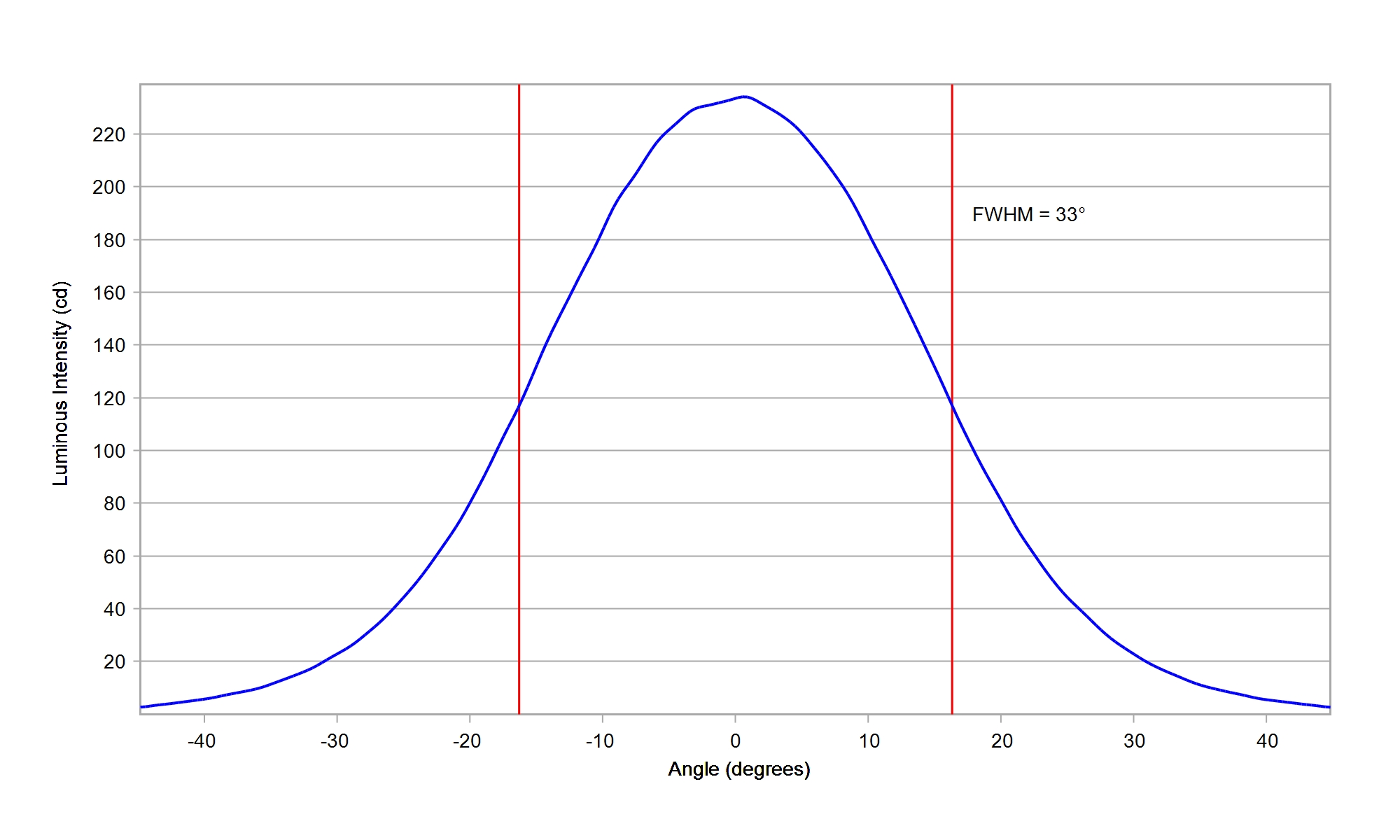

Samsung 2835 LM282B+ White

Eff:

85.0%

FWHM:

33°

Cd/Im:

2.2



Download

Samsung 3030 LM301B White

Eff:

85.0%

FWHM:

32°

Cd/Im:

2.3

Download

IES

Samsung 3535 LH351A White

FWHM:

32.4°

Cd/Im:

3.0

Download

ies

Samsung 3535 LH351B White

Eff:

82.0%

FWHM:

32.5°

Cd/Im:

2.1

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Samsung 3535 LH351D White

Eff:

82.5%

FWHM:

32.0°

Cd/Im:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Samsung 3535 LH351Z White

Eff:

82.0%

FWHM:

34°

Cd/Im:

2.0

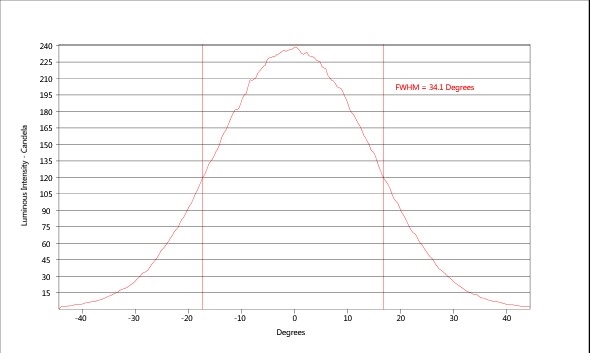

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

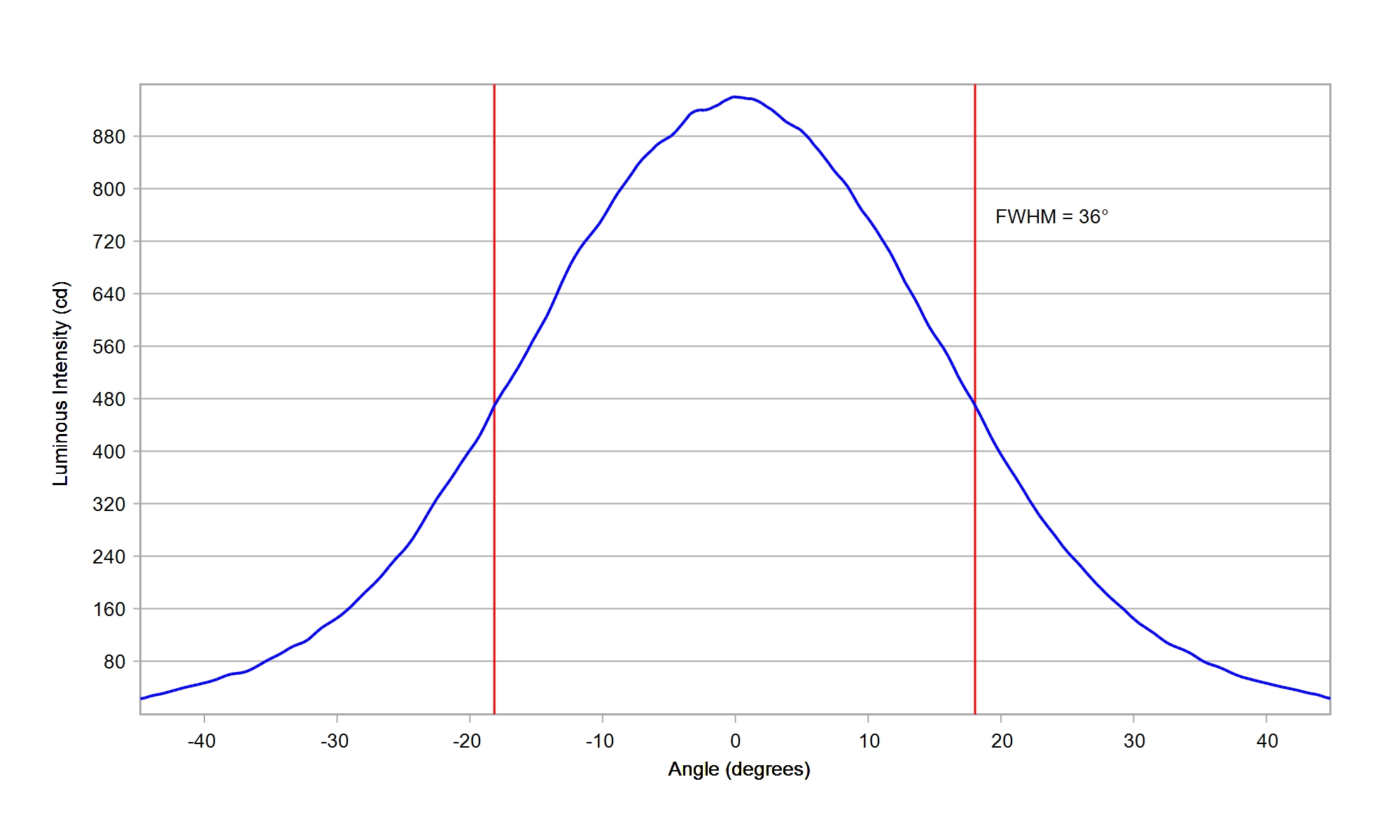

Samsung 5050 LH502C White

Eff:

83.5%

FWHM:

36°

Cd/Im:

1.7


Download

IES

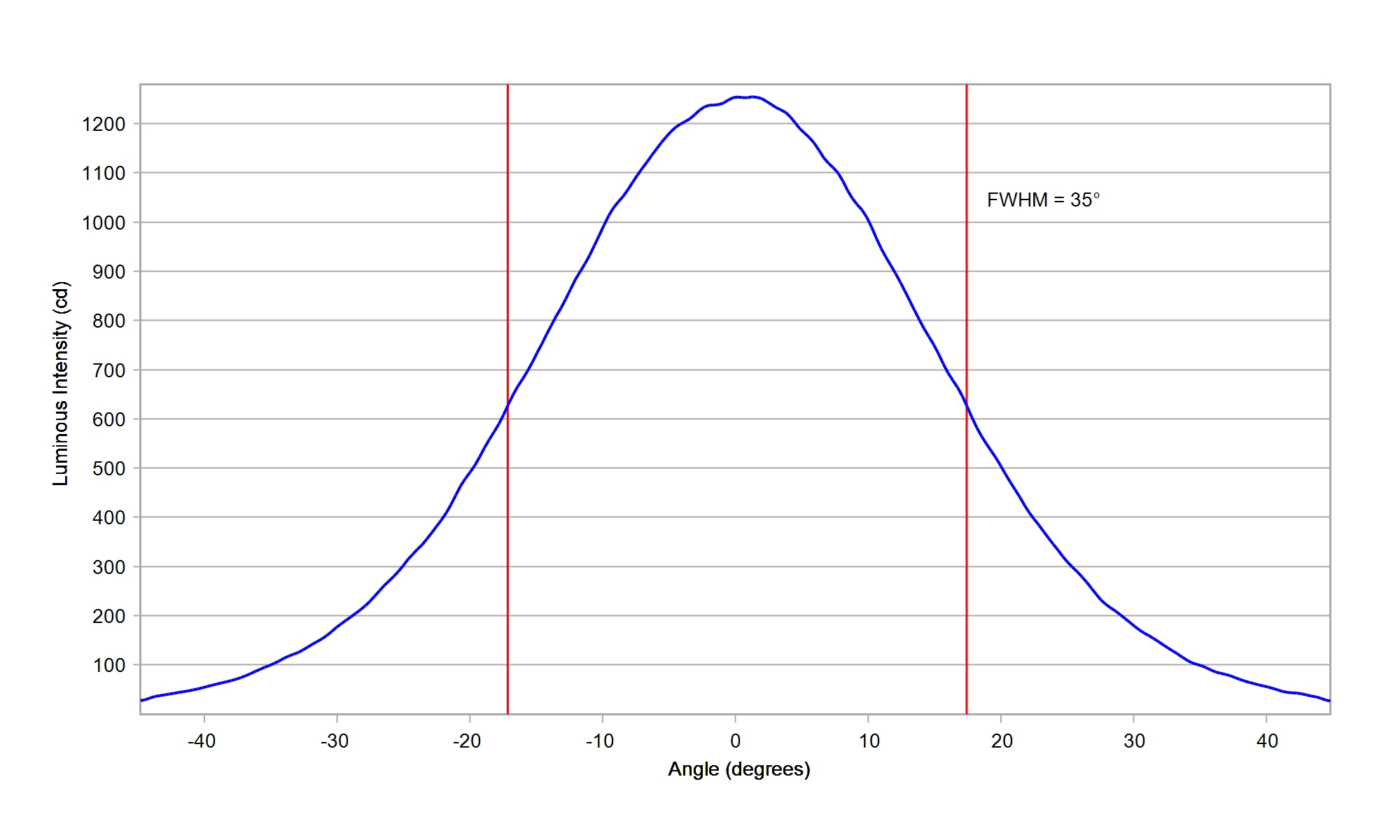

Samsung 5050 LH502D White

Eff:

84.0%

FWHM:

35°

Cd/Im:

1.8


Download

IES

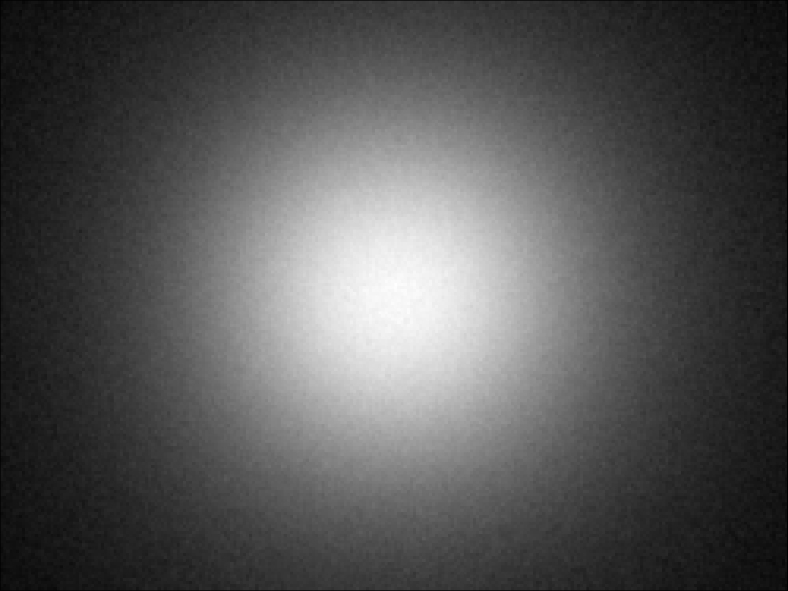

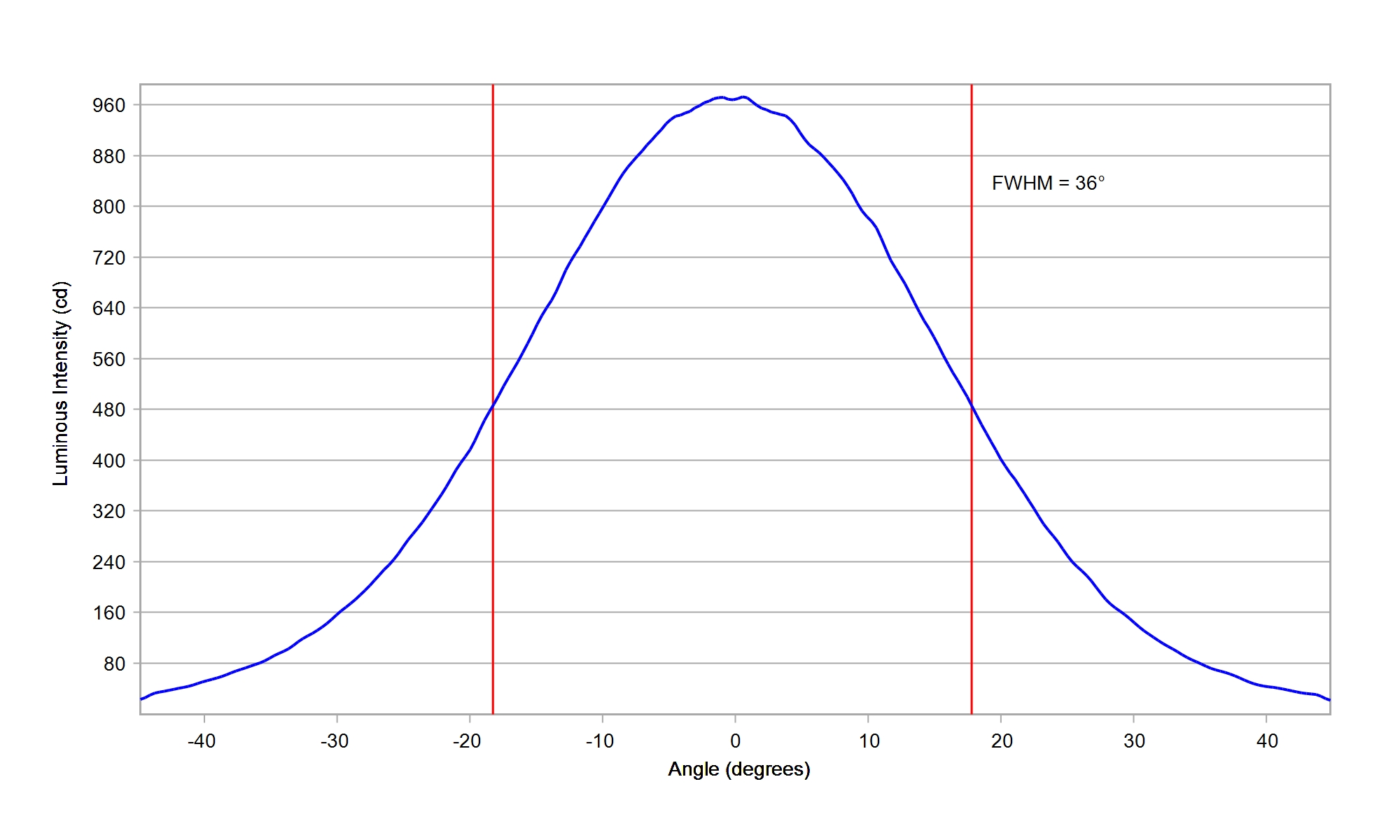

Samsung 5050 LH508C White

Eff:

83.5%

FWHM:

36°

Cd/Im:

1.7


Download

IES

Samsung CSP LH151B White

Eff:

85.5%

FWHM:

33°

Cd/Im:

2.3

Carclo Optics – 10260 – Samsung_LH151B_spot-image

Carclo Optics – 10260 – Samsung_LH151B_cross section

Download

IES

Samsung CSP LH181B White

Eff:

84.0%

FWHM:

31.5°

Cd/Im:

2.3

Carclo Optics -10260 Sport Image - Samsung LH181B 4000K

Carclo Optics -10260 Cross Section - Samsung LH181B 4000K

Download

IES

Samsung CSP LH231B White

Eff:

83.5%

FWHM:

34.5 x 34°

Cd/Im:

2.0

Carclo Optics -10260 Spot Image - Samsung LH231B 5000KL

Carclo Optics -10260 Cross Section - Samsung LH231B 5000K

Download

IES

Samsung CSP LM101B White

Eff:

84.0%

FWHM:

32.5°

Cd/Im:

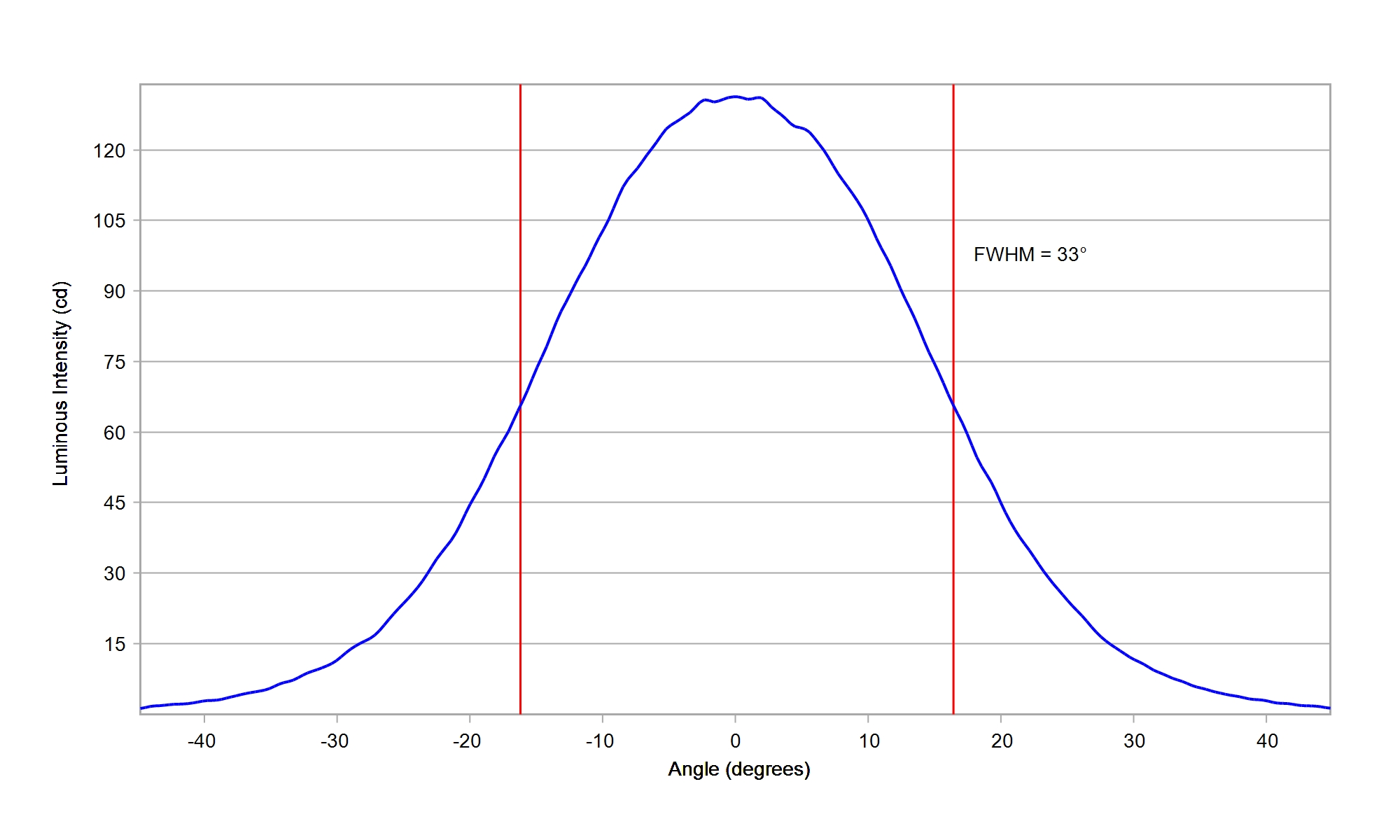

2.3

Carclo Optics -10260 Sport Image - Samsung LM101B 5000K

Carclo Optics -10260 Cross Section Samsung LM101B 5000K

Download

IES

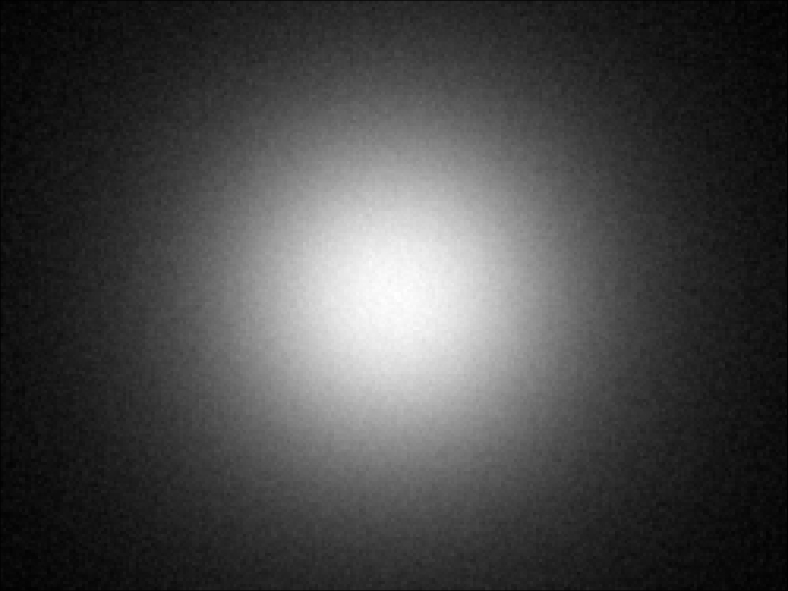

Seoul 3030 STW8C12E-E0 White

Eff:

85.5%

FWHM:

32°

Cd/Im:

2.3

Download

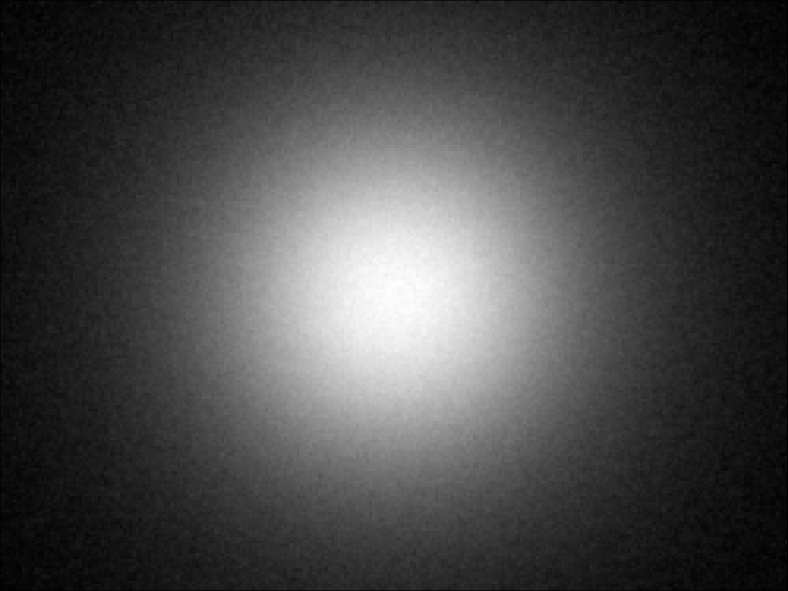

Seoul 3528 G STW8A2PD-G700 White

Eff:

85.5%

FWHM:

32°

Cd/Im:

2.2

Download

Seoul CSP SZ8Y11 White

Eff:

83.0%

FWHM:

33 x 32.5°

Cd/Im:

2.2

Carclo Optics -10260 Spot Image - Seoul Z8Y11

Carclo Optics -10260 Cross Section image - Seoul Z8Y11

Download

IES

Seoul CSP SZ8Y15 White

Eff:

84.5%

FWHM:

30.0°

Cd/Im:

2.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Seoul CSP SZ8Y19 White

Eff:

82.0%

FWHM:

34°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Seoul CSP SZ8Y22 White

Eff:

84.0%

FWHM:

32.5°

Cd/Im:

2.2

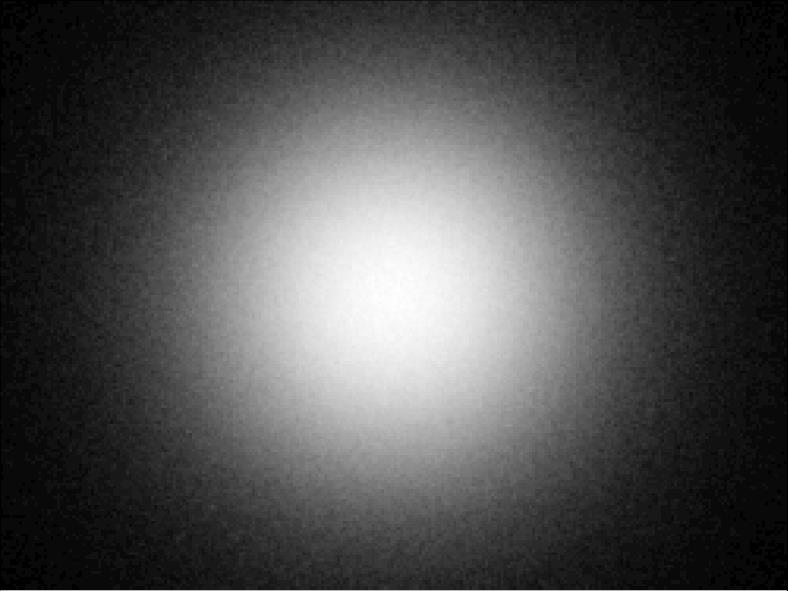

Carclo Optics -10260 Spot Image - Seoul SZ8Y22

Carclo Optics -10260 Cross Section image - Seoul SZ8Y22

Download

IES

Seoul CSP SZ8Y22P White

Eff:

84.0%

FWHM:

32°

Cd/Im:

2.3

Carclo Optics - 10260 Spot Image - Seoul SZ8Y22P

Carclo Optics -10260 Cross Section Image - Seoul SZ8Y22P

Download

IES

Seoul CSP SZ8Y50 White

Eff:

82.5%

FWHM:

37.5°

Cd/Im:

1.5

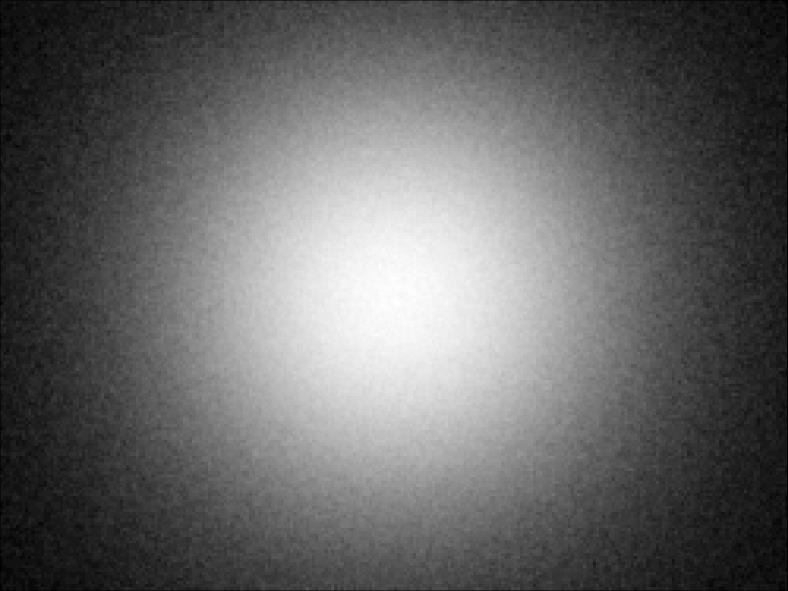

Carclo Optics - 10260 Spot Image - Seoul SSC SZ8Y50

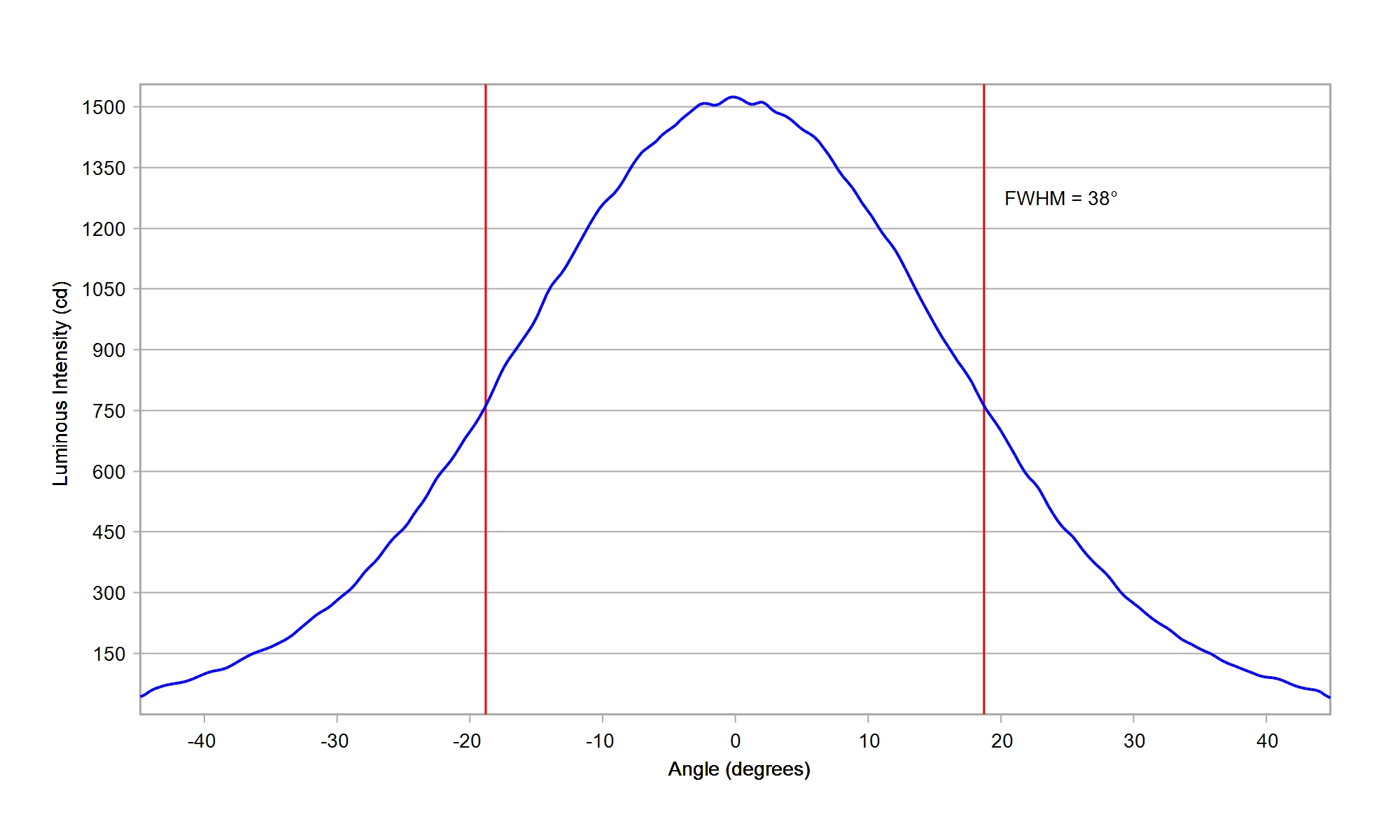

Carclo Optics - 10260 Cross section Image - Seoul SSC SZ8Y50

Download

IES

Seoul MidPower MJT3030 White

Eff:

82.0%

FWHM:

34°

Cd/Im:

2.0

carclo optics - simulated spot image

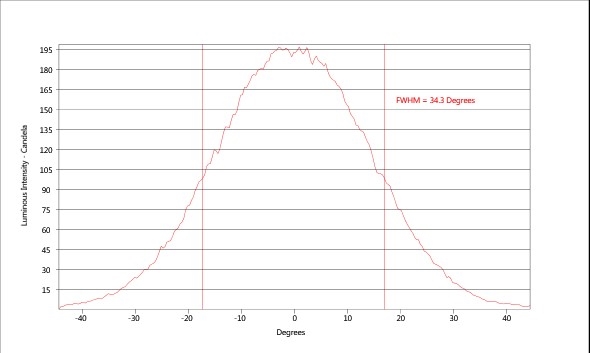

carclo optics - simulated cross section

Download

IES

Seoul MidPower MJT4040 White

Eff:

81.0%

FWHM:

36°

Cd/Im:

1.7

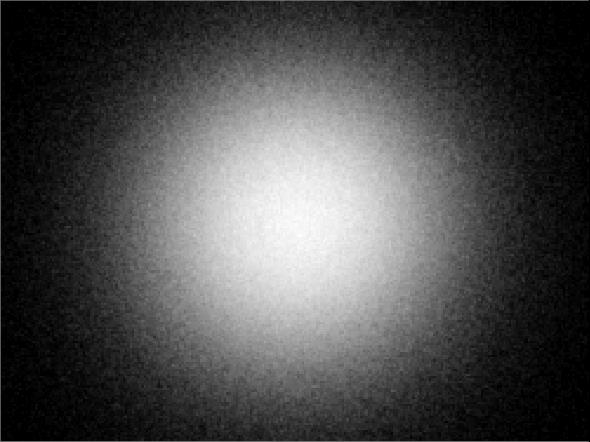

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Seoul MJT 5050 White

Eff:

81.0%

FWHM:

34.7°

Cd/Im:

1.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

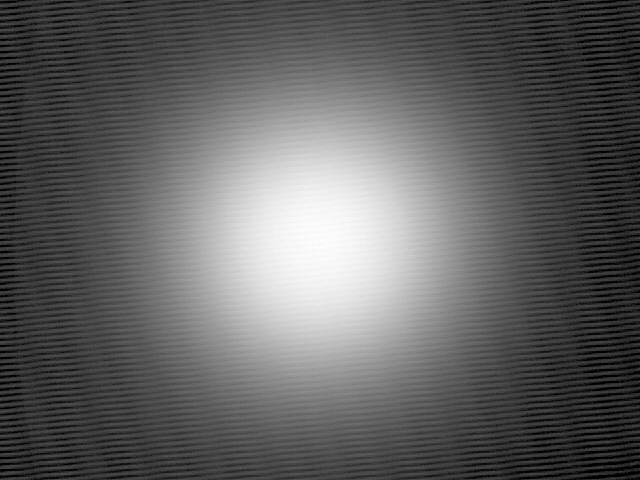

Seoul P4 White

Eff:

83.3%

FWHM:

33.1°

Cd/Im:

2.2

Download

ies

Seoul P4 White

Eff:

82.7%

FWHM:

29.3°

Cd/Im:

2.3

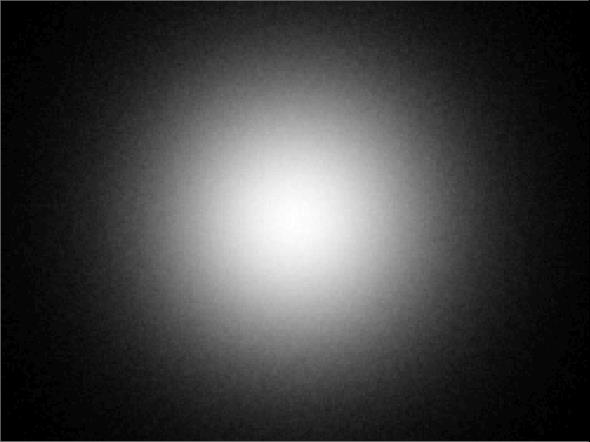

Carclo Optics - Simulated Spot Image

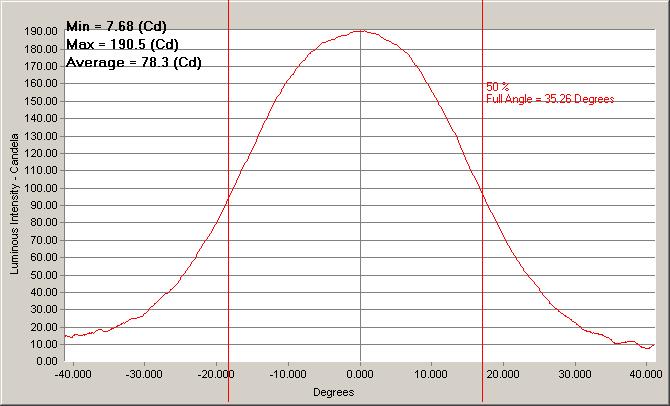

Carclo Optics - Simulated Cross Section Image

Download

IES

Seoul 3030 STW8C2SB-NT White

Eff:

85.0%

FWHM:

33.0°

Cd/Im:

2.2

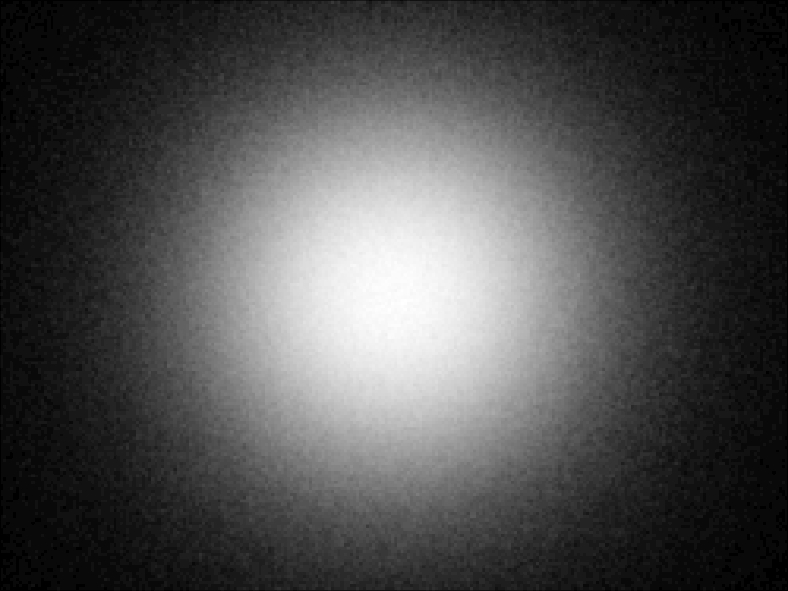

Carclo Optics - 10260 Spot Image Seoul STW8 C2SB-NT

Carclo Optics - 10260 Cross Section Seoul STW8 C2SB-NT

Download

IES

Seoul SunLike 3030 STWSC2PB-E0 White

Eff:

85.0%

FWHM:

33.0°

Cd/Im:

2.2

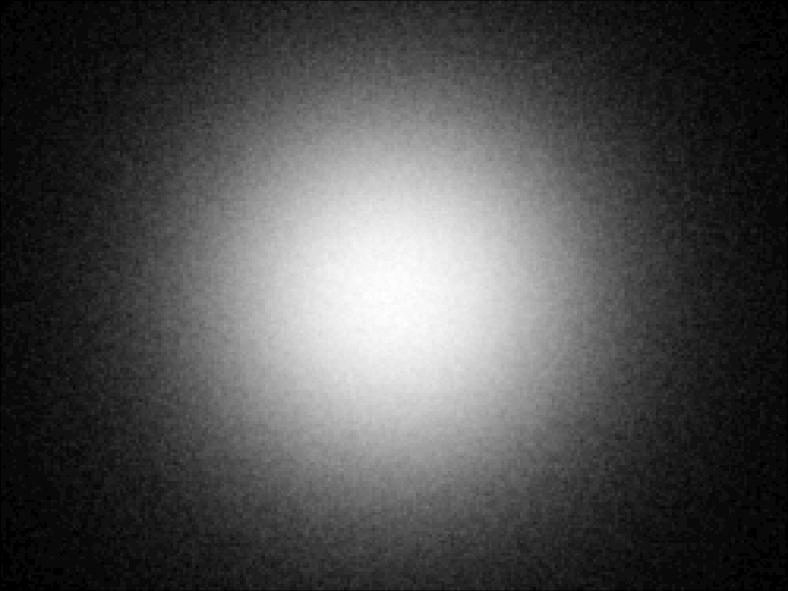

Carclo Optics - 10260 Spot Image STWS C2PB-E0

Carclo Optics - 10260 Cross Section STWS C2PB-E0

Download

IES

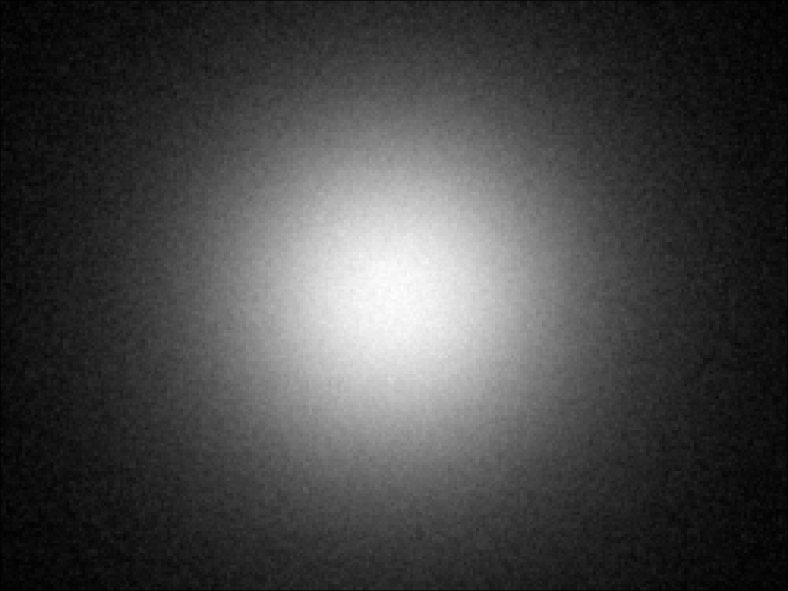

Seoul SunLike 3030 STWSC12S-E1 White

Eff:

85.5%

FWHM:

32°

Cd/Im:

2.3

Download

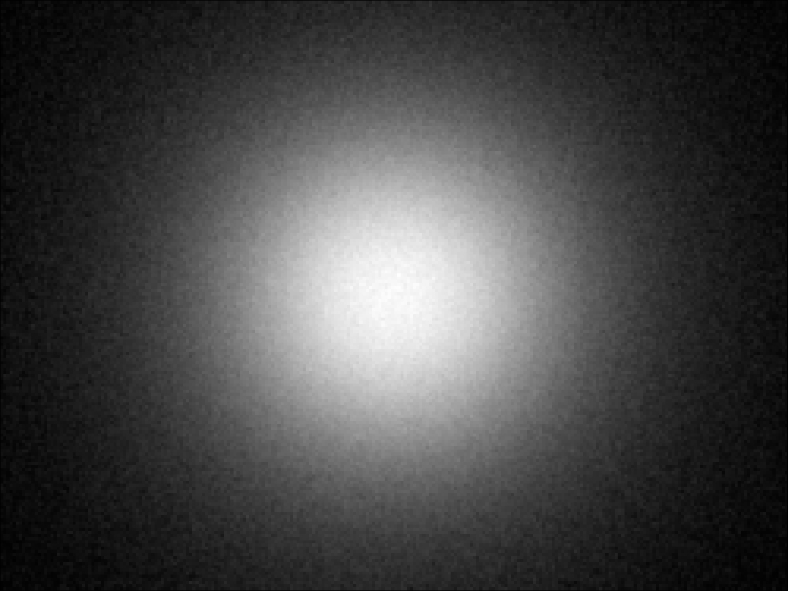

Seoul SunLike 3030 STWSC12S-E2 White

Eff:

85.5%

FWHM:

32°

Cd/Im:

2.3

Download

Seoul SunLike 3030 STW9C2SB-S White

Eff:

85.5%

FWHM:

32°

Cd/Im:

2.2

Carclo Optics - 10260 26.5mm Spot Image Seoul Sunlike 3030

Carclo Optics - 10260 26.5mm Vertical Cross Section Seoul Sunlike 3030

Download

IES

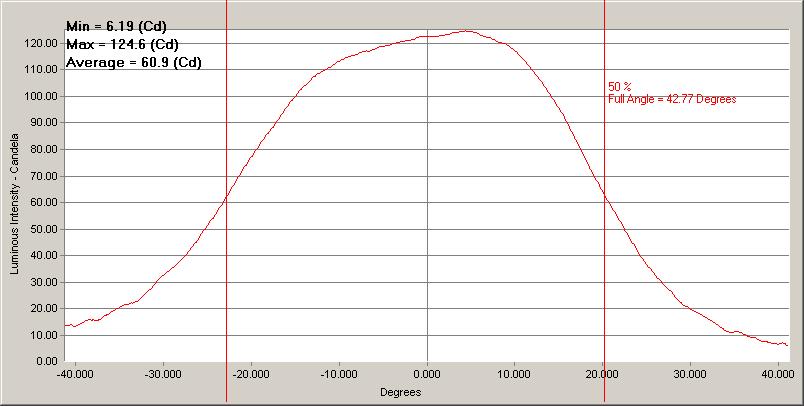

Seoul Z - Power Z1 White

Eff:

79.7%

FWHM:

42.9°

Cd/Im:

1.5

Download

ies

Seoul Z - Power Z5-M0 White

FWHM:

36.9°

Cd/Im:

2.2

Download

ies

Seoul Z - Power Z5-M4 White

Eff:

85.0%

FWHM:

31°

Cd/Im:

2.2

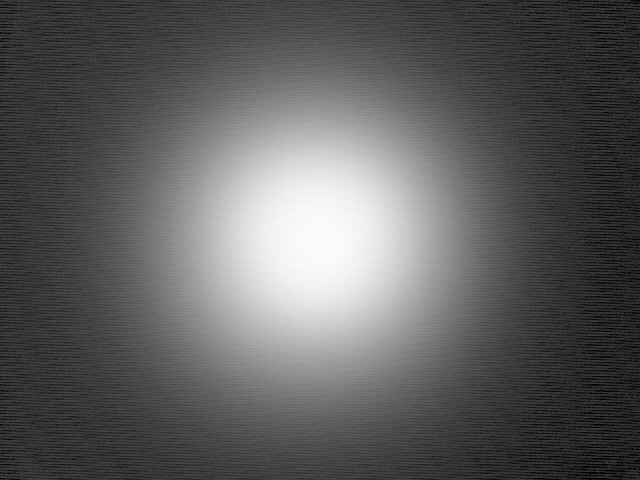

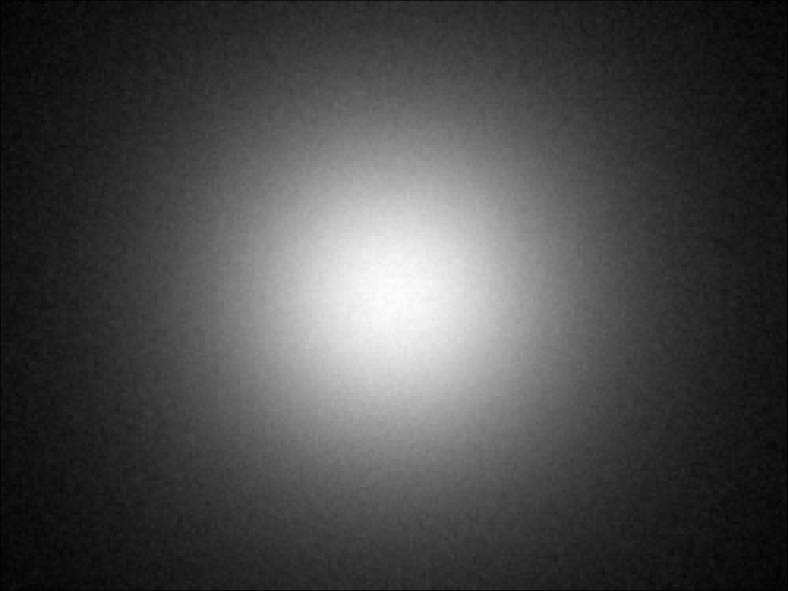

Carclo Optics – 10260 Seoul Z-Power Z5 - Spot Image

Carclo Optics – 10260 Seoul Z-Power Z5 - Cross-Section

Download

IES

Seoul Z - Power Z5-M5 White

Eff:

84.0%

FWHM:

34°

Cd/Im:

2.0

Download

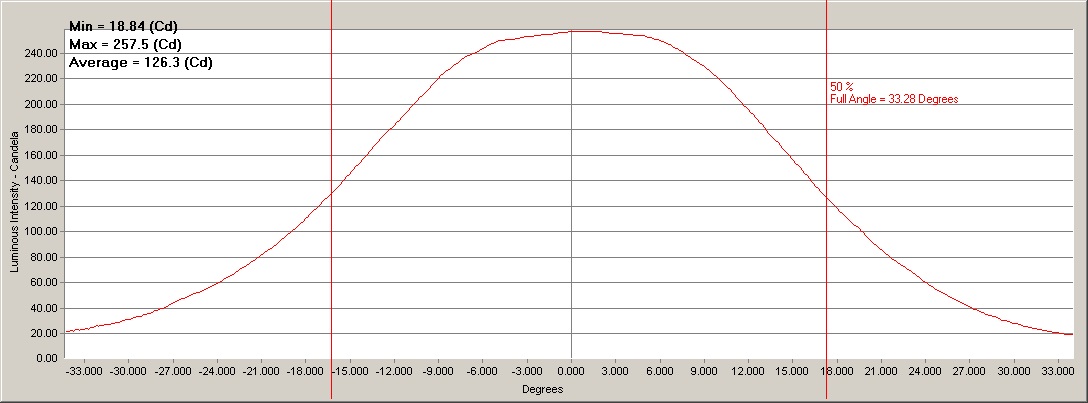

Seoul Z - Power Z5-P0 White

FWHM:

33.3°

Cd/Im:

2.7

Download

ies

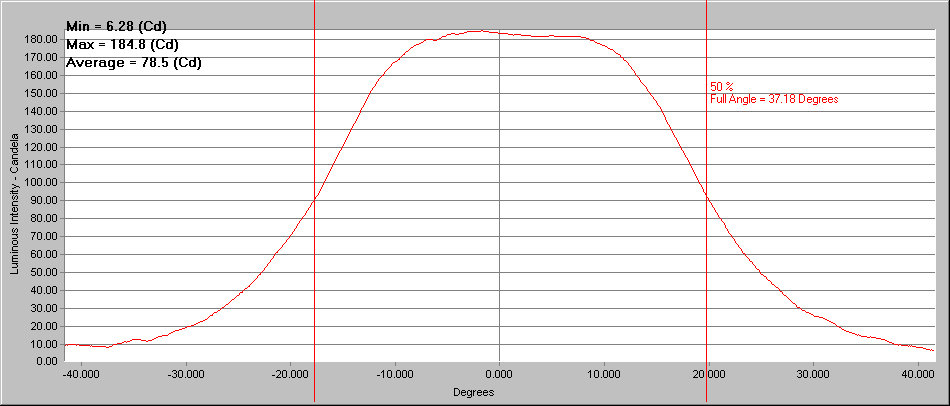

Seoul Z - Power Z5-M White

Eff:

82.7%

FWHM:

33.8°

Cd/Im:

2.5

Download

ies

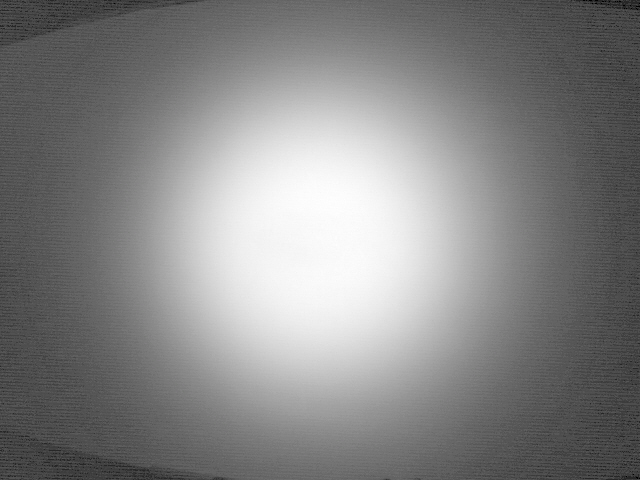

Stanley 1N White

FWHM:

42.3°

Cd/Im:

1.8

Download

ies

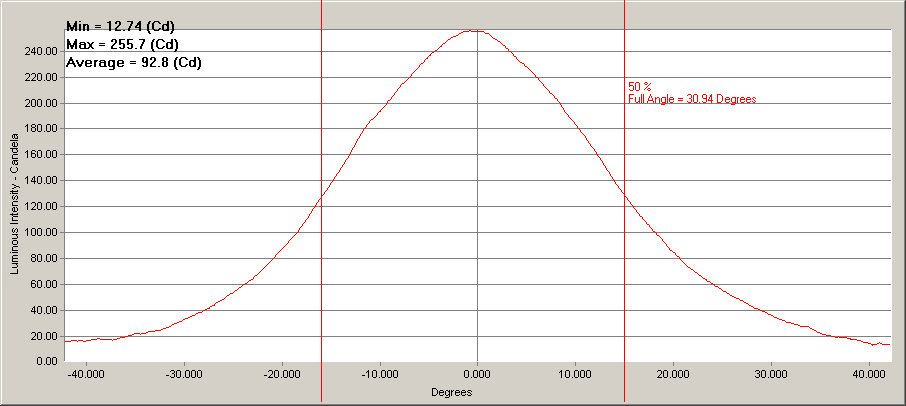

Stanley 6J White

FWHM:

30.7°

Cd/Im:

2.6

Download

ies

Stanley 6J White

Eff:

81.0%

FWHM:

36.1°

Cd/Im:

1.7

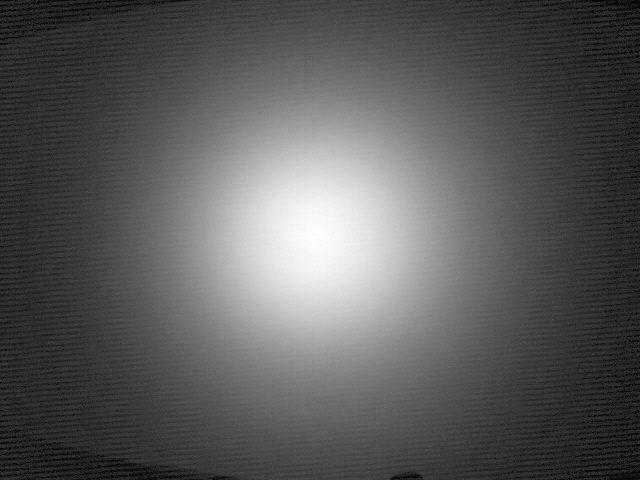

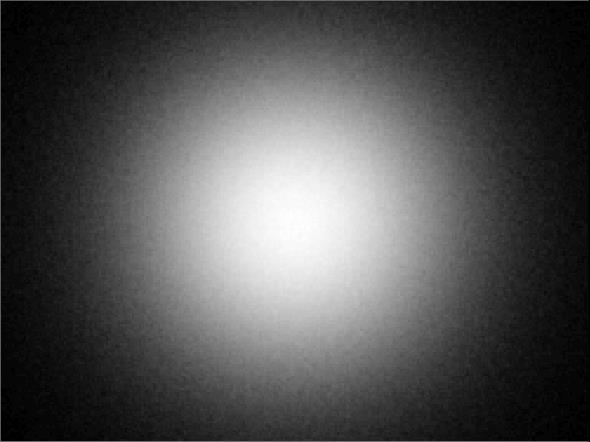

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

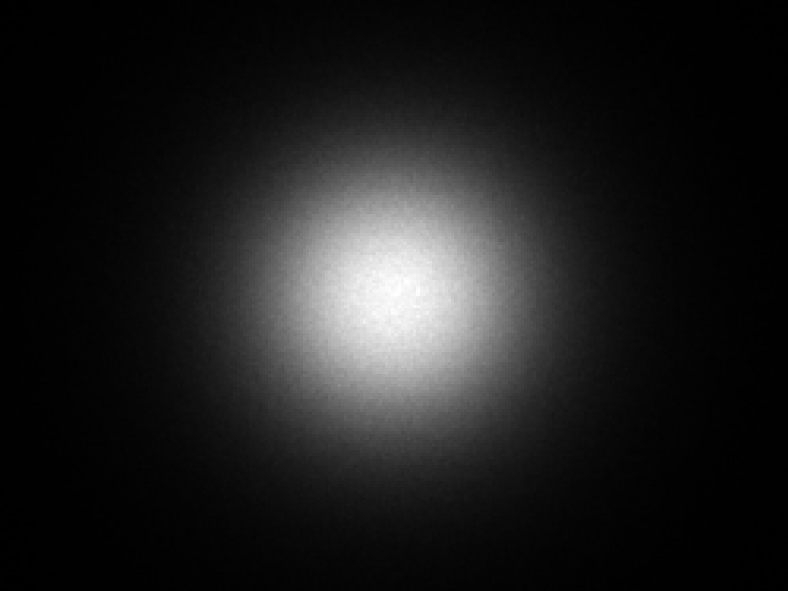

Stanley FWR1108MS IR 755nm

Eff:

91.5%

FWHM:

32°

Ipk/W:

2.5


Download

Toshiba TL 1L2 White

Eff:

82.0%

FWHM:

31.8°

Cd/Im:

2.2

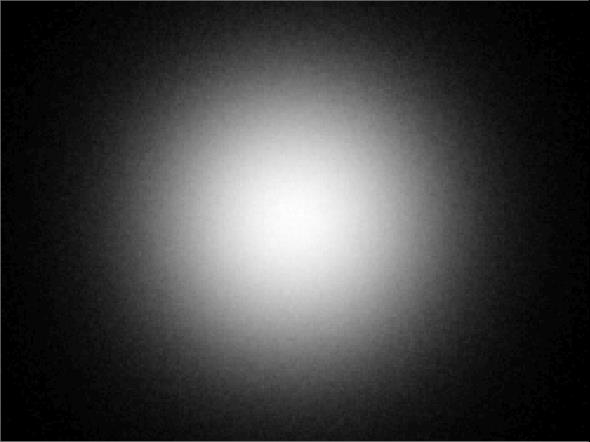

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

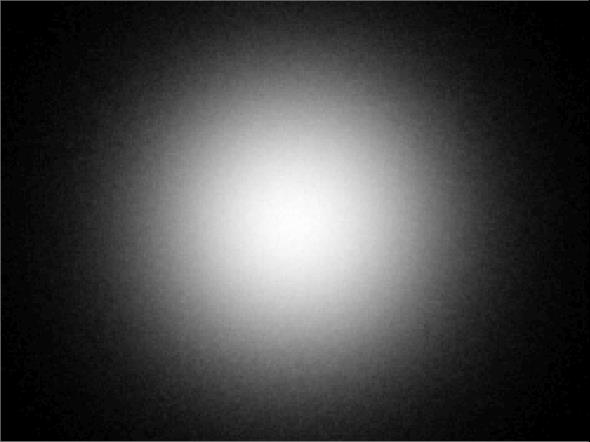

Toshiba TL 1L4 White

Eff:

82.0%

FWHM:

33.2°

Cd/Im:

2.0

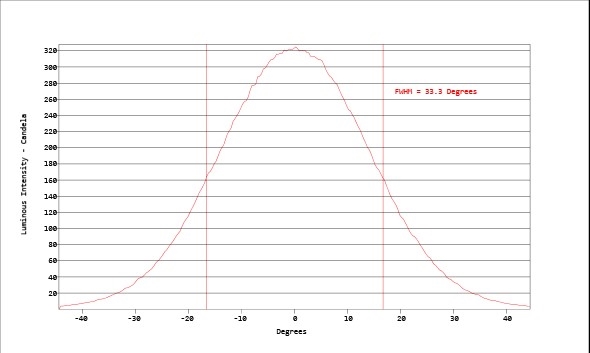

Carclo Optics - Simulated Cross Section

Download

IES
