20.0mm Wide Spot Uncoated Reflector | Carclo Optics

Carclo Optics 10255

20.0mm Wide Spot Uncoated Reflector

Part number

10255

Dimensions

20.0mm

Drawing Number

60426

Optic type

Reflector

Finish

Uncoated

Beam type

Wide Spot

Applications

Architectural

Landscape & Garden

Office

Retail

Special order only. Please contact us for further information.

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

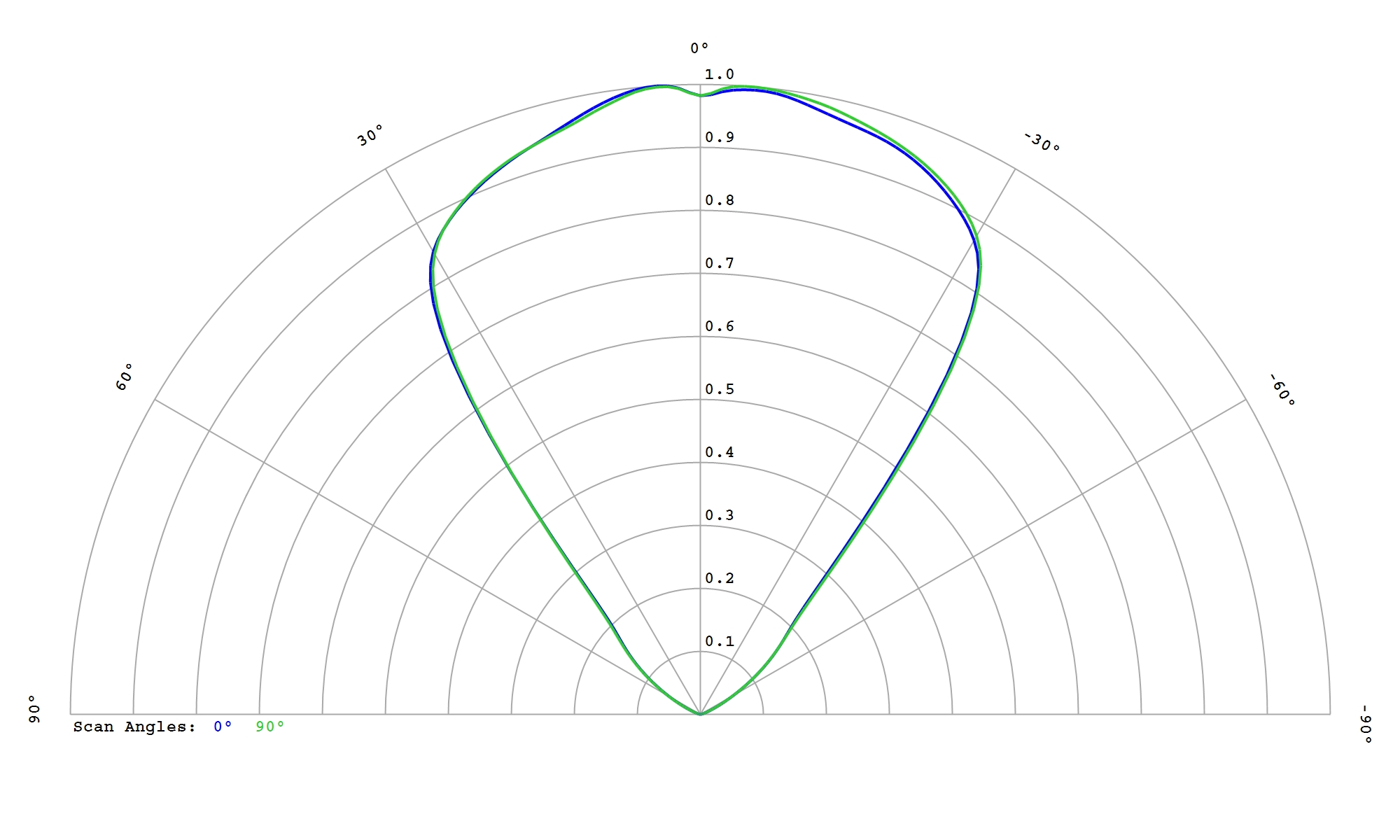

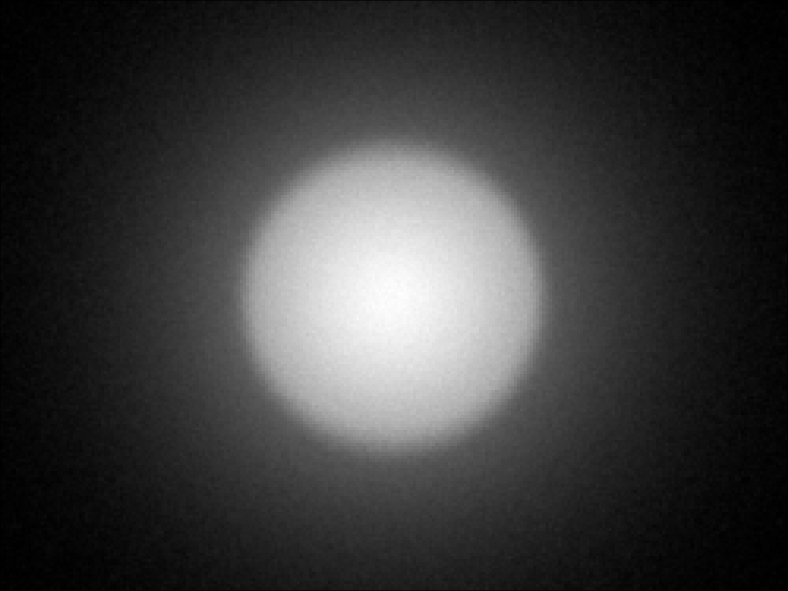

Bridgelux SMD 3030 Gen2 White

Eff:

80.5%

FWHM:

76°

Cd/Im:

0.7


Download

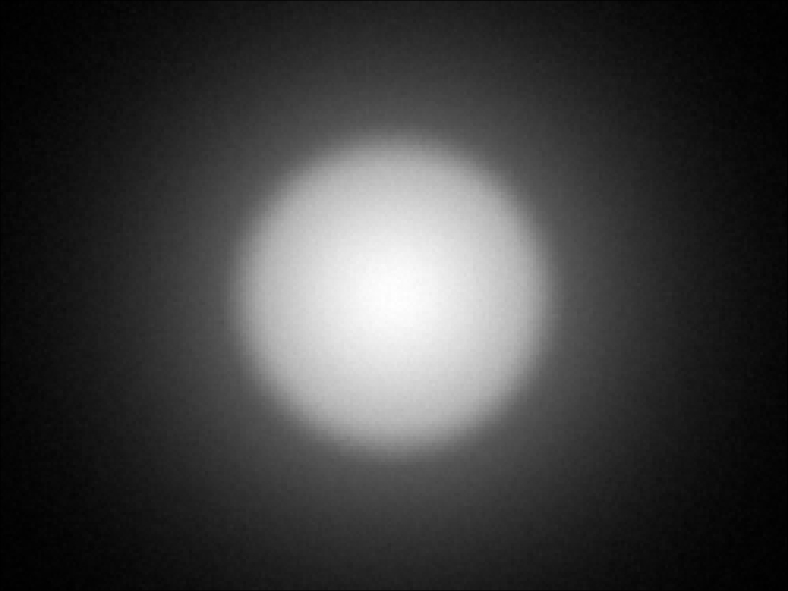

Cree JB3030C 3V E-Class White

Eff:

79.5%

FWHM:

77°

Cd/Im:

0.7


Download

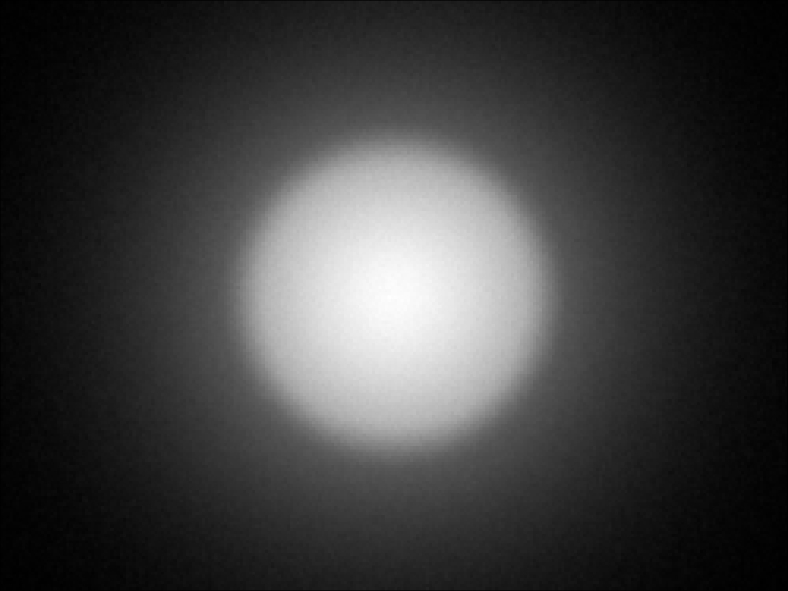

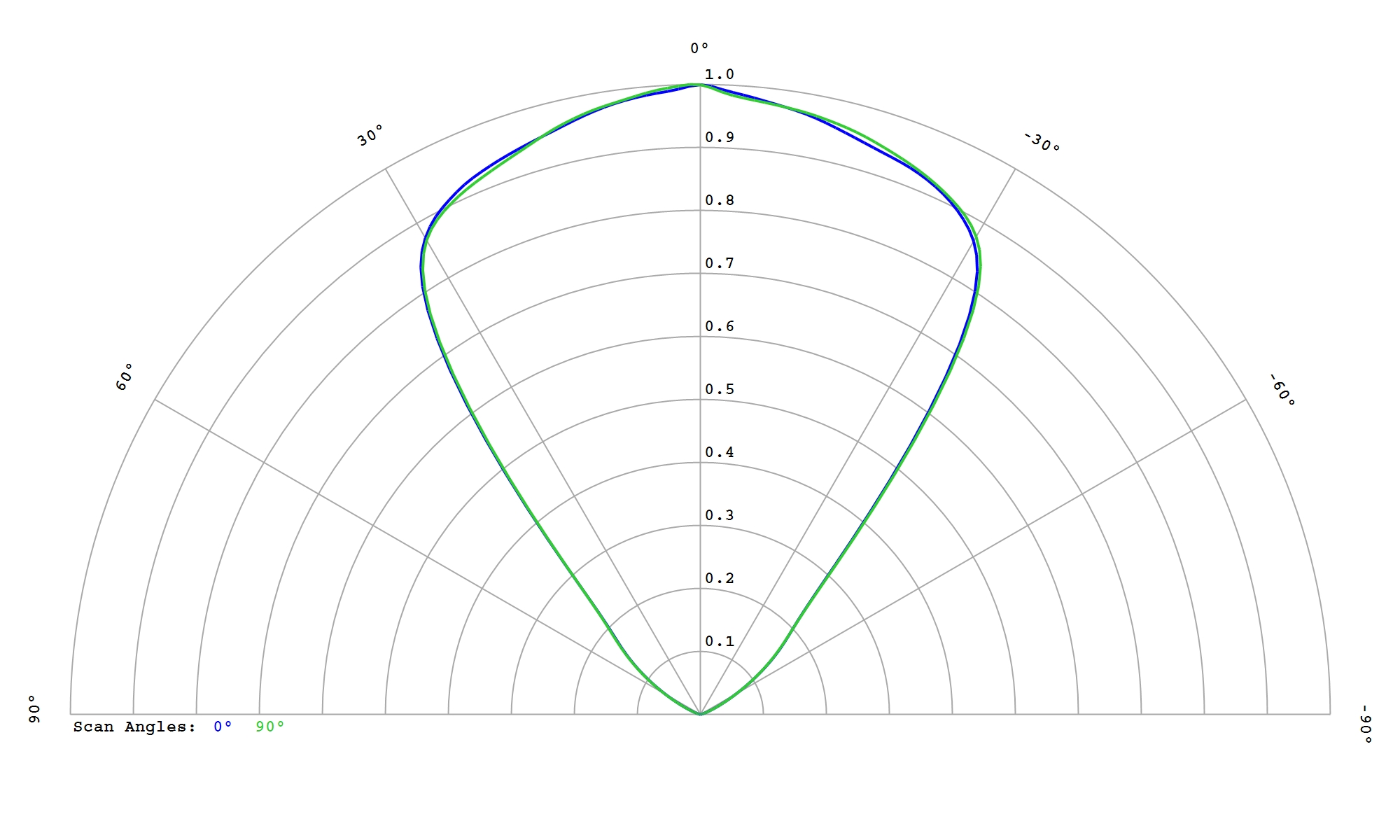

Cree JB3030C 3V F-Class White

Eff:

80.0%

FWHM:

77°

Cd/Im:

0.7


Download

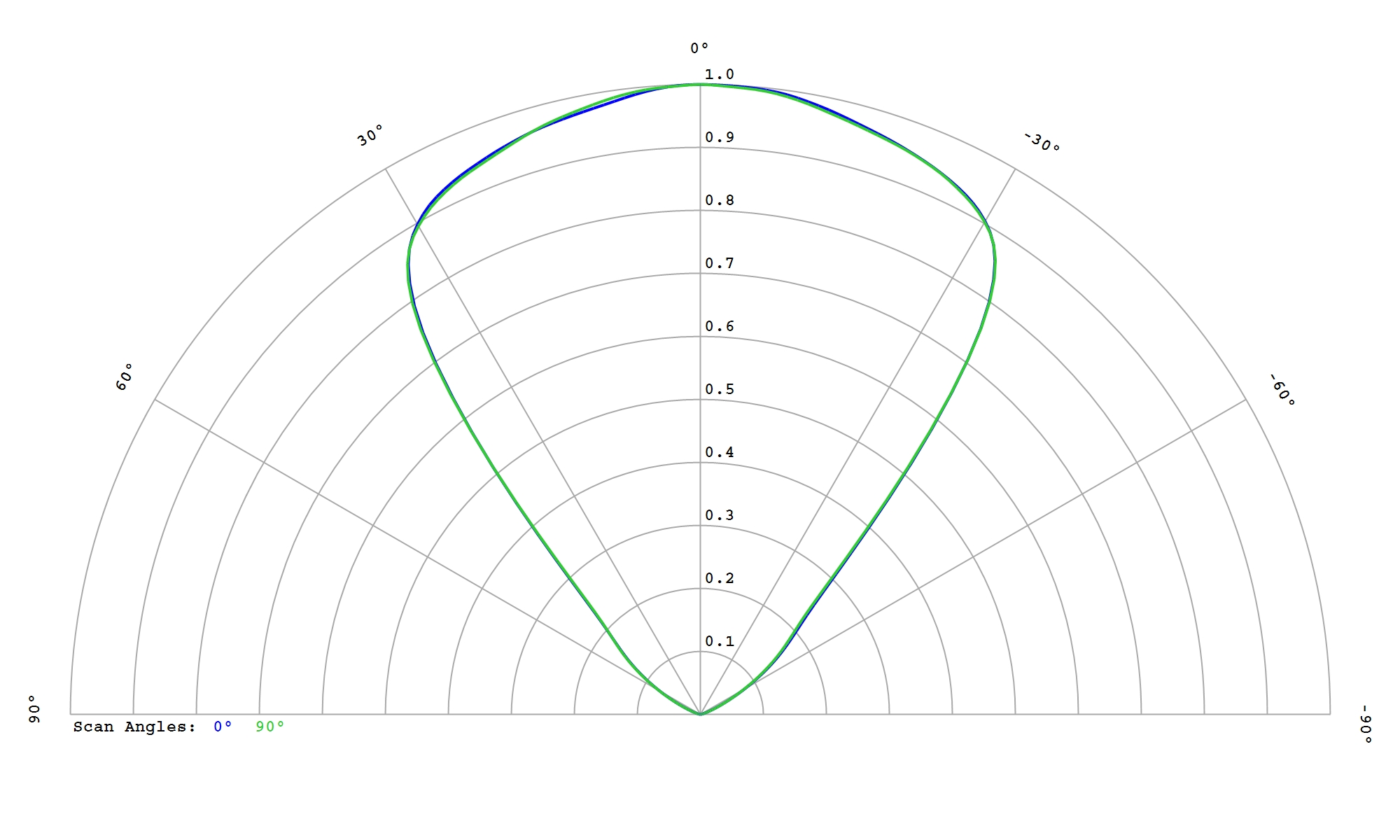

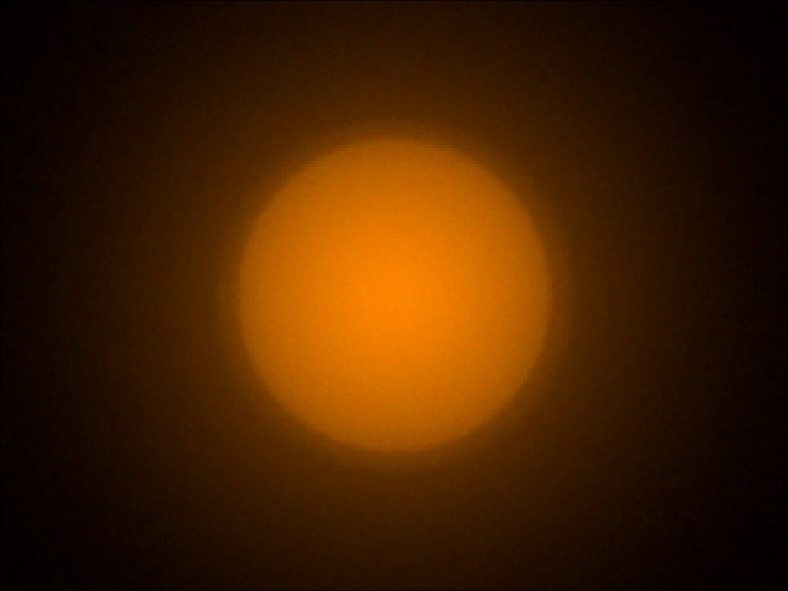

Cree JE2835 3V PC Amber

Eff:

80.0%

FWHM:

79°

Cd/Im:

0.6

Download

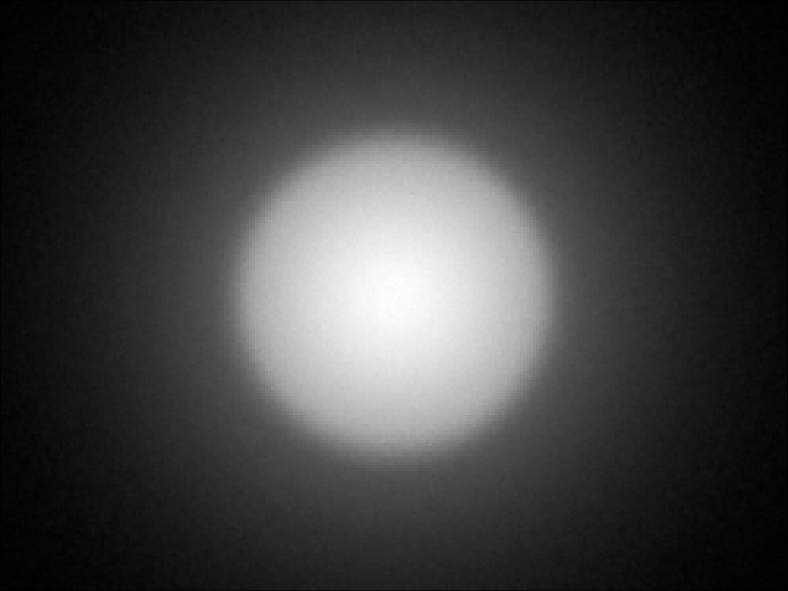

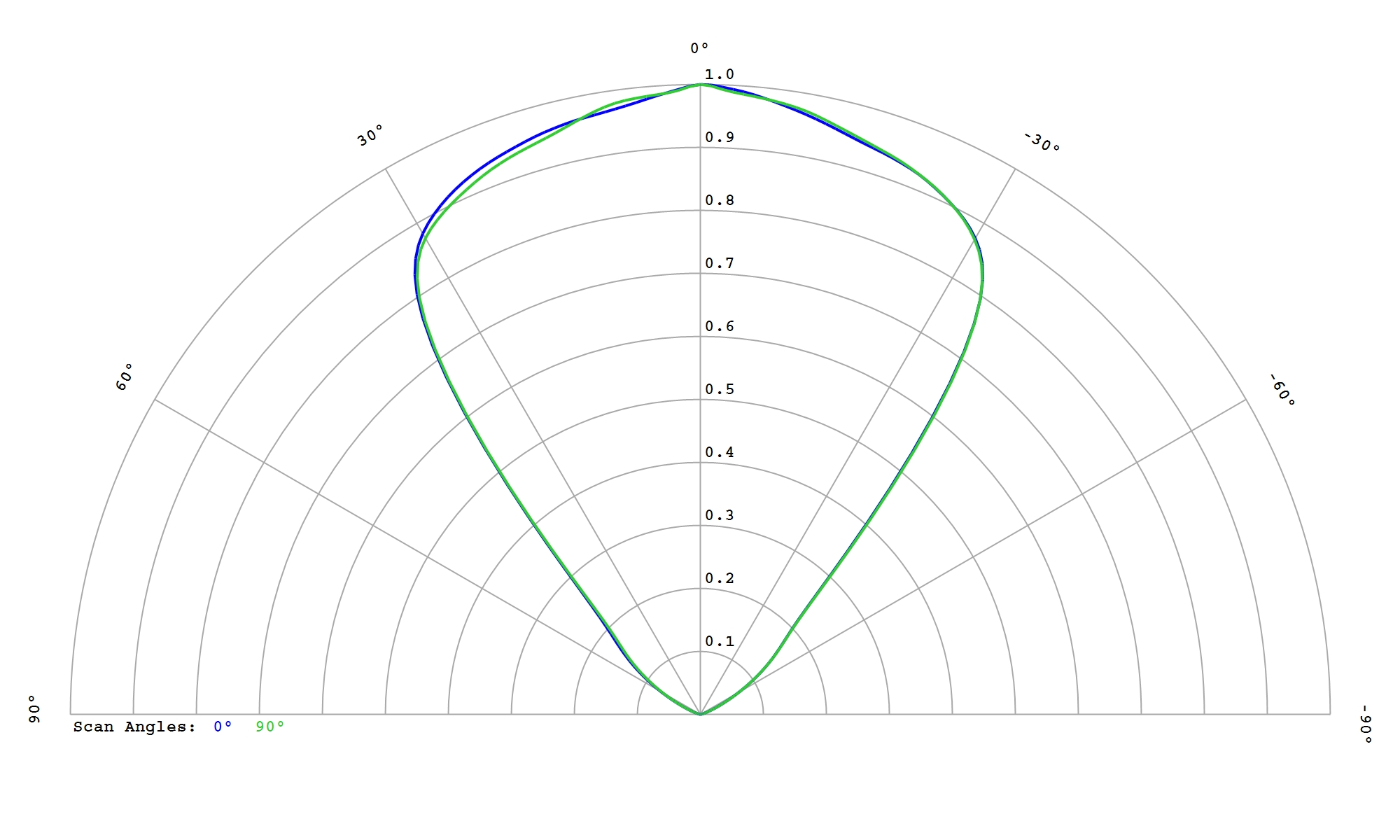

Cree JE2835 3V White

Eff:

81.0%

FWHM:

79°

Cd/Im:

0.6

Download

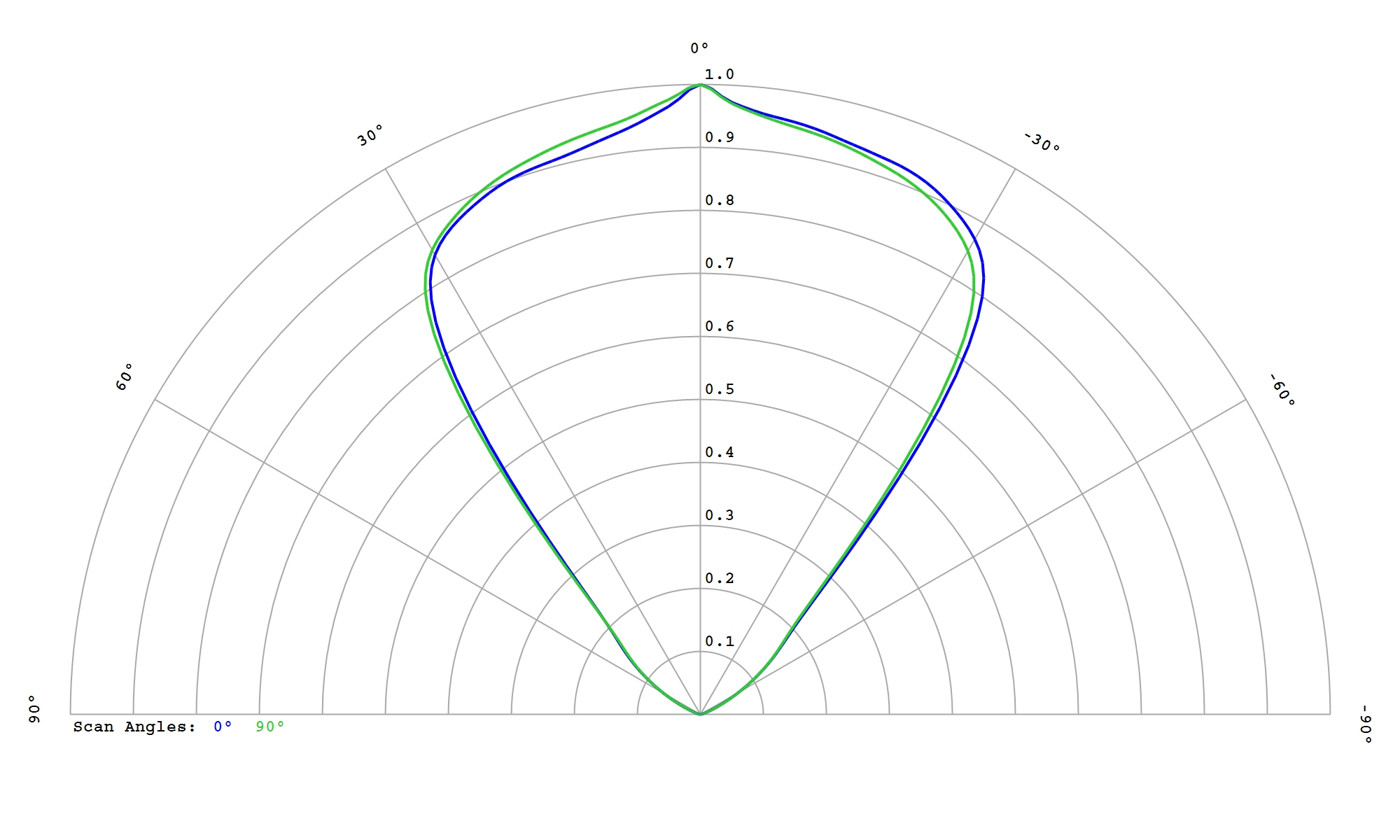

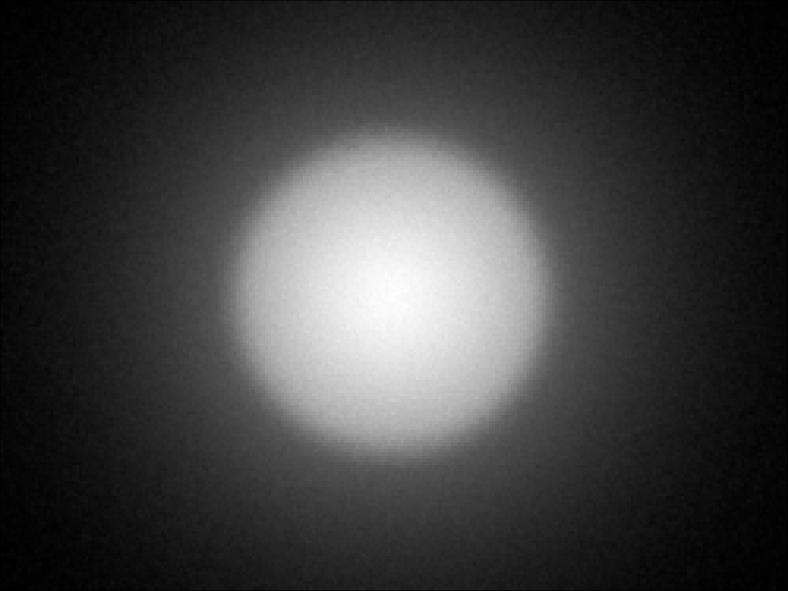

Cree JK2835 6V White

Eff:

80.5%

FWHM:

78°

Cd/Im:

0.8

Download

Cree XLamp XP-E White

Eff:

79.8%

FWHM:

83°

Cd/Im:

0.6

Download

ies

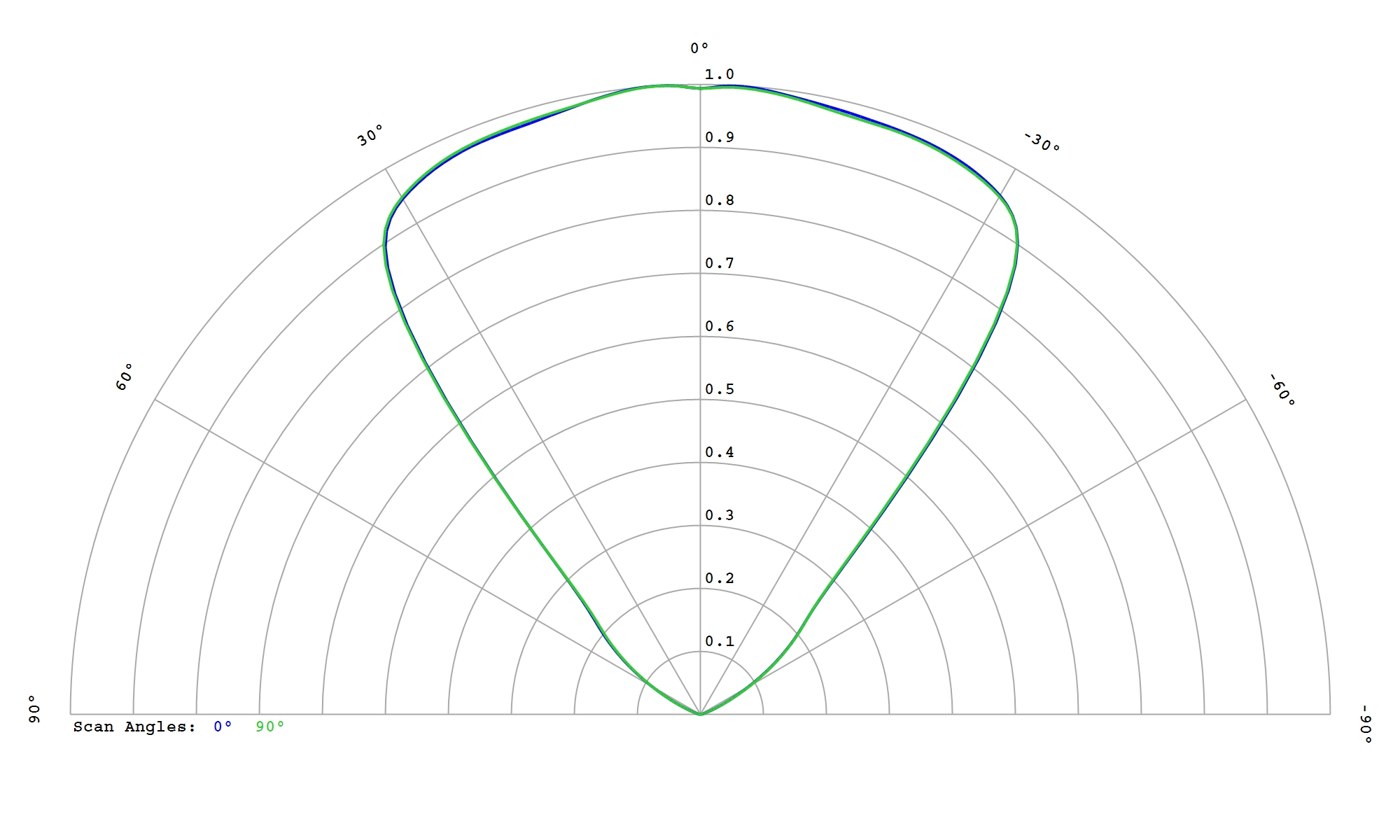

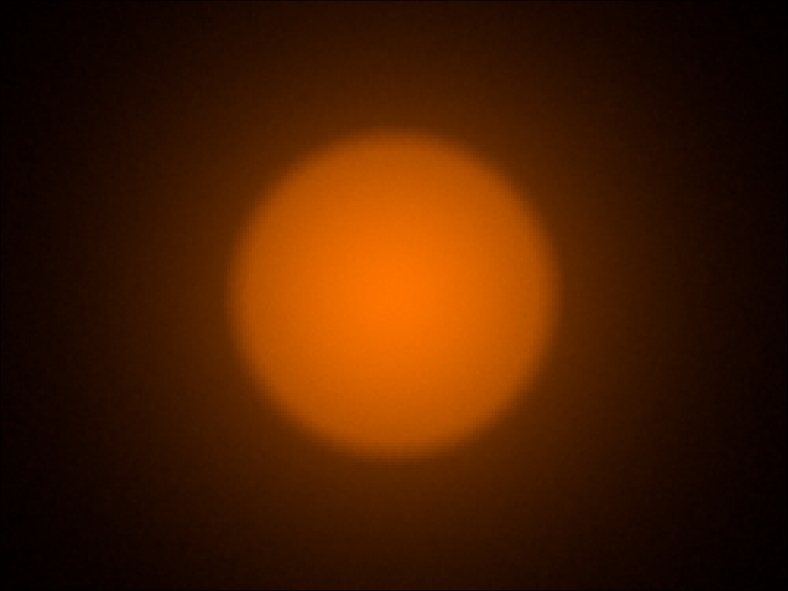

Cree XLamp XP-E2 Amber

Eff:

76.5%

FWHM:

81°

Cd/Im:

0.5

Download

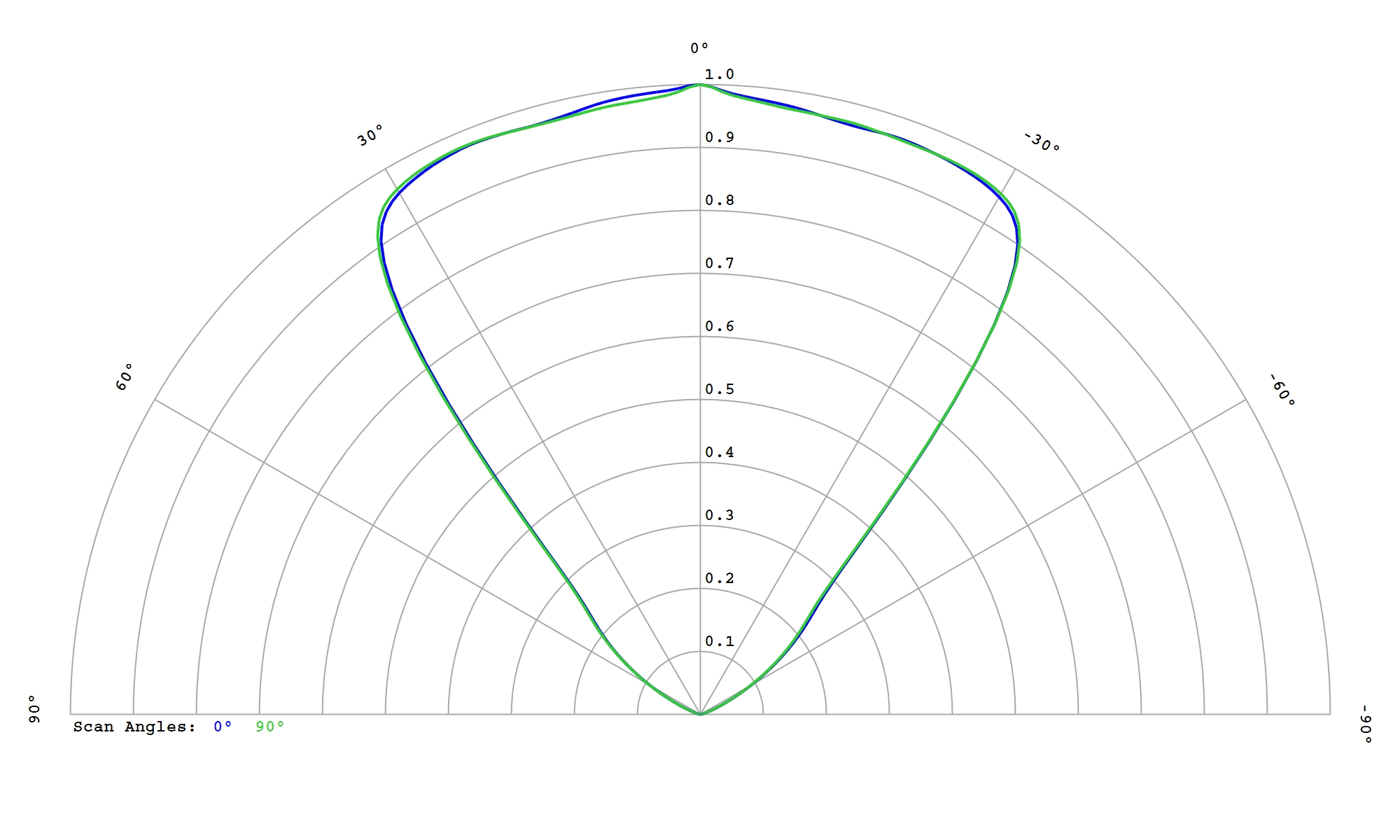

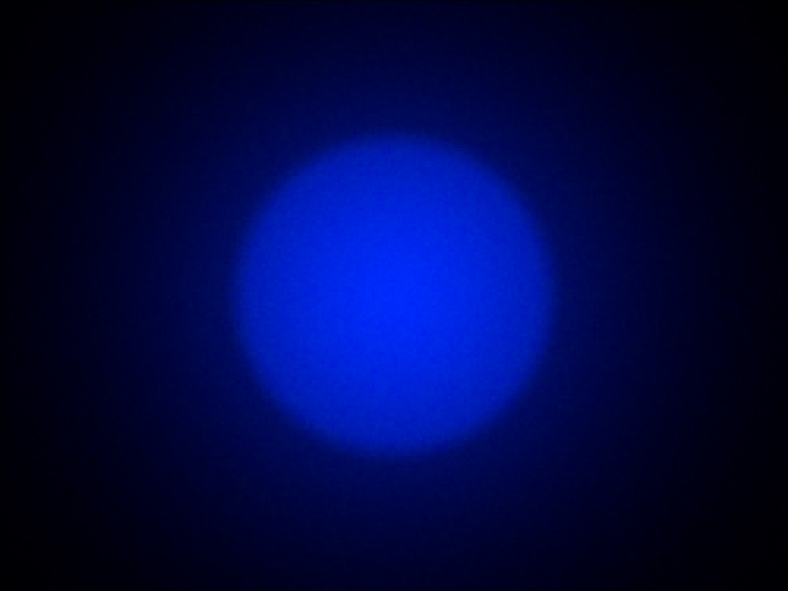

Cree XLamp XP-E2 Blue

Eff:

79.0%

FWHM:

80°

Cd/Im:

0.6

Download

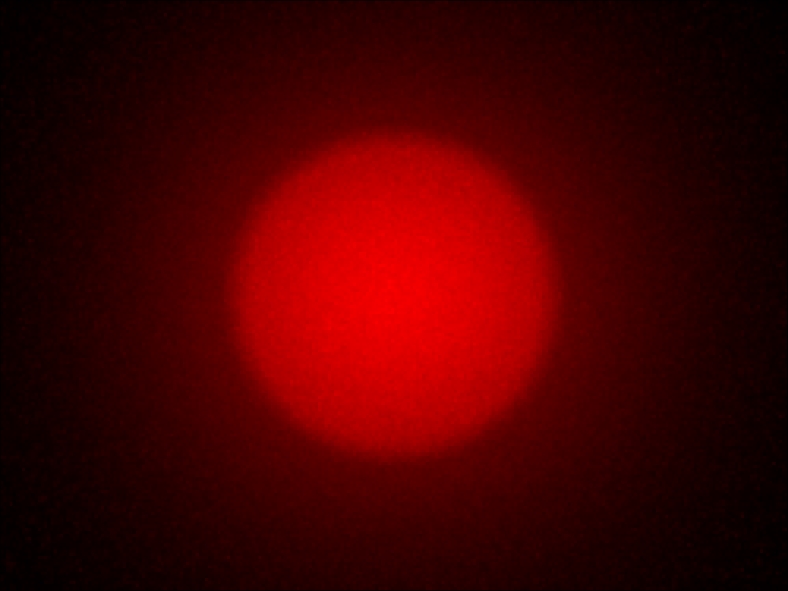

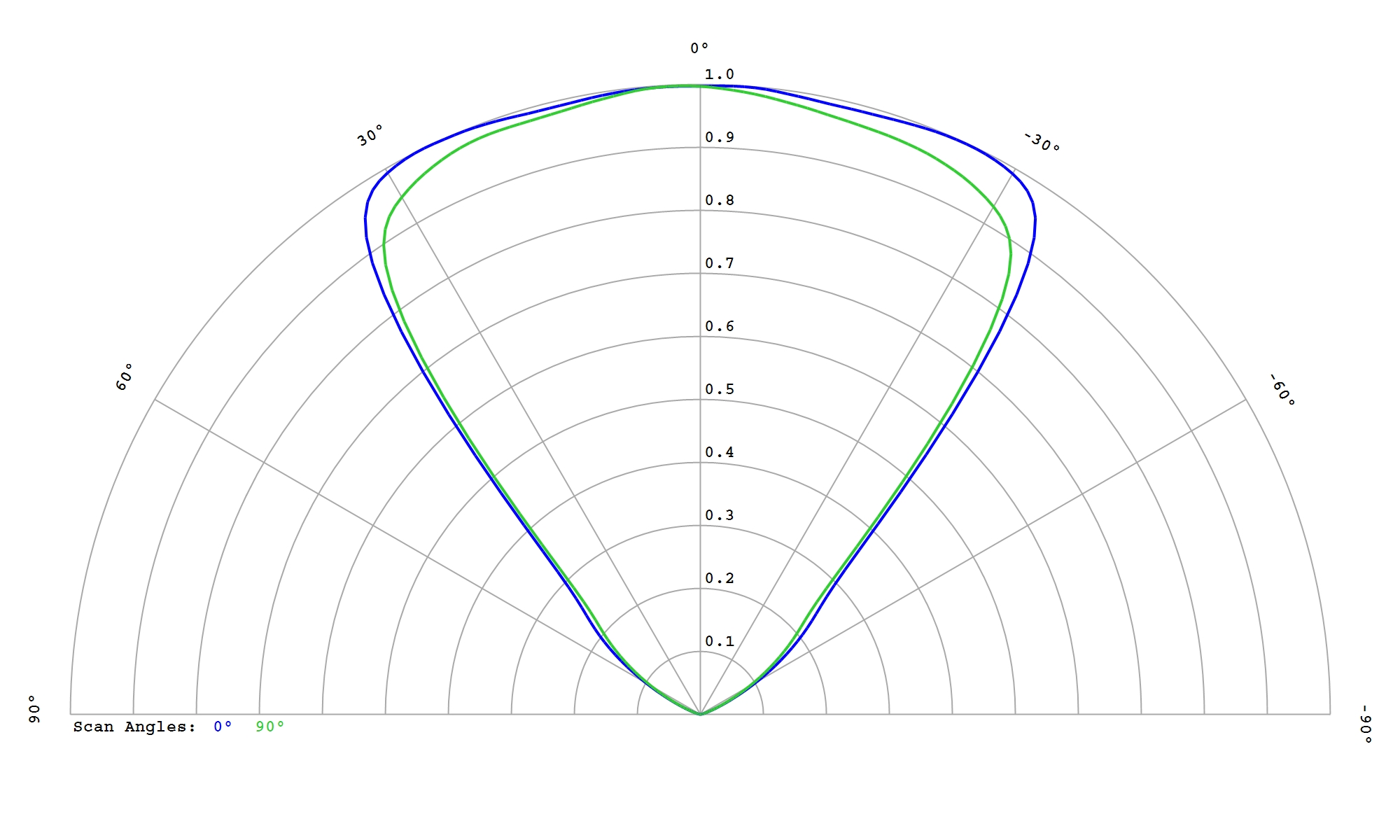

Cree XLamp XP-E2 Far Red

Eff:

75.5%

FWHM:

81°

Ipk/W:

0.5

Download

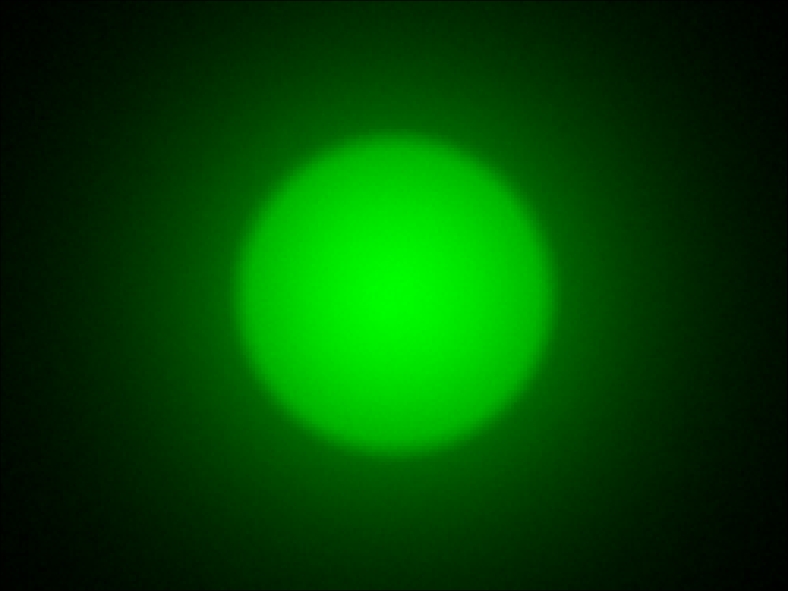

Cree XLamp XP-E2 Green

Eff:

79.0%

FWHM:

80°

Cd/Im:

0.5

Download

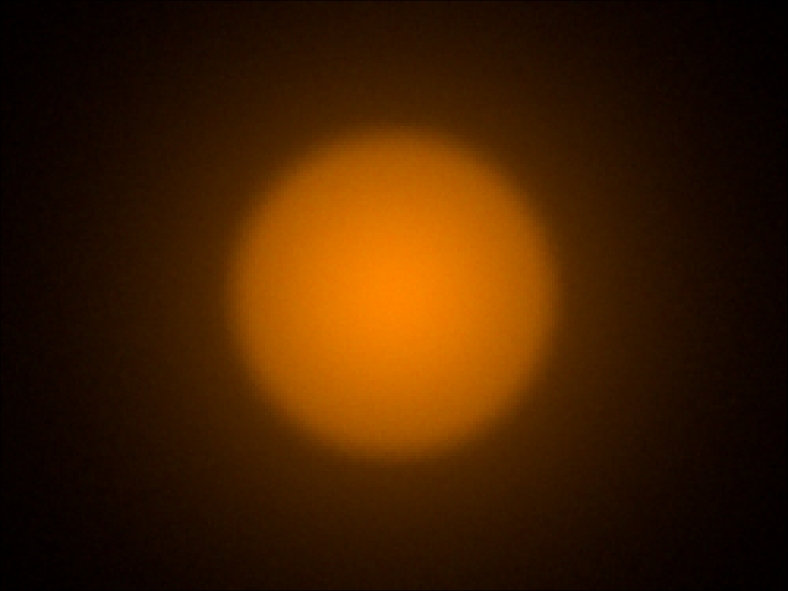

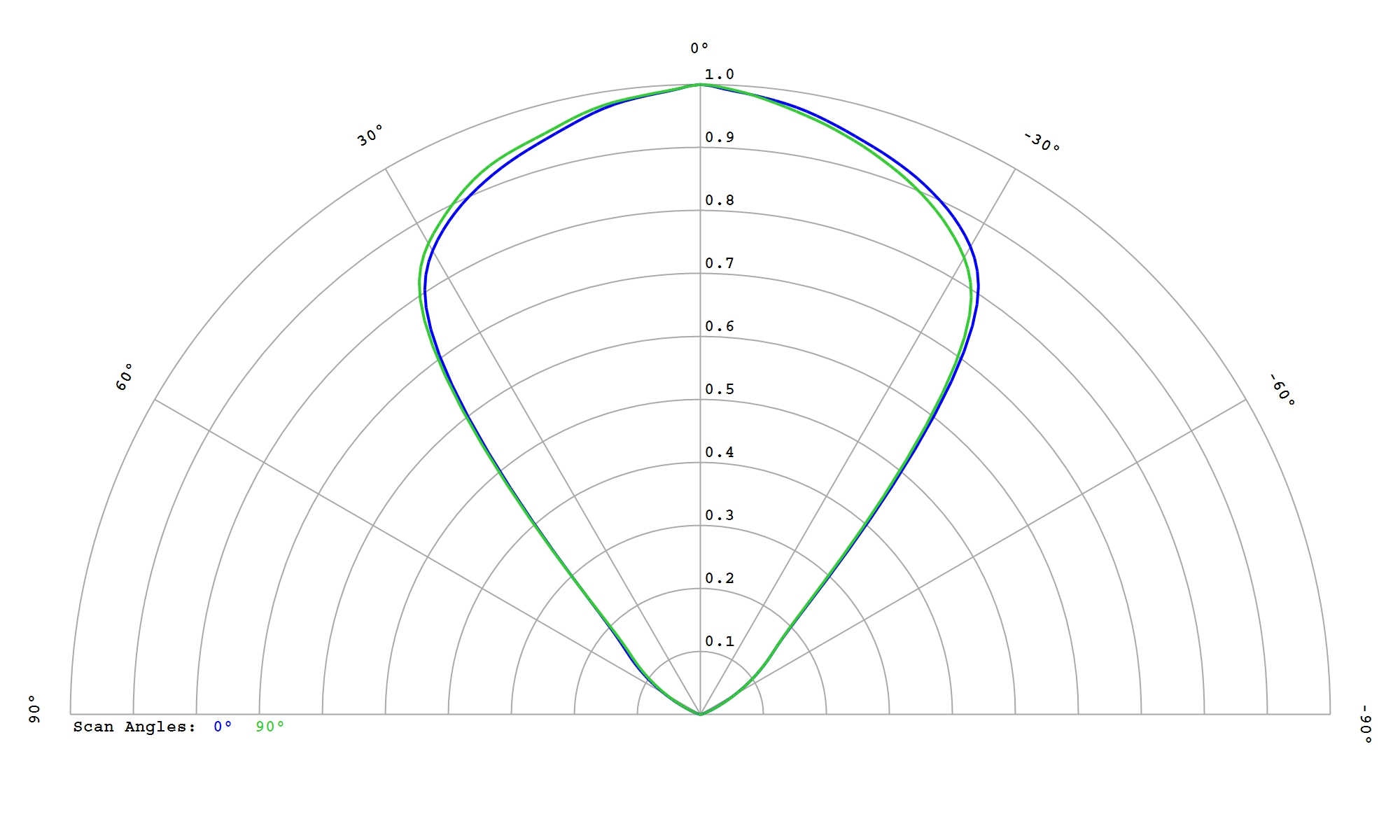

Cree XLamp XP-E2 PC Amber

Eff:

78.5%

FWHM:

79°

Cd/Im:

0.6


Download

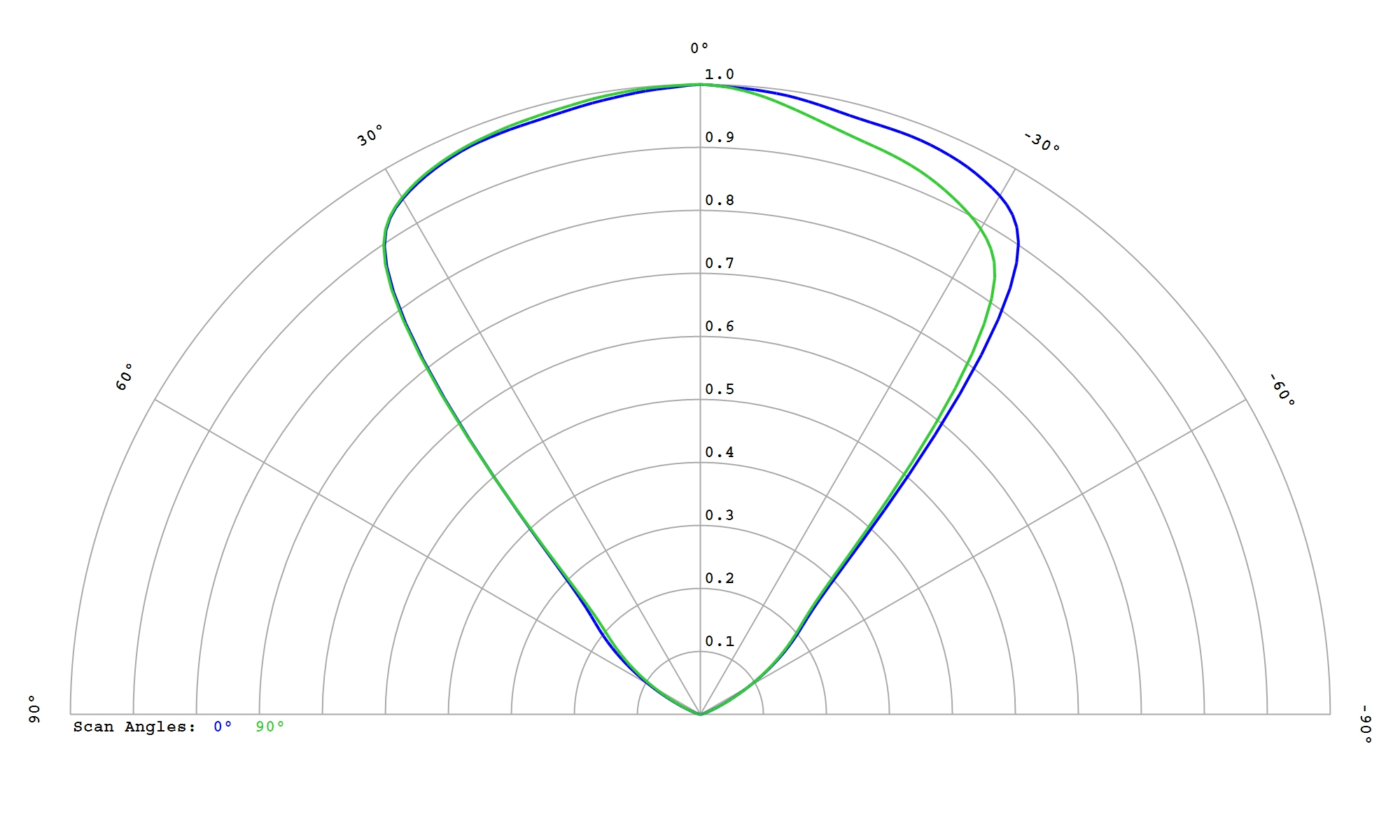

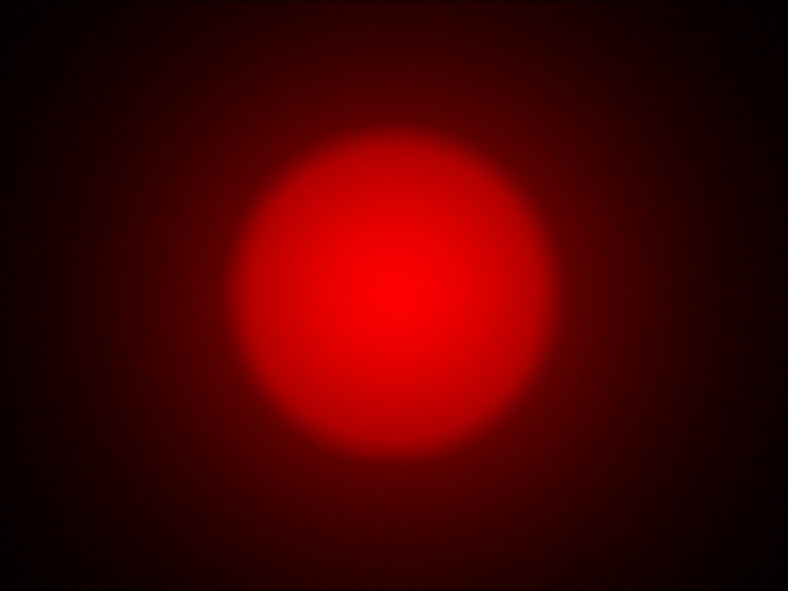

Cree XLamp XP-E2 Photo Red

Eff:

76.5%

FWHM:

81°

Ipk/W:

0.5


Download

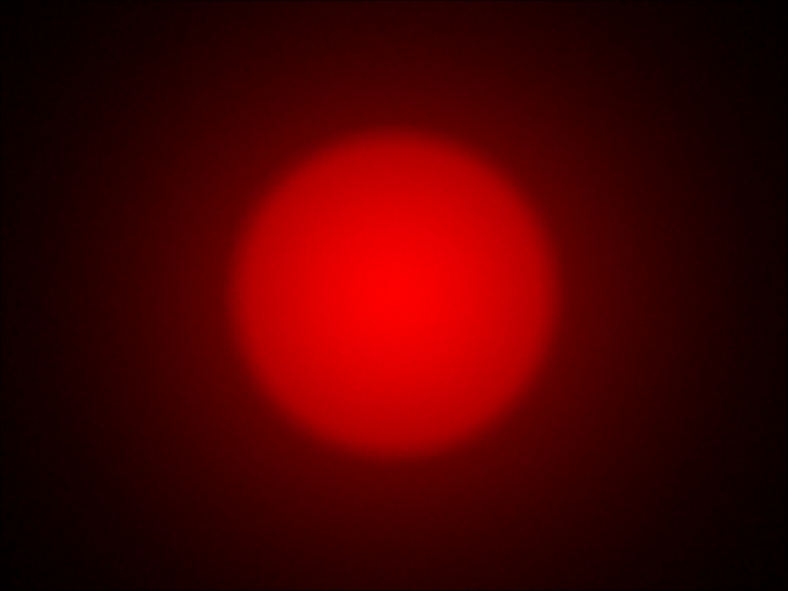

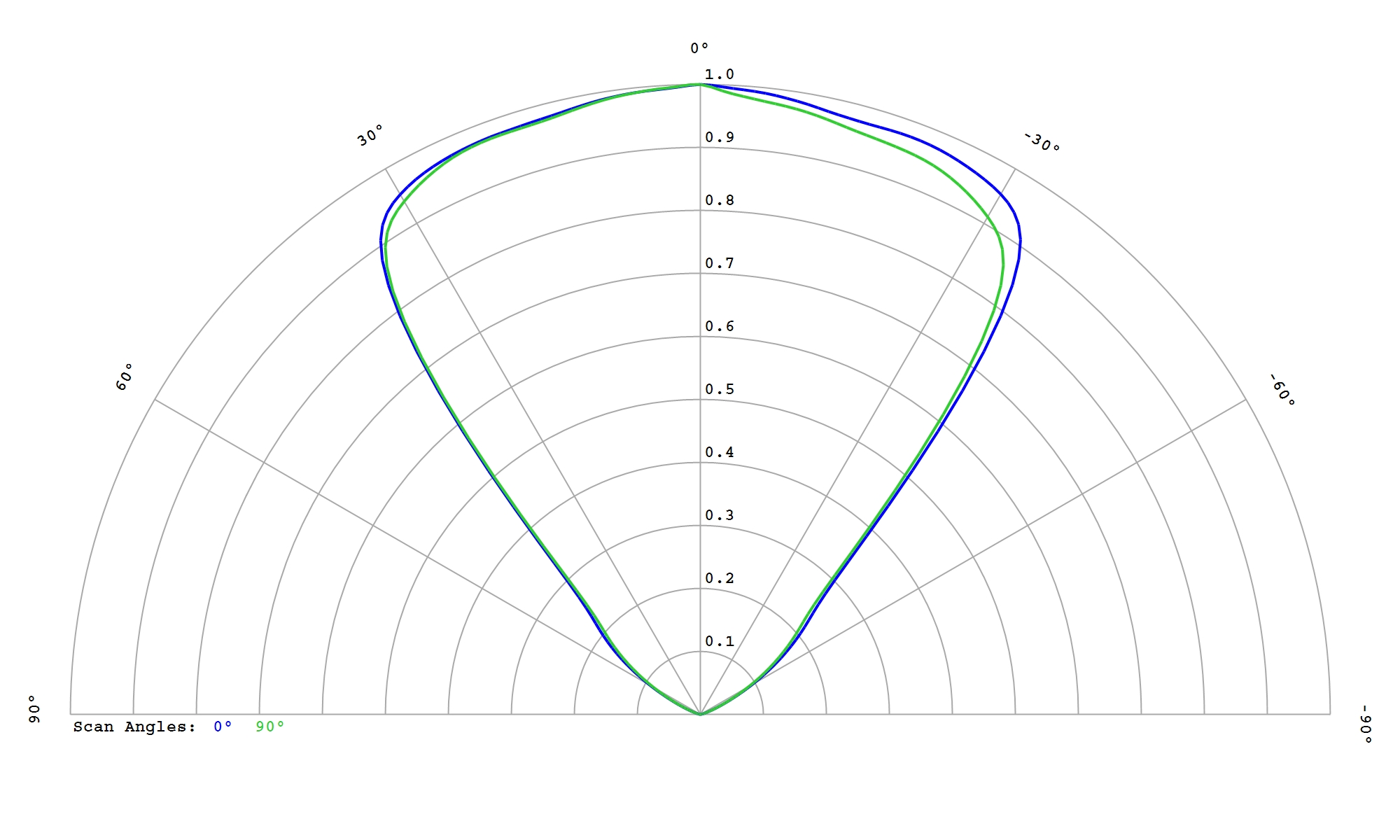

Cree XLamp XP-E2 Red

Eff:

76.0%

FWHM:

81°

Cd/Im:

0.6

Download

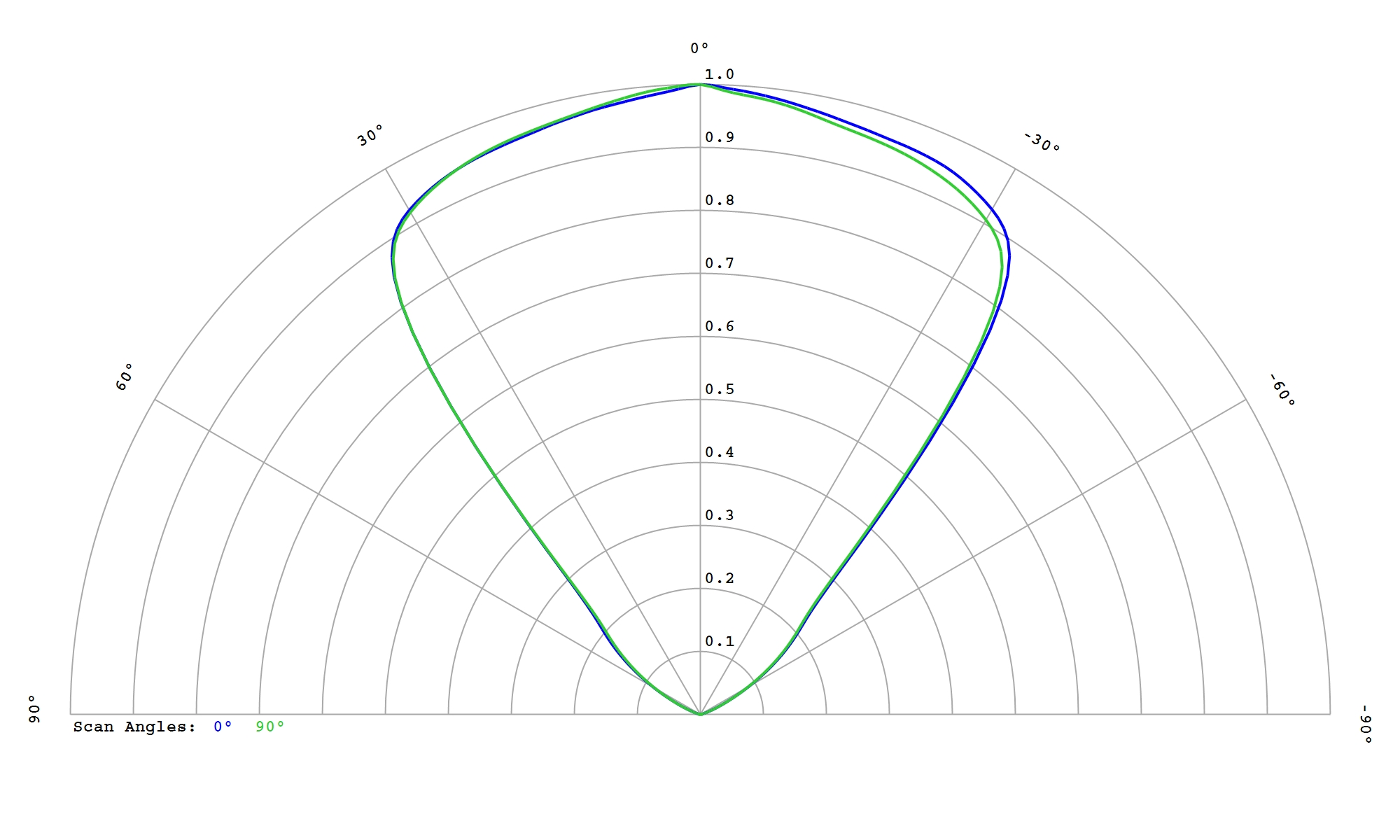

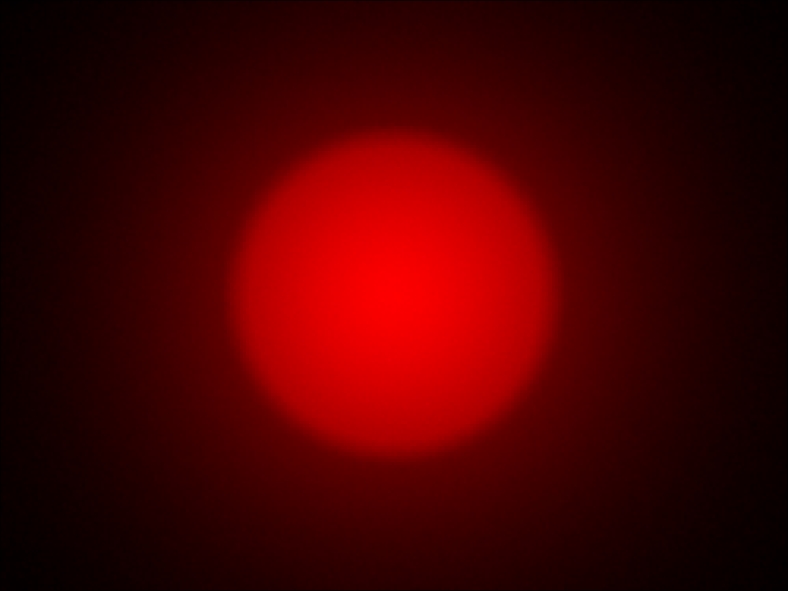

Cree XLamp XP-E2 Red-Orange

Eff:

76.0%

FWHM:

81°

Cd/Im:

0.6


Download

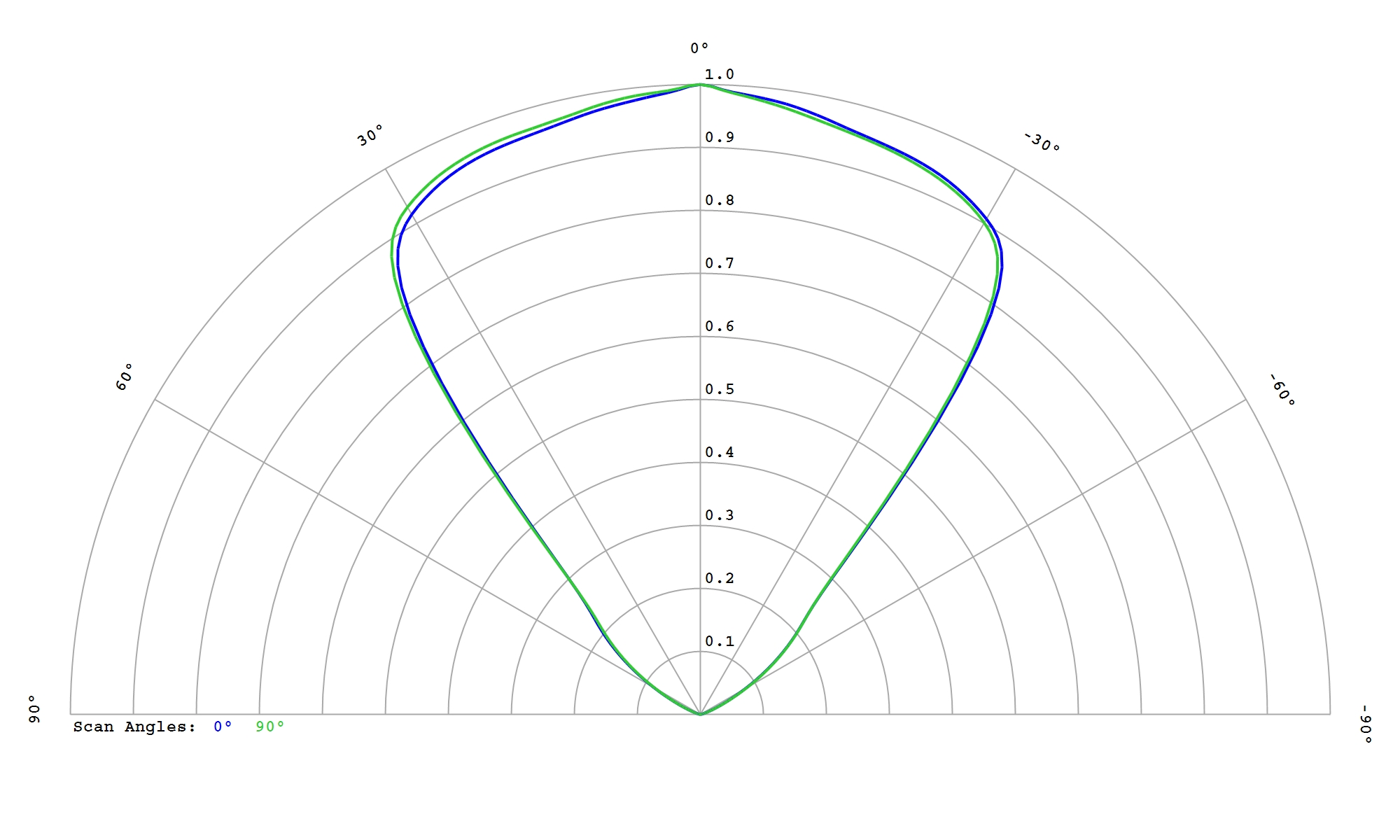

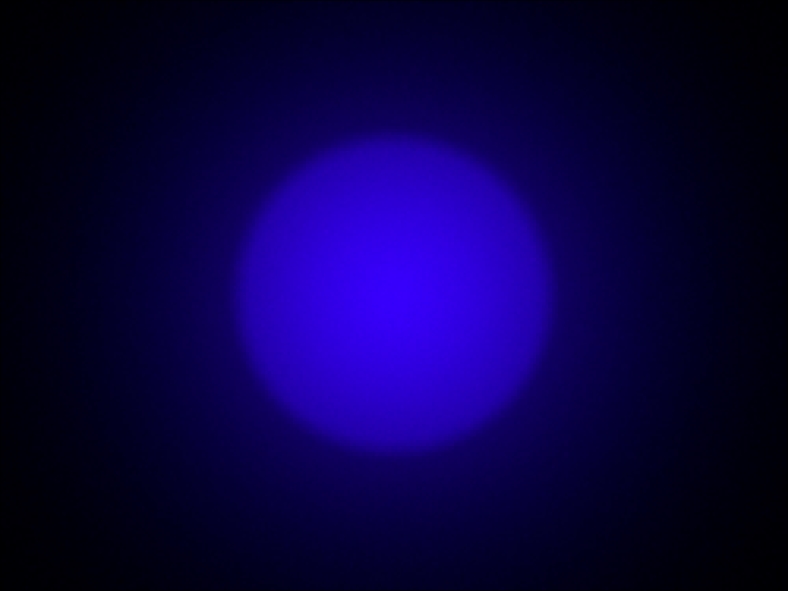

Cree XLamp XP-E2 Royal Blue

Eff:

76.0%

FWHM:

80°

Ipk/W:

0.6


Download

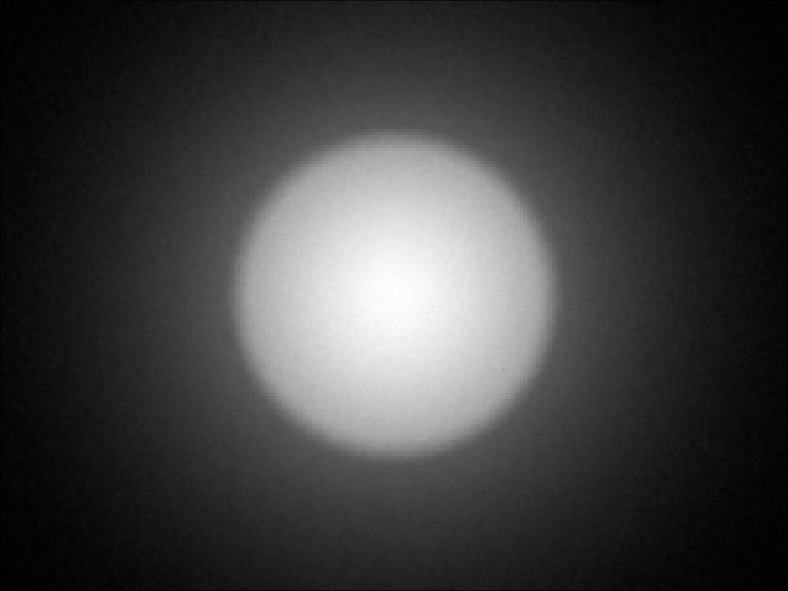

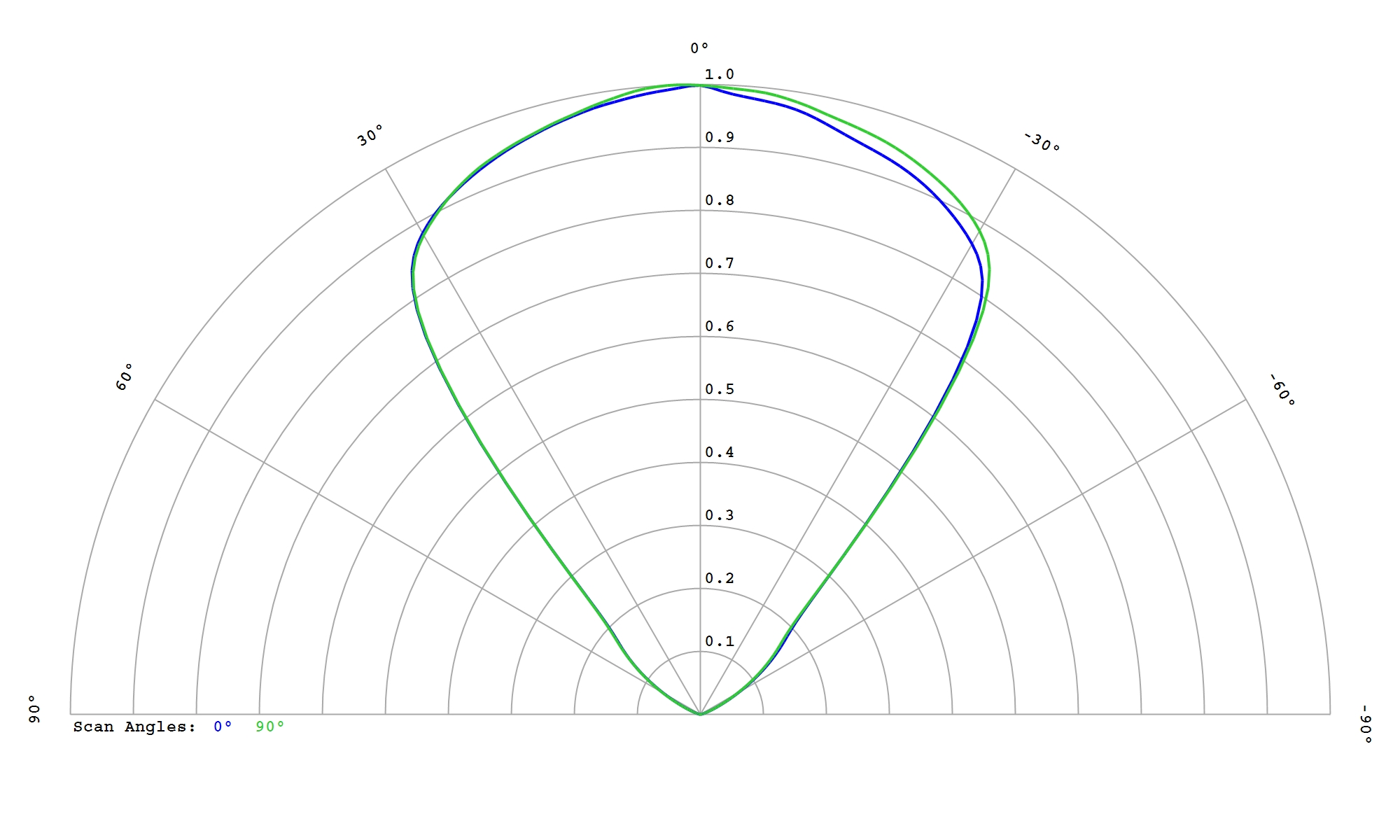

Cree XLamp XP-E2 White

Eff:

80.5%

FWHM:

79°

Cd/Im:

0.7

Download

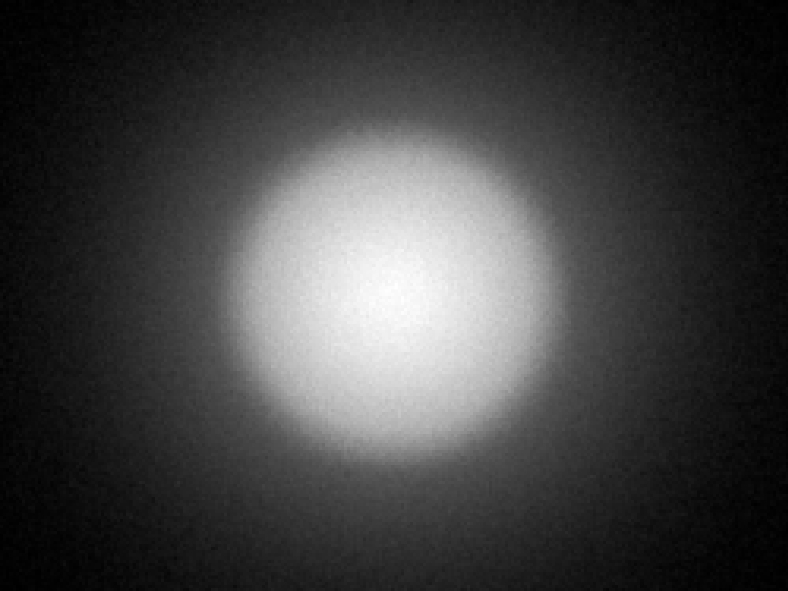

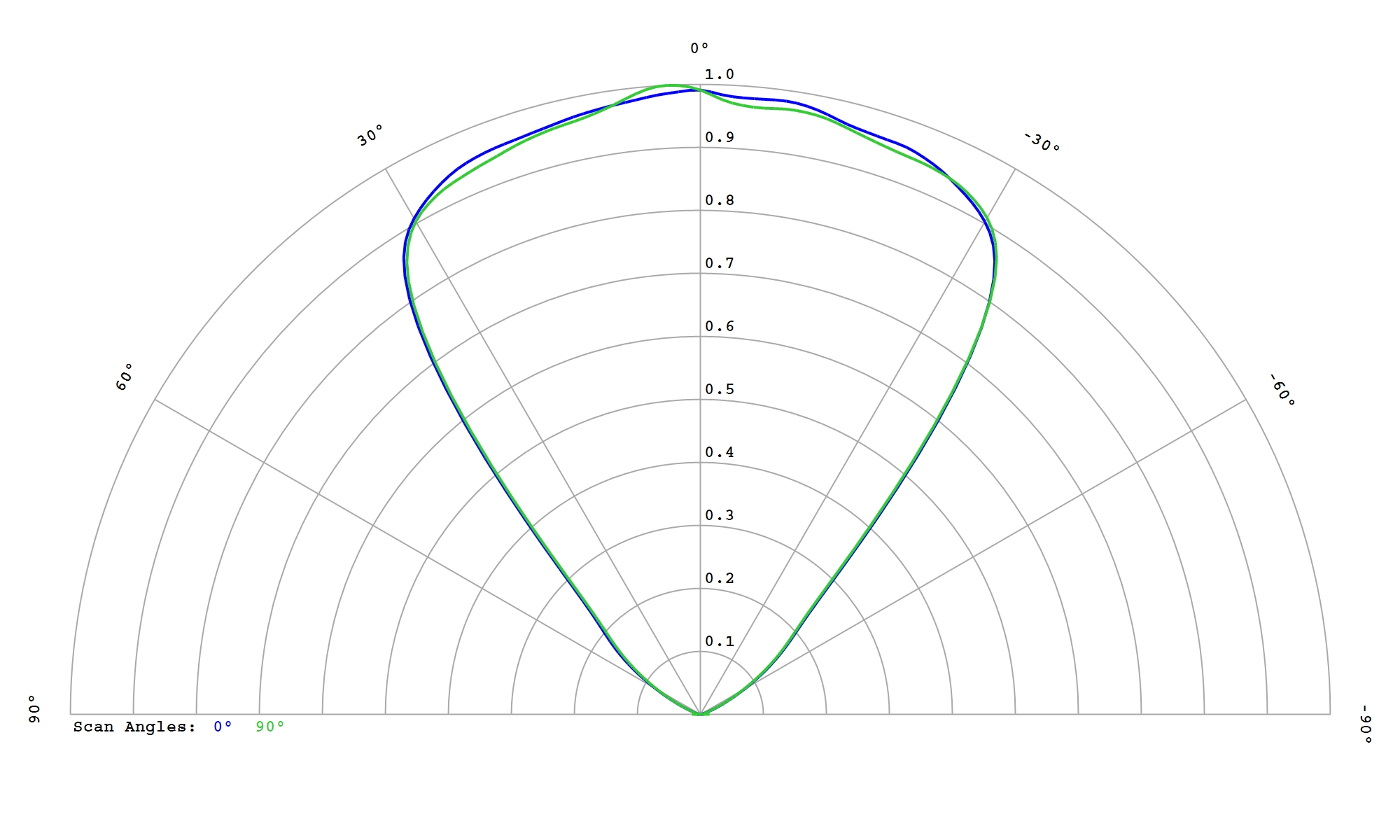

Cree XLamp XP-G3 White

Eff:

73.5%

FWHM:

80°

Cd/Im:

0.8

Download

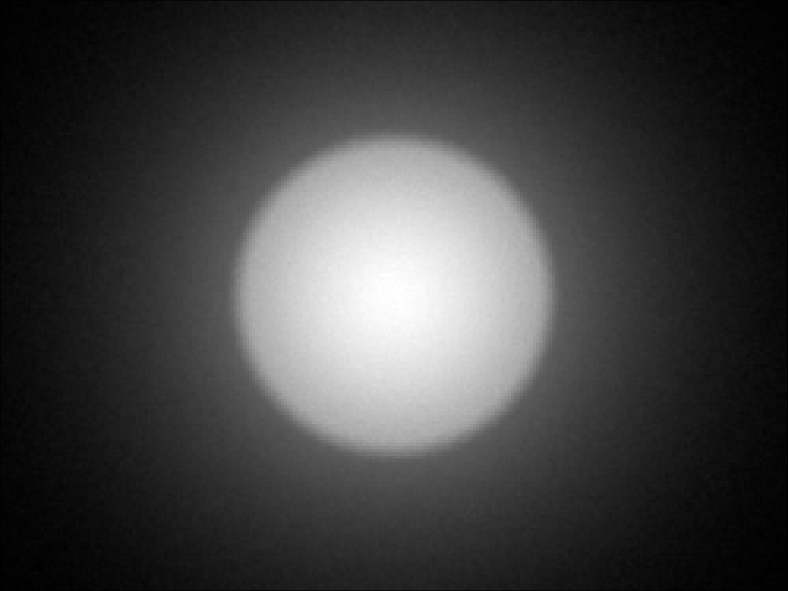

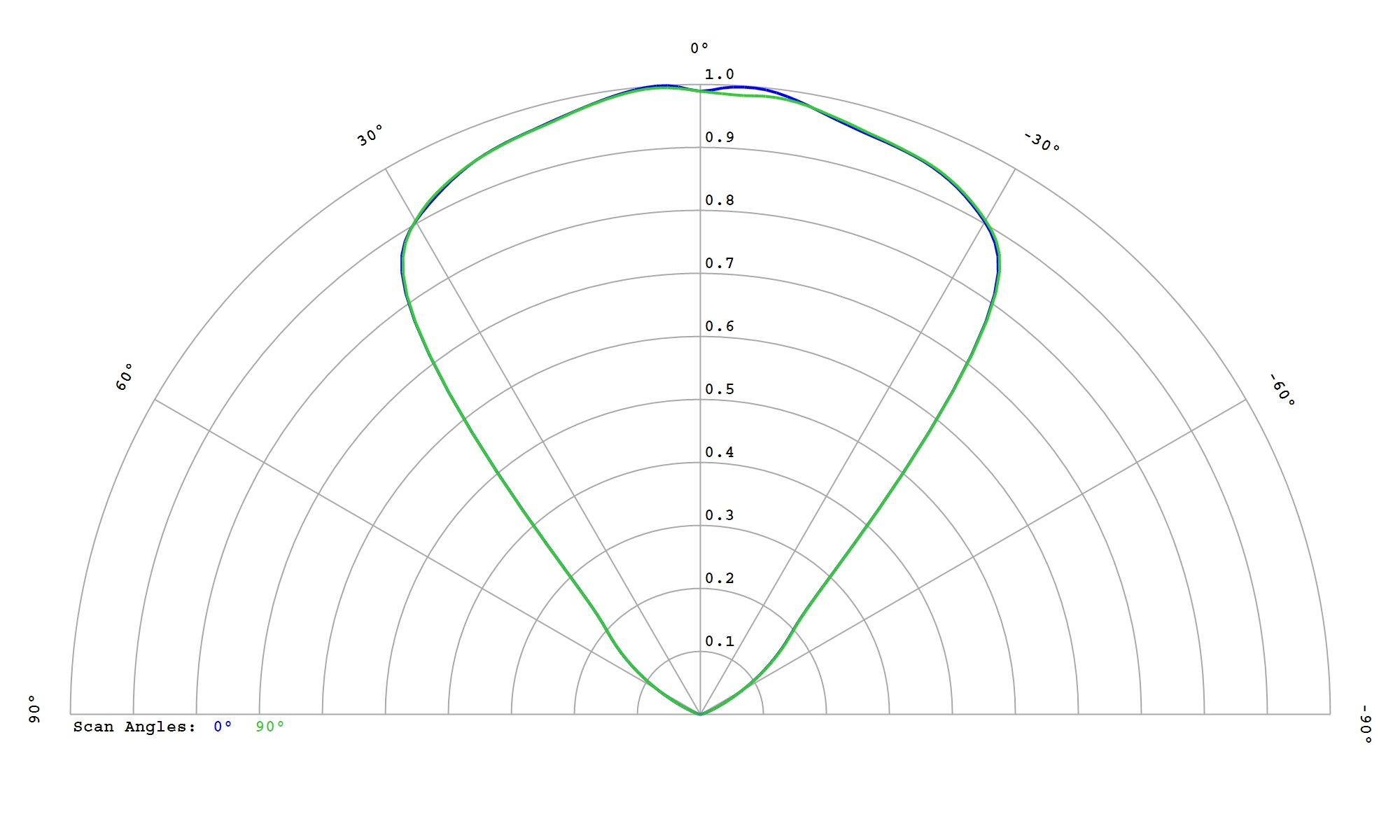

Cree XLamp XP-GR White

Eff:

79.5%

FWHM:

79°

Cd/Im:

0.7

Download

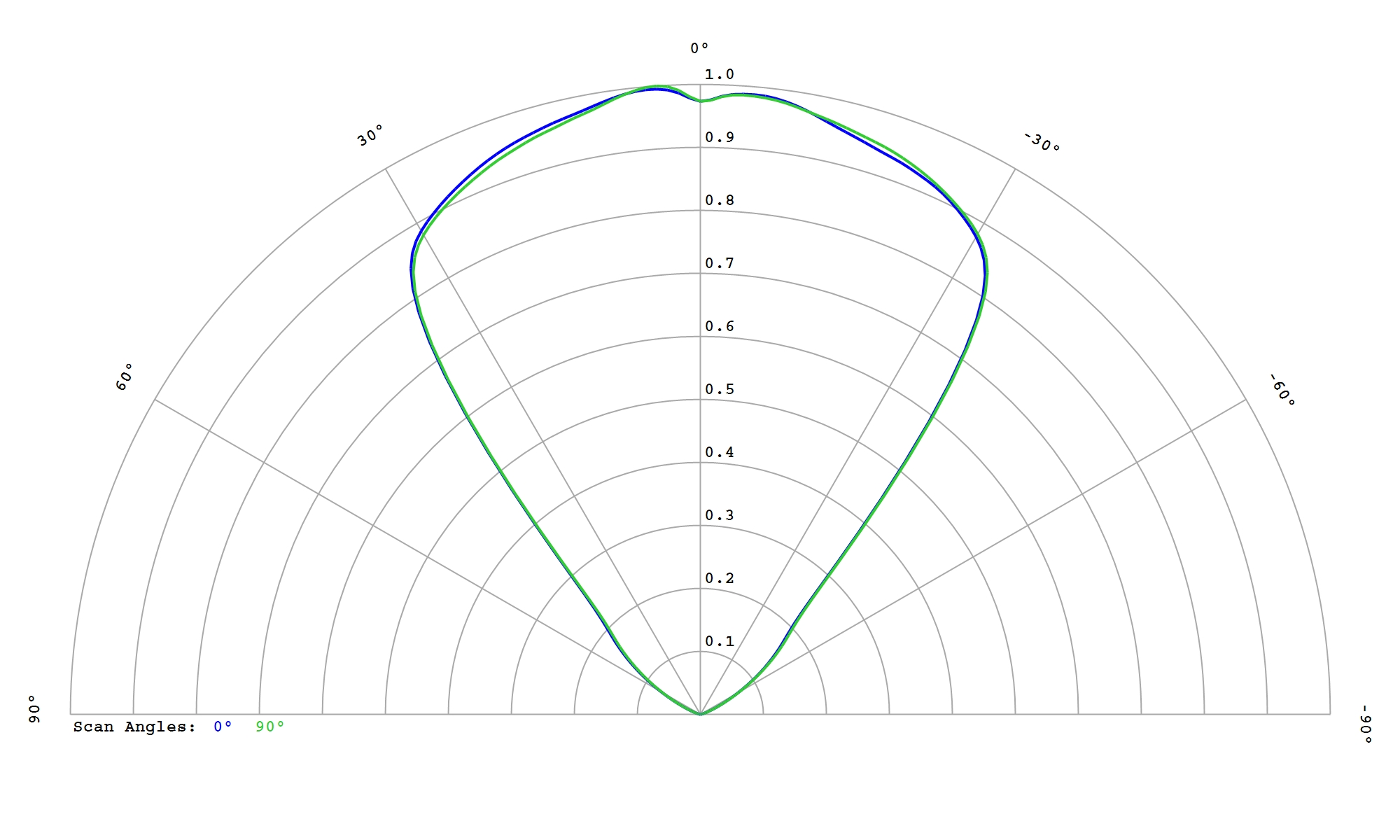

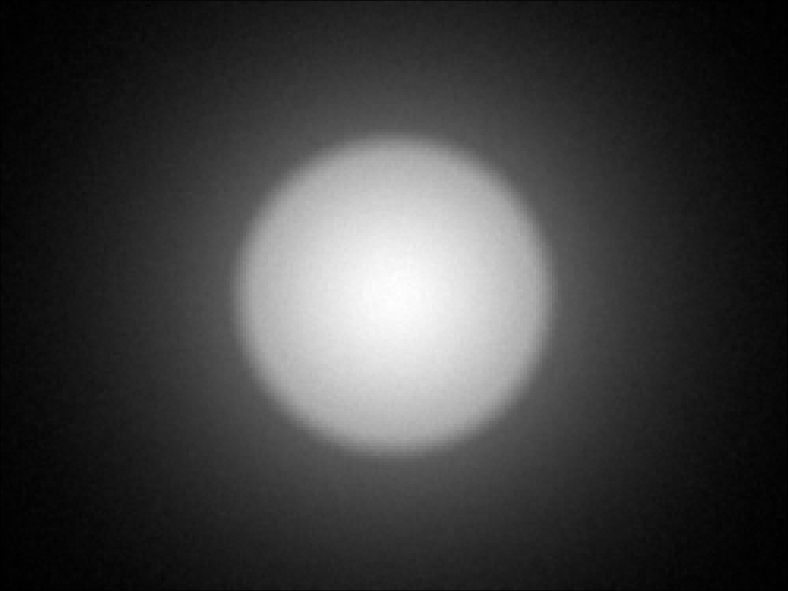

Cree XLamp XP-LR White

Eff:

80.5%

FWHM:

78°

Cd/Im:

0.7

Download

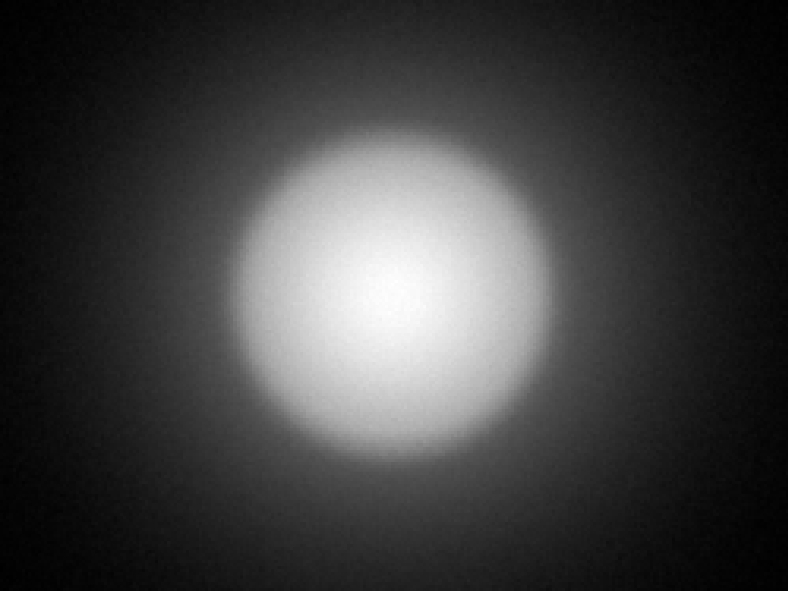

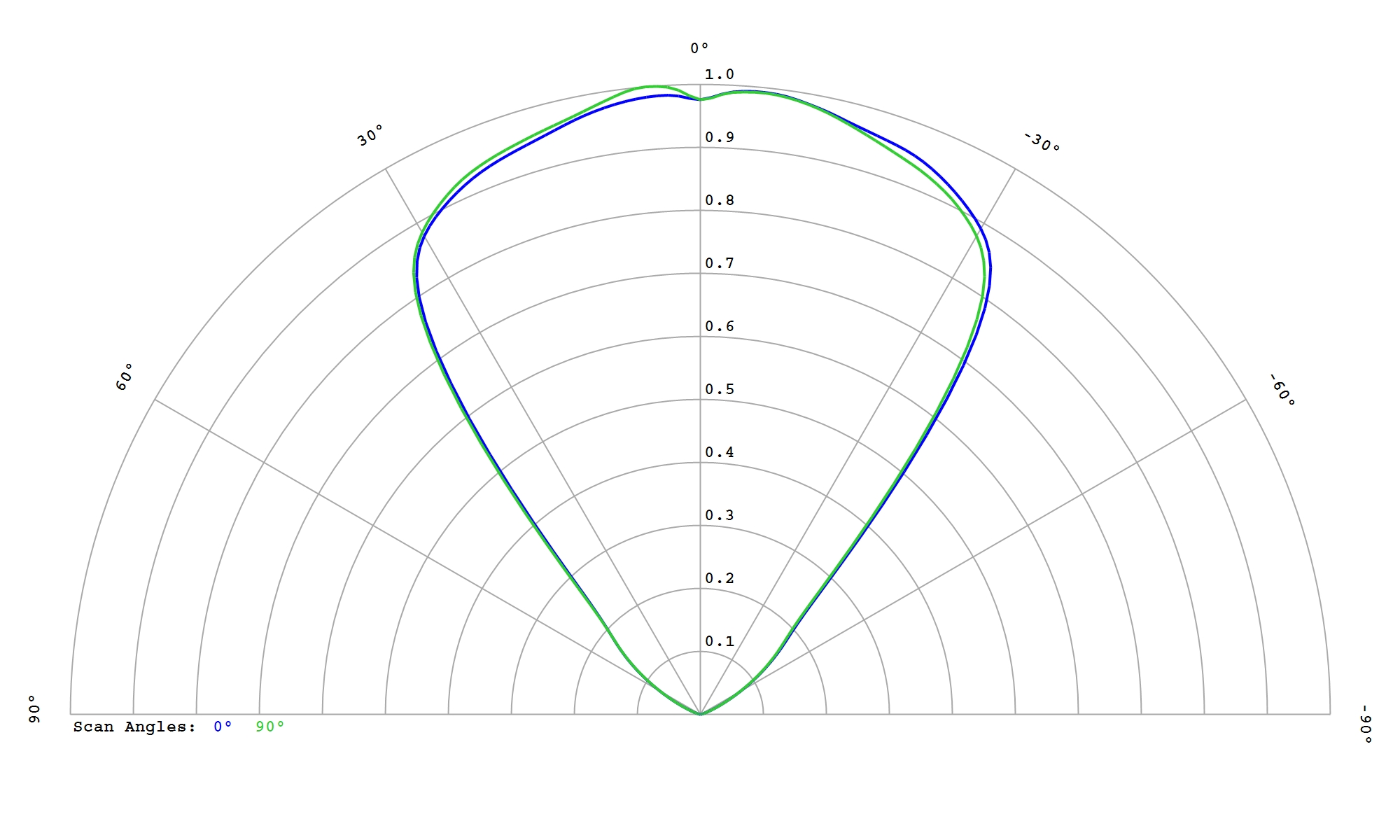

LUMILEDS LUXEON 2835C 6V White

Eff:

81.0%

FWHM:

79°

Cd/Im:

0.7

Download

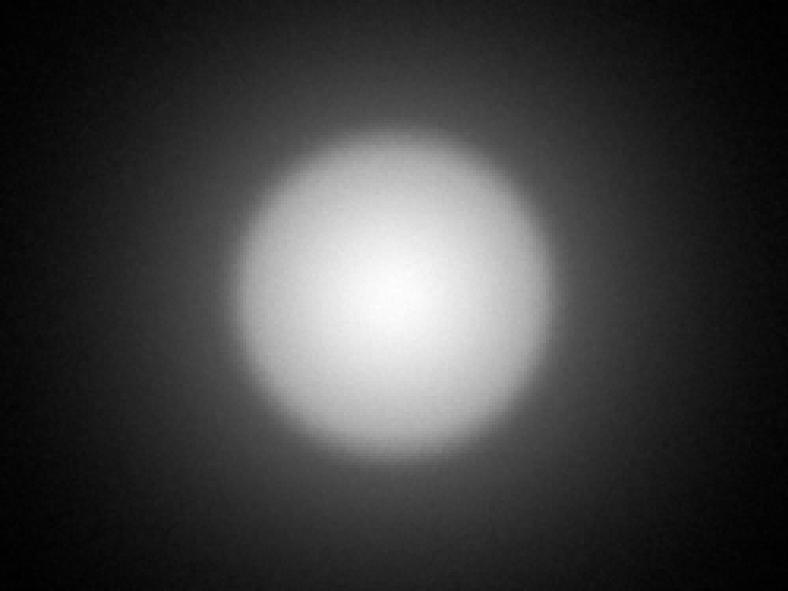

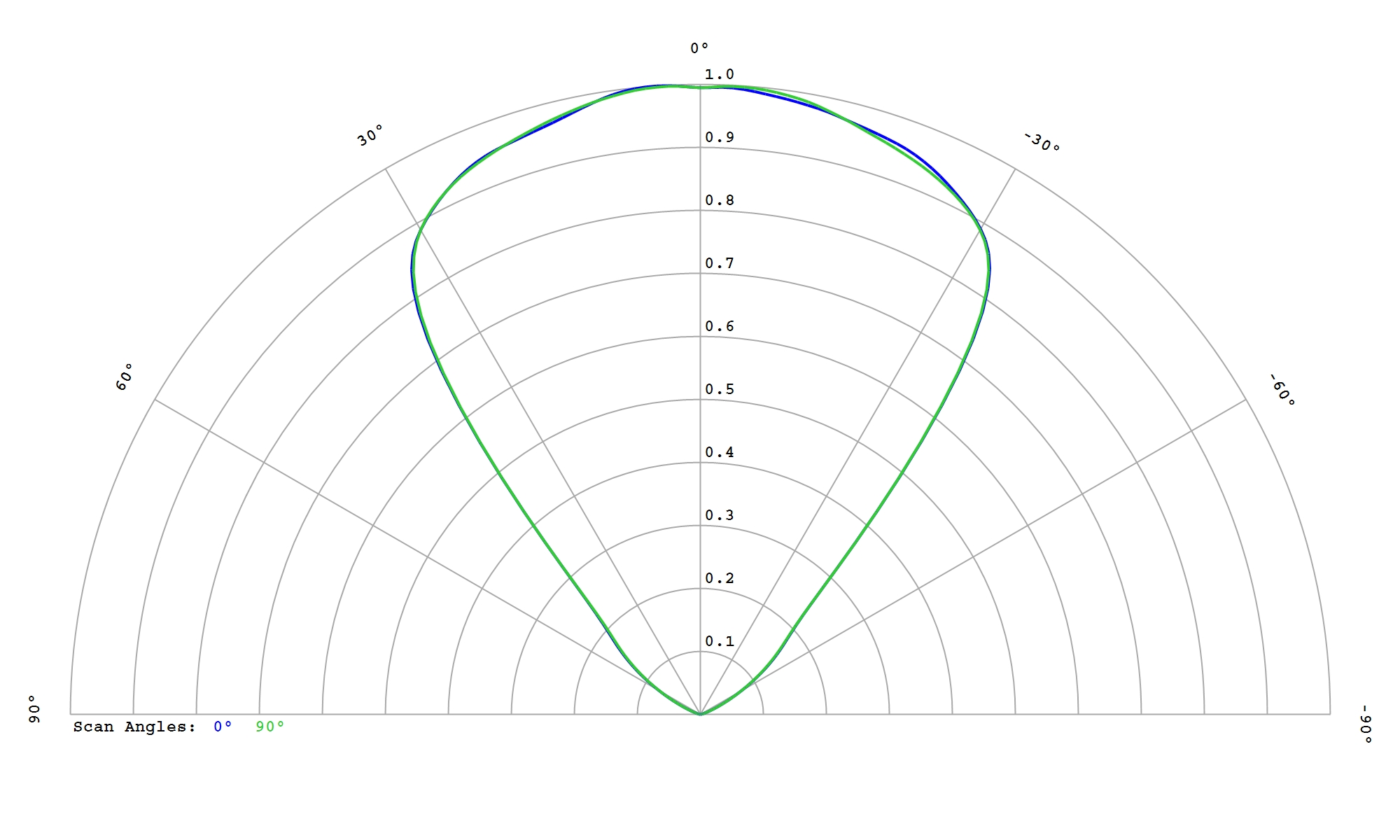

LUMILEDS LUXEON 2835E 9V White

Eff:

81.0%

FWHM:

79°

Cd/Im:

0.7

Download

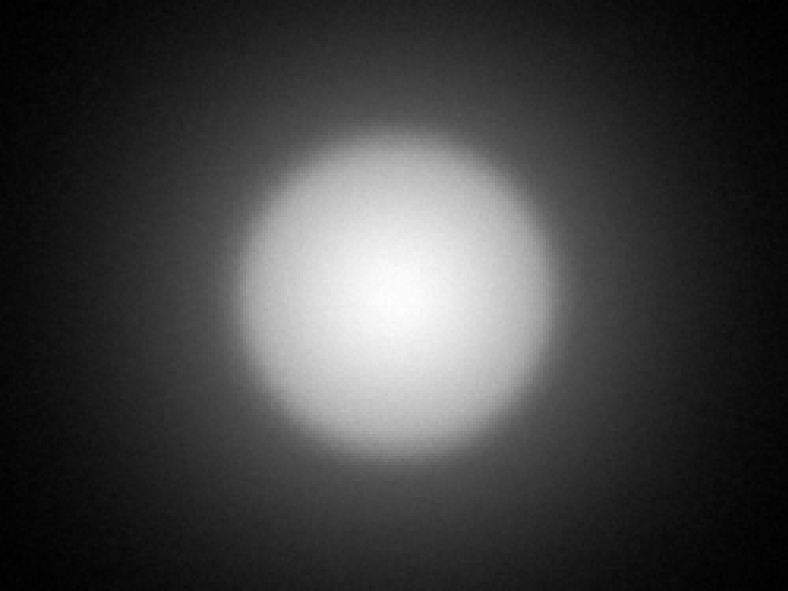

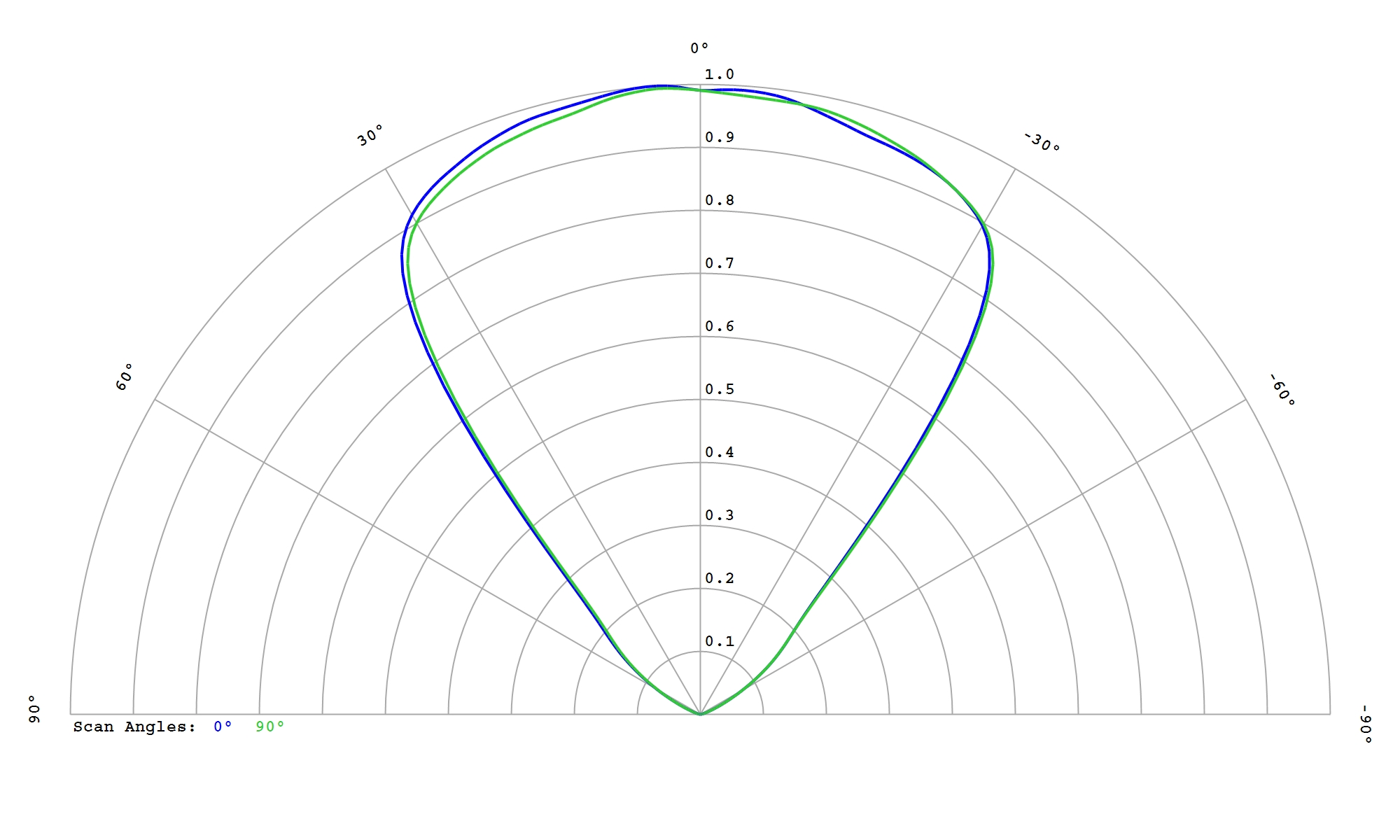

LUMILEDS LUXEON 2835N 3V White

Eff:

80.0%

FWHM:

79°

Cd/Im:

0.6

Download

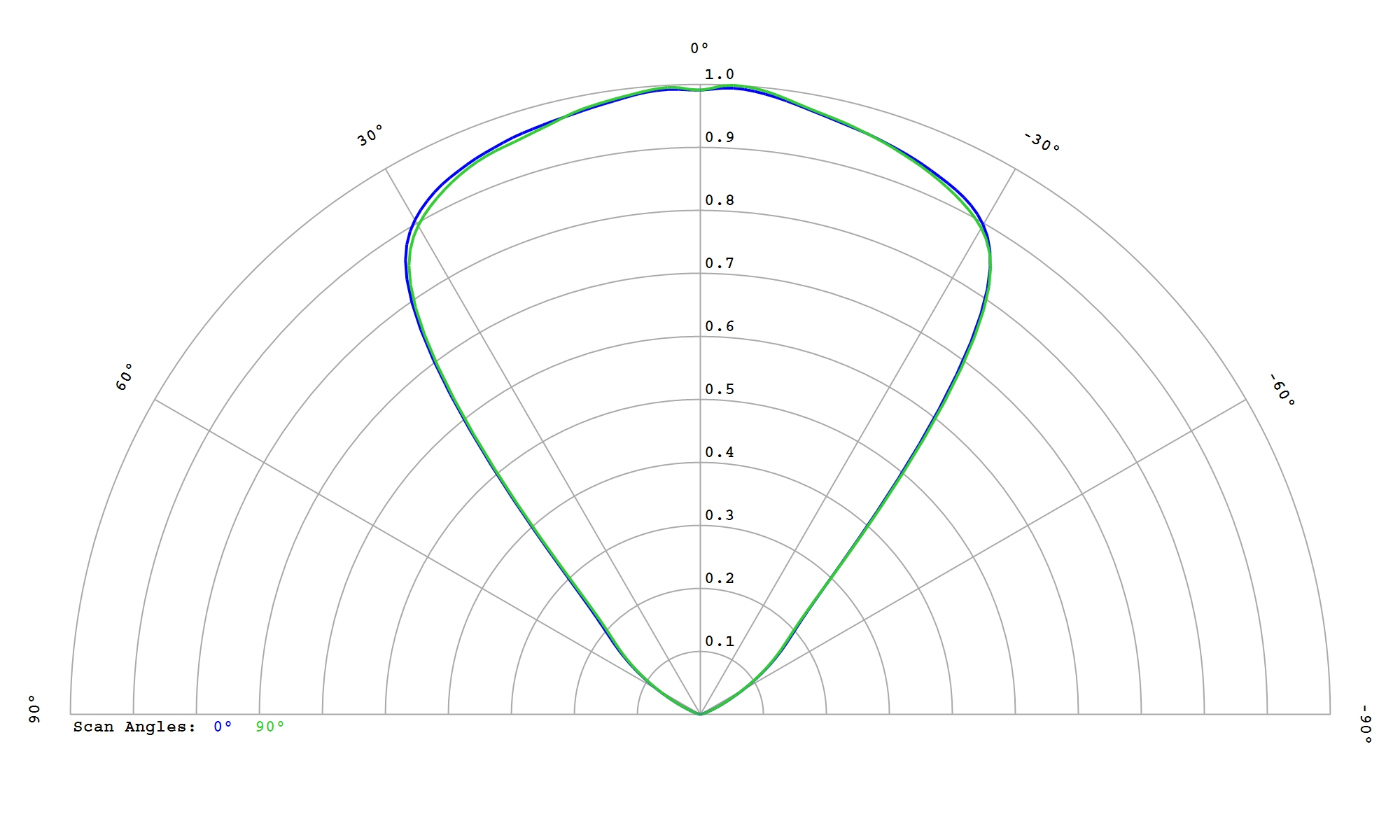

LUMILEDS LUXEON 2835S 3V White

Eff:

80.5%

FWHM:

79°

Cd/Im:

0.6

Download

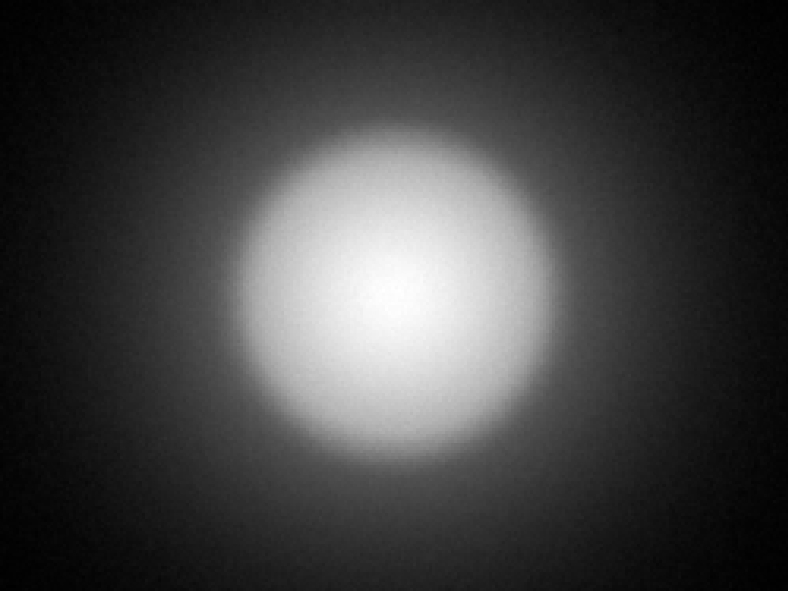

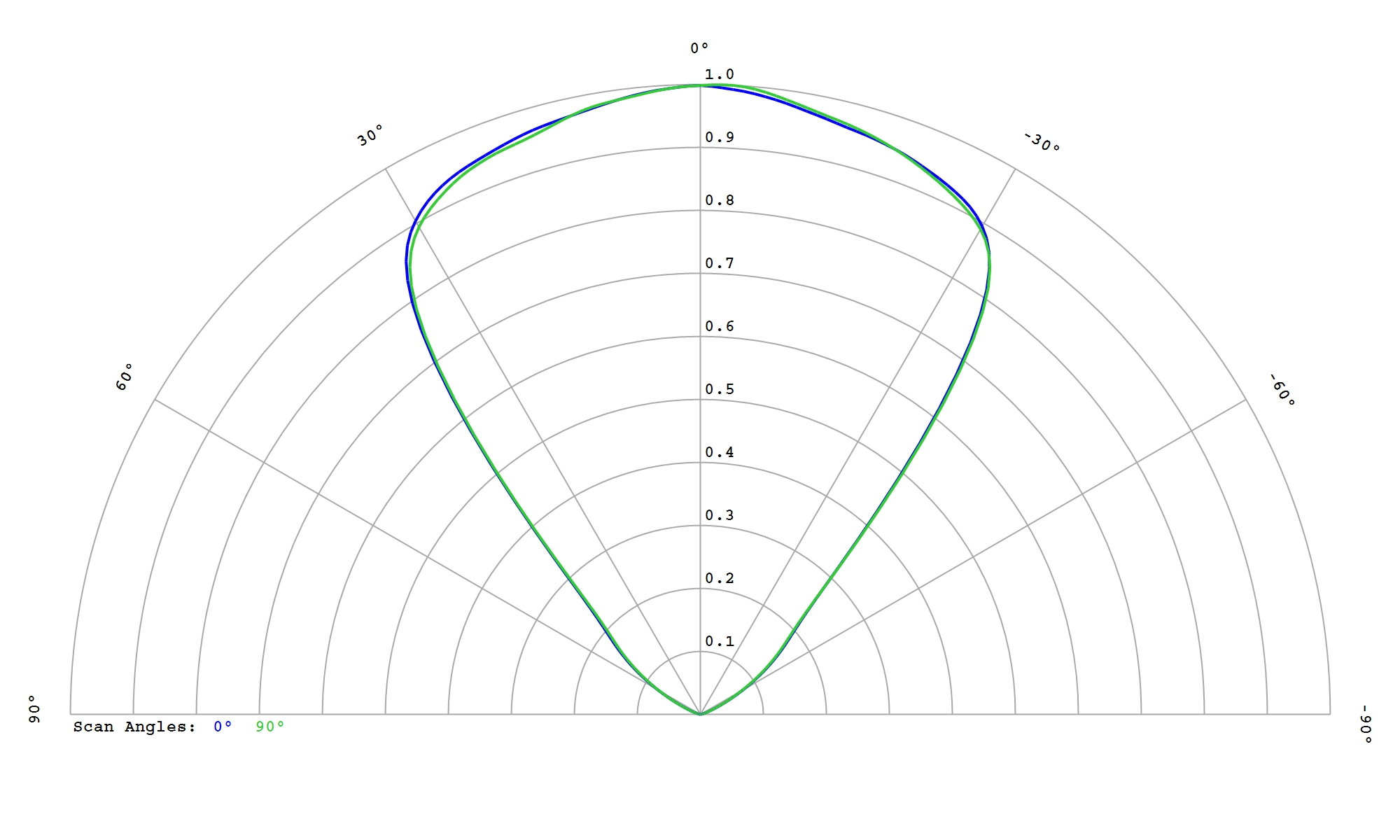

LUMILEDS LUXEON 2835S 6V White

Eff:

80.5%

FWHM:

79°

Cd/Im:

0.6

Download

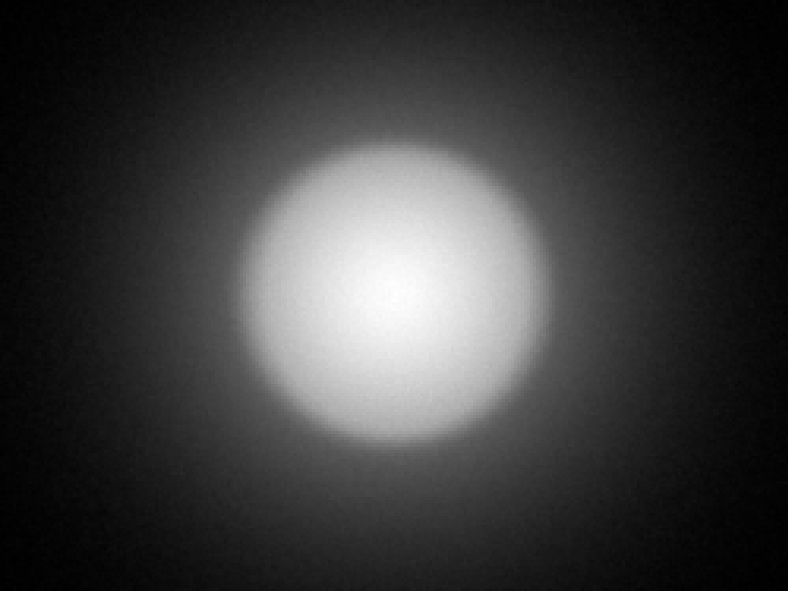

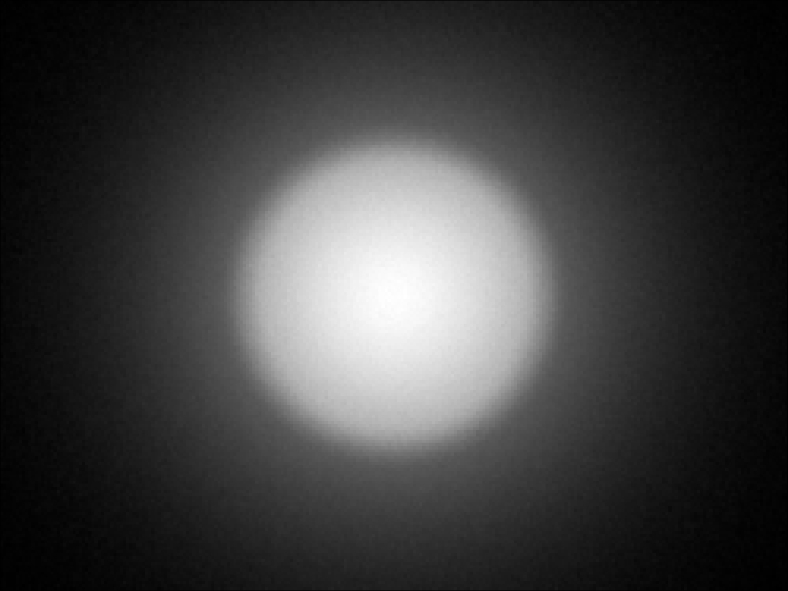

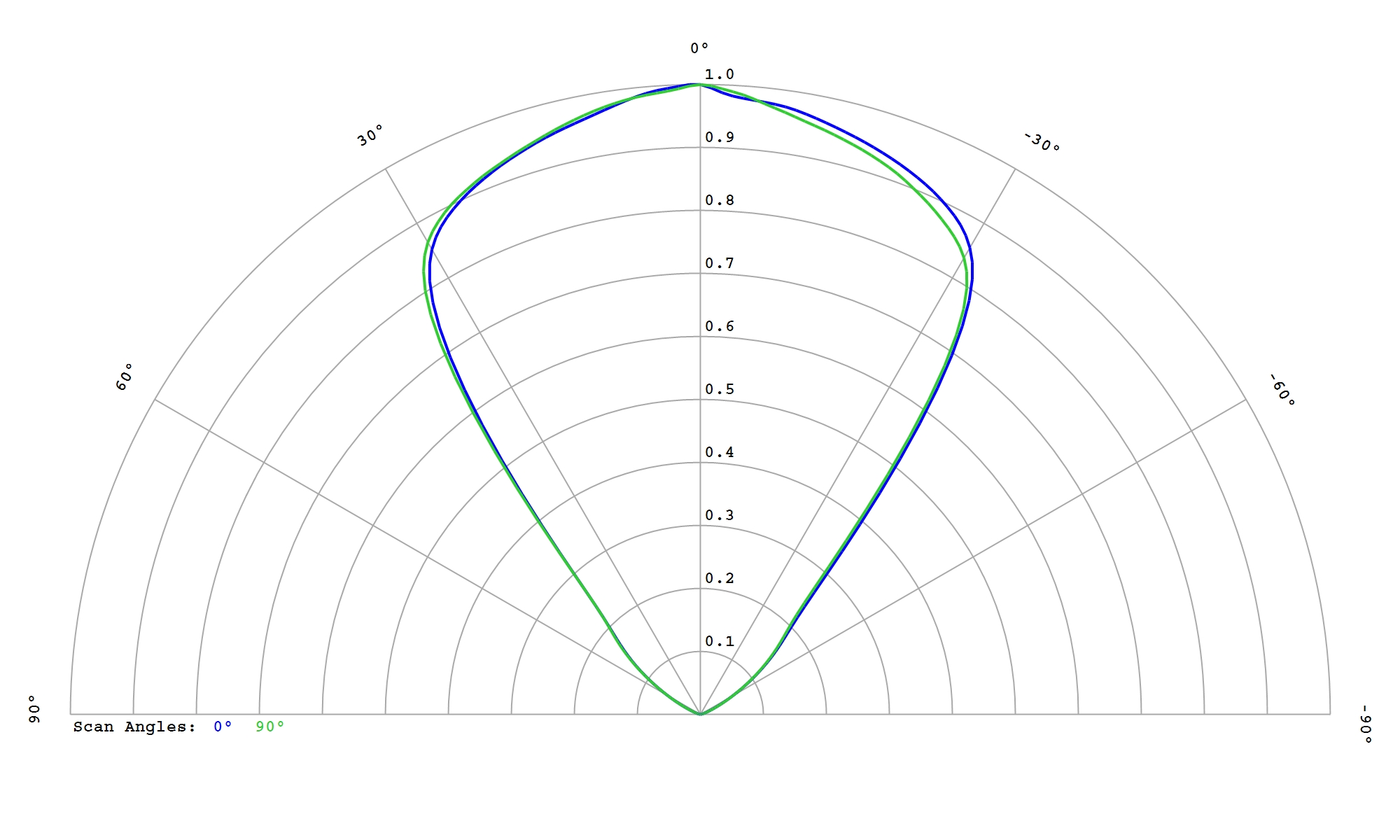

LUMILEDS LUXEON 3030 2D Plus Round White

Eff:

79.5%

FWHM:

77°

Cd/Im:

0.6


Download

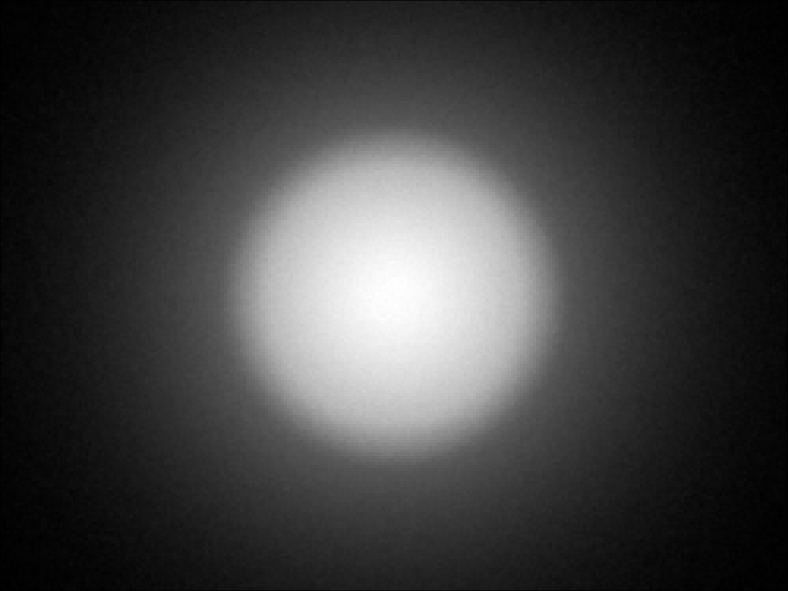

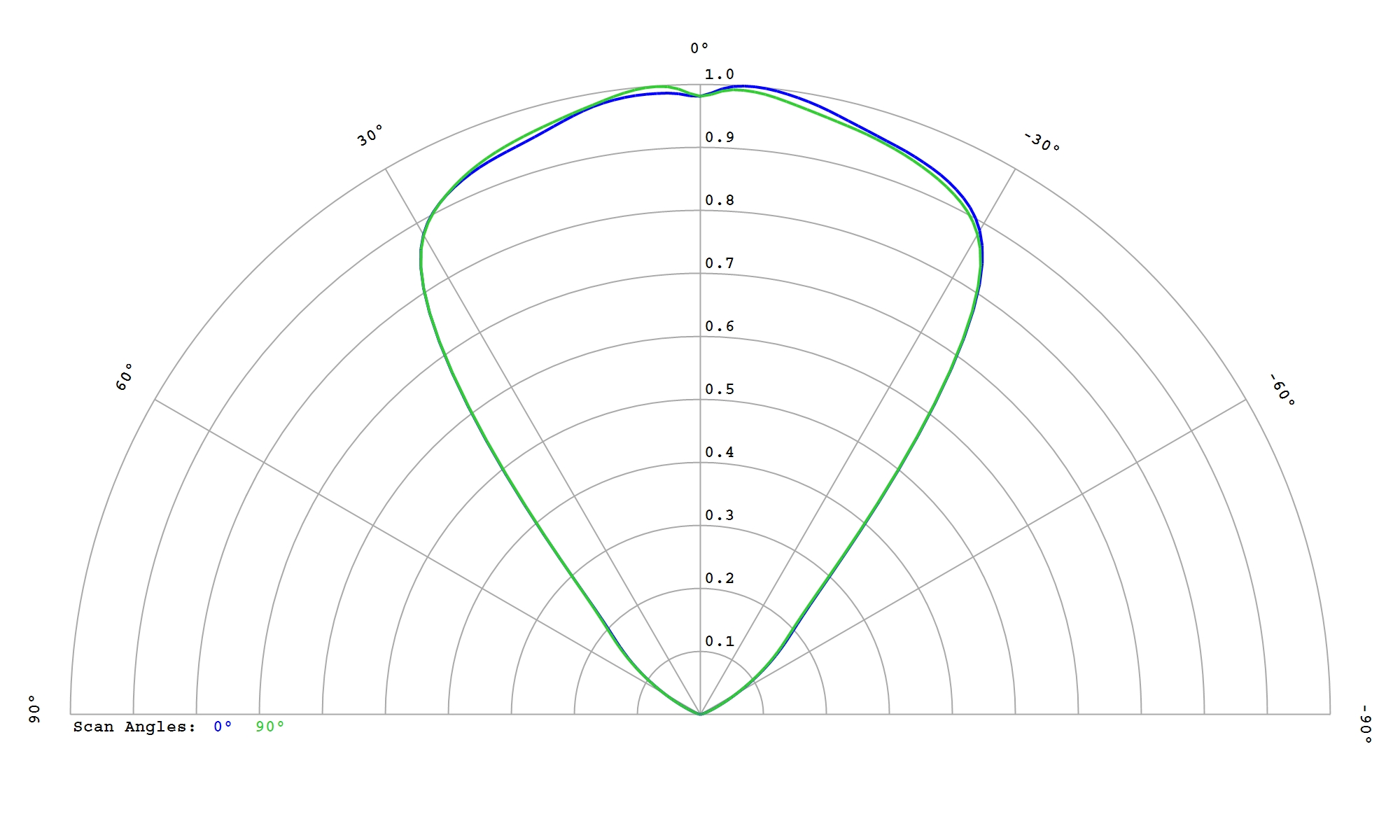

LUMILEDS LUXEON 3030 2D Plus Square White

Eff:

79.0%

FWHM:

77°

Cd/Im:

0.7


Download

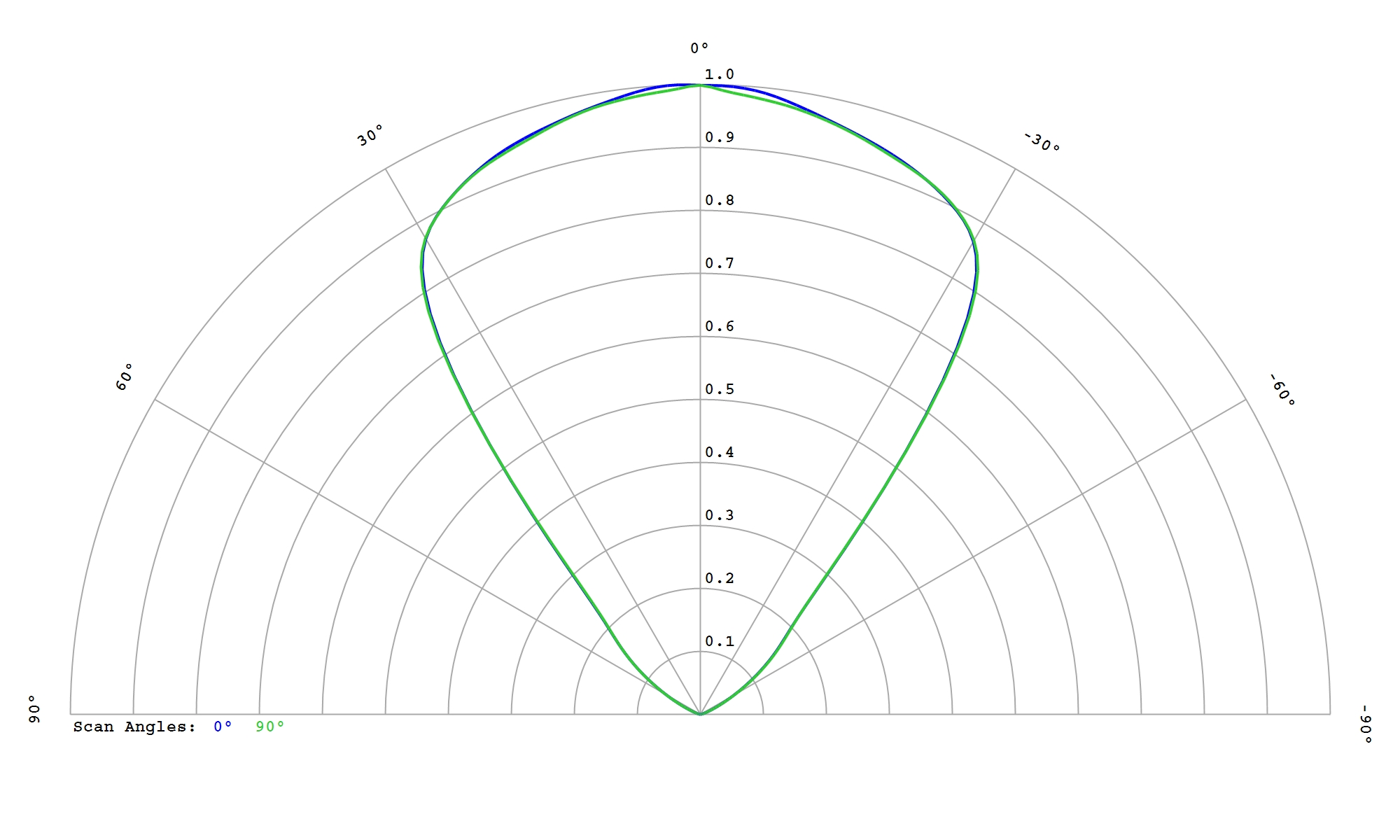

LUMILEDS LUXEON 3030 2D Square White

Eff:

79.5%

FWHM:

76°

Cd/Im:

0.6


Download

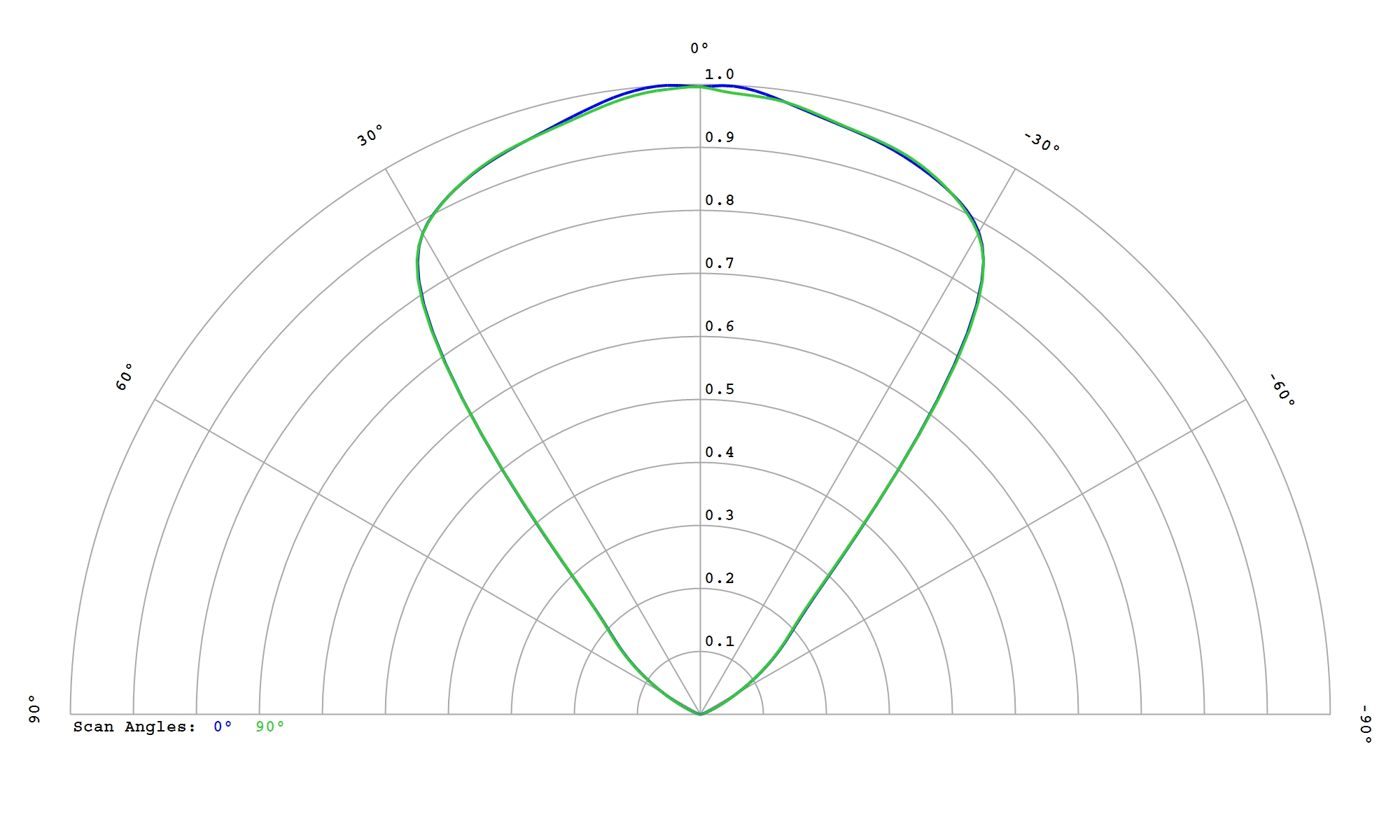

LUMILEDS LUXEON 3030 2D Round White

Eff:

79.5%

FWHM:

76°

Cd/Im:

0.7

Download

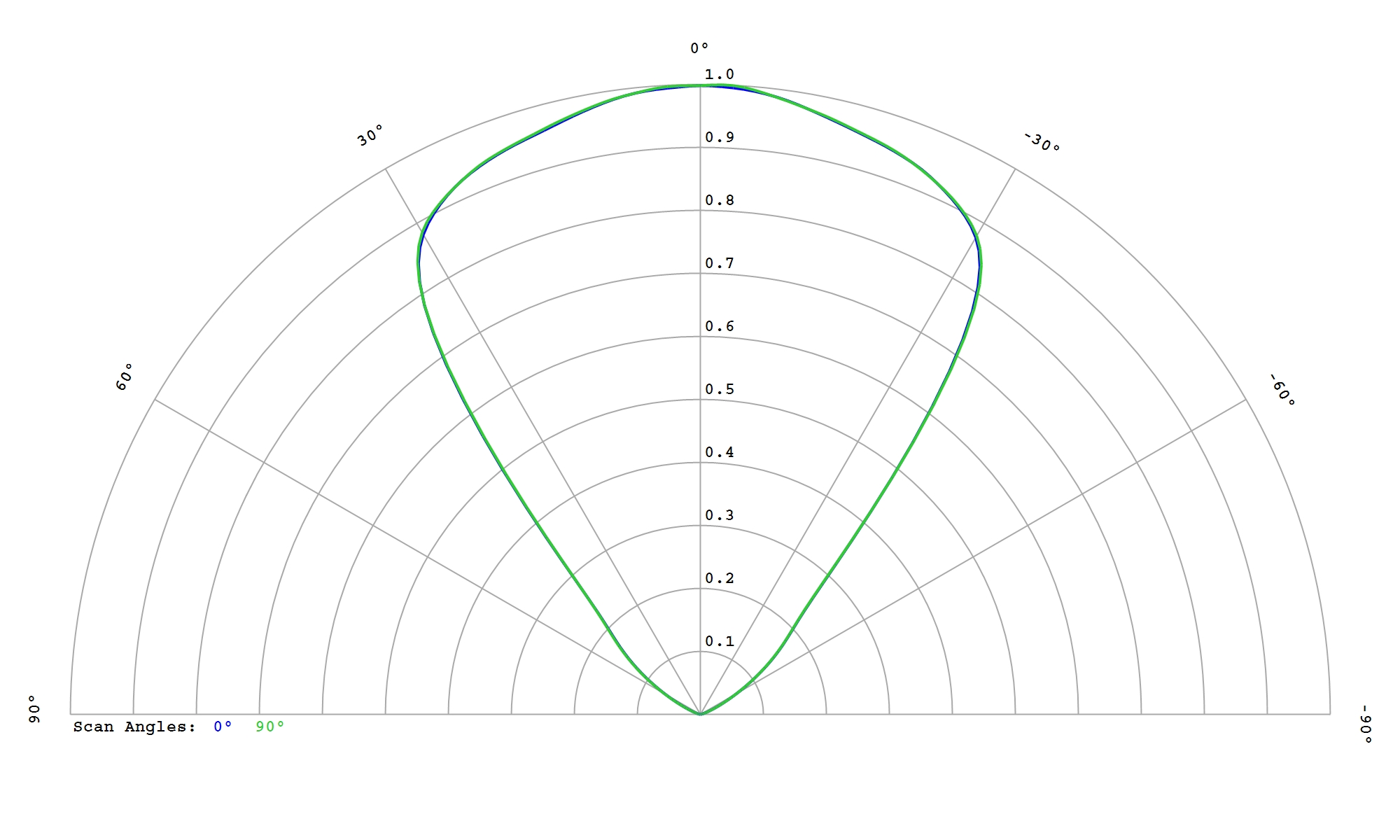

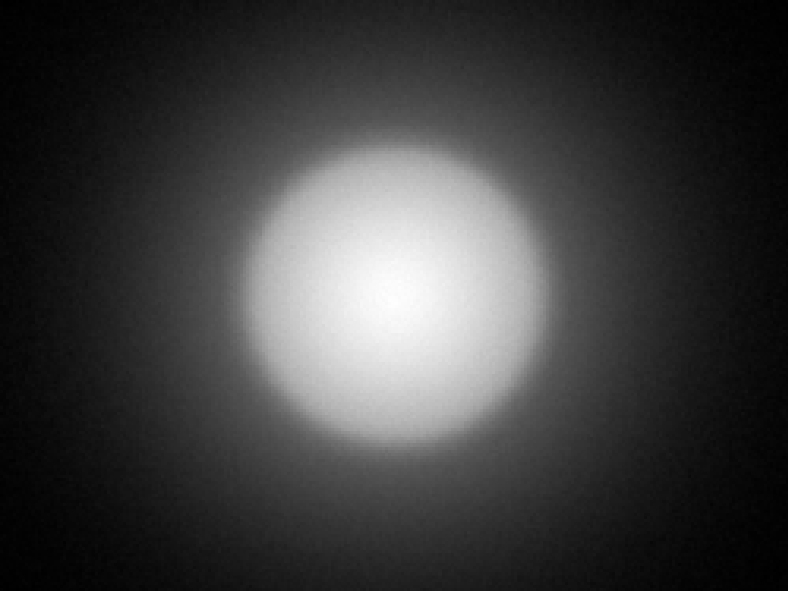

LUMILEDS LUXEON 3030 HE White

Eff:

79.5%

FWHM:

77°

Cd/Im:

0.7

Download

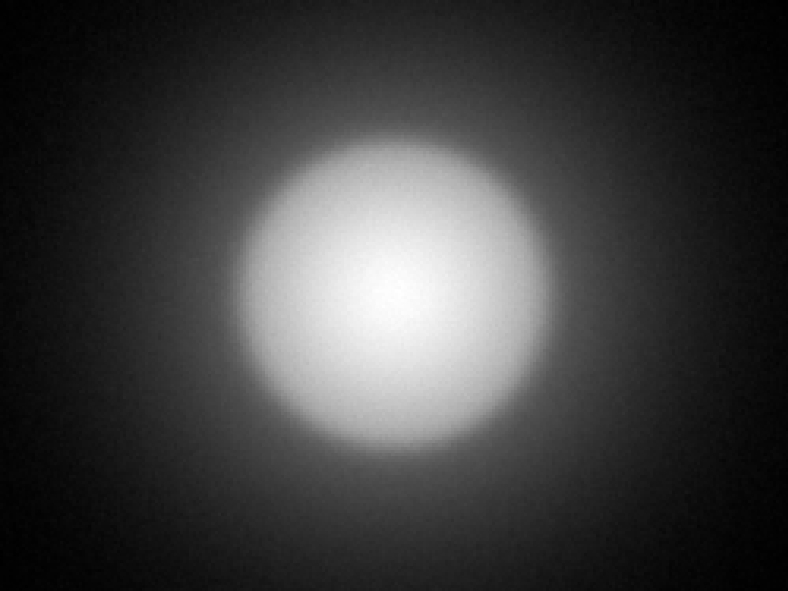

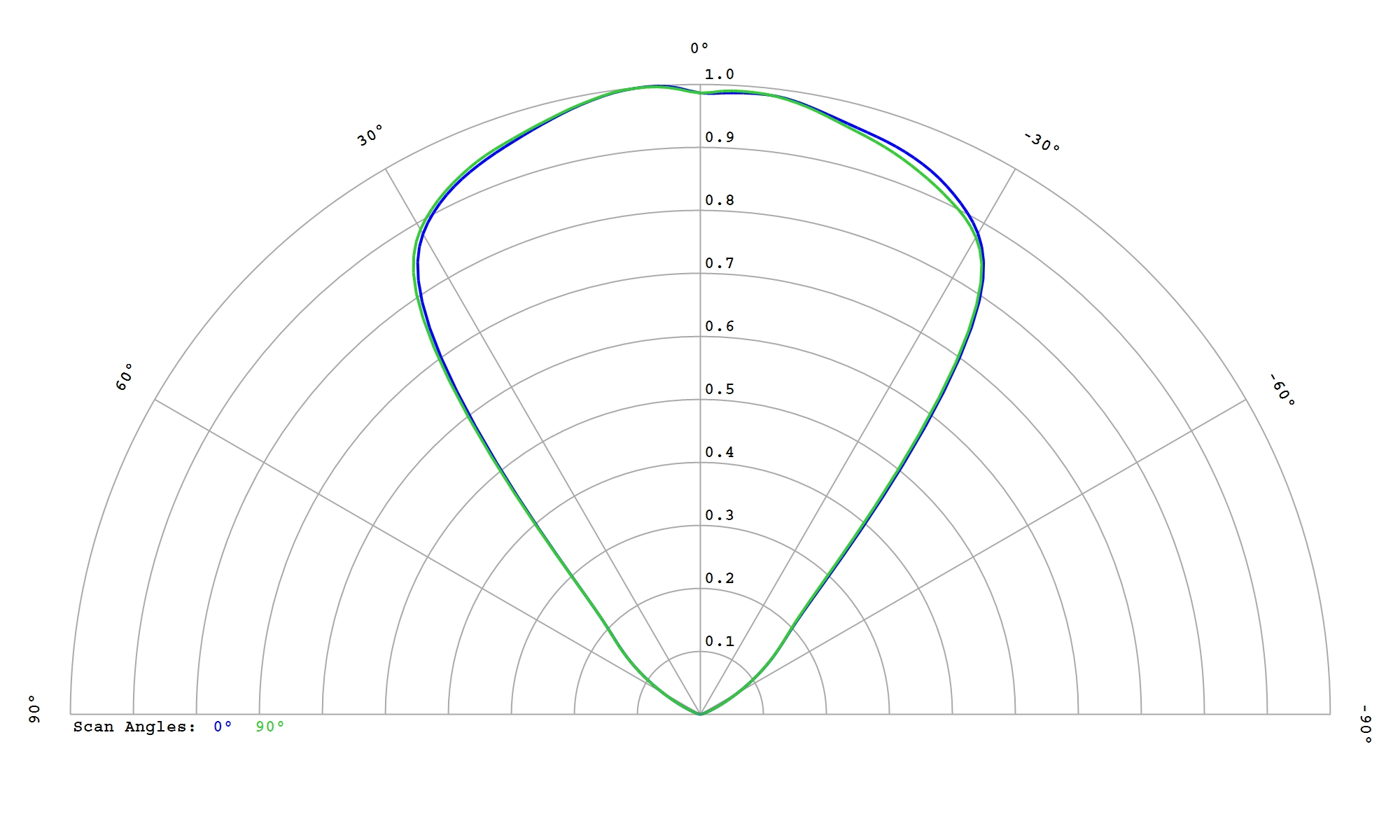

LUMILEDS LUXEON 3535 L White

Eff:

80.5%

FWHM:

78°

Cd/Im:

0.7

Download

LUMILEDS LUXEON Rebel ES White

Eff:

80.4%

FWHM:

79.7°

Cd/Im:

0.6

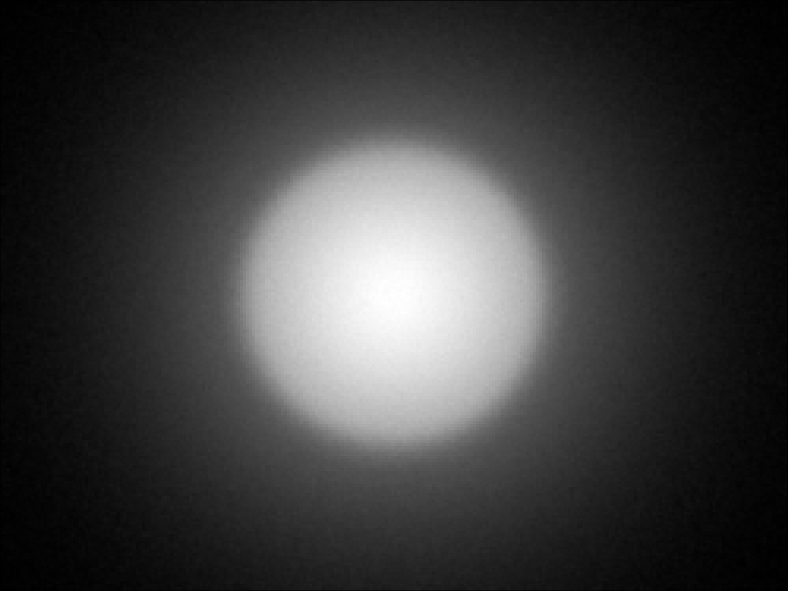

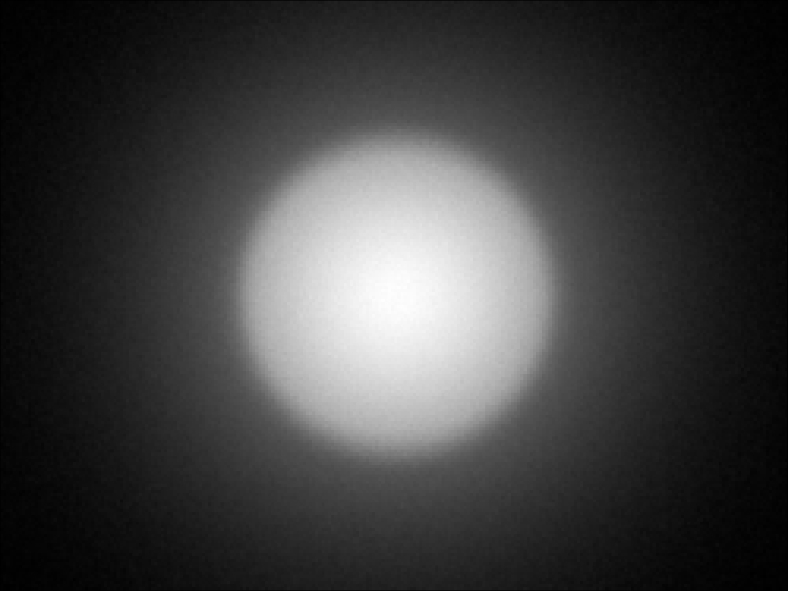

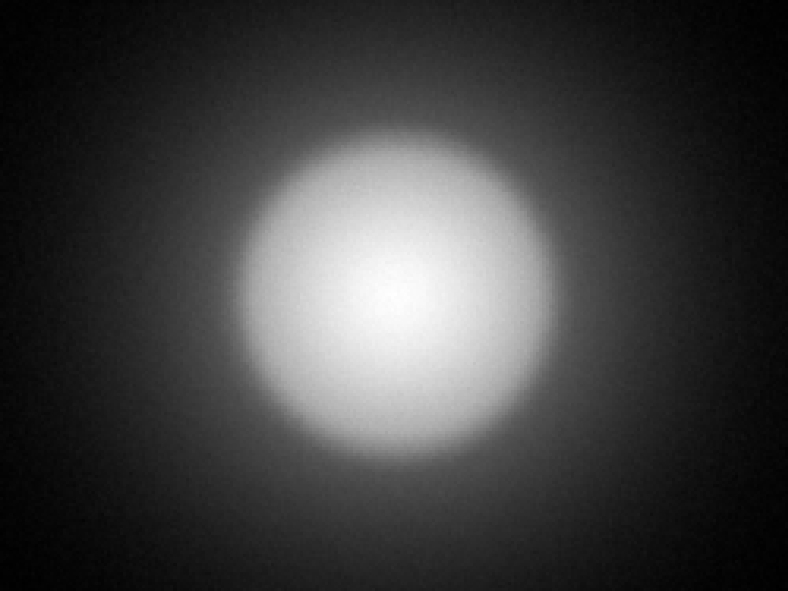

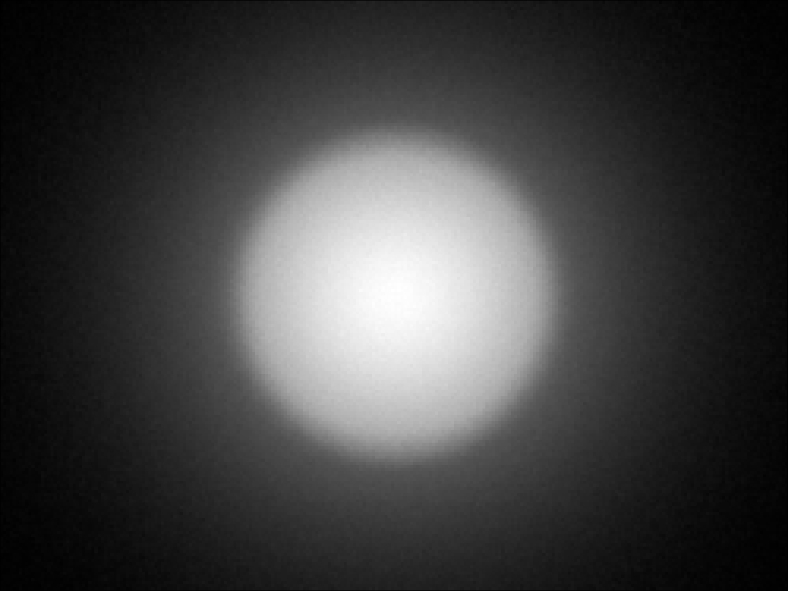

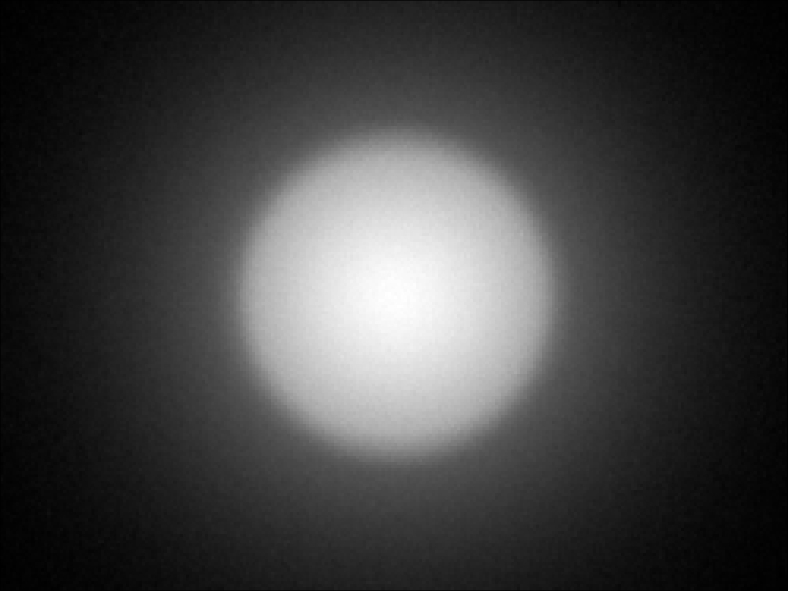

Optic 10255 Spot image

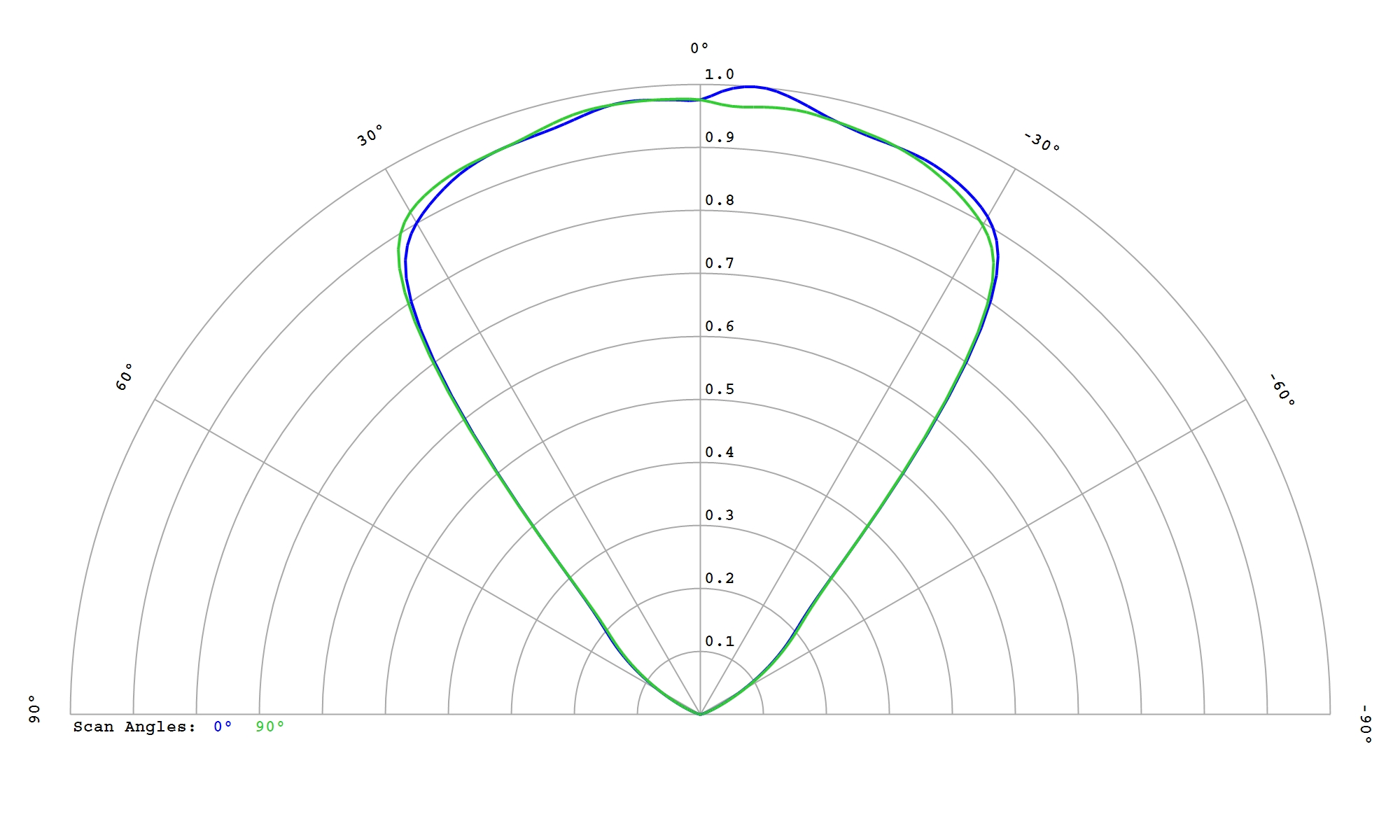

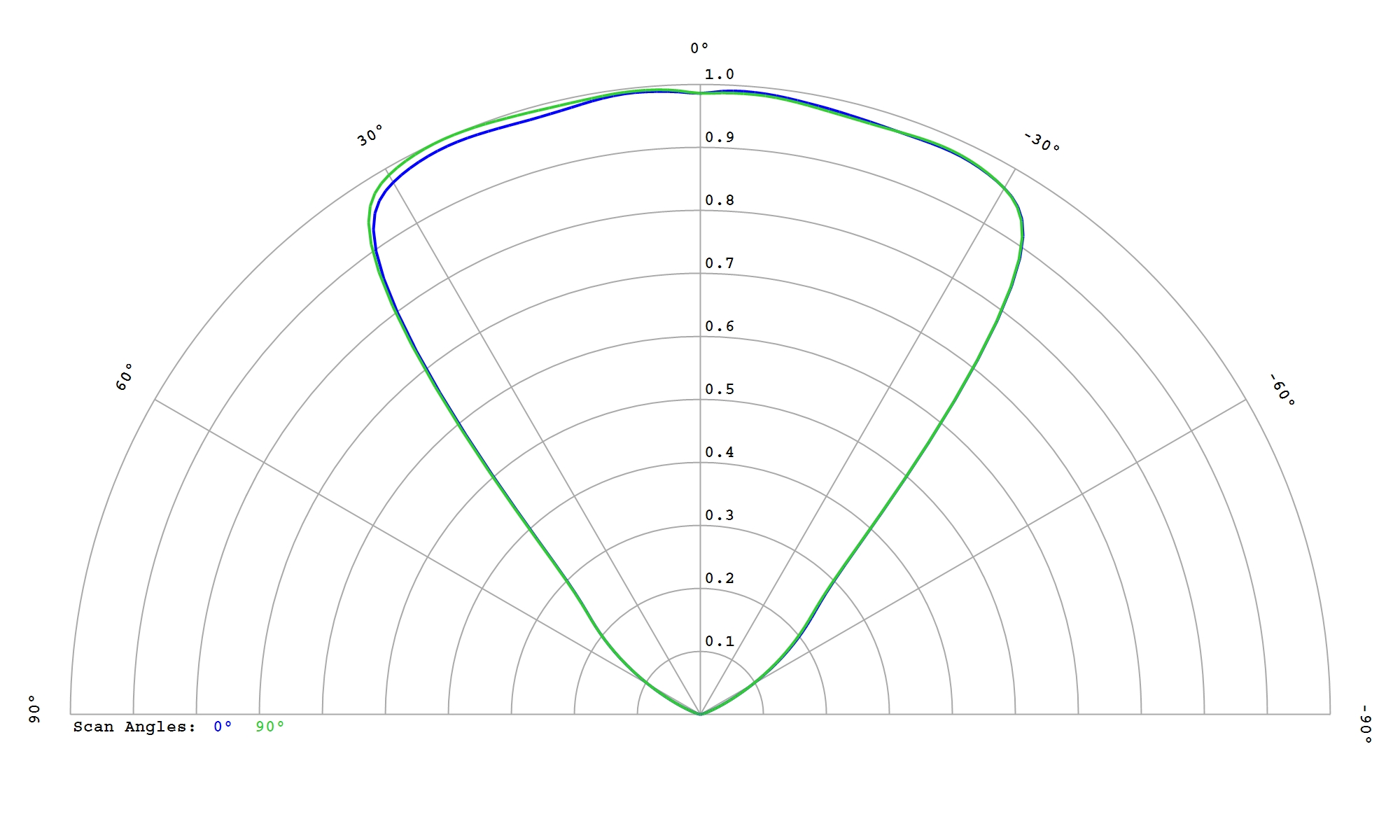

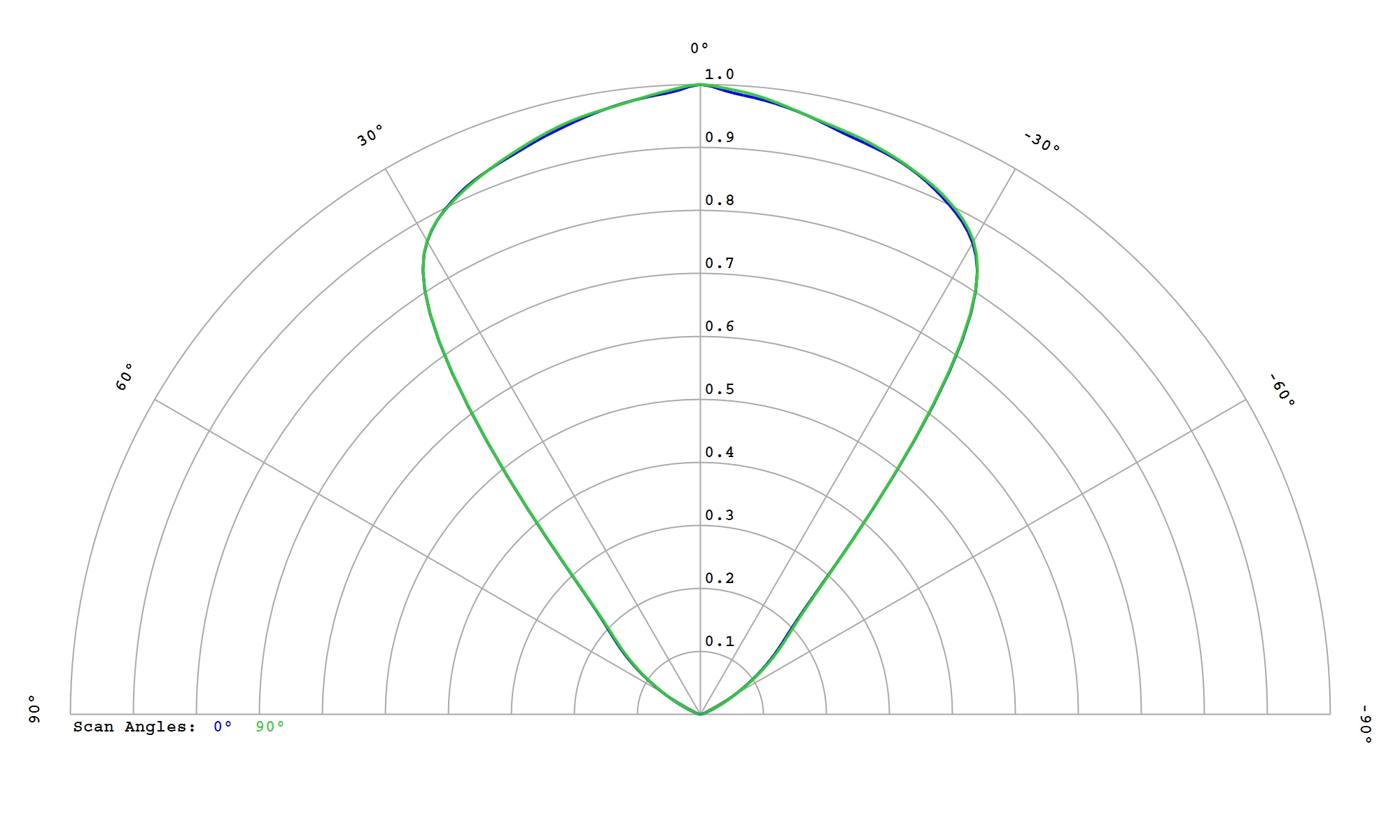

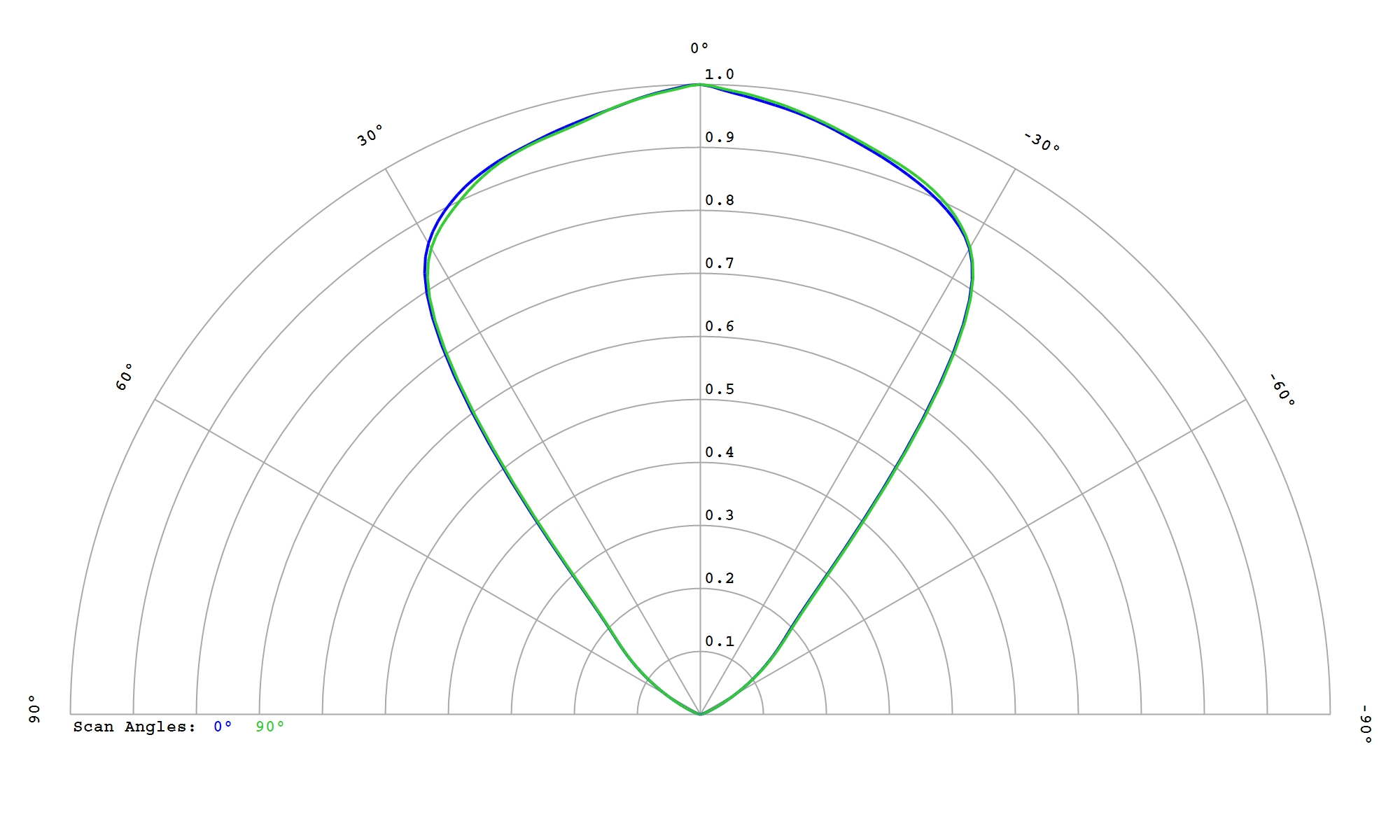

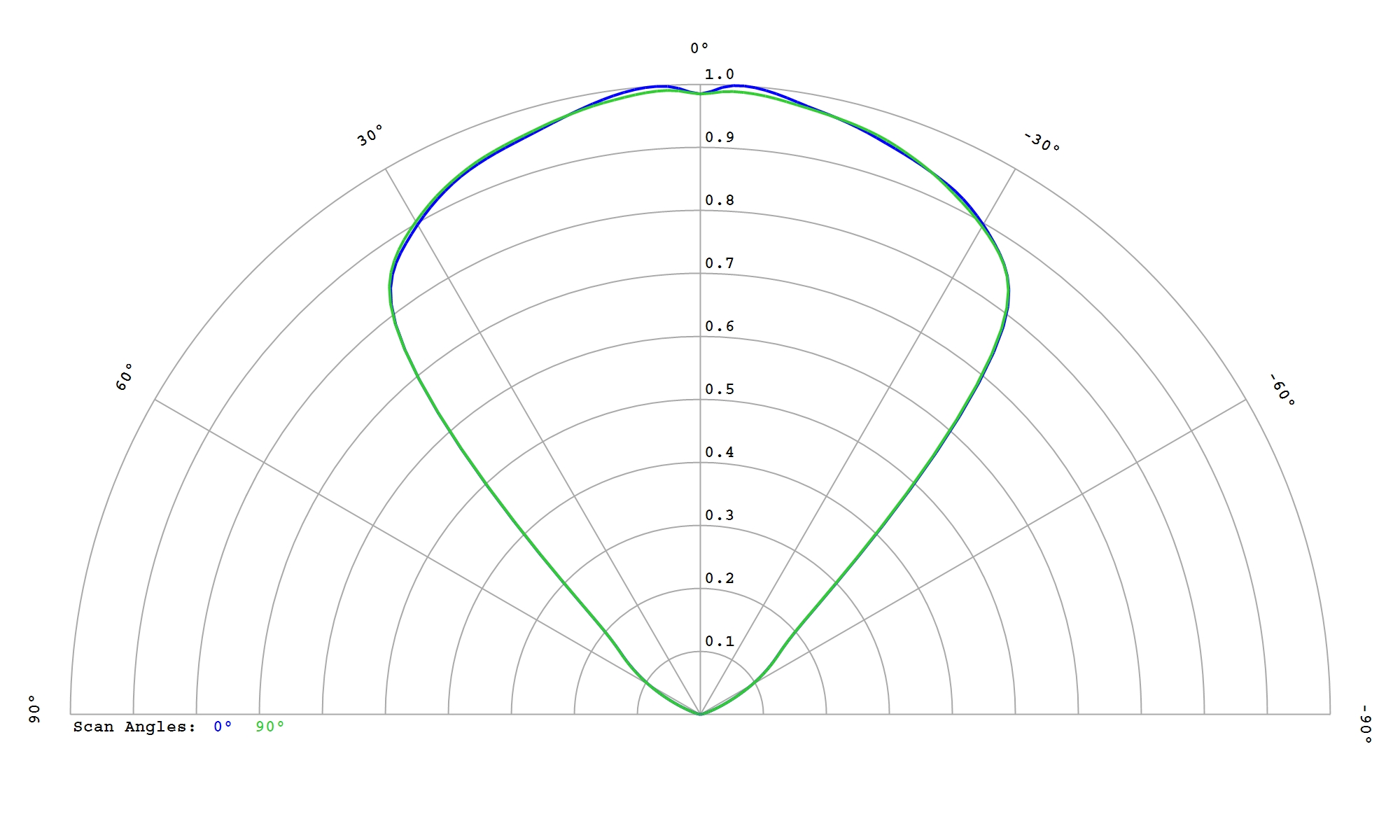

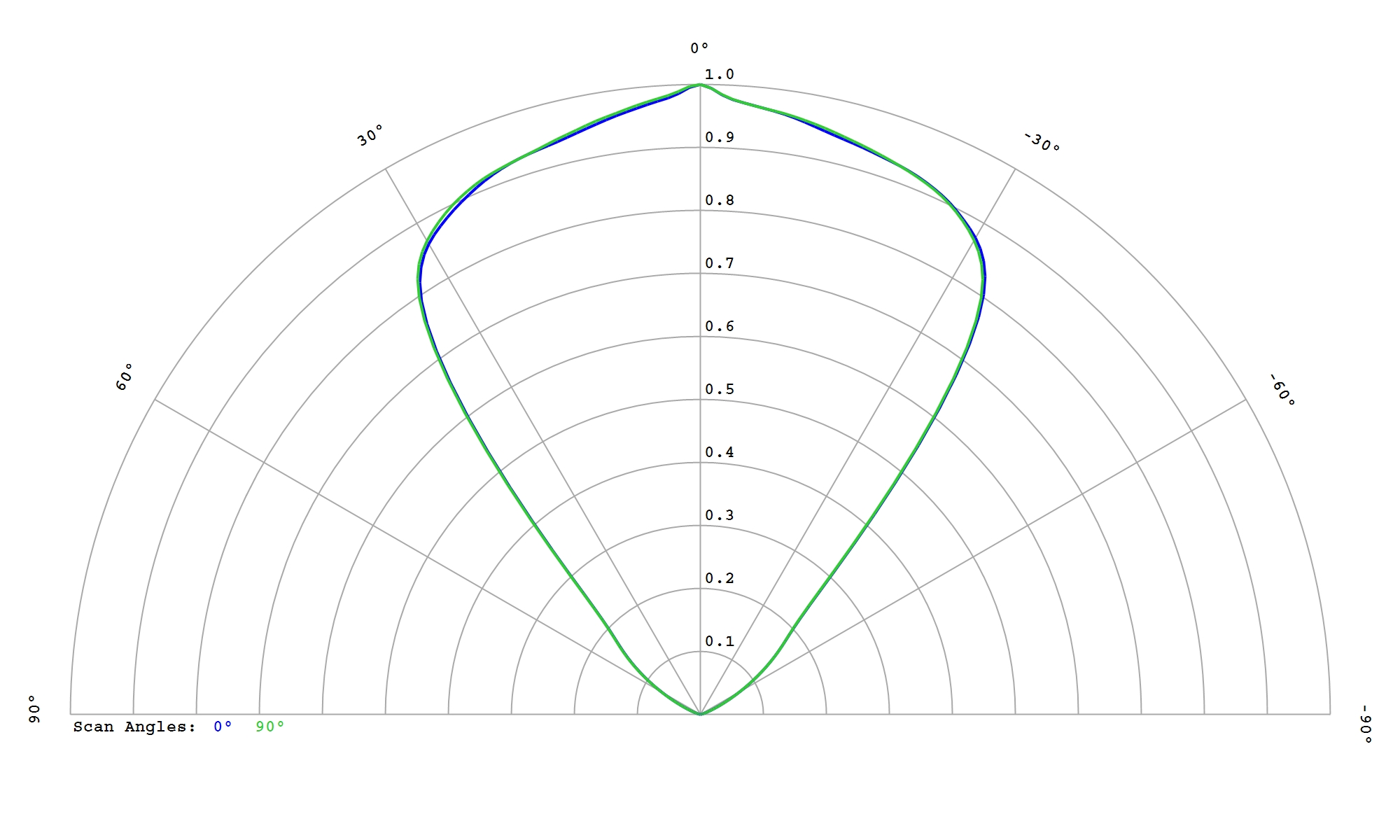

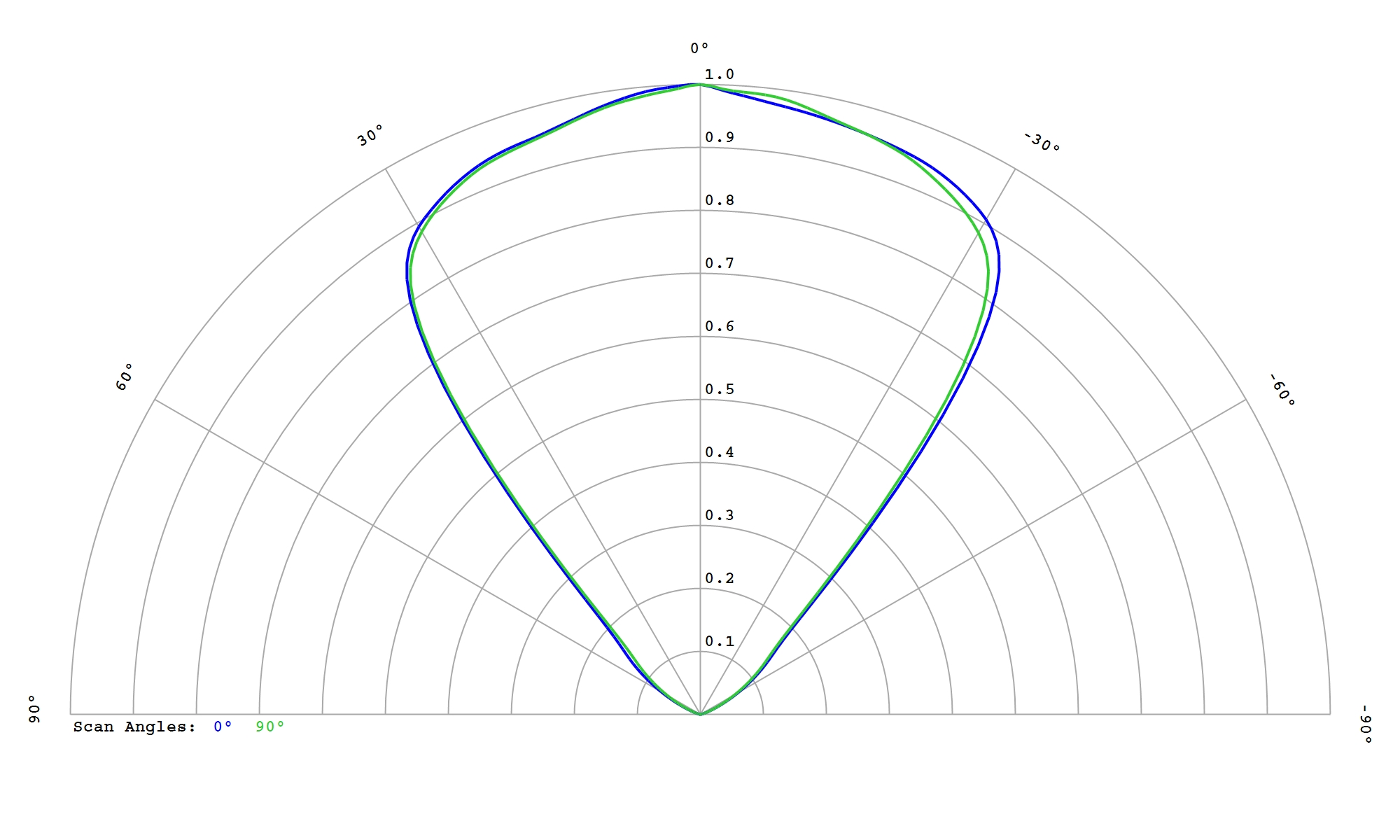

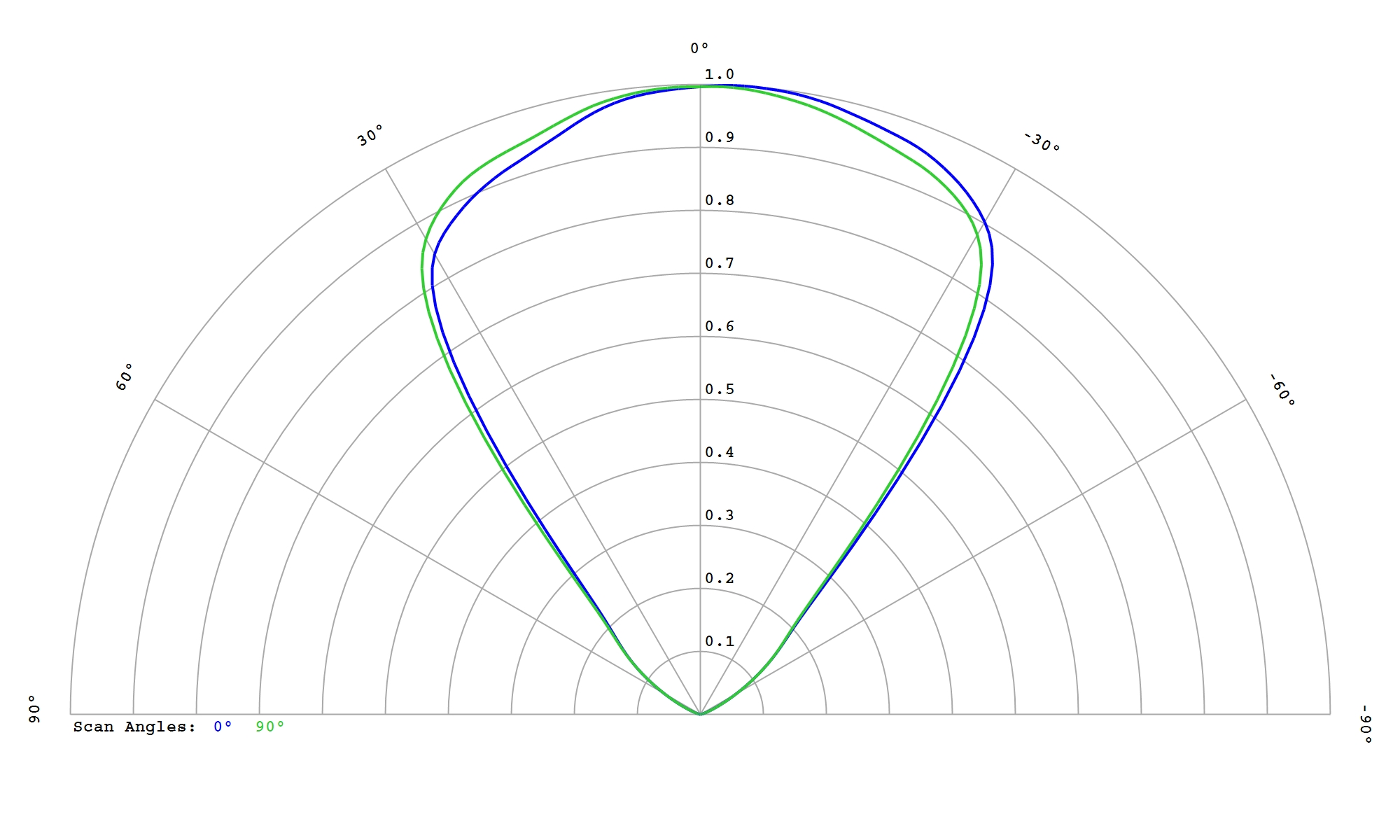

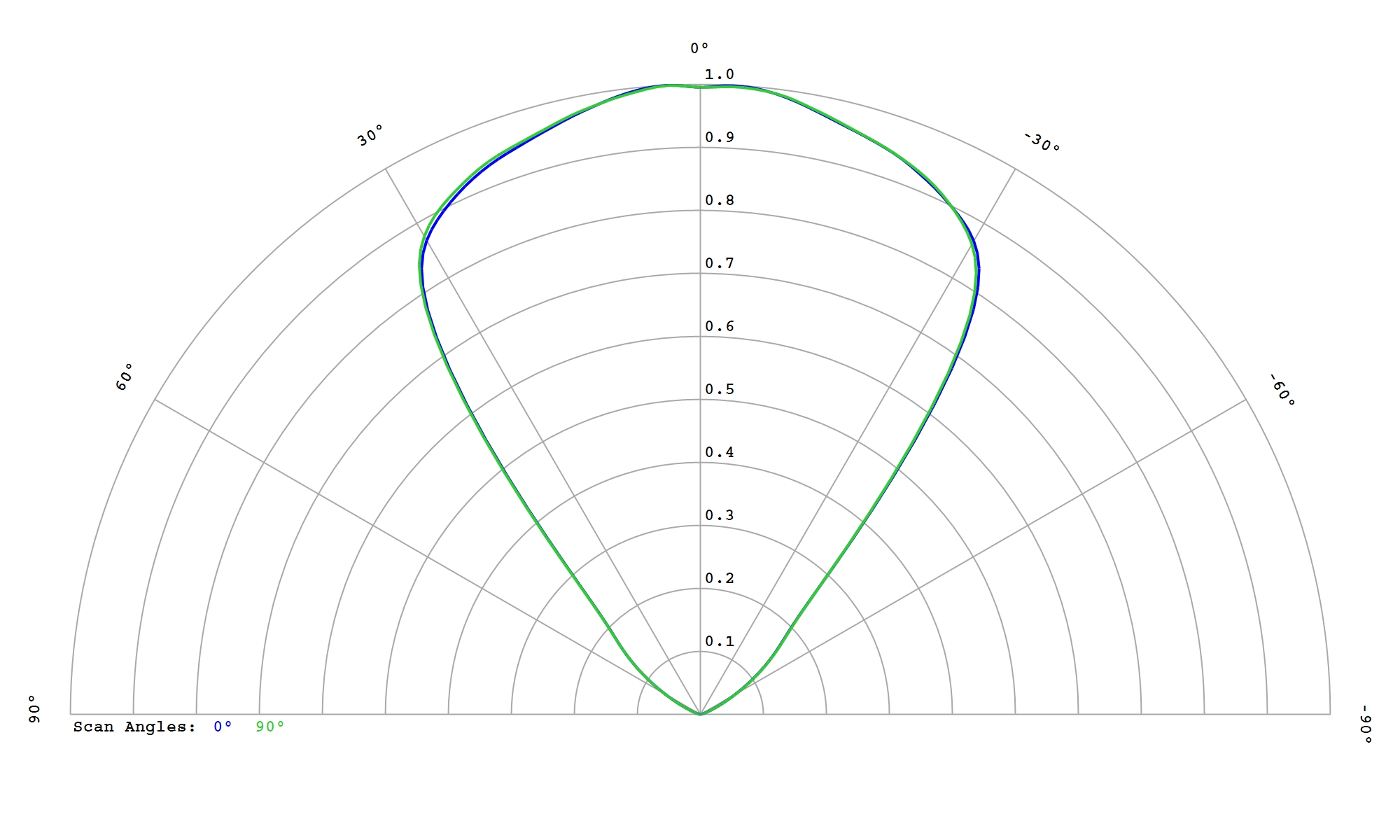

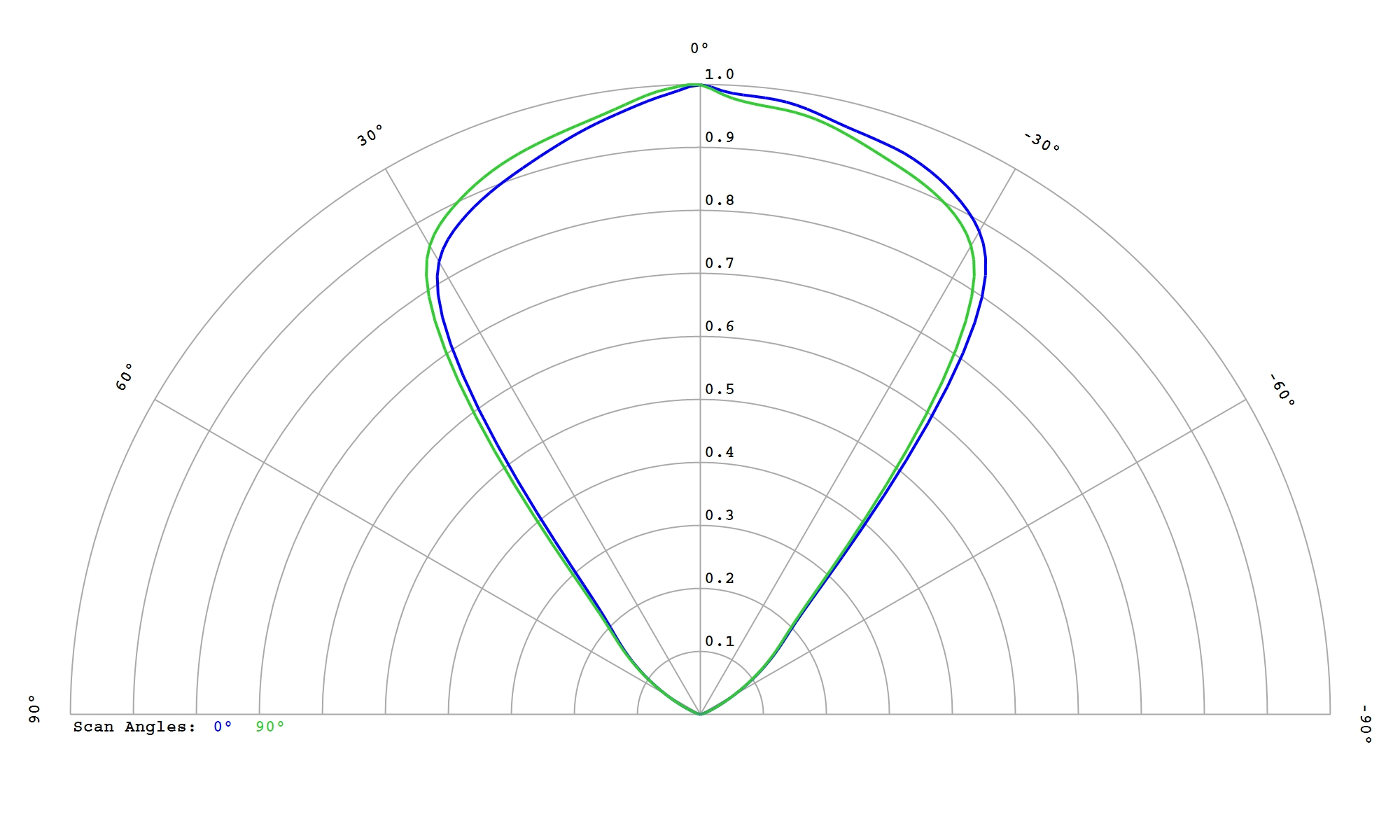

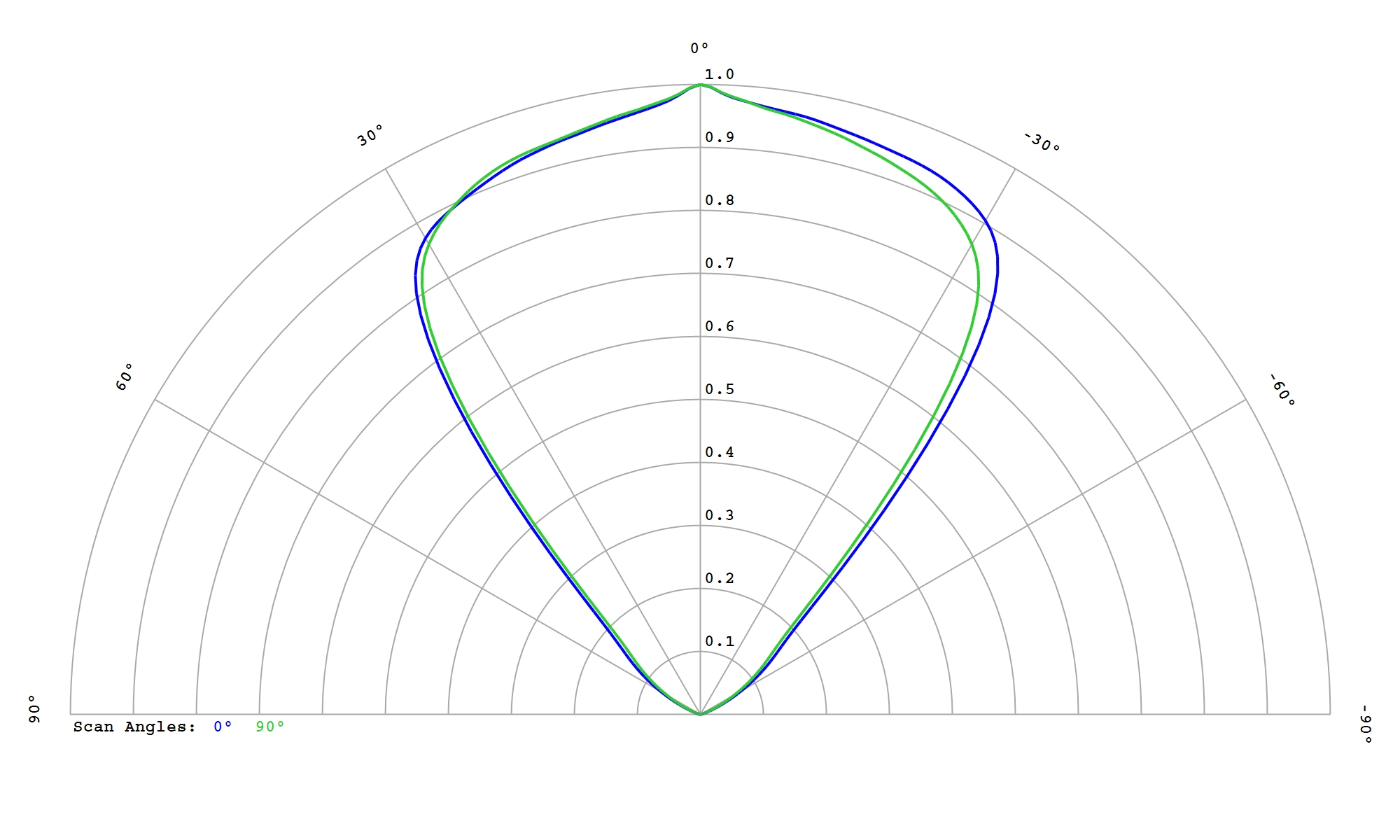

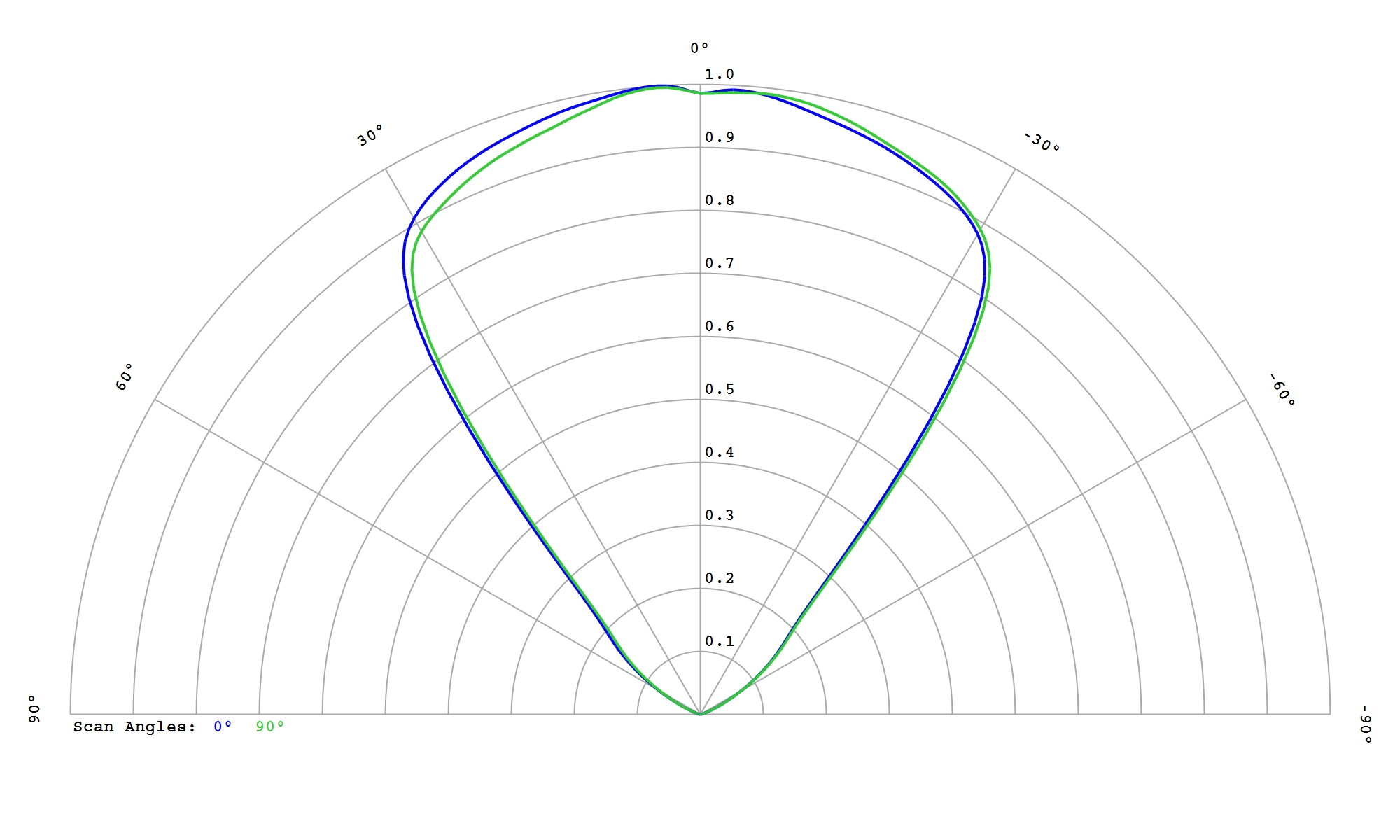

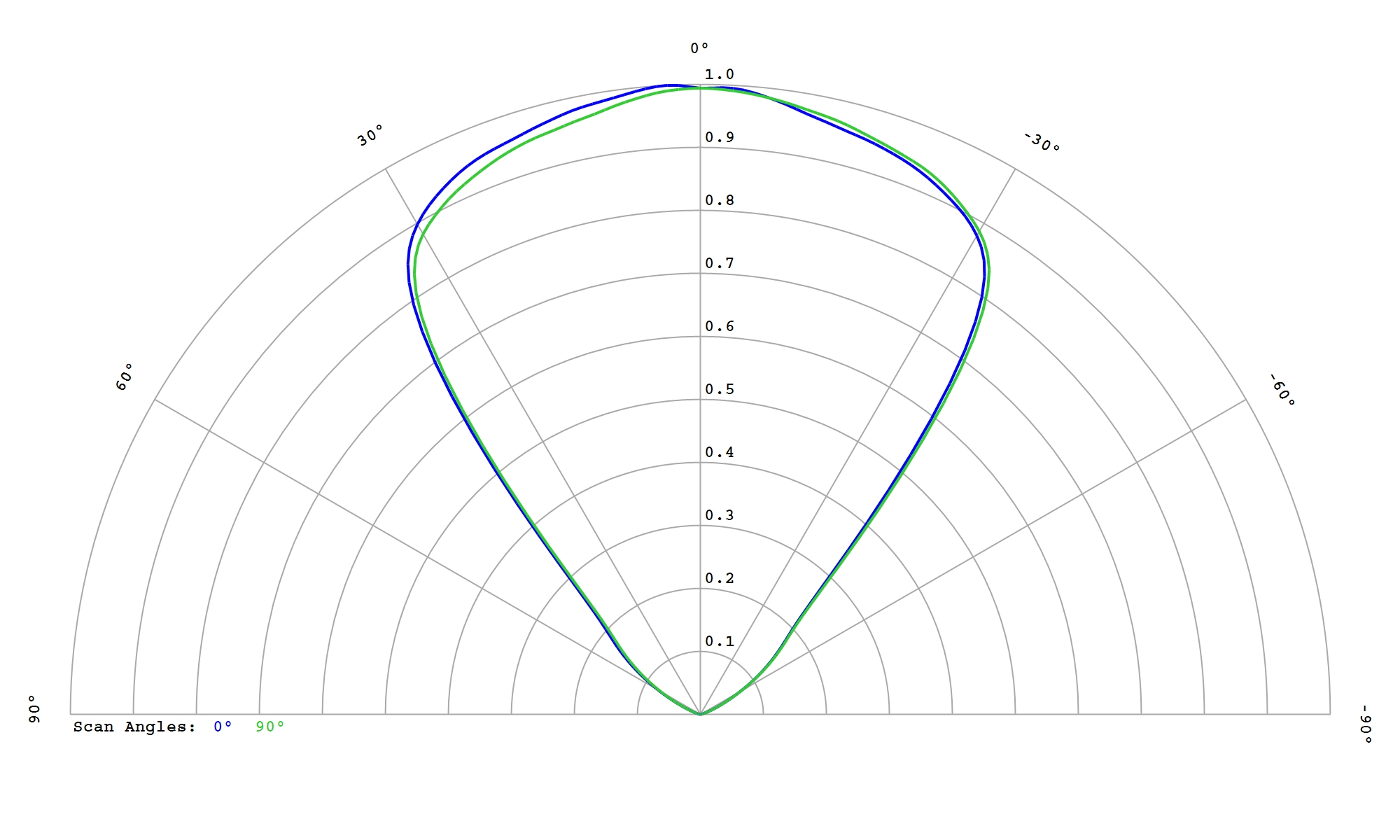

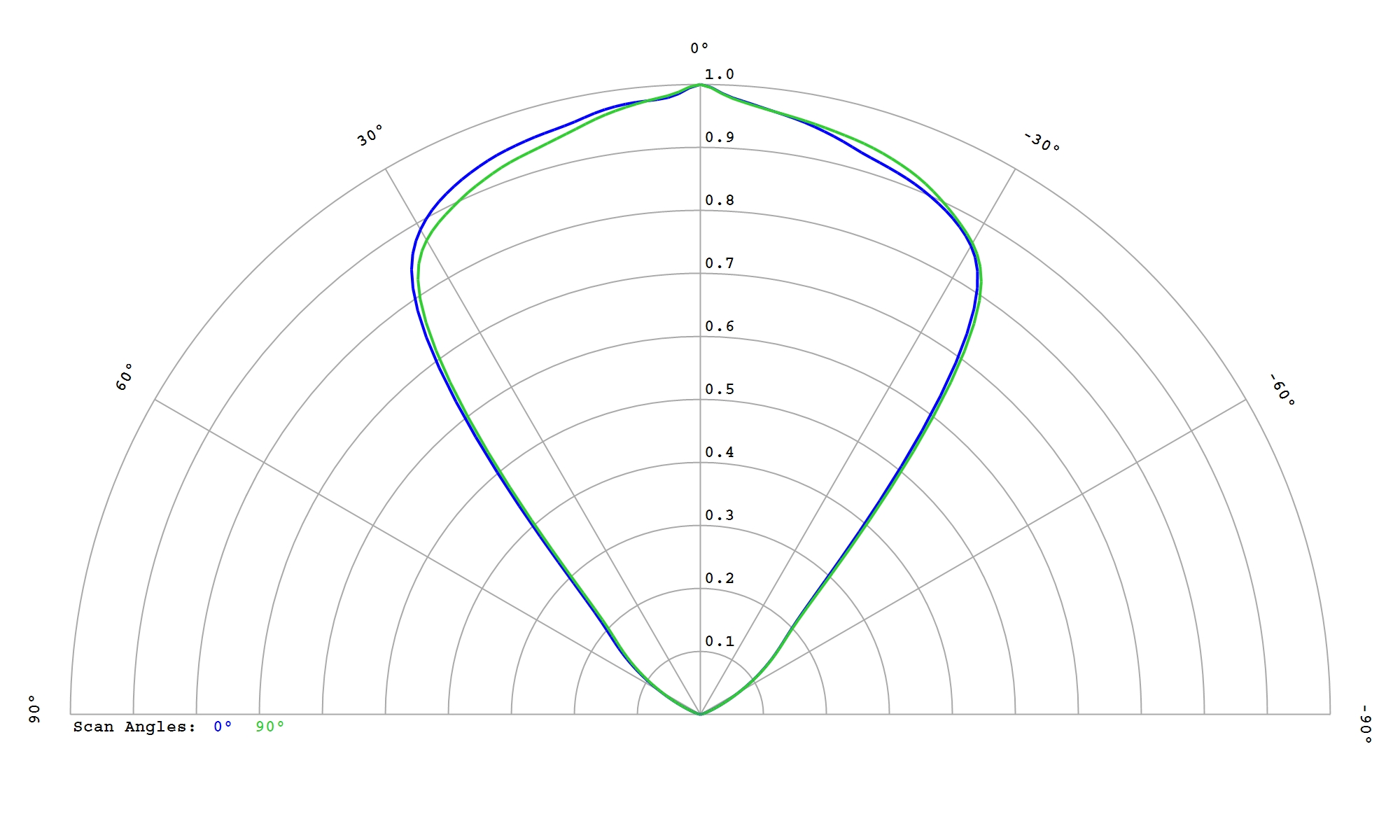

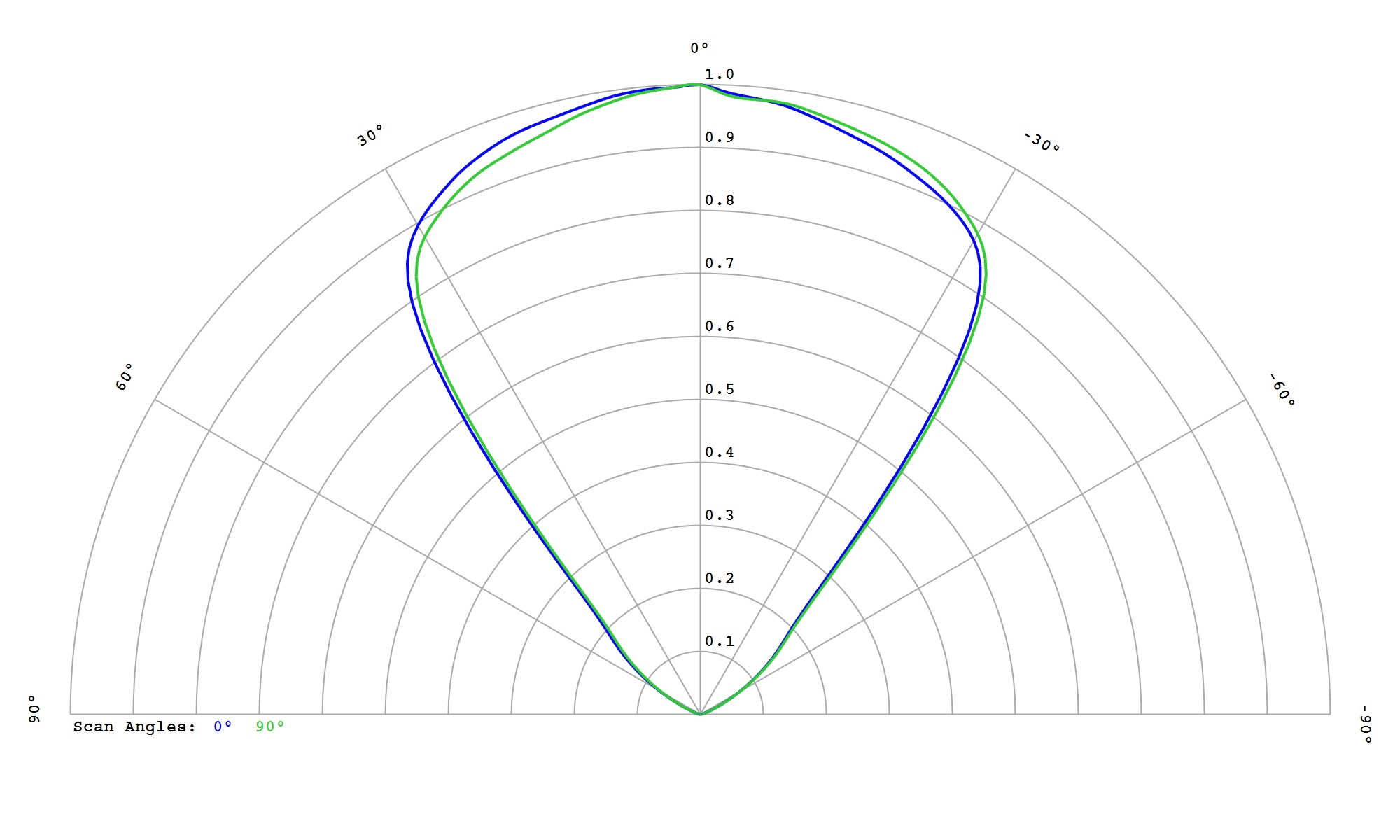

10255 Photometric plot

Download

ies

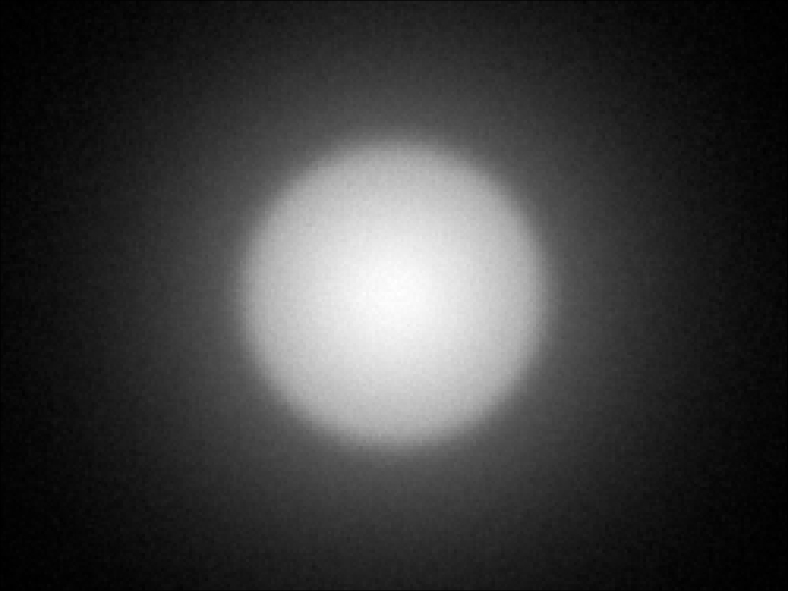

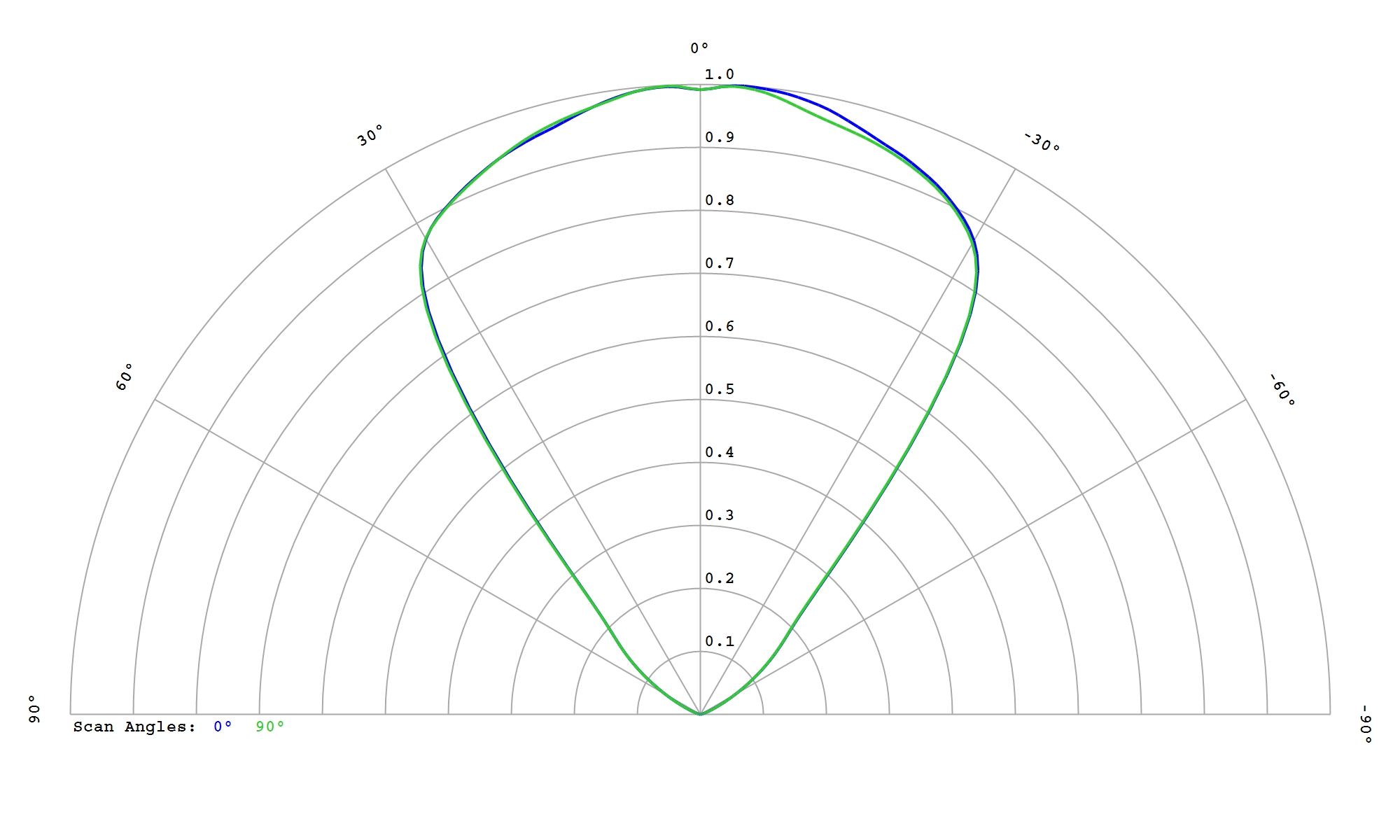

Luminus Devices MP-3030-11F2 White

Eff:

80.0%

FWHM:

76°

Cd/Im:

0.8


Download

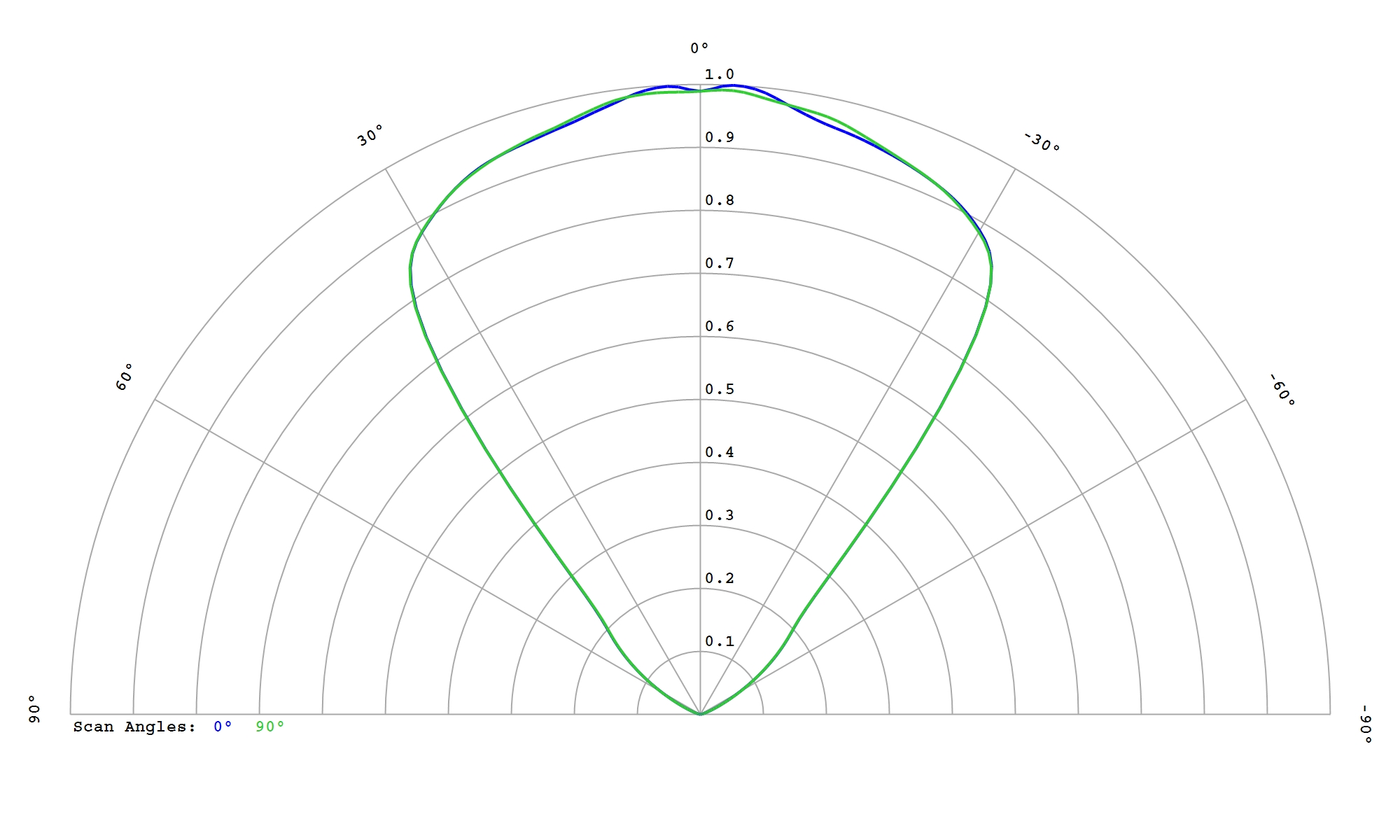

Luminus Devices SFT-12R-WES-A White

Eff:

80.5%

FWHM:

78°

Cd/Im:

0.7


Download

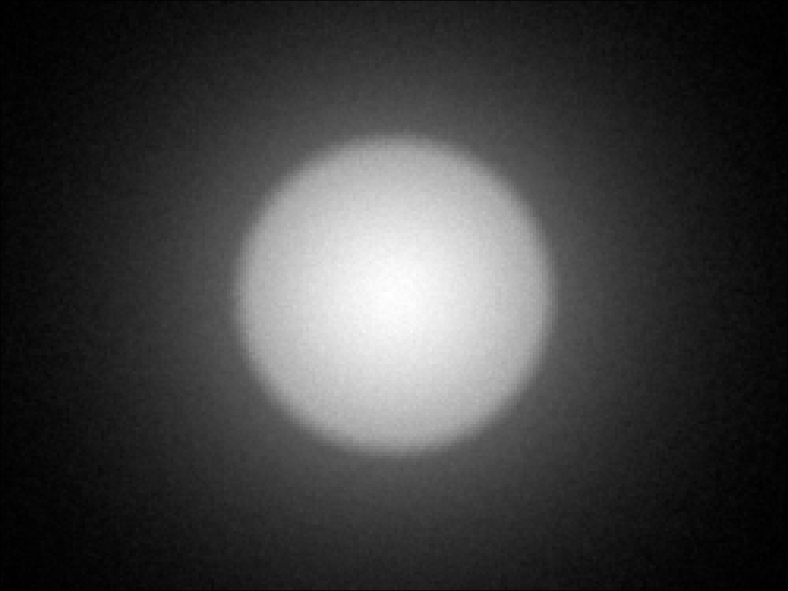

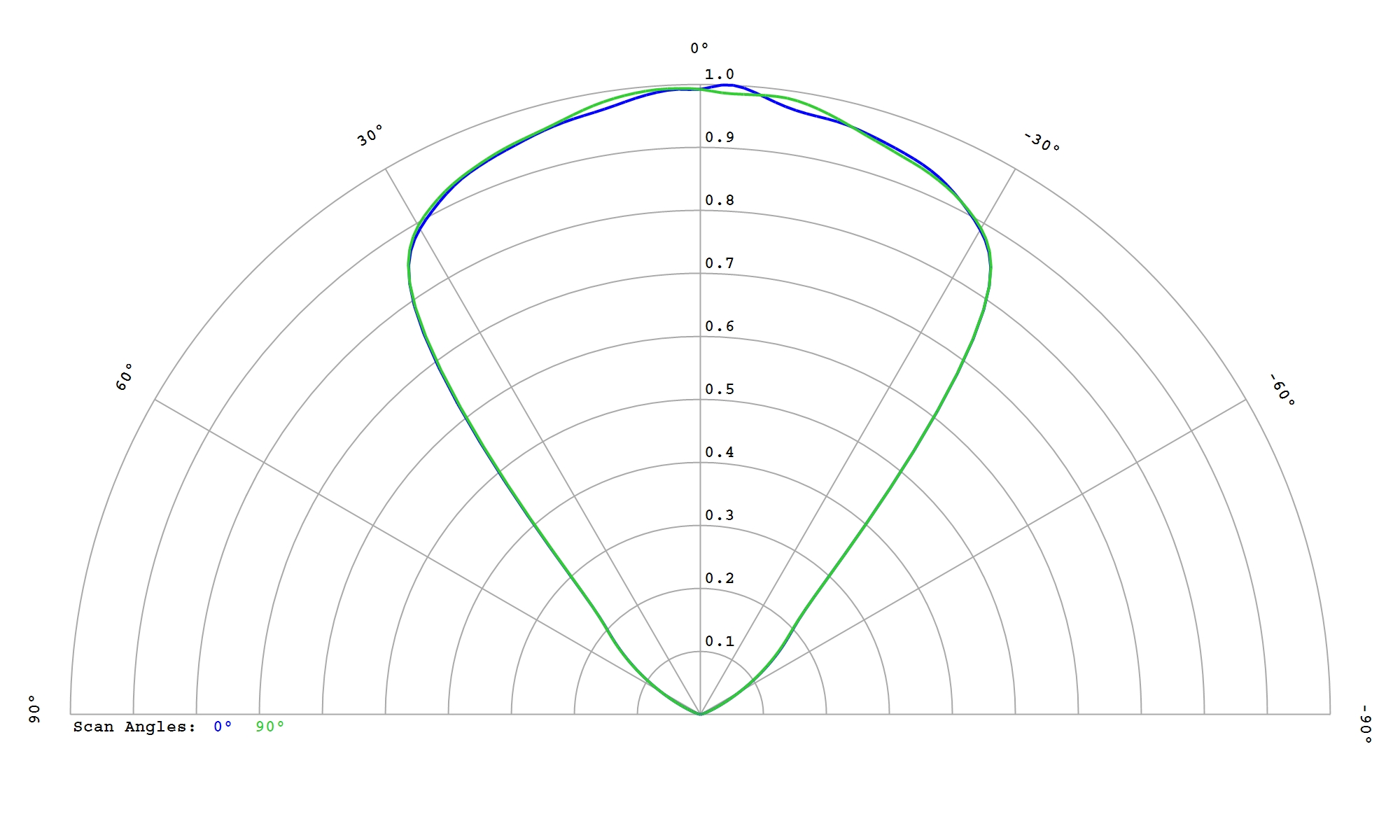

Luminus Devices SFT-25R-WES-A White

Eff:

80.5%

FWHM:

78°

Cd/Im:

0.7


Download

Luminus Devices SST 20-WxH White Hi CRI

Eff:

78.5%

FWHM:

78°

Cd/Im:

0.7

Download

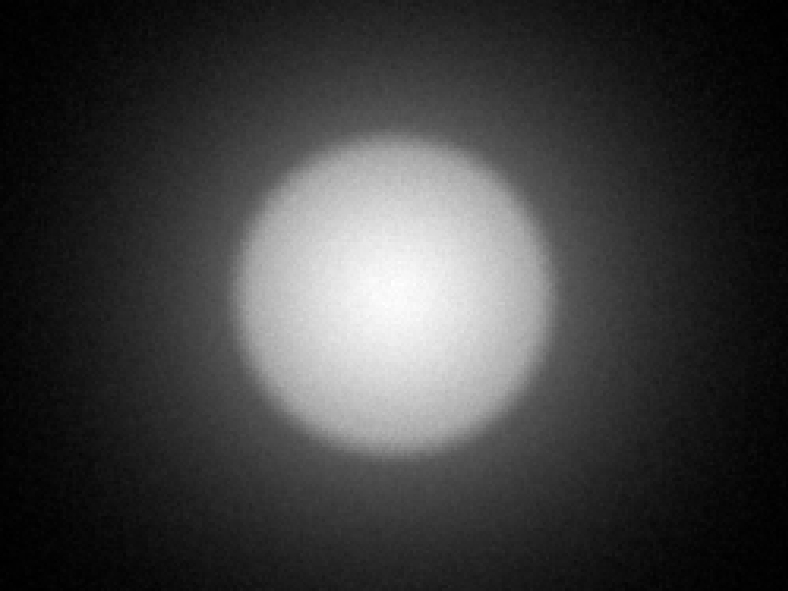

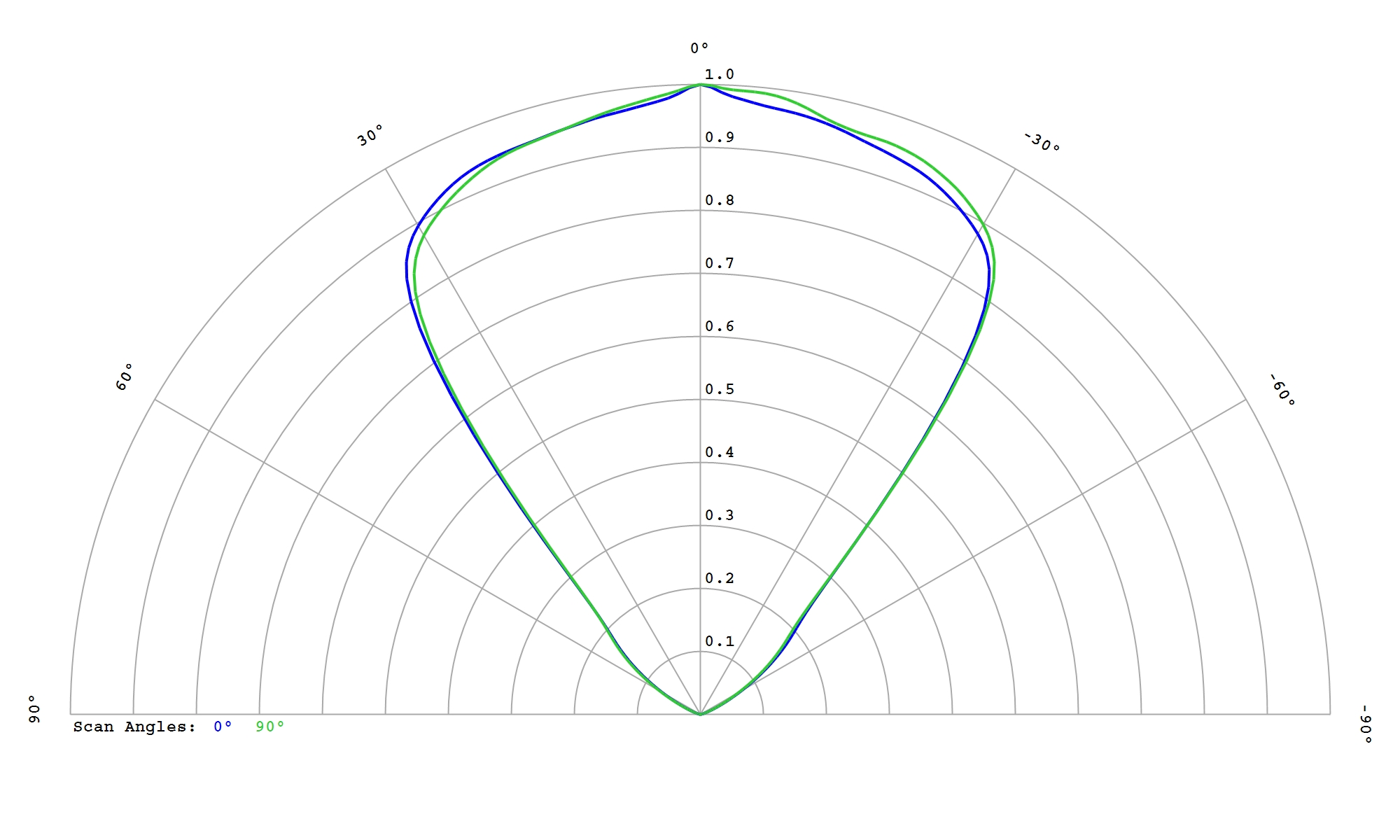

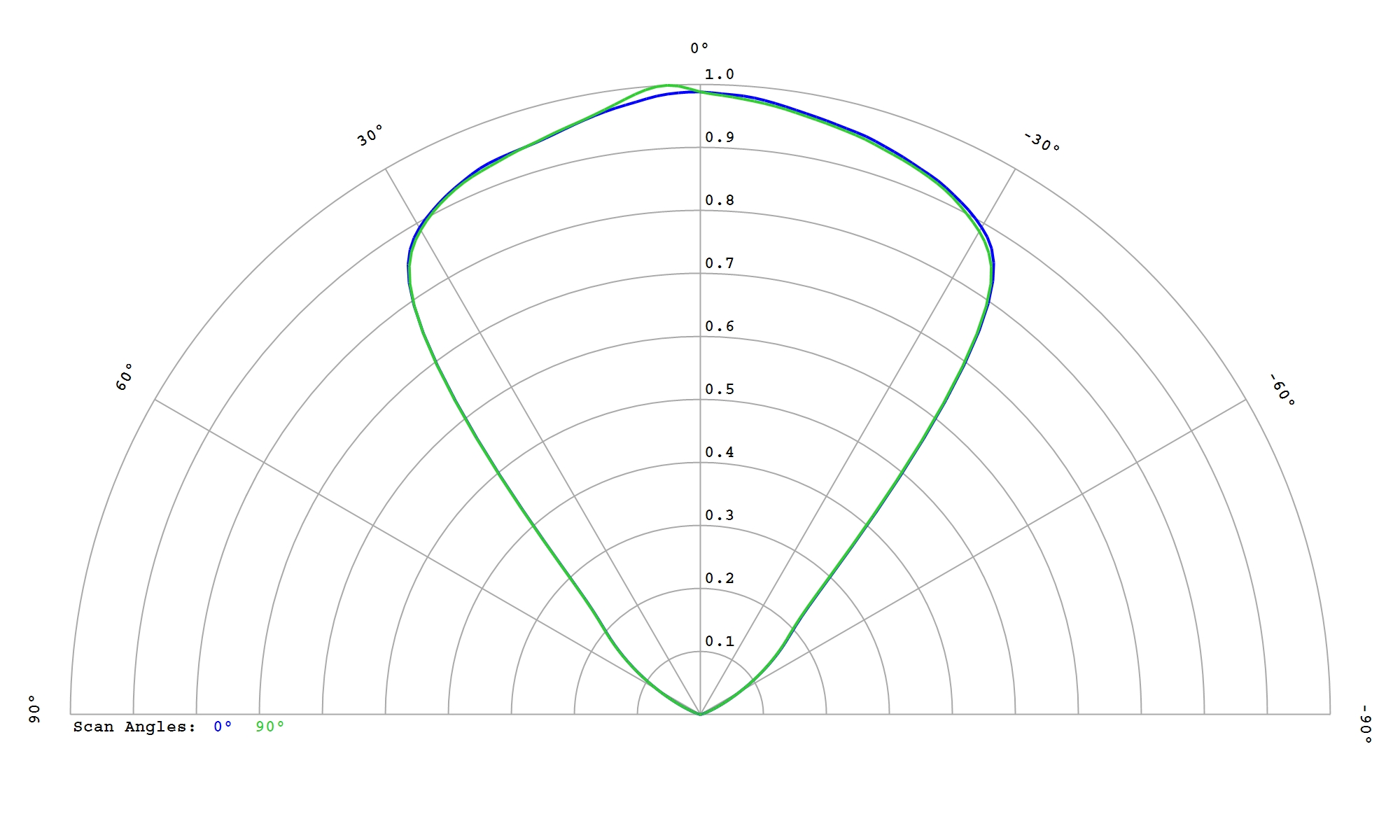

Luminus Devices SST-12-WS Gen2 White

Eff:

79.5%

FWHM:

79°

Cd/Im:

0.7


Download

Luminus Devices SST-12-WxS White

Eff:

79.0%

FWHM:

79°

Cd/Im:

0.7

Download

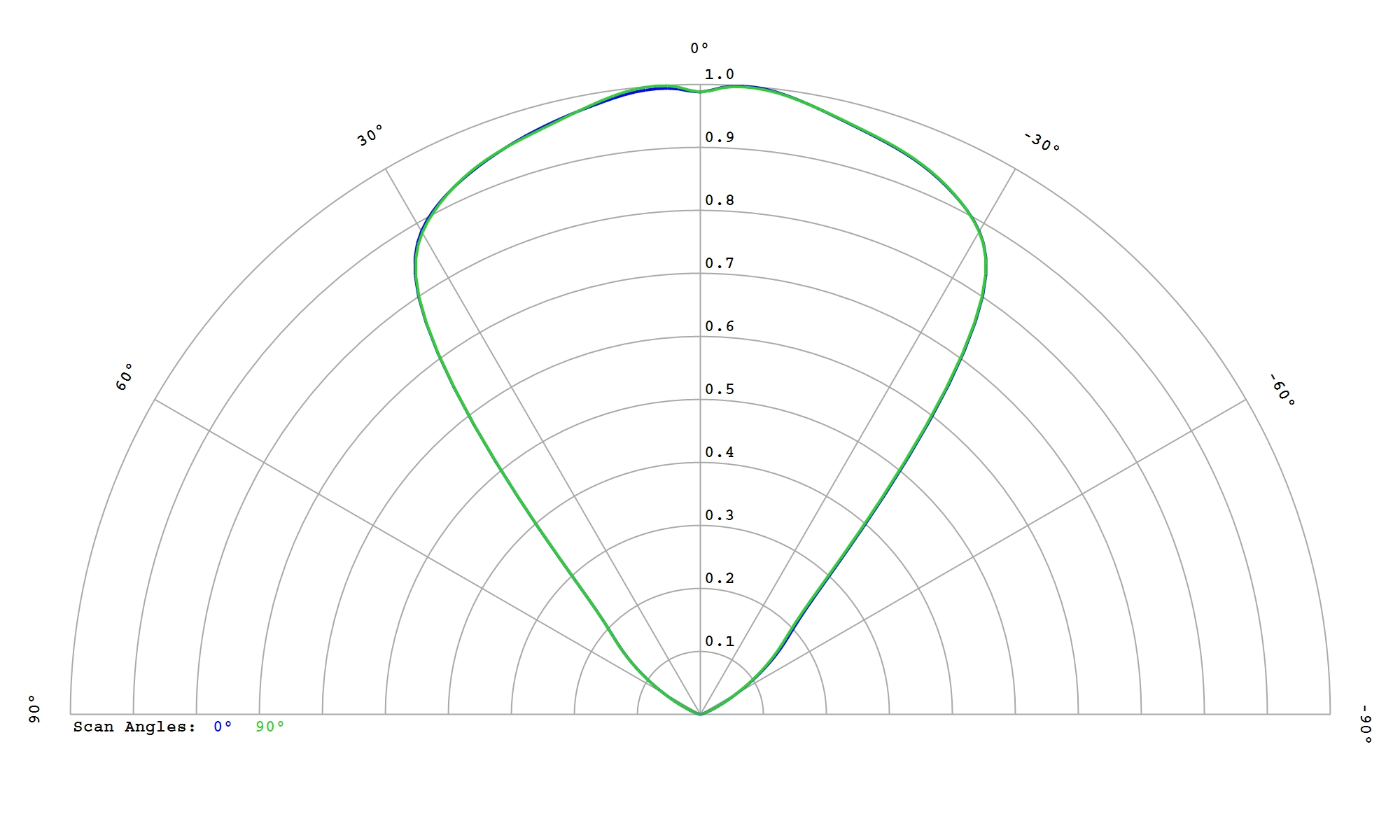

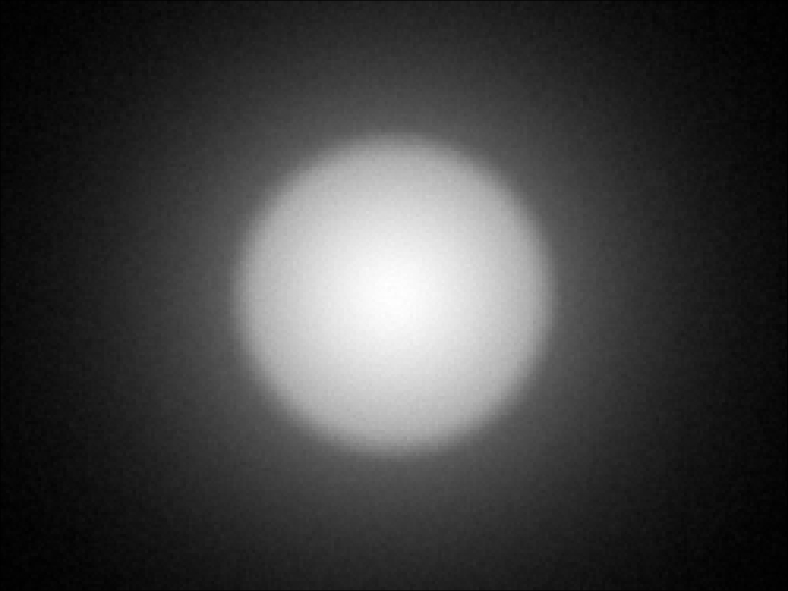

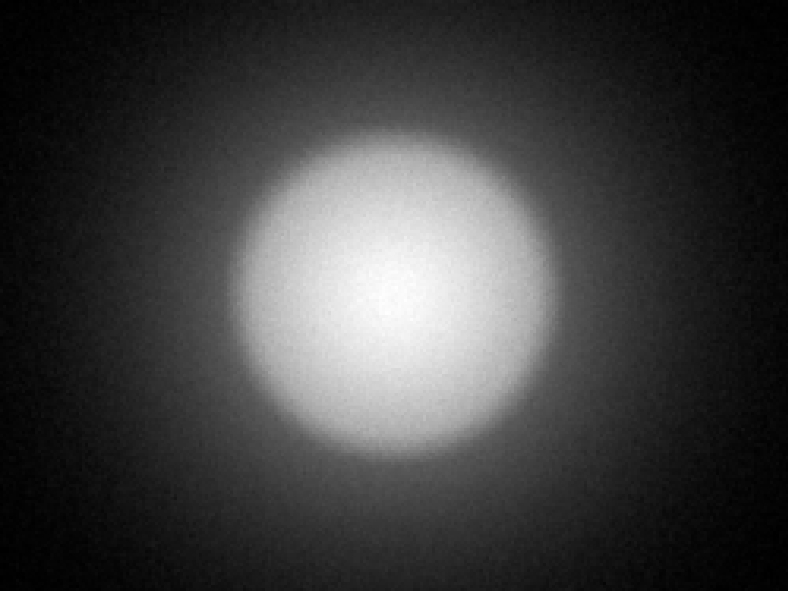

Luminus Devices SST-20-W Gen2 White

Eff:

79.0%

FWHM:

79°

Cd/Im:

0.7


Download

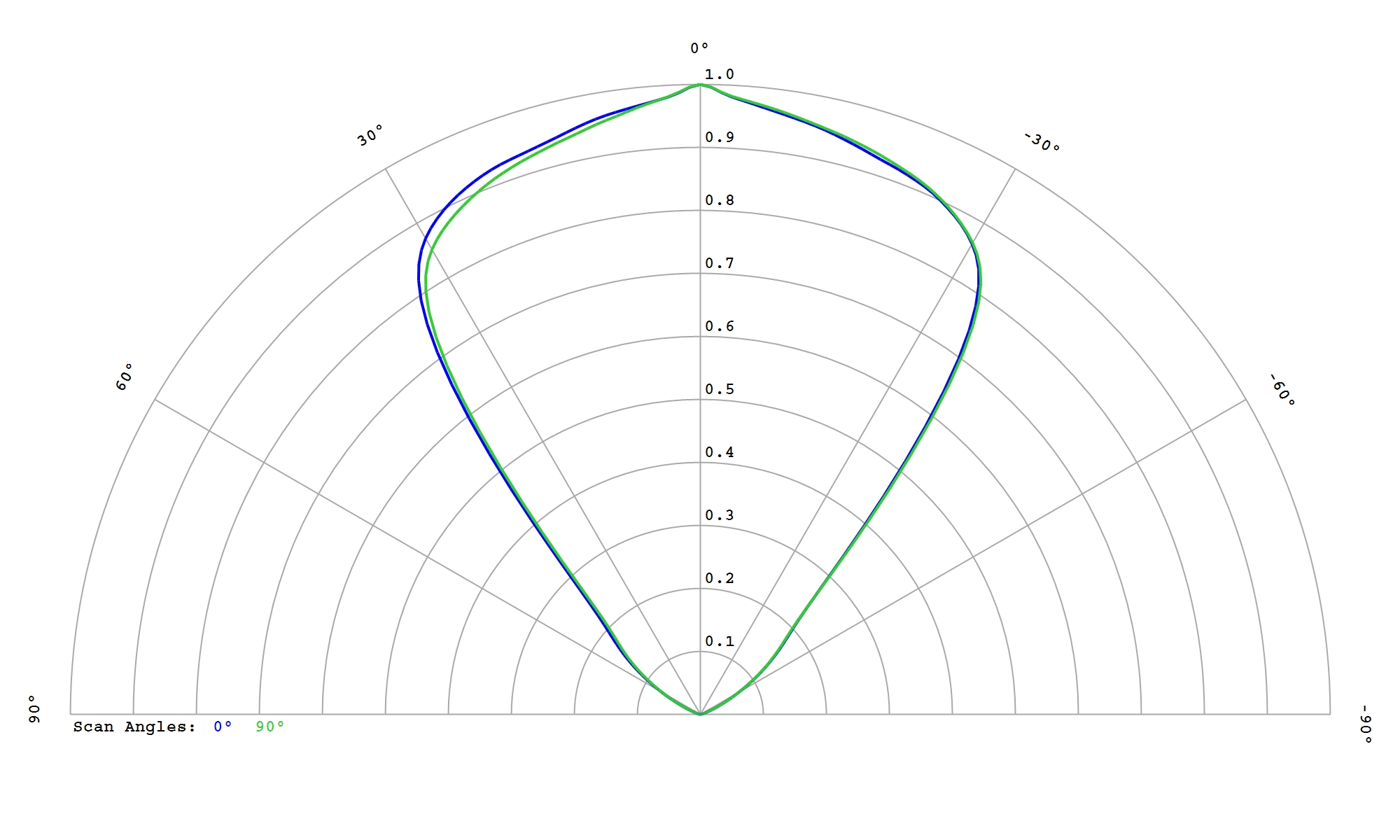

Osram DURIS E 2835 Gen2

Eff:

80.5%

FWHM:

78°

Cd/Im:

0.7



Download

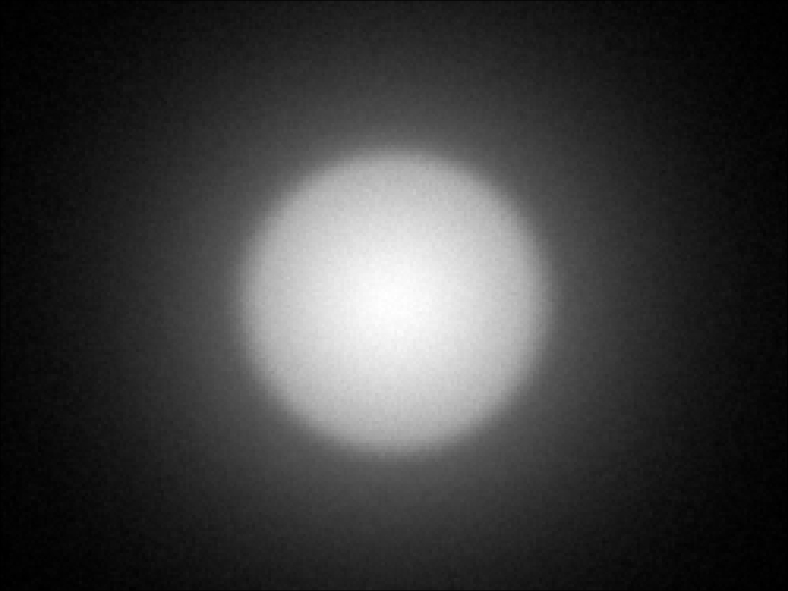

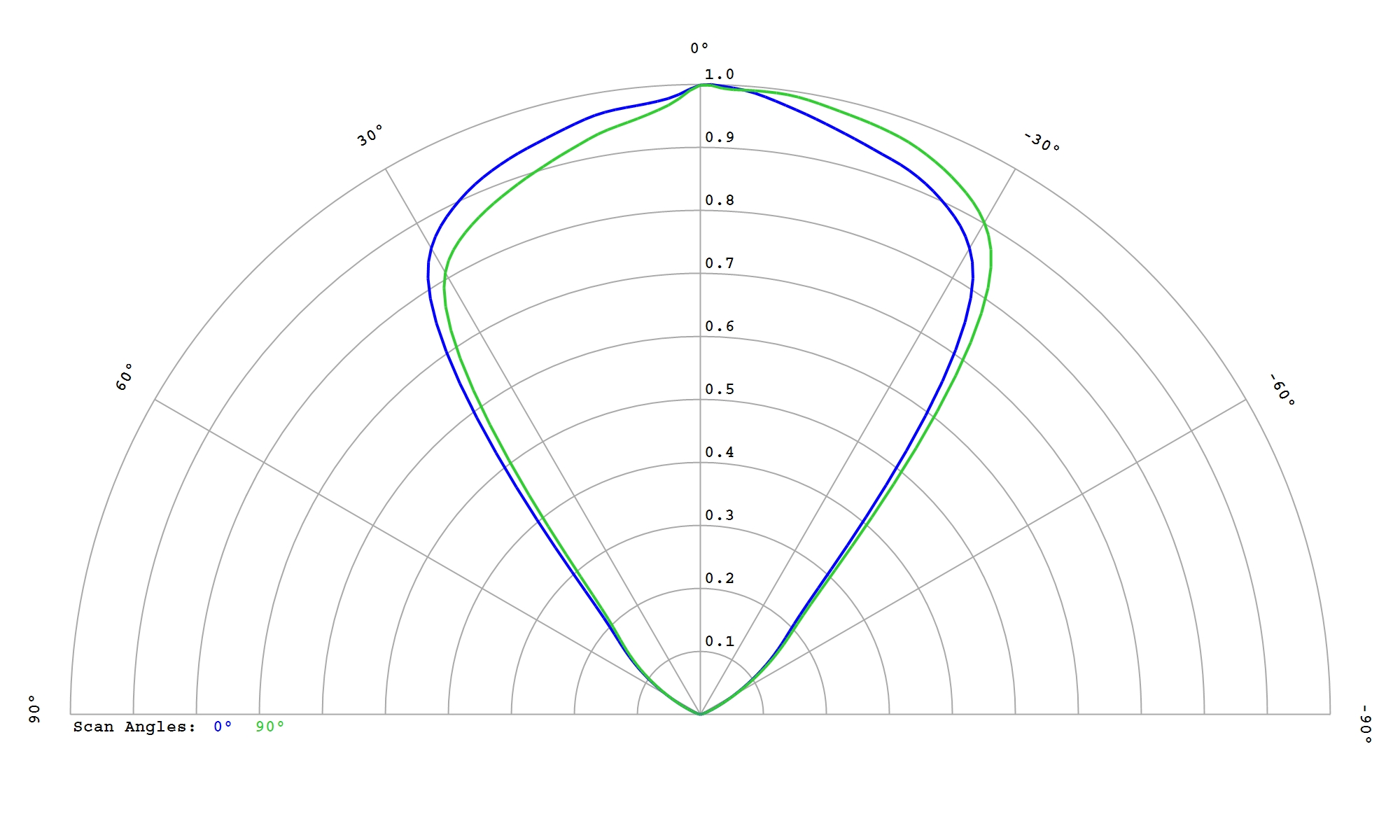

Osram DURIS S5 White

Eff:

79.5%

FWHM:

76°

Cd/Im:

0.7

Download

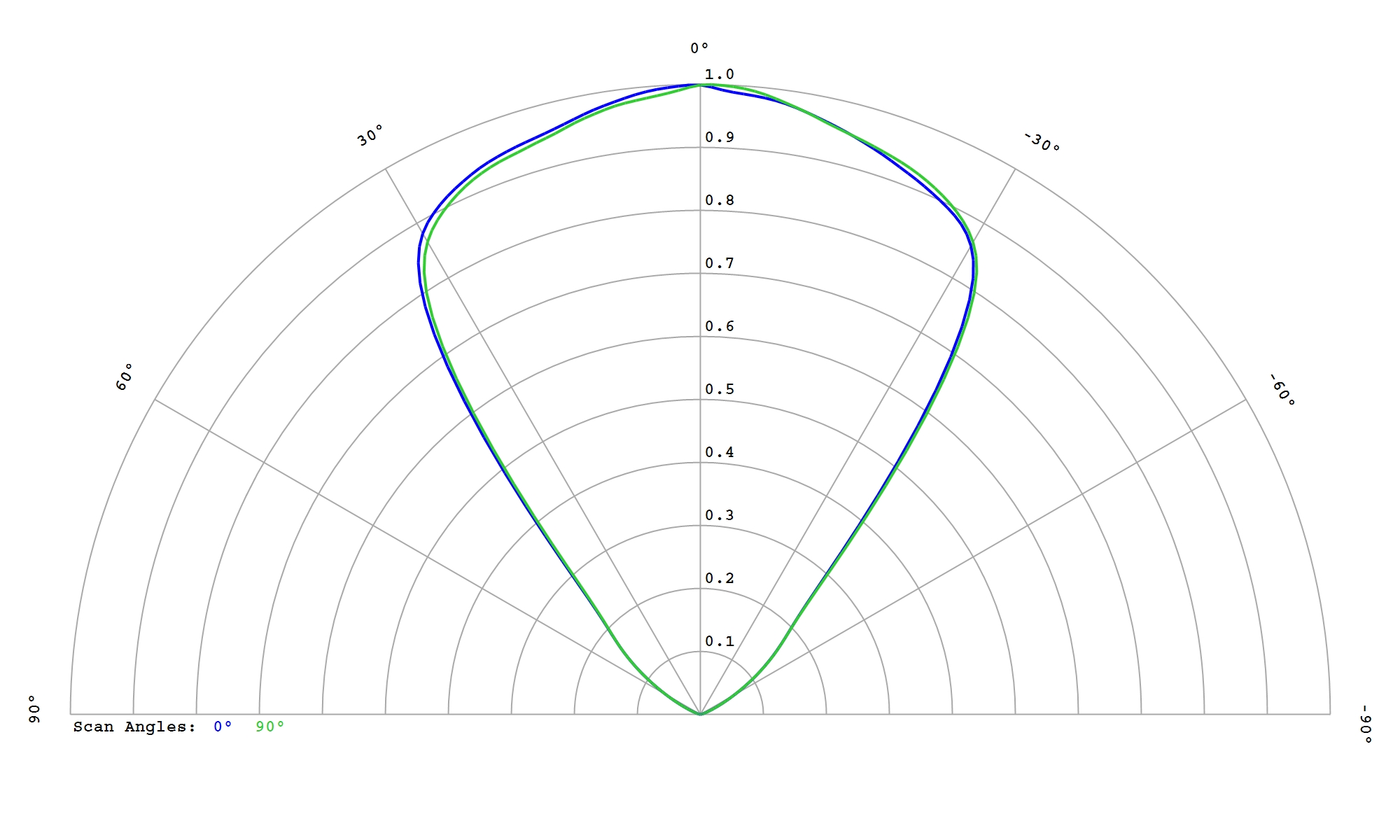

Osram OSCONIQ C 3030 GW PLTRA1.PM White

Eff:

79.5%

FWHM:

76°

Cd/Im:

0.8

Download

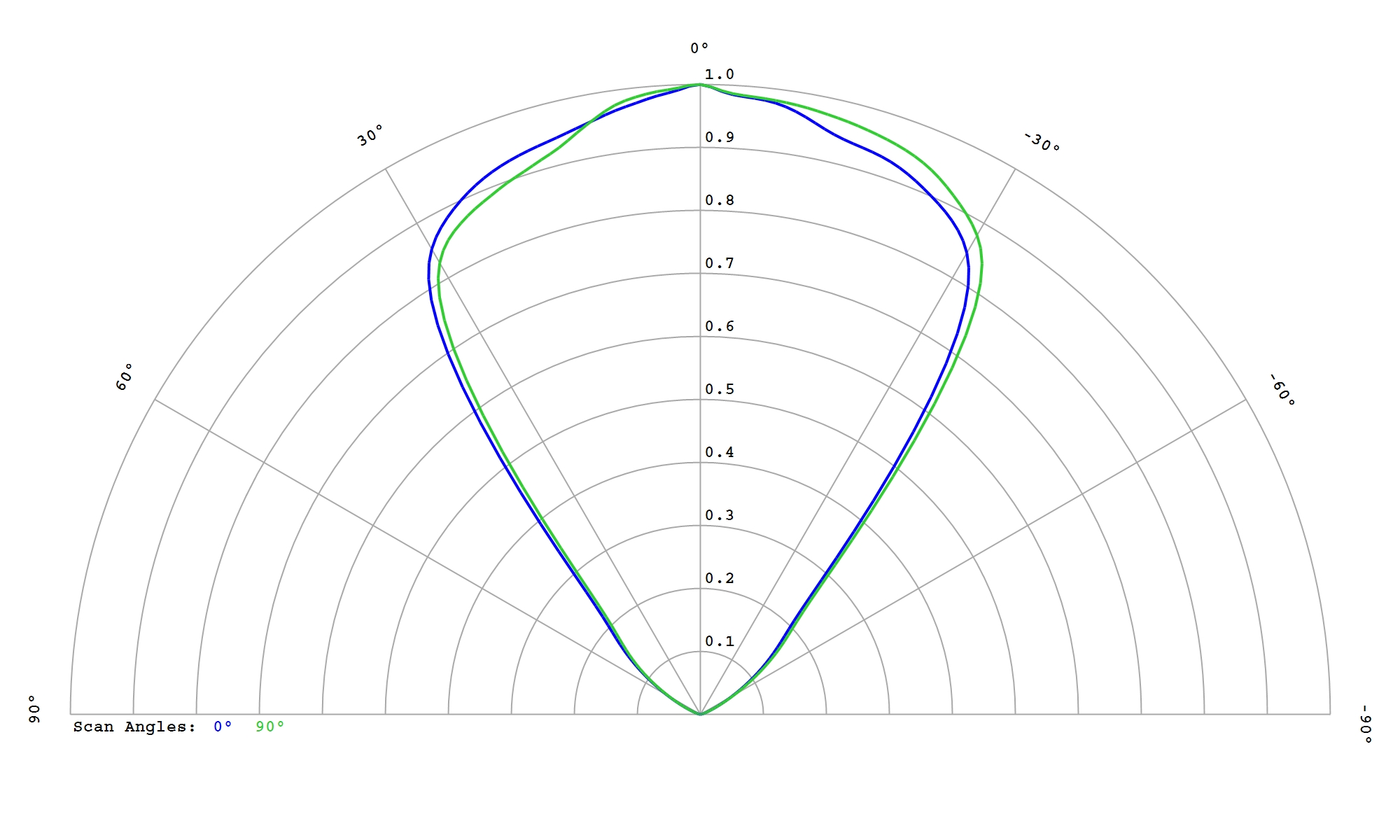

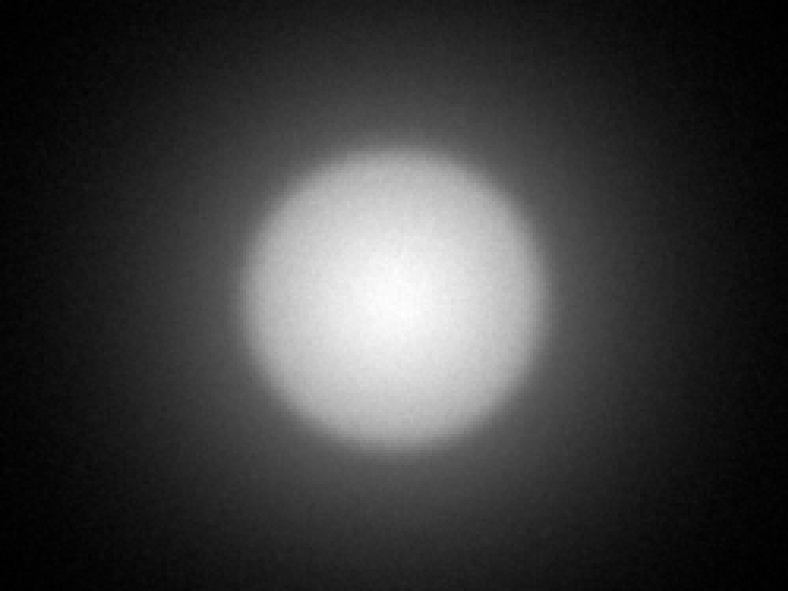

Osram OSCONIQ E 3030 GW QSLPS1.EM White

Eff:

80.0%

FWHM:

75°

Cd/Im:

0.8

Download

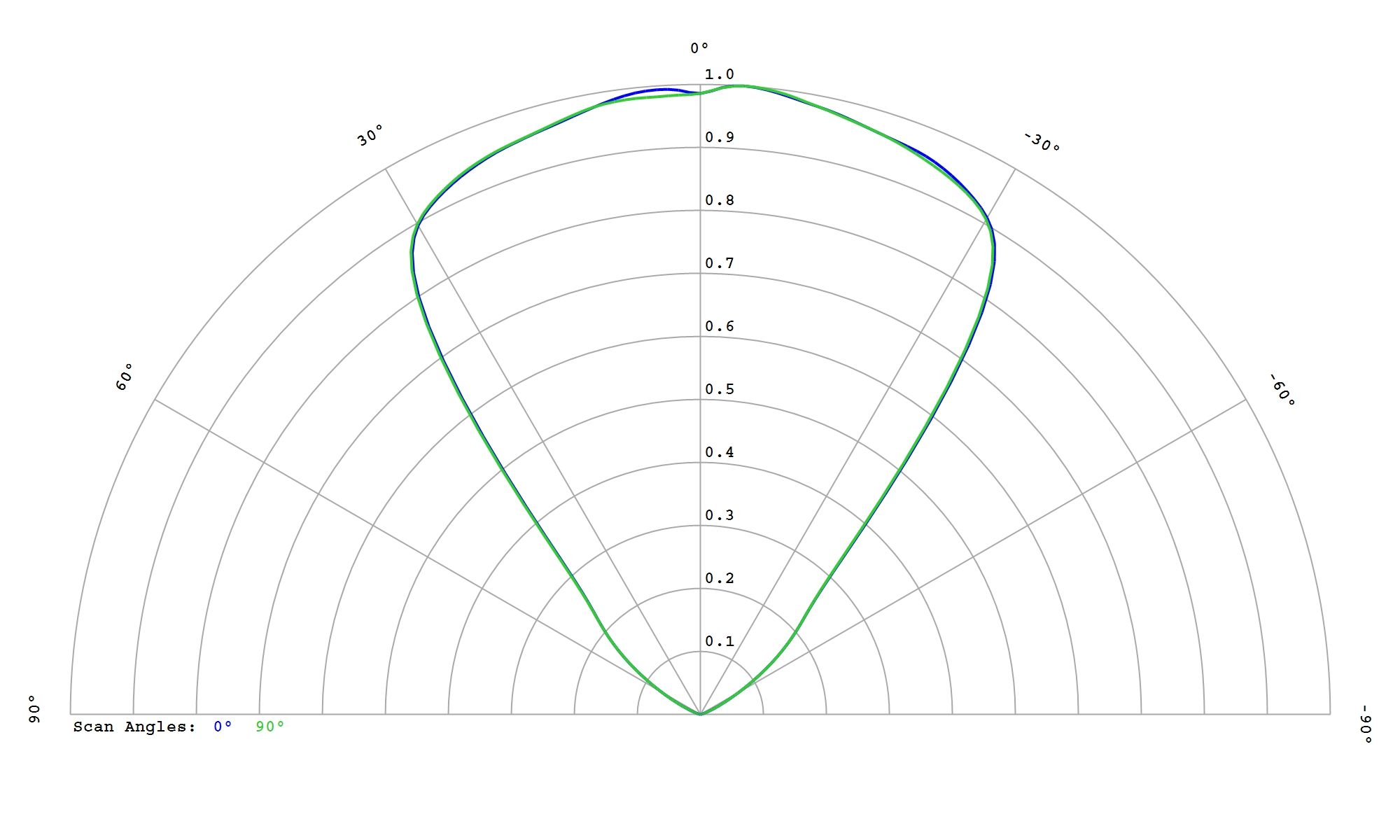

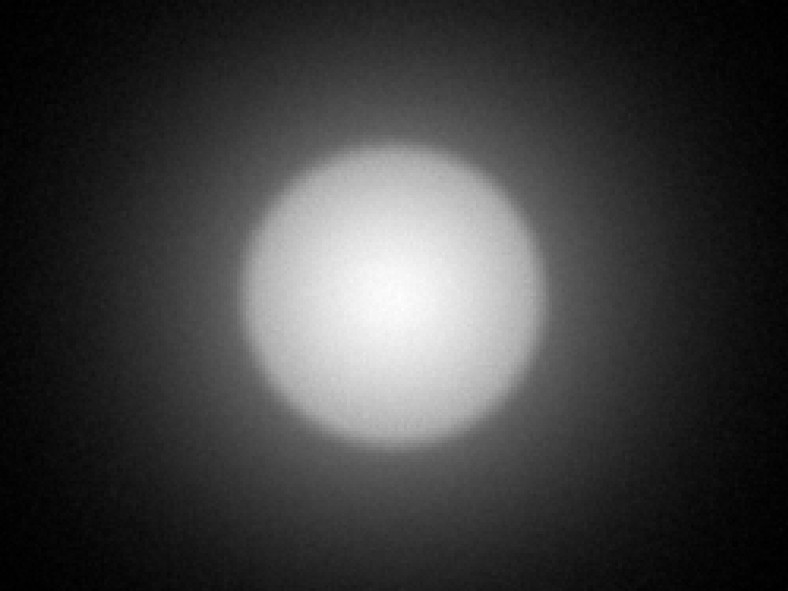

Osram OSCONIQ P 3030 GW QSSPA1.PM White

Eff:

77.0%

FWHM:

77°

Cd/Im:

0.7

Download

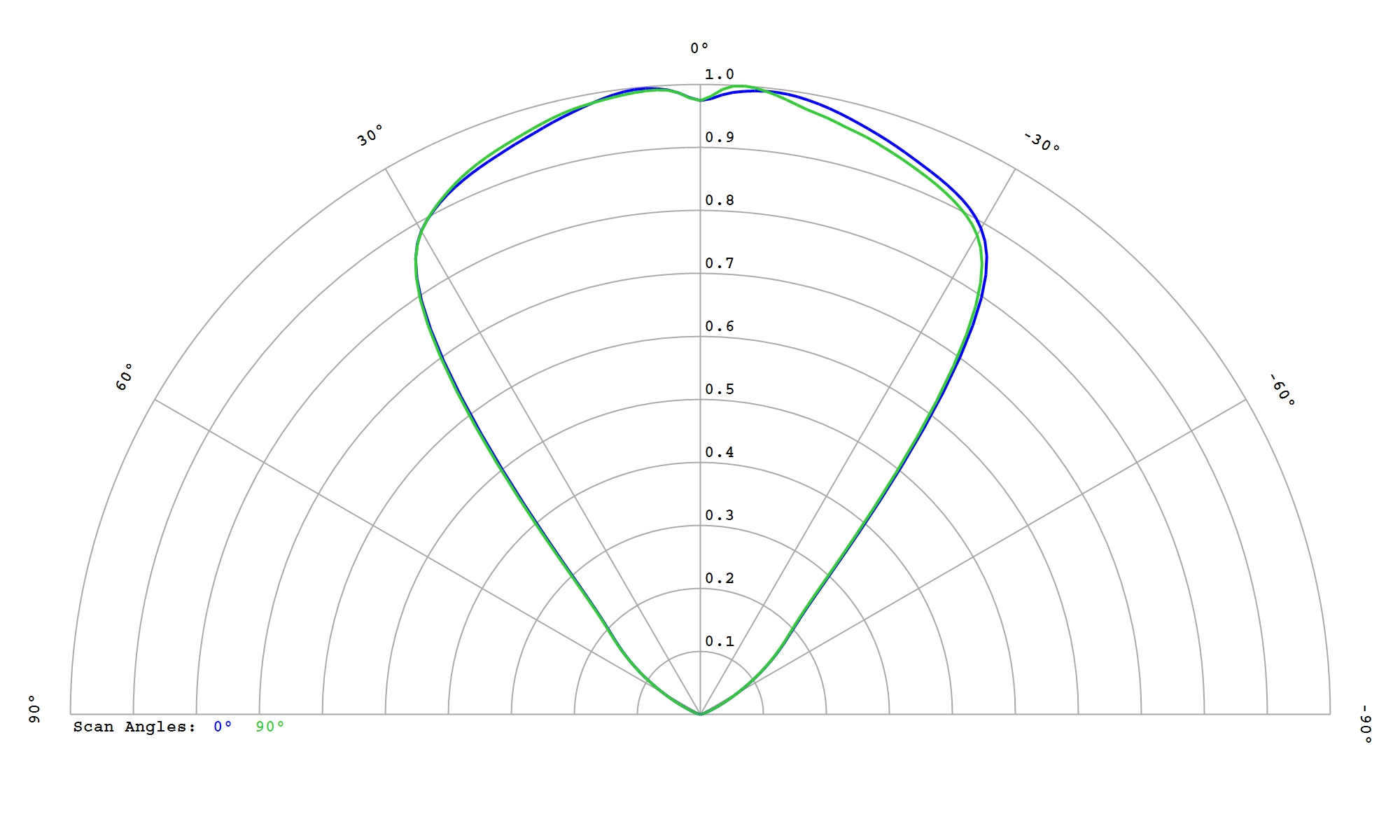

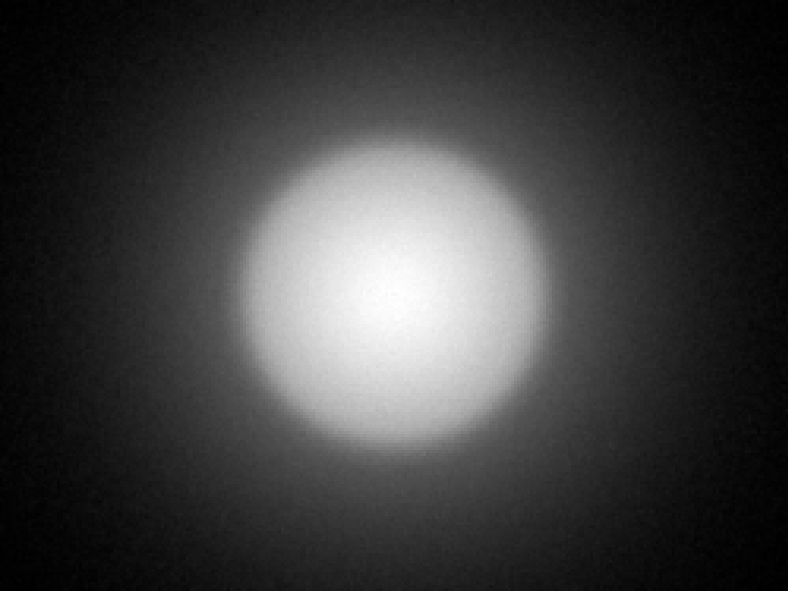

Osram OSCONIQ S 3030 GW QSLMS3.EM White

Eff:

80.0%

FWHM:

77°

Cd/Im:

0.7

Download

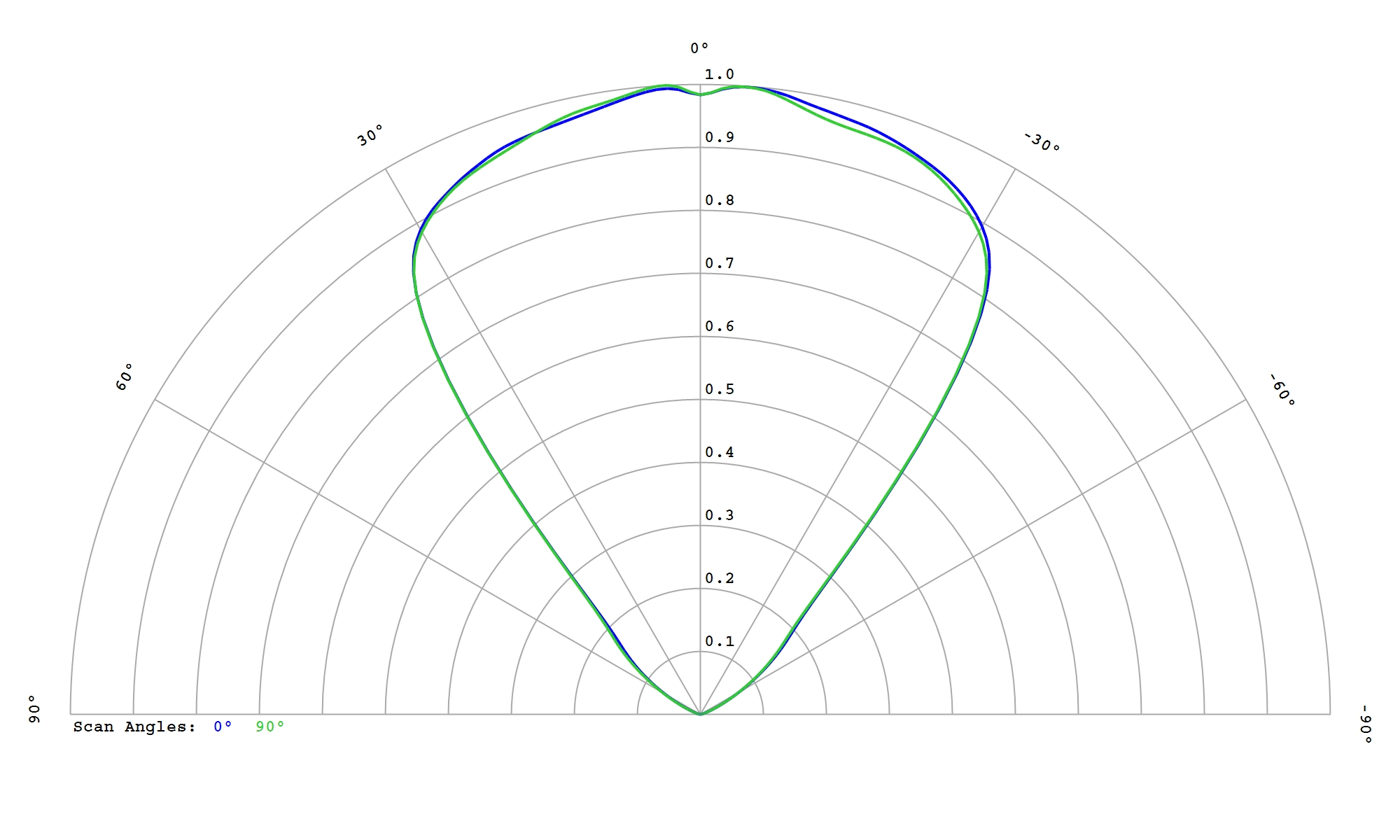

Osram OSLON Square Gen 3 White

Eff:

79.5%

FWHM:

79°

Cd/Im:

0.7


Download

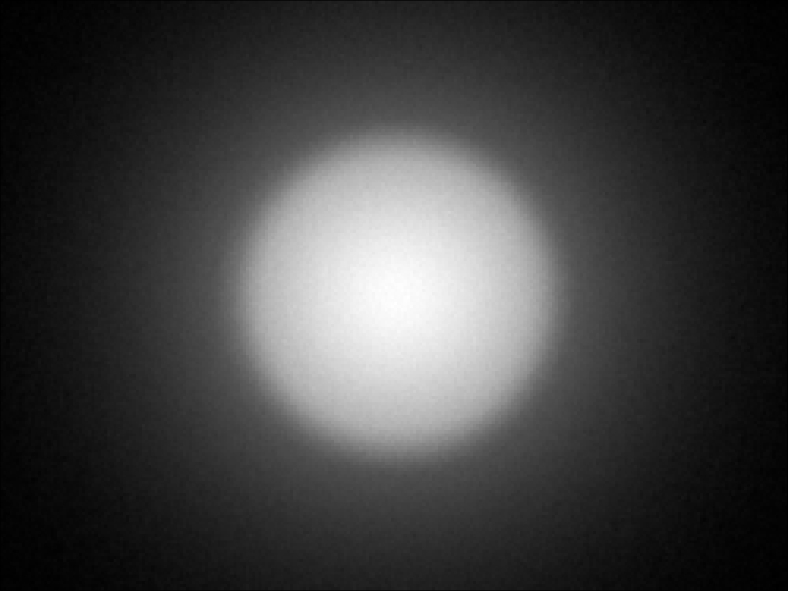

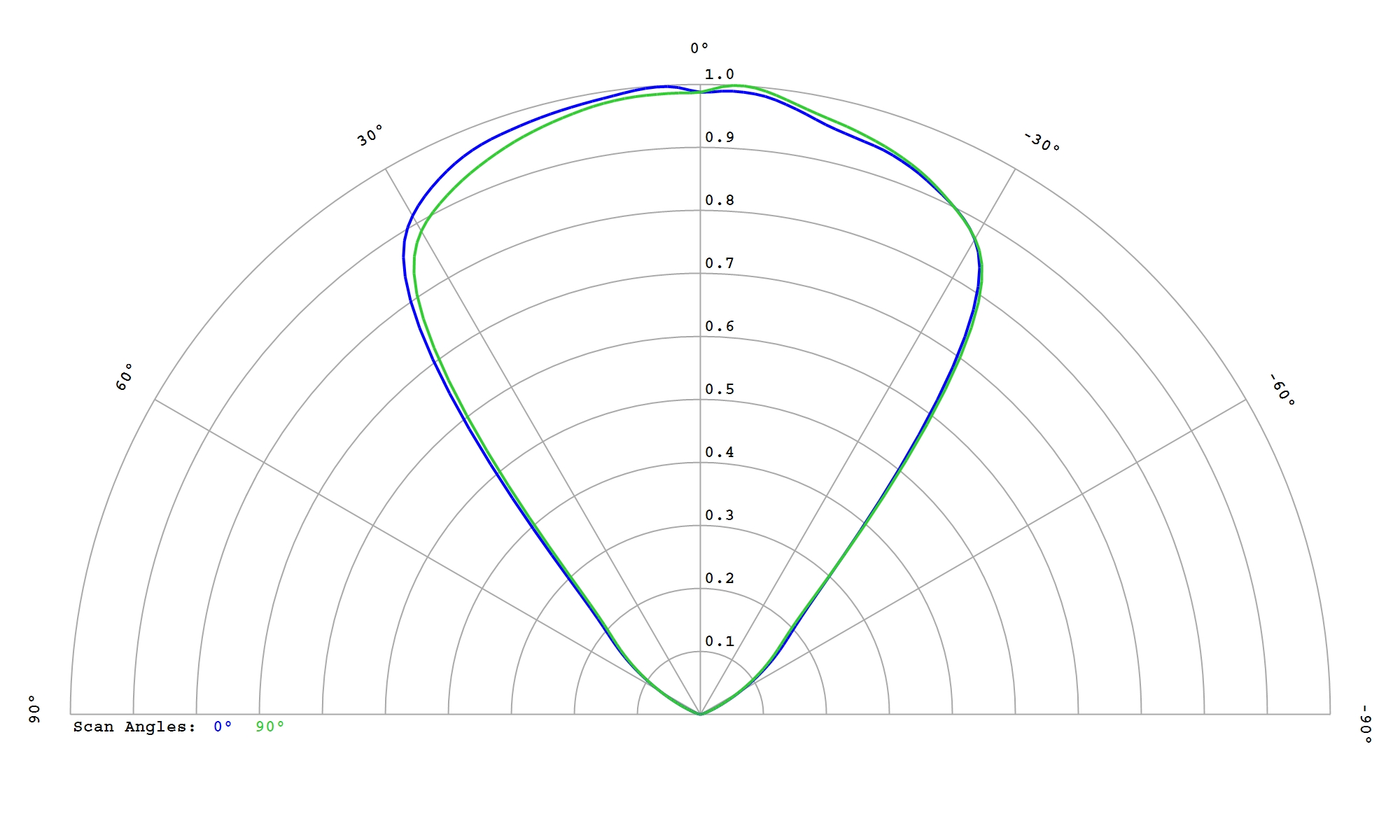

Samsung 2835 LM281B+ White

Eff:

76.5%

FWHM:

78°

Cd/Im:

0.7



Download

Samsung 3030 LM301B White

Eff:

80.0%

FWHM:

76°

Cd/Im:

0.7


Download

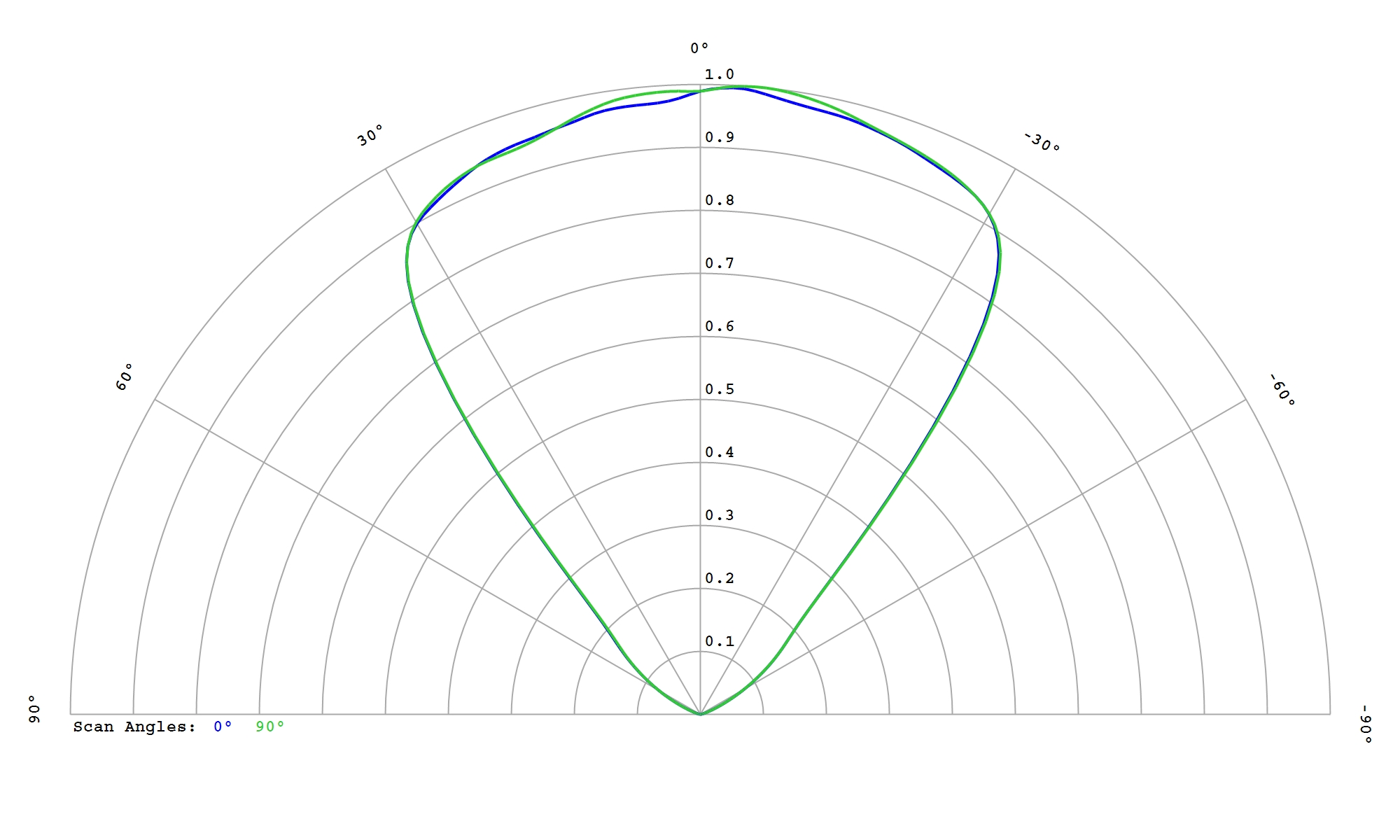

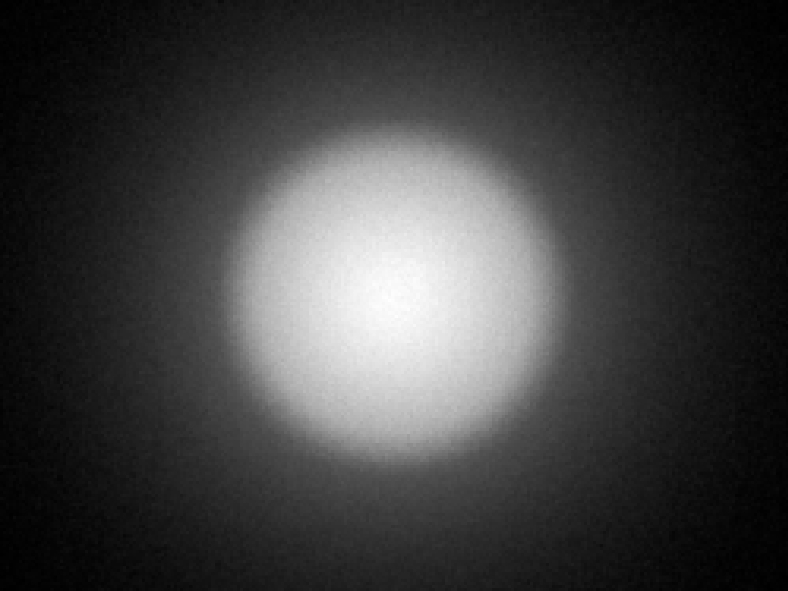

Samsung 3535 LH351B White

Eff:

78.5%

FWHM:

80°

Cd/Im:

0.8

Download

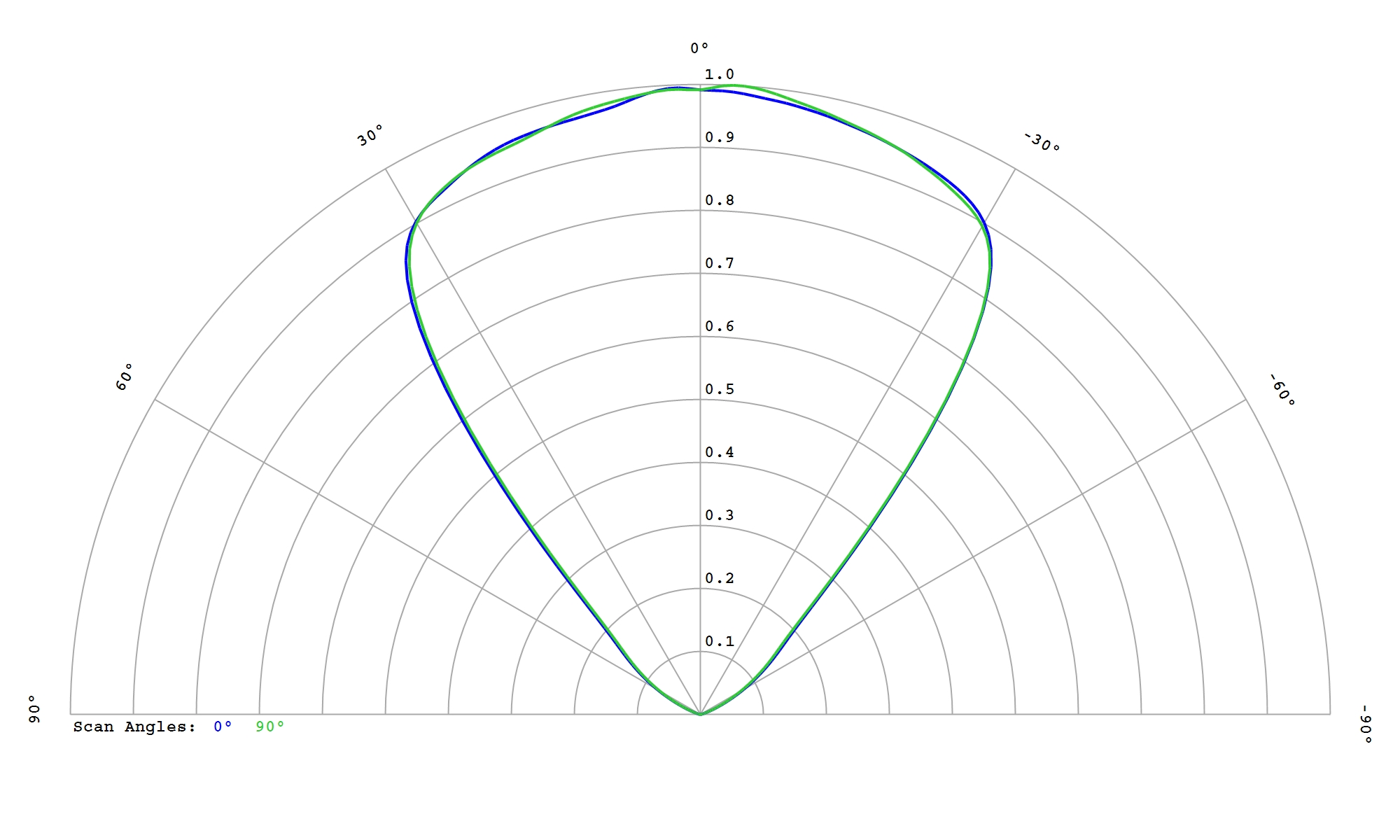

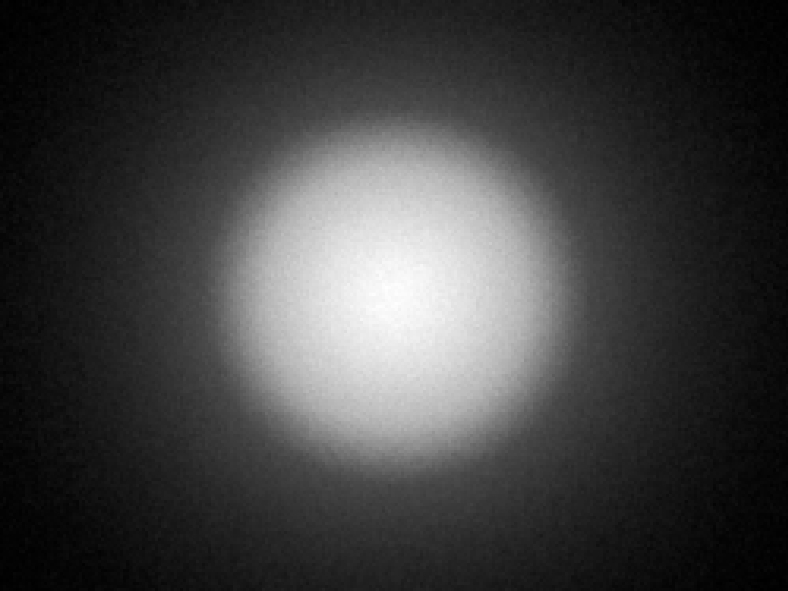

Samsung 3535 LH351D White

Eff:

73.0%

FWHM:

80°

Cd/Im:

0.7

Download

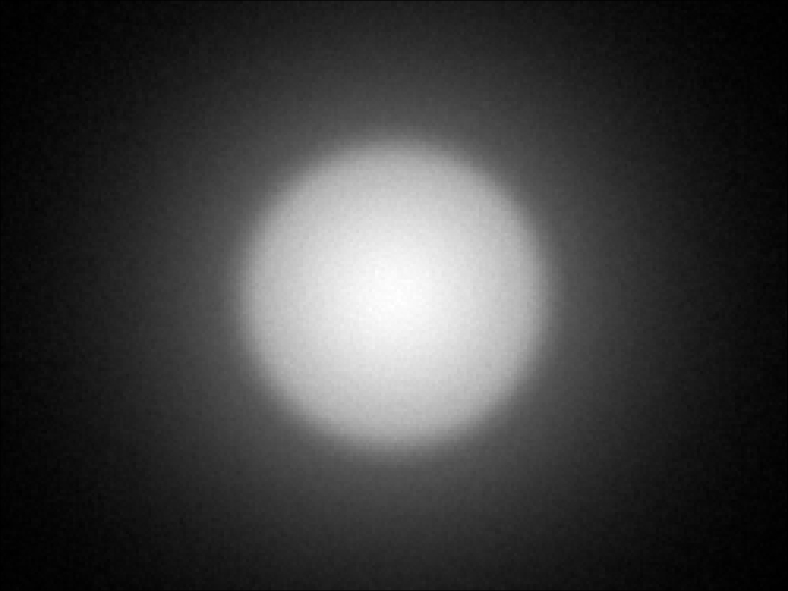

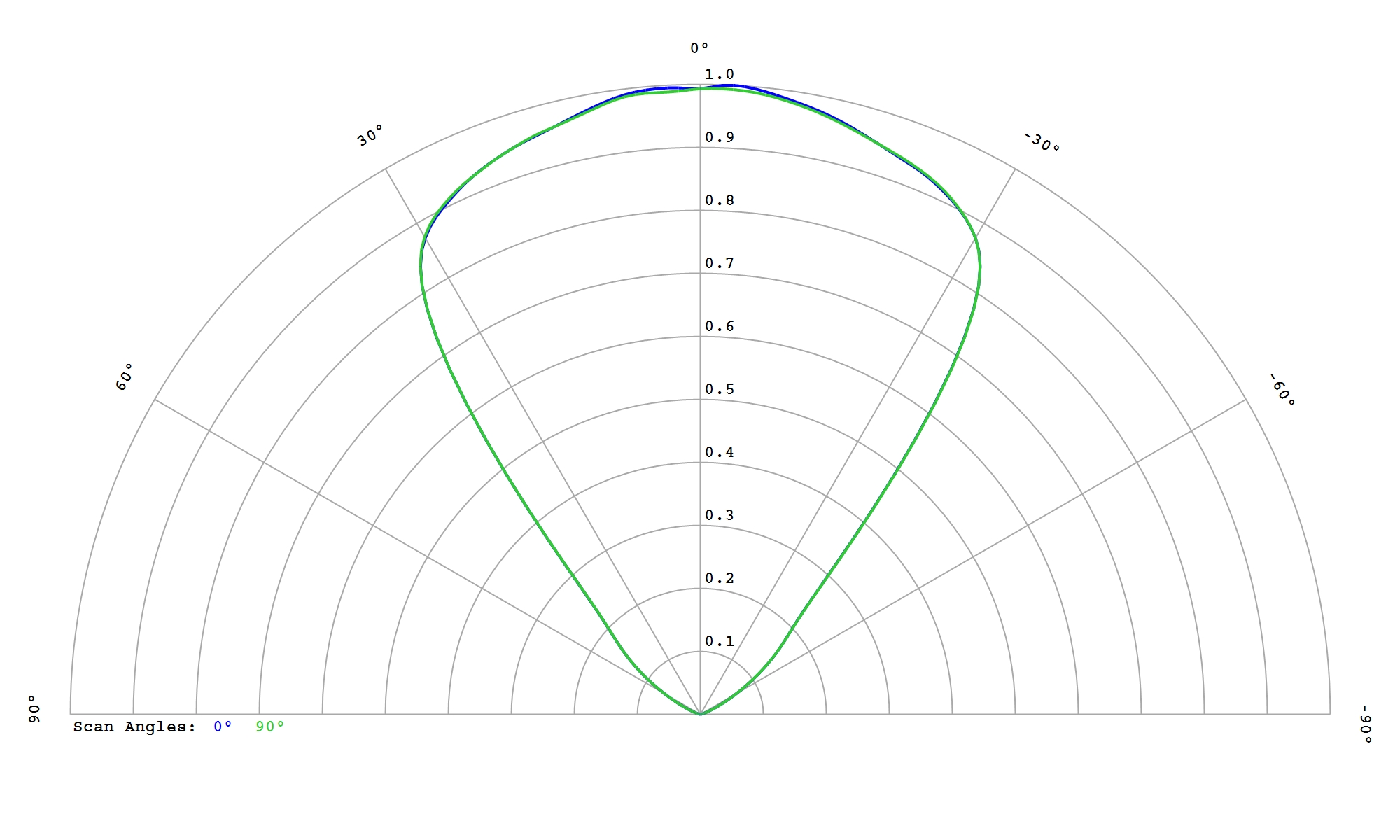

Seoul 3030 STW8C12E-E0 White

Eff:

80.0%

FWHM:

77°

Cd/Im:

0.7

Download

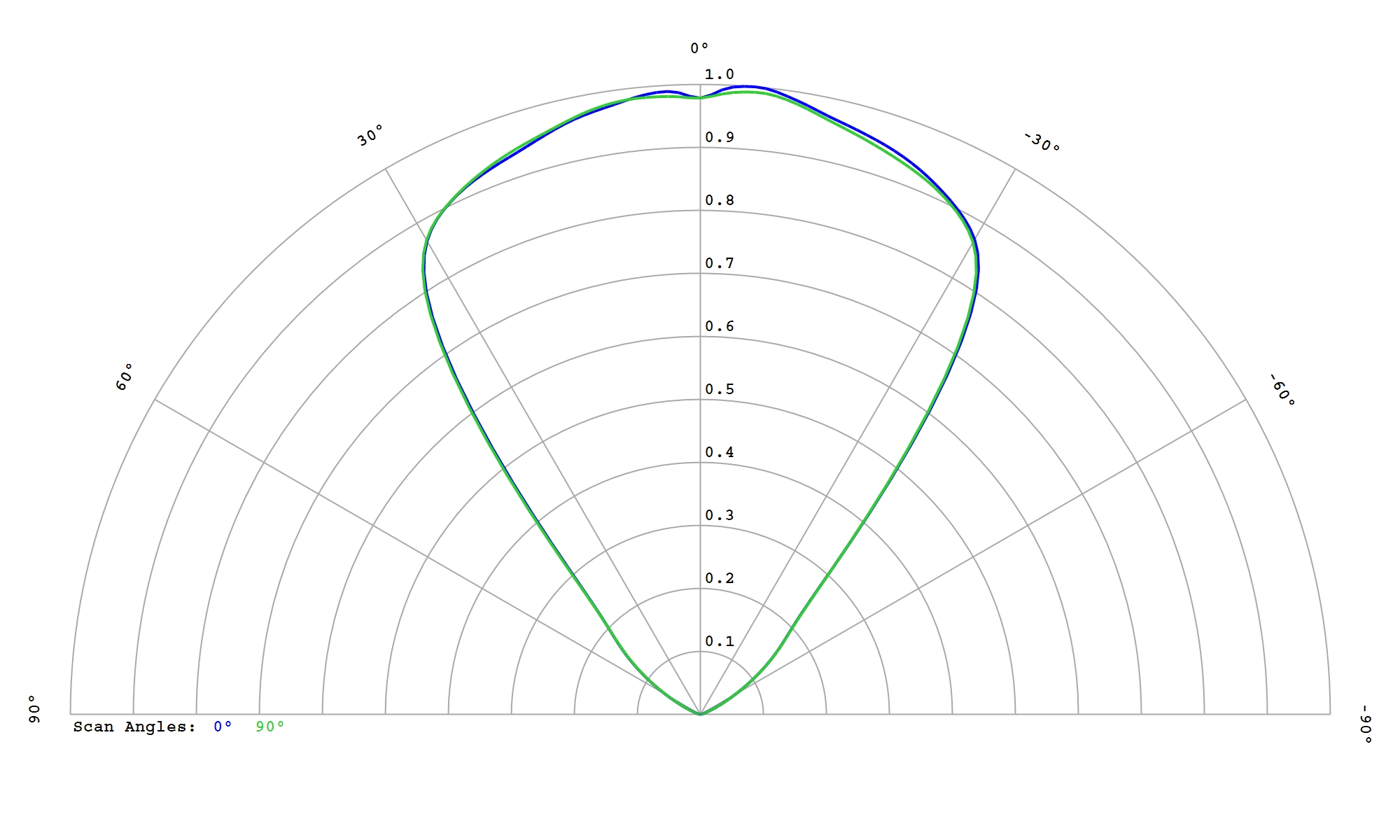

Seoul 3030 STW8C2SB-NT White

Eff:

79.5%

FWHM:

77°

Cd/Im:

0.8

Download

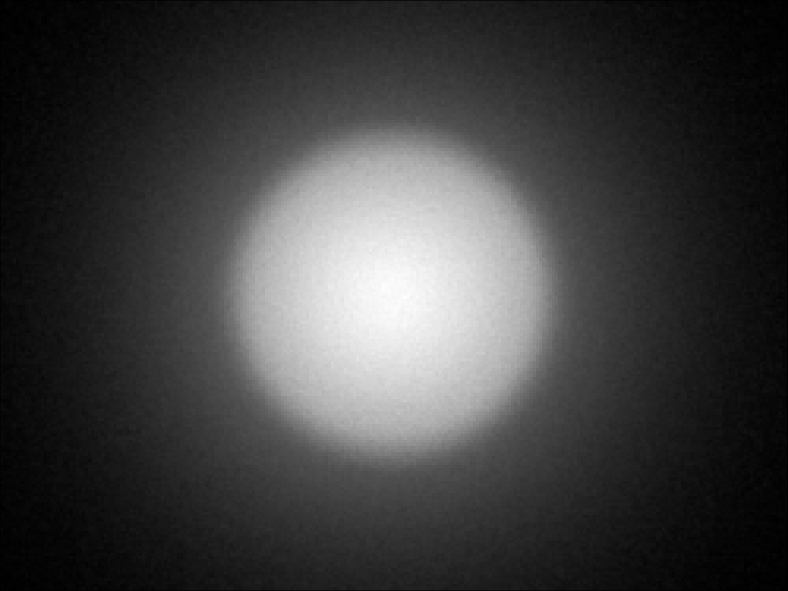

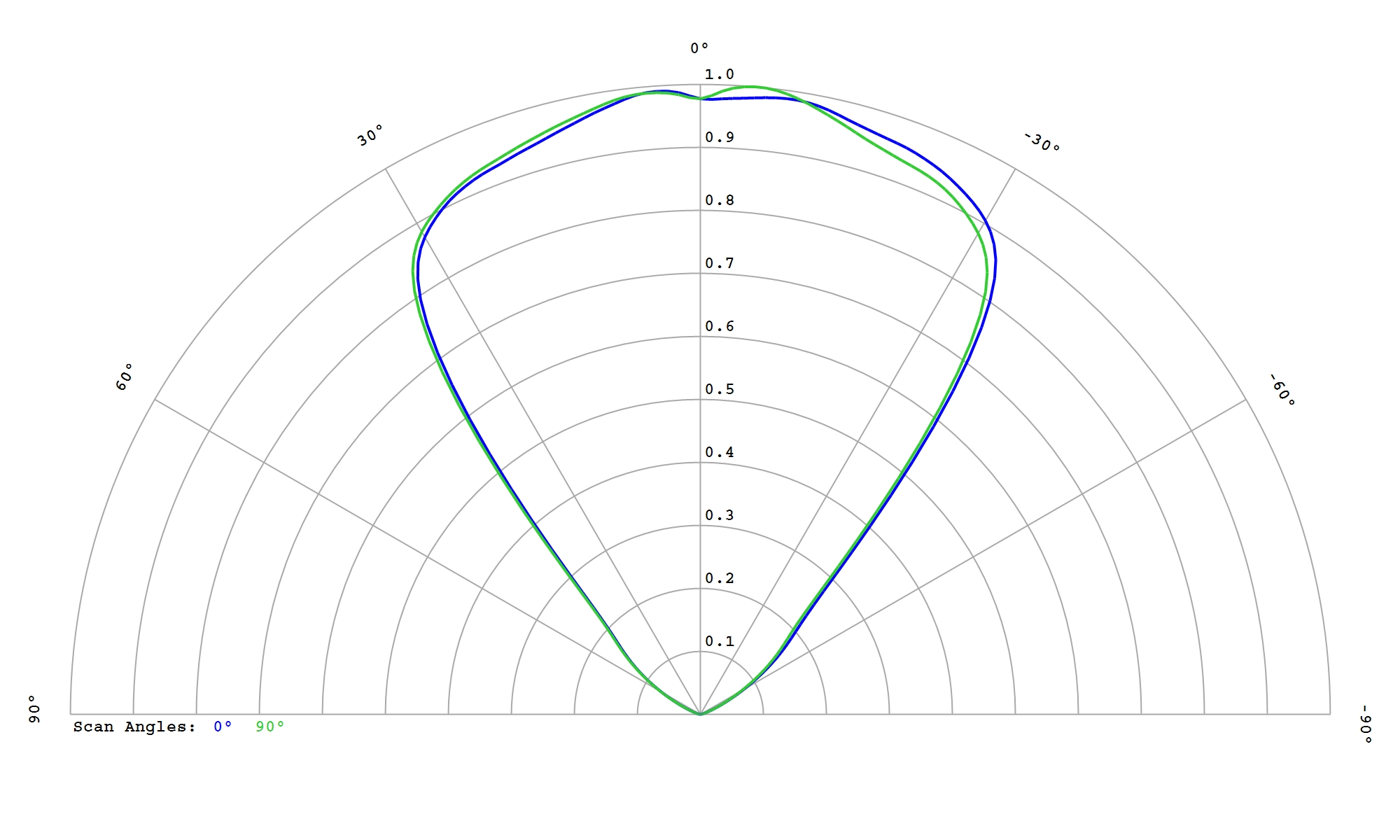

Seoul 3528 G STW8A2PD-G700 White

Eff:

81.0%

FWHM:

79°

Cd/Im:

0.7

Download

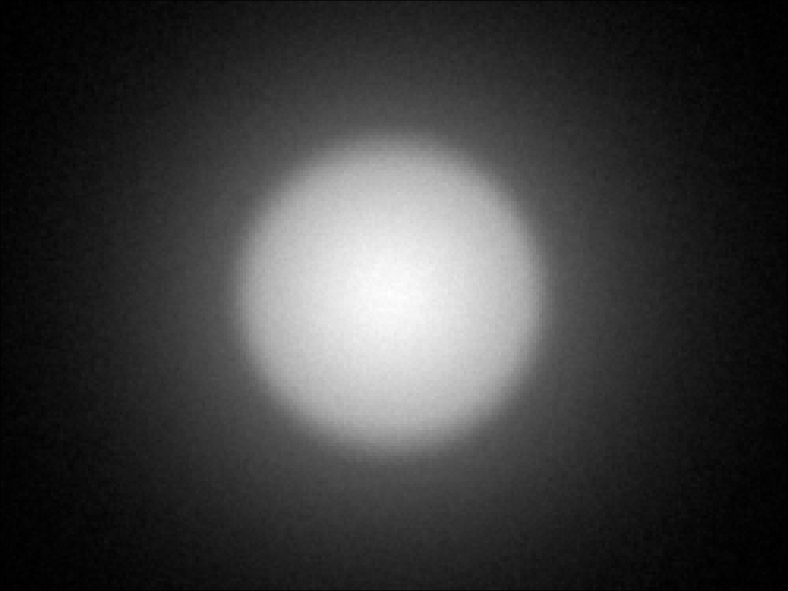

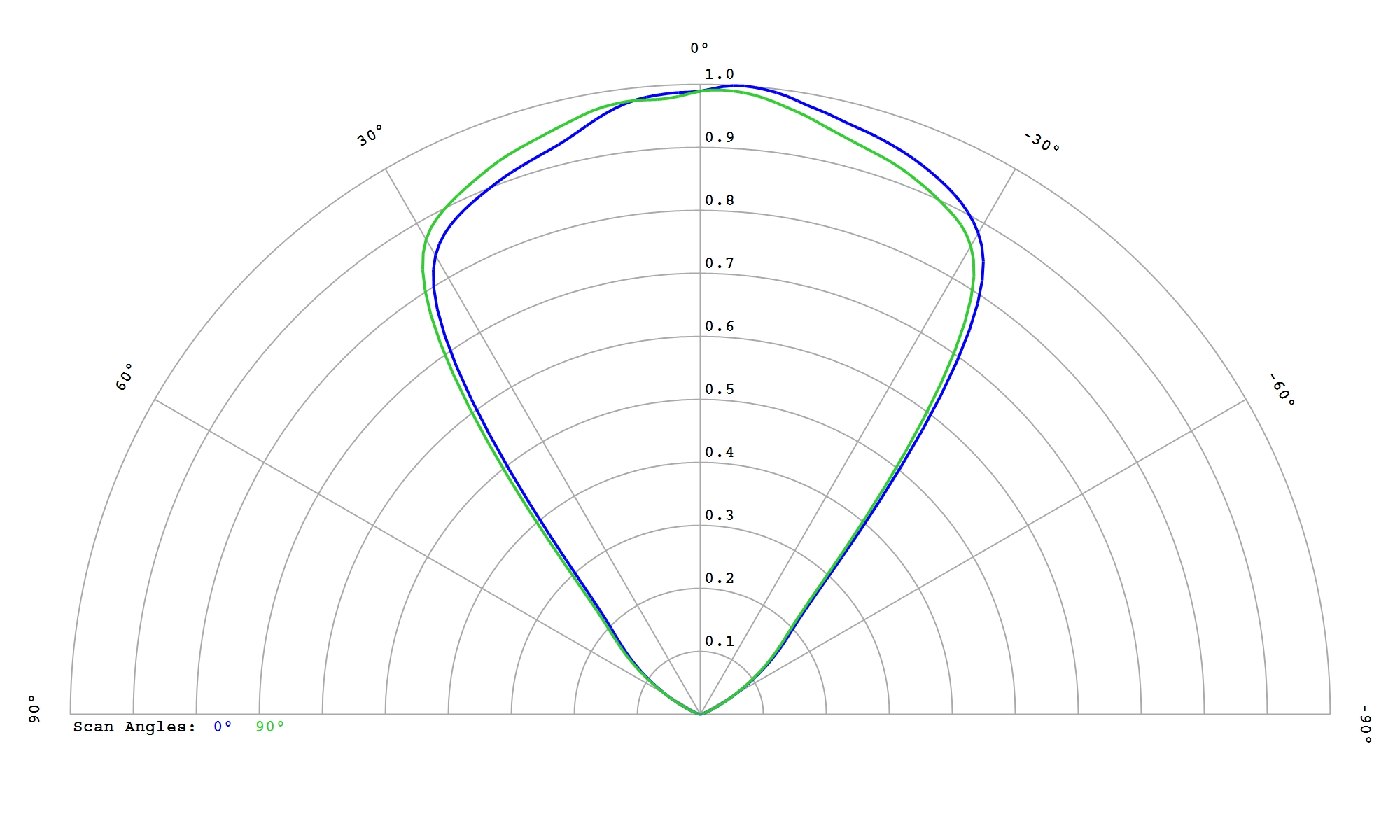

Seoul SunLike 3030 STWSC2PB-E0 White

Eff:

80.0%

FWHM:

76°

Cd/Im:

0.7


Download

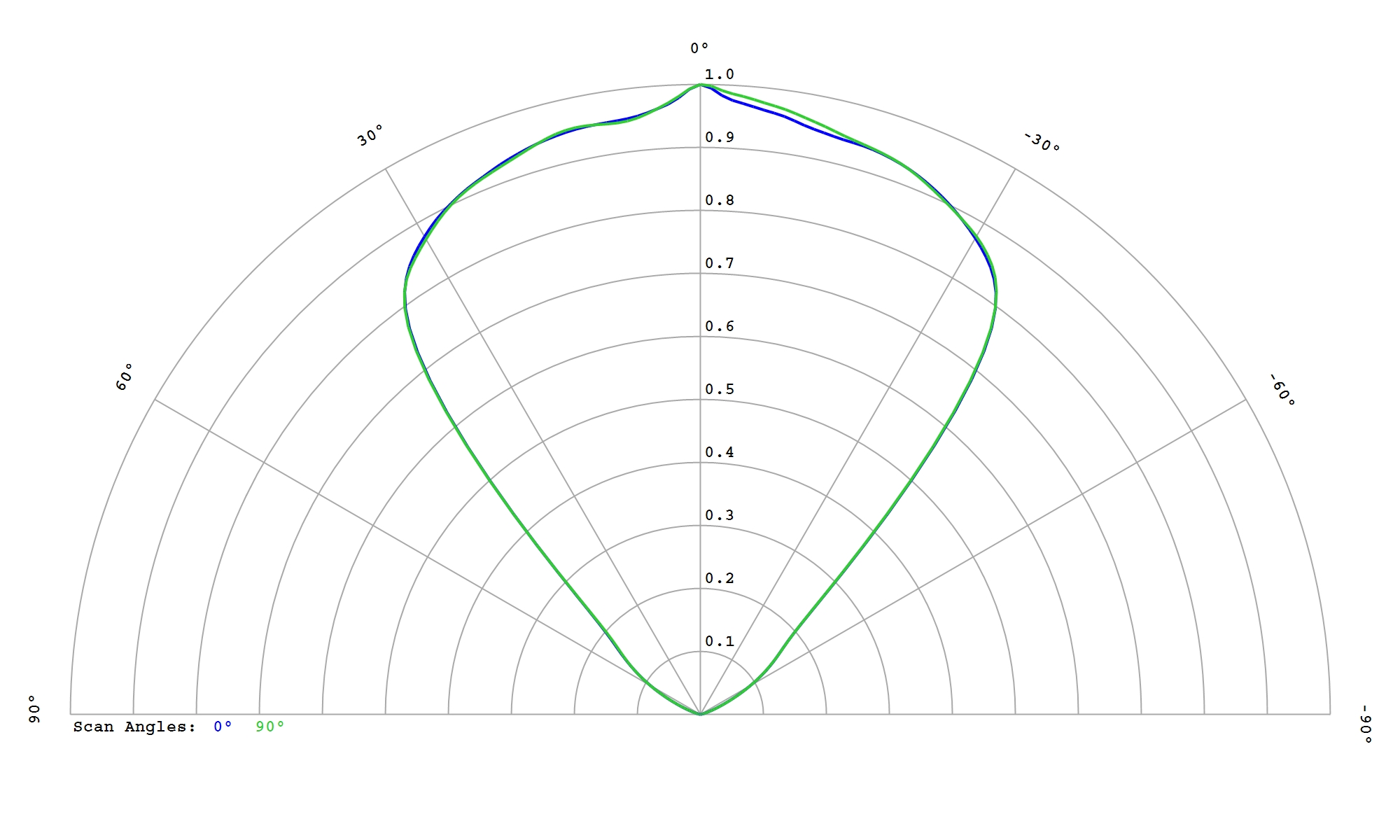

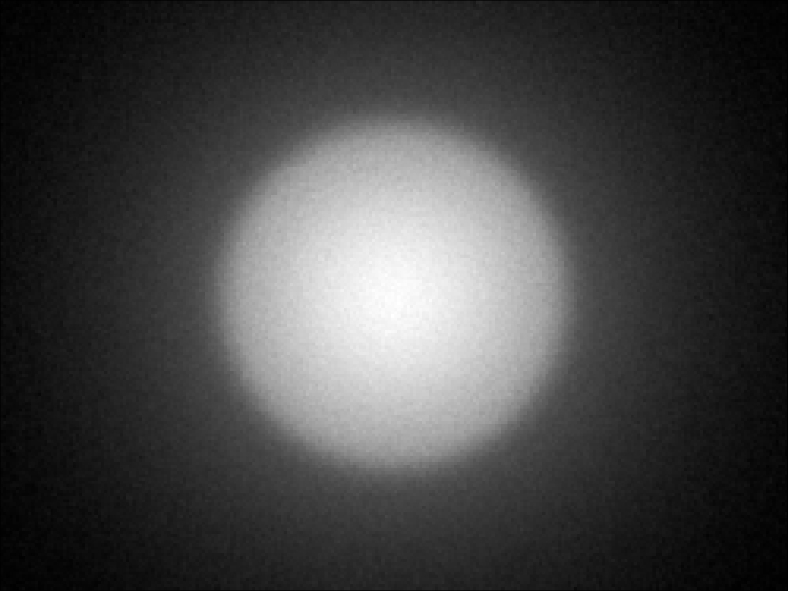

Seoul SunLike 3030 STWSC12S-E1 White

Eff:

83.0%

FWHM:

84°

Cd/Im:

0.7

Download

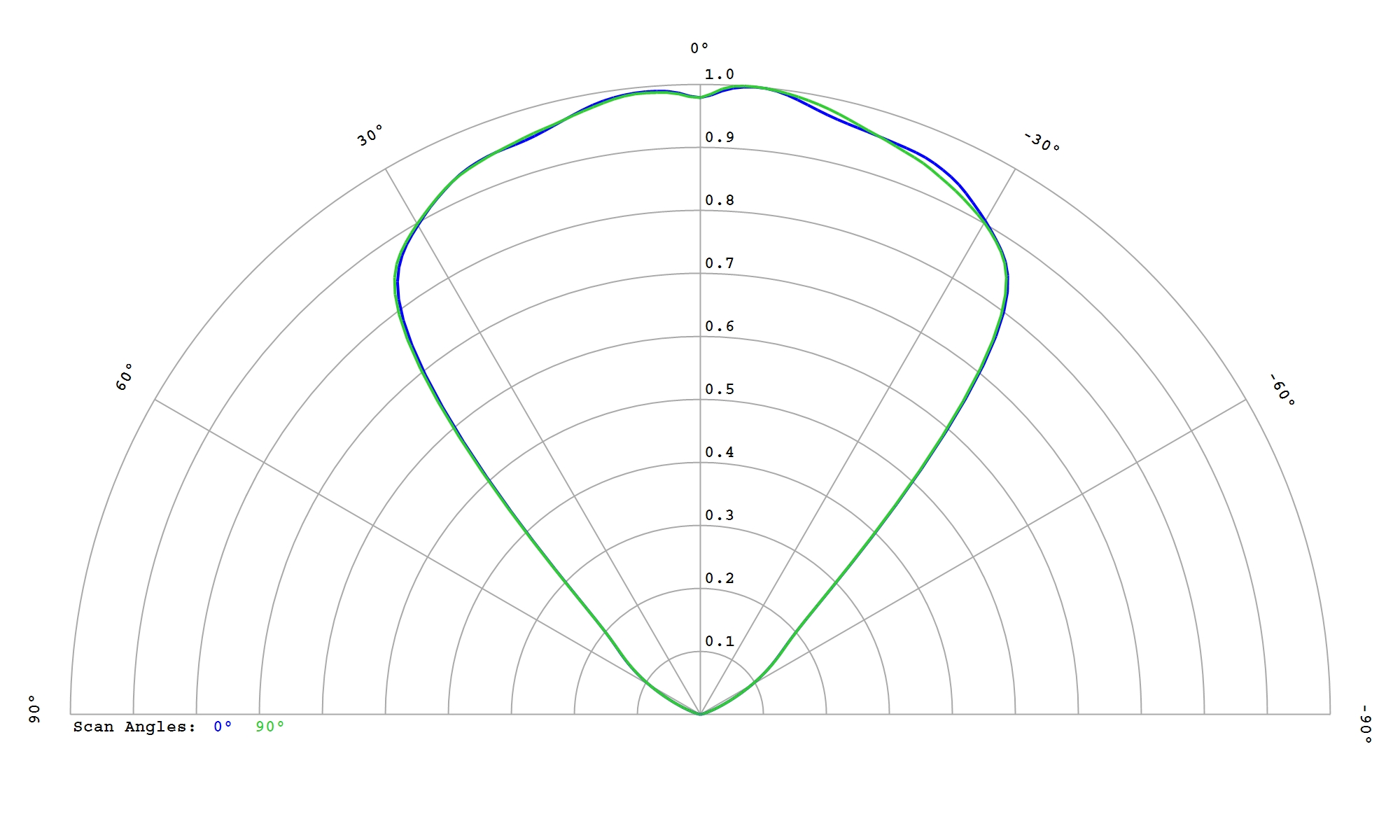

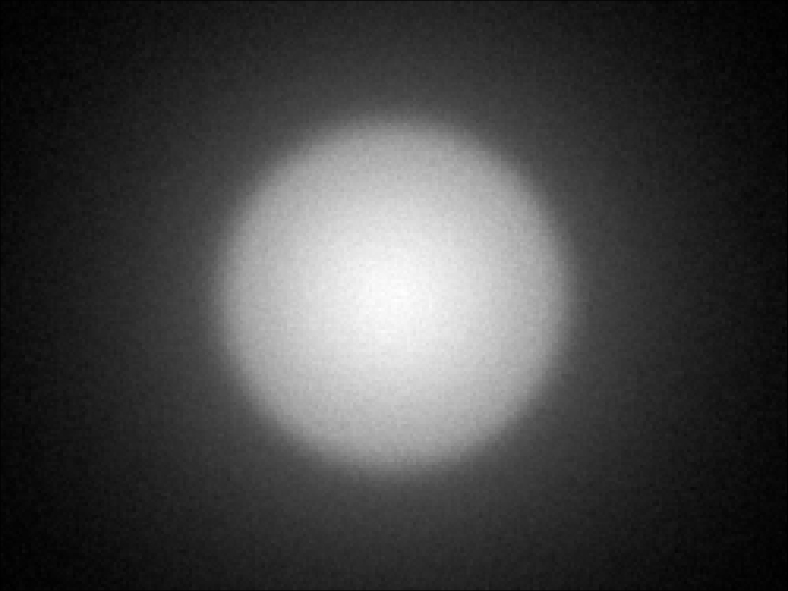

Seoul SunLike 3030 STWSC12S-E2 White

Eff:

83.0%

FWHM:

84°

Cd/Im:

0.7

Download

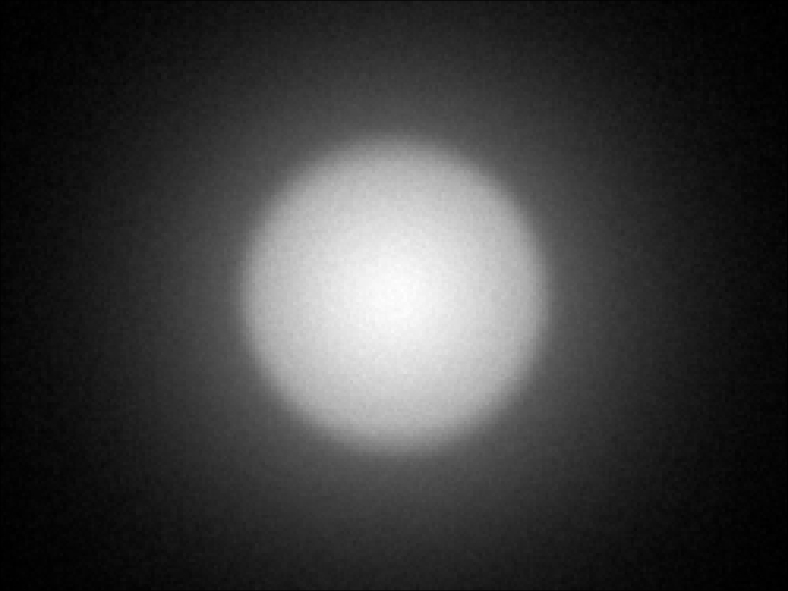

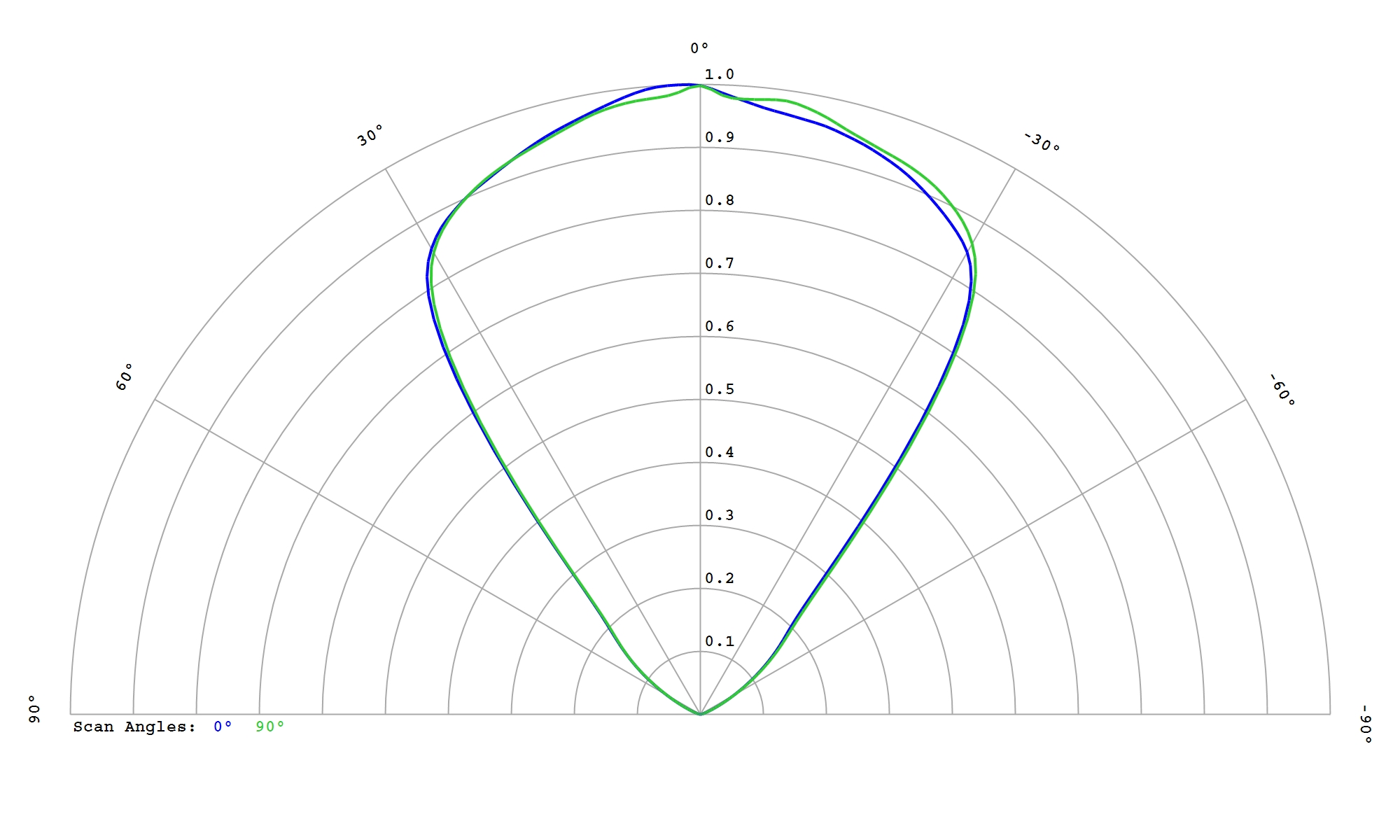

Seoul SunLike 3030 STW9C2SB-S White

Eff:

80.0%

FWHM:

76°

Cd/Im:

0.7


Download

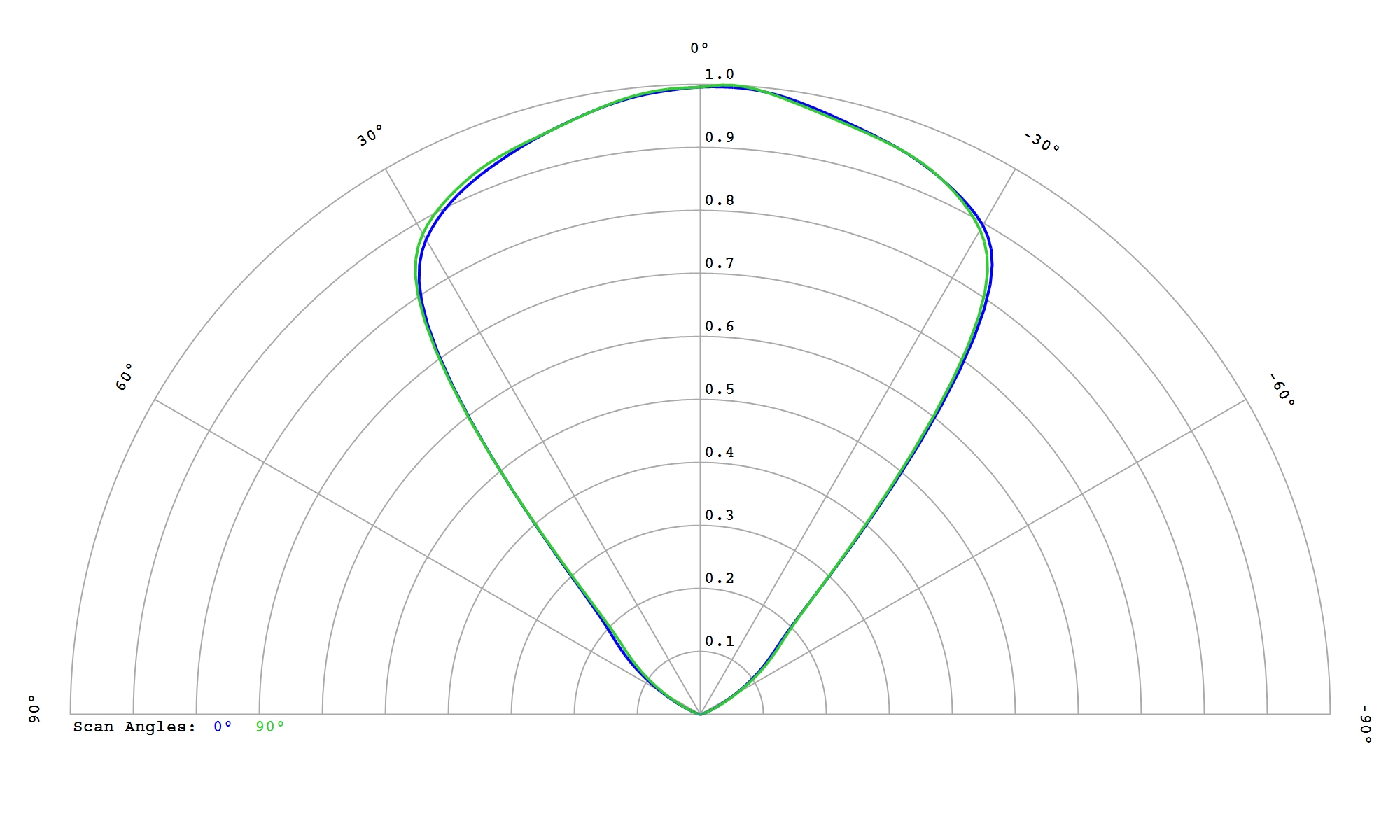

Seoul Z - Power Z5-M1 White

Eff:

79.0%

FWHM:

79°

Cd/Im:

0.6

Download

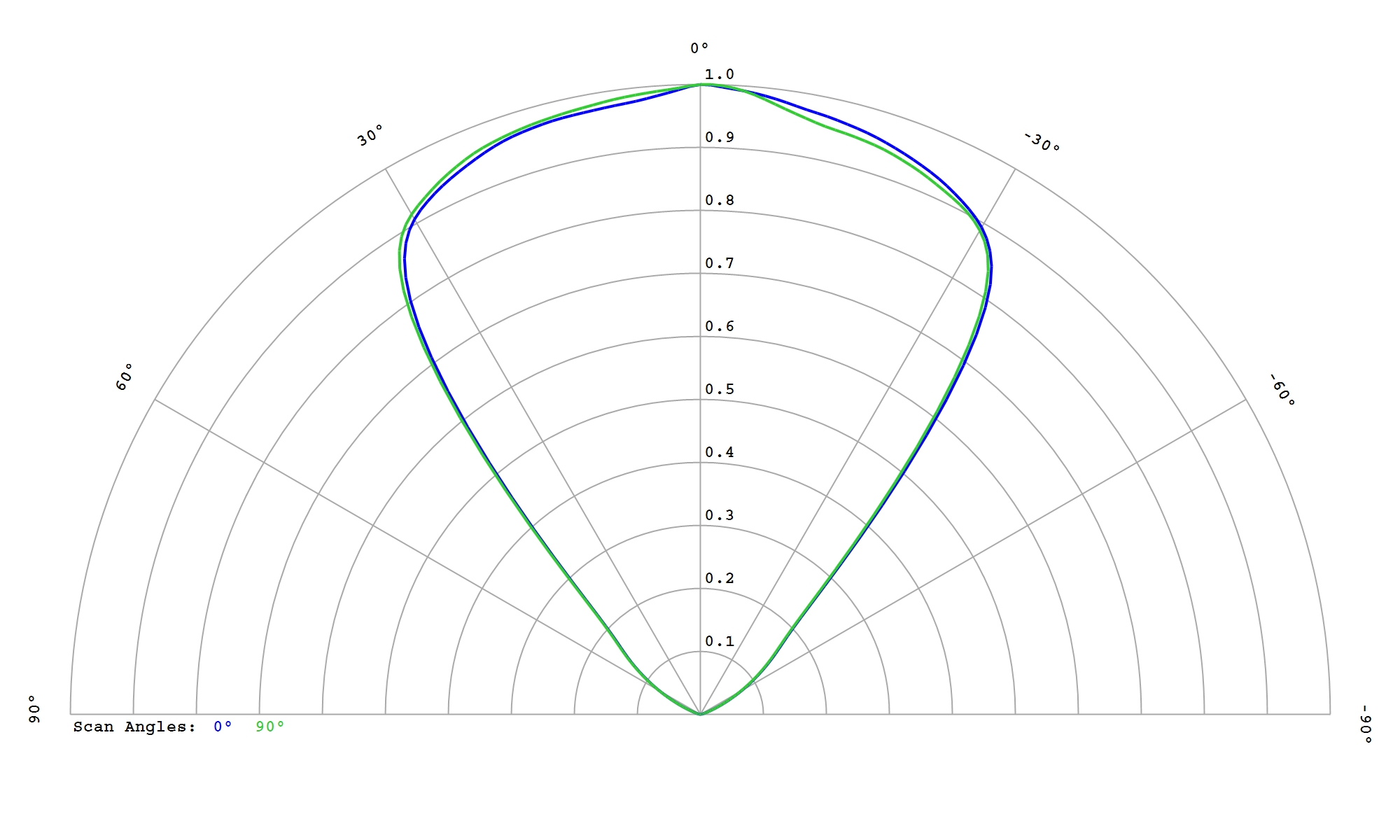

Seoul Z - Power Z5-M4 White

Eff:

80.5%

FWHM:

80°

Cd/Im:

0.7

Download

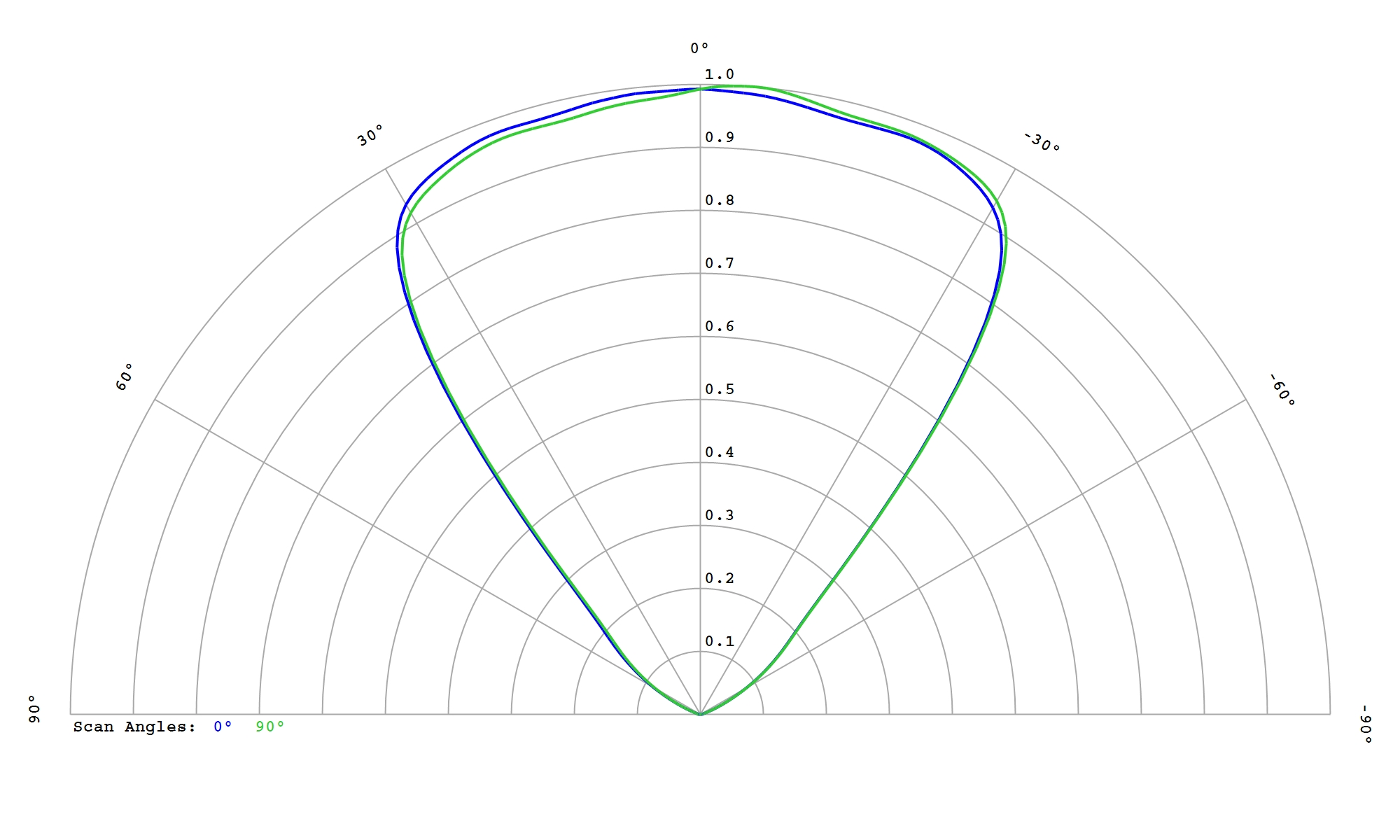

Seoul Z - Power Z5-M5 White

Eff:

75.5%

FWHM:

81°

Cd/Im:

0.6

Download
