Carclo Optics 10209
20.0mm Wide Spot Ripple Circular TIR LED Lenses
Part number
10209
Dimensions
20.0mm
Drawing Number
60441
Optic type
TIR LED Lenses
Finish
Ripple Circular
Beam type
Wide Spot
Applications
Architectural
Landscape & Garden
Downloads

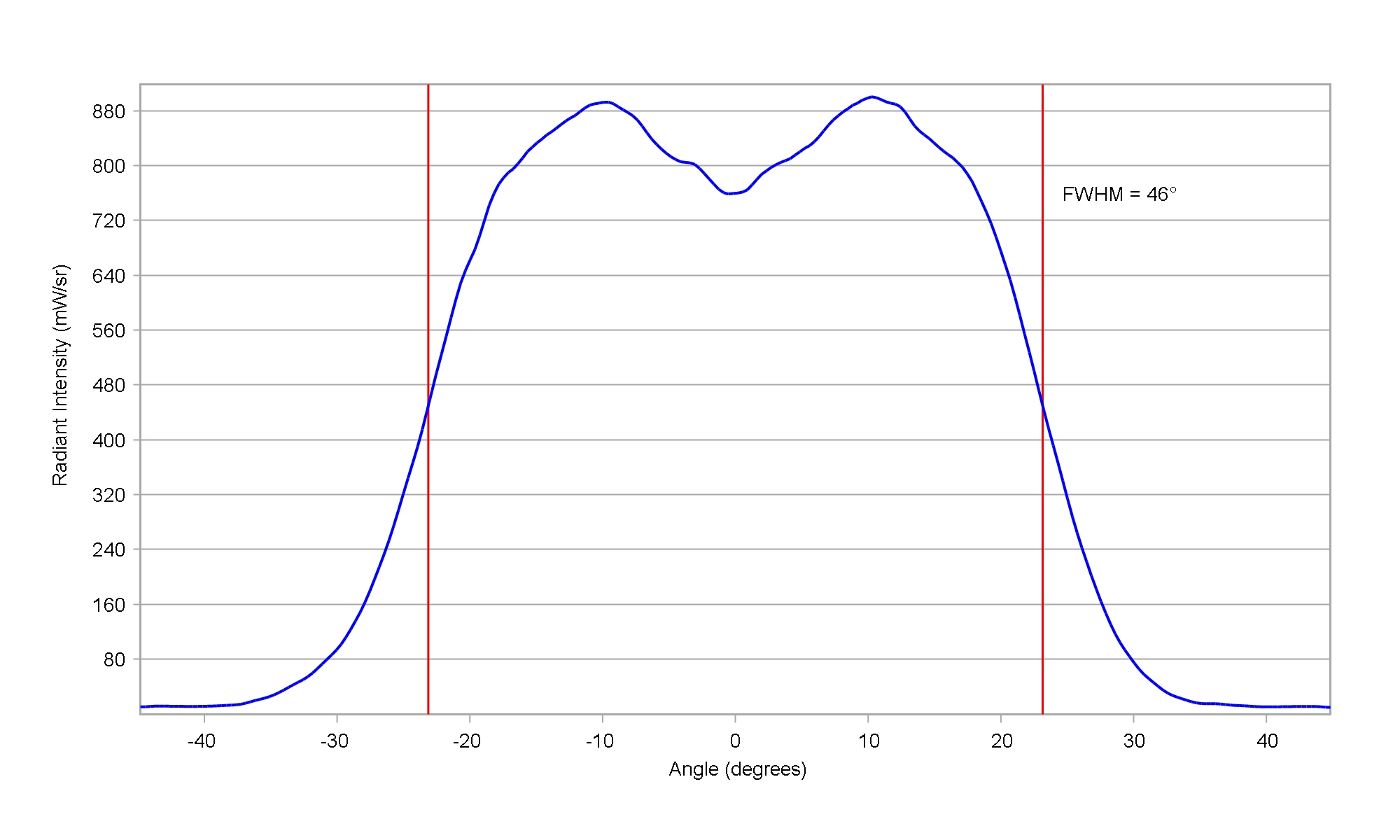

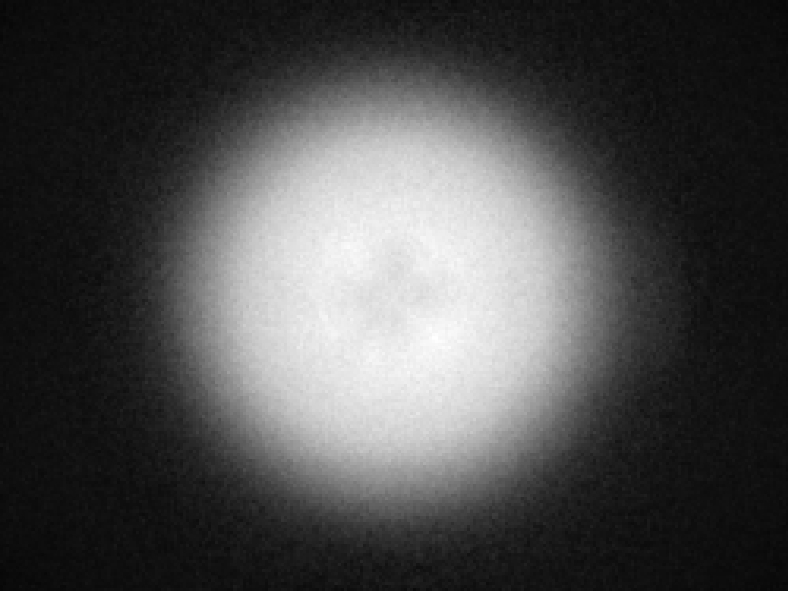

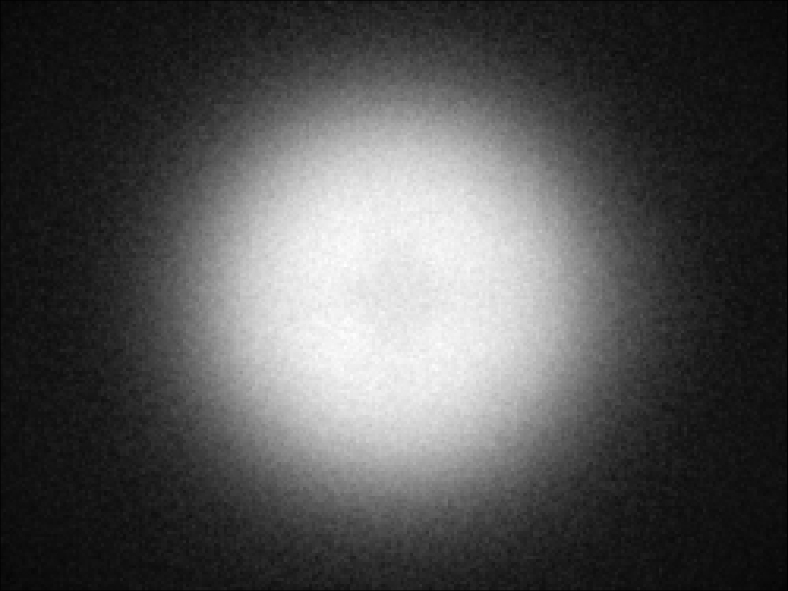

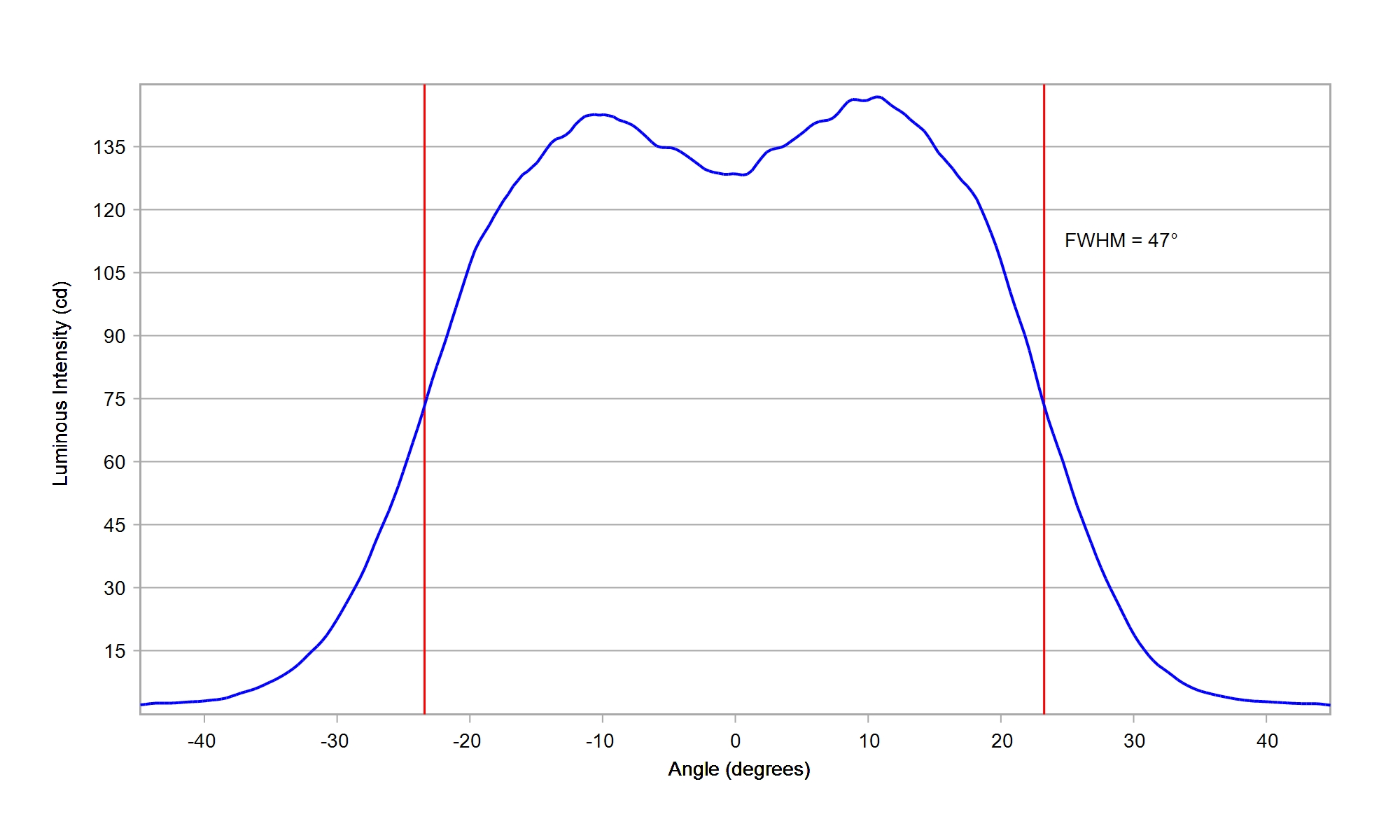

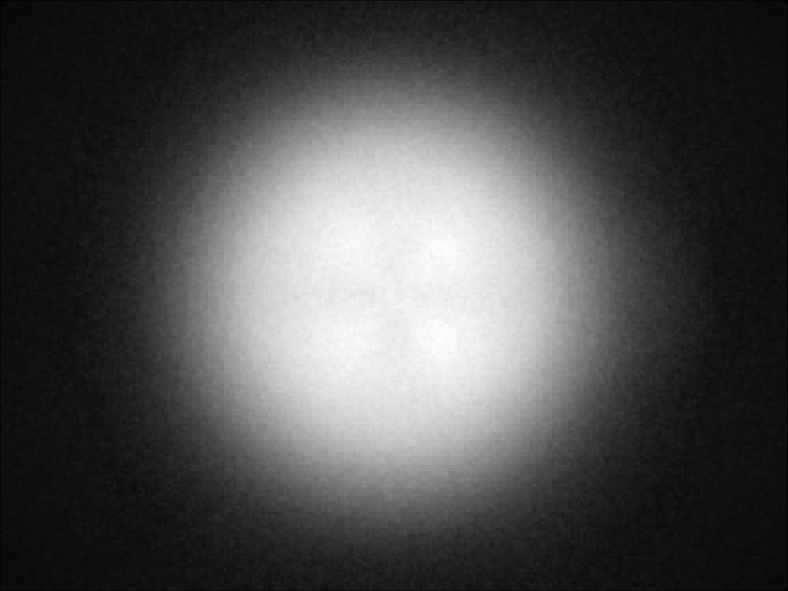

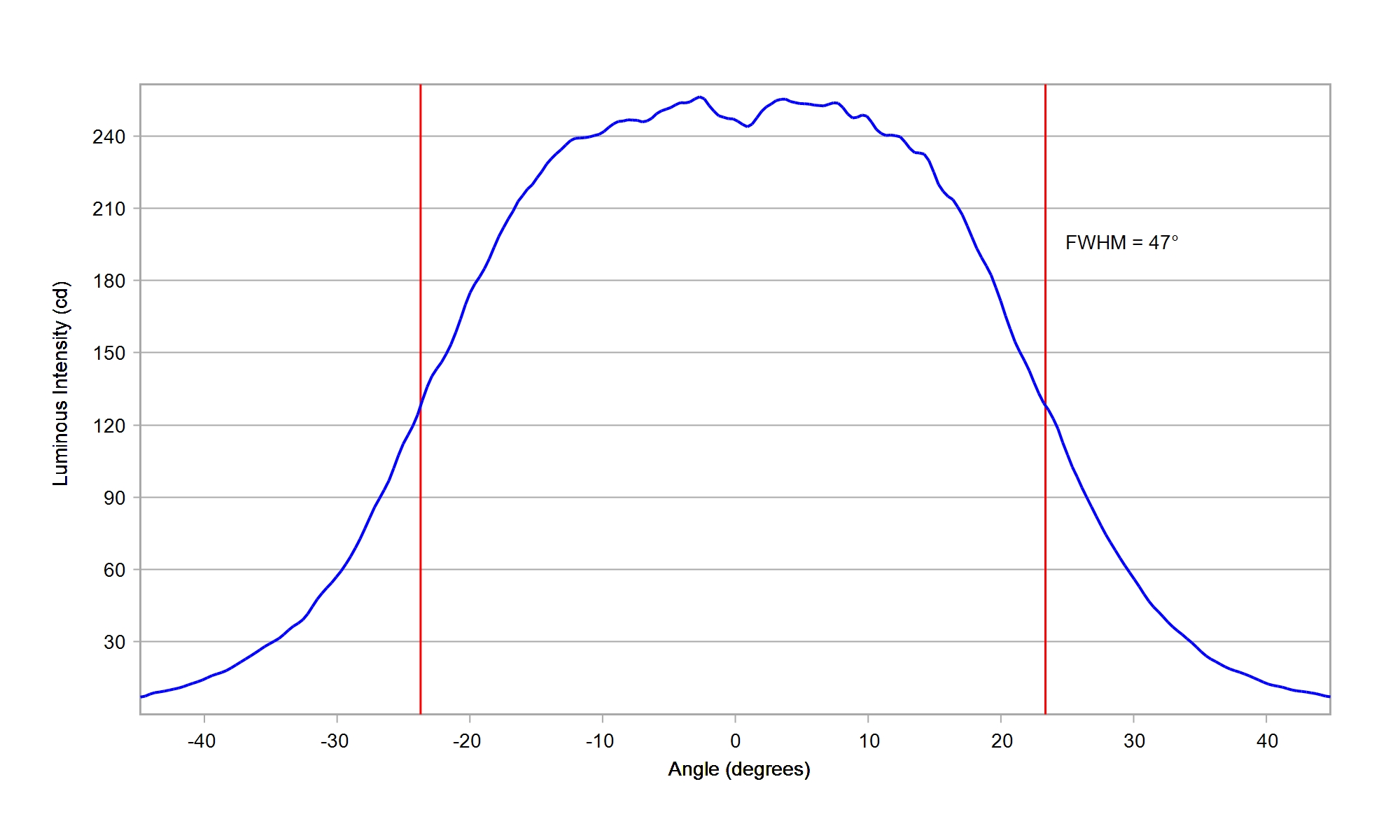

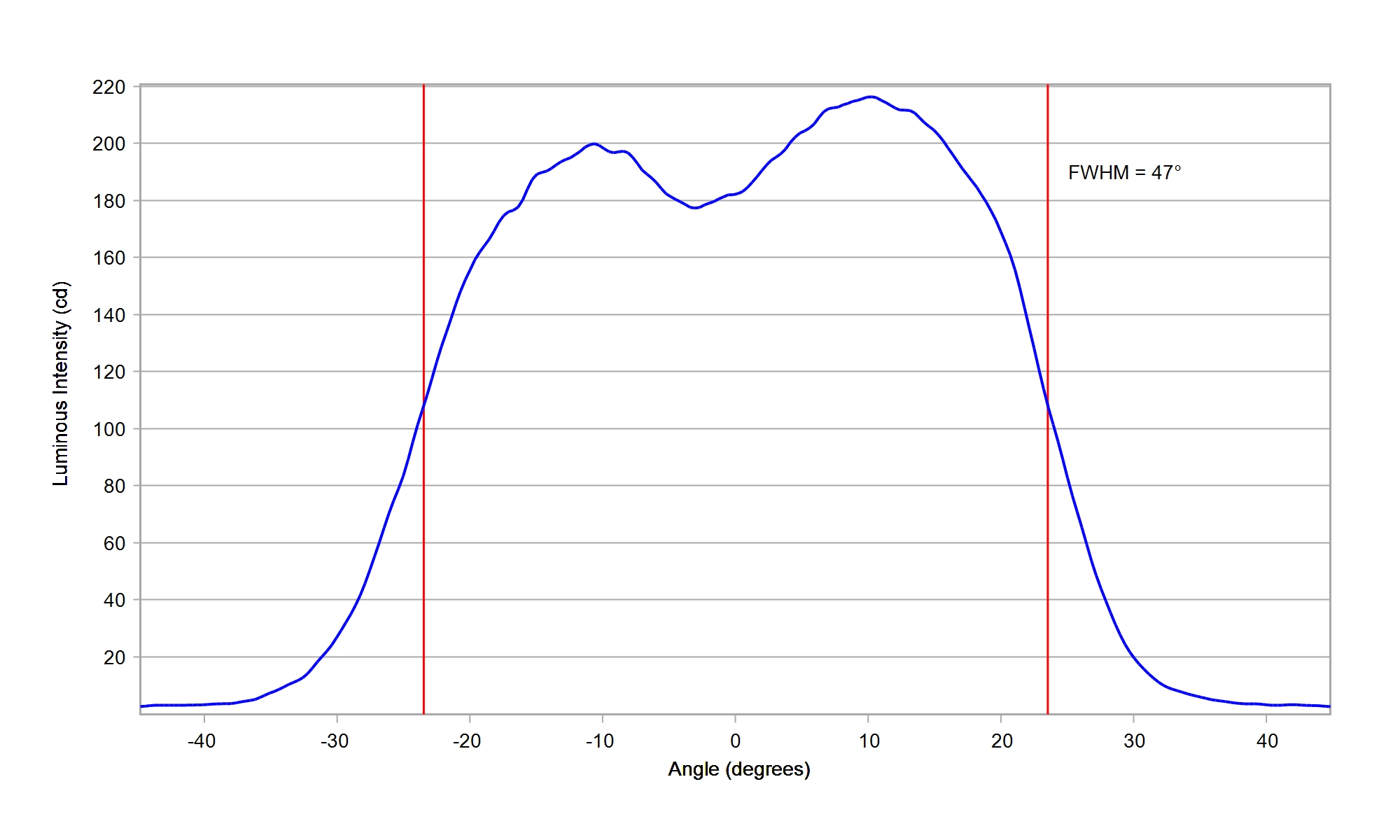

LEDs and Performances

Select and filter based on manufacturer(s)

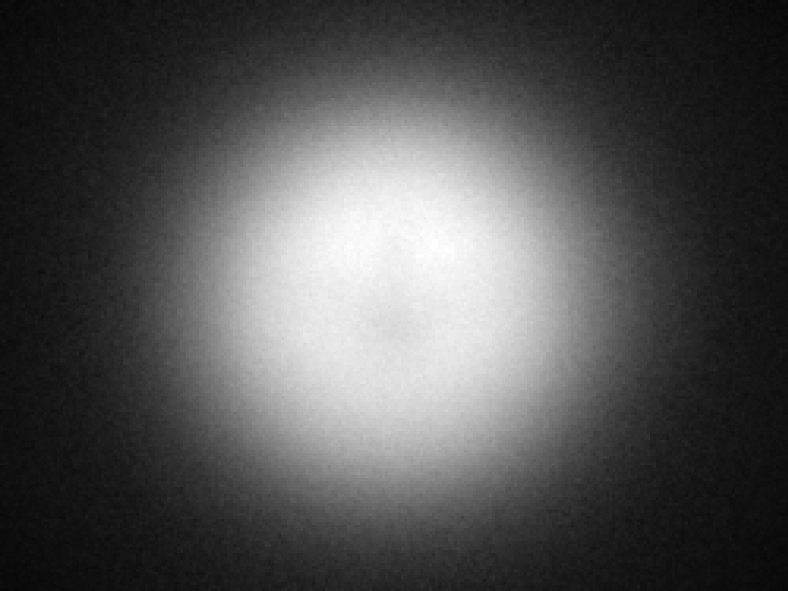

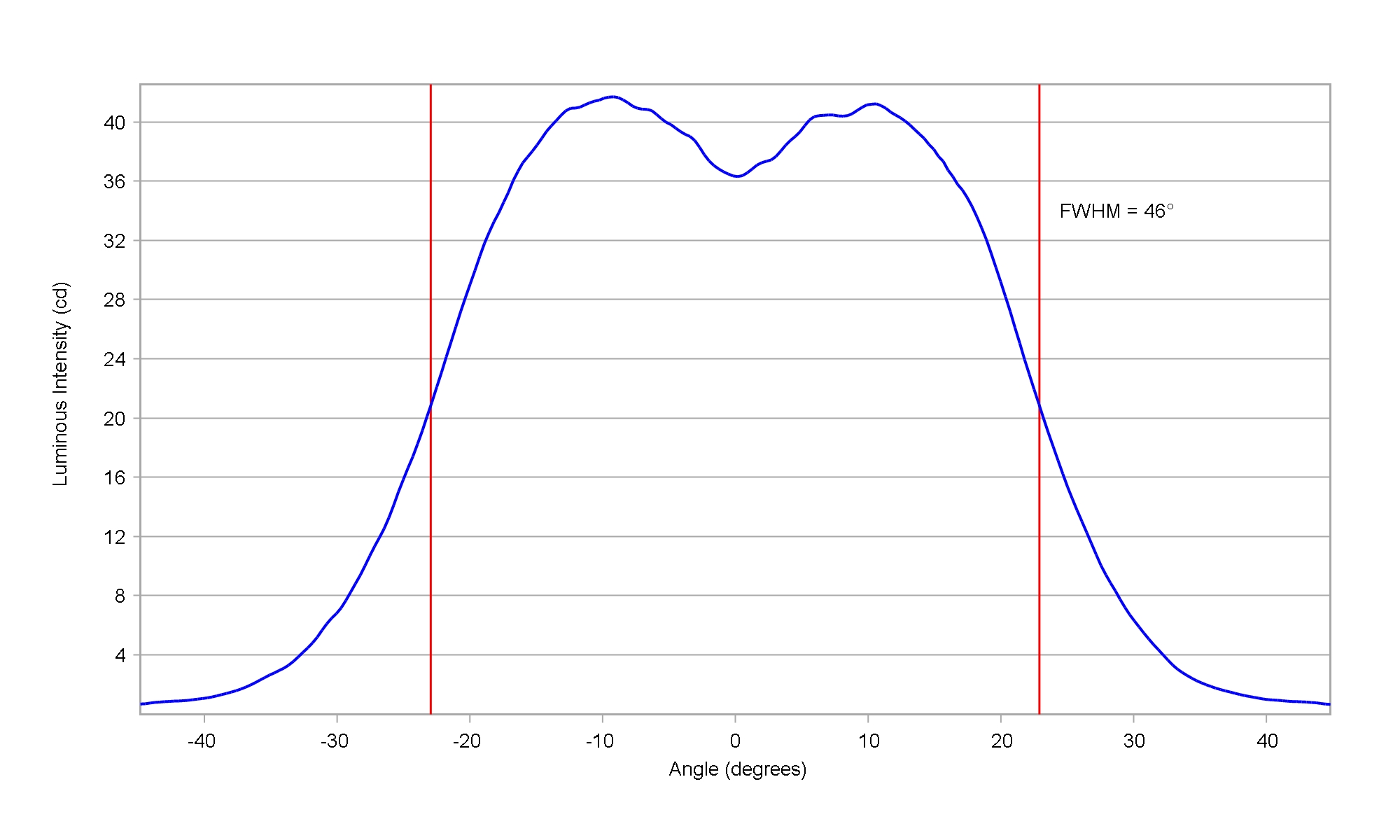

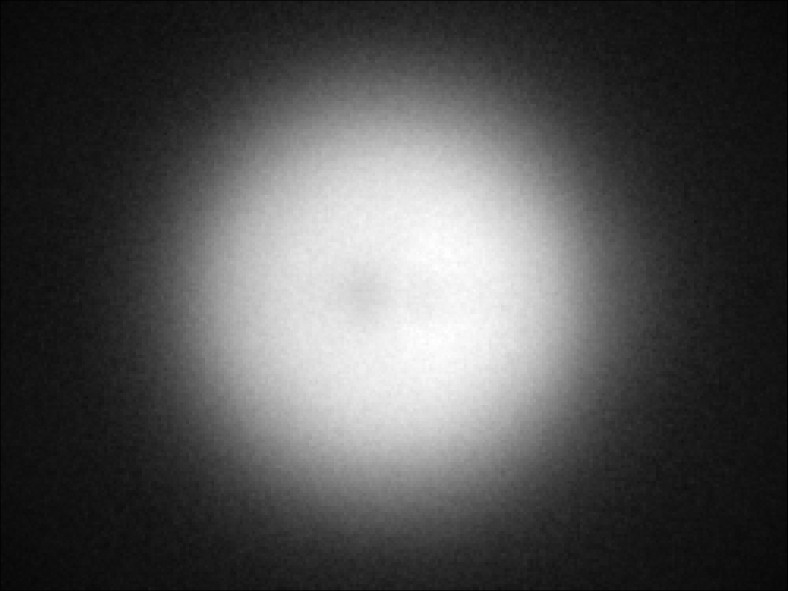

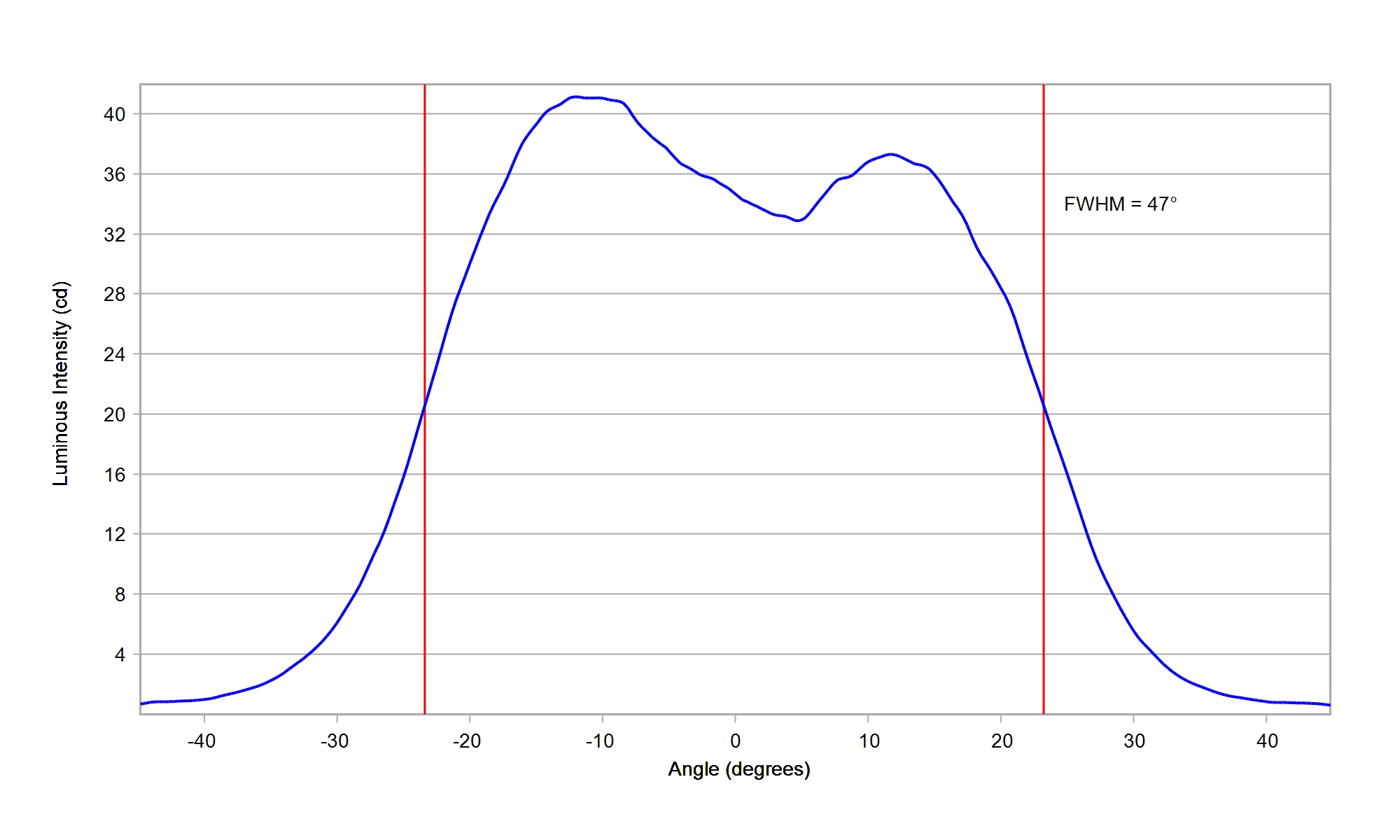

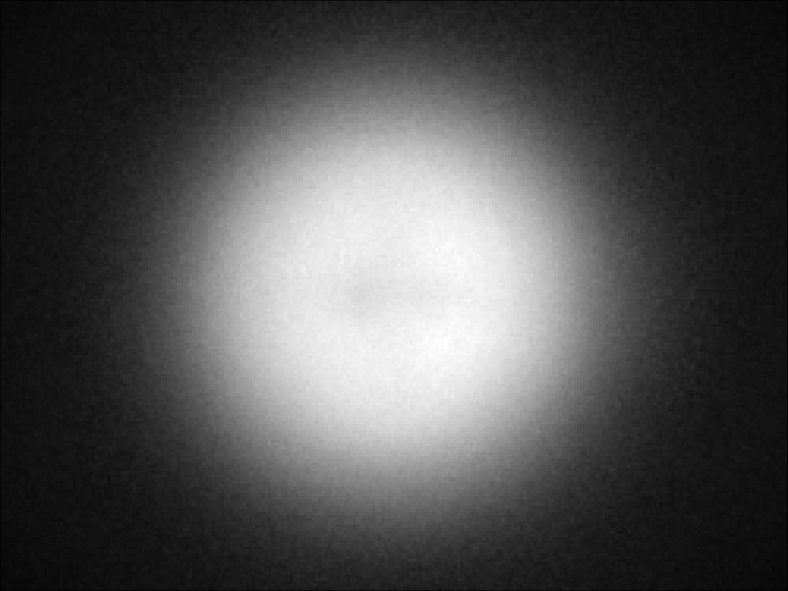

Cree JB2835B 3V G-Class White
Eff:
87.0%
FWHM:
46°
Cd/Im:
1.6
Download

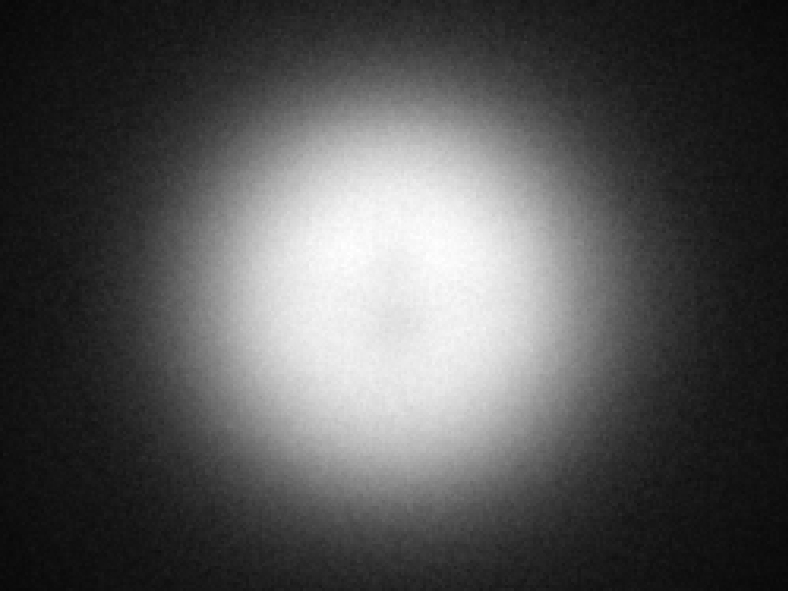

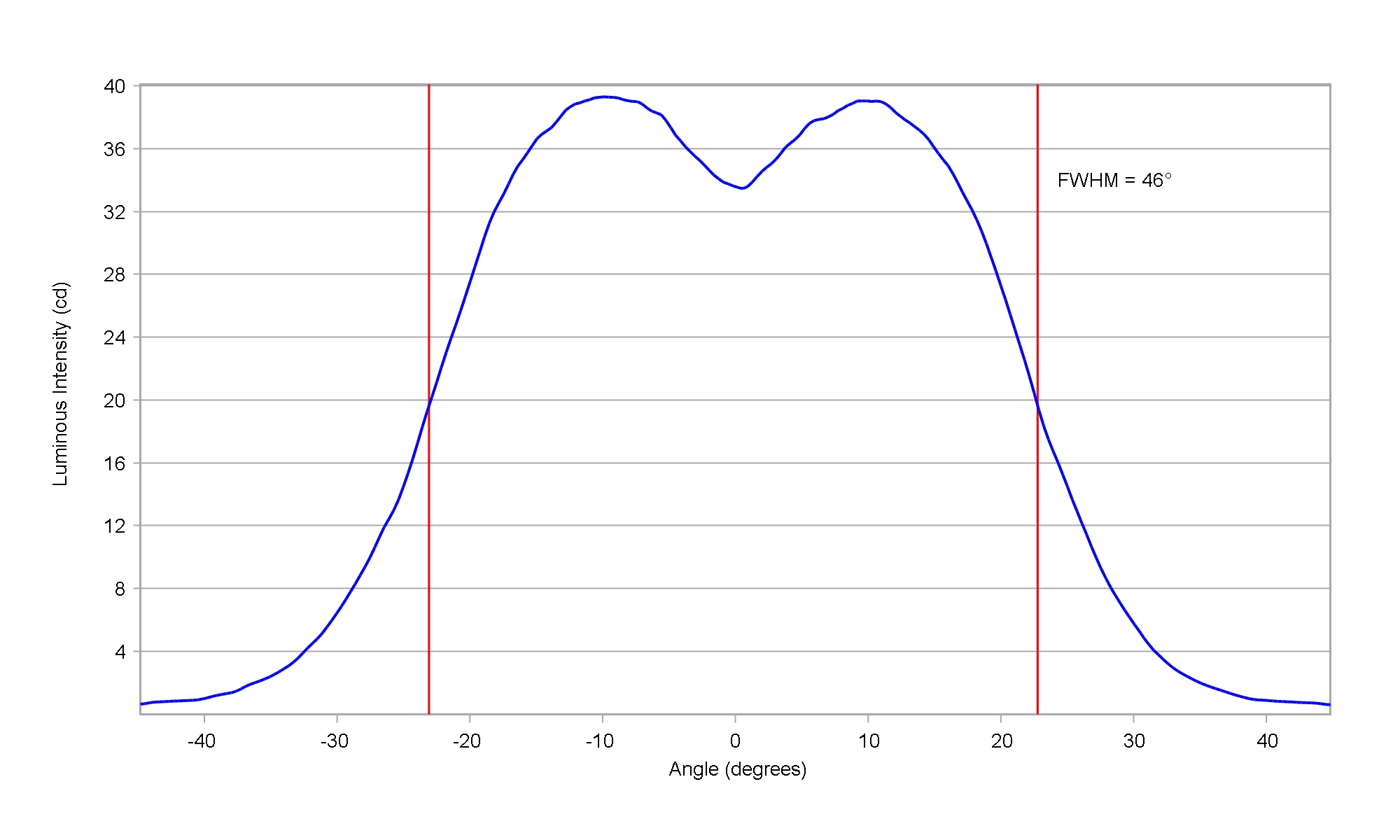

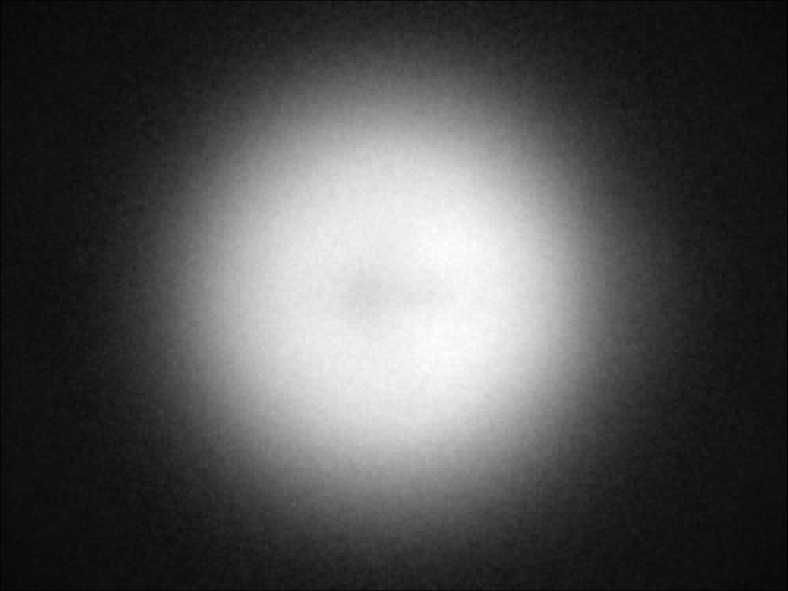

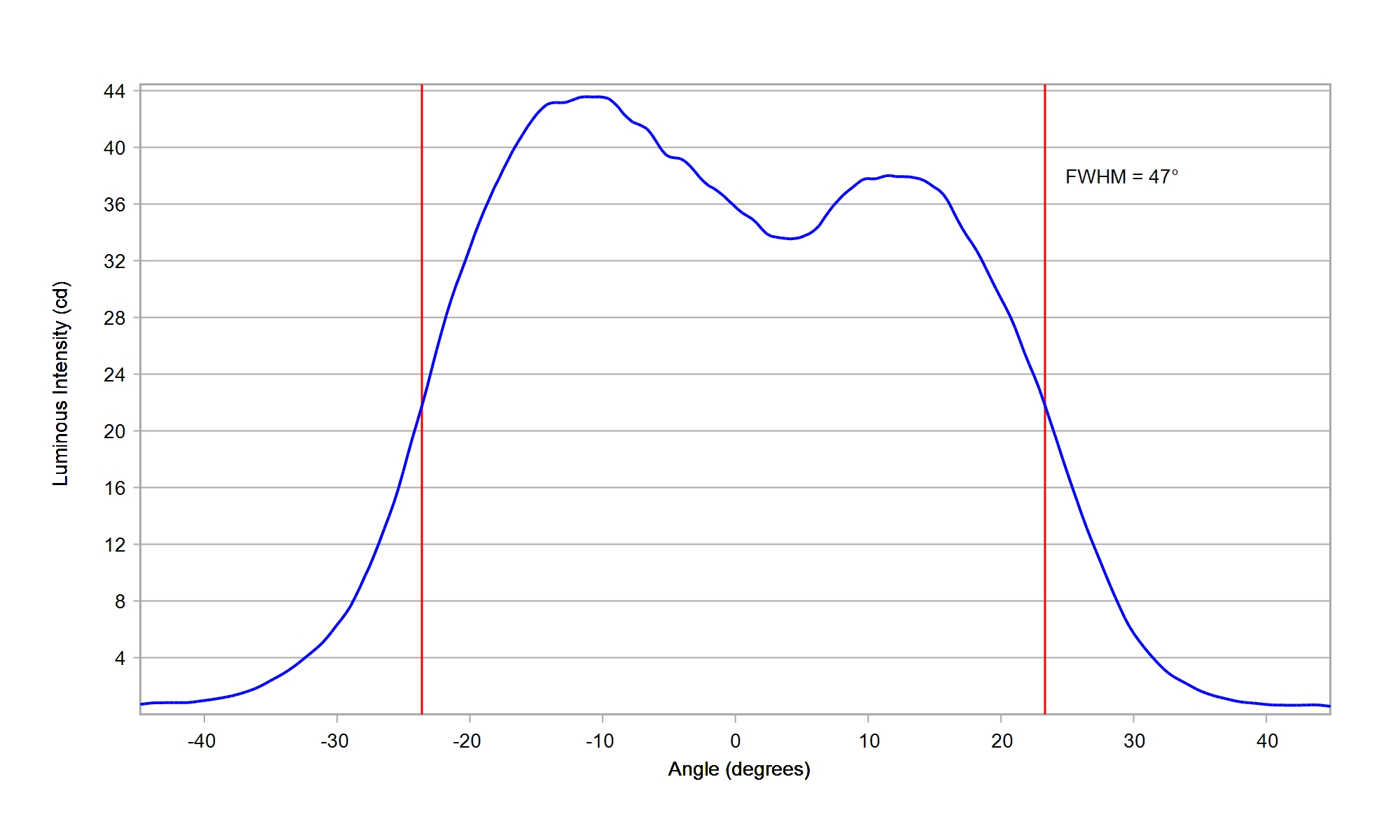

Cree JB2835B 3V J-Class White
Eff:
87.0%
FWHM:
46°
Cd/Im:
1.5
Download
Cree JB3030 3V P-Class White
Eff:
87.5%
FWHM:
46.0°
Cd/Im:
1.5
Download

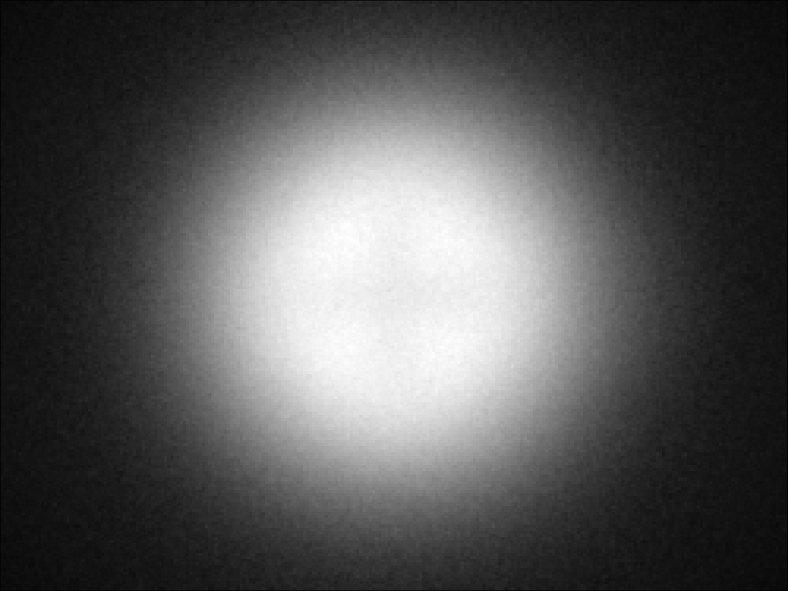

Cree JB3030C 3V E-Class White
Eff:
87.0%
FWHM:
46°
Cd/Im:
1.5
Download

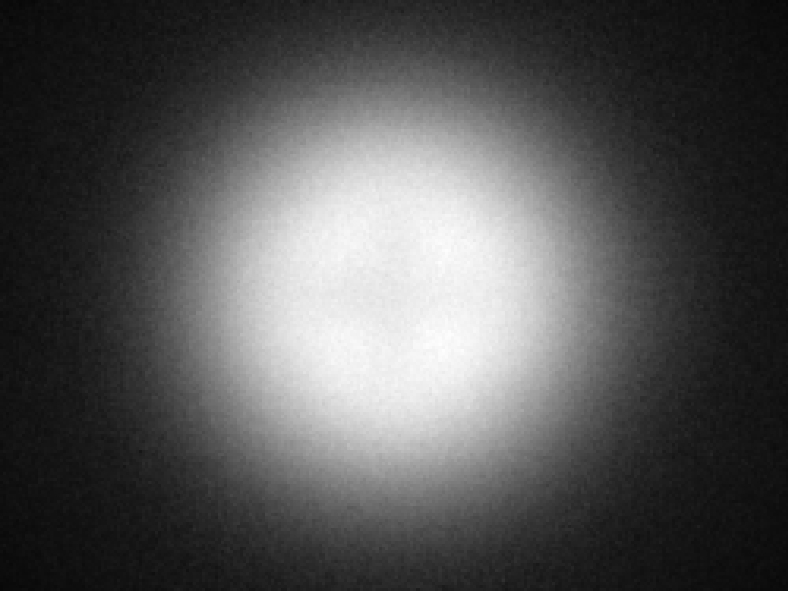

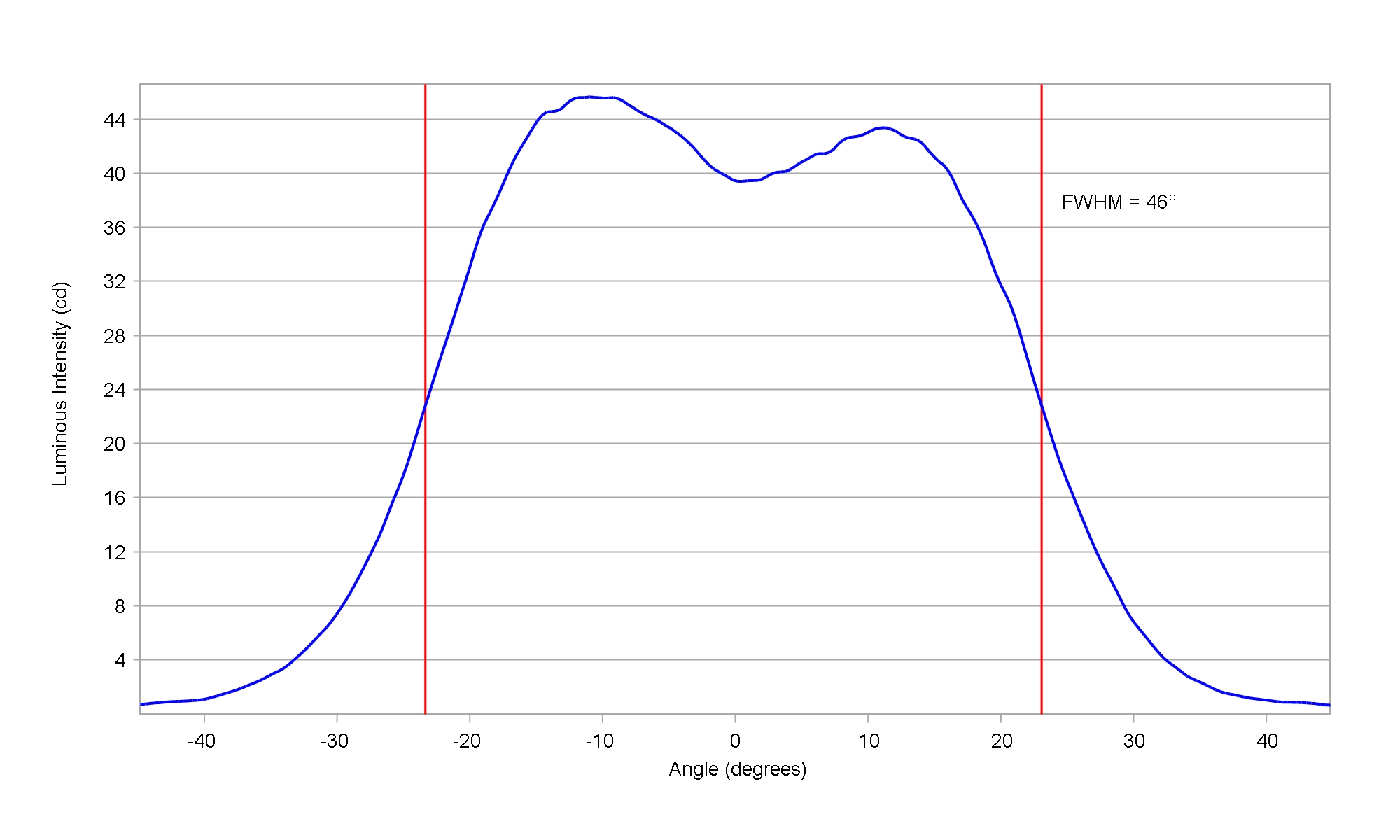

Cree JB3030C 3V F-Class White
Eff:
87.0%
FWHM:
46°
Cd/Im:
1.5
Download

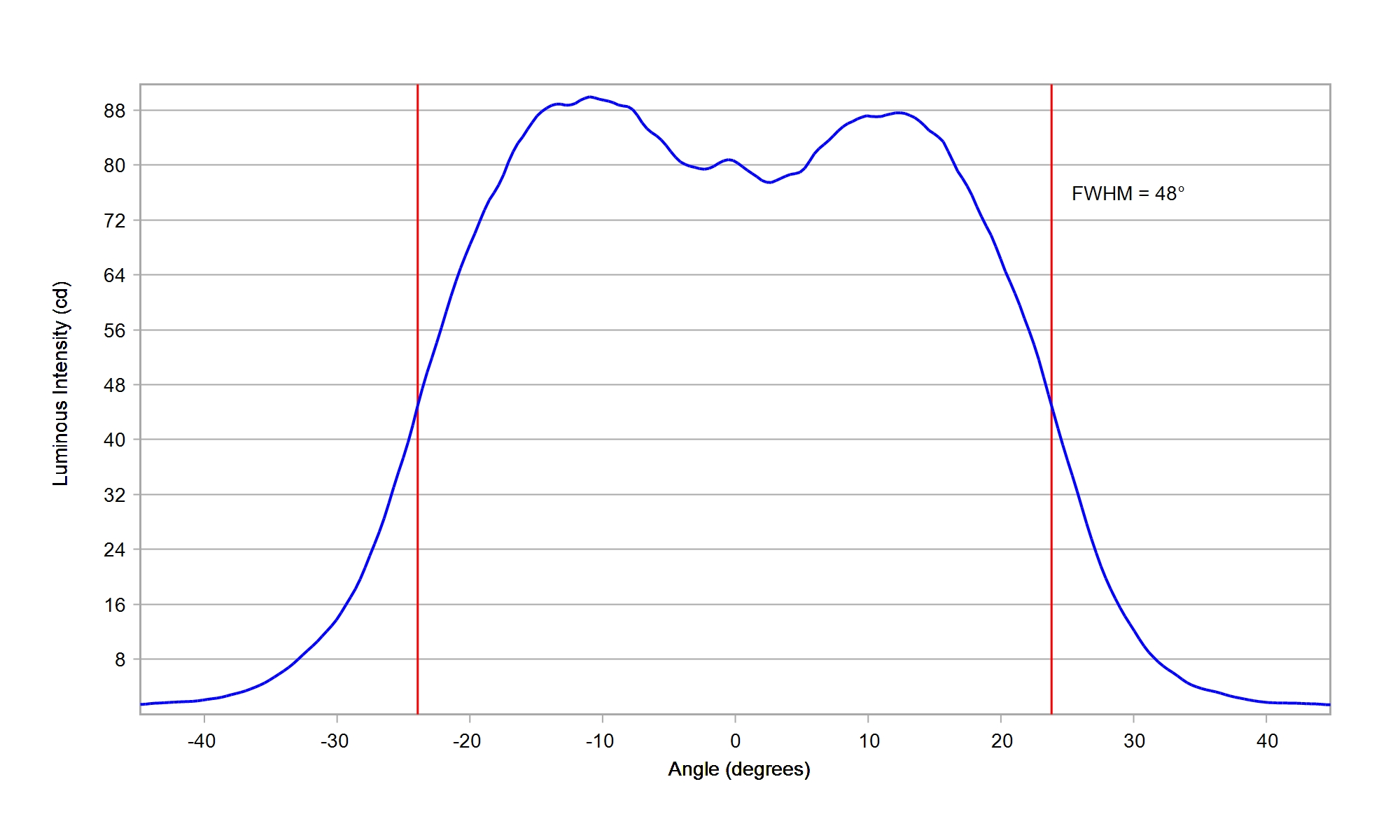

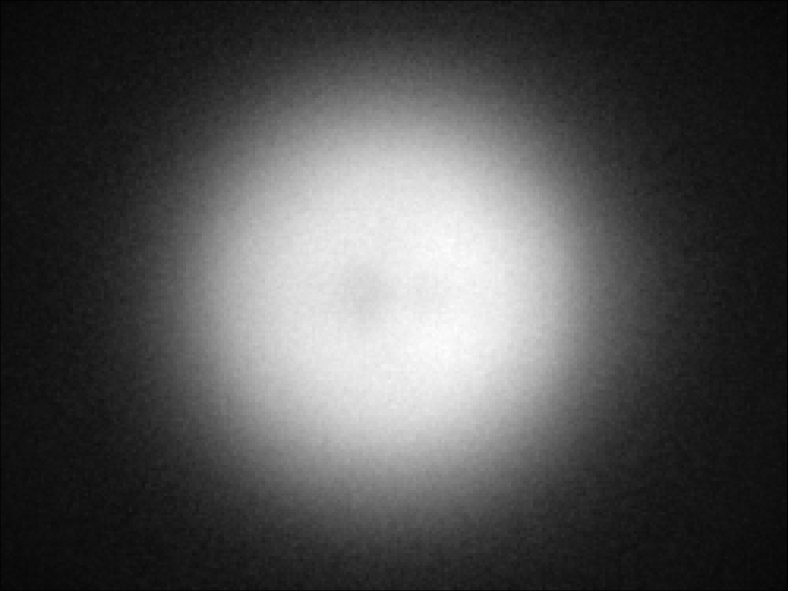

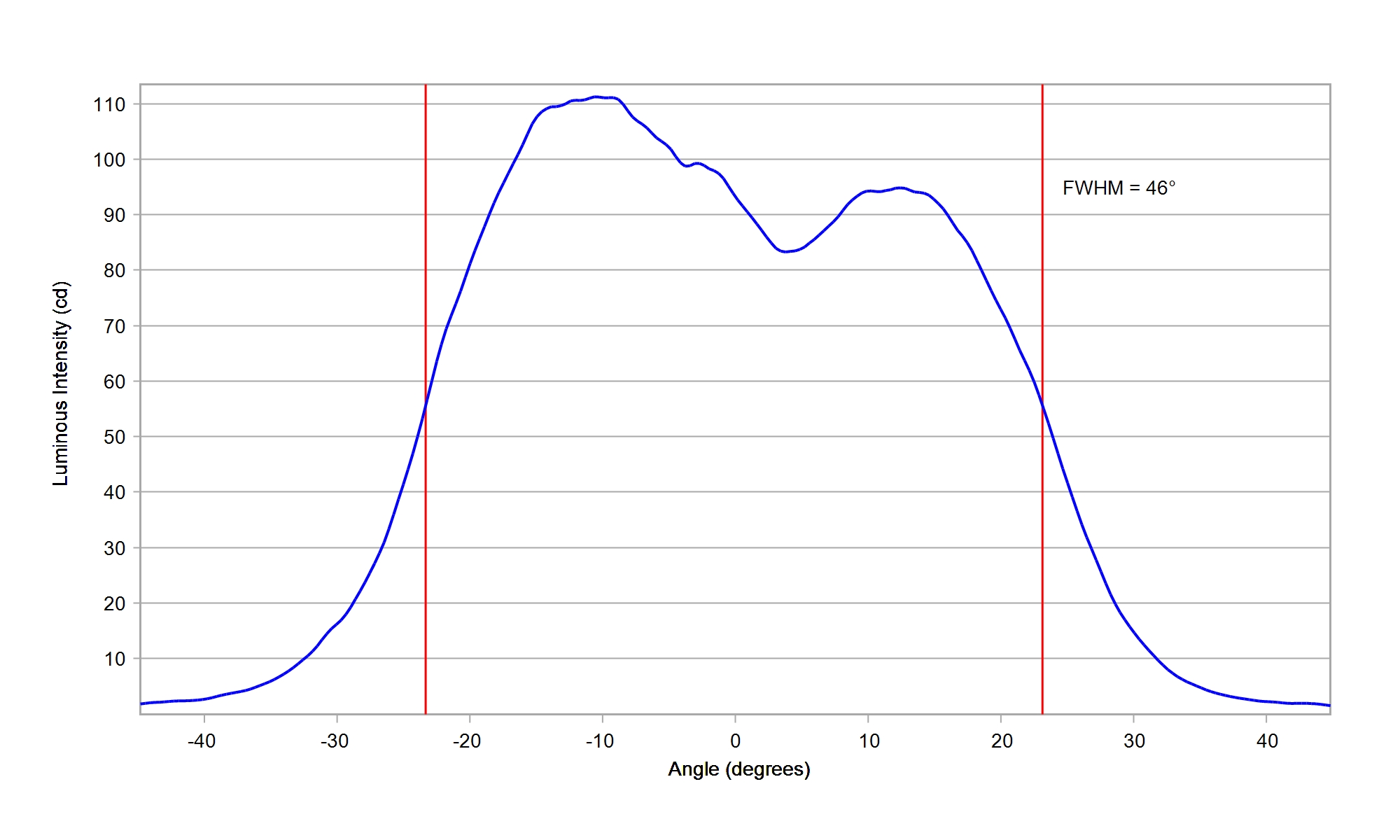

Cree JE2835 3V White
Eff:
87.5%
FWHM:
48°
Cd/Im:
1.5
Download
Cree JK2835 6V White
Eff:
87.5%
FWHM:
47°
Cd/Im:
1.6
Download
Cree JQ5050 9V White
Eff:
86.0%
FWHM:
47.0°
Cd/Im:
1.3
Download
Cree JR5050 24V White
Eff:
86.0%
FWHM:
47.0°
Cd/Im:
1.4
Download
Cree JR5050 36V White
Eff:
86.5%
FWHM:
46.0°
Cd/Im:
1.4
Download
Cree JR5050 6V White
Eff:
86.0%
FWHM:
47.0°
Cd/Im:
1.3
Download

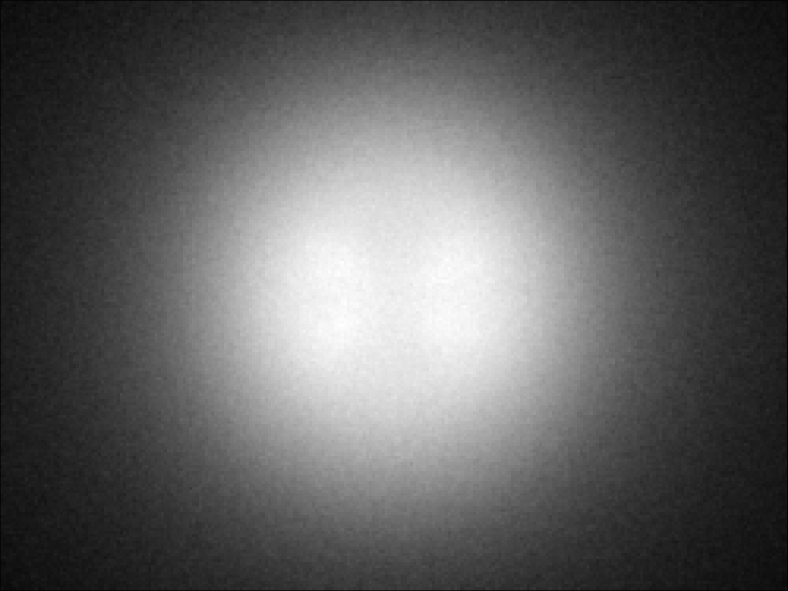

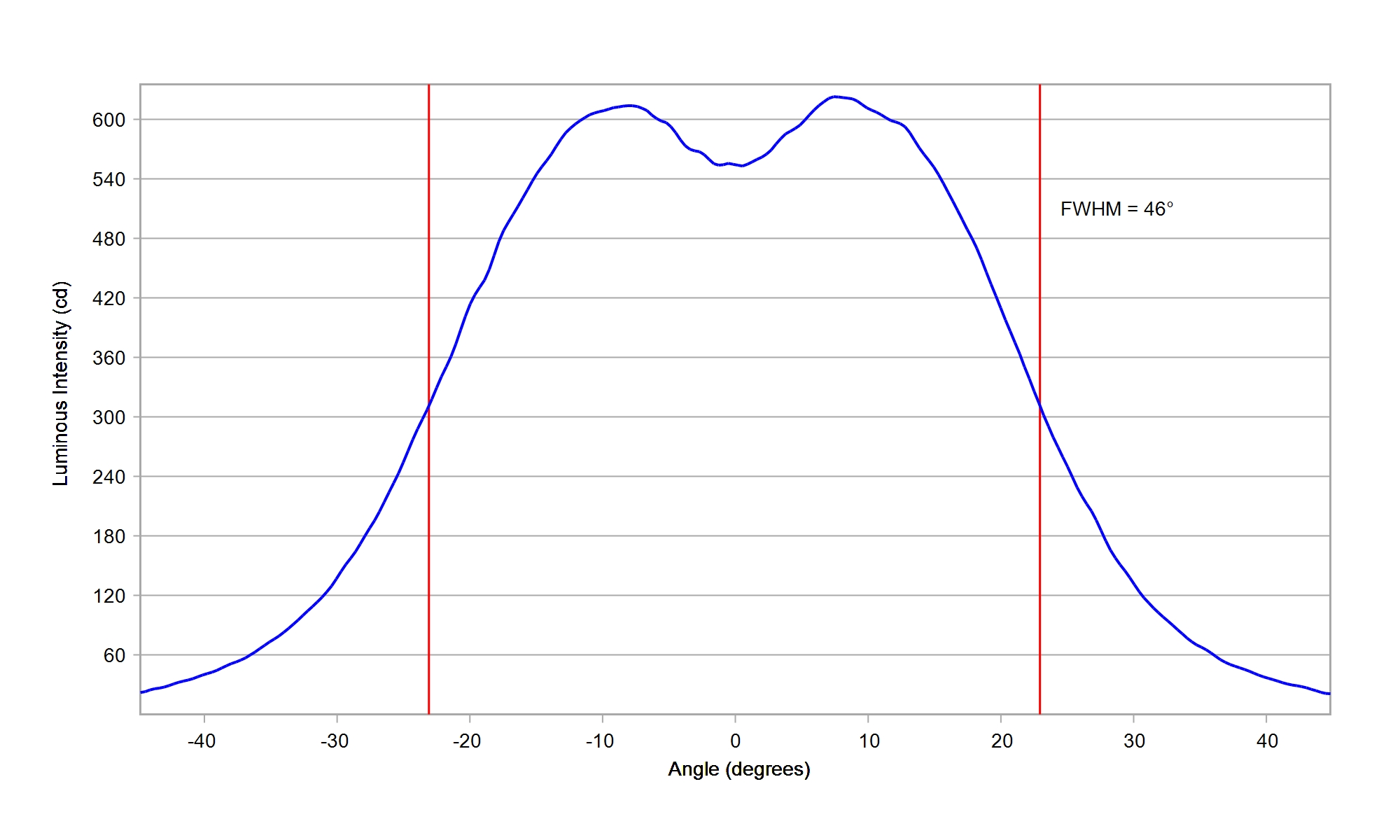

Cree JR5050C 6V E-Class White
Eff:
86.0%
FWHM:
46°
Cd/Im:
1.4
Download
Cree XLamp CSP XD16 Cool White
Eff:
85.5%
FWHM:
46.5°
Cd/Im:
1.4
Download
Cree XLamp CSP XD16 Premium White
Eff:
87.0%
FWHM:
48°
Cd/Im:
1.5
Download
Cree XLamp MC-E White
Eff:
76.1%
FWHM:
38.9°
Cd/Im:
1.9
Download
Cree XLamp MH-B White
Eff:
82.5%
FWHM:
45°
Cd/Im:
1.2
Download
Cree XLamp XB-H White
Eff:
87.5%
FWHM:
45 x 44°
Cd/Im:
1.7
Download
Cree XLamp XE-G Blue
Eff:
87.0%
FWHM:
49°
Cd/Im:
1.5
Download
Cree XLamp XE-G Green
Eff:
87.0%
FWHM:
48°
Cd/Im:
1.5
Download
Cree XLamp XE-G Red
Eff:
86.0%
FWHM:
47°
Cd/Im:
1.5
Download
Cree XLamp XE-G White
Eff:
86.5%
FWHM:
47°
Cd/Im:
1.5
Download

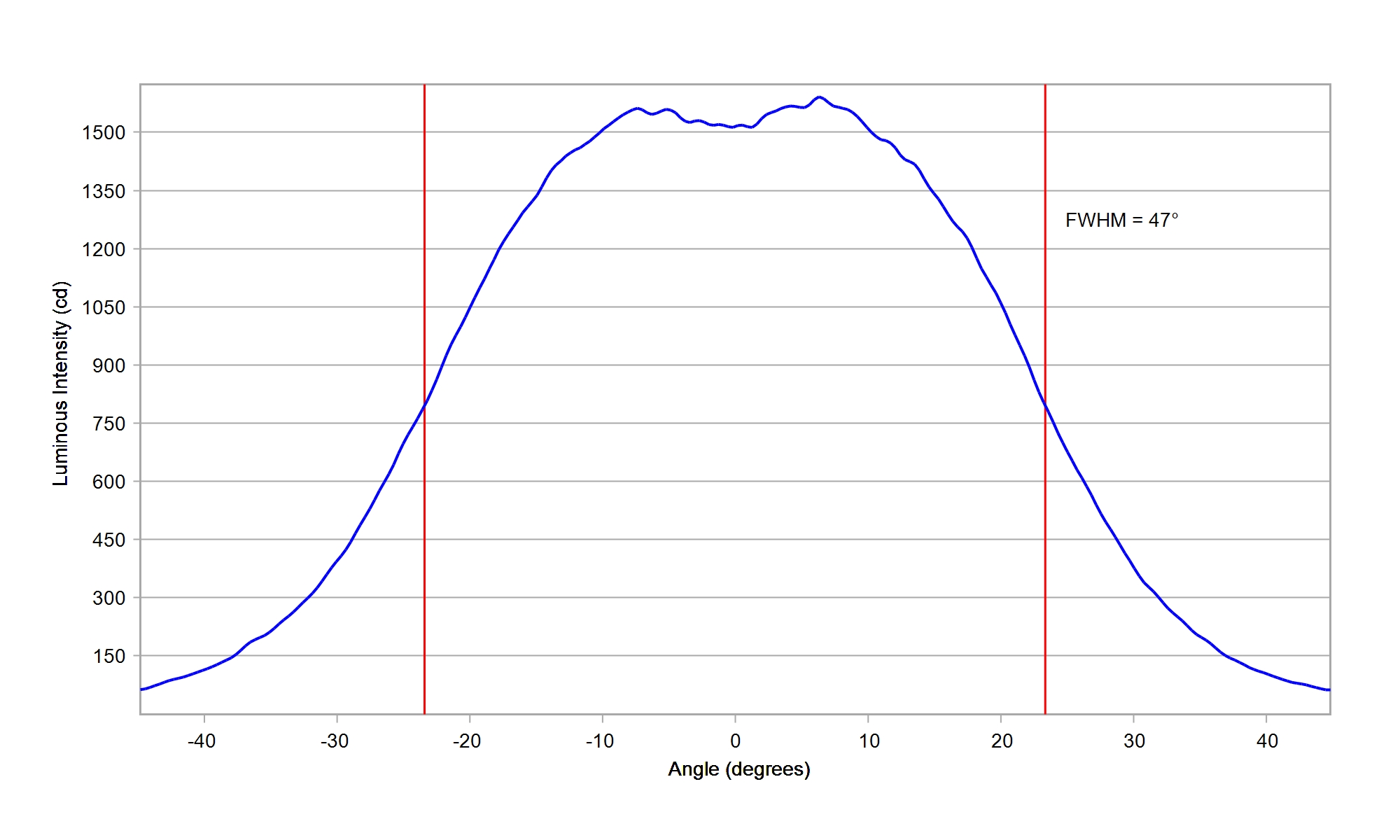

Cree XLamp XHP-50 Gen 2 White
Eff:
83.0%
FWHM:
47.0°
Cd/Im:
1.2
Download
Cree XLamp XHP35 HI White
Eff:
86.0%
FWHM:
47.7°
Cd/Im:
1.5
Download
Cree XLamp XHP35 HD White
Eff:
84.2%
FWHM:
44.4°
Cd/Im:
1.4
Download
Cree XLamp XHP35.2 HI White
Eff:
86.0%
FWHM:
46°
Cd/Im:
1.4
Download
Cree XLamp XHP35.2 HD White
Eff:
84.5%
FWHM:
43.0°
Cd/Im:
1.4
Download

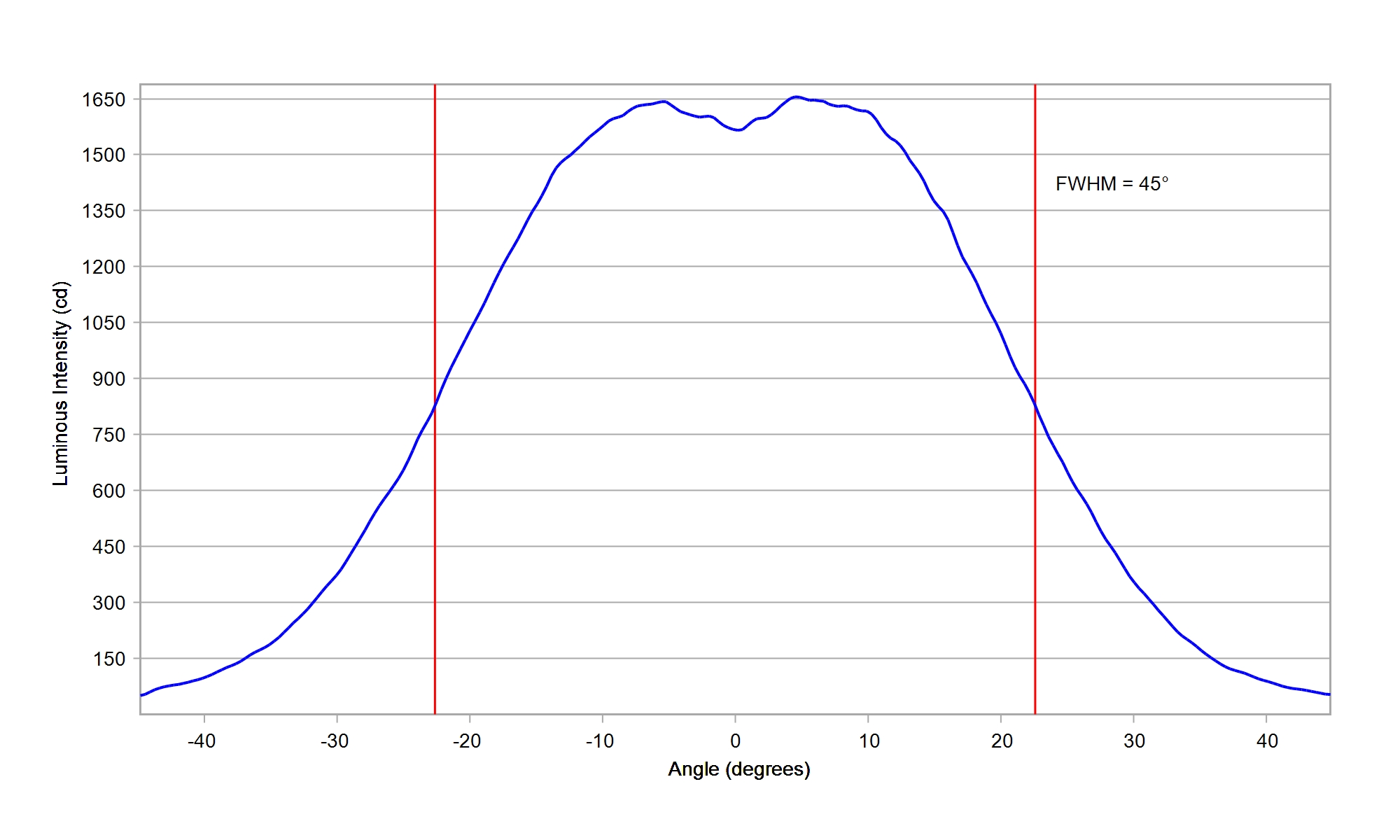

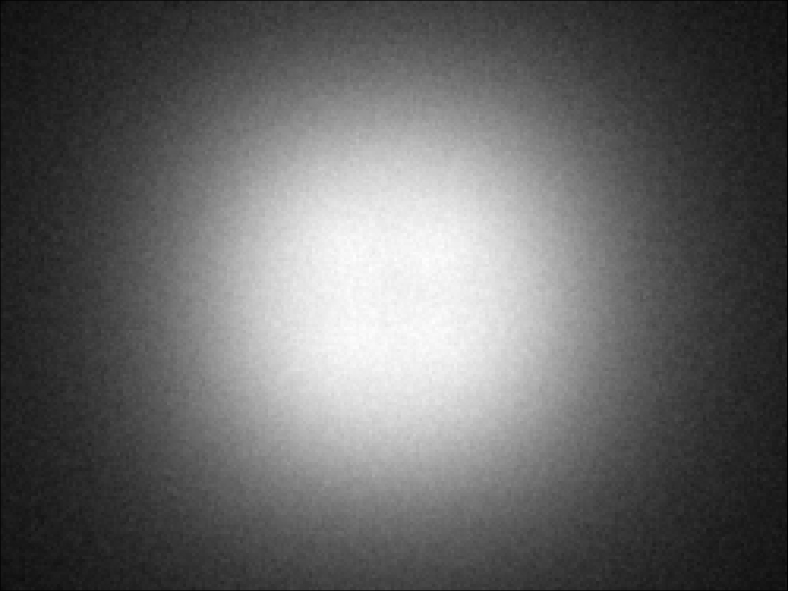

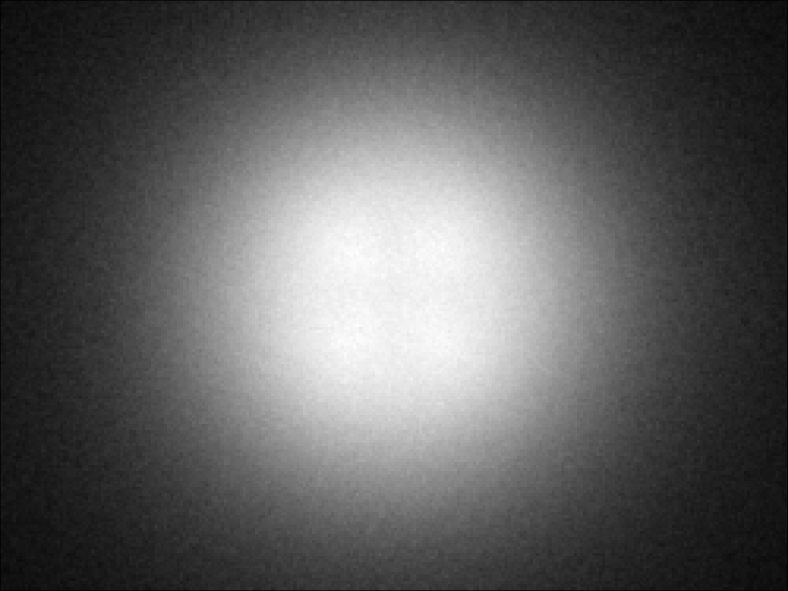

Cree XLamp XHP50.3 HI White
Eff:
85.5%
FWHM:
45°
Cd/Im:
1.4
Download
Cree XLamp XHP50.3 White
Eff:
83.5%
FWHM:
47°
Cd/Im:
1.2
Download
Cree XLamp XM-L White
FWHM:
46.3°
Cd/Im:
2.1
Download
Cree XLamp XM-L3 White
Eff:
84.5%
FWHM:
47.0°
Cd/Im:
1.4
Download
Cree XLamp XP-E White
Eff:
81.6%
FWHM:
43°
Cd/Im:
2.1
Download

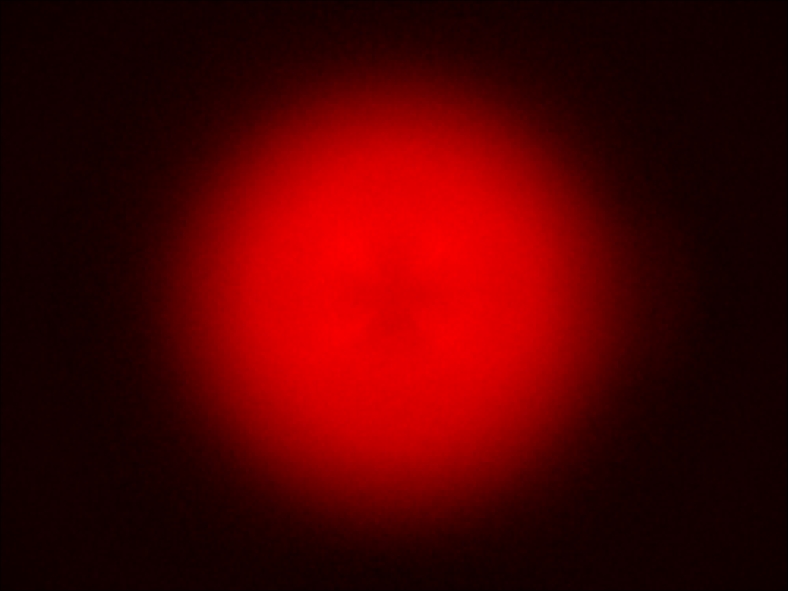

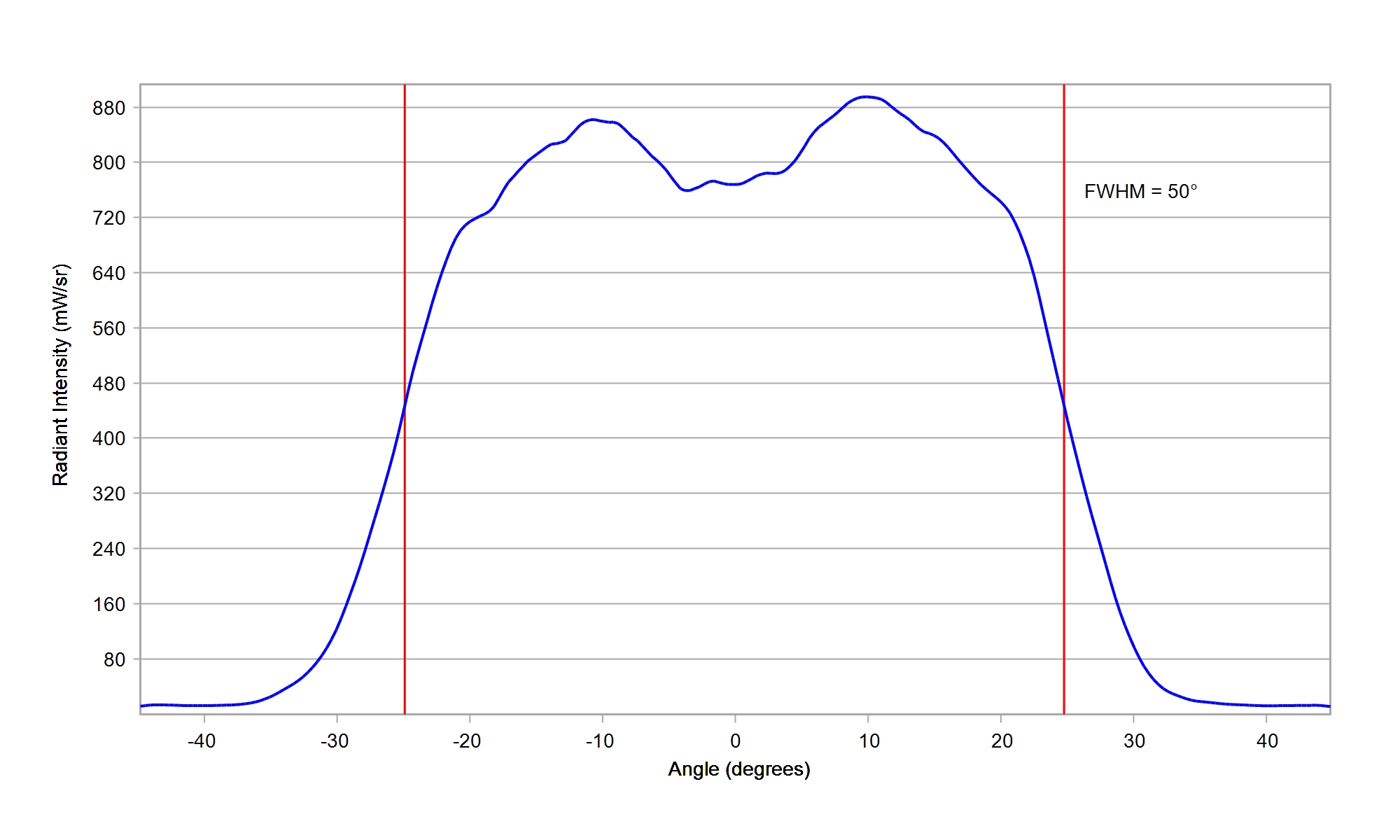

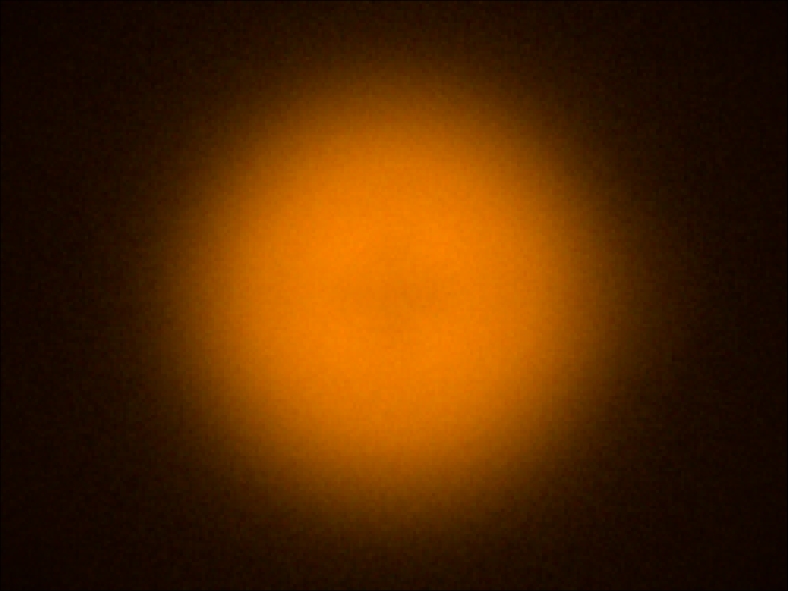

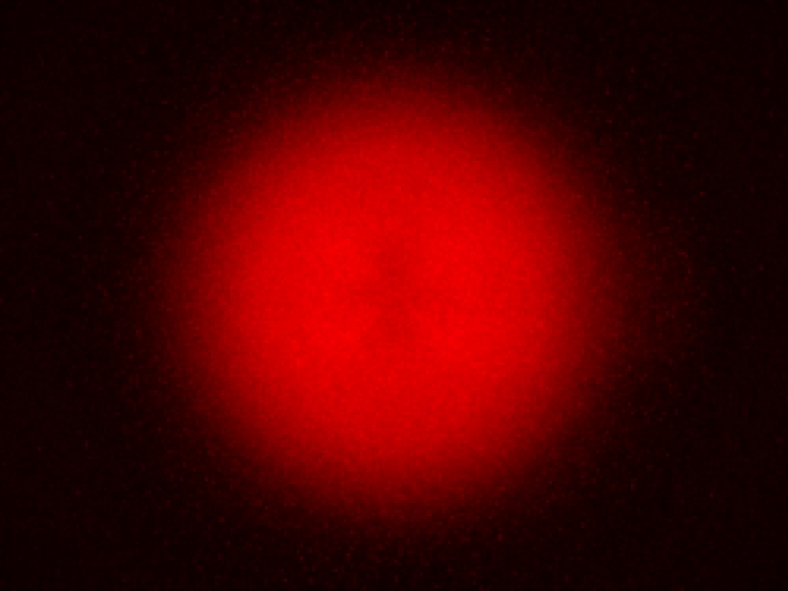

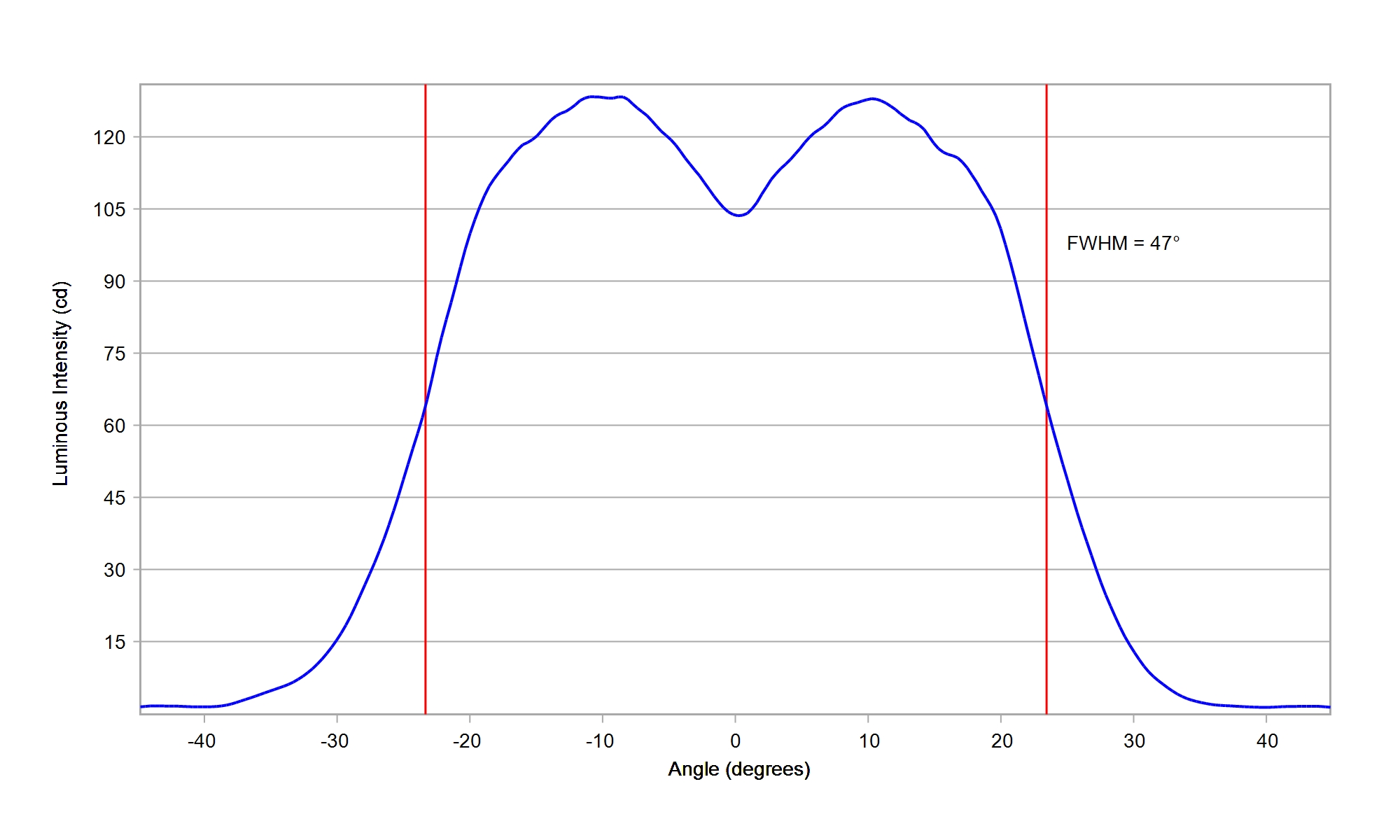

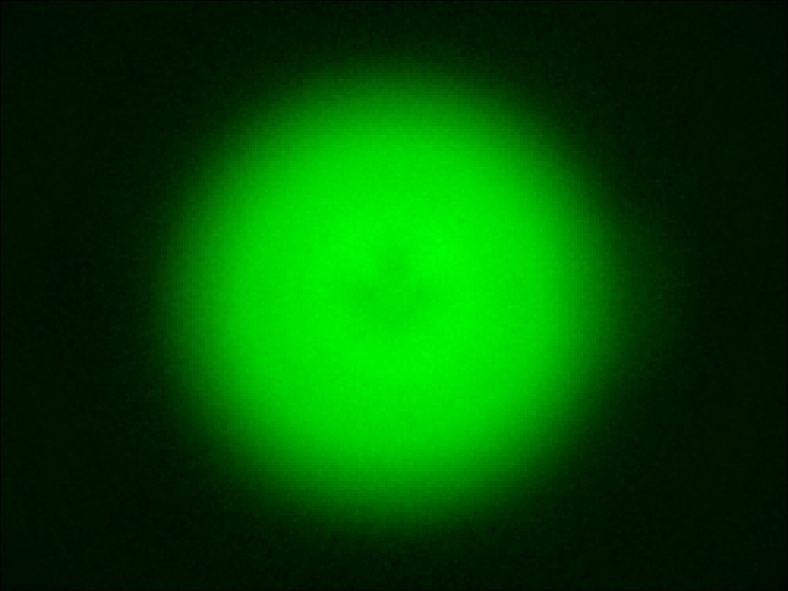

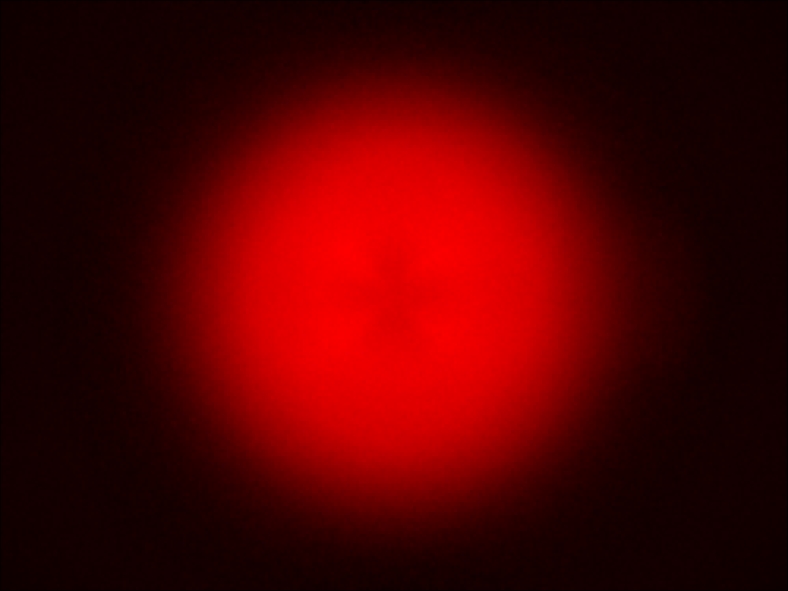

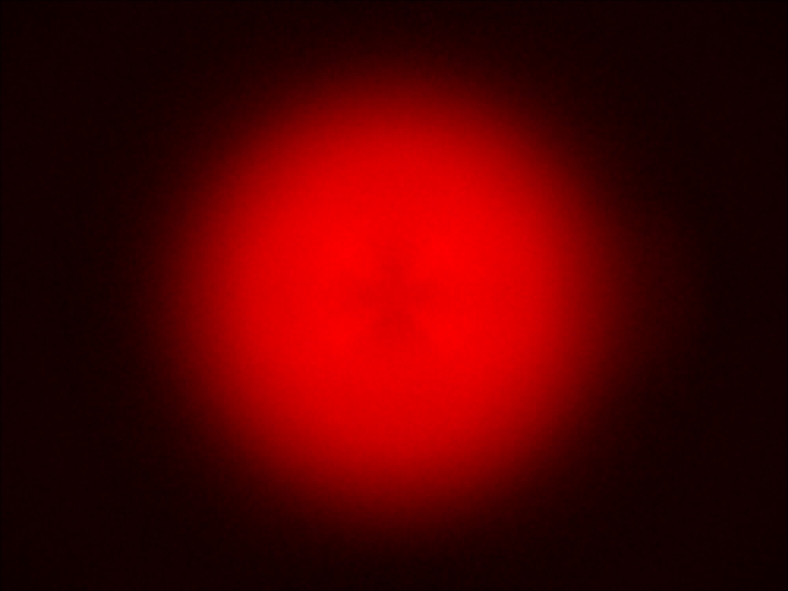

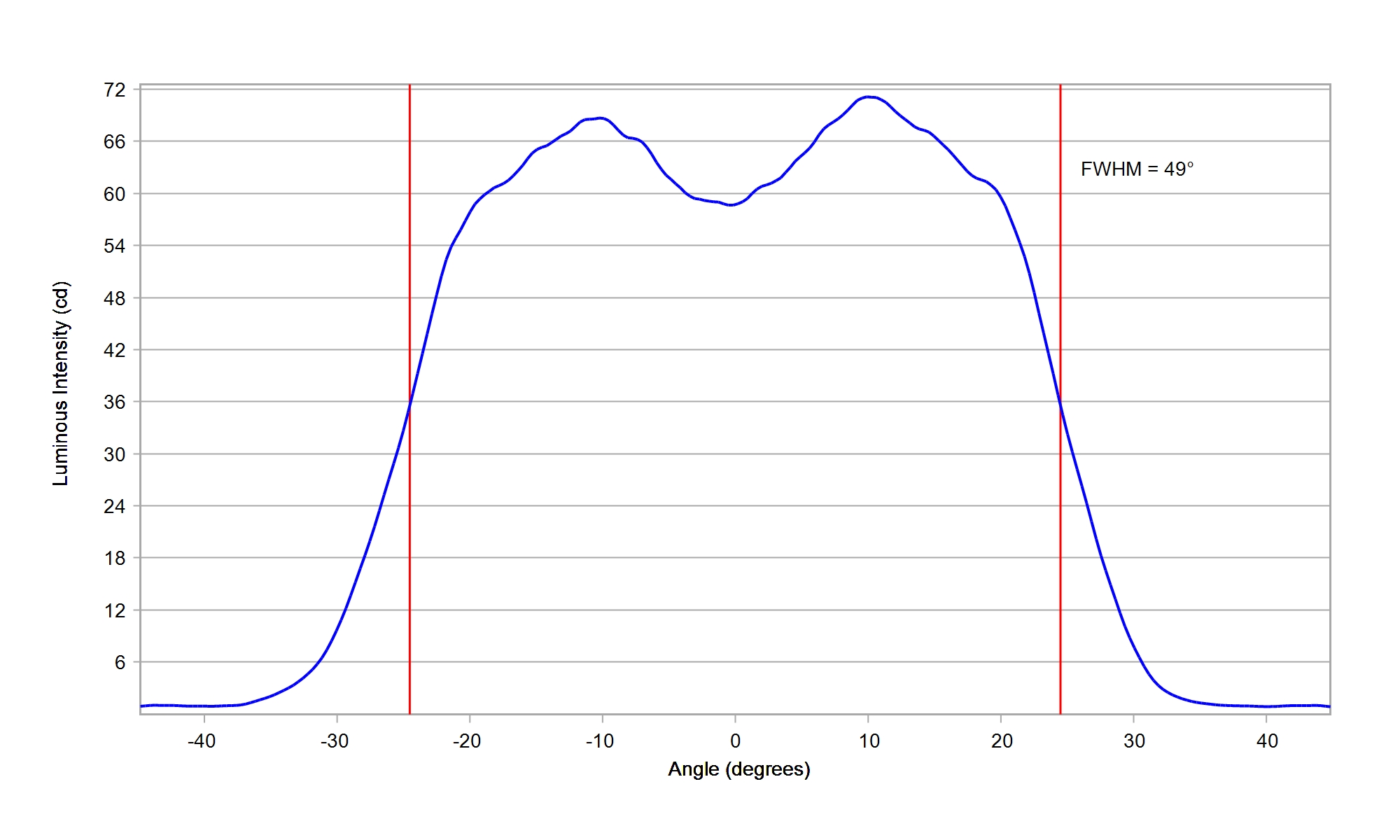

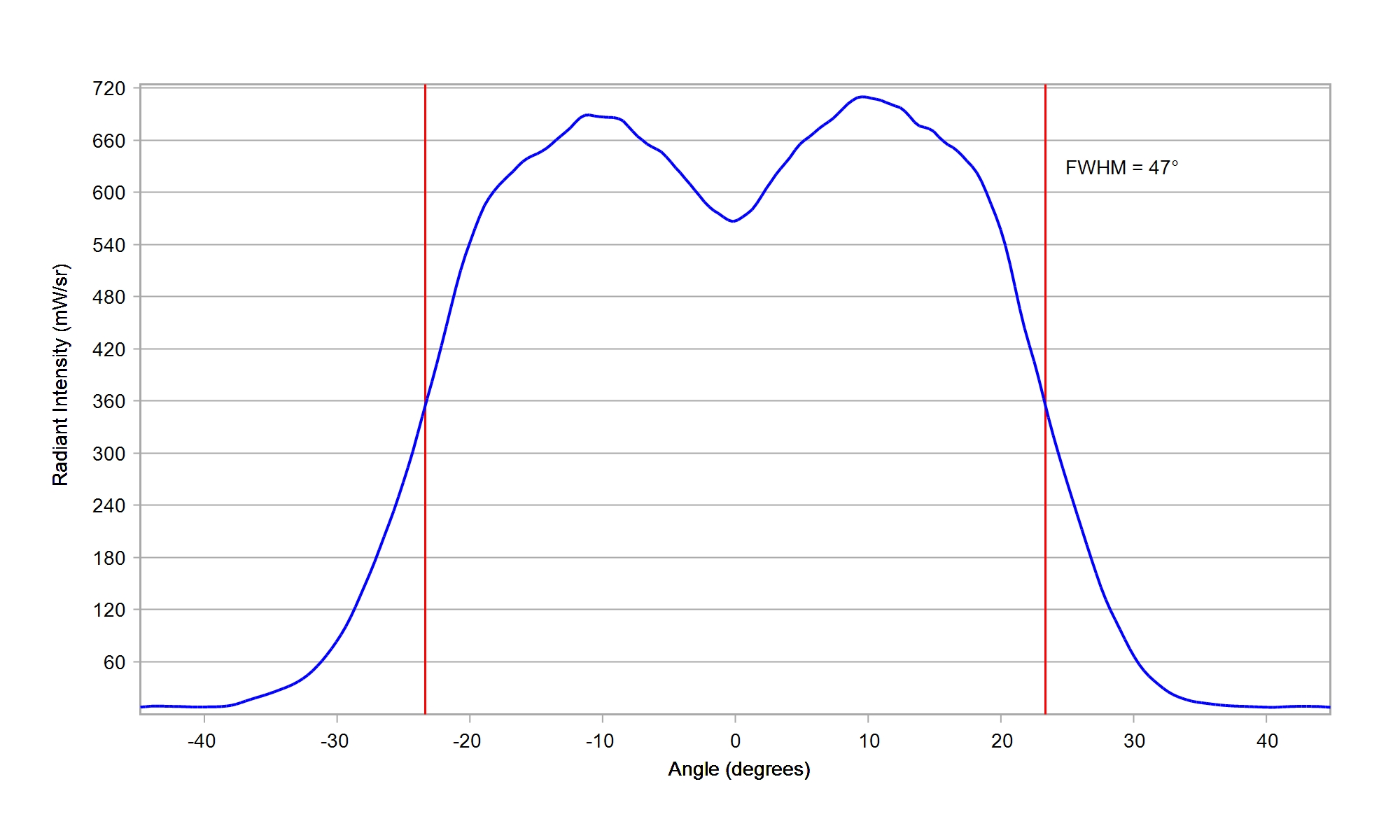

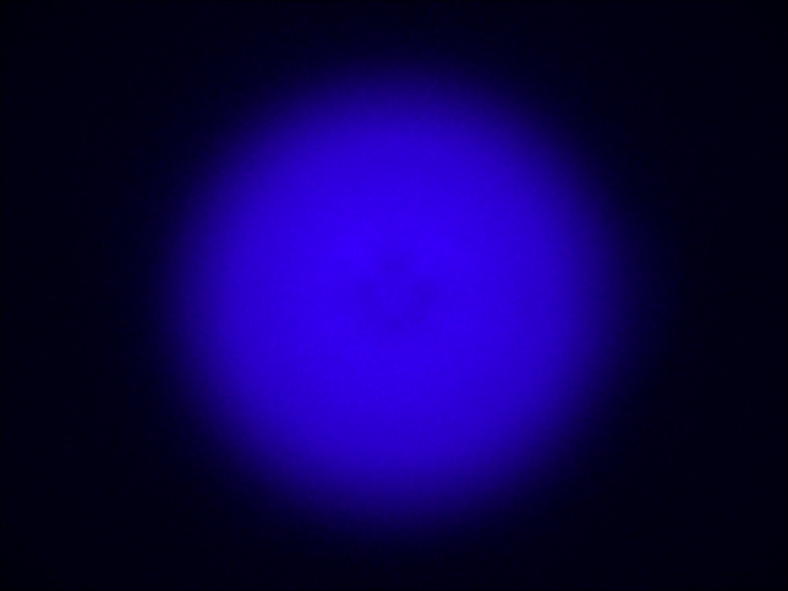

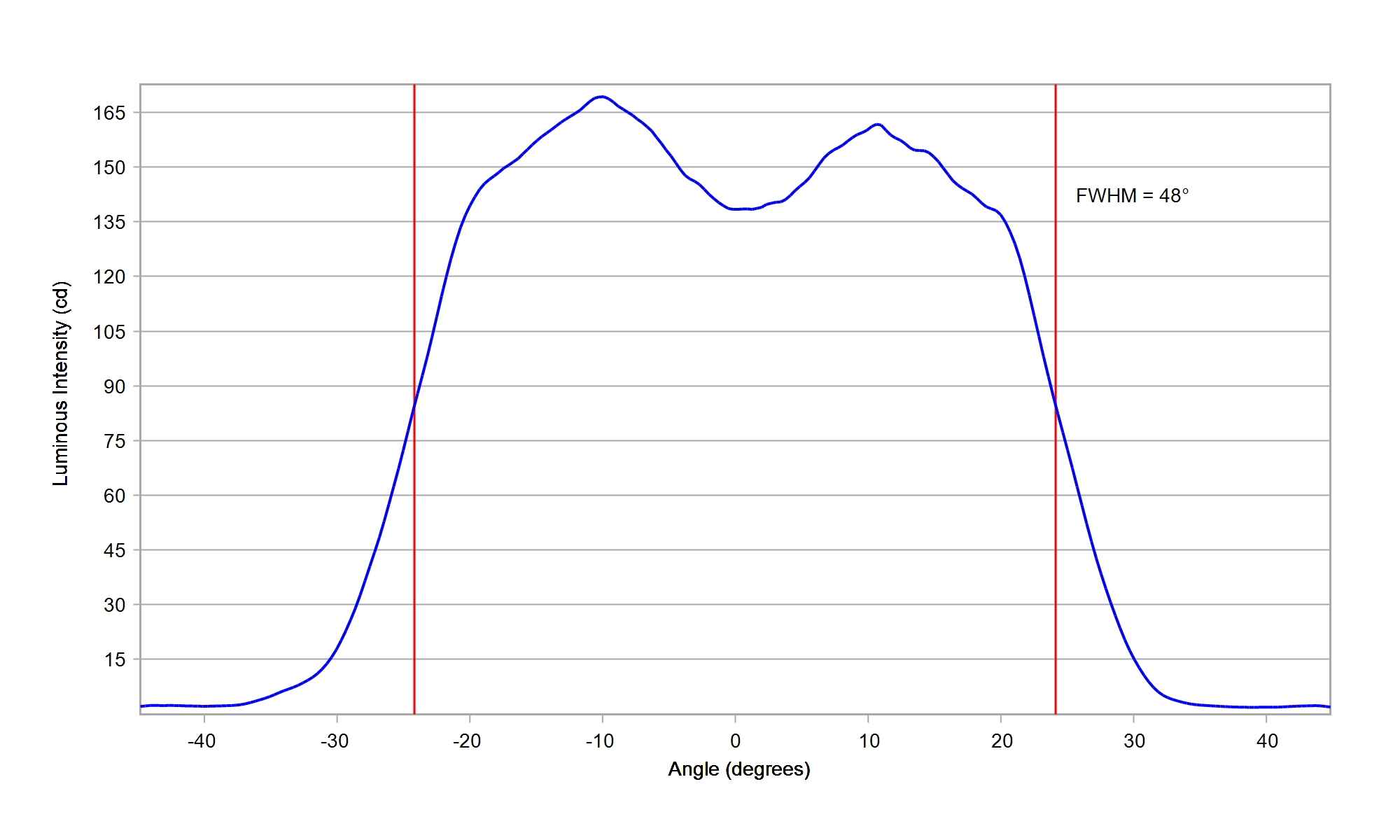

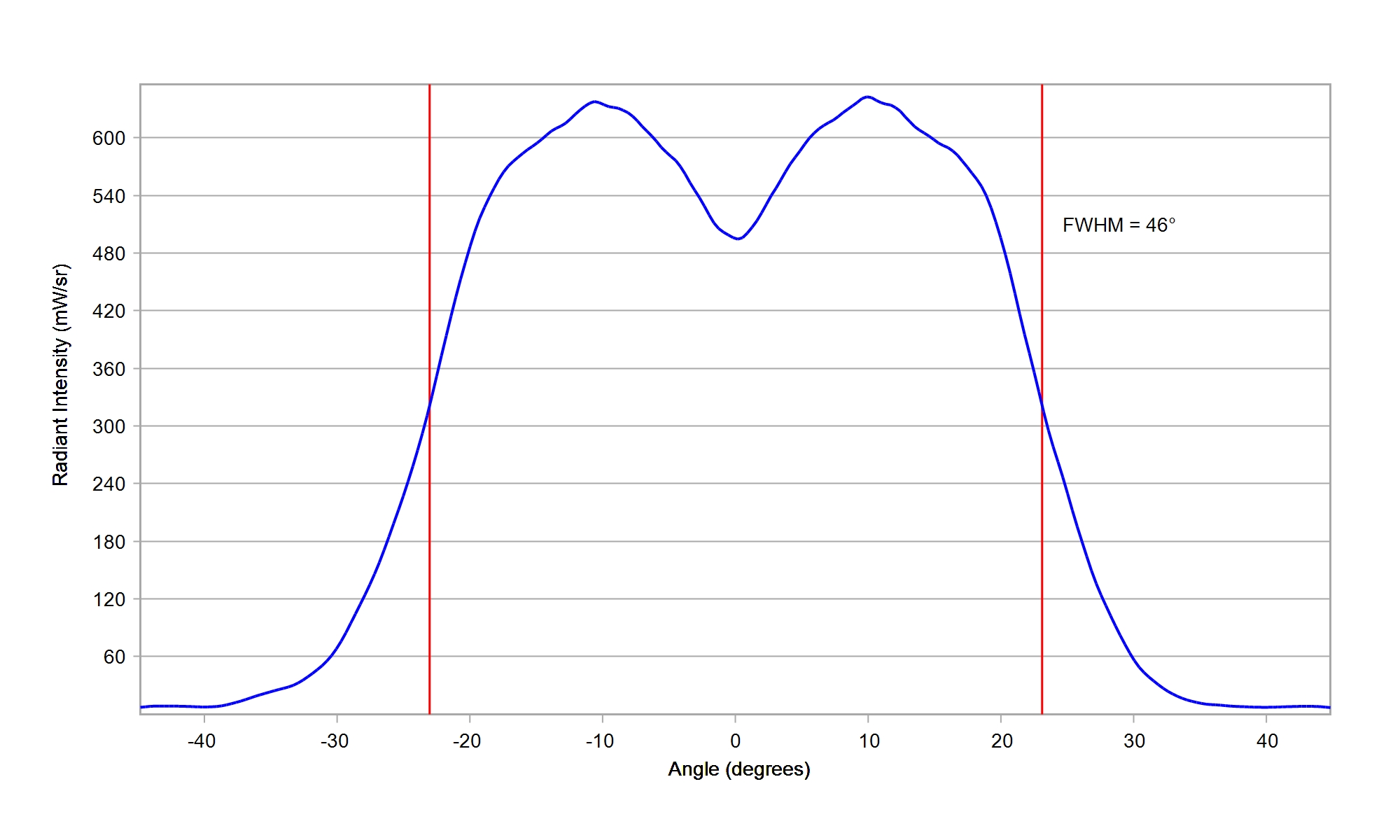

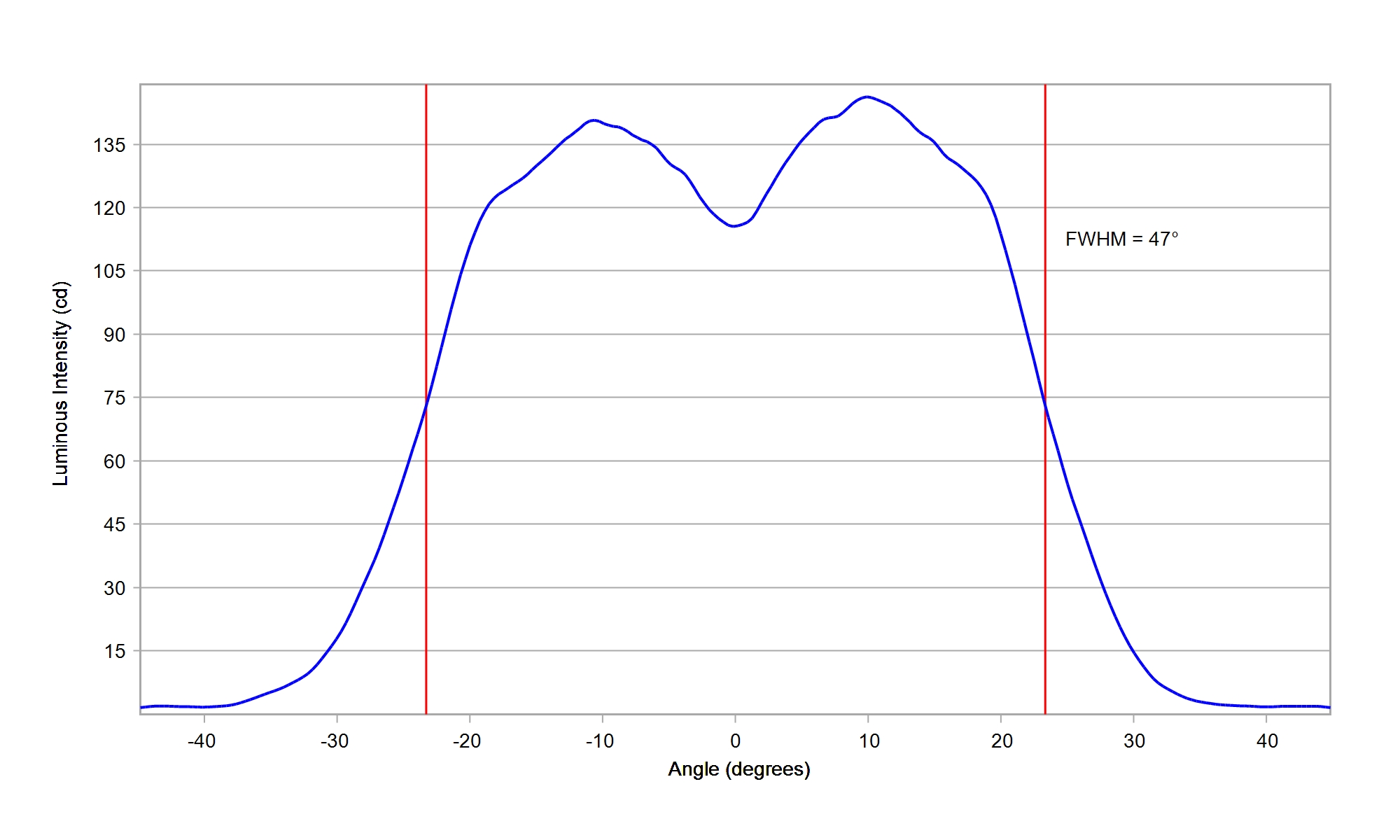

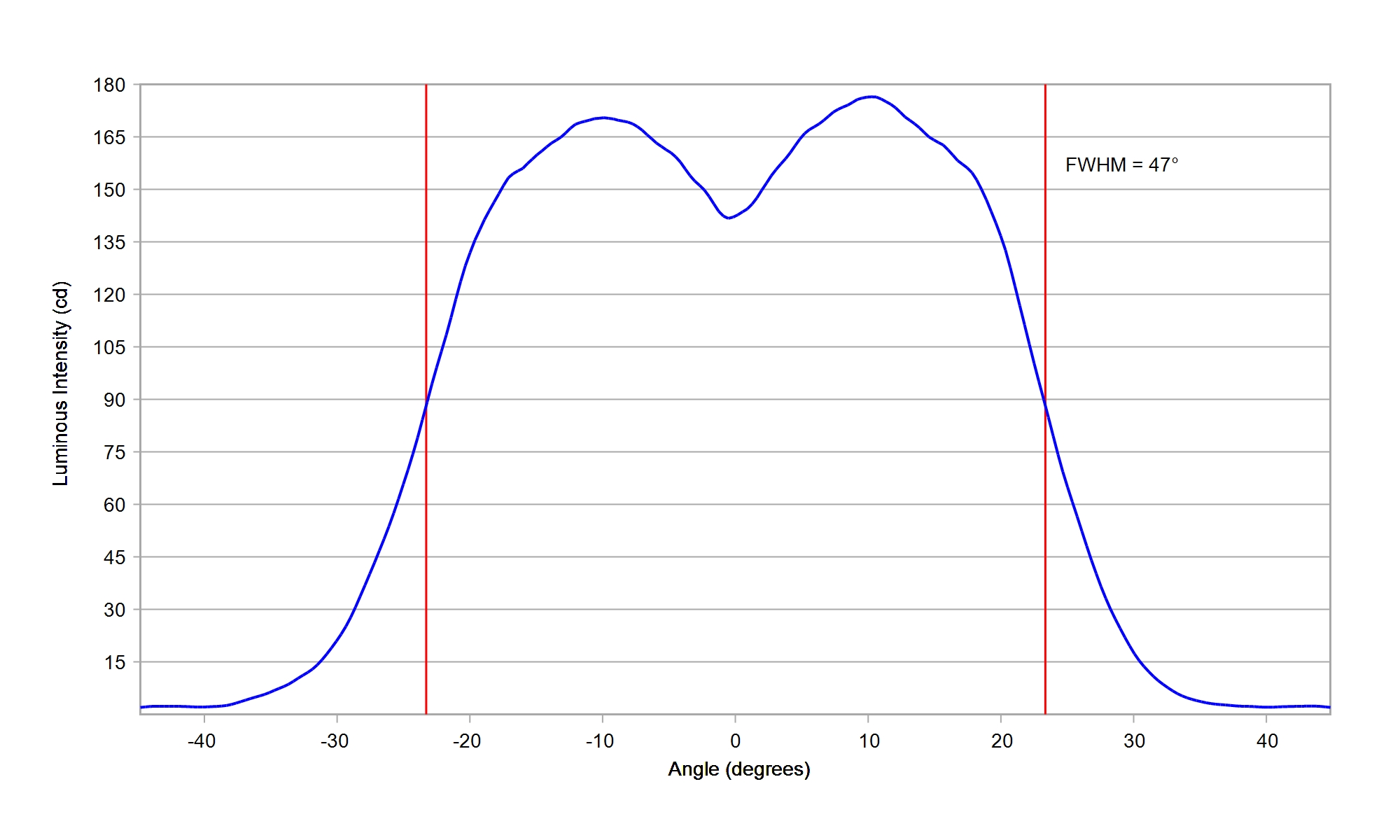

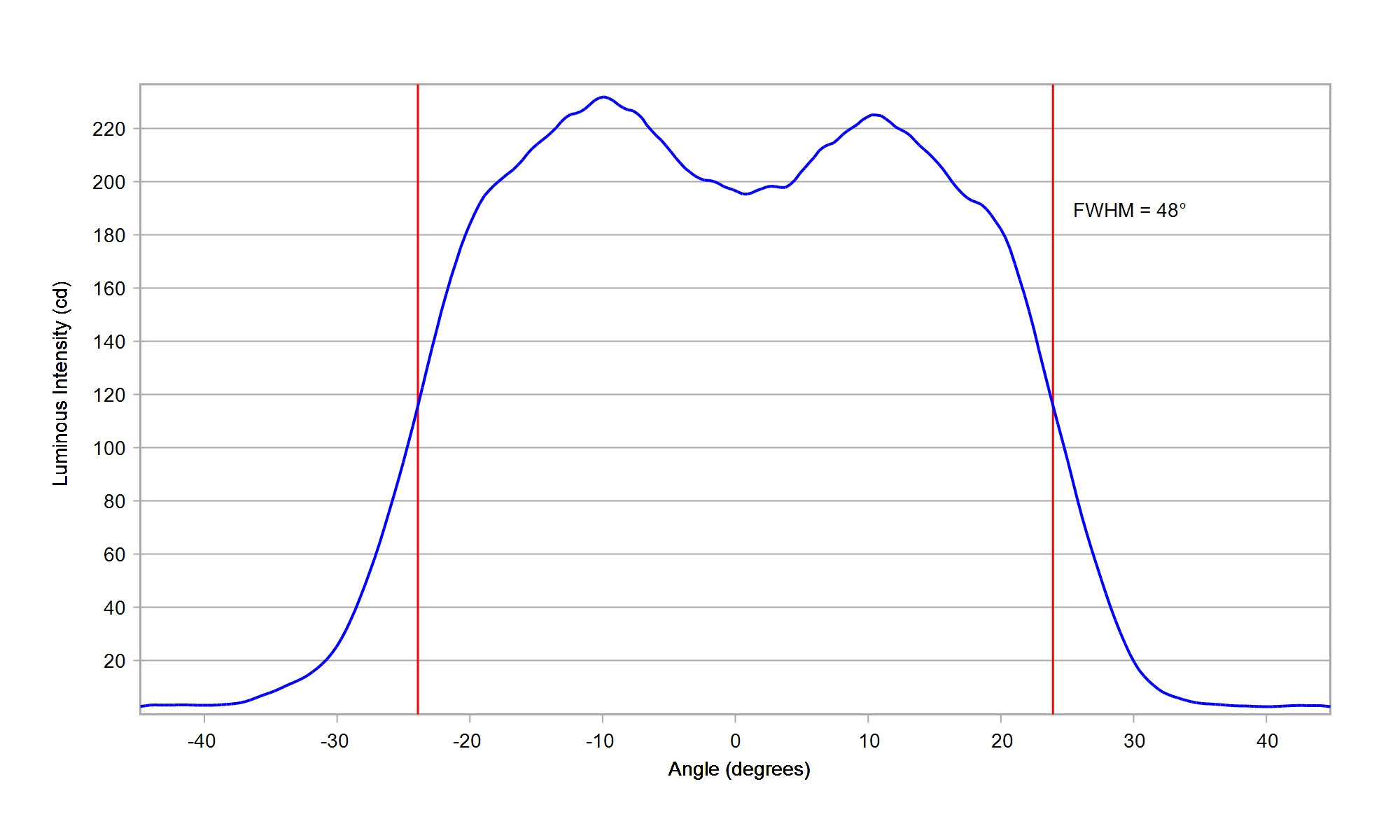

Cree XLamp XP-E2 White
Eff:
88.0%
FWHM:
45°
Cd/Im:
1.7
Download

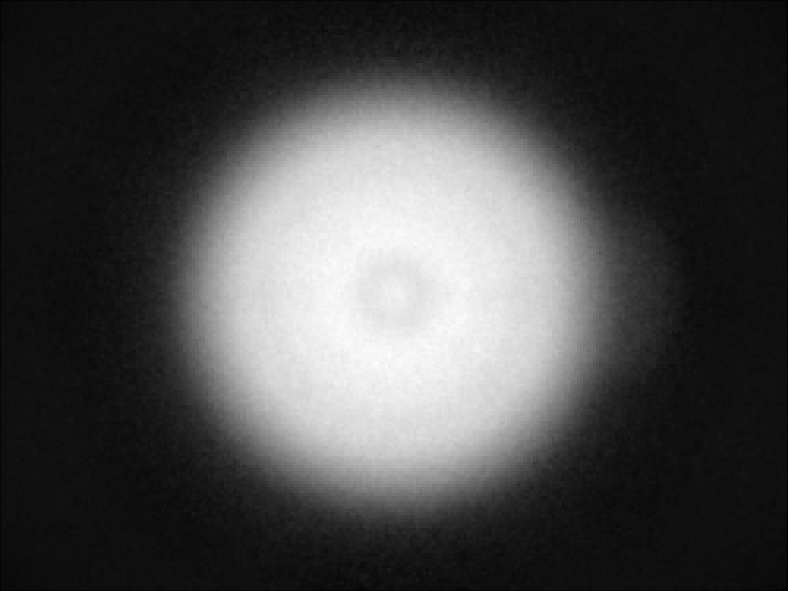

Cree XLamp XP-G3 White
Eff:
86.0%
FWHM:
45.3°
Cd/Im:
1.4
Download

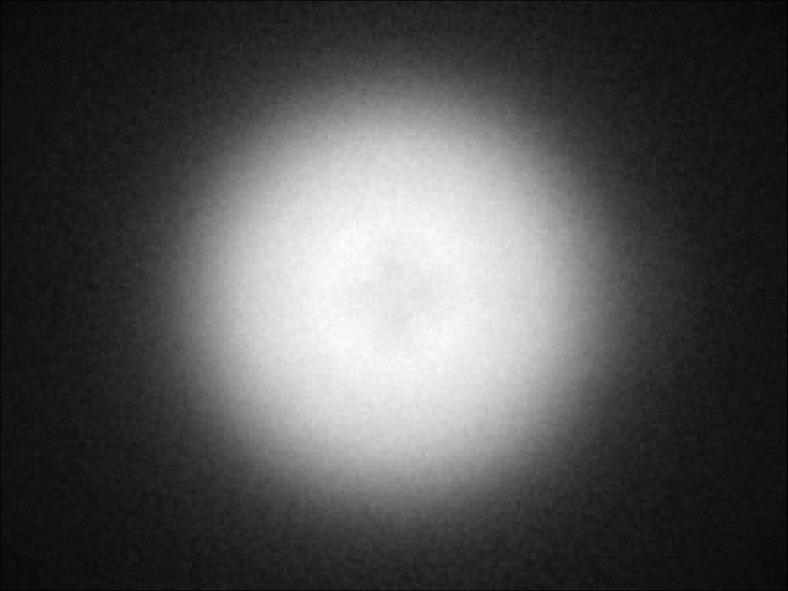

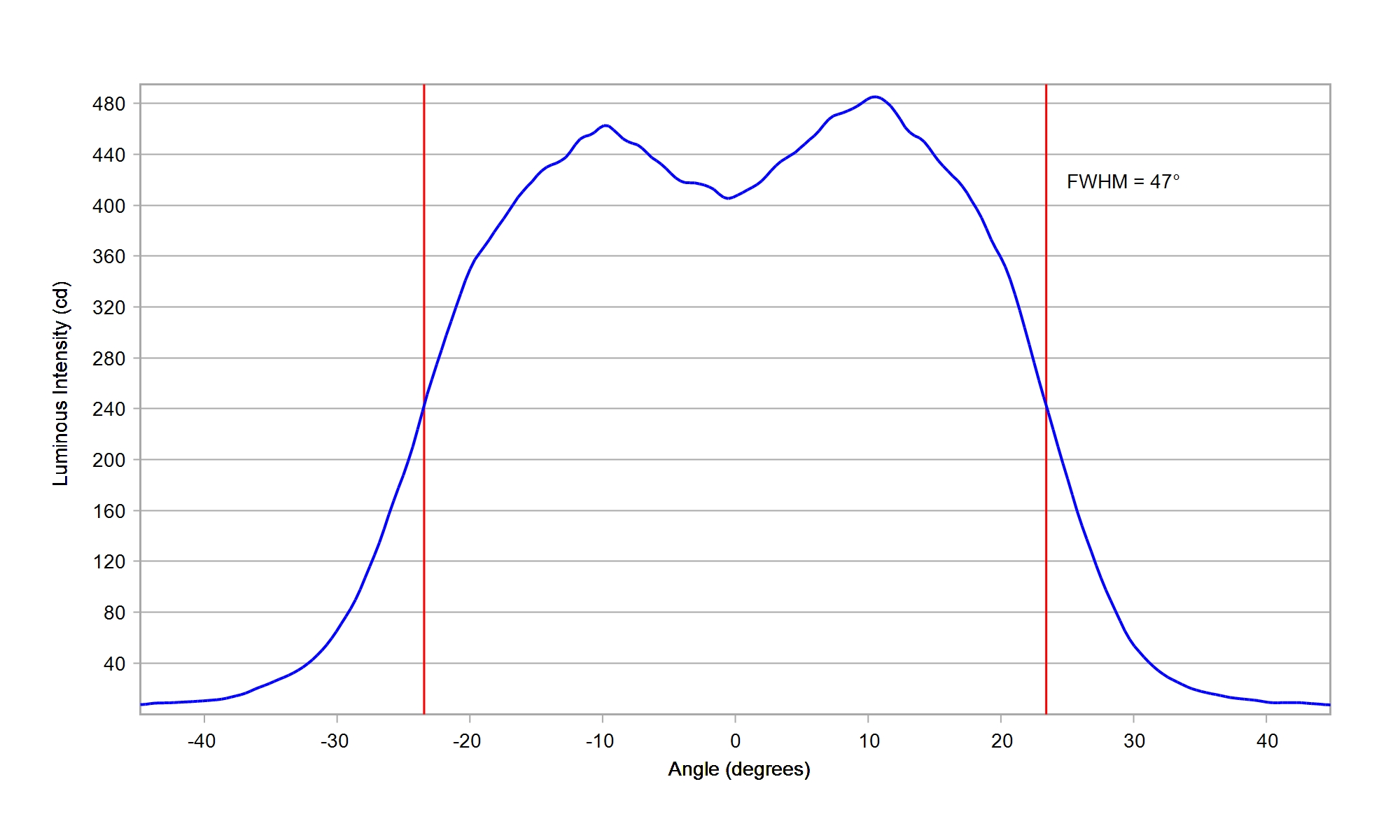

Cree XLamp XP-G4 HI White
Eff:
86.0%
FWHM:
47°
Cd/Im:
1.4
Download

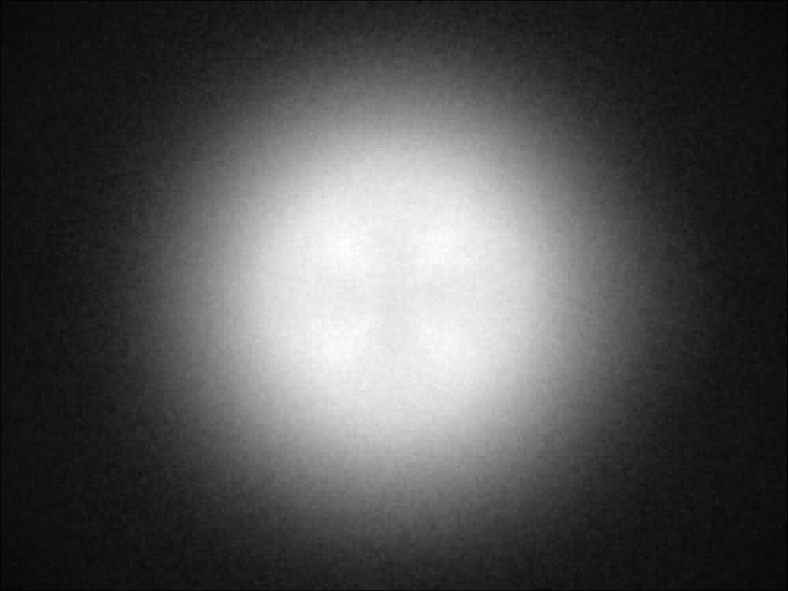

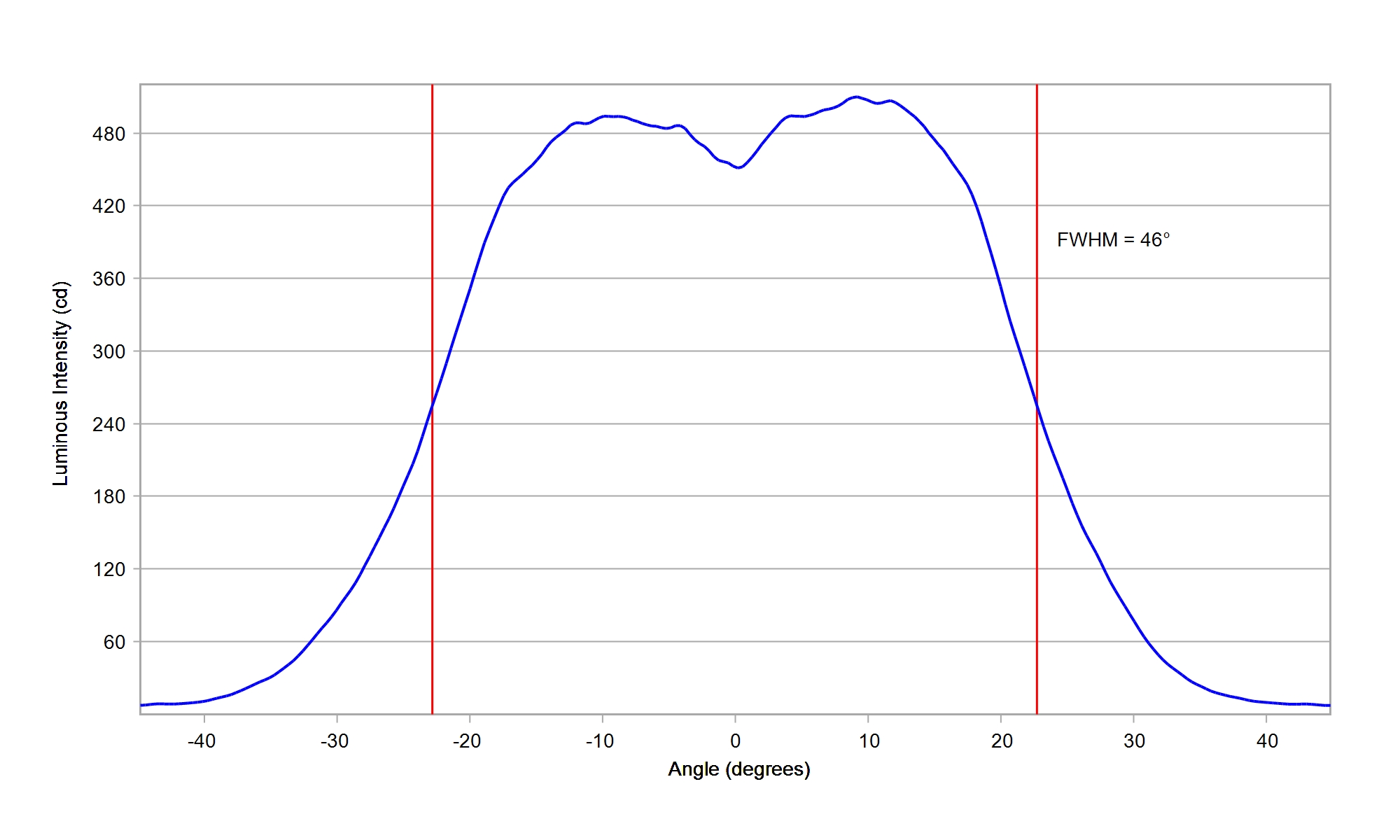

Cree XLamp XP-G4 White
Eff:
88.0%
FWHM:
46°
Cd/Im:
1.6
Download
Cree XLamp XP-L HI White
Eff:
86.3%
FWHM:
47.1°
Cd/Im:
1.4
Download

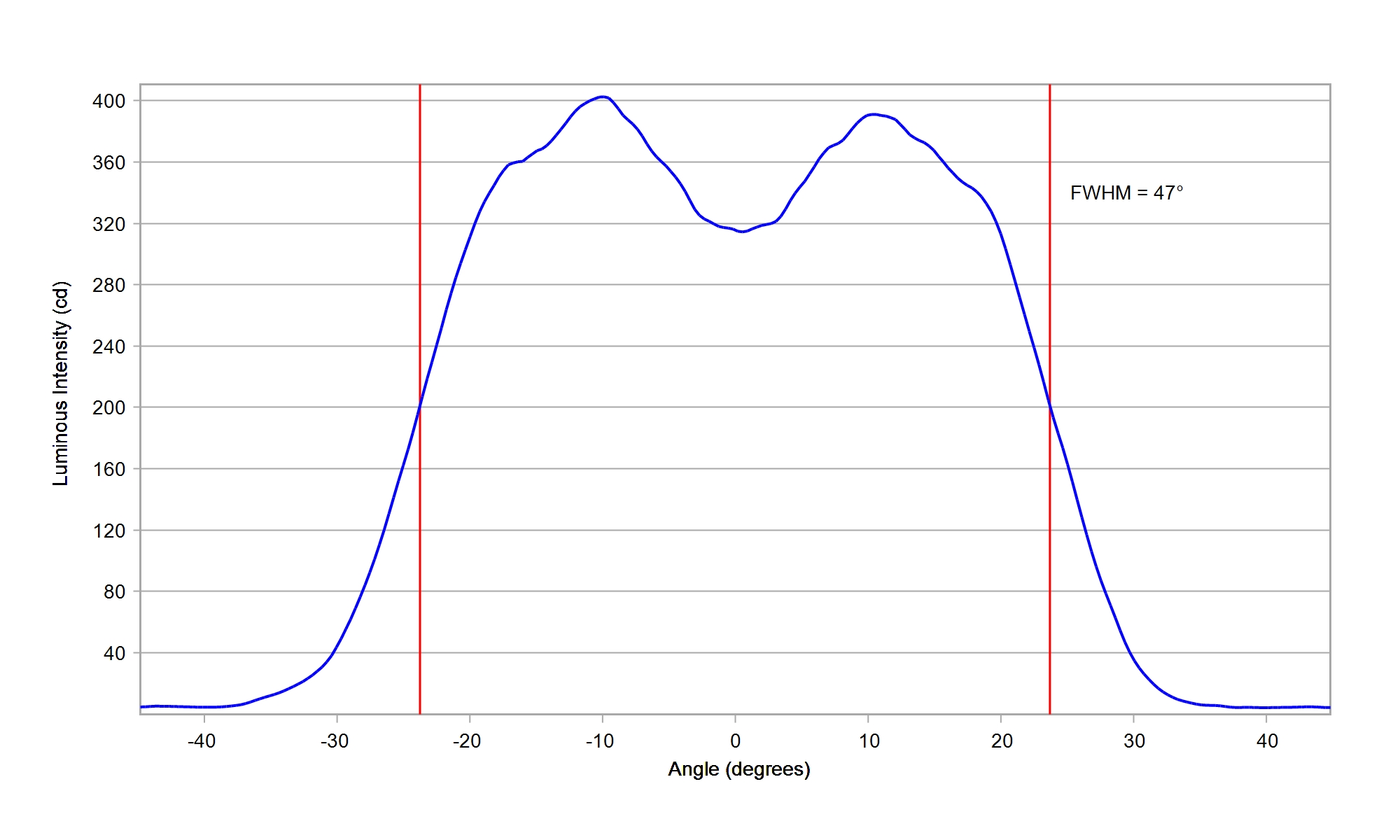

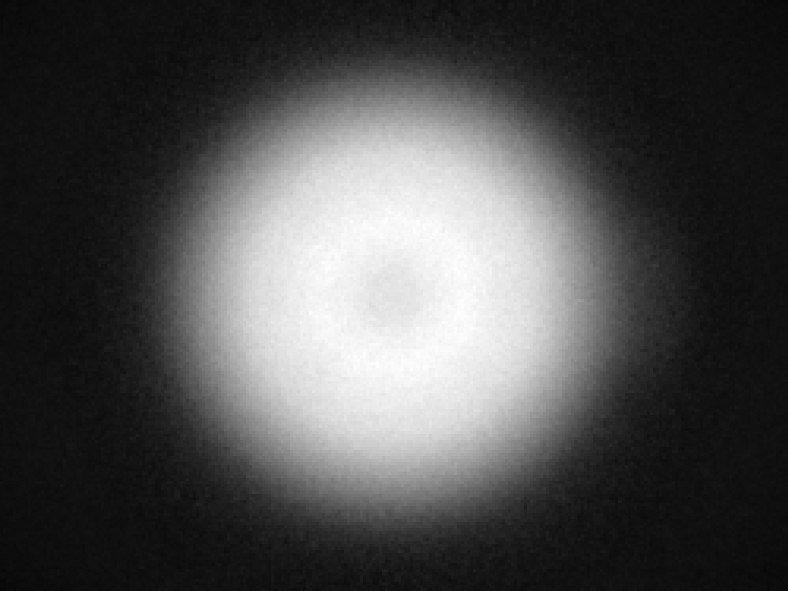

Cree XLamp XP-L White
Eff:
85.2%
FWHM:
44.1°
Cd/Im:
1.5
Download
Cree XLamp XP-L2 White
Eff:
84.5%
FWHM:
44.5°
Cd/Im:
1.5
Download
Cree XLamp XP-P White
Eff:
87.5%
FWHM:
47°
Cd/Im:
1.7
Download

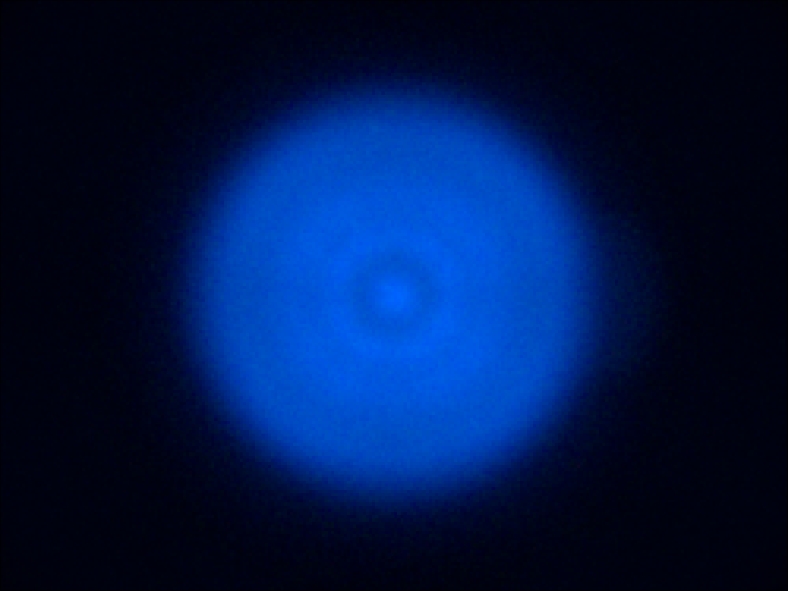

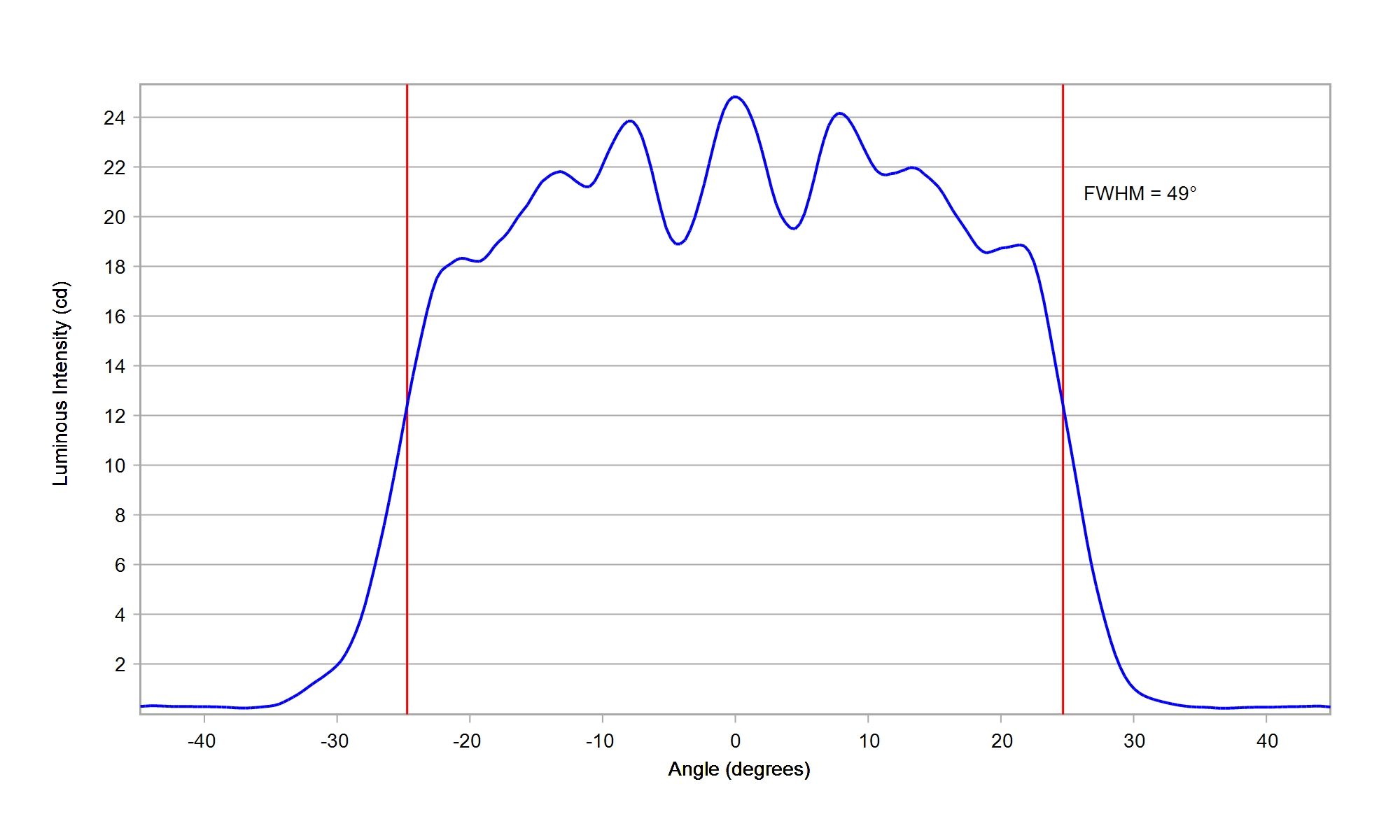

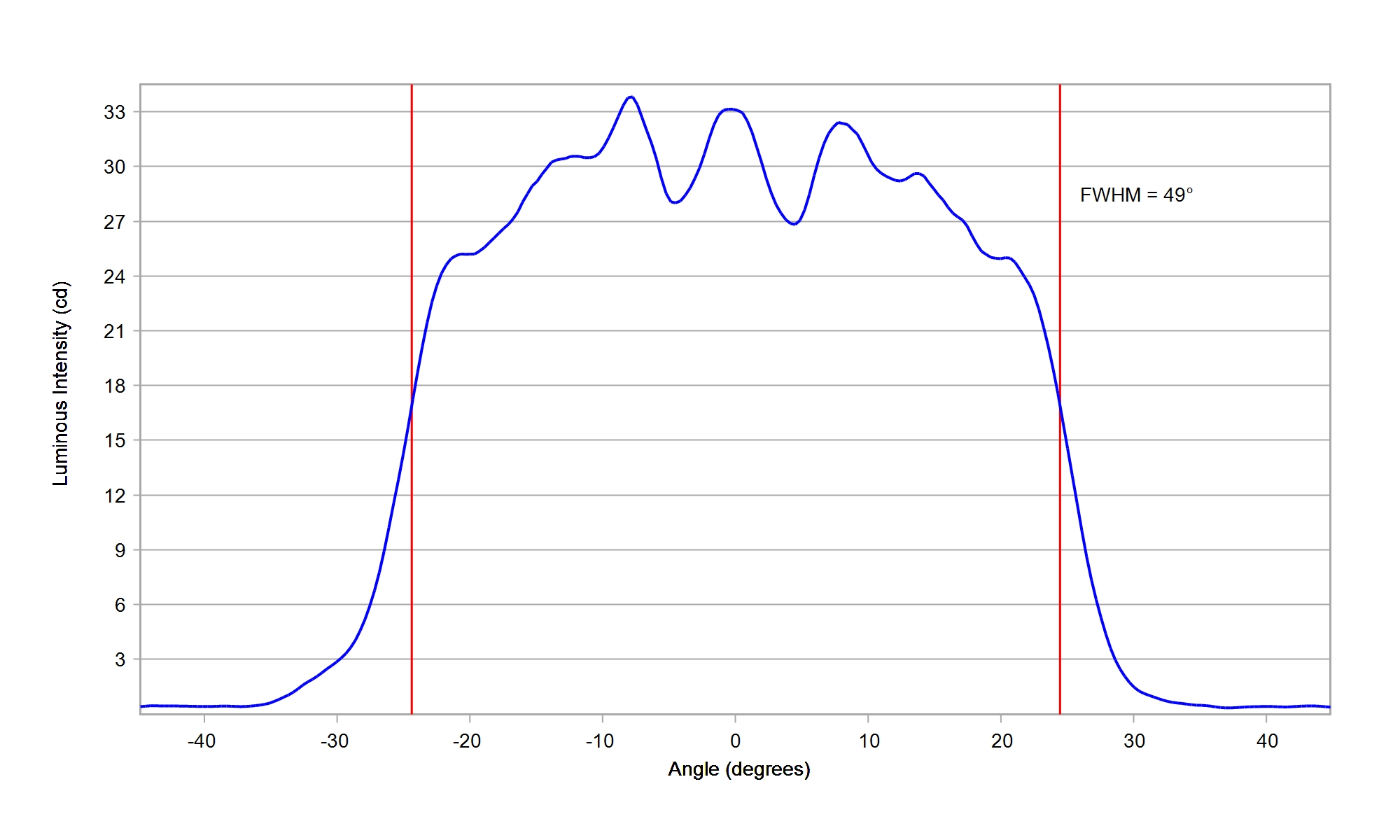

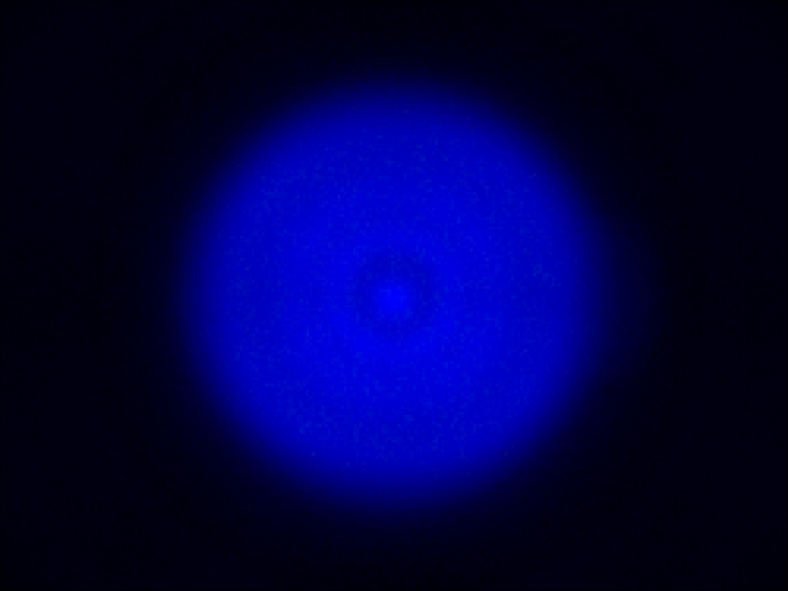

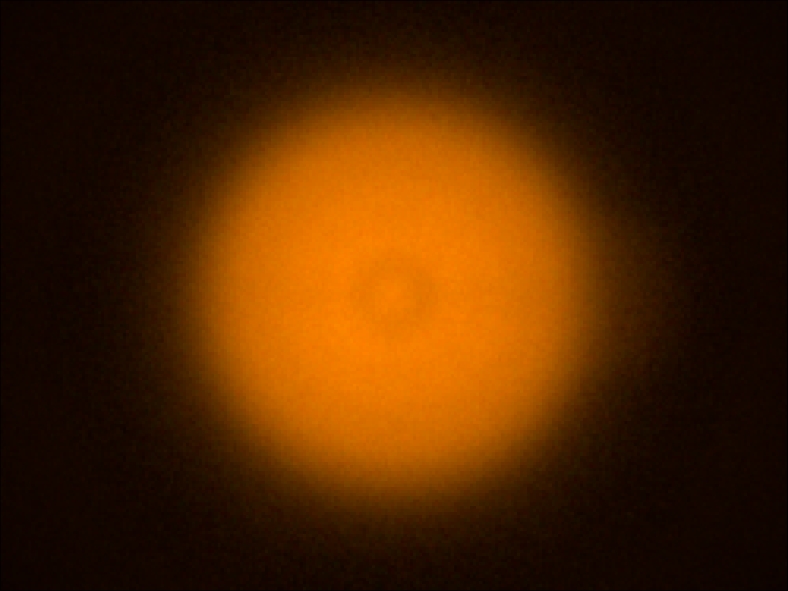

Cree XLamp XQ-A Blue
Eff:
87.0%
FWHM:
45°
Cd/Im:
1.9
Download

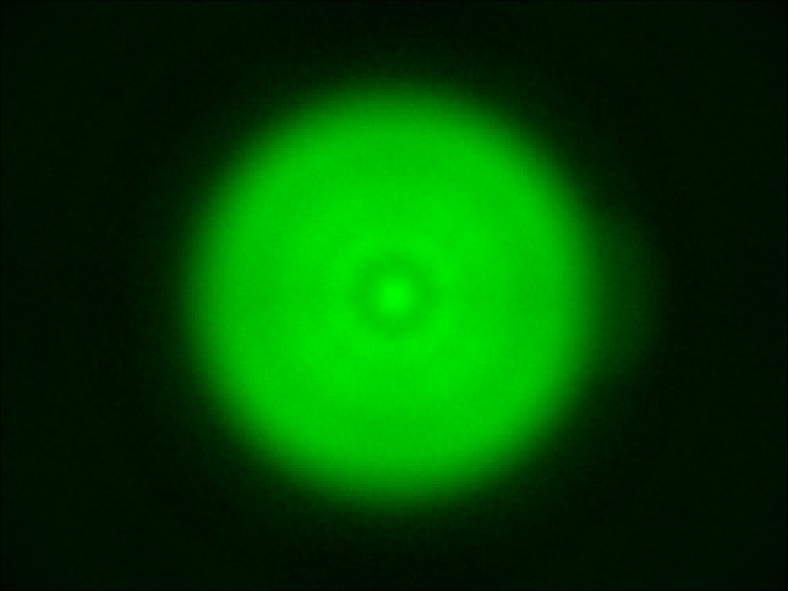

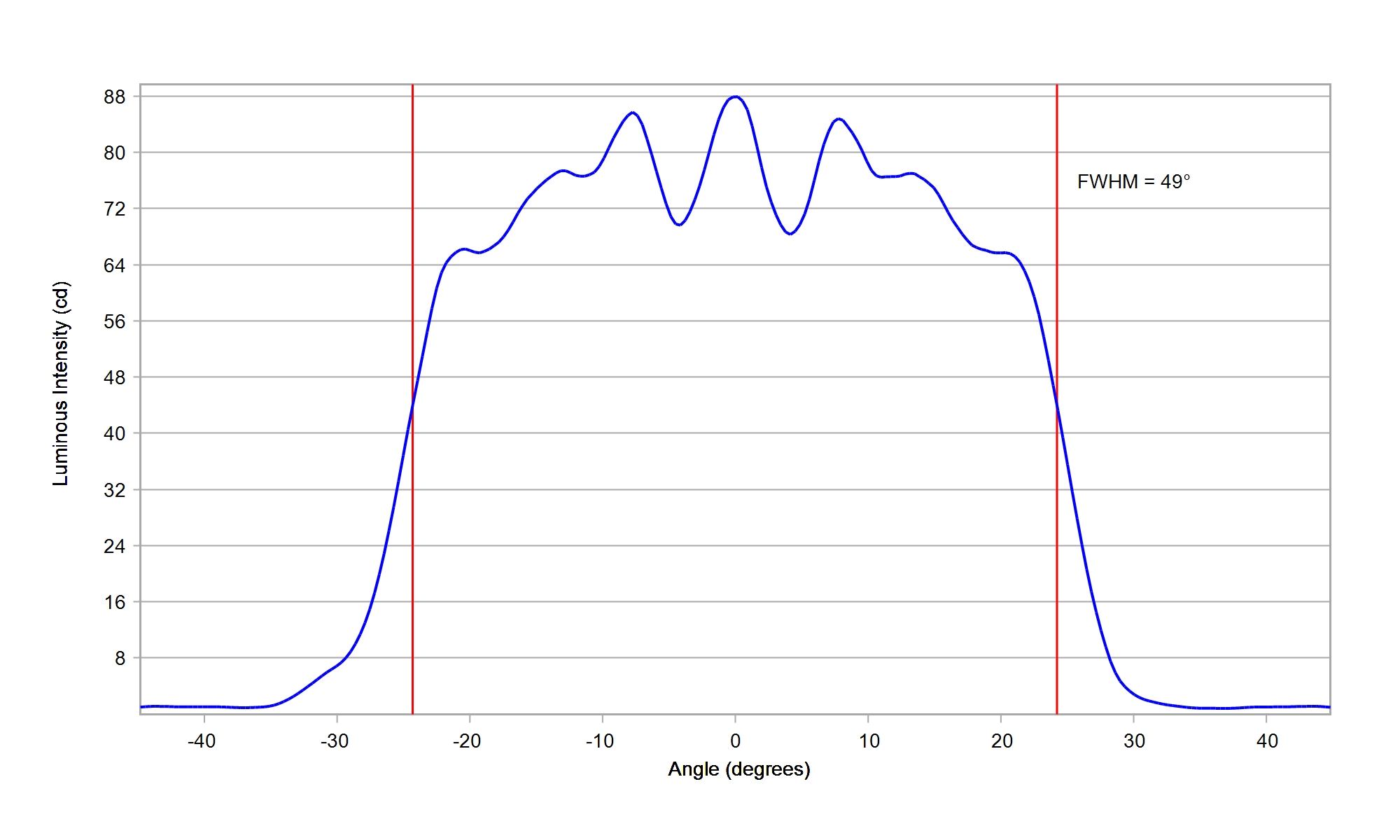

Cree XLamp XQ-A Green
Eff:
87.0%
FWHM:
46.0°
Cd/Im:
2.0
Download

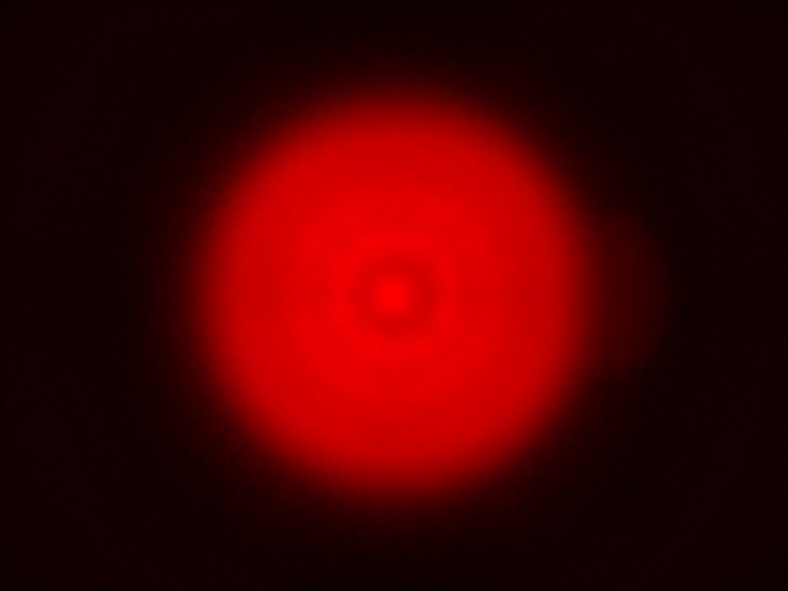

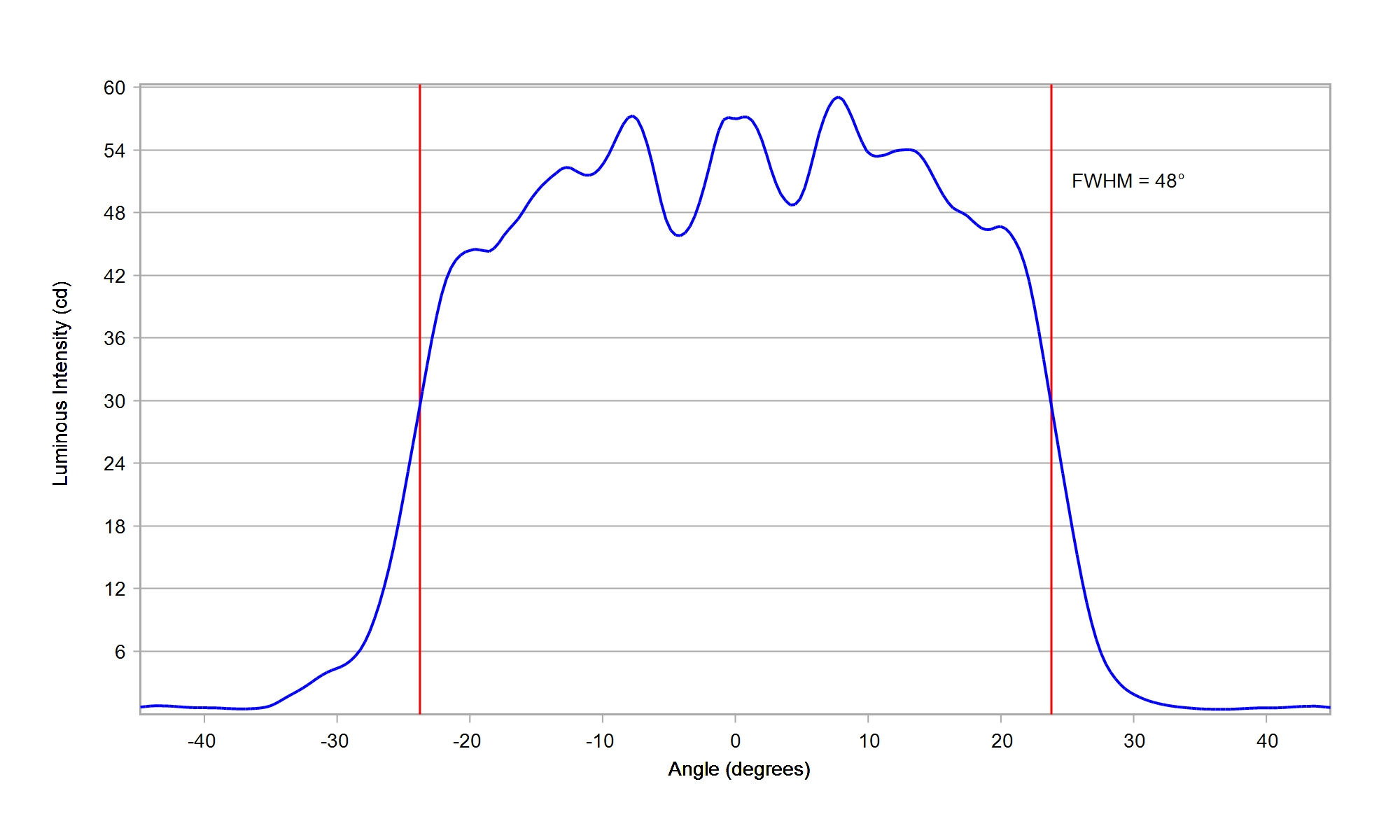

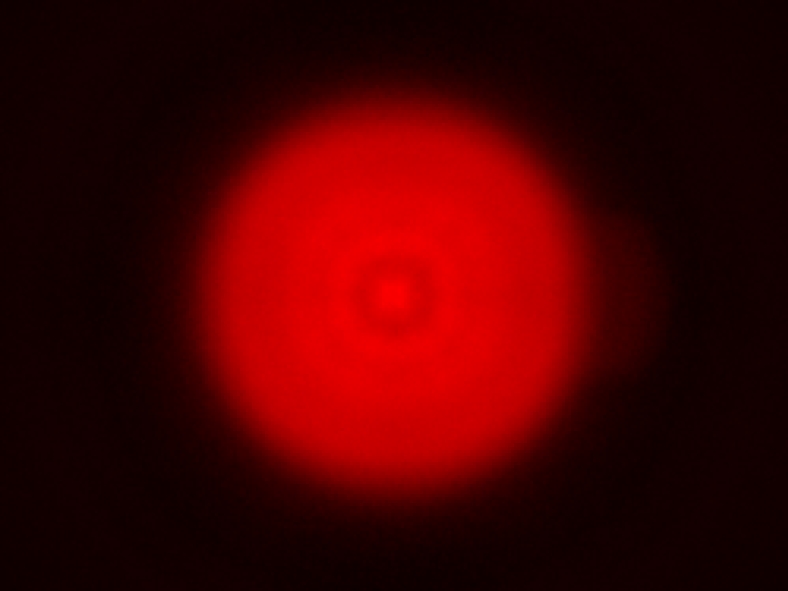

Cree XLamp XQ-A Red
Eff:
87.0%
FWHM:
46.0°
Cd/Im:
1.8
Download

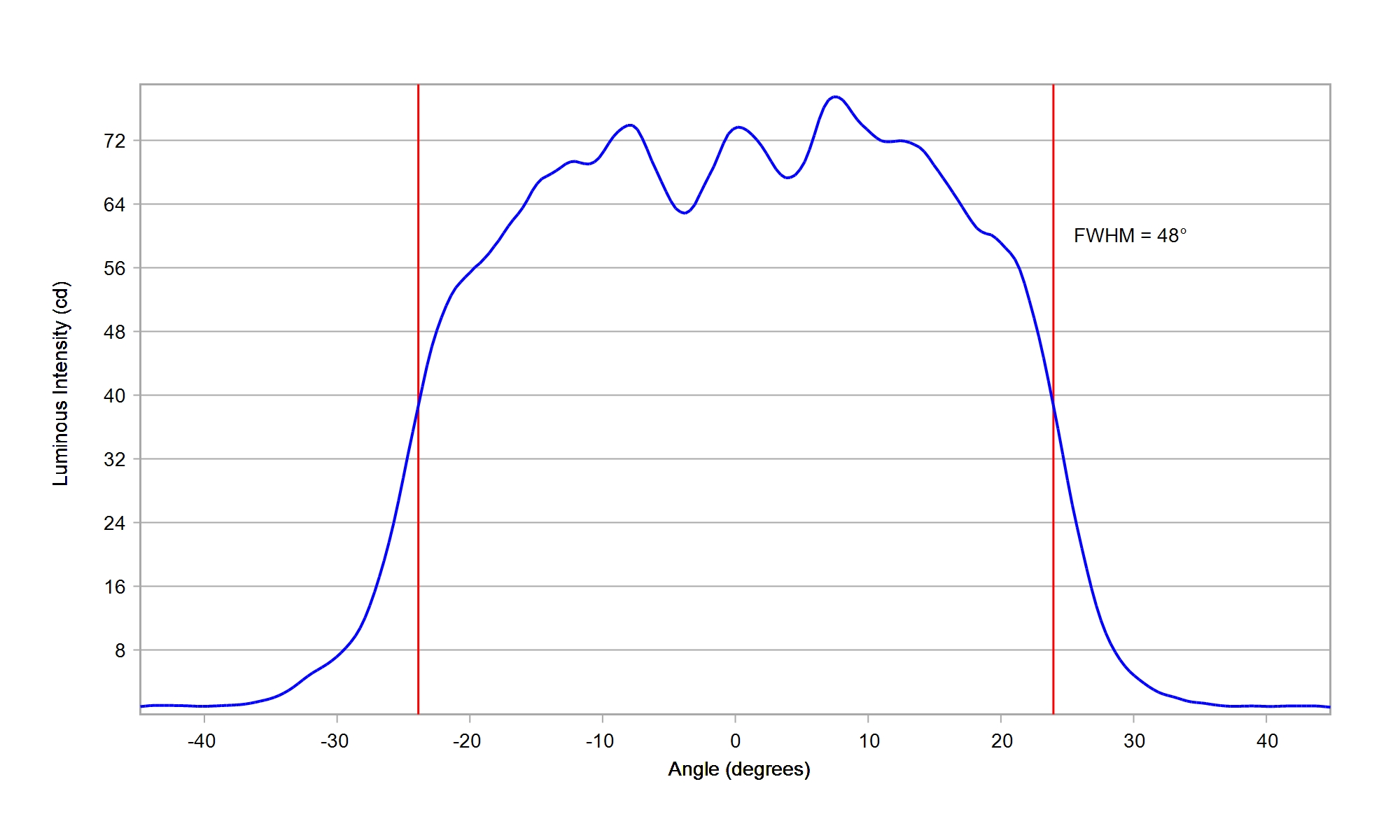

Cree XLamp XQ-A White
Eff:
87.0%
FWHM:
45°
Cd/Im:
2.0
Download

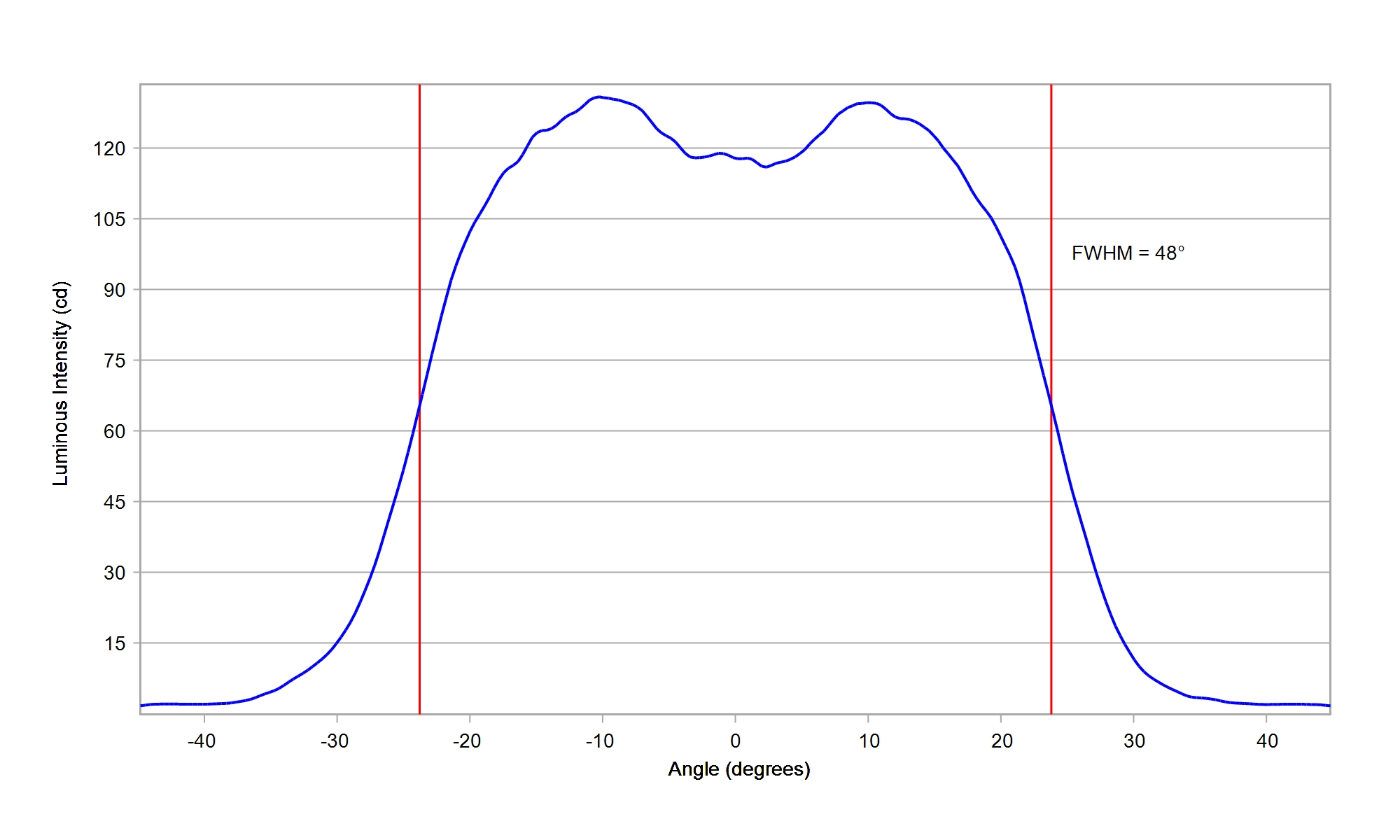

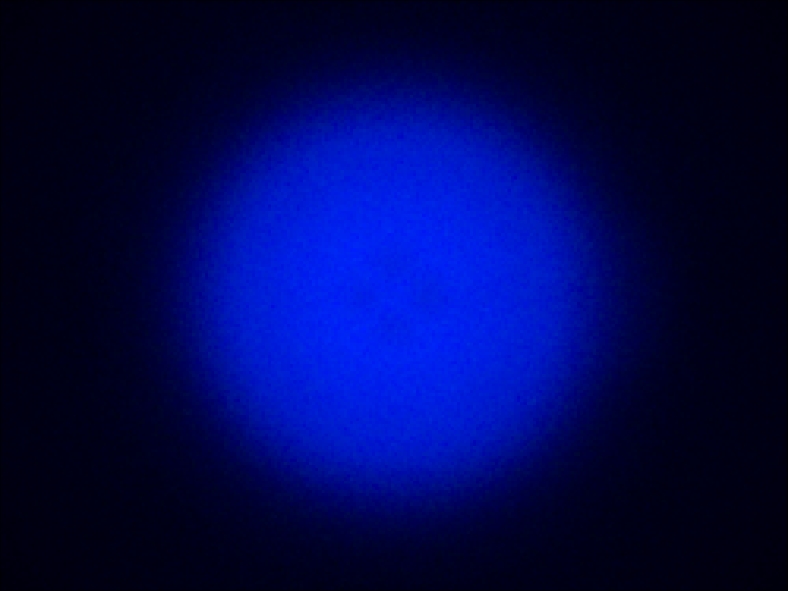

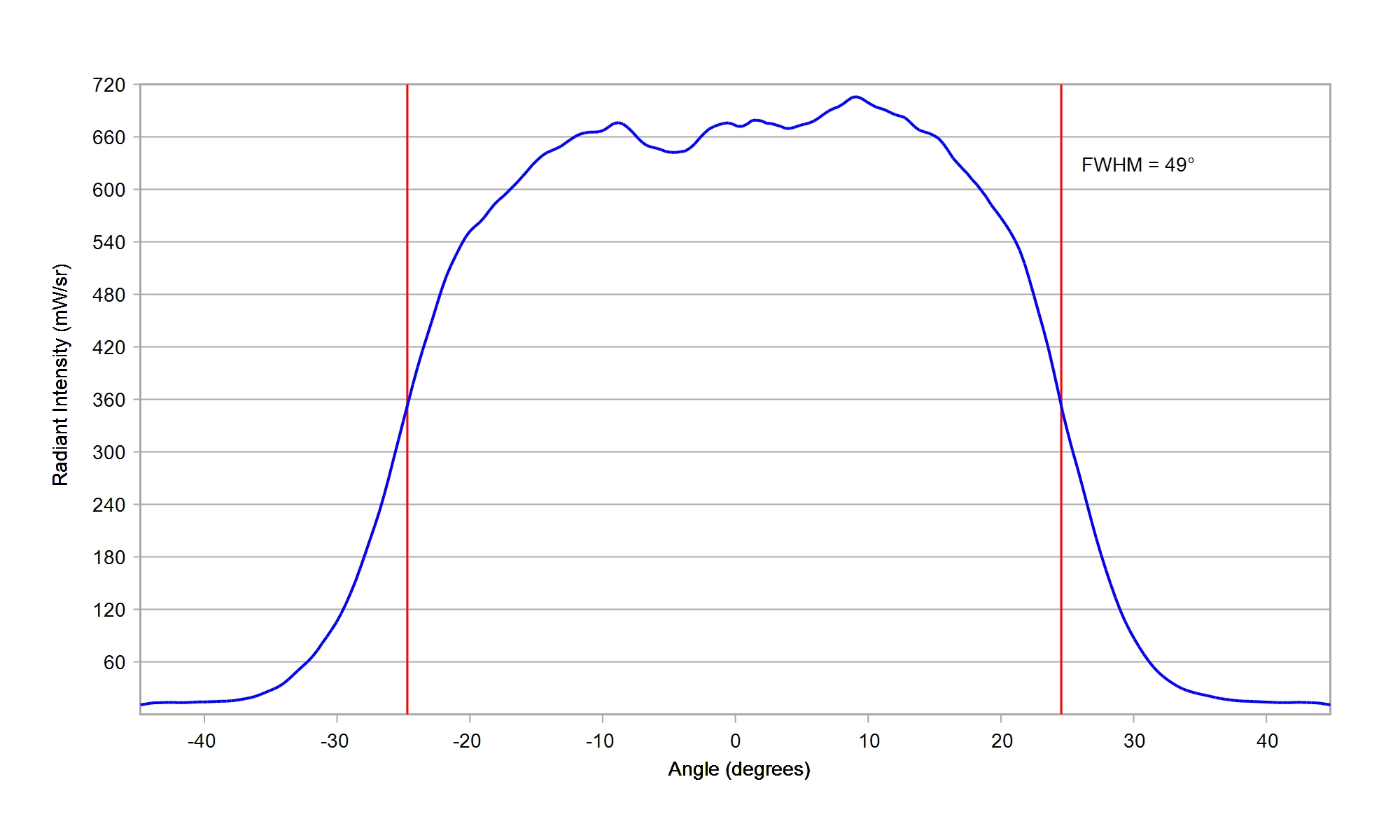

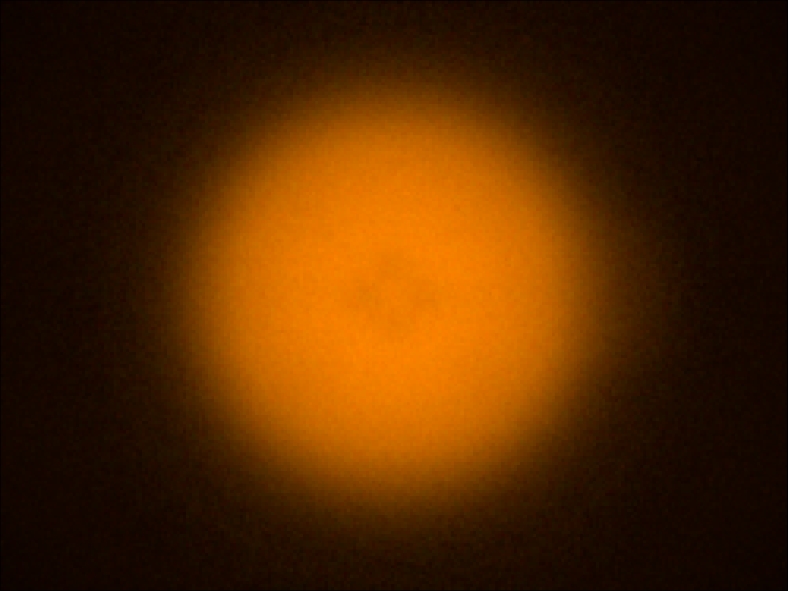

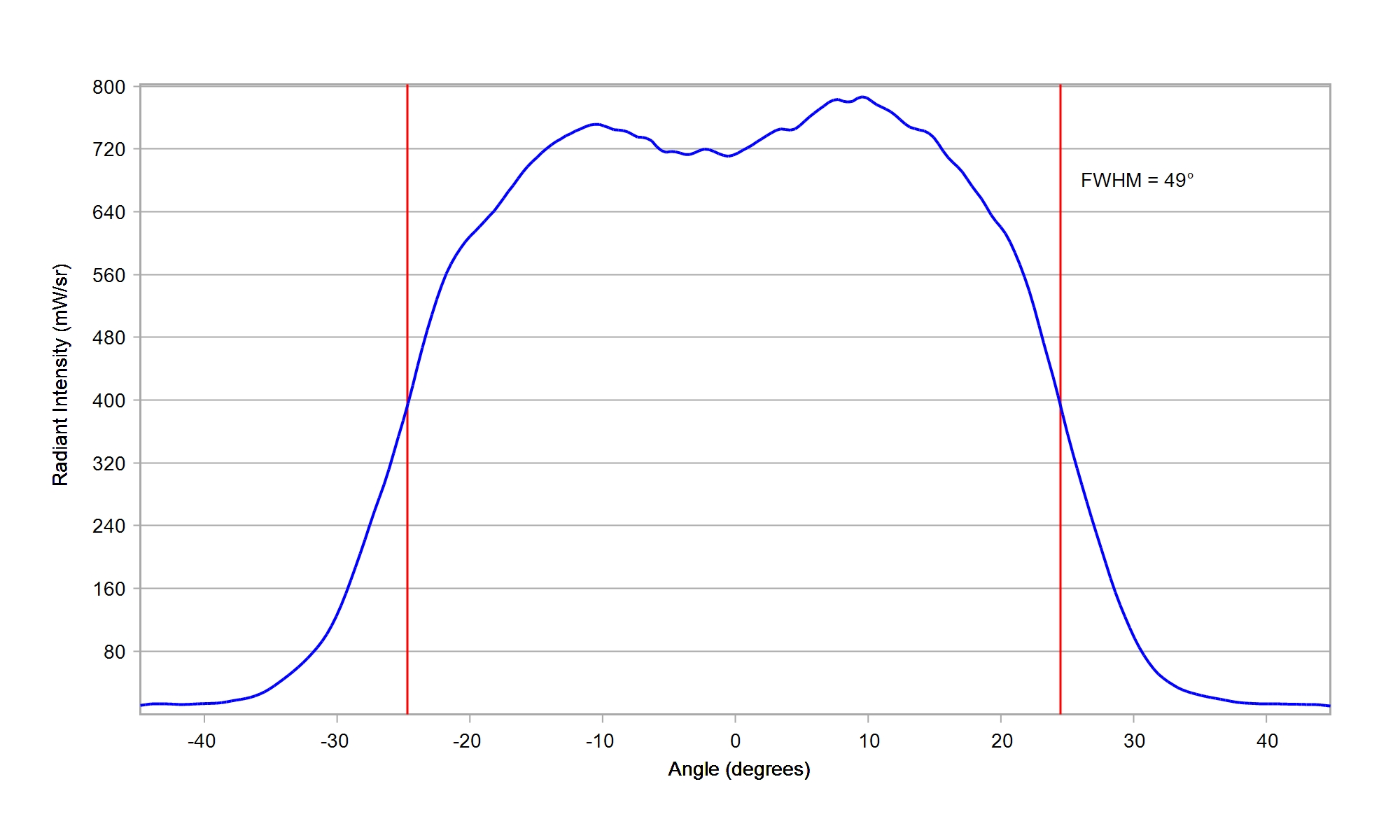

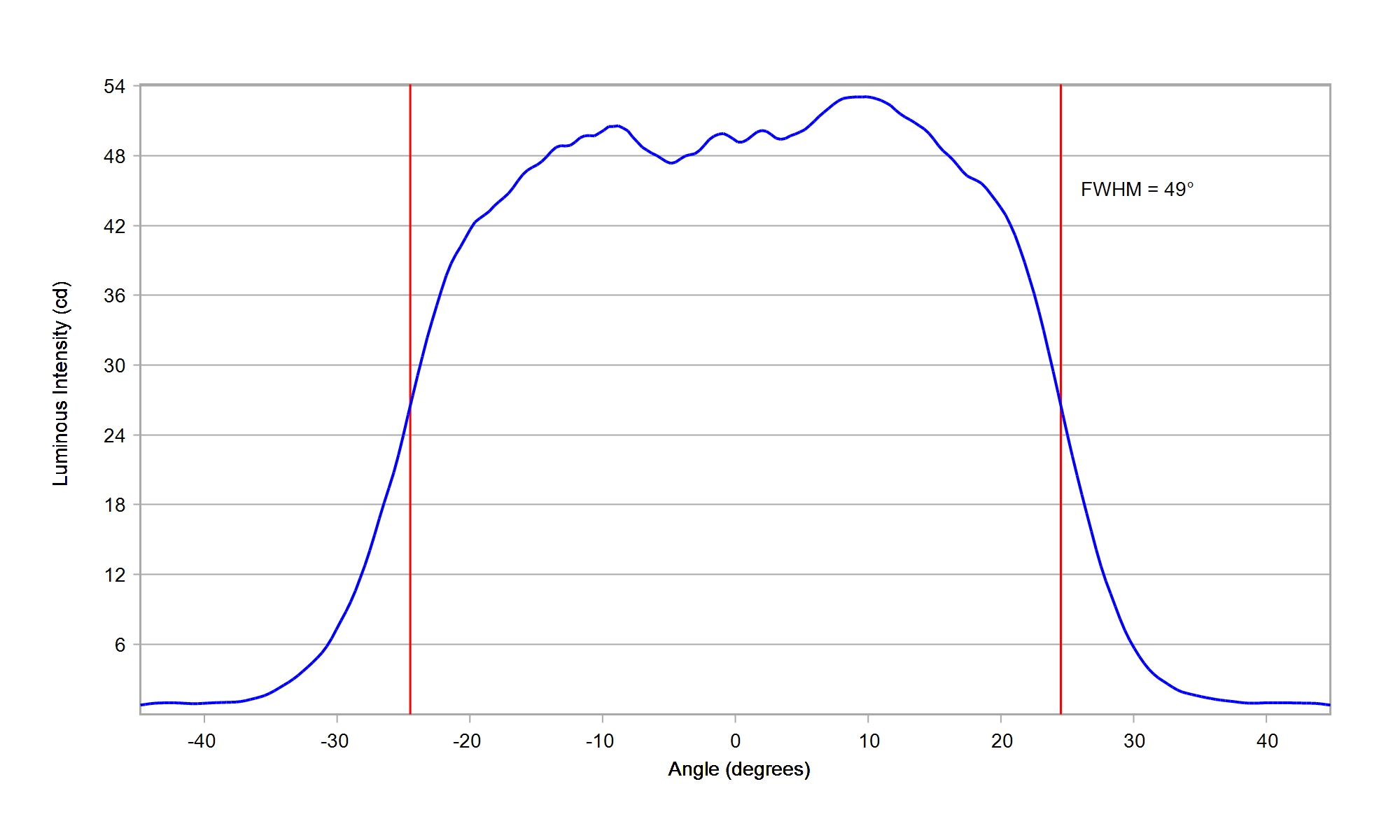

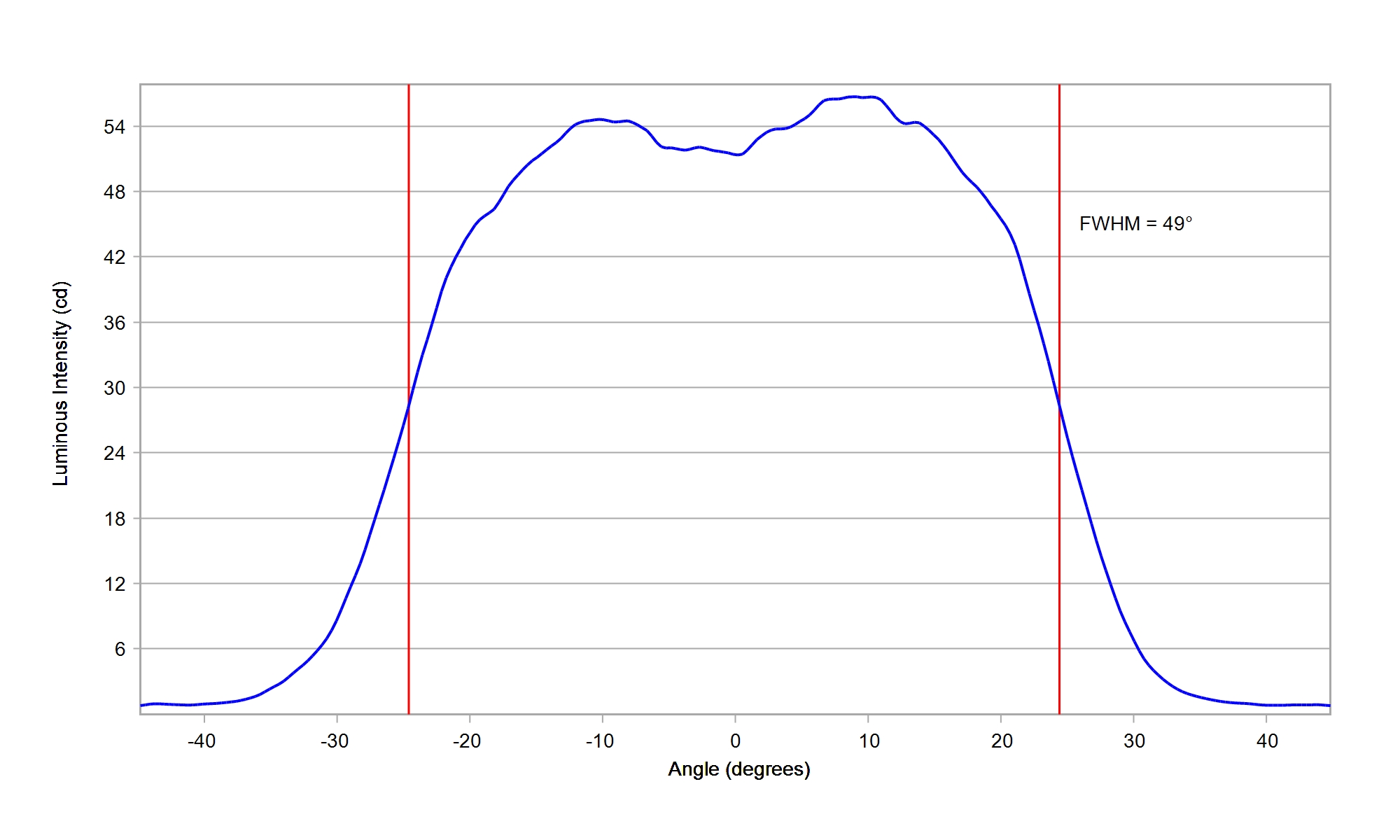

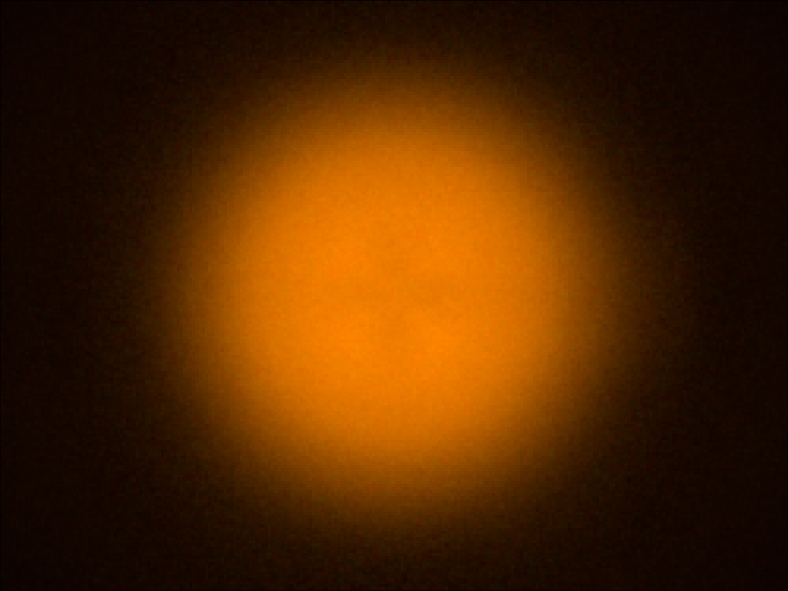

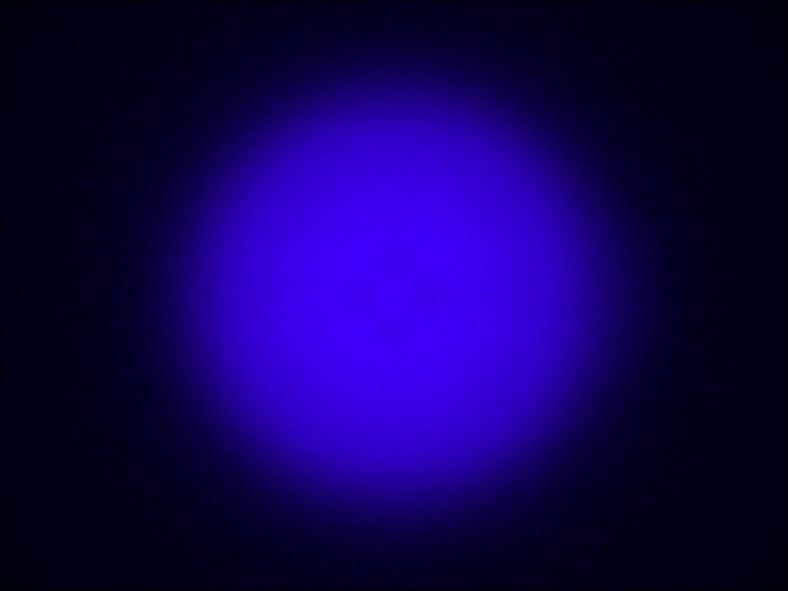

Cree XLamp XQ-E HI Blue
Eff:
85.0%
FWHM:
49.0°
Cd/Im:
1.4
Download

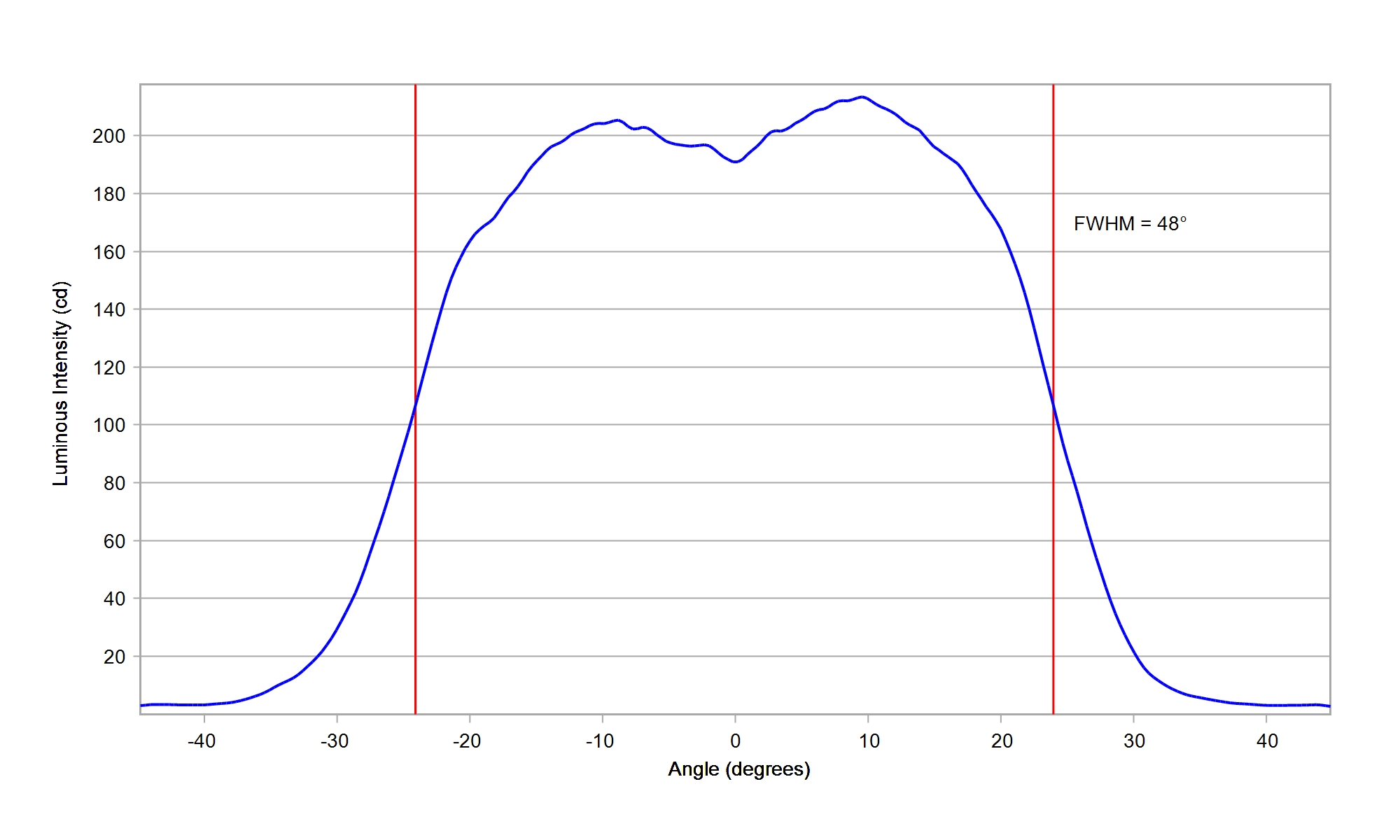

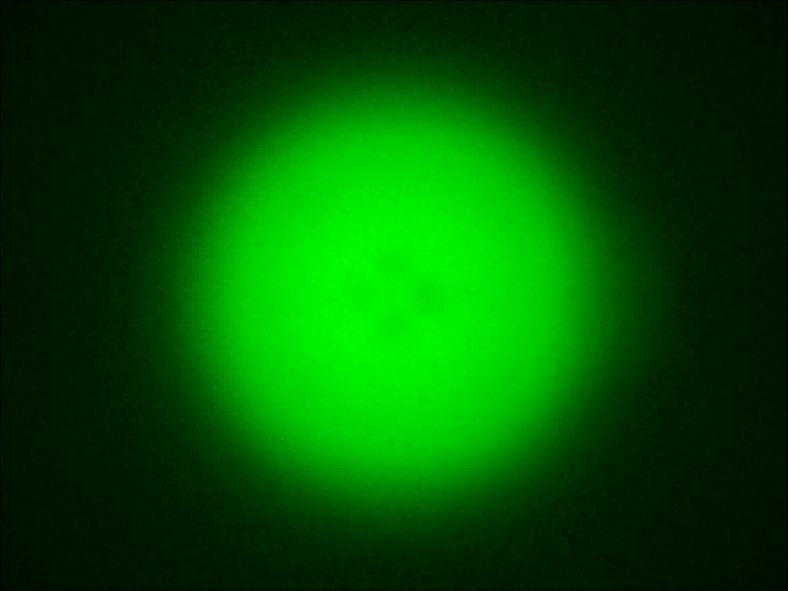

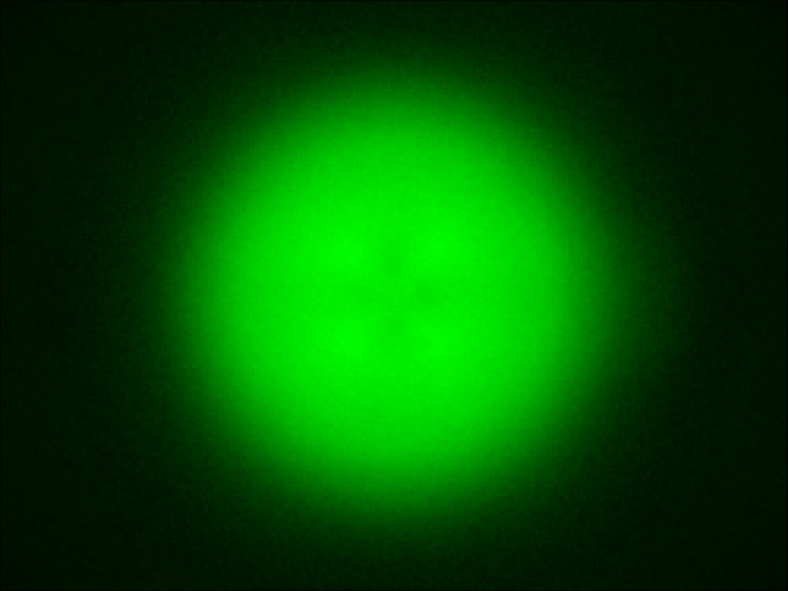

Cree XLamp XQ-E HI Green
Eff:
85.0%
FWHM:
48.5°
Cd/Im:
1.5
Download
Cree XLamp XQ-E HI Red
Eff:
85.0%
FWHM:
47.5°
Cd/Im:
1.5
Download

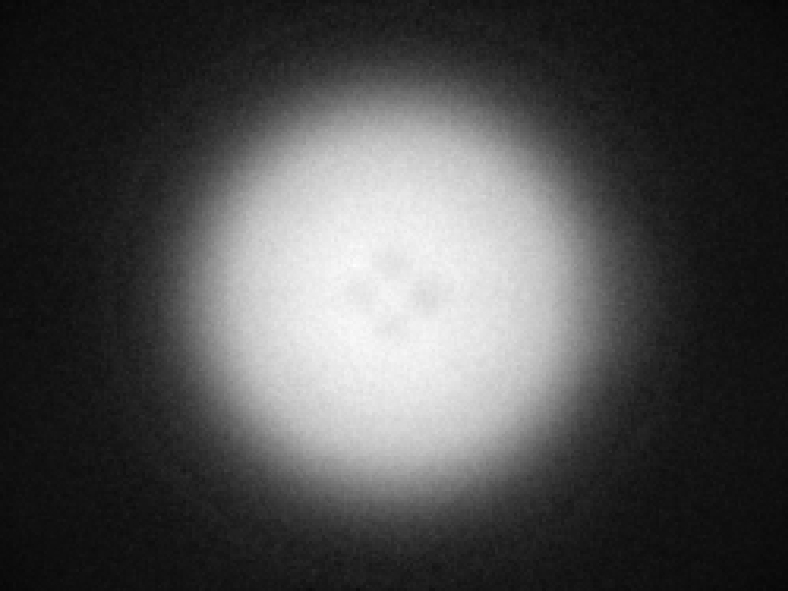

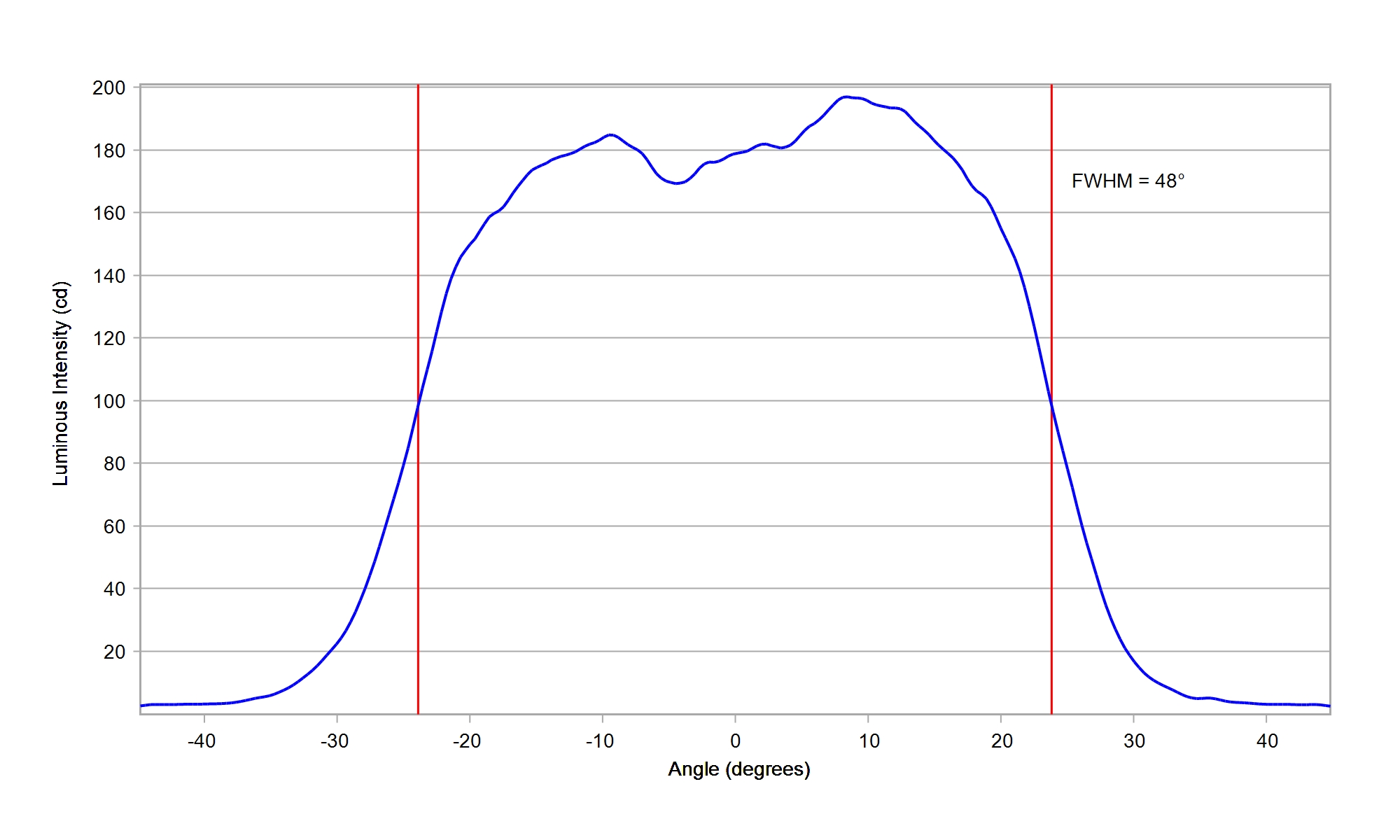

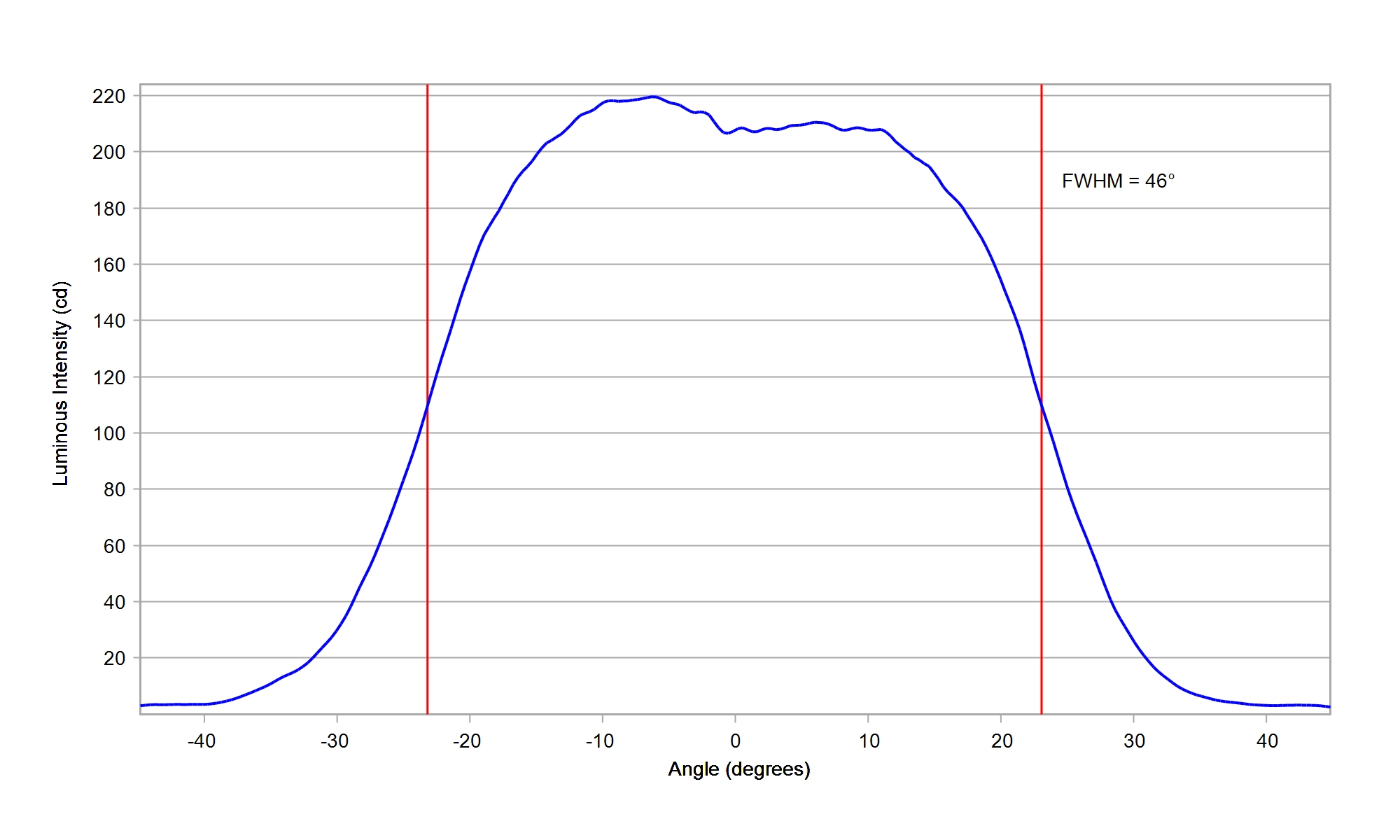

Cree XLamp XQ-E HI White
Eff:
87.0%
FWHM:
48.5°
Cd/Im:
1.5
Download
Cree XLamp XT-E HE White
Eff:
86.5%
FWHM:
46.5°
Cd/Im:
1.5
Download
LG Innotek 3535LG White
FWHM:
46.7°
Cd/Im:
1.9
Download
Lite-On R38386AS - S R38 IR
Eff:
90.0%
FWHM:
44.0°
Ipk/W:
2.0
Download

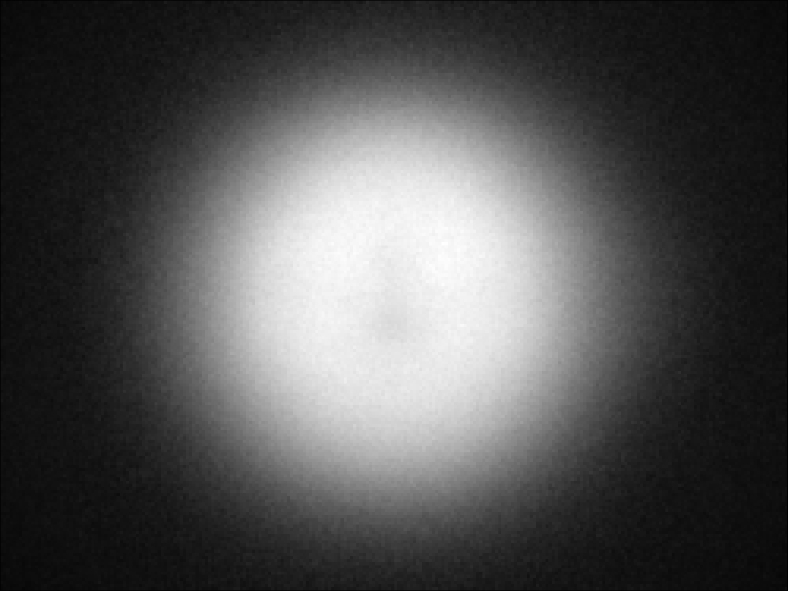

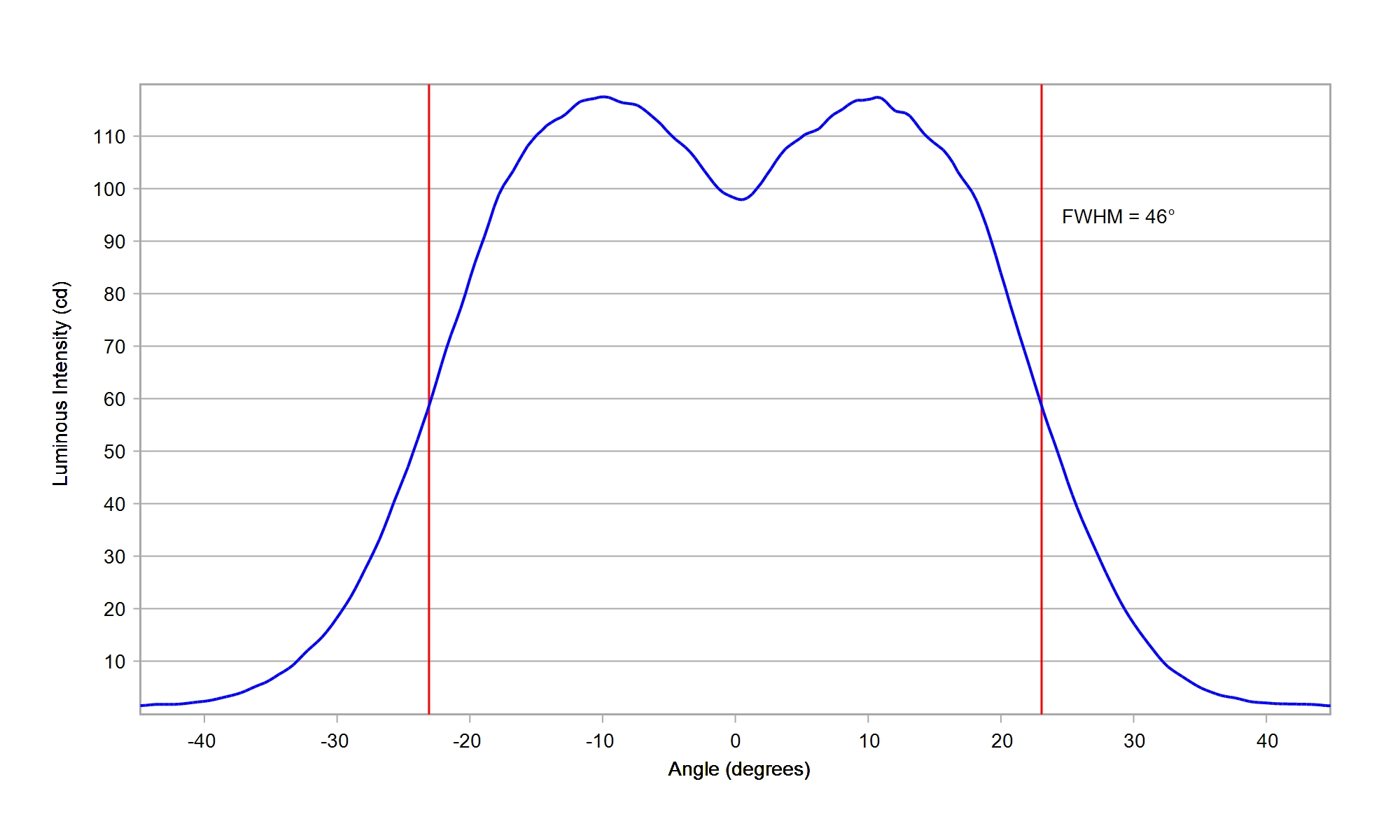

LUMILEDS LUXEON 2835C 6V White
Eff:
87.5%
FWHM:
46°
Cd/Im:
1.6
Download

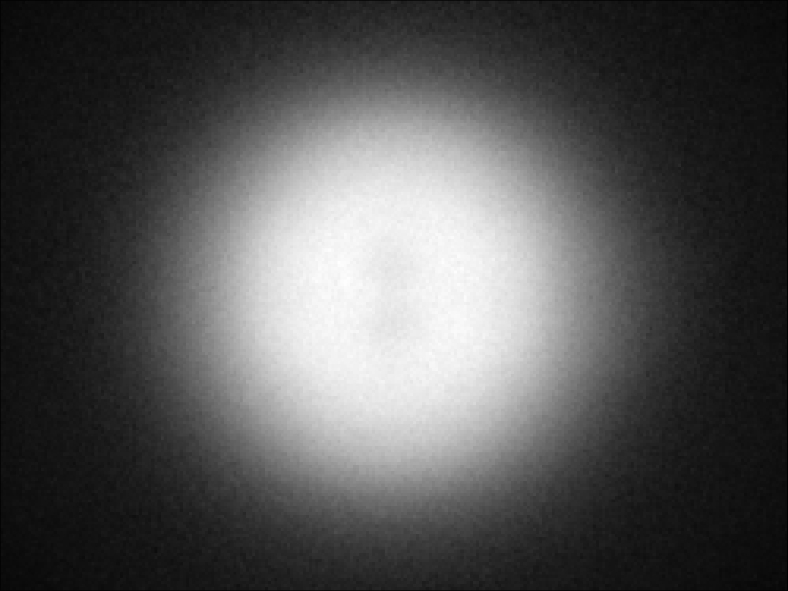

LUMILEDS LUXEON 2835E 9V White
Eff:
87.0%
FWHM:
46°
Cd/Im:
1.5
Download

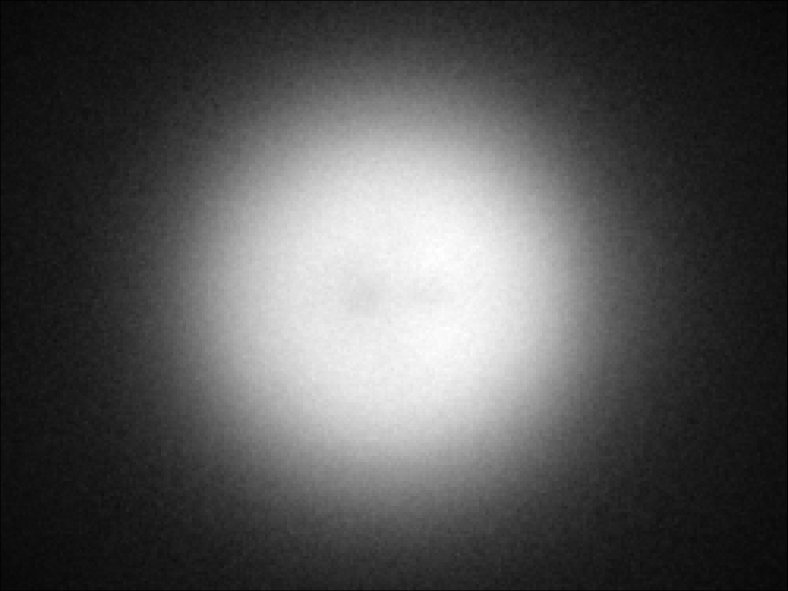

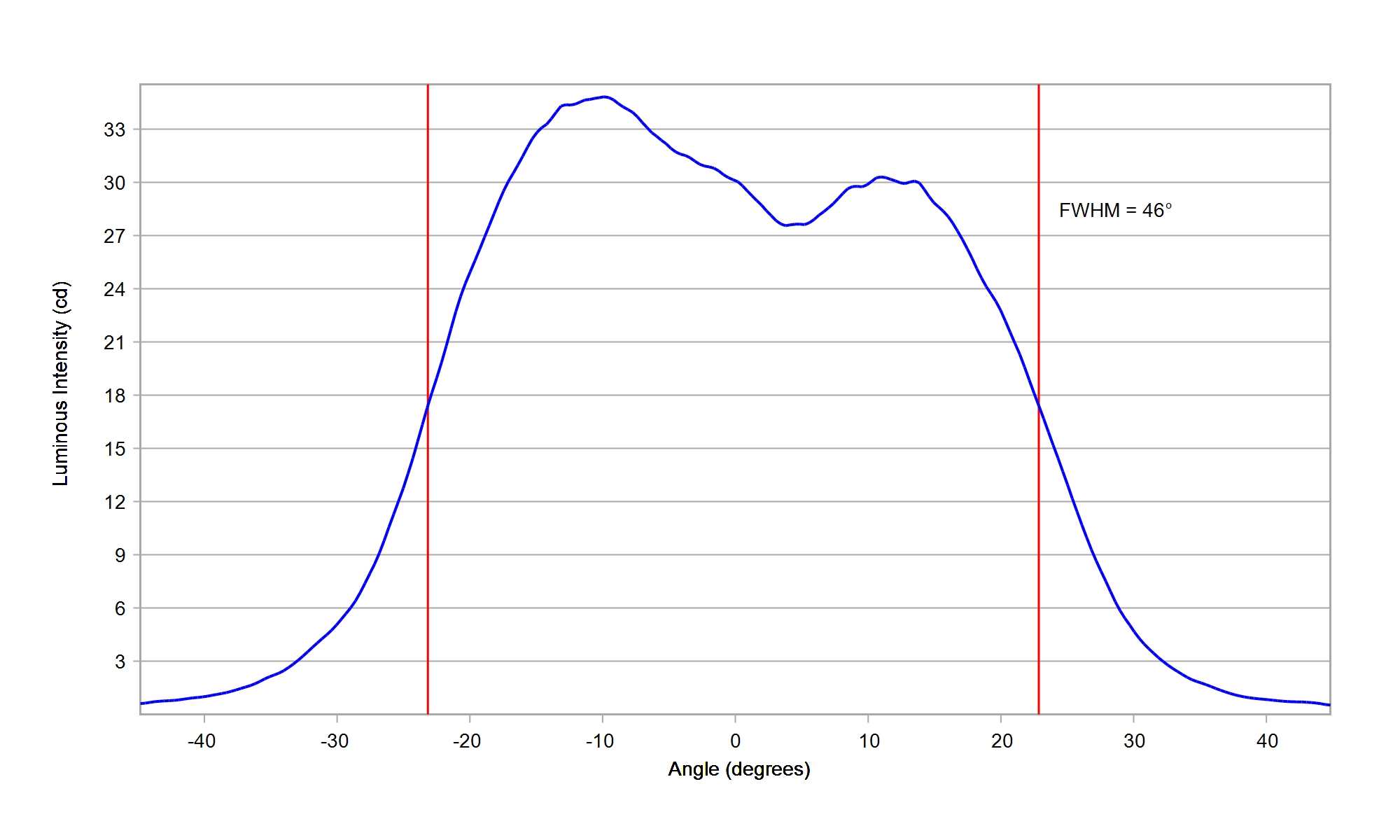

LUMILEDS LUXEON 2835N 3V White
Eff:
87.0%
FWHM:
46°
Cd/Im:
1.5
Download

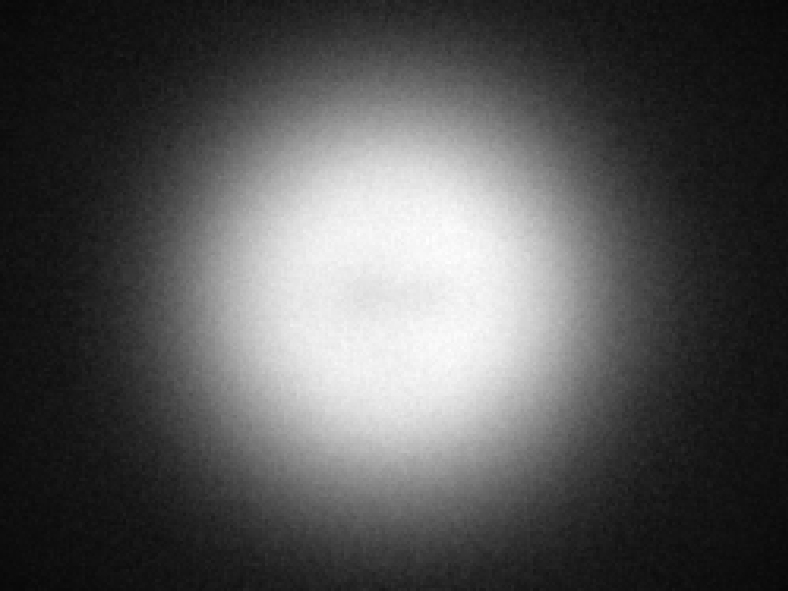

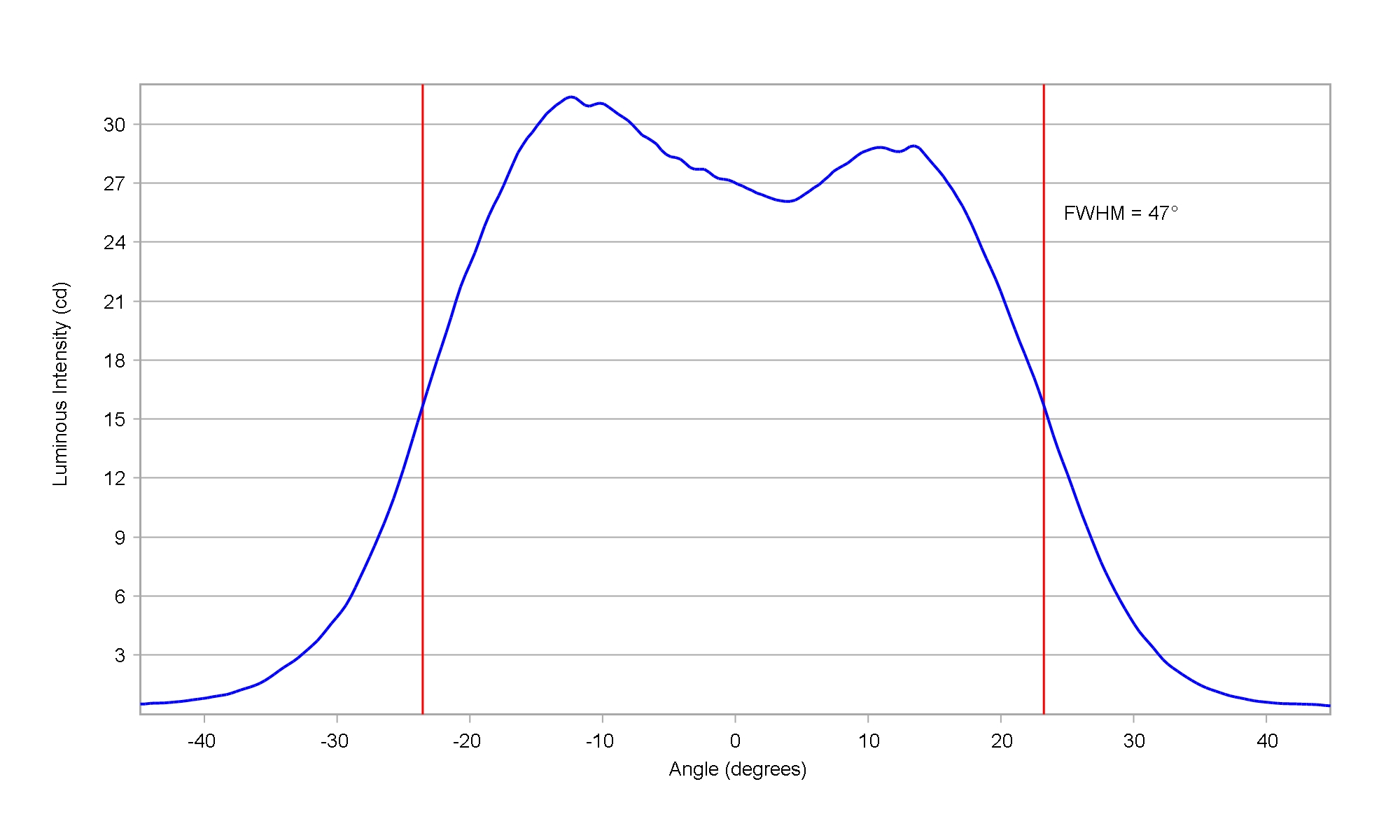

LUMILEDS LUXEON 2835S 3V White
Eff:
87.5%
FWHM:
47°
Cd/Im:
1.5
Download

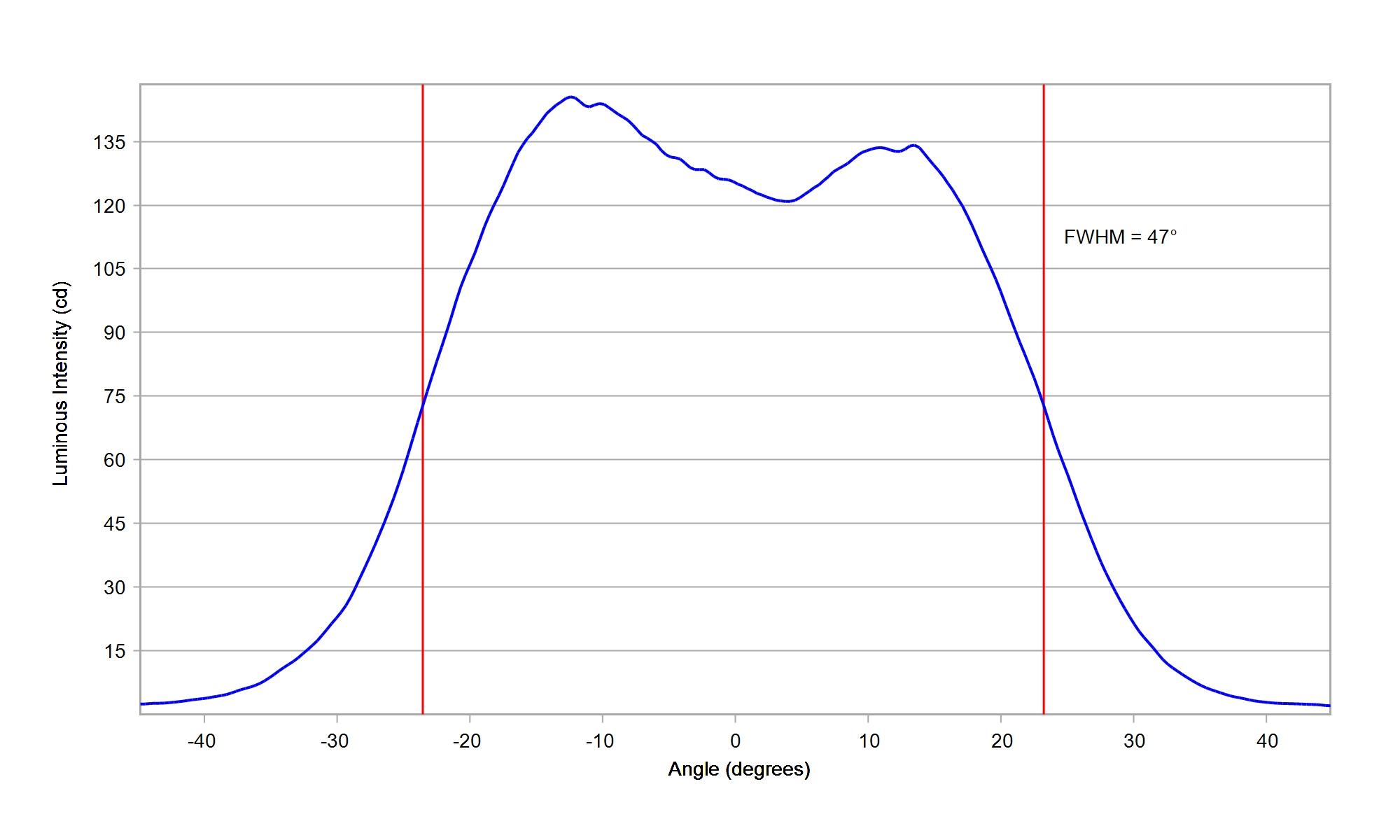

LUMILEDS LUXEON 2835S 6V White
Eff:
87.5%
FWHM:
47°
Cd/Im:
1.5
Download
LUMILEDS LUXEON 3014 White
Eff:
87.5%
FWHM:
45°
Cd/Im:
1.8
Download

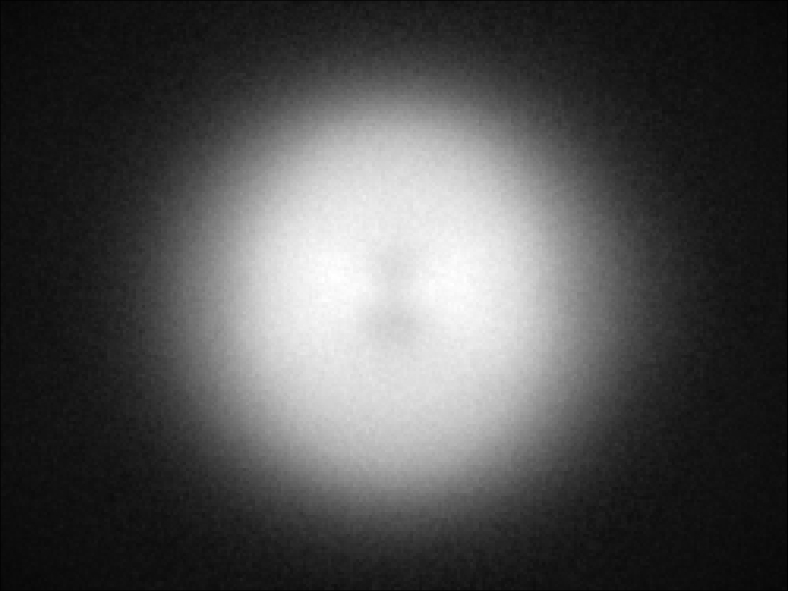

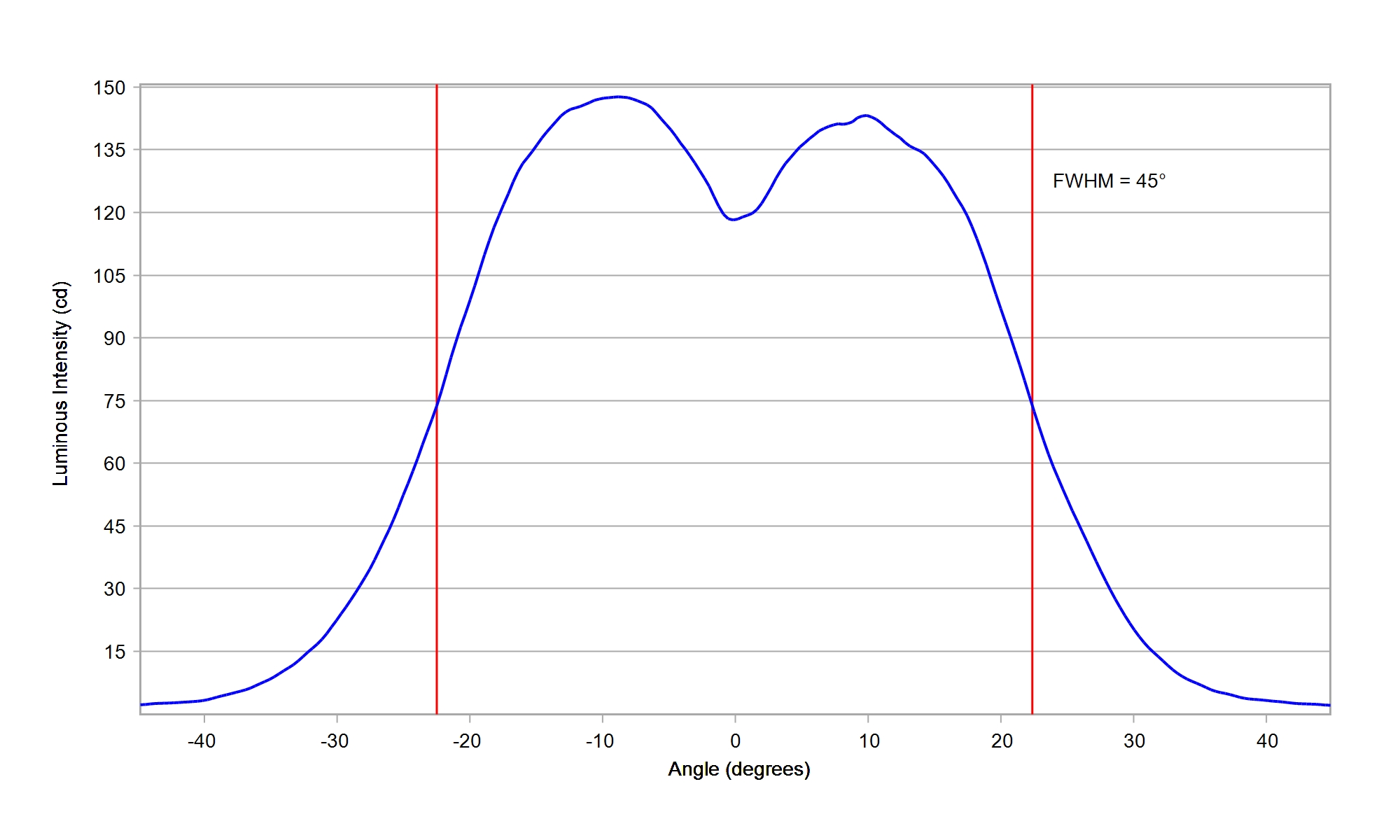

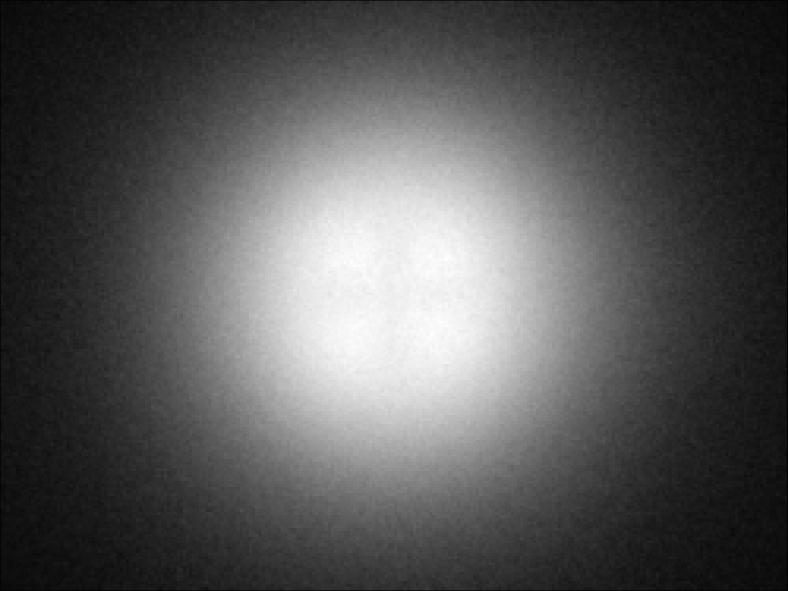

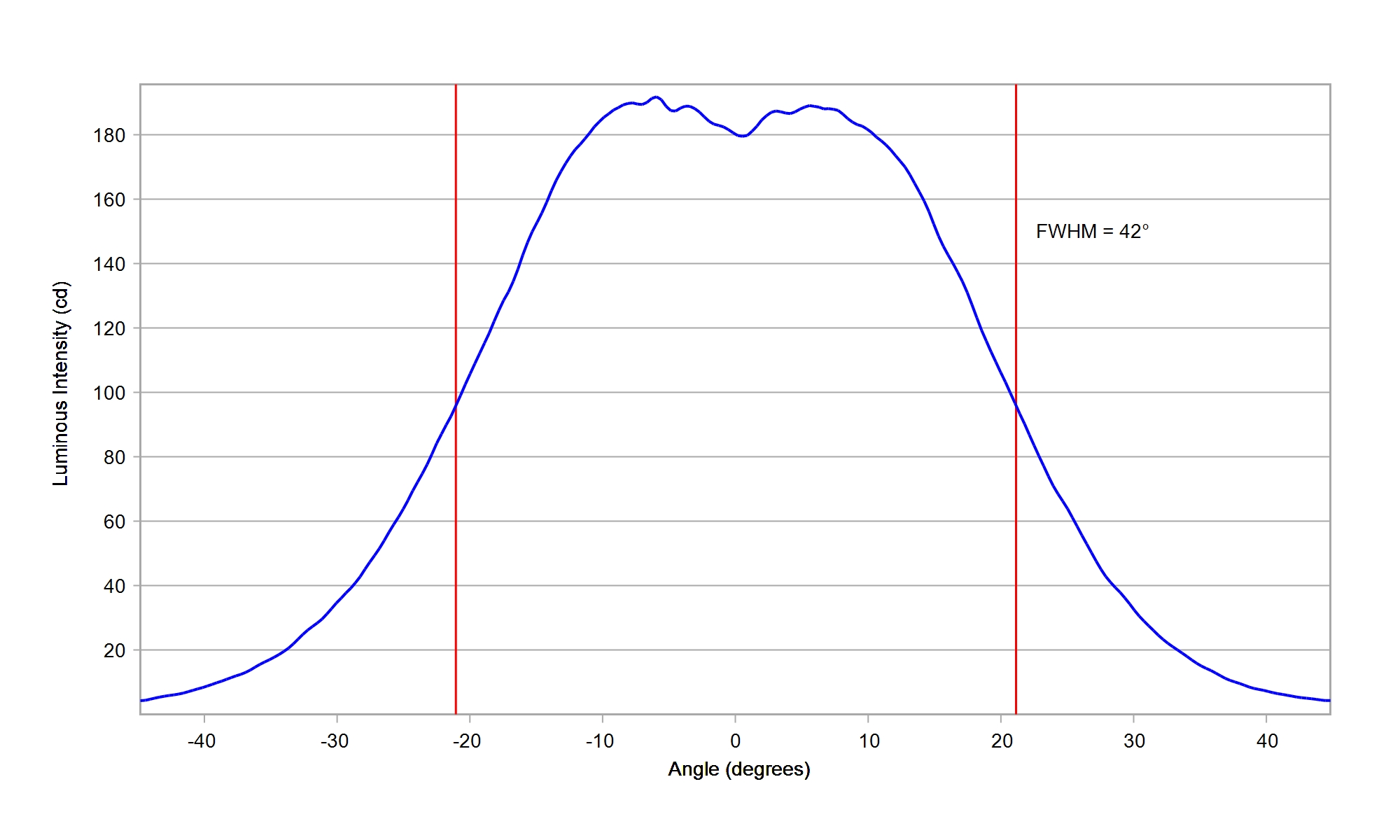

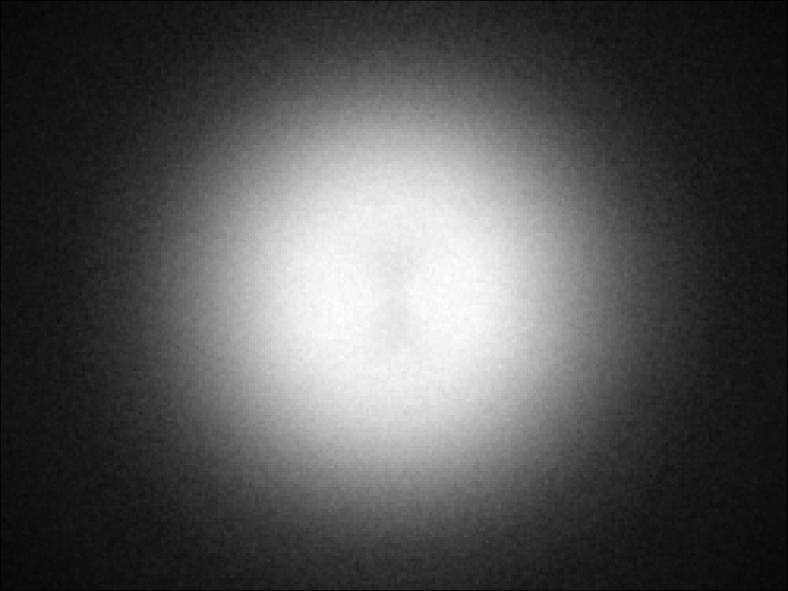

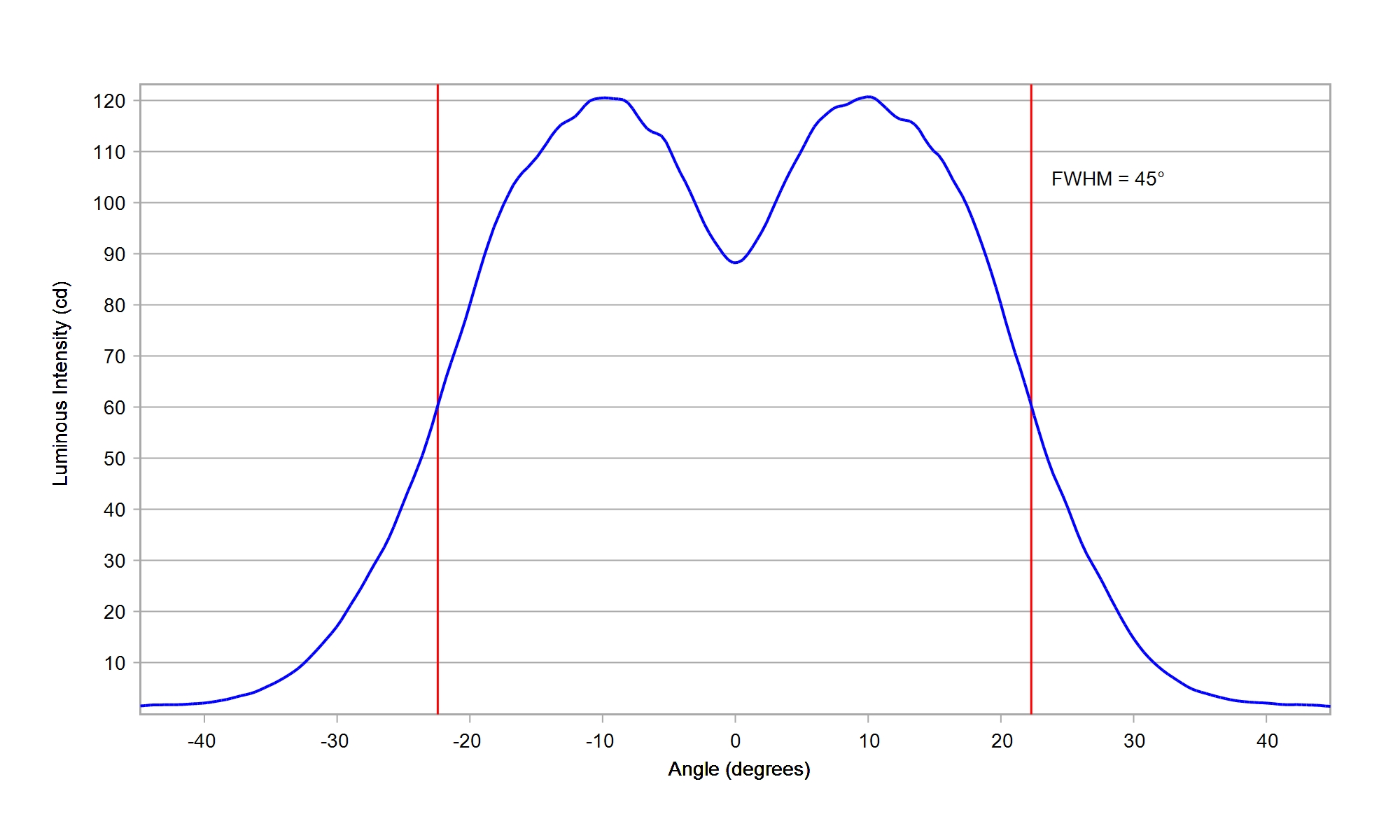

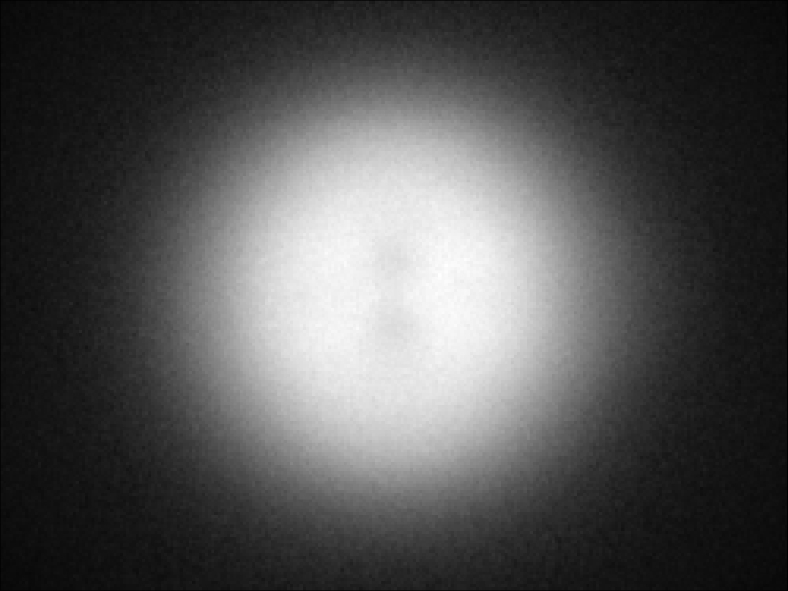

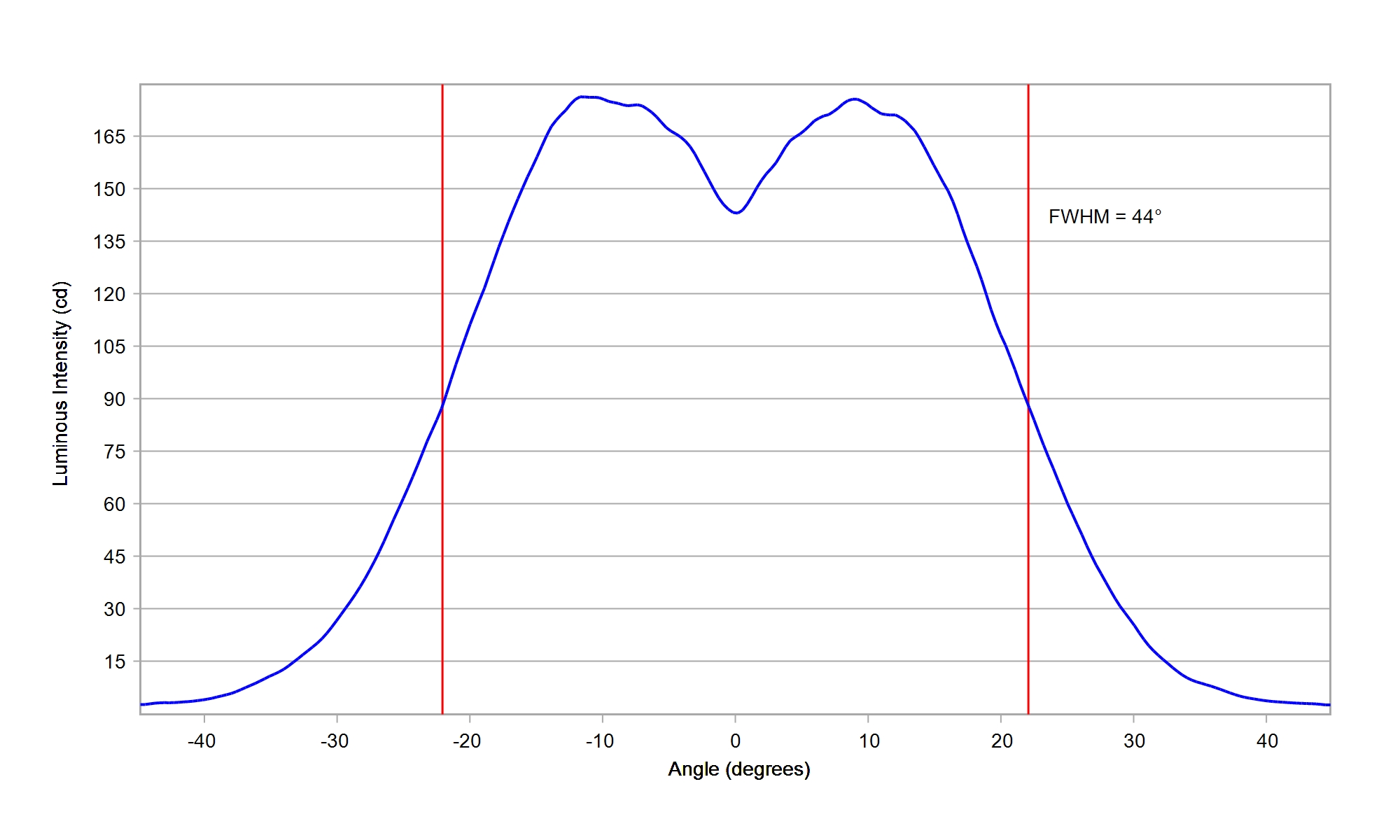

LUMILEDS LUXEON 3030 2D White
Eff:
87.5%
FWHM:
45°
Cd/Im:
1.6
Download
LUMILEDS LUXEON 3030 HE Plus White
Eff:
87.5%
FWHM:
46°
Cd/Im:
1.5
Download

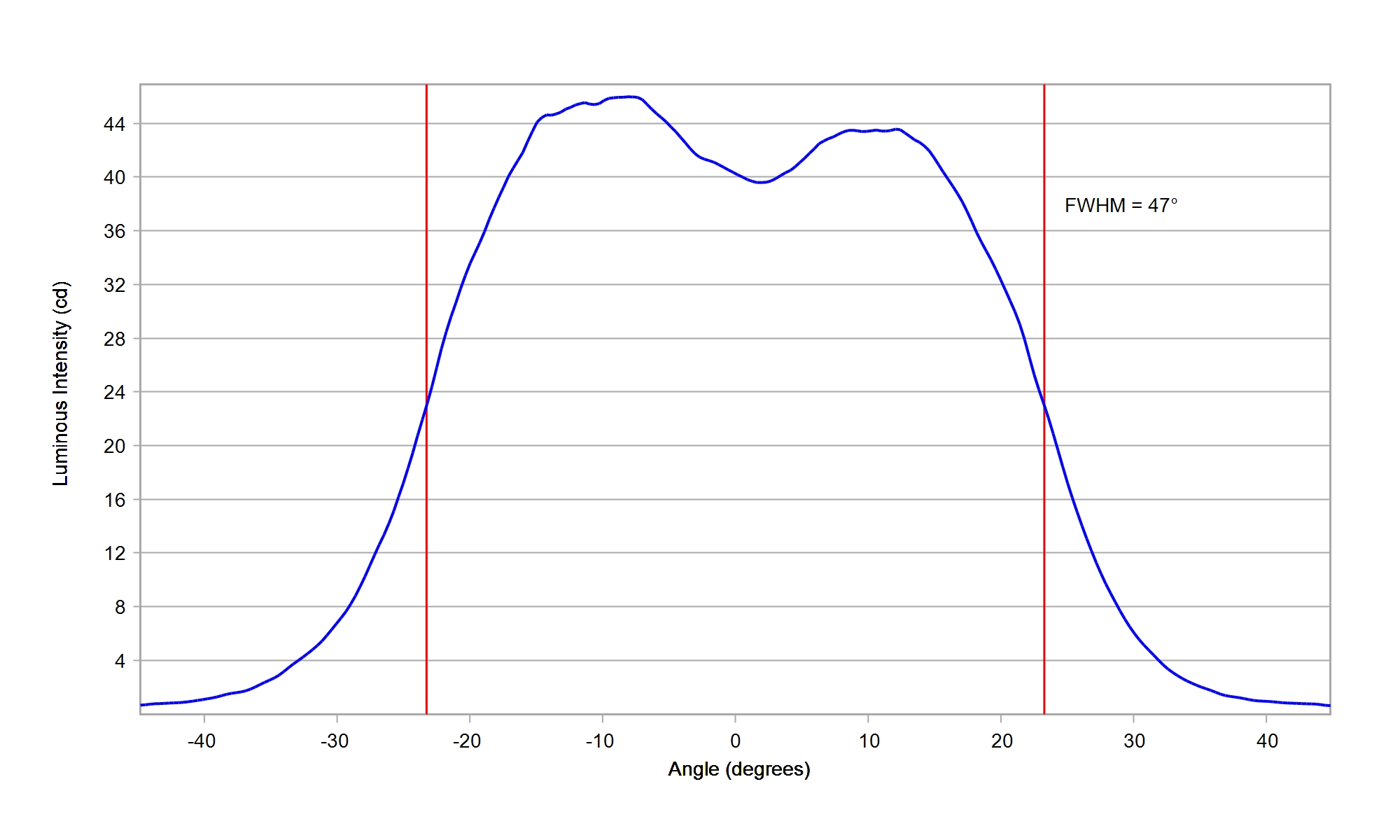

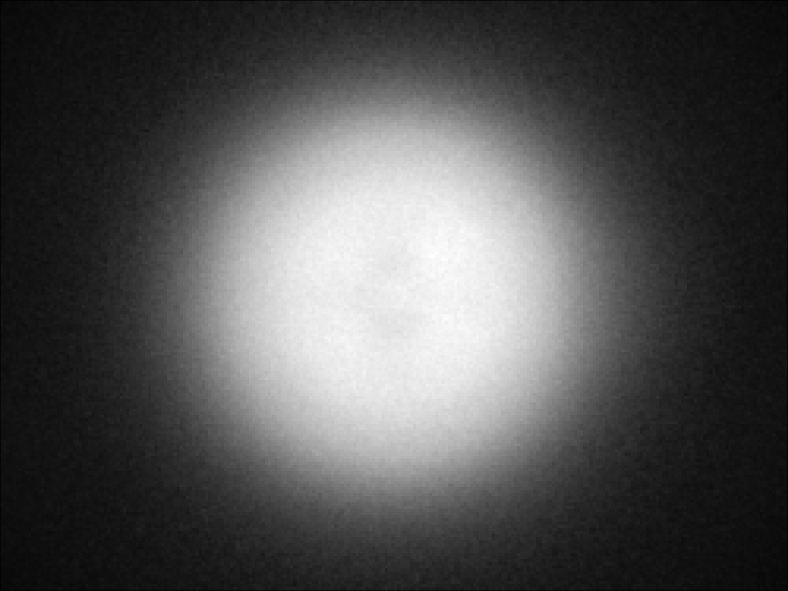

LUMILEDS LUXEON 3030 HE White
Eff:
87.0%
FWHM:
47°
Cd/Im:
1.5
Download
LUMILEDS LUXEON 3535 HV White
Eff:
86.0%
FWHM:
46°
Cd/Im:
1.6
Download
LUMILEDS LUXEON 3535 L White
Eff:
86.3%
FWHM:
47°
Cd/Im:
1.5
Download
LUMILEDS LUXEON 3535L Blue
Eff:
86.5%
FWHM:
48.0°
Cd/Im:
1.5
Download
LUMILEDS LUXEON 3535L Green
Eff:
87.0%
FWHM:
48.0°
Cd/Im:
1.5
Download
LUMILEDS LUXEON 3535L Red
Eff:
87.0%
FWHM:
45.5°
Cd/Im:
1.9
Download

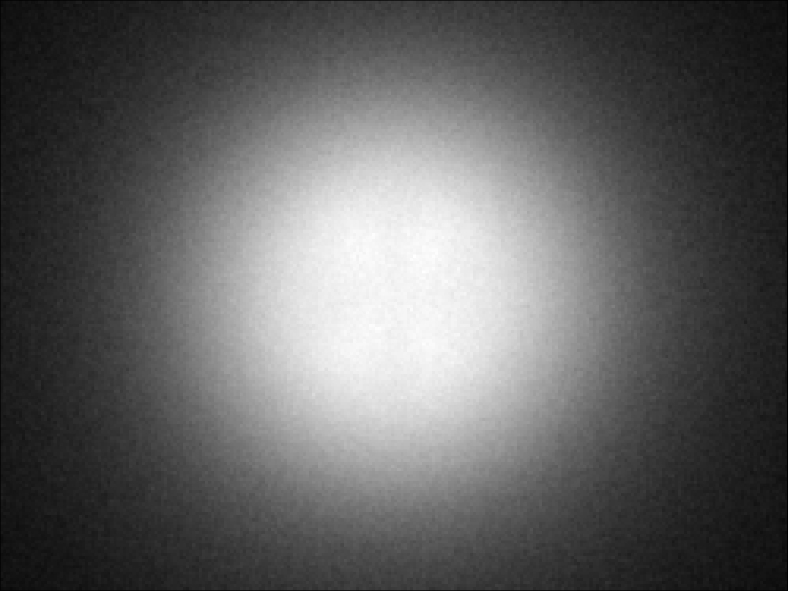

LUMILEDS LUXEON 5050 HE 24V White
Eff:
85.5%
FWHM:
47°
Cd/Im:
1.3
Download

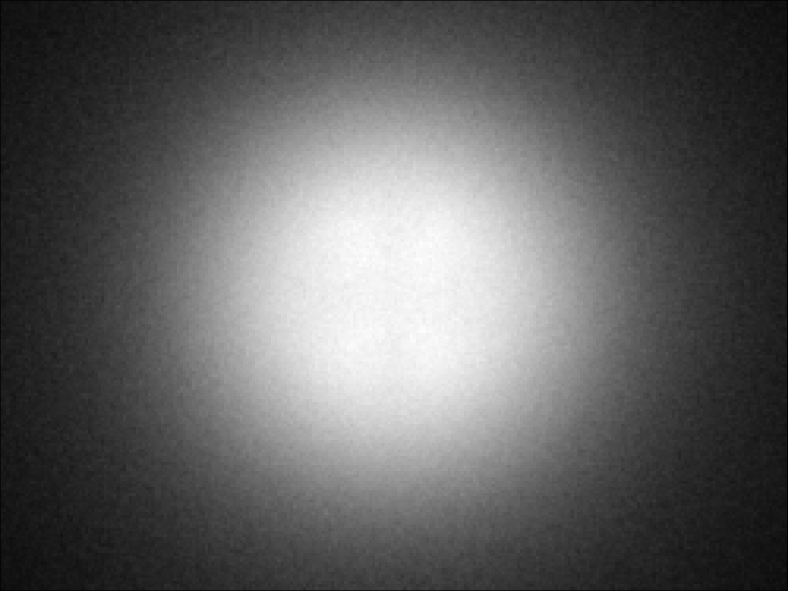

LUMILEDS LUXEON 5050 HE 6V White
Eff:
85.5%
FWHM:
47°
Cd/Im:
1.3
Download

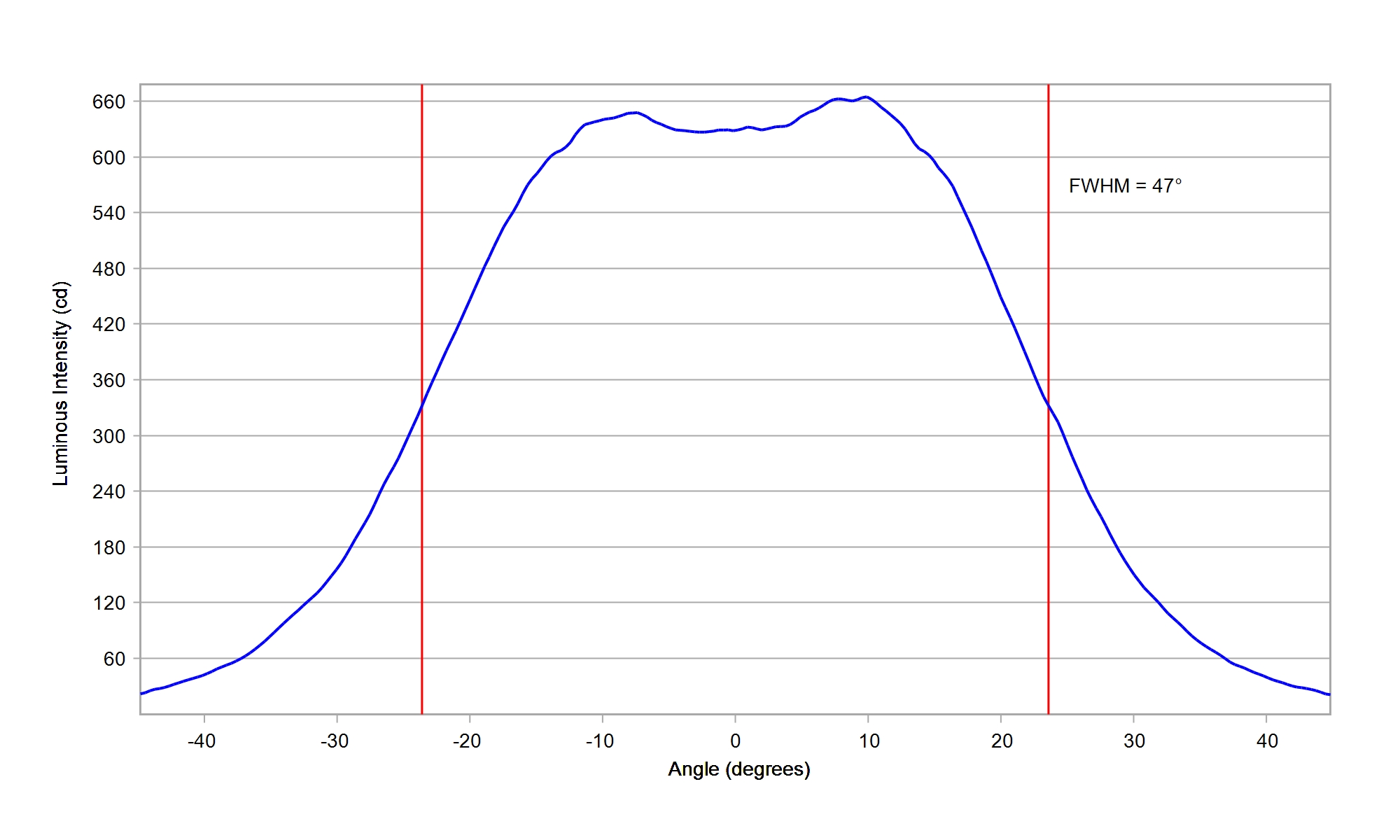

LUMILEDS LUXEON 5050 Round 24V White
Eff:
86.0%
FWHM:
47°
Cd/Im:
1.3
Download

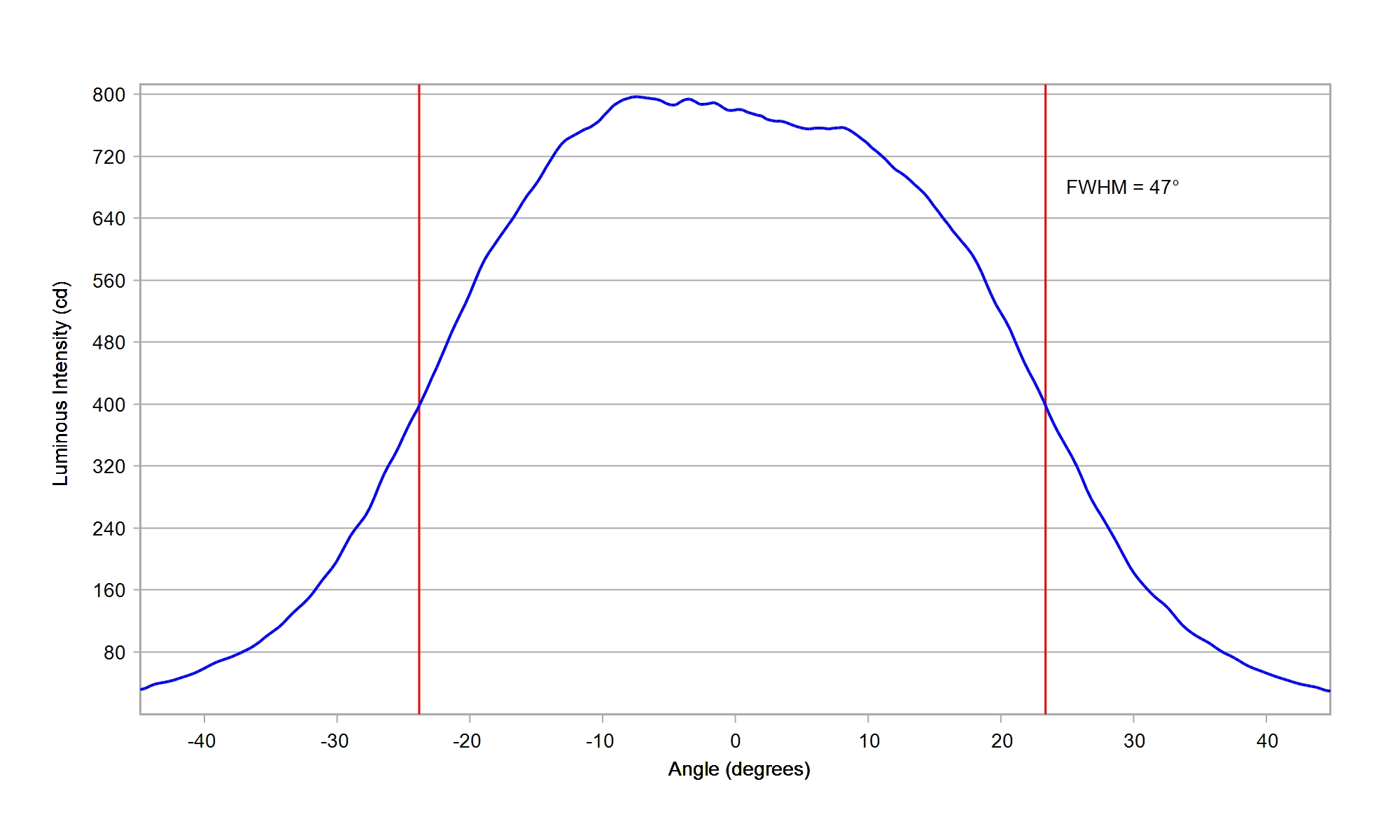

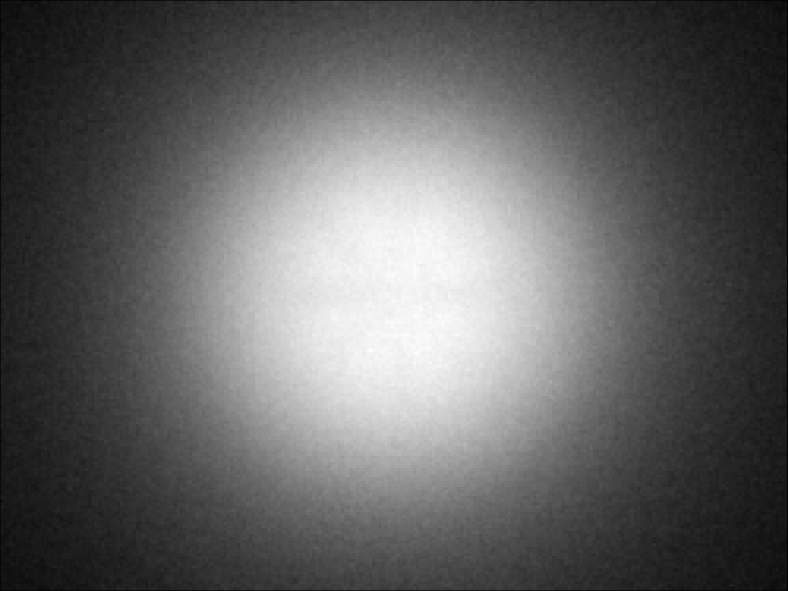

LUMILEDS LUXEON 5050 Square 30V White
Eff:
85.5%
FWHM:
47°
Cd/Im:
1.3
Download

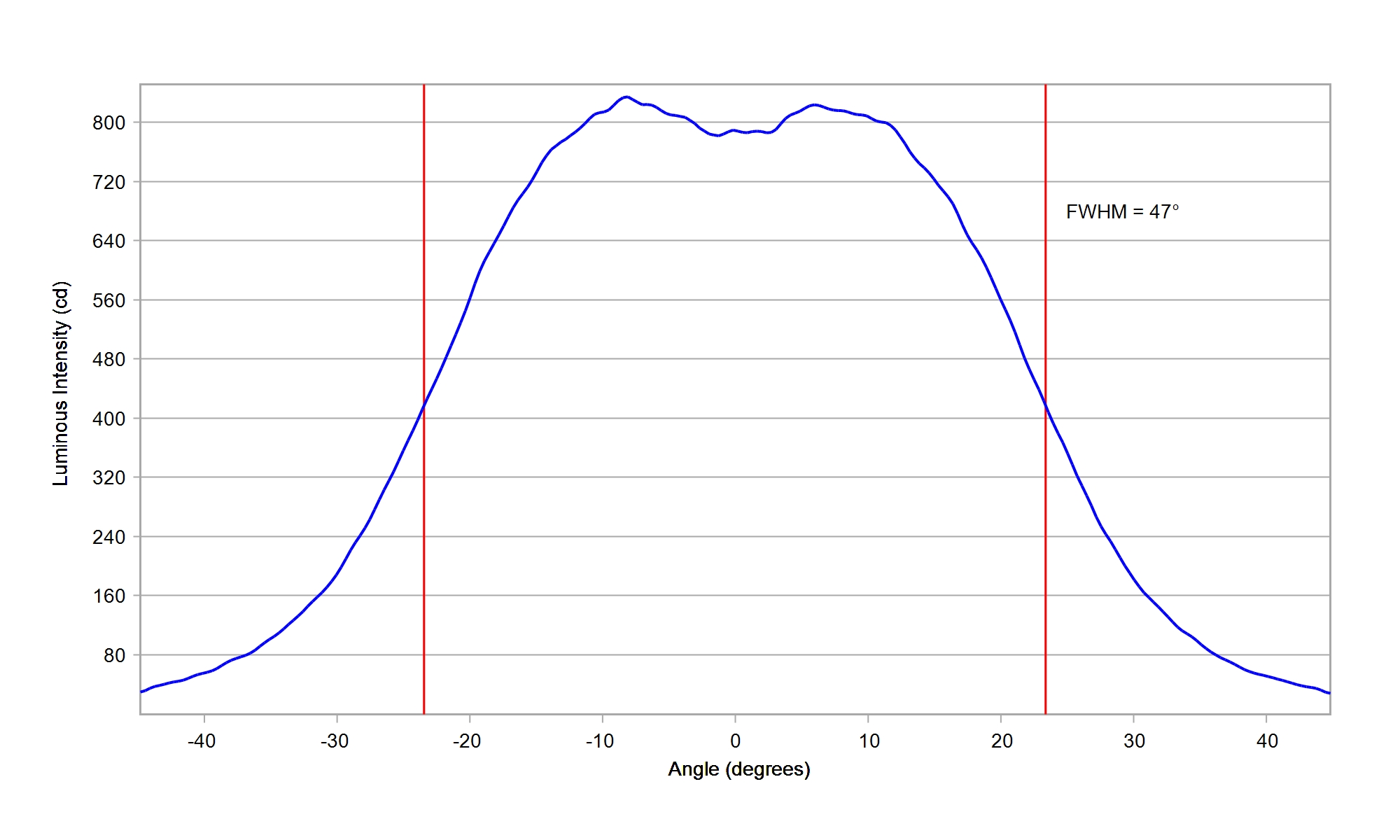

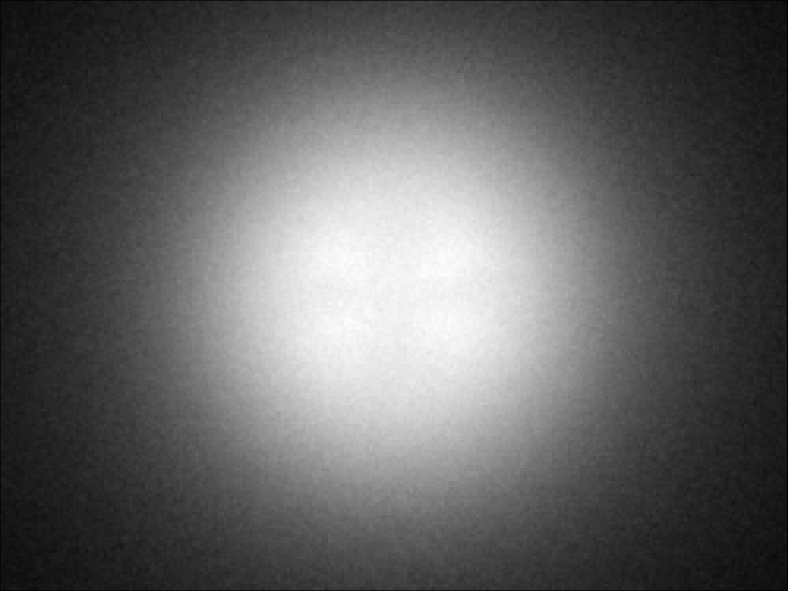

LUMILEDS LUXEON 5050 Square 6V White
Eff:
86.0%
FWHM:
47°
Cd/Im:
1.3
Download
LUMILEDS LUXEON 5050 Round 6V White
Eff:
84.5%
FWHM:
45.0°
Cd/Im:
1.4
Download
LUMILEDS LUXEON C Blue
Eff:
82.0%
FWHM:
41.0°
Cd/Im:
1.6
Download
LUMILEDS LUXEON C Lime
Eff:
84.0%
FWHM:
40.5°
Cd/Im:
1.7
Download
LUMILEDS LUXEON C Red
Eff:
81.5%
FWHM:
39.5°
Cd/Im:
1.7
Download

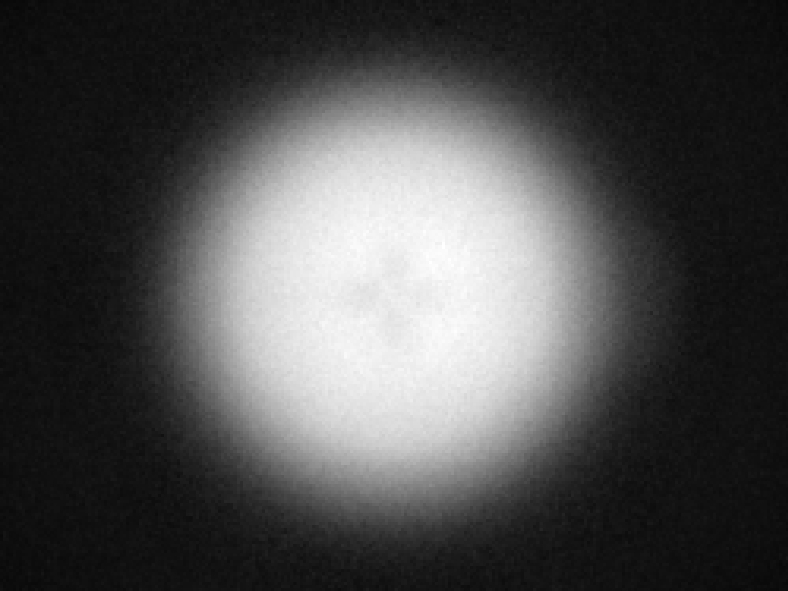

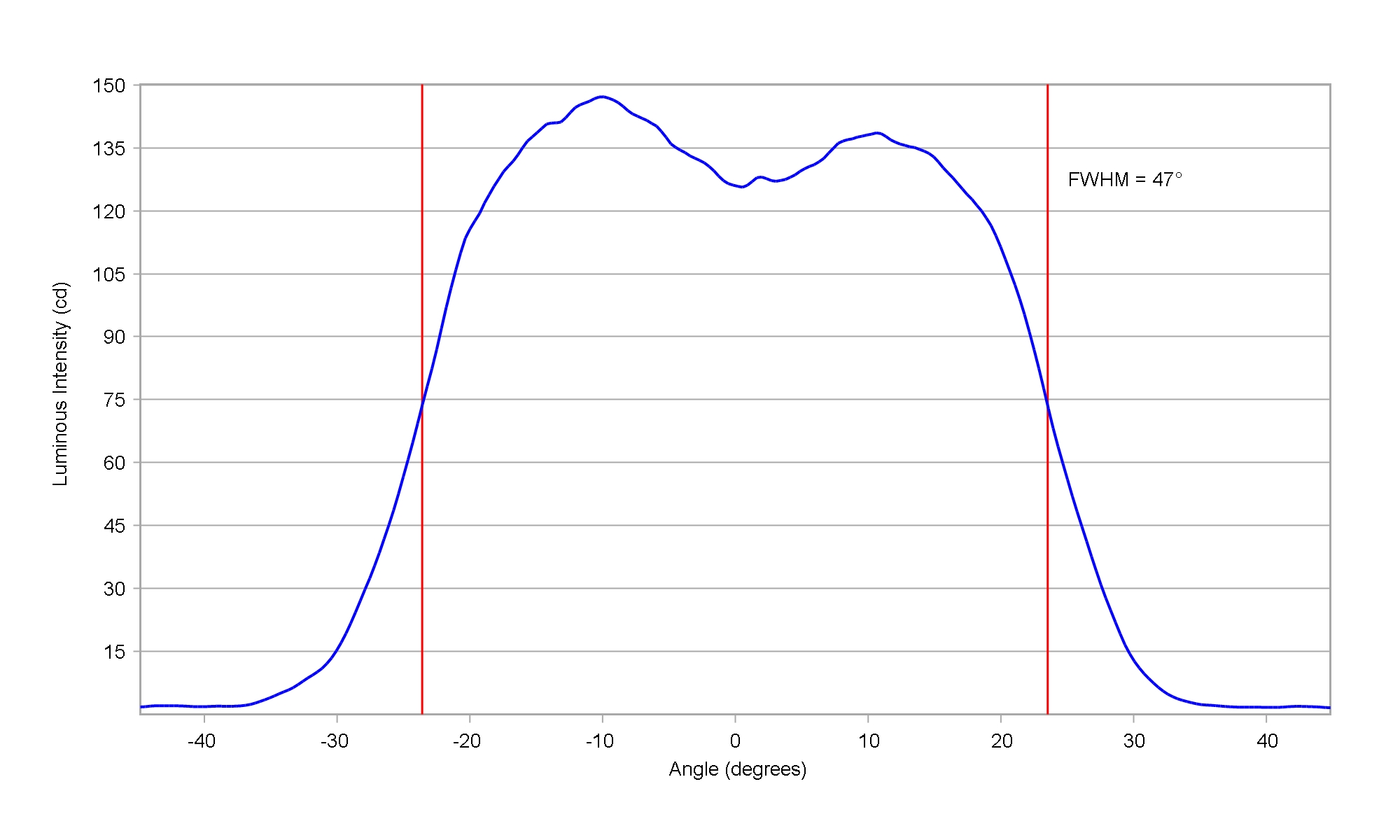

LUMILEDS LUXEON C White
Eff:
83.0%
FWHM:
47°
Cd/Im:
1.4
Download

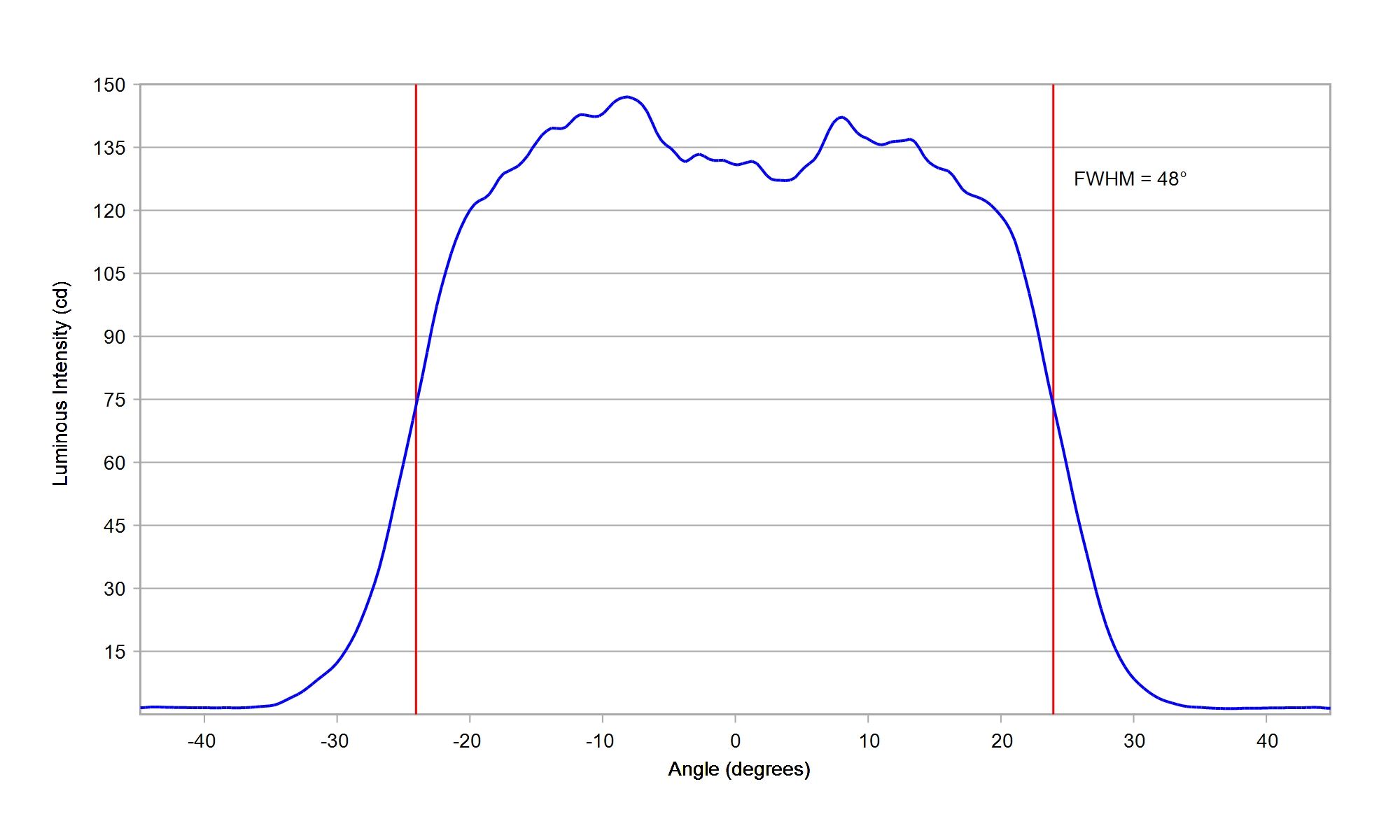

LUMILEDS LUXEON CZ White
Eff:
87.0%
FWHM:
48°
Cd/Im:
1.5
Download

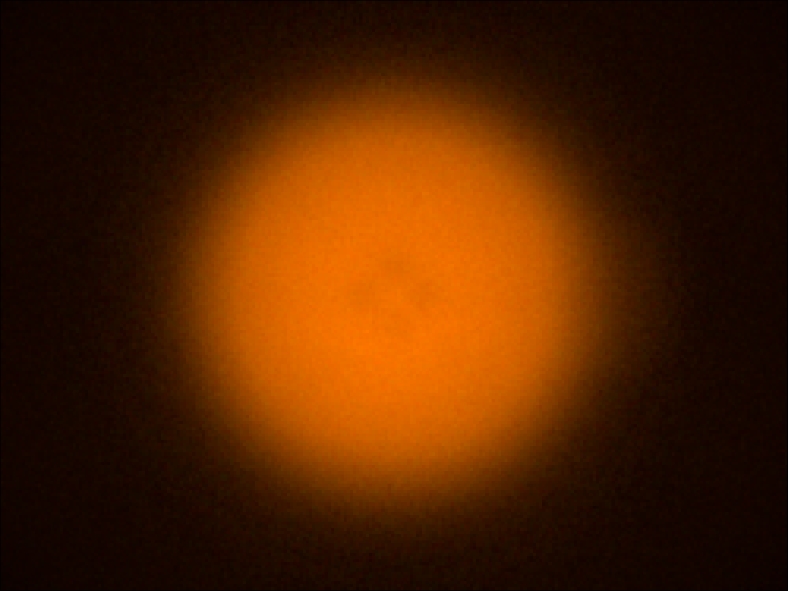

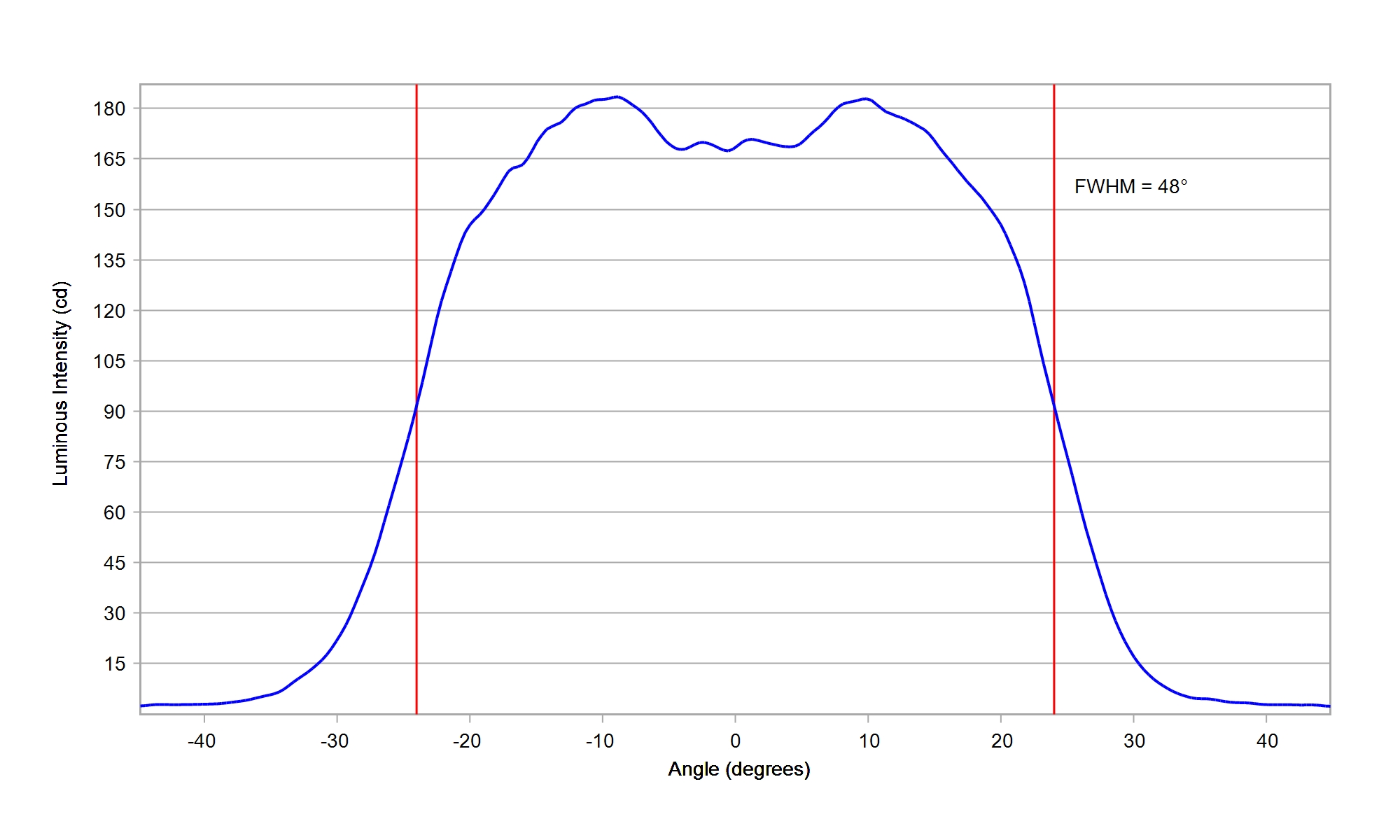

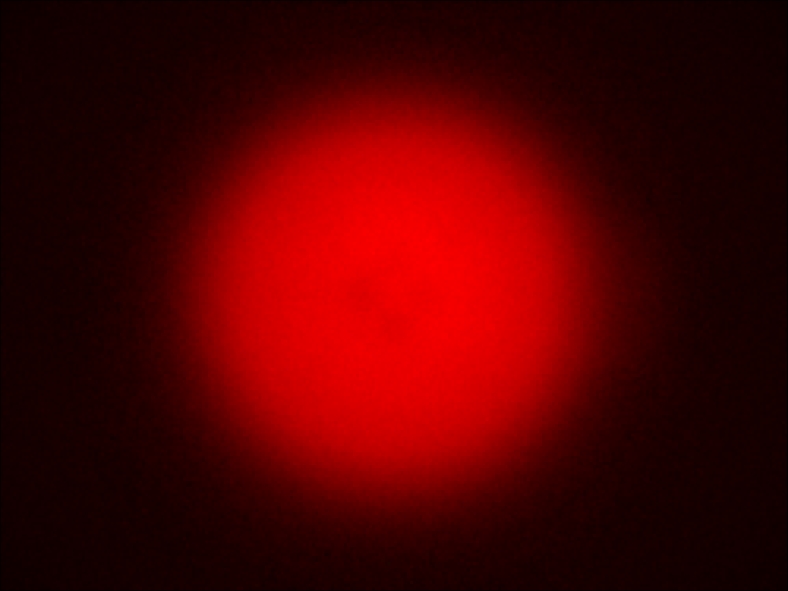

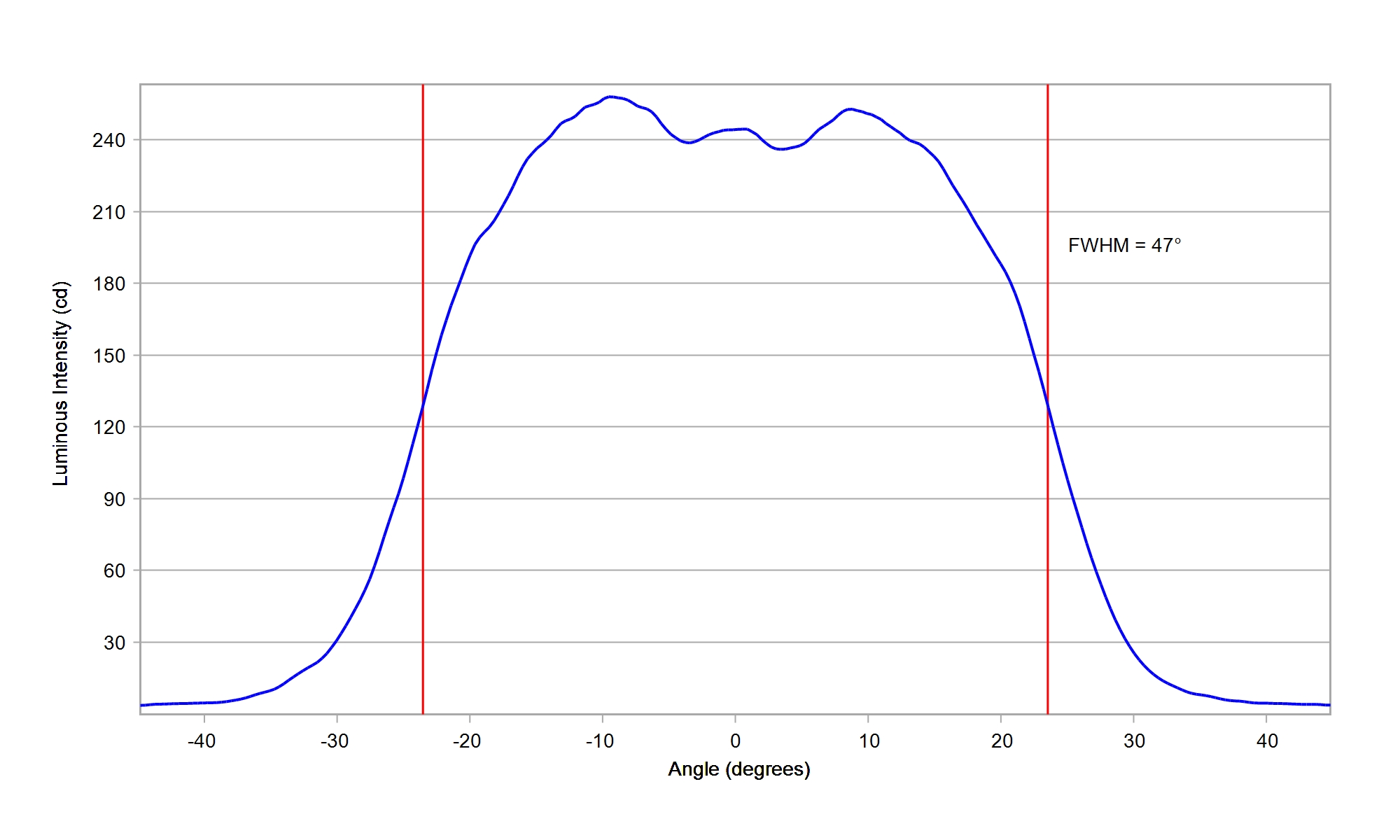

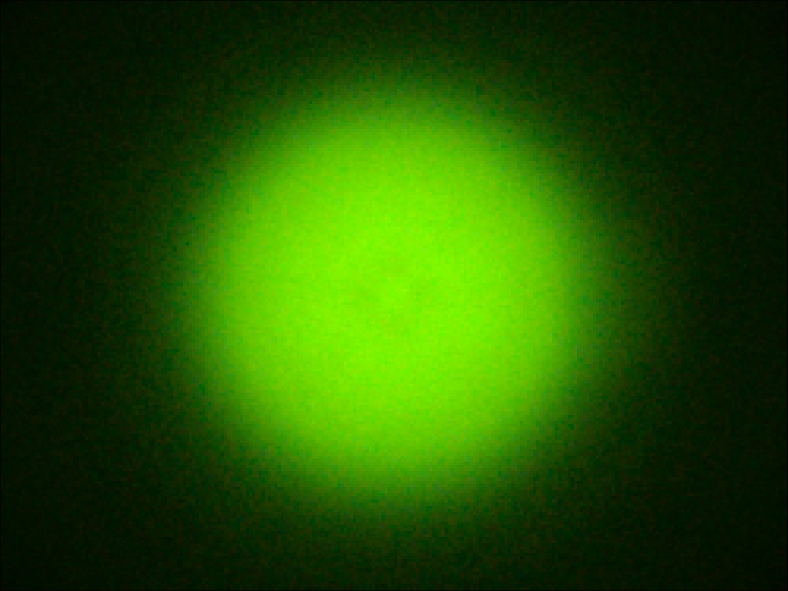

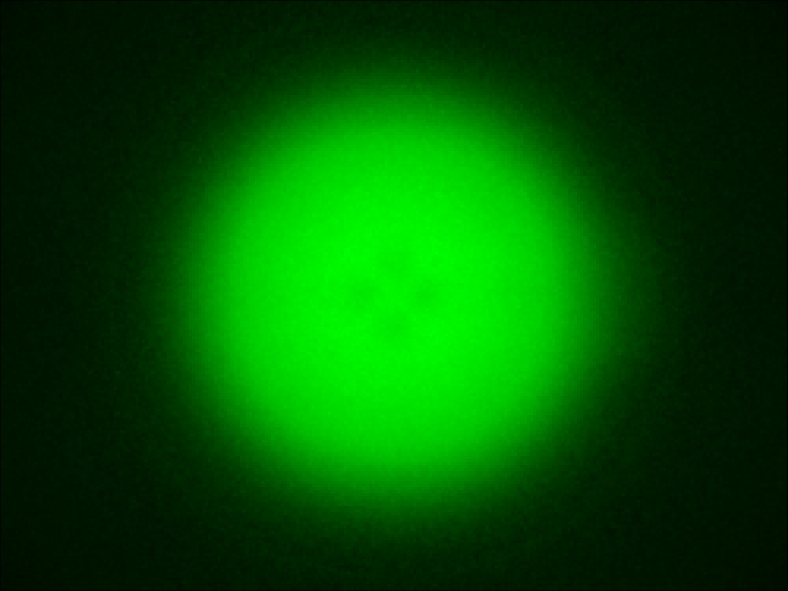

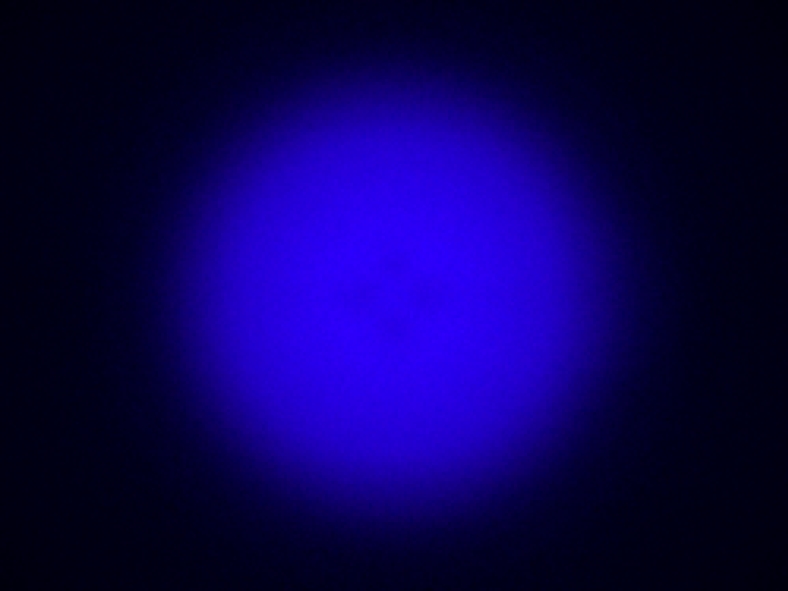

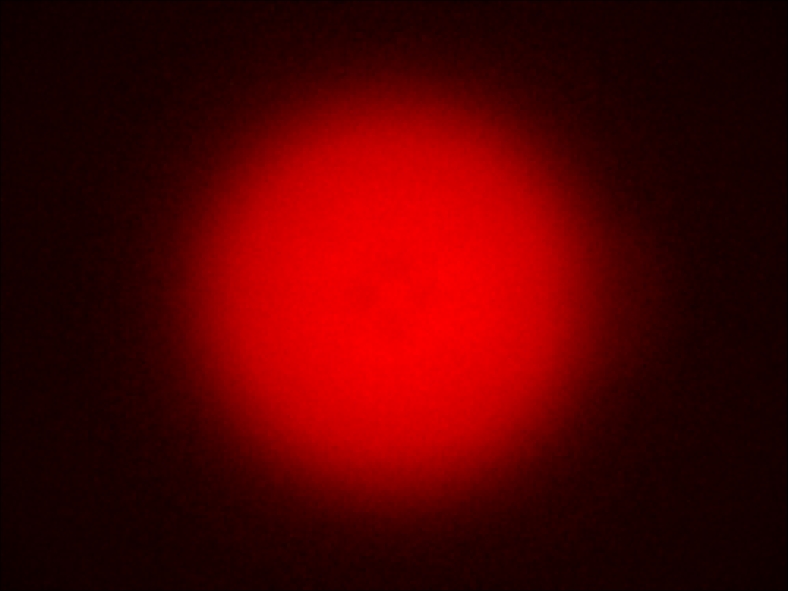

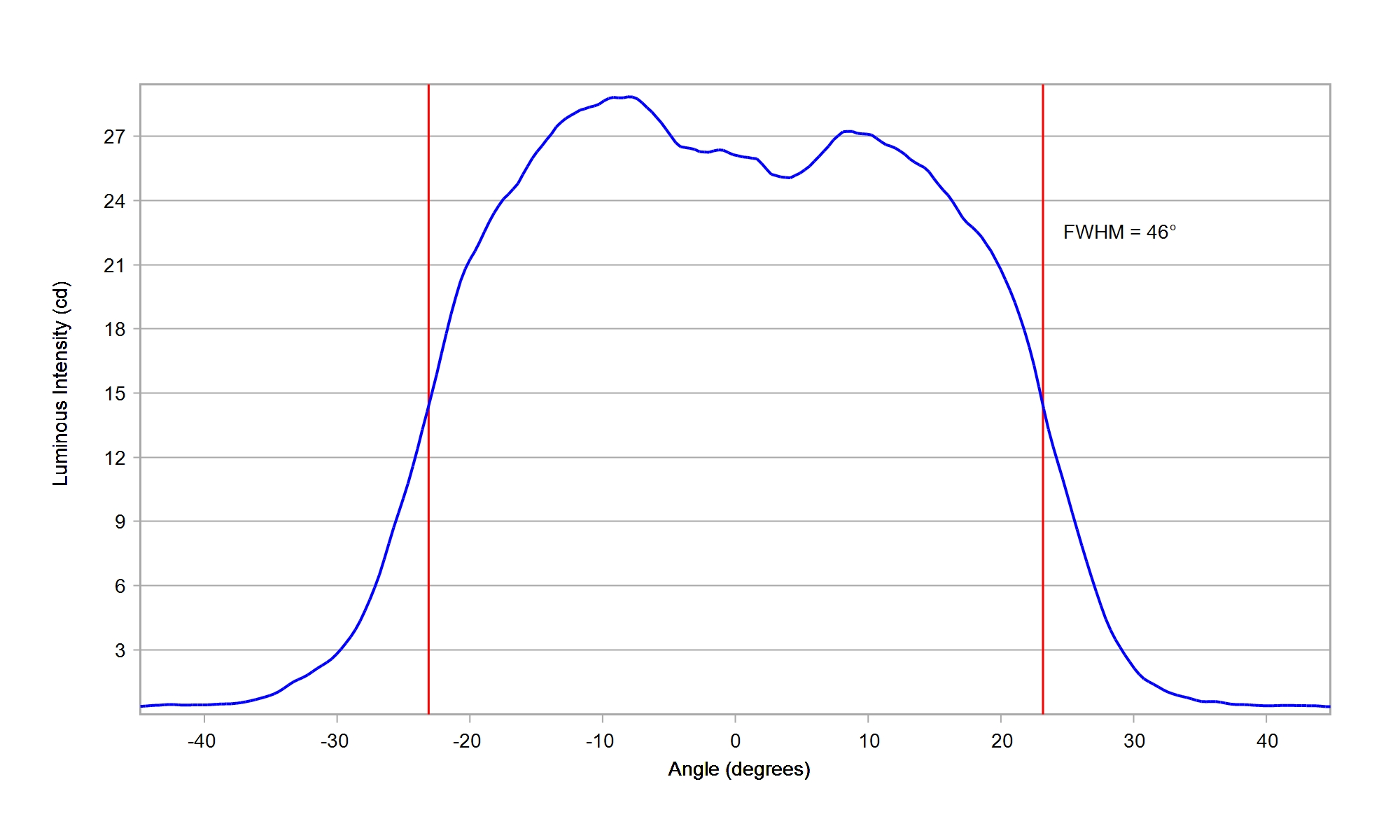

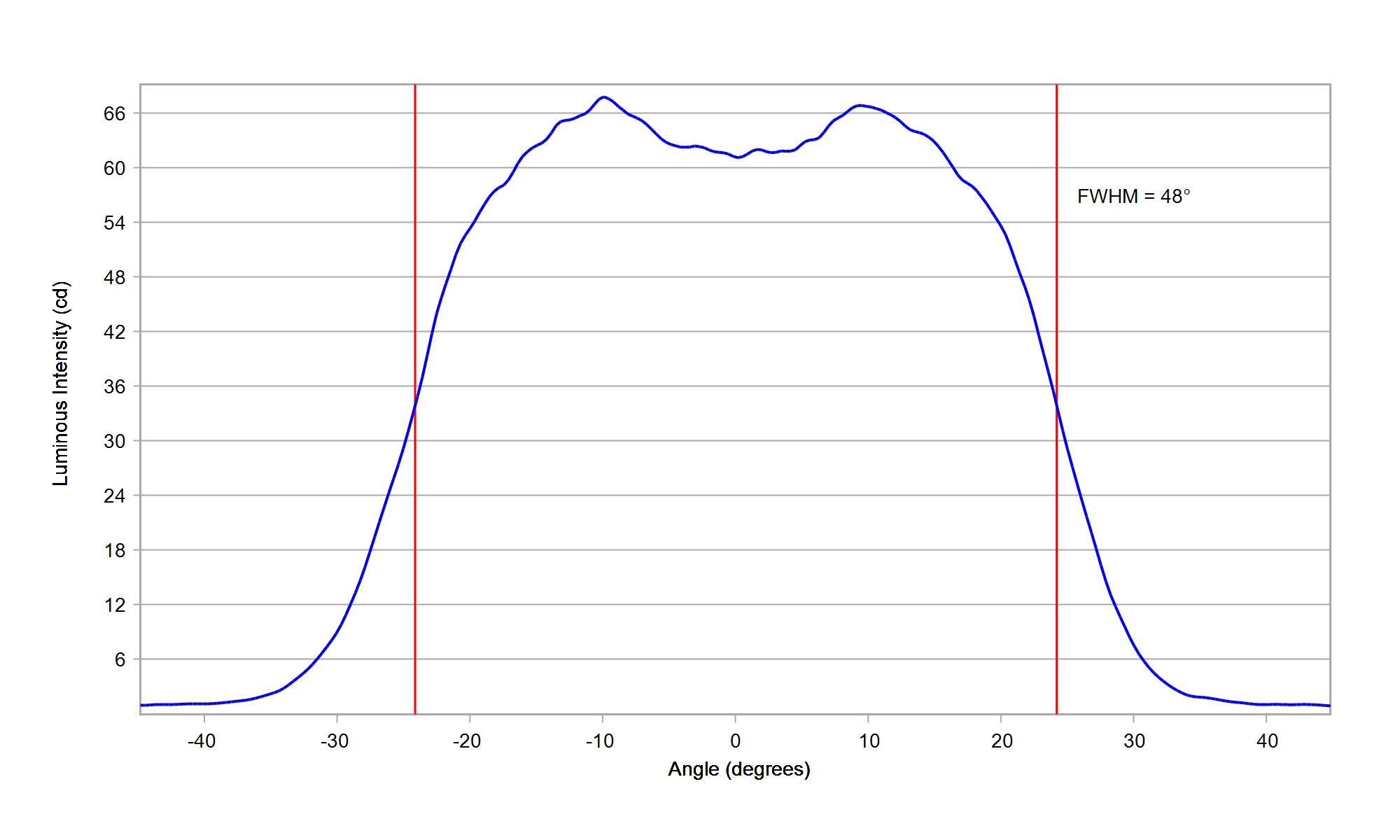

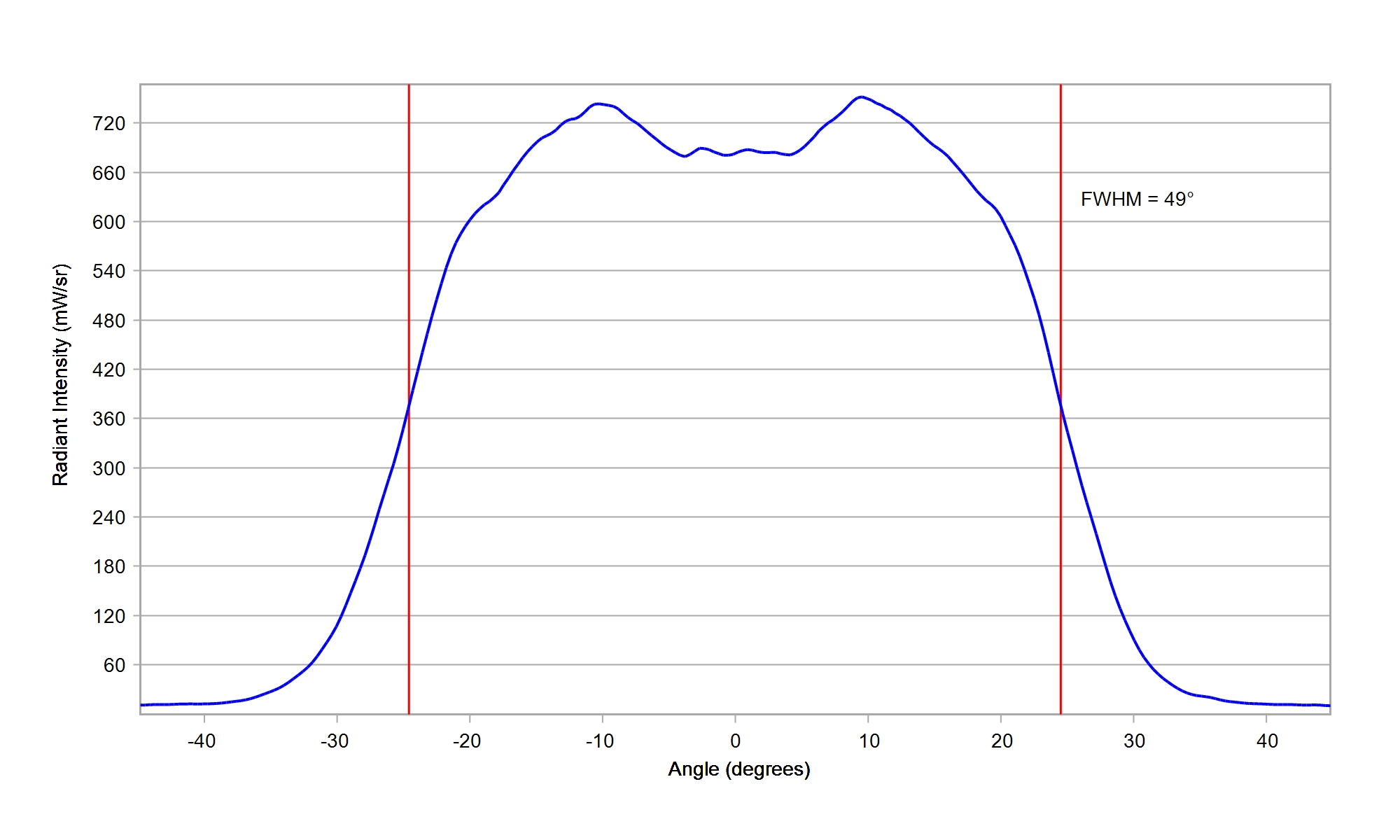

LUMILEDS LUXEON HL1Z CSP White
Eff:
86.5%
FWHM:
47°
Cd/Im:
1.5
Download

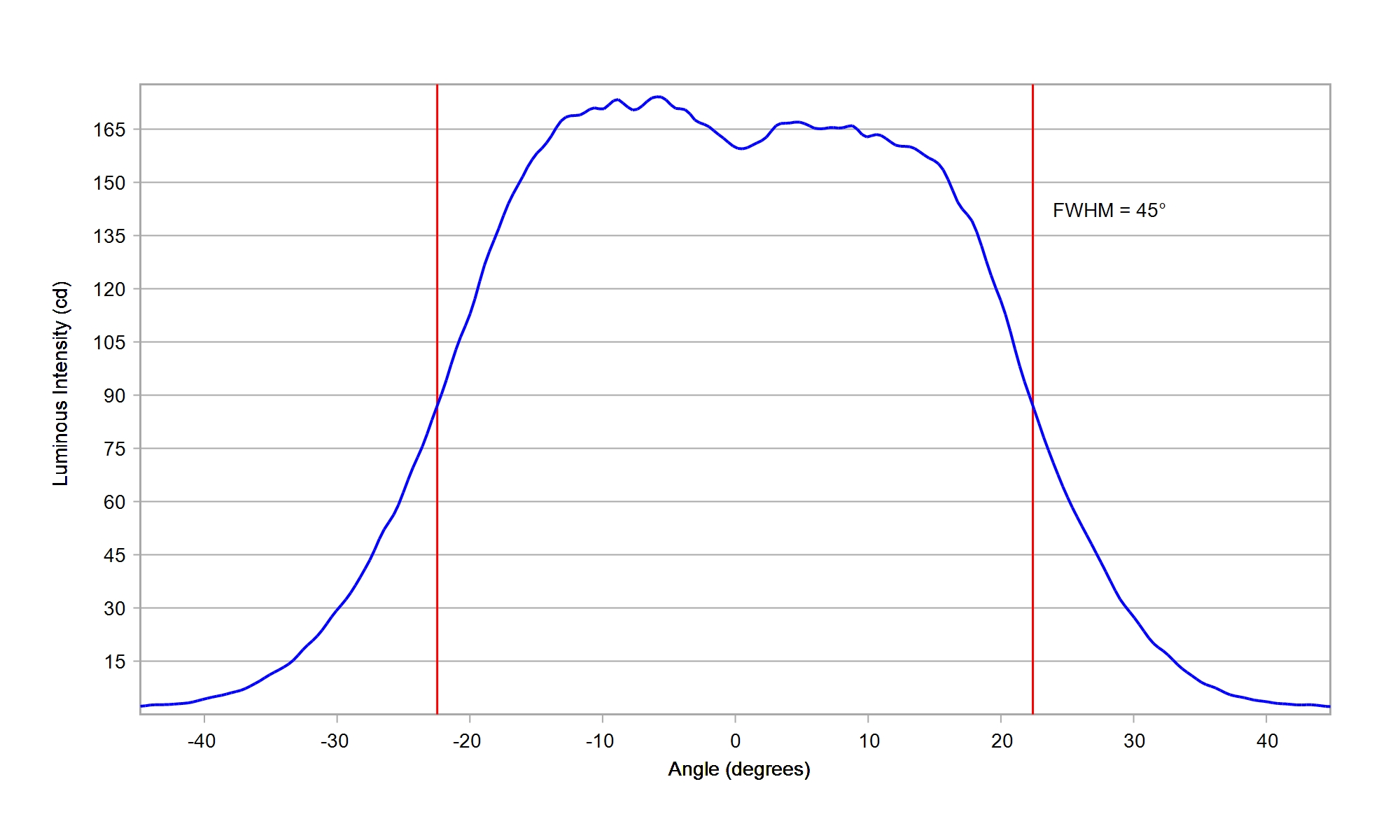

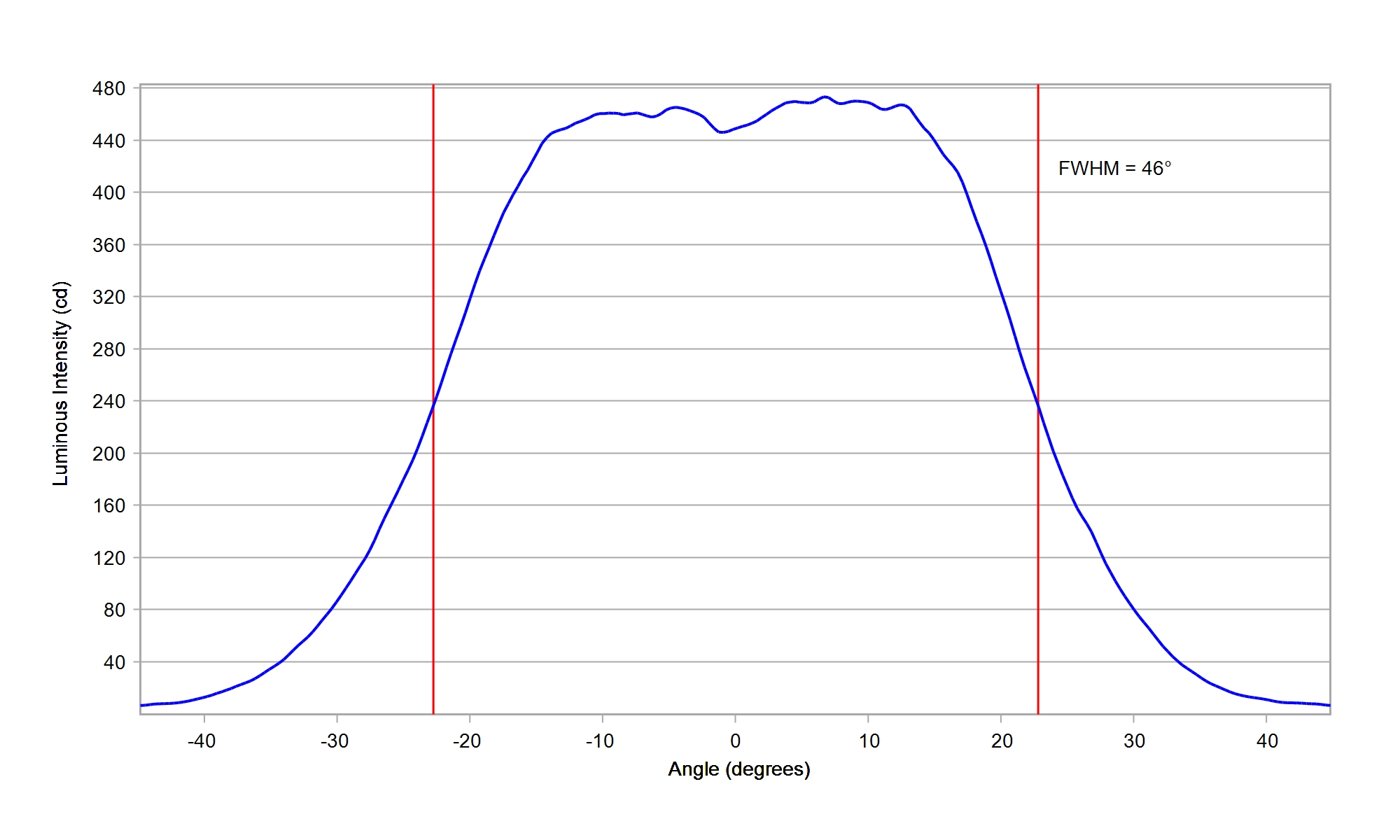

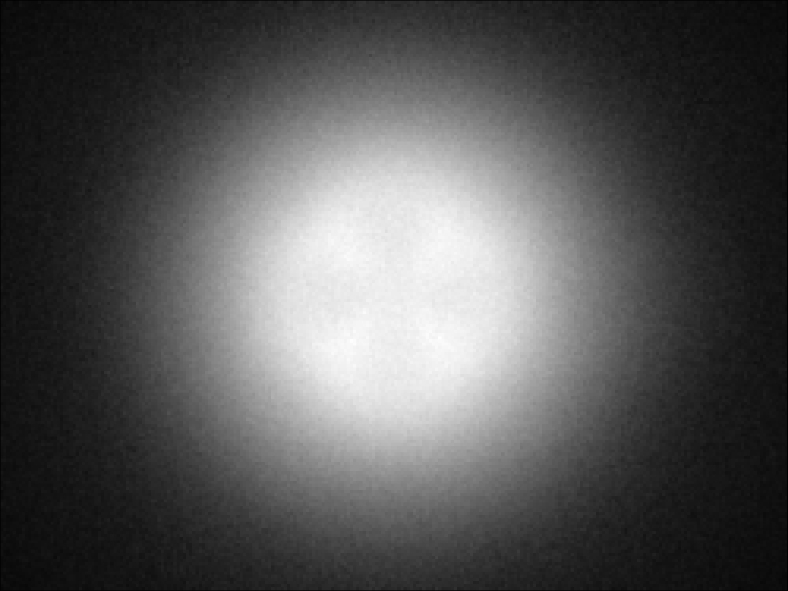

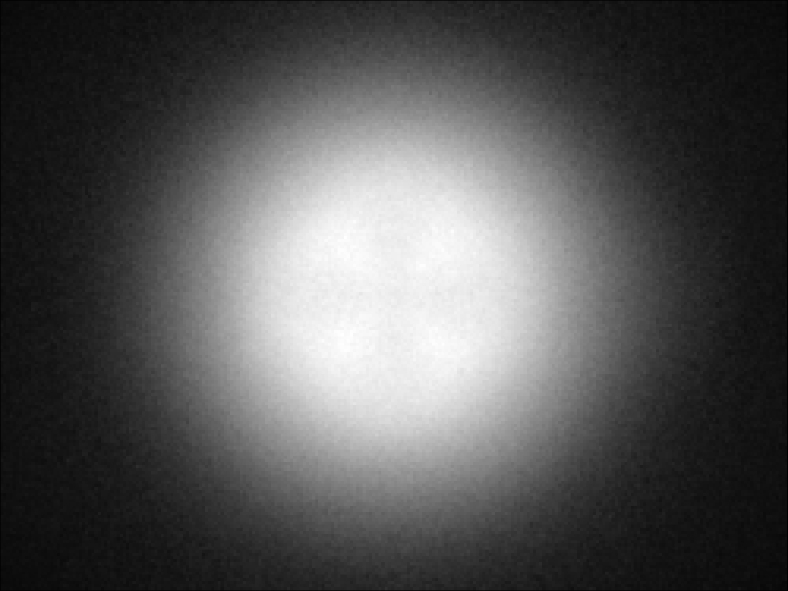

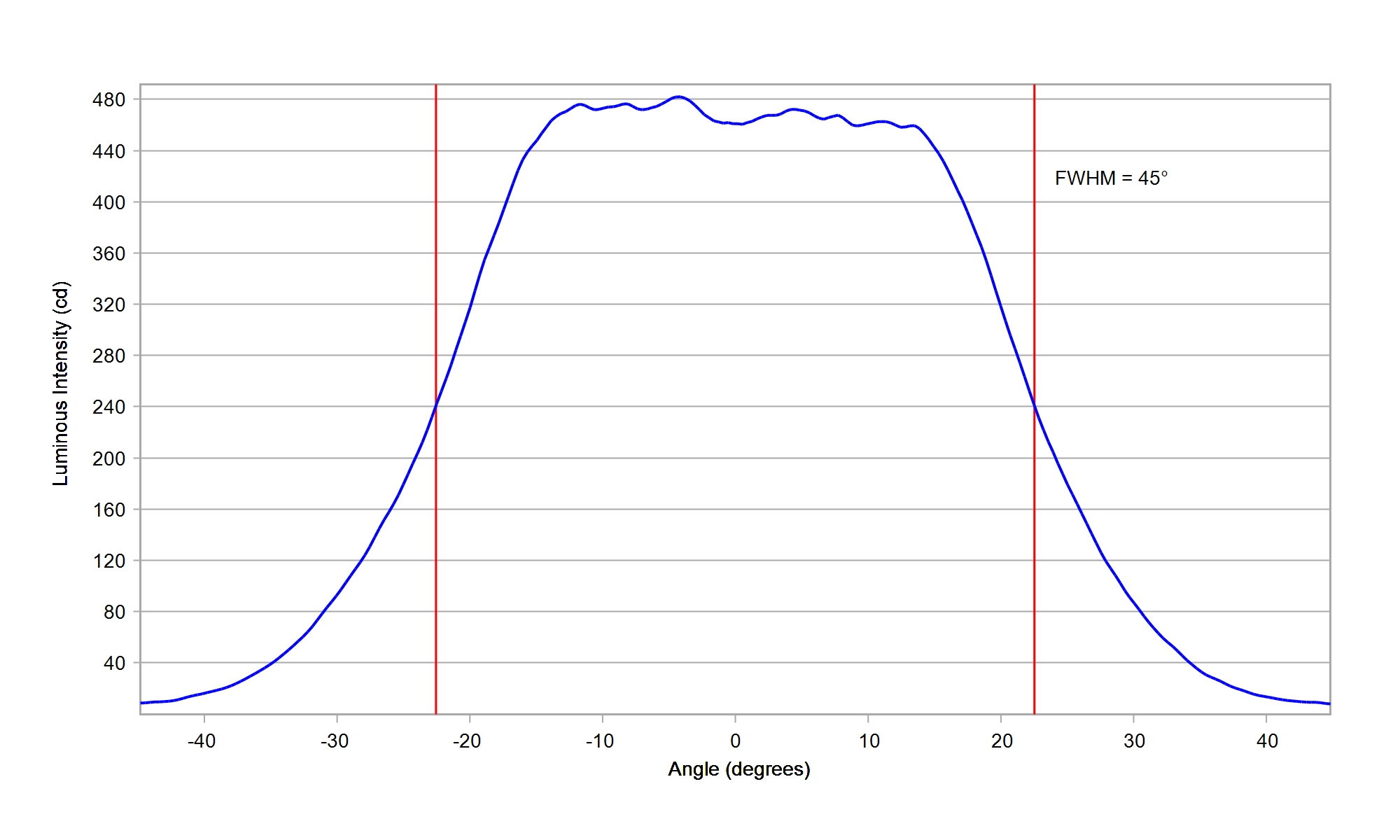

LUMILEDS LUXEON HL2X White
Eff:
87.0%
FWHM:
45.0°
Cd/Im:
1.6
Download
LUMILEDS LUXEON HL2X-D White
Eff:
87.0%
FWHM:
45°
Cd/Im:
1.5
Download
LUMILEDS LUXEON HL2X-P White
Eff:
87.0%
FWHM:
43°
Cd/Im:
1.6
Download
LUMILEDS LUXEON HL2Z White
Eff:
86.0%
FWHM:
45°
Cd/Im:
1.6
Download

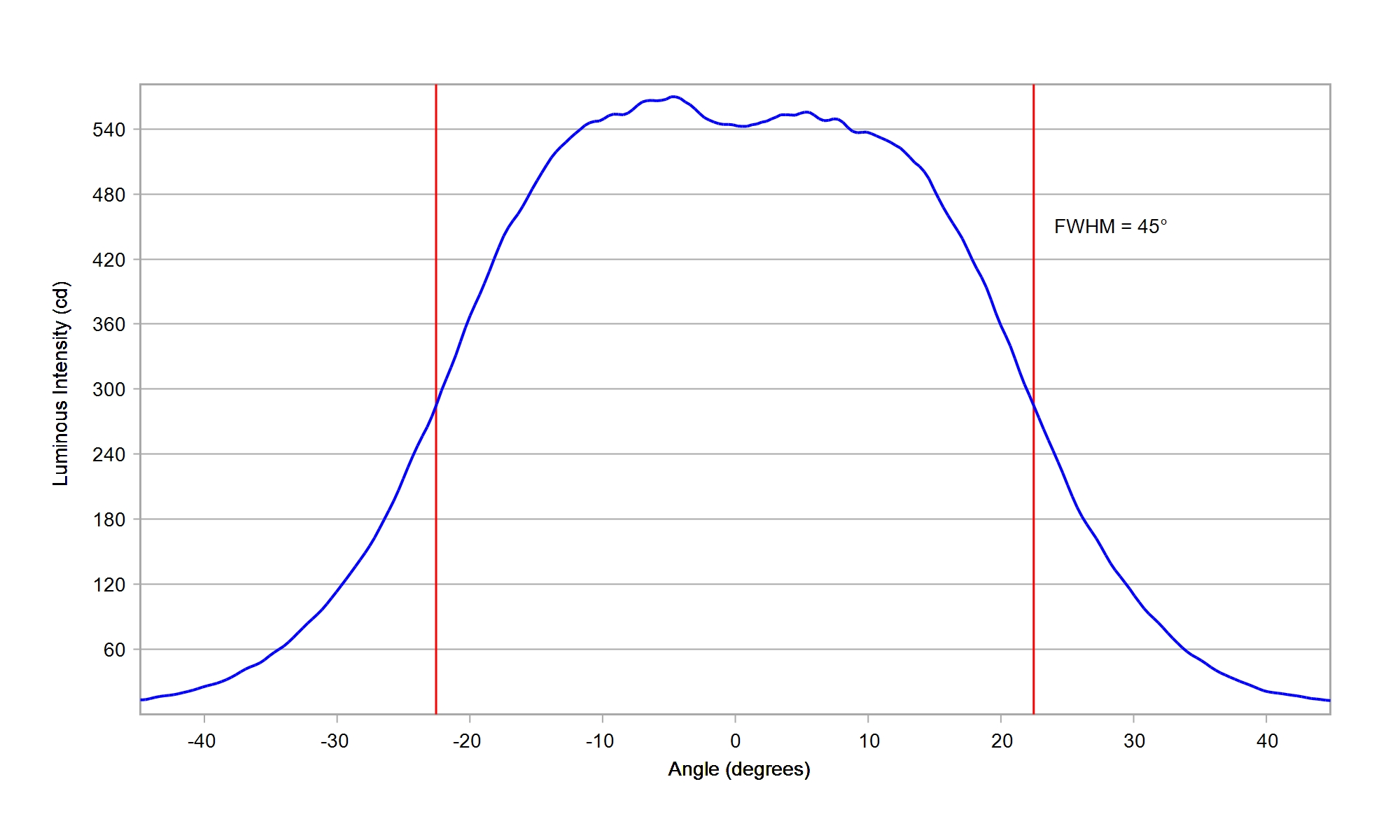

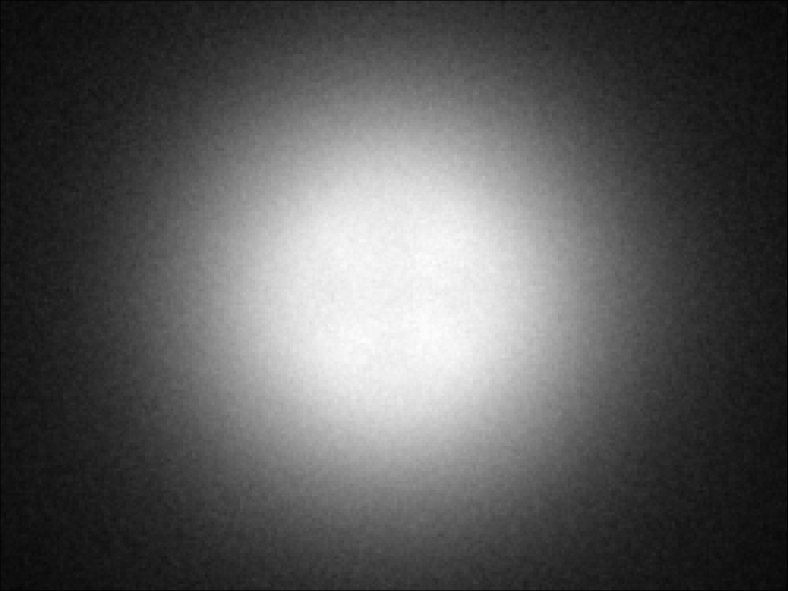

LUMILEDS LUXEON HL4X White
Eff:
86.5%
FWHM:
45°
Cd/Im:
1.5
Download

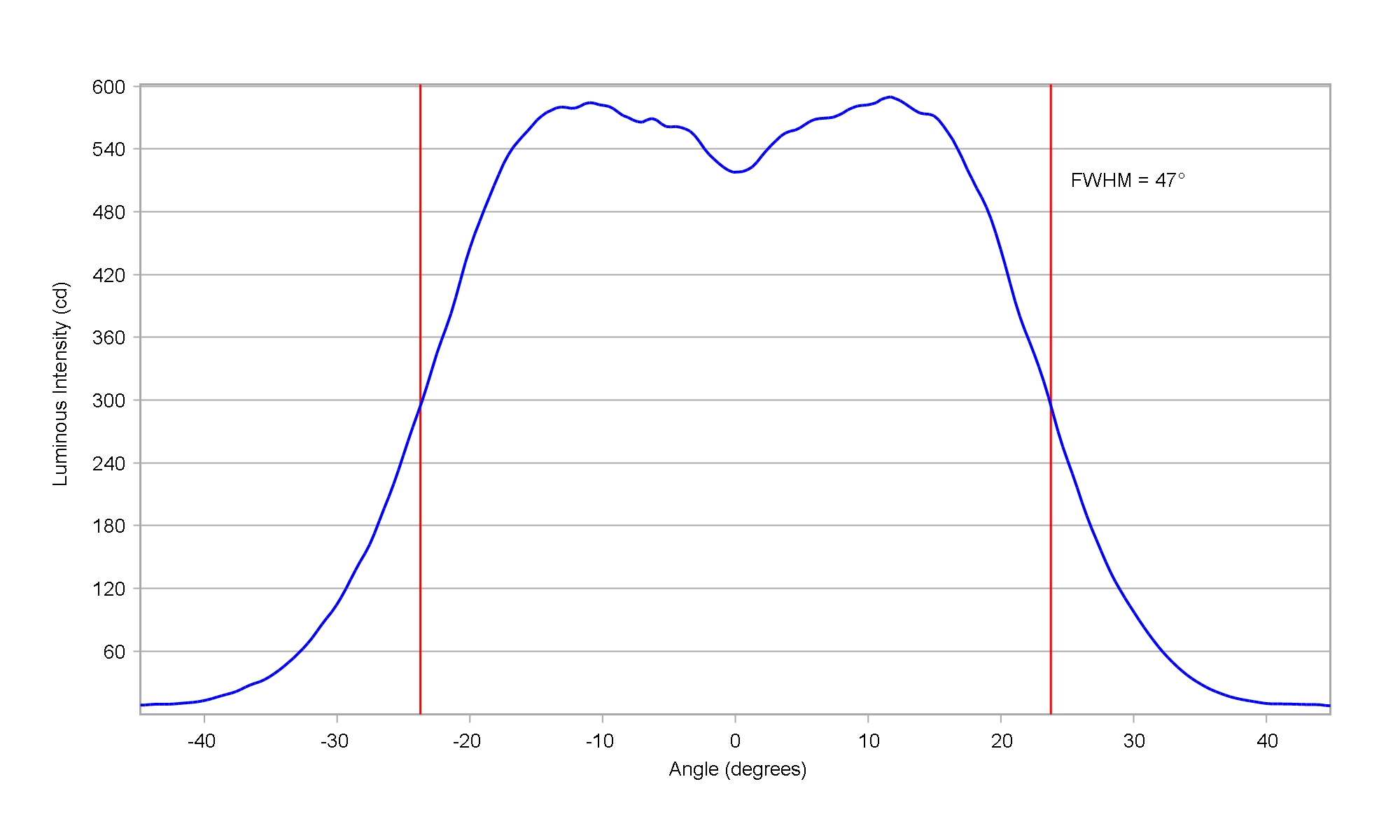

LUMILEDS LUXEON HL4Z White
Eff:
87.5%
FWHM:
47°
Cd/Im:
1.5
Download

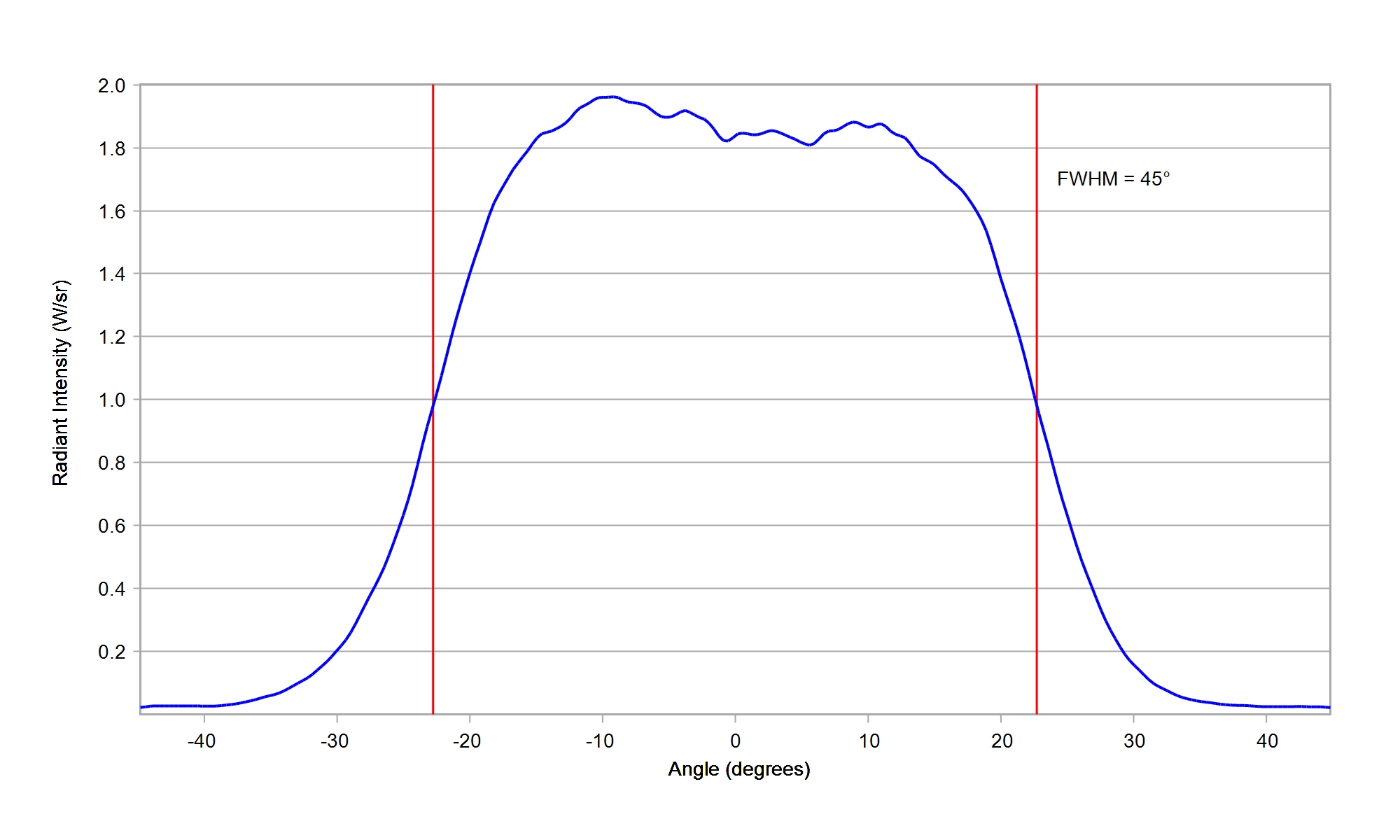

LUMILEDS LUXEON IR 2720
Eff:
90.0%
FWHM:
45°
Ipk/W:
1.8
Download
LUMILEDS LUXEON IR Compact 850nm
Eff:
90.0%
FWHM:
45.0°
Ipk/W:
1.7
Download
LUMILEDS LUXEON IR Domed 60 Degree
Eff:
88.0%
FWHM:
45.5°
Ipk/W:
1.7
Download
LUMILEDS LUXEON IR Domed 90 Degree
Eff:
89.5%
FWHM:
45.0°
Ipk/W:
1.8
Download
LUMILEDS LUXEON MZ White
Eff:
84.0%
FWHM:
44.3°
Cd/Im:
1.5
Download

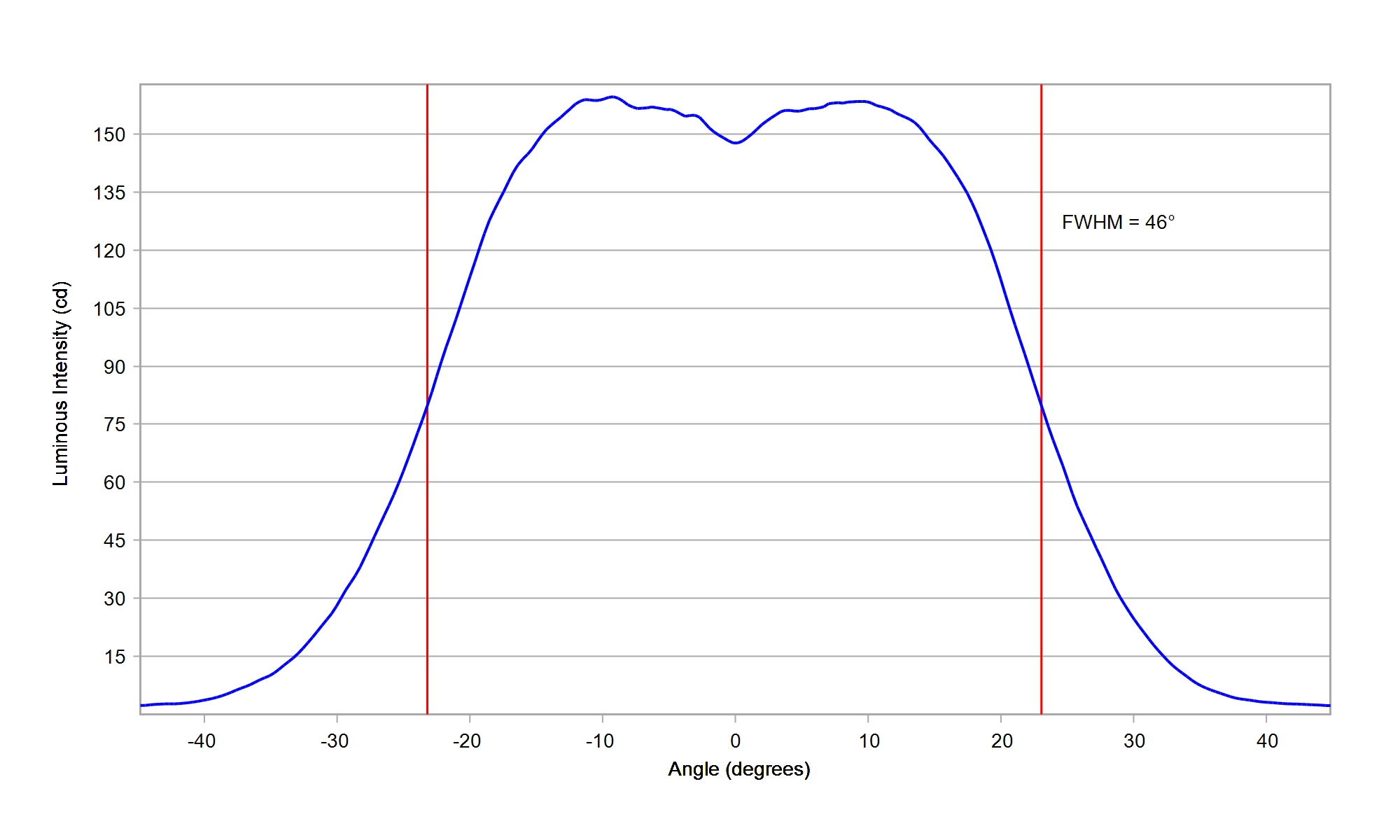

LUMILEDS LUXEON Rebel ES White
Eff:
78.7%
FWHM:
45.9°
Cd/Im:
4.9
Download

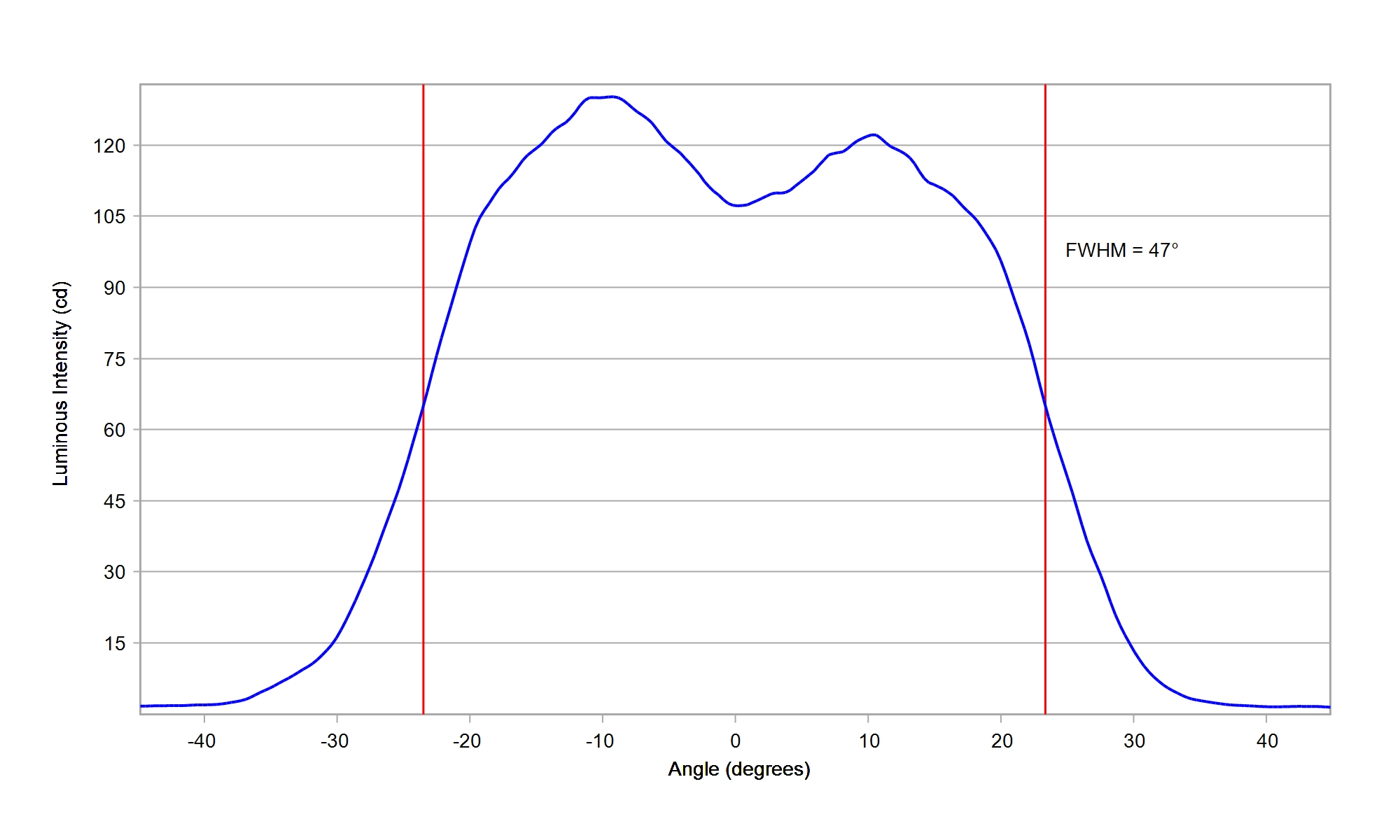

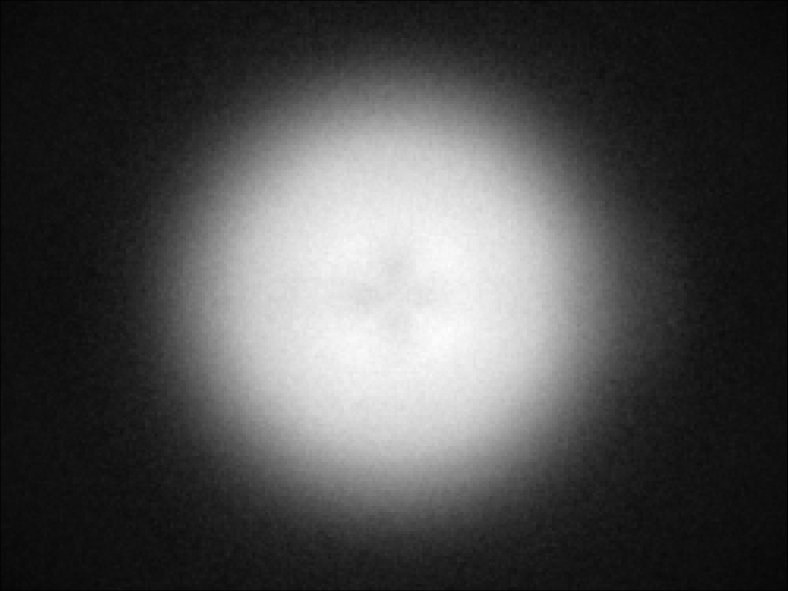

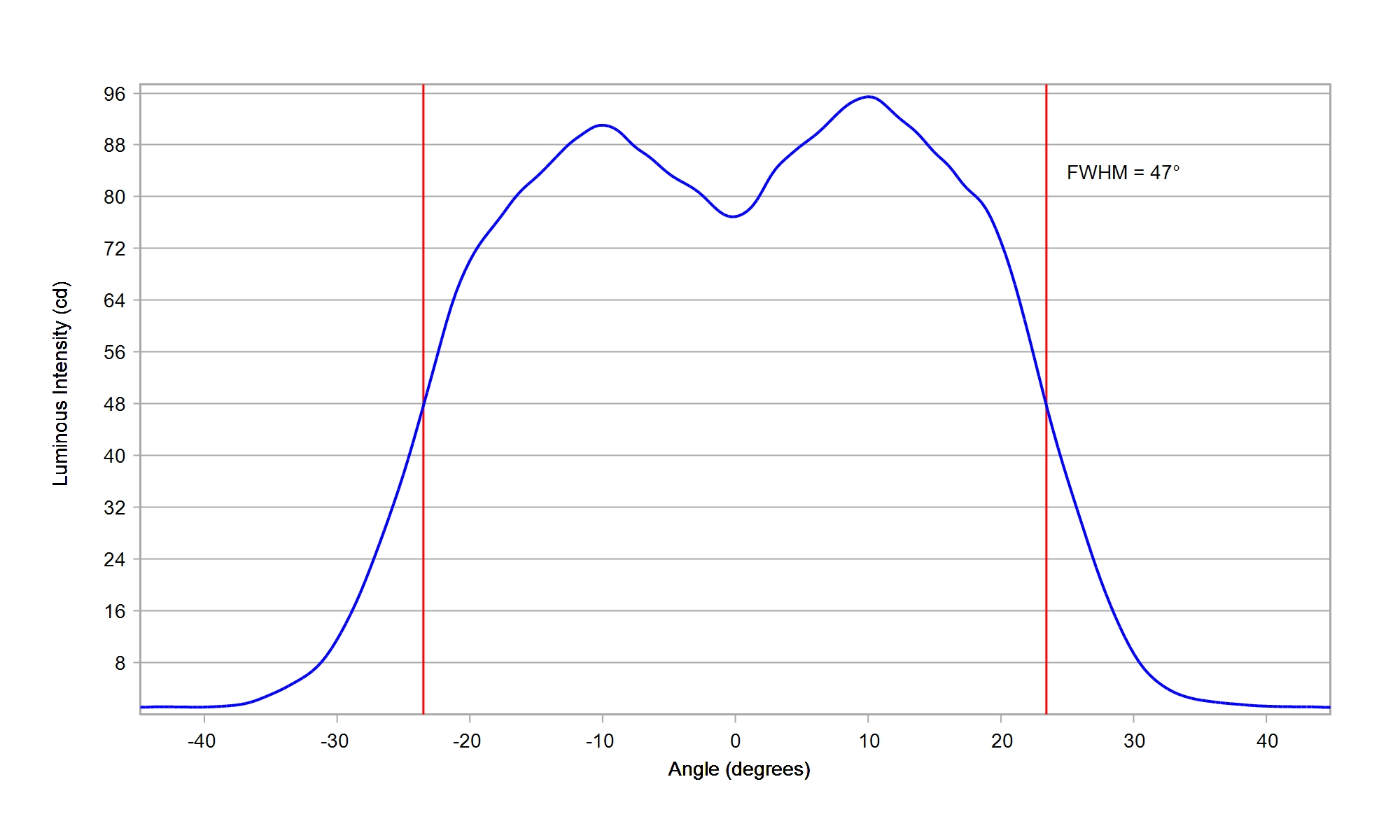

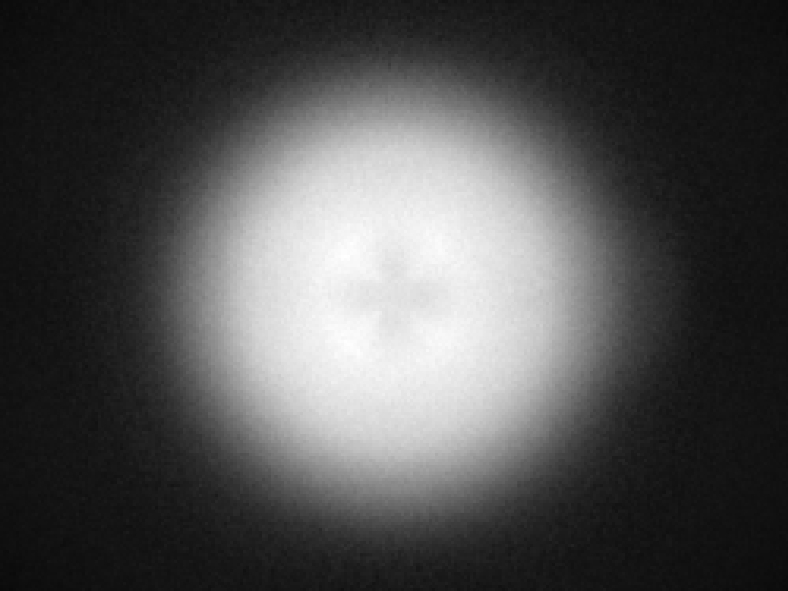

LUMILEDS LUXEON Rebel White
Eff:
81.8%
FWHM:
45.4°
Cd/Im:
2.0
Download
LUMILEDS LUXEON Rubix Blue
Eff:
87.5%
FWHM:
49°
Cd/Im:
1.5
Download
LUMILEDS LUXEON Rubix Green
Eff:
87.0%
FWHM:
48°
Cd/Im:
1.5
Download
LUMILEDS LUXEON Rubix Red
Eff:
88.5%
FWHM:
47°
Cd/Im:
1.6
Download
LUMILEDS LUXEON Rubix Royal Blue
Eff:
86.5%
FWHM:
50°
Cd/Im:
1.5
Download
LUMILEDS LUXEON Rubix White
Eff:
87.0%
FWHM:
48.0°
Cd/Im:
1.5
Download

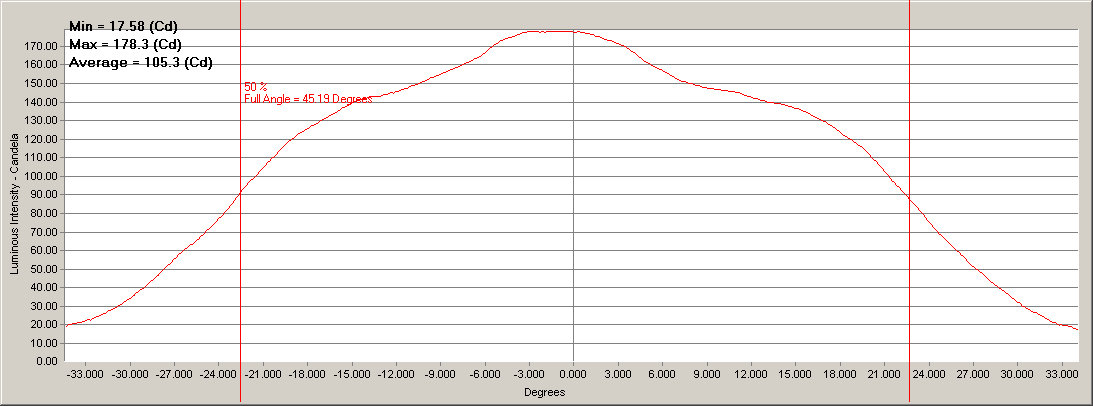

LUMILEDS LUXEON TX White
Eff:
86.0%
FWHM:
47.1°
Cd/Im:
1.4
Download
LUMILEDS LUXEON V White
Eff:
83.0%
FWHM:
45.5°
Cd/Im:
1.4
Download
LUMILEDS LUXEON Z ES White
Eff:
86.6%
FWHM:
48°
Cd/Im:
1.5
Download
LUMILEDS LUXEON Z White
Eff:
86.5%
FWHM:
48.4°
Cd/Im:
1.4
Download

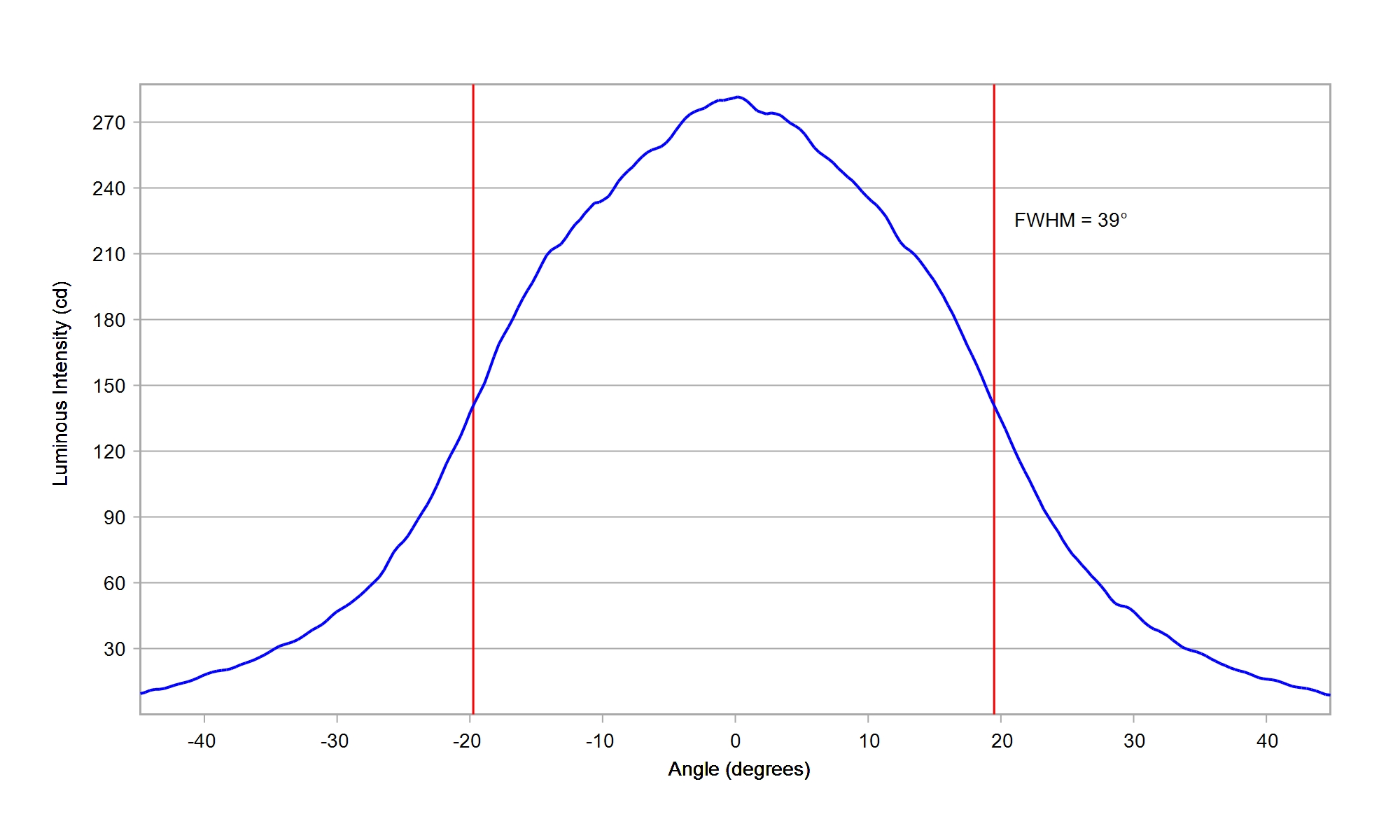

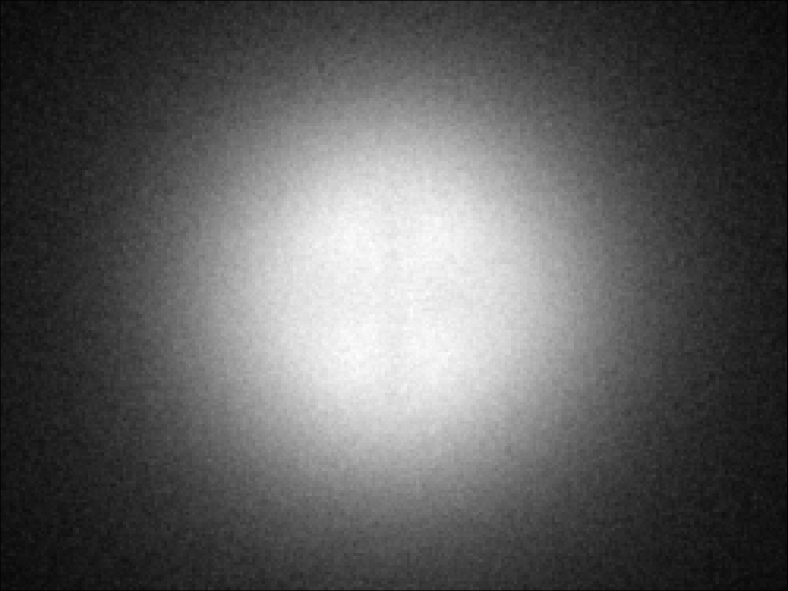

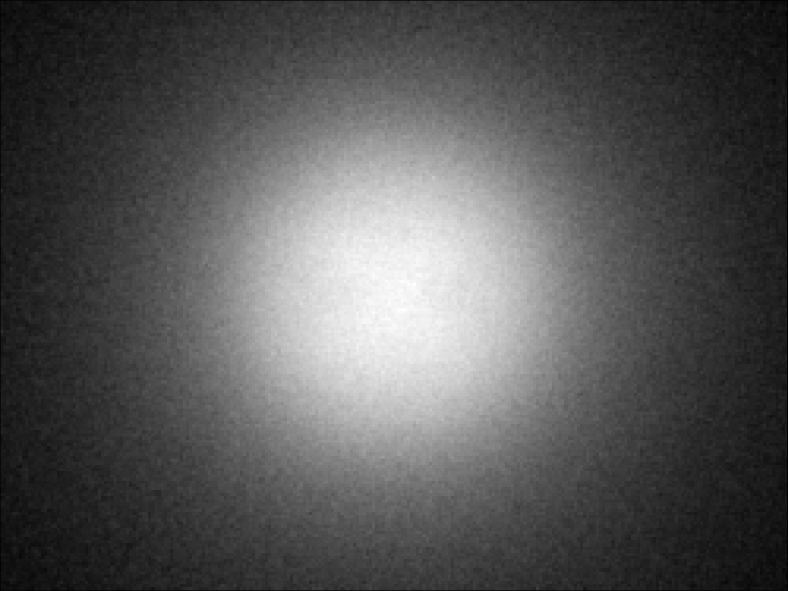

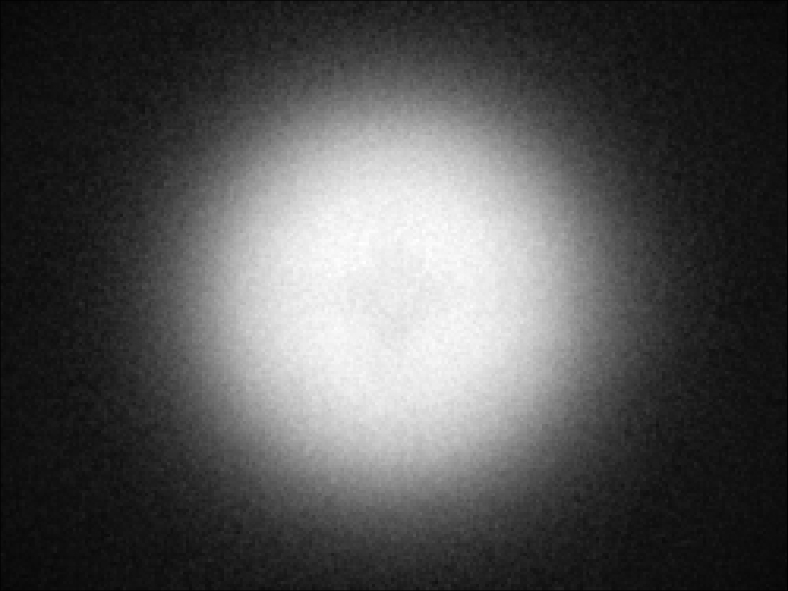

Luminus Devices SST 05-IR-B40 850nm
Eff:
90.0%
FWHM:
45.0°
Ipk/W:
1.7
Download
Luminus Devices SST 10-B-B130 Blue
Eff:
85.5%
FWHM:
48°
Cd/Im:
1.5
Download
Luminus Devices SST 10-B-B90 Blue
Eff:
85.5%
FWHM:
49°
Cd/Im:
1.4
Download
Luminus Devices SST 10-DR-B130 Deep Red
Eff:
89.0%
FWHM:
44°
Cd/Im:
1.7
Download
Luminus Devices SST 10-DR-B90 Deep Red
Eff:
88.5%
FWHM:
46°
Cd/Im:
1.7
Download
Luminus Devices SST 10-G-B130 Green
Eff:
87.5%
FWHM:
47°
Cd/Im:
1.6
Download
Luminus Devices SST 10-IR-B130 940nm
Eff:
90.5%
FWHM:
44.0°
Ipk/W:
1.7
Download
Luminus Devices SST 10-IR-B90 940nm
Eff:
91.0%
FWHM:
44.0°
Ipk/W:
1.8
Download
Luminus Devices SST 10-IRD-B130 810nm
Eff:
91.0%
FWHM:
46°
Ipk/W:
1.7
Download
Luminus Devices SST 10-IRD-B90 810nm
Eff:
91.0%
FWHM:
45°
Ipk/W:
1.8
Download

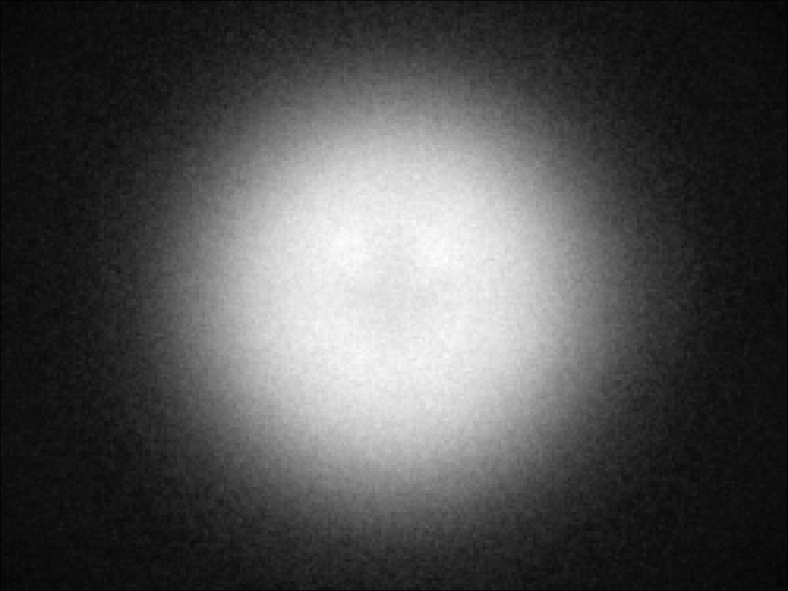

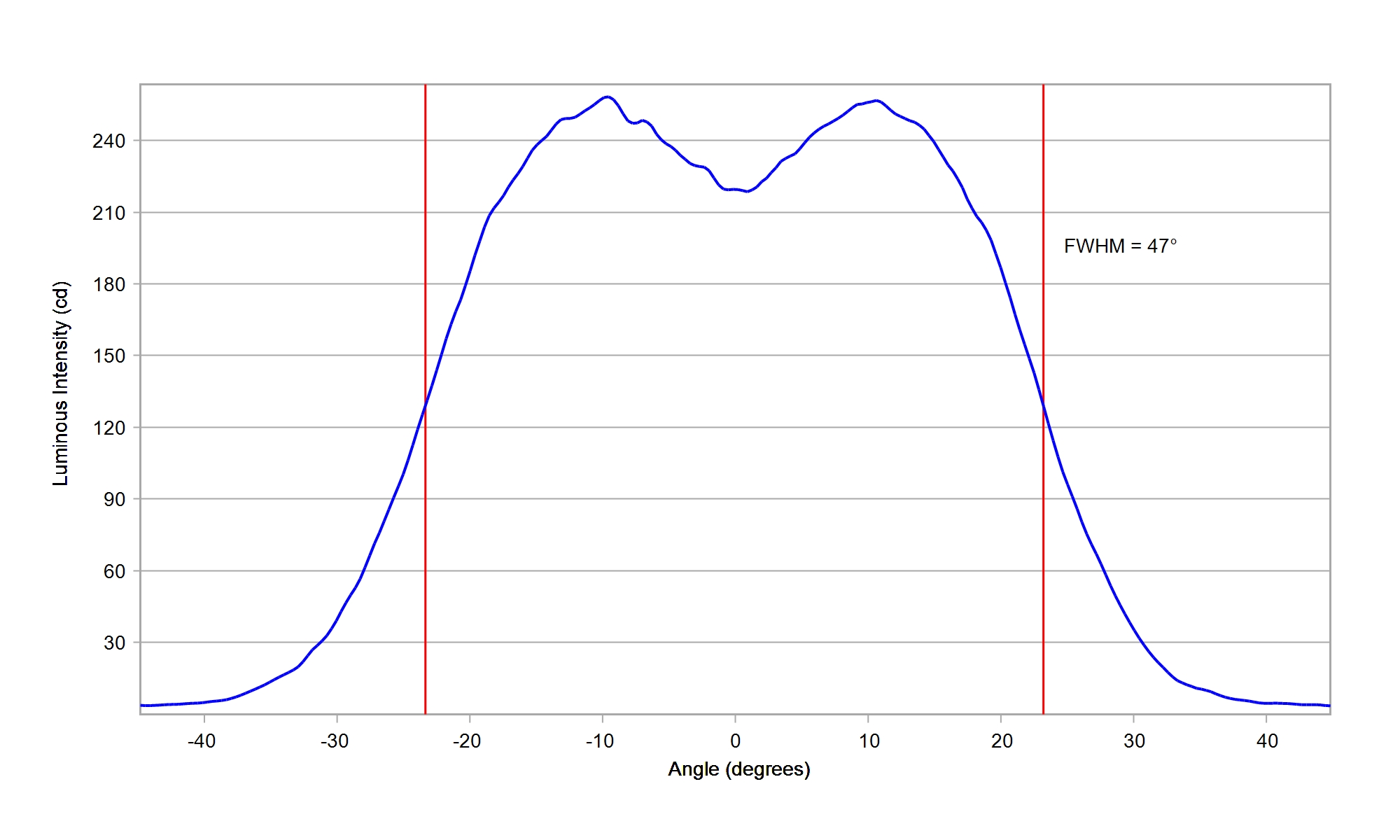

Luminus Devices SST 20-WxH White Hi CRI
Eff:
87.0%
FWHM:
46°
Cd/Im:
1.5
Download
Luminus Devices SST 40-W White
Eff:
86.5%
FWHM:
45°
Cd/Im:
1.5
Download

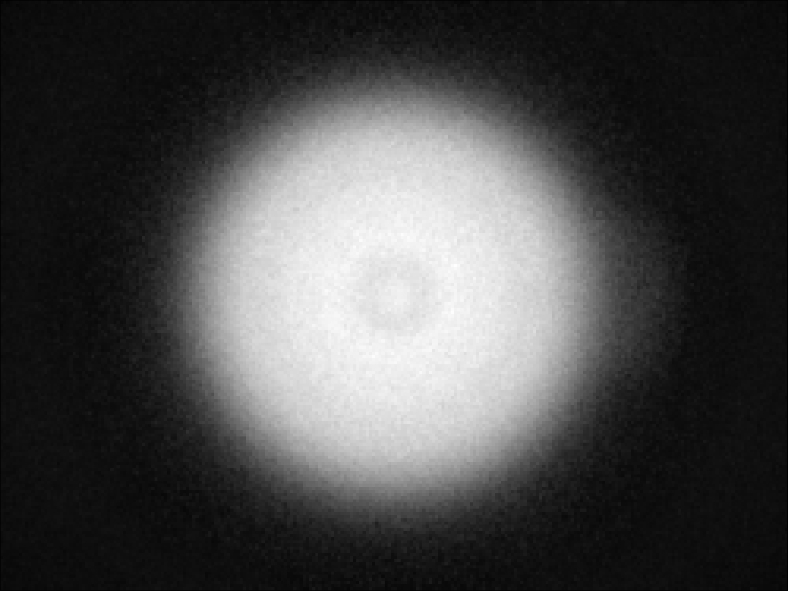

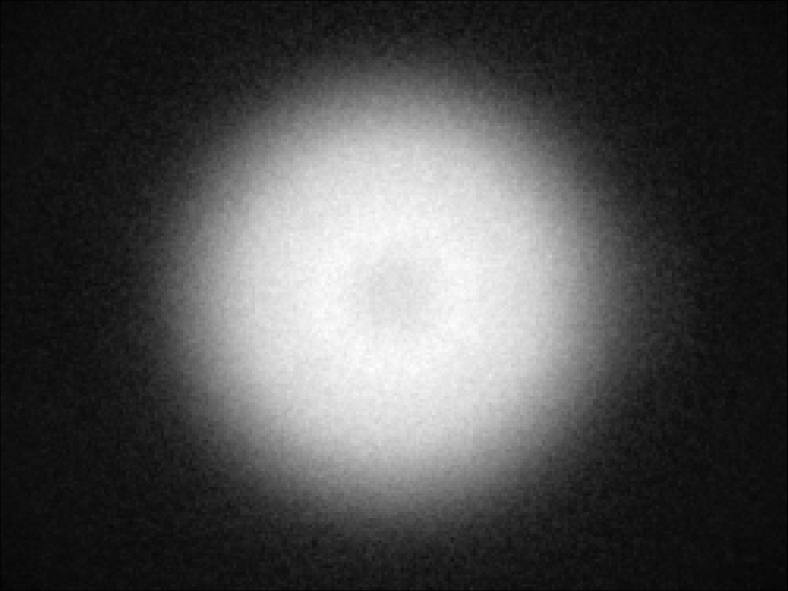

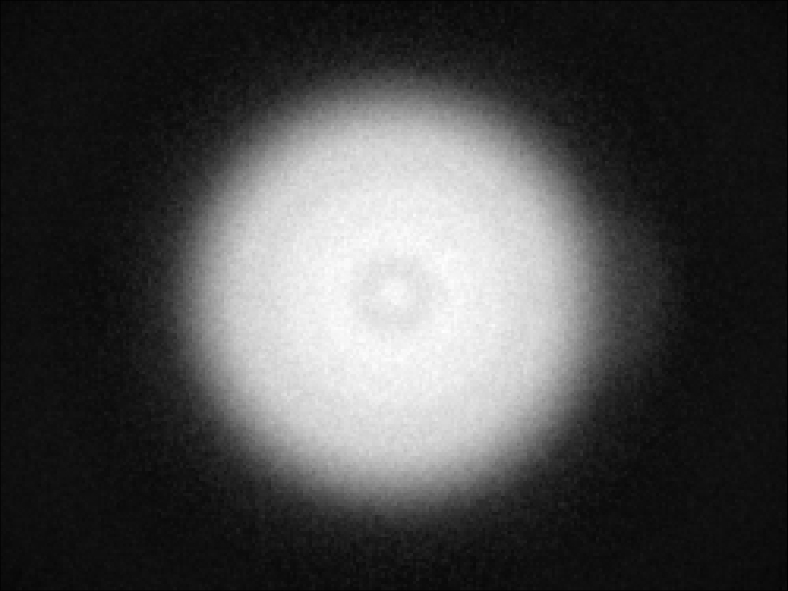

Luminus Devices SST-12-WxS White
Eff:
86.5%
FWHM:
47°
Cd/Im:
1.5
Download

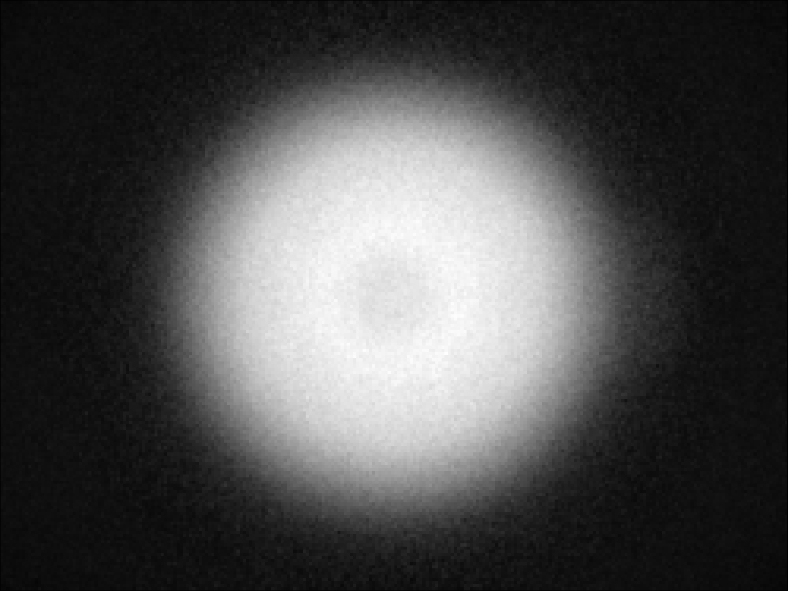

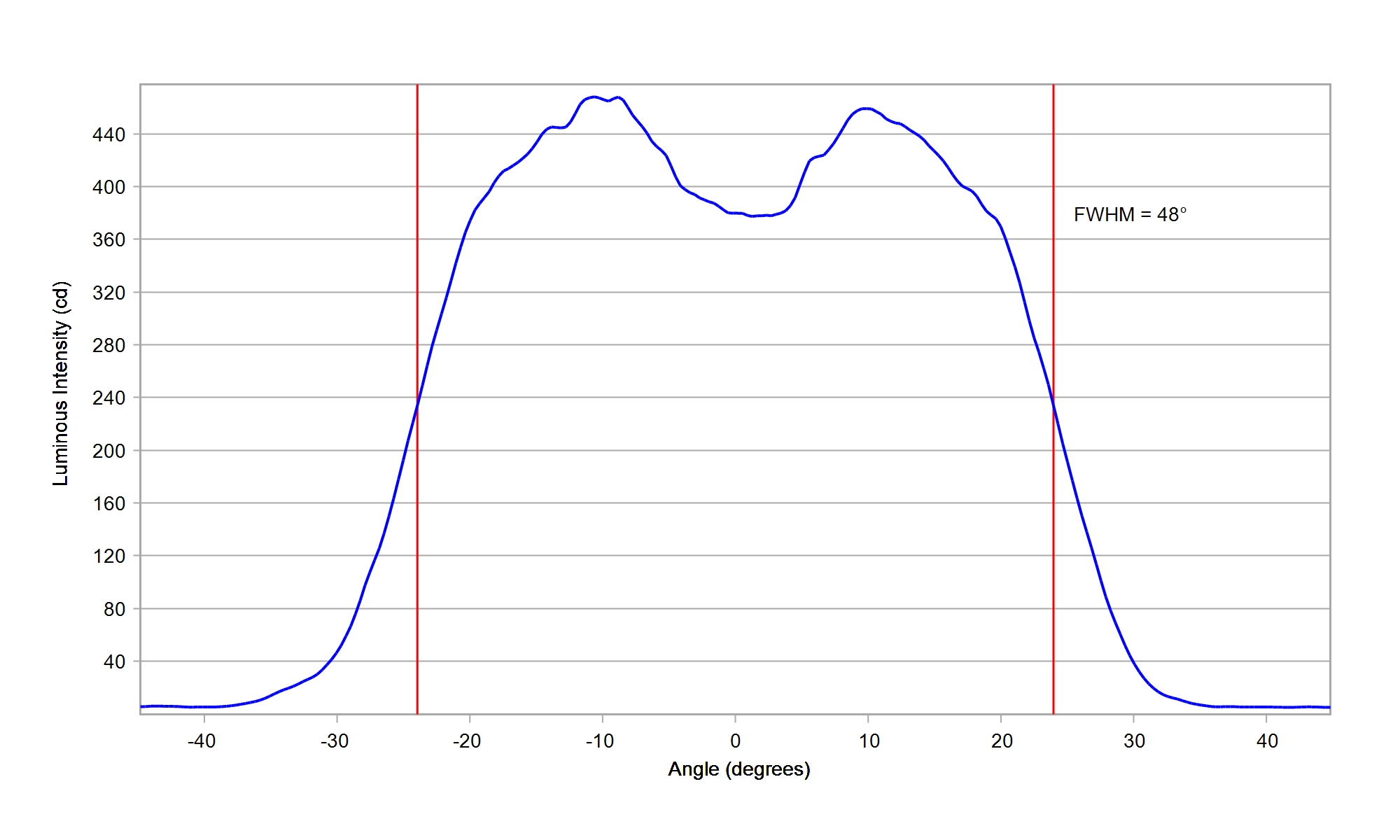

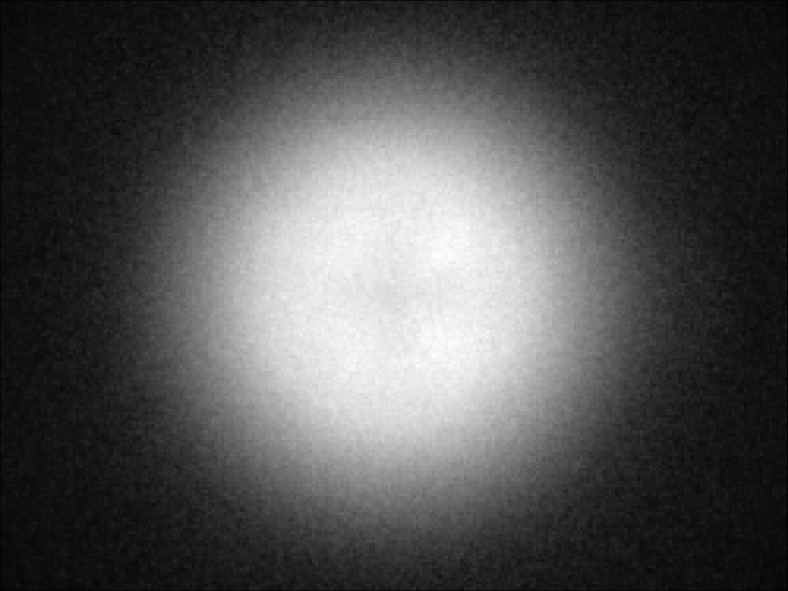

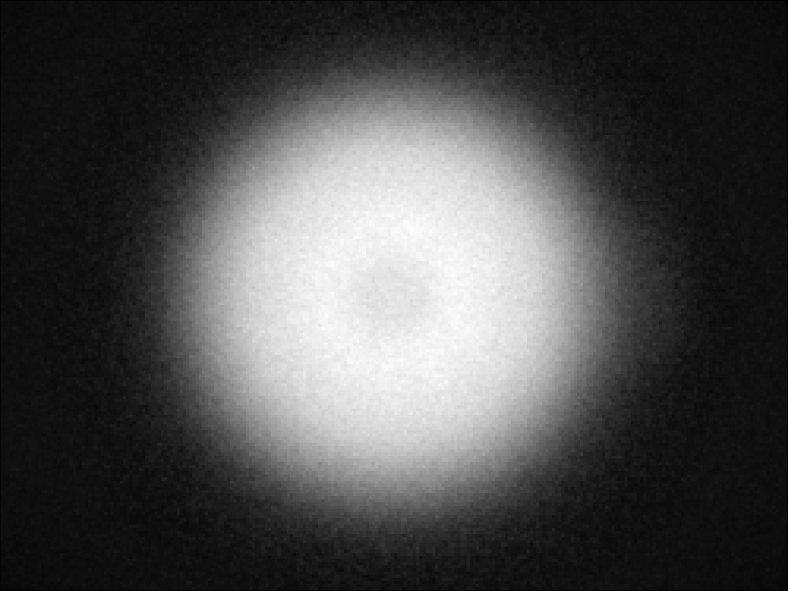

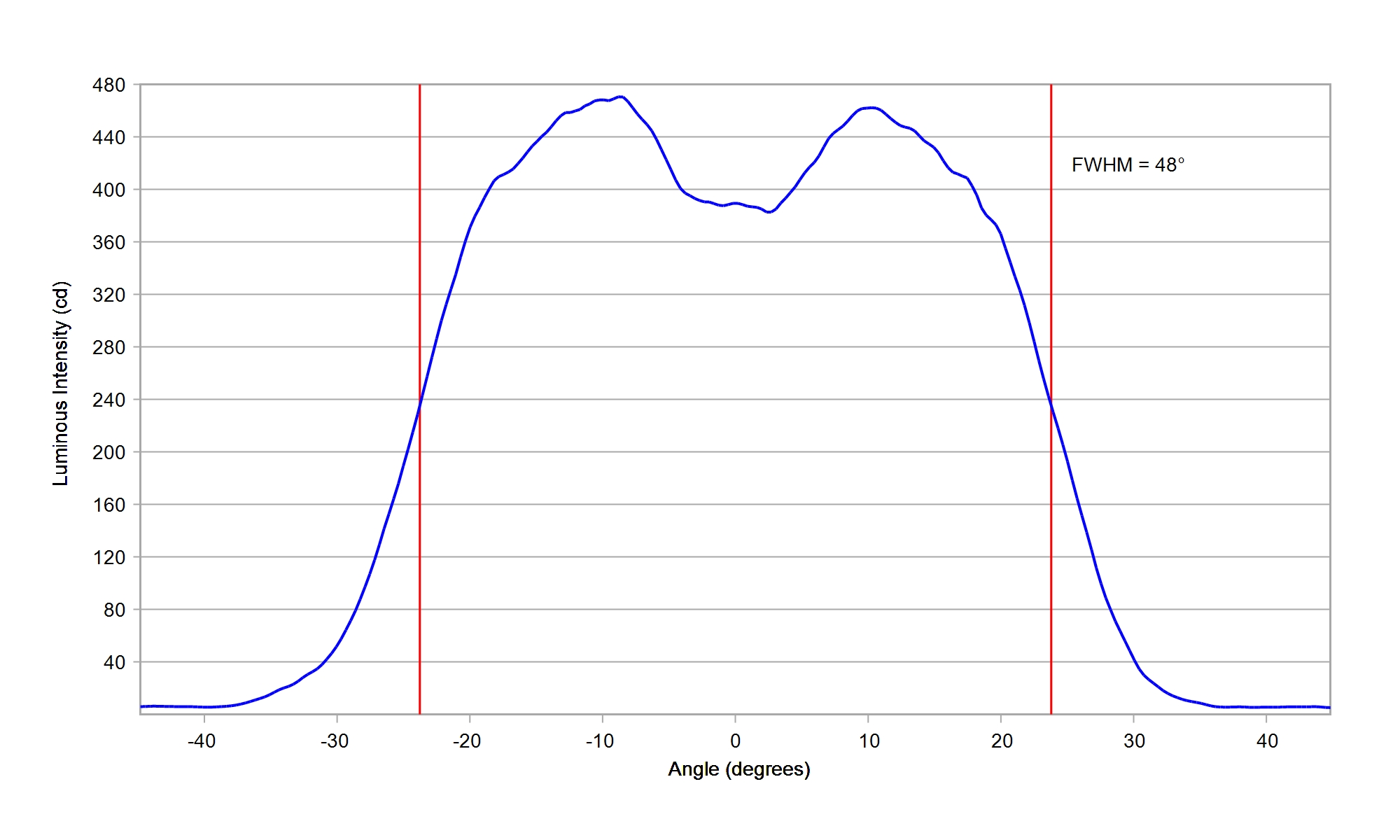

Luminus Devices SST-25-WES White
Eff:
87.0%
FWHM:
47°
Cd/Im:
1.5
Download

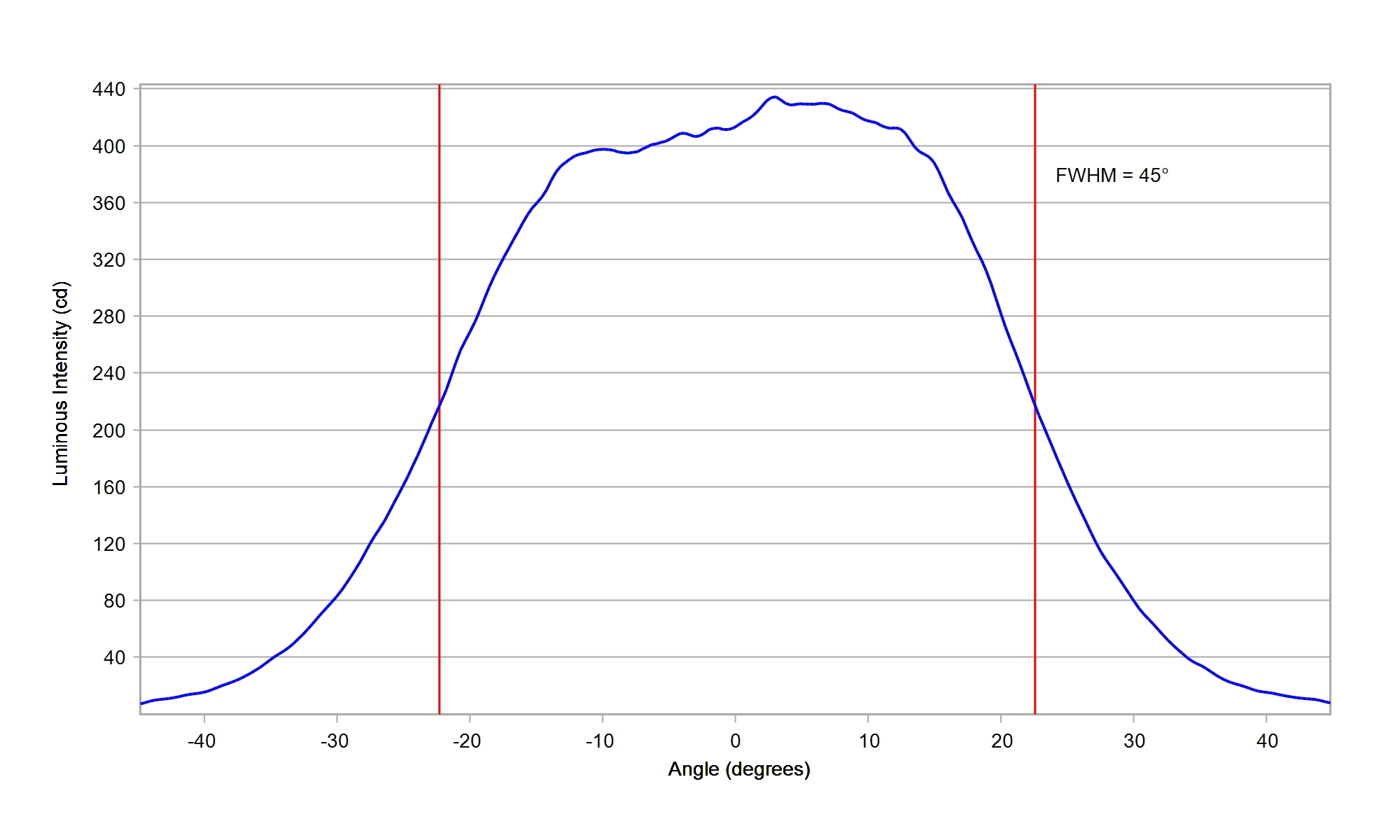

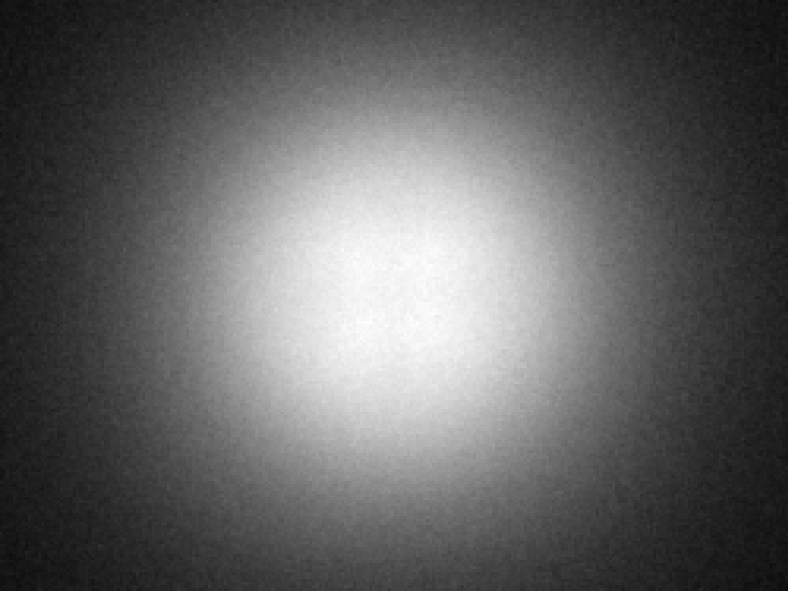

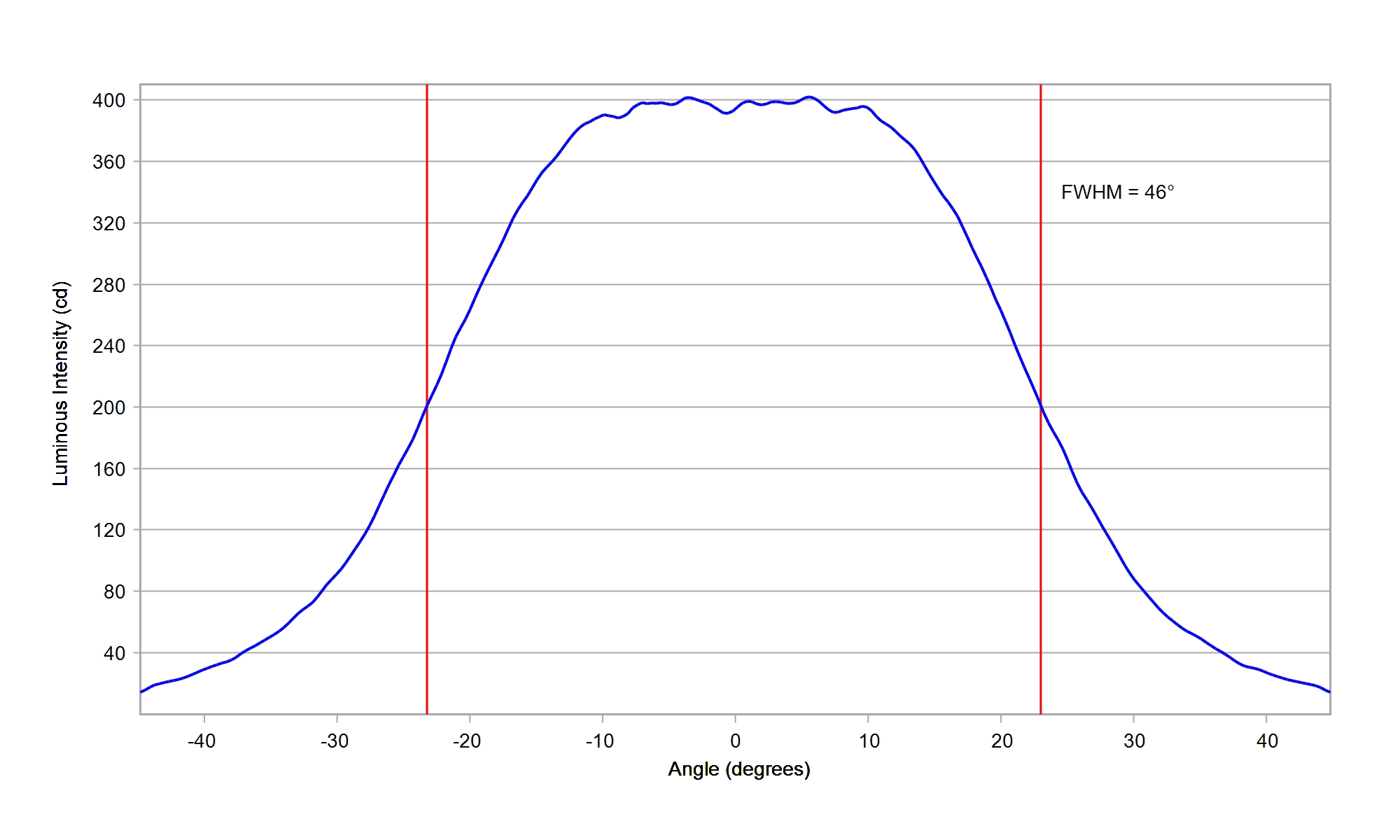

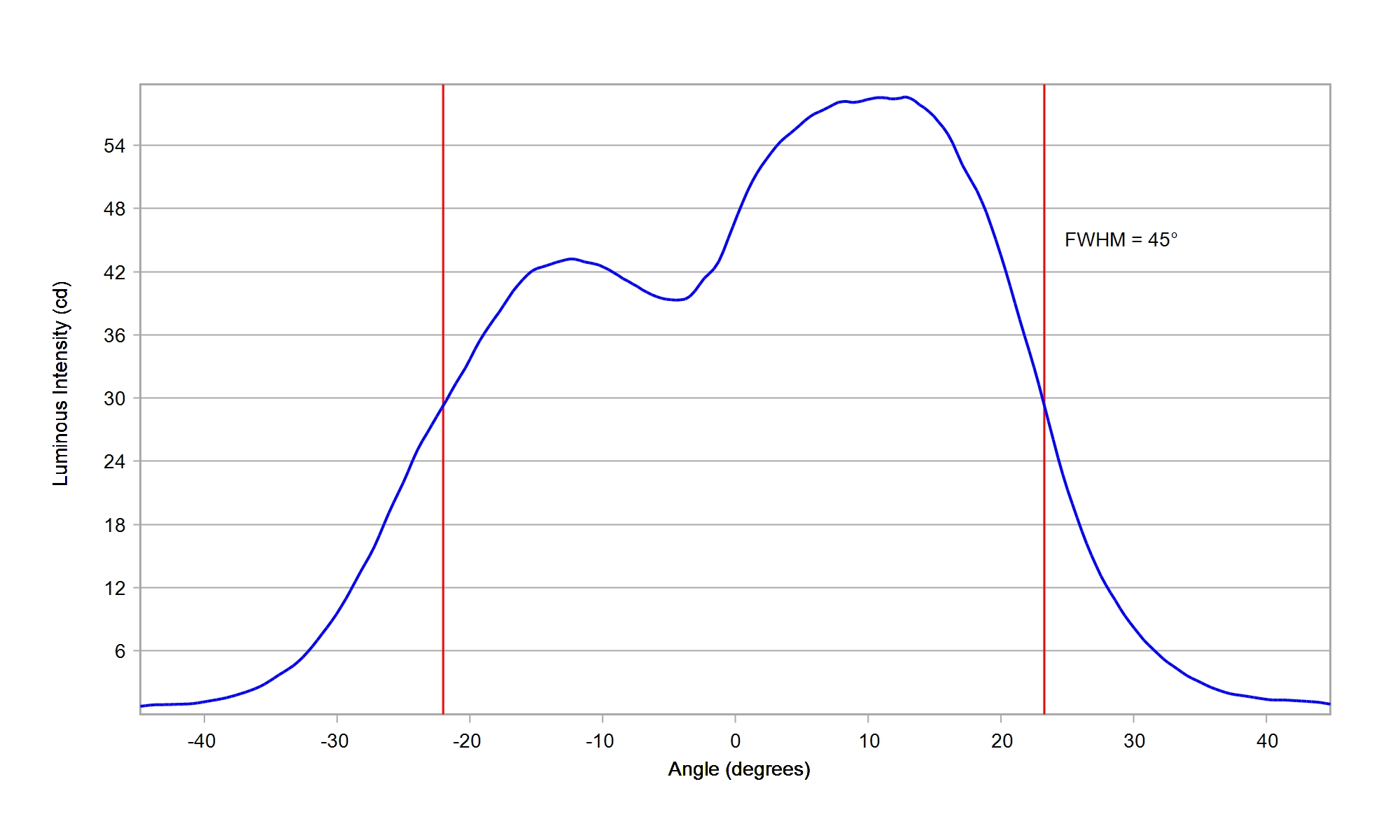

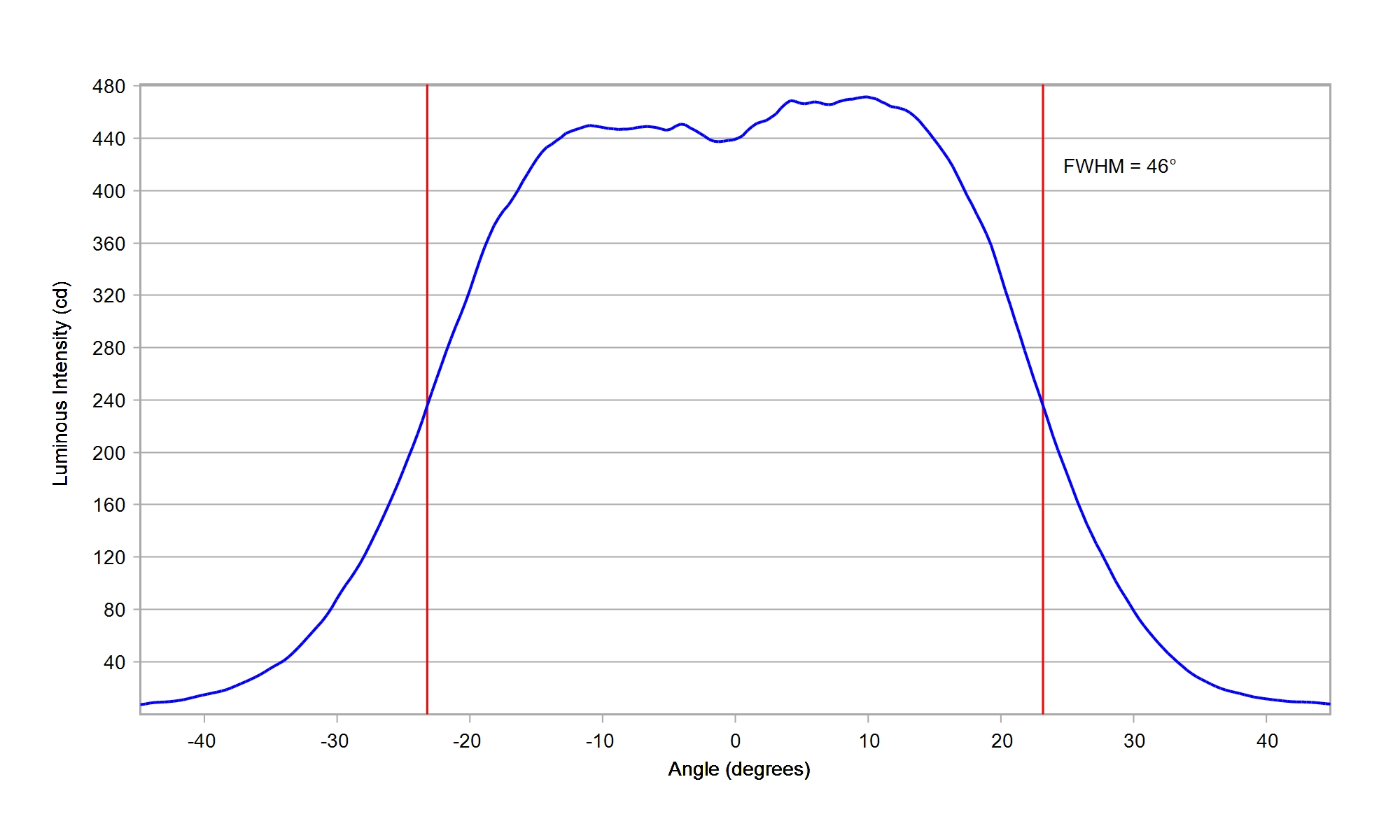

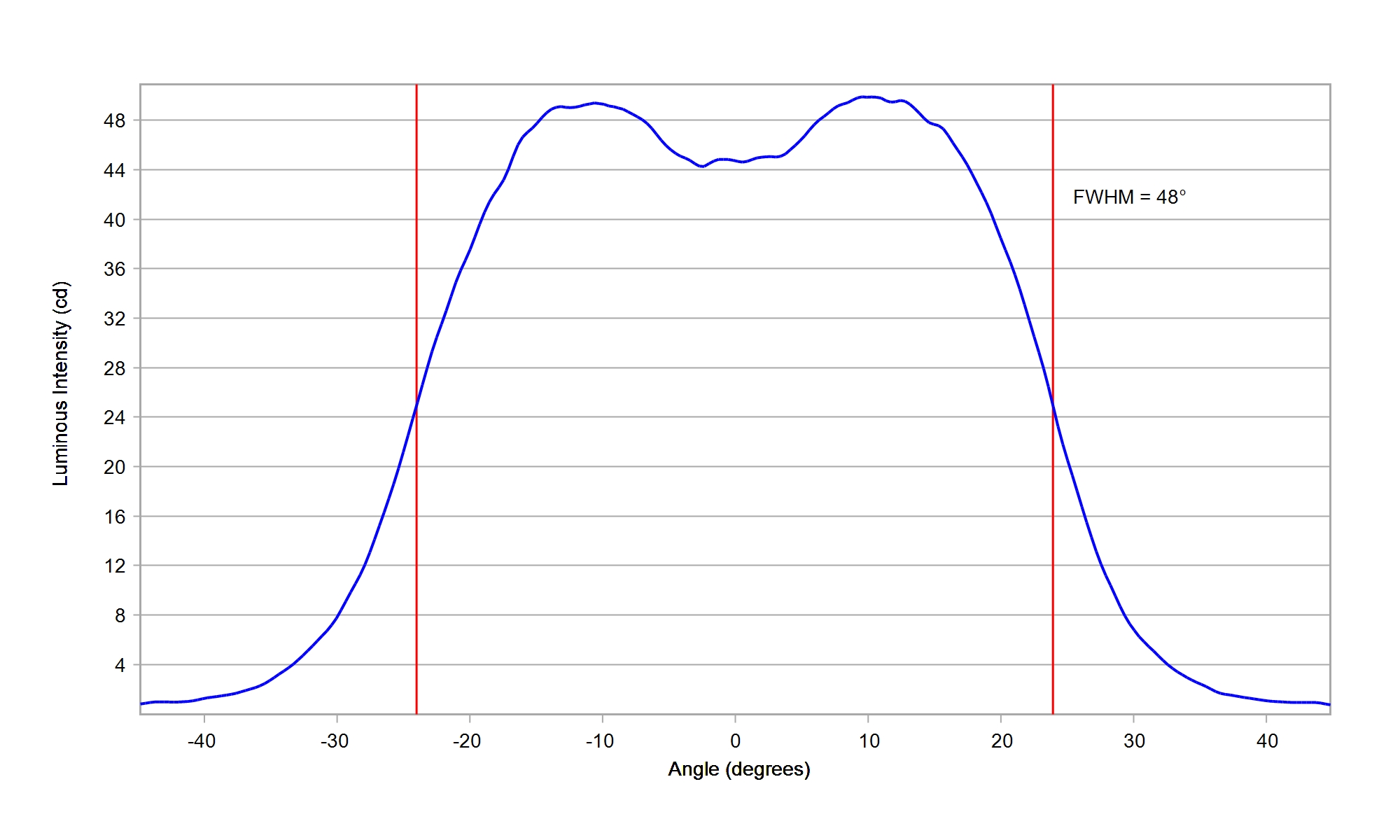

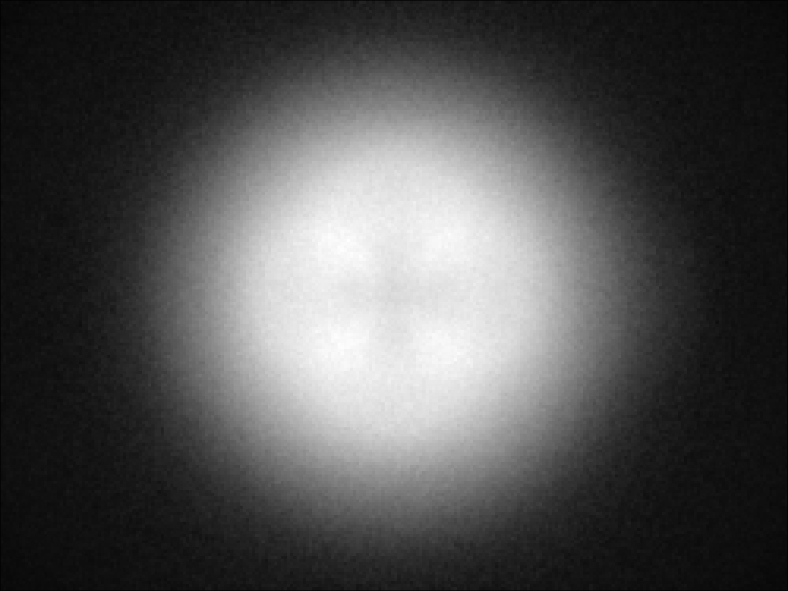

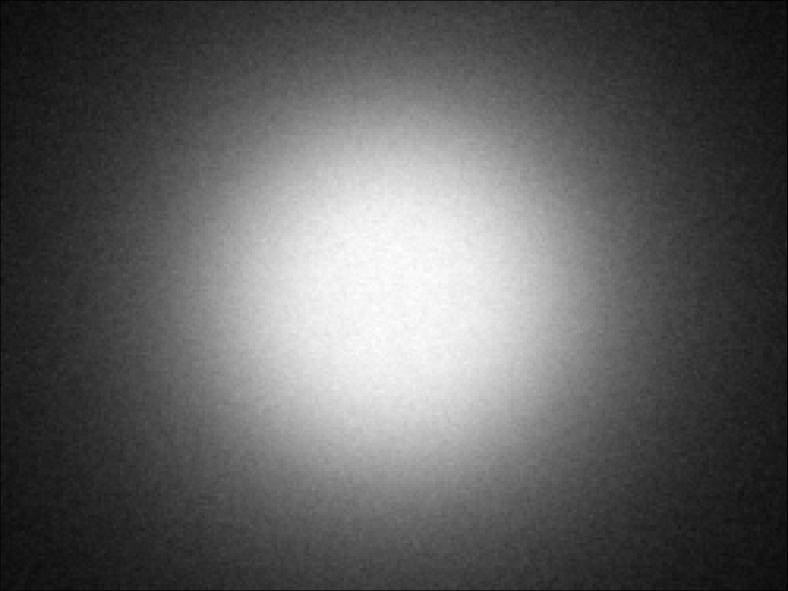

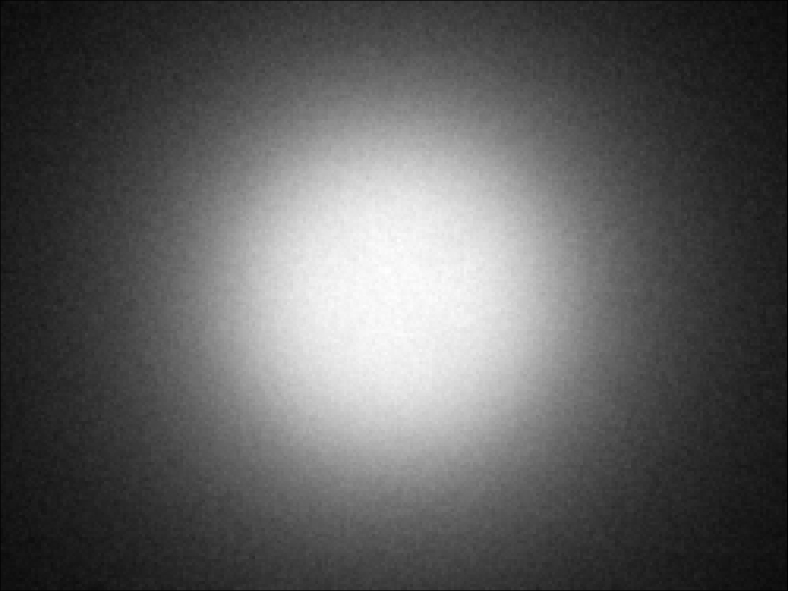

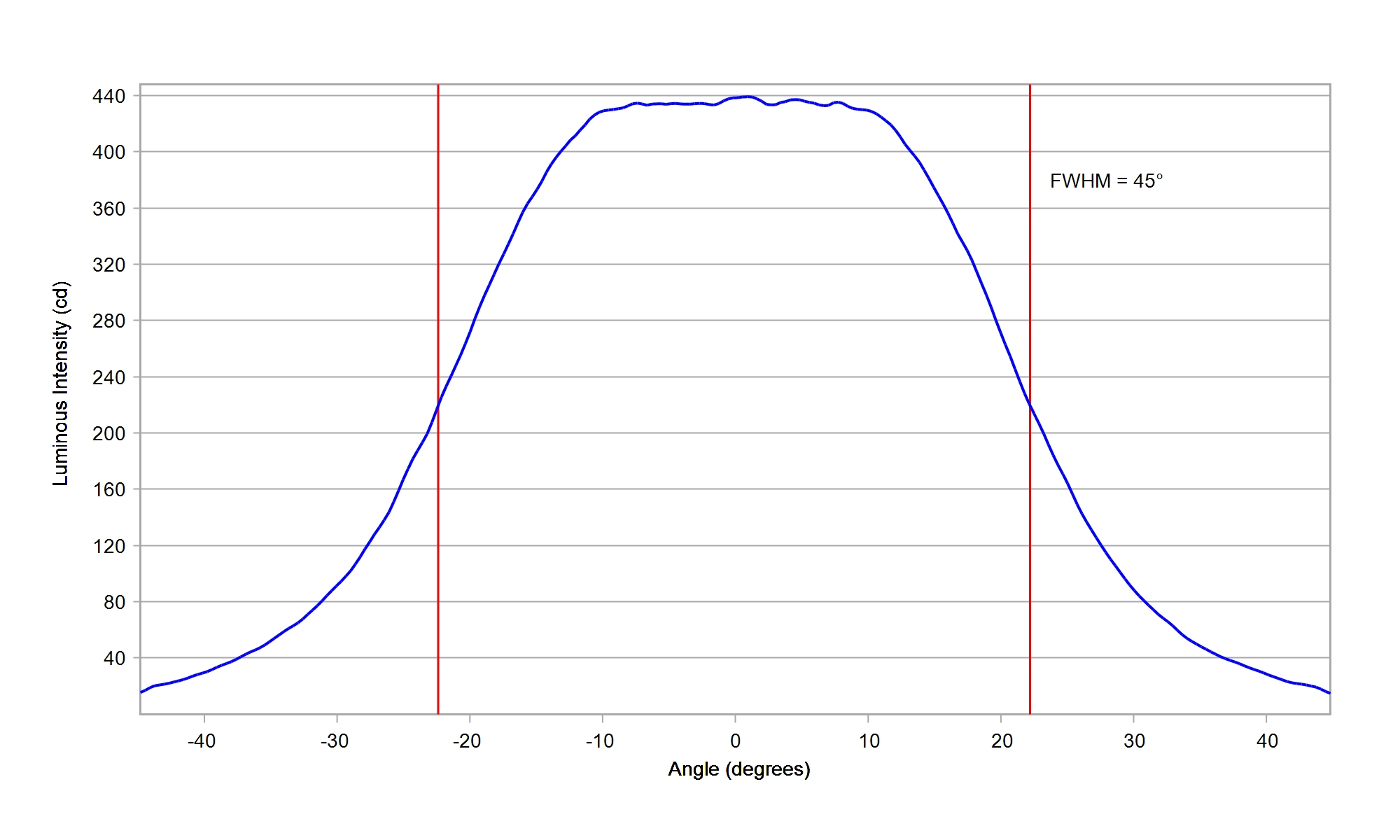

Nichia 229A White
Eff:
83.5%
FWHM:
42.5°
Cd/Im:
1.4
Download

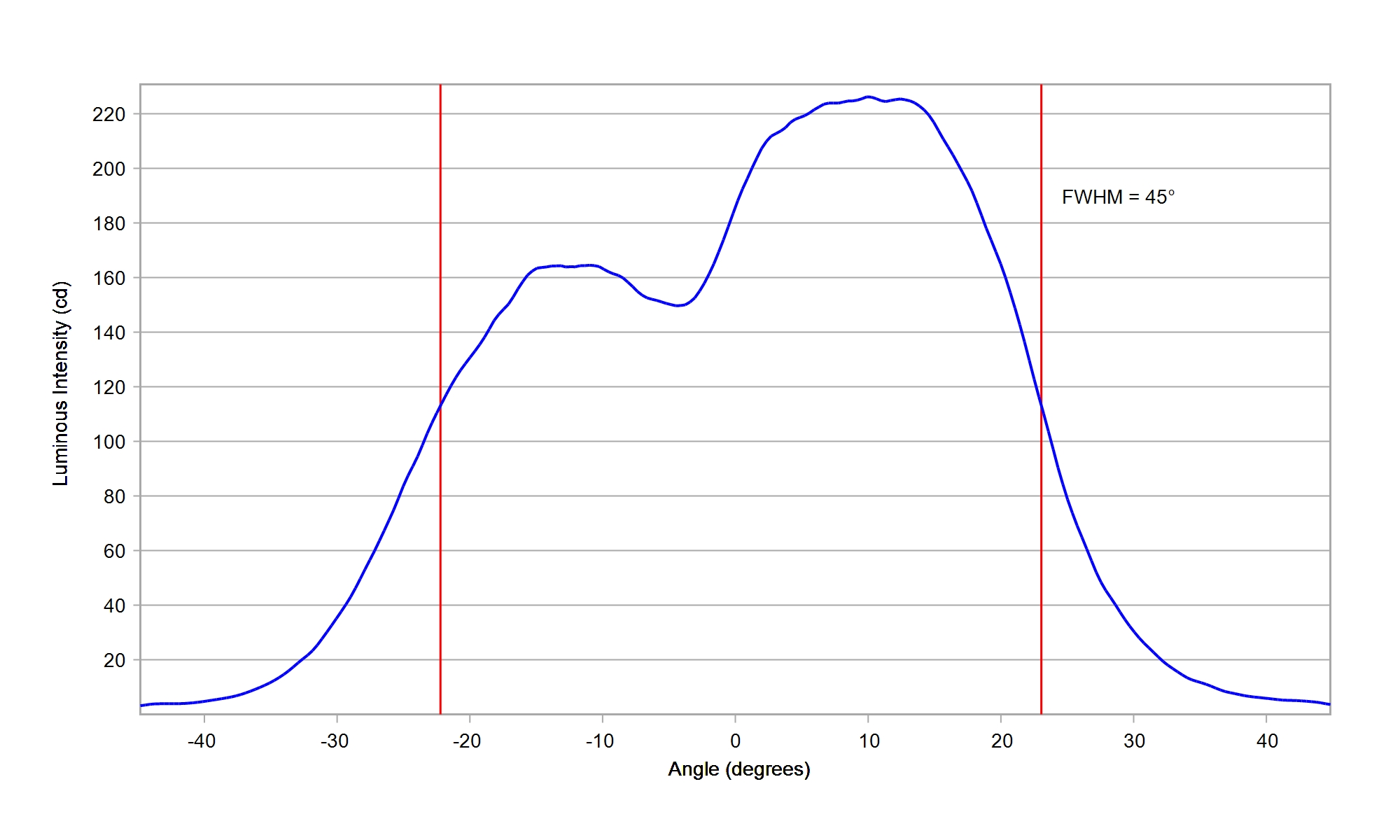

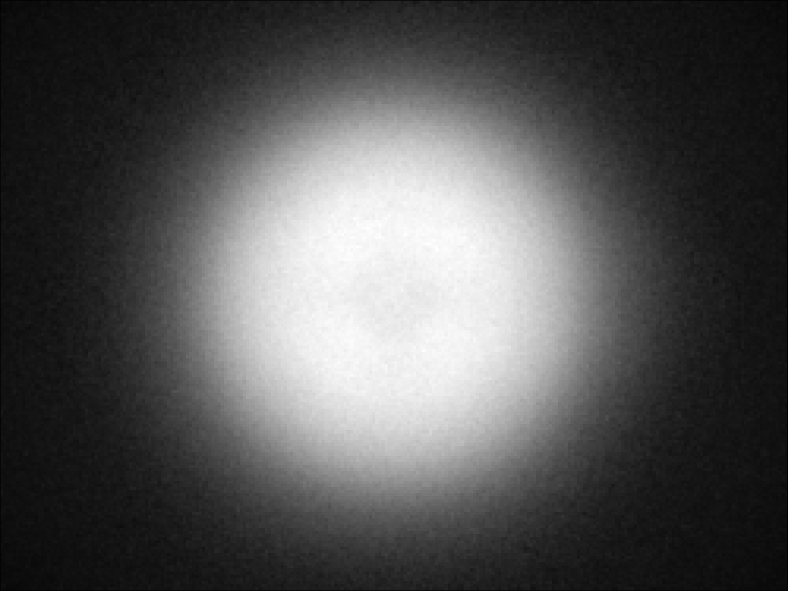

Nichia 757G White
Eff:
87.0%
FWHM:
46°
Cd/Im:
2.1
Download

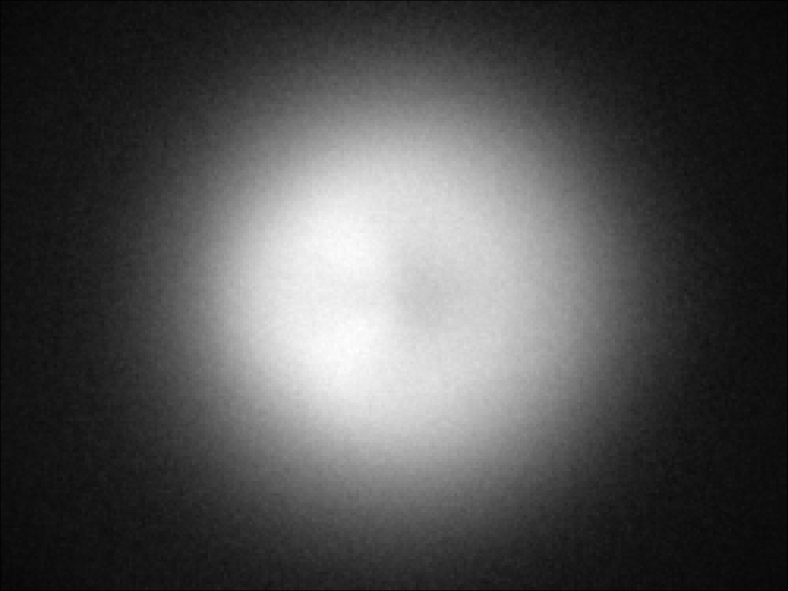

Nichia 757G White
Eff:
86.5%
FWHM:
46.0°
Cd/Im:
1.6
Download
Nichia NCSW CSP E17A White
Eff:
86.5%
FWHM:
15.0°
Cd/Im:
5.2
Download

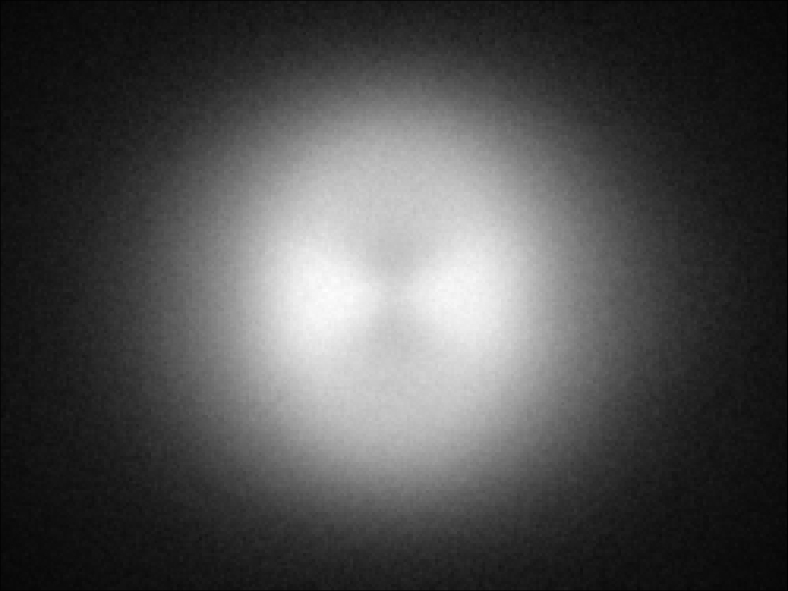

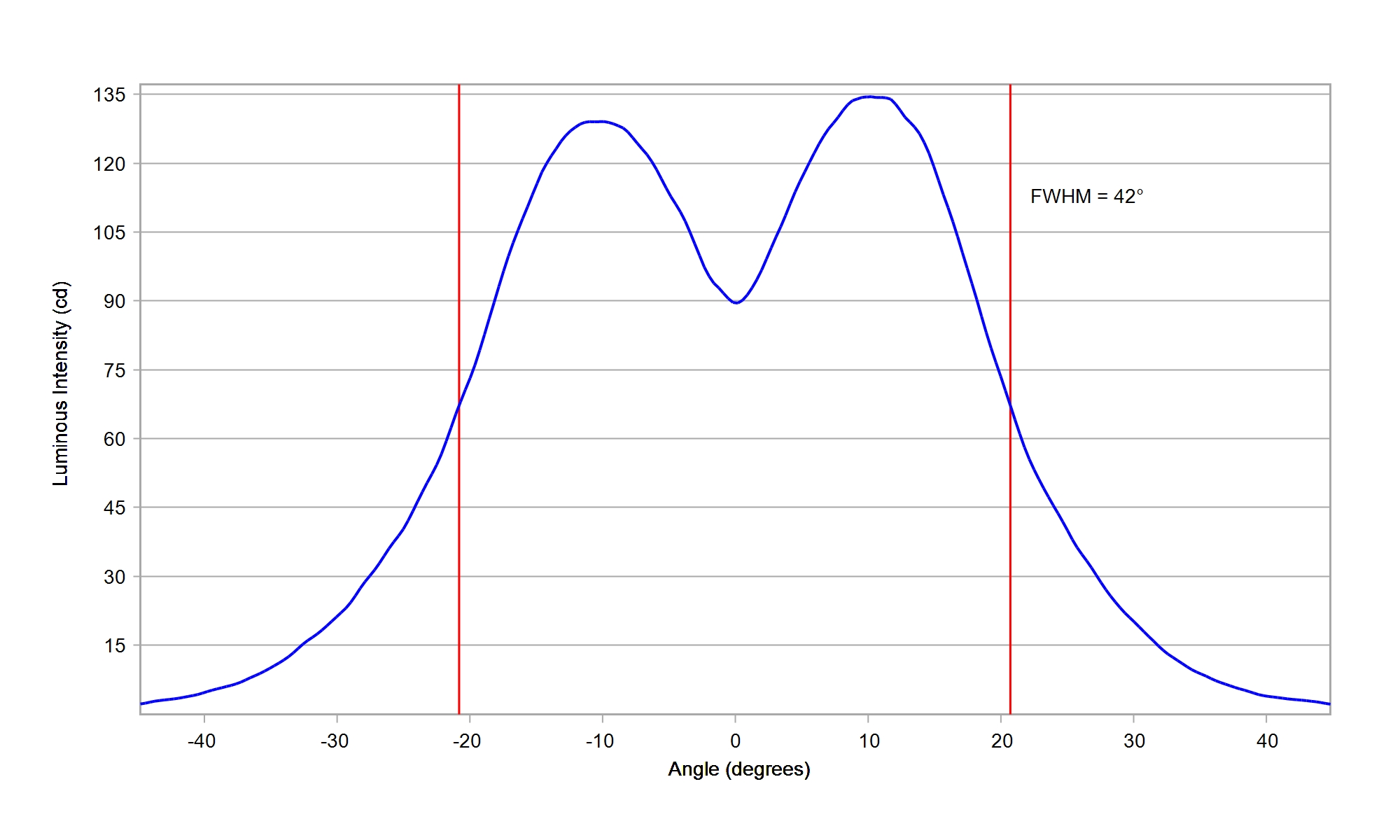

Nichia NF2W 385AR-V2 White
Eff:
87.0%
FWHM:
43°
Cd/Im:
1.8
Download
Nichia NFSW CSP E11A White
Eff:
86.0%
FWHM:
46°
Cd/Im:
1.6
Download

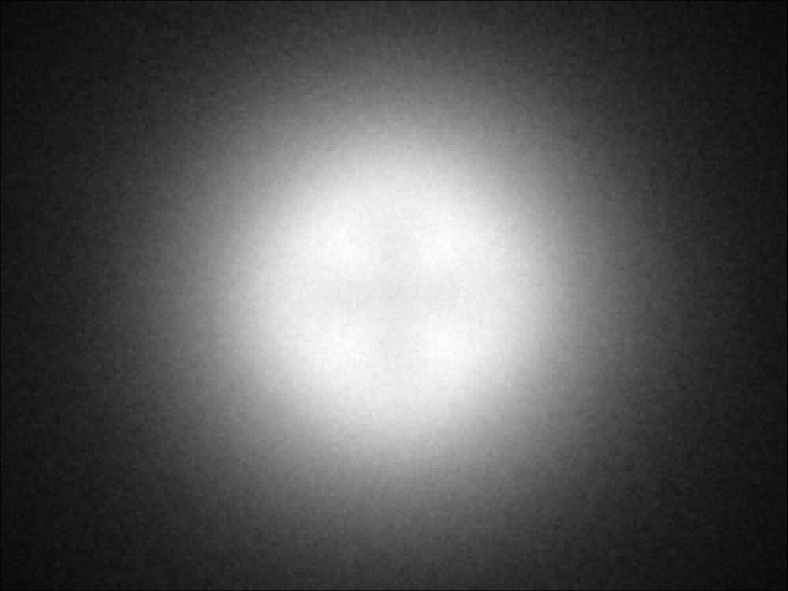

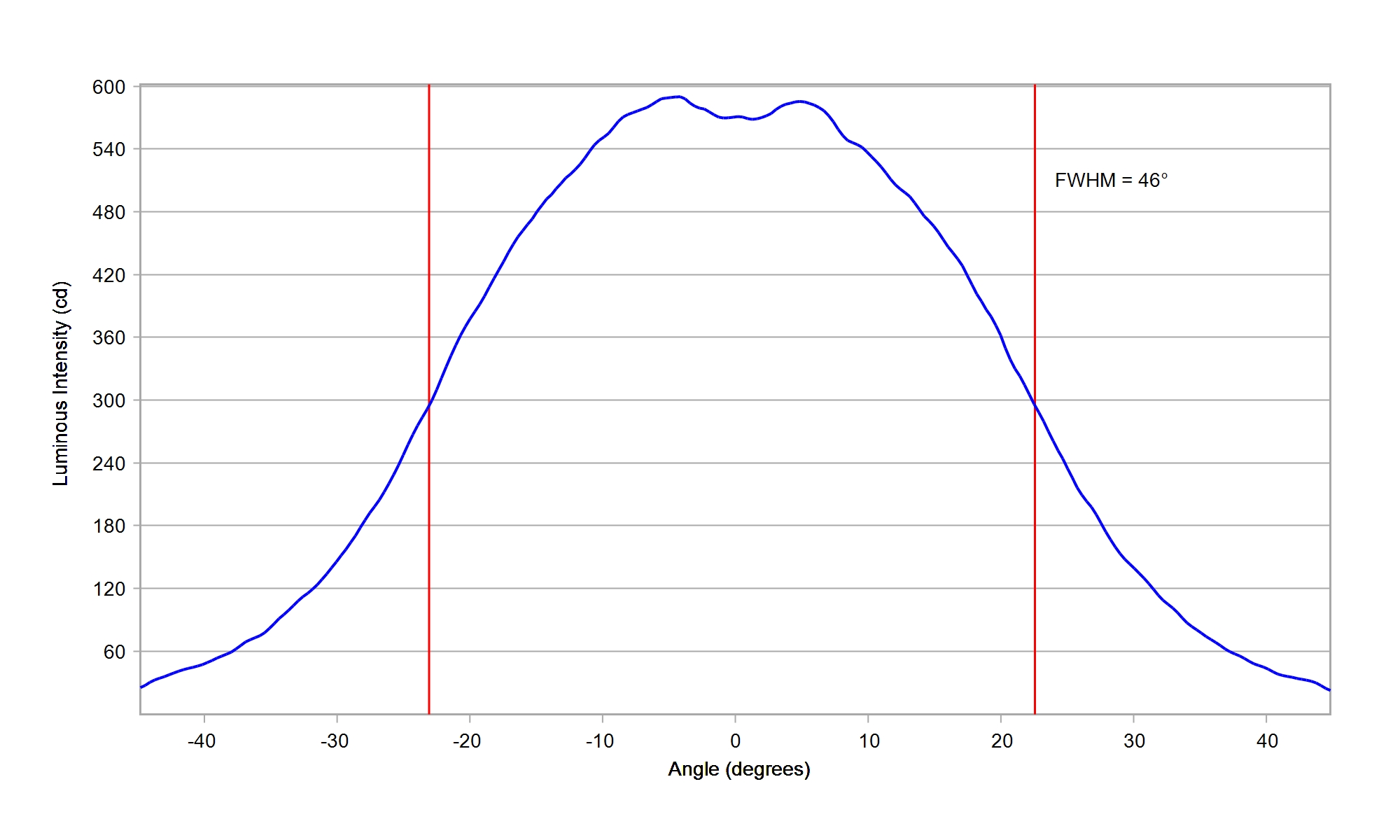

Nichia NV4W B35AM White
Eff:
85.5%
FWHM:
45°
Cd/Im:
1.4
Download
Nichia NVSL 219B White
Eff:
84.5%
FWHM:
46.5°
Cd/Im:
1.5
Download

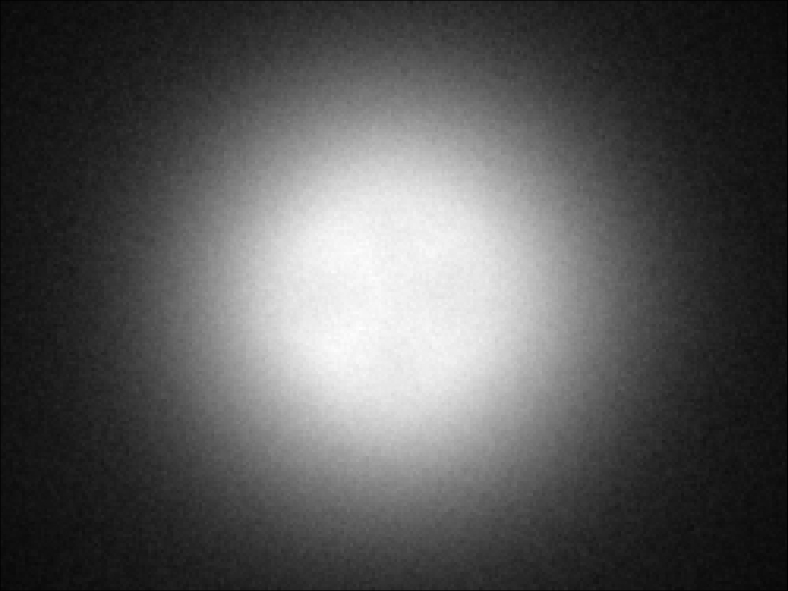

Nichia NVSW 219C White
Eff:
85.0%
FWHM:
21.0°
Cd/Im:
3.6
Download
Nichia NVSW 219F White
Eff:
86.0%
FWHM:
46°
Cd/Im:
1.6
Download
Nichia NVSW 319A White
Eff:
84.5%
FWHM:
44.0°
Cd/Im:
1.5
Download
Nichia NVSW CSP E21A White
Eff:
85.0%
FWHM:
47.4°
Cd/Im:
1.5
Download
Nichia Top Emitting 083 White
Eff:
80.7%
FWHM:
45.2°
Cd/Im:
2.0
Download
Nichia Top Emitting NFSW 036 White
Eff:
80.1%
FWHM:
43.6°
Cd/Im:
2.1
Download
Nichia Top Emitting NS3W 183T White
Eff:
83.1%
FWHM:
45.5°
Cd/Im:
2.0
Download

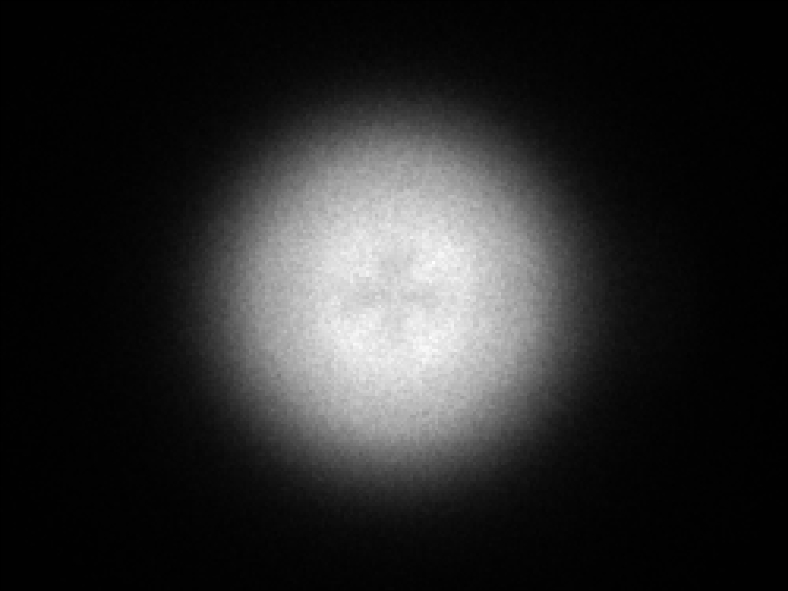

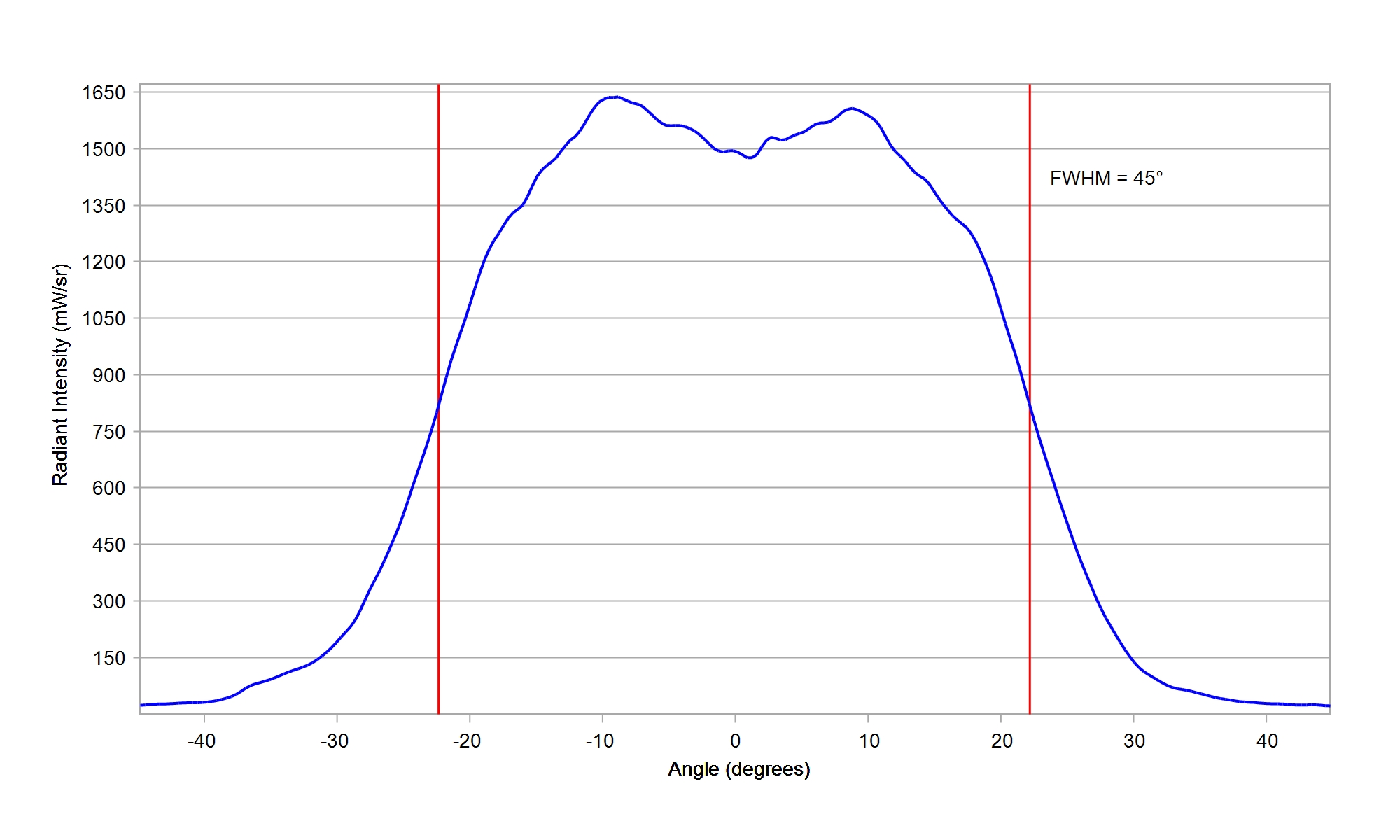

Osram Led Engin LuxiGen LZ1 00R702 IR940nm
Eff:
91.5%
FWHM:
45°
Ipk/W:
1.8
Download
Osram DURIS E 2835 White
Eff:
86.5%
FWHM:
47°
Cd/Im:
1.6
Download
Osram DURIS E2 White
Eff:
87.0%
FWHM:
48.1°
Cd/Im:
1.5
Download
Osram DURIS E3 White
Eff:
90.1%
FWHM:
47.0°
Cd/Im:
1.7
Download
Osram DURIS P8 White
Eff:
85.9%
FWHM:
47.2°
Cd/Im:
1.5
Download
Osram DURIS S2 White
Eff:
91.0%
FWHM:
46.0°
Cd/Im:
1.5
Download
Osram DURIS S5 Deep Blue
Eff:
86.0%
FWHM:
44.0°
Cd/Im:
1.7
Download
Osram DURIS S5 Green
Eff:
87.0%
FWHM:
47.0°
Cd/Im:
1.6
Download

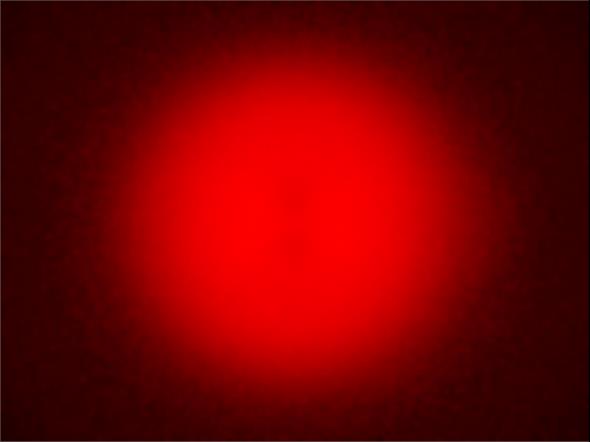

Osram DURIS S5 Red
Eff:
87.5%
FWHM:
46°
Cd/Im:
1.7
Download
Osram DURIS S5 White
Eff:
86.0%
FWHM:
45.8°
Cd/Im:
1.5
Download
Osram GOLDEN DRAGON W5SM White
Eff:
82.2%
FWHM:
44.1°
Cd/Im:
2.0
Download

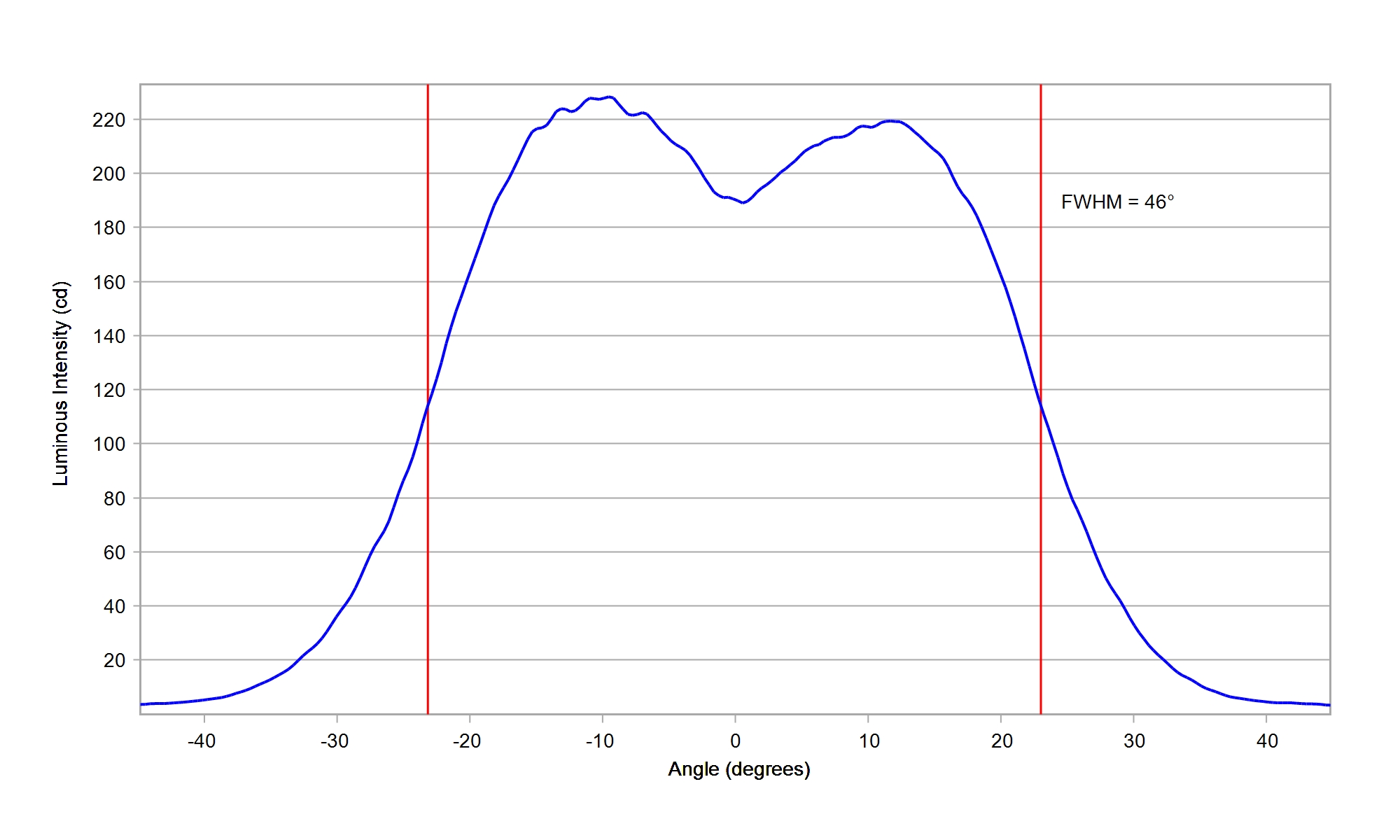

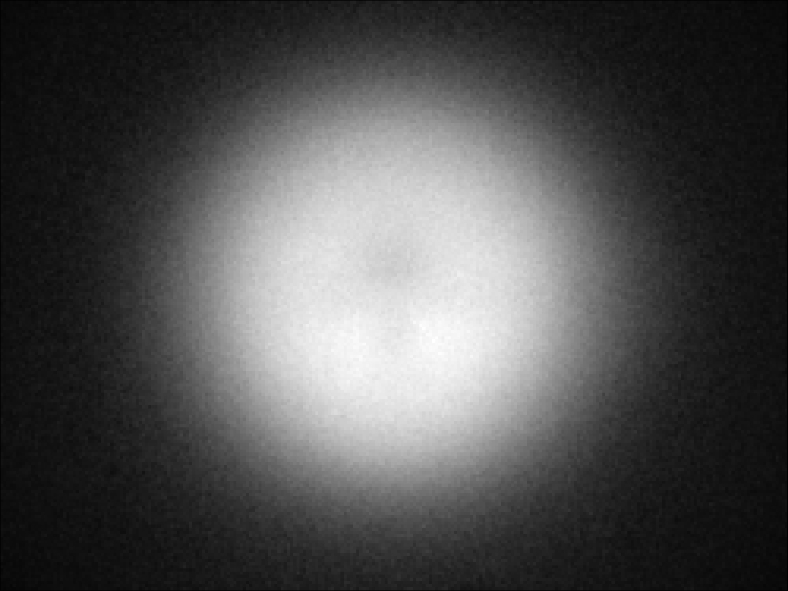

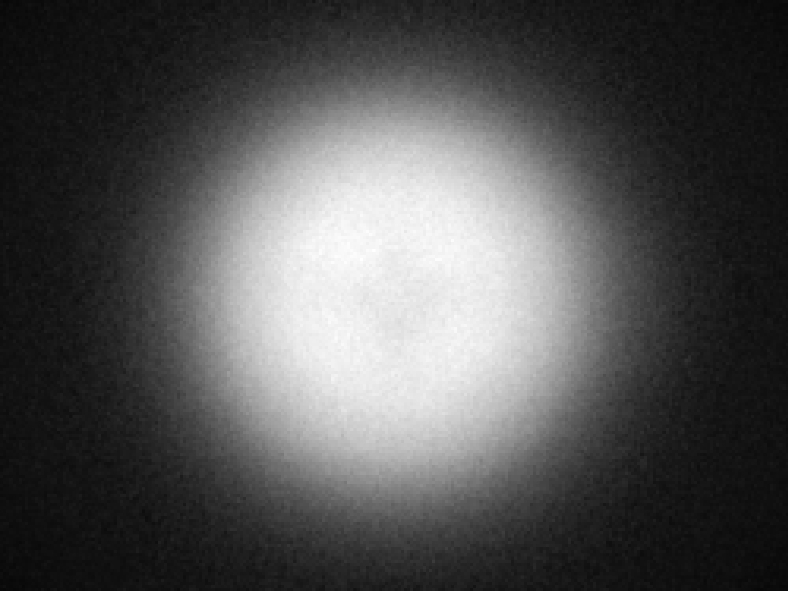

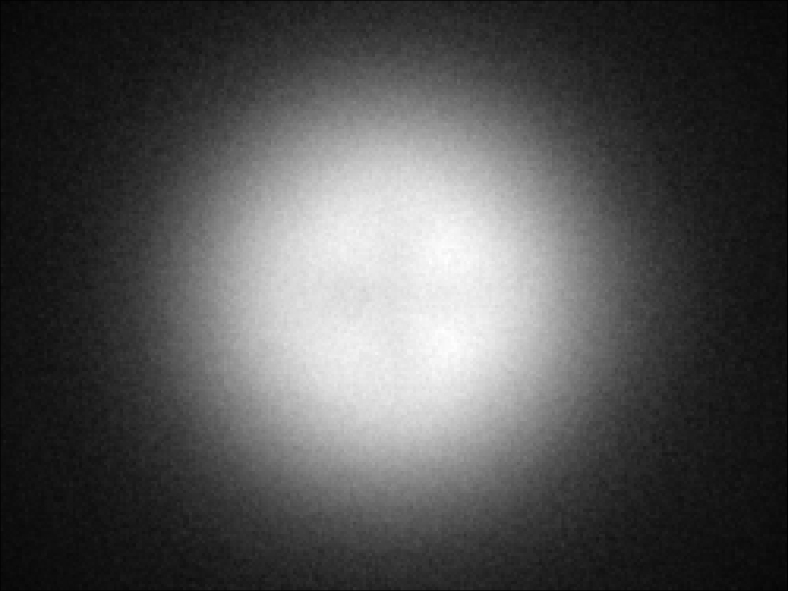

Osram OSCONIQ C 2424 White
Eff:
87.0%
FWHM:
46.0°
Cd/Im:
1.6
Download
Osram OSCONIQ P3737 White
Eff:
84.0%
FWHM:
45.5°
Cd/Im:
1.4
Download

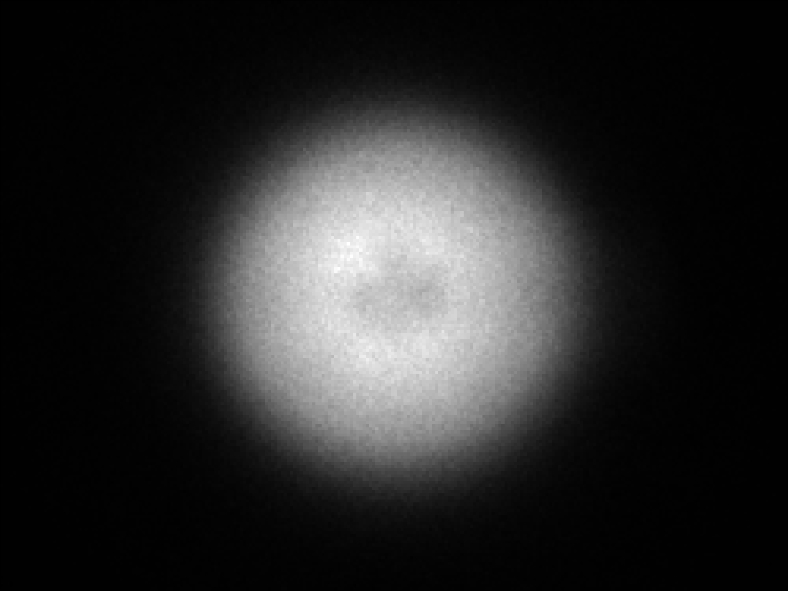

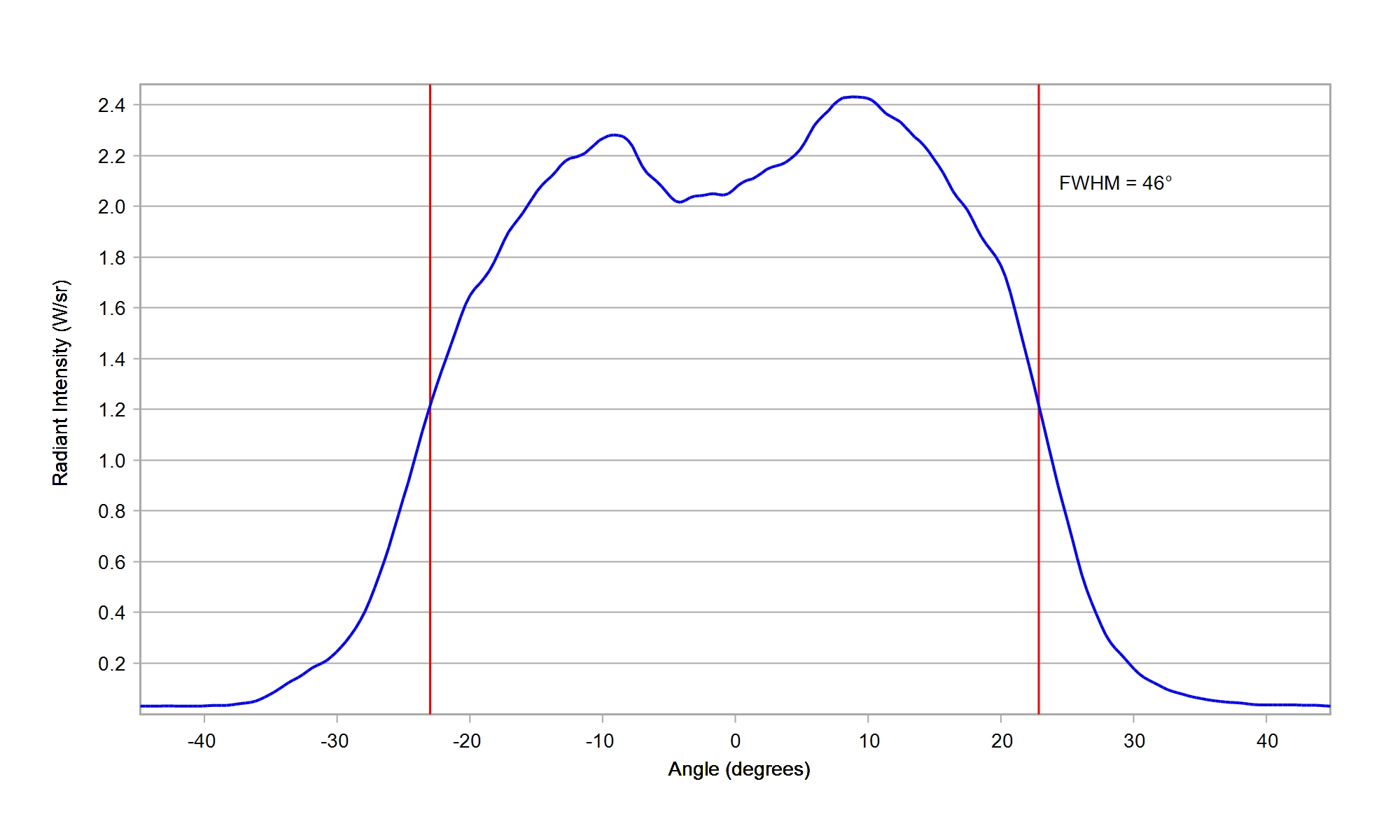

Osram OSLON Black SFH 4715AS IR
Eff:
90.0%
FWHM:
46°
Ipk/W:
1.8
Download
Osram OSLON Black SFH 4716AS IR
Eff:
89.5%
FWHM:
46°
Ipk/W:
1.8
Download
Osram OSLON Black SFH 4725S IR
Eff:
91.5%
FWHM:
40.5 x 39°
Ipk/W:
2.0
Download

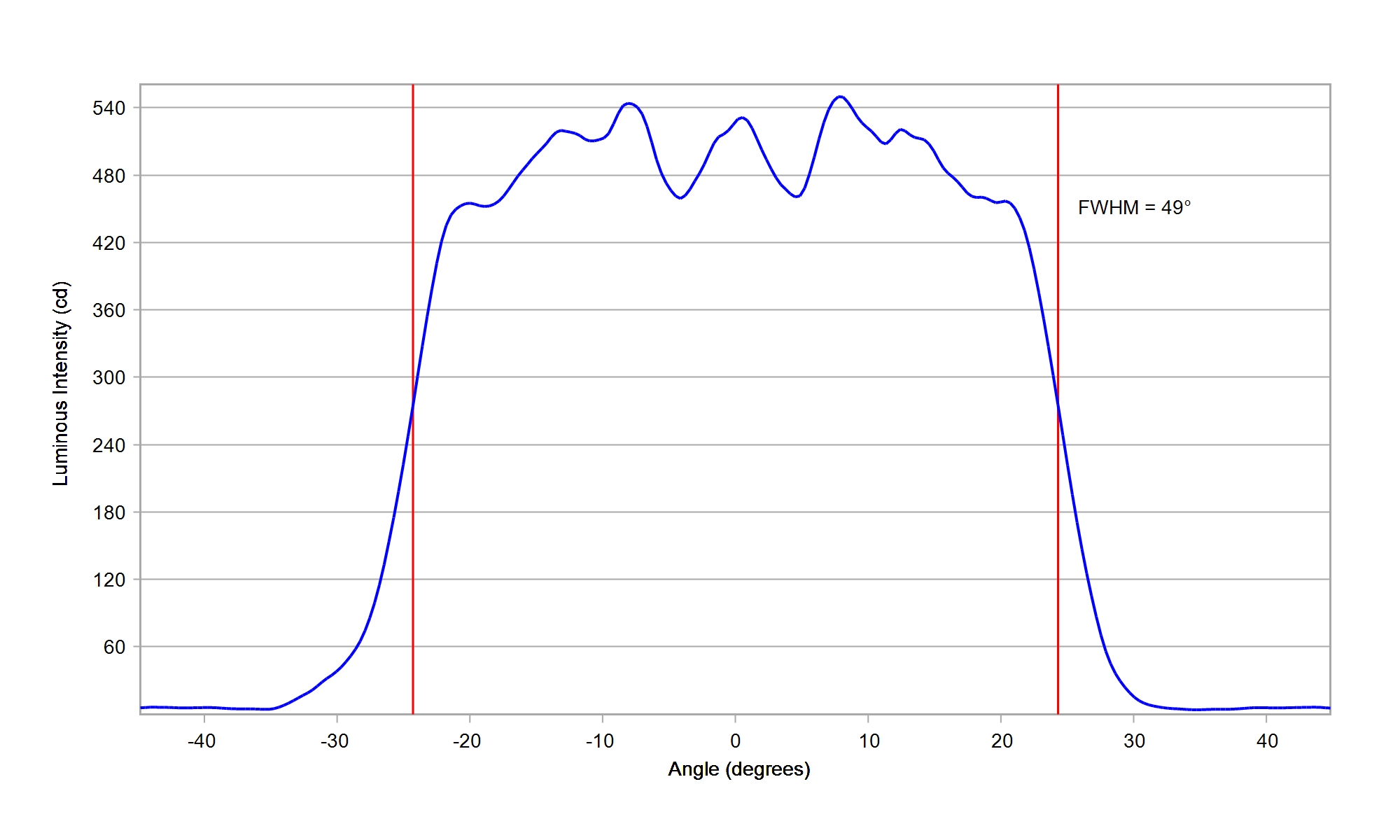

Osram OSLON Boost HM KW CELMM1.TG
Eff:
87.0%
FWHM:
49°
Cd/Im:
1.7
Download
Osram OSLON Pure 1010 CSP GC VJLPE1.13 Cyan
Eff:
87.5%
FWHM:
48°
Cd/Im:
1.6
Download
Osram OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue
Eff:
85.5%
FWHM:
49°
Ipk/W:
1.5
Download
Osram OSLON Pure 1010 CSP GG VJLPE1.F3 Green
Eff:
87.0%
FWHM:
47°
Cd/Im:
1.6
Download
Osram OSLON Pure 1010 CSP GR VJLPE1.F3 Red
Eff:
85.0%
FWHM:
46°
Cd/Im:
1.5
Download
Osram OSLON Pure 1010 CSP GT VJLPE1.13 True Green
Eff:
87.0%
FWHM:
48°
Cd/Im:
1.6
Download

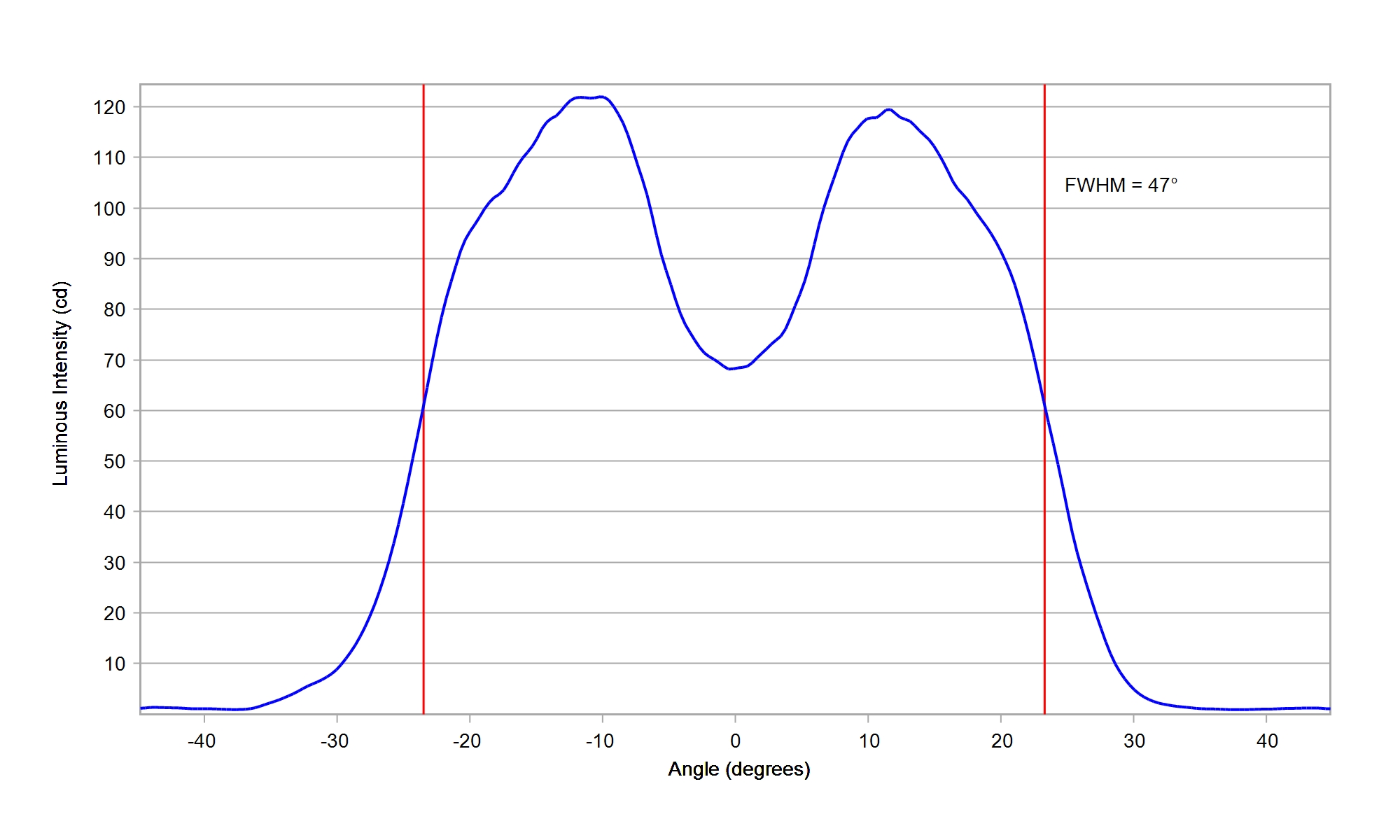

Osram OSLON Pure 1010 CSP GW VJLPE1.CM White
Eff:
86.5%
FWHM:
47°
Cd/Im:
1.6
Download

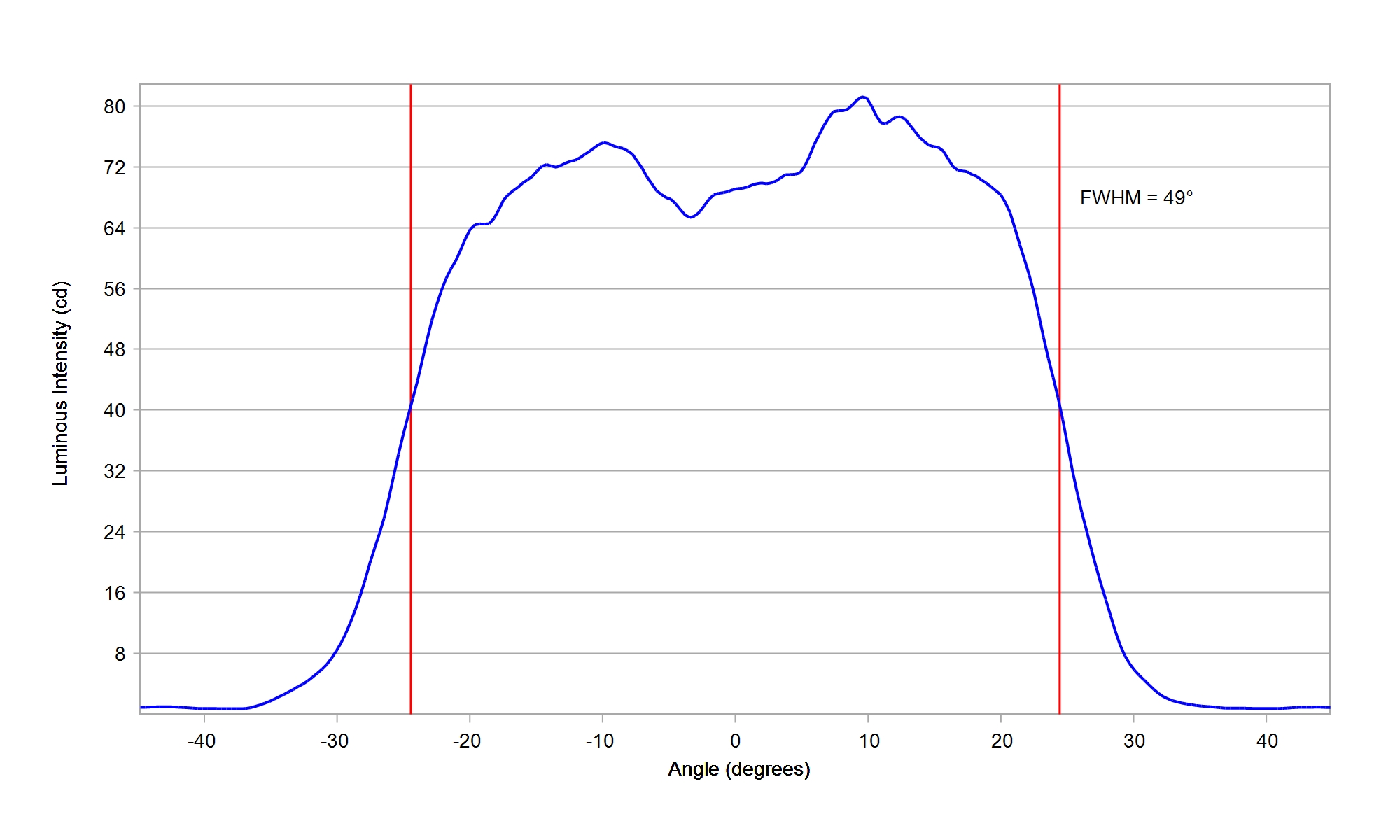

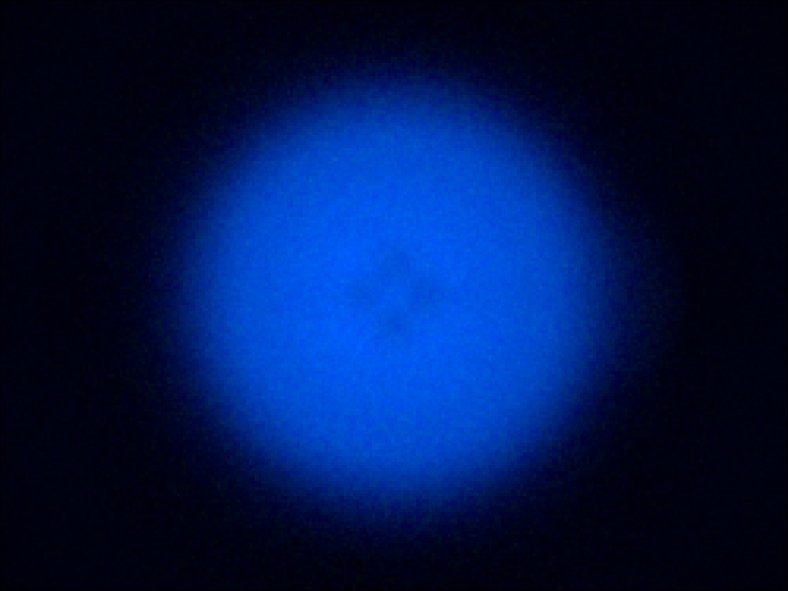

Osram OSLON Pure 1414 GB VJLPL1.F3 Blue
Eff:
88.0%
FWHM:
49°
Cd/Im:
1.6
Download

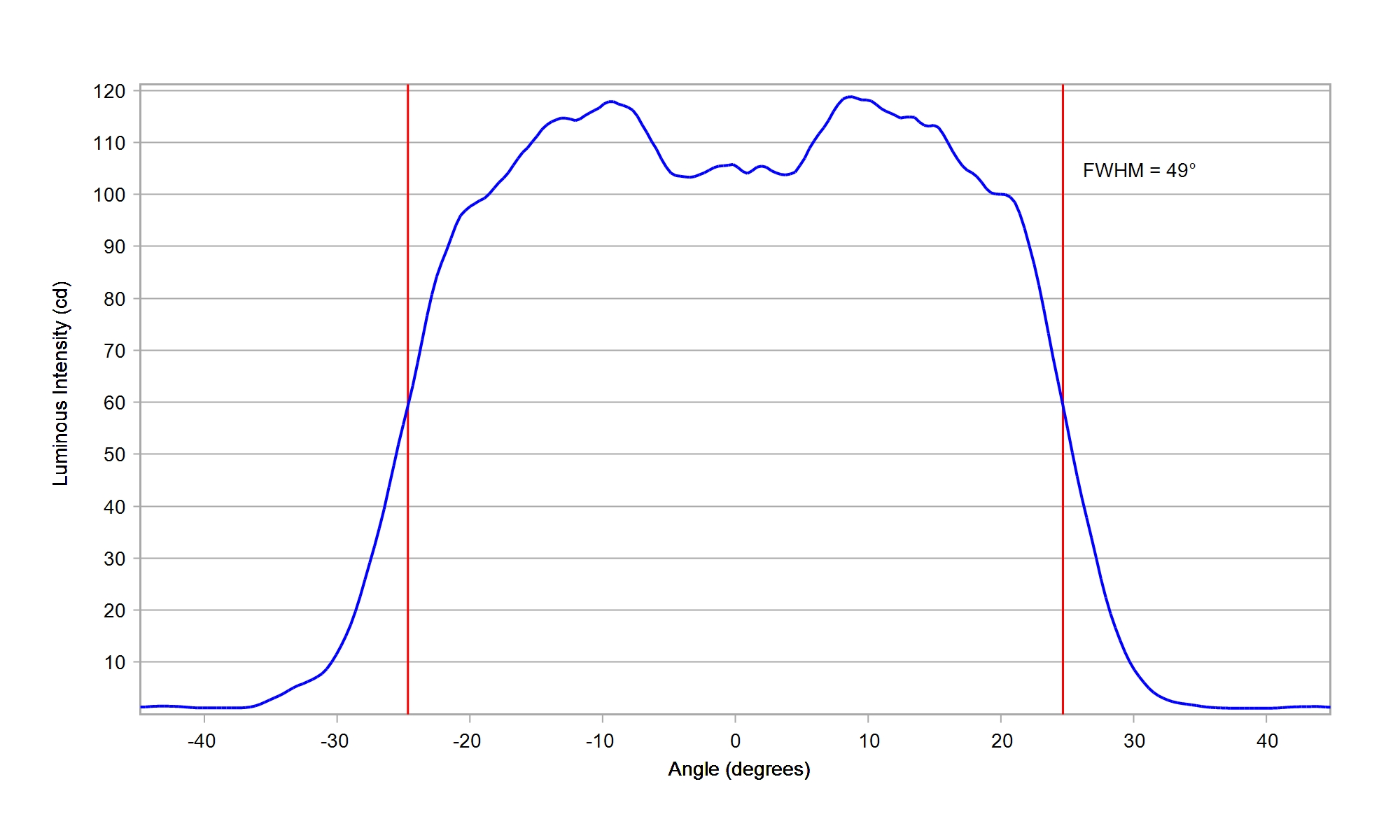

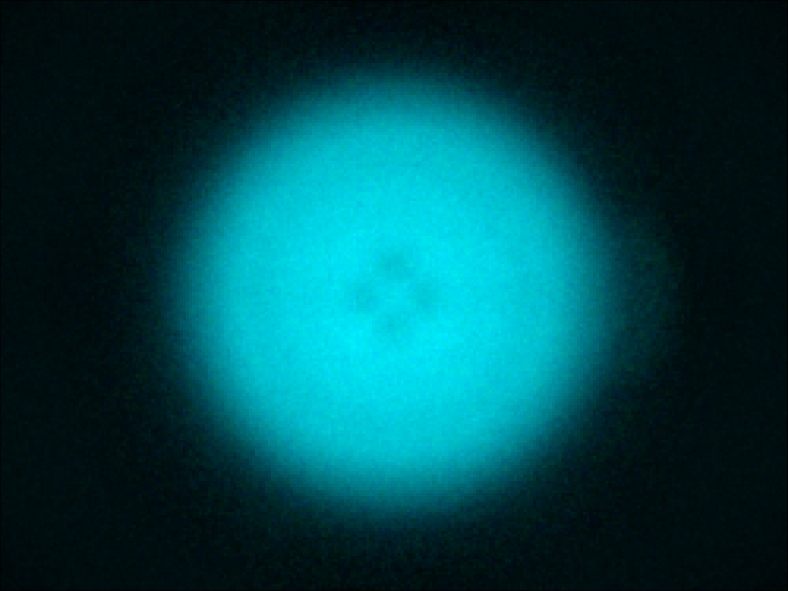

Osram OSLON Pure 1414 GC VJLPL1.13 Cyan
Eff:
88.0%
FWHM:
49°
Cd/Im:
1.6
Download

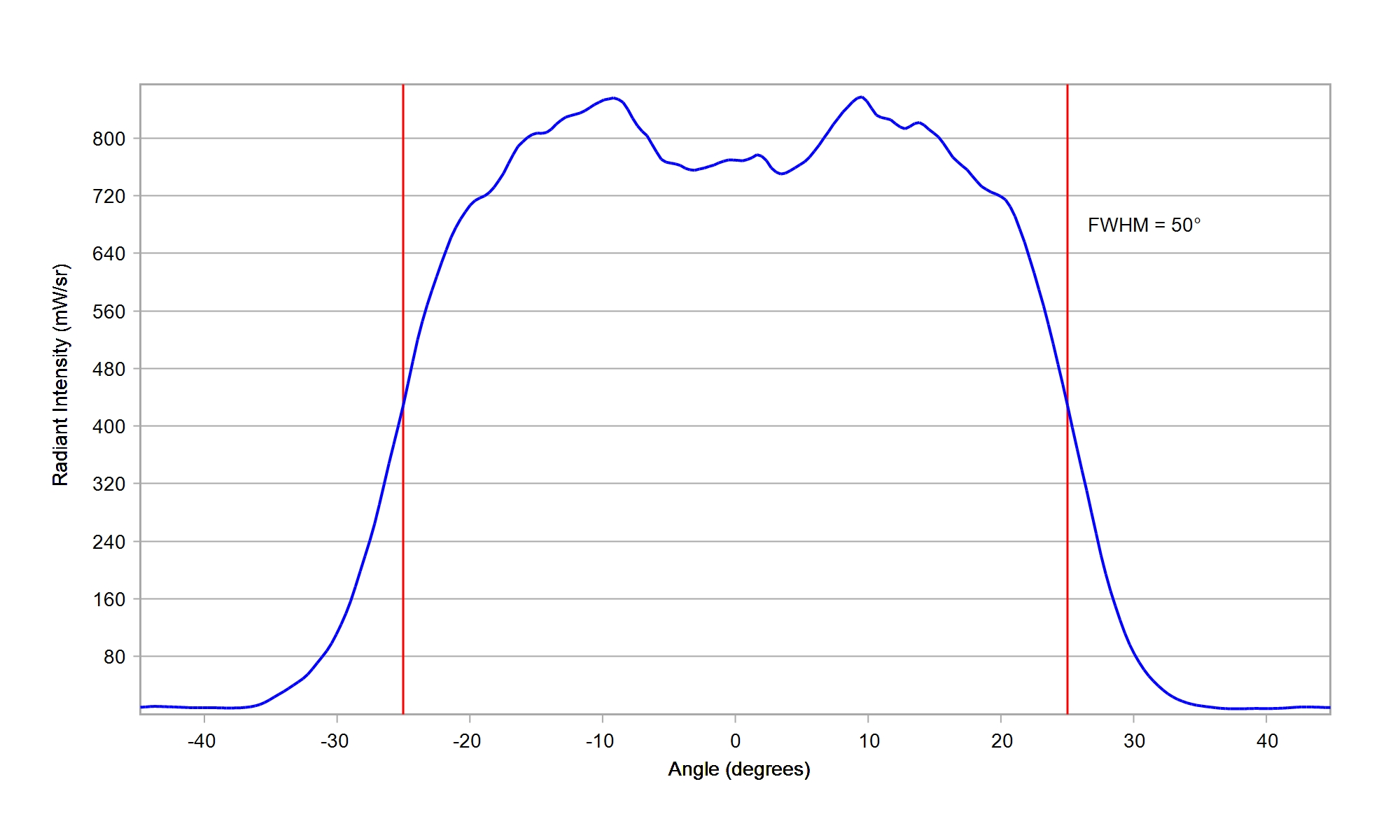

Osram OSLON Pure 1414 GD VJLPL1.14 Deep Blue
Eff:
86.5%
FWHM:
50°
Ipk/W:
1.4
Download
Osram OSLON Pure 1414 GR VJLPL1.23 Red
Eff:
87.0%
FWHM:
47°
Cd/Im:
1.6
Download

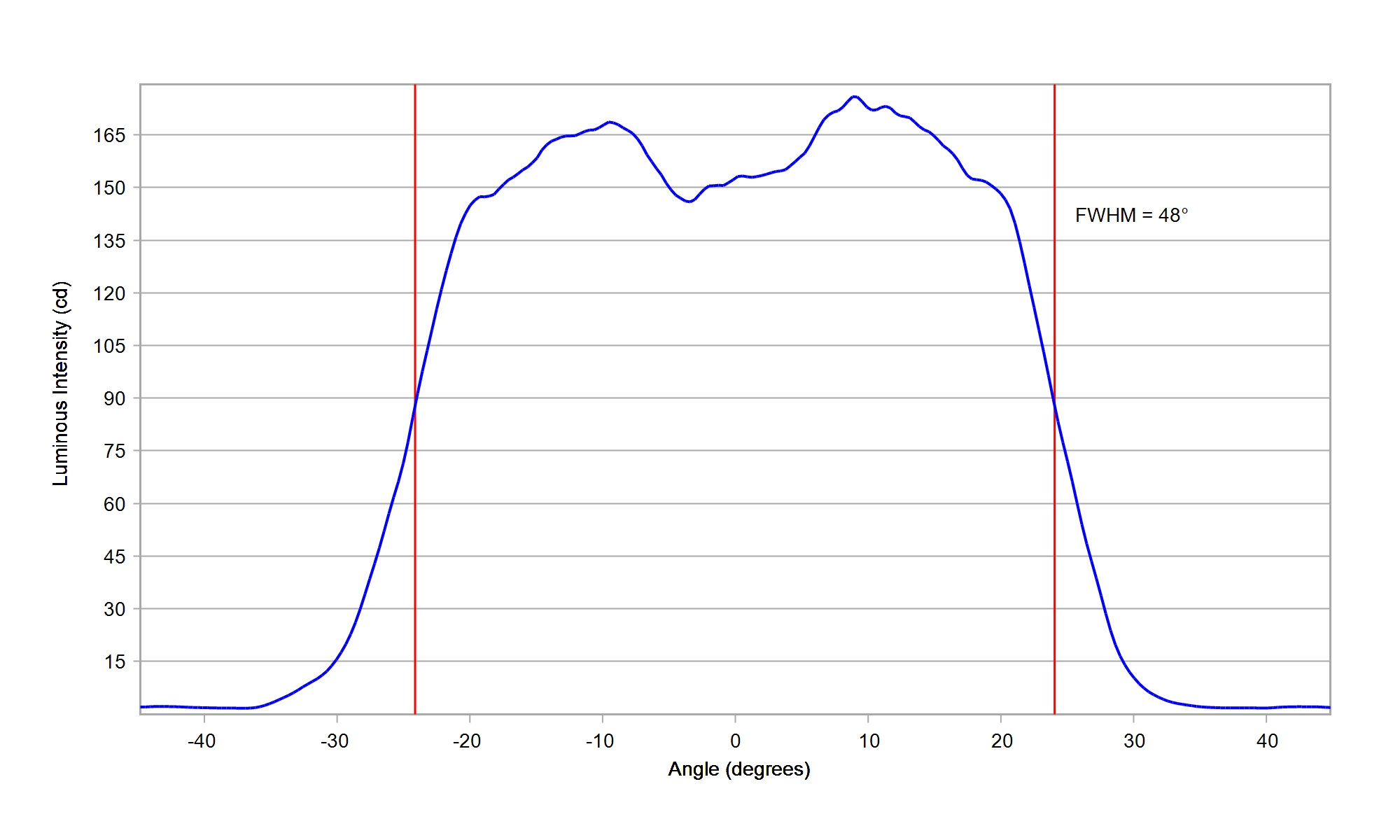

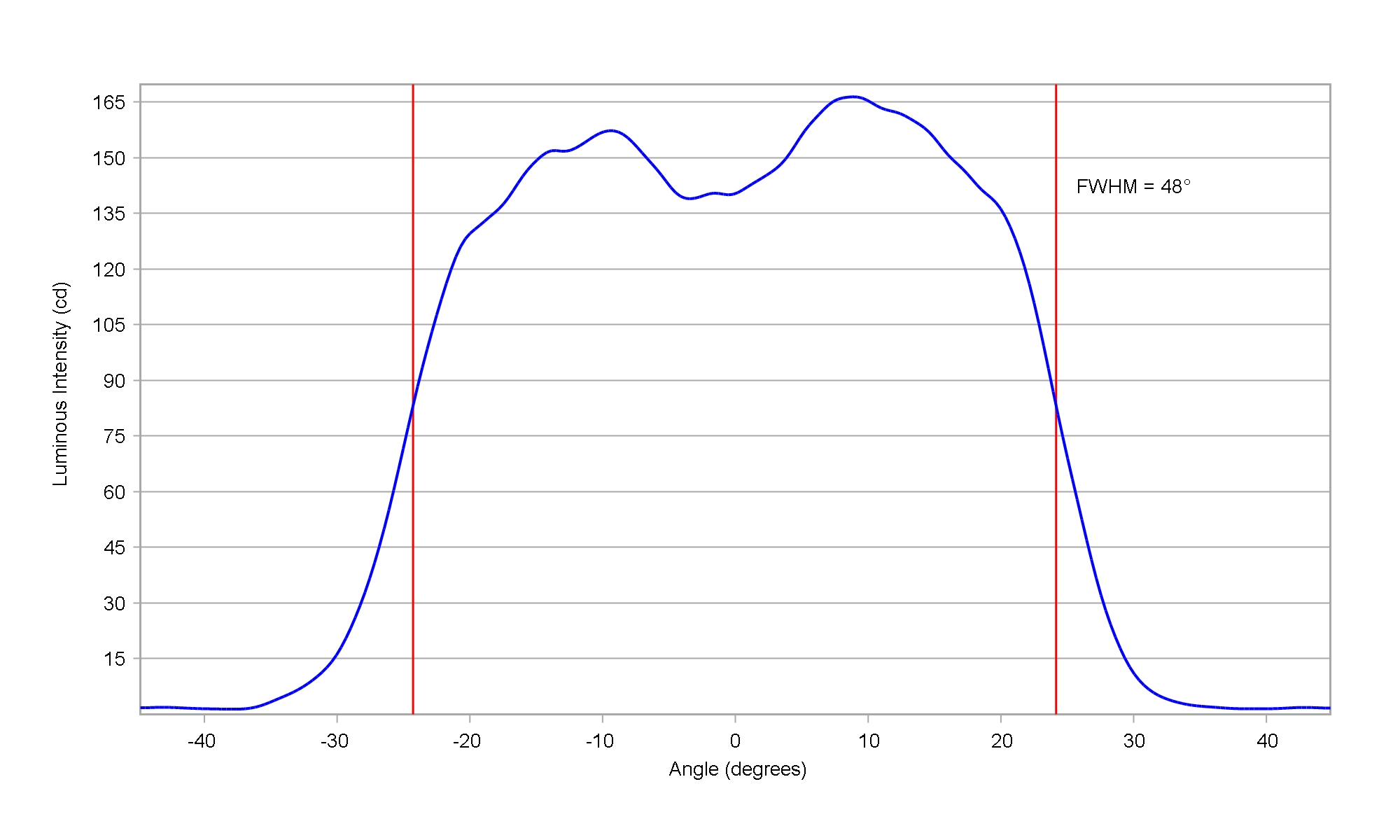

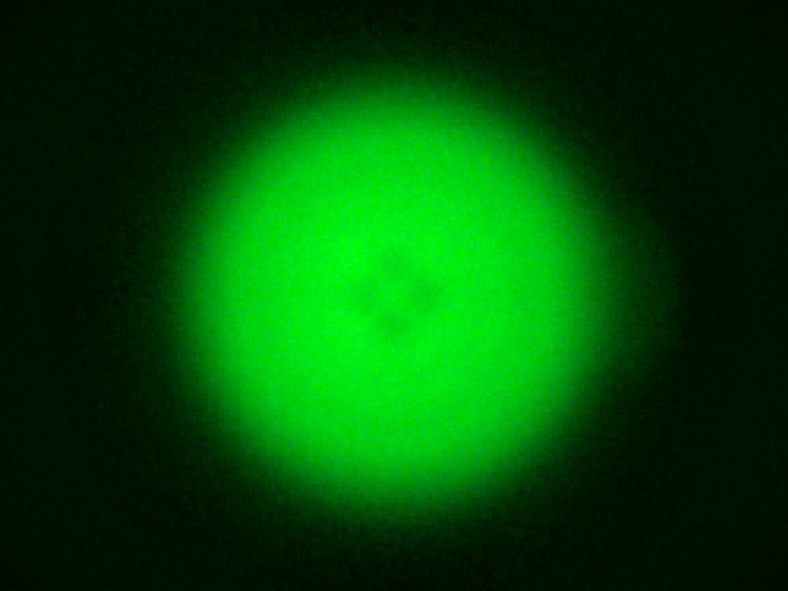

Osram OSLON Pure 1414 GT VJLPL1.13 True Green
Eff:
88.0%
FWHM:
48°
Cd/Im:
1.6
Download

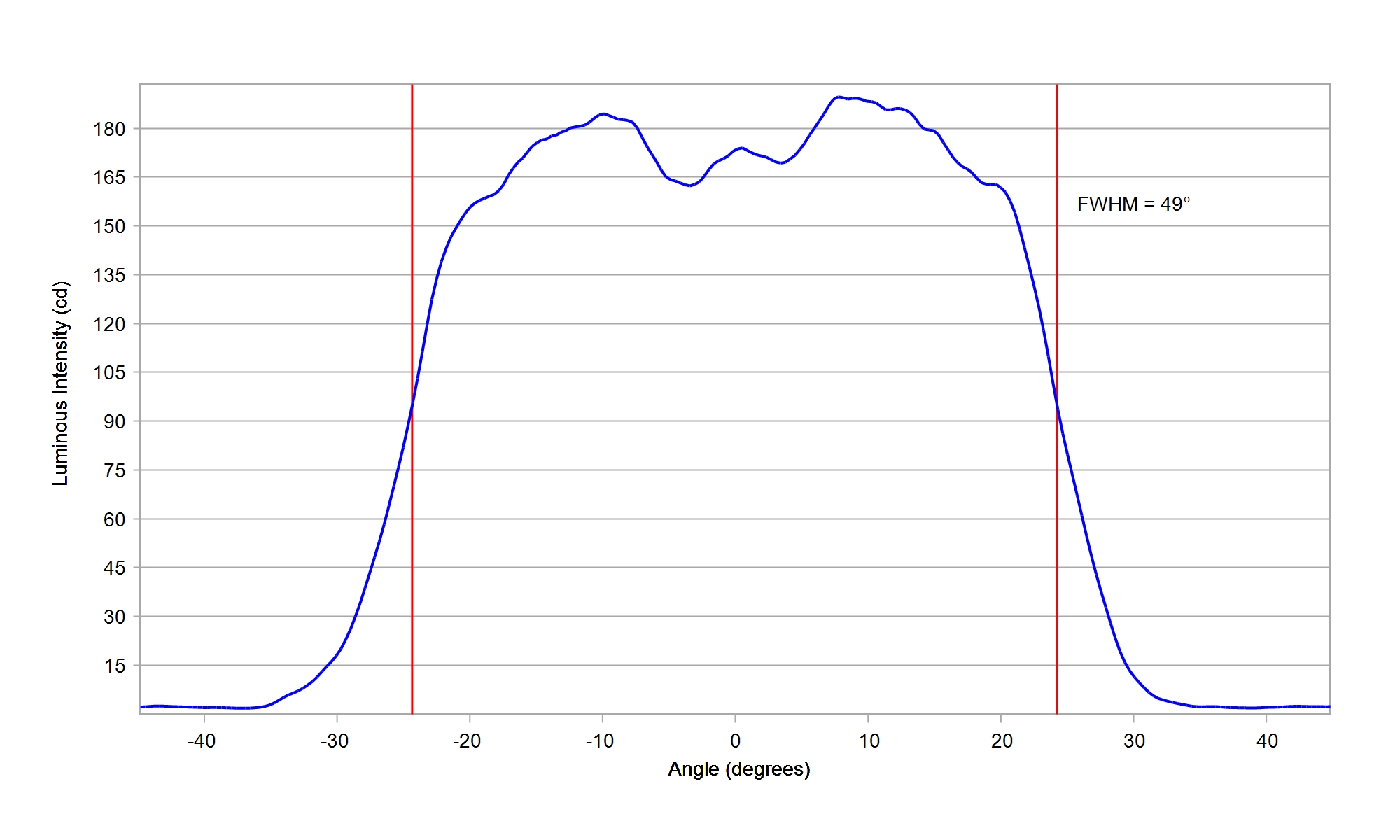

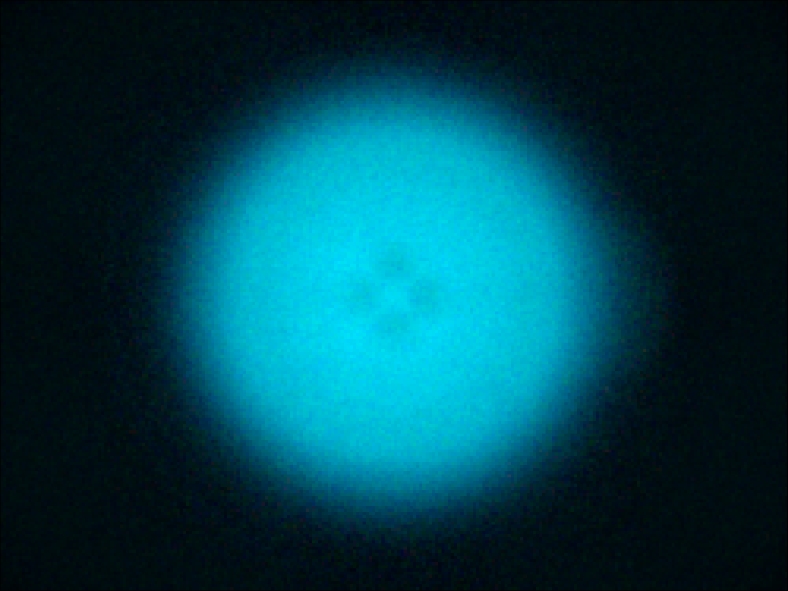

Osram OSLON Pure 1414 GV VJLPL1.F3 Verde
Eff:
87.0%
FWHM:
49°
Cd/Im:
1.6
Download
Osram OSLON Pure 1414 GW VJLPL1.CM White
Eff:
87.5%
FWHM:
48°
Cd/Im:
1.6
Download

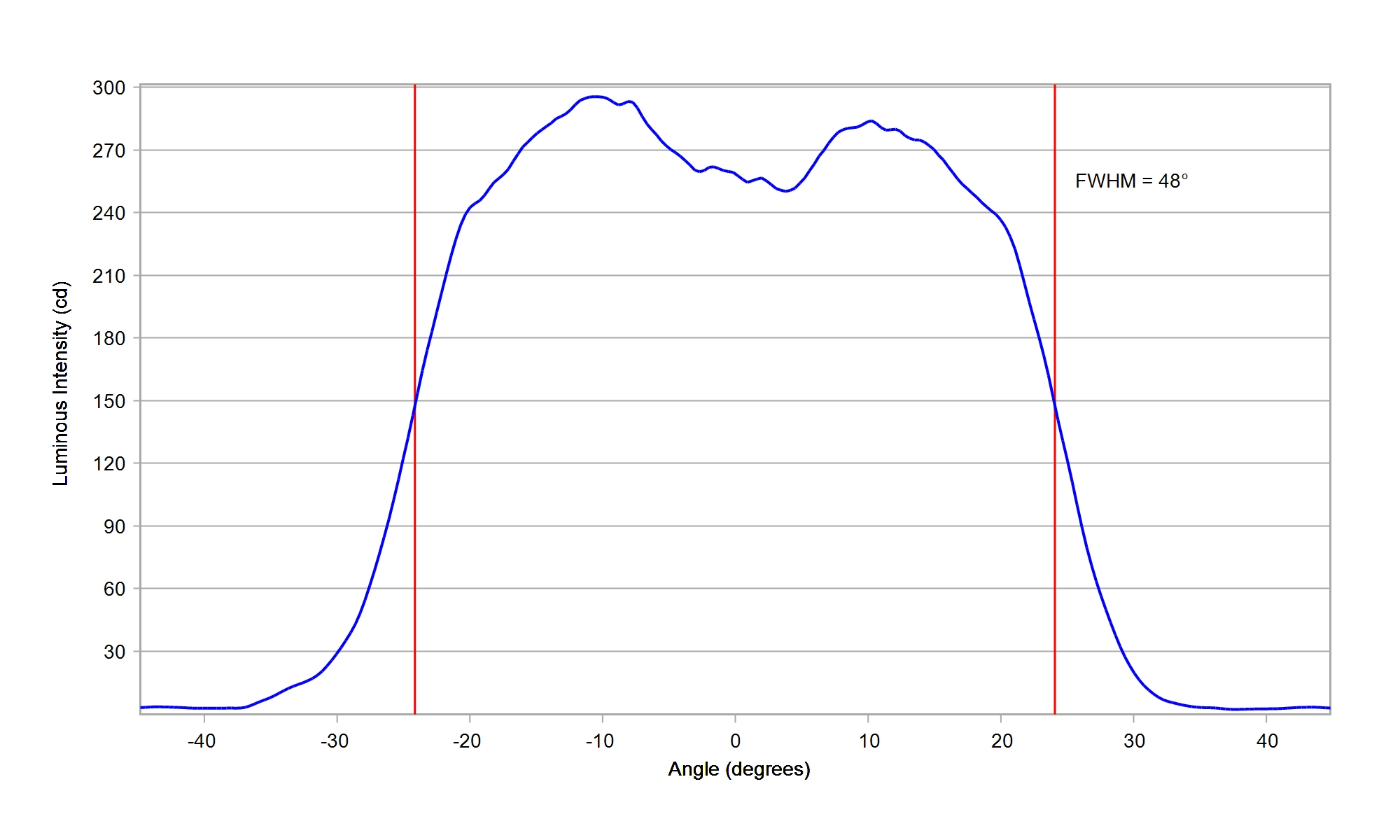

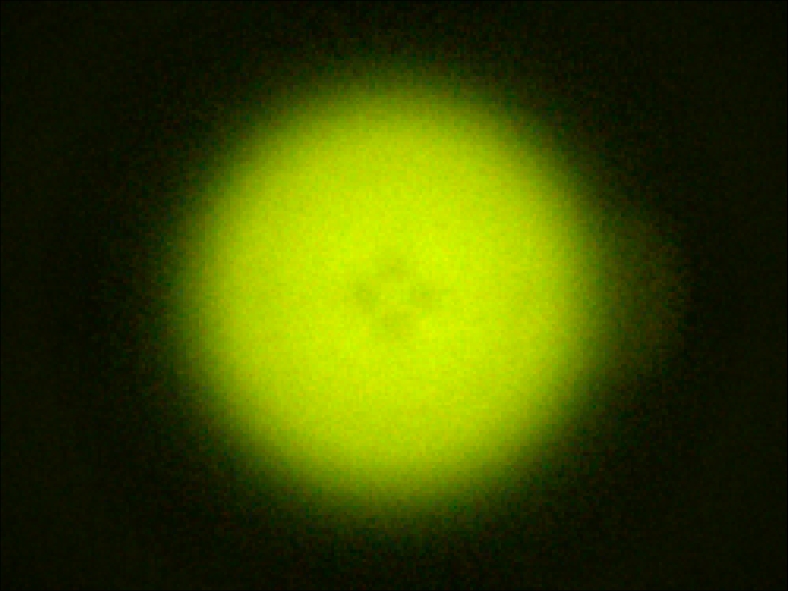

Osram OSLON Pure 1414 GW VJLPL1.UL Green
Eff:
88.0%
FWHM:
48°
Cd/Im:
1.6
Download

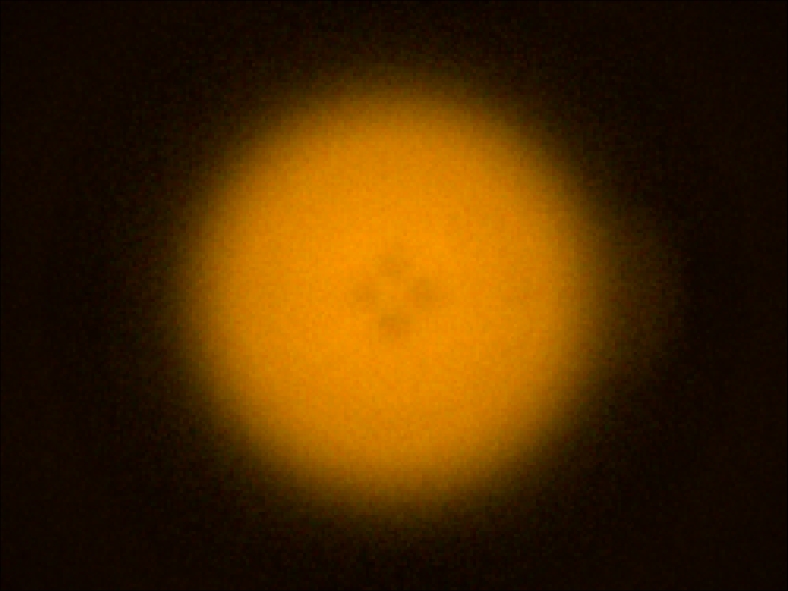

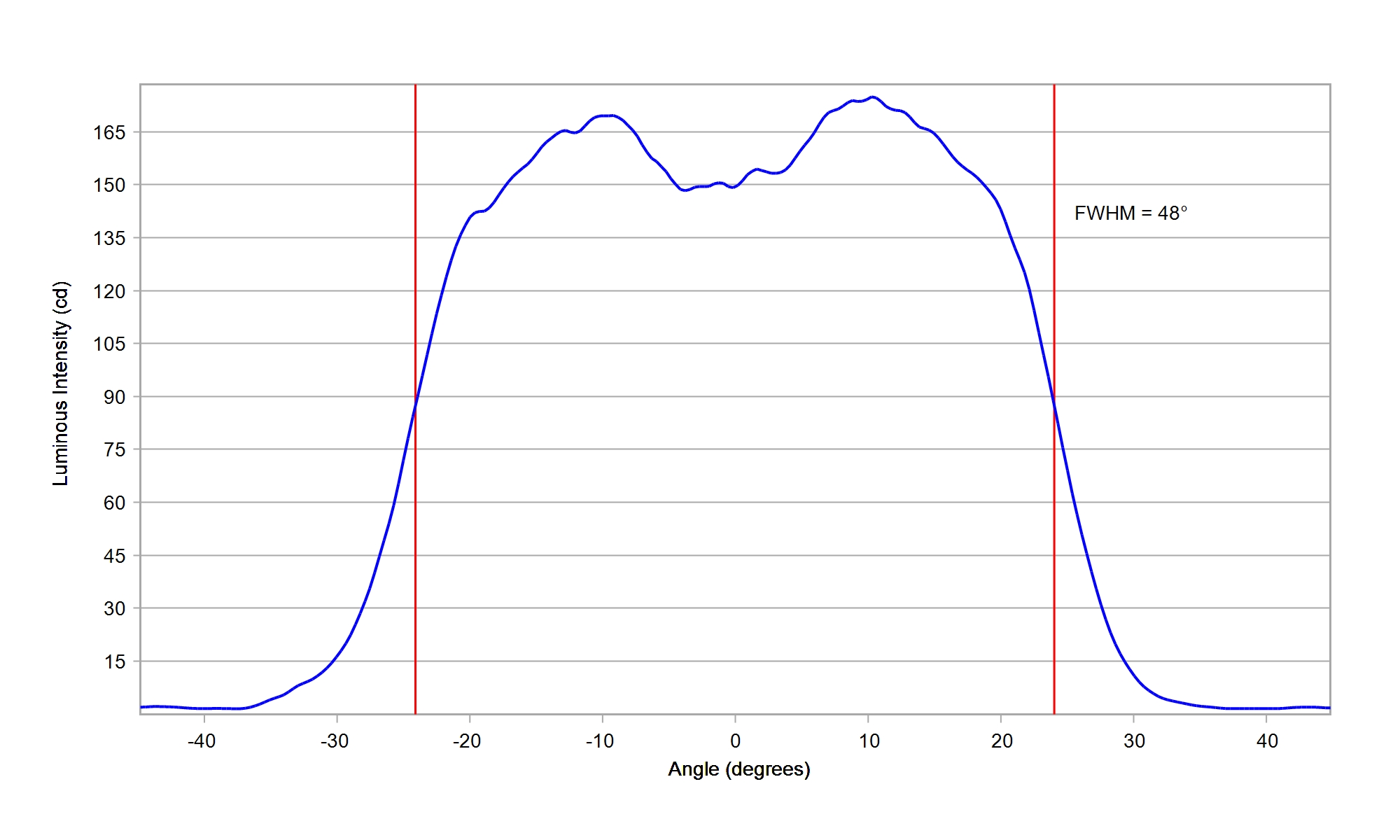

Osram OSLON Pure 1414 GY VJLPL1.F3 Yellow
Eff:
87.5%
FWHM:
48°
Cd/Im:
1.6
Download
Osram OSLON Square Flat White
Eff:
87.0%
FWHM:
46.5°
Cd/Im:
1.6
Download
Osram OSLON Square Gen 3 White
Eff:
86.2%
FWHM:
46.4°
Cd/Im:
1.7
Download
Osram OSLON Square Gen 5 GW CSSRM3
Eff:
87.0%
FWHM:
45.5 x 46.5°
Cd/Im:
1.6
Download
Osram OSLON Square White
Eff:
86.0%
FWHM:
46.3°
Cd/Im:
1.5
Download
Osram OSLON SSL 150 degree GW CSHPM1.PM White
Eff:
86.5%
FWHM:
46°
Cd/Im:
1.5
Download

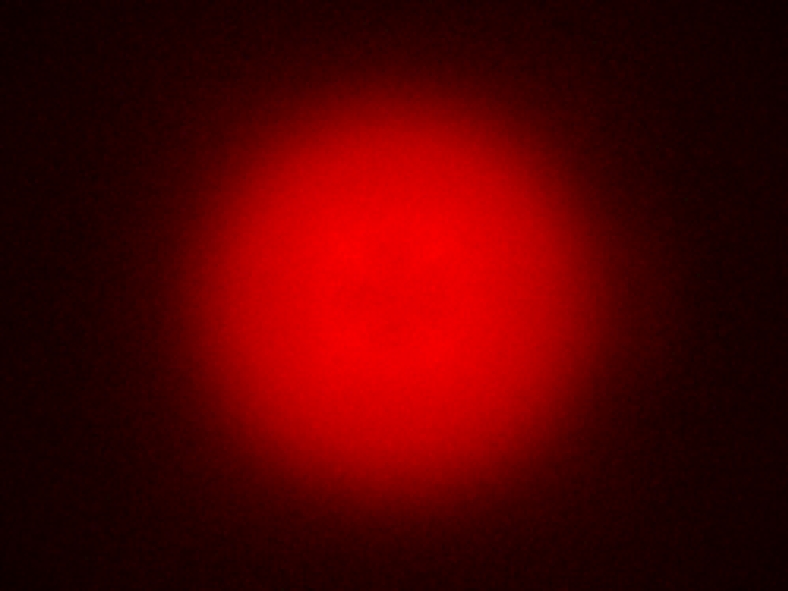

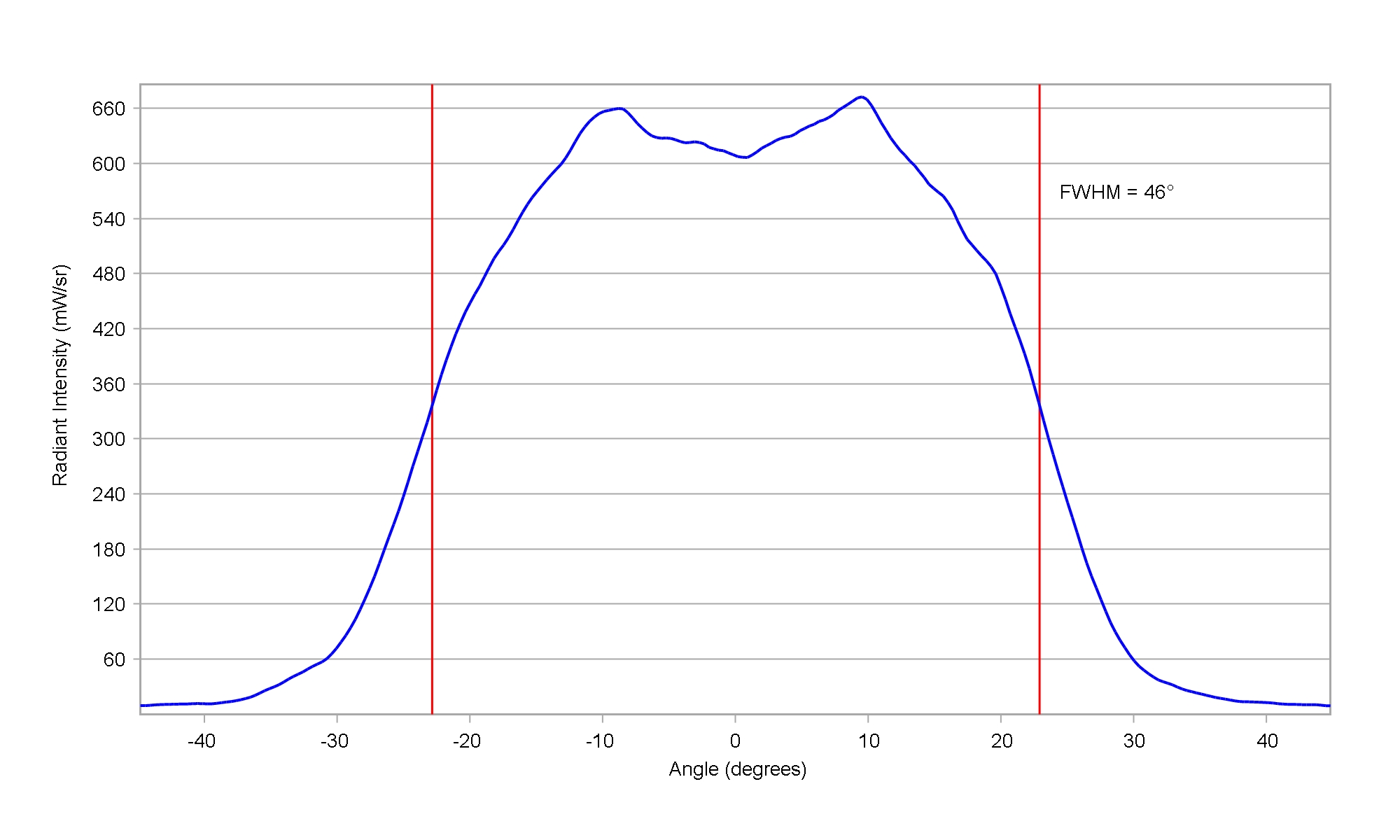

Osram OSLON SSL 80 GH CS8PM1.24 Hyper Red
Eff:
87.5%
FWHM:
46°
Ipk/W:
1.7
Download

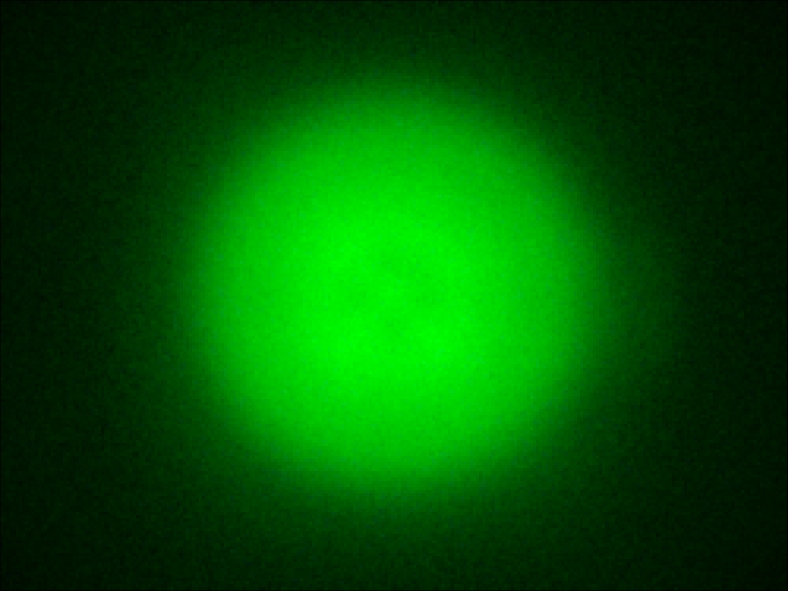

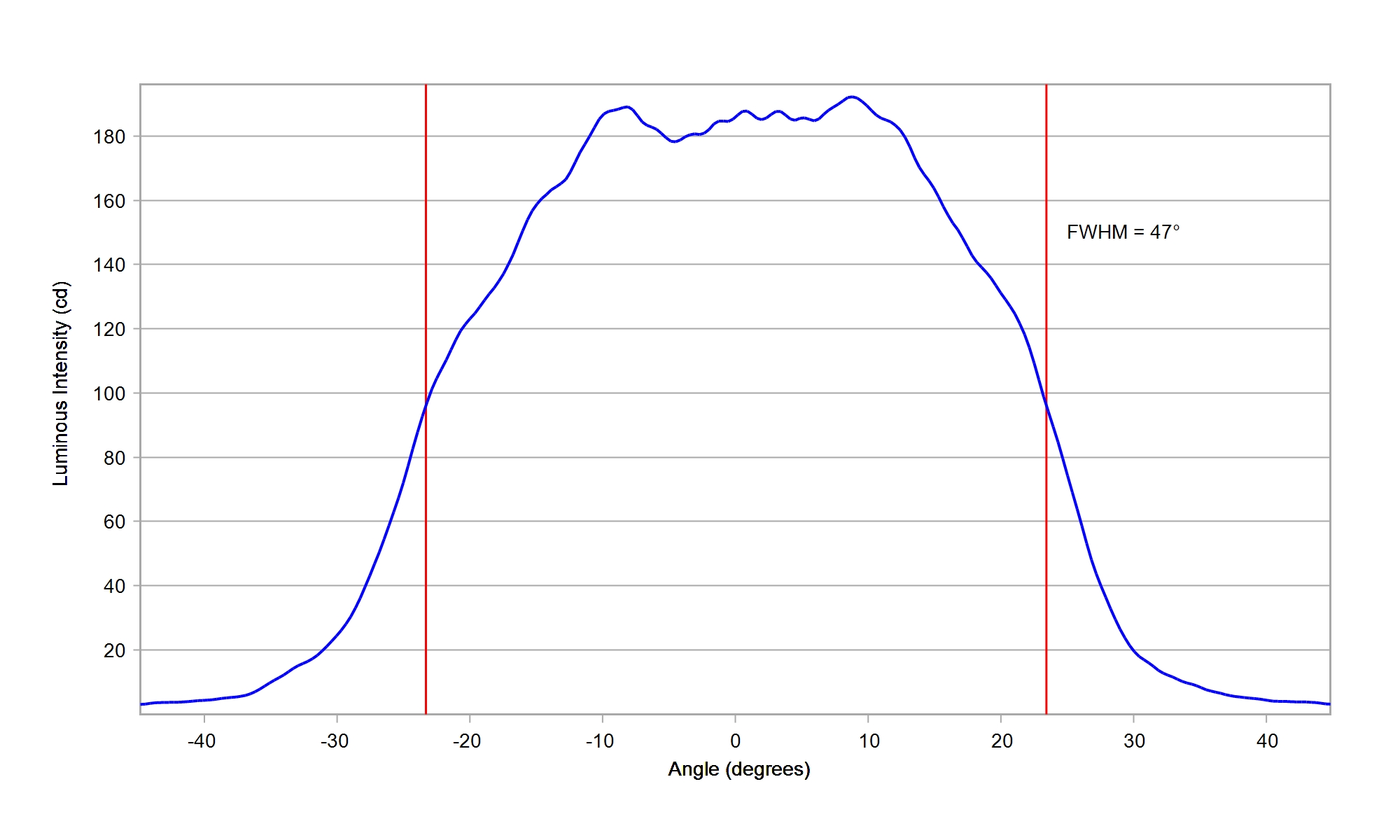

Osram OSLON SSL 80 GT CS8PM1.13 True Green
Eff:
87.5%
FWHM:
47°
Cd/Im:
1.6
Download

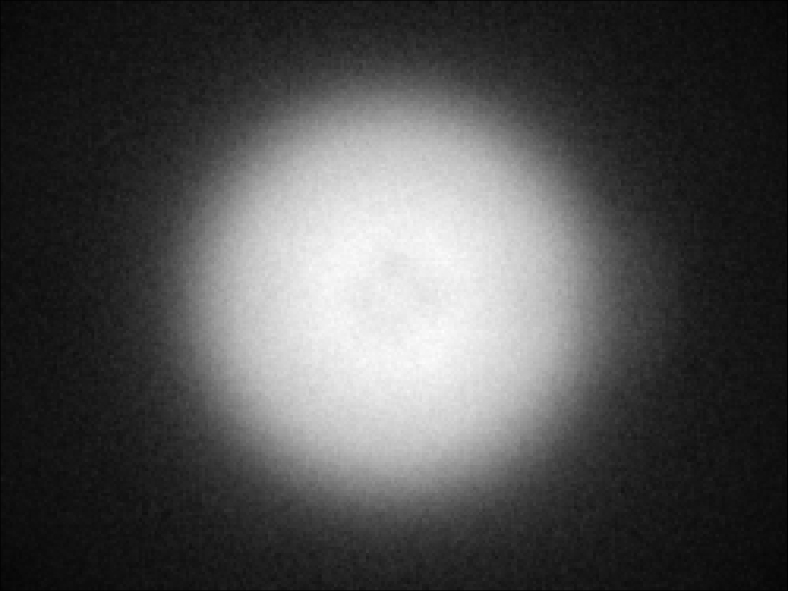

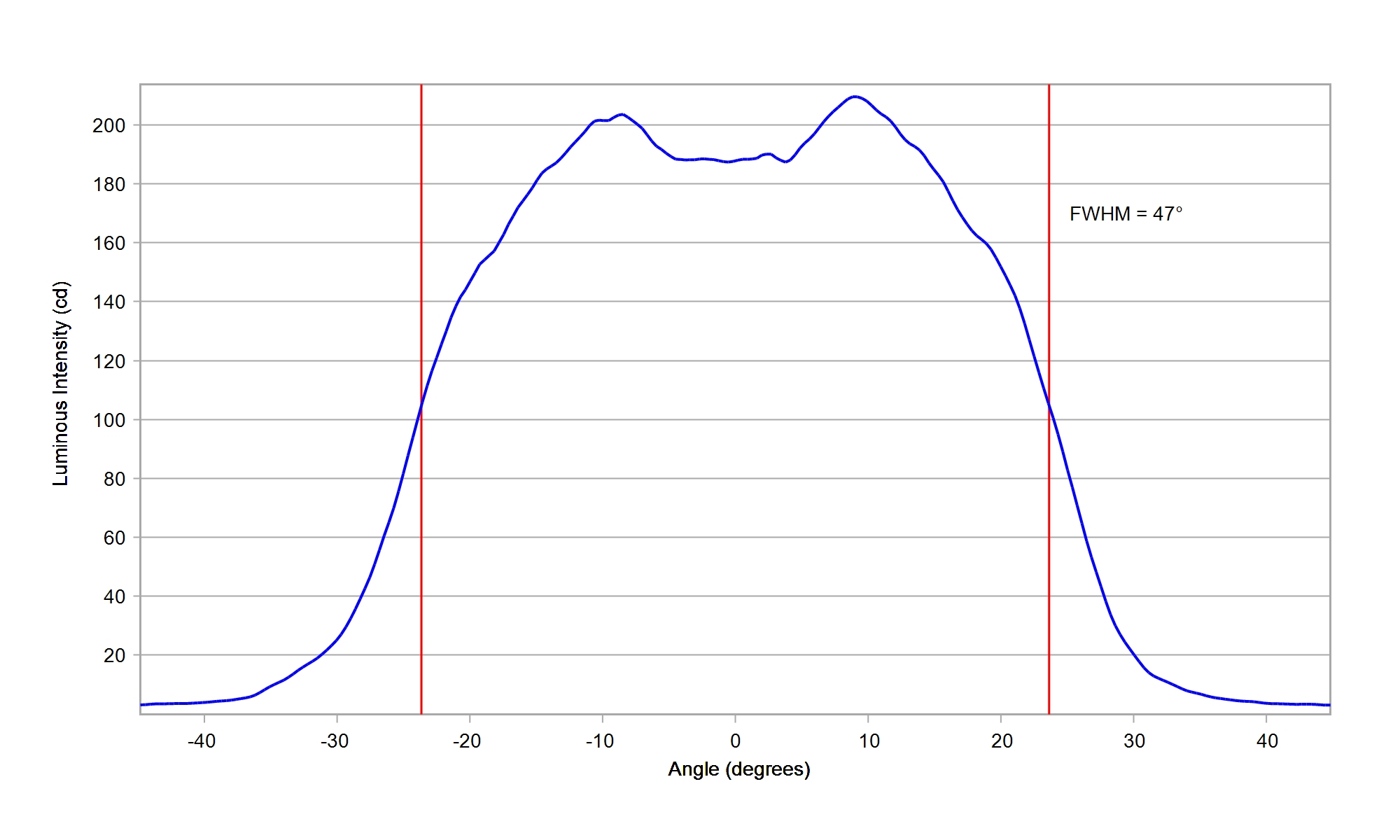

Osram OSLON SSL 80 GW CS8PM1.PM White
Eff:
87.0%
FWHM:
47°
Cd/Im:
1.5
Download
Osram PLATINUM DRAGON W5SN White
Eff:
81.0%
FWHM:
44.3°
Cd/Im:
2.1
Download

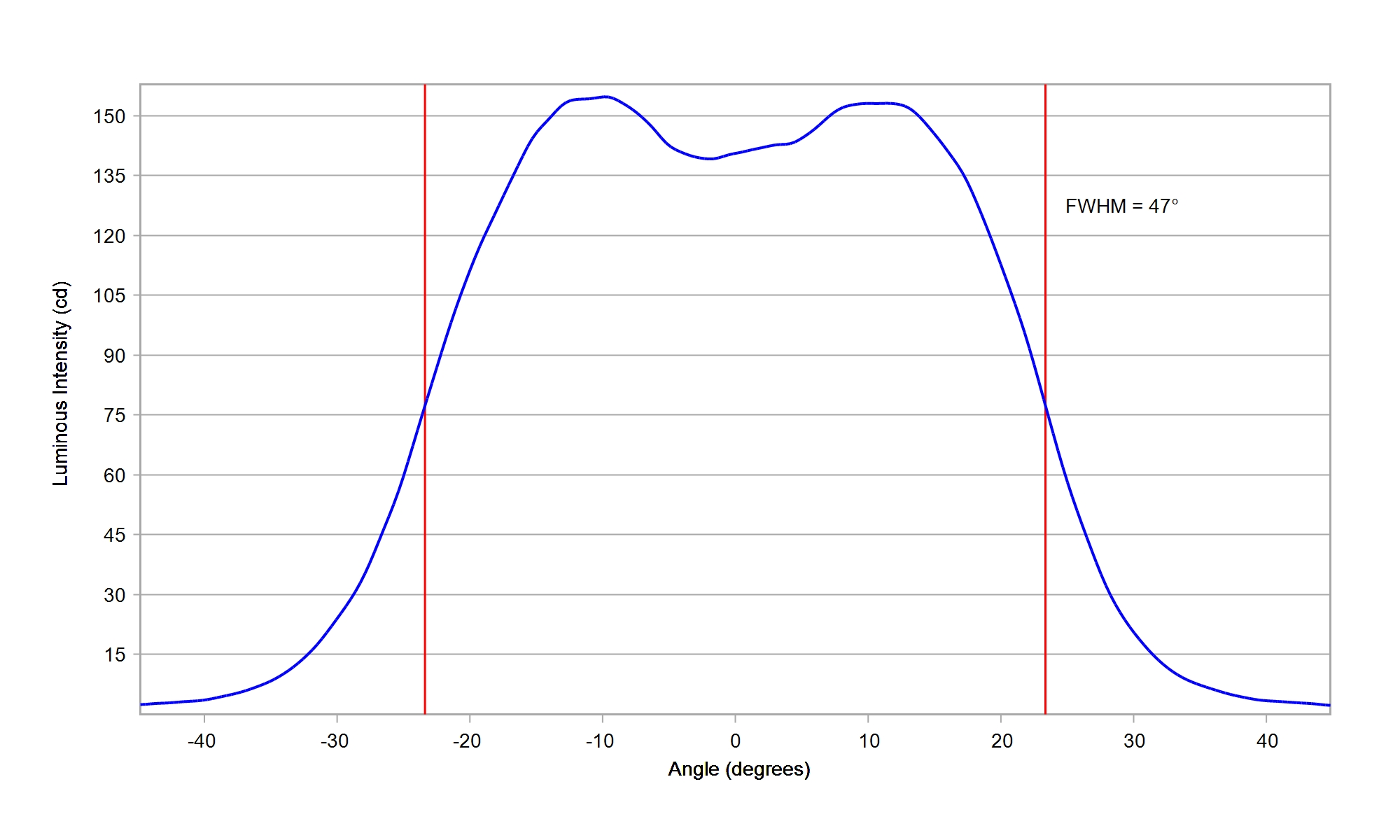

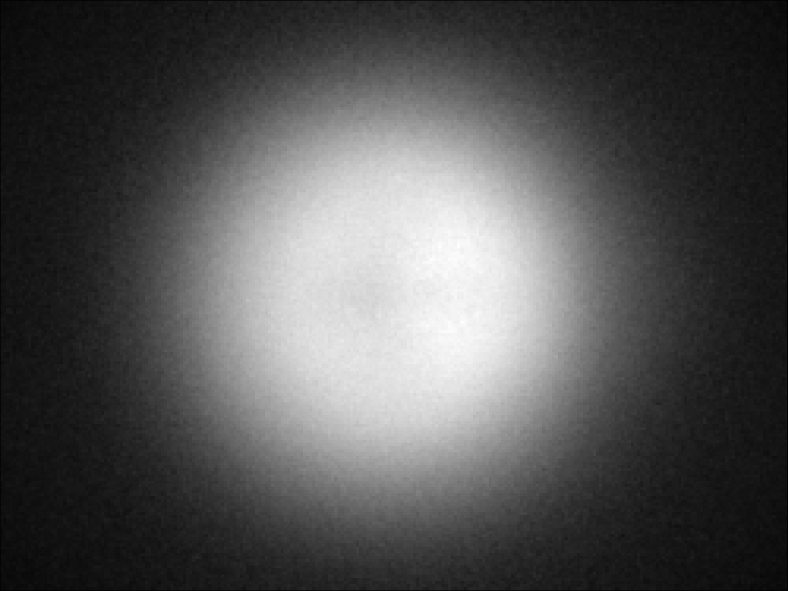

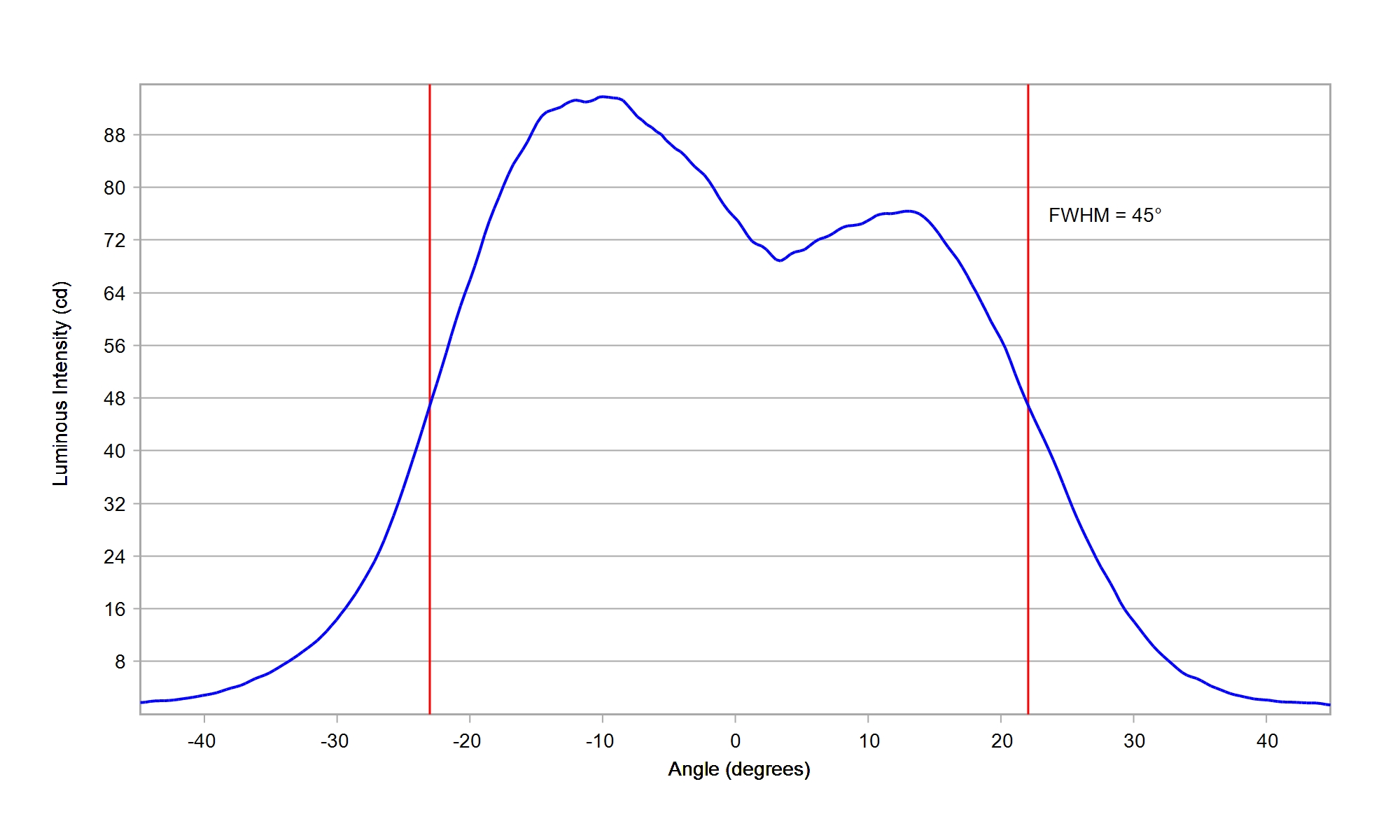

Samsung 2835 LM281B+ White
Eff:
86.5%
FWHM:
45°
Cd/Im:
1.6
Download
Samsung 3030 LM301B White
Eff:
87.5%
FWHM:
47°
Cd/Im:
1.5
Download

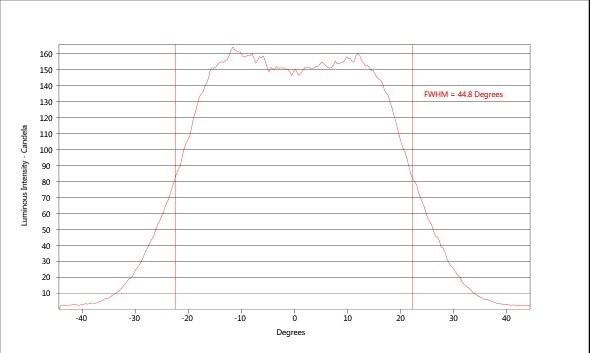

Samsung 3535 LH351B White
Eff:
86.0%
FWHM:
45°
Cd/Im:
1.5
Download
Samsung 3535 LH351D White
Eff:
86.0%
FWHM:
43.0°
Cd/Im:
1.6
Download
Samsung 3535 LH351Z White
Eff:
86.3%
FWHM:
46°
Cd/Im:
1.6
Download
Samsung CSP LH151B White
Eff:
86.0%
FWHM:
46°
Cd/Im:
1.6
Download
Samsung CSP LH181B White
Eff:
87.5%
FWHM:
46.5 x 46°
Cd/Im:
1.6
Download
Samsung CSP LH231B White
Eff:
86.0%
FWHM:
43.5 x 44°
Cd/Im:
1.6
Download
Samsung CSP LM101B White
Eff:
86.5%
FWHM:
46.5°
Cd/Im:
1.6
Download
Samsung WH5 White
Eff:
82.5%
FWHM:
46.6°
Cd/Im:
1.6
Download
Seoul CSP SZ8Y19 White
Eff:
87.0%
FWHM:
45.1°
Cd/Im:
1.3
Download
Seoul CSP SZ8Y22 White
Eff:
86.0%
FWHM:
46.5°
Cd/Im:
1.5
Download
Seoul CSP SZ8Y22P White
Eff:
84.5%
FWHM:
46°
Cd/Im:
1.4
Download
Seoul MidPower MJT3030 White
Eff:
86.0%
FWHM:
42°
Cd/Im:
1.6
Download
Seoul MidPower MJT4040 White
Eff:
86.0%
FWHM:
38°
Cd/Im:
1.5
Download
Seoul P4 White
Eff:
82.9%
FWHM:
23.4°
Cd/Im:
2.7
Download

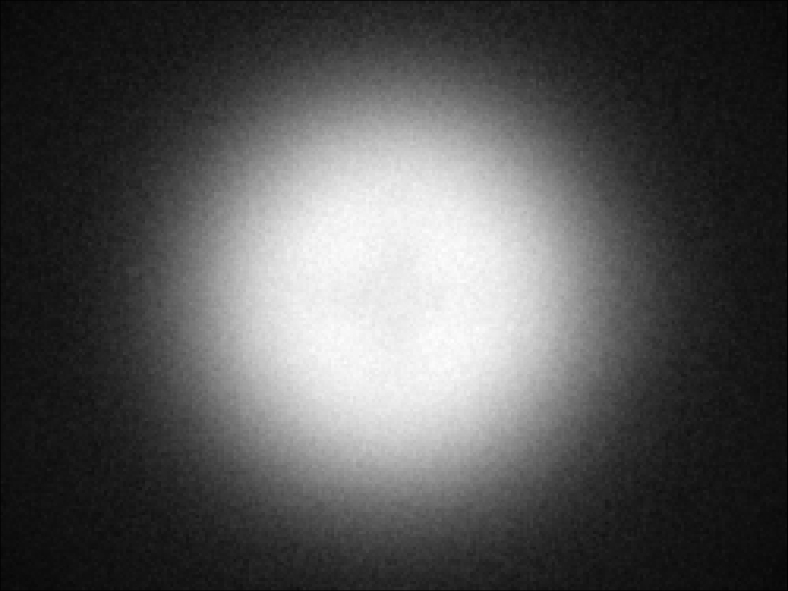

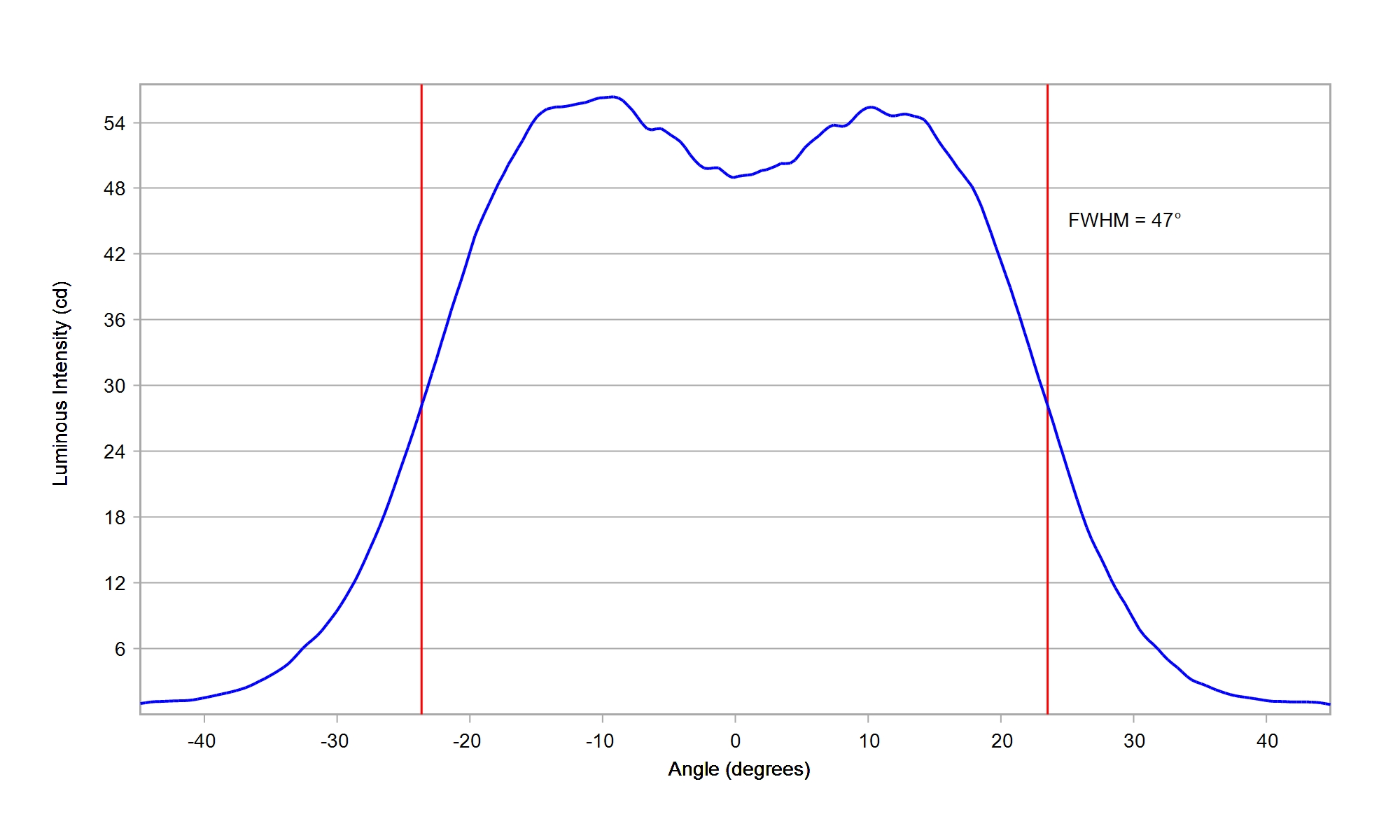

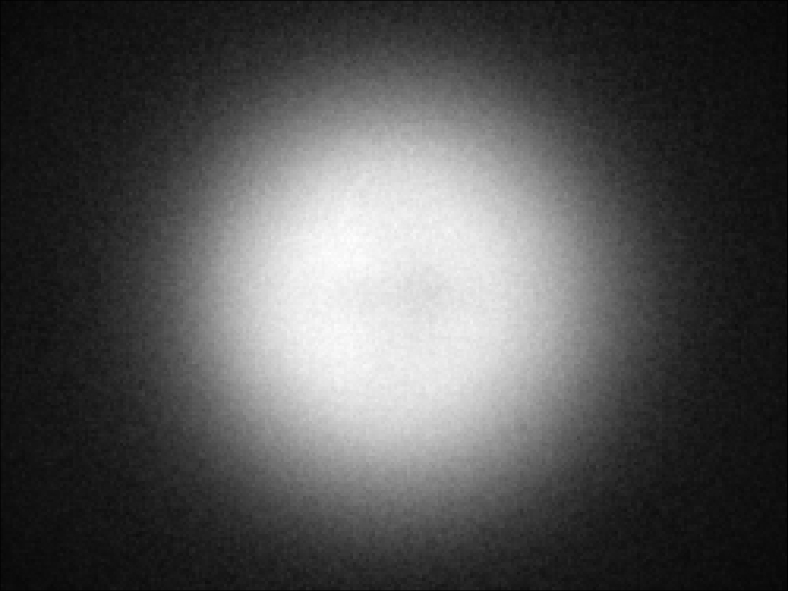

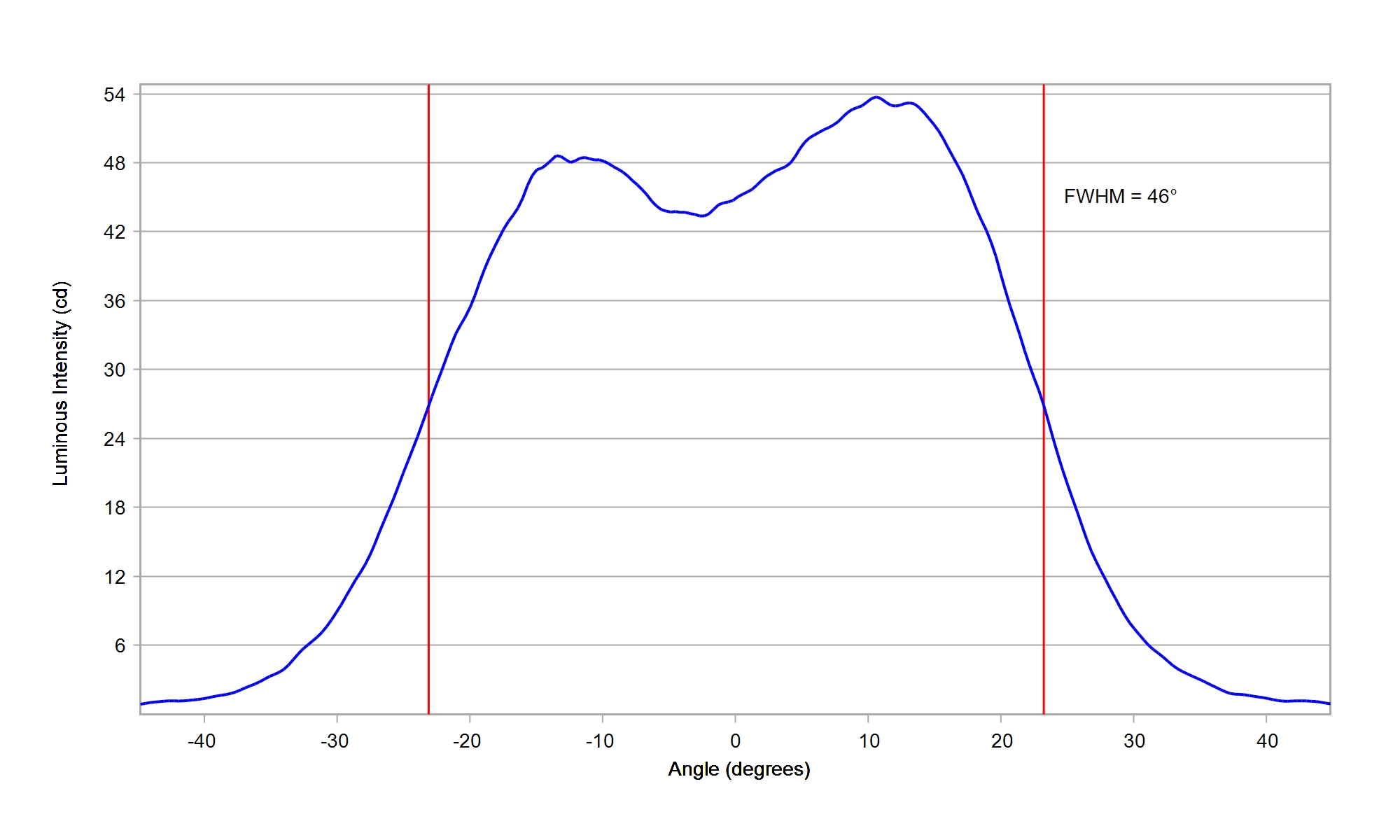

Seoul STW8 C2SB-NT White
Eff:
87.5%
FWHM:
47.0°
Cd/Im:
1.5
Download

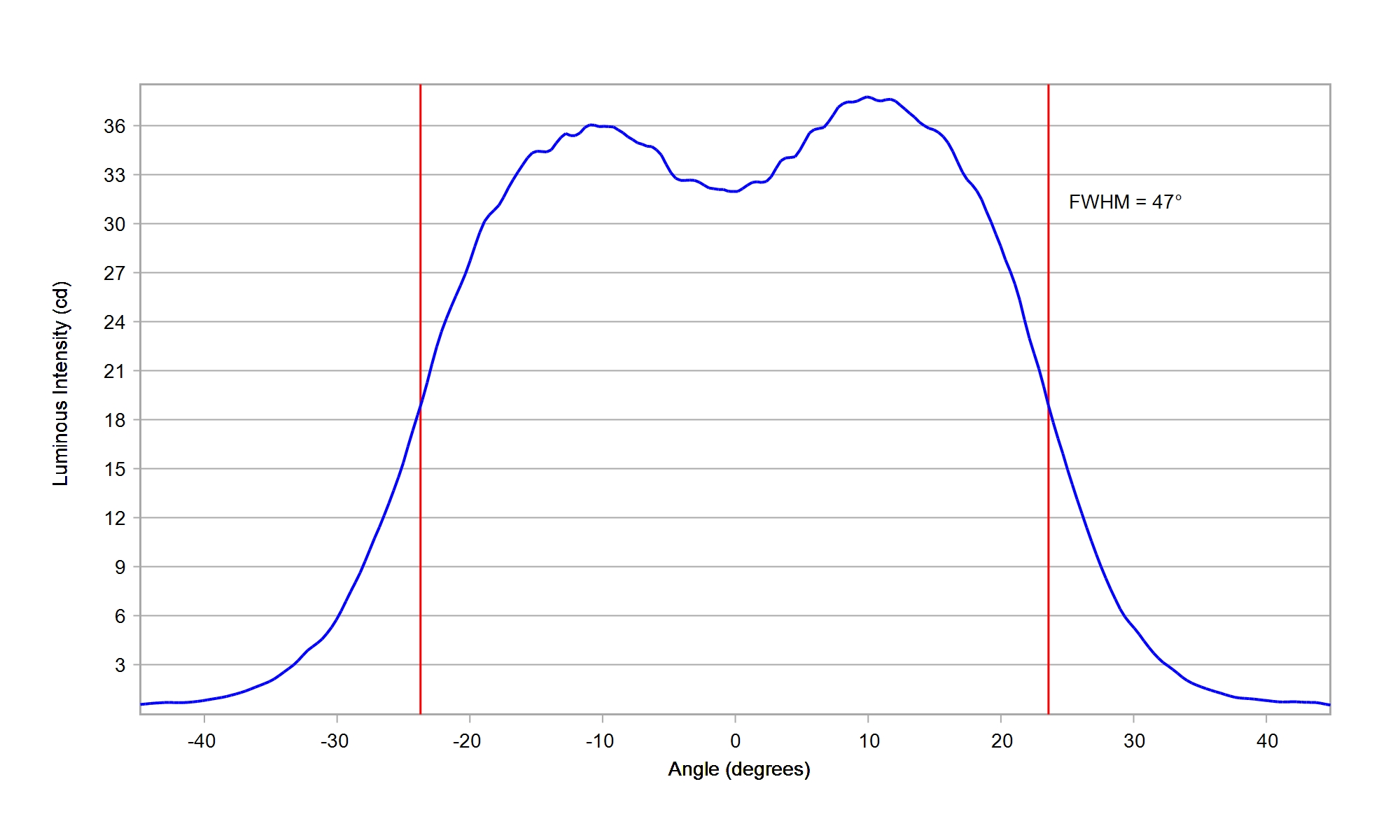

Seoul STWS C2PB-E0 White
Eff:
86.5%
FWHM:
47.0°
Cd/Im:
1.7
