Carclo Optics 10204
20.0mm Elliptical Orthog Ripple Linear TIR LED Lenses
Part number
10204
Dimensions
20.0mm
Drawing Number
60437
Optic type
TIR LED Lenses
Finish
Ripple Linear
Beam type
Elliptical Orthog
Applications
Architectural
Landscape & Garden
Downloads
PDF
Request a sample
Contact Sales

LEDs and Performances

Select and filter based on manufacturer(s)
Bridgelux SMD 3030 Gen2 White
Eff:
85.5%
FWHM:
8.5 x 47°
Cd/Im:
5.7

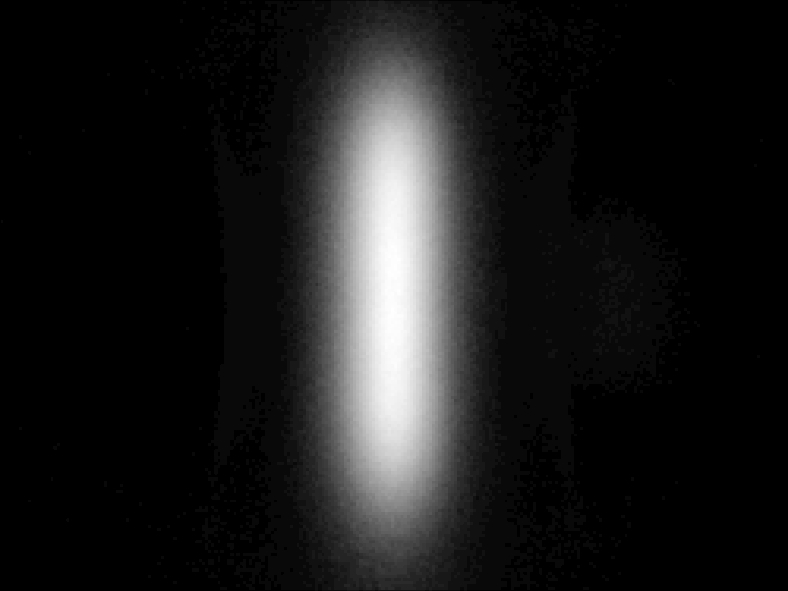

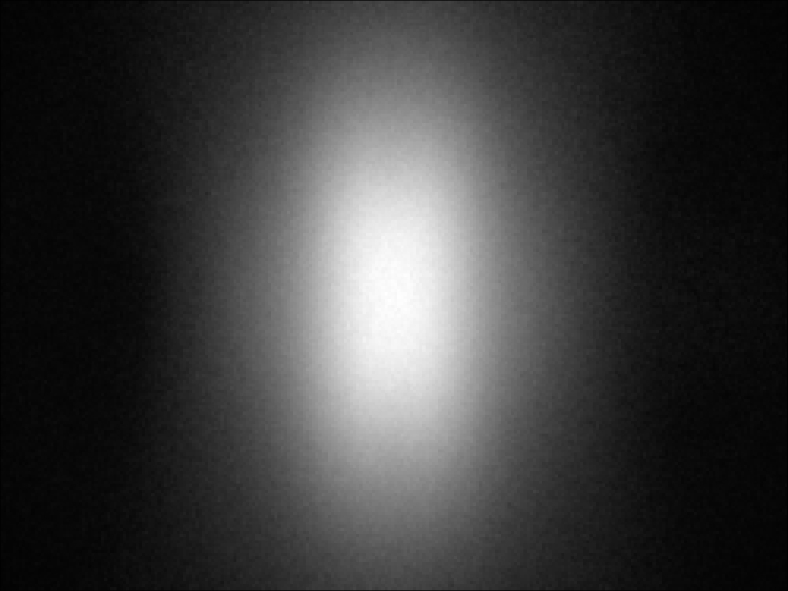

Carclo Optics - 10204 20mm Spot Image Bridgelux 3030 Gen2

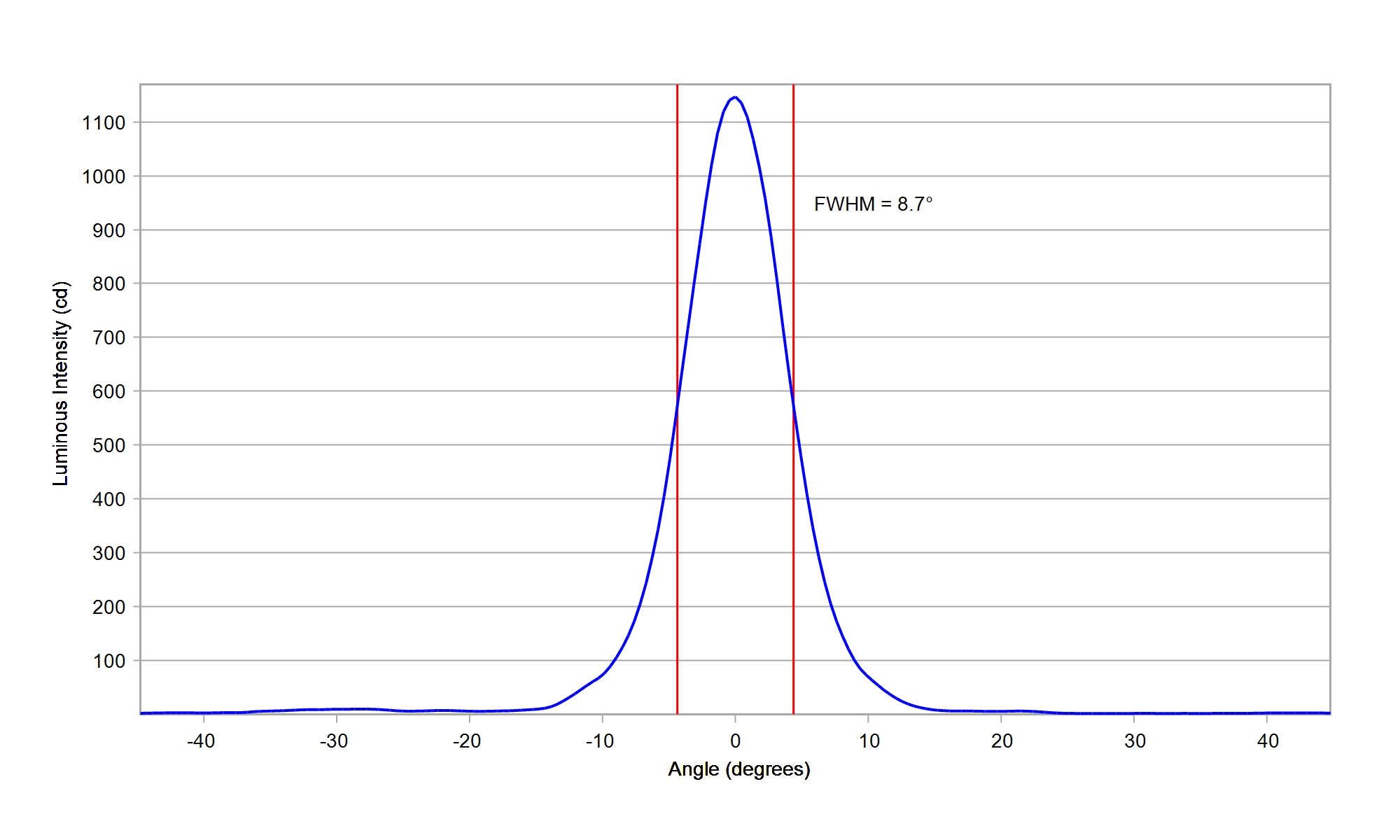

Carclo Optics - 10204 20mm Horizontal Cross Section Bridgelux 3030 Gen2 , Carclo Optics - 10204 20mm Vertical Cross Section Bridgelux 3030 Gen2
Download
Details

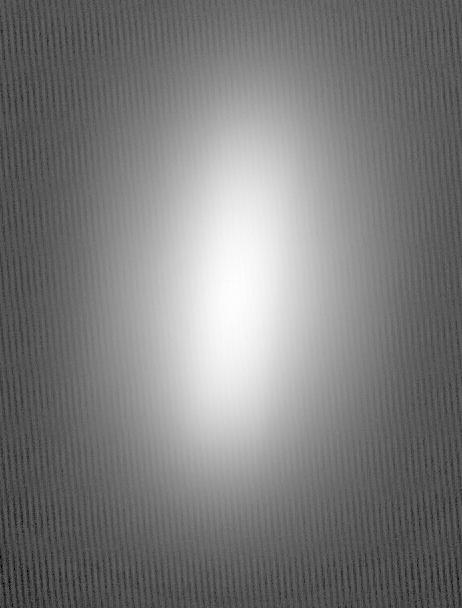

Broadcom Moonstone White
Eff:
84.5%
FWHM:
20.3 x 45.0°
Cd/Im:
2.3
Download
Details
Cree JB2835B 3V G-Class White
Eff:
84.5%
FWHM:
11 x 47°
Cd/Im:
4.2

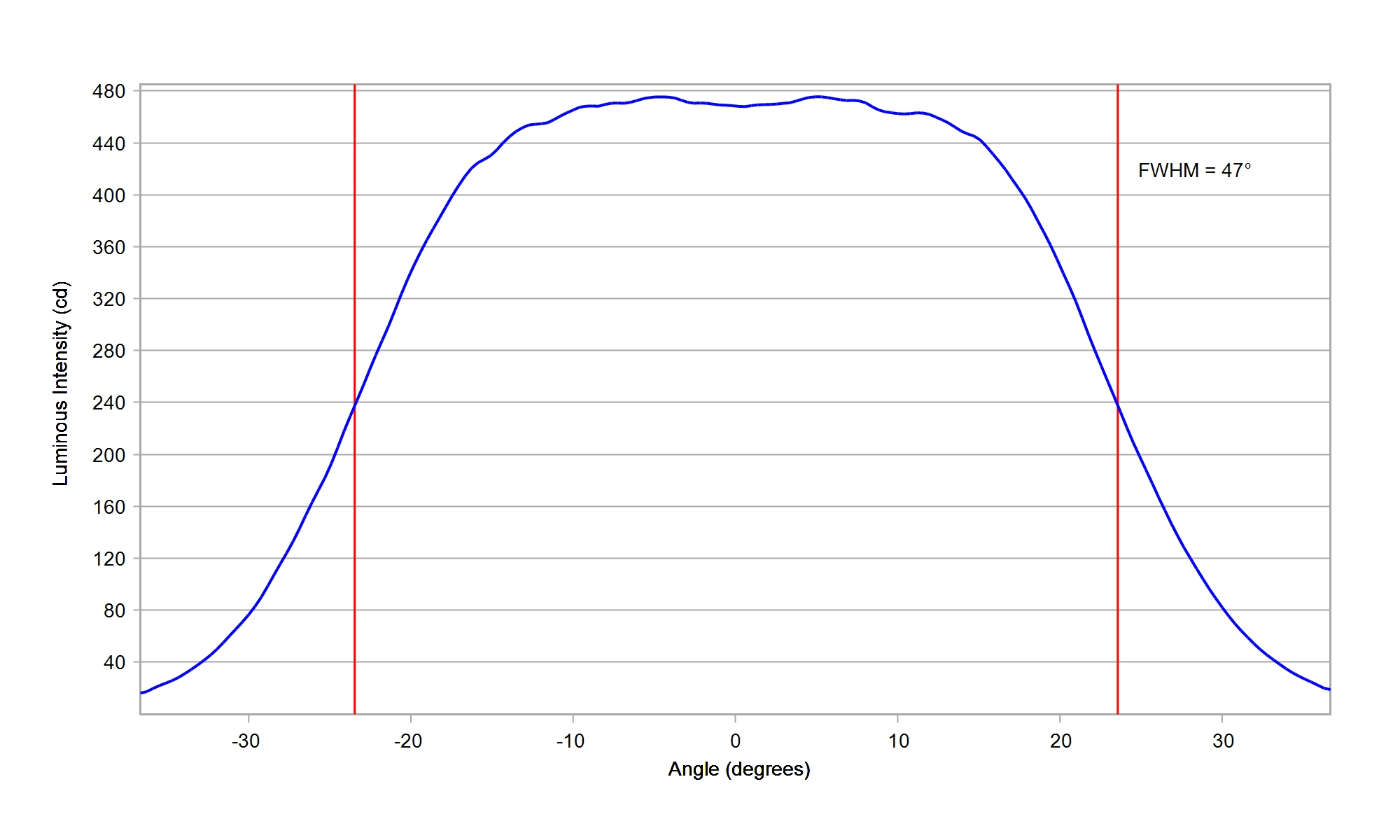

optic-10204-Cree-JB2835-3V-G-Class-cross-section-image-horizontal.jpg , optic-10204-Cree-JB2835-3V-G-Class-cross-section-image-vertical.jpg
Download
Details
Cree JB2835B 3V J-Class White
Eff:
84.5%
FWHM:
10.5 x 47°
Cd/Im:
4.4
optic-10204-Cree-JB2835-3V-J-Class-cross-section-image-horizontal.jpg , optic-10204-Cree-JB2835-3V-J-Class-cross-section-image-vertical.jpg
Download
Details
Cree JB3030 3V P-Class White
Eff:
85.0%
FWHM:
12 x 47°
Cd/Im:
4.0

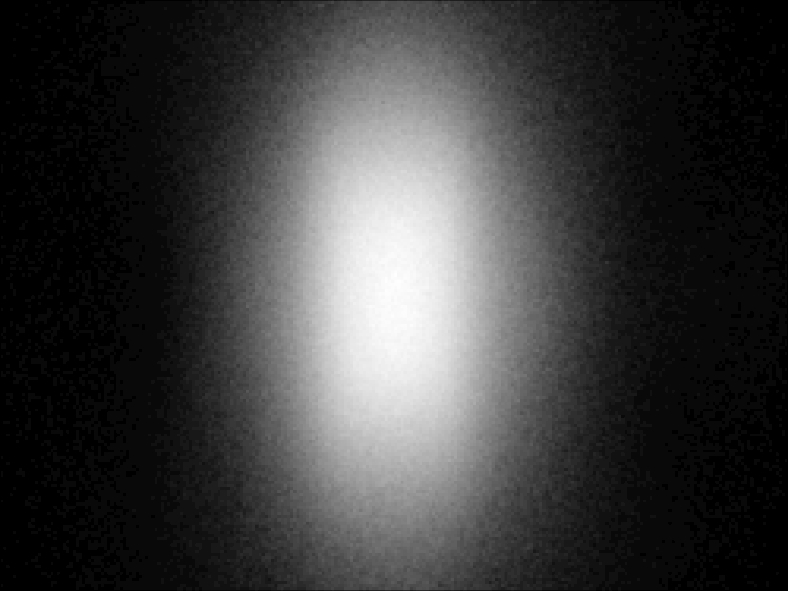

Carclo Optics - 10204 Spot Image Cree JB3030 3V White

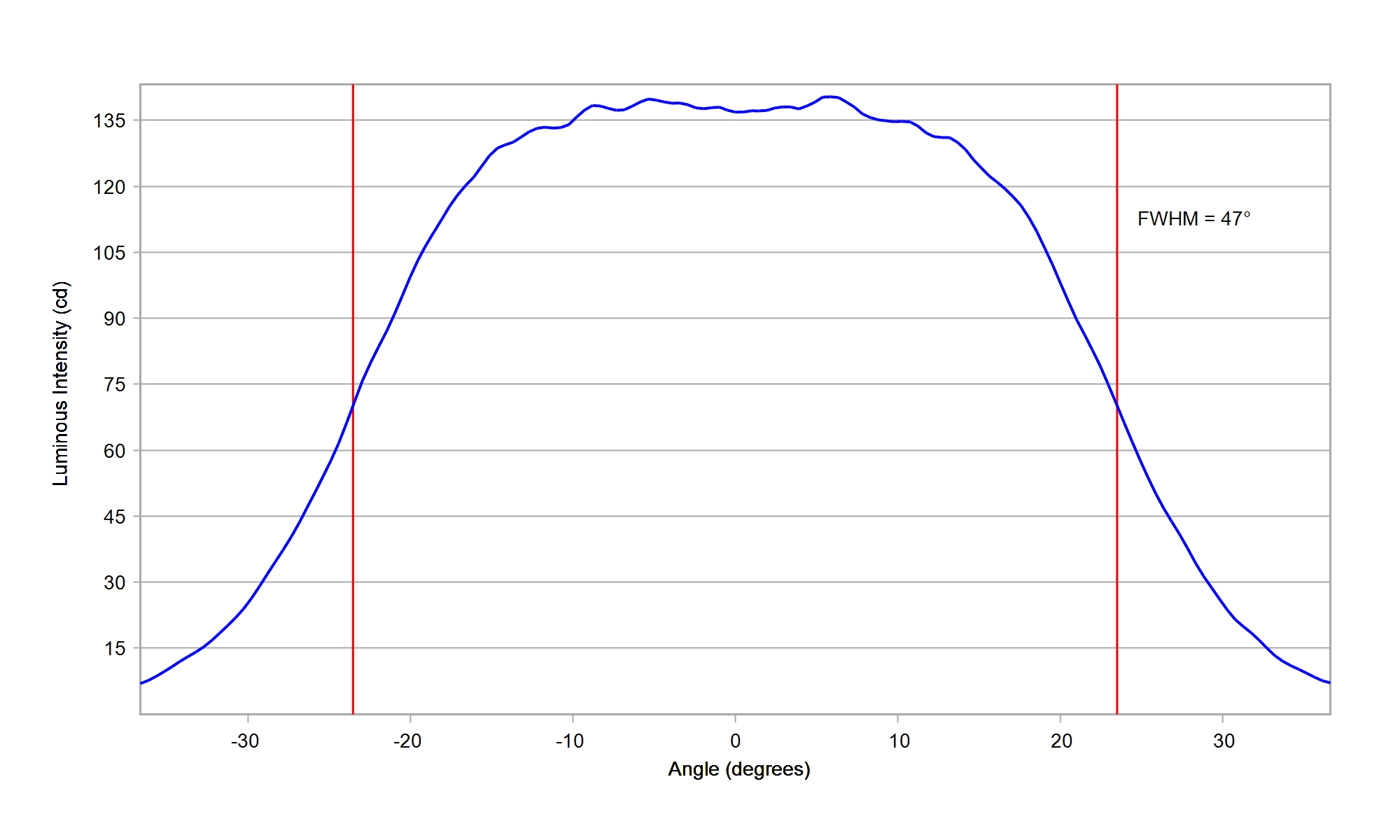

Carclo Optics - 10204 Horizontal Cross Section Cree JB3030 3V White , Carclo Optics - 10204 Vertical Cross Section Cree JB3030 3V White
Download
Details
Cree JB3030C 3V E-Class White
Eff:
84.5%
FWHM:
11.5 x 47°
Cd/Im:
4.1
optic-10204-Cree_JB3030C_E-Class-cross-section-image-horizontal.jpg , optic-10204-Cree_JB3030C_E-Class-cross-section-image-vertical.jpg
Download
Details
Cree JB3030C 3V F-Class White
Eff:
84.5%
FWHM:
11 x 47°
Cd/Im:
4.2
optic-10204-Cree_JB3030C_F-Class-cross-section-image-horizontal.jpg , optic-10204-Cree_JB3030C_F-Class-cross-section-image-vertical.jpg
Download
Details
Cree JE2835 3V White
Eff:
86.0%
FWHM:
9.6 x 47°
Cd/Im:
5.0
optic-10204-Cree_JE2835-3V-cross-section-image-horizontal.jpg , optic-10204-Cree_JE2835-3V-cross-section-image-vertical.jpg
Download
Details
Cree JK2835 6V White
Eff:
85.0%
FWHM:
10.5 x 47°
Cd/Im:
4.4

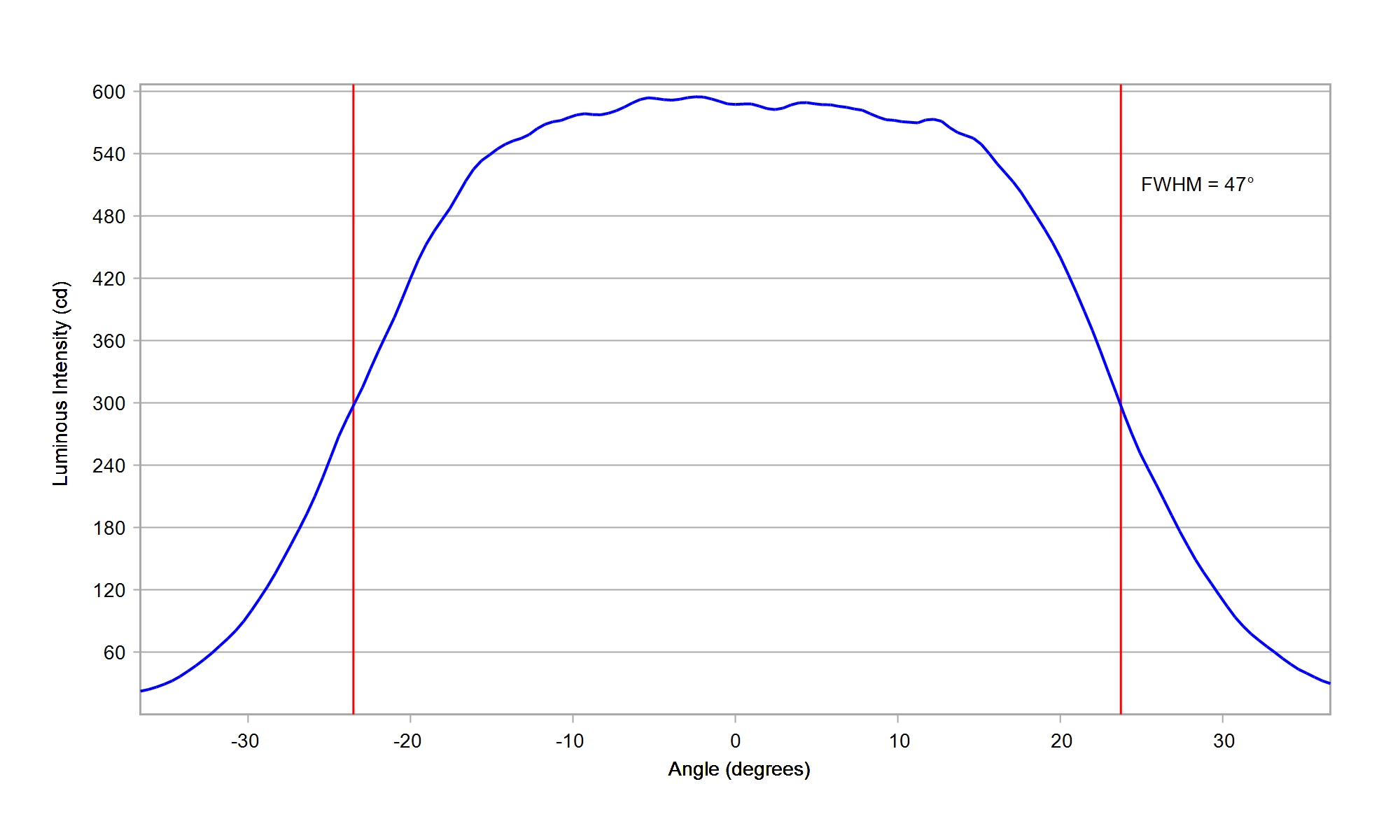

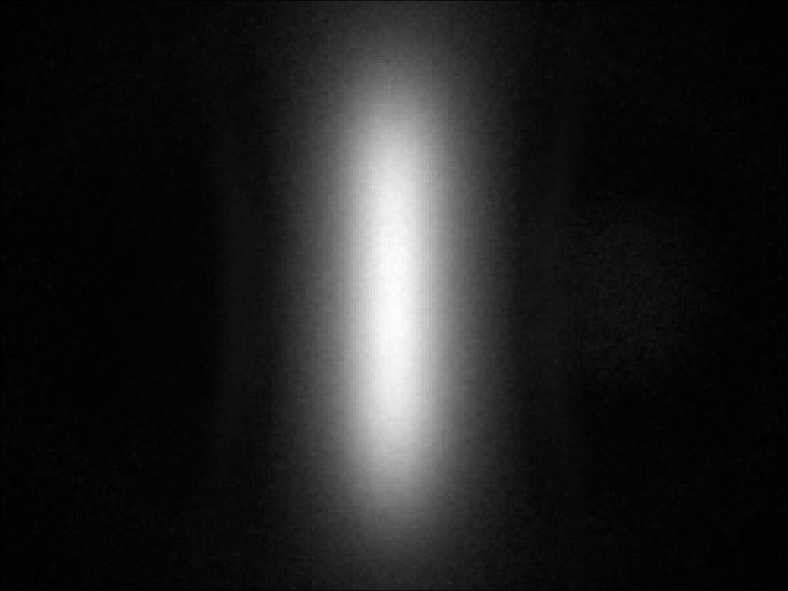

optic-10204-Cree_JK2835-6V-cross-section-image-horizontal.jpg , optic-10204-Cree_JK2835-6V-cross-section-image-vertical.jpg
Download
Details
Cree JQ5050 9V White
Eff:
85.5%
FWHM:
21 x 42°
Cd/Im:
2.5
Carclo Optics - 10204 Spot Image Cree JQ5050 9V White
Carclo Optics - 10204 Horizontal Cross Section Cree JQ5050 9V White , Carclo Optics - 10204 Vertical Cross Section Cree JQ5050 9V White
Download
Details
Cree JR5050 24V White
Eff:
85.5%
FWHM:
20.5 x 42°
Cd/Im:
2.6
Carclo Optics - 10204 Spot Image Cree JR5050 24V White

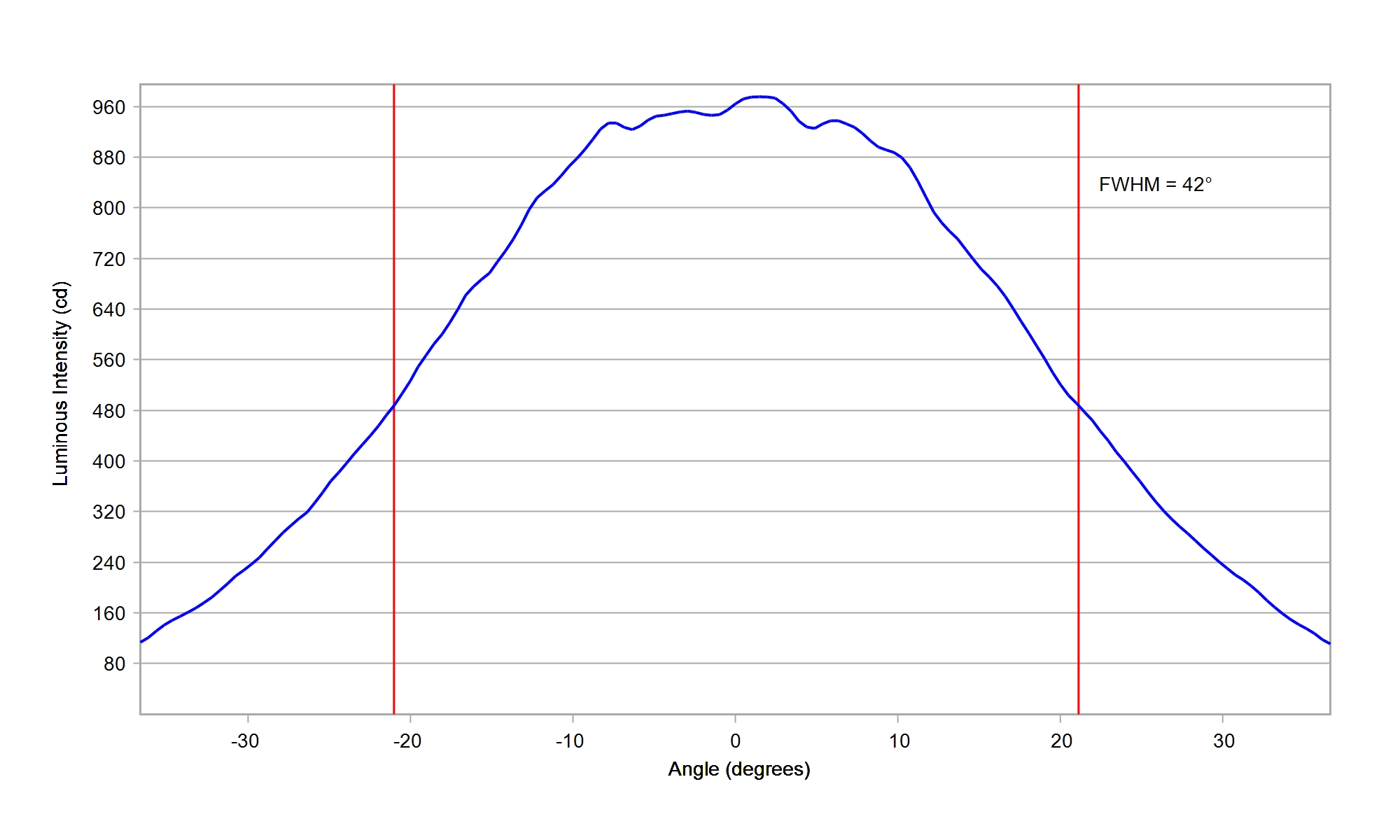

Carclo Optics - 10204 Horizontal Cross Section Cree JR5050 24V White , Carclo Optics - 10204 Vertical Cross Section Cree JR5050 24V White
Download
Details
Cree JR5050 36V White
Eff:
86.0%
FWHM:
19 x 43°
Cd/Im:
2.7
Carclo Optics - 10204 Spot Image Cree JR5050 36V White
Carclo Optics - 10204 Horizontal Cross Section Cree JR5050 36V White , Carclo Optics - 10204 Vertical Cross Section Cree JR5050 36V White
Download
Details
Cree JR5050 6V White
Eff:
86.0%
FWHM:
20 x 42°
Cd/Im:
2.6
Carclo Optics - 10204 Spot Image Cree JR50506V White
Carclo Optics - 10204 Horizontal Cross Section Cree JR50506V White , Carclo Optics - 10204 Vertical Cross Section Cree JR50506V White
Download
Details
Cree JR5050C 6V E-Class White
Eff:
83.5%
FWHM:
19 x 43°
Cd/Im:
2.4

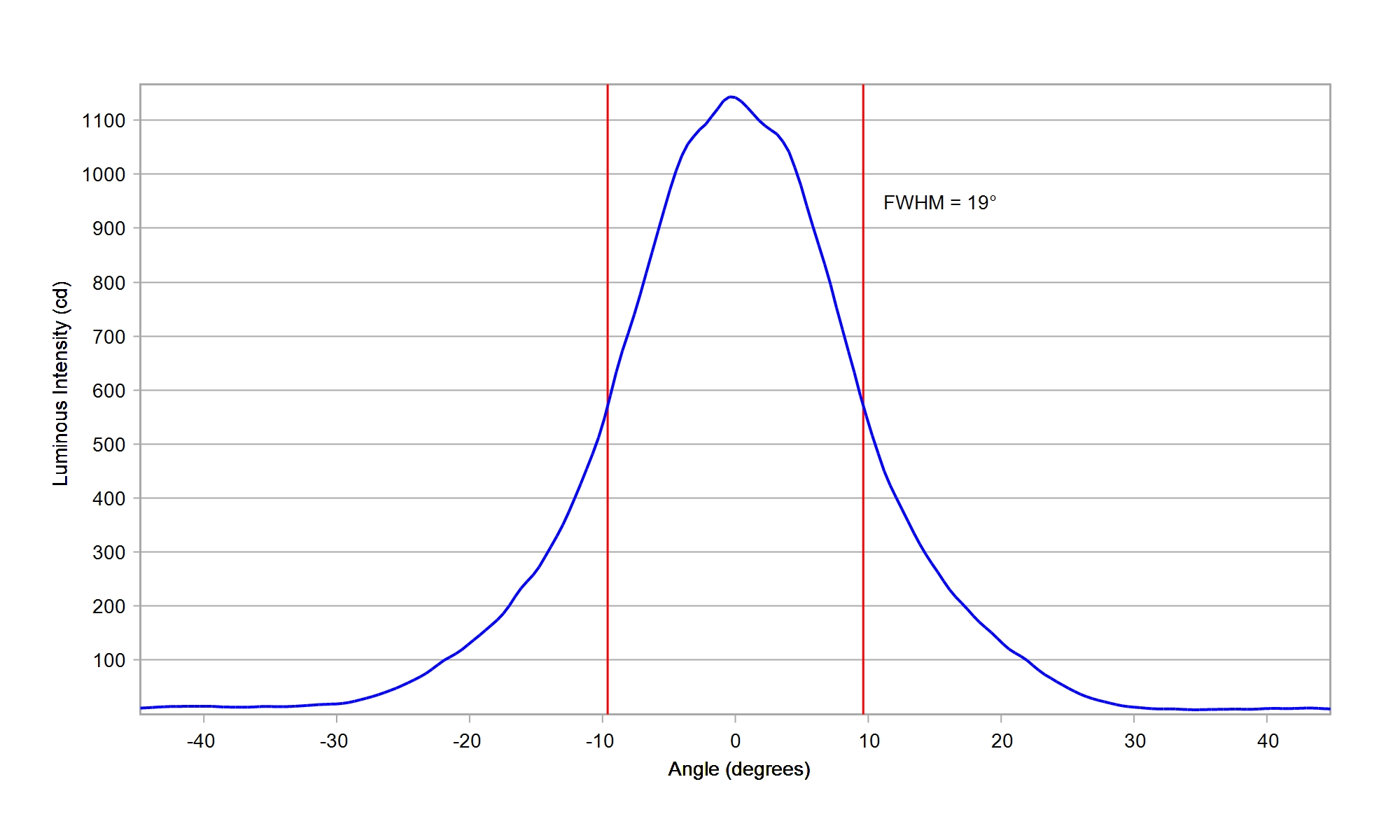

optic-10204-Cree_JR5050_6V_E-Class-cross-section-image-horizontal.jpg , optic-10204-Cree_JR5050_6V_E-Class-cross-section-image-vertical.jpg
Download
Details
Cree XLamp CSP XD16 Cool White
Eff:
83.0%
FWHM:
47.5 x 8.7°
Cd/Im:
4.6

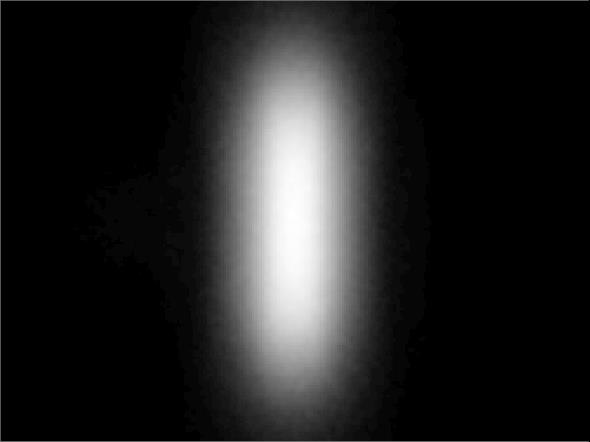

Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Cree XLamp CSP XD16 Premium White
Eff:
84.5%
FWHM:
7.8 x 48°
Cd/Im:
5.9

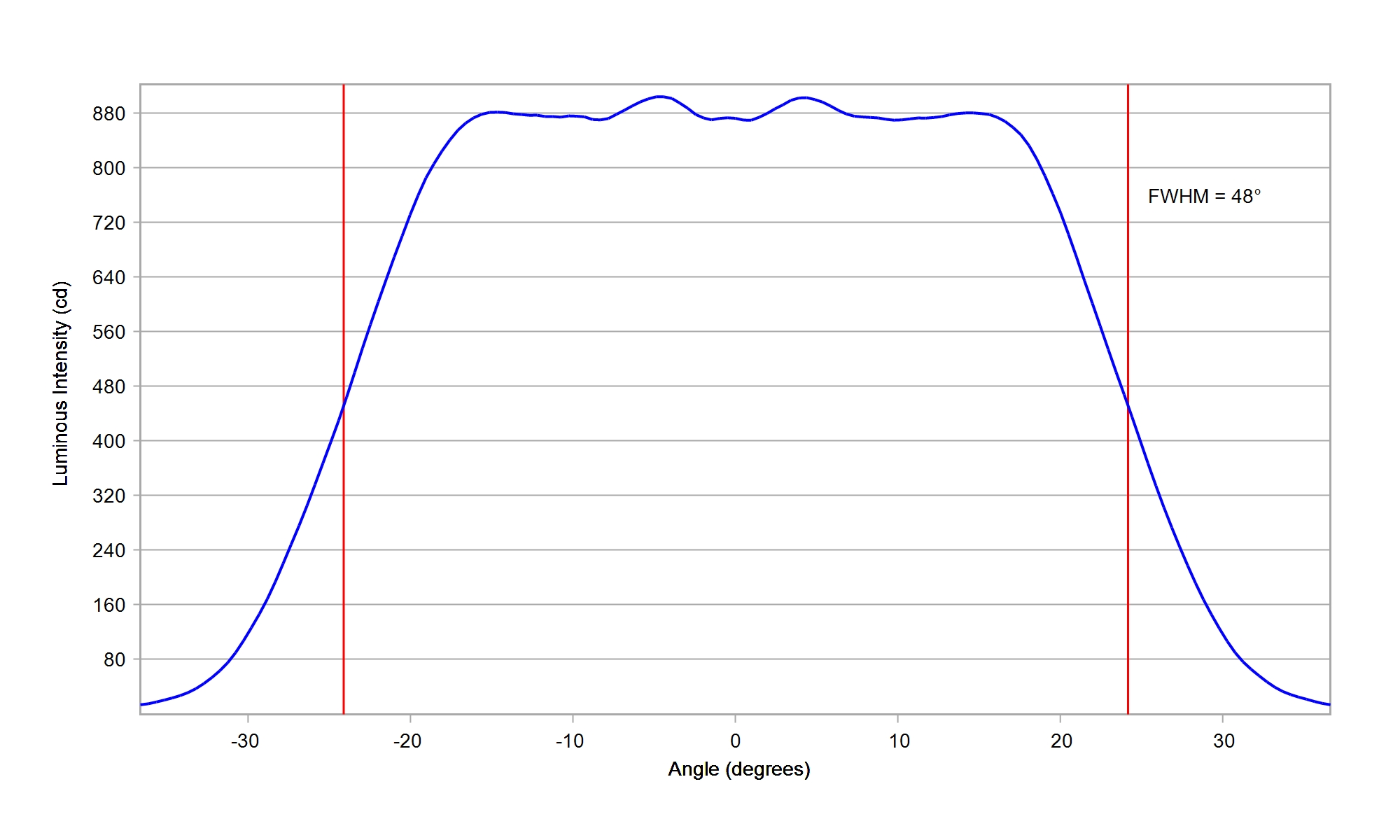

optic-10204-Cree_XD16-PW-cross-section-image-horizontal.jpg , optic-10204-Cree_XD16-PW-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XB-H White
Eff:
86.0%
FWHM:
10.5 x 47°
Cd/Im:
4.7
Carclo Optics - 10204 20mm Spot Image Cree XLamp XB-H
Carclo Optics - 10203 20mm Horizontal Cross Section Cree XLamp XB-H , Carclo Optics - 10203 20mm Vertical Cross Section Cree XLamp XB-H
Download
Details
Cree XLamp XE-G Blue
Eff:
84.0%
FWHM:
6.8 x 50°
Cd/Im:
6.5
optic-10204-Cree-XEG-Blue-cross-section-image-horizontal.jpg , optic-10204-Cree-XEG-Blue-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XE-G Green
Eff:
84.0%
FWHM:
6.9 x 49°
Cd/Im:
6.6
optic-10204-Cree-XEG-Green-cross-section-image-horizontal.jpg , optic-10204-Cree-XEG-Green-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XE-G Red
Eff:
82.5%
FWHM:
7 x 48°
Cd/Im:
6.5
optic-10204-Cree-XEG-Red-cross-section-image-horizontal.jpg , optic-10204-Cree-XEG-Red-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XE-G White
Eff:
85.0%
FWHM:
7.3 x 48°
Cd/Im:
6.2

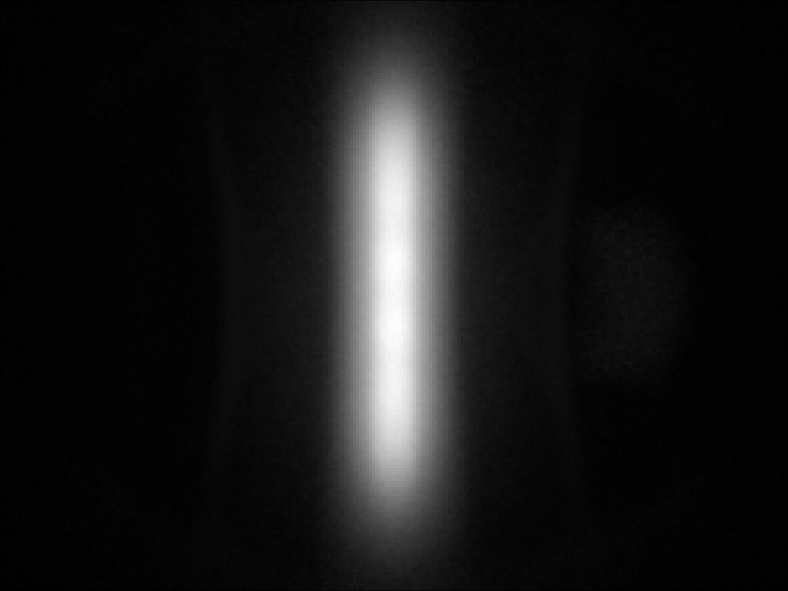

optic-10204-Cree-XEG-WarmWhite-cross-section-image-horizontal.jpg , optic-10204-Cree-XEG-WarmWhite-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XHP-50 Gen 2 White
Eff:
82.5%
FWHM:
24.0 x 40.5°
Cd/Im:
2.1

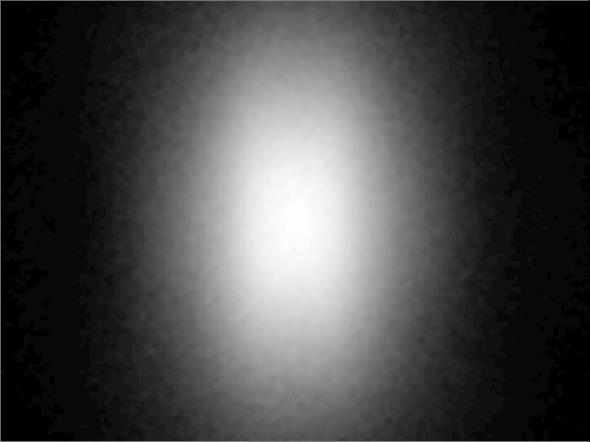

Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Cree XLamp XHP35 HI White
Eff:
86.6%
FWHM:
12x46°
Cd/Im:
3.8
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Cree XLamp XHP35 HD White
Eff:
85.0%
FWHM:
17.2 x 42.7°
Cd/Im:
2.7
Carclo Optics - Simulated Spot Image

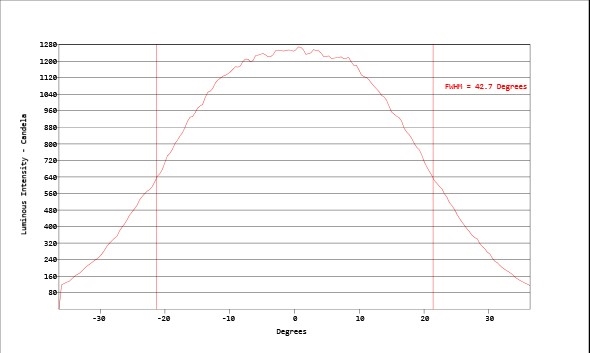

Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Cree XLamp XHP35.2 HI White
Eff:
84.0%
FWHM:
13.5 x 45°
Cd/Im:
3.3
Carclo Optics – 10204 Spot Image Cree XLamp XHP35.2 HI White
Carclo Optics – 10204 Horizontal Cross Section Cree XLamp XHP35.2 HI White , Carclo Optics – 10204 Vertical Cross Section Cree XLamp XHP35.2 HI White
Download
Details
Cree XLamp XHP35.2 HD White
Eff:
83.5%
FWHM:
19.5 x 43°
Cd/Im:
2.4
Carclo Optics - 10204 Spot Image Cree XHP35.2 White
Carclo Optics - 10204 Horizontal Cross Section Cree XHP35.2 White , Carclo Optics - 10204 Vertical Cross Section Cree XHP35.2 White
Download
Details
Cree XLamp XHP50.3 HI White
Eff:
85.0%
FWHM:
18.5 x 44°
Cd/Im:
2.7

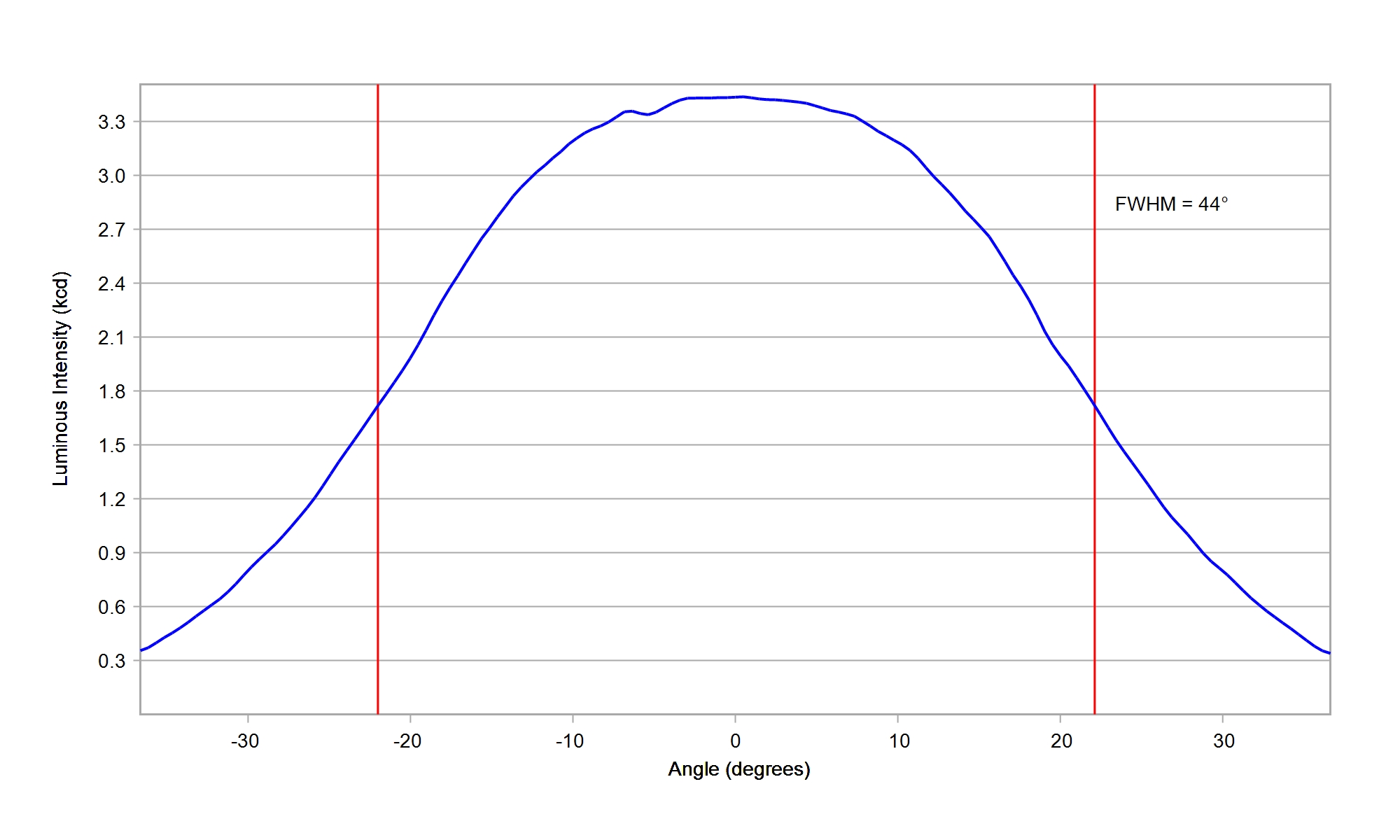

optic-10204-Cree_XHP50D_HI-cross-section-image-horizontal.jpg , optic-10204-Cree_XHP50D_HI-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XHP50.3 White
Eff:
83.5%
FWHM:
22 x 42°
Cd/Im:
2.2
optic-10204-Cree_XHP50D-cross-section-image-horizontal.jpg , optic-10204-Cree_XHP50D-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XM-L3 White
Eff:
83.0%
FWHM:
16 x 45°
Cd/Im:
2.9

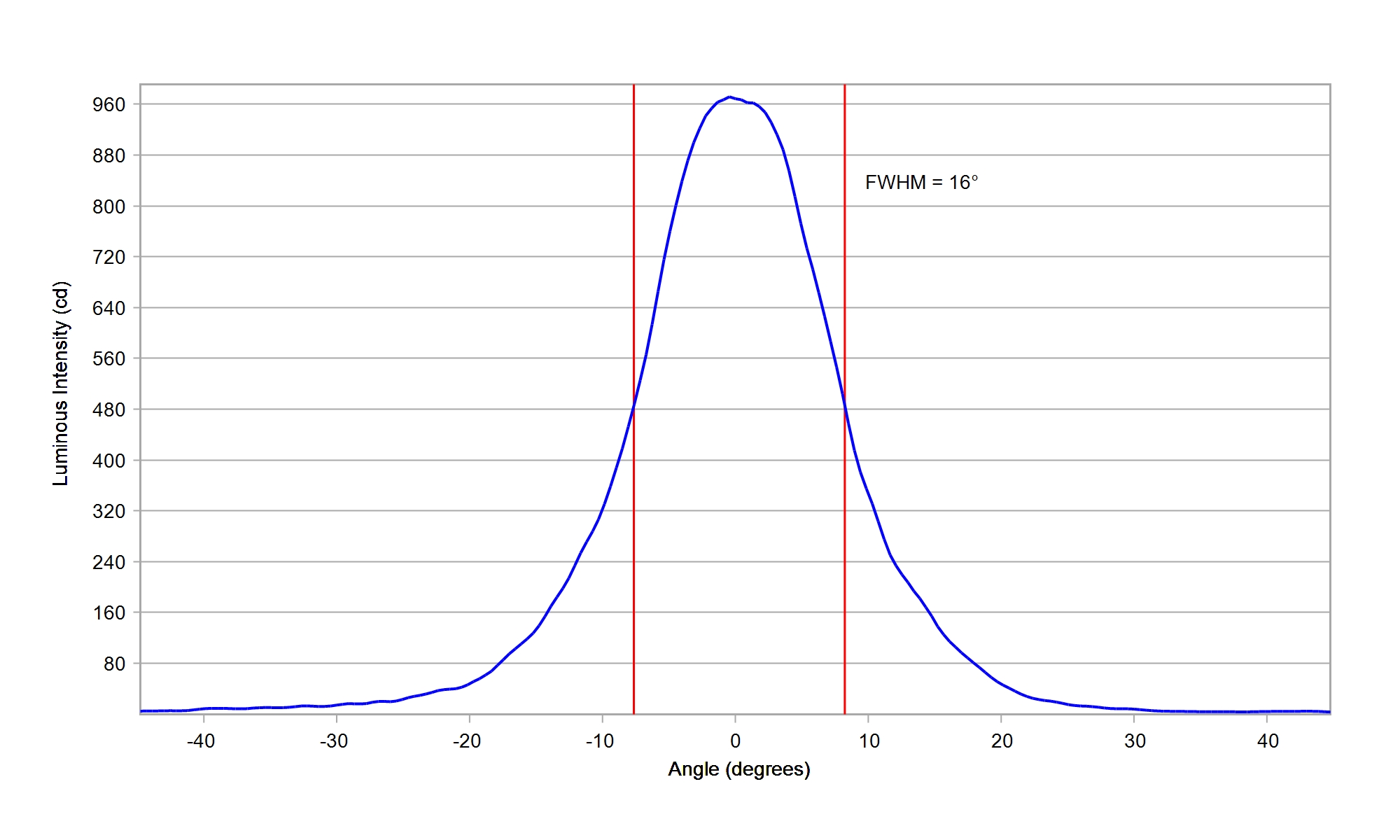

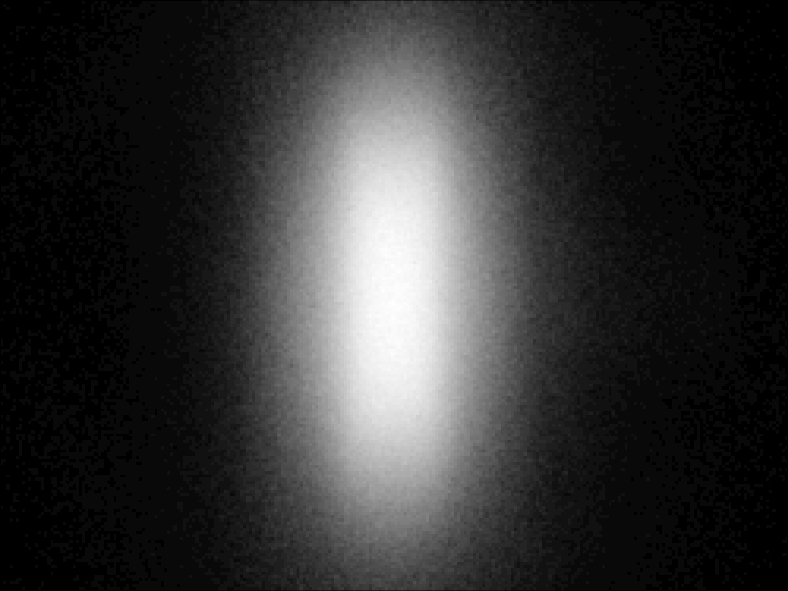

Carclo Optics - 10204 Spot Image Cree XM-L3
Carclo Optics - 10204 Horizontal Cross Section Cree XM-L3 , Carclo Optics - 10204 Vertical Cross Section Cree XM-L3
Download
Details
Cree XLamp XP-E2 Amber
Eff:
83.5%
FWHM:
8.1 x 48°
Cd/Im:
5.5

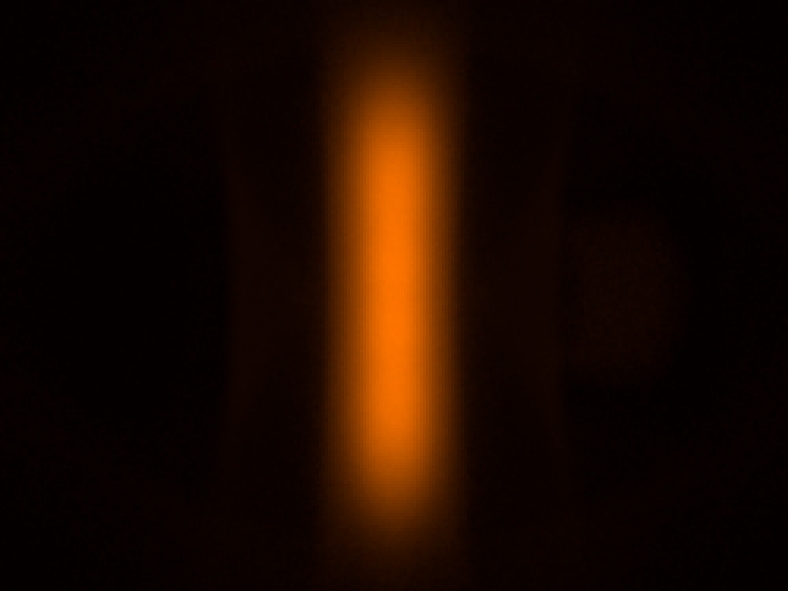

optic-10204-Cree-XP-E2-Amber-cross-section-image-horizontal.jpg , optic-10204-Cree-XP-E2-Amber-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XP-E2 Blue
Eff:
84.0%
FWHM:
7.3 x 50°
Cd/Im:
6.2

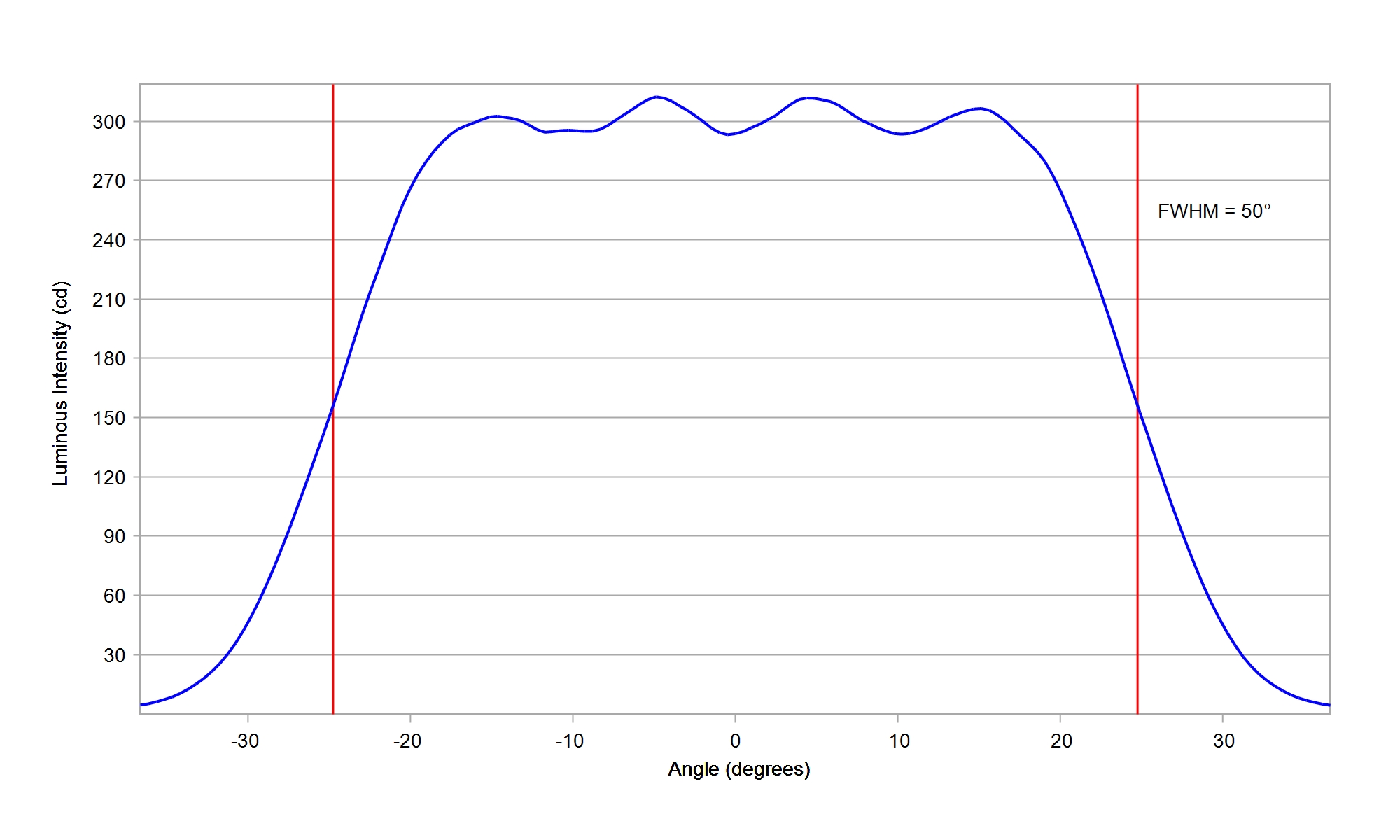

optic-10204-Cree-XP-E2-Blue-cross-section-image-horizontal.jpg , optic-10204-Cree-XP-E2-Blue-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XP-E2 Far Red
Eff:
86.5%
FWHM:
8.1 x 47°
Ipk/W:
5.8

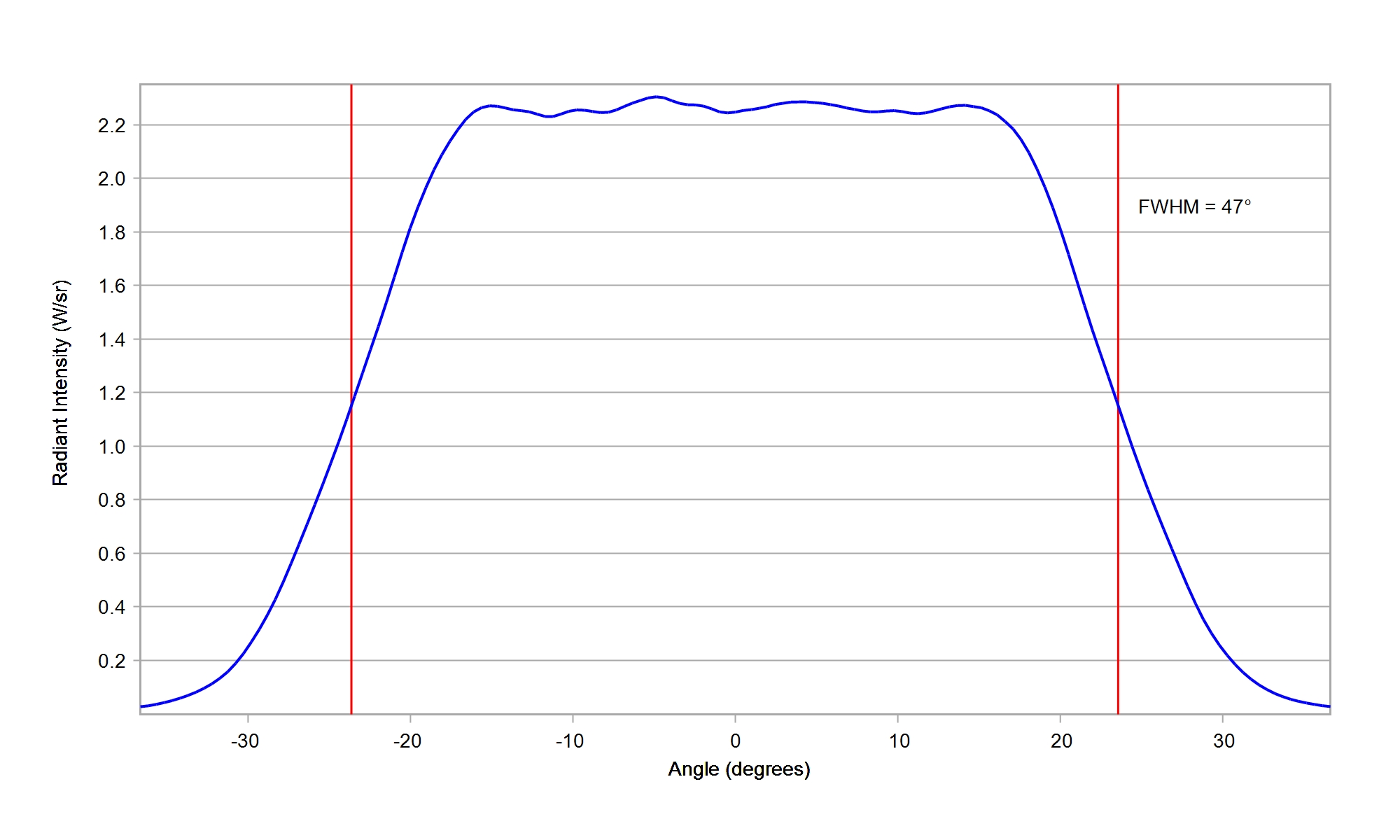

optic-10204-Cree-XP-E2-FarRed-cross-section-image-horizontal.jpg , optic-10204-Cree-XP-E2-FarRed-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XP-E2 Green
Eff:
85.5%
FWHM:
7.4 x 49°
Cd/Im:
6.5

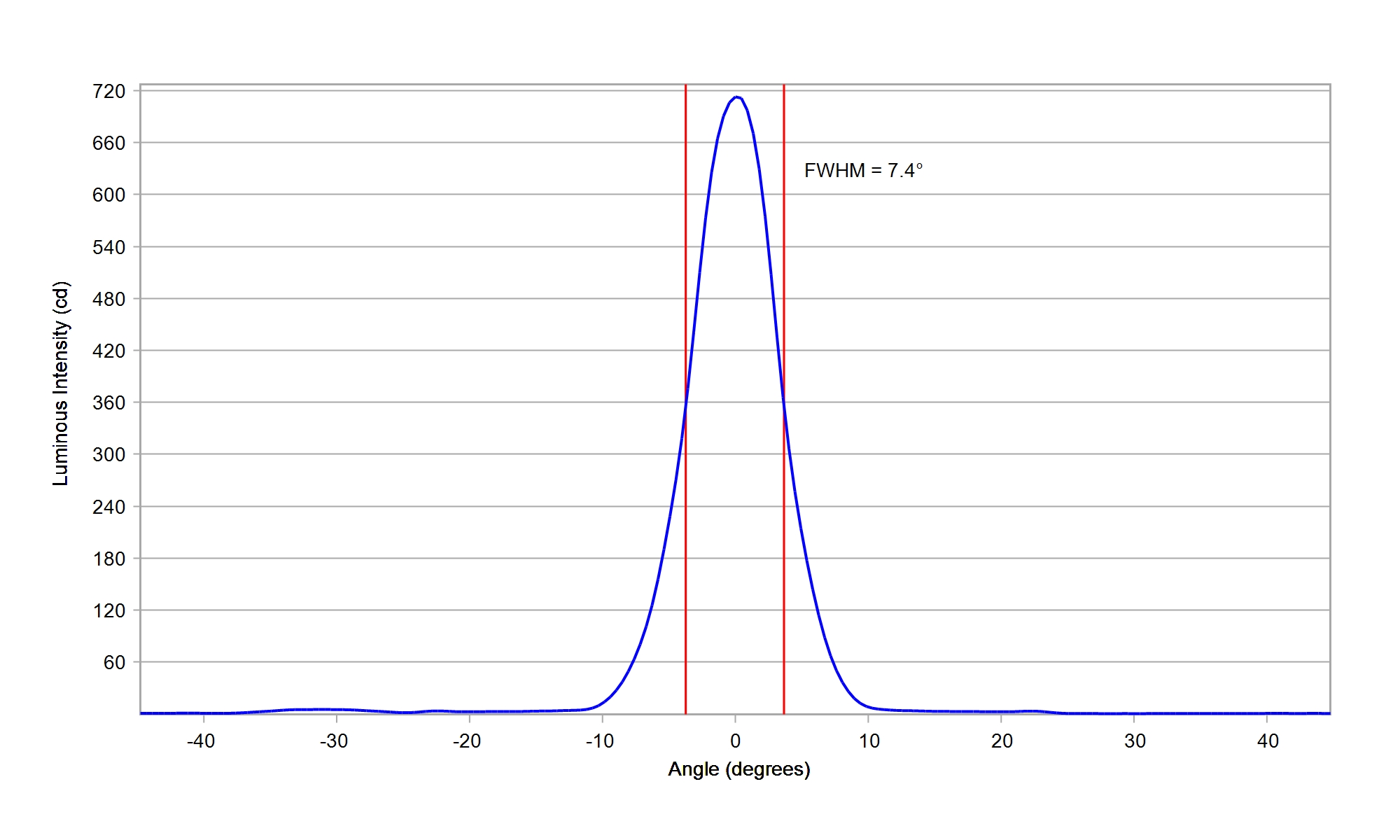

optic-10204-Cree-XP-E2-Green-cross-section-image-horizontal.jpg , optic-10204-Cree-XP-E2-Green-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XP-E2 PC Amber
Eff:
84.5%
FWHM:
9.6 x 47°
Cd/Im:
4.8
optic-10204-Cree-XP-E2-PC-Amber-cross-section-image-horizontal.jpg , optic-10204-Cree-XP-E2-PC-Amber-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XP-E2 Photo Red
Eff:
84.0%
FWHM:
8.2 x 47°
Ipk/W:
5.5
optic-10204-Cree-XP-E2-PhotoRed-cross-section-image-horizontal.jpg , optic-10204-Cree-XP-E2-PhotoRed-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XP-E2 Red
Eff:
85.0%
FWHM:
8 x 48°
Cd/Im:
5.7
optic-10204-Cree-XP-E2-Red-cross-section-image-horizontal.jpg , optic-10204-Cree-XP-E2-Red-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XP-E2 Red-Orange
Eff:
84.5%
FWHM:
8 x 48°
Cd/Im:
5.7
optic-10204-Cree-XP-E2-RedOrange-cross-section-image-horizontal.jpg , optic-10204-Cree-XP-E2-RedOrange-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XP-E2 Royal Blue
Eff:
82.0%
FWHM:
6.9 x 50°
Ipk/W:
6.2
optic-10204-Cree-XP-E2-RoyalBlue-cross-section-image-horizontal.jpg , optic-10204-Cree-XP-E2-RoyalBlue-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XP-E2 White
Eff:
84.0%
FWHM:
7.4 x 48°
Cd/Im:
6.2
optic-10204-Cree-XP-E2-White-cross-section-image-horizontal.jpg , optic-10204-Cree-XP-E2-White-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XP-G3 White
Eff:
87.0%
FWHM:
12.6 x 46°
Cd/Im:
3.5
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Cree XLamp XP-G4 HI White
Eff:
84.5%
FWHM:
8.9 x 48°
Cd/Im:
5.0
optic-10204-Cree-XP-G4-HI-cross-section-image-horizontal.jpg , optic-10204-Cree-XP-G4-HI-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XP-G4 White
Eff:
87.0%
FWHM:
11.5 x 47°
Cd/Im:
4.5

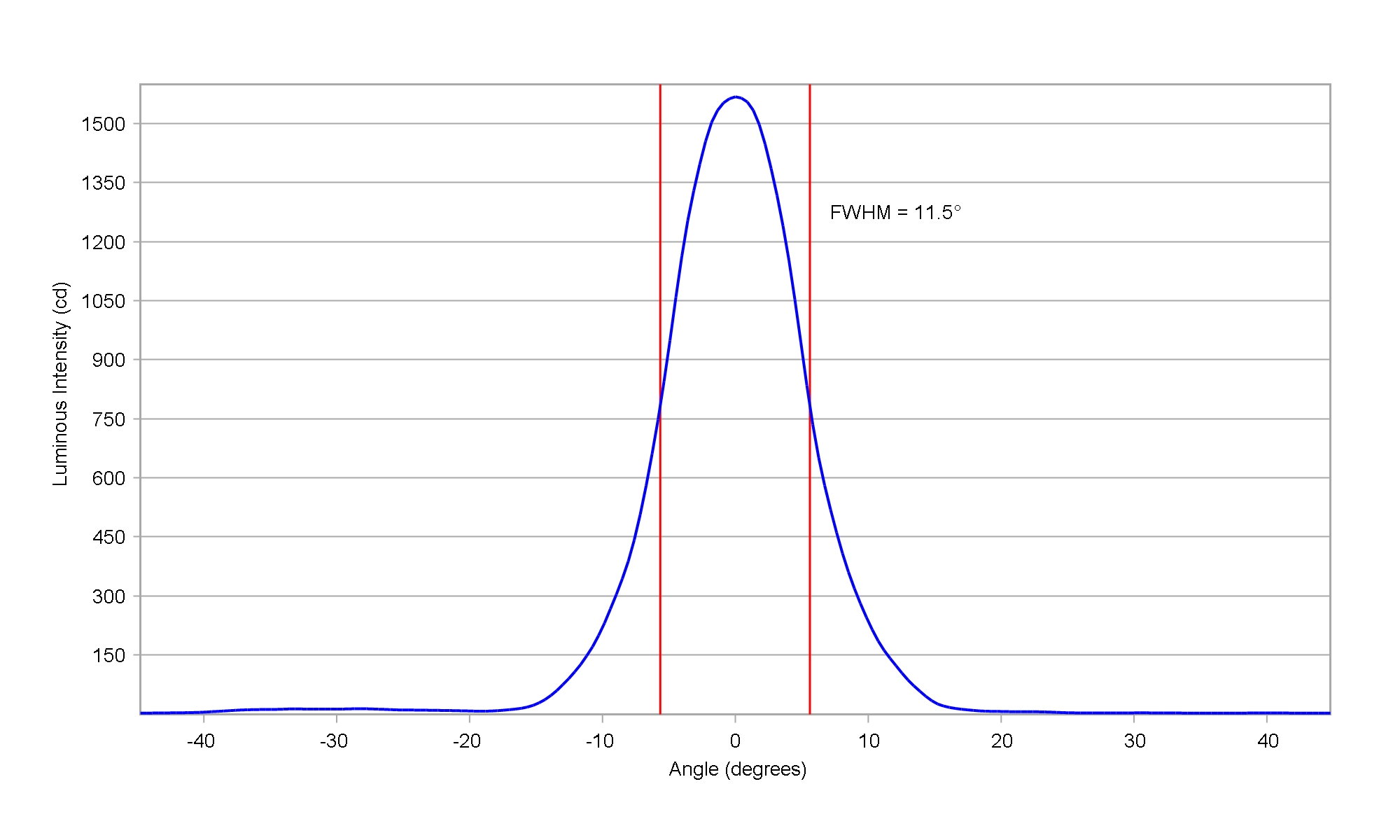

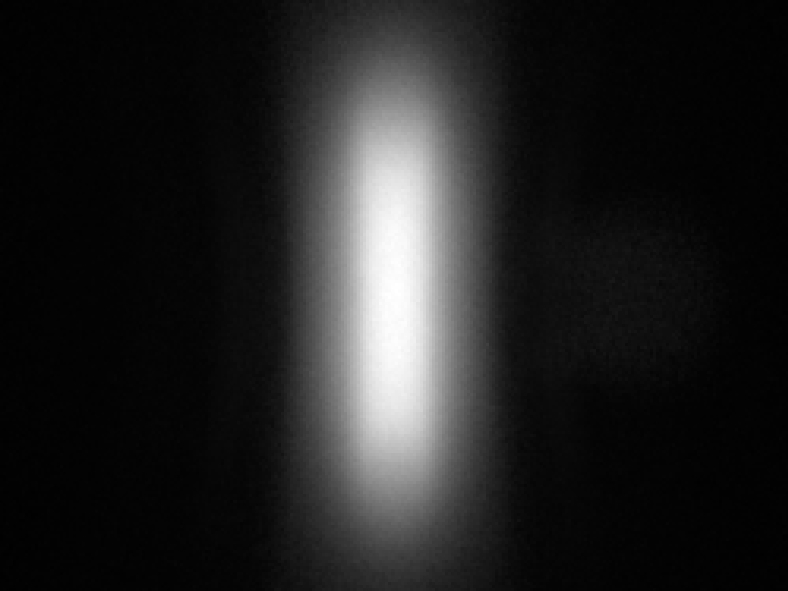

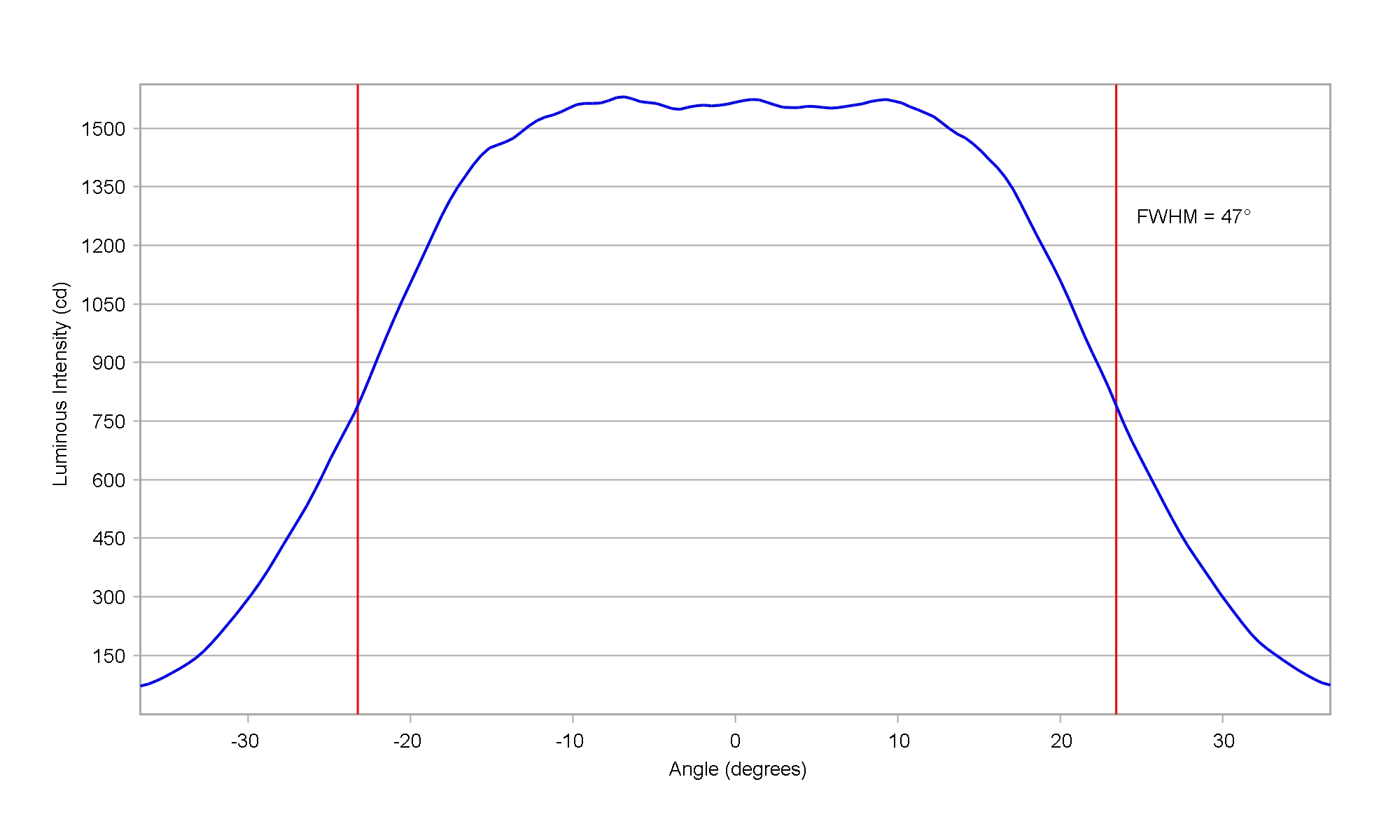

optic-10204-Cree_XP-G4-NeutralWhite-cross-section-image-horizontal.jpg , optic-10204-Cree_XP-G4-NeutralWhite-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XP-GR White
Eff:
86.0%
FWHM:
6.2 x 48°
Cd/Im:
7.9

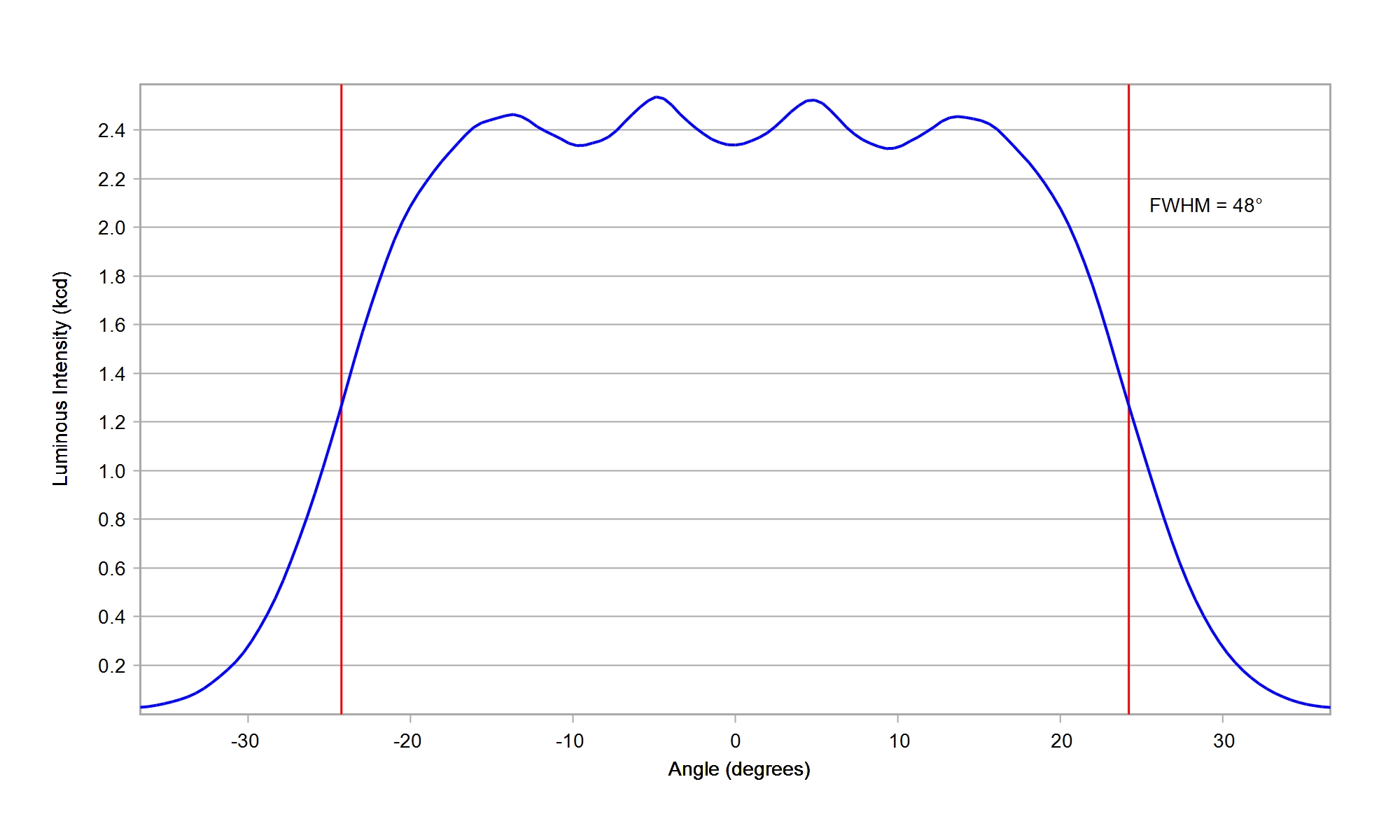

optic-10204-Cree_XP-GR-cross-section-image-horizontal.jpg , optic-10204-Cree_XP-GR-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XP-L HI White
Eff:
86.7%
FWHM:
10.3x46.8°
Cd/Im:
4.3
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Cree XLamp XP-L White
Eff:
85.9%
FWHM:
14.9 x 44.0°
Cd/Im:
3.2

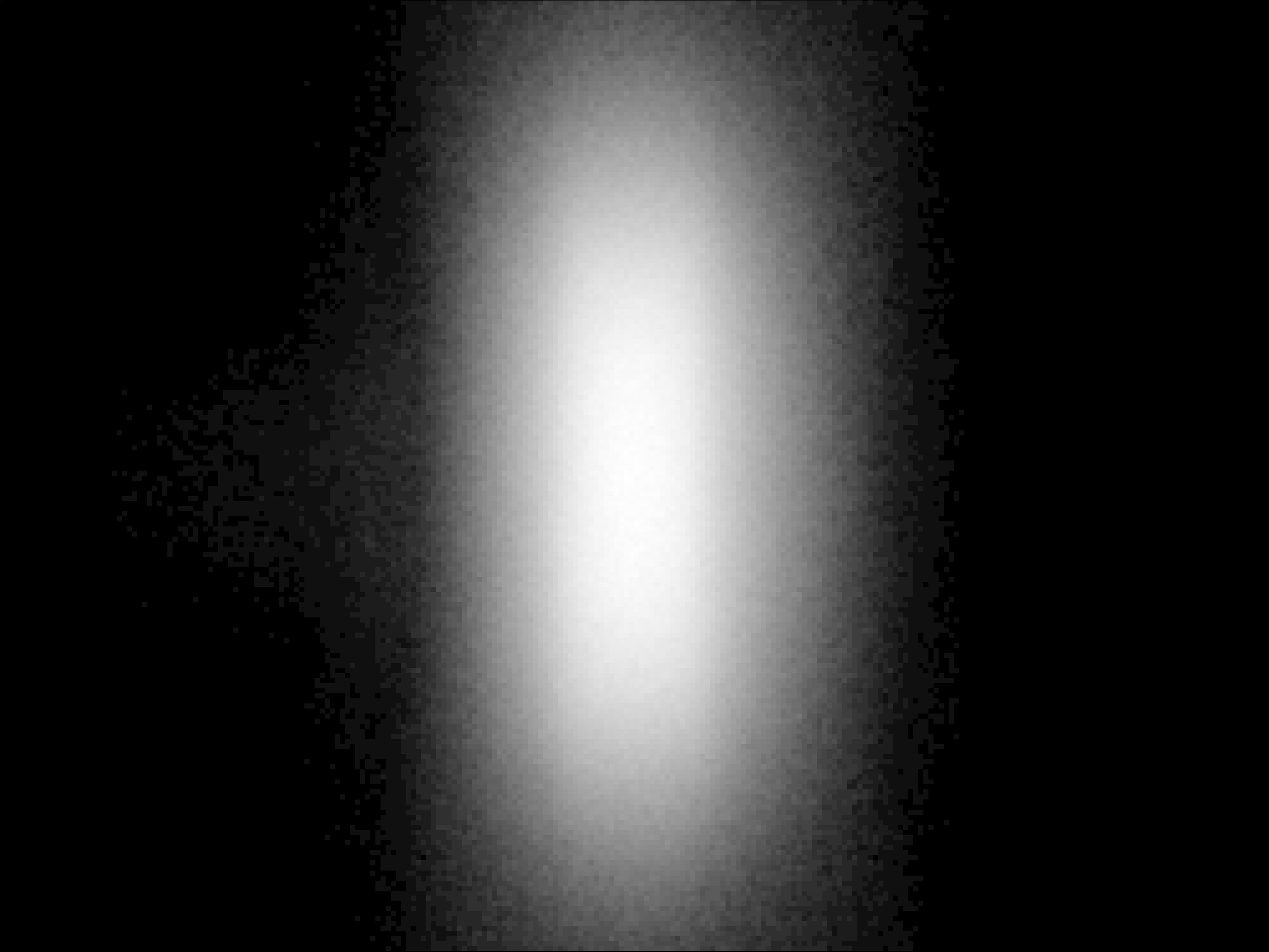

carclo optics - simulated spot image
carclo optics - simulated horizontal cross section , carclo optics - simulated vertical cross section
Download
Details
Cree XLamp XP-L2 White
Eff:
83.0%
FWHM:
16.5 x 43.0°
Cd/Im:
2.9
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Cree XLamp XP-LR White
Eff:
85.5%
FWHM:
7.7 x 48°
Cd/Im:
6.2

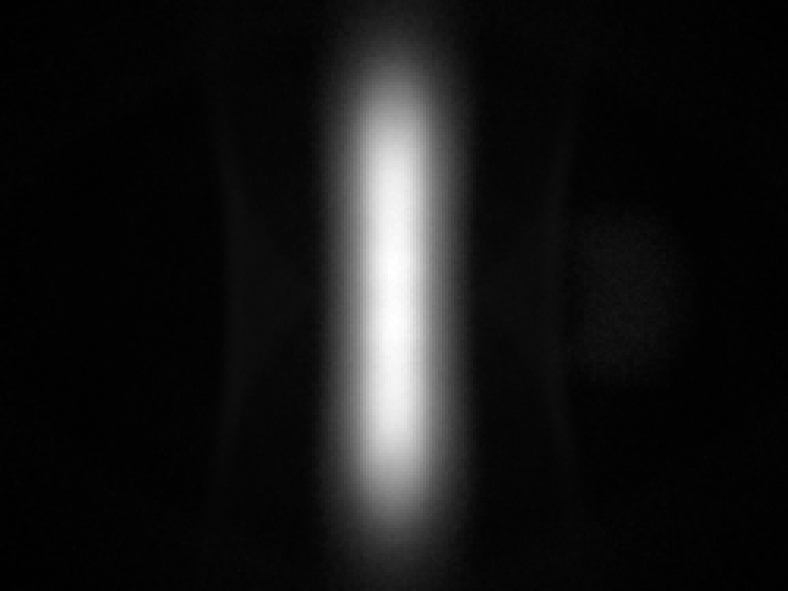

optic-10204-Cree_XP-LR-cross-section-image-horizontal.jpg , optic-10204-Cree_XP-LR-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XP-P White
Eff:
85.0%
FWHM:
6.6 x 48°
Cd/Im:
7.5
Carclo Optics – 10204 Cree Xlamp XP-P - Spot Image
Carclo Optics – 10204 Horizontal Cree Xlamp XP-P - Cross-Section , Carclo Optics – 10204 Vertical Cree Xlamp XP-P - Cross-Section
Download
Details
Cree XLamp XQ-A Blue
Eff:
85.5%
FWHM:
4.5 x 50°
Cd/Im:
11.5
optic-10204-Cree-XQ-A-Blue-cross-section-image-horizontal.jpg , optic-10204-Cree-XQ-A-Blue-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XQ-A Green
Eff:
85.5%
FWHM:
4.6 x 49°
Cd/Im:
11.5
optic-10204-Cree-XQ-A-Green-cross-section-image-horizontal.jpg , optic-10204-Cree-XQ-A-Green-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XQ-A PC Amber
Eff:
85.0%
FWHM:
6 x 48°
Cd/Im:
7.8

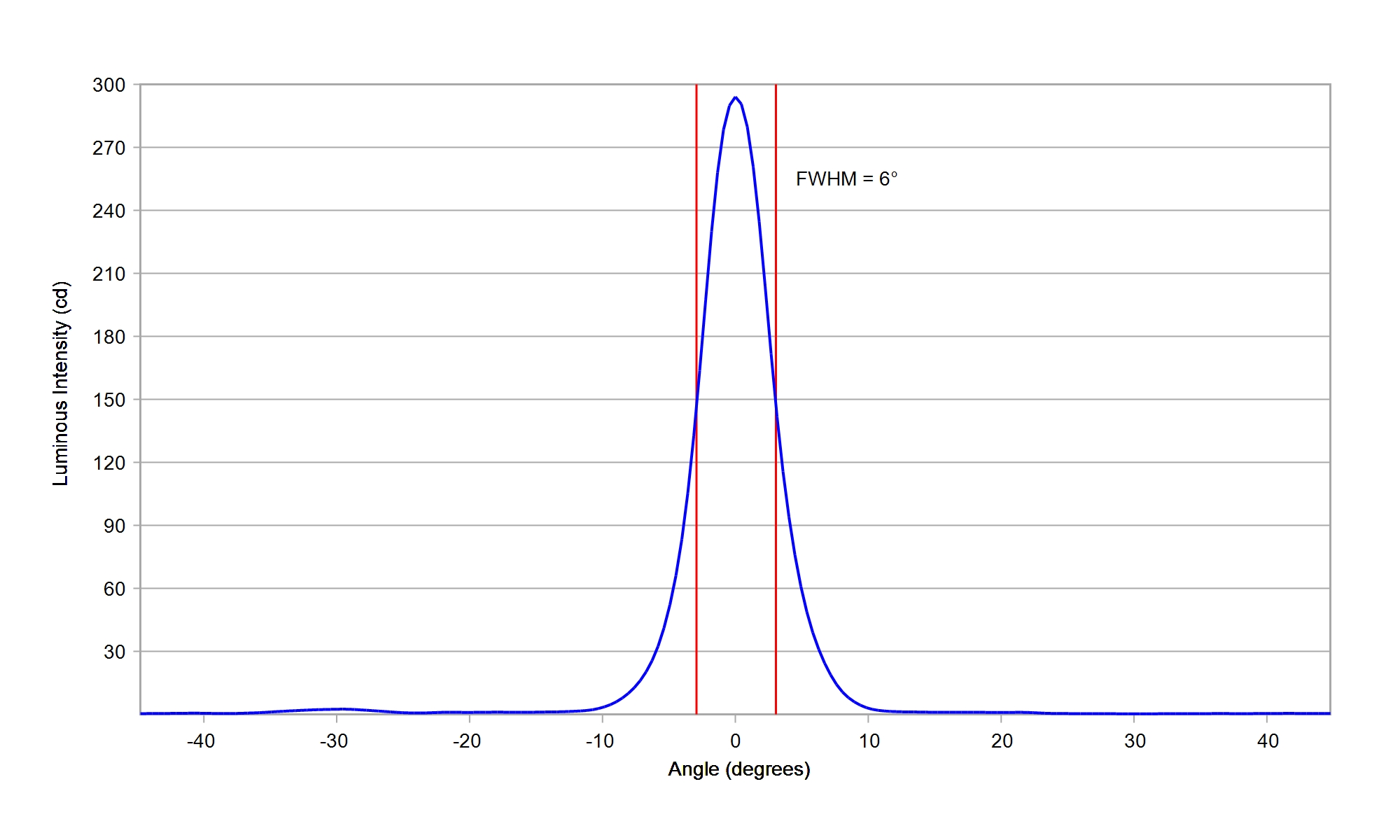

optic-10204-Cree-XQ-A-PCAmber-cross-section-image-horizontal.jpg , optic-10204-Cree-XQ-A-PCAmber-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XQ-A PC Blue
Eff:
84.0%
FWHM:
4.7 x 50°
Cd/Im:
10.2
optic-10204-Cree-XQ-A-PCBlue-cross-section-image-horizontal.jpg , optic-10204-Cree-XQ-A-PCBlue-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XQ-A Red
Eff:
87.0%
FWHM:
4.5 x 48°
Cd/Im:
11.7
optic-10204-Cree-XQ-A-Red-cross-section-image-horizontal.jpg , optic-10204-Cree-XQ-A-Red-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XQ-A Red-Orange
Eff:
86.5%
FWHM:
4.4 x 48°
Cd/Im:
11.9

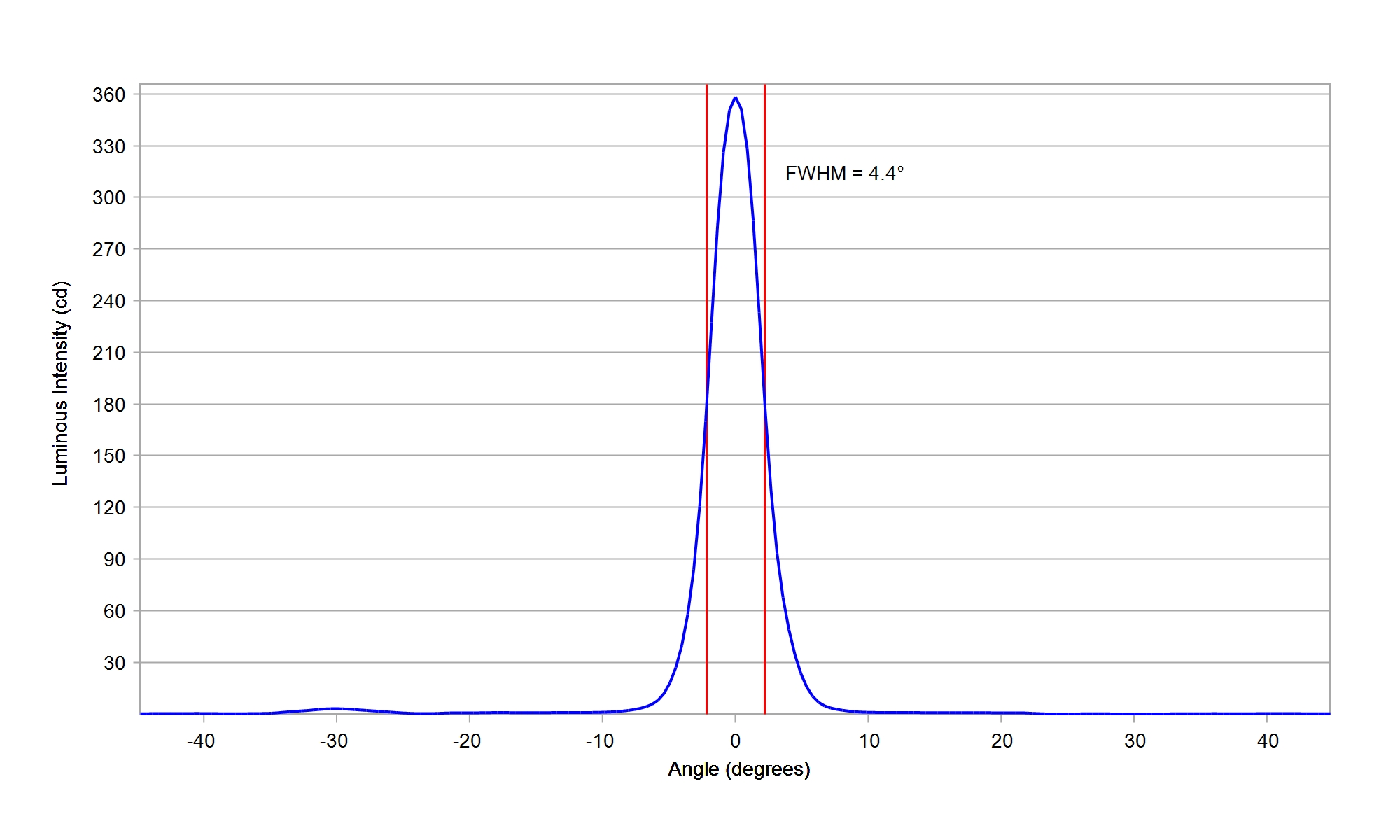

optic-10204-Cree-XQ-A-RedOrange-cross-section-image-horizontal.jpg , optic-10204-Cree-XQ-A-RedOrange-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XQ-A White
Eff:
85.5%
FWHM:
5.1 x 49°
Cd/Im:
9.5

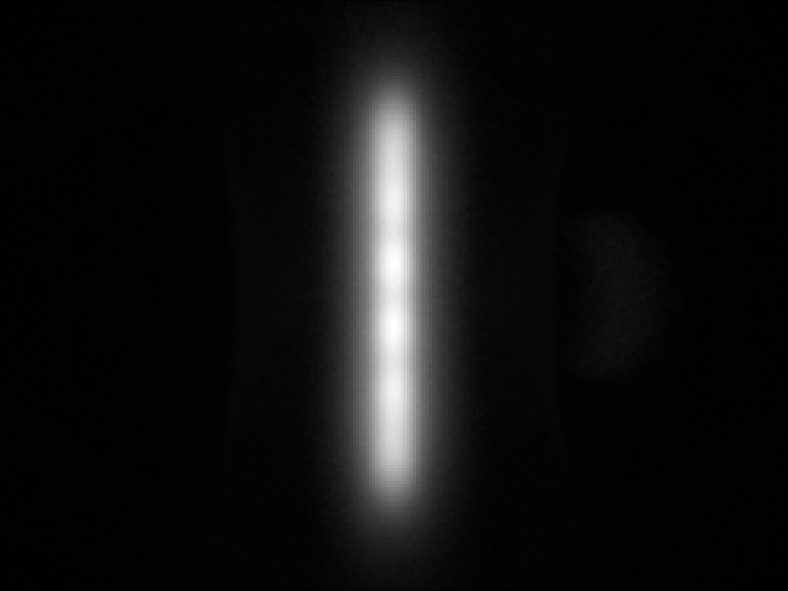

optic-10204-Cree-XQ-A-White-cross-section-image-horizontal.jpg , optic-10204-Cree-XQ-A-White-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XQ-E HI Blue
Eff:
83.0%
FWHM:
6.4 X 83.5°
Cd/Im:

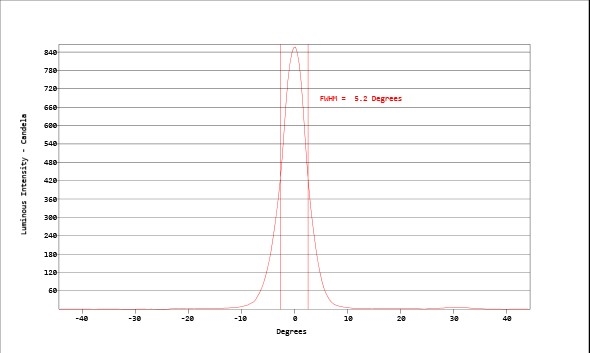

6.6
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Cree XLamp XQ-E HI Green
Eff:
83.5%
FWHM:
6.0 x 48.5°
Cd/Im:
6.9
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Cree XLamp XQ-E HI Red
Eff:
83.0%
FWHM:
5.3 X 48.0°
Cd/Im:
7.9
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Cree XLamp XQ-E HI White
Eff:
87.0%
FWHM:
5.2 x 48.8°
Cd/Im:
7.6
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Cree XLamp XQ-E Plus HD Blue
Eff:
85.0%
FWHM:
7.4 x 49°
Cd/Im:
6.0

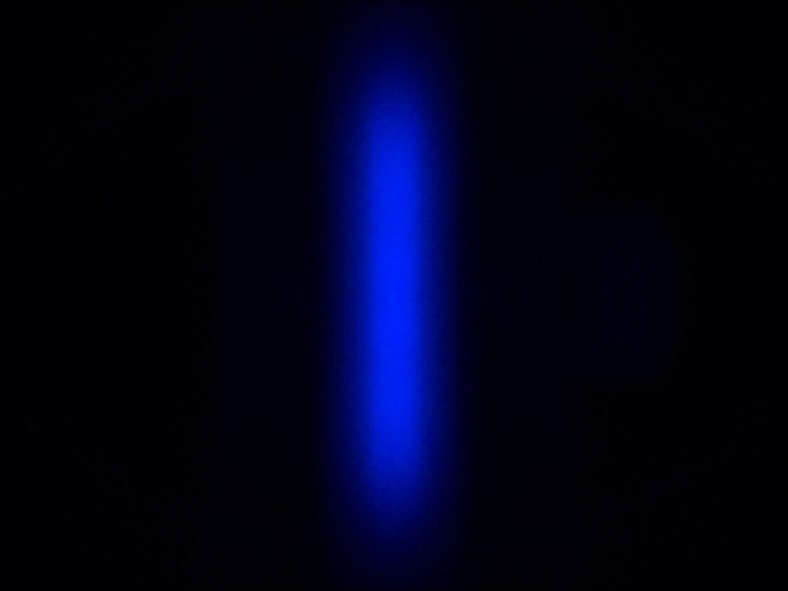

optic-10204-Cree-XQ-E-Plus-HD-Blue-cross-section-image-horizontal.jpg , optic-10204-Cree-XQ-E-Plus-HD-Blue-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XQ-E Plus HD Green
Eff:
85.0%
FWHM:
7.5 x 49°
Cd/Im:
5.9

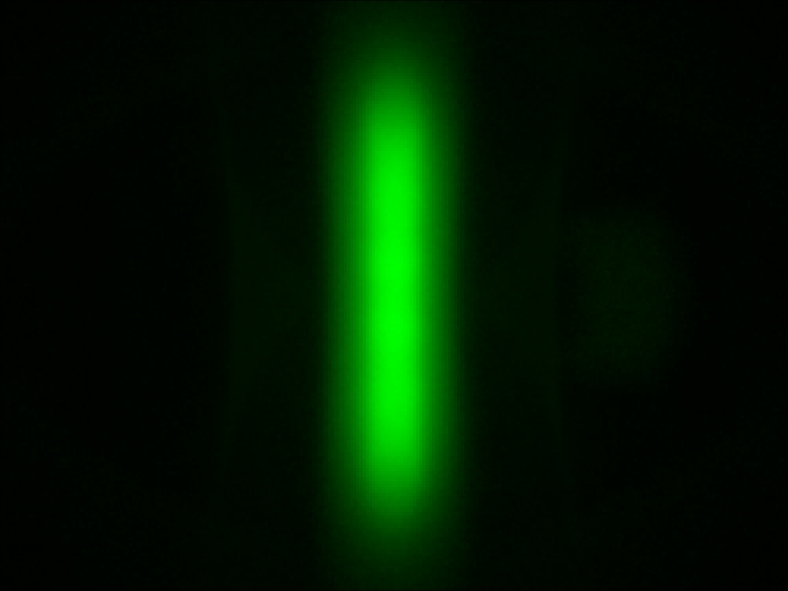

optic-10204-Cree-XQ-E-Plus-HD-Green-cross-section-image-horizontal.jpg , optic-10204-Cree-XQ-E-Plus-HD-Green-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XQ-E Plus HD PC Amber
Eff:
85.0%
FWHM:
8.2 x 48°
Cd/Im:
5.6
optic-10204-Cree-XQ-E-Plus-HD-PCAmber-cross-section-image-horizontal.jpg , optic-10204-Cree-XQ-E-Plus-HD-PCAmber-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XQ-E Plus HD Royal Blue
Eff:
83.5%
FWHM:
7.4 x 50°
Ipk/W:
5.7

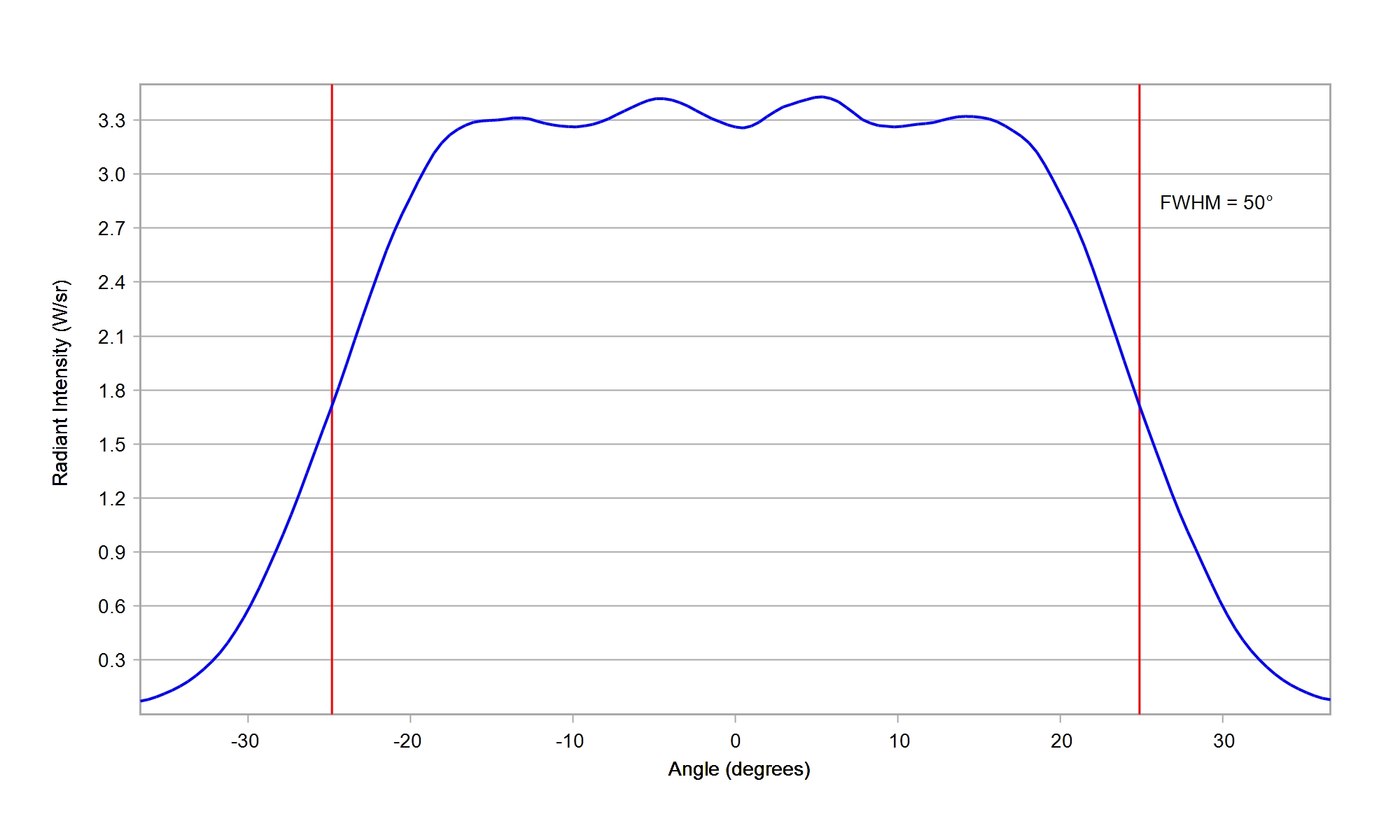

optic-10204-Cree-XQ-E-Plus-HD-RoyalBlue-cross-section-image-horizontal.jpg , optic-10204-Cree-XQ-E-Plus-HD-RoyalBlue-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XQ-E Plus HD White
Eff:
85.0%
FWHM:
8.3 x 48°
Cd/Im:
5.6
optic-10204-Cree-XQ-E-Plus-HD-White-cross-section-image-horizontal.jpg , optic-10204-Cree-XQ-E-Plus-HD-White-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XQ-E Plus HI Blue
Eff:
83.5%
FWHM:
6.4 x 50°
Cd/Im:
6.5
optic-10204-Cree-XQ-E-Plus-HI-Blue-cross-section-image-horizontal.jpg , optic-10204-Cree-XQ-E-Plus-HI-Blue-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XQ-E Plus HI Green
Eff:
83.5%
FWHM:
6.4 x 49°
Cd/Im:
6.5
optic-10204-Cree-XQ-E-Plus-HI-Green-cross-section-image-horizontal.jpg , optic-10204-Cree-XQ-E-Plus-HI-Green-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XQ-E Plus HI PC Amber
Eff:
82.5%
FWHM:
7.4 x 48°
Cd/Im:
5.7
optic-10204-Cree-XQ-E-Plus-HI-PCAmber-cross-section-image-horizontal.jpg , optic-10204-Cree-XQ-E-Plus-HI-PCAmber-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XQ-E Plus HI Royal Blue
Eff:
82.5%
FWHM:
6.4 x 50°
Ipk/W:
6.3
optic-10204-Cree-XQ-E-Plus-HI-RoyalBlue-cross-section-image-horizontal.jpg , optic-10204-Cree-XQ-E-Plus-HI-RoyalBlue-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XQ-E Plus HI White
Eff:
82.5%
FWHM:
7.4 x 49°
Cd/Im:
5.9
optic-10204-Cree-XQ-E-Plus-HI-White-cross-section-image-horizontal.jpg , optic-10204-Cree-XQ-E-Plus-HI-White-cross-section-image-vertical.jpg
Download
Details
Cree XLamp XR-C White
Eff:
84.0%
FWHM:
8.4 x 41°
Cd/Im:
7.1
Details
Cree XLamp XR-E White
Eff:
90.0%
FWHM:
10 x 41°
Cd/Im:
5.1
Download
Details
Cree XLamp XT-E HE White
Eff:
84.0%
FWHM:
11 x 46.5°
Cd/Im:
4.0

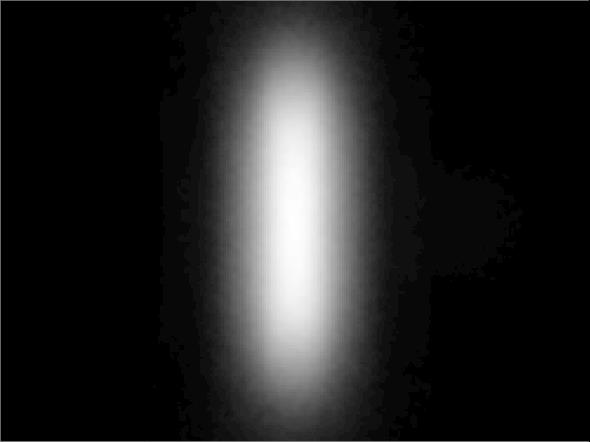

Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Lite-On R38386AS - S R38 IR
Eff:
89.0%
FWHM:
8.3 x 46.0°
Ipk/W:
6.2
Carclo Optics - Simulated Spot Image

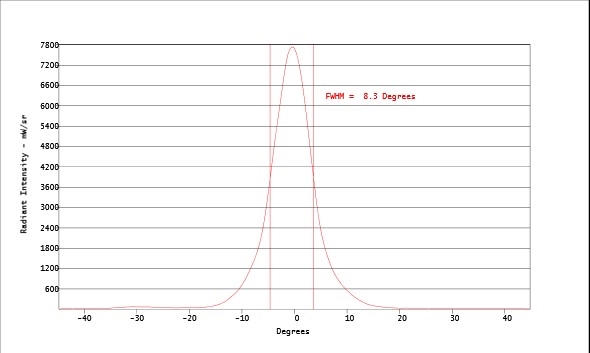

Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
LUMILEDS LUXEON 2835C 6V White
Eff:
85.5%
FWHM:
10 x 47°
Cd/Im:
4.6

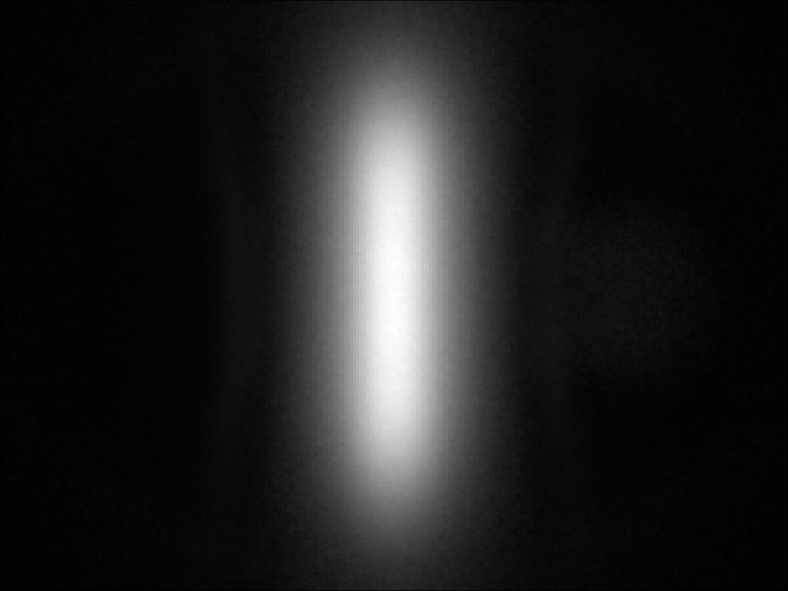

optic-10204-LUXEON_2835C_6V-cross-section-image-horizontal.jpg , optic-10204-LUXEON_2835C_6V-cross-section-image-vertical.jpg
Download
Details

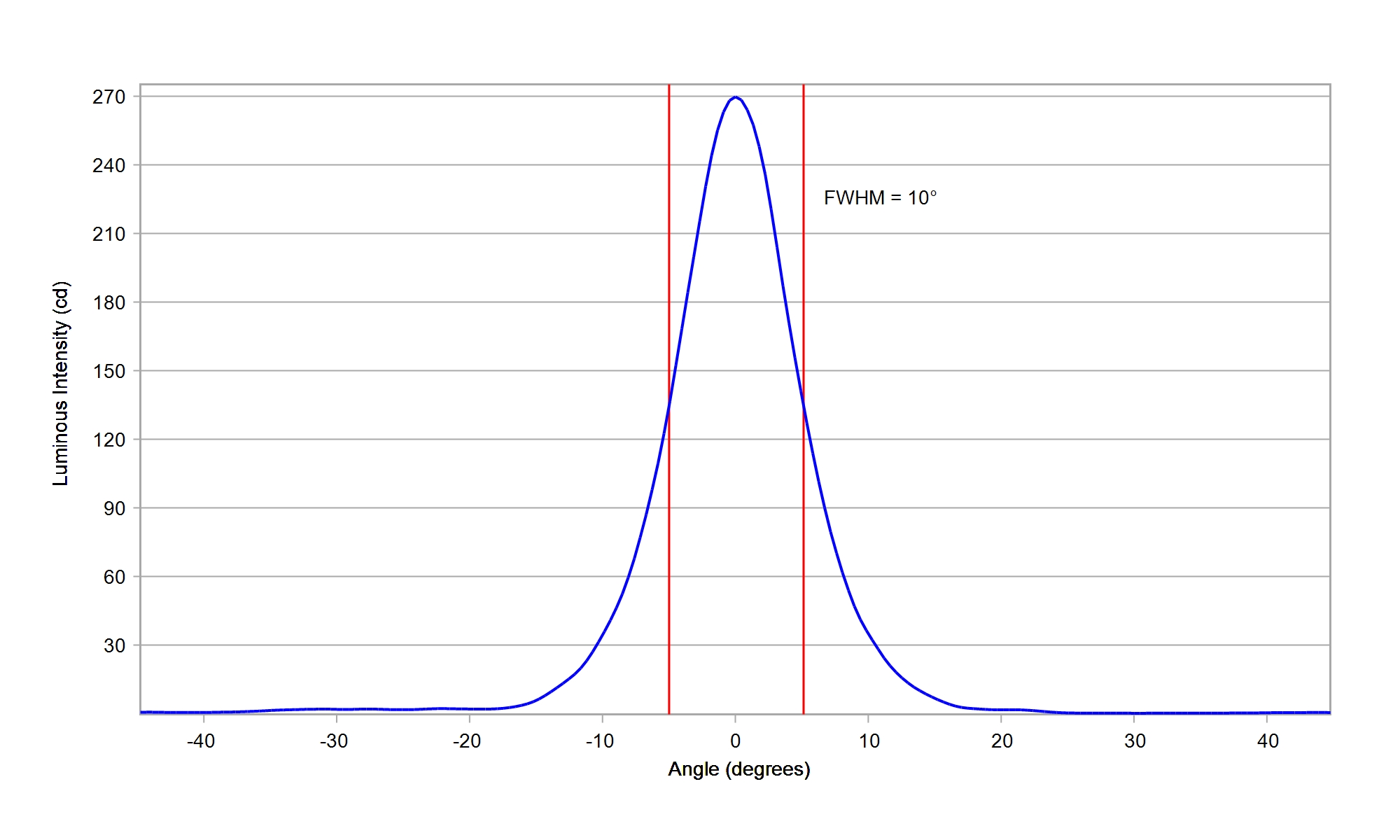

LUMILEDS LUXEON 2835E 9V White
Eff:
85.0%
FWHM:
10 x 48°
Cd/Im:
4.6
optic-10204-LUXEON_2835E_9V-cross-section-image-horizontal.jpg , optic-10204-LUXEON_2835E_9V-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON 2835N 3V White
Eff:
85.5%
FWHM:
10 x 47°
Cd/Im:
4.5

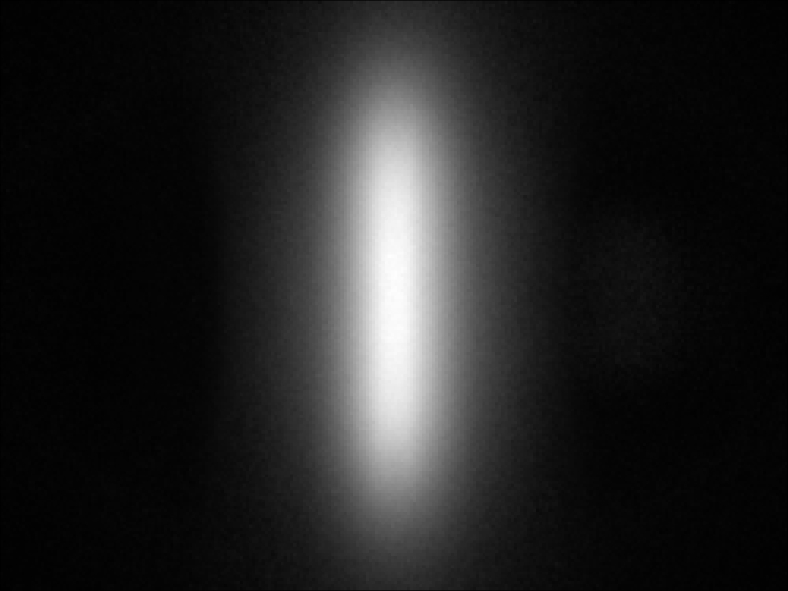

optic-10204-LUXEON_2835N_3V-cross-section-image-horizontal.jpg , optic-10204-LUXEON_2835N_3V-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON 2835S 3V White
Eff:
85.5%
FWHM:
11 x 47°
Cd/Im:
4.3
optic-10204-LUXEON_2835S_3V-cross-section-image-horizontal.jpg , optic-10204-LUXEON_2835S_3V-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON 2835S 6V White
Eff:
85.5%
FWHM:
11 x 47°
Cd/Im:
4.3
optic-10204-LUXEON_2835S_6V-cross-section-image-horizontal.jpg , optic-10204-LUXEON_2835S_6V-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON 3014 White
Eff:
85.0%
FWHM:
5.8 x 49°
Cd/Im:
7.9
optic-10204-LUXEON_3014-cross-section-image-horizontal.jpg , optic-10204-LUXEON_3014-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON 3030 2D Plus Round White
Eff:
86.0%
FWHM:
11.5 x 47°
Cd/Im:
4.2
optic-10204-LUXEON_3030-2D_Plus_RD-cross-section-image-horizontal.jpg , optic-10204-LUXEON_3030-2D_Plus_RD-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON 3030 2D Plus Square White
Eff:
86.5%
FWHM:
16.5 x 44°
Cd/Im:
3.2
optic-10204-LUXEON_3030-2D_Plus_SQ-cross-section-image-horizontal.jpg , optic-10204-LUXEON_3030-2D_Plus_SQ-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON 3030 2D Square White
Eff:
84.5%
FWHM:
10.5 x 48°
Cd/Im:
4.4
optic-10204-LUXEON_3030-2D_Square-cross-section-image-horizontal.jpg , optic-10204-LUXEON_3030-2D_Square-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON 3030 2D Round White
Eff:
85.0%
FWHM:
9.3 x 48°
Cd/Im:
5.0

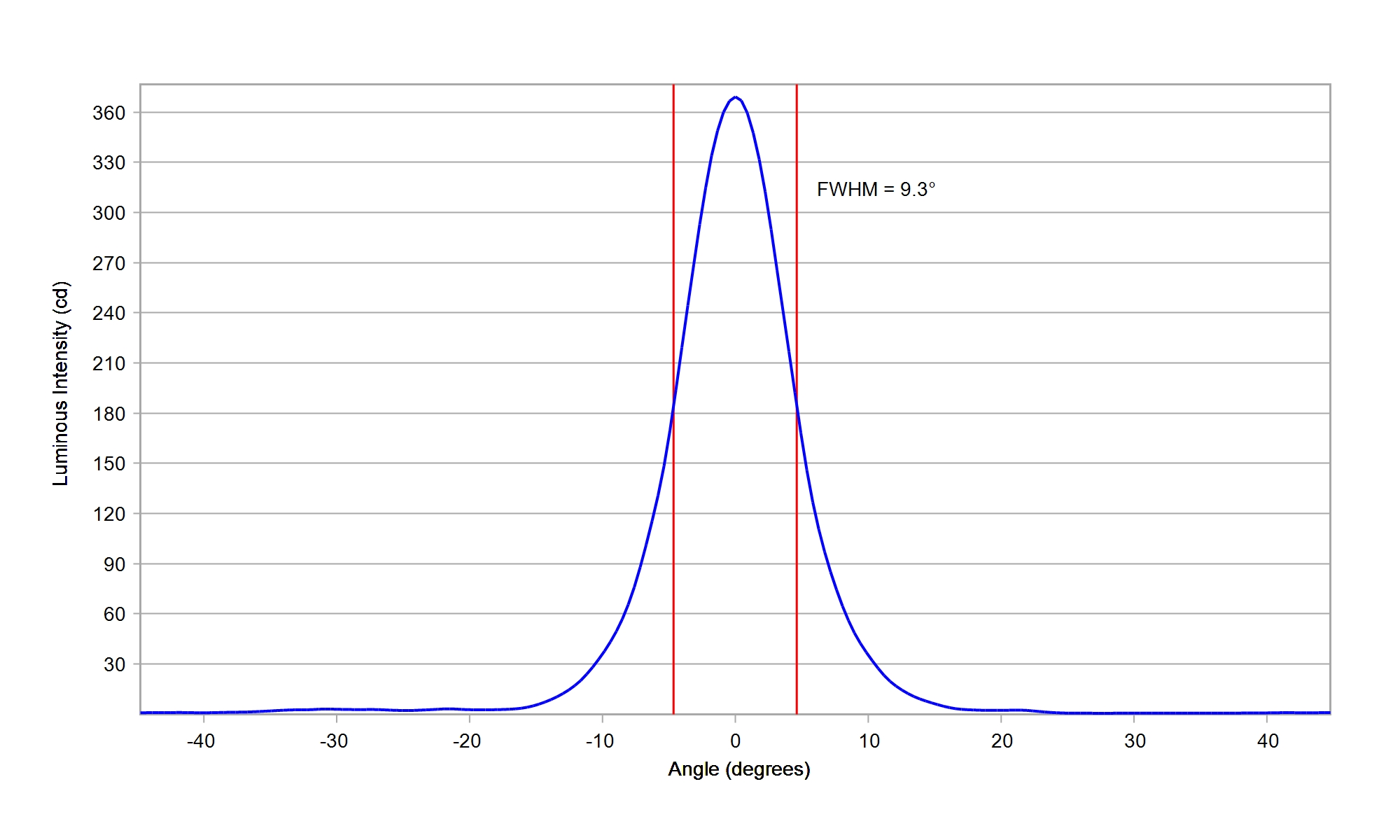

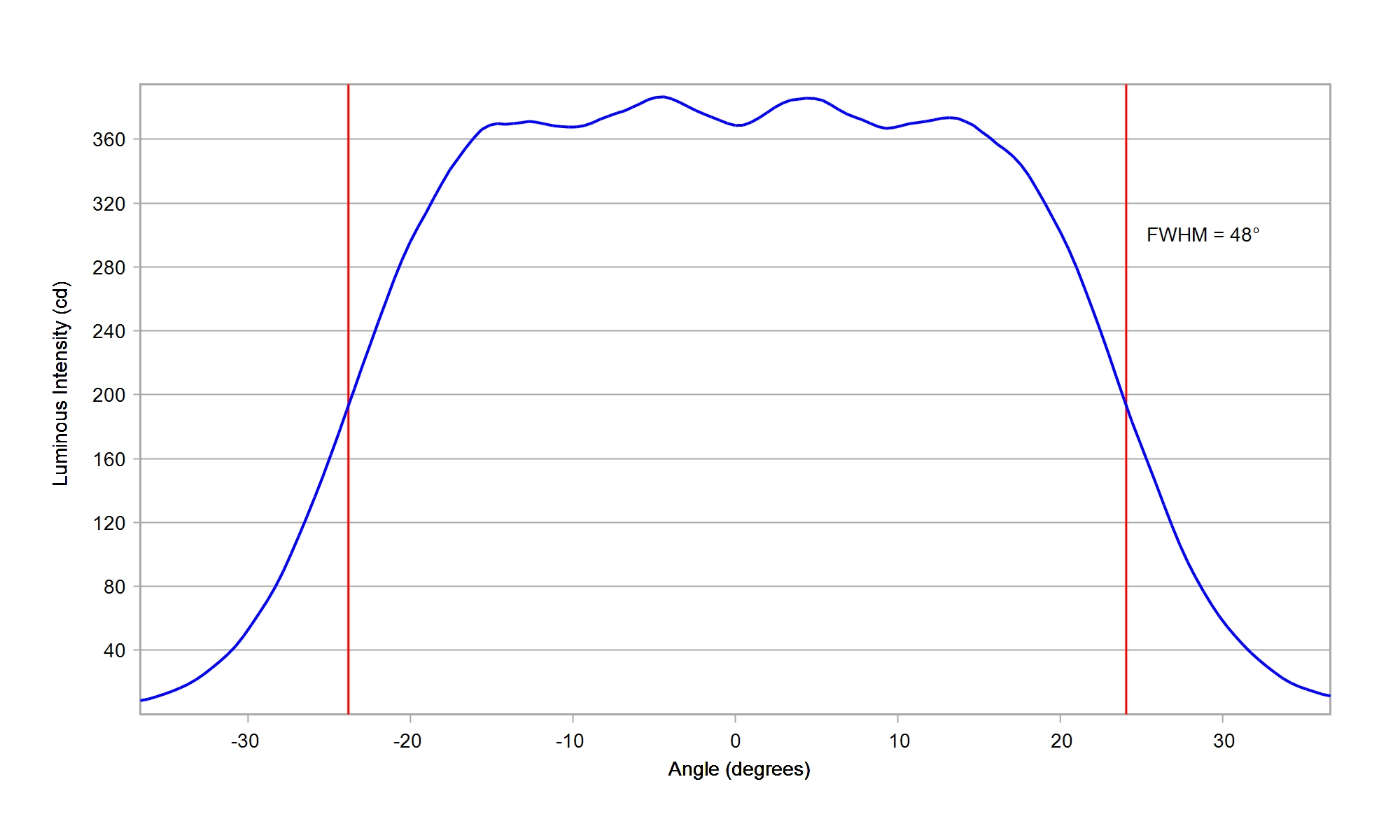

optic-10204-Luxeon_3030-cross-section-image-horizontal.jpg , optic-10204-Luxeon_3030-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON 3030 HE Plus White
Eff:
85.5%
FWHM:
11 x 47°
Cd/Im:
4.3
Carclo Optics – 10204 – Luxeon_3030_HE_Plus_spot-image

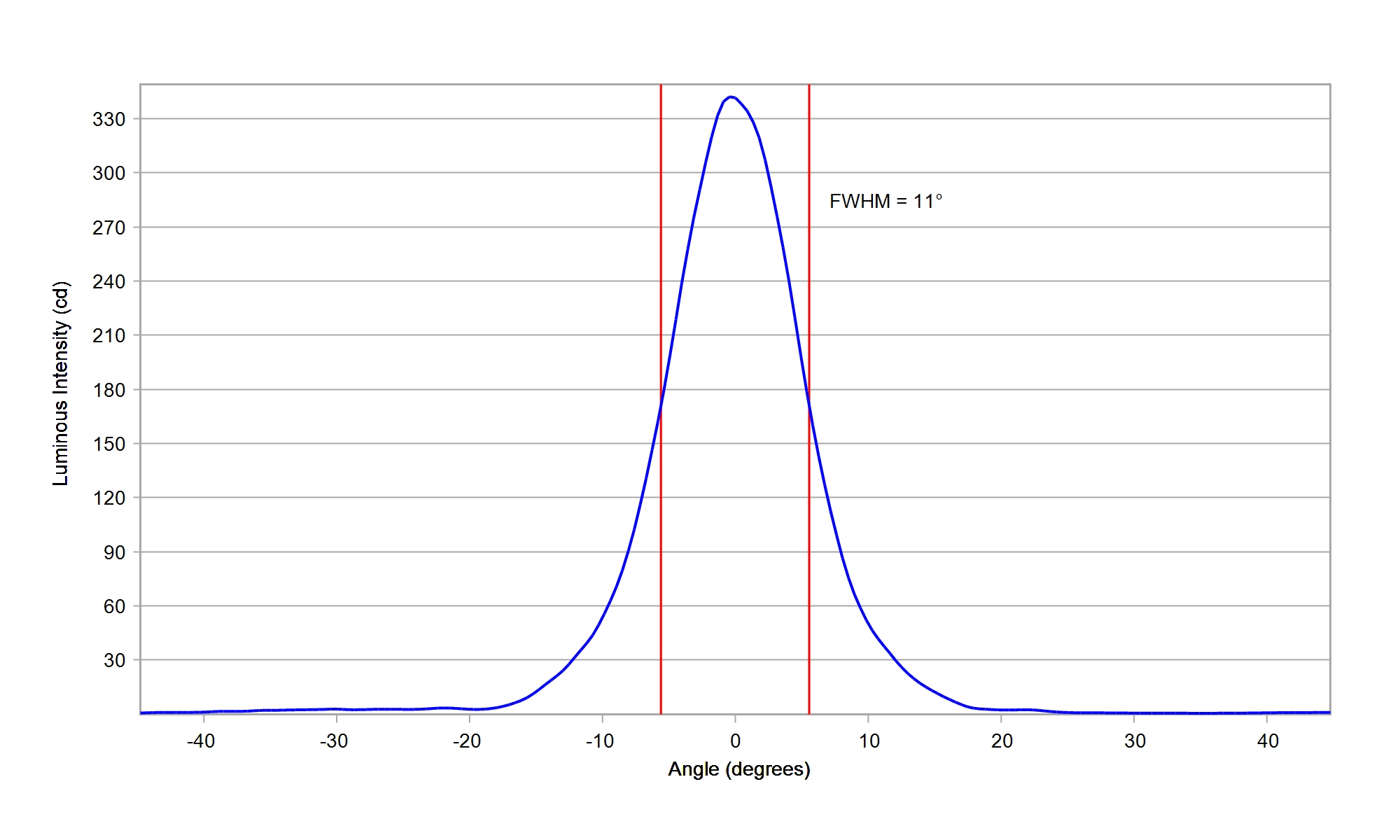

Carclo Optics – 10204 Horizontal – Luxeon_3030_HE_Plus_cross vertical section , Carclo Optics – 10204 Vertical – Luxeon_3030_HE_Plus_cross vertical section
Download
Details
LUMILEDS LUXEON 3030 HE White
Eff:
85.5%
FWHM:
8.5 x 48°
Cd/Im:
5.3

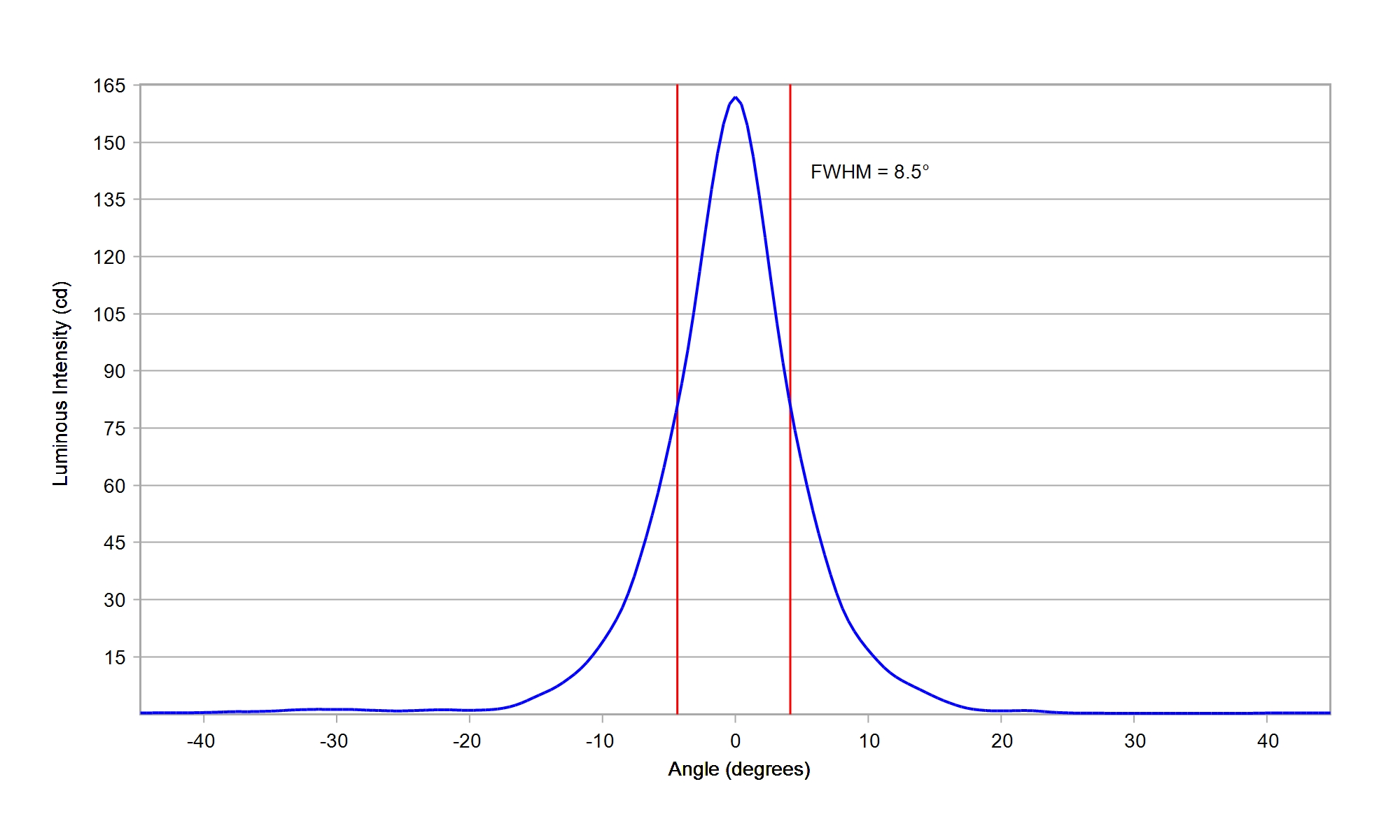

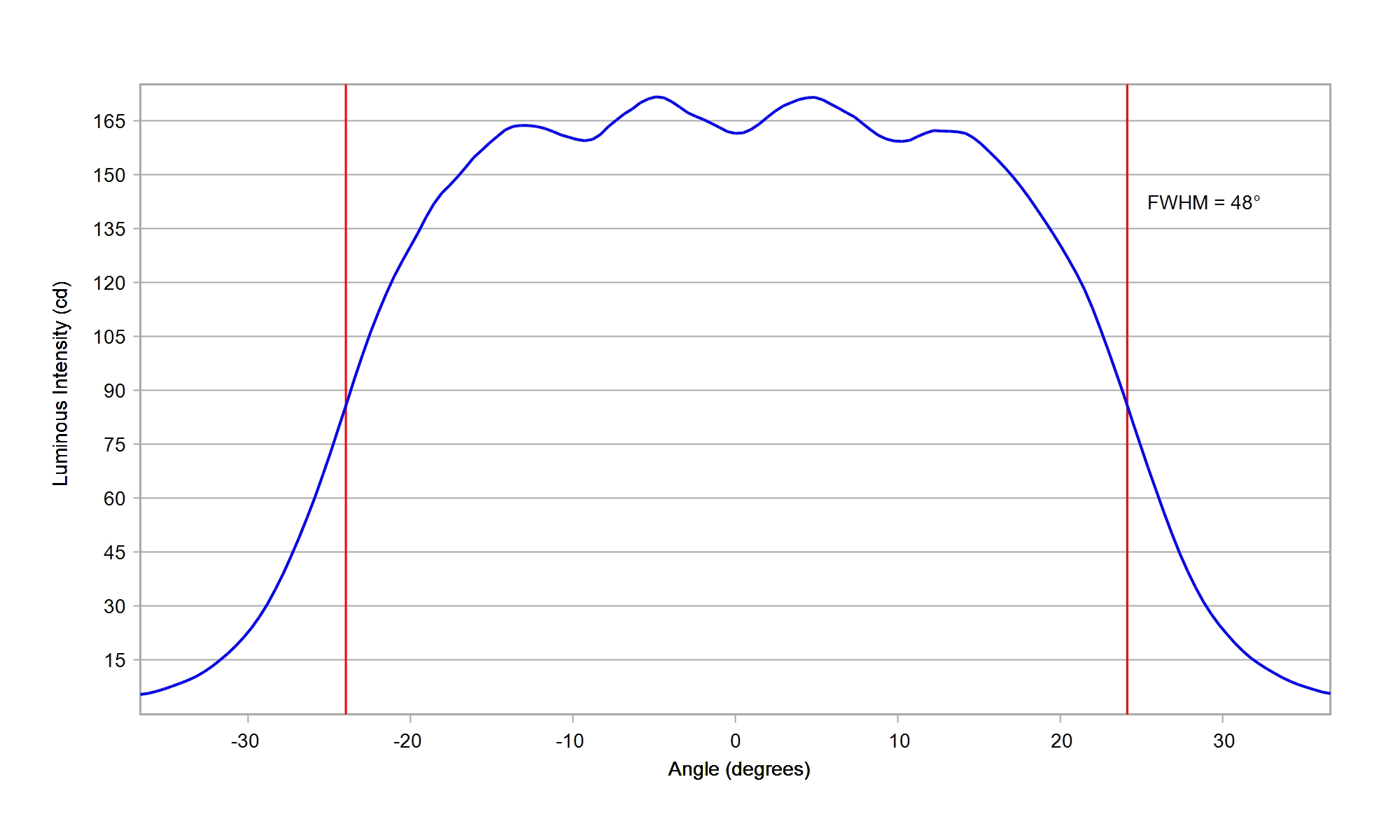

optic-10204-Luxeon_3030_HE_10M-cross-section-image-horizontal.jpg , optic-10204-Luxeon_3030_HE_10M-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON 3535L Blue
Eff:
83.5%
FWHM:
7.0 x 495°
Cd/Im:
5.9
Carclo Optics - Simulated Spot Image

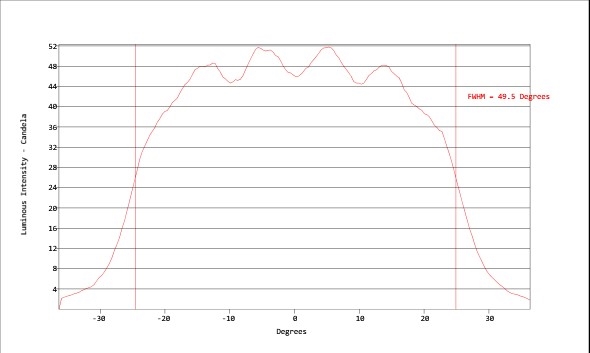

Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
LUMILEDS LUXEON 3535L Green
Eff:
83.5%
FWHM:
6.1 x 49°
Cd/Im:
6.3
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
LUMILEDS LUXEON 3535L Red
Eff:
81.5%
FWHM:
3.5 x 48.5°
Cd/Im:
10.5
Carclo Optics - Simulated Spot Image

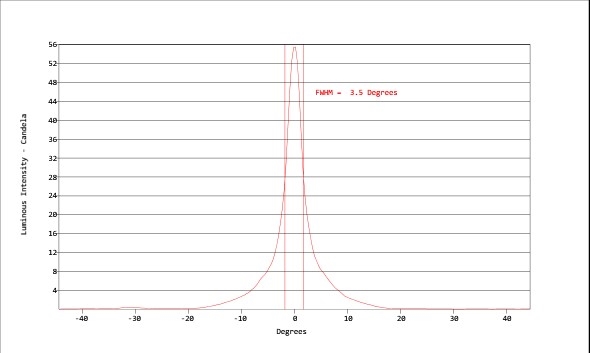

Carclo Optics - Simulated Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
LUMILEDS LUXEON 5050 HE 24V White
Eff:
85.0%
FWHM:
21 x 43°
Cd/Im:
2.5
optic-10204-Luxeon_5050_HE_24V-cross-section-image-horizontal.jpg , optic-10204-Luxeon_5050_HE_24V-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON 5050 HE 6V White
Eff:
85.0%
FWHM:
21 x 43°
Cd/Im:
2.5
optic-10204-Luxeon_5050_HE_6V-cross-section-image-horizontal.jpg , optic-10204-Luxeon_5050_HE_6V-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON 5050 Round 24V White
Eff:
85.5%
FWHM:
20.5 x 42°
Cd/Im:
2.6

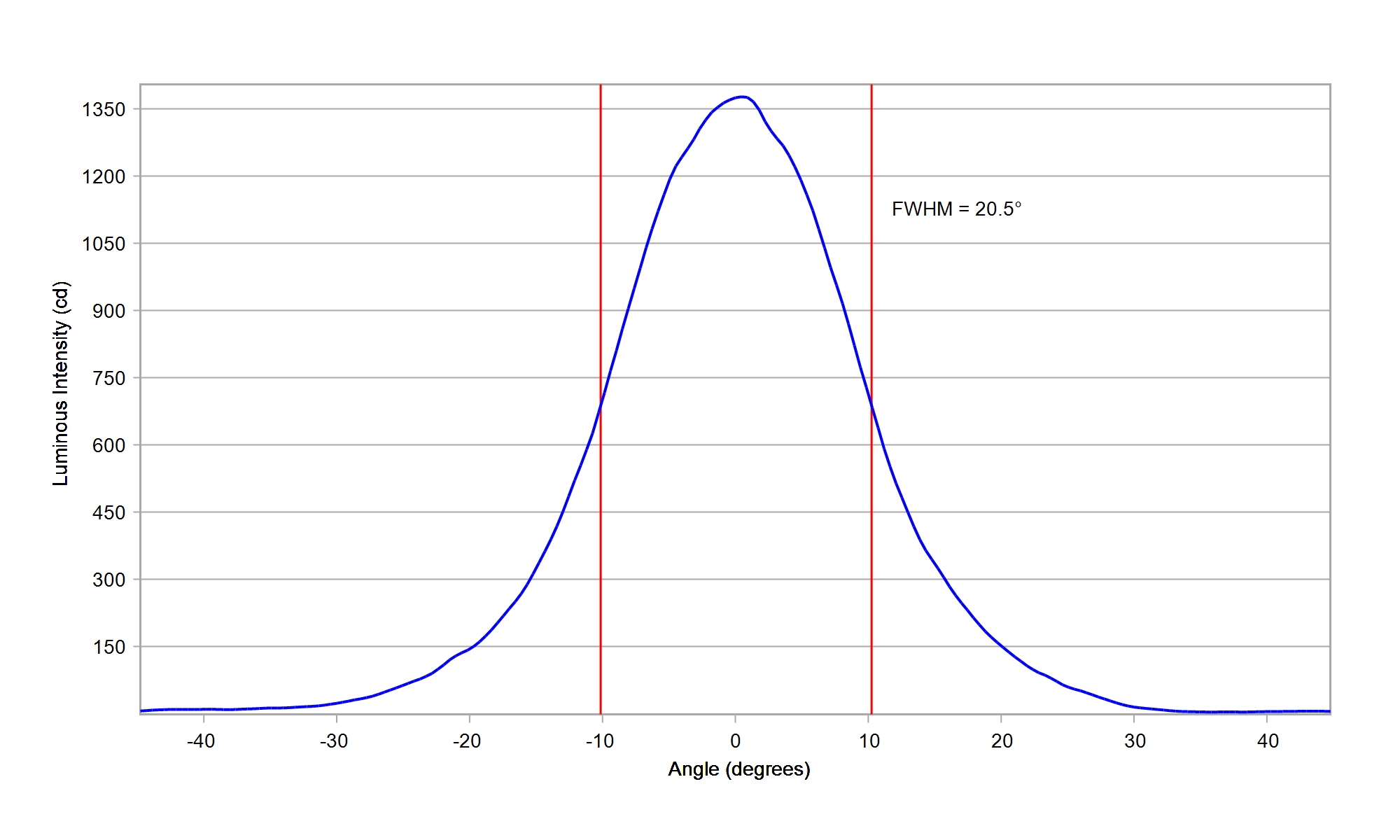

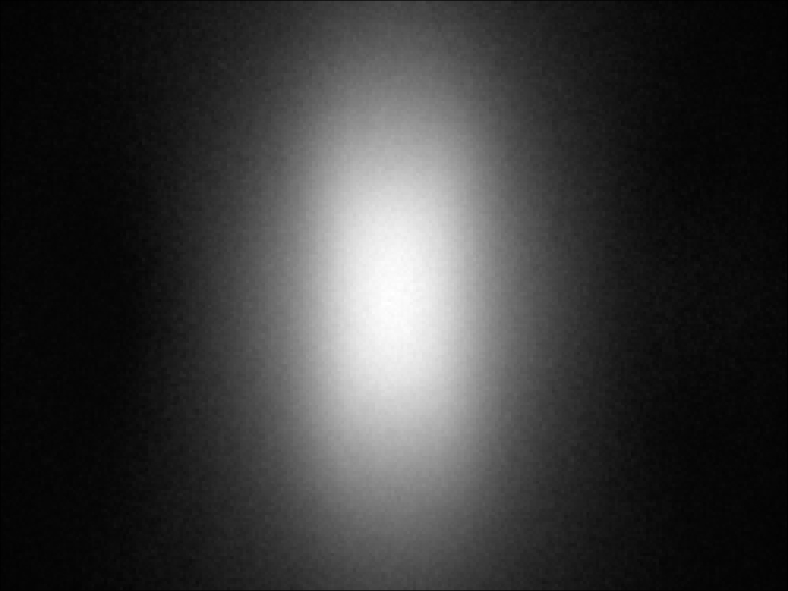

optic-10204-Luxeon_5050_Round_24V-cross-section-image-horizontal.jpg , optic-10204-Luxeon_5050_Round_24V-cross-section-image-vertical.jpg
Download
Details

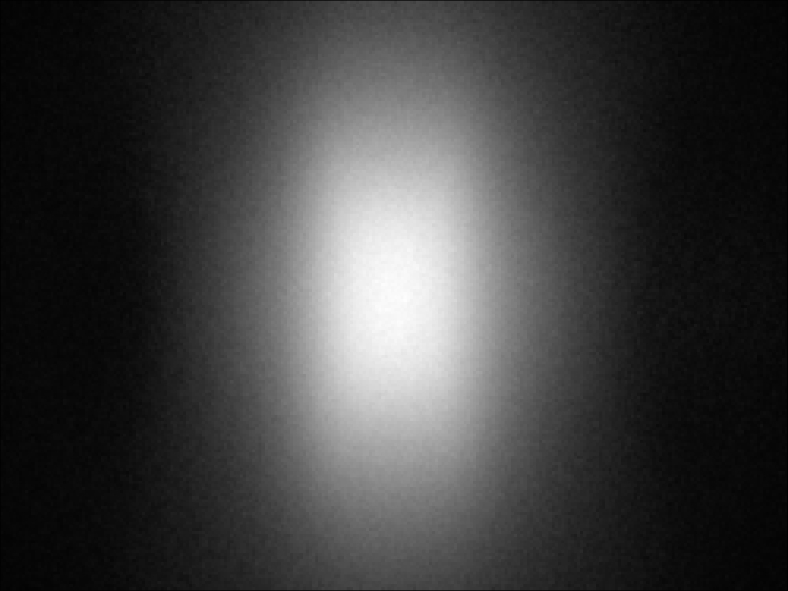

LUMILEDS LUXEON 5050 Square 30V White
Eff:
85.0%
FWHM:
23 x 41°
Cd/Im:
2.3

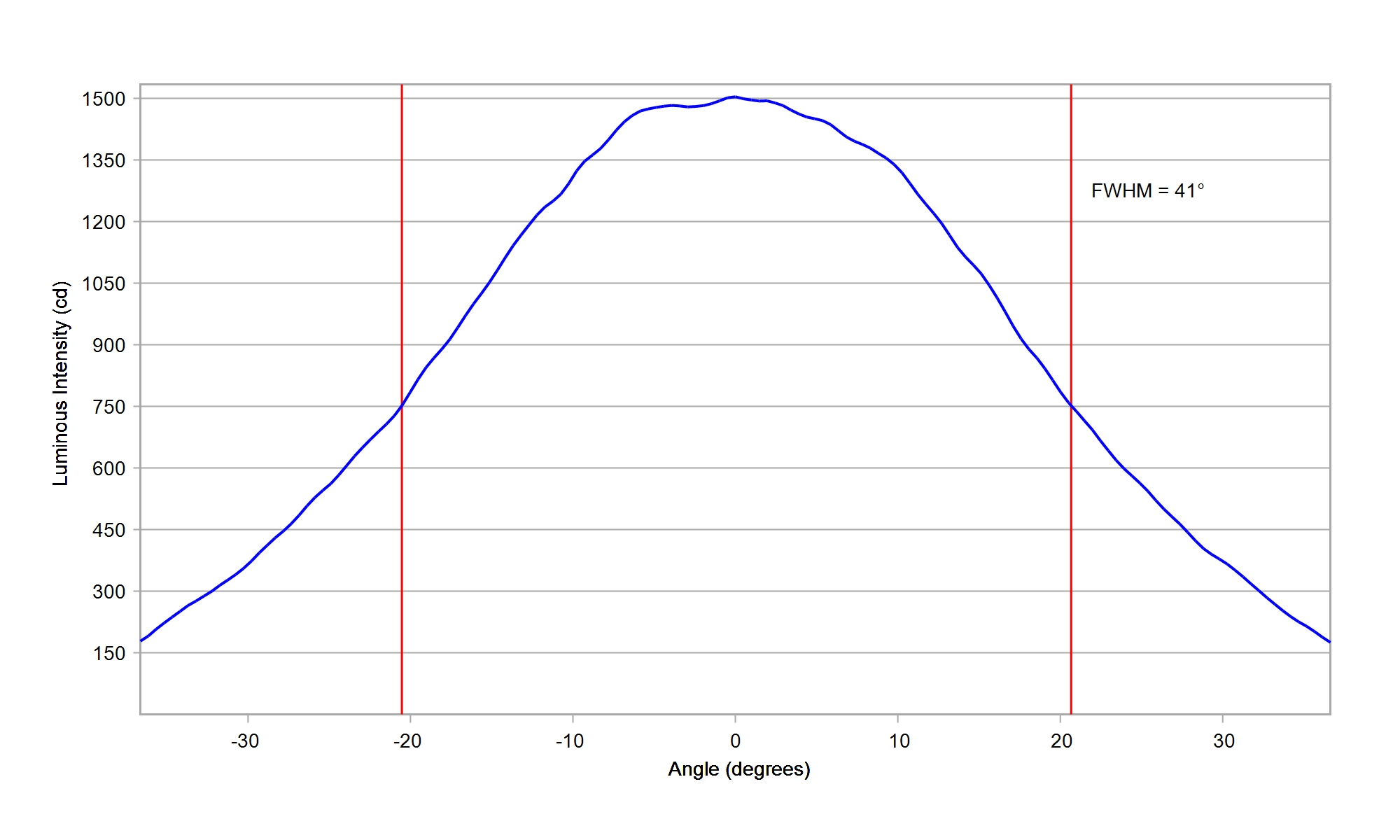

optic-10204-Luxeon_5050_Square_30V-cross-section-image-horizontal.jpg , optic-10204-Luxeon_5050_Square_30V-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON 5050 Square 6V White
Eff:
85.5%
FWHM:
21 x 42°
Cd/Im:
2.4
optic-10204-Luxeon_5050_Square_6V-cross-section-image-horizontal.jpg , optic-10204-Luxeon_5050_Square_6V-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON C Blue
Eff:
81.0%
FWHM:
15.0 x 45.5°
Cd/Im:
3.1
Carclo Optics - Simulated Spot Image

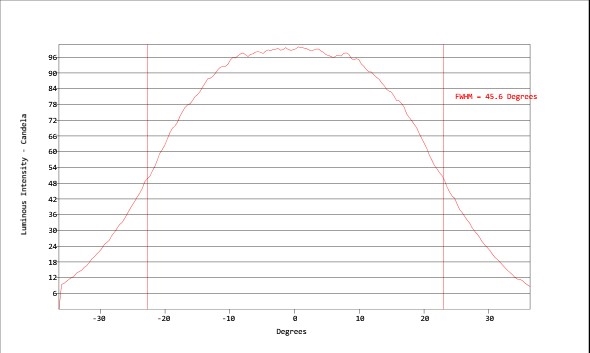

Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
LUMILEDS LUXEON C Lime
Eff:
82.0%
FWHM:
10.0 x 47.0°
Cd/Im:
4.7
Carclo Optics - Simulated Spot Image

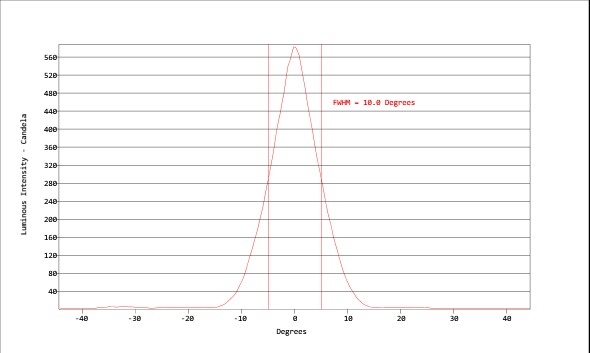

Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
LUMILEDS LUXEON C Red
Eff:
80.5%
FWHM:
15.5 x 44.0°
Cd/Im:
3.2
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
LUMILEDS LUXEON C White
Eff:
80.5%
FWHM:
7.3 x 48°
Cd/Im:
5.7

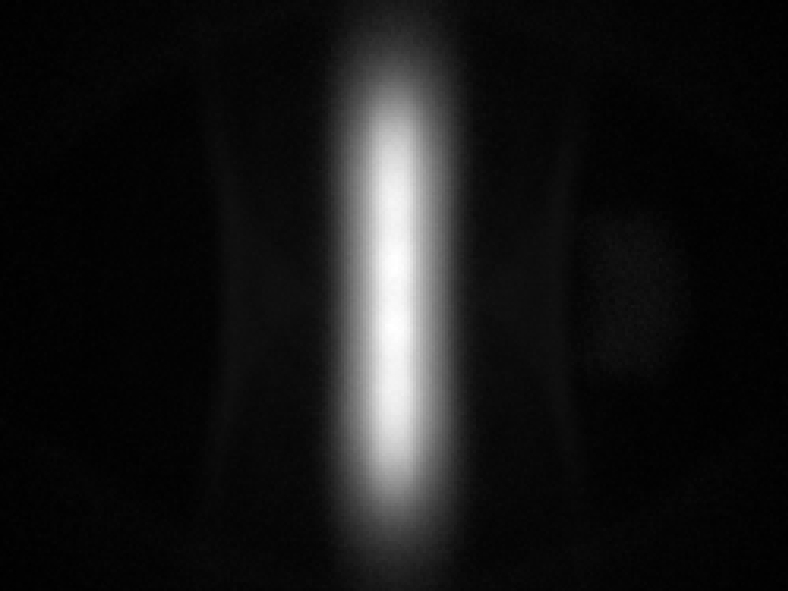

optic-10204-Luxeon_C_White-cross-section-image-horizontal.jpg , optic-10204-Luxeon_C_White-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON CZ White
Eff:
85.0%
FWHM:
5.5 x 49°
Cd/Im:
8.9
Carclo Optics 10204 Spot Image Luxeon CZ 5M CW
Carclo Optics 10204 Cross Section Horizontal Luxeon CZ 5M CW , Carclo Optics 10204 Cross Section Vertical Luxeon CZ 5M CW
Download
Details
LUMILEDS LUXEON HL1Z Color Blue
Eff:
84.5%
FWHM:
6.9 x 49°
Cd/Im:
6.4
optic-10204-Luxeon-HL1Z-Blue-cross-section-image-horizontal.jpg , optic-10204-Luxeon-HL1Z-Blue-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON HL1Z Color Green
Eff:
84.0%
FWHM:
6.8 x 49°
Cd/Im:
6.4
optic-10204-Luxeon-HL1Z-Green-cross-section-image-horizontal.jpg , optic-10204-Luxeon-HL1Z-Green-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON HL1Z Color PC Amber
Eff:
84.0%
FWHM:
6.9 x 48°
Cd/Im:
6.5

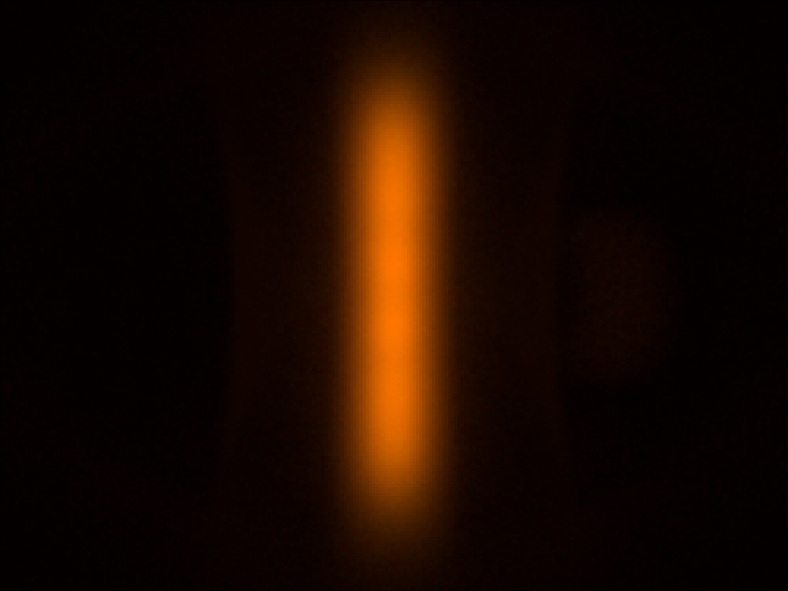

optic-10204-Luxeon-HL1Z-PC-Amber-cross-section-image-horizontal.jpg , optic-10204-Luxeon-HL1Z-PC-Amber-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON HL1Z Color PC Green
Eff:
83.0%
FWHM:
7.1 x 49°
Cd/Im:
5.9

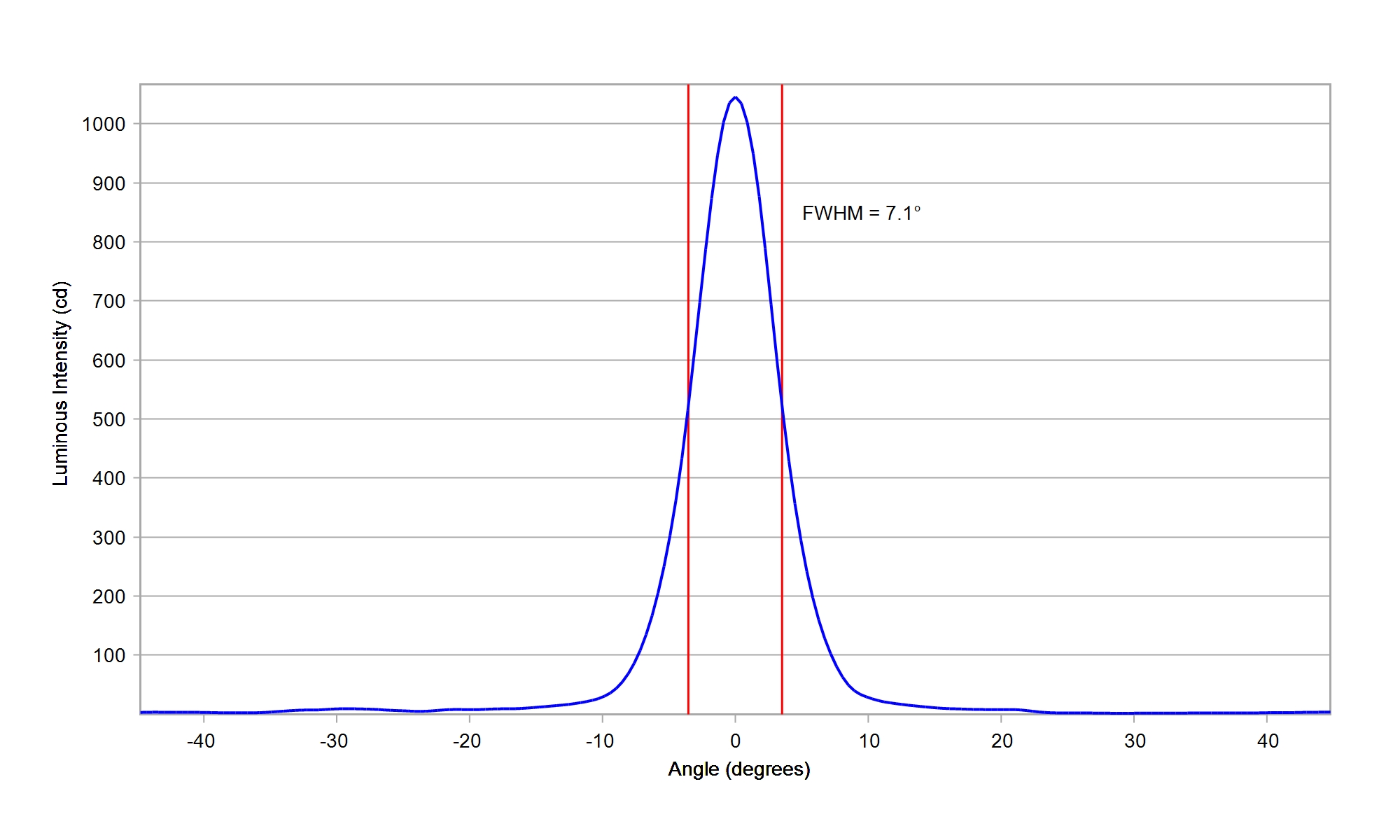

optic-10204-Luxeon-HL1Z-PC-Green-cross-section-image-horizontal.jpg , optic-10204-Luxeon-HL1Z-PC-Green-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON HL1Z Color PC Red
Eff:
84.0%
FWHM:
6.8 x 48°
Cd/Im:
6.6

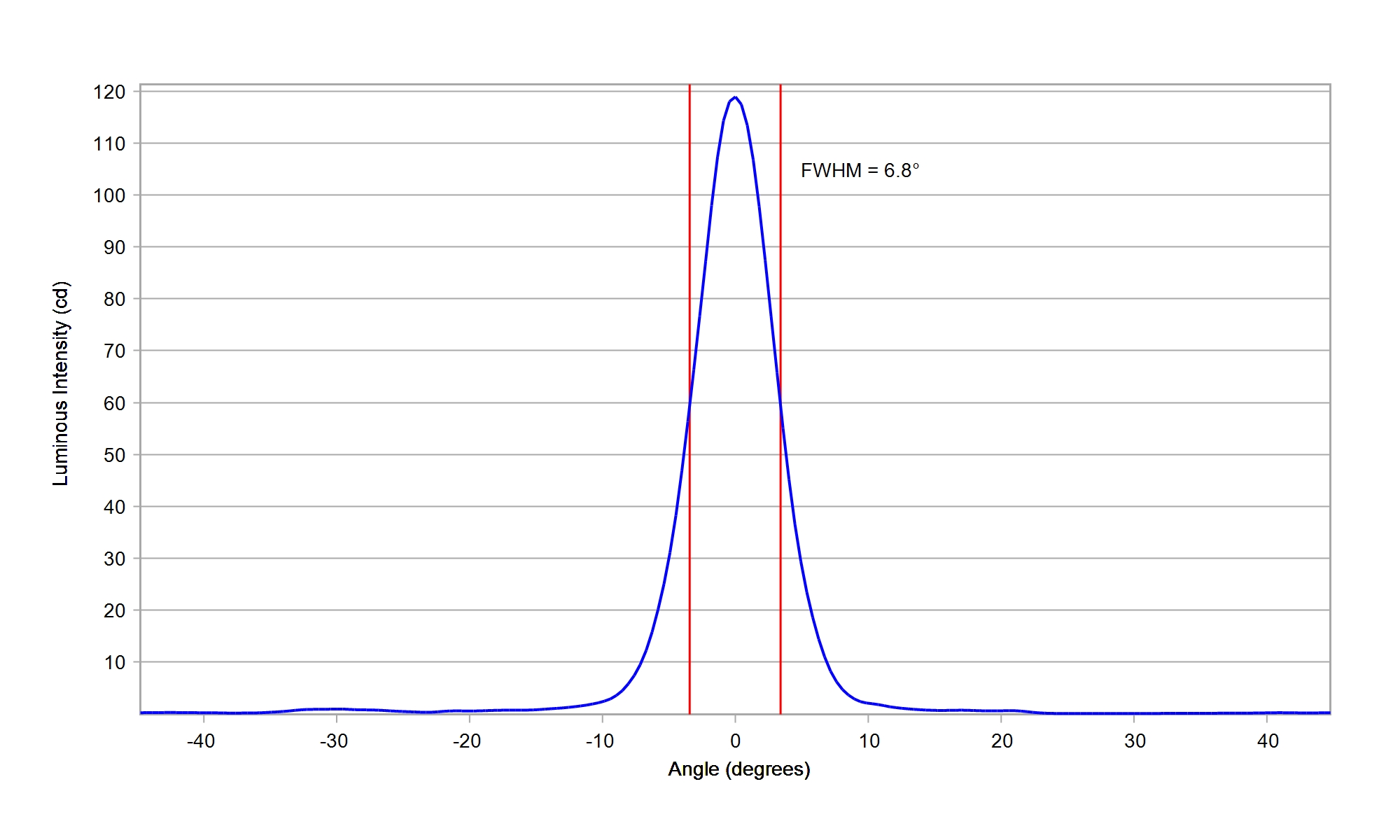

optic-10204-Luxeon-HL1Z-PCRed-cross-section-image-horizontal.jpg , optic-10204-Luxeon-HL1Z-PCRed-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON HL1Z Color PC Red Orange
Eff:
85.0%
FWHM:
6.8 x 48°
Cd/Im:
6.8

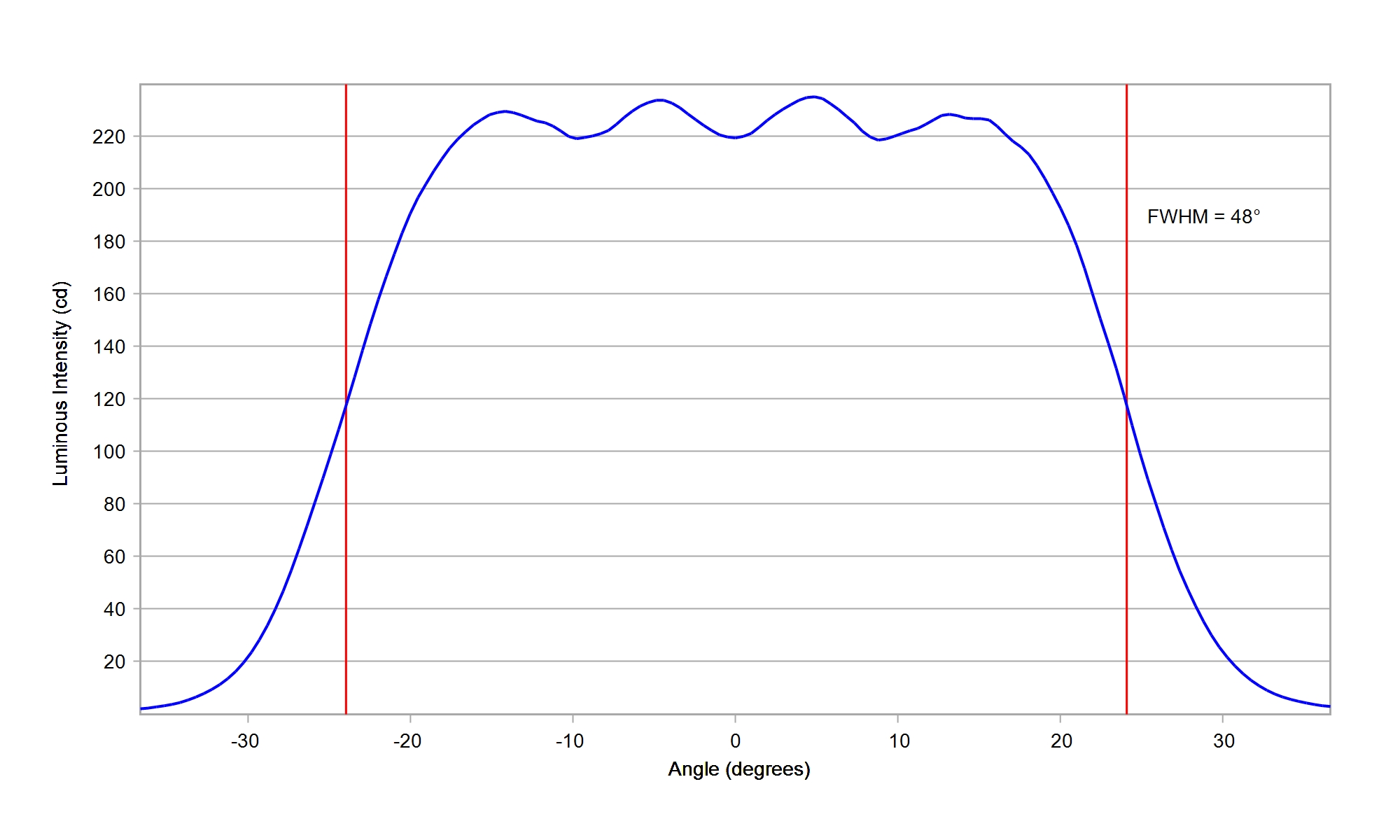

optic-10204-Luxeon-HL1Z-PC-RedOrange-cross-section-image-horizontal.jpg , optic-10204-Luxeon-HL1Z-PC-RedOrange-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON HL1Z Color Royal Blue
Eff:
83.5%
FWHM:
7 x 50°
Ipk/W:
6.2
optic-10204-Luxeon-HL1Z-RoyalBlue-cross-section-image-horizontal.jpg , optic-10204-Luxeon-HL1Z-RoyalBlue-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON HL1Z CSP White
Eff:
85.0%
FWHM:
6.8 x 48°
Cd/Im:
6.8
optic-10204-LUXEON_HL1Z-cross-section-image-horizontal.jpg , optic-10204-LUXEON_HL1Z-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON HL2X White
Eff:
85.0%
FWHM:
12 x 46°
Cd/Im:
3.9
Carclo Optics - 10204 Spot Image Luxeon HL2X

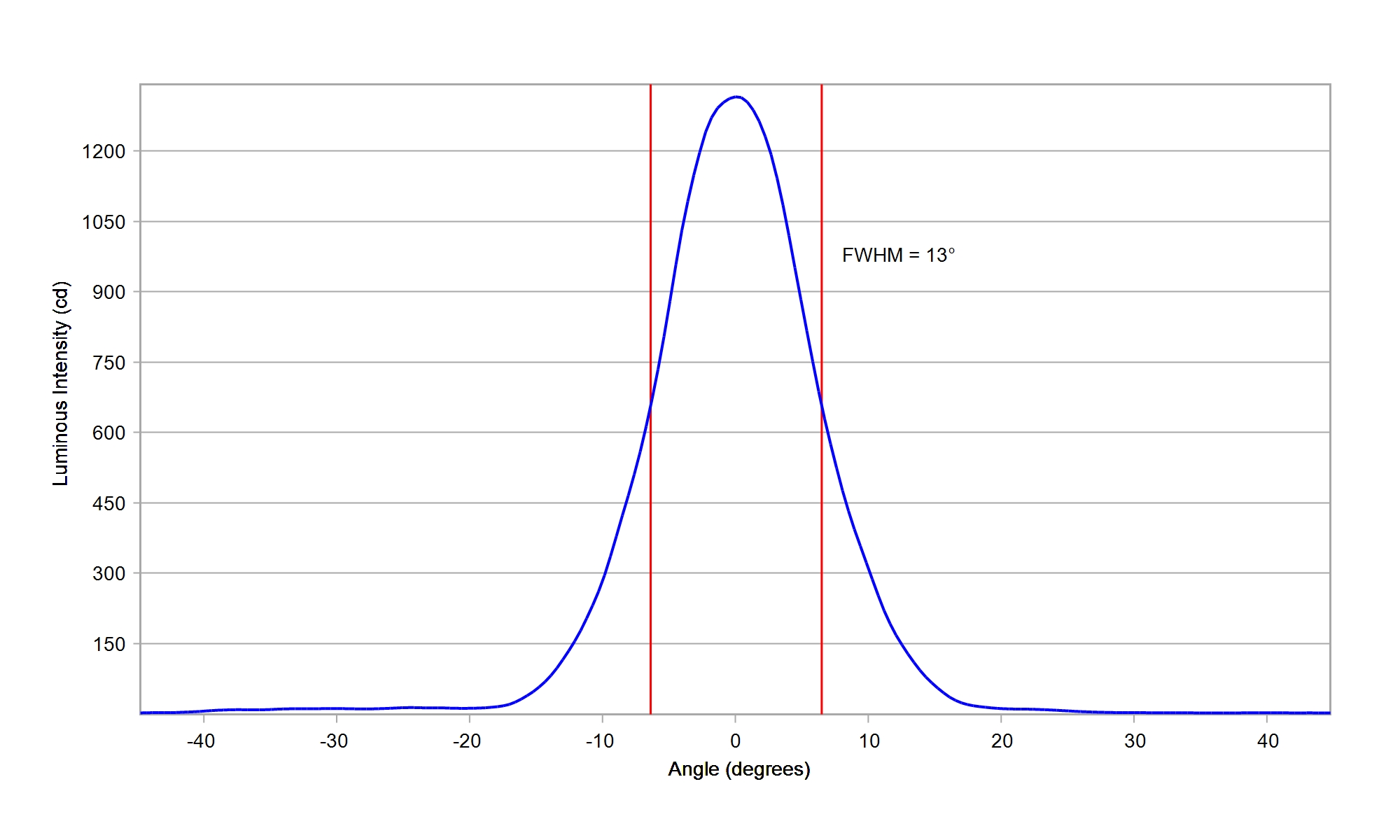

Carclo Optics - 10204 Horizontal Cross Section Luxeon HL2X , Carclo Optics - 10204 Vertical Cross Section Luxeon HL2X
Download
Details
LUMILEDS LUXEON HL2X-D White
Eff:
86.0%
FWHM:
14.5 x 45°
Cd/Im:
3.5

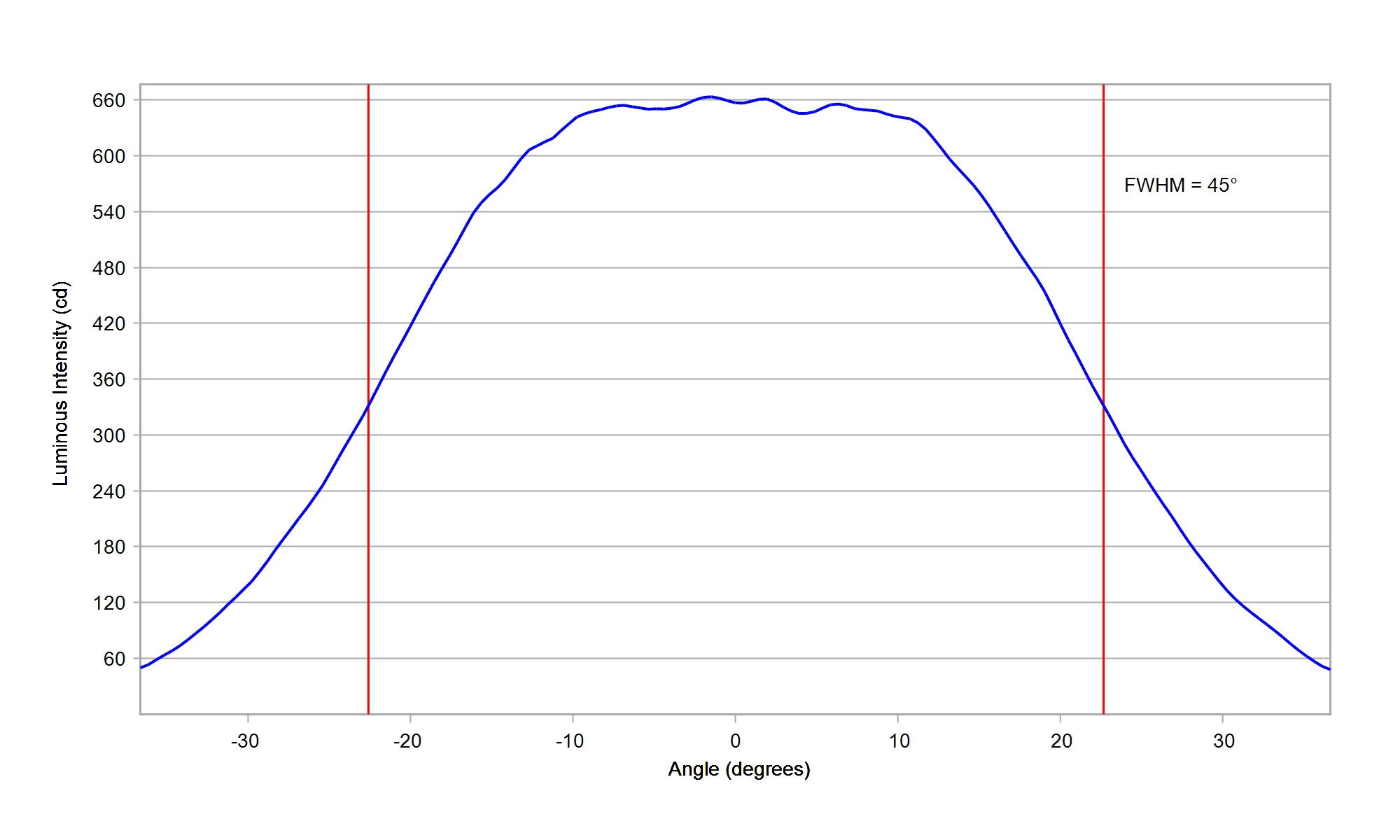

optic-10204-LUXEON_HL2X-D-cross-section-image-horizontal.jpg , optic-10204-LUXEON_HL2X-D-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON HL2X-E White
Eff:
86.5%
FWHM:
14 x 45°
Cd/Im:
3.6
optic-10204-LUXEON-HL2X-E-cross-section-image-horizontal.jpg , optic-10204-LUXEON-HL2X-E-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON HL2X-P White
Eff:
86.5%
FWHM:
15 x 45°
Cd/Im:
3.5
optic-10204-Luxeon_HL2X-P-cross-section-image-horizontal.jpg , optic-10204-Luxeon_HL2X-P-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON HL2X-V White
Eff:
86.5%
FWHM:
13 x 46°
Cd/Im:
3.9
optic-10204-LUXEON-HL2X-V-cross-section-image-horizontal.jpg , optic-10204-LUXEON-HL2X-V-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON HL2Z White
Eff:
83.5%
FWHM:
10 x 46°
Cd/Im:
4.7

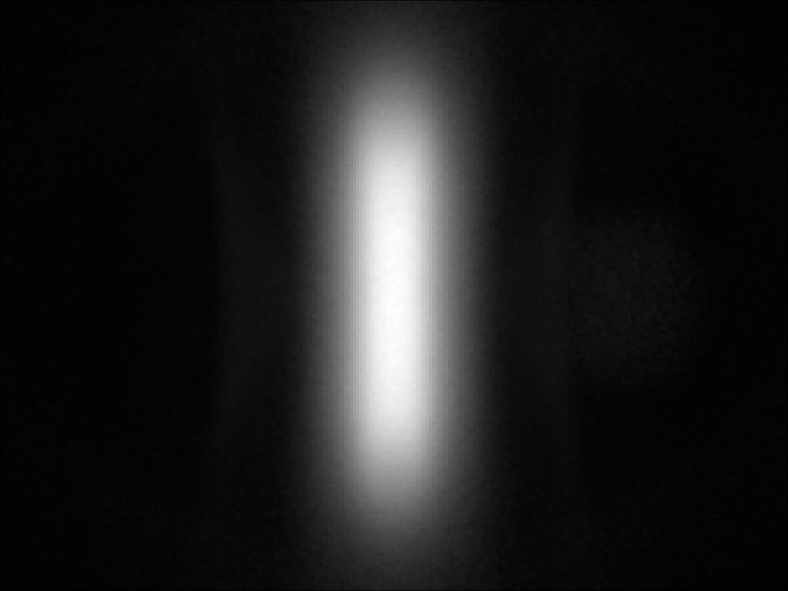

Carclo Optics – 10204 Lumileds Luxeon HL2Z - Spot Image
Carclo Optics – 10204 Horizontal Lumileds Luxeon HL2Z - Cross-Section , Carclo Optics – 10204 Vertical Lumileds Luxeon HL2Z - Cross-Section
Download
Details
LUMILEDS LUXEON HL4X White
Eff:
83.5%
FWHM:
16.5 x 44°
Cd/Im:
3.0
optic-10204-Luxeon-HL4X-cross-section-image-horizontal.jpg , optic-10204-Luxeon-HL4X-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON HL4Z White
Eff:
85.5%
FWHM:
12 x 46°
Cd/Im:
4.1
optic-10204-Luxeon-HL4Z-cross-section-image-horizontal.jpg , optic-10204-Luxeon-HL4Z-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON IR 2720
Eff:
88.5%
FWHM:
7.2 x 46.5°
Ipk/W:
6.8
Carclo Optics 10204 Spot Image Luxeon IR 2720

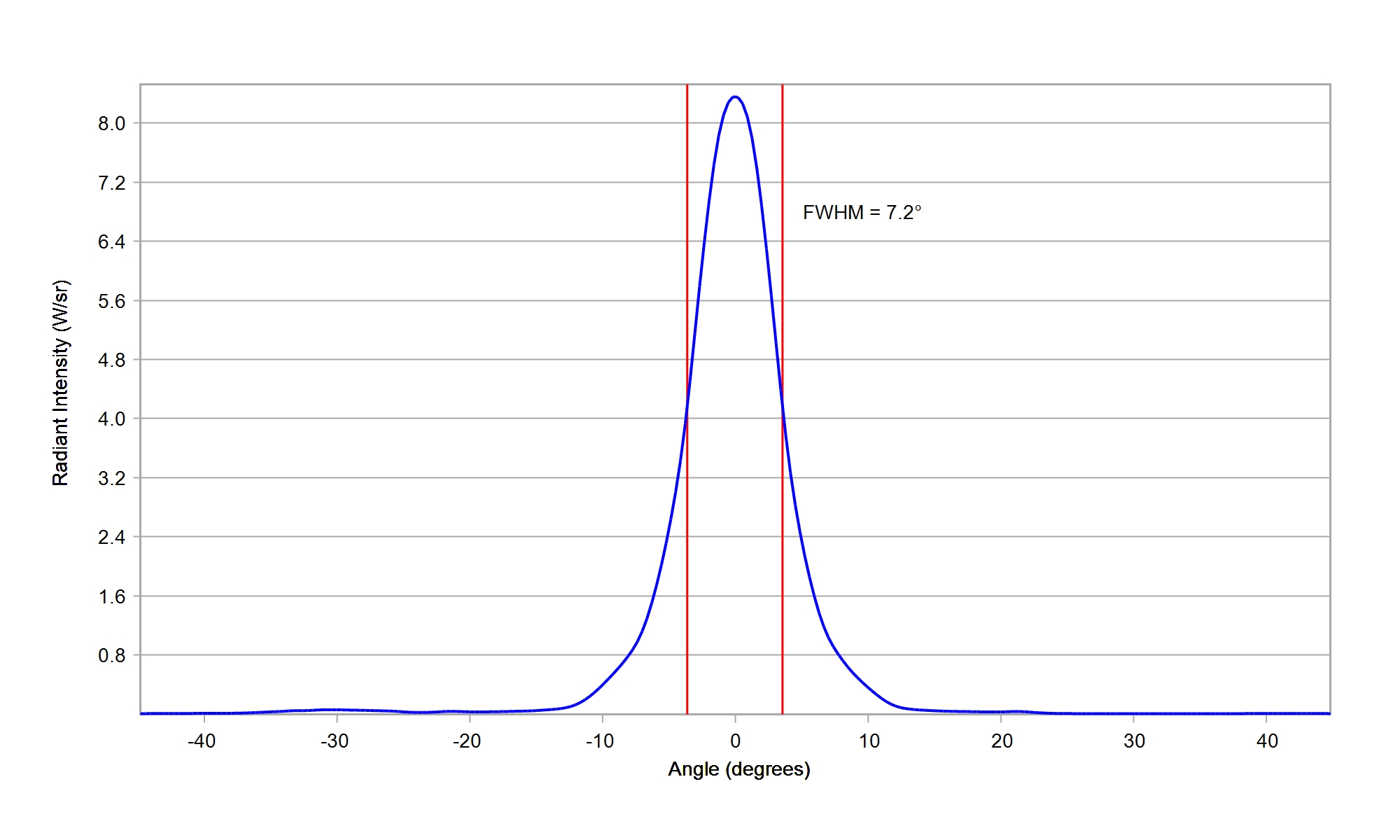

Carclo Optics 10204 Cross Section Horizontal image Luxeon IR 2720 , Carclo Optics 10204 Cross Section Vertical image Luxeon IR 2720
Download
Details
LUMILEDS LUXEON IR Compact 850nm
Eff:
87.0%
FWHM:
47.0 X 6.8°
Ipk/W:
6.7
Carclo Optics - Simulated Spot Image

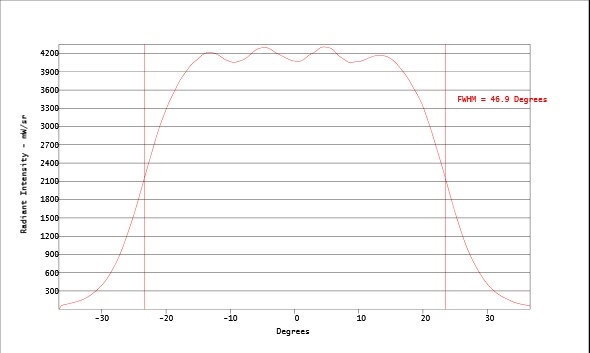

Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Details
LUMILEDS LUXEON IR Domed 60 Degree
Eff:
87.0%
FWHM:
9.7 x 46.0°
Ipk/W:
5.0
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
LUMILEDS LUXEON IR Domed 90 Degree
Eff:
88.0%
FWHM:
9.9 x 46.0°
Ipk/W:
5.4
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
LUMILEDS LUXEON MZ White

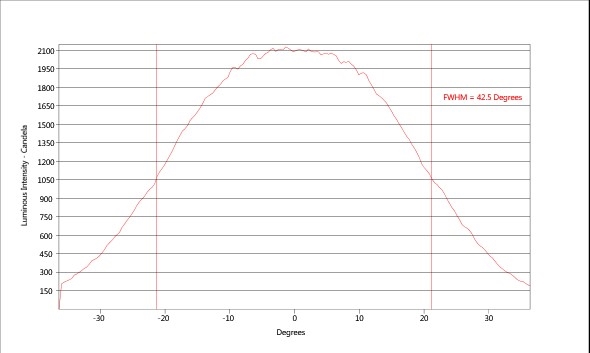

Eff:
85.1%
FWHM:
19.1 x 42.5°
Cd/Im:
2.7

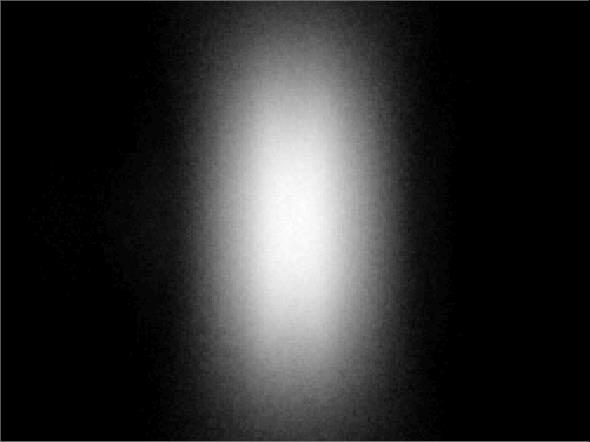

carclo optics - simulated spot image
carclo optics - simulated horizontal cross section , carclo optics - simulated vertical cross section
Download
Details
LUMILEDS LUXEON Rebel ES White
Eff:
84.0%
FWHM:
11 x 47°
Cd/Im:
4.1
optic-10204-LUXEON_Rebel_ES-cross-section-image-horizontal.jpg , optic-10204-LUXEON_Rebel_ES-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON Rebel Plus White
Eff:
85.0%
FWHM:
8.1 x 48°
Cd/Im:
5.7
optic-10204-Luxeon_Rebel_Plus-cross-section-image-horizontal.jpg , optic-10204-Luxeon_Rebel_Plus-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON Rebel White
Eff:
84.5%
FWHM:
8 x 48°
Cd/Im:
5.7

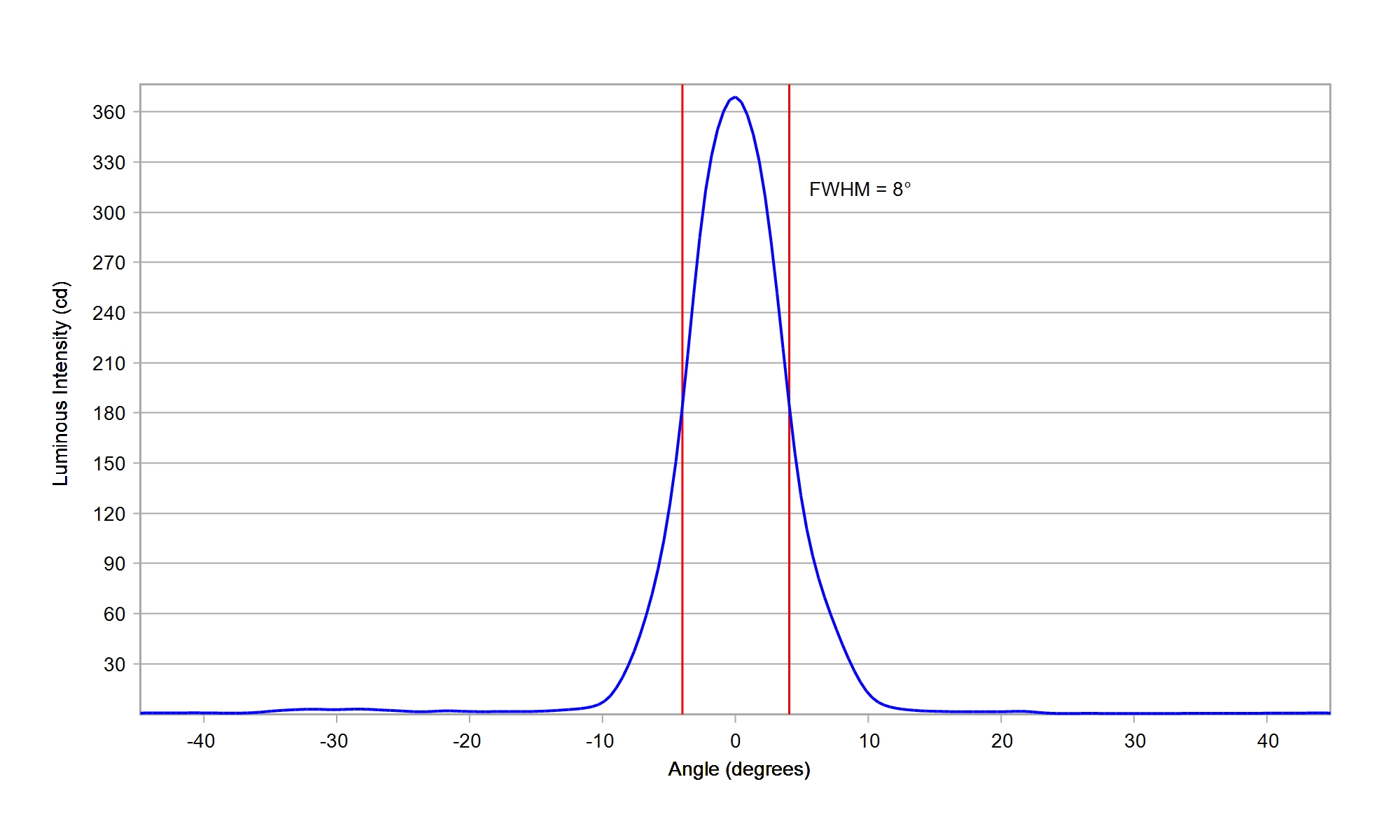

optic-10204-Luxeon_Rebel-cross-section-image-horizontal.jpg , optic-10204-Luxeon_Rebel-cross-section-image-vertical.jpg
Download
Details
LUMILEDS LUXEON Rubix Blue
Eff:
85.5%
FWHM:
5.8 x 50°
Cd/Im:
8.2

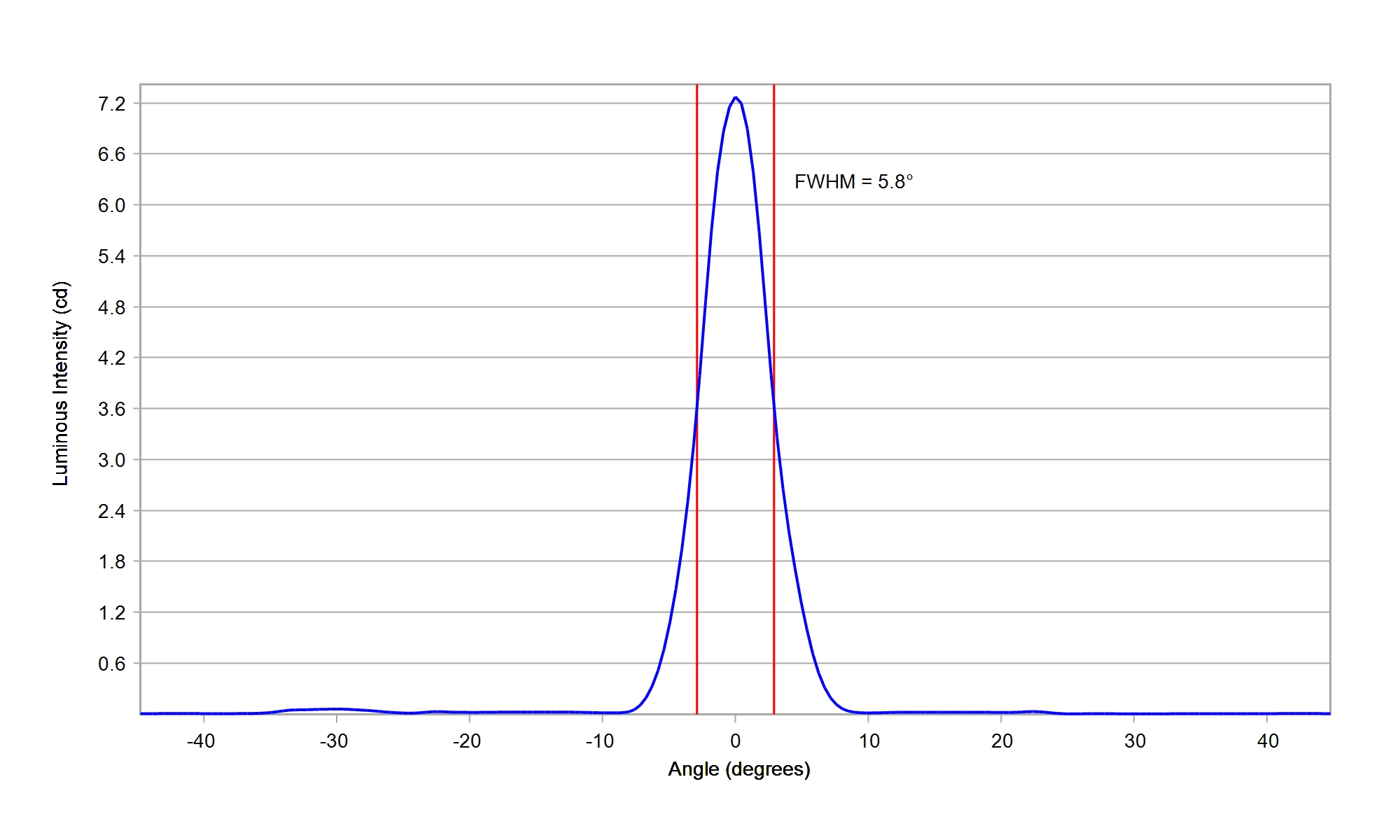

Carclo Optics – 10204 Spot Image Lumileds Luxeon Rubix Blue

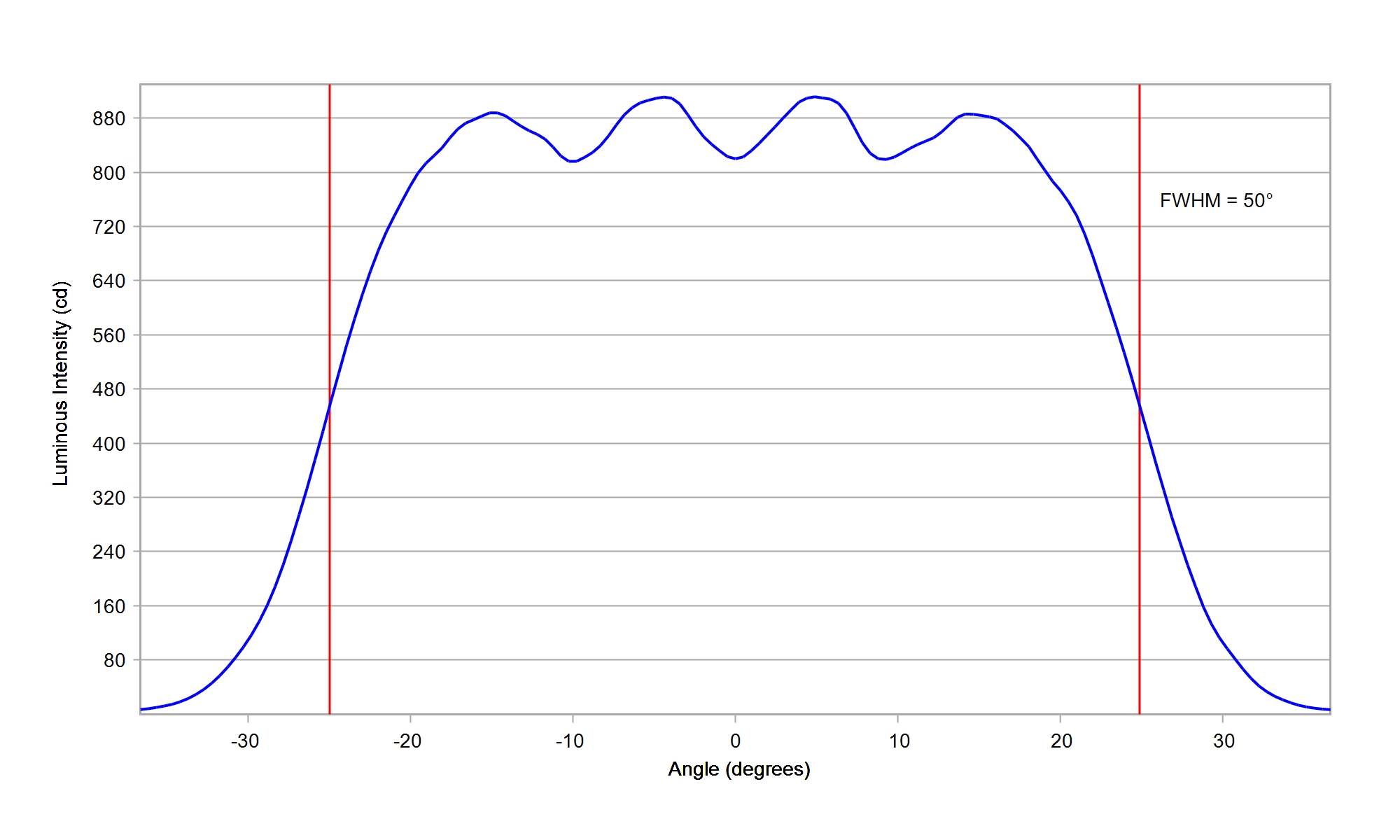

Carclo Optics – 10204 Horizontal Cross Section Lumileds Luxeon Rubix Blue , Carclo Optics – 10204 Vertical Cross Section Lumileds Luxeon Rubix Blue
Download
Details
LUMILEDS LUXEON Rubix Green
Eff:
85.0%
FWHM:
5.8 x 49°
Cd/Im:
8.4
Carclo Optics – 10204 Spot Image Lumileds Luxeon Rubix Green
Carclo Optics – 10204 Horizontal Cross Section Lumileds Luxeon Rubix Green , Carclo Optics – 10204 Vertical Cross Section Lumileds Luxeon Rubix Green
Download
Details
LUMILEDS LUXEON Rubix Red
Eff:
86.5%
FWHM:
5.4 x 48°
Cd/Im:
9.2
Carclo Optics – 10204 Spot Image Lumileds Luxeon Rubix Red

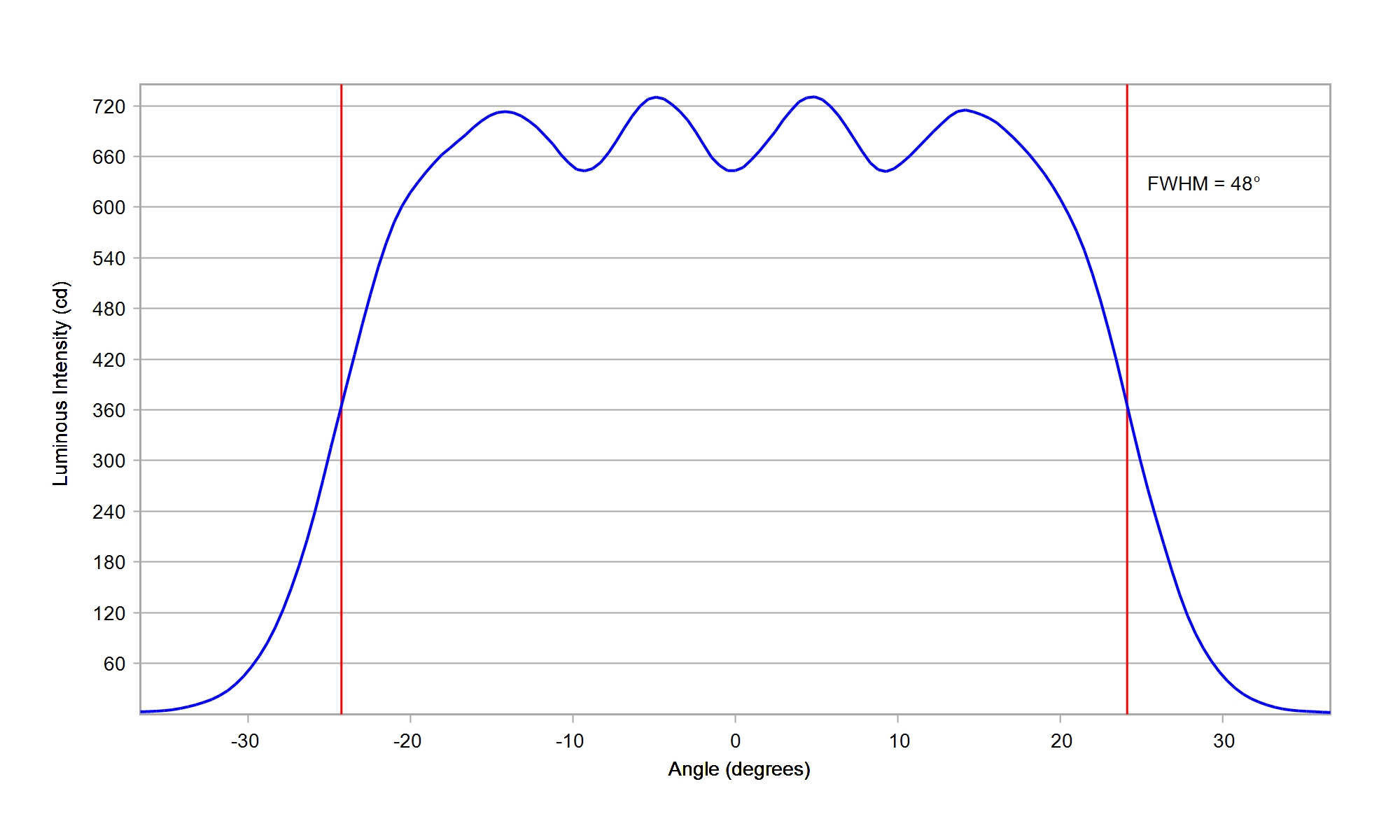

Carclo Optics – 10204 Horizontal Cross Section Lumileds Luxeon Rubix Red , Carclo Optics – 10204 Vertical Cross Section Lumileds Luxeon Rubix Red
Download
Details
LUMILEDS LUXEON Rubix Royal Blue
Eff:
84.5%
FWHM:
5.8 x 50°
Cd/Im:
8.2

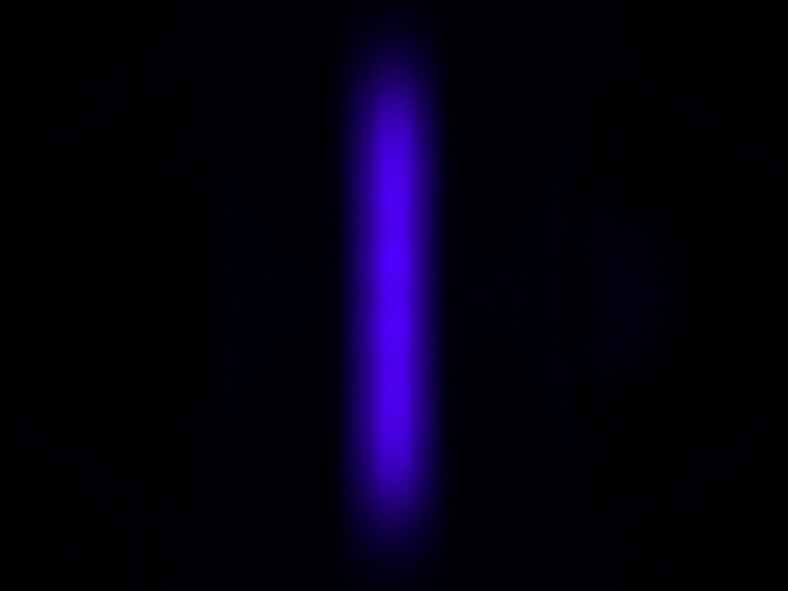

Carclo Optics – 10204 Spot Image Lumileds Luxeon Rubix Royal Blue
Carclo Optics – 10204 Horizontal Cross Section Lumileds Luxeon Rubix Royal Blue , Carclo Optics – 10204 Vertical Cross Section Lumileds Luxeon Rubix Royal Blue
Download
Details
LUMILEDS LUXEON Rubix White
Eff:
85.0%
FWHM:
6 x 49°
Cd/Im:
8.2
Carclo Optics - 10204 Spot Image Lumileds Luxeon Rubix White
Carclo Optics - 10204 Horizontal Cross Section Lumileds Luxeon Rubix White , Carclo Optics - 10204 Vertical Cross Section Lumileds Luxeon Rubix White
Download
Details
LUMILEDS LUXEON TX White
Eff:
86.9%
FWHM:
10.5 x 47.0°
Cd/Im:
4.1
carclo optics - simulated spot image

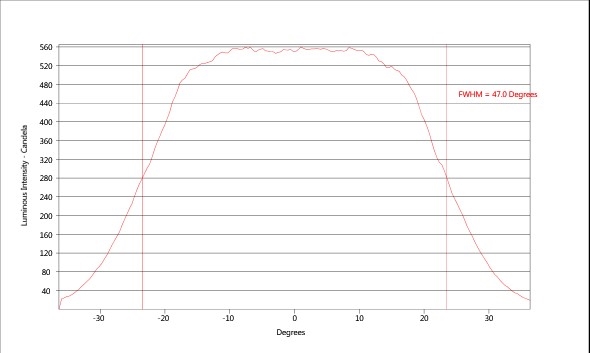

carclo optics - simulated horizontal cross section , carclo optics - simulated vertical cross section
Download
Details
LUMILEDS LUXEON V White
Eff:
81.5%
FWHM:
17.0 x 43.0°
Cd/Im:
2.7
Carclo Optics - Simulated Spot Image

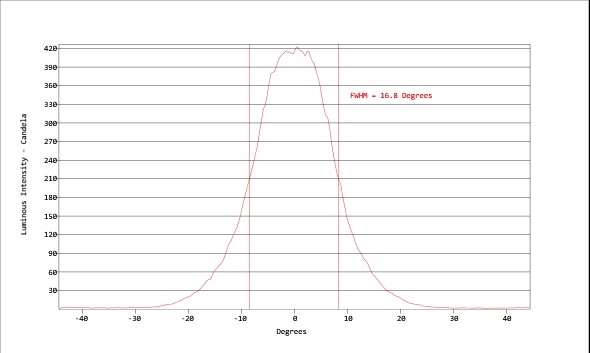

Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
LUMILEDS LUXEON Z White
Eff:
86.8%
FWHM:
5.2 x 49°
Cd/Im:
8.3
carclo optics - simulated spot image

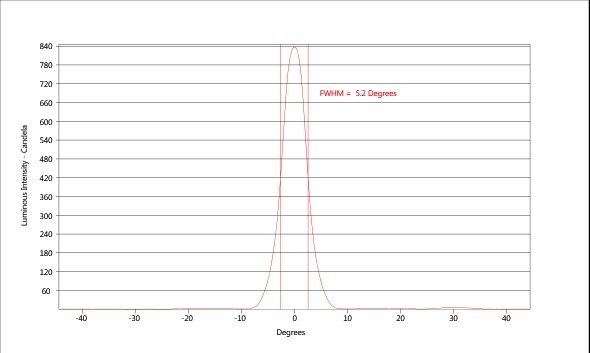

carclo optics - simulated horizontal cross section , carclo optics - simulated vertical cross section
Download
Details
Luminus Devices MP-3030-11F2 White
Eff:
85.0%
FWHM:
8.9 x 48°
Cd/Im:
5.2
optic-10204-Luminus-MP-3030-11F2-cross-section-image-horizontal.jpg , optic-10204-Luminus-MP-3030-11F2-cross-section-image-vertical.jpg
Download
Details
Luminus Devices MP-5050-240E White
Eff:
85.5%
FWHM:
20 x 43°
Cd/Im:
2.6

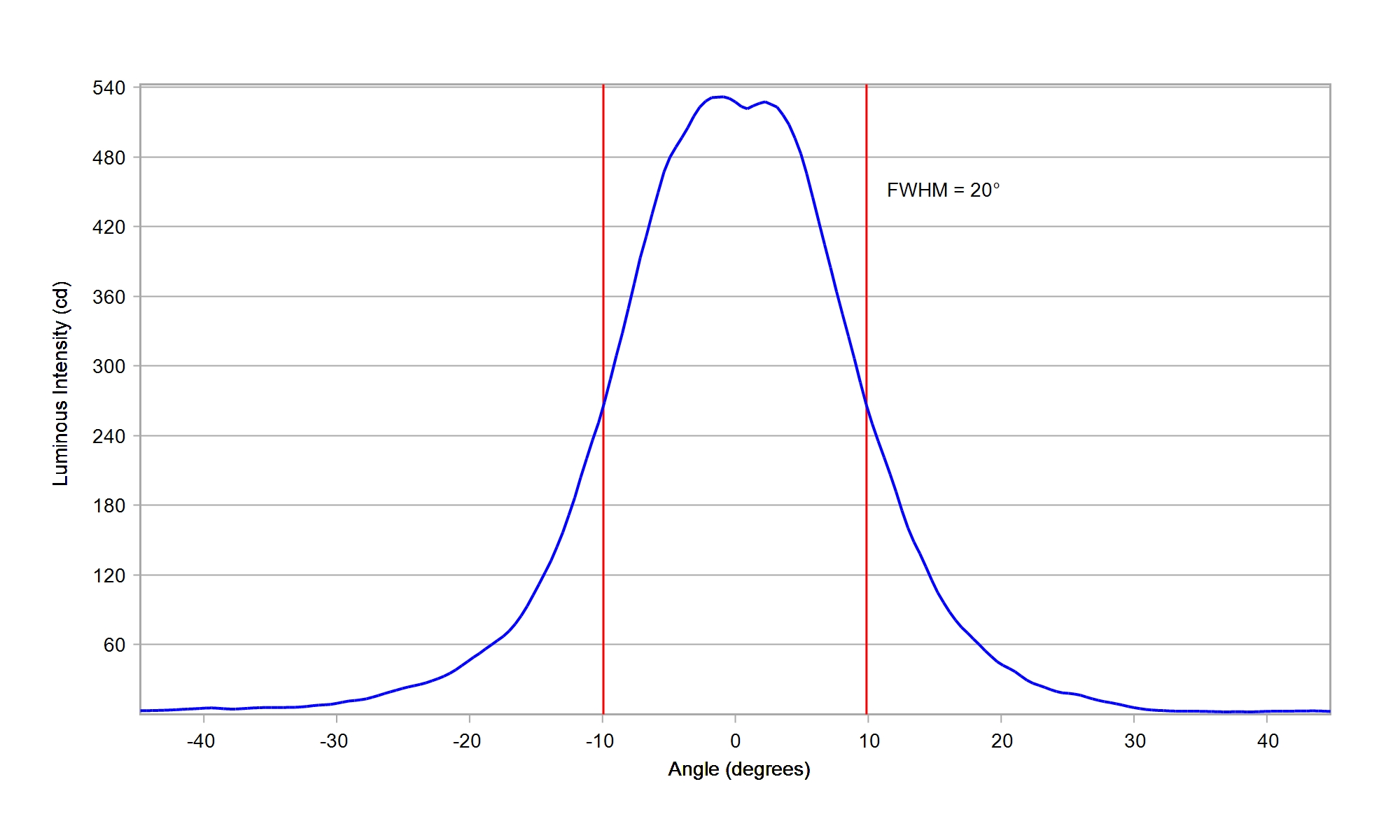

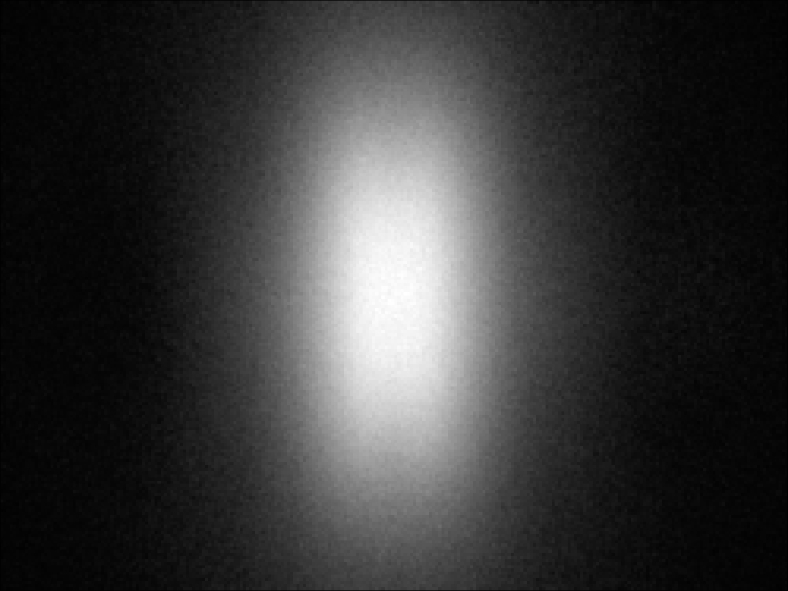

optic-10204-Luminus_MP-5050-240E-cross-section-image-horizontal.jpg , optic-10204-Luminus_MP-5050-240E-cross-section-image-vertical.jpg
Download
Details
Luminus Devices MP-5050-810E White
Eff:
85.0%
FWHM:
21 x 42°
Cd/Im:
2.5
optic-10204-Luminus_MP-5050-810E-cross-section-image-horizontal.jpg , optic-10204-Luminus_MP-5050-810E-cross-section-image-vertical.jpg
Download
Details
Luminus Devices SFT-12R-WES-A White
Eff:
85.5%
FWHM:
5.7 x 49°
Cd/Im:
8.7
optic-10204-Luminus_SFT-12R-WES-A-cross-section-image-horizontal.jpg , optic-10204-Luminus_SFT-12R-WES-A-cross-section-image-vertical.jpg
Download
Details
Luminus Devices SFT-12R-WES-F White
Eff:
84.0%
FWHM:
5.9 x 49°
Cd/Im:
8.4

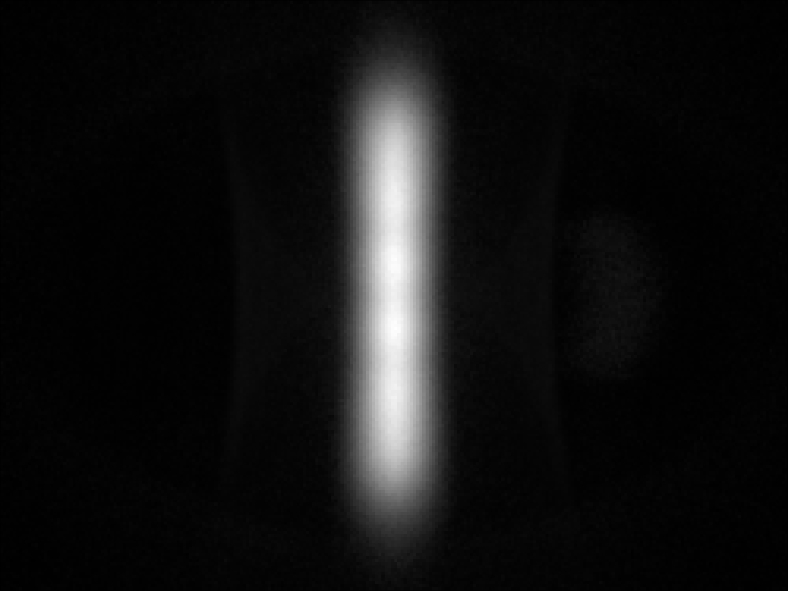

optic-10204-Luminus_SFT-12R-WES-F-cross-section-image-horizontal.jpg , optic-10204-Luminus_SFT-12R-WES-F-cross-section-image-vertical.jpg
Download
Details
Luminus Devices SFT-25R-WES-A White
Eff:
85.5%
FWHM:
7.3 x 48°
Cd/Im:
6.6

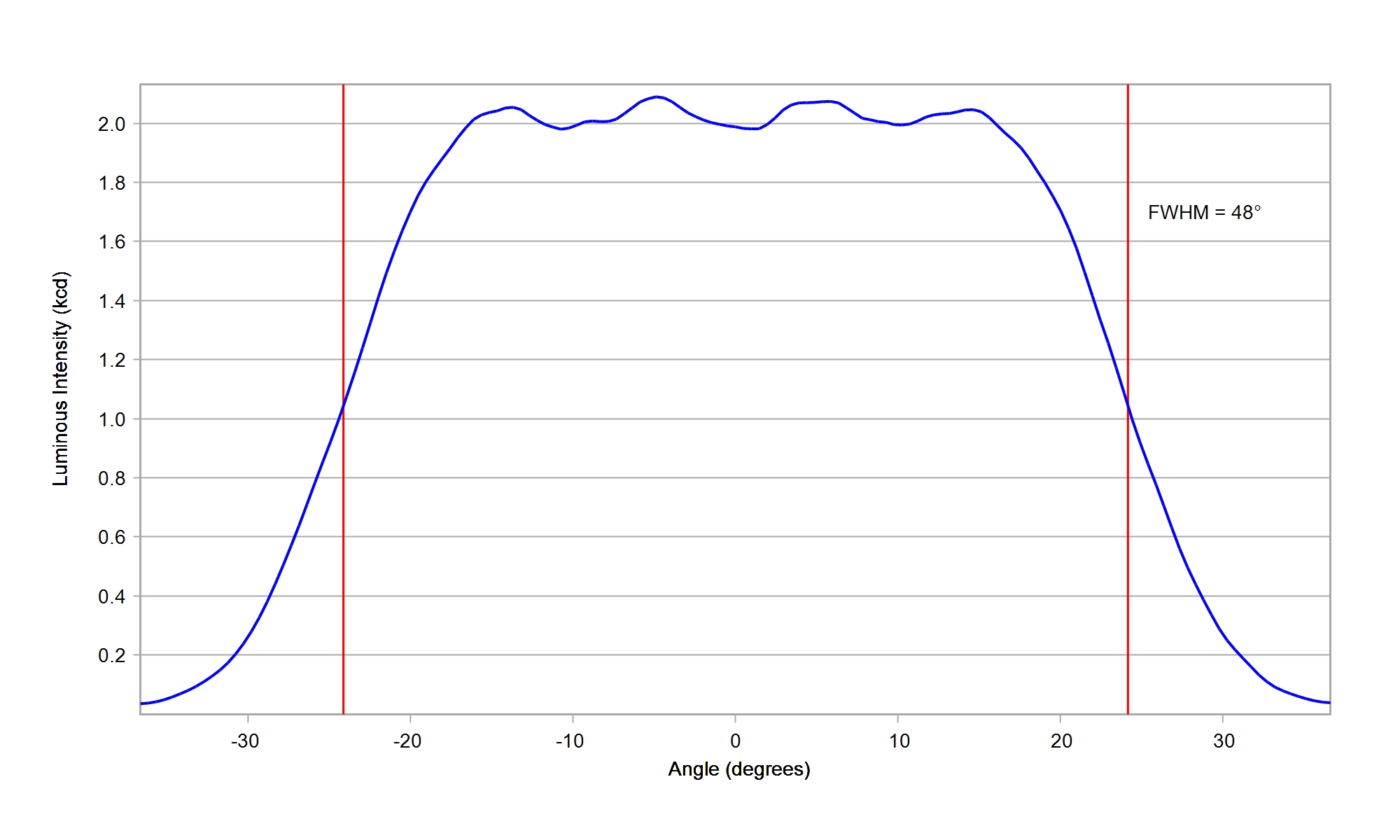

optic-10204-Luminus_SFT-25R-WES-A-cross-section-image-horizontal.jpg , optic-10204-Luminus_SFT-25R-WES-A-cross-section-image-vertical.jpg
Download
Details
Luminus Devices SFT-25R-WES-F White
Eff:
84.0%
FWHM:
7.4 x 48°
Cd/Im:
6.4
optic-10204-Luminus_SFT-25R-WES-F-cross-section-image-horizontal.jpg , optic-10204-Luminus_SFT-25R-WES-F-cross-section-image-vertical.jpg
Download
Details
Luminus Devices SST 05-IR-B40 850nm
Eff:
89.0%
FWHM:
7.5 x 47°
Ipk/W:
6.4
Carclo Optics - 10204 Spot Image Luminus SST-05-IR-B40
Carclo Optics - 10204 Horizontal Cross Section Luminus SST-05-IR-B40 , Carclo Optics - 10204 Vertical Cross Section Luminus SST-05-IR-B40
Download
Details
Luminus Devices SST 10-B-B130 Blue
Eff:
83.0%
FWHM:
8.4 x 50°
Cd/Im:
5.3
Carclo Optics - 10204 Luminus_SST-10_B_B130 - Spot Image

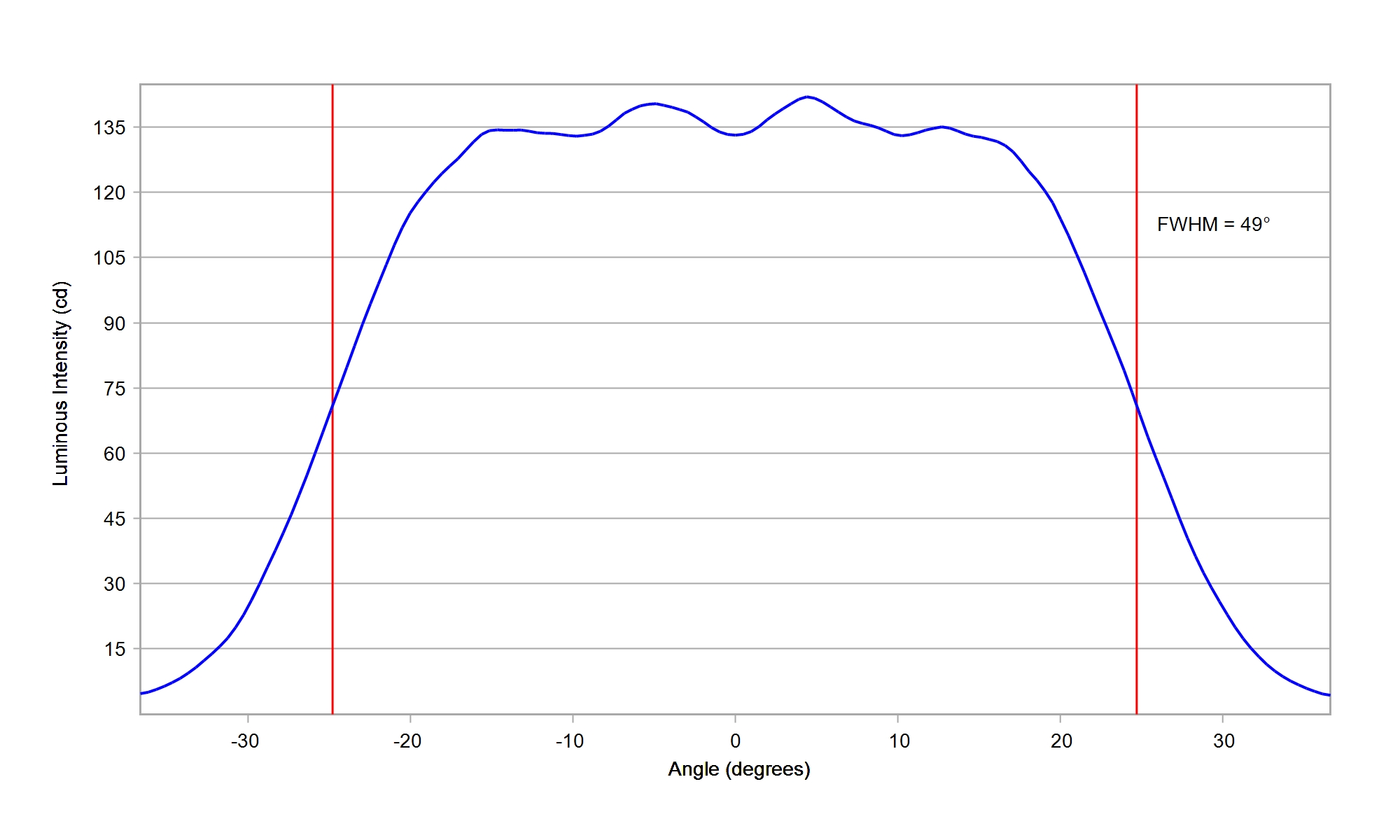

Carclo Optics - 10204 Luminus_SST-10_B_B130 - Cross section horizontal image , Carclo Optics - 10204 Luminus_SST-10_B_B130 - Cross section vertical image
Download
Details
Luminus Devices SST 10-B-B90 Blue
Eff:
83.5%
FWHM:
8.1 x 49°
Cd/Im:
5.3
Carclo Optics - 10204 Luminus_SST-10_B_B90 - spot - image
Carclo Optics - 10204 Luminus_SST-10_B_B90 - cross section horizontal image , Carclo Optics - 10204 Luminus_SST-10_B_B90 - cross section vertical image
Download
Details
Luminus Devices SST 10-DR-B130 Deep Red
Eff:
86.5%
FWHM:
9.3 x 47°
Cd/Im:
5.3
Carclo Optics – 10204 Luminus_SST-10_DR_B130- Spot - image
Carclo Optics – 10204 Horizontal Luminus_SST-10_DR_B130- Cross section – image , Carclo Optics – 10204 Vertical Luminus_SST-10_DR_B130- Cross section – image
Download
Details
Luminus Devices SST 10-DR-B90 Deep Red
Eff:
87.0%
FWHM:
9 x 47°
Cd/Im:
5.2
Carclo Optics - 10204 Luminus_SST-10_DR_B90 - Spot image
Carclo Optics - 10204 Luminus_SST-10_DR_B90 - Cross section horizontal image , Carclo Optics - 10204 Luminus_SST-10_DR_B90 - Cross section vertical image
Download
Details
Luminus Devices SST 10-G-B130 Green
Eff:
85.0%
FWHM:
8.2 x 48°
Cd/Im:
5.7
Carclo Optics - 10204 Luminus_SST-10_G_B130 - spot - image

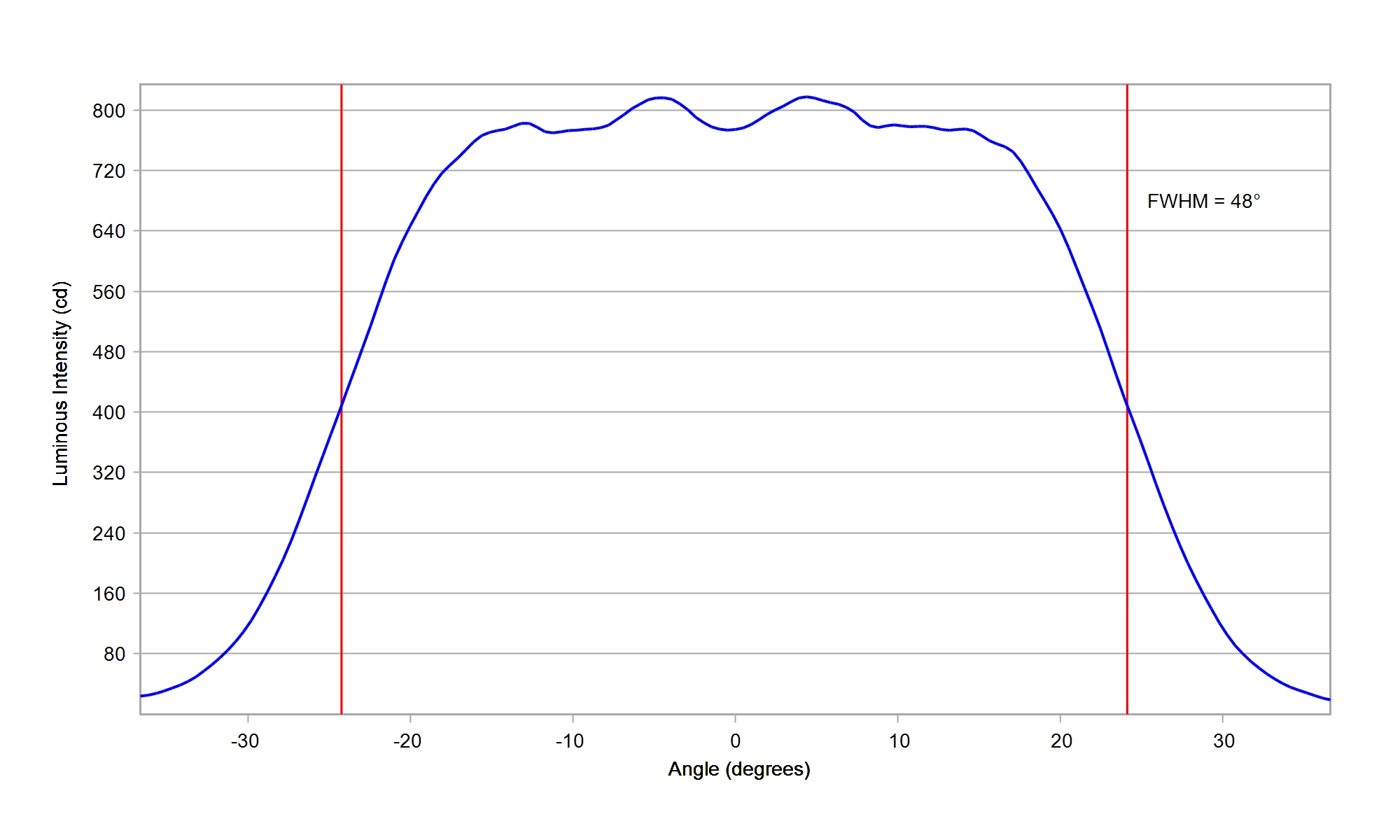

Carclo Optics - 10204 Luminus_SST-10_G_B130 - cross -vertical- section- image , Carclo Optics - 10204 Luminus_SST-10_G_B130 - cross -vertical- section- image
Download
Details
Luminus Devices SST 10-G-B90 Green
Eff:
85.0%
FWHM:
8.3 x 48°
Cd/Im:
5.4
Carclo Optics – 10204 Luminus_SST-10_G_B90- Spot - image
Carclo Optics – 10204 Horizontal Luminus_SST-10_G_B90- Cross section – image , Carclo Optics – 10204 Vertical Luminus_SST-10_G_B90- Cross section – image
Download
Details
Luminus Devices SST 10-IR-B130 940nm
Eff:
88.5%
FWHM:
9.1 x 45°
Ipk/W:
5.4

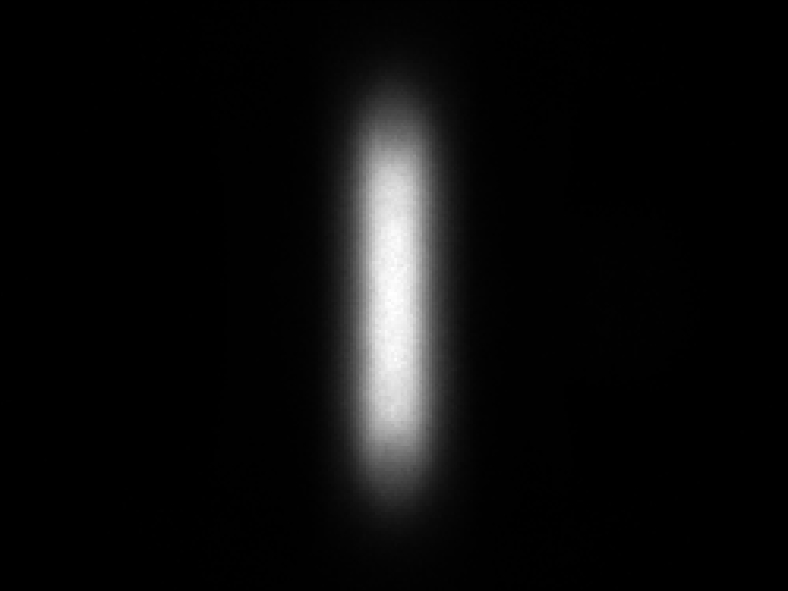

Carclo Optics - 10204 Spot Image Luminus SST-10-IR-B130

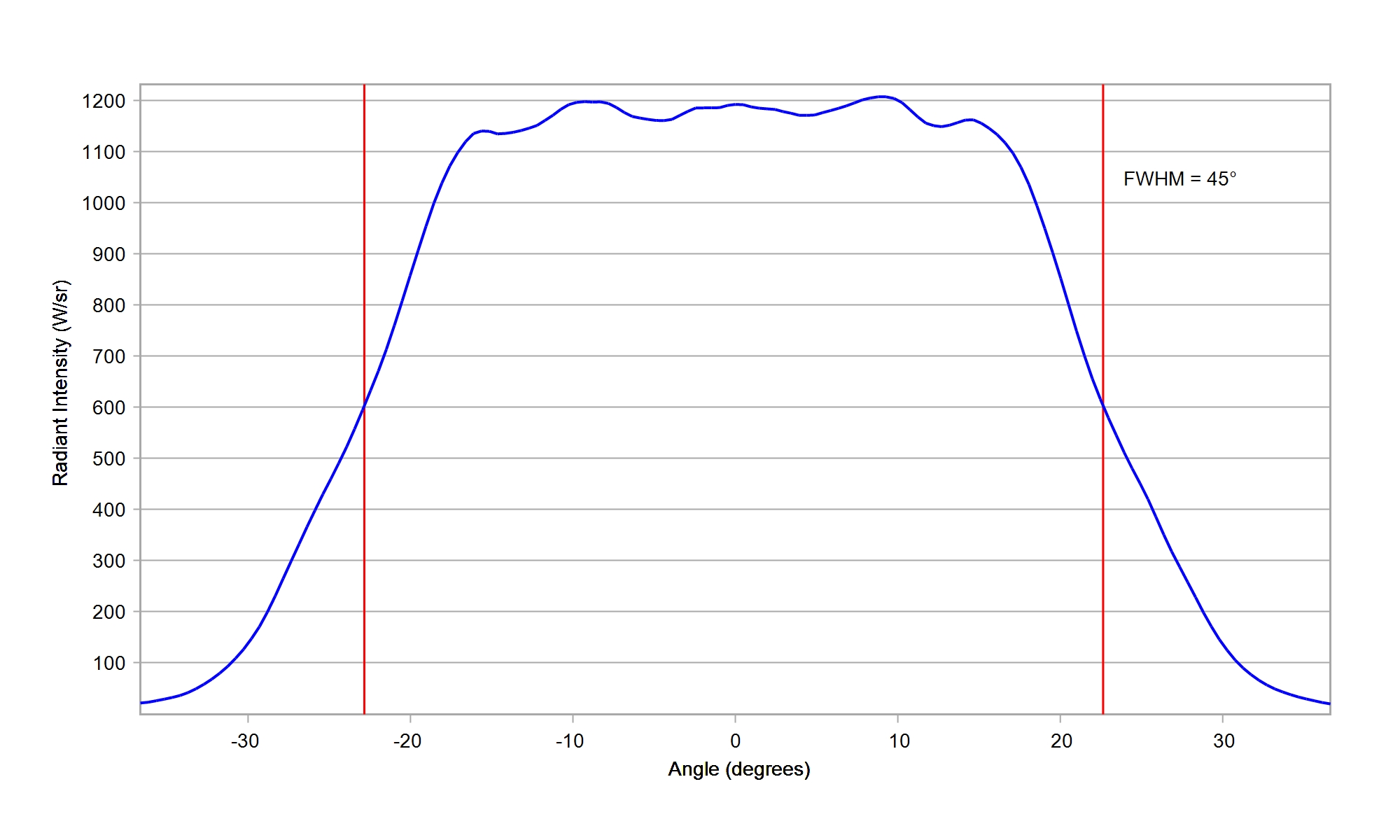

Carclo Optics - 10204 Horizontal Cross Section Luminus SST-10-IR-B130 , Carclo Optics - 10204 Vertical Cross Section Luminus SST-10-IR-B130
Download
Details
Luminus Devices SST 10-IR-B90 940nm
Eff:
89.5%
FWHM:
9 x 46°
Ipk/W:
5.3
Carclo Optics - 10204 Spot Image Luminus SST-10-IR-B90
Carclo Optics - 10204 Hoizontal Cross Section Luminus SST-10-IR-B90 , Carclo Optics - 10204 Vertical Cross Section Luminus SST-10-IR-B90
Download
Details
Luminus Devices SST 10-IRD-B130 810nm
Eff:
89.0%
FWHM:
8.4 x 46°
Ipk/W:
5.8
optic-10204-Luminus-SST-10-IRD-B130-cross-section-image-horizontal.jpg , optic-10204-Luminus-SST-10-IRD-B130-cross-section-image-vertical.jpg
Download
Details
Luminus Devices SST 10-IRD-B90 810nm
Eff:
89.5%
FWHM:
8.7 x 46°
Ipk/W:
5.3
optic-10204-Luminus-SST-10-IRD-B90-cross-section-image-horizontal.jpg , optic-10204-Luminus-SST-10-IRD-B90-cross-section-image-vertical.jpg
Download
Details
Luminus Devices SST 20-WxH White Hi CRI
Eff:
85.0%
FWHM:
9.2 x 48°
Cd/Im:
4.9
Carclo Optics – 10204 - Luxeon_SST_20_W_spot-image
Carclo Optics – 10204 Horizontal - Luxeon_SST_20_W_cross vertical section , Carclo Optics – 10204 Vertical - Luxeon_SST_20_W_cross vertical section
Download
Details
Luminus Devices SST 40-W White
Eff:
83.5%
FWHM:
15.5 x 45°
Cd/Im:
3.1
Carclo Optics – 10204 - Luxeon_SST_40_W_spot-image
Carclo Optics – 10204 Horizontal - Luxeon_SST_40_W_cross vertical section , Carclo Optics – 10204 Vertical - Luxeon_SST_40_W_cross vertical section
Download
Details
Luminus Devices SST-12-WS Gen2 White
Eff:
85.0%
FWHM:
8 x 48°
Cd/Im:
5.6
optic-10204-Luminus-SST-12-WS-Gen2-cross-section-image-horizontal.jpg , optic-10204-Luminus-SST-12-WS-Gen2-cross-section-image-vertical.jpg
Download
Details
Luminus Devices SST-12-WxS White
Eff:
85.0%
FWHM:
7.8 x 48°
Cd/Im:
5.9

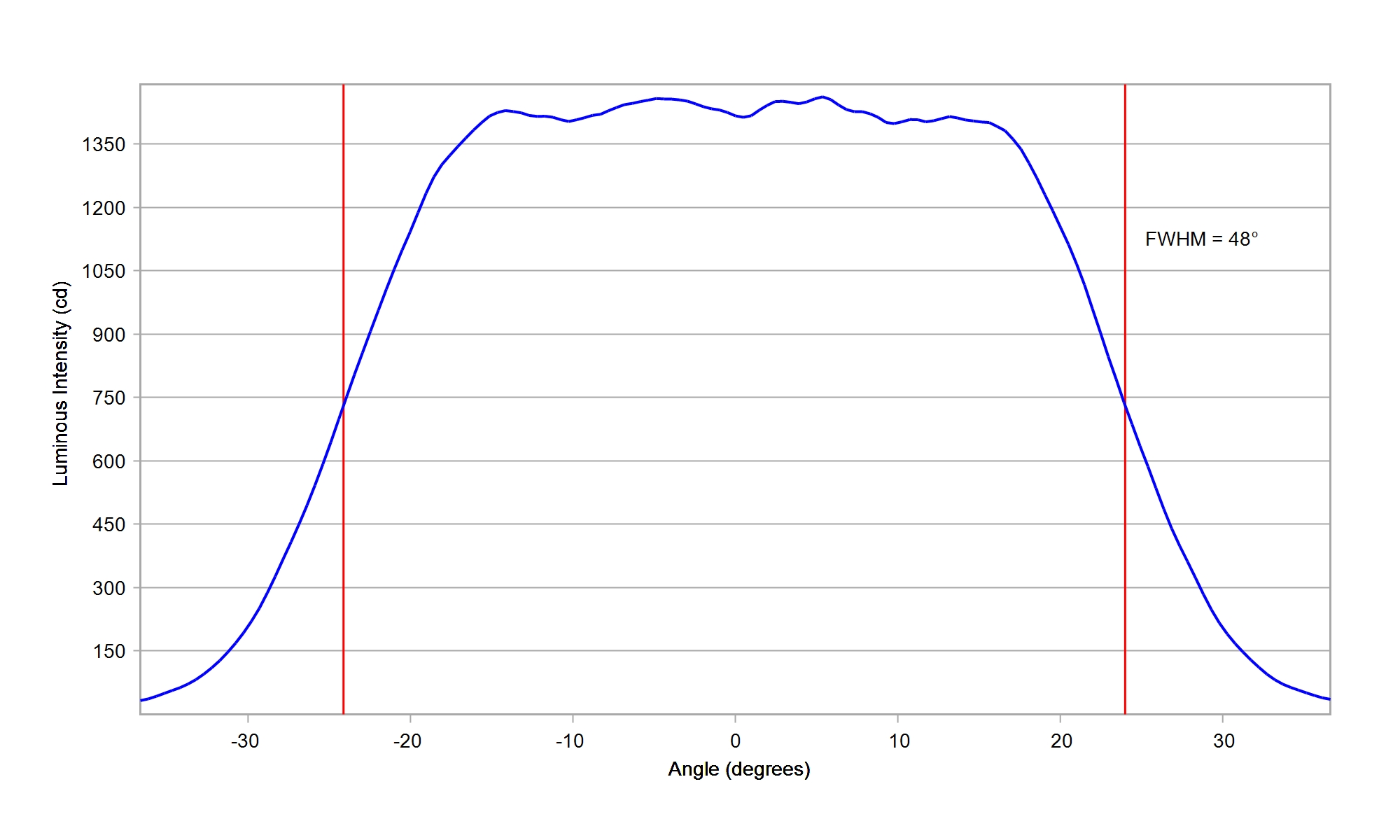

optic-10204-Luminus_SST-12-cross-section-image-horizontal.jpg , optic-10204-Luminus_SST-12-cross-section-image-vertical.jpg
Download
Details
Luminus Devices SST-20-W Gen2 White
Eff:
84.5%
FWHM:
9.6 x 47°
Cd/Im:
4.7

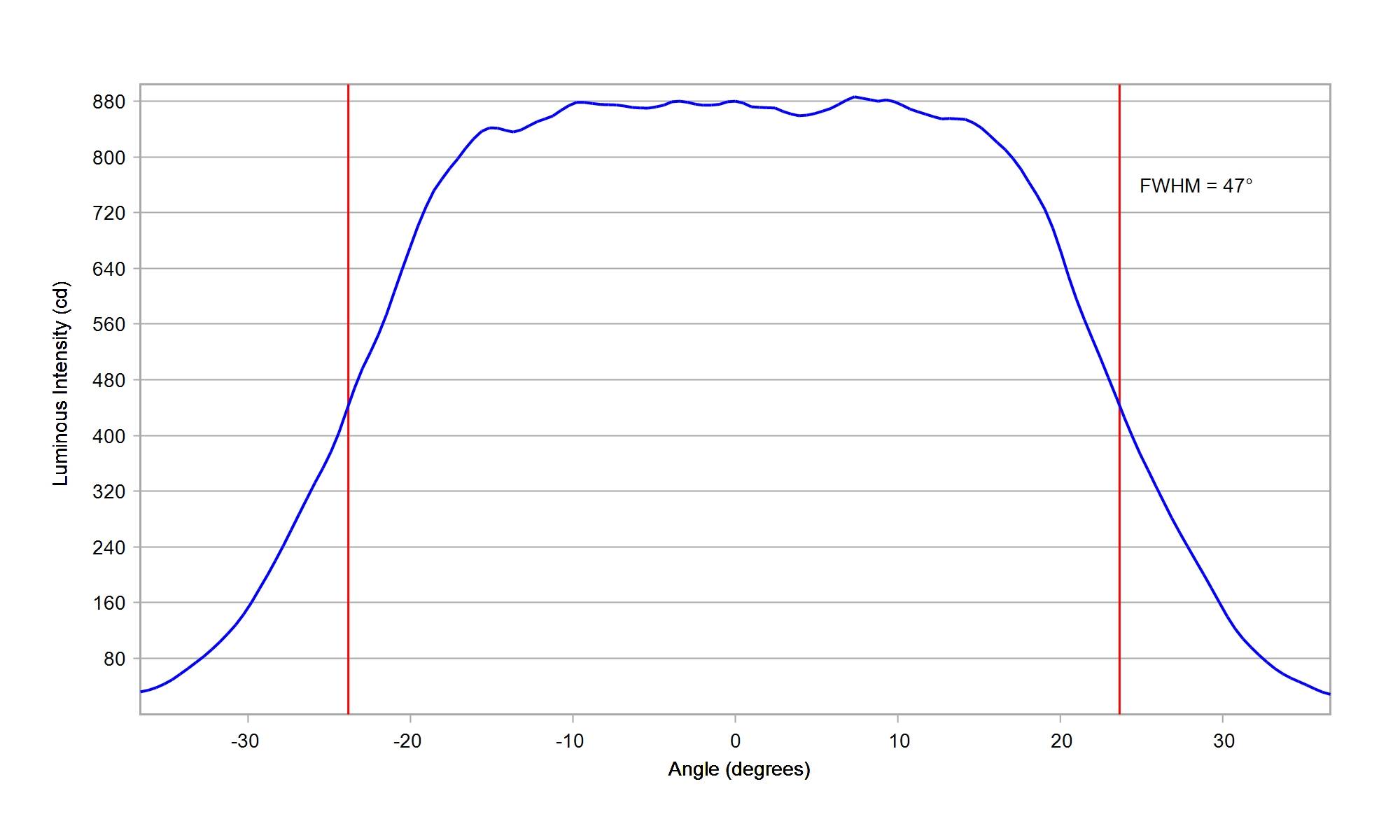

optic-10204-Luminus-SST-20-WS-Gen2-cross-section-image-horizontal.jpg , optic-10204-Luminus-SST-20-WS-Gen2-cross-section-image-vertical.jpg
Download
Details
Luminus Devices SST-25-WES White
Eff:
85.0%
FWHM:
11.5 x 47°
Cd/Im:
4.1

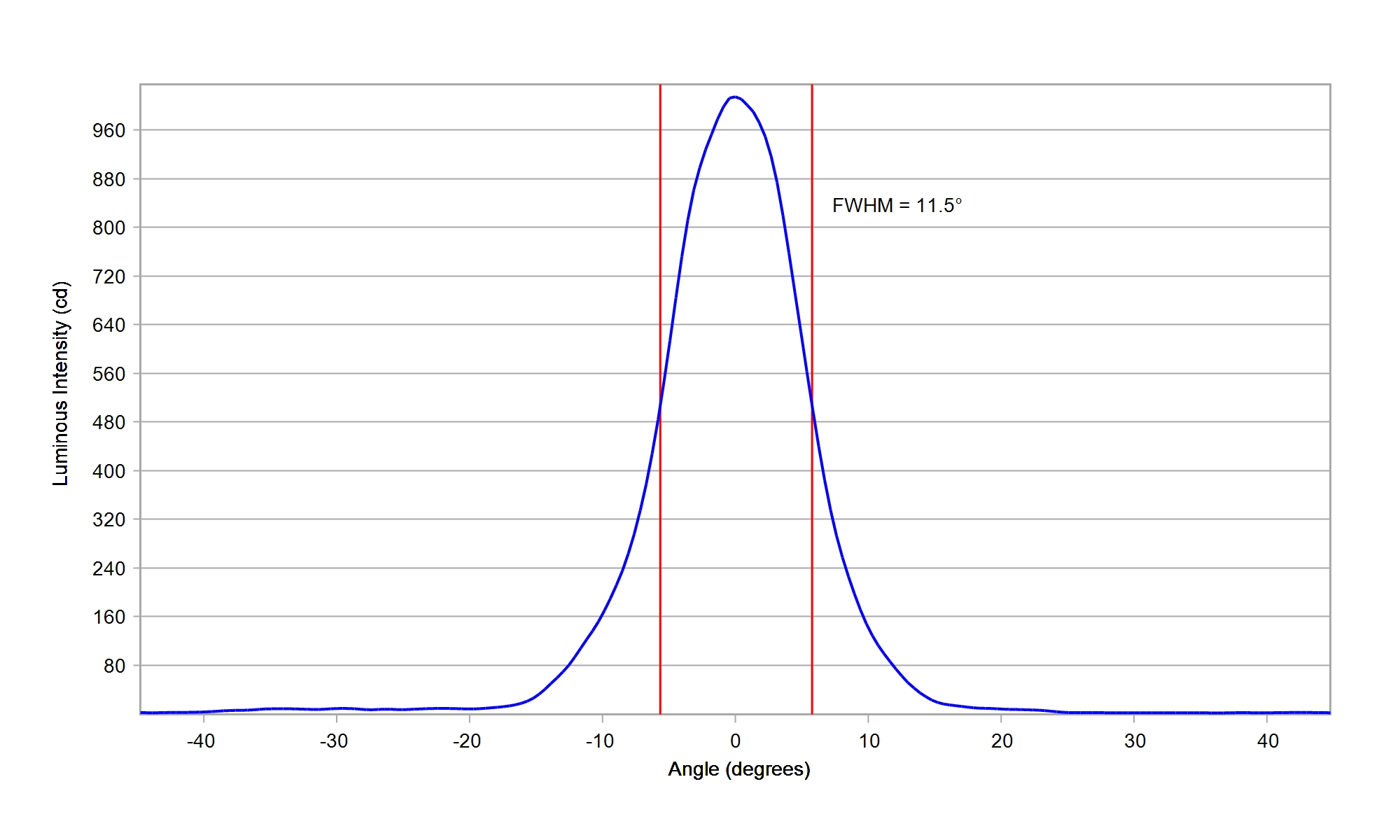

optic-10204-Luminus_SST-25-W-cross-section-image-horizontal.jpg , optic-10204-Luminus_SST-25-W-cross-section-image-vertical.jpg
Download
Details
Nichia 229A White
Eff:
82.5%
FWHM:
17.0 x 43.0°
Cd/Im:
2.8

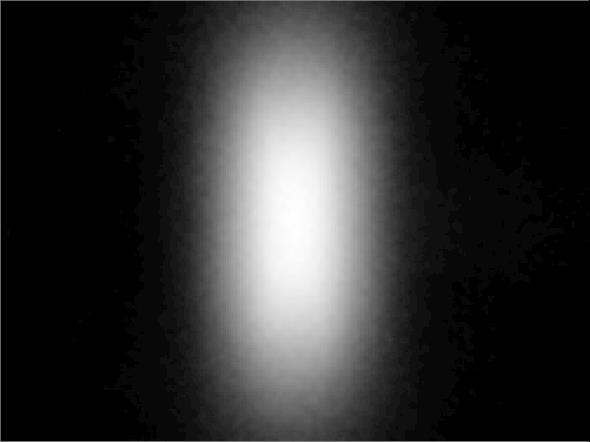

Carclo Optics - Simulated Spot Image

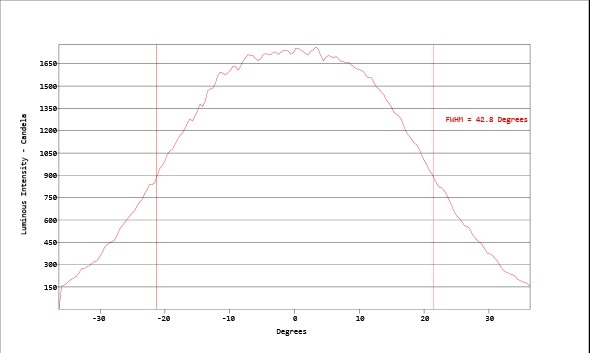

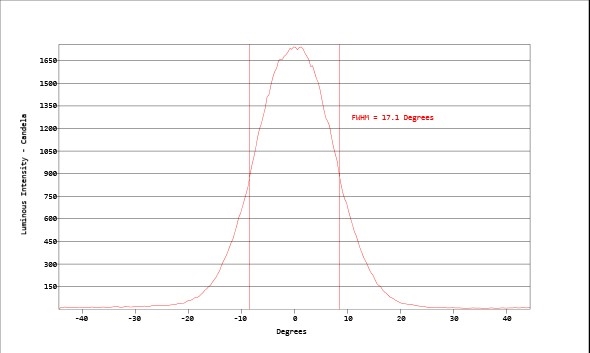

Carclo Optics - Simulated Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Nichia 757G White
Eff:
84.5%
FWHM:
10.5 x 46.5°
Cd/Im:
4.5

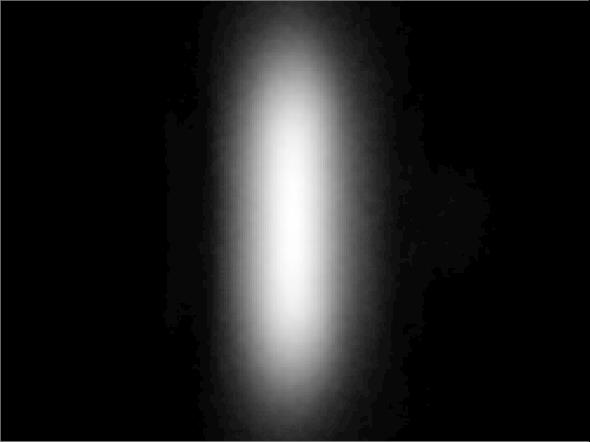

Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Nichia NCSW CSP E17A White
Eff:
83.0%
FWHM:
7.2 x 48.0°
Cd/Im:
6.1
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Nichia NF2W 385AR-V2 White
Eff:
85.0%
FWHM:
12.5 x 47°
Cd/Im:
3.7

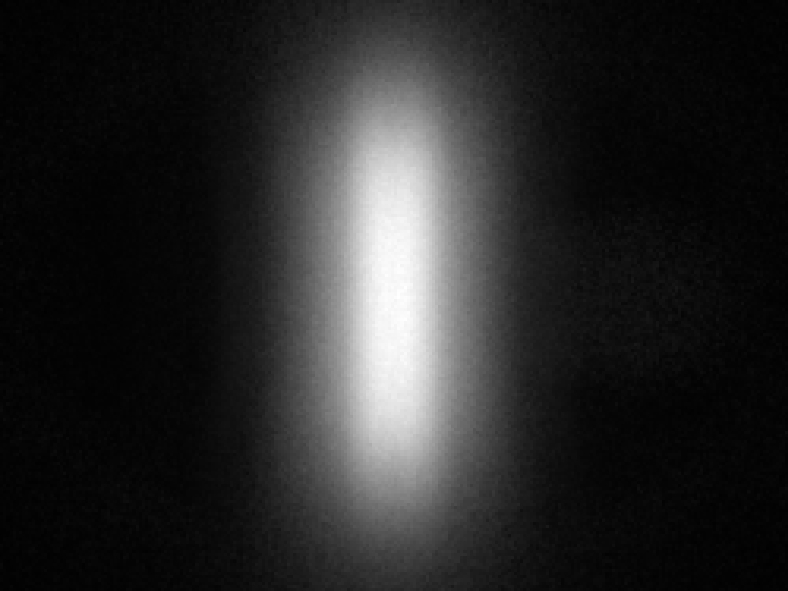

optic-10204-Nichia_385AR-V2-cross-section-image-horizontal.jpg , optic-10204-Nichia_385AR-V2-cross-section-image-vertical.jpg
Download
Details
Nichia NF2W 757G-MT Tunable
Eff:
85.5%
FWHM:
12 x 47°
Cd/Im:
4.2

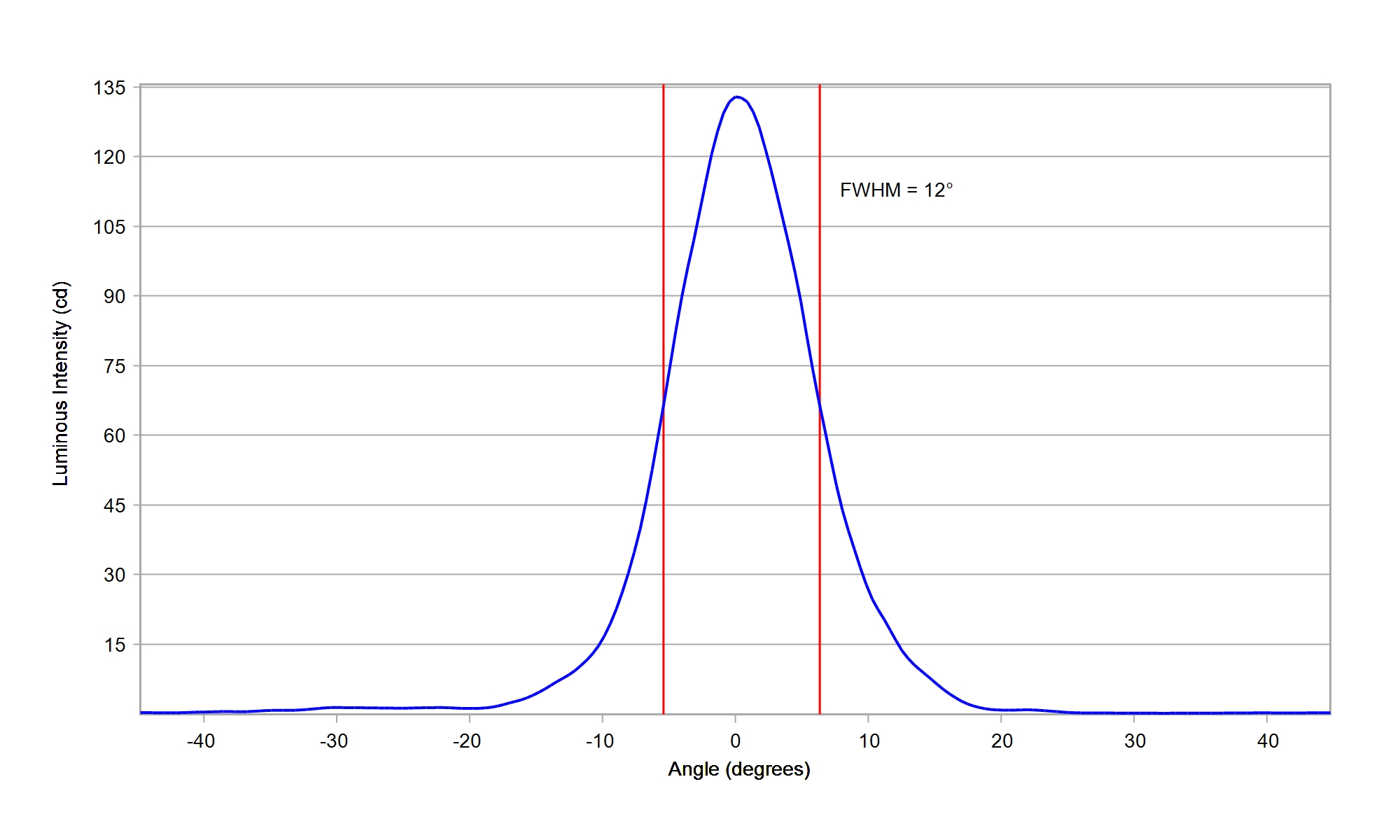

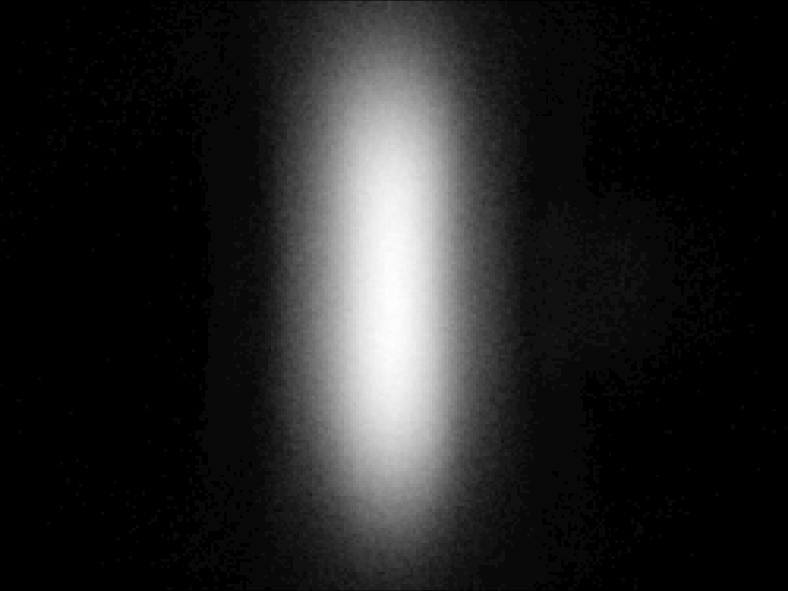

Carclo Optics 10204 20mm Simulated Spot Image Nichia 757G-MT
Carclo Optics 10204 20mm Simulated cross section horizontal Nichia 757G-MT , Carclo Optics 10204 20mm Simulated cross section vertical Nichia 757G-MT
Download
Details
Nichia NFSW CSP E11A White
Eff:
81.5%
FWHM:
5.2 x 48°
Cd/Im:
9.0

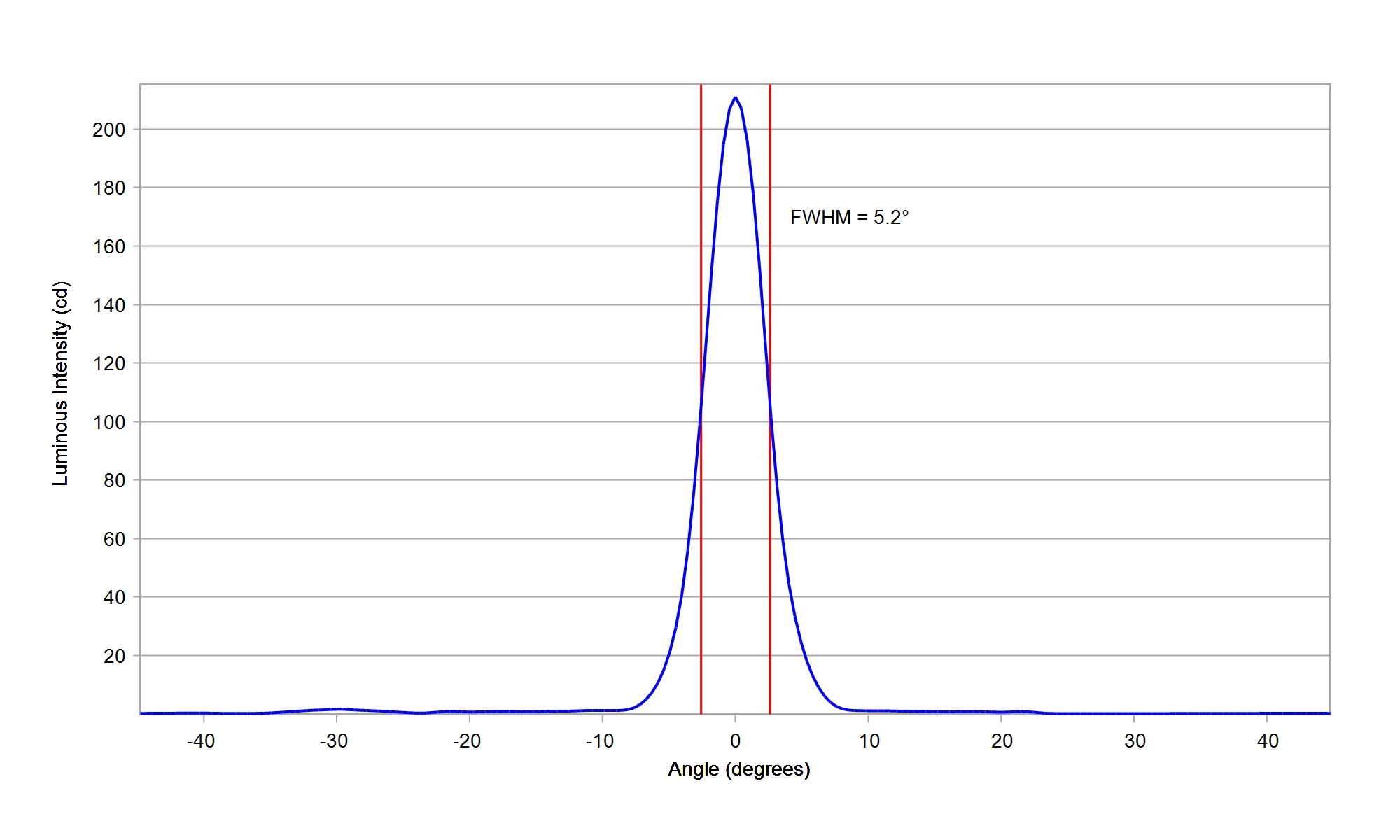

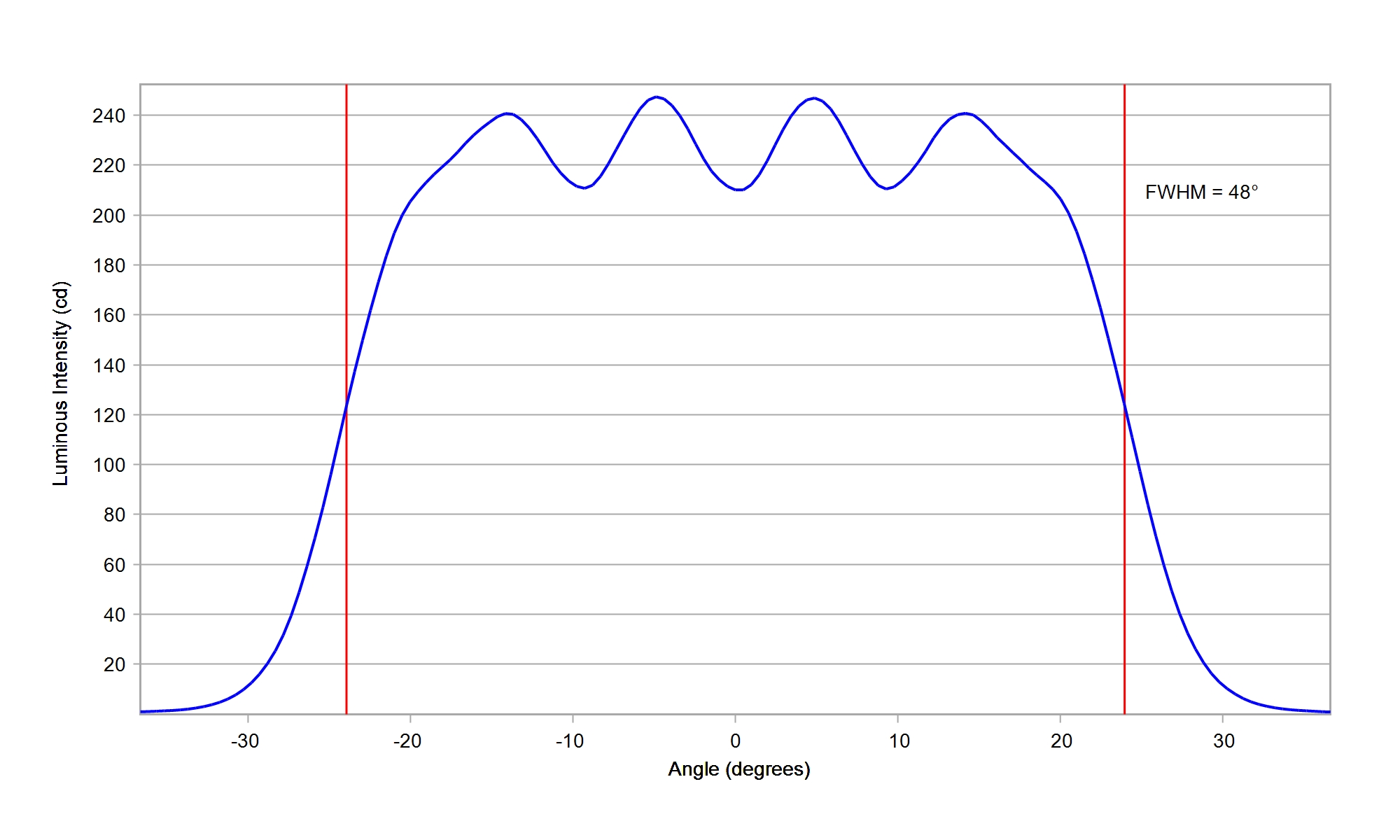

optic-10204-Nichia_E11A-cross-section-image-horizontal.jpg , optic-10204-Nichia_E11A-cross-section-image-vertical.jpg
Download
Details
Nichia NV4W B35AM White
Eff:
83.0%
FWHM:
17 x 43°
Cd/Im:
3.0
Carclo Optics – 10204 Nichia NV4WB35AM - Spot Image
Carclo Optics – 10204 Horizontal Nichia NV4WB35AM - Cross-Section , Carclo Optics – 10204 Vertical Nichia NV4WB35AM - Cross-Section
Download
Details
Nichia NVSW 219C White
Eff:
84.0%
FWHM:
12.5 x 45.5°
Cd/Im:
3.9
Carclo Optics - Simulated Spot Image

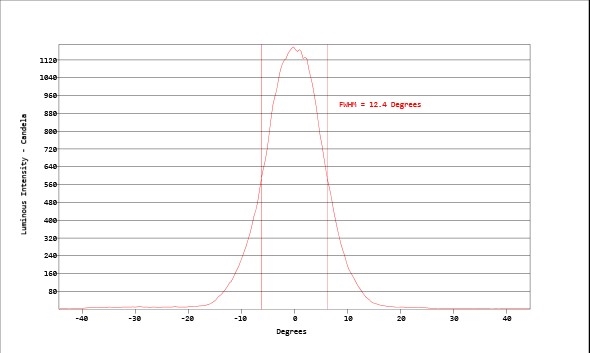

Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Nichia NVSW 219F White
Eff:
83.5%
FWHM:
13 x 46°
Cd/Im:
3.8

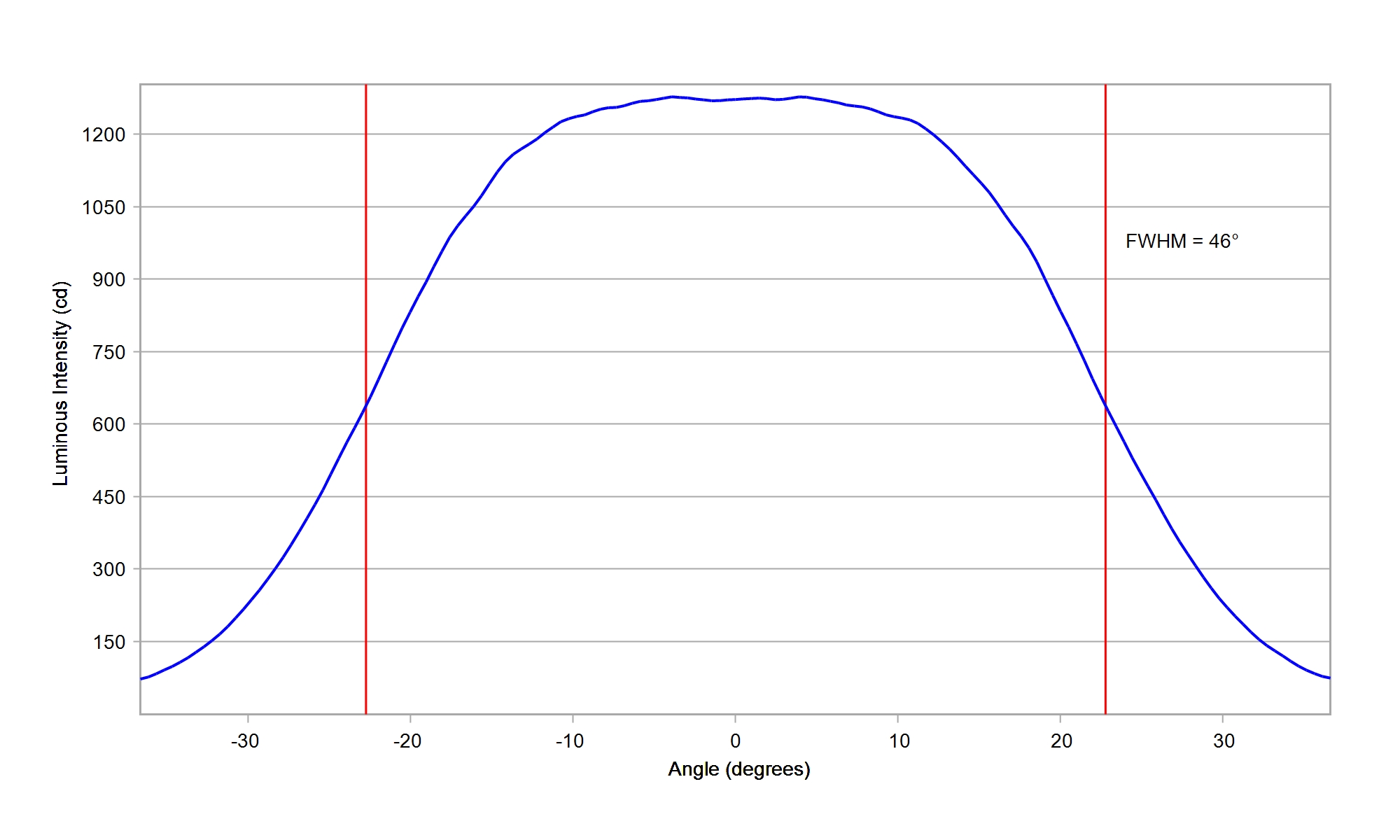

Carclo Optics – 10204 Nichia NVSW 219F White - Spot Image
Carclo Optics – 10204 Horizontal Nichia NVSW 219F White - Cross-Section , Carclo Optics – 10204 Vertical Nichia NVSW 219F White - Cross-Section
Download
Details
Nichia NVSW 319A White
Eff:
83.0%
FWHM:
13.5 x 44.5°
Cd/Im:
3.4
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Nichia NVSW CSP E21A White
Eff:
85.0%
FWHM:
9.5 x 47.3°
Cd/Im:
4.6

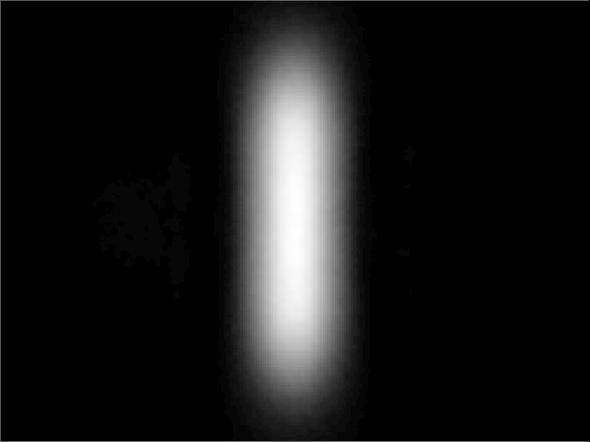

Carclo Optics - Simulated Spot Image

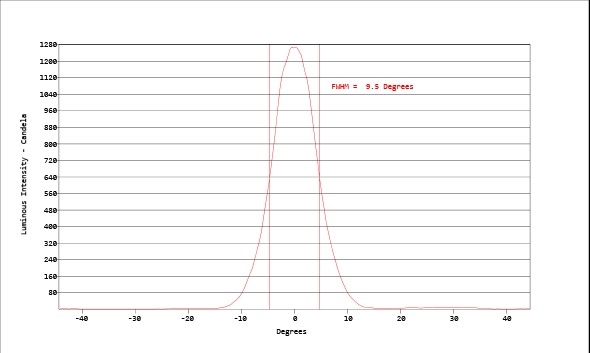

Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Osram LED ENGIN LuxiGen LZ1 00CW02 White
Eff:
87.5%
FWHM:
7.8 x 48°
Cd/Im:
6.4
optic-10204-Osram_LZ1-00CW02-cross-section-image-horizontal.jpg , optic-10204-Osram_LZ1-00CW02-cross-section-image-vertical.jpg
Download
Details
Osram LED ENGIN LuxiGen LZ1 00R702 IR940nm
Eff:
90.5%
FWHM:
8.9 x 46°
Ipk/W:
5.8

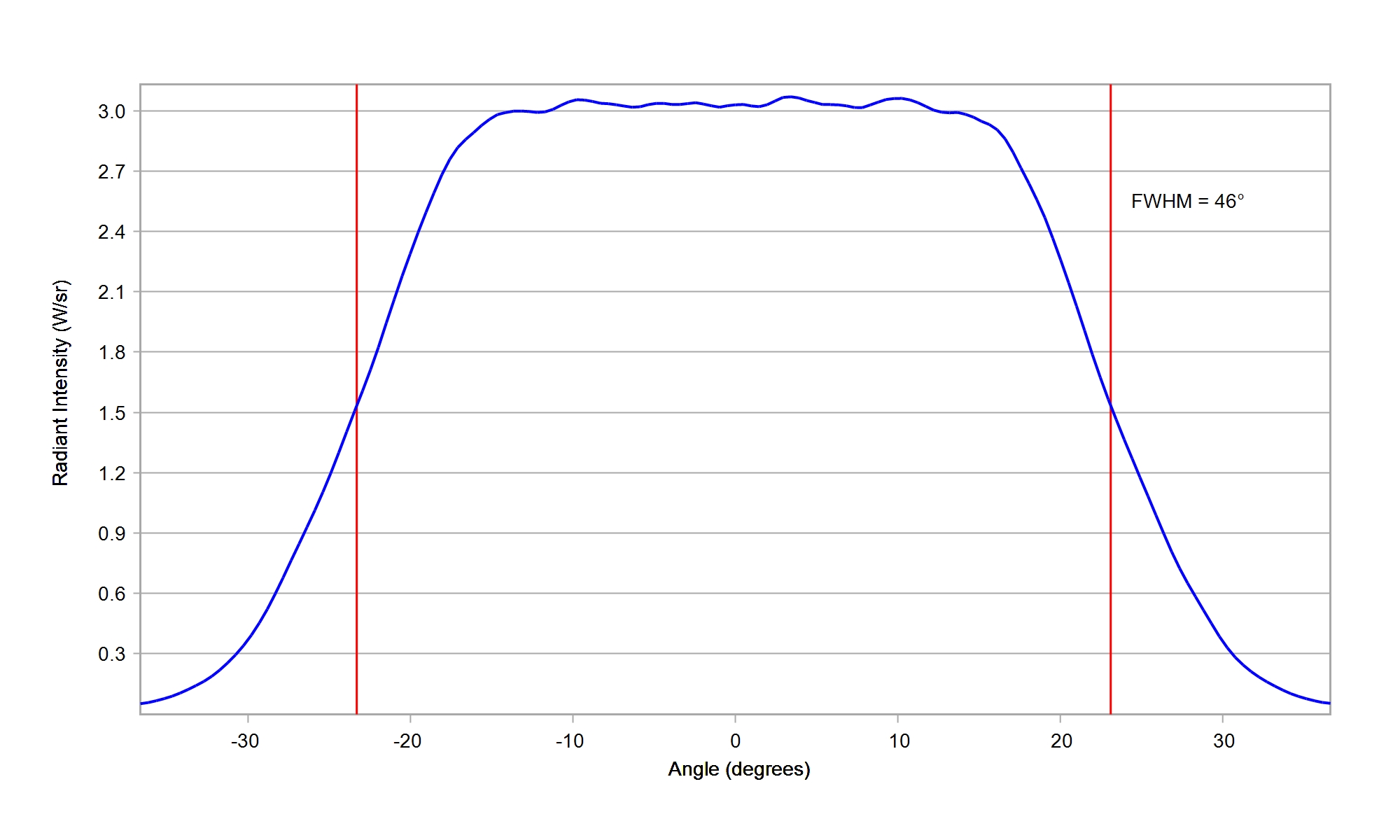

optic-10204-Osram_LZ1_00R702-cross-section-image-horizontal.jpg , optic-10204-Osram_LZ1_00R702-cross-section-image-vertical.jpg
Download
Details
Osram DURIS E 2835 Gen2
Eff:
85.0%
FWHM:
8.2 x 48°
Cd/Im:
5.5

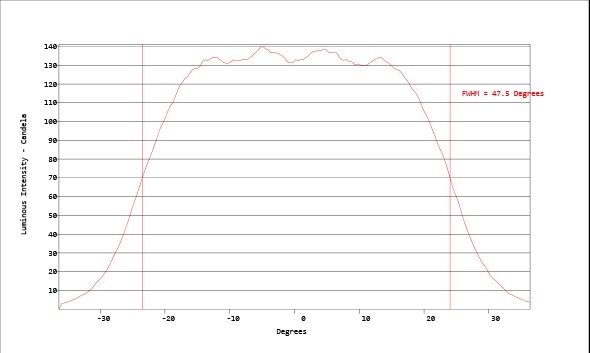

Carclo Optics - 10204 20mm Spot Image Osram DURIS E 2835 Gen2

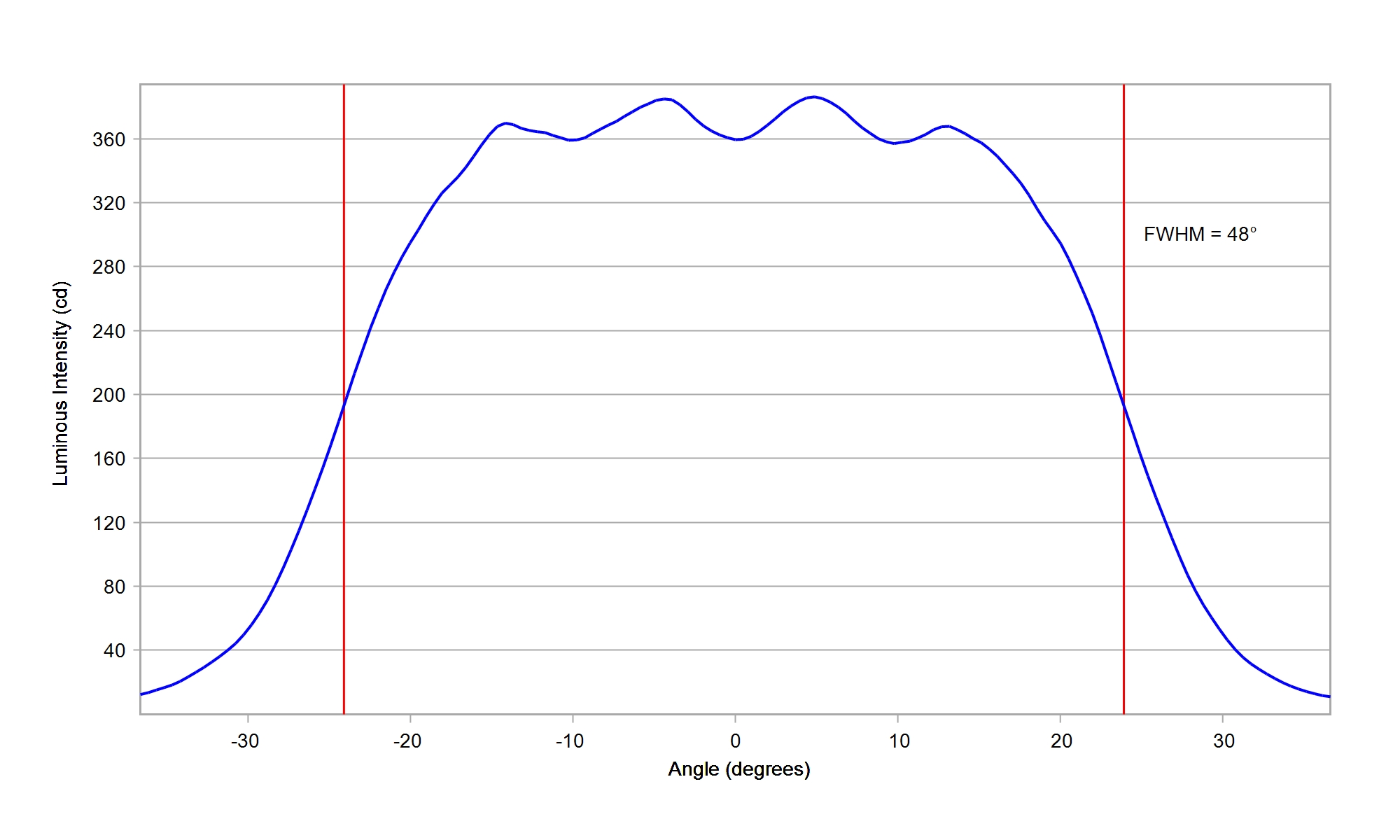

Carclo Optics - 10204 20mm Horizontal Cross Section Osram DURIS E 2835 Gen2 , Carclo Optics - 10204 20mm Vertical Cross Section Osram DURIS E 2835 Gen2
Download
Details
Osram DURIS E 2835 White
Eff:
85.0%
FWHM:
9.8 x 47.5°
Cd/Im:
4.9
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Osram DURIS E2 White
Eff:
87.0%
FWHM:
4.7 x 48.9°
Cd/Im:
7.7
Carclo Optics - Simulated Spot Image

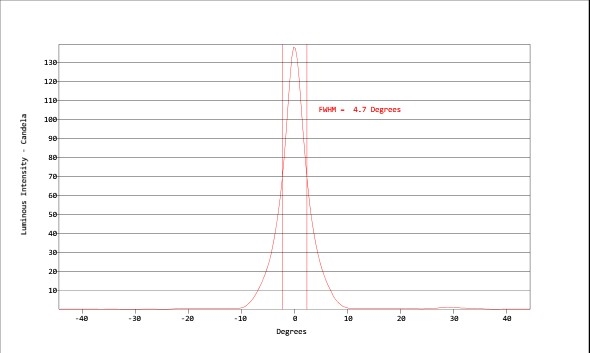

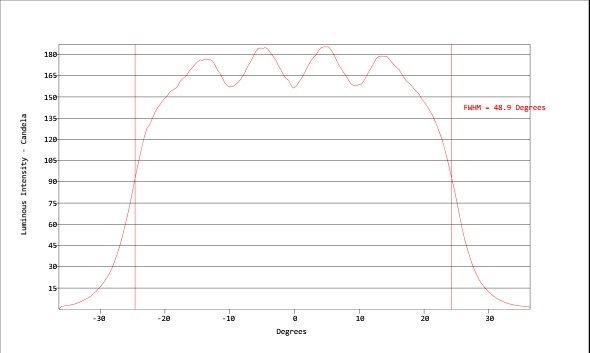

Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Osram DURIS E3 White
Eff:
90.0%
FWHM:
6.8x48.1°
Cd/Im:
6.2

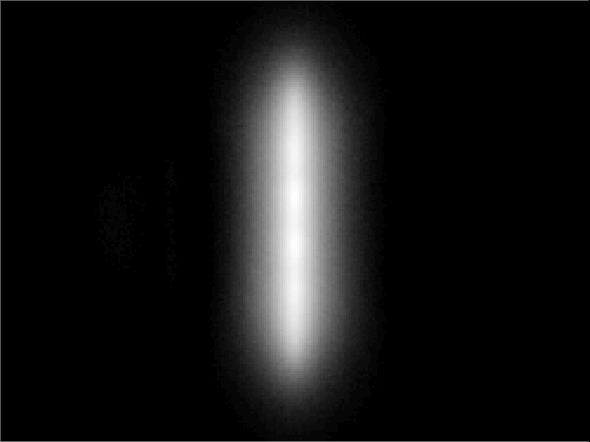

Carclo Optics - Simulated Spot Image

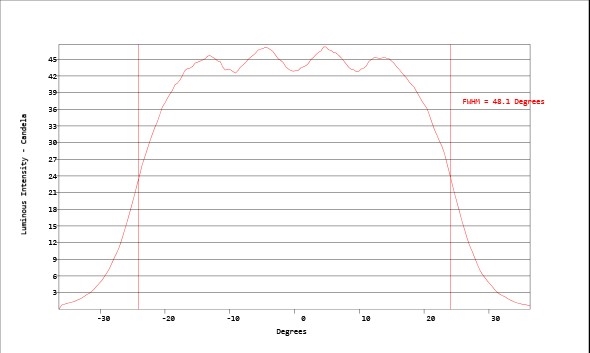

Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Osram DURIS P8 White
Eff:
86.7%
FWHM:
10.0 x 47.1°
Cd/Im:
4.4
Carclo Optics - Simulated Spot Image

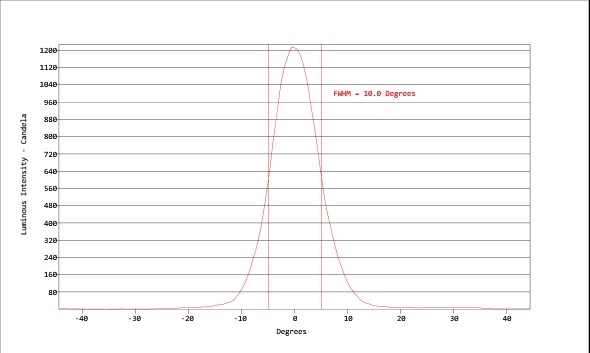

Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulation Vertical Cross Section
Download
Details
Osram DURIS S2 White
Eff:
92.1%
FWHM:
8.4x47.5°
Cd/Im:
4.9
Carclo Optics - Simulated Spot Image

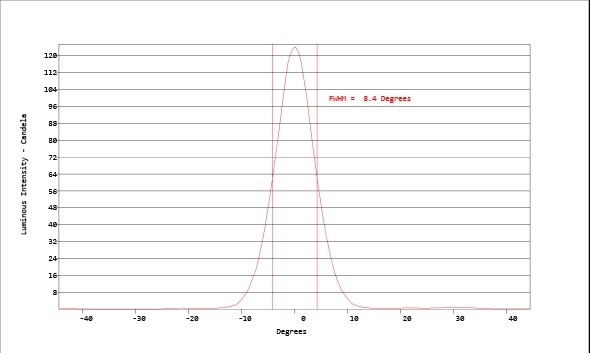

Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Osram DURIS S5 Deep Blue
Eff:
83.5%
FWHM:
10.5 x 49.0°
Cd/Im:
4.5
Carclo Optics - Simulated Spot Image

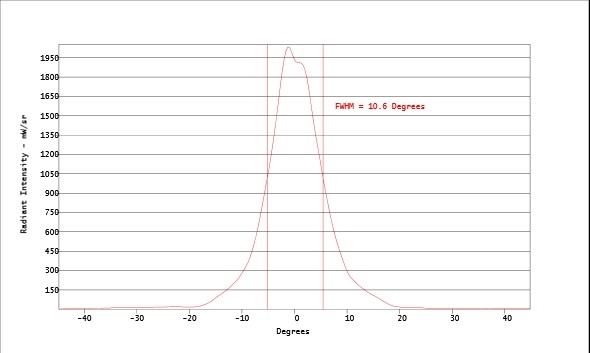

Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Osram DURIS S5 Green
Eff:
85.5%
FWHM:
9.3 x 48.0°
Cd/Im:
4.9
Carclo Optics - Simulated Spot Image

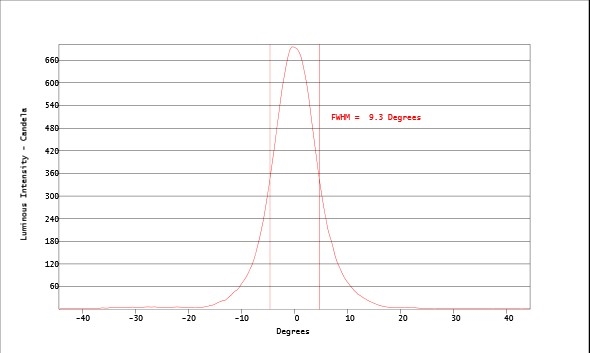

Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details

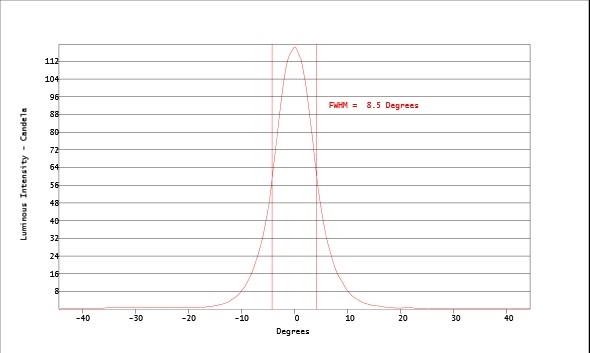

Osram DURIS S5 Red
Eff:
86.0%
FWHM:
8.5 x 47.0°
Cd/Im:
5.5
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Osram DURIS S5 White
Eff:
87.0%
FWHM:
10.6 x 47.2°
Cd/Im:
4.1
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Osram OSCONIQ C 2424 White
Eff:
85.5%
FWHM:
8.7 x 48°
Cd/Im:
5.4
Carclo Optics - 10204 Spot Image OSCONIQ C2424
Carclo Optics - 10204 Horizontal Cross Section OSCONIQ C2424 , Carclo Optics - 10204 Vertical Cross Section OSCONIQ C2424
Download
Details
Osram OSCONIQ P3737 White
Eff:
82.0%
FWHM:
15 x 45°
Cd/Im:
3.2
Carclo Optics 10204 Spot Image Osram Osconiq

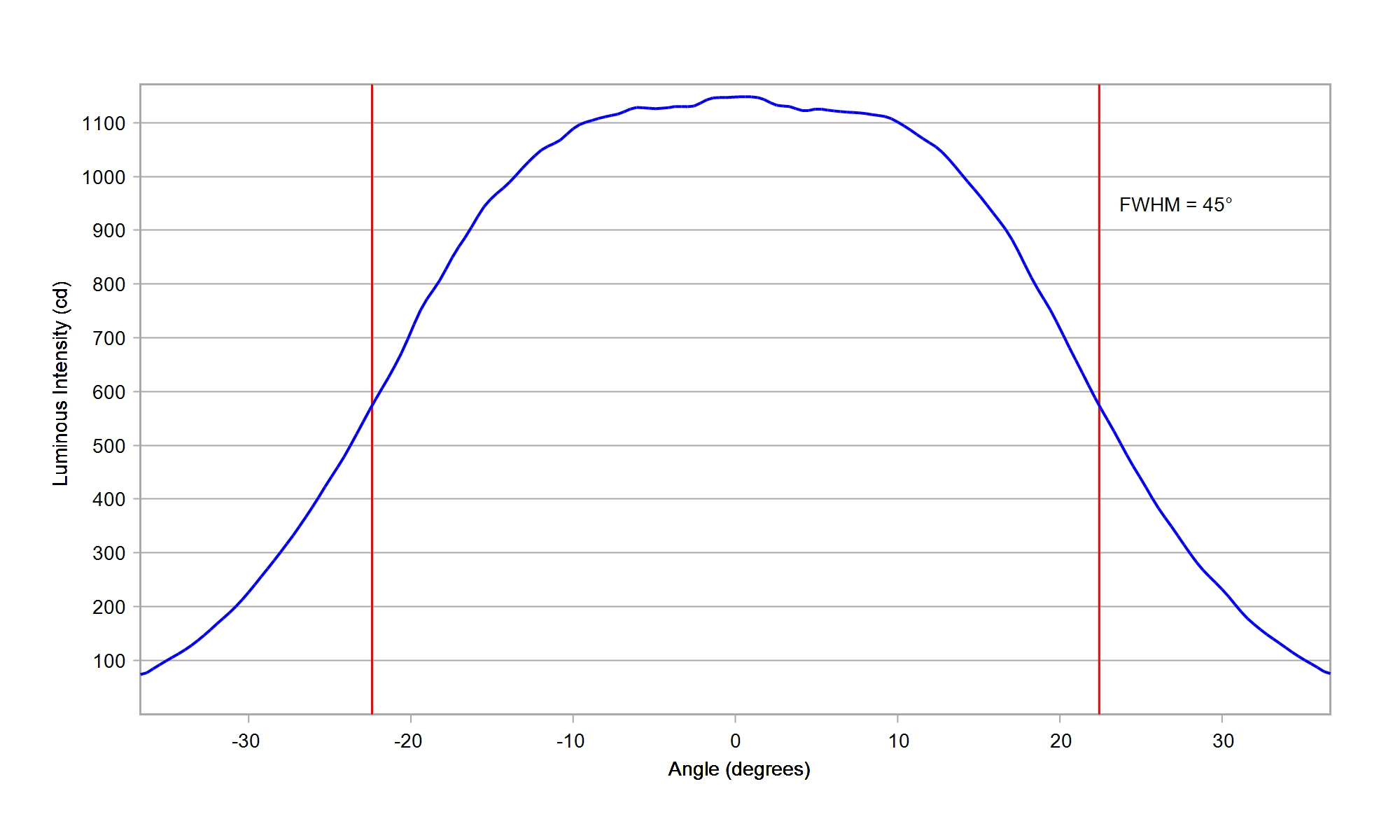

Carclo Optics 10204 Cross Section Horizontal Osram Osconiq P3737 , Carclo Optics 10204 Cross Section Vertical Osram Osconiq P3737
Download
Details
Osram OSLON Black SFH 4715AS IR
Eff:
89.0%
FWHM:
7.9 x 46°
Ipk/W:
6.2

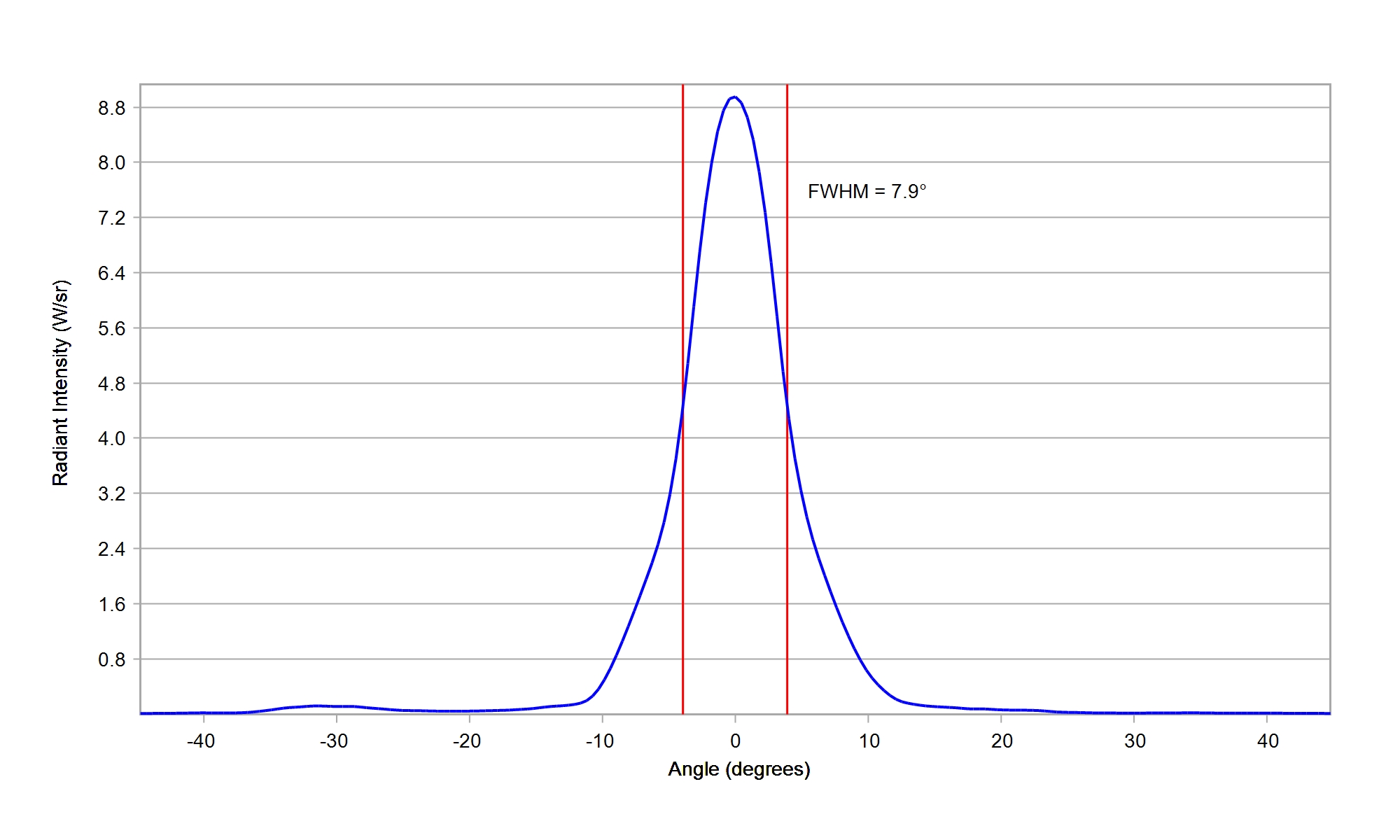

optic-10204-OslonBlack_SFH_4715AS-cross-section-image-horizontal.jpg , optic-10204-OslonBlack_SFH_4715AS-cross-section-image-vertical.jpg
Download
Details
Osram OSLON Black SFH 4716AS IR
Eff:
85.0%
FWHM:
7.3 x 47°
Ipk/W:
6.5
Carclo Optics – 10204 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

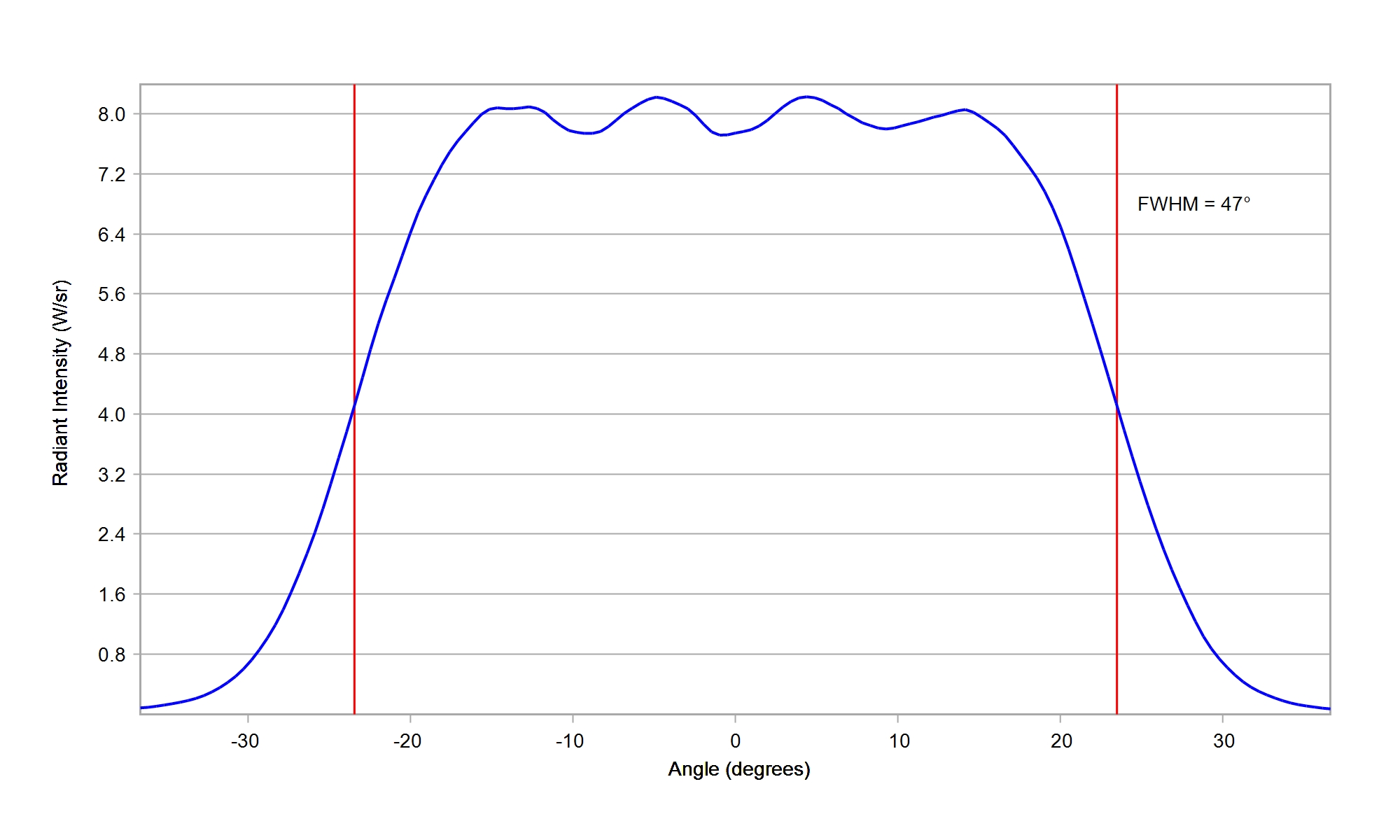

Carclo Optics – 10204 Horizontal Cross Section OSRAM OS Oslon Black IR SFH 4716AS , Carclo Optics – 10204 Vertical Cross Section OSRAM OS Oslon Black IR SFH 4716AS
Download
Details
Osram OSLON Black SFH 4725S IR
Eff:
90.5%
FWHM:
10 x 46°
Ipk/W:
5.3
Carclo Optics 10204 Spot Image Osram Oslon Black_IR_SFH_4725S

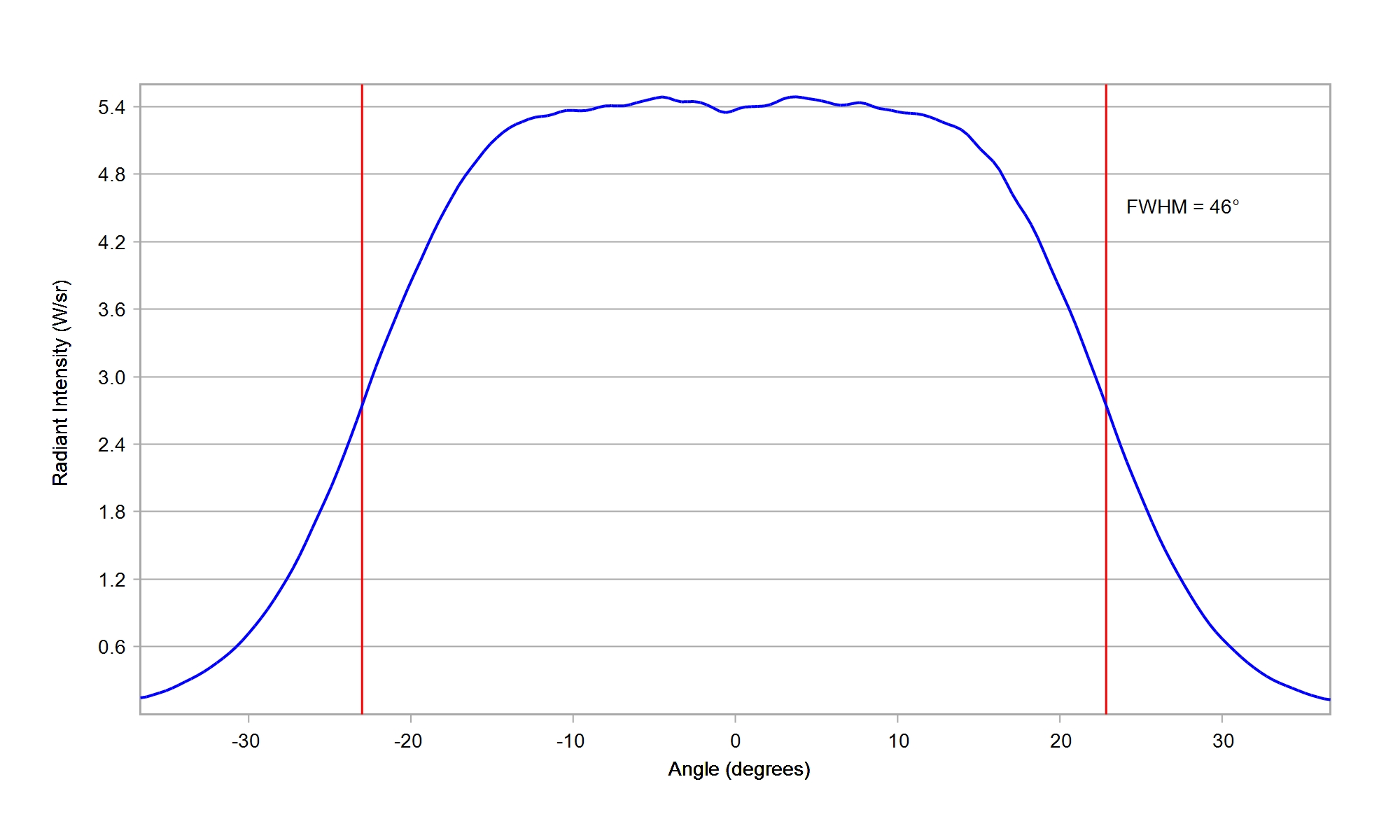

Carclo Optics 10204 Cross Horizontal Section Image Osram Oslon Black_IR_SFH_4725S , Carclo Optics 10204 Cross Vertical Section Image Osram Oslon Black_IR_SFH_4725S
Download
Details
Osram OSLON Boost HM KW CELMM1.TG
Eff:
85.0%
FWHM:
4.3 x 49°
Cd/Im:
11.8

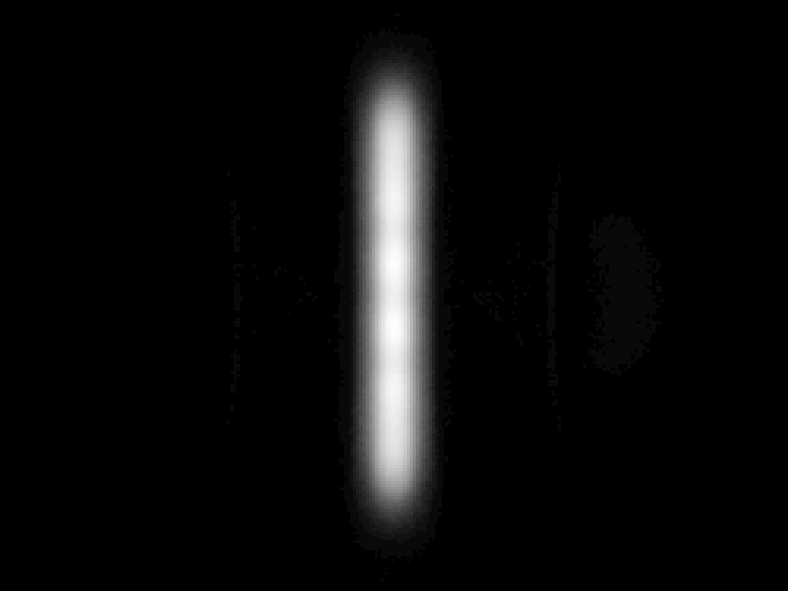

Carclo Optics – 10204 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image
Carclo Optics – 10204 Horizontal – Osram_Oslon_Boost_KW_CELMM1_TG_cross section , Carclo Optics – 10204 Vertical – Osram_Oslon_Boost_KW_CELMM1_TG_cross section
Download
Details
Osram OSLON Pure 1010 CSP GC VJLPE1.13 Cyan
Eff:
83.0%
FWHM:
5.4 x 49°
Cd/Im:
9.4
optic-10204-Oslon_Pure_1010_Cyan-cross-section-image-horizontal.jpg , optic-10204-Oslon_Pure_1010_Cyan-cross-section-image-vertical.jpg
Download
Details
Osram OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue
Eff:
81.5%
FWHM:
5.3 x 50°
Ipk/W:
9.0

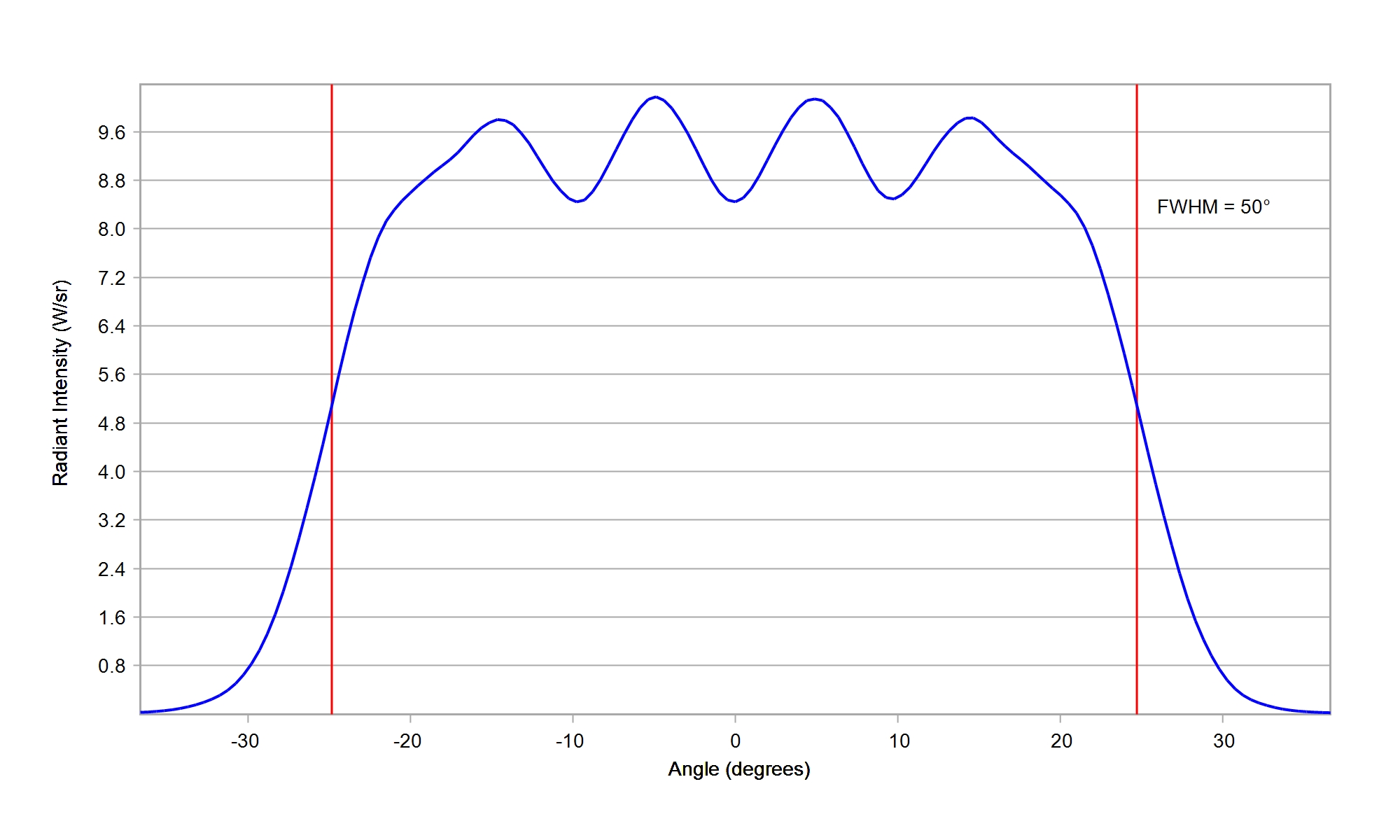

optic-10204-Oslon_Pure_1010_DeepBlue-cross-section-image-horizontal.jpg , optic-10204-Oslon_Pure_1010_DeepBlue-cross-section-image-vertical.jpg
Download
Details
Osram OSLON Pure 1010 CSP GG VJLPE1.F3 Green
Eff:
82.5%
FWHM:
5.1 x 48°
Cd/Im:
9.7

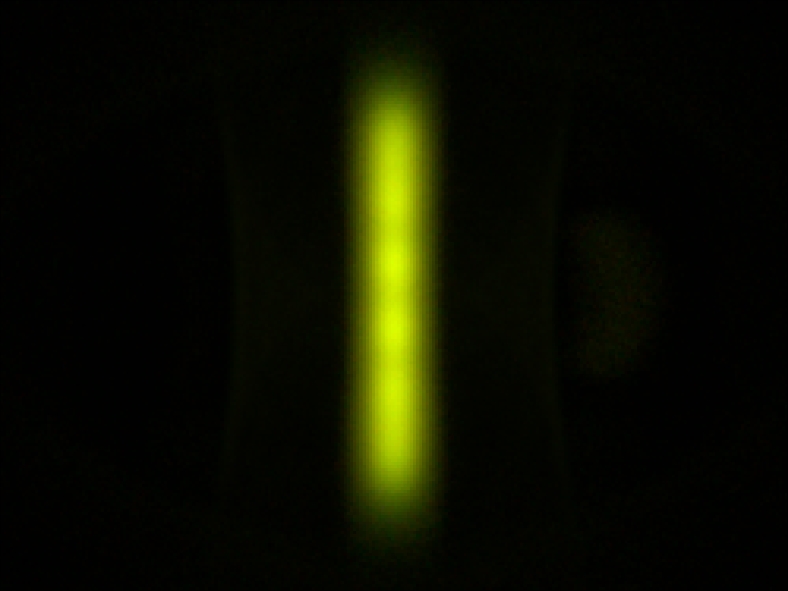

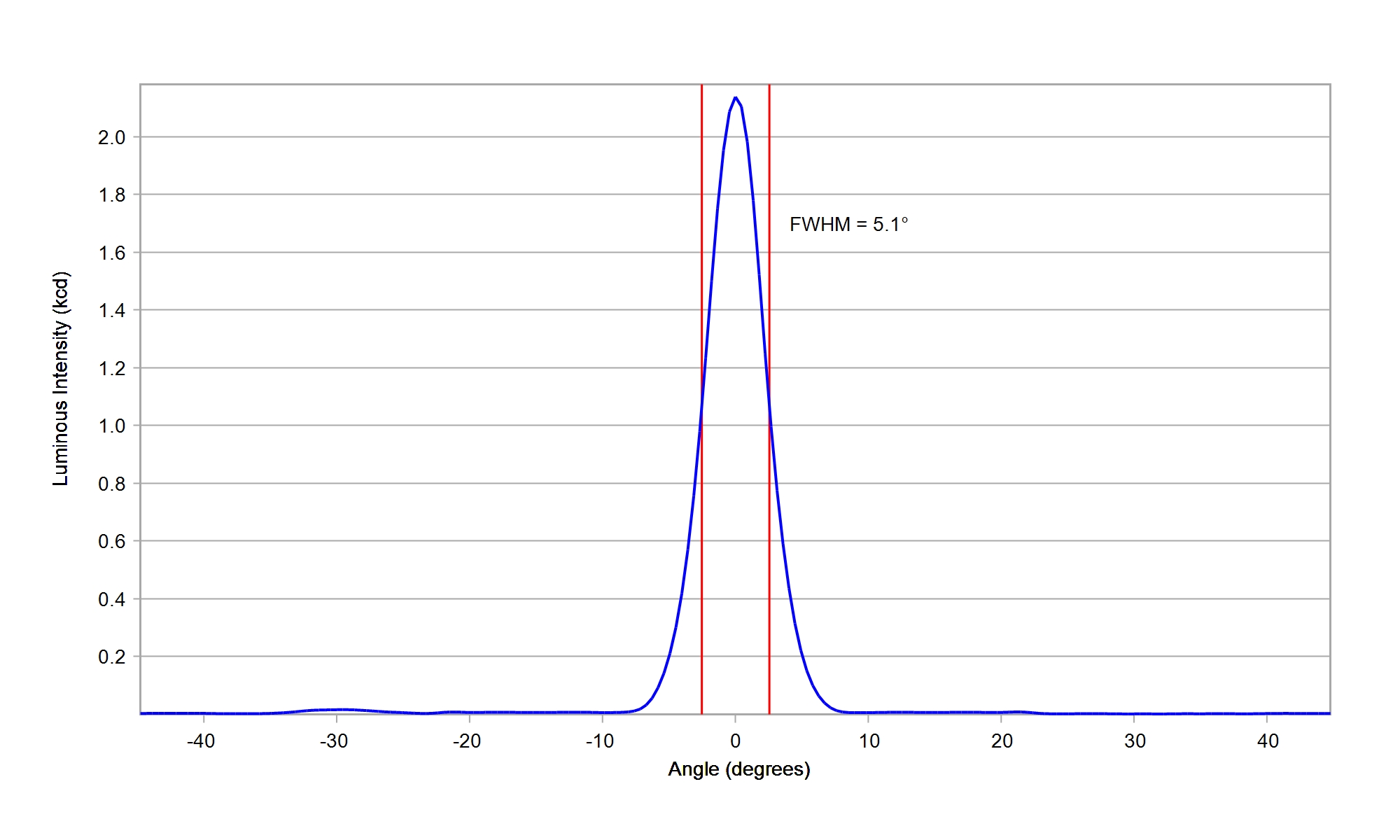

optic-10204-Oslon_Pure_1010_PC_Green-cross-section-image-horizontal.jpg , optic-10204-Oslon_Pure_1010_PC_Green-cross-section-image-vertical.jpg
Download
Details
Osram OSLON Pure 1010 CSP GR VJLPE1.F3 Red
Eff:
82.0%
FWHM:
5.3 x 48°
Cd/Im:
8.6
optic-10204-Oslon_Pure_1010_PC_Red-cross-section-image-horizontal.jpg , optic-10204-Oslon_Pure_1010_PC_Red-cross-section-image-vertical.jpg
Download
Details
Osram OSLON Pure 1010 CSP GT VJLPE1.13 True Green
Eff:
82.5%
FWHM:
5.4 x 48°
Cd/Im:
9.4

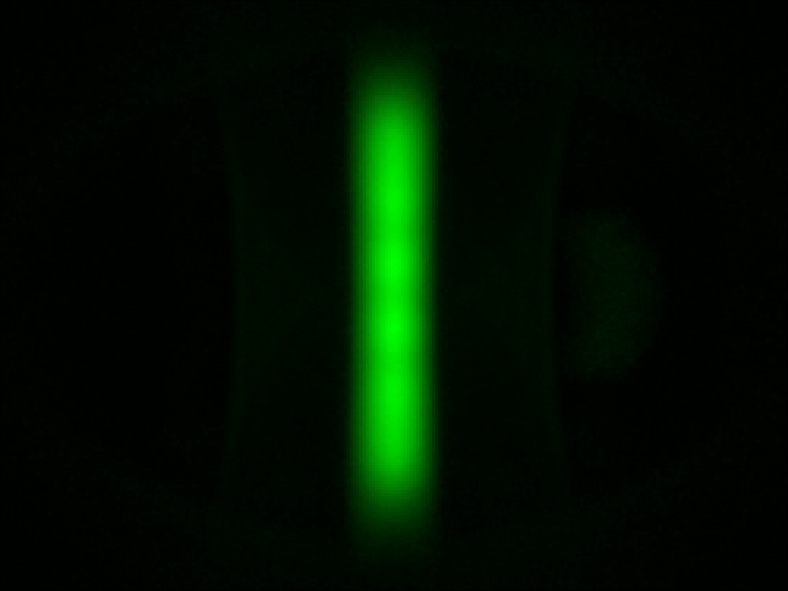

optic-10204-Oslon_Pure_1010_True_Green-cross-section-image-horizontal.jpg , optic-10204-Oslon_Pure_1010_True_Green-cross-section-image-vertical.jpg
Download
Details
Osram OSLON Pure 1010 CSP GW VJLPE1.CM White
Eff:
82.5%
FWHM:
5.1 x 48°
Cd/Im:
9.6

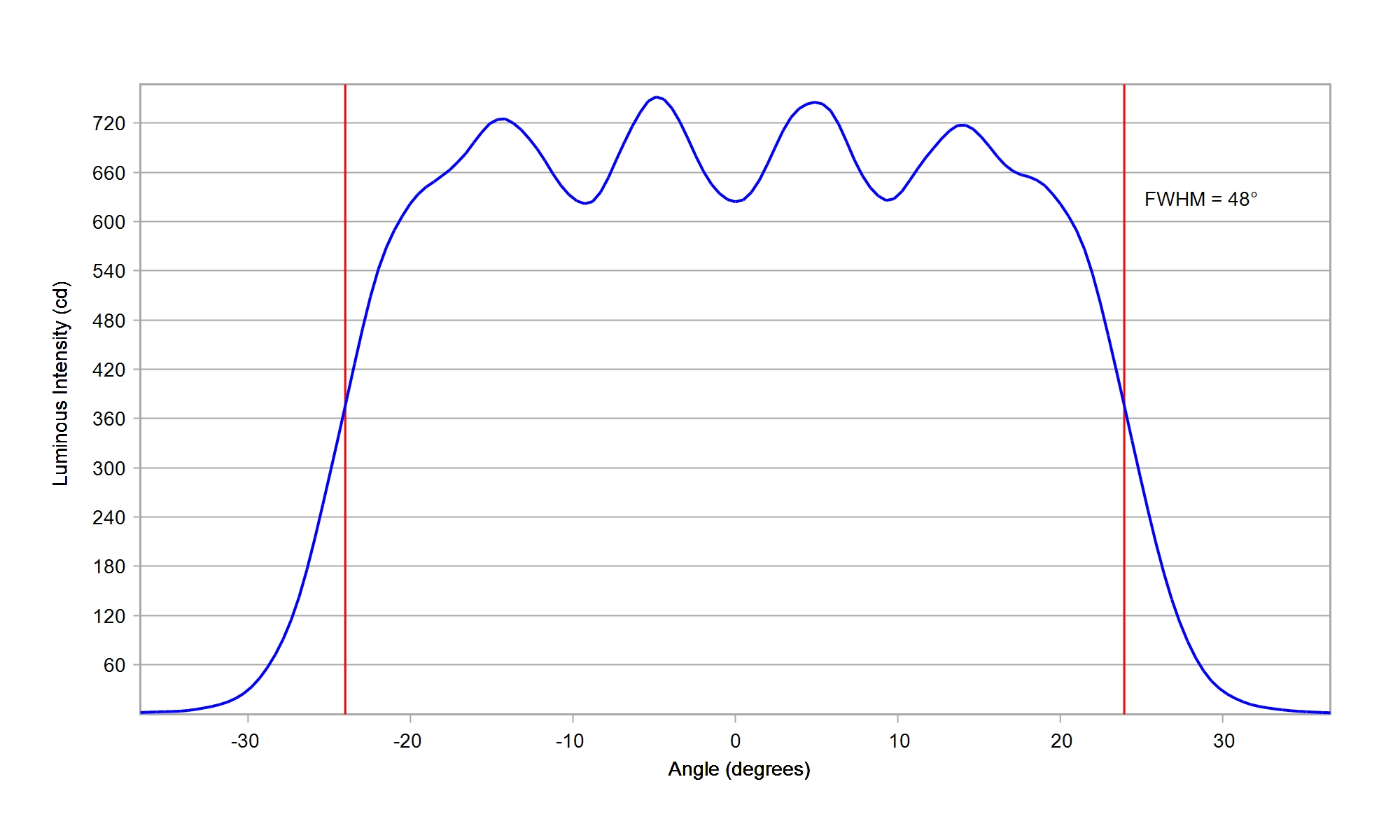

optic-10204-Oslon_Pure_1010_White_GW_VJLPE1_CM-cross-section-image-horizontal.jpg , optic-10204-Oslon_Pure_1010_White_GW_VJLPE1_CM-cross-section-image-vertical.jpg
Download
Details
Osram OSLON Pure 1414 GB VJLPL1.F3 Blue
Eff:
85.5%
FWHM:
6.1 x 49°
Cd/Im:
8.0

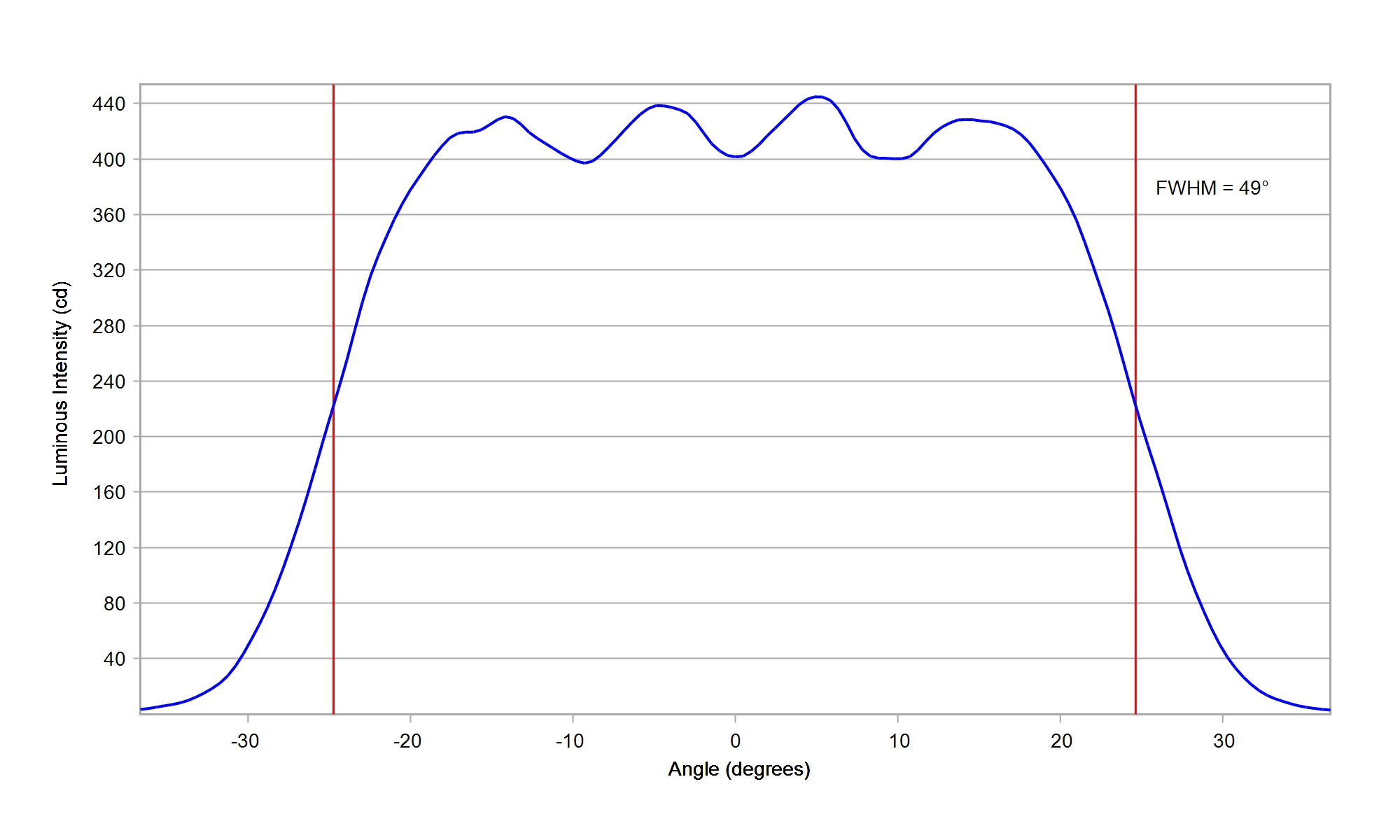

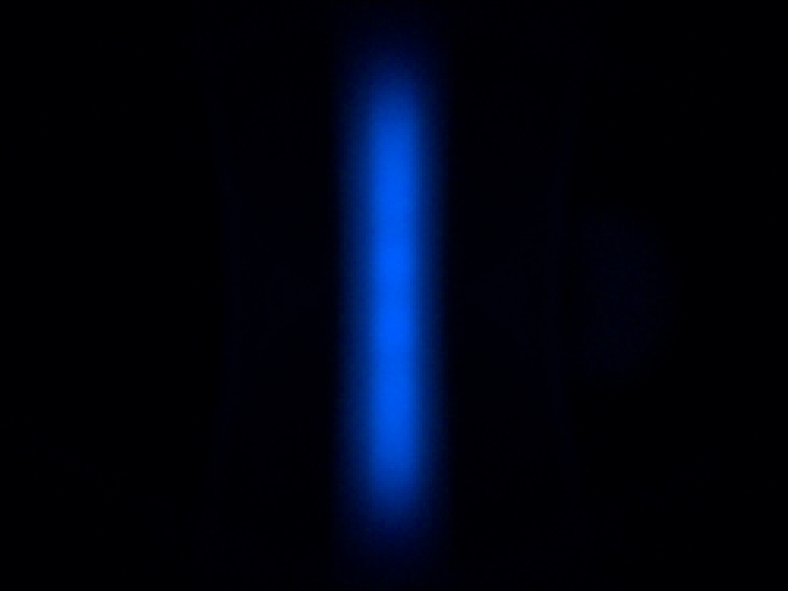

optic-10204-Oslon_Pure_1414_Blue-cross-section-image-horizontal.jpg , optic-10204-Oslon_Pure_1414_Blue-cross-section-image-vertical.jpg
Download
Details
Osram OSLON Pure 1414 GC VJLPL1.13 Cyan
Eff:
86.0%
FWHM:
6 x 49°
Cd/Im:
8.2
optic-10204-Oslon_Pure_1414_Cyan-cross-section-image-horizontal.jpg , optic-10204-Oslon_Pure_1414_Cyan-cross-section-image-vertical.jpg
Download
Details
Osram OSLON Pure 1414 GD VJLPL1.14 Deep Blue
Eff:
84.0%
FWHM:
6 x 50°
Ipk/W:
8.0
optic-10204-Oslon_Pure_1414_DeepBlue-cross-section-image-horizontal.jpg , optic-10204-Oslon_Pure_1414_DeepBlue-cross-section-image-vertical.jpg
Download
Details
Osram OSLON Pure 1414 GR VJLPL1.23 Red
Eff:
84.0%
FWHM:
4.9 x 48°
Cd/Im:
9.2
optic-10204-Oslon-Pure-1414_Red-cross-section-image-horizontal.jpg , optic-10204-Oslon-Pure-1414_Red-cross-section-image-vertical.jpg
Download
Details
Osram OSLON Pure 1414 GT VJLPL1.13 True Green
Eff:
85.5%
FWHM:
6 x 49°
Cd/Im:
8.2

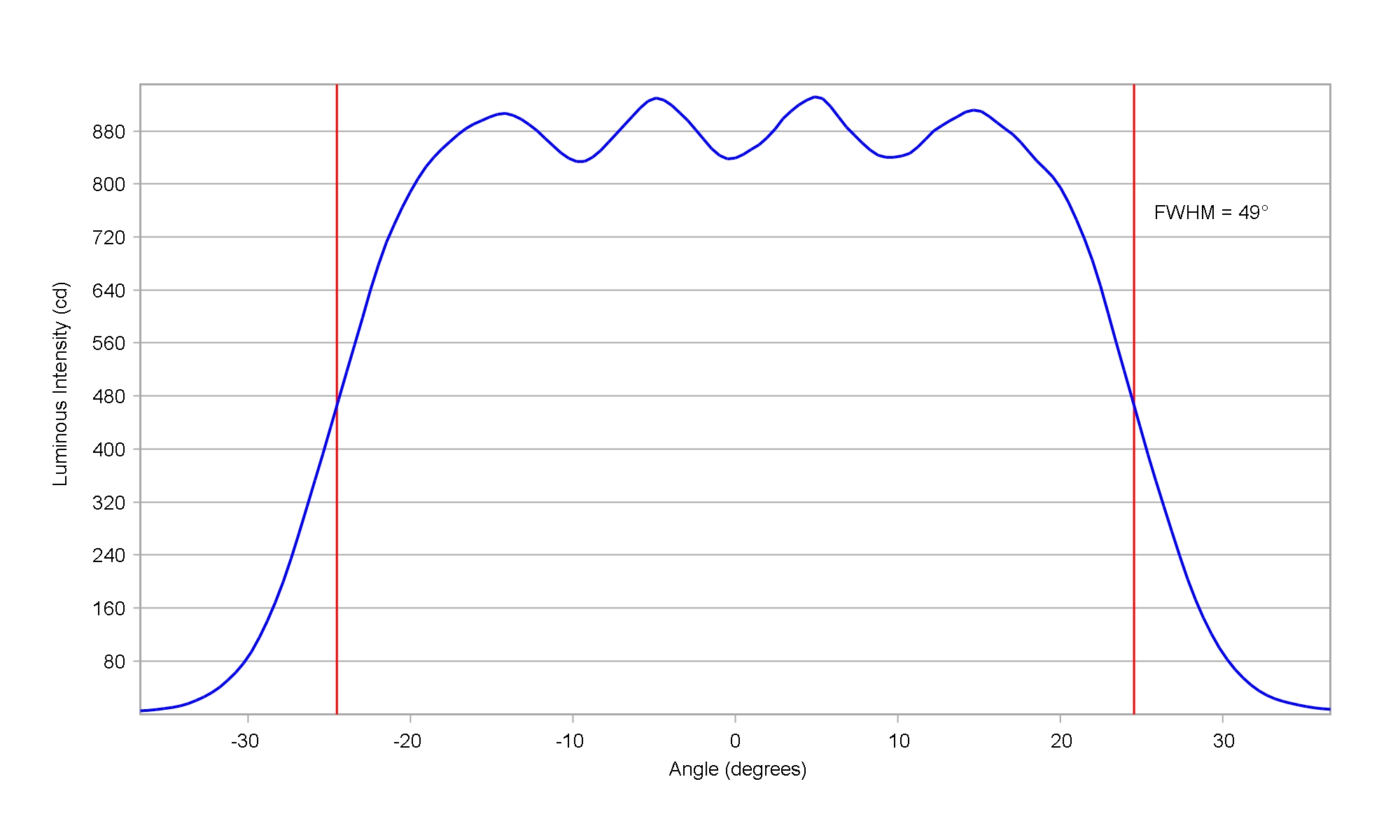

optic-10204-Oslon_Pure_1414_TrueGreen-cross-section-image-horizontal.jpg , optic-10204-Oslon_Pure_1414_TrueGreen-cross-section-image-vertical.jpg
Download
Details
Osram OSLON Pure 1414 GV VJLPL1.F3 Verde
Eff:
85.5%
FWHM:
6 x 49°
Cd/Im:
8.3

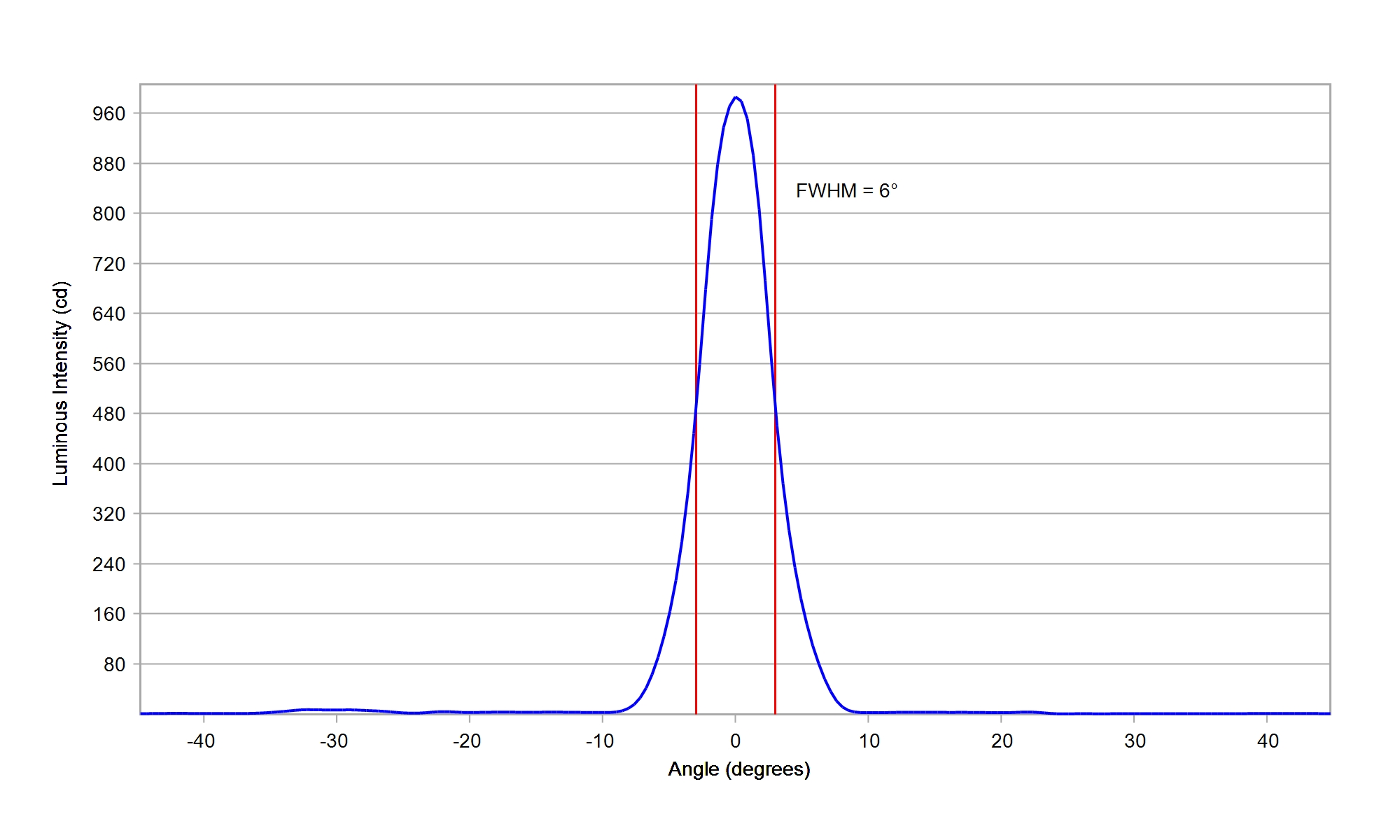

optic-10204-Oslon_Pure_1414_Verde-cross-section-image-horizontal.jpg , optic-10204-Oslon_Pure_1414_Verde-cross-section-image-vertical.jpg
Download
Details
Osram OSLON Pure 1414 GW VJLPL1.CM White
Eff:
85.5%
FWHM:
6.2 x 49°
Cd/Im:
7.9
optic-10204-Oslon_Pure_1414-cross-section-image-horizontal.jpg , optic-10204-Oslon_Pure_1414-cross-section-image-vertical.jpg
Download
Details
Osram OSLON Pure 1414 GW VJLPL1.UL Green
Eff:
85.5%
FWHM:
6.1 x 49°
Cd/Im:
8.1

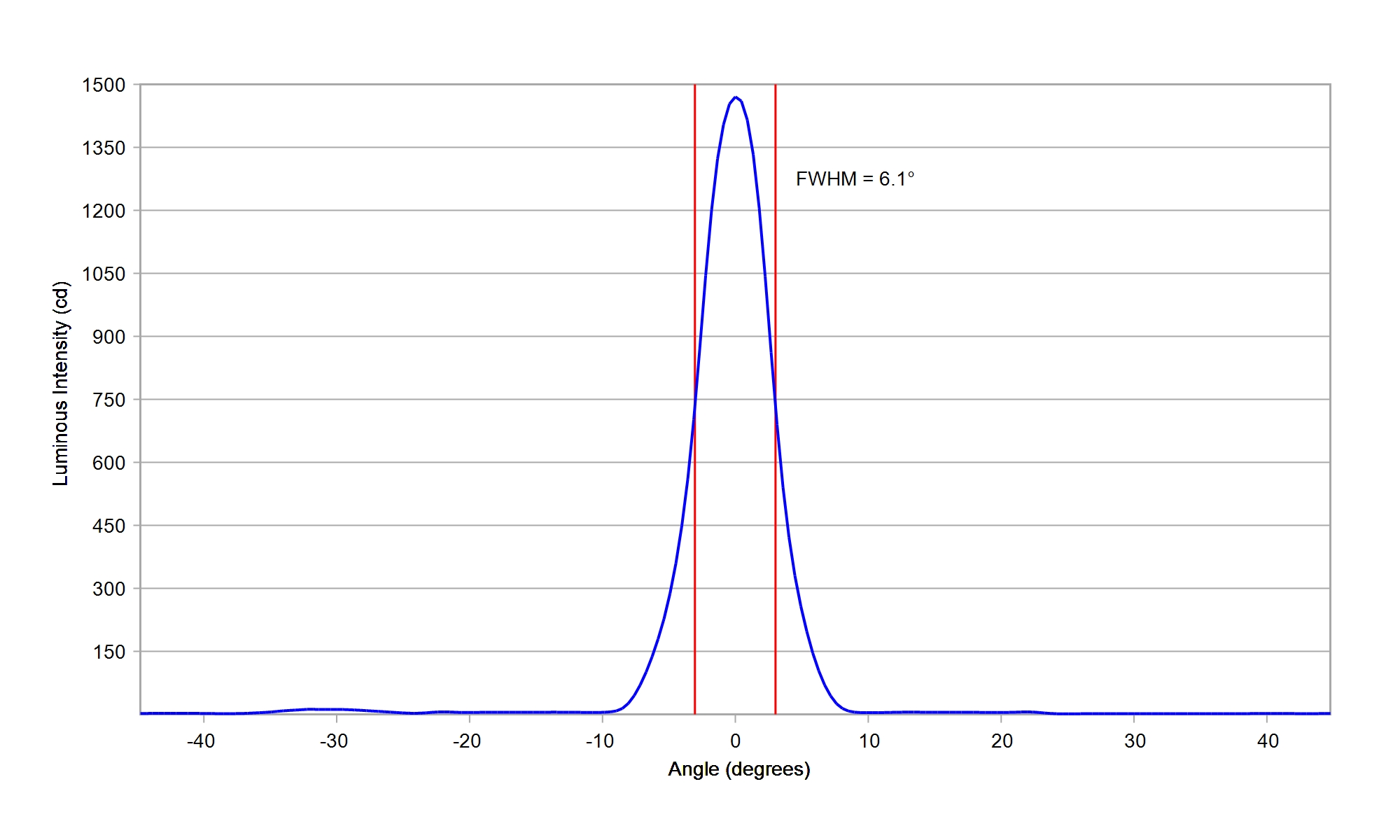

optic-10204-Oslon_Pure_1414_Green-cross-section-image-horizontal.jpg , optic-10204-Oslon_Pure_1414_Green-cross-section-image-vertical.jpg
Download
Details
Osram OSLON Pure 1414 GY VJLPL1.F3 Yellow
Eff:
85.5%
FWHM:
6.1 x 49°
Cd/Im:
8.0
optic-10204-Oslon_Pure_1414_Yellow-cross-section-image-horizontal.jpg , optic-10204-Oslon_Pure_1414_Yellow-cross-section-image-vertical.jpg
Download
Details
Osram OSLON Square Flat White
Eff:
84.0%
FWHM:
8.0 x 48.0°
Cd/Im:
58.0
Carclo Optics - Simulated Spot Image

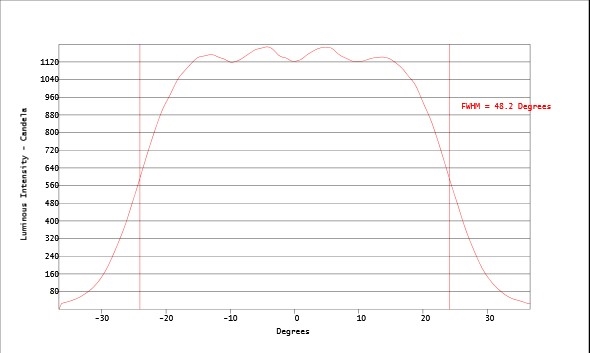

Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Osram OSLON Square Gen 3 White
Eff:
86.5%
FWHM:
10.5 x 47.1°
Cd/Im:
4.2

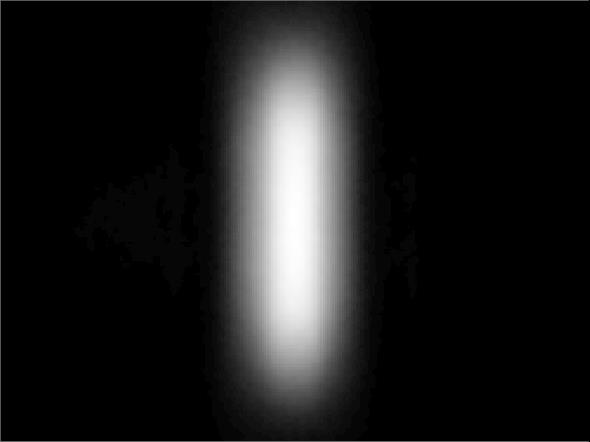

Carclo Optics - Simulated Spot Image

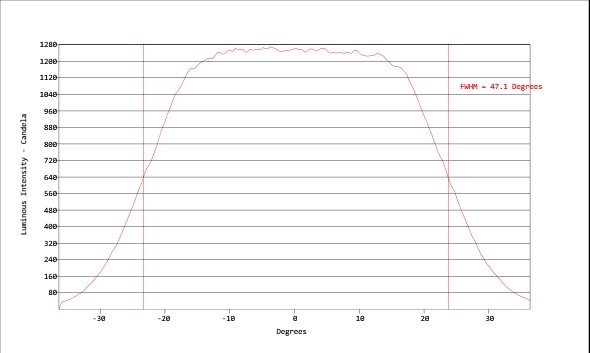

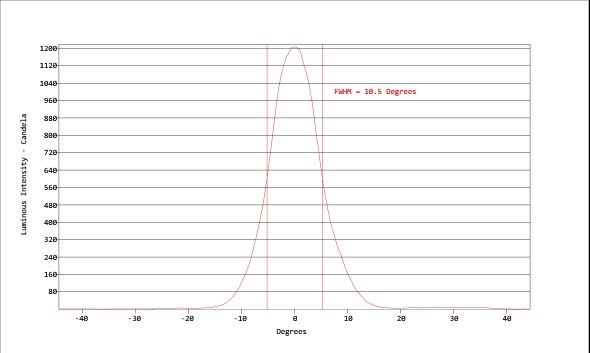

Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulation Vertical Cross Section
Download
Details

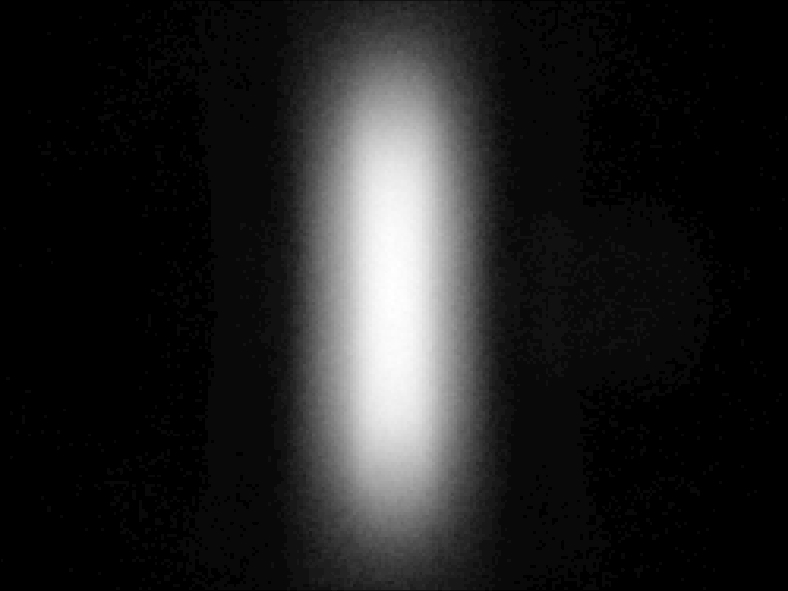

Osram OSLON Square Gen 5 GW CSSRM3
Eff:
85.0%
FWHM:
11 x 47°
Cd/Im:
4.2
Carclo Optics - 10204 20mm Spot Image Oslon Square Gen 5
Carclo Optics - 10204 20mm Horizontal Cross Section Oslon Square Gen 5 , Carclo Optics - 10204 20mm Vertical Cross Section Oslon Square Gen 5
Download
Details
Osram OSLON Square White
Eff:
86.0%
FWHM:
10.3 x 46.9°
Cd/Im:
4.3
Carclo Optics - Simulated Spot Image

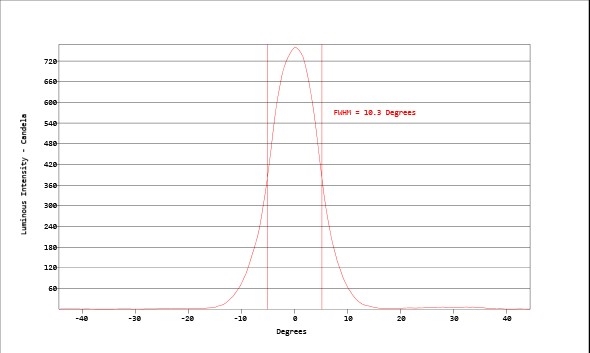

Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Osram OSLON SSL 150 degree GW CSHPM1.PM White
Eff:
85.0%
FWHM:
7.4 x 48°
Cd/Im:
6.4
Carclo Optics – 10204 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White
Carclo Optics – 10204 Horizontal Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White , Carclo Optics – 10204 Vertical Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White
Download
Details
Osram OSLON SSL 80 GH CS8PM1.24 Hyper Red
Eff:
86.0%
FWHM:
8.3 x 47°
Ipk/W:
5.5
optic-10204-Oslon-SSL80-GH_CS8PM1_24-cross-section-image-horizontal.jpg , optic-10204-Oslon-SSL80-GH_CS8PM1_24-cross-section-image-vertical.jpg
Download
Details
Osram OSLON SSL 80 GT CS8PM1.13 True Green
Eff:
87.0%
FWHM:
7.7 x 48°
Cd/Im:
5.7
optic-10204-Oslon_SSL80-GT_CS8PM1_13-cross-section-image-horizontal.jpg , optic-10204-Oslon_SSL80-GT_CS8PM1_13-cross-section-image-vertical.jpg
Download
Details

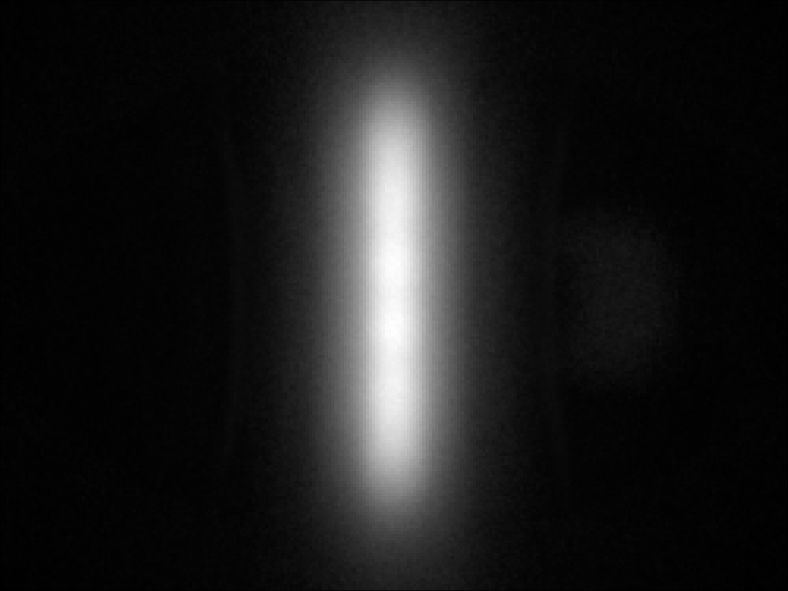

Osram OSLON SSL 80 GW CS8PM1.PM White
Eff:
85.0%
FWHM:
7.7 x 48°
Cd/Im:
5.9

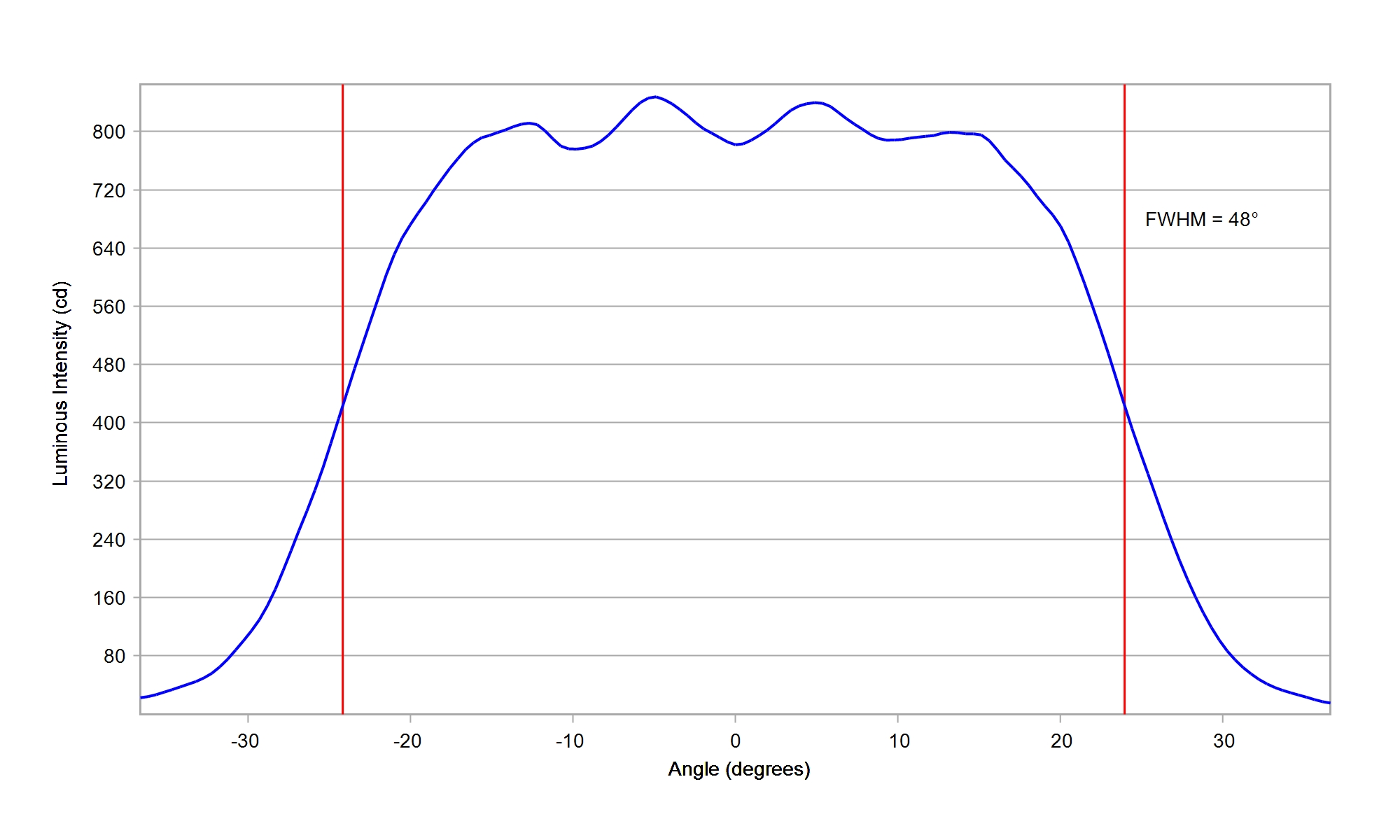

optic-10204-Oslon_SSL80-GW_CS8PM1_PM-cross-section-image-horizontal.jpg , optic-10204-Oslon_SSL80-GW_CS8PM1_PM-cross-section-image-vertical.jpg
Download
Details
Osram OSCONIQ C 3030 GW PLTRA1.PM White
Eff:
85.0%
FWHM:
11.5 x 47°
Cd/Im:
4.2

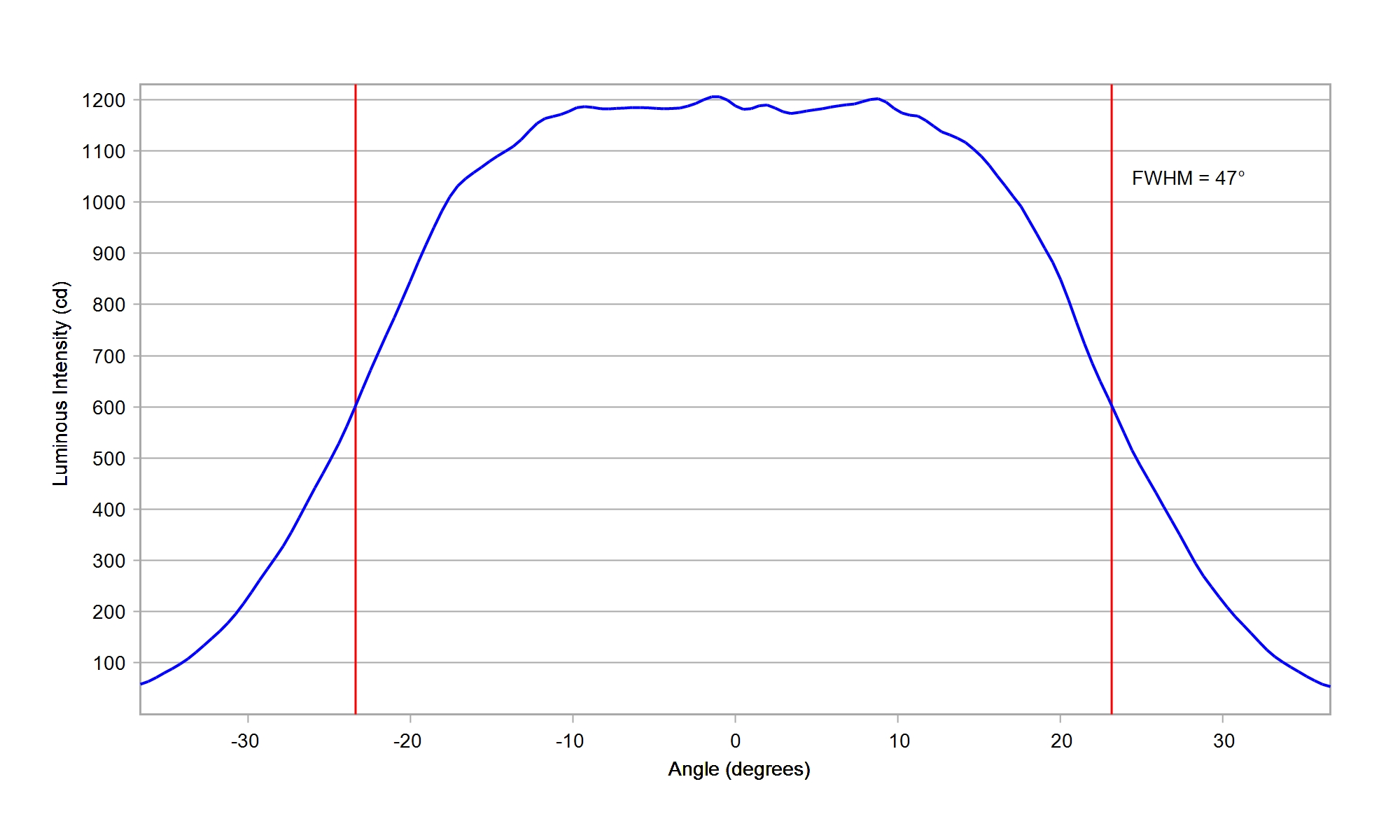

optic-10204-OSCONIQ_C3030-cross-section-image-horizontal.jpg , optic-10204-OSCONIQ_C3030-cross-section-image-vertical.jpg
Download
Details
Osram OSCONIQ E 3030 GW QSLPS1.EM White
Eff:
85.0%
FWHM:
10.5 x 48°
Cd/Im:
4.6
optic-10204-OSCONIQ_E3030-cross-section-image-horizontal.jpg , optic-10204-OSCONIQ_E3030-cross-section-image-vertical.jpg
Download
Details
Osram OSCONIQ P 3030 GW QSSPA1.PM White
Eff:
84.0%
FWHM:
7.3 x 48°
Cd/Im:
6.0
optic-10204-OSCONIQ_P3030-cross-section-image-horizontal.jpg , optic-10204-OSCONIQ_P3030-cross-section-image-vertical.jpg
Download
Details
Osram OSCONIQ S 3030 GW QSLMS3.EM White
Eff:
85.0%
FWHM:
8.9 x 48°
Cd/Im:
5.1

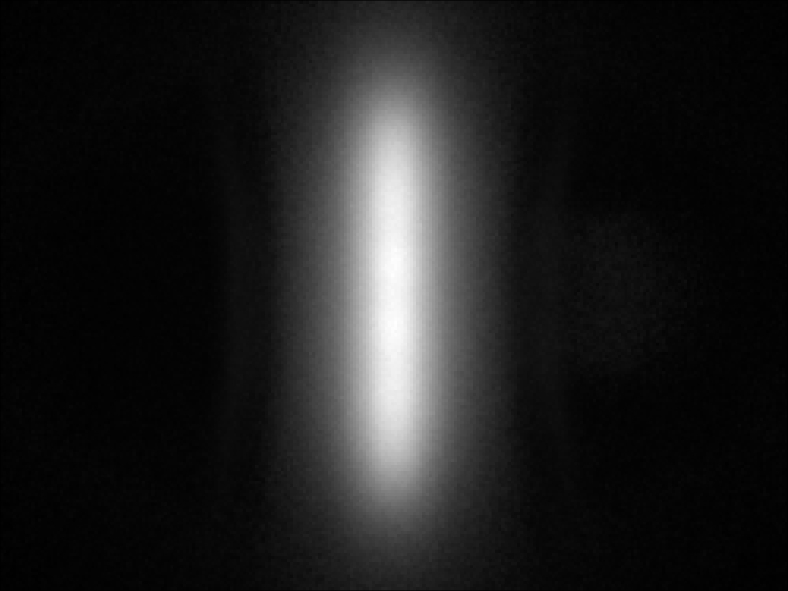

optic-10204-OSCONIQ_S3030-cross-section-image-horizontal.jpg , optic-10204-OSCONIQ_S3030-cross-section-image-vertical.jpg
Download
Details
Osram OSLON Signal LUW CRBP.01 White
Eff:
84.5%
FWHM:
7.5 x 48°
Cd/Im:
6.1

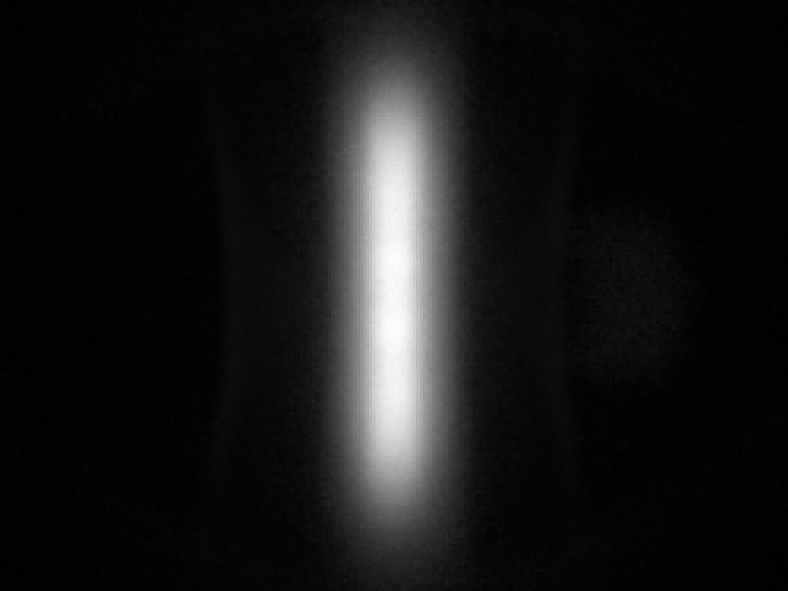

optic-10204-Oslon_Signal_LUW_CRBP_01-cross-section-image-horizontal.jpg , optic-10204-Oslon_Signal_LUW_CRBP_01-cross-section-image-vertical.jpg
Download
Details
Samsung 2835 LM281B+ White
Eff:
84.5%
FWHM:
11.5 x 47°
Cd/Im:
4.0
optic-10204-Samsung_LM281B+_4000K-cross-section-image-horizontal.jpg , optic-10204-Samsung_LM281B+_4000K-cross-section-image-vertical.jpg
Download
Details
Samsung 2835 LM282B+ White
Eff:
85.5%
FWHM:
9.8 x 47°
Cd/Im:
4.8
optic-10204-Samsung_LM282B+-cross-section-image-horizontal.jpg , optic-10204-Samsung_LM282B+-cross-section-image-vertical.jpg
Download
Details
Samsung 3030 LM301B White
Eff:
85.5%
FWHM:
10 x 48°
Cd/Im:
4.7

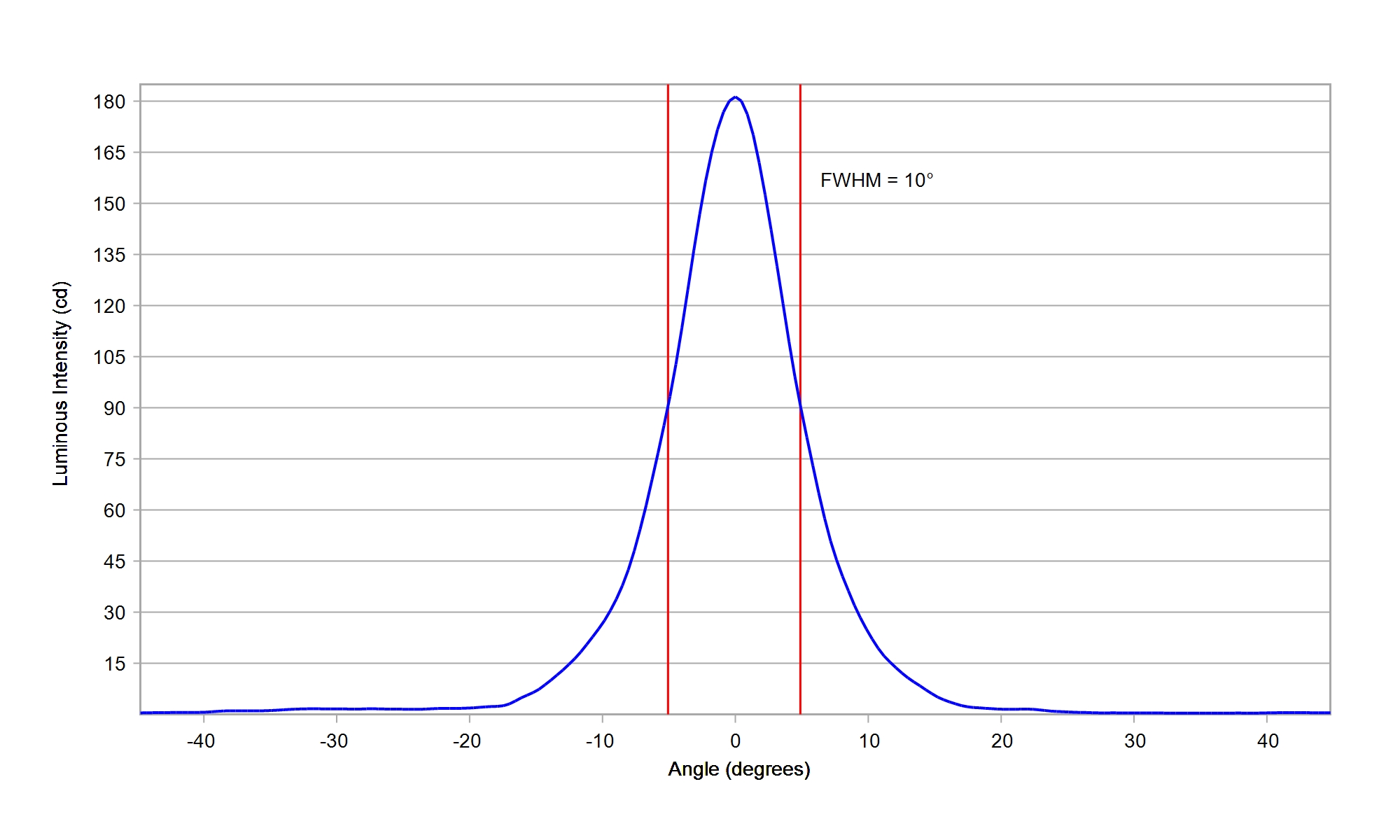

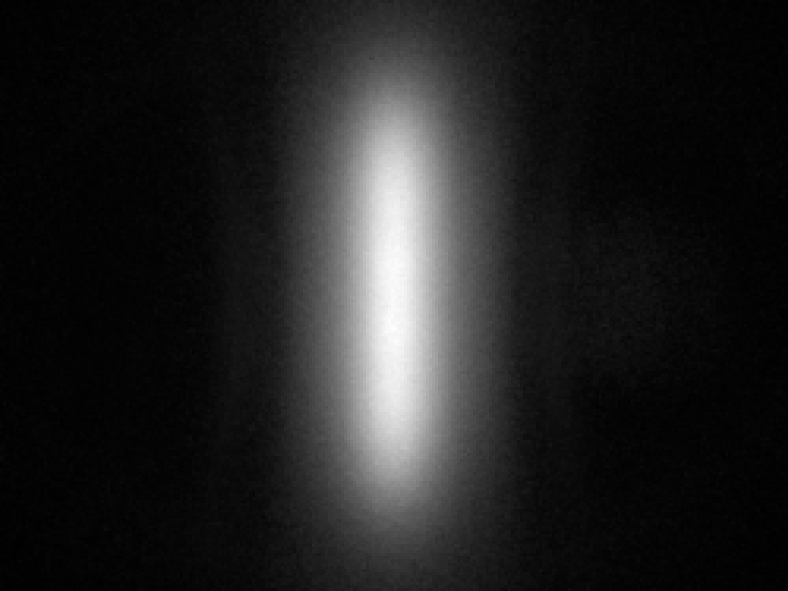

optic-10204-Samsung_LM301B-cross-section-image-horizontal.jpg , optic-10204-Samsung_LM301B-cross-section-image-vertical.jpg
Download
Details
Samsung 3535 LH351D White
Eff:
85.5%
FWHM:
17.0 x 44.0°
Cd/Im:
3.2
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Samsung CSP LH151B White
Eff:
83.5%
FWHM:
6.8 x 48°
Cd/Im:
6.9
Carclo Optics – 10204 – Samsung_LH151B_spot-image
Carclo Optics – 10204 Horizontal – Samsung_LH151B_cross section , Carclo Optics – 10204 Vertical – Samsung_LH151B_cross section
Download
Details
Samsung CSP LH181B White
Eff:
85.0%
FWHM:
11 x 47°
Cd/Im:
4.4
Carclo Optics -10204 Sport Image - Samsung LH181B 4000K
Carclo Optics -10204 Cross Section Horizontal - Samsung LH81B 4000K , Carclo Optics -10204 Cross Section Vertical - Samsung LH81B 4000K
Download
Details
Samsung CSP LH231B White
Eff:
84.5%
FWHM:
13 x 45.5°
Cd/Im:
3.7
Carclo Optics -10204 Spot Image - Samsung LH231B 5000KL

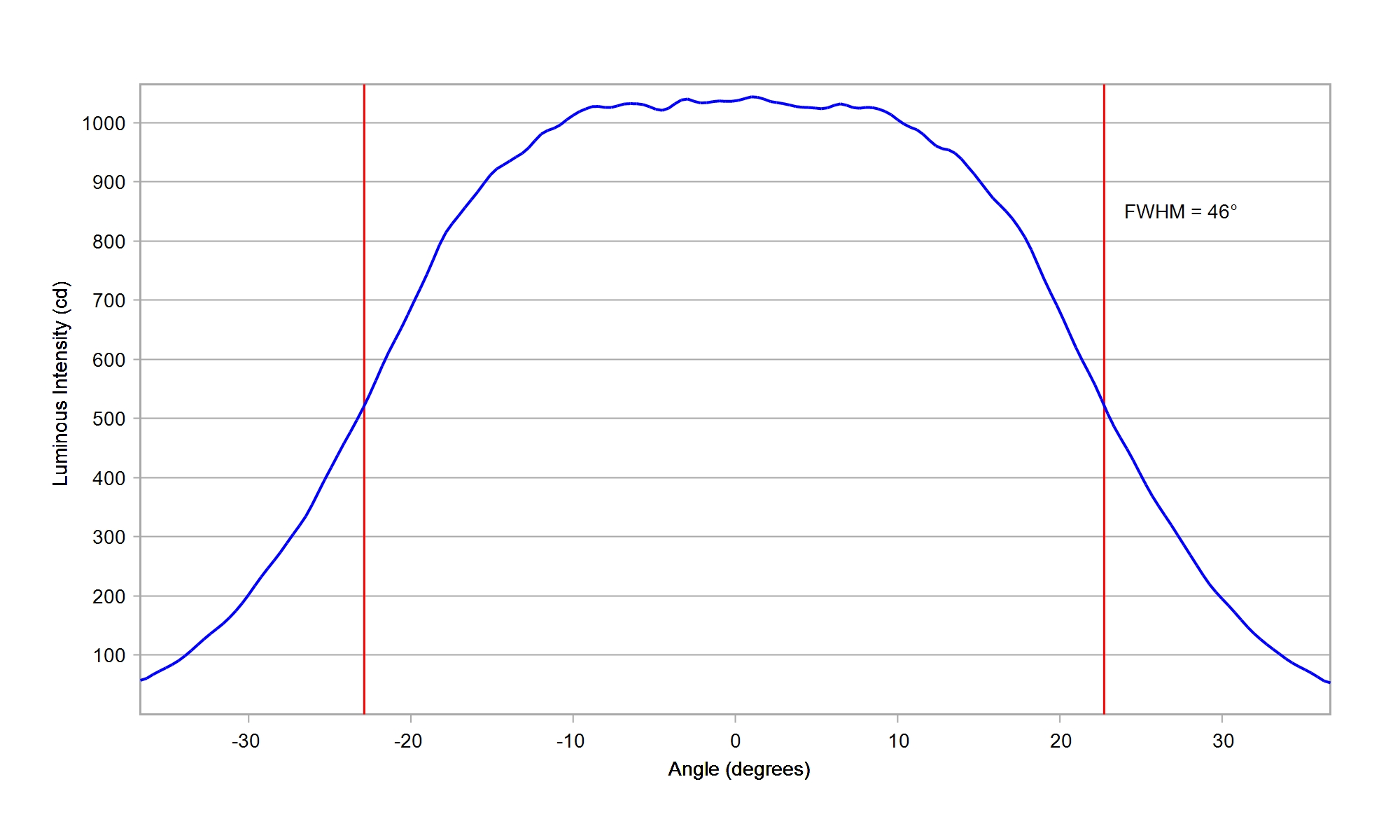

Carclo Optics -10204 Cross Section Horizontal - Samsung LH231B 5000K , Carclo Optics -10204 Cross Section Vertical - Samsung LH231B 5000K
Download
Details
Samsung CSP LM101B White
Eff:
85.0%
FWHM:
48.5 x 7°
Cd/Im:
6.5

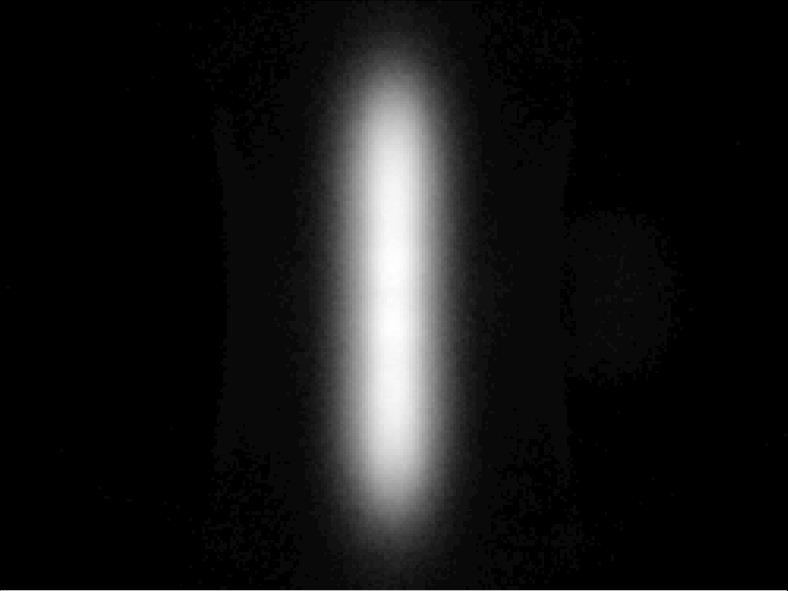

Carclo Optics -10204 Sport Image - Samsung LM101B 5000K
Carclo Optics -10204 Cross Section Horizontal Image - Samsung LM101B 5000K , Carclo Optics -10204 Cross Section Vertical Image - Samsung LM101B 5000K
Download
Details
Seoul 3030 STW8C12E-E0 White
Eff:
85.0%
FWHM:
10 x 48°
Cd/Im:
4.6

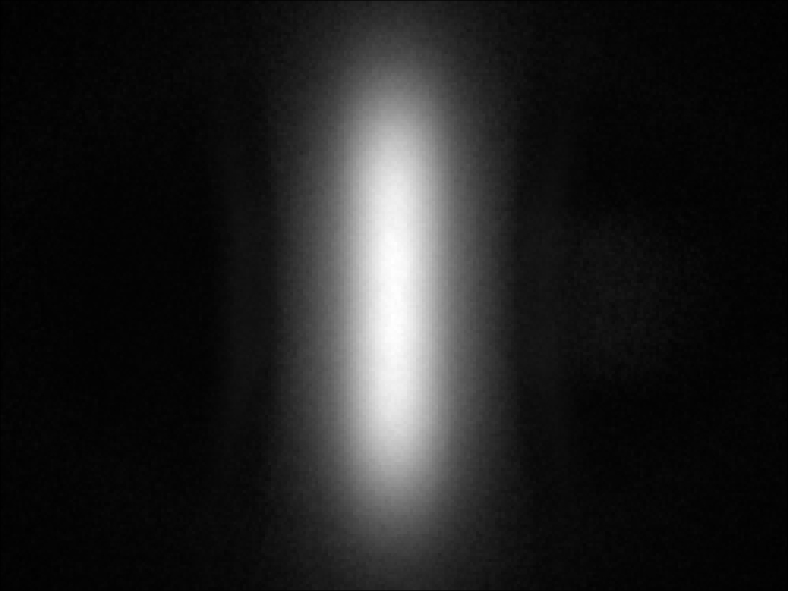

optic-10204-Seoul-STW8C12E-E0-cross-section-image-horizontal.jpg , optic-10204-Seoul-STW8C12E-E0-cross-section-image-vertical.jpg
Download
Details
Seoul 3528 G STW8A2PD-G700 White
Eff:
84.5%
FWHM:
11 x 47°
Cd/Im:
4.3

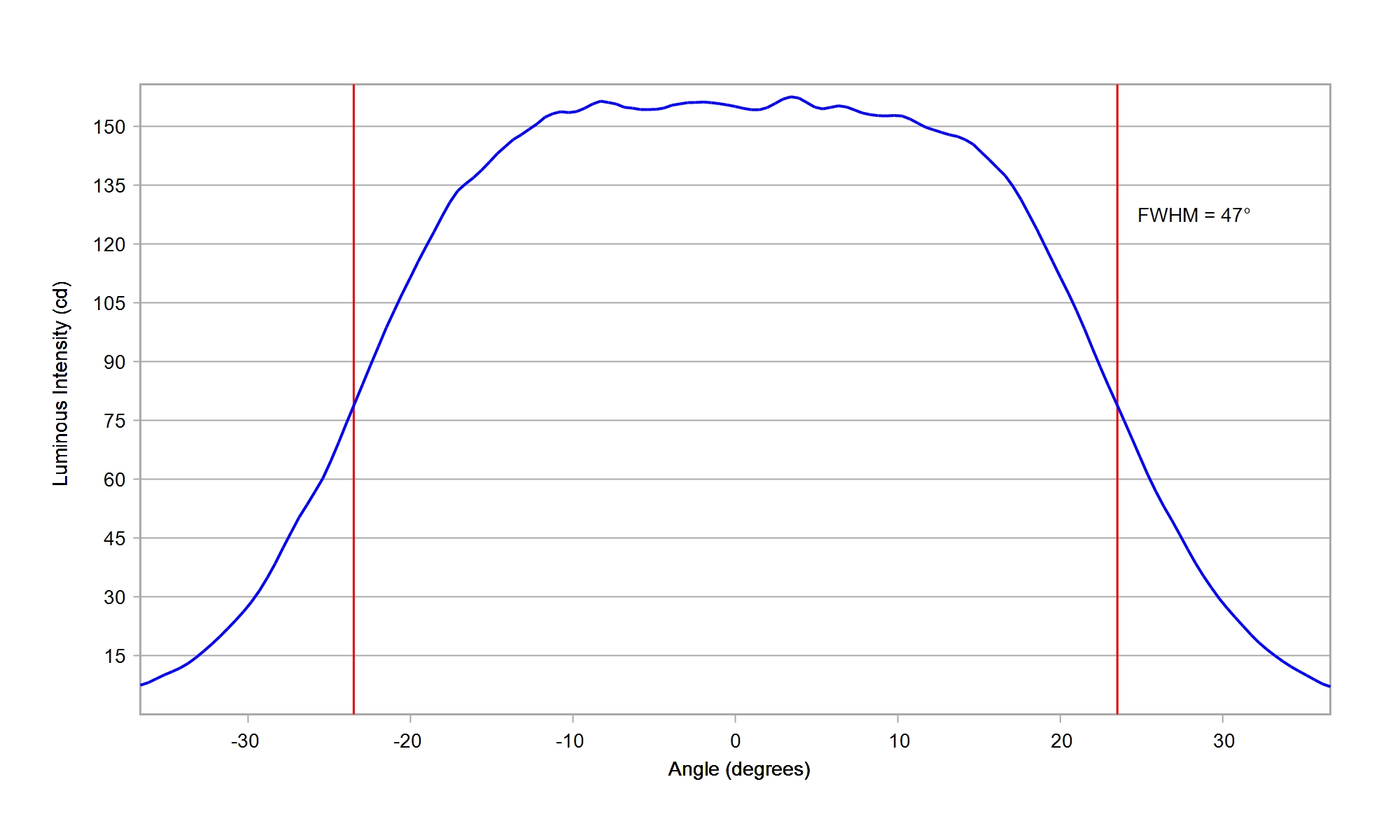

optic-10204-Seoul-STW8A2PD-G7-cross-section-image-horizontal.jpg , optic-10204-Seoul-STW8A2PD-G7-cross-section-image-vertical.jpg
Download
Details
Seoul CSP SZ8Y19 White
Eff:
88.0%
FWHM:
11.7 x 46.1°
Cd/Im:
3.5
Carclo Optics - Simulated Spot Image

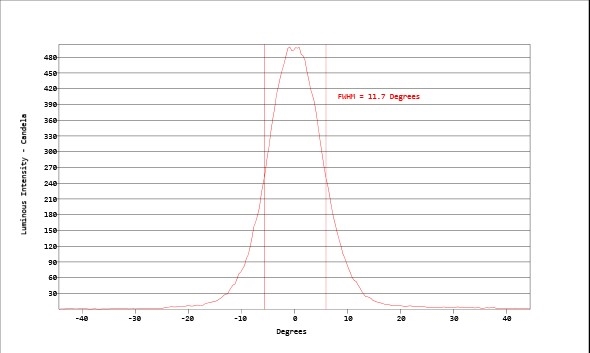

Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Seoul CSP SZ8Y22P White
Eff:
82.0%
FWHM:
13 x 46°
Cd/Im:
3.4
Carclo Optics - 10204 Spot Image - Seoul SZ8Y22P
Carclo Optics -10204 Cross Section Horizontal Image - Seoul SZ8Y22P , Carclo Optics -10204 Cross Section Vertical Image - Seoul SZ8Y22P
Download
Details
Seoul P4 White
Eff:
84.4%
FWHM:
18.2x42.1°
Cd/Im:
2.9
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section Image , Carclo Optics - Simulated Vertical Cross Section Image
Download
Details
Seoul 3030 STW8C2SB-NT White
Eff:
85.5%
FWHM:
10.5 x 47°
Cd/Im:
4.4
Carclo Optics - 10204 Spot Image Seoul STW8 C2SB-NT

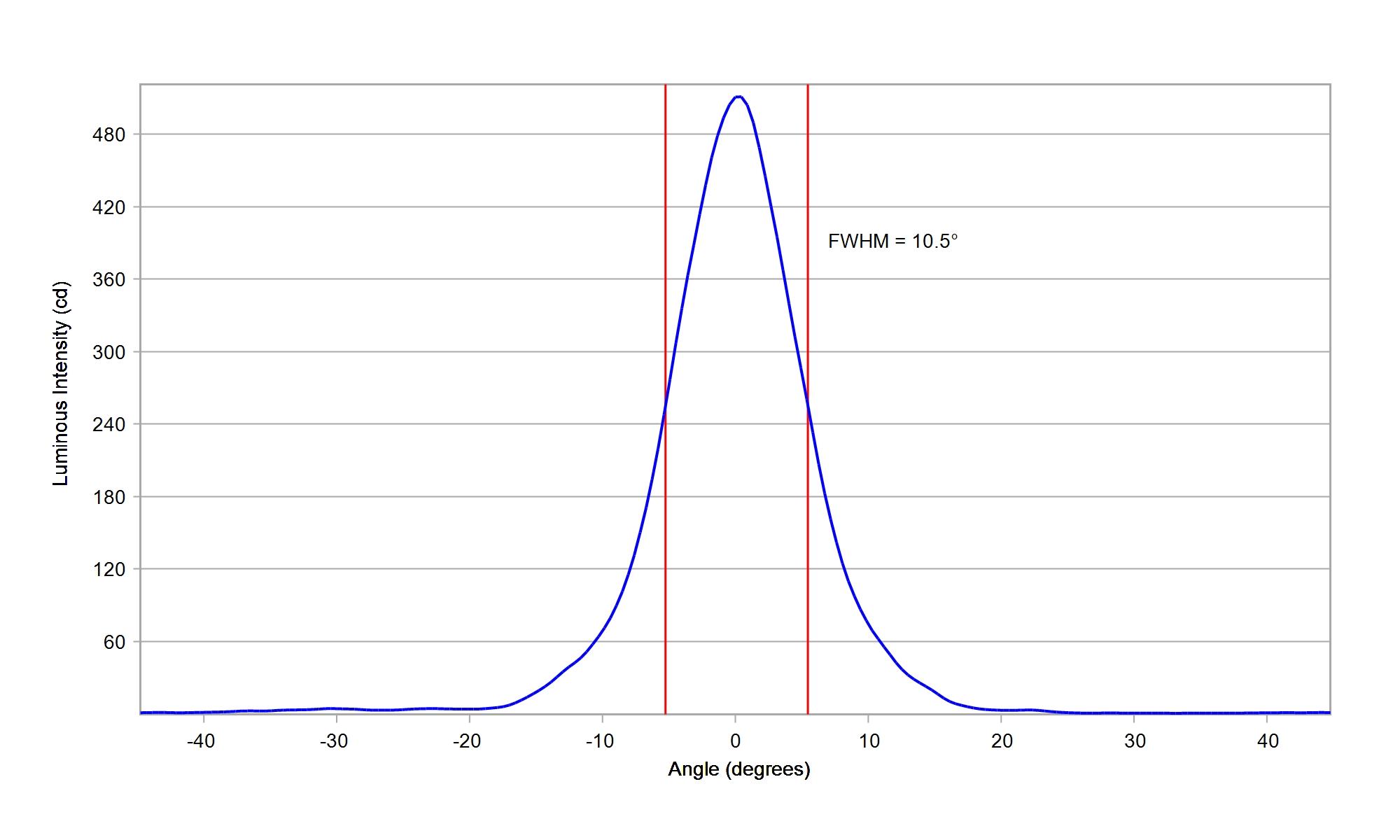

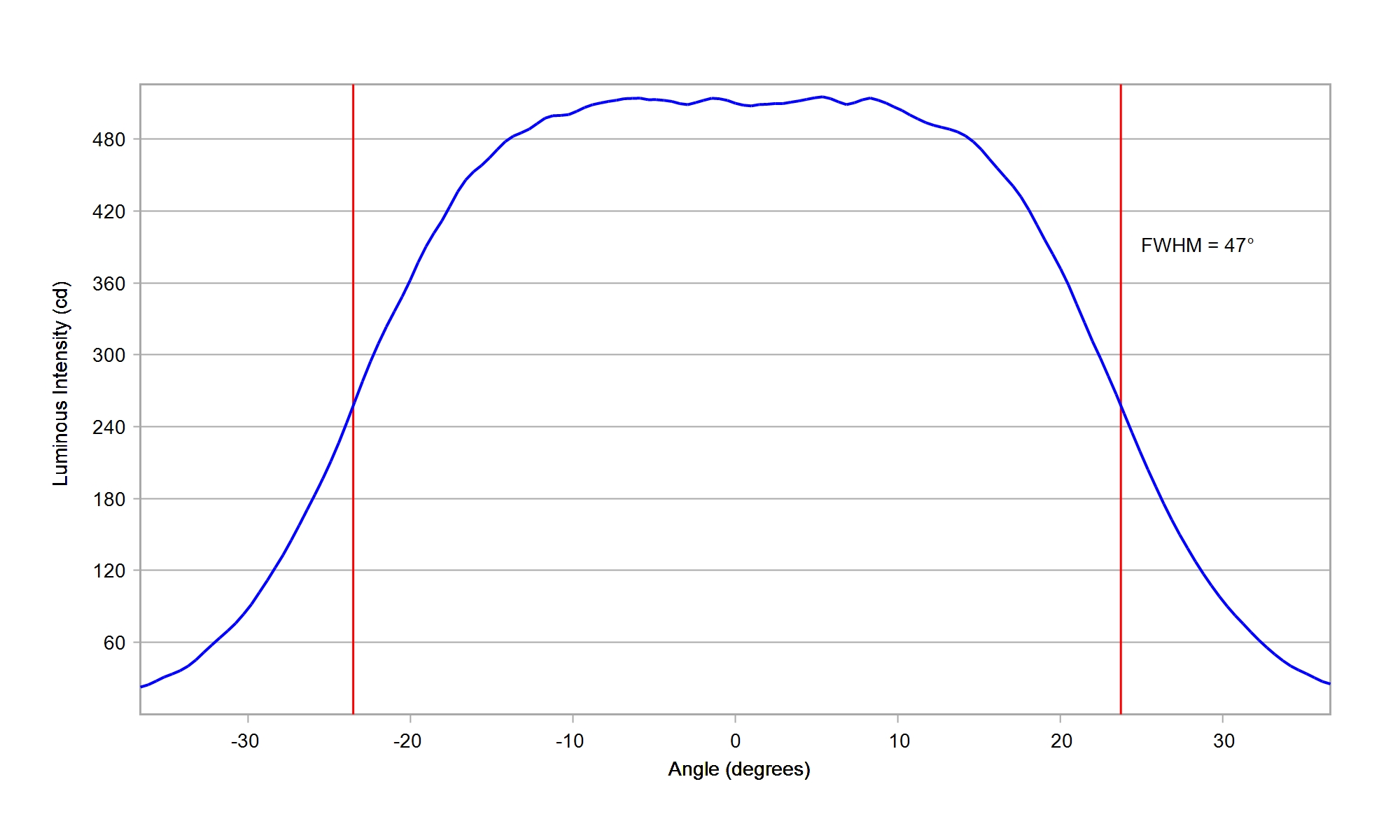

Carclo Optics - 10204 Horizontal Cross Section Seoul STW8 C2SB-NT , Carclo Optics - 10204 Vertical Cross Section Seoul STW8 C2SB-NT
Download
Details
Seoul SunLike 3030 STWSC2PB-E0 White
Eff:
85.0%
FWHM:
11 x 47°
Cd/Im:
4.4
Carclo Optics - 10204 Spot Image STWS C2PB-E0
Carclo Optics - 10204 Horiztonal Cross Section STWS C2PB-E0 , Carclo Optics - 10204 Vertical Cross Section STWS C2PB-E0
Download
Details
Seoul SunLike 3030 STWSC12S-E1 White
Eff:
85.0%
FWHM:
8.8 x 48°
Cd/Im:
5.2
optic-10204-Seoul-STWSC12S-E1-cross-section-image-horizontal.jpg , optic-10204-Seoul-STWSC12S-E1-cross-section-image-vertical.jpg
Download
Details
Seoul SunLike 3030 STWSC12S-E2 White
Eff:
85.0%
FWHM:
9.1 x 48°
Cd/Im:
5.0
optic-10204-Seoul-STWSC12S-E2-cross-section-image-horizontal.jpg , optic-10204-Seoul-STWSC12S-E2-cross-section-image-vertical.jpg
Download
Details
Seoul SunLike 3030 STW9C2SB-S White
Eff:
86.0%
FWHM:
10.5 x 47°
Cd/Im:
4.7
Carclo Optics - 10204 20mm Spot Image Seoul Sunlike 3030
Carclo Optics - 10204 20mm Horizontal Cross Section Seoul Sunlike 3030 , Carclo Optics - 10204 20mm Vertical Cross Section Seoul Sunlike 3030
Download
Details
Seoul Z - Power Z5-M4 White
Eff:
85.0%
FWHM:
13 x 45°
Cd/Im:
3.9
Carclo Optics – 10204 Seoul Z-Power Z5 - Spot Image
Carclo Optics – 10204 Horizontal Seoul Z-Power Z5 - Cross-Section , Carclo Optics – 10204 Vertical Seoul Z-Power Z5 - Cross-Section
Download
Details
Seoul Z - Power Z5-M5 White
Eff:
86.0%
FWHM:
15 x 45°
Cd/Im:
3.4
optic-10204-Seoul-SZ5-M5-WN-C7-cross-section-image-horizontal.jpg , optic-10204-Seoul-SZ5-M5-WN-C7-cross-section-image-vertical.jpg
Download
Details
Stanley 6J White
Eff:
85.0%
FWHM:
22.8 x 39.9°
Cd/Im:
2.2
Carclo Optics - Simulated Spot Image

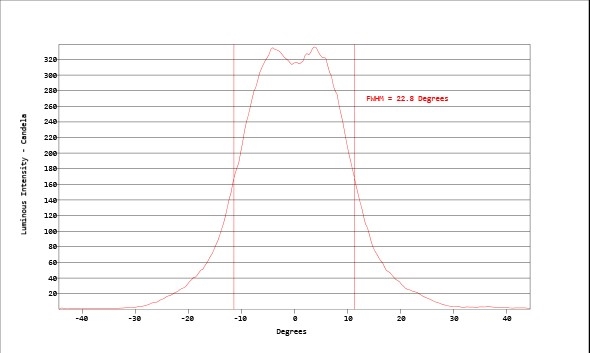

Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Stanley FWR1108MS IR 755nm
Eff:
88.5%
FWHM:
7.8 x 47°
Ipk/W:
6.2

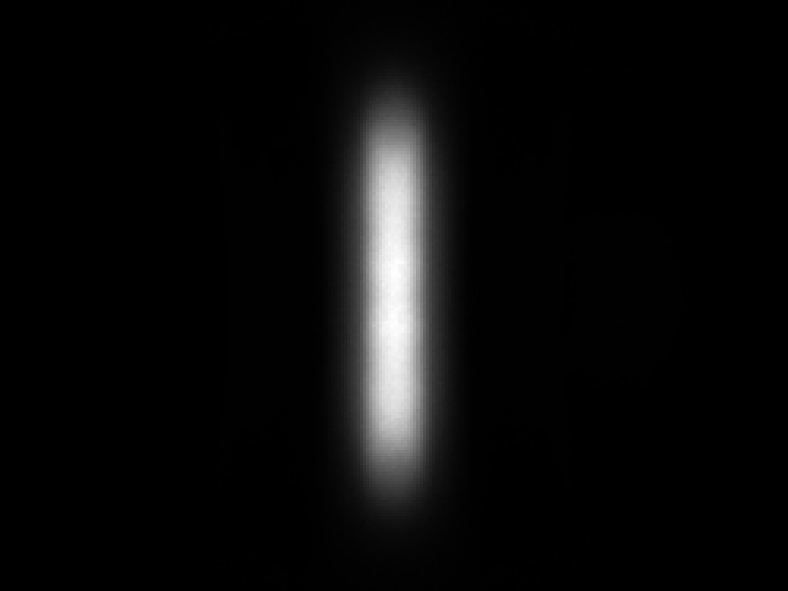

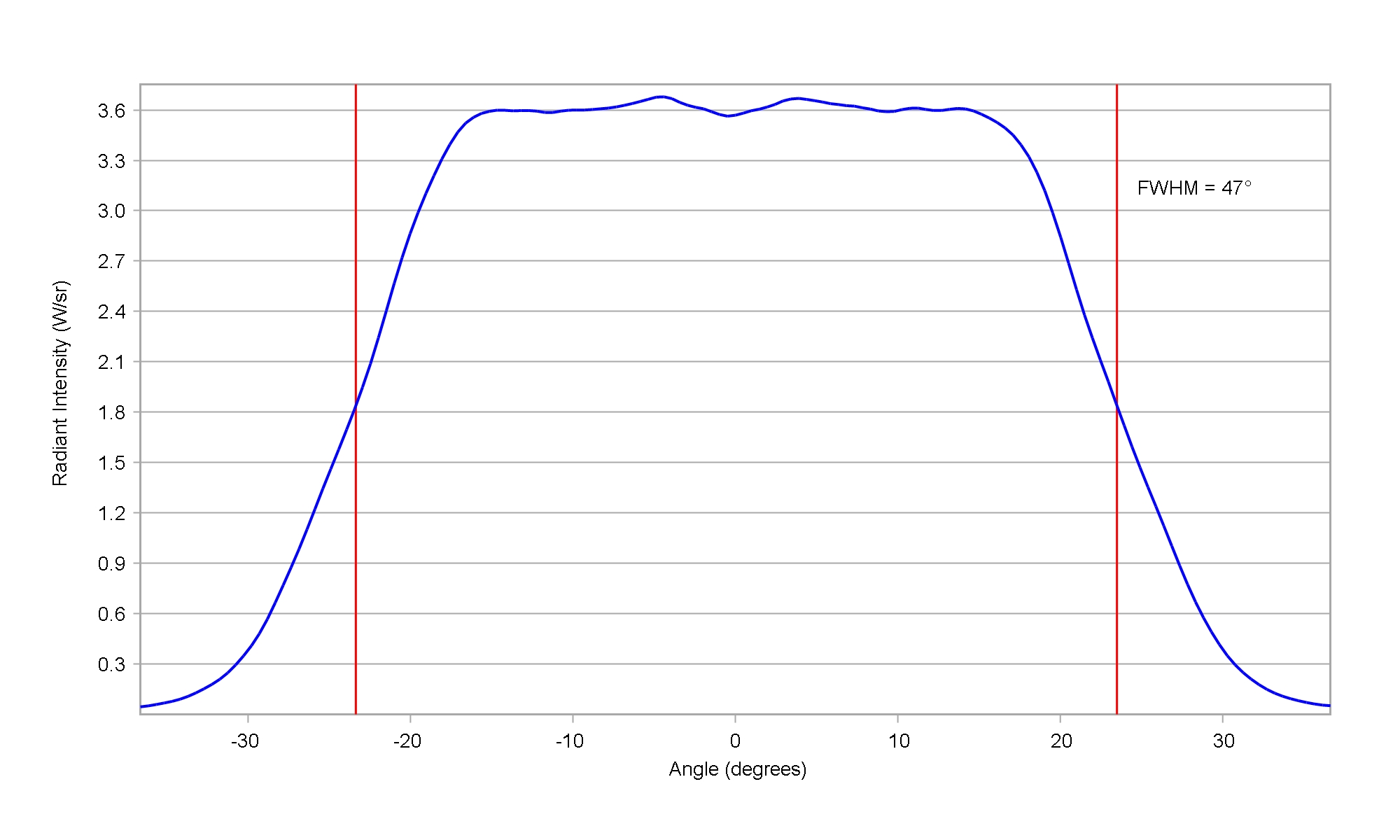

optic-10204-Stanley_FWR1108MS-IR-cross-section-image-horizontal.jpg , optic-10204-Stanley_FWR1108MS-IR-cross-section-image-vertical.jpg
Download
Details
Toshiba TL 1L2 White
Eff:
87.0%
FWHM:
10.5 x 86.8°
Cd/Im:
4.0

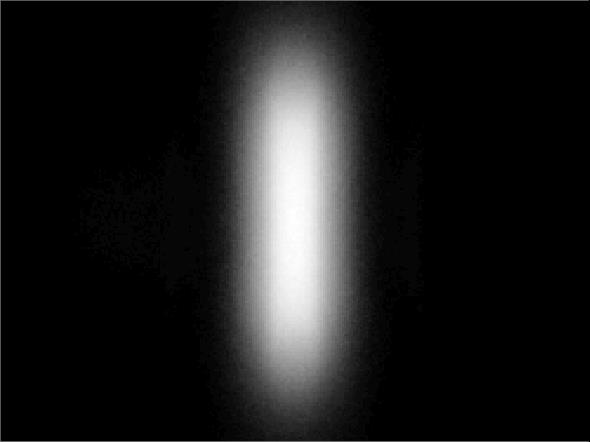

Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
Toshiba TL 1L4 White
Eff:
86.0%
FWHM:
11.4 x 46.2°
Cd/Im:
4.1
Carclo Optics - Simulated Spot Image

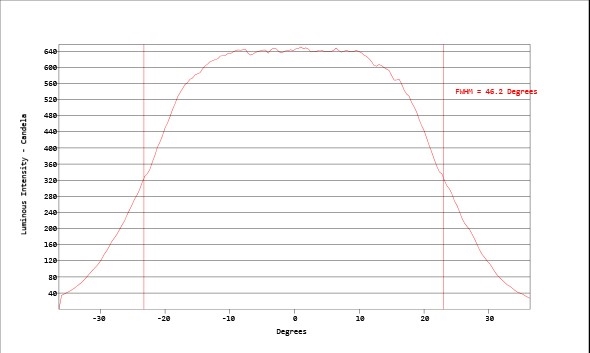

Carclo Optics - Simulated Horizontal Cross Section , Carclo Optics - Simulated Vertical Cross Section
Download
Details
