Carclo Optics 10197
20.0mm Elliptical Ripple Linear TIR LED Lenses
Part number
10197
Dimensions
20.0mm
Drawing Number
60432
Optic type
TIR LED Lenses
Finish
Ripple Linear
Beam type
Elliptical
Applications
Architectural
Landscape & Garden
Downloads

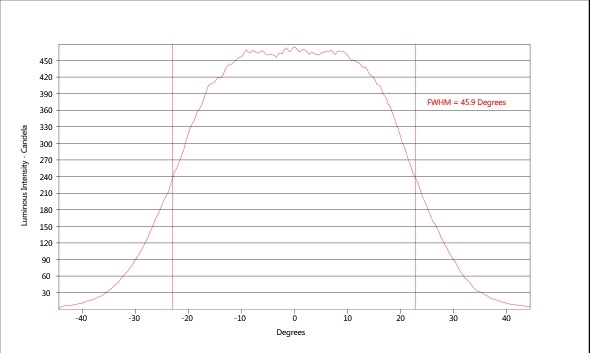

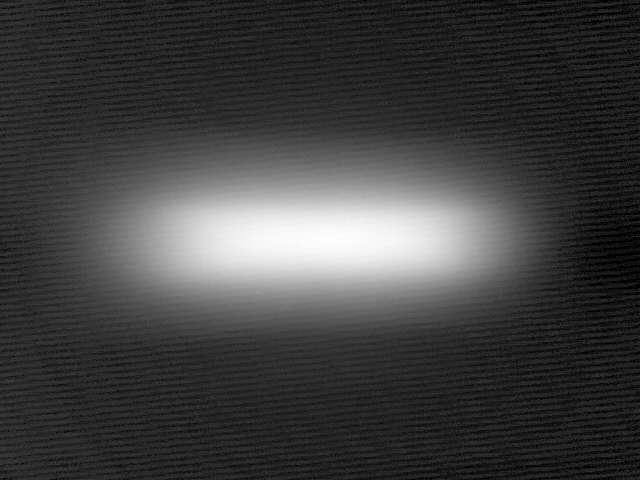

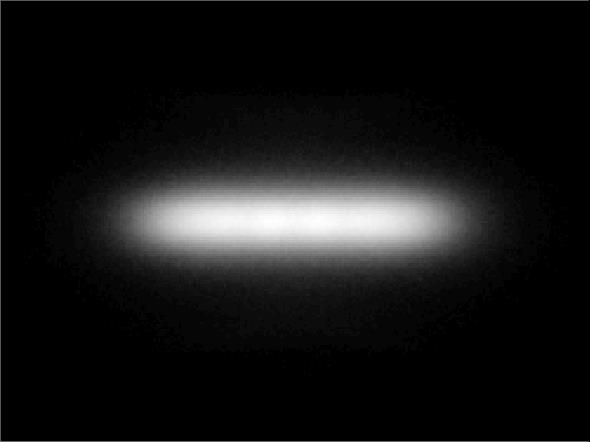

LEDs and Performances

Select and filter based on manufacturer(s)
Bridgelux SMD 3030 Gen2 White
Eff:
87.5%
FWHM:
48 x 9.3°
Cd/Im:
5.3
Download
Cree JB2835B 3V G-Class White
Eff:
86.5%
FWHM:
47 x 10.5°
Cd/Im:
4.5
Download
Cree JB2835B 3V J-Class White
Eff:
86.5%
FWHM:
47 x 10°
Cd/Im:
4.7
Download
Cree JB3030 3V P-Class White
Eff:
87.0%
FWHM:
46 x 12.5°
Cd/Im:
4.1
Download
Cree JB3030C 3V E-Class White
Eff:
86.5%
FWHM:
47 x 11.5°
Cd/Im:
4.2
Download
Cree JB3030C 3V F-Class White
Eff:
86.5%
FWHM:
47 x 11°
Cd/Im:
4.3
Download
Cree JE2835 3V White
Eff:
87.0%
FWHM:
48 x 9.4°
Cd/Im:
5.0
Download
Cree JK2835 6V White
Eff:
87.0%
FWHM:
47 x 11°
Cd/Im:
4.6
Download
Cree JQ5050 9V White
Eff:
86.5%
FWHM:
42 x 22°
Cd/Im:
2.4
Download
Cree JR5050 24V White
Eff:
86.5%
FWHM:
43 x 21.5°
Cd/Im:
2.5
Download
Cree JR5050 36V White
Eff:
86.5%
FWHM:
43 x 20°
Cd/Im:
2.7
Download
Cree JR5050 6V White
Eff:
86.5%
FWHM:
43 x 21°
Cd/Im:
2.5
Download
Cree JR5050C 6V E-Class White
Eff:
86.0%
FWHM:
43 x 21°
Cd/Im:
2.5
Download
Cree XLamp CSP XD16 Cool White
Eff:
85.0%
FWHM:
47.5 x 9.0°
Cd/Im:
4.7
Download
Cree XLamp CSP XD16 Premium White
Eff:
86.5%
FWHM:
48 x 8°
Cd/Im:
6.0
Download
Cree XLamp MH-B White
Eff:
83.6%
FWHM:
41 x 22°
Cd/Im:
2.1
Download
Cree XLamp XB-H White
Eff:
87.0%
FWHM:
47°
Cd/Im:
4.6
Download
Cree XLamp XE-G Blue
Eff:
86.5%
FWHM:
50 x 7.1°
Cd/Im:
6.7
Download
Cree XLamp XE-G Green
Eff:
87.0%
FWHM:
49 x 7.1°
Cd/Im:
6.8
Download

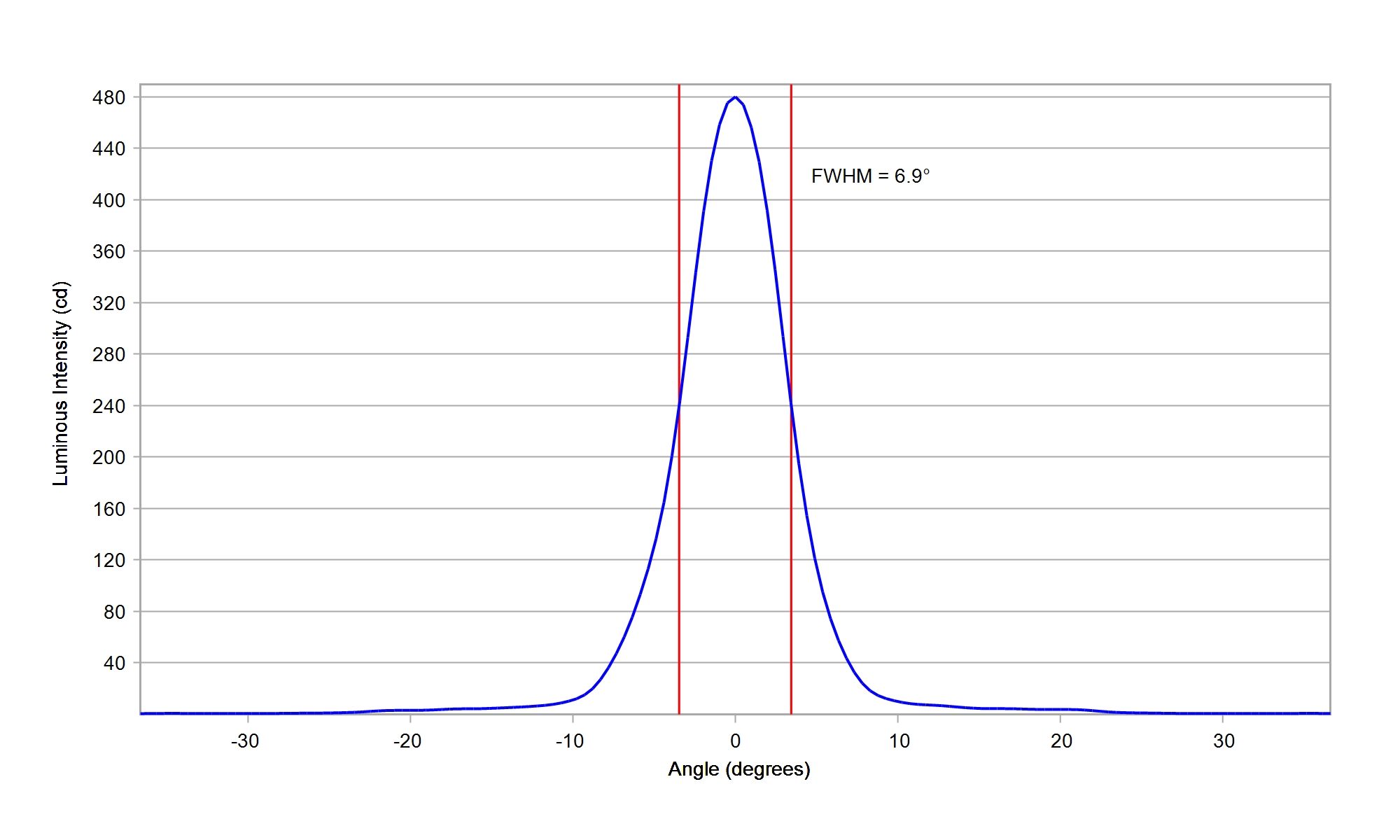

Cree XLamp XE-G Red
Eff:
85.5%
FWHM:
48 x 6.9°
Cd/Im:
6.9
Download

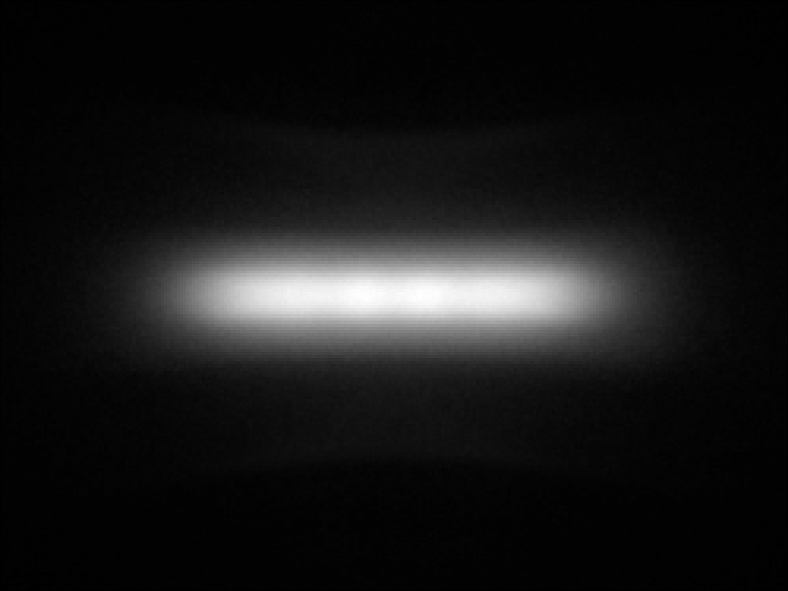

Cree XLamp XE-G White
Eff:
86.0%
FWHM:
48 x 7.1°
Cd/Im:
6.5
Download
Cree XLamp XHP-50 Gen 2 White
Eff:
83.0%
FWHM:
41.0 x 23.5°
Cd/Im:
2.0
Download
Cree XLamp XHP35 HI White
Eff:
85.6%
FWHM:
45.7x12.5°
Cd/Im:
3.9
Download
Cree XLamp XHP35 HD White
Eff:
84.6%
FWHM:
42.7x17.5°
Cd/Im:
2.8
Download
Cree XLamp XHP35.2 HI White
Eff:
86.0%
FWHM:
46 x 14.5°
Cd/Im:
3.3
Download
Cree XLamp XHP35.2 HD White
Eff:
85.0%
FWHM:
42 x 20°
Cd/Im:
2.5
Download
Cree XLamp XHP50.3 HI White
Eff:
85.5%
FWHM:
43 x 19.5°
Cd/Im:
2.6
Download
Cree XLamp XHP50.3 White
Eff:
84.0%
FWHM:
43 x 23°
Cd/Im:
2.1
Download
Cree XLamp XM-L White
FWHM:
47.3 X 17.4°
Cd/Im:
3.8
Download

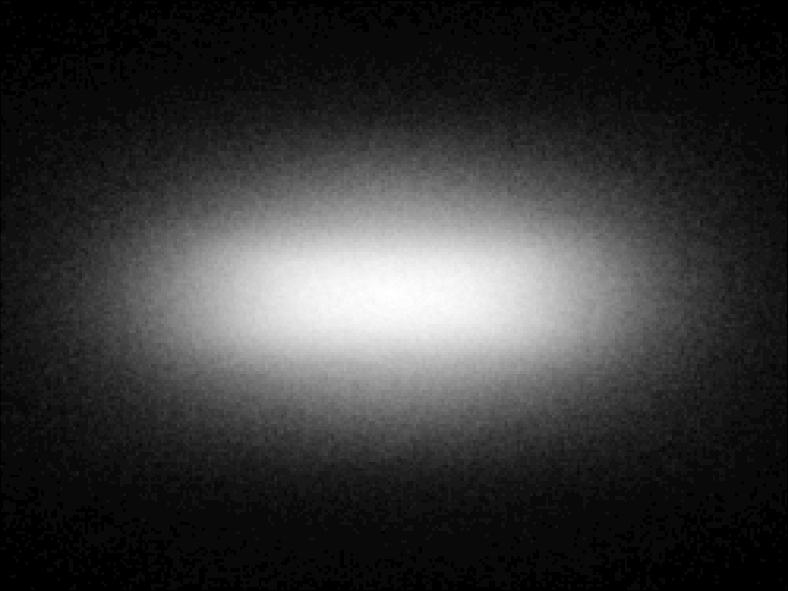

Cree XLamp XM-L3 White
Eff:
85.0%
FWHM:
44 x 16°
Cd/Im:
3.0
Download
Cree XLamp XP-E White
Eff:
86.0%
FWHM:
47 x 8°
Cd/Im:
6.5
Download
Cree XLamp XP-E2 White
Eff:
87.5%
FWHM:
48 x 8.8°
Cd/Im:
6.1
Download
Cree XLamp XP-G3 White
Eff:
86.0%
FWHM:
45.9 x 12.7°
Cd/Im:
3.6
Download
Cree XLamp XP-G4 HI White
Eff:
86.0%
FWHM:
48 x 8.5°
Cd/Im:
5.3
Download
Cree XLamp XP-G4 White
Eff:
87.5%
FWHM:
47 x 11.5°
Cd/Im:
4.4
Download
Cree XLamp XP-L HI White
Eff:
86.0%
FWHM:
46.9x10.3°
Cd/Im:
4.3
Download
Cree XLamp XP-L White
Eff:
85.3%
FWHM:
43.9x15.4°
Cd/Im:
3.2
Download
Cree XLamp XP-L2 White
Eff:
84.5%
FWHM:
43 x 17°
Cd/Im:
2.9
Download
Cree XLamp XP-P White
Eff:
87.5%
FWHM:
49 x 6.3°
Cd/Im:
8.3
Download
Cree XLamp XQ-A Blue
Eff:
86.0%
FWHM:
51.0 x 3.5°
Cd/Im:
13.6
Download

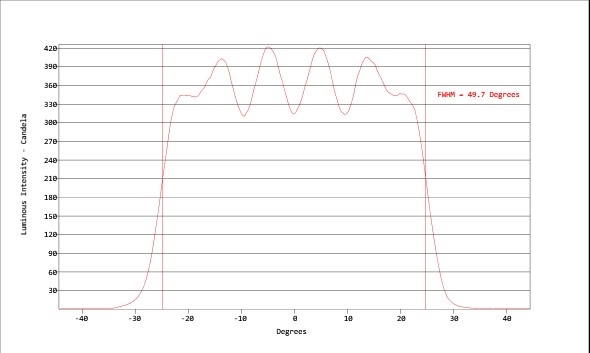

Cree XLamp XQ-A Green
Eff:
86.0%
FWHM:
49.5 X 3.6°
Cd/Im:
13.6
Download
Cree XLamp XQ-A Red
Eff:
86.5%
FWHM:
48.0 x 4.3°
Cd/Im:
11.7
Download
Cree XLamp XQ-A White
Eff:
86.0%
FWHM:
49.2 x 3.8°
Cd/Im:
12.3
Download
Cree XLamp XQ-E HI Blue
Eff:
84.5%
FWHM:
49.5 X 5.9°
Cd/Im:
7.1
Download
Cree XLamp XQ-E HI Green
Eff:
84.5%
FWHM:
49.0 x 5.7°
Cd/Im:
7.4
Download
Cree XLamp XQ-E HI Red
Eff:
85.0%
FWHM:
48.0 x 5.2°
Cd/Im:
8.1
Download
Cree XLamp XQ-E HI White
Eff:
87.0%
FWHM:
48.8 x 5.2°
Cd/Im:
8.0
Download
Cree XLamp XT-E HE White
Eff:
86.0%
FWHM:
46.0 x 11.5°
Cd/Im:
4.1
Download
LG Innotek 3535LG White
FWHM:
48.9 x 11.2°
Cd/Im:
5.4
Download
Lite-On R38386AS - S R38 IR
Eff:
89.5%
FWHM:
46.0 x 8.9°
Ipk/W:
5.9
Download
LUMILEDS LUXEON 2835C 6V White
Eff:
87.5%
FWHM:
47 x 10°
Cd/Im:
4.9
Download
LUMILEDS LUXEON 2835E 9V White
Eff:
87.0%
FWHM:
47 x 9.6°
Cd/Im:
5.1
Download
LUMILEDS LUXEON 2835N 3V White
Eff:
86.5%
FWHM:
47 x 11.5°
Cd/Im:
4.2
Download
LUMILEDS LUXEON 2835S 3V White
Eff:
87.5%
FWHM:
47 x 12°
Cd/Im:
4.1
Download
LUMILEDS LUXEON 2835S 6V White
Eff:
87.5%
FWHM:
47 x 12°
Cd/Im:
4.1
Download
LUMILEDS LUXEON 3014 White
Eff:
87.0%
FWHM:
49 x 5.4°
Cd/Im:
9.1
Download
LUMILEDS LUXEON 3030 2D White
Eff:
87.0%
FWHM:
48 x 8.8°
Cd/Im:
5.6
Download
LUMILEDS LUXEON 3030 HE Plus White
Eff:
87.0%
FWHM:
47 x 11°
Cd/Im:
4.6
Download
LUMILEDS LUXEON 3030 HE White
Eff:
86.5%
FWHM:
48 x 8.4°
Cd/Im:
5.6
Download
LUMILEDS LUXEON 3535 HV White
Eff:
85.8%
FWHM:
48 x 8°
Cd/Im:
5.4
Download
LUMILEDS LUXEON 3535 L White
Eff:
86.0%
FWHM:
47 x 9°
Cd/Im:
5.1
Download
LUMILEDS LUXEON 3535L Blue
Eff:
86.5%
FWHM:
49.5 x 7.1°
Cd/Im:
5.8
Download
LUMILEDS LUXEON 3535L Green
Eff:
84.6%
FWHM:
49 x 5.4°
Cd/Im:
6.7
Download
LUMILEDS LUXEON 3535L Red
Eff:
86.5%
FWHM:
48.5 x 4°
Cd/Im:
9.8
Download
LUMILEDS LUXEON 5050 HE 24V White
Eff:
86.0%
FWHM:
43 x 20°
Cd/Im:
2.5
Download
LUMILEDS LUXEON 5050 HE 6V White
Eff:
86.0%
FWHM:
43 x 20.5°
Cd/Im:
2.5
Download
LUMILEDS LUXEON 5050 Round 24V White
Eff:
86.5%
FWHM:
42 x 21.5°
Cd/Im:
2.4
Download
LUMILEDS LUXEON 5050 Square 30V White
Eff:
86.0%
FWHM:
41 x 24°
Cd/Im:
2.2
Download
LUMILEDS LUXEON 5050 Square 6V White
Eff:
86.0%
FWHM:
43 x 22°
Cd/Im:
2.4
Download
LUMILEDS LUXEON 5050 Round 6V White
Eff:
85.0%
FWHM:
41.5 x 20.0°
Cd/Im:
2.6
Download
LUMILEDS LUXEON C Blue
Eff:
82.0%
FWHM:
49.0 x 10.0°
Cd/Im:
4.6
Download
LUMILEDS LUXEON C Lime
Eff:
83.5%
FWHM:
47.5 X 9.9°
Cd/Im:
4.9
Download
LUMILEDS LUXEON C Red
Eff:
81.5%
FWHM:
46.5 x 10.5°
Cd/Im:
4.5
Download
LUMILEDS LUXEON C White
Eff:
82.5%
FWHM:
48 x 7.5°
Cd/Im:
5.9
Download
LUMILEDS LUXEON CZ White
Eff:
86.5%
FWHM:
49 x 5.6°
Cd/Im:
9.1
Download
LUMILEDS LUXEON HL1Z CSP White
Eff:
86.0%
FWHM:
48 x 6.9°
Cd/Im:
6.9
Download
LUMILEDS LUXEON HL2X White
Eff:
86.5%
FWHM:
46 x 12.5°
Cd/Im:
4.0
Download
LUMILEDS LUXEON HL2X-D White
Eff:
87.0%
FWHM:
45 x 15.5°
Cd/Im:
3.4
Download
LUMILEDS LUXEON HL2X-P White
Eff:
87.0%
FWHM:
45 x 15°
Cd/Im:
3.5
Download

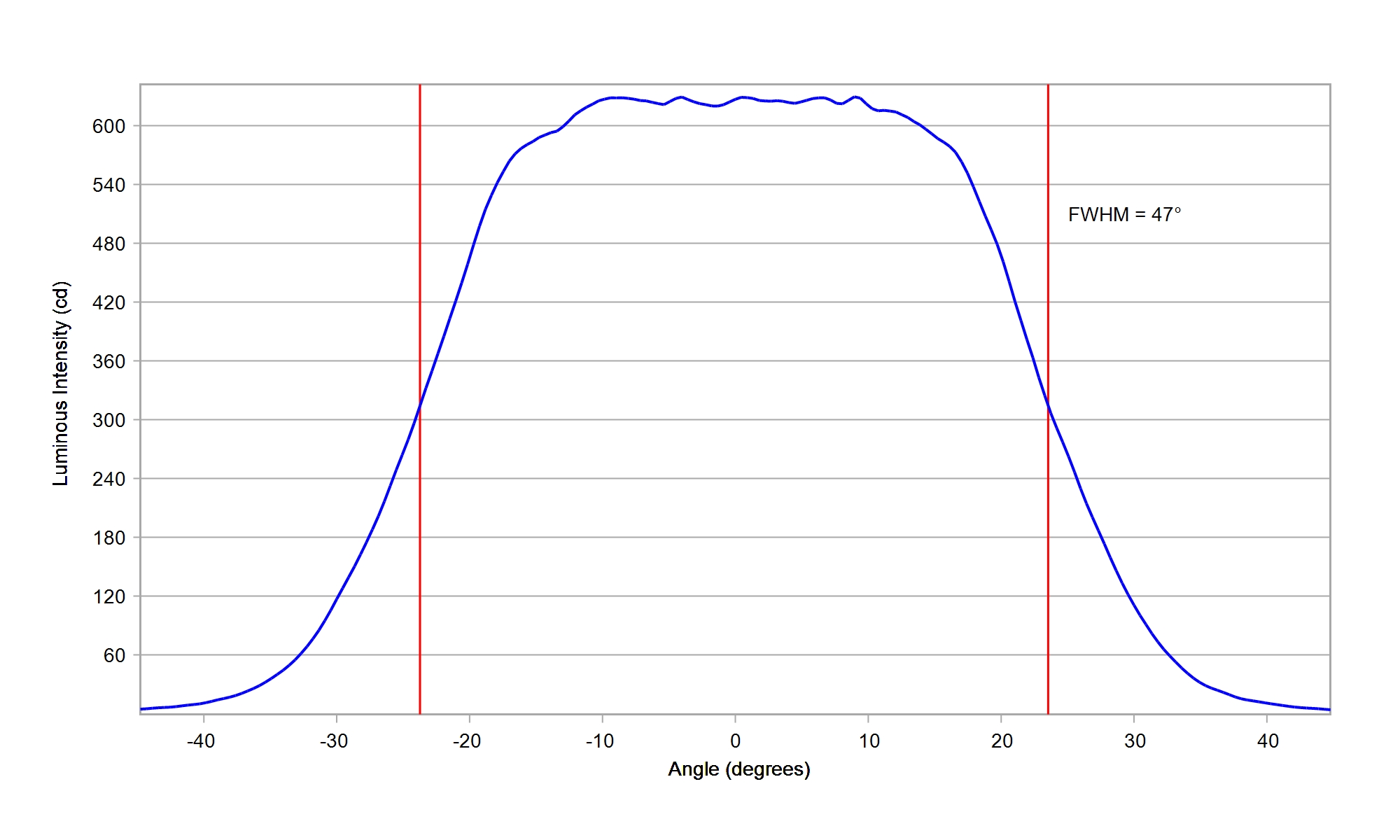

LUMILEDS LUXEON HL2Z White
Eff:
86.0%
FWHM:
47 x 10°
Cd/Im:
4.7
Download
LUMILEDS LUXEON HL4X White
Eff:
86.5%
FWHM:
44 x 17°
Cd/Im:
3.0
Download
LUMILEDS LUXEON HL4Z White
Eff:
87.5%
FWHM:
46 x 12.5°
Cd/Im:
4.2
Download
LUMILEDS LUXEON IR 2720
Eff:
89.5%
FWHM:
46.5 x 7.7°
Ipk/W:
1.9
Download
LUMILEDS LUXEON IR Compact 850nm
Eff:
90.0%
FWHM:
46.5 x 7.6°
Ipk/W:
6.7
Download
LUMILEDS LUXEON IR Domed 150 Degree
Eff:
90.5%
FWHM:
46.0 x 10.5°
Cd/Im:
5.5
Download

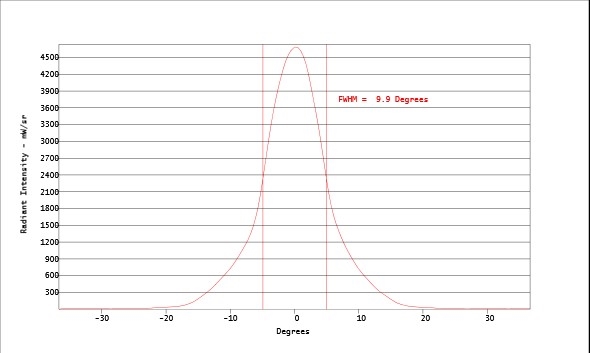

LUMILEDS LUXEON IR Domed 60 Degree
Eff:
88.0%
FWHM:
45.5 x 9.9°
Ipk/W:
5.0
Download
LUMILEDS LUXEON IR Domed 90 Degree
Eff:
89.0%
FWHM:
46.0 x 9.8°
Ipk/W:
5.4
Download
LUMILEDS LUXEON MZ White
Eff:
84.4%
FWHM:
42.6 x 19.9°
Cd/Im:
2.7
Download
LUMILEDS LUXEON Rebel ES White
Eff:
81.2%
FWHM:
47.8 x 12.7°
Cd/Im:
4.8
Download
LUMILEDS LUXEON Rebel White
Eff:
82.0%
FWHM:
48 x 9.5°
Cd/Im:
6.0
Download
LUMILEDS LUXEON Rubix Blue
Eff:
87.0%
FWHM:
50 x 5.9°
Cd/Im:
8.7
Download
LUMILEDS LUXEON Rubix Green
Eff:
86.5%
FWHM:
49 x 5.8°
Cd/Im:
8.8
Download

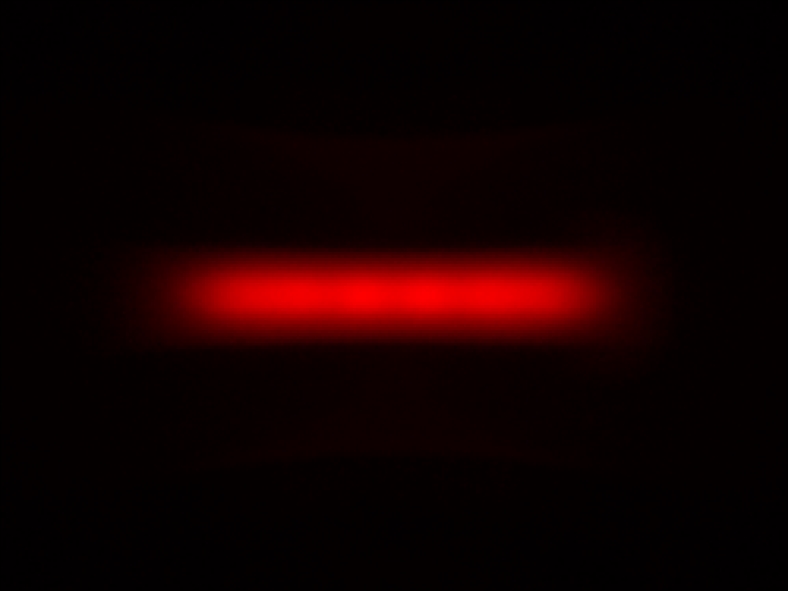

LUMILEDS LUXEON Rubix Red
Eff:
88.0%
FWHM:
48 x 5.5°
Cd/Im:
9.7
Download

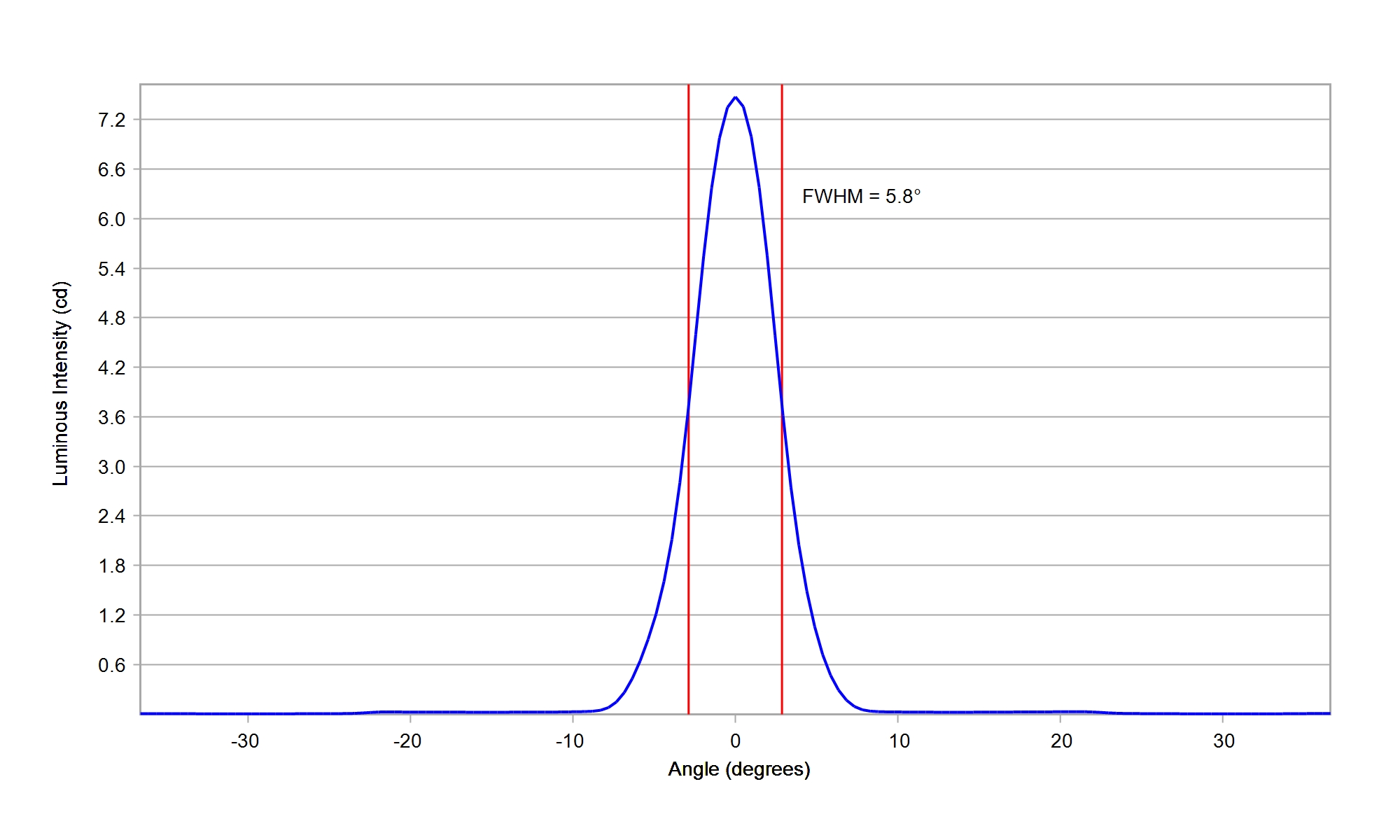

LUMILEDS LUXEON Rubix Royal Blue
Eff:
86.0%
FWHM:
50 x 5.8°
Cd/Im:
8.7
Download
LUMILEDS LUXEON Rubix White
Eff:
86.5%
FWHM:
49 x 6°
Cd/Im:
8.4
Download
LUMILEDS LUXEON TX White
Eff:
87.0%
FWHM:
46 x 12°
Cd/Im:
4.5
Download
LUMILEDS LUXEON TX White
Eff:
85.8%
FWHM:
46.8 x 10.6°
Cd/Im:
4.3
Download
LUMILEDS LUXEON V White
Eff:
83.0%
FWHM:
43.0 x 17°
Cd/Im:
2.8
Download
LUMILEDS LUXEON Z ES White
Eff:
86.0%
FWHM:
48 x 7.6°
Cd/Im:
6.0
Download
LUMILEDS LUXEON Z White
Eff:
86.0%
FWHM:
48.8 x 5.3°
Cd/Im:
8.2
Download
Luminus Devices SST 05-IR-B40 850nm
Eff:
90.0%
FWHM:
47 x 7.6°
Ipk/W:
6.4
Download
Luminus Devices SST 10-B-B130 Blue
Eff:
85.0%
FWHM:
50 x 8.5°
Cd/Im:
5.6
Download
Luminus Devices SST 10-B-B90 Blue
Eff:
85.0%
FWHM:
49 x 8.6°
Cd/Im:
5.2
Download
Luminus Devices SST 10-DR-B130 Deep Red
Eff:
89.0%
FWHM:
47 x 11°
Cd/Im:
4.9
Download
Luminus Devices SST 10-DR-B90 Deep Red
Eff:
88.5%
FWHM:
47 х 8.6°
Cd/Im:
5.4
Download
Luminus Devices SST 10-G-B130 Green
Eff:
87.0%
FWHM:
48 x 8.3°
Cd/Im:
5.9
Download
Luminus Devices SST 10-G-B90 Green
Eff:
87.0%
FWHM:
48 x 8.3°
Cd/Im:
5.5
Download
Luminus Devices SST 10-IR-B130 940nm
Eff:
90.0%
FWHM:
46 x 9.4°
Ipk/W:
5.4
Download

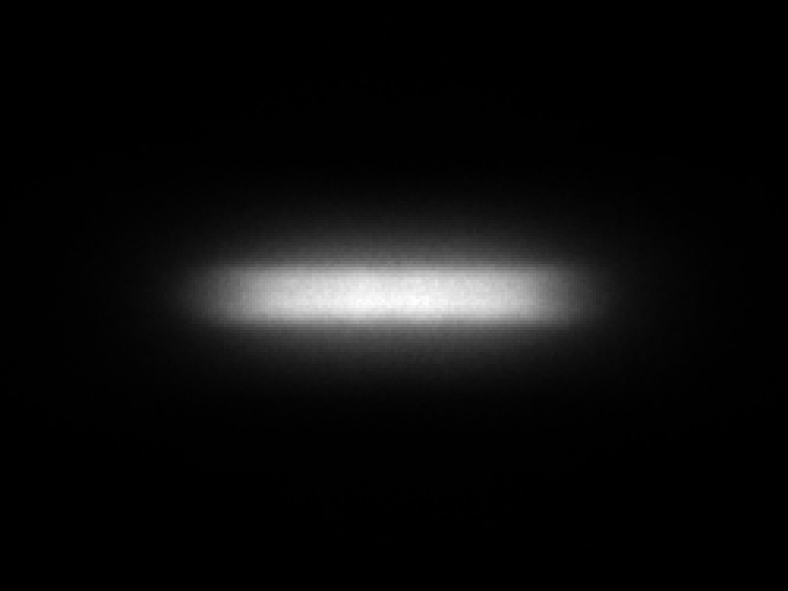

Luminus Devices SST 10-IR-B90 940nm
Eff:
91.0%
FWHM:
46 x 9.2°
Ipk/W:
5.3
Download
Luminus Devices SST 10-IRD-B130 810nm
Eff:
90.5%
FWHM:
46 x 8.8°
Ipk/W:
5.7
Download

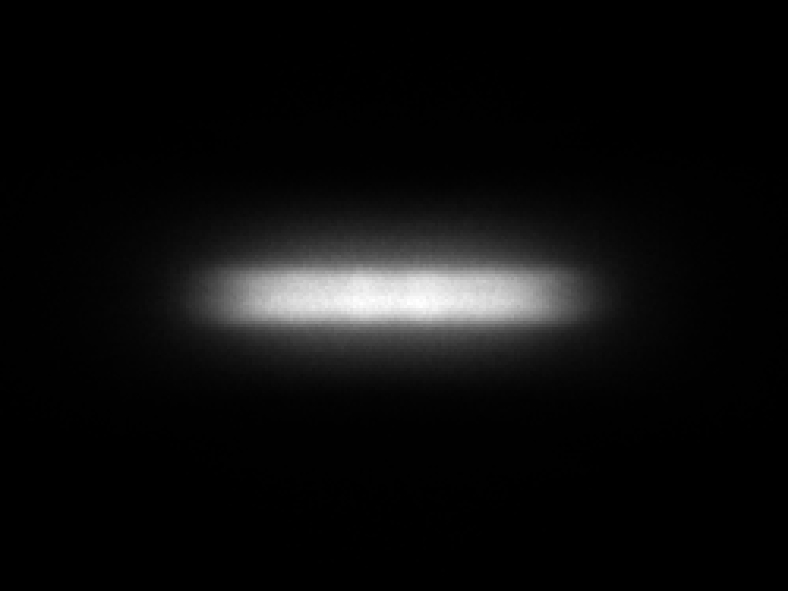

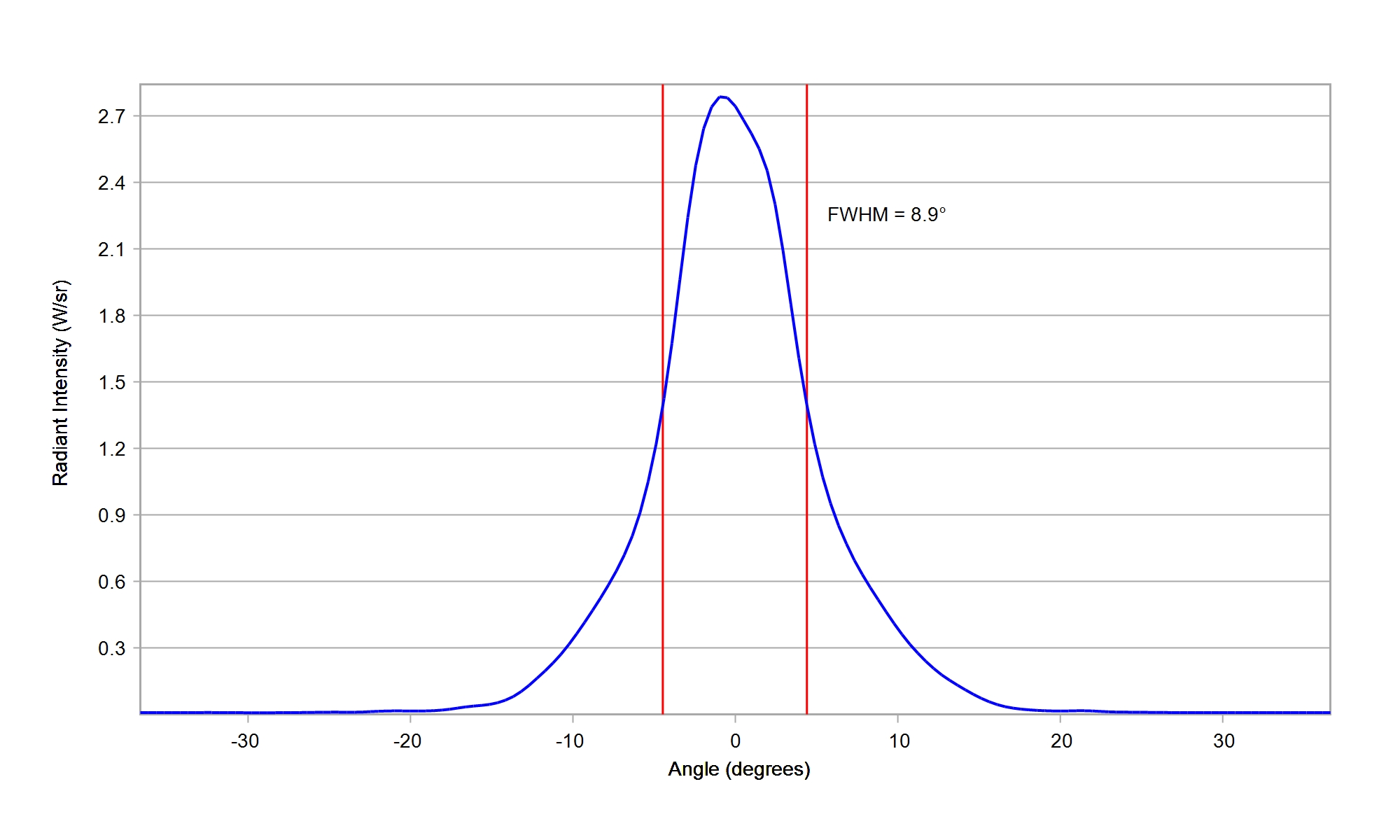

Luminus Devices SST 10-IRD-B90 810nm
Eff:
91.0%
FWHM:
46 x 8.9°
Ipk/W:
5.4
Download
Luminus Devices SST 20-WxH White Hi CRI
Eff:
86.5%
FWHM:
48 x 9.6°
Cd/Im:
5.0
Download
Luminus Devices SST 40-W White
Eff:
86.5%
FWHM:
44 x 16°
Cd/Im:
3.2
Download
Luminus Devices SST-12-WxS White
Eff:
86.5%
FWHM:
48 x 7.9°
Cd/Im:
6.0
Download
Luminus Devices SST-25-WES White
Eff:
86.5%
FWHM:
46 x 11.5°
Cd/Im:
4.1
Download

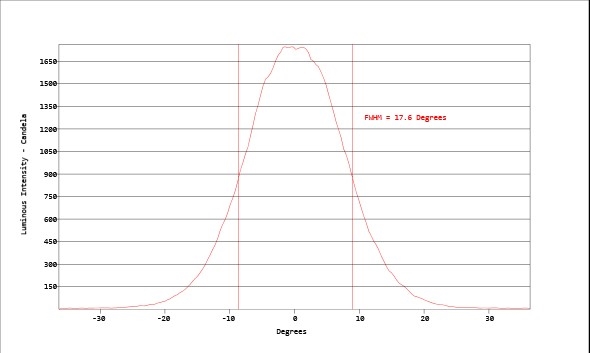

Nichia 229A White
Eff:
83.5%
FWHM:
42.5 x 17.5°
Cd/Im:
2.9
Download
Nichia 757G White
Eff:
86.0%
FWHM:
47.0 x 11.5°
Cd/Im:
4.3
Download
Nichia 757G White
Eff:
87.0%
FWHM:
47 x 12.5°
Cd/Im:
4.1
Download
Nichia NCSW CSP E17A White
Eff:
86.0%
FWHM:
48.0 x 7.9°
Cd/Im:
6.1
Download

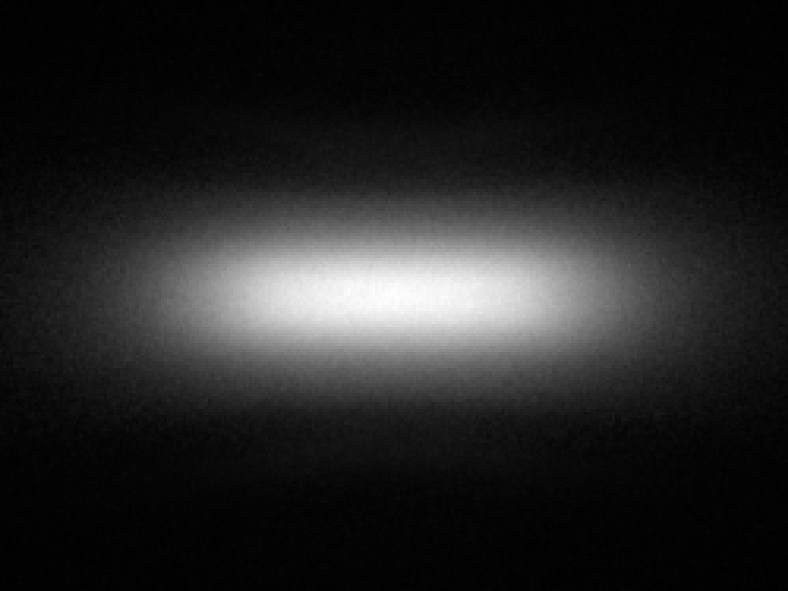

Nichia NF2W 385AR-V2 White
Eff:
87.0%
FWHM:
46 x 12°
Cd/Im:
4.3
Download
Nichia NFSW CSP E11A White
Eff:
86.0%
FWHM:
49 x 6.1°
Cd/Im:
8.3
Download
Nichia NV4W B35AM White
Eff:
86.0%
FWHM:
44 x 17°
Cd/Im:
2.9
Download
Nichia NVSL 219B White
Eff:
84.0%
FWHM:
47.5 x 9.1°
Cd/Im:
4.9
Download
Nichia NVSW 219C White
Eff:
84.5%
FWHM:
45.5 x 12.5°
Cd/Im:
3.8
Download
Nichia NVSW 219F White
Eff:
86.5%
FWHM:
46 x 13°
Cd/Im:
3.9
Download
Nichia NVSW 319A White
Eff:
84.5%
FWHM:
44.0 x 14.5°
Cd/Im:
3.4
Download
Nichia NVSW CSP E21A White
Eff:
84.0%
FWHM:
47 x 9.6°
Cd/Im:
4.8
Download
Nichia Top Emitting 083 White
Eff:
84.2%
FWHM:
44.6x12.5°
Cd/Im:
3.8
Download

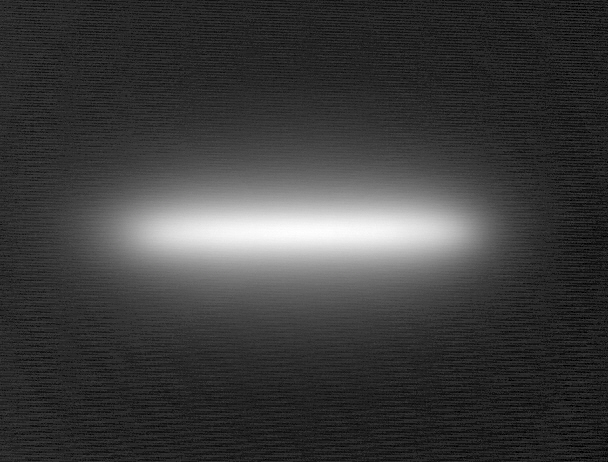

Nichia Top Emitting NFSW 036 White
Eff:
87.0%
FWHM:
47.5x7.4°
Cd/Im:
5.7
Download
Nichia Top Emitting NS3W 183T White
Eff:
86.8%
FWHM:
48.9x14.3°
Cd/Im:
3.8
Download
Osram Led Engin LuxiGen LZ1 00R702 IR940nm
Eff:
91.5%
FWHM:
46 x 8.7°
Ipk/W:
5.6
Download
Osram DURIS E 2835 Gen2
Eff:
86.0%
FWHM:
48 x 9°
Cd/Im:
5.3
Download
Osram DURIS E 2835 White
Eff:
86.0%
FWHM:
47.5 x 8.9°
Cd/Im:
5.1
Download
Osram DURIS E2 White
Eff:
86.0%
FWHM:
49 x 4.9°
Cd/Im:
7.6
Download
Osram DURIS E3 White
Eff:
89.5%
FWHM:
48.2x6.0°
Cd/Im:
7.5
Download
Osram DURIS S2 White
Eff:
90.8%
FWHM:
47.6x8.9°
Cd/Im:
4.9
Download
Osram DURIS S5 Deep Blue
Eff:
85.5%
FWHM:
47.5 x 10.0°
Cd/Im:
4.6
Download
Osram DURIS S5 Green
Eff:
86.5%
FWHM:
47.5 x 9.0°
Cd/Im:
5.4
Download
Osram DURIS S5 Red
Eff:
87.0%
FWHM:
47 x 8.1°
Cd/Im:
6.1
Download
Osram DURIS S5 White
Eff:
86.0%
FWHM:
47 X 9.4°
Cd/Im:
4.9
Download

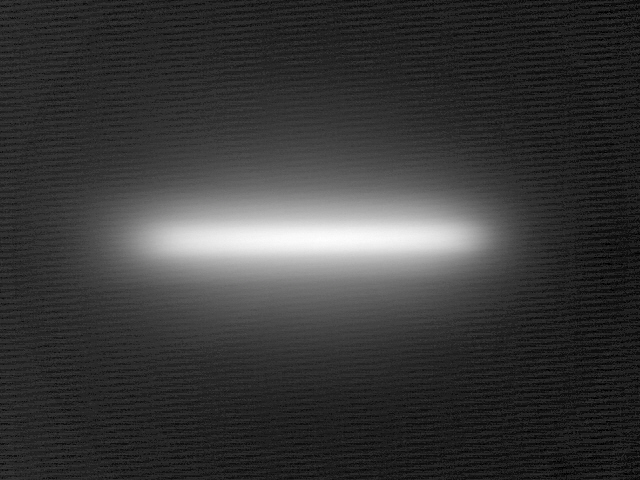

Osram GOLDEN DRAGON W5SM White
Eff:
87.0%
FWHM:
39x7.8°
Cd/Im:
6.0
Download
Osram OSCONIQ C 2424 White
Eff:
86.5%
FWHM:
48 x 9.4°
Cd/Im:
5.2
Download
Osram OSCONIQ P3737 White
Eff:
84.0%
FWHM:
44.5 x 15.5°
Cd/Im:
3.3
Download
Osram OSLON Black SFH 4715AS IR
Eff:
90.0%
FWHM:
47 x 7.6°
Ipk/W:
6.1
Download
