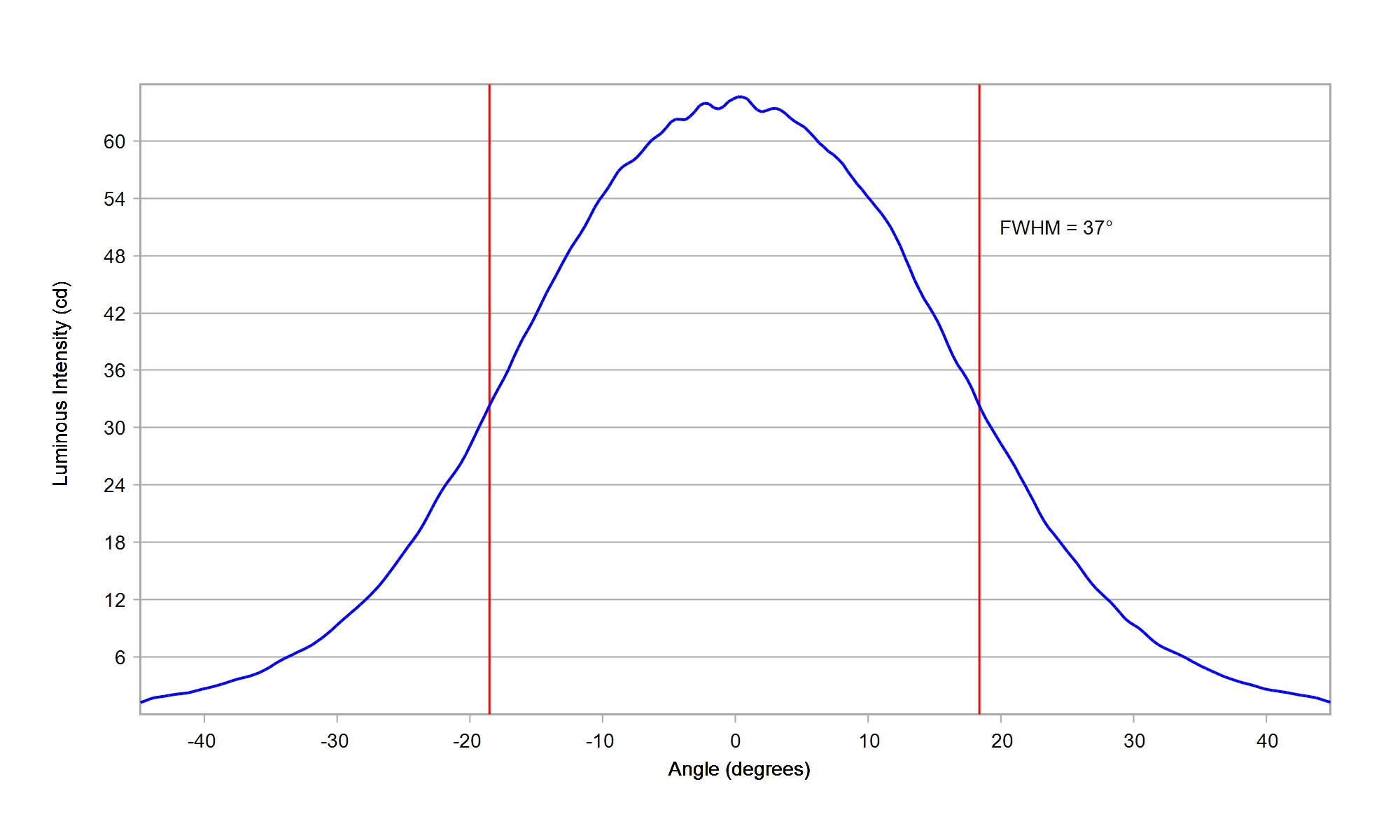

20.0mm Wide Spot Frosted TIR LED Lenses

Part number

10196

Dimensions

20.0mm

Drawing Number

60461

Optic type

TIR LED Lenses

Finish

Frosted

Beam type

Wide Spot

Applications

Architectural

Landscape & Garden

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

87.5%

FWHM:

35 x 34°

Cd/Im:

2.1

Carclo Optics - 10196 20mm Spot Image Bridgelux 3030 Gen2

Carclo Optics - 10196 20mm Cross Section Bridgelux 3030 Gen2

Download

IES

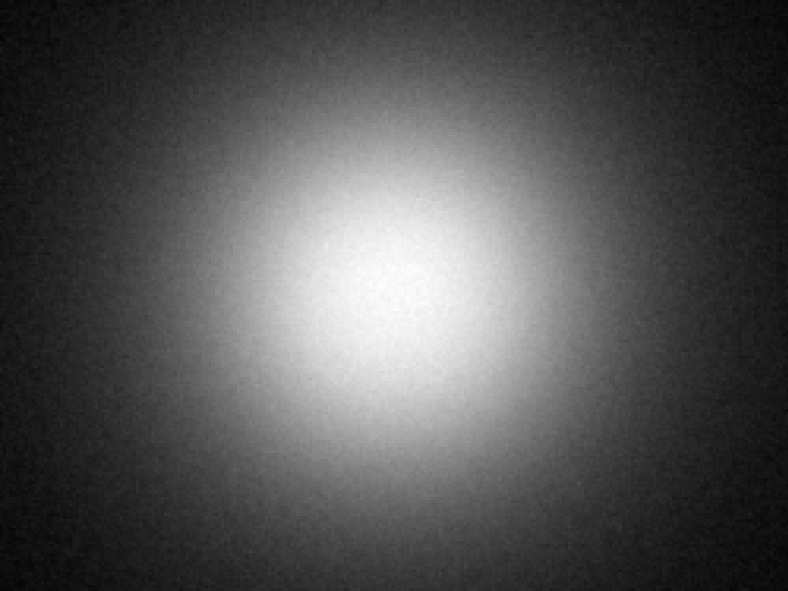

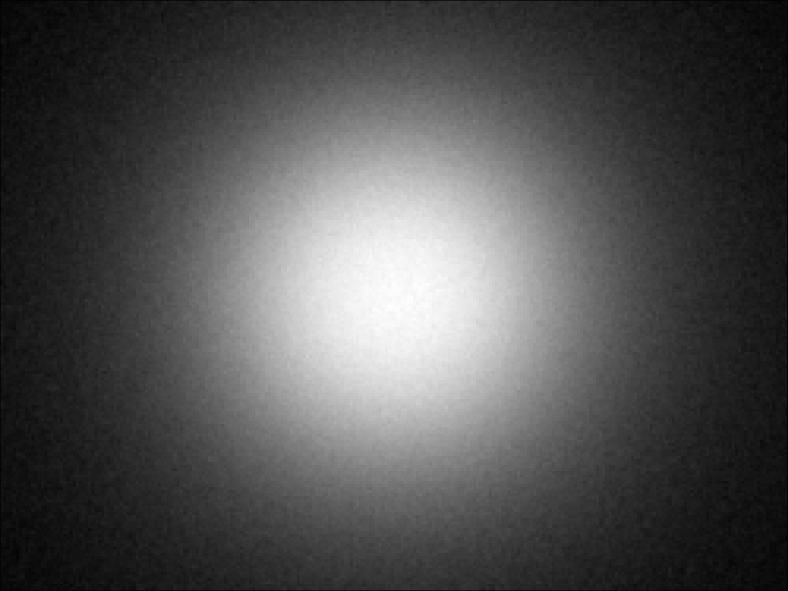

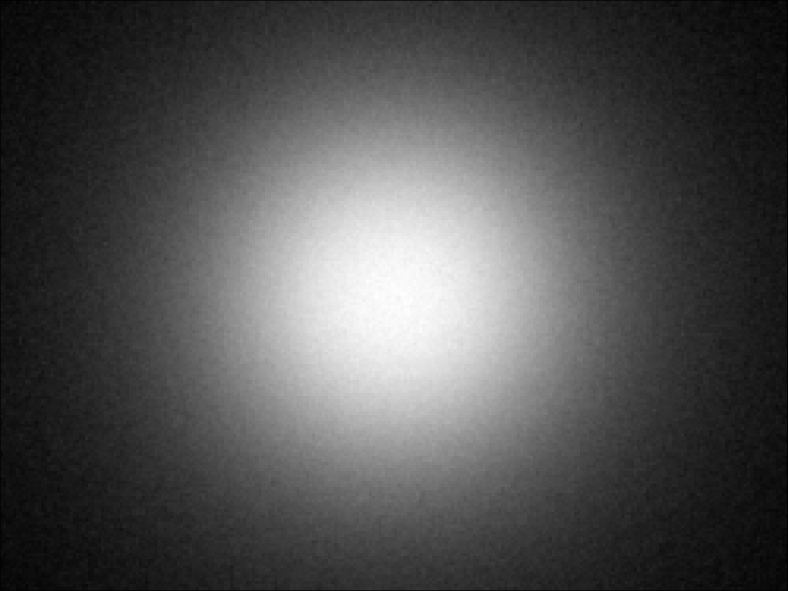

Cree JB2835B 3V G-Class White

Eff:

86.5%

FWHM:

38°

Cd/Im:

1.7


Download

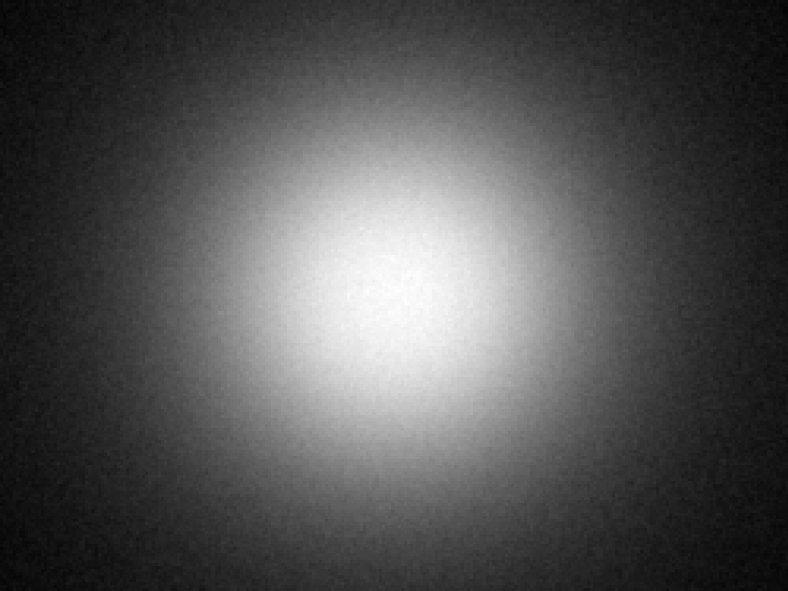

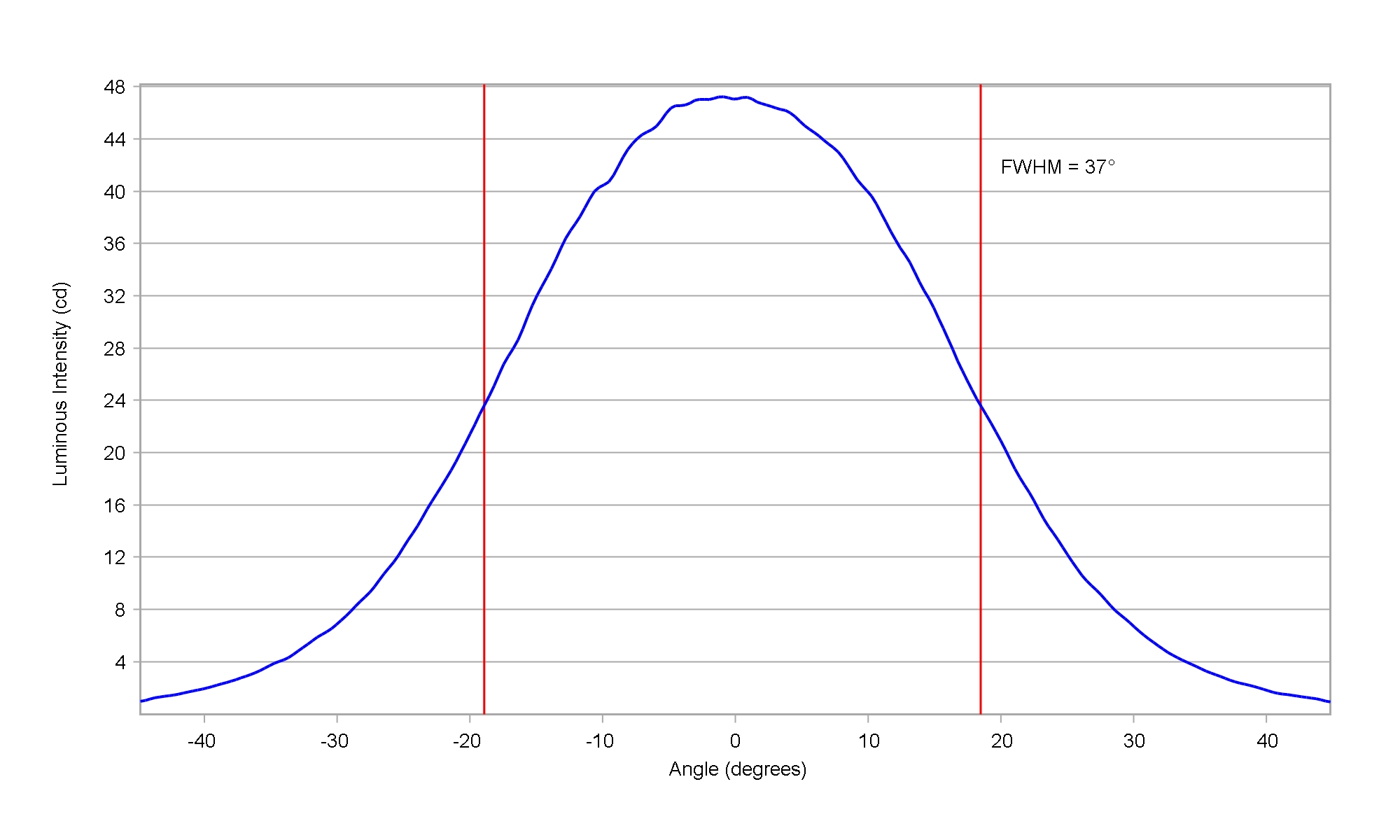

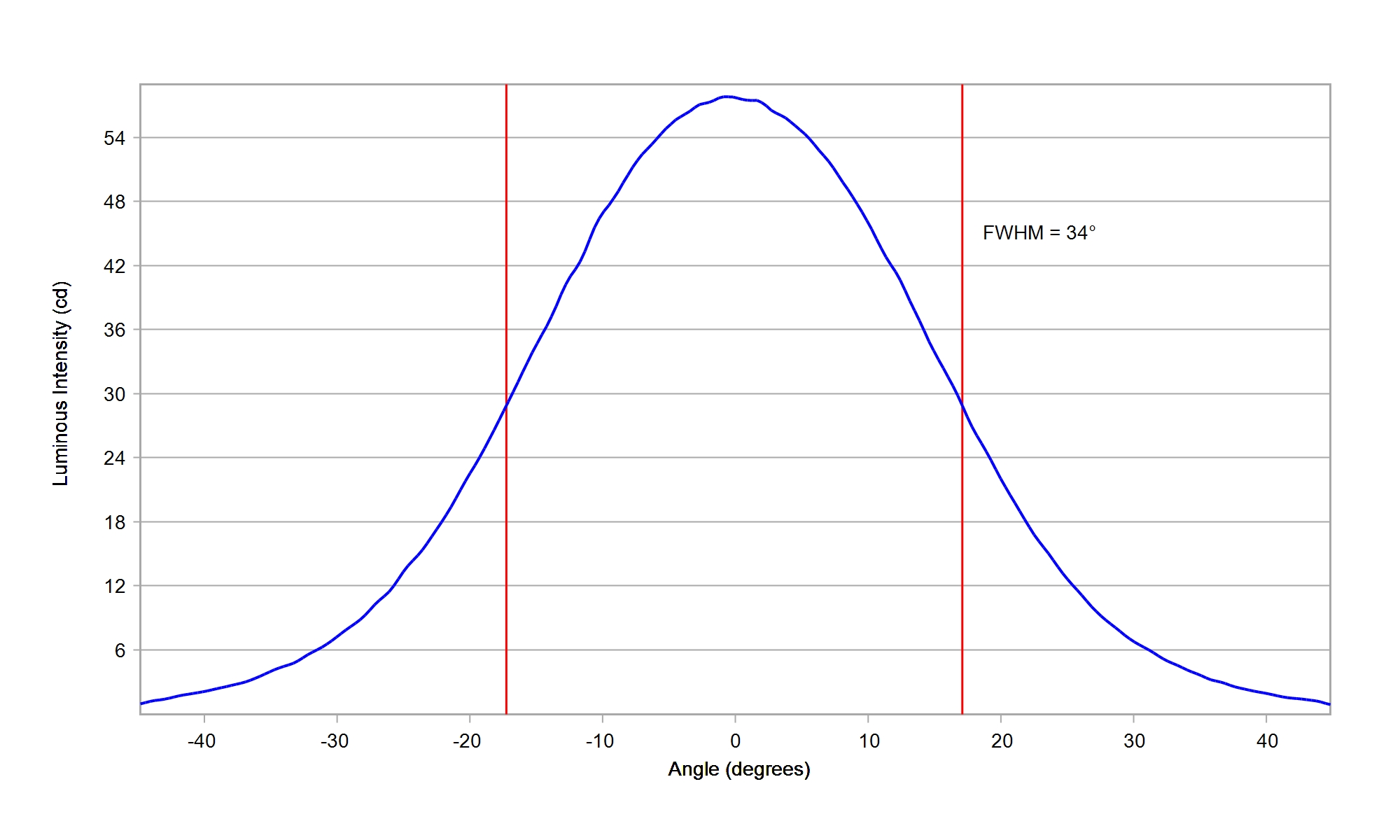

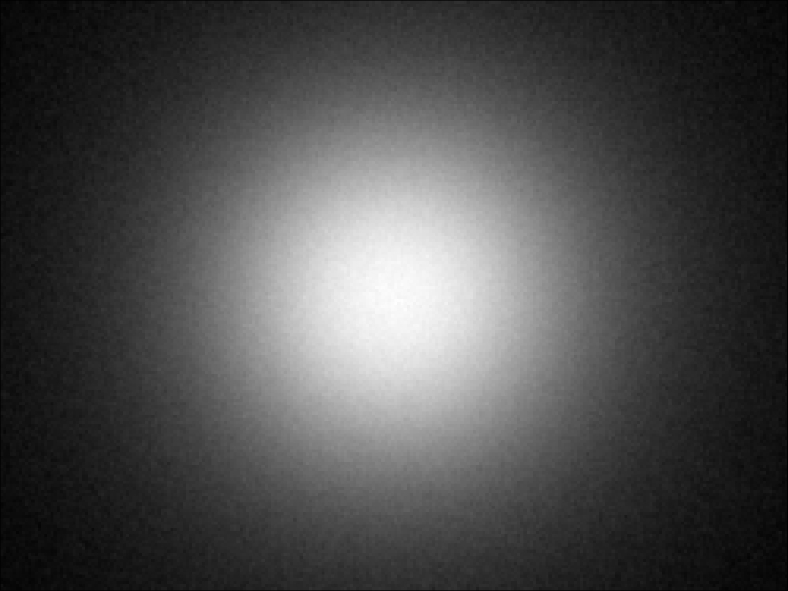

Cree JB2835B 3V J-Class White

Eff:

86.5%

FWHM:

37°

Cd/Im:

1.7


Download

Cree JB3030 3V P-Class White

Eff:

87.5%

FWHM:

33.0°

Cd/Im:

2.0

Carclo Optics - 10196 Spot Image Cree JB3030 3V White

Carclo Optics - 10196 Cross Section Cree JB3030 3V White

Download

IES

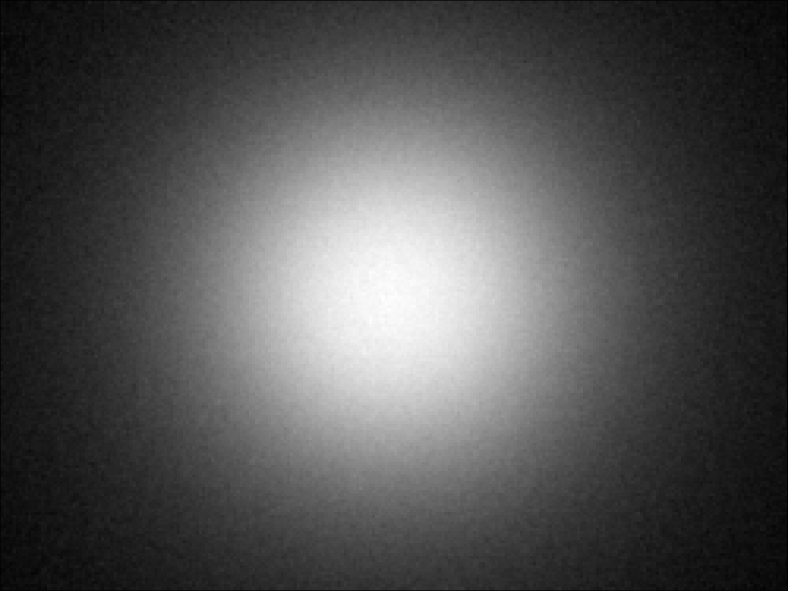

Cree JB3030C 3V E-Class White

Eff:

86.5%

FWHM:

37°

Cd/Im:

1.8


Download

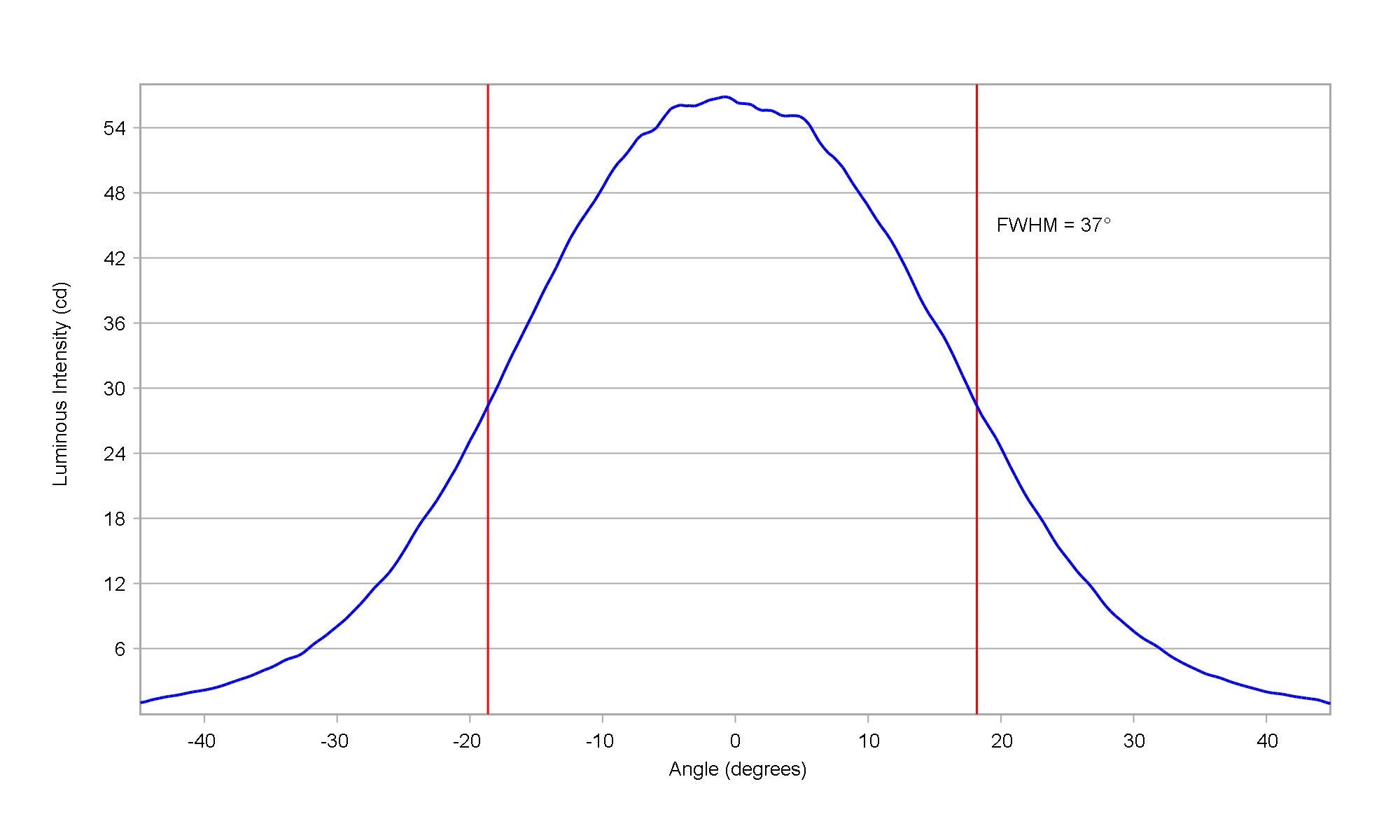

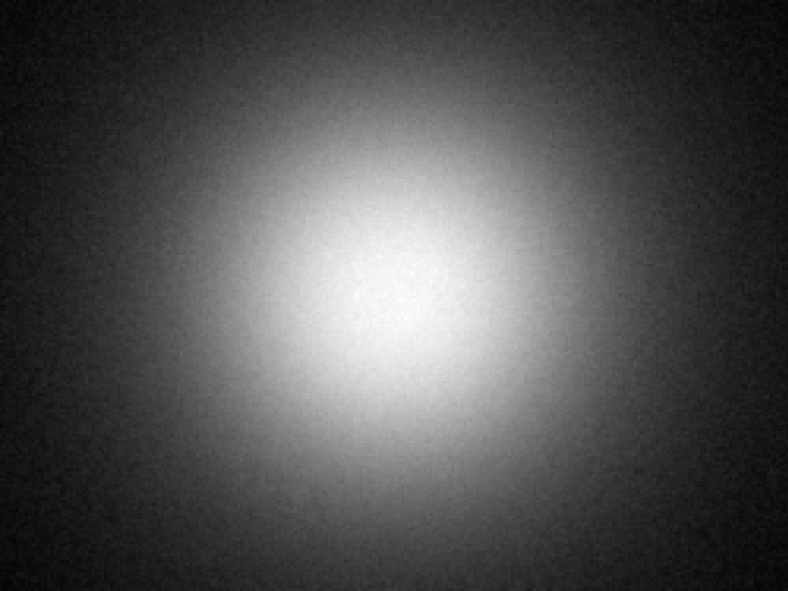

Cree JB3030C 3V F-Class White

Eff:

86.5%

FWHM:

37°

Cd/Im:

1.8


Download

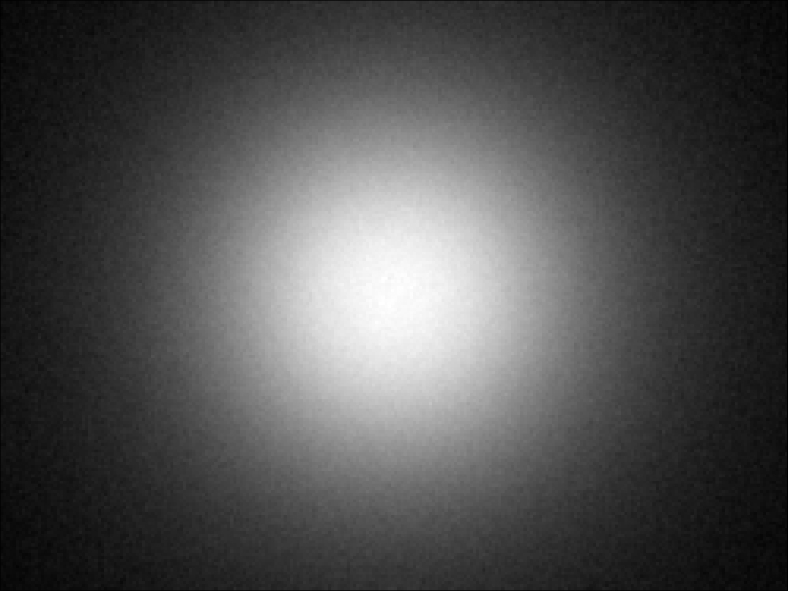

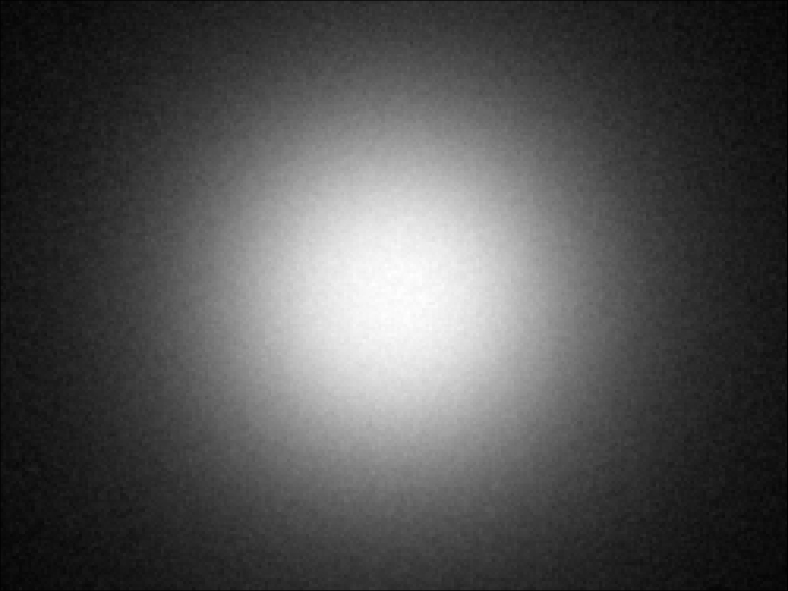

Cree JE2835 3V White

Eff:

87.5%

FWHM:

35°

Cd/Im:

2.0

Download

Cree JK2835 6V White

Eff:

87.0%

FWHM:

35°

Cd/Im:

1.9

Download

IES

Cree JQ5050 9V White

Eff:

86.5%

FWHM:

38.0°

Cd/Im:

1.6

Carclo Optics - 10196 Spot Image Cree JQ5050 9V White

Carclo Optics - 10196 Cross Section Cree JQ5050 9V White

Download

IES

Cree JR5050 24V White

Eff:

86.5%

FWHM:

38.0°

Cd/Im:

1.5

Carclo Optics - 10196 Spot Image Cree JR5050-24V White

Carclo Optics - 10196 Cross Section Cree JR5050-24V White

Download

IES

Cree JR5050 36V White

Eff:

87.0%

FWHM:

37.0°

Cd/Im:

1.6

Carclo Optics - 10196 Spot Image Cree JR5050 36V White

Carclo Optics - 10196 Cross Section Cree JR5050 36V White

Download

IES

Cree JR5050 6V White

Eff:

86.5%

FWHM:

37.0°

Cd/Im:

1.6

Carclo Optics - 10196 Spot Image Cree JR50506V White

Carclo Optics - 10196 Cross Section Cree JR50506V White

Download

IES

Cree JR5050C 6V E-Class White

Eff:

86.5%

FWHM:

37°

Cd/Im:

1.6


Download

IES

Cree XLamp CSP XD16 Cool White

Eff:

85.5%

FWHM:

36.5°

Cd/Im:

1.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp CSP XD16 Premium White

Eff:

87.0%

FWHM:

34°

Cd/Im:

2.0

Download

IES

Cree XLamp MC-E White

Eff:

70.0%

FWHM:

45°

Cd/Im:

1.4

Download

ies

Cree XLamp MH-B White

Eff:

83.3%

FWHM:

41°

Cd/Im:

1.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XB-H White

Eff:

87.5%

FWHM:

33°

Cd/Im:

2.0

Carclo Optics - 10196 20mm Spot Image Cree XLamp XB-H

Carclo Optics - 10196 20mm Cross Section Cree XLamp XB-H

Download

IES

Cree XLamp XE-G Blue

Eff:

87.0%

FWHM:

33°

Cd/Im:

2.1

Download

IES

Cree XLamp XE-G Green

Eff:

87.0%

FWHM:

33°

Cd/Im:

2.1

Download

IES

Cree XLamp XE-G Red

Eff:

86.0%

FWHM:

34°

Cd/Im:

2.0

Download

IES

Cree XLamp XE-G White

Eff:

86.5%

FWHM:

34°

Cd/Im:

2.0

Download

IES

Cree XLamp XHP-50 Gen 2 White

Eff:

84.0%

FWHM:

39.0°

Cd/Im:

1.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP-50 White

Eff:

82.8%

FWHM:

40°

Cd/Im:

1.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XHP35 HI White

Eff:

84.1%

FWHM:

35.6°

Cd/Im:

1.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP35 HD White

Eff:

83.9%

FWHM:

36.1°

Cd/Im:

1.6

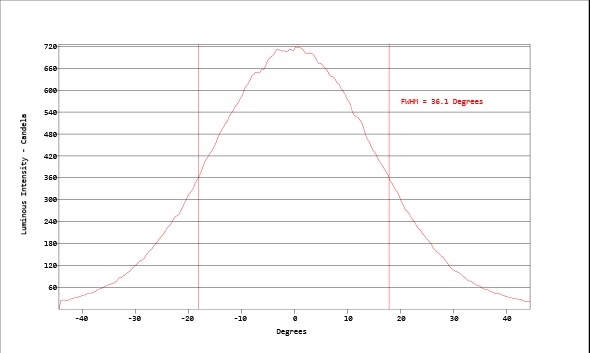

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP35.2 HI White

Eff:

86.0%

FWHM:

36°

Cd/Im:

1.7

Carclo Optics – 10196 Spot Image Cree XLamp XHP35.2 HI White

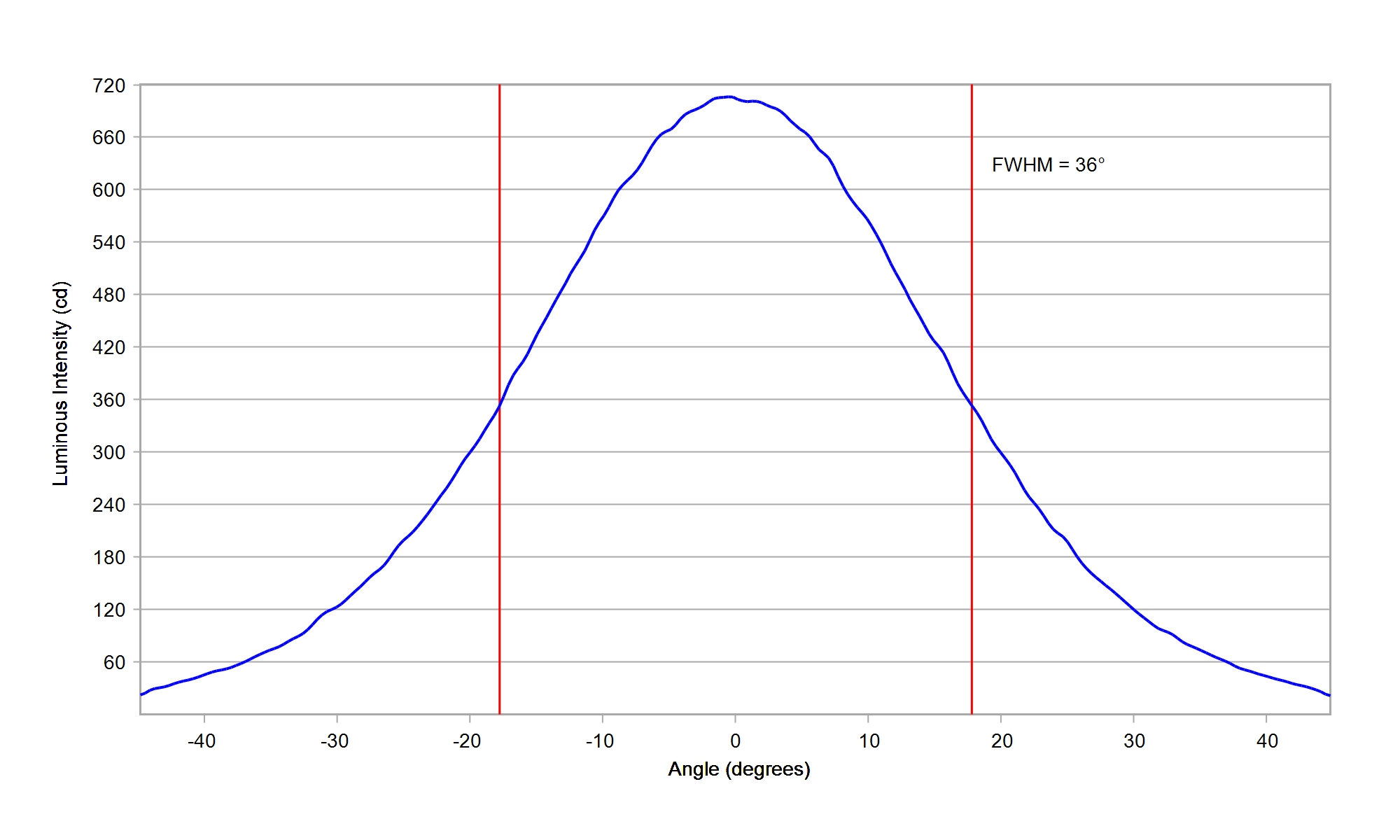

Carclo Optics – 10196 Cross Section Cree XLamp XHP35.2 HI White

Download

2-HI-WW

Cree XLamp XHP35.2 HD White

Eff:

86.0%

FWHM:

36.0°

Cd/Im:

1.6

Carclo Optics - 10196 Spot Image Cree XHP35.2 White

Carclo Optics - 10196 Cross Section Cree XHP35.2 White

Download

IES

Cree XLamp XHP50.3 HI White

Eff:

86.0%

FWHM:

34°

Cd/Im:

1.8

Download

Cree XLamp XHP50.3 White

Eff:

85.0%

FWHM:

37°

Cd/Im:

1.4

Download

3
3

Cree XLamp XM-L Color G2 HD RGBW

Eff:

87.5%

FWHM:

33°

Cd/Im:

1.7

Download

IES

Cree XLamp XM-L Color G2 HI RGBW

Eff:

87.0%

FWHM:

34°

Cd/Im:

1.8

Download

IES

Cree XLamp XM-L White

FWHM:

39.2°

Cd/Im:

1.5

Download

ies

Cree XLamp XM-L3 White

Eff:

85.5%

FWHM:

34.0°

Cd/Im:

1.8

Carclo Optics - 10196 Spot Image Cree XM-L3

Carclo Optics - 10196 Cross Section Cree XM-L3

Download

IES

Cree XLamp XP-E White

Eff:

78.1%

FWHM:

31.5°

Cd/Im:

2.5

Download

ies

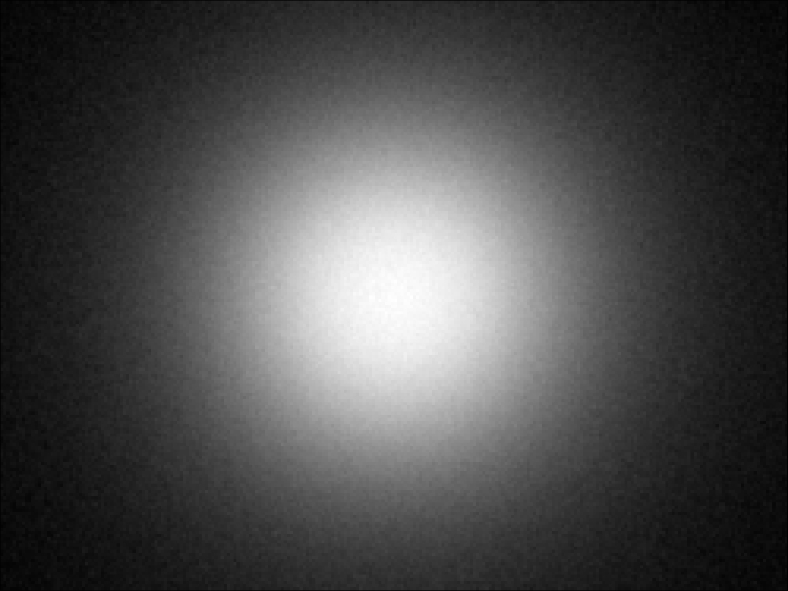

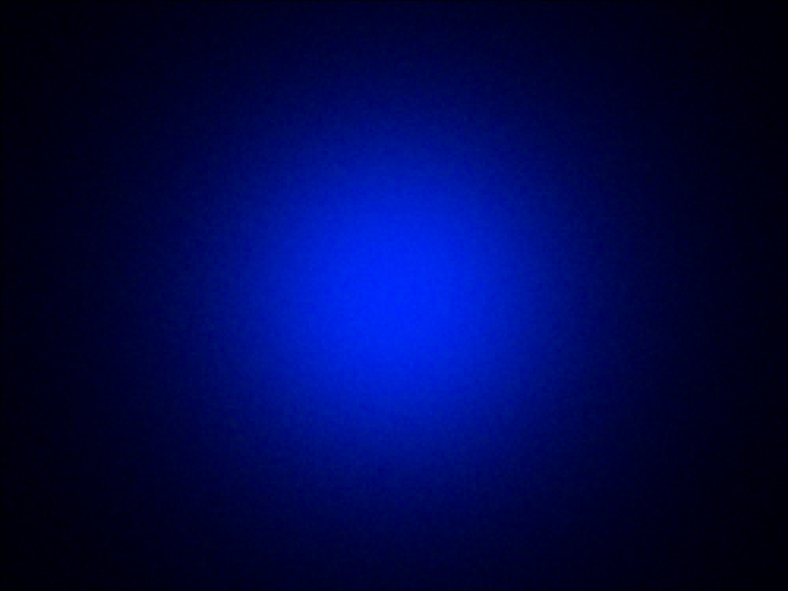

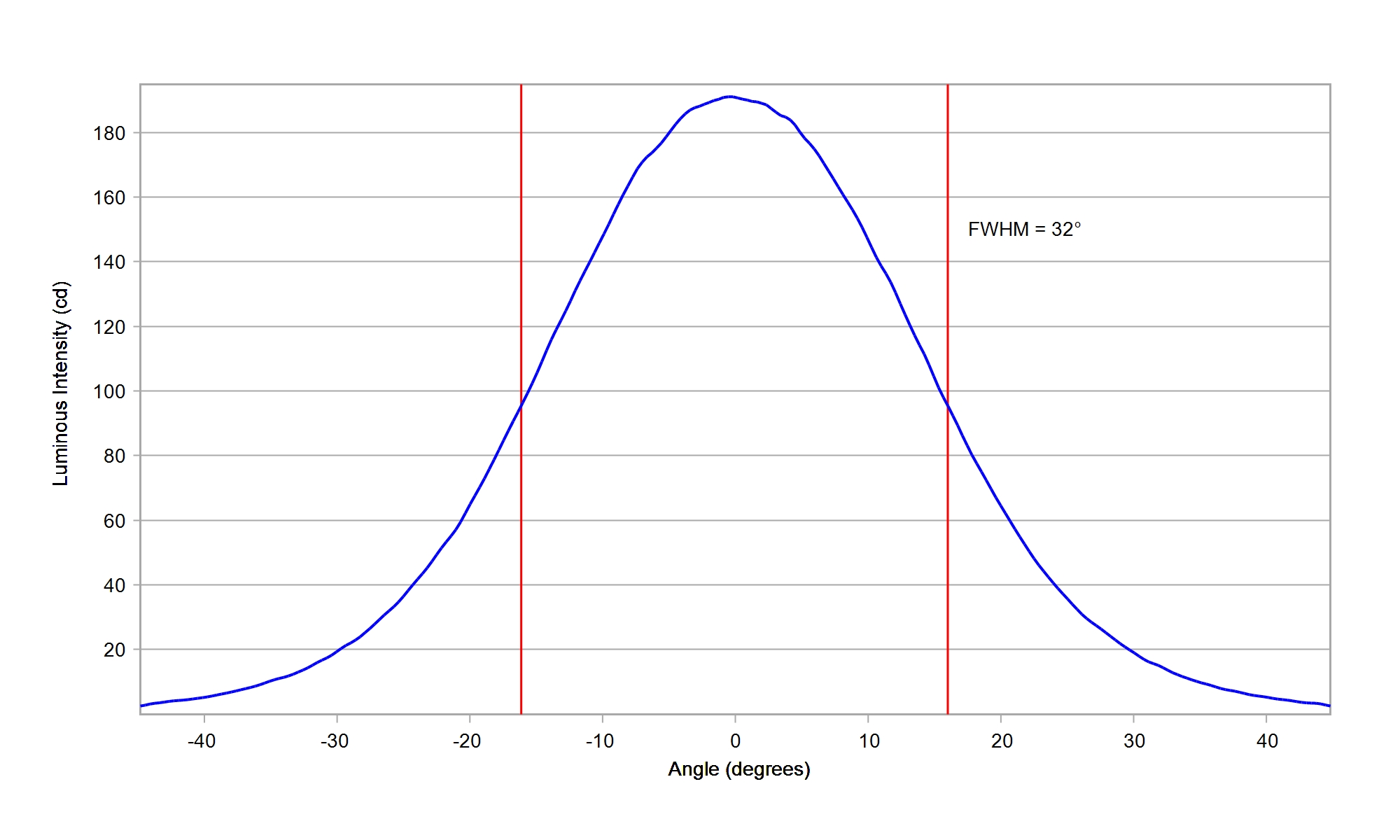

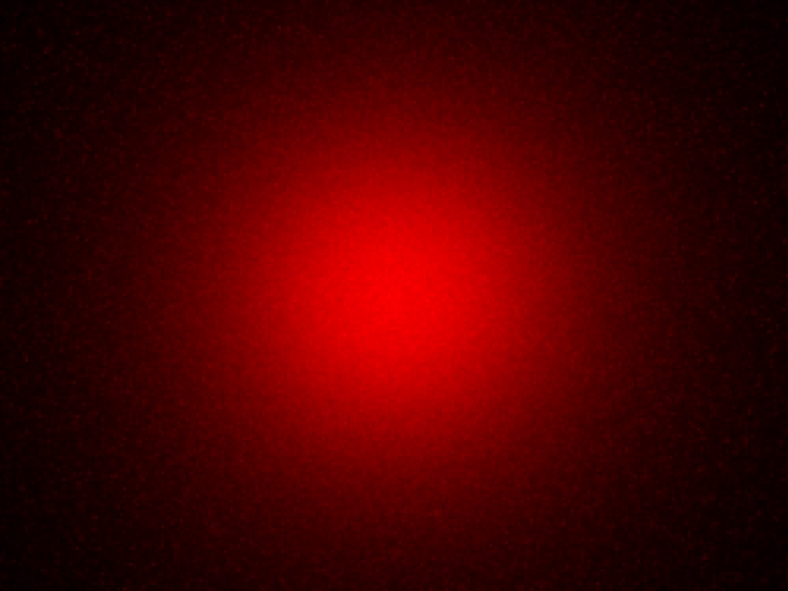

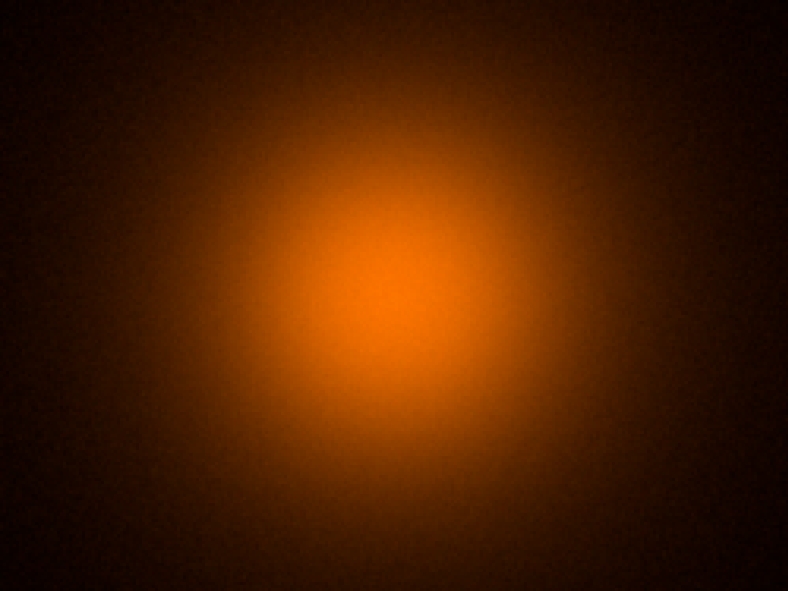

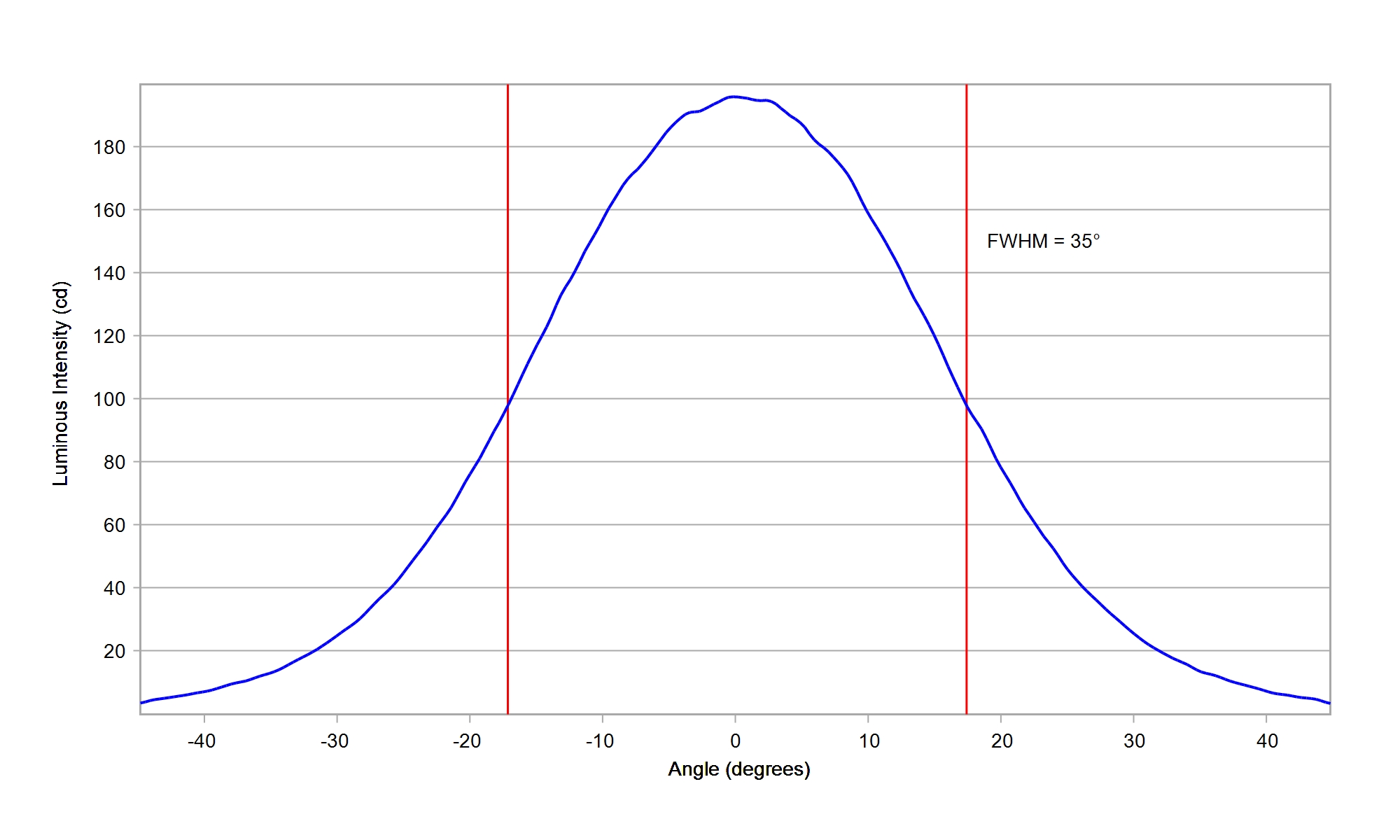

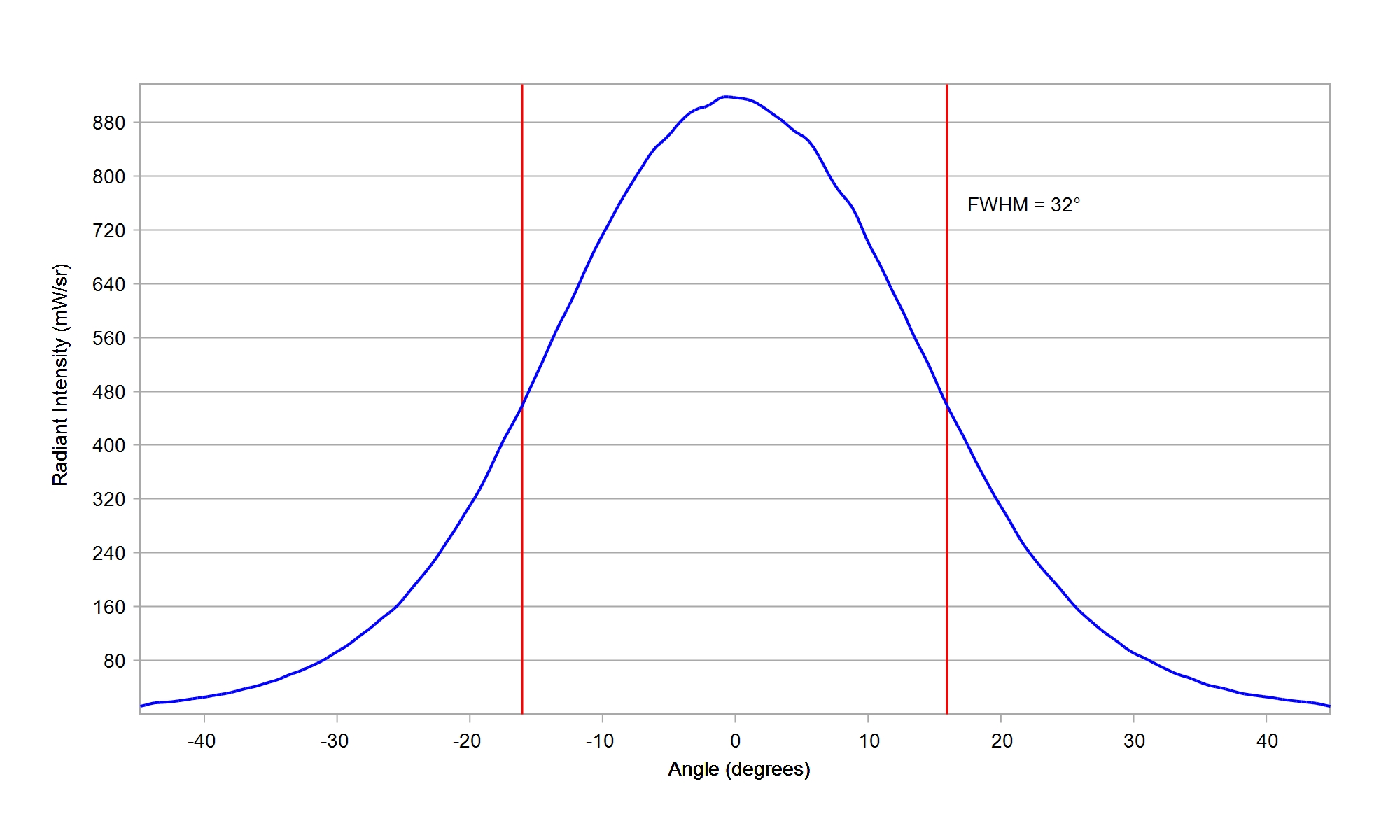

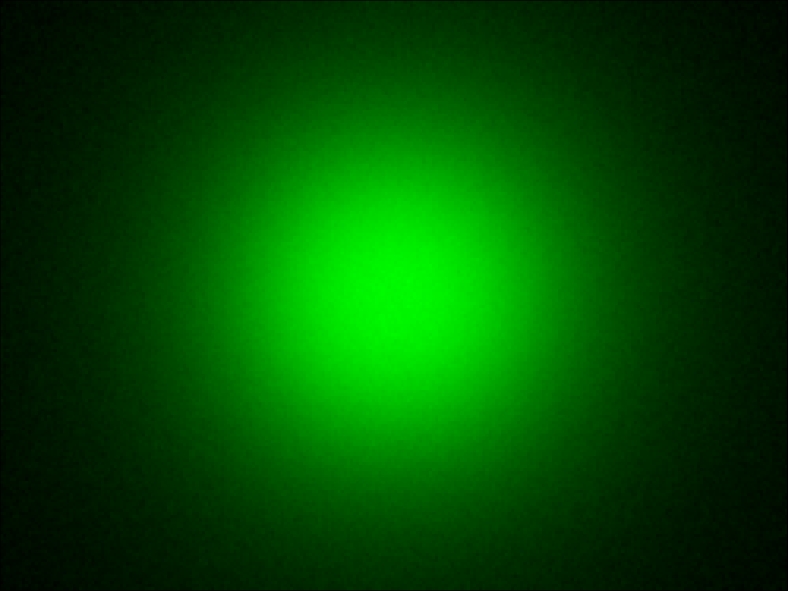

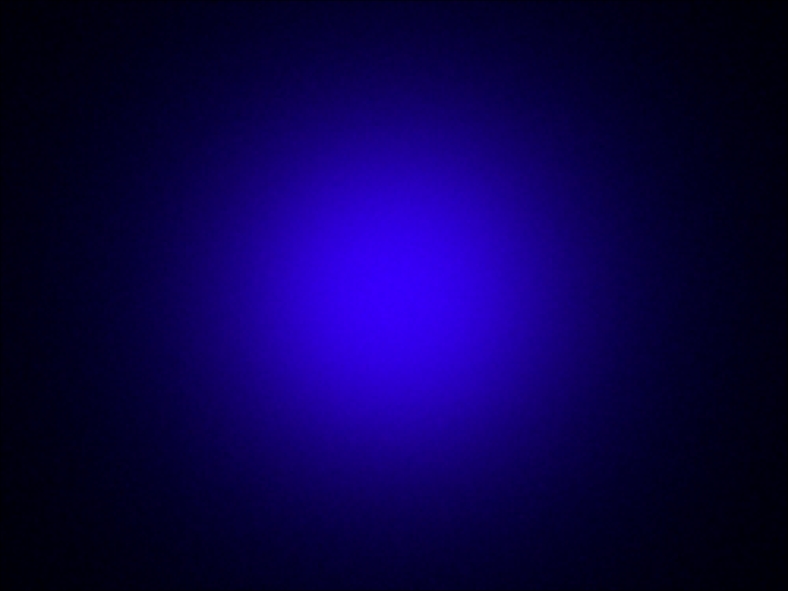

Cree XLamp XP-E2 White

Eff:

88.5%

FWHM:

30°

Cd/Im:

2.4

Download

IES

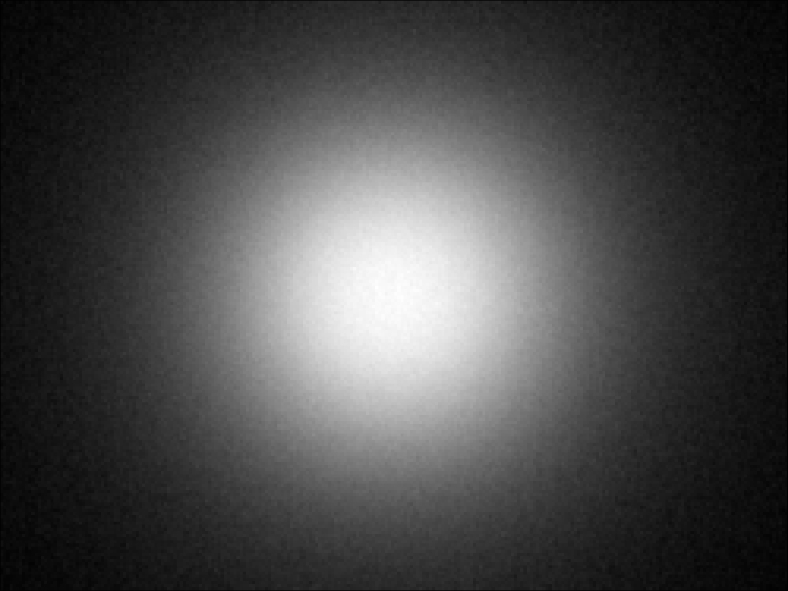

Cree XLamp XP-G3 White

Eff:

85.0%

FWHM:

36.5°

Cd/Im:

1.6

Carclo Optics - Simulated Spot Image

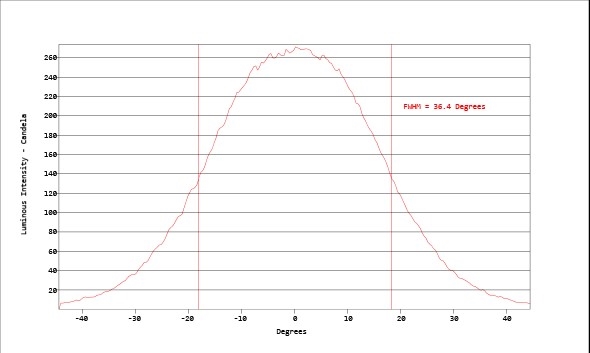

Carclo Optics - Simulated Cross Section

Download

IES

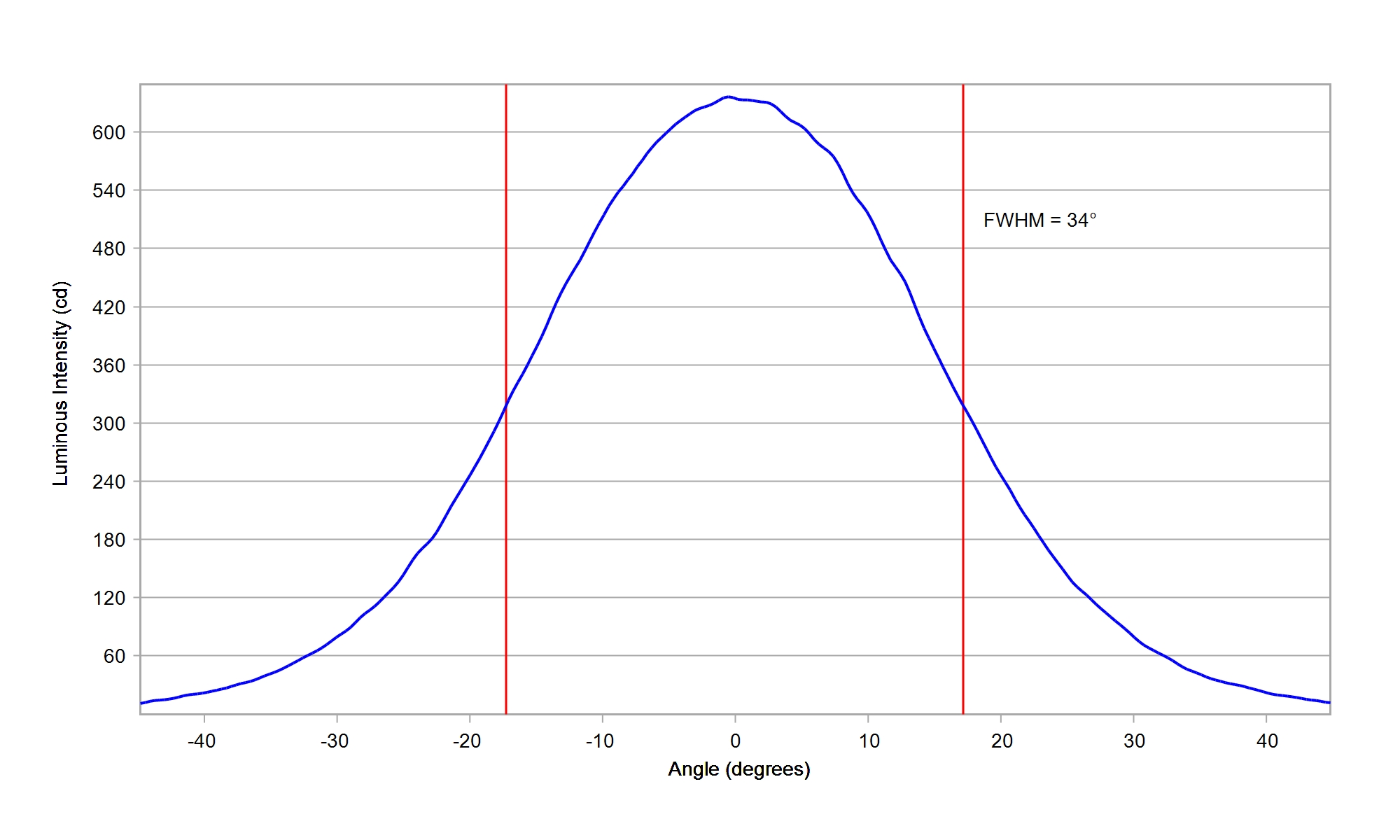

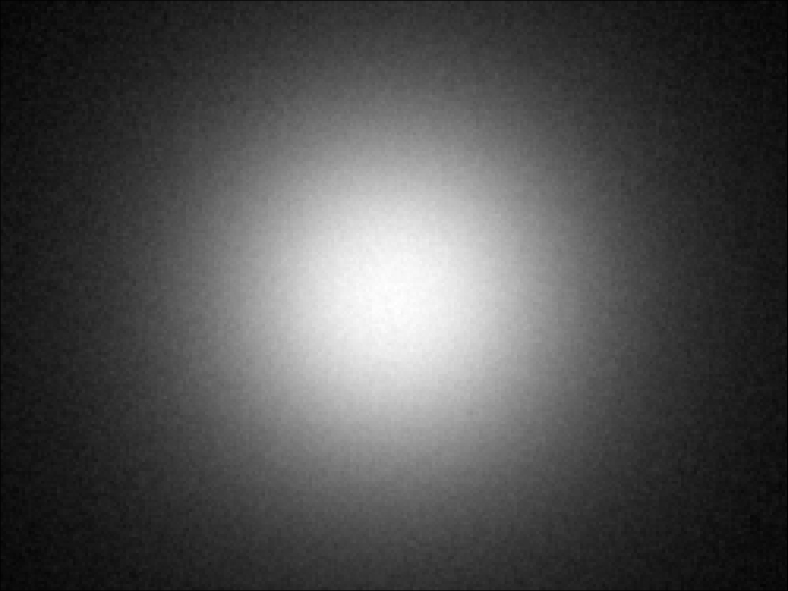

Cree XLamp XP-G4 HI White

Eff:

86.0%

FWHM:

34°

Cd/Im:

1.9

Download

Cree XLamp XP-G4 White

Eff:

87.5%

FWHM:

36°

Cd/Im:

1.9

Download

Cree XLamp XP-L HI White

Eff:

84.4%

FWHM:

36.6°

Cd/Im:

1.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

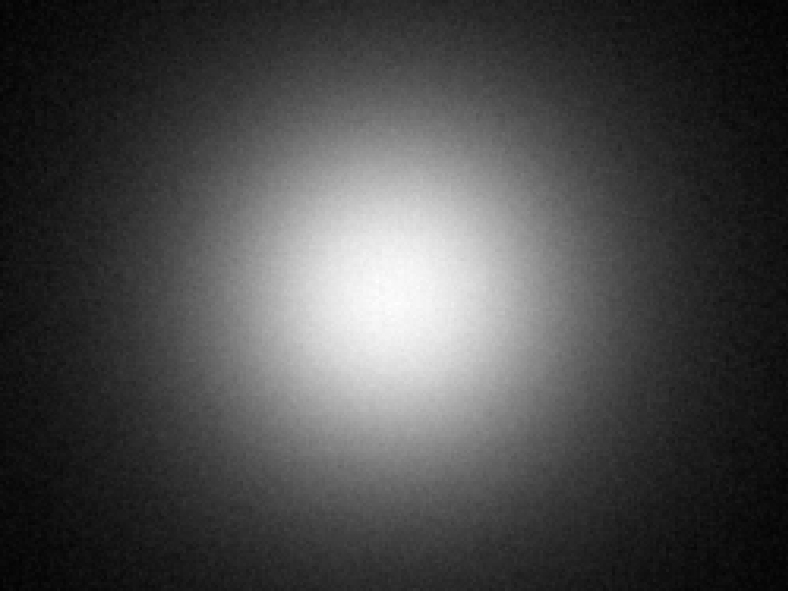

Cree XLamp XP-L White

Eff:

84.2%

FWHM:

34.2°

Cd/Im:

1.7

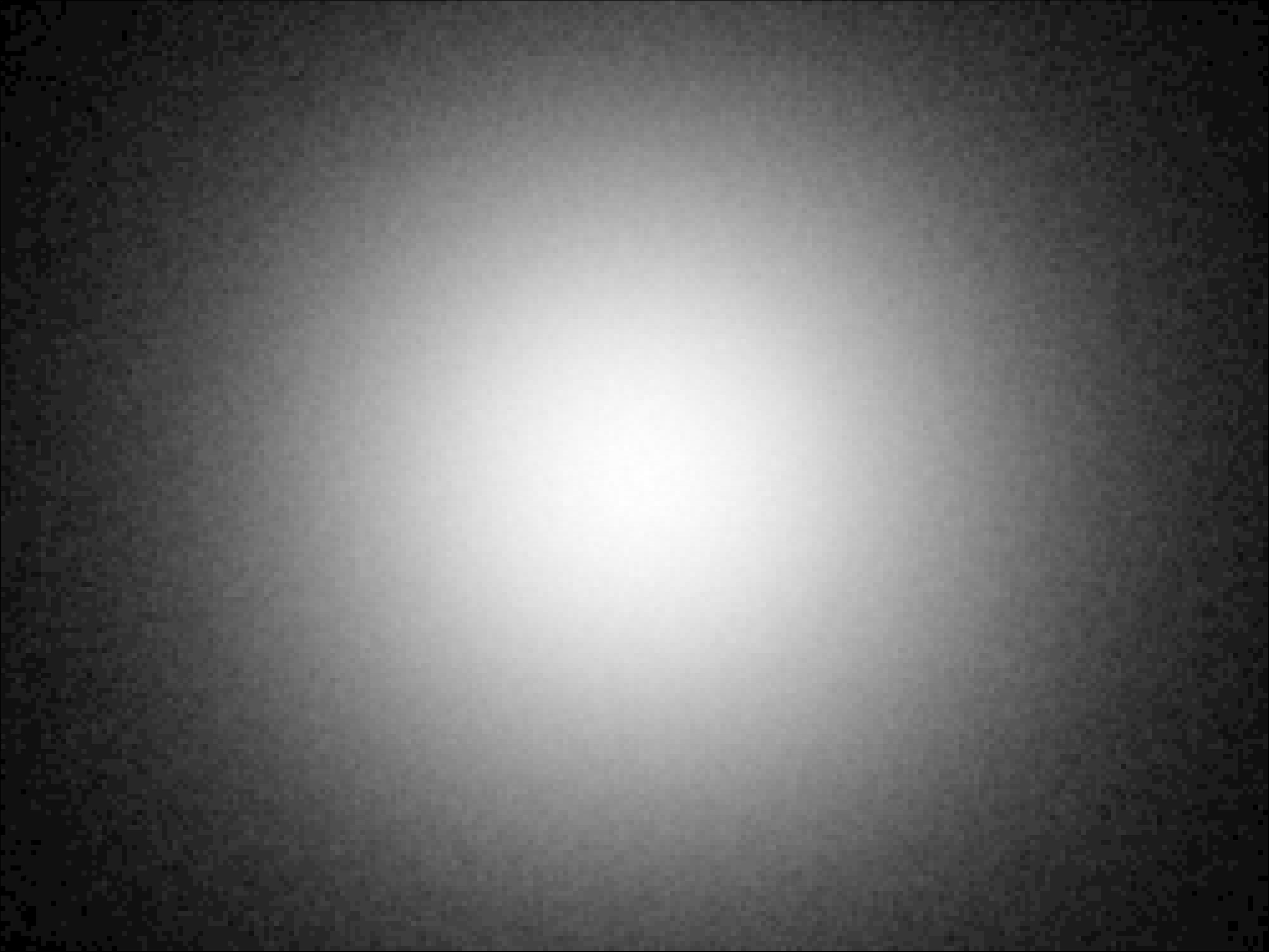

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XP-L2 White

Eff:

85.0%

FWHM:

36.0°

Cd/Im:

1.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XP-P White

Eff:

88.0%

FWHM:

32°

Cd/Im:

2.3

Carclo Optics – 10196 Cree Xlamp XP-P - Spot Image

Carclo Optics – 10196 Cree Xlamp XP-P - Cross-Section

Download

IES

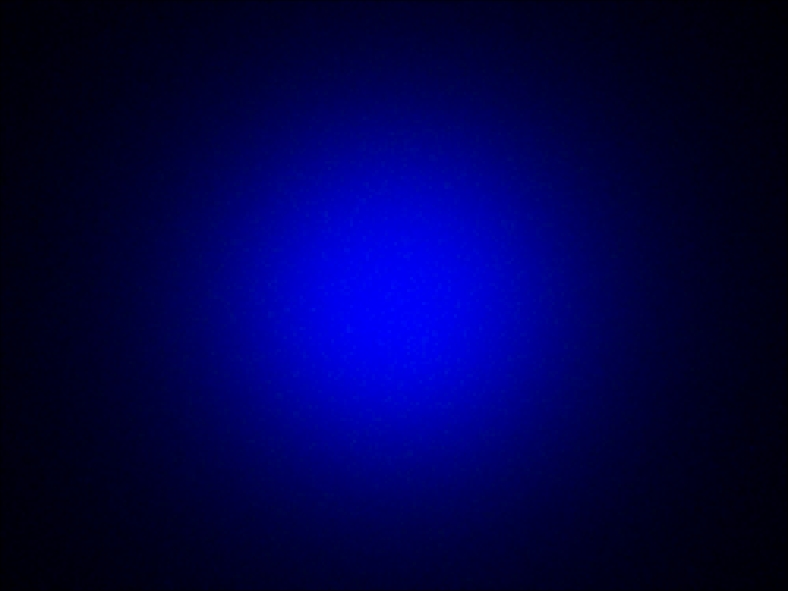

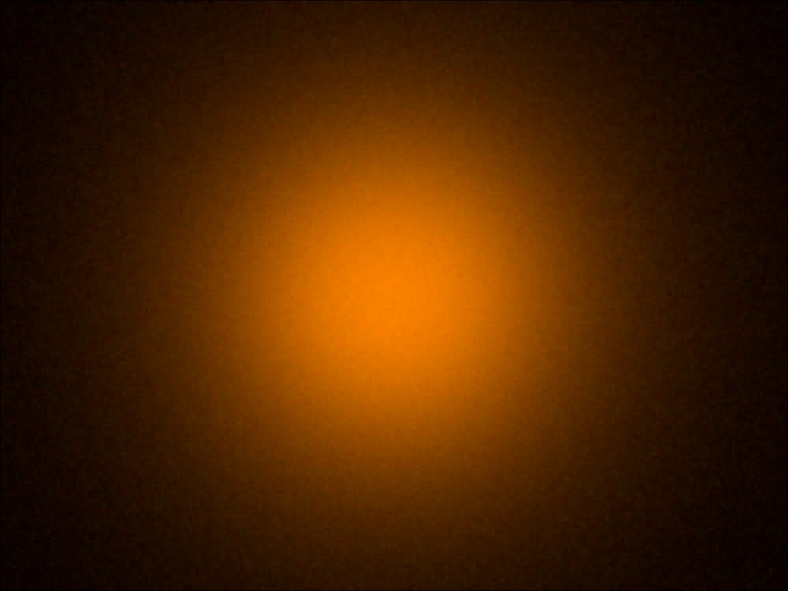

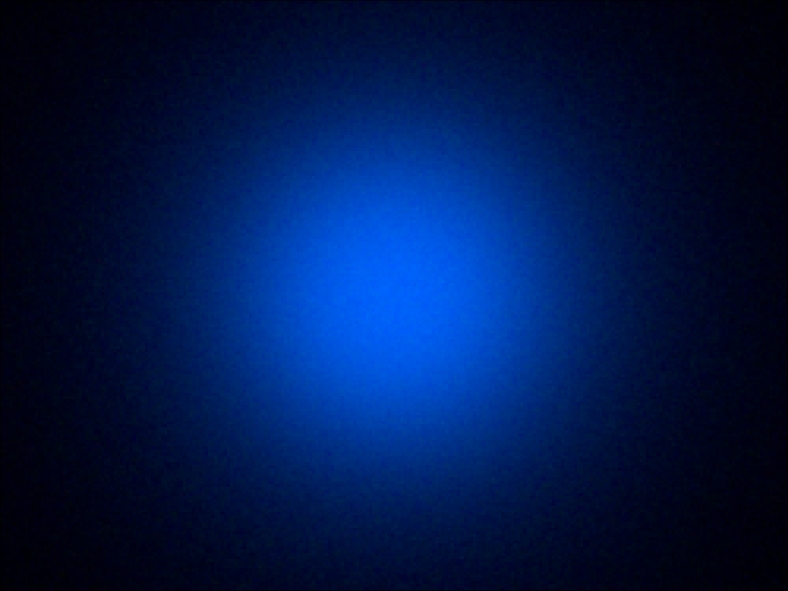

Cree XLamp XQ-A Blue

Eff:

86.5%

FWHM:

34.5°

Cd/Im:

2.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-A Green

Eff:

86.5%

FWHM:

34.0°

Cd/Im:

2.0

Carclo Optics - Simulated Spot Image

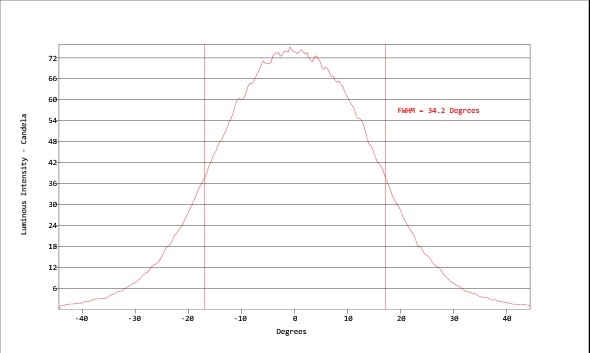

Carclo Optics - Simulated Cross Section

Download

IES

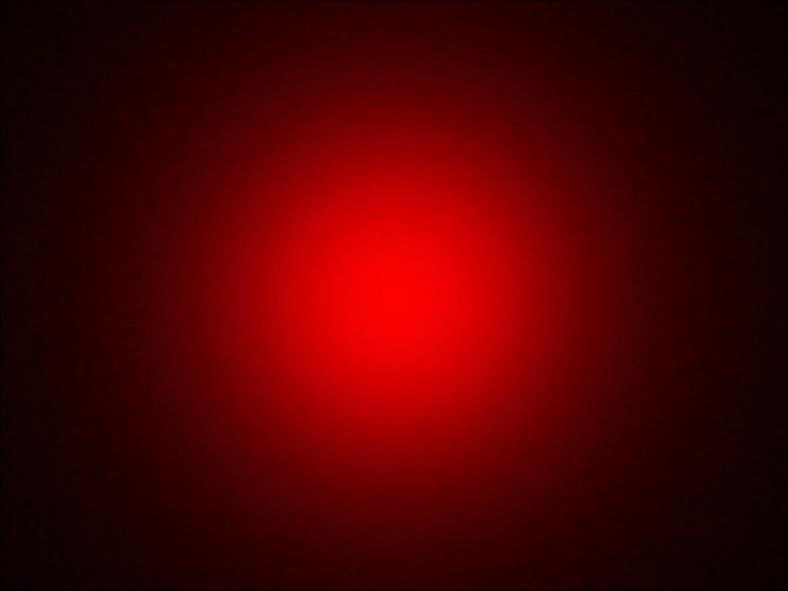

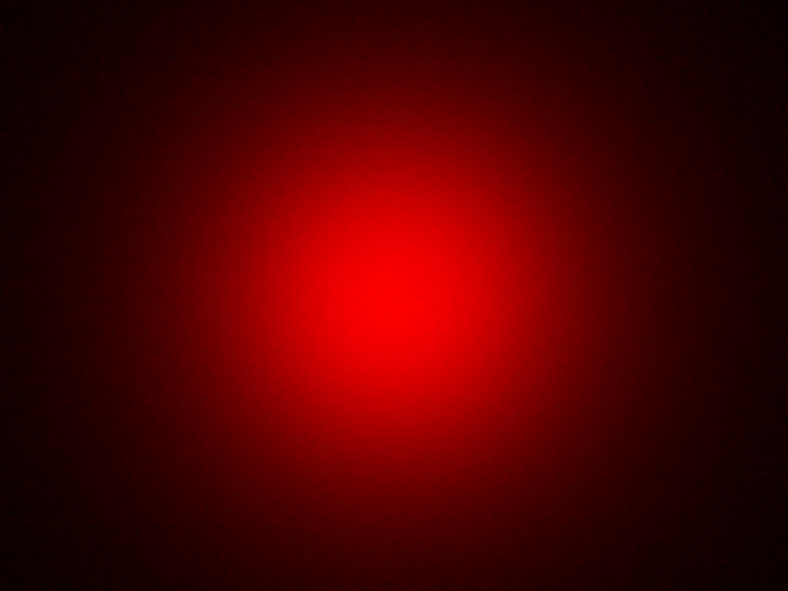

Cree XLamp XQ-A Red

Eff:

86.5%

FWHM:

33.5°

Cd/Im:

2.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

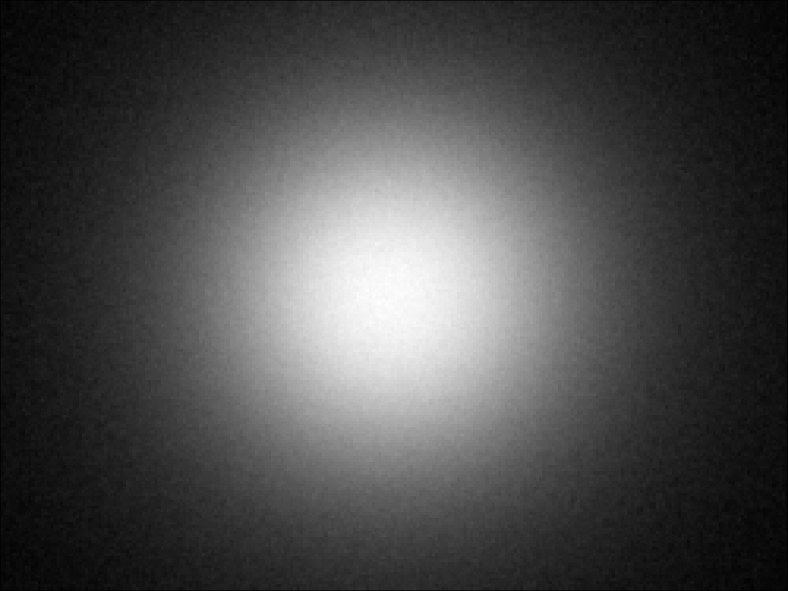

Cree XLamp XQ-A White

Eff:

85.0%

FWHM:

33.2°

Cd/Im:

2.1

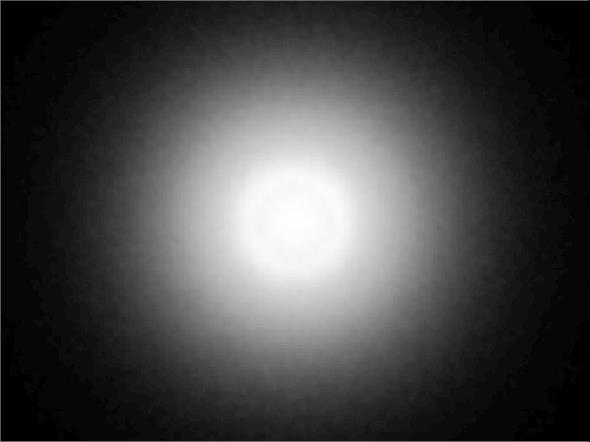

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

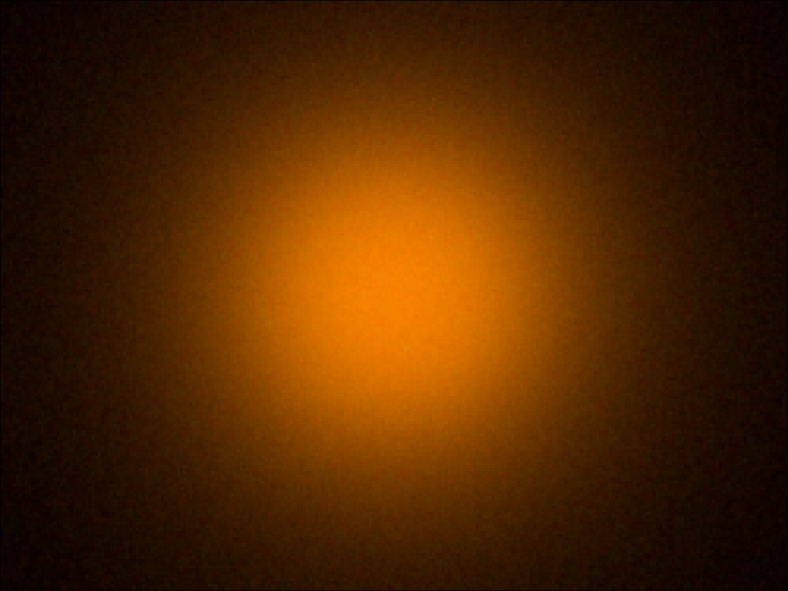

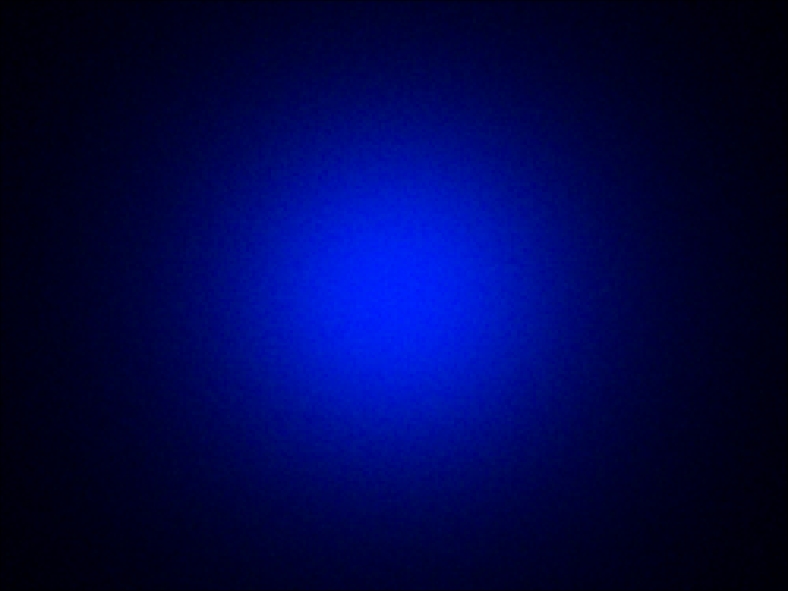

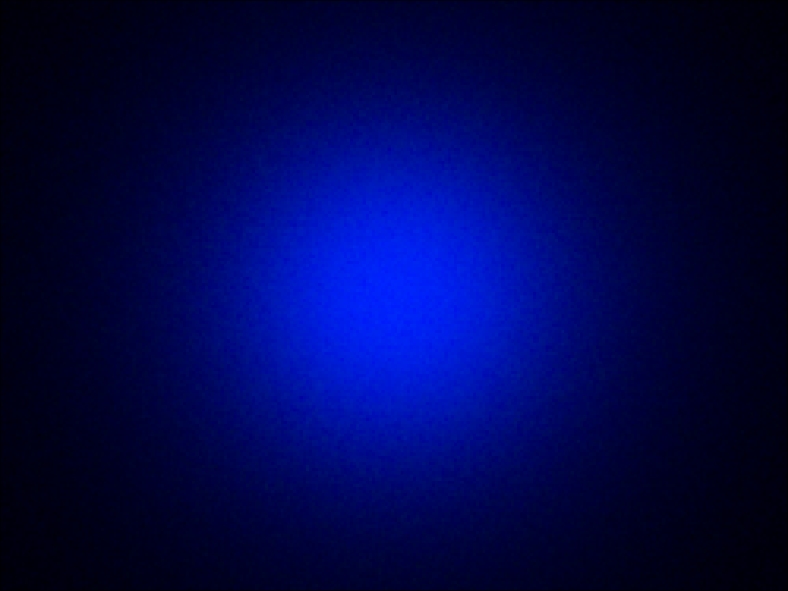

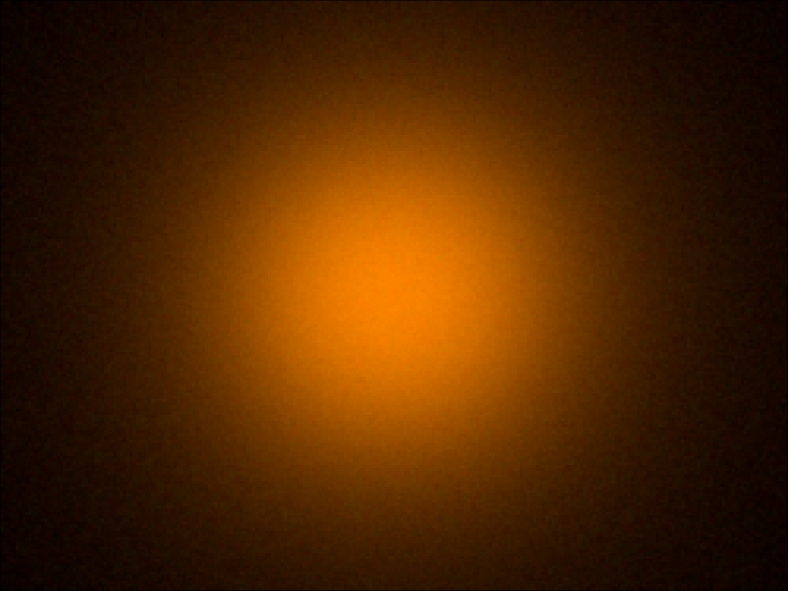

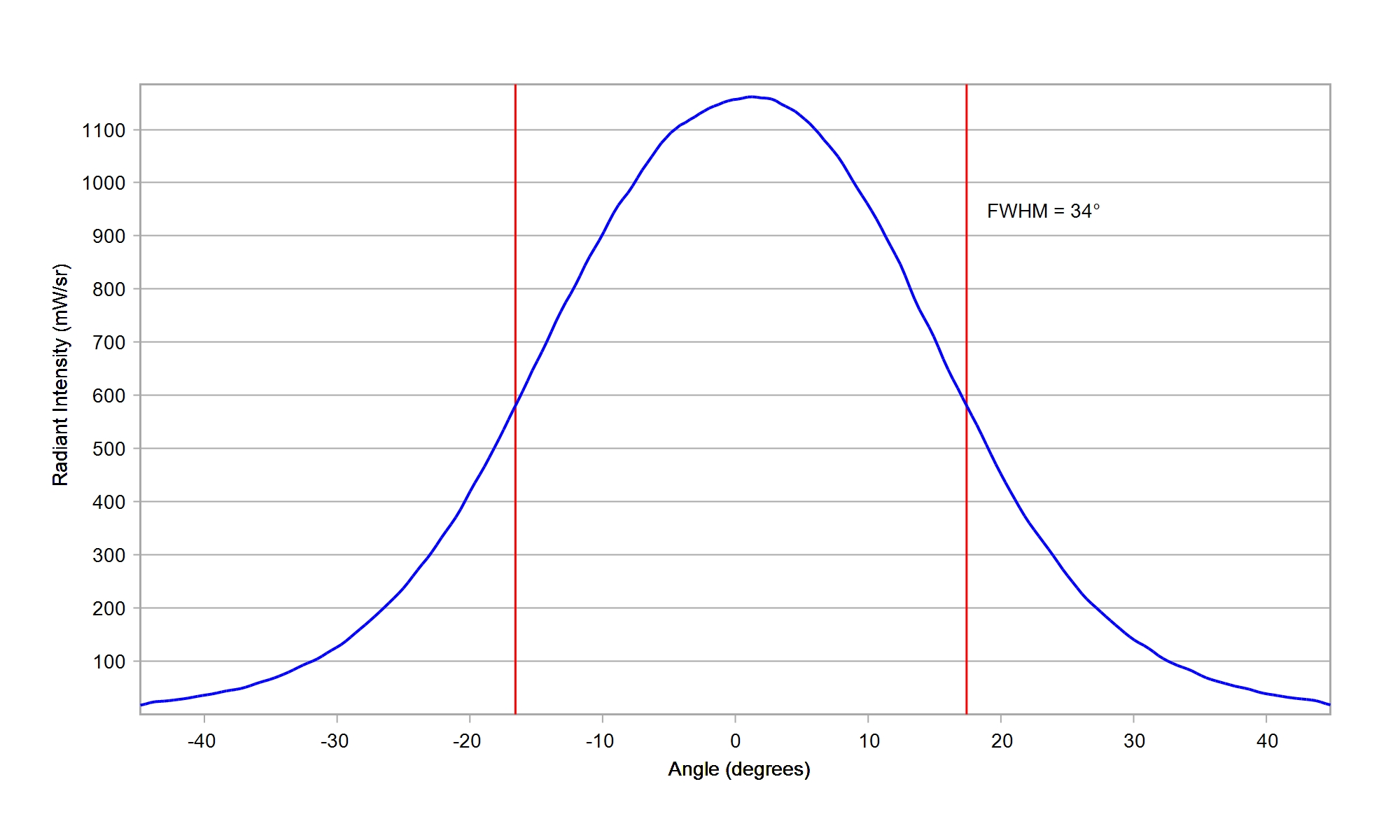

Cree XLamp XQ-E HI Blue

Eff:

85.0%

FWHM:

34.0°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

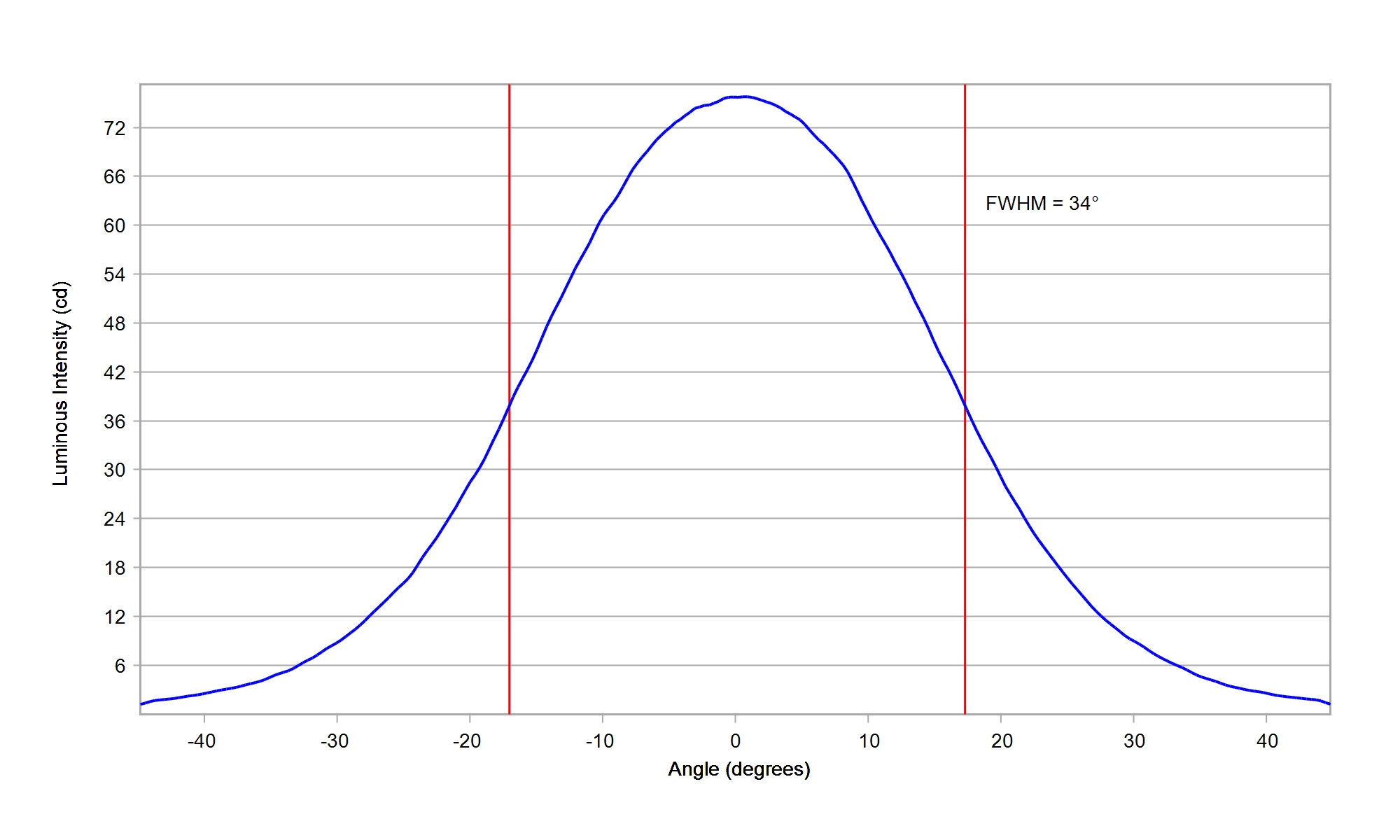

Carclo Optics - Simulated Cross Section

Download

IES

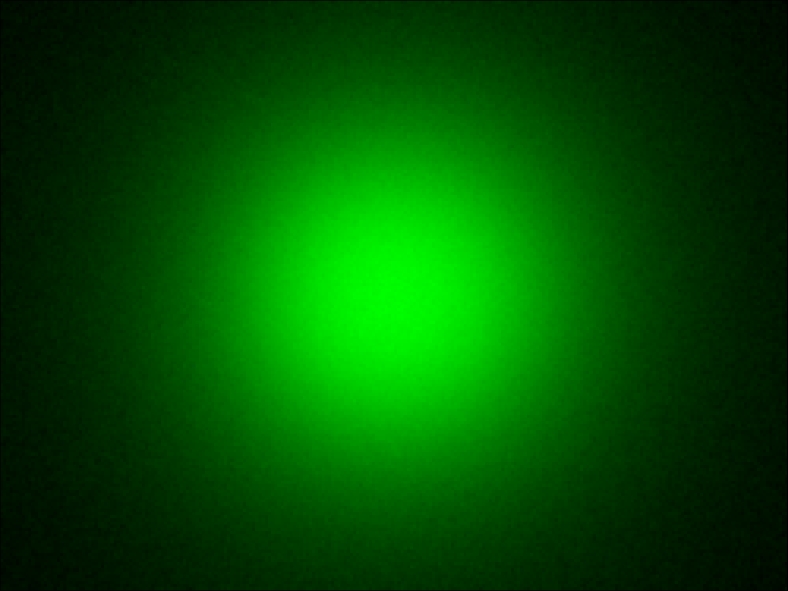

Cree XLamp XQ-E HI Green

Eff:

85.0%

FWHM:

34.5°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Red

Eff:

85.0%

FWHM:

35.0°

Cd/Im:

1.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

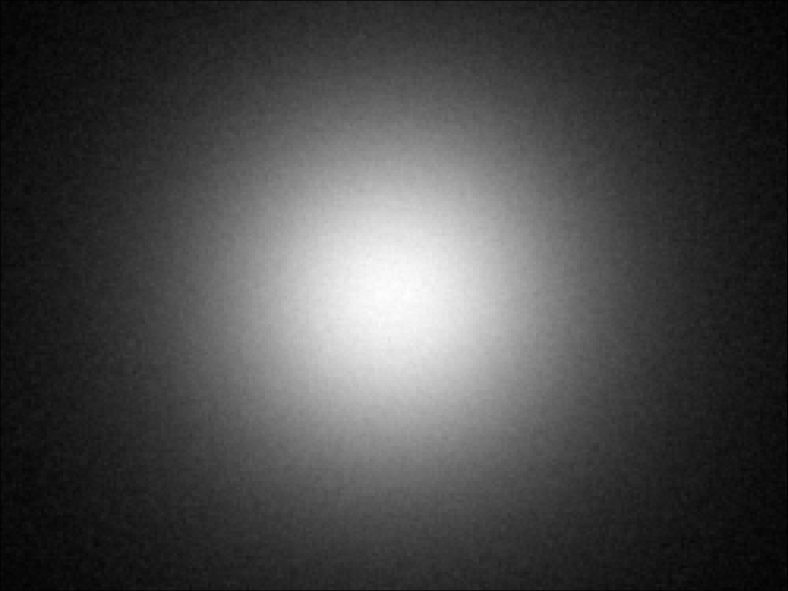

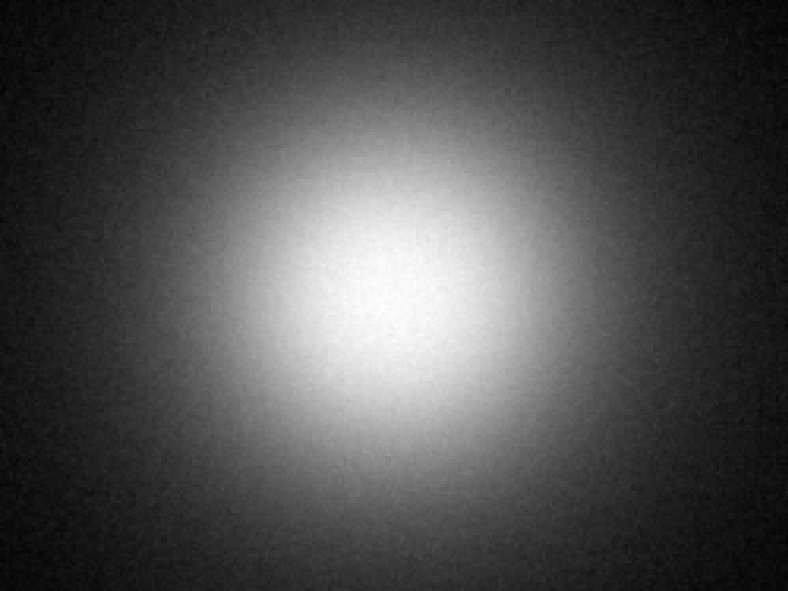

Cree XLamp XQ-E HI White

Eff:

85.0%

FWHM:

35°

Cd/Im:

1.8

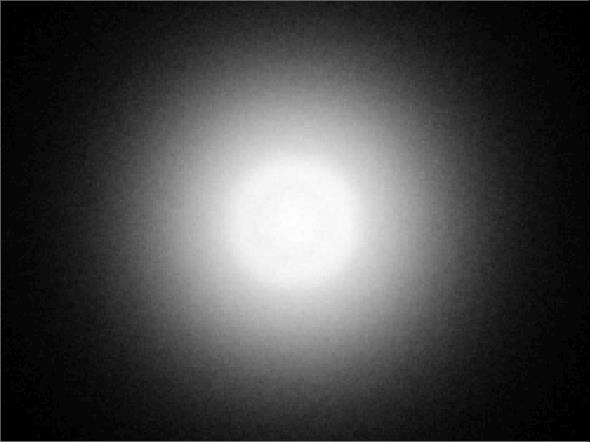

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

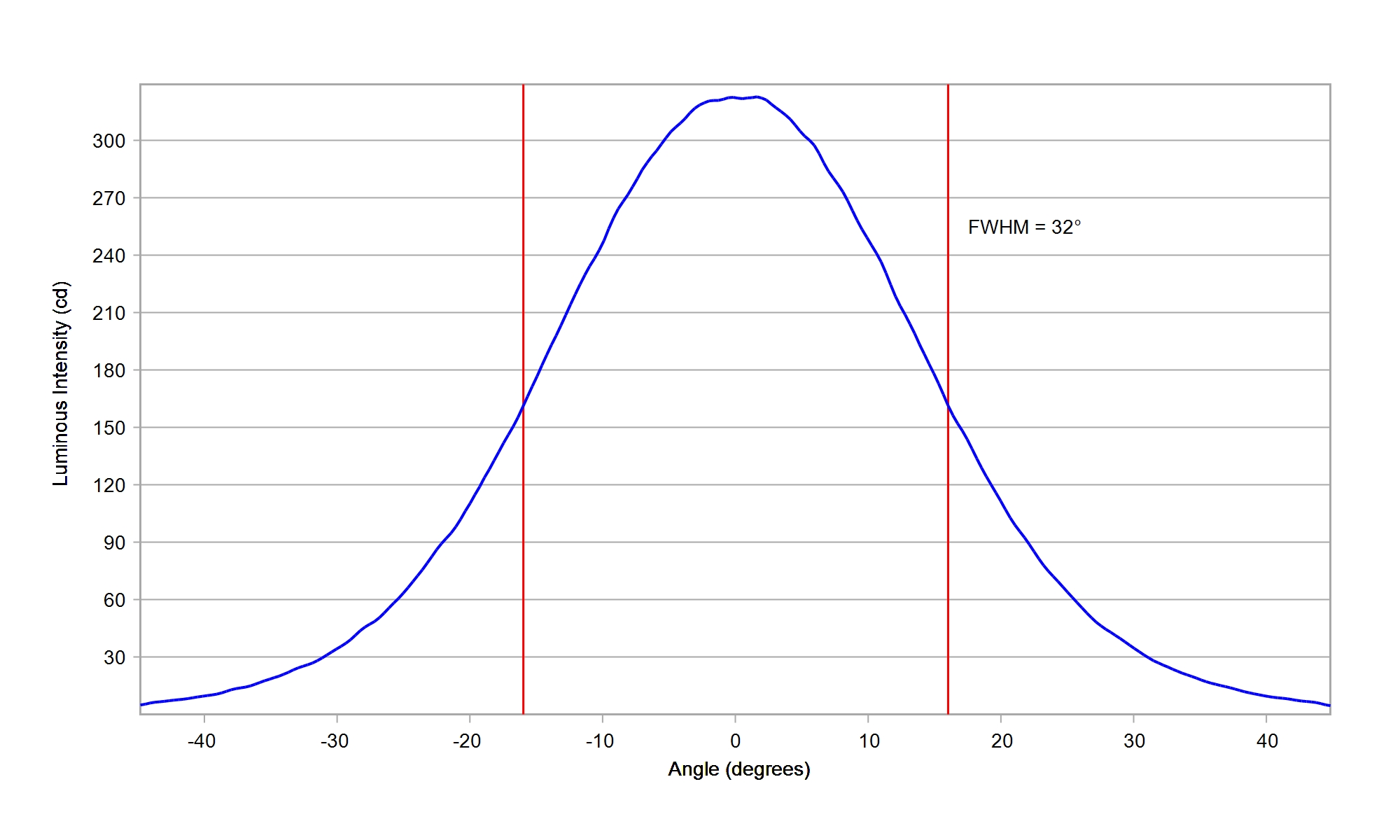

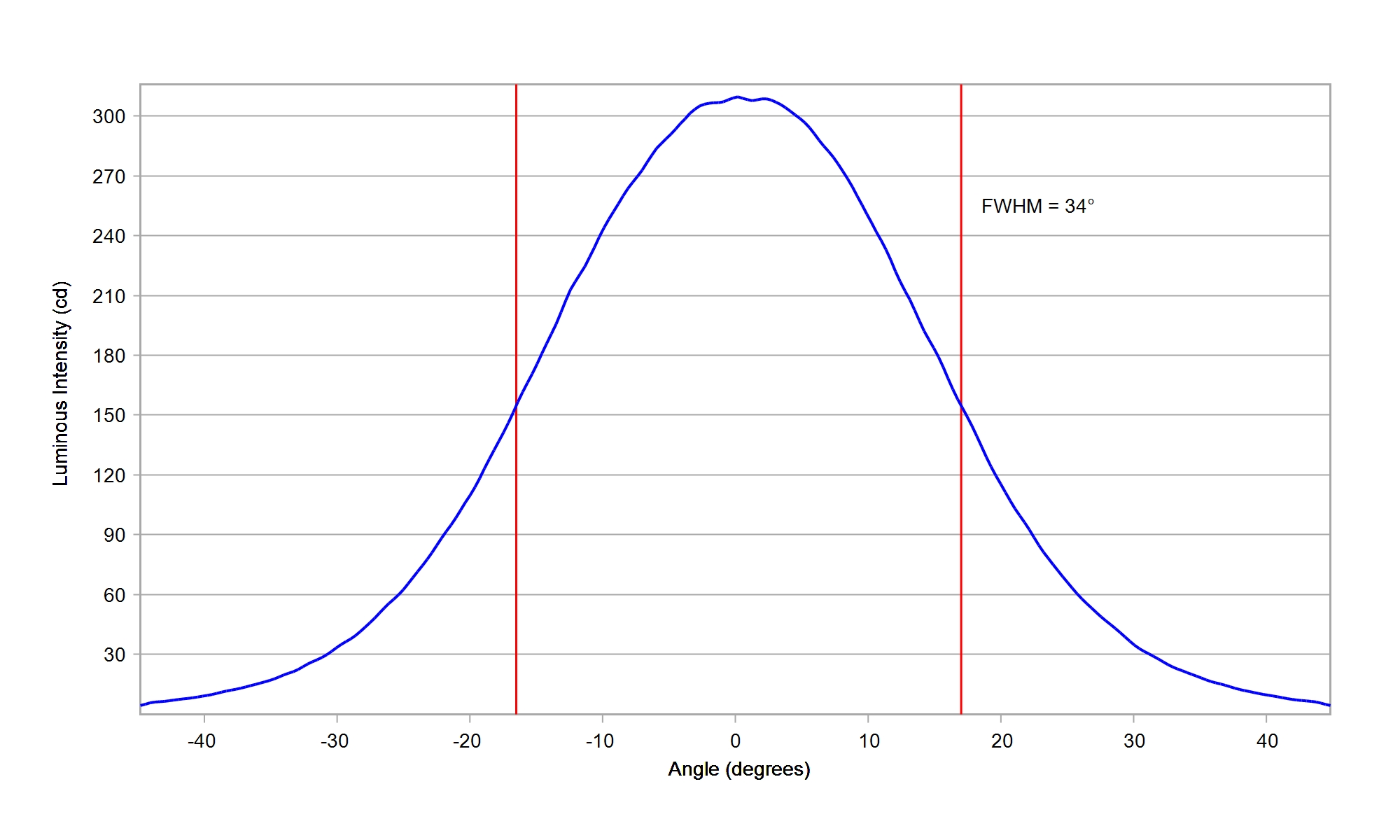

Cree XLamp XT-E HE White

Eff:

86.5%

FWHM:

35.5°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LG Innotek 3535LG White

FWHM:

35.4°

Cd/Im:

2.4

Download

ies

Lite-On R38386AS - S R38 IR

Eff:

89.5%

FWHM:

38.0°

Ipk/W:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 2835C 6V White

Eff:

87.5%

FWHM:

34°

Cd/Im:

2.0

Download

LUMILEDS LUXEON 2835E 9V White

Eff:

87.0%

FWHM:

36°

Cd/Im:

1.8

Download

LUMILEDS LUXEON 2835N 3V White

Eff:

86.5%

FWHM:

37°

Cd/Im:

1.8

Download

LUMILEDS LUXEON 2835S 3V White

Eff:

87.5%

FWHM:

34°

Cd/Im:

2.0

Download

LUMILEDS LUXEON 2835S 6V White

Eff:

87.5%

FWHM:

34°

Cd/Im:

2.0

Download

LUMILEDS LUXEON 3014 White

Eff:

87.0%

FWHM:

35°

Cd/Im:

2.0

Download

IES

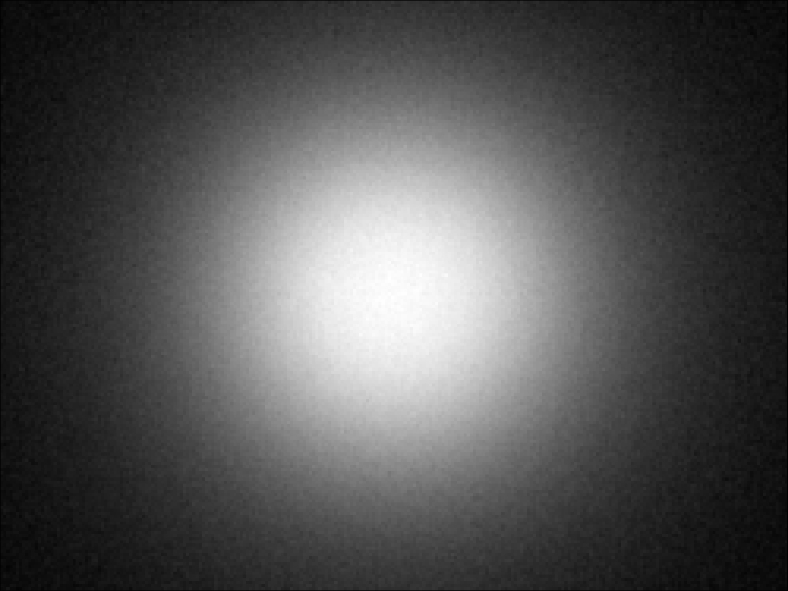

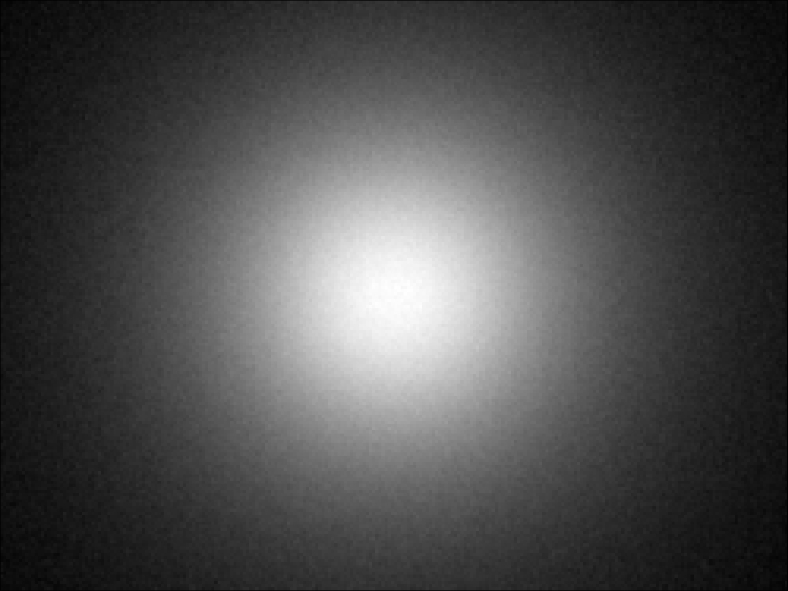

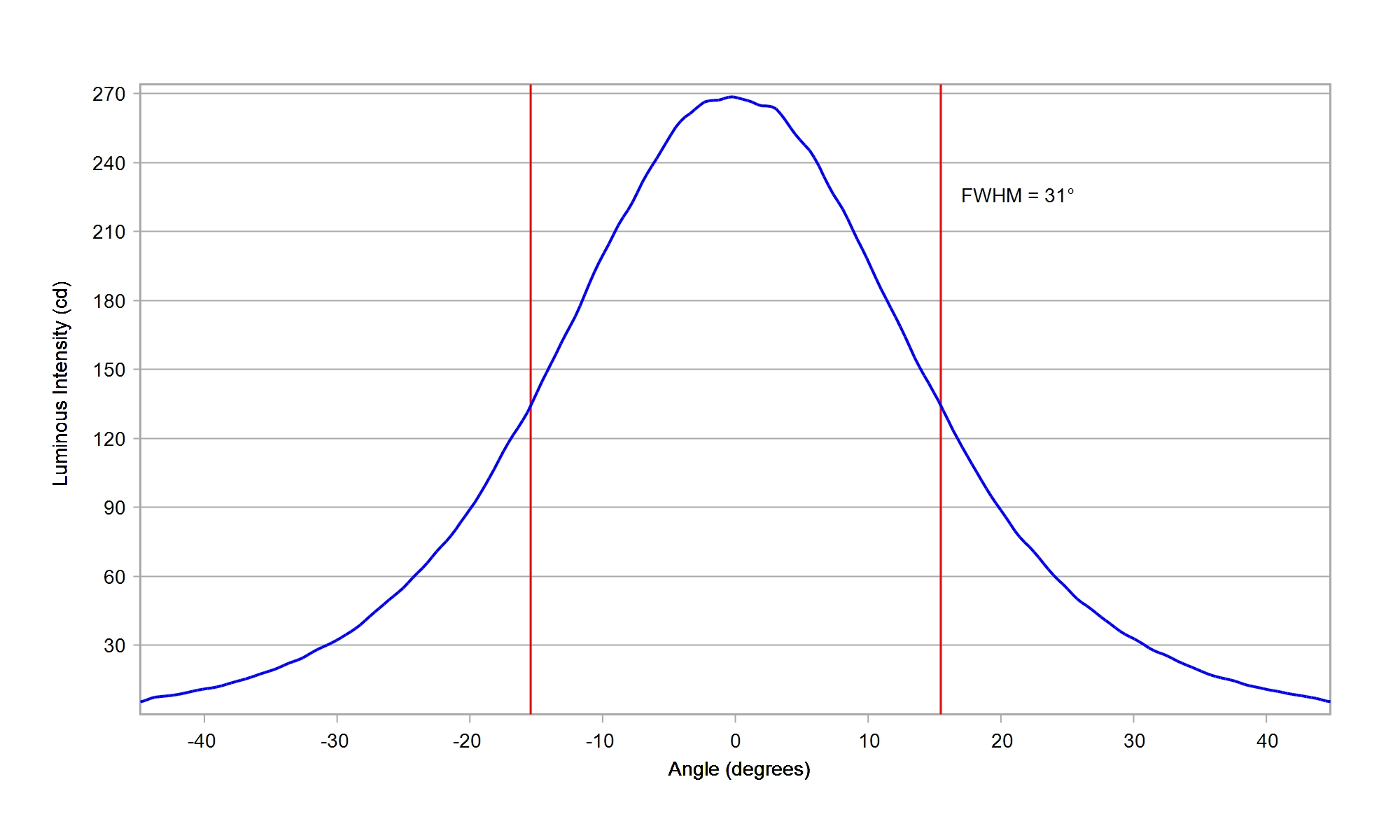

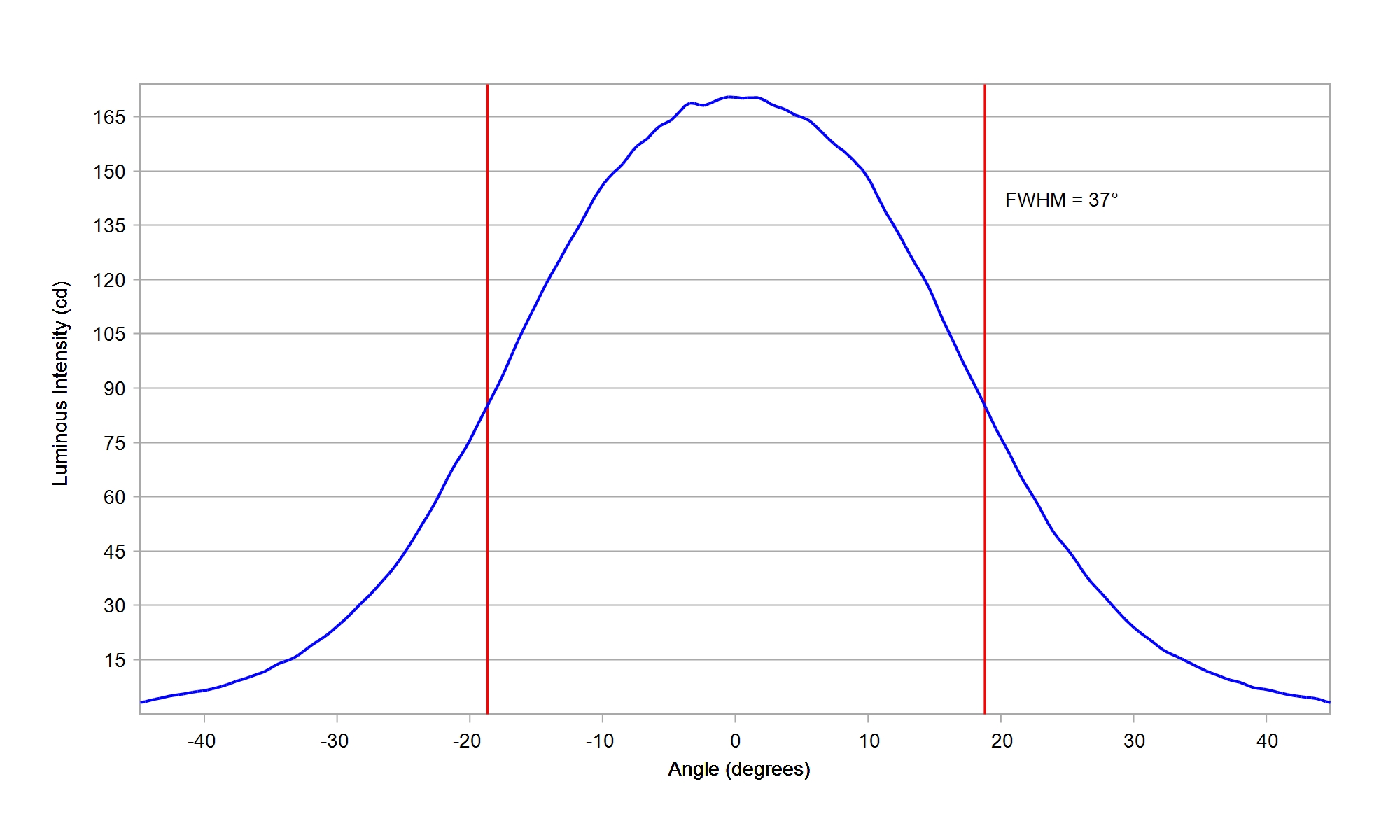

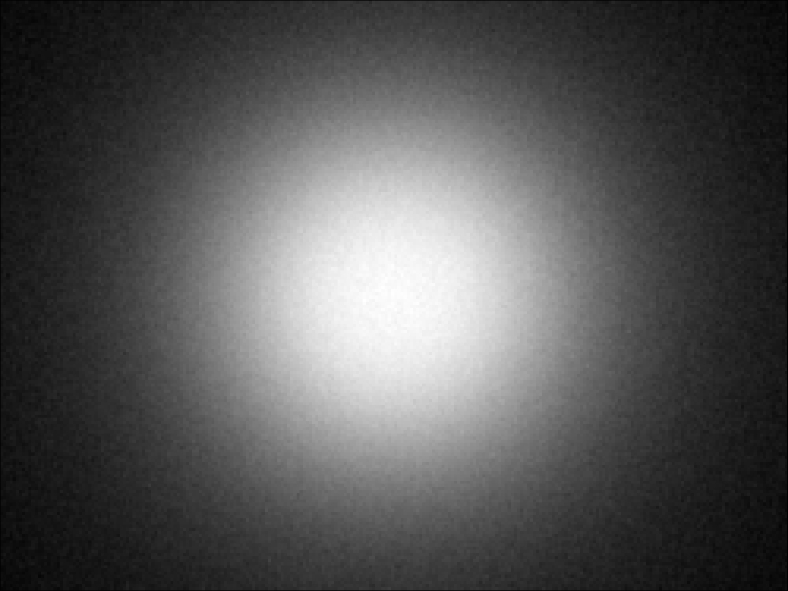

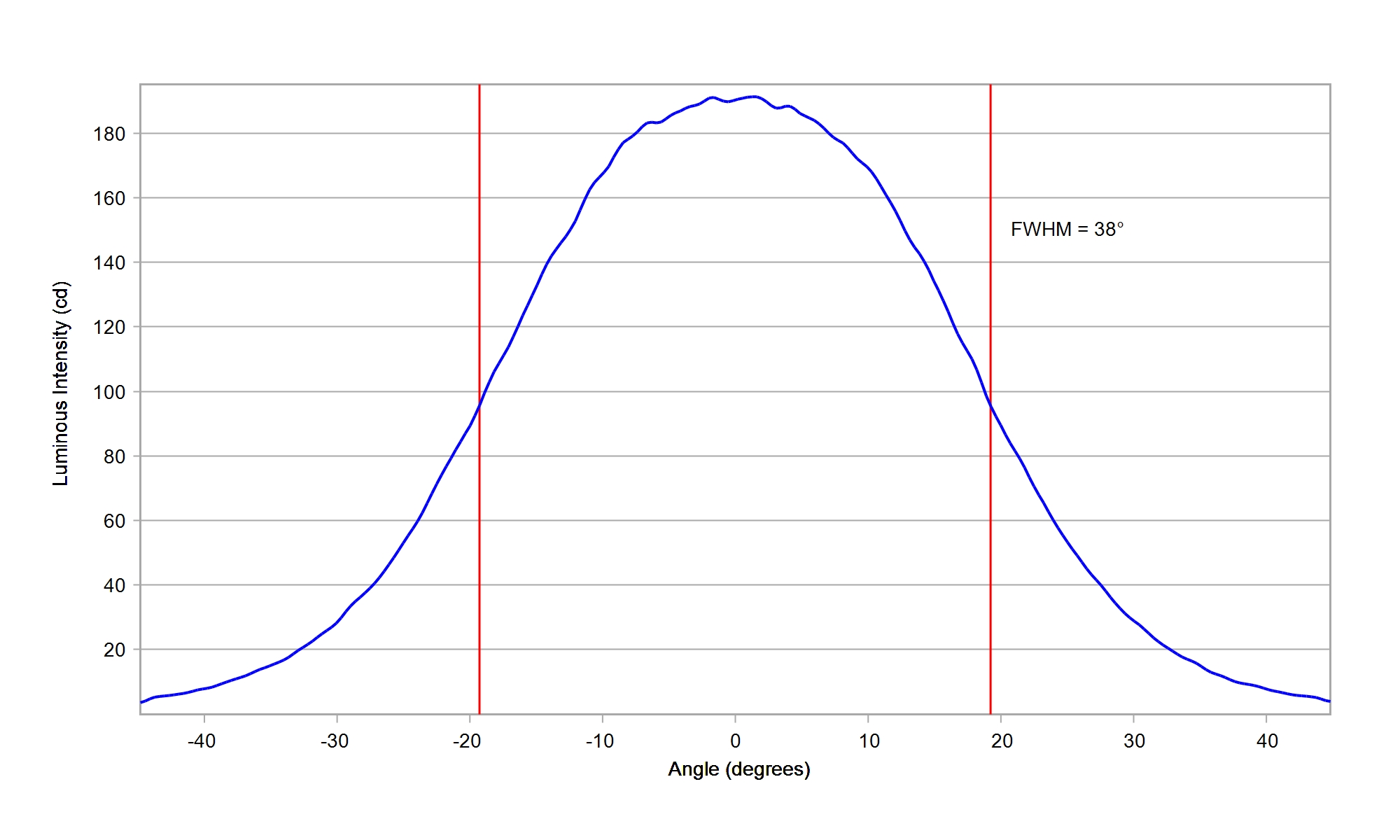

LUMILEDS LUXEON 3030 2D White

Eff:

87.0%

FWHM:

36°

Cd/Im:

1.9

Download

LUMILEDS LUXEON 3030 HE Plus White

Eff:

87.0%

FWHM:

35°

Cd/Im:

1.9

Carclo Optics – 10196 – Luxeon_3030_HE_Plus_spot-image

Carclo Optics – 10196 – Luxeon_3030_HE_Plus_cross vertical section

Download

IES

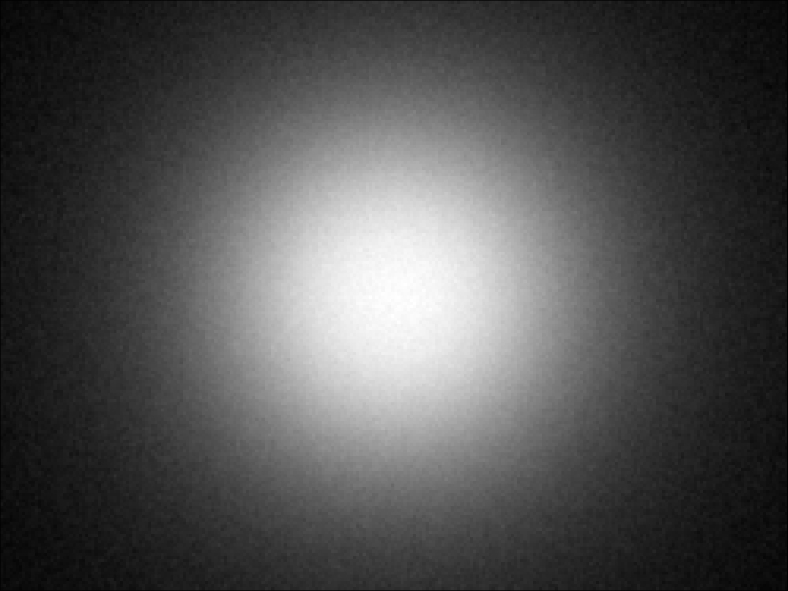

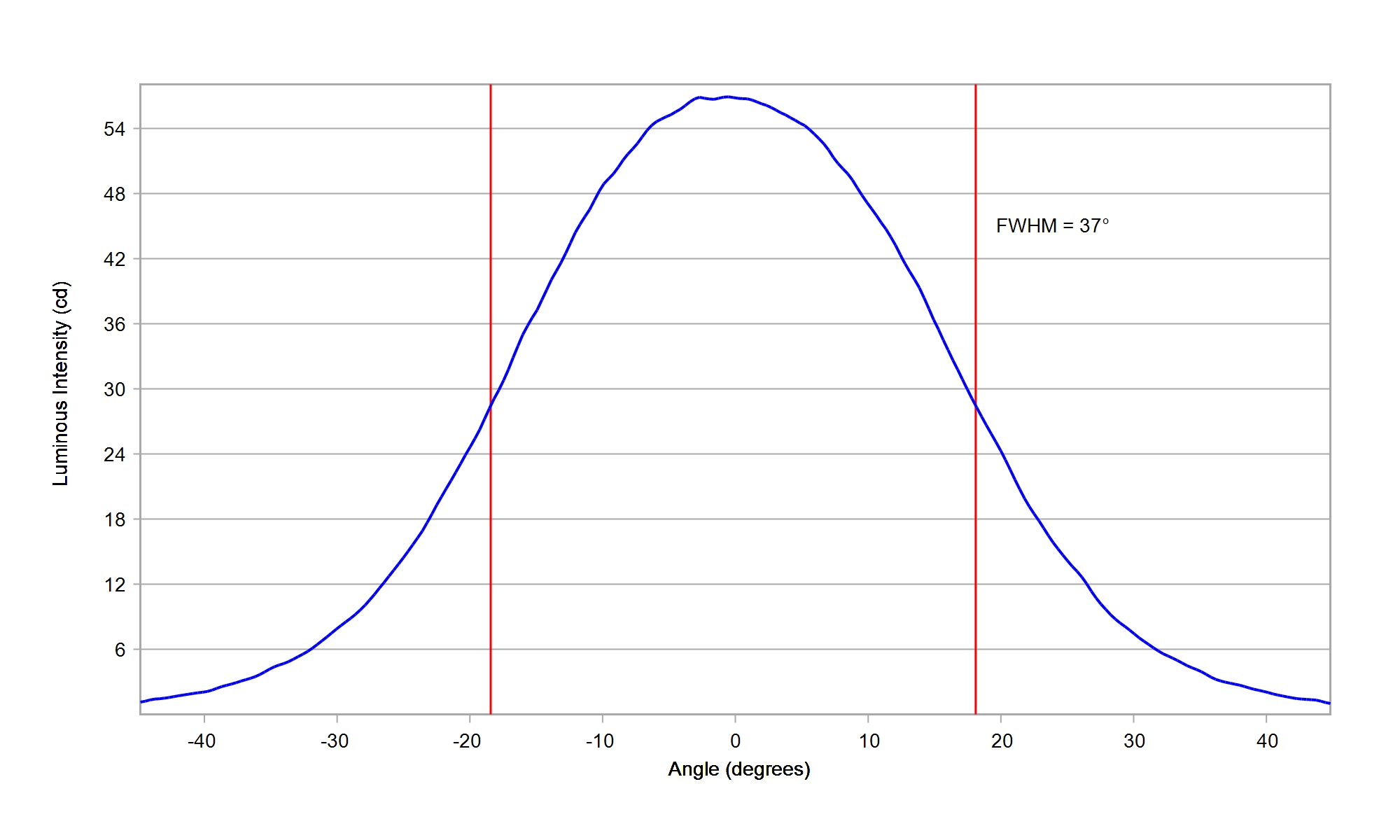

LUMILEDS LUXEON 3030 HE White

Eff:

86.5%

FWHM:

37°

Cd/Im:

1.8

Download

LUMILEDS LUXEON 3535 HV White

Eff:

84.3%

FWHM:

34.5°

Cd/Im:

1.9

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON 3535 L White

Eff:

84.3%

FWHM:

36.5°

Cd/Im:

1.7

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON 3535L Blue

Eff:

87.0%

FWHM:

32.0°

Cd/Im:

2.2

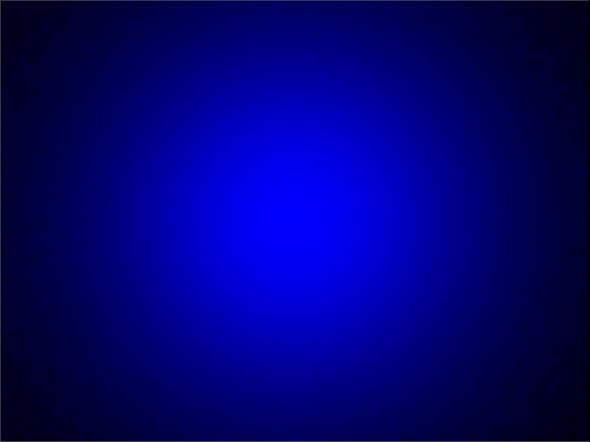

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 3535L Green

Eff:

87.0%

FWHM:

32°

Cd/Im:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 3535L Red

Eff:

87.5%

FWHM:

31.0°

Cd/Im:

2.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

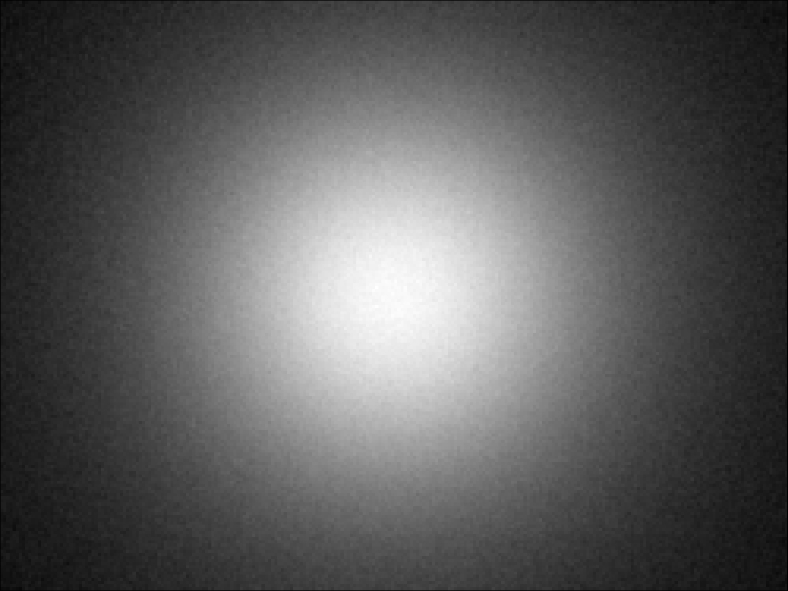

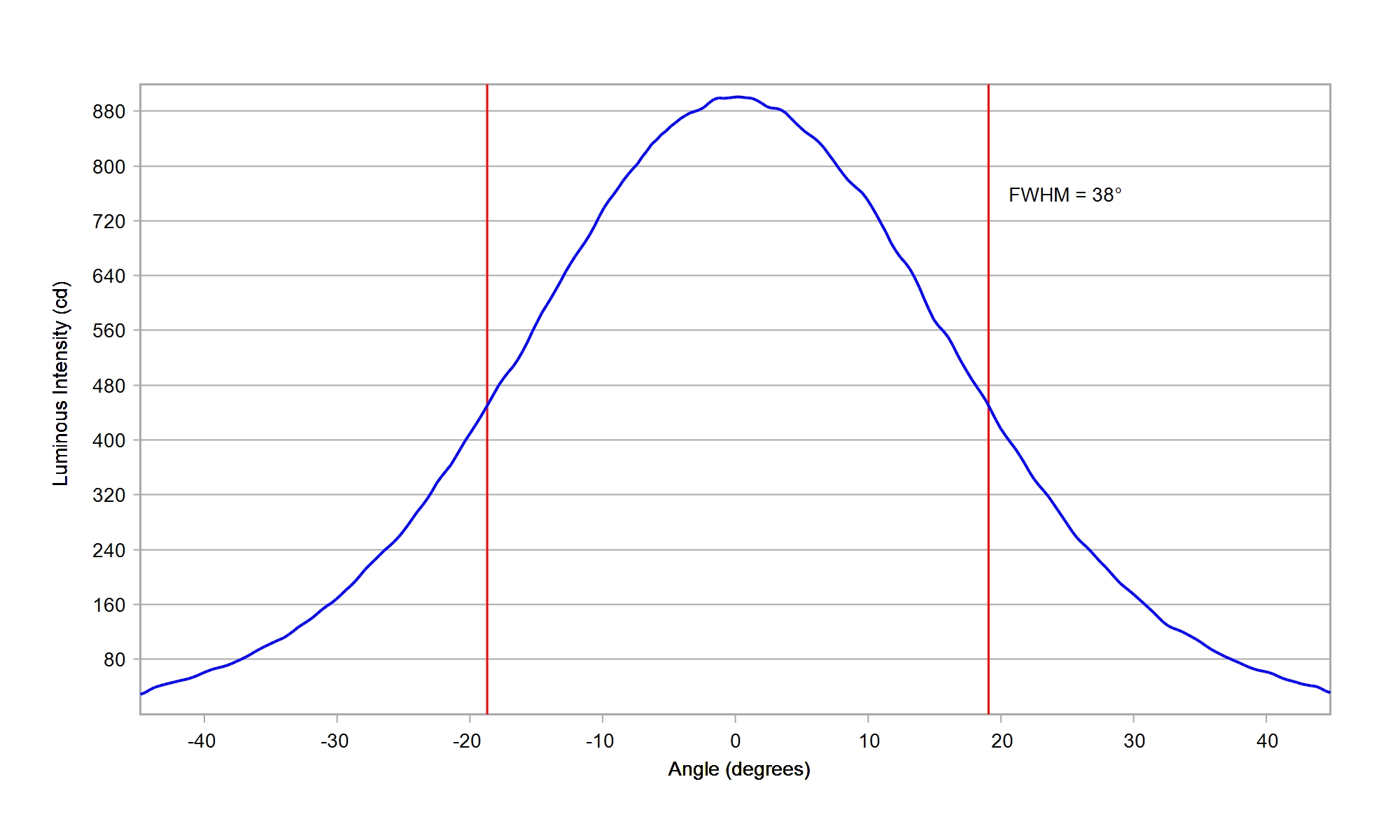

LUMILEDS LUXEON 5050 HE 24V White

Eff:

86.5%

FWHM:

38°

Cd/Im:

1.6

Download

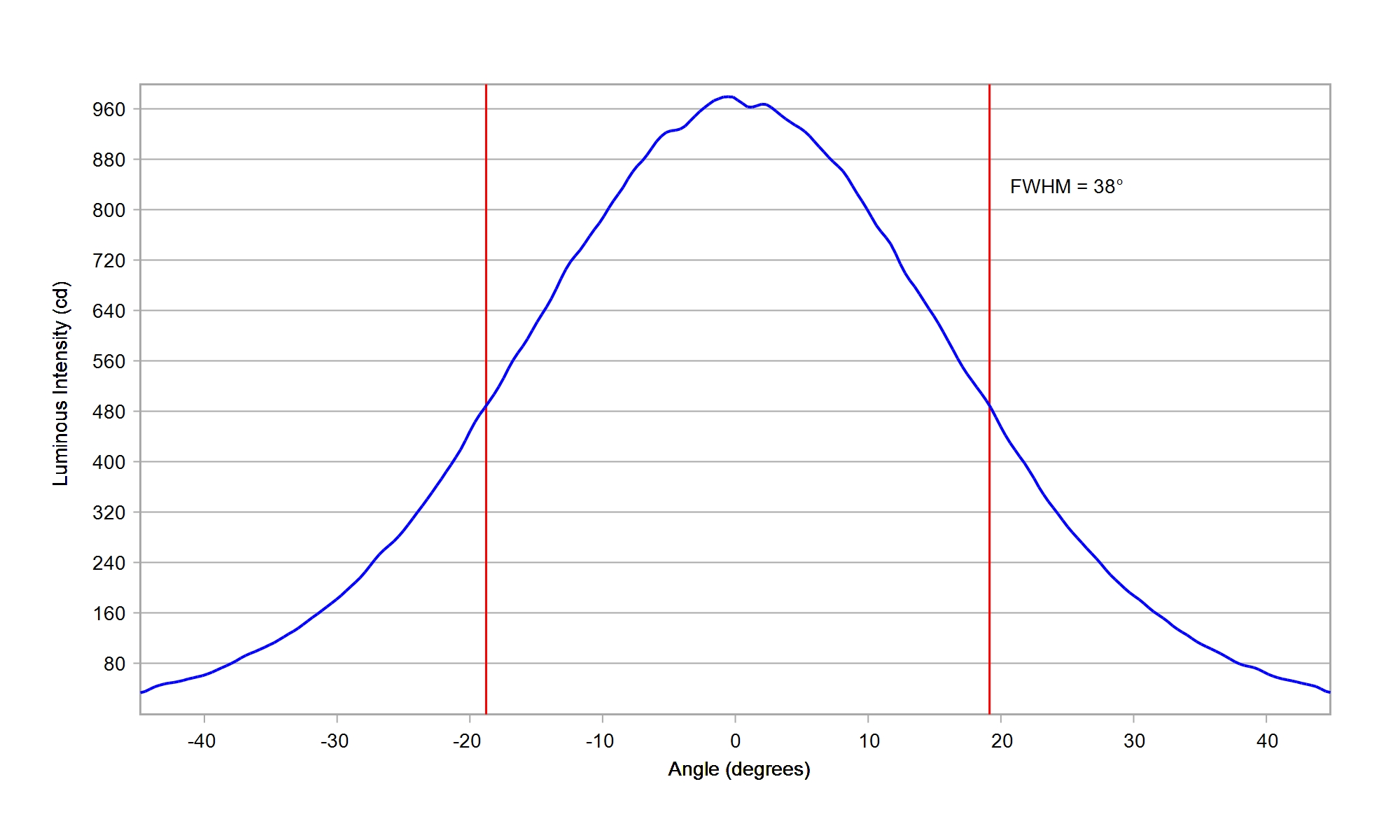

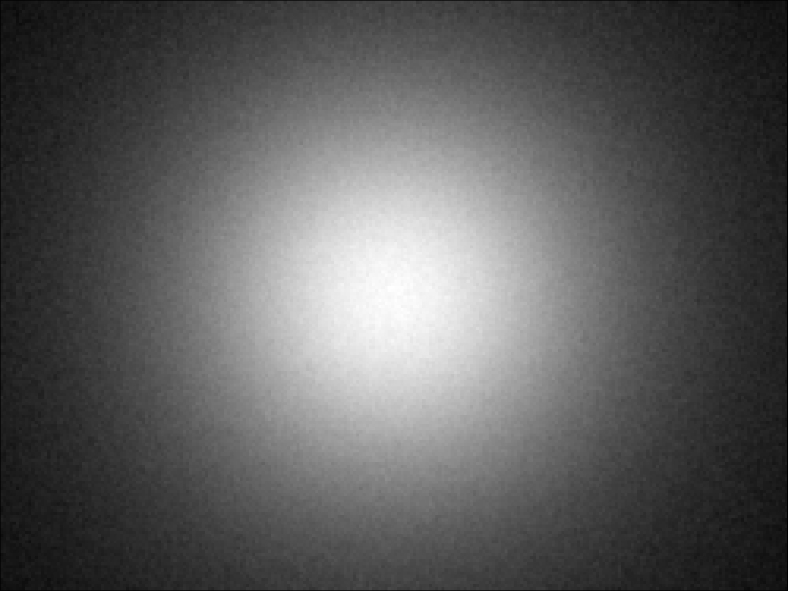

LUMILEDS LUXEON 5050 HE 6V White

Eff:

86.5%

FWHM:

38°

Cd/Im:

1.6

Download

LUMILEDS LUXEON 5050 Round 24V White

Eff:

86.5%

FWHM:

38°

Cd/Im:

1.5


Download

LUMILEDS LUXEON 5050 Square 30V White

Eff:

86.0%

FWHM:

41°

Cd/Im:

1.4


Download

LUMILEDS LUXEON 5050 Square 6V White

Eff:

86.5%

FWHM:

39°

Cd/Im:

1.5


Download

LUMILEDS LUXEON 5050 Round 6V White

Eff:

85.0%

FWHM:

40.0°

Cd/Im:

1.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Blue

Eff:

83.0%

FWHM:

26.5°

Cd/Im:

2.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Lime

Eff:

84.5%

FWHM:

27.0°

Cd/Im:

2.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Red

Eff:

82.5%

FWHM:

26.0°

Cd/Im:

2.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C White

Eff:

83.0%

FWHM:

32°

Cd/Im:

2.0

Download

LUMILEDS LUXEON CZ White

Eff:

86.5%

FWHM:

35.5°

Cd/Im:

2.0

Carclo Optics 10196 Spot Image Luxeon CZ 5M CW

Carclo Optics 10196 Cross Section Luxeon CZ 5M CW

Download

IES

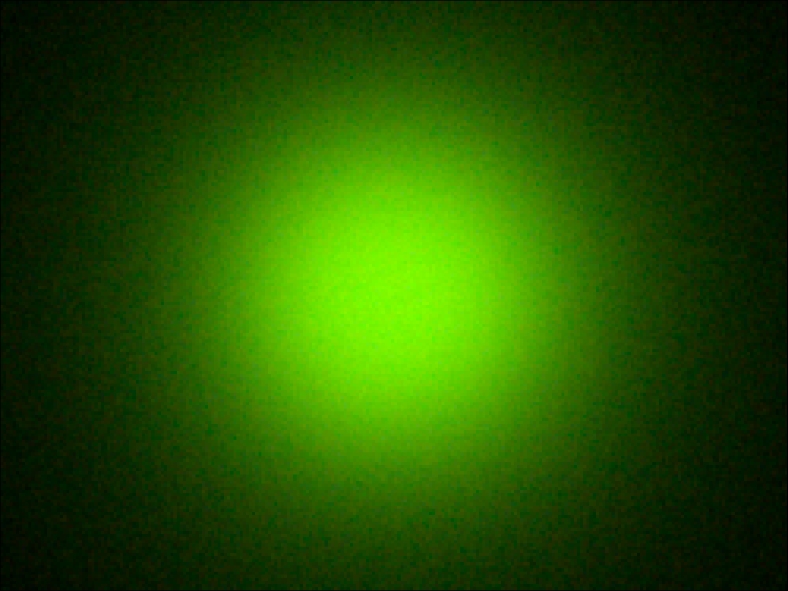

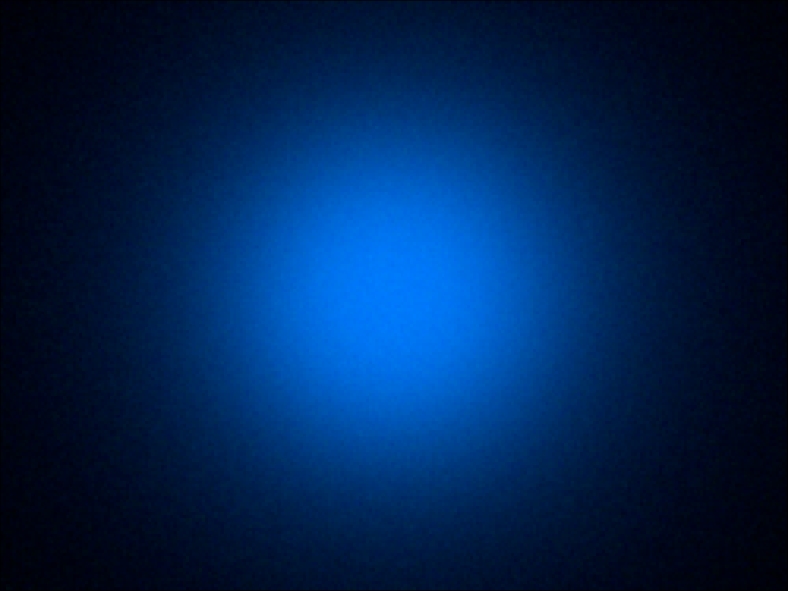

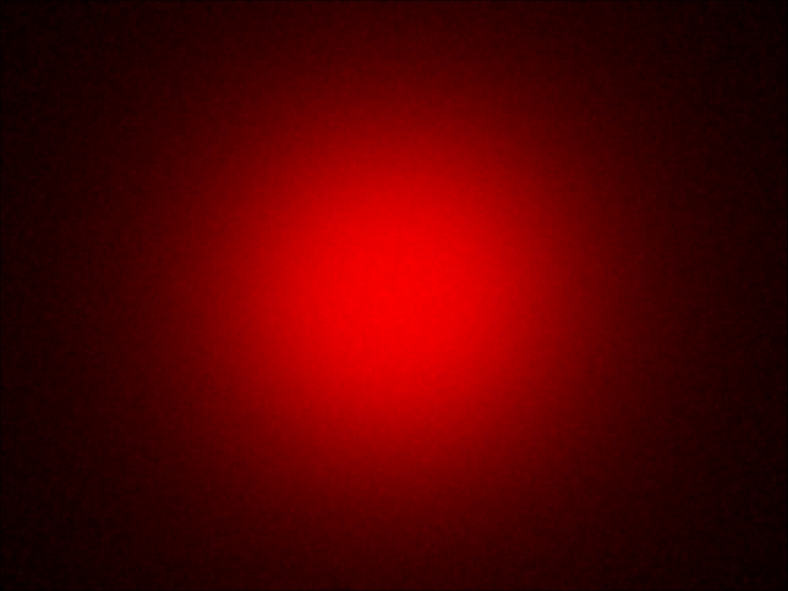

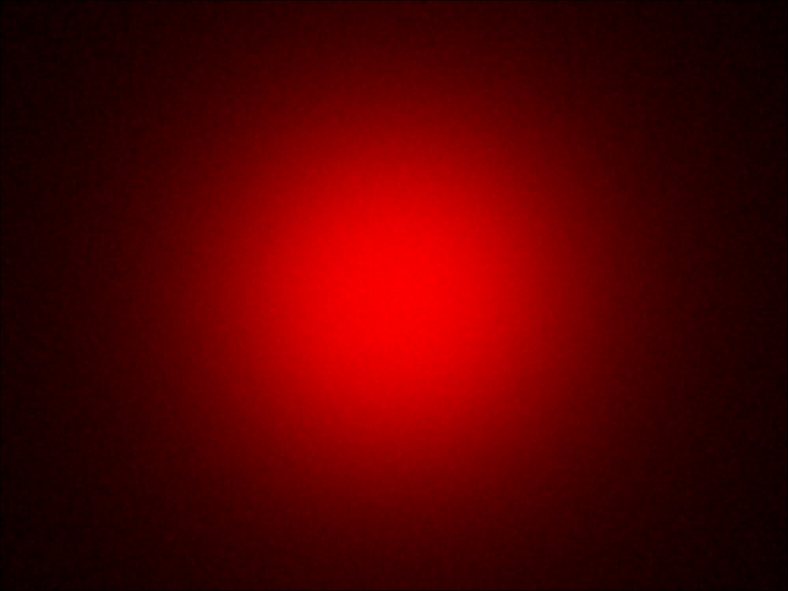

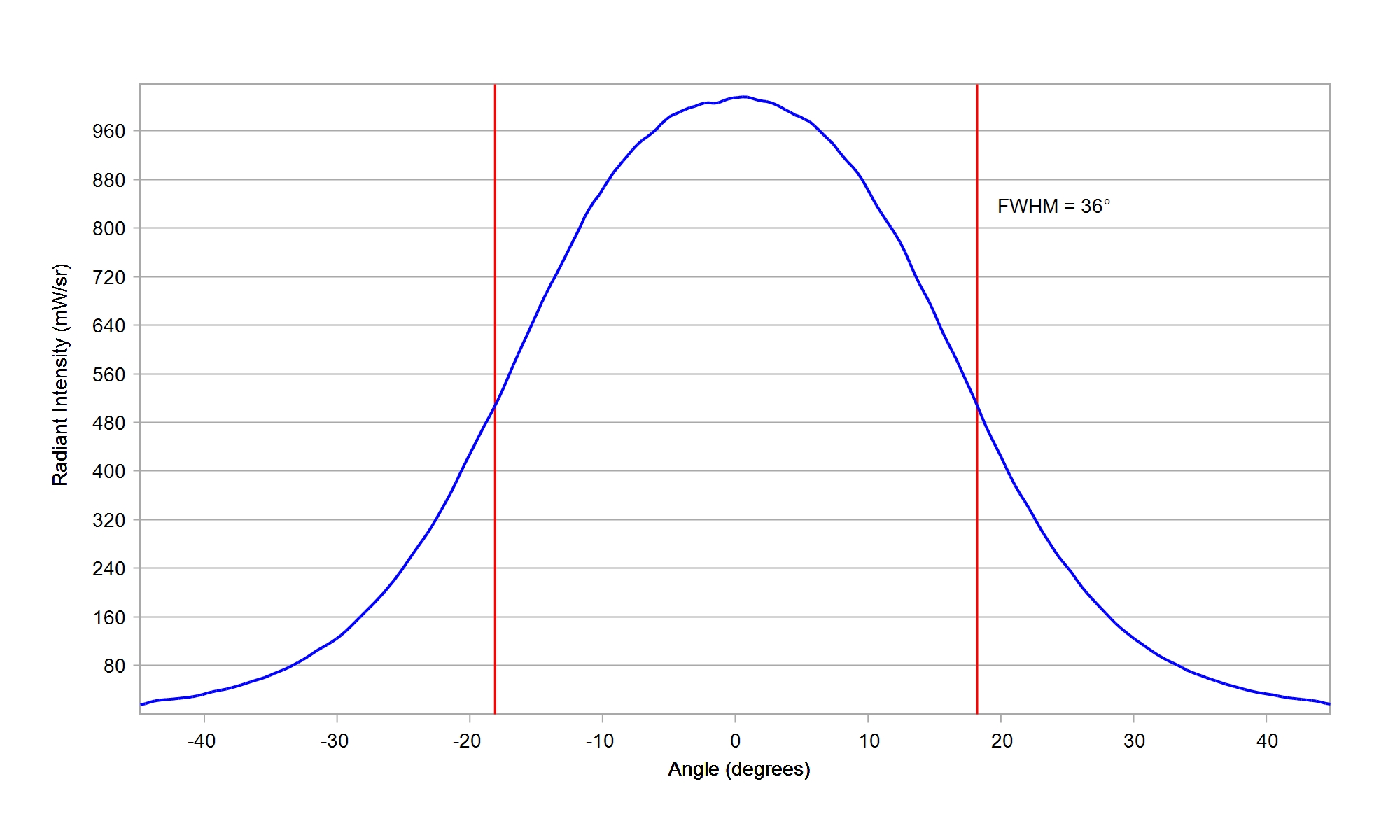

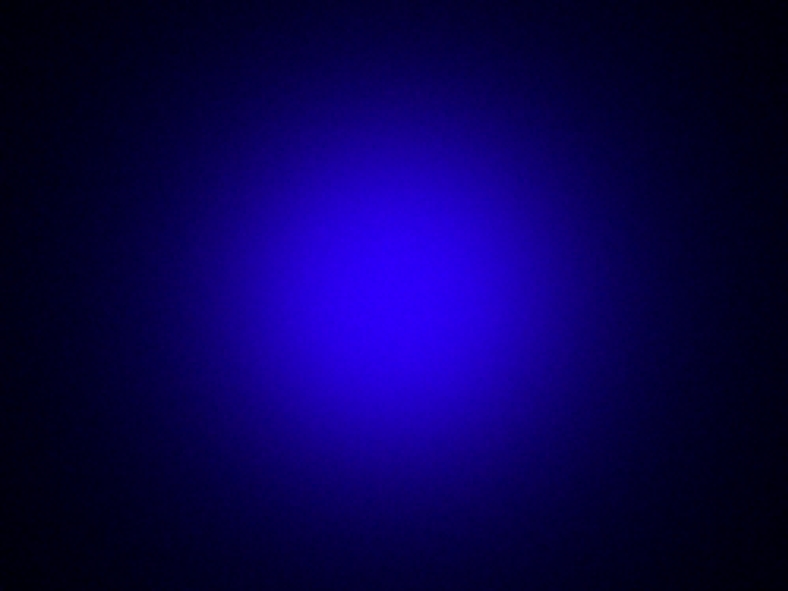

LUMILEDS LUXEON HL1Z CSP White

Eff:

86.5%

FWHM:

36°

Cd/Im:

1.9

Download

IES

LUMILEDS LUXEON HL2X White

Eff:

87.0%

FWHM:

34.0°

Cd/Im:

2.0

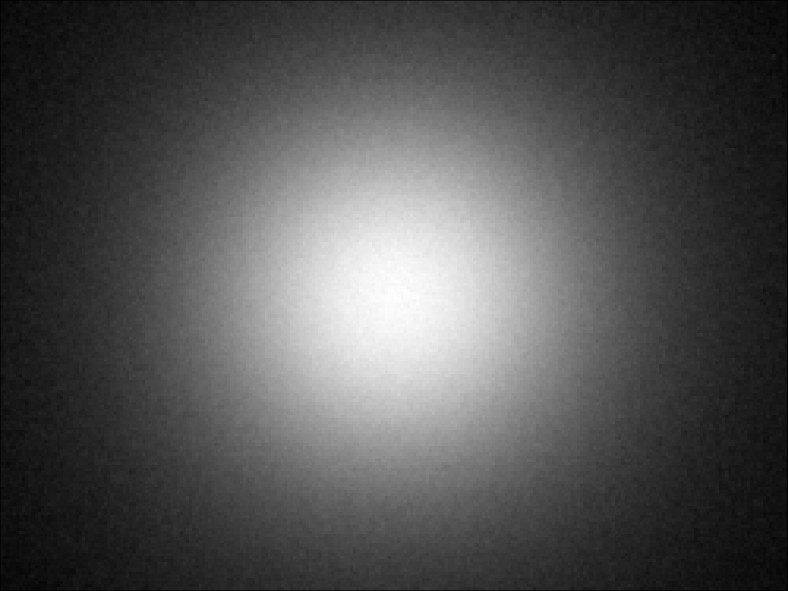

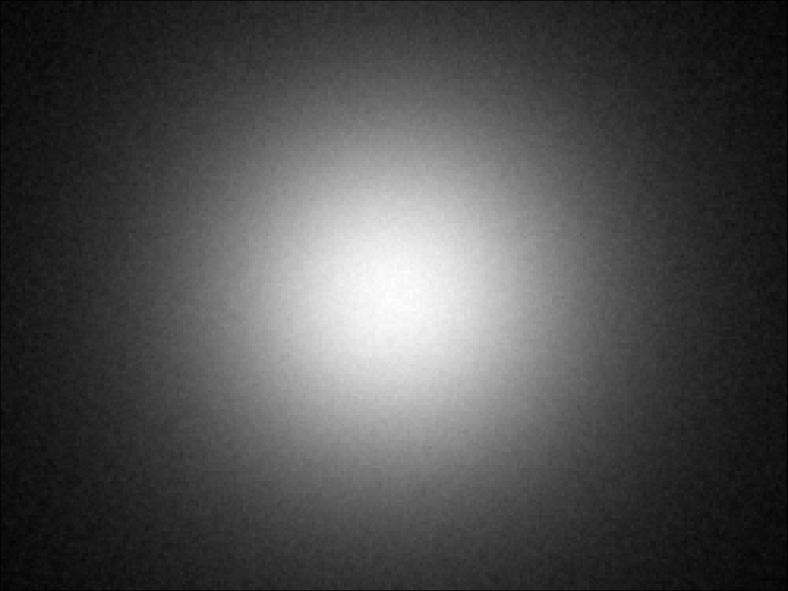

Carclo Optics - 10196 Spot Image Luxeon HL2X

Carclo Optics - 10196 Cross Section Luxeon HL2X

Download

IES

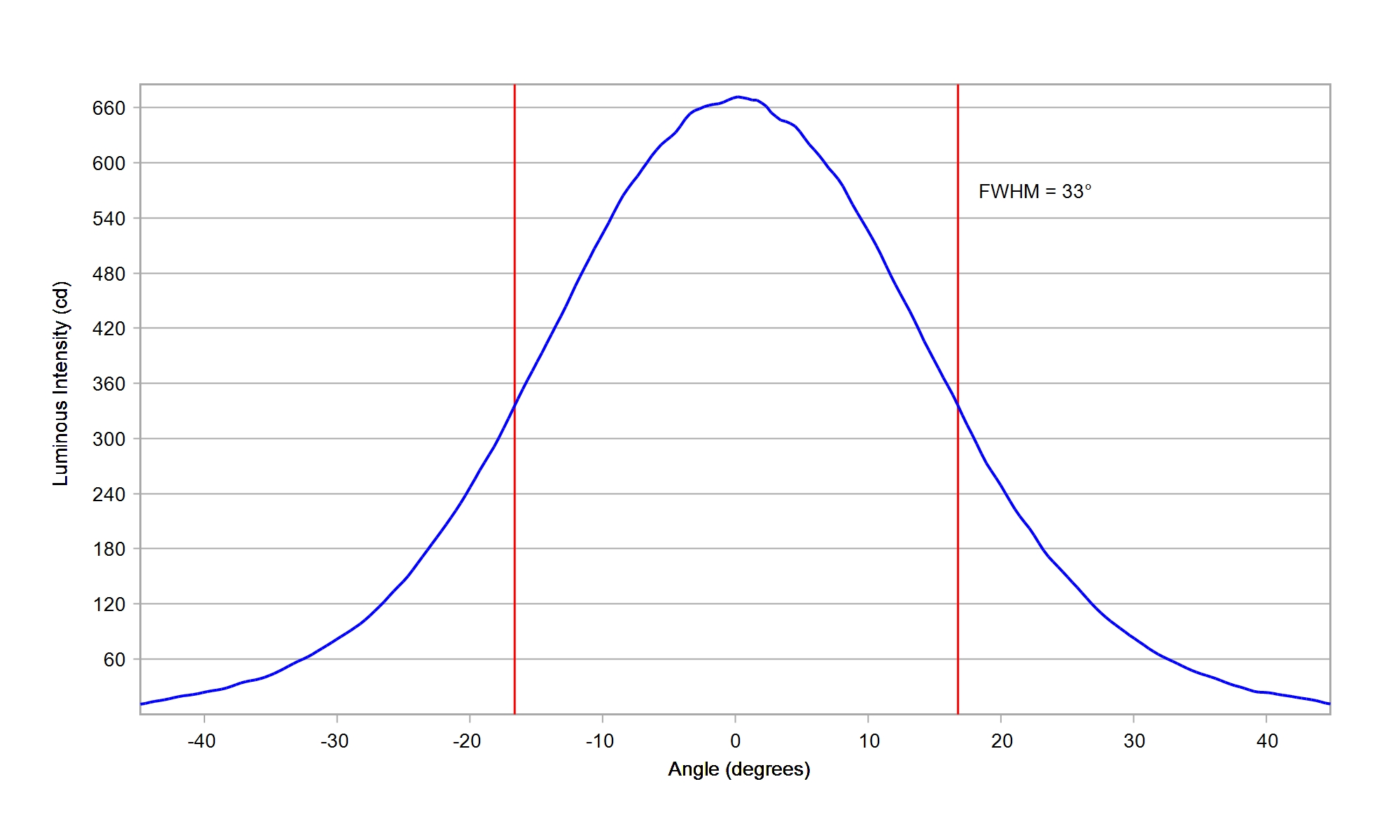

LUMILEDS LUXEON HL2X-D White

Eff:

87.5%

FWHM:

33°

Cd/Im:

2.0

Download

IES

LUMILEDS LUXEON HL2X-P White

Eff:

87.5%

FWHM:

32°

Cd/Im:

2.0

Download

IES

LUMILEDS LUXEON HL2Z White

Eff:

86.0%

FWHM:

36°

Cd/Im:

1.8

Carclo Optics – 10196 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 10196 Lumileds Luxeon HL2Z - Cross-Section

Download

IES

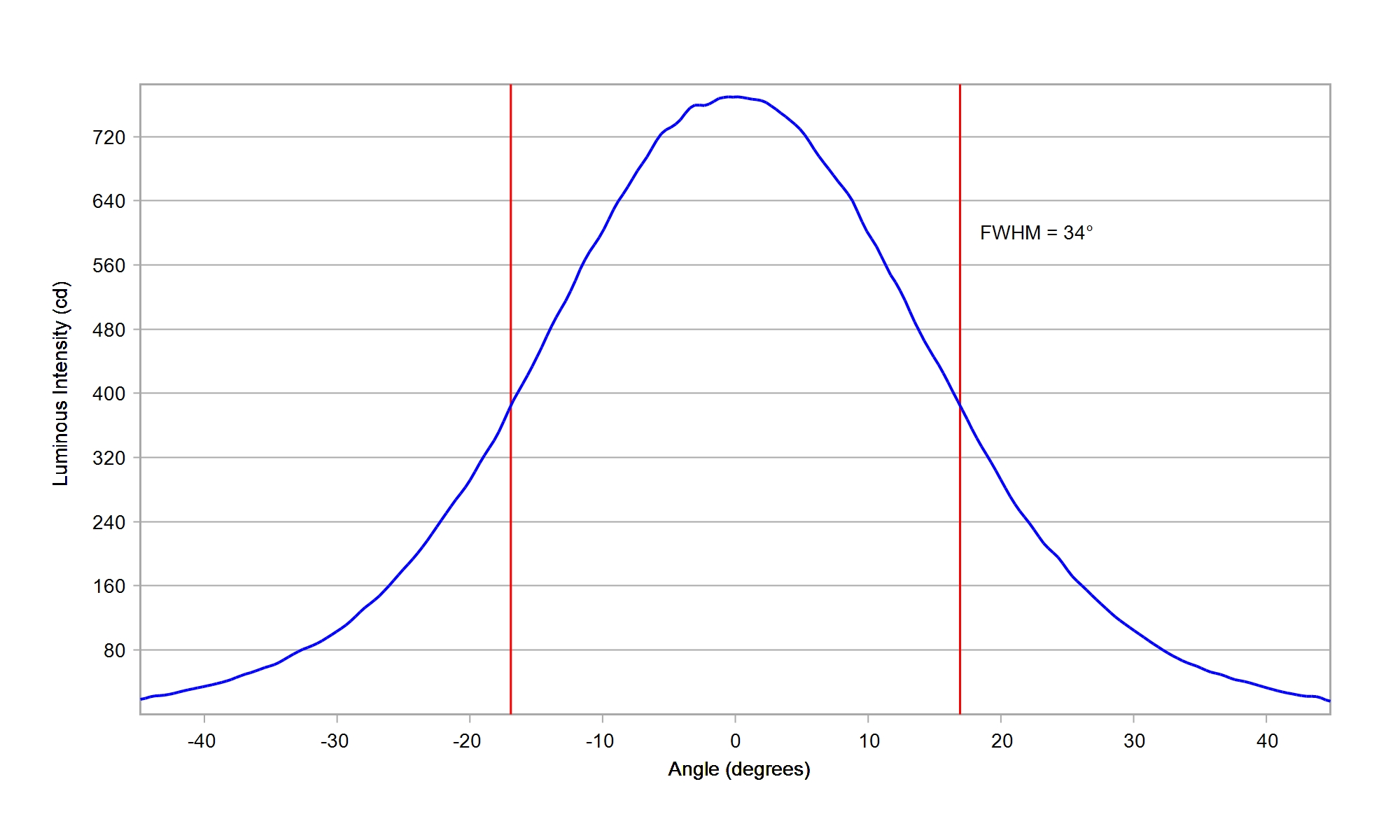

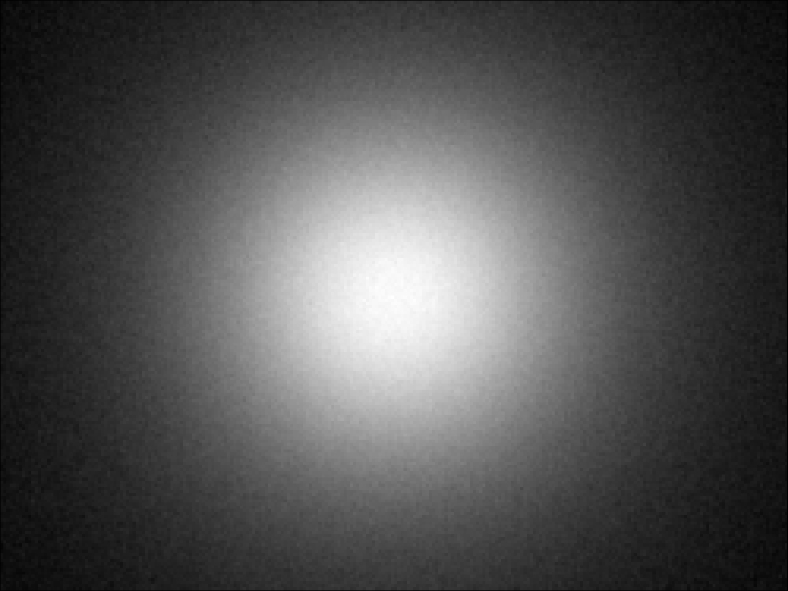

LUMILEDS LUXEON HL4X White

Eff:

87.0%

FWHM:

34°

Cd/Im:

1.9

Download

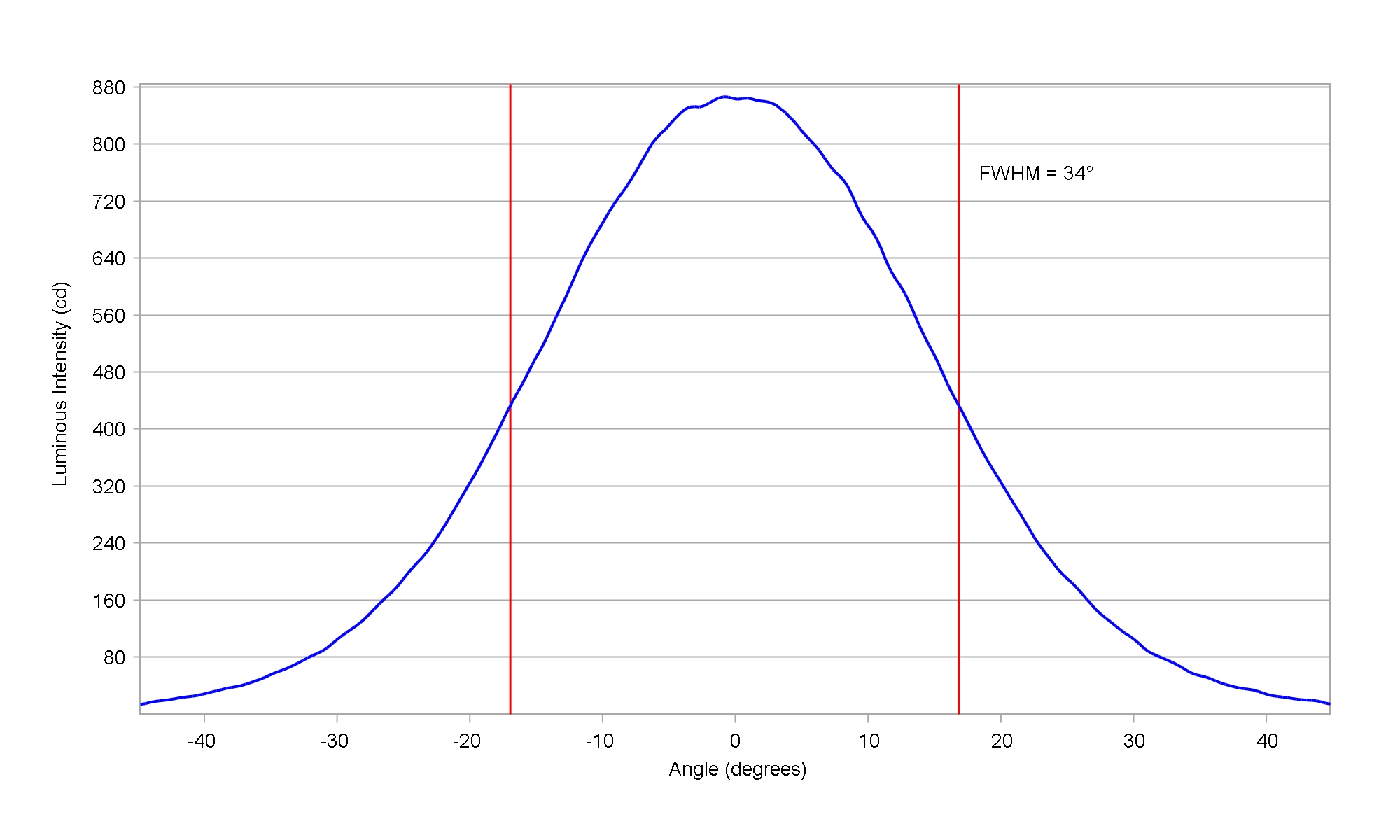

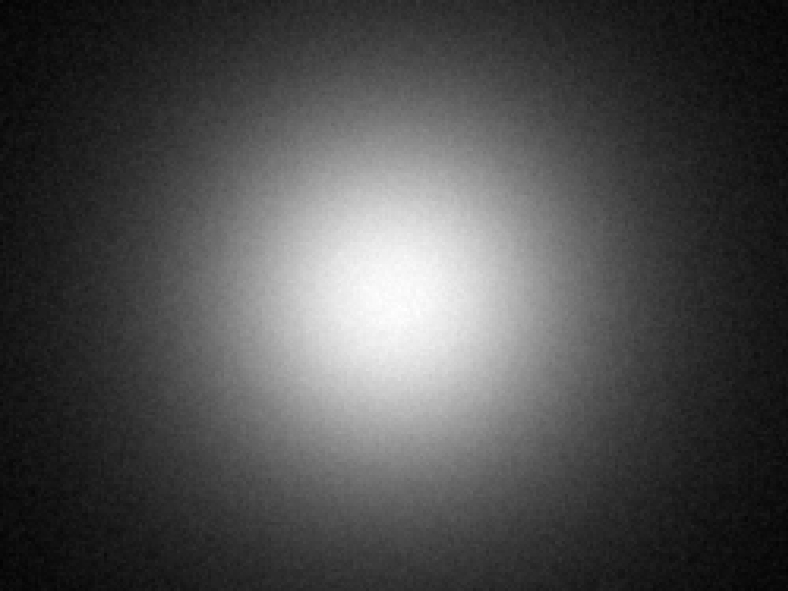

LUMILEDS LUXEON HL4Z White

Eff:

87.5%

FWHM:

34°

Cd/Im:

2.0

Download

LUMILEDS LUXEON IR 2720

Eff:

90.0%

FWHM:

36.5°

Ipk/W:

1.9

Carclo Optics 10196 Spot Image Luxeon IR 2720

Carclo Optics 10196 Cross Section image Luxeon IR 2720

Download

IES

LUMILEDS LUXEON IR Compact 850nm

Eff:

90.5%

FWHM:

30.5°

Ipk/W:

2.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 150 Degree

Eff:

91.5%

FWHM:

27.5°

Cd/Im:

3.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 60 Degree

Eff:

87.5%

FWHM:

37.0°

Ipk/W:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 90 Degree

Eff:

88.5%

FWHM:

36.5°

Ipk/W:

2.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON MZ White

Eff:

84.1%

FWHM:

32.0°

Cd/Im:

1.9

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

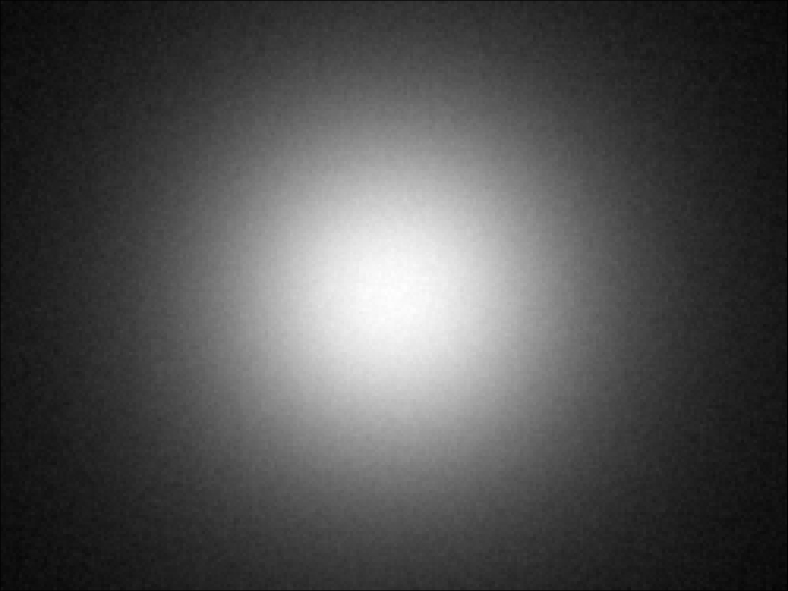

LUMILEDS LUXEON Rebel ES White

Eff:

76.0%

FWHM:

33.6°

Cd/Im:

2.5

Download

ies

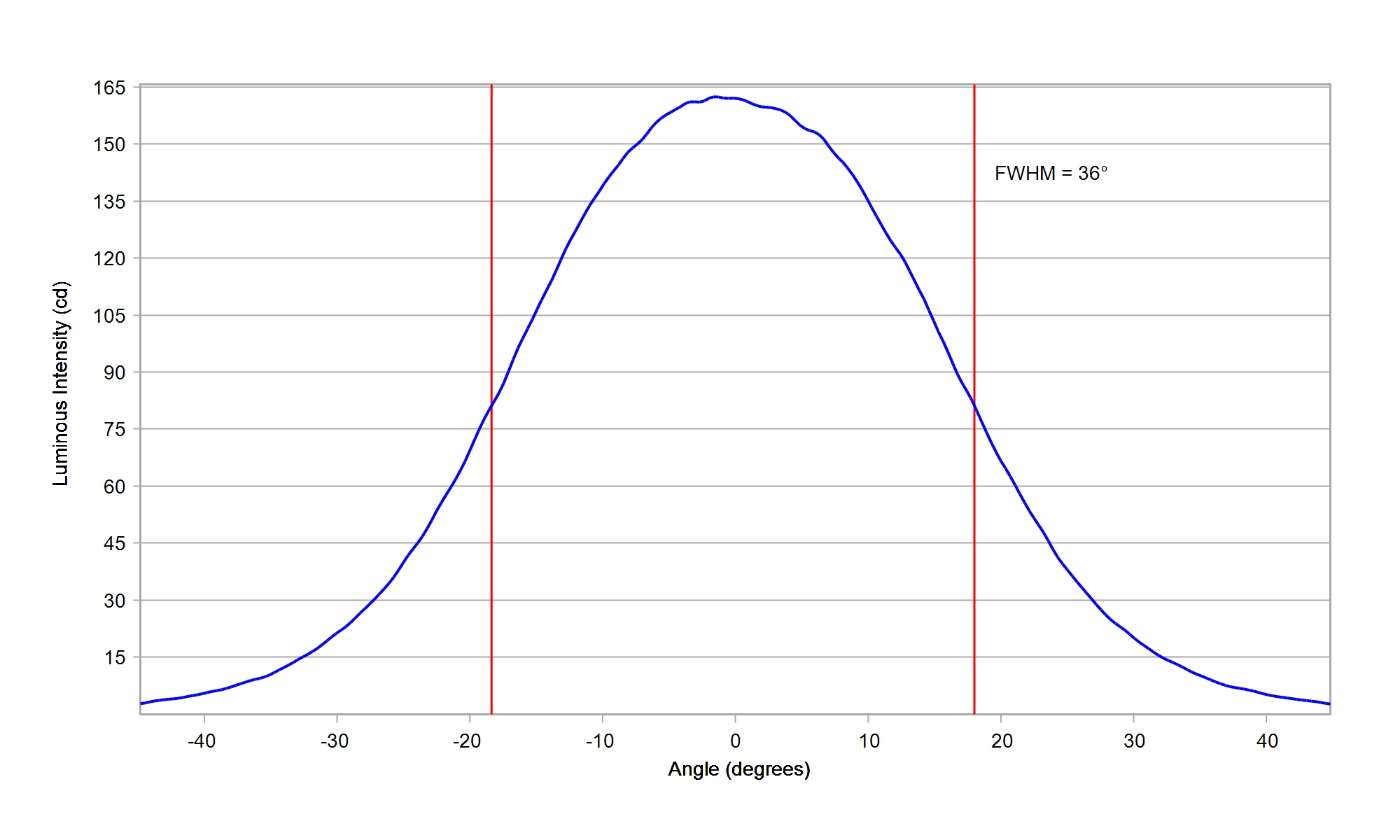

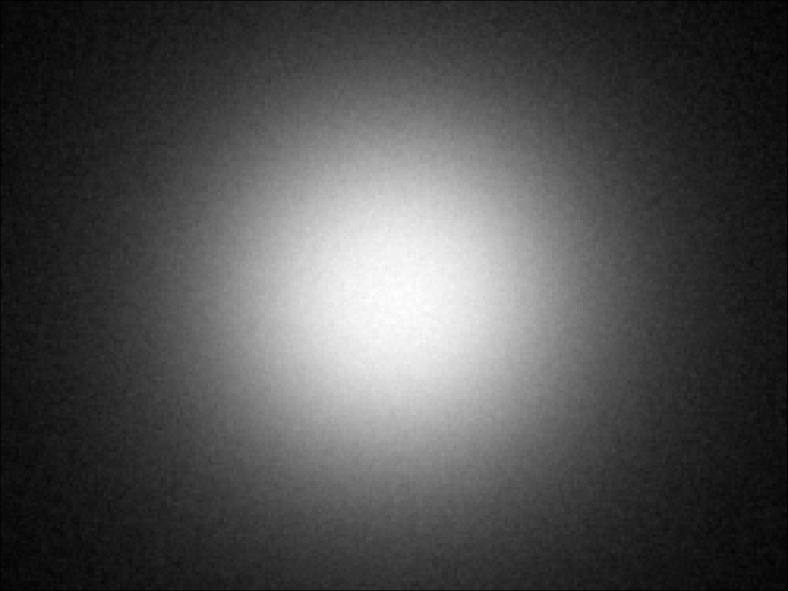

LUMILEDS LUXEON Rebel White

Eff:

74.0%

FWHM:

35°

Cd/Im:

2.0

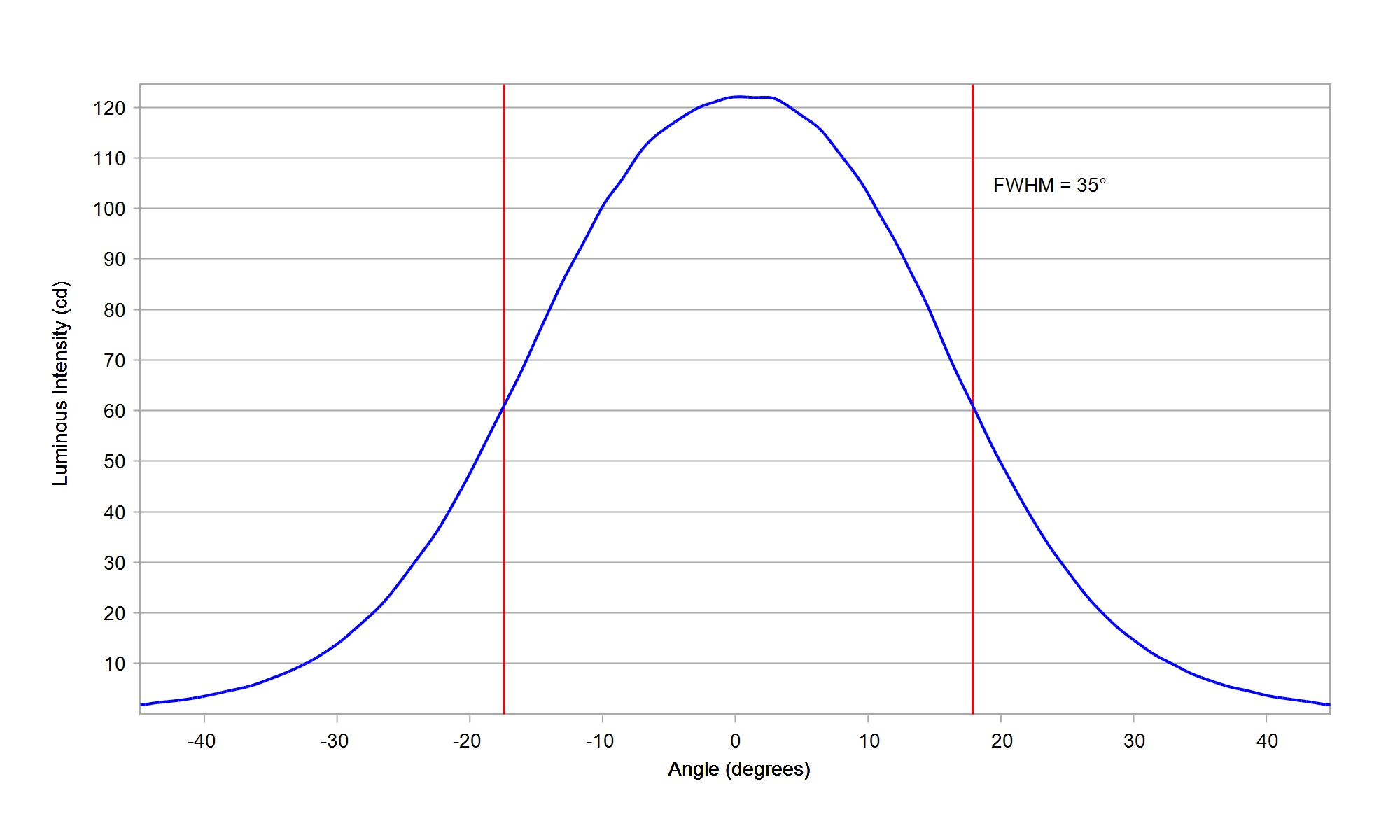

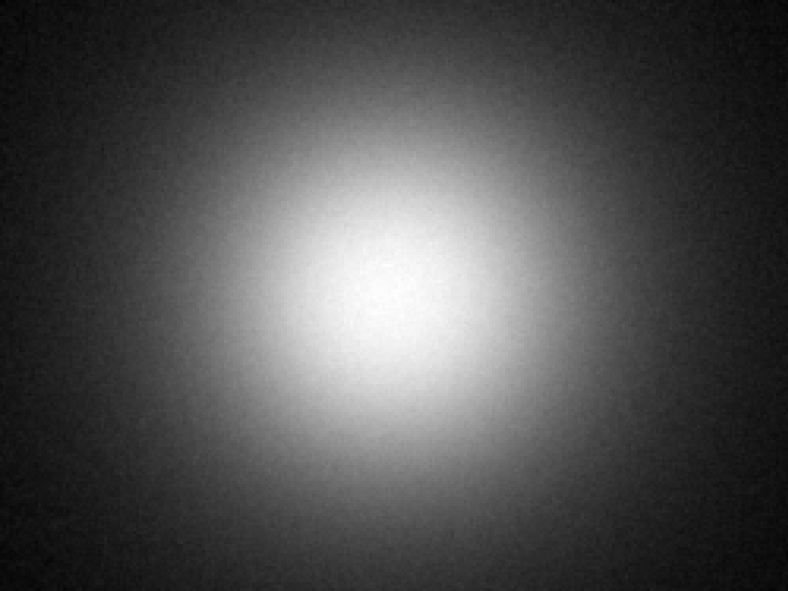

10196 Limileds Luxeon Rebel White Spot Image

LUMILEDS LUXEON Rubix Blue

Eff:

87.0%

FWHM:

34°

Cd/Im:

2.1

Carclo Optics – 10196 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics – 10196 Cross Section Lumileds Luxeon Rubix Blue

Download

IES

LUMILEDS LUXEON Rubix Green

Eff:

87.0%

FWHM:

34°

Cd/Im:

2.1

Carclo Optics – 10196 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 10196 Cross Section Lumileds Luxeon Rubix Green

Download

IES

LUMILEDS LUXEON Rubix Red

Eff:

88.5%

FWHM:

34°

Cd/Im:

2.1

Carclo Optics – 10196 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 10196 Cross Section Lumileds Luxeon Rubix Red

Download

IES

LUMILEDS LUXEON Rubix Royal Blue

Eff:

86.0%

FWHM:

34°

Cd/Im:

2.1

Carclo Optics – 10196 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 10196 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

IES

LUMILEDS LUXEON Rubix White

Eff:

86.5%

FWHM:

34.0°

Cd/Im:

2.0

Carclo Optics - 10196 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 10196 Cross Section Lumileds Luxeon Rubix White

Download

IES

LUMILEDS LUXEON TX White

Eff:

84.7%

FWHM:

35.0°

Cd/Im:

1.7

carclo optics - simulated spot image

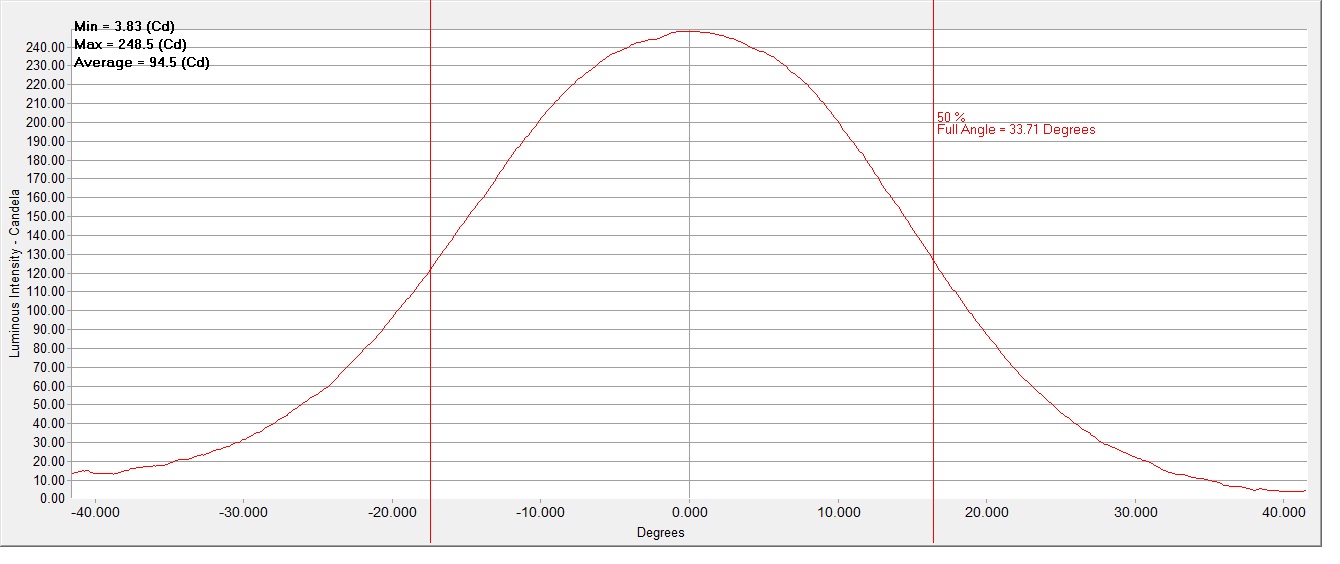

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON V White

Eff:

83.5%

FWHM:

35.0°

Cd/Im:

1.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON Z ES White

Eff:

85.0%

FWHM:

34°

Cd/Im:

1.9

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON Z RGBW

Eff:

78.0%

FWHM:

34°

Cd/Im:

2.4

10196 Led LUMILEDS LUXEON Z RGBW Spot Image

10196 Led LUMILEDS LUXEON Z RGBW Cross Section

LUMILEDS LUXEON Z White

Eff:

84.8%

FWHM:

35.7°

Cd/Im:

1.8

carclo optics - simulated spot image

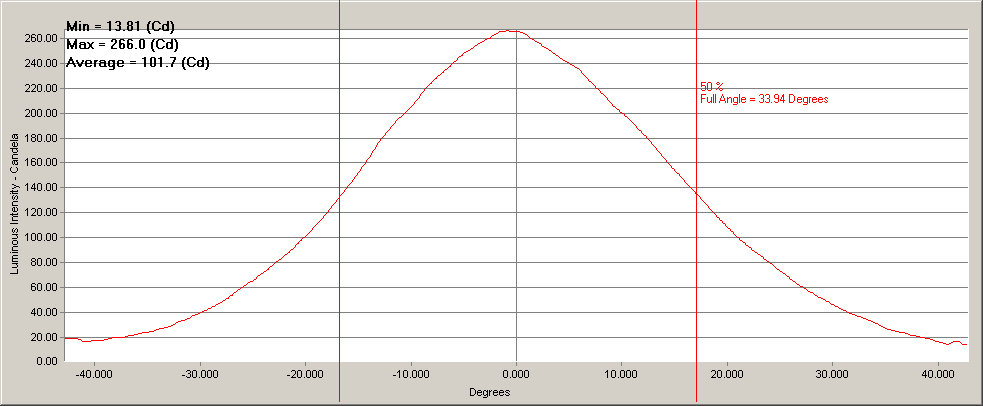

carclo optics - simulated cross section

Download

IES

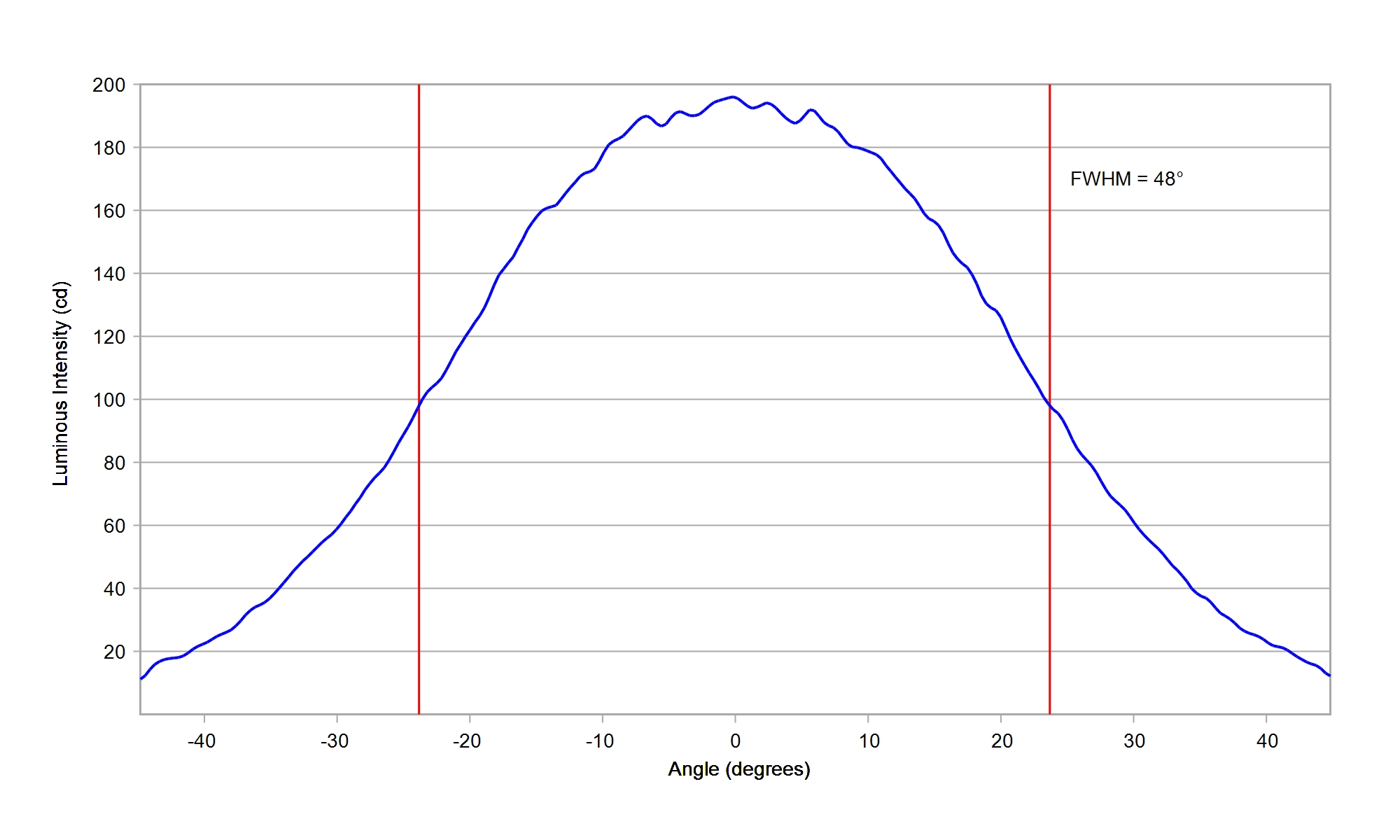

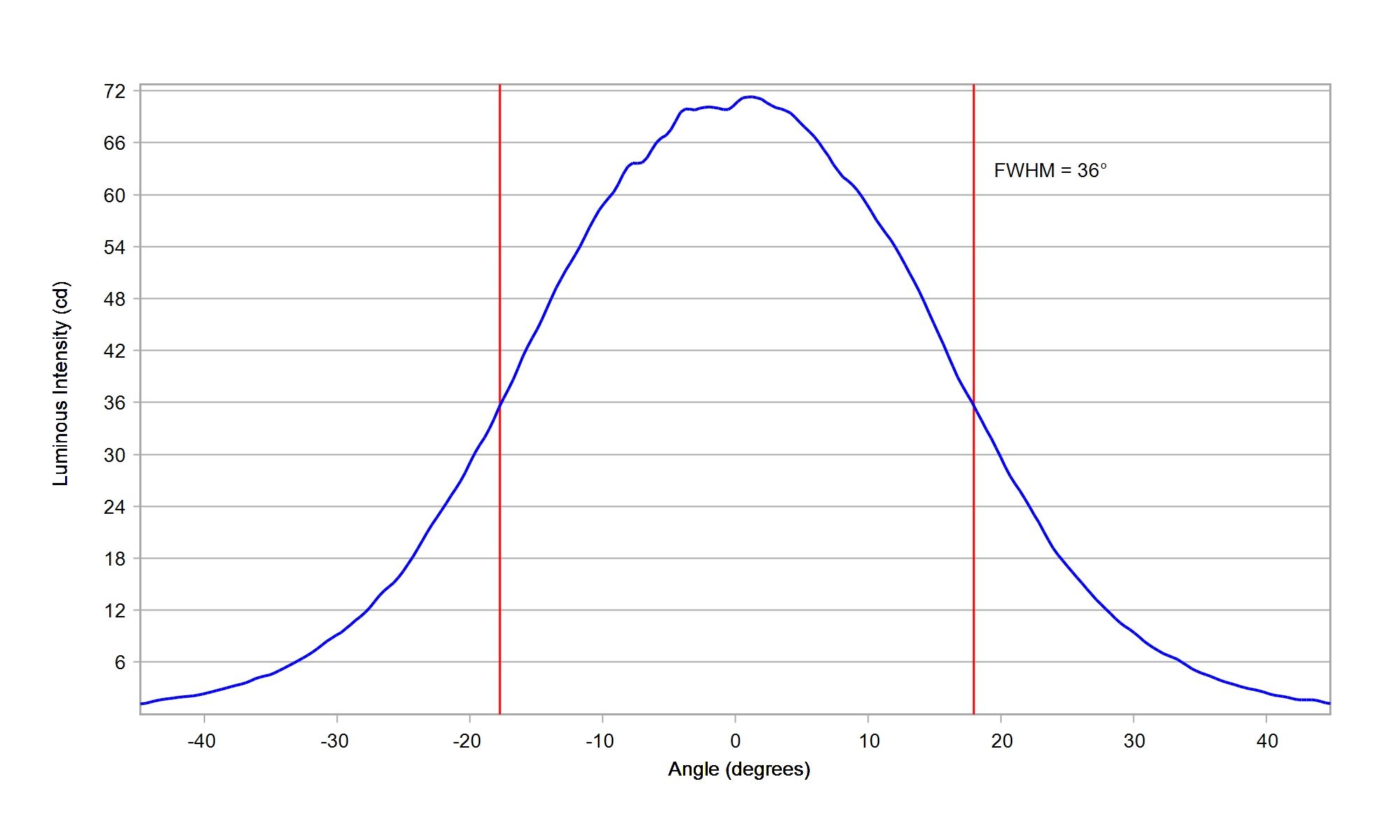

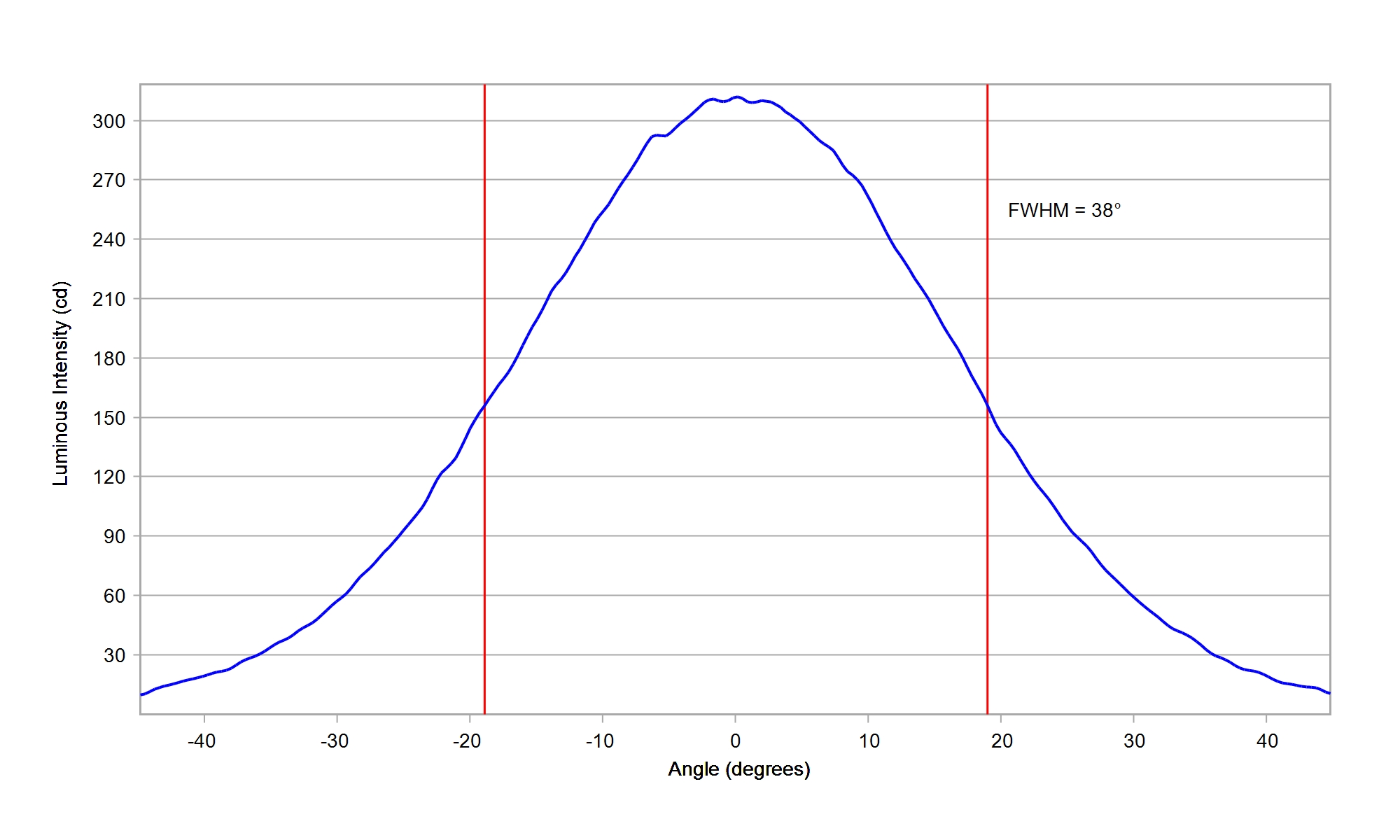

Luminus Devices SST 05-IR-B40 850nm

Eff:

90.5%

FWHM:

30.0°

Ipk/W:

2.6

Carclo Optics - 10196 Spot Image Luminus SST-05-IR-B40

Carclo Optics - 10196 Cross Section Luminus SST-05-IR-B40

Download

IES

Luminus Devices SST 10-B-B130 Blue

Eff:

85.5%

FWHM:

32°

Cd/Im:

2.2

Carclo Optics - 10196 Luminus_SST-10_B_B130 - spot image

Carclo Optics - 10196 Luminus_SST-10_B_B130 - cross section image

Download

IES

Luminus Devices SST 10-B-B90 Blue

Eff:

85.5%

FWHM:

34°

Cd/Im:

1.9

Carclo Optics - 10196 Luminus_SST-10_B_B90 - spot - image

Carclo Optics - 10196 Luminus_SST-10_B_B90 - cross section image

Download

IES

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

90.0%

FWHM:

28.5°

Cd/Im:

2.6

Carclo Optics – 10196 Luminus_SST-10_DR_B130- Spot - image

Carclo Optics – 10196 Luminus_SST-10_DR_B130- Cross section – image

Download

IES

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

88.5%

FWHM:

36°

Cd/Im:

1.9

Carclo Optics - 10196 Luminus_SST-10_DR_B90 - Spot Image

Carclo Optics - 10196 Luminus_SST-10_DR_B90 - Cross section image

Download

IES

Luminus Devices SST 10-G-B130 Green

Eff:

87.5%

FWHM:

32°

Cd/Im:

2.2

Carclo Optics - 10196 Luminus_SST-10_G_B130 - spot - image

Carclo Optics - 10196 Luminus_SST-10_G_B130 - cross - section- image

Download

IES

Luminus Devices SST 10-G-B90 Green

Eff:

87.0%

FWHM:

35°

Cd/Im:

2.0

Carclo Optics – 10196 Luminus_SST-10_G_B90- Spot - image

Carclo Optics – 10196 Luminus_SST-10_G_B90- Cross section – image

Download

IES

Luminus Devices SST 10-IR-B130 940nm

Eff:

90.5%

FWHM:

37.0°

Ipk/W:

1.8

Carclo Optics - 10196 Spot Image Luminus SST-10-IR-B130

Carclo Optics - 10196 Cross Section Luminus SST-10-IR-B130

Download

IES

Luminus Devices SST 10-IR-B90 940nm

Eff:

91.5%

FWHM:

34.0°

Ipk/W:

2.0

Carclo Optics - 10196 Spot Image Luminus SST-10-IR-B90

Carclo Optics - 10196 Cross Section Luminus SST-10-IR-B90

Download

IES

Luminus Devices SST 10-IRD-B130 810nm

Eff:

91.0%

FWHM:

34°

Ipk/W:

2.1


Download

IES

Luminus Devices SST 10-IRD-B90 810nm

Eff:

91.5%

FWHM:

35°

Ipk/W:

2.0


Download

IES

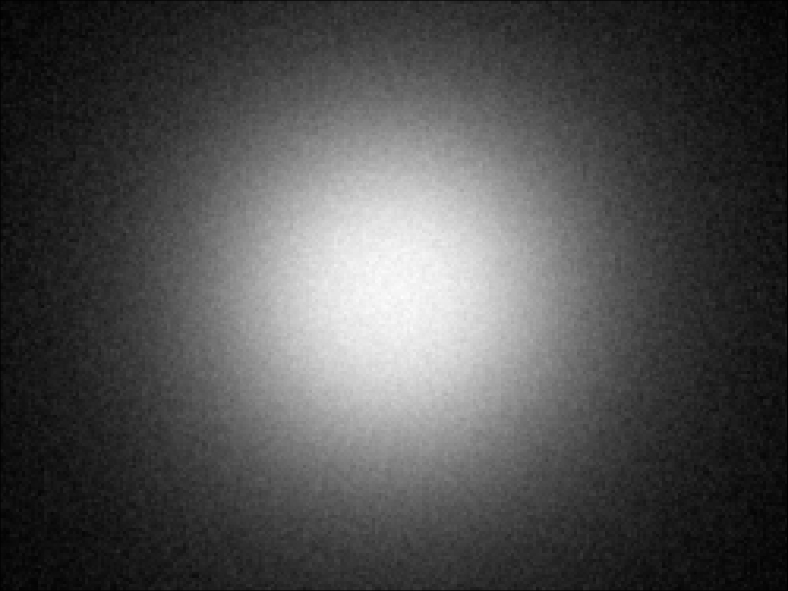

Luminus Devices SST 20-WxH White Hi CRI

Eff:

87.0%

FWHM:

33°

Cd/Im:

2.1

Carclo Optics – 10196 - Luxeon_SST_20_W_spot-image

Carclo Optics – 10196 - Luxeon_SST_20_W_cross vertical section

Download

IES

Luminus Devices SST 40-W White

Eff:

87.0%

FWHM:

33°

Cd/Im:

2.0

Carclo Optics – 10196 - Luxeon_SST_40_W_spot-image

Carclo Optics – 10196 - Luxeon_SST_40_W_cross vertical section

Download

IES

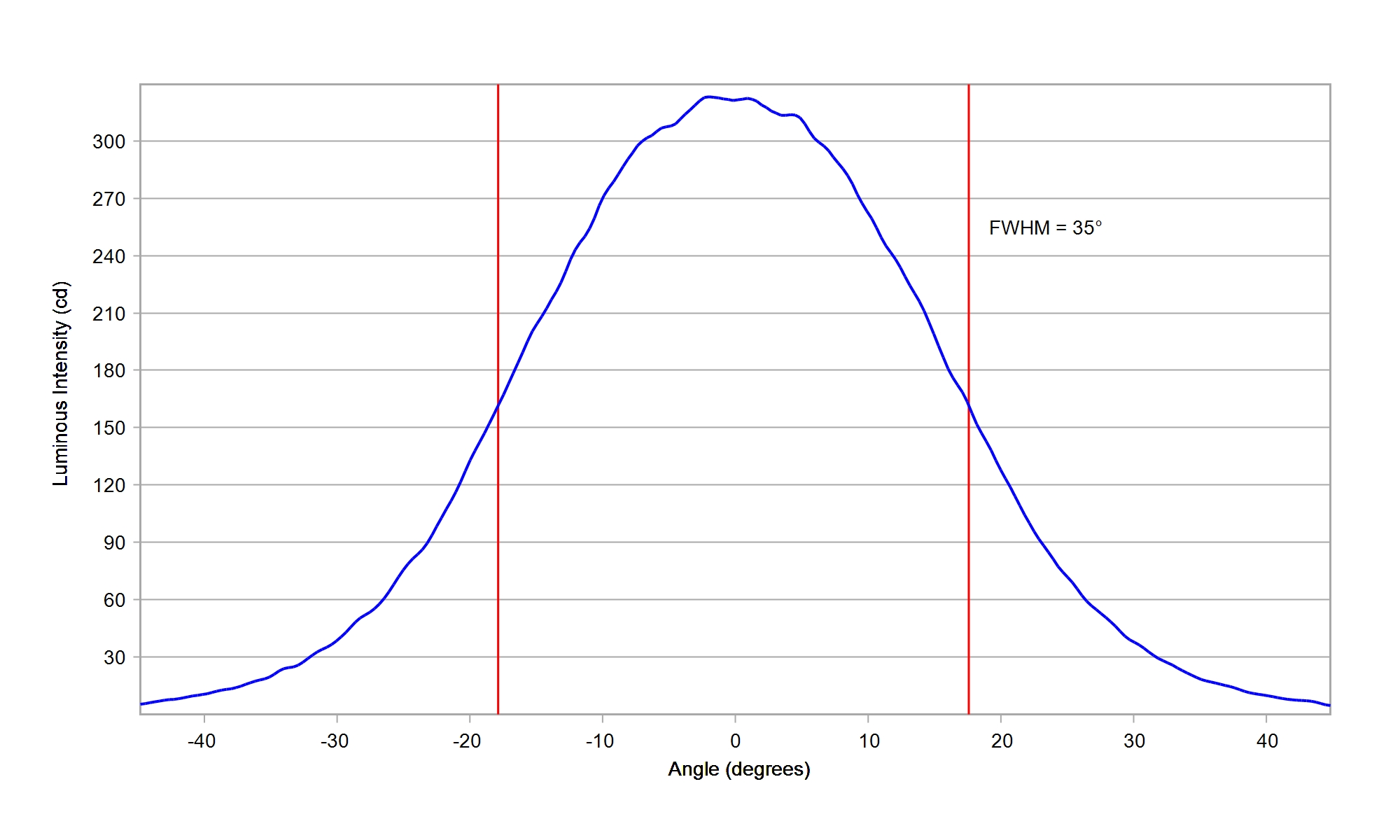

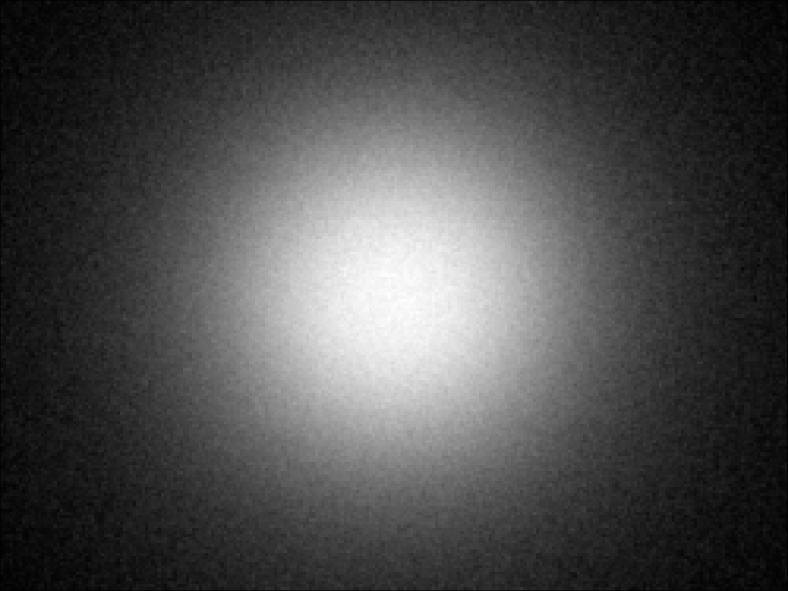

Luminus Devices SST-12-WxS White

Eff:

86.5%

FWHM:

35°

Cd/Im:

1.9

Download

IES

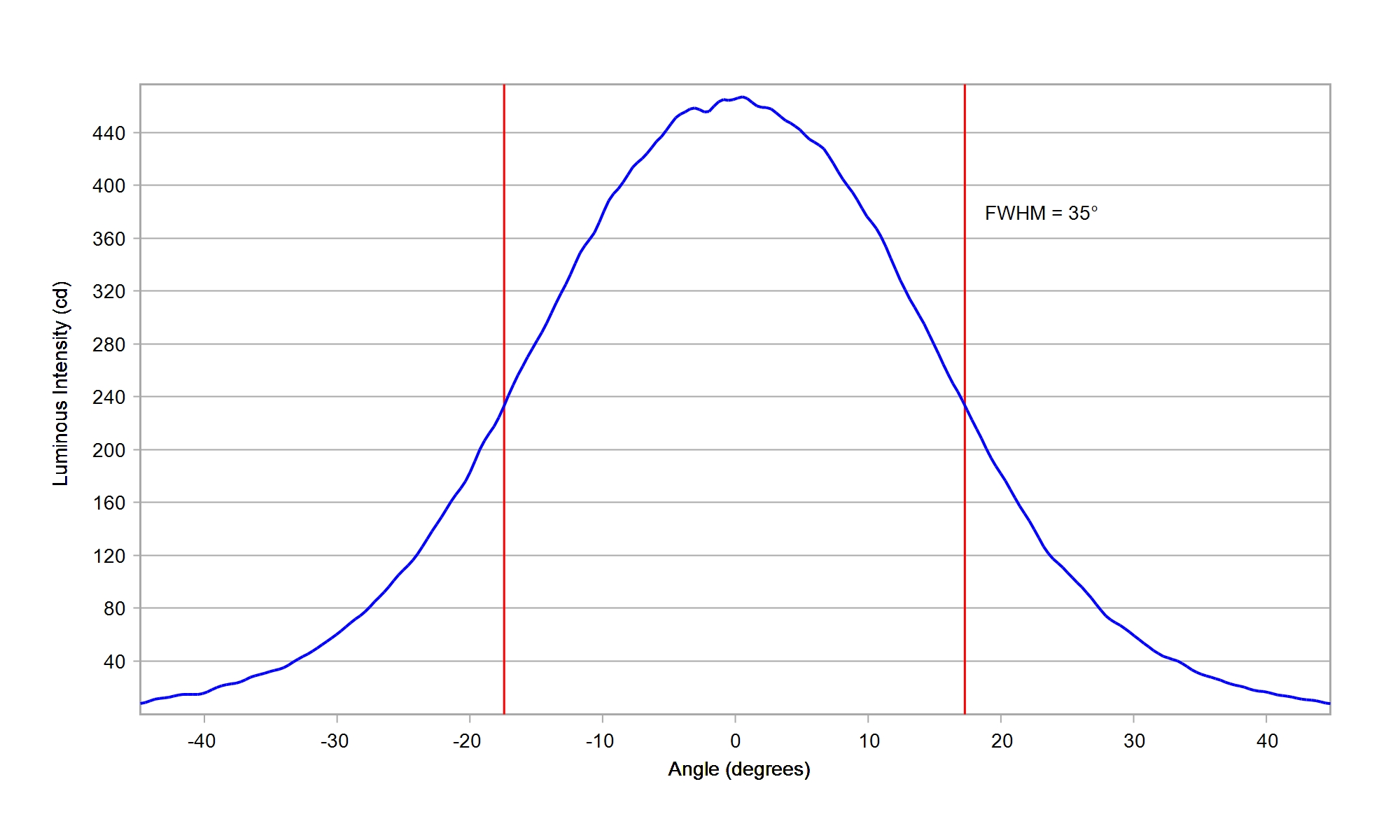

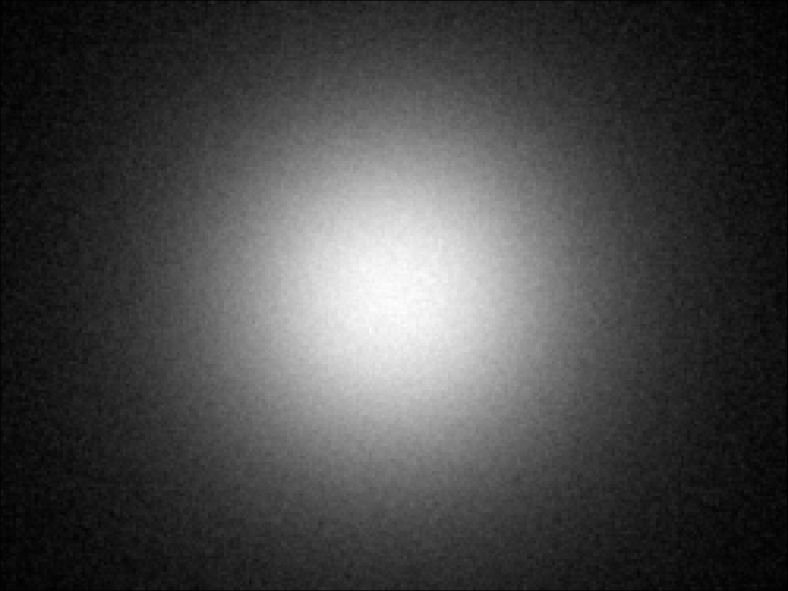

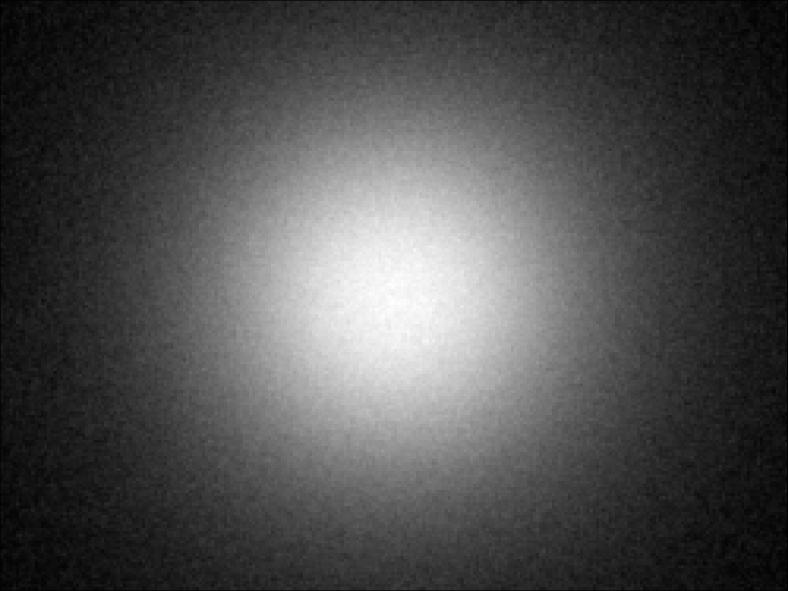

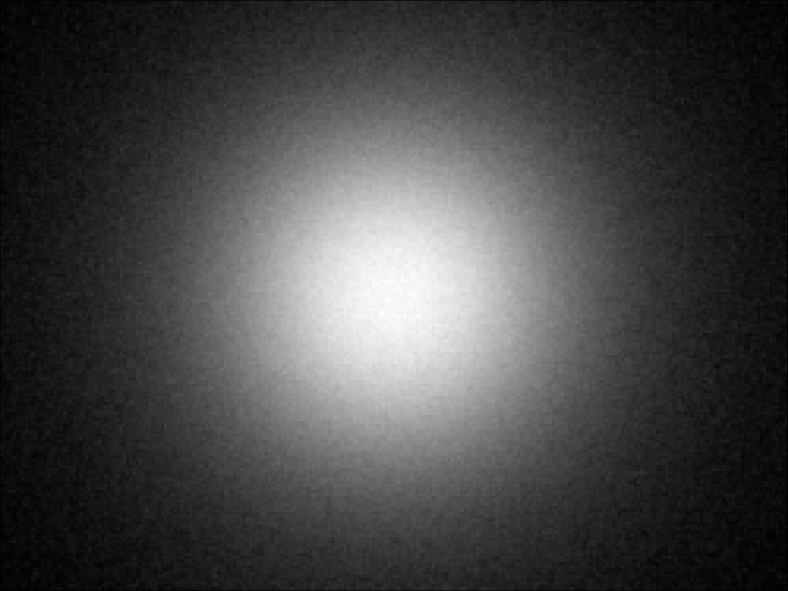

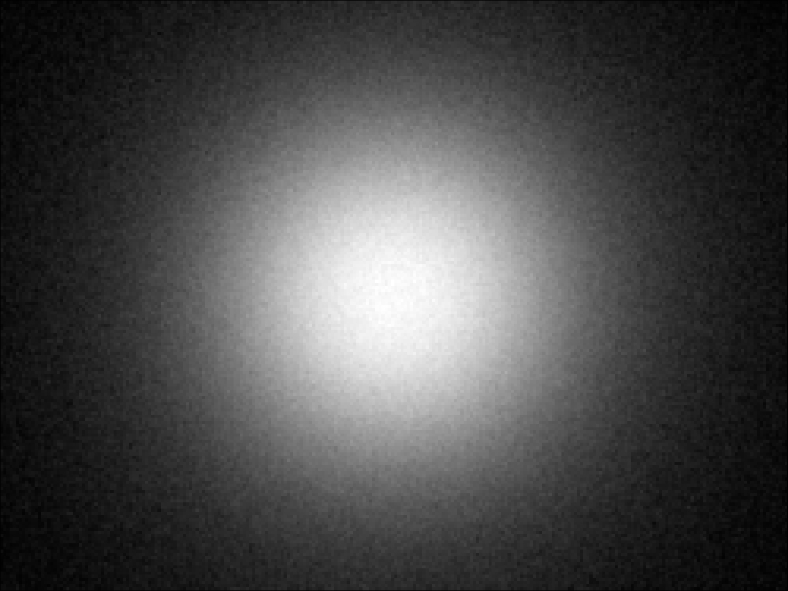

Luminus Devices SST-25-WES White

Eff:

87.0%

FWHM:

35°

Cd/Im:

1.9

Download

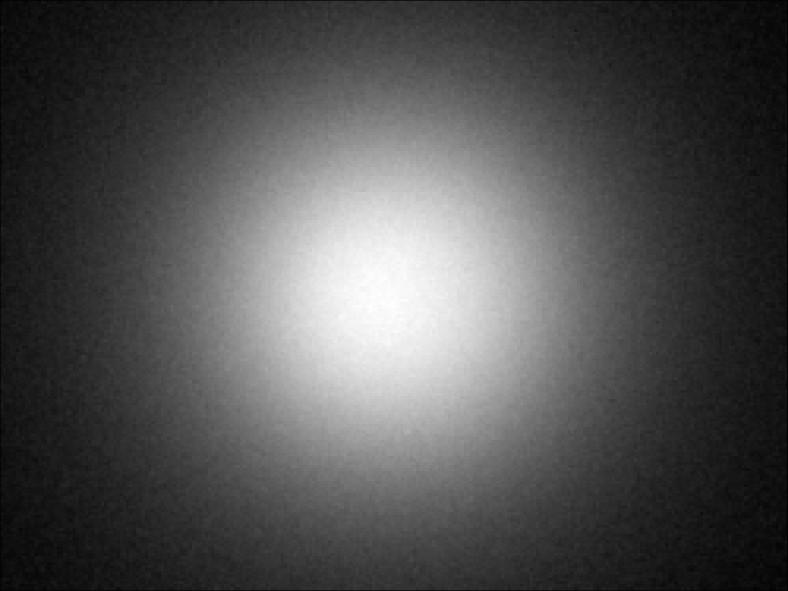

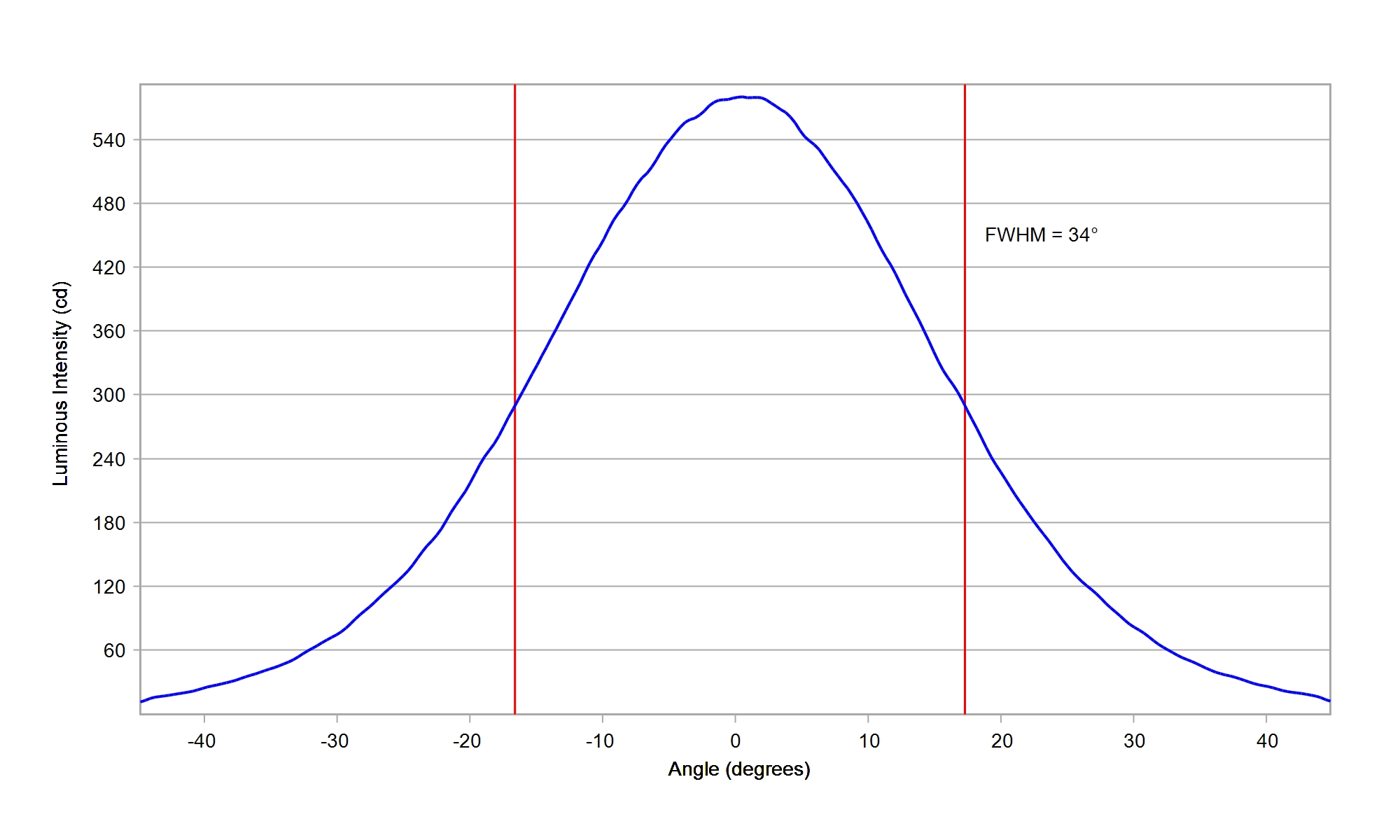

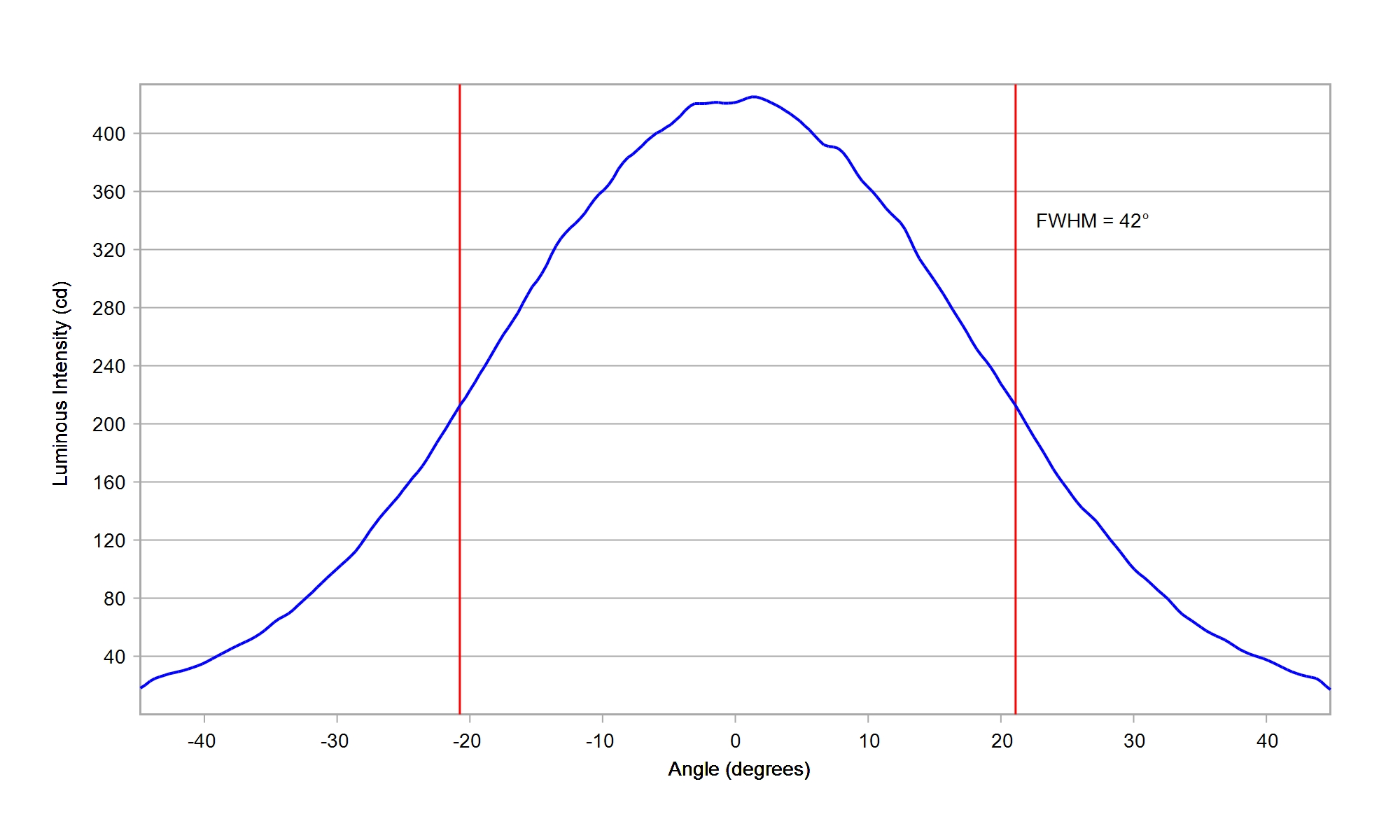

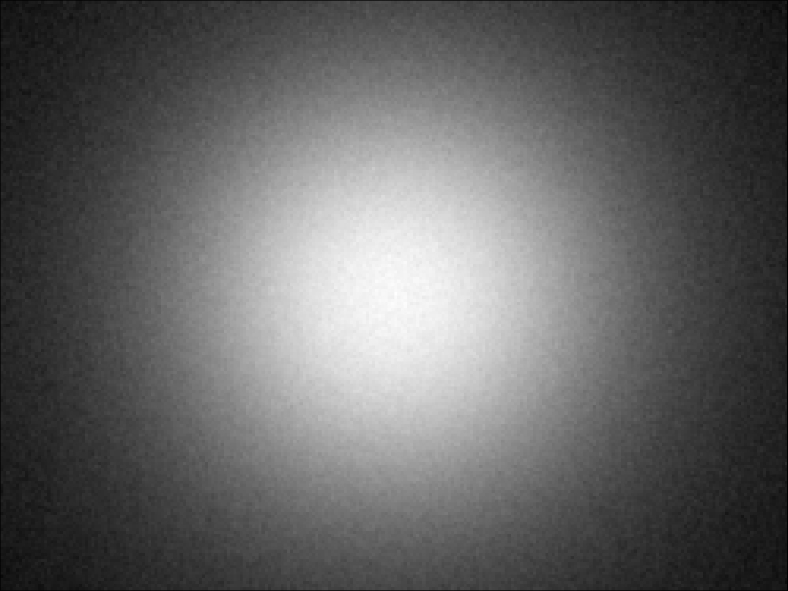

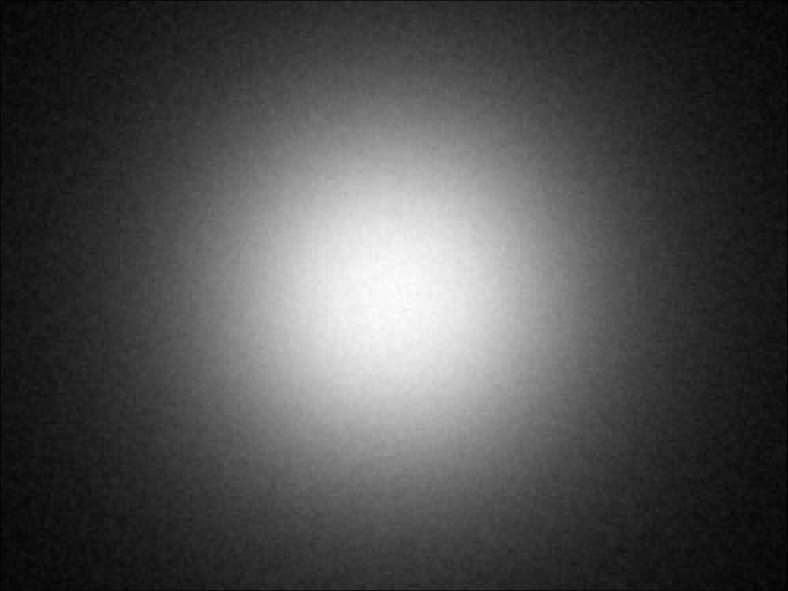

Nichia 229A White

Eff:

84.0%

FWHM:

35.0°

Cd/Im:

1.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

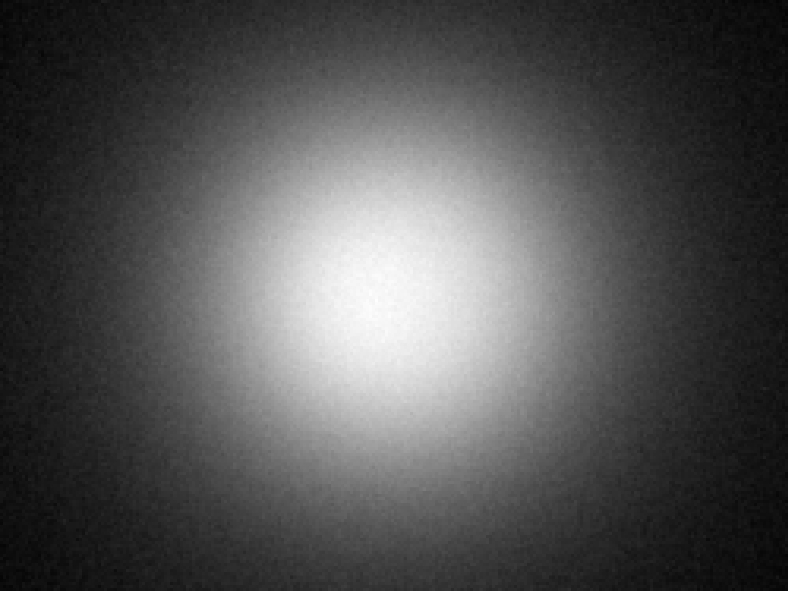

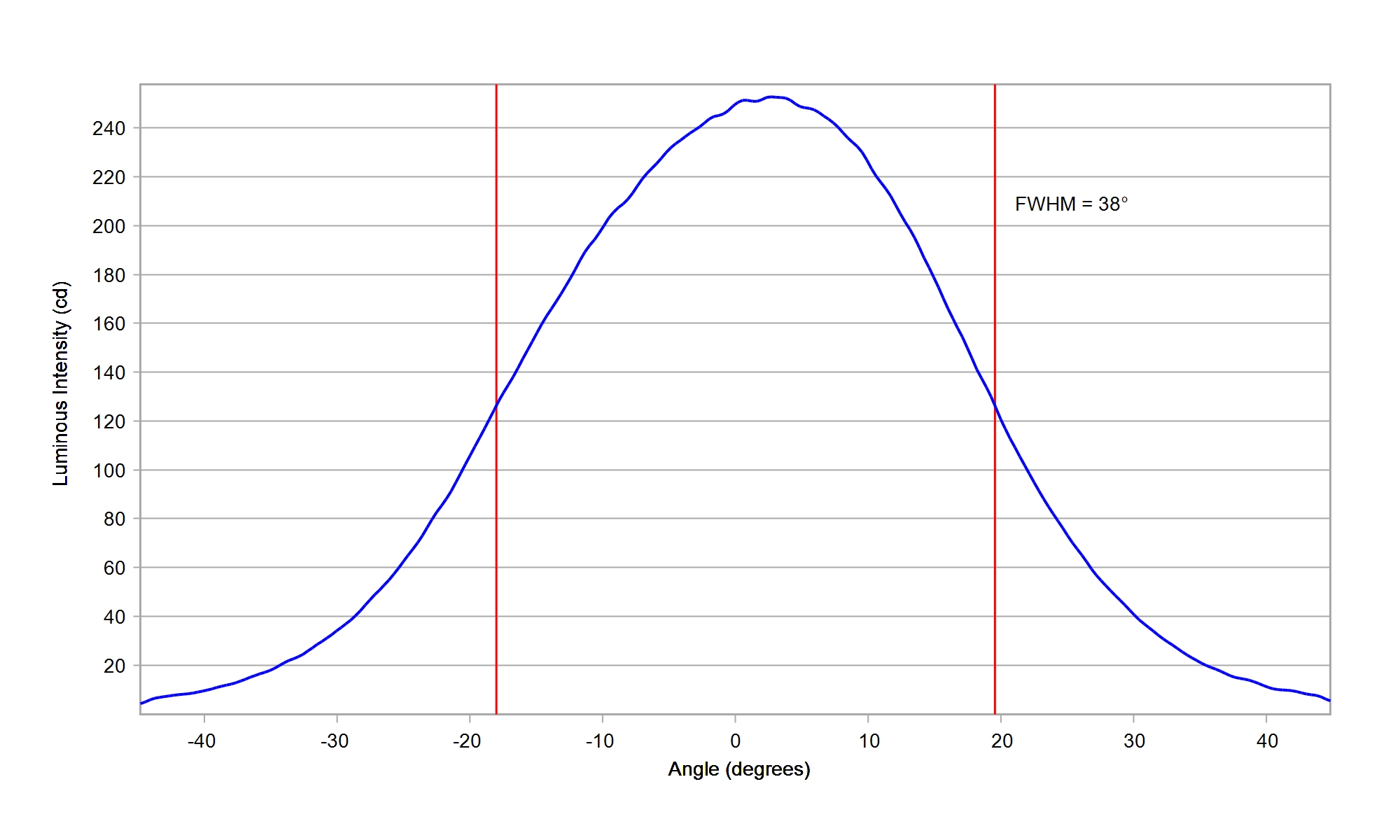

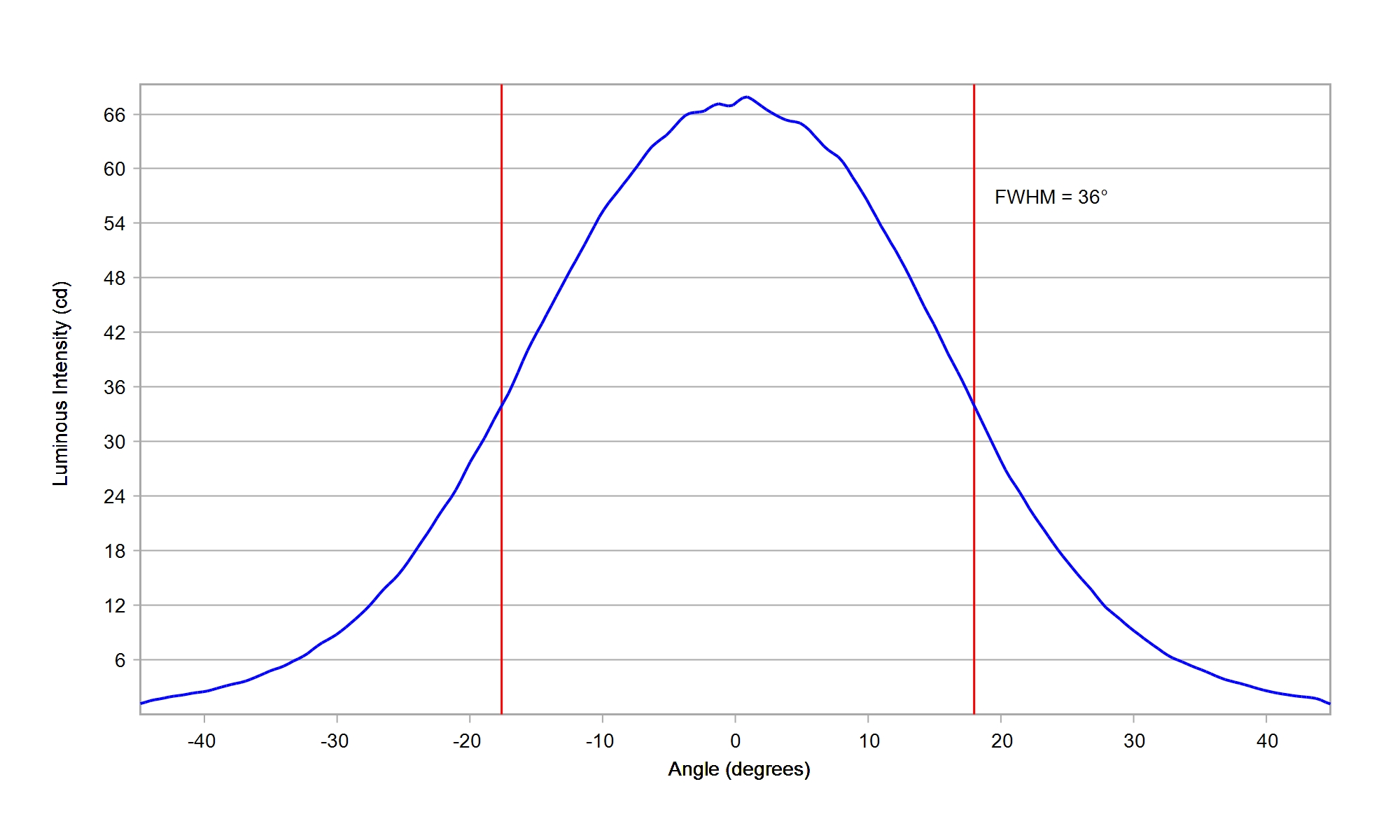

Nichia 757G White

Eff:

86.5%

FWHM:

36°

Cd/Im:

1.9

Carclo Optics 10196 20mm Simulated Spot Image Nichia 757G-MT

Carclo Optics 10196 20mm Simulated cross section Nichia 757G-MT

Download

IES

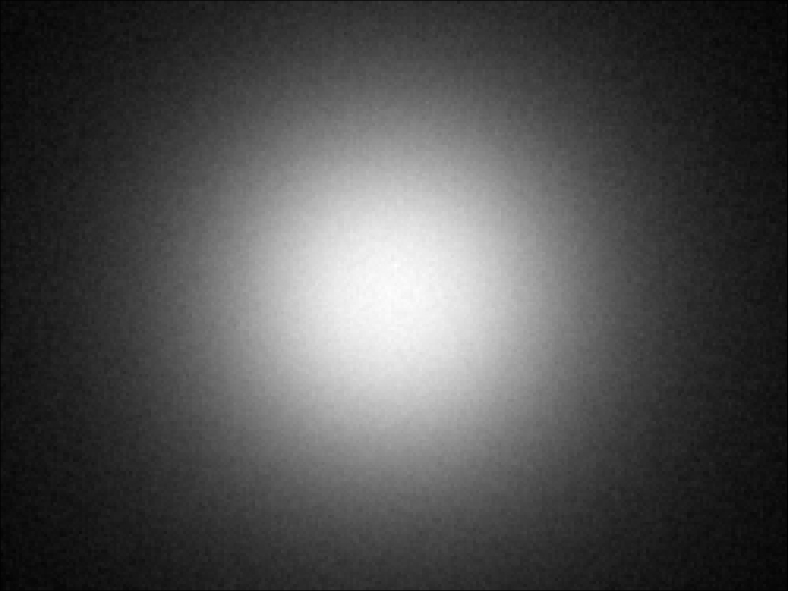

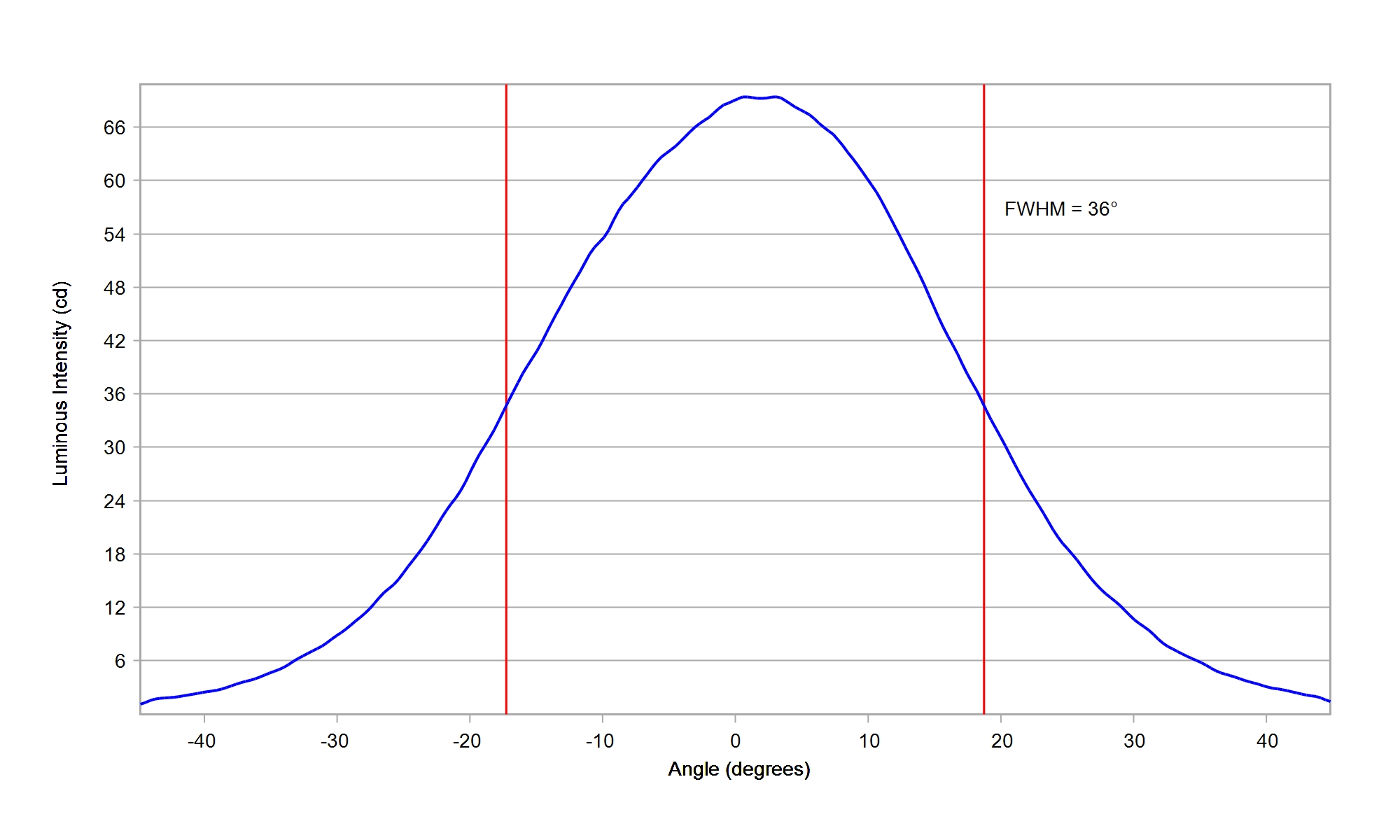

Nichia 757G White

Eff:

86.0%

FWHM:

36.0°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NCSW CSP E17A White

Eff:

86.5%

FWHM:

32.5°

Cd/Im:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

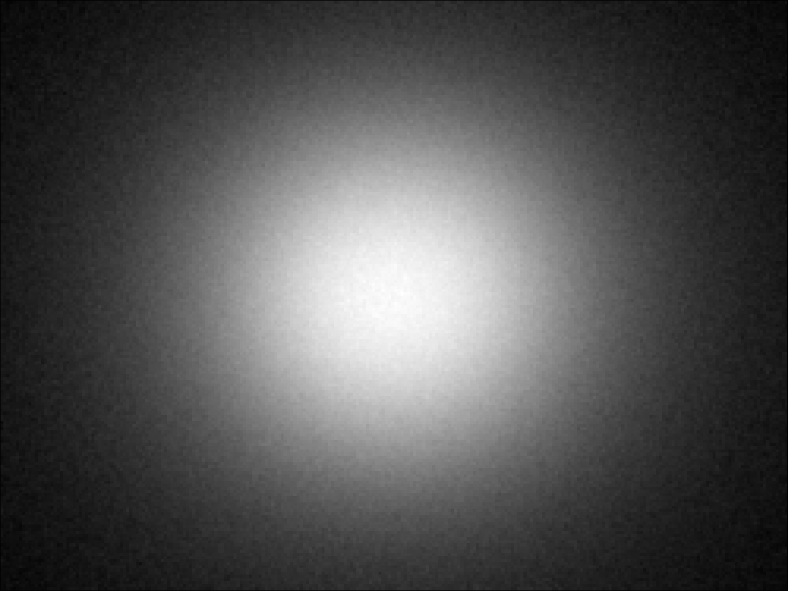

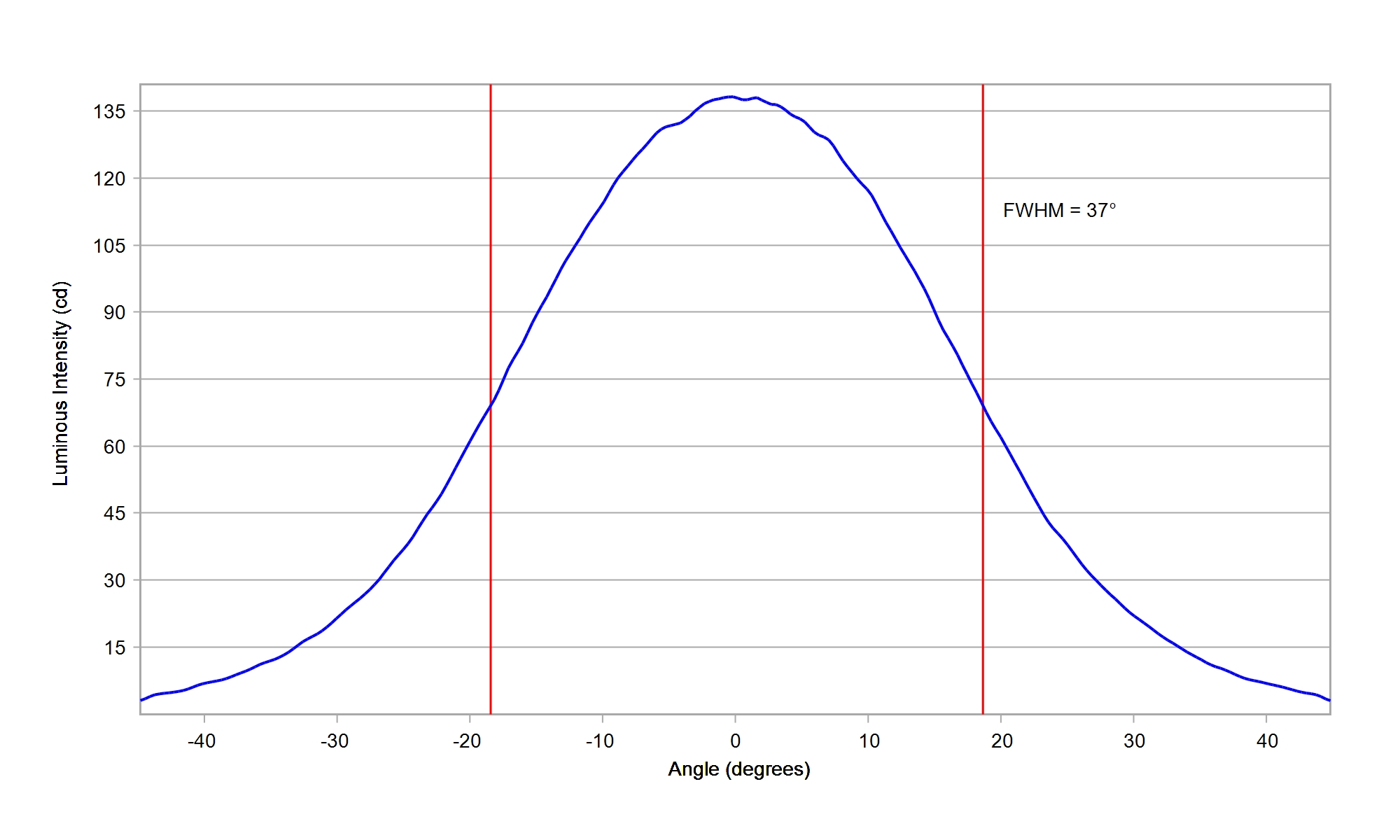

Nichia NF2W 385AR-V2 White

Eff:

87.0%

FWHM:

34°

Cd/Im:

2.0

Download

IES

Nichia NFSW CSP E11A White

Eff:

86.5%

FWHM:

31°

Cd/Im:

2.3

Download

IES

Nichia NSBWL 121A White

Eff:

83.0%

FWHM:

33.5°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

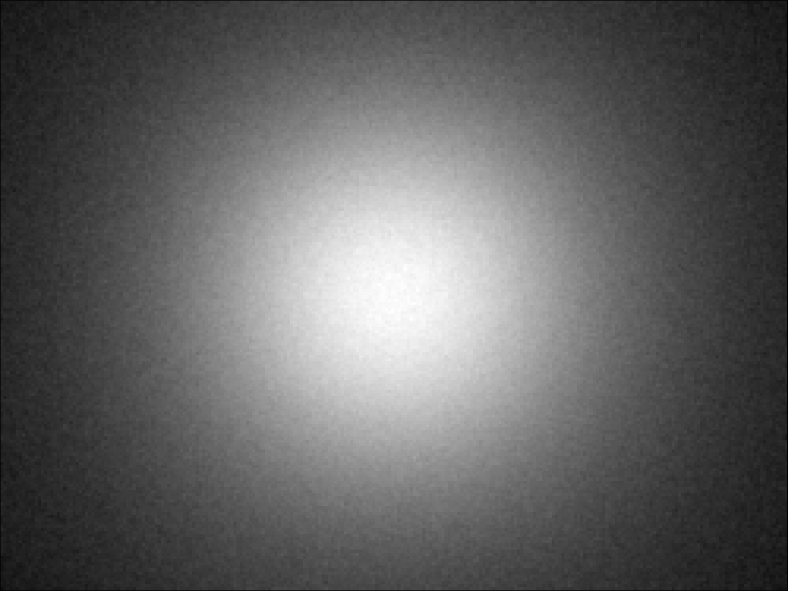

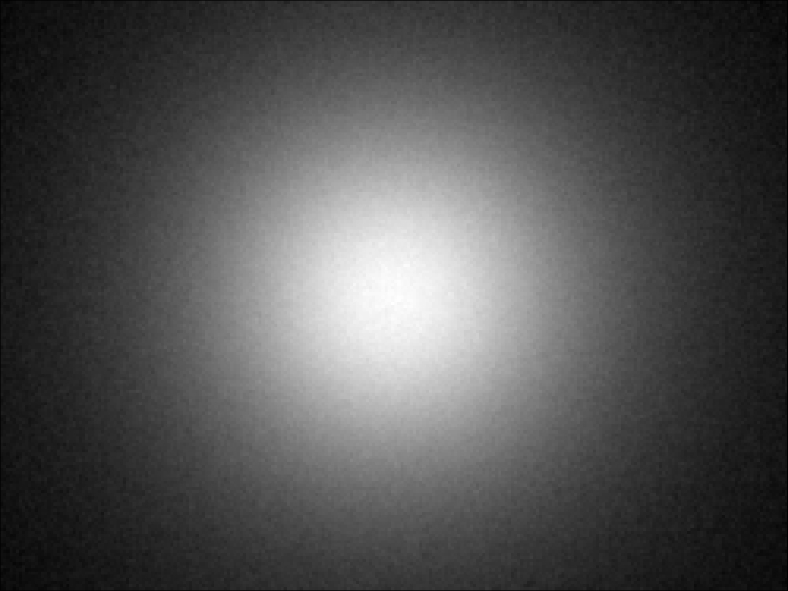

Nichia NV4W B35AM White

Eff:

85.5%

FWHM:

39°

Cd/Im:

1.5

Carclo Optics – 10196 Nichia NV4WB35AM - Spot Image

Carclo Optics – 10196 Nichia NV4WB35AM - Cross-Section

Download

IES

Nichia NVSL 219B White

Eff:

84.5%

FWHM:

35.5°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW 219C White

Eff:

84.5%

FWHM:

36.0°

Cd/Im:

1.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

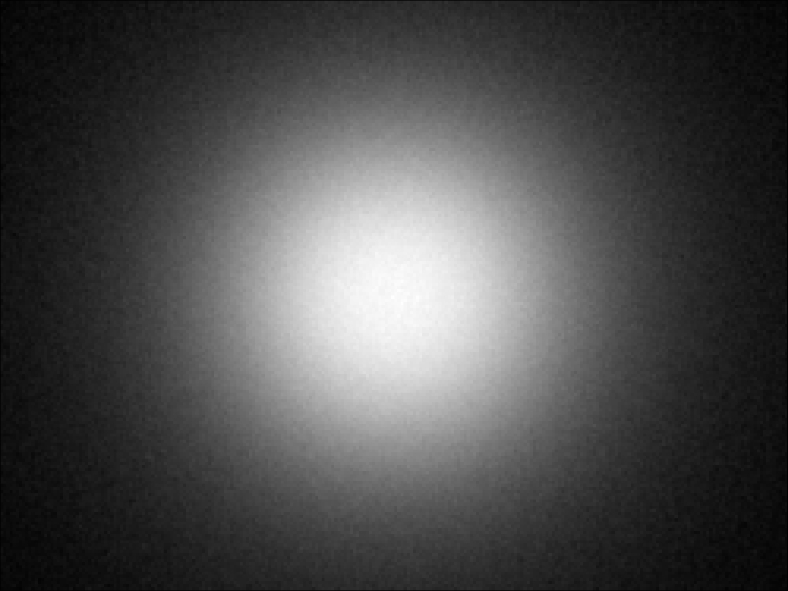

Nichia NVSW 219F White

Eff:

86.5%

FWHM:

33°

Cd/Im:

2.1

Carclo Optics – 10196 Nichia NVSW 219F White - Spot Image

Carclo Optics – 10196 Nichia NVSW 219F White - Cross-Section

Download

IES

Nichia NVSW 319A White

Eff:

84.5%

FWHM:

34.5°

Cd/Im:

1.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW CSP E21A White

Eff:

83.0%

FWHM:

34.4°

Cd/Im:

1.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia Top Emitting 083 White

Eff:

75.6%

FWHM:

37.4°

Cd/Im:

1.7

Download

ies

Nichia Top Emitting NFSW 036 White

Eff:

79.4%

FWHM:

32.8°

Cd/Im:

2.2

Download

ies

Nichia Top Emitting NS3W 183T White

Eff:

80.9%

FWHM:

37°

Cd/Im:

1.9

Download

ies

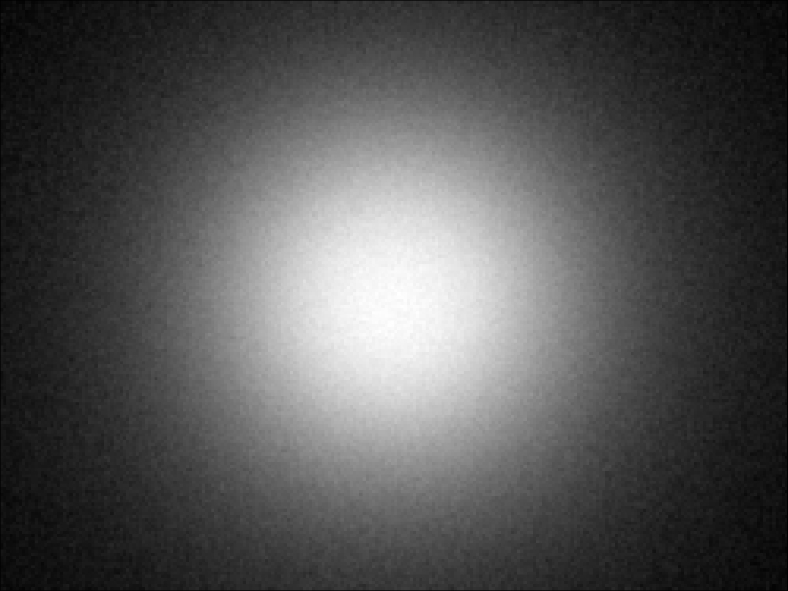

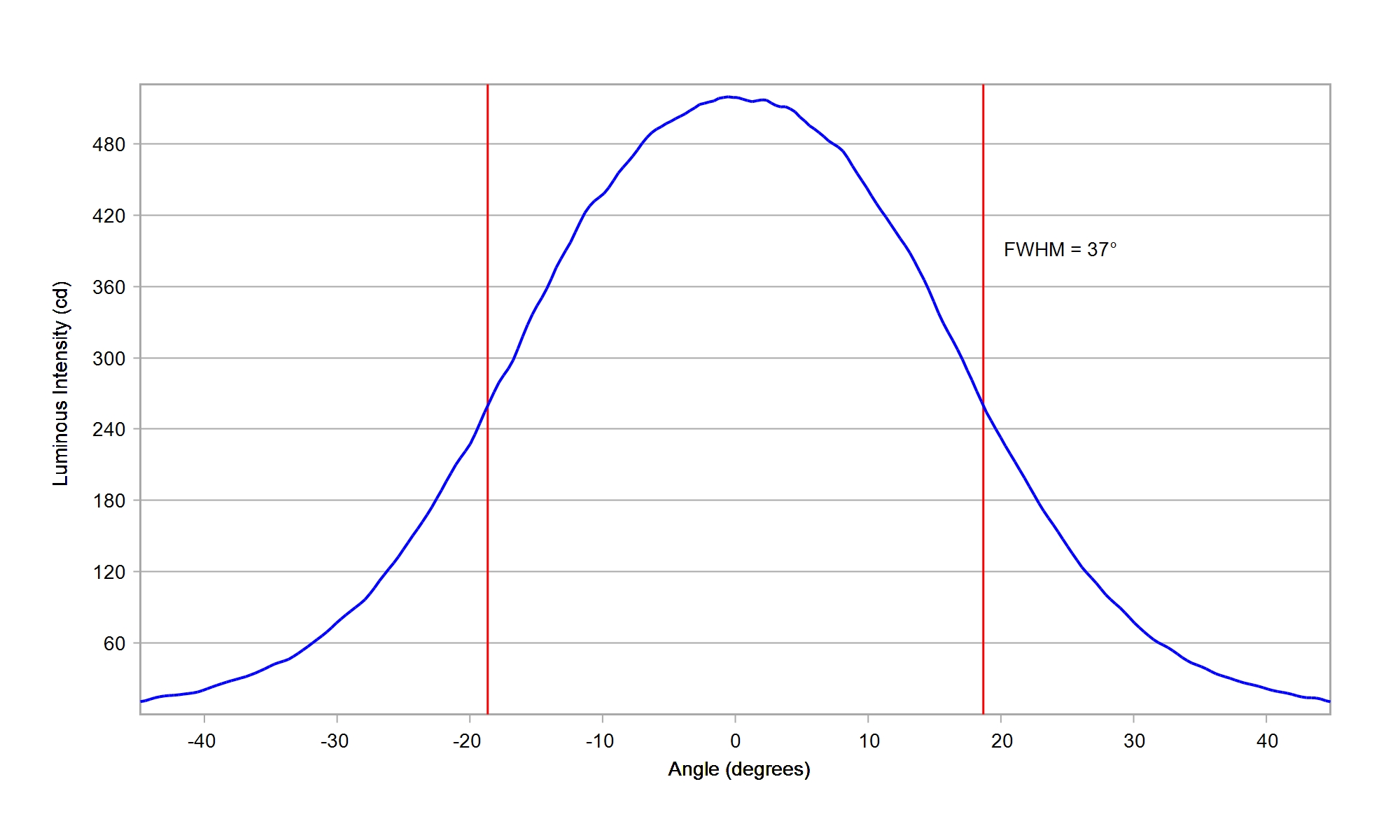

Osram Led Engin LuxiGen LZ1 00R702 IR940nm

Eff:

91.5%

FWHM:

37°

Ipk/W:

1.9

Download

IES

Osram OS DURIS E 2835 Gen2

Eff:

86.0%

FWHM:

38°

Cd/Im:

1.7

Carclo Optics - 10196 20mm Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 10196 20mm Cross Section Osram DURIS E 2835 Gen2

Download

IES

Osram OS DURIS E 2835 White

Eff:

86.0%

FWHM:

36°

Cd/Im:

1.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS E 5050 GW J9LHS1.4M RGBW

Eff:

86.5%

FWHM:

39°

Cd/Im:

1.4

Download

IES

Osram OS DURIS E2 White

Eff:

85.0%

FWHM:

35°

Cd/Im:

1.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS E3 White

Eff:

88.5%

FWHM:

32.6°

Cd/Im:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS P8 White

Eff:

83.9%

FWHM:

37.8°

Cd/Im:

1.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S2 White

Eff:

89.6%

FWHM:

35.3°

Cd/Im:

1.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 Deep Blue

Eff:

86.5%

FWHM:

30.0°

Cd/Im:

2.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 Green

Eff:

86.5%

FWHM:

37.5°

Cd/Im:

1.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 Red

Eff:

87.0%

FWHM:

37°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 White

Eff:

84.0%

FWHM:

37.0°

Cd/Im:

1.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS GOLDEN DRAGON W5SM White

Eff:

84.0%

FWHM:

32°

Cd/Im:

2.3

Download

ies

Osram OS OSCONIQ C 2424 White

Eff:

86.5%

FWHM:

37.0°

Cd/Im:

1.8

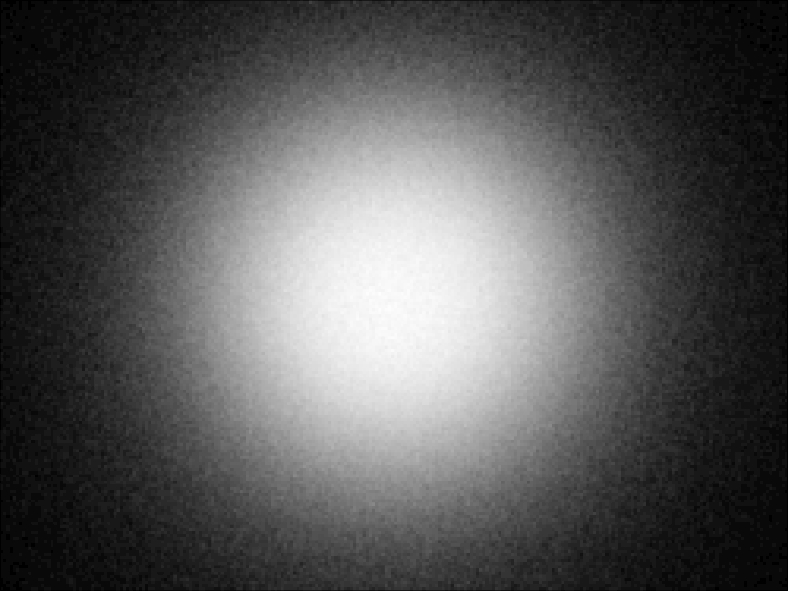

Carclo Optics - 10196 Spot Image OSCONIQ C2424

Carclo Optics - 10196 Cross Section OSCONIQ C2424

Download

IES

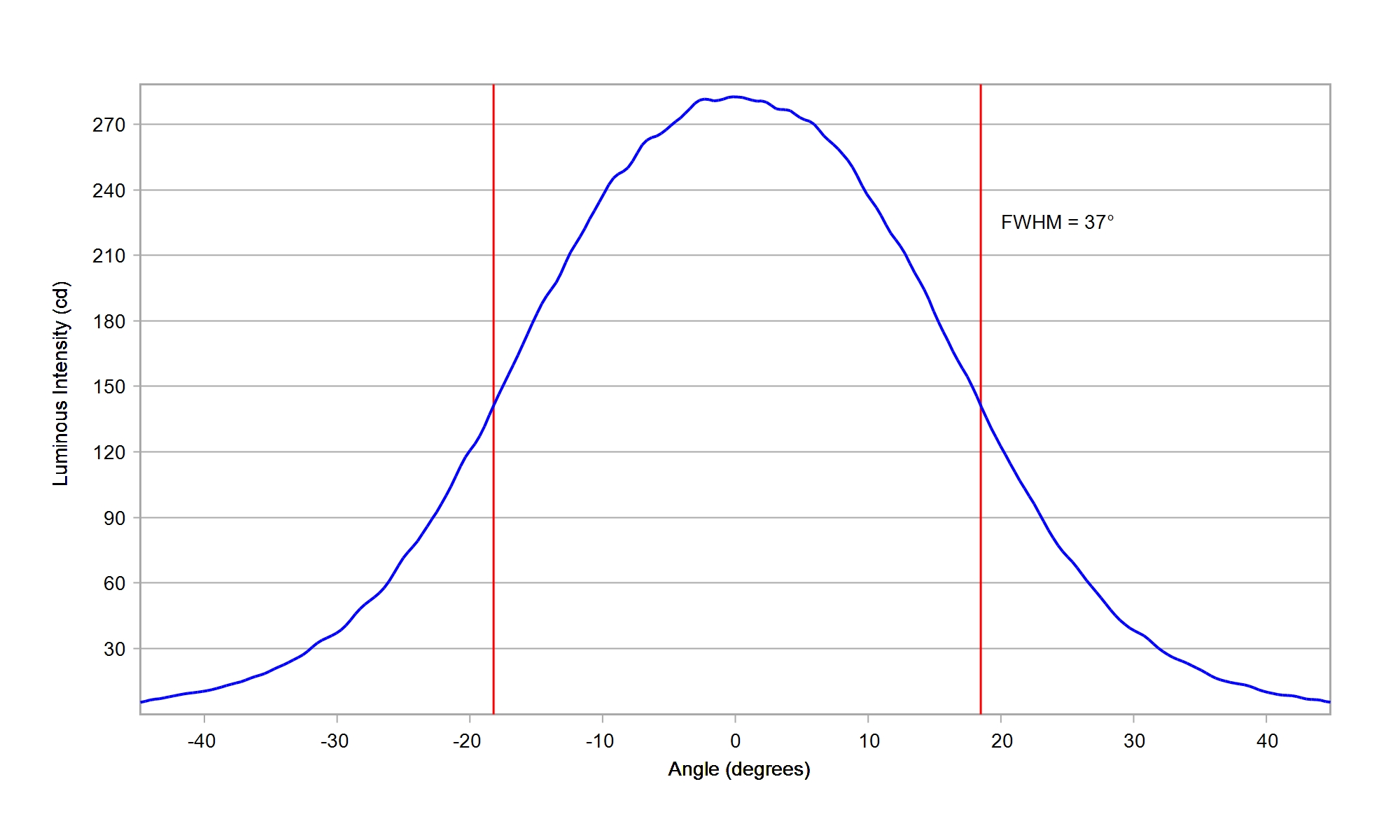

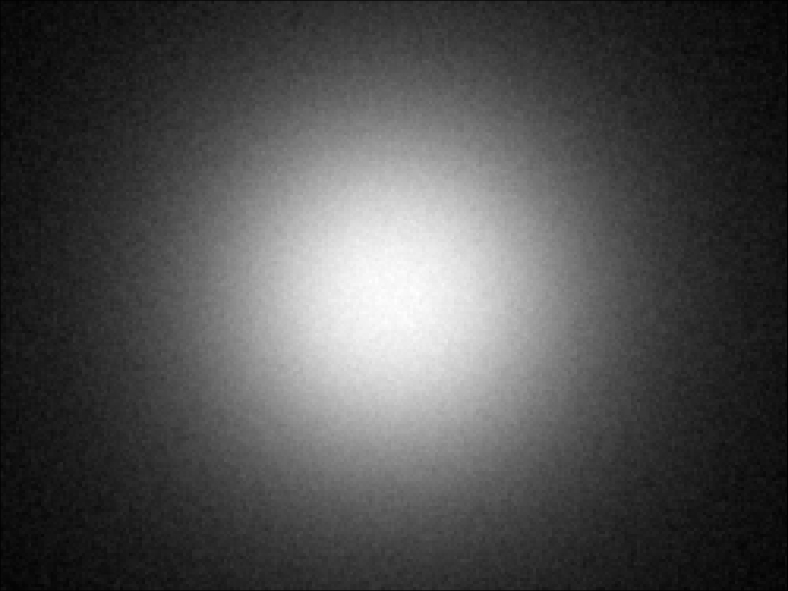

Osram OS OSCONIQ P3737 White

Eff:

84.5%

FWHM:

35.5°

Cd/Im:

1.8

Carclo Optics 10196 Spot Image Osram Osconiq

Carclo Optics 10196 Cross Section Osram Osconiq P3737

Download

IES

Osram OS OSLON Black SFH 4715AS IR

Eff:

90.0%

FWHM:

34°

Ipk/W:

2.1


Download

IES

Osram OS OSLON Black SFH 4716AS IR

Eff:

89.5%

FWHM:

31°

Ipk/W:

2.4

Carclo Optics – 10196 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

Carclo Optics – 10196 Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

IES

Osram OS OSLON Black SFH 4725S IR

Eff:

93.0%

FWHM:

30.5°

Ipk/W:

2.4

Carclo Optics 10196 Spot Image Osram Oslon Black_IR_SFH_4725S

Carclo Optics 10196 Cross Section Horizontal Image Osram Oslon Black_IR_SFH_4725S

Download

IES

Osram OS OSLON Boost HM KW CELMM1.TG

Eff:

86.5%

FWHM:

35°

Cd/Im:

2.0

Carclo Optics – 10196 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 10196 – Osram_Oslon_Boost_KW_CELMM1_TG_cross section

Download

IES

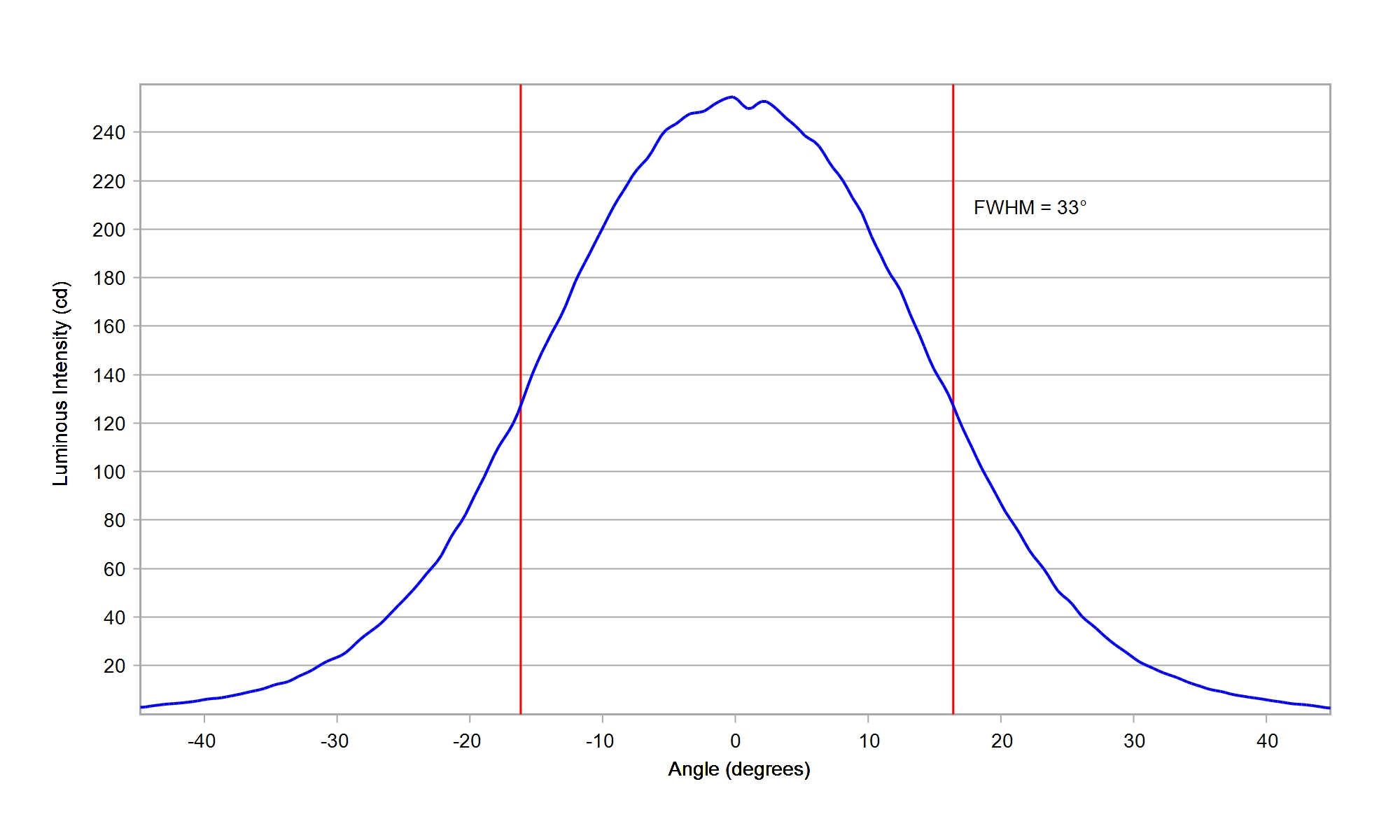

Osram OS OSLON Pure 1010 CSP GC VJLPE1.13 Cyan

Eff:

88.0%

FWHM:

33°

Cd/Im:

2.2


Download

IES

Osram OS OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue

Eff:

86.0%

FWHM:

33°

Ipk/W:

2.2


Download

IES

Osram OS OSLON Pure 1010 CSP GG VJLPE1.F3 Green

Eff:

87.5%

FWHM:

32°

Cd/Im:

2.3


Download

IES

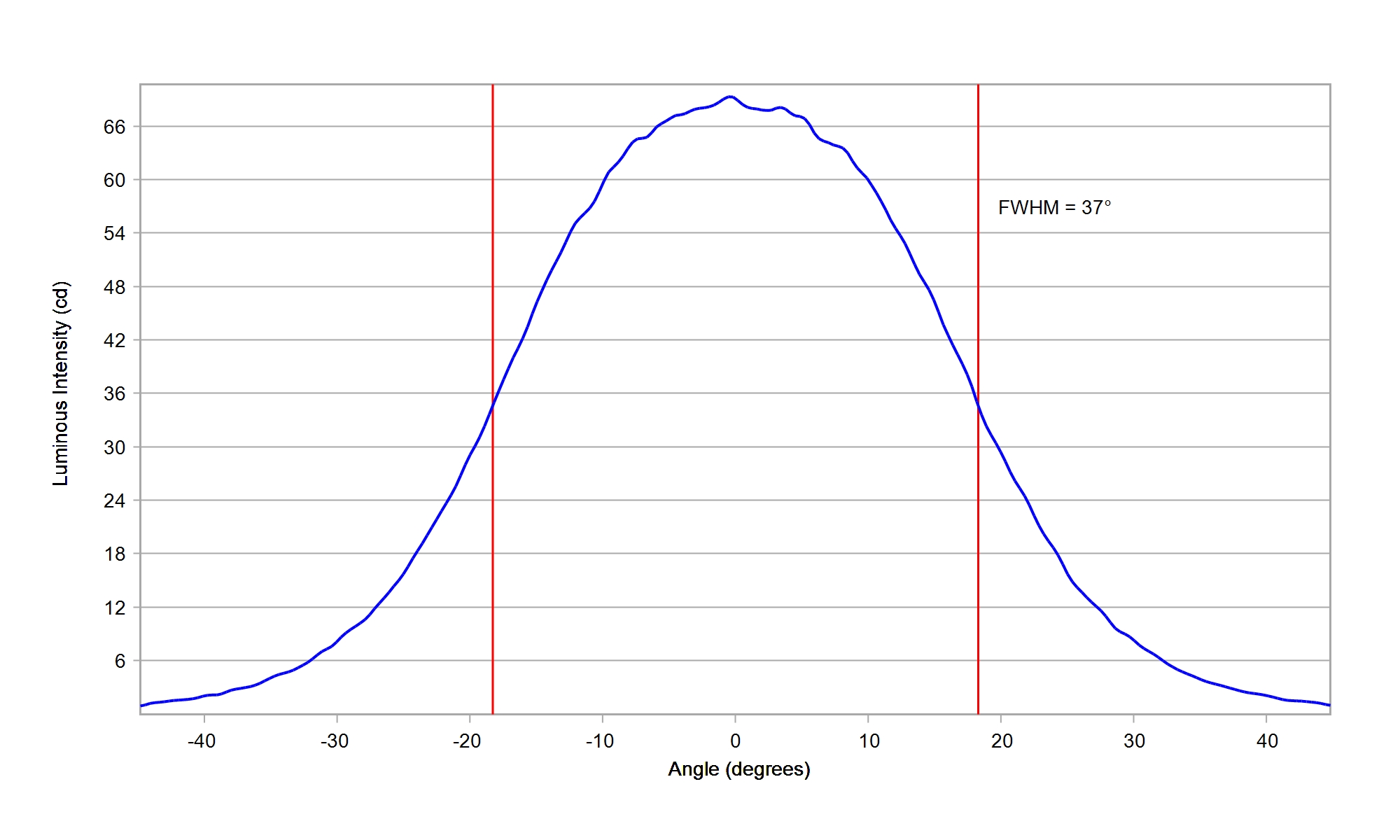

Osram OS OSLON Pure 1010 CSP GR VJLPE1.F3 Red

Eff:

85.5%

FWHM:

37°

Cd/Im:

1.7


Download

IES

Osram OS OSLON Pure 1010 CSP GT VJLPE1.13 True Green

Eff:

87.5%

FWHM:

33°

Cd/Im:

2.2


Download

IES

Osram OS OSLON Pure 1010 CSP GW VJLPE1.CM White

Eff:

87.0%

FWHM:

32°

Cd/Im:

2.2



Download

IES

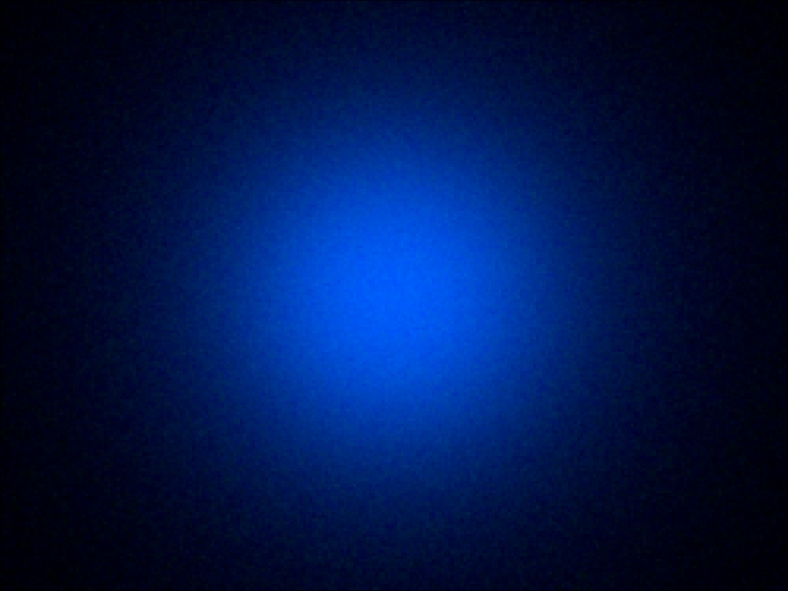

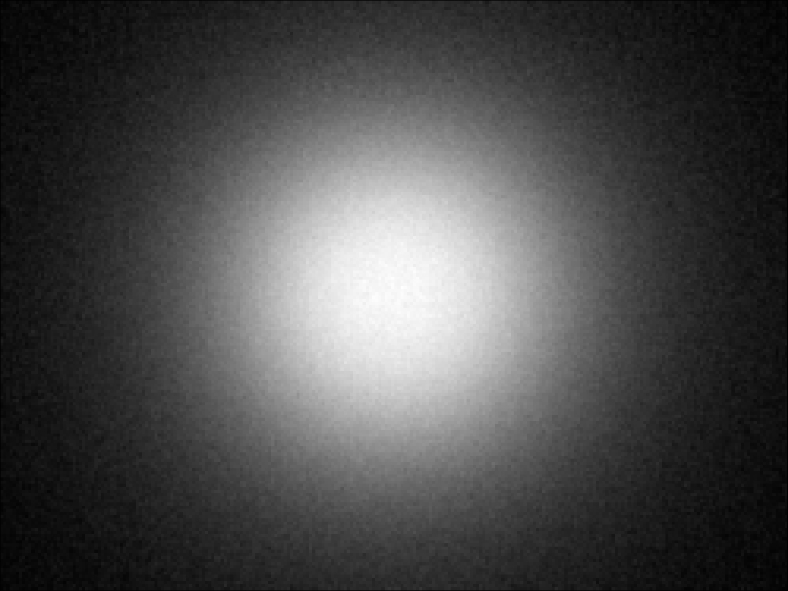

Osram OS OSLON Pure 1414 GB VJLPL1.F3 Blue

Eff:

88.0%

FWHM:

33°

Cd/Im:

2.2


Download

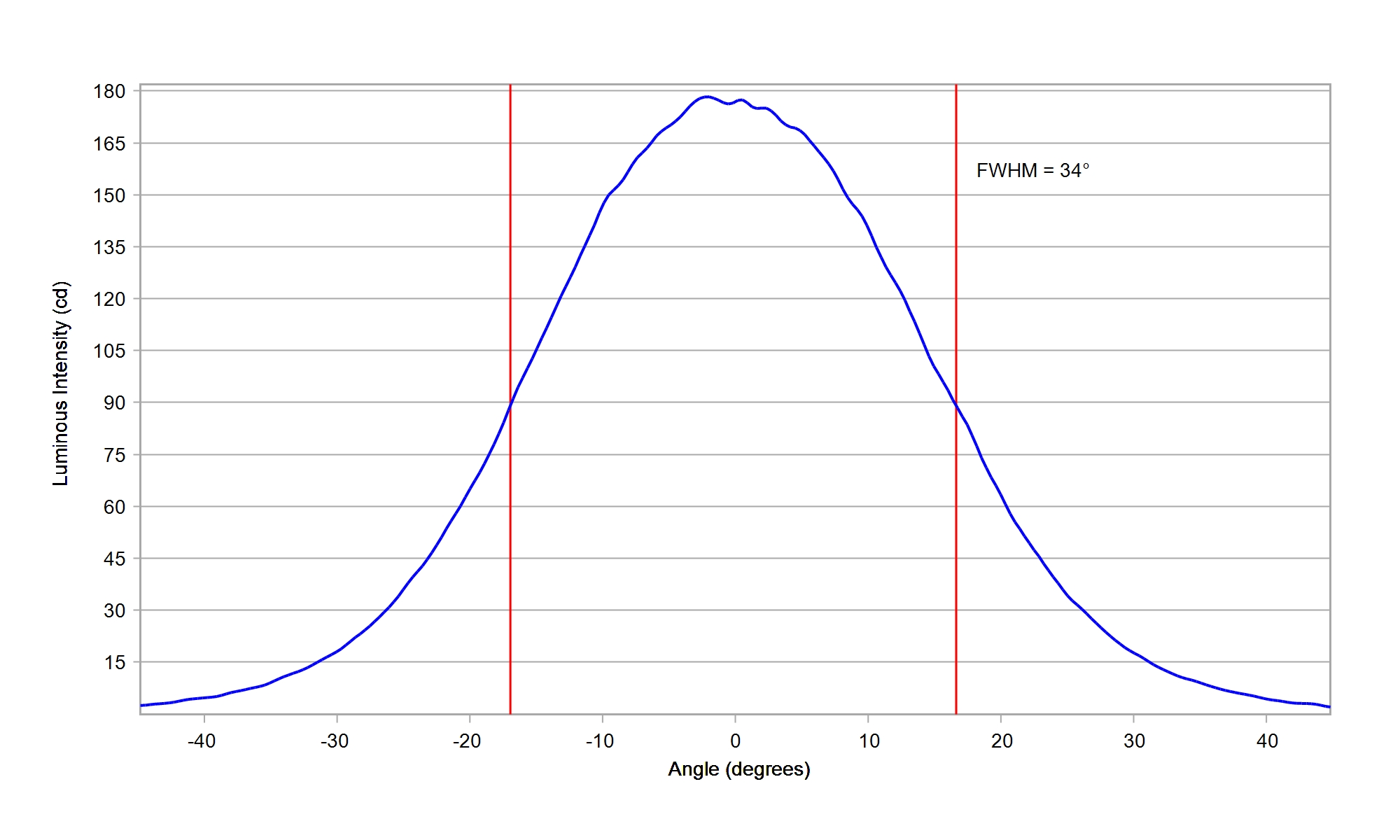

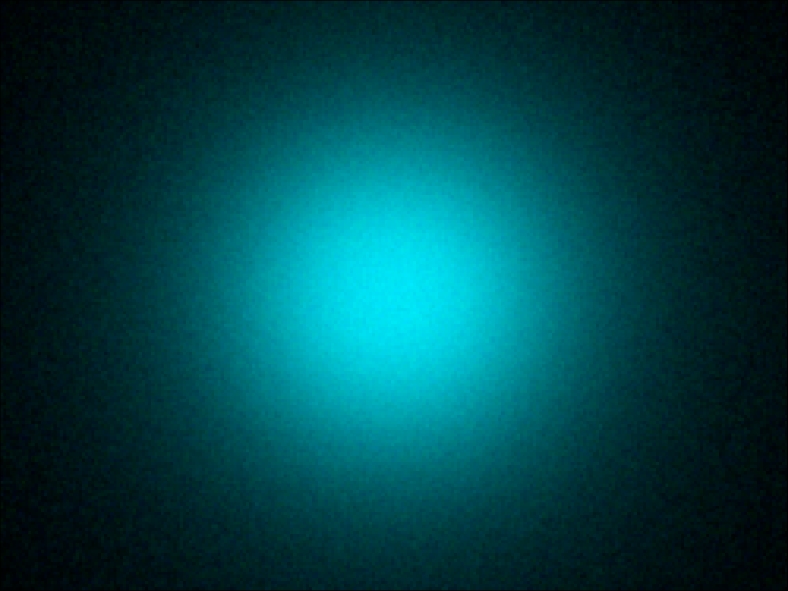

Osram OS OSLON Pure 1414 GC VJLPL1.13 Cyan

Eff:

88.0%

FWHM:

34°

Cd/Im:

2.2


Download

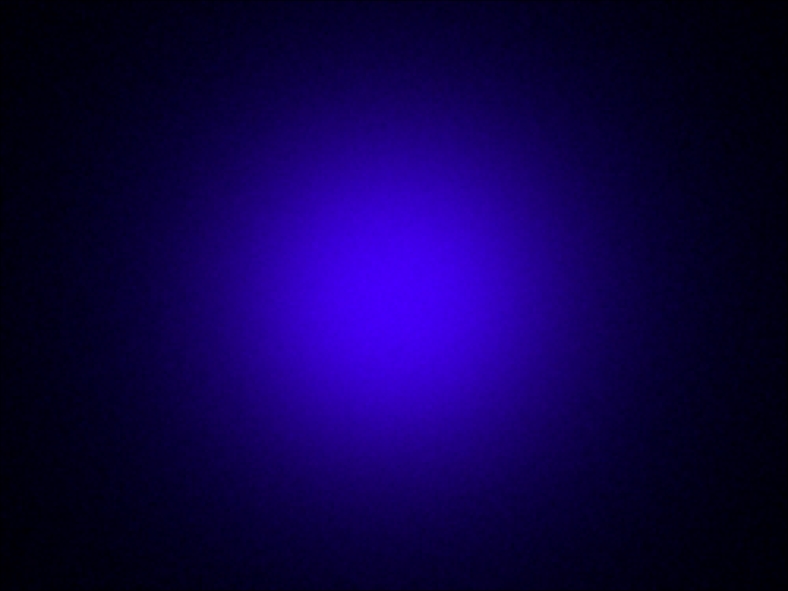

Osram OS OSLON Pure 1414 GD VJLPL1.14 Deep Blue

Eff:

86.5%

FWHM:

33°

Ipk/W:

2.2


Download

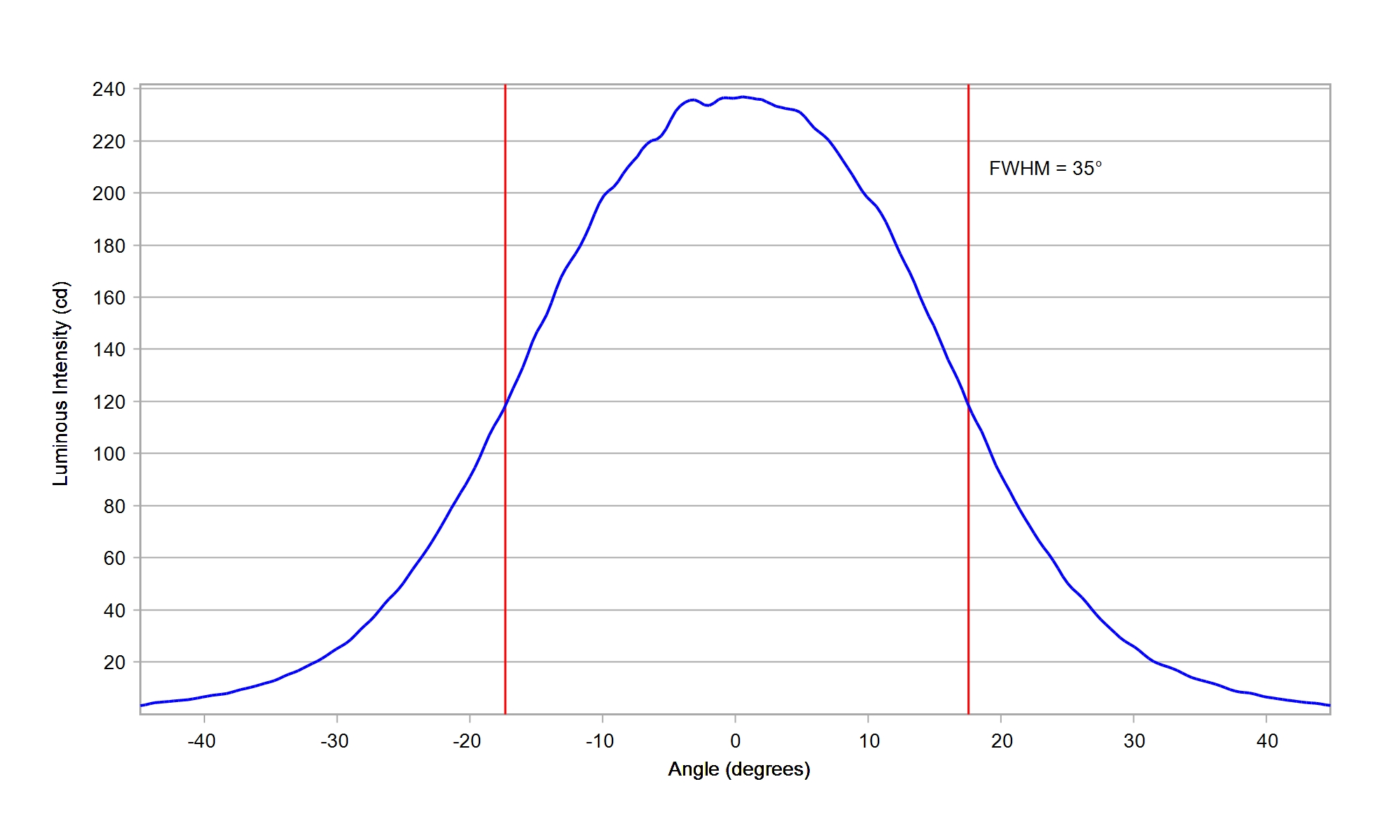

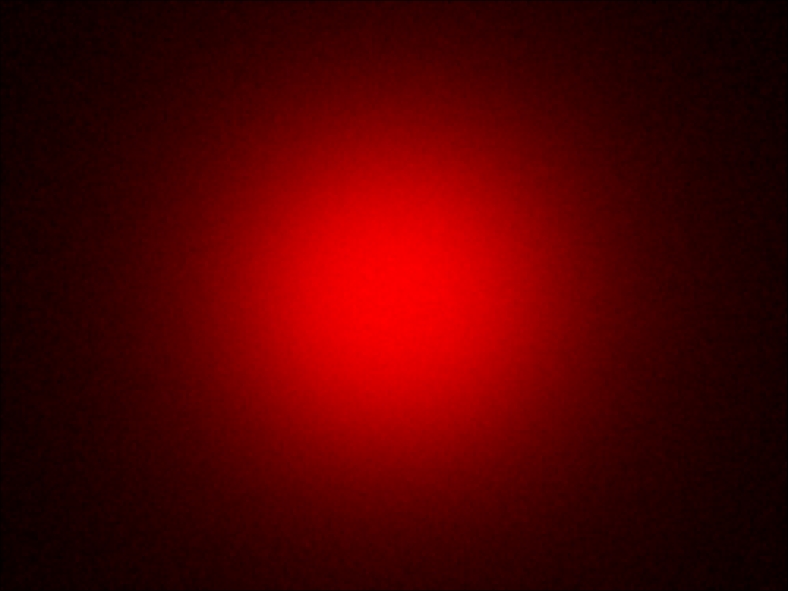

Osram OS OSLON Pure 1414 GR VJLPL1.23 Red

Eff:

87.0%

FWHM:

35°

Cd/Im:

2.0


Download

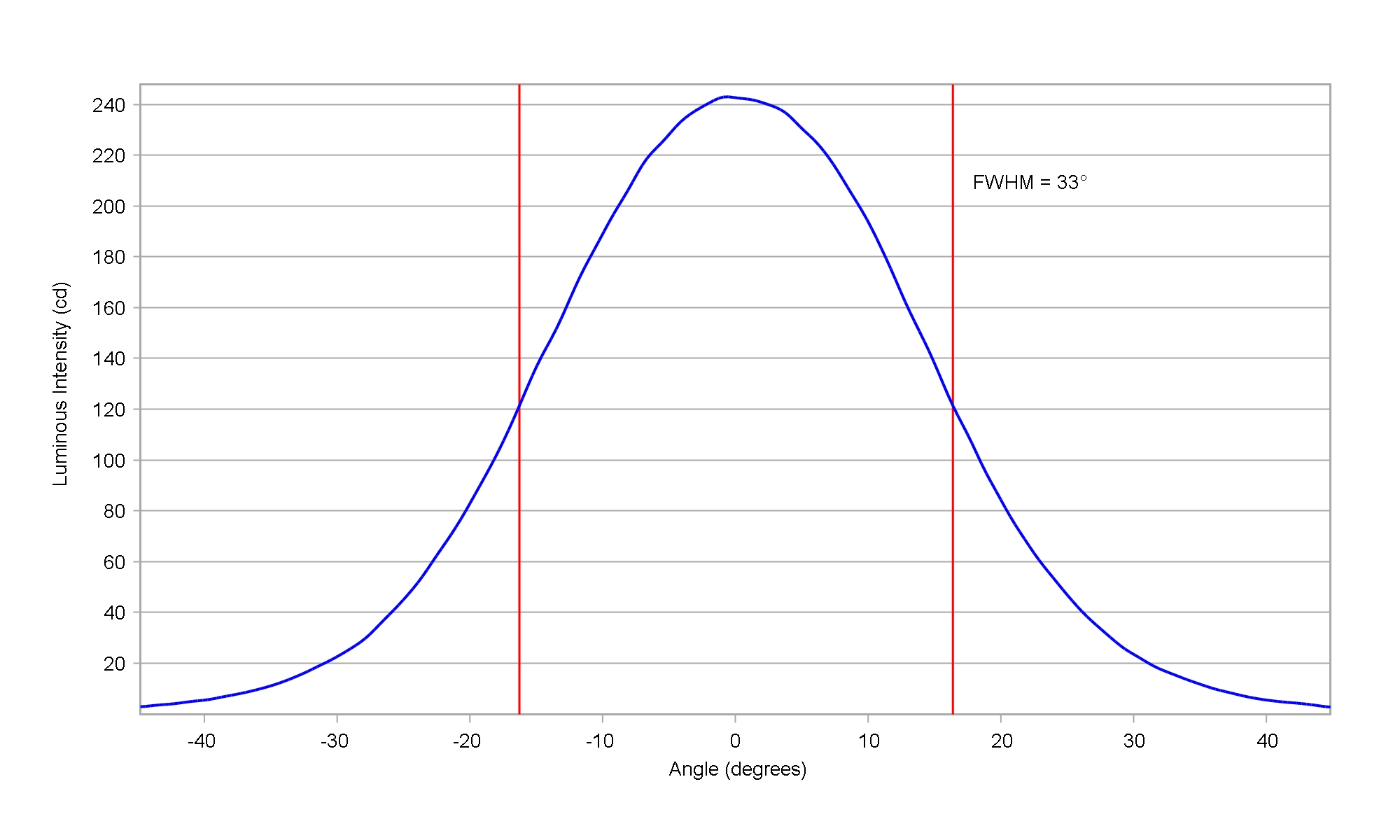

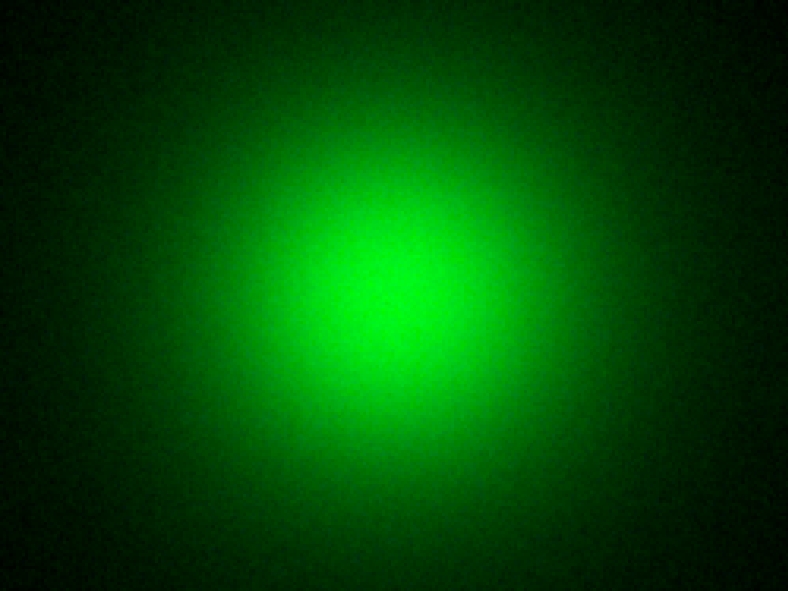

Osram OS OSLON Pure 1414 GT VJLPL1.13 True Green

Eff:

88.0%

FWHM:

33°

Cd/Im:

2.2


Download

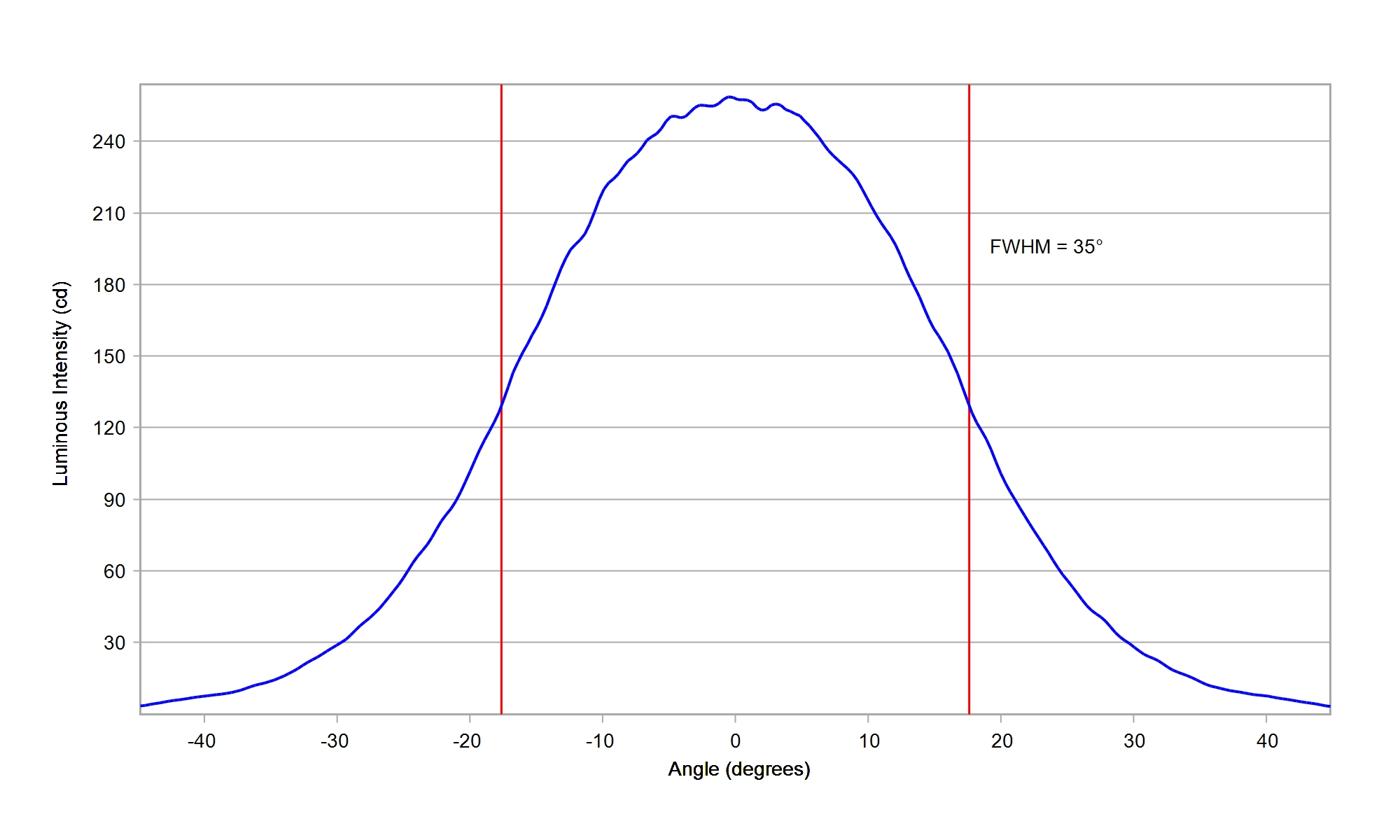

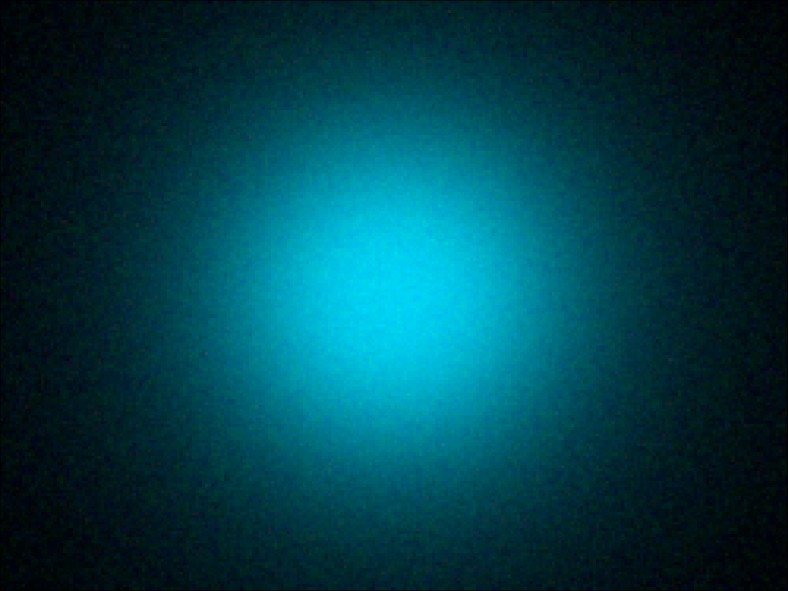

Osram OS OSLON Pure 1414 GV VJLPL1.F3 Verde

Eff:

87.0%

FWHM:

35°

Cd/Im:

2.0


Download

Osram OS OSLON Pure 1414 GW VJLPL1.CM White

Eff:

87.0%

FWHM:

35°

Cd/Im:

2.0

Download

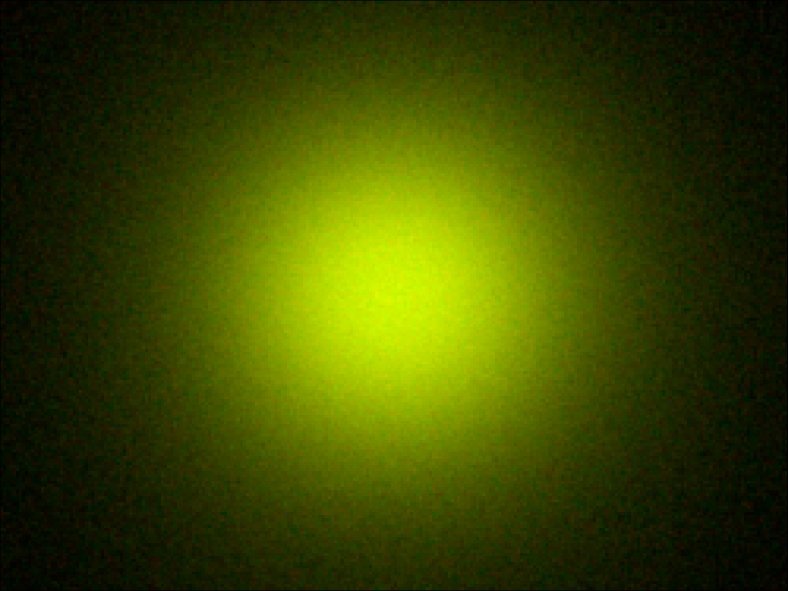

Osram OS OSLON Pure 1414 GW VJLPL1.UL Green

Eff:

87.5%

FWHM:

32°

Cd/Im:

2.3


Download

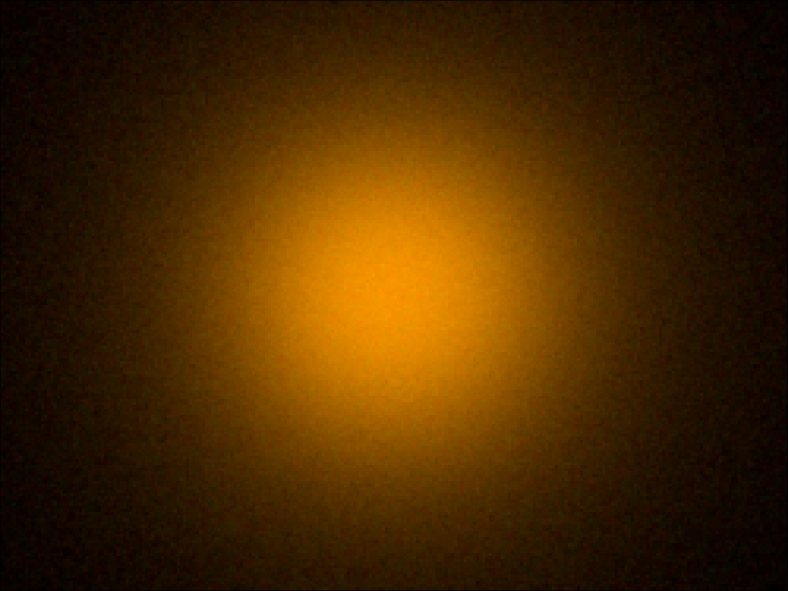

Osram OS OSLON Pure 1414 GY VJLPL1.F3 Yellow

Eff:

87.5%

FWHM:

32°

Cd/Im:

2.2


Download

Osram OS OSLON Square Flat White

Eff:

87.0%

FWHM:

33.0°

Cd/Im:

2.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS OSLON Square Gen 3 White

Eff:

84.5%

FWHM:

36.1°

Cd/Im:

1.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS OSLON Square Gen 5 GW CSSRM3

Eff:

87.0%

FWHM:

34 x 33.5°

Cd/Im:

2.0

Carclo Optics - 10196 20mm Spot Image Oslon Square Gen 5

Carclo Optics - 10196 20mm Vertical Cross Section Oslon Square Gen 5

Download

IES

Osram OS OSLON Square White

Eff:

84.0%

FWHM:

34.5°

Cd/Im:

1.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

86.5%

FWHM:

33°

Cd/Im:

2.1

Carclo Optics – 10196 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Carclo Optics – 10196 Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Download

IES

Osram OS OSLON SSL 80 GH CS8PM1.24 Hyper Red

Eff:

87.5%

FWHM:

36°

Ipk/W:

1.8


Download

IES

Osram OS OSLON SSL 80 GT CS8PM1.13 True Green

Eff:

88.0%

FWHM:

37°

Cd/Im:

1.8



Download

IES

Osram OS OSLON SSL 80 GW CS8PM1.PM White

Eff:

86.5%

FWHM:

36°

Cd/Im:

1.9


Download

IES

Osram OS PLATINUM DRAGON W5SN White

Eff:

85.0%

FWHM:

31.7°

Cd/Im:

2.3

Download

ies

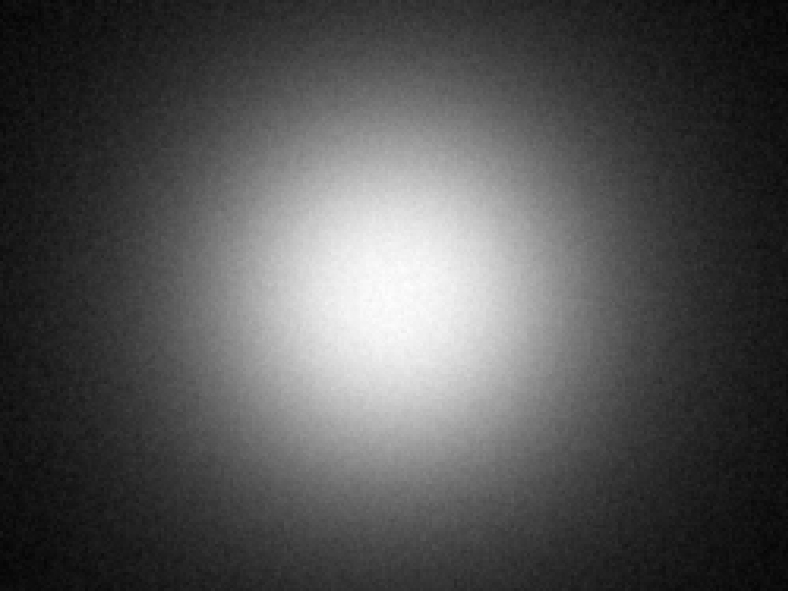

Samsung 2835 LM281B+ White

Eff:

86.5%

FWHM:

35°

Cd/Im:

1.8



Download

Samsung 3030 LM301B White

Eff:

87.5%

FWHM:

34°

Cd/Im:

2.0

Download

IES

Samsung 3535 LH351B White

Eff:

84.0%

FWHM:

36°

Cd/Im:

1.7

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Samsung 3535 LH351D White

Eff:

86.0%

FWHM:

35.0°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Samsung 3535 LH351Z White

Eff:

84.7%

FWHM:

34°

Cd/Im:

1.9

carclo optics - simulated spot image

carclo optics - simulated cross section

,

carclo optics - simulated vertical cross section

Download

IES

Samsung CSP LH151B White

Eff:

86.0%

FWHM:

37°

Cd/Im:

1.8

Carclo Optics – 10196 – Samsung_LH151B_spot-image

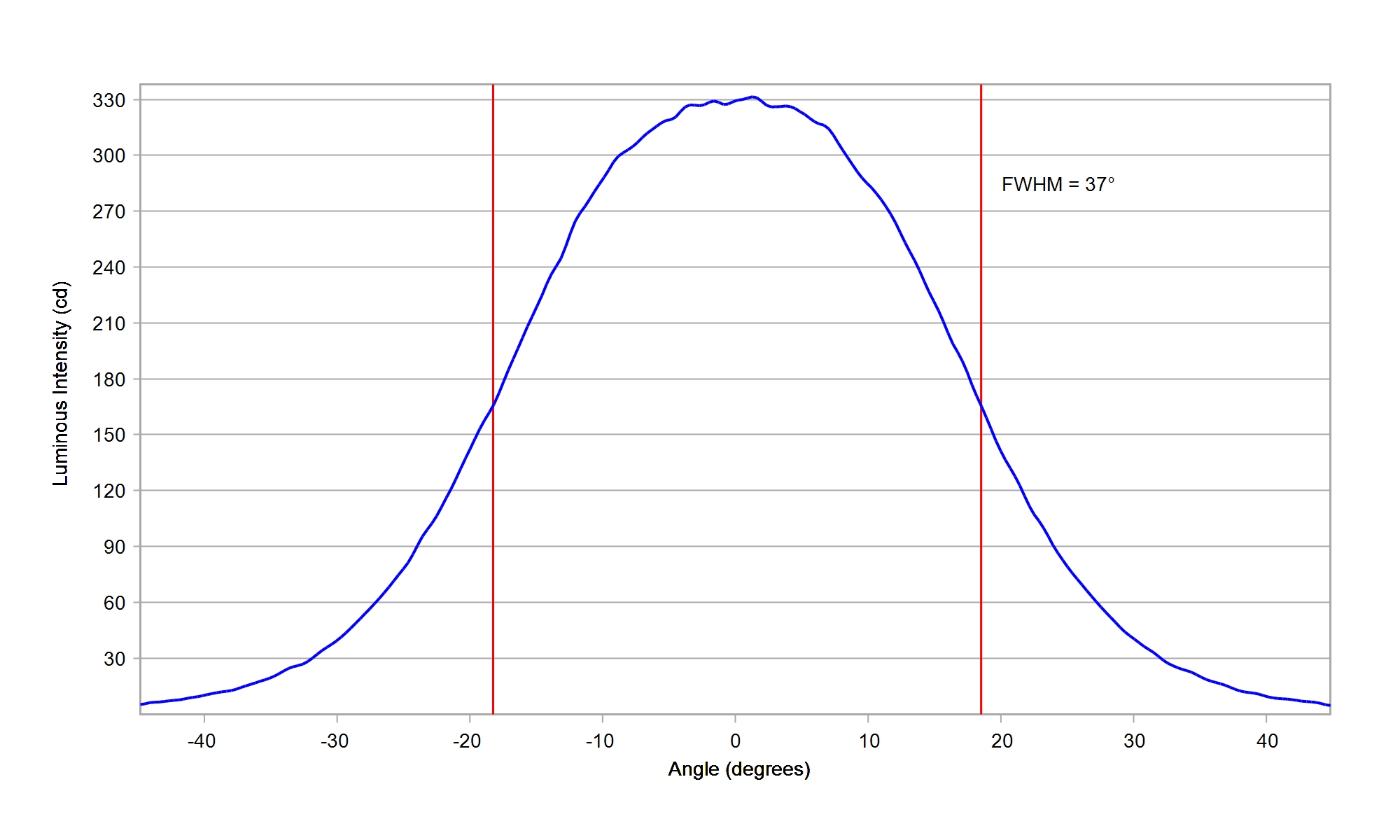

Carclo Optics – 10196 – Samsung_LH151B_cross section

Download

IES

Samsung CSP LH181B White

Eff:

87.5%

FWHM:

33.5 x 33°

Cd/Im:

2.1

Carclo Optics -10196 Sport Image - Samsung LH181B 4000K

Carclo Optics -10196 Cross Section - Samsung LH81B 4000K

Download

IES

Samsung CSP LH231B White

Eff:

85.5%

FWHM:

39.5°

Cd/Im:

1.6

Carclo Optics -10196 Spot Image - Samsung LH231B 5000KL

Carclo Optics -10196 Cross Section - Samsung LH231B 5000K

Download

IES

Samsung CSP LM101B White

Eff:

87.0%

FWHM:

29.5°

Cd/Im:

4.1
