20.0mm Narrow Spot Plain TIR LED Lenses

Part number

10193

Dimensions

20.0mm

Drawing Number

60431

Optic type

TIR LED Lenses

Finish

Plain

Beam type

Narrow Spot

Applications

Architectural

Landscape & Garden

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

88.5%

FWHM:

8.3 x 8.9°

Cd/Im:

28.4

Carclo Optics - 10193 20mm Spot Image Bridgelux 3030 Gen2

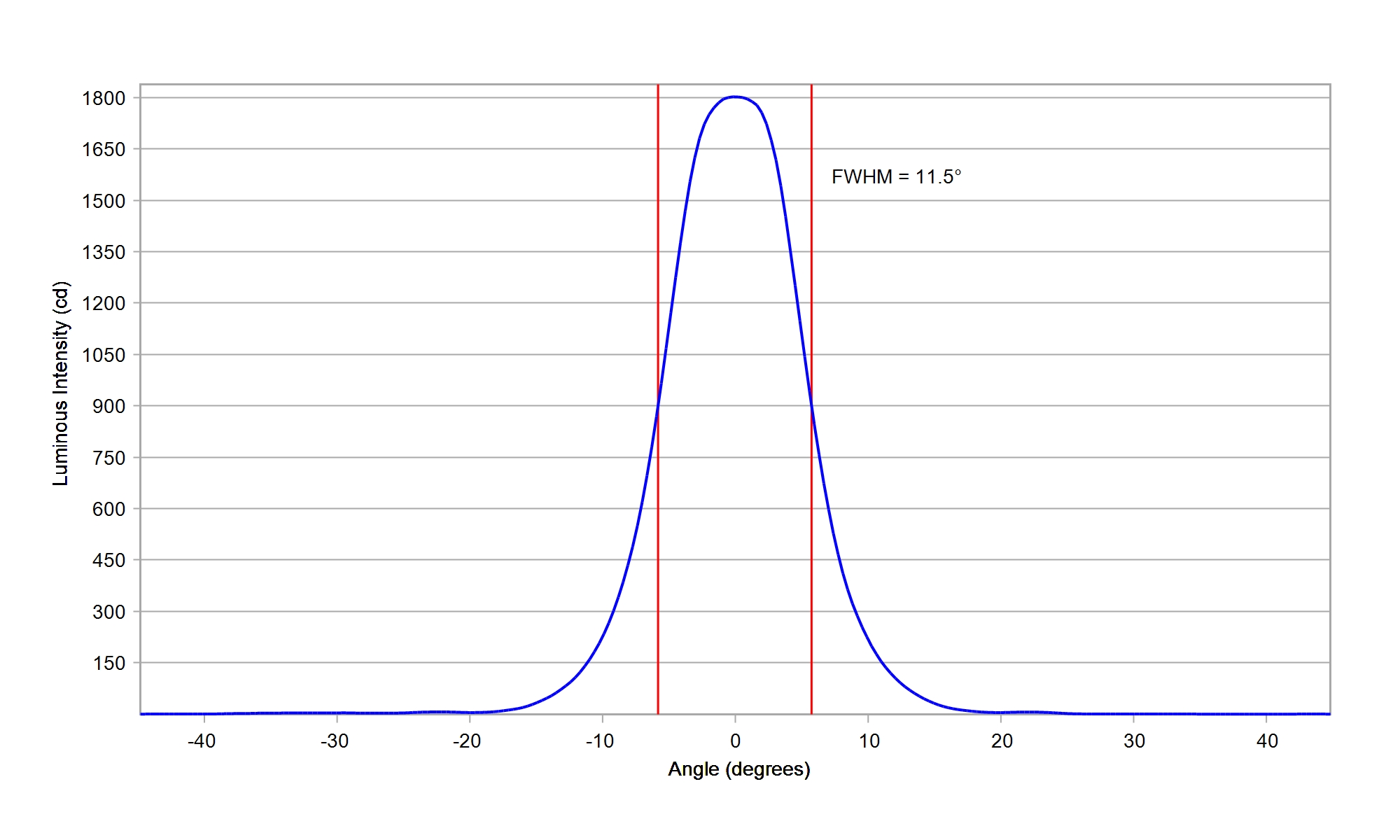

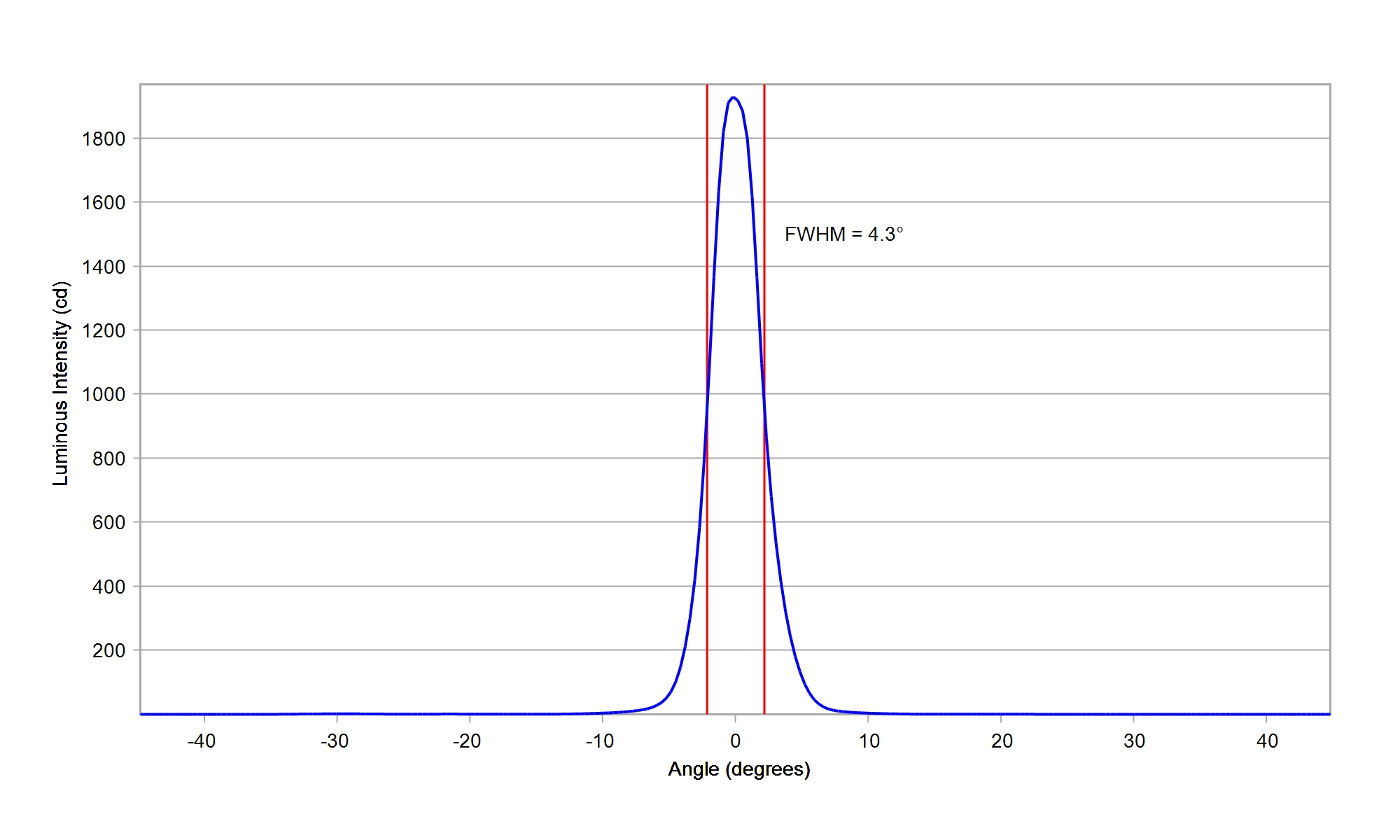

Carclo Optics - 10193 20mm Cross Section Bridgelux 3030 Gen2

Download

IES

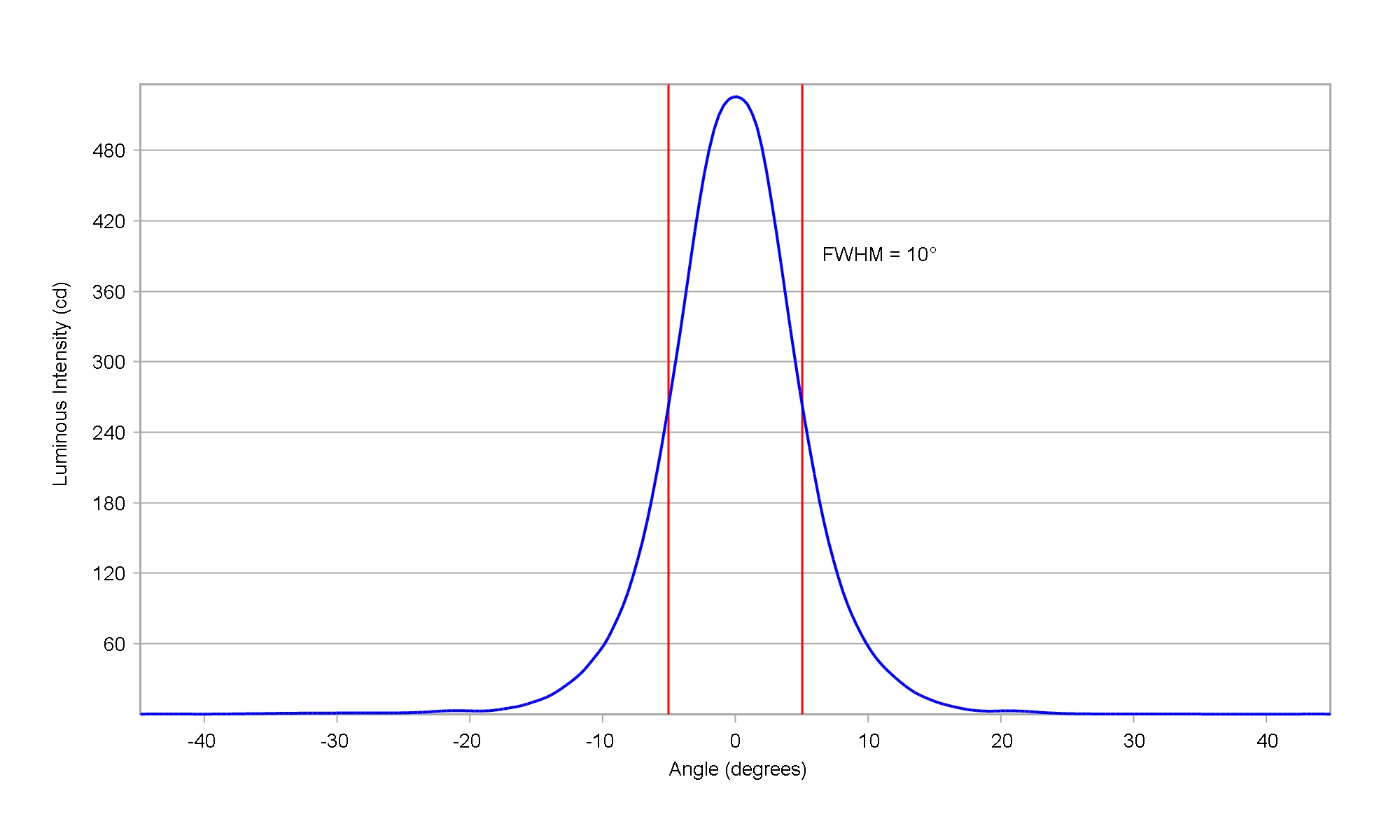

Cree JB2835B 3V G-Class White

Eff:

88.0%

FWHM:

10°

Cd/Im:

18.7


Download

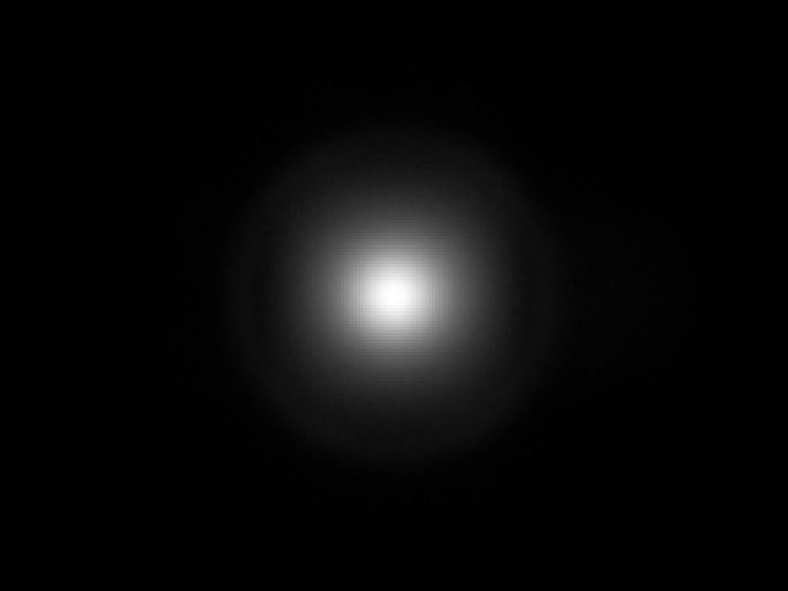

Cree JB2835B 3V J-Class White

Eff:

88.0%

FWHM:

9.7°

Cd/Im:

20.4


Download

Cree JB3030 3V P-Class White

Eff:

89.0%

FWHM:

11.5°

Cd/Im:

15.1

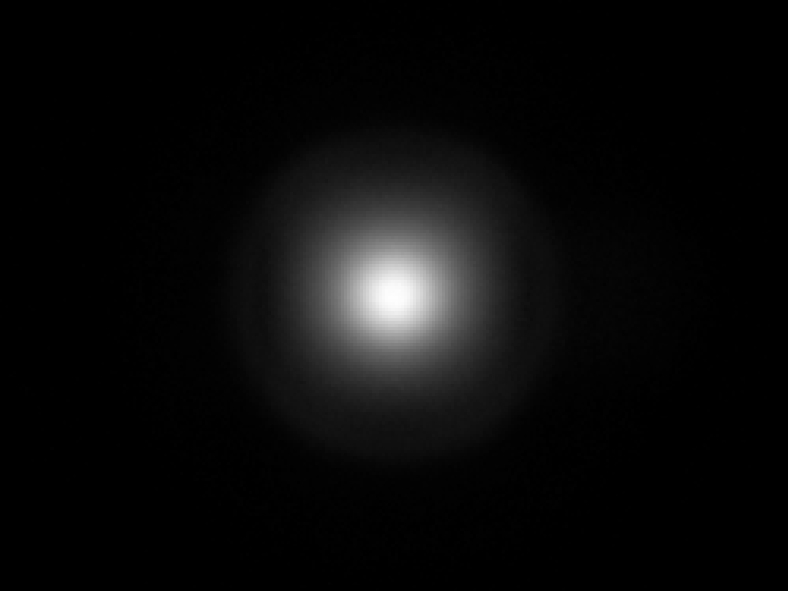

Carclo Optics - 10193 Spot Image Cree JB3030 3V White

Carclo Optics - 10193 Cross Section Cree JB3030 3V White

Download

IES

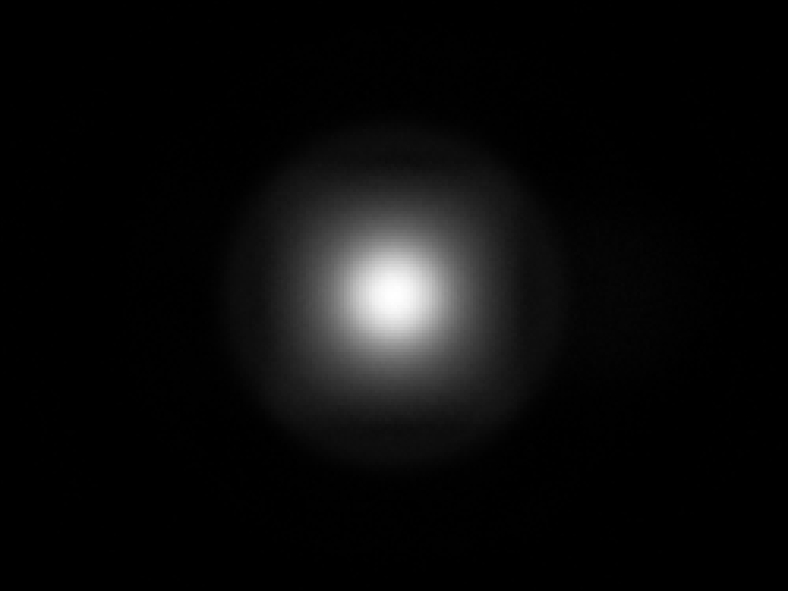

Cree JB3030C 3V E-Class White

Eff:

88.0%

FWHM:

11°

Cd/Im:

16.3


Download

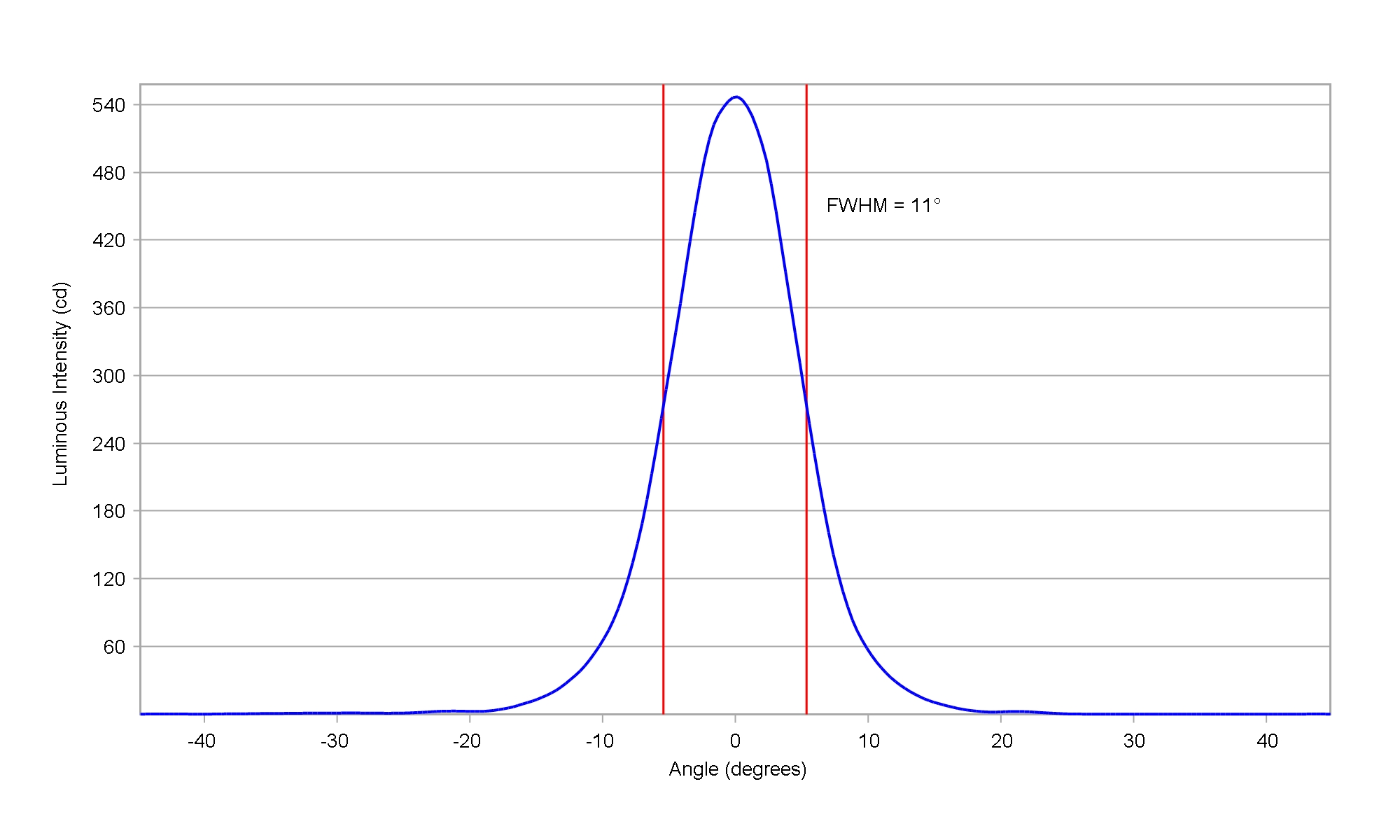

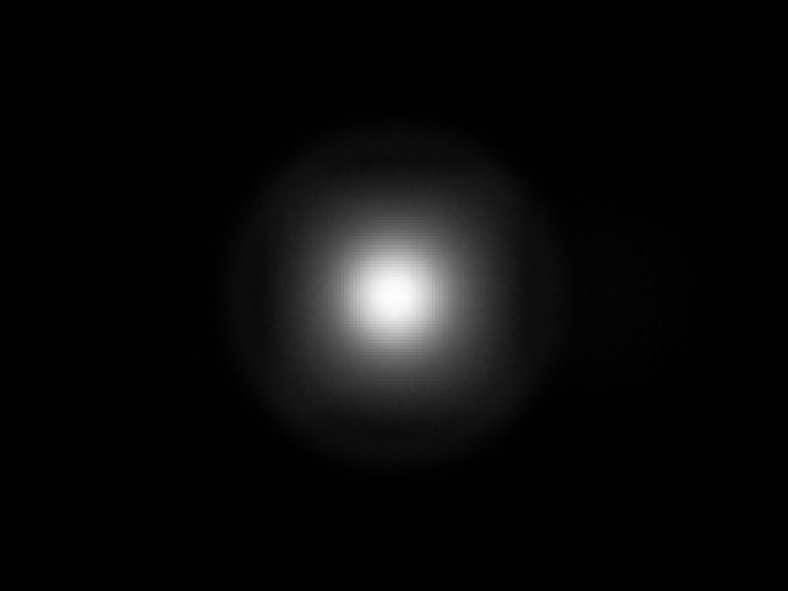

Cree JB3030C 3V F-Class White

Eff:

88.0%

FWHM:

11°

Cd/Im:

17.6


Download

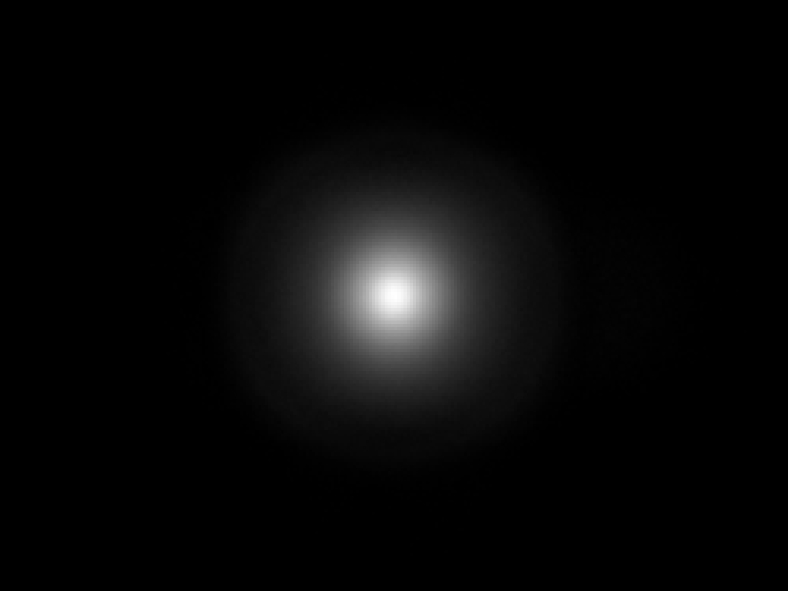

Cree JE2835 3V White

Eff:

88.5%

FWHM:

7.8°

Cd/Im:

26.6

Download

Cree JK2835 6V White

Eff:

88.5%

FWHM:

10.5°

Cd/Im:

19.6

Download

IES

Cree JQ5050 9V White

Eff:

89.0%

FWHM:

23.0°

Cd/Im:

4.6

Carclo Optics - 10193 Spot Image Cree JQ5050 9V White

Carclo Optics - 10193 Cross Section Cree JQ5050 9V White

Download

IES

Cree JR5050 24V White

Eff:

89.0%

FWHM:

22.0°

Cd/Im:

4.9

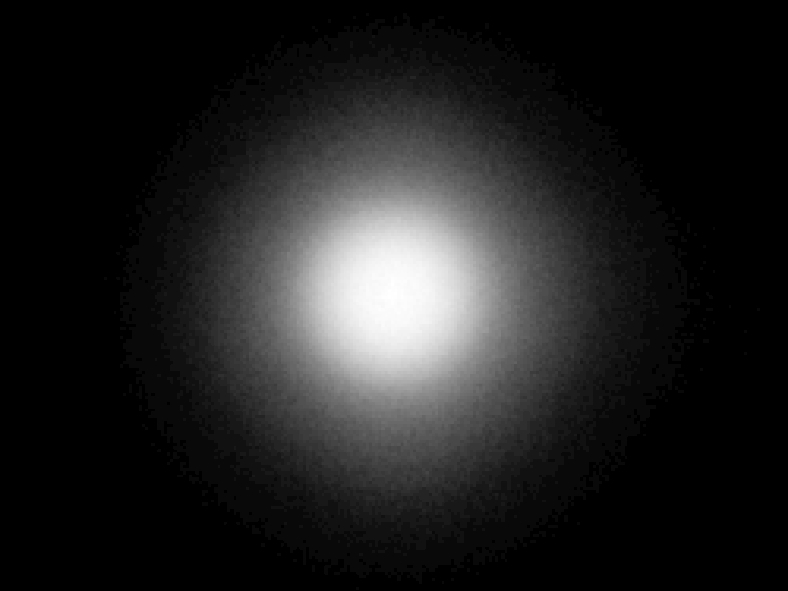

Carclo Optics - 10193 Spot Image Cree JR5050-24V White

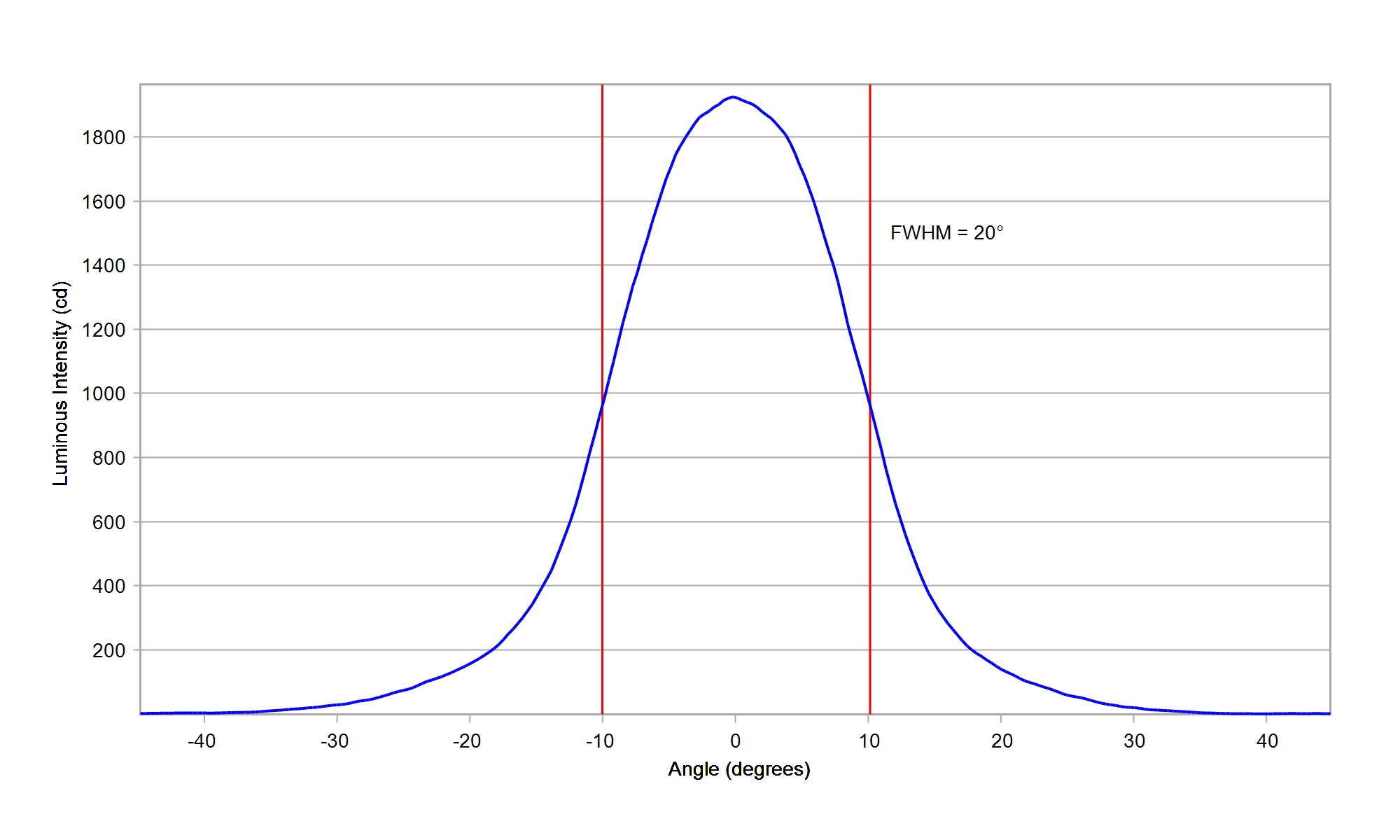

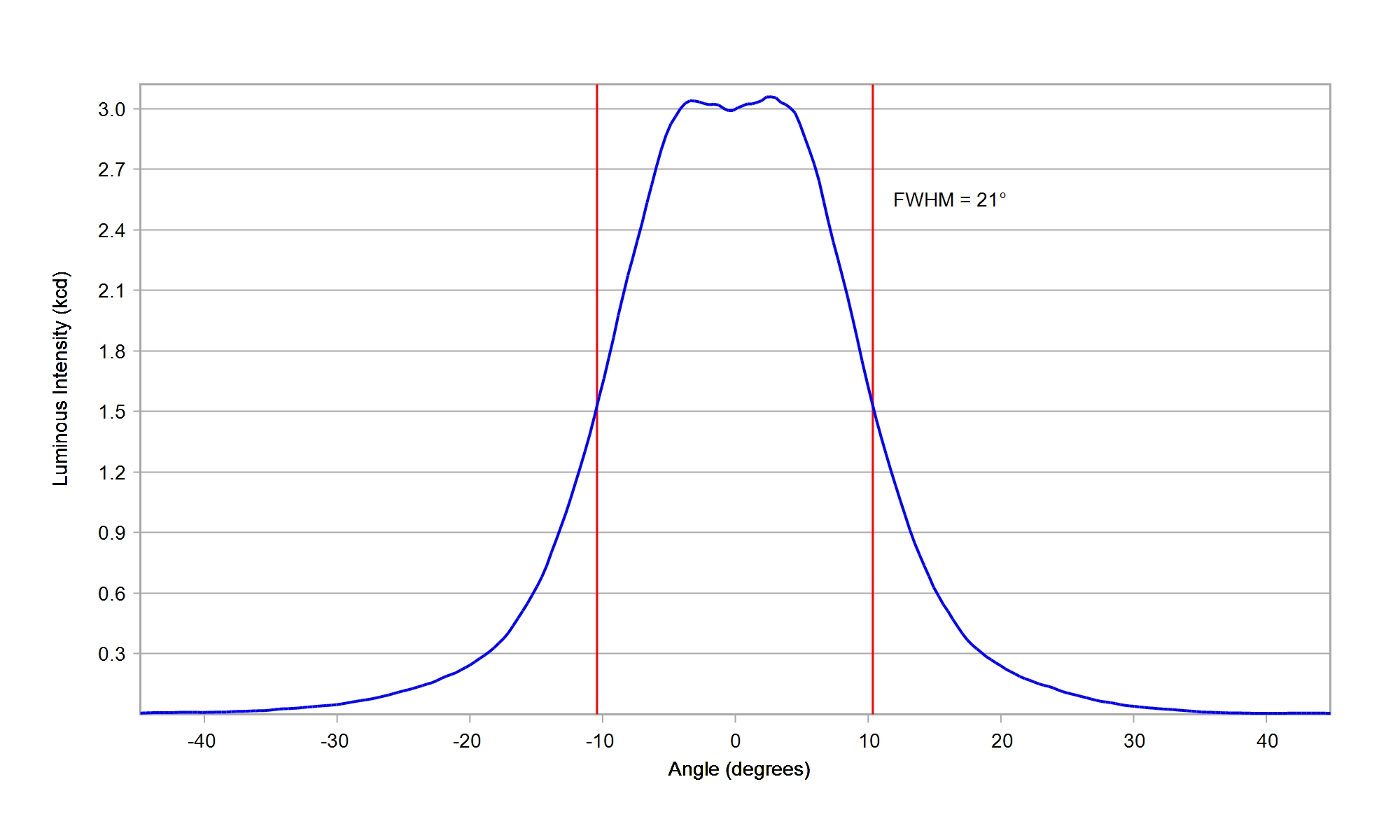

Carclo Optics - 10193 Cross Section Cree JR5050-24V White

Download

IES

Cree JR5050 36V White

Eff:

89.0%

FWHM:

20.0°

Cd/Im:

5.7

Carclo Optics - 10193 Spot Image Cree JR5050 36V White

Carclo Optics - 10193 Cross Section Cree JR5050 36V White

Download

IES

Cree JR5050 6V White

Eff:

89.0%

FWHM:

21.5°

Cd/Im:

5.0

Carclo Optics - 10193 Spot Image Cree JR50506V White

Carclo Optics - 10193 Cross Section Cree JR50506V White

Download

IES

Cree JR5050C 6V E-Class White

Eff:

89.0%

FWHM:

21°

Cd/Im:

5.2


Download

IES

Cree XLamp CSP XD16 Cool White

Eff:

86.5%

FWHM:

8.9°

Cd/Im:

22.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp CSP XD16 Premium White

Eff:

87.5%

FWHM:

7.9°

Cd/Im:

32.2

Download

IES

Cree XLamp MC-E White

Eff:

84.5%

FWHM:

20°

Cd/Im:

5.8

Download

ies

Cree XLamp MH-B White

Eff:

86.0%

FWHM:

23.5°

Cd/Im:

3.7

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XB-H White

Eff:

88.5%

FWHM:

10.5°

Cd/Im:

17.8

Carclo Optics - 10193 20mm Spot Image Cree XLamp XB-H

Carclo Optics - 10193 20mm Cross Section Cree XLamp XB-H

Download

IES

Cree XLamp XE-G Blue

Eff:

87.5%

FWHM:

6.8°

Cd/Im:

42.2

Download

IES

Cree XLamp XE-G Green

Eff:

88.0%

FWHM:

6.8°

Cd/Im:

41.6

Download

IES

Cree XLamp XE-G Red

Eff:

86.5%

FWHM:

6.6°

Cd/Im:

42.2

Download

IES

Cree XLamp XE-G White

Eff:

87.0%

FWHM:

6.8°

Cd/Im:

39.4

Download

IES

Cree XLamp XHP-50 Gen 2 White

Eff:

87.0%

FWHM:

26°

Cd/Im:

3.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP35 HI White

Eff:

85.9%

FWHM:

13.2°

Cd/Im:

12.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP35 HD White

Eff:

85.8%

FWHM:

18.9°

Cd/Im:

6.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP35.2 HI White

Eff:

87.5%

FWHM:

14°

Cd/Im:

9.7

Carclo Optics – 10193 Spot Image Cree XLamp XHP35.2 HI White

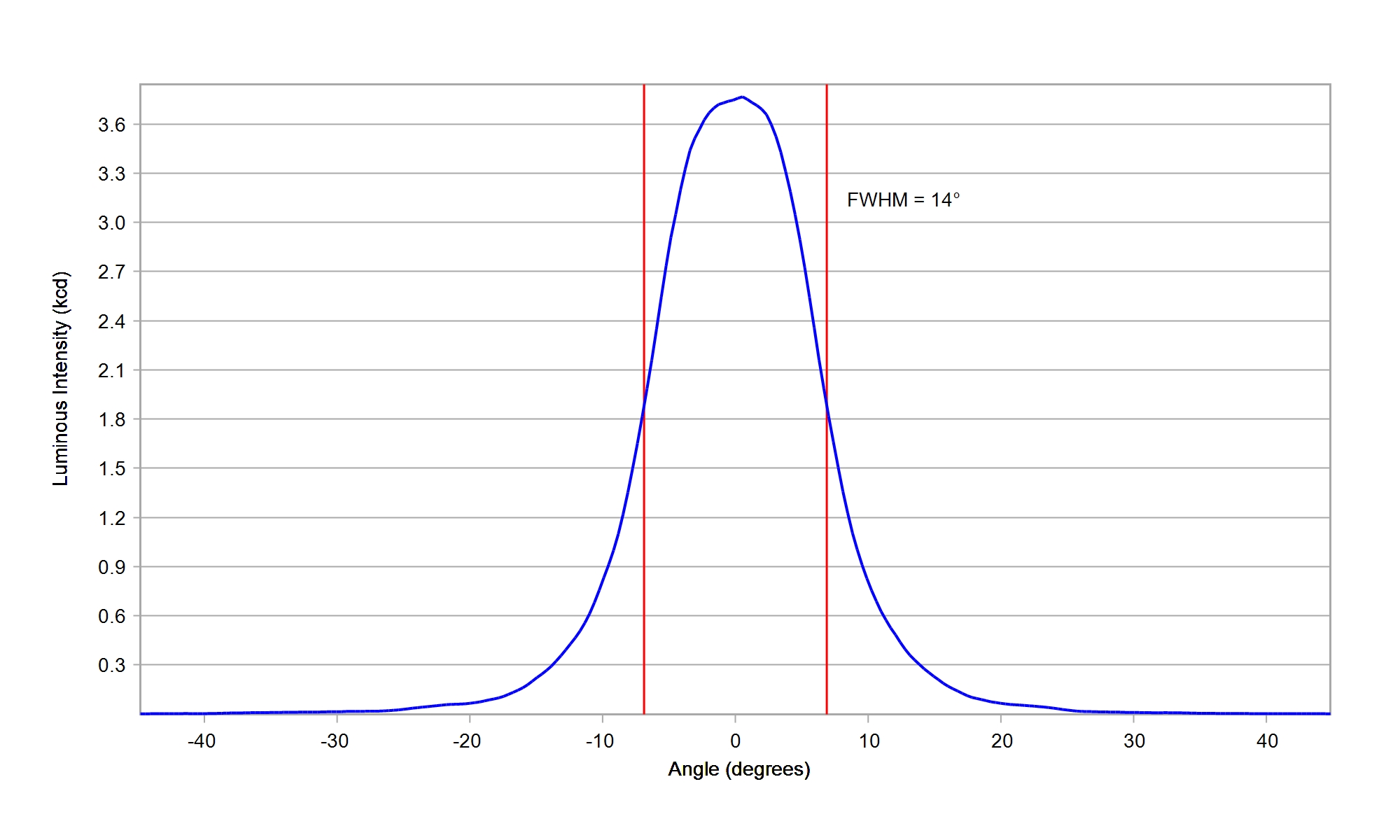

Carclo Optics – 10193 Cross Section Cree XLamp XHP35.2 HI White

Download

2-HI-WW

Cree XLamp XHP35.2 HD White

Eff:

87.5%

FWHM:

21.0°

Cd/Im:

4.9

Carclo Optics - 10193 Spot Image Cree XHP35.2 White

Carclo Optics - 10193 Cross Section Cree XHP35.2 White

Download

IES

Cree XLamp XHP50.3 HI White

Eff:

88.0%

FWHM:

19.5°

Cd/Im:

5.8

Download

Cree XLamp XHP50.3 White

Eff:

87.5%

FWHM:

24°

Cd/Im:

3.7

Download

3
3

Cree XLamp XM-L White

FWHM:

16.2°

Cd/Im:

10.1

Download

ies

Cree XLamp XM-L3 White

Eff:

87.0%

FWHM:

16.0°

Cd/Im:

7.7

Carclo Optics - 10193 Spot Image Cree XM-L3

Carclo Optics - 10193 Cross Section Cree XM-L3

Download

IES

Cree XLamp XP-E White

Eff:

87.3%

FWHM:

8.2°

Cd/Im:

36.3

Download

ies

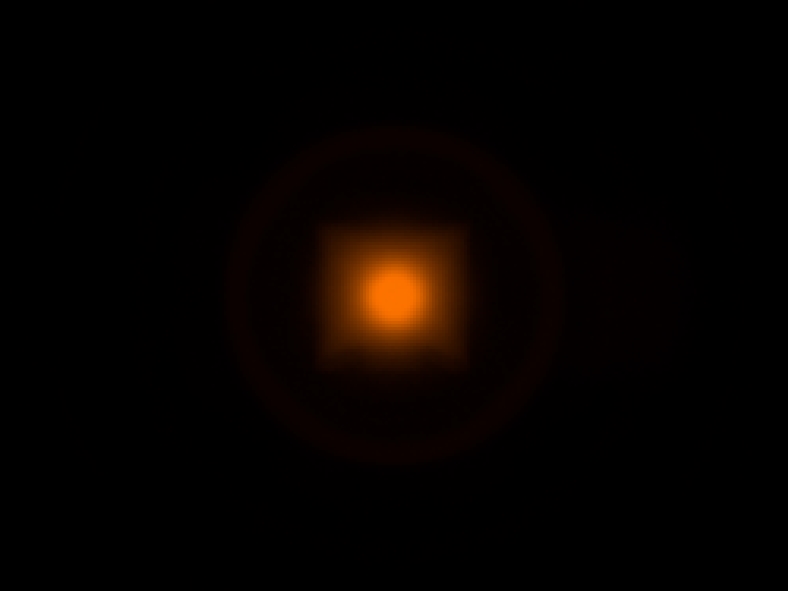

Cree XLamp XP-E2 Amber

Eff:

88.0%

FWHM:

8.3°

Cd/Im:

29.2

Download

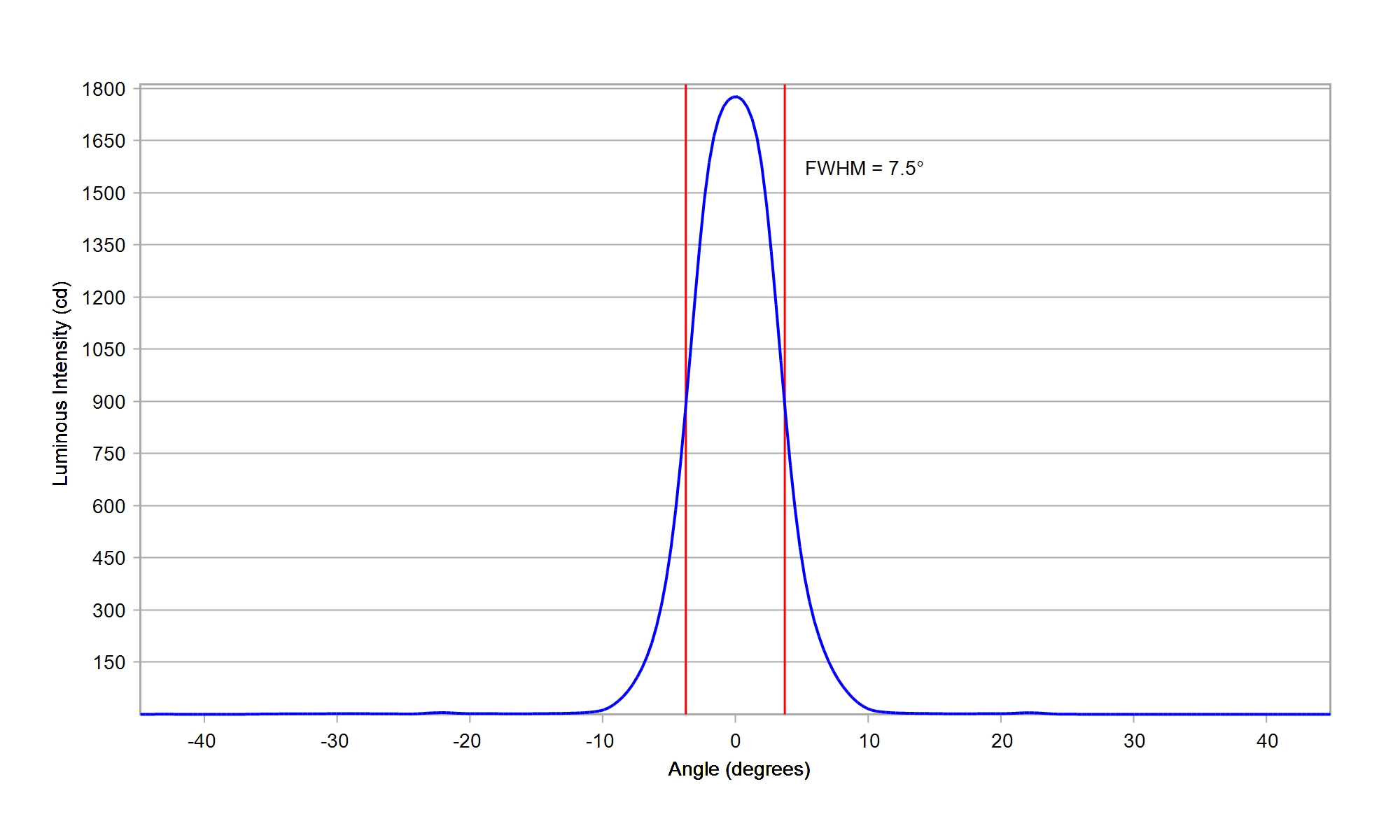

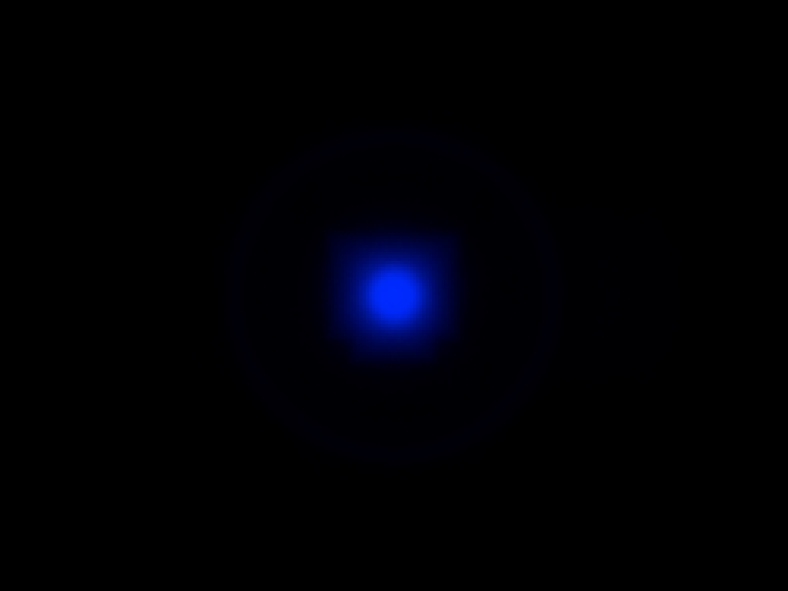

Cree XLamp XP-E2 Blue

Eff:

88.0%

FWHM:

7.5°

Cd/Im:

37.6

Download

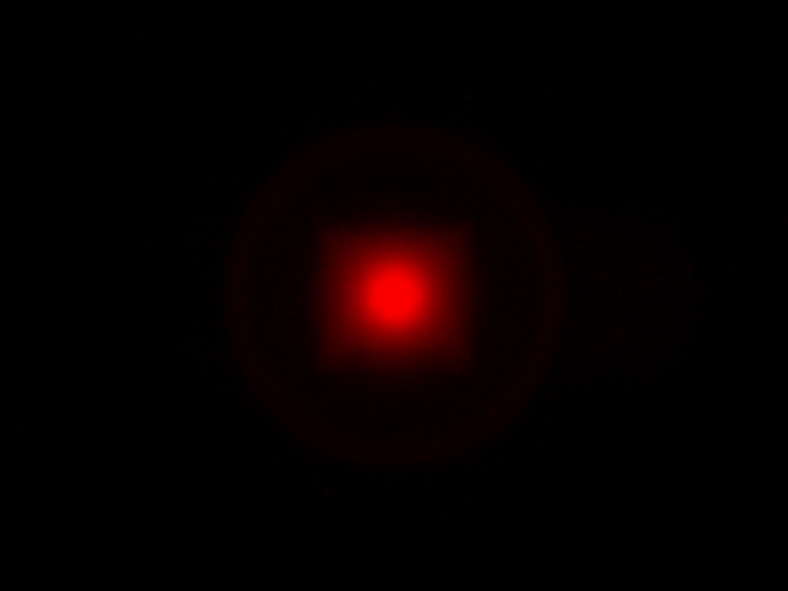

Cree XLamp XP-E2 Far Red

Eff:

91.0%

FWHM:

8.2°

Ipk/W:

30.5

Download

Cree XLamp XP-E2 Green

Eff:

88.0%

FWHM:

7.3°

Cd/Im:

37.9

Download

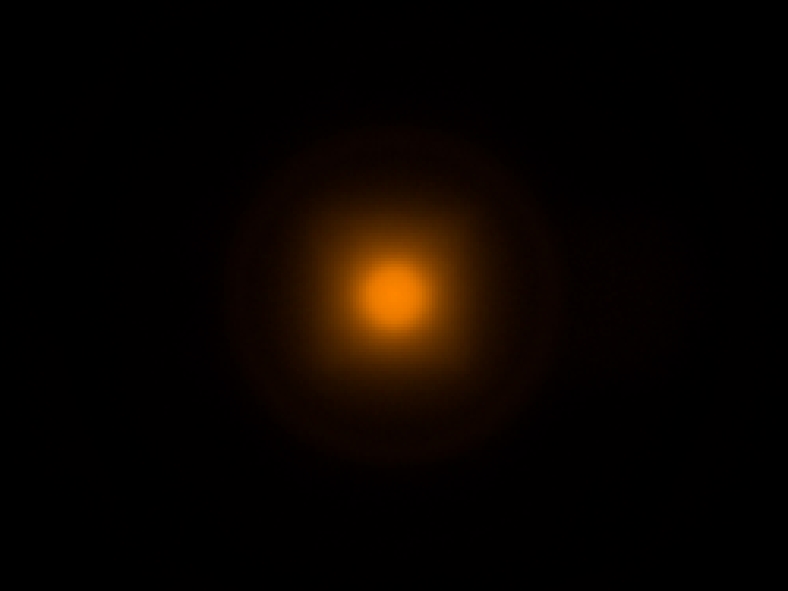

Cree XLamp XP-E2 PC Amber

Eff:

88.0%

FWHM:

9.3°

Cd/Im:

21.9


Download

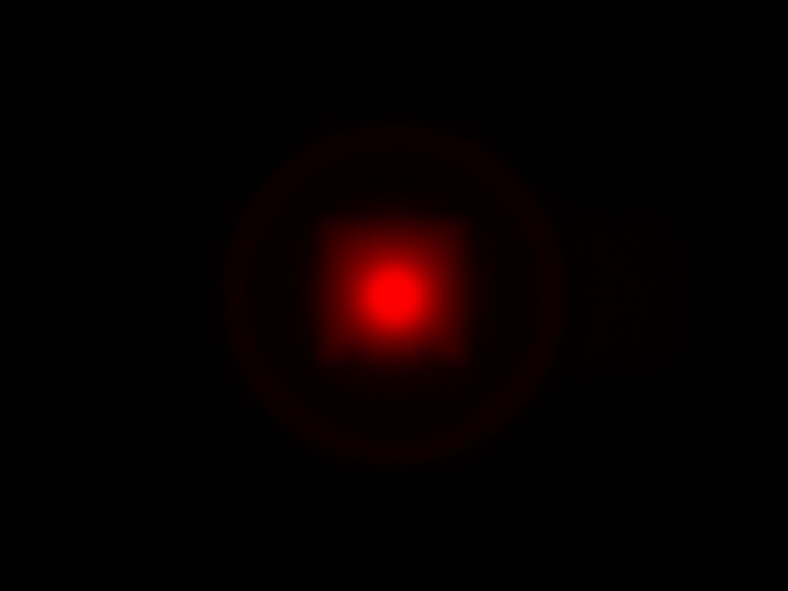

Cree XLamp XP-E2 Photo Red

Eff:

88.5%

FWHM:

8.5°

Ipk/W:

28.0


Download

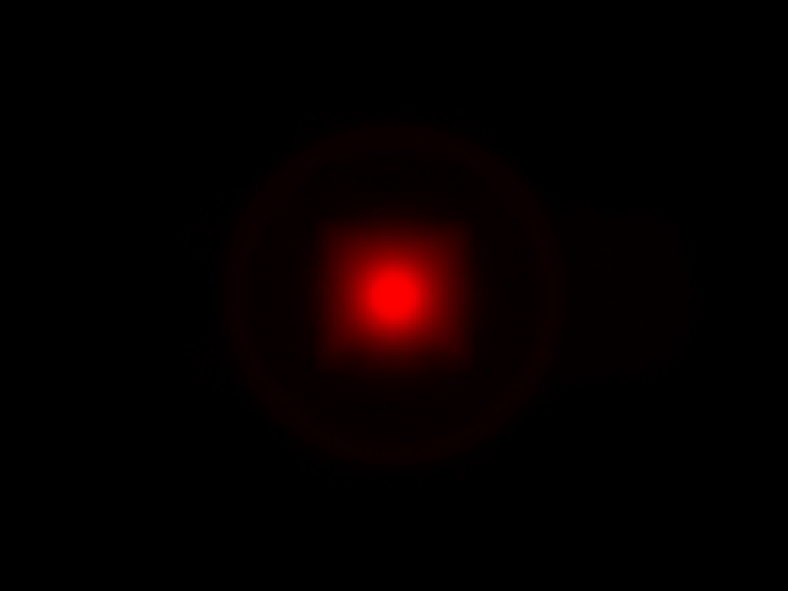

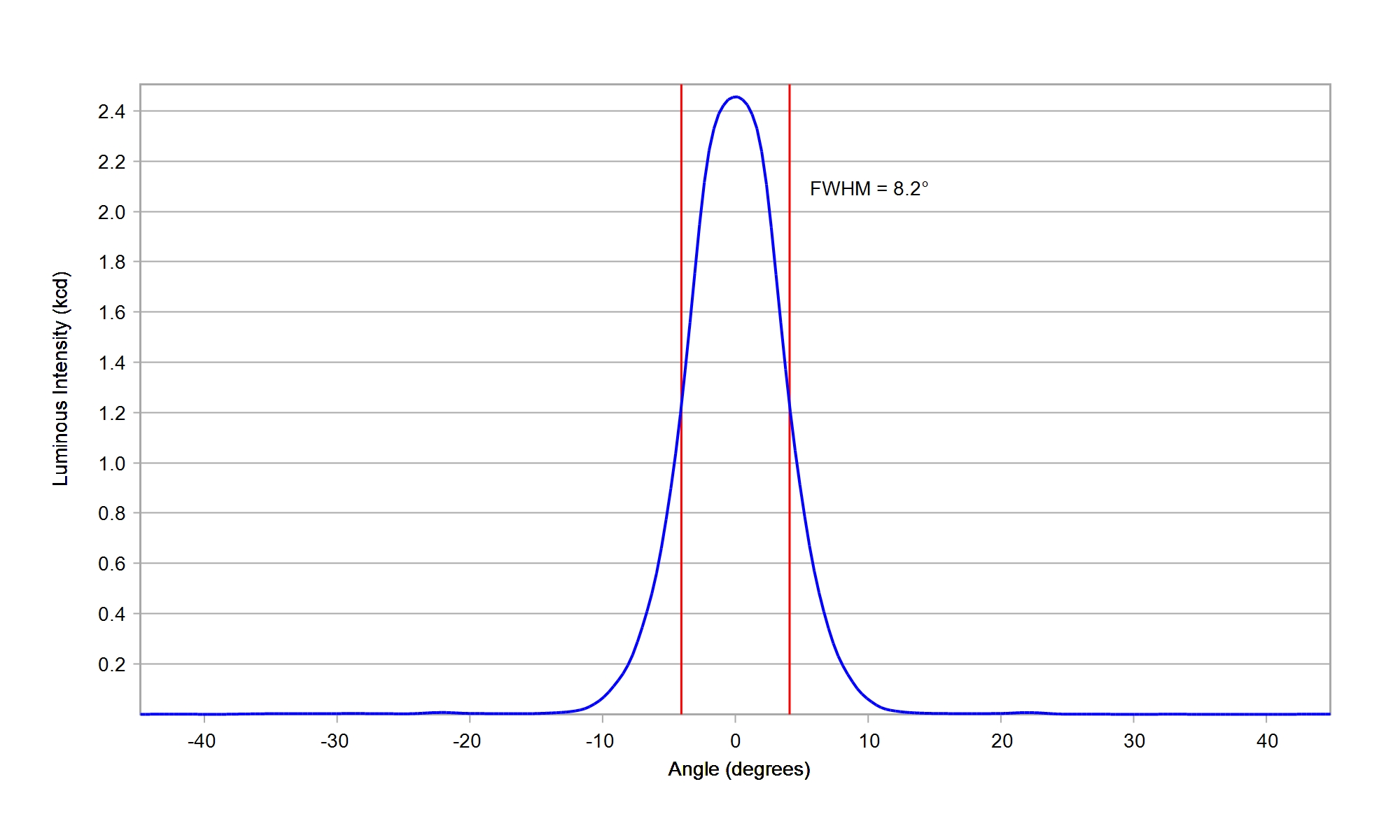

Cree XLamp XP-E2 Red

Eff:

89.0%

FWHM:

8.2°

Cd/Im:

30.3

Download

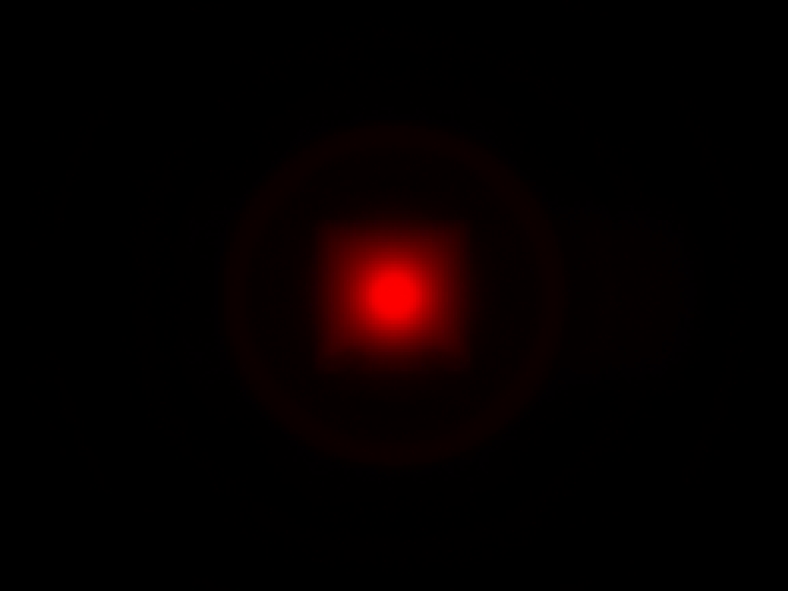

Cree XLamp XP-E2 Red-Orange

Eff:

89.0%

FWHM:

8.2°

Cd/Im:

30.2


Download

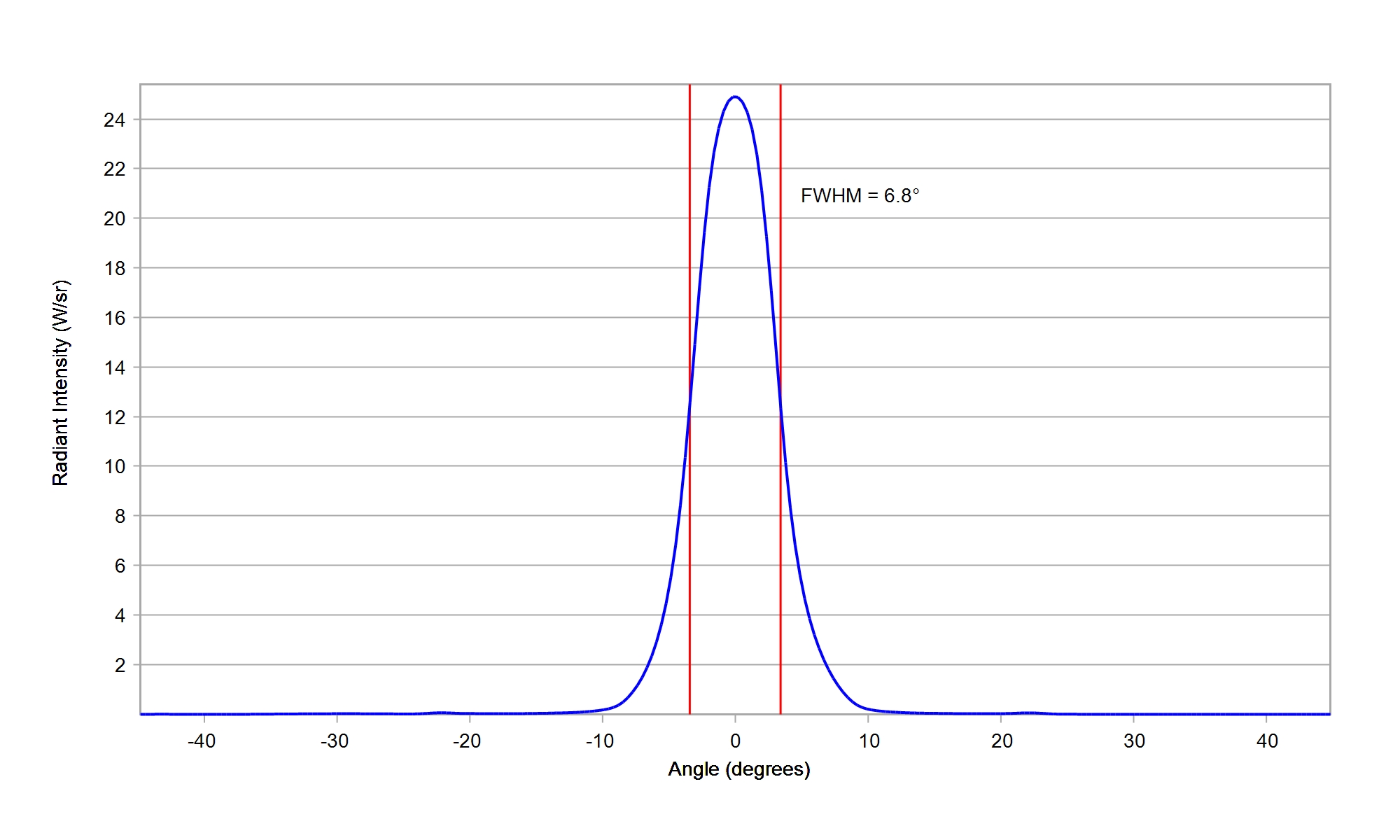

Cree XLamp XP-E2 Royal Blue

Eff:

86.5%

FWHM:

6.8°

Ipk/W:

41.0


Download

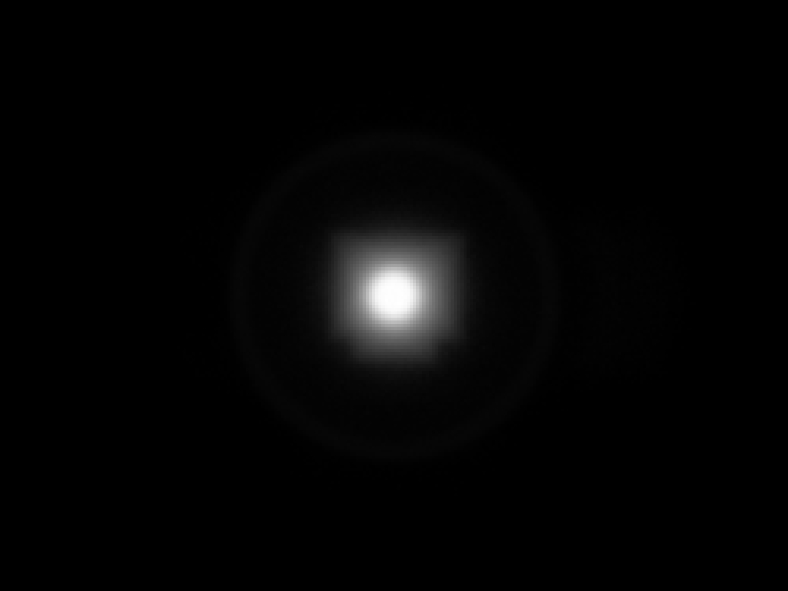

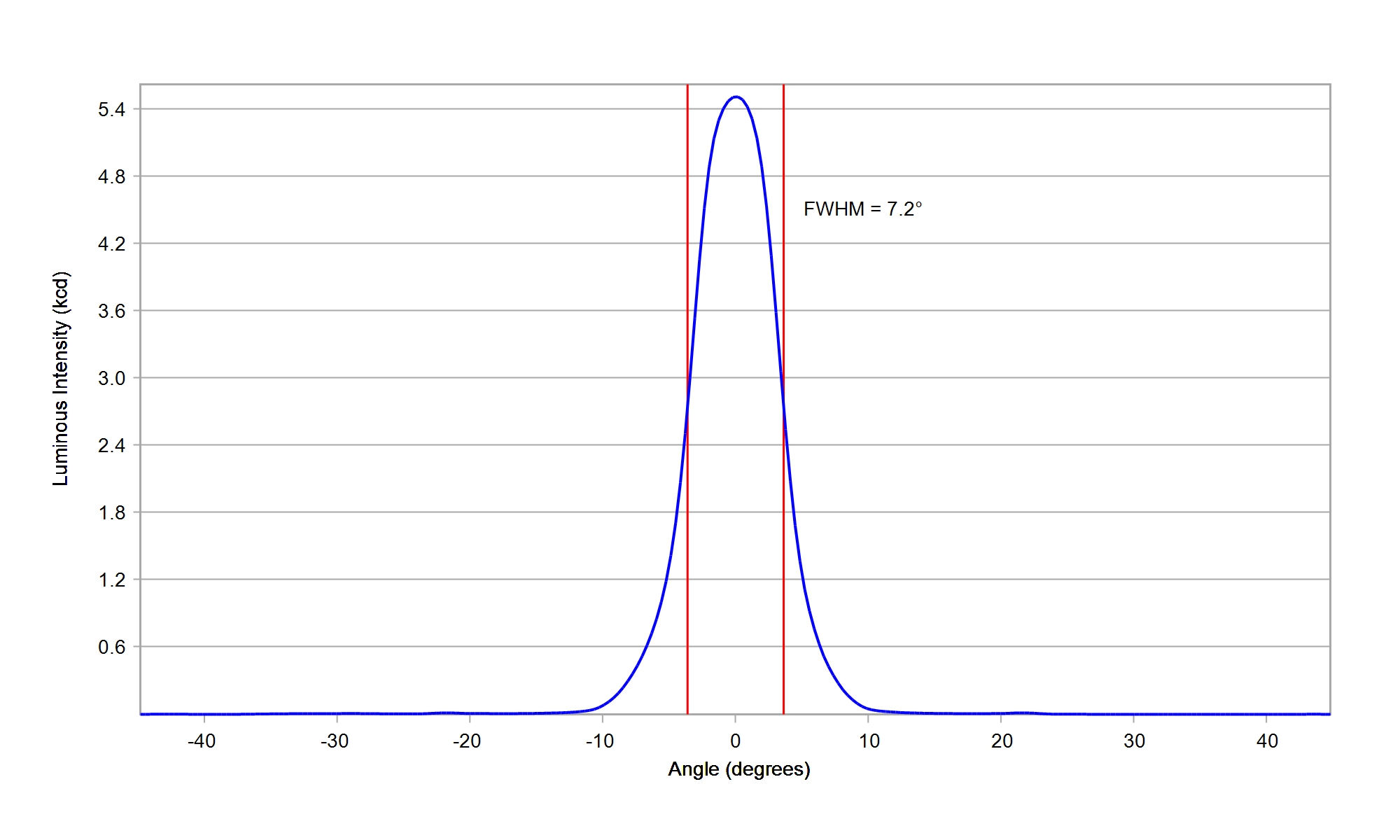

Cree XLamp XP-E2 White

Eff:

88.0%

FWHM:

7.2°

Cd/Im:

37.1

Download

Cree XLamp XP-G3 White

Eff:

87.0%

FWHM:

12.7°

Cd/Im:

12.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

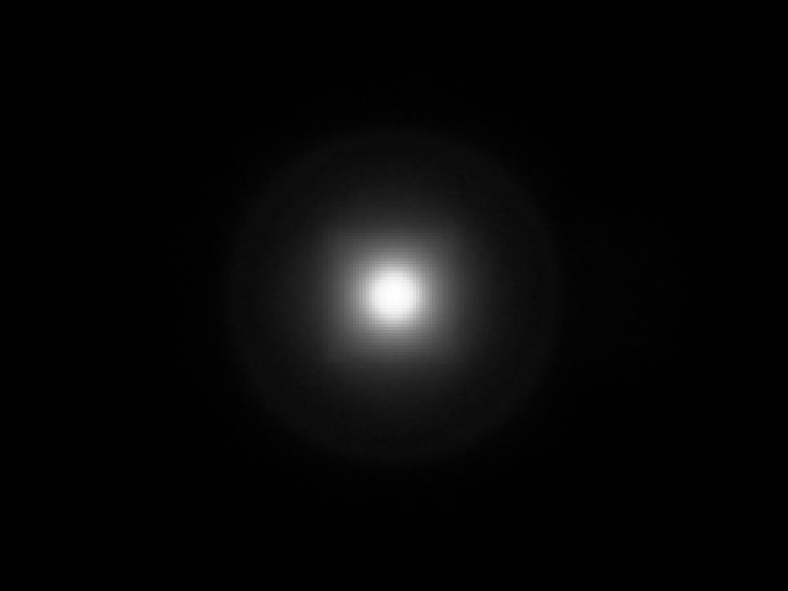

Cree XLamp XP-G4 HI White

Eff:

87.0%

FWHM:

7.9°

Cd/Im:

27.2

Download

Cree XLamp XP-G4 White

Eff:

88.5%

FWHM:

12°

Cd/Im:

16.2

Download

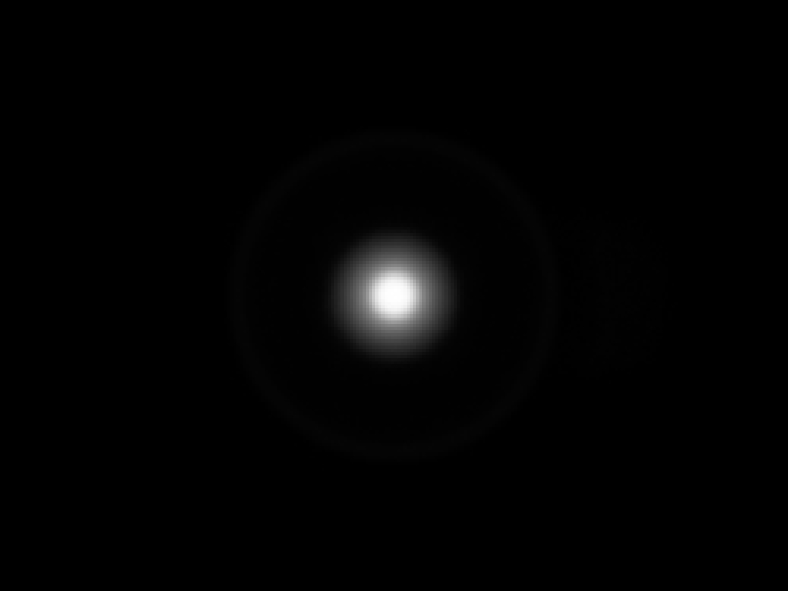

Cree XLamp XP-GR White

Eff:

88.0%

FWHM:

6.1°

Cd/Im:

55.0

Download

Cree XLamp XP-L HI White

Eff:

86.2%

FWHM:

10.4°

Cd/Im:

17.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XP-L White

Eff:

85.9%

FWHM:

16.4°

Cd/Im:

8.4

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XP-L2 White

Eff:

86.5%

FWHM:

18.0°

Cd/Im:

6.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XP-LR White

Eff:

88.5%

FWHM:

8.1°

Cd/Im:

32.8

Download

Cree XLamp XP-P White

Eff:

88.5%

FWHM:

6°

Cd/Im:

59.0

Carclo Optics – 10193 Cree Xlamp XP-P - Spot Image

Carclo Optics – 10193 Cree Xlamp XP-P - Cross-Section

Download

IES

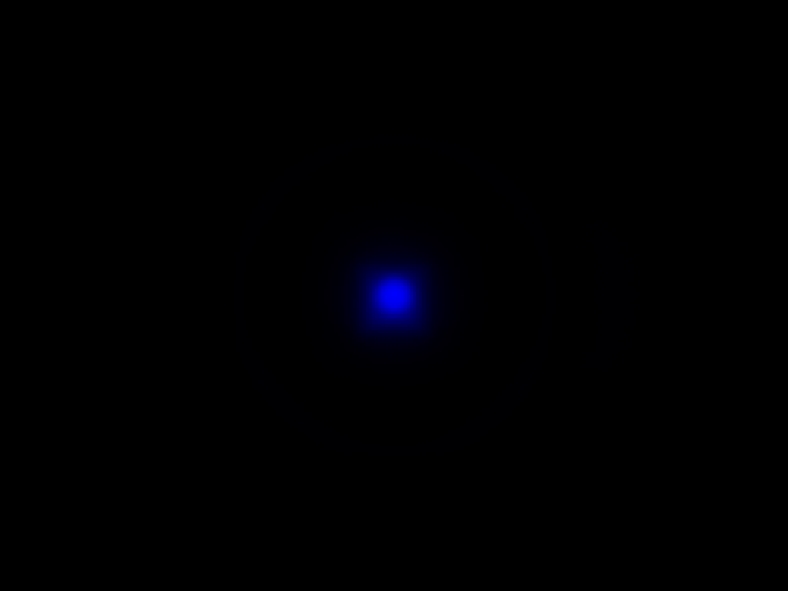

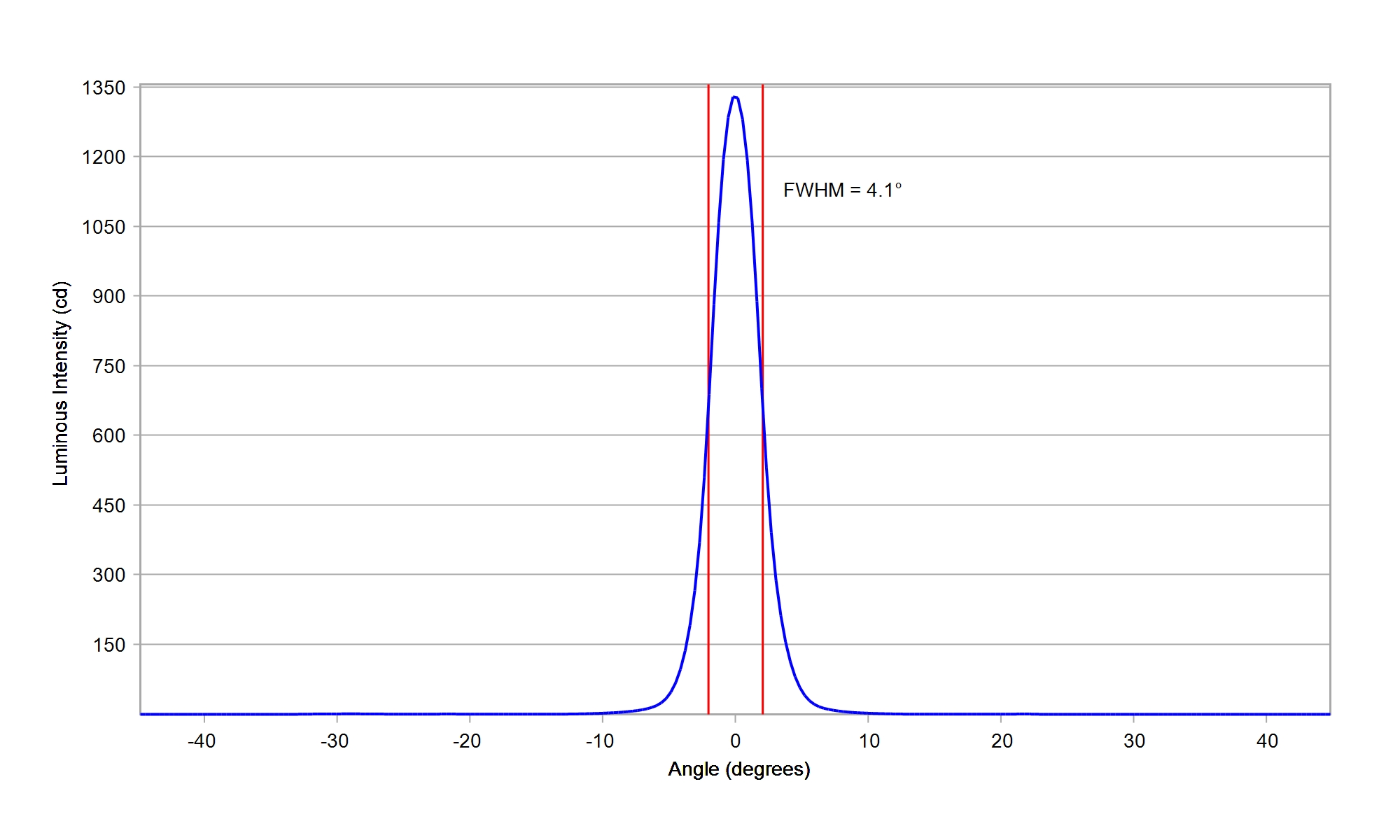

Cree XLamp XQ-A Blue

Eff:

87.5%

FWHM:

4.1°

Cd/Im:

118.5

Download

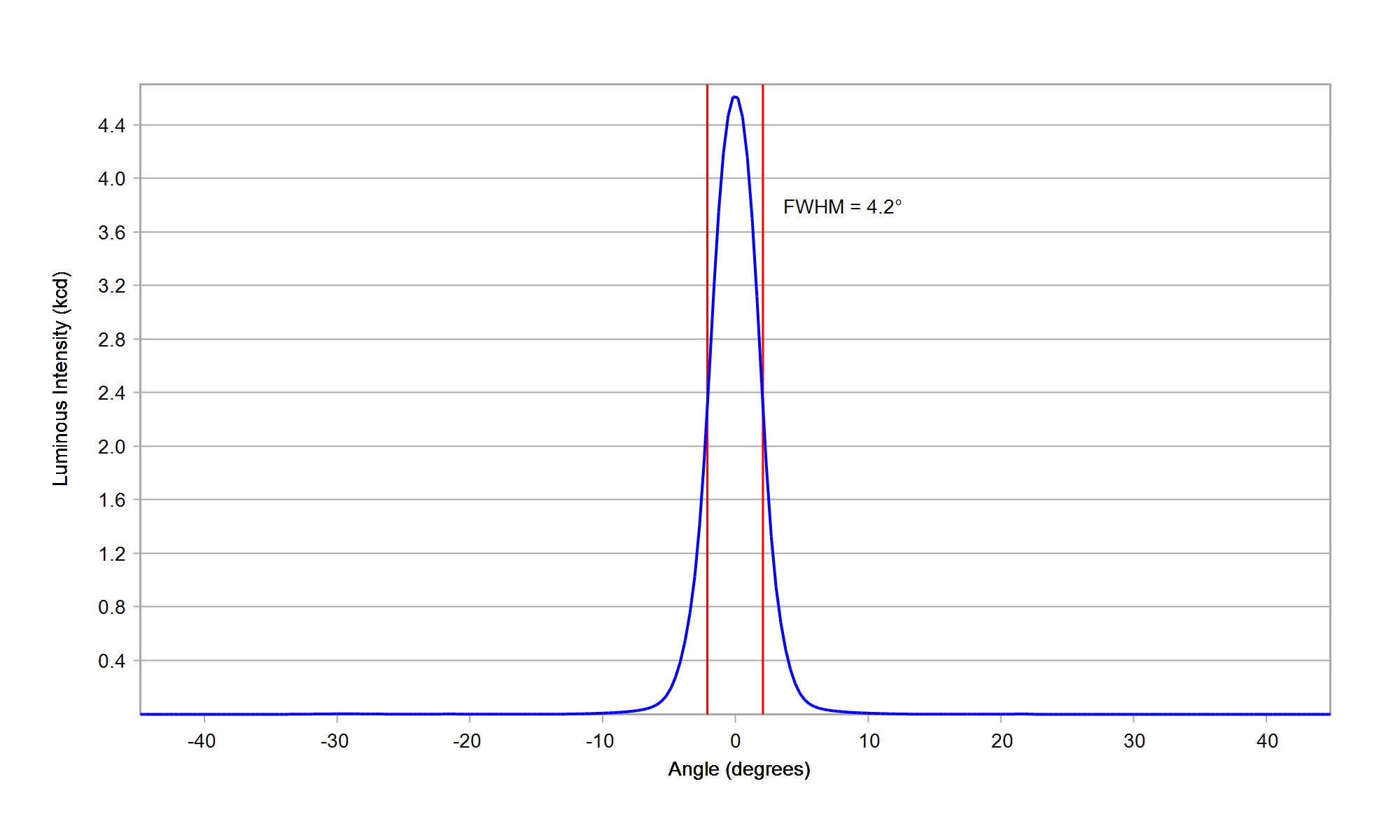

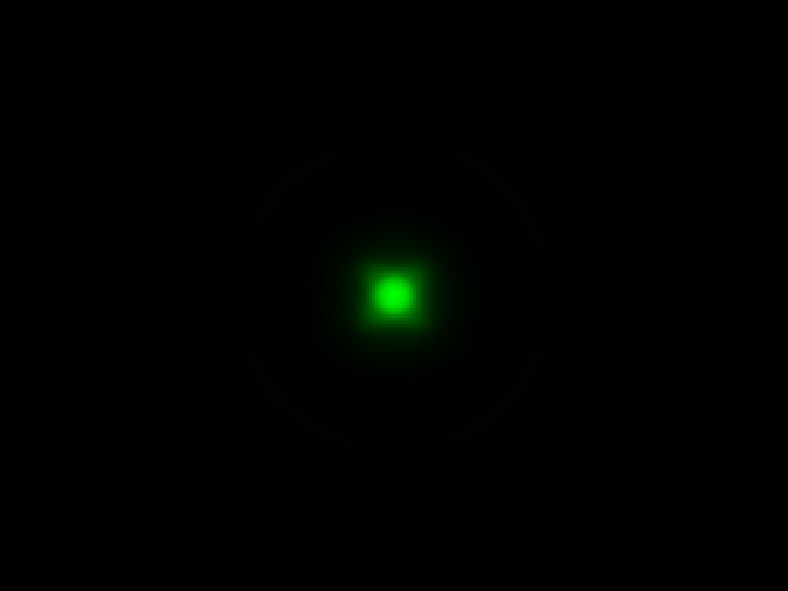

Cree XLamp XQ-A Green

Eff:

88.0%

FWHM:

4.2°

Cd/Im:

117.1

Download

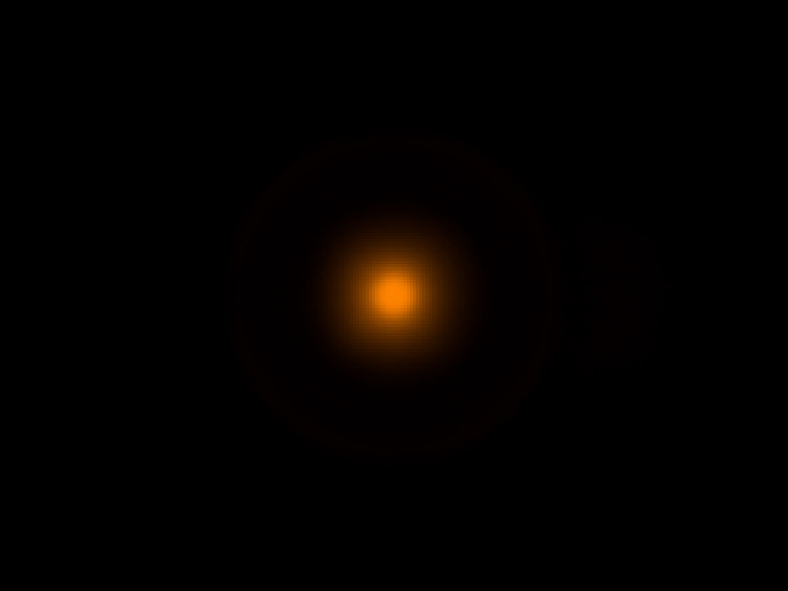

Cree XLamp XQ-A PC Amber

Eff:

87.5%

FWHM:

5.7°

Cd/Im:

54.6

Download

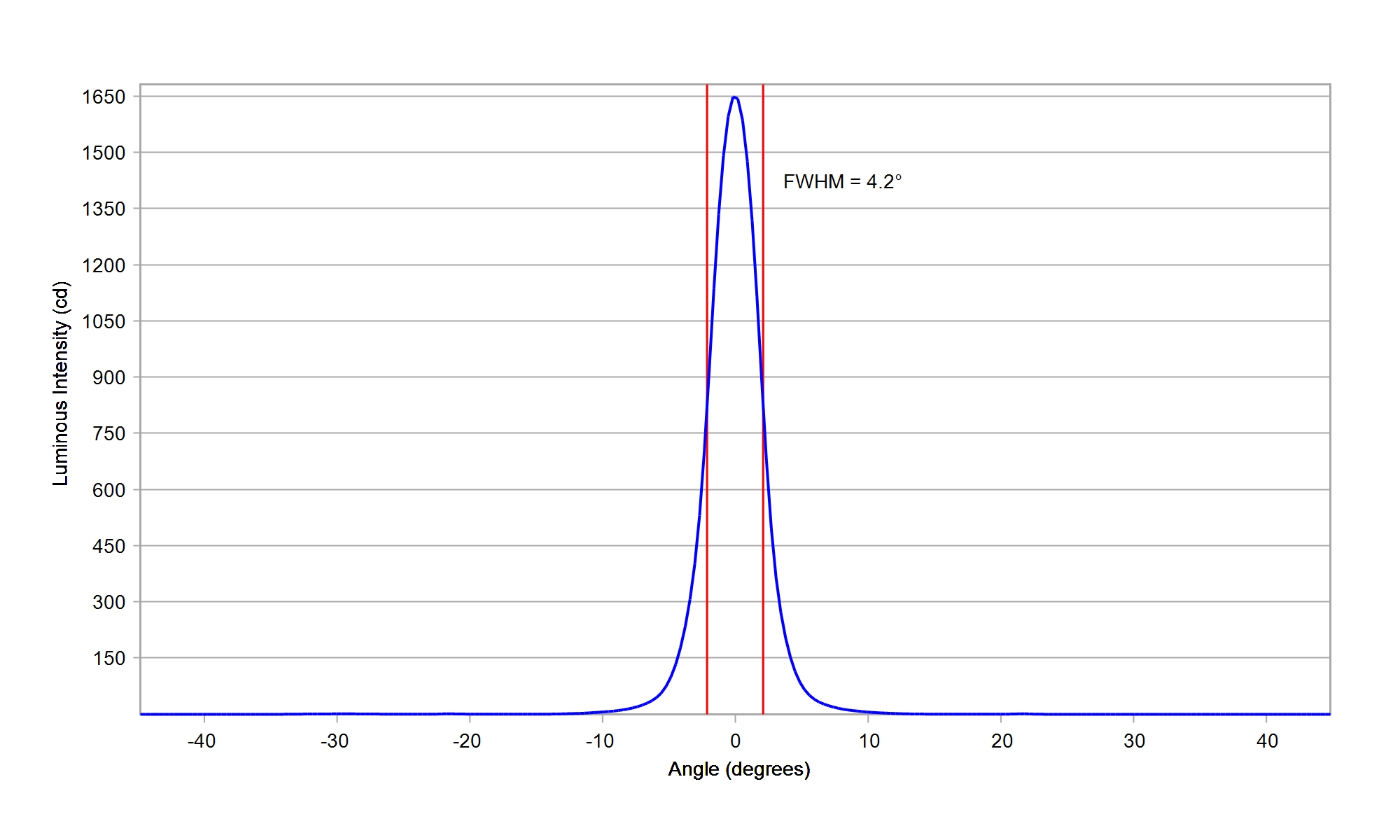

Cree XLamp XQ-A PC Blue

Eff:

87.0%

FWHM:

4.2°

Cd/Im:

101.6

Download

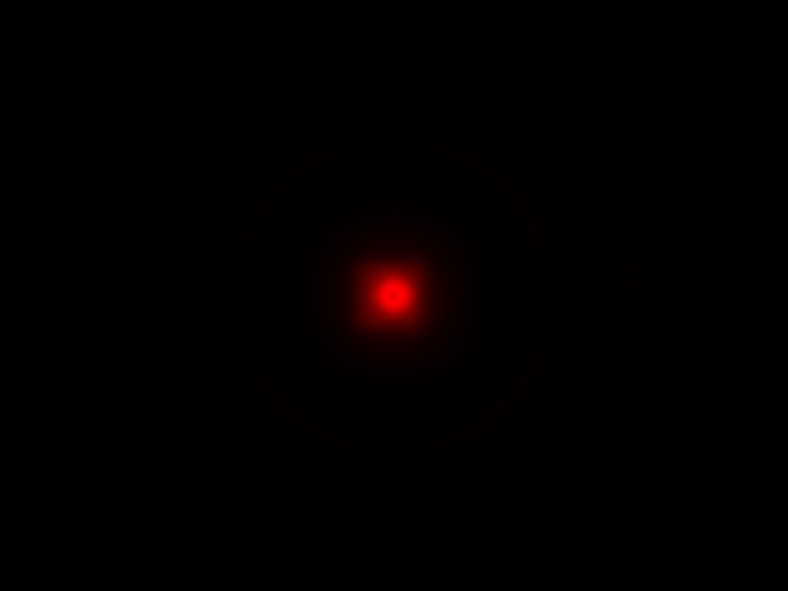

Cree XLamp XQ-A Red

Eff:

89.0%

FWHM:

4.3°

Cd/Im:

101.4

Download

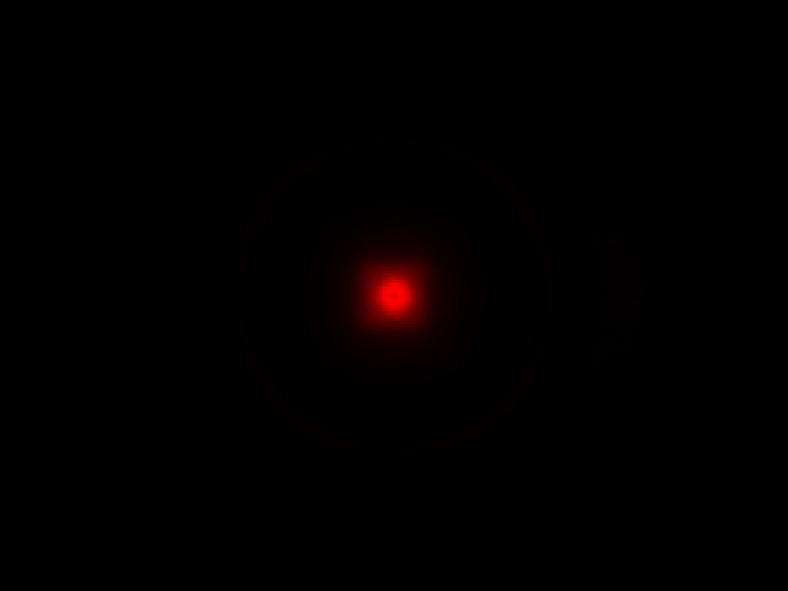

Cree XLamp XQ-A Red-Orange

Eff:

89.0%

FWHM:

4.2°

Cd/Im:

105.1


Download

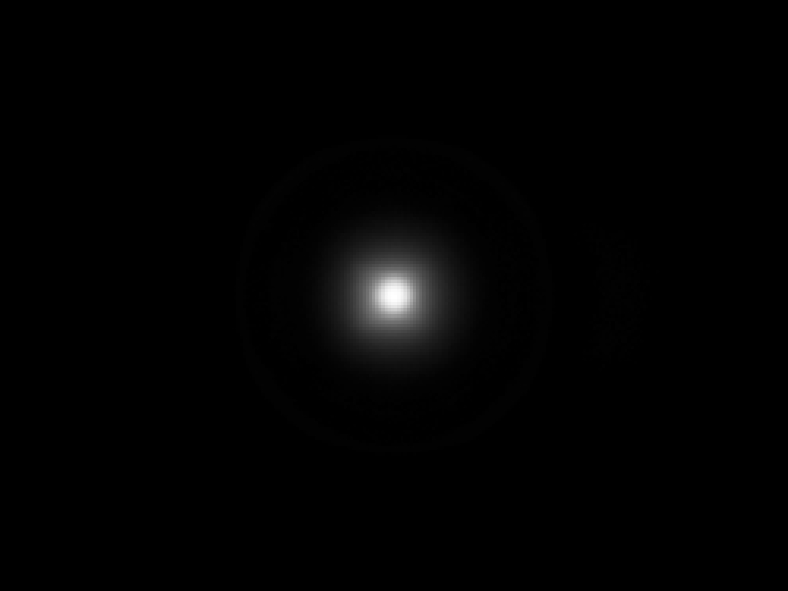

Cree XLamp XQ-A White

Eff:

87.5%

FWHM:

4.5°

Cd/Im:

82.7

Download

Cree XLamp XQ-E HI Blue

Eff:

86.0%

FWHM:

5.5°

Cd/Im:

52.9

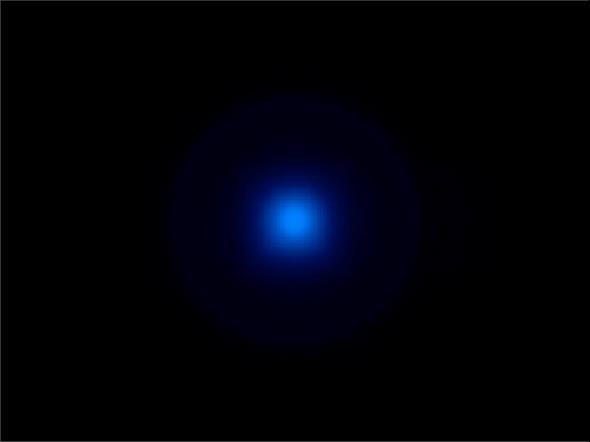

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Green

Eff:

86.0%

FWHM:

5.3°

Cd/Im:

54.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Red

Eff:

86.5%

FWHM:

4.9°

Cd/Im:

63.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI White

Eff:

86.0%

FWHM:

5°

Cd/Im:

71.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

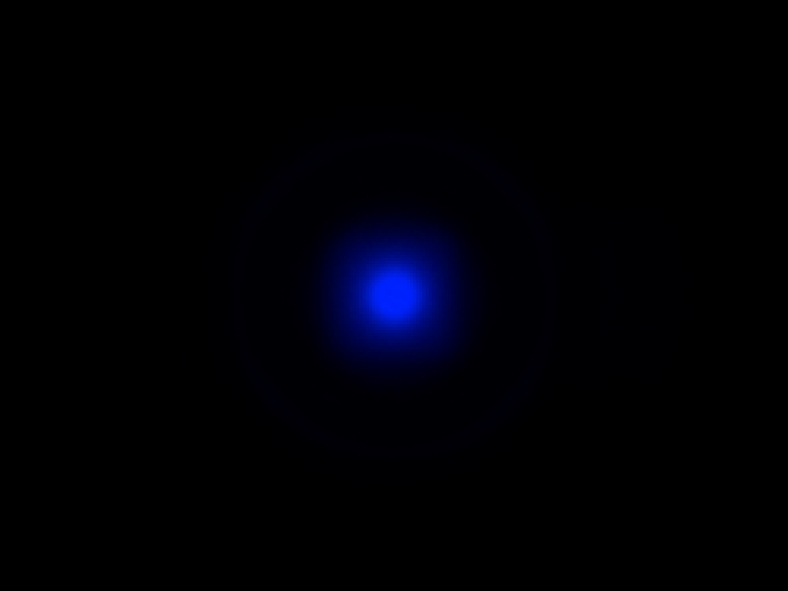

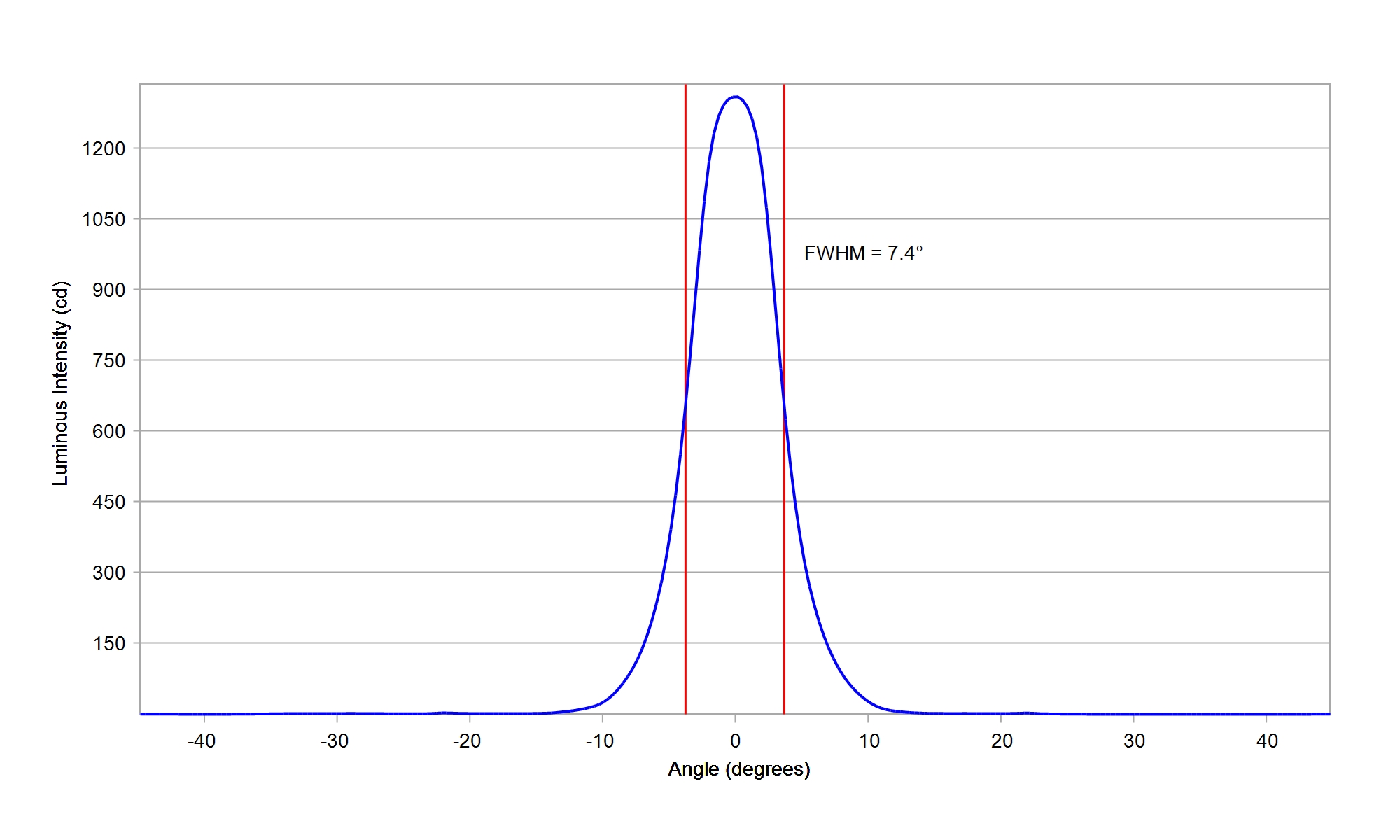

Cree XLamp XQ-E Plus HD Blue

Eff:

87.5%

FWHM:

7.4°

Cd/Im:

33.6


Download

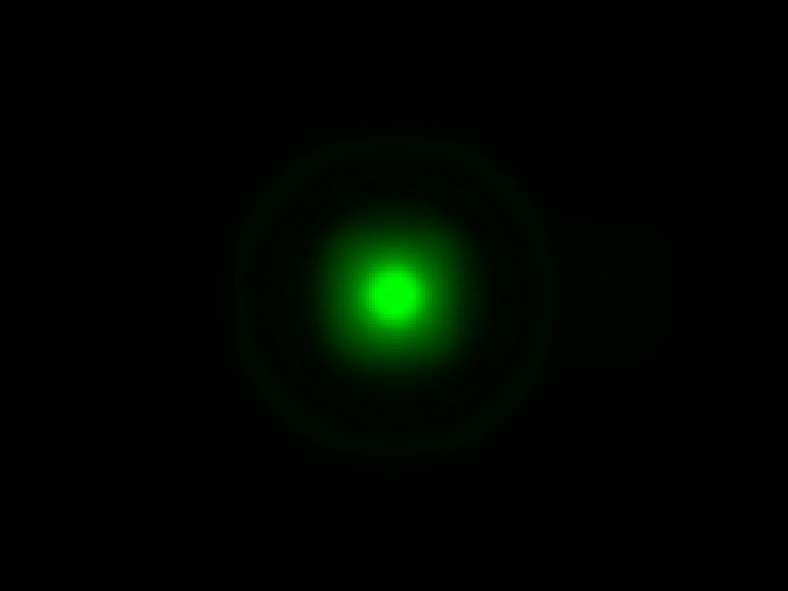

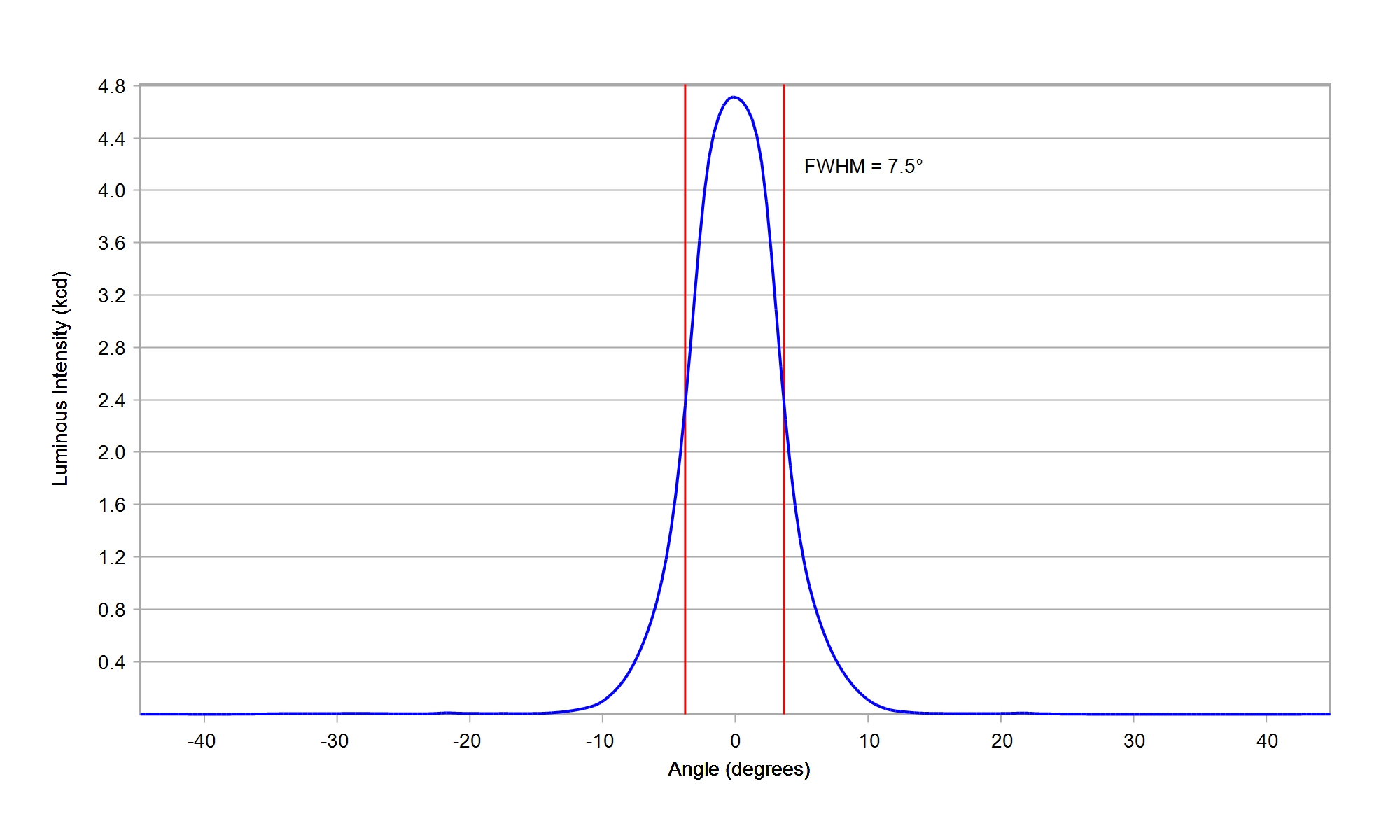

Cree XLamp XQ-E Plus HD Green

Eff:

87.5%

FWHM:

7.5°

Cd/Im:

32.4


Download

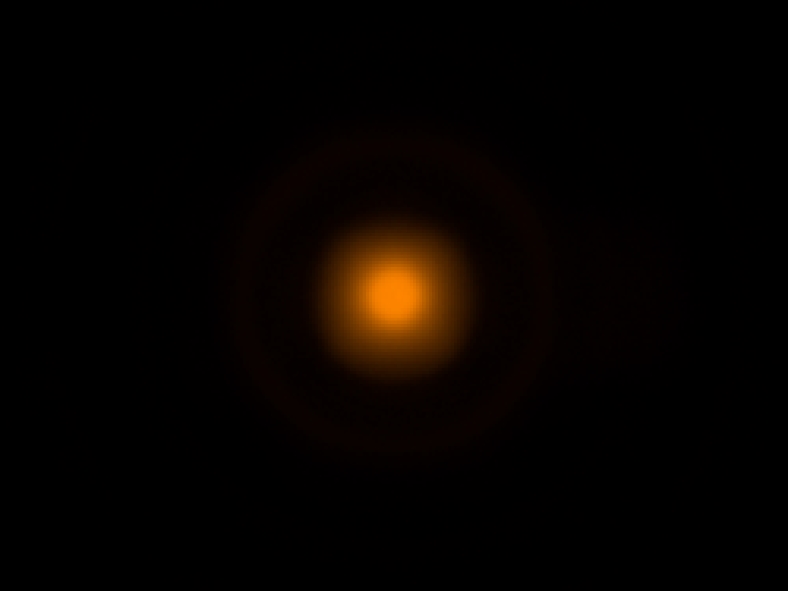

Cree XLamp XQ-E Plus HD PC Amber

Eff:

87.0%

FWHM:

8.2°

Cd/Im:

28.1


Download

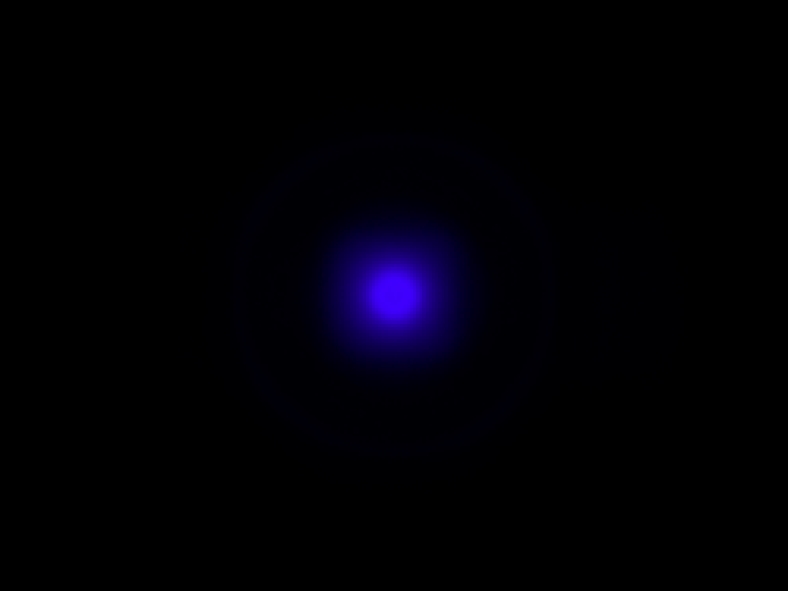

Cree XLamp XQ-E Plus HD Royal Blue

Eff:

86.5%

FWHM:

7.4°

Ipk/W:

32.6


Download

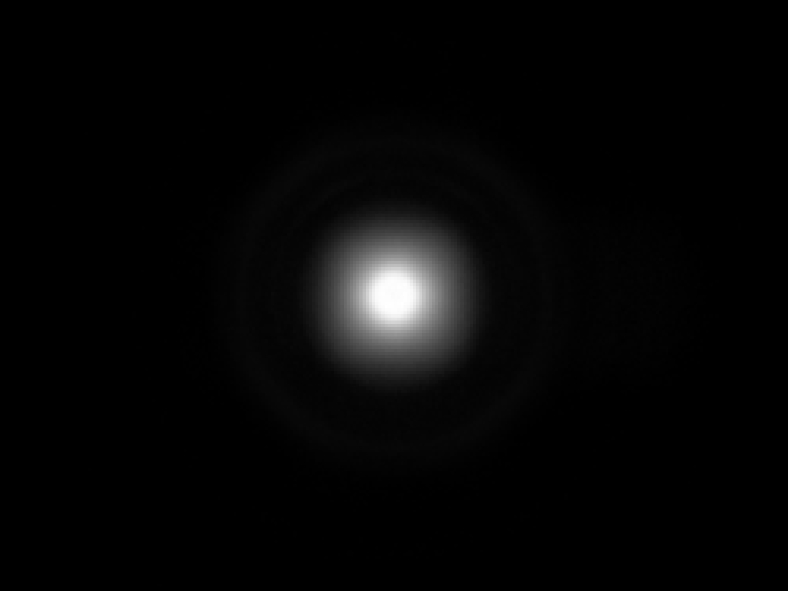

Cree XLamp XQ-E Plus HD White

Eff:

87.5%

FWHM:

8.5°

Cd/Im:

27.0


Download

Cree XLamp XQ-E Plus HI Blue

Eff:

87.0%

FWHM:

6.1°

Cd/Im:

44.2


Download

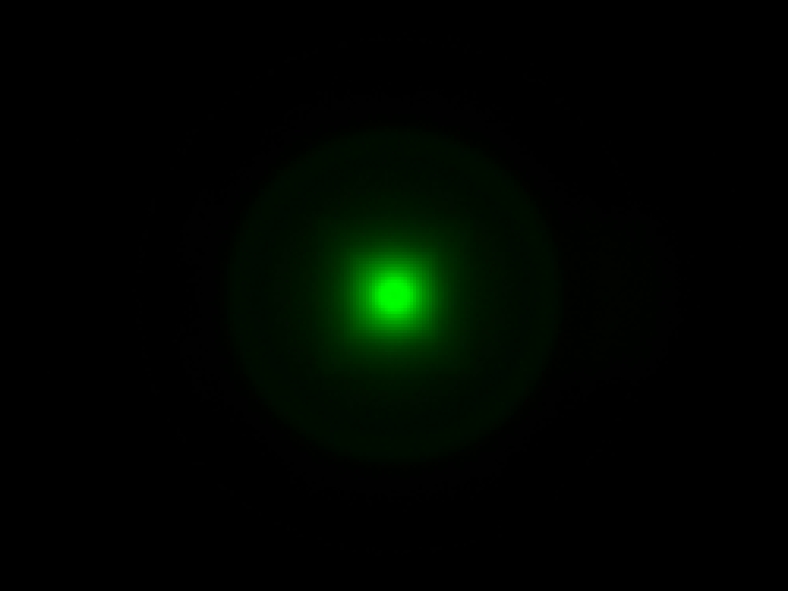

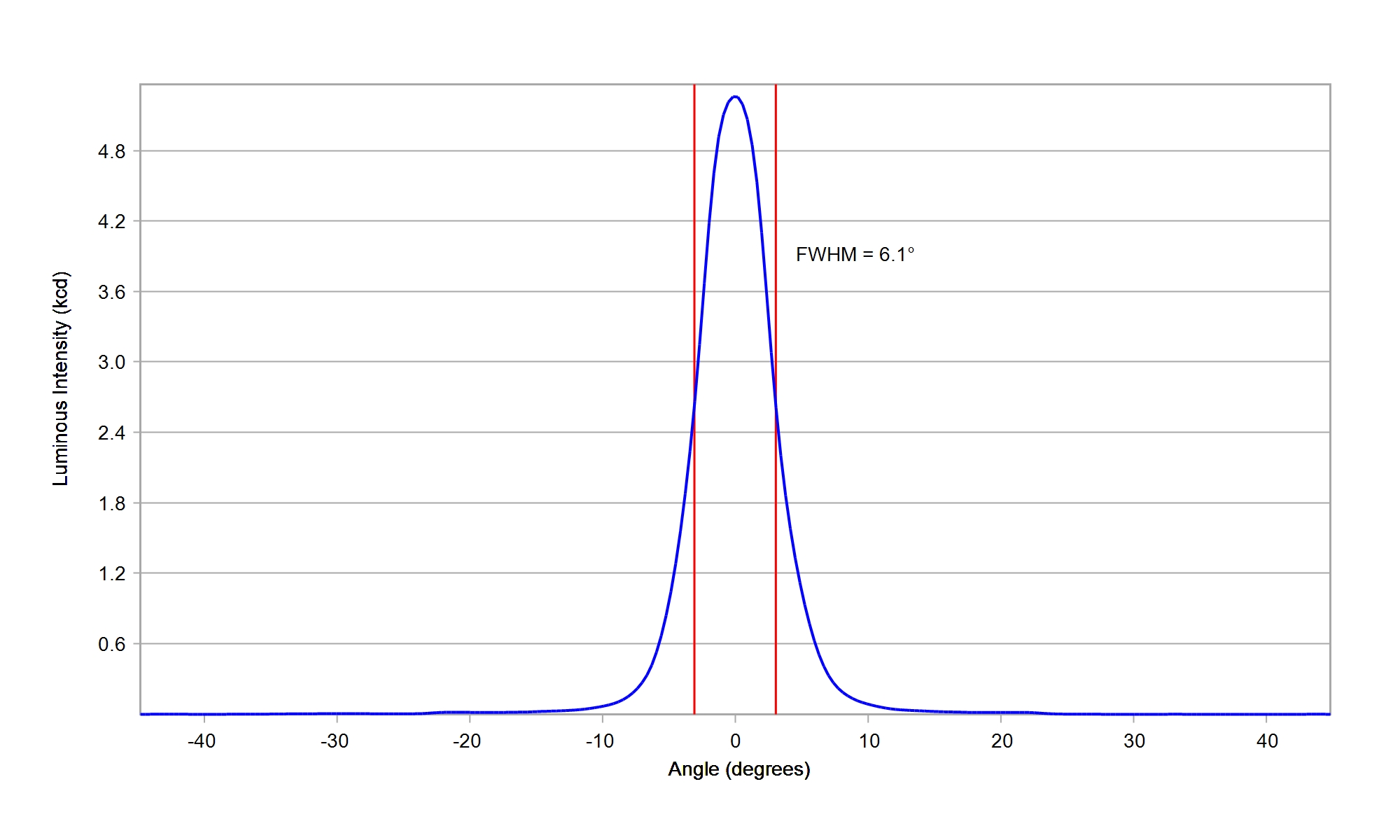

Cree XLamp XQ-E Plus HI Green

Eff:

87.0%

FWHM:

6.1°

Cd/Im:

42.9


Download

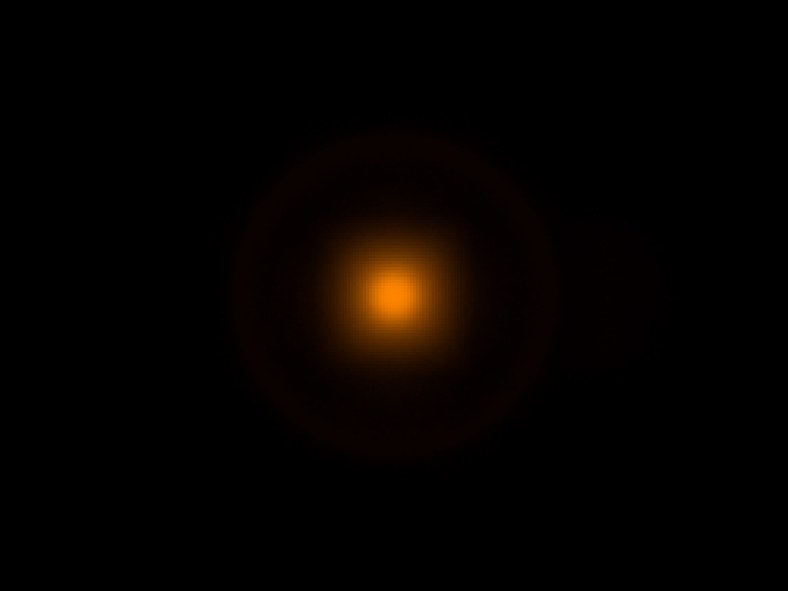

Cree XLamp XQ-E Plus HI PC Amber

Eff:

86.5%

FWHM:

6.5°

Cd/Im:

40.3


Download

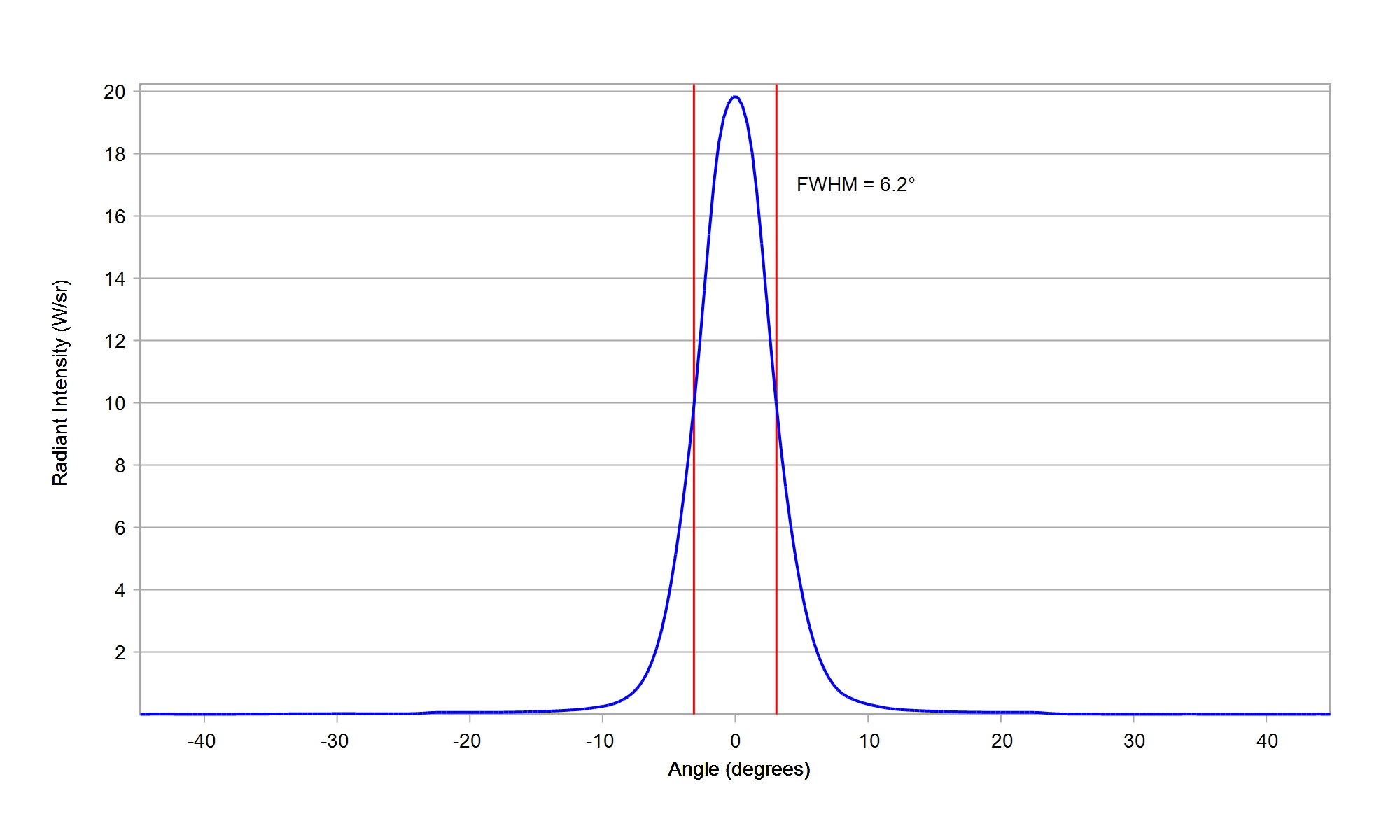

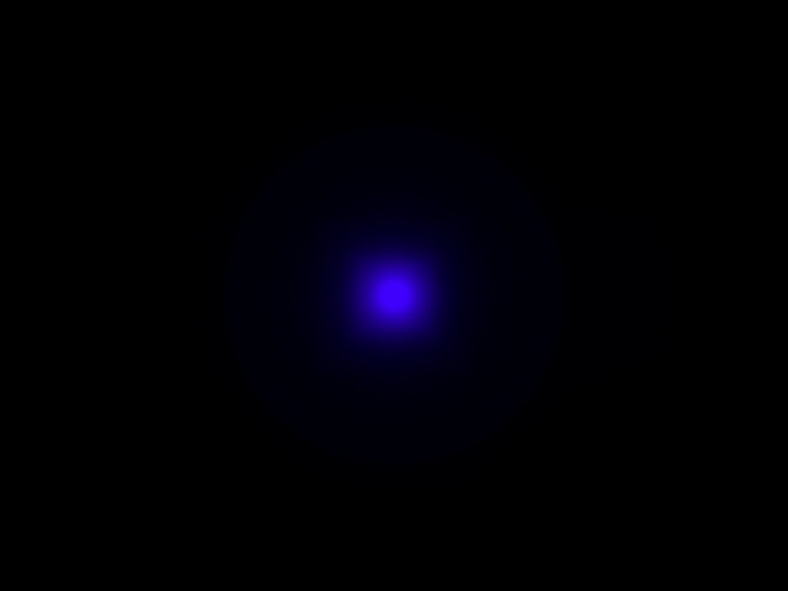

Cree XLamp XQ-E Plus HI Royal Blue

Eff:

86.0%

FWHM:

6.2°

Ipk/W:

43.4


Download

Cree XLamp XQ-E Plus HI White

Eff:

86.5%

FWHM:

6°

Cd/Im:

46.5


Download

Cree XLamp XT-E HE White

Eff:

87.5%

FWHM:

11.5°

Cd/Im:

15.2

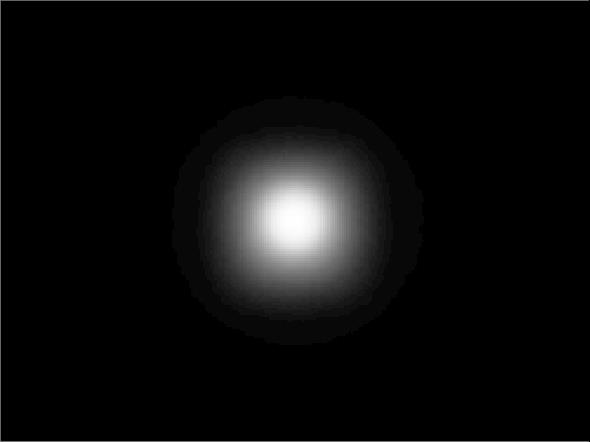

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LG Innotek 3535LG White

FWHM:

11.3°

Cd/Im:

21.1

Download

ies

Lite-On R38386AS - S R38 IR

Eff:

91.0%

FWHM:

8.7°

Ipk/W:

27.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 2835C 6V White

Eff:

88.5%

FWHM:

10°

Cd/Im:

21.0

Download

LUMILEDS LUXEON 2835E 9V White

Eff:

88.5%

FWHM:

9.2°

Cd/Im:

23.8

Download

LUMILEDS LUXEON 2835N 3V White

Eff:

88.0%

FWHM:

9.2°

Cd/Im:

18.2

Download

LUMILEDS LUXEON 2835S 3V White

Eff:

88.5%

FWHM:

11°

Cd/Im:

16.1

Download

LUMILEDS LUXEON 2835S 6V White

Eff:

88.5%

FWHM:

11°

Cd/Im:

16.1

Download

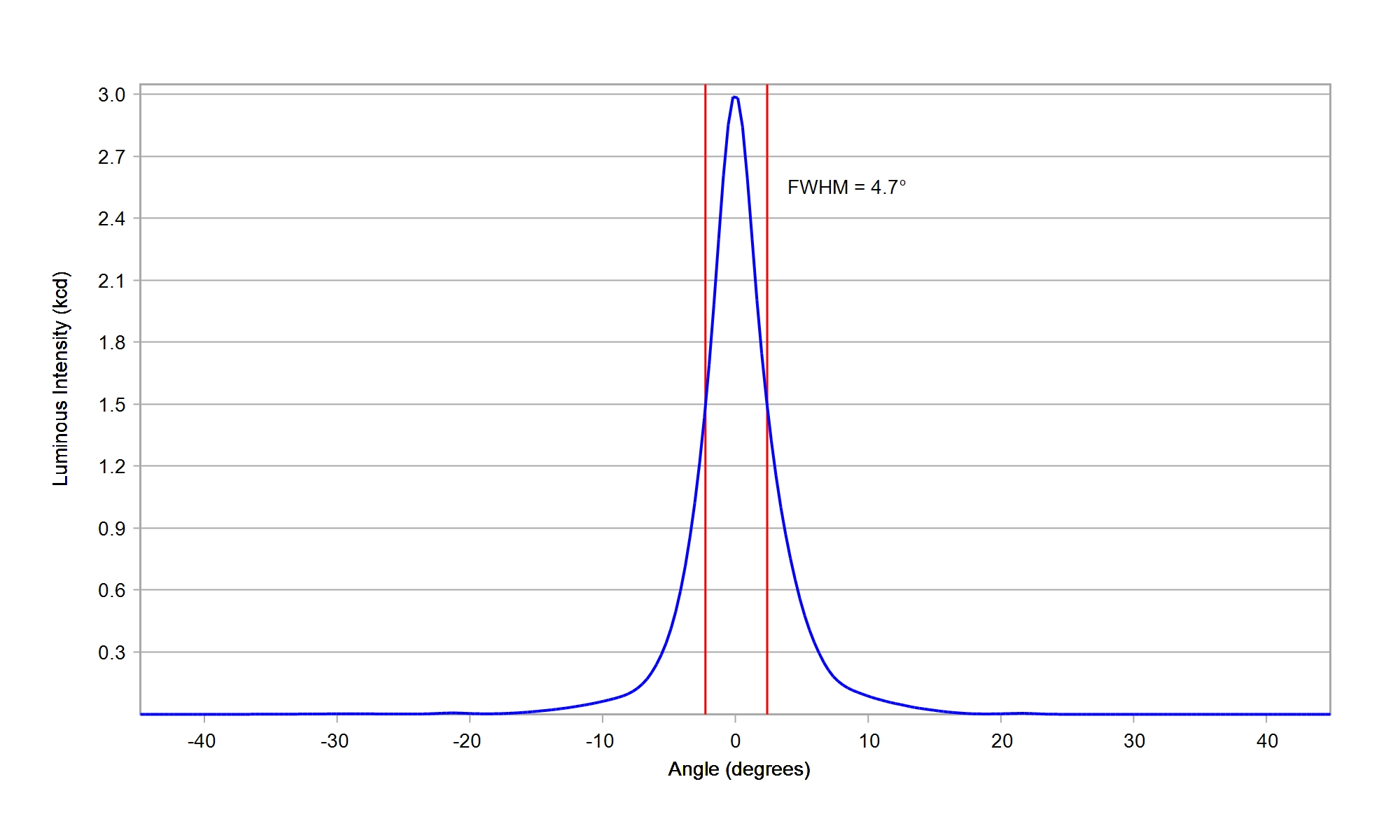

LUMILEDS LUXEON 3014 White

Eff:

88.0%

FWHM:

4.7°

Cd/Im:

79.9

Download

IES

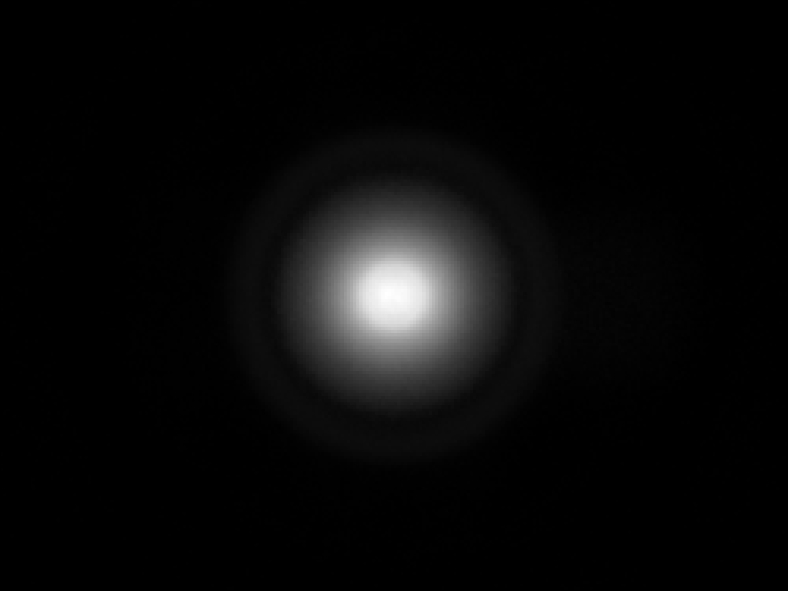

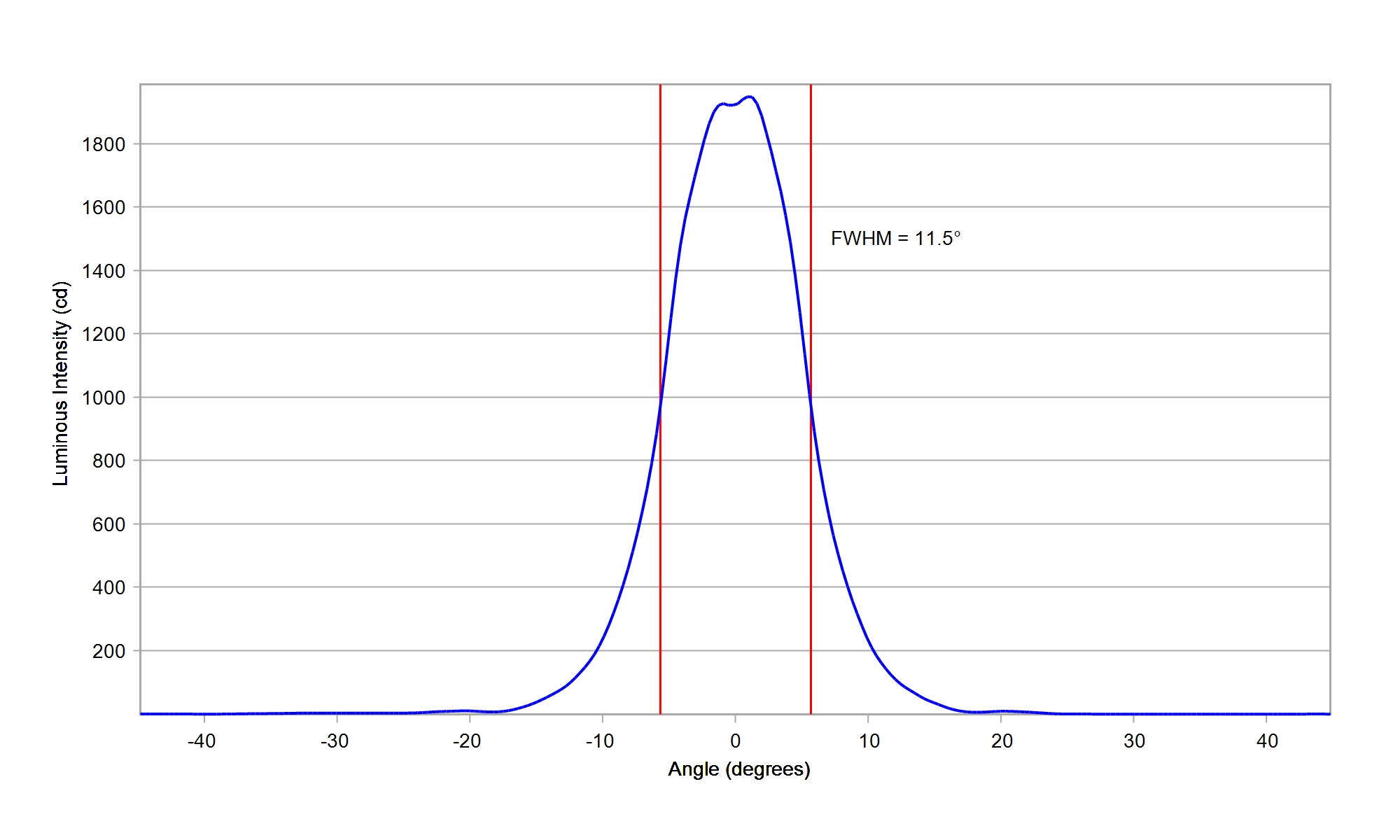

LUMILEDS LUXEON 3030 2D Plus Round White

Eff:

87.5%

FWHM:

11.5°

Cd/Im:

17.5


Download

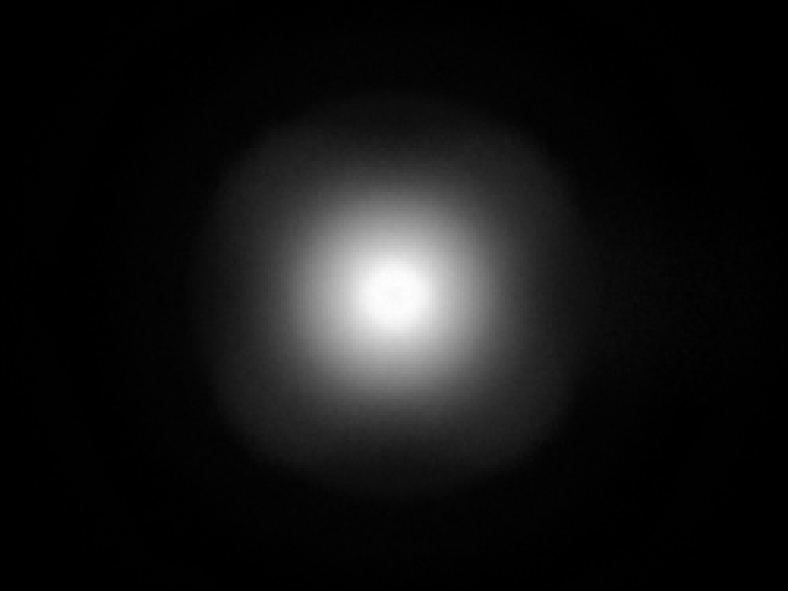

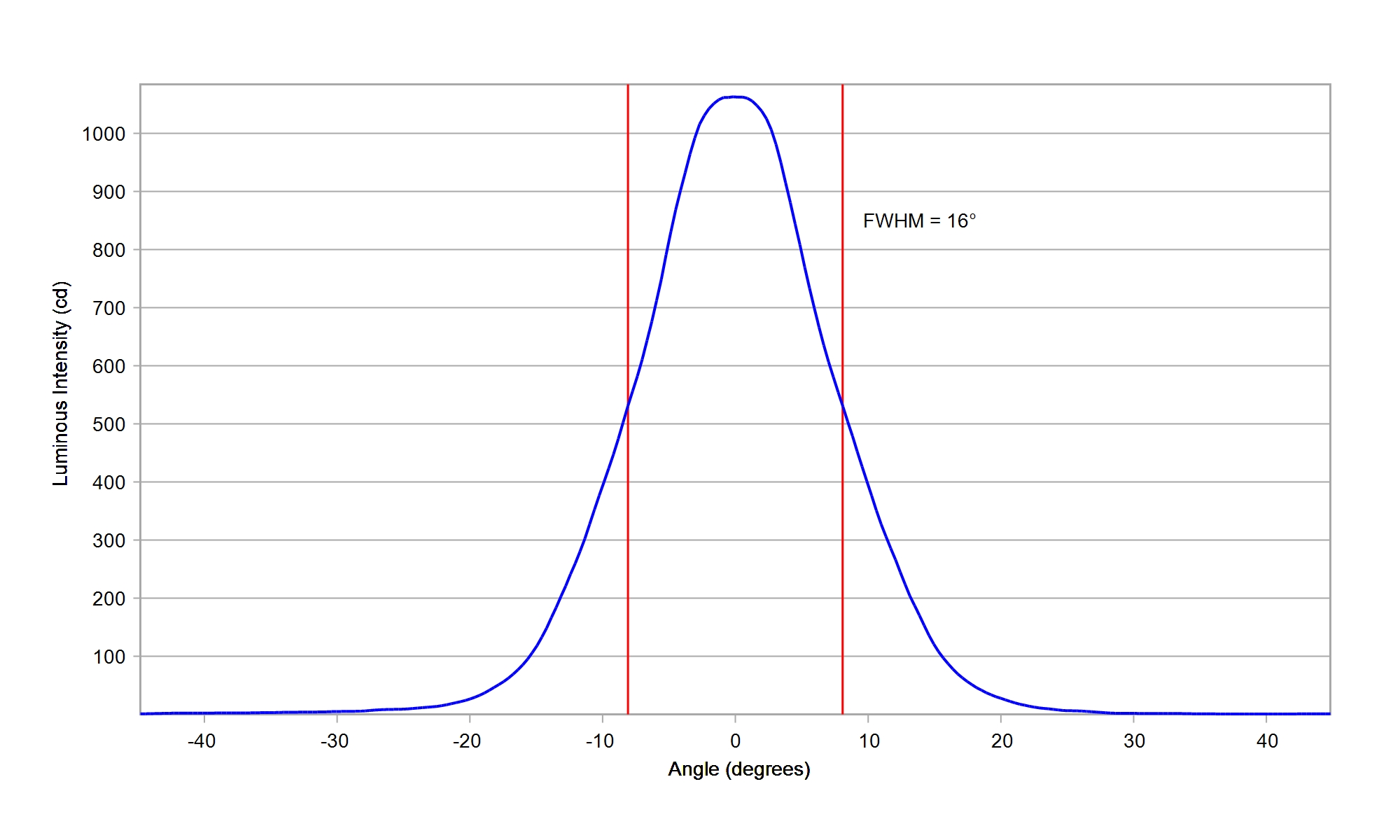

LUMILEDS LUXEON 3030 2D Plus Square White

Eff:

89.0%

FWHM:

16°

Cd/Im:

8.5


Download

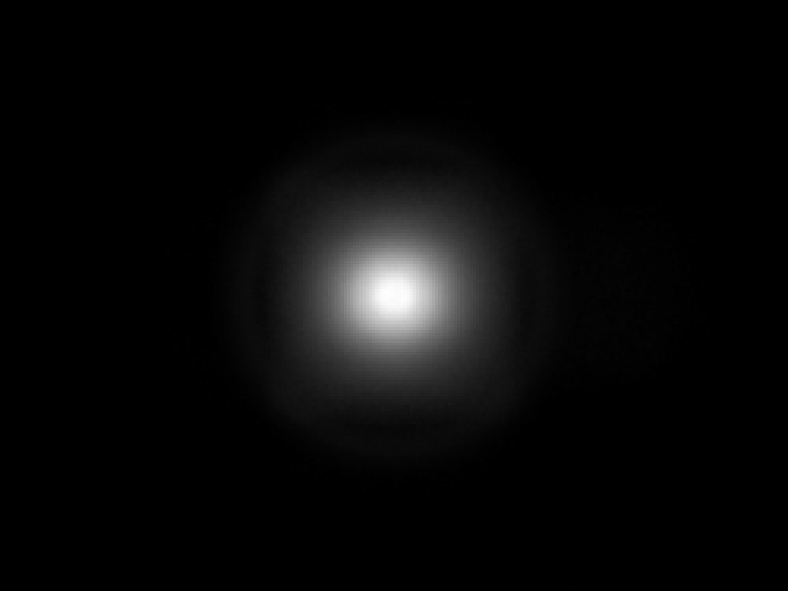

LUMILEDS LUXEON 3030 2D Square White

Eff:

88.0%

FWHM:

9.8°

Cd/Im:

21.4


Download

LUMILEDS LUXEON 3030 2D Round White

Eff:

88.0%

FWHM:

8.9°

Cd/Im:

26.6

Download

LUMILEDS LUXEON 3030 HE Plus White

Eff:

88.5%

FWHM:

10.5°

Cd/Im:

18.7

Carclo Optics – 10193 – Luxeon_3030_HE_Plus_spot-image

Carclo Optics – 10193 – Luxeon_3030_HE_Plus_cross vertical section

Download

IES

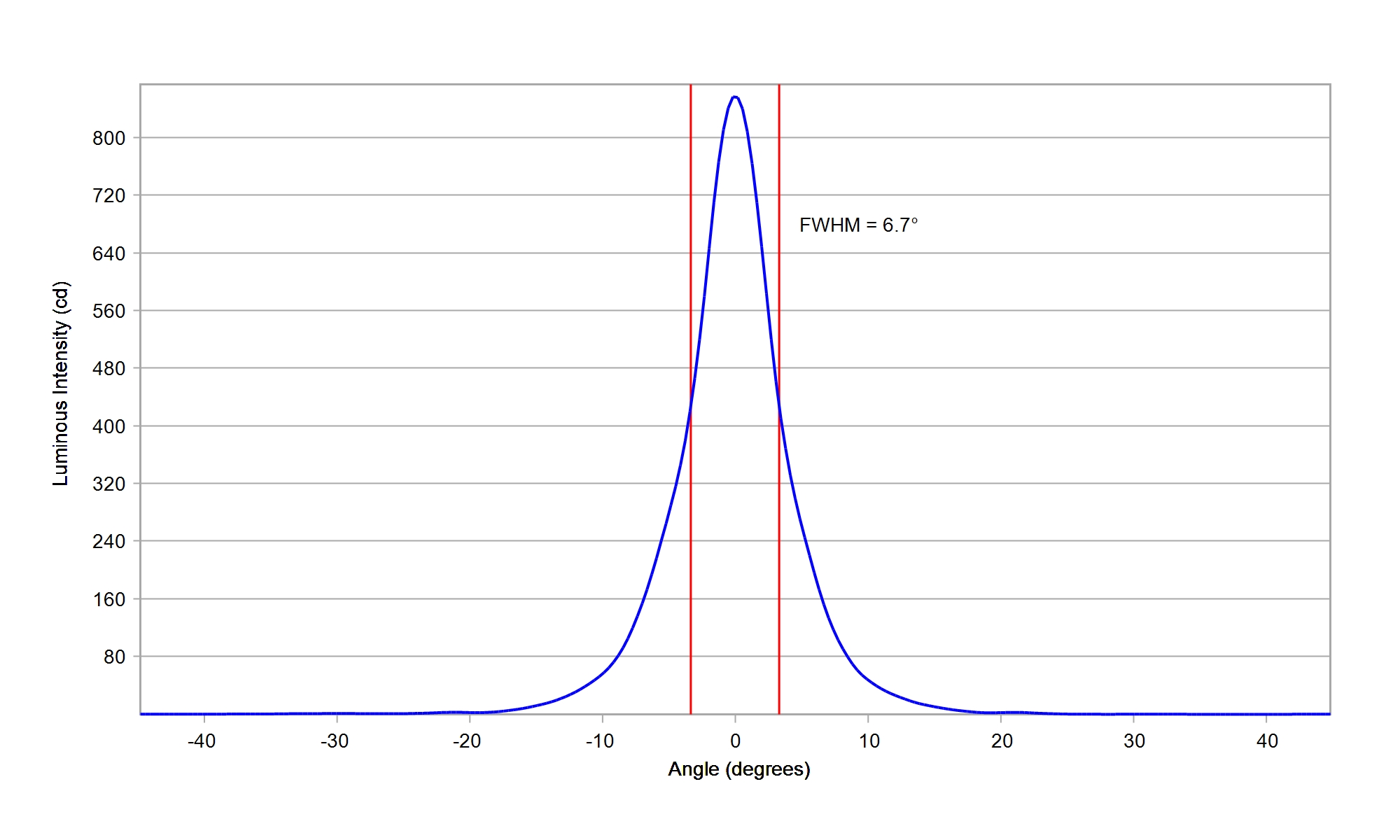

LUMILEDS LUXEON 3030 HE White

Eff:

88.0%

FWHM:

6.7°

Cd/Im:

33.0

Download

LUMILEDS LUXEON 3535 HV White

Eff:

85.0%

FWHM:

7°

Cd/Im:

25.7

carclo optics - simulated spot image

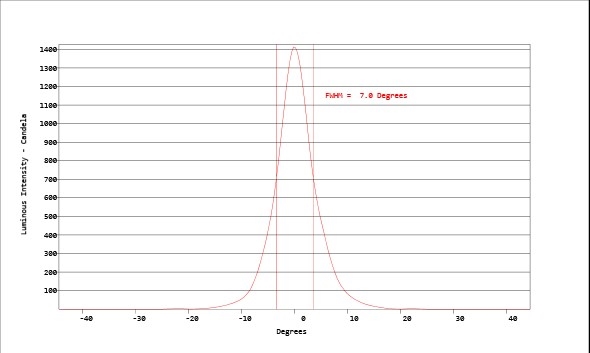

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON 3535 L White

Eff:

86.0%

FWHM:

8.4°

Cd/Im:

22.0

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON 3535L Blue

Eff:

88.0%

FWHM:

4.8°

Cd/Im:

42.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 3535L Green

Eff:

88.0%

FWHM:

3.6 x 3.6°

Cd/Im:

59.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 3535L Red

Eff:

88.0%

FWHM:

3.0°

Cd/Im:

110.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

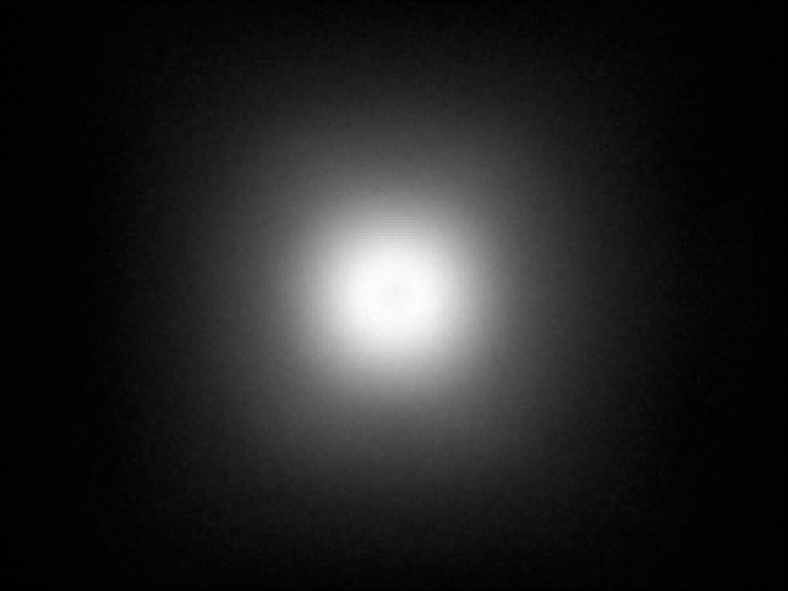

LUMILEDS LUXEON 5050 HE 24V White

Eff:

89.0%

FWHM:

21°

Cd/Im:

5.1

Download

LUMILEDS LUXEON 5050 HE 6V White

Eff:

89.0%

FWHM:

20.5°

Cd/Im:

5.2

Download

LUMILEDS LUXEON 5050 Round 24V White

Eff:

89.0%

FWHM:

22.5°

Cd/Im:

4.8


Download

LUMILEDS LUXEON 5050 Square 30V White

Eff:

89.0%

FWHM:

25°

Cd/Im:

3.9


Download

LUMILEDS LUXEON 5050 Square 6V White

Eff:

89.0%

FWHM:

22°

Cd/Im:

4.8


Download

LUMILEDS LUXEON 5050 Round 6V White

Eff:

87.5%

FWHM:

21.0°

Cd/Im:

5.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Blue

Eff:

83.0%

FWHM:

8.0°

Cd/Im:

25.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Lime

Eff:

85.0%

FWHM:

8.0°

Cd/Im:

27.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Red

Eff:

82.5%

FWHM:

8.6°

Cd/Im:

22.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Red

Eff:

82.5%

FWHM:

13.5°

Cd/Im:

10.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C White

Eff:

83.5%

FWHM:

7.3°

Cd/Im:

33.6

Download

LUMILEDS LUXEON CZ White

Eff:

87.5%

FWHM:

5.5°

Cd/Im:

67.5

Carclo Optics 10193 Spot Image Luxeon CZ 5M CW

Carclo Optics 10193 Cross Section Luxeon CZ 5M CW

Download

IES

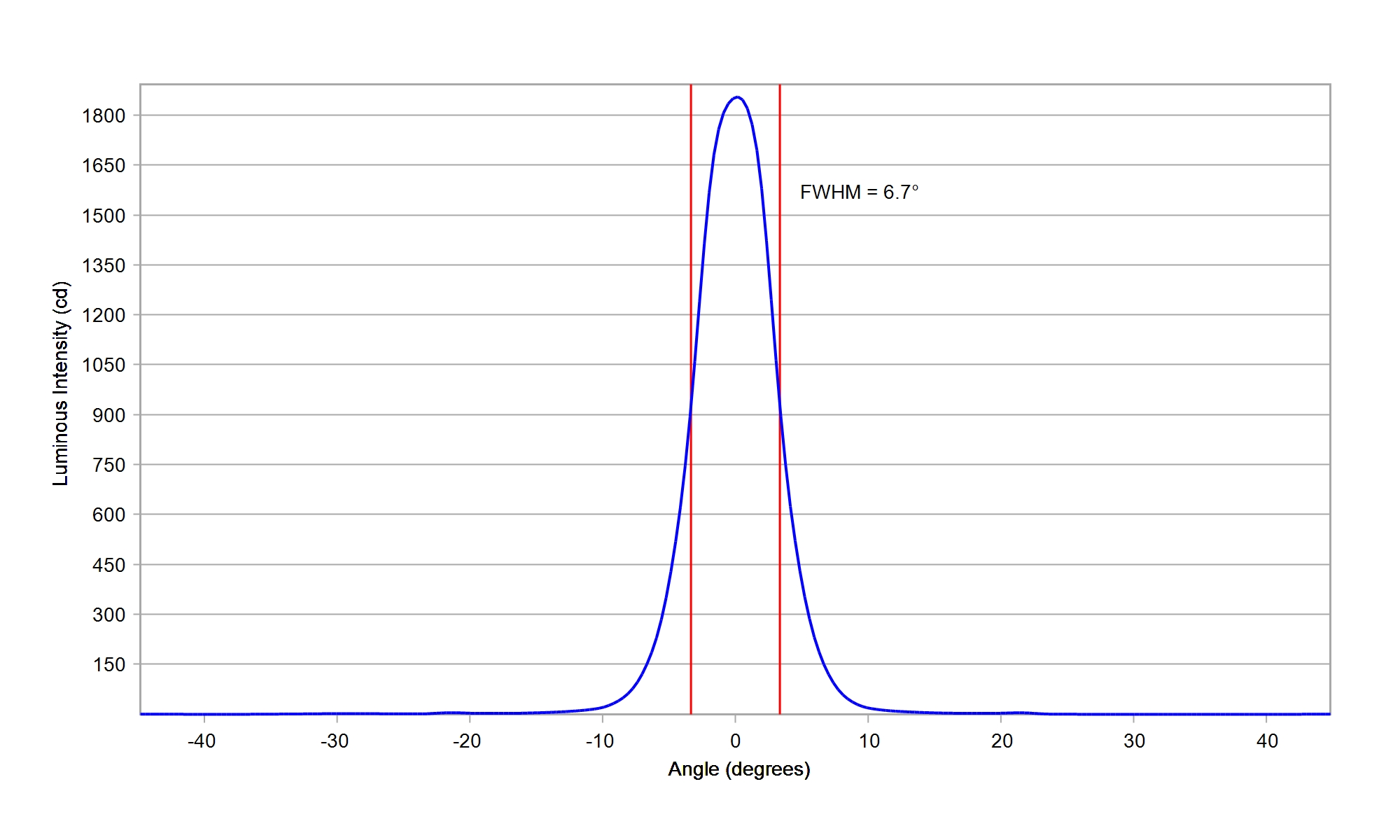

LUMILEDS LUXEON HL1Z Color Blue

Eff:

87.0%

FWHM:

6.7°

Cd/Im:

38.9

Download

LUMILEDS LUXEON HL1Z Color Green

Eff:

87.0%

FWHM:

6.5°

Cd/Im:

40.5

Download

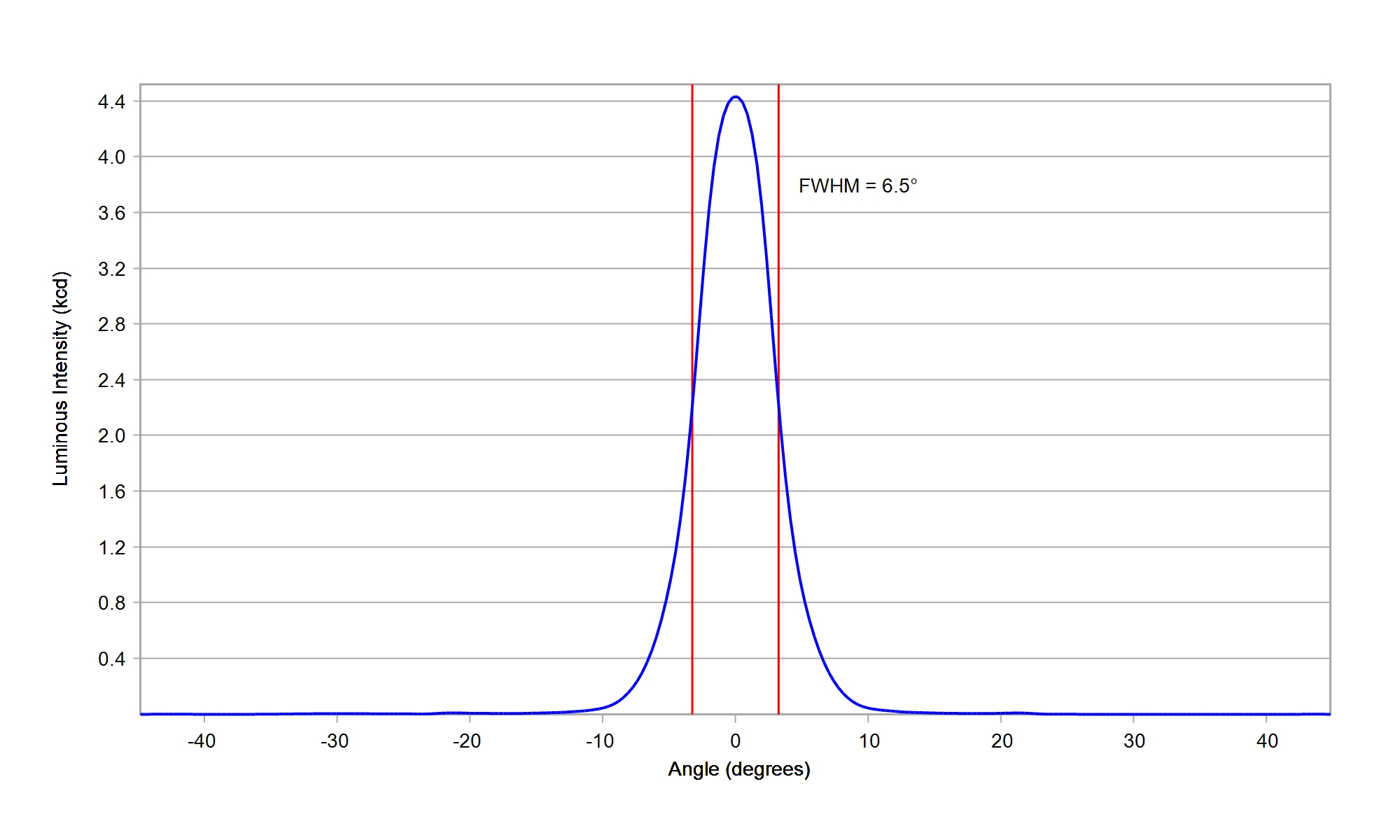

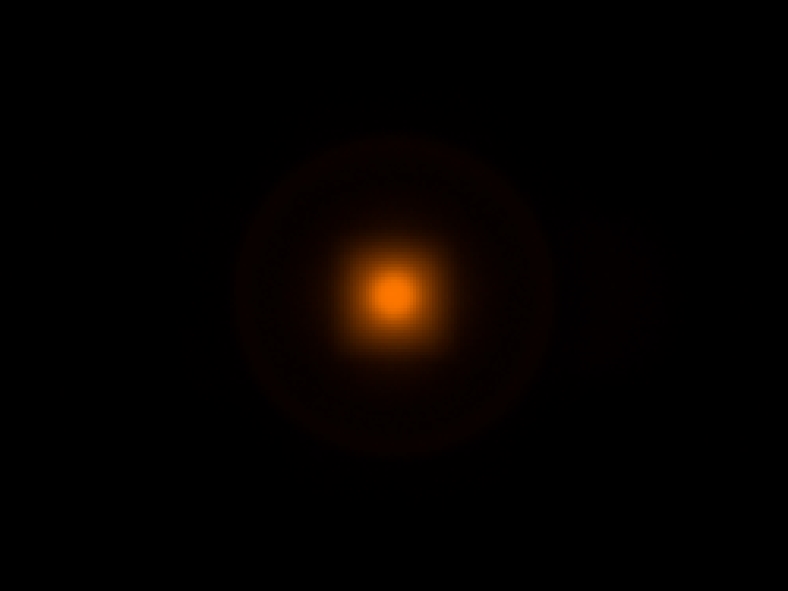

LUMILEDS LUXEON HL1Z Color PC Amber

Eff:

87.0%

FWHM:

6.5°

Cd/Im:

41.7


Download

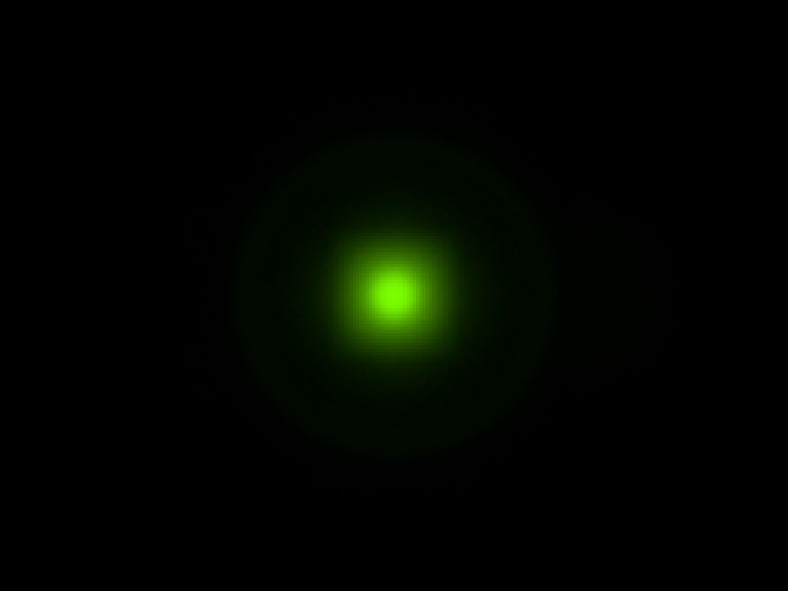

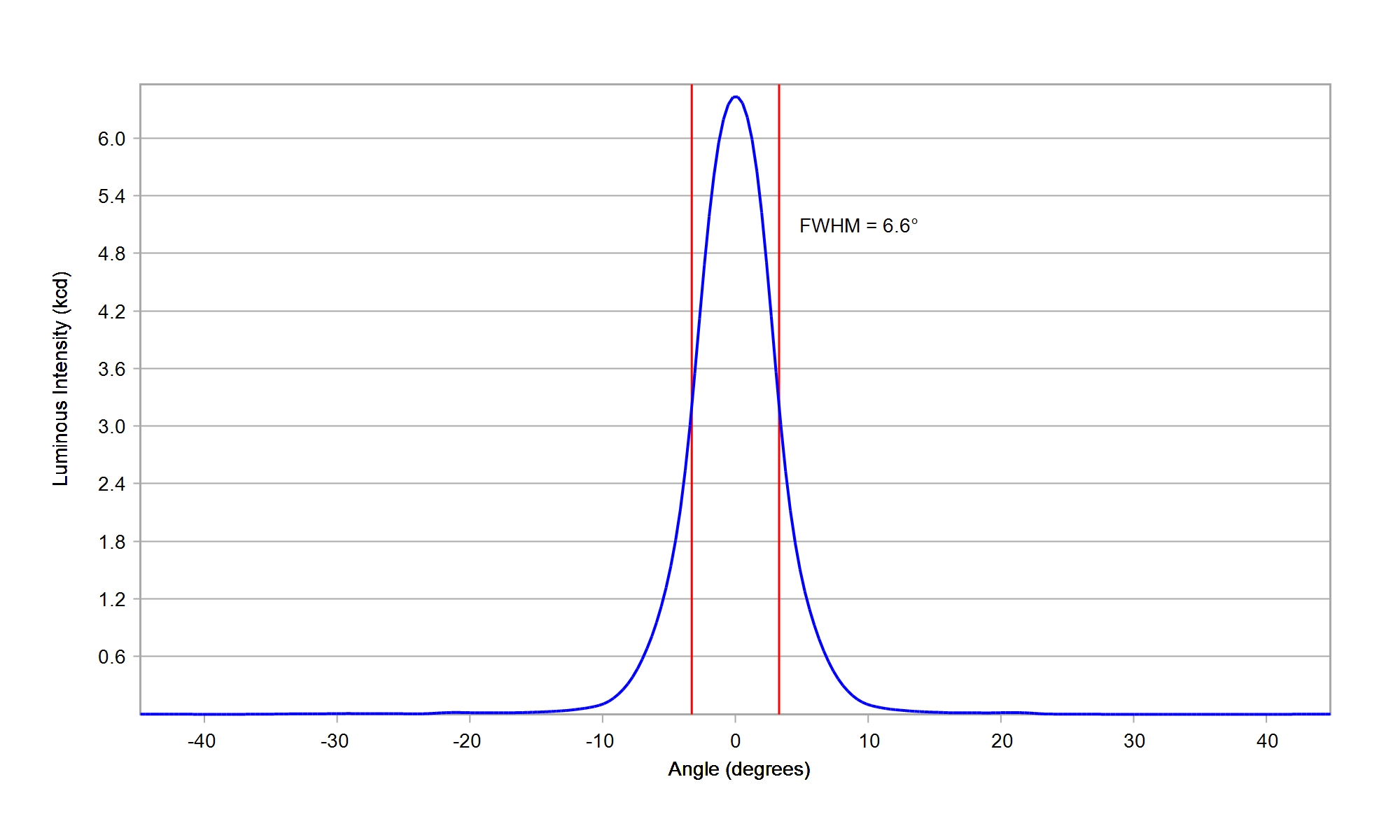

LUMILEDS LUXEON HL1Z Color PC Green

Eff:

86.5%

FWHM:

6.6°

Cd/Im:

37.7


Download

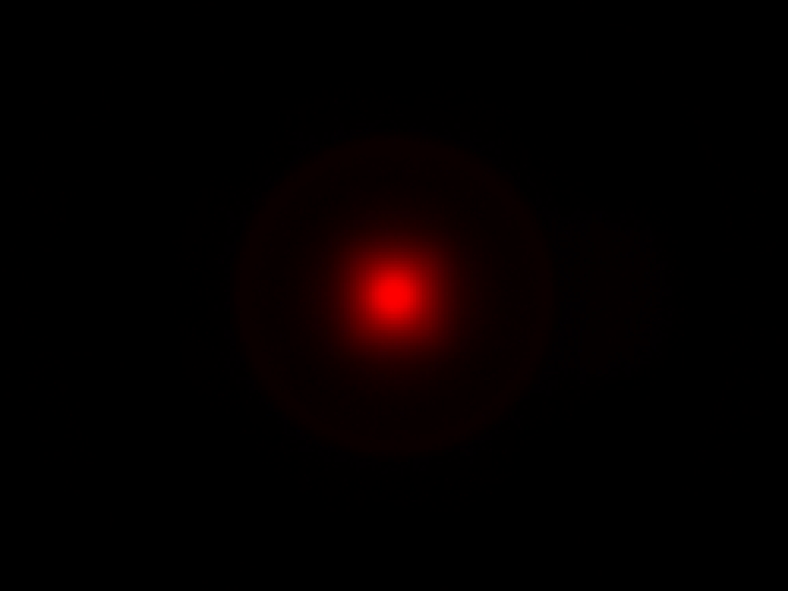

LUMILEDS LUXEON HL1Z Color PC Red

Eff:

87.5%

FWHM:

6.3°

Cd/Im:

43.0

Download

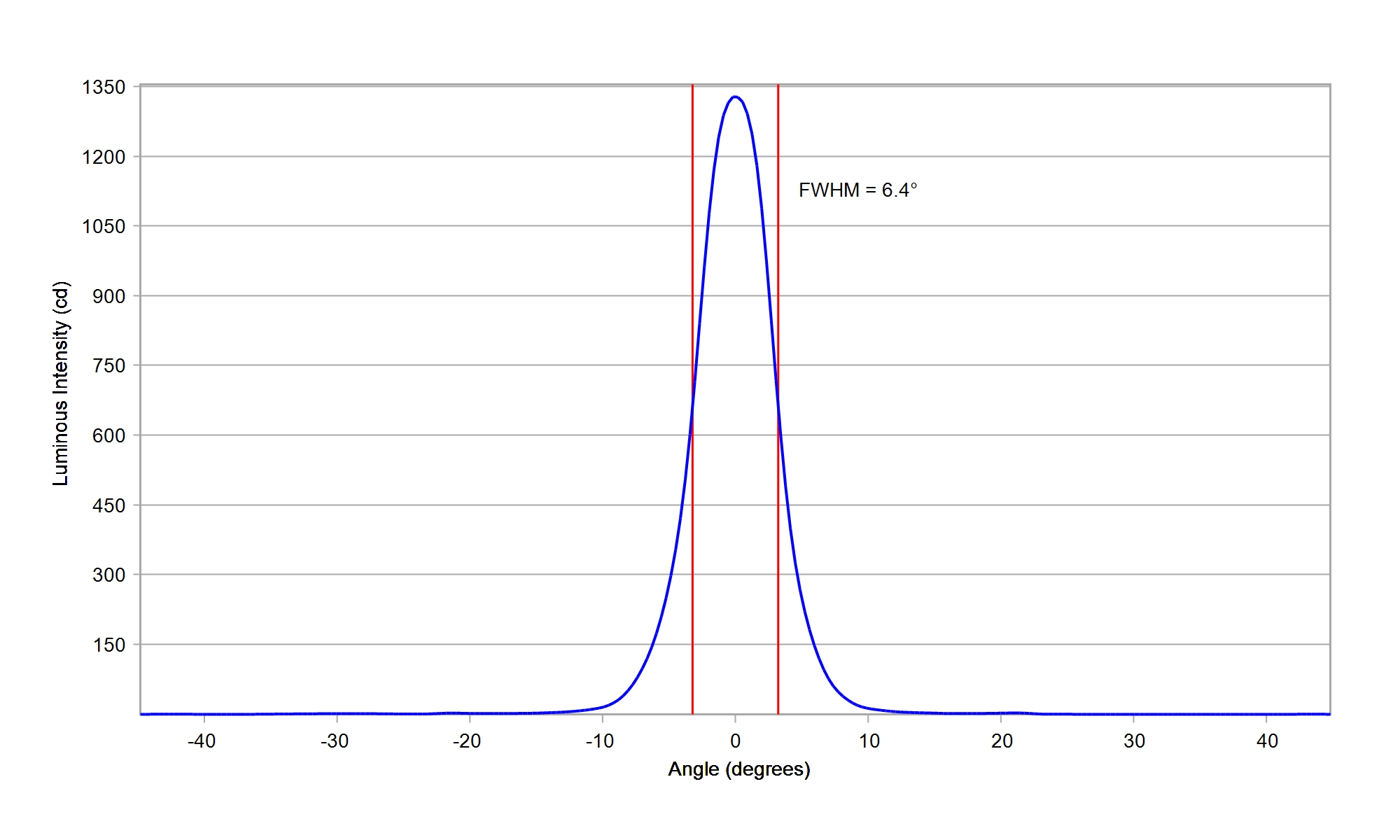

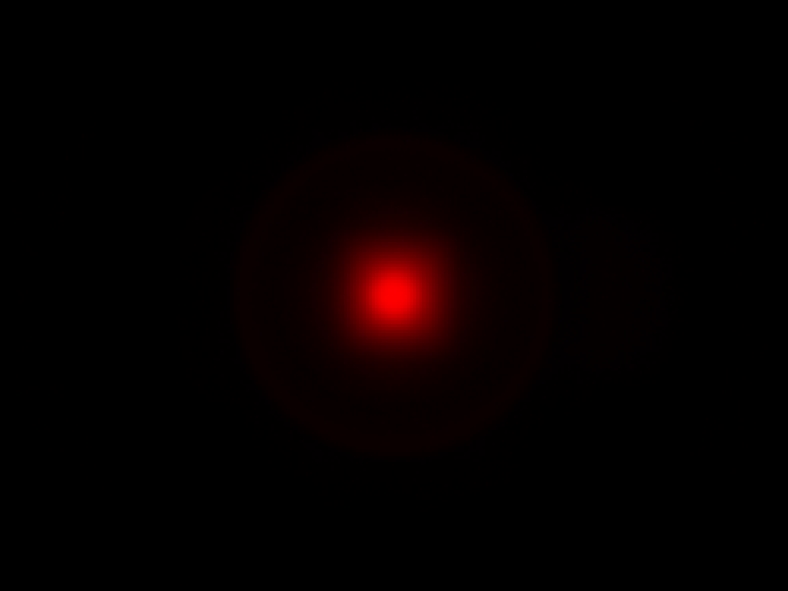

LUMILEDS LUXEON HL1Z Color PC Red Orange

Eff:

87.5%

FWHM:

6.4°

Cd/Im:

42.8


Download

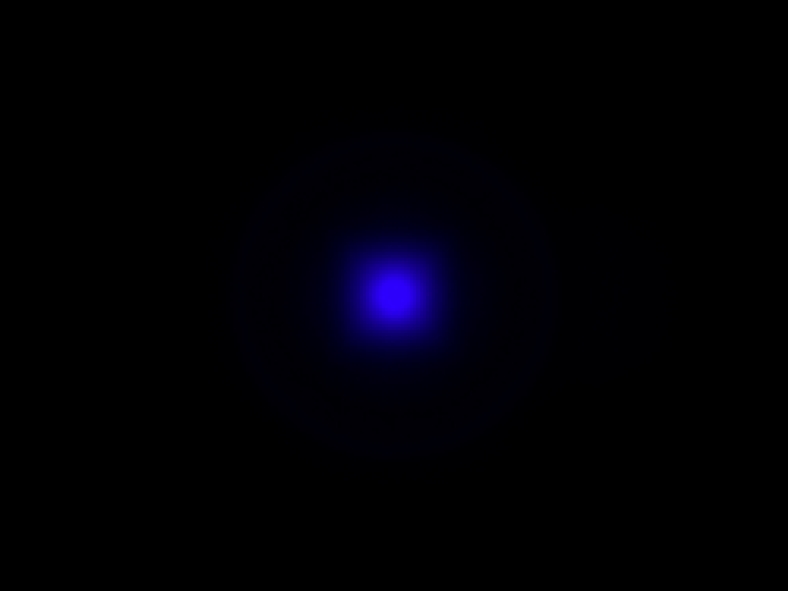

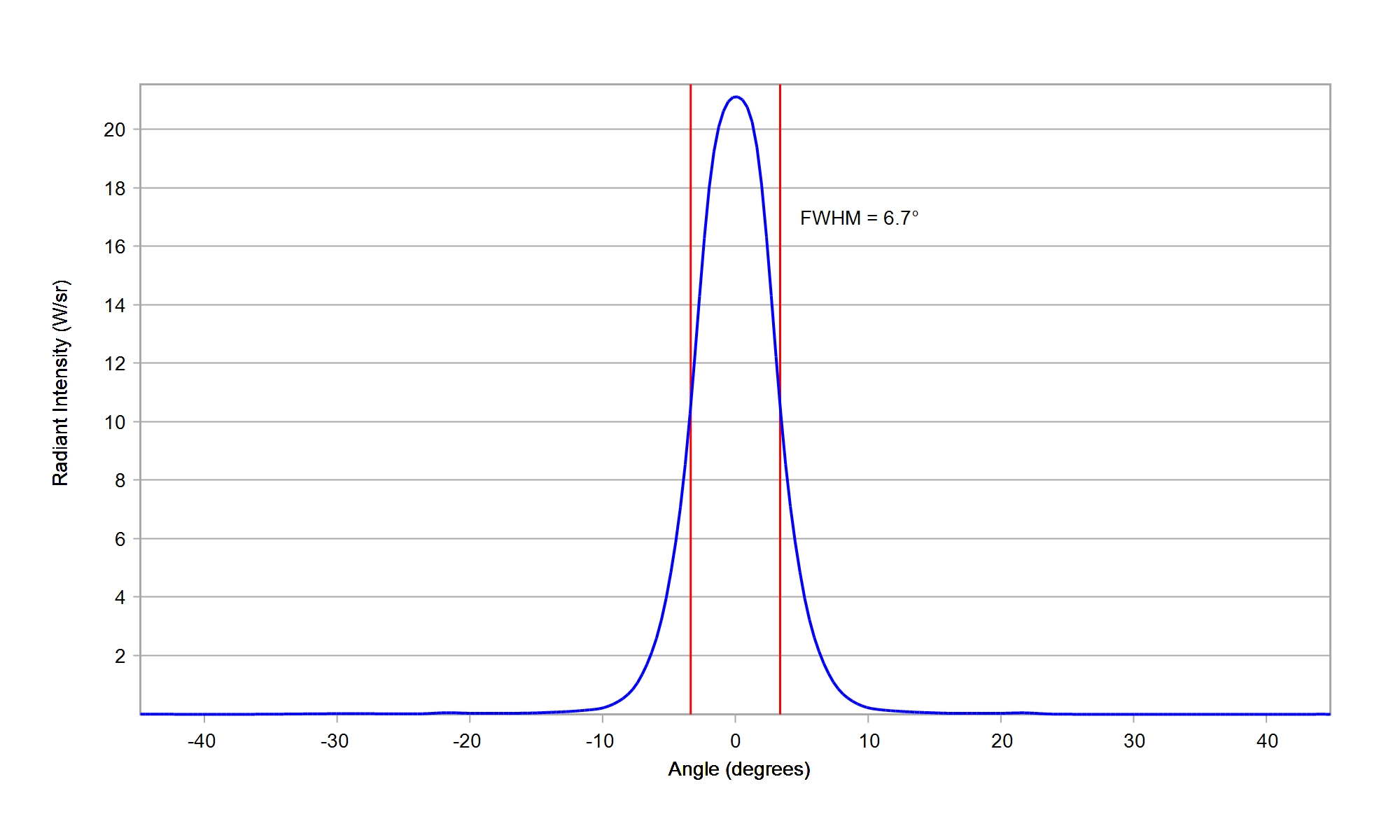

LUMILEDS LUXEON HL1Z Color Royal Blue

Eff:

86.0%

FWHM:

6.7°

Ipk/W:

38.2


Download

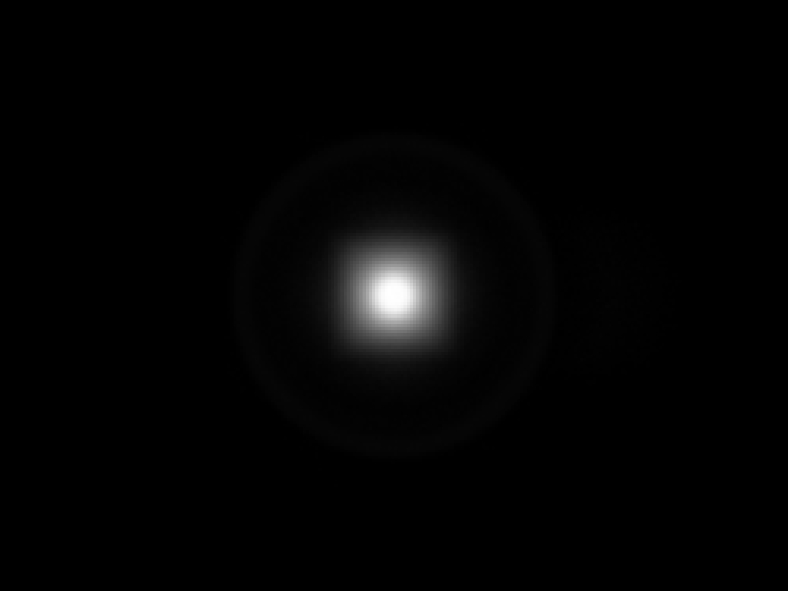

LUMILEDS LUXEON HL1Z CSP White

Eff:

87.5%

FWHM:

6.6°

Cd/Im:

43.0

Download

IES

LUMILEDS LUXEON HL2X White

Eff:

88.0%

FWHM:

12.5°

Cd/Im:

13.6

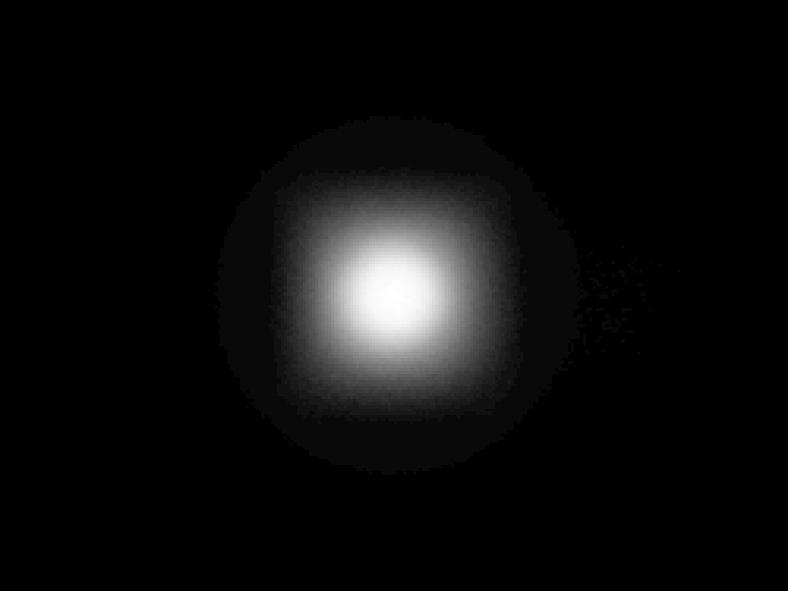

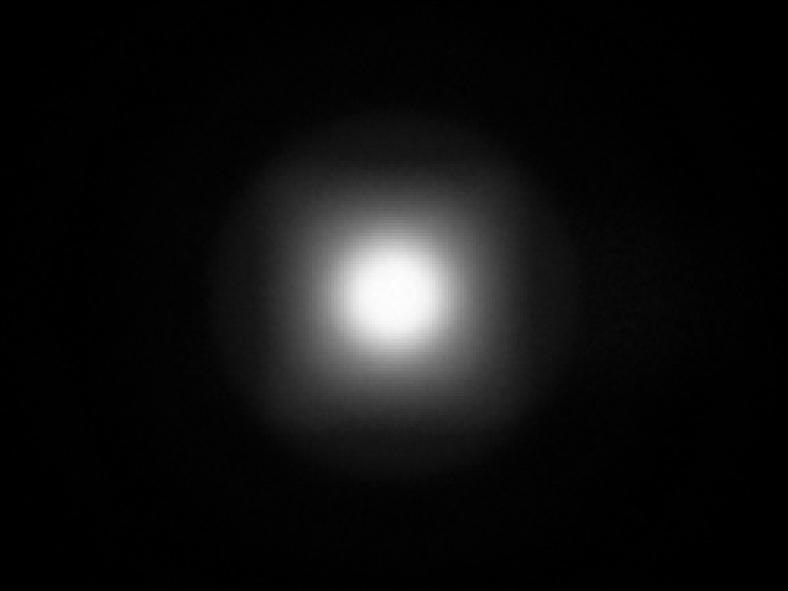

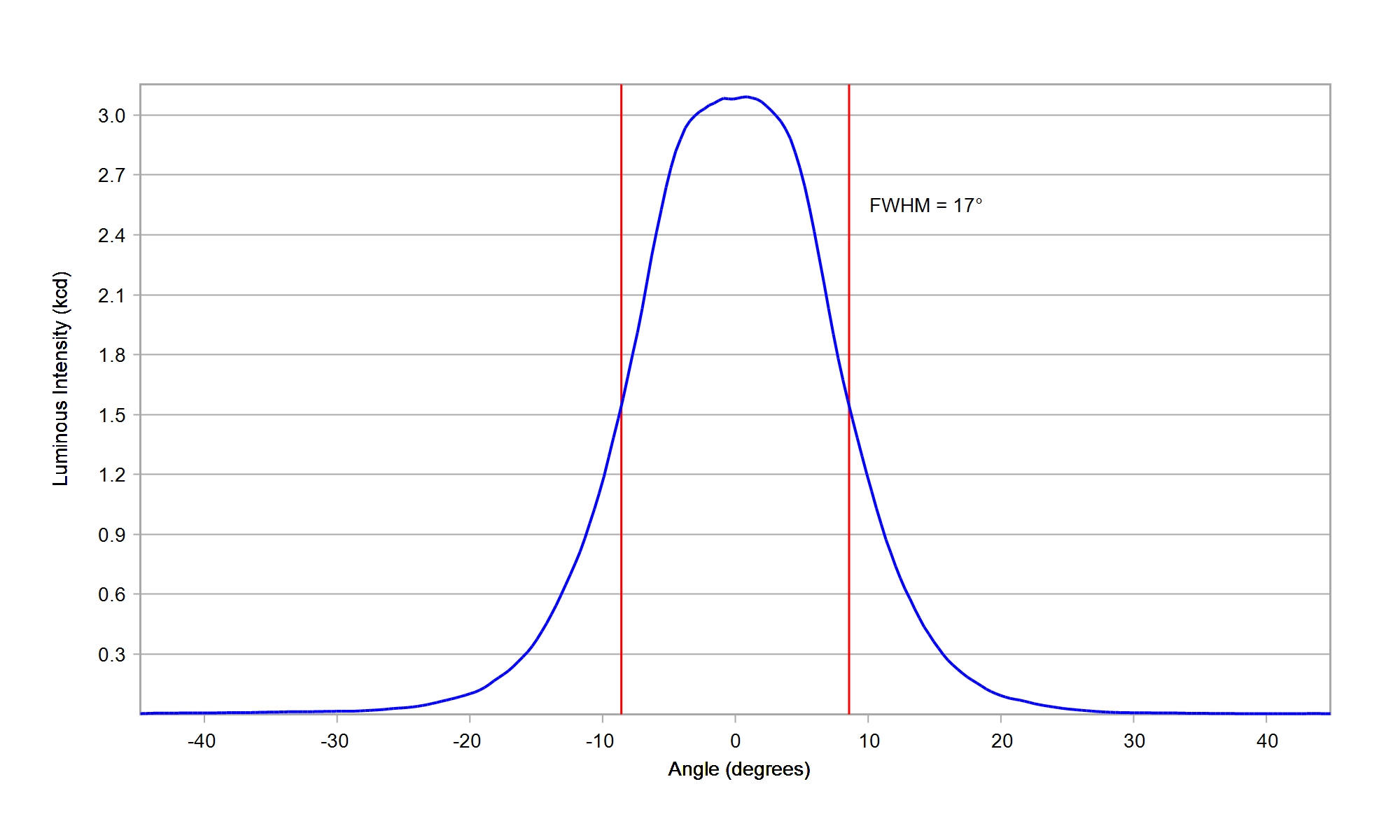

Carclo Optics - 10193 Spot Image Luxeon HL2X

Carclo Optics - 10193 Cross Section Luxeon HL2X

Download

IES

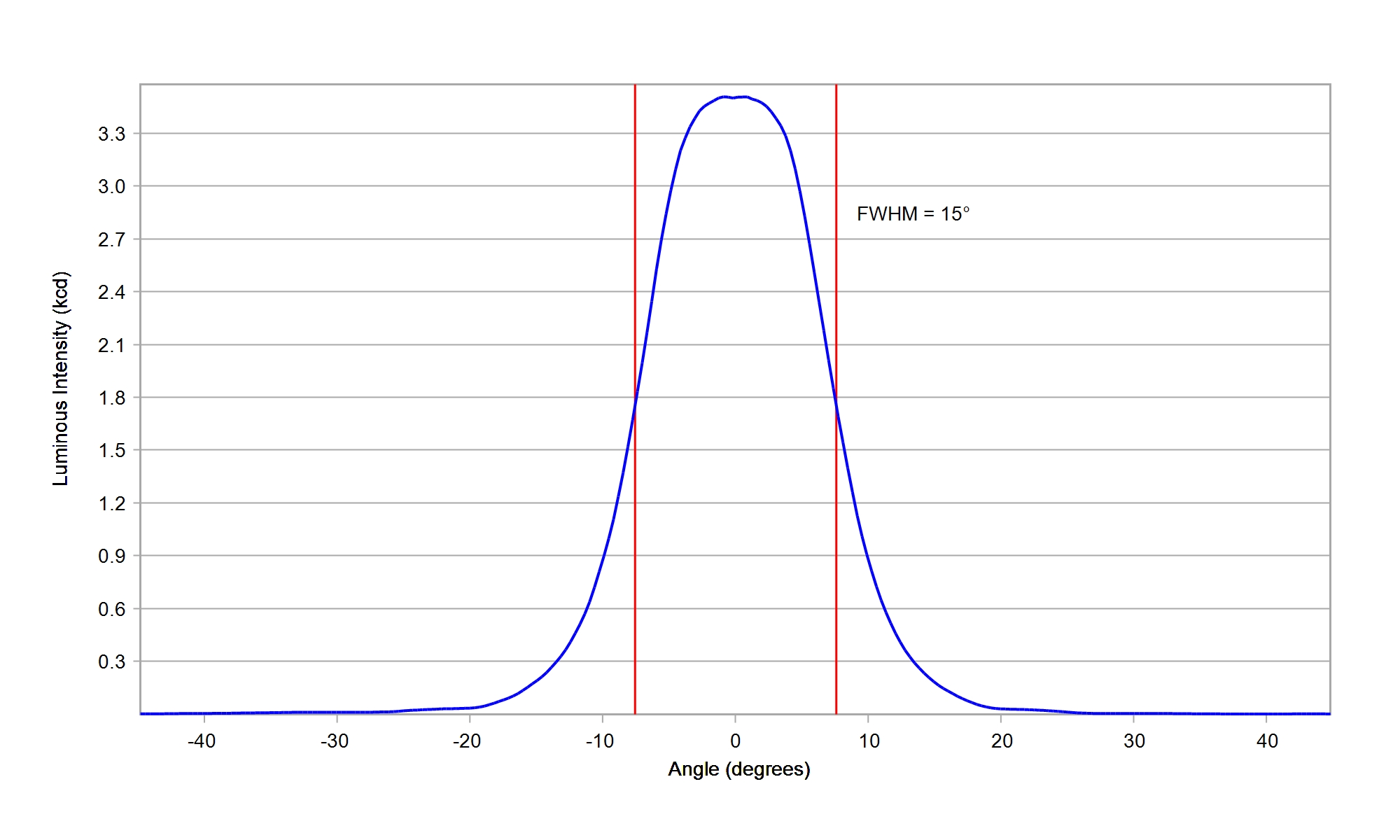

LUMILEDS LUXEON HL2X-D White

Eff:

88.5%

FWHM:

15°

Cd/Im:

9.5

Download

IES

LUMILEDS LUXEON HL2X-E White

Eff:

88.5%

FWHM:

15°

Cd/Im:

10.1

Download

LUMILEDS LUXEON HL2X-P White

Eff:

88.5%

FWHM:

14.5°

Cd/Im:

9.9

Download

IES

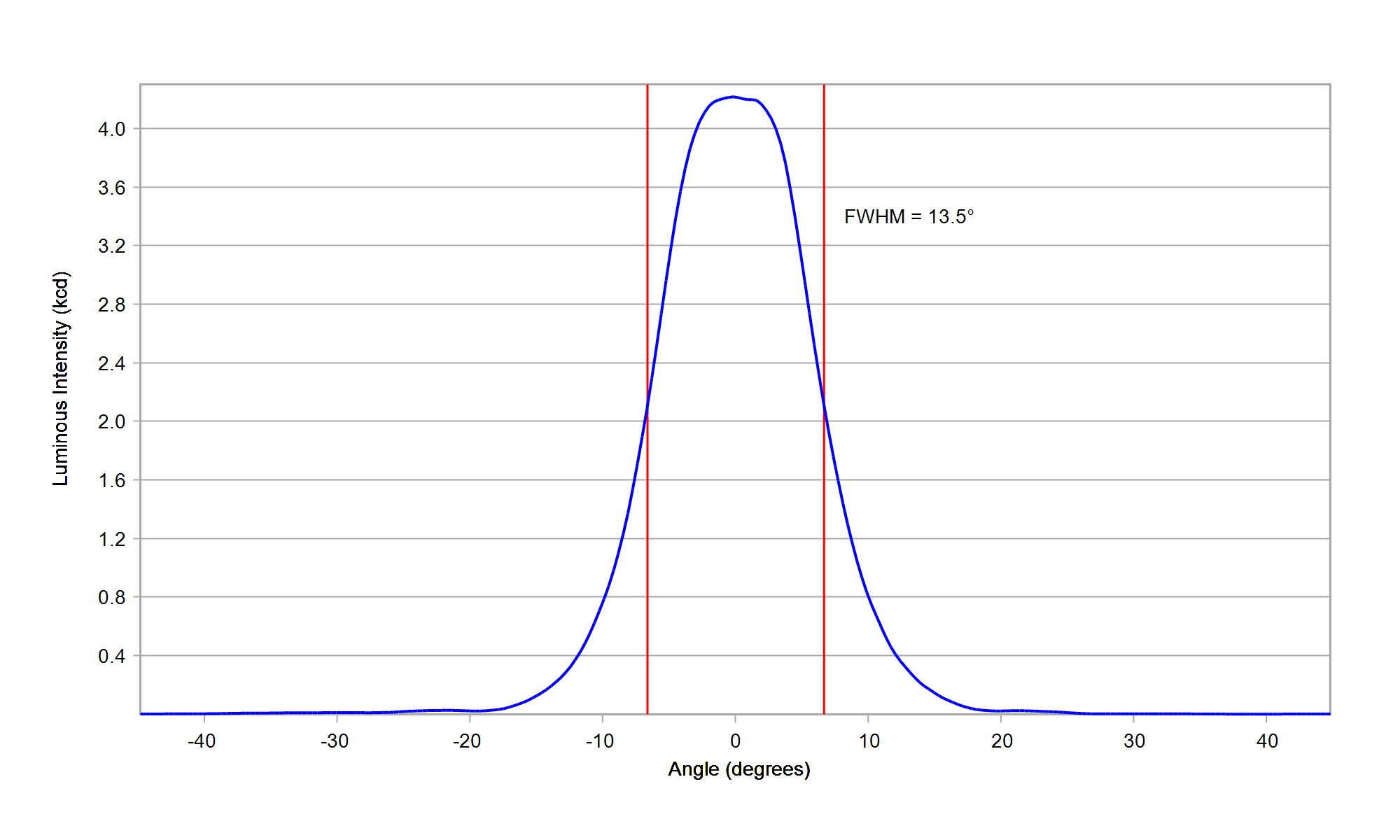

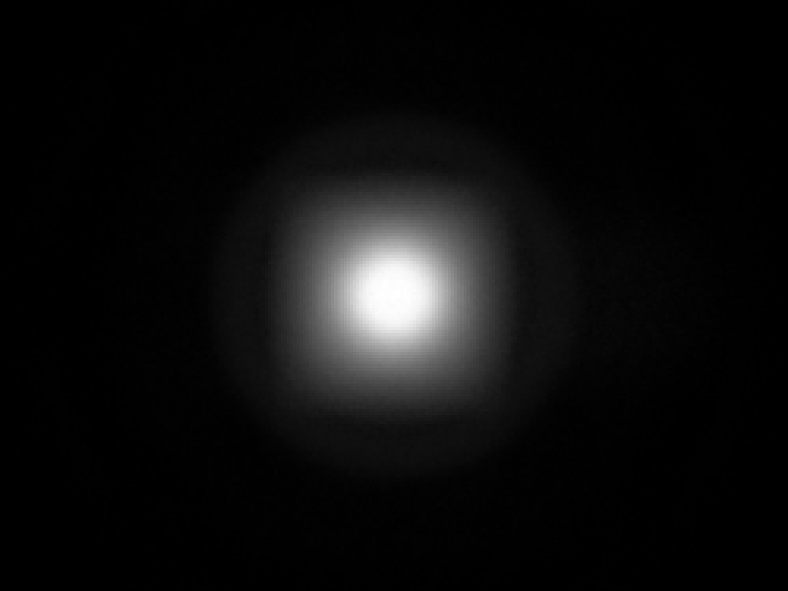

LUMILEDS LUXEON HL2X-V White

Eff:

88.5%

FWHM:

13.5°

Cd/Im:

12.6

Download

LUMILEDS LUXEON HL2Z White

Eff:

87.5%

FWHM:

9.9°

Cd/Im:

19.7

Carclo Optics – 10193 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 10193 Lumileds Luxeon HL2Z - Cross-Section

Download

IES

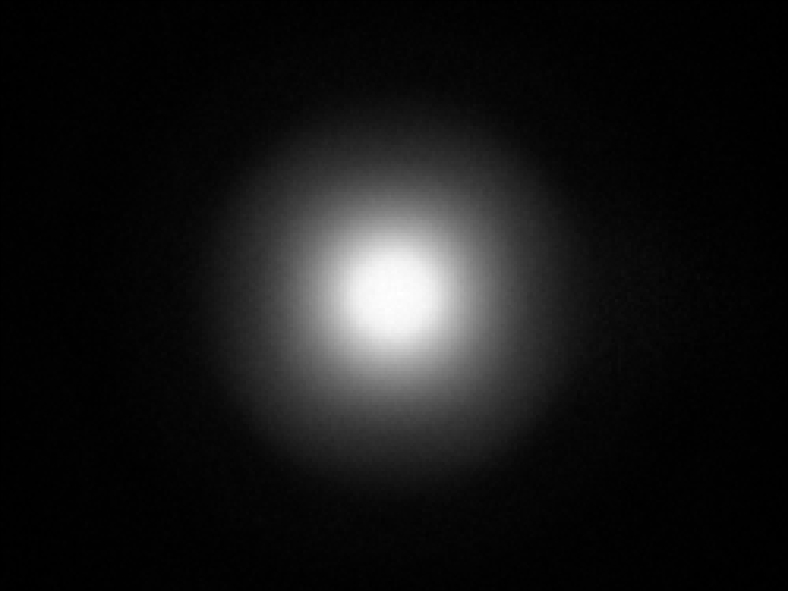

LUMILEDS LUXEON HL4X White

Eff:

88.0%

FWHM:

17°

Cd/Im:

7.4

Download

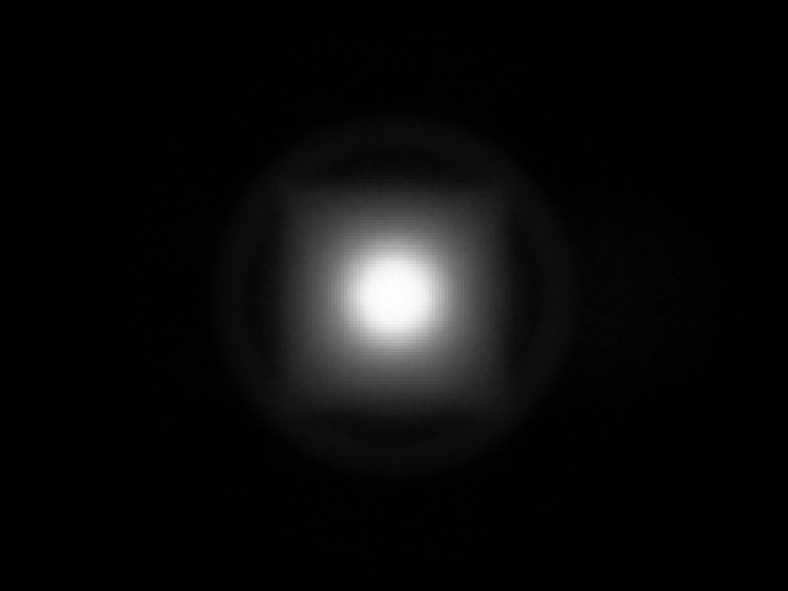

LUMILEDS LUXEON HL4Z White

Eff:

88.5%

FWHM:

12.5°

Cd/Im:

14.2

Download

LUMILEDS LUXEON IR 2720

Eff:

91.0%

FWHM:

7.3°

Ipk/W:

40.4

Carclo Optics 10193 Spot Image Luxeon IR 2720

Carclo Optics 10193 Cross Section image Luxeon IR 2720

Download

IES

LUMILEDS LUXEON IR Compact 850nm

Eff:

91.0%

FWHM:

7.1°

Ipk/W:

38.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 150 Degree

Eff:

91.5%

FWHM:

9.5°

Cd/Im:

26.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 60 Degree

Eff:

89.5%

FWHM:

9.2°

Ipk/W:

23.5

Carclo Optics - Simulated Spot Image

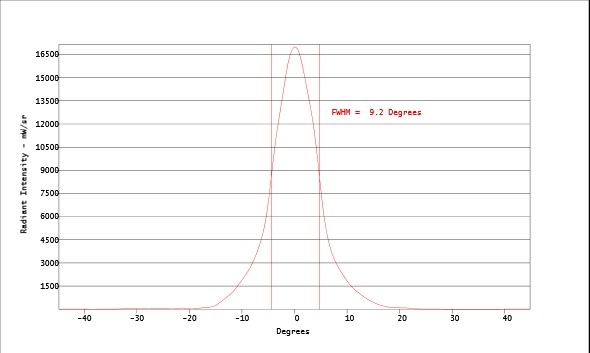

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 90 Degree

Eff:

90.5%

FWHM:

9.2°

Ipk/W:

25.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON MZ White

Eff:

85.7%

FWHM:

18.8°

Cd/Im:

6.1

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

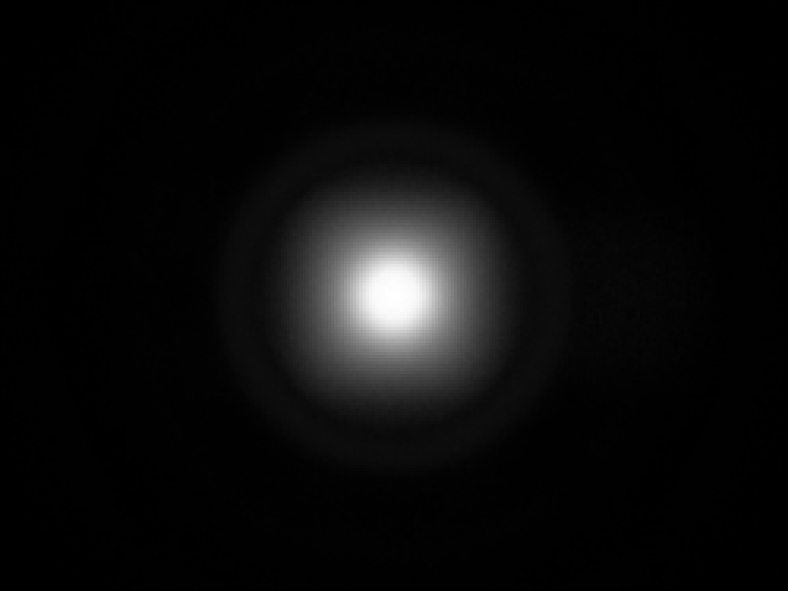

LUMILEDS LUXEON Rebel ES White

Eff:

87.0%

FWHM:

11.5°

Cd/Im:

15.3

Download

LUMILEDS LUXEON Rebel Plus White

Eff:

87.5%

FWHM:

8°

Cd/Im:

29.9

Download

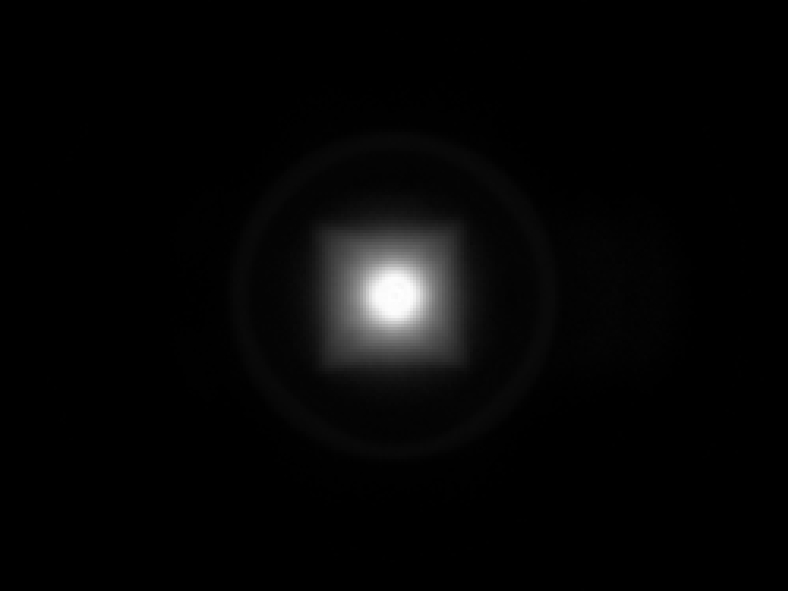

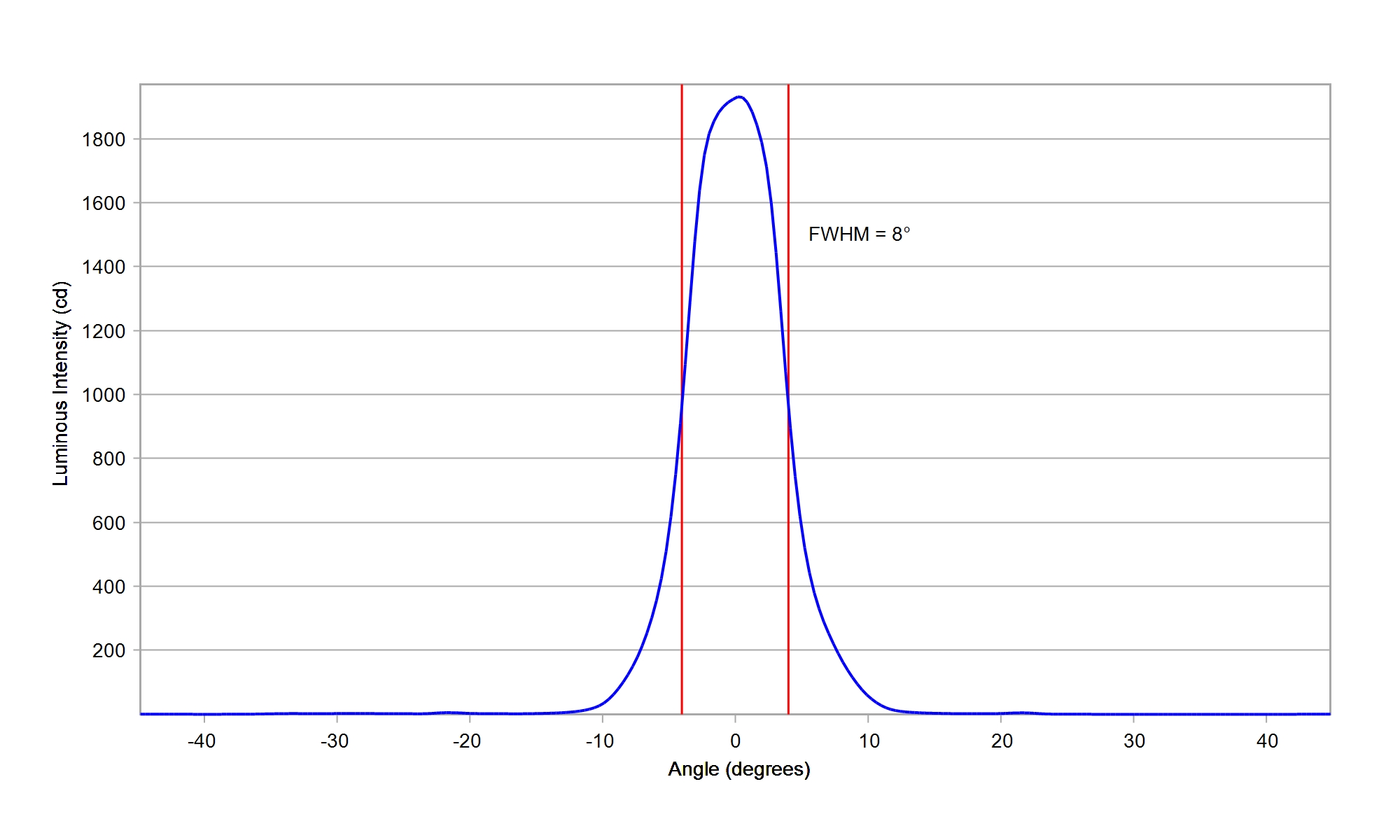

LUMILEDS LUXEON Rebel White

Eff:

87.5%

FWHM:

8°

Cd/Im:

29.6

Download

LUMILEDS LUXEON Rubix Blue

Eff:

88.0%

FWHM:

5.8°

Cd/Im:

61.8

Carclo Optics – 10193 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics – 10193 Cross Section Lumileds Luxeon Rubix Blue

Download

IES

LUMILEDS LUXEON Rubix Green

Eff:

87.5%

FWHM:

5.7°

Cd/Im:

62.6

Carclo Optics – 10193 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 10193 Cross Section Lumileds Luxeon Rubix Green

Download

IES

LUMILEDS LUXEON Rubix Red

Eff:

89.0%

FWHM:

5.3°

Cd/Im:

72.1

Carclo Optics – 10193 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 10193 Cross Section Lumileds Luxeon Rubix Red

Download

IES

LUMILEDS LUXEON Rubix Royal Blue

Eff:

87.0%

FWHM:

5.7°

Cd/Im:

63.6

Carclo Optics – 10193 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 10193 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

IES

LUMILEDS LUXEON Rubix White

Eff:

87.5%

FWHM:

5.9°

Cd/Im:

58.5

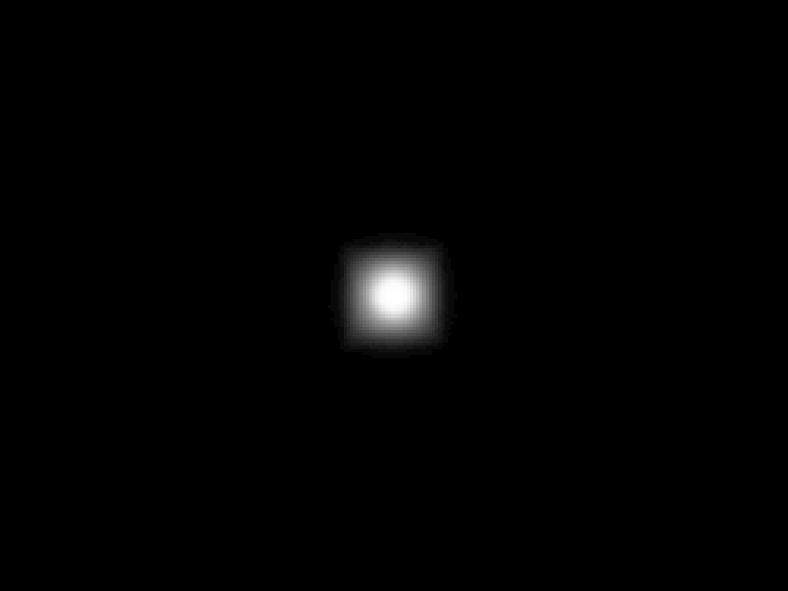

Carclo Optics - 10193 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 10193 Cross Section Lumileds Luxeon Rubix White

Download

IES

LUMILEDS LUXEON TX White

Eff:

85.8%

FWHM:

11.2°

Cd/Im:

16.5

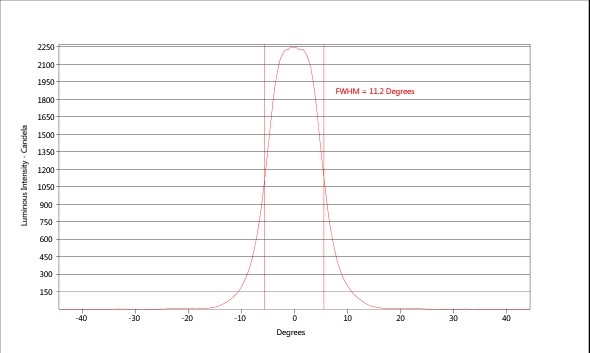

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON V White

Eff:

85.0%

FWHM:

18.0°

Cd/Im:

6.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON Z ES White

Eff:

86.0%

FWHM:

8.0°

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON Z White

Eff:

85.9%

FWHM:

5.1°

Cd/Im:

54.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

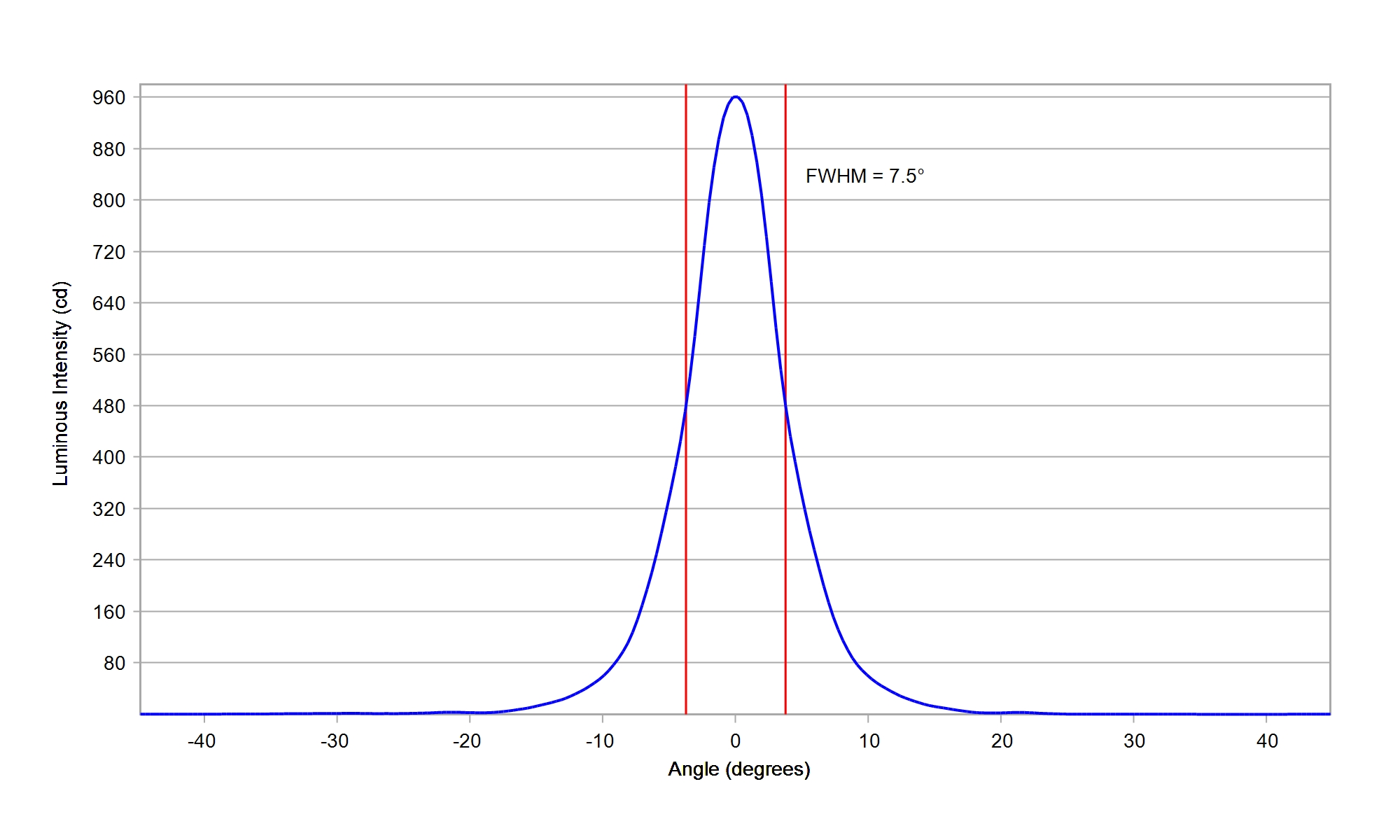

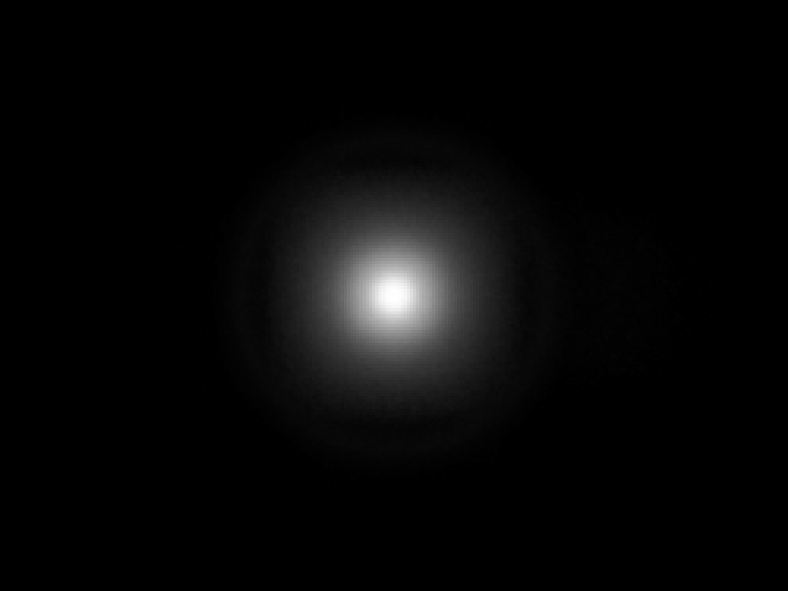

Luminus Devices MP-3030-11F2 White

Eff:

88.5%

FWHM:

7.5°

Cd/Im:

28.0


Download

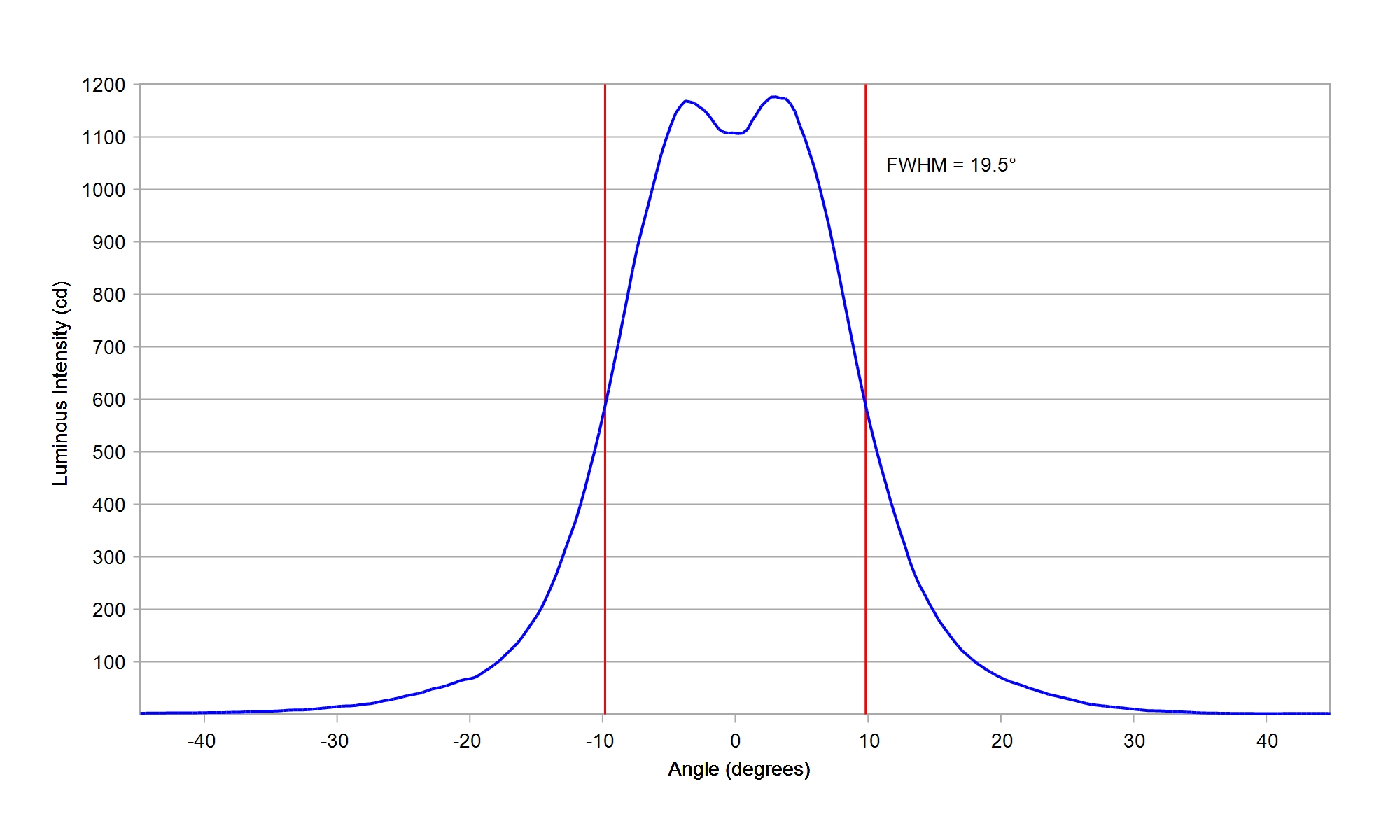

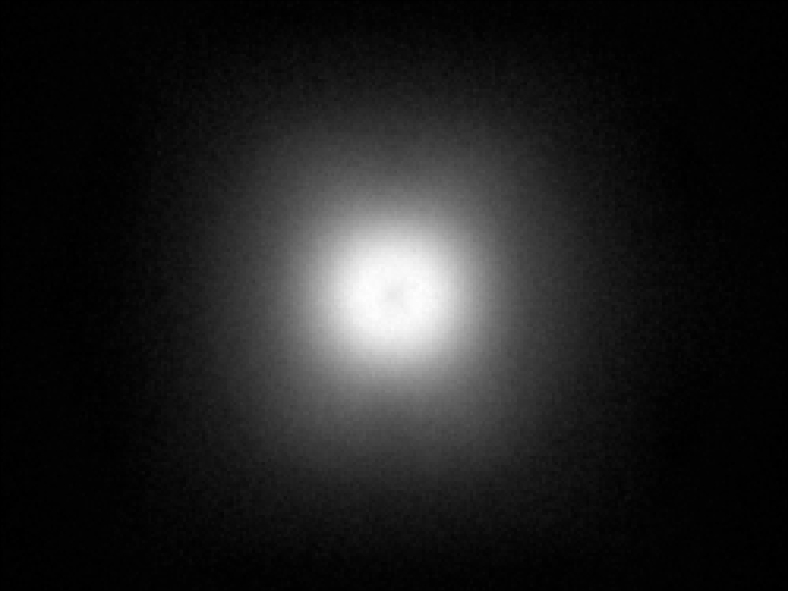

Luminus Devices MP-5050-240E White

Eff:

89.0%

FWHM:

19.5°

Cd/Im:

5.8


Download

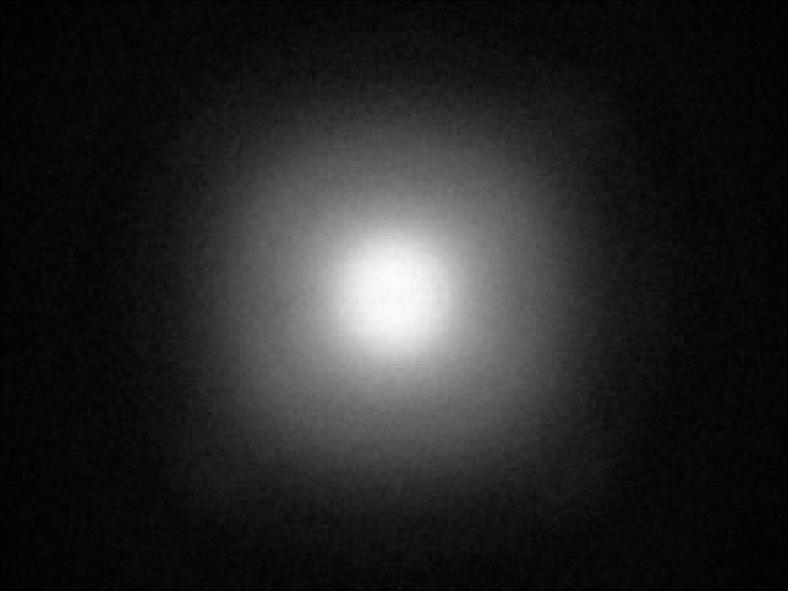

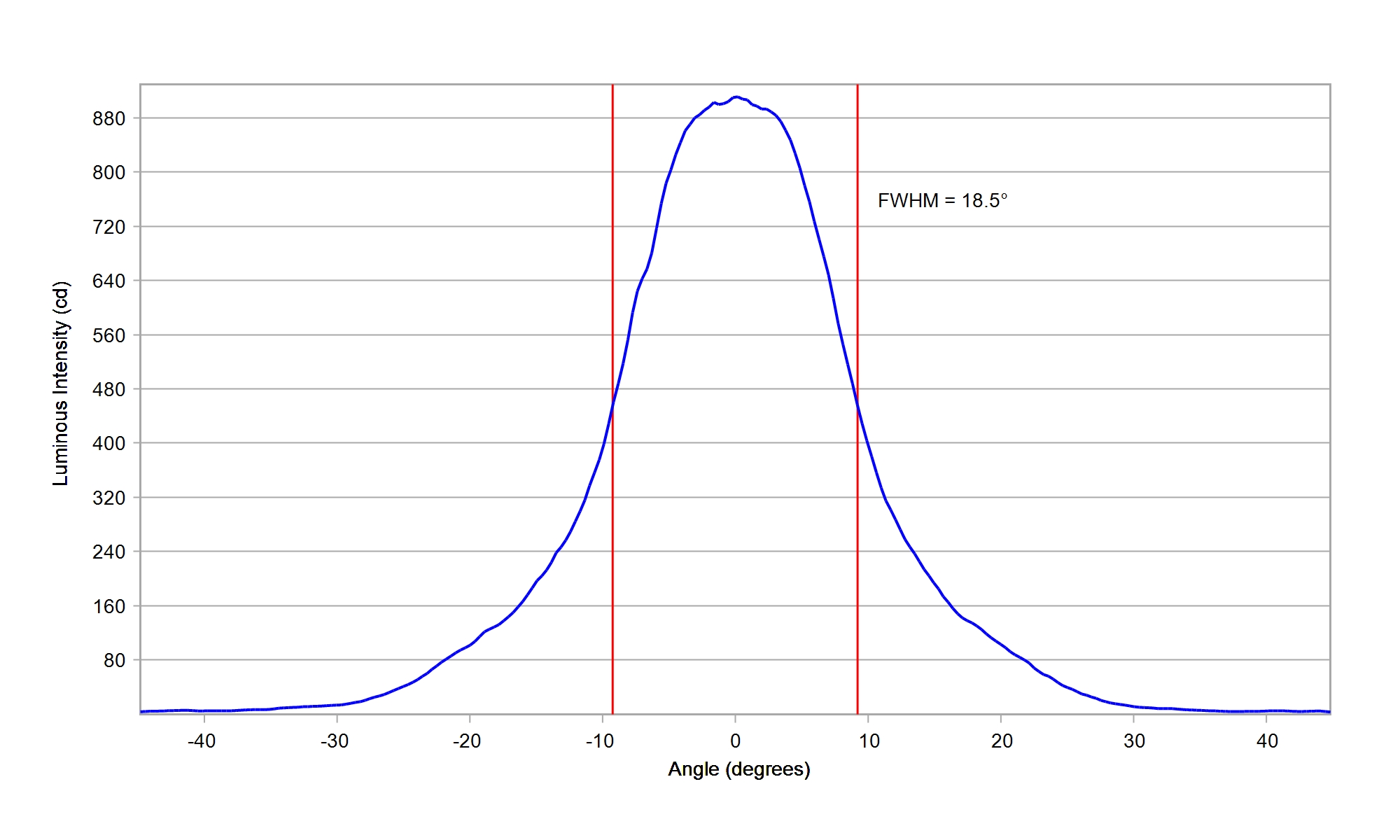

Luminus Devices MP-5050-810E White

Eff:

86.0%

FWHM:

18.5°

Cd/Im:

4.6


Download

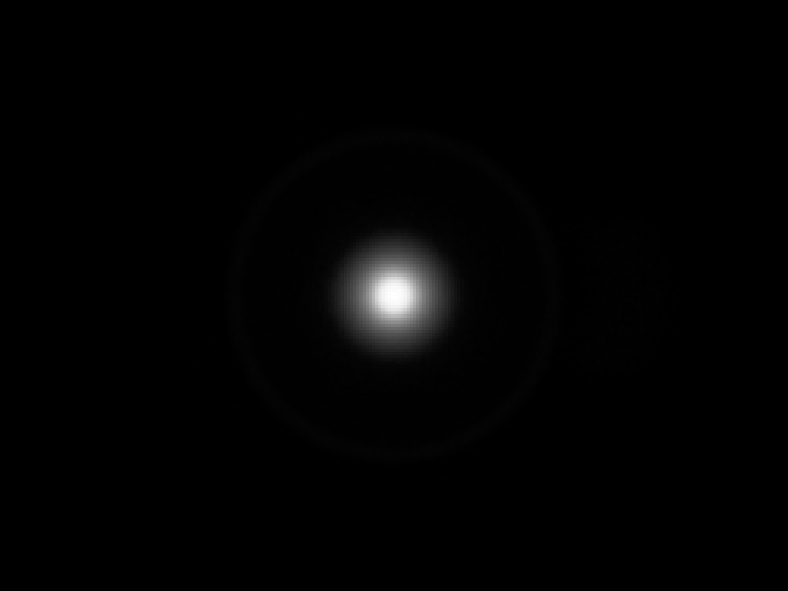

Luminus Devices SFT-12R-WES-A White

Eff:

88.5%

FWHM:

5.7°

Cd/Im:

62.3


Download

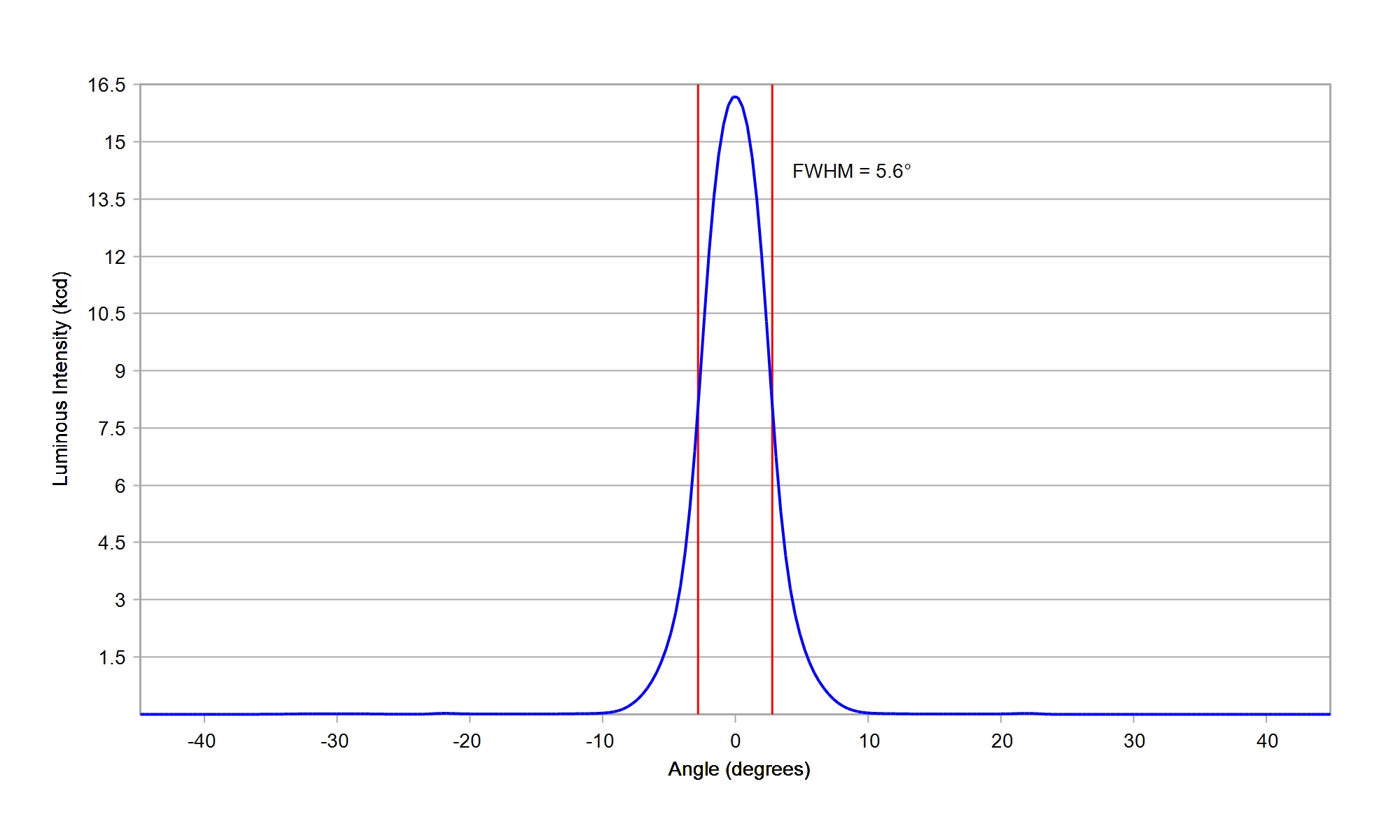

Luminus Devices SFT-12R-WES-F White

Eff:

88.0%

FWHM:

5.6°

Cd/Im:

64.7


Download

Luminus Devices SFT-25R-WES-A White

Eff:

88.5%

FWHM:

7.5°

Cd/Im:

37.1


Download

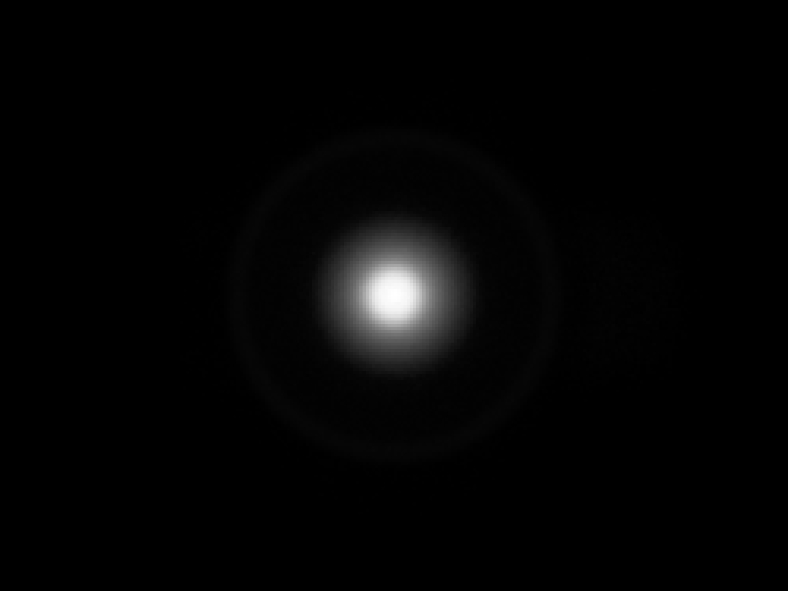

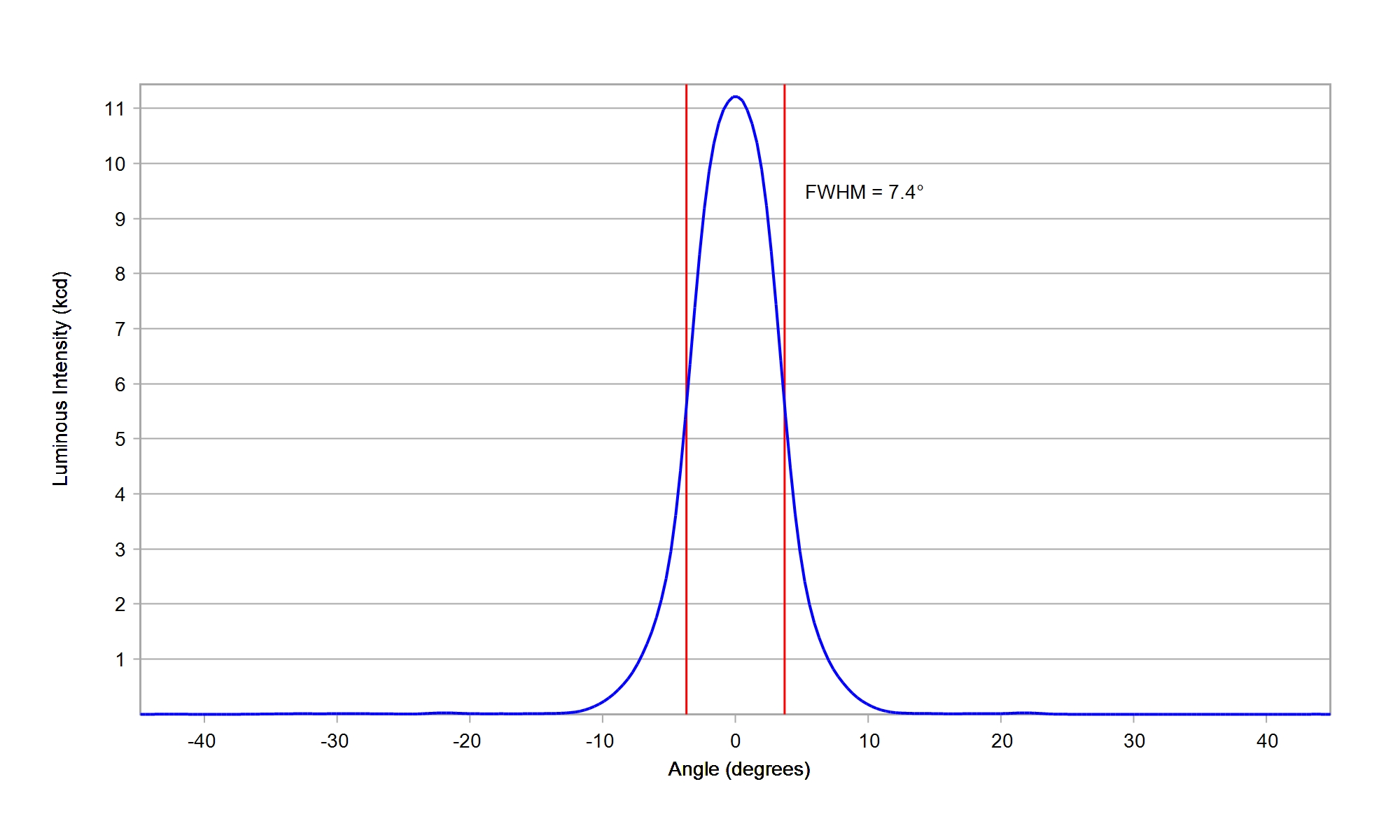

Luminus Devices SFT-25R-WES-F White

Eff:

88.0%

FWHM:

7.4°

Cd/Im:

38.4


Download

Luminus Devices SST 05-IR-B40 850nm

Eff:

91.5%

FWHM:

6.1°

Ipk/W:

40.9

Carclo Optics - 10193 Spot Image Luminus SST-05-IR-B40

Carclo Optics - 10193 Cross Section Luminus SST-05-IR-B40

Download

IES

Luminus Devices SST 10-B-B130 Blue

Eff:

86.5%

FWHM:

8.9°

Cd/Im:

30.0

Carclo Optics - 10193 Luminus_SST-10_B_B130 - spot image

Carclo Optics - 10193 Luminus_SST-10_B_B130 - cross section image

Download

IES

Luminus Devices SST 10-B-B90 Blue

Eff:

86.5%

FWHM:

7.9°

Cd/Im:

28.4

Carclo Optics - 10193 Luminus_SST-10_B_B90 - spot - image

Carclo Optics - 10193 Luminus_SST-10_B_B90 - cross section image

Download

IES

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

90.0%

FWHM:

9.5°

Cd/Im:

23.8

Carclo Optics – 10193 Luminus_SST-10_DR_B130- Spot - image

Carclo Optics – 10193 Luminus_SST-10_DR_B130- Cross section – image

Download

IES

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

89.5%

FWHM:

8.3°

Cd/Im:

25.9

Carclo Optics - 10193 Luminus_SST-10_DR_B90 - Spot Image

Carclo Optics - 10193 Luminus_SST-10_DR_B90 - Cross section image

Download

IES

Luminus Devices SST 10-G-B130 Green

Eff:

88.0%

FWHM:

8.6°

Cd/Im:

30.8

Carclo Optics - 10193 Luminus_SST-10_G_B130 - spot - image

Carclo Optics - 10193 Luminus_SST-10_G_B130 - cross - section- image

Download

IES

Luminus Devices SST 10-G-B90 Green

Eff:

88.5%

FWHM:

7.6°

Cd/Im:

29.3

Carclo Optics – 10193 Luminus_SST-10_G_B90- Spot - image

Carclo Optics – 10193 Luminus_SST-10_G_B90- Cross section – image

Download

IES

Luminus Devices SST 10-IR-B130 940nm

Eff:

91.0%

FWHM:

9.3°

Ipk/W:

24.1

Carclo Optics - 10193 Spot Image Luminus SST-10-IR-B130

Carclo Optics - 10193 Cross Section Luminus SST-10-IR-B130

Download

IES

Luminus Devices SST 10-IR-B90 940nm

Eff:

92.5%

FWHM:

8.1°

Ipk/W:

24.0

Carclo Optics - 10193 Spot Image Luminus SST-10-IR-B90

Carclo Optics - 10193 Cross Section Luminus SST-10-IR-B90

Download

IES

Luminus Devices SST 10-IRD-B130 810nm

Eff:

91.5%

FWHM:

8.3°

Ipk/W:

28.3


Download

IES

Luminus Devices SST 10-IRD-B90 810nm

Eff:

92.0%

FWHM:

7.6°

Ipk/W:

26.7


Download

IES

Luminus Devices SST 20-WxH White Hi CRI

Eff:

88.0%

FWHM:

9.2°

Cd/Im:

22.8

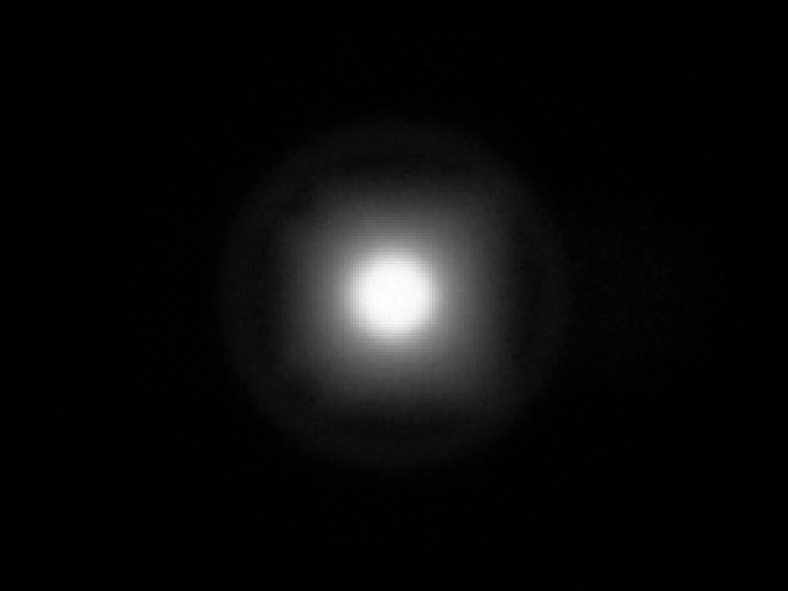

Carclo Optics – 10193 - Luxeon_SST_20_W_spot-image

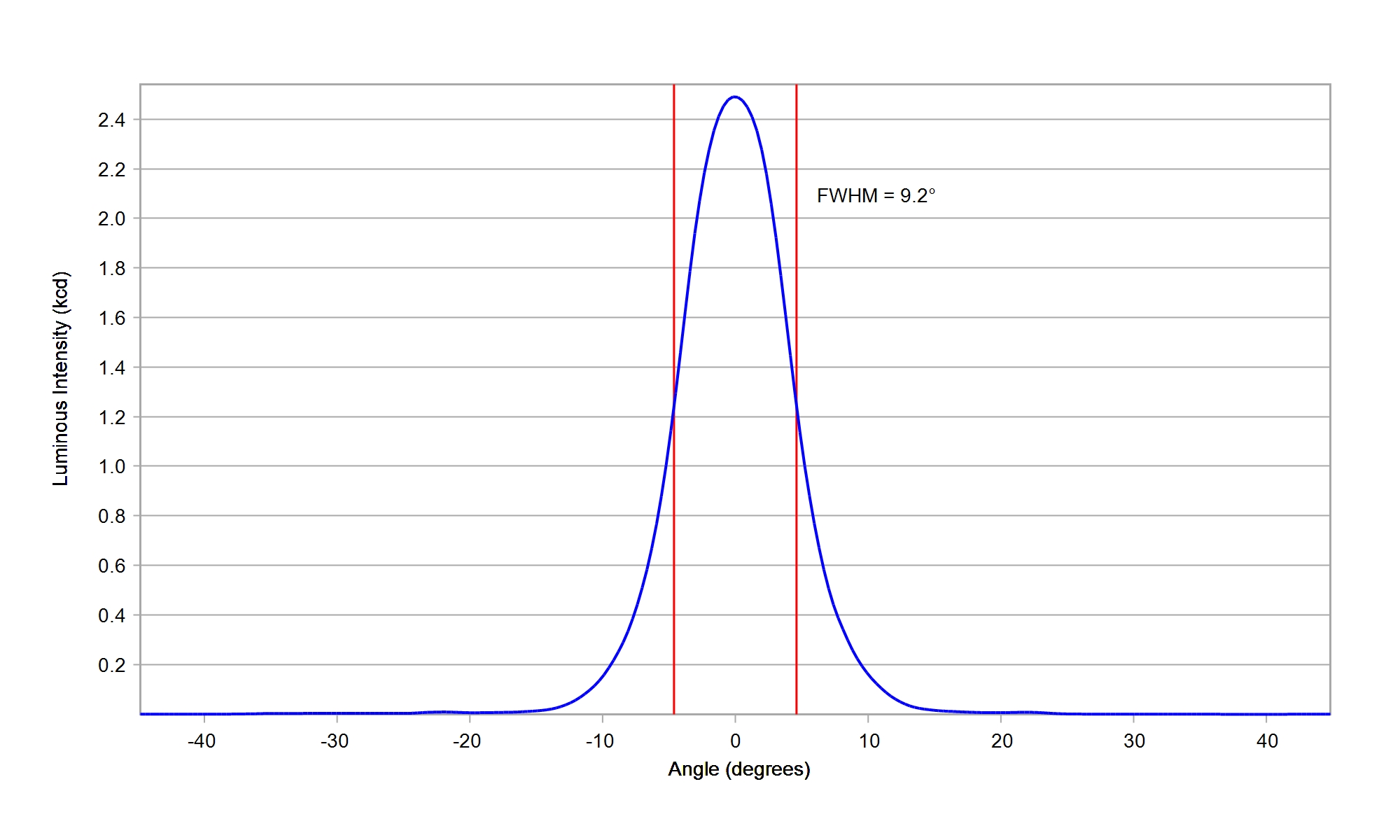

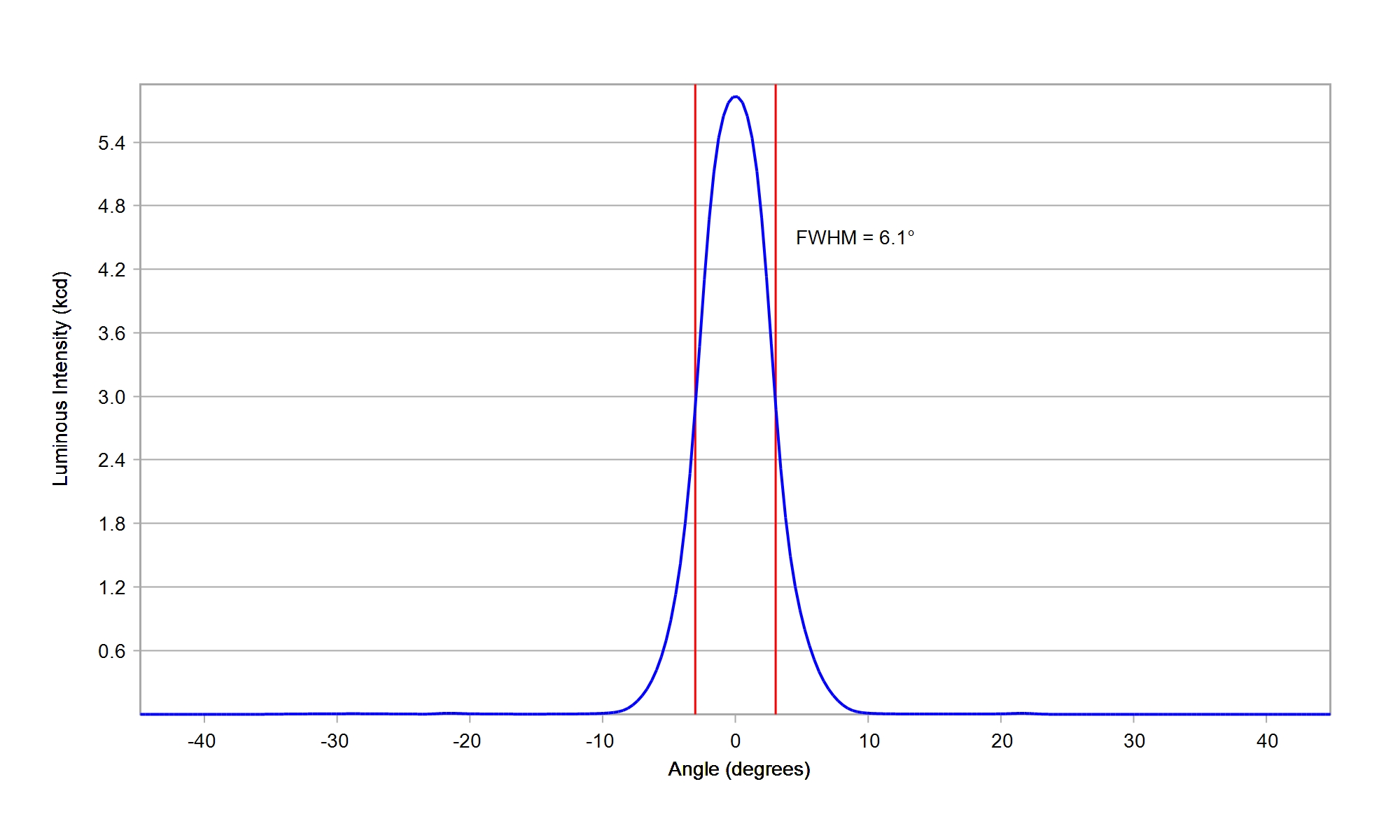

Carclo Optics – 10193 - Luxeon_SST_20_W_cross vertical section

Download

IES

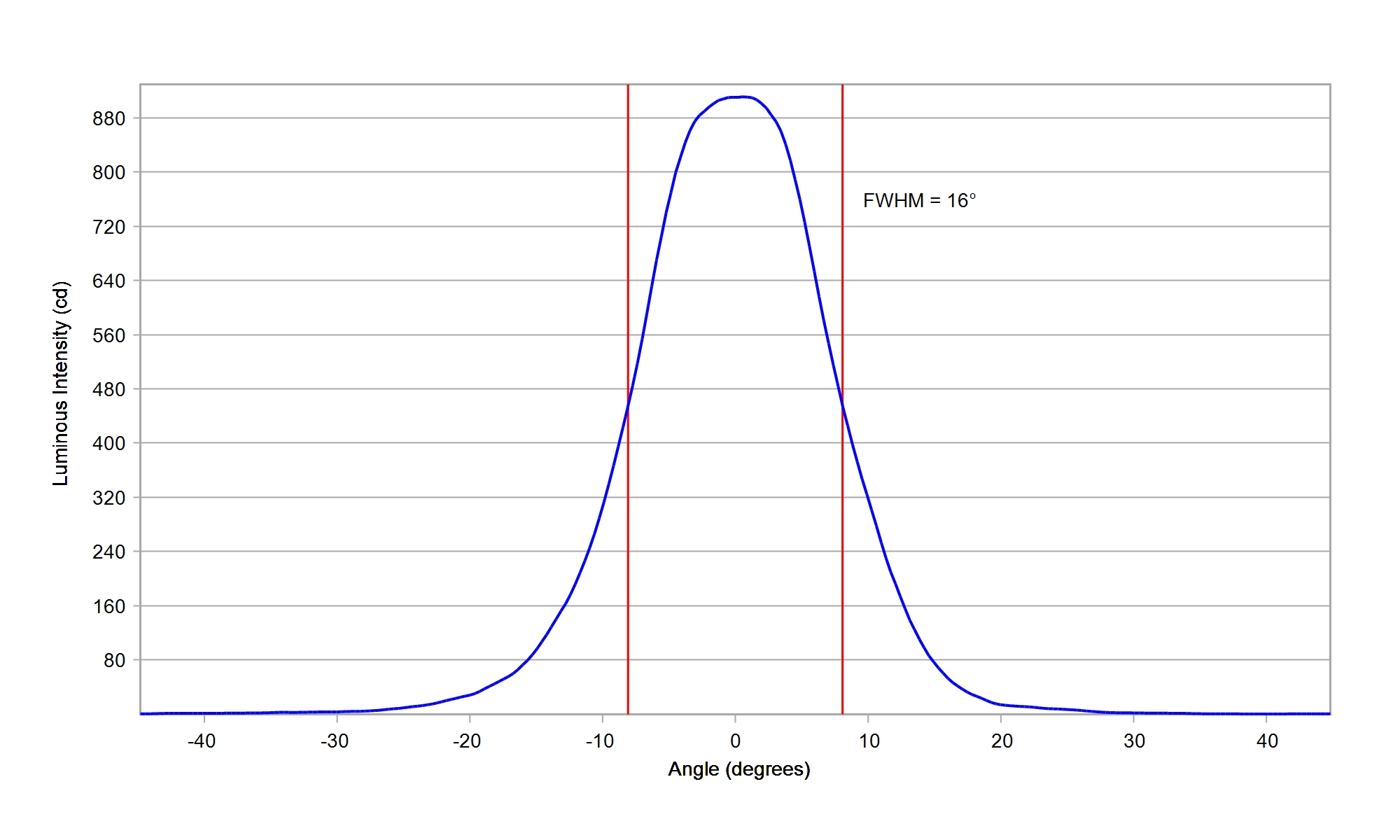

Luminus Devices SST 40-W White

Eff:

88.0%

FWHM:

16°

Cd/Im:

8.0

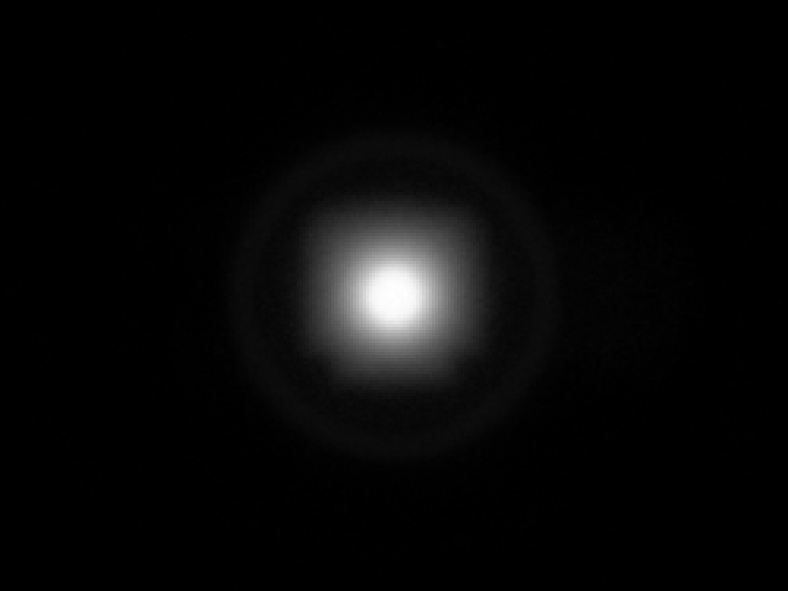

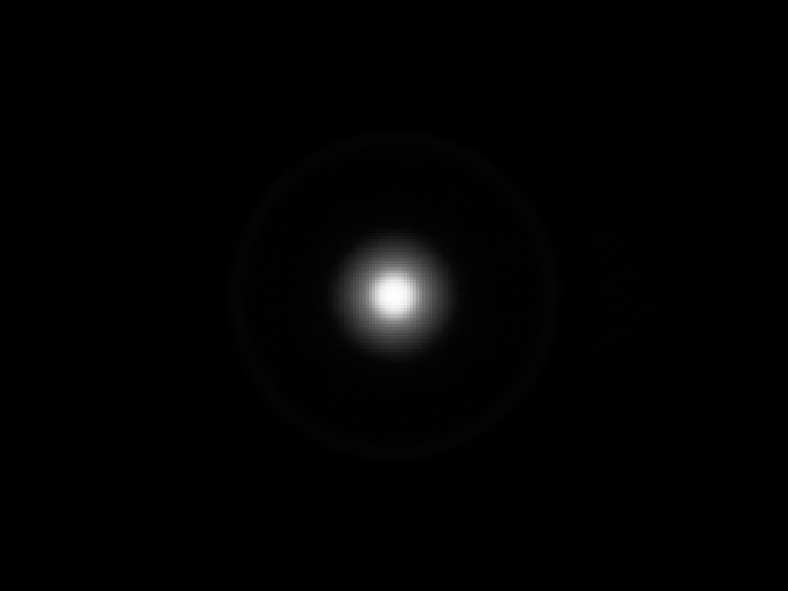

Carclo Optics – 10193 - Luxeon_SST_40_W_spot-image

Carclo Optics – 10193 - Luxeon_SST_40_W_cross vertical section

Download

IES

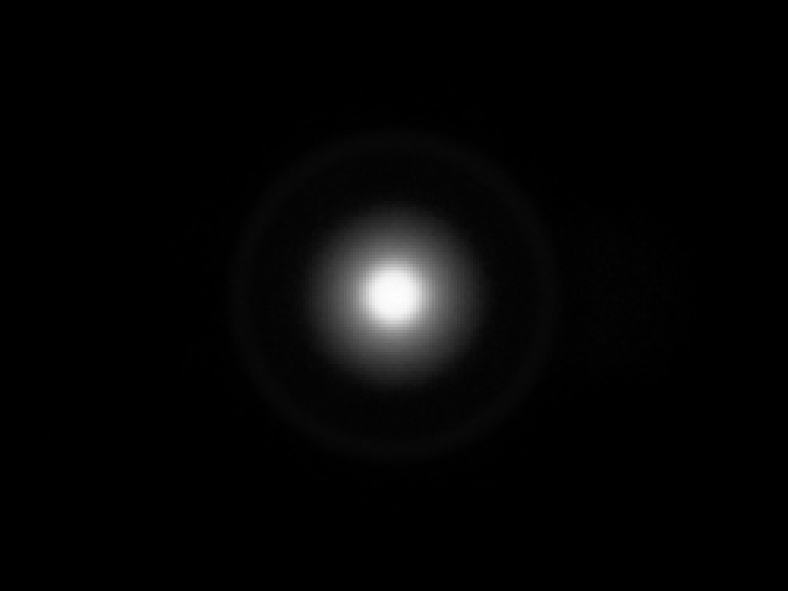

Luminus Devices SST-12-WS Gen2 White

Eff:

87.5%

FWHM:

8.1°

Cd/Im:

29.0


Download

Luminus Devices SST-12-WxS White

Eff:

87.5%

FWHM:

7.7°

Cd/Im:

31.6

Download

IES

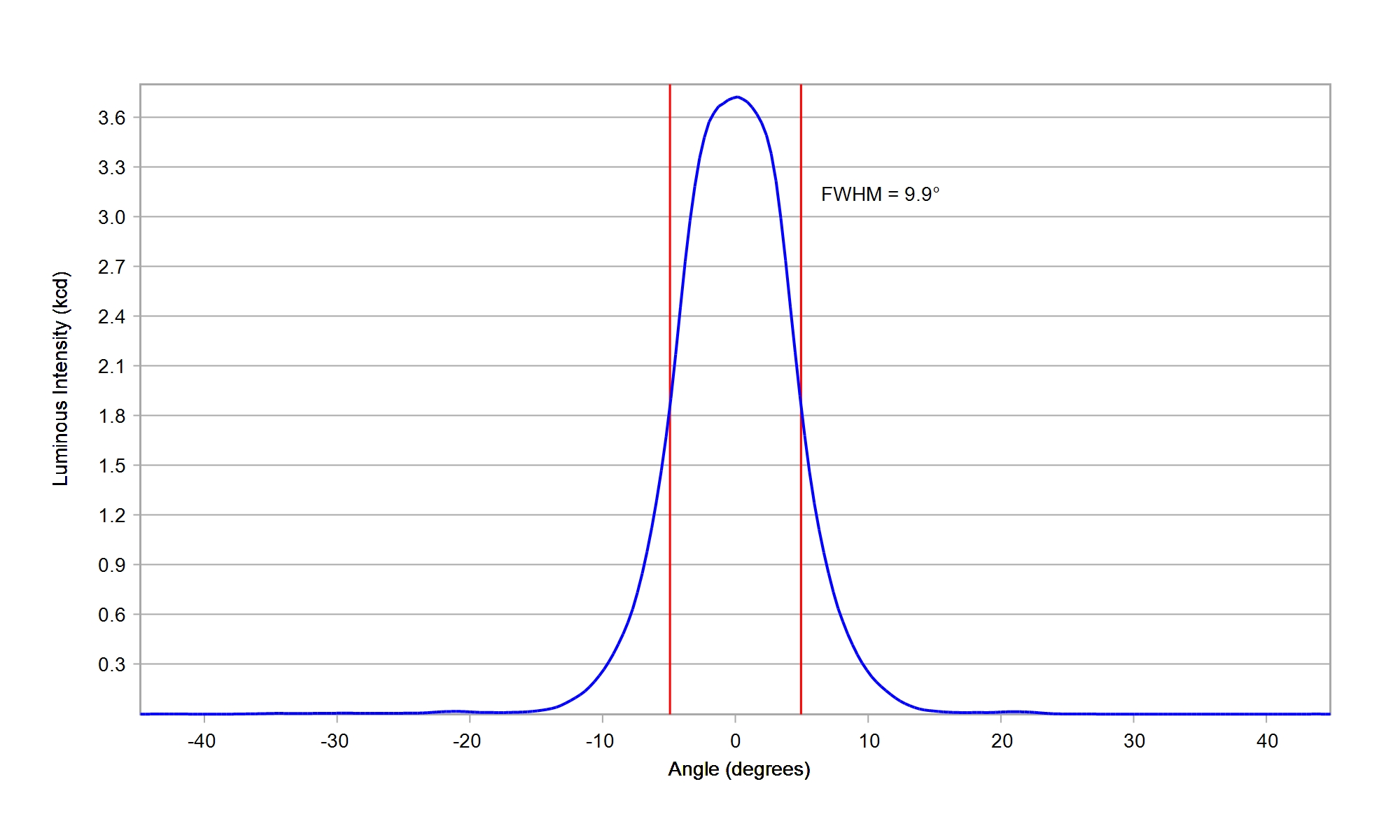

Luminus Devices SST-20-W Gen2 White

Eff:

87.0%

FWHM:

9.9°

Cd/Im:

20.1


Download

Luminus Devices SST-25-WES White

Eff:

88.0%

FWHM:

12°

Cd/Im:

14.7

Download

Nichia 229A White

Eff:

85.5%

FWHM:

18.5°

Cd/Im:

6.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia 757G White

Eff:

88.0%

FWHM:

11.5°

Cd/Im:

16.8

Carclo Optics 10193 20mm Simulated Spot Image Nichia 757G-MT

Carclo Optics 10193 20mm Simulated cross section Nichia 757G-MT

Download

IES

Nichia 757G White

Eff:

87.5%

FWHM:

10.5°

Cd/Im:

18.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NCSW CSP E17A White

Eff:

87.0%

FWHM:

7.9°

Cd/Im:

34.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NF2W 385AR-V2 White

Eff:

88.0%

FWHM:

12.0°

Cd/Im:

14.3

Download

IES

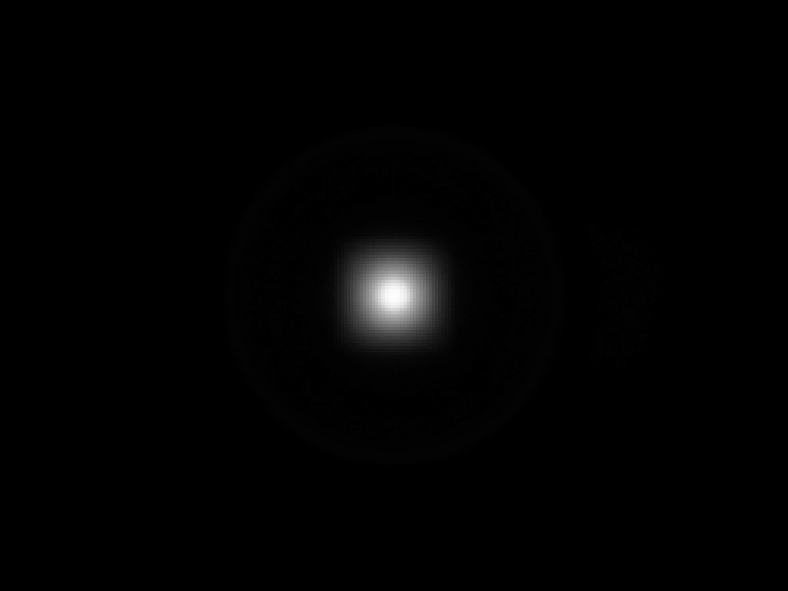

Nichia NFSW CSP E11A White

Eff:

87.0%

FWHM:

5.8°

Cd/Im:

65.5

Download

IES

Nichia NV4W B35AM White

Eff:

88.0%

FWHM:

17°

Cd/Im:

7.1

Carclo Optics – 10193 Nichia NV4WB35AM - Spot Image

Carclo Optics – 10193 Nichia NV4WB35AM - Cross-Section

Download

IES

Nichia NVSL 219B White

Eff:

85.5%

FWHM:

9.3°

Cd/Im:

23.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW 219C White

Eff:

86.0%

FWHM:

13.0°

Cd/Im:

12.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW 219F White

Eff:

87.5%

FWHM:

12.5°

Cd/Im:

13.0

Carclo Optics – 10193 Nichia NVSW 219F White - Spot Image

Carclo Optics – 10193 Nichia NVSW 219F White - Cross-Section

Download

IES

Nichia NVSW 319A White

Eff:

86.0%

FWHM:

15.5°

Cd/Im:

9.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW CSP E21A White

Eff:

84.0%

FWHM:

10.3°

Cd/Im:

20.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia Top Emitting 083 White

Eff:

86.9%

FWHM:

10.3°

Cd/Im:

12.1

Download

ies

Nichia Top Emitting NFSW 036 White

Eff:

88.6%

FWHM:

5.1°

Cd/Im:

41.4

Download

ies

Nichia Top Emitting NS3W 183T White

Eff:

89.3%

FWHM:

9.1°

Cd/Im:

23.1

Download

ies

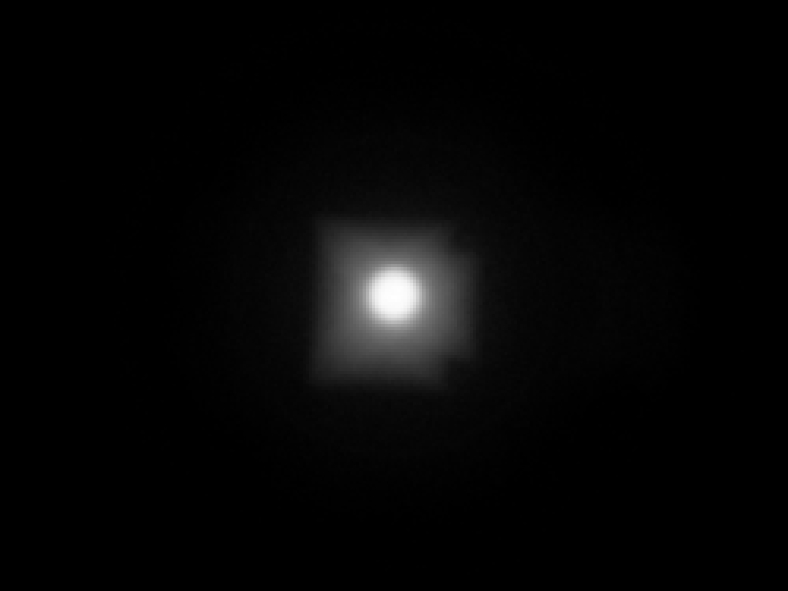

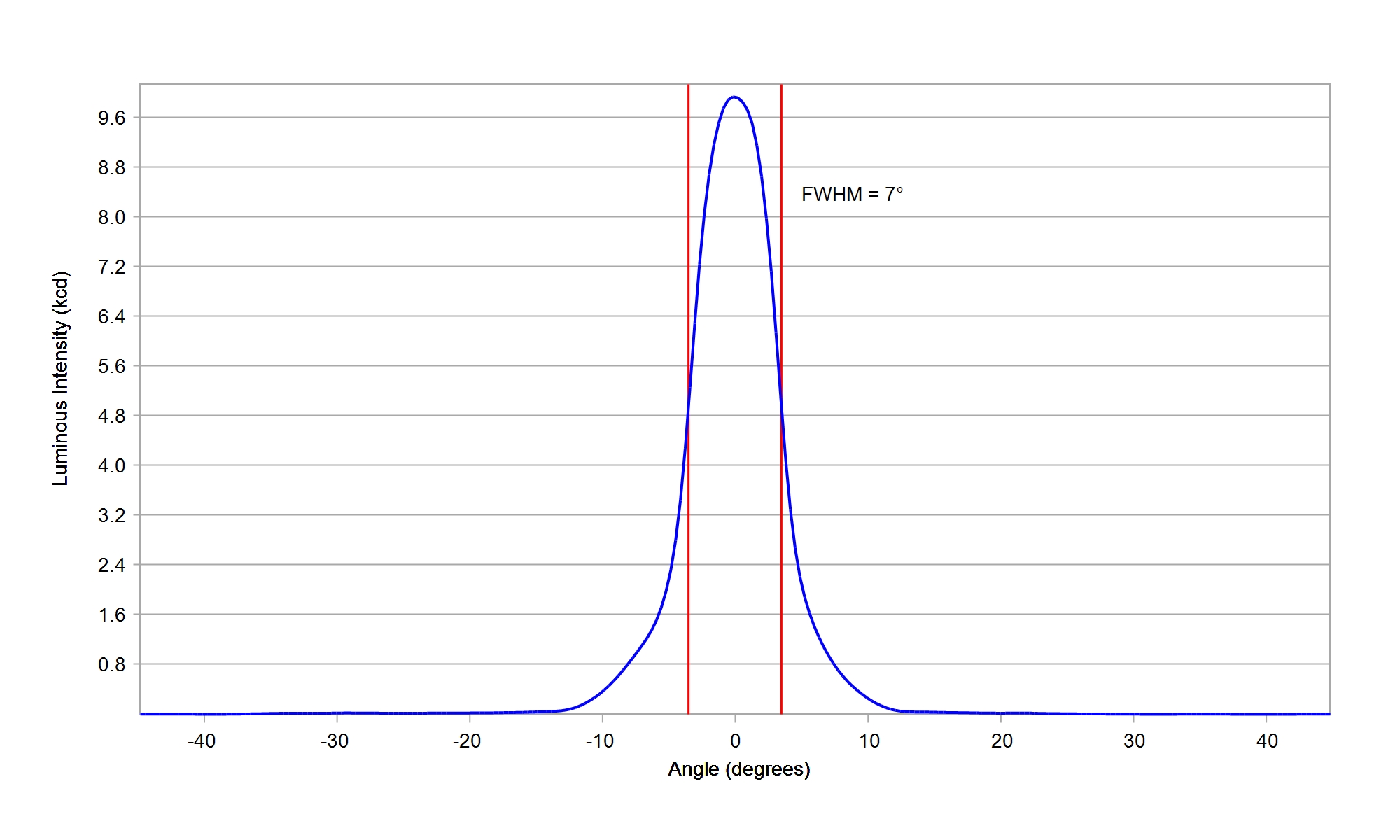

Osram LED ENGIN LuxiGen LZ1 00CW02 White

Eff:

89.0%

FWHM:

7°

Cd/Im:

36.0

Download

Osram LED ENGIN LuxiGen LZ1 00R702 IR940nm

Eff:

92.5%

FWHM:

8.3°

Ipk/W:

27.1

Download

IES

Osram DURIS E 2835 Gen2

Eff:

87.5%

FWHM:

7.6°

Cd/Im:

30.6

Carclo Optics - 10193 20mm Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 10193 20mm Vertical Cross Section Osram DURIS E 2835 Gen2

Download

IES

Osram DURIS E 2835 White

Eff:

87.5%

FWHM:

8.1°

Cd/Im:

25.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS E2 White

Eff:

84.0%

FWHM:

17.5°

Cd/Im:

4.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS E2 White

Eff:

86.0%

FWHM:

3.5°

Cd/Im:

51.7

Carclo Optics - Simulated Spot Image

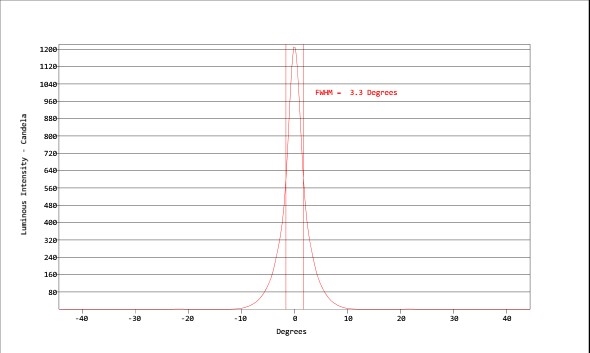

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS E3 White

Eff:

89.2%

FWHM:

4.3°

Cd/Im:

41.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS P8 White

Eff:

85.9%

FWHM:

10°

Cd/Im:

18.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S2 White

Eff:

90.7%

FWHM:

8.2°

Cd/Im:

23.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S5 Green

Eff:

88.0%

FWHM:

9.0°

Cd/Im:

24.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S5 Red

Eff:

88.5%

FWHM:

8.0°

Cd/Im:

29.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S5 White

Eff:

86.0%

FWHM:

9.1°

Cd/Im:

20.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram GOLDEN DRAGON W5SM White

Eff:

90.0%

FWHM:

5.4°

Cd/Im:

30.0

Download

ies

Osram OSCONIQ C 2424 White

Eff:

87.5%

FWHM:

8.5°

Cd/Im:

27.2

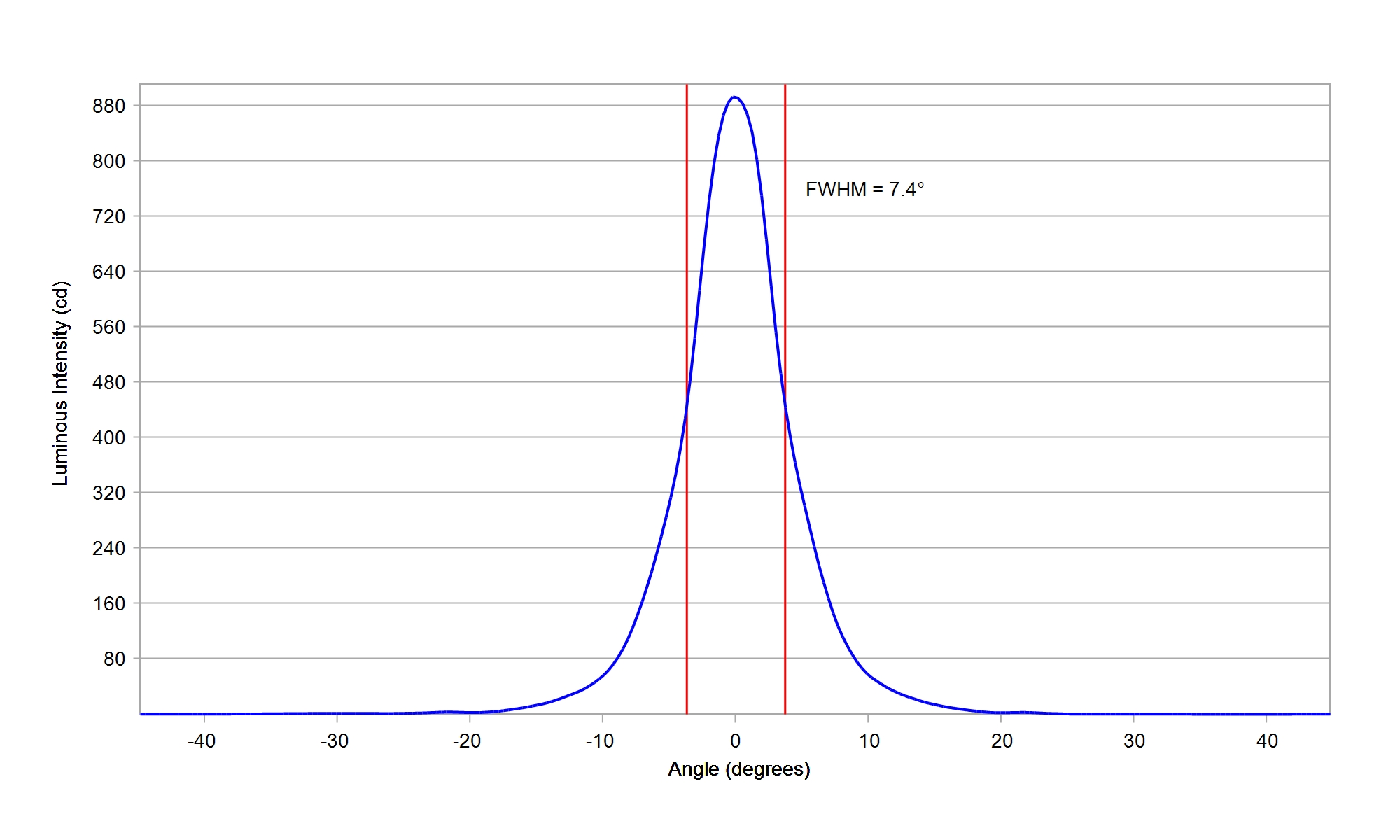

Carclo Optics - 10193 Spot Image OSCONIQ C2424

Carclo Optics - 10193 Cross Section OSCONIQ C2424

Download

IES

Osram OSCONIQ P3737 White

Eff:

85.5%

FWHM:

15°

Cd/Im:

8.8

Carclo Optics 10193 Spot Image Osram Osconiq

Carclo Optics 10193 Cross Section Osram Osconiq P3737

Download

IES

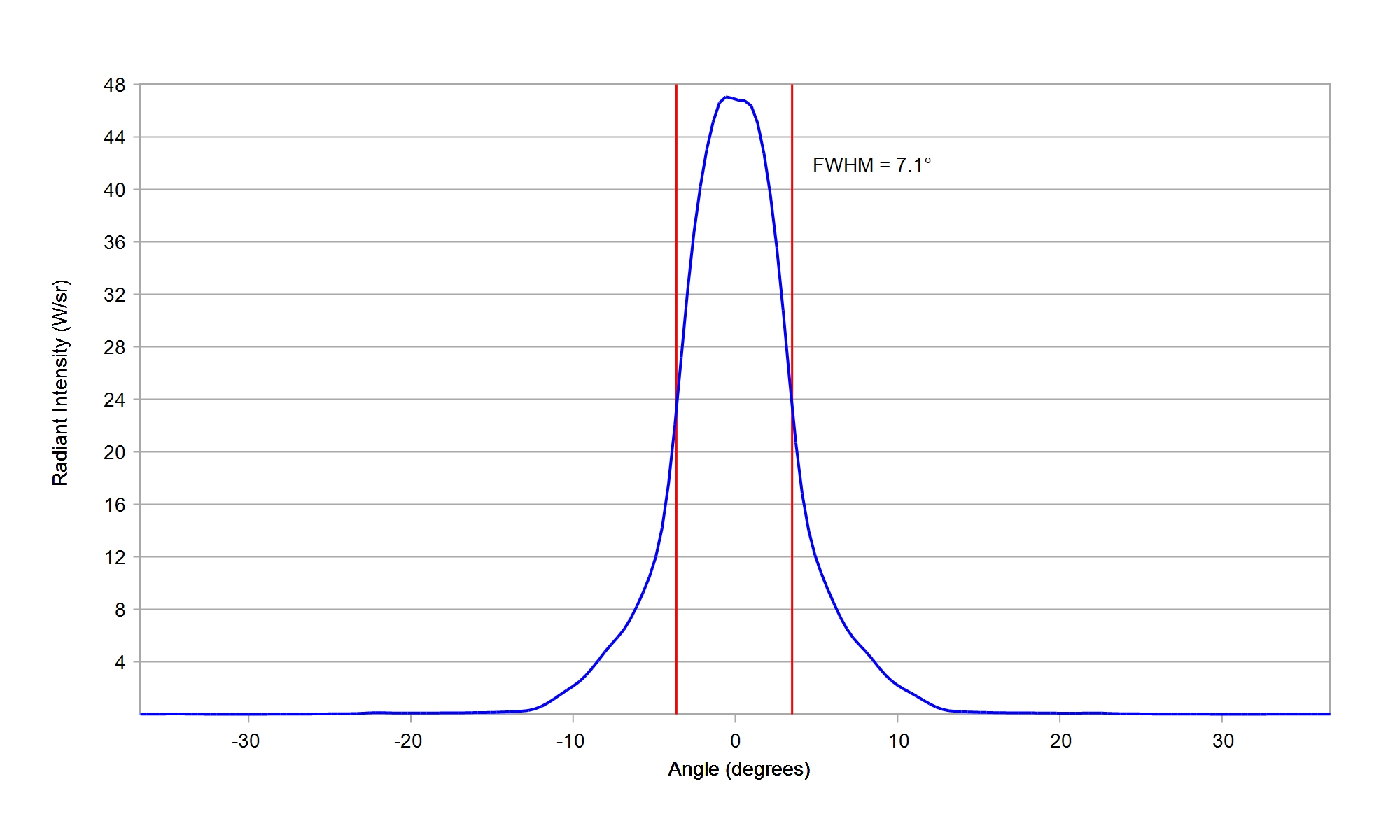

Osram OSLON Black SFH 4715AS IR

Eff:

91.0%

FWHM:

7.1°

Ipk/W:

33.7


Download

IES

Osram OSLON Black SFH 4716AS IR

Eff:

90.0%

FWHM:

7.3°

Ipk/W:

38.9

Carclo Optics – 10193 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

Carclo Optics – 10193 Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

IES

Osram OSLON Black SFH 4725S IR

Eff:

92.5%

FWHM:

10.5 x 9.7°

Ipk/W:

23.4

Carclo Optics 10193 Spot Image Osram Oslon Black_IR_SFH_4725S

Carclo Optics 10193 Cross Section Horizontal Image Osram Oslon Black_IR_SFH_4725S

Download

IES

Osram OSLON Boost HM KW CELMM1.TG

Eff:

87.5%

FWHM:

4.3°

Cd/Im:

113.2

Carclo Optics – 10193 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 10193 – Osram_Oslon_Boost_KW_CELMM1_TG_cross section

Download

IES

Osram OSLON Pure 1010 CSP GC VJLPE1.13 Cyan

Eff:

88.5%

FWHM:

5.2°

Cd/Im:

80.6


Download

IES

Osram OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue

Eff:

87.0%

FWHM:

5.5°

Ipk/W:

76.5


Download

IES

Osram OSLON Pure 1010 CSP GG VJLPE1.F3 Green

Eff:

88.0%

FWHM:

5.2°

Cd/Im:

80.0


Download

IES

Osram OSLON Pure 1010 CSP GR VJLPE1.F3 Red

Eff:

86.5%

FWHM:

5°

Cd/Im:

71.9


Download

IES

Osram OSLON Pure 1010 CSP GT VJLPE1.13 True Green

Eff:

88.0%

FWHM:

5.1°

Cd/Im:

84.5


Download

IES

Osram OSLON Pure 1010 CSP GW VJLPE1.CM White

Eff:

87.5%

FWHM:

5.2°

Cd/Im:

79.9



Download

IES

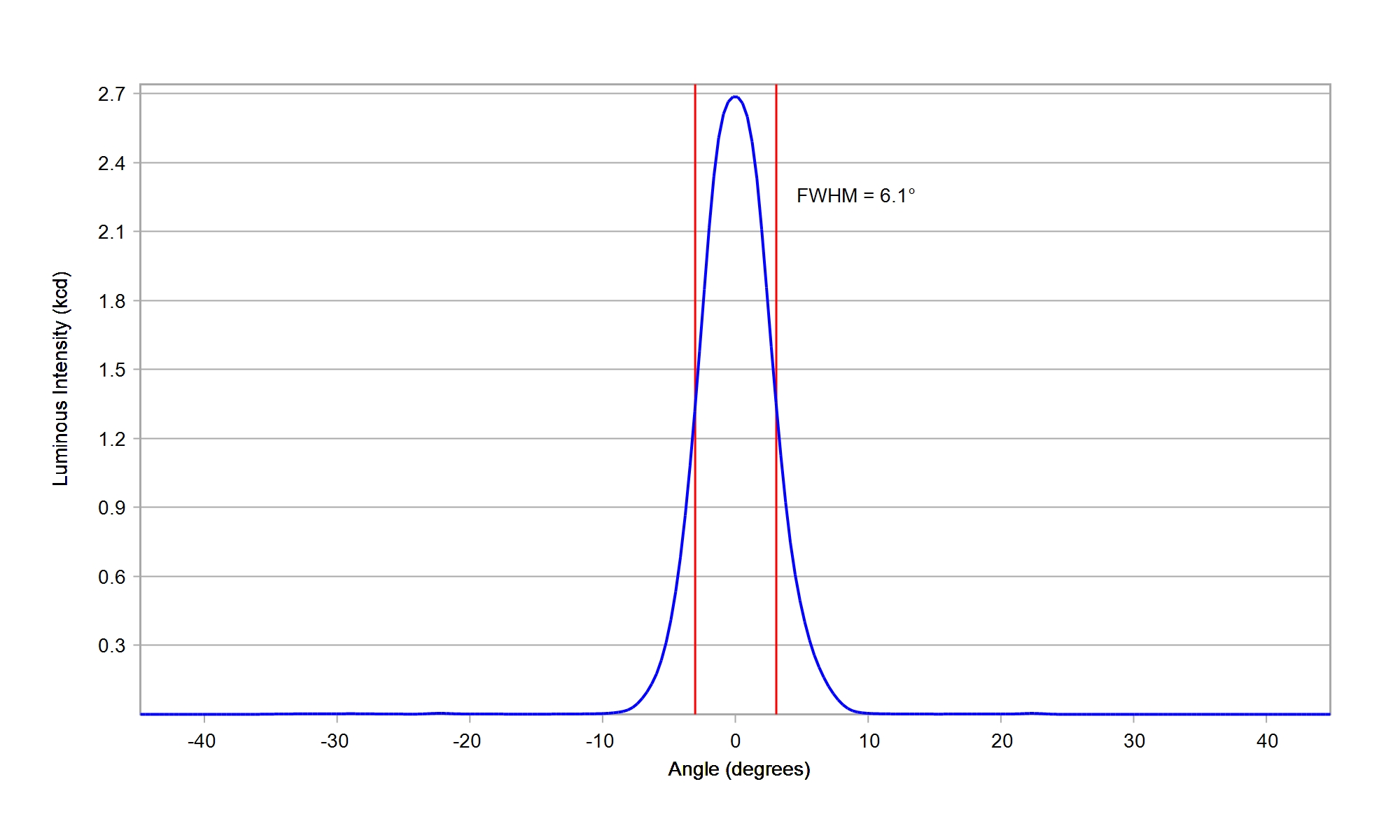

Osram OSLON Pure 1414 GB VJLPL1.F3 Blue

Eff:

88.5%

FWHM:

6.1°

Cd/Im:

55.3


Download

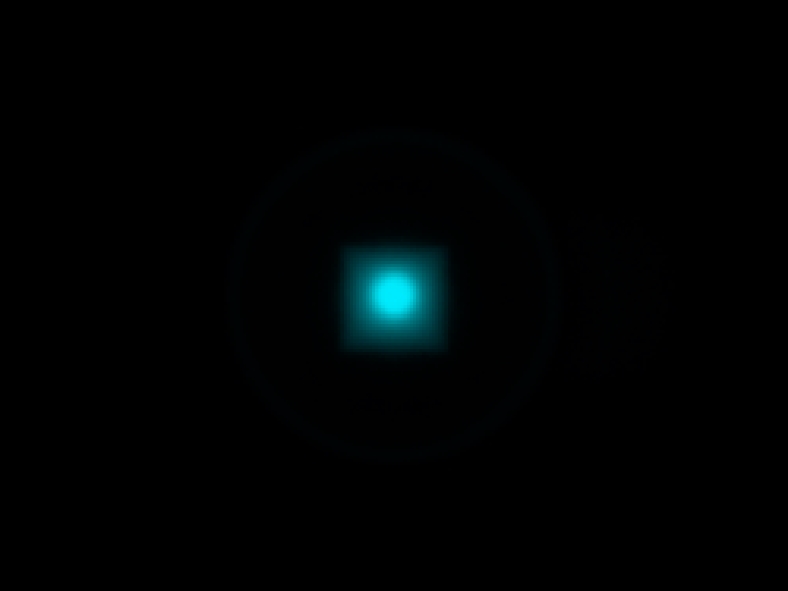

Osram OSLON Pure 1414 GC VJLPL1.13 Cyan

Eff:

88.5%

FWHM:

6°

Cd/Im:

57.8


Download

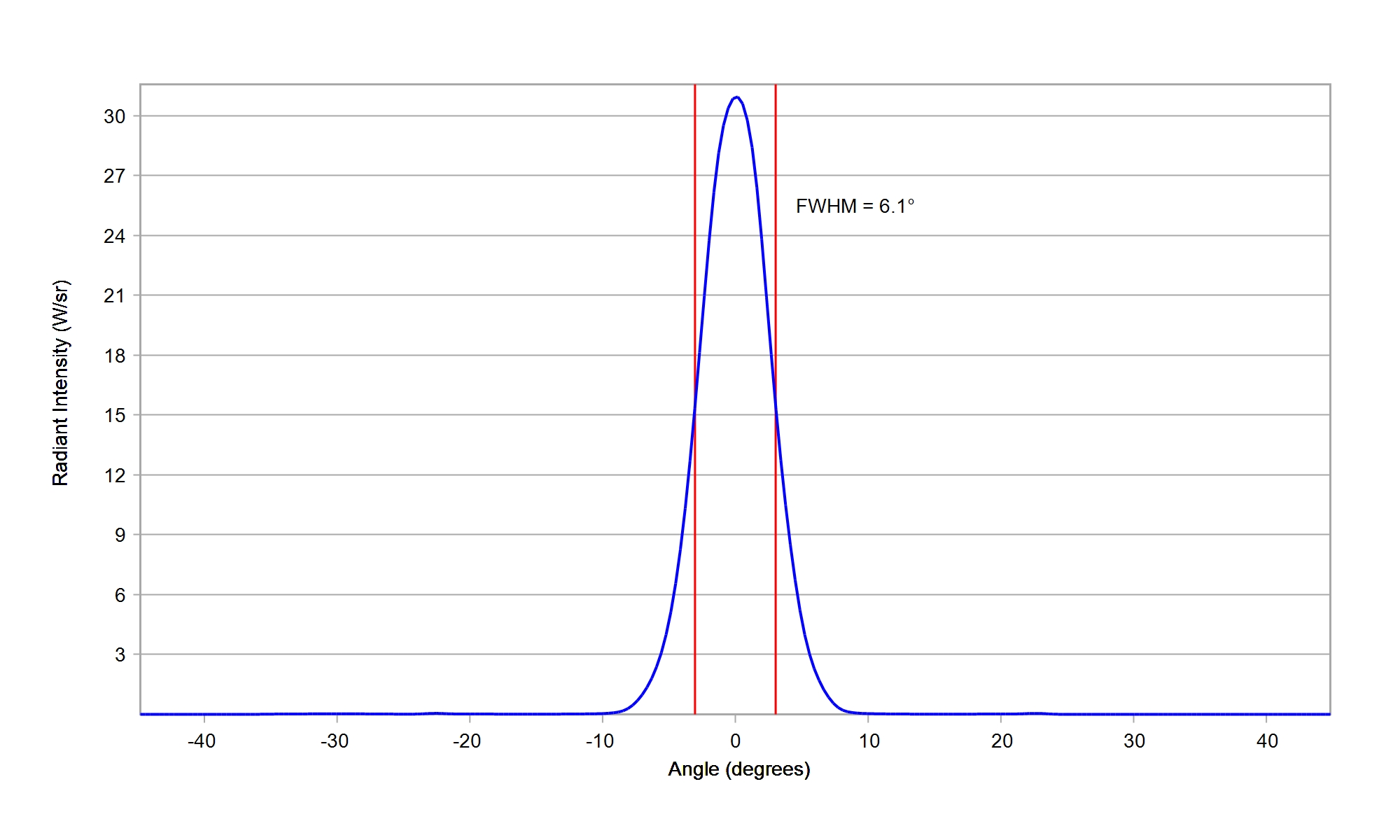

Osram OSLON Pure 1414 GD VJLPL1.14 Deep Blue

Eff:

87.0%

FWHM:

6.1°

Ipk/W:

57.0


Download

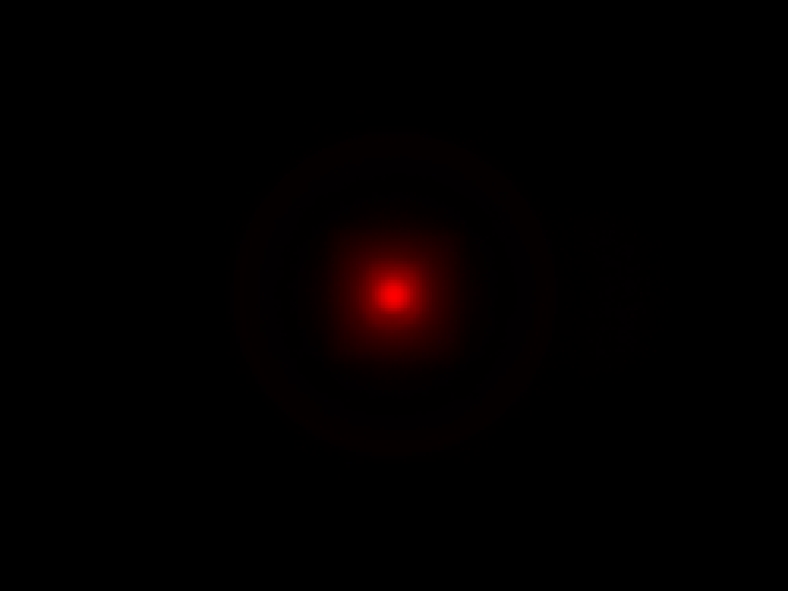

Osram OSLON Pure 1414 GR VJLPL1.23 Red

Eff:

87.5%

FWHM:

4.2°

Cd/Im:

93.2


Download

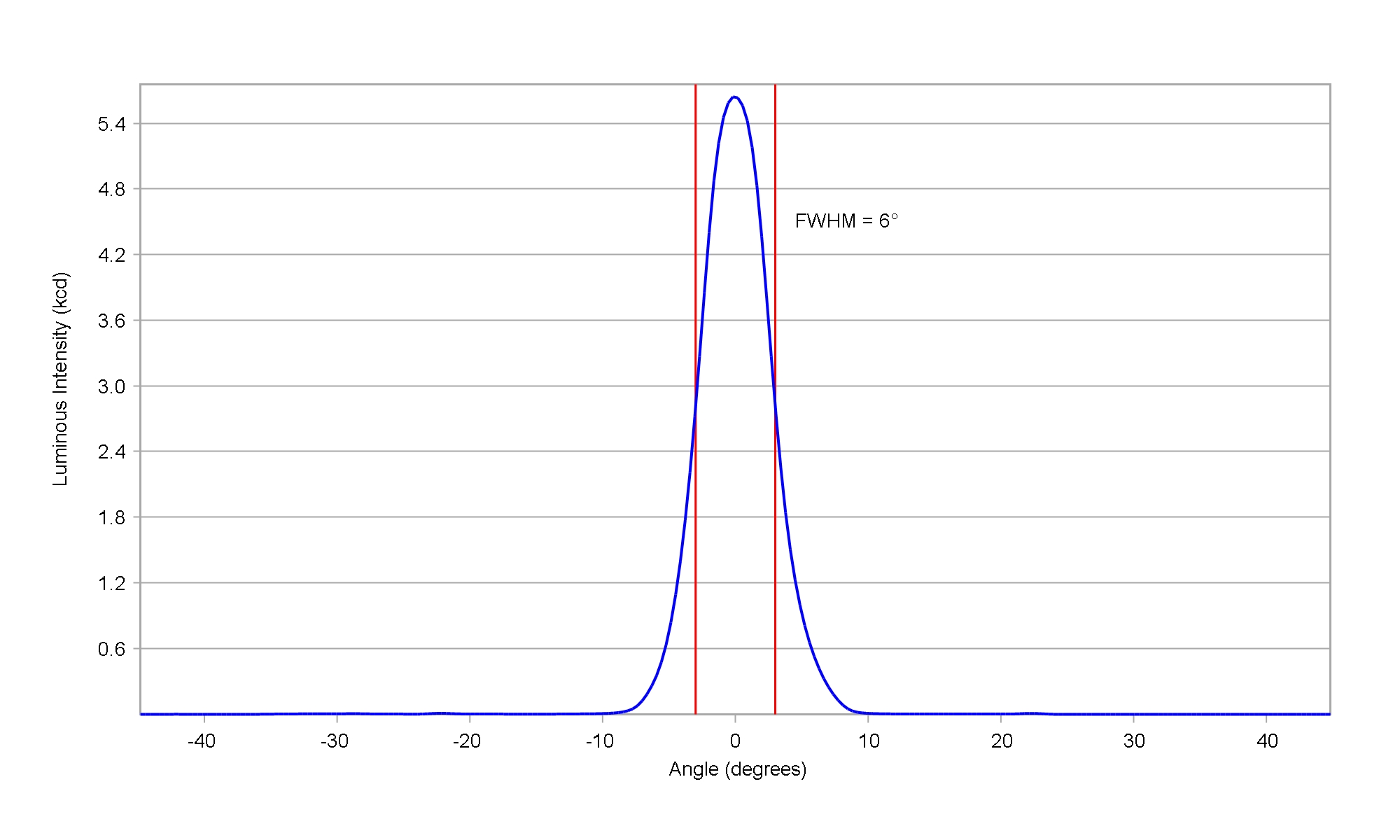

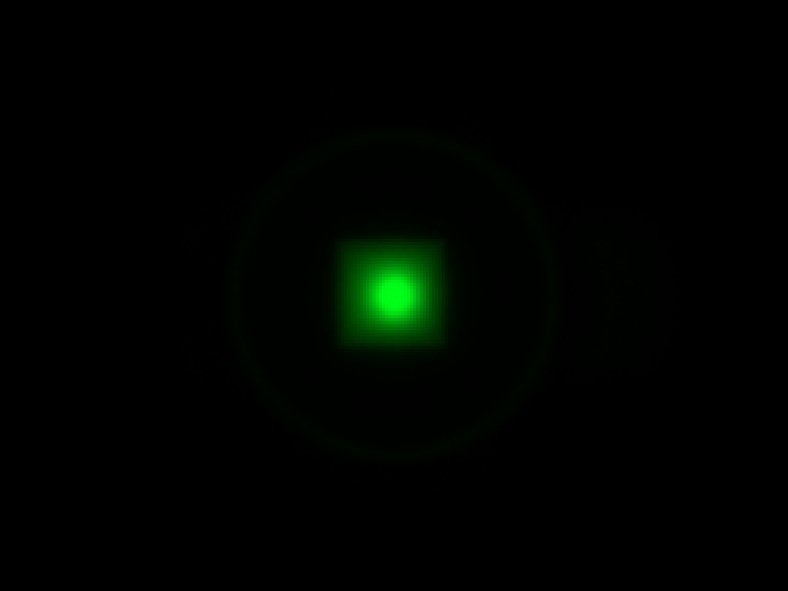

Osram OSLON Pure 1414 GT VJLPL1.13 True Green

Eff:

88.5%

FWHM:

6°

Cd/Im:

56.9


Download

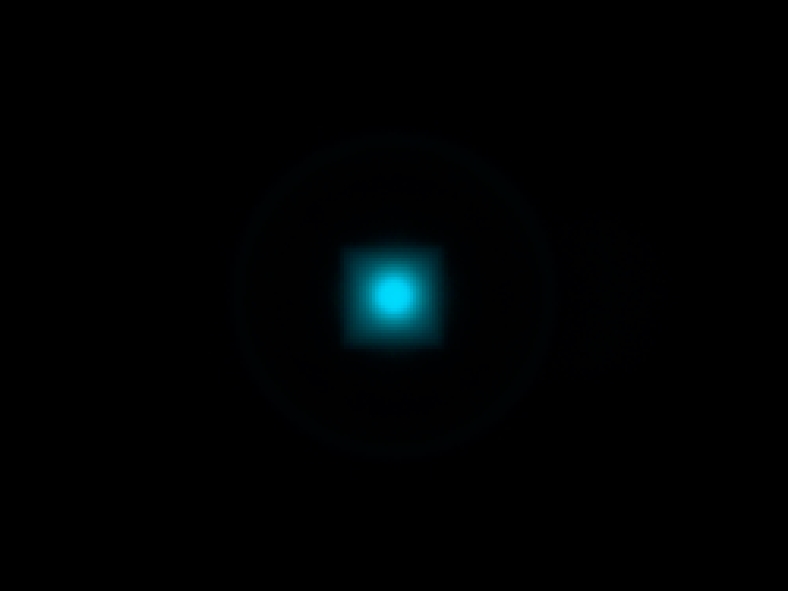

Osram OSLON Pure 1414 GV VJLPL1.F3 Verde

Eff:

87.5%

FWHM:

5.8°

Cd/Im:

59.1


Download

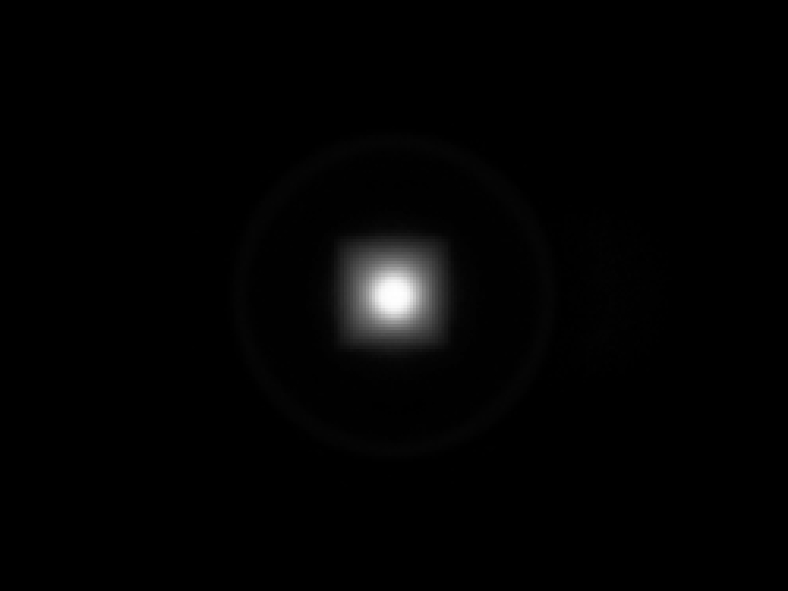

Osram OSLON Pure 1414 GW VJLPL1.CM White

Eff:

88.0%

FWHM:

6.1°

Cd/Im:

54.2

Download

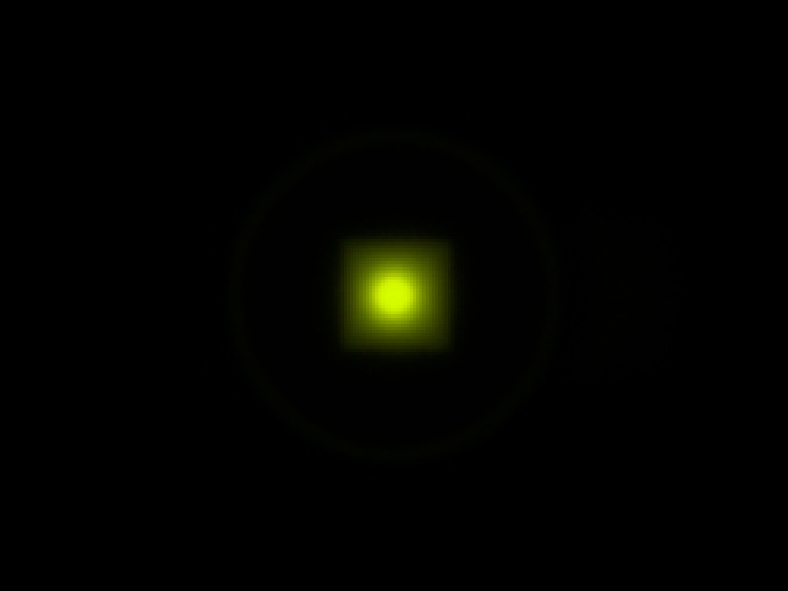

Osram OSLON Pure 1414 GW VJLPL1.UL Green

Eff:

88.0%

FWHM:

6.1°

Cd/Im:

55.4


Download

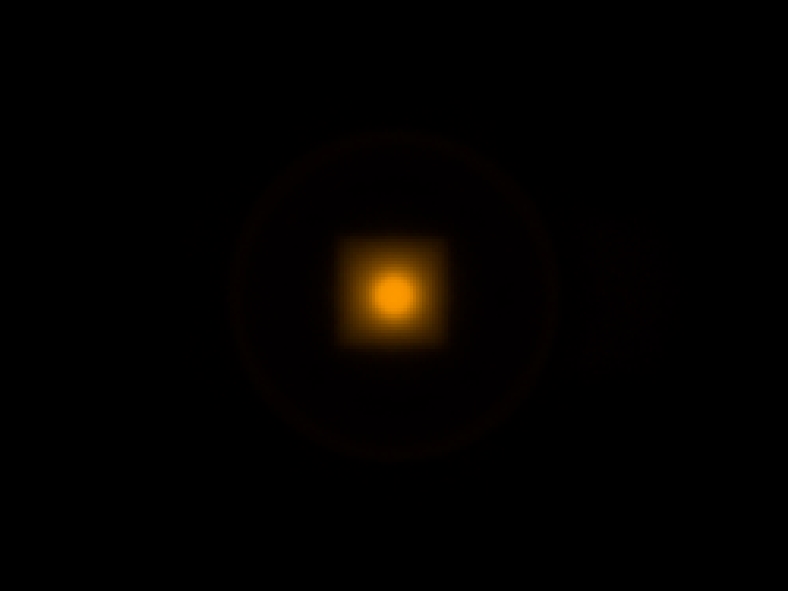

Osram OSLON Pure 1414 GY VJLPL1.F3 Yellow

Eff:

88.0%

FWHM:

6°

Cd/Im:

55.0


Download

Osram OSLON Square Flat White

Eff:

87.5%

FWHM:

8.0°

Cd/Im:

31.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OSLON Square Gen 3 White

Eff:

85.9%

FWHM:

10.3°

Cd/Im:

18.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OSLON Square Gen 5 GW CSSRM3

Eff:

87.5%

FWHM:

11°

Cd/Im:

16.4

Carclo Optics - 101932 20mm Spot Image Oslon Square Gen 5

Carclo Optics - 10193 20mm Vertical Cross Section Oslon Square Gen 5

Download

IES

Osram OSLON Square White

Eff:

85.0%

FWHM:

10.4°

Cd/Im:

18.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

87.0%

FWHM:

7.3°

Cd/Im:

38.6

Carclo Optics – 10193 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Carclo Optics – 10193 Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Download

IES

Osram OSLON SSL 80 GH CS8PM1.24 Hyper Red

Eff:

88.5%

FWHM:

7.6°

Ipk/W:

27.5


Download

IES

Osram OSLON SSL 80 GT CS8PM1.13 True Green

Eff:

89.0%

FWHM:

6.7°

Cd/Im:

30.9



Download

IES

Osram OSLON SSL 80 GW CS8PM1.PM White

Eff:

88.0%

FWHM:

6.8°

Cd/Im:

34.4


Download

IES

Osram PLATINUM DRAGON W5SN White

Eff:

86.0%

FWHM:

5.9°

Cd/Im:

36.0

Download

ies

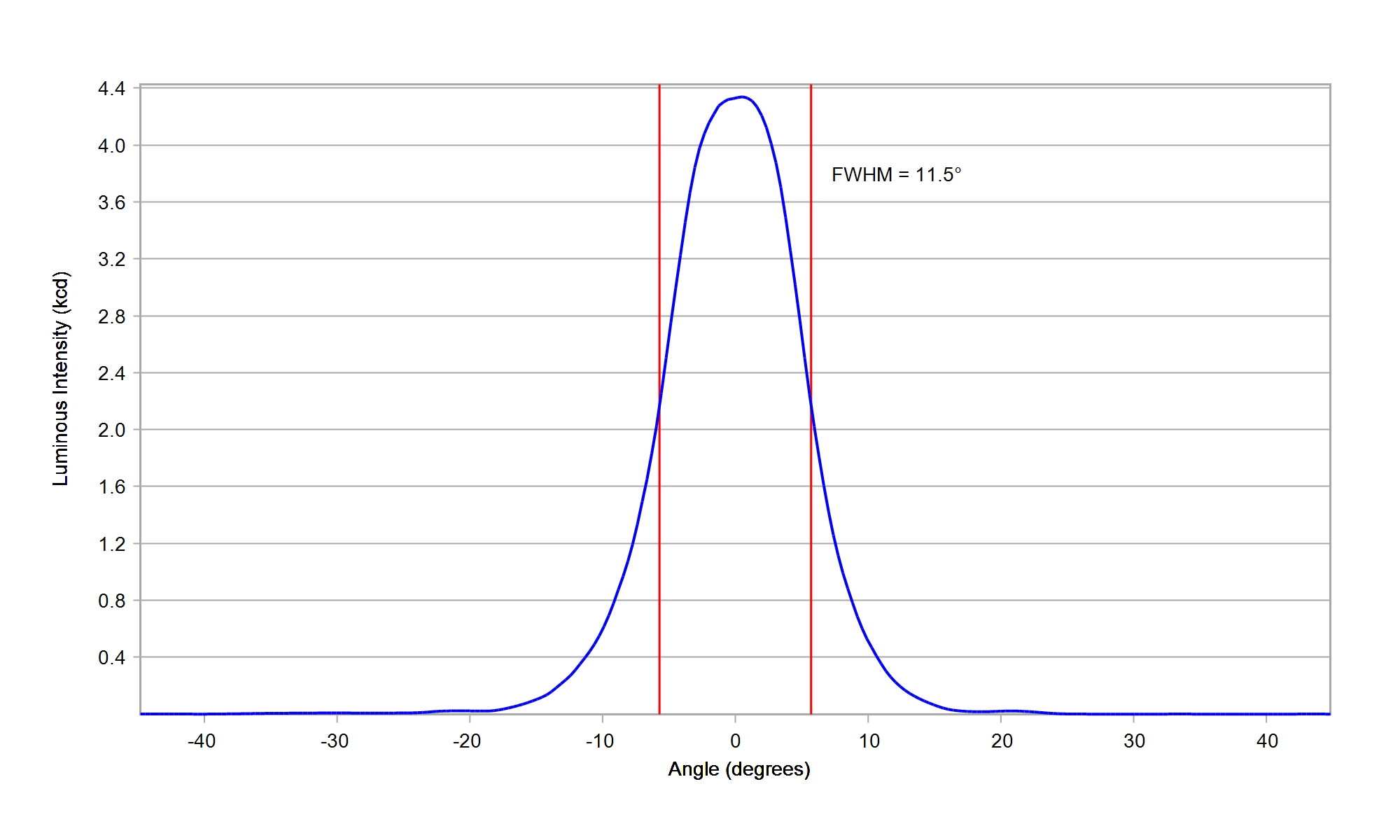

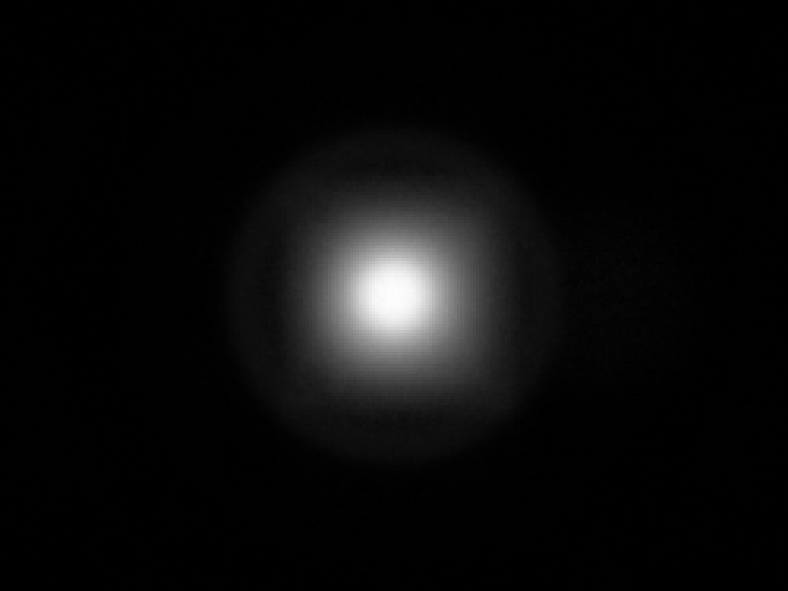

Osram OSCONIQ C 3030 GW PLTRA1.PM White

Eff:

87.5%

FWHM:

11.5°

Cd/Im:

15.3

Download

Osram OSCONIQ E 3030 GW QSLPS1.EM White

Eff:

88.0%

FWHM:

9.5°

Cd/Im:

21.3

Download

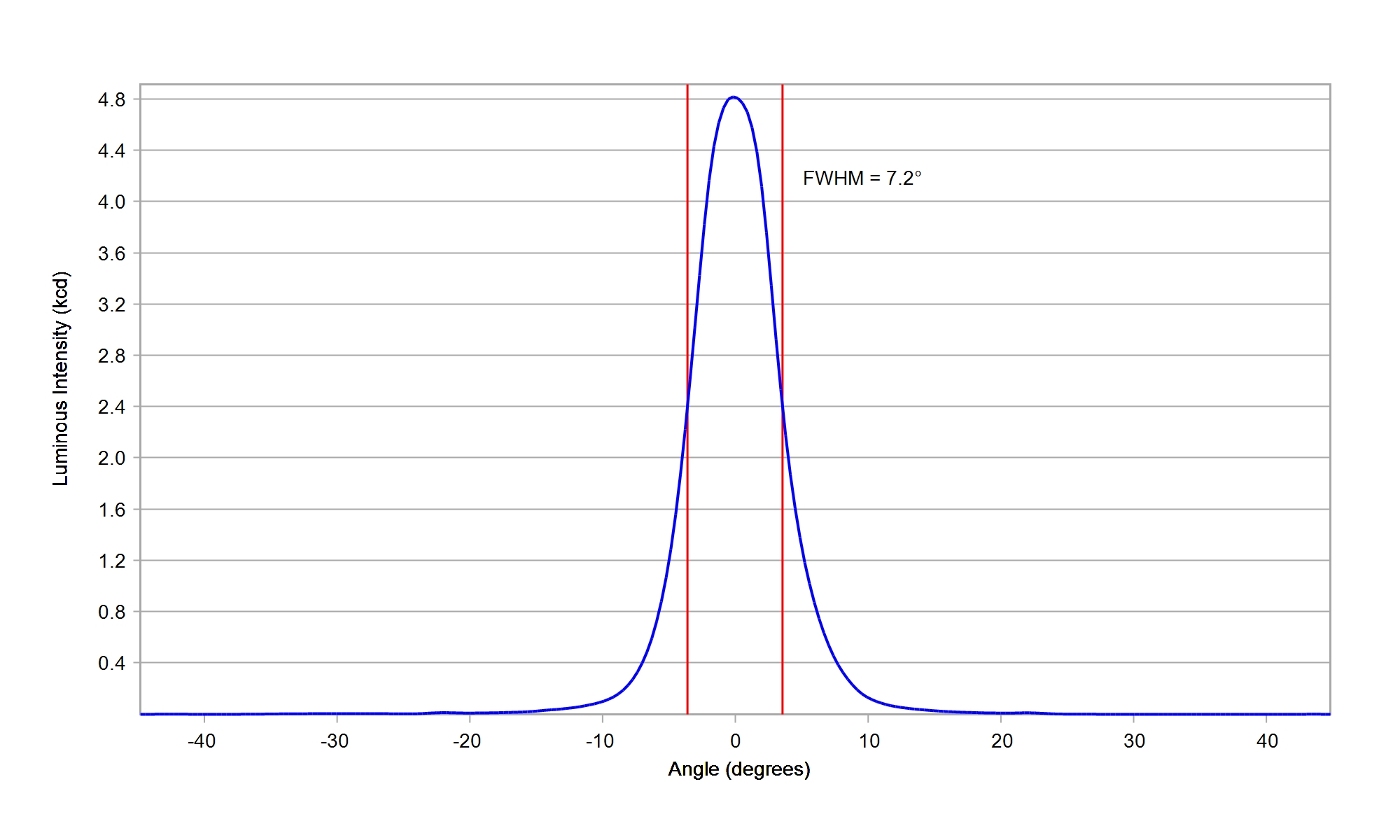

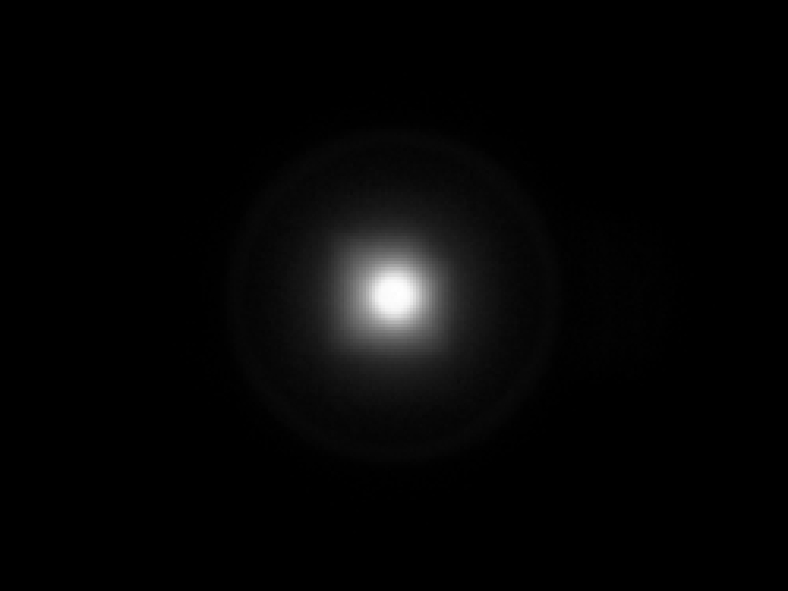

Osram OSCONIQ P 3030 GW QSSPA1.PM White

Eff:

87.5%

FWHM:

7.2°

Cd/Im:

35.1

Download

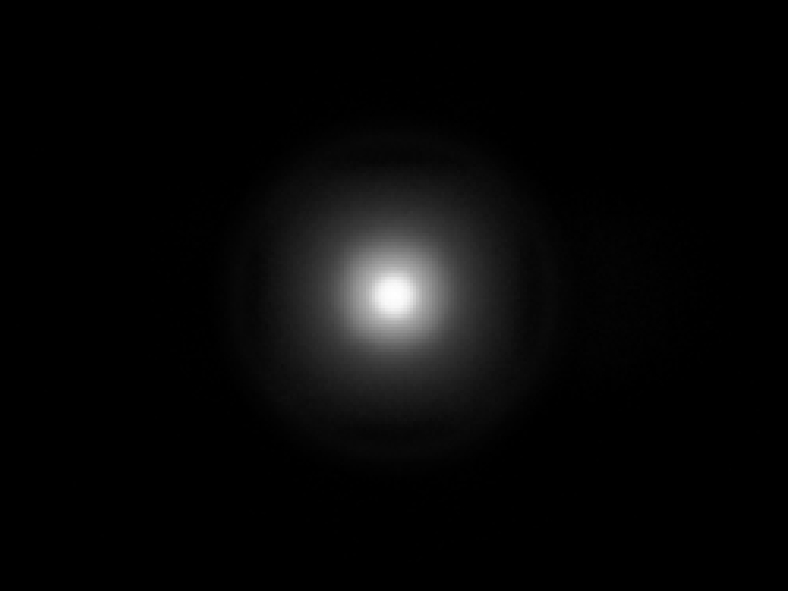

Osram OSCONIQ S 3030 GW QSLMS3.EM White

Eff:

88.5%

FWHM:

7.4°

Cd/Im:

27.3

Download

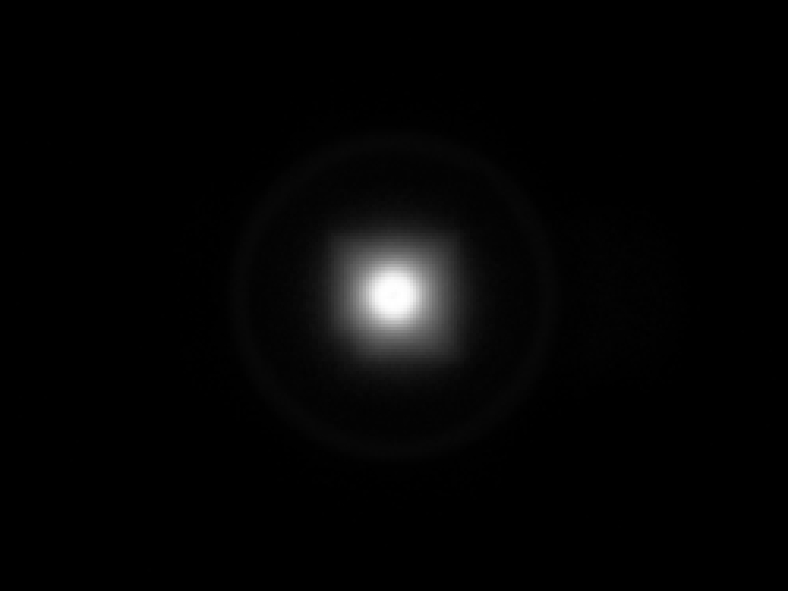

Osram OSLON Signal LUW CRBP.01 White

Eff:

87.0%

FWHM:

7.4°

Cd/Im:

34.6


Download

Samsung 2835 LM281B+ White

Eff:

88.0%

FWHM:

11°

Cd/Im:

15.4



Download

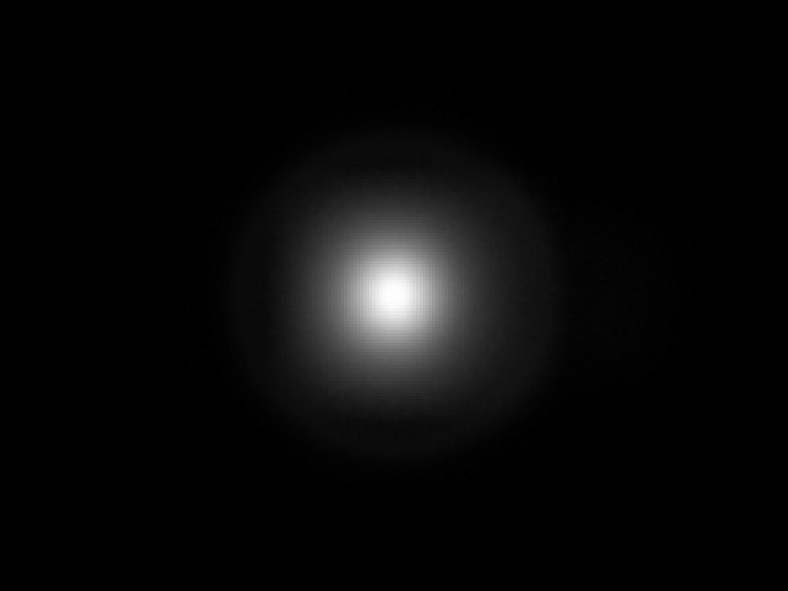

Samsung 2835 LM282B+ White

Eff:

88.0%

FWHM:

8.9°

Cd/Im:

21.5



Download

Samsung 3030 LM301B White

Eff:

88.5%

FWHM:

9.2°

Cd/Im:

22.2

Download

IES

Samsung 3535 LH351B White

Eff:

86.0%

FWHM:

13°

Cd/Im:

13.5

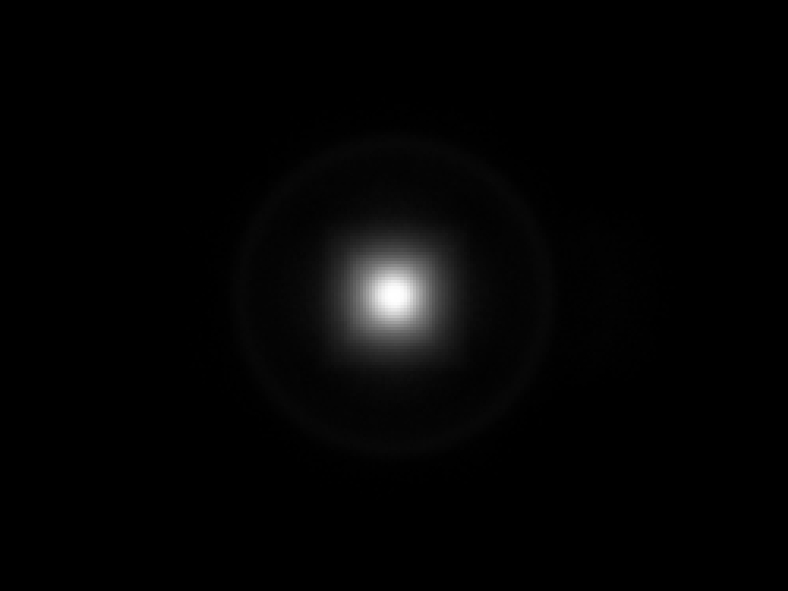

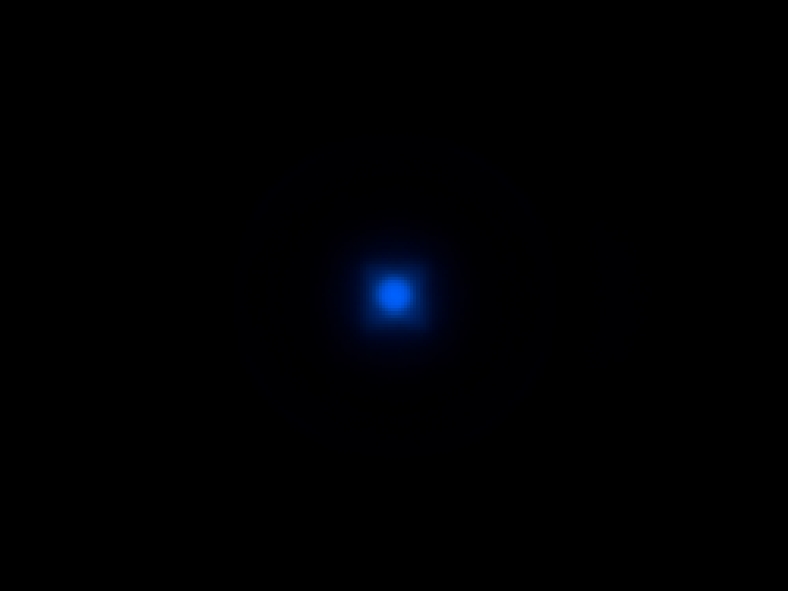

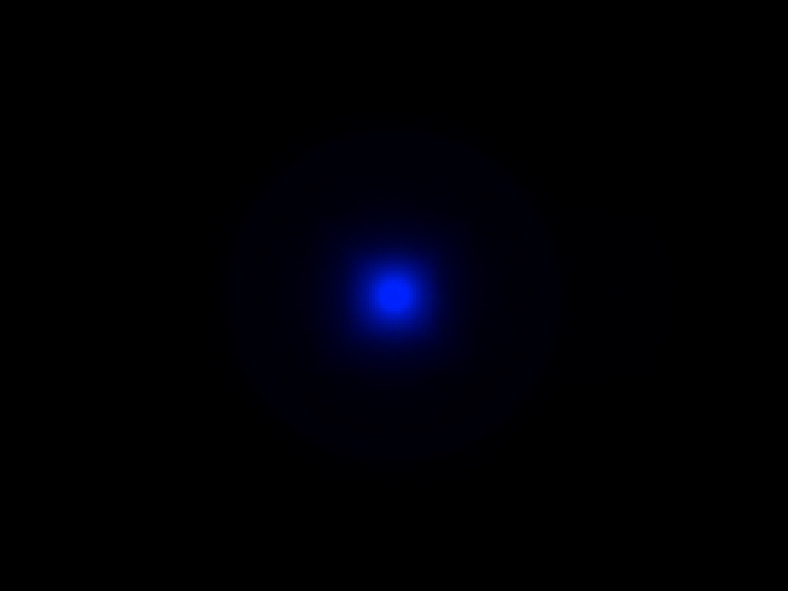

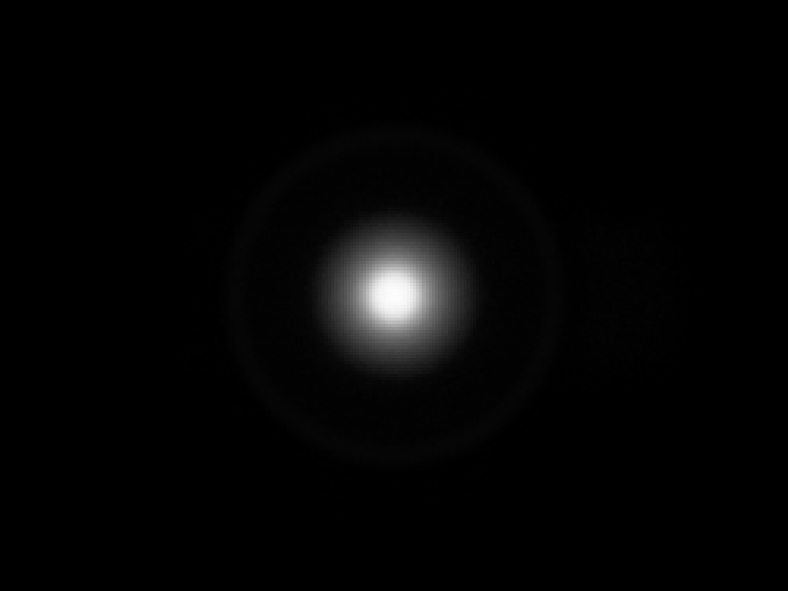

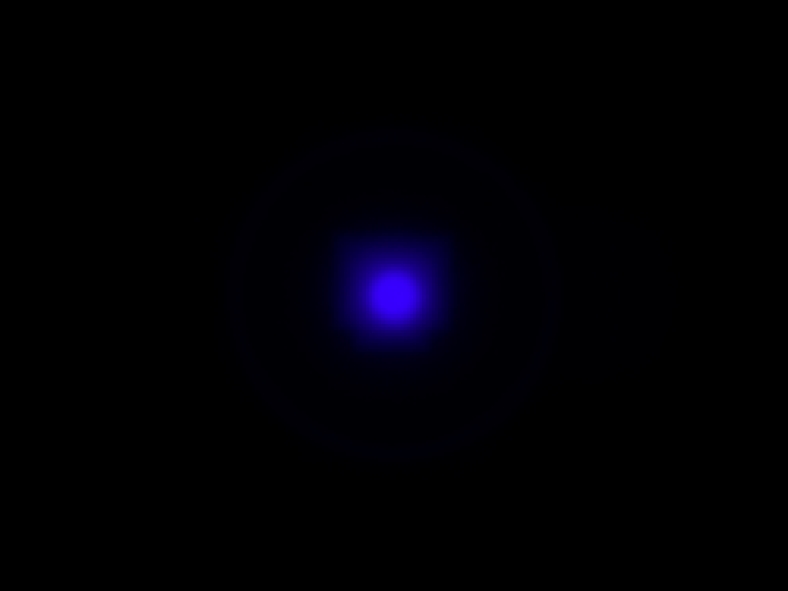

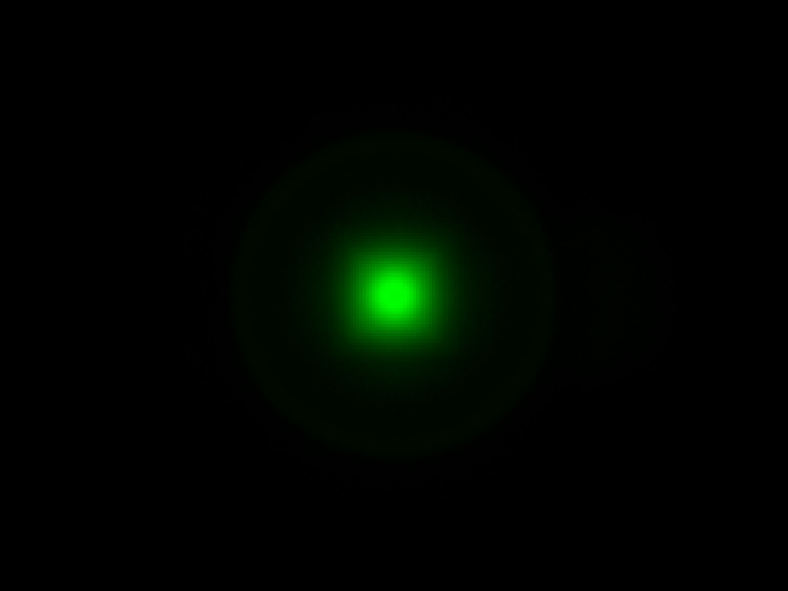

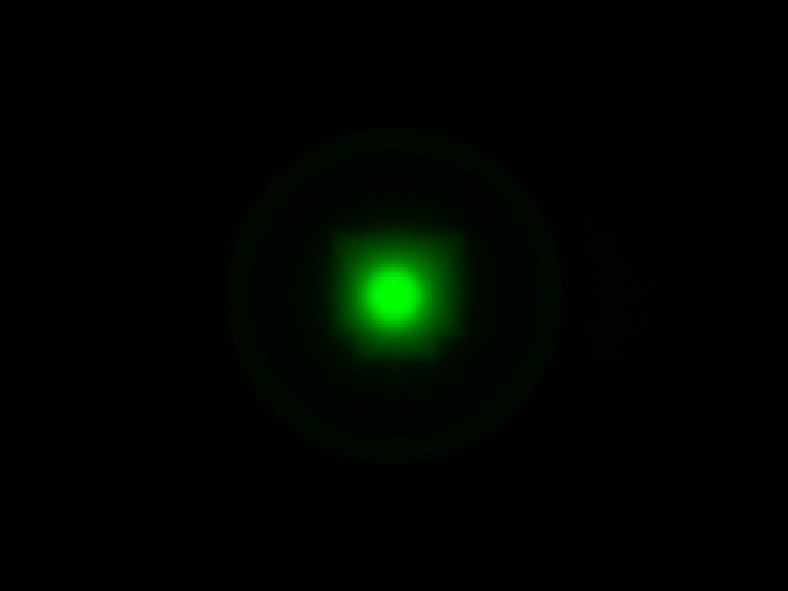

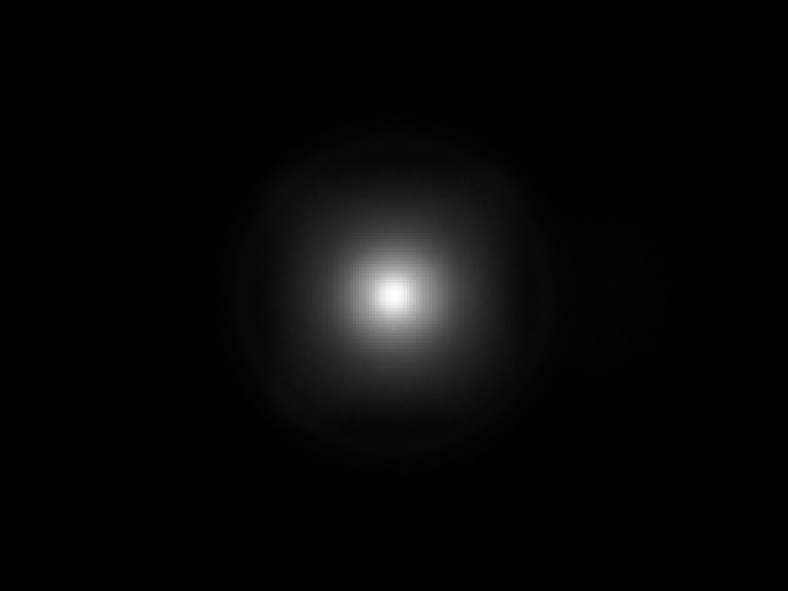

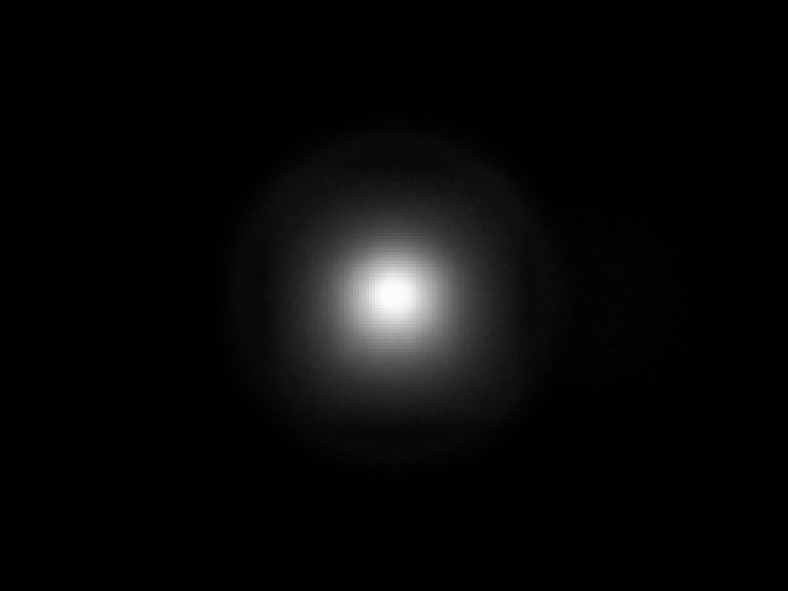

carclo optics - simulated spot image

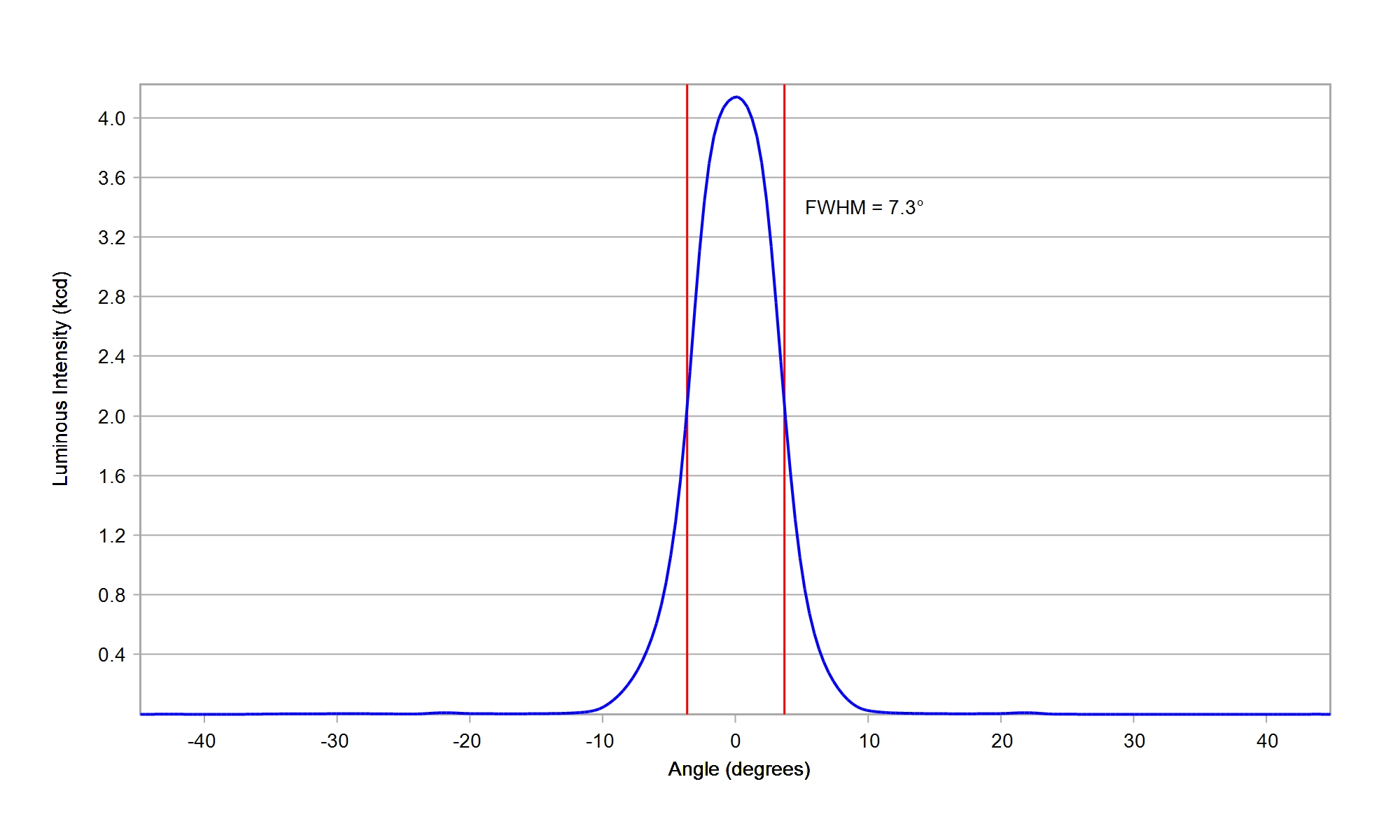

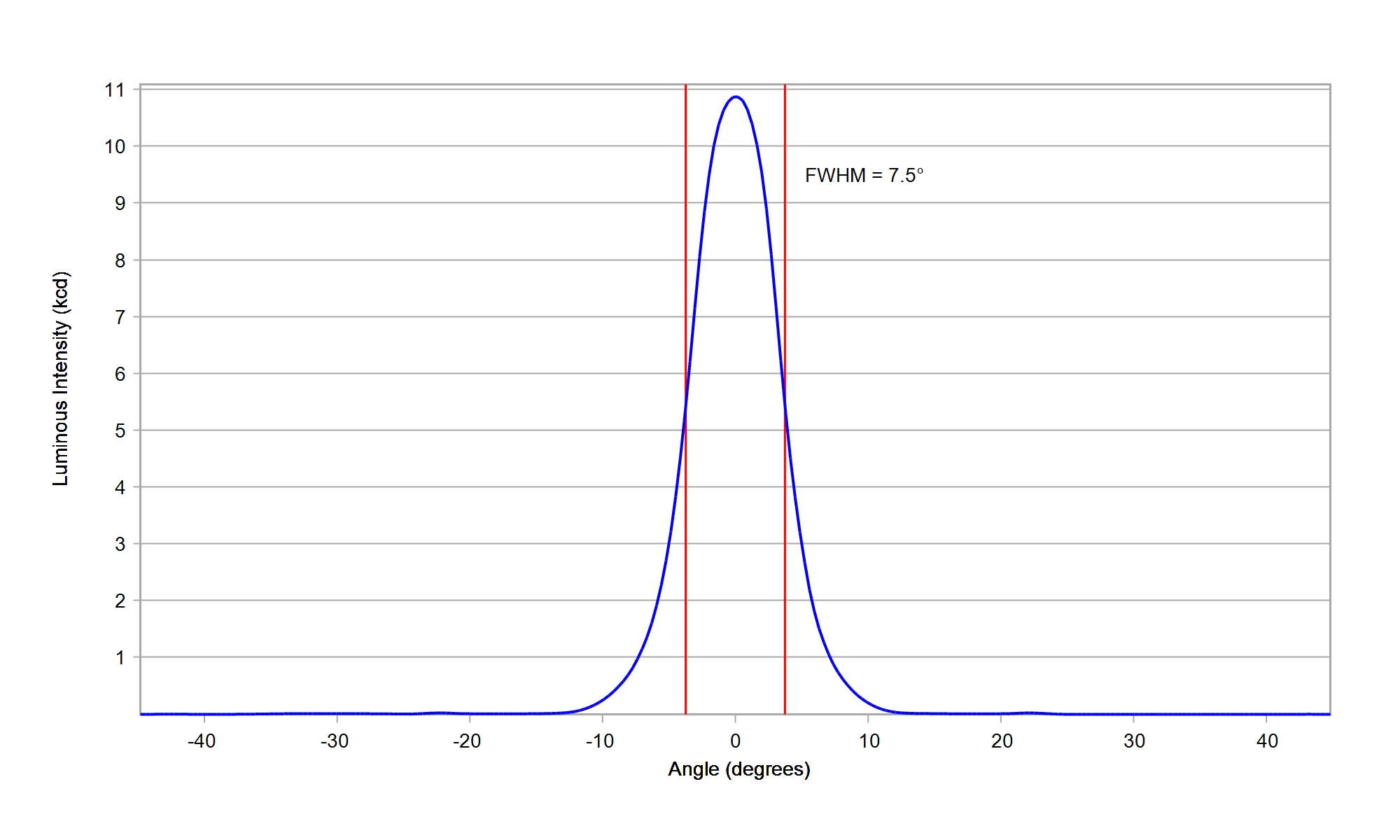

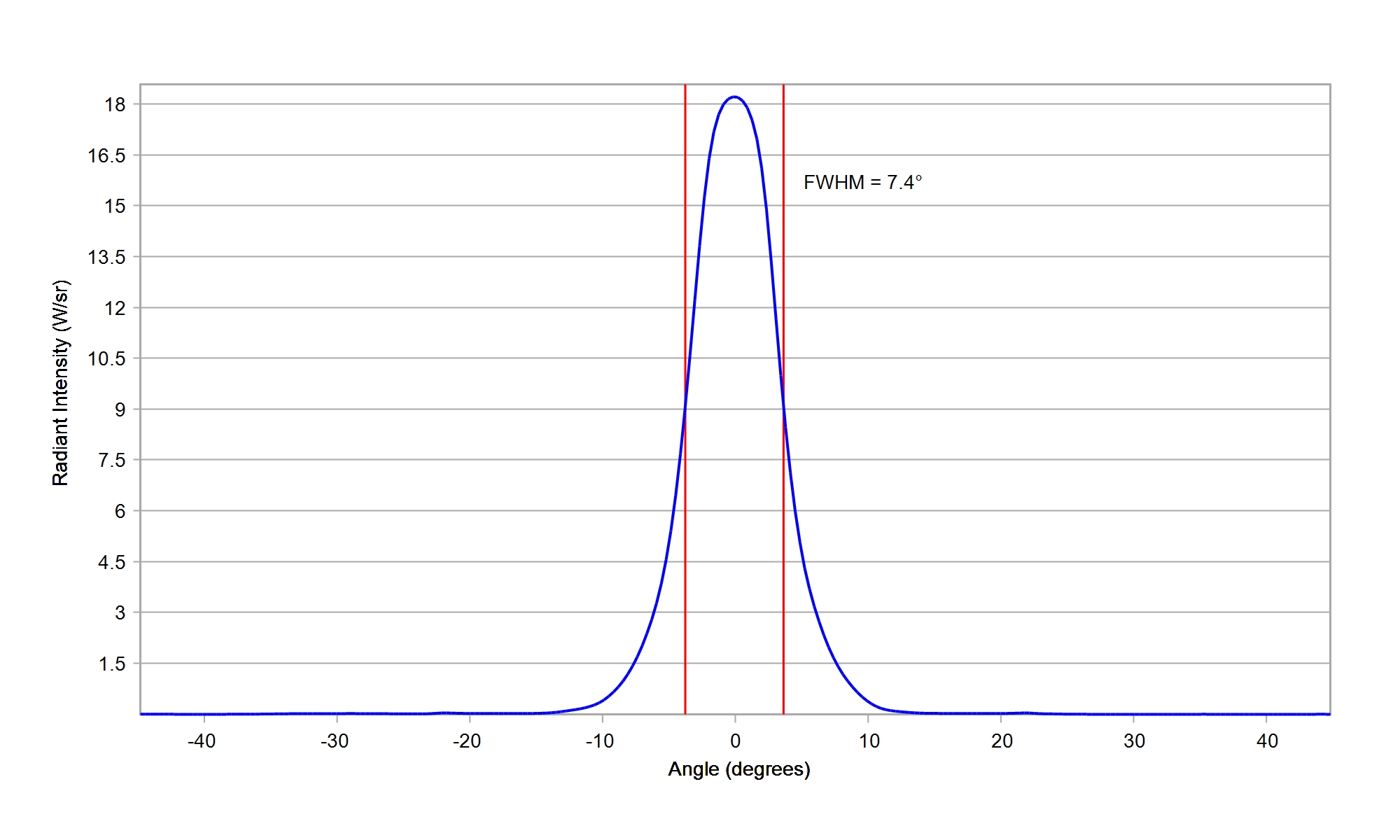

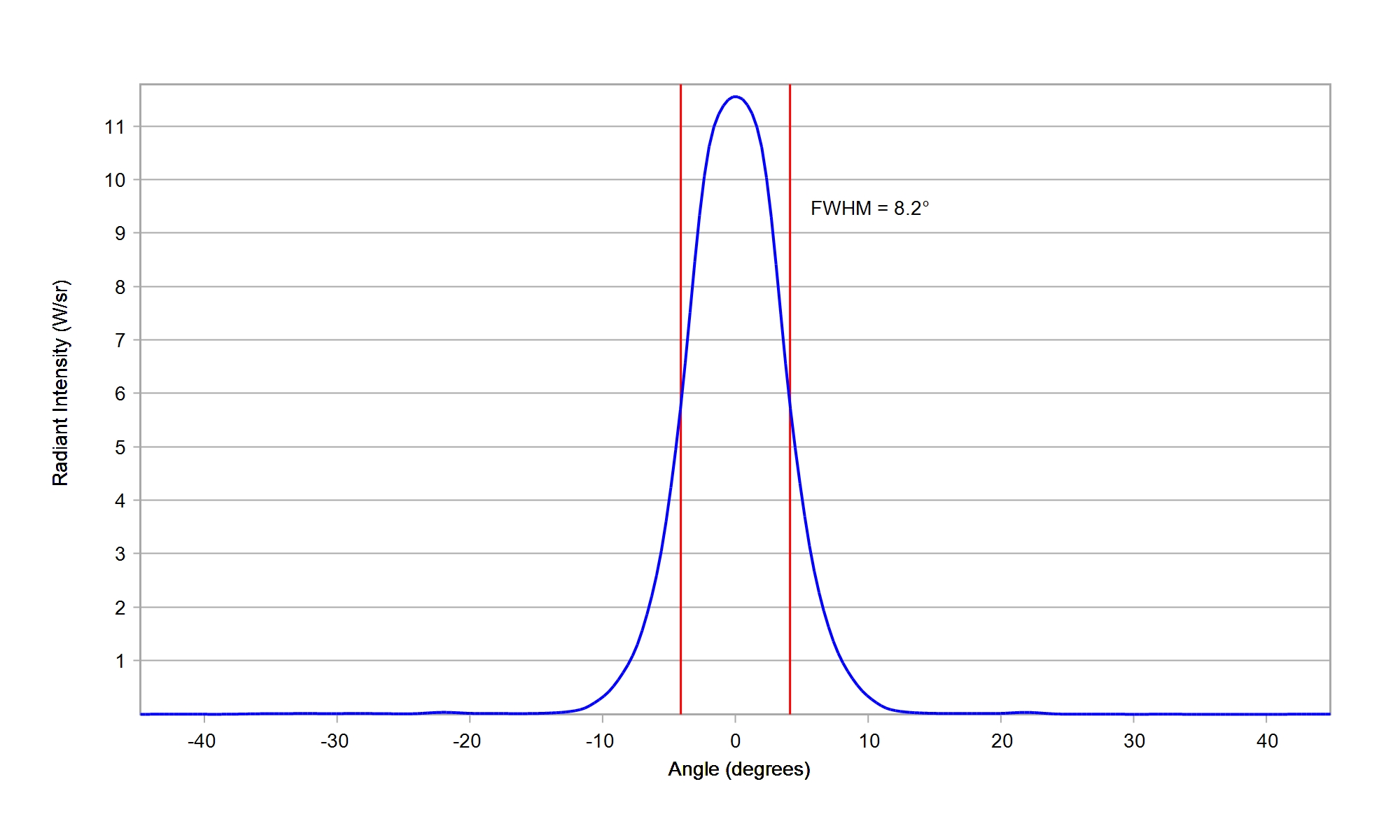

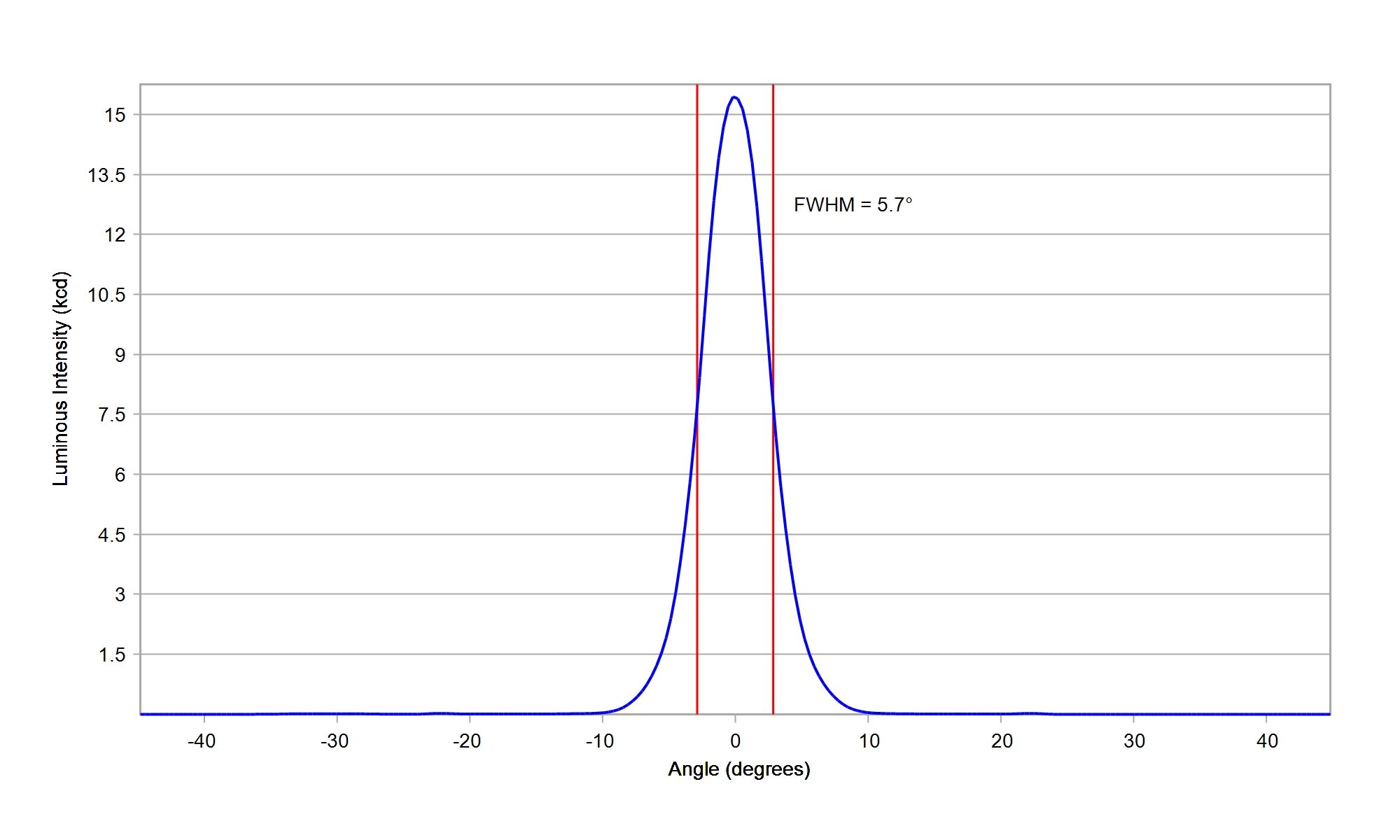

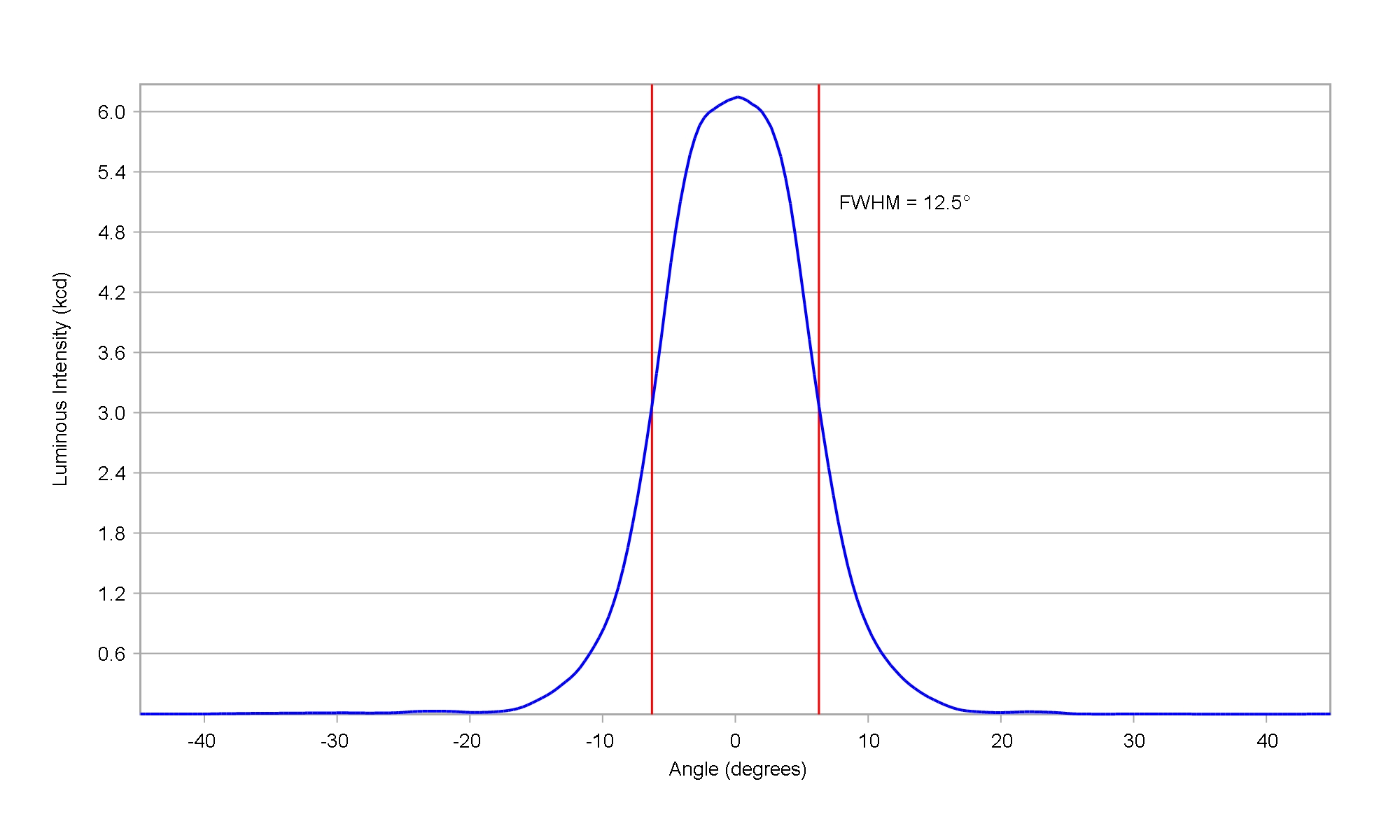

carclo optics - simulated cross section

Download

IES

Samsung 3535 LH351D White

Eff:

88.0%

FWHM:

17.5°

Cd/Im:

7.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Samsung 3535 LH351Z White

Eff:

85.5%

FWHM:

10°

Cd/Im:

20.3

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Samsung CSP LH151B White

Eff:

87.5%

FWHM:

6.8°

Cd/Im:

42.3

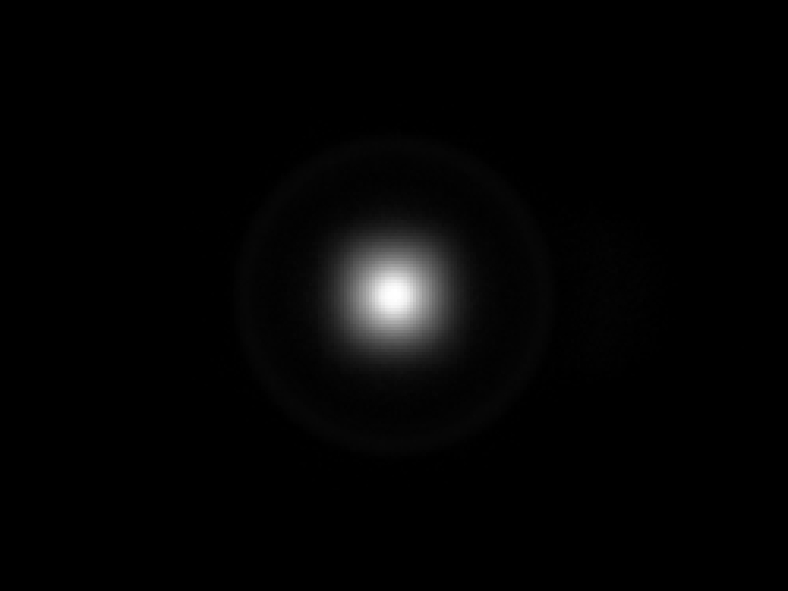

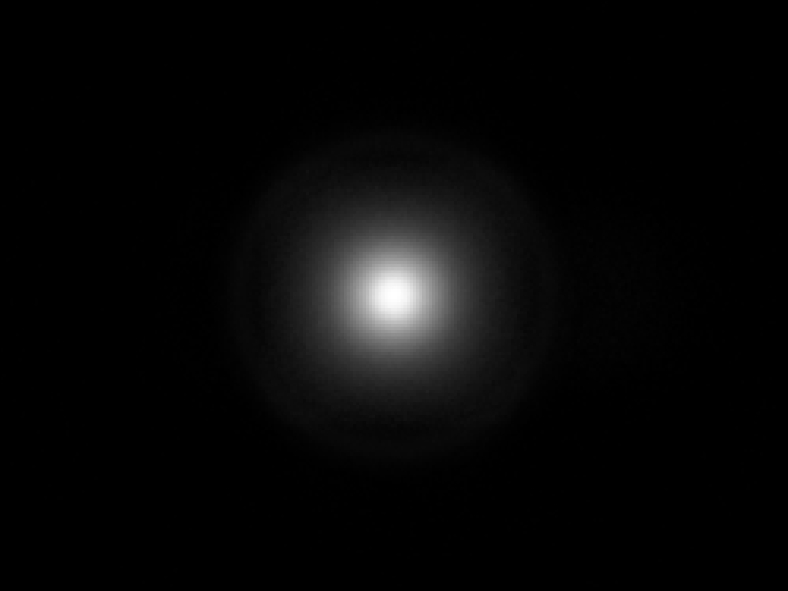

Carclo Optics – 10193 – Samsung_LH151B_spot-image

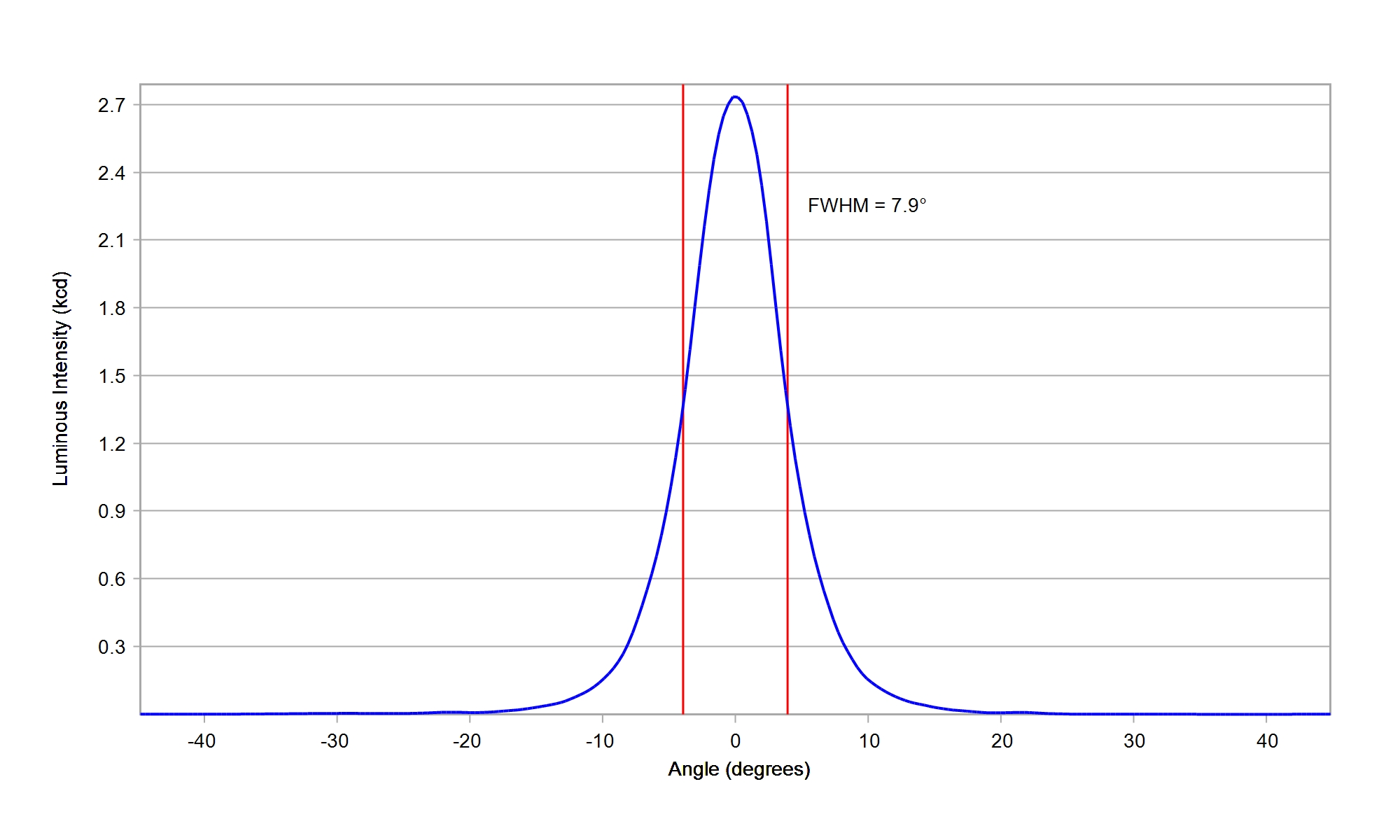

Carclo Optics – 10193 – Samsung_LH151B_cross section

Download

IES

Samsung CSP LH181B White

Eff:

88.5%

FWHM:

11.5 x 11°

Cd/Im:

16.4

Carclo Optics -10193 Sport Image - Samsung LH181B 4000K

Carclo Optics -10193 Cross Section - Samsung LH 81B 4000K

Download

IES

Samsung CSP LH231B White

Eff:

87.5%

FWHM:

12.5°

Cd/Im:

11.7

Carclo Optics -10193 Spot Image - Samsung LH231B 5000KL

Carclo Optics -10193 Cross Section - Samsung LH231B 5000K

Download

IES

Samsung CSP LM101B White

Eff:

87.5%

FWHM:

6.9°

Cd/Im:

38.8

Carclo Optics -10193 Sport Image - Samsung LM101B 5000K

Carclo Optics -10193 Cross Section - Samsung LM101B 5000K

Download

IES

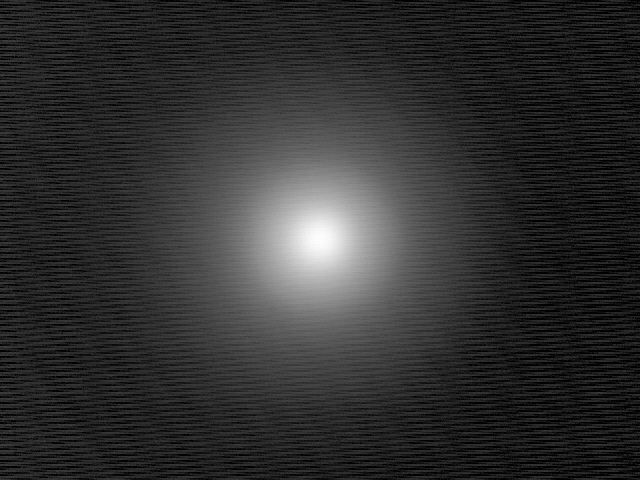

Samsung WH5 White

Eff:

88.3%

FWHM:

11.9°

Cd/Im:

9.9

Download

ies

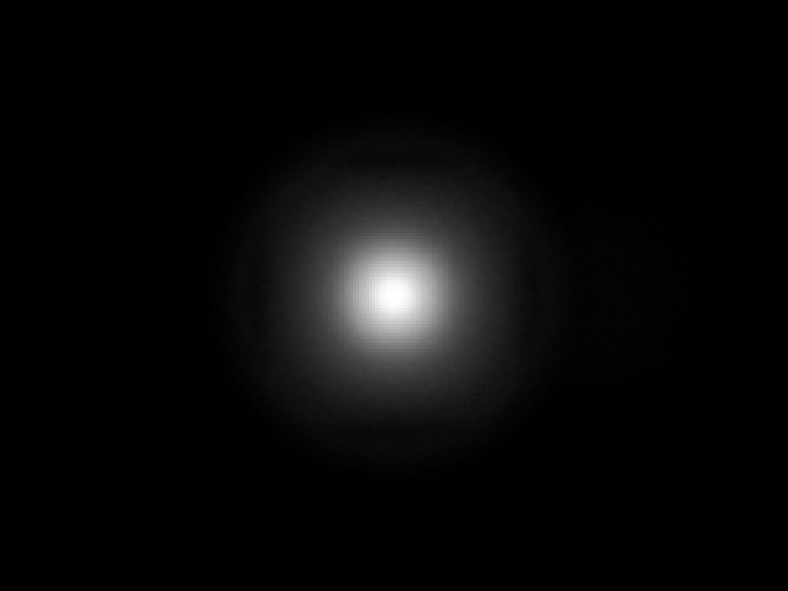

Seoul 3030 STW8C12E-E0 White

Eff:

88.0%

FWHM:

9.2°

Cd/Im:

21.5

Download

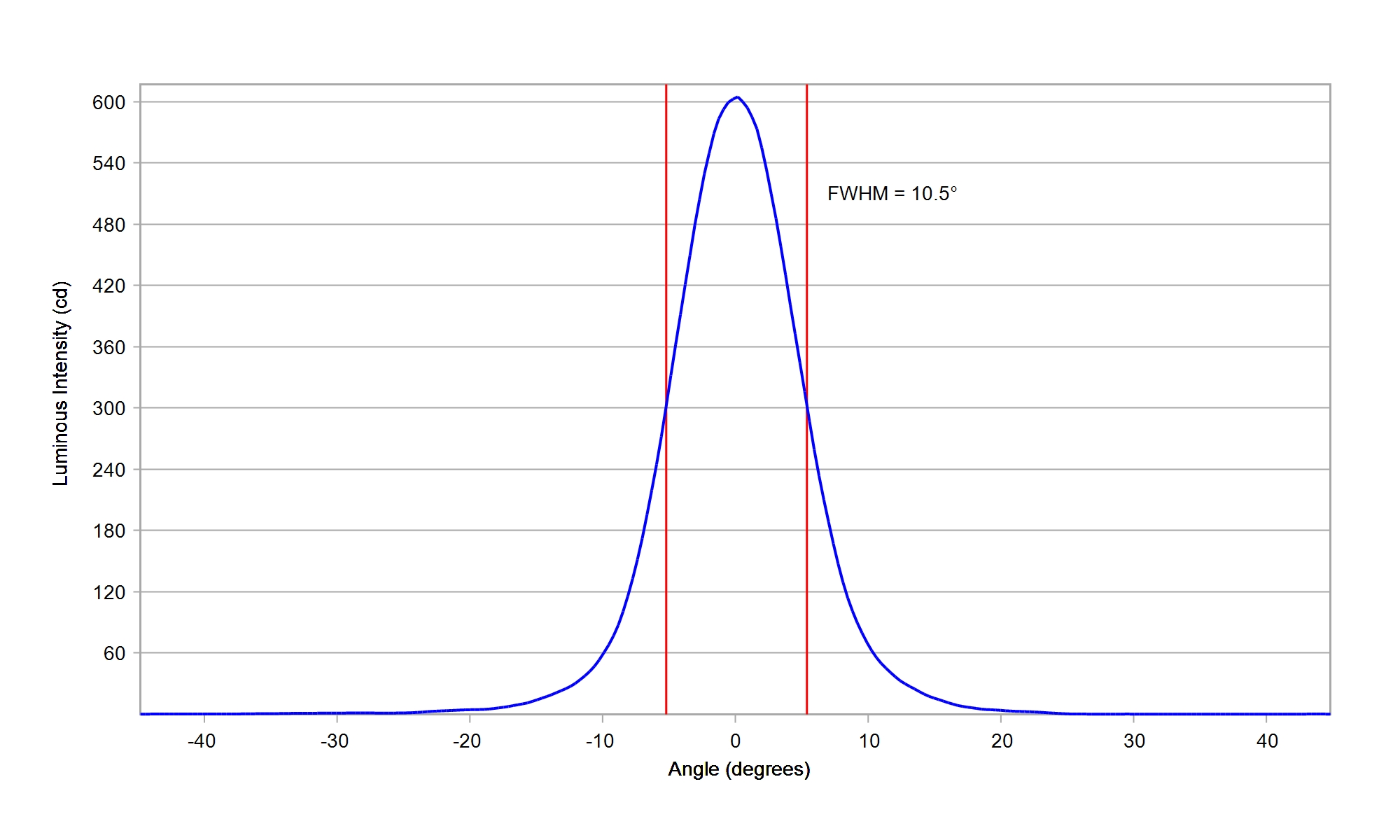

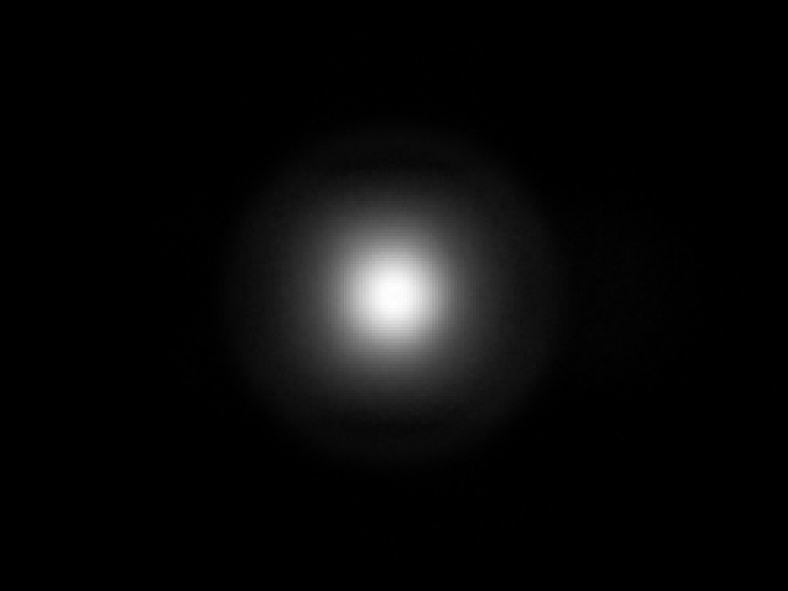

Seoul 3528 G STW8A2PD-G700 White

Eff:

88.0%

FWHM:

10.5°

Cd/Im:

17.4

Download

Seoul CSP SZ8Y19 White

Eff:

87.0%

FWHM:

11.7°

Cd/Im:

12.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Seoul CSP SZ8Y22 White

Eff:

87.0%

FWHM:

13.5°

Cd/Im:

11.7

Carclo Optics -10193 Spot Image - Seoul SZ8Y22

Carclo Optics -10193 Cross Section Image - Seoul SZ8Y22

Download

IES

Seoul CSP SZ8Y22P White

Eff:

86.0%

FWHM:

13°

Cd/Im:

11.4

Carclo Optics - 10193 Spot Image - Seoul SZ8Y22P

Carclo Optics -10193 Cross Section Image - Seoul SZ8Y22P

Download

IES

Seoul MidPower MJT3030 White

Eff:

86.0%

FWHM:

8.3°

Cd/Im:

20.7

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Seoul MidPower MJT4040 White

Eff:

87.0%

FWHM:

12°

Cd/Im:

9.8

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Seoul P4 White

Eff:

85.2%

FWHM:

18.2°

Cd/Im:

6.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section Image

Download

IES

Seoul 3030 STW8C2SB-NT White

Eff:

88.5%

FWHM:

10.5°

Cd/Im:

18.6

Carclo Optics - 10193 Spot Image Seoul STW8 C2SB-NT

Carclo Optics - 10193 Cross Section Seoul STW8 C2SB-NT

Download

IES

Seoul SunLike 3030 STWSC2PB-E0 White

Eff:

88.0%

FWHM:

10.5°

Cd/Im:

16.9

Carclo Optics - 10193 Spot Image STWS C2PB-E0

Carclo Optics - 10193 Cross Section STWS C2PB-E0

Download

IES

Seoul SunLike 3030 STWSC12S-E1 White

Eff:

88.0%

FWHM:

7.9°

Cd/Im:

27.7

Download

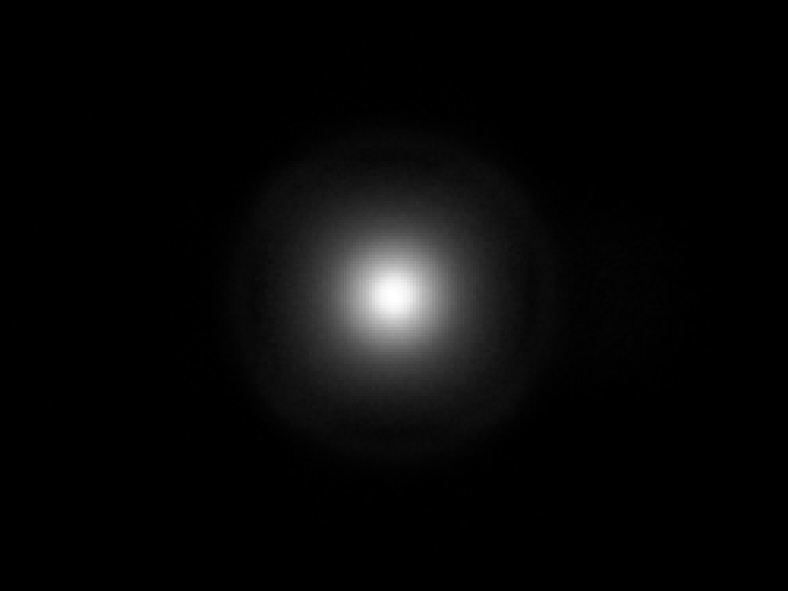

Seoul SunLike 3030 STWSC12S-E2 White

Eff:

88.0%

FWHM:

8.2°

Cd/Im:

25.3

Download

Seoul SunLike 3030 STW9C2SB-S White

Eff:

88.0%

FWHM:

9.4°

Cd/Im:

20.0

Carclo Optics - 10193 20mm Spot Image Seoul Sunlike 3030

Carclo Optics - 10193 20mm Cross Section Seoul Sunlike 3030

Download

IES

Seoul Z - Power Z5-M1 White

Eff:

85.0%

FWHM:

11.4°

Cd/Im:

15.8

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Seoul Z - Power Z5-M4 White

Eff:

88.5%

FWHM:

13°

Cd/Im:

12.7

Carclo Optics – 10193 Seoul Z-Power Z5 - Spot Image

Carclo Optics – 10193 Seoul Z-Power Z5 - Cross-Section

Download

IES

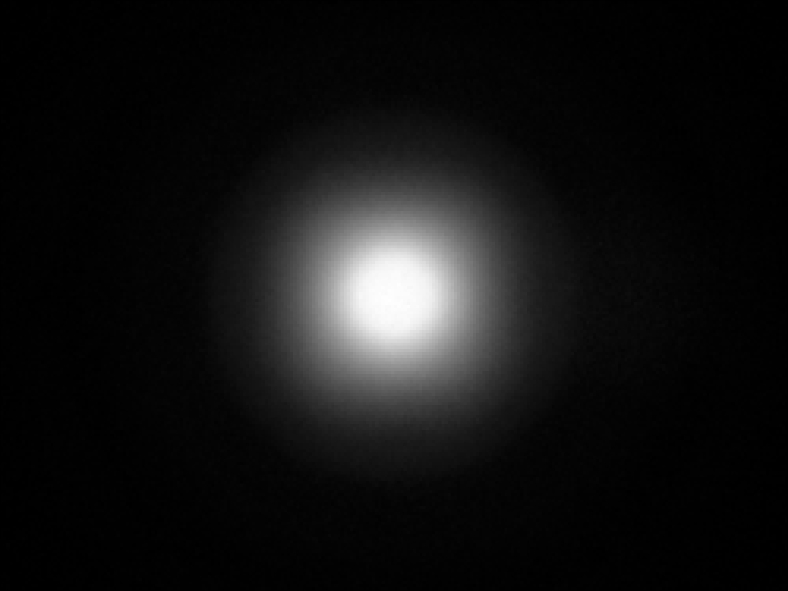

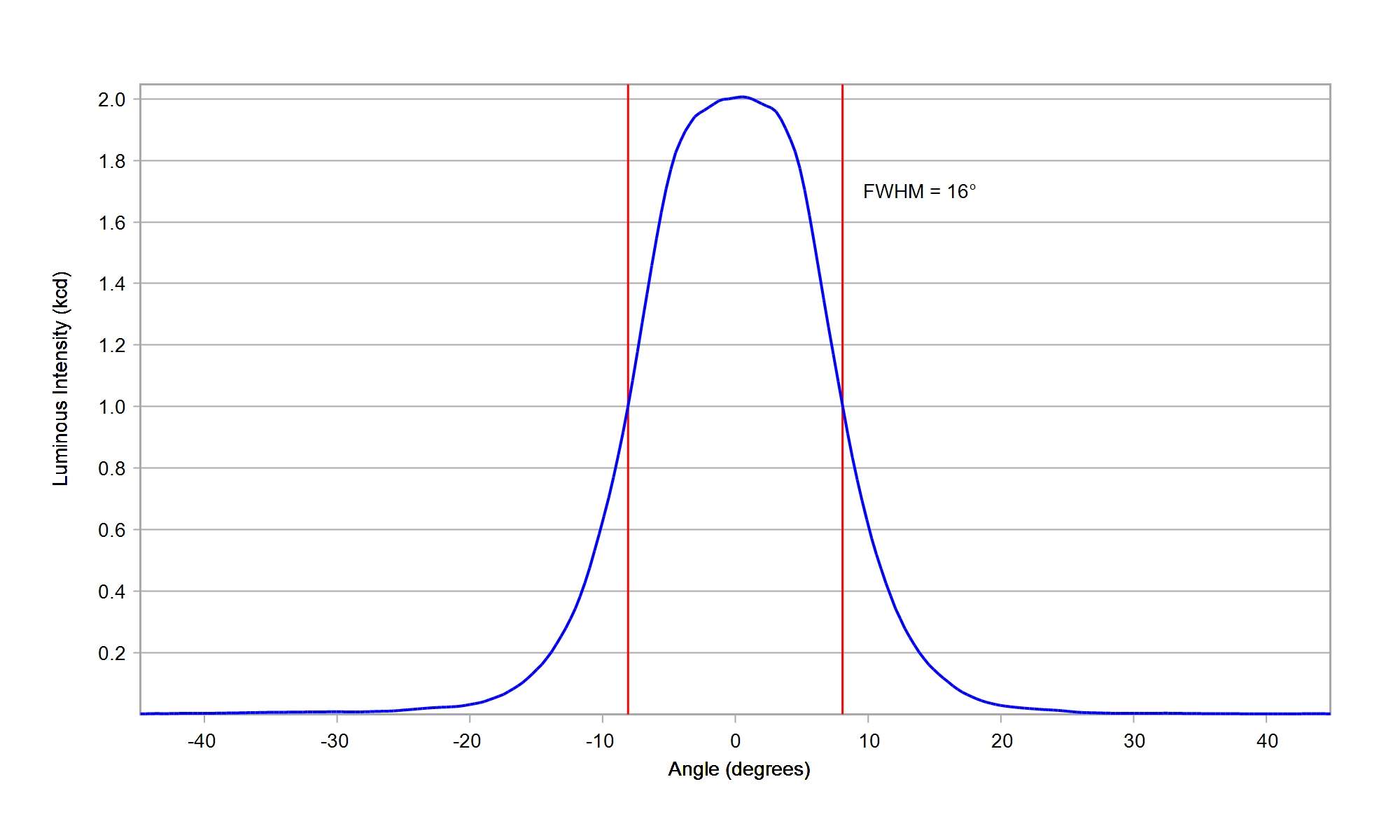

Seoul Z - Power Z5-M5 White

Eff:

88.0%

FWHM:

16°

Cd/Im:

8.8

Download

Stanley FWR1108MS IR 755nm

Eff:

91.0%

FWHM:

7.7°

Ipk/W:

31.7


Download

Toshiba TL 1L2 White

Eff:

86.0%

FWHM:

11.4°

Cd/Im:

15.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Toshiba TL 1L4 White

Eff:

86.0%

FWHM:

12.0°

Cd/Im:

14.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES
