20.0mm Wide Spot Mirror Reflector | Carclo Optics

Carclo Optics Reflector 10170

20.0mm Wide Spot Mirror Reflector

Part number

10170

Dimensions

20.0mm

Drawing Number

60426

Optic type

Reflector

Finish

Mirror

Beam type

Wide Spot

Applications

Architectural

Landscape & Garden

Special order only. Please contact us for further information.

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

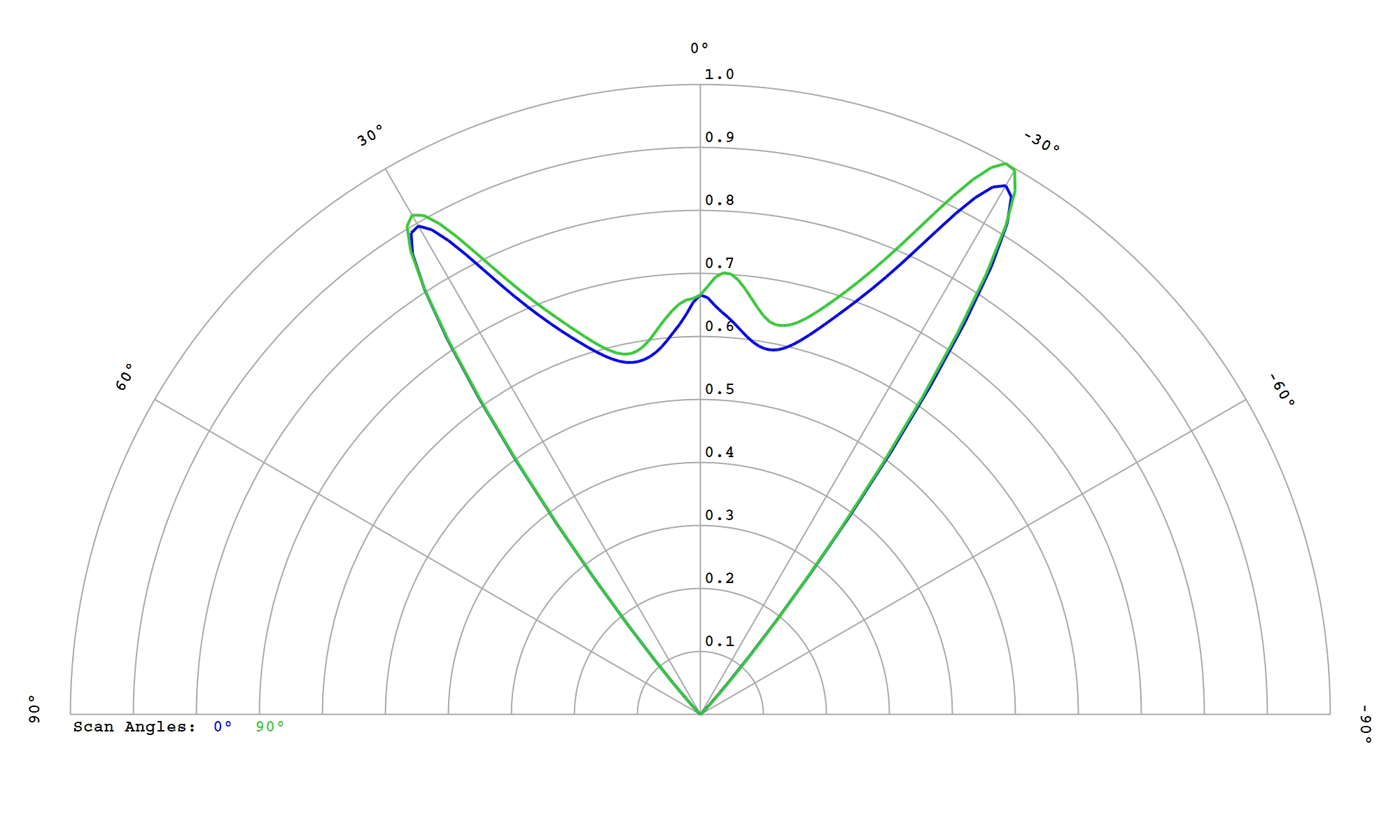

Bridgelux SMD 3030 Gen2 White

Eff:

89.0%

FWHM:

71°

Cd/Im:

1.1


Download

Cree JB3030C 3V E-Class White

Eff:

88.5%

FWHM:

74°

Cd/Im:

0.9


Download

Cree JB3030C 3V F-Class White

Eff:

88.5%

FWHM:

73°

Cd/Im:

0.9


Download

Cree JE2835 3V PC Amber

Eff:

89.0%

FWHM:

79°

Cd/Im:

0.8

Download

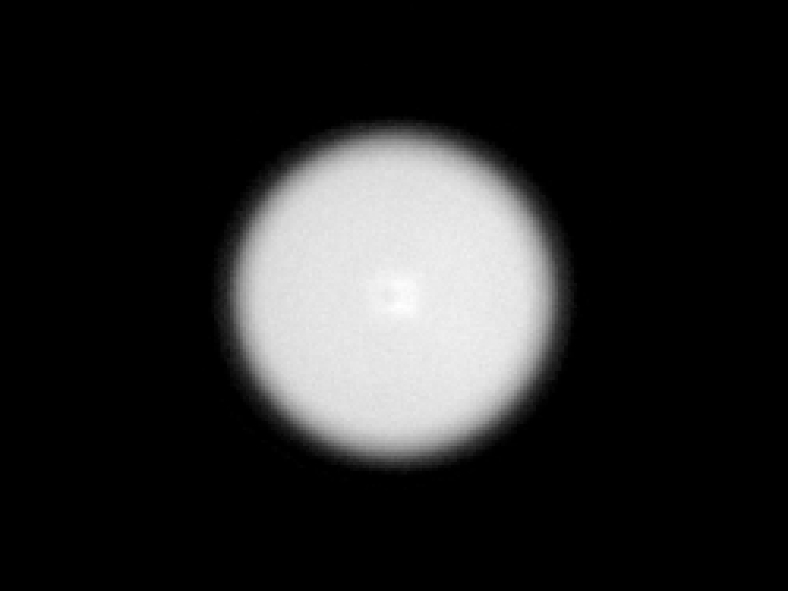

Cree JE2835 3V White

Eff:

89.5%

FWHM:

78°

Cd/Im:

0.8

Download

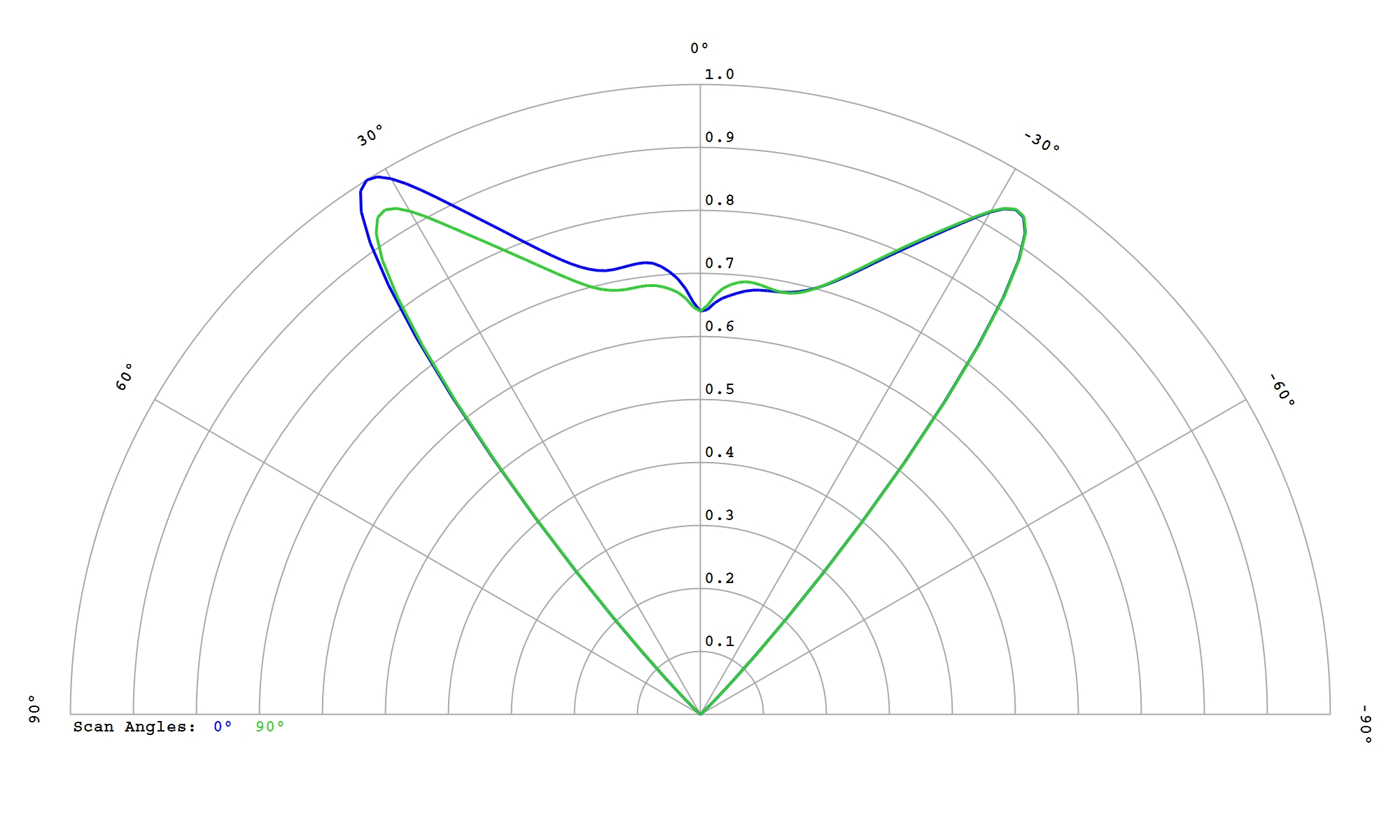

Cree JK2835 6V White

Eff:

89.5%

FWHM:

77°

Cd/Im:

0.8

Download

Cree XLamp XP-E White

Eff:

89.4%

FWHM:

80.9°

Cd/Im:

1.1

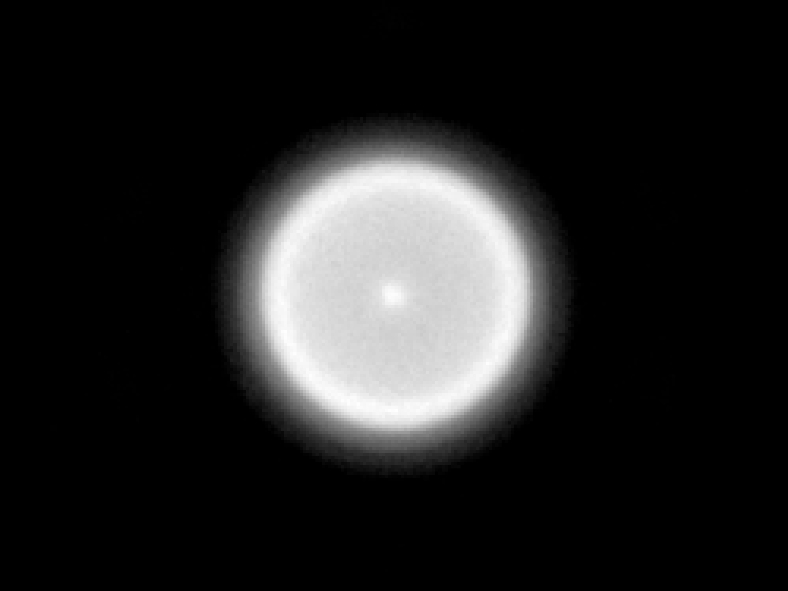

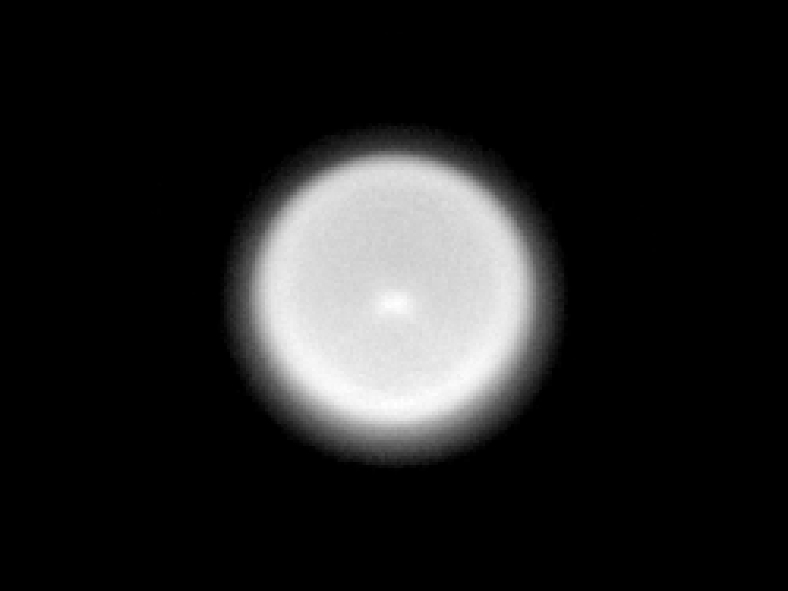

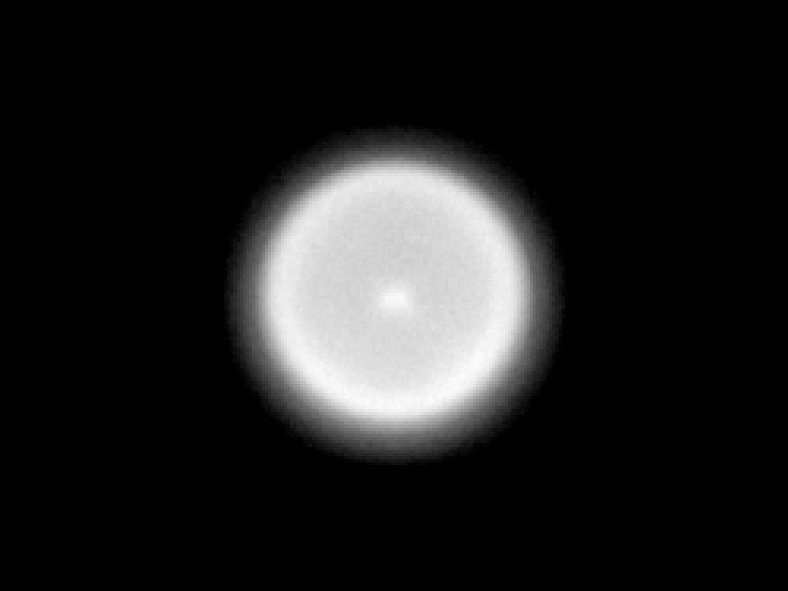

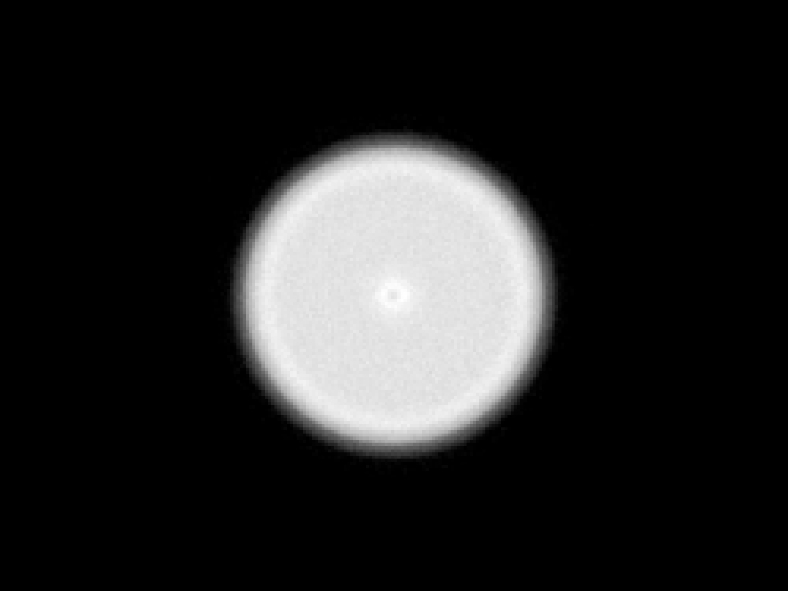

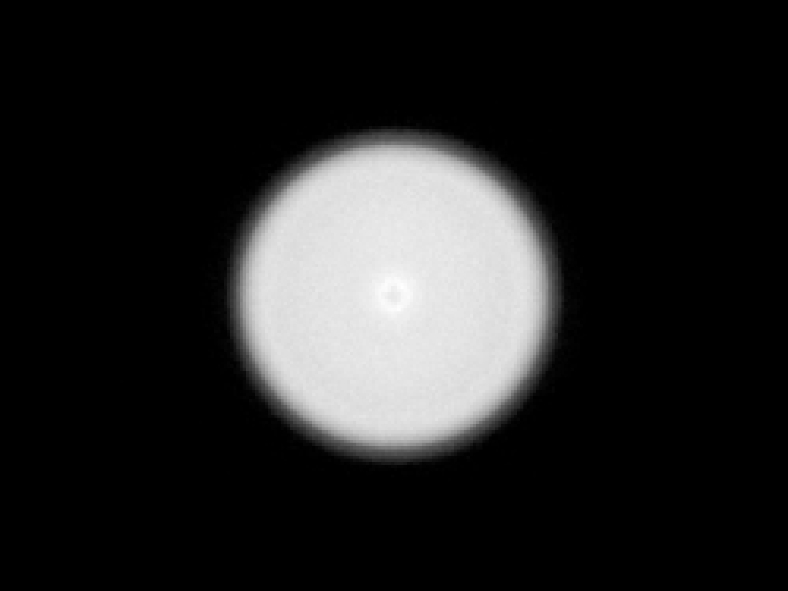

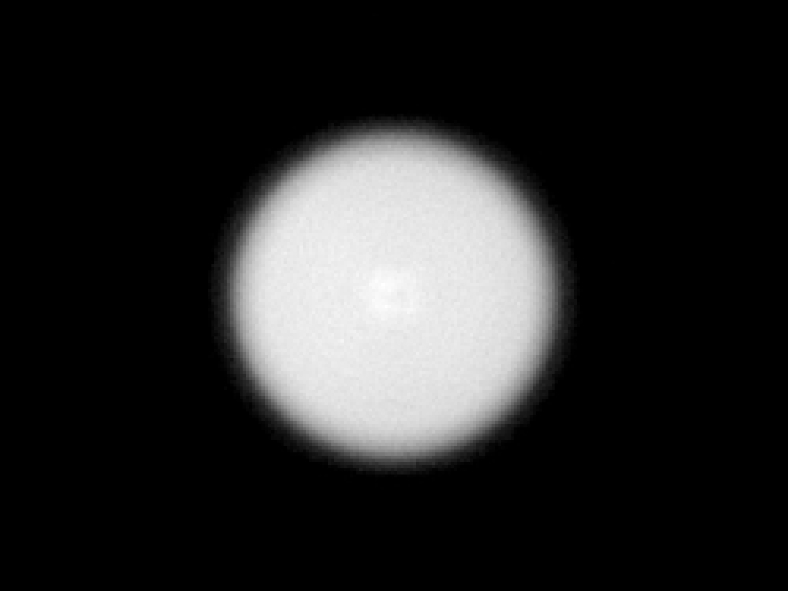

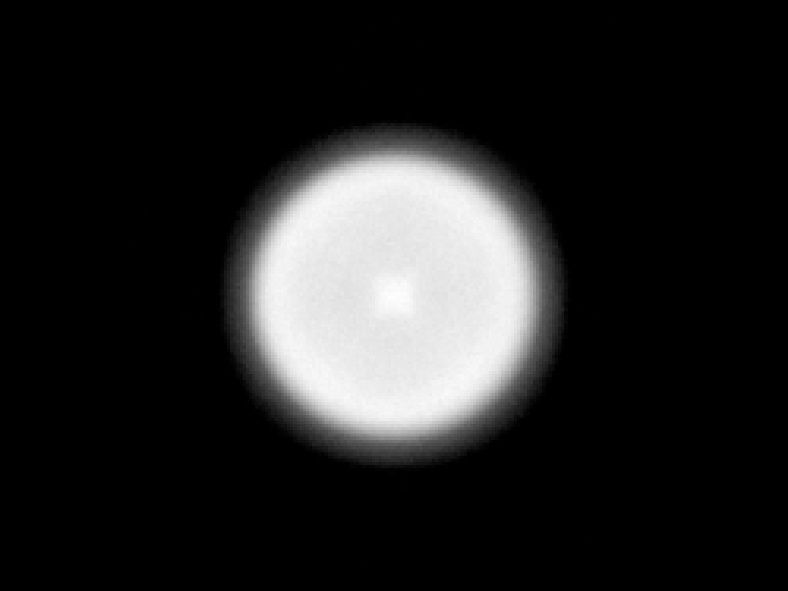

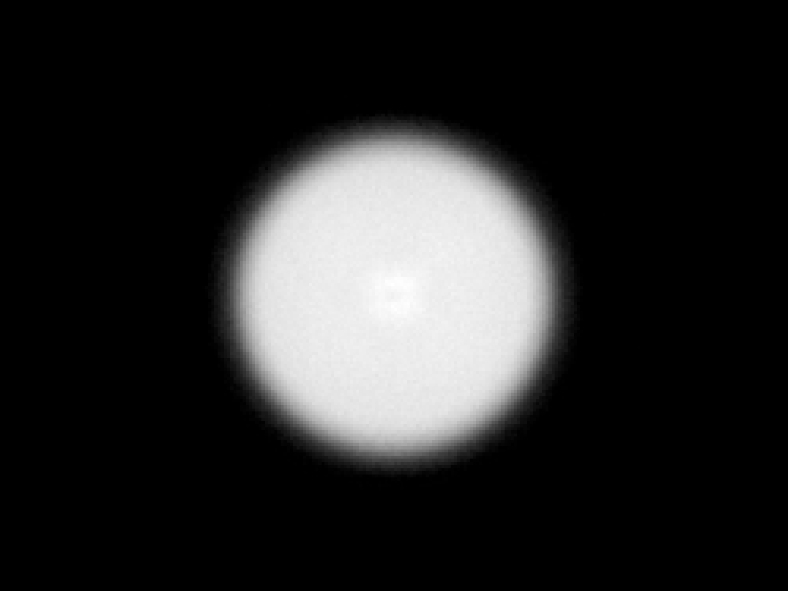

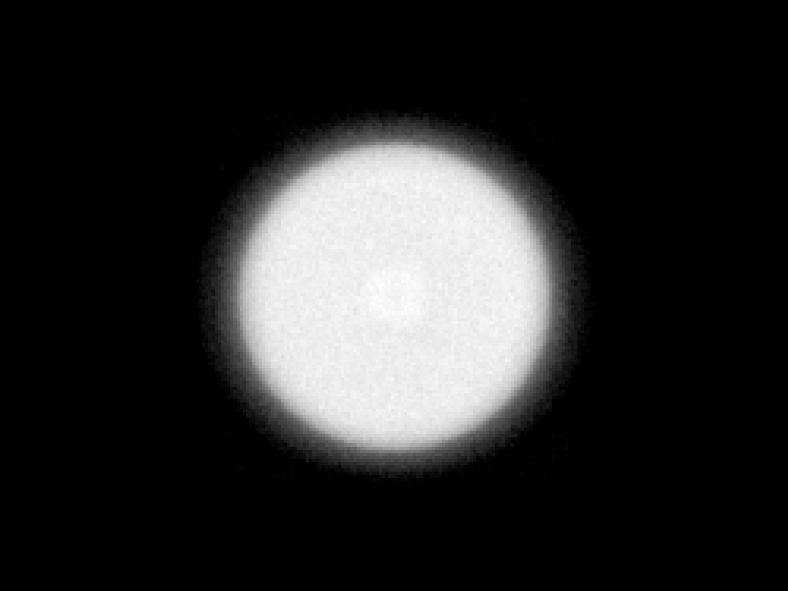

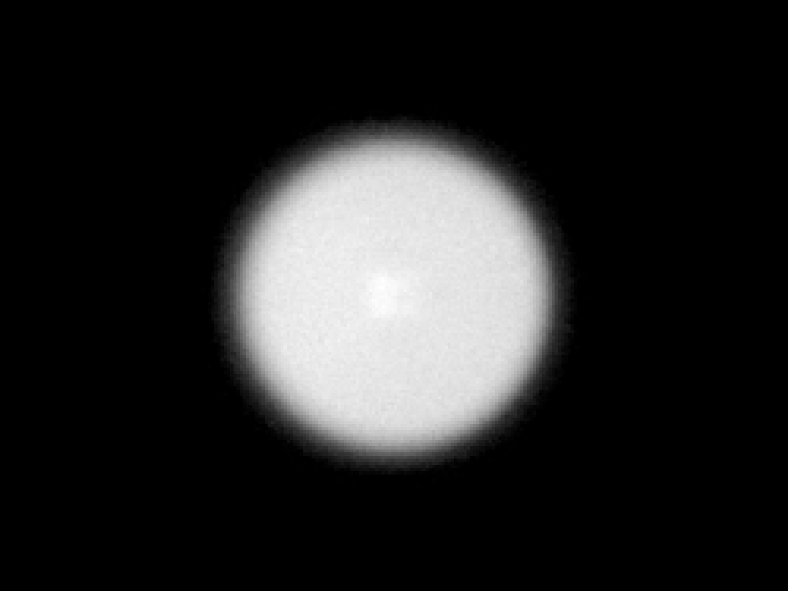

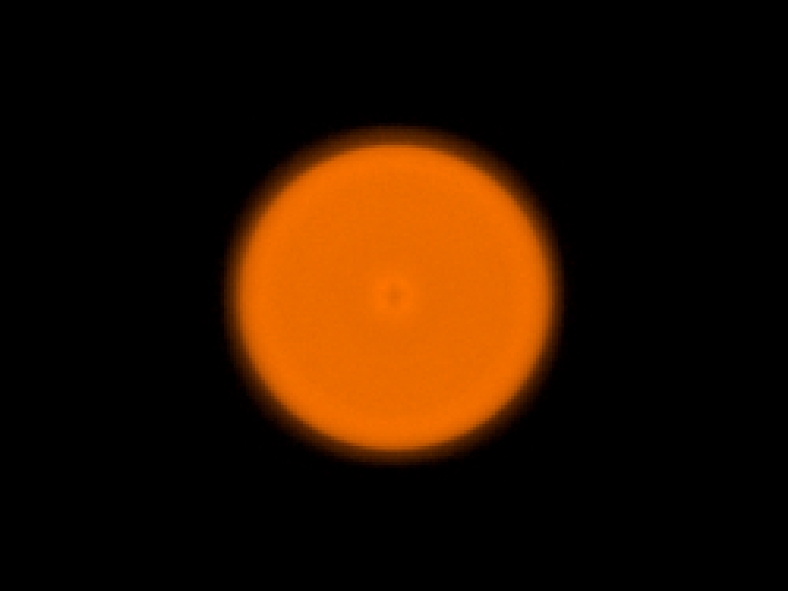

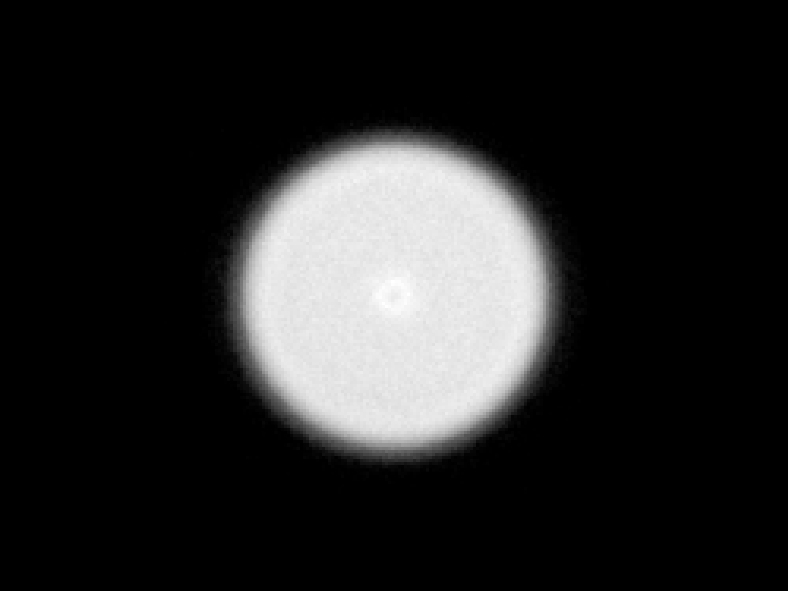

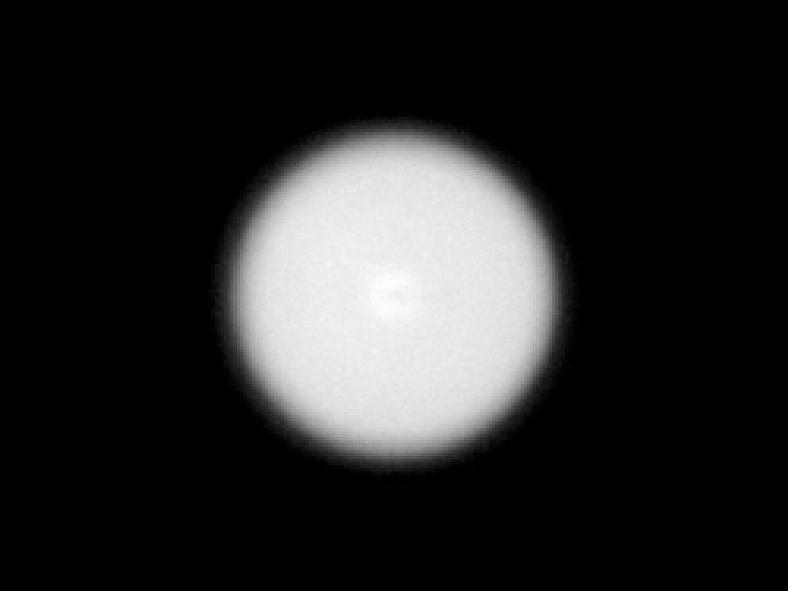

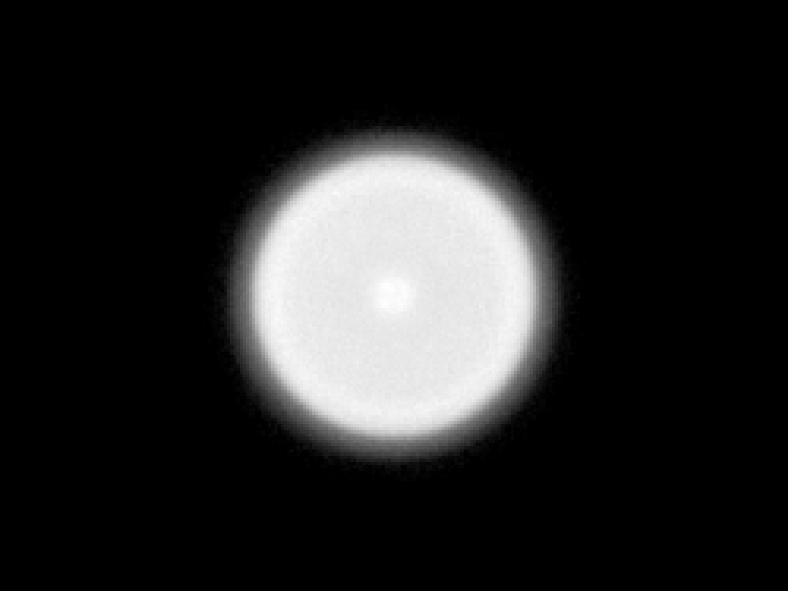

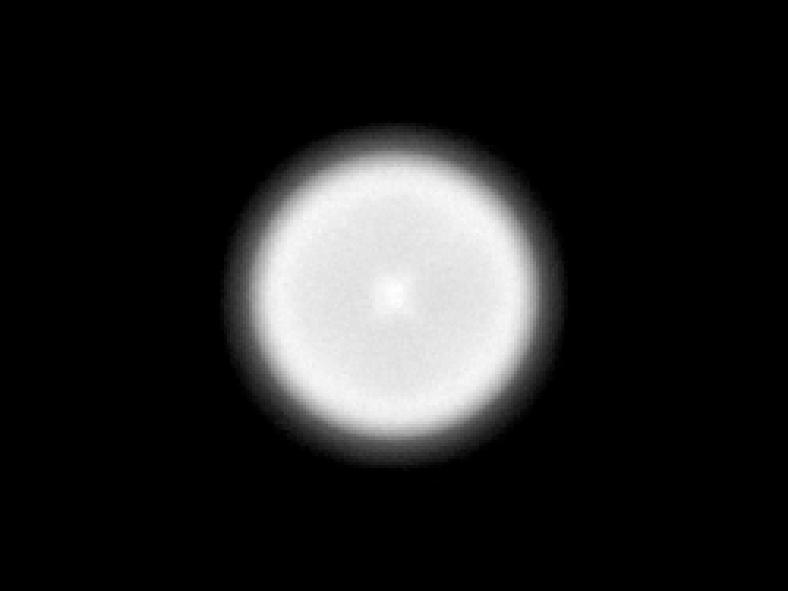

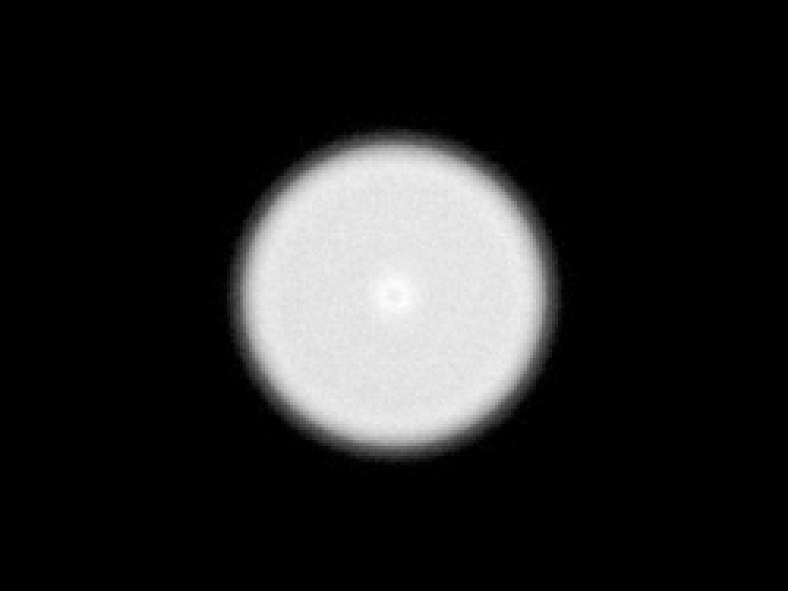

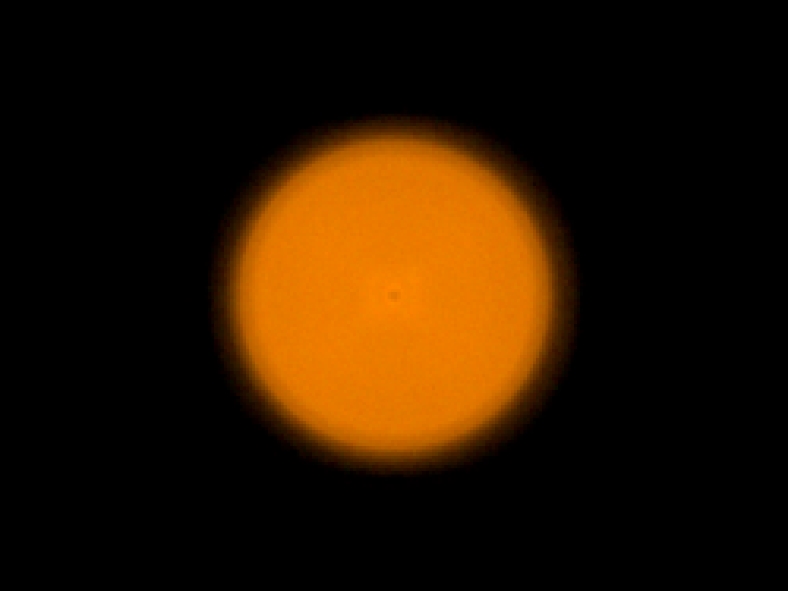

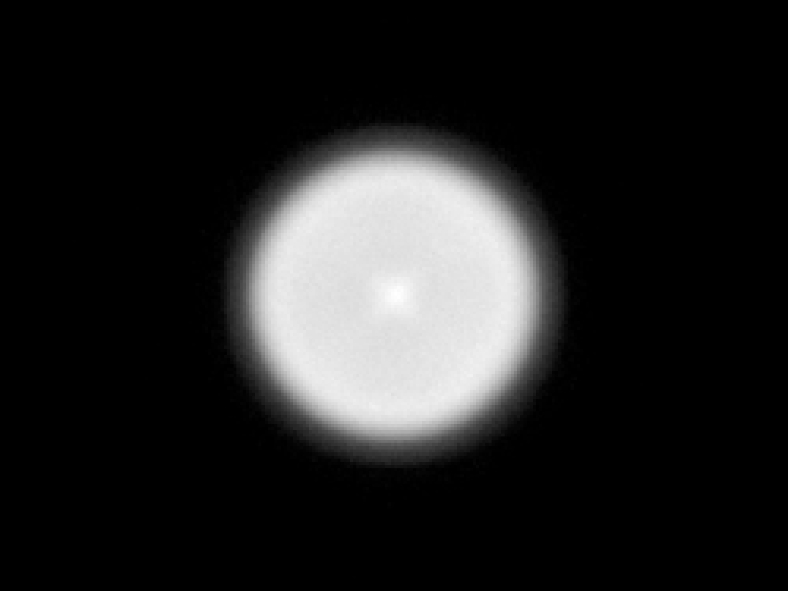

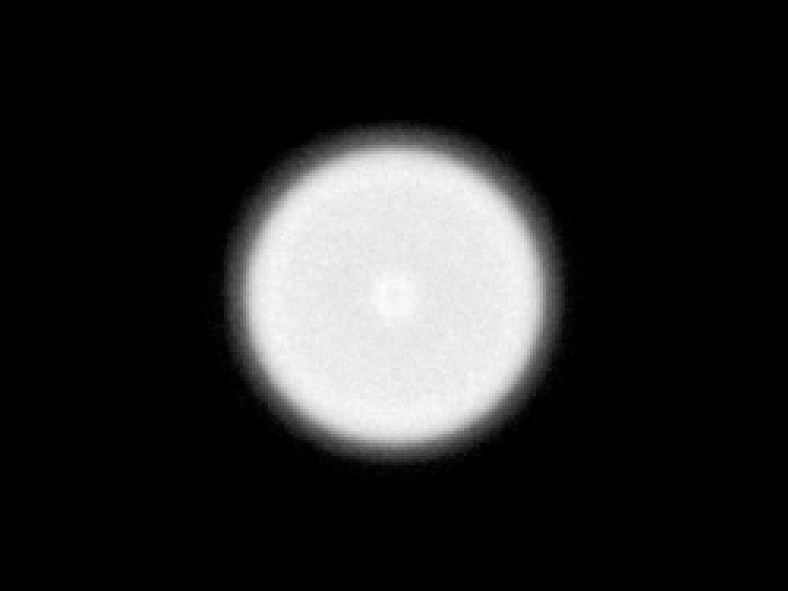

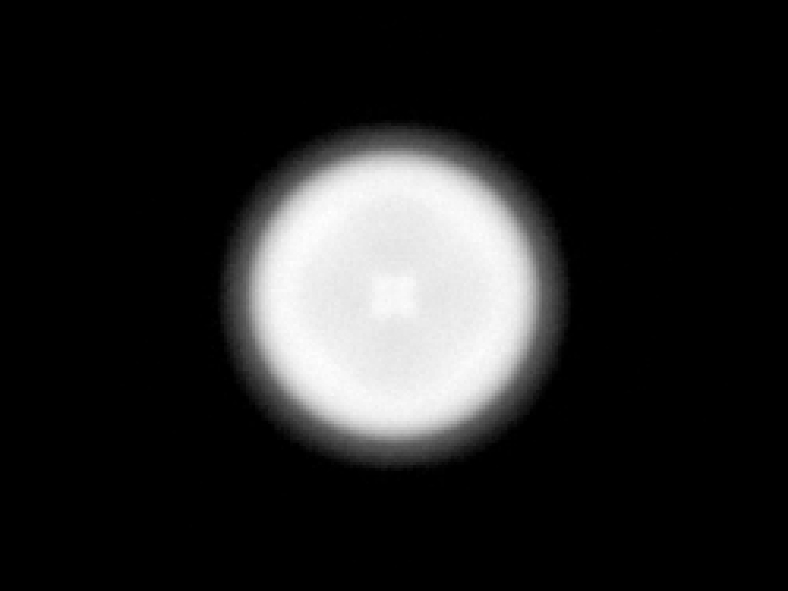

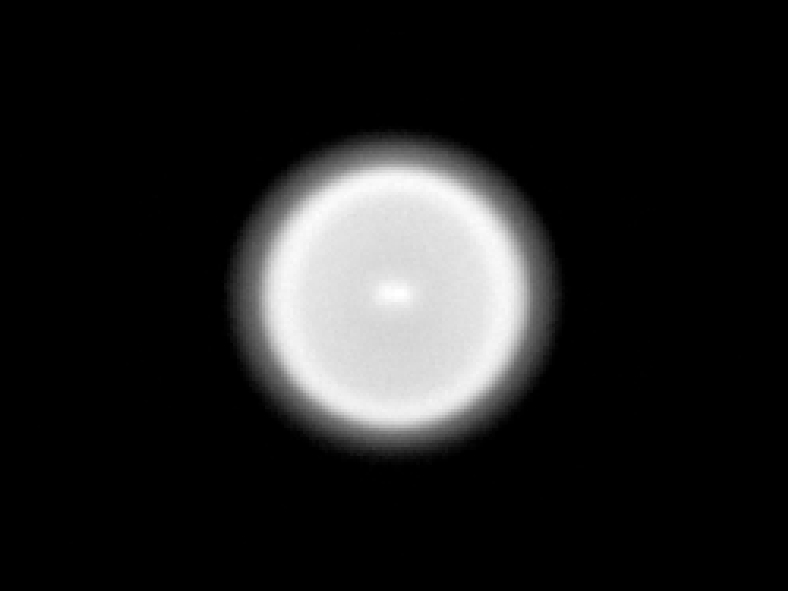

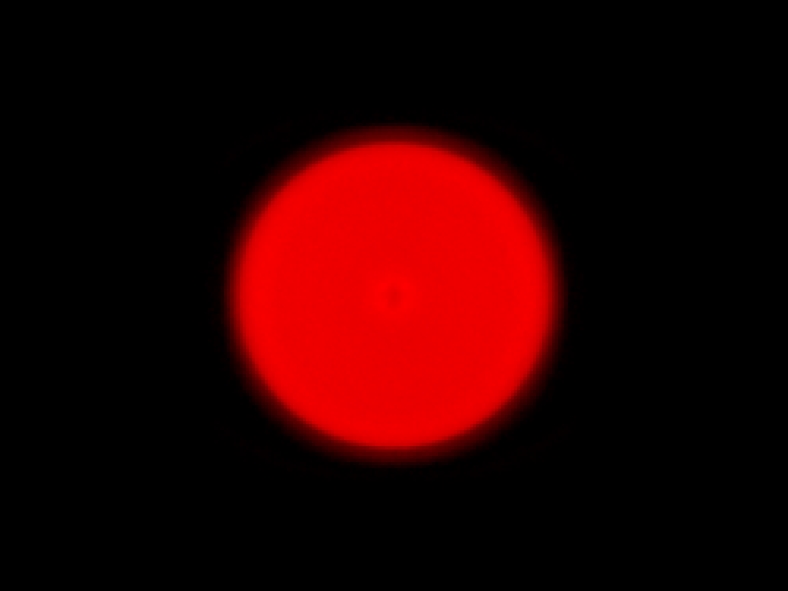

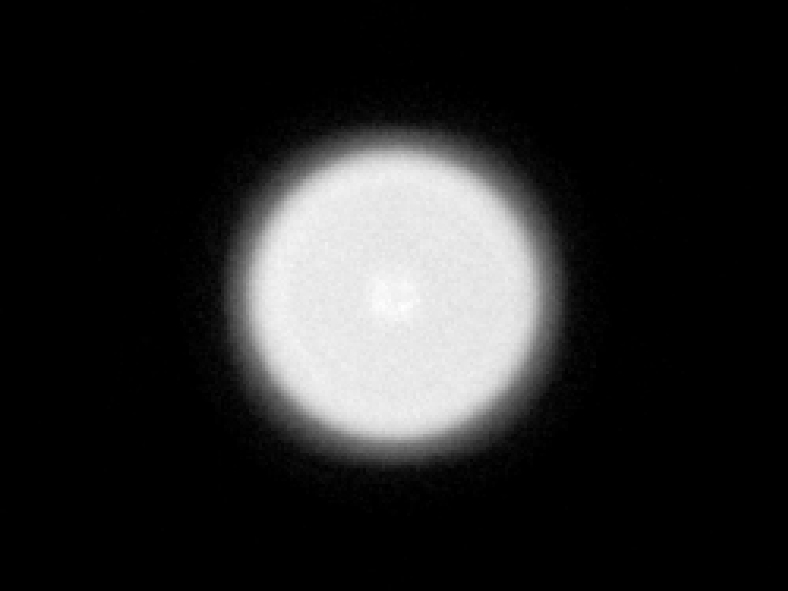

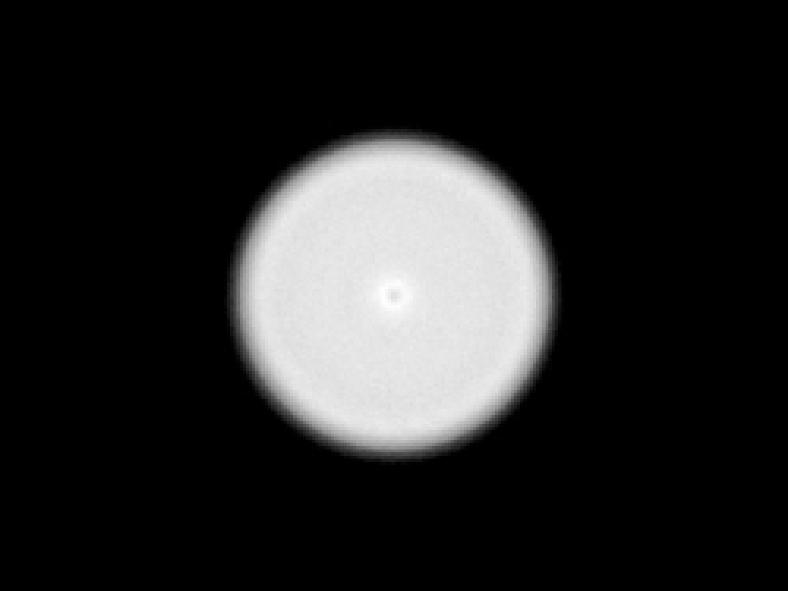

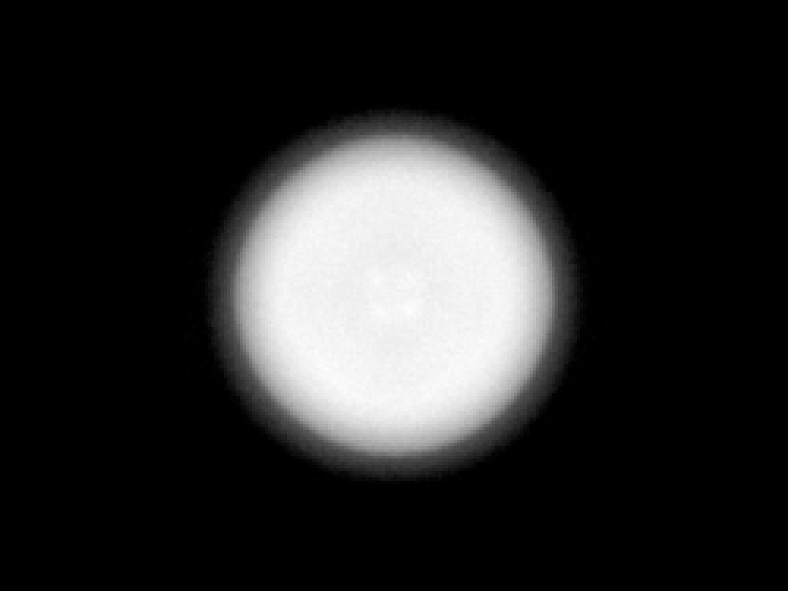

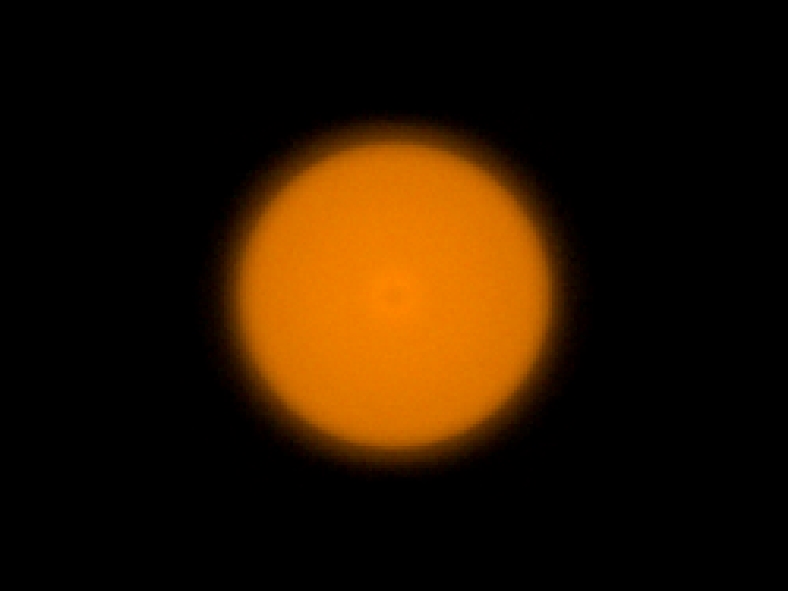

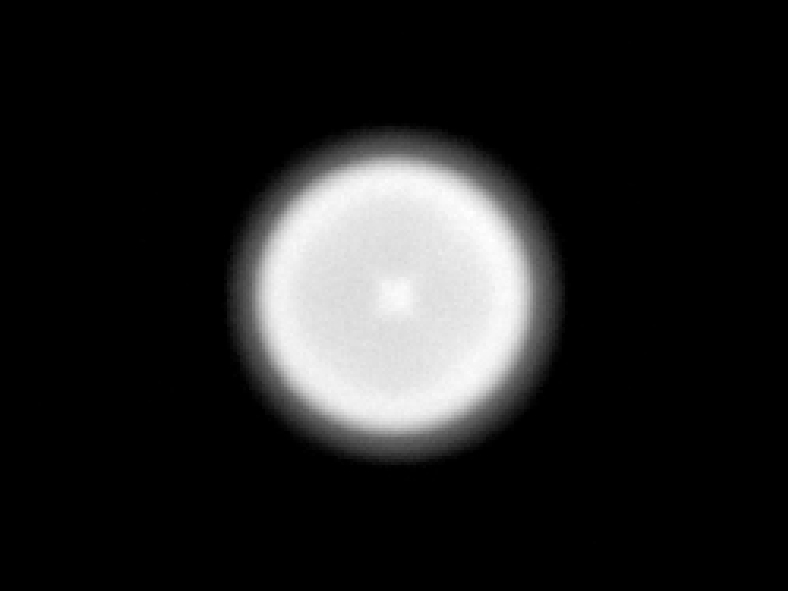

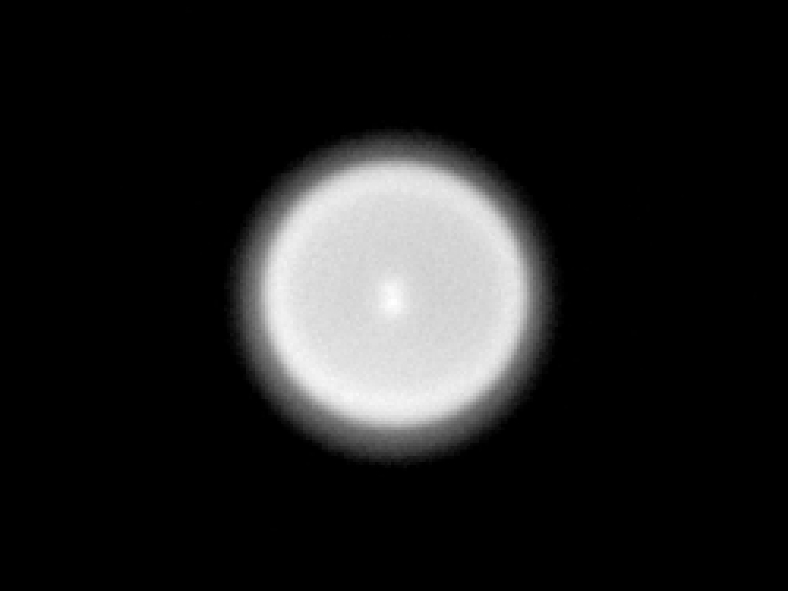

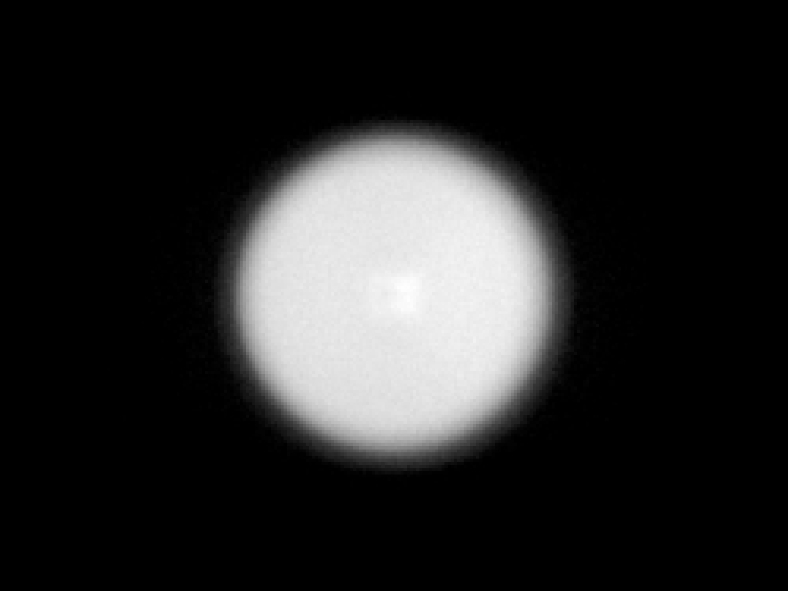

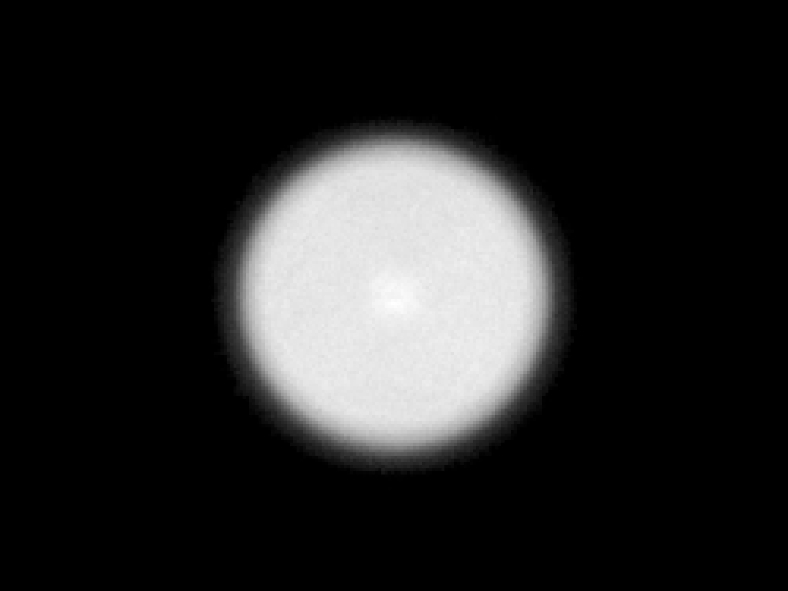

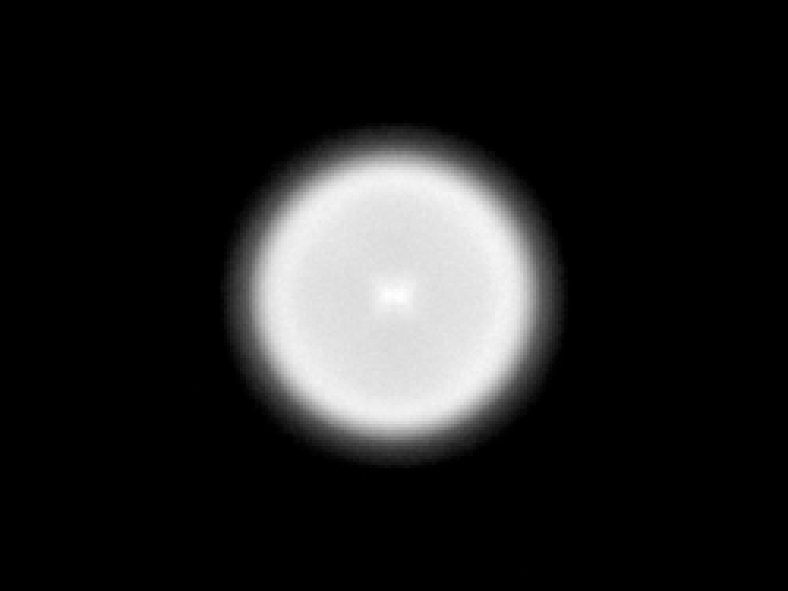

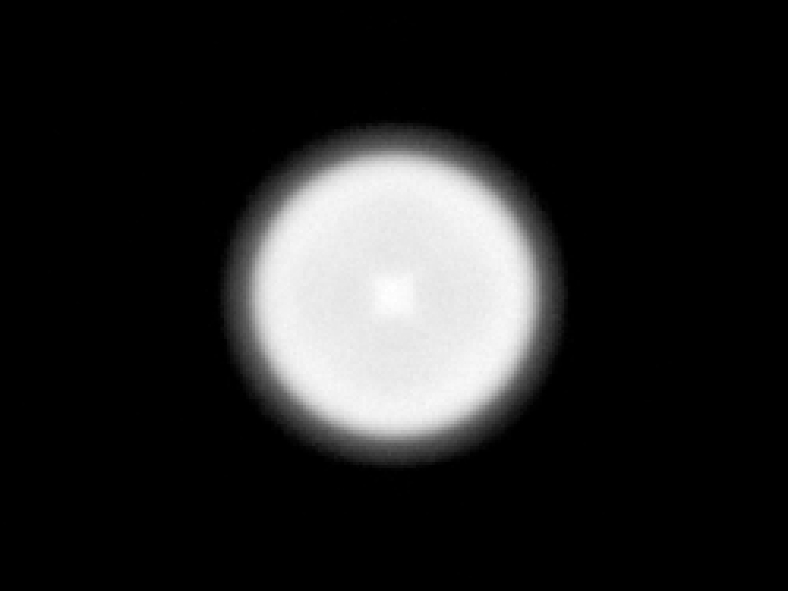

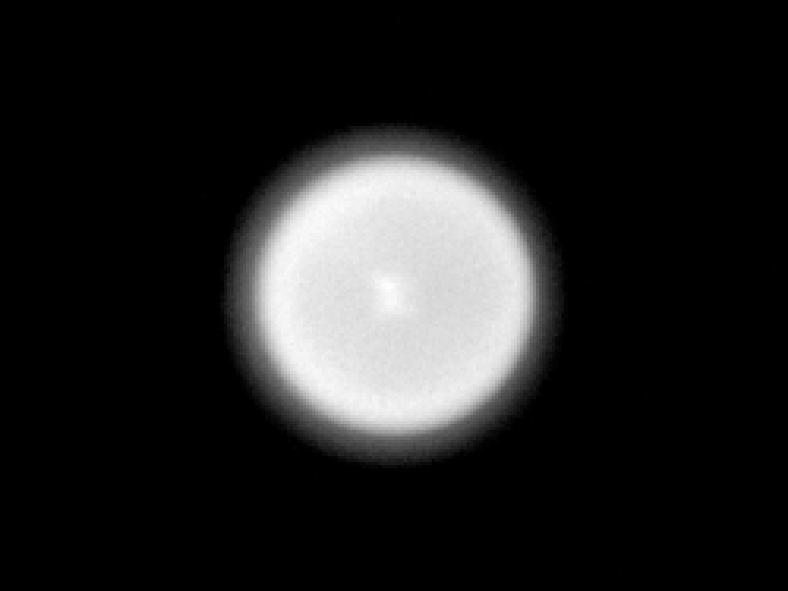

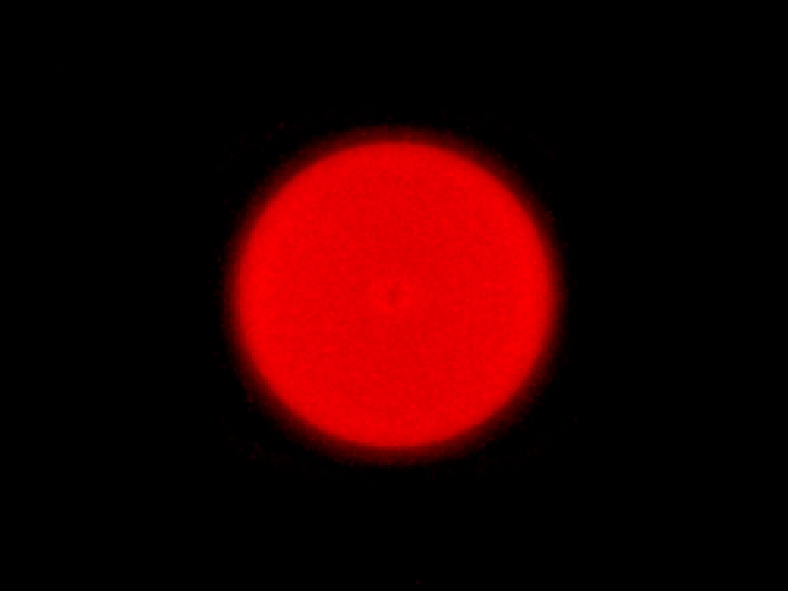

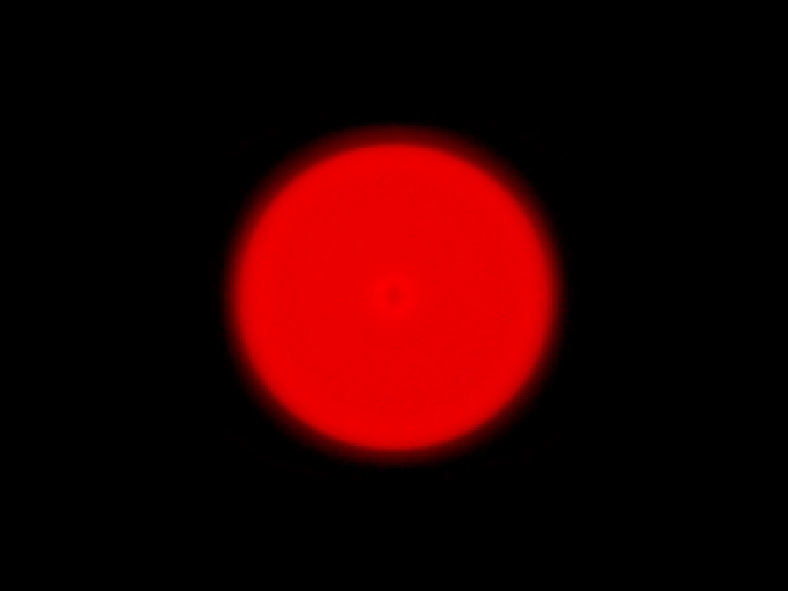

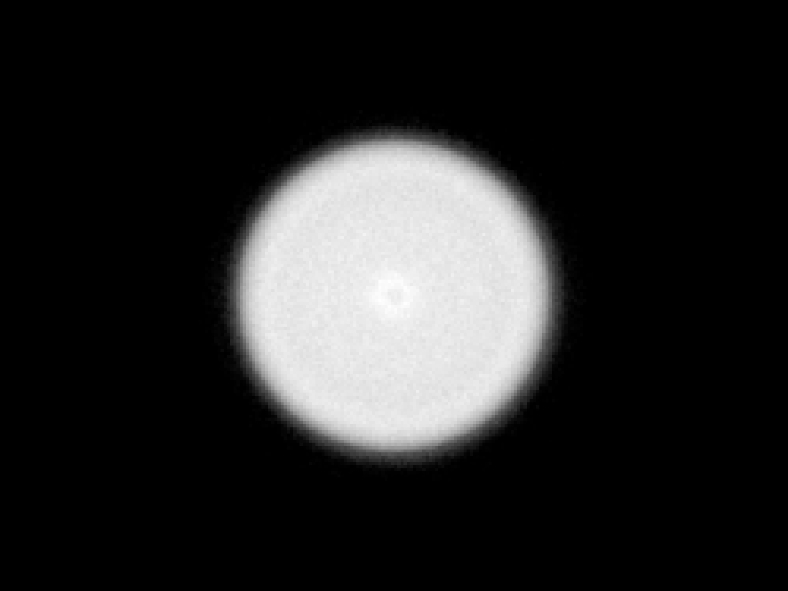

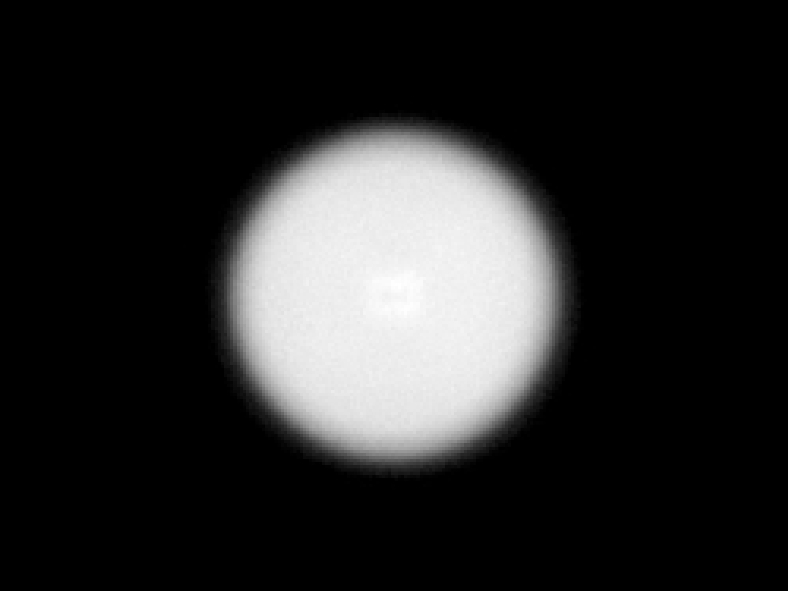

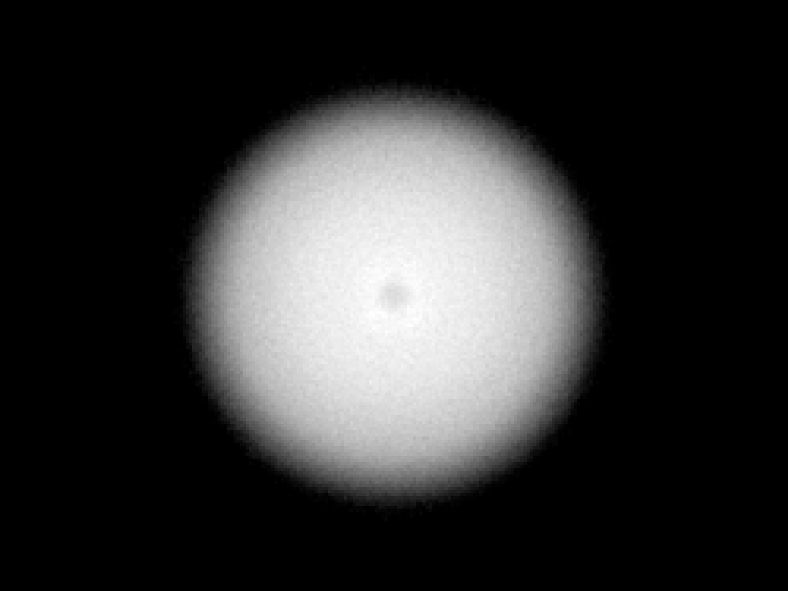

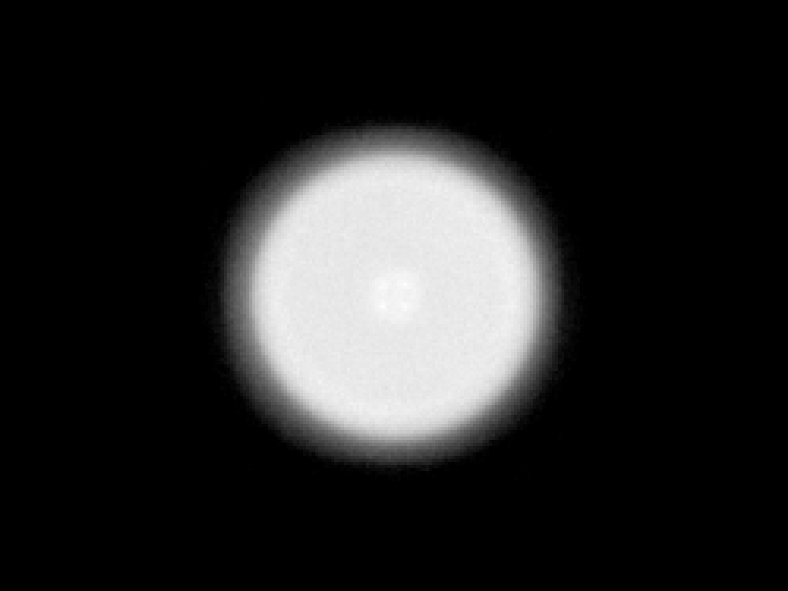

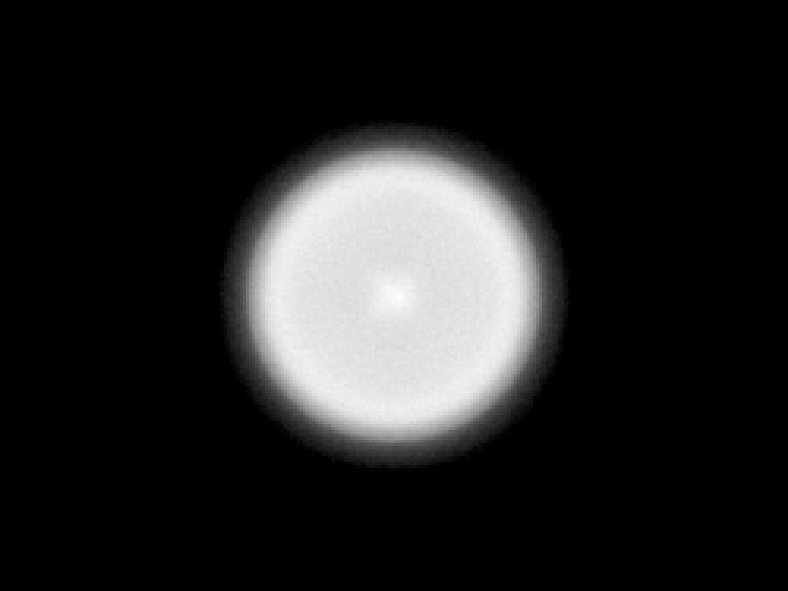

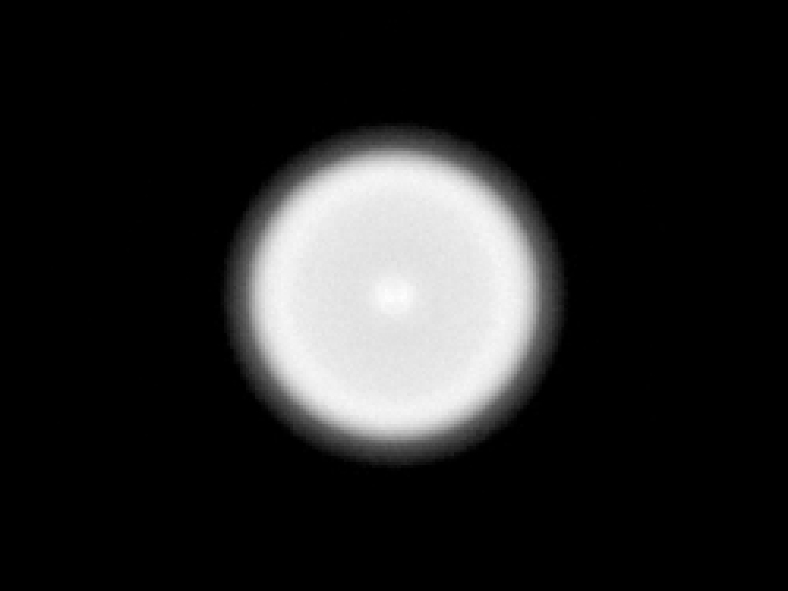

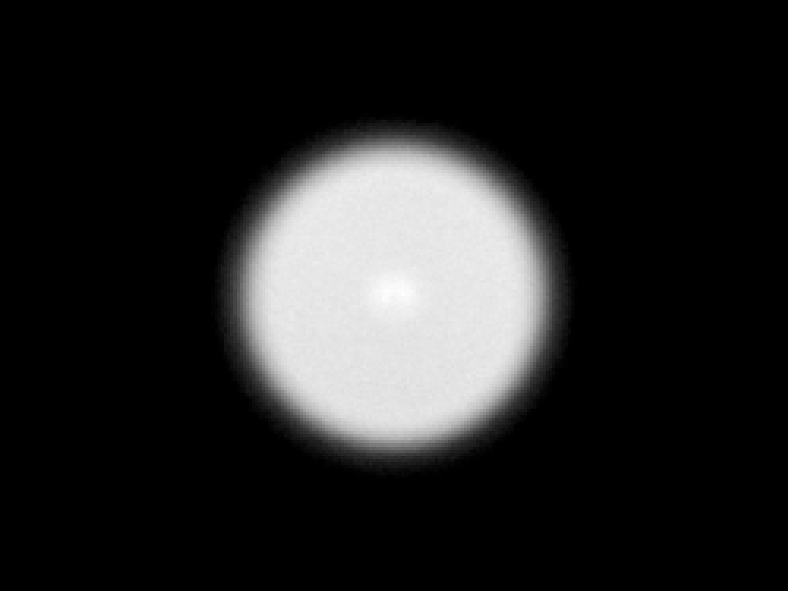

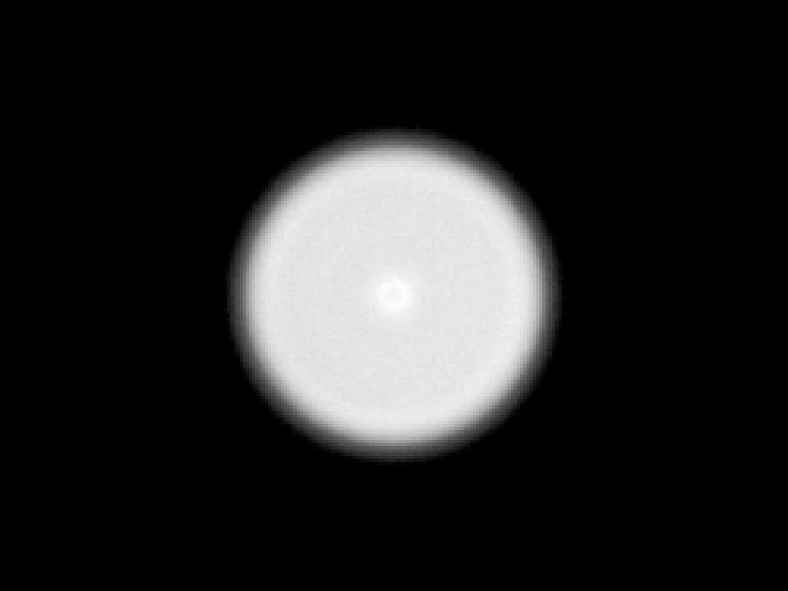

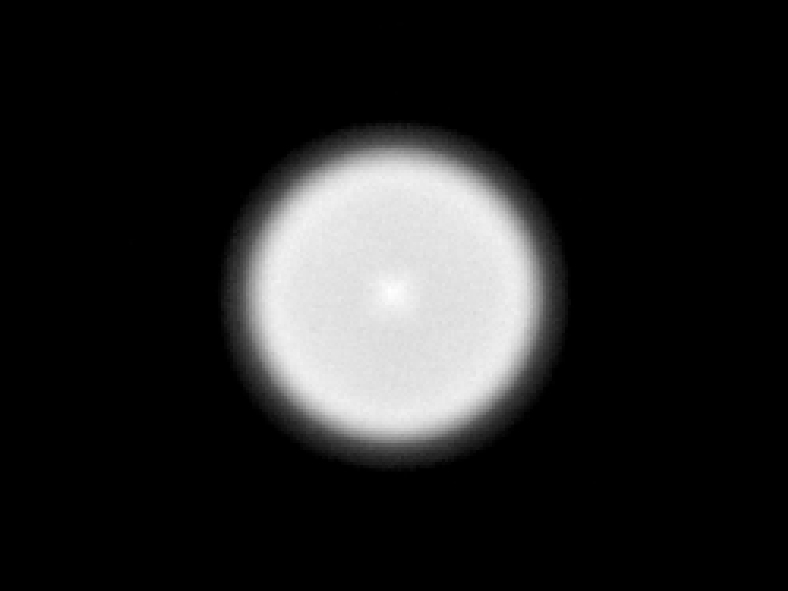

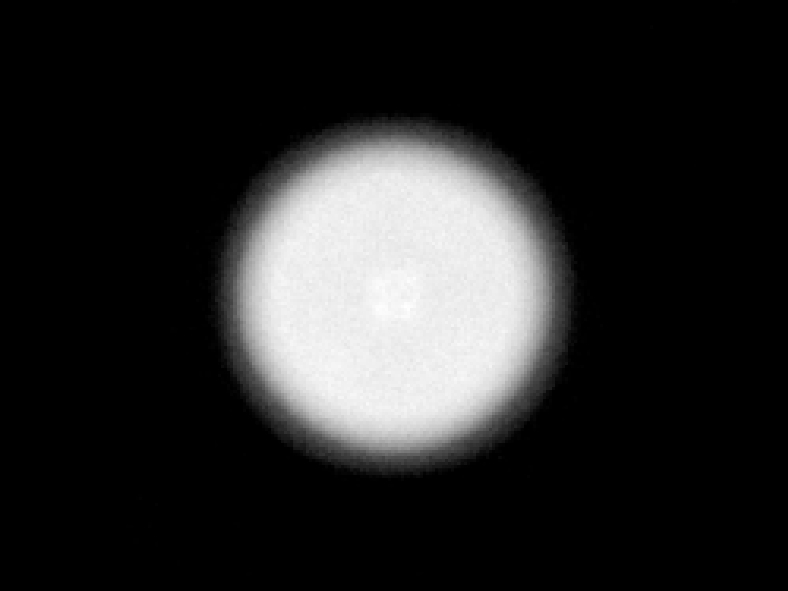

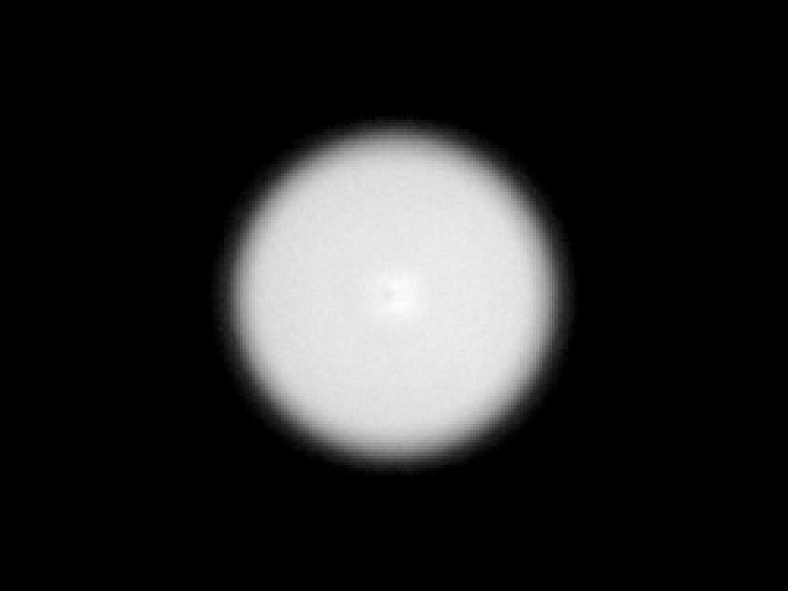

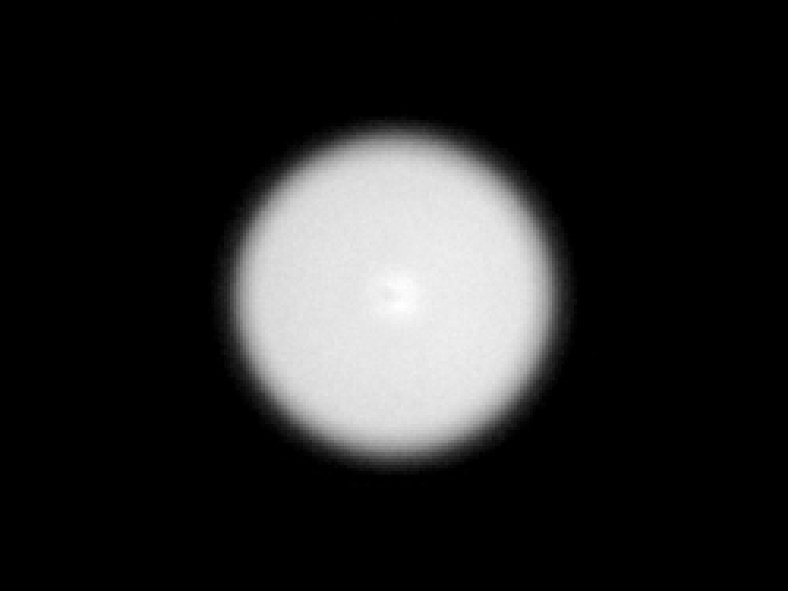

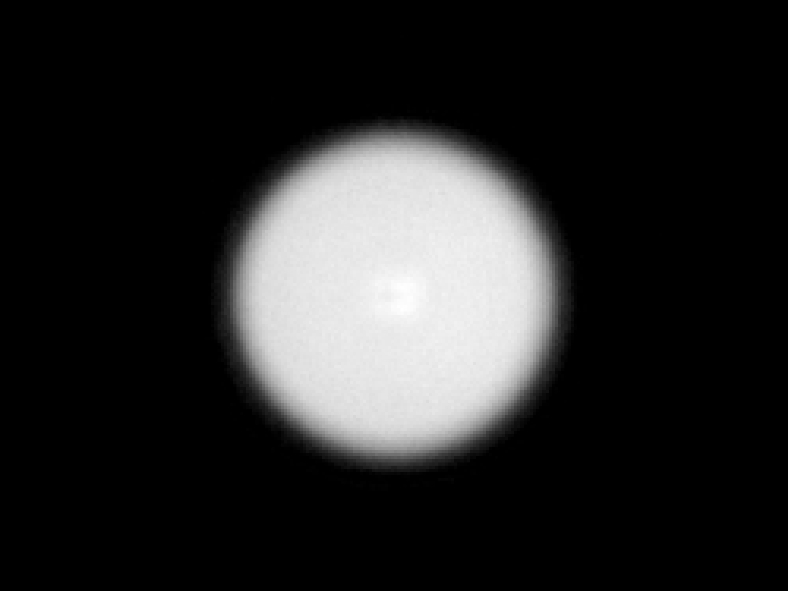

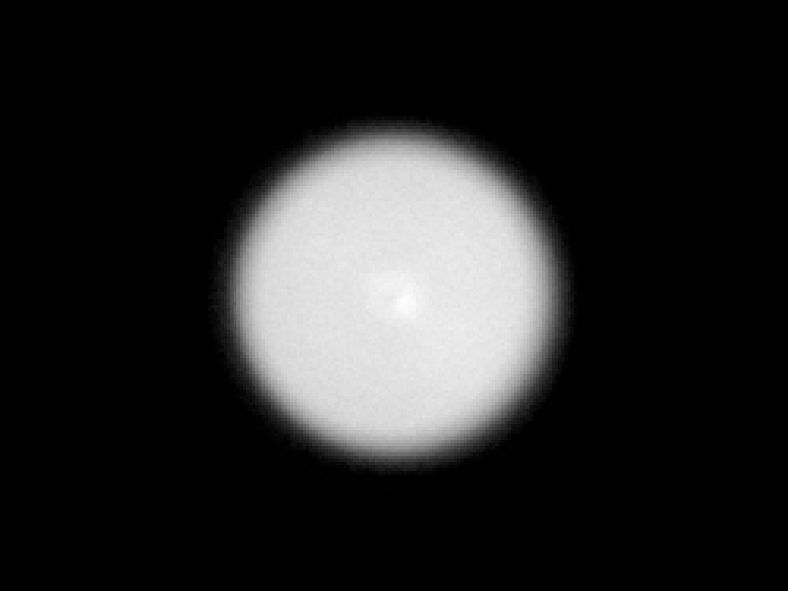

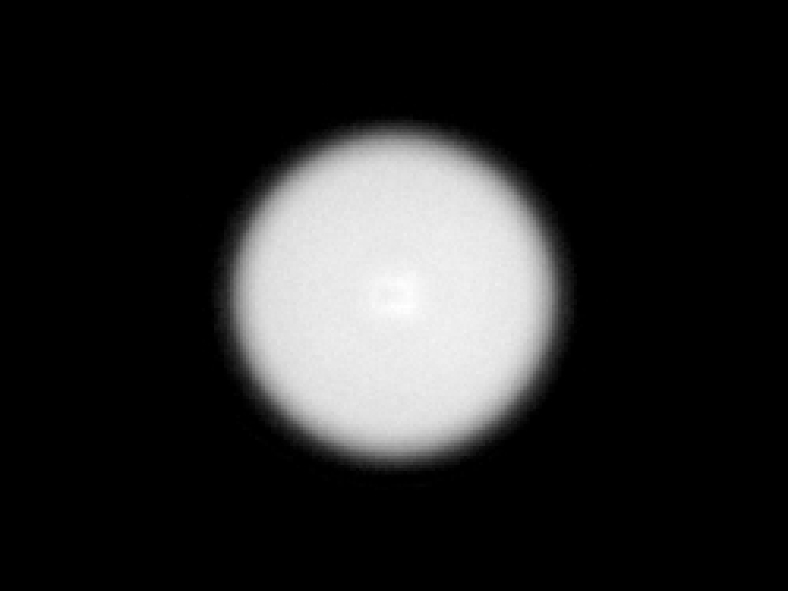

Optic 10170 spot image

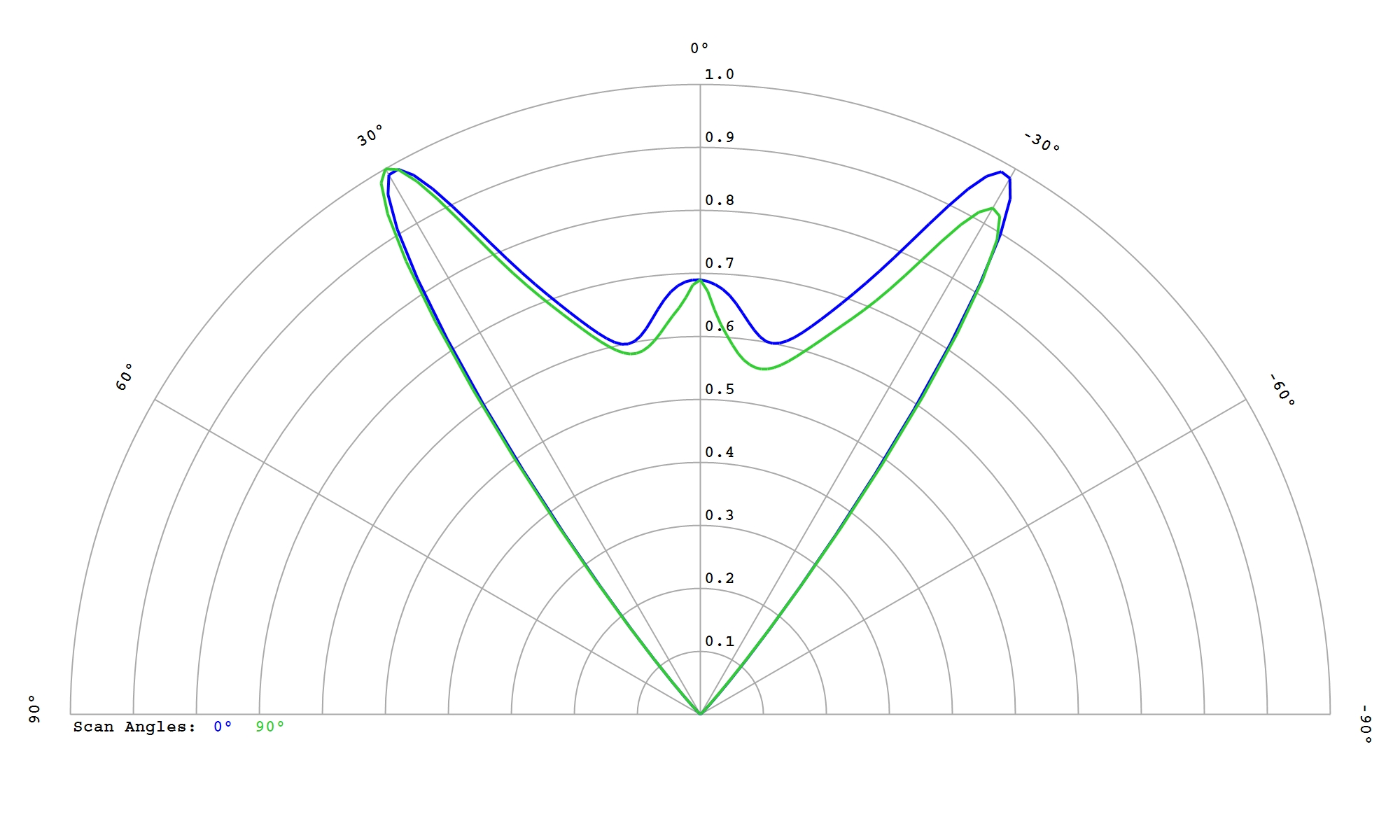

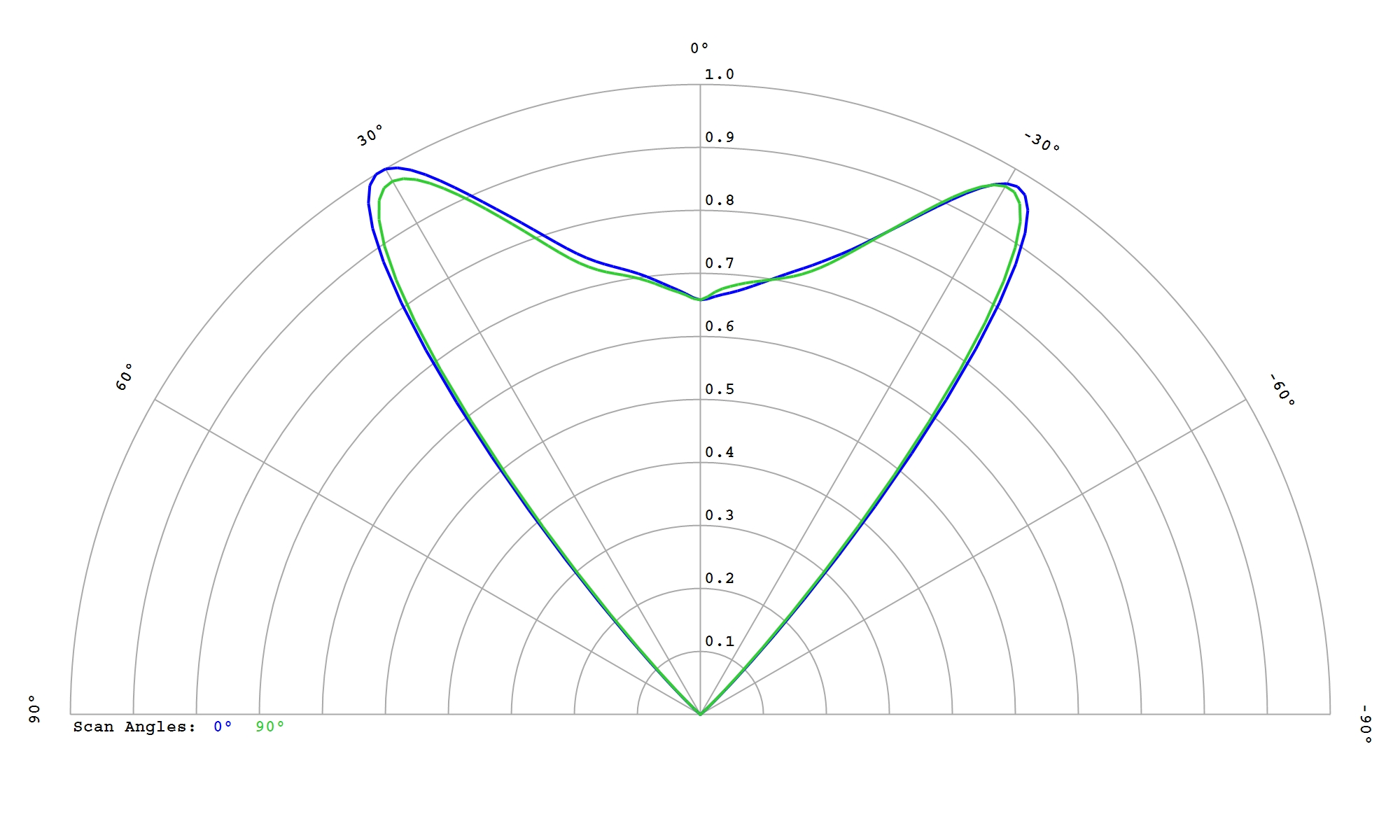

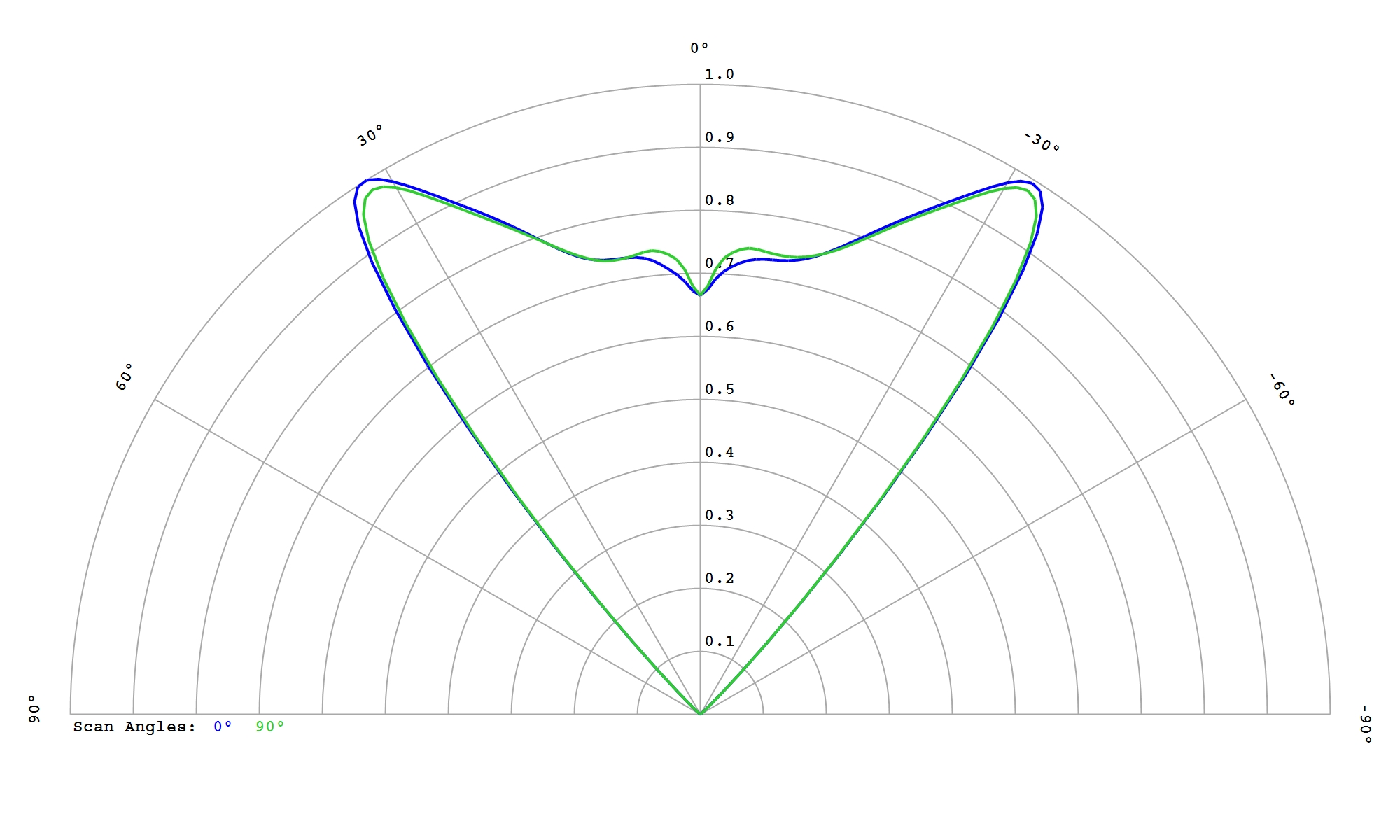

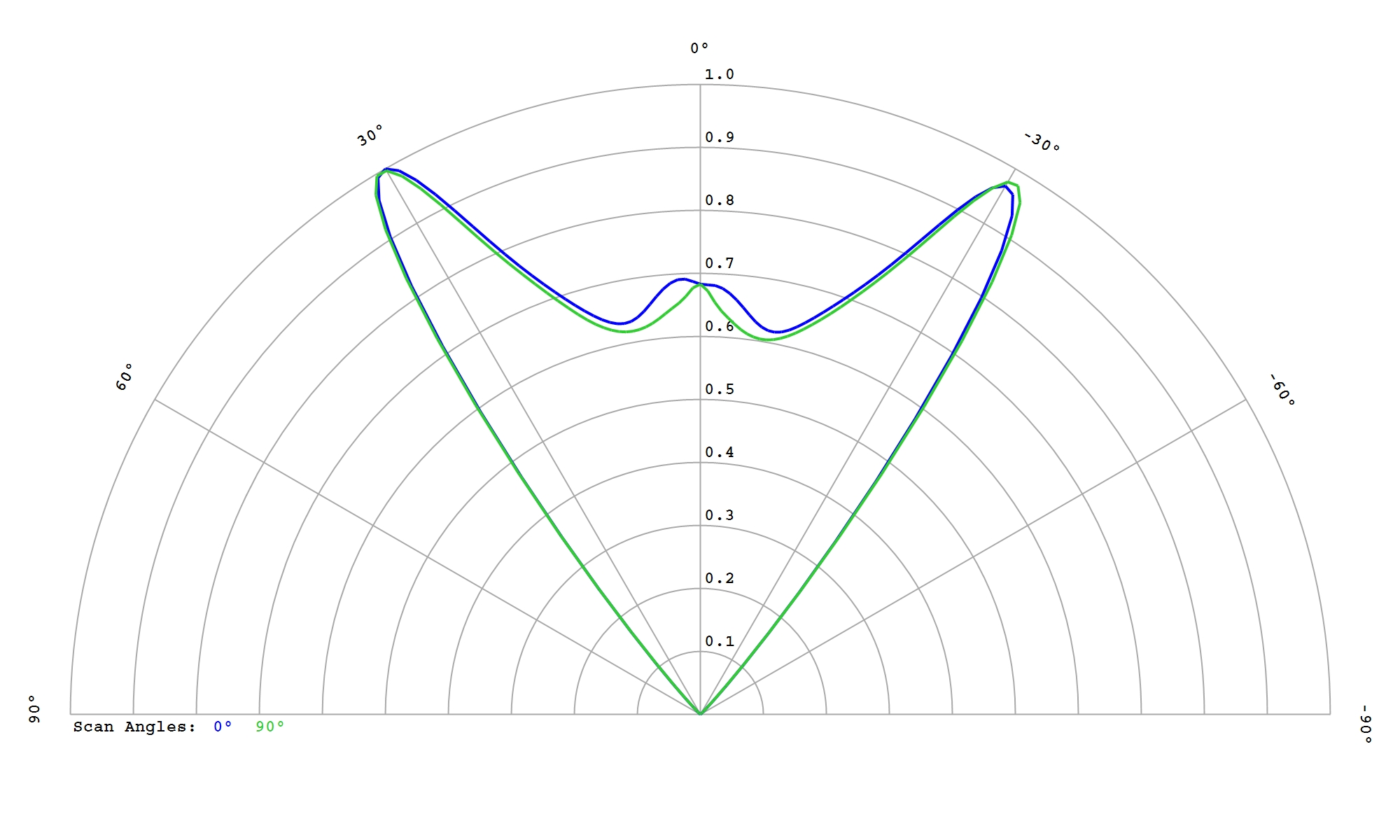

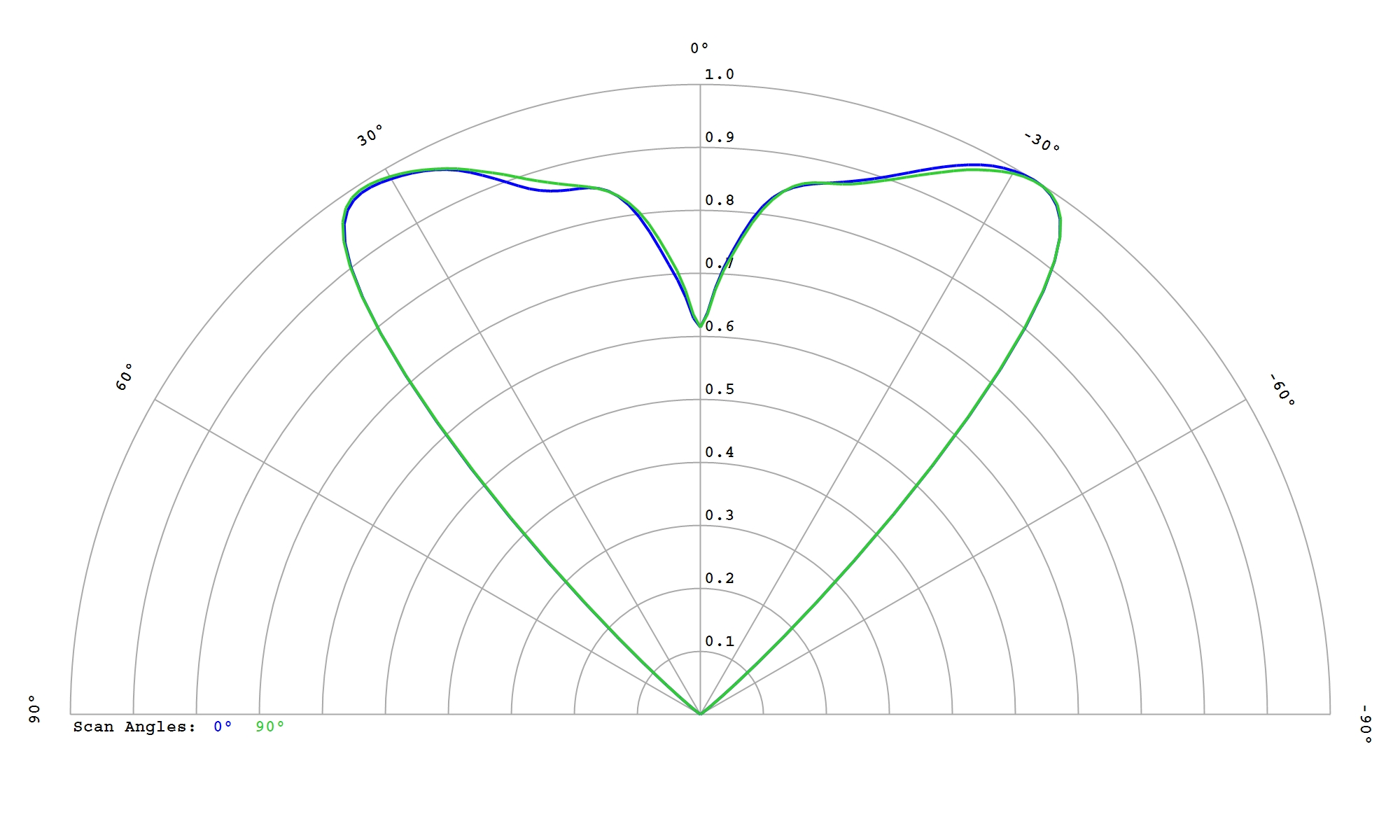

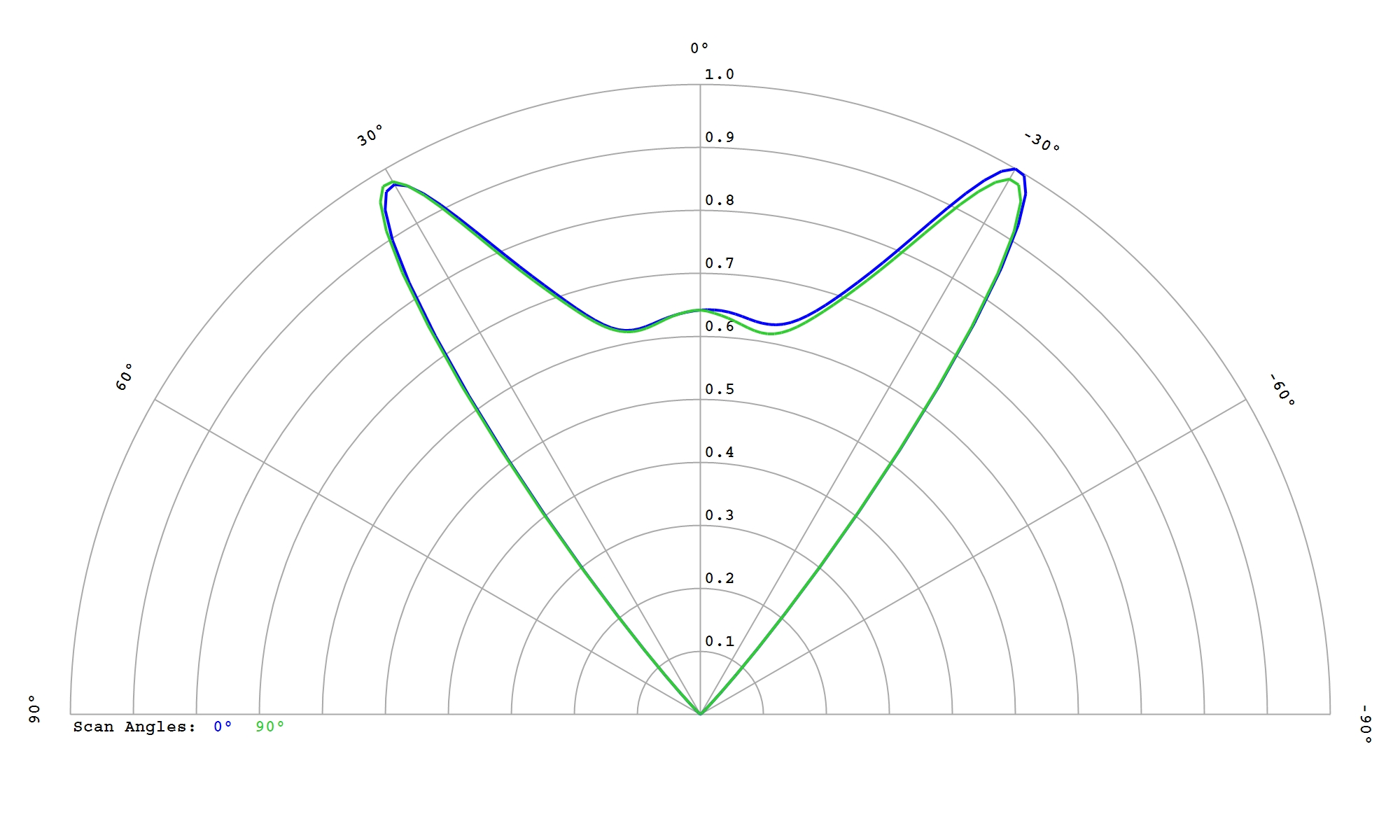

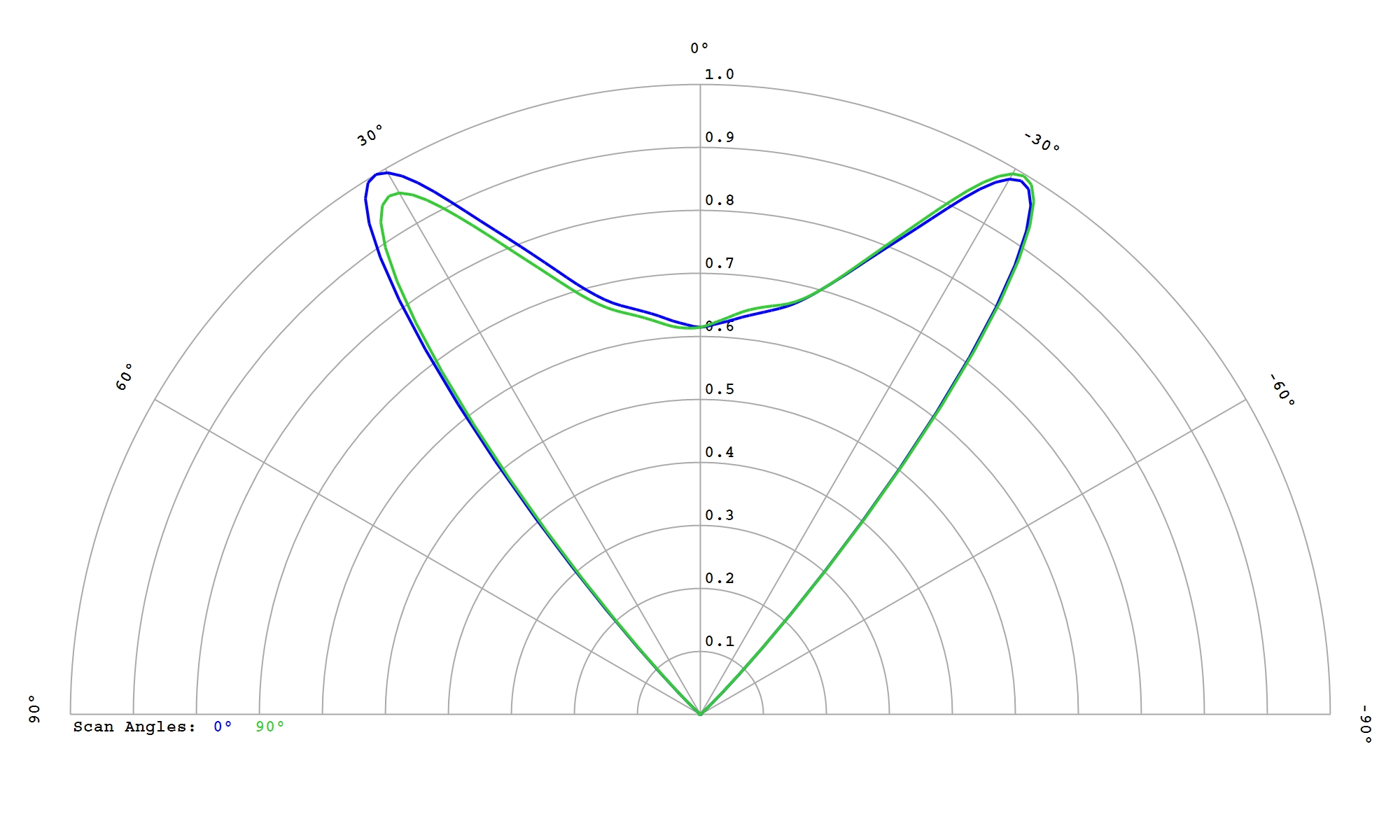

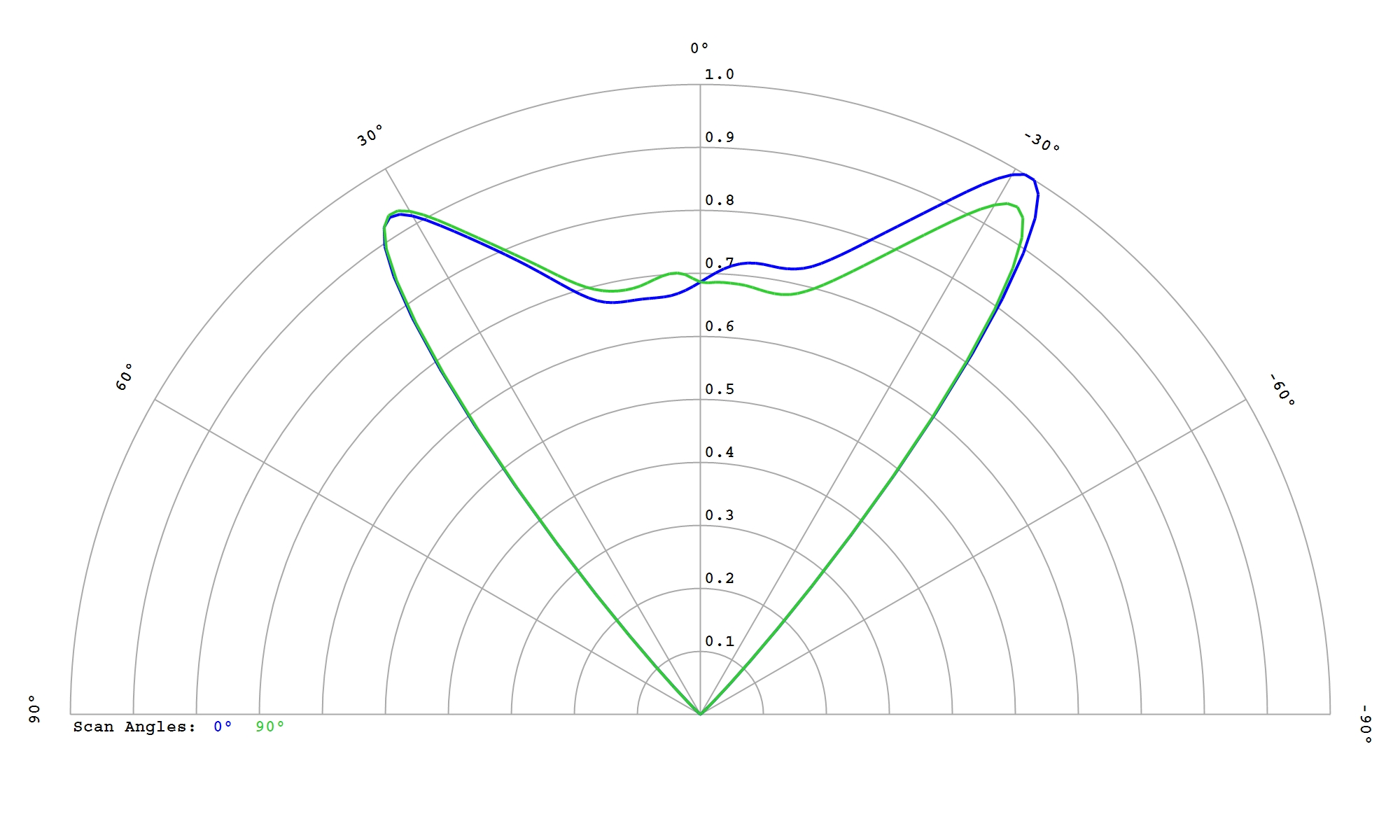

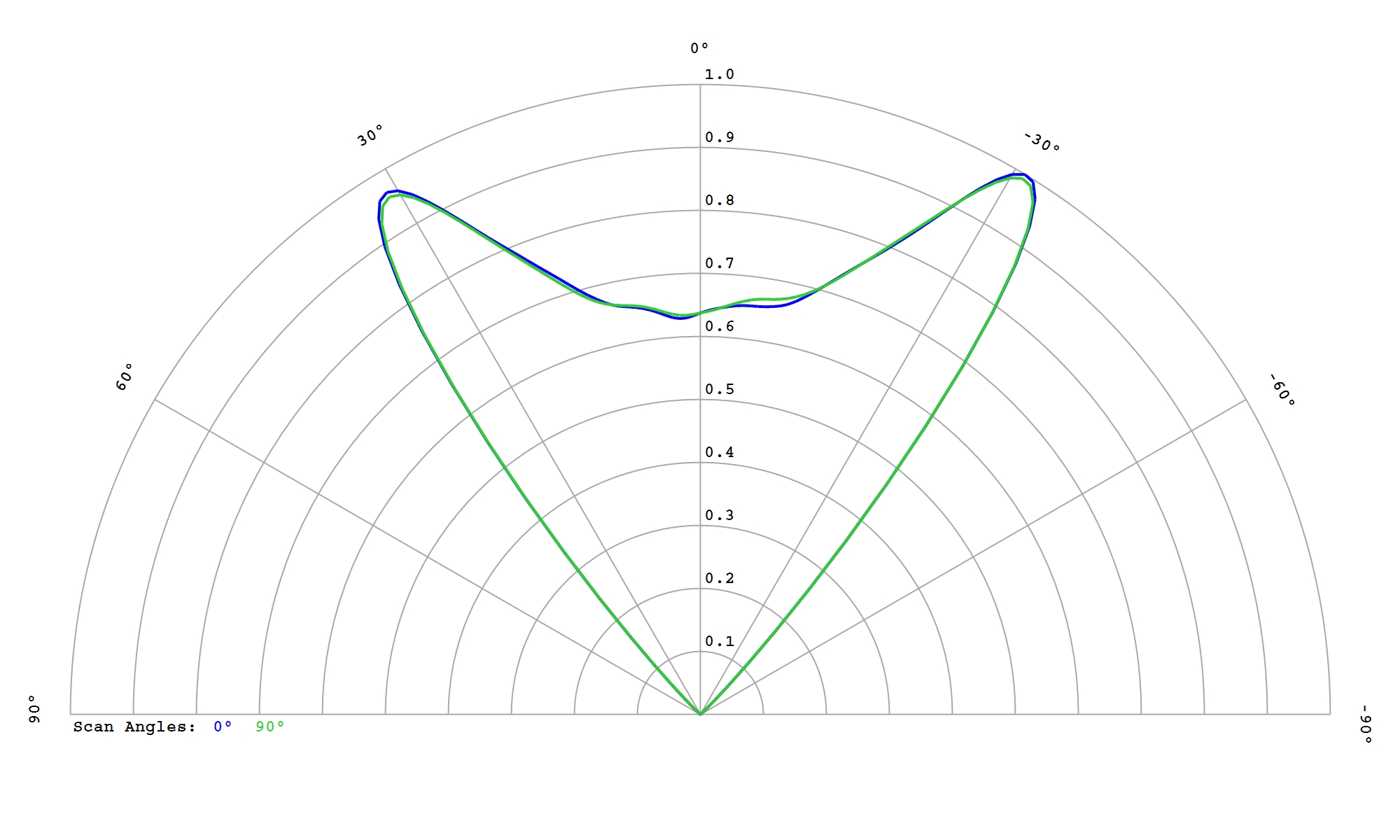

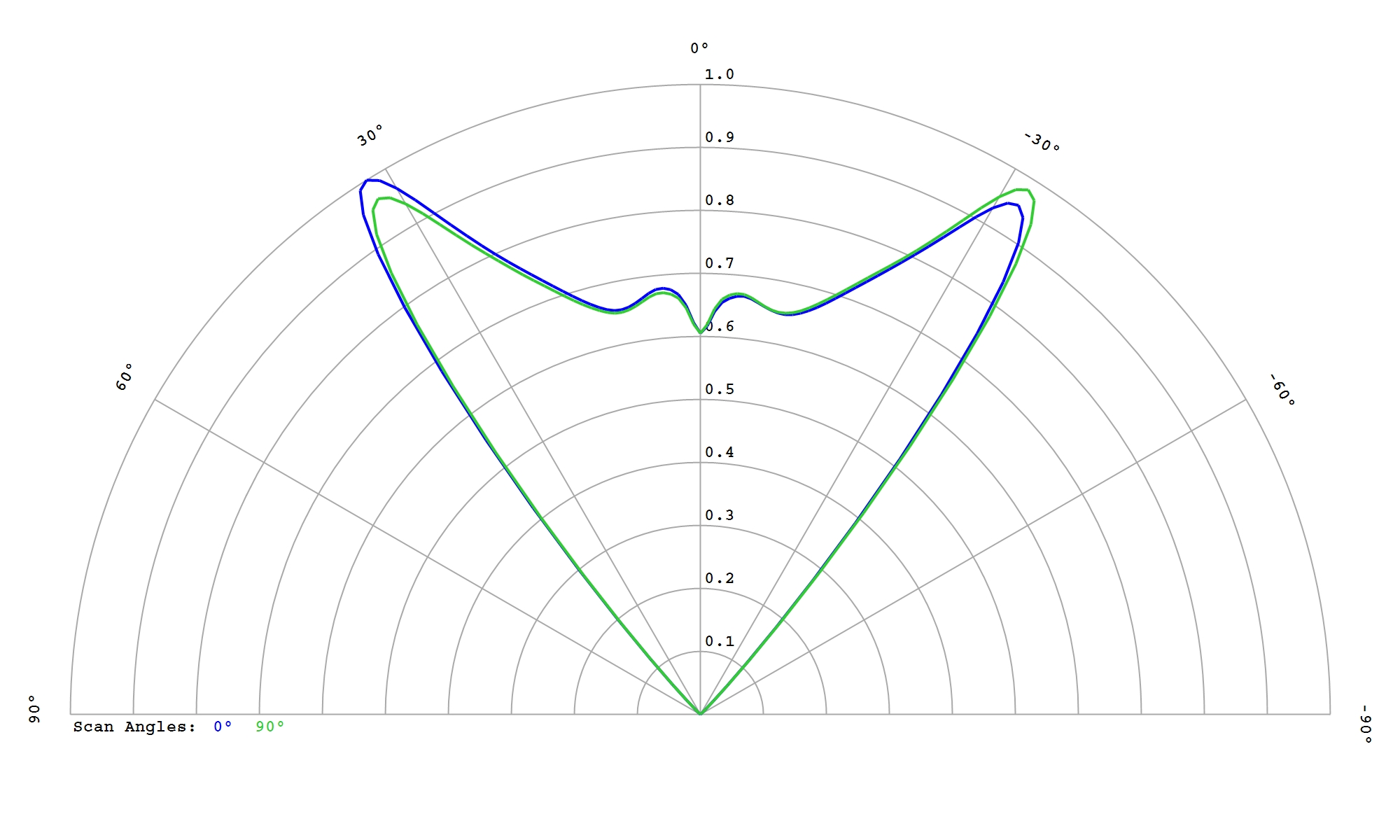

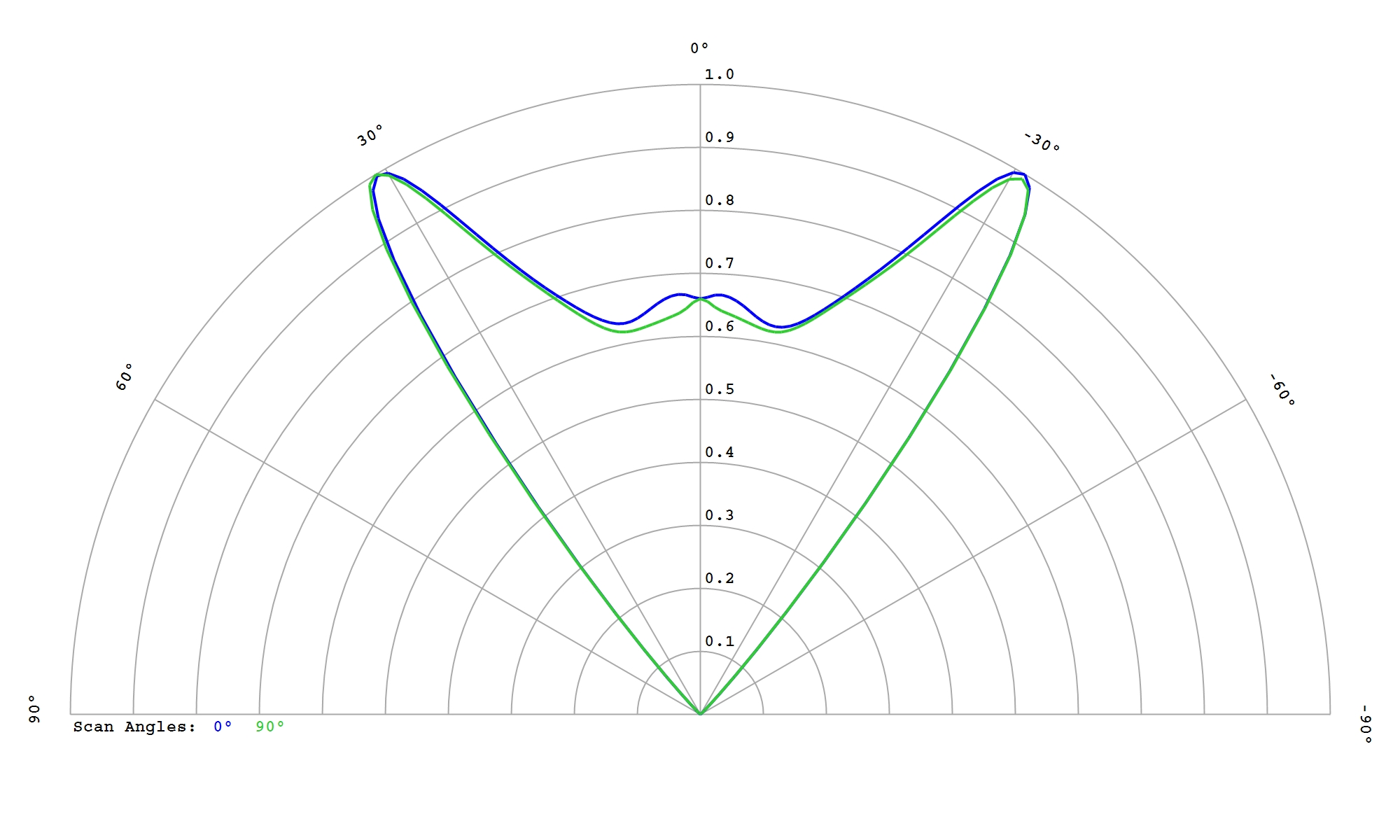

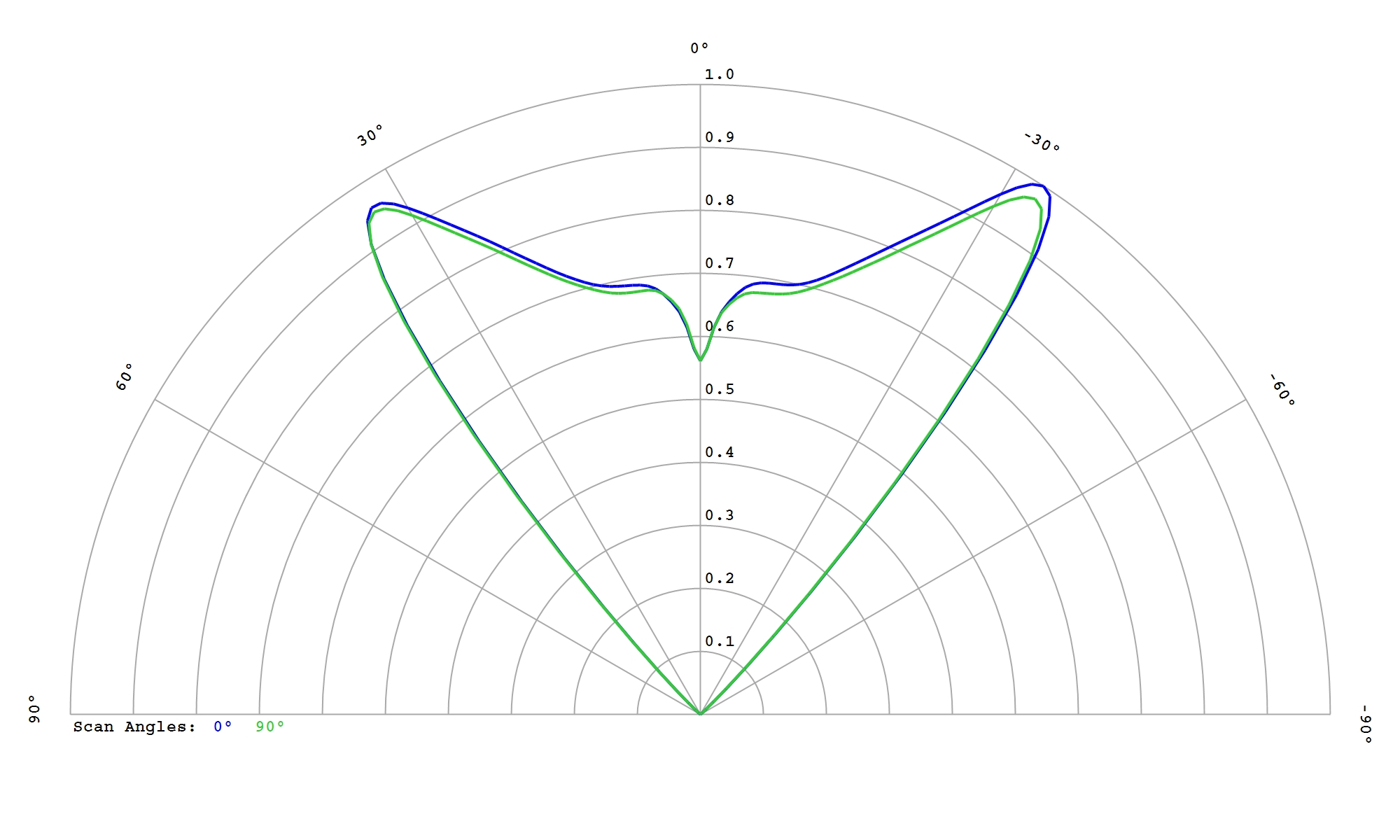

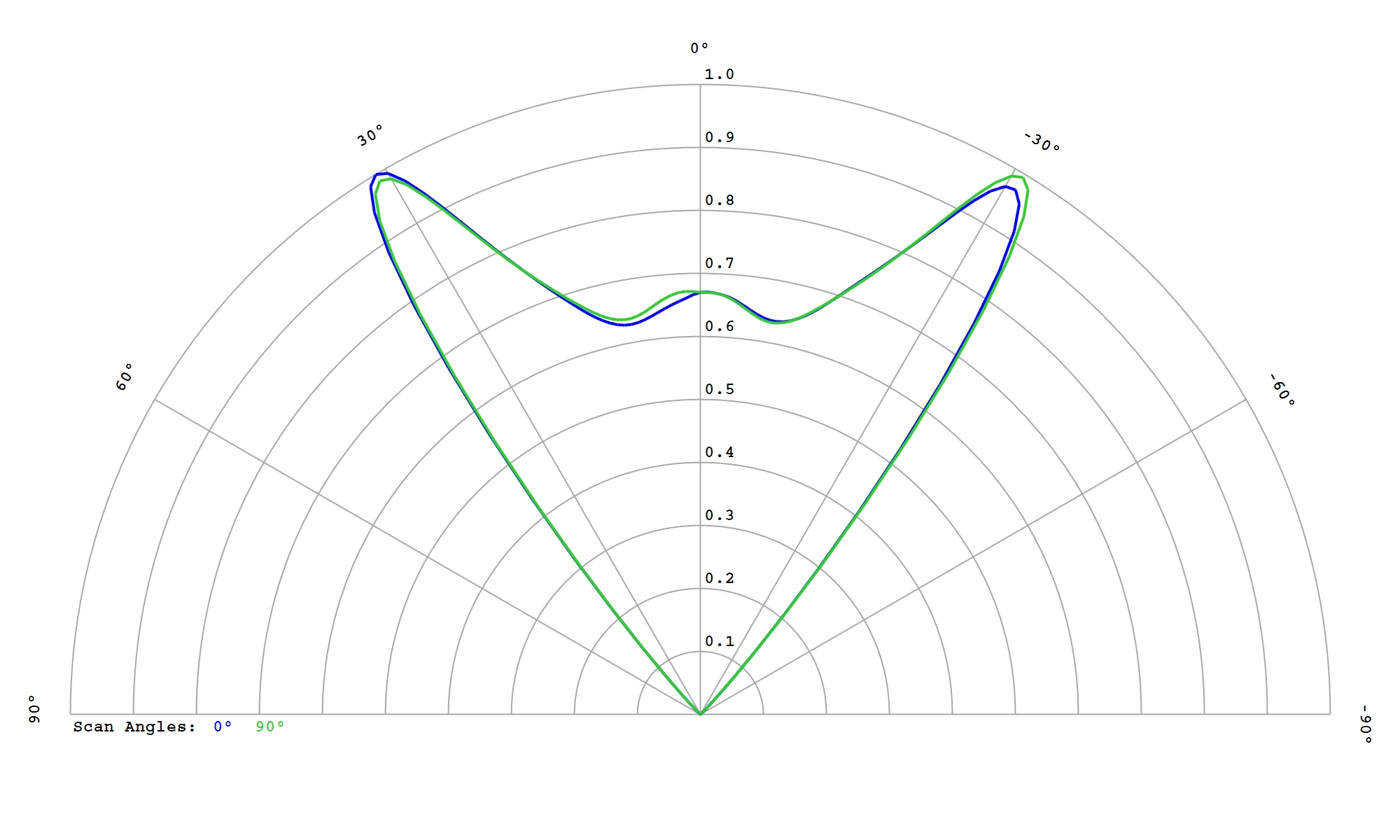

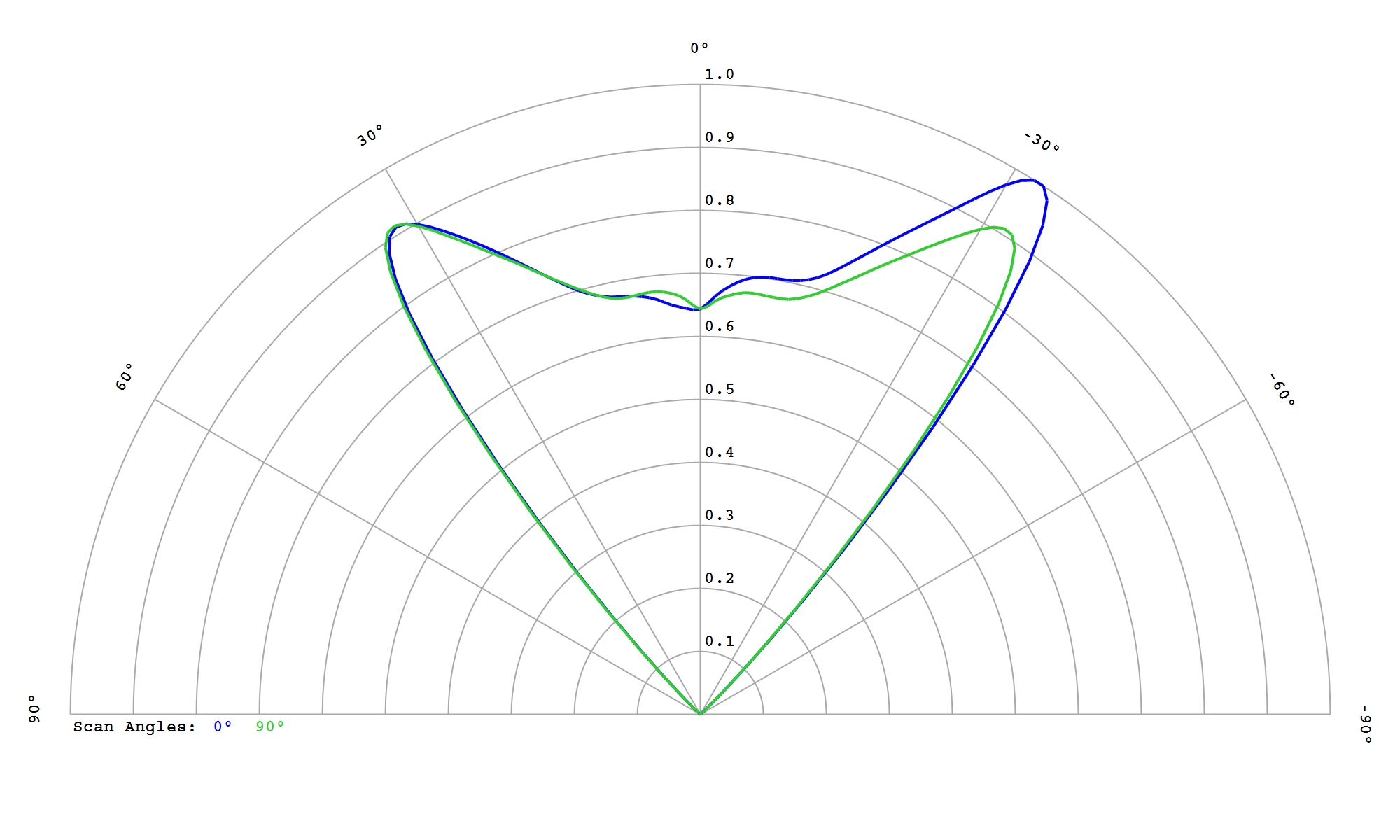

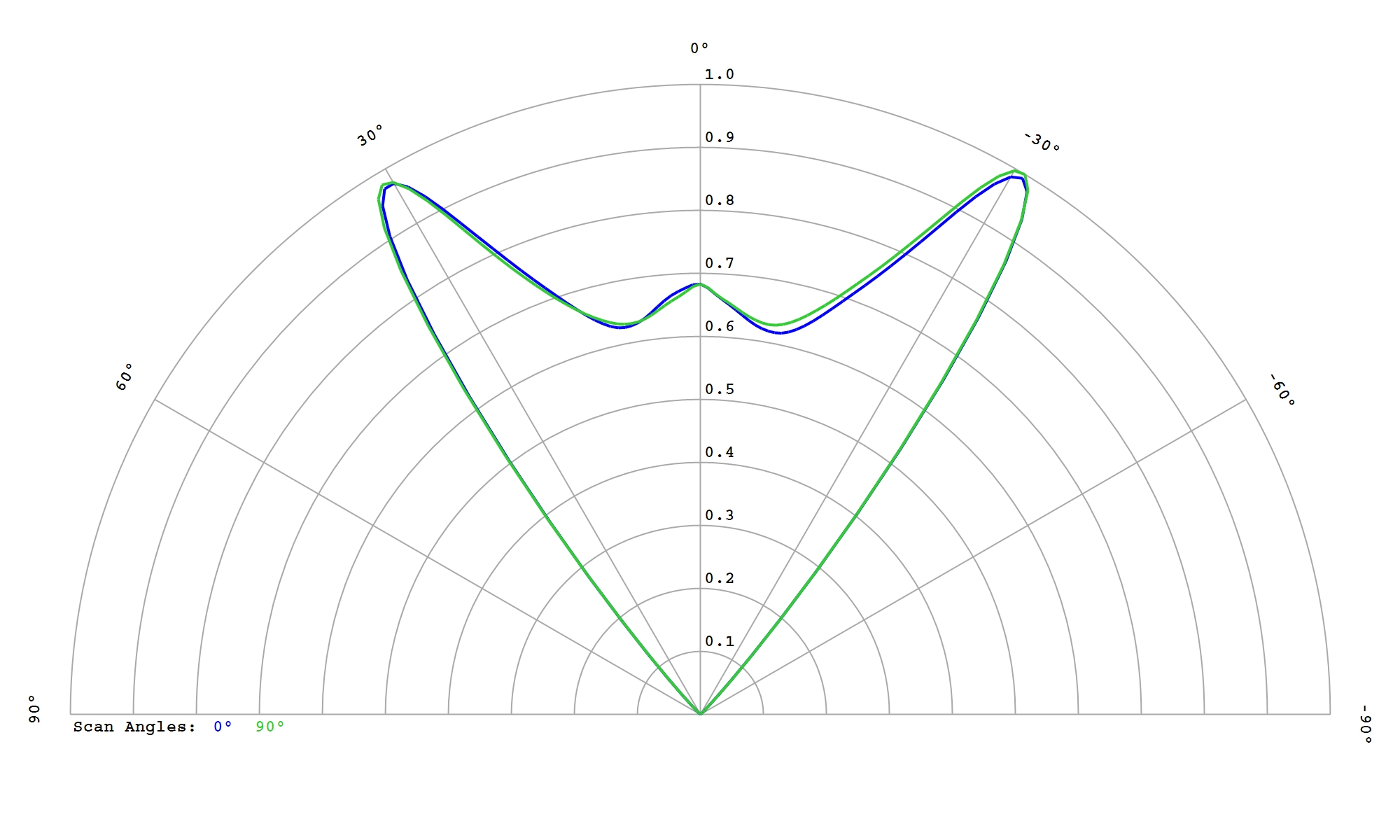

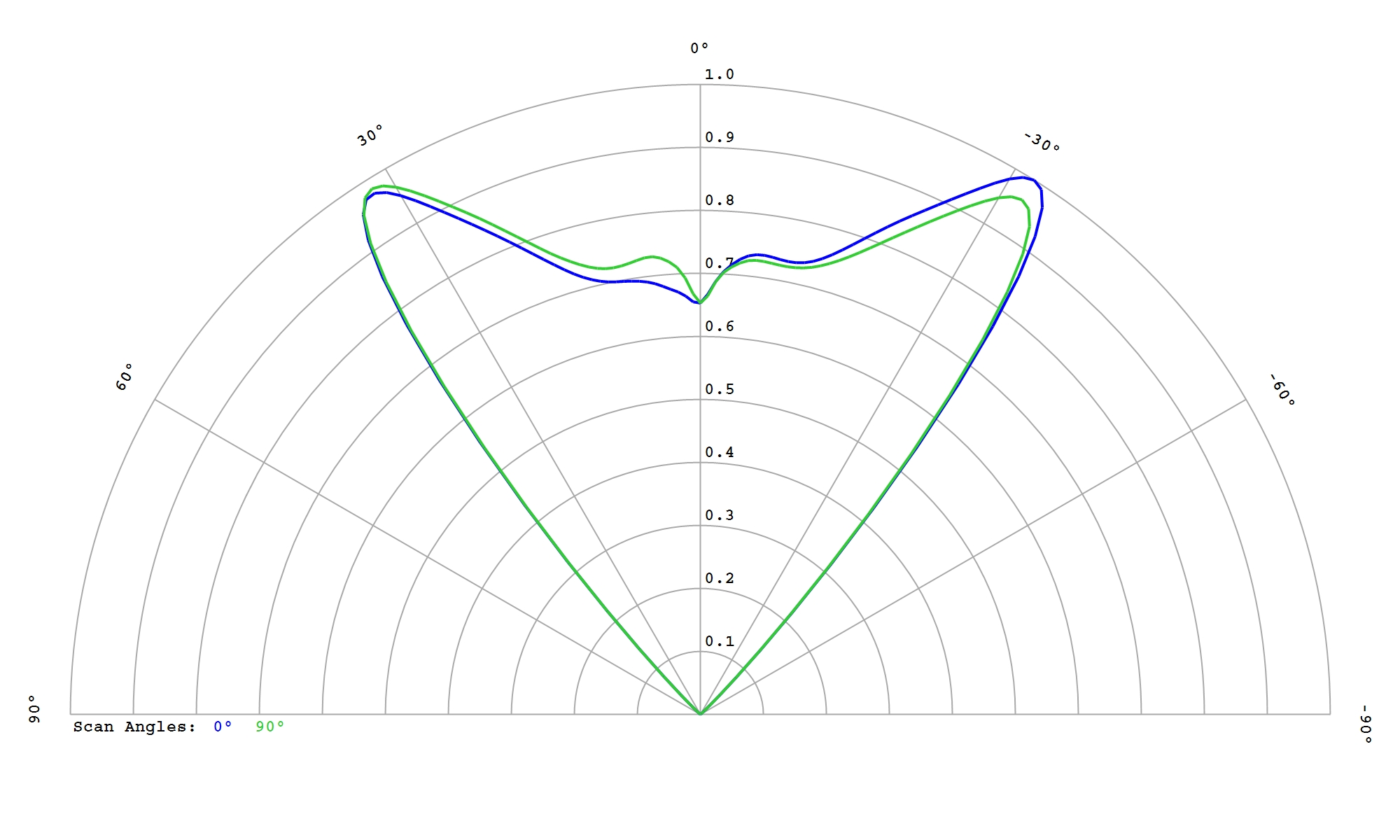

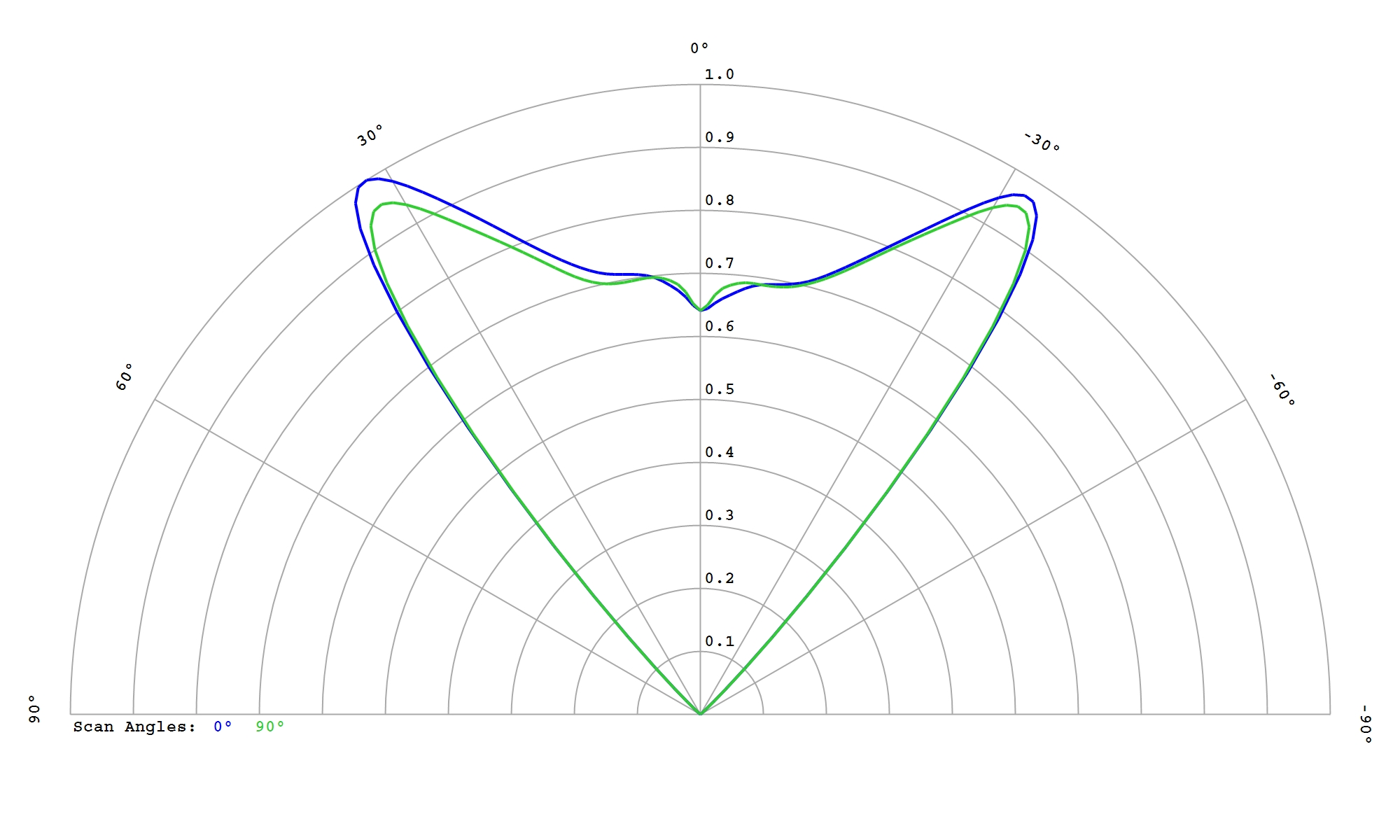

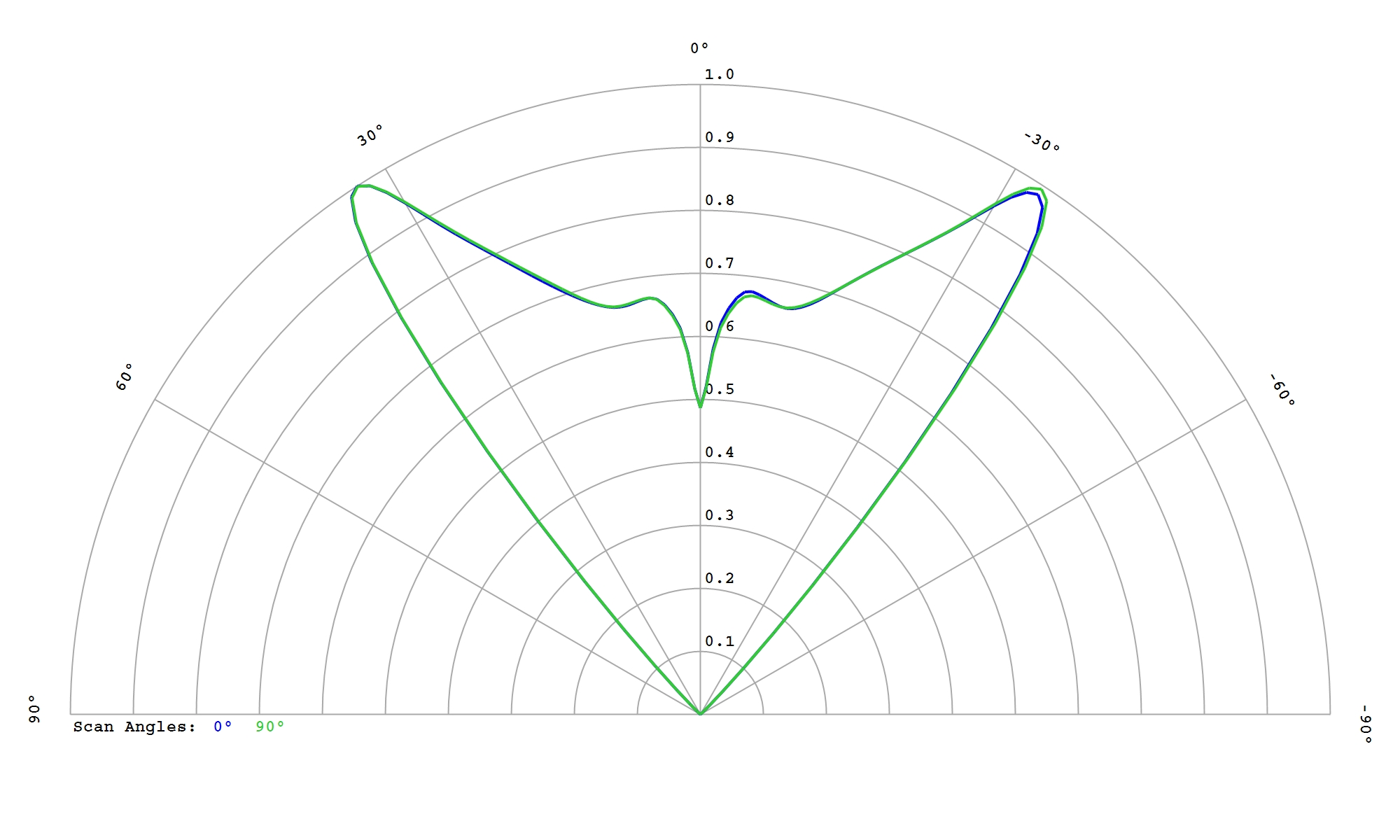

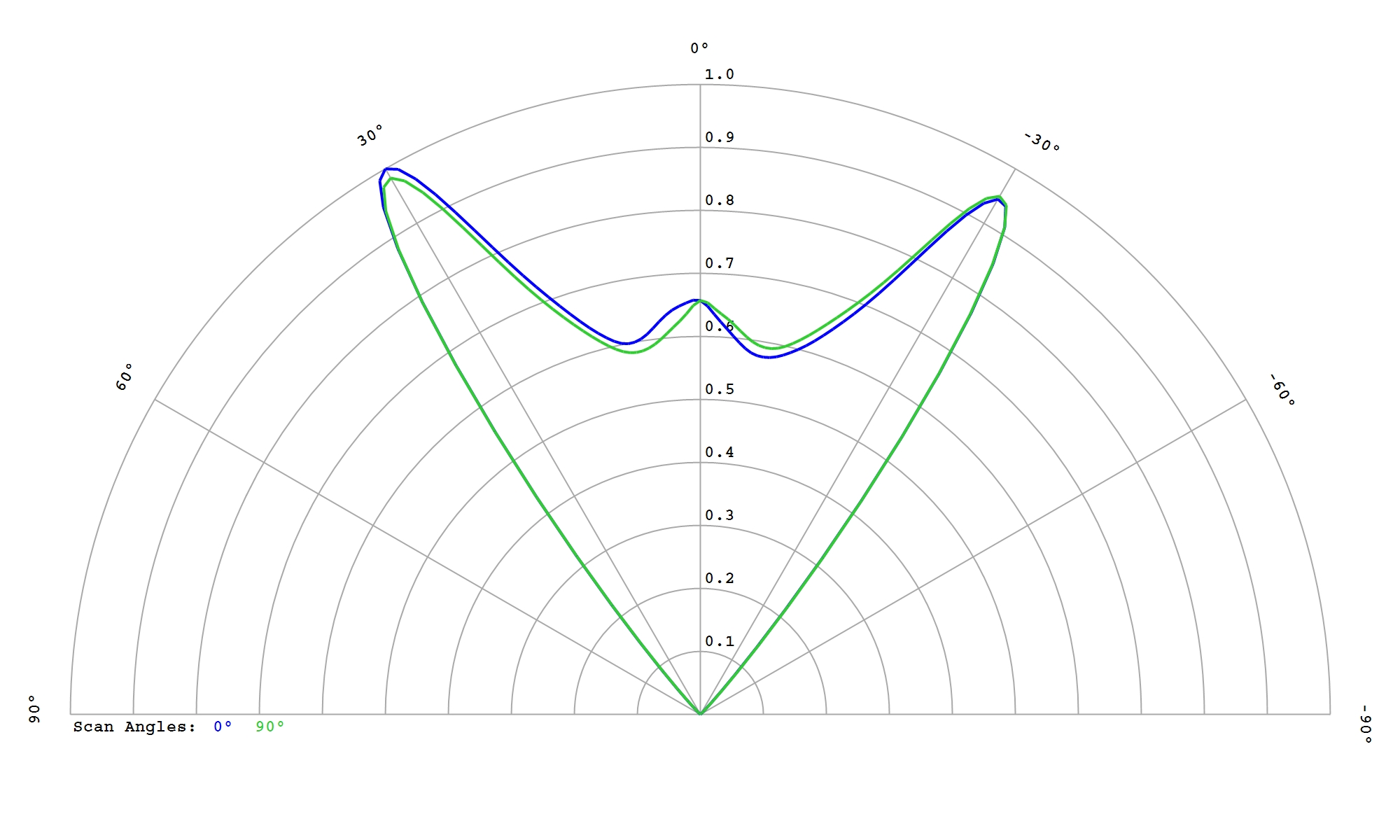

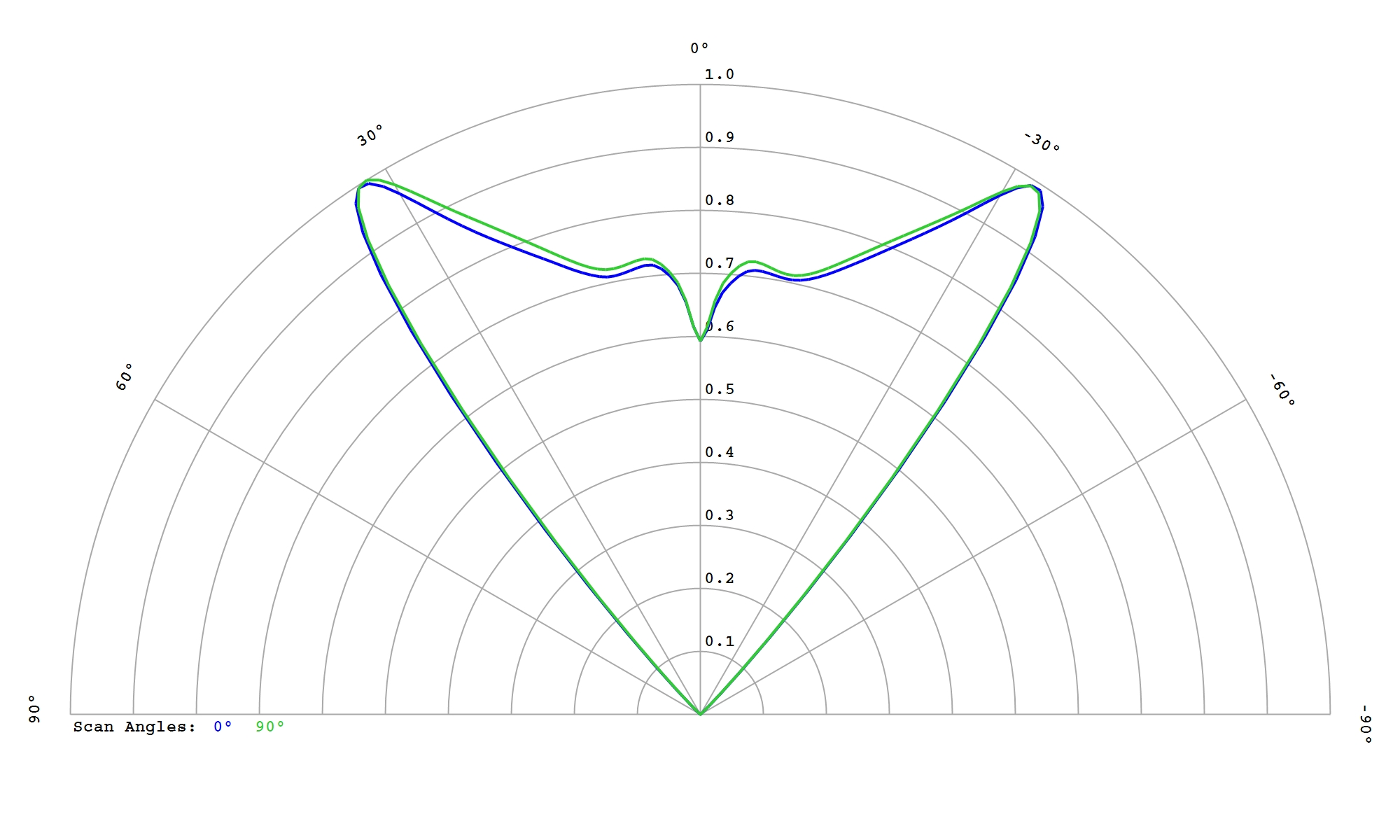

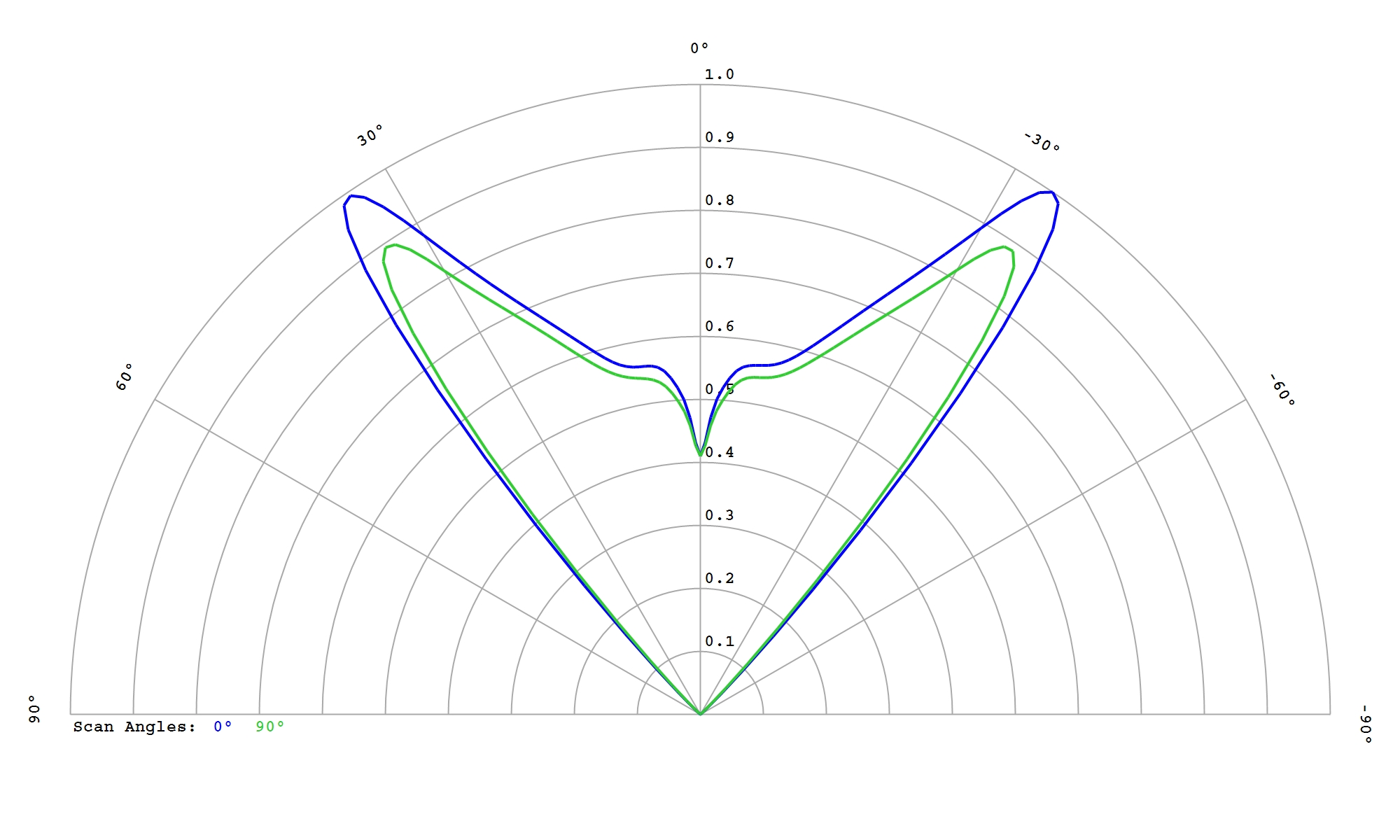

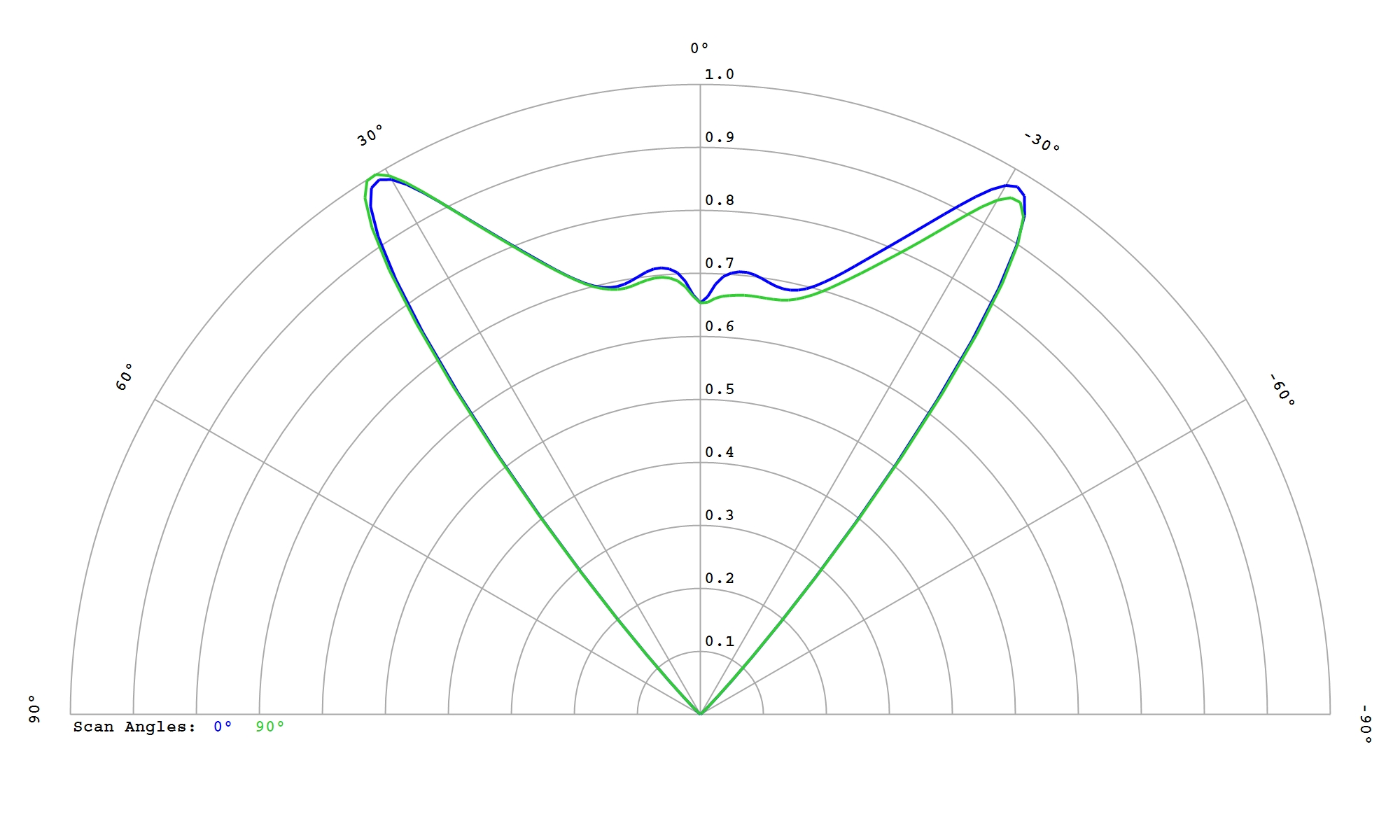

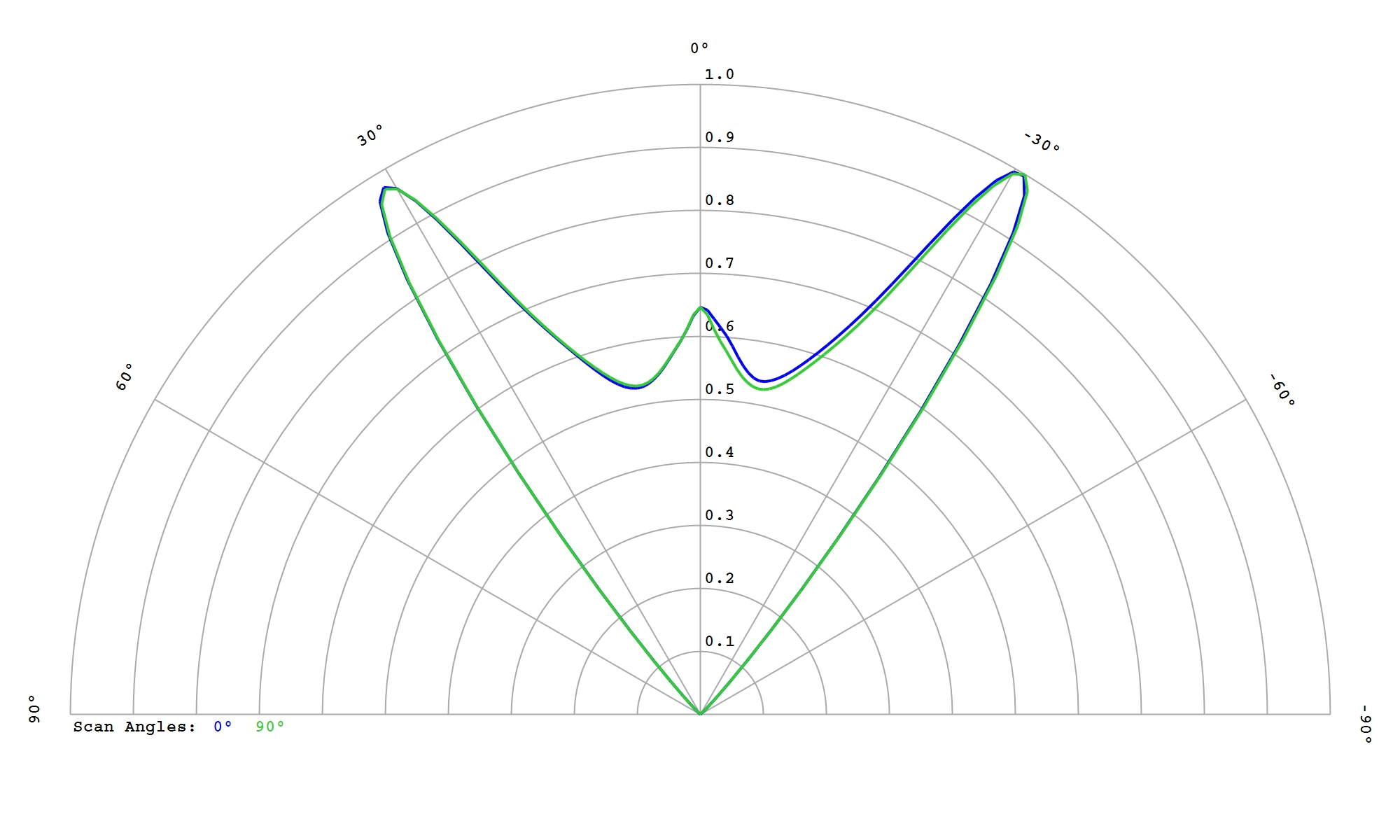

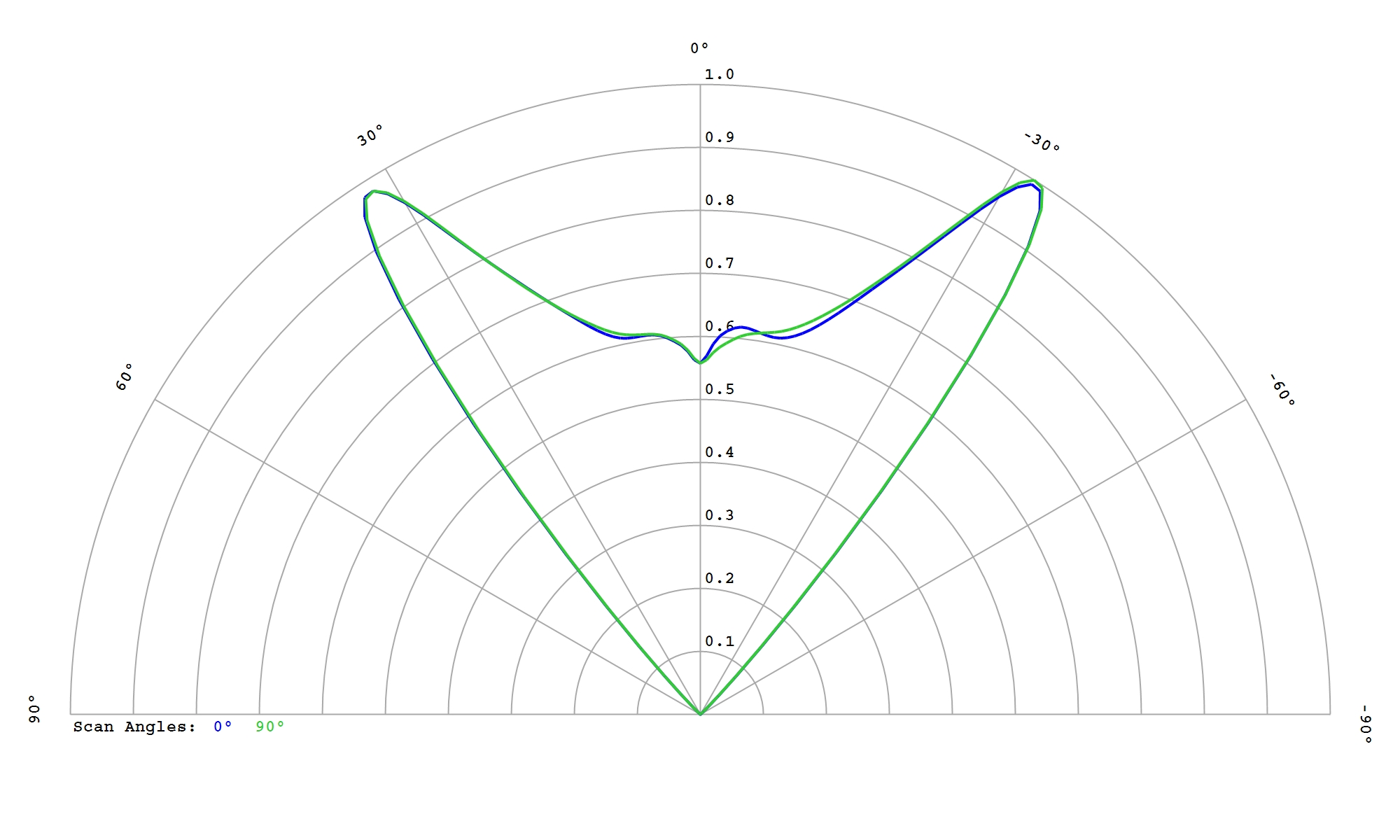

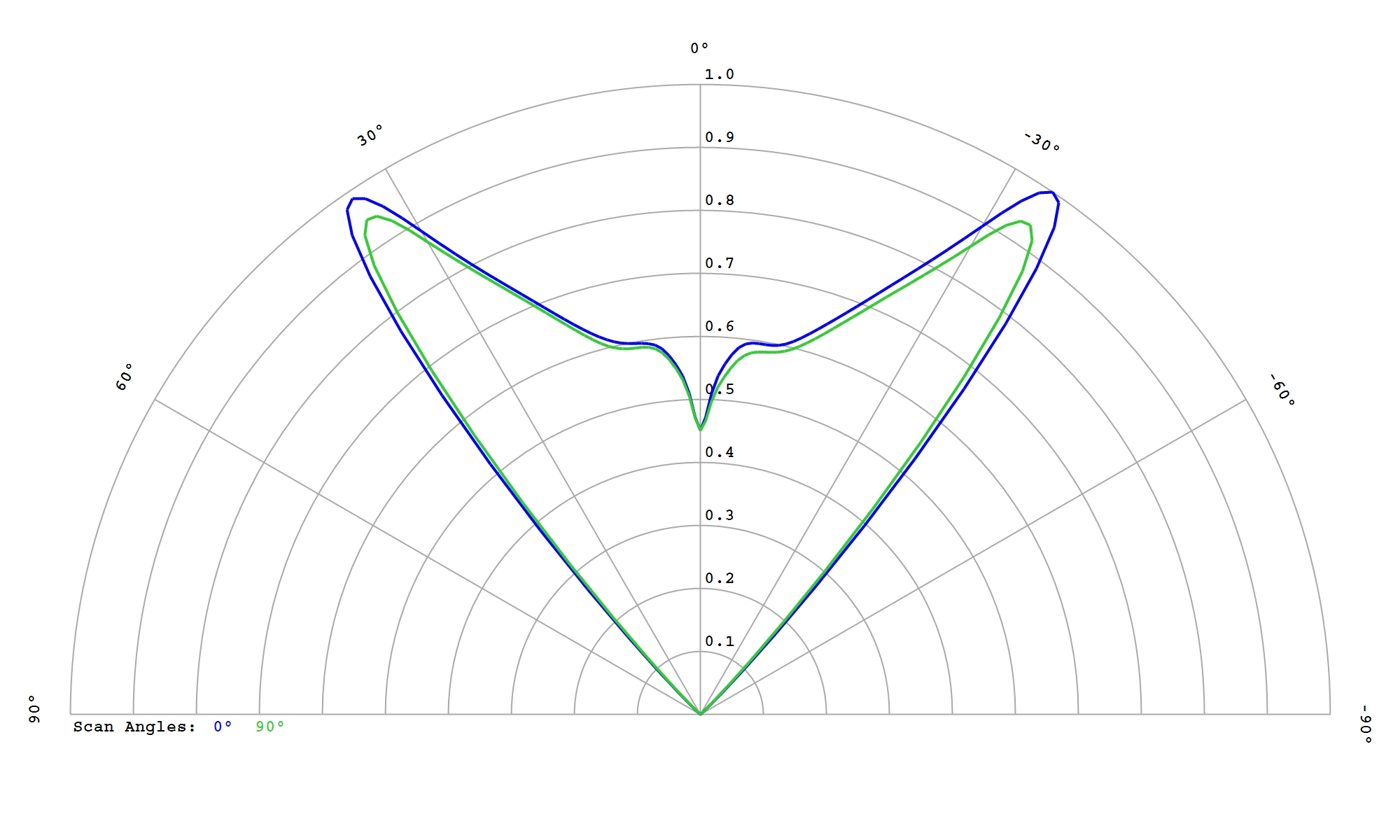

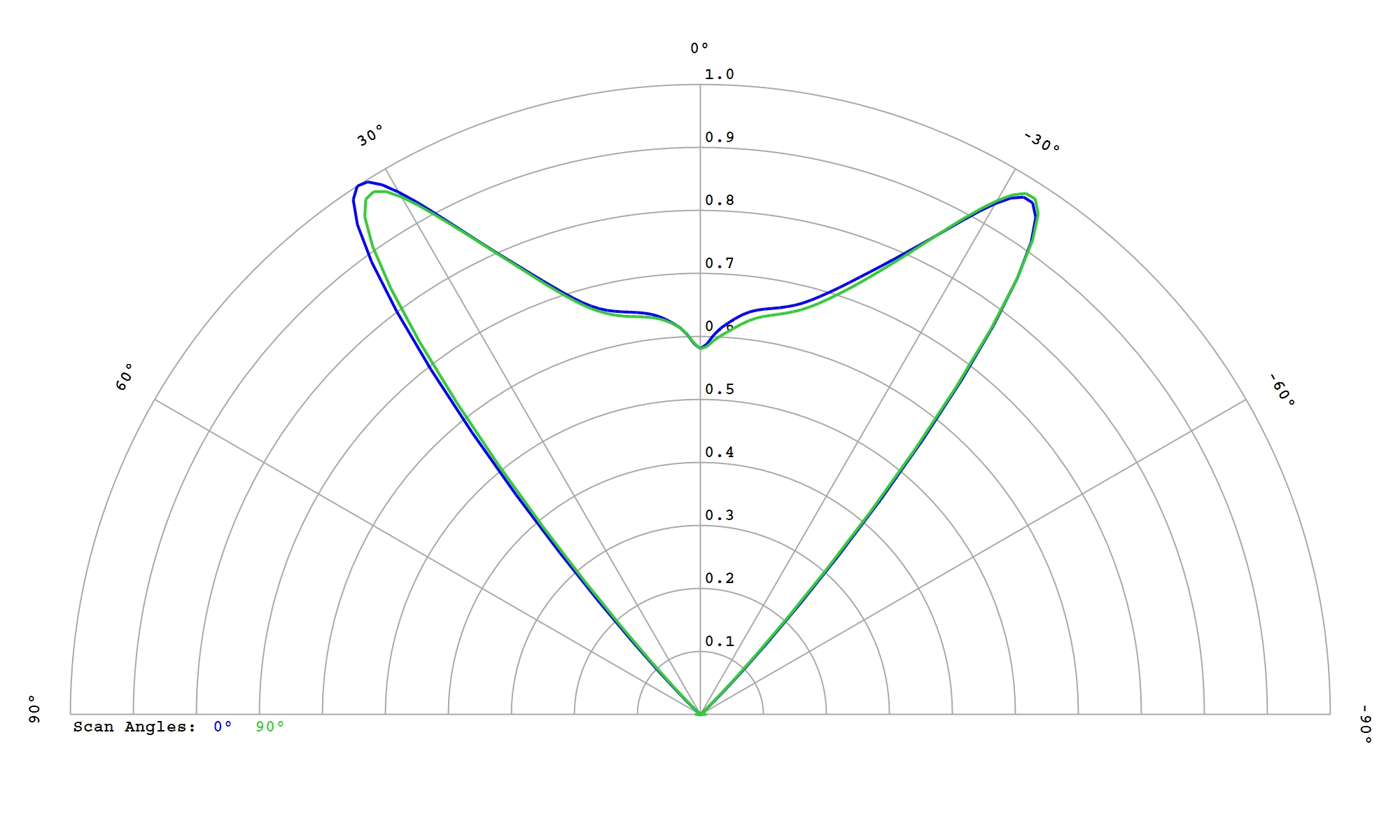

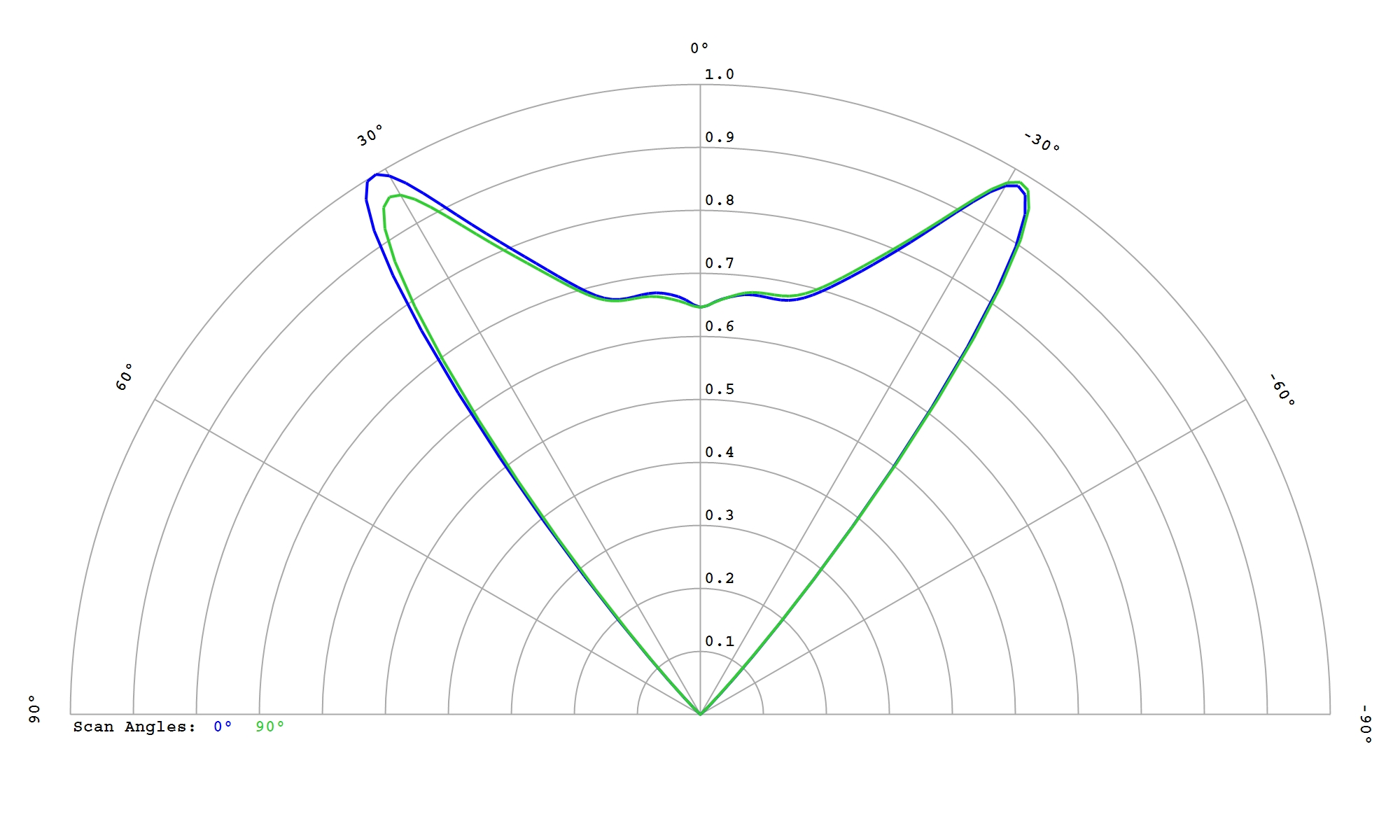

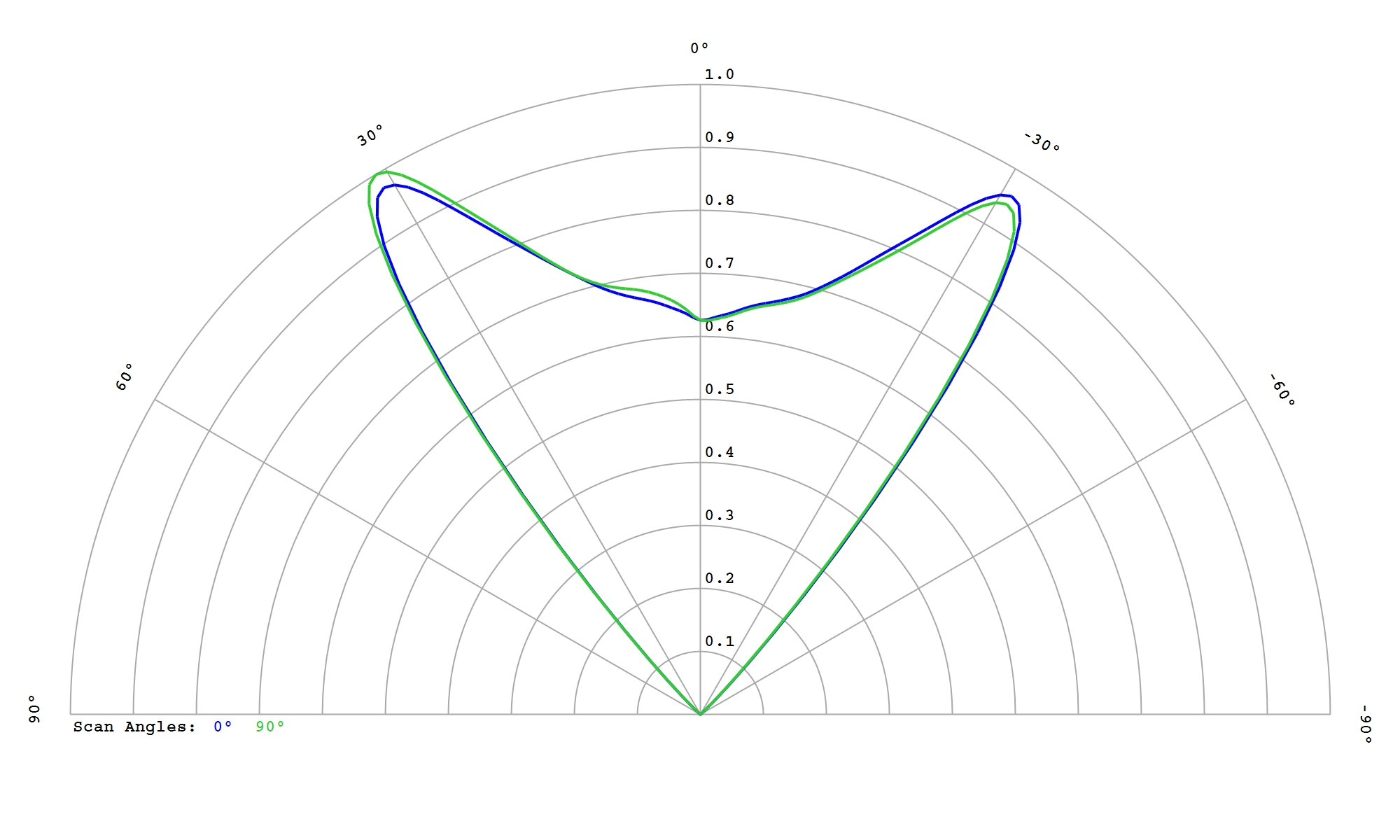

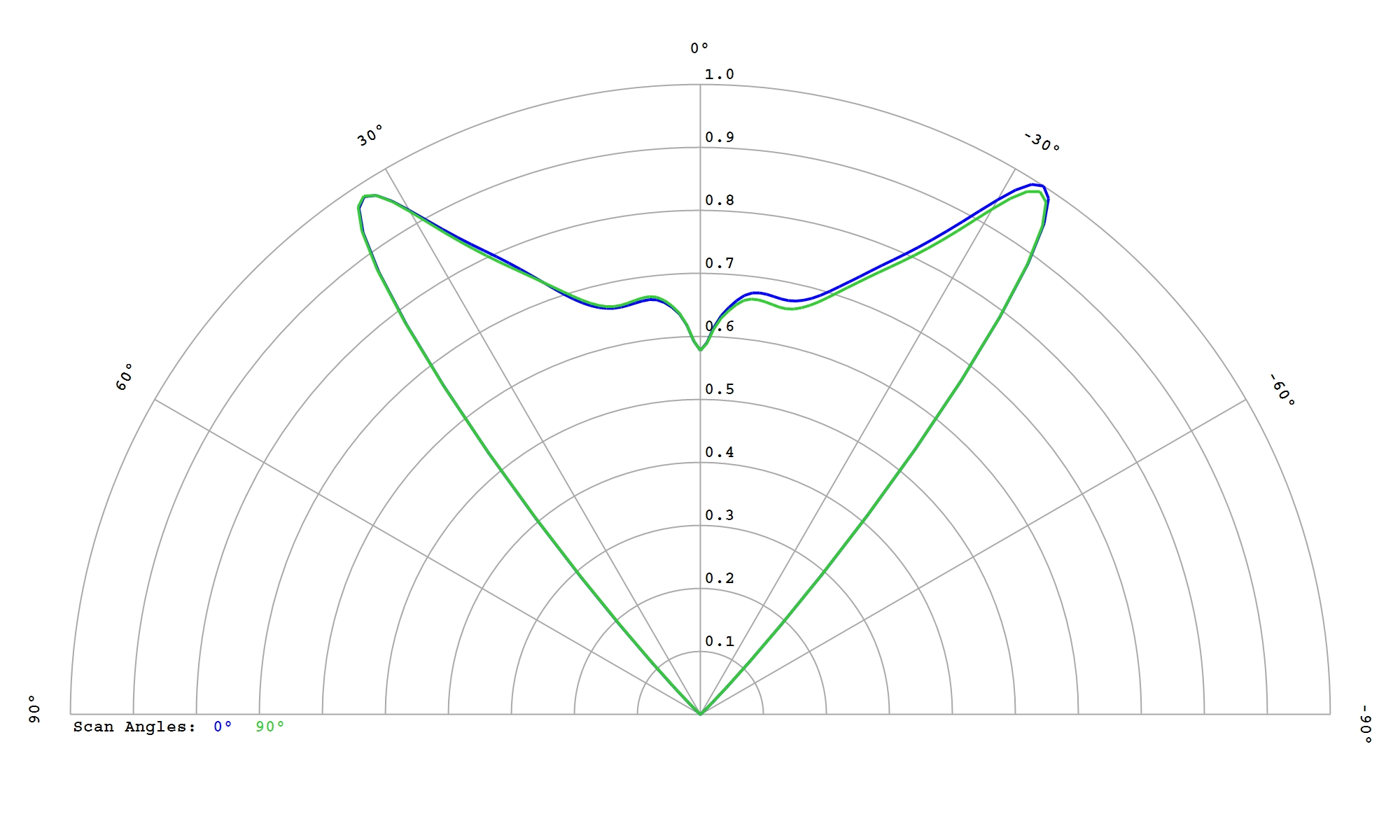

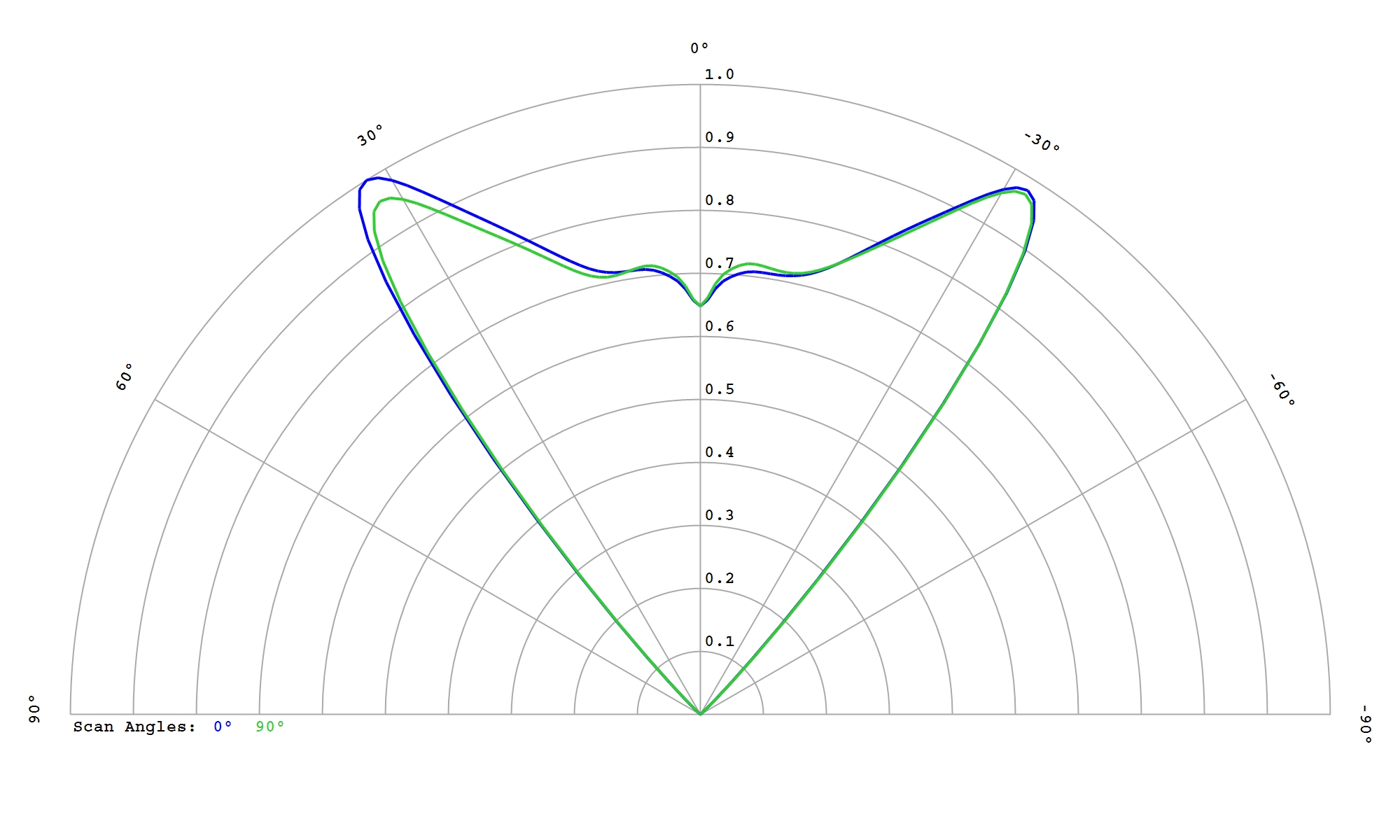

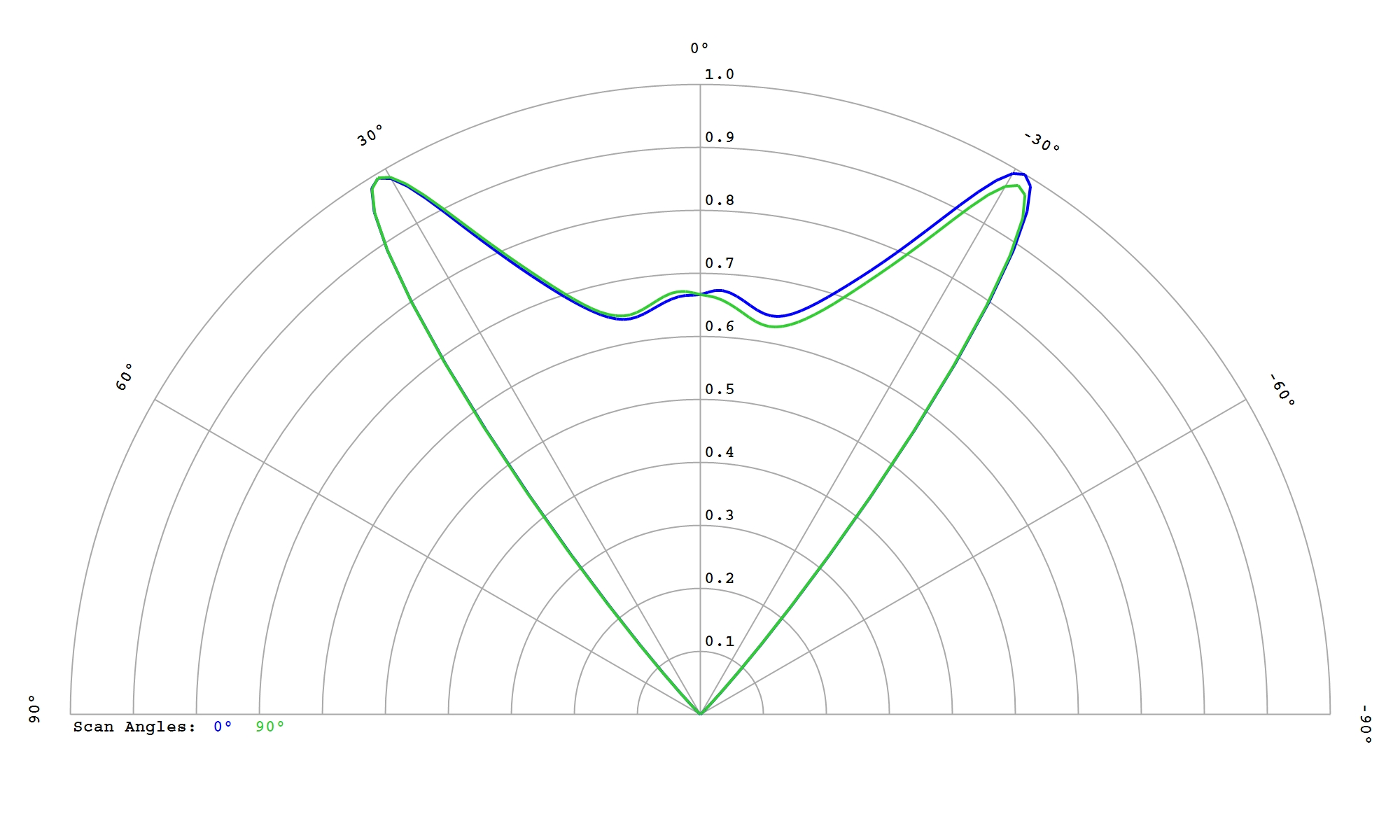

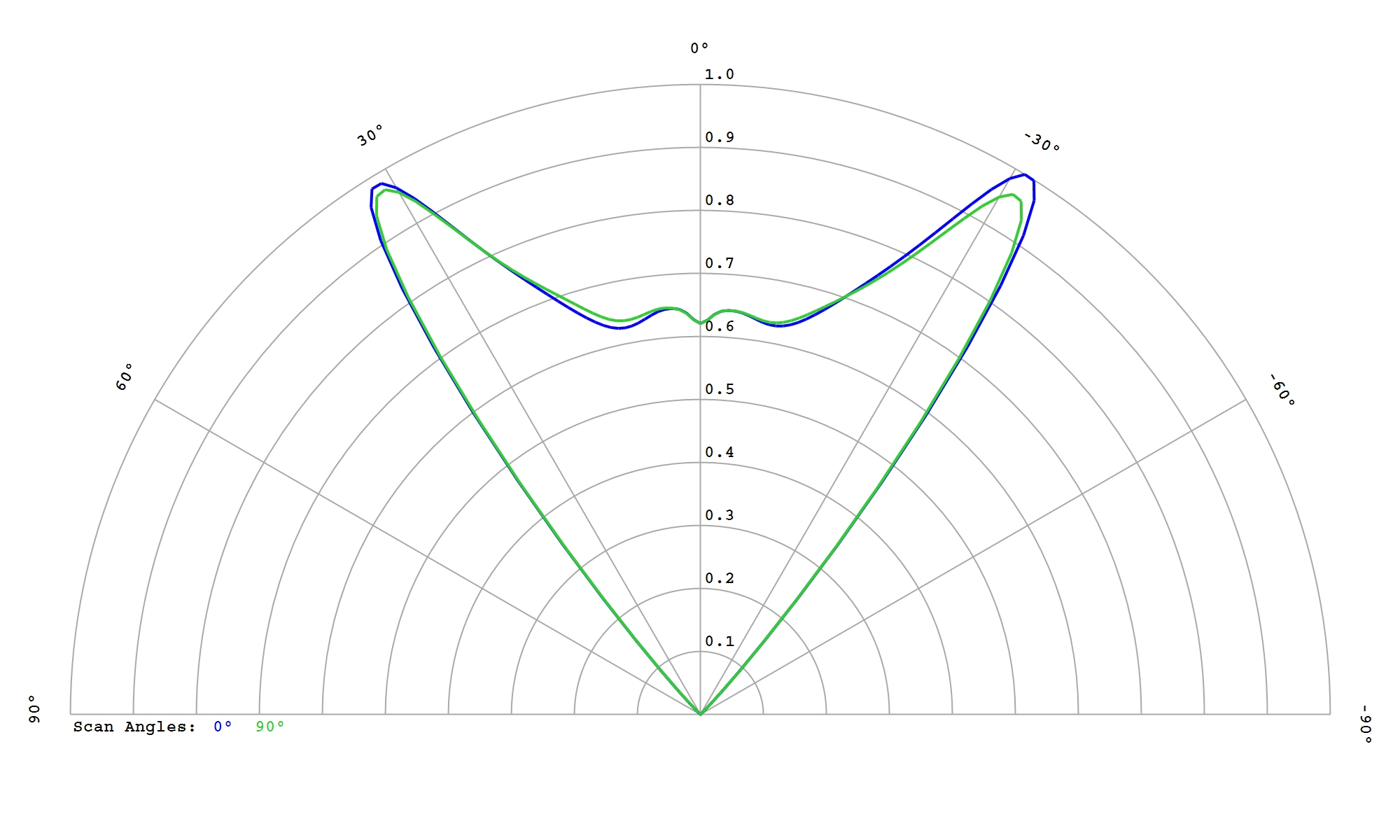

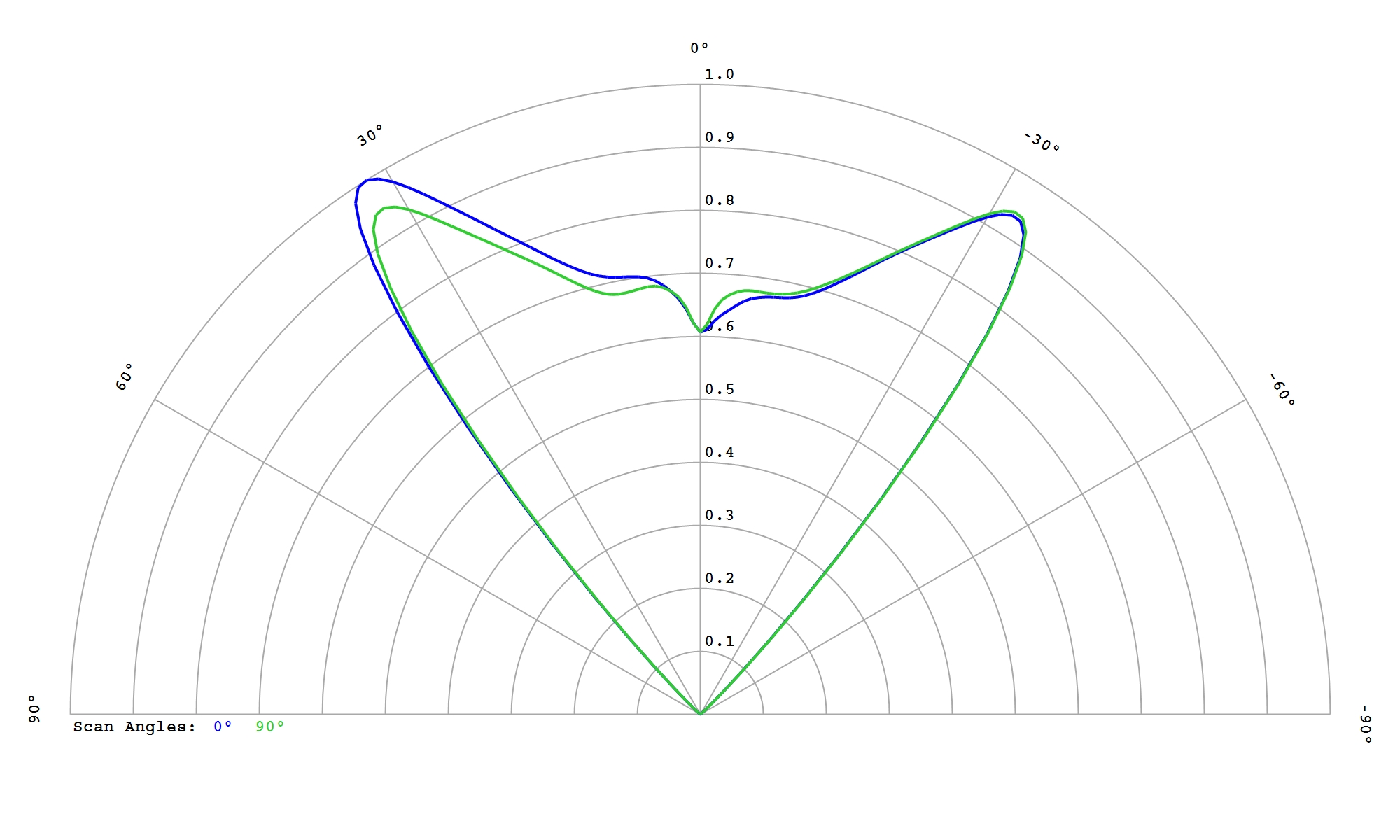

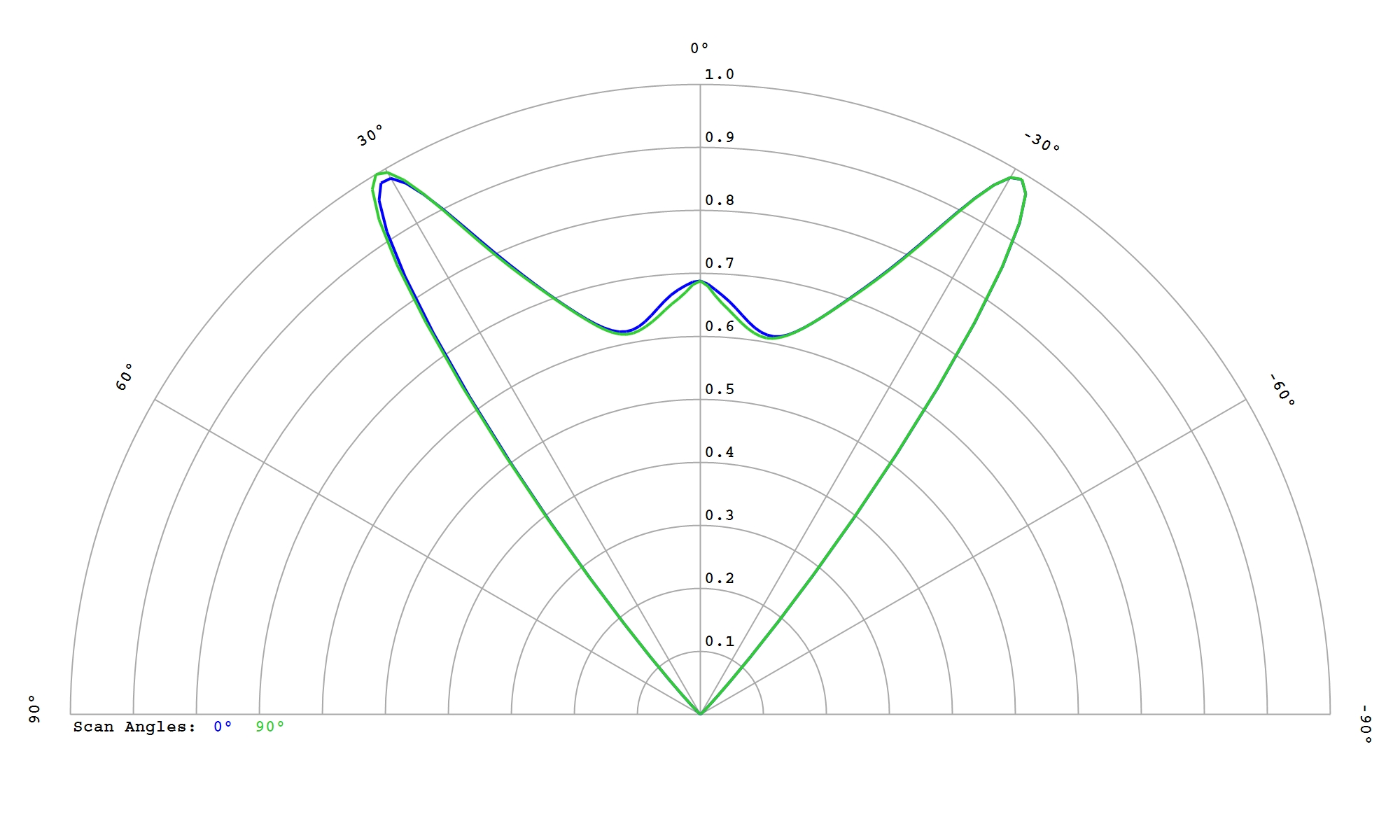

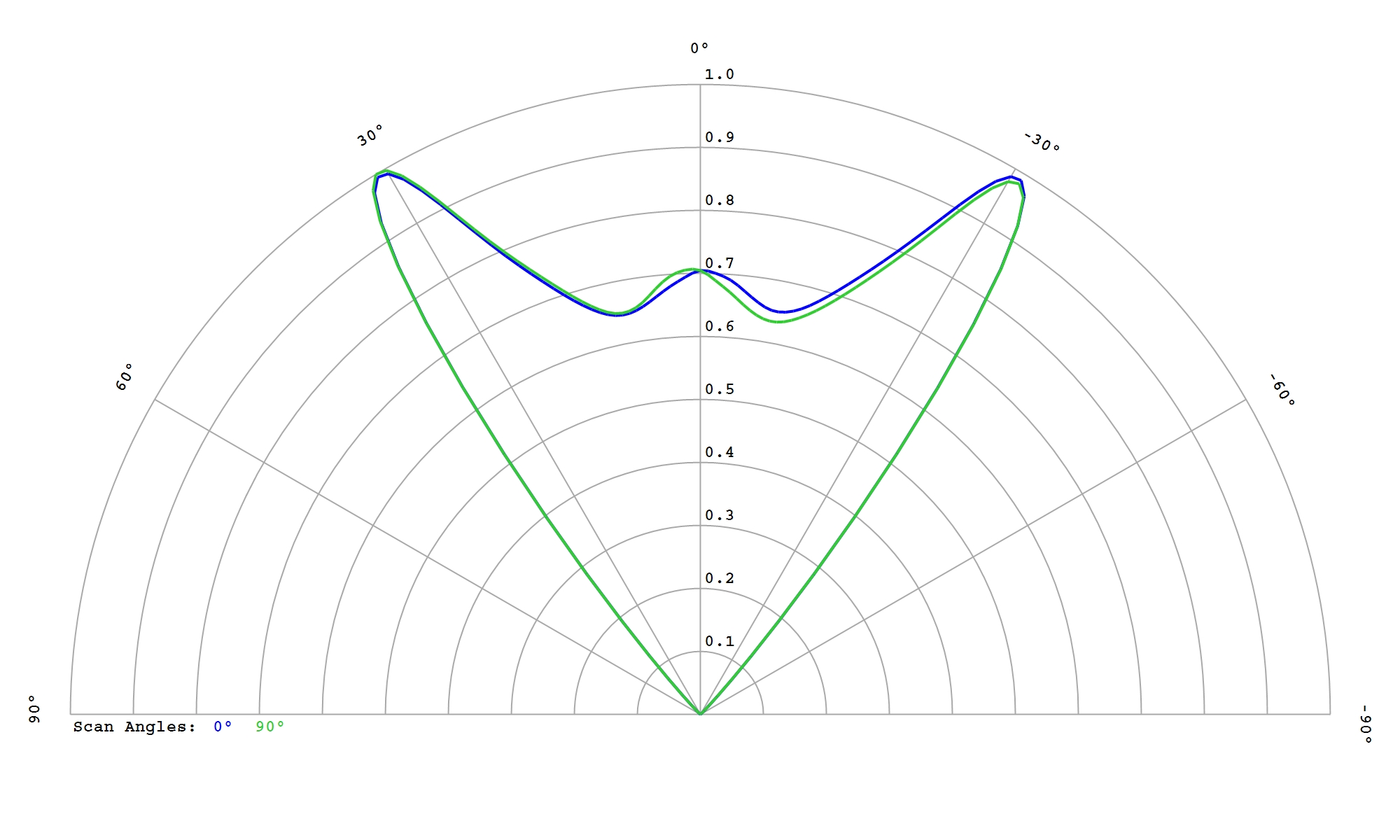

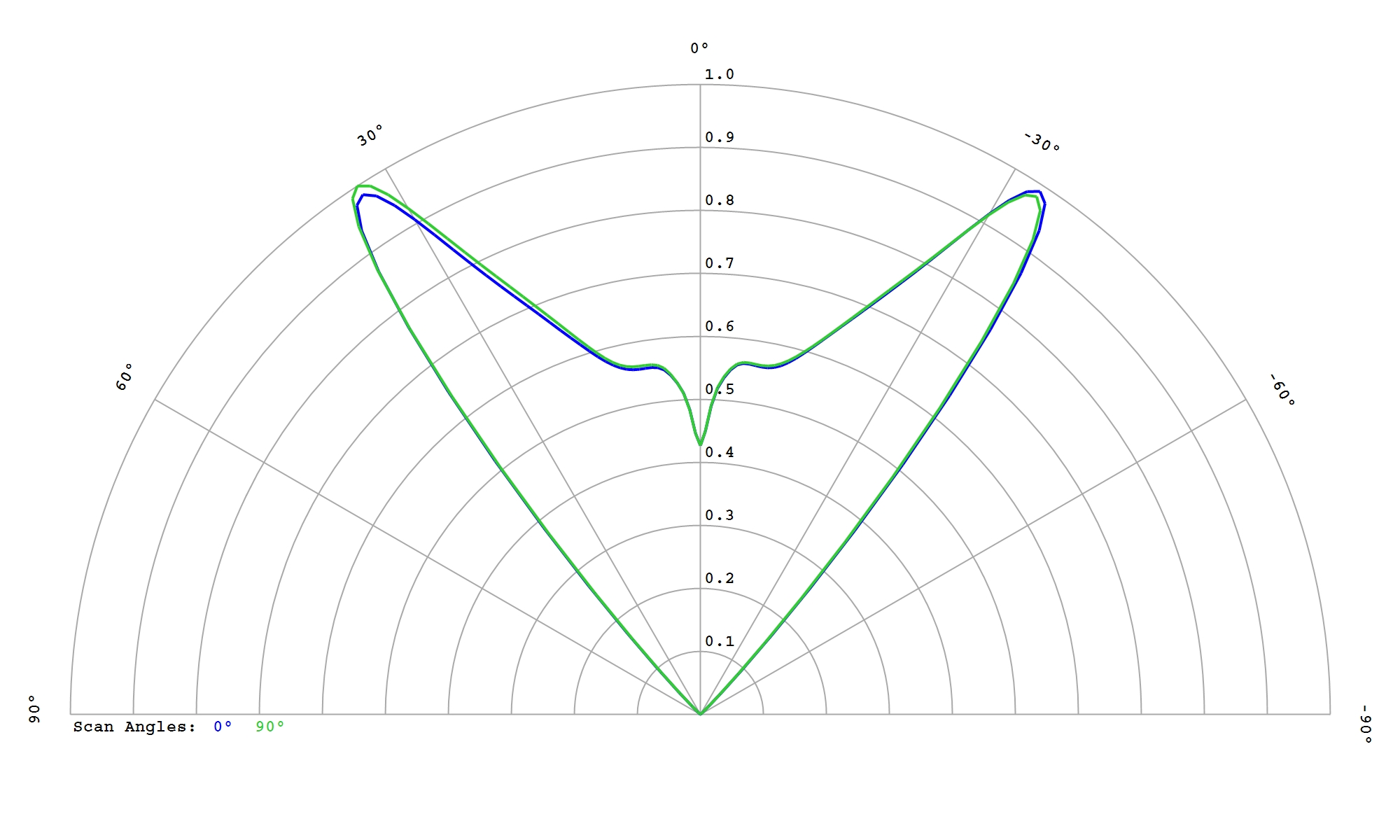

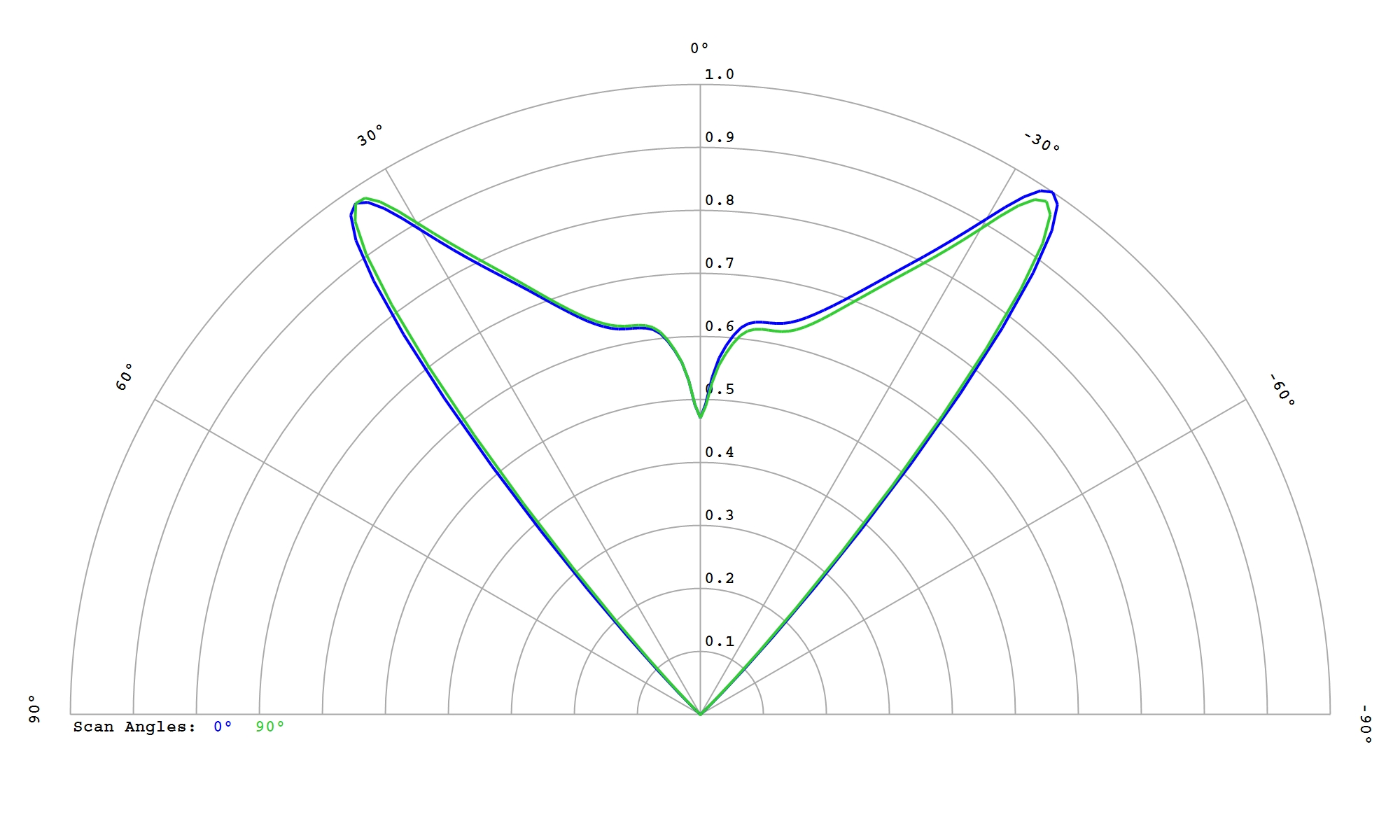

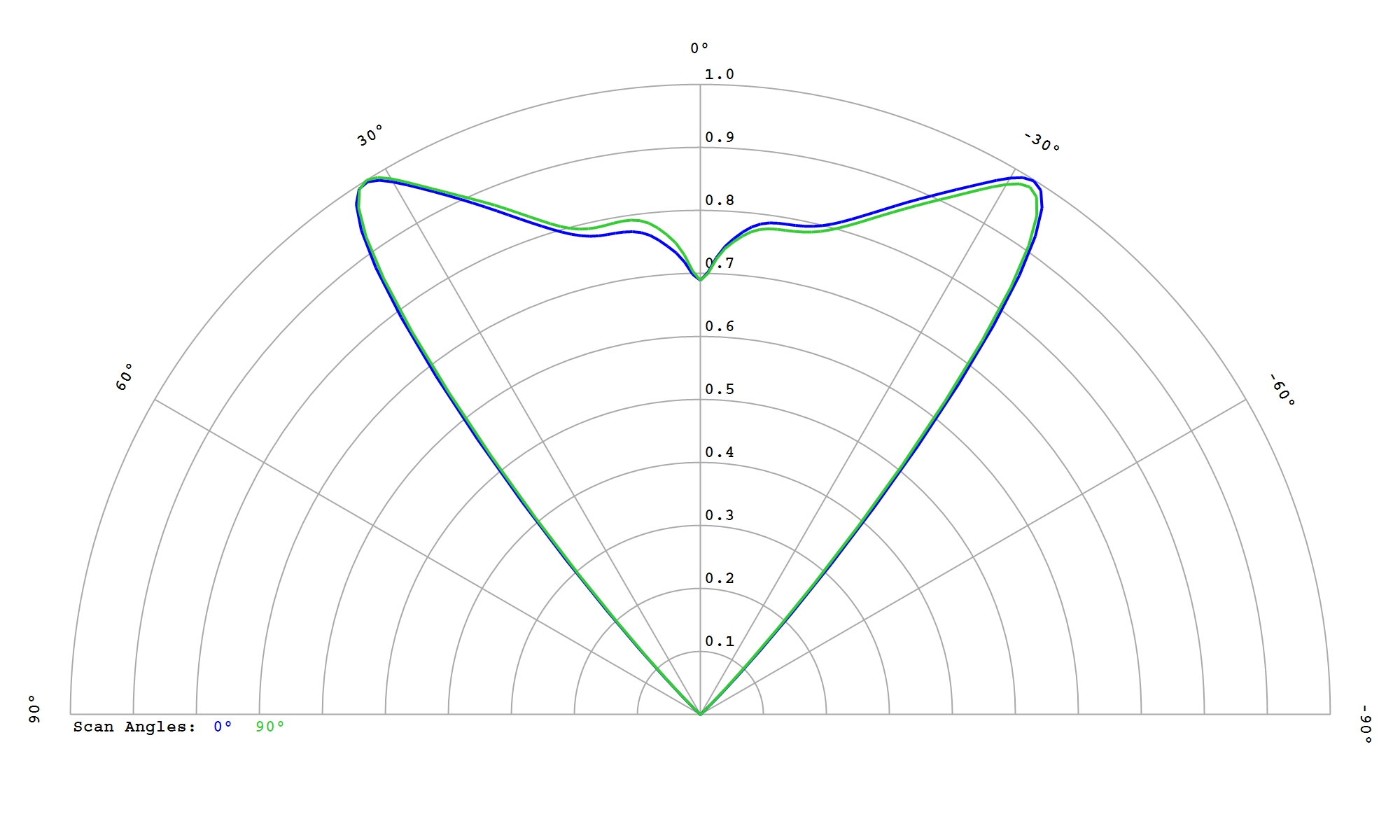

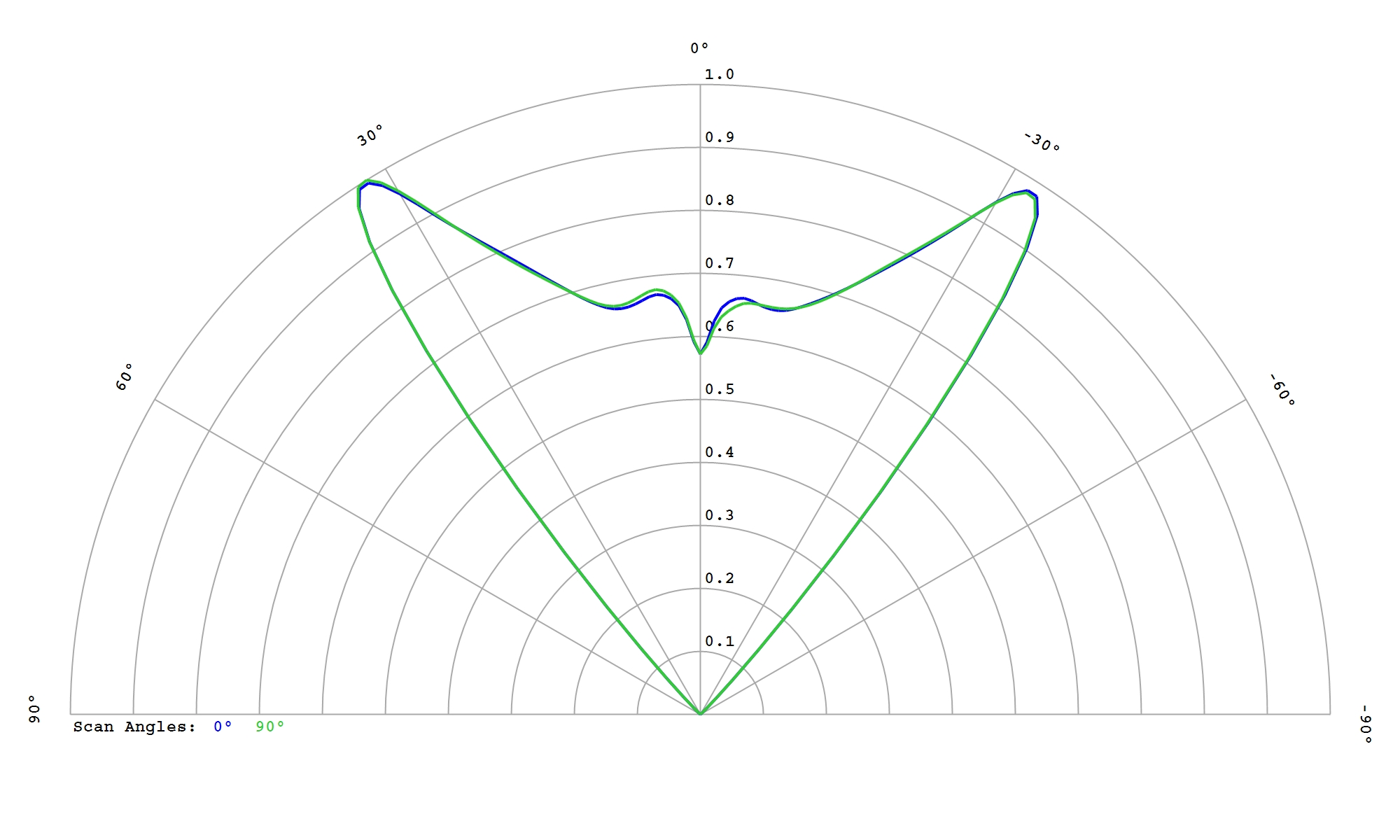

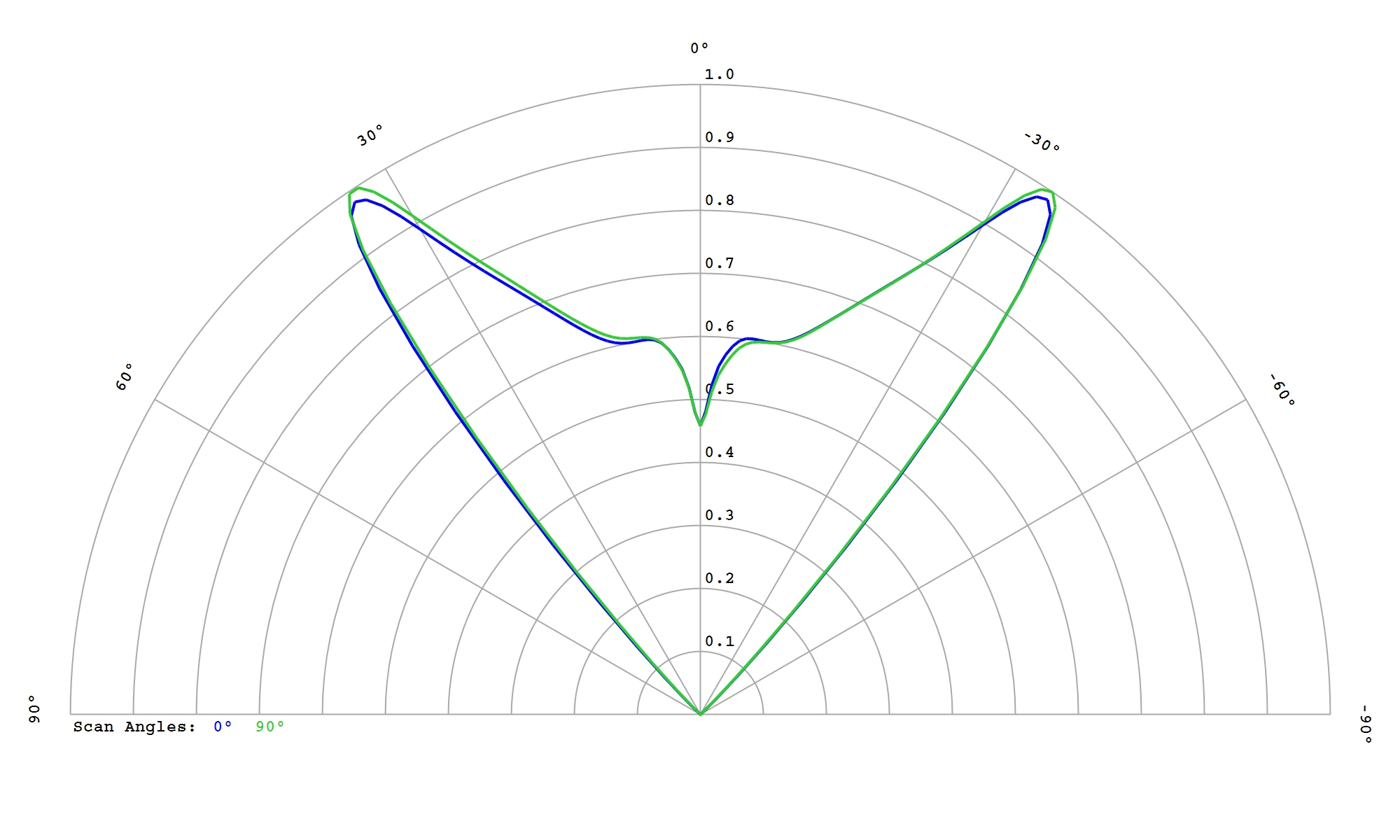

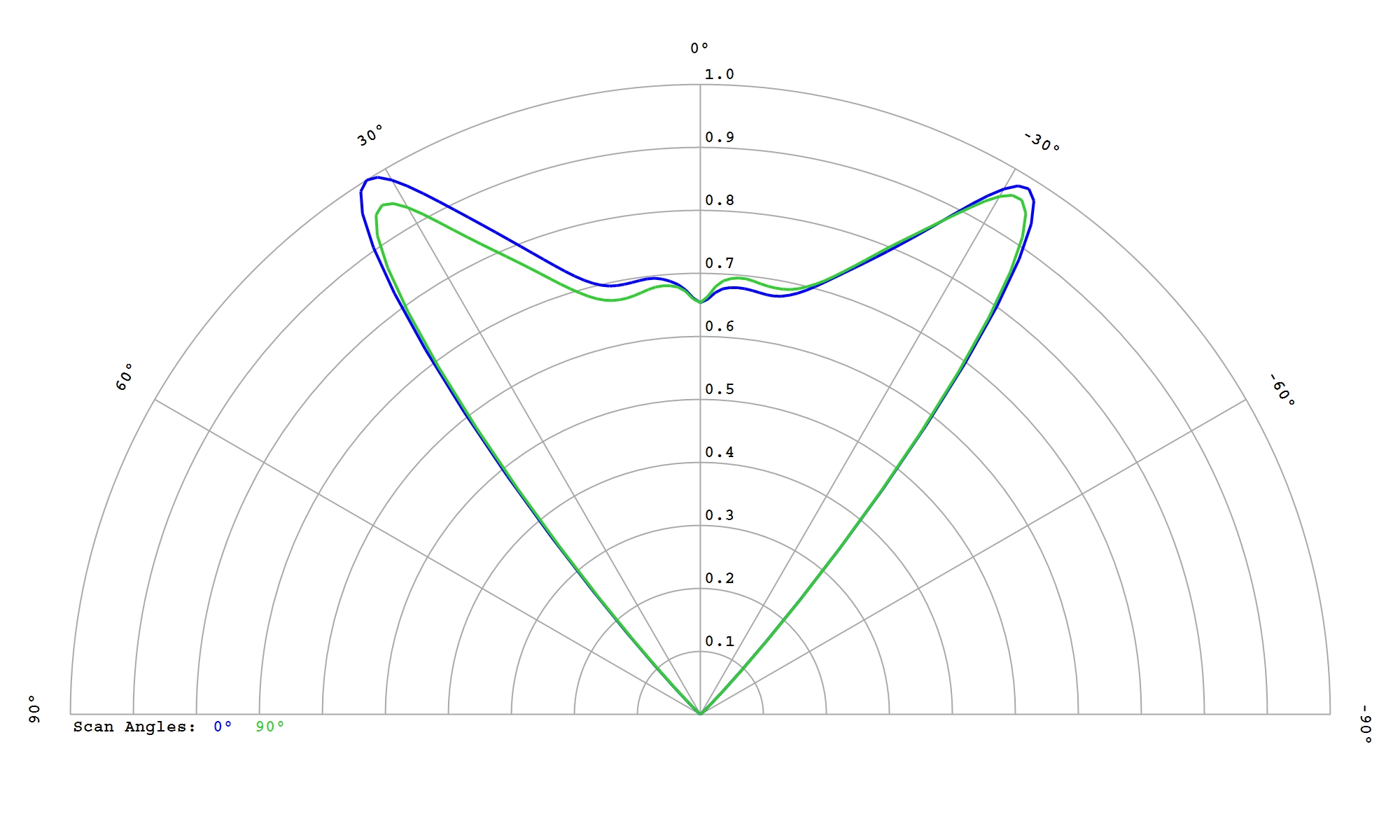

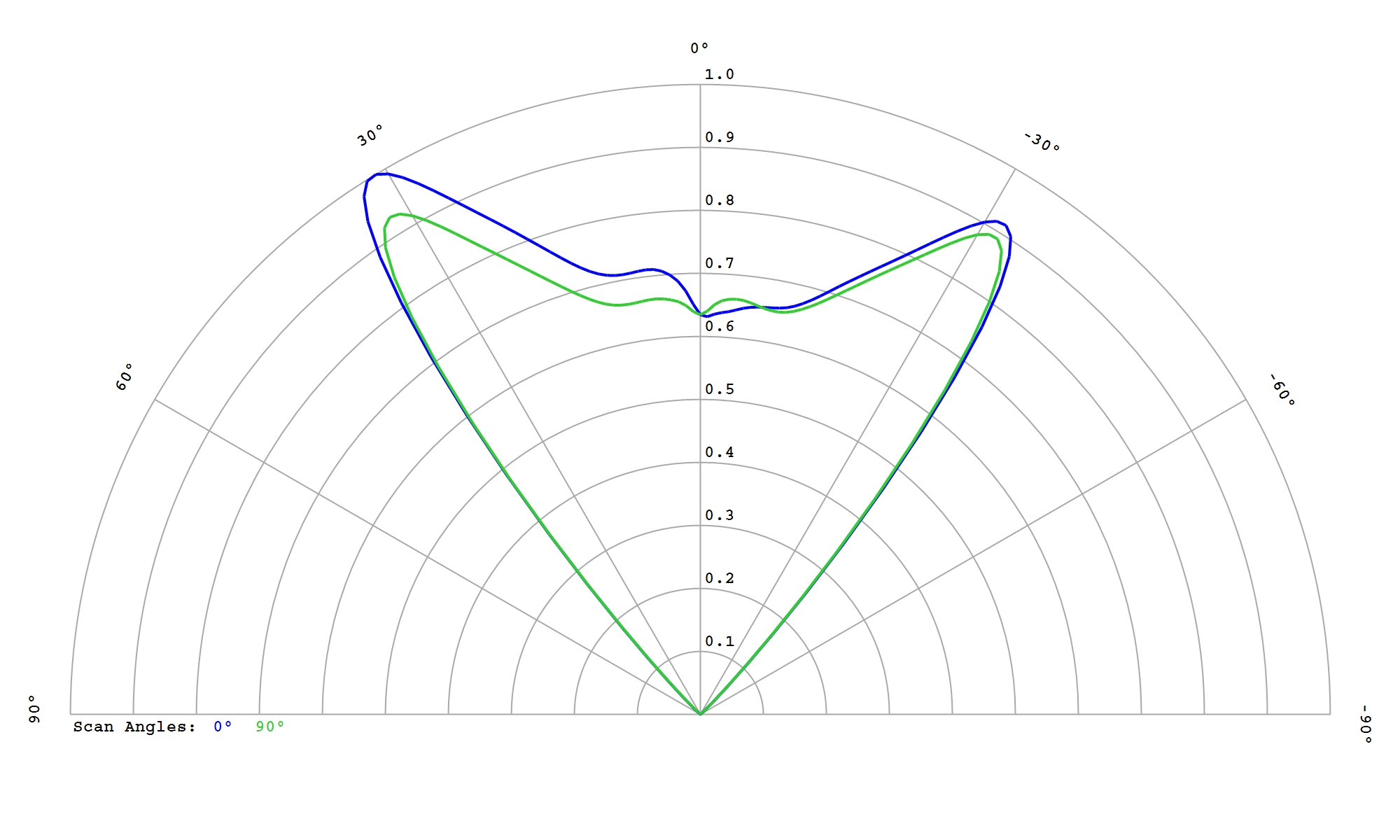

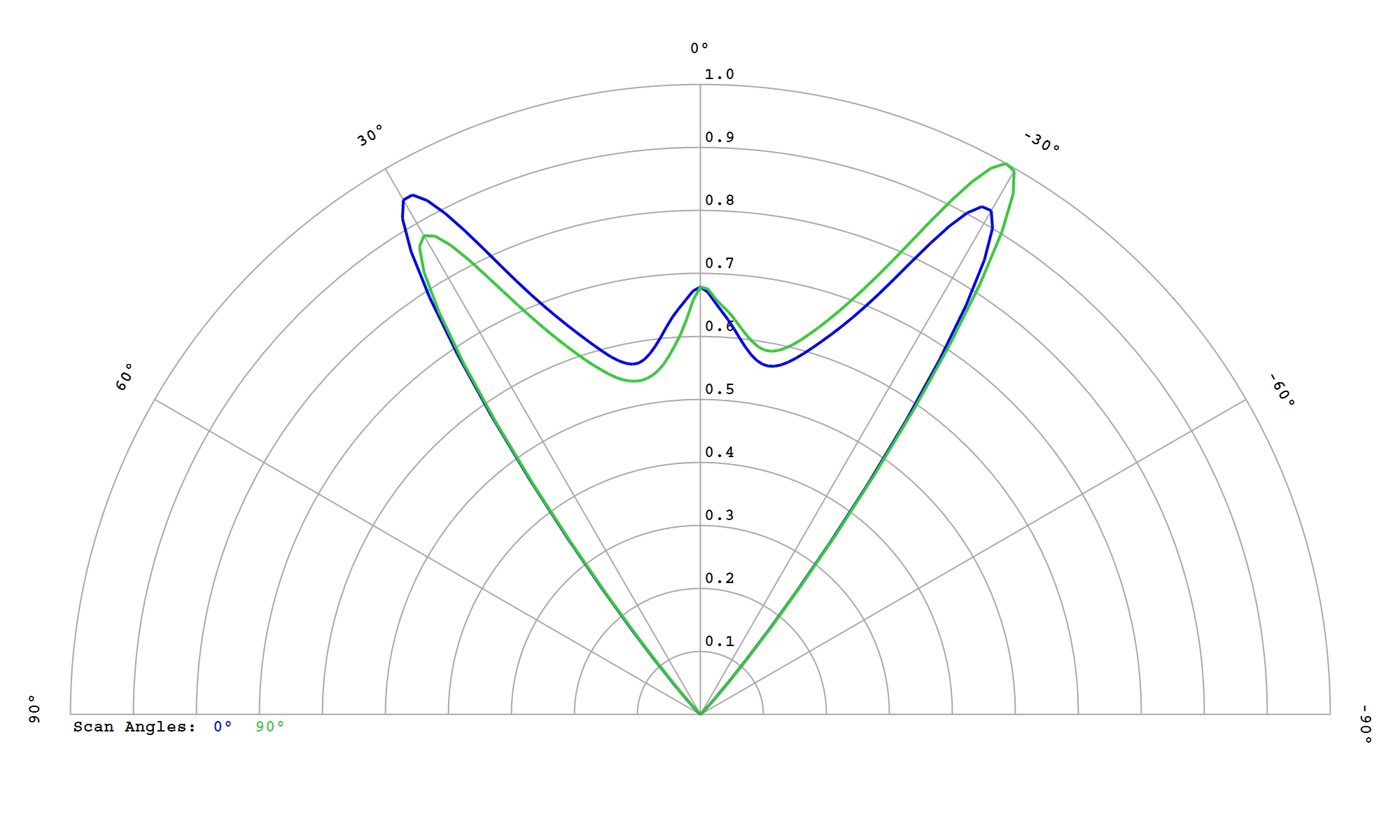

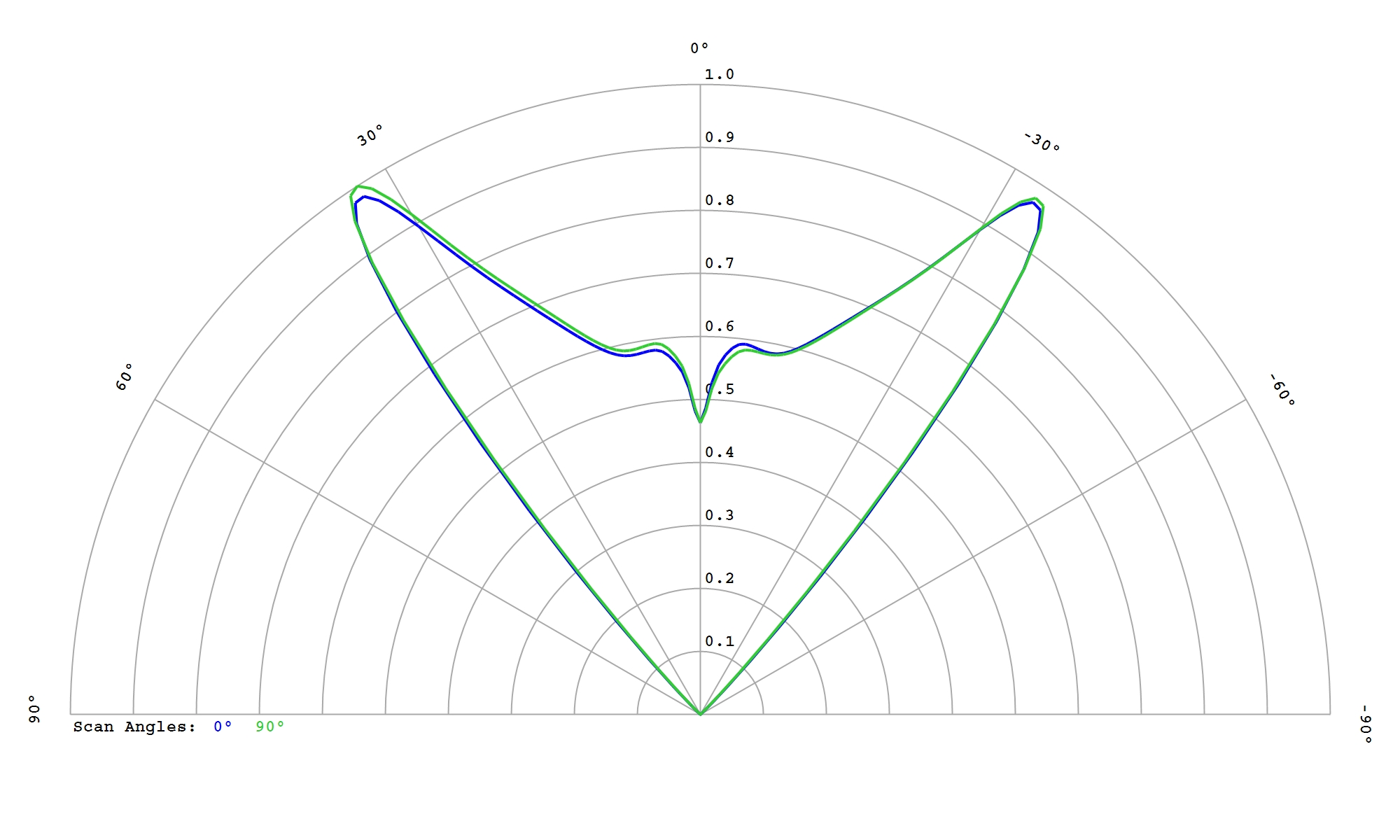

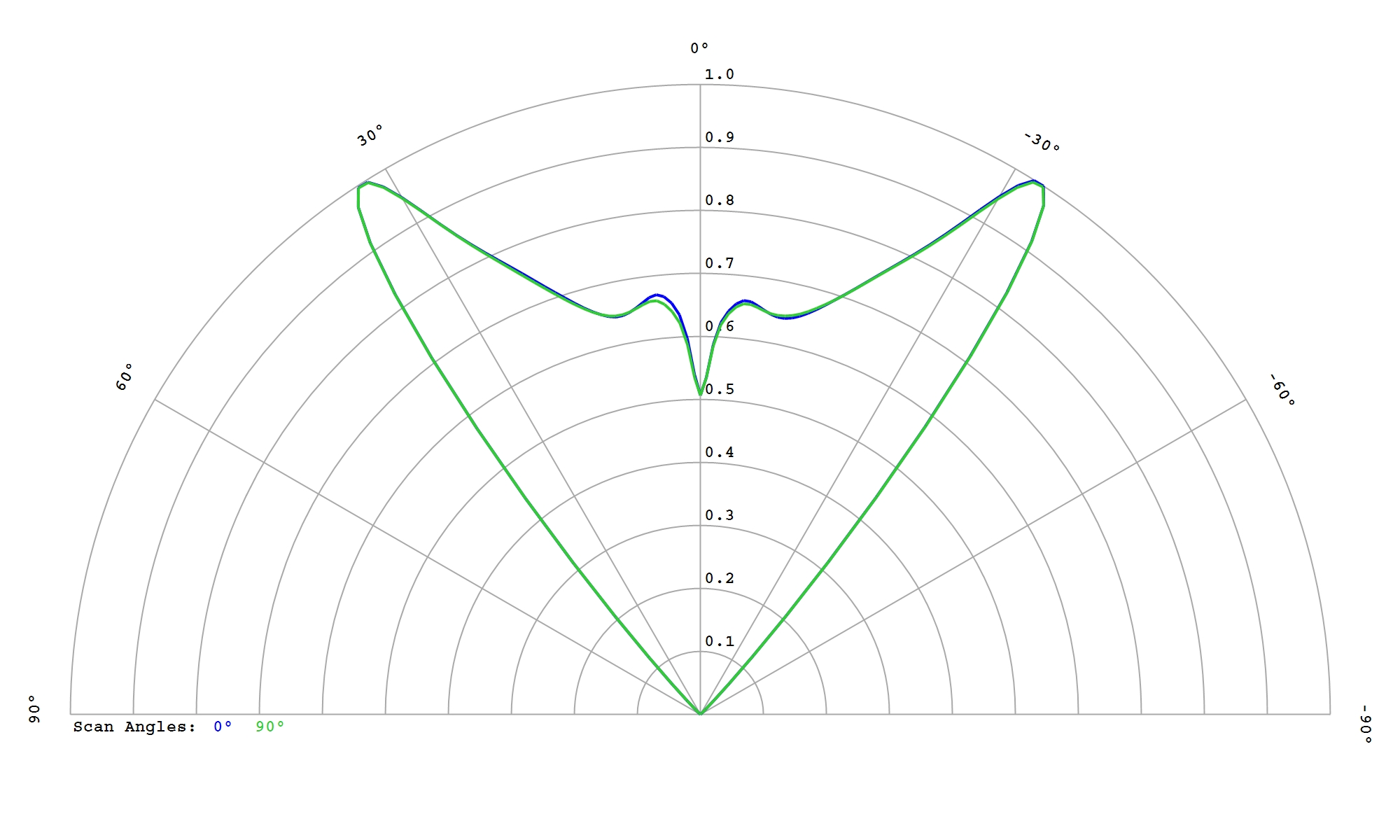

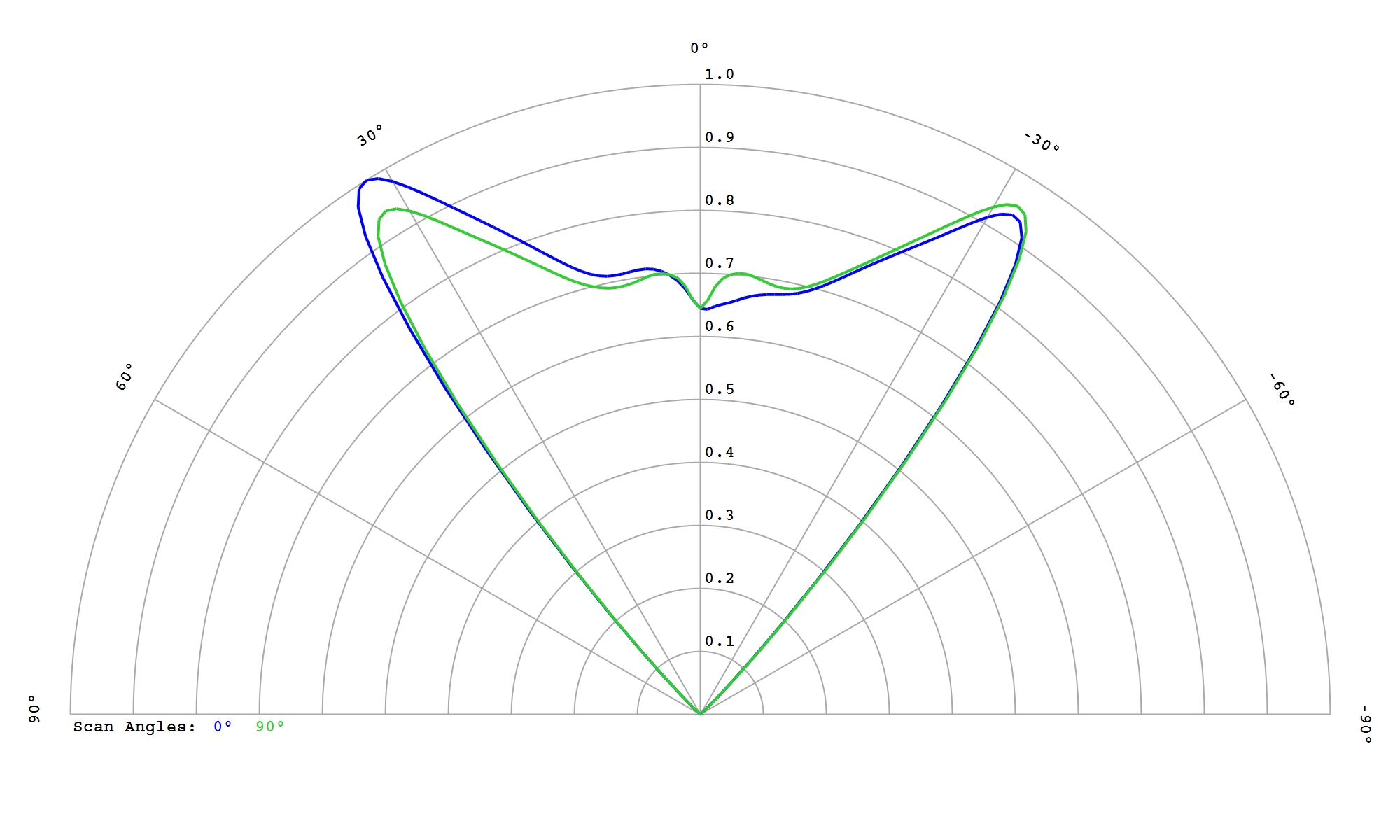

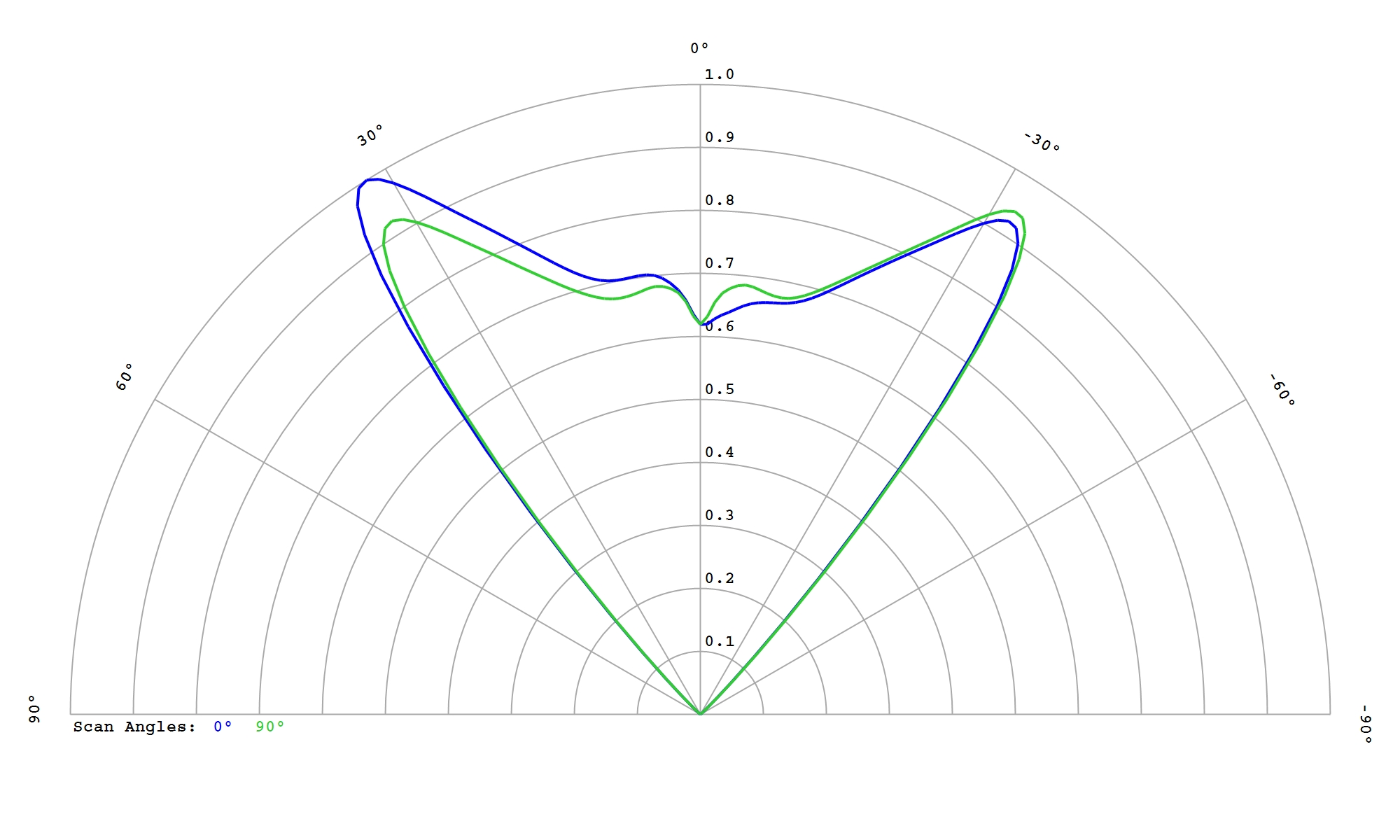

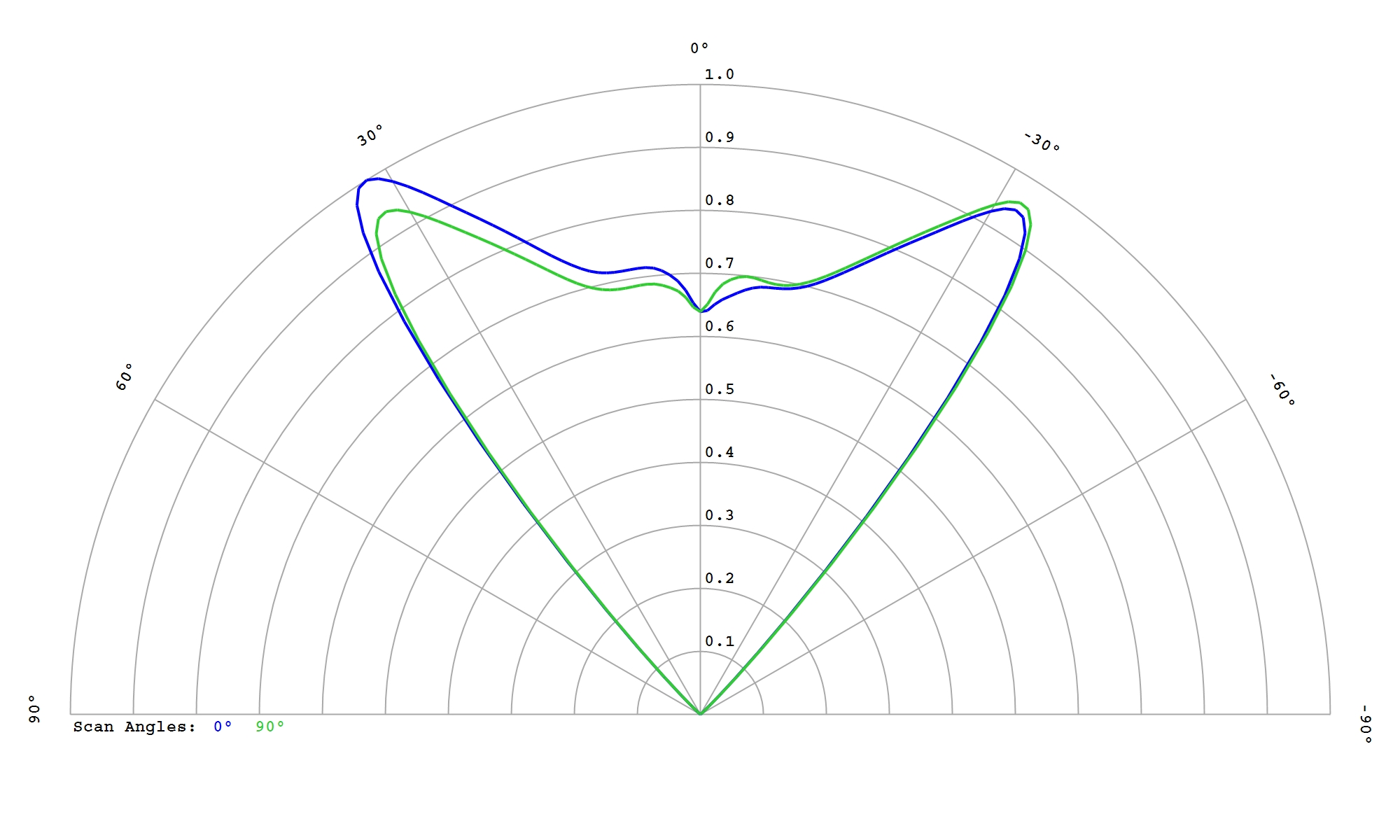

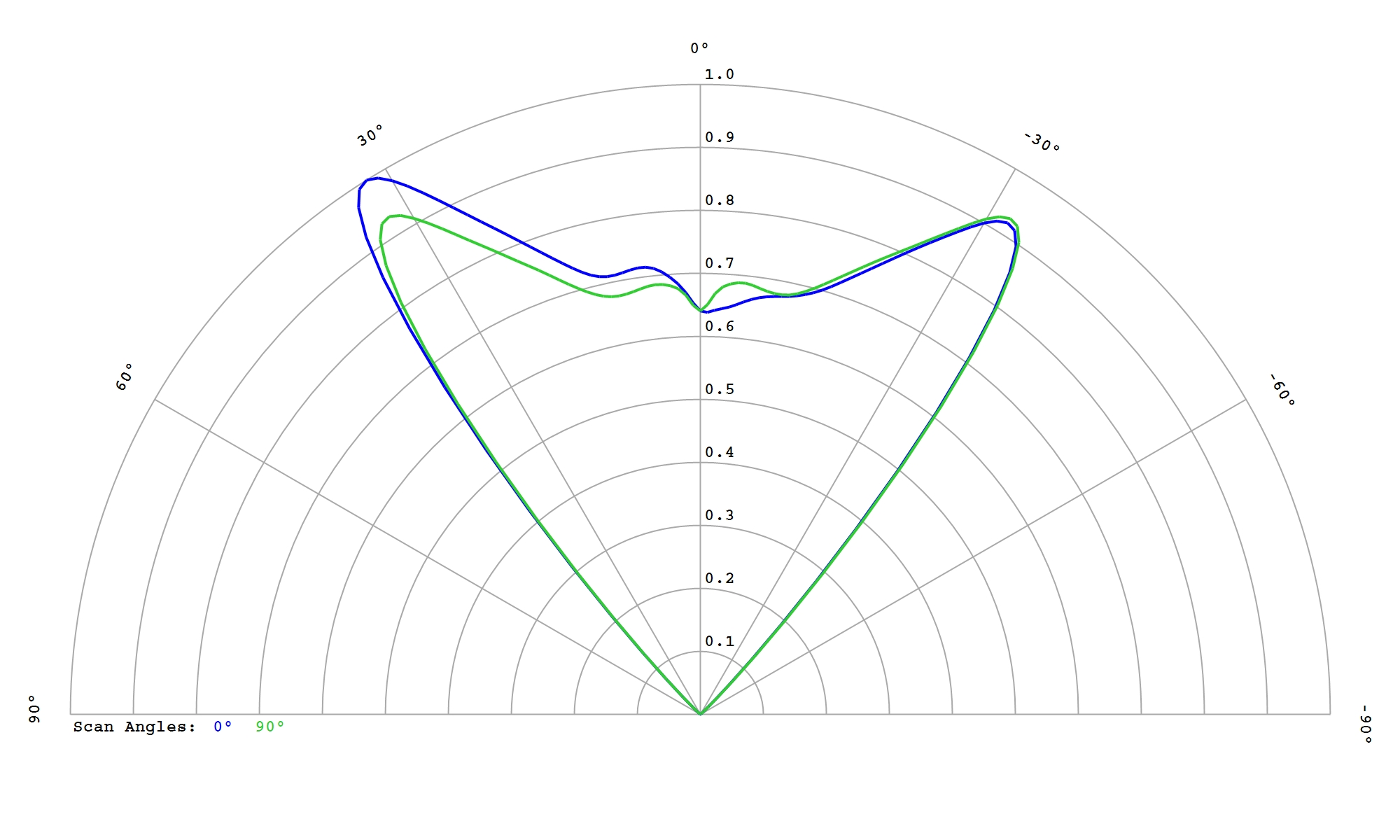

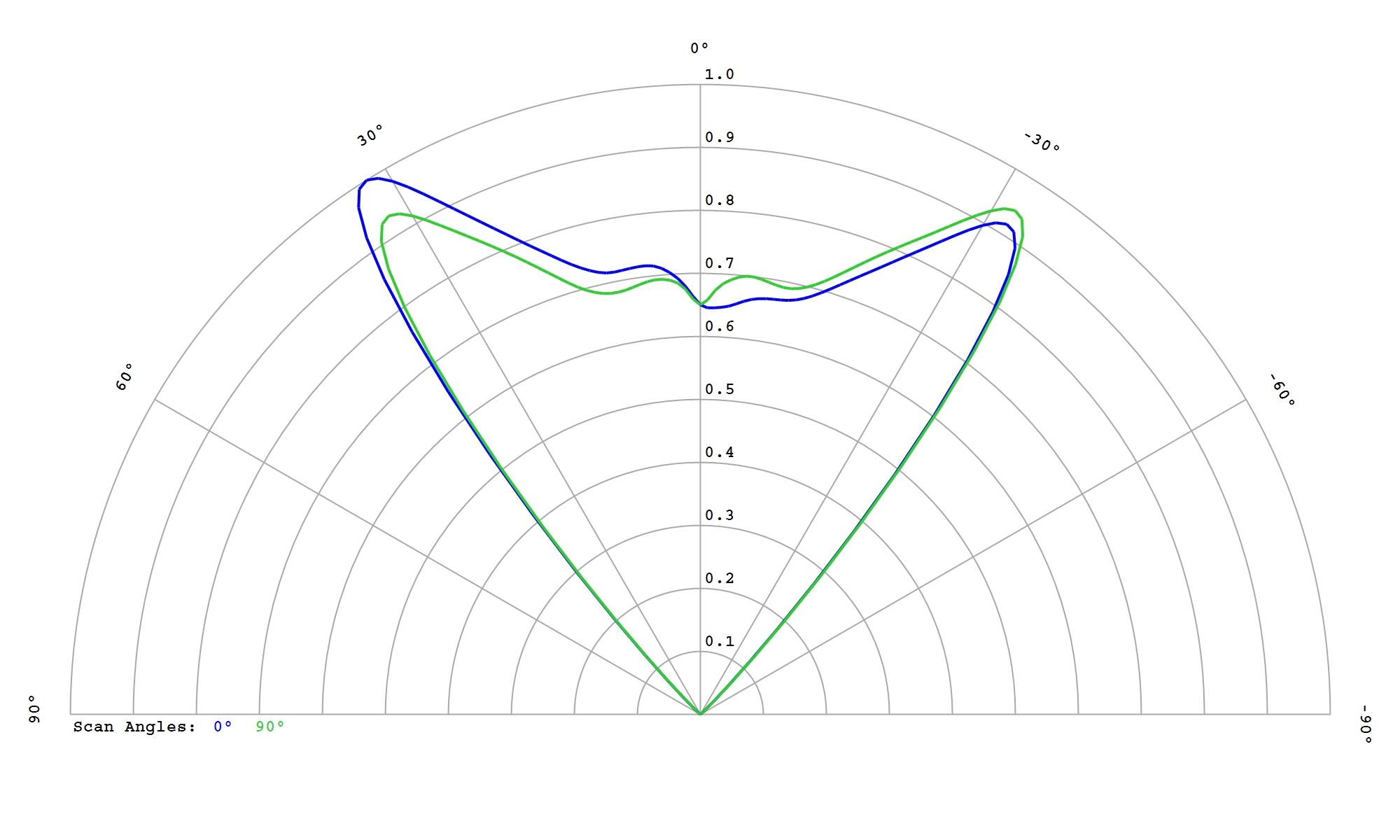

10170 Photometric plot

Download

ies

Cree XLamp XP-E2 Amber

Eff:

85.5%

FWHM:

78°

Cd/Im:

0.8

Download

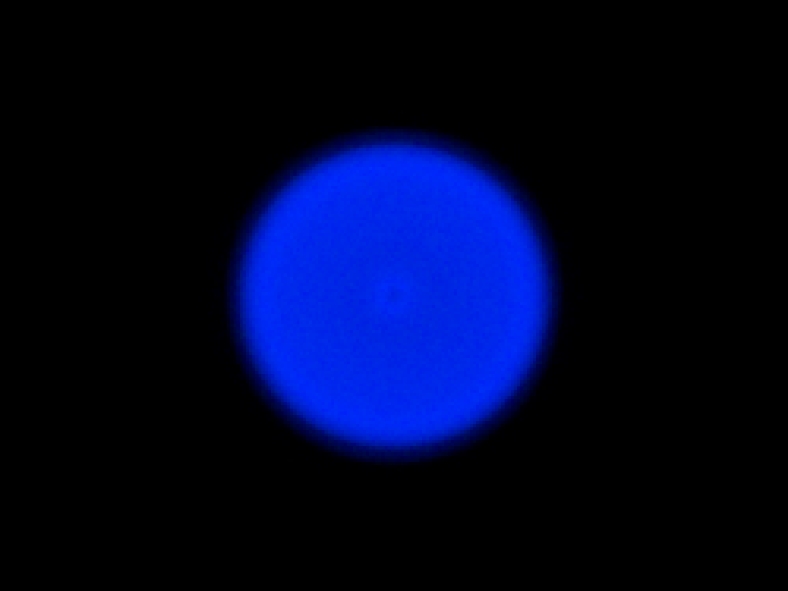

Cree XLamp XP-E2 Blue

Eff:

87.5%

FWHM:

77°

Cd/Im:

0.9

Download

Cree XLamp XP-E2 Far Red

Eff:

85.0%

FWHM:

79°

Ipk/W:

0.9

Download

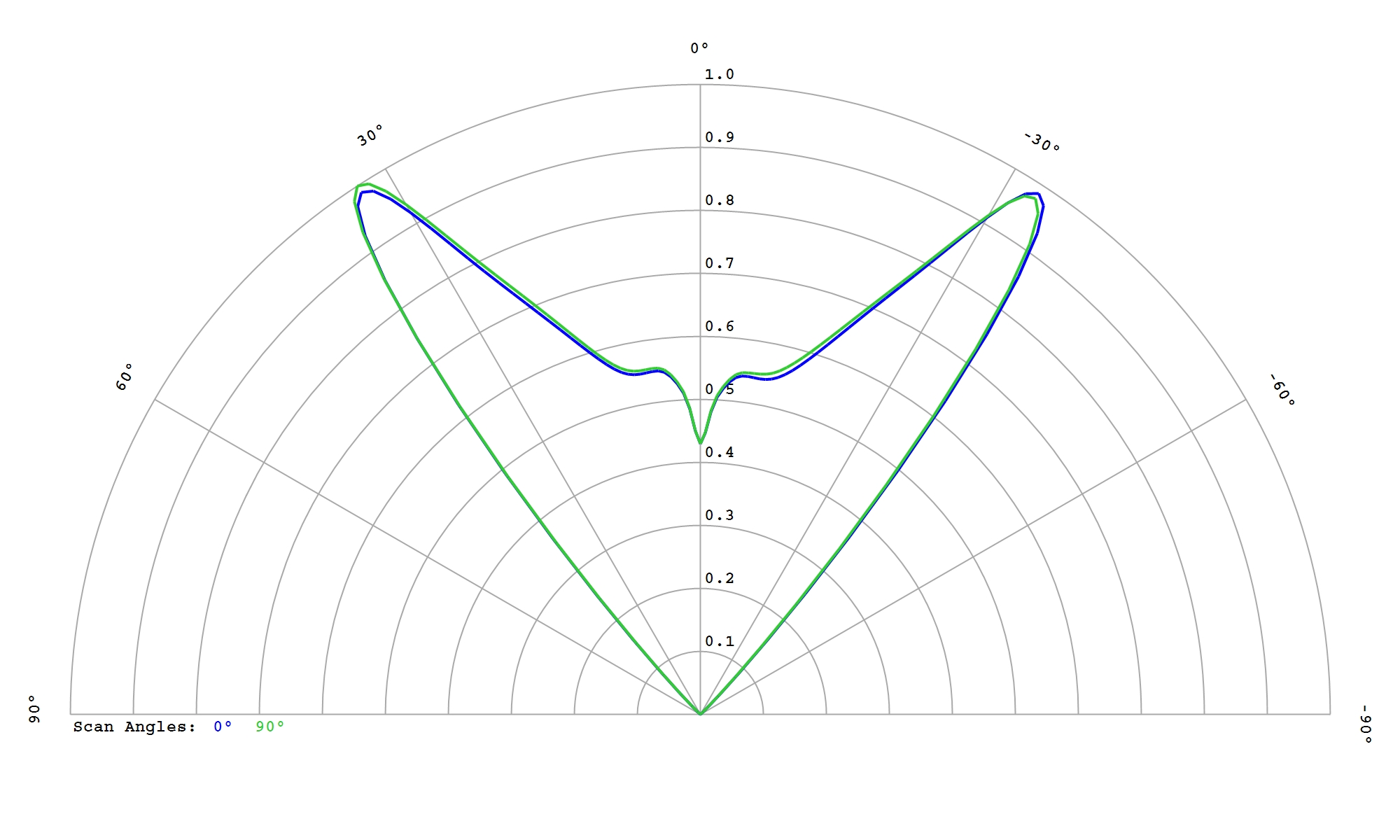

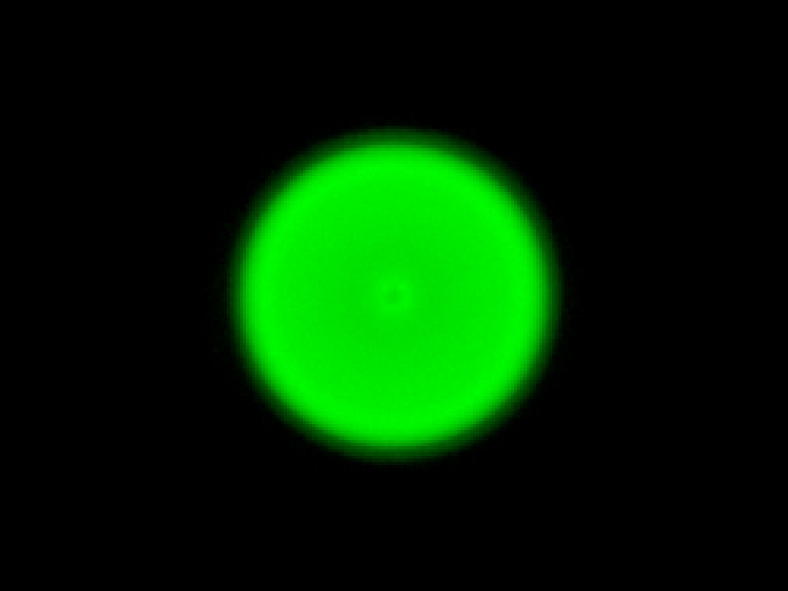

Cree XLamp XP-E2 Green

Eff:

88.0%

FWHM:

77°

Cd/Im:

0.9

Download

Cree XLamp XP-E2 PC Amber

Eff:

86.5%

FWHM:

78°

Cd/Im:

0.7


Download

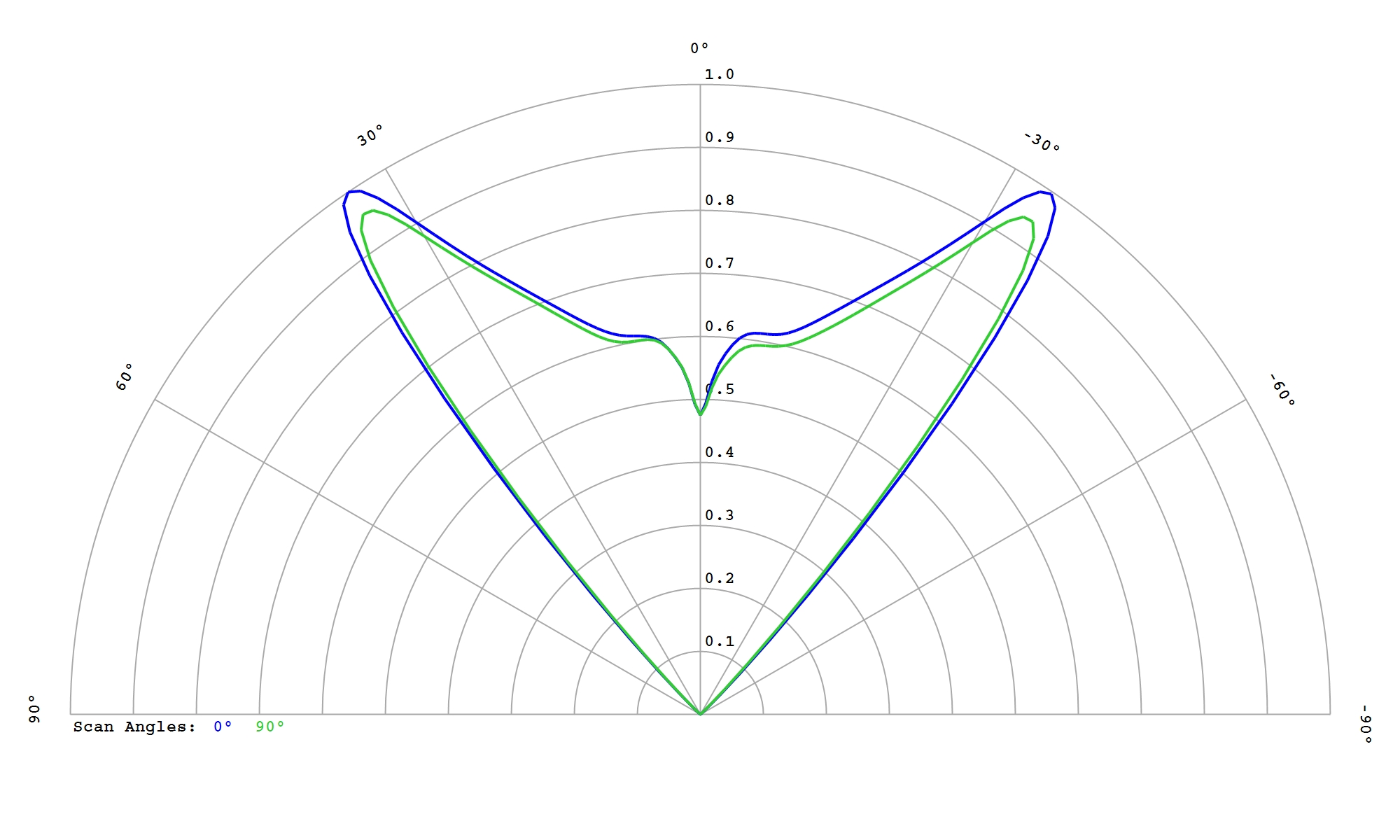

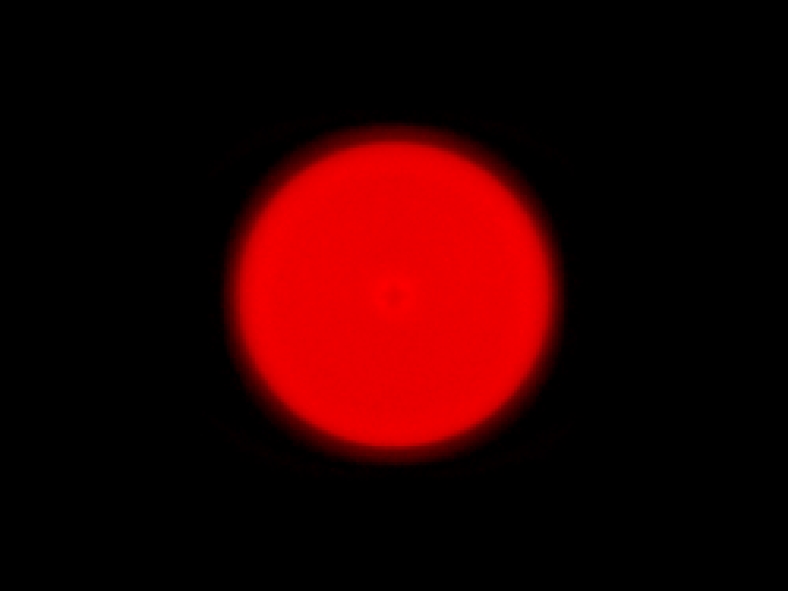

Cree XLamp XP-E2 Photo Red

Eff:

85.5%

FWHM:

79°

Ipk/W:

0.8


Download

Cree XLamp XP-E2 Red

Eff:

84.5%

FWHM:

79°

Cd/Im:

0.8

Download

Cree XLamp XP-E2 Red-Orange

Eff:

85.0%

FWHM:

79°

Cd/Im:

0.8


Download

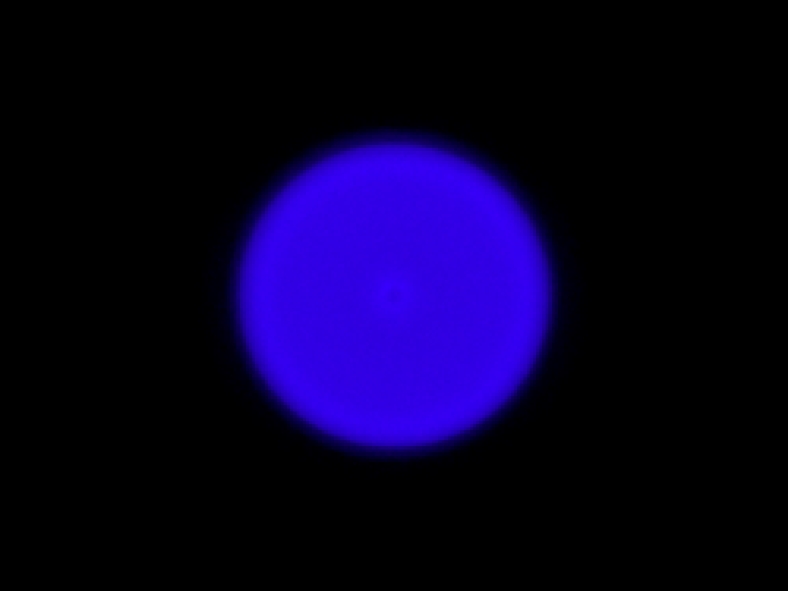

Cree XLamp XP-E2 Royal Blue

Eff:

85.5%

FWHM:

78°

Ipk/W:

0.9


Download

Cree XLamp XP-E2 White

Eff:

88.5%

FWHM:

77°

Cd/Im:

0.8

Download

Cree XLamp XP-G White

Eff:

87.9%

FWHM:

69.4°

Cd/Im:

1.1

Download

ies

Cree XLamp XP-G3 White

Eff:

81.5%

FWHM:

78°

Cd/Im:

0.7

Download

Cree XLamp XP-GR White

Eff:

88.5%

FWHM:

78°

Cd/Im:

0.9

Download

Cree XLamp XP-LR White

Eff:

89.5%

FWHM:

76°

Cd/Im:

0.9

Download

LUMILEDS LUXEON 2835C 6V White

Eff:

89.5%

FWHM:

79°

Cd/Im:

0.8

Download

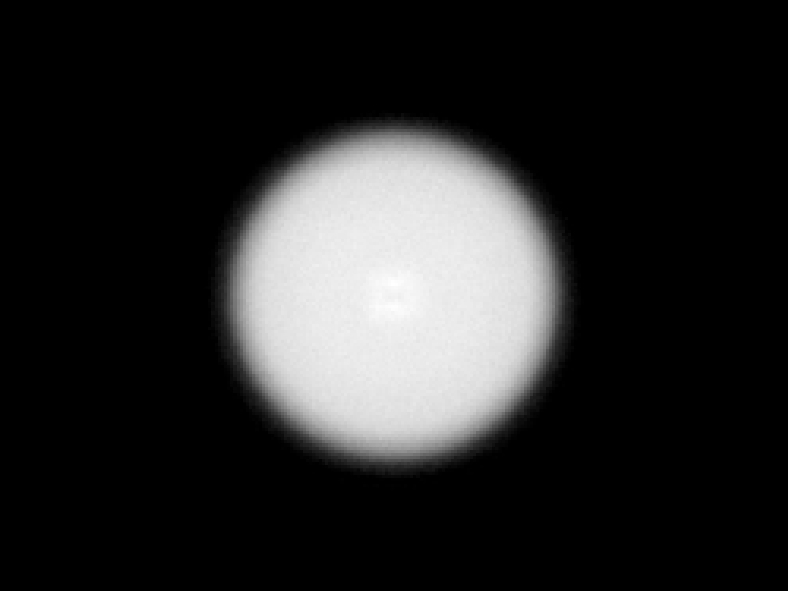

LUMILEDS LUXEON 2835E 9V White

Eff:

89.5%

FWHM:

79°

Cd/Im:

0.8

Download

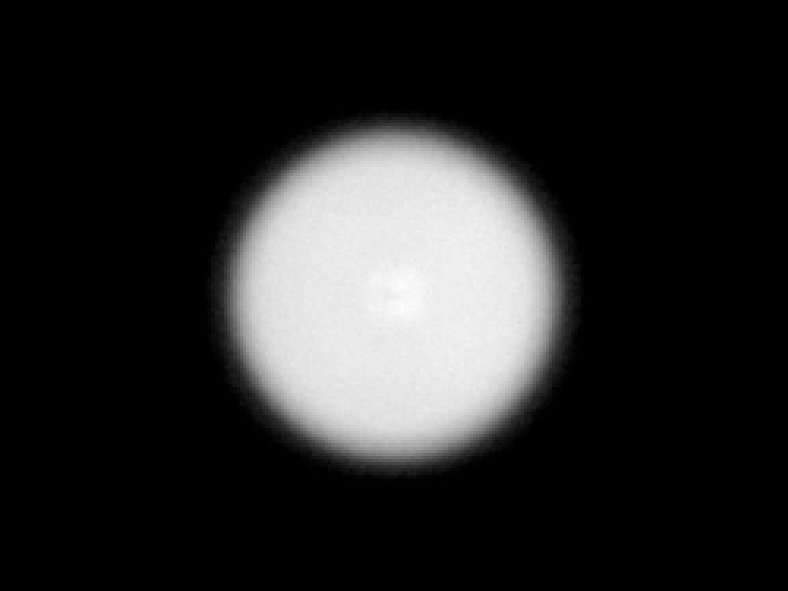

LUMILEDS LUXEON 2835N 3V White

Eff:

89.0%

FWHM:

79°

Cd/Im:

0.8

Download

LUMILEDS LUXEON 2835S 3V White

Eff:

89.0%

FWHM:

79°

Cd/Im:

0.8

Download

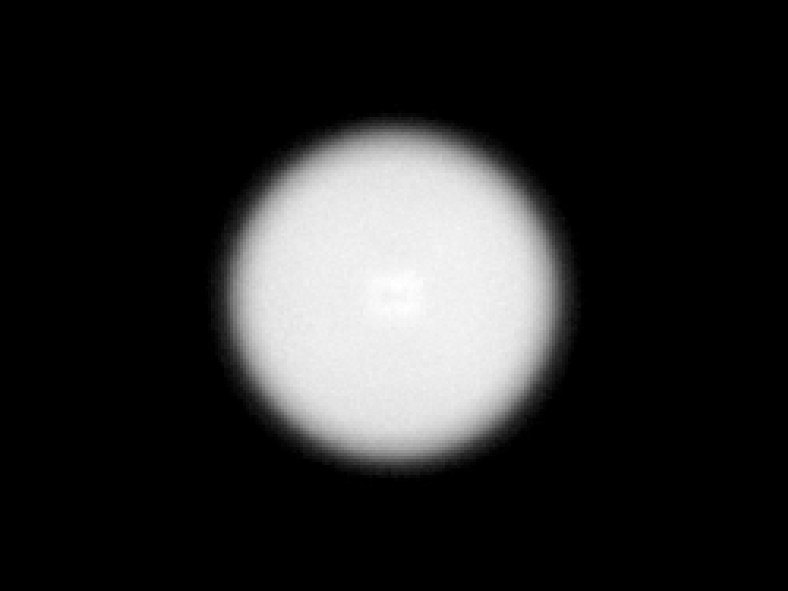

LUMILEDS LUXEON 2835S 6V White

Eff:

89.0%

FWHM:

79°

Cd/Im:

0.8

Download

LUMILEDS LUXEON 3030 2D Plus Round White

Eff:

88.5%

FWHM:

74°

Cd/Im:

1.0


Download

LUMILEDS LUXEON 3030 2D Plus Square White

Eff:

88.0%

FWHM:

74°

Cd/Im:

0.9


Download

LUMILEDS LUXEON 3030 2D Square White

Eff:

88.5%

FWHM:

72°

Cd/Im:

1.0


Download

LUMILEDS LUXEON 3030 2D Round White

Eff:

88.0%

FWHM:

70°

Cd/Im:

1.1

Download

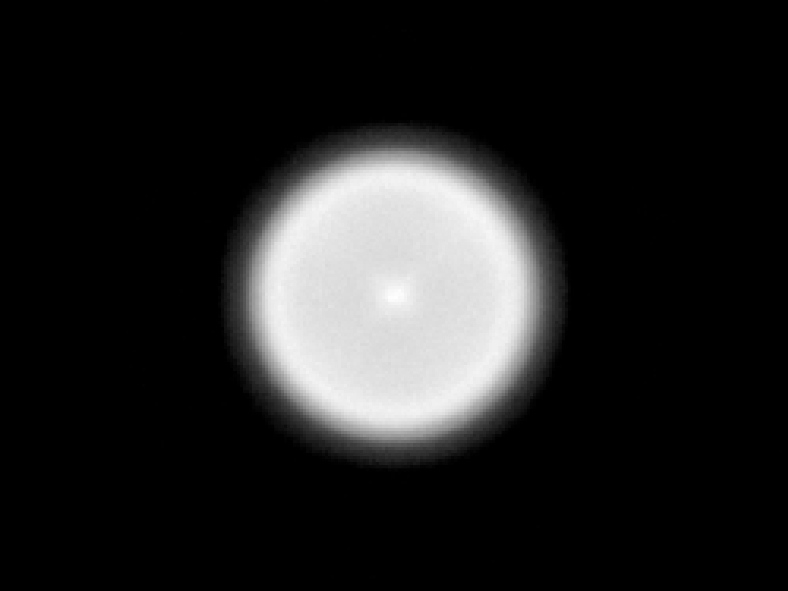

LUMILEDS LUXEON 3030 HE White

Eff:

88.5%

FWHM:

73°

Cd/Im:

1.0

Download

LUMILEDS LUXEON 3535 L White

Eff:

89.0%

FWHM:

76°

Cd/Im:

0.9

Download

LUMILEDS LUXEON IR 2720

Eff:

95.5%

FWHM:

17.0°

Ipk/W:

9.4

Carclo Optics - 10770 10mm Narrow Spot Image Luxeon IR 2720

Carclo Optics - 10770 10mm Narrow Cross Section Luxeon IR 2720

Download

ies

LUMILEDS LUXEON Rebel ES White

Eff:

89.3%

FWHM:

76.2°

Cd/Im:

1.1

Optic 10170 Spot

10170 Photometric plot

Download

ies

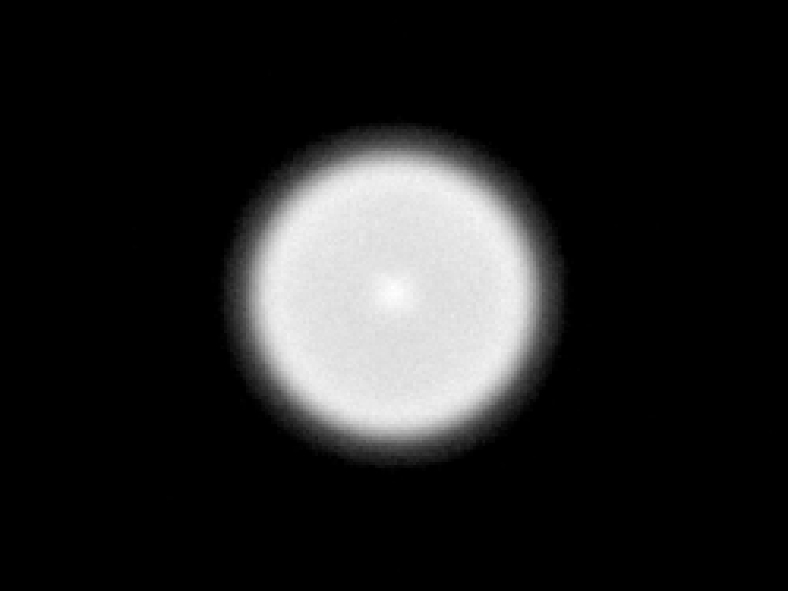

Luminus Devices MP-3030-11F2 White

Eff:

89.0%

FWHM:

73°

Cd/Im:

1.0


Download

Luminus Devices SFT-12R-WES-A White

Eff:

89.0%

FWHM:

76°

Cd/Im:

1.0


Download

Luminus Devices SFT-25R-WES-A White

Eff:

89.0%

FWHM:

76°

Cd/Im:

0.9


Download

Luminus Devices SST 20-WxH White Hi CRI

Eff:

87.5%

FWHM:

74°

Cd/Im:

0.9

Download

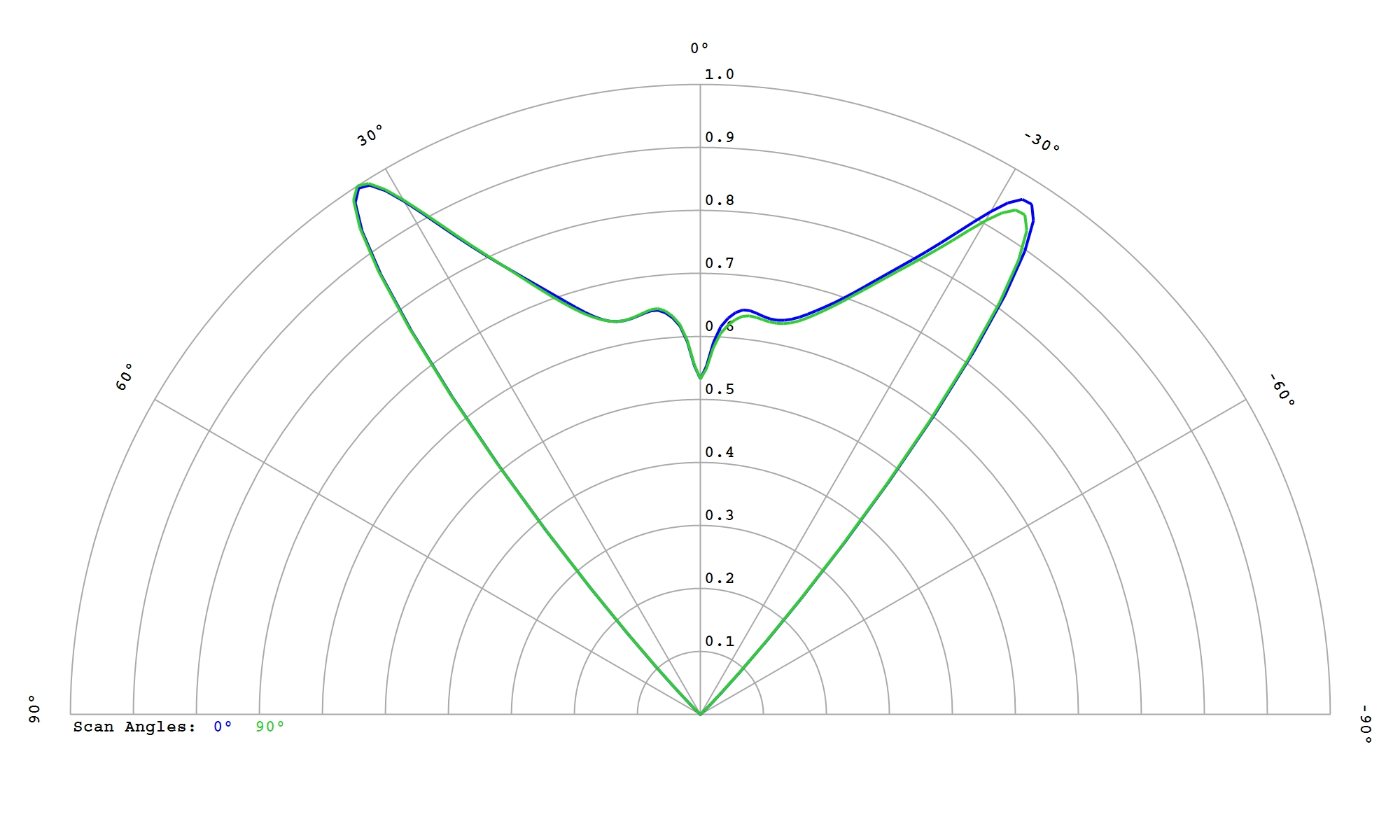

Luminus Devices SST-12-WS Gen2 White

Eff:

88.0%

FWHM:

78°

Cd/Im:

0.9


Download

Luminus Devices SST-12-WxS White

Eff:

88.0%

FWHM:

77°

Cd/Im:

0.9

Download

Luminus Devices SST-20-W Gen2 White

Eff:

87.5%

FWHM:

76°

Cd/Im:

0.9


Download

Osram DURIS E 2835 Gen2

Eff:

88.5%

FWHM:

77°

Cd/Im:

0.8



Download

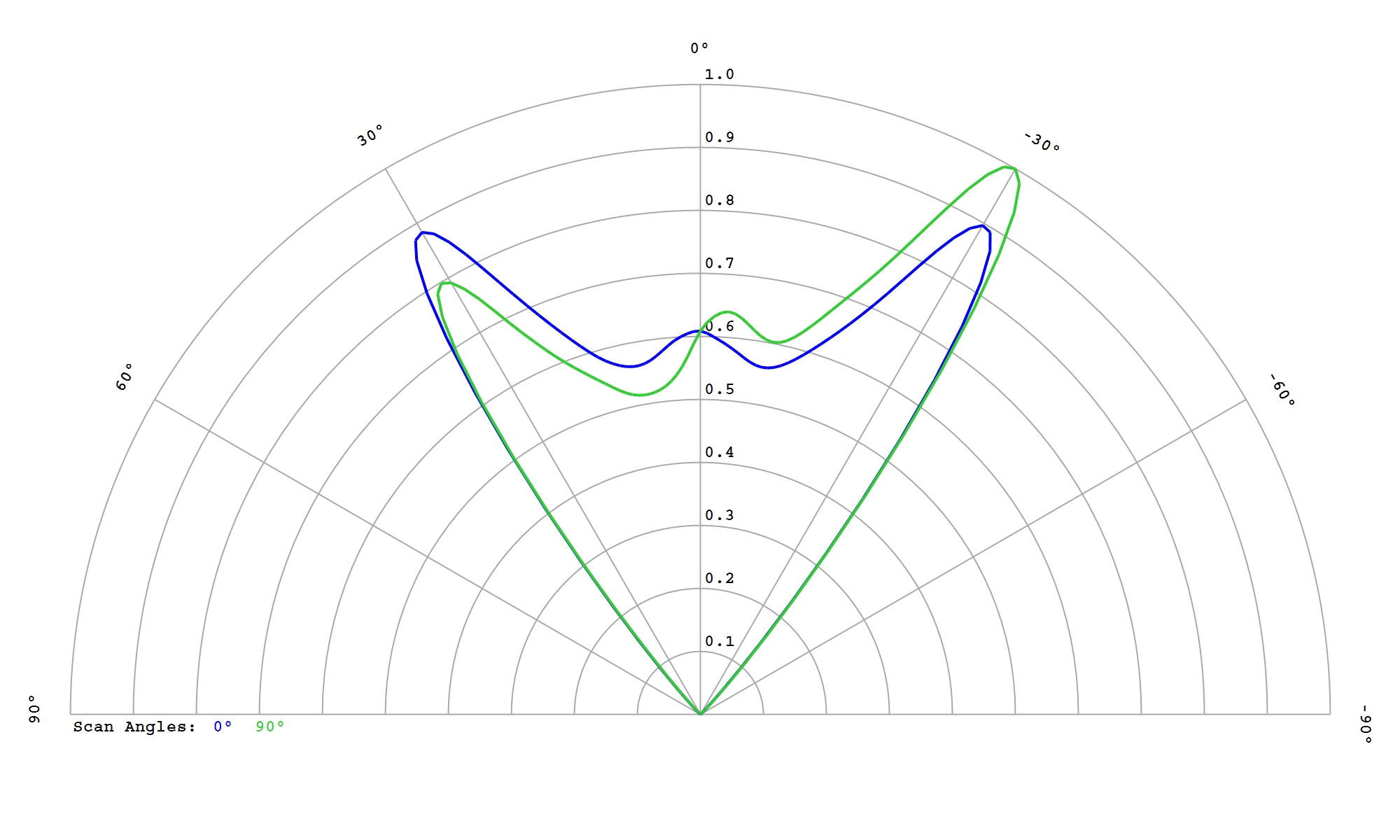

Osram DURIS S5 White

Eff:

88.5%

FWHM:

72°

Cd/Im:

1.1

Download

Osram OSCONIQ C 3030 GW PLTRA1.PM White

Eff:

88.5%

FWHM:

72°

Cd/Im:

1.0

Download

Osram OSCONIQ E 3030 GW QSLPS1.EM White

Eff:

88.5%

FWHM:

70°

Cd/Im:

1.1

Download

Osram OSCONIQ P 3030 GW QSSPA1.PM White

Eff:

86.5%

FWHM:

72°

Cd/Im:

1.1

Download

Osram OSCONIQ S 3030 GW QSLMS3.EM White

Eff:

89.0%

FWHM:

74°

Cd/Im:

0.9

Download

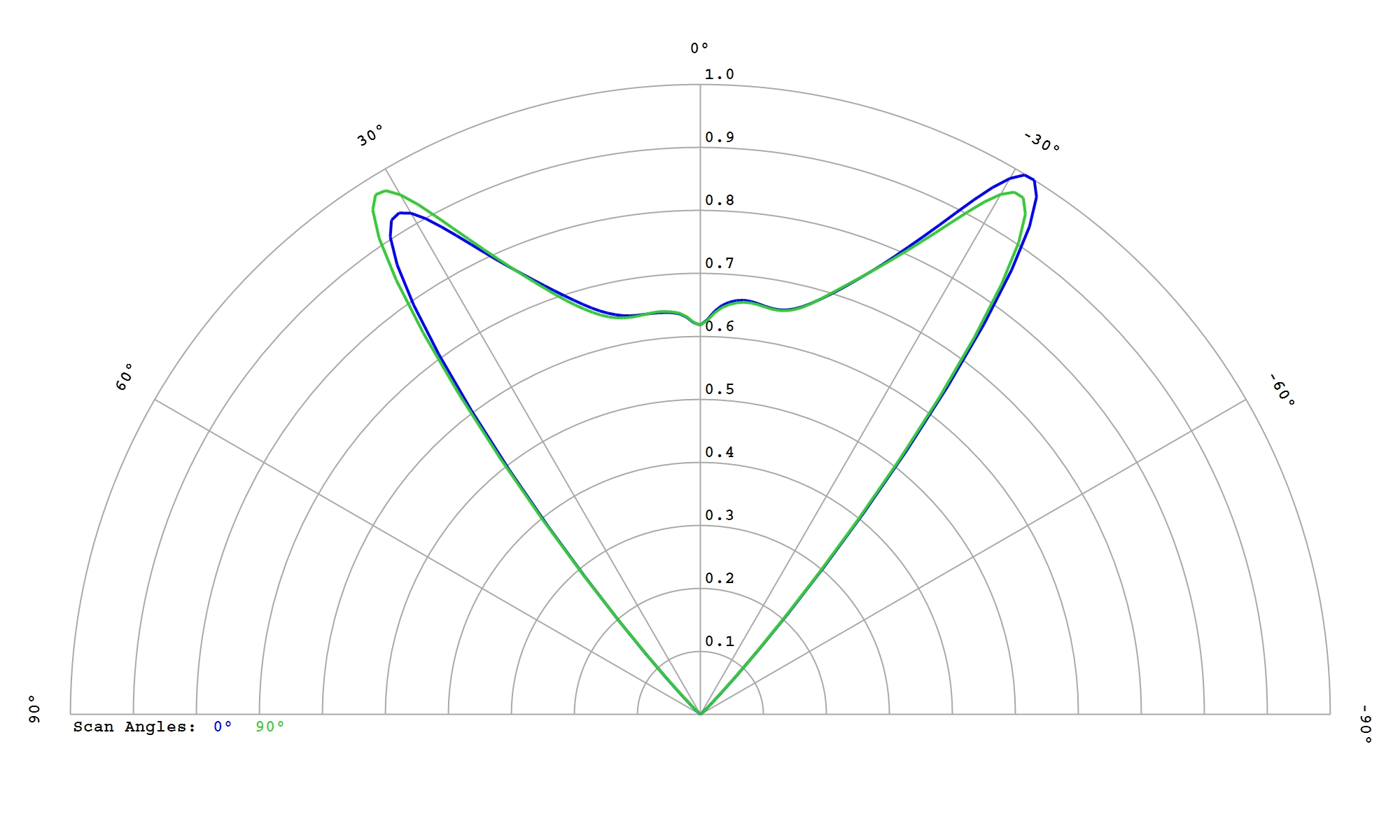

Osram OSLON Square Gen 3 White

Eff:

87.5%

FWHM:

75°

Cd/Im:

0.9


Download

Samsung 2835 LM281B+ White

Eff:

85.0%

FWHM:

78°

Cd/Im:

0.8



Download

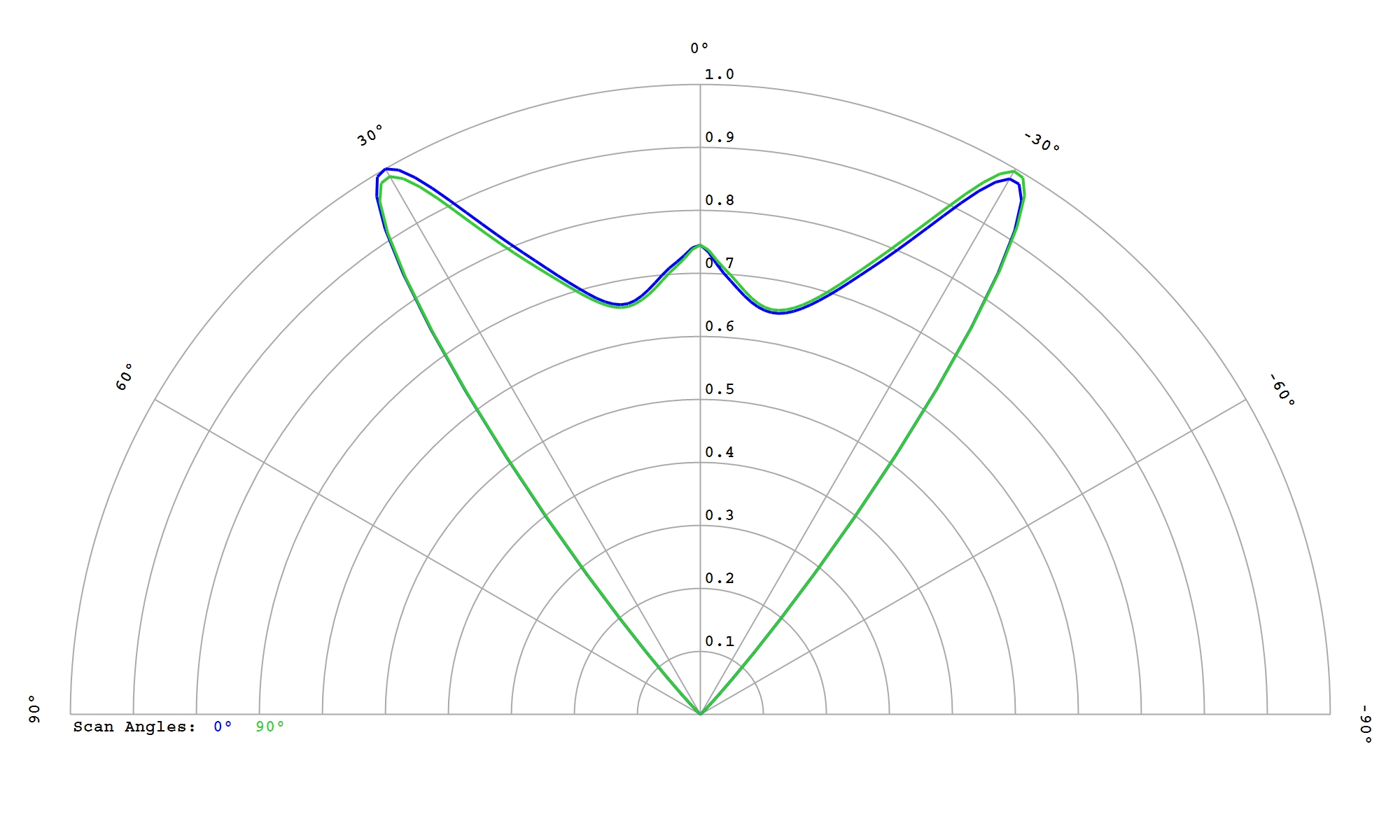

Samsung 3030 LM301B White

Eff:

89.0%

FWHM:

73°

Cd/Im:

0.9


Download

Samsung 3535 LH351B White

Eff:

87.0%

FWHM:

77°

Cd/Im:

0.8

Download

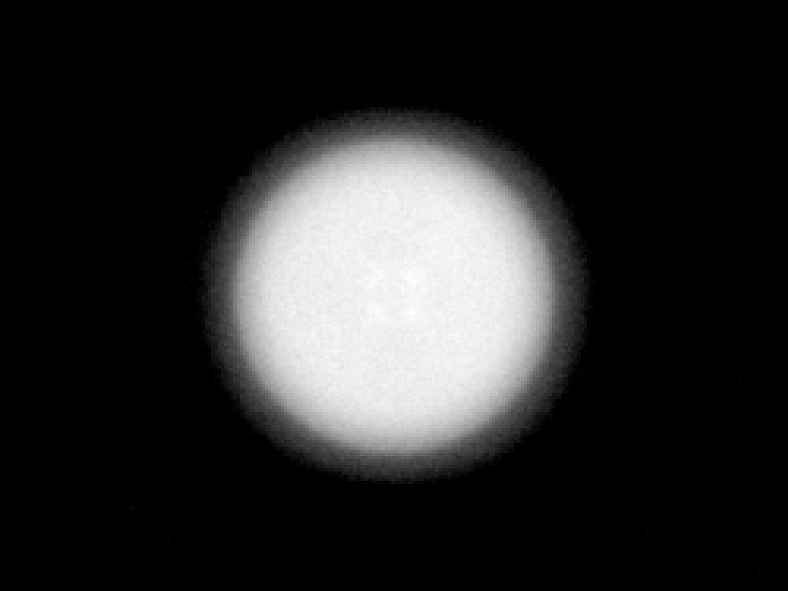

Samsung 3535 LH351D White

Eff:

80.0%

FWHM:

78°

Cd/Im:

0.7

Download

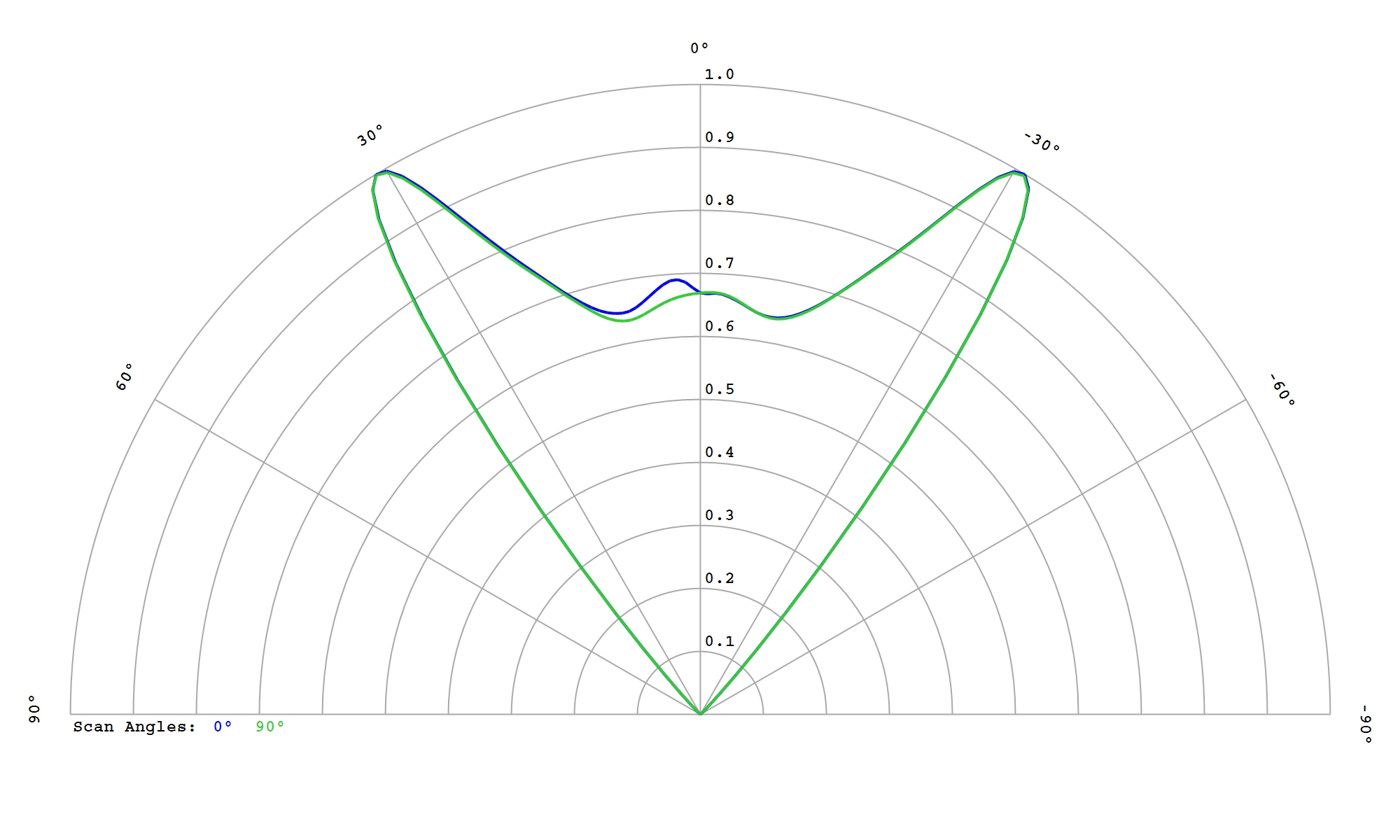

Seoul 3030 STW8C12E-E0 White

Eff:

88.5%

FWHM:

74°

Cd/Im:

0.9

Download

Seoul 3528 G STW8A2PD-G700 White

Eff:

89.5%

FWHM:

79°

Cd/Im:

0.8

Download

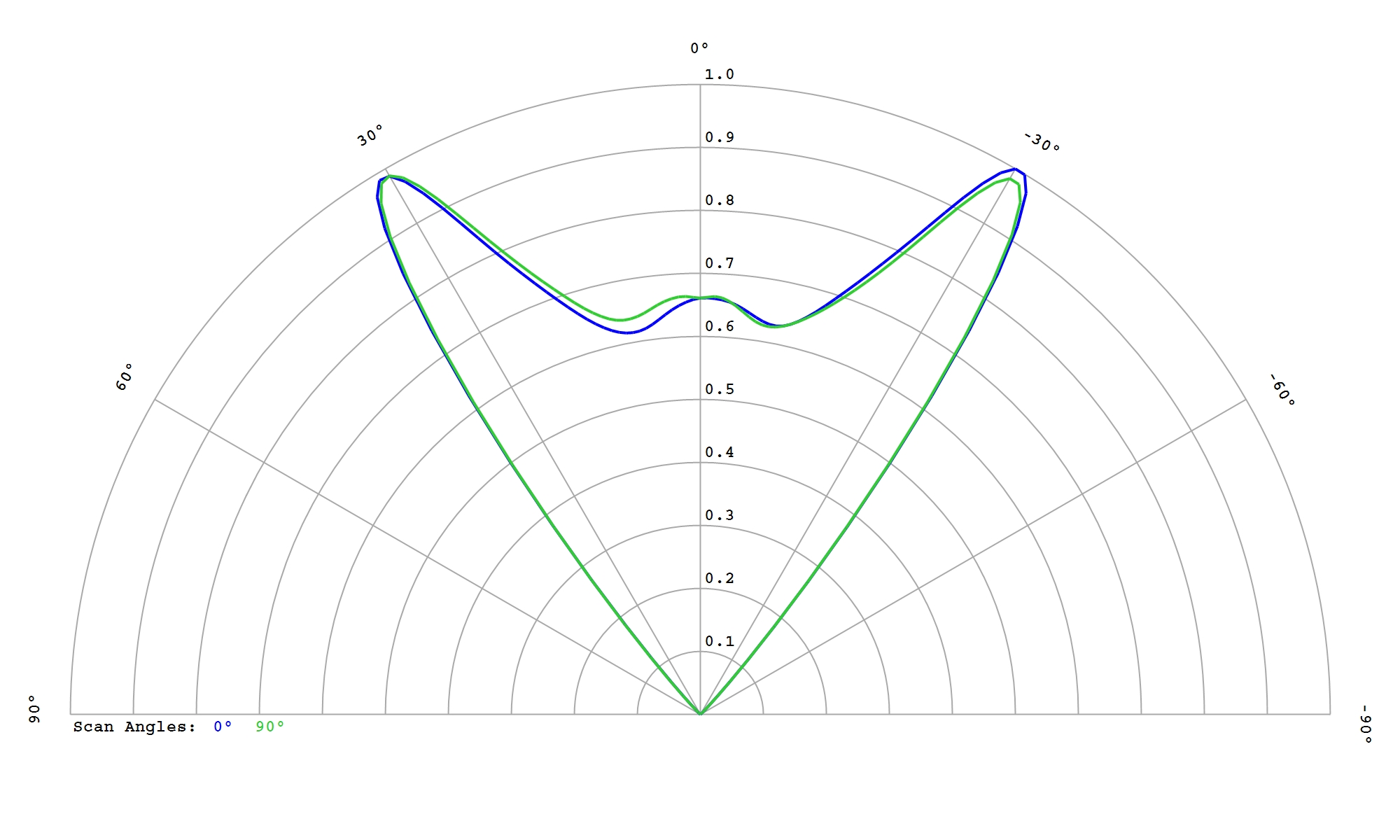

Seoul 3030 STW8C2SB-NT White

Eff:

88.5%

FWHM:

73°

Cd/Im:

1.0

Download

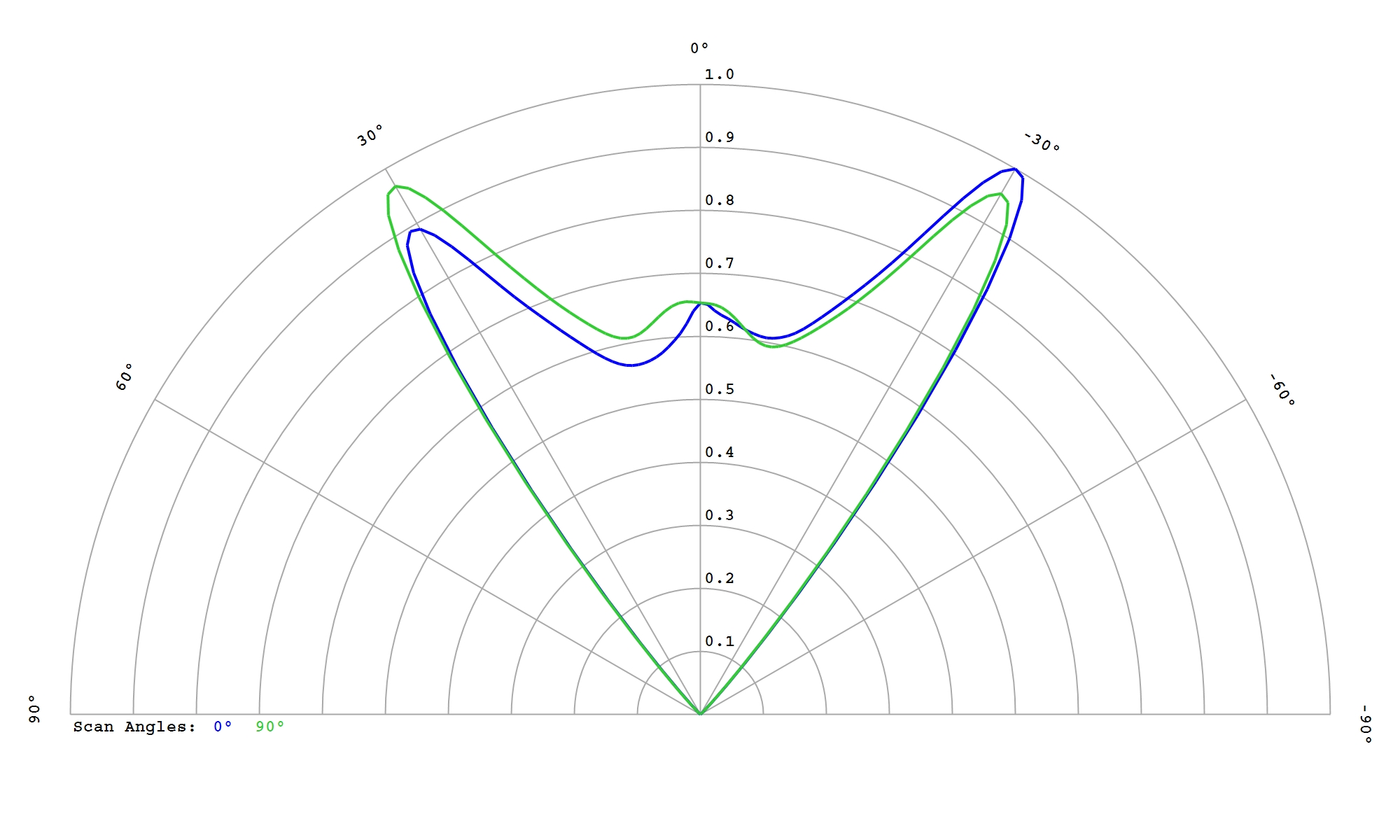

Seoul SunLike 3030 STWSC2PB-E0 White

Eff:

88.5%

FWHM:

72°

Cd/Im:

1.0


Download

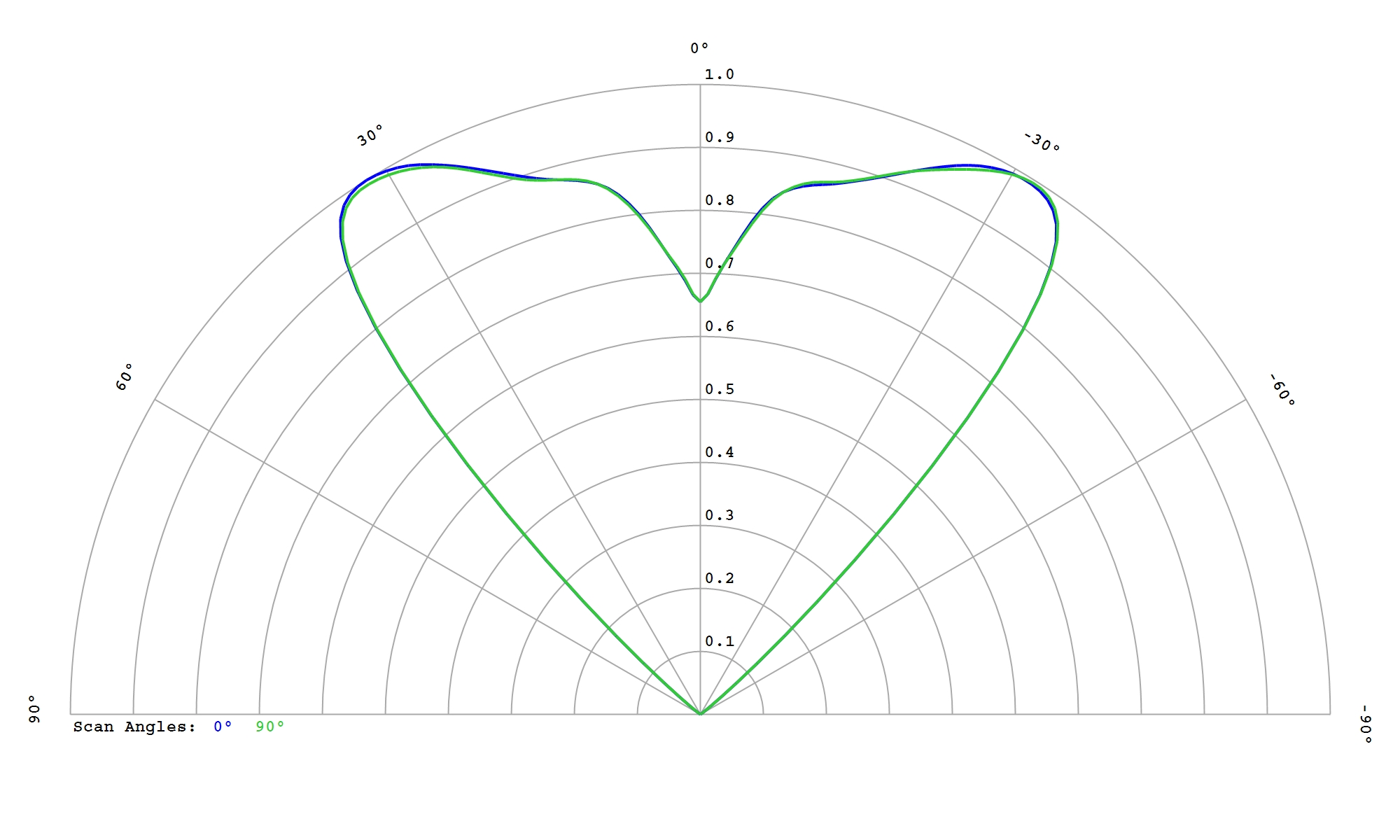

Seoul SunLike 3030 STWSC12S-E1 White

Eff:

90.5%

FWHM:

87°

Cd/Im:

0.6

Download

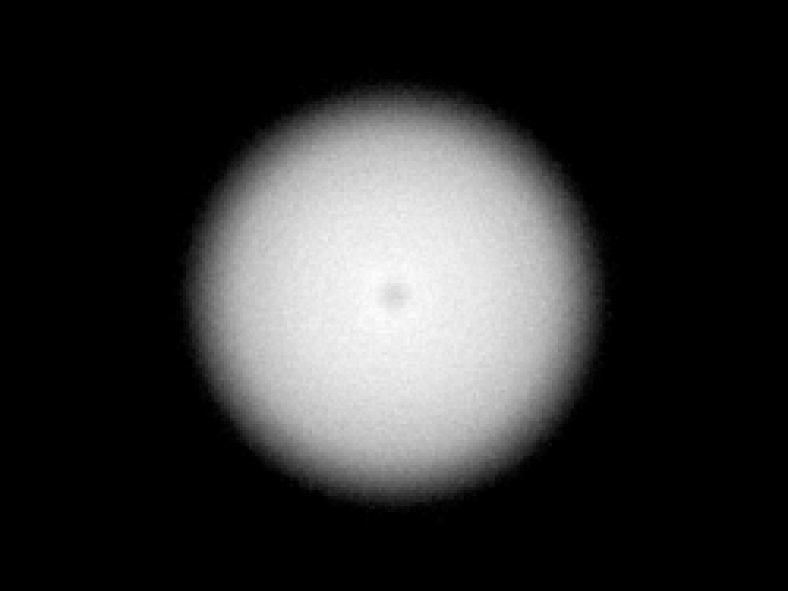

Seoul SunLike 3030 STWSC12S-E2 White

Eff:

90.5%

FWHM:

87°

Cd/Im:

0.6

Download

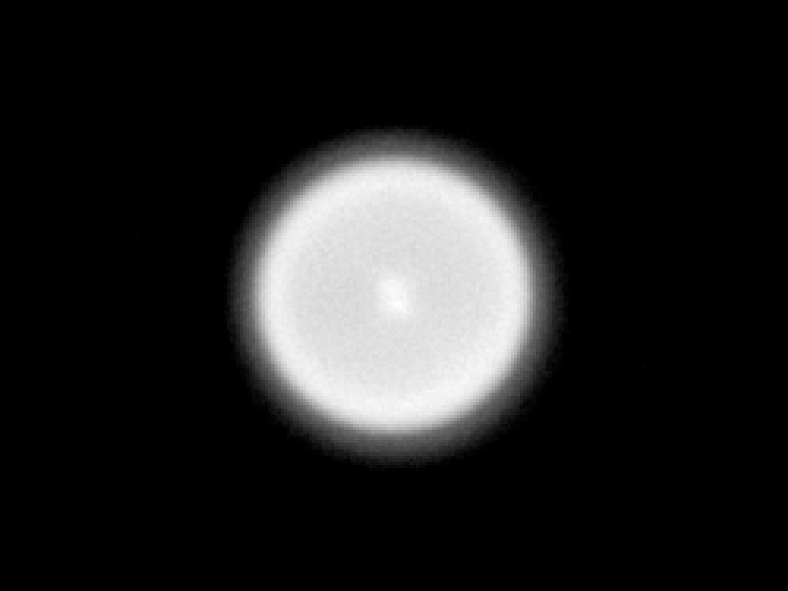

Seoul SunLike 3030 STW9C2SB-S White

Eff:

88.5%

FWHM:

72°

Cd/Im:

1.0


Download

Seoul Z - Power Z5-M1 White

Eff:

87.5%

FWHM:

75°

Cd/Im:

0.9

Download

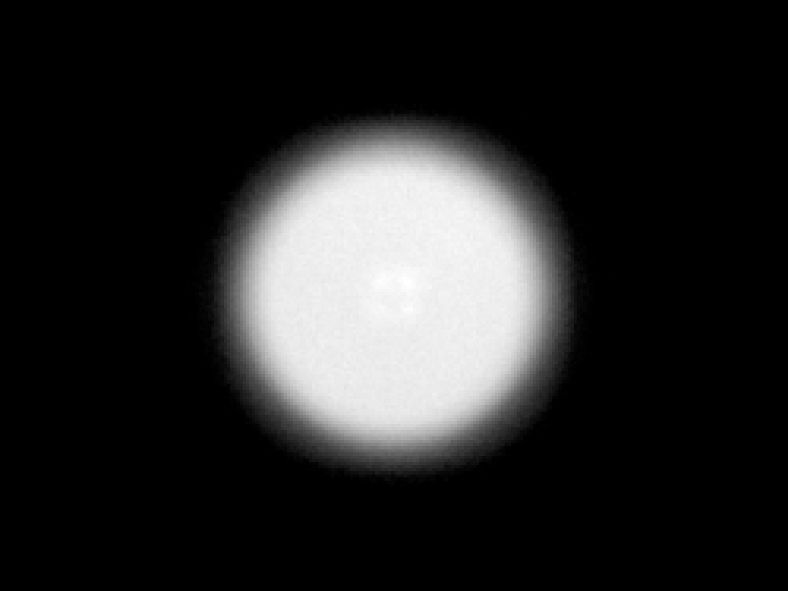

Seoul Z - Power Z5-M4 White

Eff:

88.5%

FWHM:

76°

Cd/Im:

0.8

Download

Seoul Z - Power Z5-M5 White

Eff:

83.5%

FWHM:

78°

Cd/Im:

0.7

Download

Seoul Z - Power Z5-M White

Eff:

88.7%

FWHM:

79°

Cd/Im:

1.1

Download

ies
