60.0mm Ultra Narrow Catadioptric

Part number

10158

Dimensions

60.0mm

Optic type

Catadioptric

Beam type

Ultra Narrow

Applications

Architectural

Industrial

Landscape & Garden

Downloads

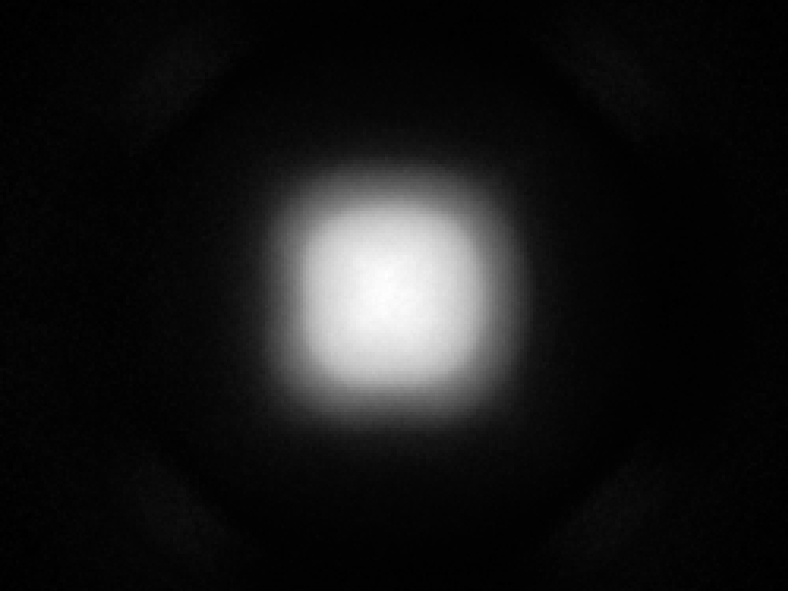

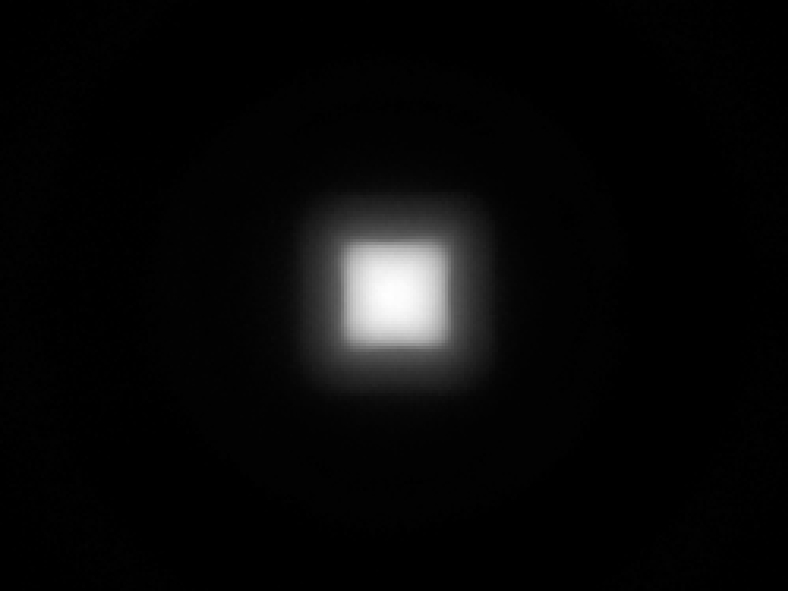

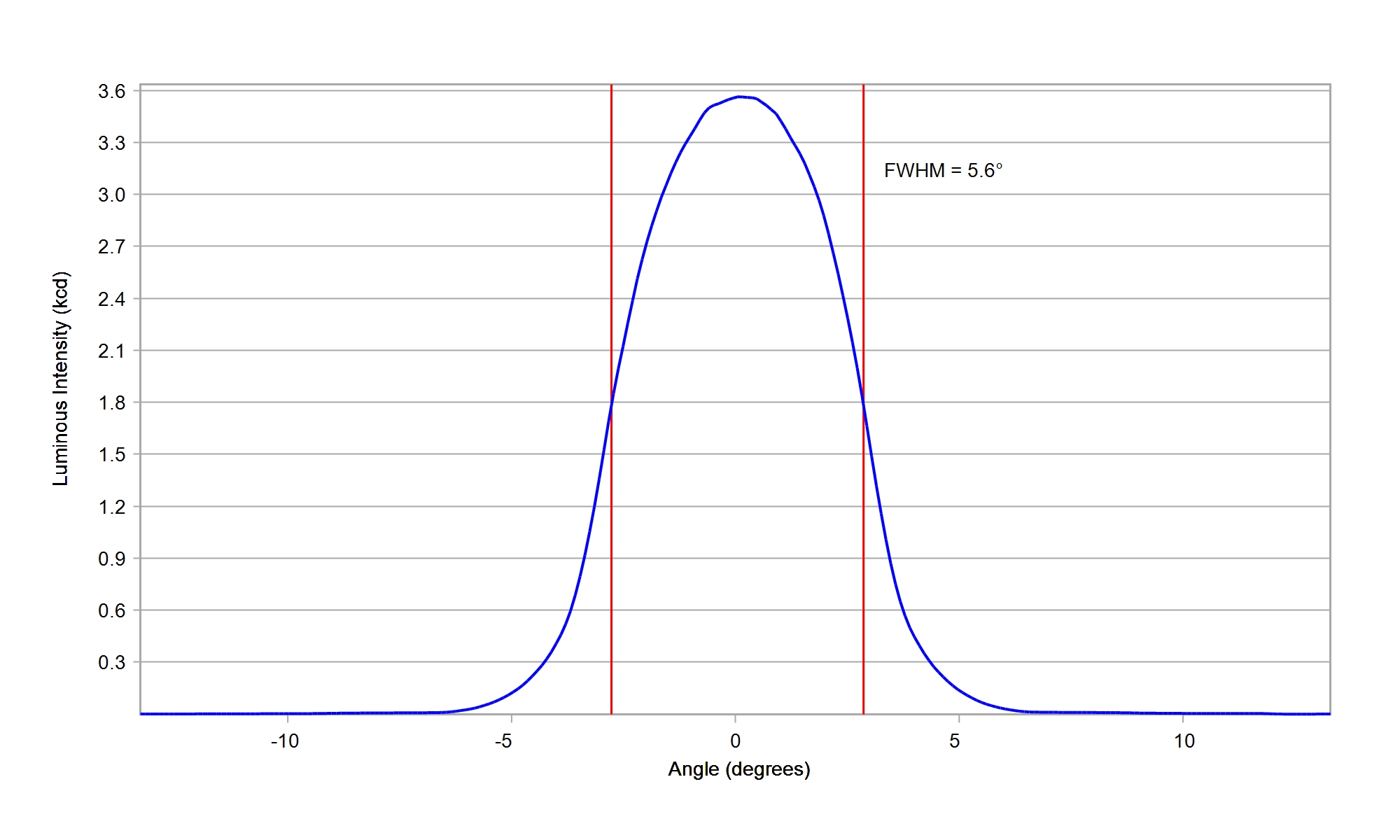

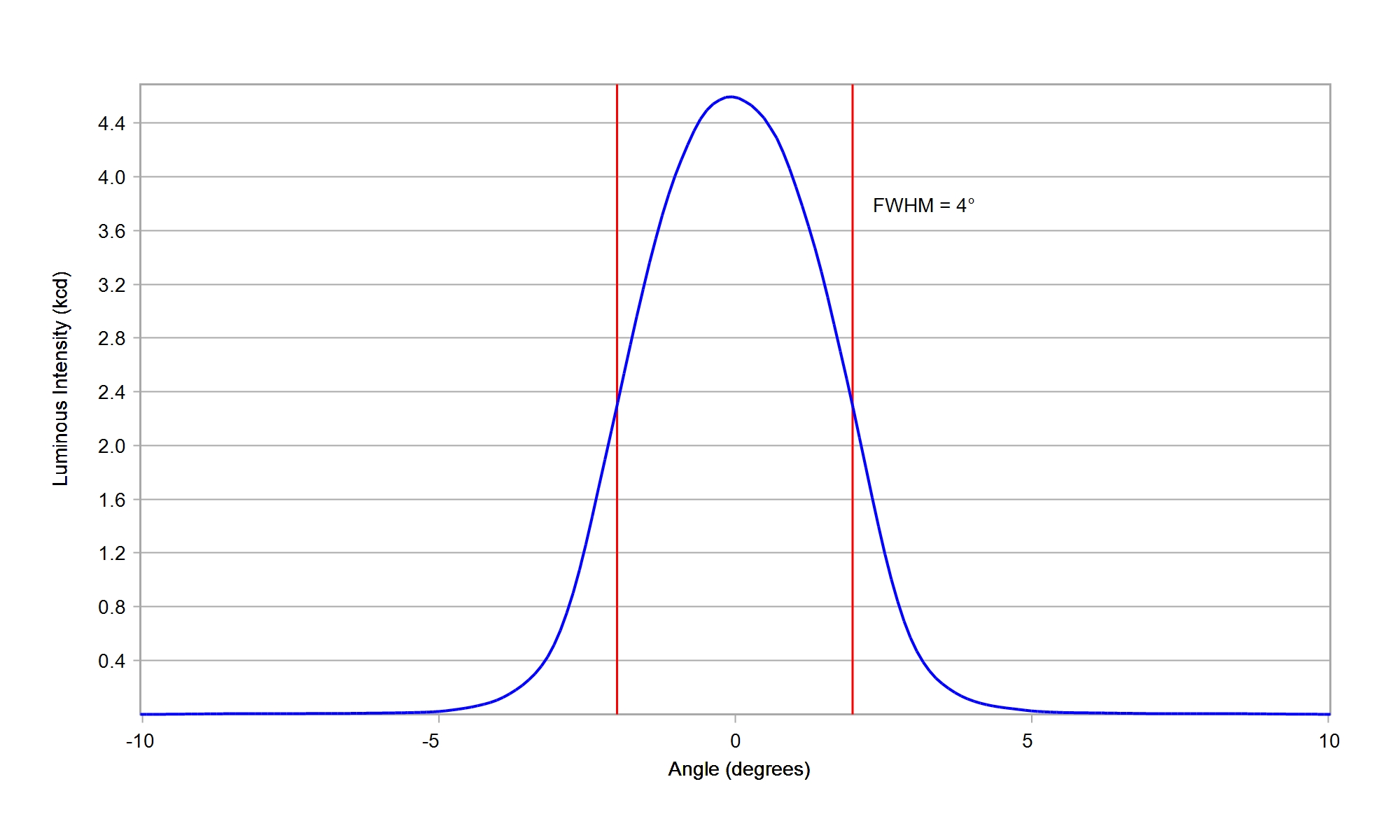

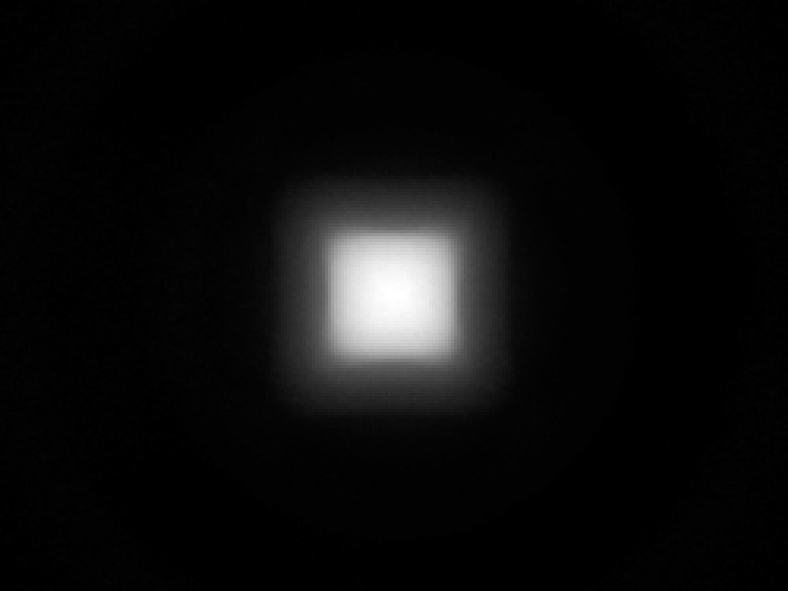

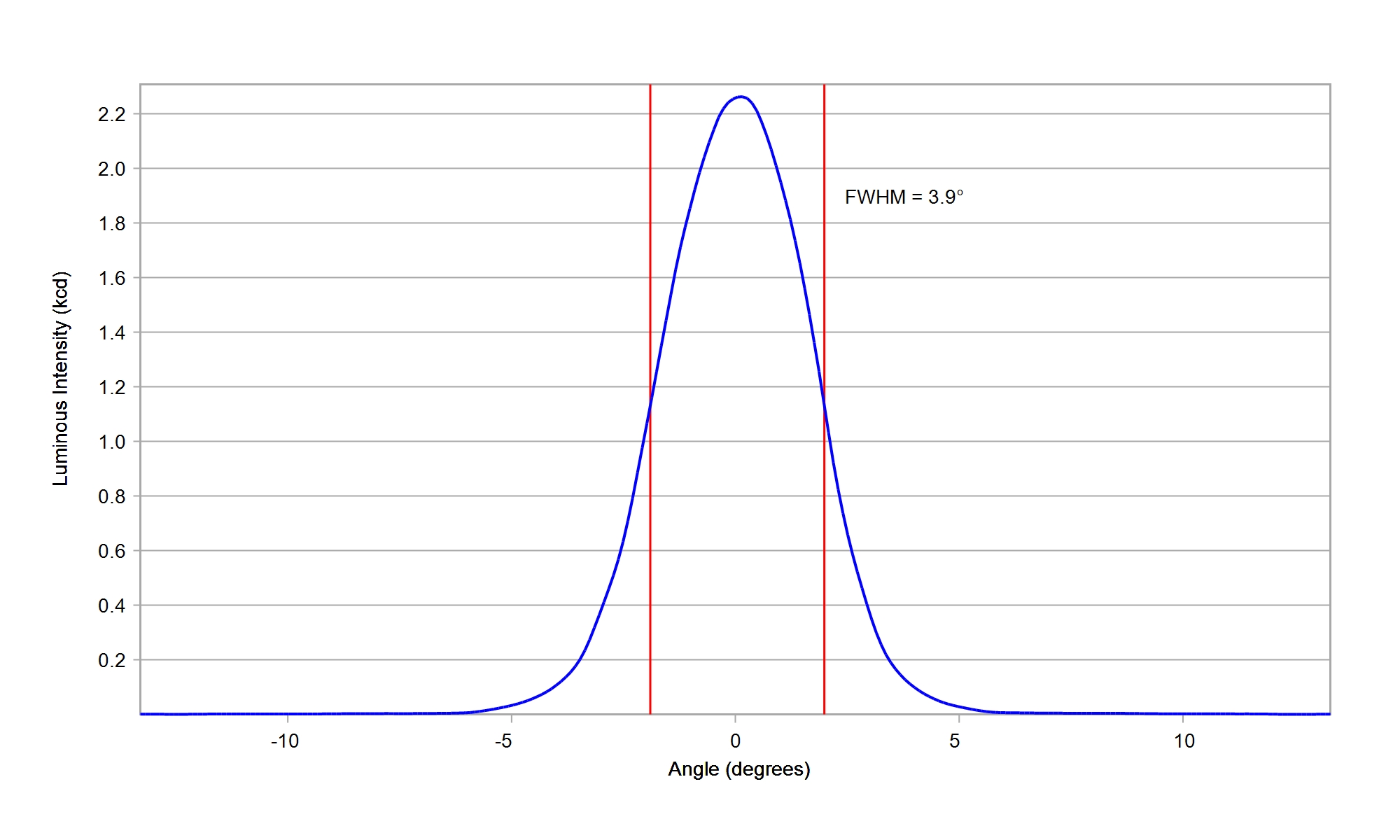

LEDs and Performances

Select and filter based on manufacturer(s)

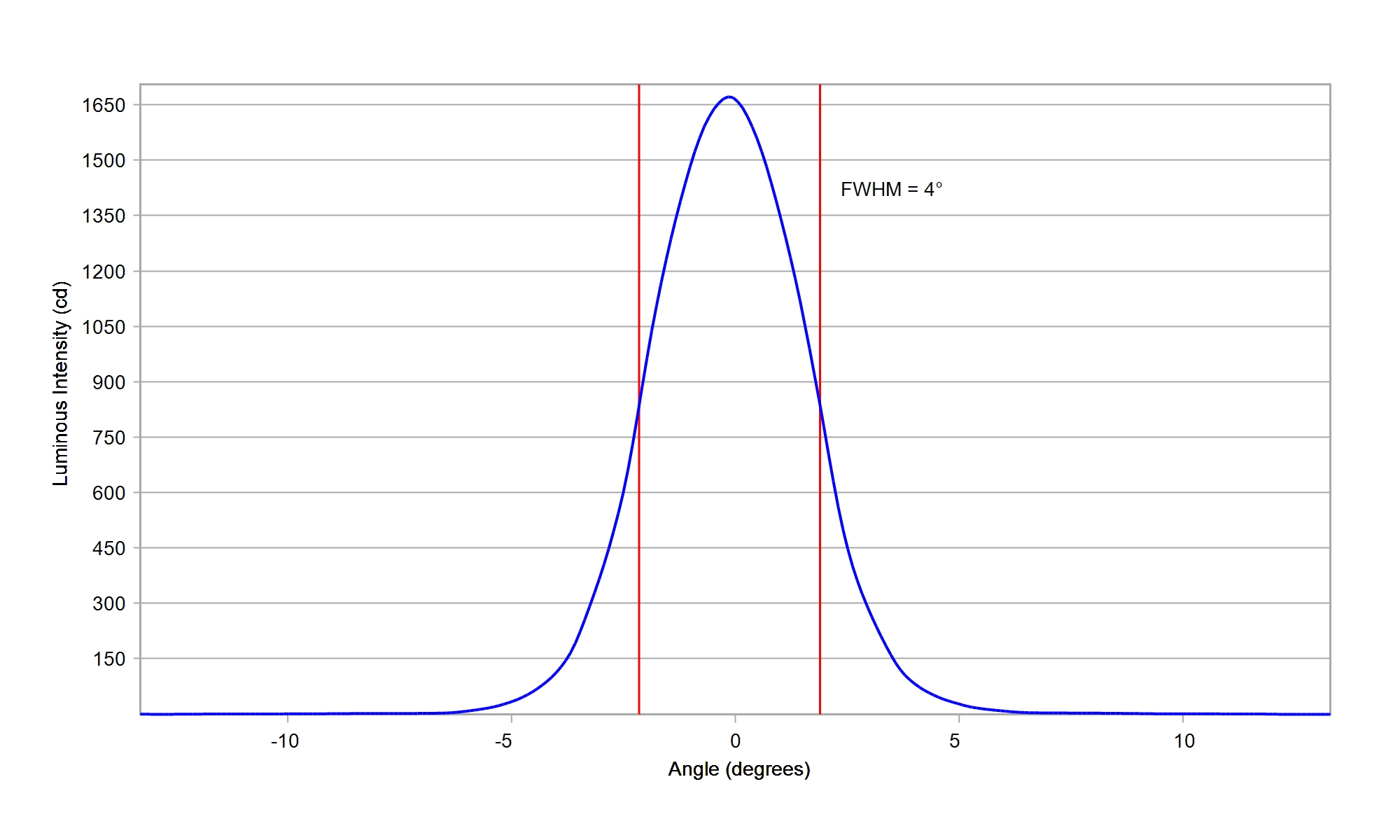

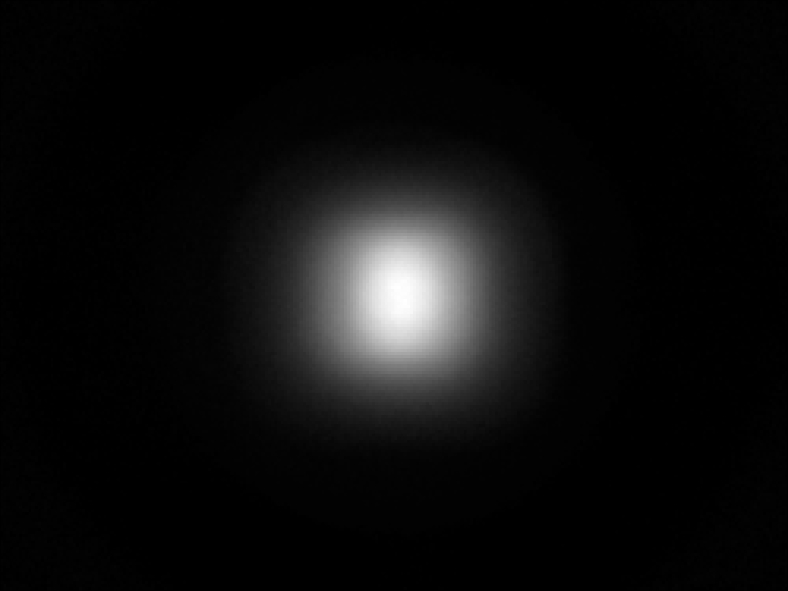

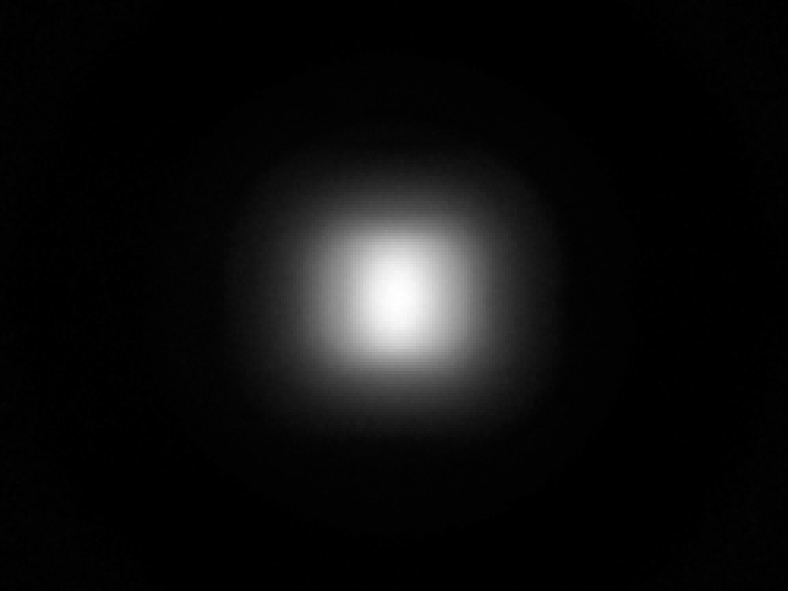

Cree JB2835B 3V G-Class White

Eff:

73.0%

FWHM:

4.5°

Cd/Im:

77.2


Download

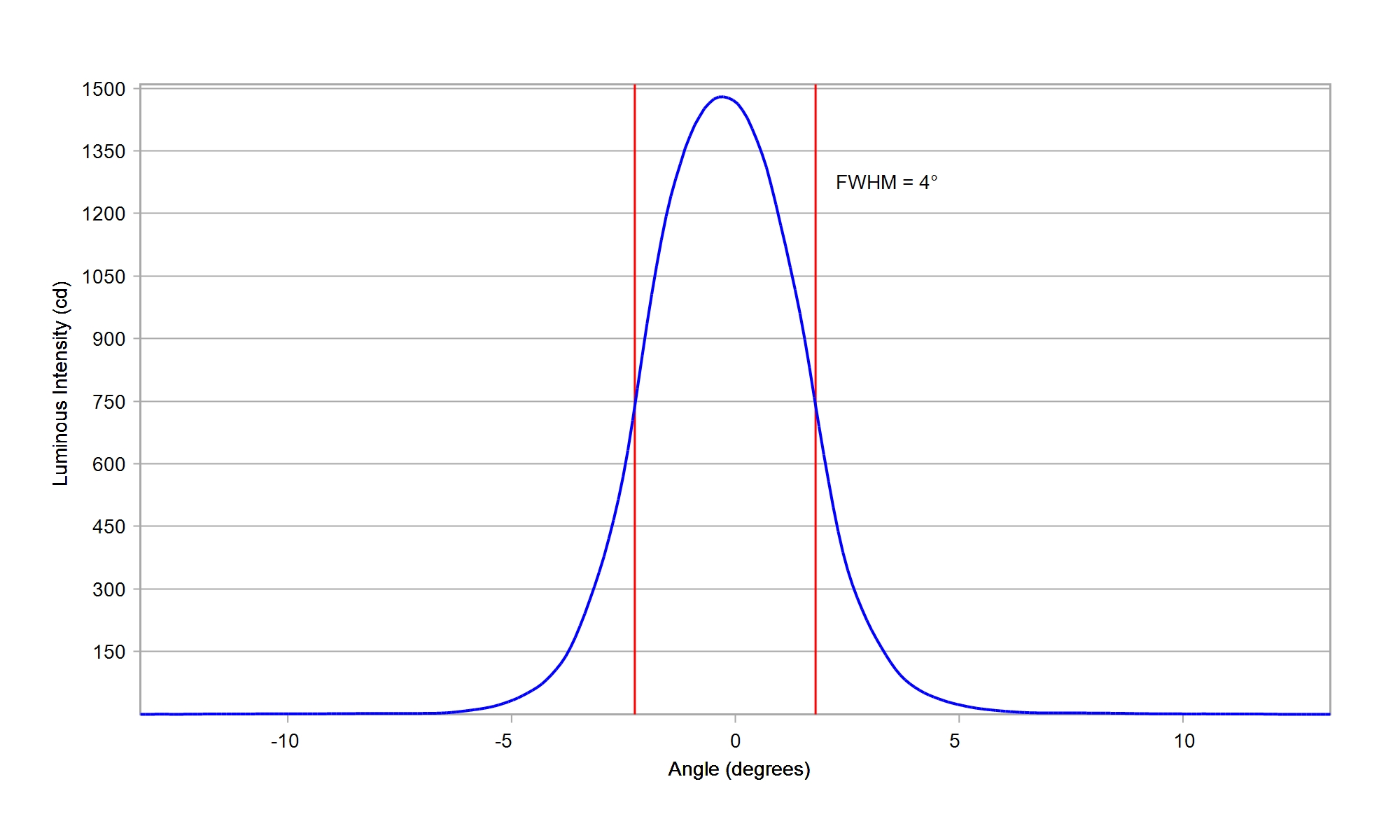

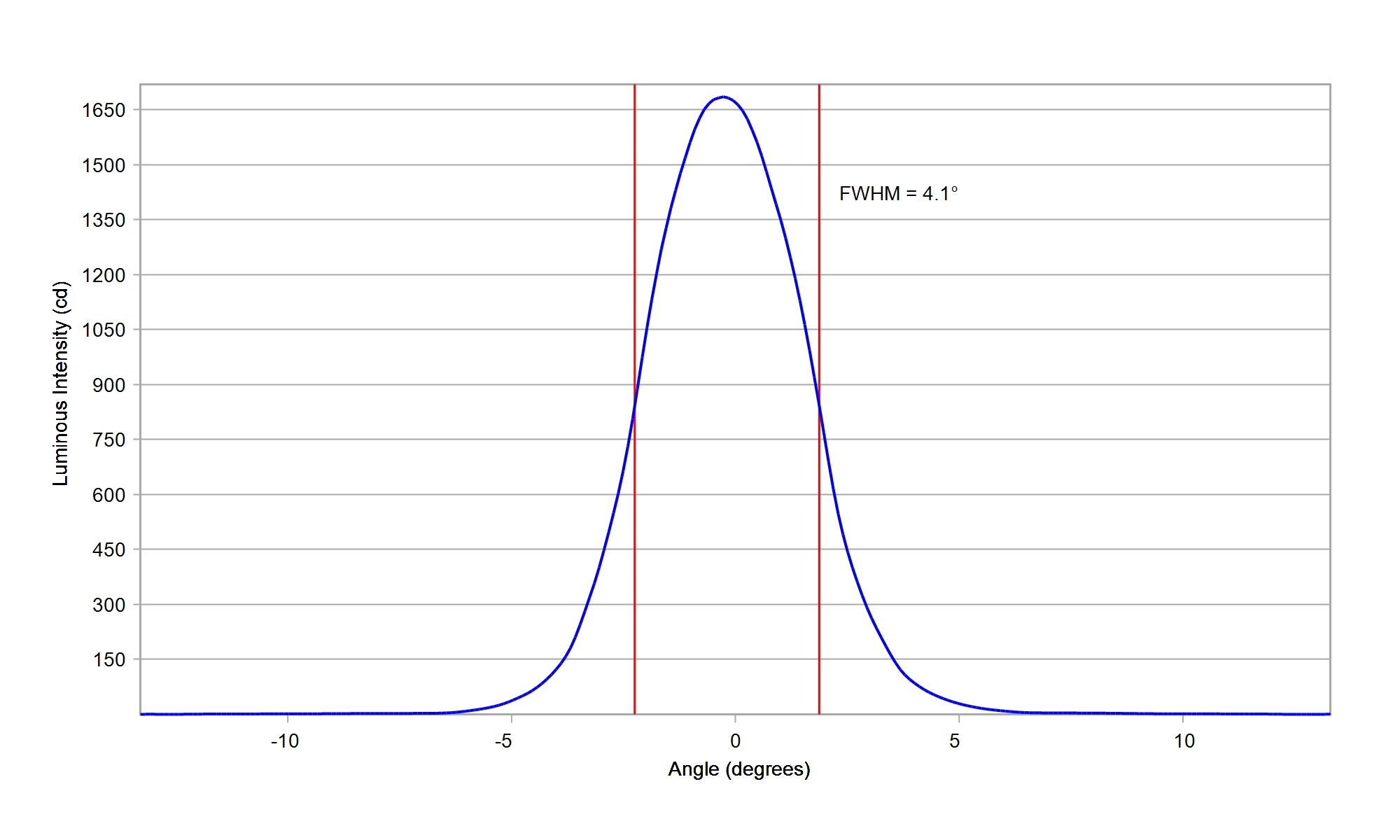

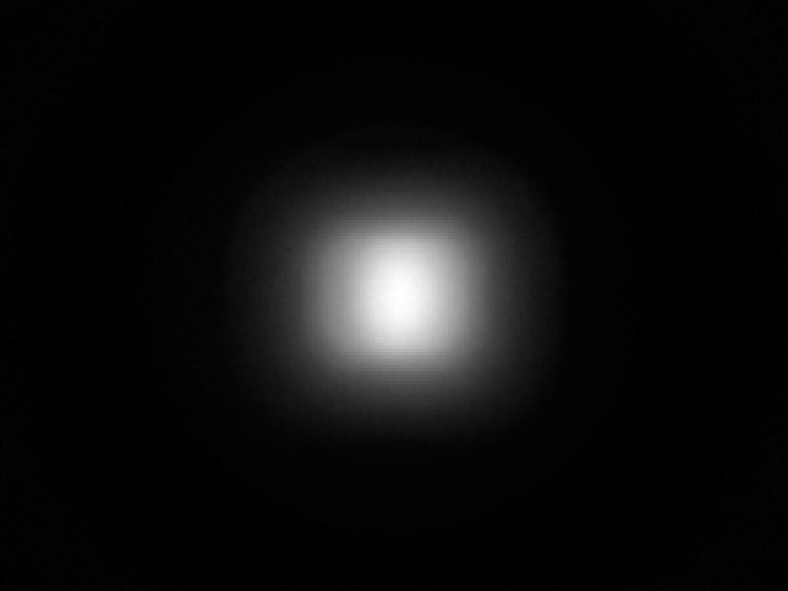

Cree JB2835B 3V J-Class White

Eff:

73.0%

FWHM:

4.4°

Cd/Im:

82.4


Download

Cree JB3030C 3V E-Class White

Eff:

72.5%

FWHM:

4.3°

Cd/Im:

79.9


Download

Cree JB3030C 3V F-Class White

Eff:

73.0%

FWHM:

4.3°

Cd/Im:

80.7


Download

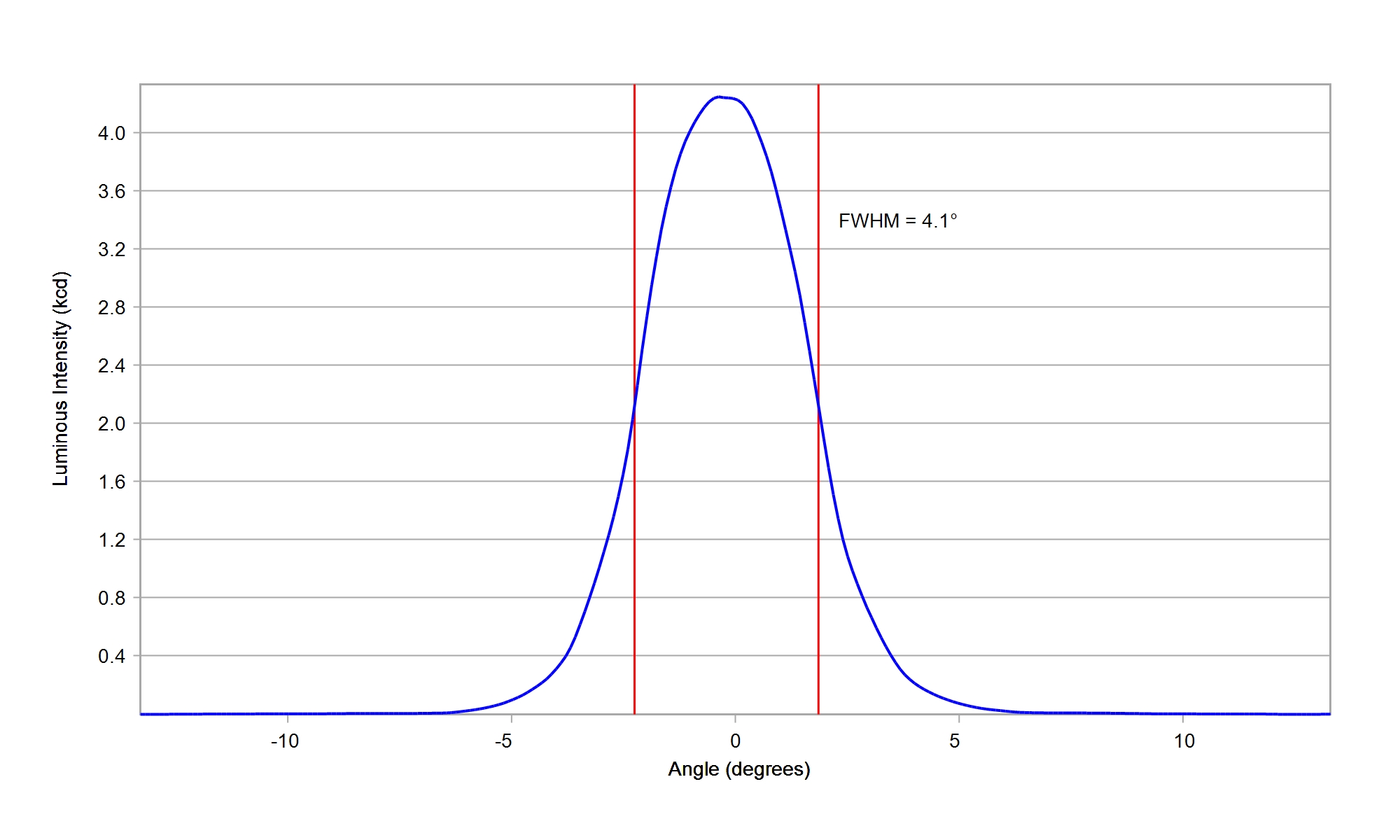

Cree JE2835 3V White

Eff:

73.0%

FWHM:

4.1°

Cd/Im:

82.6

Download

Cree XLamp CSP XD16 Cool White

Eff:

70.5%

FWHM:

3.6°

Cd/Im:

103.0

Carclo optics - 10158 Simulated spot image - Cree XLamp CSP XD16 Cool White

Carclo optics - 10158 Simulated cross section image - Cree XLamp CSP XD16 Cool White

Download

IES

Cree XLamp MC-E White

Eff:

68.3%

FWHM:

7.2°

Cd/Im:

39.9

Download

ies

Cree XLamp XHP35 HI White

Eff:

73.0%

FWHM:

4.4°

Cd/Im:

91.3

Carclo optics - 10158 Simulated Spot image - Cree XP35-HI

Carclo optics - 10158 Simulated Cross Section image - Cree XP35-HI

Download

IES

Cree XLamp XHP35 HD White

Eff:

71.5%

FWHM:

6.2°

Cd/Im:

47.5

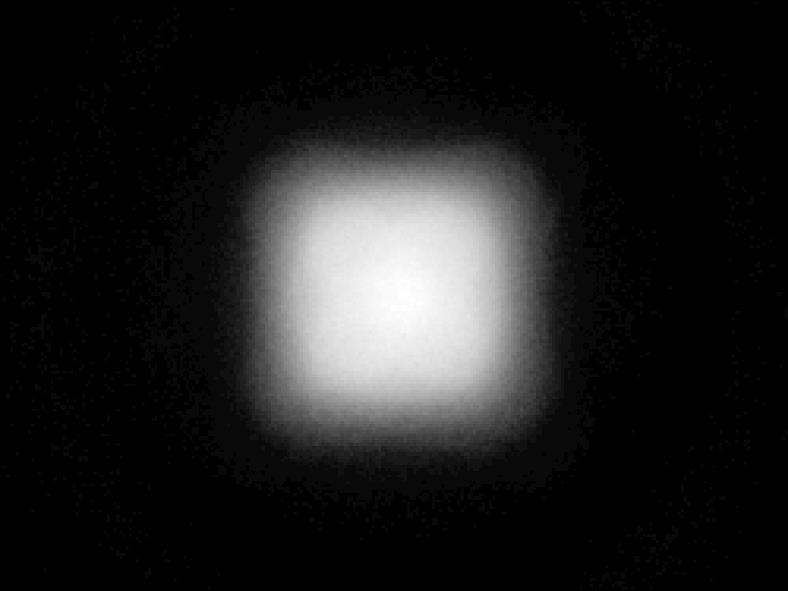

Carclo optics - 10158 Simulated Spot image - Cree XHP35

Carclo optics - 10158 Simulated Cross Section image - Cree XHP35

Download

IES

Cree XLamp XHP35.2 HD White

Eff:

69.0%

FWHM:

6.9°

Cd/Im:

32.8

Carclo Optics - 10158 Simulated spot image - Cree Xlamp XHP35.2 white

Carclo Optics - 10158 Simulated cross section image - Cree Xlamp XHP35.2 white

Download

IES

Cree XLamp XP-G2_HE White

Eff:

72.0%

FWHM:

4.6°

Cd/Im:

75.1

Carclo Optics - 10158 Simulated spot image - Cree Xlamp XP-G2 HE white

Carclo Optics - 10158 Simulated cross section image - Cree Xlamp XP-G2_HE white

Download

IES

Cree XLamp XQ-A White

Eff:

74.0%

FWHM:

2.8°

Cd/Im:

197.1

Carclo optics - 10158 Simulated Spot image - Cree XQ-A

Carclo optics - 10158 Simulated Cross Section image - Cree XQ-A

Download

IES

Cree XLamp XQ-E HI White

Eff:

72.0%

FWHM:

2.6°

Cd/Im:

231.0

Carclo Optics - 10158 Simulated spot image - Cree Xlamp XQ-E HI white

Carclo Optics - 10158 Simulated cross section image - Cree Xlamp XQ-E HI white

Download

IES

Cree XLamp XQ-E HD White

Eff:

74.0%

FWHM:

2.8°

Cd/Im:

202.0

Carclo Optics -simulated spot image - Cree XQ-E

Carclo Optics -simulated cross section image - Cree XQ-E

Download

IES

LUMILEDS LUXEON 2835C 6V White

Eff:

73.0%

FWHM:

4.2°

Cd/Im:

90.4

Download

LUMILEDS LUXEON 2835E 9V White

Eff:

73.0%

FWHM:

4.2°

Cd/Im:

92.2

Download

LUMILEDS LUXEON 2835N 3V White

Eff:

73.0%

FWHM:

4.1°

Cd/Im:

84.3

Download

LUMILEDS LUXEON 2835S 3V White

Eff:

73.0%

FWHM:

4.2°

Cd/Im:

81.1

Download

LUMILEDS LUXEON 2835S 6V White

Eff:

73.0%

FWHM:

4.2°

Cd/Im:

81.2

Download

LUMILEDS LUXEON 3030 2D White

Eff:

73.0%

FWHM:

4.6°

Cd/Im:

81.2

Download

LUMILEDS LUXEON 3030 HE White

Eff:

73.0%

FWHM:

4.1°

Cd/Im:

84.6

Download

LUMILEDS LUXEON C White

Eff:

68.5%

FWHM:

2.4°

Cd/Im:

243.0

Download

LUMILEDS LUXEON CZ White

Eff:

72.5%

FWHM:

2.6°

Cd/Im:

257.3

Carclo optics - 10158 Simulated Spot image - Luxeon CZ_CW

Carclo optics - 10158 Cross Section image - Luxeon CZ_CW

Download

IES

LUMILEDS LUXEON HL4X White

Eff:

71.5%

FWHM:

5.7°

Cd/Im:

51.7

Download

LUMILEDS LUXEON HL4Z White

Eff:

72.5%

FWHM:

4.5°

Cd/Im:

79.4

Download

LUMILEDS LUXEON MZ White

Eff:

72.0%

FWHM:

6.3°

Cd/Im:

41.3

Carclo optics - 10158 Simulated Spot image - Luxeon MZ_Spot

Carclo optics - 10158 Simulated Cross image - Luxeon MZ_Spot

Download

IES

LUMILEDS LUXEON TX White

Eff:

71.5%

FWHM:

3.9°

Cd/Im:

102.7

Carclo optics - 10158 Simulated Spot image - Luxeon TX

Carclo optics - 10158 Simulated Cross image - Luxeon TX

Download

IES

LUMILEDS LUXEON Z ES White

Eff:

72.0%

FWHM:

3.5°

Cd/Im:

147.0

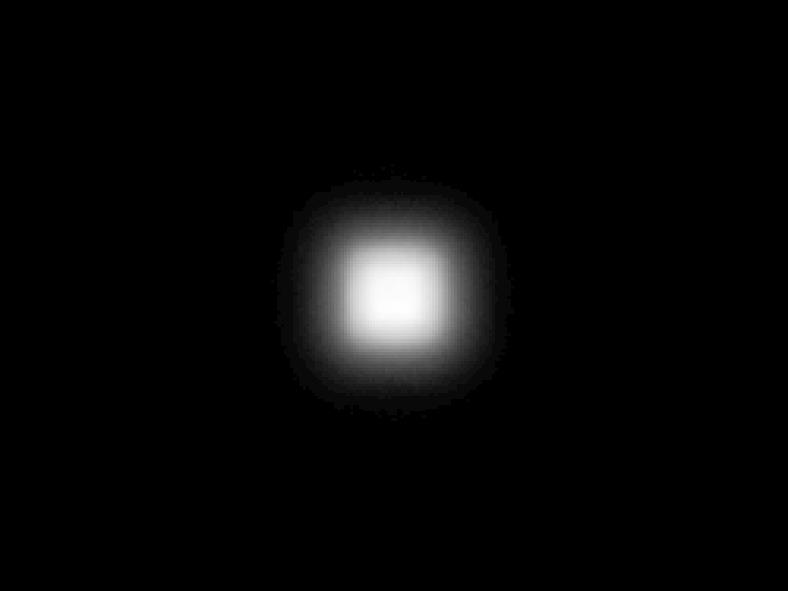

Carclo optics - 10158 Simulated Spot image - Luxeon ZES

Carclo optics - 10158 Simulated Cross image - Luxeon ZES

Download

IES

Luminus Devices SST-25-WES White

Eff:

72.0%

FWHM:

4.4°

Cd/Im:

73.8

Download

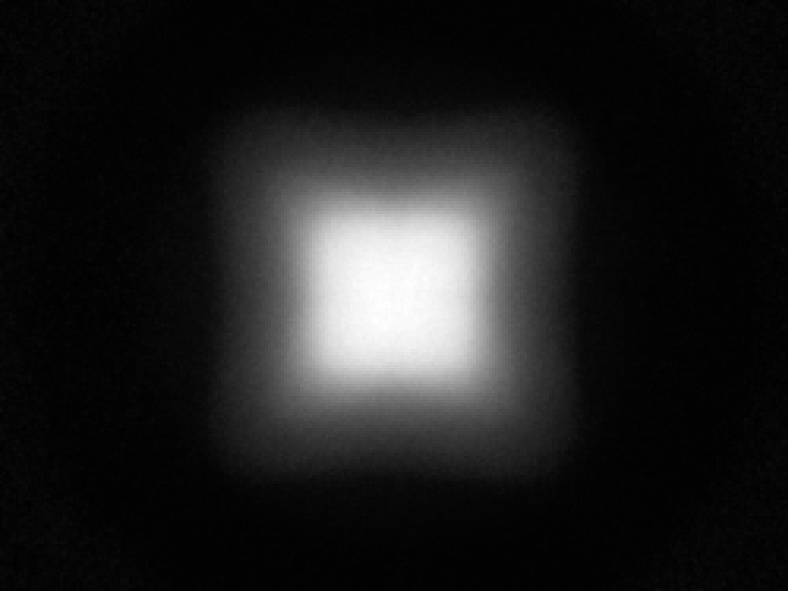

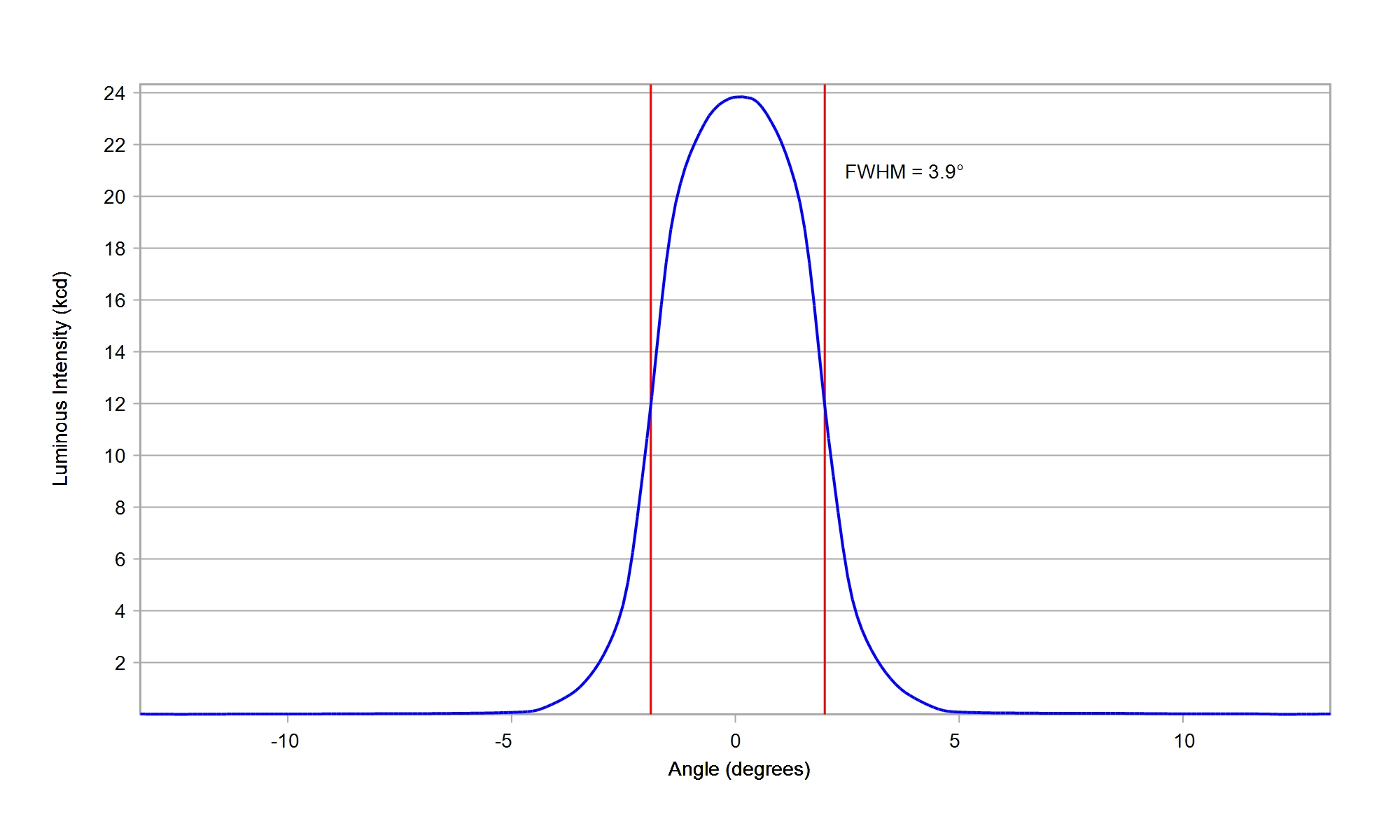

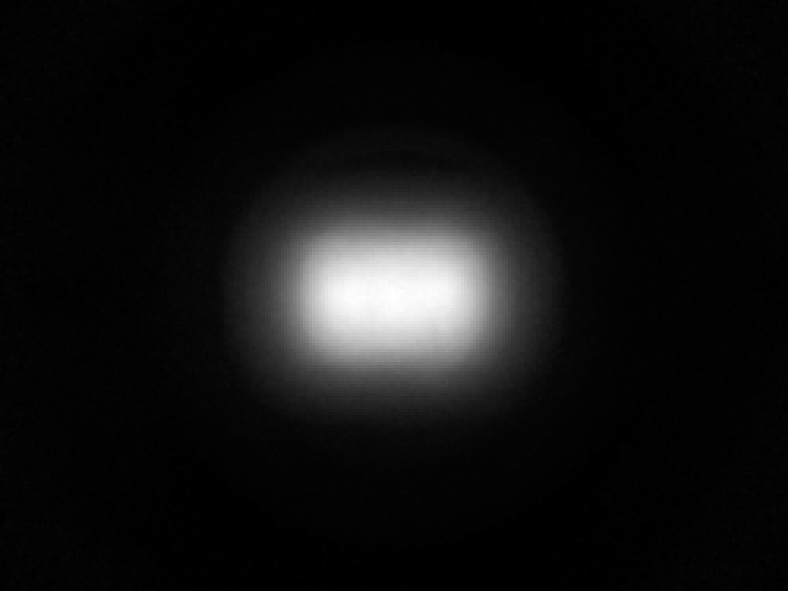

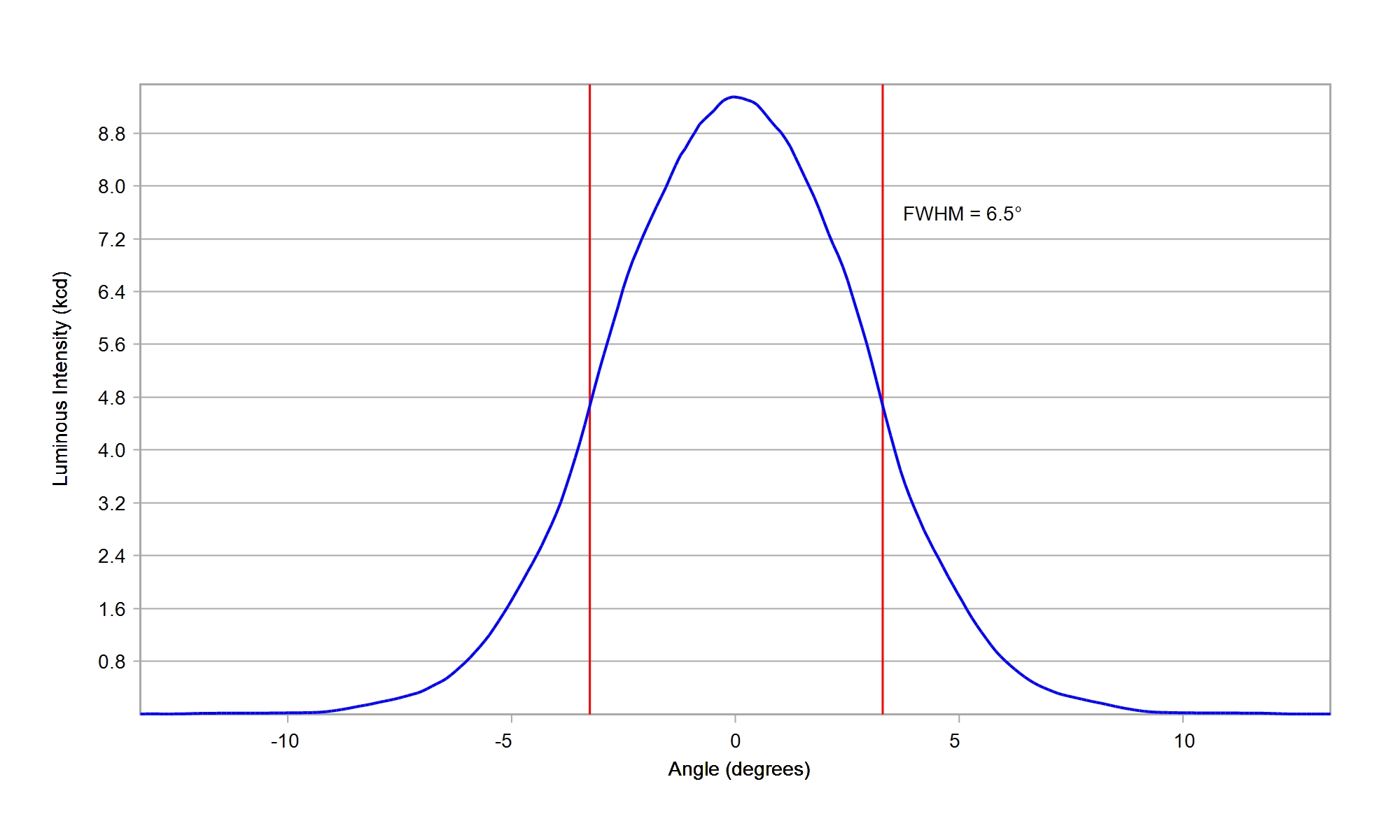

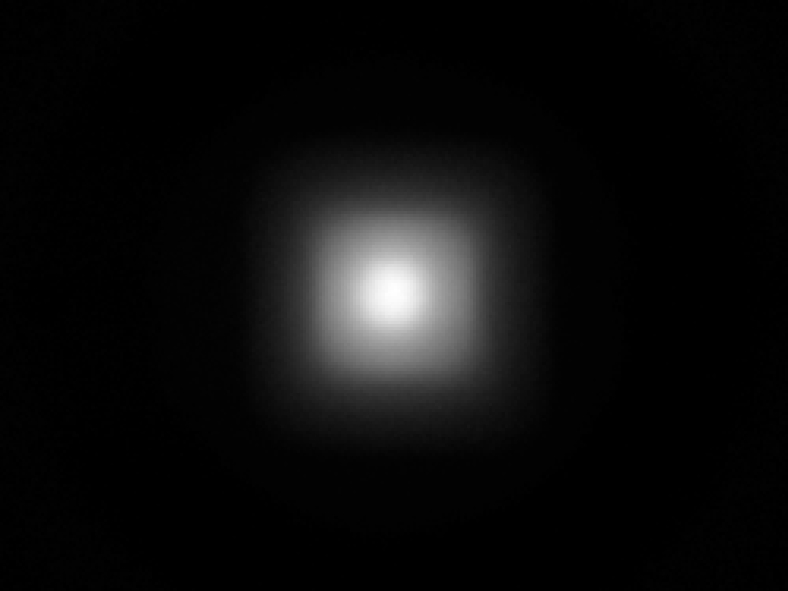

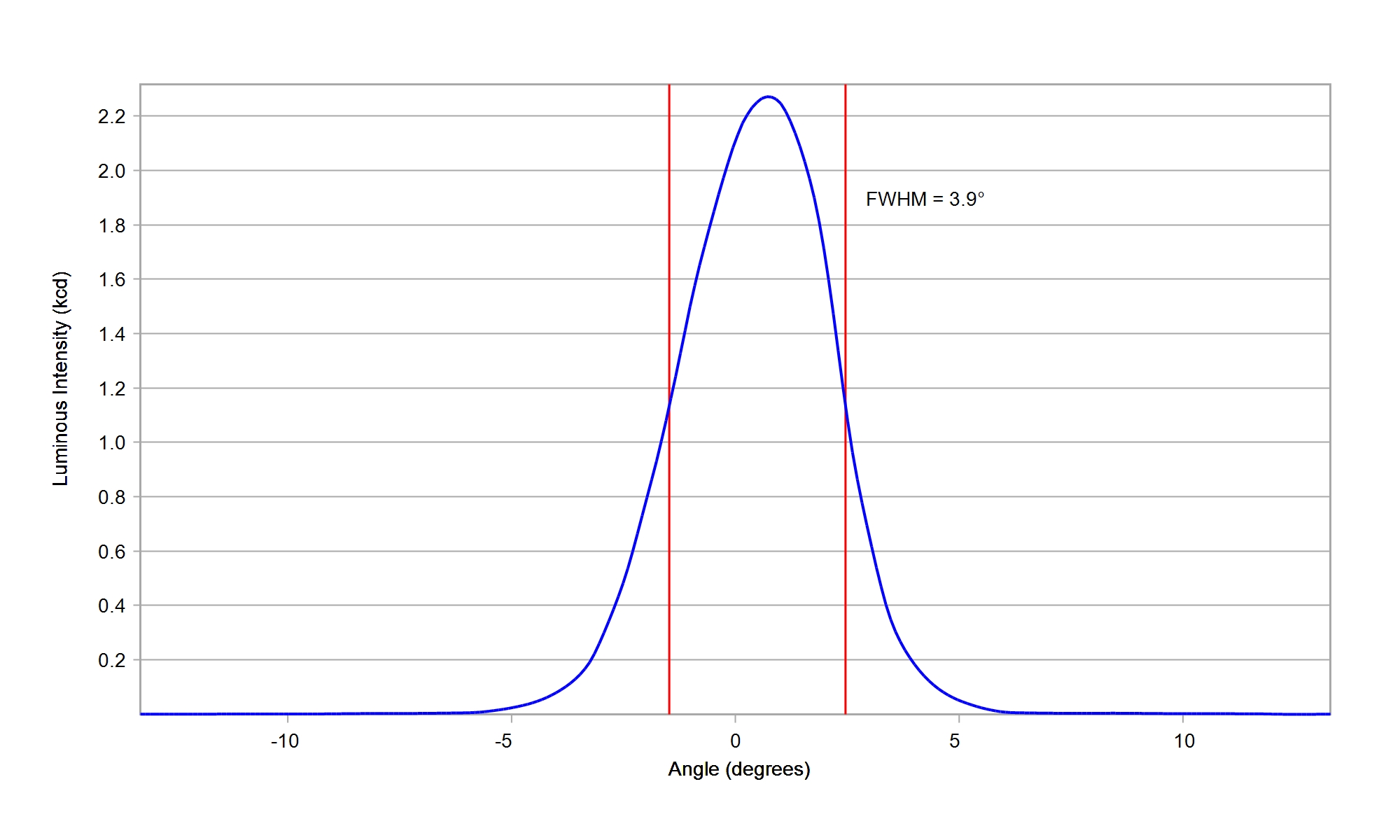

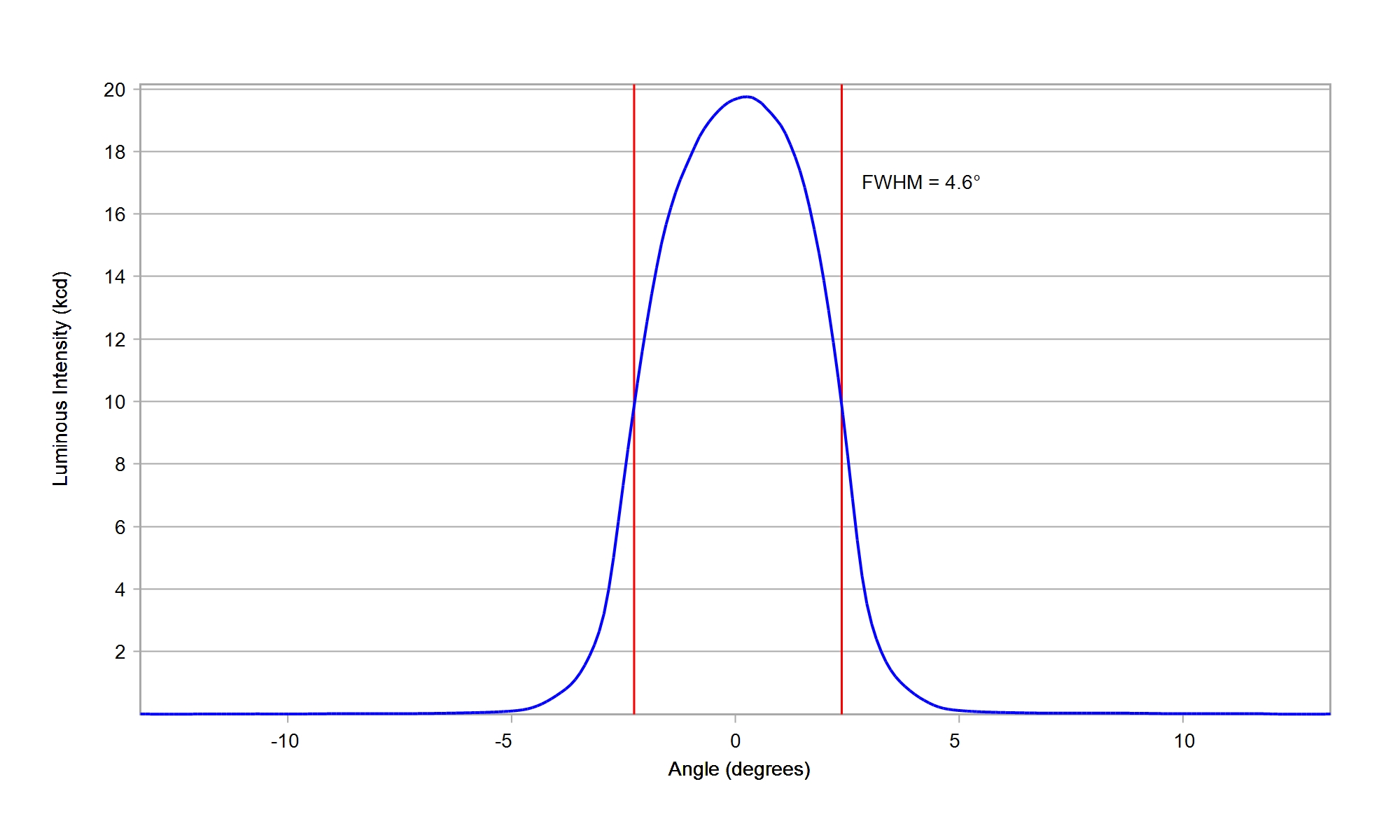

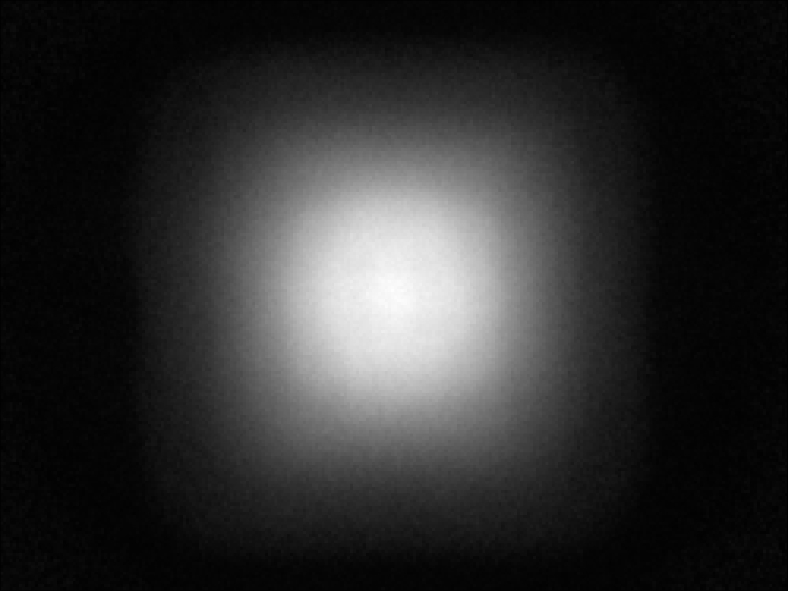

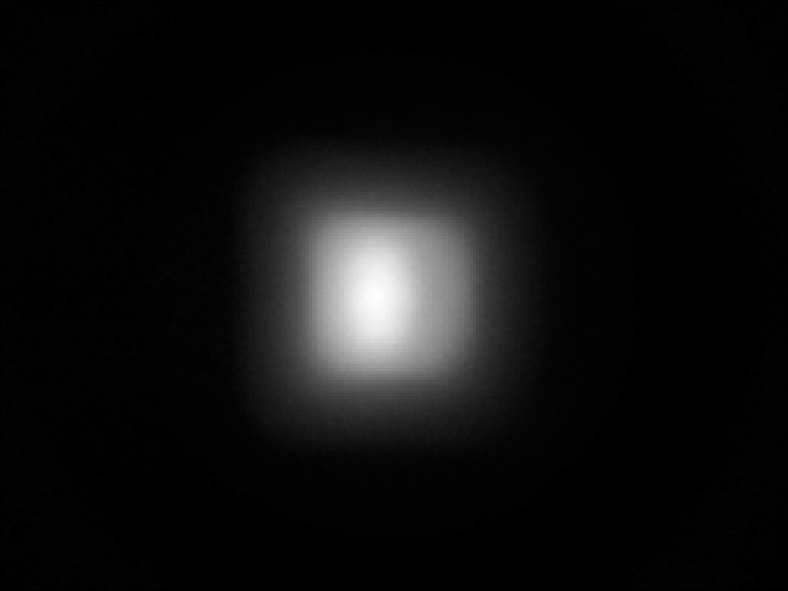

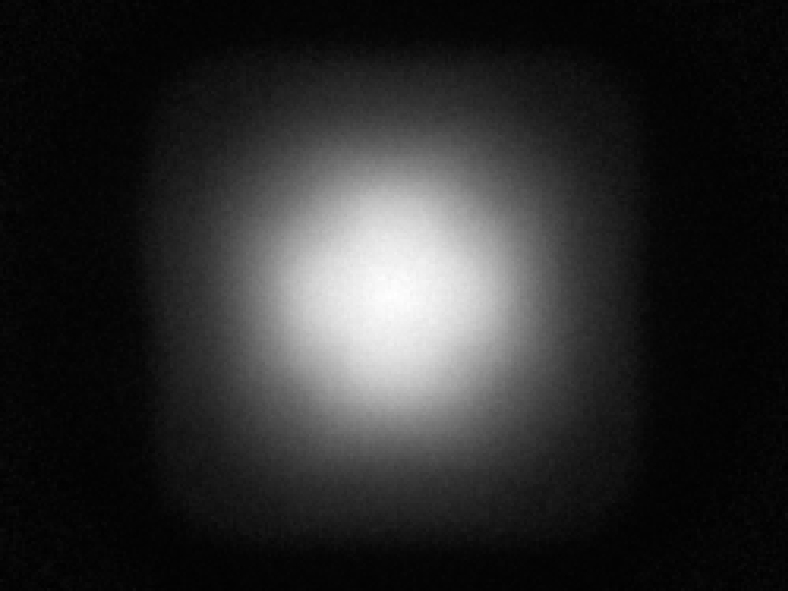

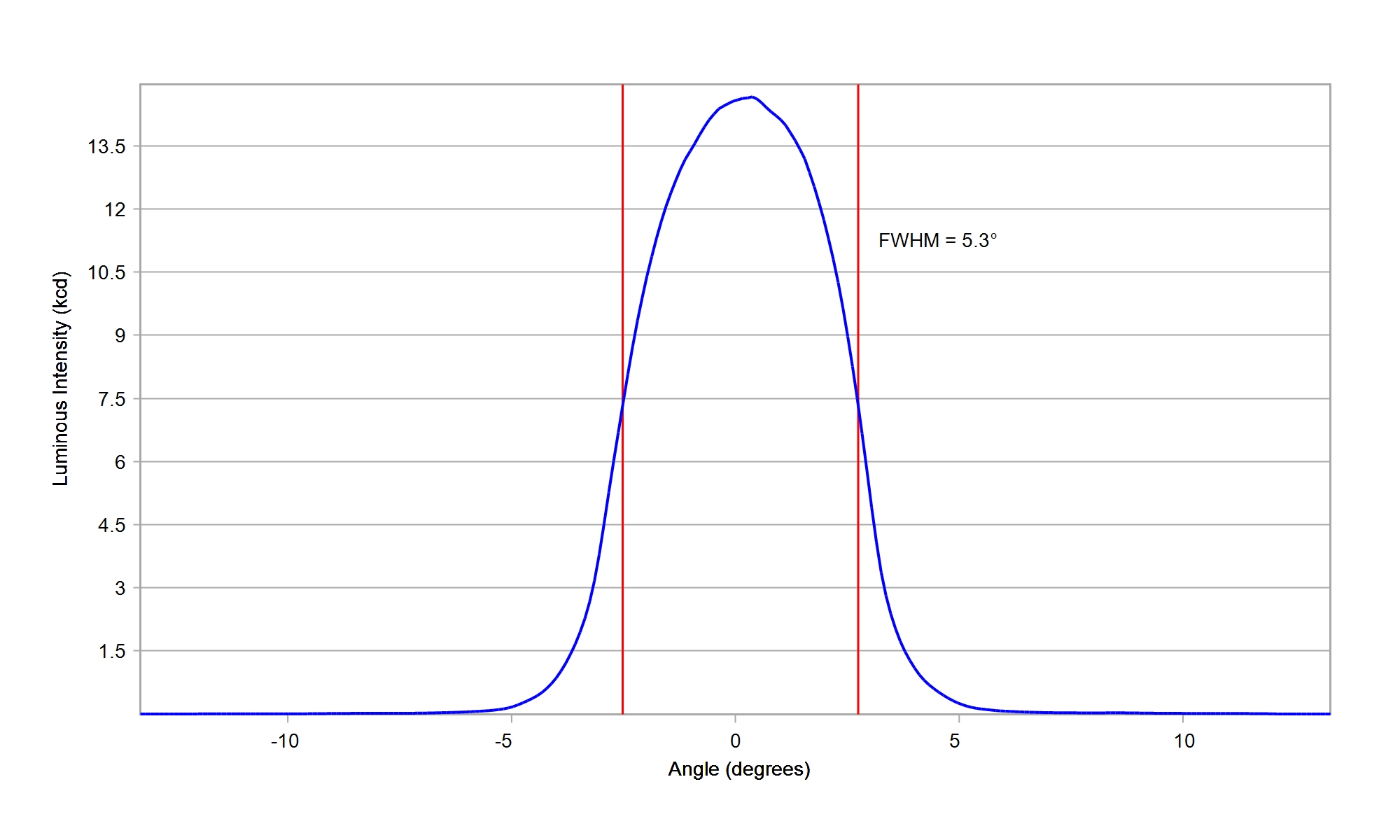

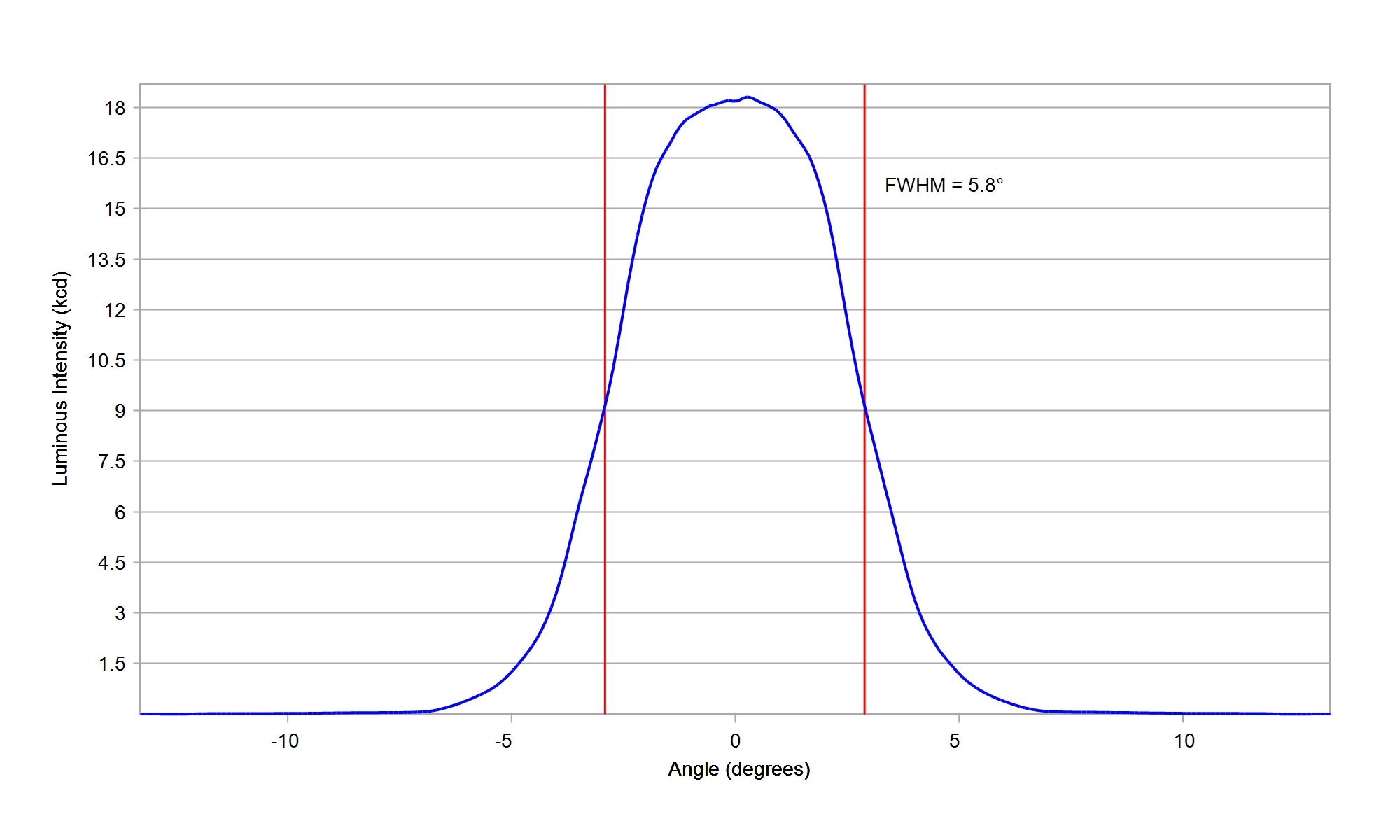

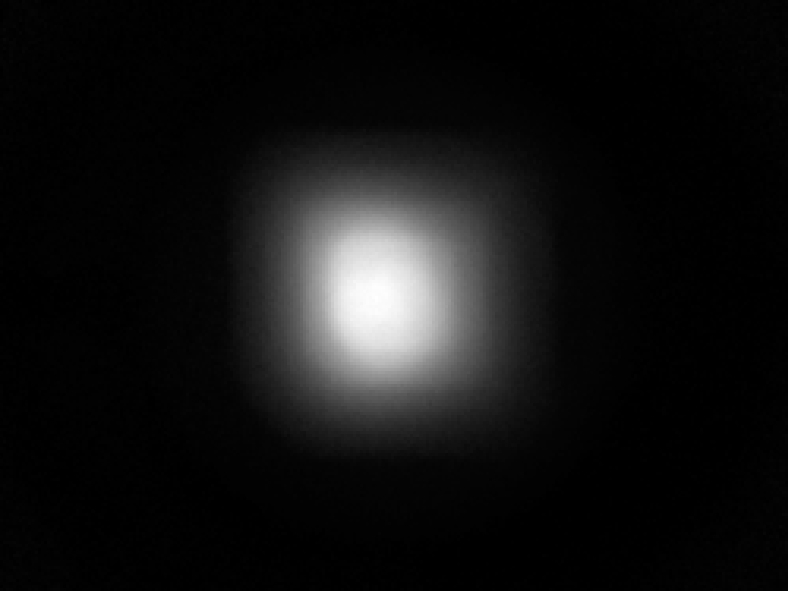

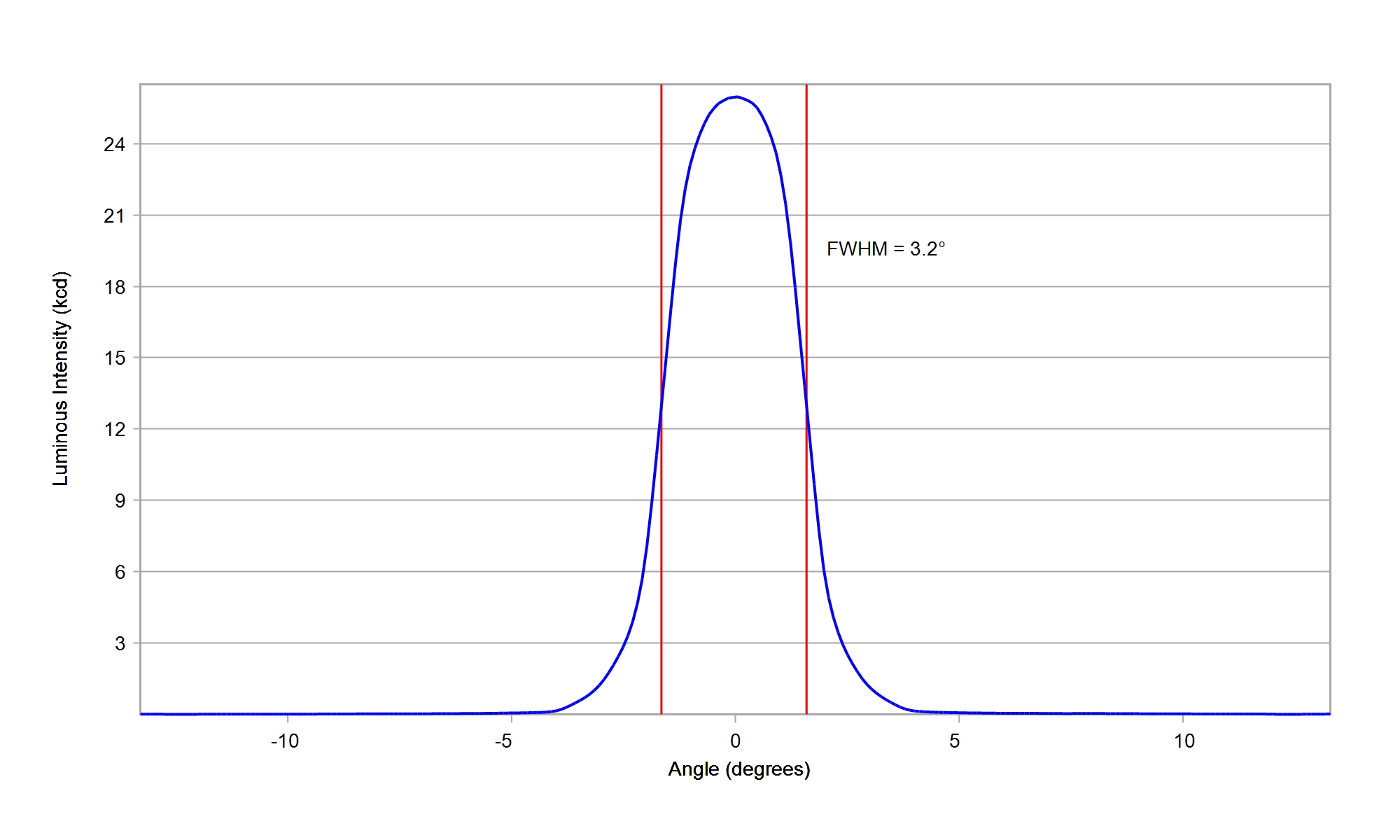

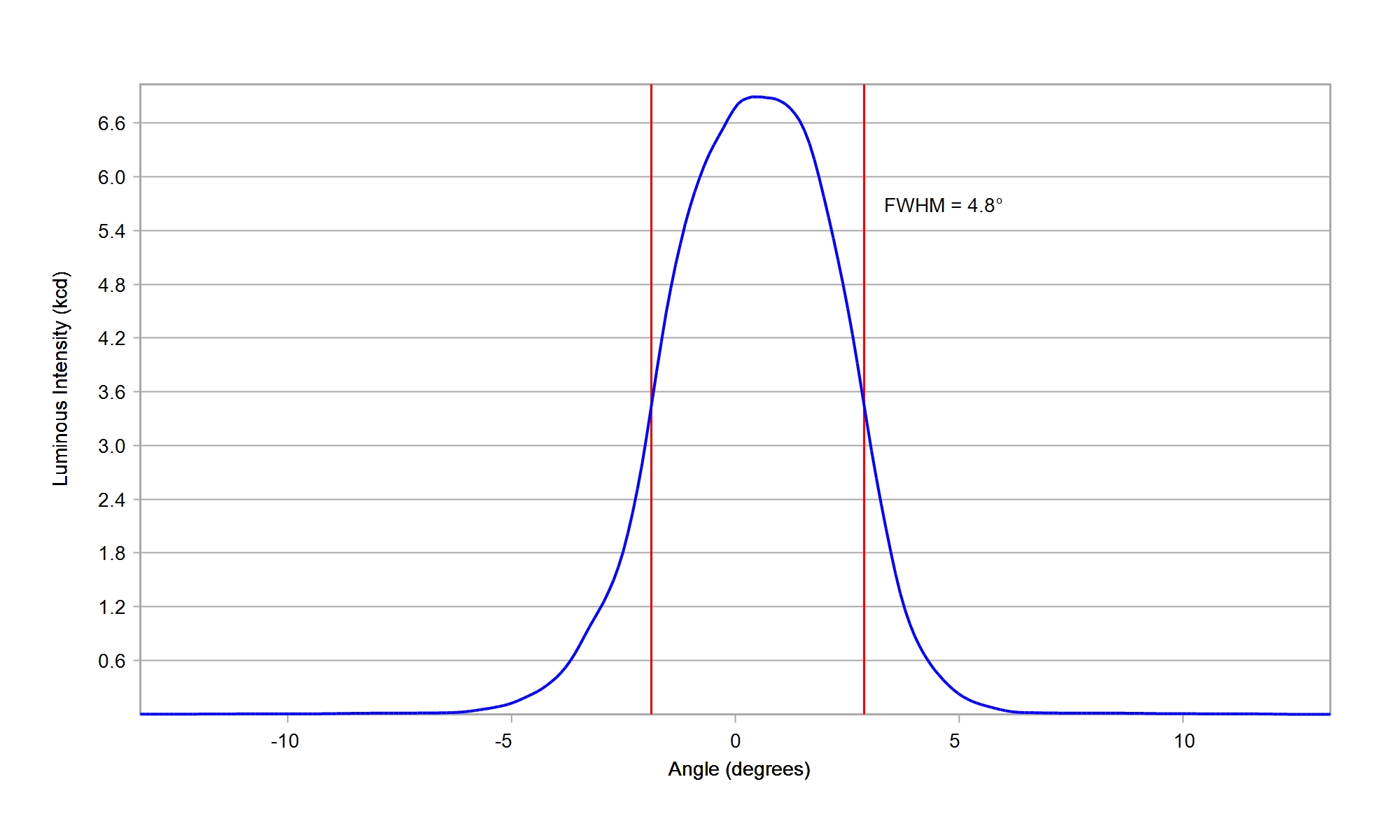

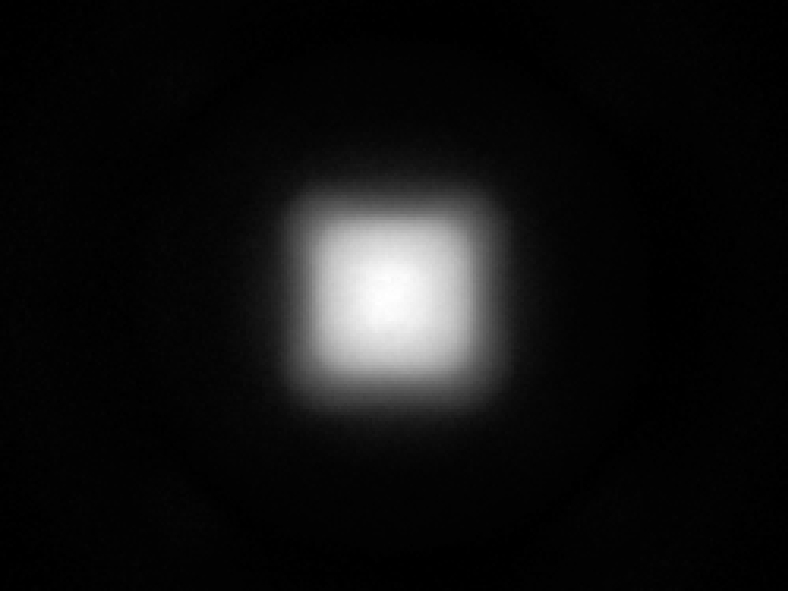

Osram Led Engin LuxiGen LZ1 00R702 IR940nm

Eff:

84.0%

FWHM:

5.2°

Ipk/W:

77.6

Download

IES

Osram OS OSLON Pure 1414 GB VJLPL1.F3 Blue

Eff:

73.0%

FWHM:

2.8°

Cd/Im:

232.7


Download

Osram OS OSLON Pure 1414 GC VJLPL1.13 Cyan

Eff:

73.5%

FWHM:

2.8°

Cd/Im:

229.4


Download

Osram OS OSLON Pure 1414 GD VJLPL1.14 Deep Blue

Eff:

70.5%

FWHM:

2.7°

Ipk/W:

237.1


Download

Osram OS OSLON Pure 1414 GR VJLPL1.23 Red

Eff:

74.0%

FWHM:

3°

Cd/Im:

144.7


Download

Osram OS OSLON Pure 1414 GT VJLPL1.13 True Green

Eff:

73.0%

FWHM:

2.7°

Cd/Im:

243.2


Download

Osram OS OSLON Pure 1414 GV VJLPL1.F3 Verde

Eff:

73.0%

FWHM:

2.6°

Cd/Im:

258.3


Download

Osram OS OSLON Pure 1414 GW VJLPL1.CM White

Eff:

73.0%

FWHM:

3.3°

Cd/Im:

162.2

Download

Osram OS OSLON Pure 1414 GW VJLPL1.UL Green

Eff:

73.0%

FWHM:

2.6°

Cd/Im:

255.0


Download

Osram OS OSLON Pure 1414 GY VJLPL1.F3 Yellow

Eff:

73.0%

FWHM:

2.6°

Cd/Im:

243.8


Download

Osram OS OSLON Square Gen 3 White

Eff:

73.0%

FWHM:

4.2°

Cd/Im:

95.8

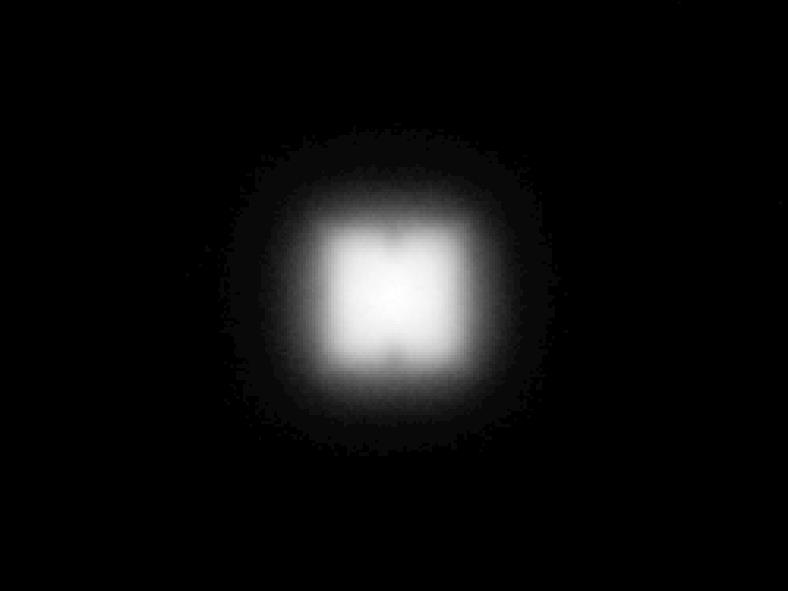

Carclo Optics - 10158 Simulated spot image - Oslon Square Gen3 GW-CSSRM2

Carclo Optics - 10158 Simulated cross section image - Oslon Square Gen3 GW-CSSRM2

Download

IES

Osram OS OSLON SSL 150 degree White

Eff:

71.0%

FWHM:

2.7°

Cd/Im:

189.0

Carclo Optics - 10158 Simulated spot image - Oslon_150_LCW_CQDP_CC

Carclo Optics - 10158 Simulated cross section image - Oslon_150_LCW_CQDP_CC

Download

IES

Osram OS OSLON SSL 80 White

Eff:

74.5%

FWHM:

3.6°

Cd/Im:

113.8

Carclo optics - 10158 Simulated Spot image - Oslon 80

Carclo optics - 10158 Simulated Cross Section image - Cree XP35-HI

Download

IES

Osram OS OSLON SSL 80 GH CS8PM1.24 Hyper Red

Eff:

75.0%

FWHM:

4.4°

Ipk/W:

83.2


Download

IES

Osram OS OSLON SSL 80 GT CS8PM1.13 True Green

Eff:

75.5%

FWHM:

4.3°

Cd/Im:

81.7


Download

IES

Osram OS OSLON SSL 80 GW CS8PM1.PM White

Eff:

74.0%

FWHM:

4.6°

Cd/Im:

75.9


Download

IES

Samsung 2835 LM281B+ White

Eff:

71.5%

FWHM:

4.7°

Cd/Im:

64.7



Download

Samsung 3030 LM301B White

Eff:

73.0%

FWHM:

4.4°

Cd/Im:

72.9

Download

IES

Samsung CSP LH181B White

Eff:

72.5%

FWHM:

5.1°

Cd/Im:

61.9

Carclo optics - 10158 Simulated Spot image - Samsung LH181B_4000K

Carclo optics - 10158 Simulated Cross Section image - Samsung LH181B_4000K

Download

IES

Samsung CSP LH231B White

Eff:

73.0%

FWHM:

5.5°

Cd/Im:

48.3

Carclo Optics - 10158 Simulated spot image - Samsung LH231B white

Carclo Optics - 10158 Simulated cross section image - Samsung LH231B white

Download

IES

Samsung CSP LM101B White

Eff:

72.5%

FWHM:

4.9°

Cd/Im:

61.2

Carclo optics - 10158 Simulated Spot image - Samsung LM101B - 5000K

Carclo optics - 10158 Simulated Cross image - Samsung LM101B - 5000K

Download

IES
