20.0mm Medium Spot Frosted TIR
Part number
10139
Dimensions
20.0mm
Drawing Number
60424
Optic type
TIR LED Lenses
Finish
Frosted
Beam type
Medium Spot
Applications
Architectural
Industrial
Landscape & Garden
Office
Horticultural
Retail
Warehouse
Wide Area
Security
Humancentric
Downloads

LEDs and Performances

Select and filter based on manufacturer(s)
Bridgelux SMD 3030 Gen2 White
Eff:
88.5%
FWHM:
23.5 x 24°
Cd/Im:
3.7
Download
Broadcom Jade White
Eff:
87.4%
FWHM:
23.1°
Cd/Im:
4.3
Download

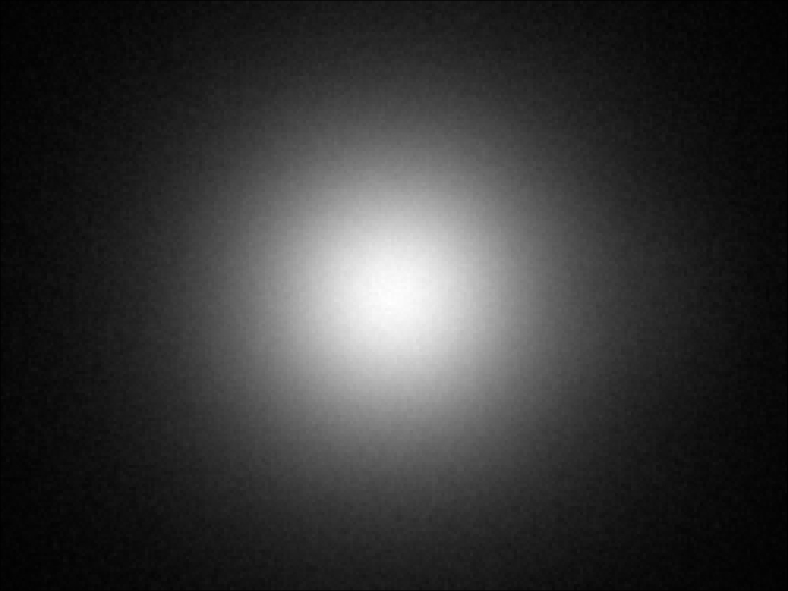

Cree JB3030 3V White
Eff:
88.0%
FWHM:
25.5°
Cd/Im:

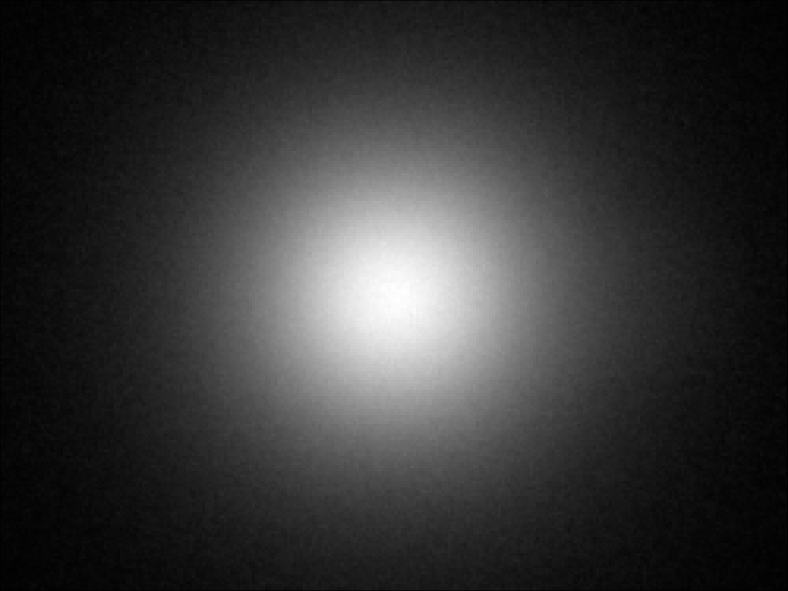

3.2
Download
Cree JK2835 6V White
Eff:
88.5%
FWHM:
25°
Cd/Im:
3.4
Download
Cree JQ5050 9V White
Eff:
88.0%
FWHM:
32.0°
Download
Cree JR5050 24V White
Eff:
88.0%
FWHM:
32.0°
Cd/Im:
2.1
Download
Cree JR5050 36V White
Eff:
88.0%
FWHM:
31.0°
Cd/Im:
2.3
Download
Cree JR5050 6V White
Eff:
88.0%
FWHM:
31.0°
Cd/Im:
2.2
Download
Cree XLamp CSP XD16 Cool White
Eff:
87.0%
FWHM:
23.5°
Cd/Im:
3.5
Download
Cree XLamp MH-B White
Eff:
86.0%
FWHM:
30°
Cd/Im:
1.9
Download
Cree XLamp MX-6 White
Eff:
87.4%
FWHM:
25.8°
Cd/Im:
3.5
Download
Cree XLamp XB-D White
FWHM:
19.7°
Cd/Im:
6.9
Download
Cree XLamp XB-H White
Eff:
88.0%
FWHM:
24.5°
Cd/Im:
3.4
Download
Cree XLamp XE-G Blue
Eff:
88.0%
FWHM:
22.5°
Cd/Im:
3.9
Download
Cree XLamp XE-G Green
Eff:
88.0%
FWHM:
22.5°
Cd/Im:
4.0
Download
Cree XLamp XE-G Red
Eff:
87.5%
FWHM:
22.5°
Cd/Im:
4.0
Download
Cree XLamp XE-G White
Eff:
88.0%
FWHM:
22.5°
Cd/Im:
3.9
Download

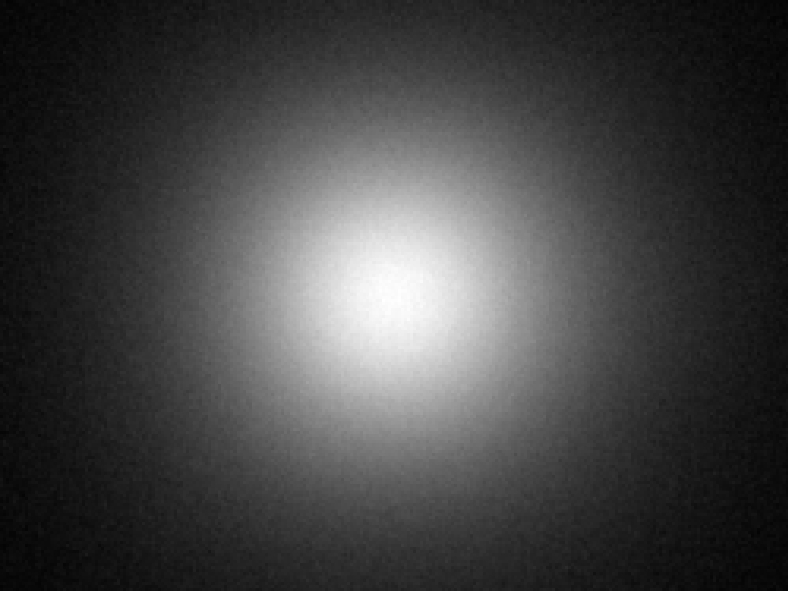

Cree XLamp XHP-50 White
Eff:
83.0%
FWHM:
30°
Cd/Im:
1.9
Download
Cree XLamp XHP35 HI White
Eff:
85.5%
FWHM:
21.6°
Cd/Im:
4.1
Download
Cree XLamp XHP35 White
Eff:
84.8%
FWHM:
24.5°
Cd/Im:
3.0
Download
Cree XLamp XHP35.2 HI White
Eff:
87.0%
FWHM:
27°
Cd/Im:
2.8
Download
Cree XLamp XHP35.2 White
Eff:
86.5%
FWHM:
29.5°
Cd/Im:
2.2
Download
Cree XLamp XM-L Color G2 HD RGBW
Eff:
88.0%
FWHM:
30°
Cd/Im:
2.4
Download
Cree XLamp XM-L Color G2 HI RGBW
Eff:
86.5%
FWHM:
28.5°
Cd/Im:
2.4
Download
Cree XLamp XM-L White
Eff:
82.5%
FWHM:
24.1°
Cd/Im:
4.1
Download
Cree XLamp XM-L2 White
FWHM:
23.7°
Cd/Im:
4.2
Download
Cree XLamp XM-L3 White
Eff:
86.5%
FWHM:
28.0°
Cd/Im:
2.7
Download
Cree XLamp XP-C White
Eff:
83.8%
FWHM:
16°
Cd/Im:
8.0
Download

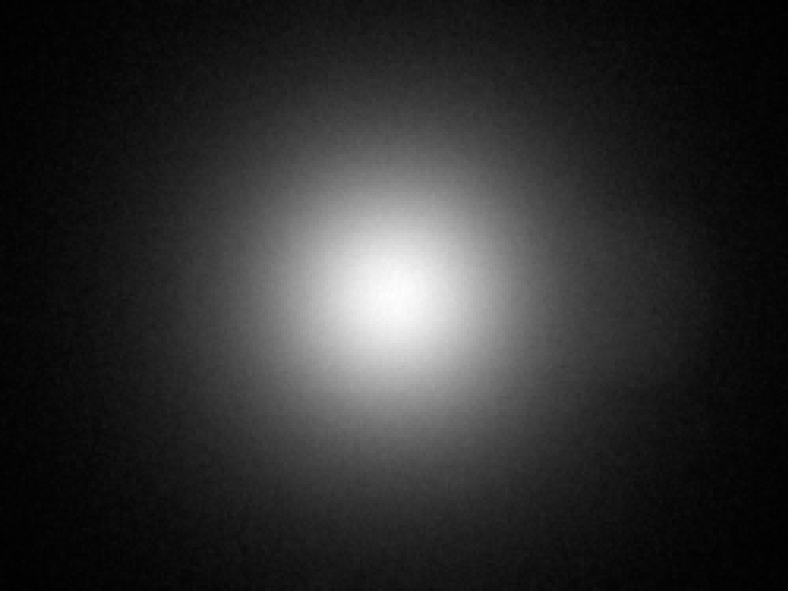

Cree XLamp XP-E2 White
Eff:
88.5%
FWHM:
22.5°
Cd/Im:
4.0
Download
Cree XLamp XP-G White
Eff:
82.1%
FWHM:
21.2°
Cd/Im:
5.0
Download
Cree XLamp XP-G2 White
FWHM:
20.1°
Cd/Im:
5.9
Download
Cree XLamp XP-G3 White
Eff:
86.0%
FWHM:
22.3°
Cd/Im:
3.9
Download
Cree XLamp XP-L HI White
Eff:
85.5%
FWHM:
21.0°
Cd/Im:
4.3
Download
Cree XLamp XP-L White
Eff:
85.5%
FWHM:
23.3°
Cd/Im:
3.5
Download
Cree XLamp XP-L2 White
Eff:
85.5%
FWHM:
28.0°
Cd/Im:
2.5
Download
Cree XLamp XP-P White
Eff:
88.5%
FWHM:
22°
Cd/Im:
4.3
Download

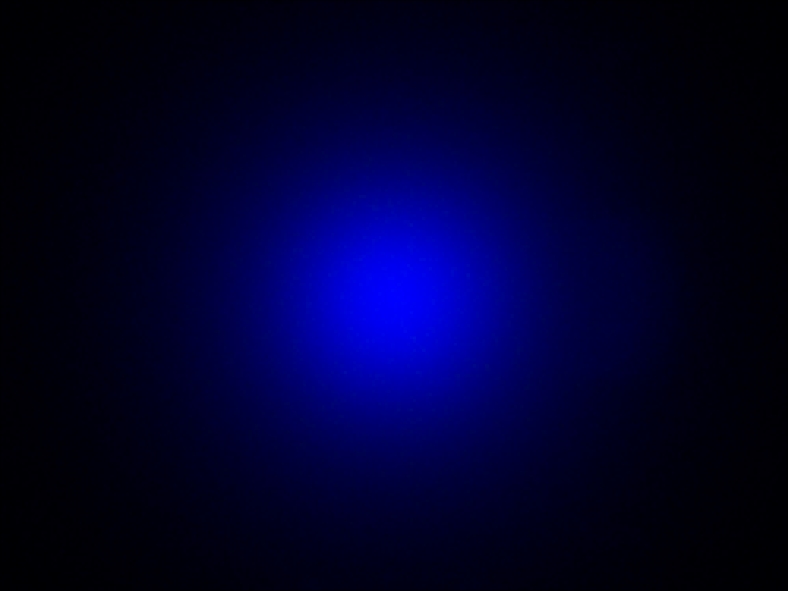

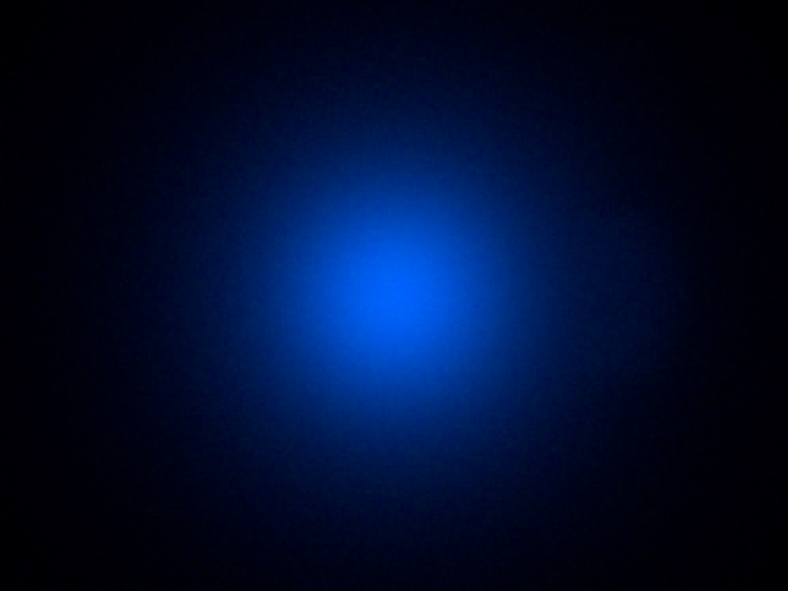

Cree XLamp XQ-A Blue
Eff:
87.5%
FWHM:
21.5°
Cd/Im:
4.3
Download

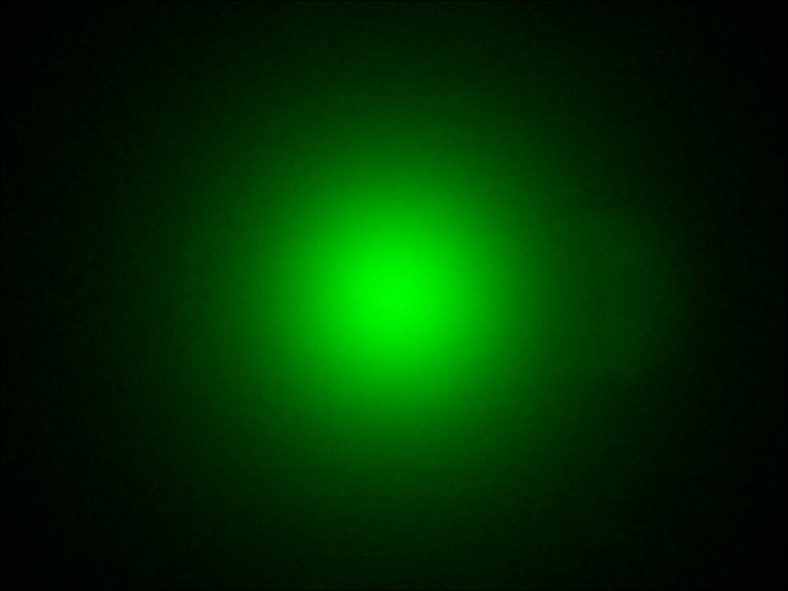

Cree XLamp XQ-A Green
Eff:
87.5%
FWHM:
21.5°
Cd/Im:
4.3
Download

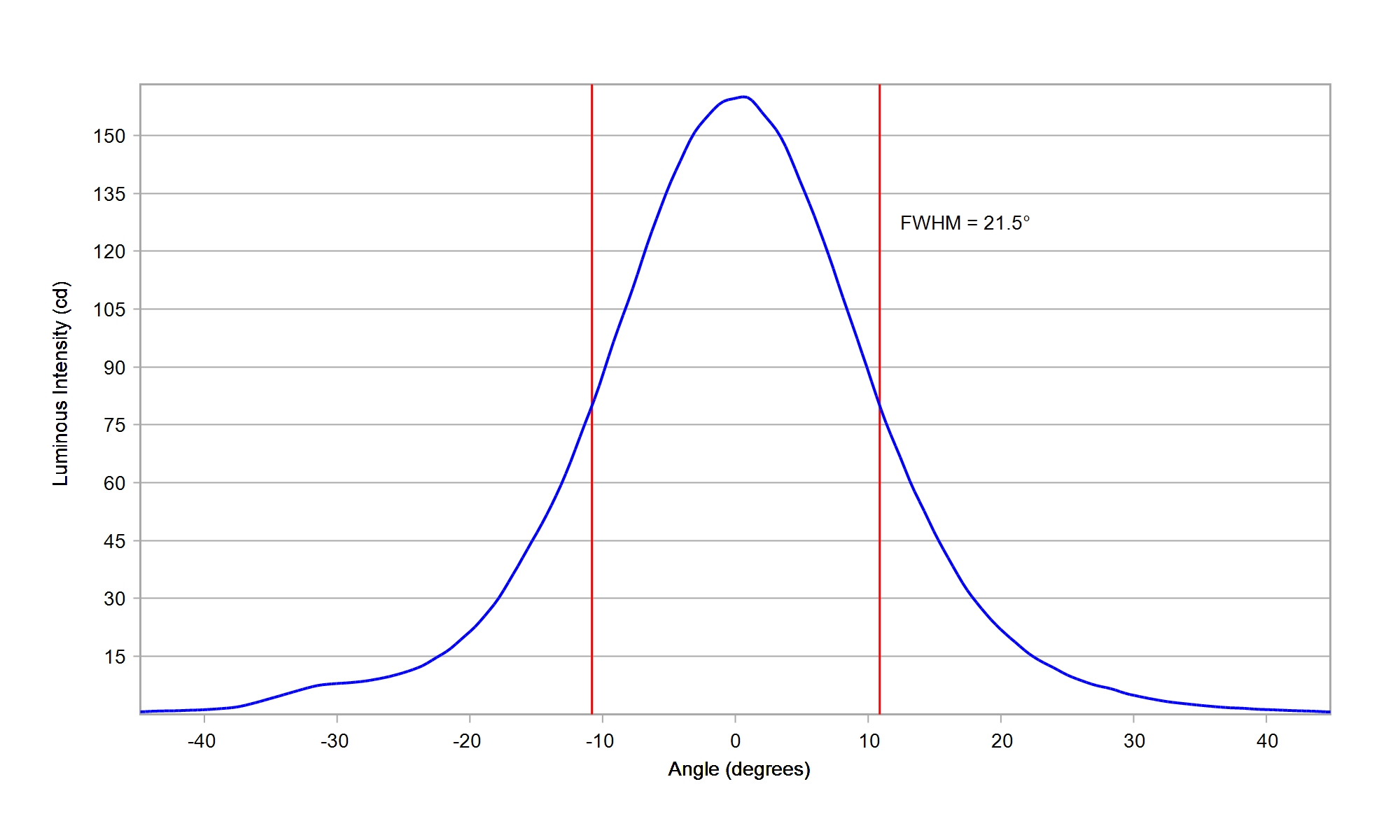

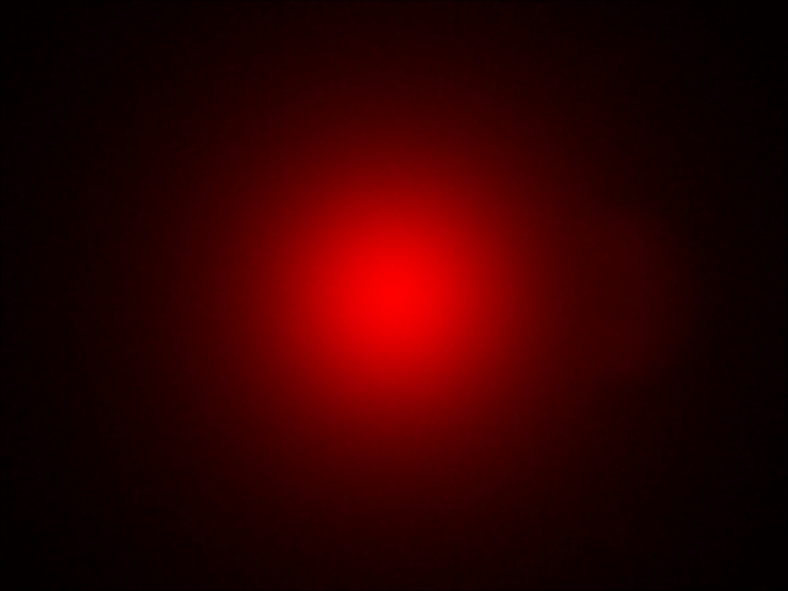

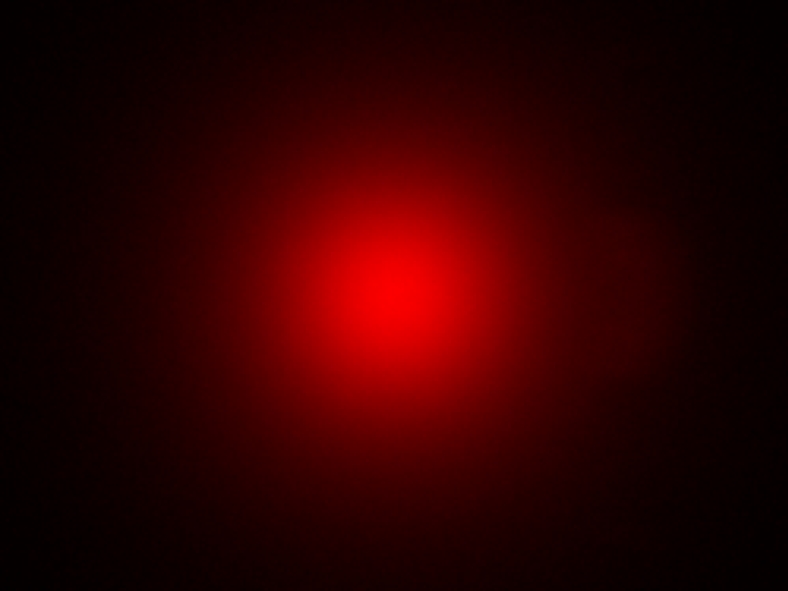

Cree XLamp XQ-A Red
Eff:
87.5%
FWHM:
21.5°
Cd/Im:
4.3
Download

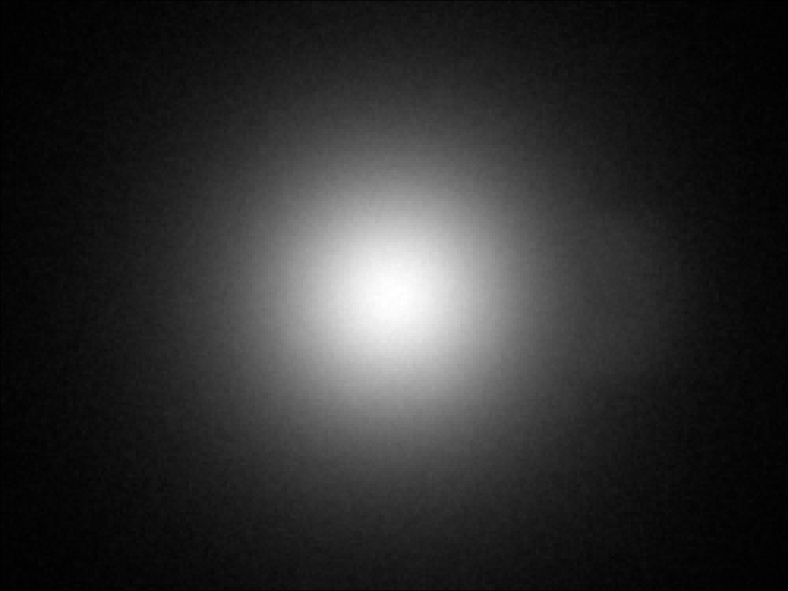

Cree XLamp XQ-A White
Eff:
85.0%
FWHM:
19.0°
Cd/Im:
5.5
Download
Cree XLamp XQ-E HI Blue
Eff:
87.0%
FWHM:
22.5°
Cd/Im:
3.8
Download
Cree XLamp XQ-E HI Green
Eff:
86.5%
FWHM:
22.0°
Cd/Im:
3.8
Download
Cree XLamp XQ-E HI Red
Eff:
86.5%
FWHM:
22.0°
Cd/Im:
3.9
Download
Cree XLamp XQ-E HI White
Eff:
85.0%
FWHM:
16.7°
Cd/Im:
5.5
Download
Cree XLamp XQ-E White
Eff:
85.0%
FWHM:
19°
Cd/Im:
5.1
Download
Cree XLamp XT-E HE White
Eff:
87.5%
FWHM:
25.0°
Cd/Im:
3.4
Download
Cree XLamp XT-E White
FWHM:
21°
Cd/Im:
5.8
Download
Everlight Shuen White
Eff:
82.4%
FWHM:
20.1°
Cd/Im:
4.9
Download
LEDEngin 3W White
Eff:
82.3%
FWHM:
26.6°
Cd/Im:
3.1
Download
LEDEngin 5W White
Eff:
82.3%
FWHM:
24.6°
Cd/Im:
3.4
Download
Lite-On R38386AS - S R38 IR
Eff:
91.5%
FWHM:
24.0°
Cd/Im:
3.9
Download

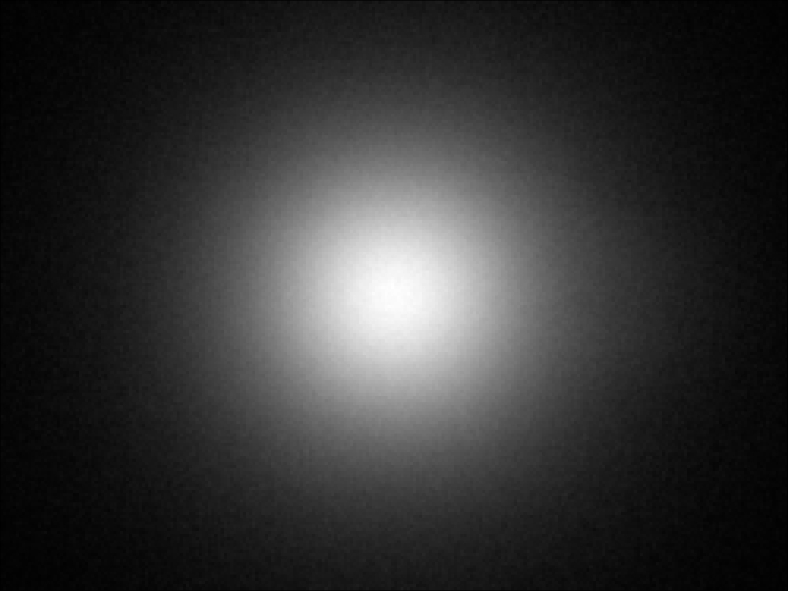

LUMILEDS LUXEON 3030 HE Plus White
Eff:
88.5%
FWHM:
25°
Cd/Im:
3.4
Download
LUMILEDS LUXEON 3030 LUXEON White
Eff:
84.0%
FWHM:
21.0°
Cd/Im:
4.4
Download
LUMILEDS LUXEON 3535 HV White
Eff:
85.0%
FWHM:
20°
Cd/Im:
4.7
Download
LUMILEDS LUXEON 3535 L White
Eff:
85.0%
FWHM:
20.6°
Cd/Im:
4.6
Download
LUMILEDS LUXEON 3535L Blue
Eff:
87.5%
FWHM:
24.0°
Cd/Im:
3.6
Download
LUMILEDS LUXEON 3535L Green
Eff:
88.0%
FWHM:
24.0°
Cd/Im:
3.6
Download
LUMILEDS LUXEON 3535L Red
Eff:
88.0%
FWHM:
22.5°
Cd/Im:
4.0
Download
LUMILEDS LUXEON C Blue
Eff:
83.0%
FWHM:
23.0°
Cd/Im:
12.1
Download
LUMILEDS LUXEON C High-Power
Eff:
81.0%
FWHM:
19.3°
Cd/Im:
5.0
Download
LUMILEDS LUXEON C Lime
Eff:
84.0%
FWHM:
23.0°
Cd/Im:
3.7
Download
LUMILEDS LUXEON C Red
Eff:
81.5%
FWHM:
23.5°
Cd/Im:
3.4
Download

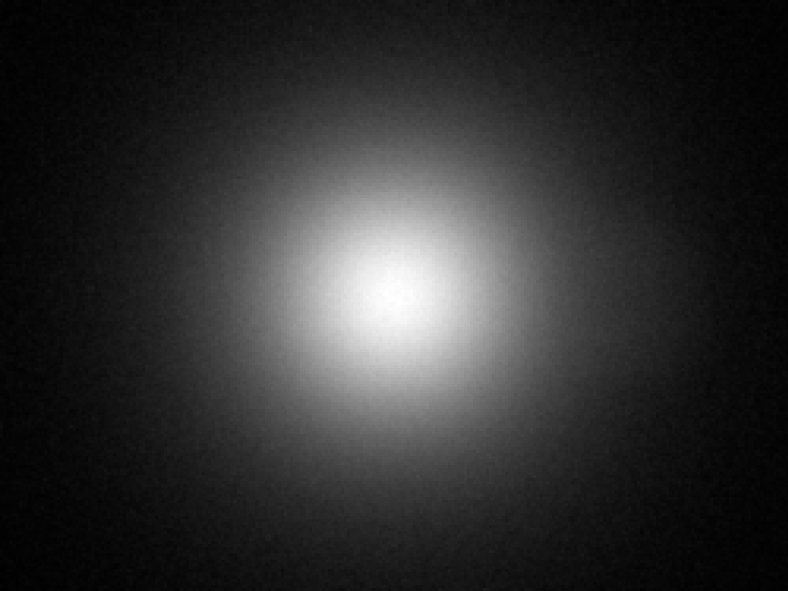

LUMILEDS LUXEON C White
Eff:
82.0%
FWHM:
15.8°
Cd/Im:
7.8
Download
LUMILEDS LUXEON CSP 05 White
Eff:
83.0%
FWHM:
19.8°
Cd/Im:
4.5
Download
LUMILEDS LUXEON CSP 10 White
Eff:
83.0%
FWHM:
21.8°
Cd/Im:
3.4
Download
LUMILEDS LUXEON CZ White
Eff:
88.5%
FWHM:
22°
Cd/Im:
4.3
Download
LUMILEDS LUXEON HL1Z CSP White
Eff:
88.5%
FWHM:
22.5°
Cd/Im:
4.1
Download

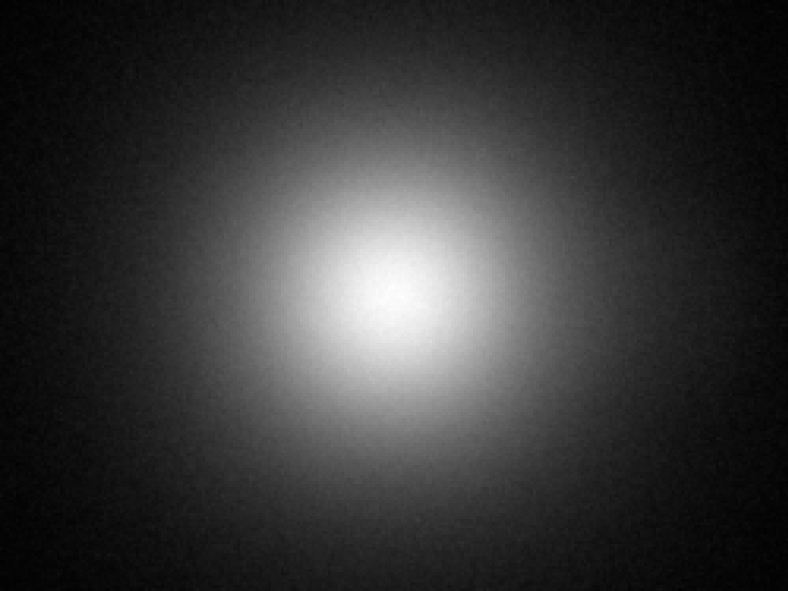

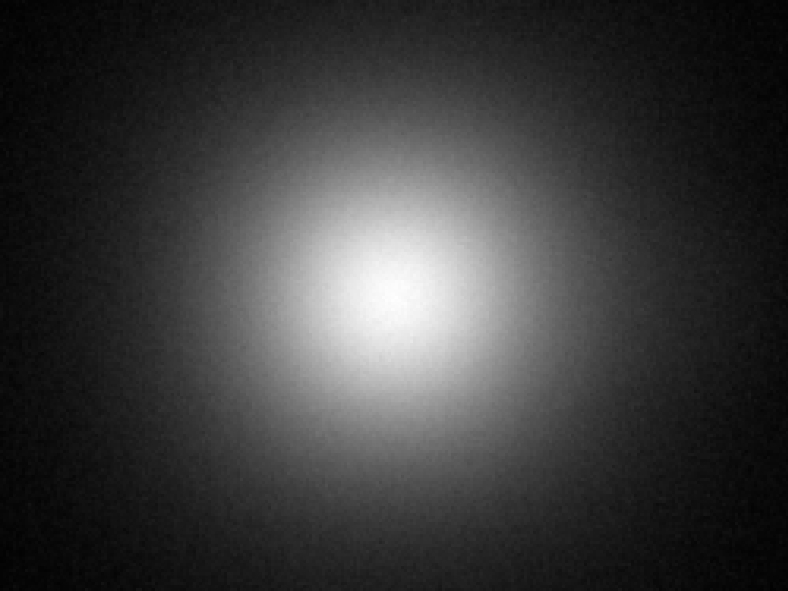

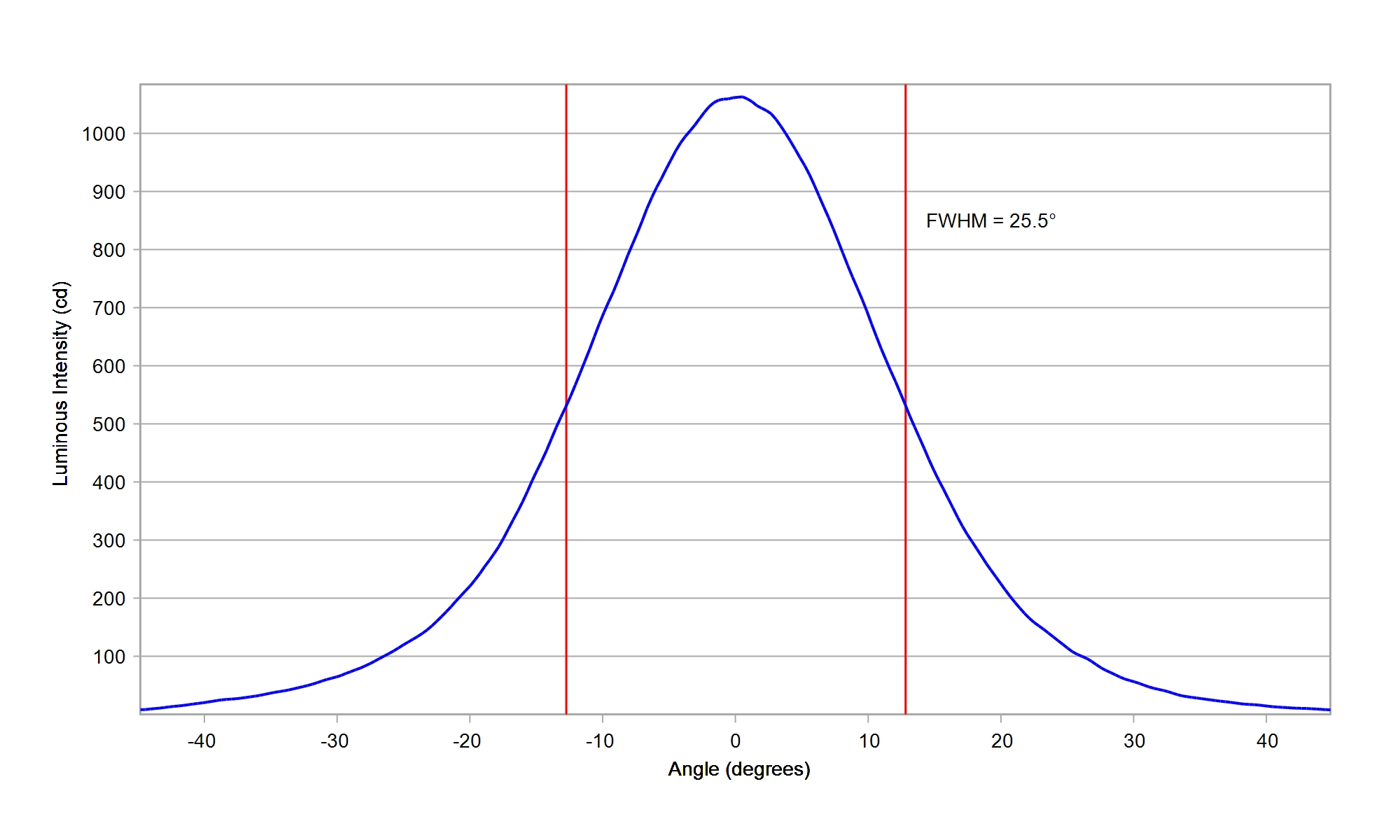

LUMILEDS LUXEON HL2X White
Eff:
87.5%
FWHM:
25.5°
Cd/Im:
3.3
Download
LUMILEDS LUXEON HL2X-P White
Eff:
87.5%
FWHM:
26.5°
Cd/Im:
2.9
Download
LUMILEDS LUXEON HL2Z White
Eff:
88.5%
FWHM:
24°
Cd/Im:
3.6
Download
LUMILEDS LUXEON IR 2720
Eff:
92.0%
FWHM:
23°
Ipk/W:
4.1
Download
LUMILEDS LUXEON IR Compact 850nm
Eff:
90.0%
FWHM:
23.0°
Ipk/W:
4.1
Download
LUMILEDS LUXEON IR Domed 150 Degree
Eff:
91.0%
FWHM:
24.0°
Cd/Im:
4.0
Download
LUMILEDS LUXEON IR Domed 60 Degree
Eff:
89.0%
FWHM:
25.0°
Cd/Im:
3.5
Download
LUMILEDS LUXEON IR Domed 90 Degree
Eff:
90.0%
FWHM:
24.0°
Cd/Im:
3.9
Download
LUMILEDS LUXEON MZ White
Eff:
86.8%
FWHM:
27.5°
Cd/Im:
2.4
Download
LUMILEDS LUXEON Q White
Eff:
84.2%
FWHM:
21.1°
Cd/Im:
4.2
Download
LUMILEDS LUXEON Rubix Blue
Eff:
88.5%
FWHM:
22°
Cd/Im:
4.3
Download
LUMILEDS LUXEON Rubix Green
Eff:
88.5%
FWHM:
22°
Cd/Im:
4.3
Download
LUMILEDS LUXEON Rubix Red
Eff:
90.0%
FWHM:
22°
Cd/Im:
4.4
Download
LUMILEDS LUXEON Rubix White
Eff:
88.5%
FWHM:
22.0°
Cd/Im:
4.3
Download
LUMILEDS LUXEON TX White
Eff:
85.1%
FWHM:
20.8°
Cd/Im:
4.4
Download
LUMILEDS LUXEON V White
Eff:
85.0%
FWHM:
28.0°
Cd/Im:
2.6
Download
LUMILEDS LUXEON V2 White
Eff:
87.5%
FWHM:
25°
Cd/Im:
3.4
Download
LUMILEDS LUXEON Z ES White
Eff:
85.0%
FWHM:
16.8°
Cd/Im:
6.1
Download
LUMILEDS LUXEON Z White
Eff:
85.0%
FWHM:
18.5°
Cd/Im:
5.7
Download
Luminus Devices SST 05-IR-B40 850nm
Eff:
90.5%
FWHM:
24.0°
Ipk/W:
3.8
Download
Luminus Devices SST 10-B-B130 Blue
Eff:
86.5%
FWHM:
23.5°
Cd/Im:
3.8
Download
Luminus Devices SST 10-B-B90 Blue
Eff:
86.0%
FWHM:
24°
Cd/Im:
3.5
Download
Luminus Devices SST 10-DR-B130 Deep Red
Eff:
90.0%
FWHM:
23°
Cd/Im:
4.0
Download
Luminus Devices SST 10-DR-B90 Deep Red
Eff:
89.0%
FWHM:
24.5°
Cd/Im:
3.5
Download
Luminus Devices SST 10-G-B130 Green
Eff:
88.0%
FWHM:
23°
Cd/Im:
3.9
Download
Luminus Devices SST 10-G-B90 Green
Eff:
87.5%
FWHM:
23.5°
Cd/Im:
3.6
Download
Luminus Devices SST 10-IR-B130 940nm
Eff:
92.5%
FWHM:
23.5°
Ipk/W:
4.0
Download
Luminus Devices SST 10-IR-B90 940nm
Eff:
91.0%
FWHM:
24.5°
Ipk/W:
3.6
Download
Luminus Devices SST 10-IRD-B130 810nm
Eff:
92.5%
FWHM:
23°
Ipk/W:
4.1
Download
Luminus Devices SST 10-IRD-B90 810nm
Eff:
91.0%
FWHM:
24°
Ipk/W:
3.6
Download
Luminus Devices SST 20-WxH White Hi CRI
Eff:
88.0%
FWHM:
24°
Cd/Im:
3.7
Download
Luminus Devices SST 40-W White
Eff:
87.0%
FWHM:
27°
Cd/Im:
2.8
Download

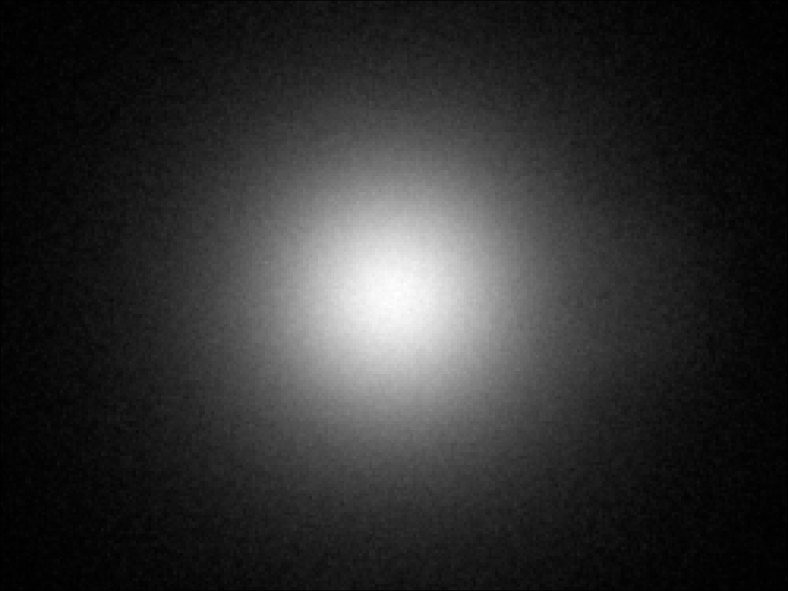

Luminus Devices SST-12-WxS White
Eff:
88.0%
FWHM:
23°
Cd/Im:
3.9
Download
Luminus Devices SST-50 White
Eff:
82.2%
FWHM:
30.7°
Cd/Im:
2.6
Download
Nichia 219 White
FWHM:
21.1°
Cd/Im:
5.6
Download
Nichia 229A White
Eff:
85.5%
FWHM:
28.0°
Cd/Im:
2.6
Download
Nichia 757G White
Eff:
88.5%
FWHM:
25°
Cd/Im:
3.3
Download
Nichia 757G White
Eff:
87.5%
FWHM:
24.5°
Cd/Im:
3.5
Download
Nichia NCSW CSP E17A White
Eff:
87.0%
FWHM:
22.5°
Cd/Im:
3.9
Download
Nichia NF2W 385AR-V2 White
Eff:
88.5%
FWHM:
26°
Cd/Im:
3.3
Download
Nichia NF2W 757G-MT Tunable
Eff:
88.5%
FWHM:
25°
Cd/Im:
3.3
Download
Nichia NFSW CSP E11A White
Eff:
87.5%
FWHM:
22°
Cd/Im:
4.3
Download
Nichia NV4W B35AM White
Eff:
88.0%
FWHM:
28°
Cd/Im:
2.8
Download
Nichia NVSL 219B White
Eff:
86.5%
FWHM:
23.5°
Cd/Im:
3.7
Download
Nichia NVSW 219C White
Eff:
86.5%
FWHM:
25.0°
Cd/Im:
3.2
Download
Nichia NVSW 219F White
Eff:
87.5%
FWHM:
25.5°
Cd/Im:
3.3
Download
Nichia NVSW 319A White
Eff:
86.0%
FWHM:
26.5°
Cd/Im:
3.0
Download
Nichia NVSW CSP E21A White
Eff:
84.0%
FWHM:
20.3°
Cd/Im:
4.8
Download
Nichia Top Emitting NCSL 119-H3 White
Eff:
84.2%
FWHM:
19.6°
Cd/Im:
6.0
Download
Osram OS DURIS E 2835 Gen2
Eff:
88.5%
FWHM:
24.5°
Cd/Im:
3.5
Download
Osram OS DURIS E 2835 White
Eff:
87.5%
FWHM:
24.5°
Cd/Im:
3.5
Download
Osram OS DURIS E2 White
Eff:
85.0%
FWHM:
19.0°
Cd/Im:
5.4
Download
Osram OS DURIS E3 White
Eff:
88.7%
FWHM:
19.6°
Cd/Im:
5.3
Download
Osram OS DURIS P8 White
Eff:
85.5%
FWHM:
20.9°
Cd/Im:
4.4
Download
Osram OS DURIS S2 White
Eff:
90.3%
FWHM:
20.5°
Cd/Im:
4.9
Download
Osram OS DURIS S5 Deep Blue
Eff:
86.5%
FWHM:
24.5°
Cd/Im:
3.5
Download
Osram OS DURIS S5 Green
Eff:
88.5%
FWHM:
24.0°
Cd/Im:
3.7
Download
Osram OS DURIS S5 Red
Eff:
89.5%
FWHM:
23.5°
Cd/Im:
3.9
Download
Osram OS DURIS S5 White
Eff:
86.0%
FWHM:
20.6°
Cd/Im:
4.5
Download
Osram OS Golden DRAGON Plus W5AM White
Eff:
83.9%
FWHM:
21.2°
Cd/Im:
4.7
Download
Osram OS OSCONIQ C 2424 White
Eff:
88.5%
FWHM:
23.5°
Cd/Im:
3.8
Download
Osram OS OSCONIQ P3737 White
Eff:
86.0%
FWHM:
27°
Cd/Im:
2.9
Download
Osram OS OSLON Black SFH 4716AS IR
Eff:
91.5%
FWHM:
22.5°
Ipk/W:
4.3
Download
Osram OS OSLON Black SFH 4725S IR
Eff:
92.0%
FWHM:
23.5°
Cd/Im:
4.0
Download
Osram OS OSLON Boost HM KW CELMM1.TG
Eff:
88.5%
FWHM:
21.5°
Cd/Im:
4.4
Download
Osram OS OSLON Pure 1010 CSP GC VJLPE1.13 Cyan
Eff:
89.0%
FWHM:
22°
Cd/Im:
4.4
Download
Osram OS OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue
Eff:
87.0%
FWHM:
22°
Ipk/W:
4.2
Download
Osram OS OSLON Pure 1010 CSP GG VJLPE1.F3 Green
Eff:
88.5%
FWHM:
22°
Cd/Im:
4.3
Download
Osram OS OSLON Pure 1010 CSP GR VJLPE1.F3 Red
Eff:
89.0%
FWHM:
22°
Cd/Im:
4.4
Download
Osram OS OSLON Pure 1010 CSP GT VJLPE1.13 True Green
Eff:
88.5%
FWHM:
22°
Cd/Im:
4.4
Download
Osram OS OSLON Pure 1010 CSP GW VJLPE1.CM White
Eff:
88.0%
FWHM:
22°
Cd/Im:
4.3
Download
Osram OS OSLON Square Flat White
Eff:
88.0%
FWHM:
23.5°
Cd/Im:
3.9
Download
Osram OS OSLON Square Gen 3 White
Eff:
85.4%
FWHM:
20.6°
Cd/Im:
4.5
Download
Osram OS OSLON Square Gen 5 GW CSSRM3
Eff:
88.0%
FWHM:
25 x 24.5°
Cd/Im:
3.4
Download
Osram OS OSLON Square White
Eff:
85.0%
FWHM:
20.5°
Cd/Im:
4.5
Download
Osram OS OSLON SSL 150 degree GW CSHPM1.PM White
Eff:
88.5%
FWHM:
22.5°
Cd/Im:
4.0
Download
Osram OS OSLON SSL 150 degree White
Eff:
83.3%
FWHM:
17.2°
Cd/Im:
7.4
Download
Osram OS OSLON SSL 80 degree White
Eff:
82.5%
FWHM:
19.4°
Cd/Im:
5.7
Download
Samsung 3030 LM301B White
Eff:
88.5%
FWHM:
25°
Cd/Im:
3.4
Download
Samsung 3535 LH351A White
FWHM:
20.1°
Cd/Im:
6.3
Download
Samsung 3535 LH351B White
Eff:
85.0%
FWHM:
21°
Cd/Im:
4.1
Download
Samsung 3535 LH351D White
Eff:
86.5%
FWHM:
28.0°
Cd/Im:
2.8
Download
Samsung 3535 LH351Z White
Eff:
85.0%
FWHM:
20°
Cd/Im:
4.7
Download
Samsung CSP LH151B White
Eff:
88.5%
FWHM:
22.5°
Cd/Im:
4.1
Download
Samsung CSP LH181B White
Eff:
88.5%
FWHM:
24.5°
Cd/Im:
3.6
Download
Samsung CSP LH231B White
Eff:
88.5%
FWHM:
26°
Cd/Im:
3.2
Download
Samsung CSP LM101B White
Eff:
89.0%
FWHM:
6.9°
Cd/Im:
36.4
Download
Seoul CSP SZ8Y11 White
Eff:
88.0%
FWHM:
22.5 X 23°
Cd/Im:
4.0
Download
Seoul CSP SZ8Y15 White
Eff:
88.0%
FWHM:
22°
Cd/Im:
4.2
Download
Seoul CSP SZ8Y19 White
Eff:
86.0%
FWHM:
21.7°
Cd/Im:
3.8
Download
Seoul CSP SZ8Y22 White
Eff:
88.0%
FWHM:
26°
Cd/Im:
3.3
Download
Seoul CSP SZ8Y22P White
Eff:
88.5%
FWHM:
26°
Cd/Im:
3.2
Download
Seoul MidPower MJT3030 White
Eff:
85.5%
FWHM:
20.8°
Cd/Im:
4.4
Download
Seoul MidPower MJT4040 White
Eff:
86.0%
FWHM:
23°
Cd/Im:
3.4
Download
Seoul P4 White
Eff:
84.5%
FWHM:
21.1°
Cd/Im:
4.3
Download
Seoul P4 White
Eff:
81.5%
FWHM:
22.4°
Cd/Im:
4.3
Download
Seoul STW8 C2SB-NT White
Eff:
88.5%
FWHM:
25.0°
Cd/Im:
3.4
Download
Seoul STWS C2PB-E0 White
Eff:
88.5%
FWHM:
25.0°
Cd/Im:
3.4
Download
Seoul SunLike STW9 C2SB-S
Eff:
88.5%
FWHM:
24°
Cd/Im:
3.6
Download
Seoul Z - Power Z1 White
Eff:
81.0%
FWHM:
27.7°
Cd/Im:
2.8
Download
Seoul Z - Power Z5 M0 White
FWHM:
20.6°
Cd/Im:
5.4
Download
Seoul Z - Power Z5 M1 White
Eff:
85.6%
FWHM:
21.2°
Cd/Im:
4.2
Download
Seoul Z - Power Z5 M4 White
Eff:
87.5%
FWHM:
25.5°
Cd/Im:
3.2
Download
Seoul Z - Power Z5 P0 White
FWHM:
20.1°
Cd/Im:
6.1
Download
Seoul Z - Power Z5 White
Eff:
83.2%
FWHM:
20.7°
Cd/Im:
5.4
Download
Stanley 1N White
FWHM:
26.4°
Cd/Im:
3.6
Download
Stanley 6J White
Eff:
86.0%
FWHM:
29.2°
Cd/Im:
2.2
Download
Stanley 6J White
Eff:
79.0%
FWHM:
47.4°
Cd/Im:
1.0
Download
Toshiba TL 1L2 White
Eff:
85.0%
FWHM:
21.1°
Cd/Im:
4.3
Download
Toshiba TL 1L4 White
Eff:
85.0%
FWHM:
21.1°
Cd/Im:
4.2
Download
