20.0mm Narrow Spot Frosted TIR LED Lenses
Part number
10138
Dimensions
20.0mm
Drawing Number
60424
Optic type
TIR LED Lenses
Finish
Frosted
Beam type
Narrow Spot
Applications
Architectural
Landscape & Garden
Humancentric
Downloads
PDF
IGS
Request a sample
Contact Sales

LEDs and Performances

Select and filter based on manufacturer(s)
Bridgelux SMD 3030 Gen2 White
Eff:
88.5%
FWHM:
12.5 x 13°
Cd/Im:
12.0
Carclo Optics - 10138 20mm Spot Image Bridgelux 3030 Gen2
Carclo Optics - 10138 20mm Cross Section Bridgelux 3030 Gen2
Download
Details
Broadcom Jade White
Eff:
91.6%
FWHM:
16.7°
Cd/Im:
7.6
Download
Details
Cree JB3030 3V White
Eff:
88.5%
FWHM:
15.0°
Cd/Im:
8.6
Carclo Optics - 10138 Spot Image Cree JB3030 3V White
Carclo Optics - 10138 Cross Section Cree JB3030 3V White
Download
Details
Cree JK2835 6V White
Eff:
88.5%
FWHM:
14°
Cd/Im:
9.6
Download
Details
Cree JQ5050 9V White
Eff:
88.5%
FWHM:
24.0°
Cd/Im:
3.5
Carclo Optics - 10138 Spot Image Cree JQ5050 9V White
Carclo Optics - 10138 Cross Section Cree JQ5050 9V White
Download
Details
Cree JR5050 24V White
Eff:
88.5%
FWHM:
22.5°
Cd/Im:
3.7
Carclo Optics - 10138 Spot Image Cree JR5050-24V White
Carclo Optics - 10138 Cross Section Cree JR5050-24V White
Download
Details
Cree JR5050 36V White
Eff:
88.5%
FWHM:
21.0°
Cd/Im:
4.2
Carclo Optics - 10138 Spot Image Cree JR5050 36V White
Carclo Optics - 10138 Cross Section Cree JR5050 36V White
Download
Details
Cree JR5050 6V White
Eff:
88.5%
FWHM:
22.0°
Carclo Optics - 10138 Spot Image Cree JR50506V White
Carclo Optics - 10138 Cross Section Cree JR50506V White
Download
Details
Cree JR5050C 6V E-Class White
Eff:
88.5%
FWHM:
22°
Cd/Im:
3.9
Download
Details
Cree XLamp CSP XD16 Cool White
Eff:
87.5%
FWHM:
12.5°
Cd/Im:
11.1
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Cree XLamp CSP XD16 Premium White
Eff:
88.5%
FWHM:
11.5°
Cd/Im:
14.4
Download
Details
Cree XLamp MH-B White
Eff:
86.0%
FWHM:
23.5°
Cd/Im:
2.8
carclo optics - simulated spot image

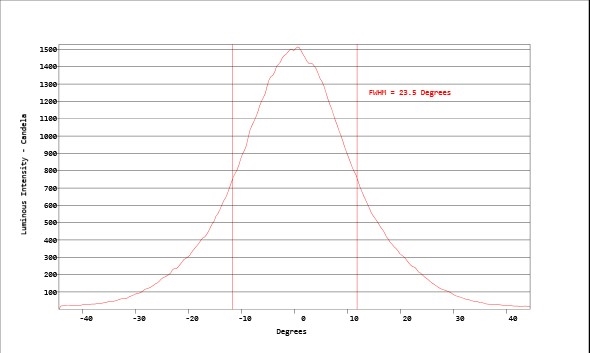

carclo optics - simulated cross section
Download
Details
Cree XLamp MX-6 White
Eff:
89.9%
FWHM:
20°
Cd/Im:
5.5
Download
Details
Cree XLamp XB-D White
Eff:
86.4%
FWHM:
11.5°
Cd/Im:
17.5
Download
Details
Cree XLamp XB-H White
Eff:
88.0%
FWHM:
14 x 13.5°
Cd/Im:
9.9
Carclo Optics - 10138 20mm Spot Image Cree XLamp XB-H
Carclo Optics - 10138 20mm Cross Section Cree XLamp XB-H
Download
Details
Cree XLamp XE-G Blue
Eff:
88.0%
FWHM:
11°
Cd/Im:
15.5
Download
Details
Cree XLamp XE-G Green
Eff:
88.0%
FWHM:
11°
Cd/Im:
15.5
Download
Details
Cree XLamp XE-G Red
Eff:
87.5%
FWHM:
11°
Cd/Im:
15.6
Download
Details
Cree XLamp XE-G White
Eff:
88.0%
FWHM:
11°
Cd/Im:
14.7
Download
Details
Cree XLamp XHP-50 White
Eff:
86.0%
FWHM:
25°
Cd/Im:
2.7
carclo optics - simulated spot image
carclo optics - simulated cross section
Download
Details
Cree XLamp XHP35 HI White
Eff:
85.4%
FWHM:
15.6°
Cd/Im:
8.2

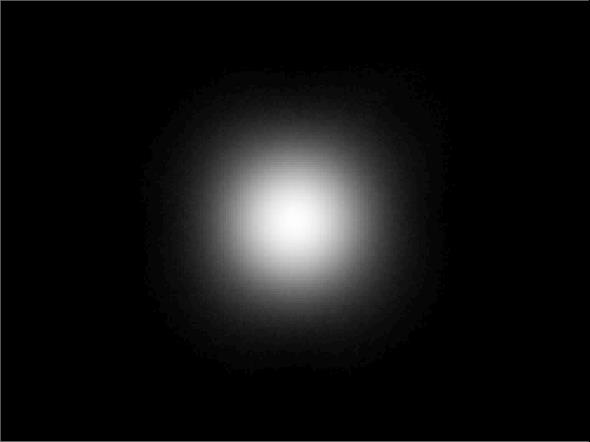

Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Cree XLamp XHP35 HD White
Eff:
84.7%
FWHM:
19.9°
Cd/Im:
5.0
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Cree XLamp XHP35.2 HI White
Eff:
87.0%
FWHM:
16.5°
Cd/Im:
6.7
Carclo Optics - 10138 Spot Image Cree XLamp XHP35.2 HI White
Carclo Optics - 10138 Cross Section Cree XLamp XHP35.2 HI White
Download
Details
Cree XLamp XHP35.2 HD White
Eff:
87.0%
FWHM:
22.5°
Cd/Im:
3.9
Carclo Optics - 10138 Spot Image Cree XHP35.2 White
Carclo Optics - 10138 Cross Section Cree XHP35.2 White
Download
Details

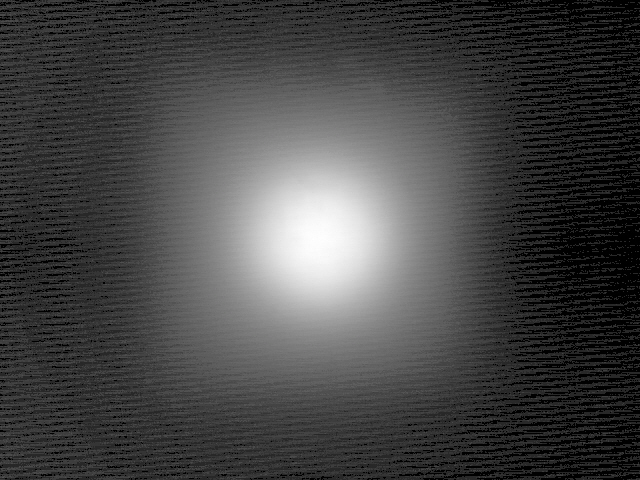

Cree XLamp XM-L White
Eff:
86.1%
FWHM:
18.6°
Cd/Im:
7.3
Download
Details
Cree XLamp XM-L2 White
FWHM:
18.4°
Cd/Im:
7.4
Optic 10138 LED Cree XLamp XM-L2 White
Optic 10138 LED Cree XLamp XM-L2 White
Download
Details
Cree XLamp XM-L3 White
Eff:
87.0%
FWHM:
18.0°
Cd/Im:
5.7
Carclo Optics - 10138 Spot Image Cree XM-L3
Carclo Optics - 10138 Cross Section Cree XM-L3
Download
Details
Cree XLamp XP-C White
Eff:
86.8%
FWHM:
9.3°
Cd/Im:
24.8
Download
Details
Cree XLamp XP-E2 White
Eff:
88.5%
FWHM:
11°
Cd/Im:
15.2
Download
Details
Cree XLamp XP-G White
Eff:
86.4%
FWHM:
14.3°
Cd/Im:
11.4
Download
Details
Cree XLamp XP-G2 White
Eff:
83.3%
FWHM:
13.4°
Cd/Im:
13.8
10138 Spot
10138 Cross section plot
Download
Details
Cree XLamp XP-G3 White
Eff:
86.0%
FWHM:
16.2°
Cd/Im:
7.7
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details

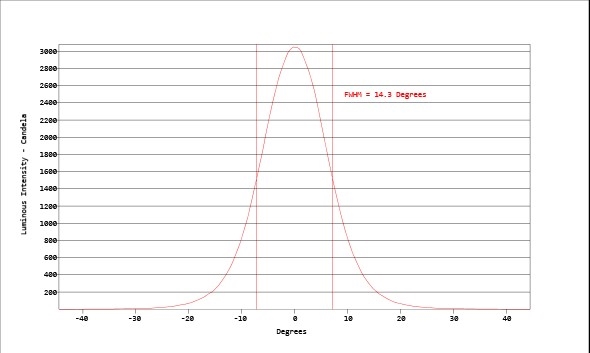

Cree XLamp XP-L HI White
Eff:
85.3%
FWHM:
14.3°
Cd/Im:
9.3
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Cree XLamp XP-L White
Eff:
85.4%
FWHM:
18.1°
Cd/Im:
6.2
carclo optics - simulated spot image
carclo optics - simulated cross section
Download
Details
Cree XLamp XP-L2 White
Eff:
85.5%
FWHM:
20.0°
Cd/Im:
4.9
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Cree XLamp XP-P White
Eff:
88.5%
FWHM:
10.5°
Cd/Im:
18.3
Carclo Optics – 10138 Cree Xlamp XP-P - Spot Image
Carclo Optics – 10138 Cree Xlamp XP-P - Cross-Section
Download
Details
Cree XLamp XQ-A Blue
Eff:
87.5%
FWHM:
9.3°
Cd/Im:
20.6
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Cree XLamp XQ-A Green
Eff:
87.5%
FWHM:
9.2°
Cd/Im:
20.6
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Cree XLamp XQ-A Red
Eff:
87.5%
FWHM:
9.5°
Cd/Im:
19.6
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Cree XLamp XQ-A White
Eff:
84.0%
FWHM:
11.8°
Cd/Im:
14.9
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Cree XLamp XQ-E HI Blue
Eff:
87.0%
FWHM:
10.5°
Cd/Im:
15.1
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Cree XLamp XQ-E HI Green
Eff:
87.0%
FWHM:
10.5°
Cd/Im:
15.2
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details

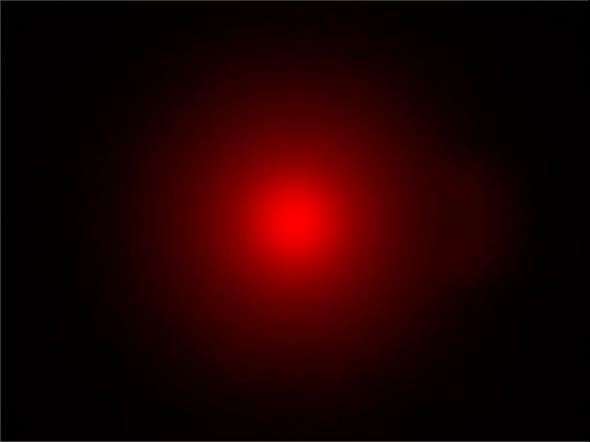

Cree XLamp XQ-E HI Red
Eff:
87.0%
FWHM:
10.0°
Cd/Im:
15.8
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Cree XLamp XQ-E HI White
Eff:
85.0%
FWHM:
11.4°
Cd/Im:
14.7
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Cree XLamp XQ-E HD White
Eff:
85.0%
FWHM:
12°
Cd/Im:
12.8
carclo optics - simulated spot image

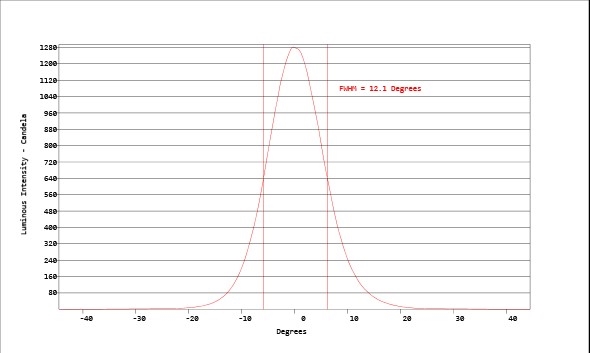

carclo optics - simulated cross section
Download
Details
Cree XLamp XT-E HE White
Eff:
87.5%
FWHM:
14.0°
Cd/Im:
9.0
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Cree XLamp XT-E White
FWHM:
13.86°
Cd/Im:
13.7
Download
Details
Everlight Shuen White
Eff:
86.3%
FWHM:
14°
Cd/Im:
10.3
Download
Details

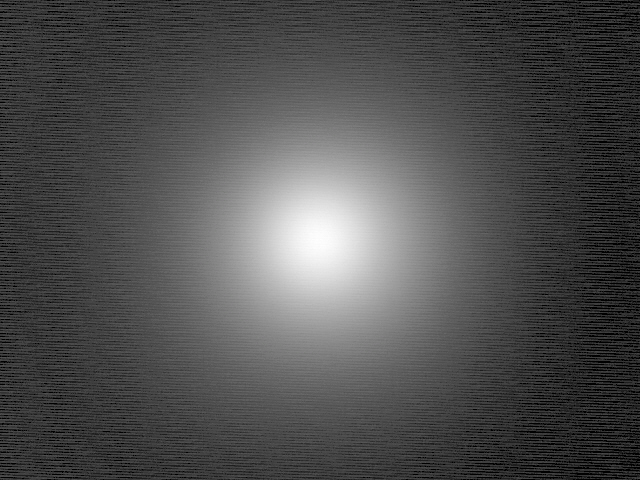

LEDEngin 3W White
Eff:
86.0%
FWHM:
17.4°
Cd/Im:
5.9
Download
Details
LEDEngin 5W White
Eff:
85.7%
FWHM:
17.1°
Cd/Im:
5.8
Download
Details
Lite-On R38386AS - S R38 IR
Eff:
91.5%
FWHM:
12.0°
Cd/Im:
12.6
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
LUMILEDS LUXEON 3014 White
Eff:
88.5%
FWHM:
11°
Cd/Im:
15.0
Download
Details
LUMILEDS LUXEON 3030 HE Plus White
Eff:
88.5%
FWHM:
14.8°
Cd/Im:
9.5
Carclo Optics – 10138 – Luxeon_3030_HE_Plus_spot-image
Carclo Optics – 10138 – Luxeon_3030_HE_Plus_cross vertical section
Download
Details
LUMILEDS LUXEON 3030 LUXEON White
Eff:
84.0%
FWHM:
14.4°
Cd/Im:
9.5
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
LUMILEDS LUXEON 3535 HV White
Eff:
85.0%
FWHM:
13.5°
Cd/Im:
10.6
carclo optics - simulated spot image
carclo optics - simulated cross section
Download
Details
LUMILEDS LUXEON 3535 L White
Eff:
85.0%
FWHM:
14°
Cd/Im:
10.1
carclo optics - simulated spot image
carclo optics - simulated cross section
Download
Details

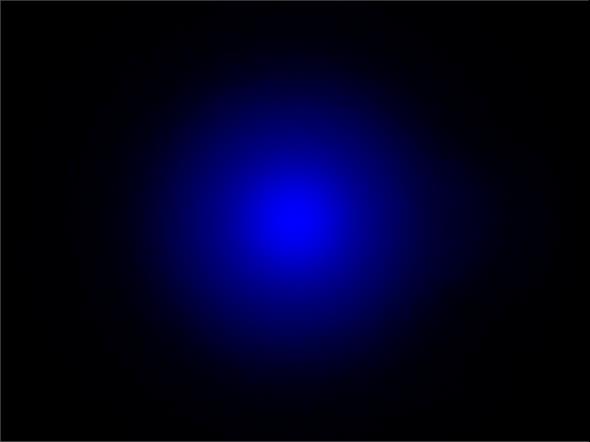

LUMILEDS LUXEON 3535L Blue
Eff:
88.0%
FWHM:
12.5°
Cd/Im:
11.5
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
LUMILEDS LUXEON 3535L Green
Eff:
88.0%
FWHM:
12.0°
Cd/Im:
11.6
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
LUMILEDS LUXEON 3535L Red
Eff:
88.0%
FWHM:
10.0°
Cd/Im:
15.7
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
LUMILEDS LUXEON C Blue
Eff:
83.0%
FWHM:
12.0°
Cd/Im:
12.1
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
LUMILEDS LUXEON C Lime
Eff:
84.0%
FWHM:
12.0°
Cd/Im:
12.3
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
LUMILEDS LUXEON C Red
Eff:
82.0%
FWHM:
12.5°
Cd/Im:
11.2
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
LUMILEDS LUXEON C White
Eff:
85.6%
FWHM:
10.1°
Cd/Im:
19.7
Download
Details
LUMILEDS LUXEON CSP 05 White
Eff:
84.0%
FWHM:
12.7°
Cd/Im:
10.9
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
LUMILEDS LUXEON CSP 10 White
Eff:
83.0%
FWHM:
14.8°
Cd/Im:
7.0
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
LUMILEDS LUXEON CZ White
Eff:
88.5%
FWHM:
10.5°
Cd/Im:
18.1
Carclo Optics 10138 Spot Image Luxeon CZ 5M CW
Carclo Optics 10138 Cross Section Luxeon CZ 5M CW
Download
Details
LUMILEDS LUXEON HL1Z CSP White
Eff:
88.5%
FWHM:
11°
Cd/Im:
15.7
Download
Details
LUMILEDS LUXEON HL2X White
Eff:
87.5%
FWHM:
15.5°
Cd/Im:
8.3
Carclo Optics - 10138 Spot Image HL2X
Carclo Optics - 10138 Cross Section HL2X
Download
Details

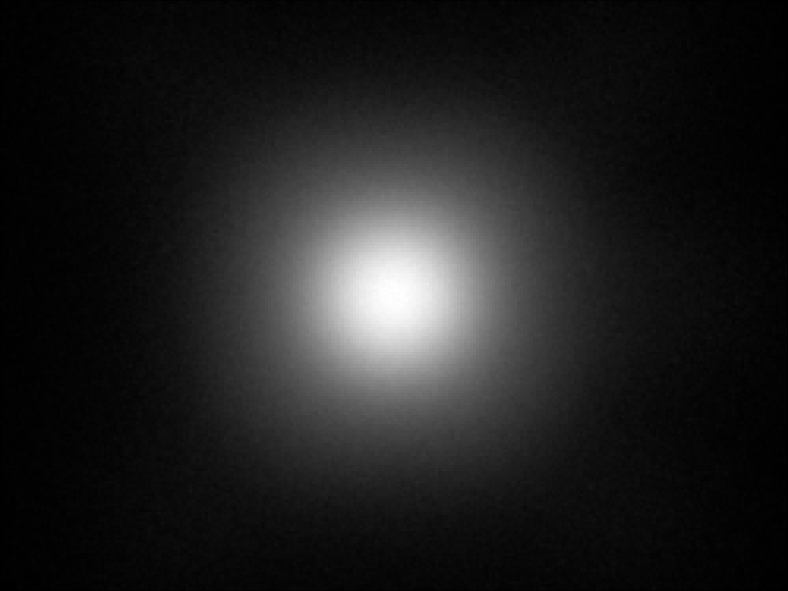

LUMILEDS LUXEON HL2X-D White
Eff:
88.5%
FWHM:
17.5°
Cd/Im:
6.4
Download
Details
LUMILEDS LUXEON HL2X-P White
Eff:
87.5%
FWHM:
17.5°
Cd/Im:
6.6
Download
Details
LUMILEDS LUXEON HL2Z White
Eff:
88.5%
FWHM:
13.5°
Cd/Im:
10.9
Carclo Optics – 10138 Lumileds Luxeon HL2Z - Spot Image
Carclo Optics – 10138 Lumileds Luxeon HL2Z - Cross-Section
Download
Details
LUMILEDS LUXEON IR 2720
Eff:
92.0%
FWHM:
11.5°
Cd/Im:
14.8
Carclo Optics 10138 Spot Image Luxeon IR 2720
Carclo Optics 10138 Cross section image Luxeon IR 2720
Download
Details
LUMILEDS LUXEON IR Compact 850nm
Eff:
90.5%
FWHM:
11.5°
Ipk/W:
14.3

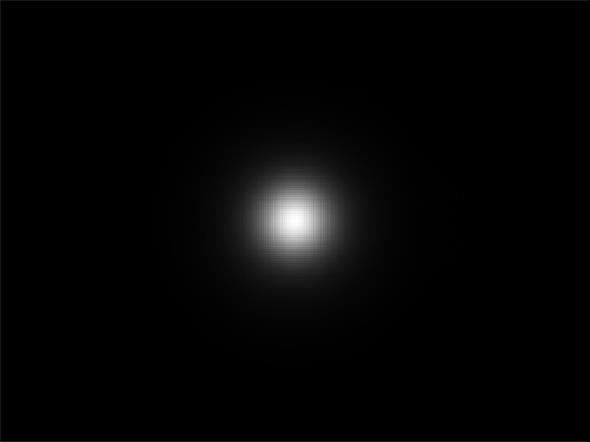

Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
LUMILEDS LUXEON IR Domed 150 Degree
Eff:
91.5%
FWHM:
13.5°
Cd/Im:
11.2
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
LUMILEDS LUXEON IR Domed 60 Degree
Eff:
89.0%
FWHM:
14.0°
Cd/Im:
9.9
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
LUMILEDS LUXEON IR Domed 90 Degree
Eff:
90.5%
FWHM:
13.0°
Cd/Im:
11.5
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
LUMILEDS LUXEON MZ White
Eff:
87.0%
FWHM:
20.6°
Cd/Im:
3.9
carclo optics - simulated spot image
carclo optics - simulated cross section
Download
Details
LUMILEDS LUXEON Q White
Eff:
84.0%
FWHM:
14.8°
Cd/Im:
8.8
carclo optics - simulated spot image
carclo optics - simulated cross section
Download
Details
LUMILEDS LUXEON Rubix Blue
Eff:
89.0%
FWHM:
10°
Cd/Im:
19.0
Carclo Optics - 10138 Spot Image Lumileds Luxeon Rubix Blue
Carclo Optics - 10138 Cross Section Lumileds Luxeon Rubix Blue
Download
Details
LUMILEDS LUXEON Rubix Green
Eff:
88.5%
FWHM:
10°
Cd/Im:
19.1
Carclo Optics – 10138 Spot Image Lumileds Luxeon Rubix Green
Carclo Optics – 10138 Cross Section Lumileds Luxeon Rubix Green
Download
Details
LUMILEDS LUXEON Rubix Red
Eff:
90.0%
FWHM:
10°
Cd/Im:
19.7
Carclo Optics – 10138 Spot Image Lumileds Luxeon Rubix Red
Carclo Optics – 10138 Cross Section Lumileds Luxeon Rubix Red
Download
Details
LUMILEDS LUXEON Rubix White
Eff:
88.5%
FWHM:
10.5°
Cd/Im:
18.4
Carclo Optics - 10138 Spot Image Lumileds Luxeon Rubix White
Carclo Optics - 10138 Cross Section Lumileds Luxeon Rubix White
Download
Details
LUMILEDS LUXEON TX White
Eff:
85.0%
FWHM:
14.3°
Cd/Im:
9.5
carclo optics - simulated spot image
carclo optics - simulated cross section
Download
Details
LUMILEDS LUXEON V White
Eff:
85.0%
FWHM:
19.5°
Cd/Im:
5.1
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
LUMILEDS LUXEON V2 White
Eff:
87.5%
FWHM:
15°
Cd/Im:
8.8
Carclo Optics 10138 Spot Image Luxeon V2
Carclo Optics 10138 Cross Section Horizontal image Luxeon V2
Download
Details
LUMILEDS LUXEON Z ES White
FWHM:
11.2°
Cd/Im:
15.7
Download
Details
LUMILEDS LUXEON Z White
Eff:
84.7%
FWHM:
11.3°
Cd/Im:
15.6
carclo optics - simulated spot image
carclo optics - simulated cross section
Download
Details
Luminus Devices SST 05-IR-B40 850nm
Eff:
90.5%
FWHM:
12.5°
Ipk/W:
12.2
Carclo Optics - 10138 Spot Image Luminus SST-05-IR-B40
Carclo Optics - 10138 Cross Section Luminus SST-05-IR-B40
Download
Details
Luminus Devices SST 10-B-B130 Blue
Eff:
86.5%
FWHM:
12°
Cd/Im:
13.4
Carclo Optics - 10138 Luminus_SST-10_B_B130 - spot image
Carclo Optics - 10138 Luminus_SST-10_B_B130 - cross section image
Download
Details
Luminus Devices SST 10-B-B90 Blue
Eff:
86.0%
FWHM:
12°
Cd/Im:
11.9
Carclo Optics - 10138 Luminus_SST-10_B_B90 - spot - image
Carclo Optics - 10138 Luminus_SST-10_B_B90 - cross vertical image
Download
Details
Luminus Devices SST 10-DR-B130 Deep Red
Eff:
90.0%
FWHM:
12°
Cd/Im:
13.6
Carclo Optics – 10138 Luminus_SST-10_DR_B130- Spot - image
Carclo Optics – 10138 Luminus_SST-10_DR_B130- Cross section – image
Download
Details
Luminus Devices SST 10-DR-B90 Deep Red
Eff:
89.0%
FWHM:
12.5°
Cd/Im:
11.5
Carclo Optics - 10138 Luminus_SST-10_DR_B90 - Spot Image
Carclo Optics - 10138 Luminus_SST-10_DR_B90 - Cross section vertical image
Download
Details
Luminus Devices SST 10-G-B130 Green
Eff:
88.5%
FWHM:
12.5°
Cd/Im:
13.7
Carclo Optics - 10138 Luminus_SST-10_G_B130 - spot - image
Carclo Optics - 10138 Luminus_SST-10_G_B130 - cross -horizontal- section- image
Download
Details
Luminus Devices SST 10-G-B90 Green
Eff:
88.0%
FWHM:
12°
Cd/Im:
12.1
Carclo Optics - 10138 Luminus_SST-10_G_B90- Spot - image
Carclo Optics - 10138 Luminus_SST-10_G_B90- Cross section - image
Download
Details
Luminus Devices SST 10-IR-B130 940nm
Eff:
92.5%
FWHM:
13.0°
Ipk/W:
12.4
Carclo Optics - 10138 Spot Image Luminus SST-10-IR-B130
Carclo Optics - 10138 Cross Section Luminus SST-10-IR-B130
Download
Details
Luminus Devices SST 10-IR-B90 940nm
Eff:
91.5%
FWHM:
12.5°
Ipk/W:
11.1
Carclo Optics - 10138 Spot Image Luminus SST-10-IR-B90
Carclo Optics - 10138 Cross Section Luminus SST-10-IR-B90
Download
Details
Luminus Devices SST 10-IRD-B130 810nm
Eff:
92.5%
FWHM:
12°
Ipk/W:
14.1
Download
Details
Luminus Devices SST 10-IRD-B90 810nm
Eff:
91.5%
FWHM:
12°
Ipk/W:
11.8
Download
Details
Luminus Devices SST 20-WxH White Hi CRI
Eff:
88.0%
FWHM:
12.5°
Cd/Im:
11.8
Carclo Optics – 10138 - Luxeon_SST_20_W_spot-image
Carclo Optics – 10138 - Luxeon_SST_20_W_cross vertical section
Download
Details
Luminus Devices SST 40-W White
Eff:
87.5%
FWHM:
18.5°
Cd/Im:
5.8
Carclo Optics - 10138 - Luxeon_SST_40_W_spot-image
Carclo Optics - 10138 - Luxeon_SST_40_W_cross vertical section
Download
Details
Luminus Devices SST-12-WxS White
Eff:
88.0%
FWHM:
11.5°
Cd/Im:
14.0
Download
Details
Luminus Devices SST-50 White
Eff:
84.6%
FWHM:
23.8°
Cd/Im:
3.8
Download
Details
Nichia 219 White
Eff:
83.3%
FWHM:
14.1°
Cd/Im:
12.3
Download
Details
Nichia 229A White
Eff:
85.5%
FWHM:
20.0°
Cd/Im:
5.0
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Nichia 757G White
Eff:
88.5%
FWHM:
15°
Cd/Im:
8.6
Carclo Optics 10138 20mm Simulated Spot Image Nichia 757G-MT
Carclo Optics 10138 20mm Cross Section Nichia 757G-MT
Download
Details
Nichia 757G White
Eff:
88.0%
FWHM:
14.5°
Cd/Im:
9.3
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Nichia NCSW CSP E17A White
Eff:
87.5%
FWHM:
11.5°
Cd/Im:
14.4
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Nichia NF2W 385AR-V2 White
Eff:
88.5%
FWHM:
15.5°
Cd/Im:
8.5
Download
Details
Nichia NF2W 757G-MT Tunable
Eff:
88.5%
FWHM:
15°
Cd/Im:
8.8
Download
Details
Nichia NFSW CSP E11A White
Eff:
87.5%
FWHM:
10°
Cd/Im:
18.8
Download
Details
Nichia NV4W B35AM White
Eff:
88.5%
FWHM:
19.5°
Cd/Im:
5.4
Carclo Optics – 10138 Nichia NV4WB35AM - Spot Image
Carclo Optics – 10138 Nichia NV4WB35AM - Cross-Section
Download
Details
Nichia NVSL 219B White
Eff:
86.5%
FWHM:
12.5°
Cd/Im:
11.7
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Nichia NVSW 219C White
Eff:
86.5%
FWHM:
15.5°
Cd/Im:
8.1
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Nichia NVSW 219F White
Eff:
87.5%
FWHM:
15.5°
Cd/Im:
8.3
Carclo Optics – 10138 Nichia NVSW 219F White - Spot Image
Carclo Optics – 10138 Nichia NVSW 219F White - Cross-Section
Download
Details
Nichia NVSW 319A White
Eff:
86.5%
FWHM:
17.5°
Cd/Im:
6.8
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Nichia NVSW CSP E21A White
Eff:
84.0%
FWHM:
13.8°
Cd/Im:
10.9
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Nichia Top Emitting NCSL 119-H3 White
Eff:
87.0%
FWHM:
12.2°
Cd/Im:
14.3
Download
Details
Osram OS DURIS E 2835 Gen2
Eff:
88.5%
FWHM:
13°
Cd/Im:
10.9

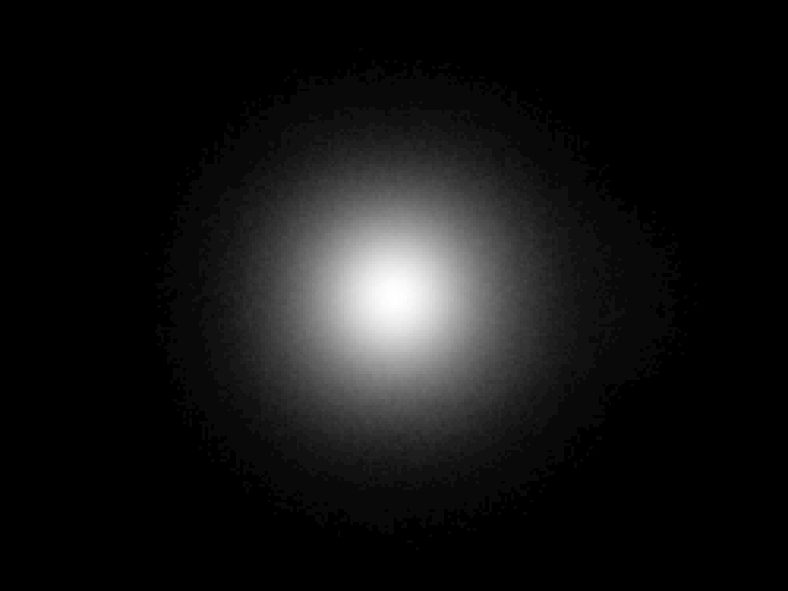

Carclo Optics - 10138 20mm Spot Image Osram DURIS E 2835 Gen2
Carclo Optics - 10138 20mm Cross Section Osram DURIS E 2835 Gen2
Download
Details
Osram OS DURIS E 2835 White
Eff:
88.0%
FWHM:
13..5°
Cd/Im:
10.5
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Osram OS DURIS E2 White
Eff:
85.0%
FWHM:
11.8°
Cd/Im:
14.1
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Osram OS DURIS E3 White
Eff:
88.6%
FWHM:
12.5°
Cd/Im:
13.1
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Osram OS DURIS P8 White
Eff:
85.4%
FWHM:
14°
Cd/Im:
10.0
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Osram OS DURIS S2 White
Eff:
90.0%
FWHM:
14.3°
Cd/Im:
10.7
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Osram OS DURIS S5 Deep Blue
Eff:
87.0%
FWHM:
13.5°
Cd/Im:
10.4
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Osram OS DURIS S5 Green
Eff:
88.5%
FWHM:
12.5°
Cd/Im:
11.4
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Osram OS DURIS S5 Red
Eff:
89.5%
FWHM:
12.0°
Cd/Im:
13.0
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Osram OS DURIS S5 White
Eff:
85.0%
FWHM:
13.9°
Cd/Im:
9.9
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Osram OS Golden DRAGON Plus W5AM White
Eff:
87.3%
FWHM:
12.3°
Cd/Im:
13.4
Download
Details
Osram OS OSCONIQ C 2424 White
Eff:
89.0%
FWHM:
12.5°
Cd/Im:
12.5
Carclo Optics - 10138 Spot Image OSCONIQ C2424
Carclo Optics - 10138 Cross Section OSCONIQ C2424
Download
Details
Osram OS OSCONIQ P3737 White
Eff:
86.0%
FWHM:
17.5°
Cd/Im:
6.3
Carclo Optics 10138 Spot Image Osram Osconiq
Carclo Optics 10138 Cross Section Osram Osconiq P3737
Download
Details
Osram OS OSLON Black SFH 4715AS IR
Eff:
91.0%
FWHM:
11.5°
Ipk/W:
12.9
Download
Details
Osram OS OSLON Black SFH 4716AS IR
Eff:
91.5%
FWHM:
11.5°
Ipk/W:
16.0
Carclo Optics – 10138 Spot Image OSRAM OS Oslon Black IR SFH 4716AS
Carclo Optics – 10138 Cross Section OSRAM OS Oslon Black IR SFH 4716AS
Download
Details
Osram OS OSLON Black SFH 4725S IR
Eff:
92.5%
FWHM:
12.5°
Cd/Im:
13.3
Carclo Optics 10138 Spot Image Osram Oslon Black_IR_SFH_4725S

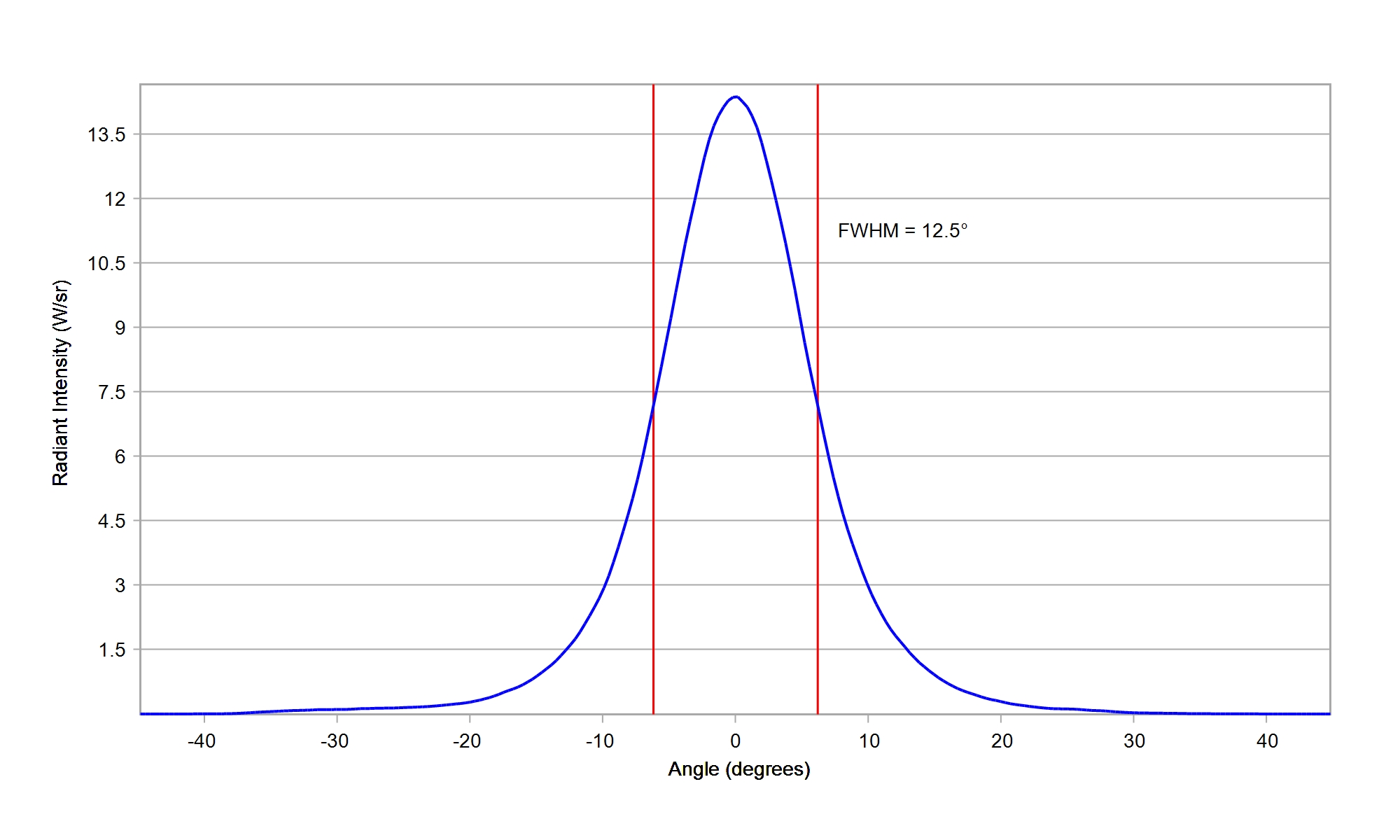

Carclo Optics 10138 Cross Section Image Osram Oslon Black_IR_SFH_4725S
Download
Details
Osram OS OSLON Boost HM KW CELMM1.TG
Eff:
88.5%
FWHM:
9.6°
Cd/Im:
20.9
Carclo Optics – 10138 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

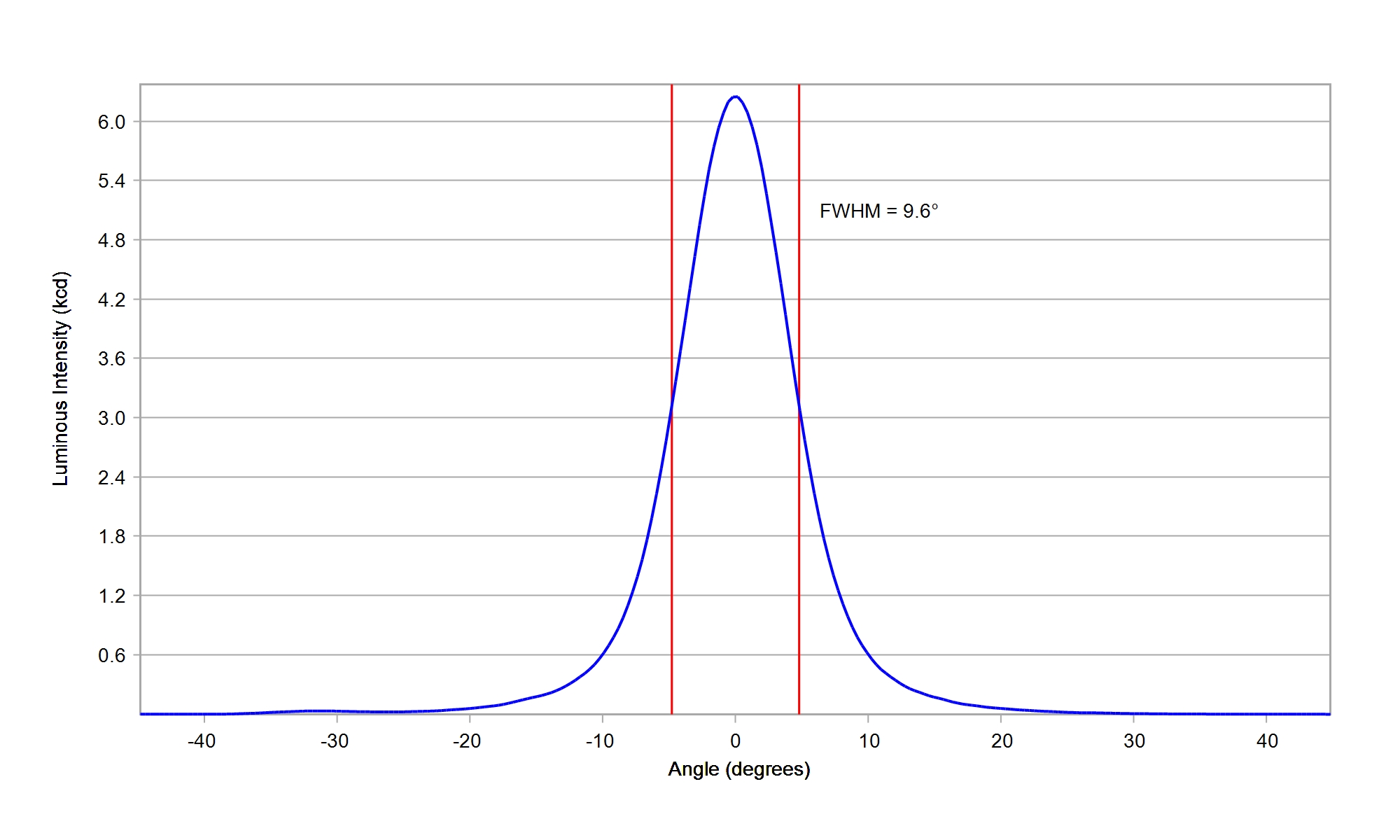

Carclo Optics – 10138 – Osram_Oslon_Boost_KW_CELMM1_TG_cross vertical section
Download
Details
Osram OS OSLON Pure 1010 CSP GC VJLPE1.13 Cyan
Eff:
89.0%
FWHM:
10°
Cd/Im:
19.4
Download
Details
Osram OS OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue
Eff:
87.5%
FWHM:
10°
Ipk/W:
19.1
Download
Details
Osram OS OSLON Pure 1010 CSP GG VJLPE1.F3 Green
Eff:
88.5%
FWHM:
10°
Cd/Im:
19.4
Download
Details
Osram OS OSLON Pure 1010 CSP GR VJLPE1.F3 Red
Eff:
89.0%
FWHM:
10.5°
Cd/Im:
18.3
Download
Details
Osram OS OSLON Pure 1010 CSP GT VJLPE1.13 True Green
Eff:
89.0%
FWHM:
10°
Cd/Im:
19.3
Download
Details
Osram OS OSLON Pure 1010 CSP GW VJLPE1.CM White
Eff:
88.0%
FWHM:
10°
Cd/Im:
19.0
Download
Details
Osram OS OSLON Square Flat White
Eff:
88.0%
FWHM:
12°
Cd/Im:
13.3
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Osram OS OSLON Square Gen 3 White
Eff:
85.3%
FWHM:
14.1°
Cd/Im:
9.8
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Osram OS OSLON Square Gen 5 GW CSSRM3
Eff:
88.0%
FWHM:
14°
Cd/Im:
9.6
Carclo Optics - 10138 20mm Spot Image Oslon Square Gen 5

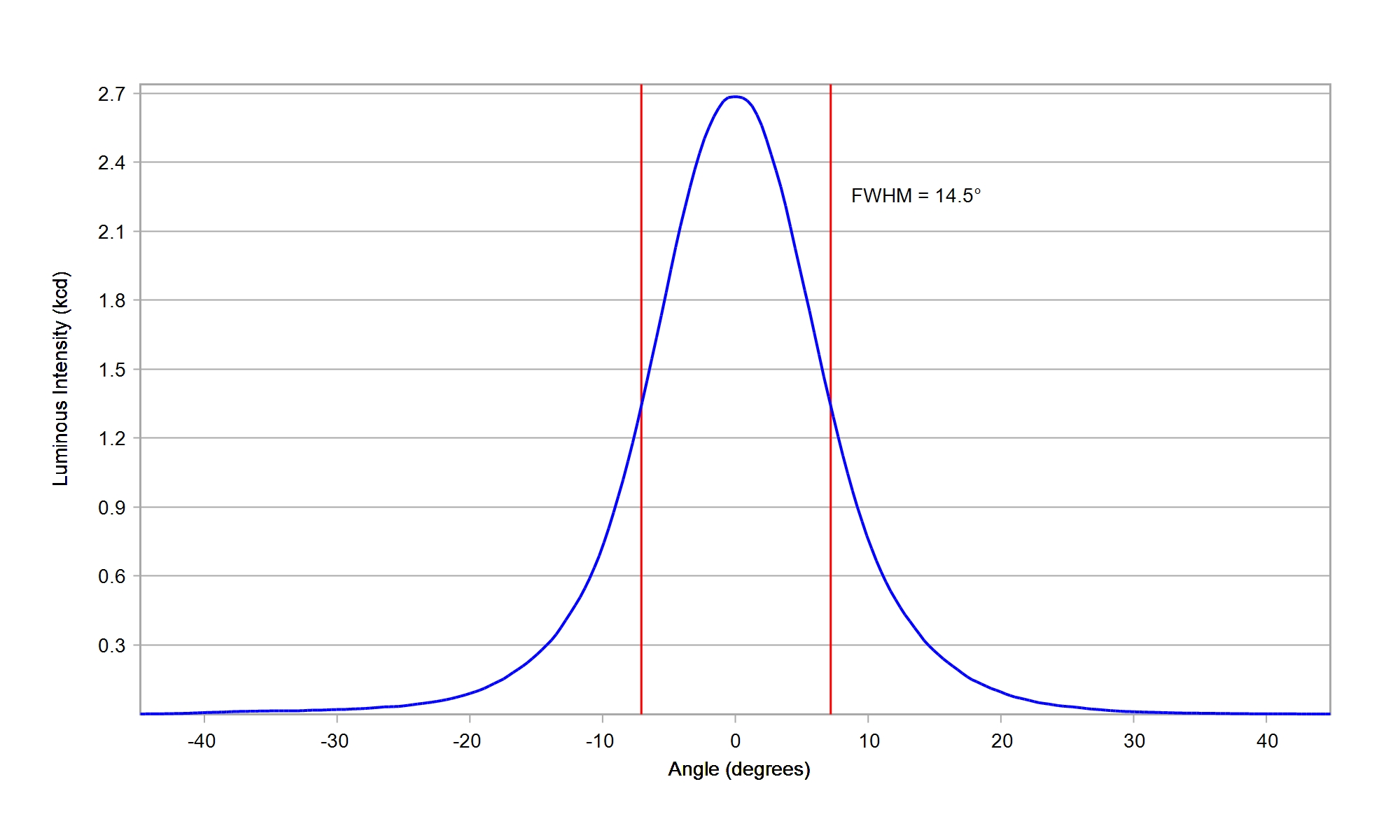

Carclo Optics - 10138 20mm Cross Section Oslon Square Gen 5
Download
Details
Osram OS OSLON Square White
Eff:
85.0%
FWHM:
14.1°
Cd/Im:
9.8
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Osram OS OSLON SSL 150 degree GW CSHPM1.PM White
Eff:
88.5%
FWHM:
11.5°
Cd/Im:
15.1
Carclo Optics – 10138 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White
Carclo Optics – 10138 Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White
Download
Details
Osram OS OSLON SSL 150 degree White
Eff:
87.3%
FWHM:
11.5°
Cd/Im:
17.3
Download
Details
Osram OS OSLON SSL 80 White
Eff:
86.4%
FWHM:
11.5°
Cd/Im:
14.7
10138 Spot Osram SSL 80
10138 Cross section plot
Download
Details
Osram OS OSLON SSL 80 GH CS8PM1.24 Hyper Red
Eff:
89.0%
FWHM:
12°
Ipk/W:
11.7
Download
Details

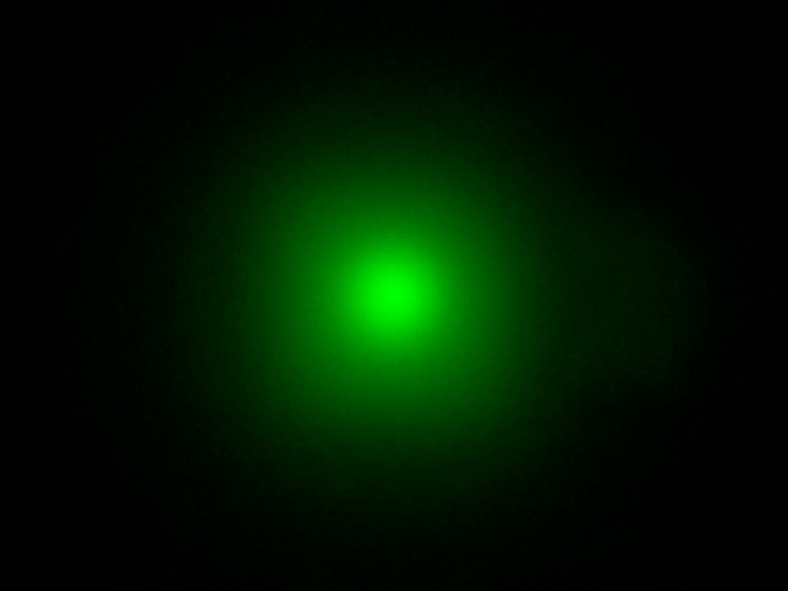

Osram OS OSLON SSL 80 GT CS8PM1.13 True Green
Eff:
89.0%
FWHM:
12°
Cd/Im:
10.9
Download
Details
Osram OS OSLON SSL 80 GW CS8PM1.PM White
Eff:
88.5%
FWHM:
12°
Cd/Im:
12.3
Download
Details
Samsung 3030 LM301B White
Eff:
88.5%
FWHM:
14°
Cd/Im:
9.8
Download
Details
Samsung 3535 LH351A White
FWHM:
13.4°
Cd/Im:
13.9
Download
Details
Samsung 3535 LH351B White
Eff:
85.0%
FWHM:
15°
Cd/Im:
8.2
carclo optics - simulated spot image
carclo optics - simulated cross section
Download
Details
Samsung 3535 LH351D White
Eff:
87.0%
FWHM:
20.0°
Cd/Im:
5.5
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Samsung 3535 LH351Z White
Eff:
85.0%
FWHM:
13.7°
Cd/Im:
10.5
carclo optics - simulated spot image
carclo optics - simulated cross section
Download
Details
Samsung CSP LH151B White
Eff:
88.5%
FWHM:
11°
Cd/Im:
15.7
Carclo Optics – 10138 – Samsung_LH151B_spot-image
Carclo Optics – 10138 – Samsung_LH151B_cross section
Download
Details
Samsung CSP LH181B White
Eff:
88.5%
FWHM:
14°
Cd/Im:
9.9
Carclo Optics -10138 Sport Image - Samsung LH181B 4000K
Carclo Optics -10138 Cross Seciton - Samsung LH181B 4000K
Download
Details
Samsung CSP LH231B White
Eff:
88.5%
FWHM:
16°
Cd/Im:
7.8
Carclo Optics -10138 Spot Image - Samsung LH231B 5000KL
Carclo Optics -10138 Cross Section - Samsung LH231B 5000K
Download
Details
Samsung CSP LM101B White
Eff:
89.0%
FWHM:
6.9°
Cd/Im:
36.4
Carclo Optics -10138 Sport Image - Samsung LM101B 5000K
Carclo Optics -10138 Cross Section image - Samsung LM101B 5000K
Download
Details
Seoul CSP SZ8Y11 White
Eff:
88.0%
FWHM:
12°
Cd/Im:
14.1
Carclo Optics -10138 Spot Image - Seoul Z8Y11
Carclo Optics - 10138 Cross Section image - Seoul Z8Y11
Download
Details
Seoul CSP SZ8Y15 White
Eff:
88.0%
FWHM:
10.5°
Cd/Im:
16.7
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Seoul CSP SZ8Y19 White
Eff:
86.0%
FWHM:
15.2°
Cd/Im:
7.6
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Seoul CSP SZ8Y22 White
Eff:
88.5%
FWHM:
16°
Cd/Im:
8.0
Carclo Optics -10138 Spot Image - Seoul SZ8Y22
Carclo Optics -10138 Cross Section Image - Seoul SZ8Y22
Download
Details
Seoul CSP SZ8Y22P White
Eff:
88.5%
FWHM:
16.5°
Cd/Im:
7.4
Carclo Optics -10138 Spot Image - Seoul SZ8Y22P
Carclo Optics -10138 Cross Section Image - Seoul SZ8Y22P
Download
Details
Seoul MidPower MJT3030 White
Eff:
85.3%
FWHM:
14.3°
Cd/Im:
9.4
carclo optics - simulated spot image
carclo optics - simulated cross section
Download
Details
Seoul MidPower MJT4040 White
Eff:
86.0%
FWHM:
18°
Cd/Im:
6.0
carclo optics - simulated spot image
carclo optics - simulated cross section
Download
Details
Seoul P4 White
Eff:
85.3%
FWHM:
16.4°
Cd/Im:
7.8
Download
Details
Seoul P4 White
Eff:
84.4%
FWHM:
14.5°
Cd/Im:
9.0
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section Image
Download
Details
Seoul STW8 C2SB-NT White
Eff:
88.5%
FWHM:
14.0°
Cd/Im:
9.3
Carclo Optics - 10138 Spot Image Seoul STW8 C2SB-NT
Carclo Optics - 10138 Cross Section Seoul STW8 C2SB-NT
Download
Details
Seoul STWS C2PB-E0 White
Eff:
88.5%
FWHM:
14.5°
Cd/Im:
9.3
Carclo Optics - 10138 Spot Image STWS C2PB-E0
Carclo Optics - 10138 Cross Section STWS C2PB-E0
Download
Details
Seoul SunLike STW9 C2SB-S
Eff:
88.5%
FWHM:
13.5°
Cd/Im:
10.4
Carclo Optics - 10138 20mm Spot Image Seoul Sunlike 3030
Carclo Optics - 10138 20mm Cross Section Seoul Sunlike 3030
Download
Details

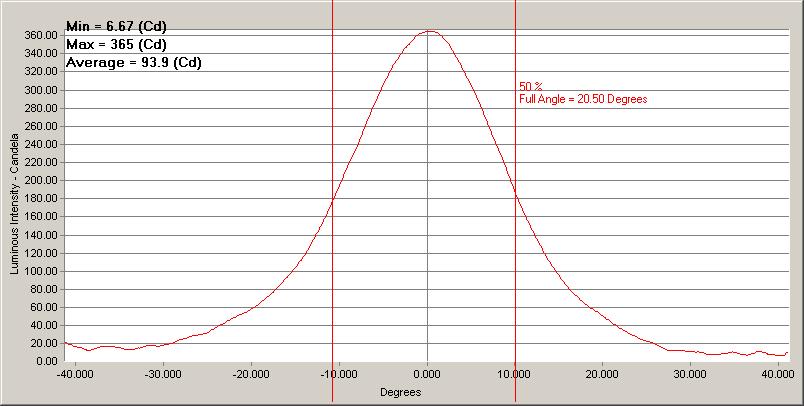

Seoul Z - Power Z1 White
Eff:
84.9%
FWHM:
21.3°
Cd/Im:
4.4
Download
Details
Seoul Z - Power Z5 M0 White
Eff:
84.3%
FWHM:
12.9°
Cd/Im:
13.2
Download
Details
Seoul Z - Power Z5 M1 White
Eff:
85.5%
FWHM:
15°
Cd/Im:
8.7
carclo optics - simulated spot image
carclo optics - simulated cross section
Download
Details
Seoul Z - Power Z5 M4 White
Eff:
88.0%
FWHM:
16°
Cd/Im:
7.8
Carclo Optics – 10138 Seoul Z-Power Z5 - Spot Image
Carclo Optics – 10138 Seoul Z-Power Z5 - Cross-Section
Download
Details

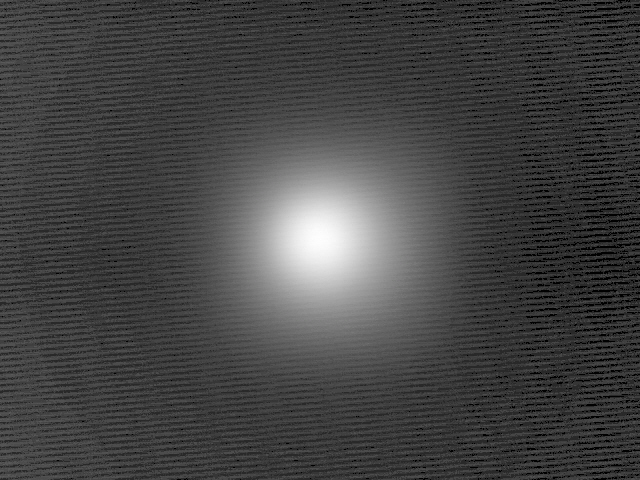

Seoul Z - Power Z5 P0 White
FWHM:
12.7°
Cd/Im:
14.3
Download
Details
Seoul Z - Power Z5 White
Eff:
88.2%
FWHM:
12.3°
Cd/Im:
14.0
Download
Details
Stanley 1N White
Eff:
83.0%
FWHM:
19.4°
Cd/Im:
5.9
Download
Details
Stanley 6J White
Eff:
87.0%
FWHM:
23°
Cd/Im:
3.3
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Toshiba TL 1L2 White
Eff:
85.0%
FWHM:
14.8°
Cd/Im:
9.0
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
Toshiba TL 1L4 White
Eff:
85.0%
FWHM:
14.8°
Cd/Im:
8.8

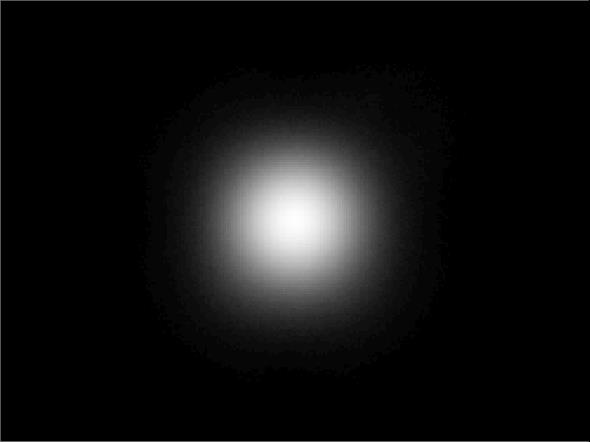

Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
Download
Details
