20.0mm Wide Spot Ripple Circular TIR LED Lenses

Part number

10003/25

Dimensions

20.0mm

Drawing Number

60319

Optic type

TIR LED Lenses

Finish

Ripple Circular

Beam type

Wide Spot

Applications

Architectural

Landscape & Garden

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

87.5%

FWHM:

43 x 41°

Cd/Im:

2.1

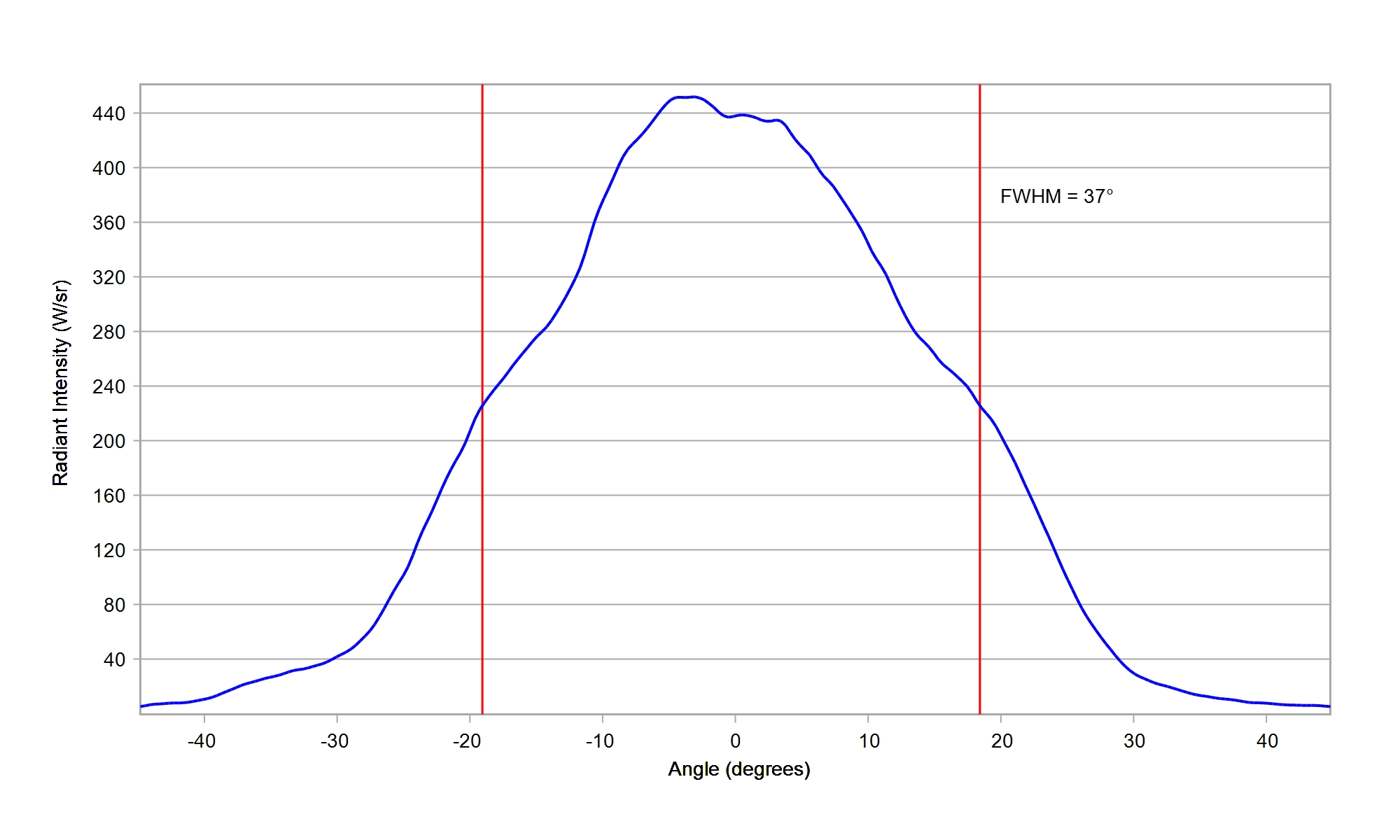

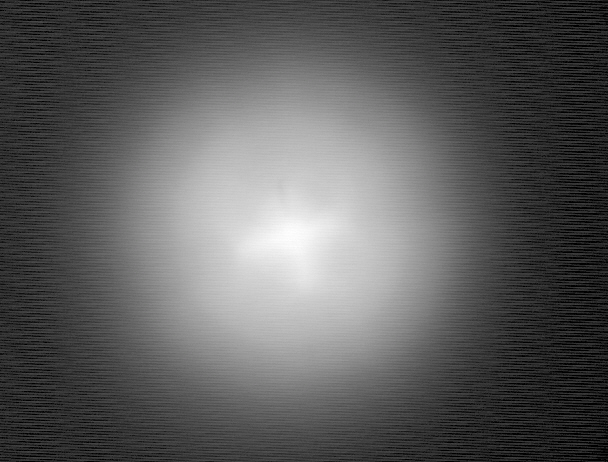

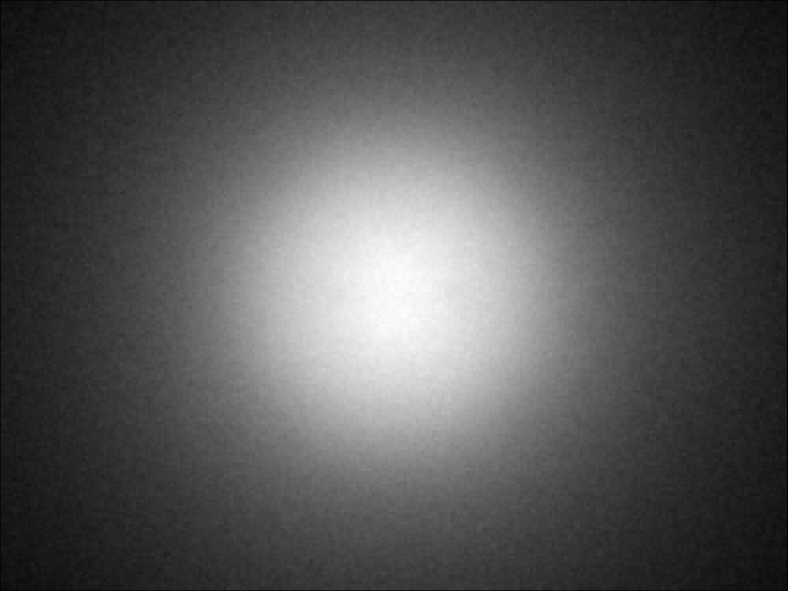

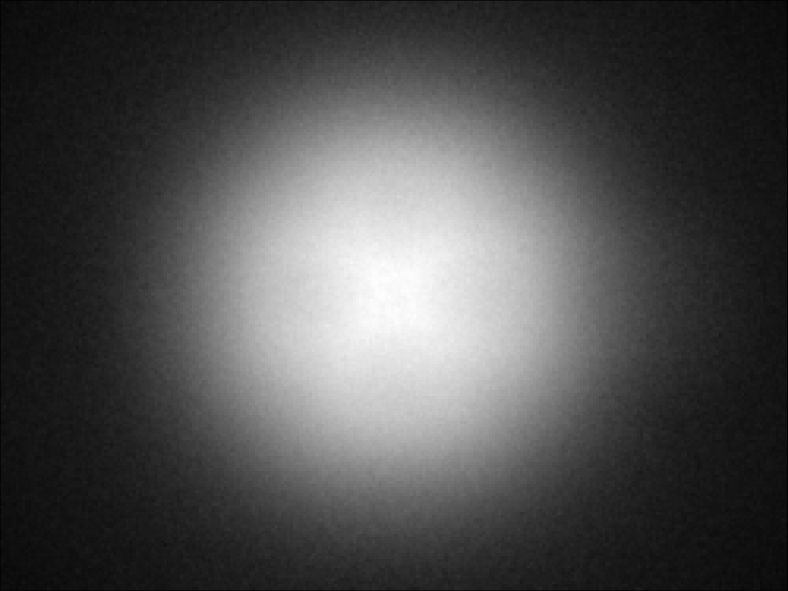

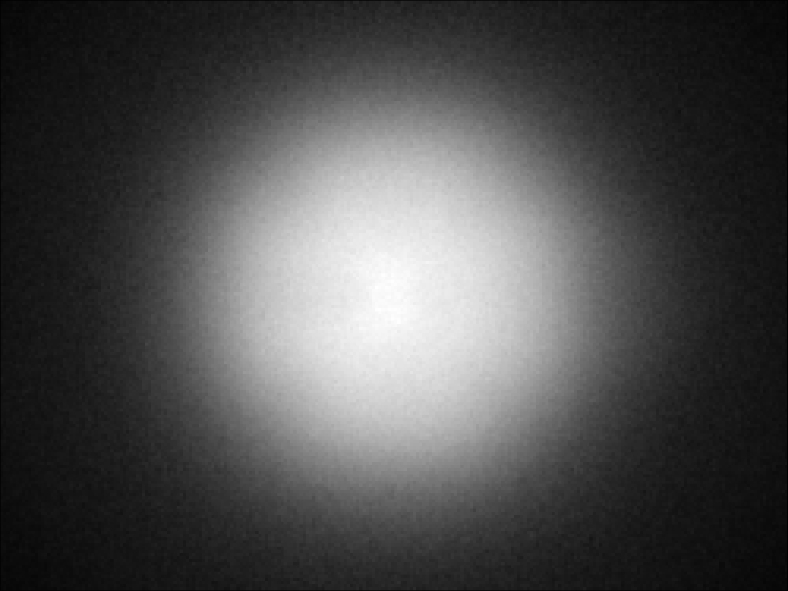

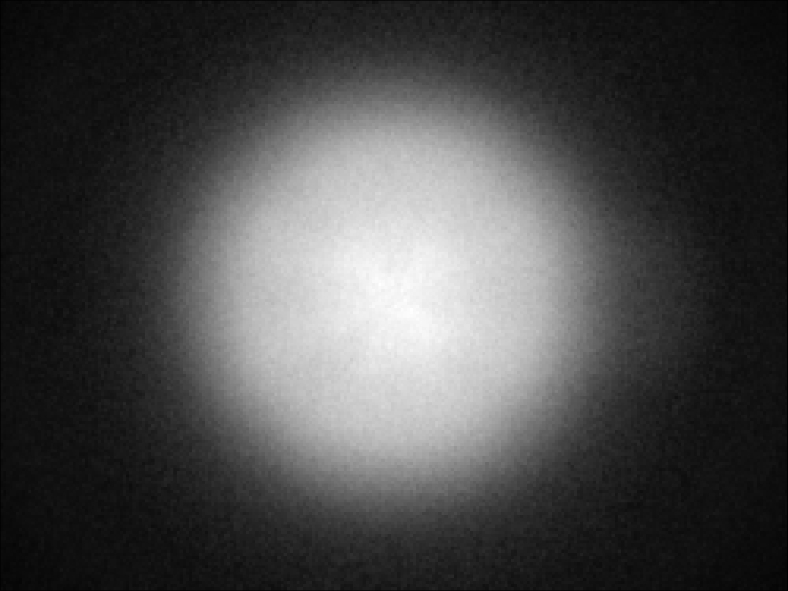

Carclo Optics - 10003/25 20mm Spot Image Bridgelux 3030 Gen2

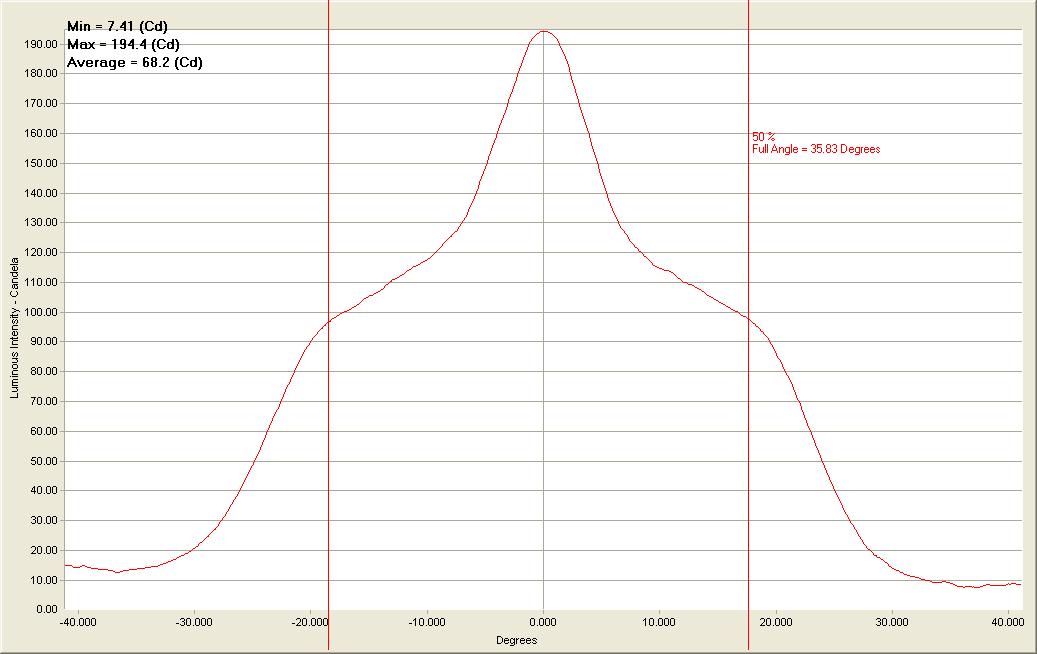

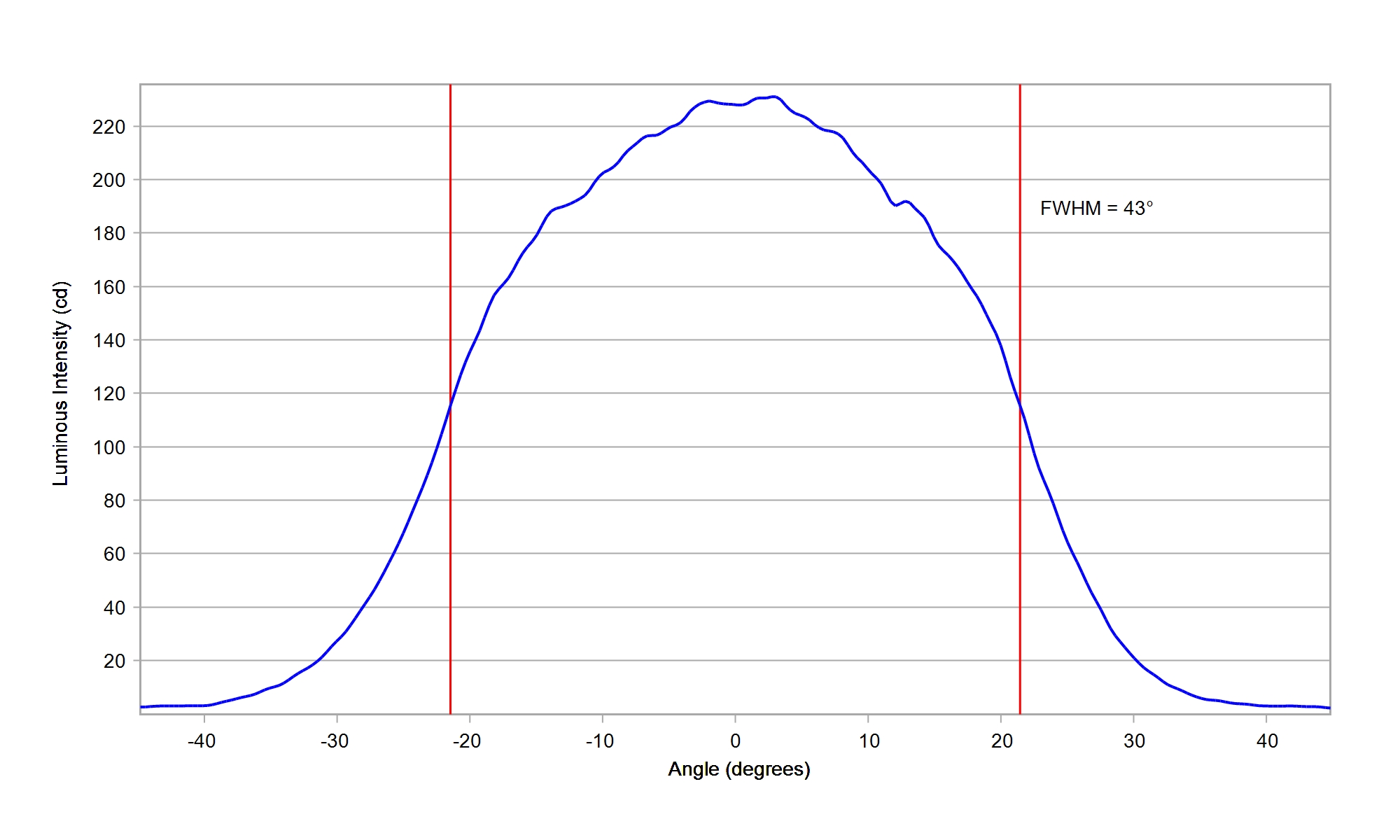

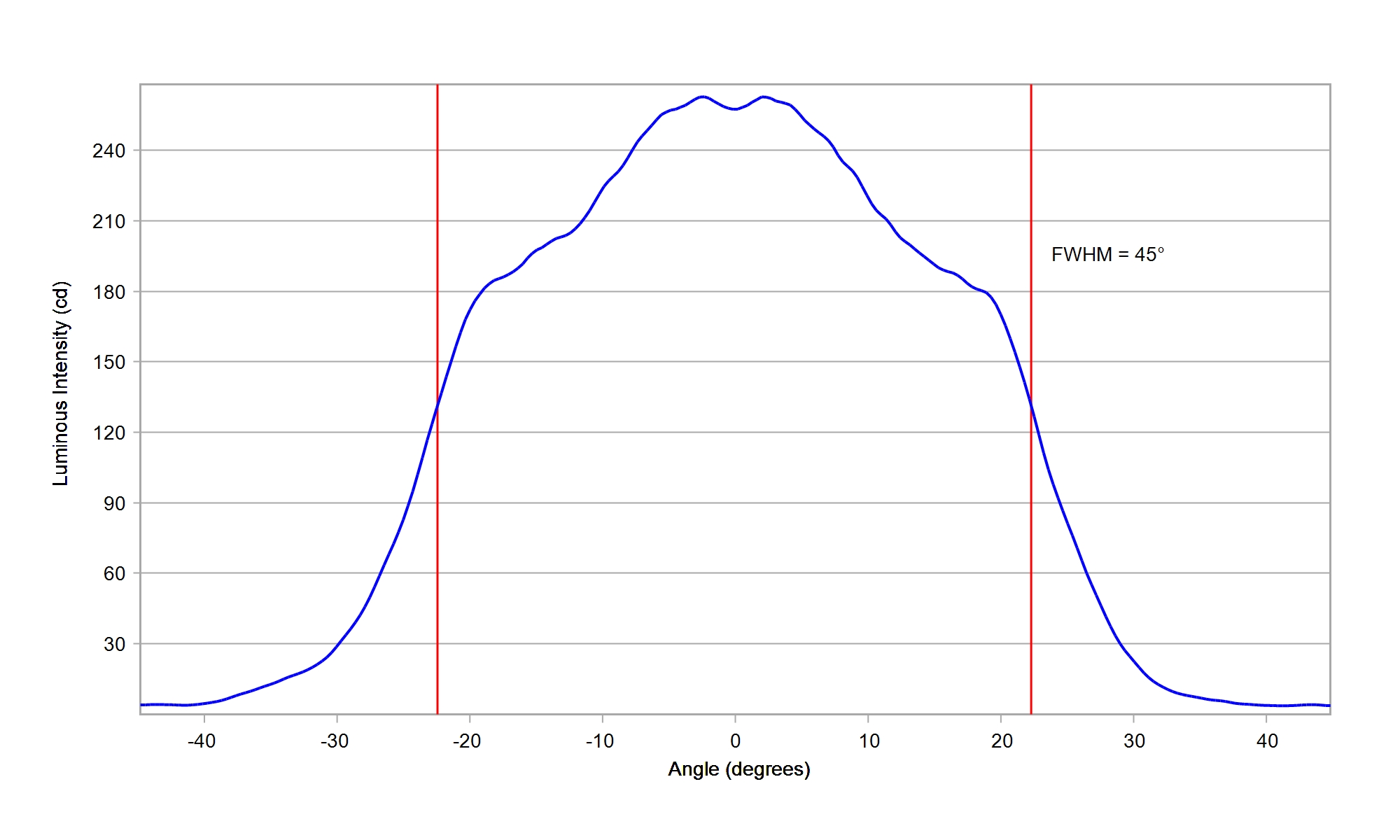

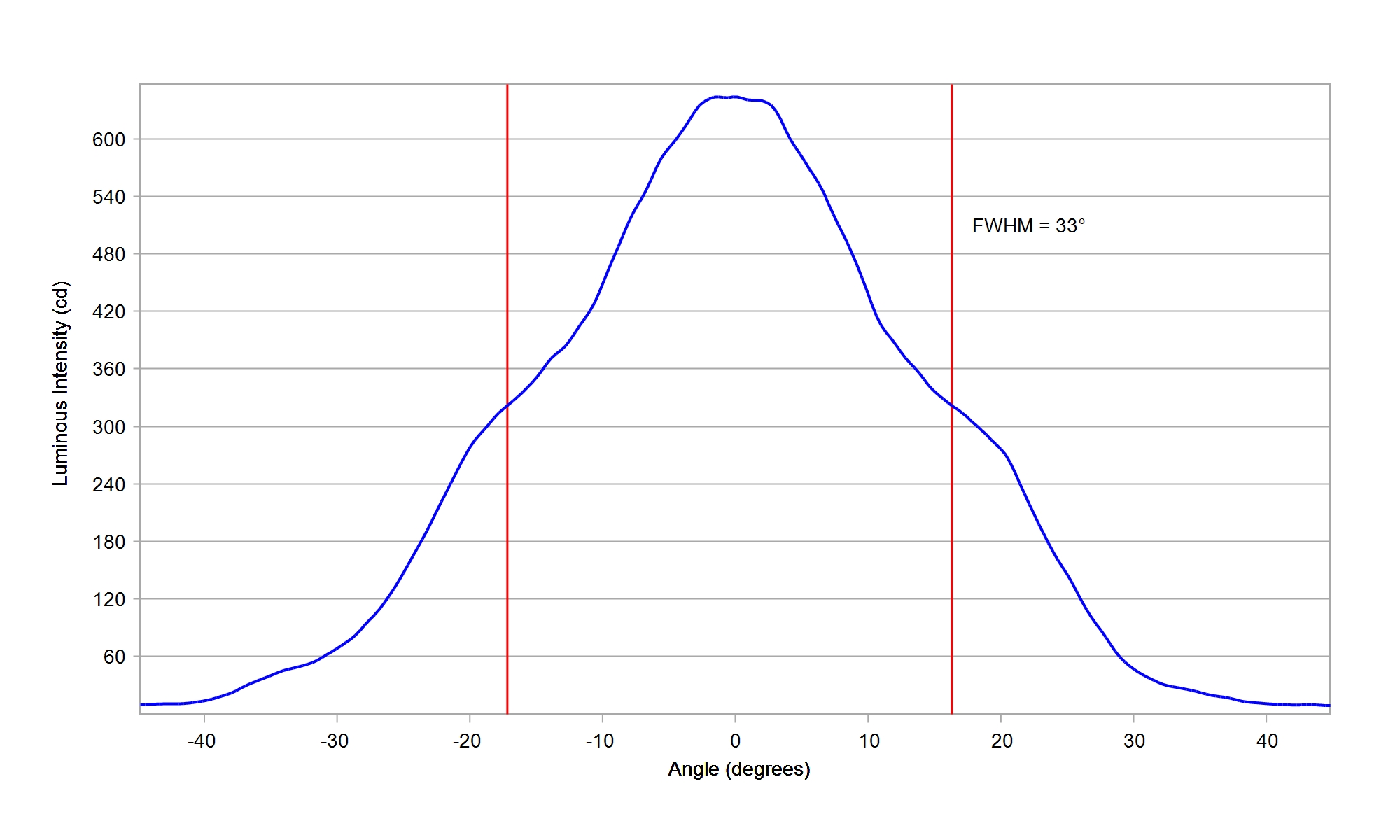

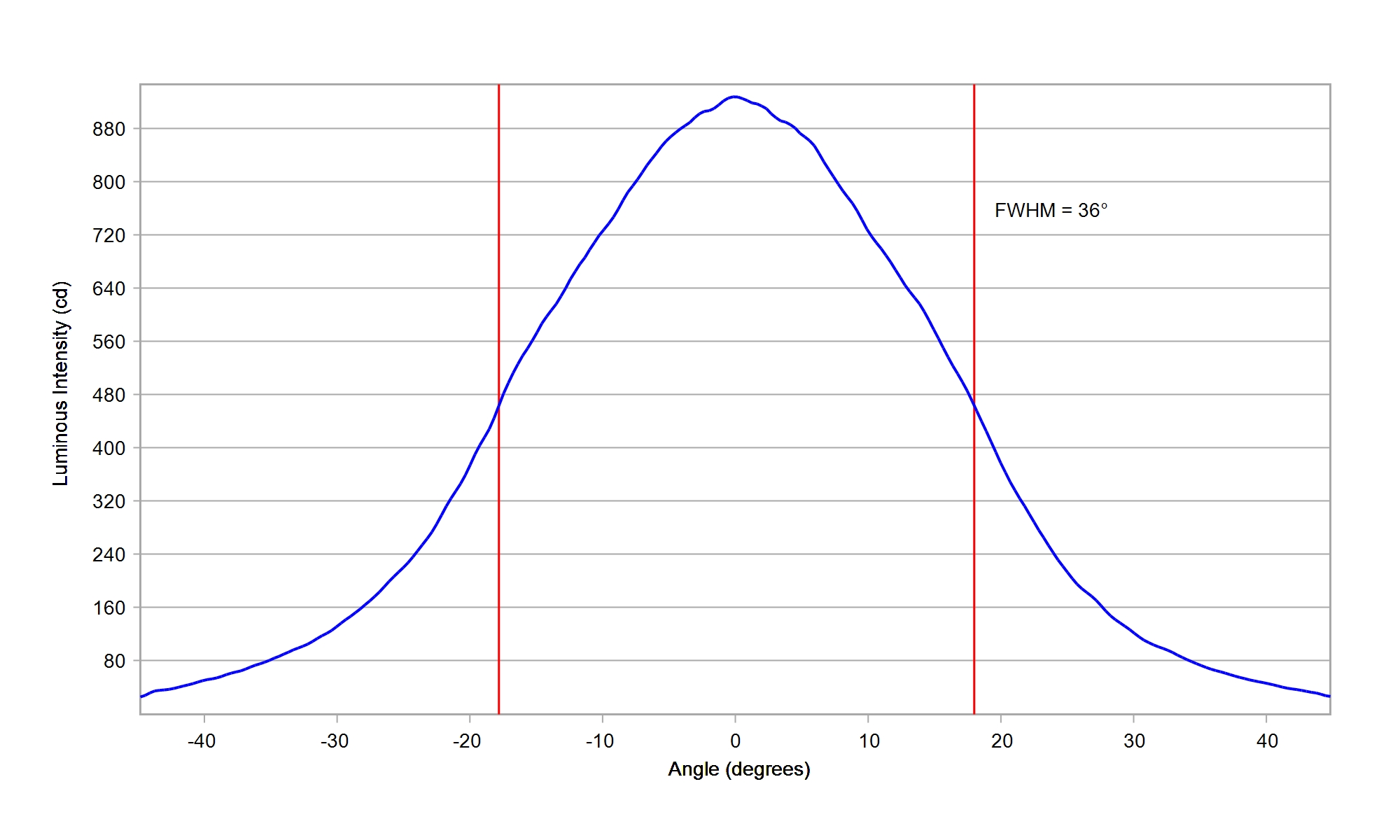

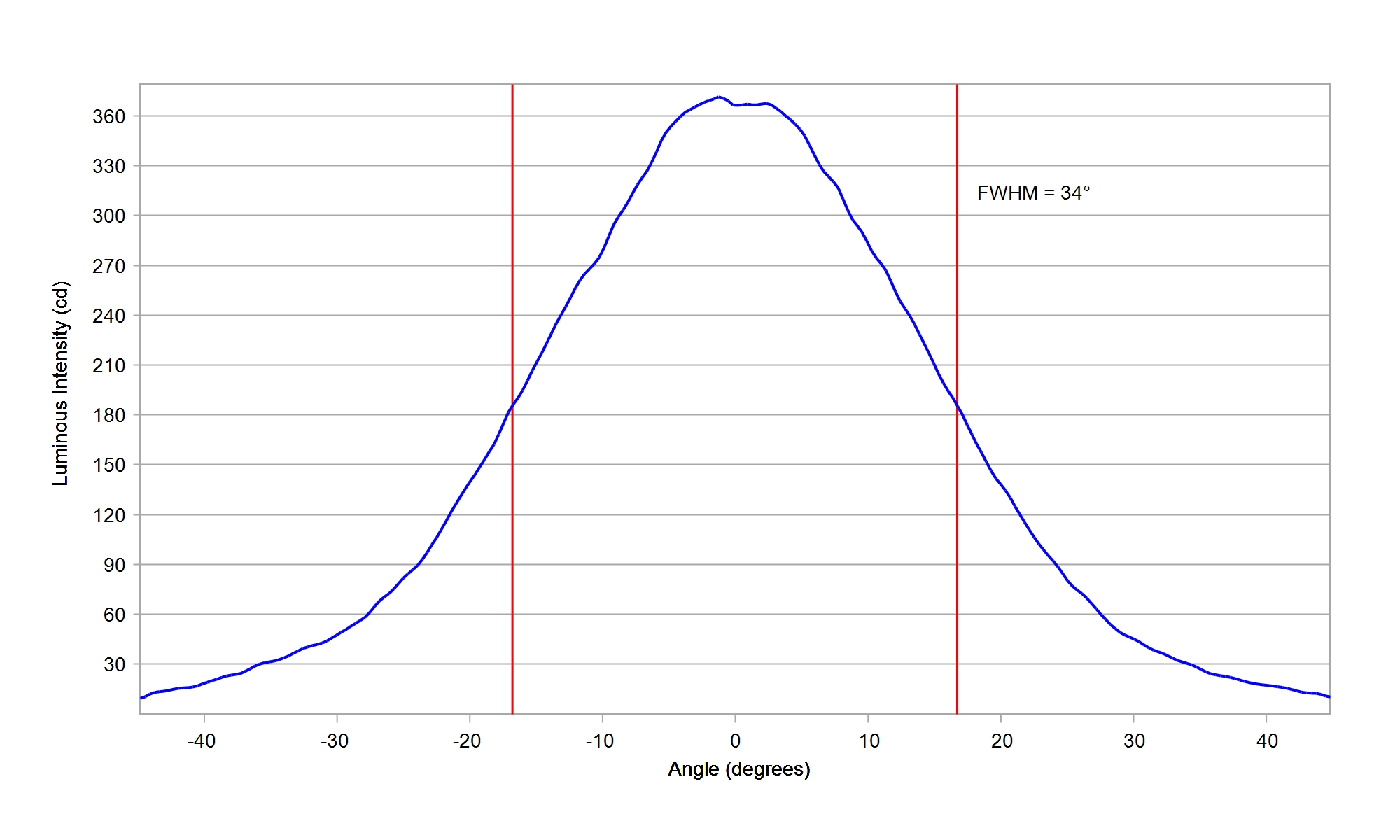

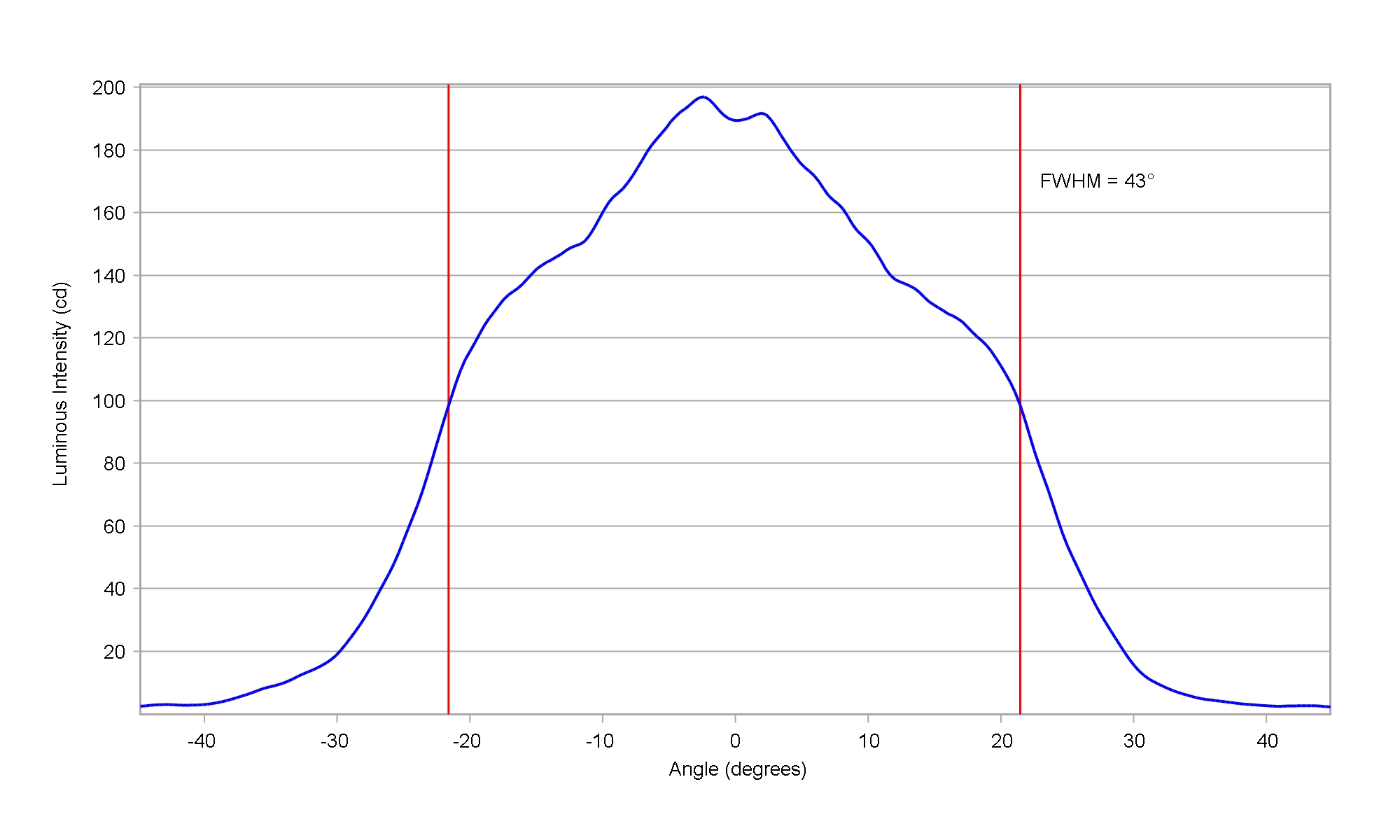

Carclo Optics - 1003/25 20mm Cross Section Bridgelux 3030 Gen2

Download

IES

Broadcom Jade White

Eff:

85.3%

FWHM:

35.3°

Cd/Im:

2.2

Download

ies

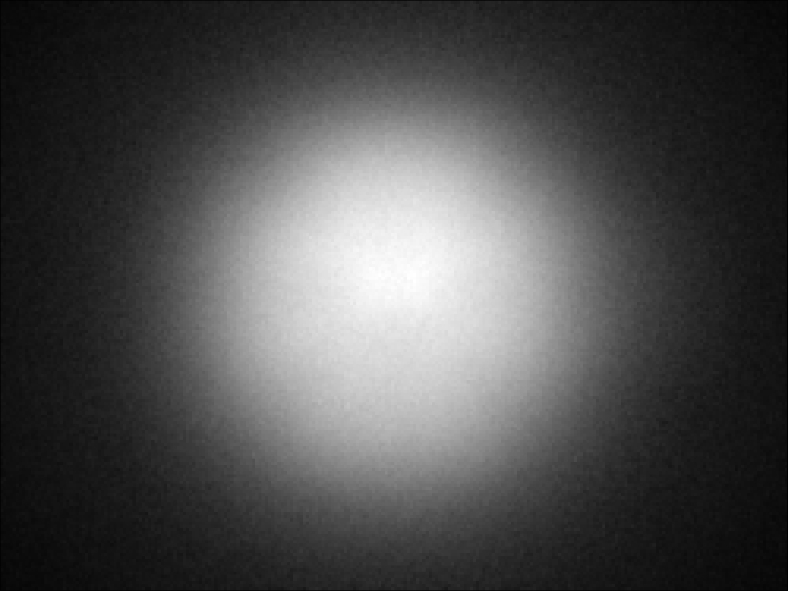

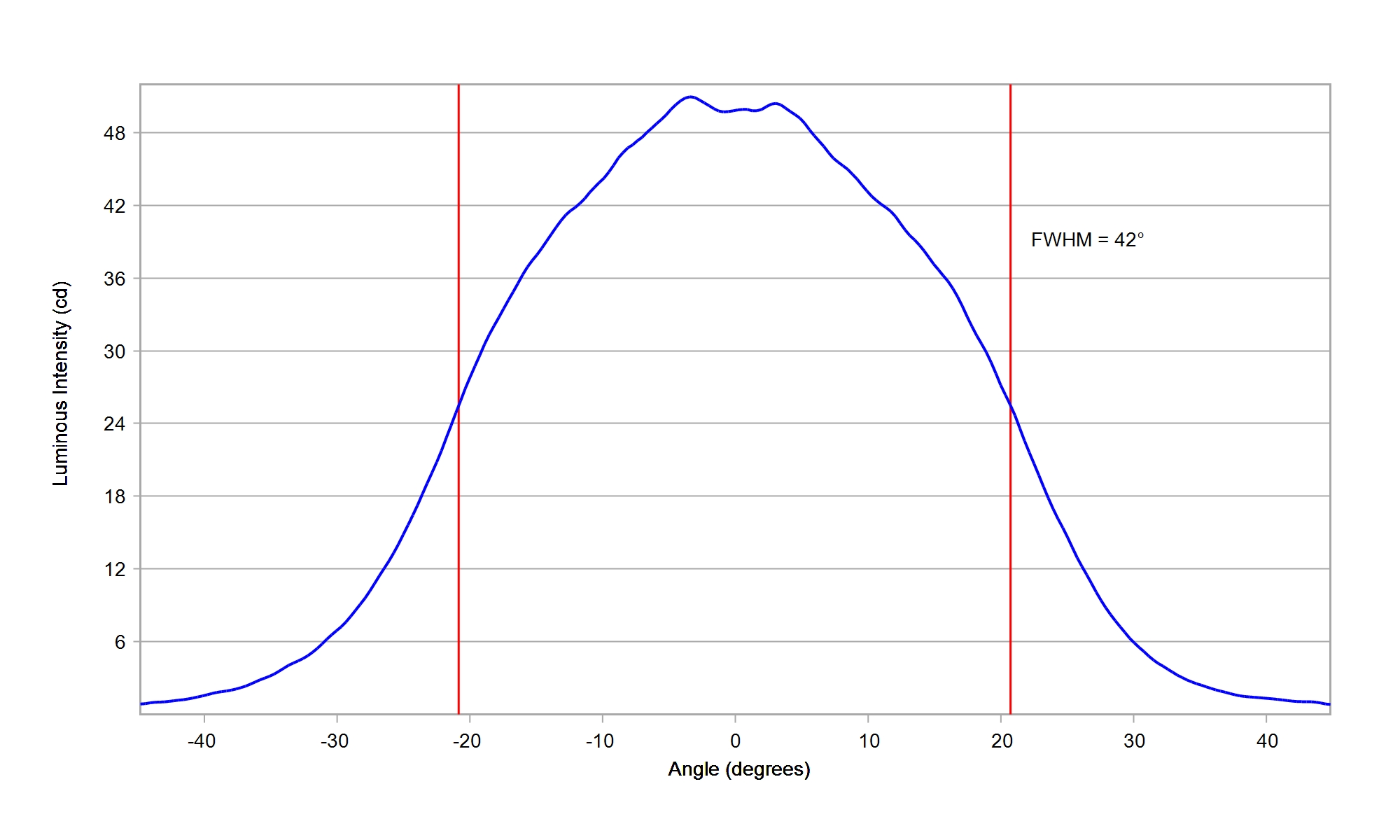

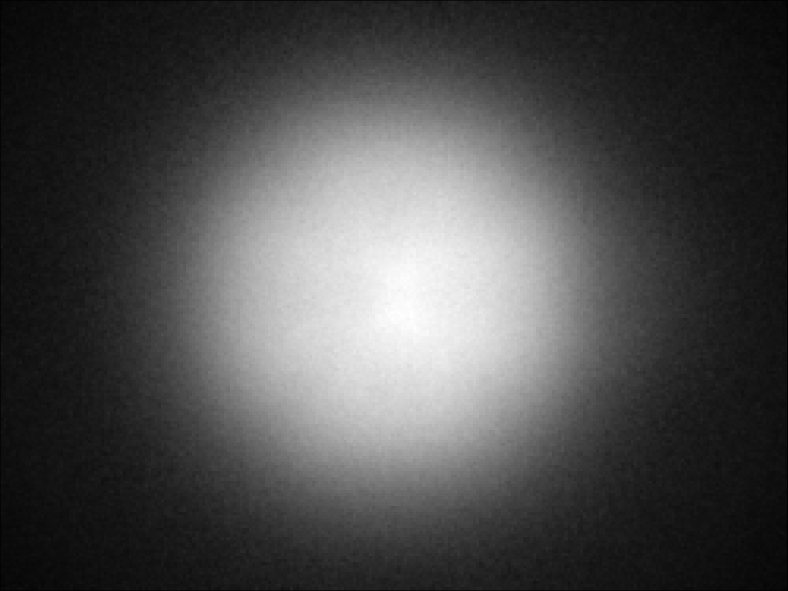

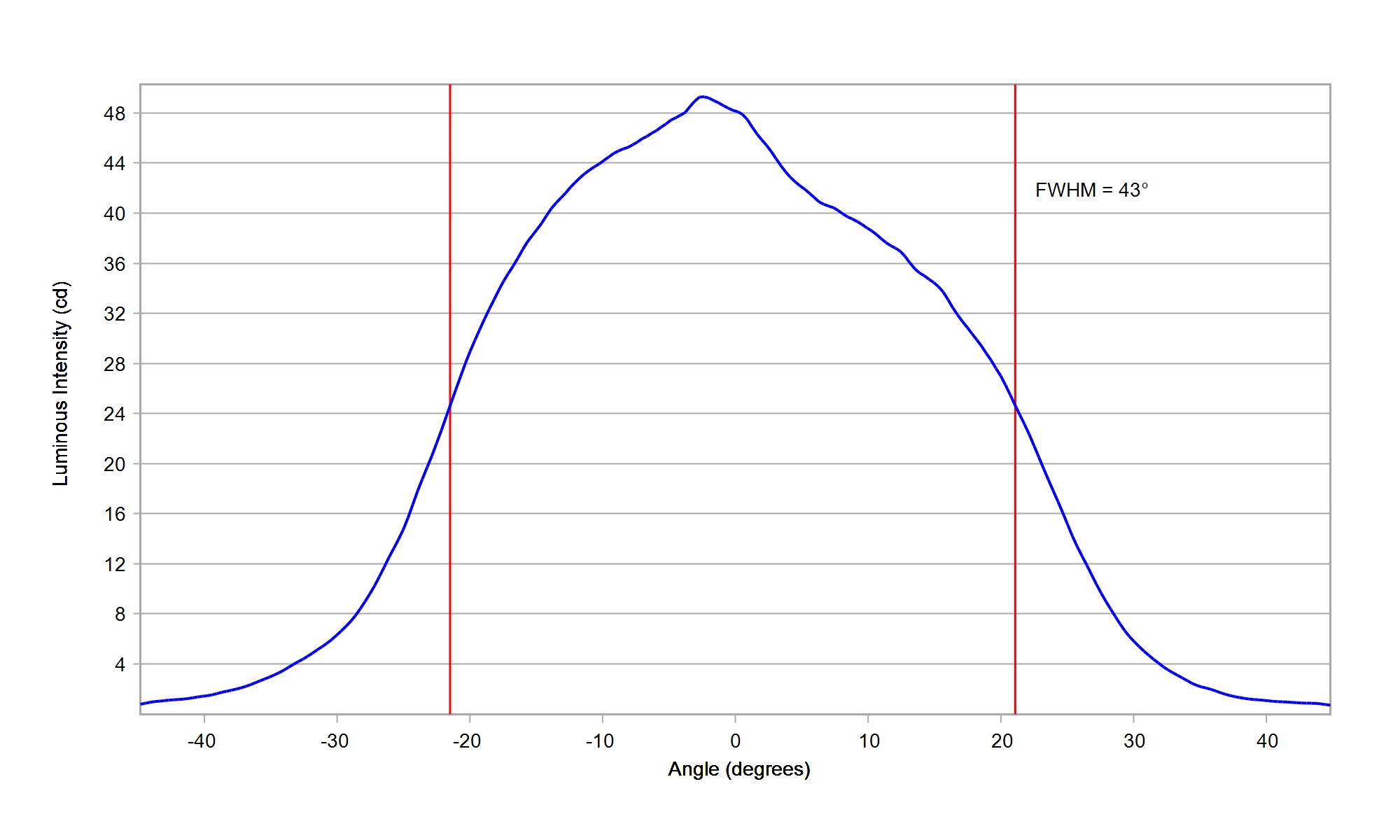

Cree JB2835B 3V G-Class White

Eff:

87.0%

FWHM:

42°

Cd/Im:

1.8


Download

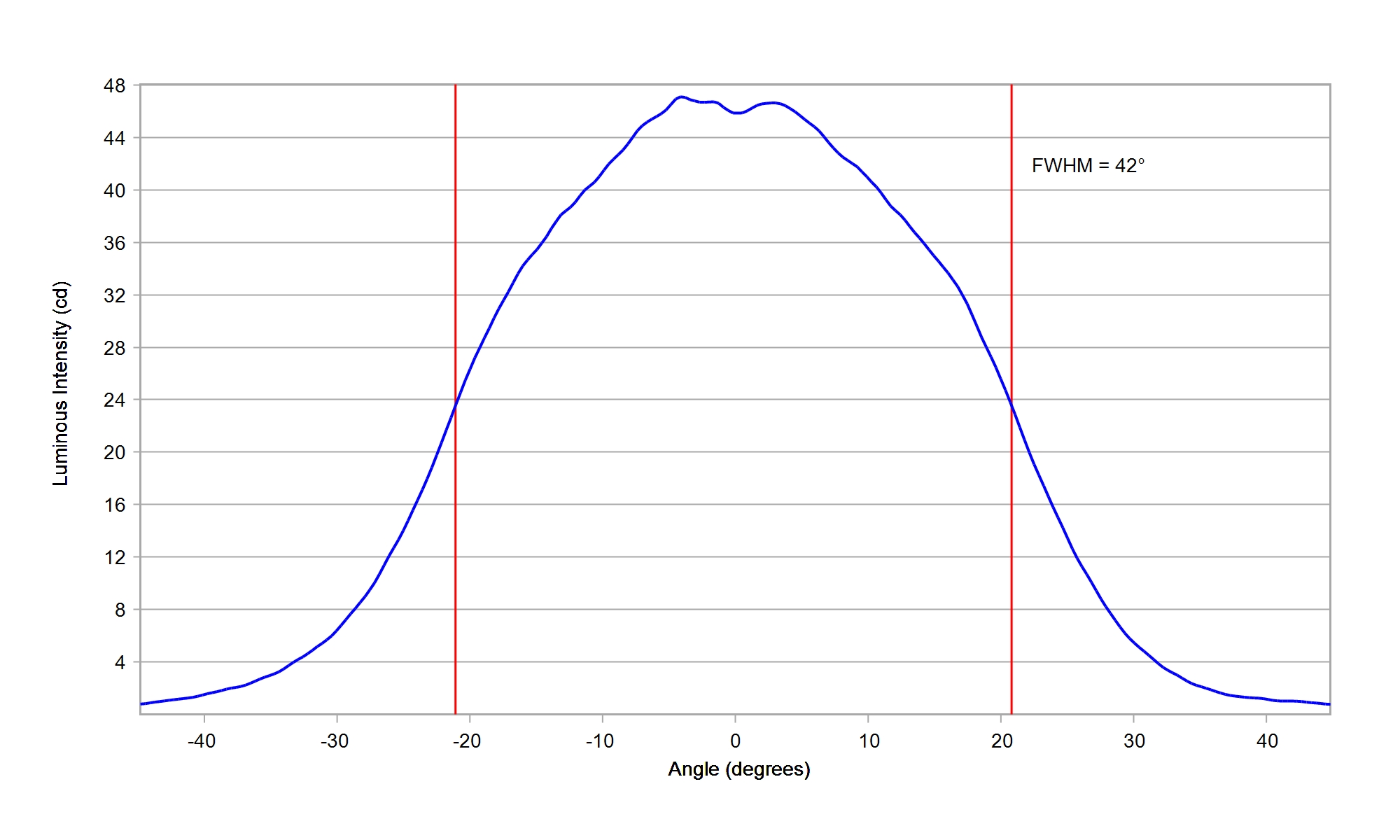

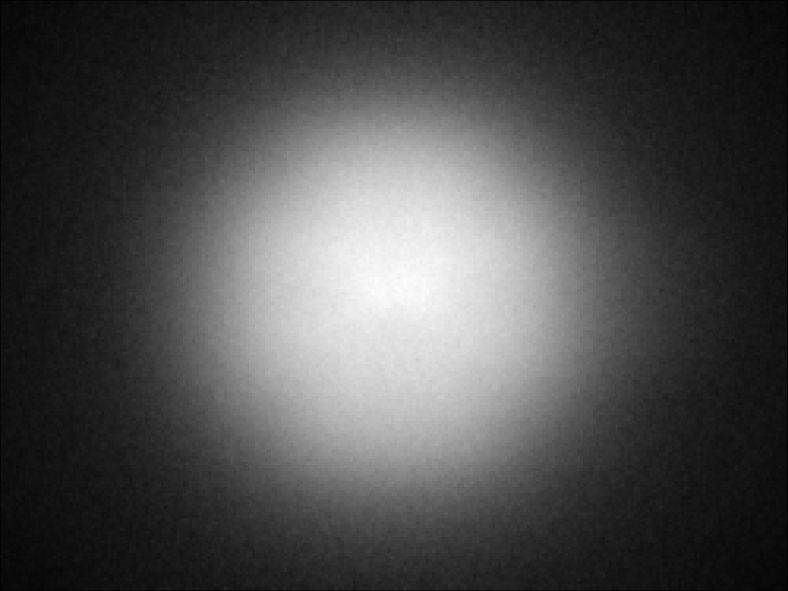

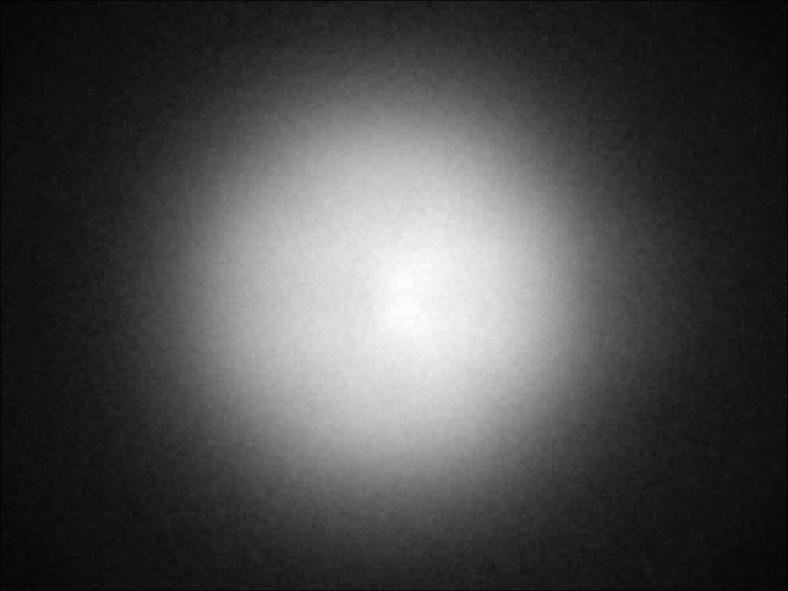

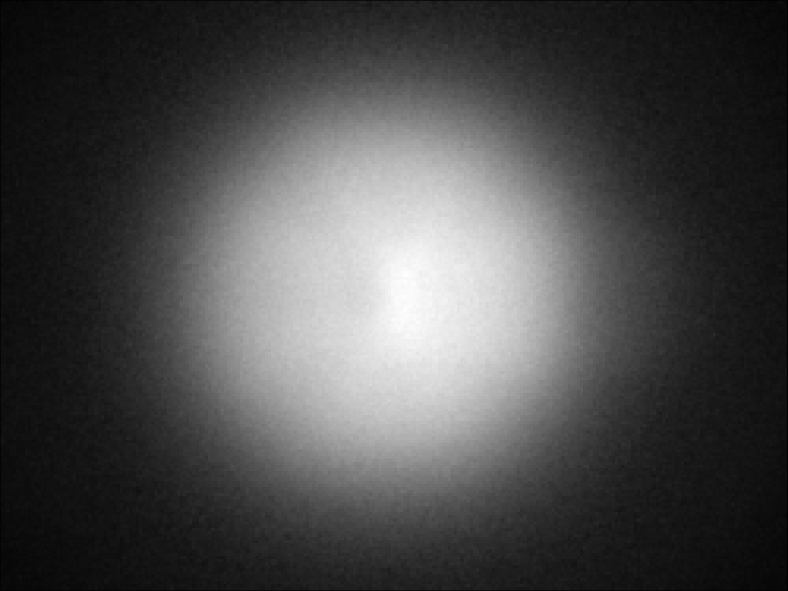

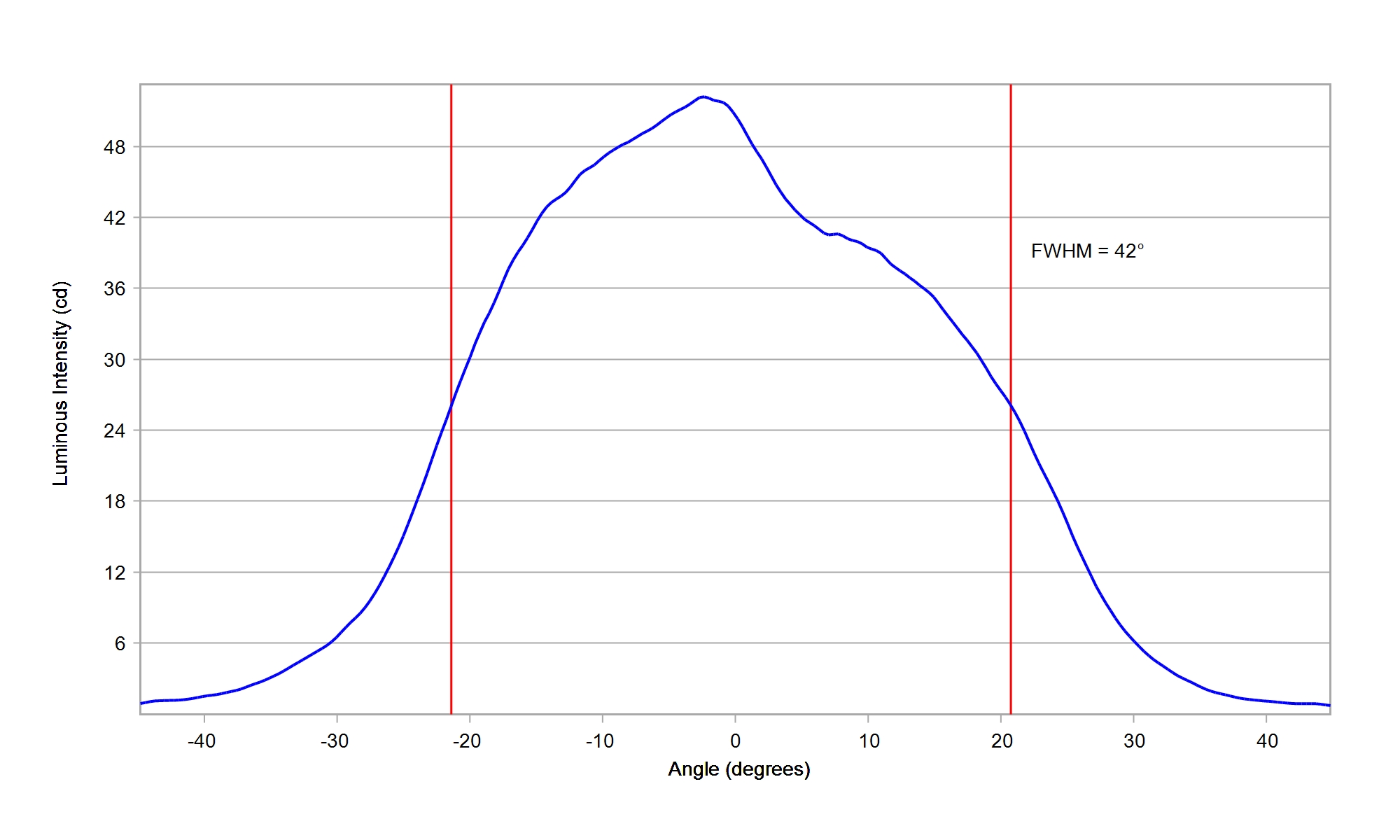

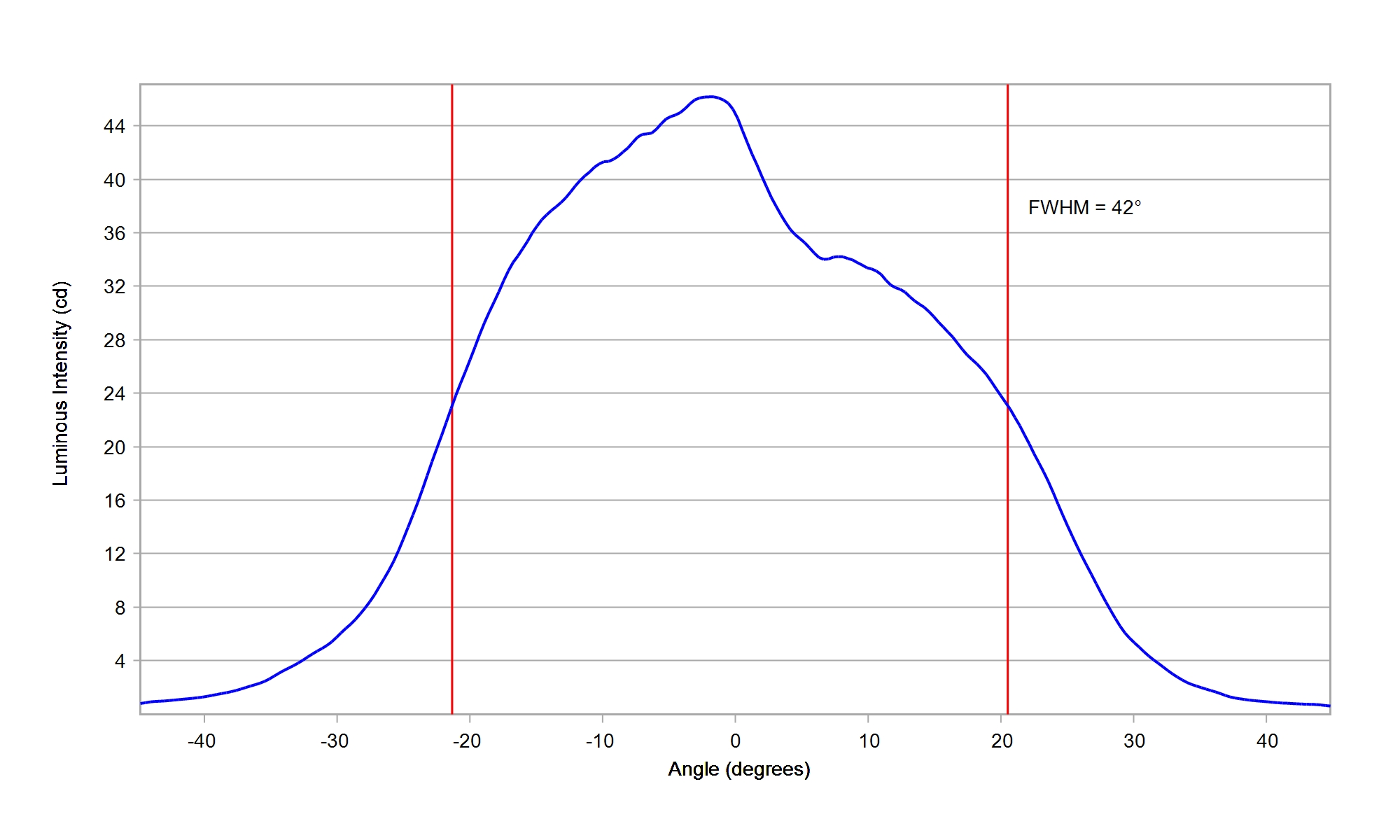

Cree JB2835B 3V J-Class White

Eff:

87.0%

FWHM:

42°

Cd/Im:

1.8


Download

Cree JB3030 3V P-Class White

Eff:

86.5%

FWHM:

42.0°

Cd/Im:

1.7

Carclo Optics - 10005/25 Spot Image Cree JB3030 3V White

Carclo Optics - 10005/25 Cross Section Cree JB3030 3V White

Download

IES

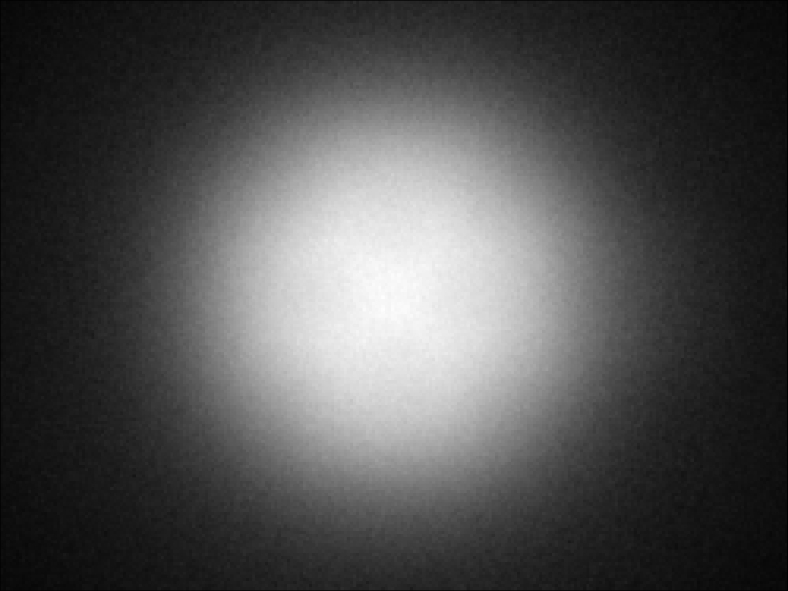

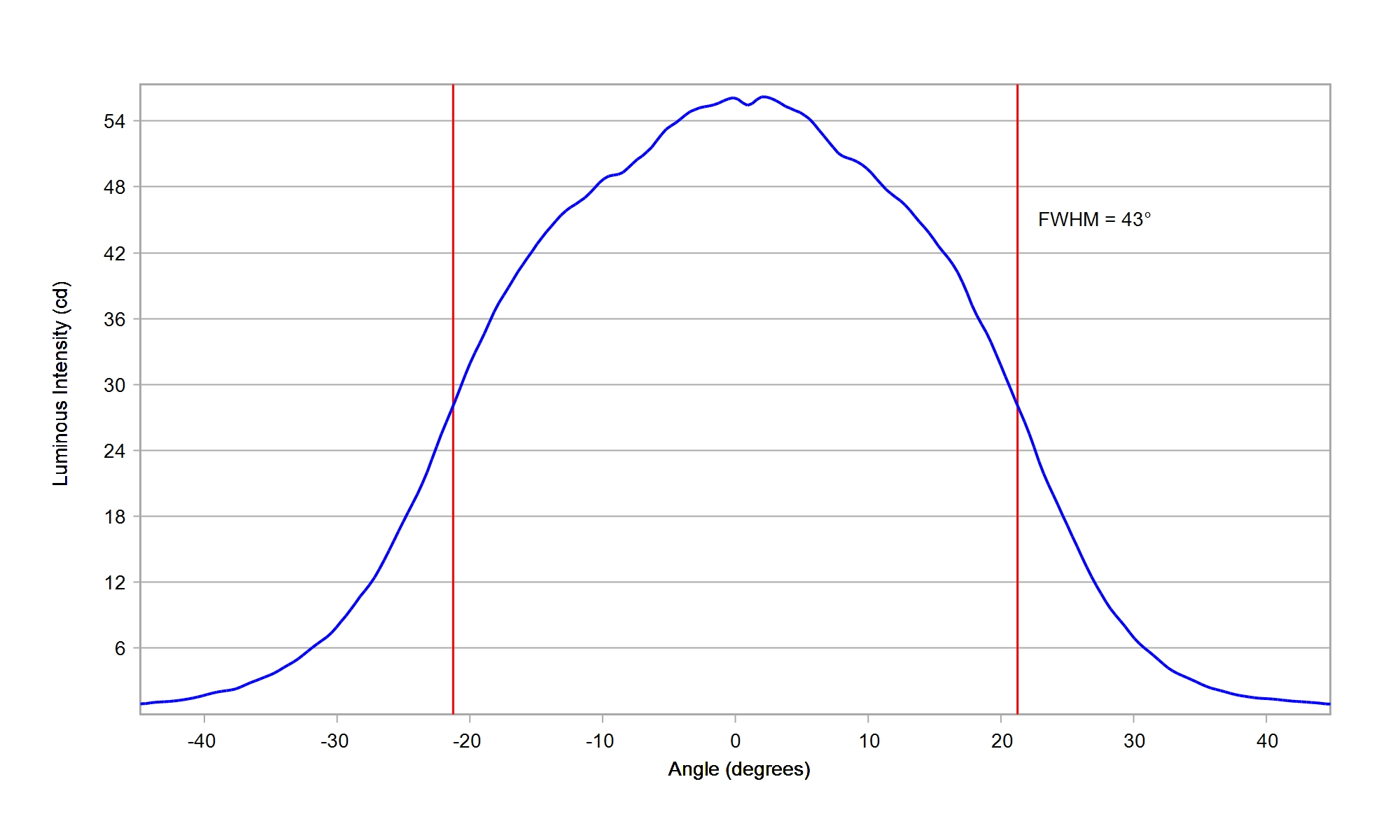

Cree JB3030C 3V E-Class White

Eff:

87.0%

FWHM:

43°

Cd/Im:

1.7


Download

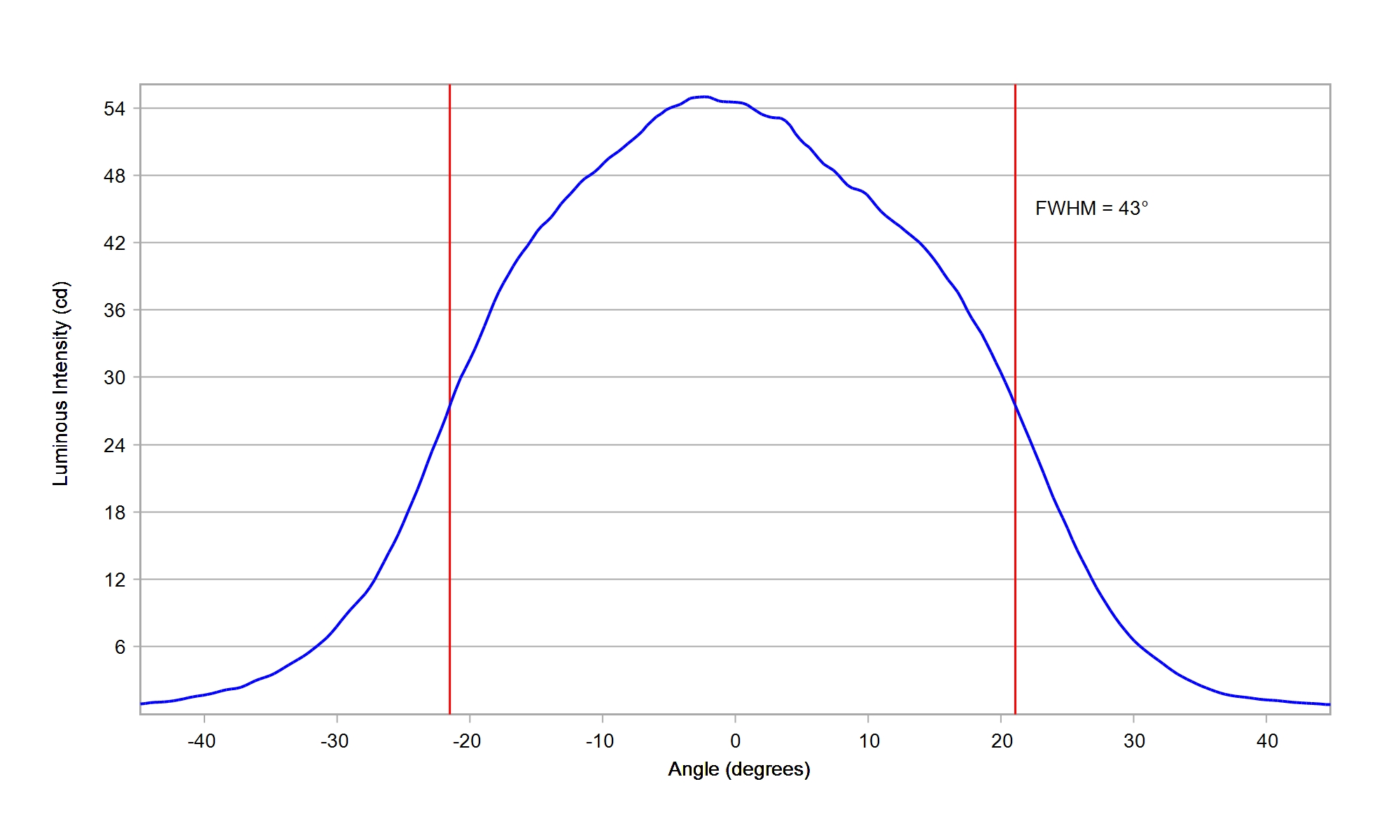

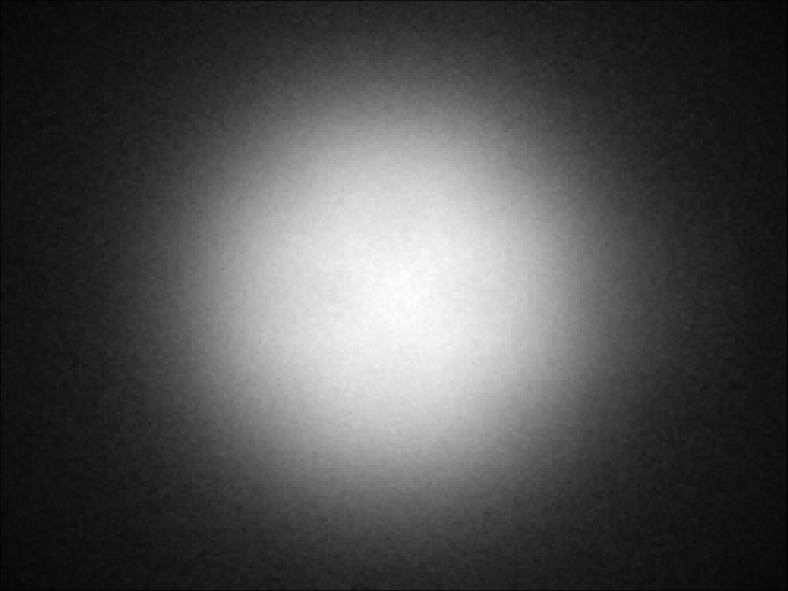

Cree JB3030C 3V F-Class White

Eff:

87.5%

FWHM:

43°

Cd/Im:

1.7


Download

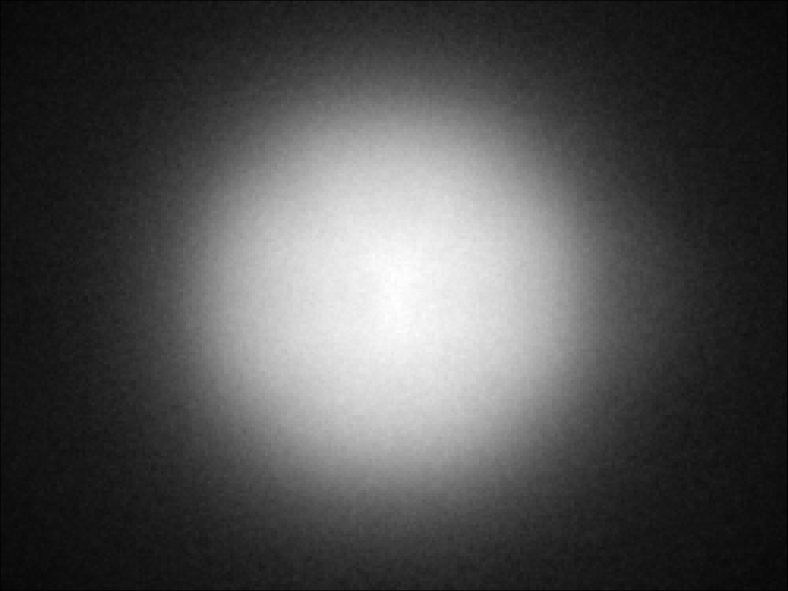

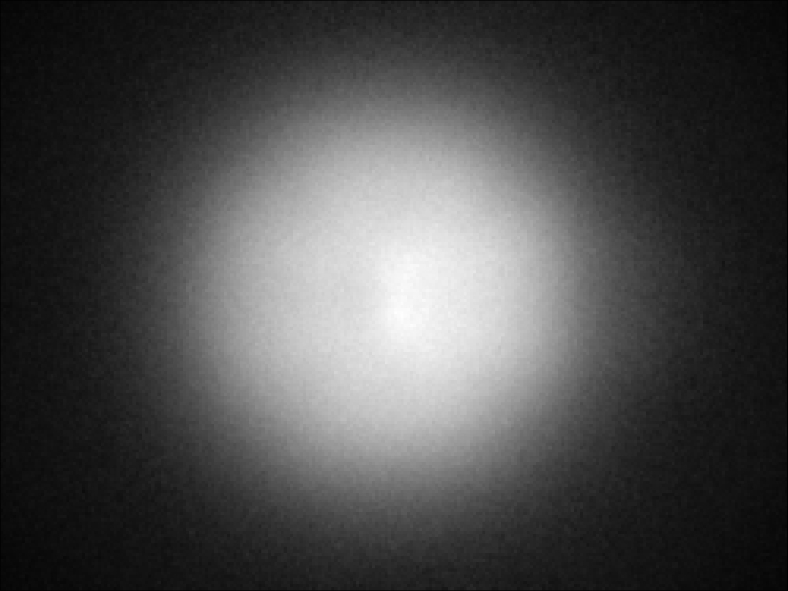

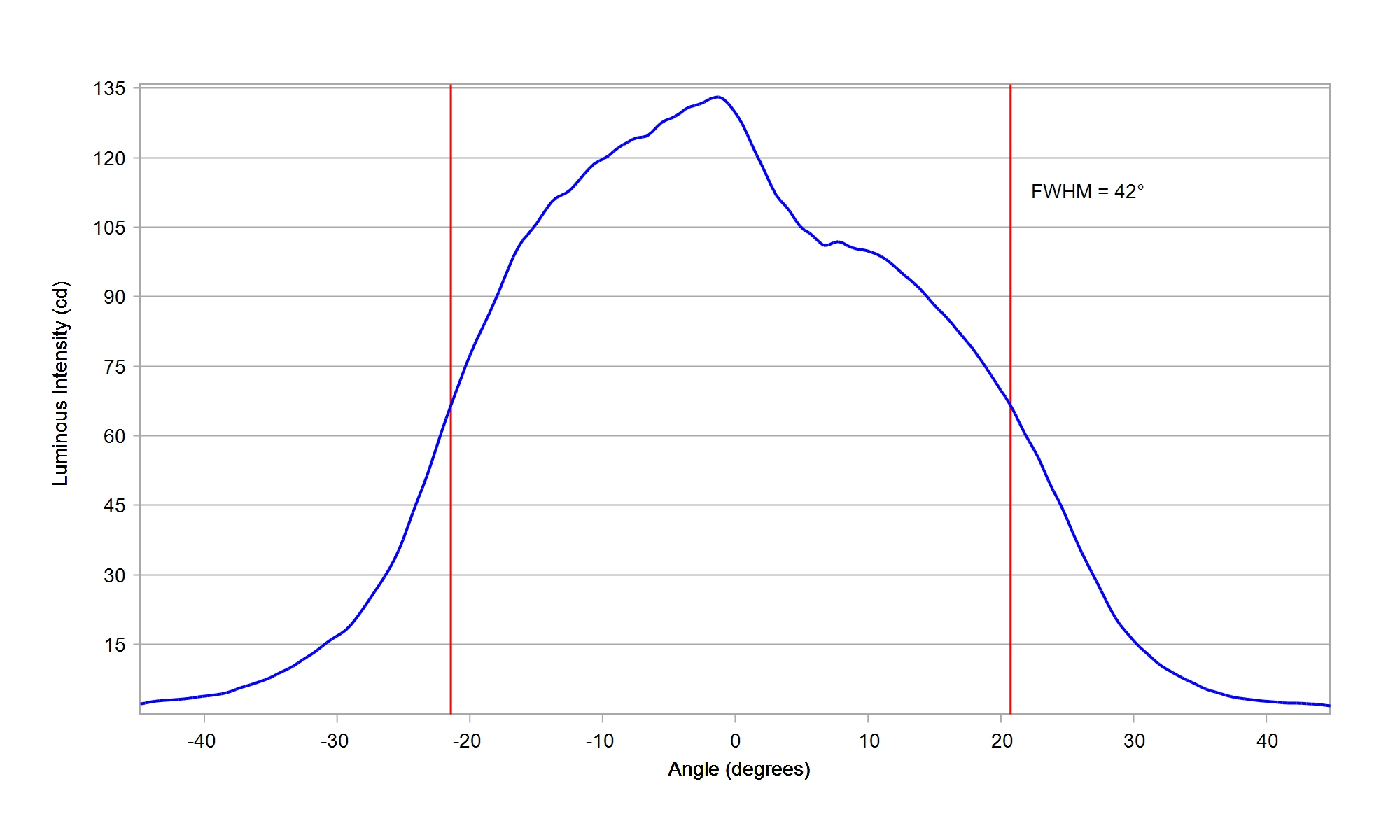

Cree JE2835 3V White

Eff:

87.5%

FWHM:

44°

Cd/Im:

1.7

Download

Cree JK2835 6V White

Eff:

87.0%

FWHM:

43°

Cd/Im:

1.8

Download

IES

Cree JQ5050 9V White

Eff:

84.0%

FWHM:

36.0°

Cd/Im:

1.8

Carclo Optics - 10003/25 Spot Image Cree JQ5050 9V White

Carclo Optics - 10003/25 Cross Section Cree JQ5050 9V White

Download

IES

Cree JR5050 24V White

Eff:

84.0%

FWHM:

35.0°

Cd/Im:

1.8

Carclo Optics - 10003/25 Spot Image Cree JR5050-24V White

Carclo Optics - 10003/25 Cross Section Cree JR5050-24V White

Download

IES

Cree JR5050 36V White

Eff:

84.5%

FWHM:

35.0°

Cd/Im:

1.8

Carclo Optics - 10003/25 Spot Image Cree JR5050 36V White

Carclo Optics - 10003/25 Cross Section Cree JR5050 36V White

Download

IES

Cree JR5050 6V White

Eff:

84.5%

FWHM:

37.0°

Cd/Im:

1.7

Carclo Optics - 10003/25 Spot Image Cree JR50506V White

Carclo Optics - 10003/25 Cross Section Cree JR50506V White

Download

IES

Cree JR5050C 6V E-Class White

Eff:

84.0%

FWHM:

38°

Cd/Im:

1.7


Download

IES

Cree XLamp CSP XD16 Premium White

Eff:

88.0%

FWHM:

45°

Cd/Im:

1.8

Download

IES

Cree XLamp MX-6 White

Eff:

85.1%

FWHM:

36.5°

Cd/Im:

2.2

Download

ies

Cree XLamp XB-H White

Eff:

86.5%

FWHM:

38°

Cd/Im:

2.0

Carclo Optics - 10003/25 20mm Spot Image Cree XLamp XB-H

Carclo Optics - 10003/25 20mm Cross Section Cree XLamp XB-H

Download

IES

Cree XLamp XE-G Blue

Eff:

87.5%

FWHM:

46°

Cd/Im:

1.7

Download

IES

Cree XLamp XE-G Green

Eff:

87.5%

FWHM:

45°

Cd/Im:

1.7

Download

IES

Cree XLamp XE-G Red

Eff:

86.5%

FWHM:

45°

Cd/Im:

1.8

Download

IES

Cree XLamp XE-G White

Eff:

87.0%

FWHM:

45°

Cd/Im:

1.7


Download

IES

Cree XLamp XHP35.2 HI White

Eff:

85.0%

FWHM:

41°

Cd/Im:

1.6

Carclo Optics – 10003/25 Spot Image Cree XLamp XHP35.2 HI White

Carclo Optics – 10003/25 Cross Section Cree XLamp XHP35.2 HI White

Download

2-HI-WW

Cree XLamp XHP35.2 HD White

Eff:

83.0%

FWHM:

42.0°

Cd/Im:

1.4

Carclo Optics - 10003/25 Spot Image Cree XHP35.2 White

Carclo Optics - 10003/25 Cross Section Cree XHP35.2 White

Download

IES

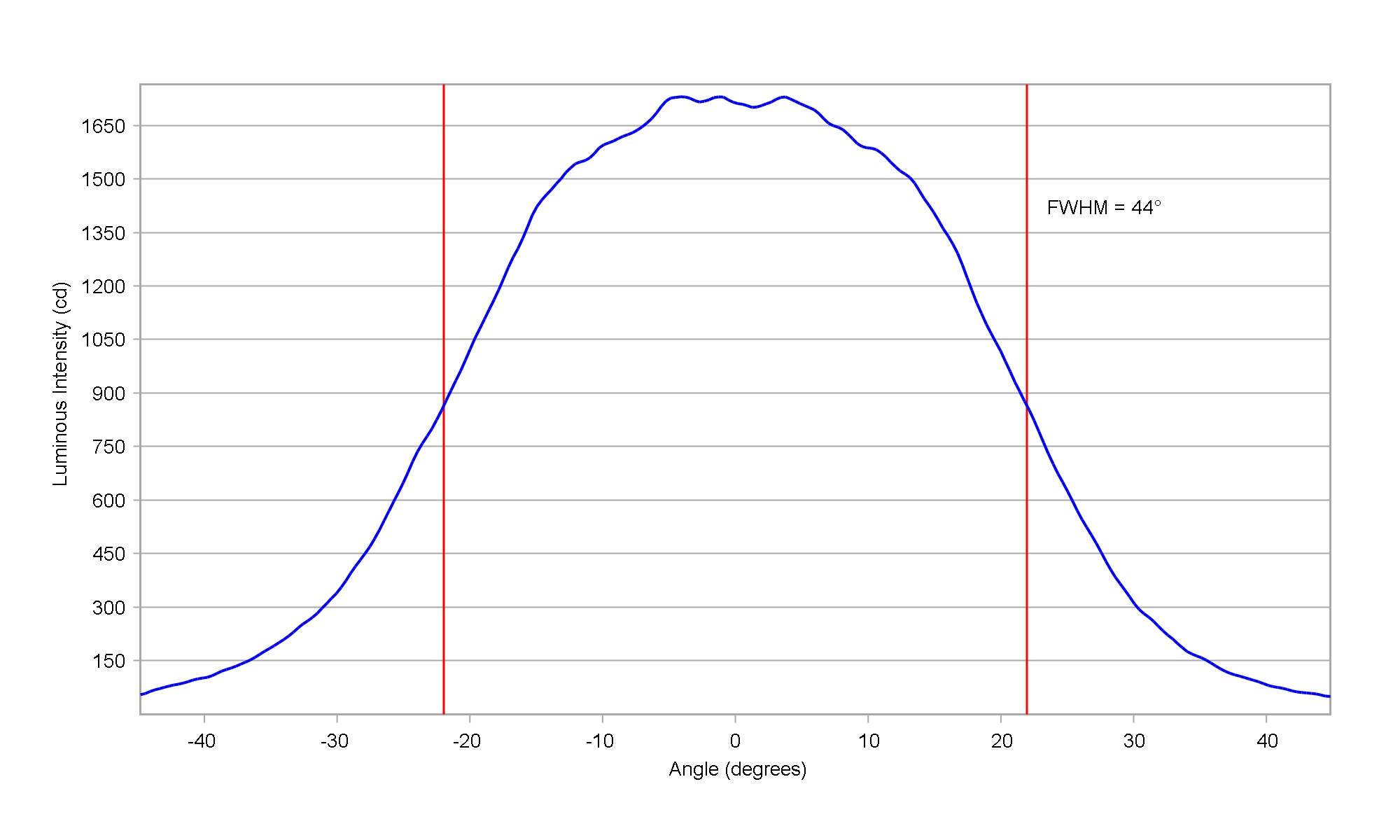

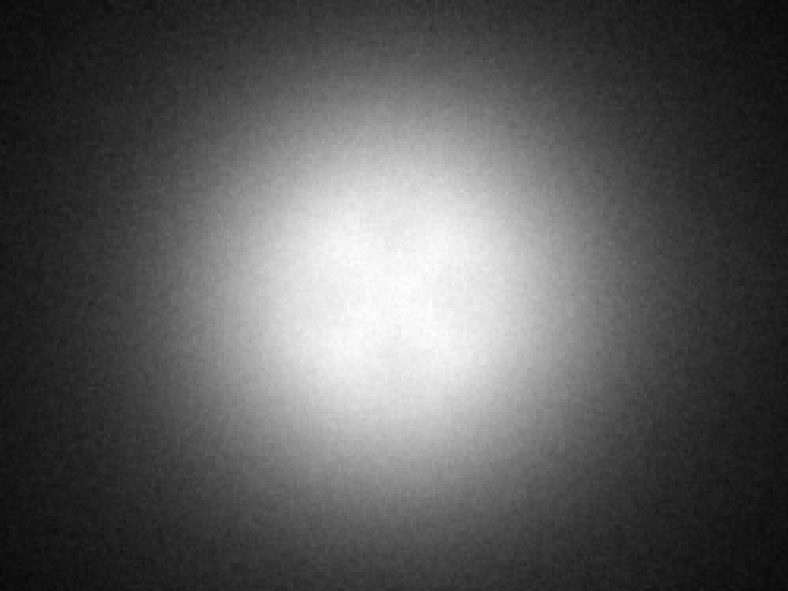

Cree XLamp XHP50.3 HI White

Eff:

83.5%

FWHM:

44°

Cd/Im:

1.4

Download

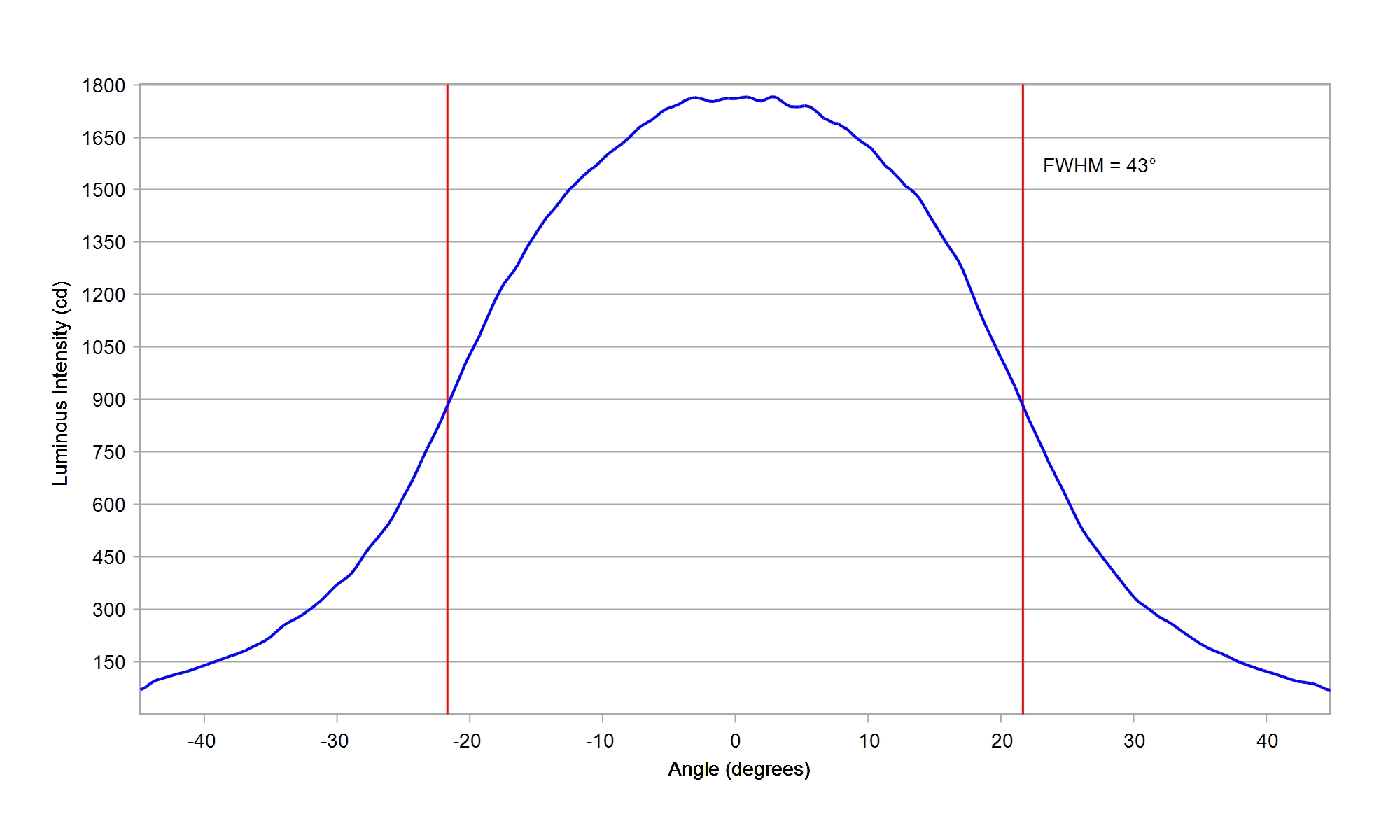

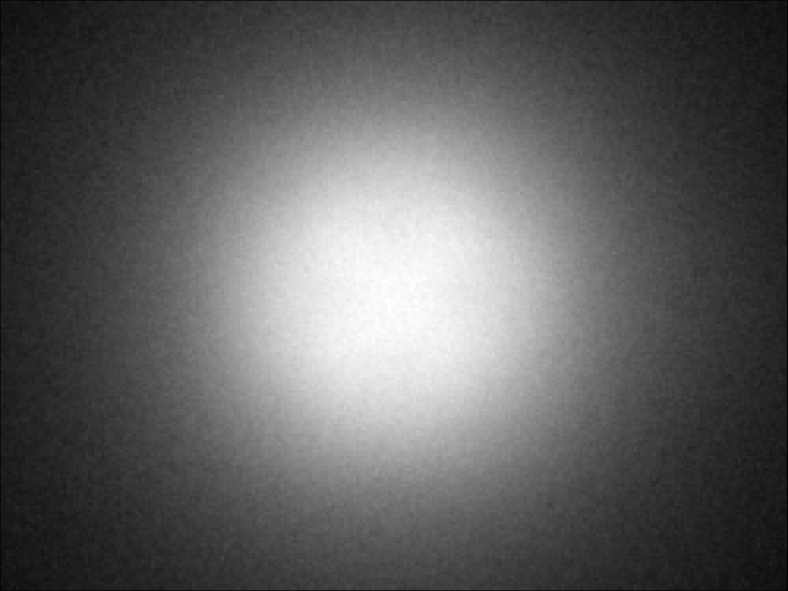

Cree XLamp XHP50.3 White

Eff:

82.5%

FWHM:

43°

Cd/Im:

1.3

Download

3
3

Cree XLamp XM-L White

Eff:

81.0%

FWHM:

43.3°

Cd/Im:

1.9

10003/25 Led Cree XLamp XM-L White Spot Image

10003/25 Led Cree XLamp XM-L White Cross Section

Cree XLamp XM-L2 White

FWHM:

42°

Cd/Im:

1.9

Optic 10003-25 LED Cree XLamp XM-L2 White

Optic 10003-25 LED Cree XLamp XM-L2 White

Download

ies

Cree XLamp XM-L3 White

Eff:

84.5%

FWHM:

44.0°

Cd/Im:

1.5

Carclo Optics - 10003/25 Spot Image Cree XM-L3

Carclo Optics - 10003/25 Cross Section Cree XM-L3

Download

IES

Cree XLamp XP-C White

Eff:

83.7%

FWHM:

23°

Cd/Im:

3.4

Download

ies

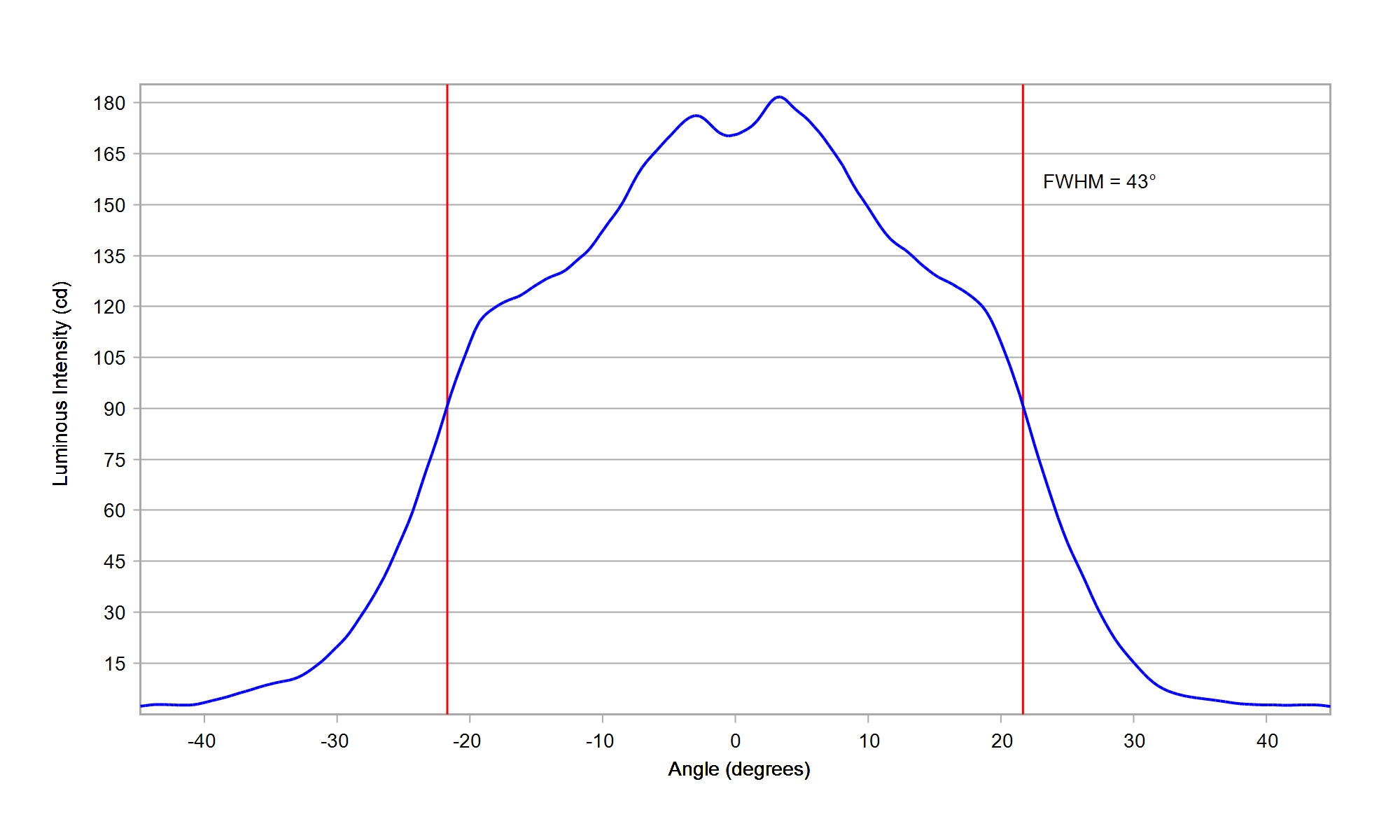

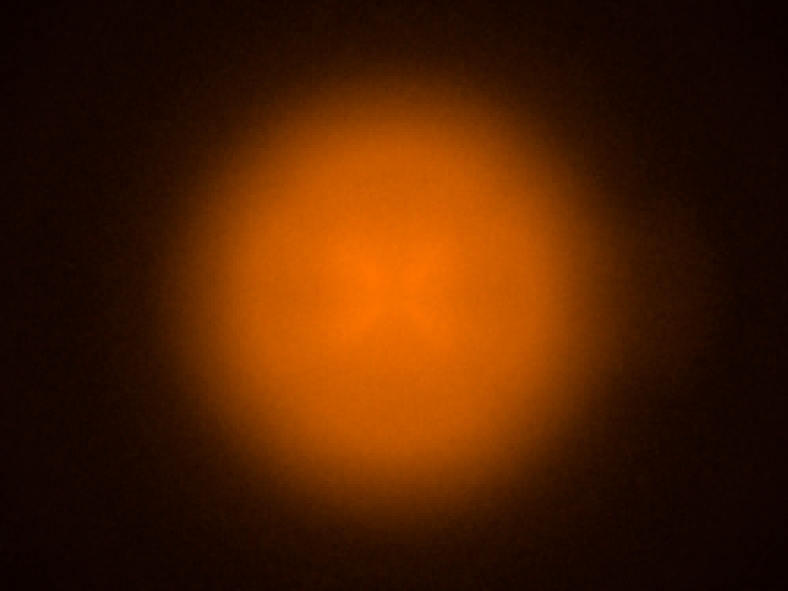

Cree XLamp XP-E2 Amber

Eff:

88.0%

FWHM:

43°

Cd/Im:

1.9


Download

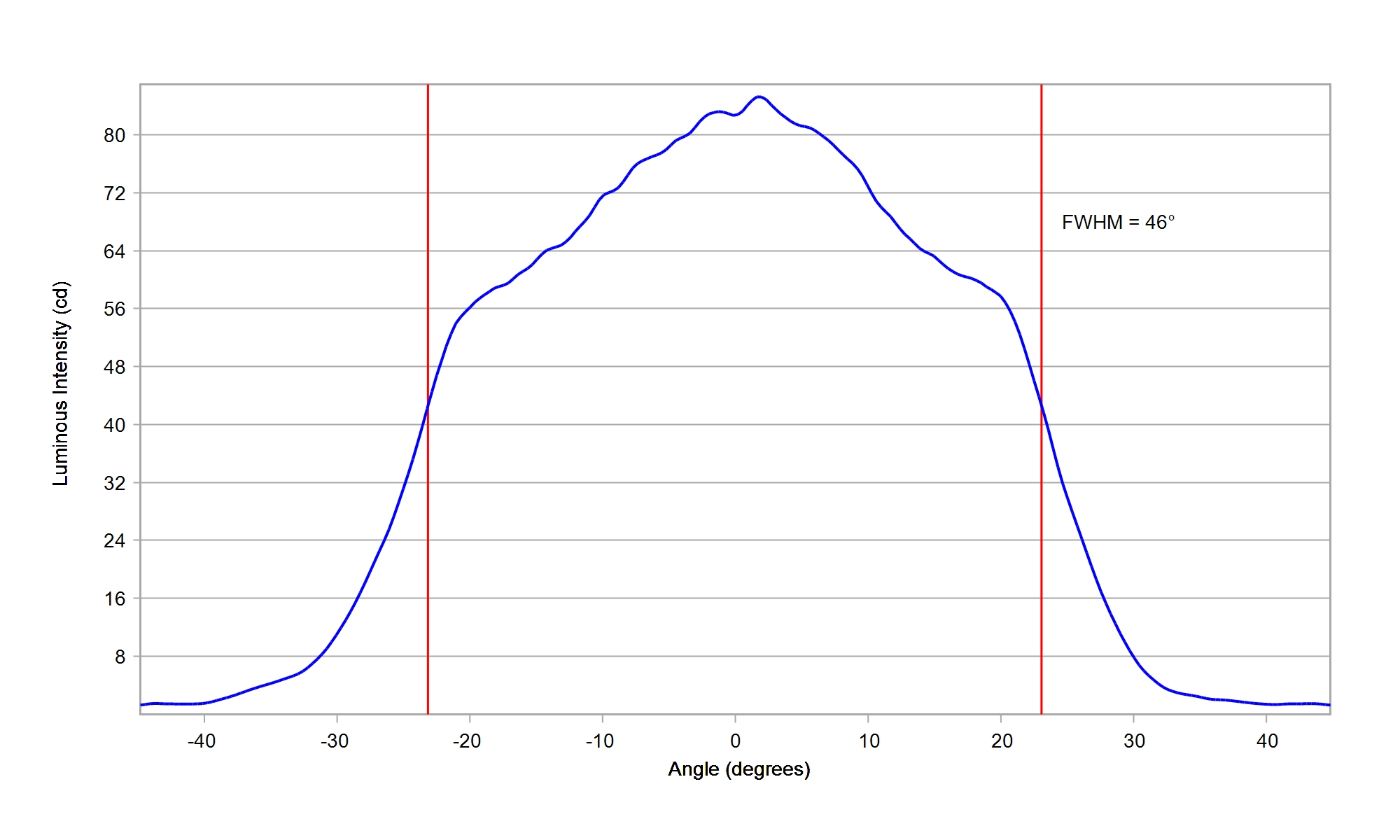

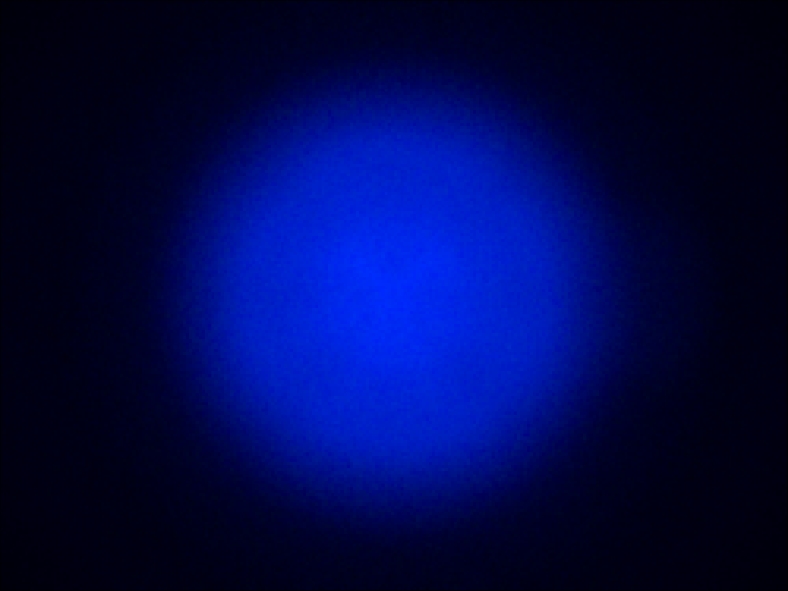

Cree XLamp XP-E2 Blue

Eff:

88.0%

FWHM:

46°

Cd/Im:

1.7

Download

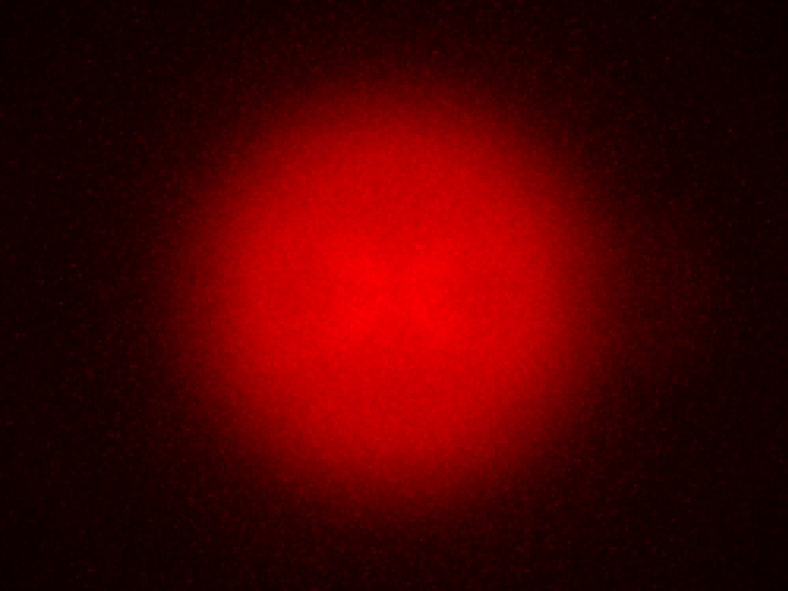

Cree XLamp XP-E2 Far Red

Eff:

91.0%

FWHM:

43°

Ipk/W:

2.0


Download

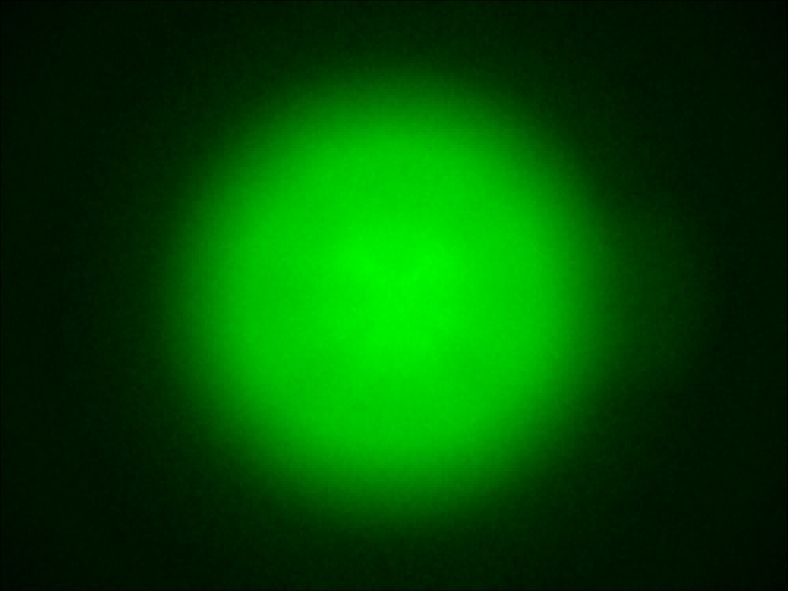

Cree XLamp XP-E2 Green

Eff:

88.0%

FWHM:

46°

Cd/Im:

1.8


Download

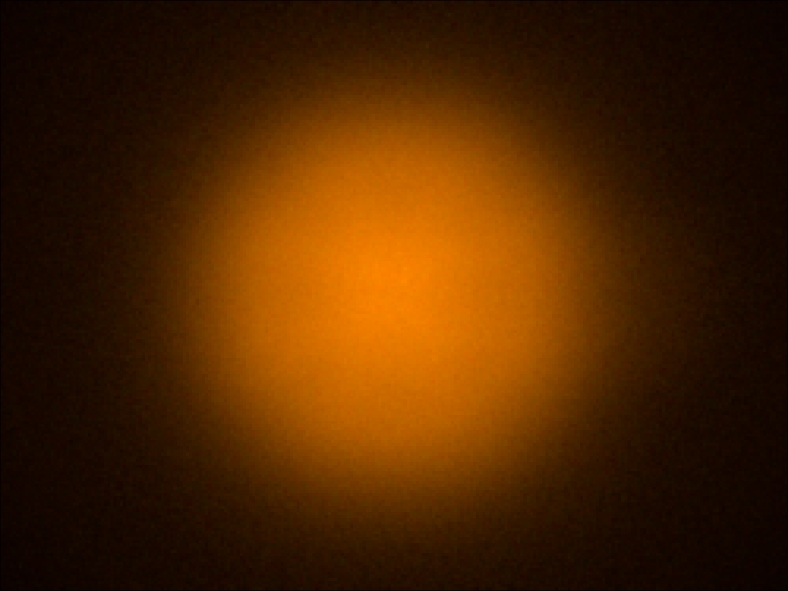

Cree XLamp XP-E2 PC Amber

Eff:

87.0%

FWHM:

42°

Cd/Im:

1.9


Download

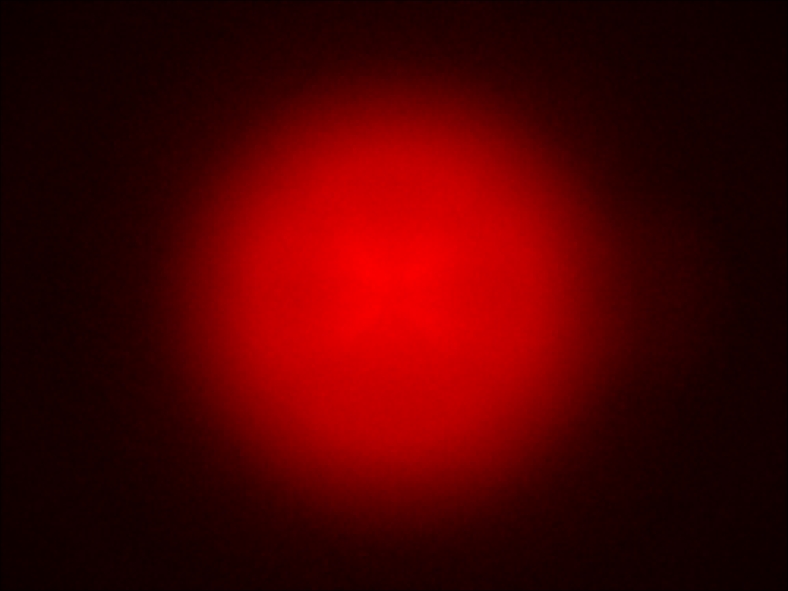

Cree XLamp XP-E2 Photo Red

Eff:

88.0%

FWHM:

43°

Ipk/W:

2.0


Download

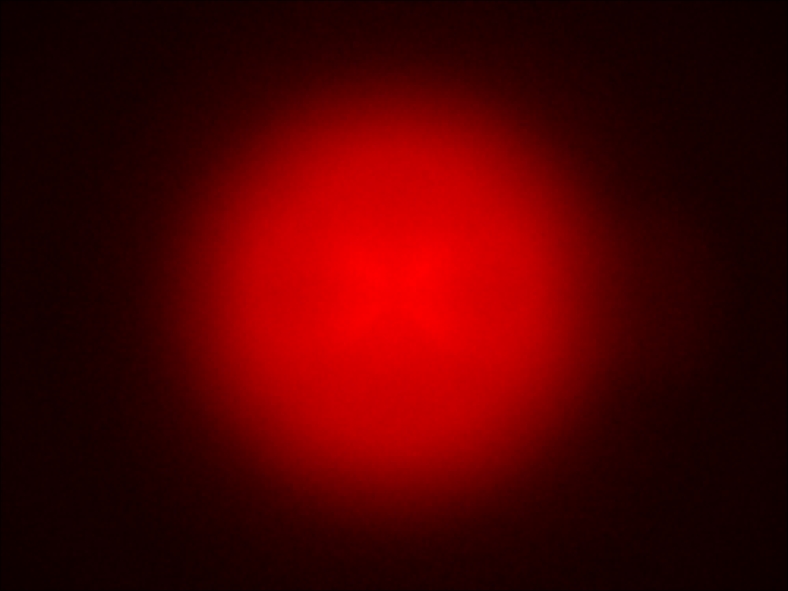

Cree XLamp XP-E2 Red

Eff:

89.0%

FWHM:

43°

Cd/Im:

2.0

Download

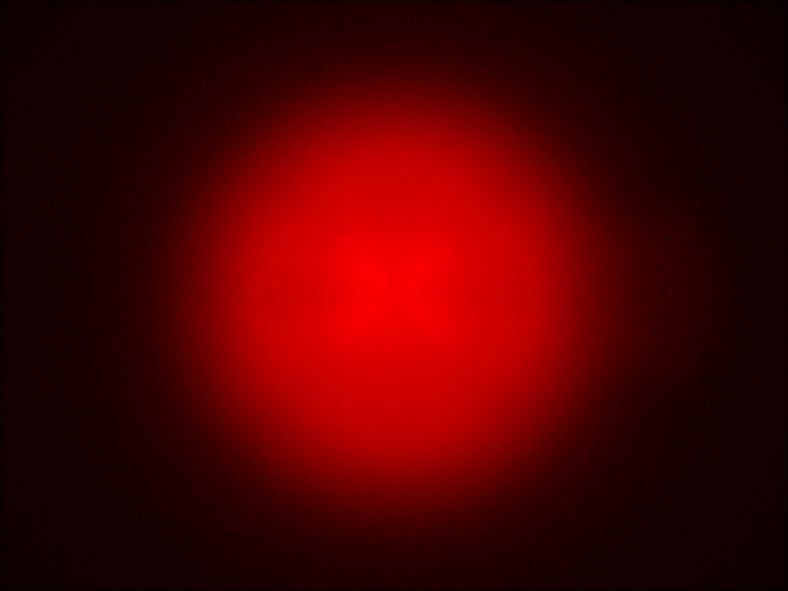

Cree XLamp XP-E2 Red-Orange

Eff:

88.5%

FWHM:

43°

Cd/Im:

2.0


Download

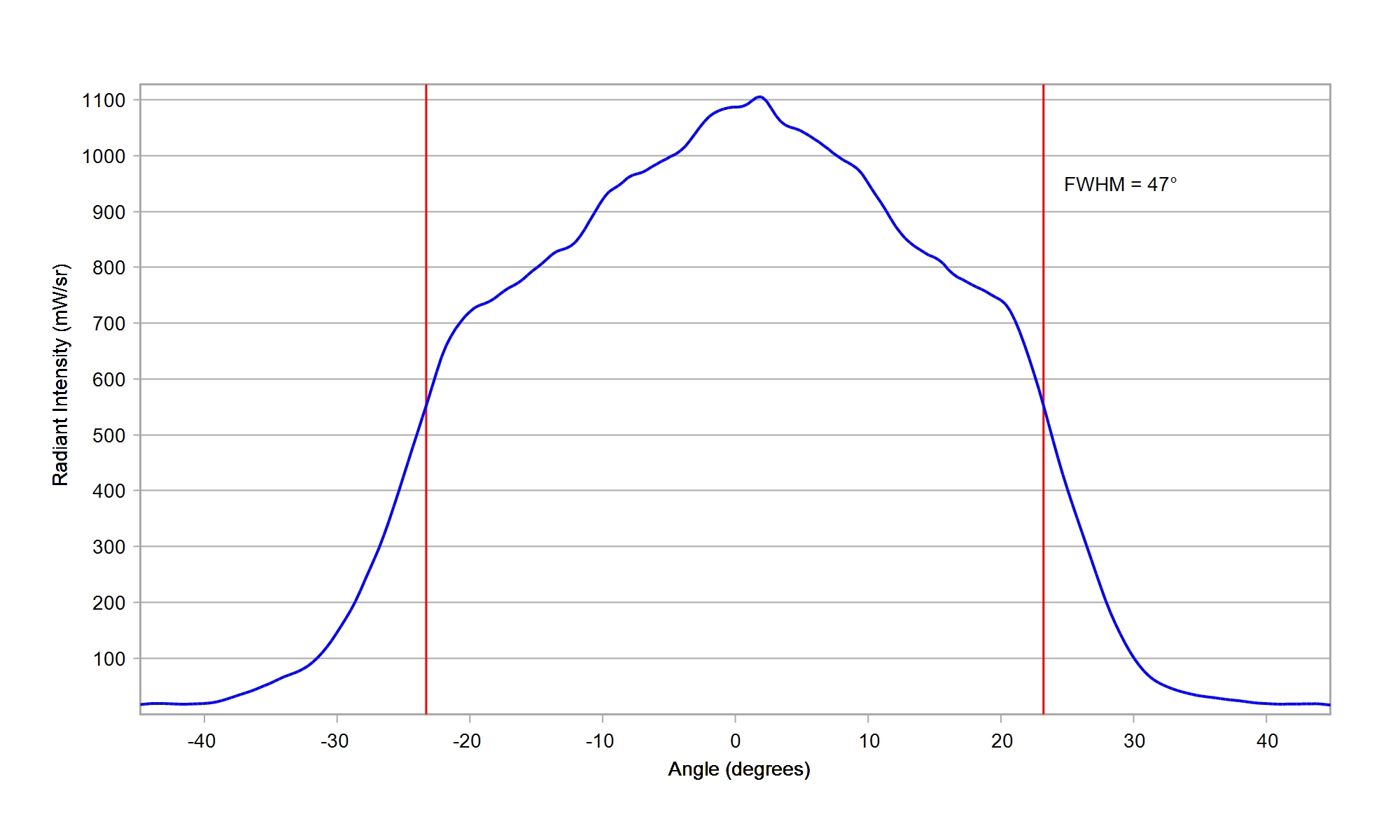

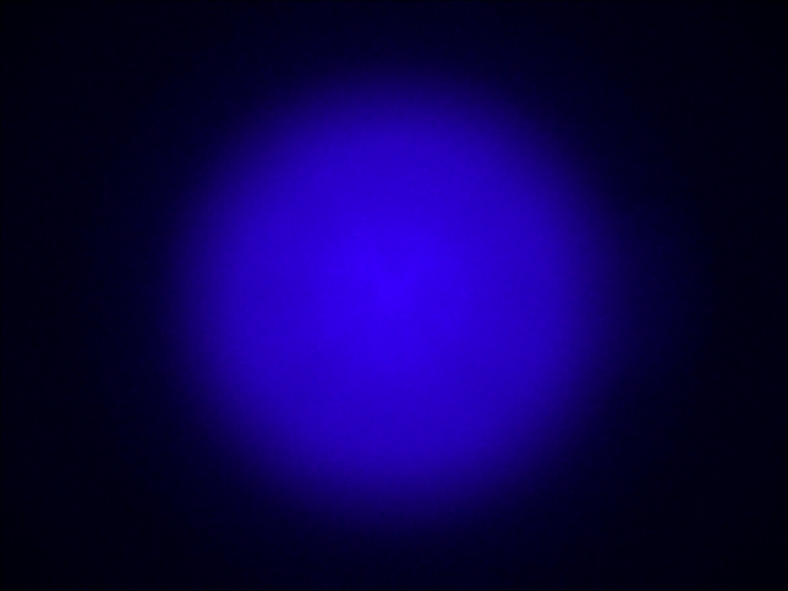

Cree XLamp XP-E2 Royal Blue

Eff:

86.5%

FWHM:

47°

Ipk/W:

1.7


Download

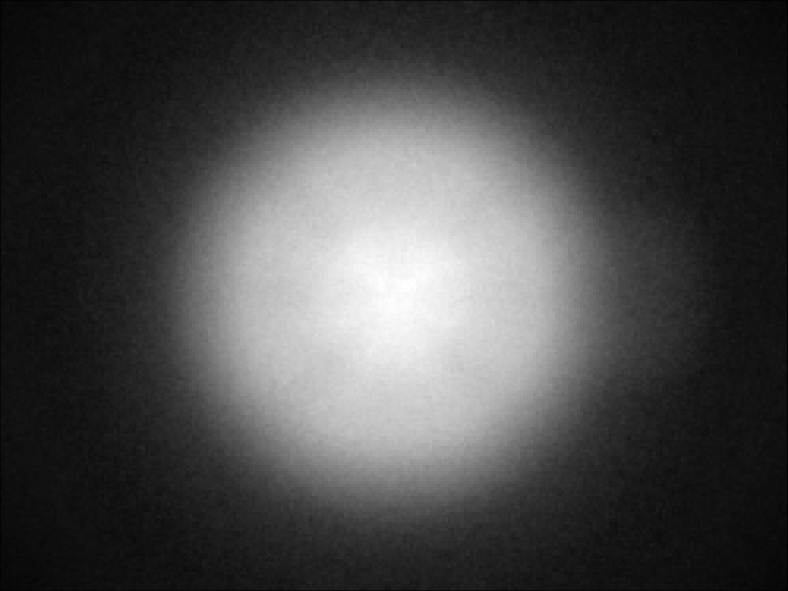

Cree XLamp XP-E2 White

Eff:

87.5%

FWHM:

44°

Cd/Im:

1.8


Download

Cree XLamp XP-G White

Eff:

82.9%

FWHM:

37.4°

Cd/Im:

2.1

Download

ies

Cree XLamp XP-G2 White

FWHM:

39.9°

Cd/Im:

2.8

10003/25 Spot

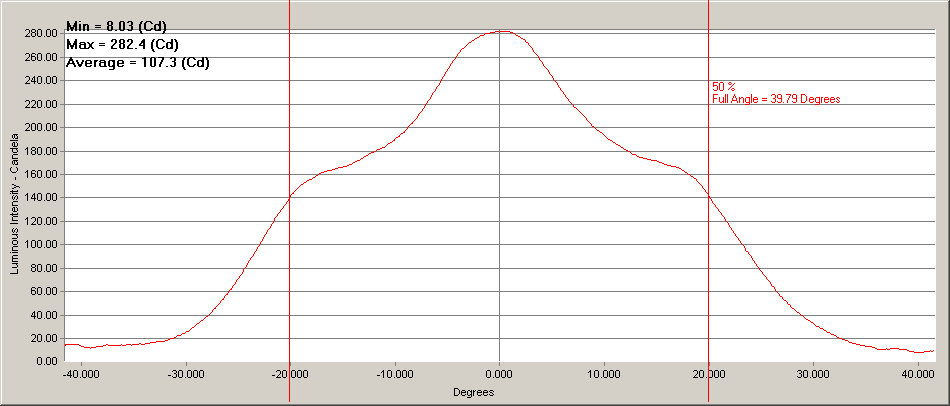

10003/25 Cross section plot

Download

ies

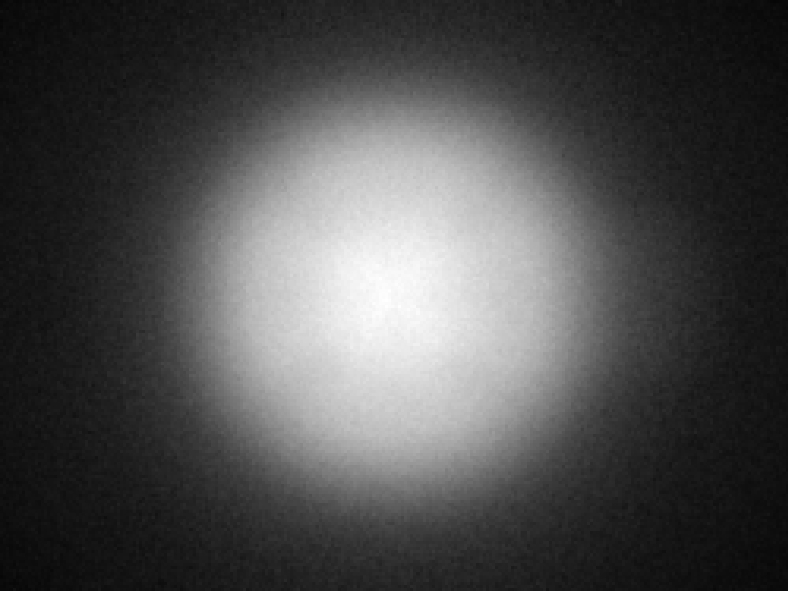

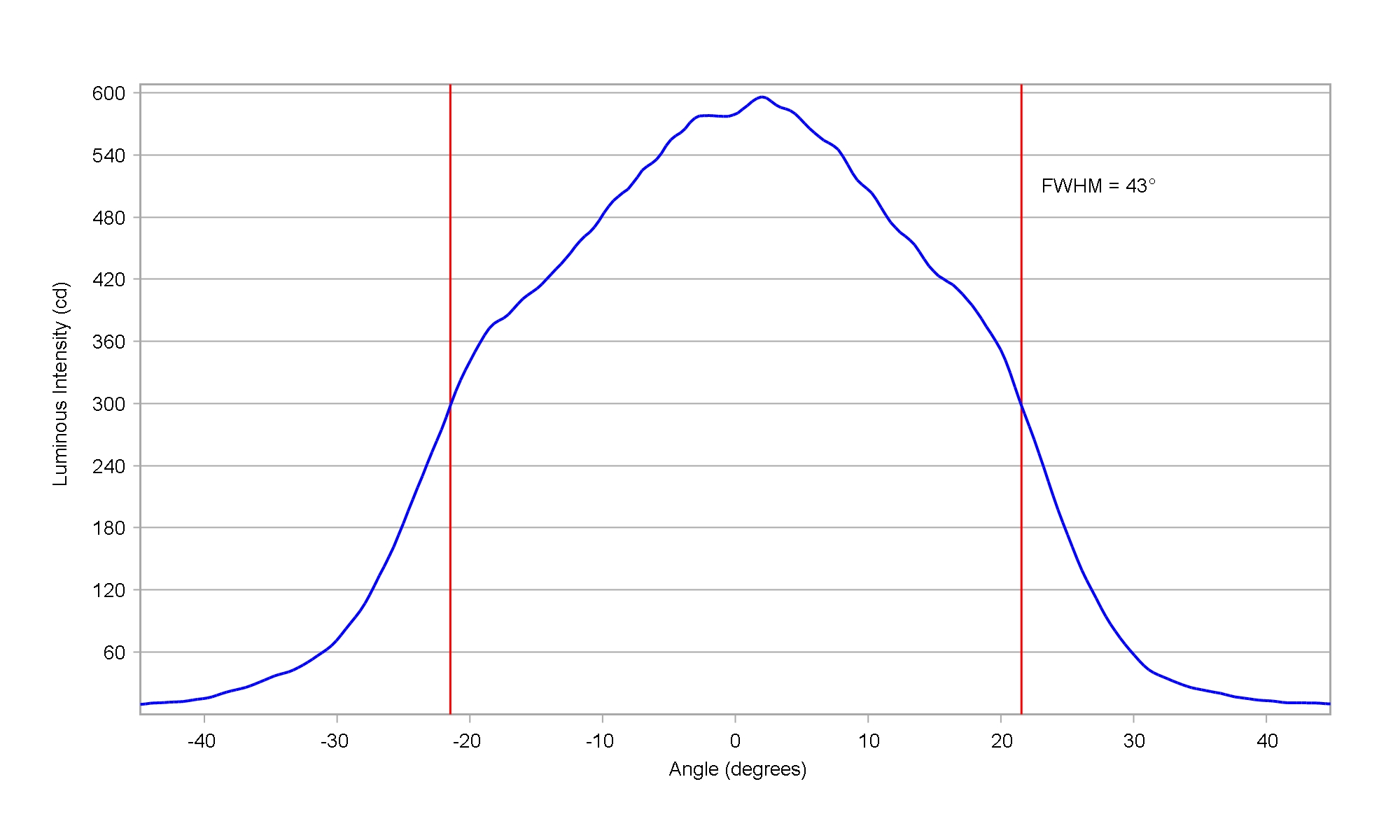

Cree XLamp XP-G4 HI White

Eff:

86.5%

FWHM:

43°

Cd/Im:

1.7

Download

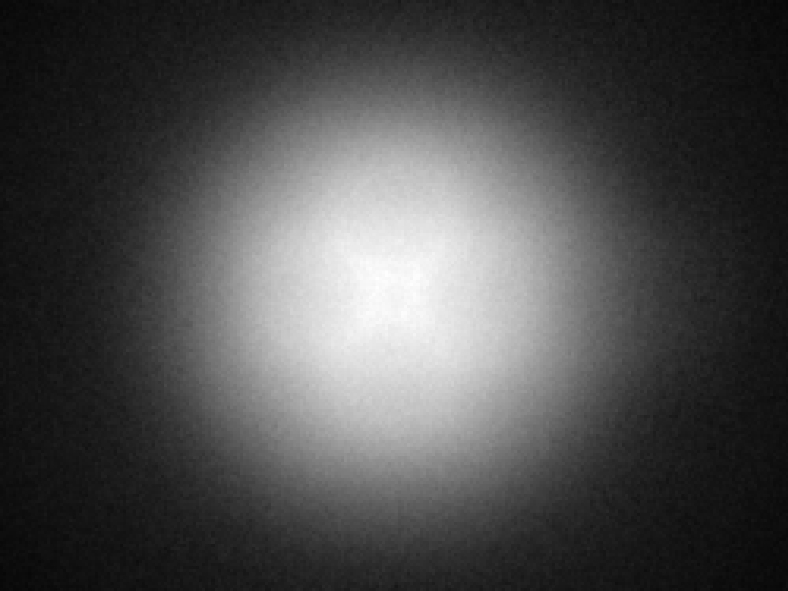

Cree XLamp XP-G4 White

Eff:

87.0%

FWHM:

40°

Cd/Im:

1.8


Download

IES

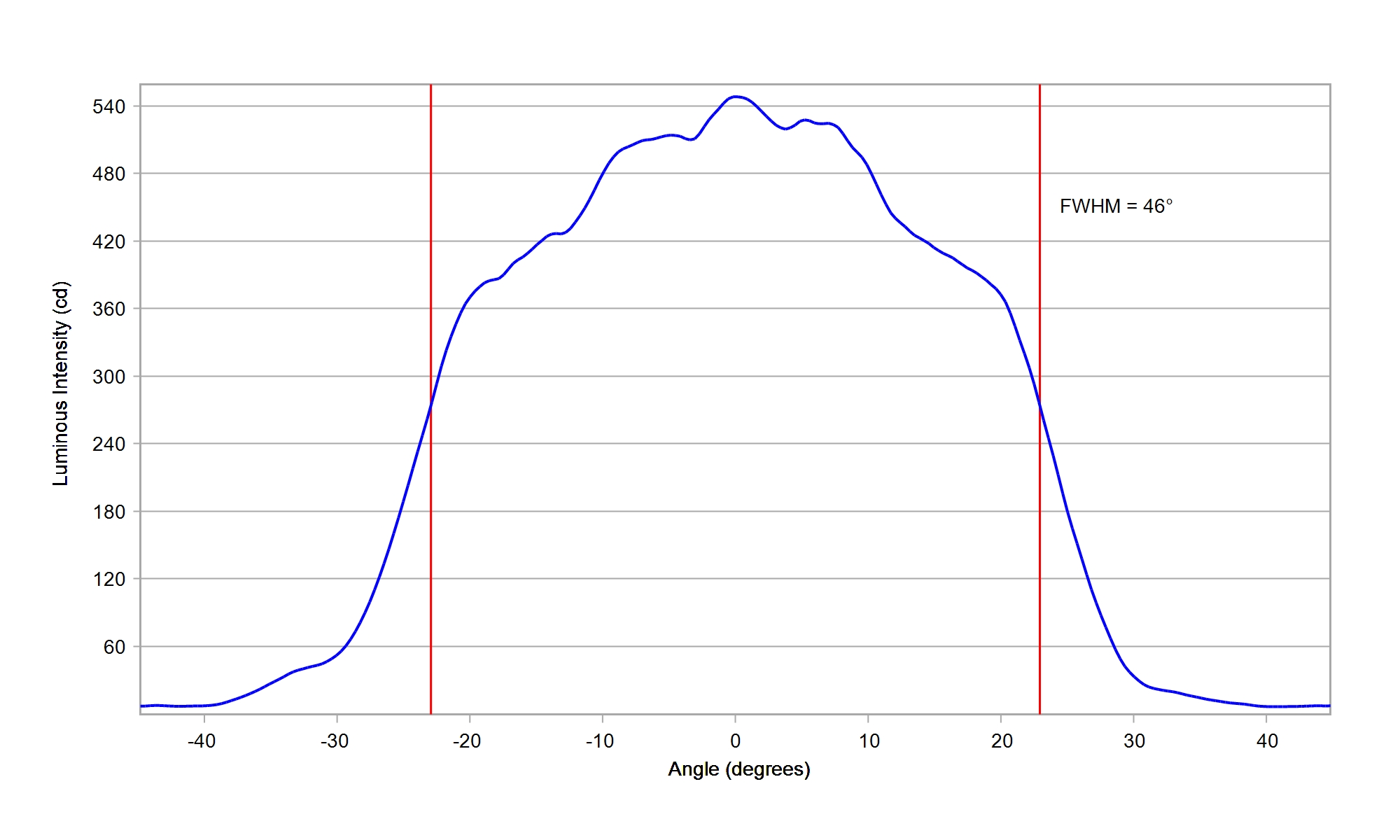

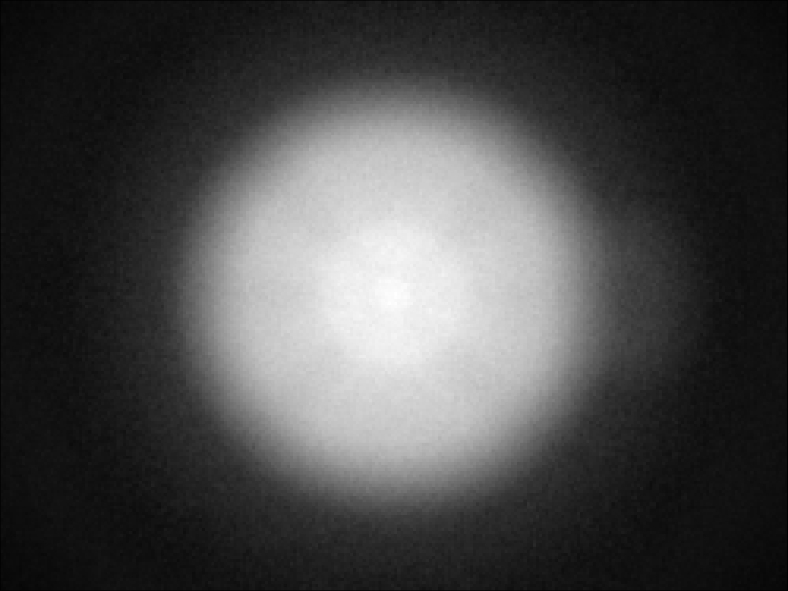

Cree XLamp XP-GR White

Eff:

88.0%

FWHM:

46°

Cd/Im:

1.8

Download

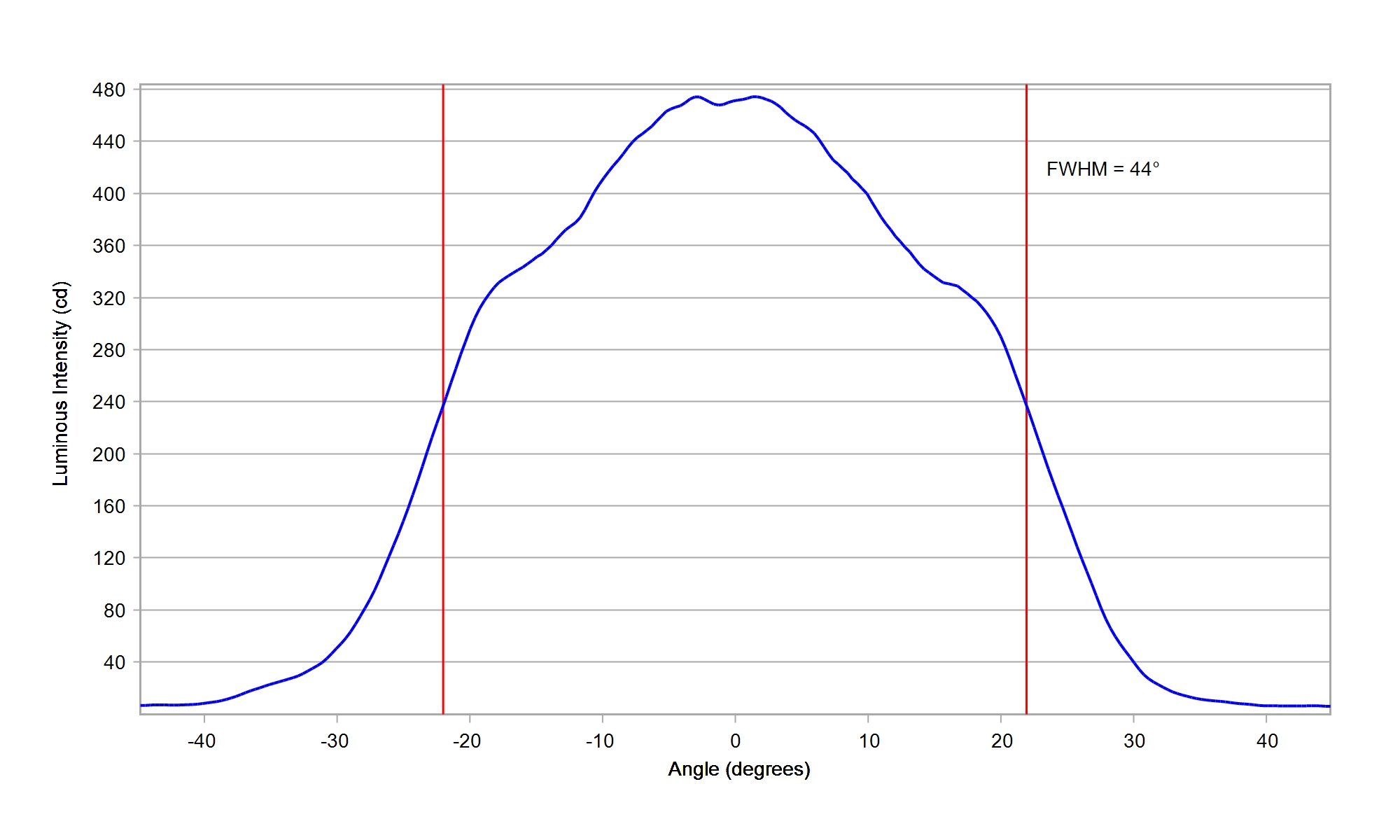

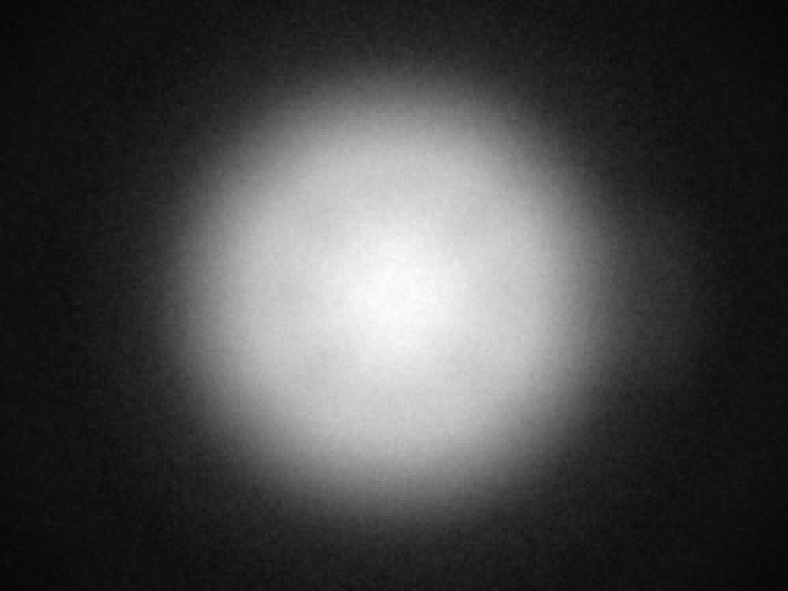

Cree XLamp XP-LR White

Eff:

88.0%

FWHM:

44°

Cd/Im:

1.8

Download

Cree XLamp XP-P White

Eff:

87.5%

FWHM:

45°

Cd/Im:

1.8

Carclo Optics – 10003/25 Cree Xlamp XP-P - Spot Image

Carclo Optics – 10003/25 Cree Xlamp XP-P - Cross-Section

Download

IES

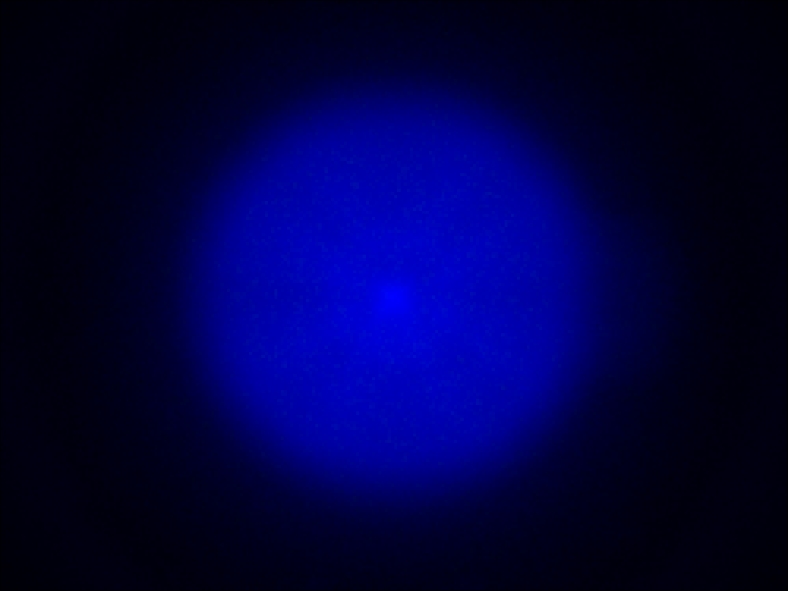

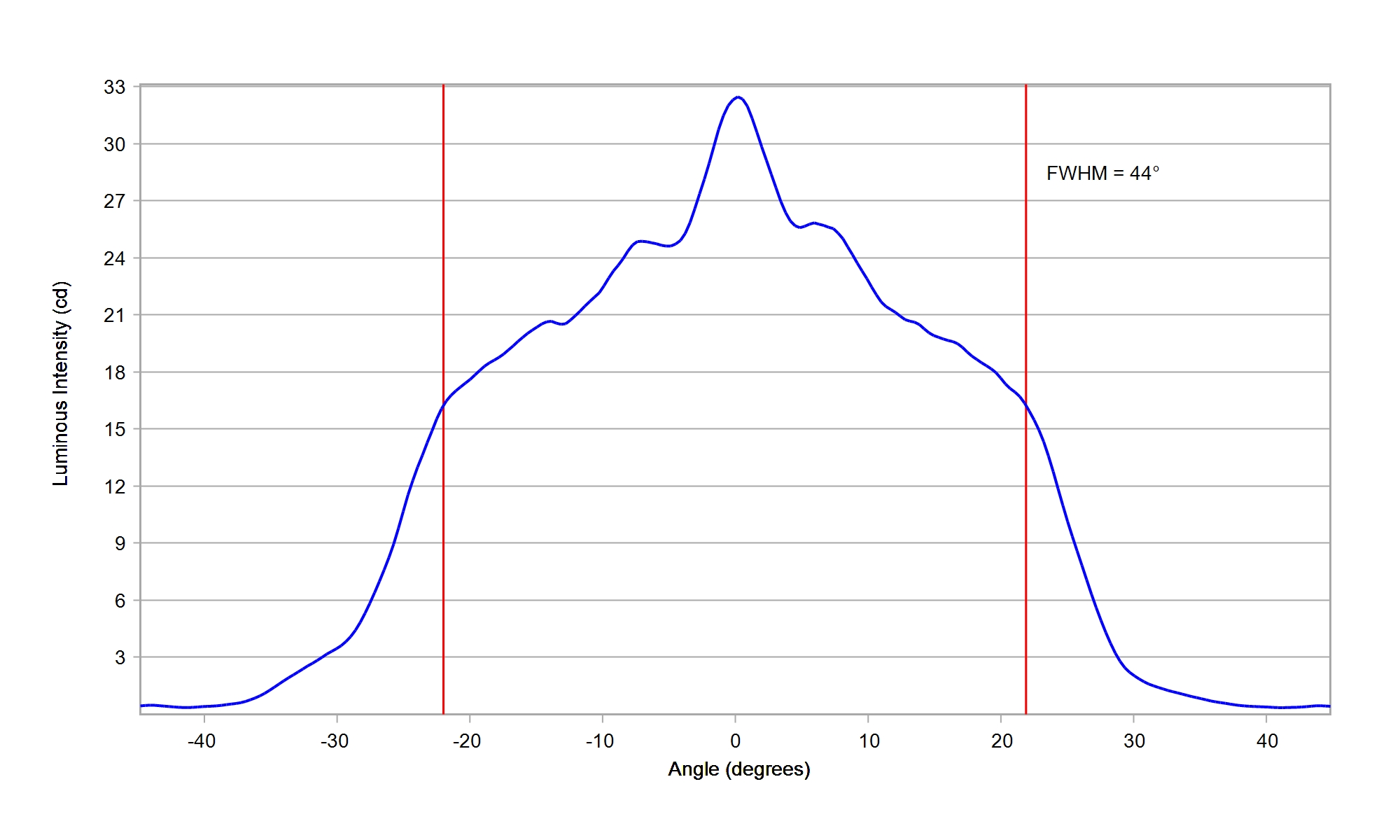

Cree XLamp XQ-A Blue

Eff:

87.5%

FWHM:

44°

Cd/Im:

2.3

Download

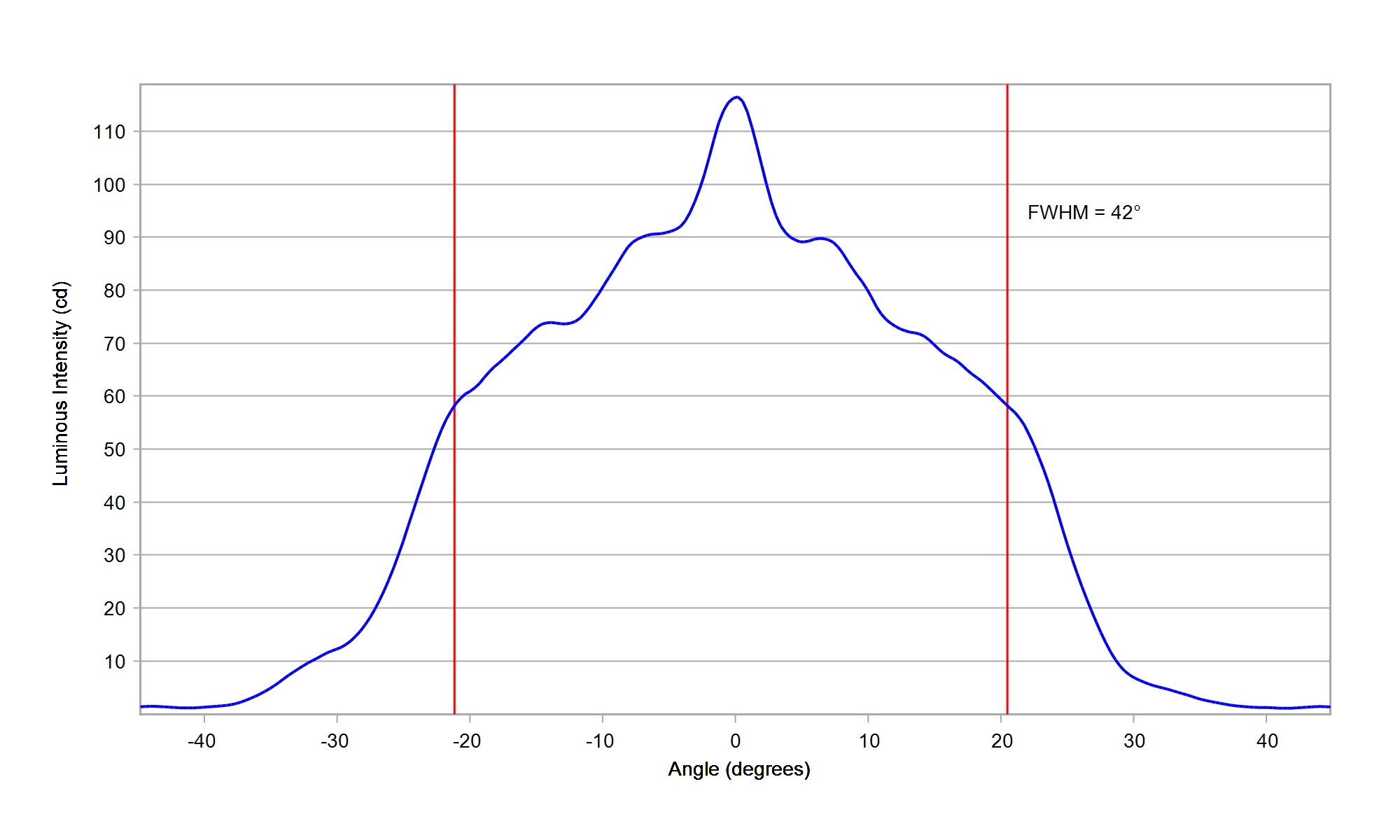

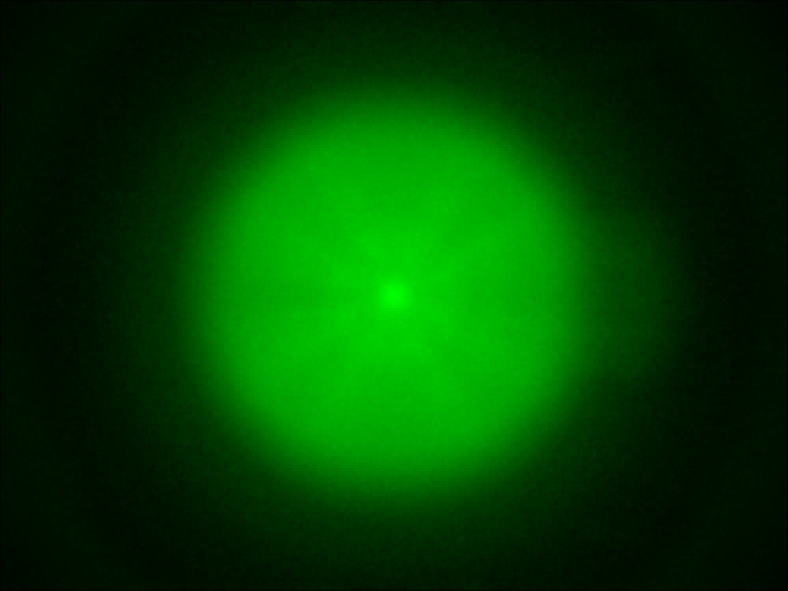

Cree XLamp XQ-A Green

Eff:

87.5%

FWHM:

42°

Cd/Im:

2.4

Download

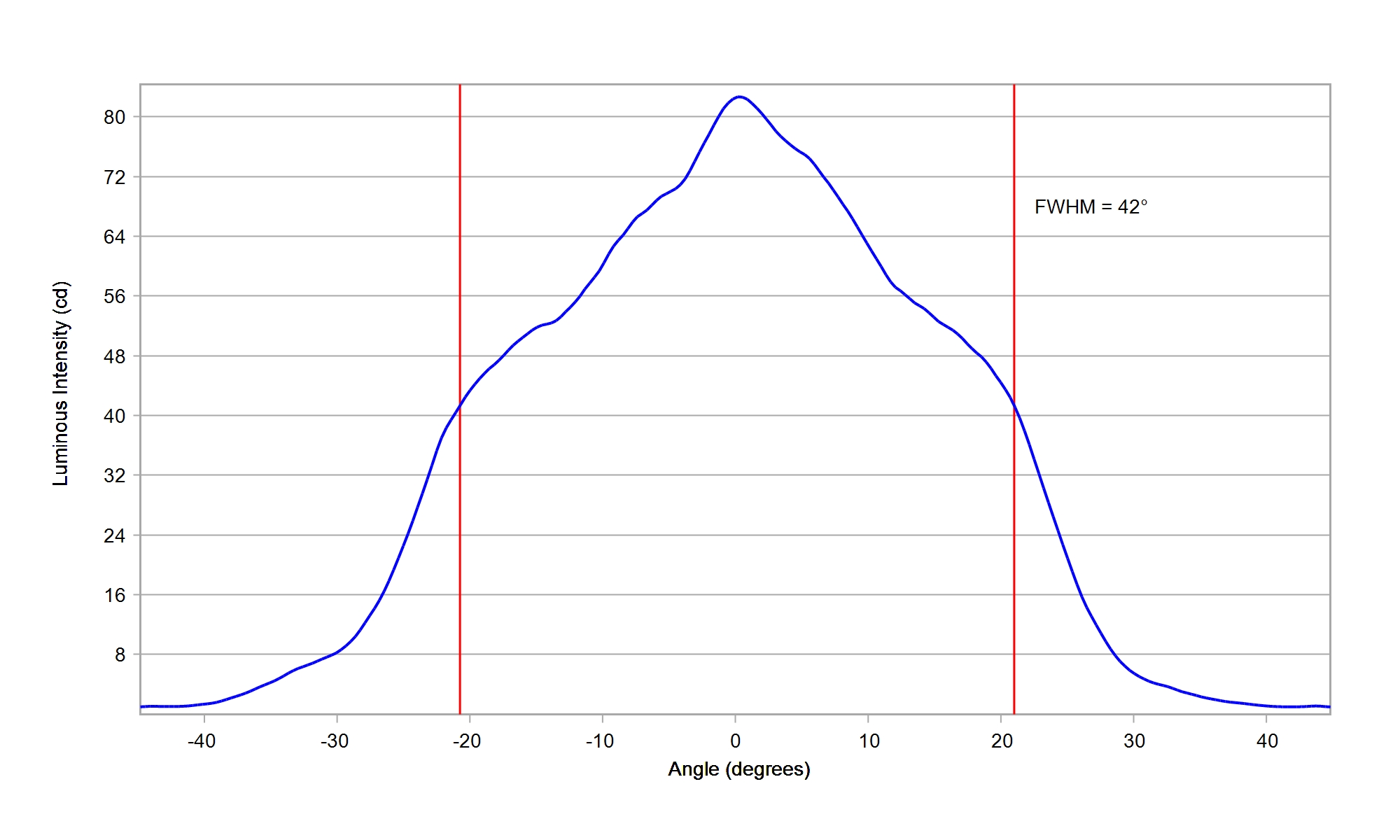

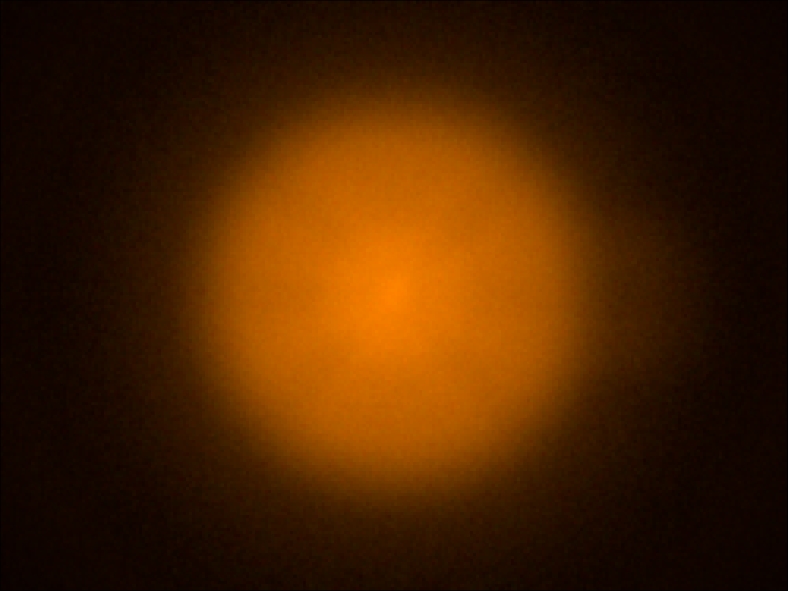

Cree XLamp XQ-A PC Amber

Eff:

87.5%

FWHM:

42°

Cd/Im:

2.1


Download

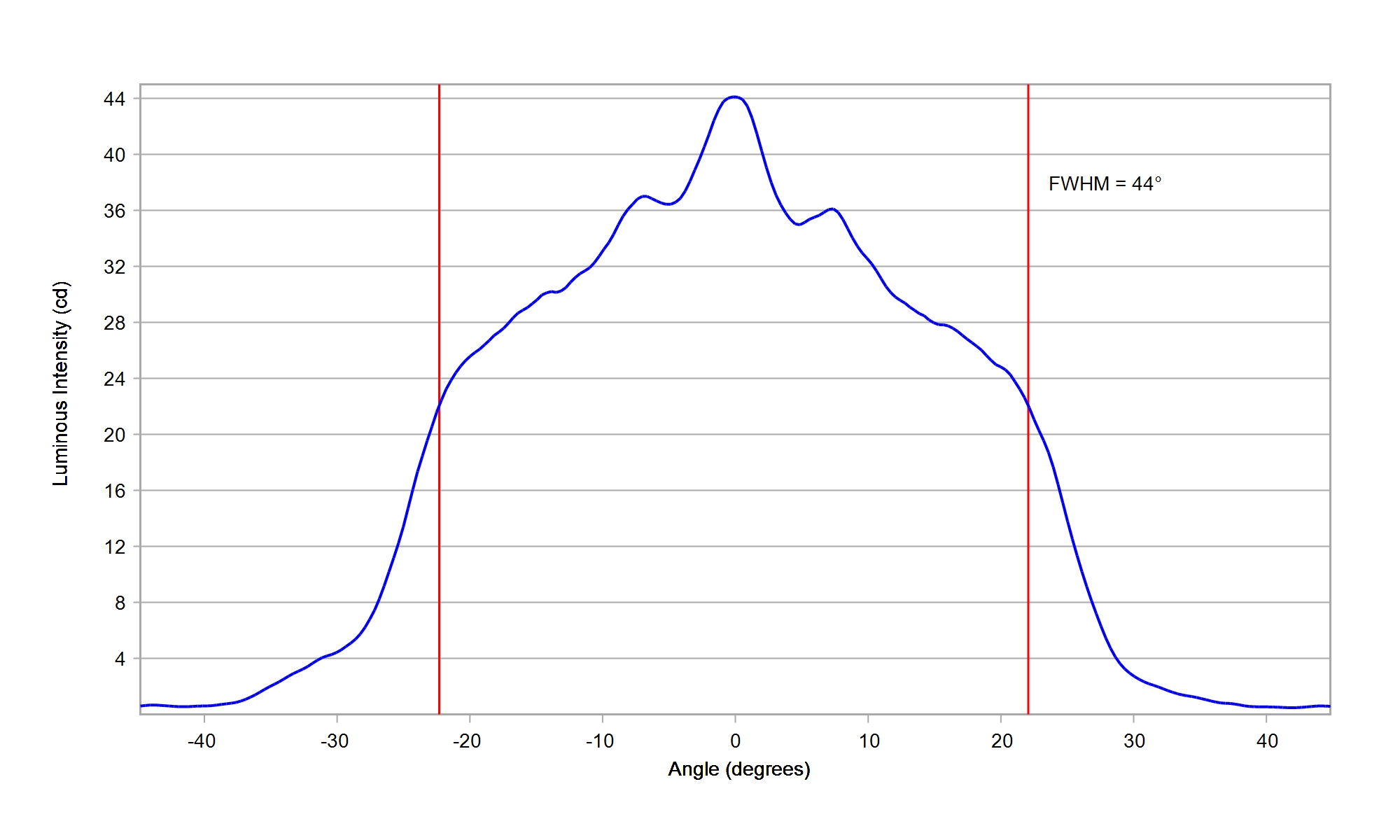

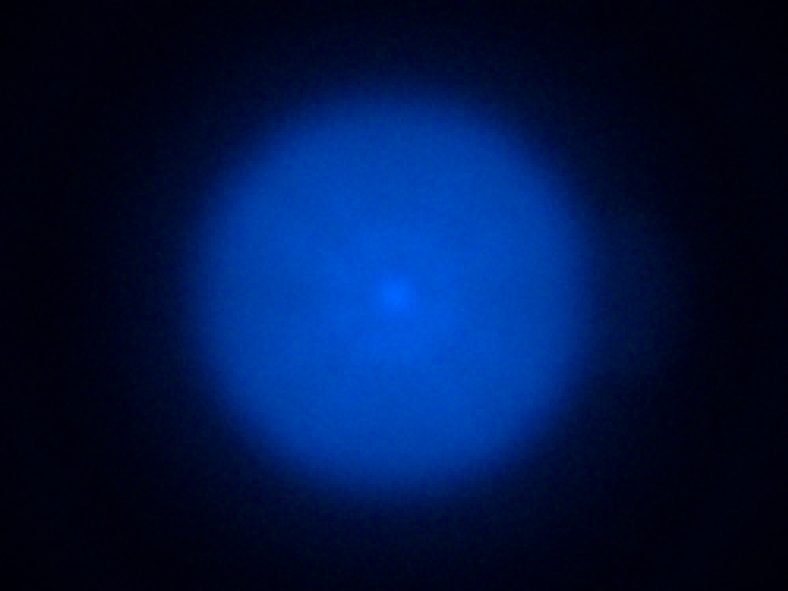

Cree XLamp XQ-A PC Blue

Eff:

87.0%

FWHM:

44°

Cd/Im:

2.2


Download

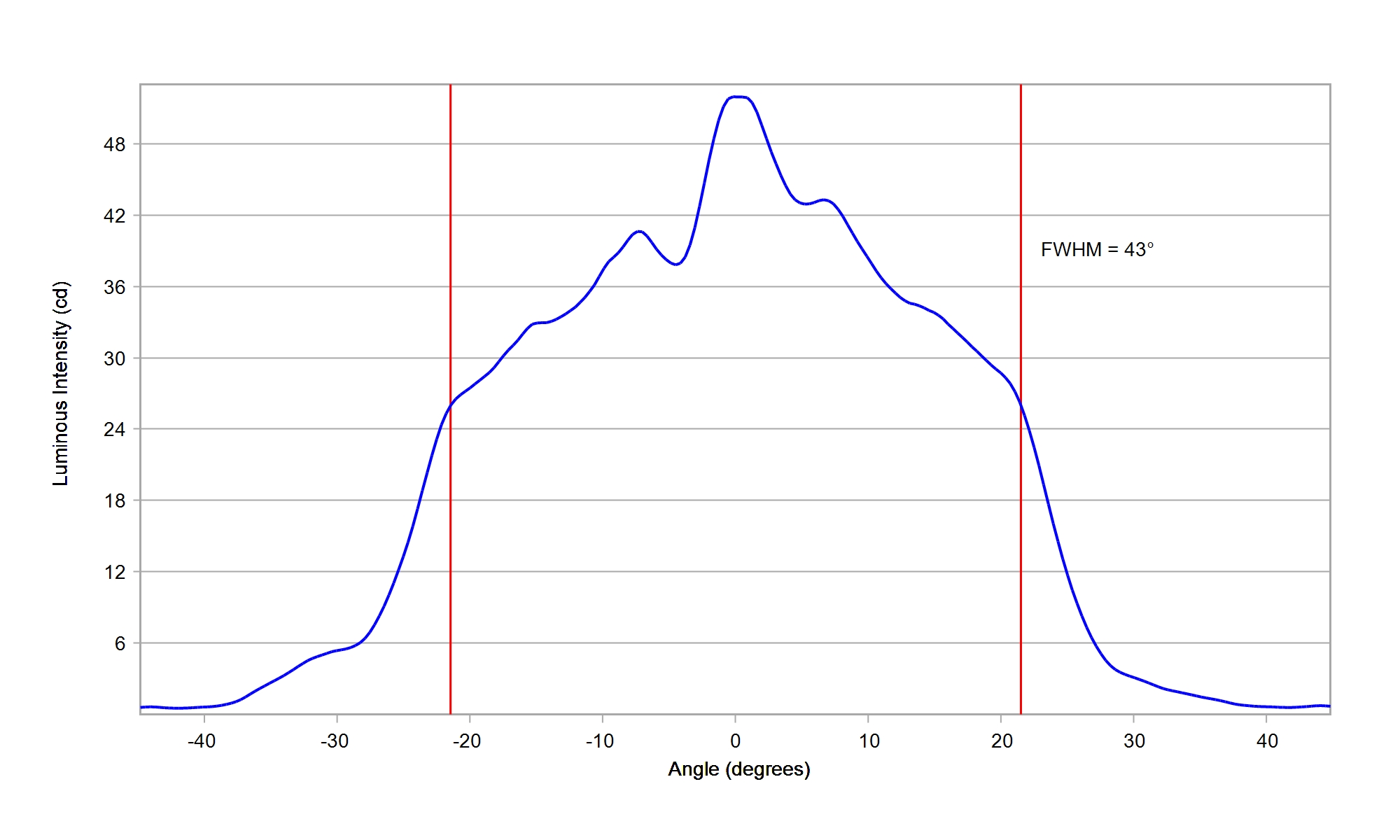

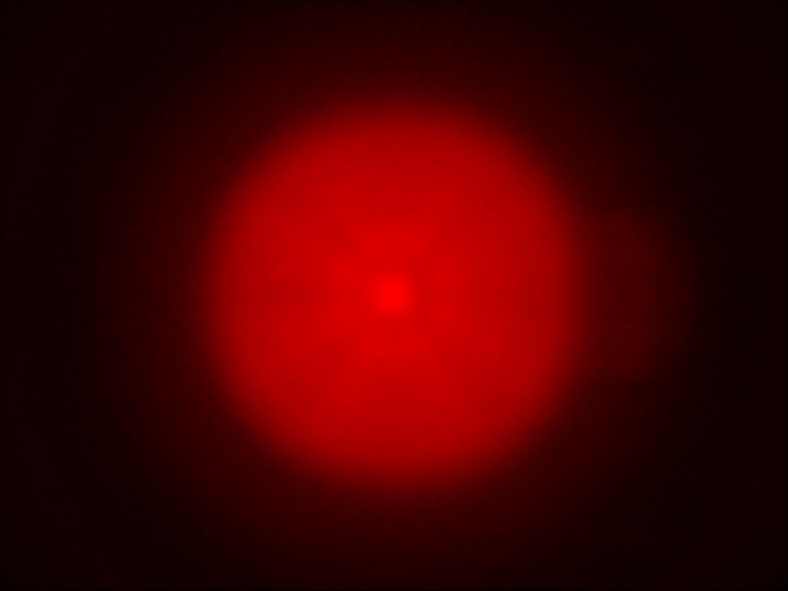

Cree XLamp XQ-A Red

Eff:

89.0%

FWHM:

43°

Cd/Im:

2.3

Download

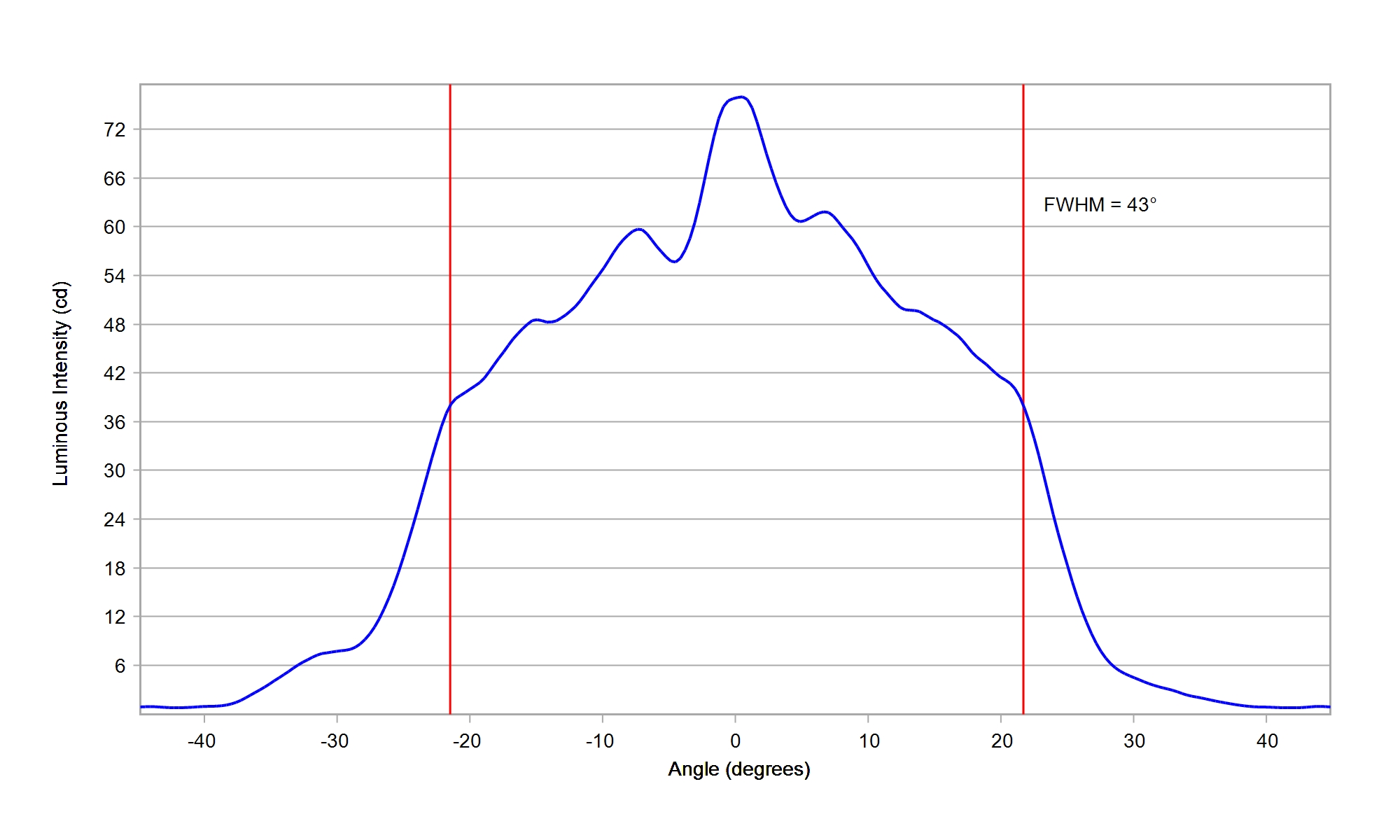

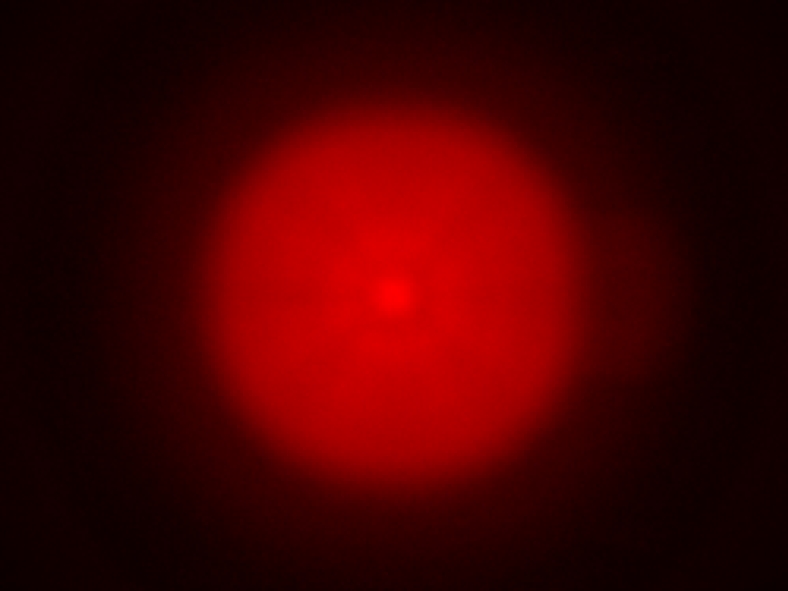

Cree XLamp XQ-A Red-Orange

Eff:

88.5%

FWHM:

43°

Cd/Im:

2.3


Download

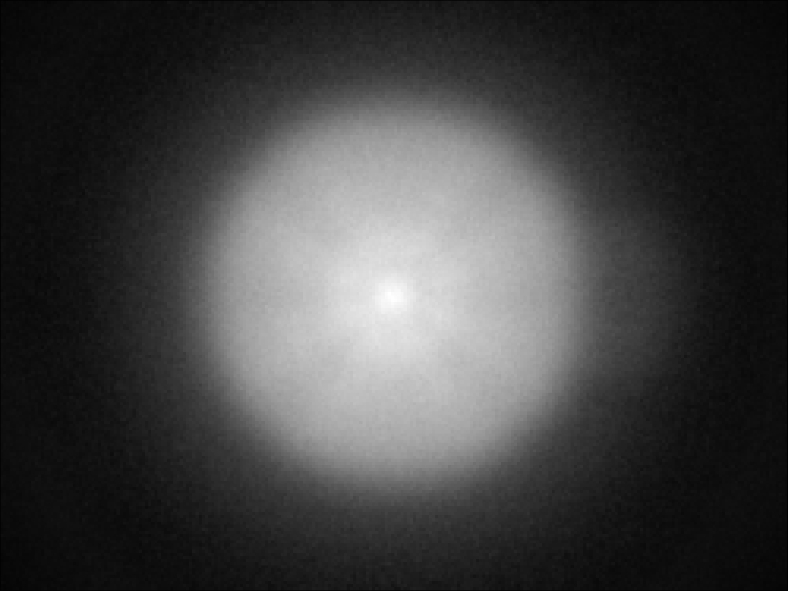

Cree XLamp XQ-A White

Eff:

87.0%

FWHM:

41°

Cd/Im:

2.2

Download

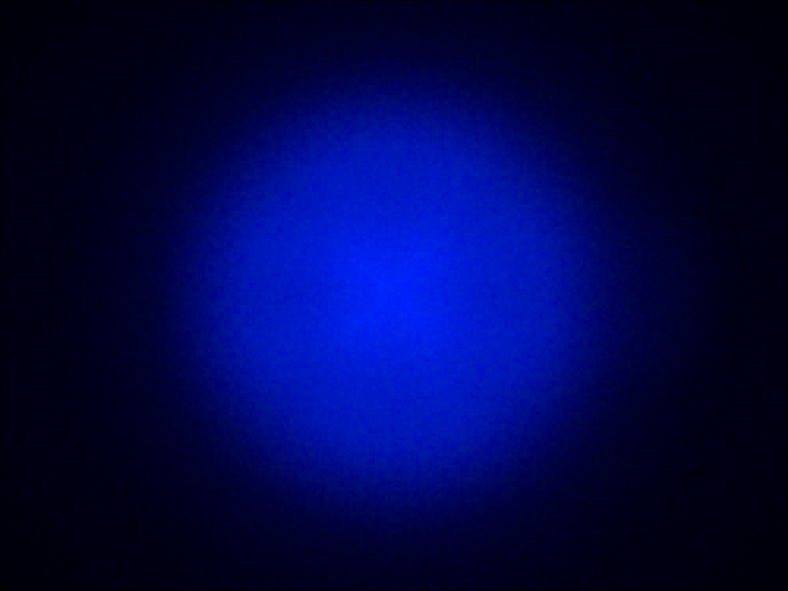

Cree XLamp XQ-E Plus HD Blue

Eff:

87.0%

FWHM:

44°

Cd/Im:

1.9


Download

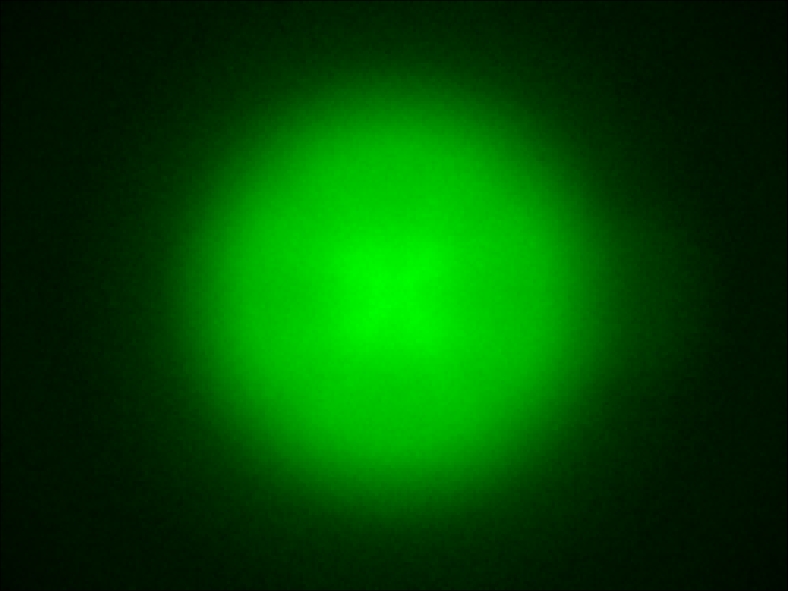

Cree XLamp XQ-E Plus HD Green

Eff:

87.0%

FWHM:

43°

Cd/Im:

1.9


Download

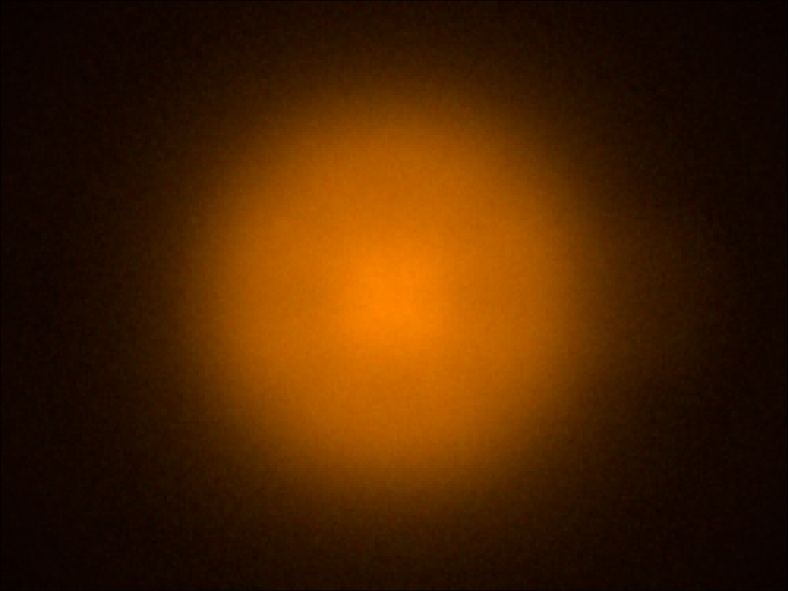

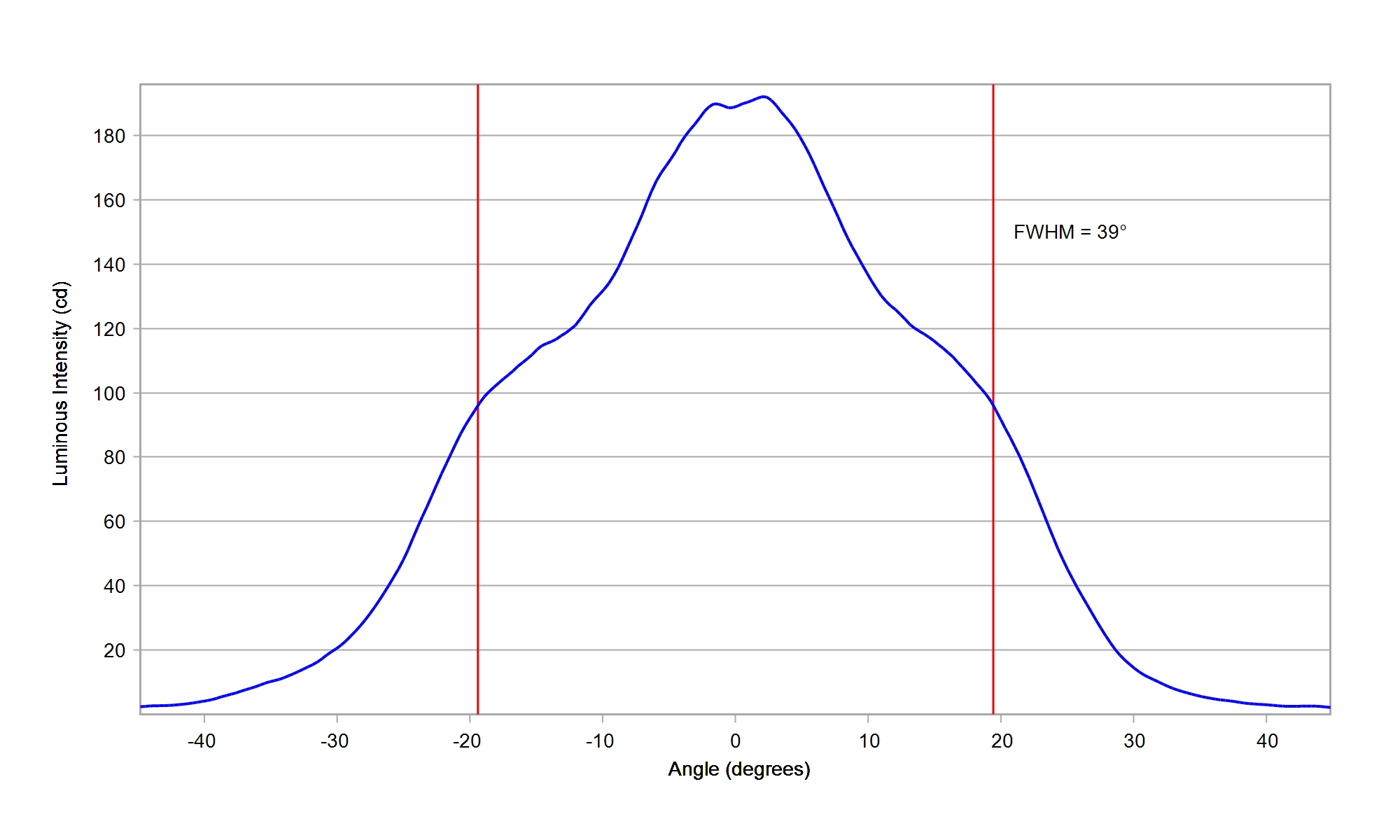

Cree XLamp XQ-E Plus HD PC Amber

Eff:

87.0%

FWHM:

39°

Cd/Im:

2.1



Download

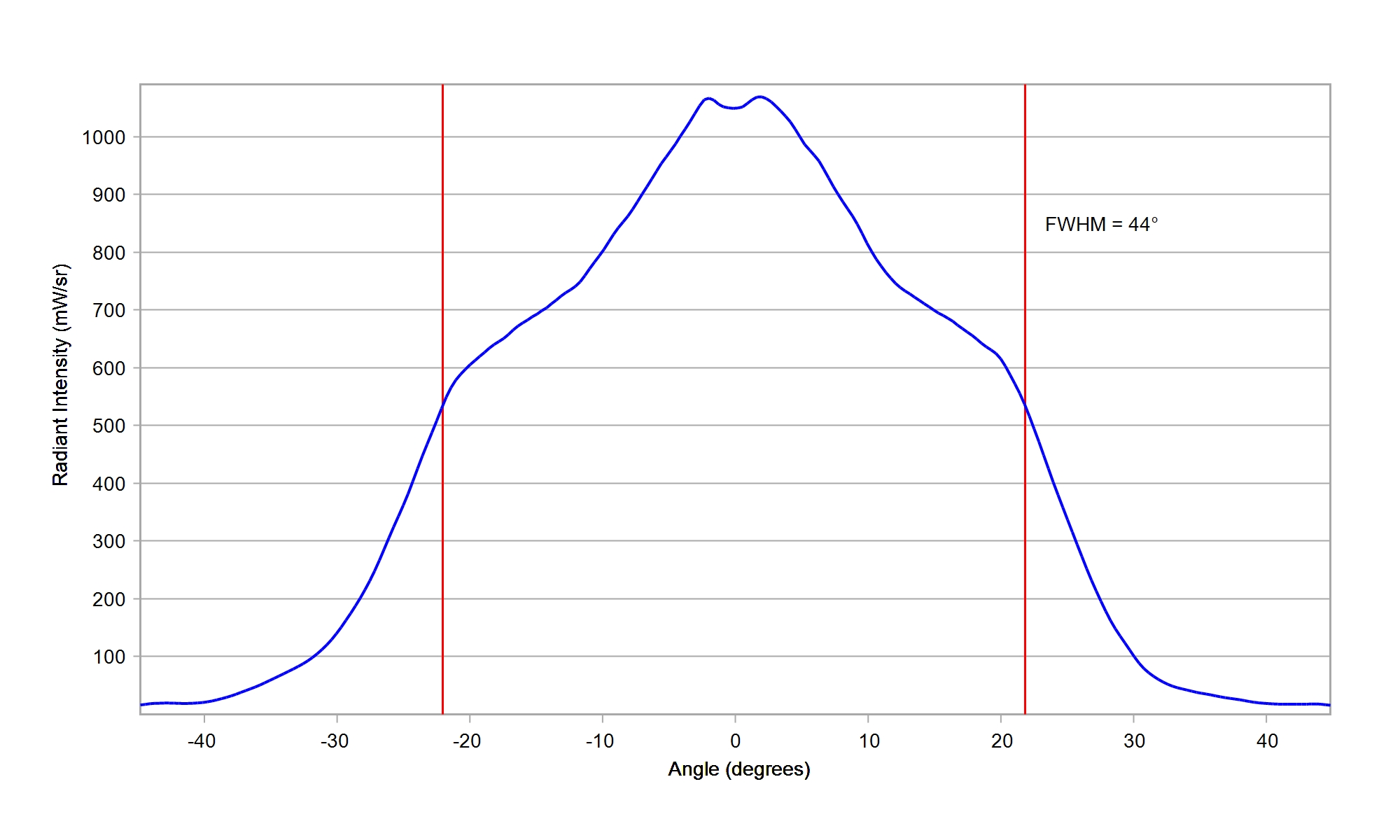

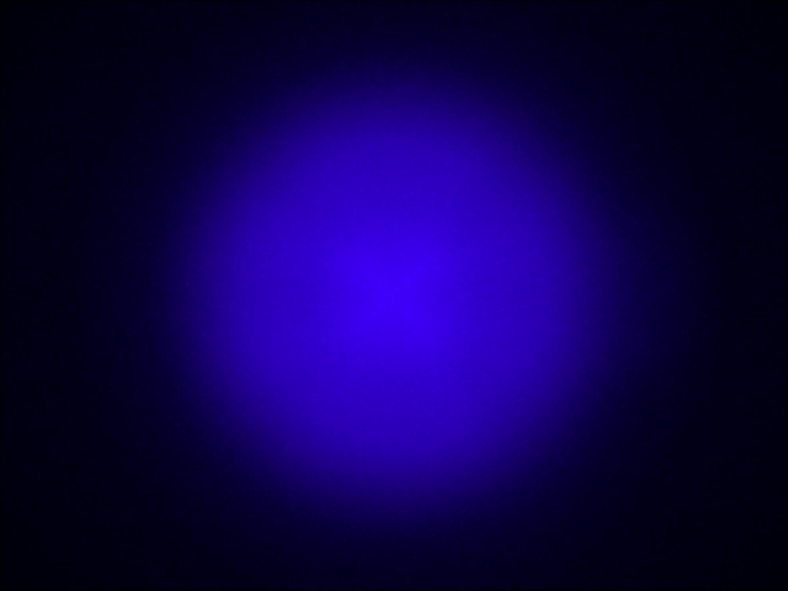

Cree XLamp XQ-E Plus HD Royal Blue

Eff:

86.0%

FWHM:

44°

Ipk/W:

1.8



Download

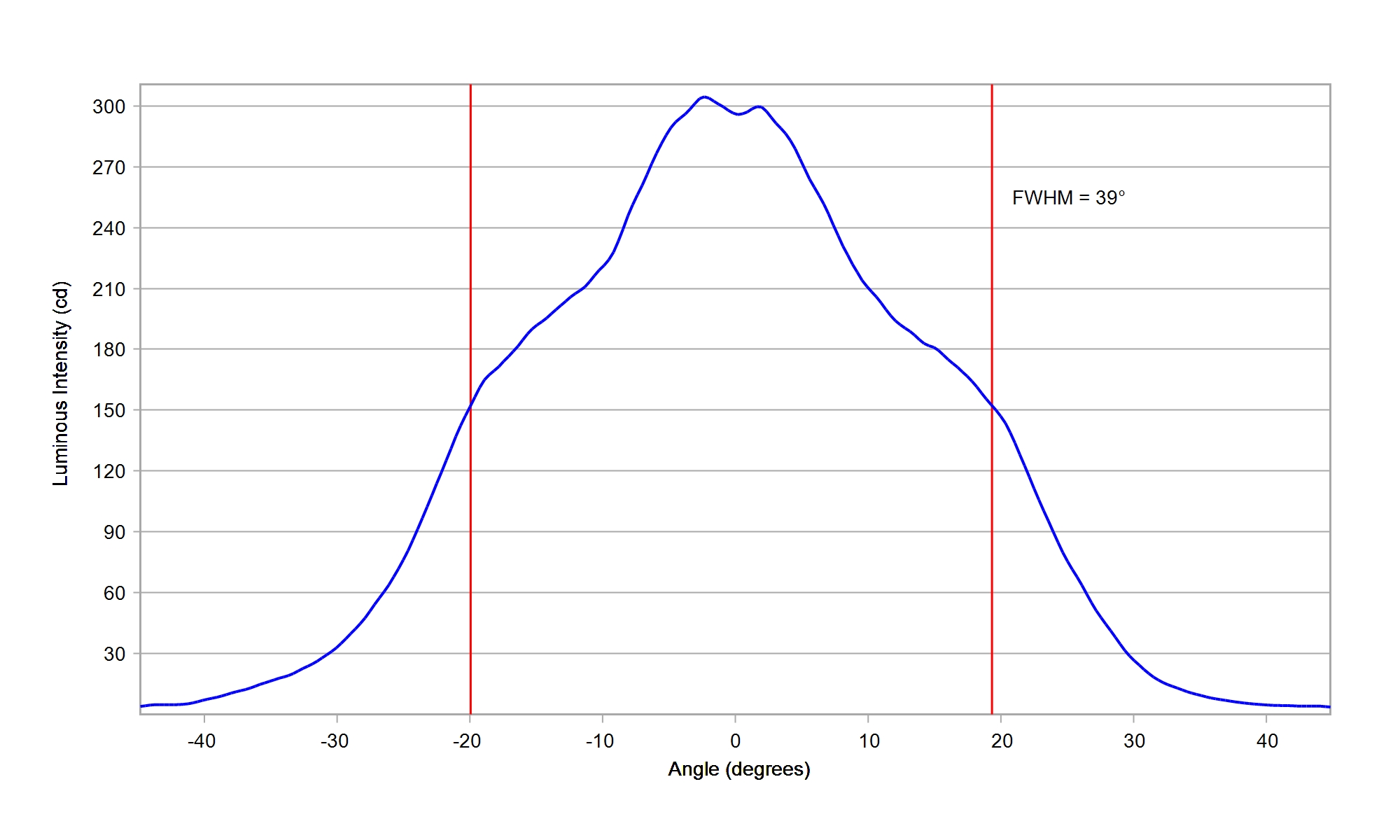

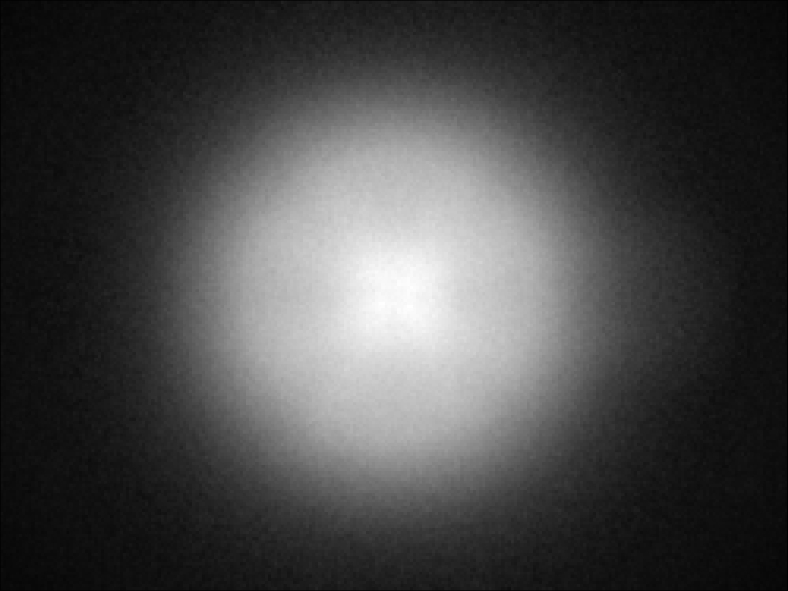

Cree XLamp XQ-E Plus HD White

Eff:

86.5%

FWHM:

39°

Cd/Im:

2.0


Download

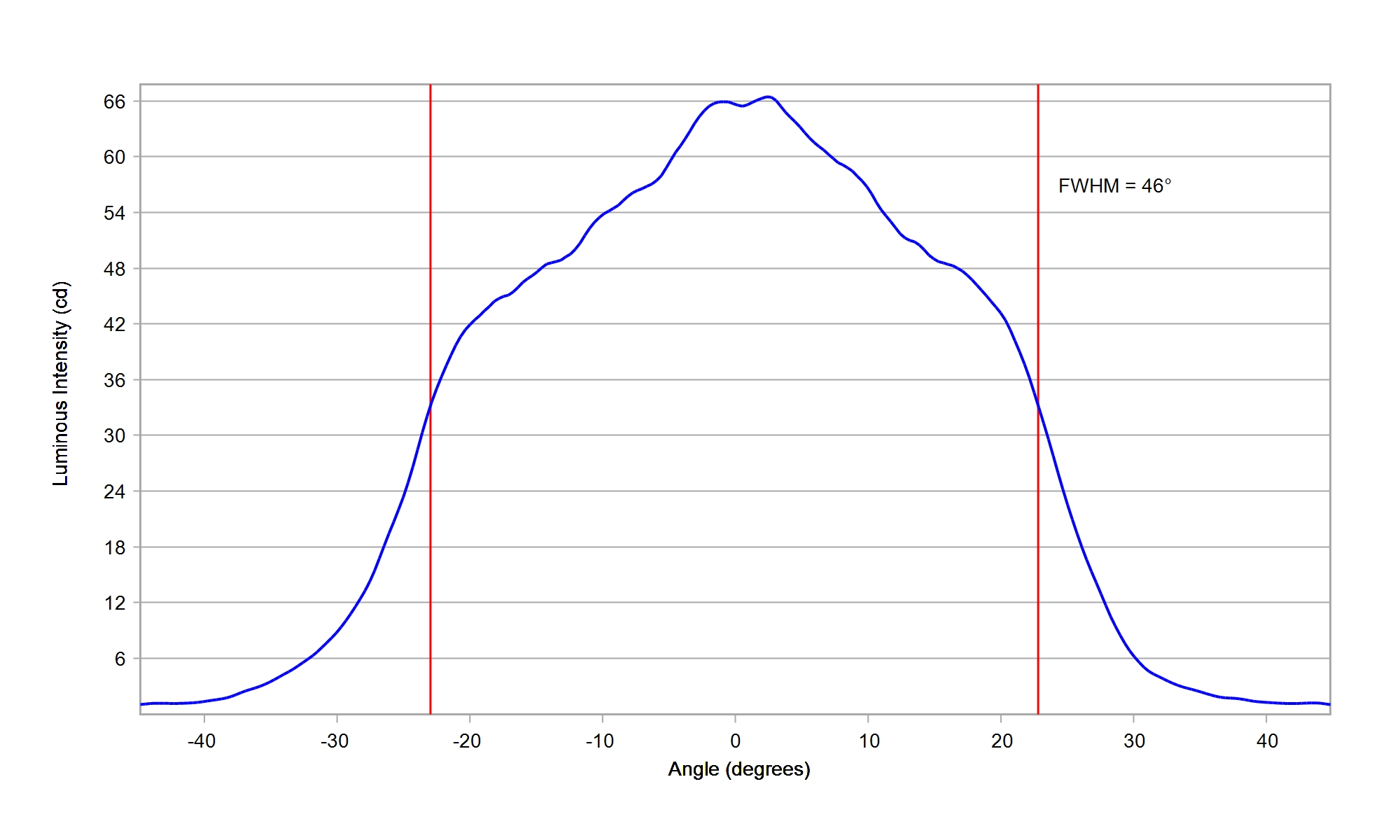

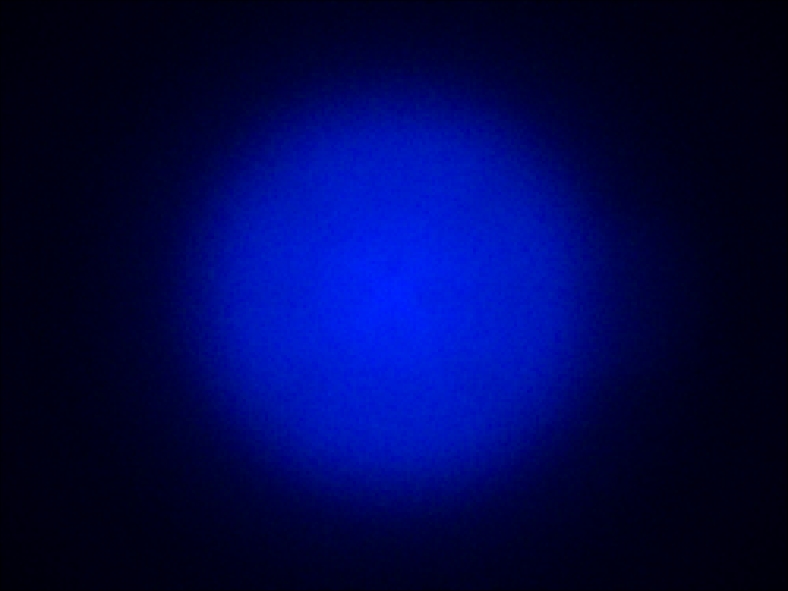

Cree XLamp XQ-E Plus HI Blue

Eff:

86.5%

FWHM:

46°

Cd/Im:

1.7


Download

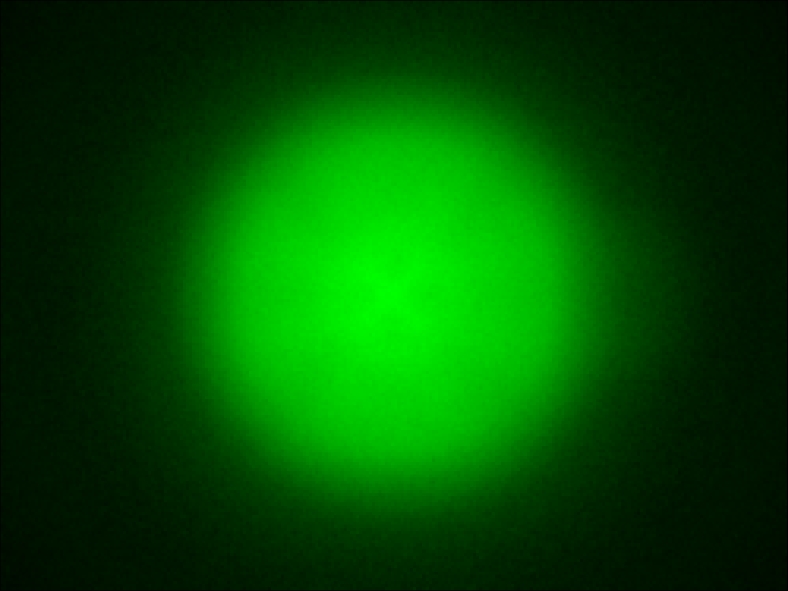

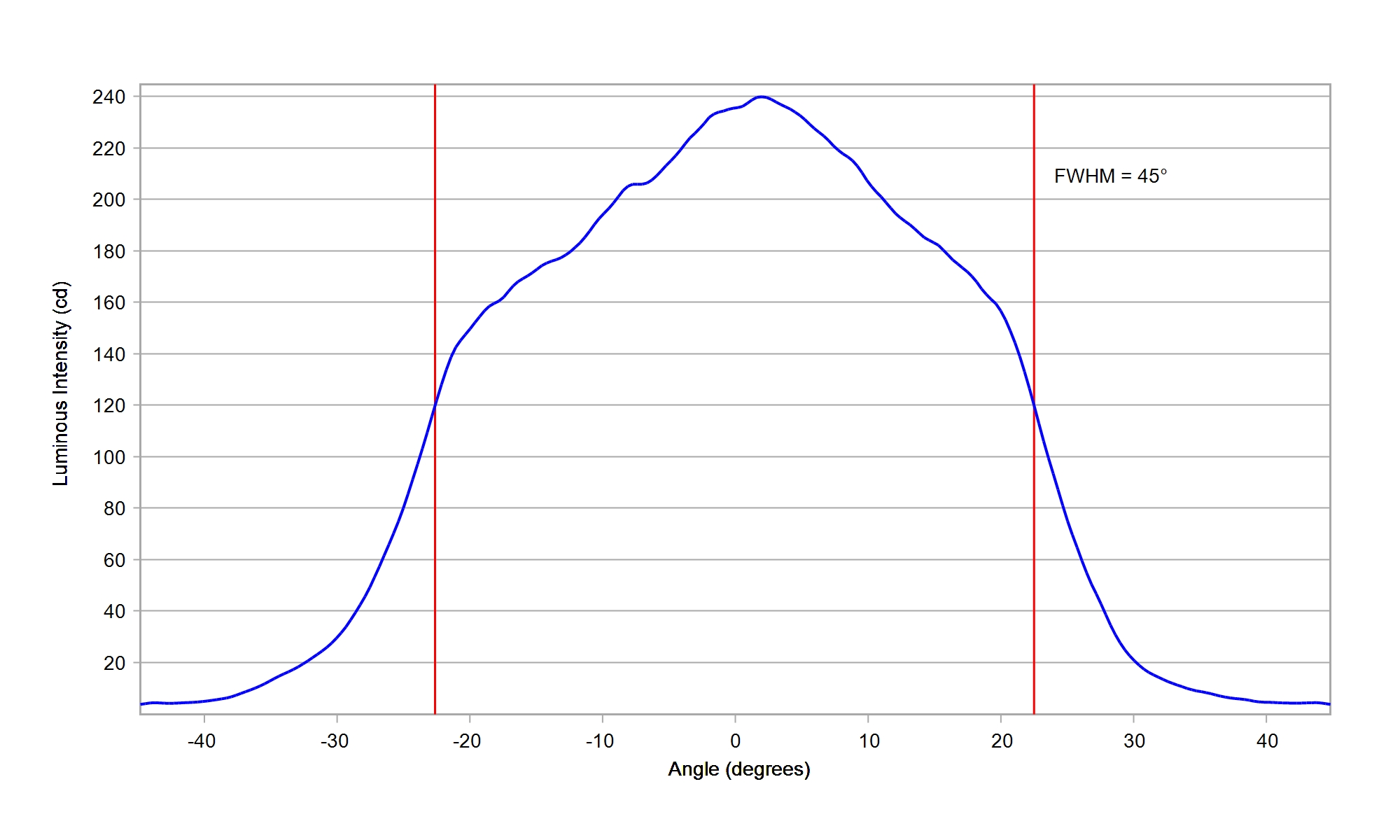

Cree XLamp XQ-E Plus HI Green

Eff:

86.5%

FWHM:

45°

Cd/Im:

1.7


Download

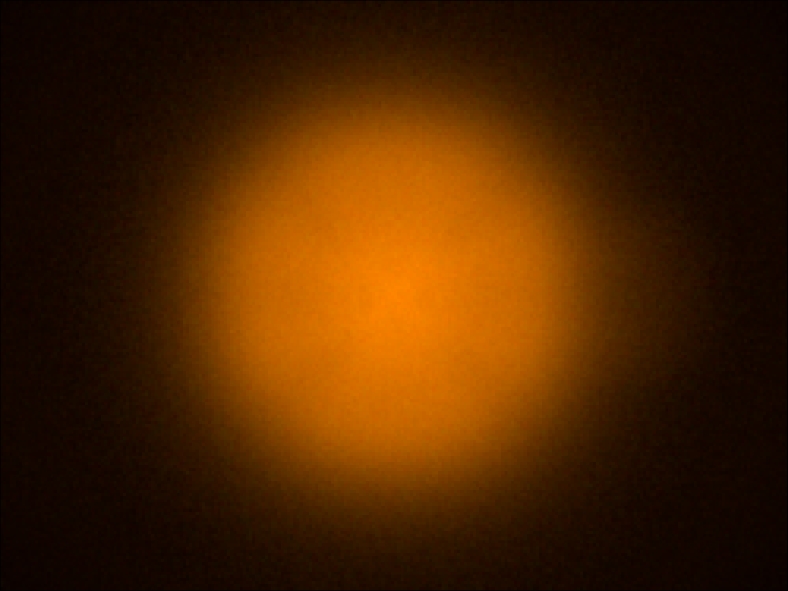

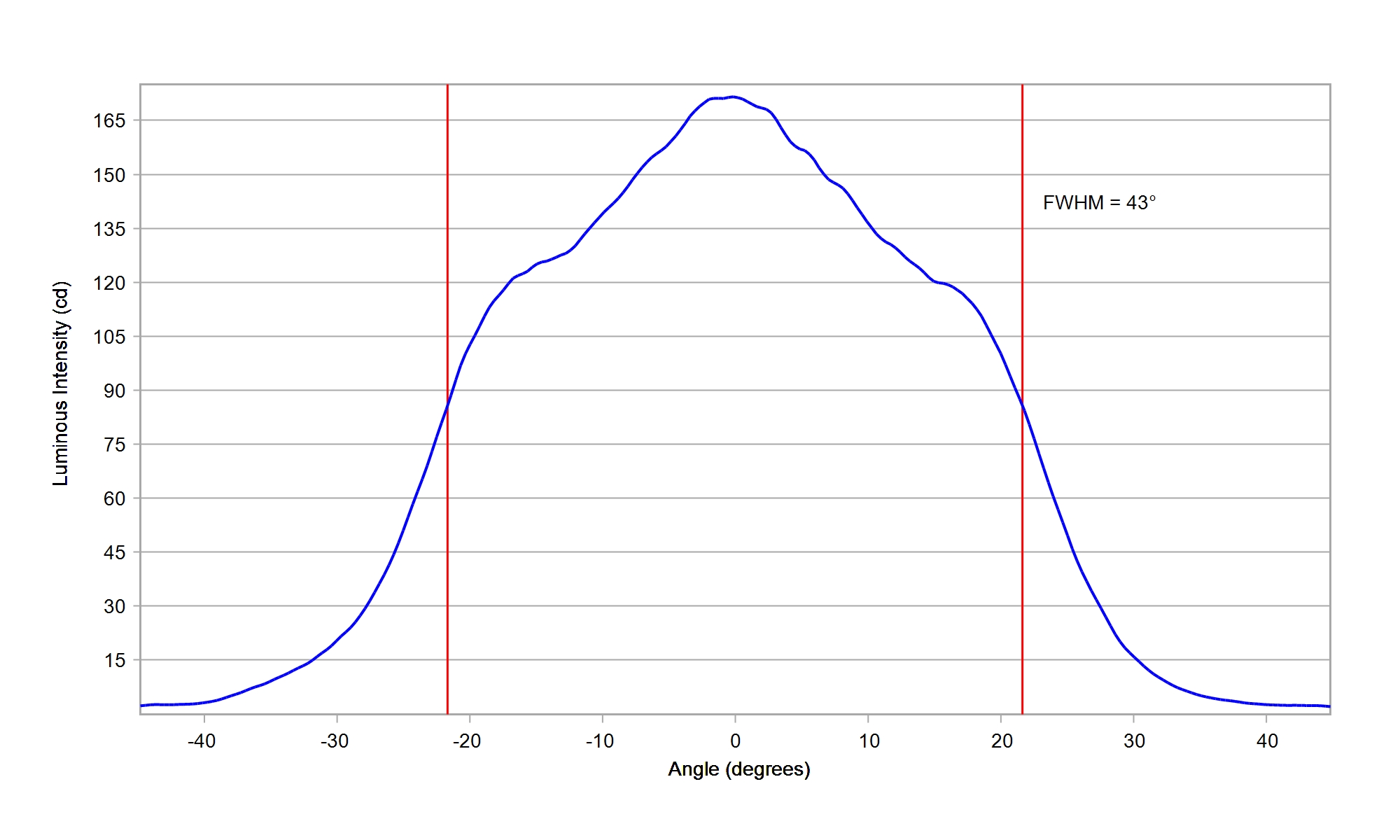

Cree XLamp XQ-E Plus HI PC Amber

Eff:

86.5%

FWHM:

43°

Cd/Im:

1.8



Download

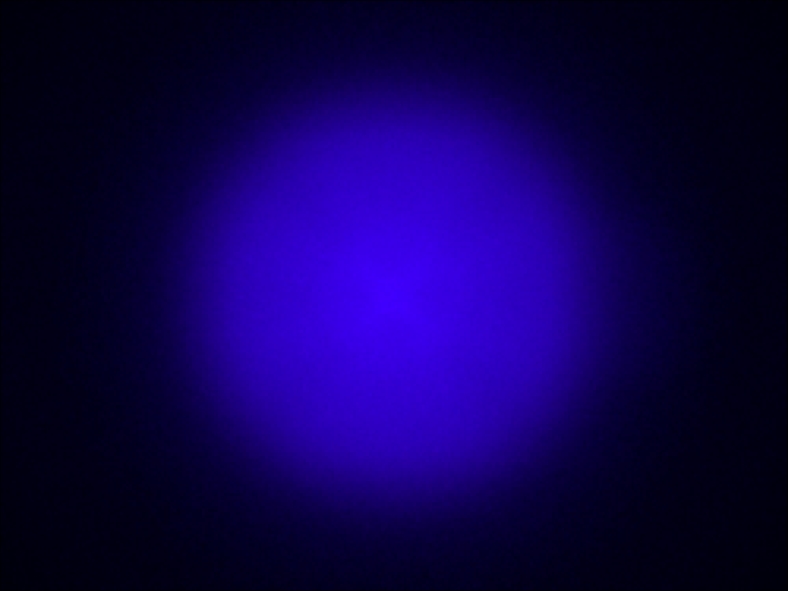

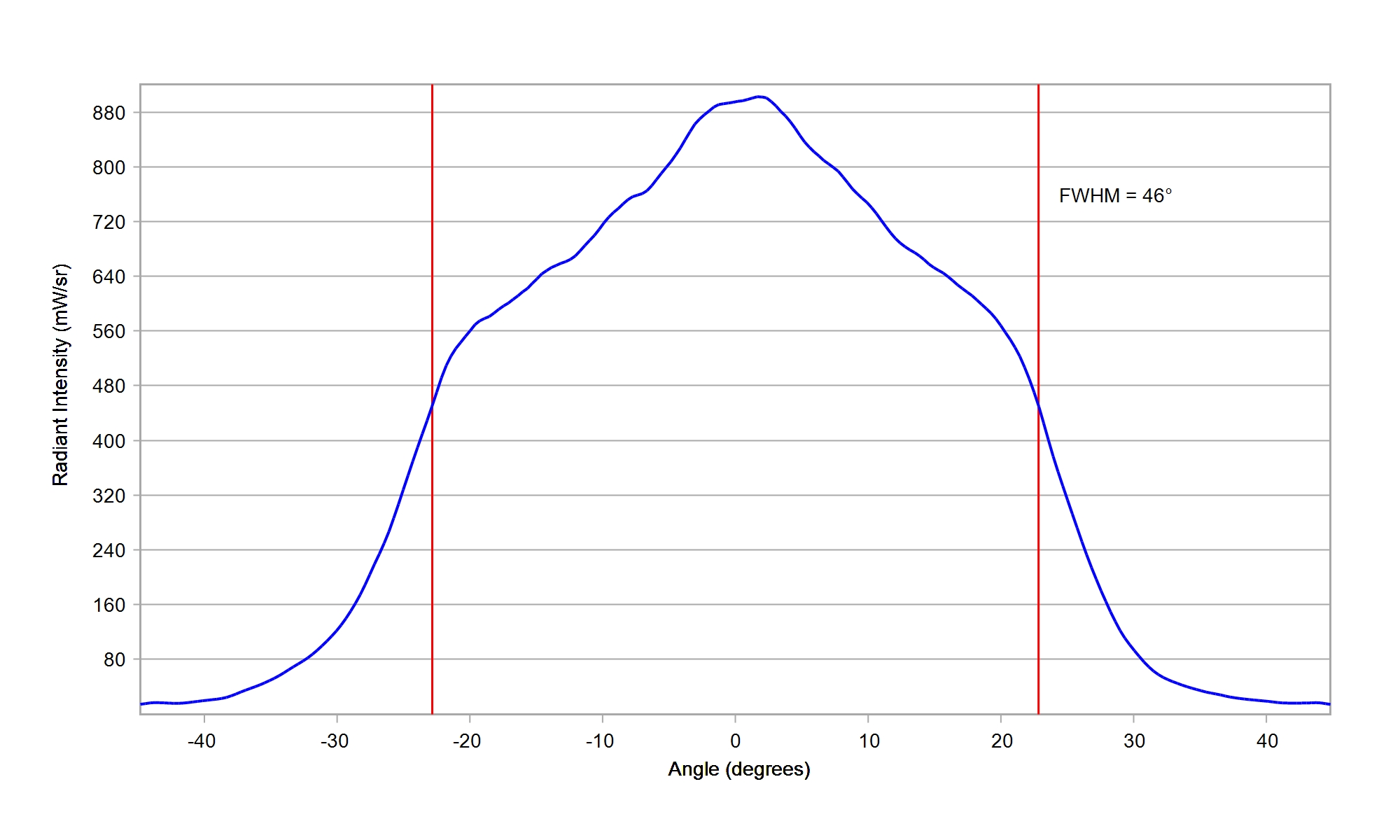

Cree XLamp XQ-E Plus HI Royal Blue

Eff:

85.5%

FWHM:

46°

Ipk/W:

1.7



Download

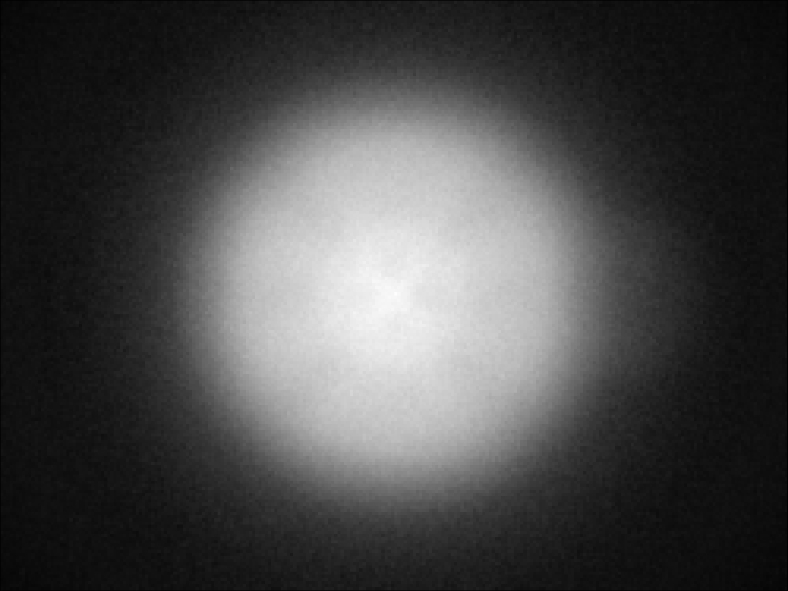

Cree XLamp XQ-E Plus HI White

Eff:

87.0%

FWHM:

45°

Cd/Im:

1.8


Download

Everlight Shuen White

Eff:

82.0%

FWHM:

41°

Cd/Im:

2.0

Download

ies

Osram LED ENGIN LuxiGen 5W LZ1-00CW05 White

Eff:

80.5%

FWHM:

40.6°

Cd/Im:

1.8

Download

ies

Lite-On R38386AS - S R38 IR

Eff:

90.5%

FWHM:

40°

Ipk/W:

2.2

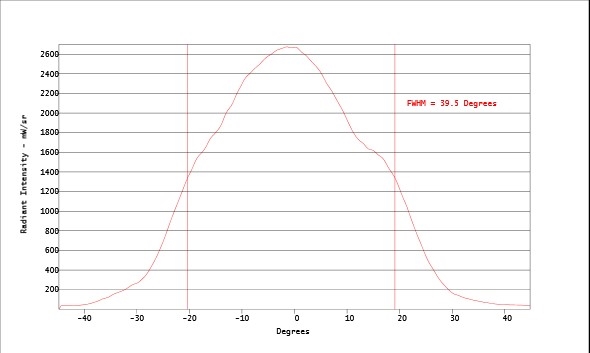

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

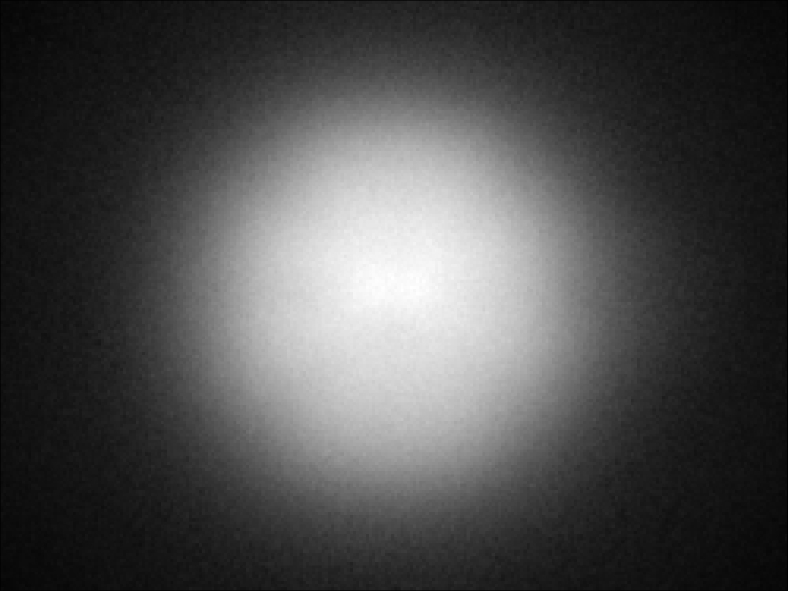

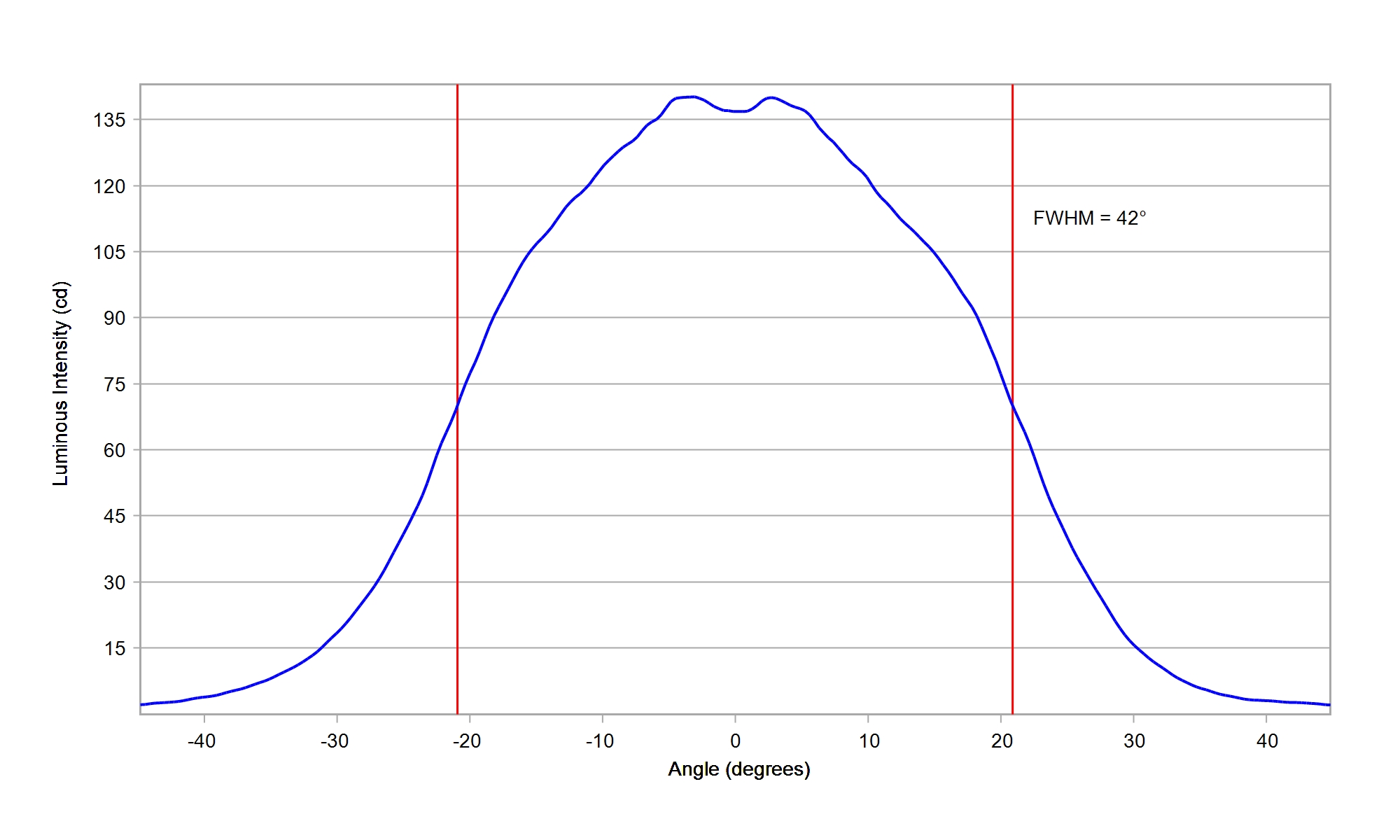

LUMILEDS LUXEON 2835C 6V White

Eff:

87.5%

FWHM:

42°

Cd/Im:

1.8

Download

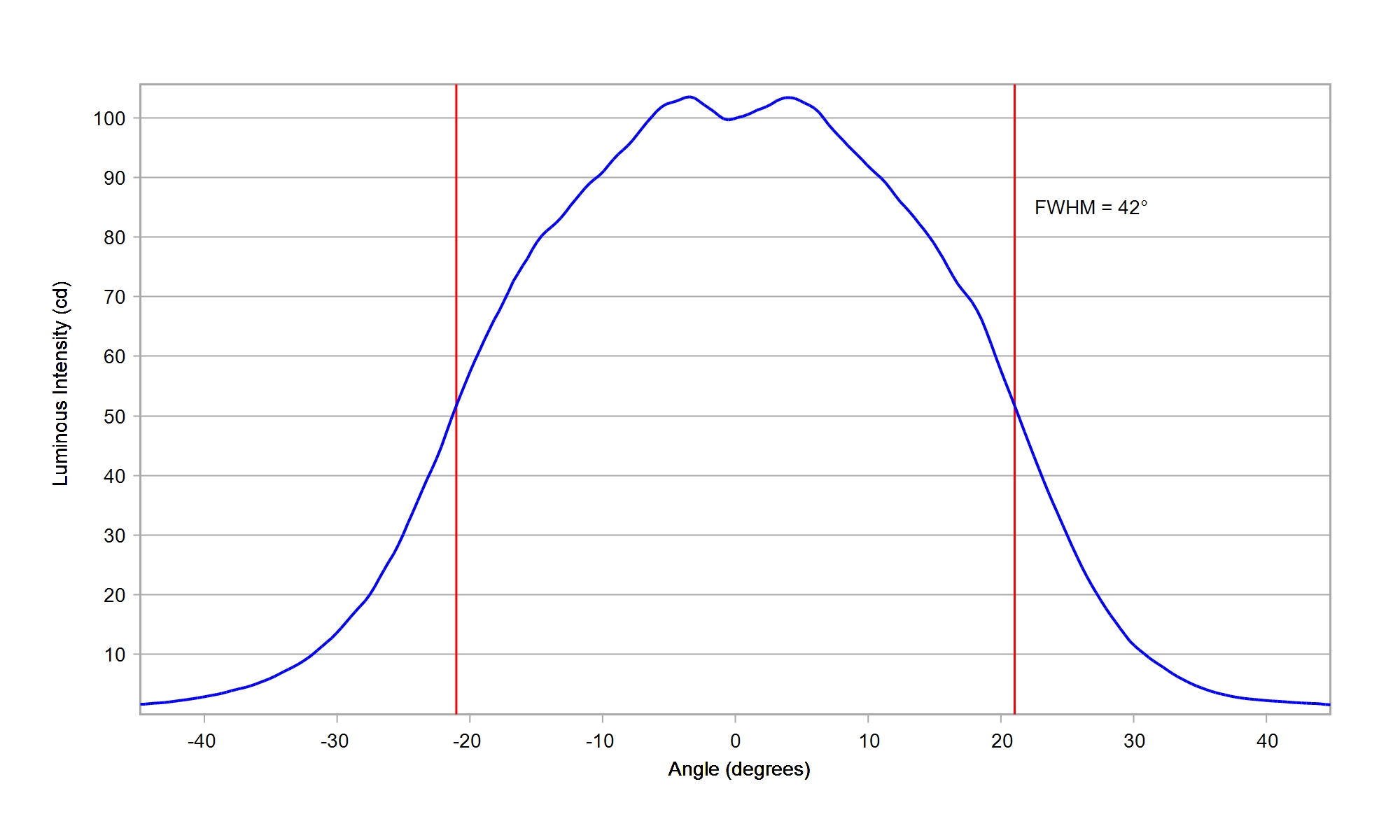

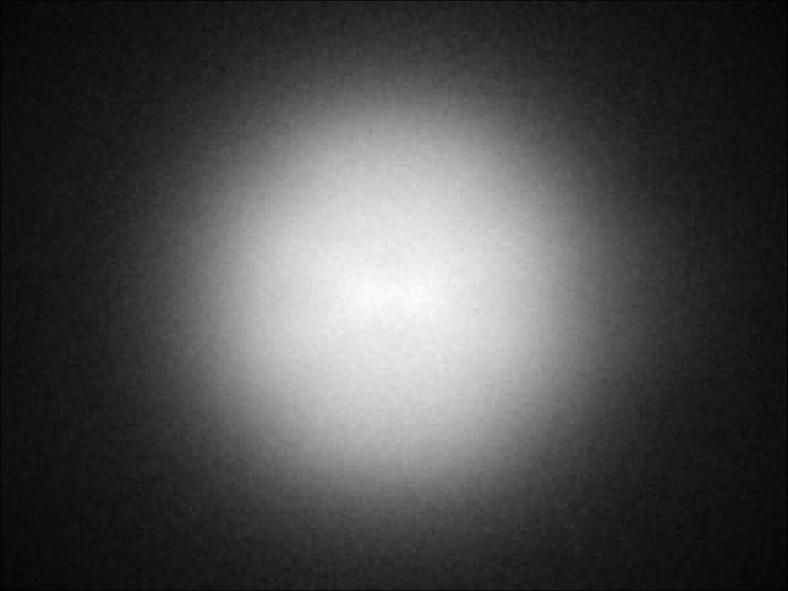

LUMILEDS LUXEON 2835E 9V White

Eff:

87.5%

FWHM:

42°

Cd/Im:

1.8

Download

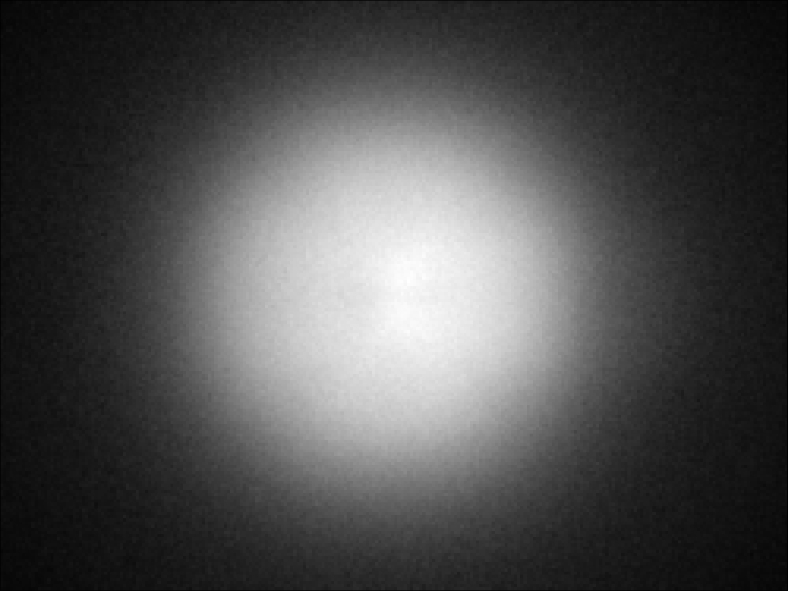

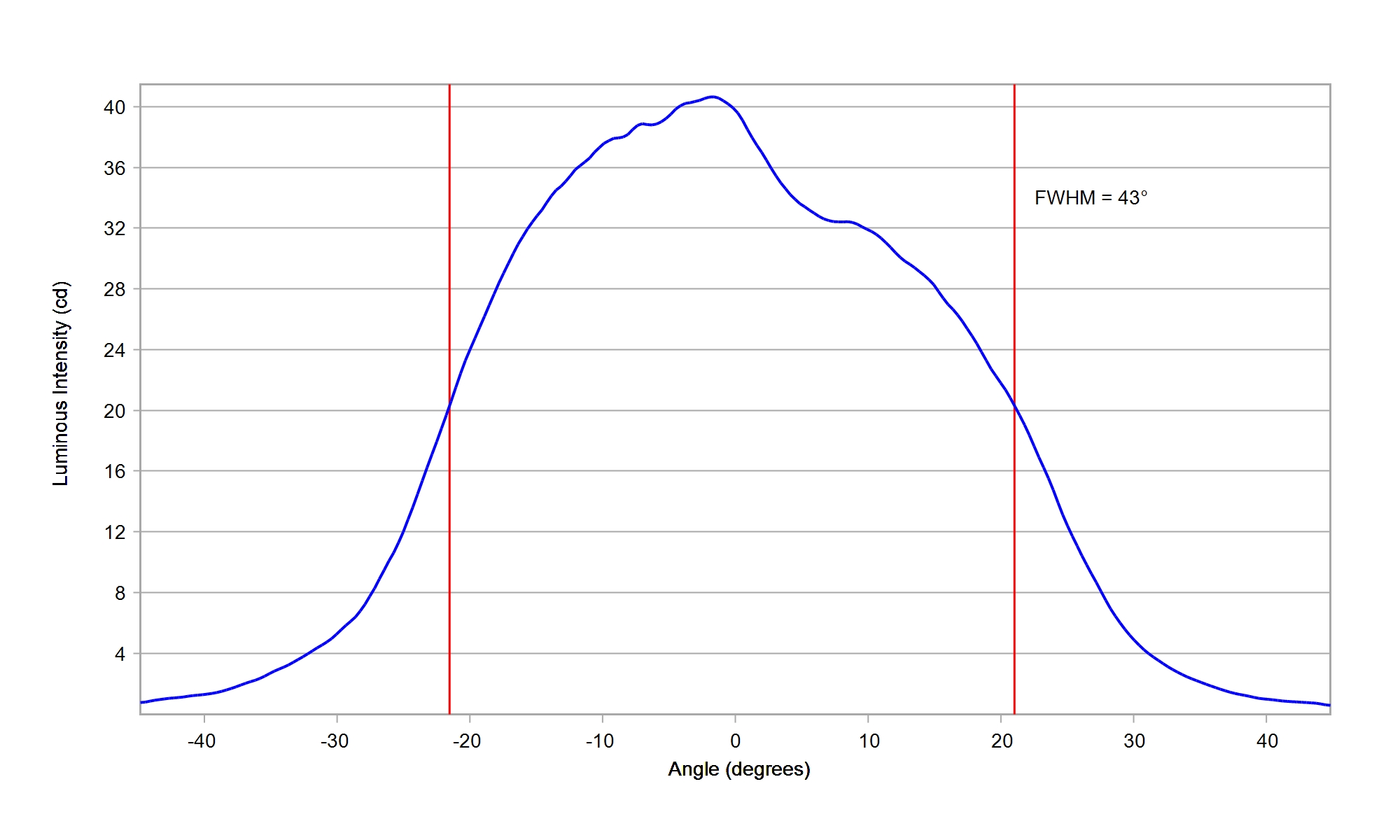

LUMILEDS LUXEON 2835N 3V White

Eff:

87.0%

FWHM:

43°

Cd/Im:

1.8

Download

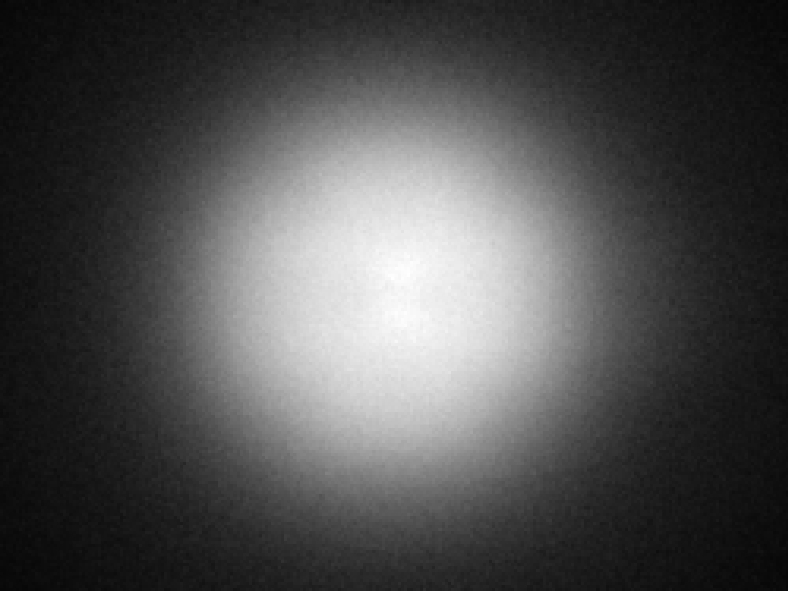

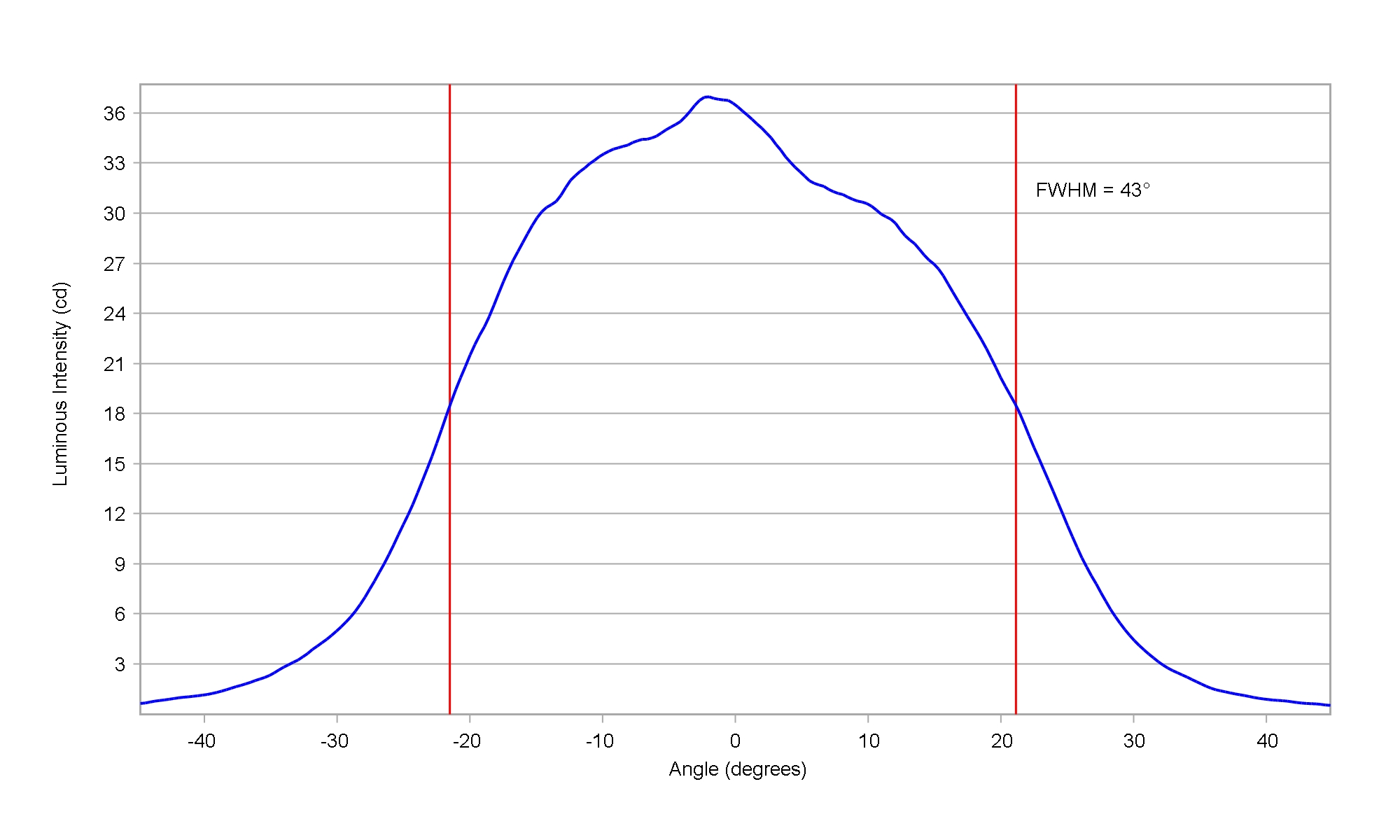

LUMILEDS LUXEON 2835S 3V White

Eff:

87.5%

FWHM:

43°

Cd/Im:

1.8

Download

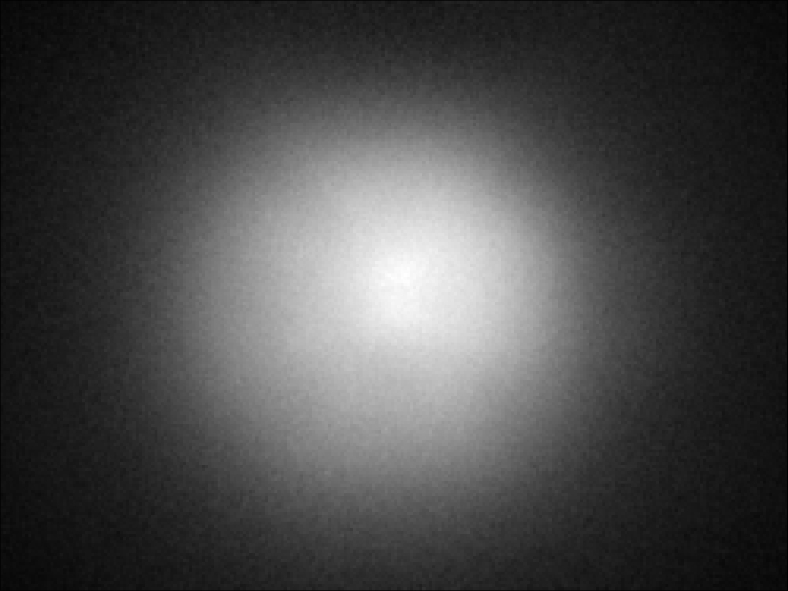

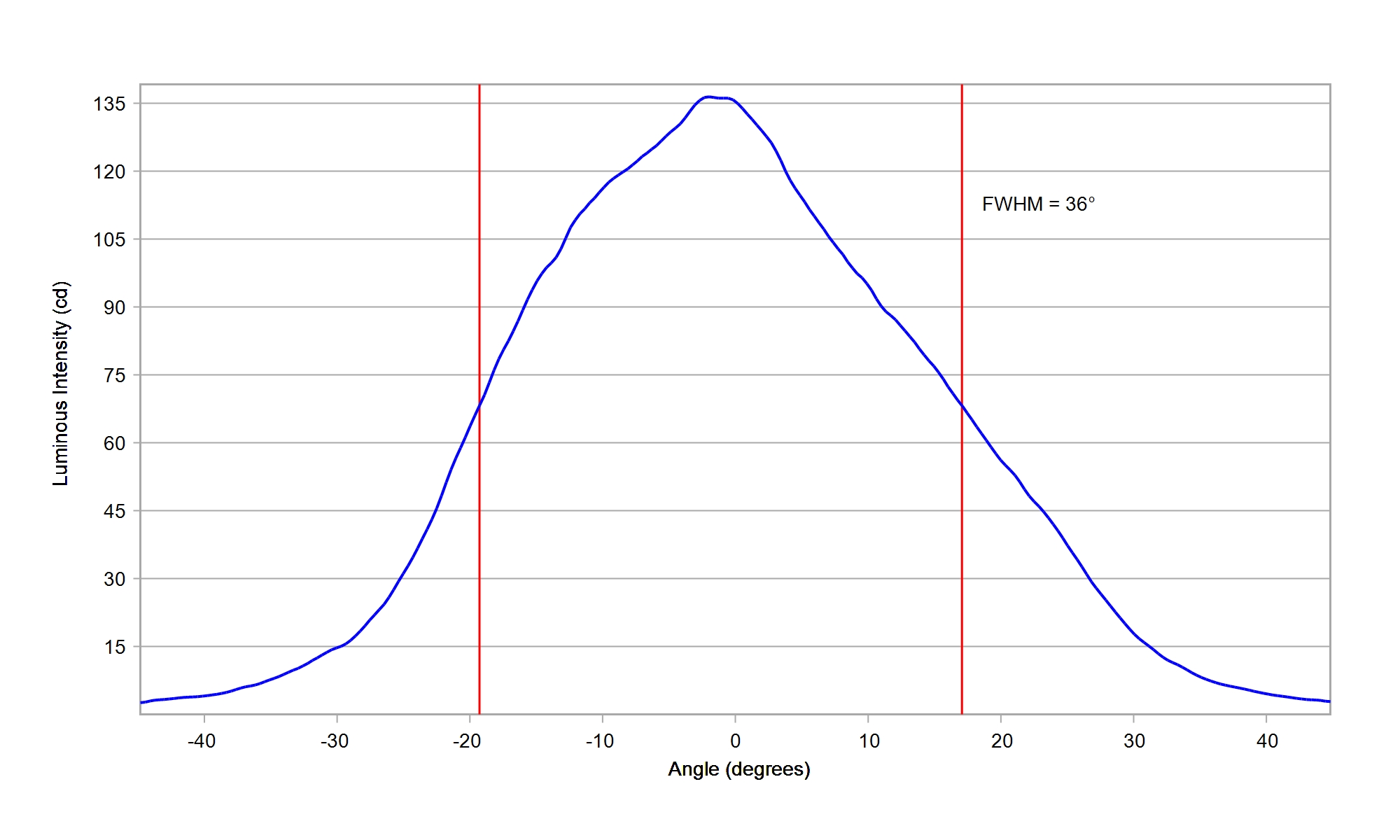

LUMILEDS LUXEON 2835S 6V White

Eff:

60.0%

FWHM:

36°

Cd/Im:

1.4

Download

LUMILEDS LUXEON 3014 White

Eff:

88.0%

FWHM:

41°

Cd/Im:

2.2

Download

IES

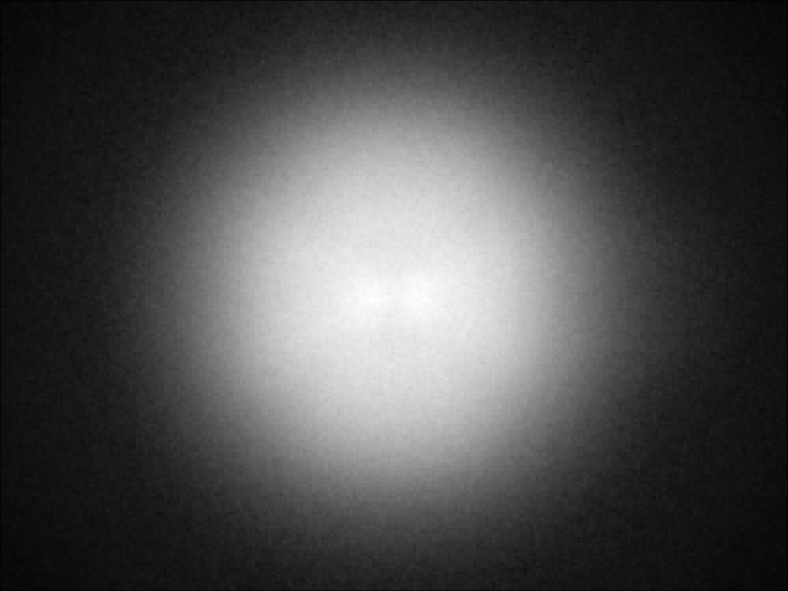

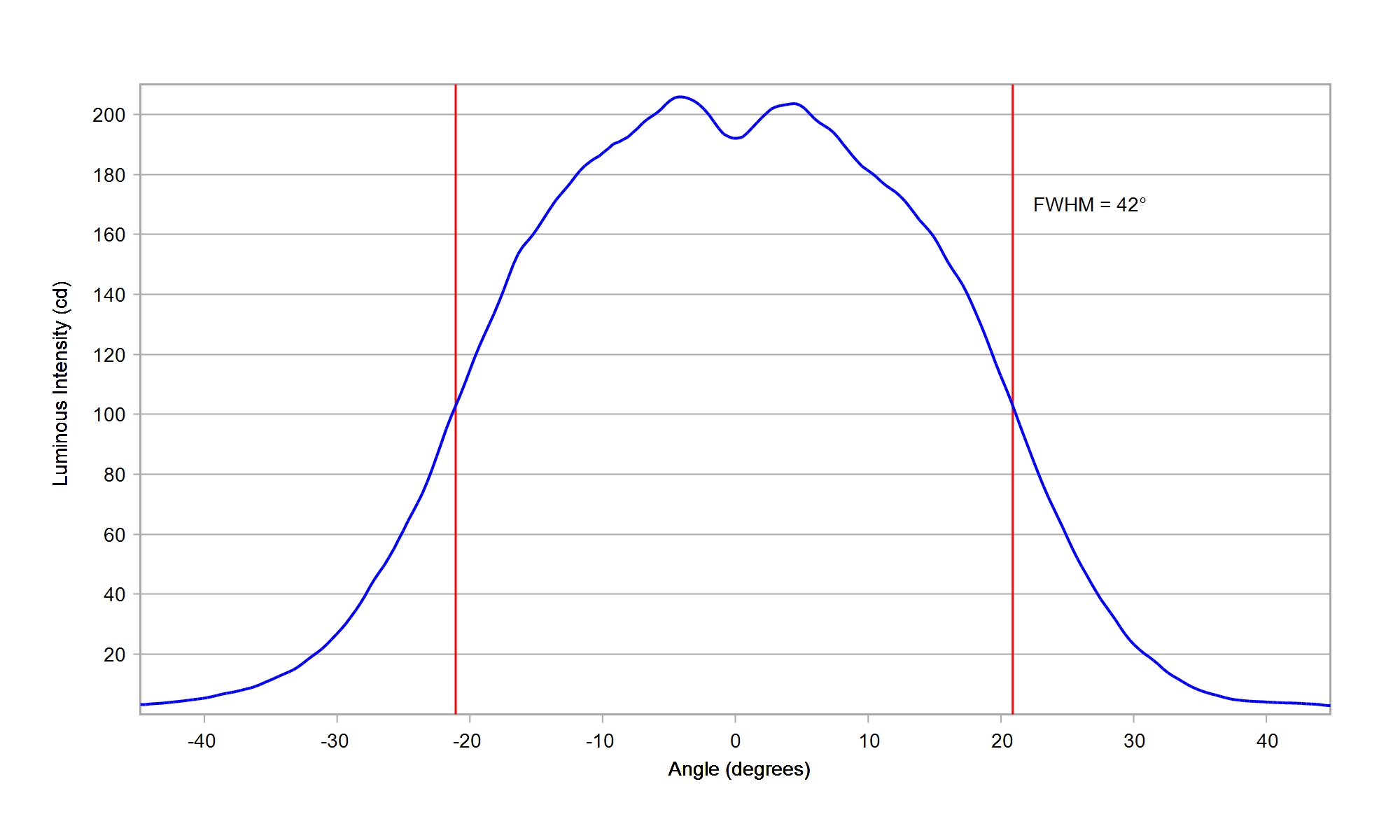

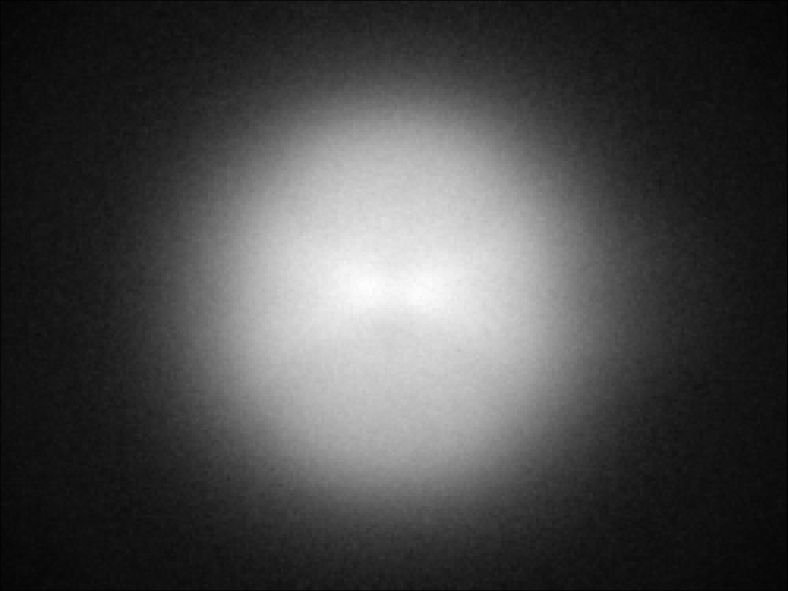

LUMILEDS LUXEON 3030 2D Plus Round White

Eff:

87.5%

FWHM:

42°

Cd/Im:

1.8


Download

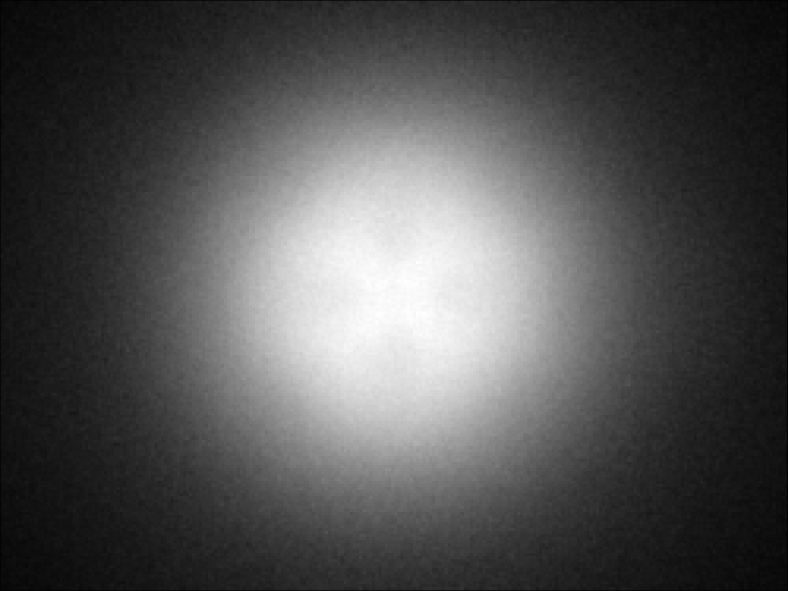

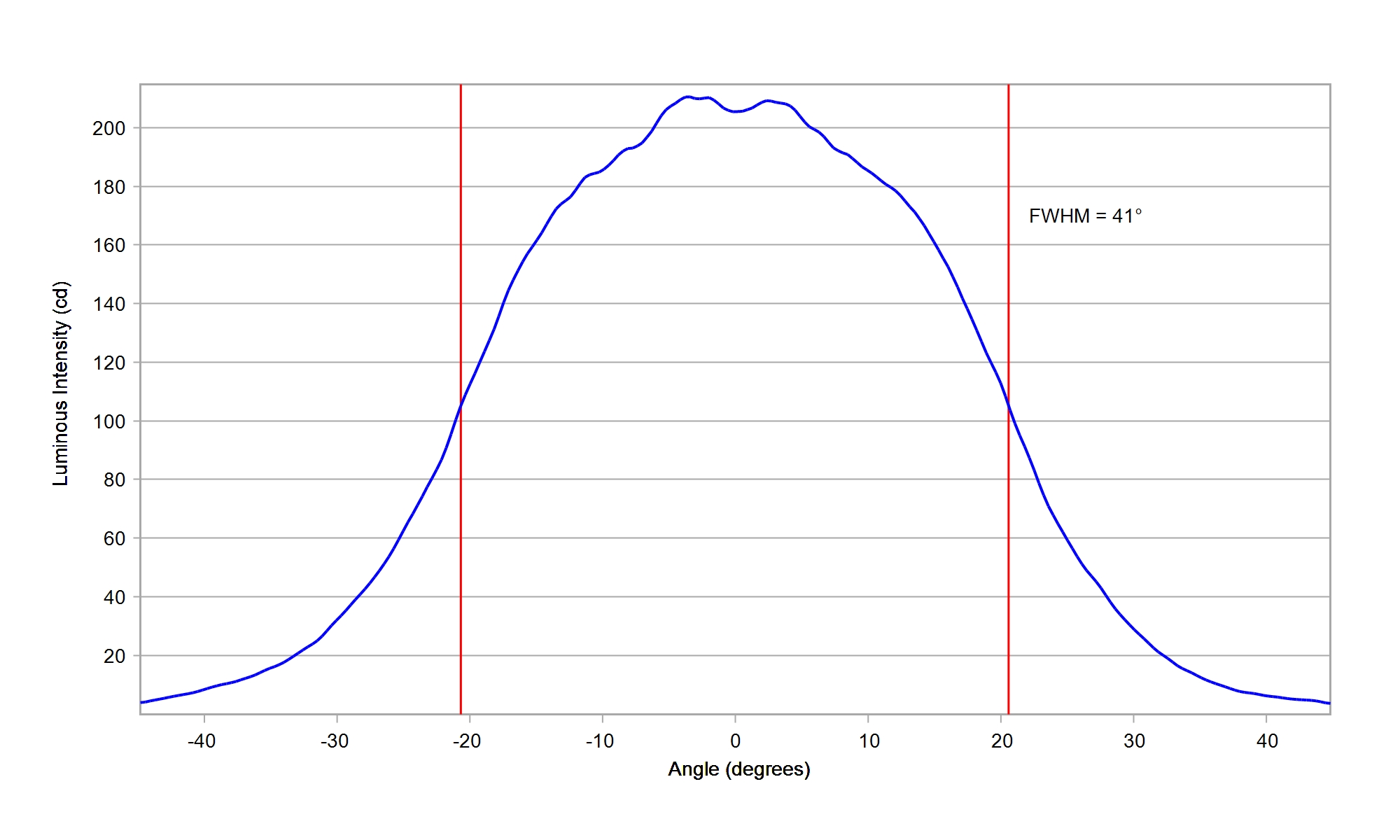

LUMILEDS LUXEON 3030 2D Plus Square White

Eff:

87.0%

FWHM:

41°

Cd/Im:

1.7


Download

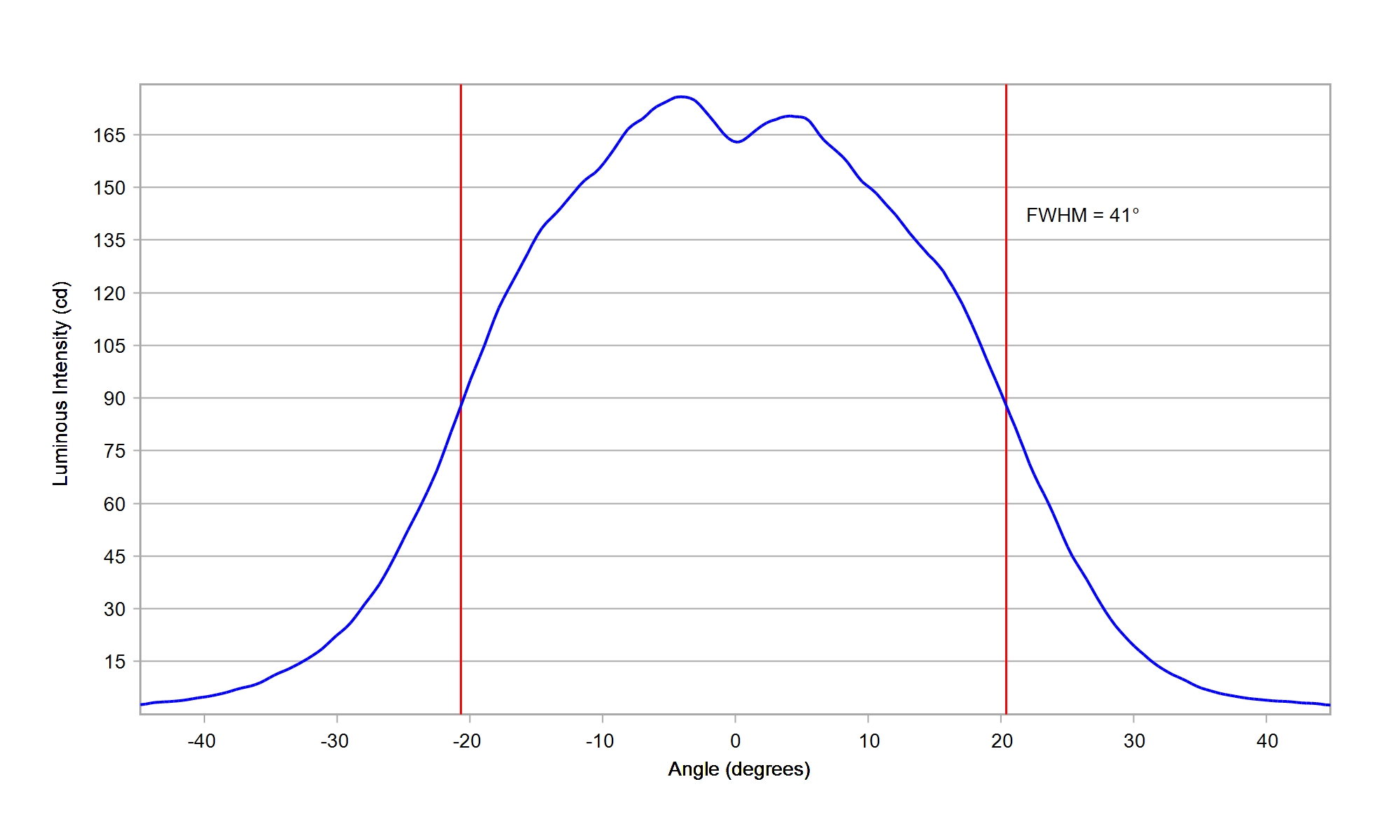

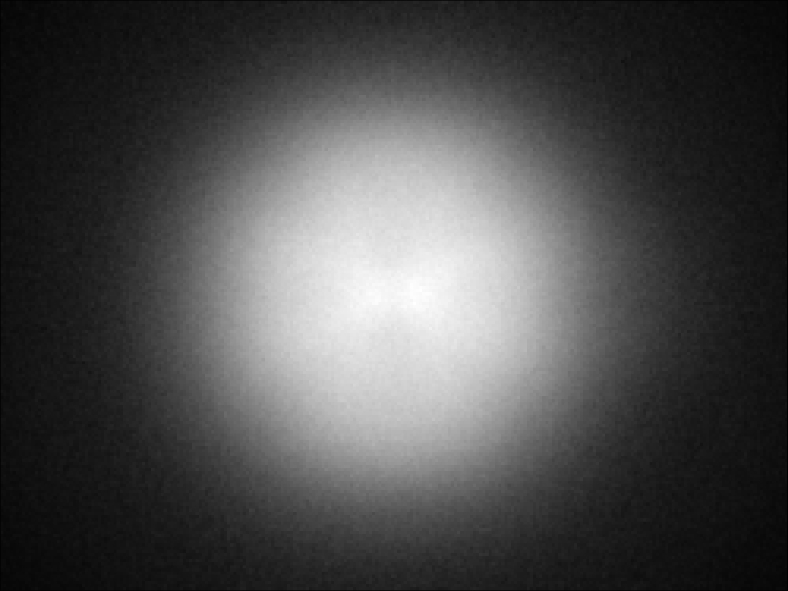

LUMILEDS LUXEON 3030 2D Square White

Eff:

87.5%

FWHM:

41°

Cd/Im:

1.8


Download

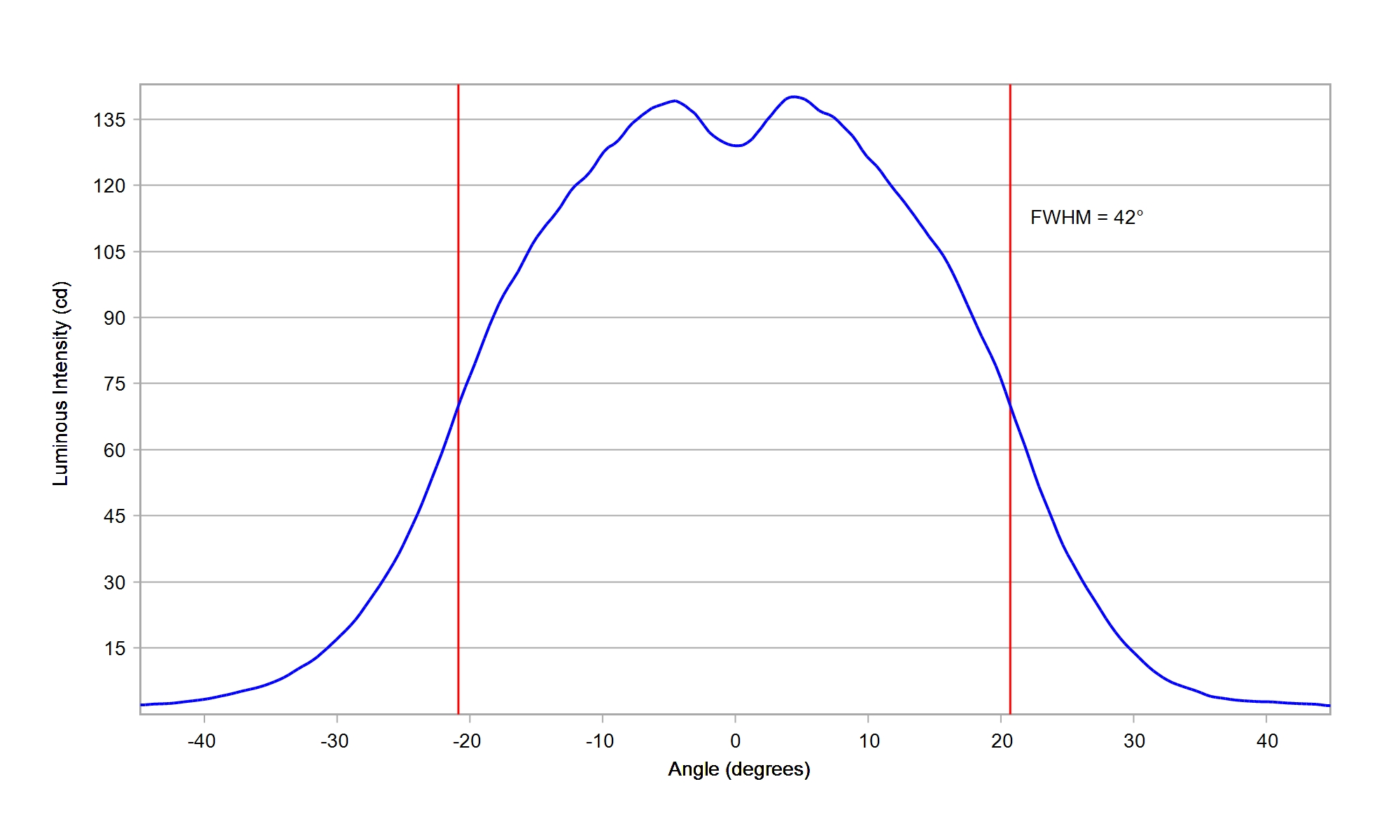

LUMILEDS LUXEON 3030 2D Round White

Eff:

87.5%

FWHM:

42°

Cd/Im:

2.0

Download

LUMILEDS LUXEON 3030 HE Plus White

Eff:

87.5%

FWHM:

43°

Cd/Im:

1.7

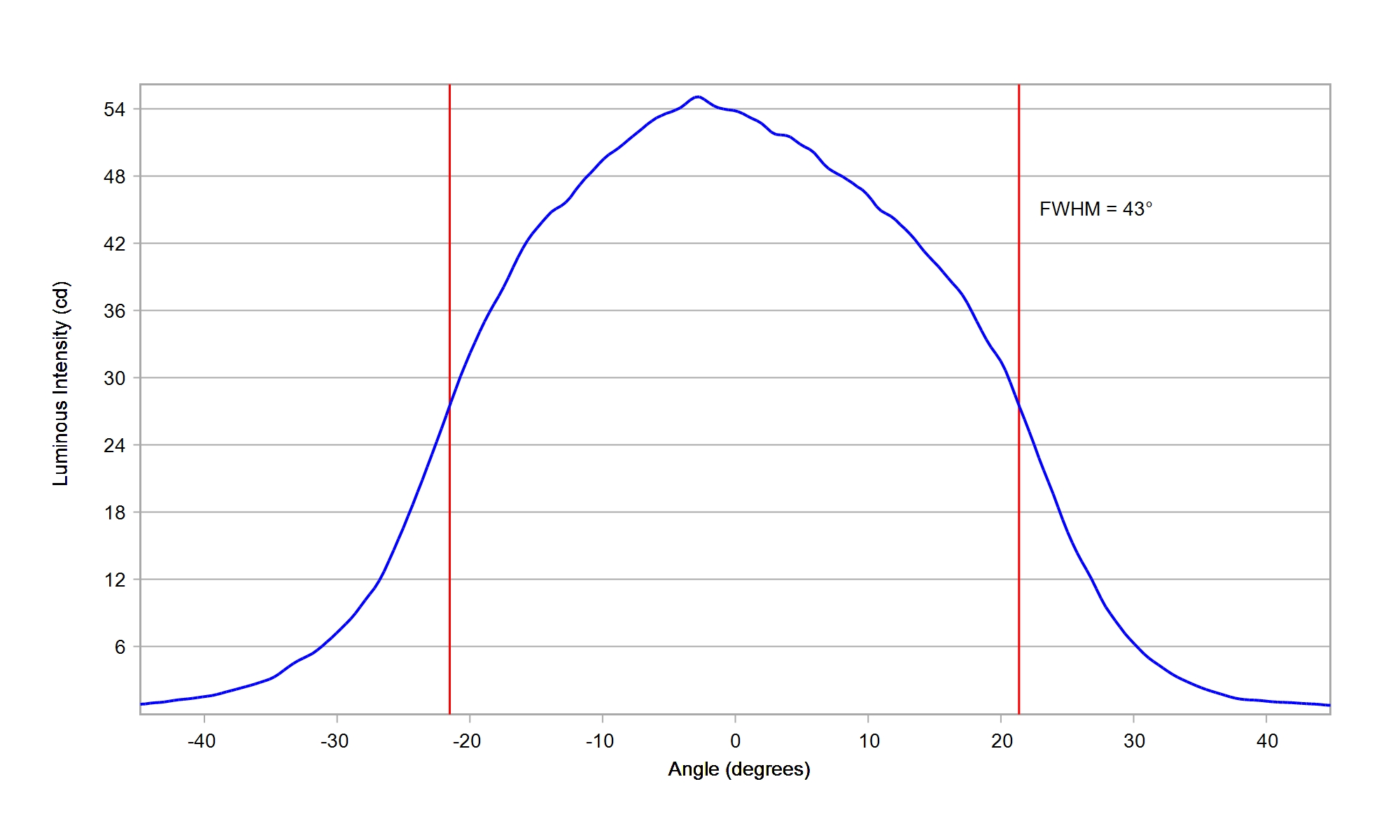

Carclo Optics – 10003/25 – Luxeon_3030_HE_Plus_spot-image

Carclo Optics – 10003/25 – Luxeon_3030_HE_Plus_cross vertical section

Download

IES

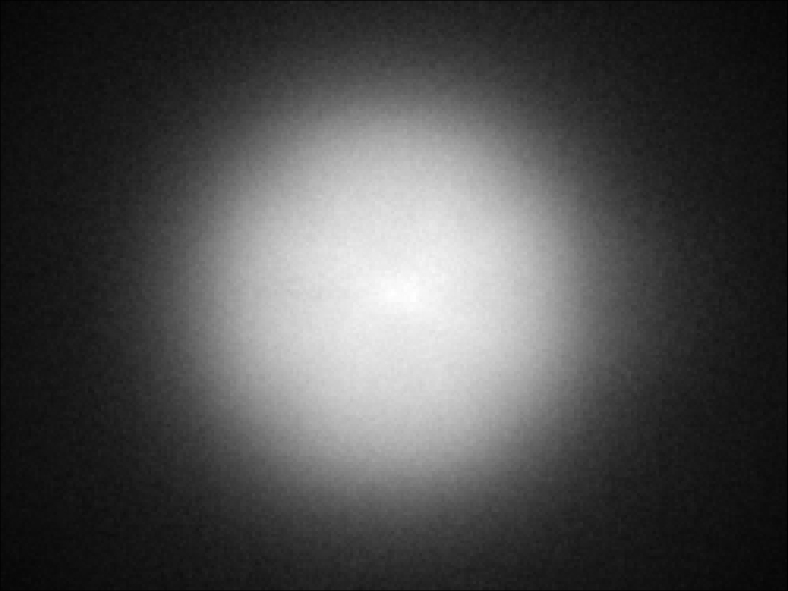

LUMILEDS LUXEON 3030 HE White

Eff:

87.5%

FWHM:

43°

Cd/Im:

1.8


Download

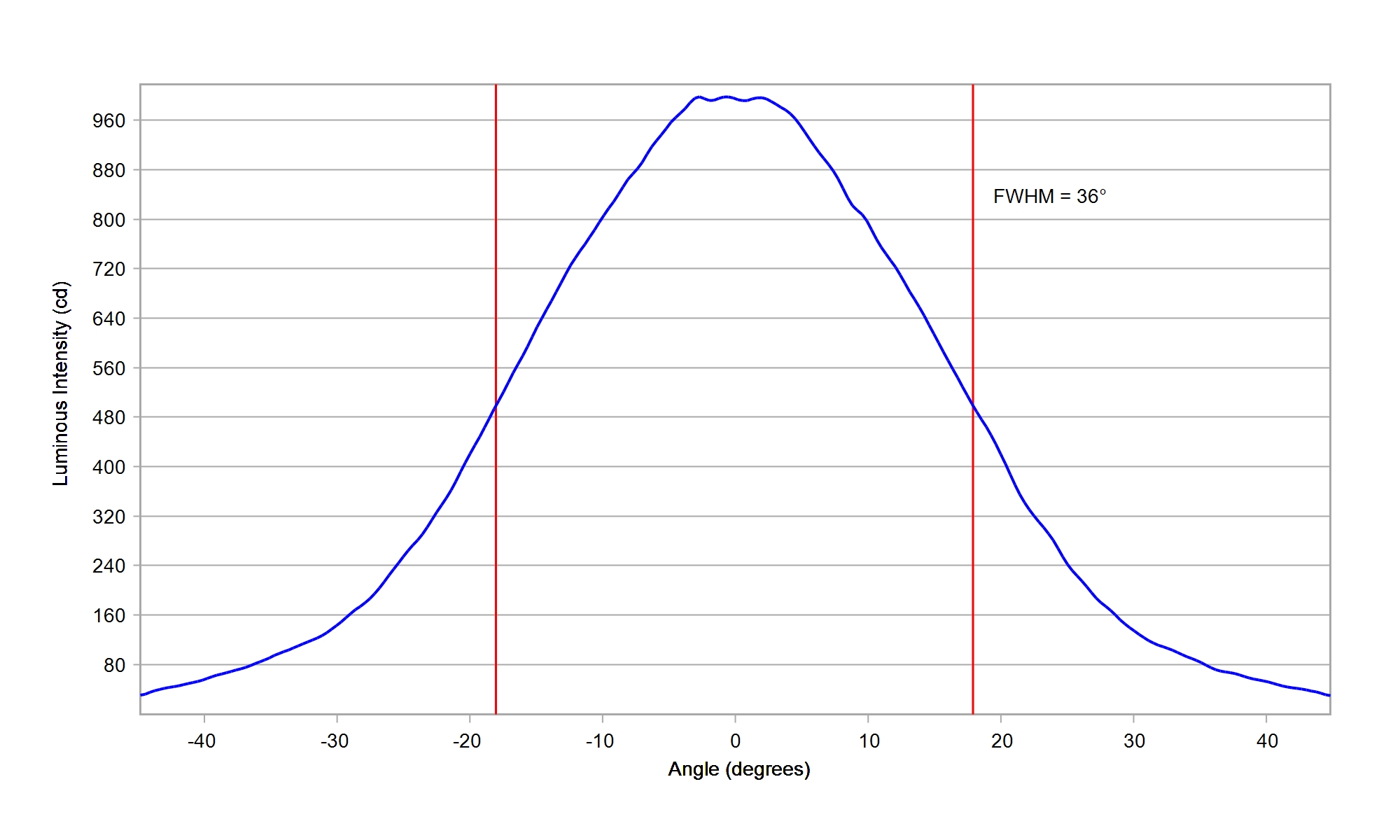

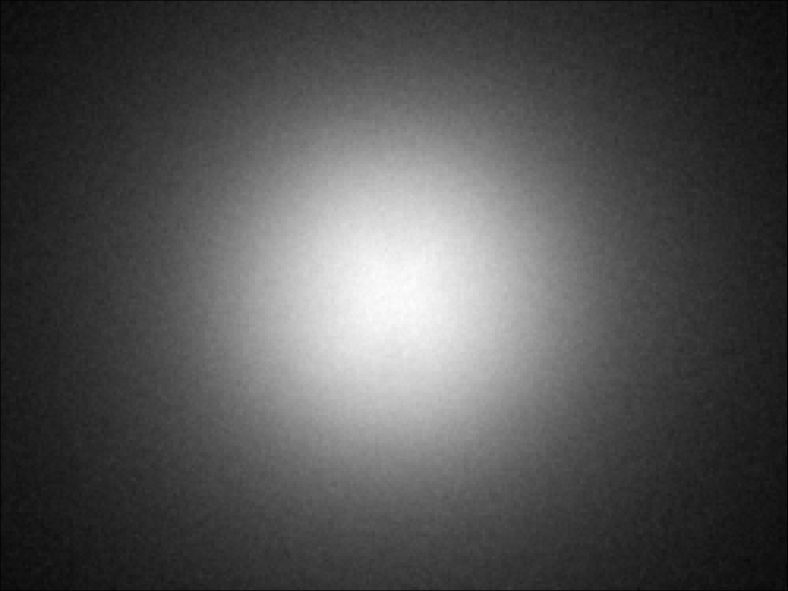

LUMILEDS LUXEON 5050 HE 24V White

Eff:

83.5%

FWHM:

36°

Cd/Im:

1.7


Download

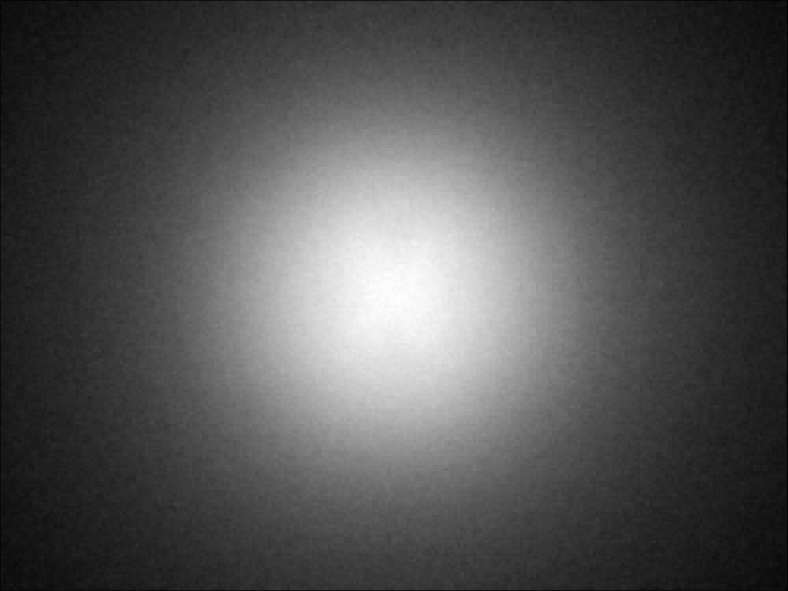

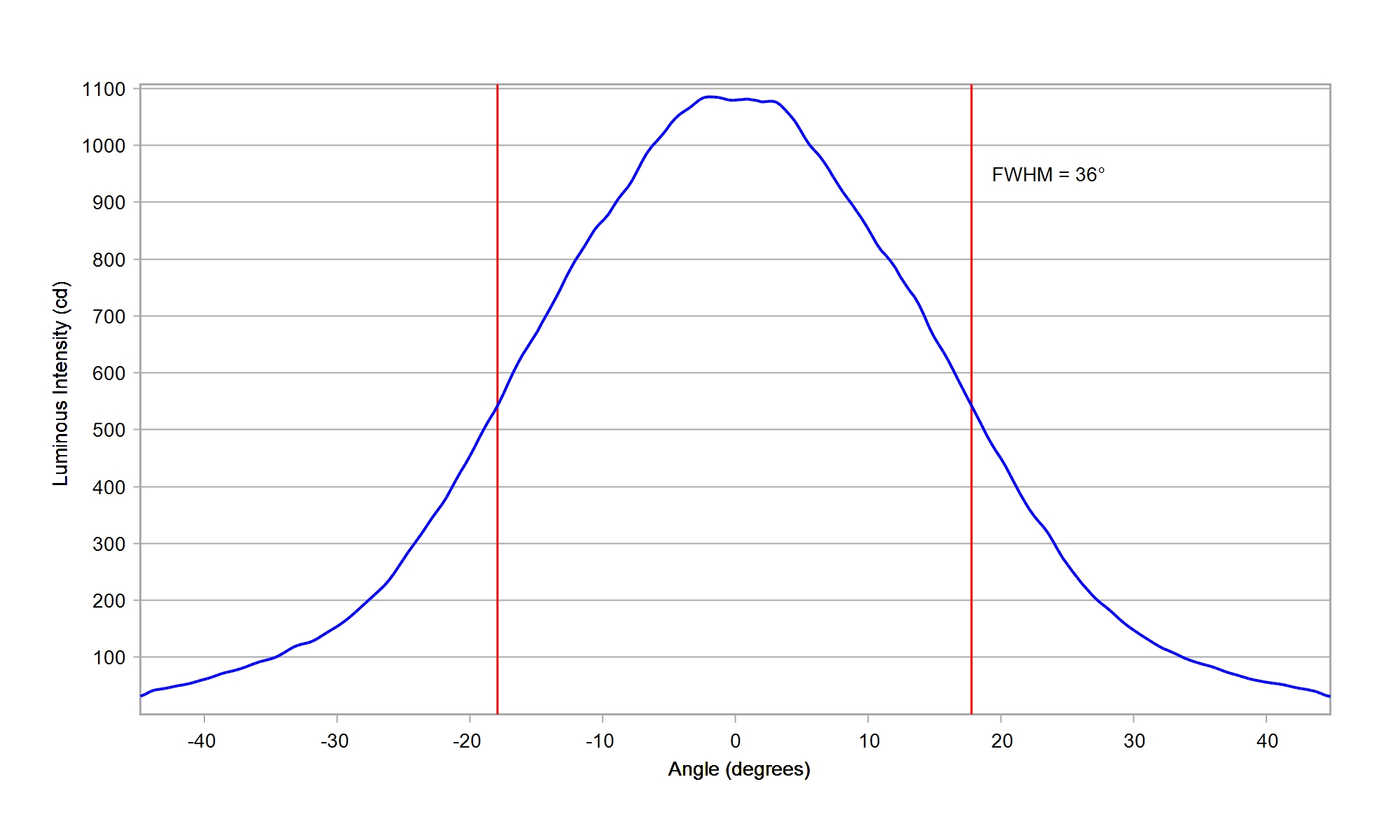

LUMILEDS LUXEON 5050 HE 6V White

Eff:

83.5%

FWHM:

36°

Cd/Im:

1.7


Download

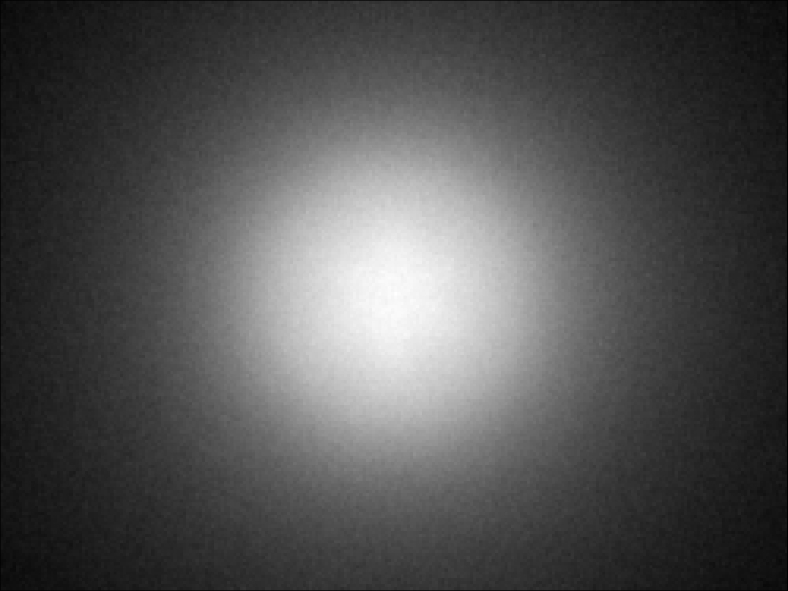

LUMILEDS LUXEON 5050 Round 24V White

Eff:

84.0%

FWHM:

36°

Cd/Im:

1.8


Download

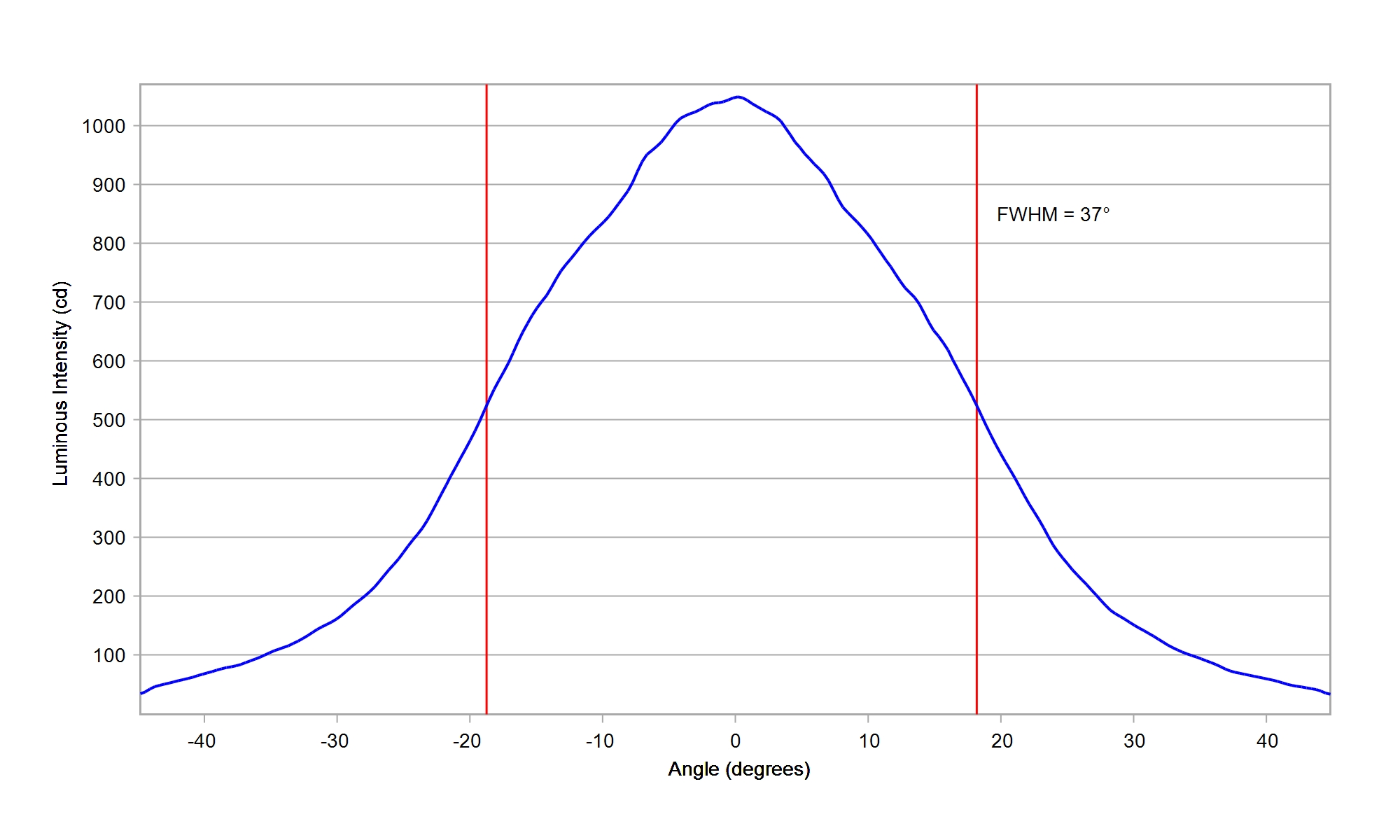

LUMILEDS LUXEON 5050 Square 30V White

Eff:

83.0%

FWHM:

37°

Cd/Im:

1.6


Download

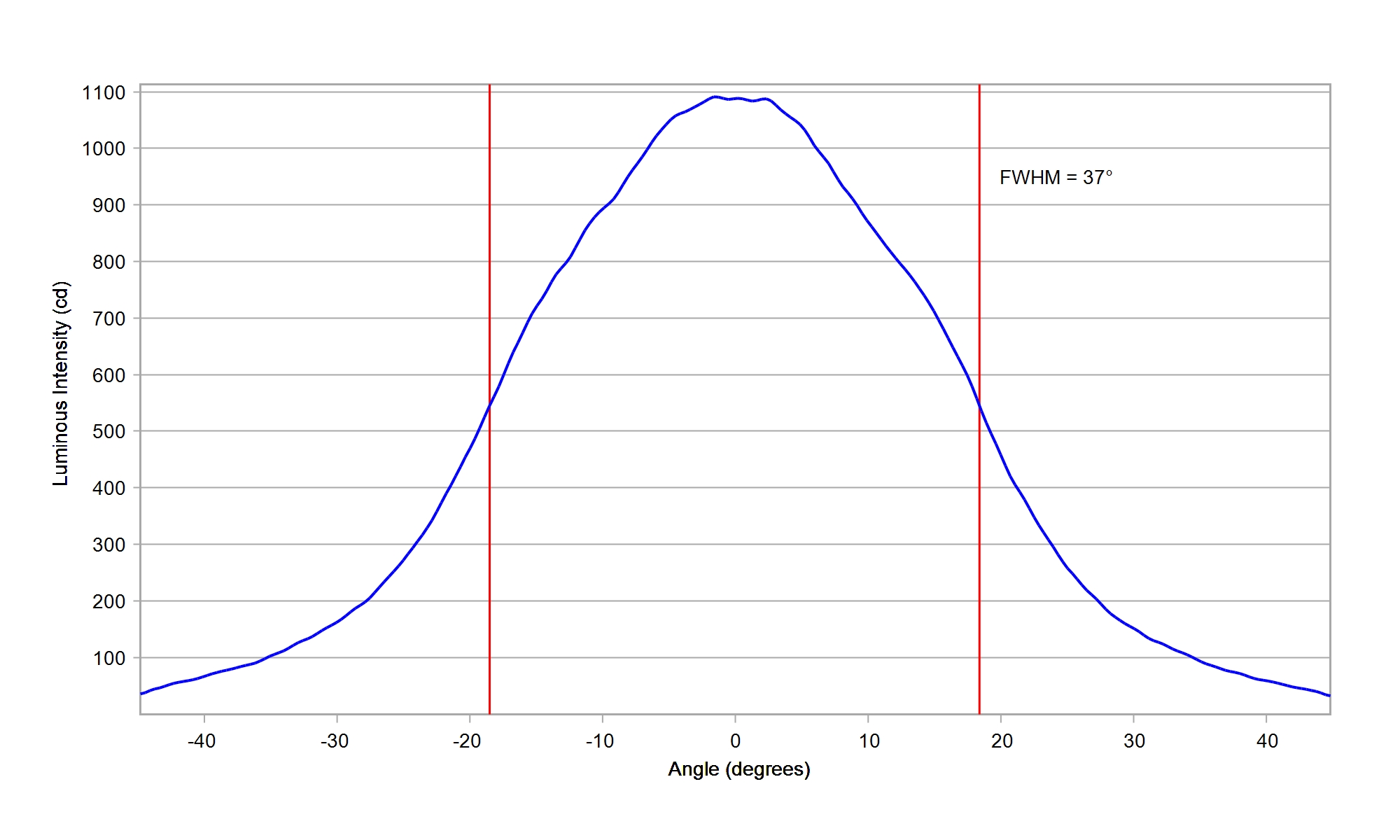

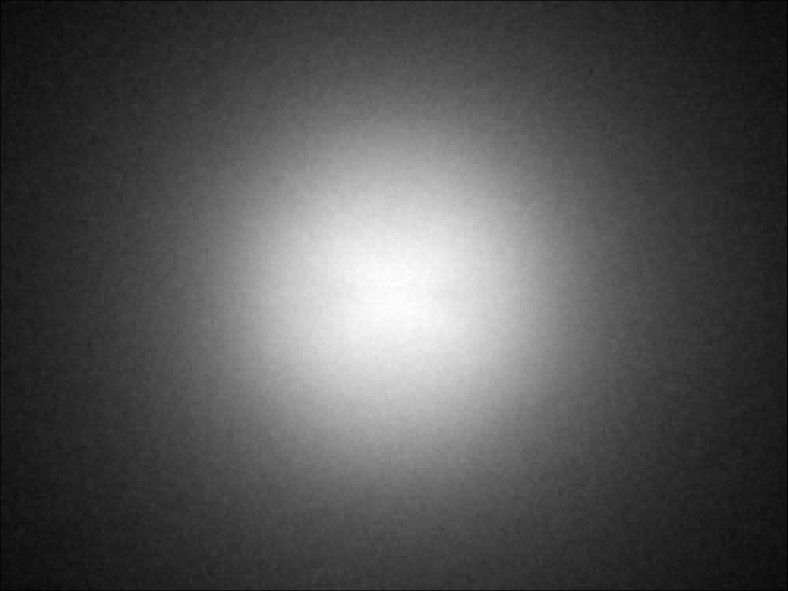

LUMILEDS LUXEON 5050 Square 6V White

Eff:

83.5%

FWHM:

37°

Cd/Im:

1.7


Download

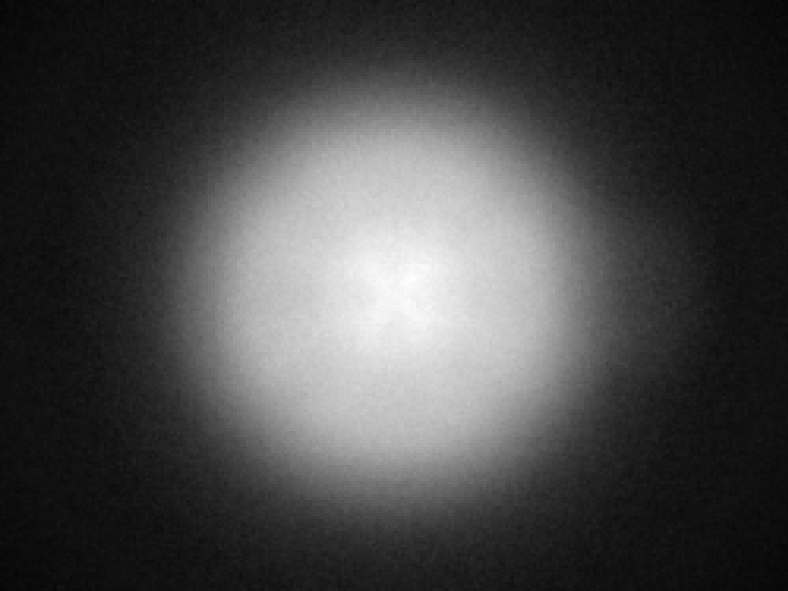

LUMILEDS LUXEON C White

Eff:

84.0%

FWHM:

43°

Cd/Im:

1.9

Download

LUMILEDS LUXEON CZ White

Eff:

88.0%

FWHM:

45°

Cd/Im:

2.0

Carclo Optics 10003/25 Spot Image Luxeon CZ 5M CW

Carclo Optics 10003/25 Cross Section Luxeon CZ 5M CW

Download

IES

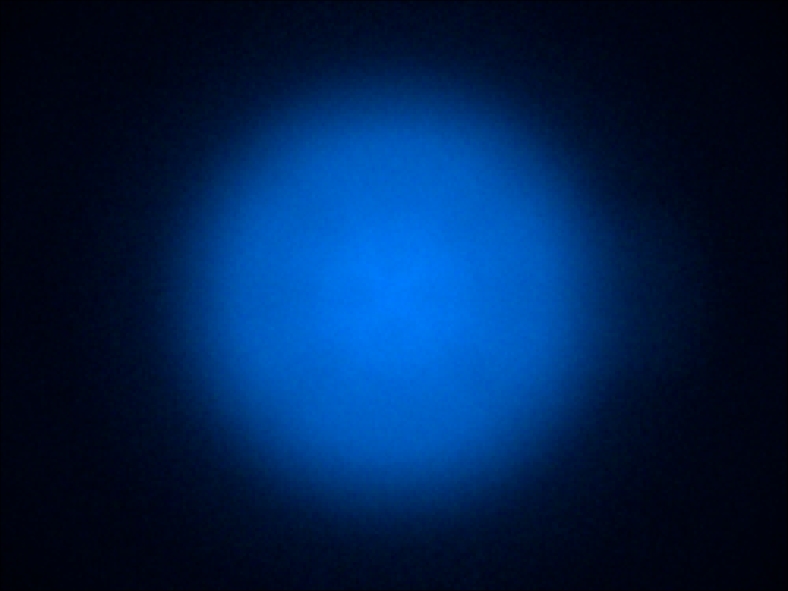

LUMILEDS LUXEON HL1Z Color Blue

Eff:

87.5%

FWHM:

46°

Cd/Im:

1.7


Download

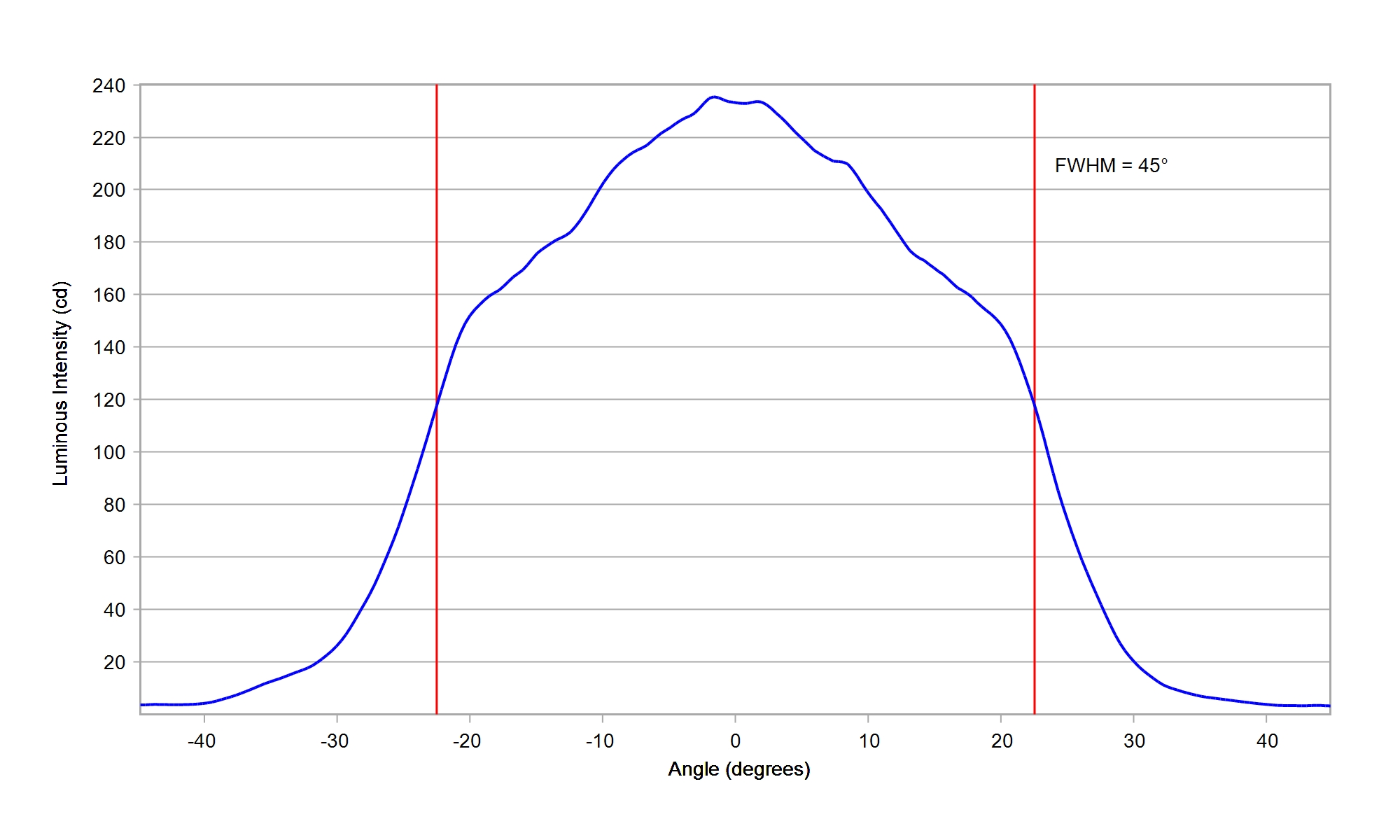

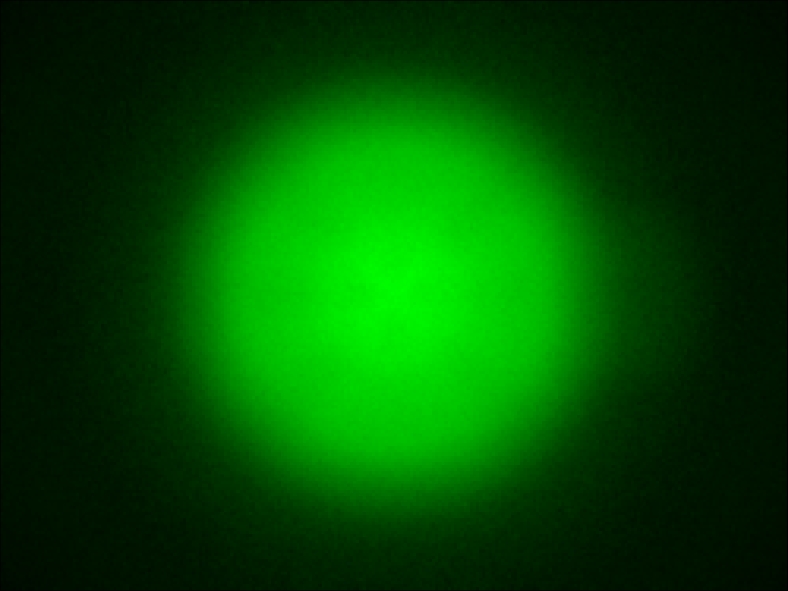

LUMILEDS LUXEON HL1Z Color Green

Eff:

87.5%

FWHM:

45°

Cd/Im:

1.7


Download

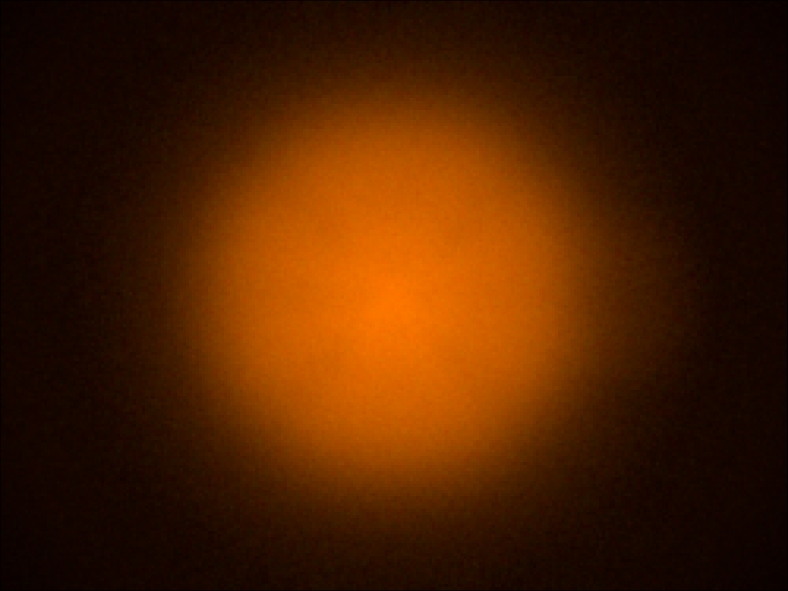

LUMILEDS LUXEON HL1Z Color PC Amber

Eff:

87.5%

FWHM:

43°

Cd/Im:

1.9


Download

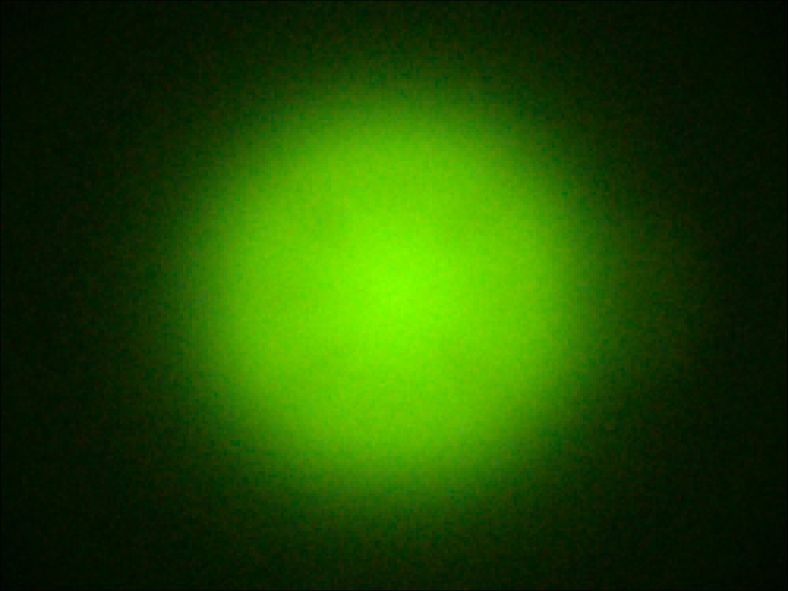

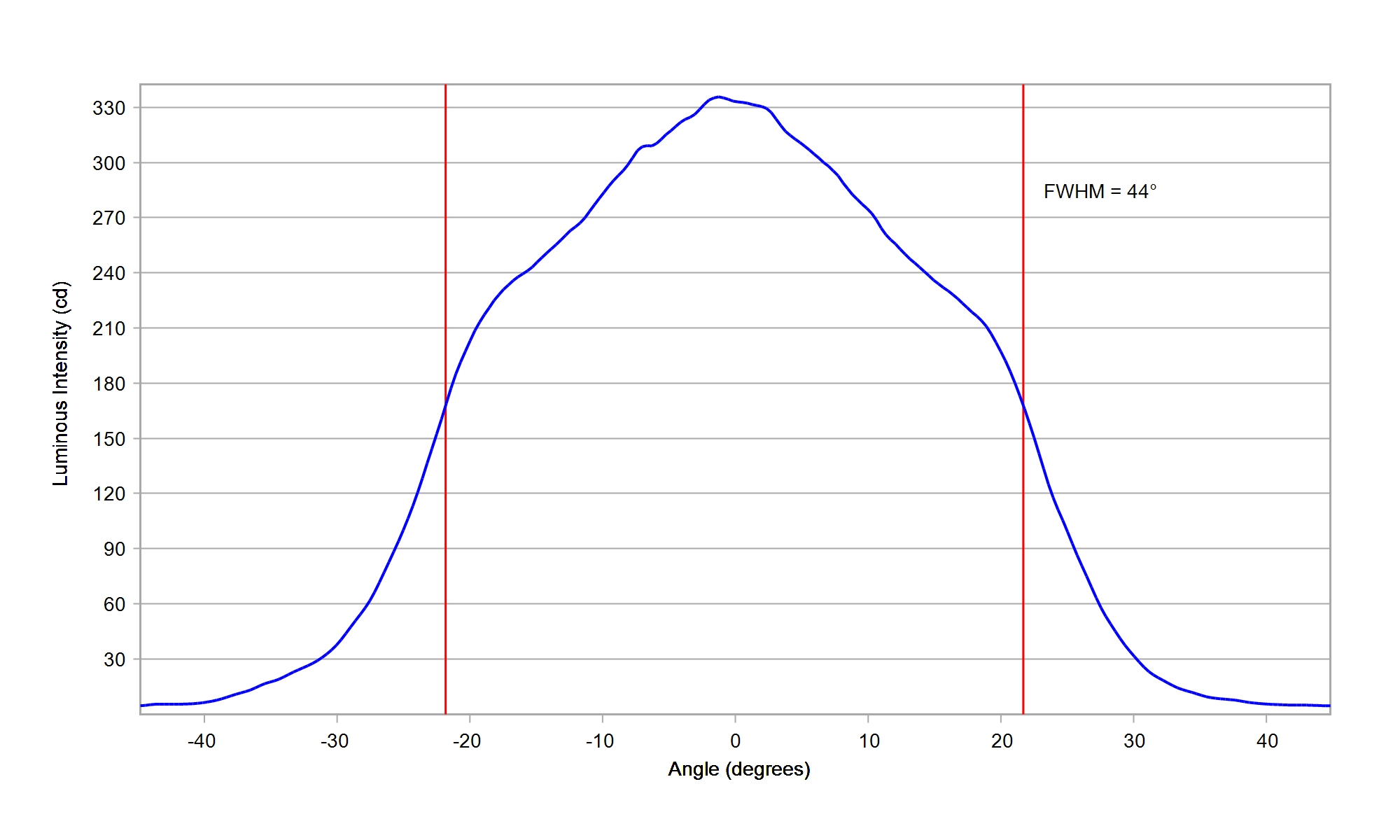

LUMILEDS LUXEON HL1Z Color PC Green

Eff:

86.5%

FWHM:

44°

Cd/Im:

1.8


Download

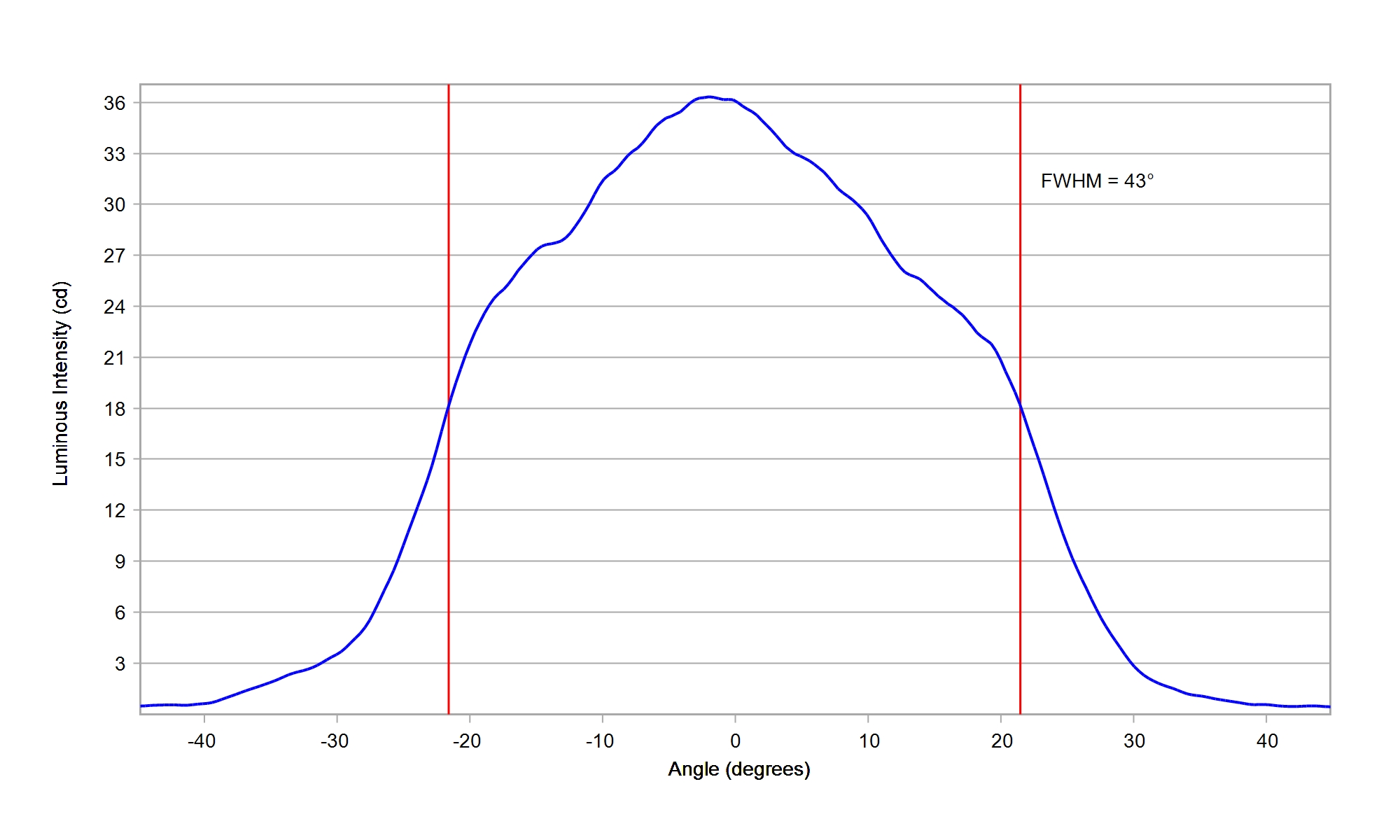

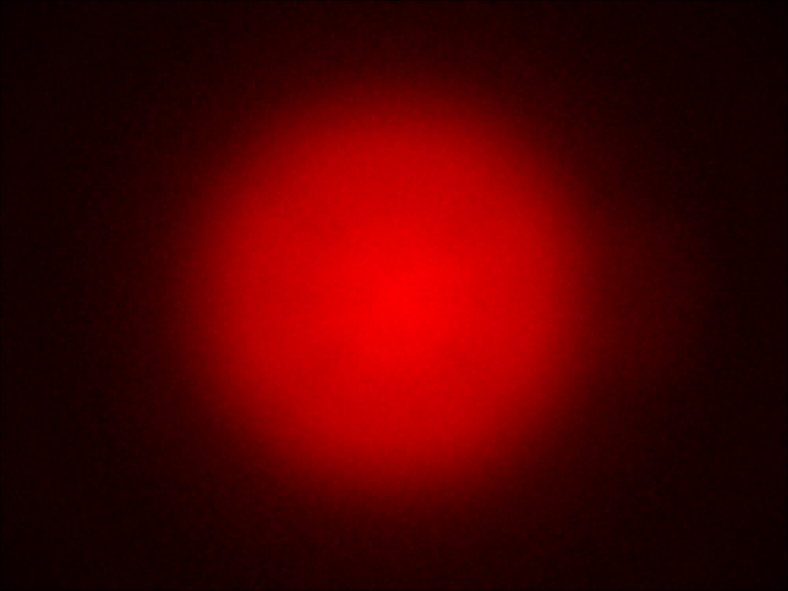

LUMILEDS LUXEON HL1Z Color PC Red

Eff:

88.0%

FWHM:

43°

Cd/Im:

1.9


Download

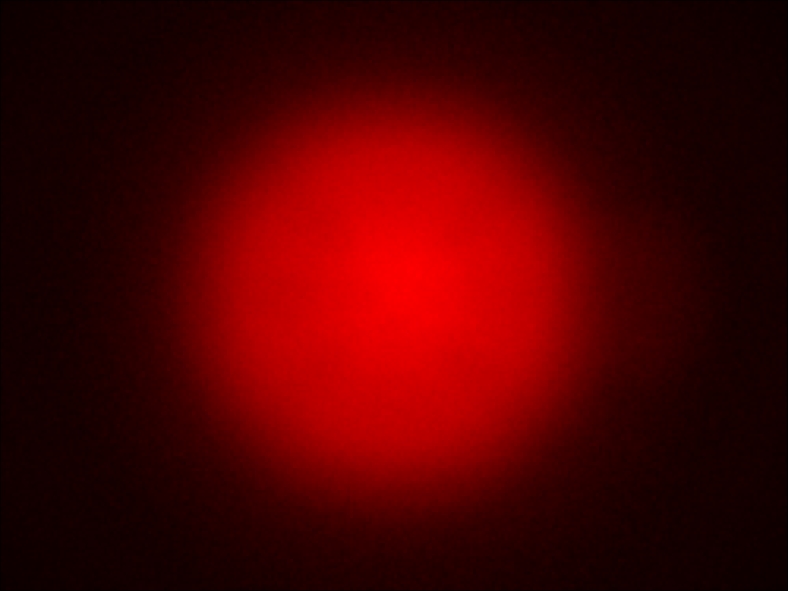

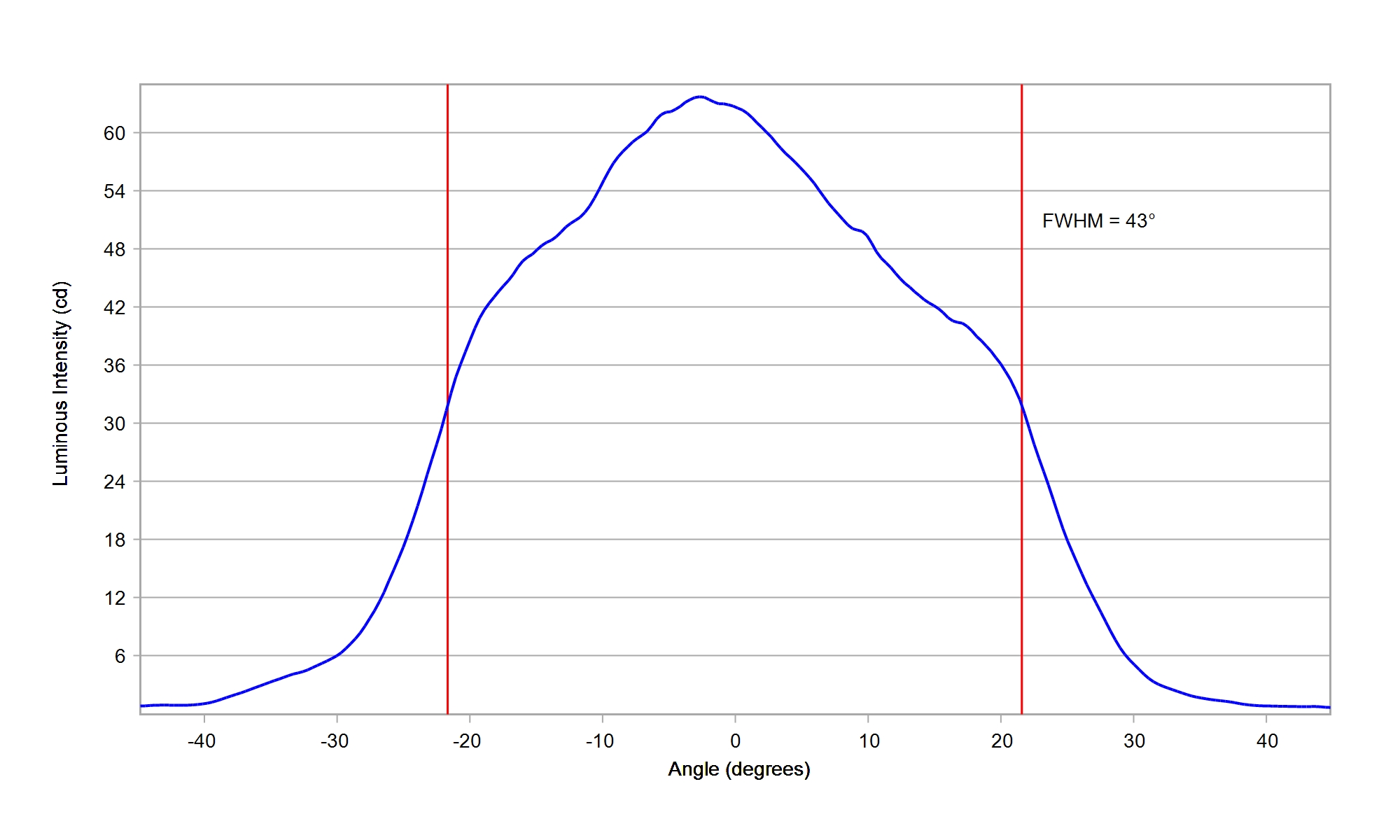

LUMILEDS LUXEON HL1Z Color PC Red Orange

Eff:

88.0%

FWHM:

43°

Cd/Im:

1.9


Download

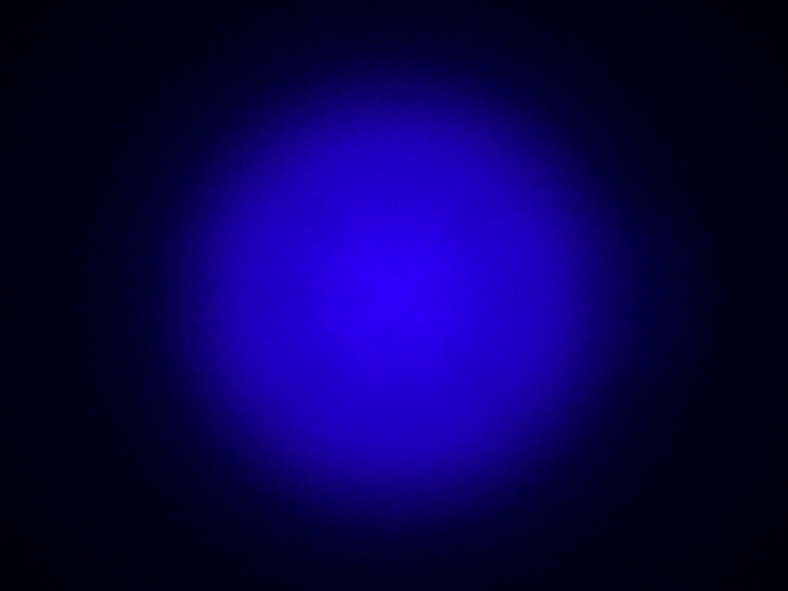

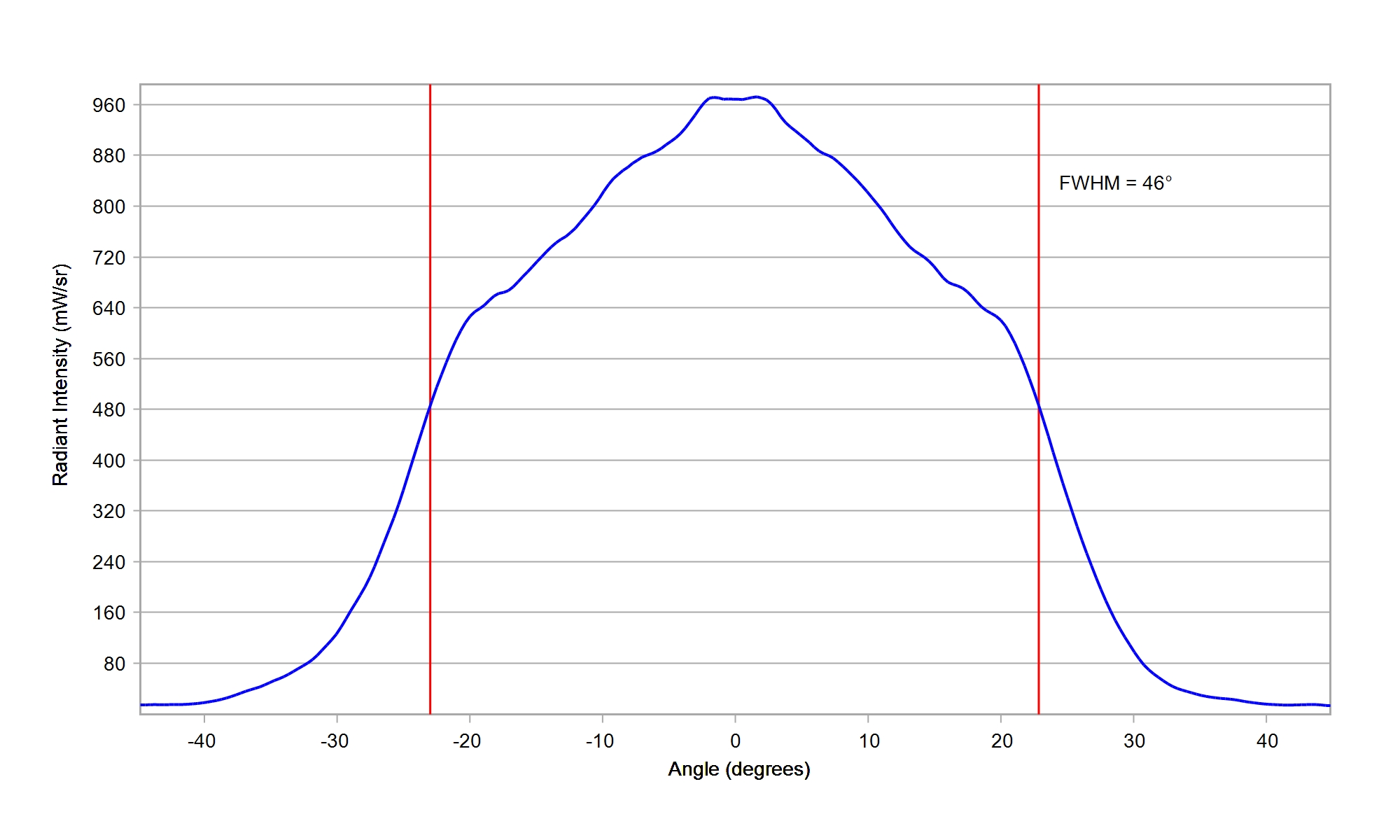

LUMILEDS LUXEON HL1Z Color Royal Blue

Eff:

86.5%

FWHM:

46°

Ipk/W:

1.7


Download

LUMILEDS LUXEON HL1Z CSP White

Eff:

87.5%

FWHM:

44°

Cd/Im:

1.8

Download

IES

LUMILEDS LUXEON HL2X White

Eff:

86.5%

FWHM:

40.0°

Cd/Im:

1.8

Carclo Optics - 10003/25 Spot Image HL2X

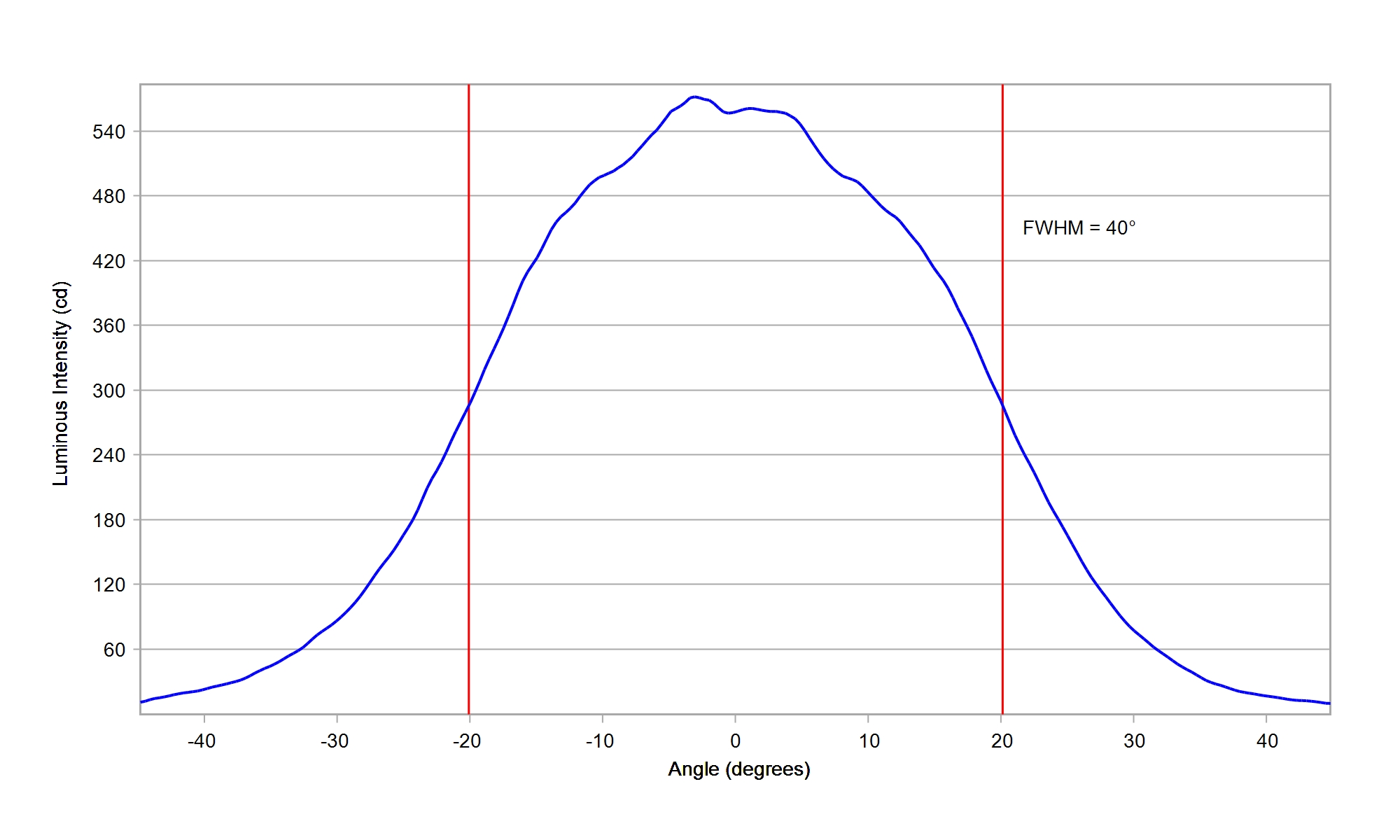

Carclo Optics - 10003/25 Cross Section HL2X

Download

IES

LUMILEDS LUXEON HL2X-D White

Eff:

86.0%

FWHM:

40°

Cd/Im:

1.6

Download

IES

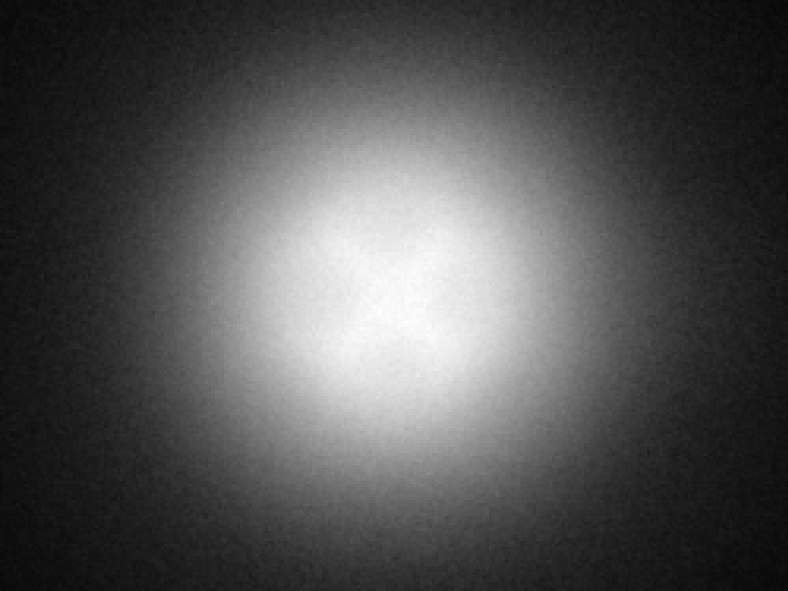

LUMILEDS LUXEON HL2X-E White

Eff:

86.0%

FWHM:

40°

Cd/Im:

1.7

Download

LUMILEDS LUXEON HL2X-P White

Eff:

85.5%

FWHM:

39°

Cd/Im:

1.7

Download

IES

LUMILEDS LUXEON HL2X-V White

Eff:

87.0%

FWHM:

40°

Cd/Im:

1.8

Download

LUMILEDS LUXEON HL2Z White

Eff:

87.0%

FWHM:

42°

Cd/Im:

1.8

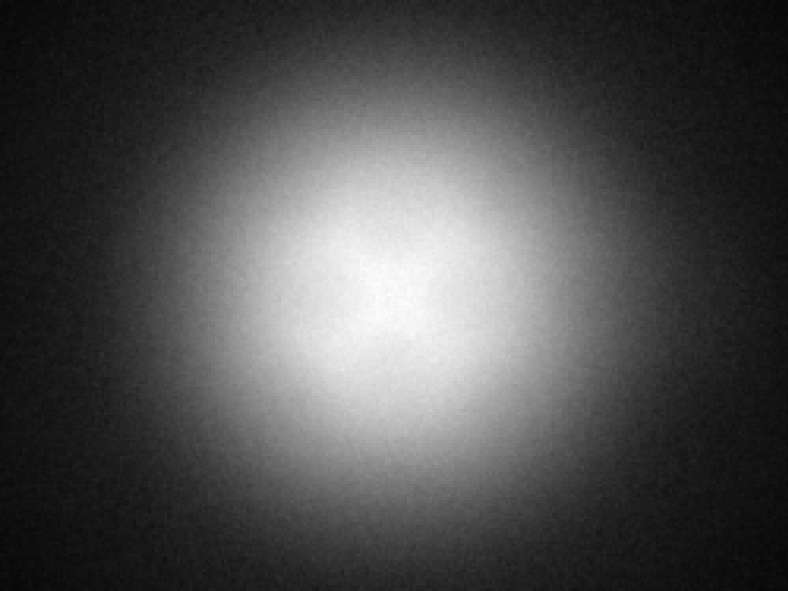

Carclo Optics – 10003/25 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 10003/25 Lumileds Luxeon HL2Z - Cross-Section

Download

IES

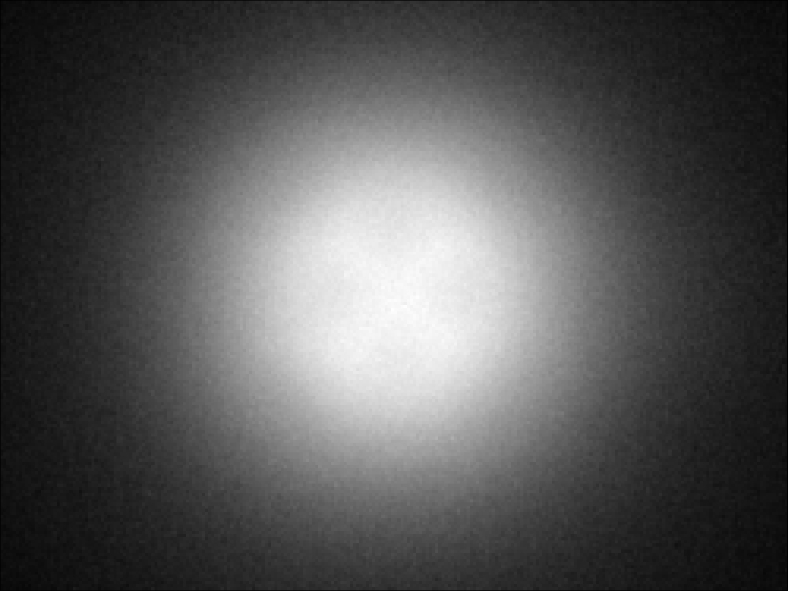

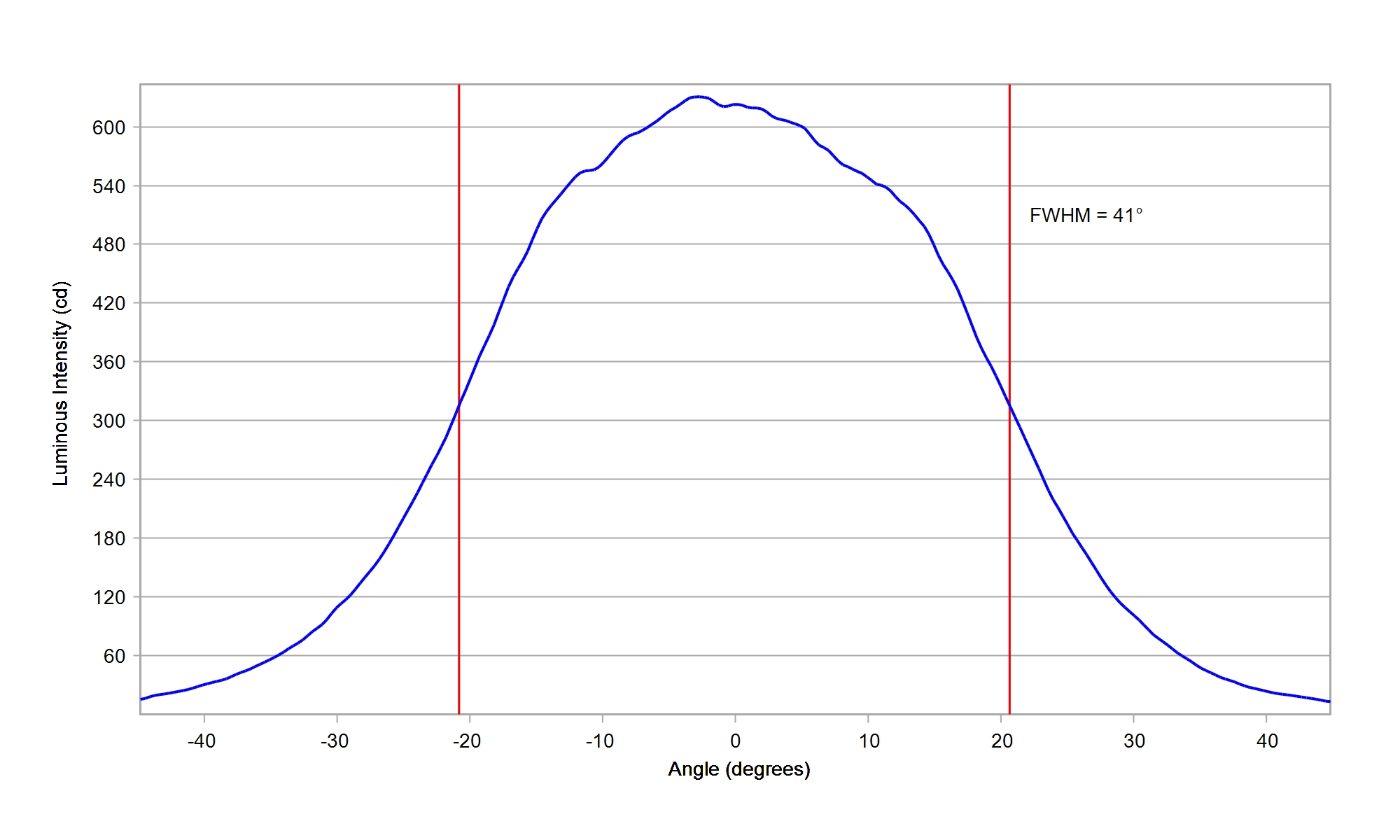

LUMILEDS LUXEON HL4X White

Eff:

85.0%

FWHM:

41°

Cd/Im:

1.5

Download

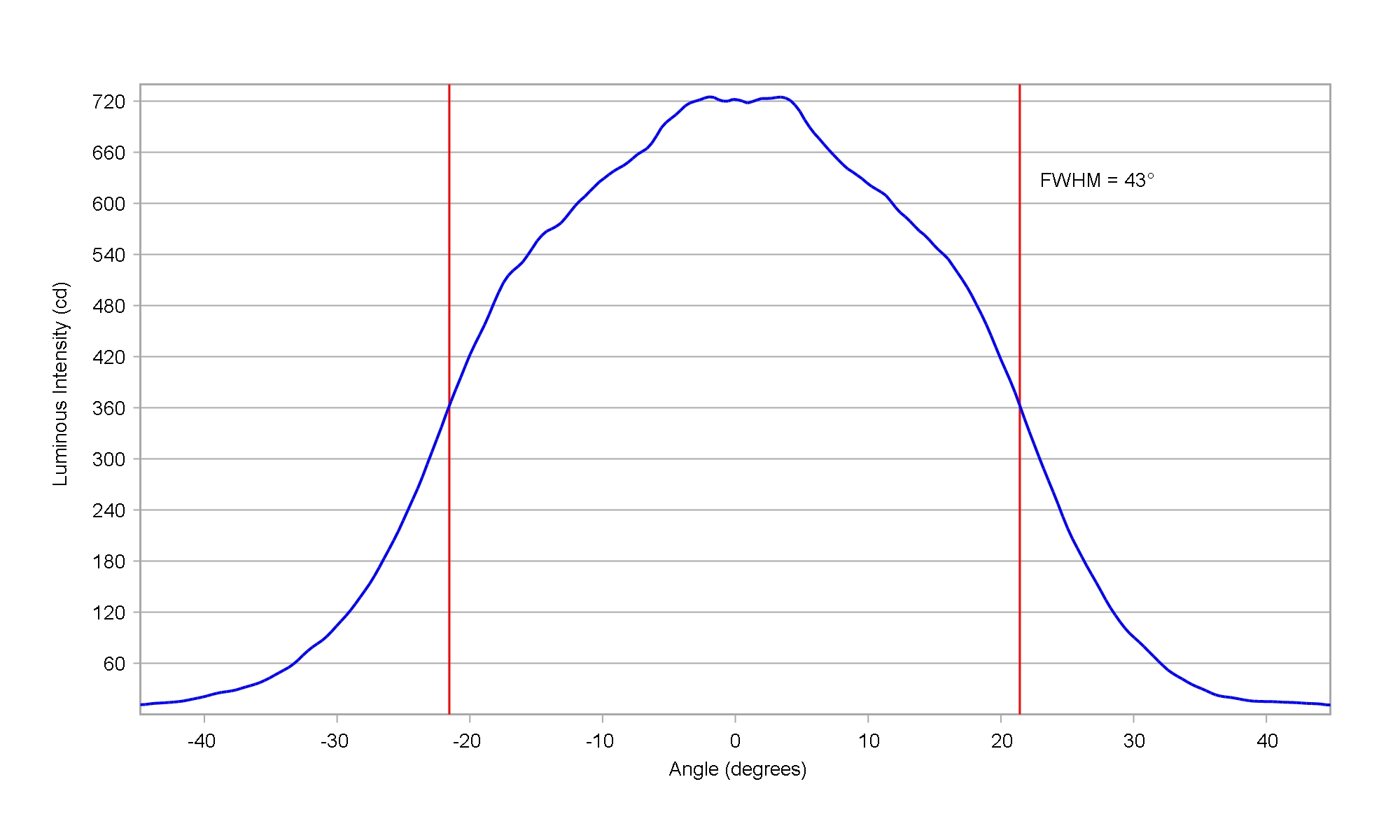

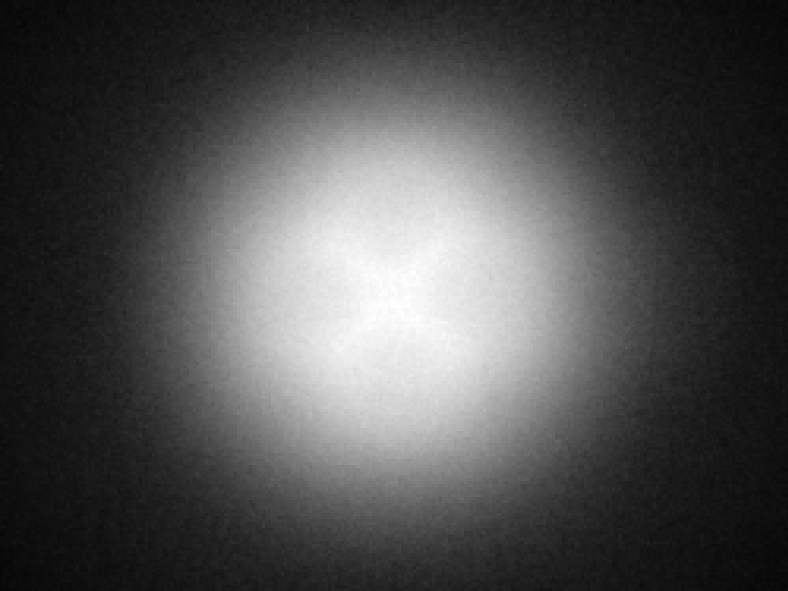

LUMILEDS LUXEON HL4Z White

Eff:

87.5%

FWHM:

43°

Cd/Im:

1.7

Download

LUMILEDS LUXEON IR 2720

Eff:

91.0%

FWHM:

43°

Ipk/W:

2.0

Carclo Optics 10003/25 Spot Image Luxeon IR 2720

Carclo Optics 10003/25 Cross section image Luxeon IR 2720

Download

IES

LUMILEDS LUXEON IR Compact 850nm

Eff:

89.0%

FWHM:

40.3°

Ipk/W:

2.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 150 Degree

Eff:

90.0%

FWHM:

33.5°

Cd/Im:

2.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 60 Degree

Eff:

87.5%

FWHM:

40.0°

Ipk/W:

2.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 90 Degree

Eff:

89.5%

FWHM:

38.5°

Ipk/W:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON Rebel ES White

Eff:

86.0%

FWHM:

41°

Cd/Im:

1.8

Download

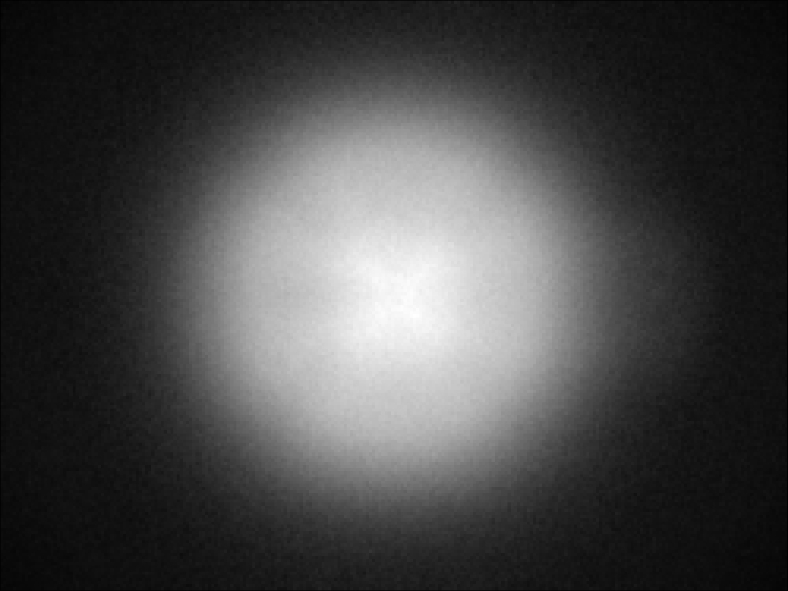

LUMILEDS LUXEON Rebel Plus White

Eff:

87.5%

FWHM:

41°

Cd/Im:

2.0


Download

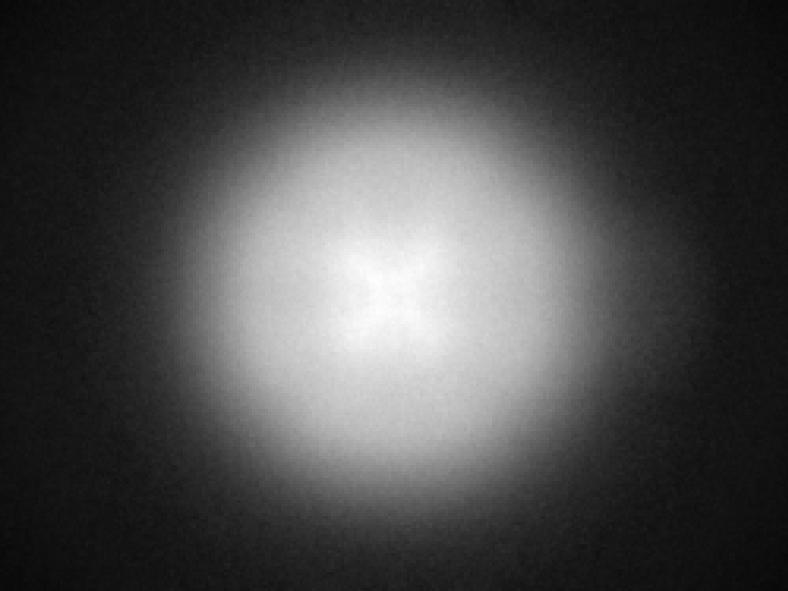

LUMILEDS LUXEON Rebel White

Eff:

87.0%

FWHM:

42°

Cd/Im:

1.9

Download

LUMILEDS LUXEON Rubix Blue

Eff:

88.0%

FWHM:

47°

Cd/Im:

1.8

Carclo Optics – 10003/25 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics – 10003/25 Cross Section Lumileds Luxeon Rubix Blue

Download

IES

LUMILEDS LUXEON Rubix Green

Eff:

88.0%

FWHM:

46°

Cd/Im:

1.8

Carclo Optics – 10003/25 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 10003/25 Cross Section Lumileds Luxeon Rubix Green

Download

IES

LUMILEDS LUXEON Rubix Royal Blue

Eff:

87.0%

FWHM:

47°

Cd/Im:

1.9

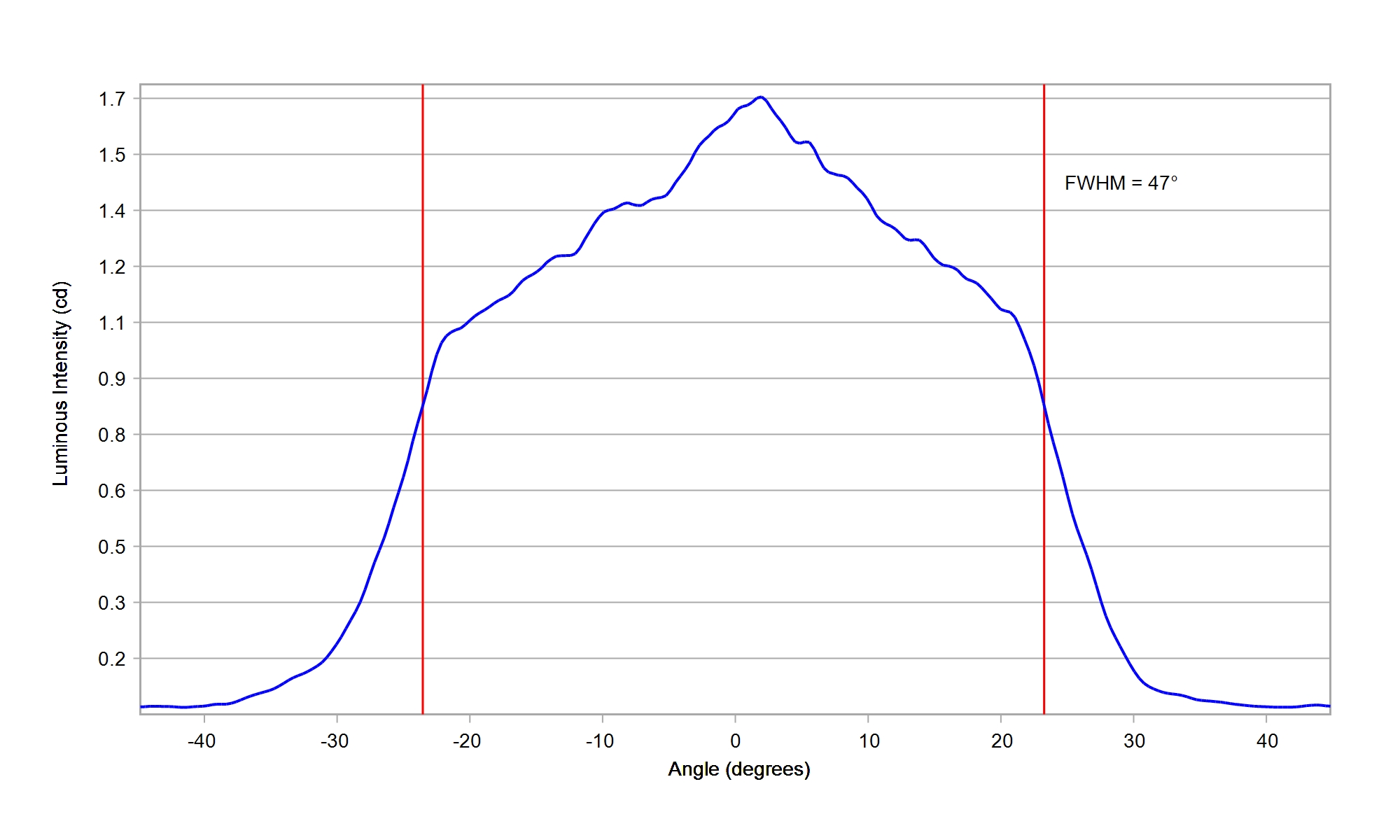

Carclo Optics – 10003/25 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 10003/25 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

IES

LUMILEDS LUXEON Rubix White

Eff:

88.0%

FWHM:

46.0°

Cd/Im:

1.8

Carclo Optics - 10003/25 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 10003/25 Cross Section Lumileds Luxeon Rubix White

Download

IES

LUMILEDS LUXEON Z ES White

FWHM:

19.7°

Cd/Im:

3.2

10003-25-Lumileds-ZES-White-Spot-Image

10003-25-Lumileds-ZES-White-Cross-Section-Image

Download

ies

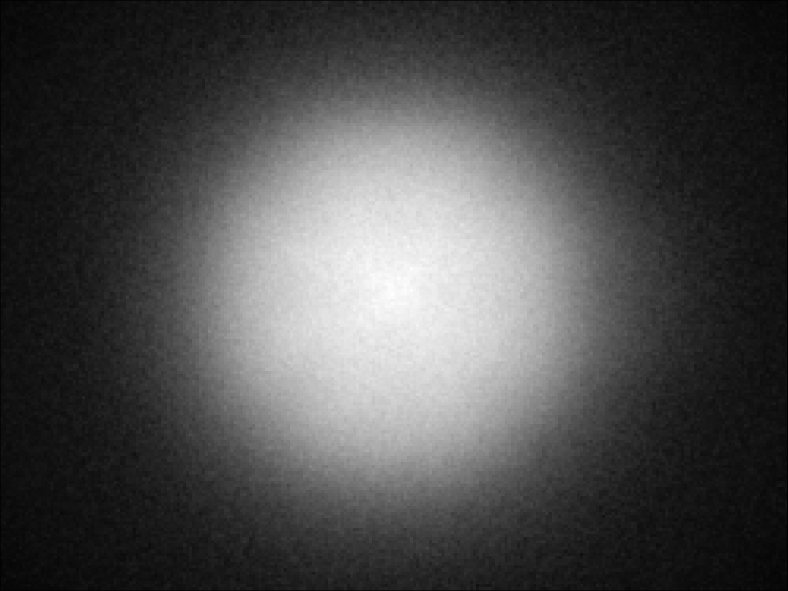

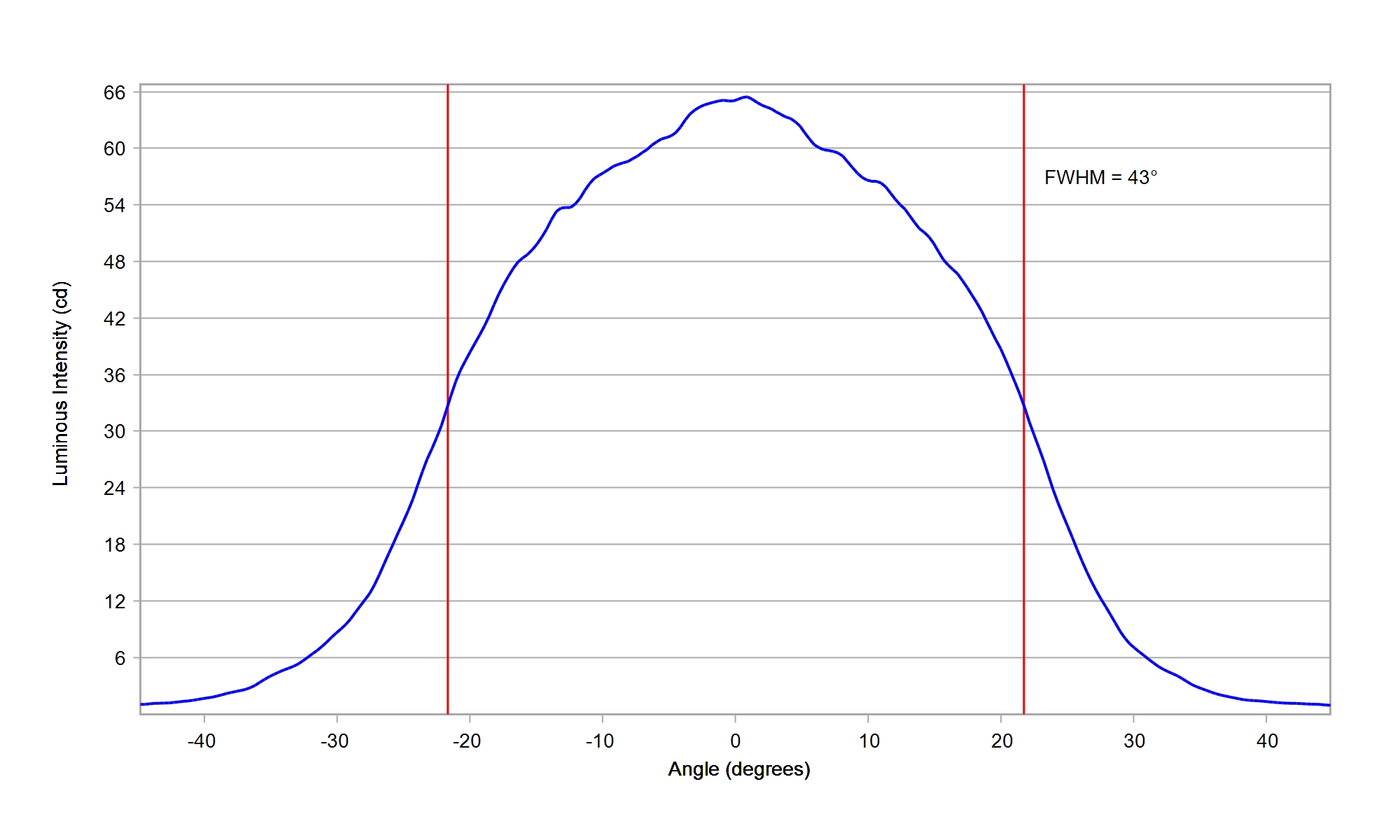

Luminus Devices MP-3030-11F2 White

Eff:

87.5%

FWHM:

43°

Cd/Im:

1.7


Download

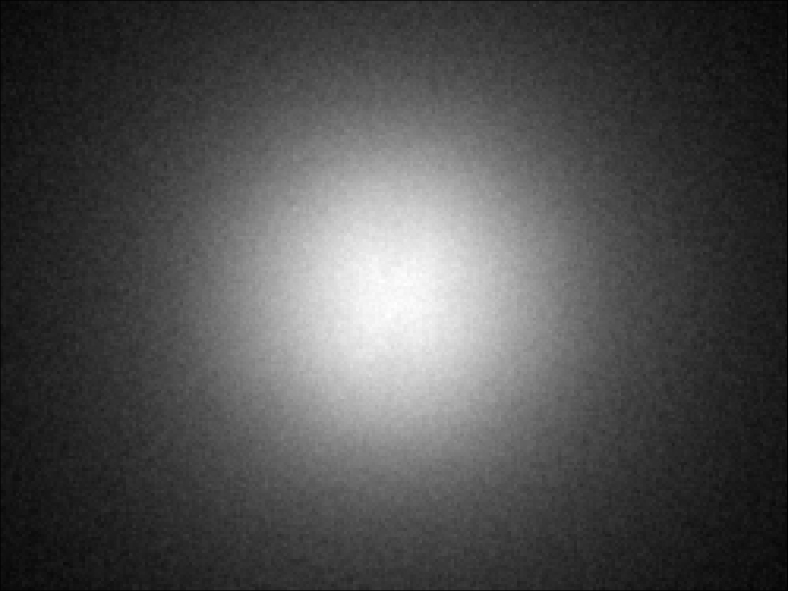

Luminus Devices MP-5050-240E White

Eff:

84.0%

FWHM:

34°

Cd/Im:

1.9


Download

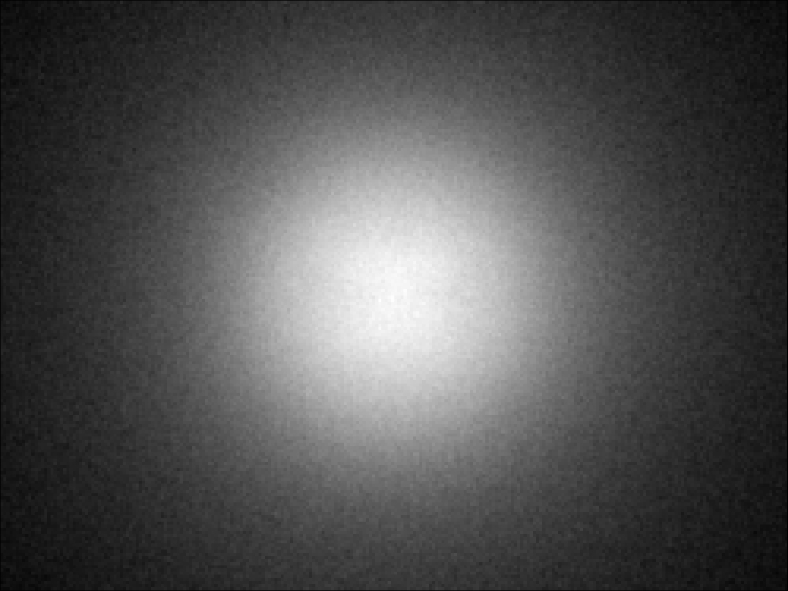

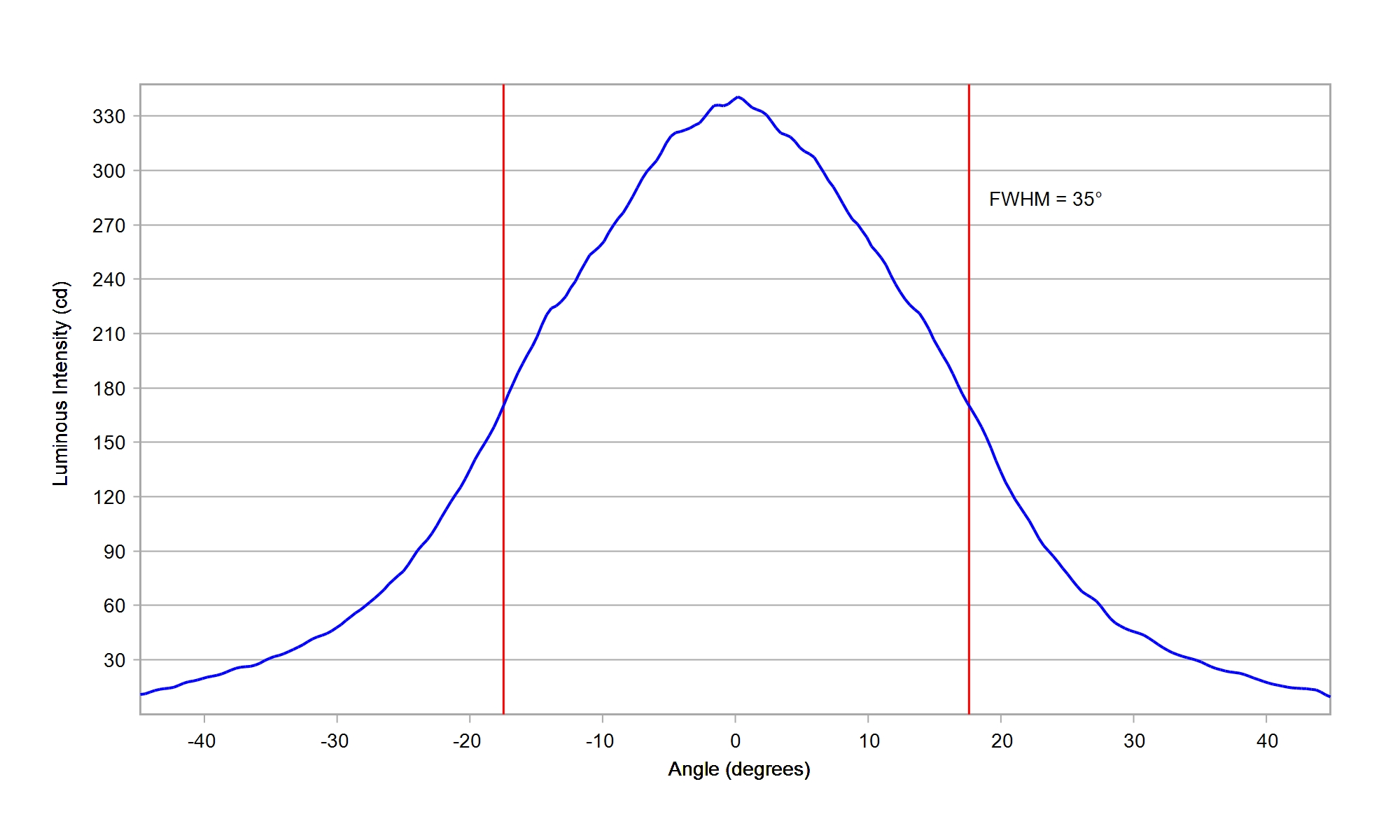

Luminus Devices MP-5050-810E White

Eff:

83.0%

FWHM:

35°

Cd/Im:

1.8


Download

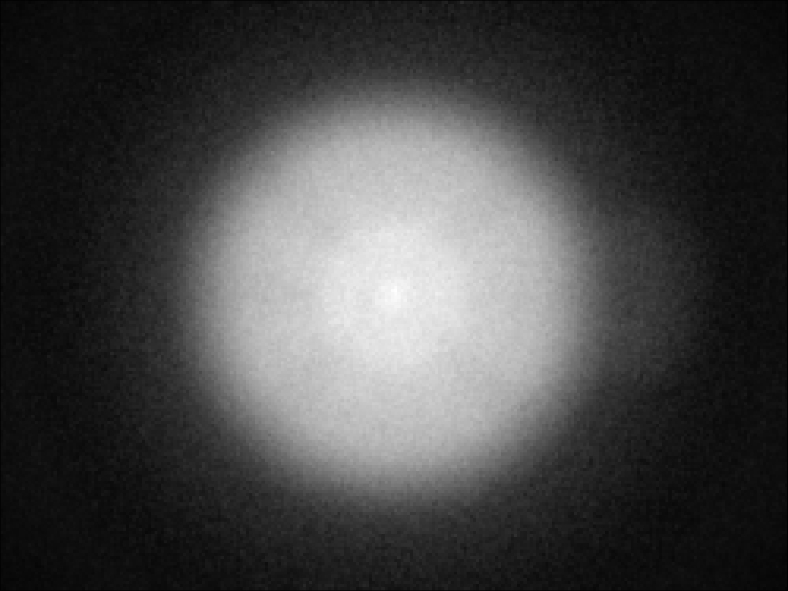

Luminus Devices SFT-12R-WES-A White

Eff:

88.0%

FWHM:

45°

Cd/Im:

1.9


Download

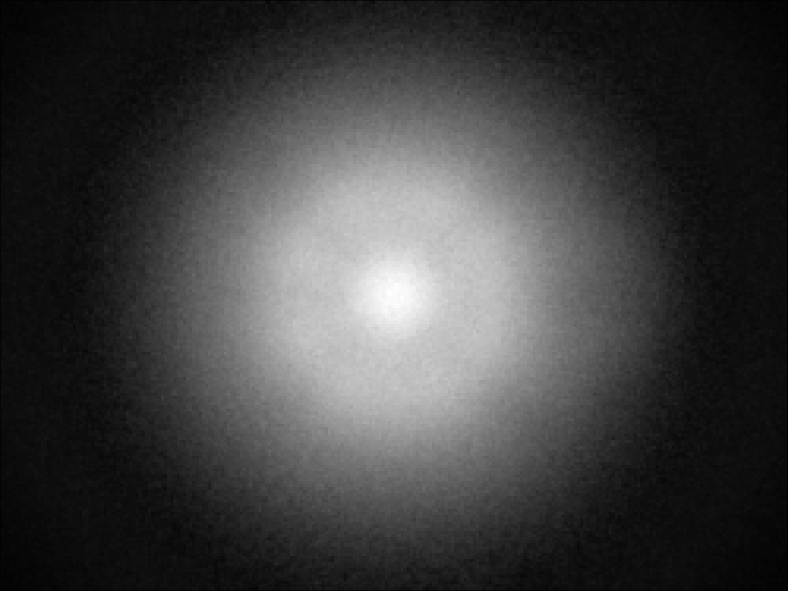

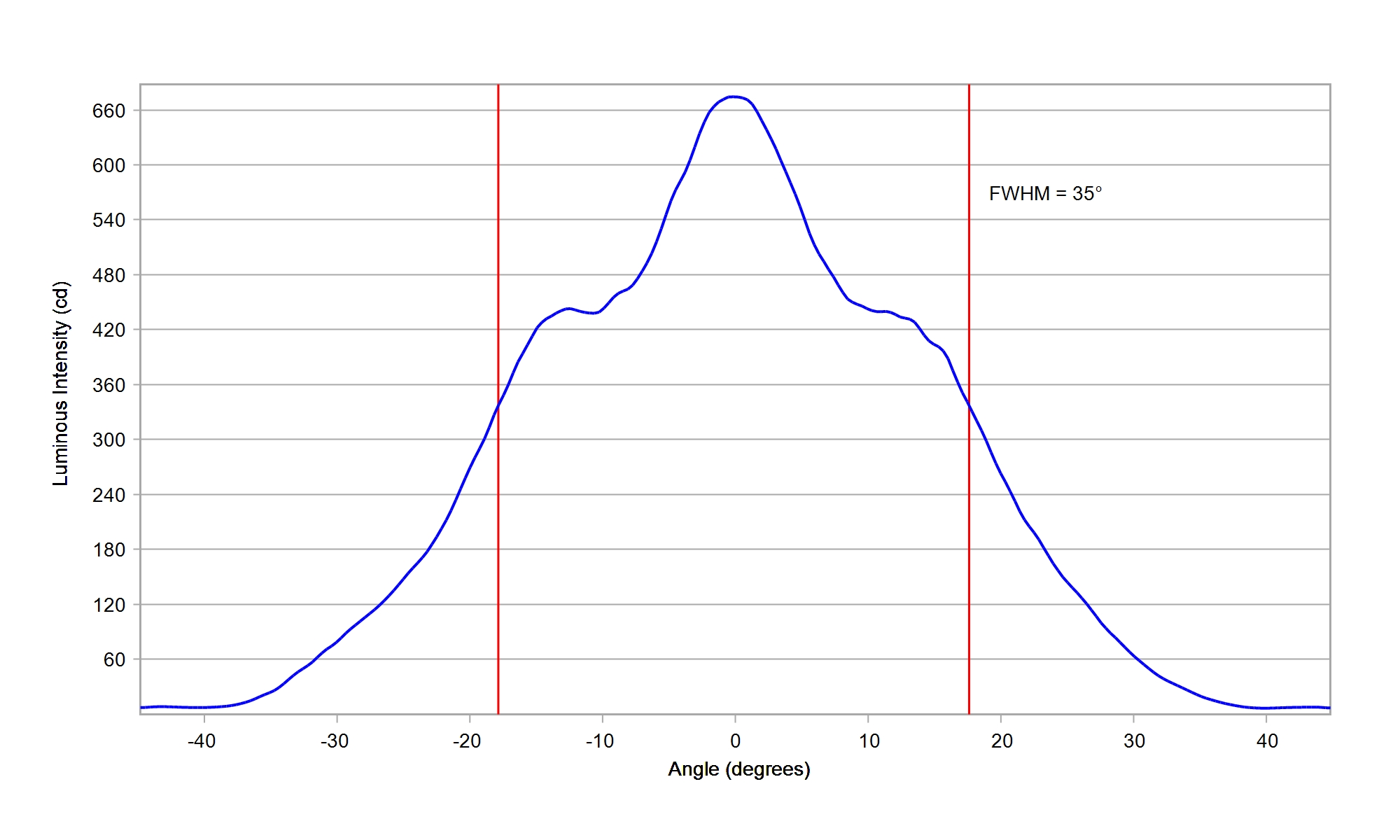

Luminus Devices SFT-12R-WES-F White

Eff:

87.5%

FWHM:

35°

Cd/Im:

2.4


Download

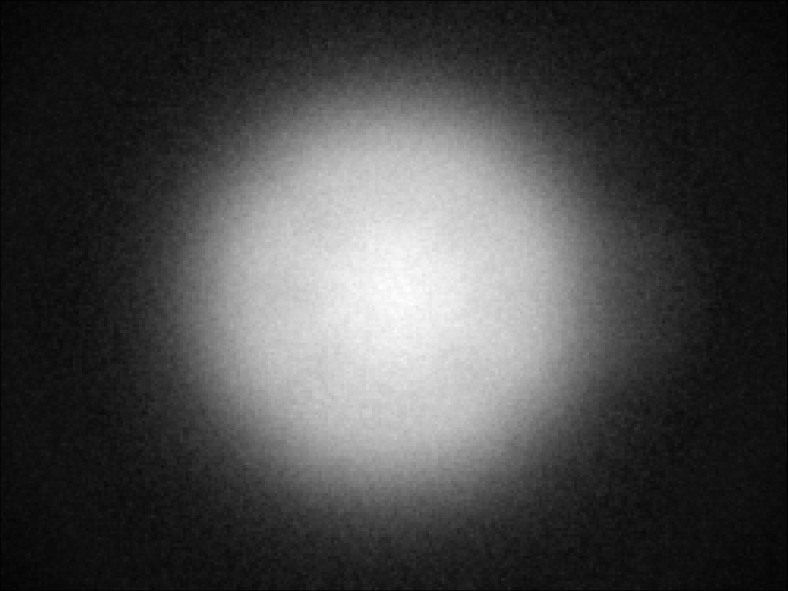

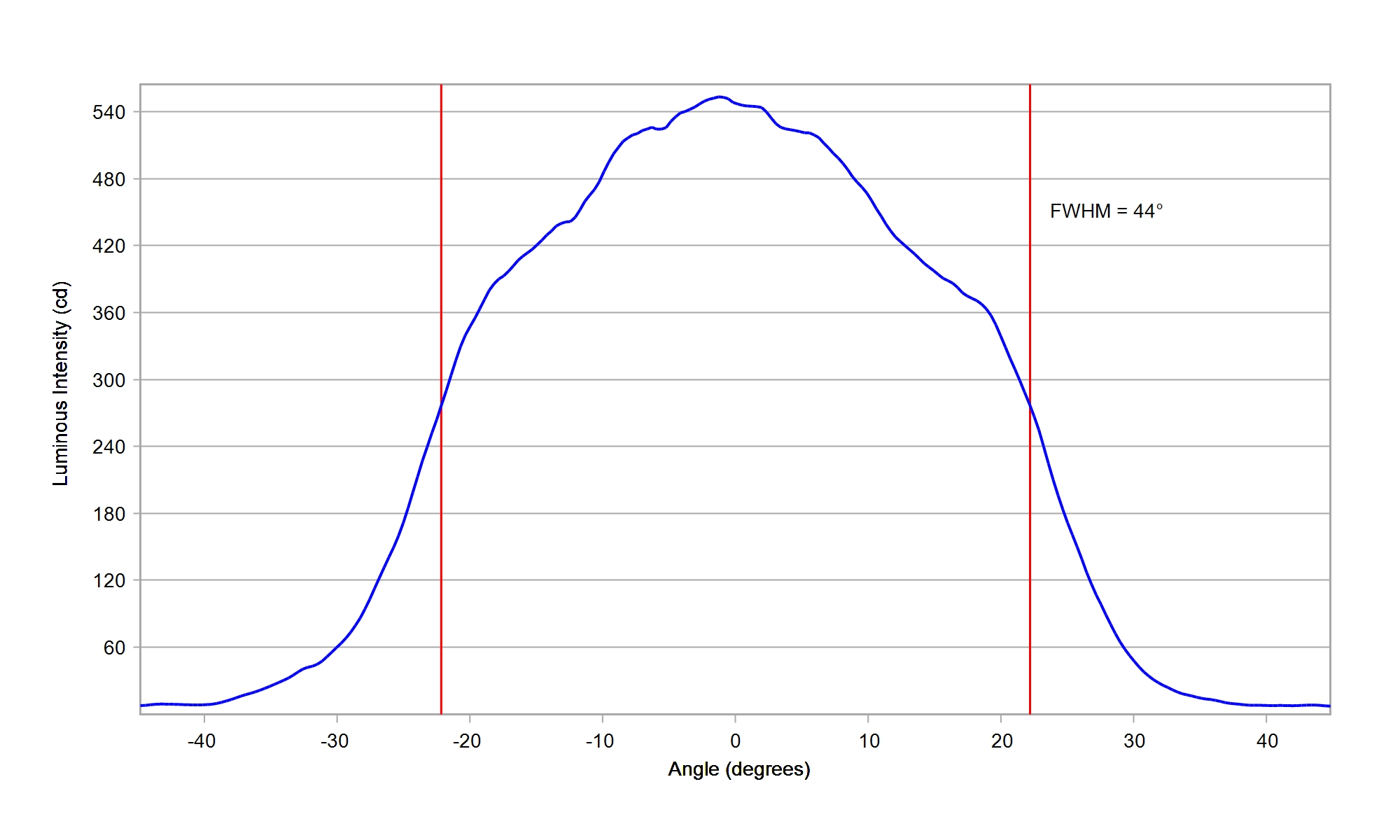

Luminus Devices SFT-25R-WES-A White

Eff:

88.0%

FWHM:

44°

Cd/Im:

1.8


Download

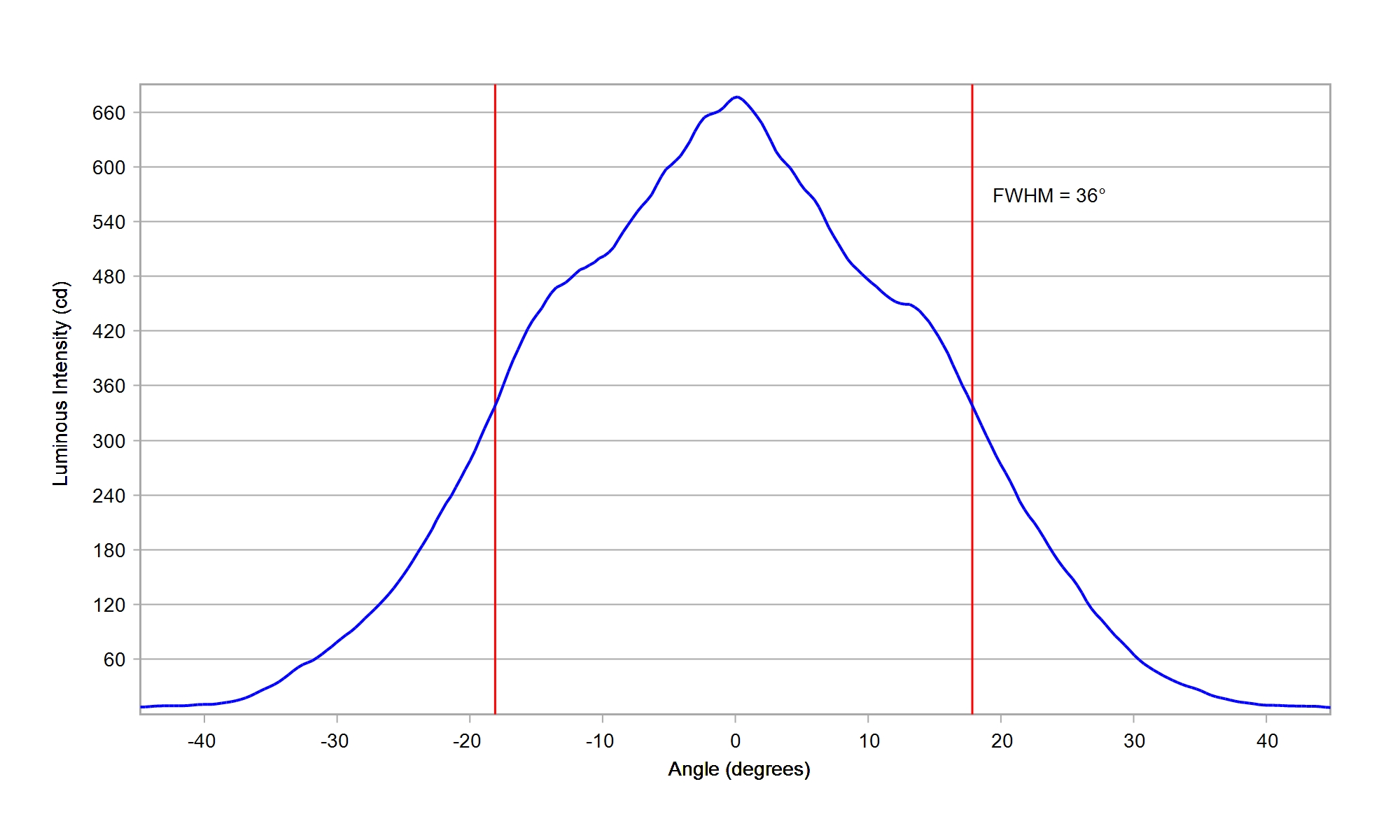

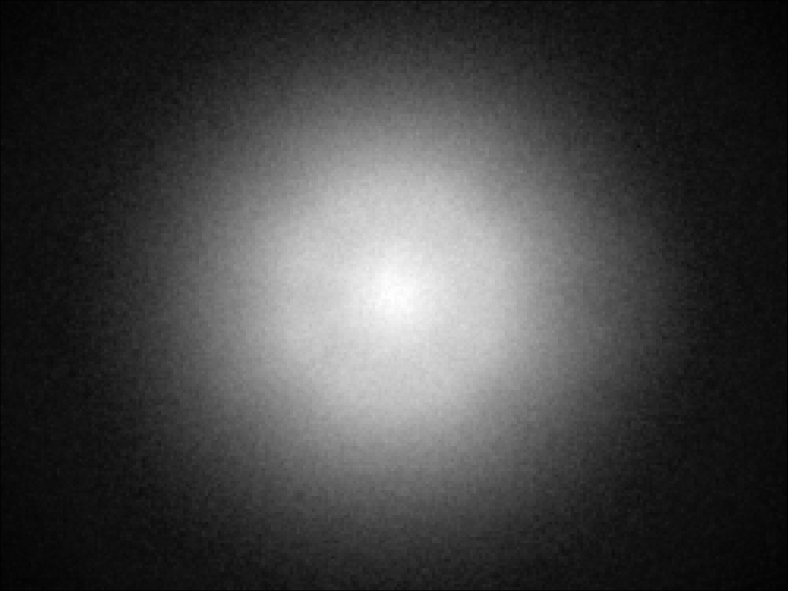

Luminus Devices SFT-25R-WES-F White

Eff:

87.5%

FWHM:

36°

Cd/Im:

2.2


Download

Luminus Devices SST 05-IR-B40 850nm

Eff:

89.0%

FWHM:

43.0°

Ipk/W:

1.8

Carclo Optics - 10003/25 Spot Image Luminus SST-05-IR-B40

Carclo Optics - 10003/25 Cross Section Luminus SST-05-IR-B40

Download

IES

Luminus Devices SST 10-B-B130 Blue

Eff:

85.5%

FWHM:

42°

Cd/Im:

1.8

Carclo Optics - 10003/25 Luminus_SST-10_B_B130 - spot image

Carclo Optics - 10003/25 Luminus_SST-10_B_B130 - cross section image

Download

IES

Luminus Devices SST 10-B-B90 Blue

Eff:

84.5%

FWHM:

44°

Cd/Im:

1.7

Carclo Optics - 10003/25 Luminus_SST-10_B_B90 - spot - image

Carclo Optics - 10003/25 Luminus_SST-10_B_B90 - cross image

Download

IES

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

89.0%

FWHM:

43°

Cd/Im:

1.9

Carclo Optics – 10003/25 Luminus_SST-10_DR_B130- Spot - image

Carclo Optics – 10003/25 Luminus_SST-10_DR_B130- Cross section – image

Download

IES

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

88.0%

FWHM:

39°

Cd/Im:

2.0

Carclo Optics - 10003/25 Luminus_SST-10_DR_B90 - Spot Image

Carclo Optics - 10003/25 Luminus_SST-10_DR_B90 - Cross section image

Download

IES

Luminus Devices SST 10-G-B130 Green

Eff:

87.5%

FWHM:

41°

Cd/Im:

1.9

Carclo Optics - 10003/25 Luminus_SST-10_G_B130 - spot - image

Carclo Optics - 10003/25 Luminus_SST-10_G_B130 - cross -vertical- section- image

Download

IES

Luminus Devices SST 10-G-B90 Green

Eff:

86.5%

FWHM:

42°

Cd/Im:

1.8

Carclo Optics – 10003/25 Luminus_SST-10_G_B90- Spot - image

Carclo Optics – 10003/25 Luminus_SST-10_G_B90- Cross section – image

Download

IES

Luminus Devices SST 10-IR-B130 940nm

Eff:

91.5%

FWHM:

38.0°

Ipk/W:

2.1

Carclo Optics - 10003/25 Spot Image Luminus SST-10-IR-B130

Carclo Optics - 10003/25 Cross Section Luminus SST-10-IR-B130

Download

IES

Luminus Devices SST 10-IR-B90 940nm

Eff:

90.0%

FWHM:

37.0°

Ipk/W:

2.1

Carclo Optics - 10003/25 Spot Image Luminus SST-10-IR-B90

Carclo Optics - 10003/25 Cross Section Luminus SST-10-IR-B90

Download

IES

Luminus Devices SST 10-IRD-B130 810nm

Eff:

92.0%

FWHM:

42°

Ipk/W:

2.1


Download

IES

Luminus Devices SST 10-IRD-B90 810nm

Eff:

90.0%

FWHM:

38°

Ipk/W:

2.2


Download

IES

Luminus Devices SST 20-WxH White Hi CRI

Eff:

87.0%

FWHM:

41°

Cd/Im:

1.9

Carclo Optics – 10003/25 - Luxeon_SST_20_W_spot-image

Carclo Optics – 10003/25 - Luxeon_SST_20_W_cross vertical section

Download

IES

Luminus Devices SST 40-W White

Eff:

85.0%

FWHM:

42°

Cd/Im:

1.6

Carclo Optics – 10003/25 - Luxeon_SST_40_W_spot-image

Carclo Optics – 10003/25 - Luxeon_SST_40_W_cross vertical section

Download

IES

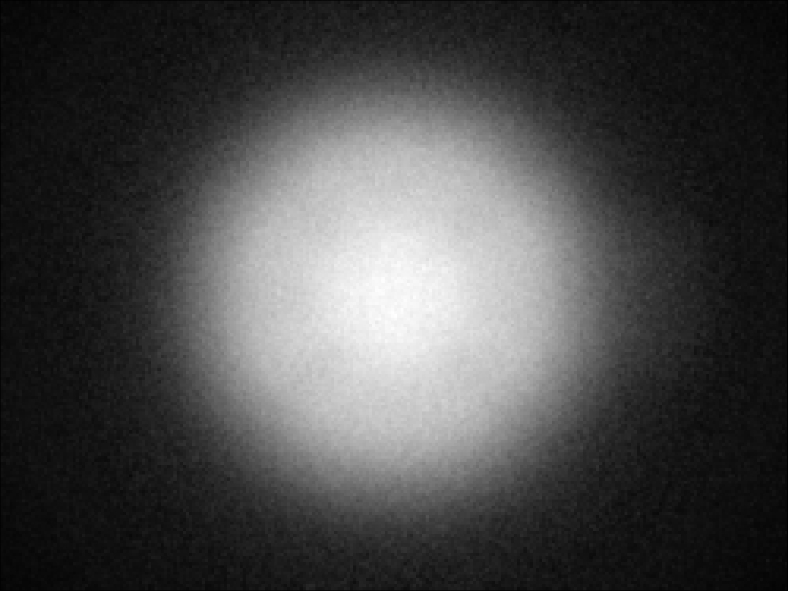

Luminus Devices SST-12-WS Gen2 White

Eff:

87.5%

FWHM:

44°

Cd/Im:

1.8


Download

Luminus Devices SST-12-WxS White

Eff:

87.5%

FWHM:

43°

Cd/Im:

1.8

Download

IES

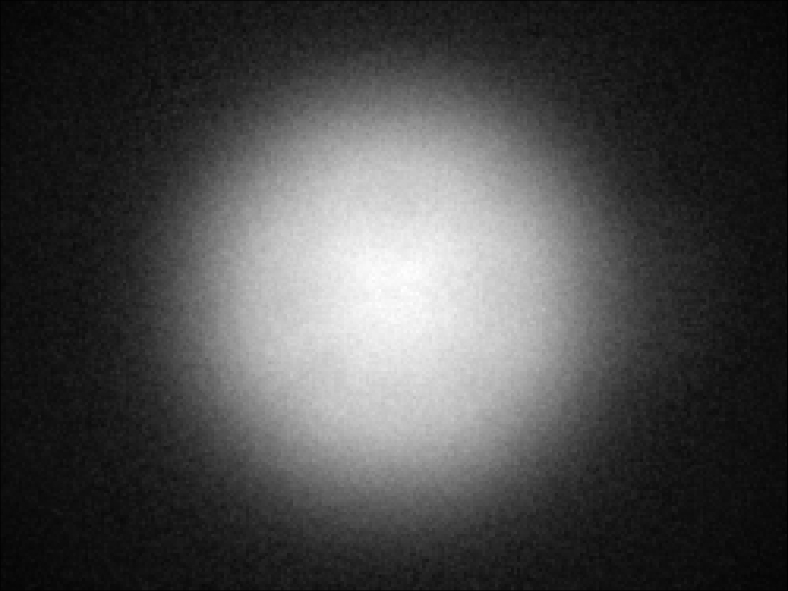

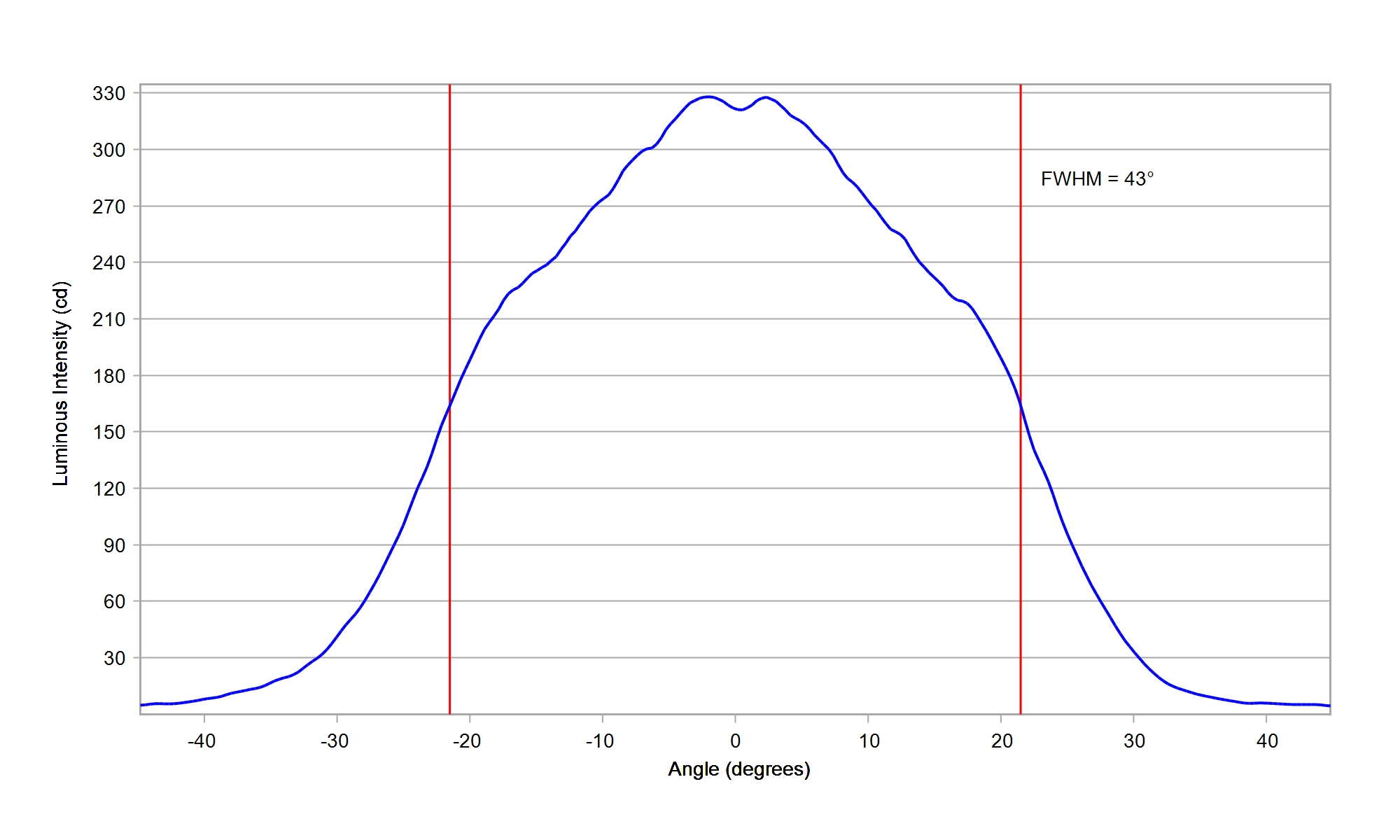

Luminus Devices SST-20-W Gen2 White

Eff:

87.0%

FWHM:

43°

Cd/Im:

1.8


Download

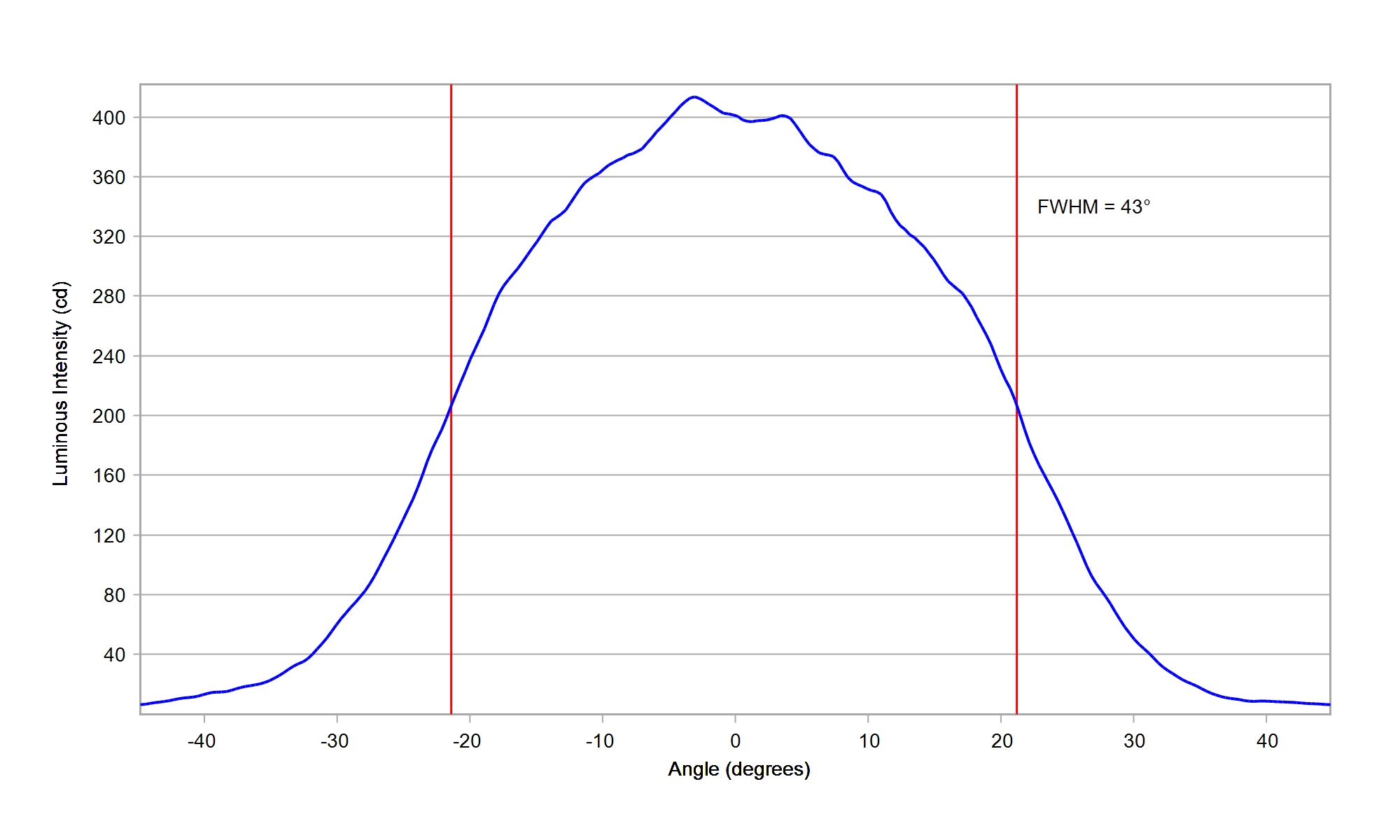

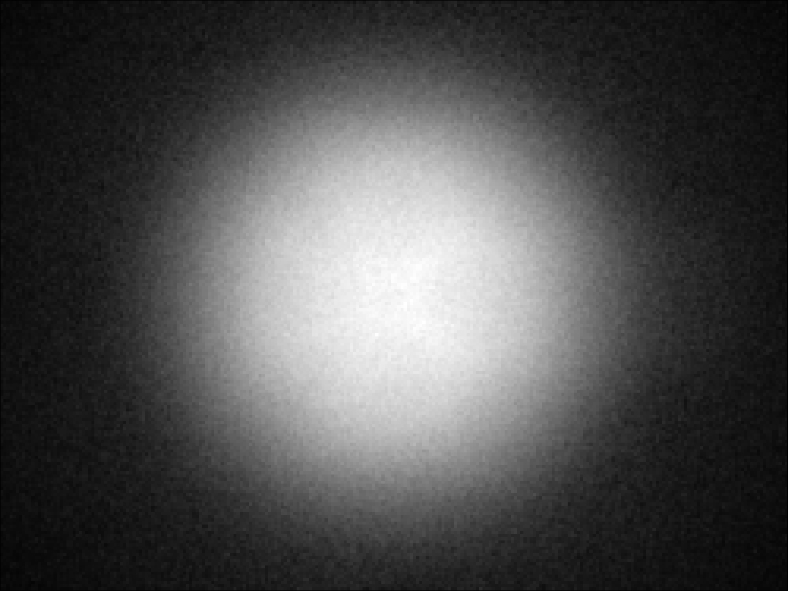

Luminus Devices SST-25-WES White

Eff:

87.0%

FWHM:

43°

Cd/Im:

1.7


Download

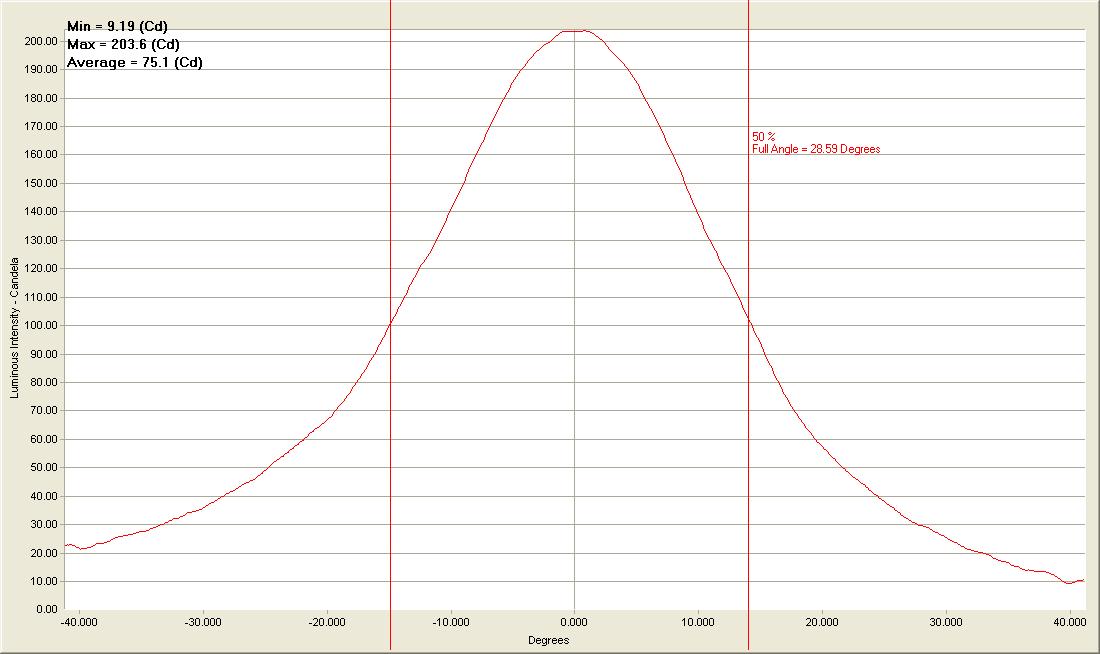

Luminus Devices SST-50 White

Eff:

79.3%

FWHM:

28.9°

Cd/Im:

2.4

Download

ies

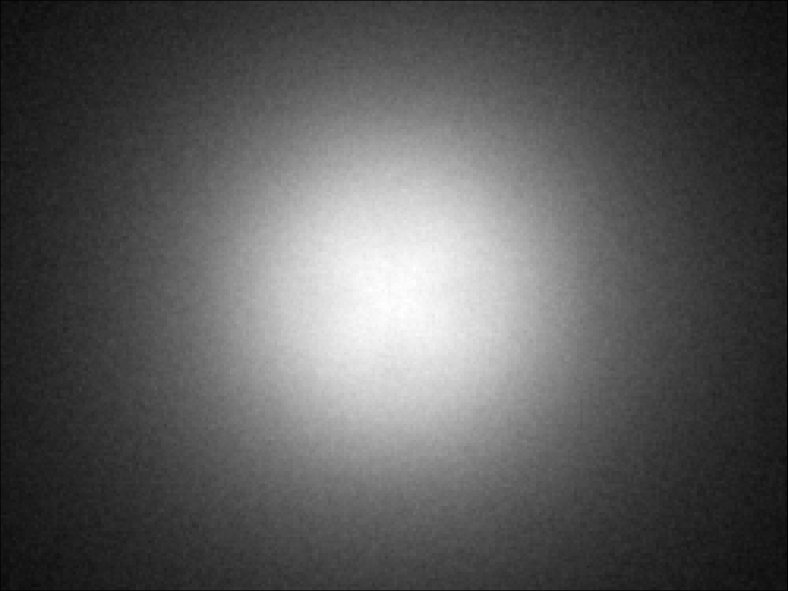

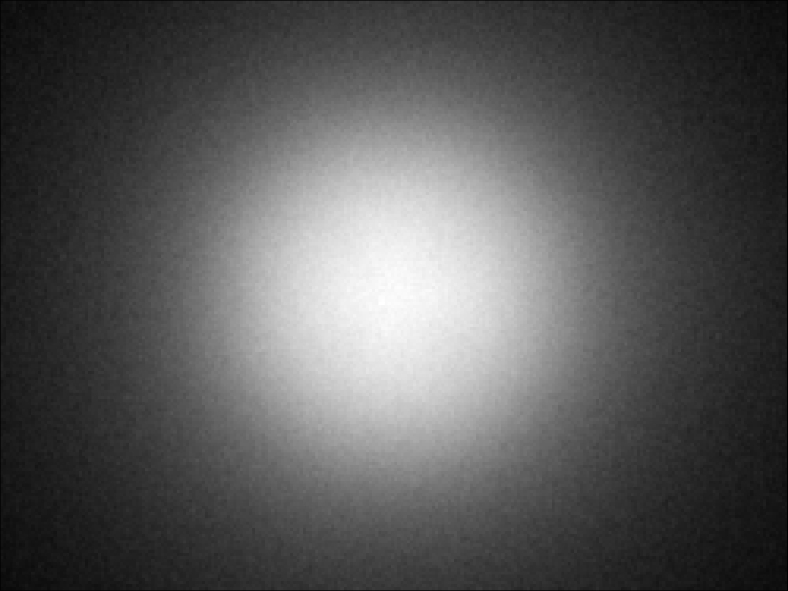

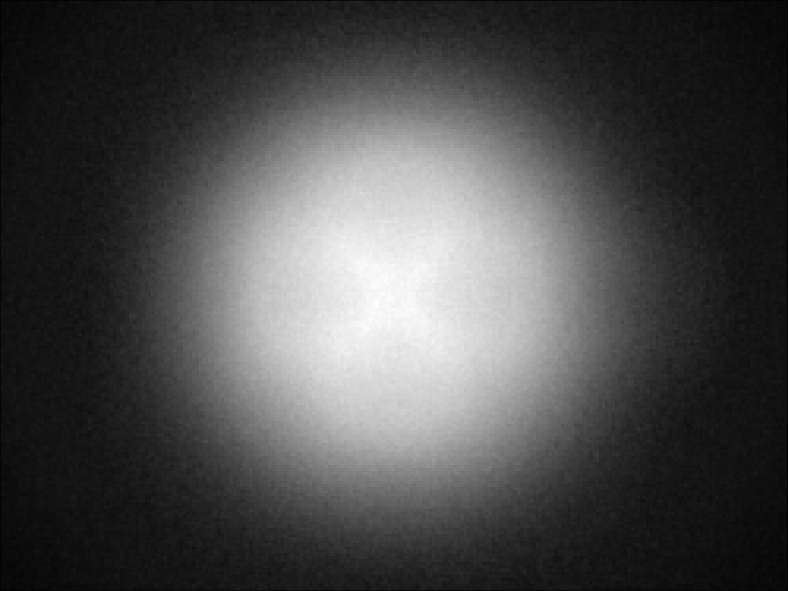

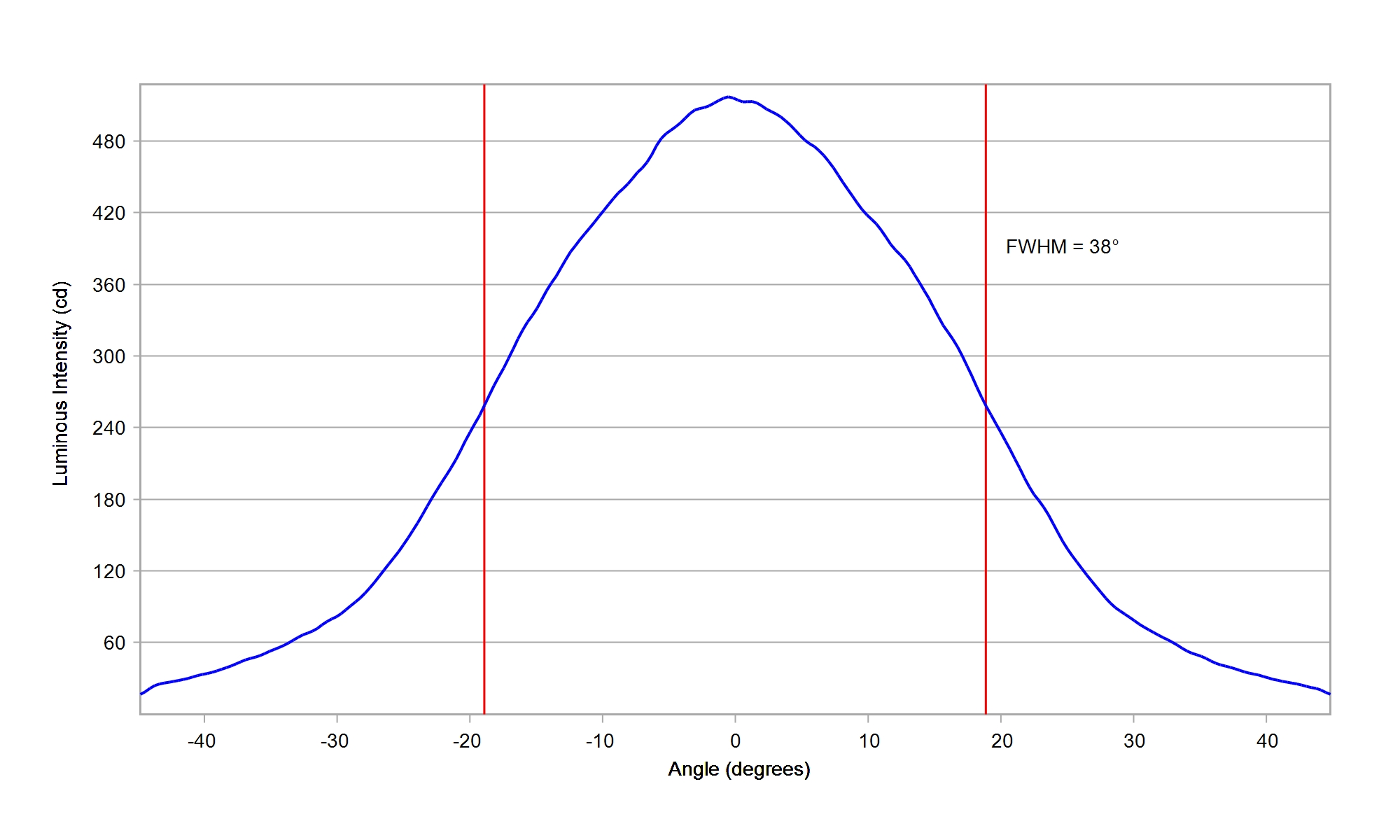

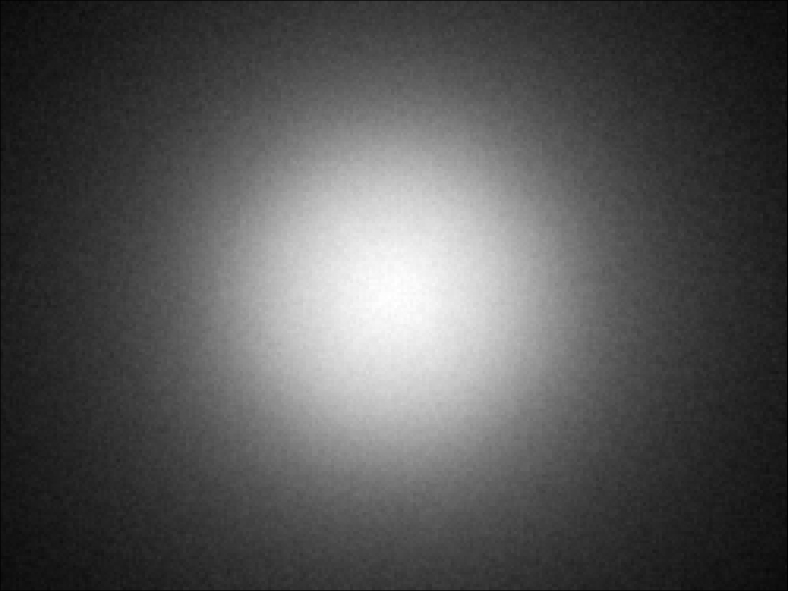

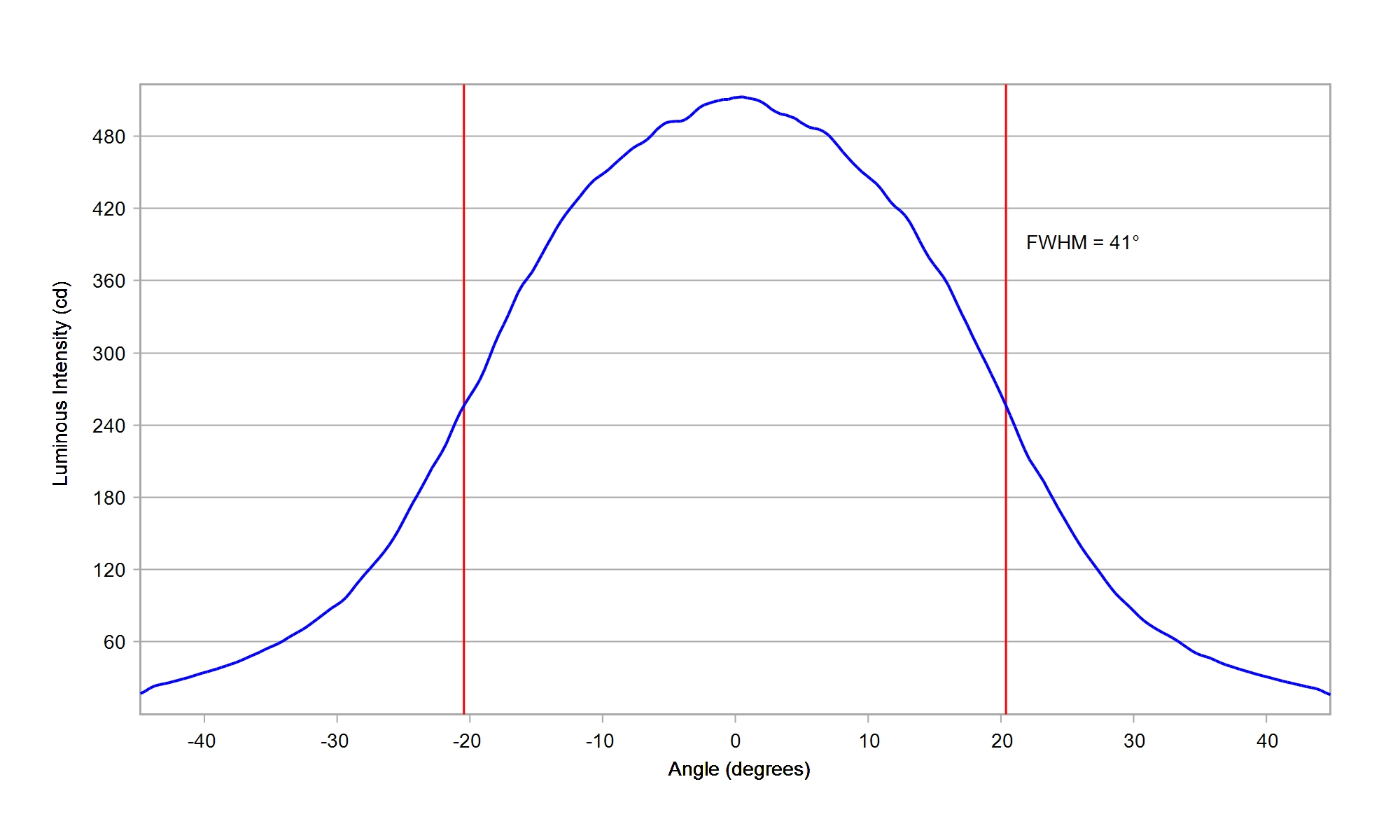

Nichia 219 White

FWHM:

40°

Cd/Im:

2.8

Download

ies

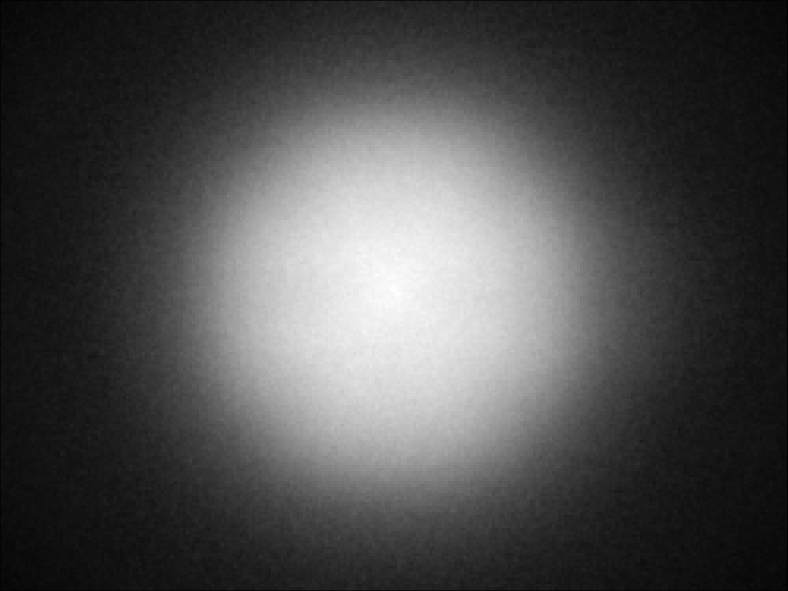

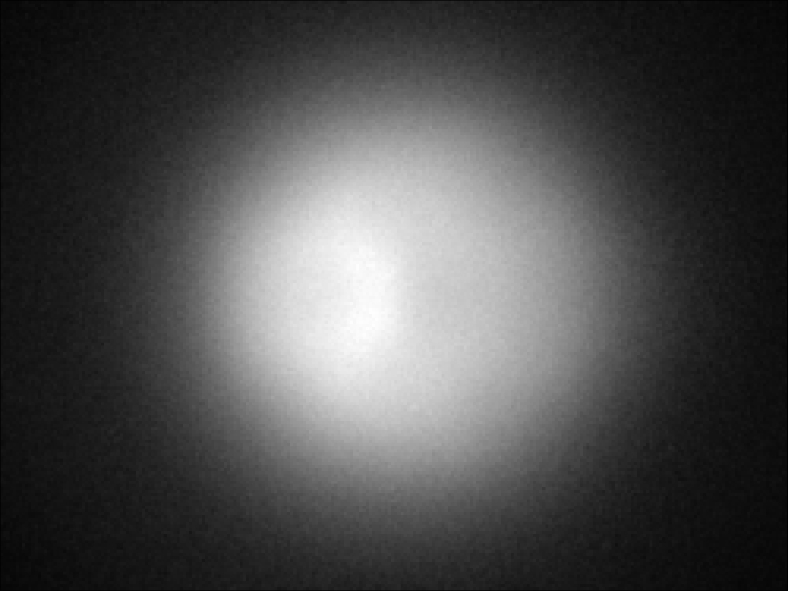

Nichia 757G White

Eff:

87.0%

FWHM:

42 x 33°

Cd/Im:

2.3

Carclo Optics 10003/25 20mm Simulated Spot Image Nichia 757G-MT

Carclo Optics 10003/25 20mm Cross Section Vertical Nichia 757G-MT

,

Carclo Optics 10003/25 20mm Cross Section Horizontal Nichia 757G-MT

Download

IES

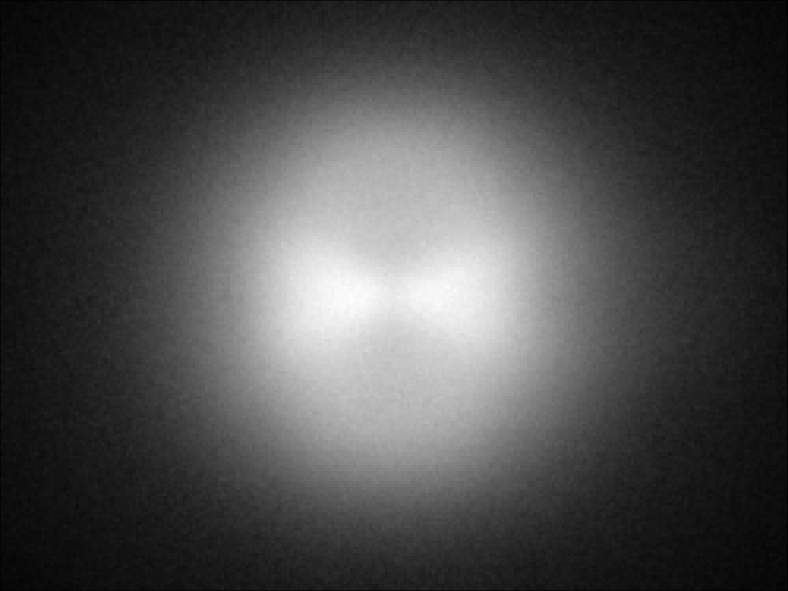

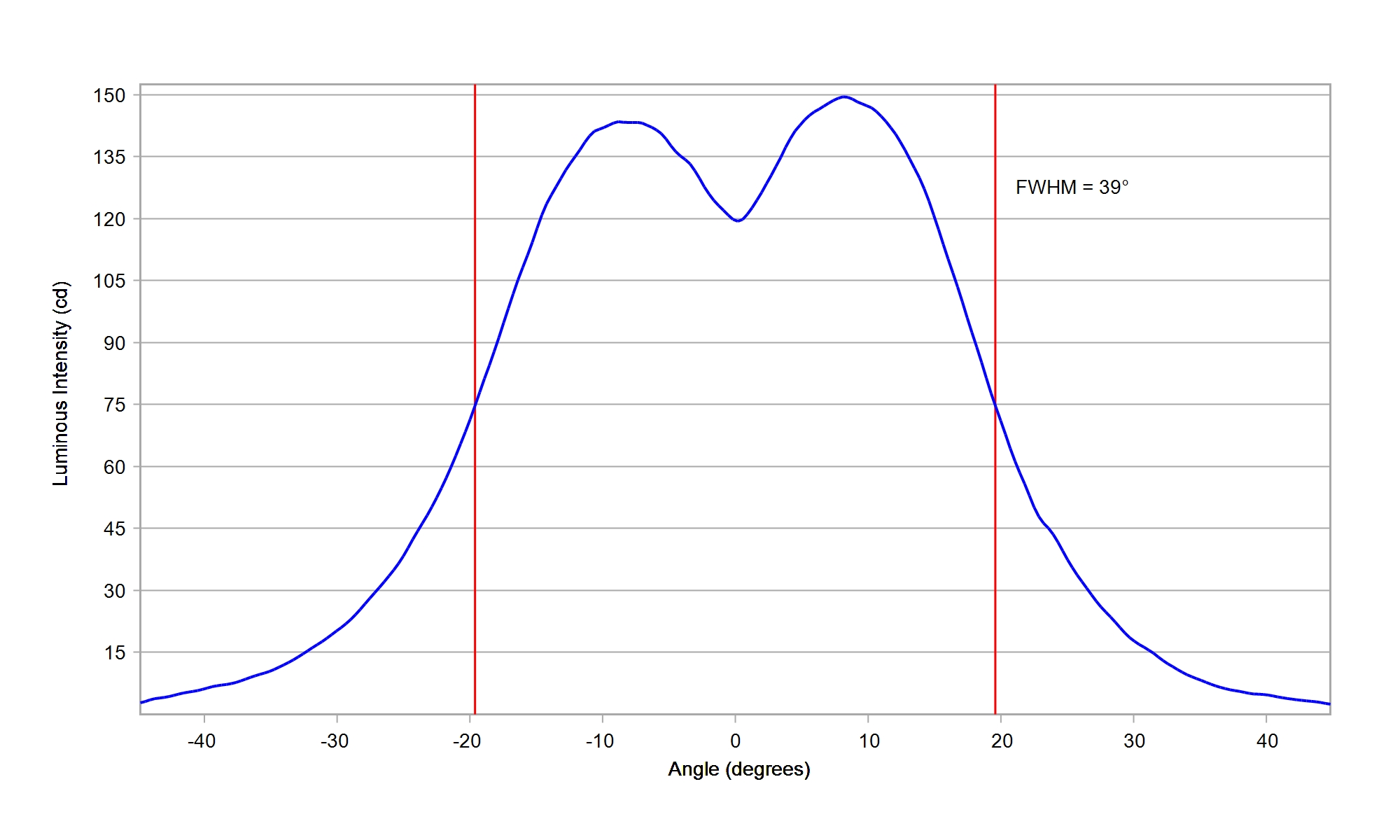

Nichia NF2W 385AR-V2 White

Eff:

87.0%

FWHM:

40°

Cd/Im:

2.0

Download

IES

Nichia NFSW CSP E11A White

Eff:

86.5%

FWHM:

45°

Cd/Im:

1.9

Download

IES

Nichia NV4W B35AM White

Eff:

86.0%

FWHM:

44°

Cd/Im:

1.5

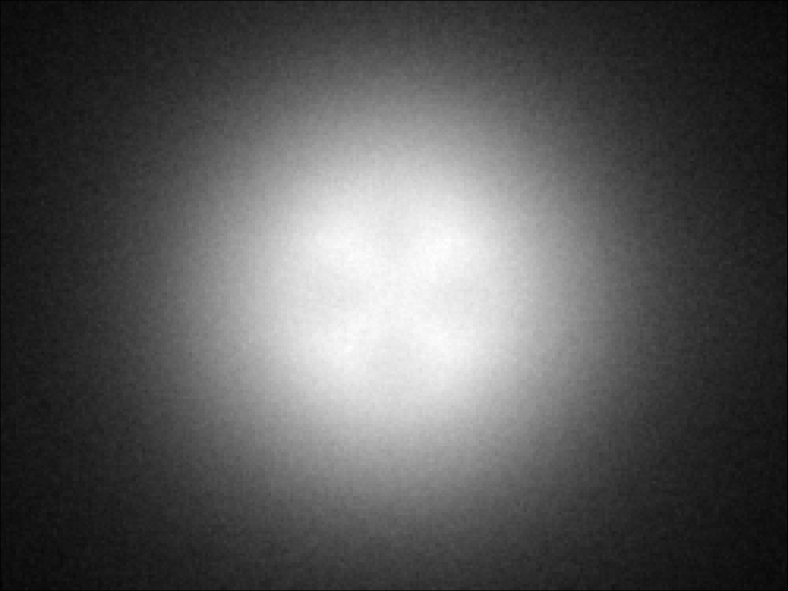

Carclo Optics – 10003-25 Nichia NV4WB35AM - Spot Image

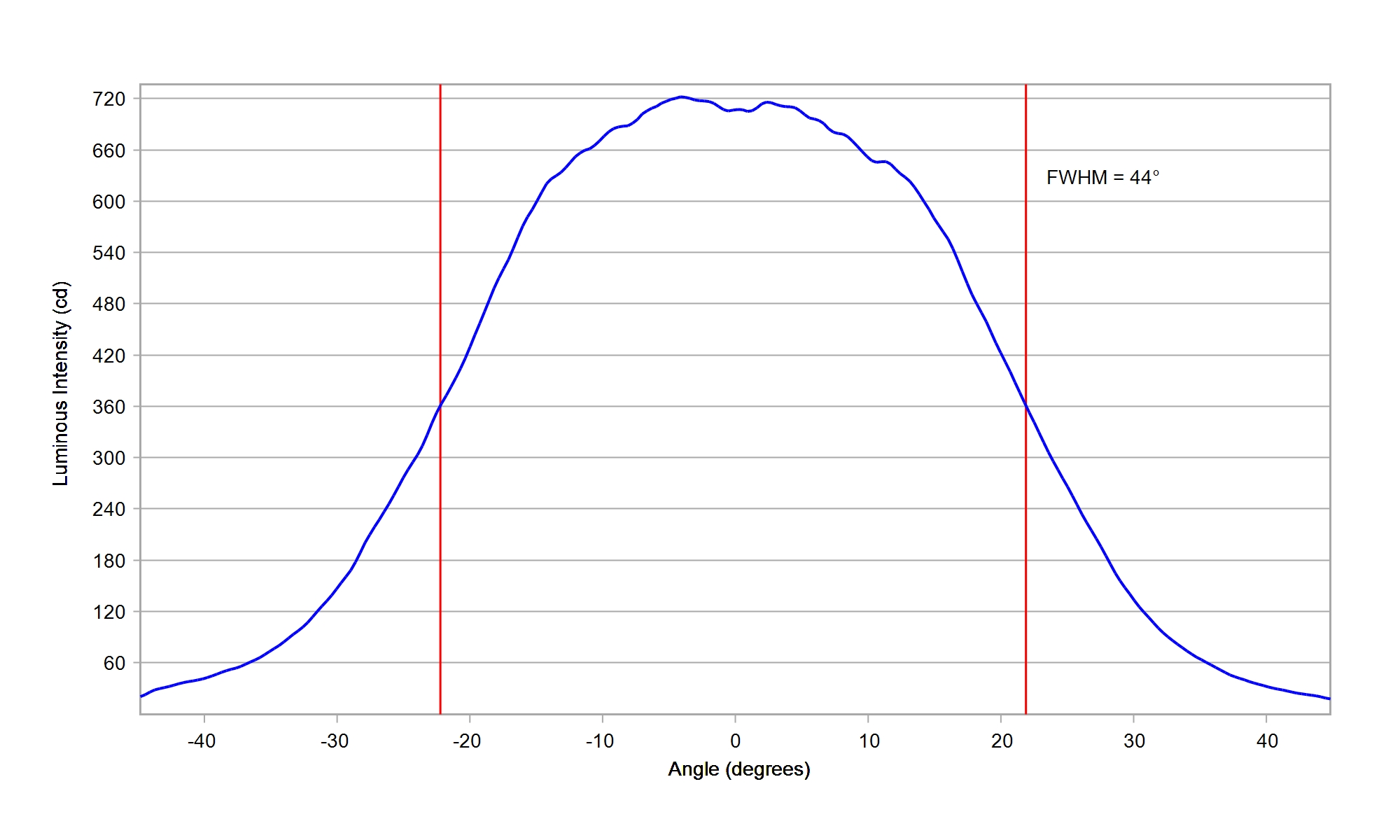

Carclo Optics – 10003-25 Nichia NV4WB35AM - Cross-Section

Download

IES

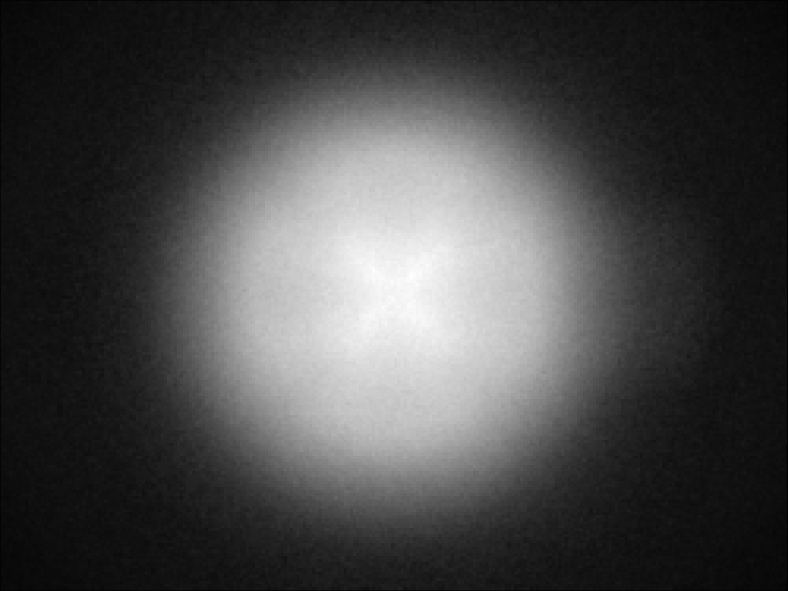

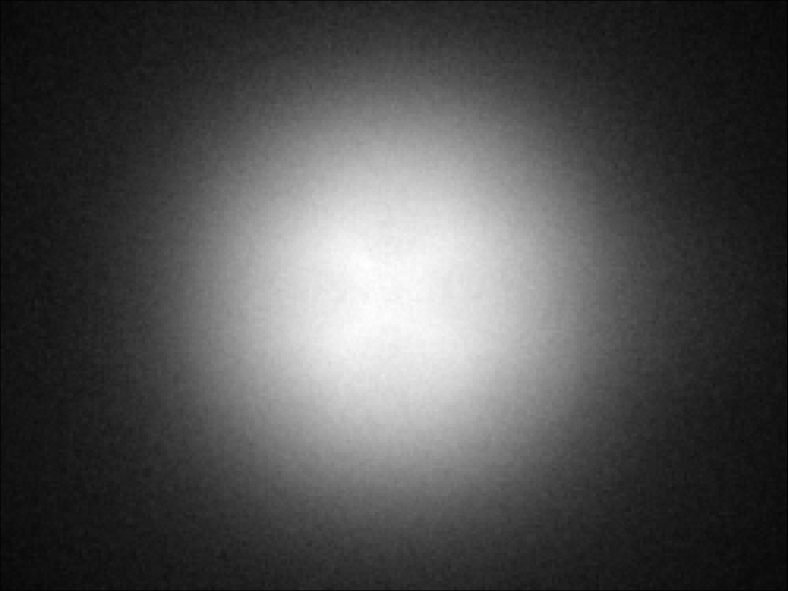

Nichia NVSW 219F White

Eff:

86.0%

FWHM:

42°

Cd/Im:

1.7

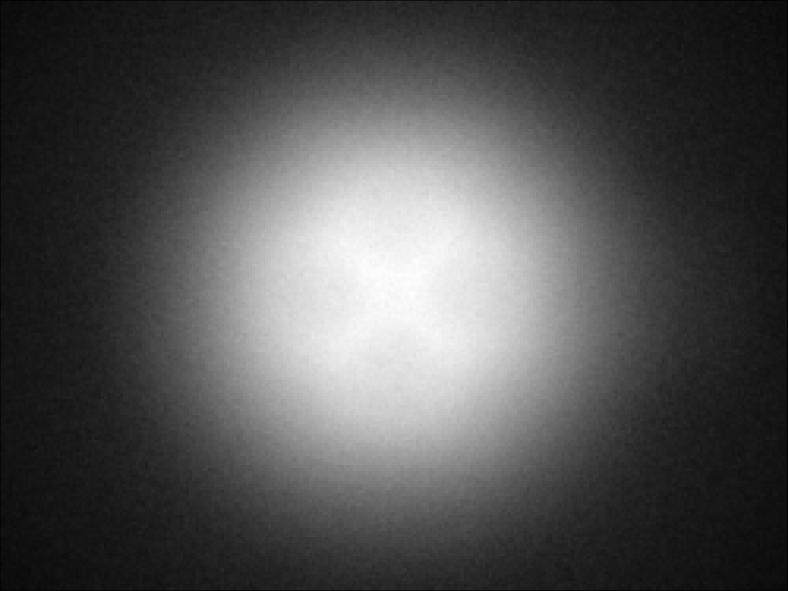

Carclo Optics – 10003/25 Nichia NVSW 219F White - Spot Image

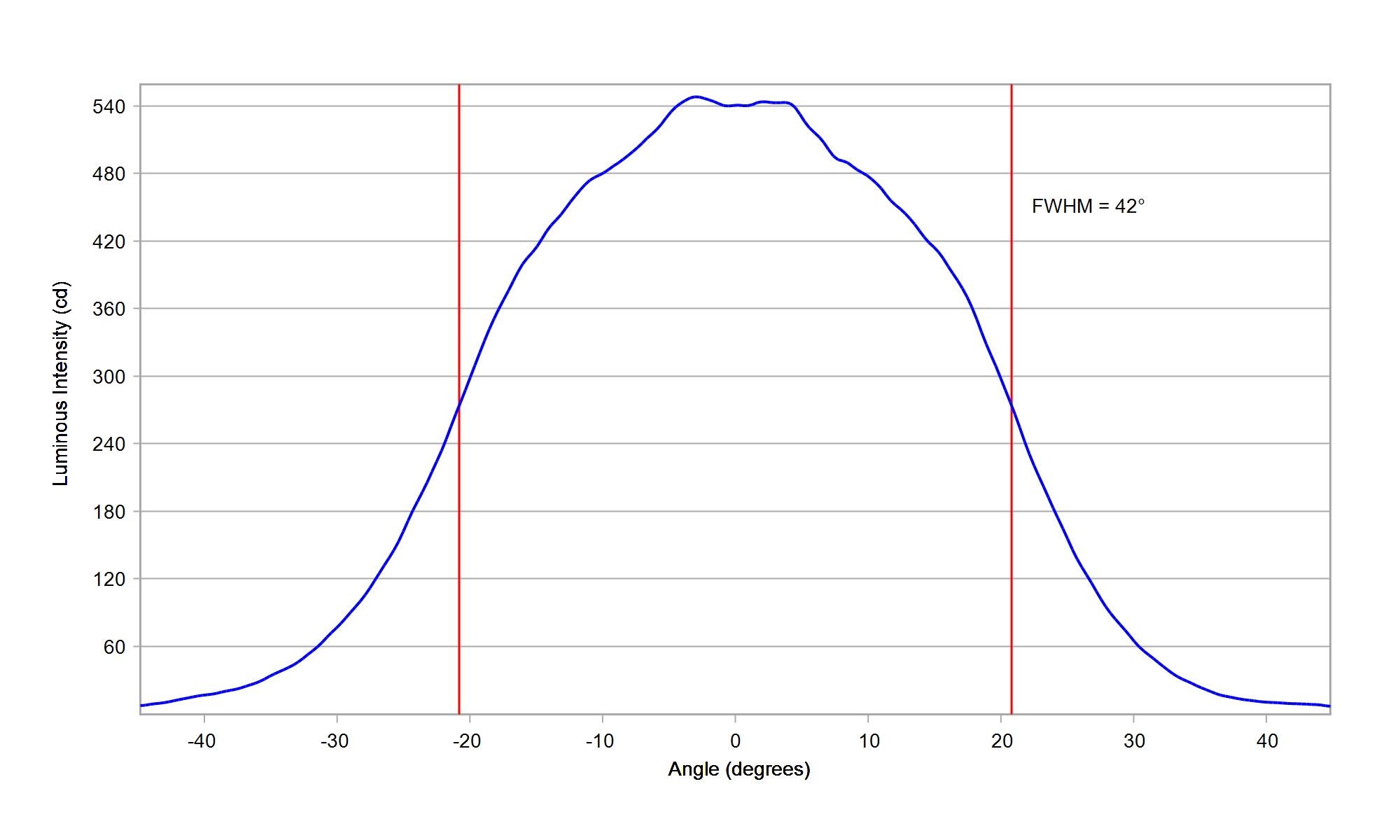

Carclo Optics – 10003/25 Nichia NVSW 219F White - Cross-Section

Download

IES

Nichia Top Emitting NCSL 119-H3 White

Eff:

83.8%

FWHM:

32.8°

Cd/Im:

3.1

Download

ies

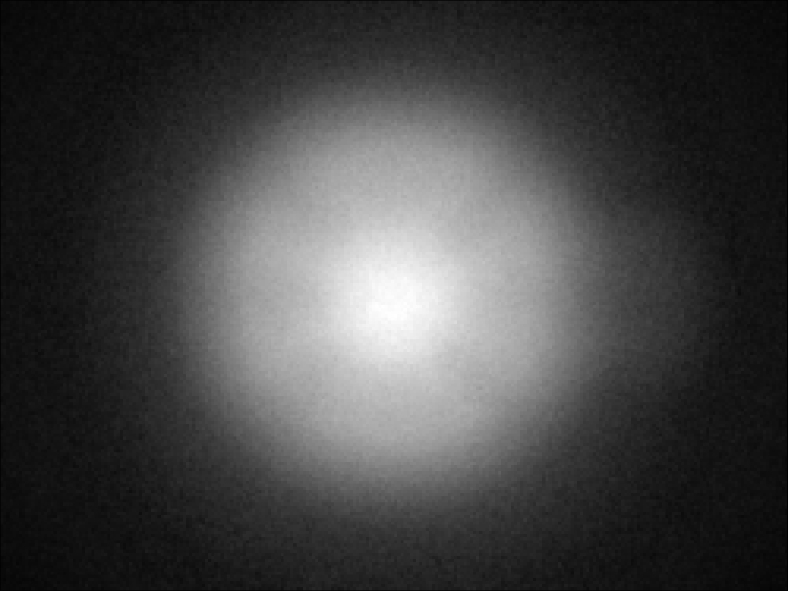

Osram LED ENGIN LuxiGen LZ1 00CW02 White

Eff:

87.0%

FWHM:

33°

Cd/Im:

2.3


Download

Osram LED ENGIN LuxiGen LZ1 00R702 IR940nm

Eff:

91.0%

FWHM:

36°

Ipk/W:

2.4


Download

IES

Osram DURIS E 2835 Gen2

Eff:

87.5%

FWHM:

41°

Cd/Im:

1.9

Carclo Optics - 10003/25 20mm Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 10003/25 20mm Cross Section Osram DURIS E 2835 Gen2

Download

IES

Osram DURIS S5 Deep Blue

Eff:

85.5%

FWHM:

43.0°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S5 Green

Eff:

87.5%

FWHM:

43.0°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S5 Red

Eff:

88.5%

FWHM:

42.5°

Cd/Im:

2.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram Golden DRAGON Plus W5AM White

Eff:

83.9%

FWHM:

32.5°

Cd/Im:

4.7

Download

ies

Osram OSCONIQ C 2424 White

Eff:

88.0%

FWHM:

44.0°

Cd/Im:

1.8

Carclo Optics - 10003/25 Spot Image OSCONIQ C2424

Carclo Optics - 10003/25 Cross Section OSCONIQ C2424

Download

IES

Osram OSCONIQ P3737 White

Eff:

84.0%

FWHM:

41.5°

Cd/Im:

1.6

Carclo Optics 10003/25 Spot Image Osram Osconiq

Carclo Optics 10003/25 Cross Section Osram Osconiq P3737

Download

IES

Osram OSLON Black SFH 4715AS IR

Eff:

90.0%

FWHM:

38°

Ipk/W:

2.3


Download

IES

Osram OSLON Black SFH 4716AS IR

Eff:

90.5%

FWHM:

43°

Ipk/W:

2.1

Carclo Optics – 10003/25 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

Carclo Optics – 10003/25 Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

IES

Osram OSLON Black SFH 4725S IR

Eff:

91.5%

FWHM:

38.5°

Ipk/W:

2.2

Carclo Optics 10003/25 Spot Image Osram Oslon Black_IR_SFH_4725S

Carclo Optics 10003/25 Cross Section Horizontal Image Osram Oslon Black_IR_SFH_4725S

Download

IES

Osram OSLON Boost HM KW CELMM1.TG

Eff:

88.0%

FWHM:

46°

Cd/Im:

2.3

Carclo Optics – 10003/25 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 10003/25 – Osram_Oslon_Boost_KW_CELMM1_TG_cross vertical section

Download

IES

Osram OSLON Pure 1010 CSP GC VJLPE1.13 Cyan

Eff:

88.0%

FWHM:

45°

Cd/Im:

2.0


Download

IES

Osram OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue

Eff:

86.0%

FWHM:

46°

Ipk/W:

2.0


Download

IES

Osram OSLON Pure 1010 CSP GG VJLPE1.F3 Green

Eff:

87.5%

FWHM:

45°

Cd/Im:

2.0


Download

IES

Osram OSLON Pure 1010 CSP GR VJLPE1.F3 Red

Eff:

88.0%

FWHM:

44°

Cd/Im:

1.9


Download

IES

Osram OSLON Pure 1010 CSP GT VJLPE1.13 True Green

Eff:

87.5%

FWHM:

44°

Cd/Im:

2.0



Download

IES

Osram OSLON Pure 1010 CSP GW VJLPE1.CM White

Eff:

87.0%

FWHM:

45°

Cd/Im:

2.1



Download

IES

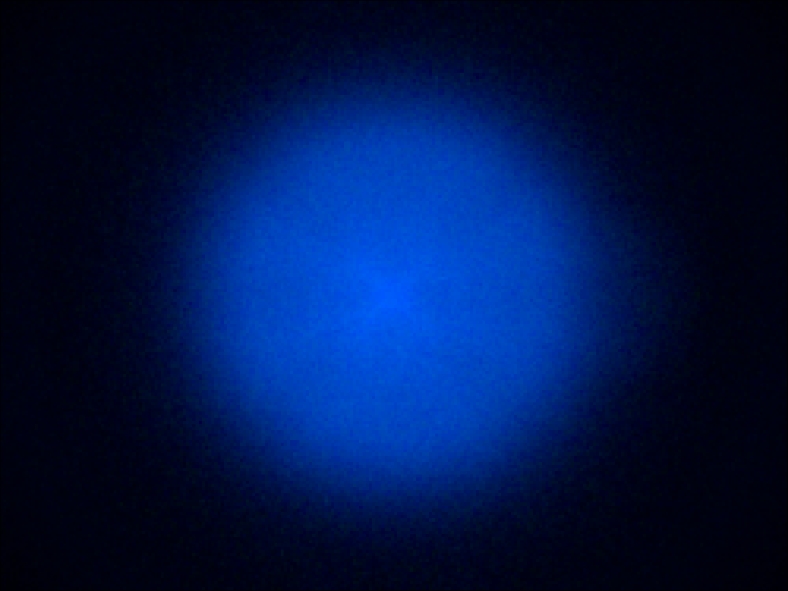

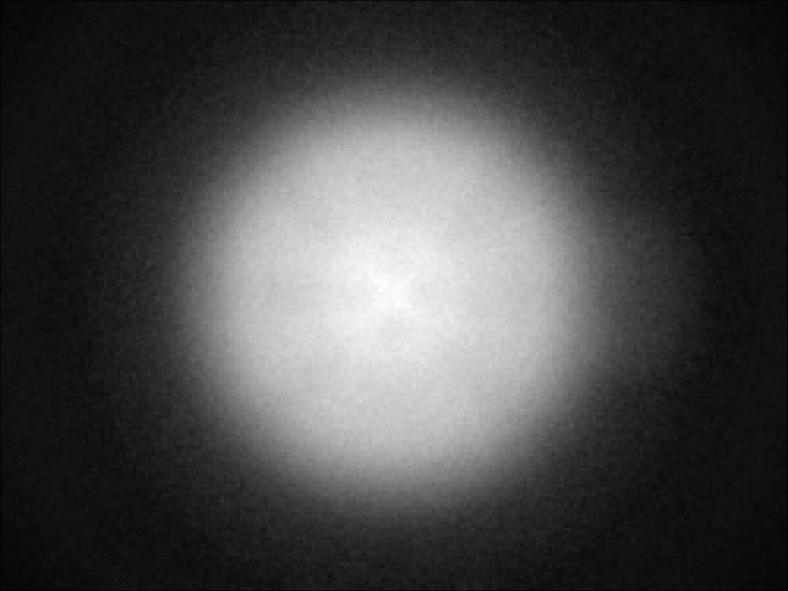

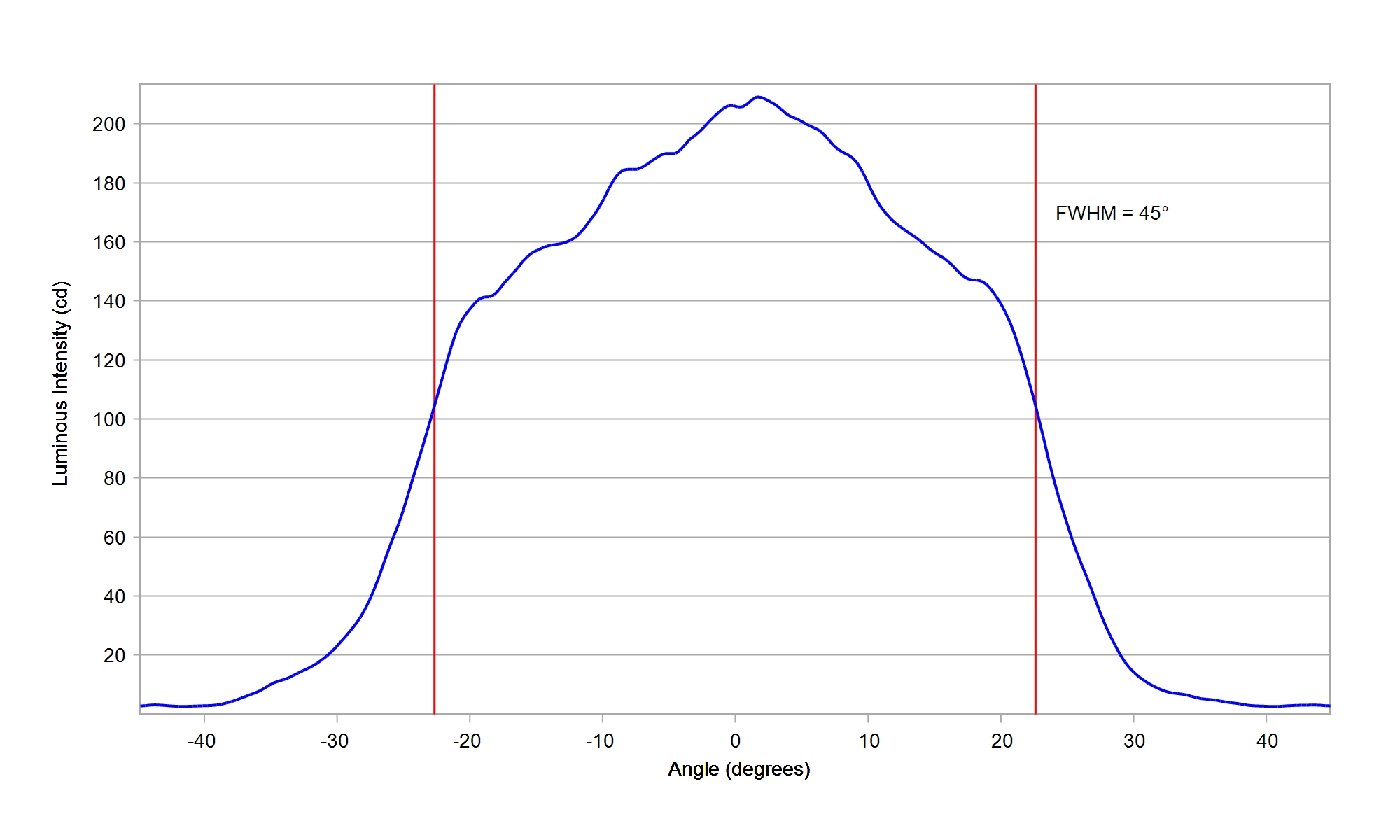

Osram OSLON Pure 1414 GB VJLPL1.F3 Blue

Eff:

88.0%

FWHM:

45°

Cd/Im:

1.9


Download

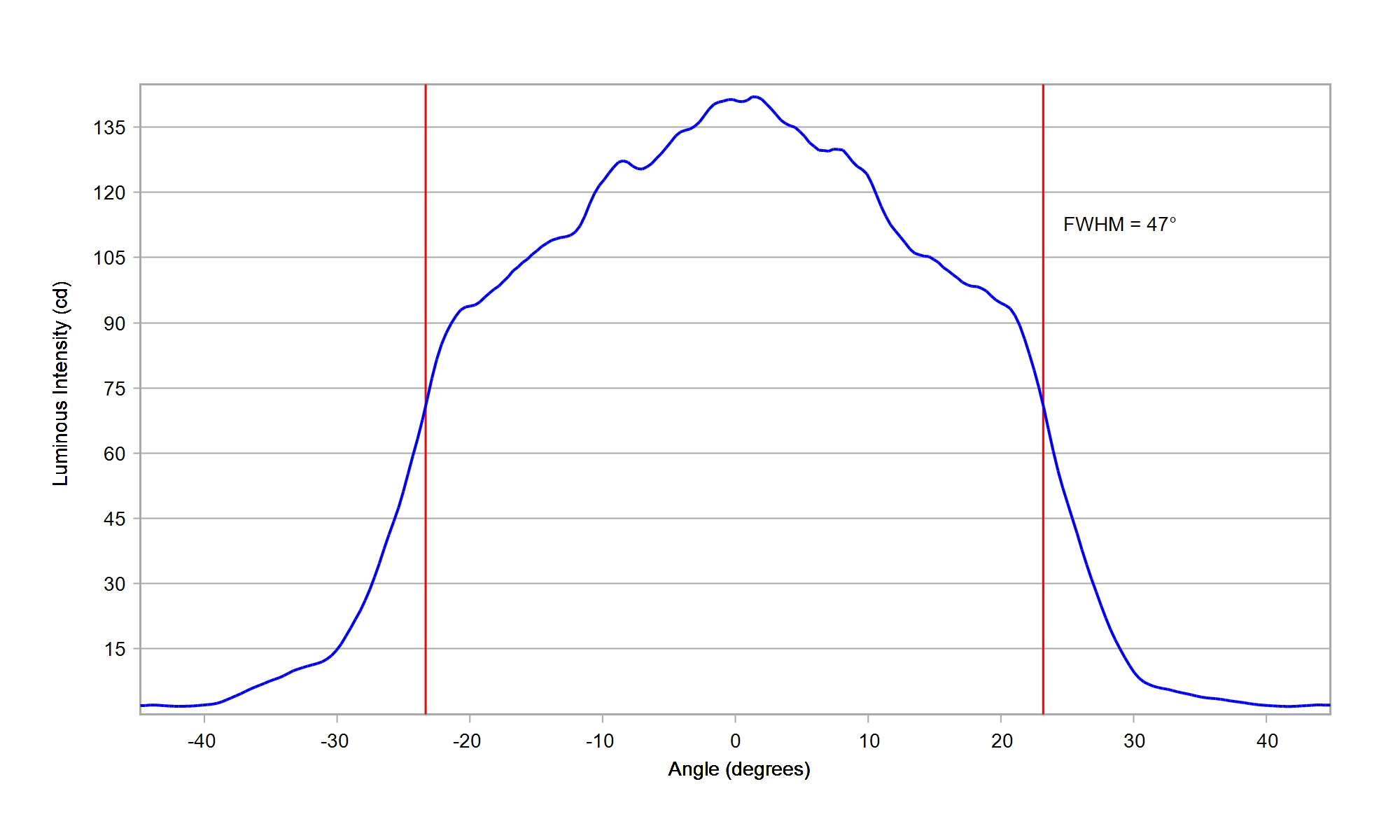

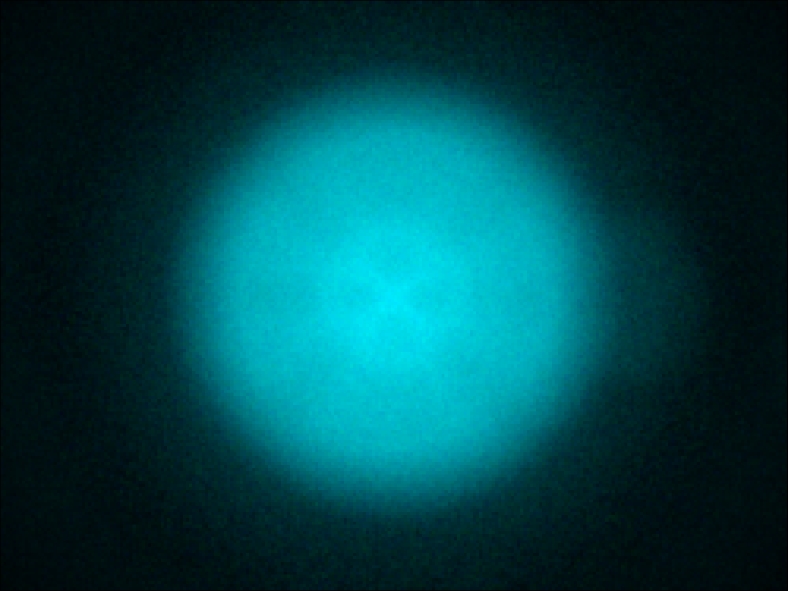

Osram OSLON Pure 1414 GC VJLPL1.13 Cyan

Eff:

88.5%

FWHM:

47°

Cd/Im:

1.8


Download

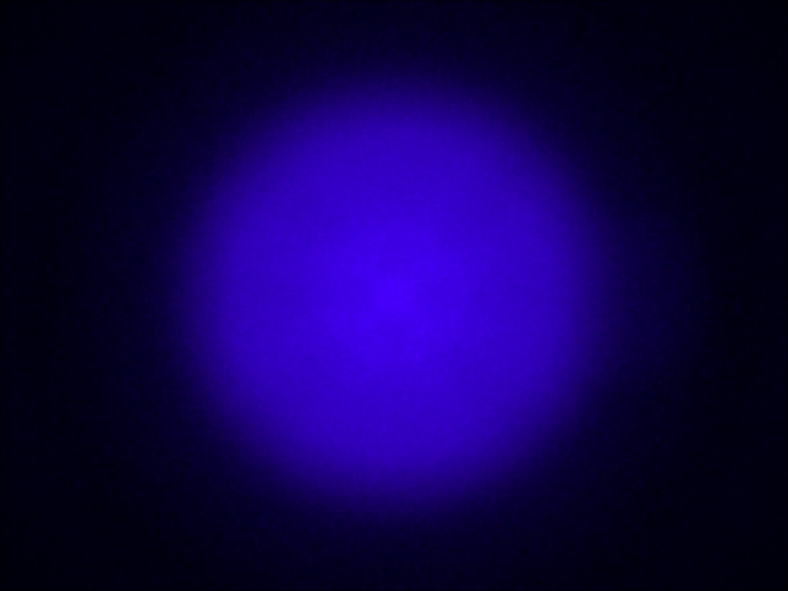

Osram OSLON Pure 1414 GD VJLPL1.14 Deep Blue

Eff:

86.5%

FWHM:

47°

Ipk/W:

1.7


Download

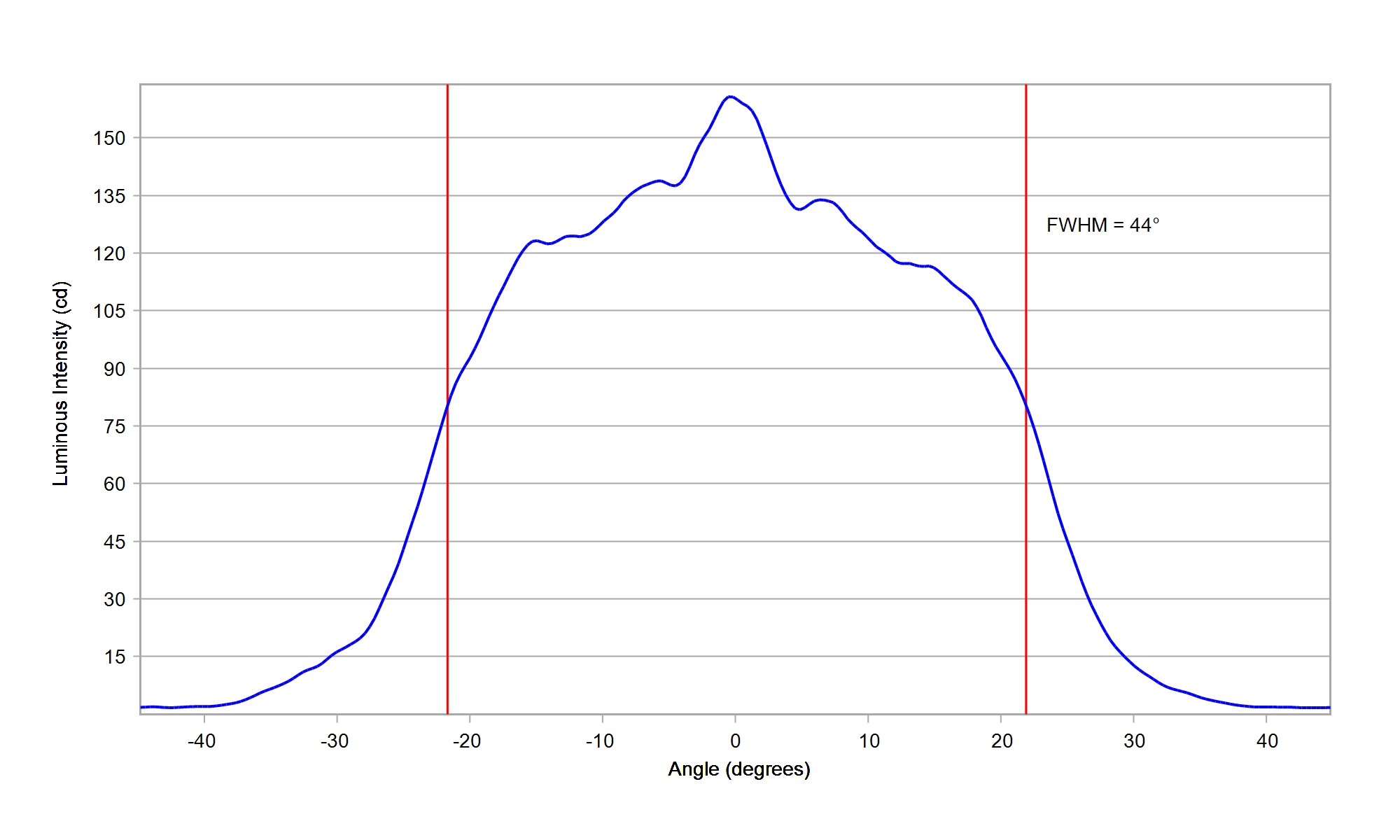

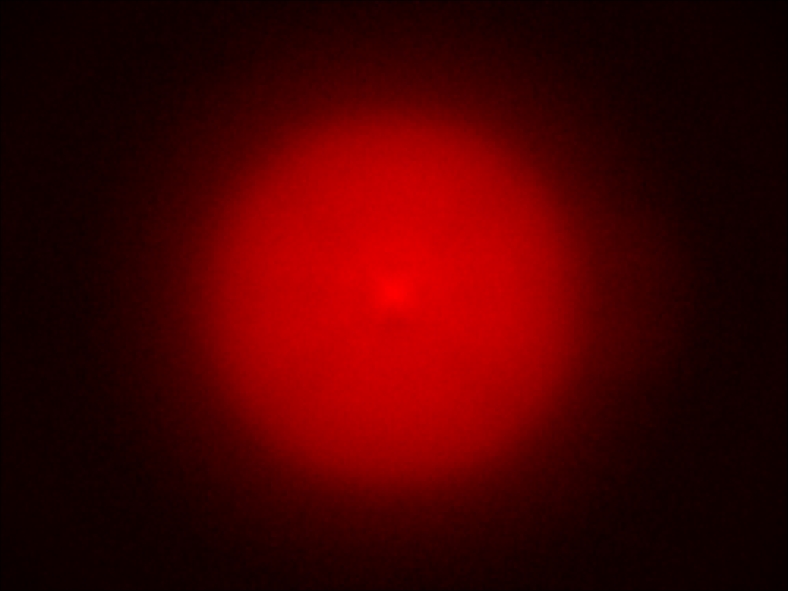

Osram OSLON Pure 1414 GR VJLPL1.23 Red

Eff:

89.0%

FWHM:

44°

Cd/Im:

2.2


Download

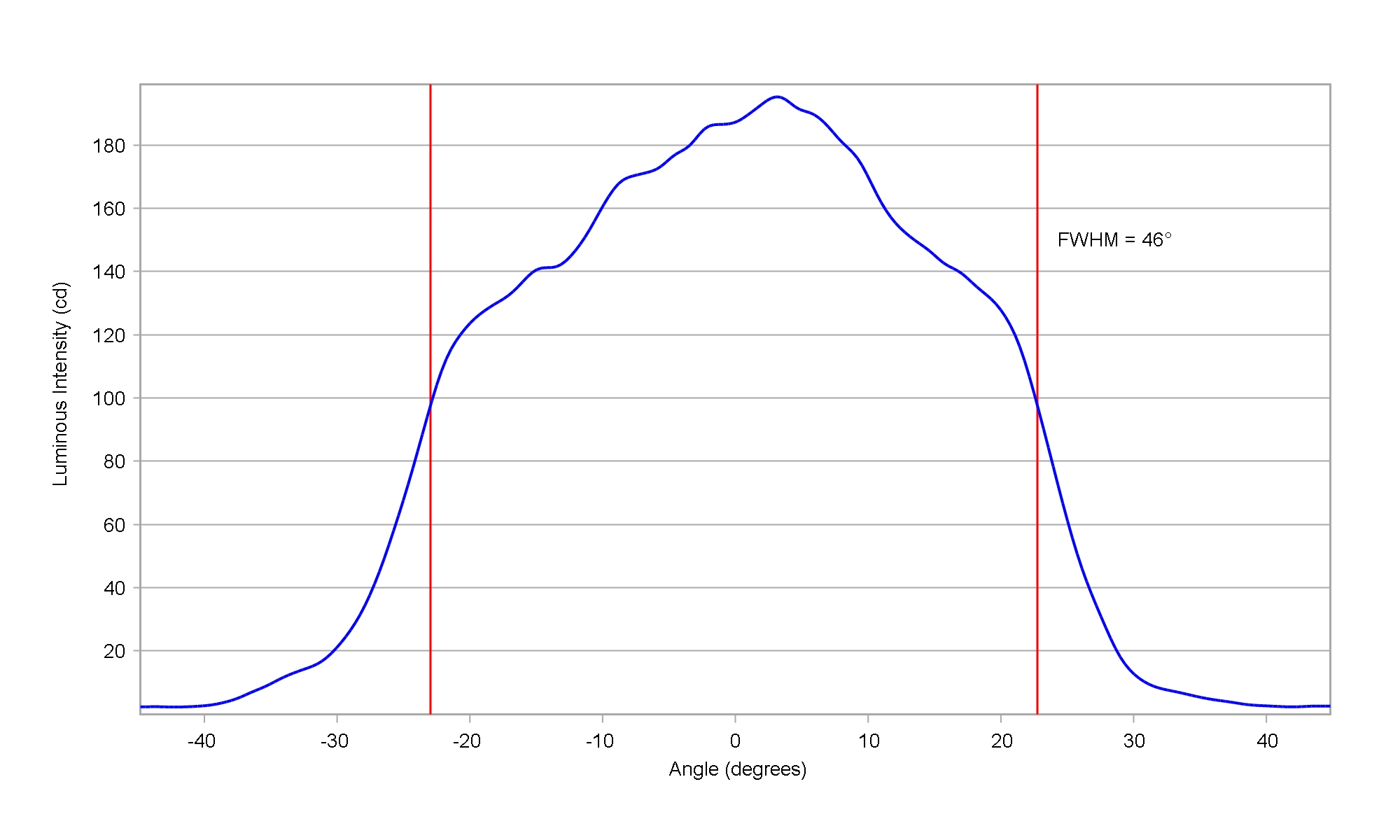

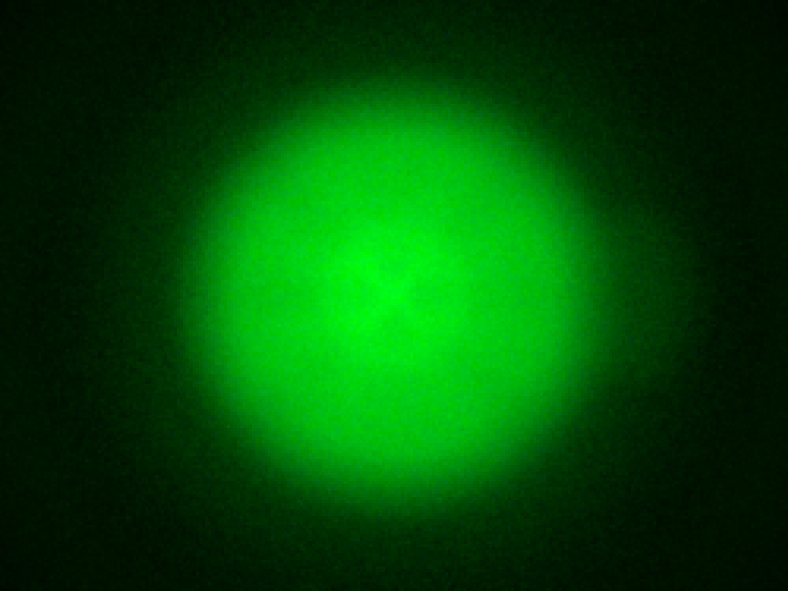

Osram OSLON Pure 1414 GT VJLPL1.13 True Green

Eff:

88.0%

FWHM:

46°

Cd/Im:

1.8



Download

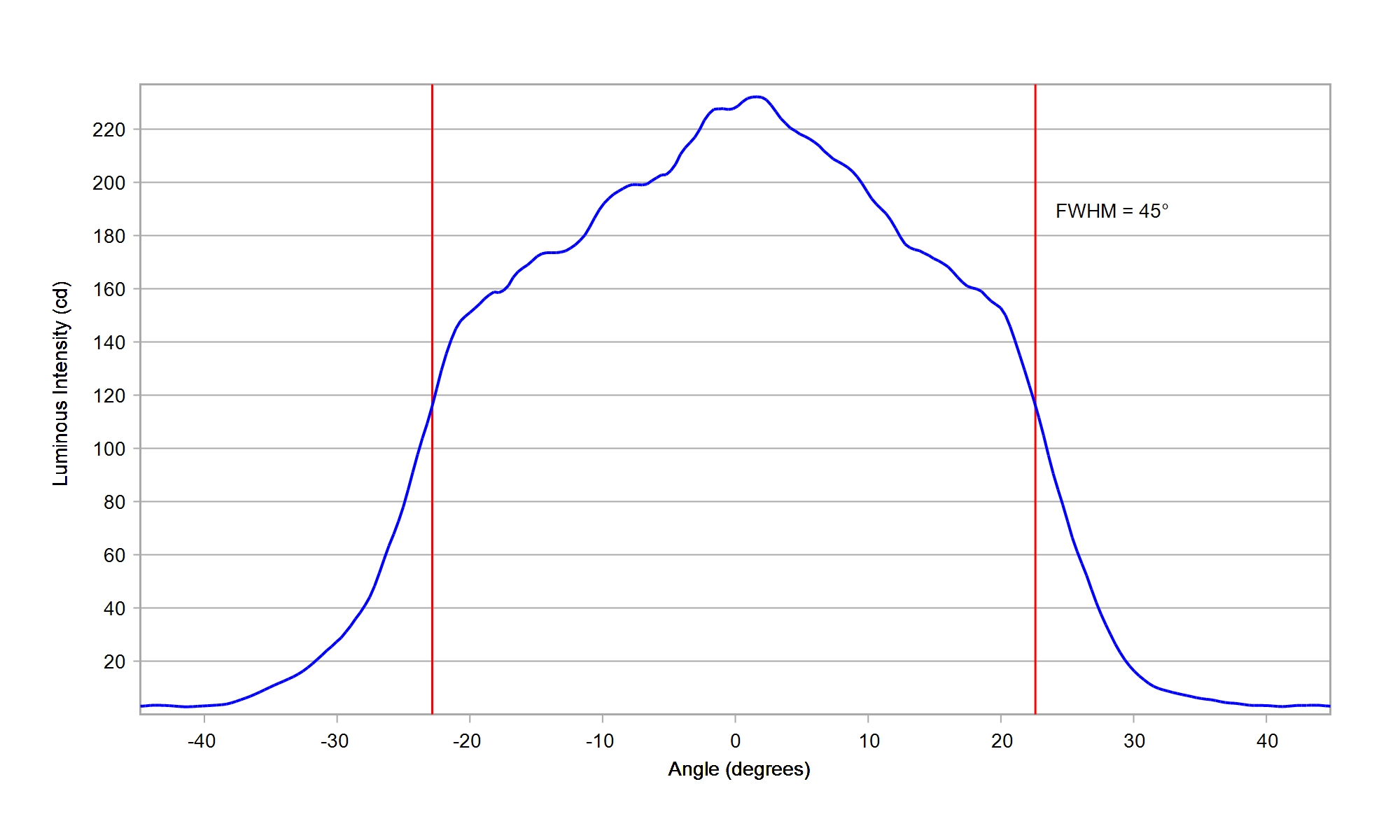

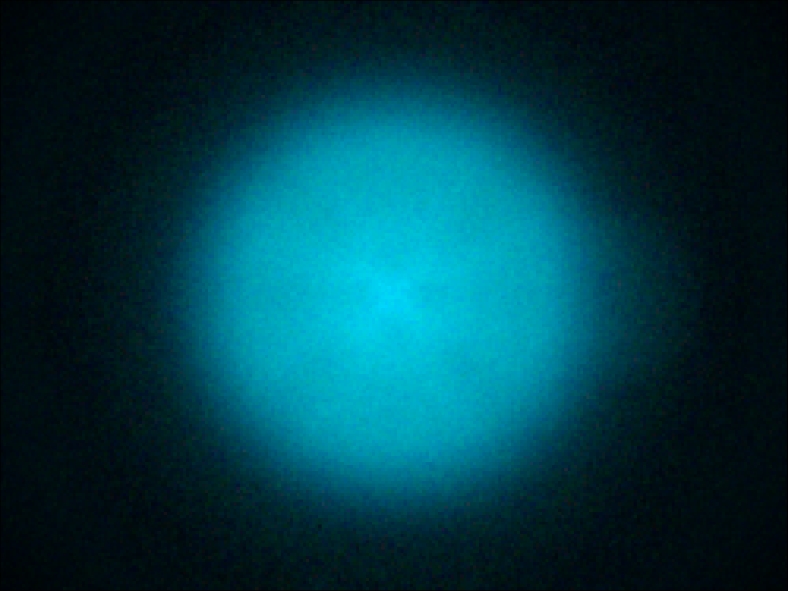

Osram OSLON Pure 1414 GV VJLPL1.F3 Verde

Eff:

88.0%

FWHM:

45°

Cd/Im:

1.8


Download

Osram OSLON Pure 1414 GW VJLPL1.CM White

Eff:

88.0%

FWHM:

45°

Cd/Im:

1.8

Download

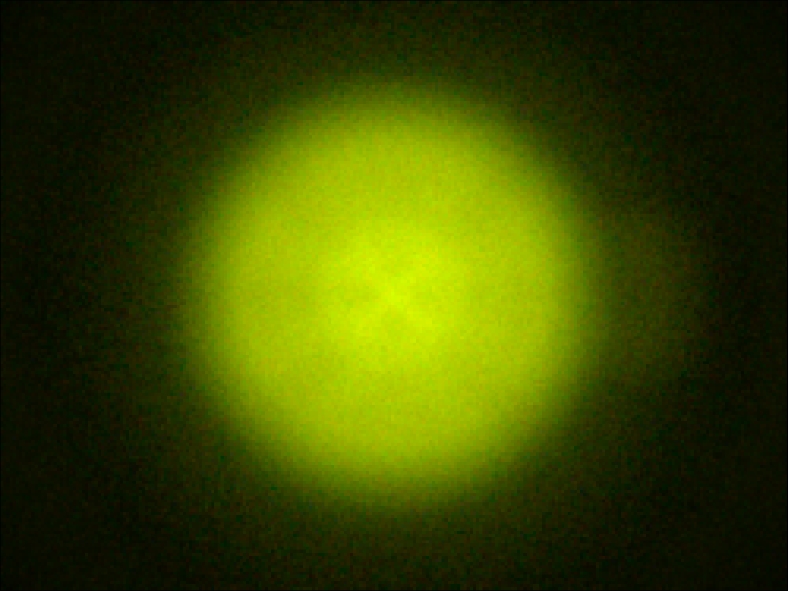

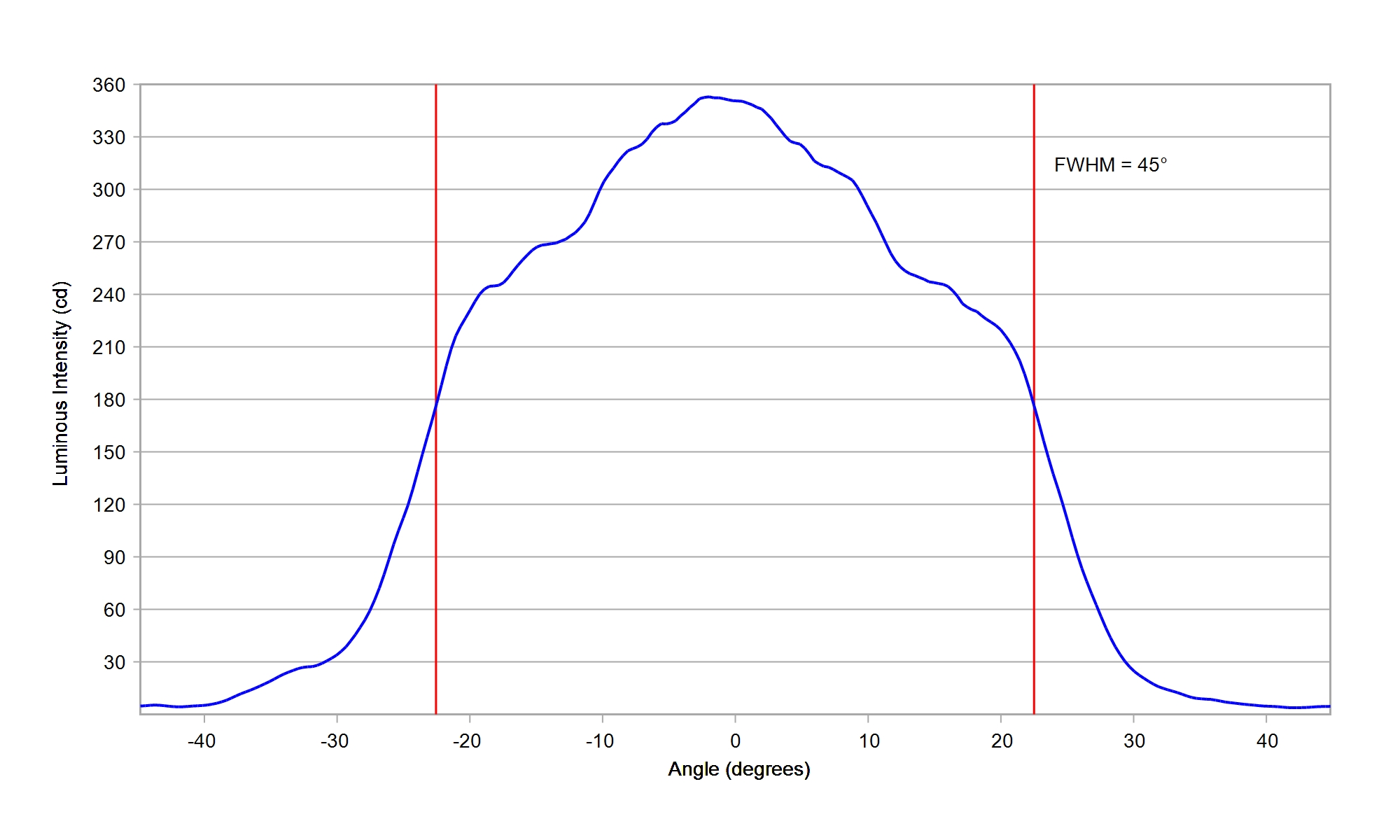

Osram OSLON Pure 1414 GW VJLPL1.UL Green

Eff:

88.0%

FWHM:

45°

Cd/Im:

1.9


Download

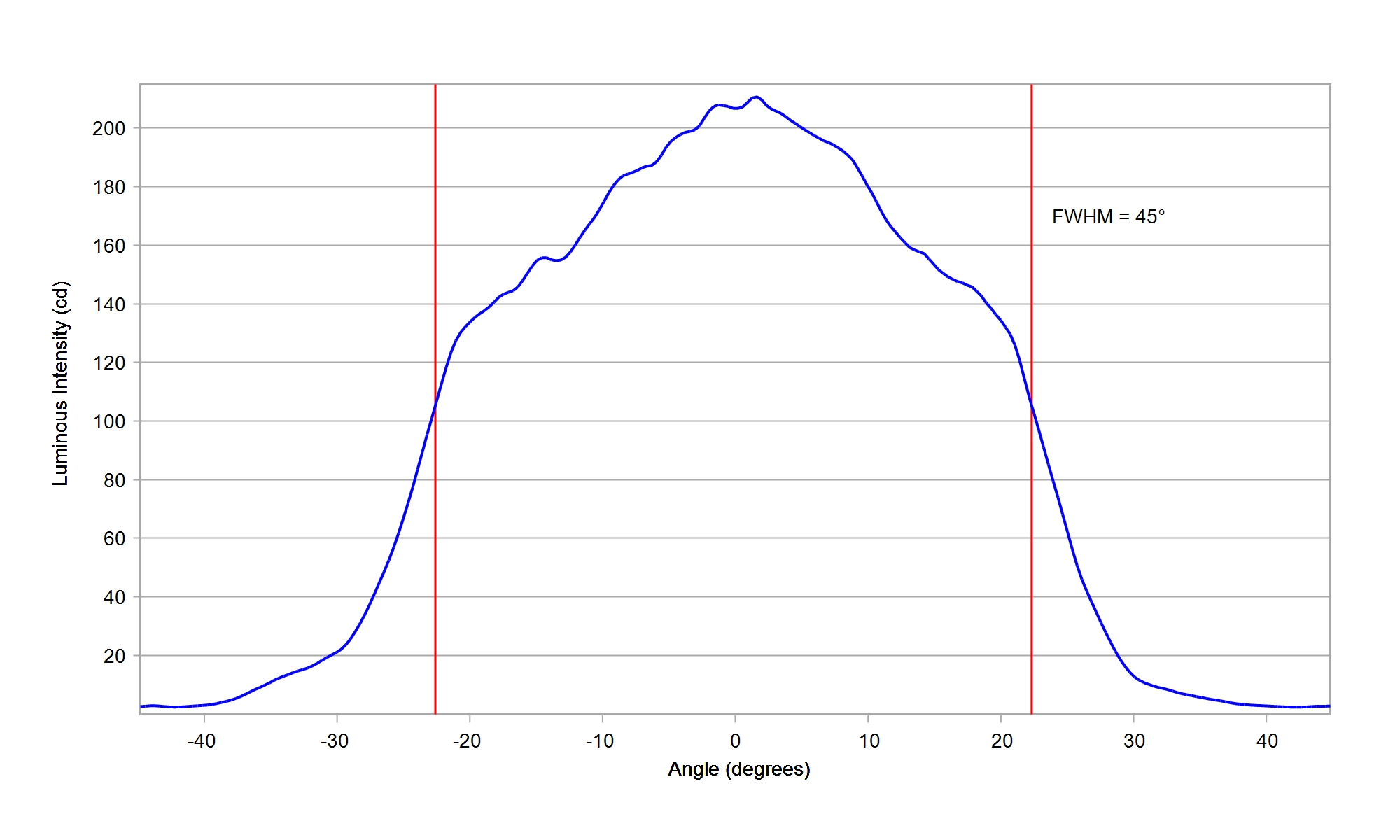

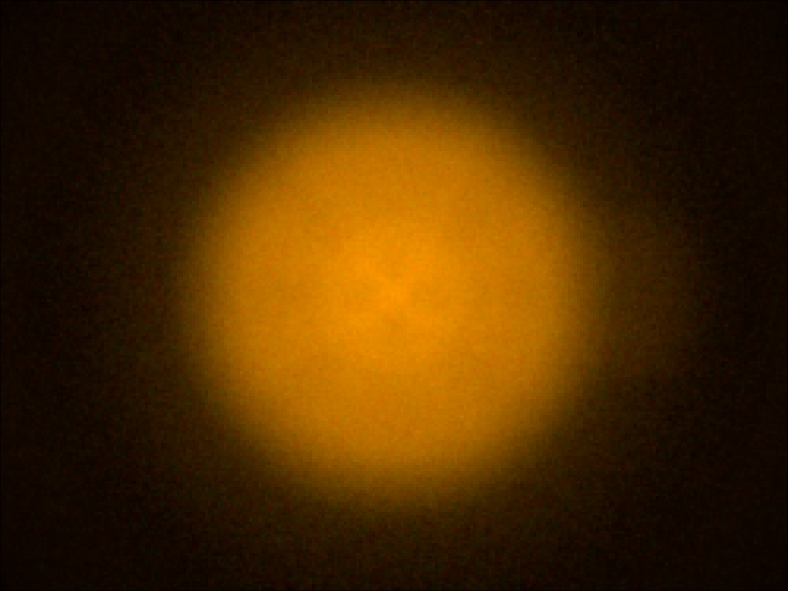

Osram OSLON Pure 1414 GY VJLPL1.F3 Yellow

Eff:

88.0%

FWHM:

45°

Cd/Im:

1.9


Download

Osram OSLON Square Flat White

Eff:

87.0%

FWHM:

43.0°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

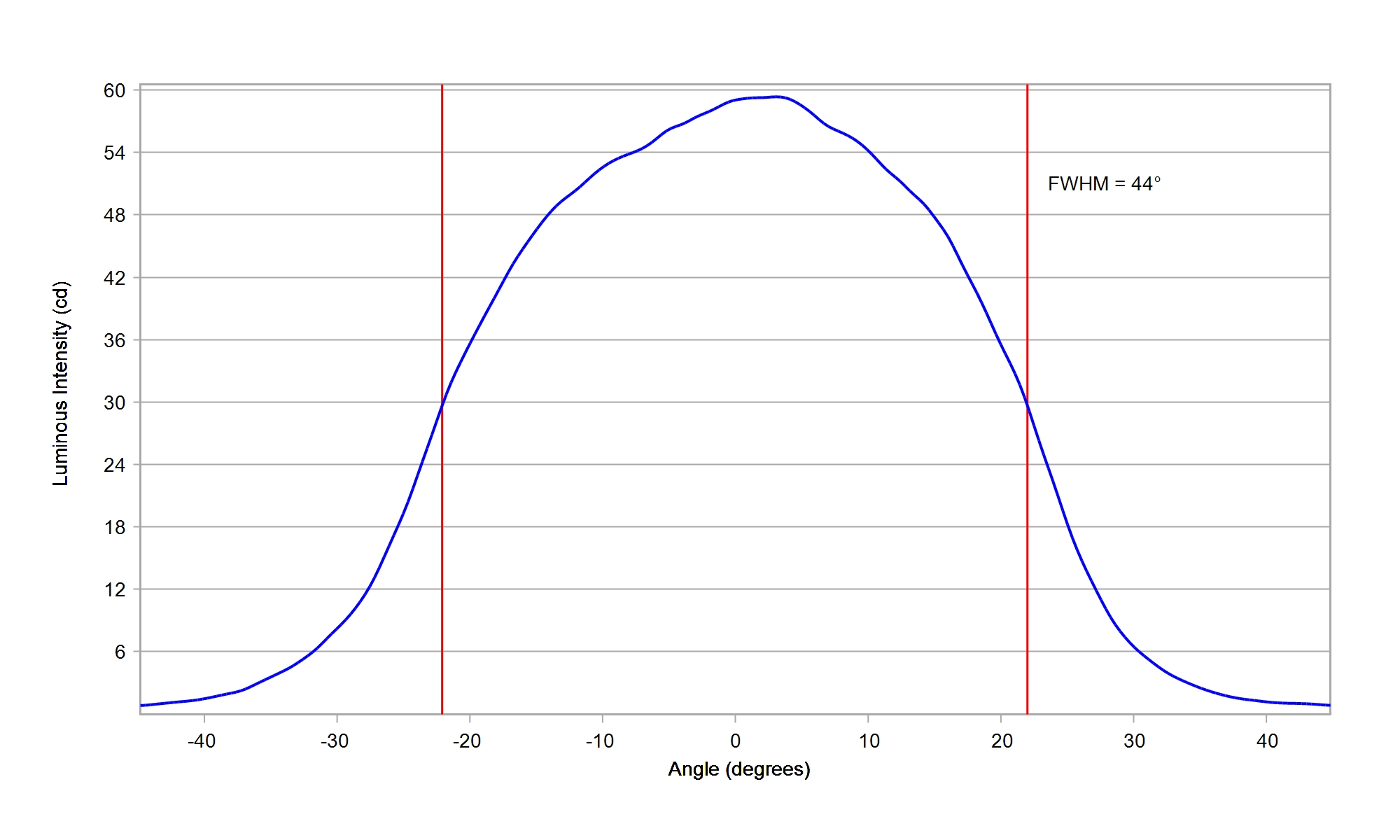

Carclo Optics - Simulated Cross Section

Download

IES

Osram OSLON Square Gen 5 GW CSSRM3

Eff:

87.0%

FWHM:

41 x 42°

Cd/Im:

1.8

Carclo Optics - 10003-25 20mm Spot Image Oslon Square Gen 5

Carclo Optics - 10003-25 20mm Cross Section Oslon Square Gen 5

Download

IES

Osram OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

87.5%

FWHM:

43°

Cd/Im:

1.8

Carclo Optics – 10003/25 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Carclo Optics – 10003/25 Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Download

IES

Osram OSLON SSL 150 degree White

Eff:

83.9%

FWHM:

30.7°

Cd/Im:

3.0

Download

ies

Osram OSLON SSL 80 White

Eff:

81.9%

FWHM:

34°

Cd/Im:

2.6

10003/25 Spot Osram SSL 80

10003/25 Cross section plot

Download

ies

Osram OSLON SSL 80 GH CS8PM1.24 Hyper Red

Eff:

87.5%

FWHM:

37°

Ipk/W:

2.1


Download

IES

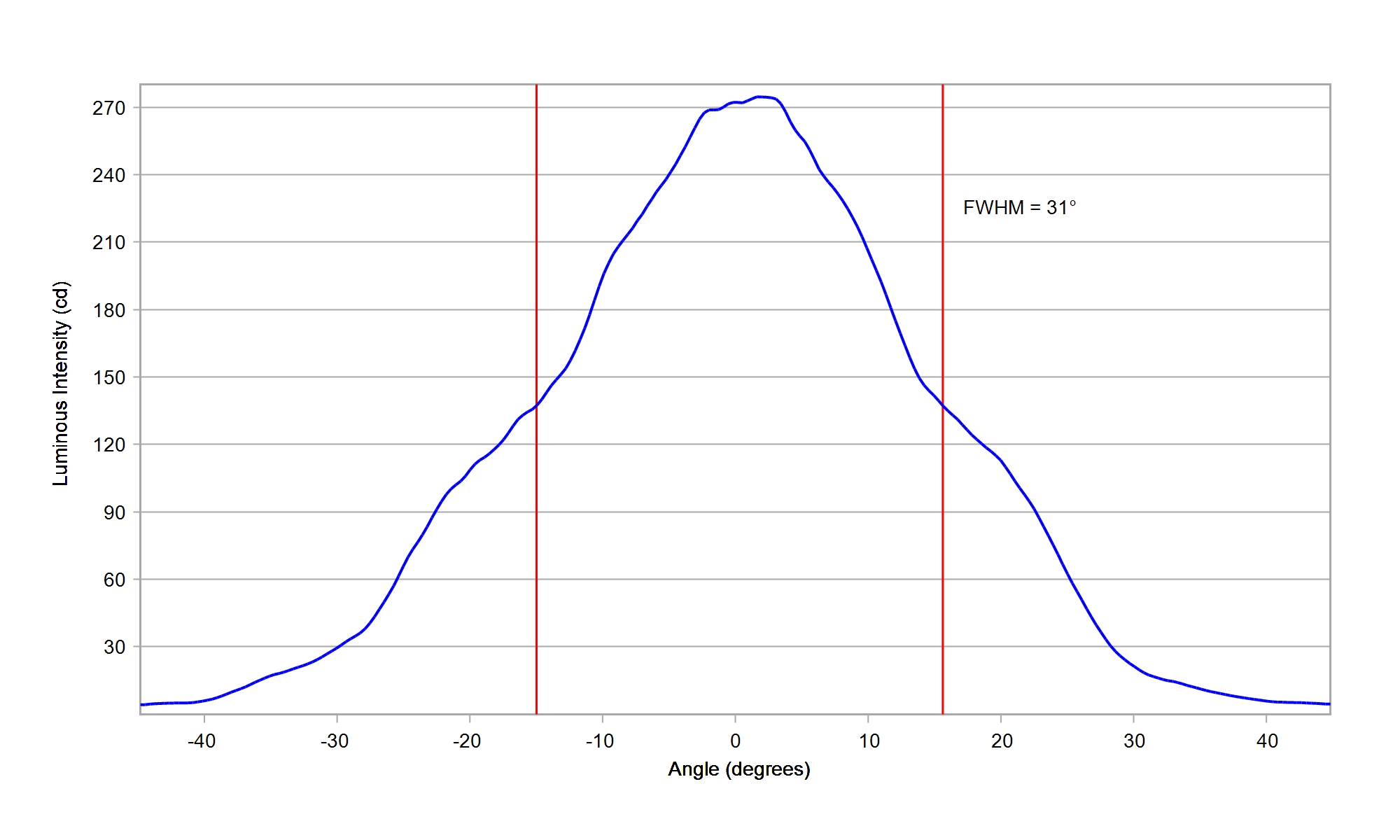

Osram OSLON SSL 80 GT CS8PM1.13 True Green

Eff:

87.0%

FWHM:

31°

Cd/Im:

2.2



Download

IES

Osram OSLON SSL 80 GW CS8PM1.PM White

Eff:

87.5%

FWHM:

40°

Cd/Im:

2.0


Download

IES

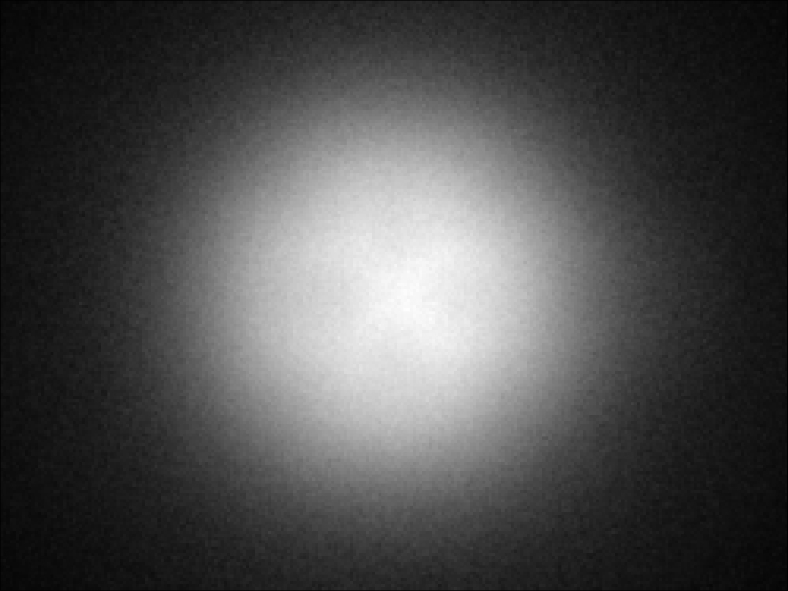

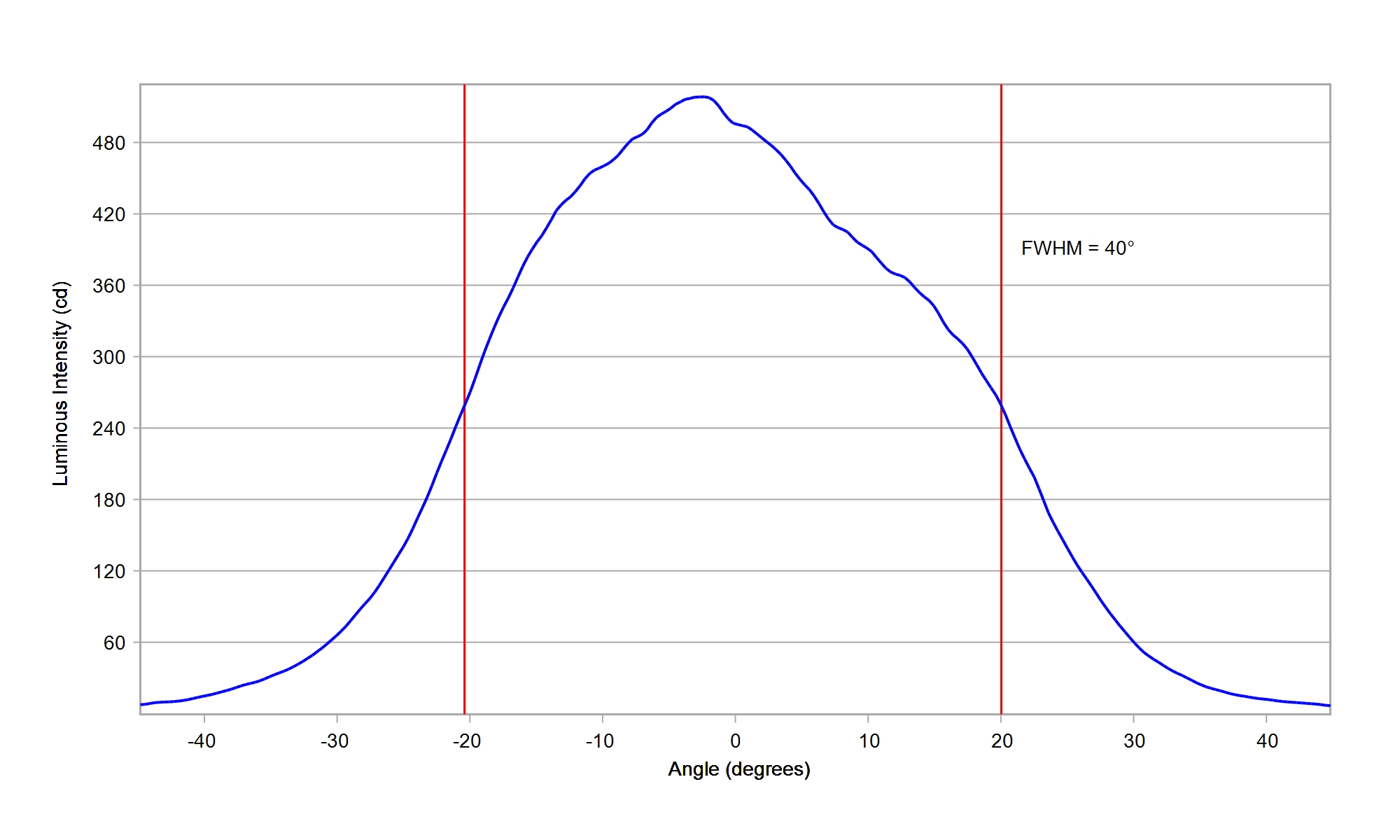

Osram OSCONIQ C 3030 GW PLTRA1.PM White

Eff:

87.5%

FWHM:

40°

Cd/Im:

1.8

Download

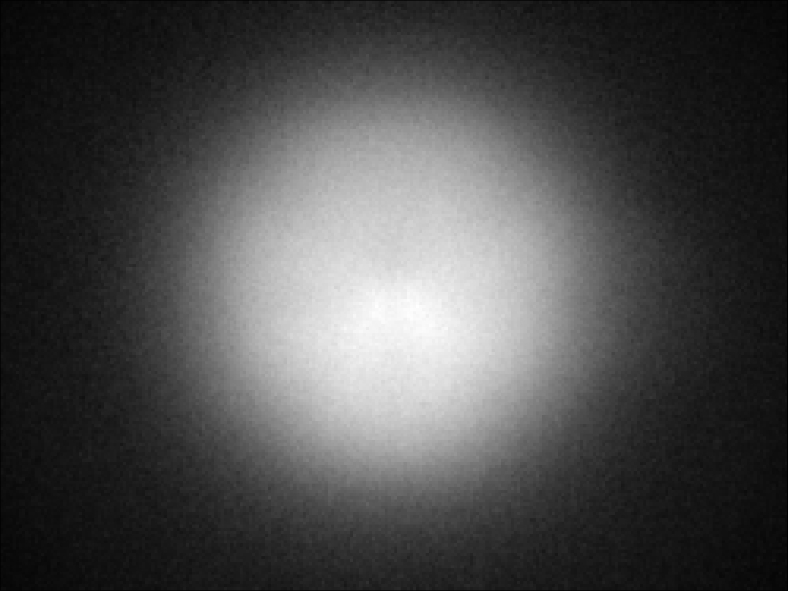

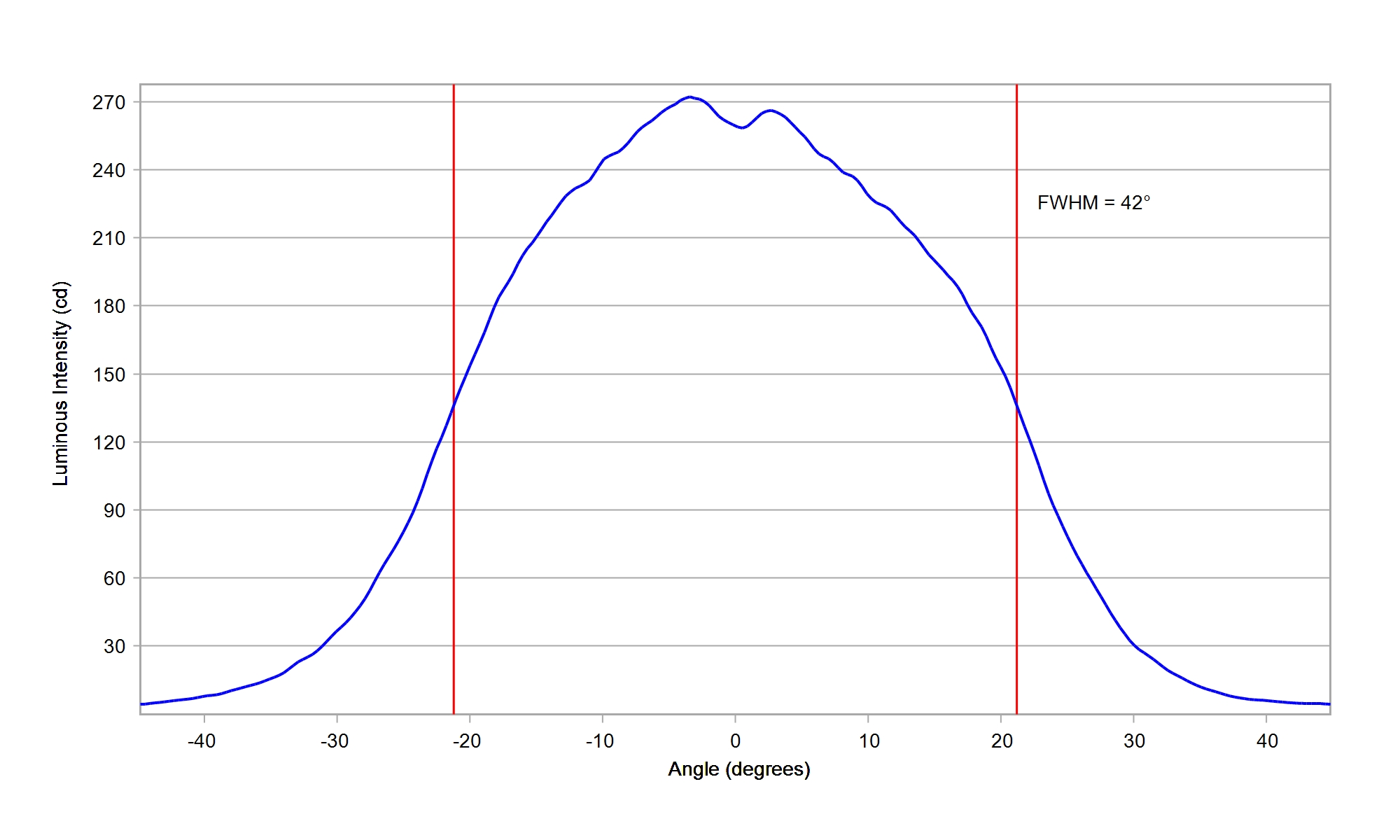

Osram OSCONIQ E 3030 GW QSLPS1.EM White

Eff:

87.5%

FWHM:

42°

Cd/Im:

1.9

Download

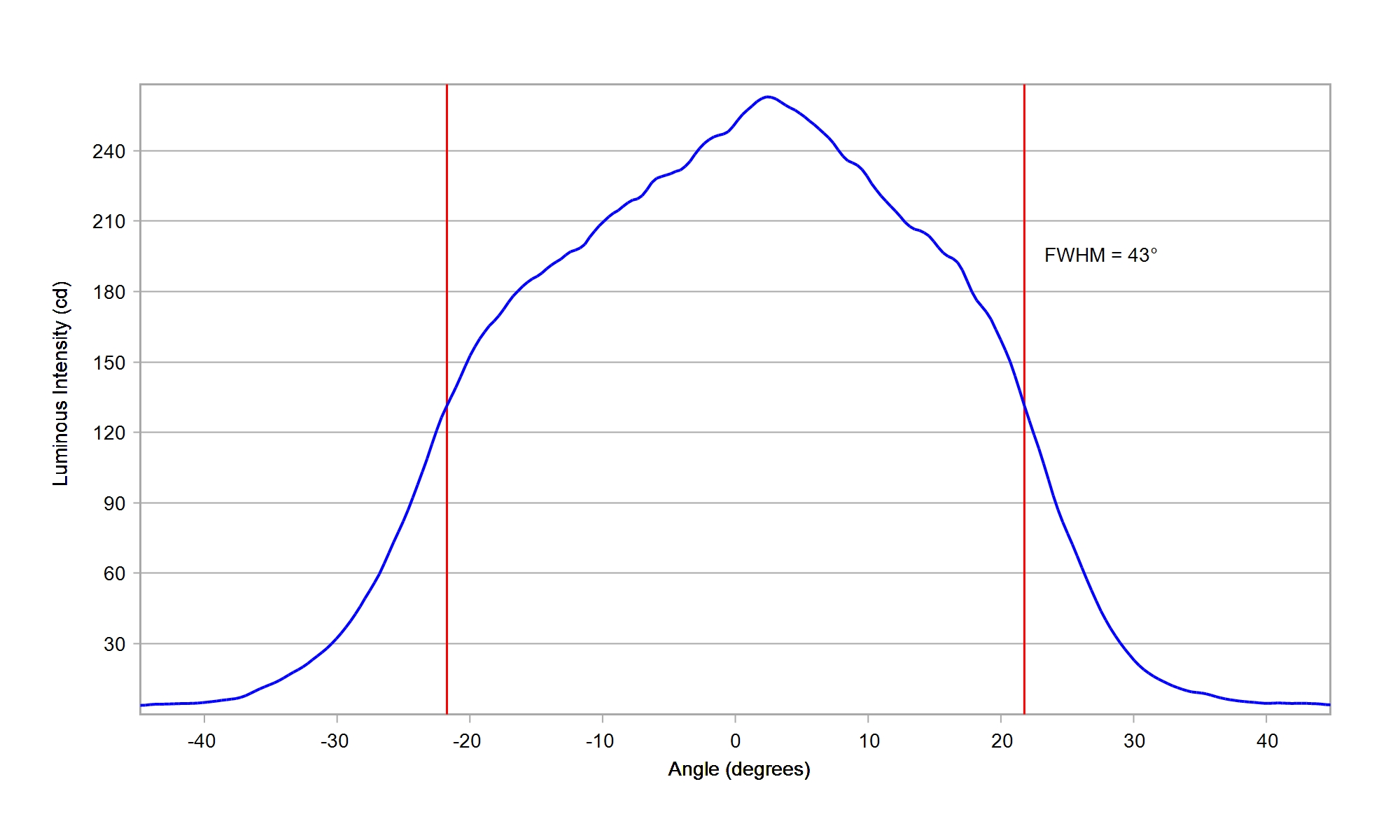

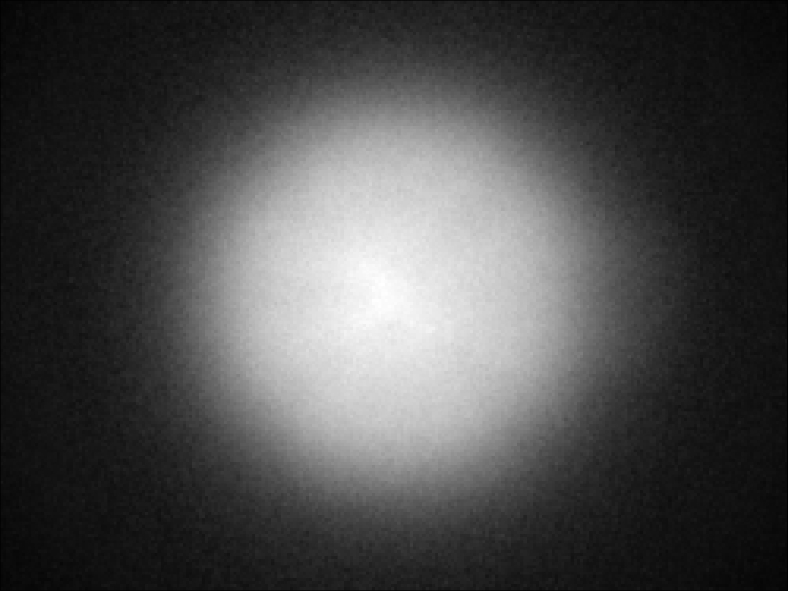

Osram OSCONIQ P 3030 GW QSSPA1.PM White

Eff:

87.5%

FWHM:

43°

Cd/Im:

1.8

Download

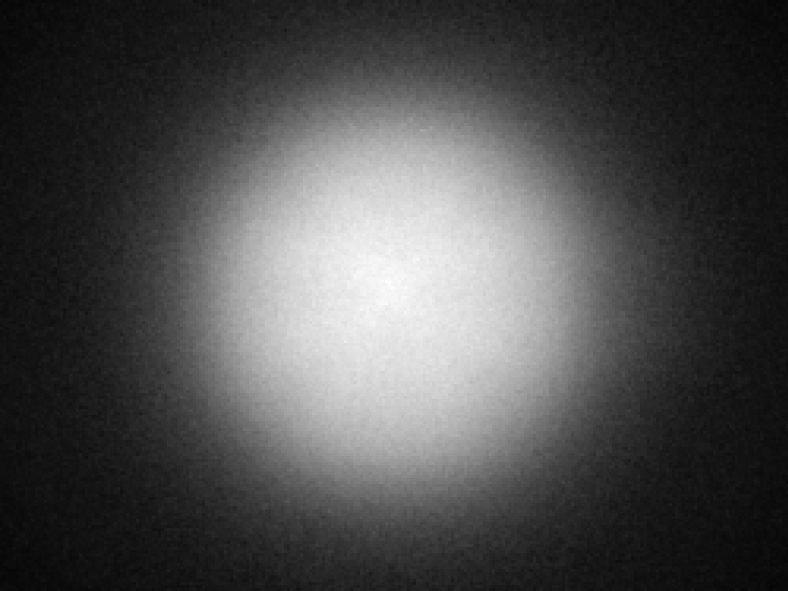

Osram OSCONIQ S 3030 GW QSLMS3.EM White

Eff:

87.5%

FWHM:

44°

Cd/Im:

1.7

Download

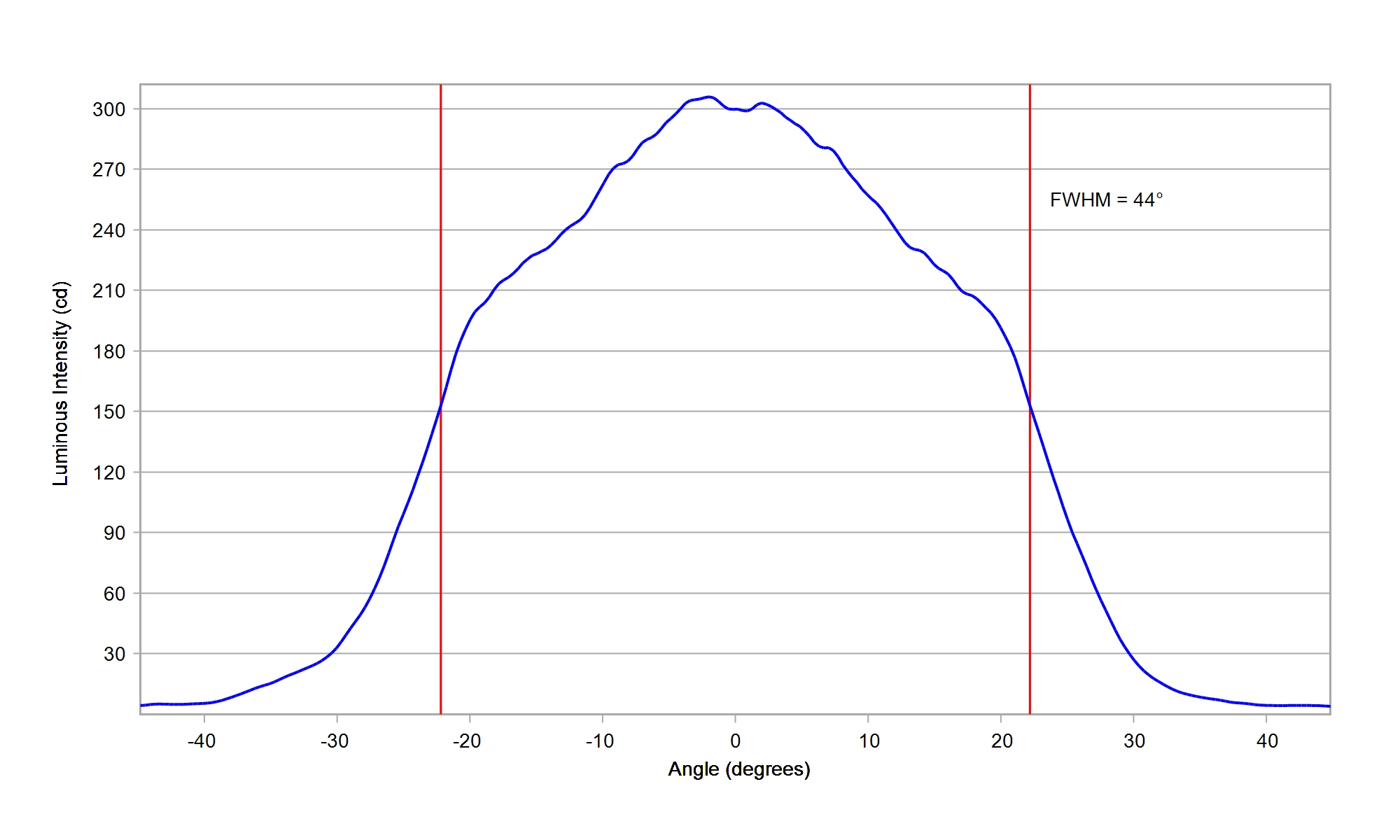

Osram OSLON Signal LUW CRBP.01 White

Eff:

87.5%

FWHM:

44°

Cd/Im:

1.8


Download

Samsung 2835 LM281B+ White

Eff:

86.0%

FWHM:

40°

Cd/Im:

1.9



Download

Samsung 2835 LM282B+ White

Eff:

87.5%

FWHM:

42°

Cd/Im:

1.8



Download

Samsung 3030 LM301B White

Eff:

87.0%

FWHM:

43°

Cd/Im:

1.7

Download

IES

Samsung 3535 LH351A White

FWHM:

27.1°

Cd/Im:

3.3

Download

ies

Samsung 3535 LH351D White

Eff:

84.5%

FWHM:

40.0°

Cd/Im:

1.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Samsung CSP LH151B White

Eff:

87.5%

FWHM:

44°

Cd/Im:

1.8

Carclo Optics – 10003/25 – Samsung_LH151B_spot-image

Carclo Optics – 10003/25 – Samsung_LH151B_cross section

Download

IES

Samsung CSP LH181B White

Eff:

87.5%

FWHM:

43°

Cd/Im:

1.8

Carclo Optics -10003/25 Sport Image - Samsung LH181B 4000K

Carclo Optics -10003/25 Cross Section - Samsung LH181B 4000K

Download

IES

Samsung CSP LH231B White

Eff:

87.5%

FWHM:

42°

Cd/Im:

1.7

Carclo Optics -10003/25 Spot Image - Samsung LH231B 5000K

Carclo Optics -10003/25 Cross Section - Samsung LH231B 5000K

Download

IES

Samsung CSP LM101B White

Eff:

87.5%

FWHM:

44°

Cd/Im:

1.8

Carclo Optics - 10003 - 25 Sport Image - Samsung LM101B 5000K

Carclo Optics - 10003 - 25 Cross Section image - Samsung LM101B 5000K

Download

IES

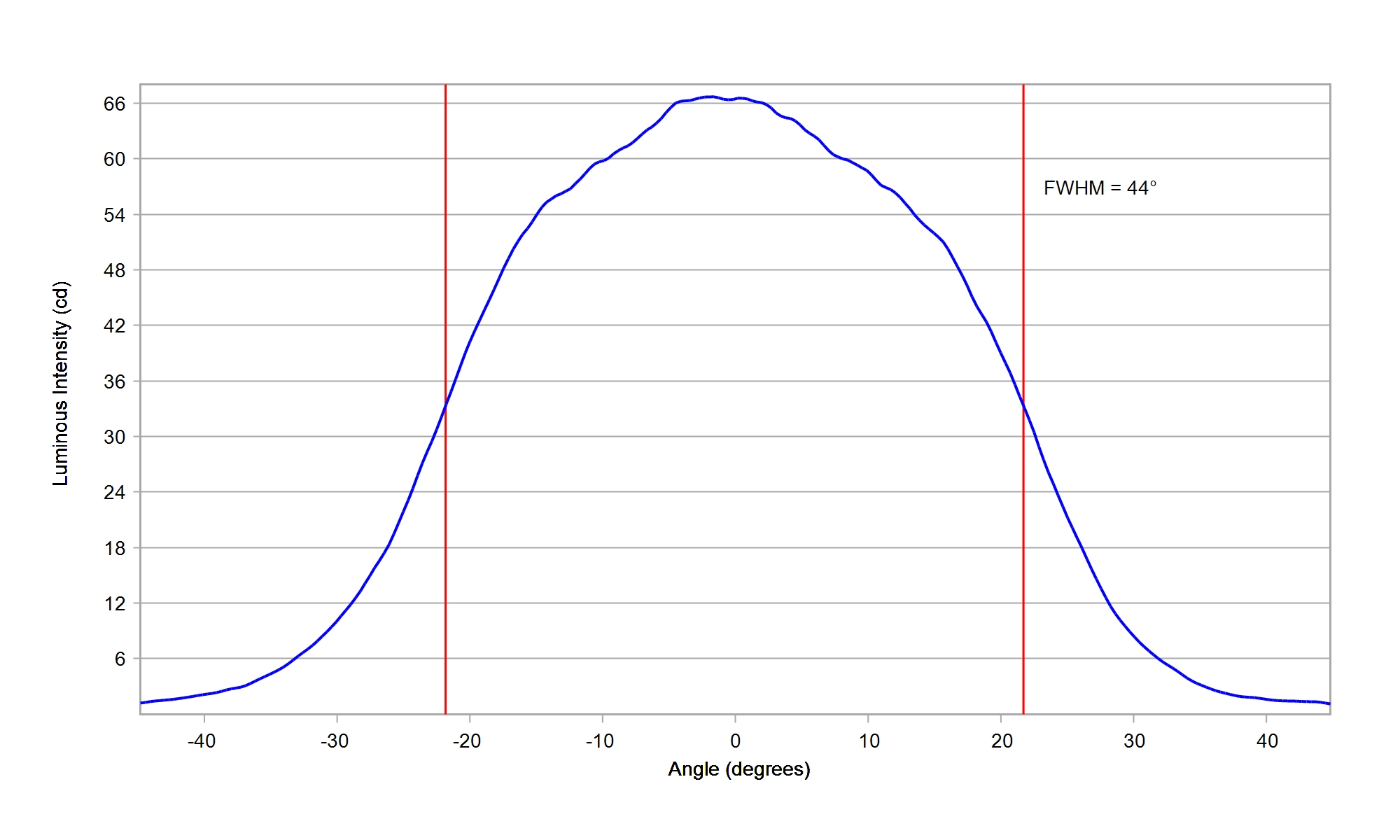

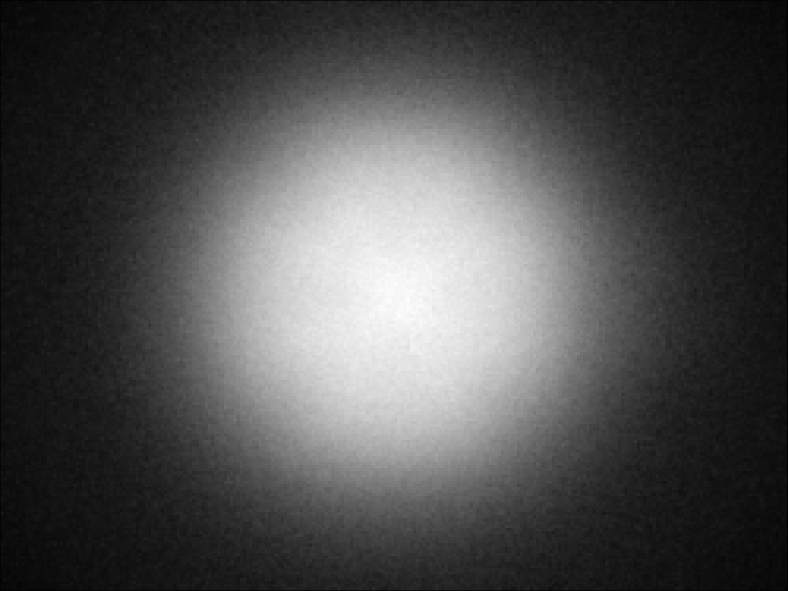

Seoul 3030 STW8C12E-E0 White

Eff:

87.5%

FWHM:

44°

Cd/Im:

1.7


Download

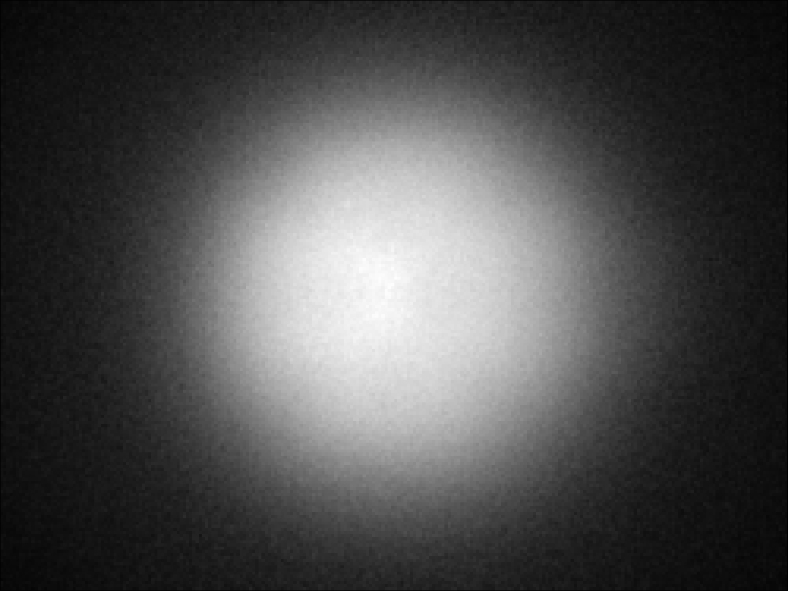

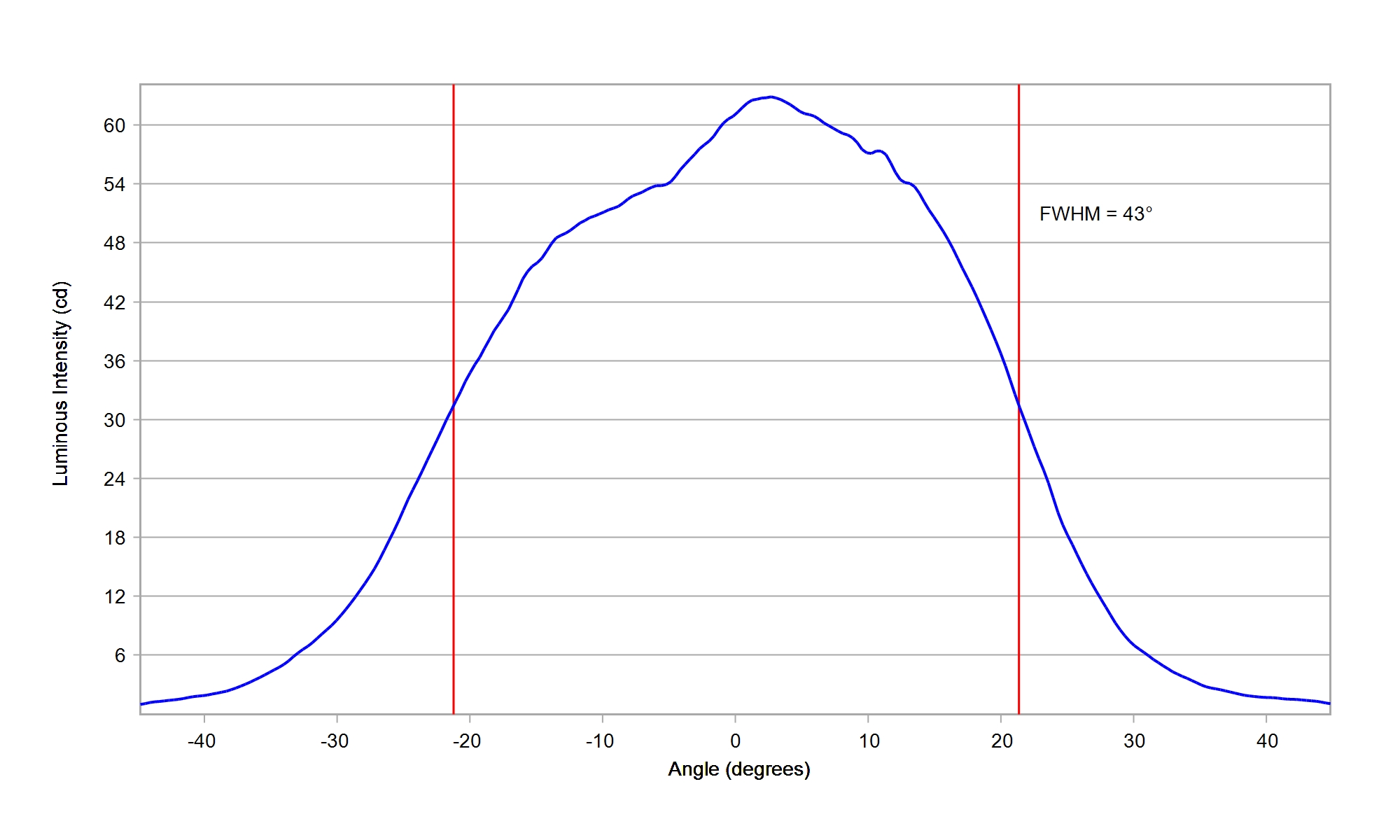

Seoul 3528 G STW8A2PD-G700 White

Eff:

87.5%

FWHM:

43°

Cd/Im:

1.8


Download

Seoul CSP SZ8Y11 White

Eff:

87.0%

FWHM:

43°

Cd/Im:

1.8

Carclo Optics -10003/25 Spot Image - Seoul Z8Y11

Carclo Optics - 10003/25 Cross Section image - Seoul Z8Y11

Download

IES

Seoul CSP SZ8Y22 White

Eff:

86.5%

FWHM:

42°

Cd/Im:

1.7

Carclo Optics -10003/25 Spot Image - Seoul SZ8Y22

Carclo Optics -10003/25 Cross Section Image - Seoul SZ8Y22

Download

IES

Seoul CSP SZ8Y22P White

Eff:

87.0%

FWHM:

43.5°

Cd/Im:

1.6

Carclo Optics -10003/25 Spot Image - Seoul SZ8Y22P

Carclo Optics -10003/25 Cross Image section - Seoul SZ8Y22P

Download

IES

Seoul P4 White

Eff:

88.0%

FWHM:

41.4°

Cd/Im:

1.6

Download

ies

Seoul 3030 STW8C2SB-NT White

Eff:

87.0%

FWHM:

43.0°

Cd/Im:

1.7

Carclo Optics - 10003/25 Spot Image Seoul STW8 C2SB-NT

Carclo Optics - 10003/25 Cross Section Seoul STW8 C2SB-NT

Download

IES

Seoul SunLike 3030 STWSC2PB-E0 White

Eff:

87.5%

FWHM:

41.0°

Cd/Im:

1.9

Carclo Optics - 10003/25 Spot Image STWS C2PB-E0

Carclo Optics - 10003/25 Cross Section STWS C2PB-E0

Download

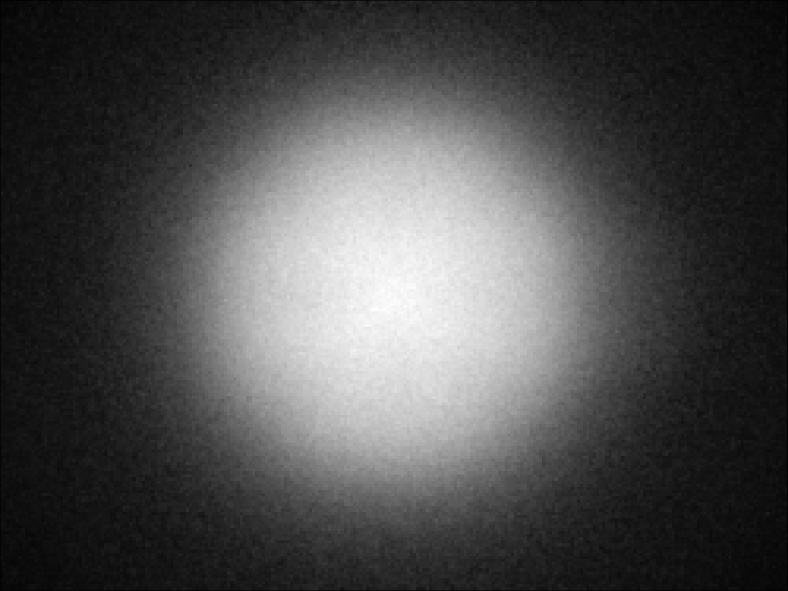

IES

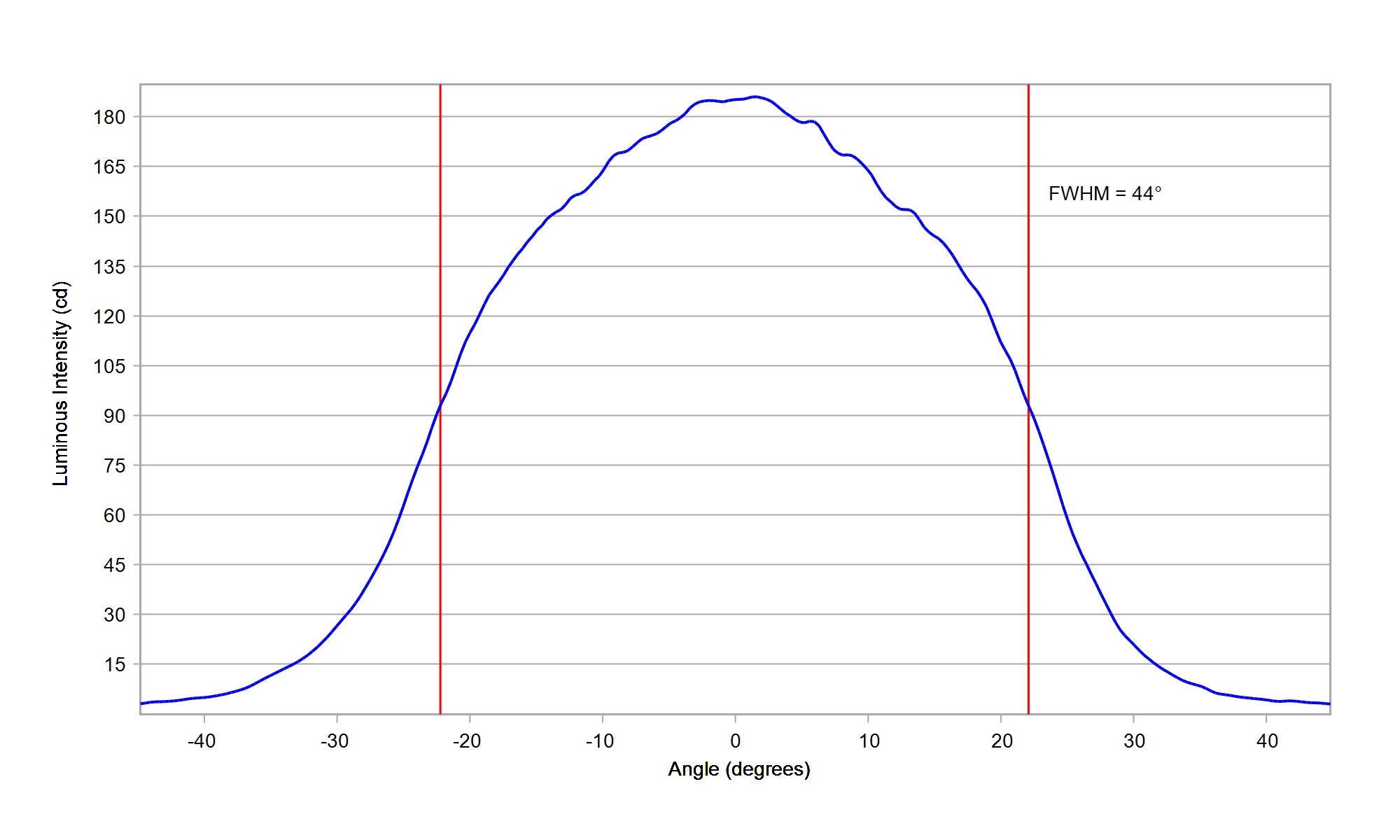

Seoul SunLike 3030 STWSC12S-E1 White

Eff:

87.5%

FWHM:

44°

Cd/Im:

1.7


Download

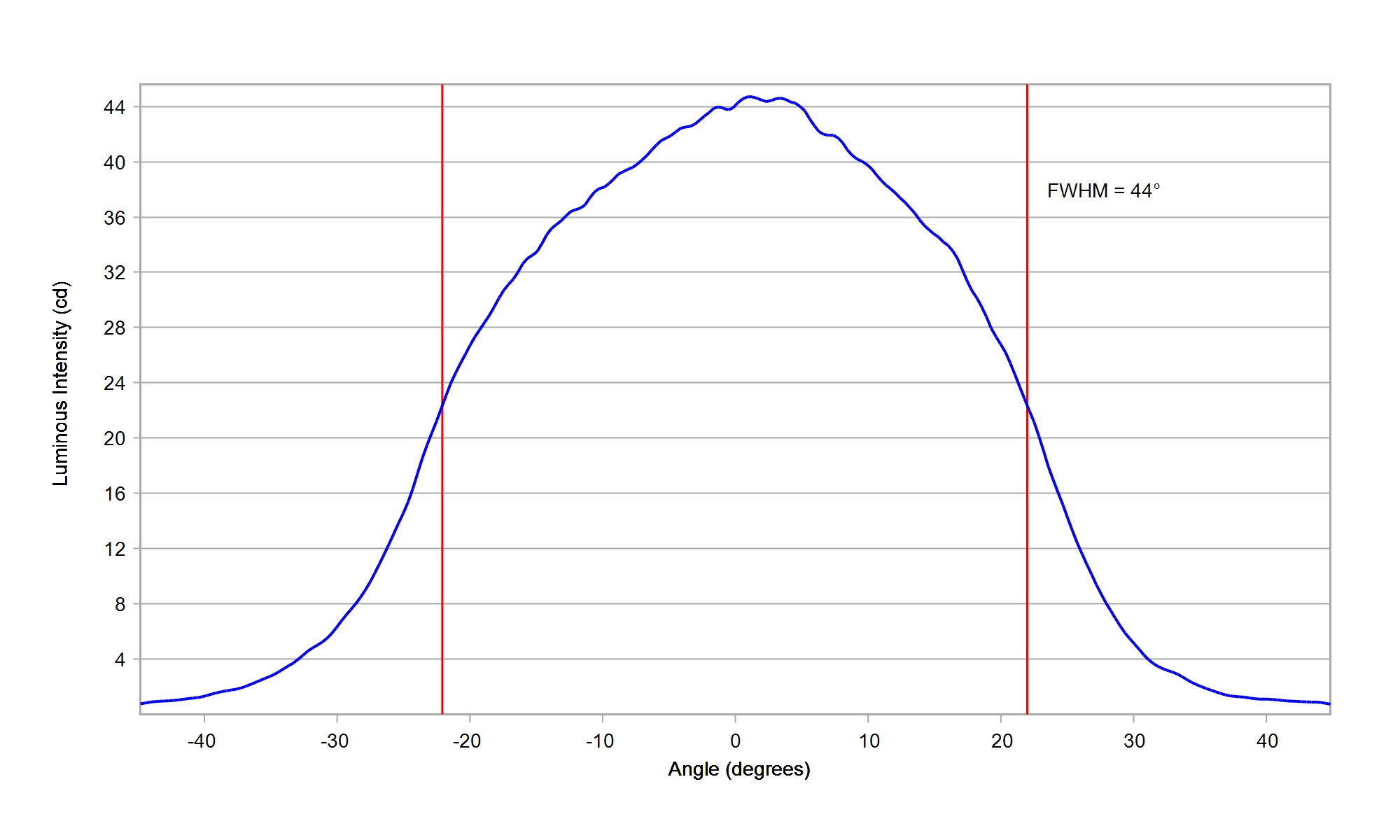

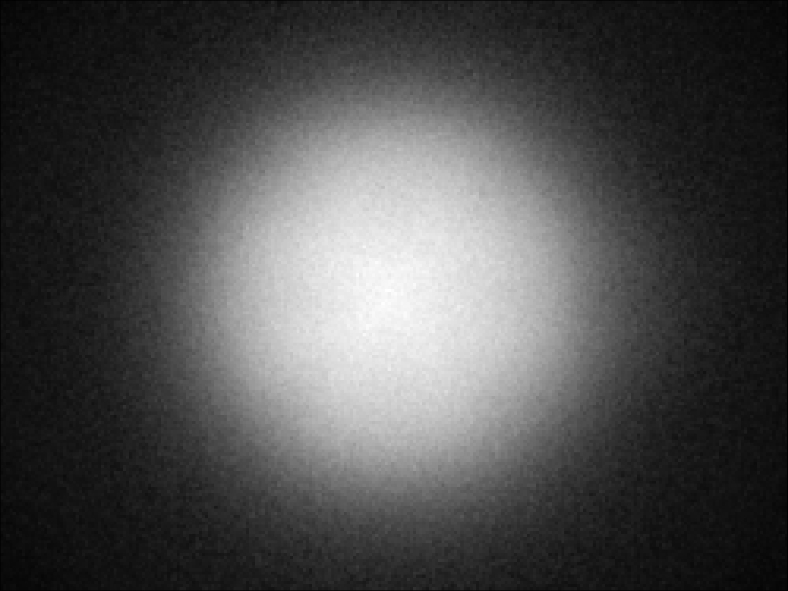

Seoul SunLike 3030 STWSC12S-E2 White

Eff:

87.5%

FWHM:

44°

Cd/Im:

1.7


Download

Seoul SunLike 3030 STW9C2SB-S White

Eff:

87.5%

FWHM:

42°

Cd/Im:

1.9

Carclo Optics - 10003/25 20mm Spot Image Seoul Sunlike 3030

Carclo Optics - 10003/25 20mm Cross Section Seoul Sunlike 3030

Download

IES

Seoul Z - Power Z1 White

Eff:

79.0%

FWHM:

37.9°

Cd/Im:

1.9

Download

ies

Seoul Z - Power Z5-M0 White

FWHM:

38.8°

Cd/Im:

2.7

Download

ies

Seoul Z - Power Z5-M4 White

Eff:

86.0%

FWHM:

40°

Cd/Im:

1.8

Carclo Optics – 10003/25 Seoul Z-Power Z5 - Spot Image

Carclo Optics – 10003/25 Seoul Z-Power Z5 - Cross-Section

Download

IES

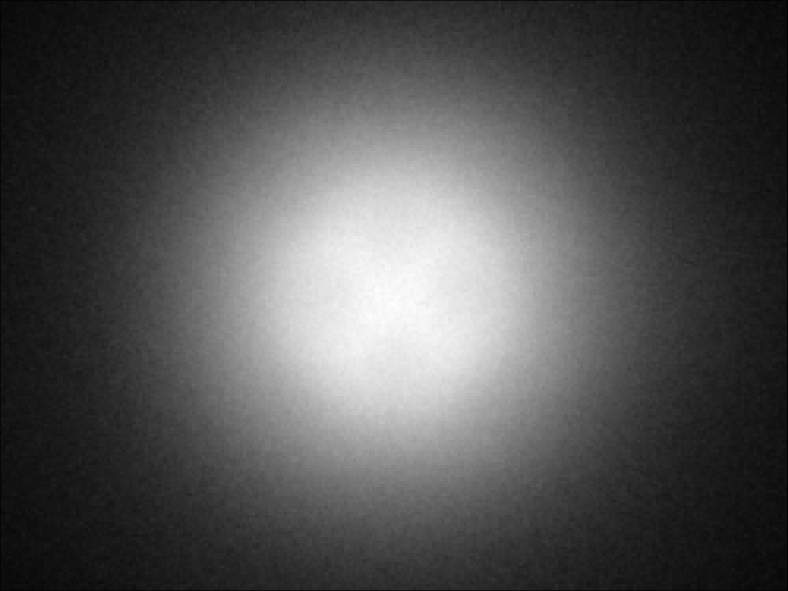

Seoul Z - Power Z5-M5 White

Eff:

85.5%

FWHM:

39°

Cd/Im:

1.7


Download

Seoul Z - Power Z5-P0 White

FWHM:

37.7°

Cd/Im:

2.5

Download

ies

Seoul Z - Power Z5-M White

Eff:

82.9%

FWHM:

36.8°

Cd/Im:

2.7

Download

ies

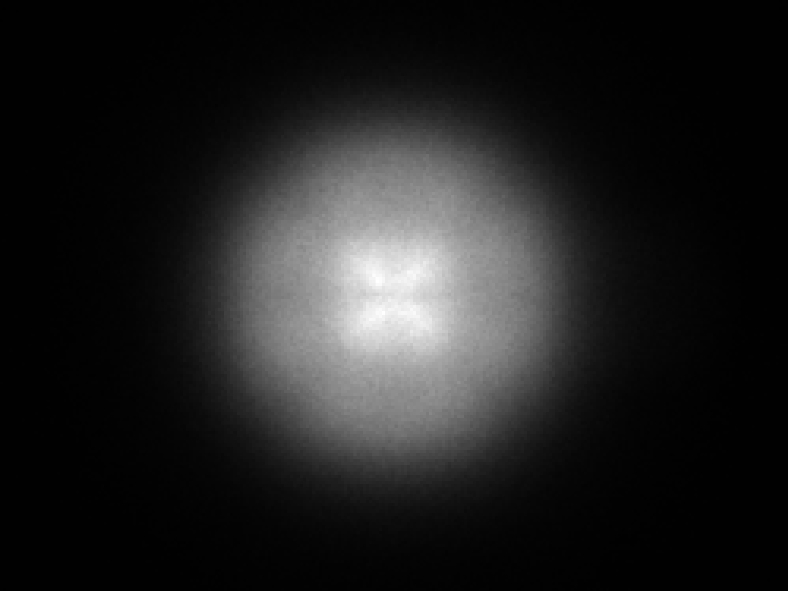

Stanley FWR1108MS IR 755nm

Eff:

91.5%

FWHM:

39°

Ipk/W:

2.3


Download
