20.0mm Narrow Spot Plain TIR LED Lenses

Part number

10003

Dimensions

20.0mm

Drawing Number

60318

Optic type

TIR LED Lenses

Finish

Plain

Beam type

Narrow Spot

Applications

Architectural

Landscape & Garden

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

89.0%

FWHM:

8.6°

Cd/Im:

25.7

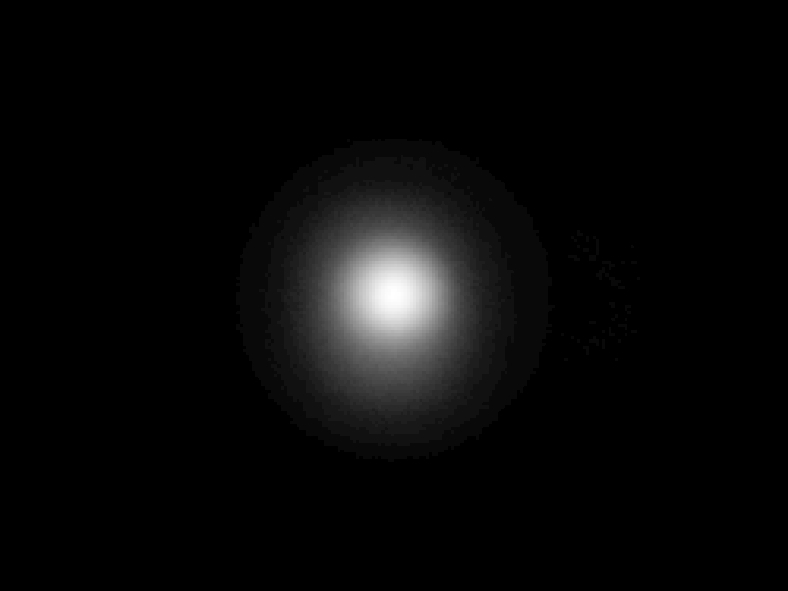

Carclo Optics - 10003 20mm Spot Image Bridgelux 3030 Gen2

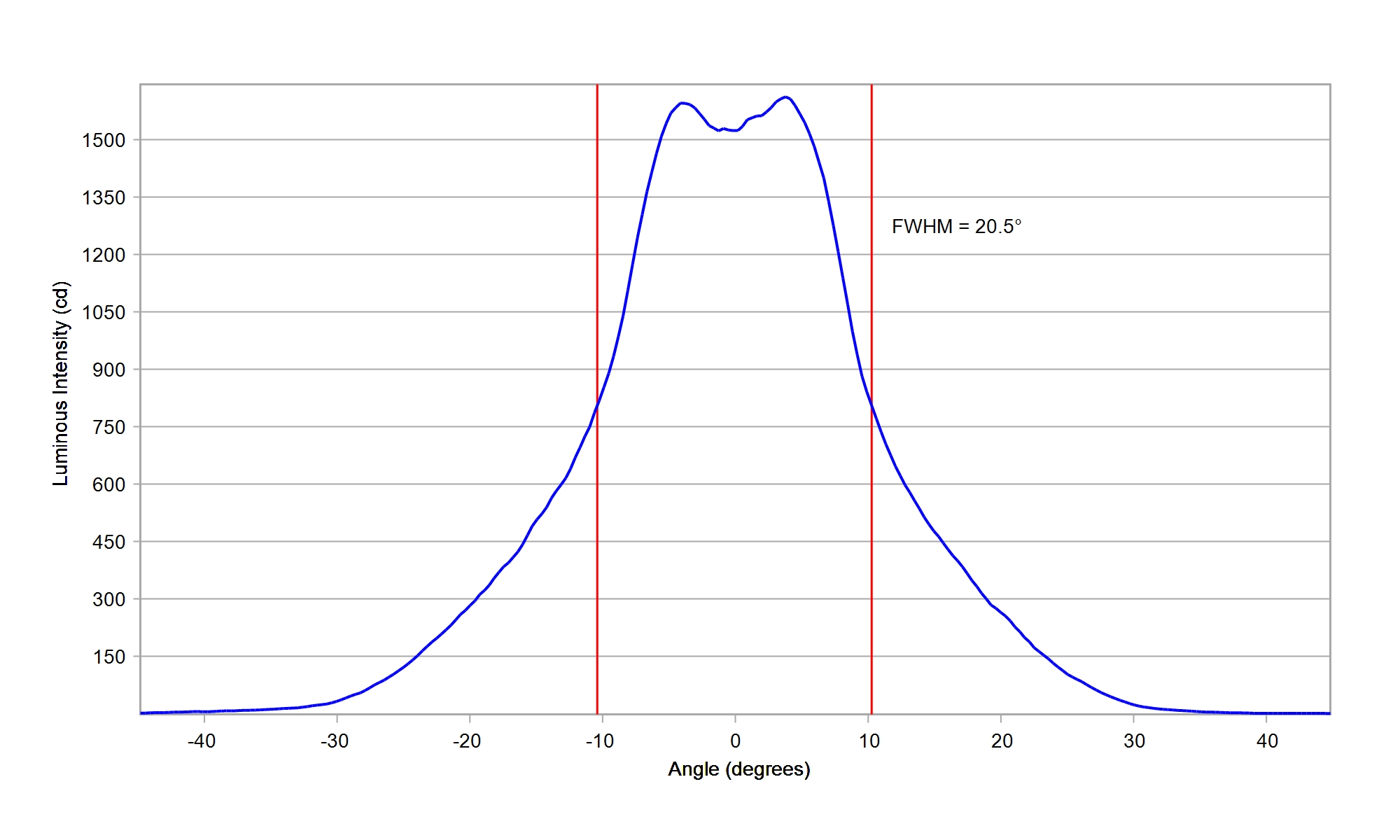

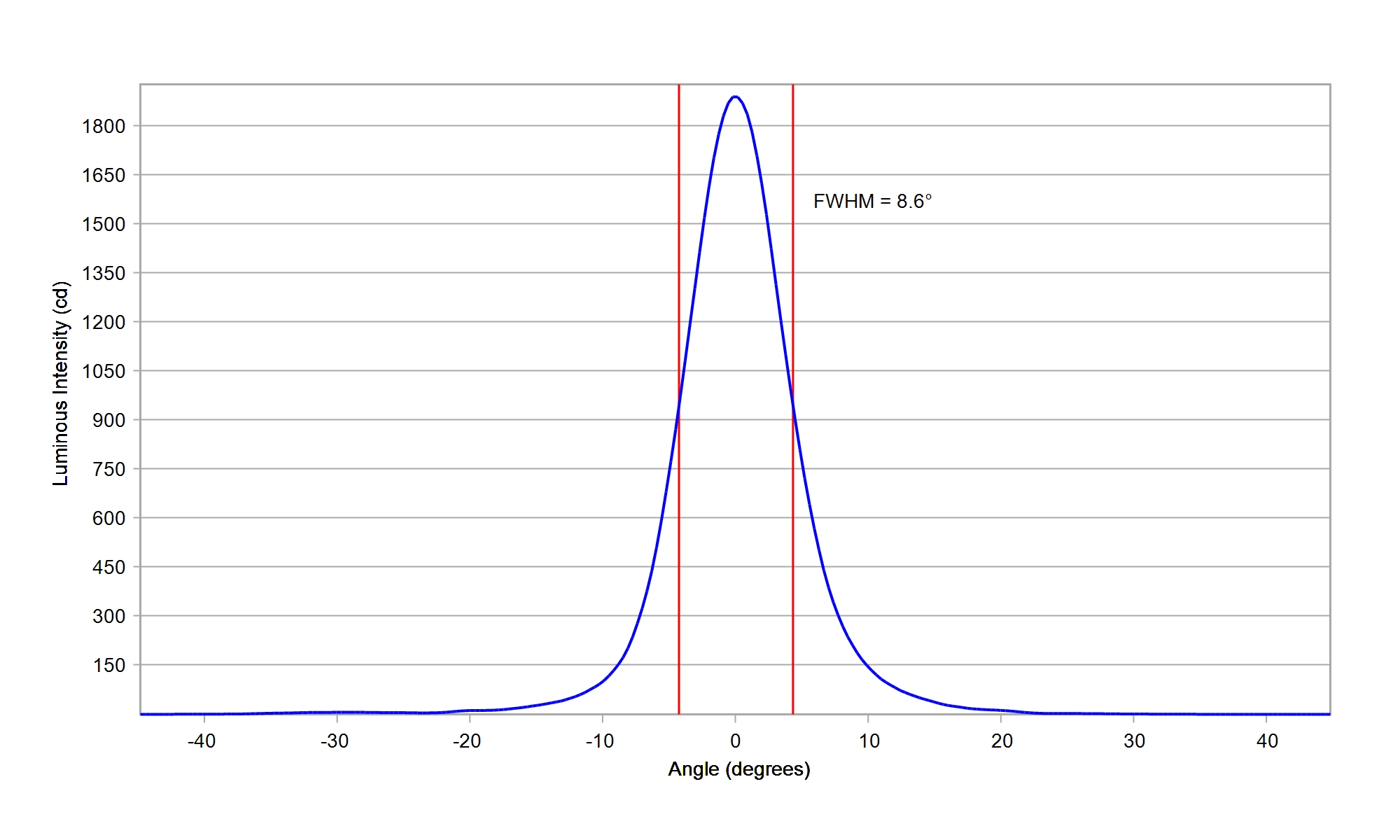

Carclo Optics - 10003 20mm Cross Section Bridgelux 3030 Gen2

Download

IES

Broadcom Jade White

Eff:

90.1%

FWHM:

11.3°

Cd/Im:

12.0

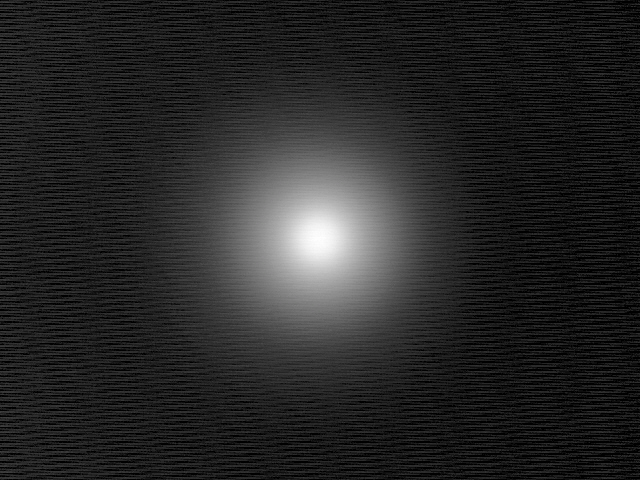

10003 Led Broadcom Jade White Spot Image

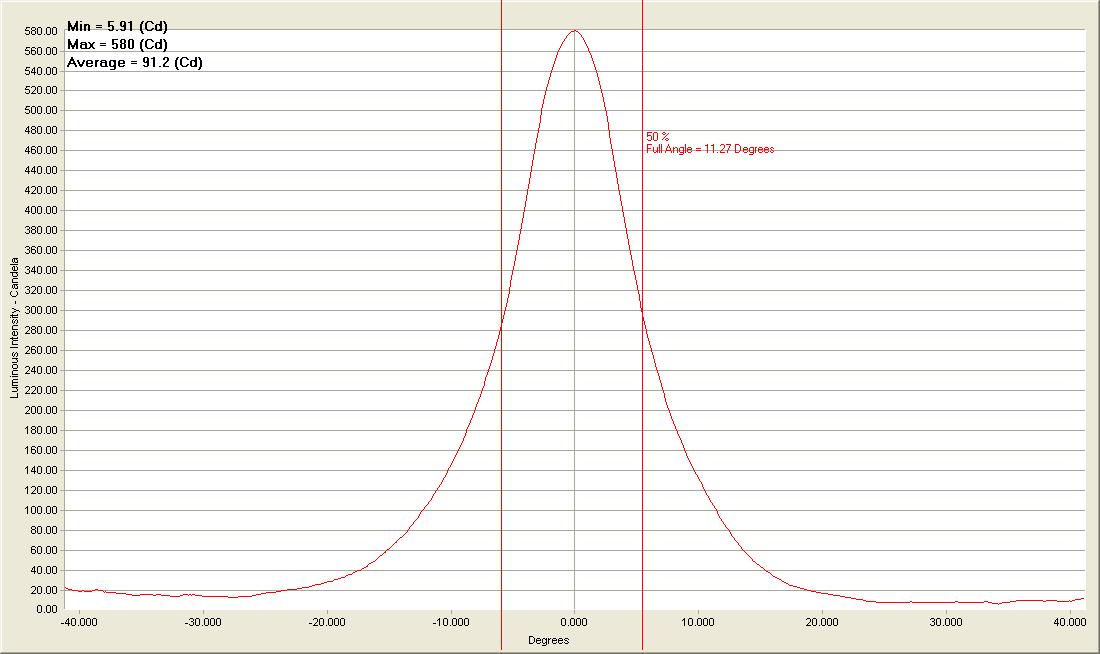

10003 Led Broadcom Jade White Cross Section

Download

ies

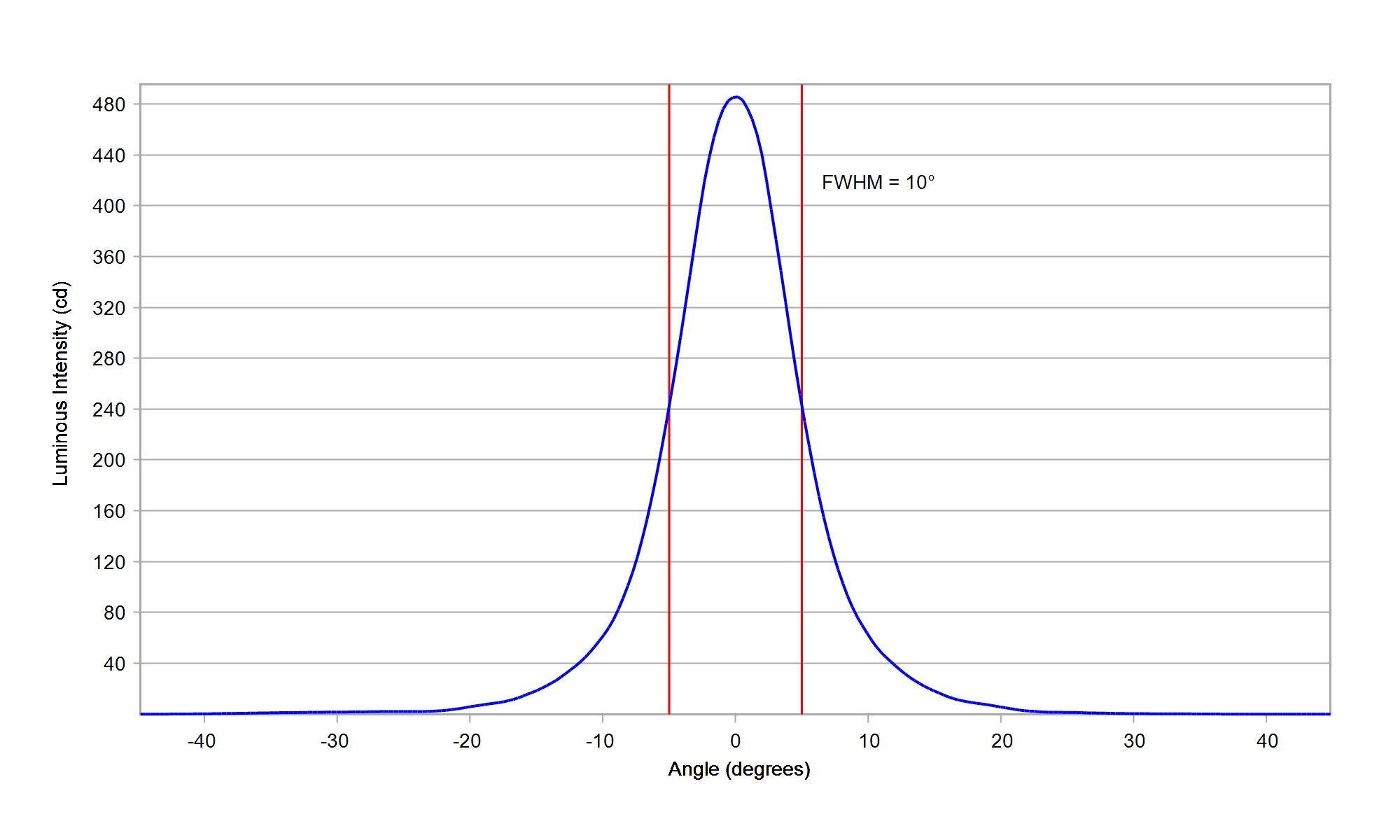

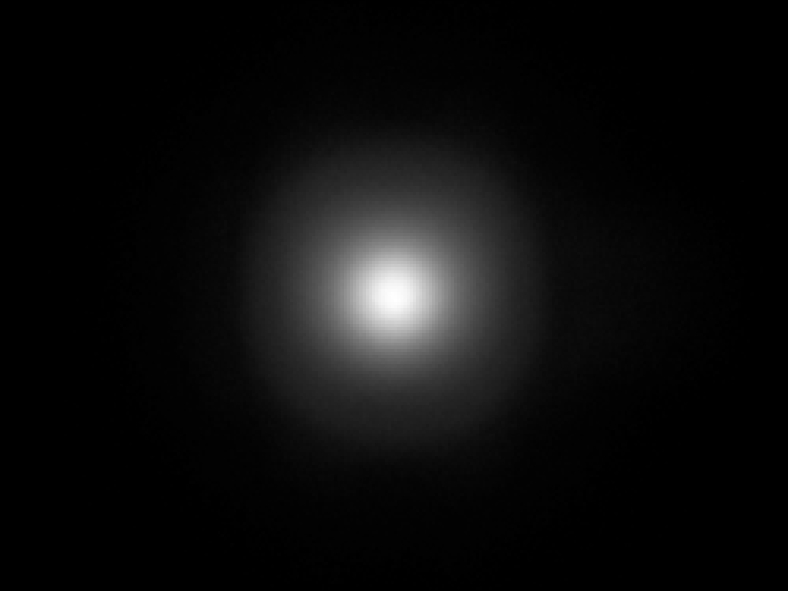

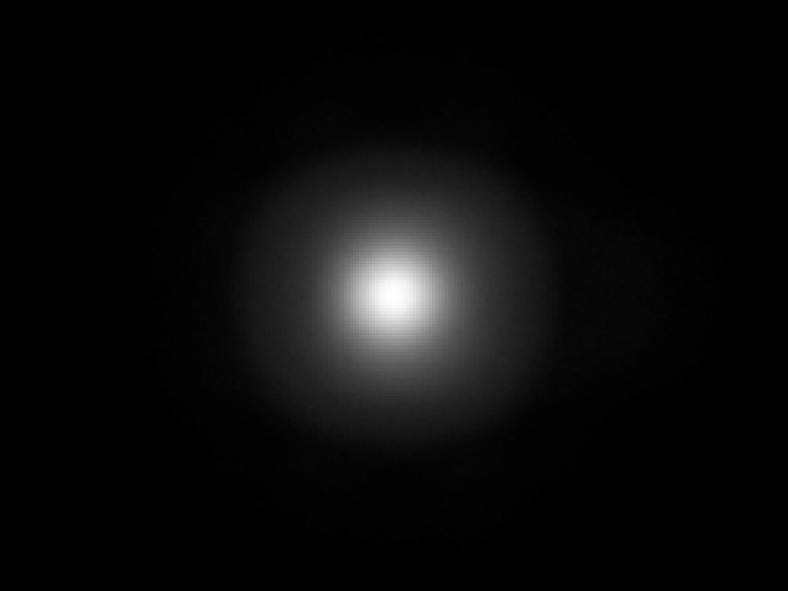

Cree JB2835B 3V G-Class White

Eff:

88.5%

FWHM:

10°

Cd/Im:

17.4


Download

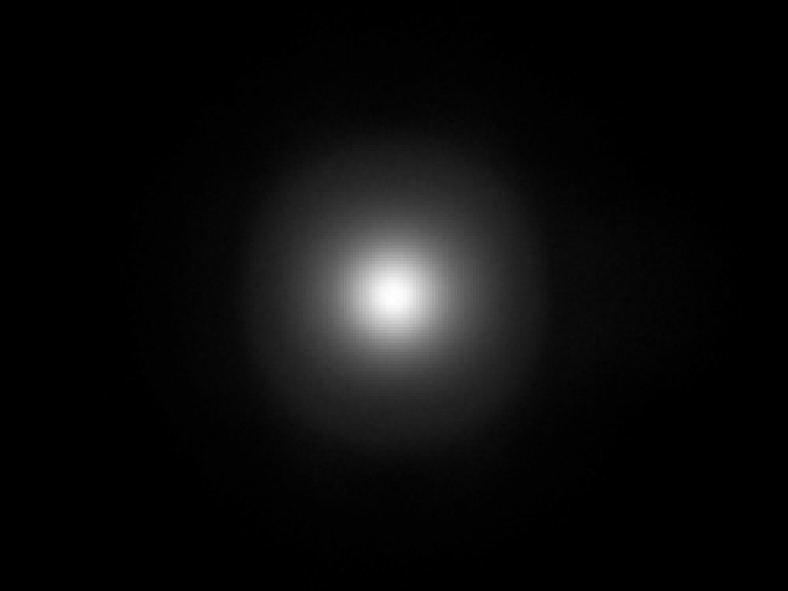

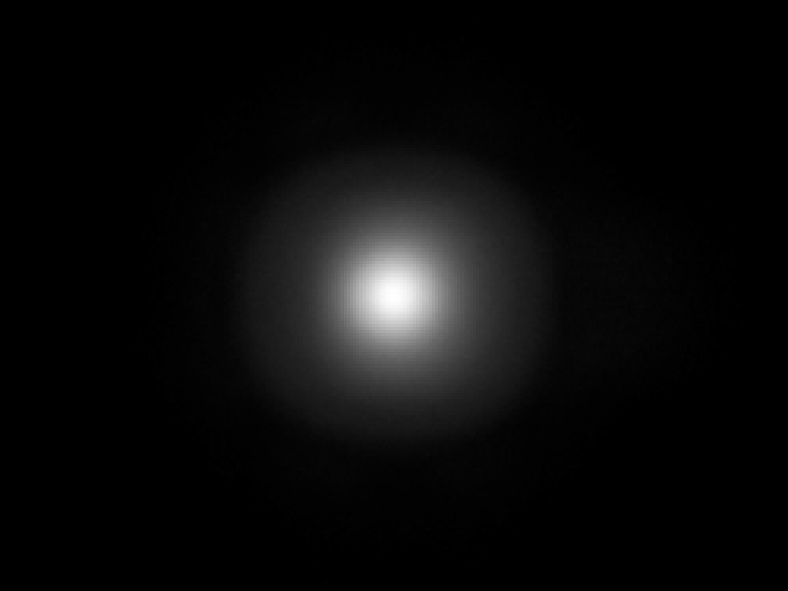

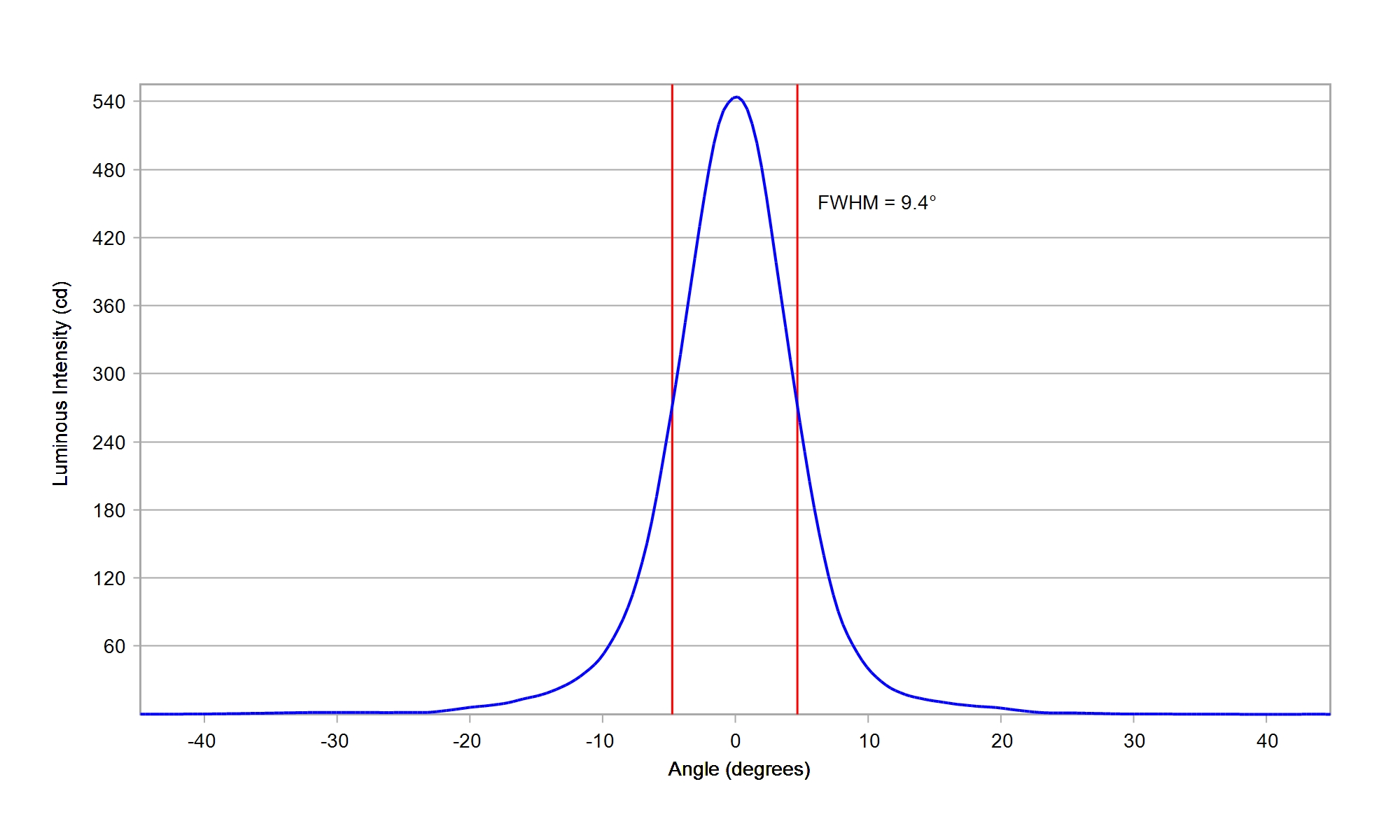

Cree JB2835B 3V J-Class White

Eff:

88.5%

FWHM:

9.6°

Cd/Im:

18.8


Download

Cree JB3030 3V P-Class White

Eff:

88.5%

FWHM:

11.5°

Cd/Im:

14.7

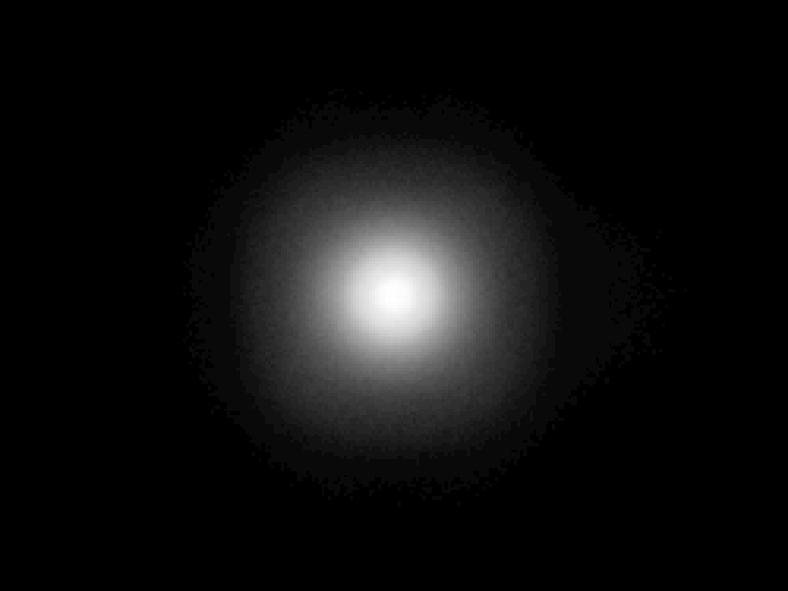

Carclo Optics - 10003 Spot Image Cree JB3030 3V White

Carclo Optics - 10003 Cross Section Cree JB3030 3V White

Download

IES

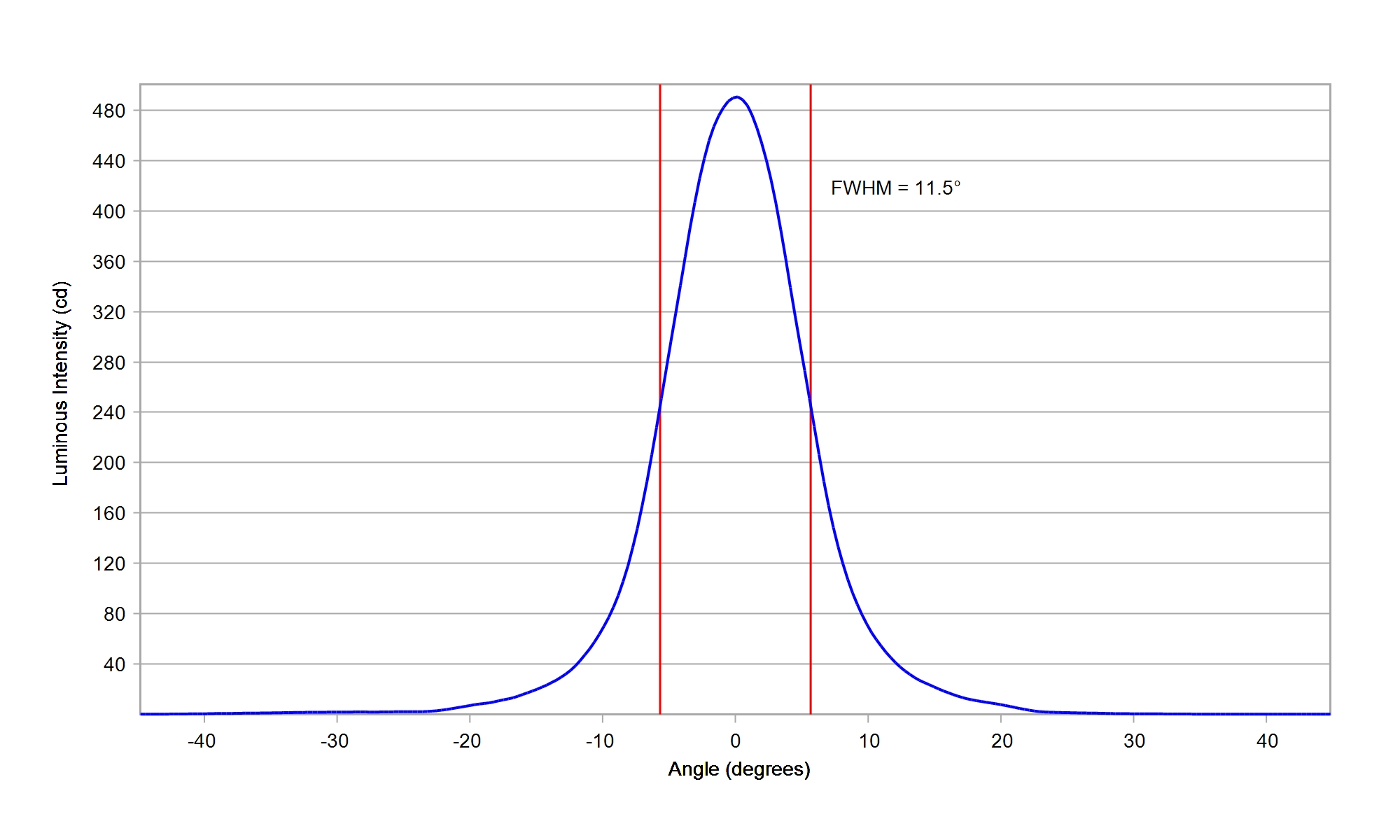

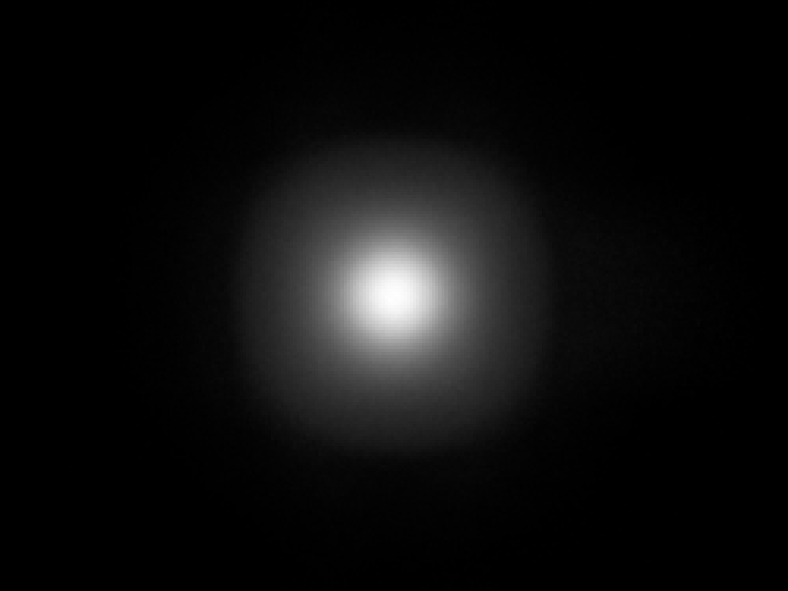

Cree JB3030C 3V E-Class White

Eff:

88.5%

FWHM:

11.5°

Cd/Im:

15.3


Download

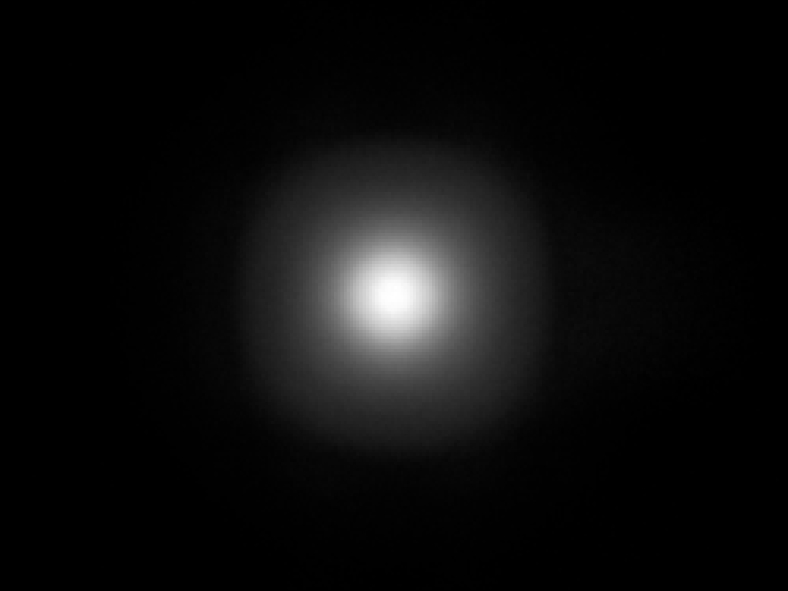

Cree JB3030C 3V F-Class White

Eff:

89.0%

FWHM:

11°

Cd/Im:

16.3


Download

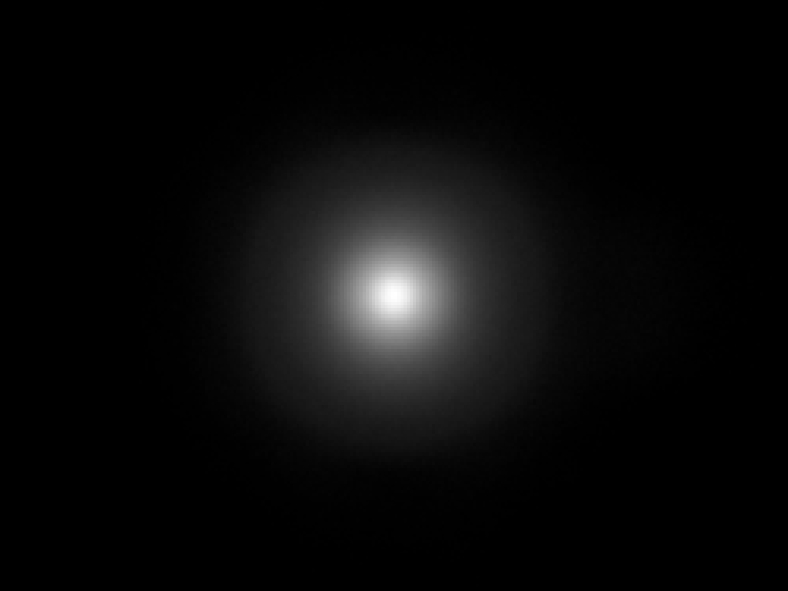

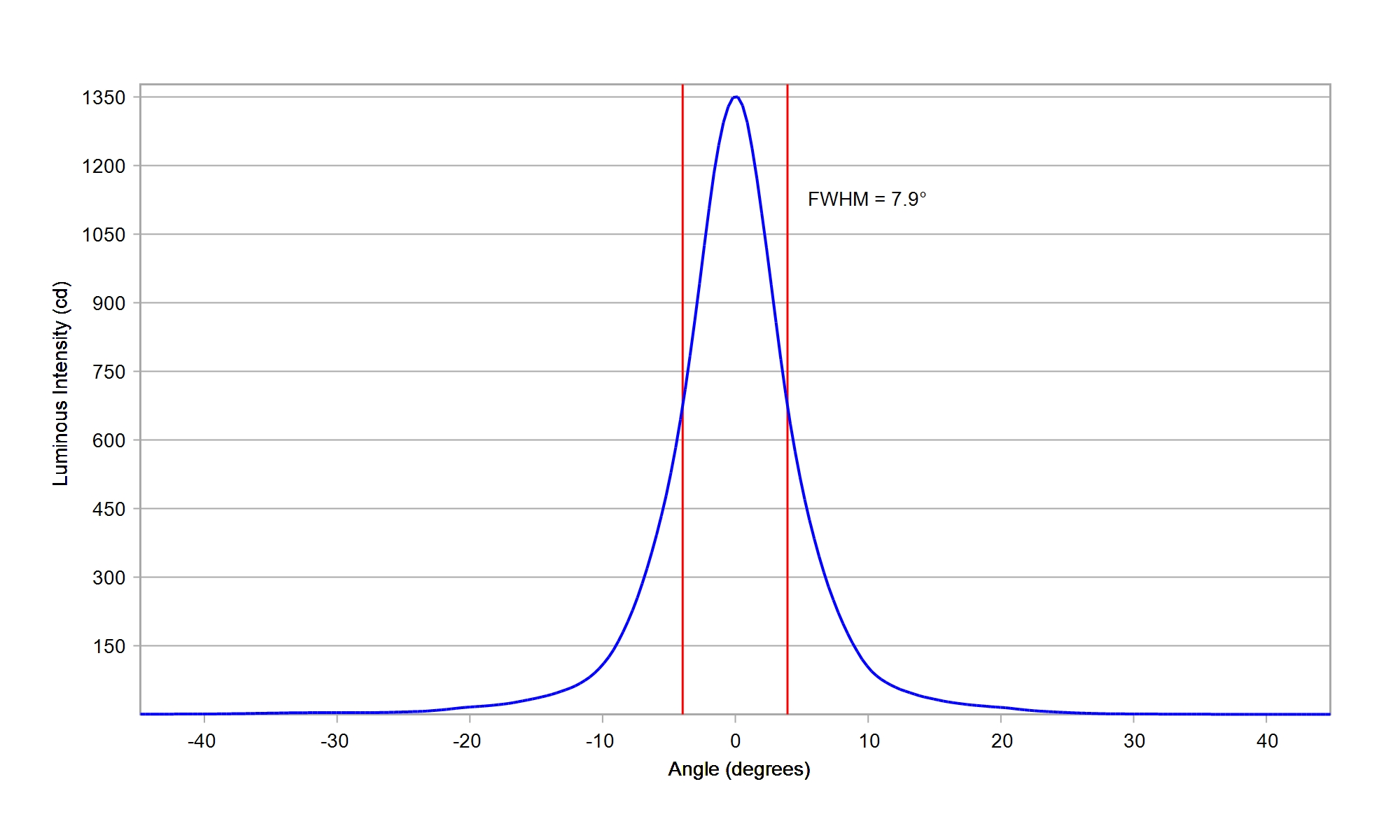

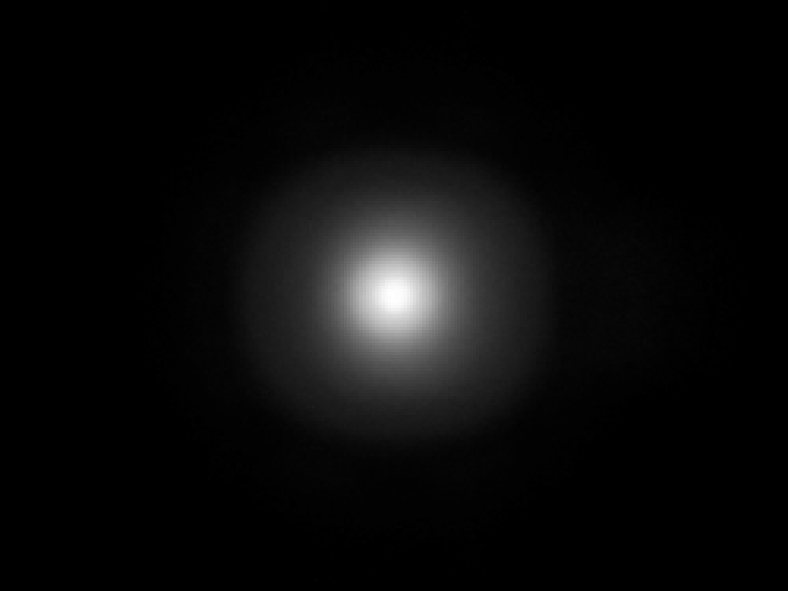

Cree JE2835 3V White

Eff:

89.0%

FWHM:

7.9°

Cd/Im:

24.3

Download

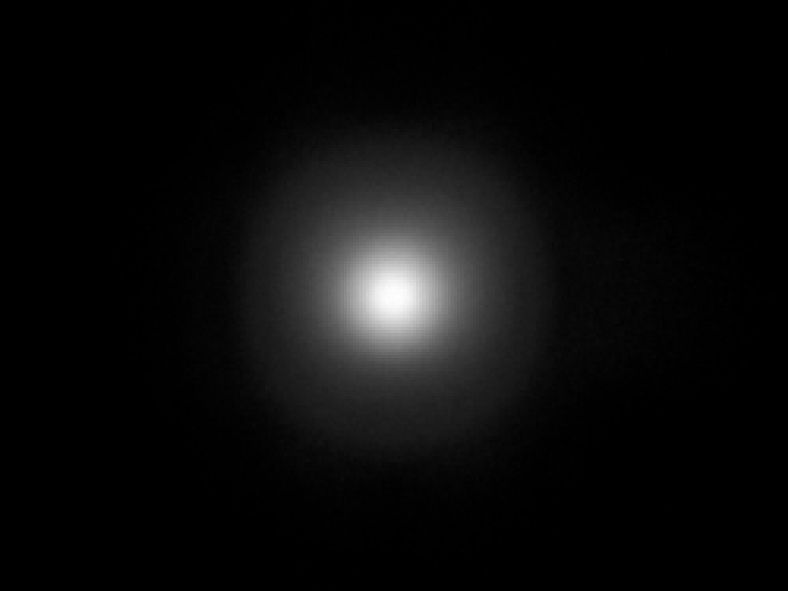

Cree JK2835 6V White

Eff:

88.5%

FWHM:

10.5°

Cd/Im:

17.8

Download

IES

Cree JQ5050 9V White

Eff:

88.5%

FWHM:

20.5°

Cd/Im:

4.1

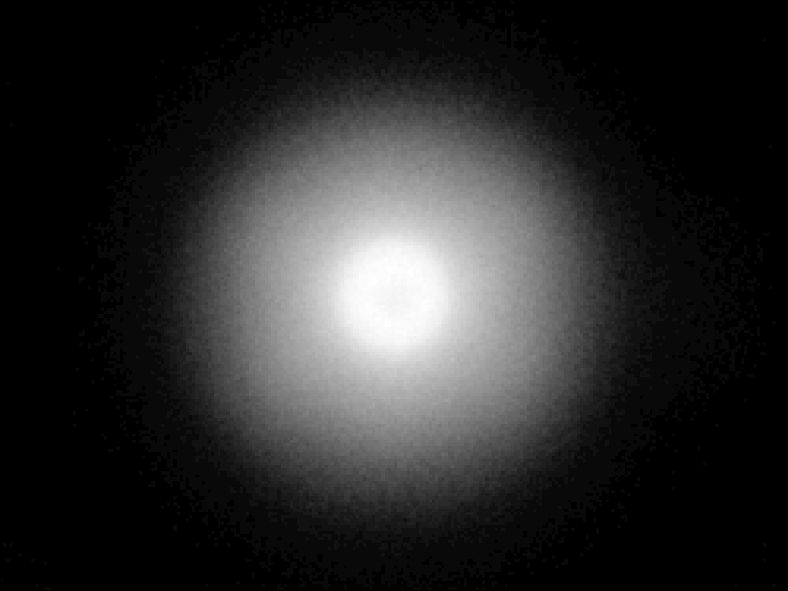

Carclo Optics - 10003 Spot Image Cree JQ5050 9V White

Carclo Optics - 10003 Cross Section Cree JQ5050 9V White

Download

IES

Cree JR5050 24V White

Eff:

88.5%

FWHM:

18.5°

Cd/Im:

4.5

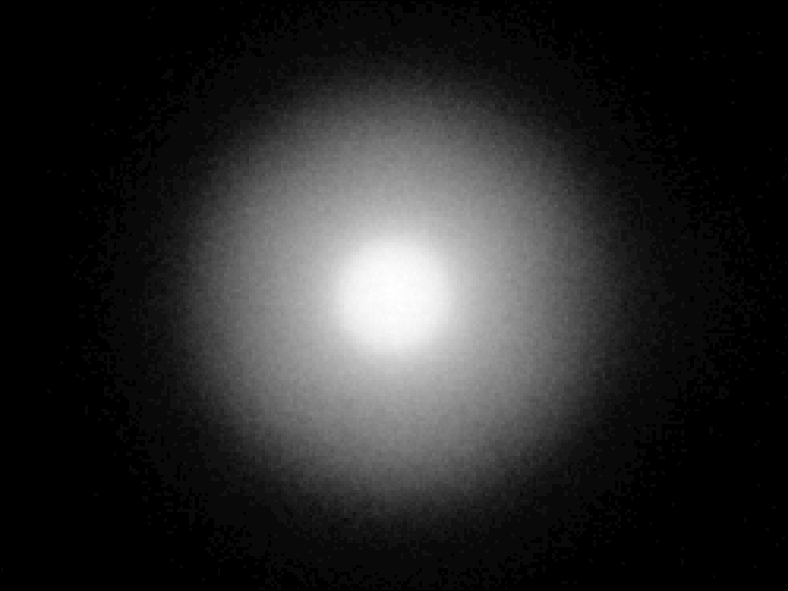

Carclo Optics - 10003 Spot Image Cree JR5050-24V White

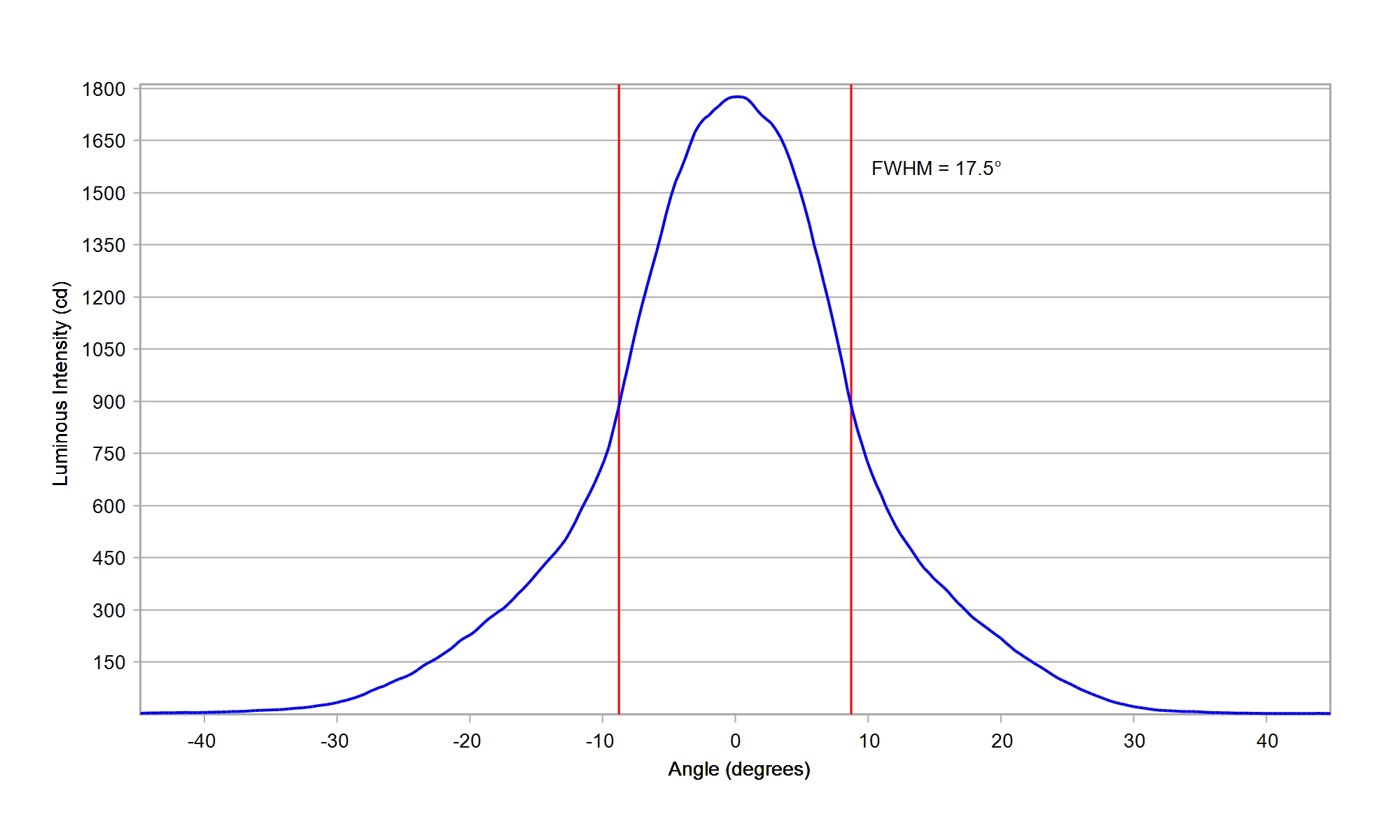

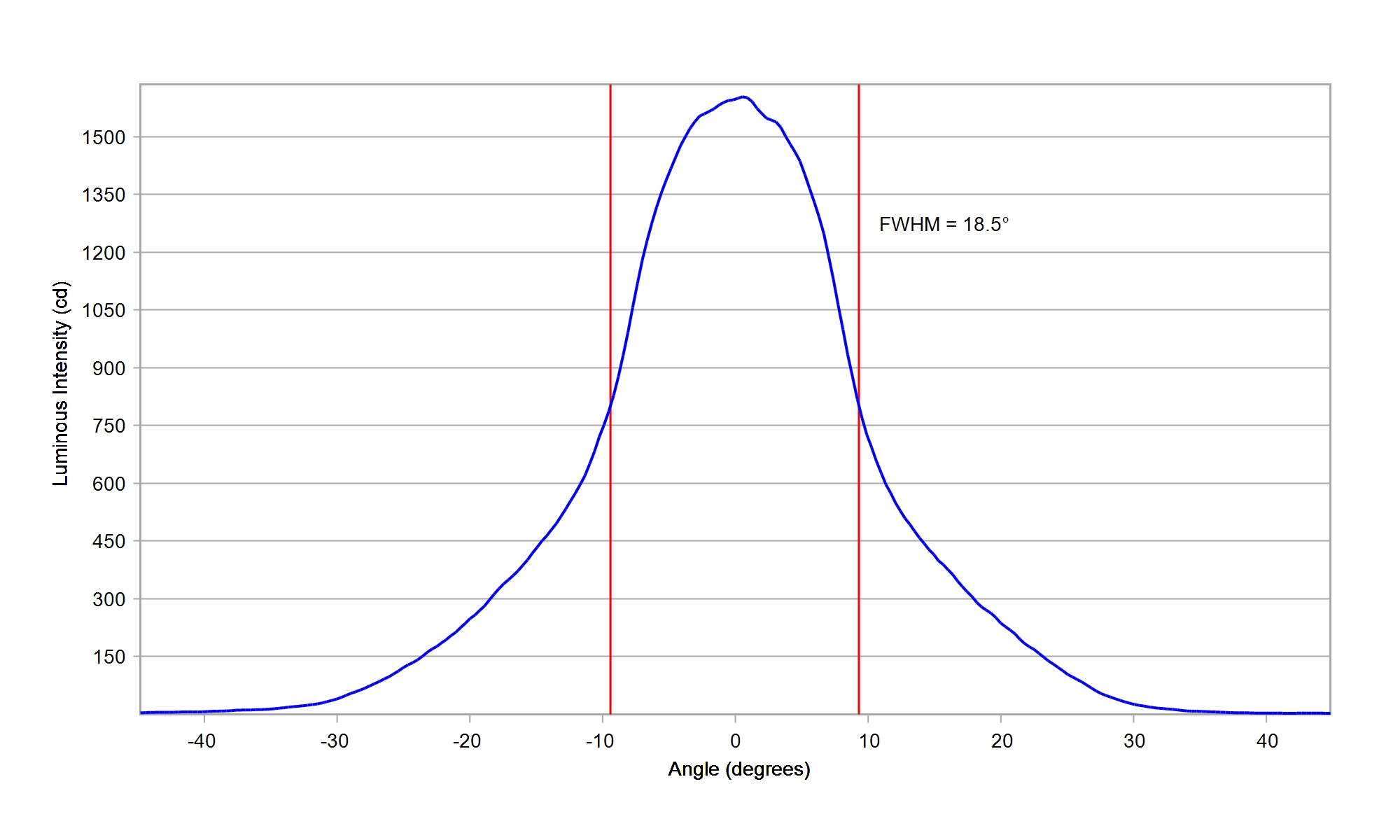

Carclo Optics - 10003 Cross Section Cree JR5050-24V White

Download

IES

Cree JR5050 36V White

Eff:

89.0%

FWHM:

17.5°

Cd/Im:

5.4

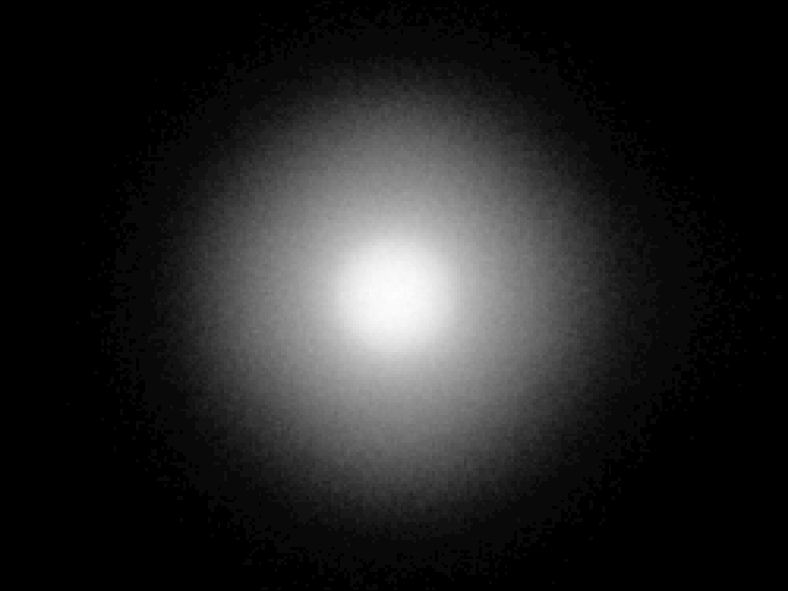

Carclo Optics - 10003 Spot Image Cree JR5050 36V White

Carclo Optics - 10003 Cross Section Cree JR5050 36V White

Download

IES

Cree JR5050 6V White

Eff:

88.5%

FWHM:

19.0°

Cd/Im:

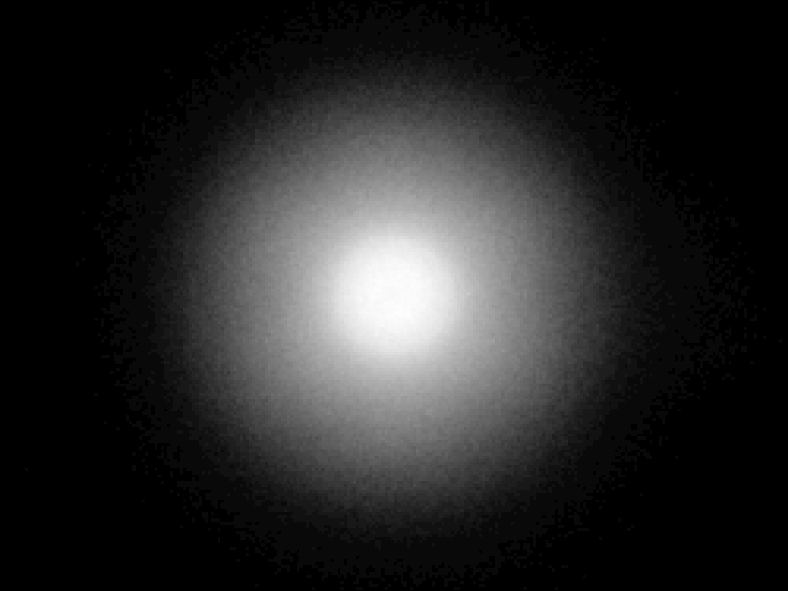

4.7

Carclo Optics - 10003 Spot Image Cree JR50506V White

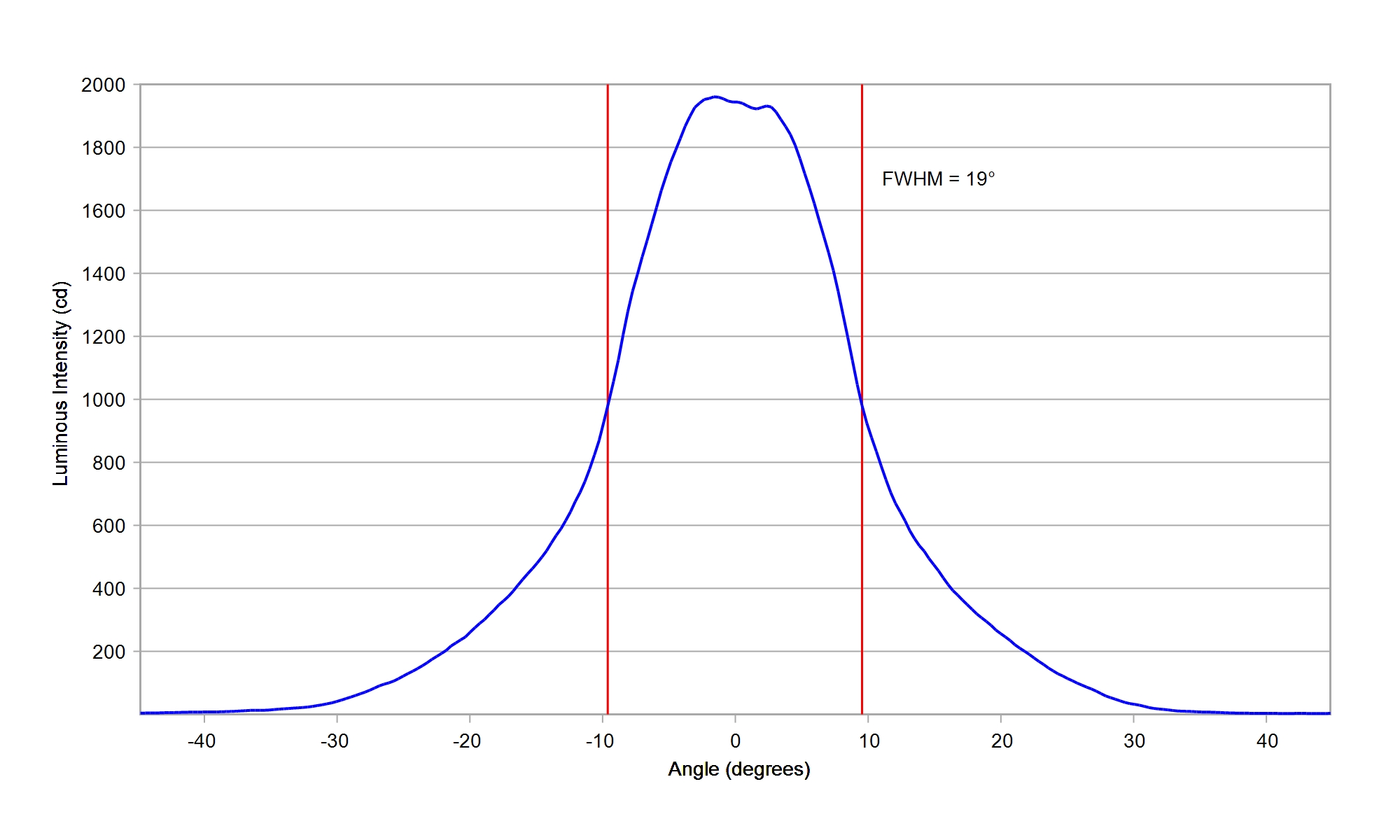

Carclo Optics - 10003 Cross Section Cree JR50506V White

Download

IES

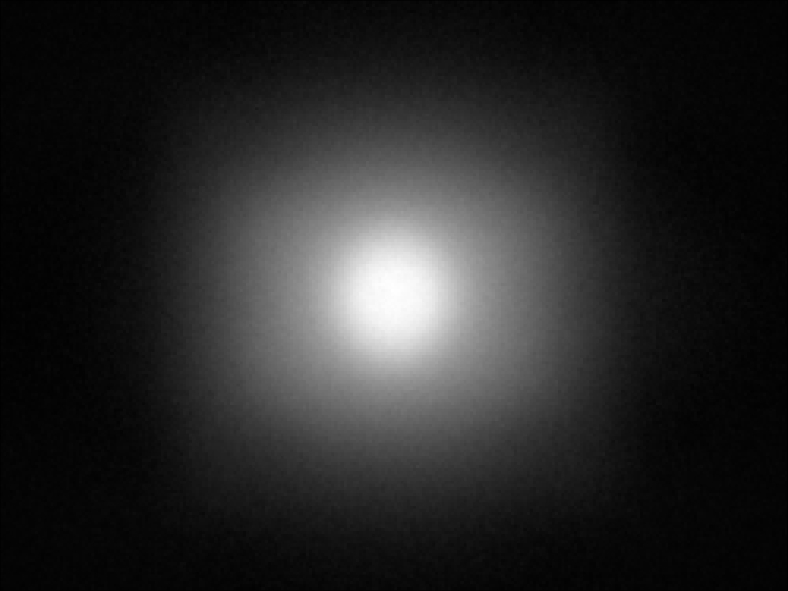

Cree JR5050C 6V E-Class White

Eff:

88.5%

FWHM:

18.5°

Cd/Im:

4.8


Download

IES

Cree XLamp CSP XD16 Cool White

Eff:

87.5%

FWHM:

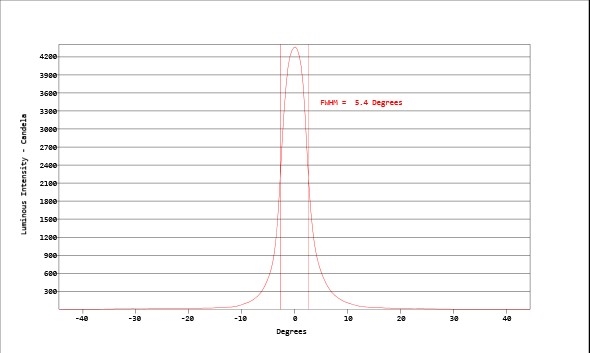

9.6°

Cd/Im:

20.9

Carclo Optics - Simulated Spot Image

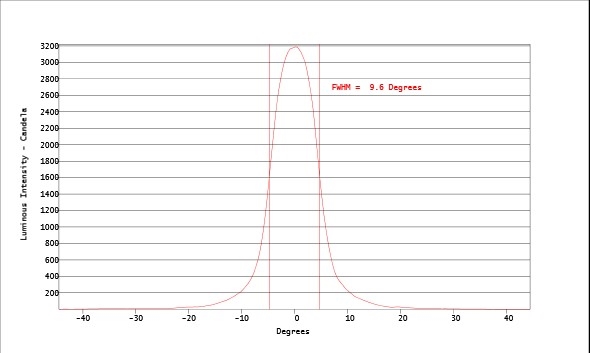

Carclo Optics - Simulated Cross Section

Download

IES

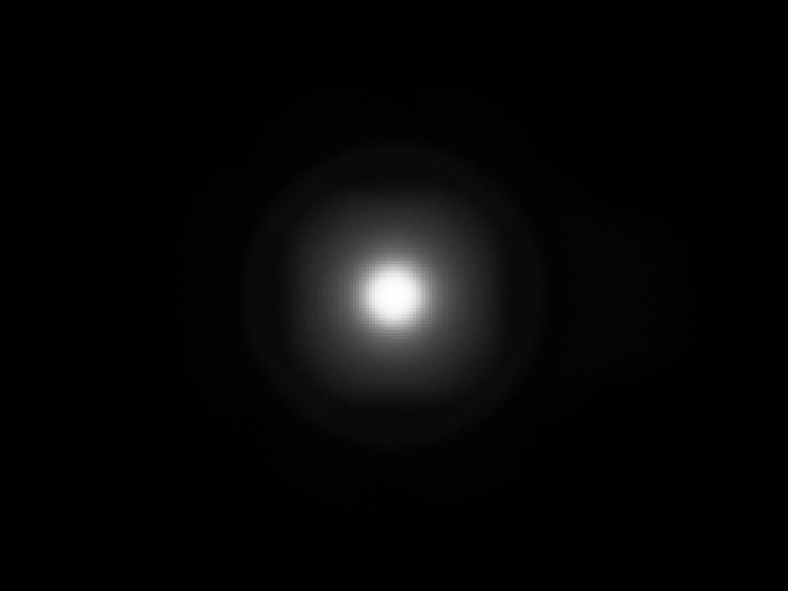

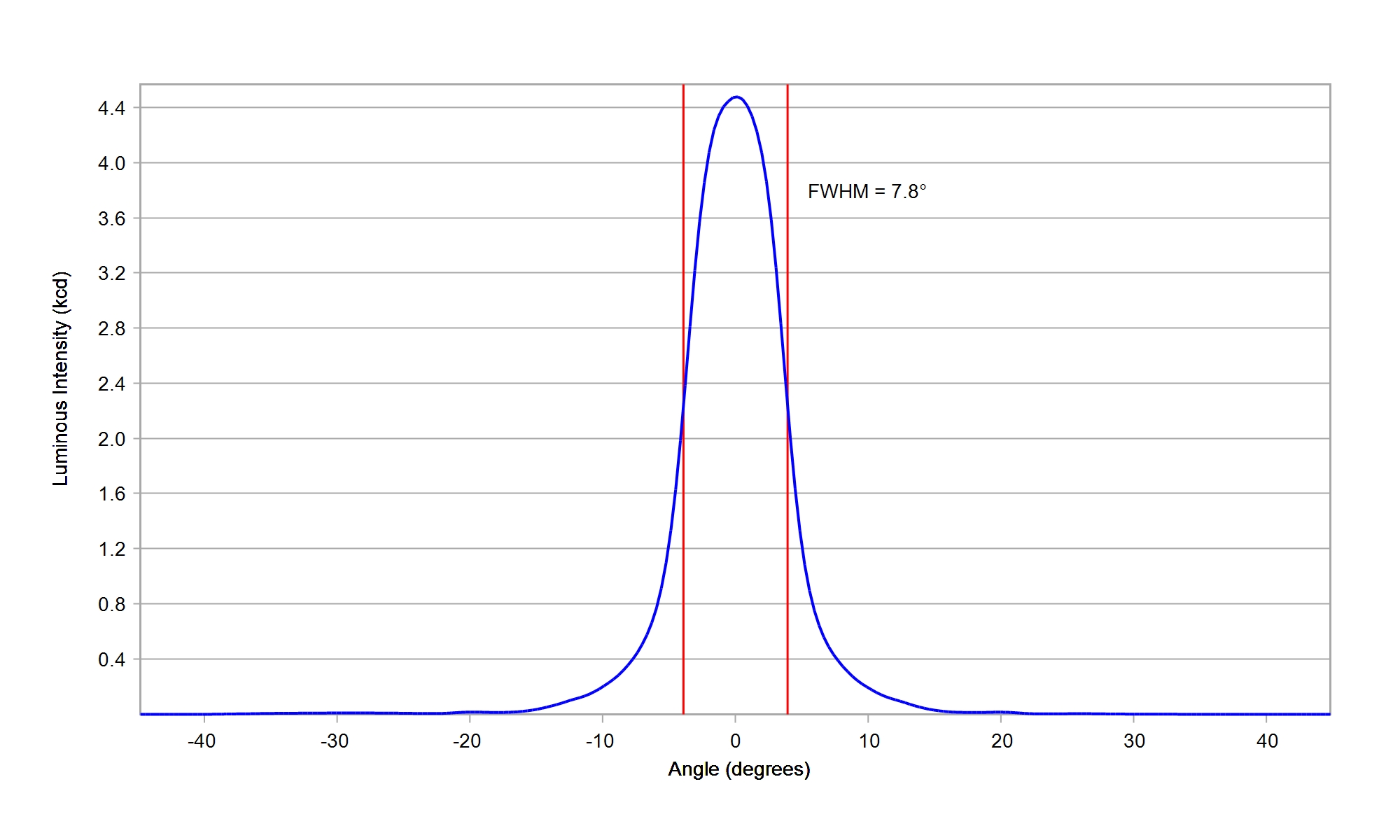

Cree XLamp CSP XD16 Premium White

Eff:

88.5%

FWHM:

7.8°

Cd/Im:

30.5

Download

IES

Cree XLamp MH-B White

Eff:

87.0%

FWHM:

20°

Cd/Im:

3.3

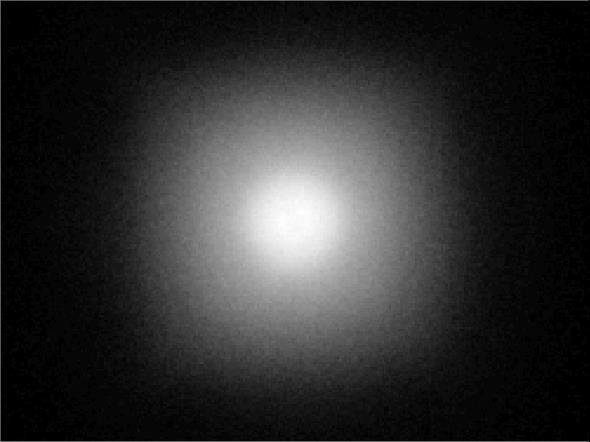

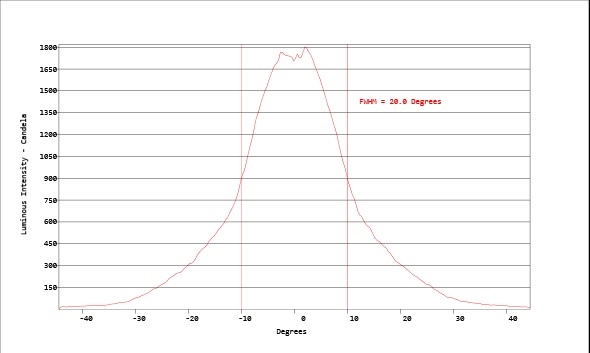

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

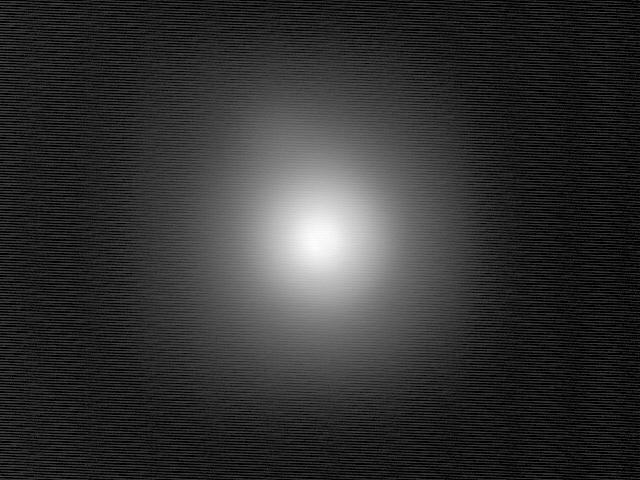

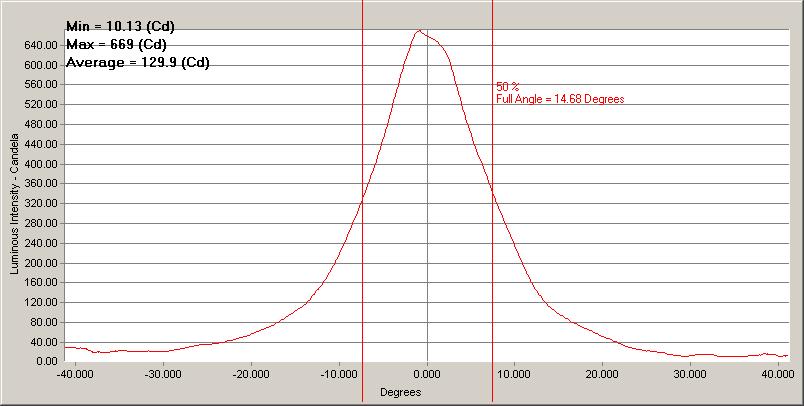

Cree XLamp MX-6 White

Eff:

90.2%

FWHM:

15°

Cd/Im:

8.5

Download

ies

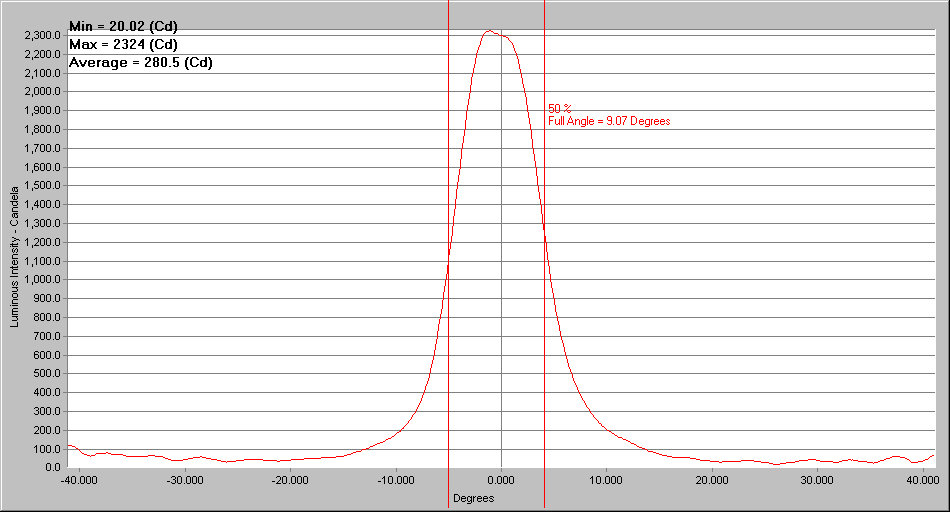

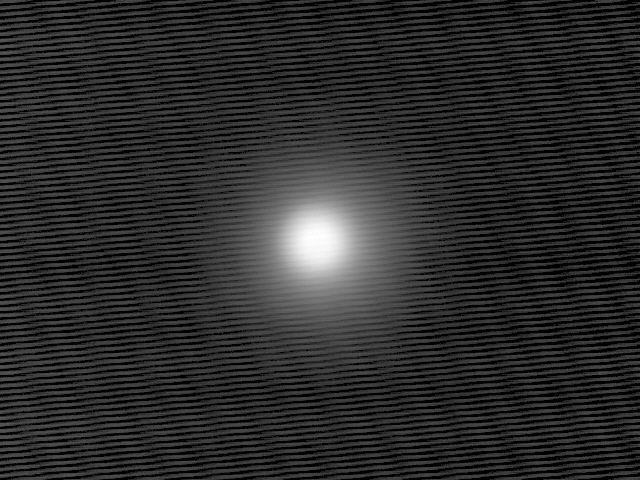

Cree XLamp XB-D White

Eff:

87.2%

FWHM:

9.3°

Cd/Im:

27.7

Download

ies

Cree XLamp XB-H White

Eff:

88.0%

FWHM:

10.5°

Cd/Im:

15.9

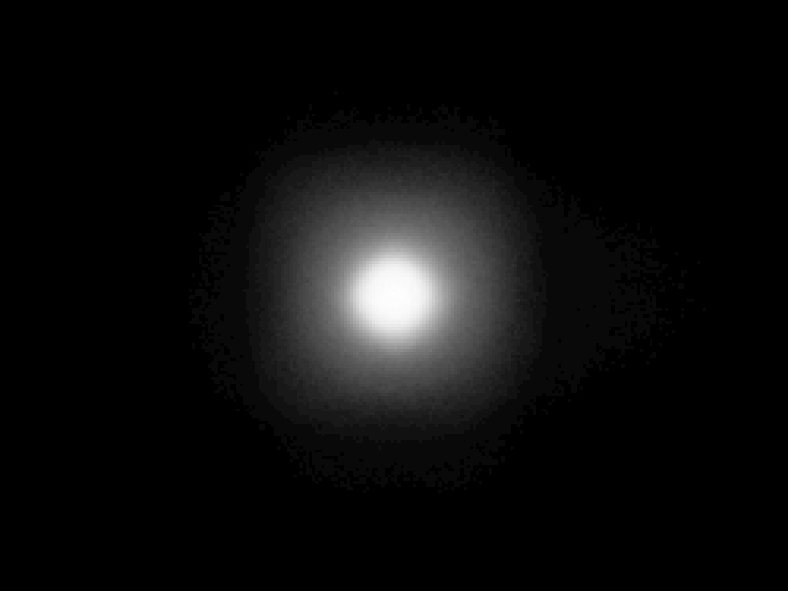

Carclo Optics - 10003 20mm Spot Image Cree XLamp XB-H

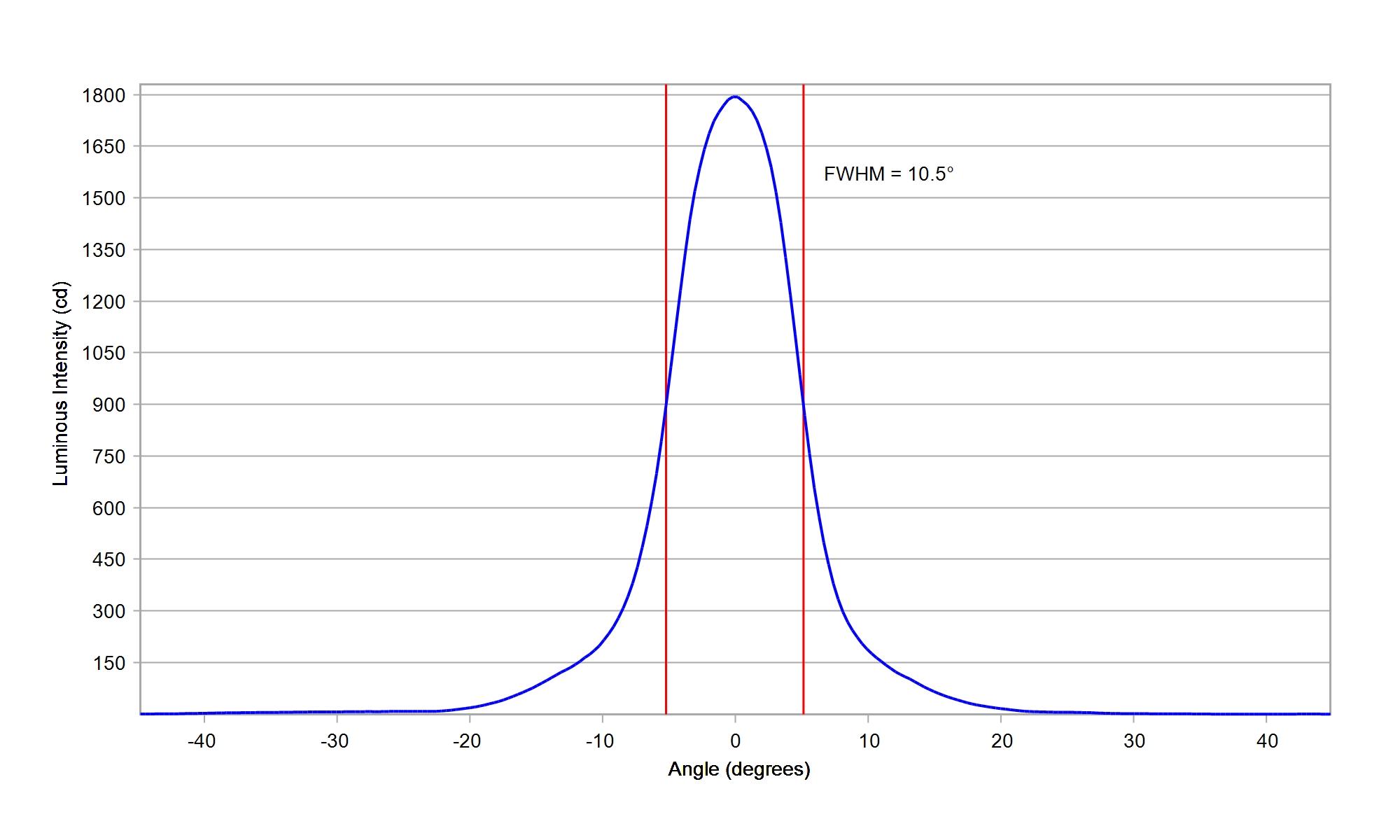

Carclo Optics - 10003 20mm Cross Section Cree XLamp XB-H

Download

IES

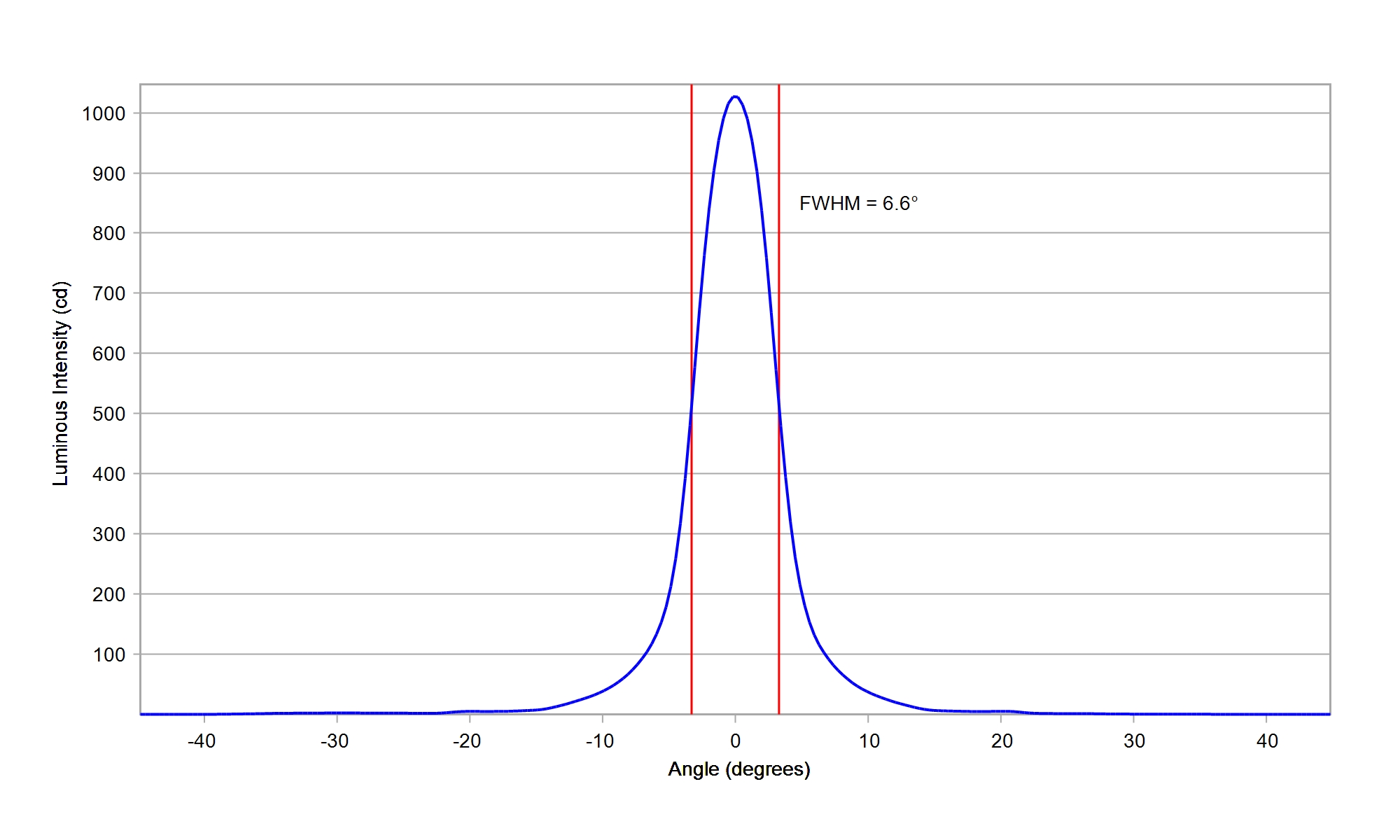

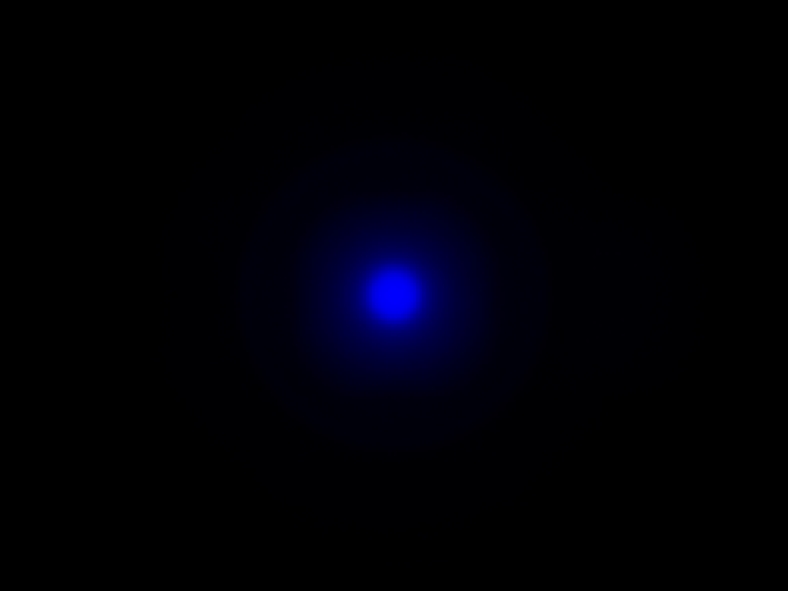

Cree XLamp XE-G Blue

Eff:

88.5%

FWHM:

6.6°

Cd/Im:

39.3

Download

IES

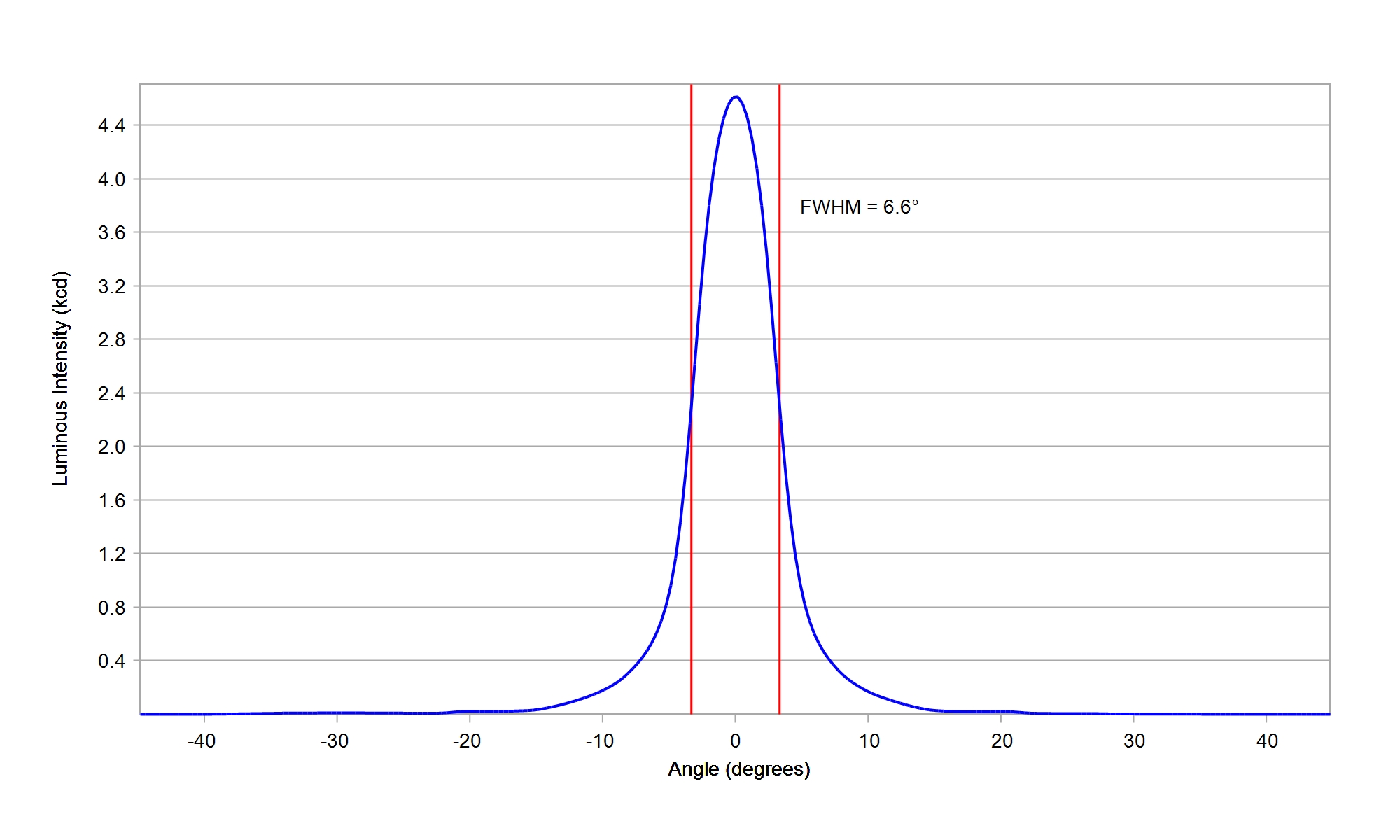

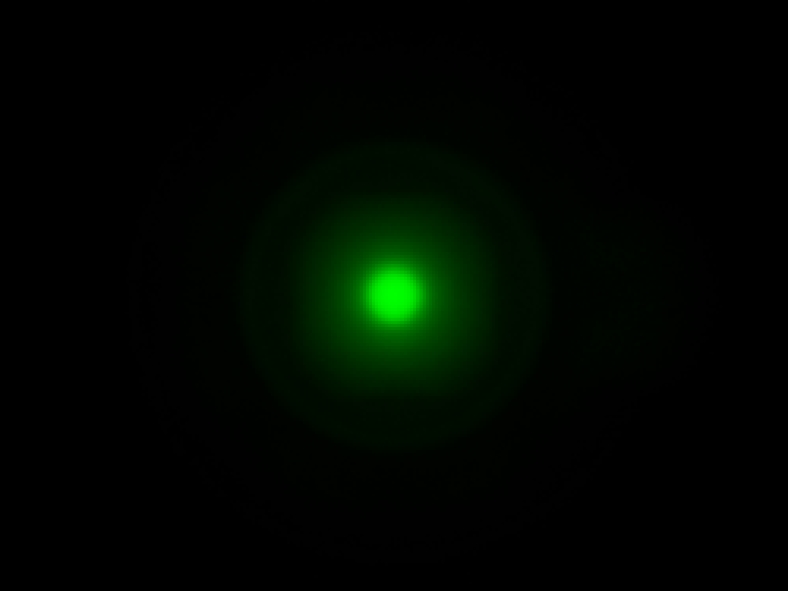

Cree XLamp XE-G Green

Eff:

88.5%

FWHM:

6.6°

Cd/Im:

38.5

Download

IES

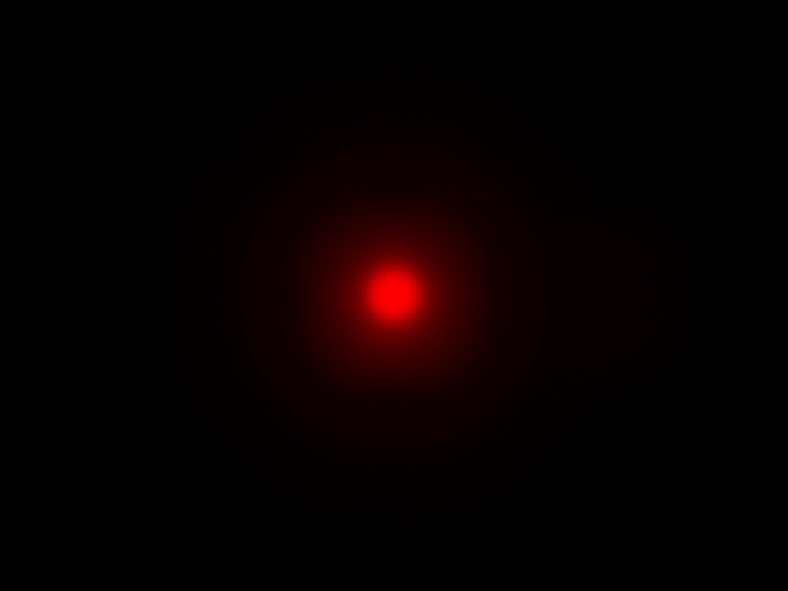

Cree XLamp XE-G Red

Eff:

87.5%

FWHM:

6.5°

Cd/Im:

39.1

Download

IES

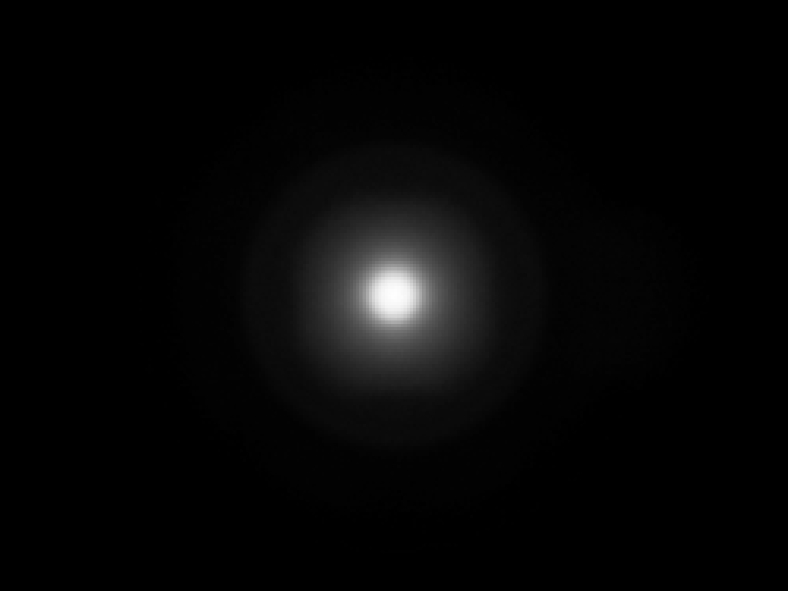

Cree XLamp XE-G White

Eff:

88.0%

FWHM:

6.7°

Cd/Im:

36.7

Download

IES

Cree XLamp XHP-50 White

Eff:

86.5%

FWHM:

22°

Cd/Im:

2.9

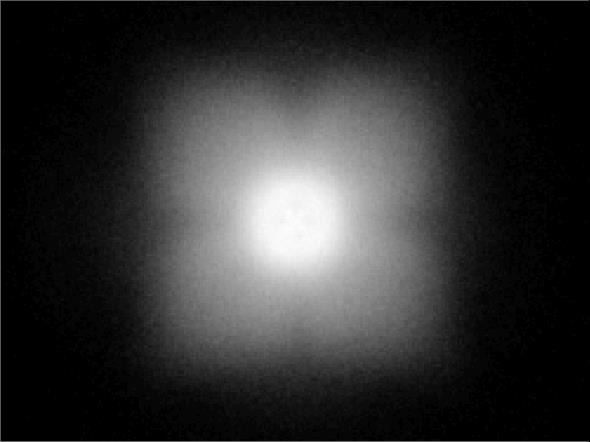

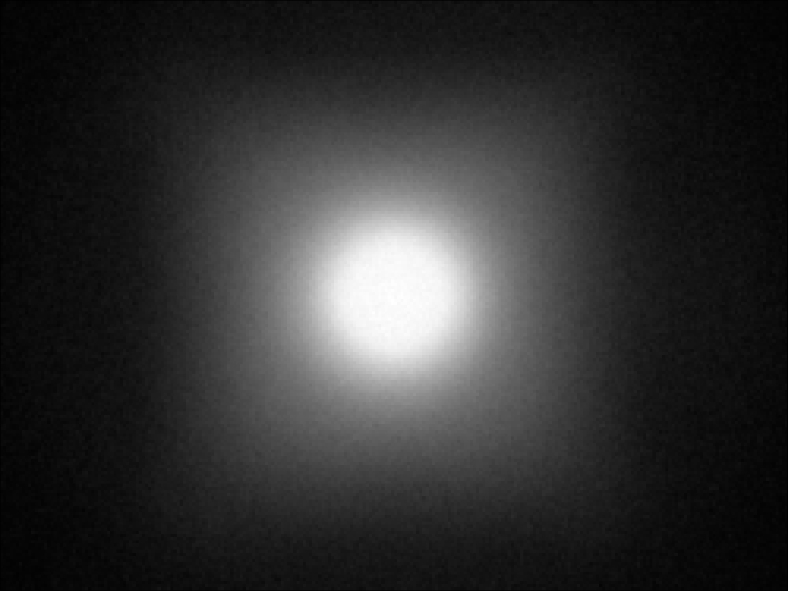

carclo optics - simulated spot image

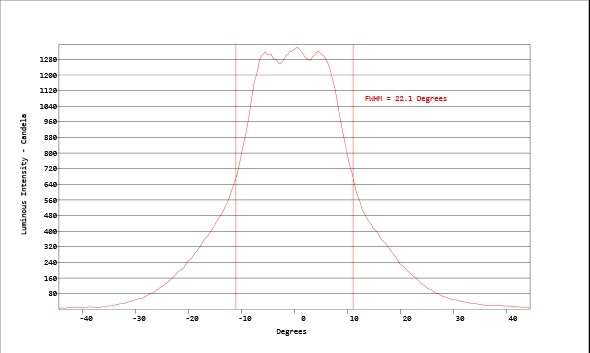

carclo optics - simulated cross section

Download

IES

Cree XLamp XHP35 HI White

Eff:

85.3%

FWHM:

13.4°

Cd/Im:

11.6

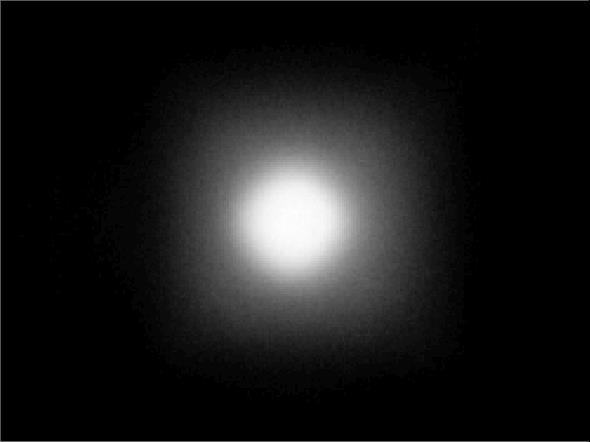

Carclo Optics - Simulated Spot Image

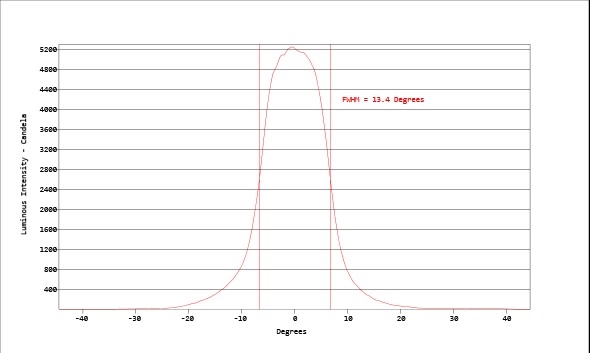

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP35 HD White

Eff:

84.7%

FWHM:

19°

Cd/Im:

5.8

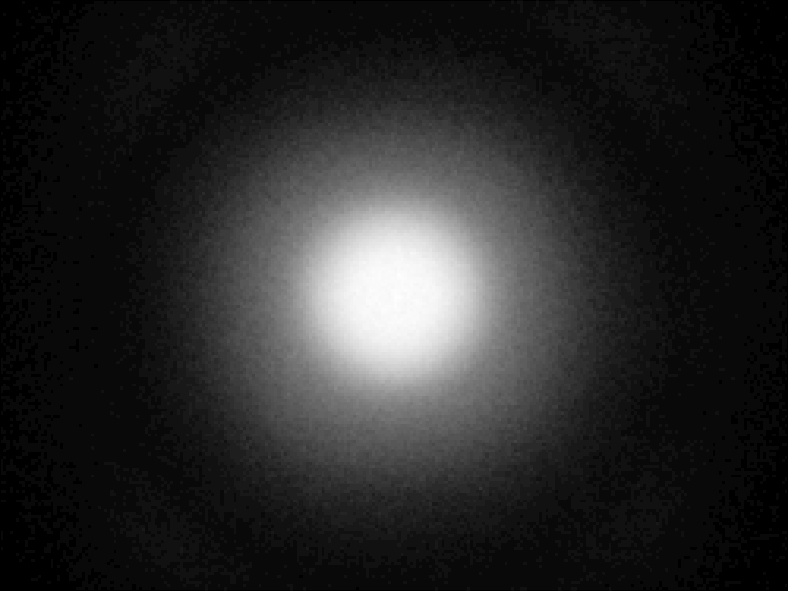

Carclo Optics - Simulated Spot Image

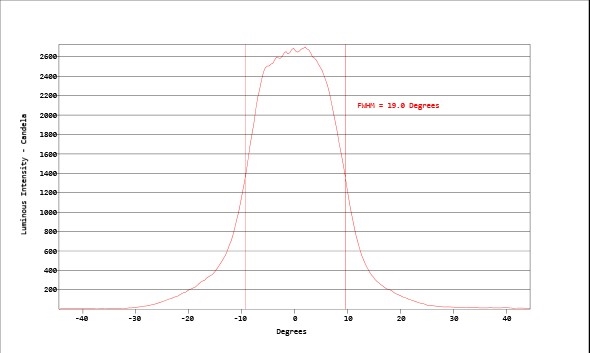

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP35.2 HI White

Eff:

87.0%

FWHM:

13.5°

Cd/Im:

9.1

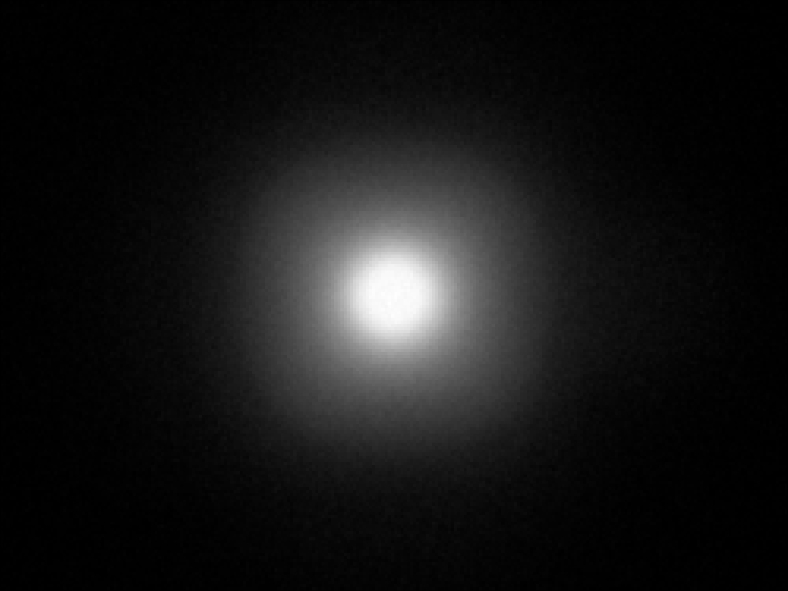

Carclo Optics - 10003 Spot Image Cree XLamp XHP35.2 HI White

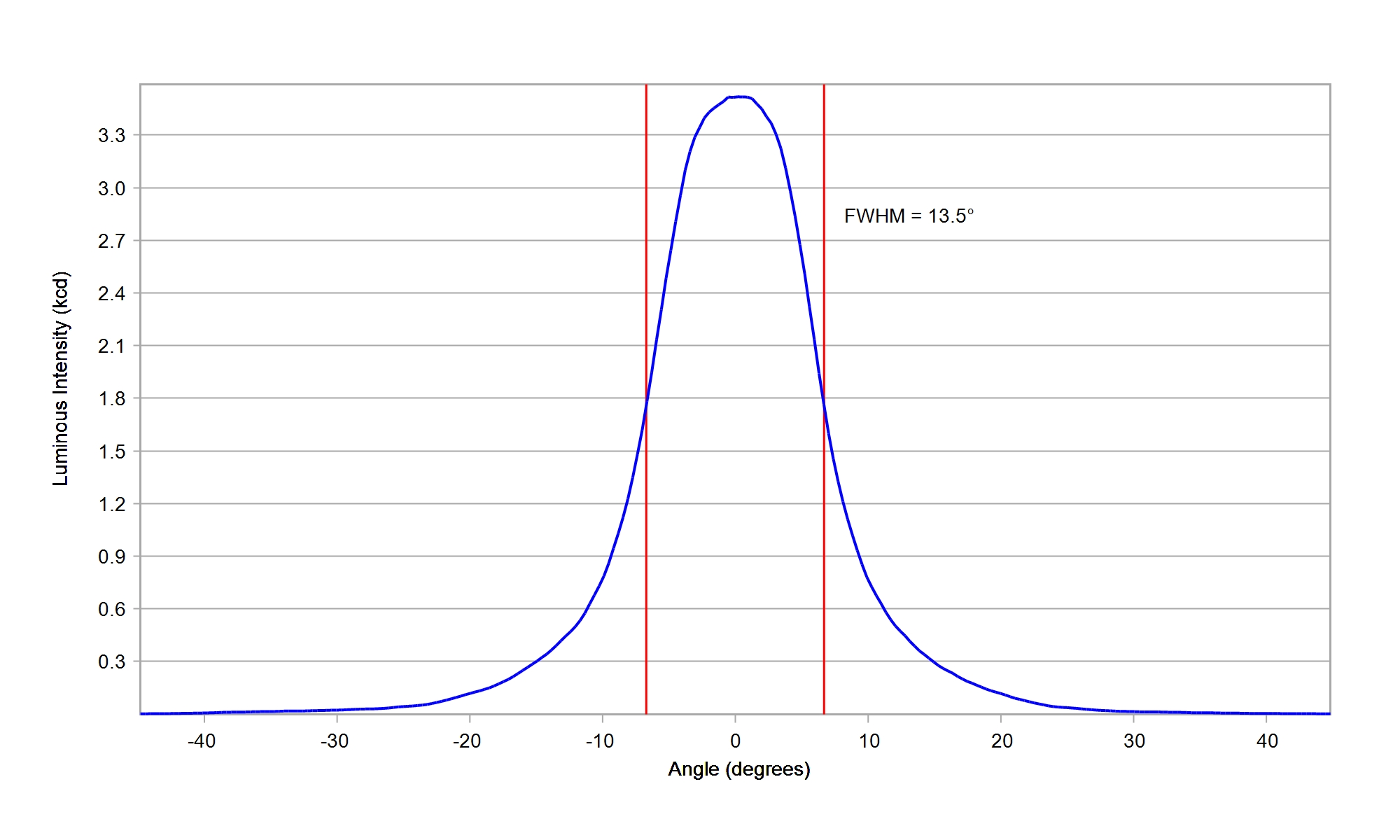

Carclo Optics - 10003 Cross Section Cree XLamp XHP35.2 HI White

Download

2-HI-WW

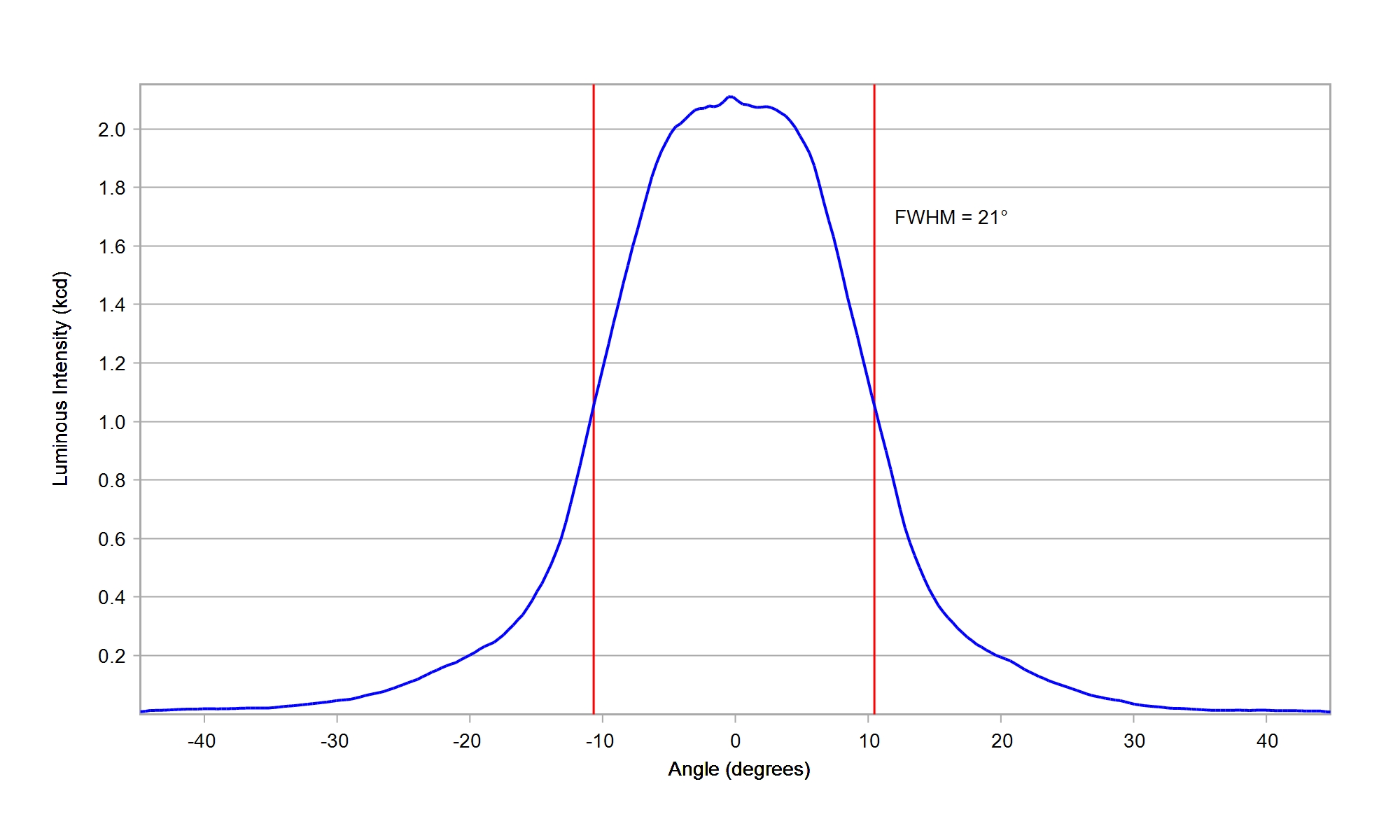

Cree XLamp XHP35.2 HD White

Eff:

87.0%

FWHM:

21.0°

Cd/Im:

4.7

Carclo Optics - 10003 Spot Image Cree XHP35.2 White

Carclo Optics - 10003 Cross Section Cree XHP35.2 White

Download

IES

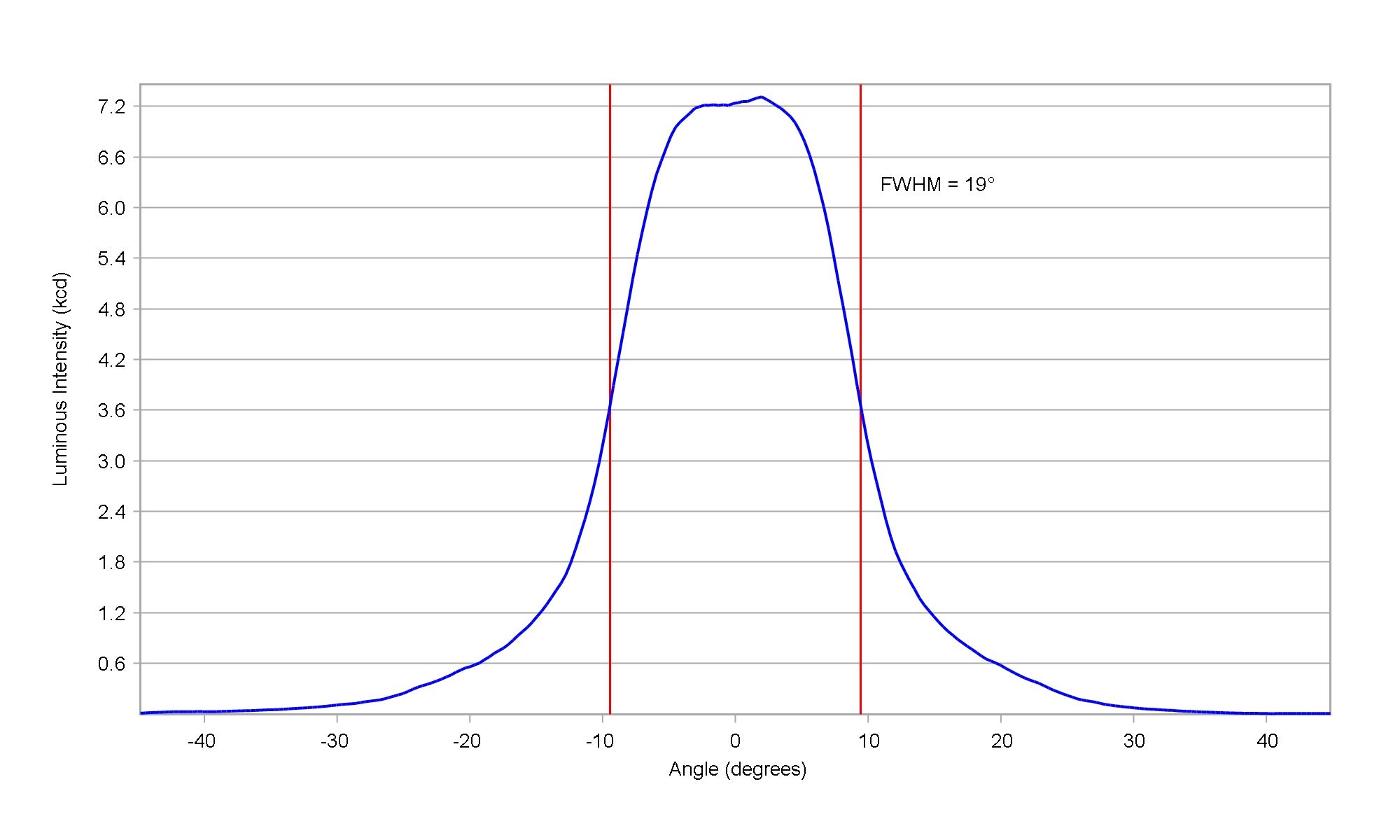

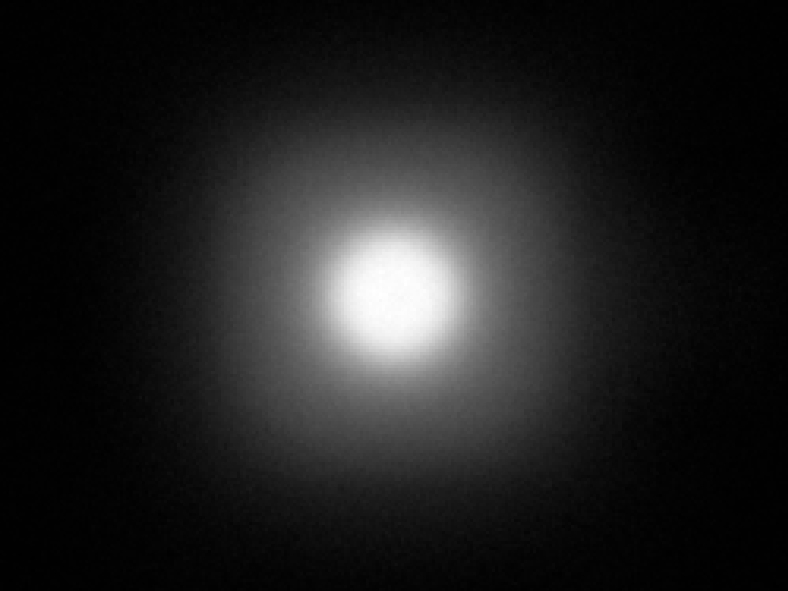

Cree XLamp XHP50.3 HI White

Eff:

86.5%

FWHM:

19°

Cd/Im:

5.7

Download

Cree XLamp XHP50.3 White

Eff:

87.0%

FWHM:

23.5°

Cd/Im:

3.6

Download

3
3

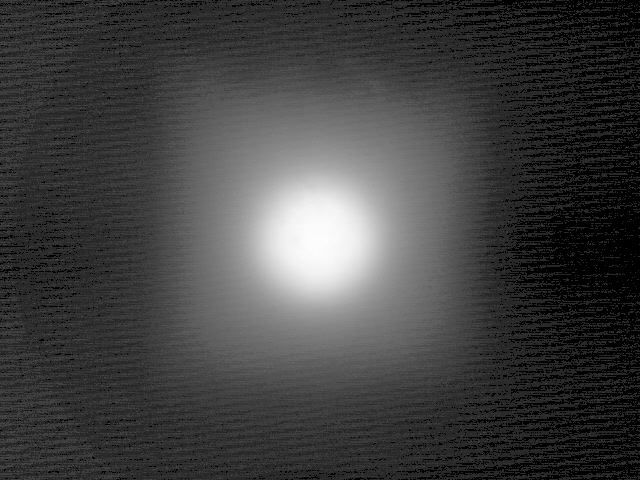

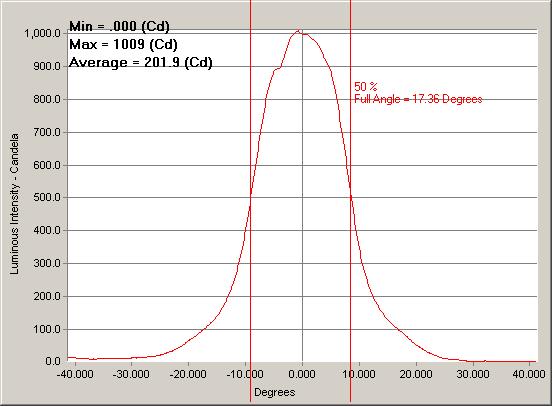

Cree XLamp XM-L White

Eff:

87.4%

FWHM:

17.3°

Cd/Im:

8.6

Download

ies

Cree XLamp XM-L2 White

Eff:

87.0%

FWHM:

16.9°

Cd/Im:

9.1

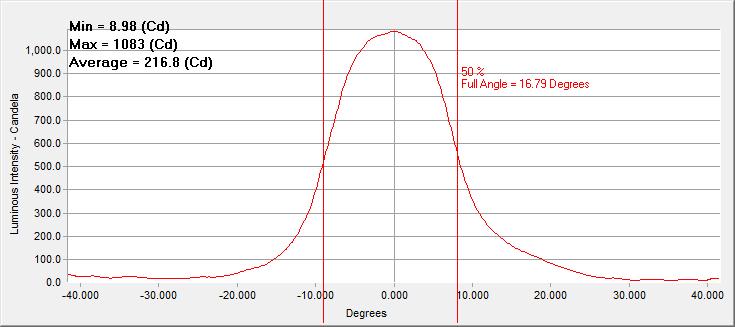

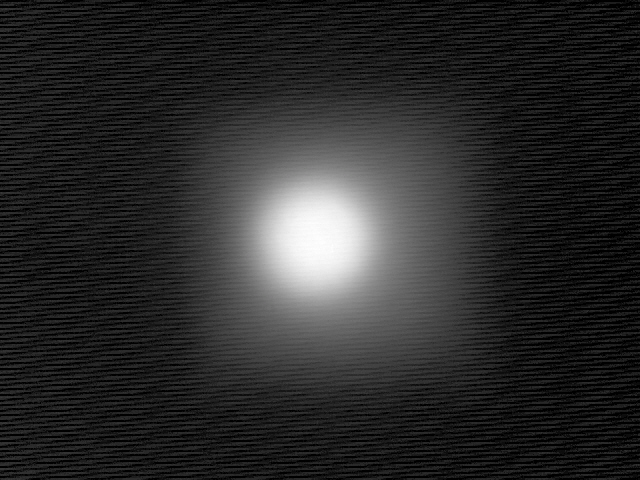

10003-Plain-Cree-XM-L2-White-Spot-Image

10003-Plain-Cree-XM-L2-White-Cross-Section

Download

ies

Cree XLamp XM-L3 White

Eff:

87.0%

FWHM:

15.5°

Cd/Im:

7.4

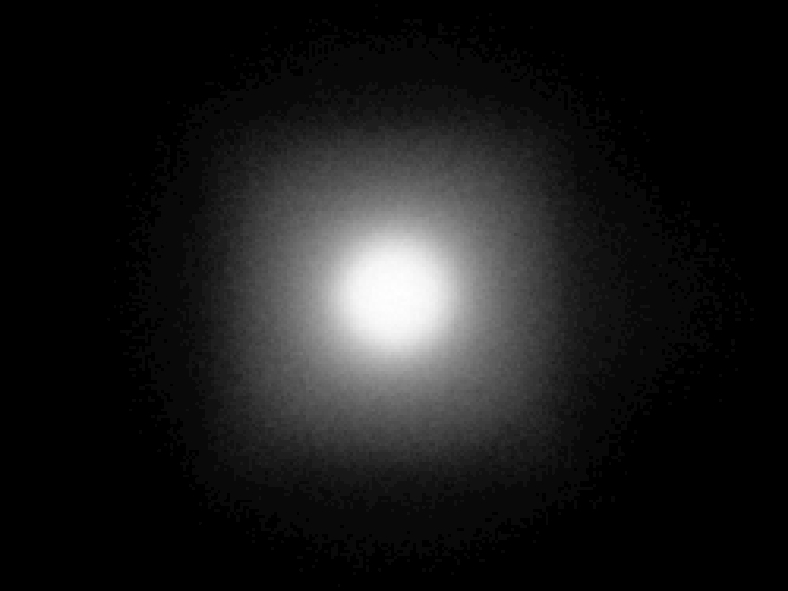

Carclo Optics - 10003 Spot Image Cree XM-L3

Carclo Optics - 10003 Cross Section Cree XM-L3

Download

IES

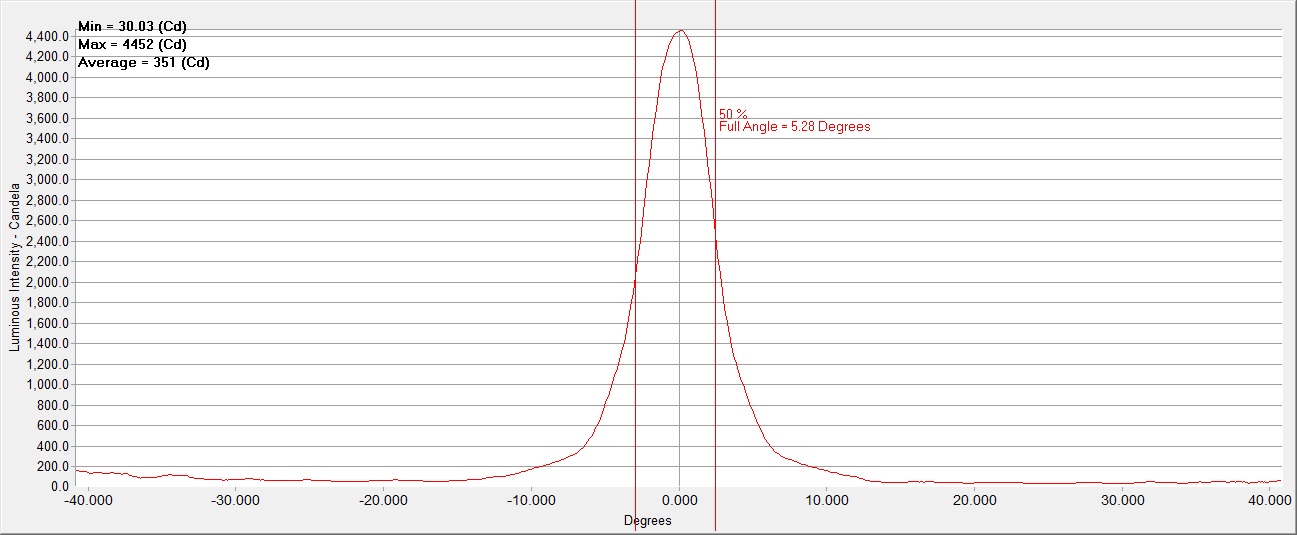

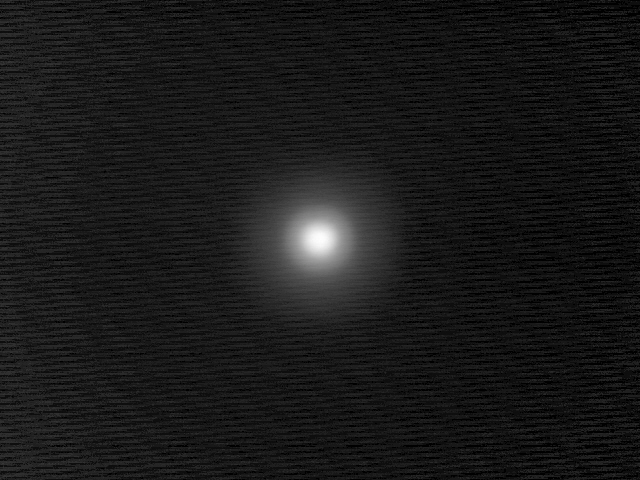

Cree XLamp XP-C White

Eff:

86.3%

FWHM:

5.1°

Cd/Im:

64.0

Download

ies

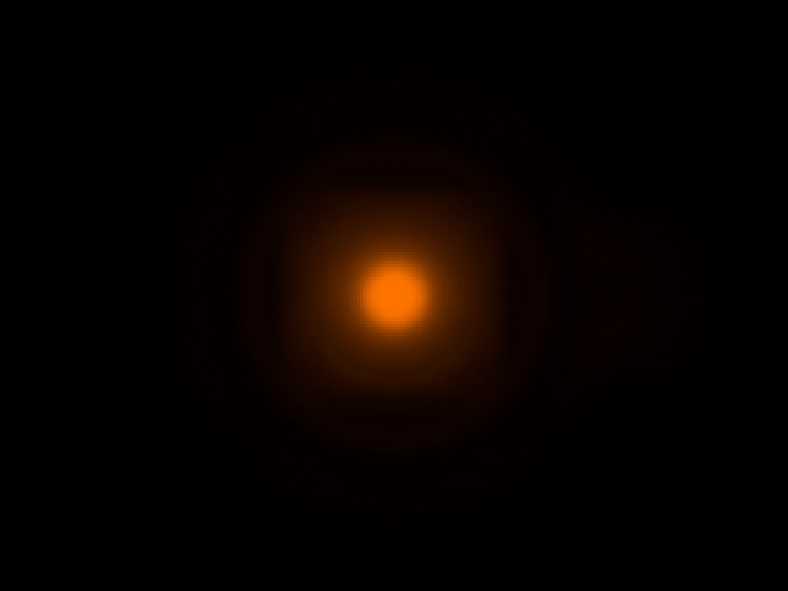

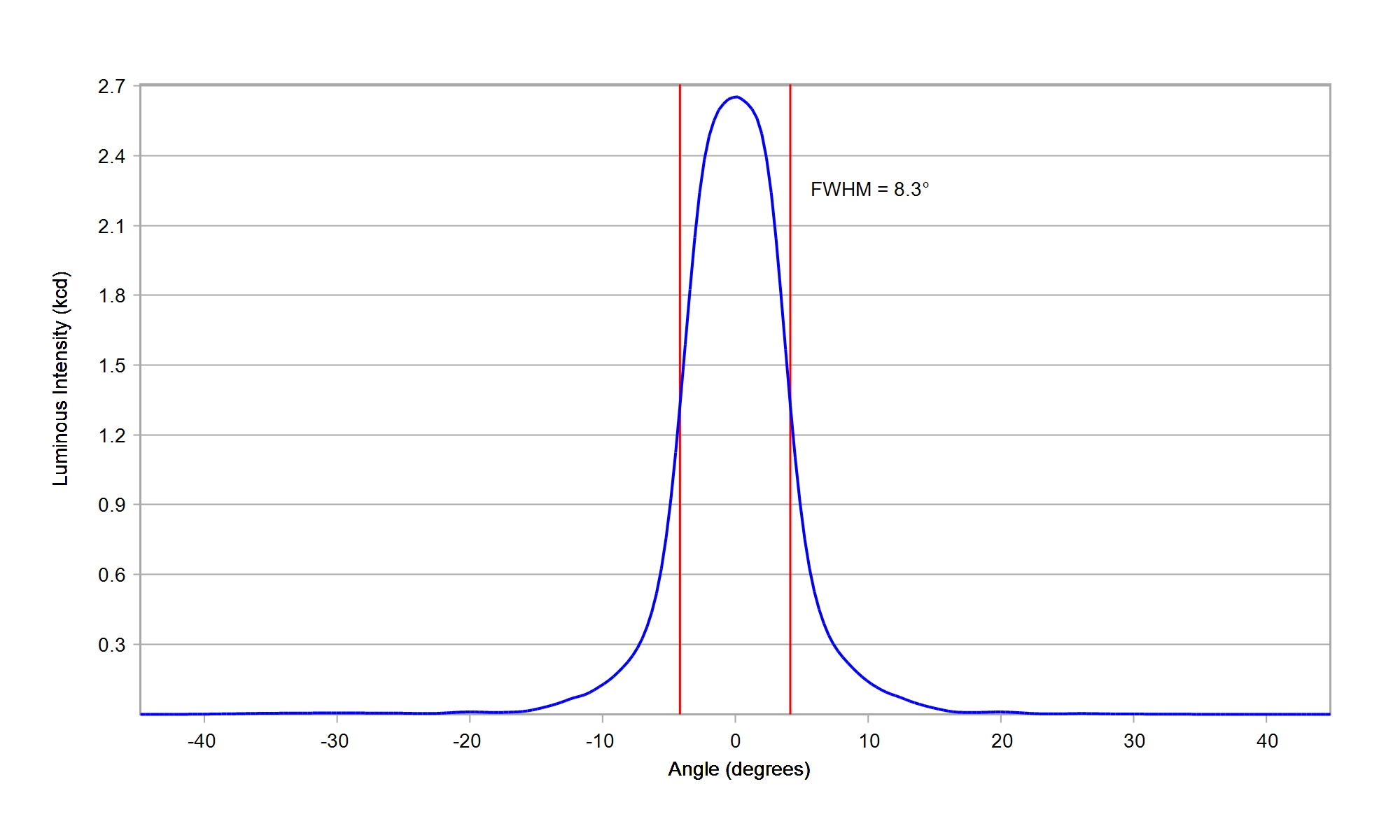

Cree XLamp XP-E2 Amber

Eff:

88.5%

FWHM:

8.3°

Cd/Im:

27.6

Download

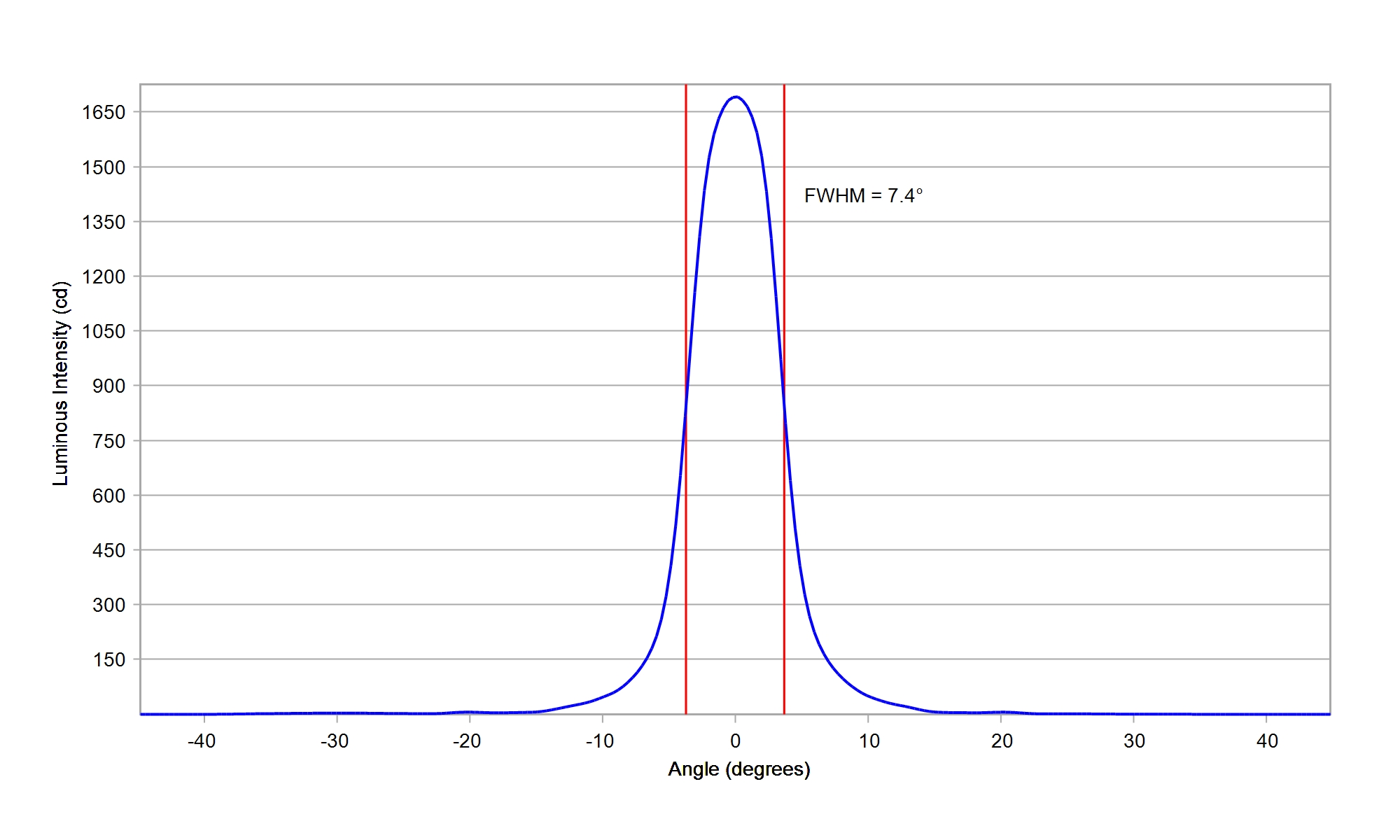

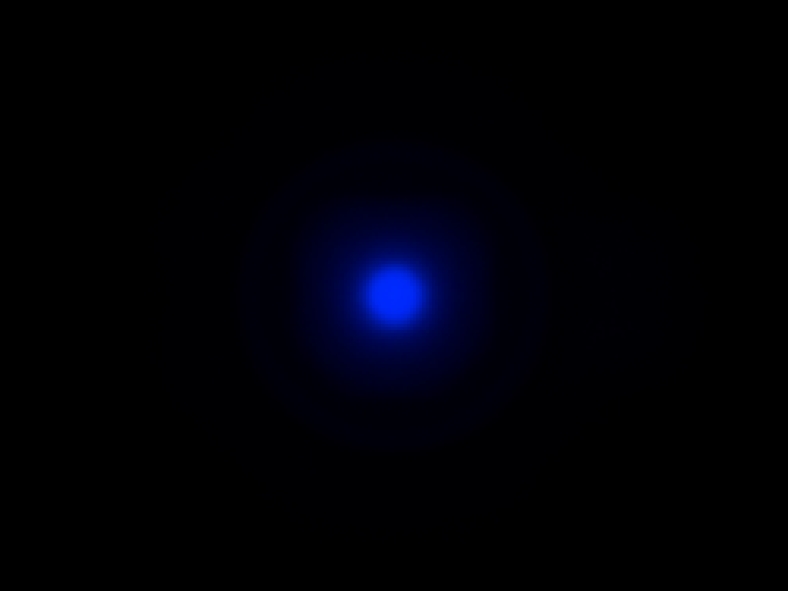

Cree XLamp XP-E2 Blue

Eff:

88.5%

FWHM:

7.4°

Cd/Im:

35.4

Download

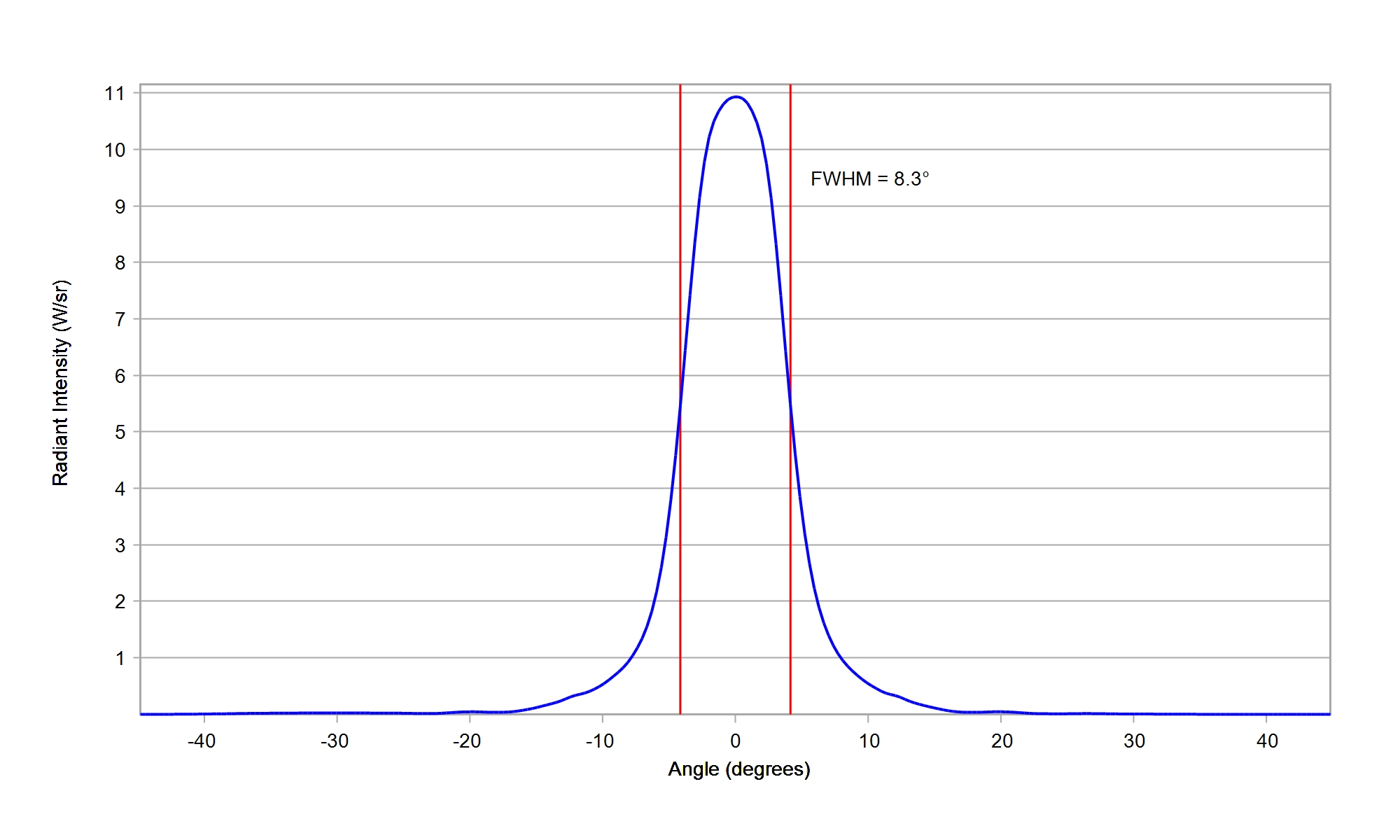

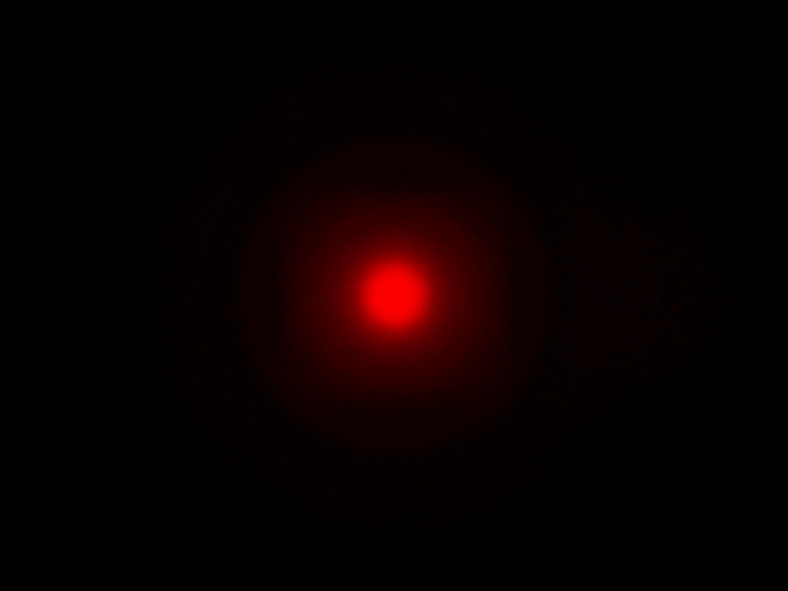

Cree XLamp XP-E2 Far Red

Eff:

91.5%

FWHM:

8.3°

Ipk/W:

28.4

Download

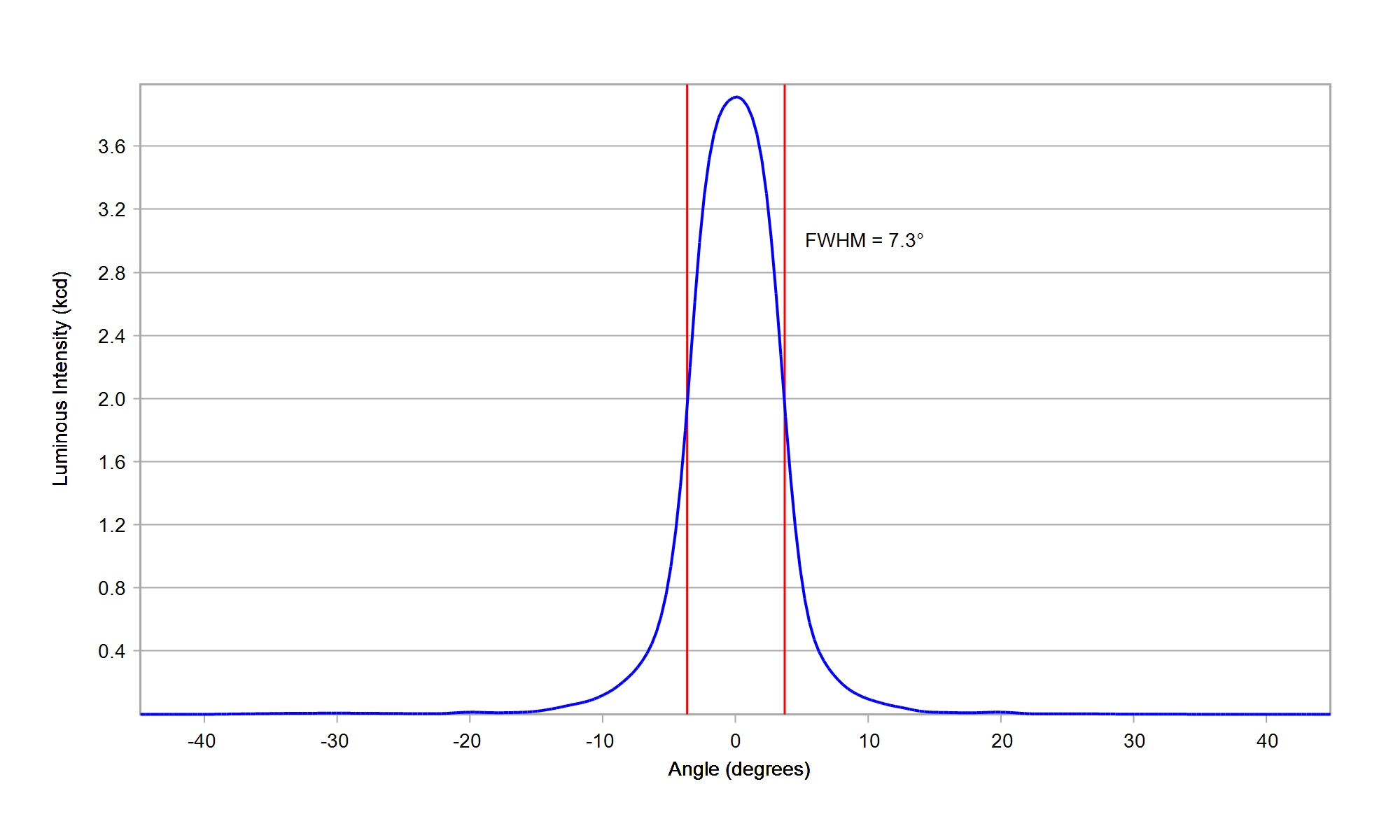

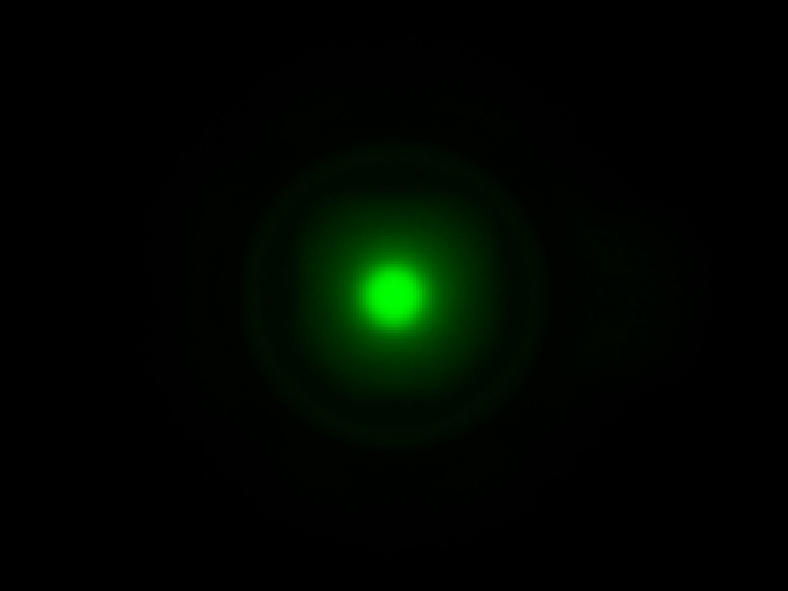

Cree XLamp XP-E2 Green

Eff:

88.5%

FWHM:

7.3°

Cd/Im:

35.6

Download

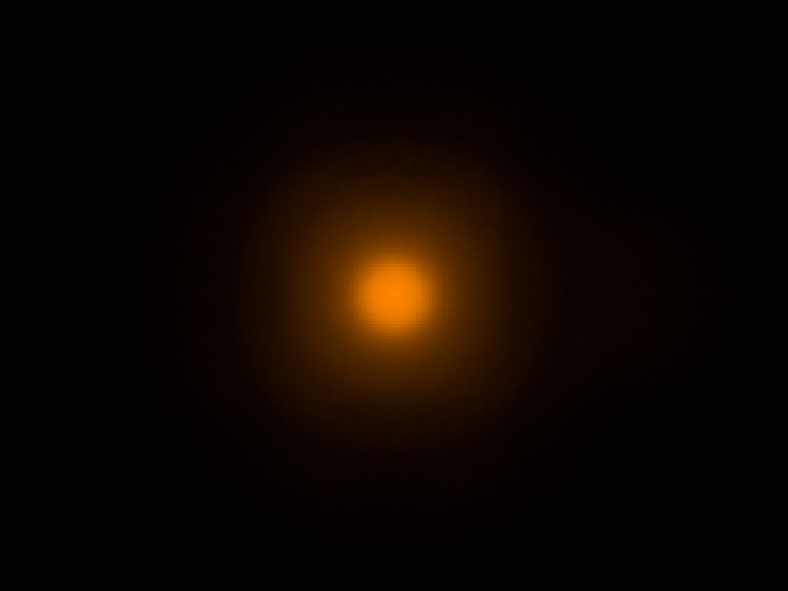

Cree XLamp XP-E2 PC Amber

Eff:

88.5%

FWHM:

9.4°

Cd/Im:

20.1


Download

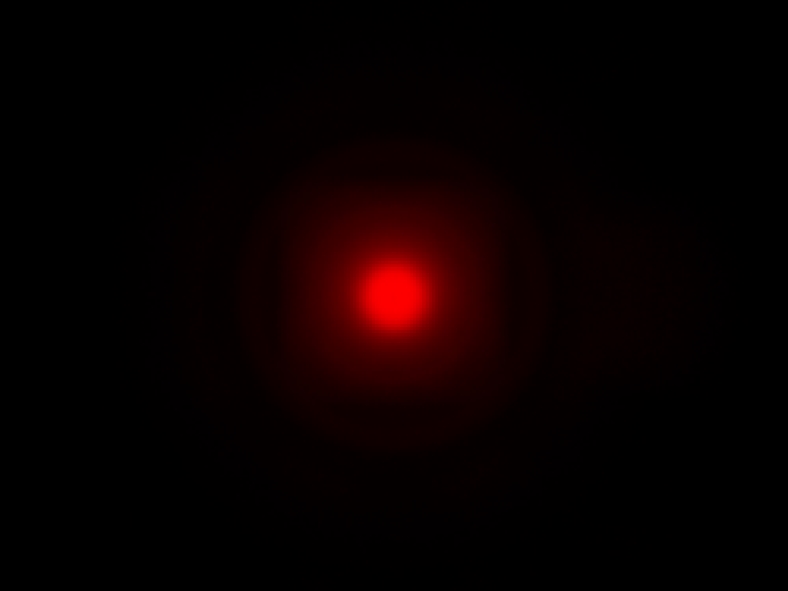

Cree XLamp XP-E2 Photo Red

Eff:

89.0%

FWHM:

8.6°

Ipk/W:

26.2


Download

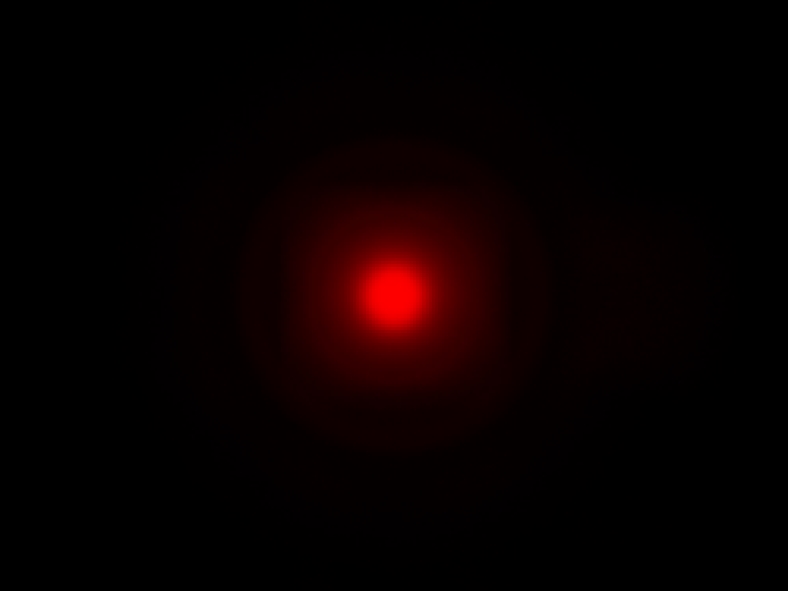

Cree XLamp XP-E2 Red

Eff:

89.5%

FWHM:

8.2°

Cd/Im:

28.2

Download

Cree XLamp XP-E2 Red-Orange

Eff:

89.5%

FWHM:

8.2°

Cd/Im:

28.1


Download

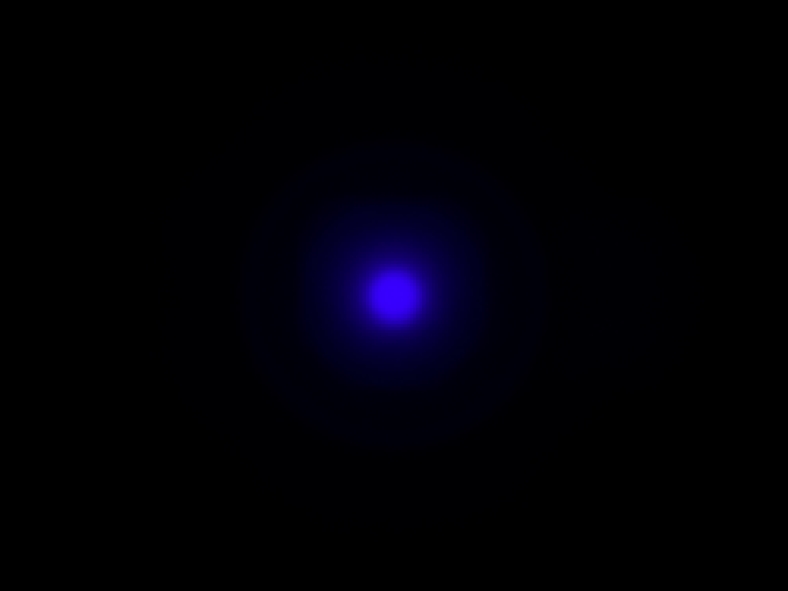

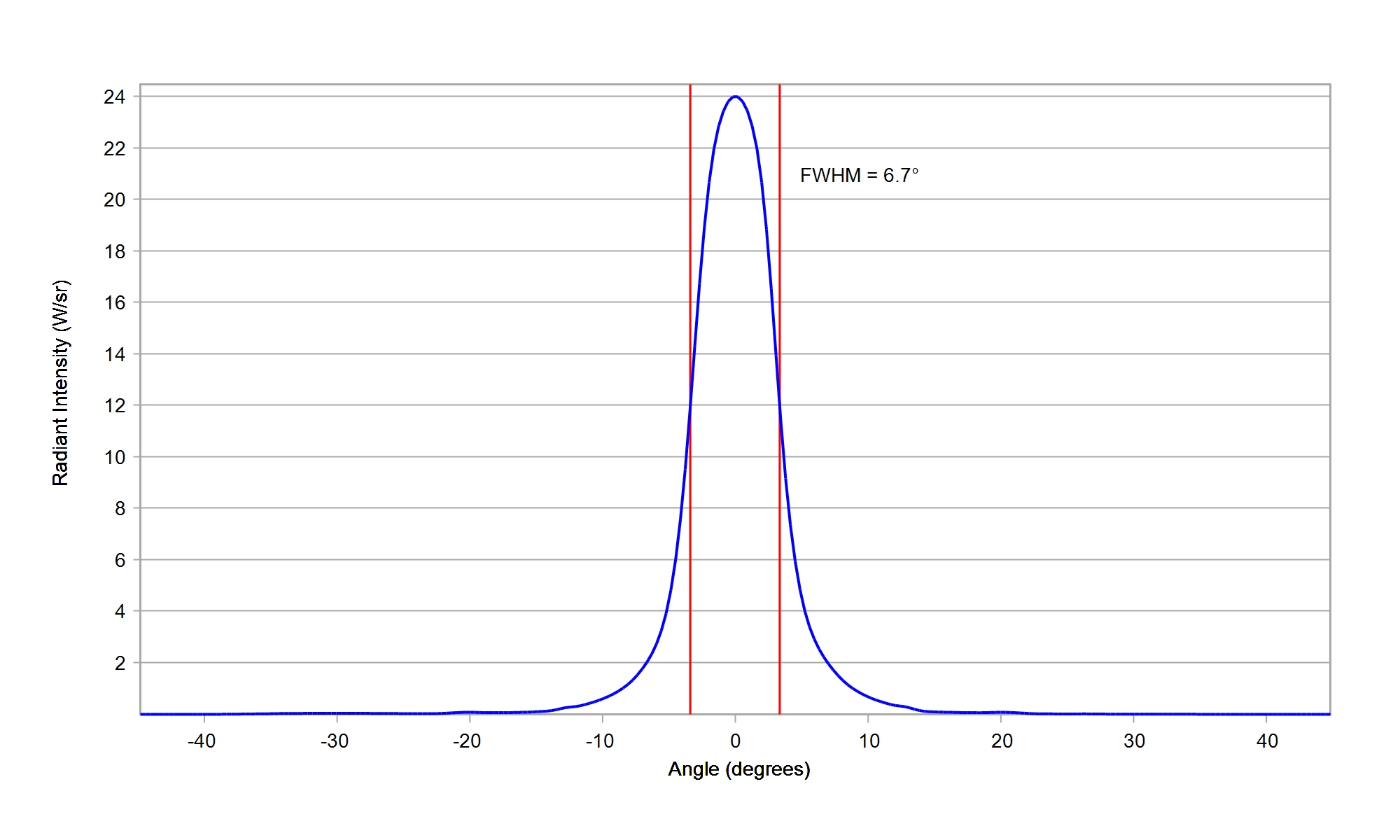

Cree XLamp XP-E2 Royal Blue

Eff:

87.5%

FWHM:

6.7°

Ipk/W:

39.0


Download

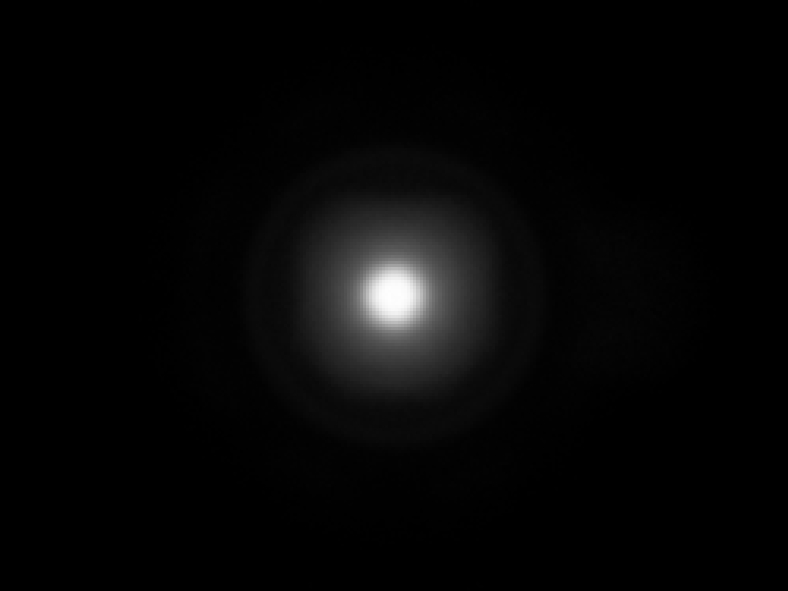

Cree XLamp XP-E2 White

Eff:

88.5%

FWHM:

7.2°

Cd/Im:

34.2

Download

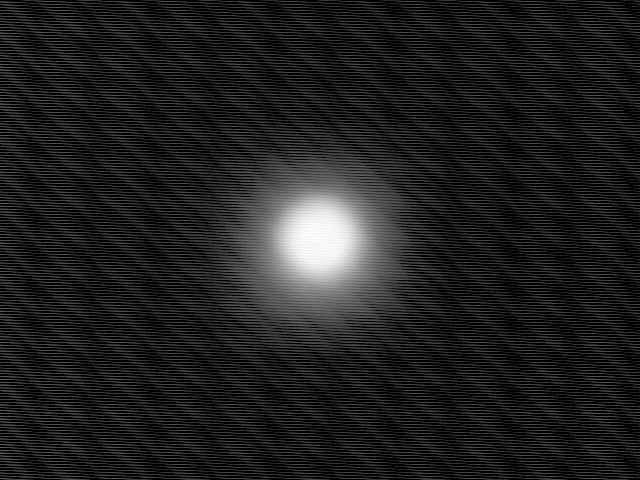

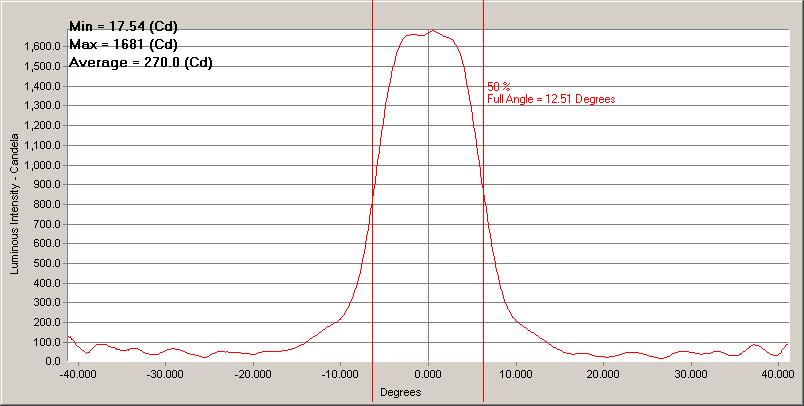

Cree XLamp XP-G White

Eff:

87.9%

FWHM:

12.4°

Cd/Im:

16.7

Download

ies

Cree XLamp XP-G2 White

FWHM:

11.3°

Cd/Im:

20.5

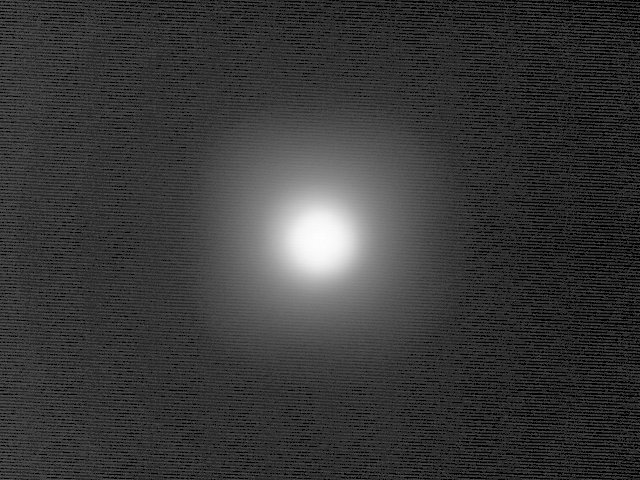

10003 Spot

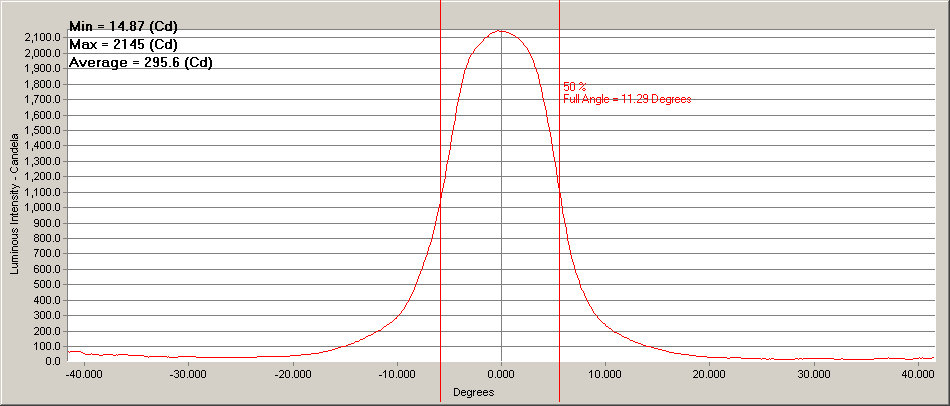

10003 Cross section plot

Download

ies

Cree XLamp XP-G3 White

Eff:

85.0%

FWHM:

12.8°

Cd/Im:

11.4

Carclo Optics - Simulated Spot Image

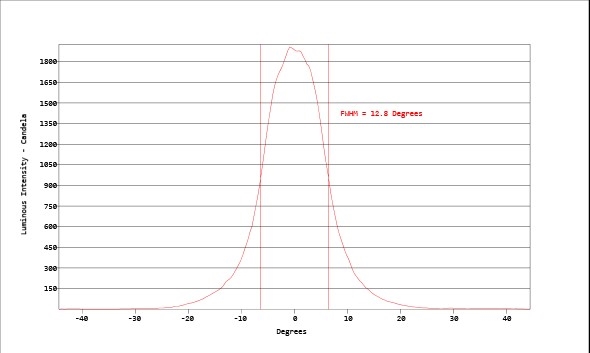

Carclo Optics - Simulated Cross Section

Download

IES

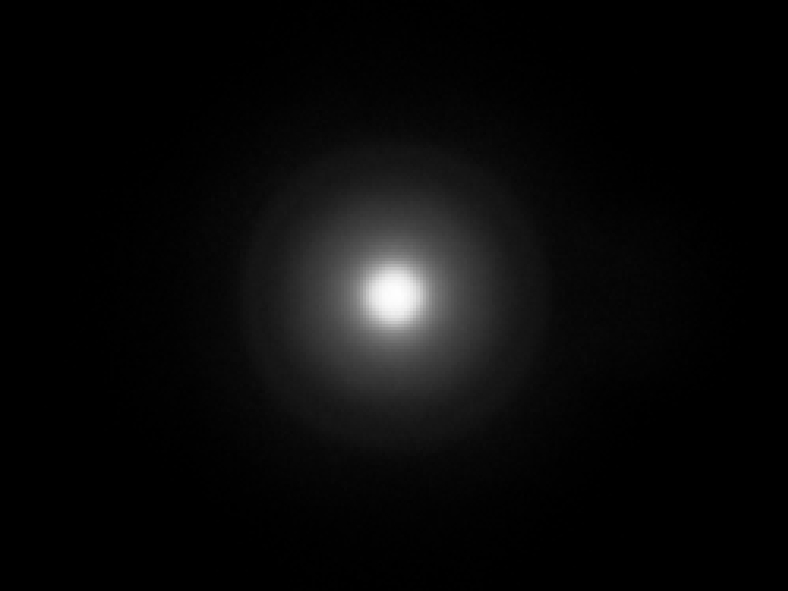

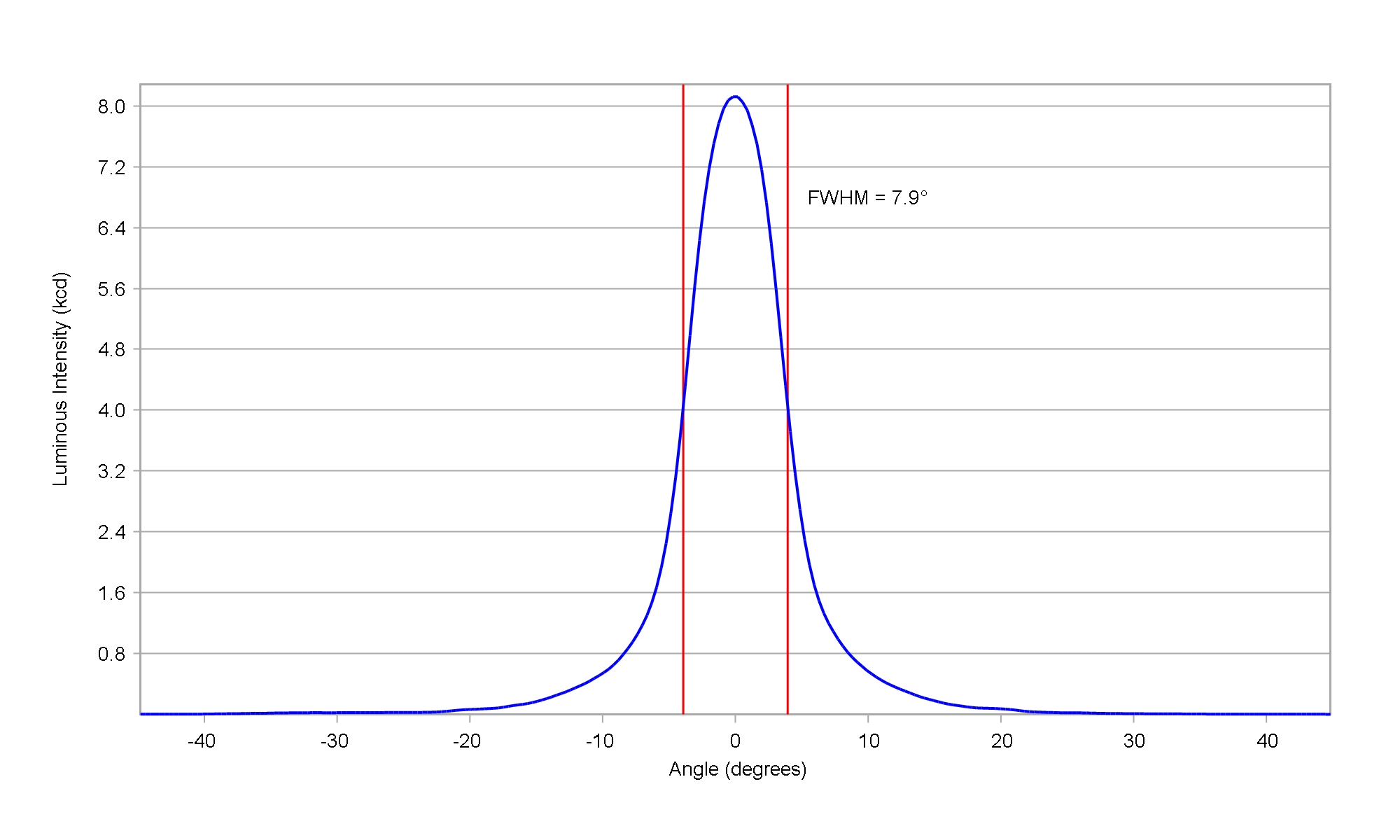

Cree XLamp XP-G4 HI White

Eff:

88.0%

FWHM:

7.9°

Cd/Im:

25.2

Download

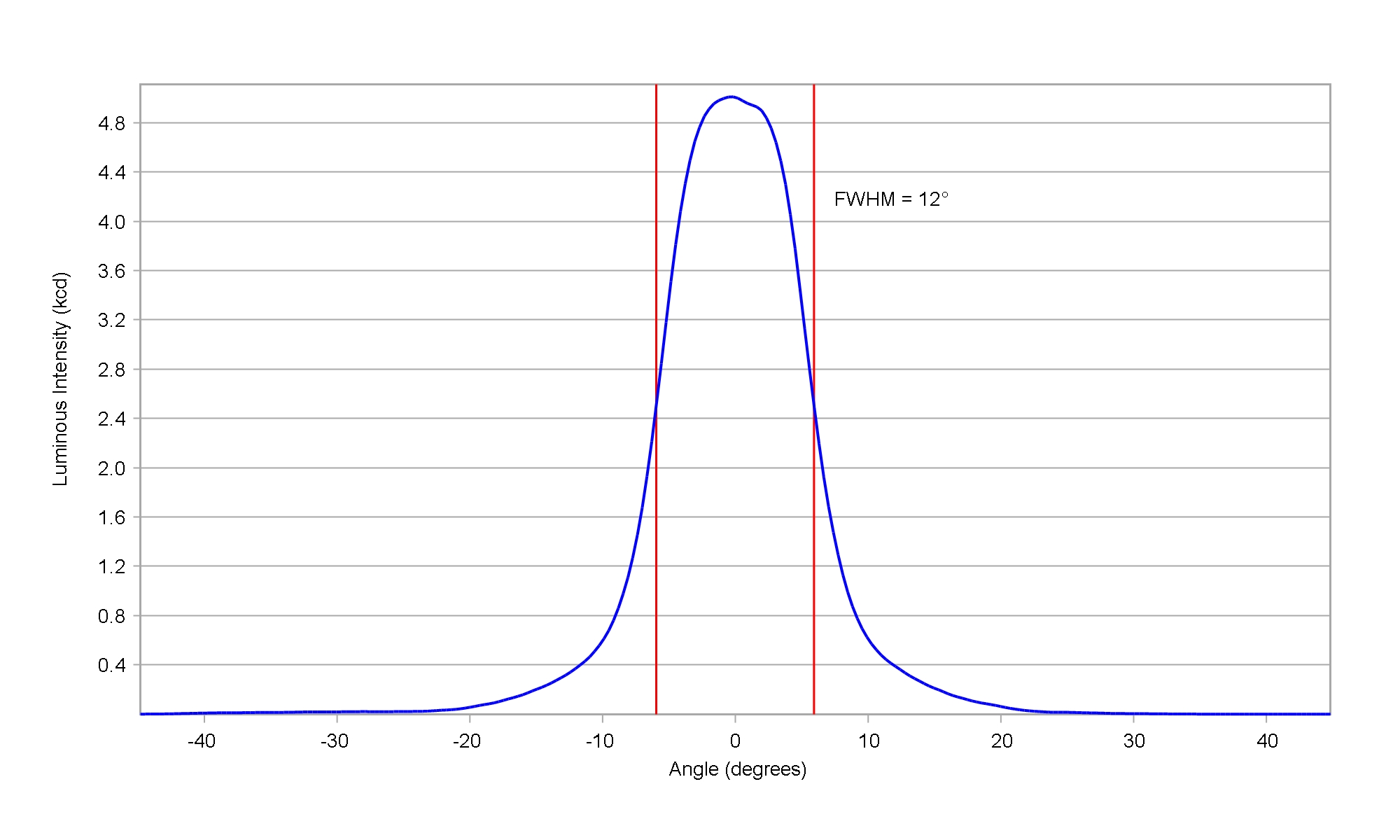

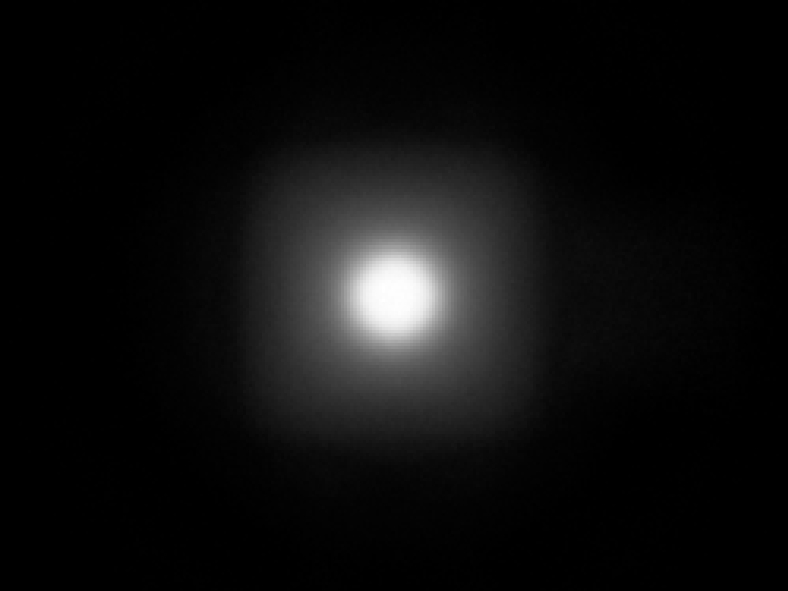

Cree XLamp XP-G4 White

Eff:

88.5%

FWHM:

12°

Cd/Im:

14.2


Download

IES

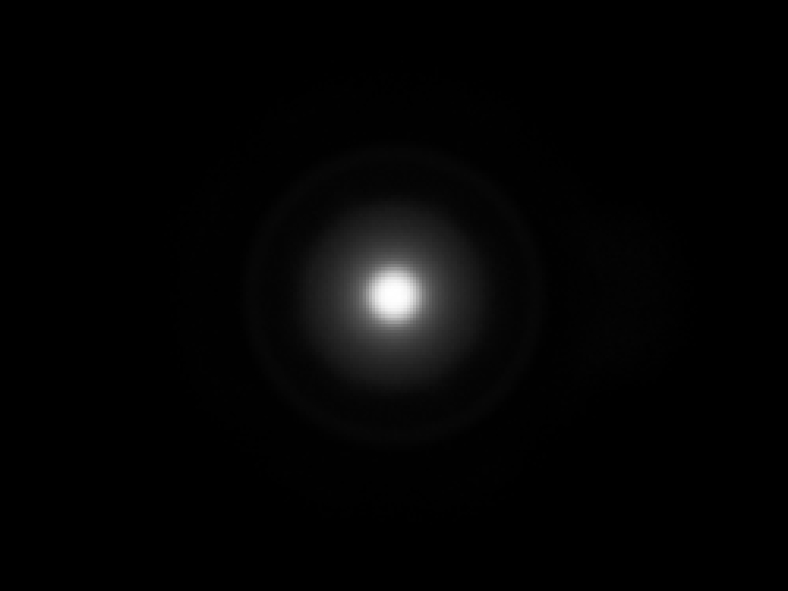

Cree XLamp XP-GR White

Eff:

88.5%

FWHM:

6.1°

Cd/Im:

50.8

Download

Cree XLamp XP-L HI White

Eff:

85.3%

FWHM:

10.9°

Cd/Im:

15.6

Carclo Optics - Simulated Spot Image

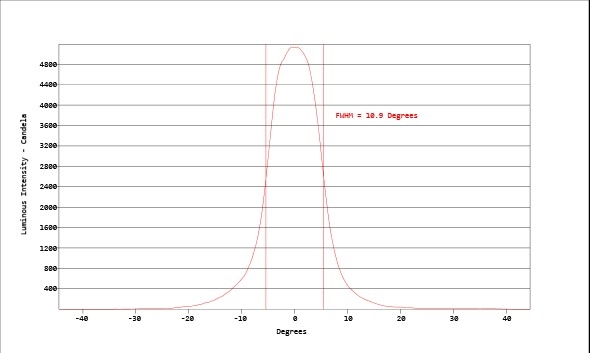

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XP-L White

Eff:

85.4%

FWHM:

16.7°

Cd/Im:

7.8

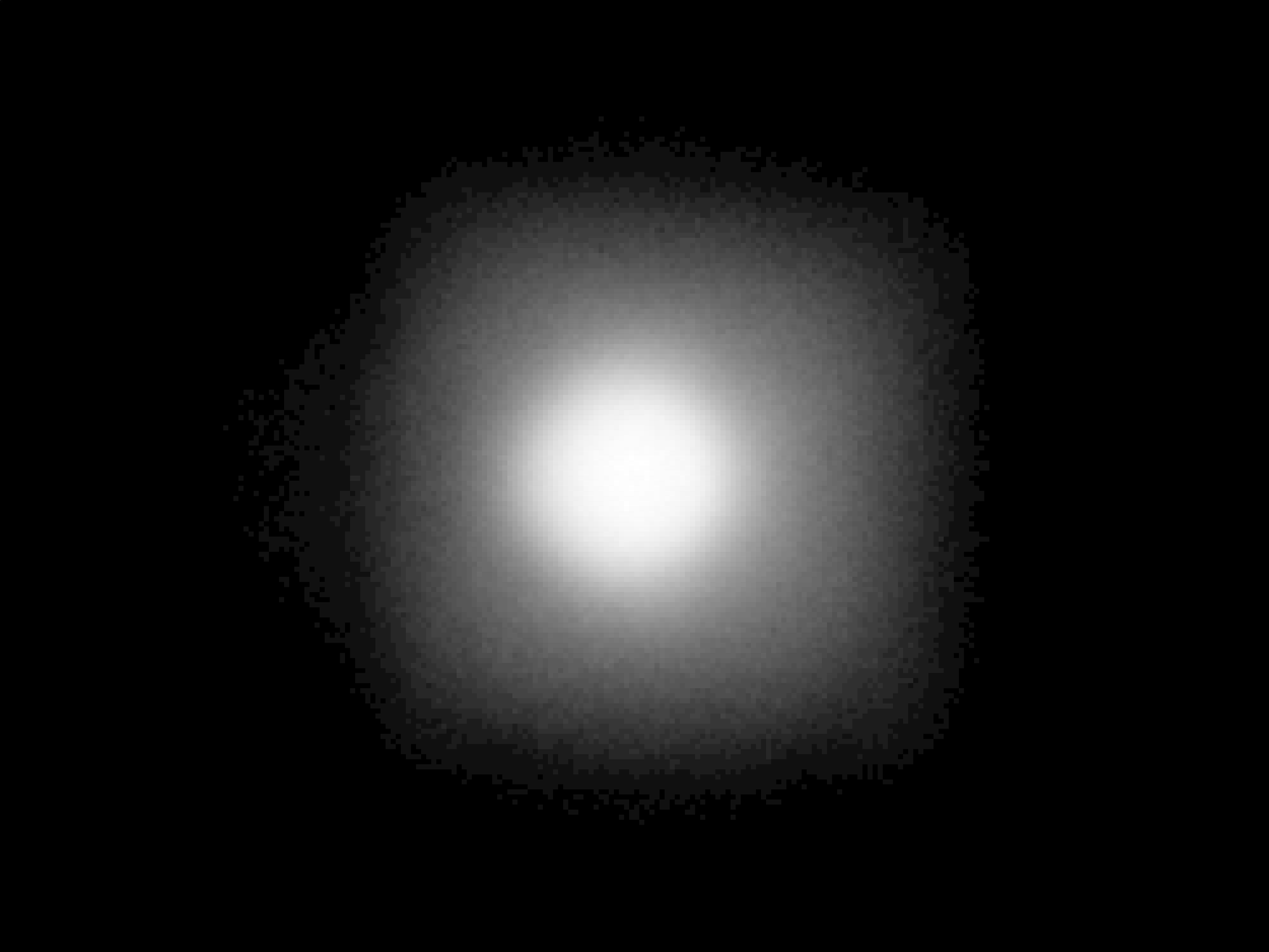

carclo optics - simulated spot image

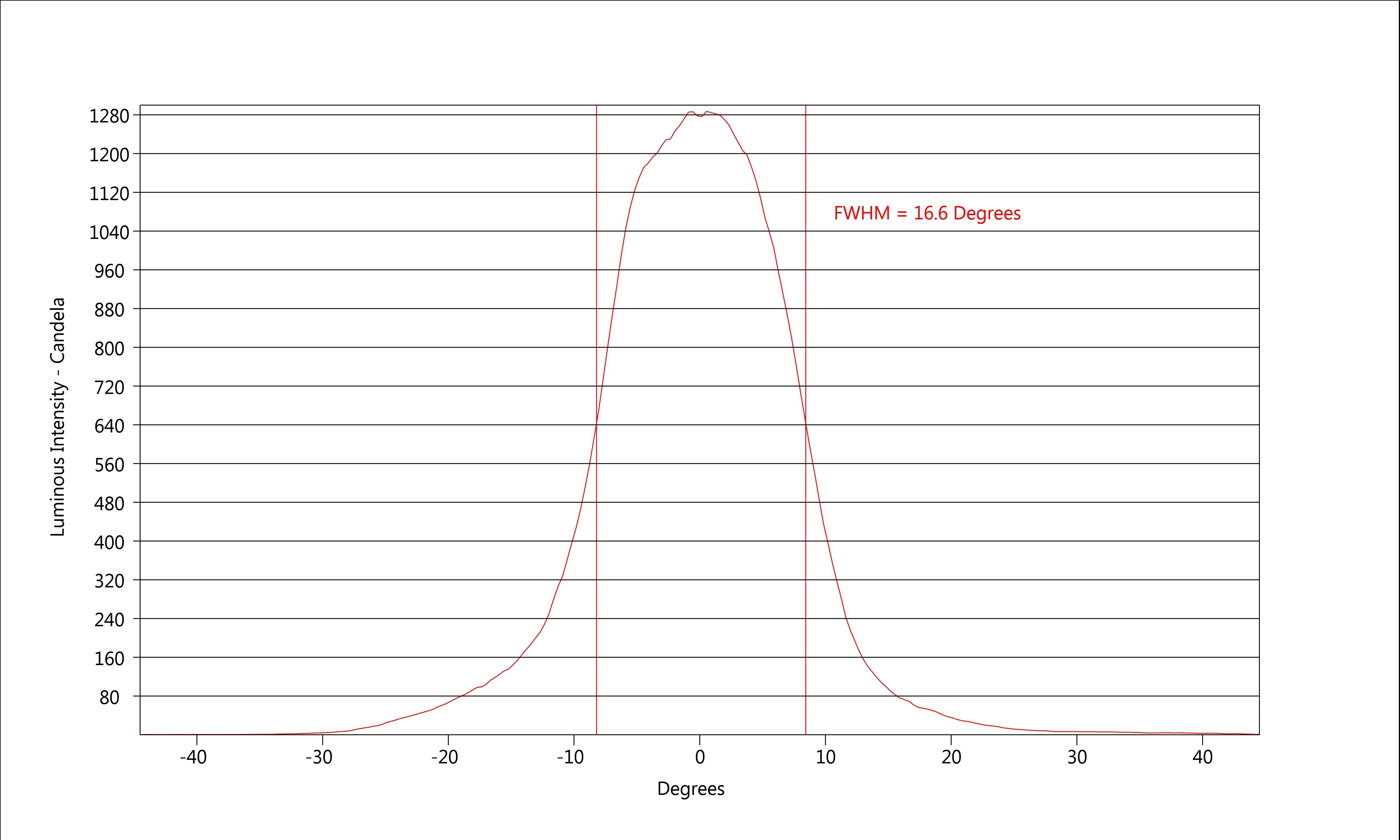

carclo optics - simulated cross section

Download

IES

Cree XLamp XP-L2 White

Eff:

86.0%

FWHM:

18.0°

Cd/Im:

6.2

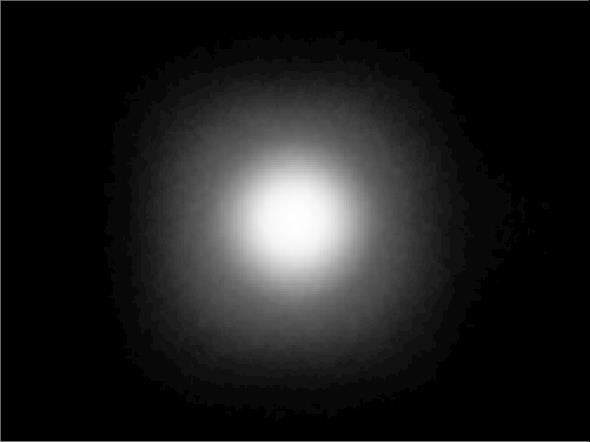

Carclo Optics - Simulated Spot Image

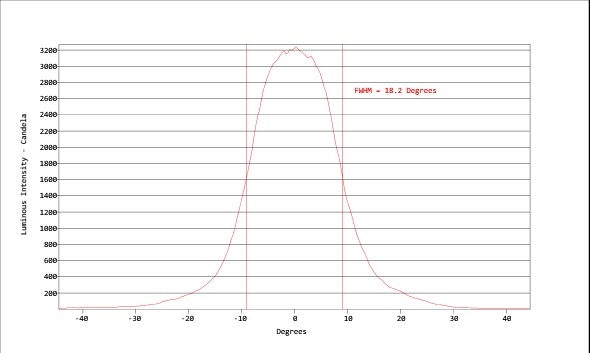

Carclo Optics - Simulated Cross Section

Download

IES

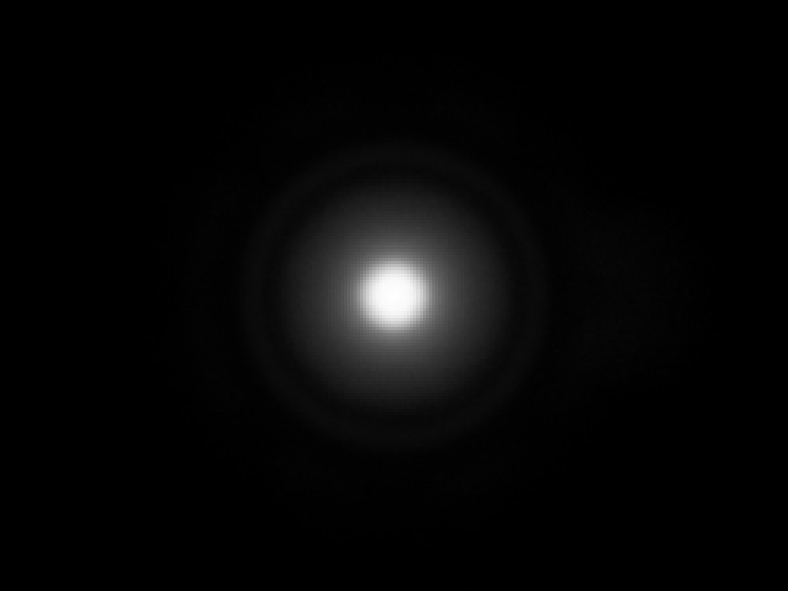

Cree XLamp XP-LR White

Eff:

88.5%

FWHM:

8.2°

Cd/Im:

30.0

Download

Cree XLamp XP-P White

Eff:

88.5%

FWHM:

5.6°

Cd/Im:

56.9

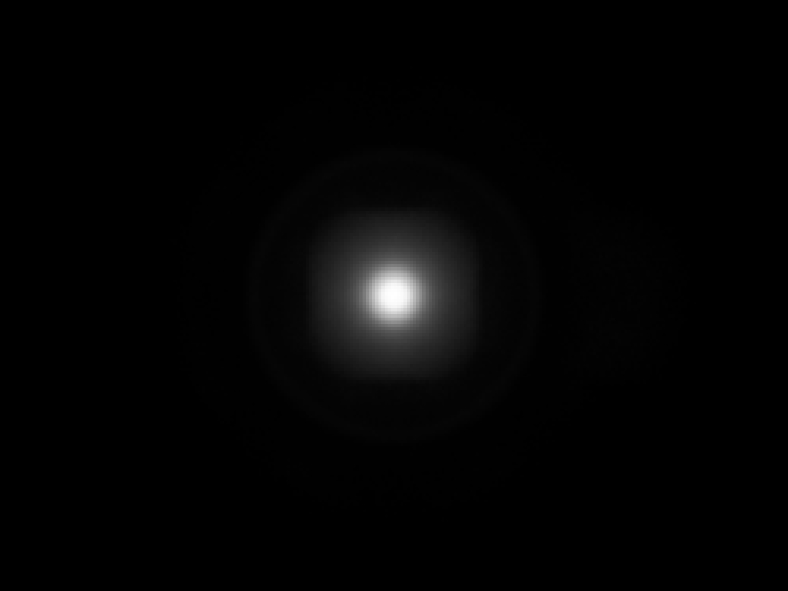

Carclo Optics – 10003 Cree Xlamp XP-P - Spot Image

Carclo Optics – 10003 Cree Xlamp XP-P - Cross-Section

Download

IES

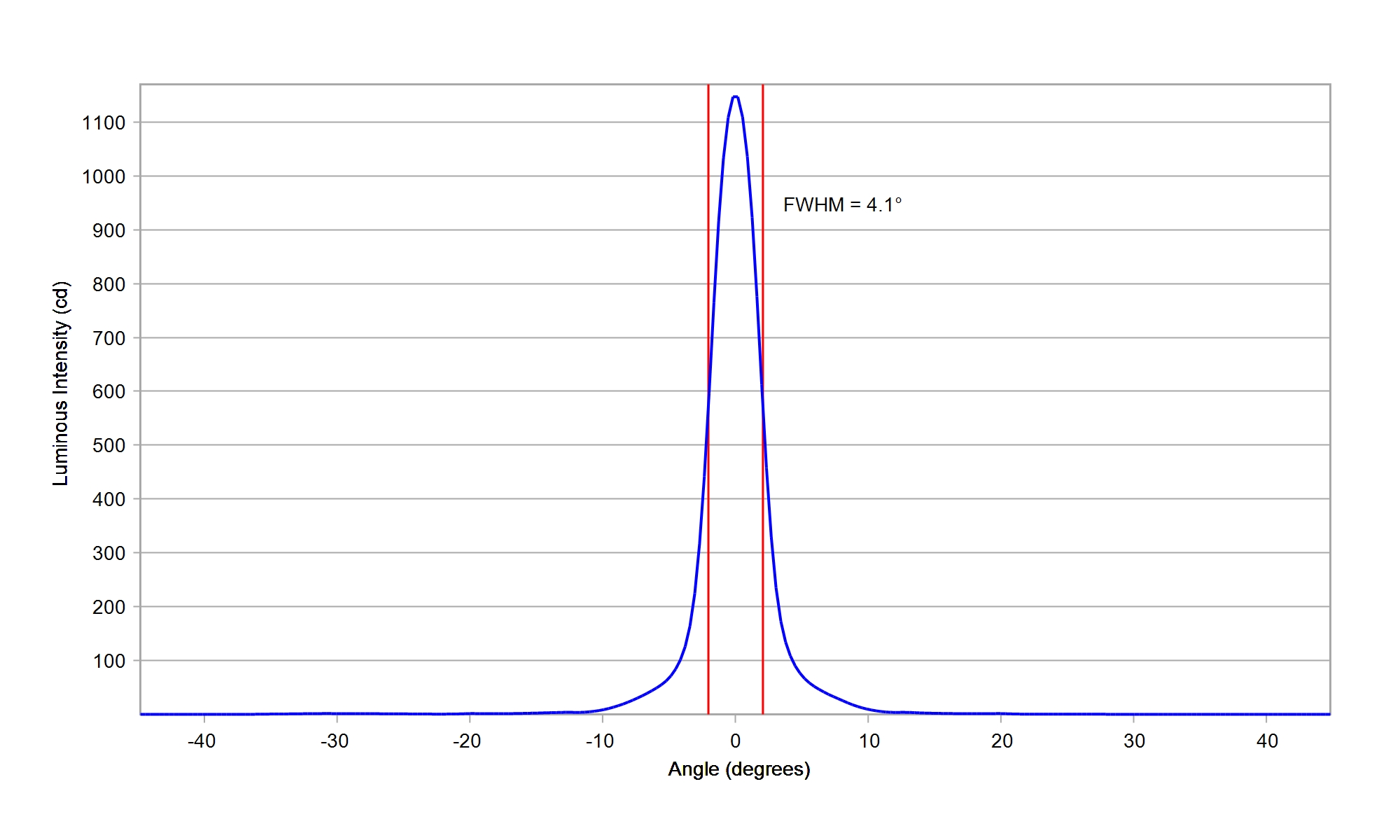

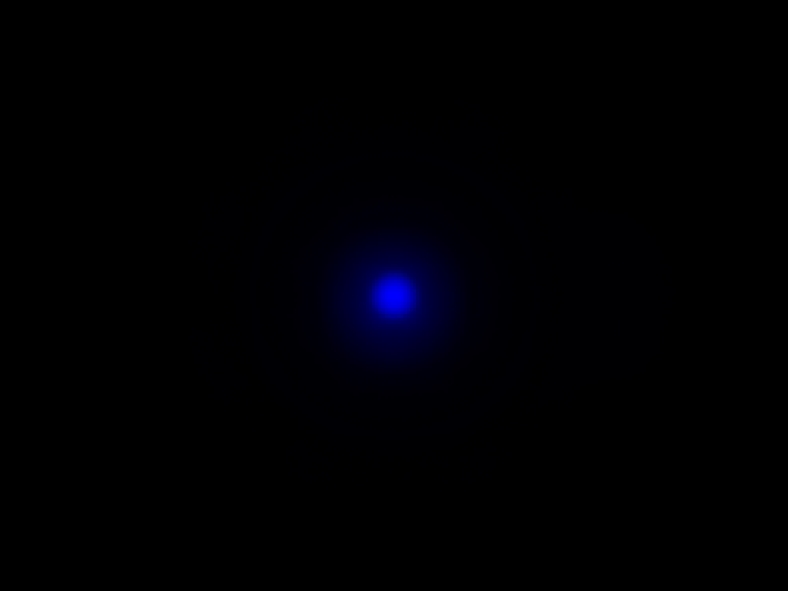

Cree XLamp XQ-A Blue

Eff:

88.5%

FWHM:

4.1°

Cd/Im:

100.5

Download

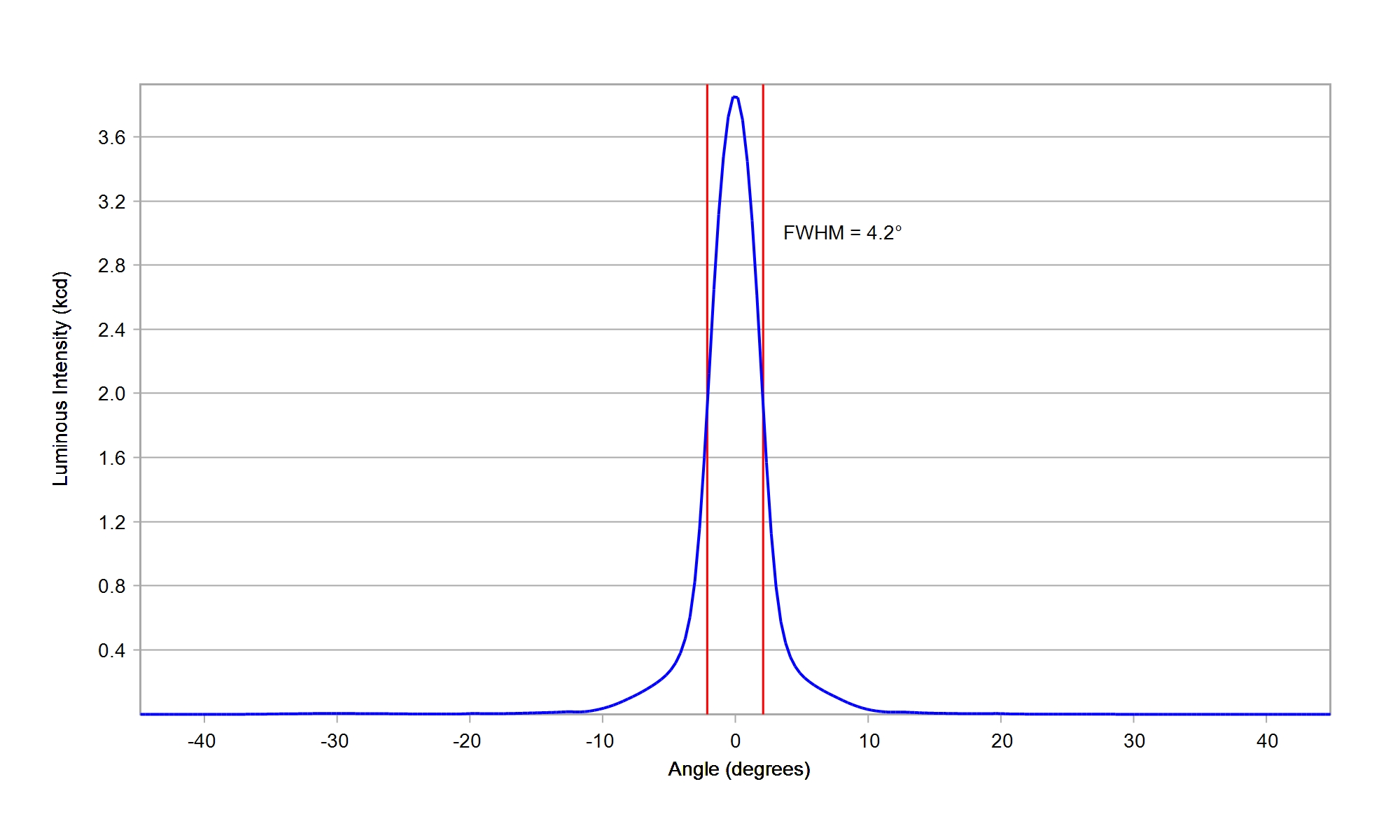

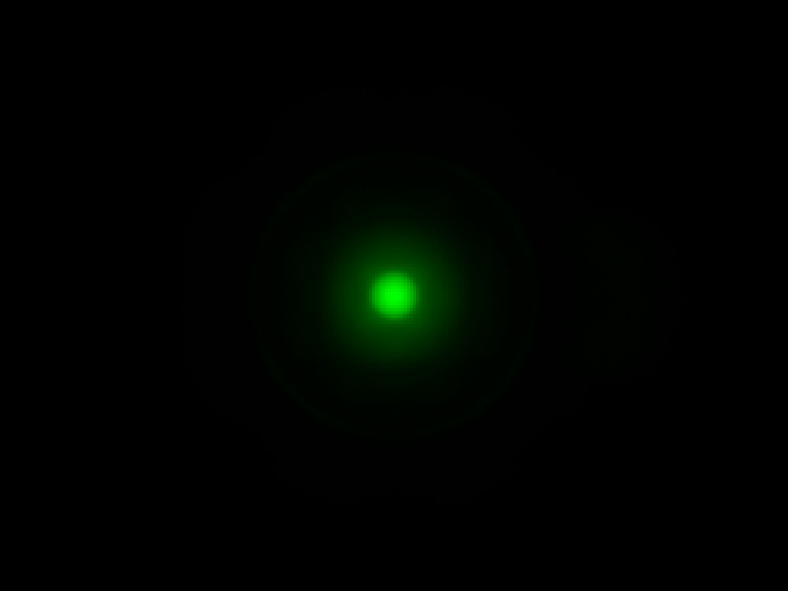

Cree XLamp XQ-A Green

Eff:

88.5%

FWHM:

4.2°

Cd/Im:

96.6

Download

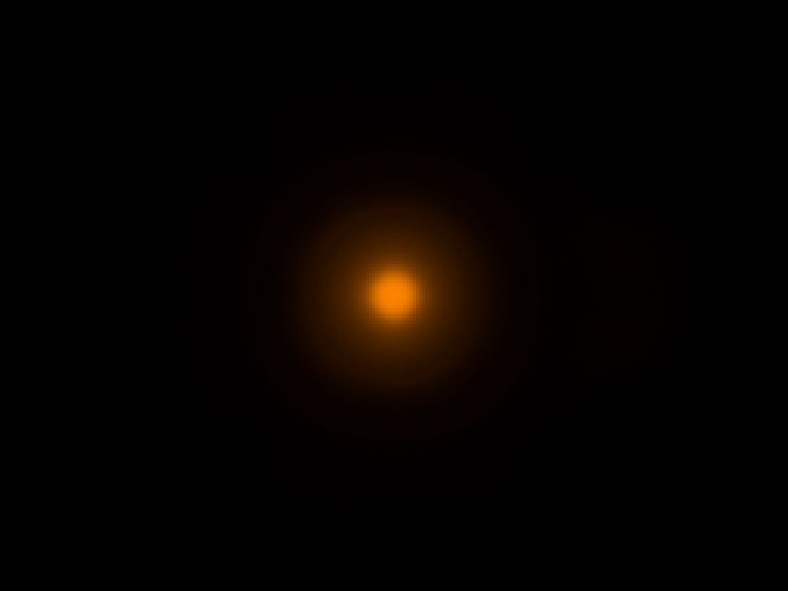

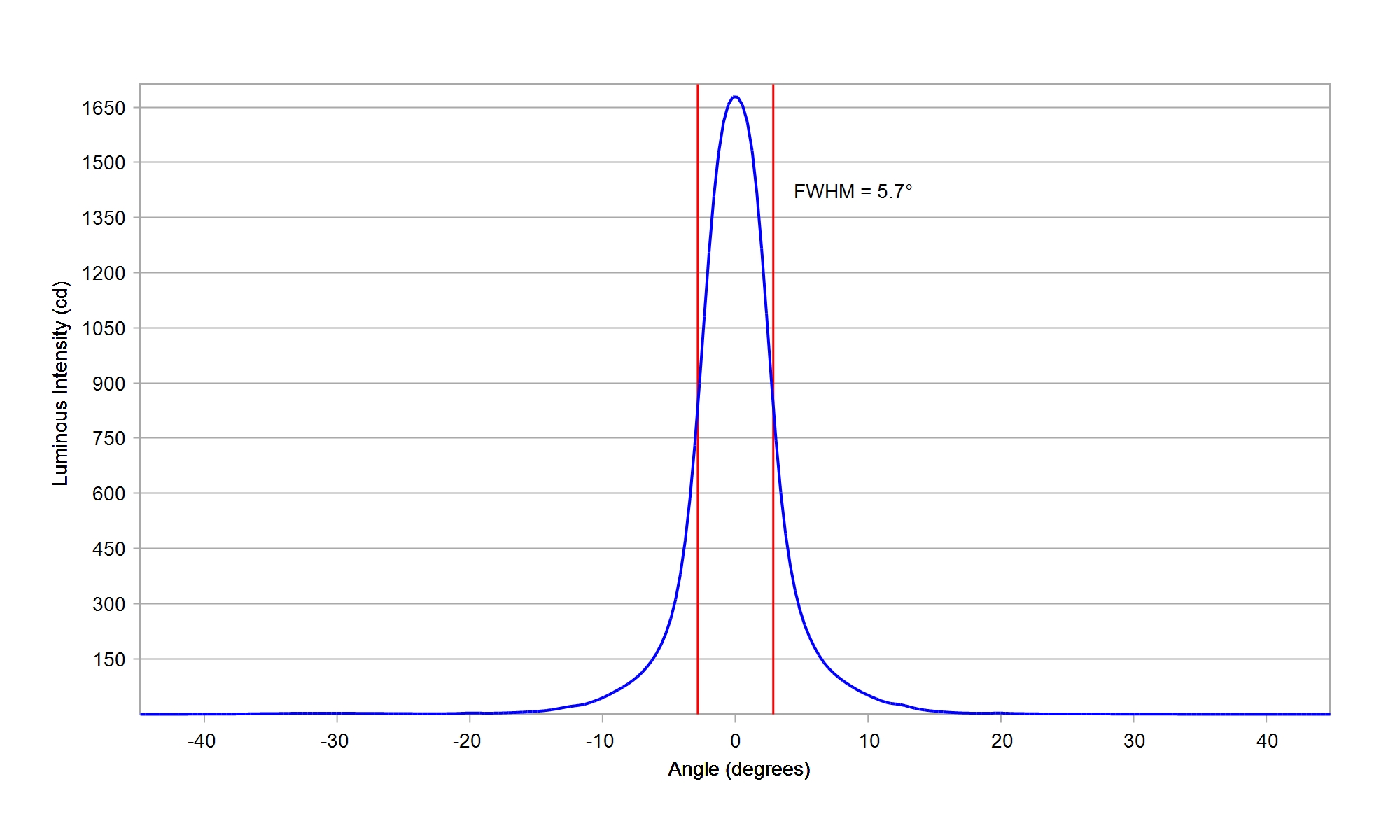

Cree XLamp XQ-A PC Amber

Eff:

88.0%

FWHM:

5.7°

Cd/Im:

48.3

Download

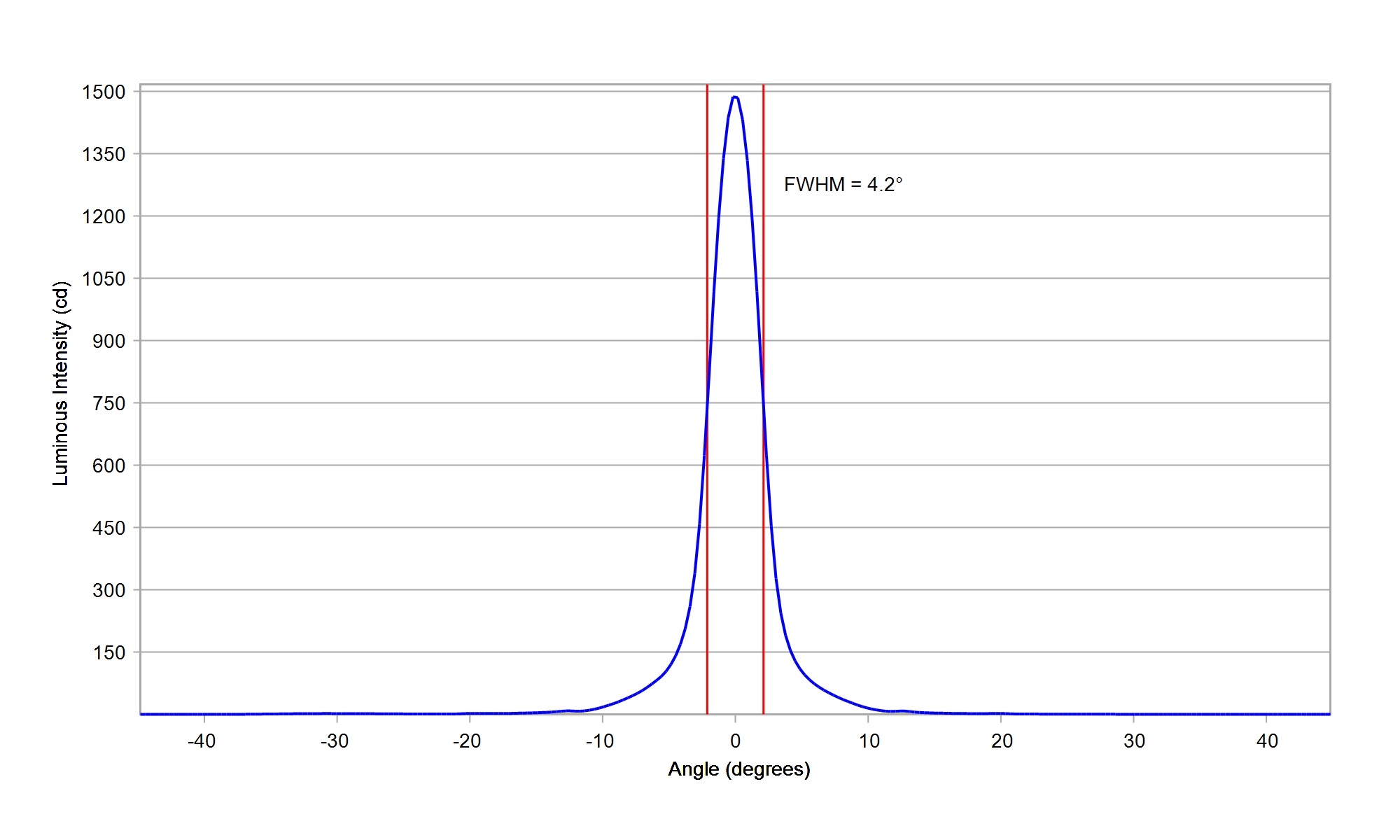

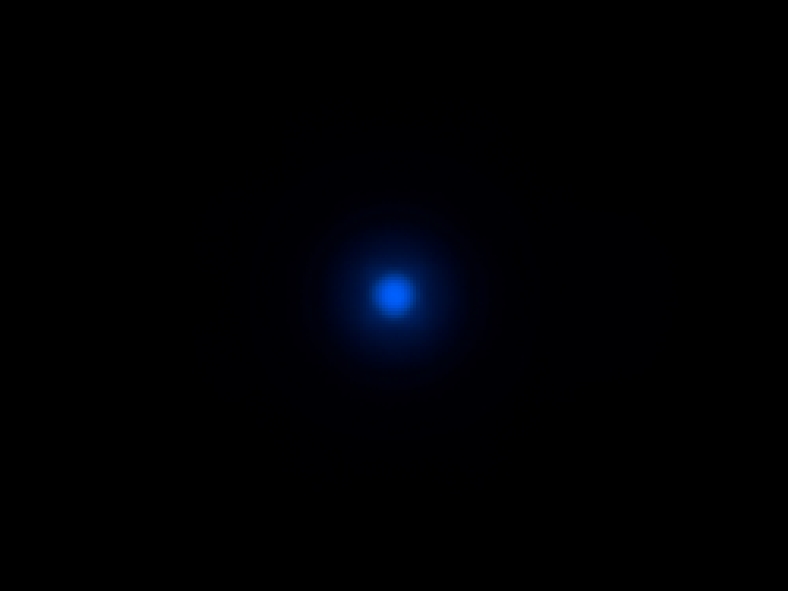

Cree XLamp XQ-A PC Blue

Eff:

88.0%

FWHM:

4.2°

Cd/Im:

90.2

Download

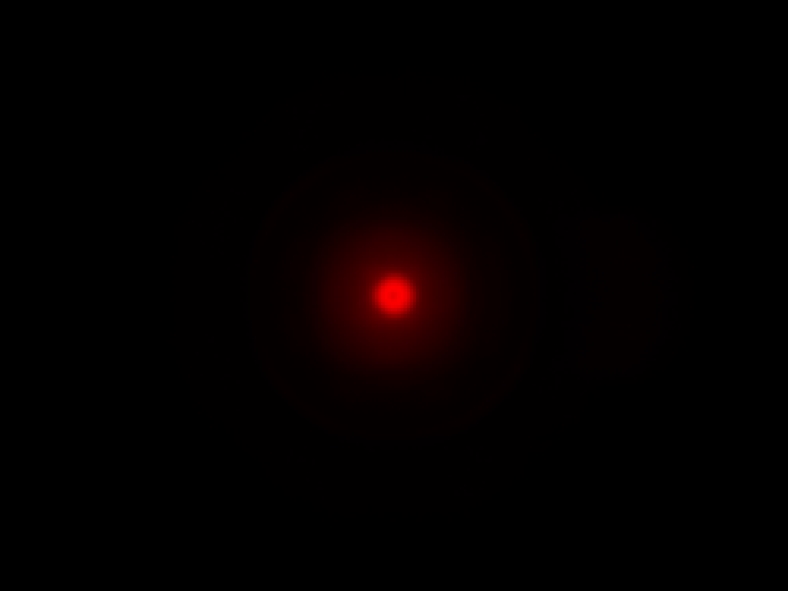

Cree XLamp XQ-A Red

Eff:

89.5%

FWHM:

4.2°

Cd/Im:

89.2

Download

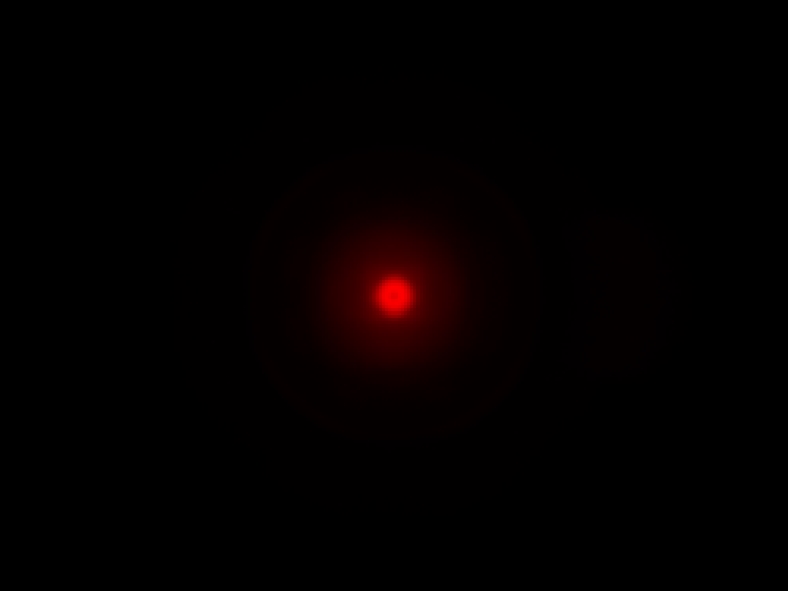

Cree XLamp XQ-A Red-Orange

Eff:

89.0%

FWHM:

4.1°

Cd/Im:

93.2


Download

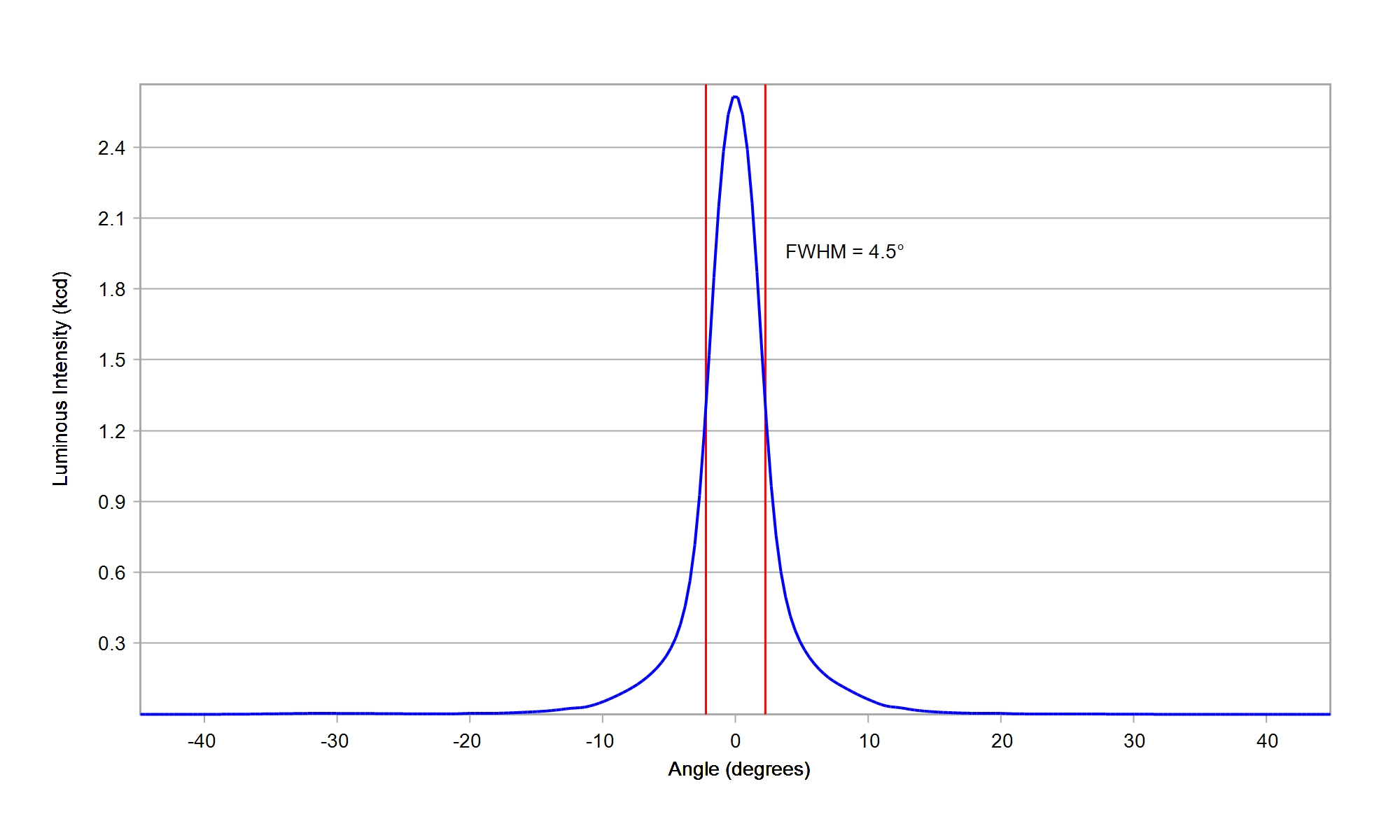

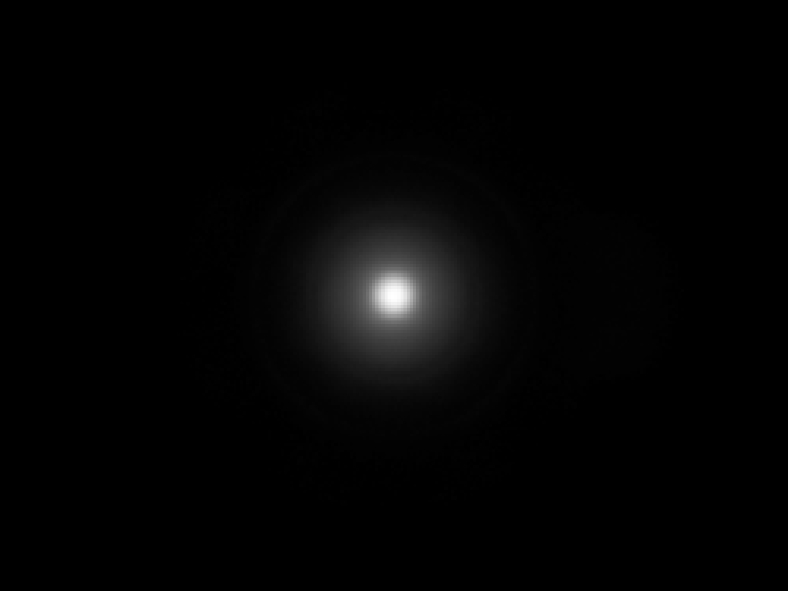

Cree XLamp XQ-A White

Eff:

88.0%

FWHM:

4.5°

Cd/Im:

71.2

Download

Cree XLamp XQ-E HI Blue

Eff:

87.0%

FWHM:

5.5°

Cd/Im:

48.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Green

Eff:

87.0%

FWHM:

5.4°

Cd/Im:

49.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Red

Eff:

87.0%

FWHM:

5.0°

Cd/Im:

56.9

Carclo Optics - Simulated Spot Image

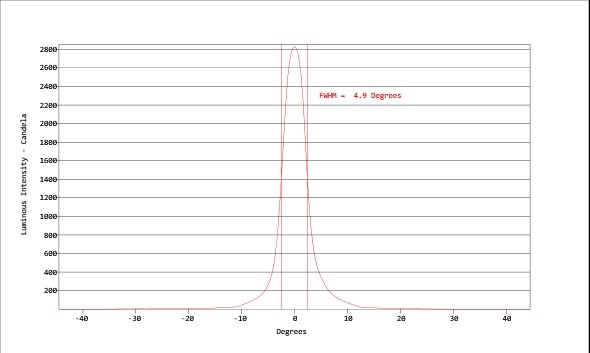

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI White

Eff:

85.0%

FWHM:

4.9°

Cd/Im:

64.9

Carclo Optics - Simulated Spot Image

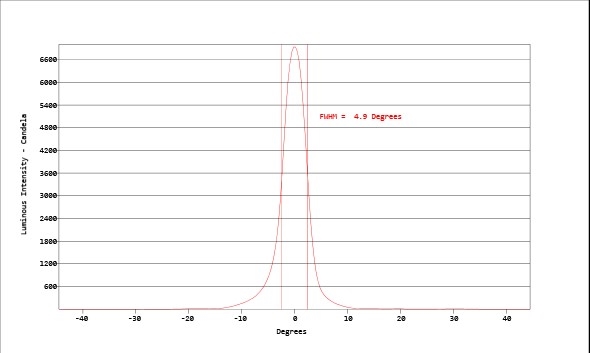

Carclo Optics - Simulated Cross Section

Download

IES

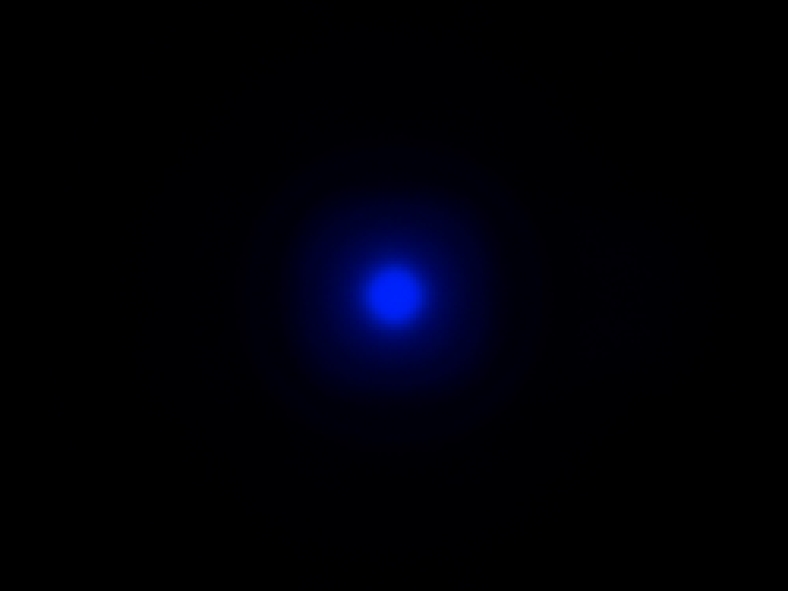

Cree XLamp XQ-E Plus HD Blue

Eff:

88.0%

FWHM:

7.3°

Cd/Im:

31.7


Download

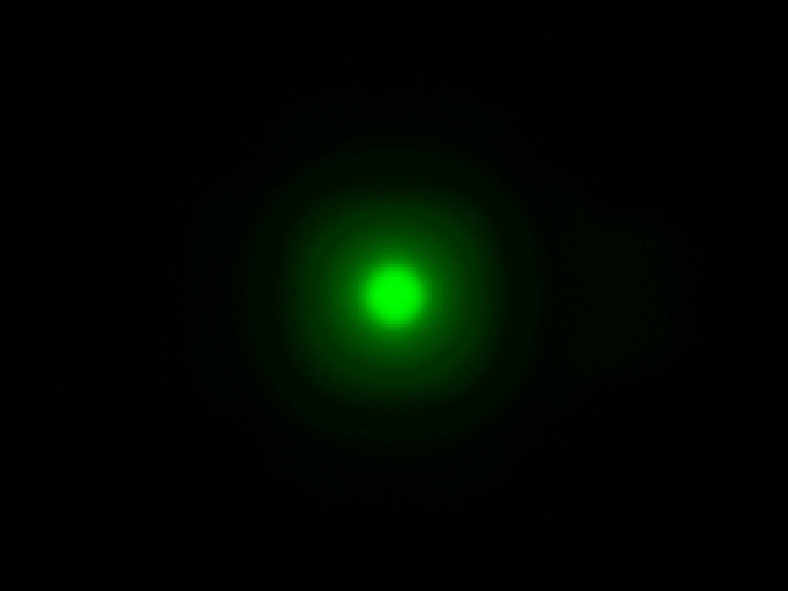

Cree XLamp XQ-E Plus HD Green

Eff:

88.0%

FWHM:

7.4°

Cd/Im:

30.8


Download

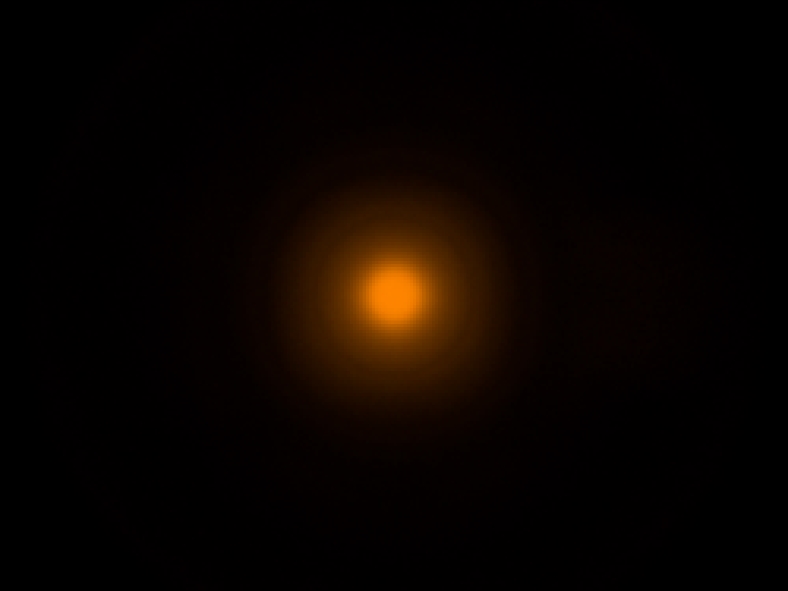

Cree XLamp XQ-E Plus HD PC Amber

Eff:

88.0%

FWHM:

8.1°

Cd/Im:

25.6


Download

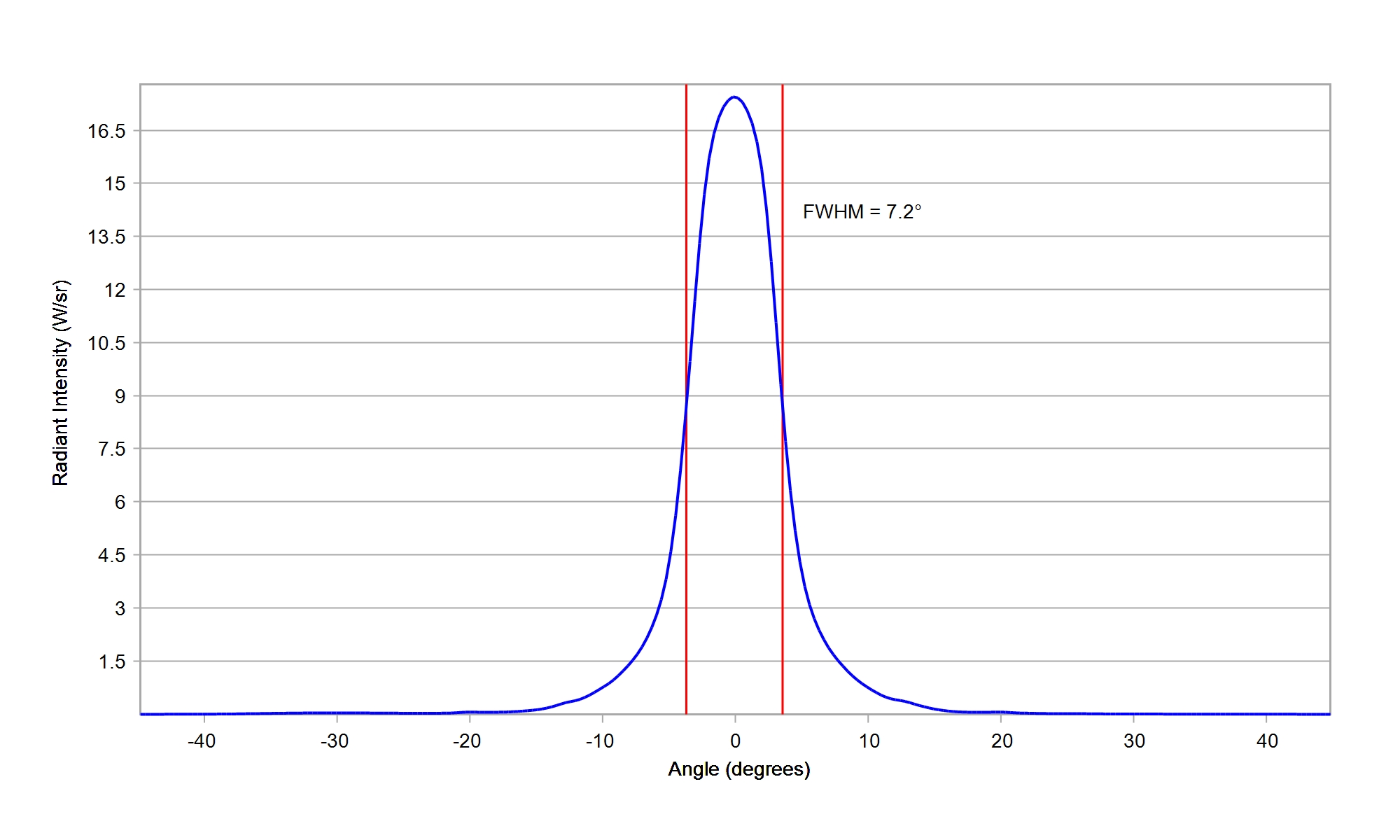

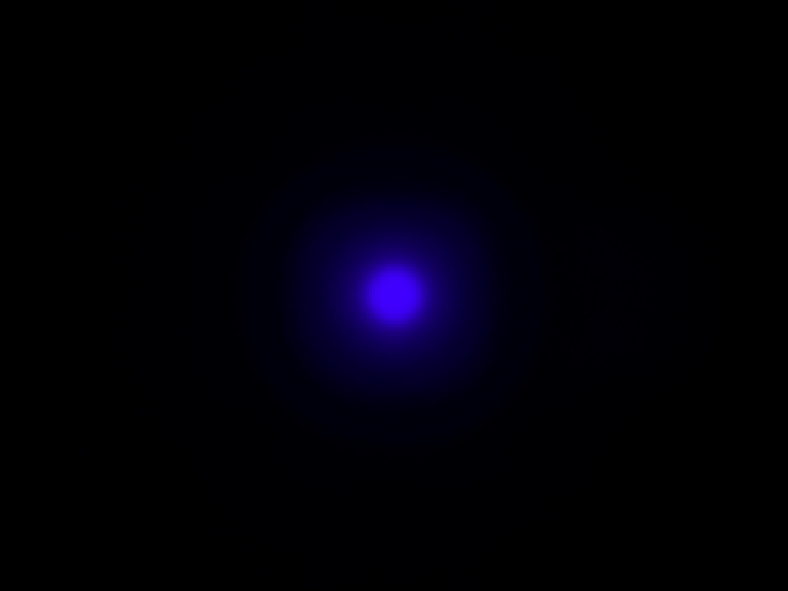

Cree XLamp XQ-E Plus HD Royal Blue

Eff:

87.0%

FWHM:

7.2°

Ipk/W:

30.8


Download

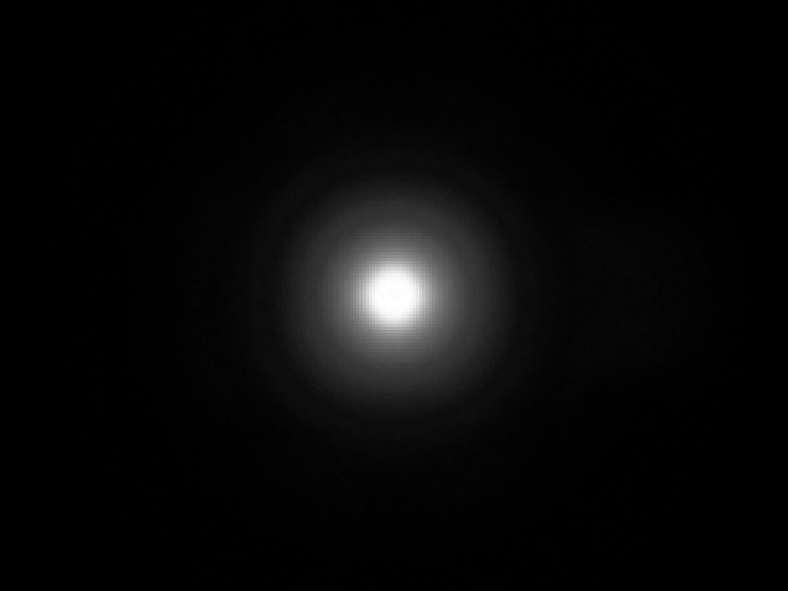

Cree XLamp XQ-E Plus HD White

Eff:

87.5%

FWHM:

8.4°

Cd/Im:

24.6


Download

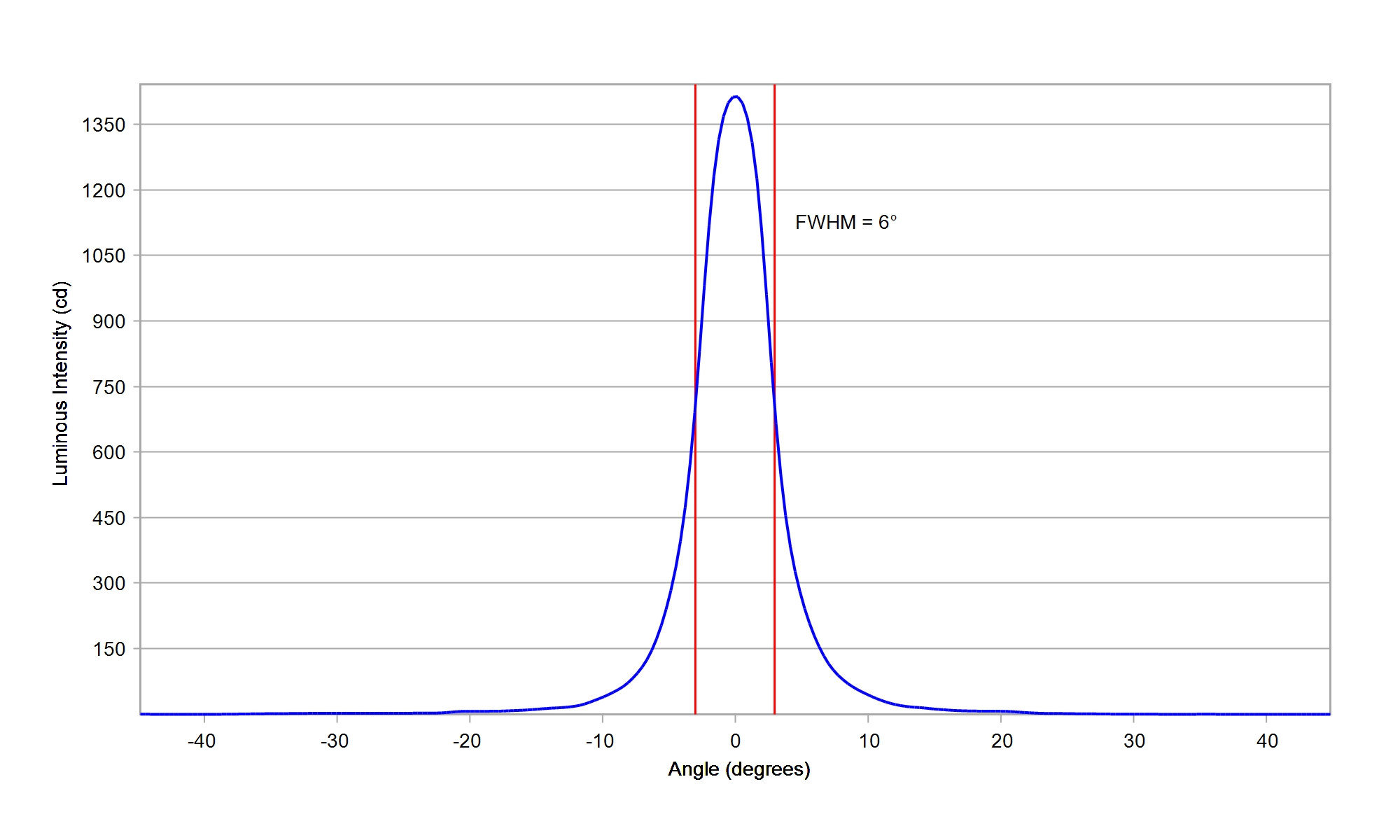

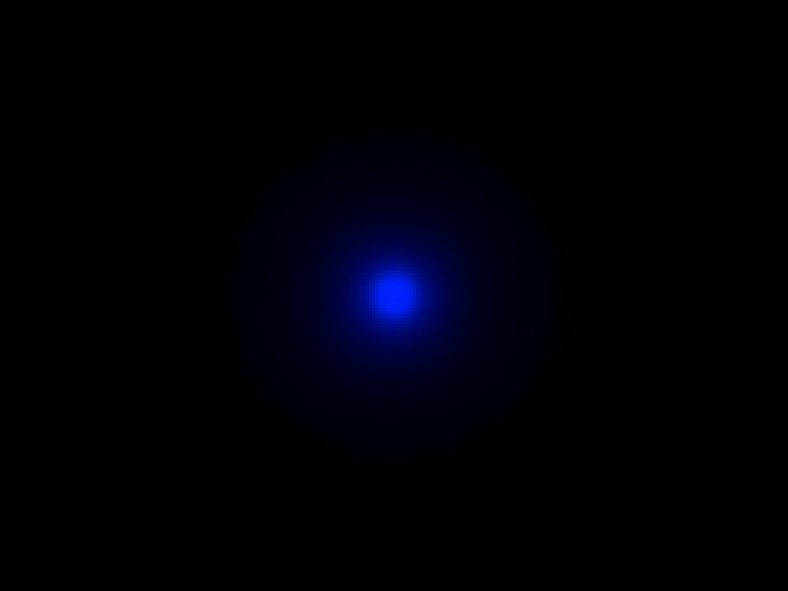

Cree XLamp XQ-E Plus HI Blue

Eff:

88.0%

FWHM:

6°

Cd/Im:

40.8


Download

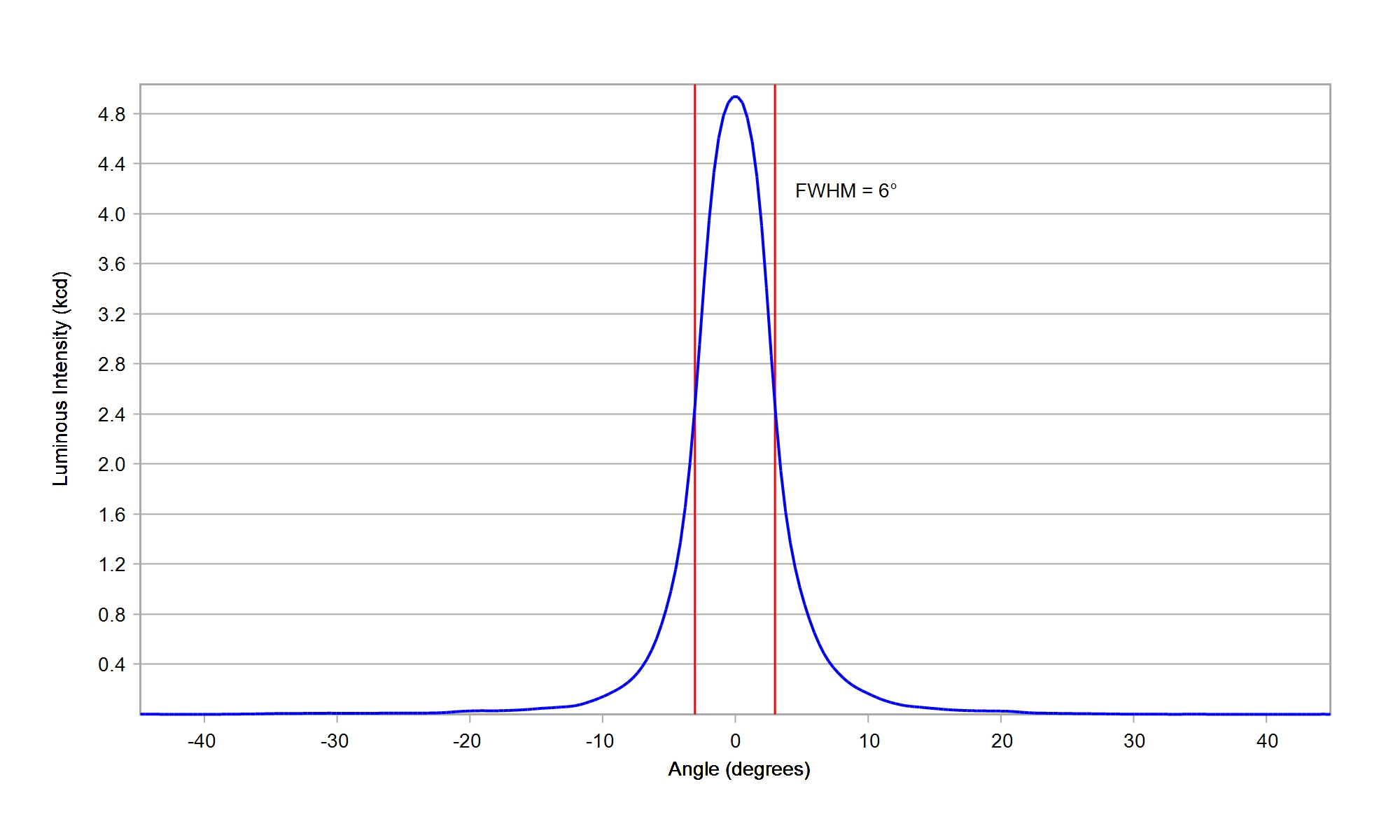

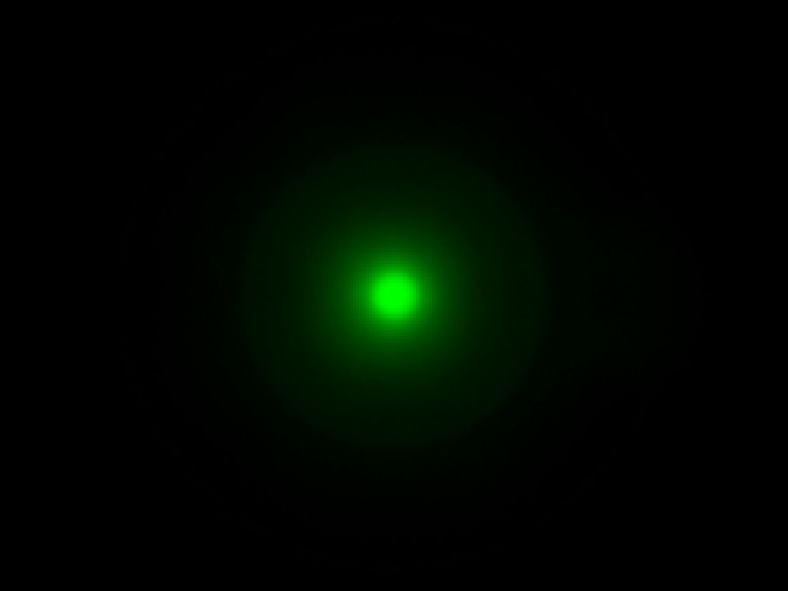

Cree XLamp XQ-E Plus HI Green

Eff:

88.0%

FWHM:

6°

Cd/Im:

39.5


Download

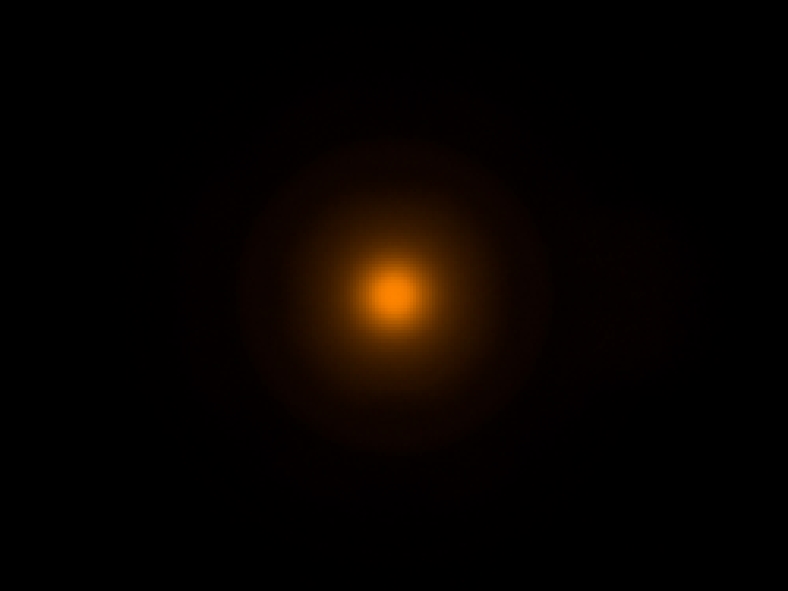

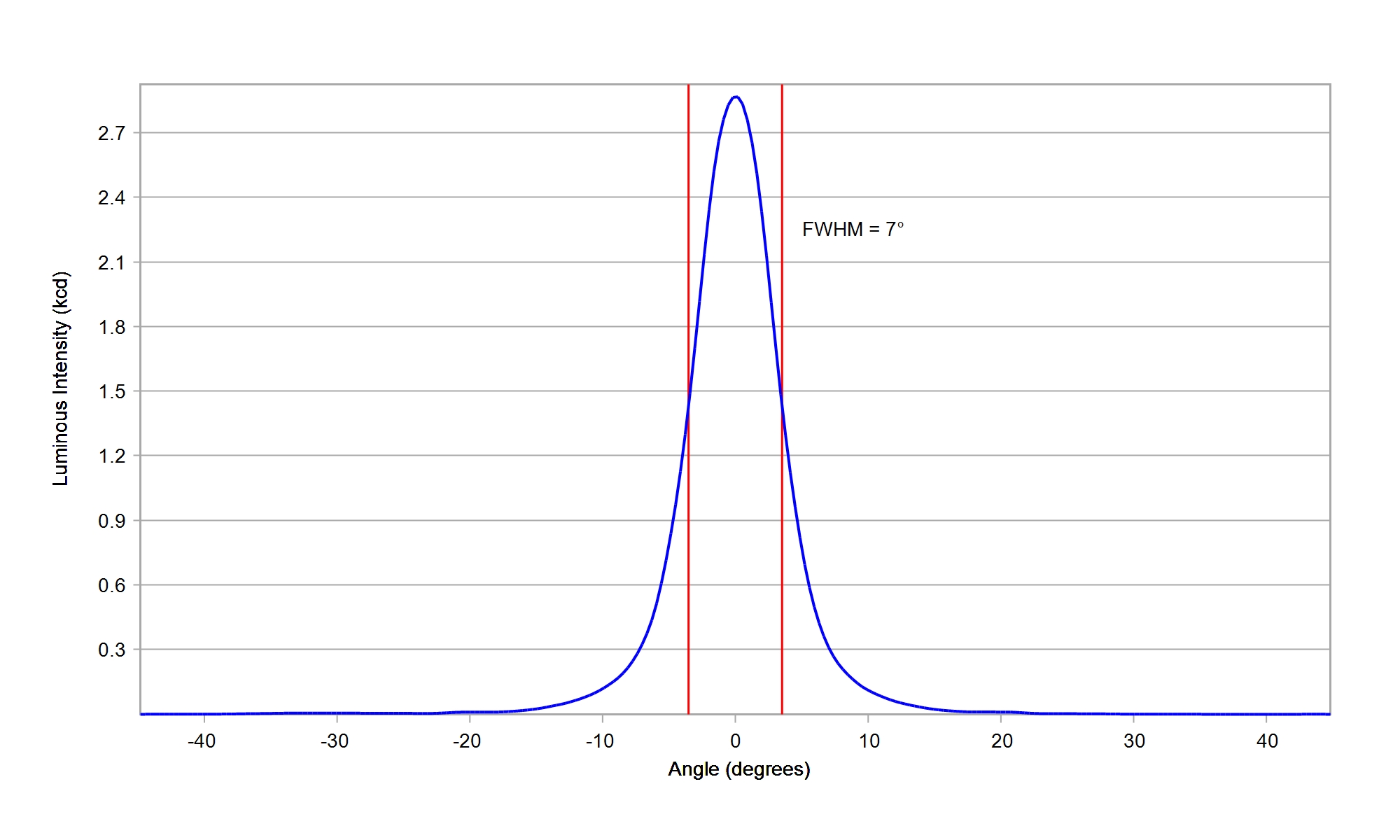

Cree XLamp XQ-E Plus HI PC Amber

Eff:

88.0%

FWHM:

7°

Cd/Im:

34.4


Download

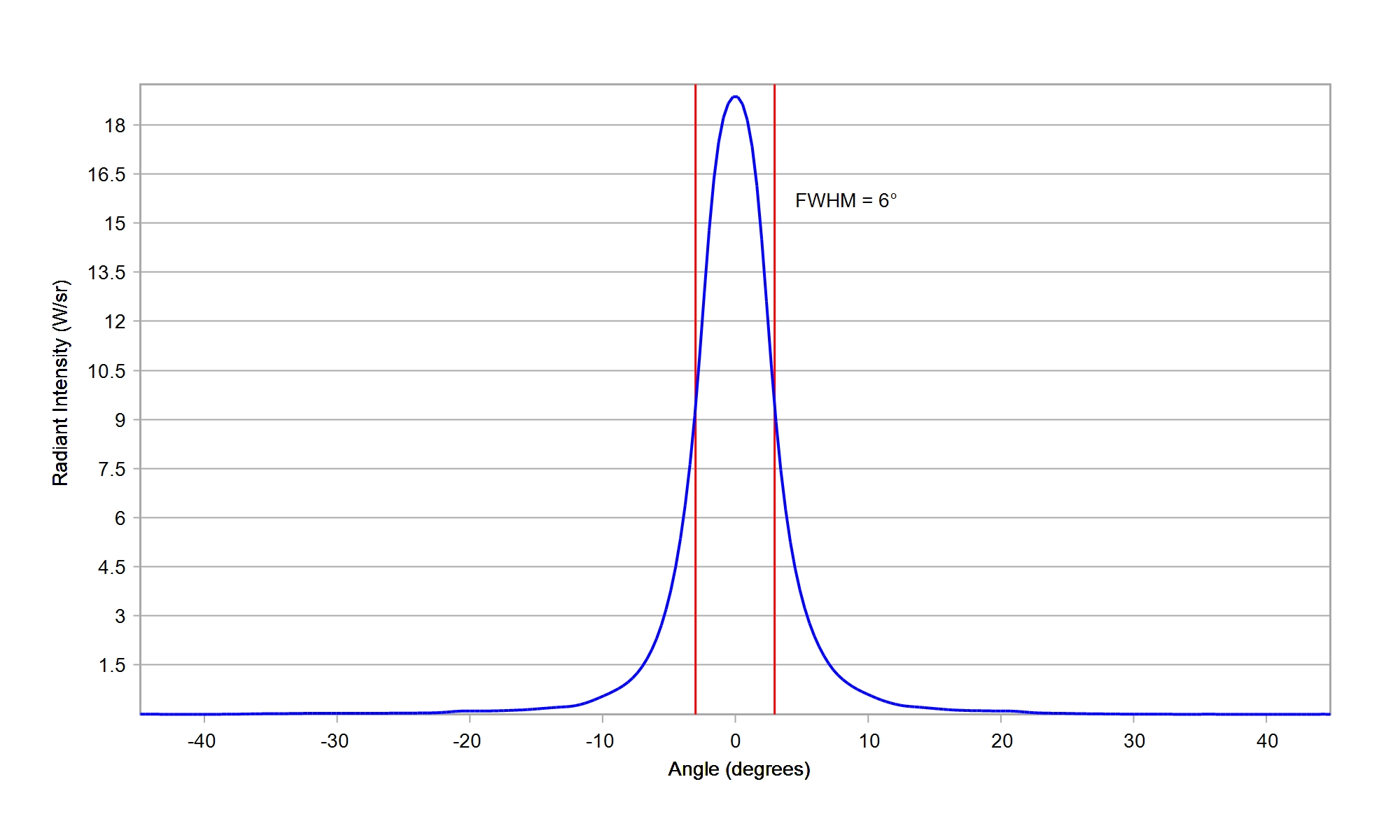

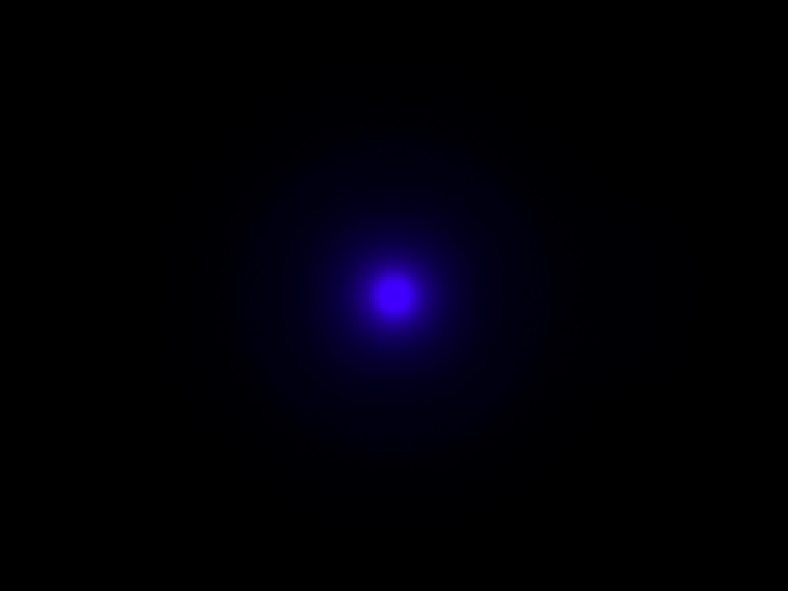

Cree XLamp XQ-E Plus HI Royal Blue

Eff:

87.0%

FWHM:

6°

Ipk/W:

39.9


Download

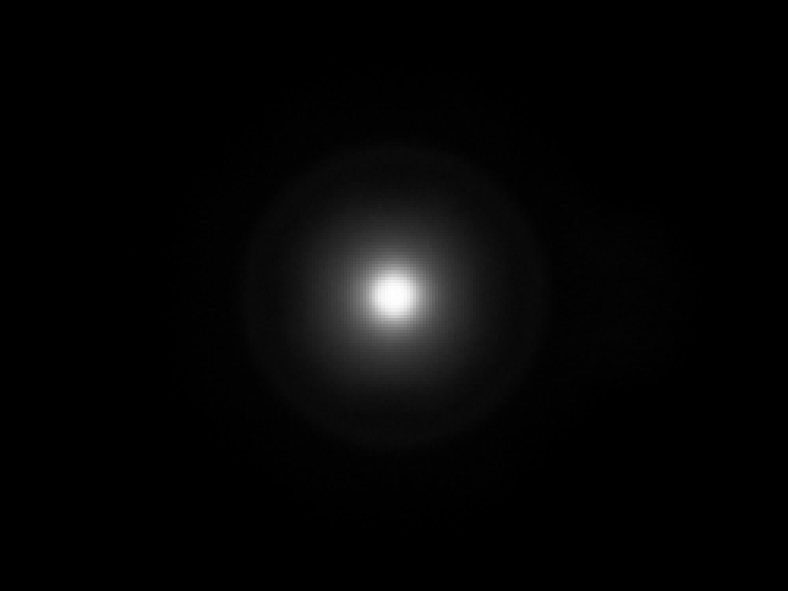

Cree XLamp XQ-E Plus HI White

Eff:

88.0%

FWHM:

6.2°

Cd/Im:

42.3


Download

Cree XLamp XQ-E HD White

Eff:

85.0%

FWHM:

7°

Cd/Im:

38.0

carclo optics simulated spot

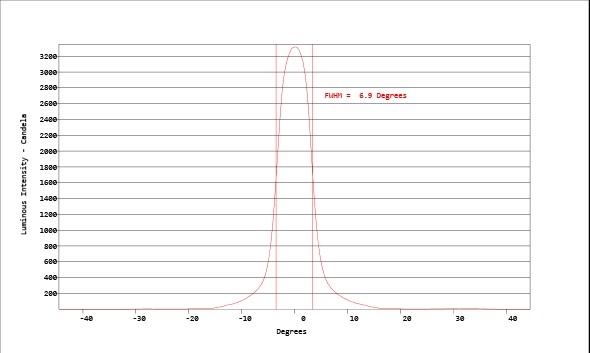

carclo optics simulated cross section

Download

IES

Cree XLamp XT-E HE White

Eff:

87.5%

FWHM:

11.5°

Cd/Im:

14.1

Carclo Optics - Simulated Spot Image

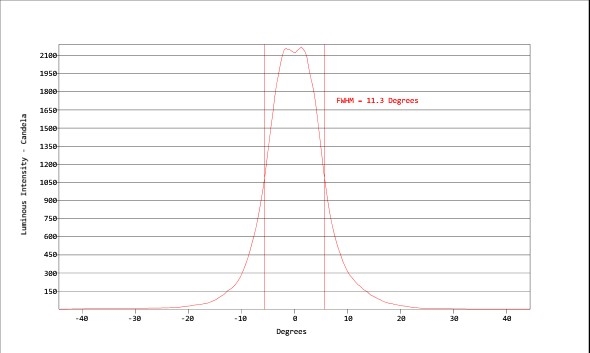

Carclo Optics - Simulated Cross Section

Download

IES

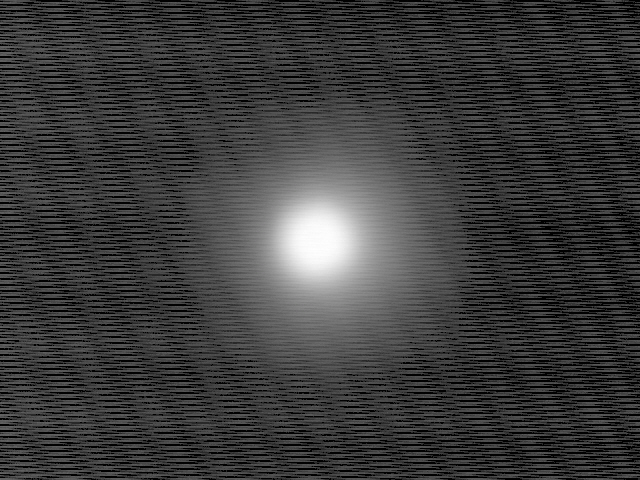

Cree XLamp XT-E White

Eff:

88.2%

FWHM:

11.7°

Cd/Im:

19.0

Download

ies

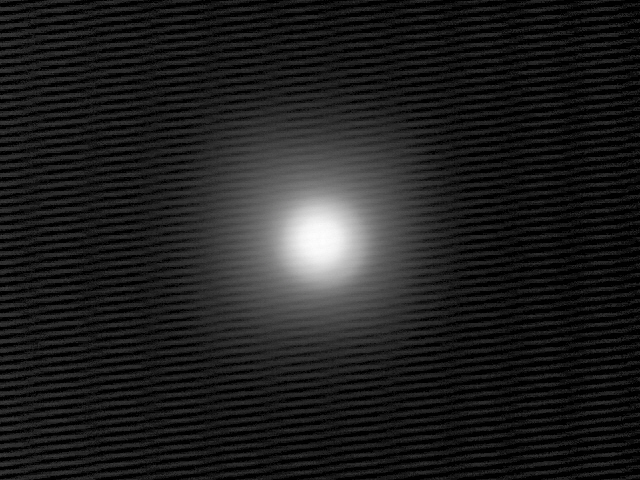

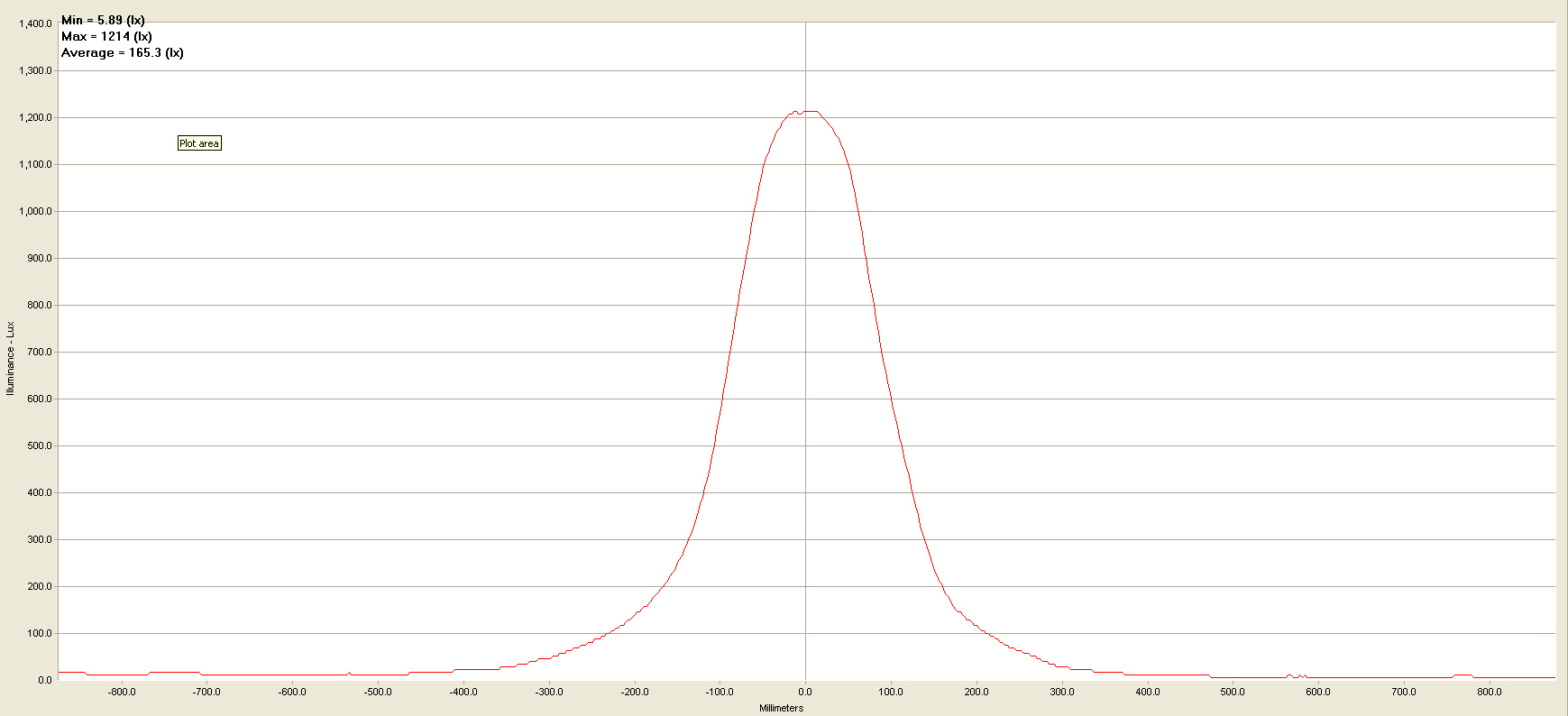

Everlight Shuen White

Eff:

87.7%

FWHM:

11.1°

Cd/Im:

16.7

Download

ies

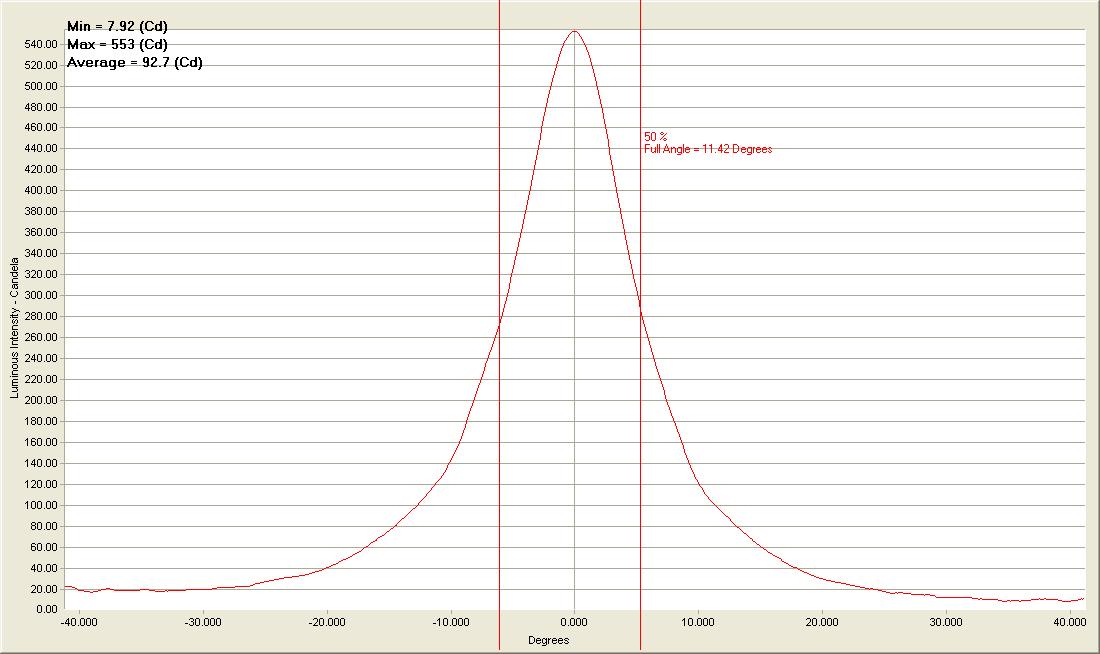

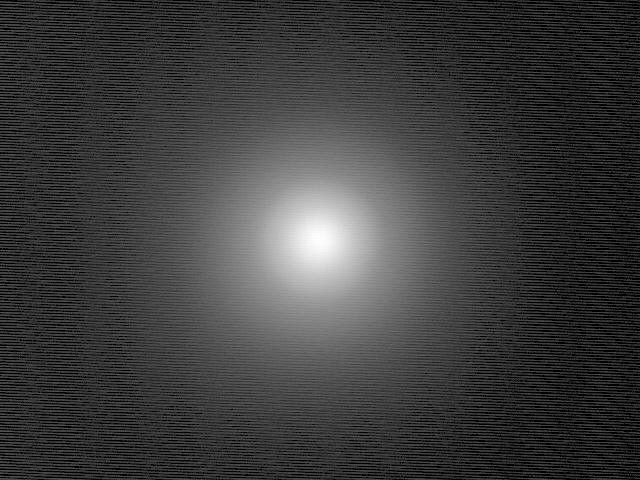

Osram LED ENGIN LuxiGen 5W LZ1-00CW05 White

Eff:

85.7%

FWHM:

11.3°

Cd/Im:

9.9

Download

ies

Lite-On R38386AS - S R38 IR

Eff:

91.5%

FWHM:

8.0°

Ipk/W:

26.1

Carclo Optics - Simulated Spot Image

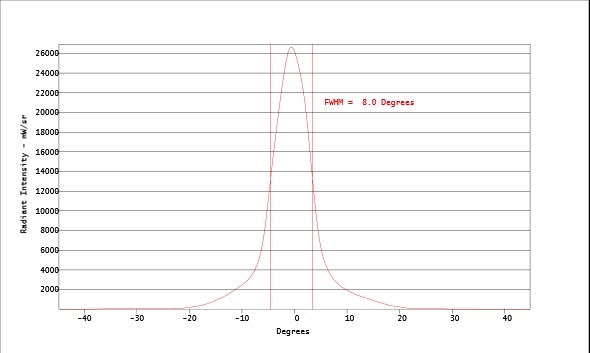

Carclo Optics - Simulated Cross Section

Download

IES

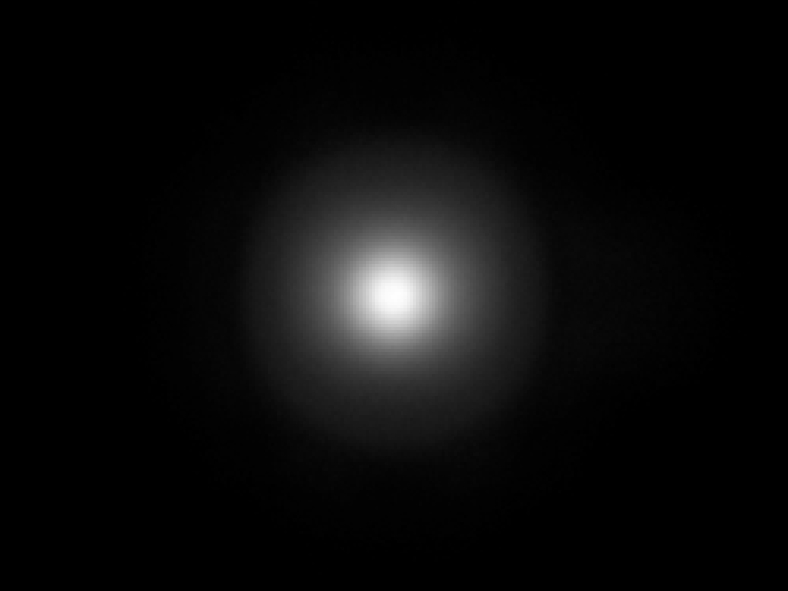

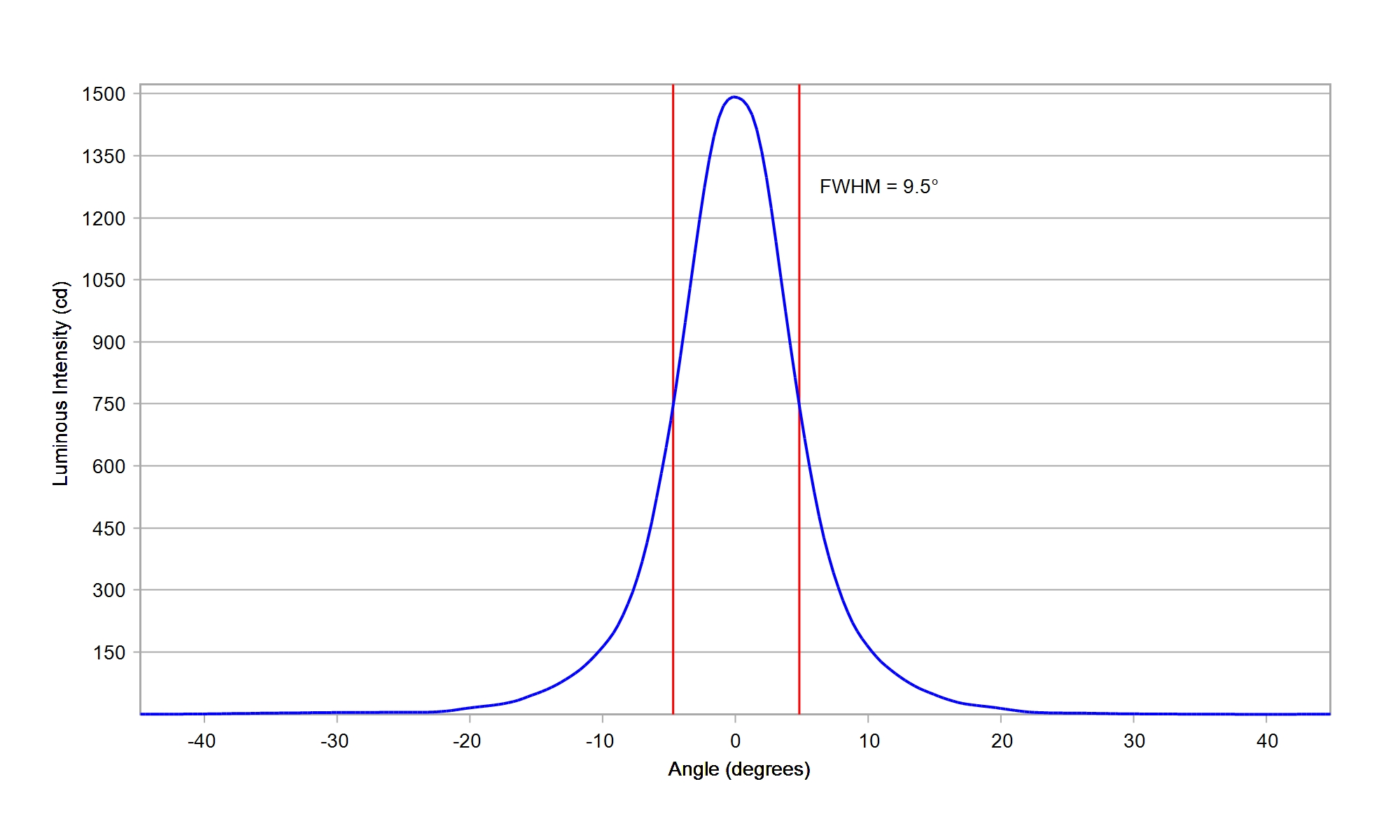

LUMILEDS LUXEON 2835C 6V White

Eff:

89.0%

FWHM:

9.5°

Cd/Im:

19.6

Download

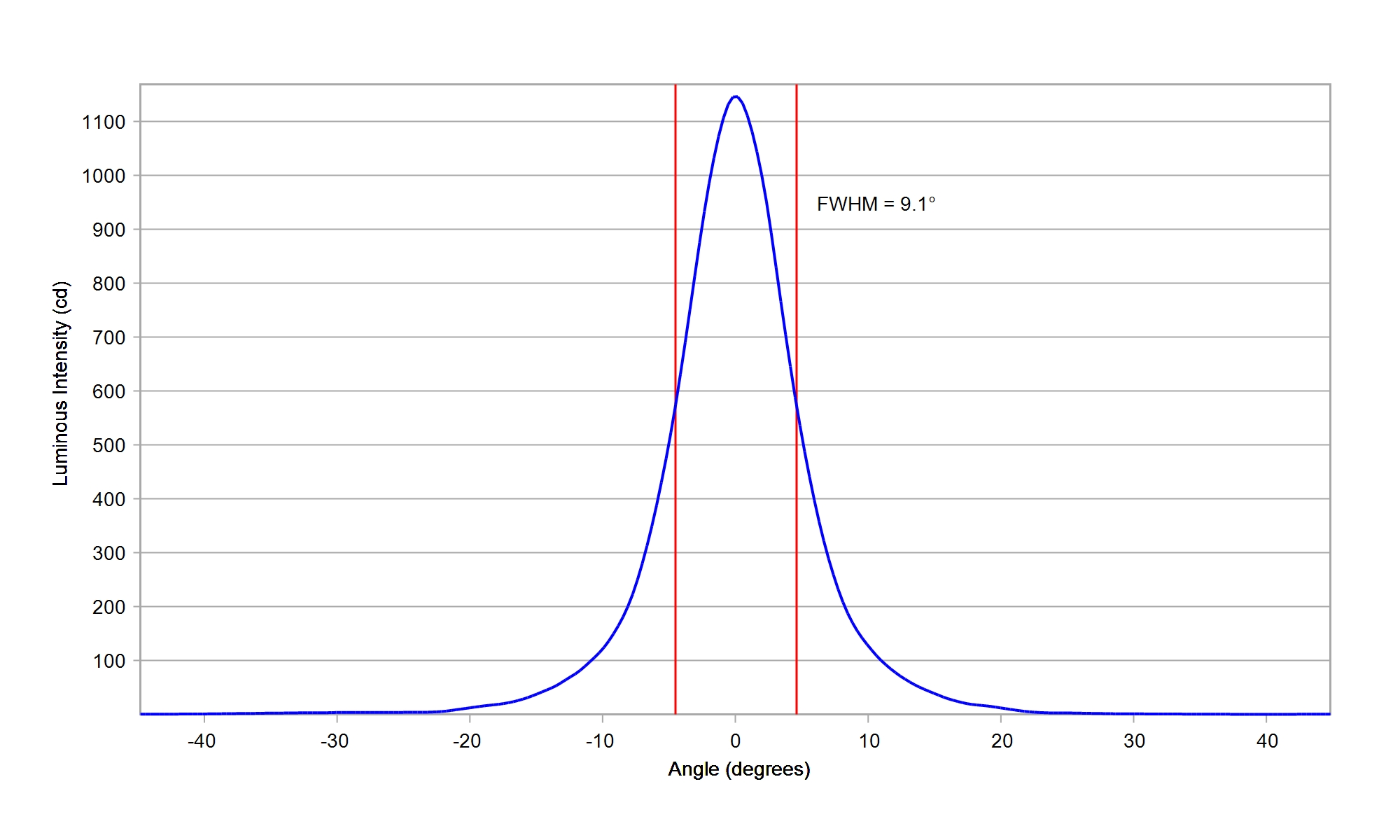

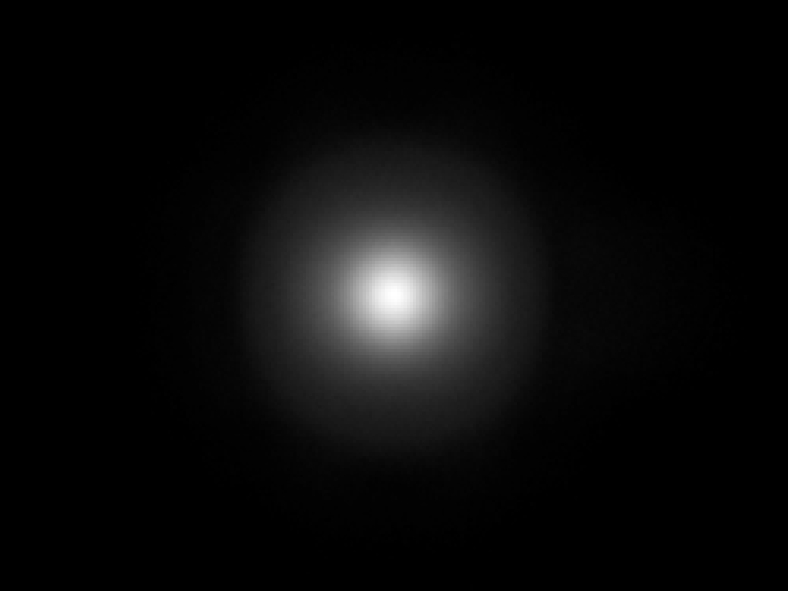

LUMILEDS LUXEON 2835E 9V White

Eff:

89.0%

FWHM:

9.1°

Cd/Im:

21.5

Download

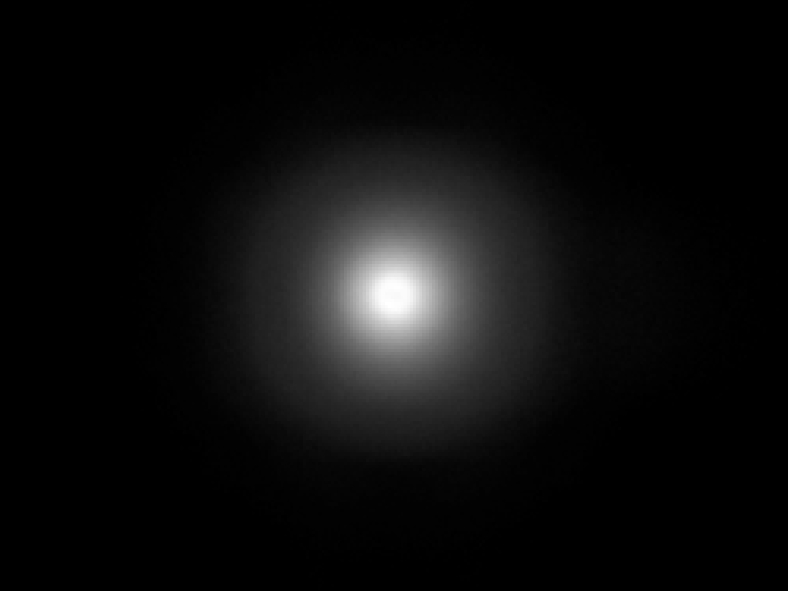

LUMILEDS LUXEON 2835N 3V White

Eff:

89.0%

FWHM:

9.6°

Cd/Im:

17.0

Download

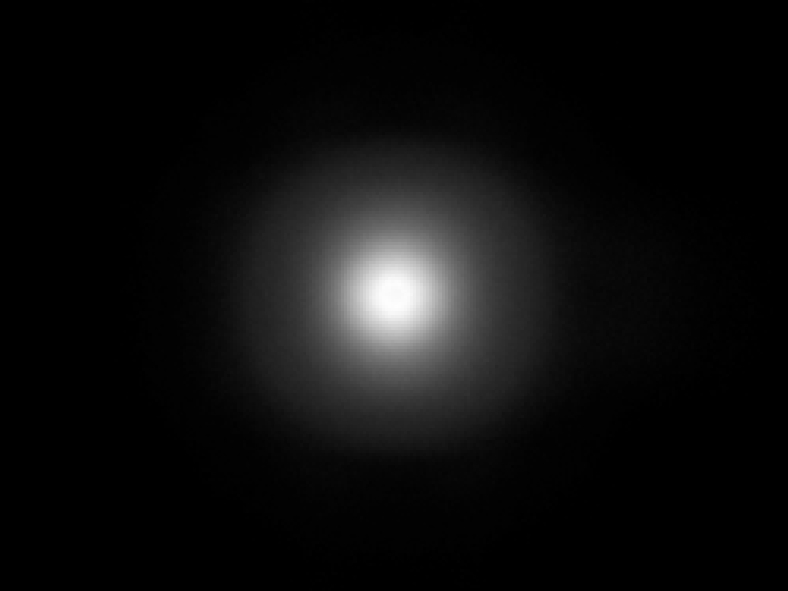

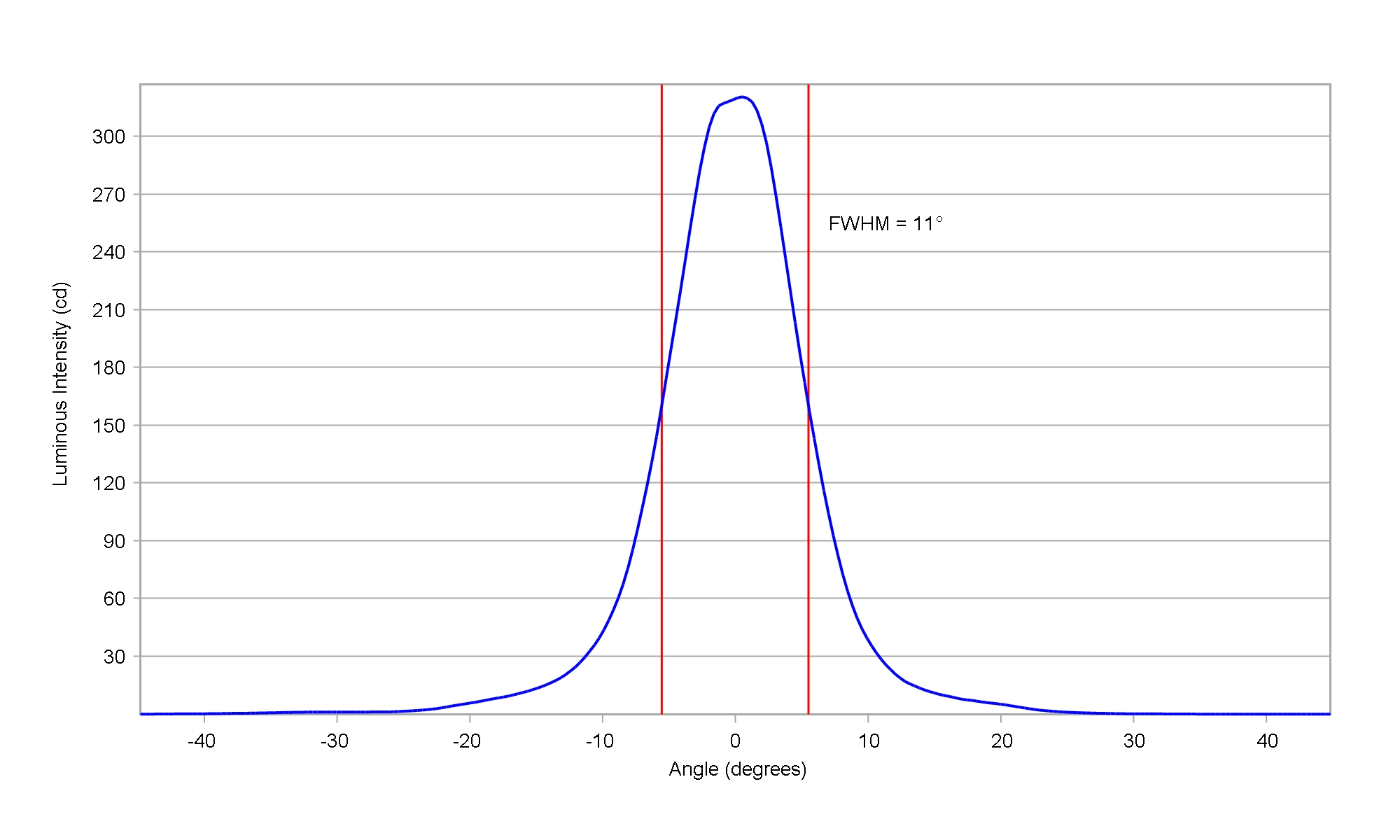

LUMILEDS LUXEON 2835S 3V White

Eff:

89.0%

FWHM:

11°

Cd/Im:

15.0

Download

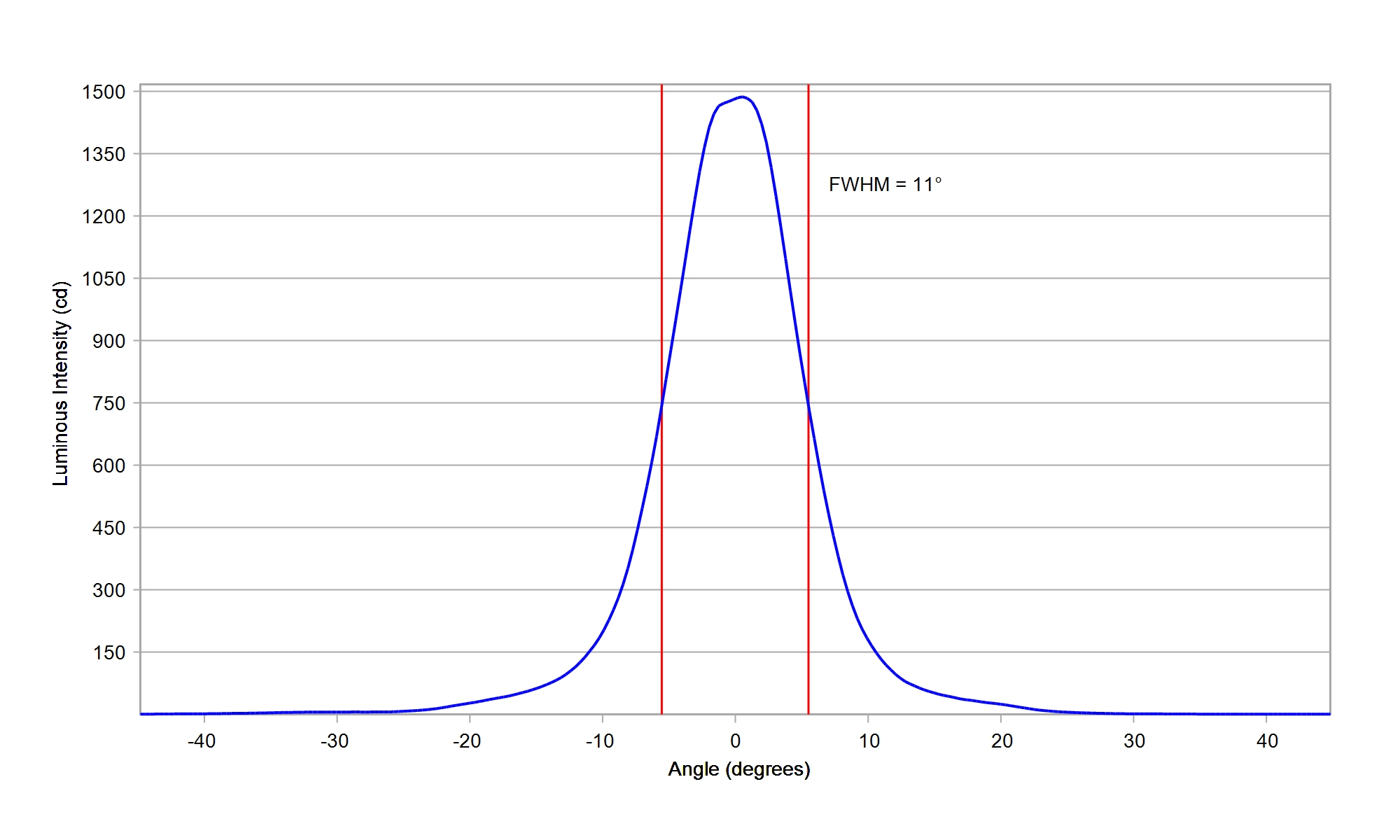

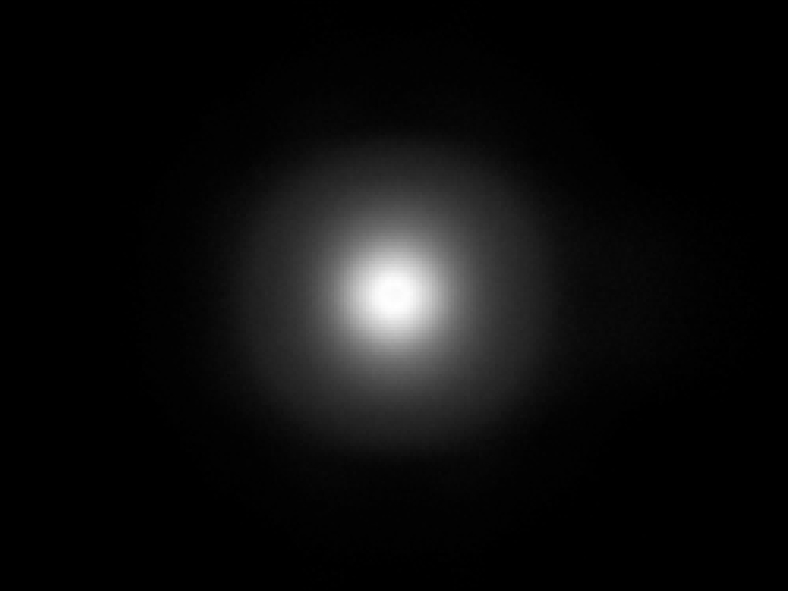

LUMILEDS LUXEON 2835S 6V White

Eff:

89.0%

FWHM:

11°

Cd/Im:

15.0

Download

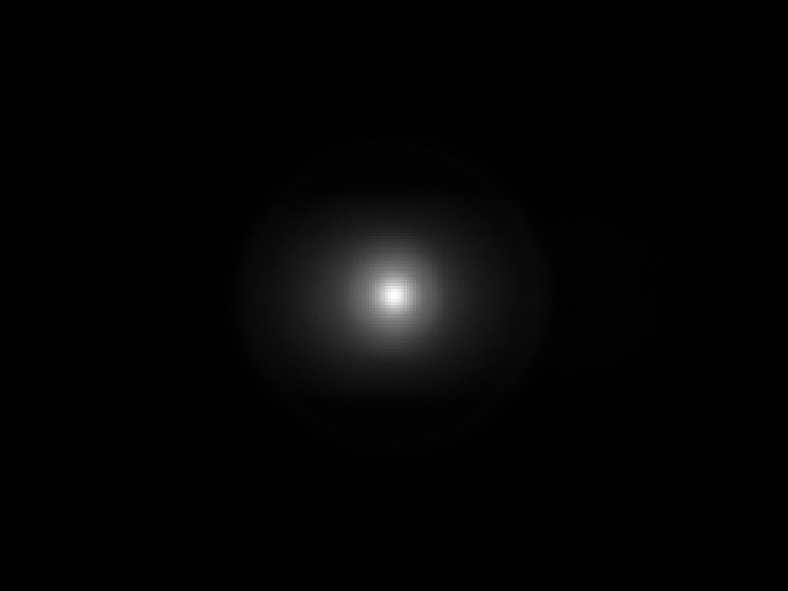

LUMILEDS LUXEON 3014 White

Eff:

89.0%

FWHM:

4.8°

Cd/Im:

61.2

Download

IES

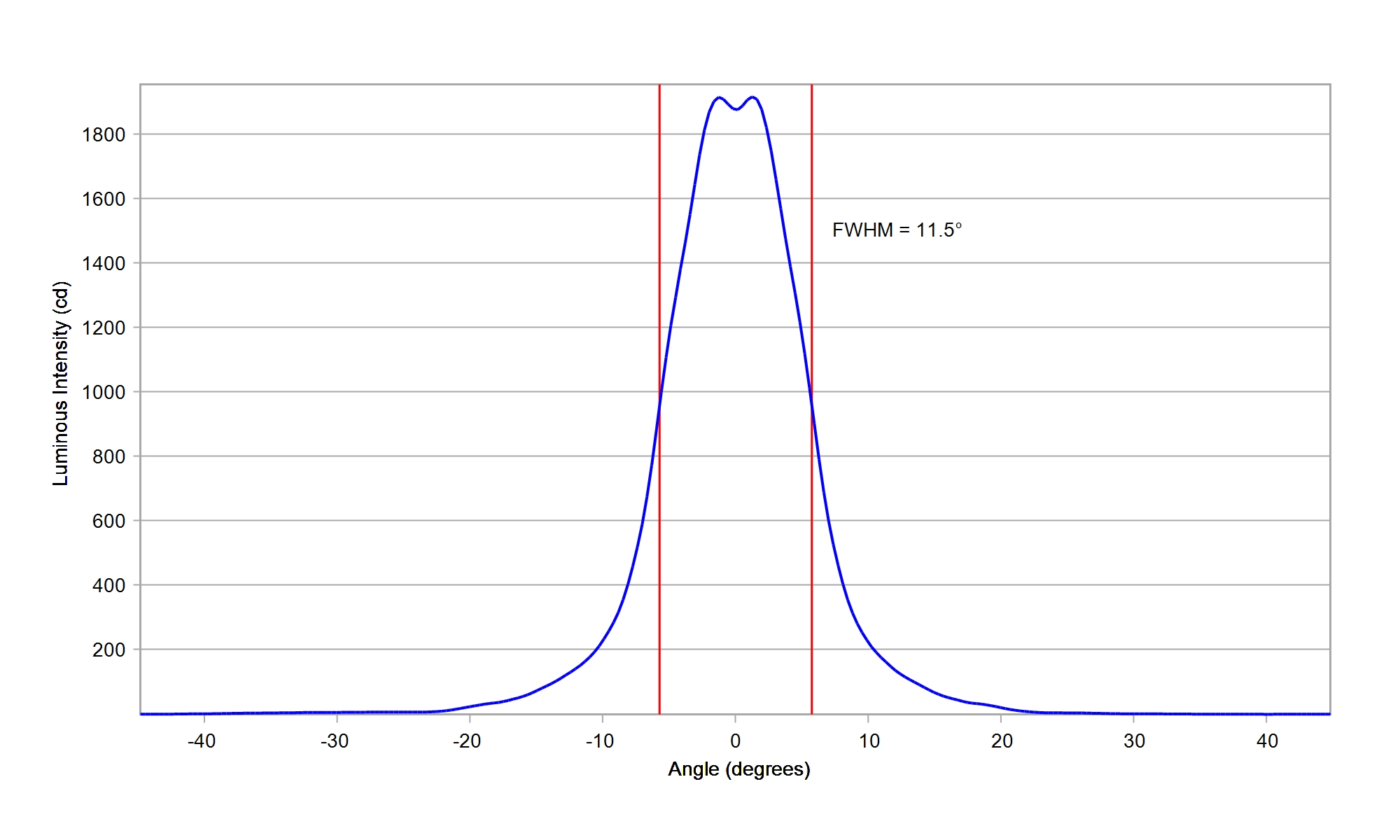

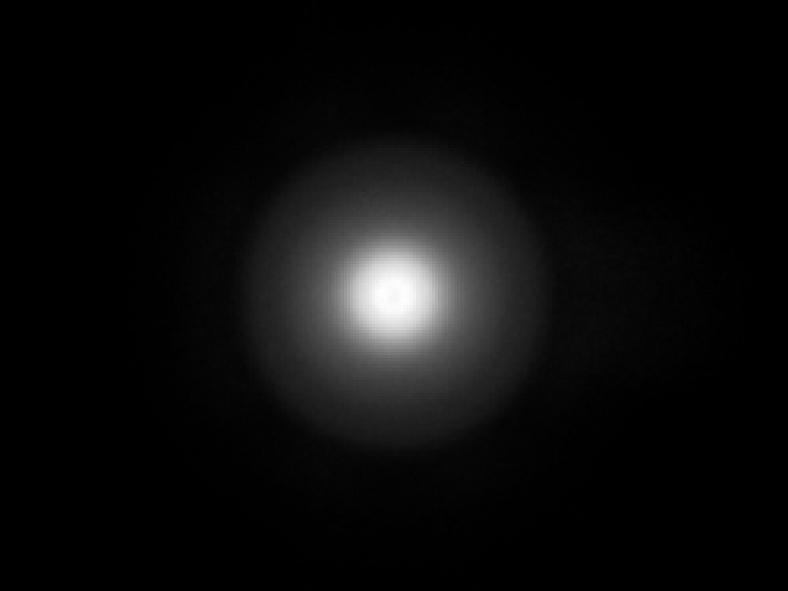

LUMILEDS LUXEON 3030 2D Plus Round White

Eff:

89.0%

FWHM:

11.5°

Cd/Im:

16.4


Download

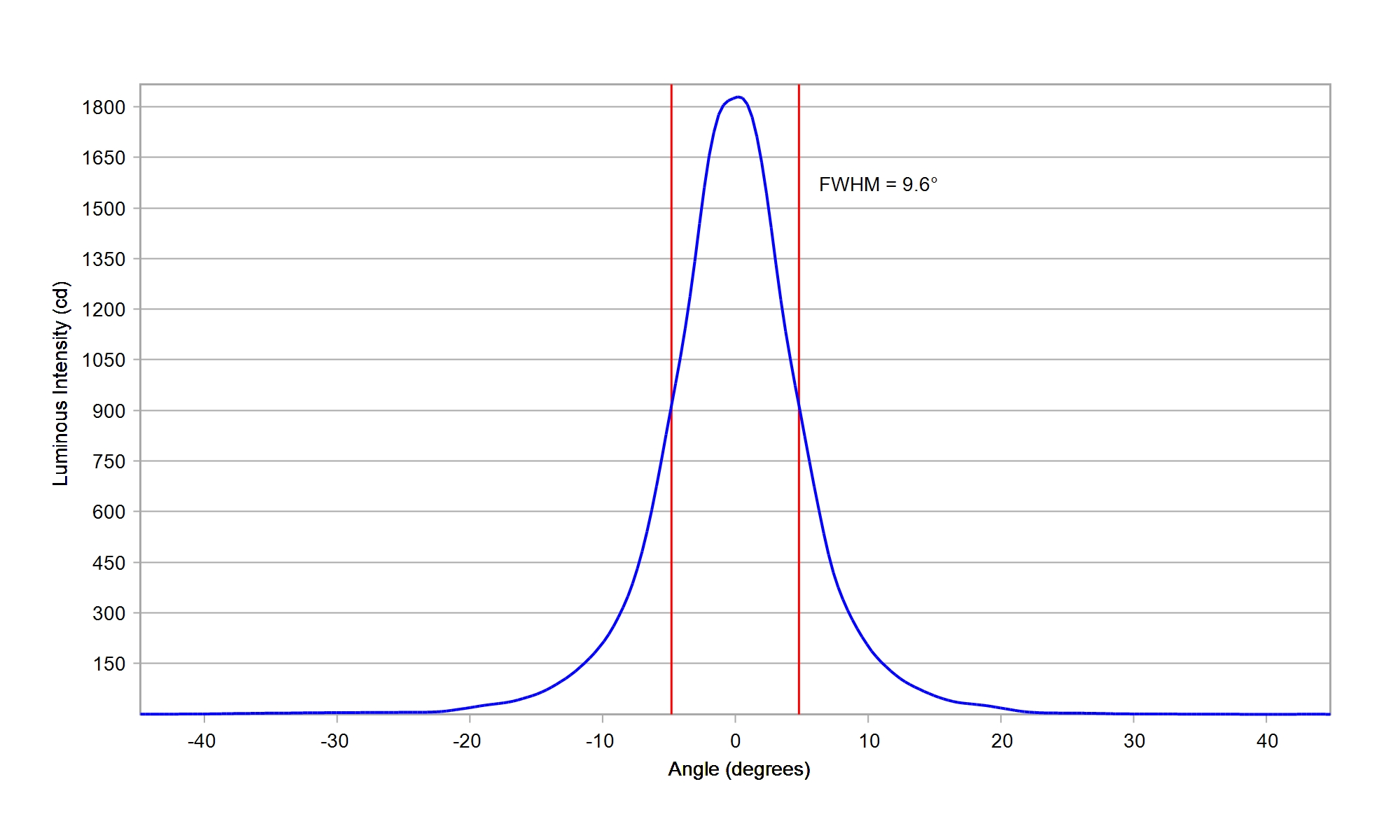

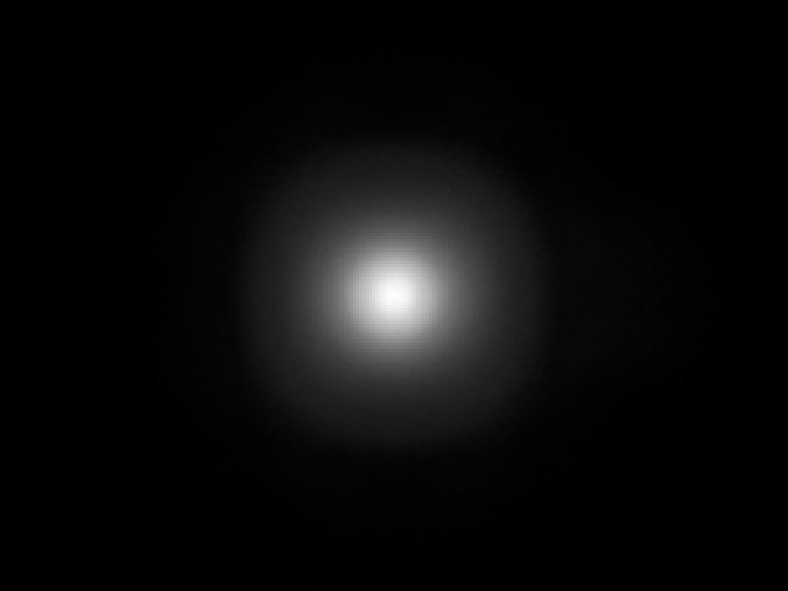

LUMILEDS LUXEON 3030 2D Square White

Eff:

89.0%

FWHM:

9.6°

Cd/Im:

19.8


Download

LUMILEDS LUXEON 3030 2D Round White

Eff:

89.0%

FWHM:

8.7°

Cd/Im:

24.4

Download

LUMILEDS LUXEON 3030 HE Plus White

Eff:

89.0%

FWHM:

10.5°

Cd/Im:

17.0

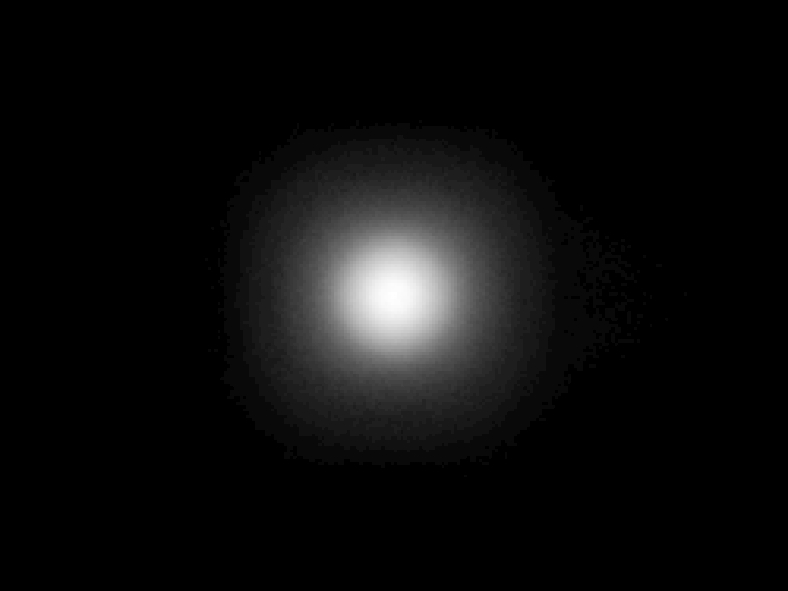

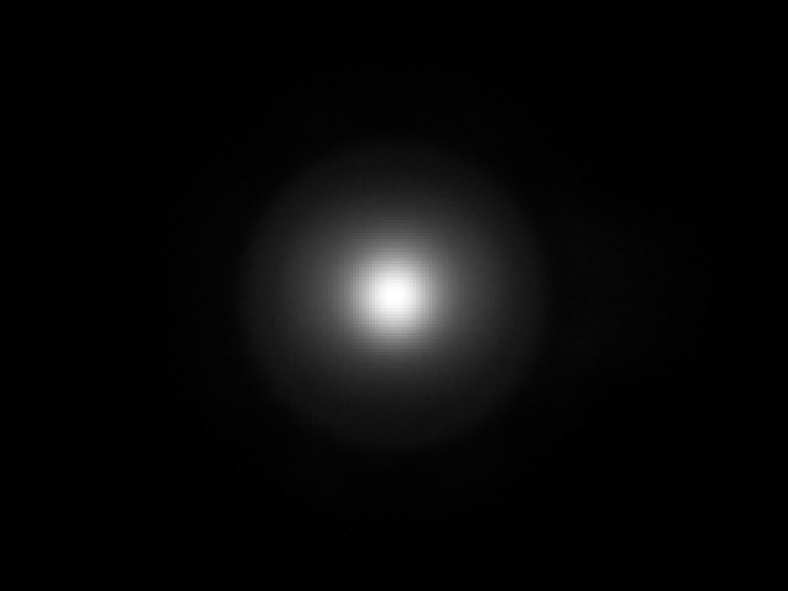

Carclo Optics – 10003 – Luxeon_3030_HE_Plus_spot-image

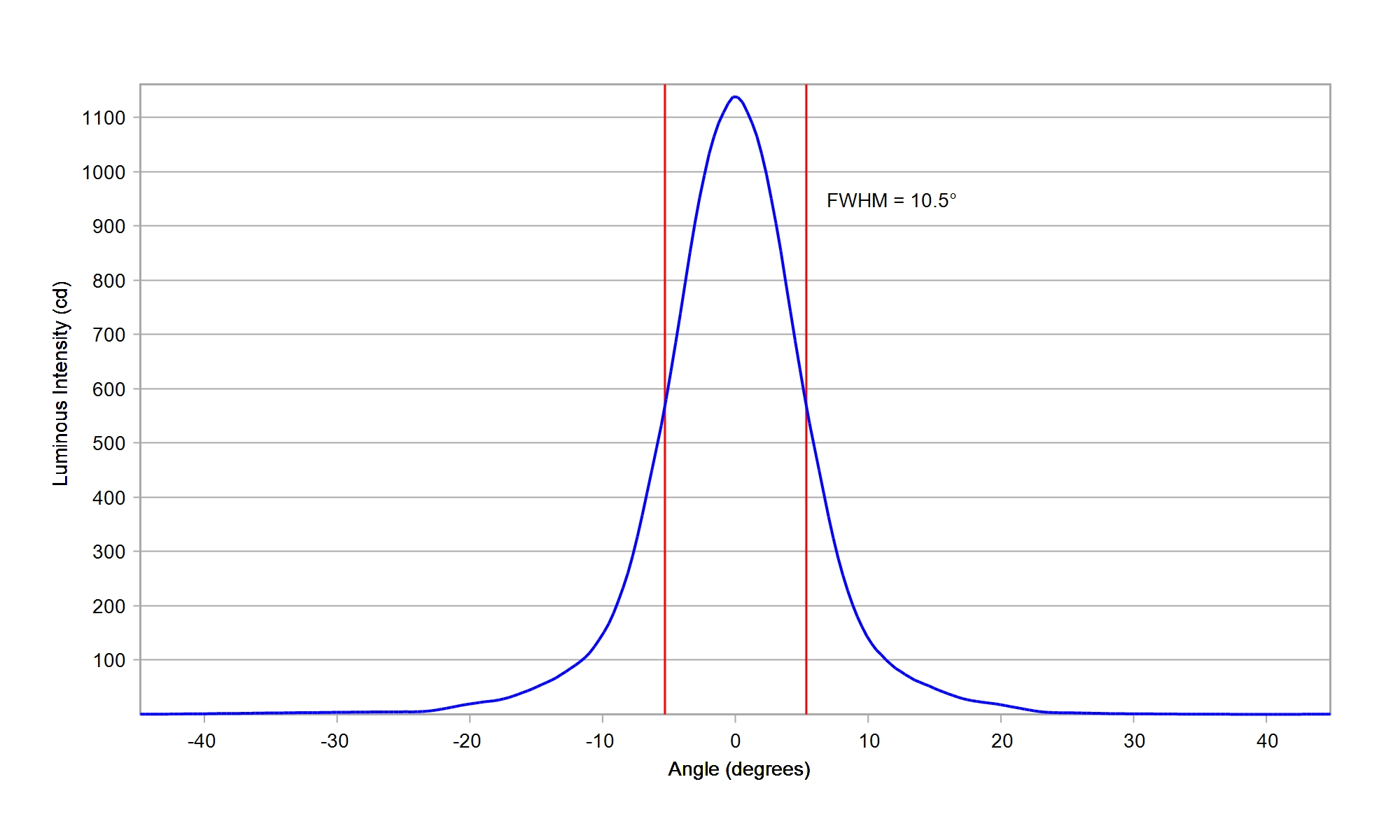

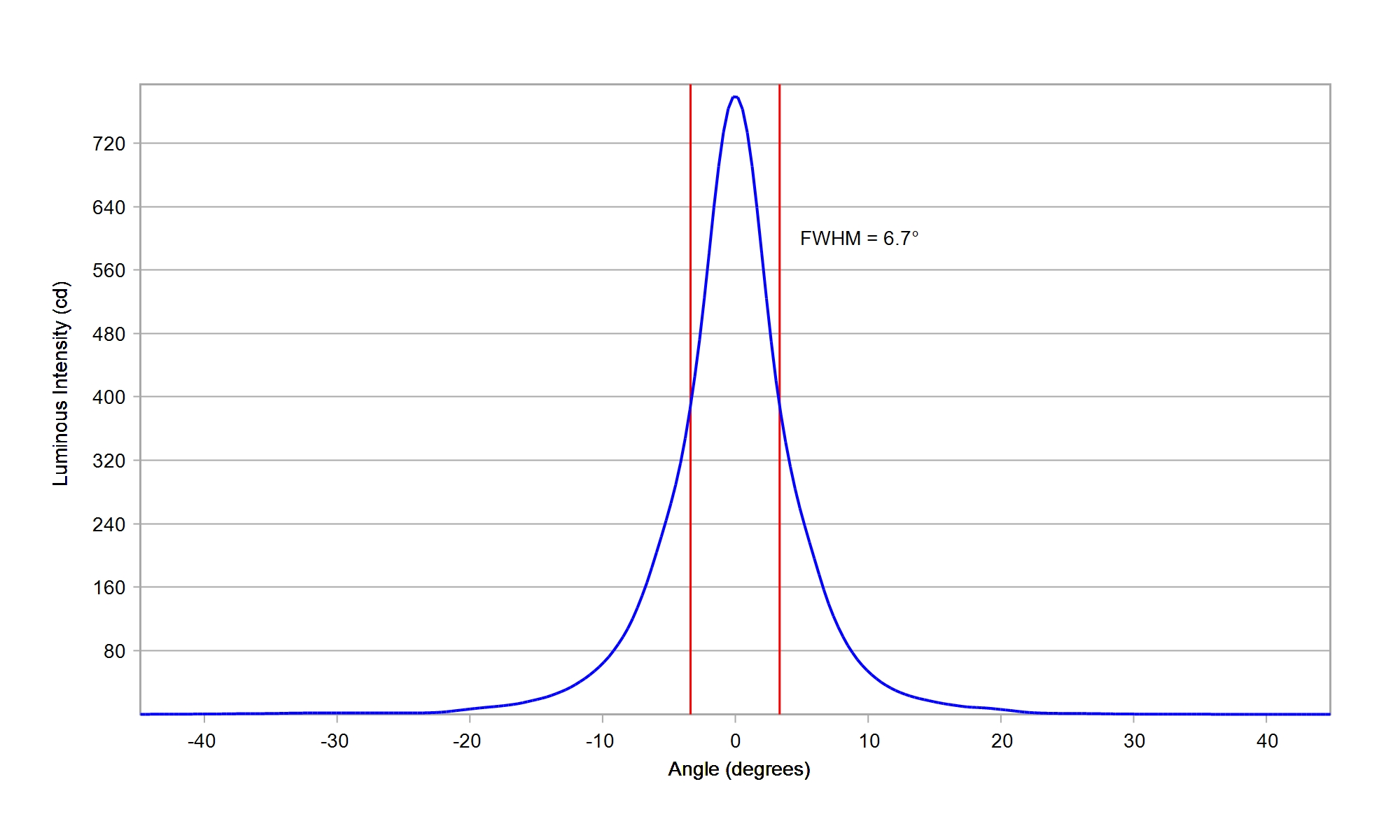

Carclo Optics – 10003 – Luxeon_3030_HE_Plus_cross vertical section

Download

IES

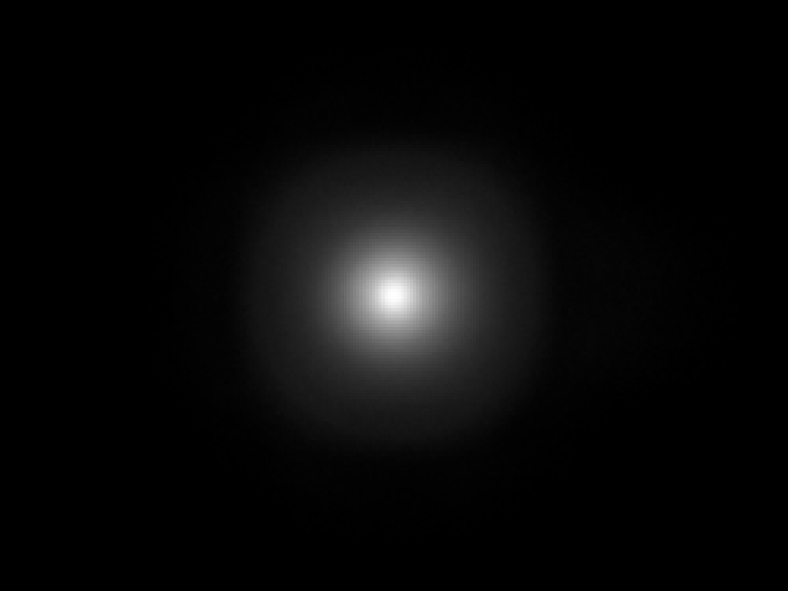

LUMILEDS LUXEON 3030 HE White

Eff:

89.0%

FWHM:

6.7°

Cd/Im:

30.0

Download

LUMILEDS LUXEON 3535 HV White

Eff:

85.0%

FWHM:

7°

Cd/Im:

23.4

carclo optics - simulated spot image

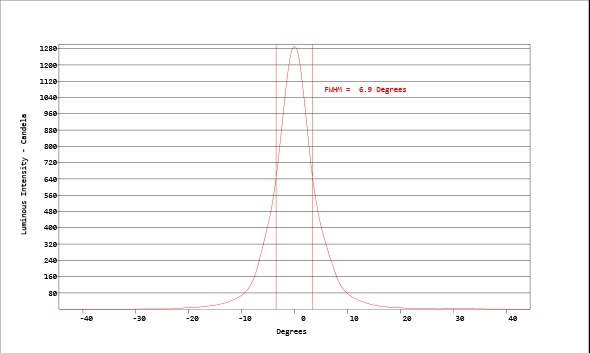

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON 3535 L White

Eff:

85.0%

FWHM:

8.5°

Cd/Im:

19.8

carclo optics - simulated spot image

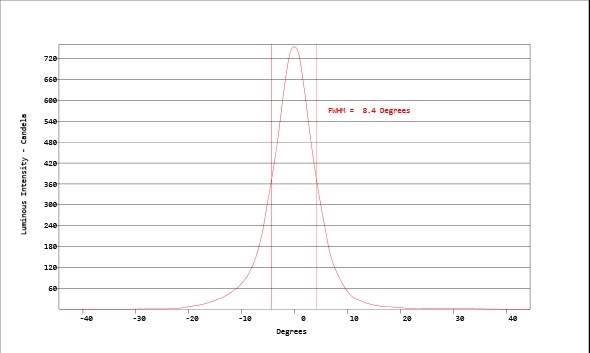

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON 3535L Blue

Eff:

88.0%

FWHM:

4.8°

Cd/Im:

37.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 3535L Green

Eff:

88.0%

FWHM:

4.7°

Cd/Im:

41.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 3535L Red

Eff:

88.0%

FWHM:

3.3°

Cd/Im:

98.7

Carclo Optics - Simulated Spot Image

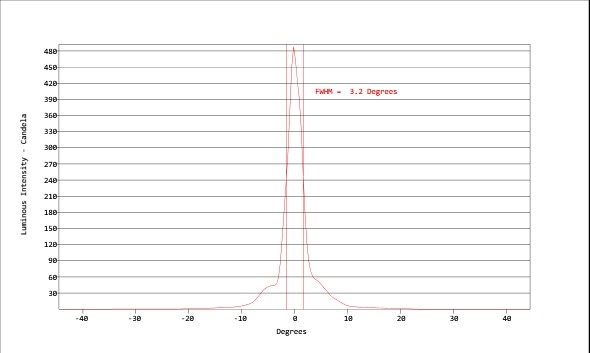

Carclo Optics - Simulated Cross Section

Download

IES

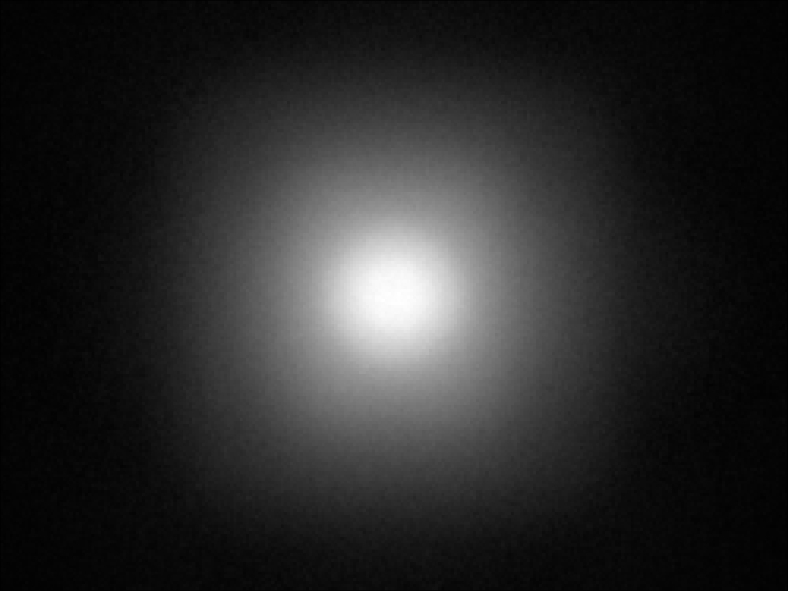

LUMILEDS LUXEON 5050 HE 24V White

Eff:

88.5%

FWHM:

19°

Cd/Im:

4.8

Download

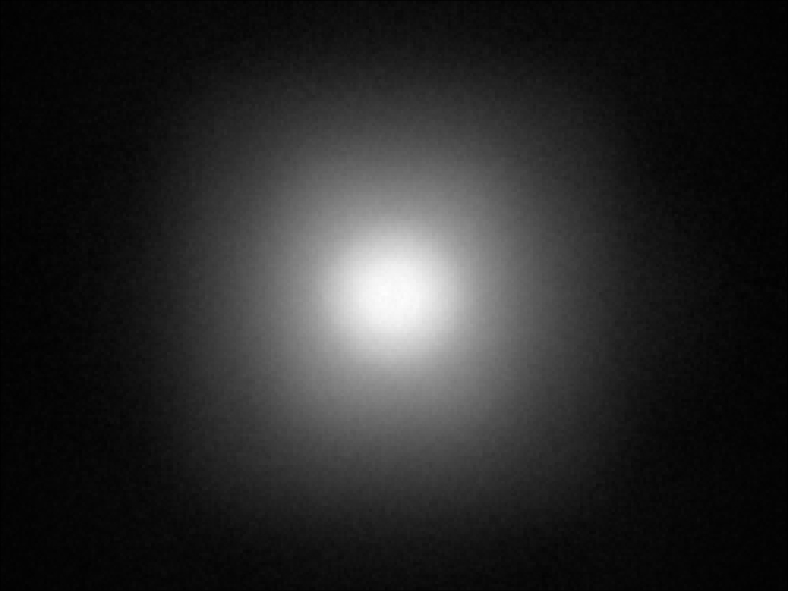

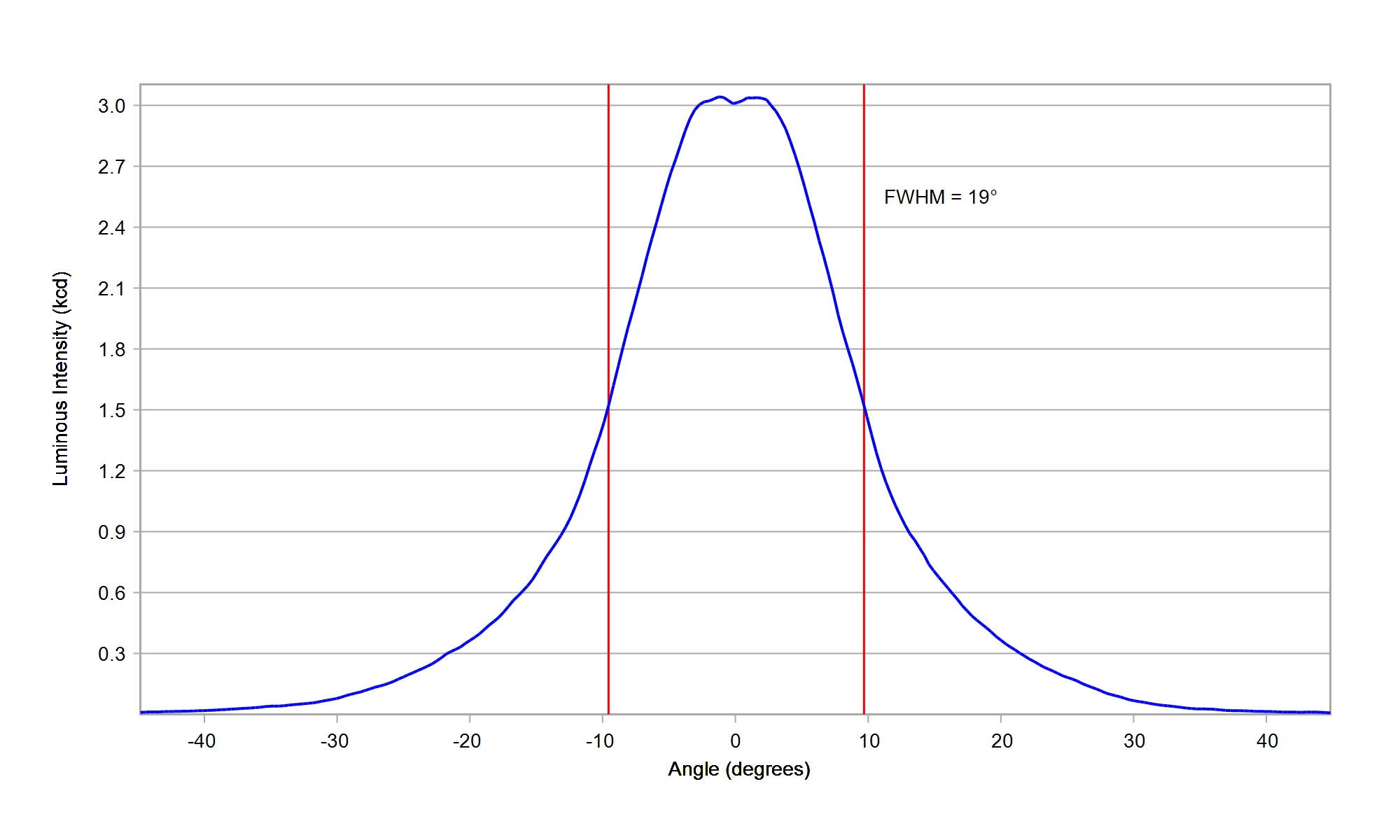

LUMILEDS LUXEON 5050 HE 6V White

Eff:

88.5%

FWHM:

19°

Cd/Im:

4.7

Download

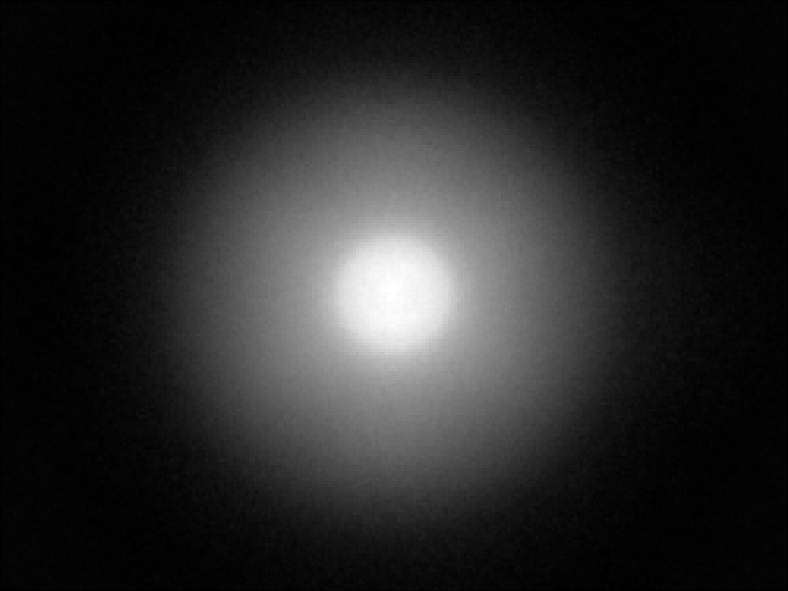

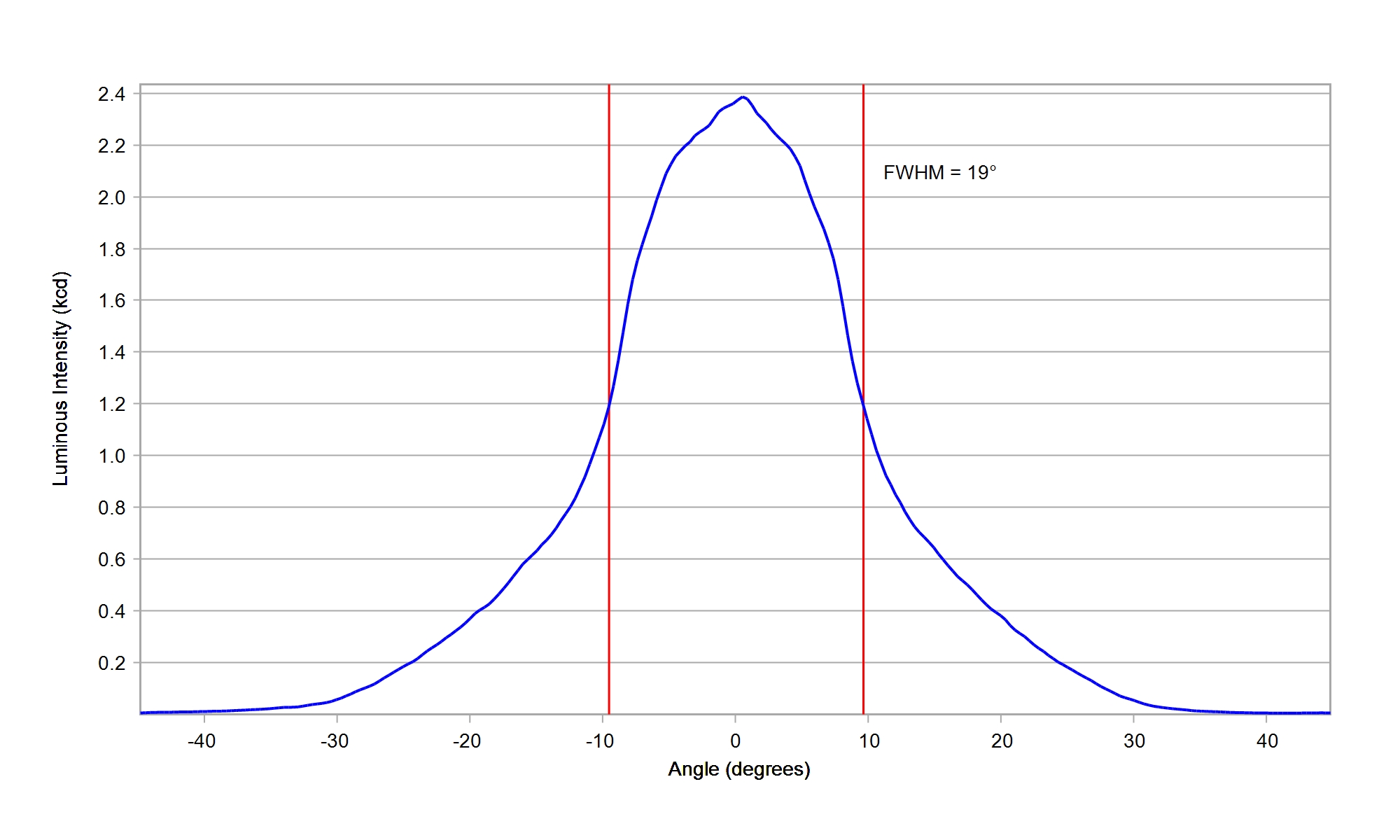

LUMILEDS LUXEON 5050 Round 24V White

Eff:

88.5%

FWHM:

19°

Cd/Im:

4.5


Download

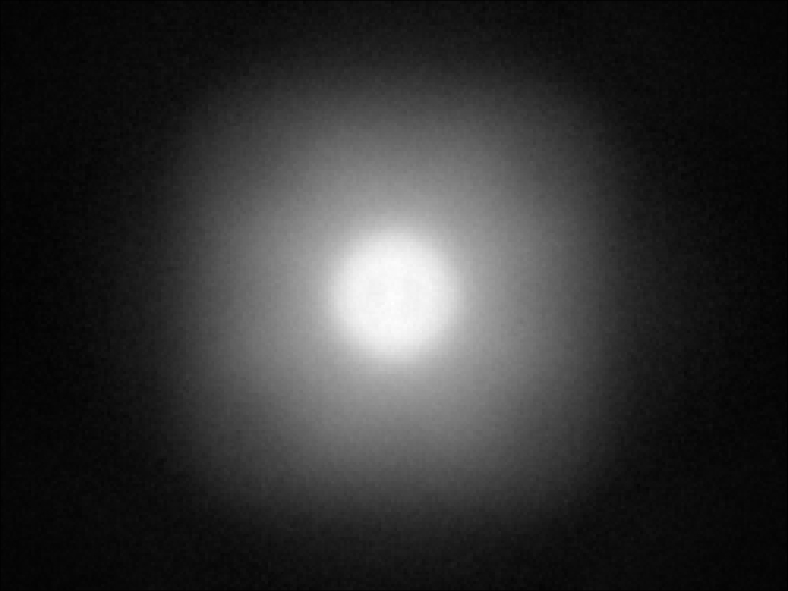

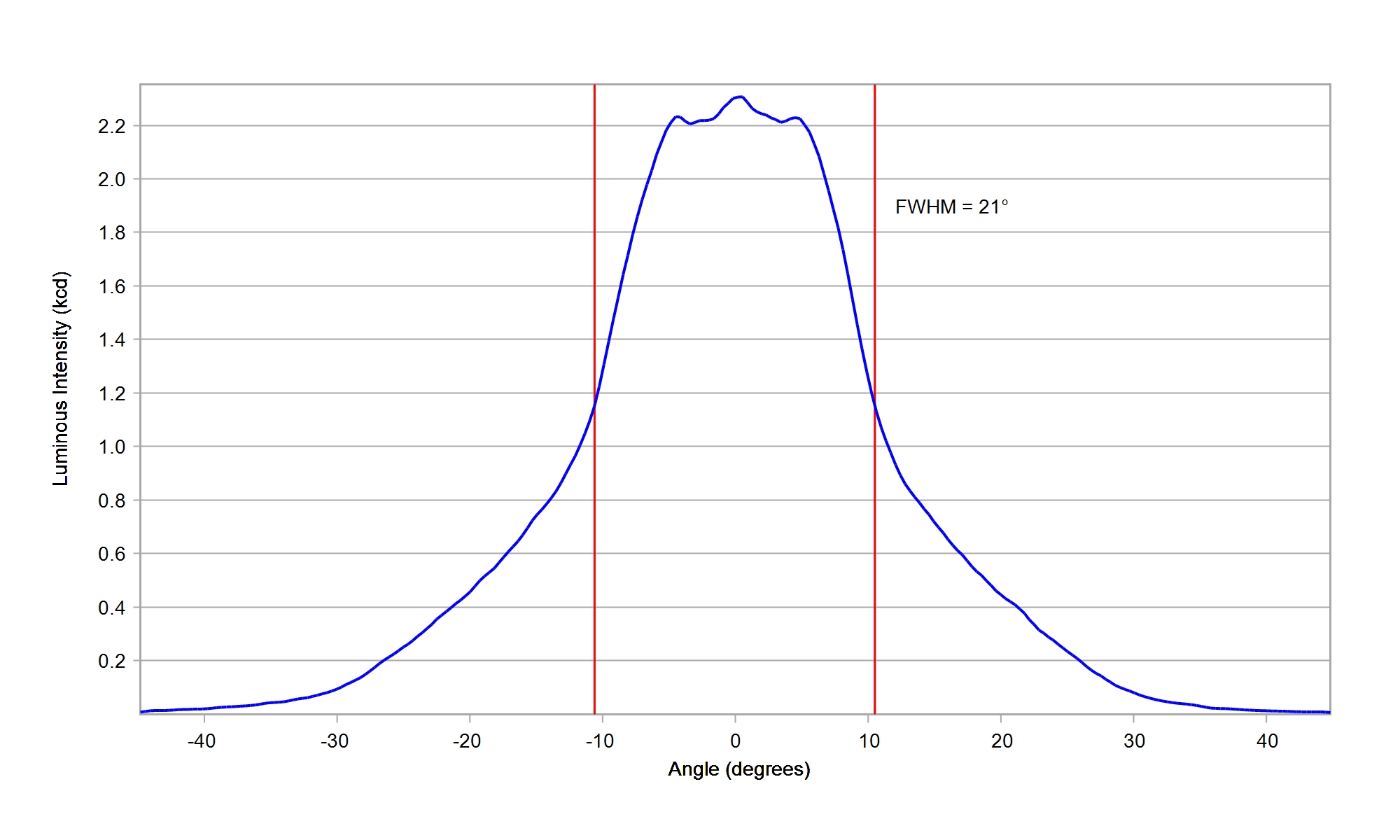

LUMILEDS LUXEON 5050 Square 30V White

Eff:

88.5%

FWHM:

21°

Cd/Im:

3.5


Download

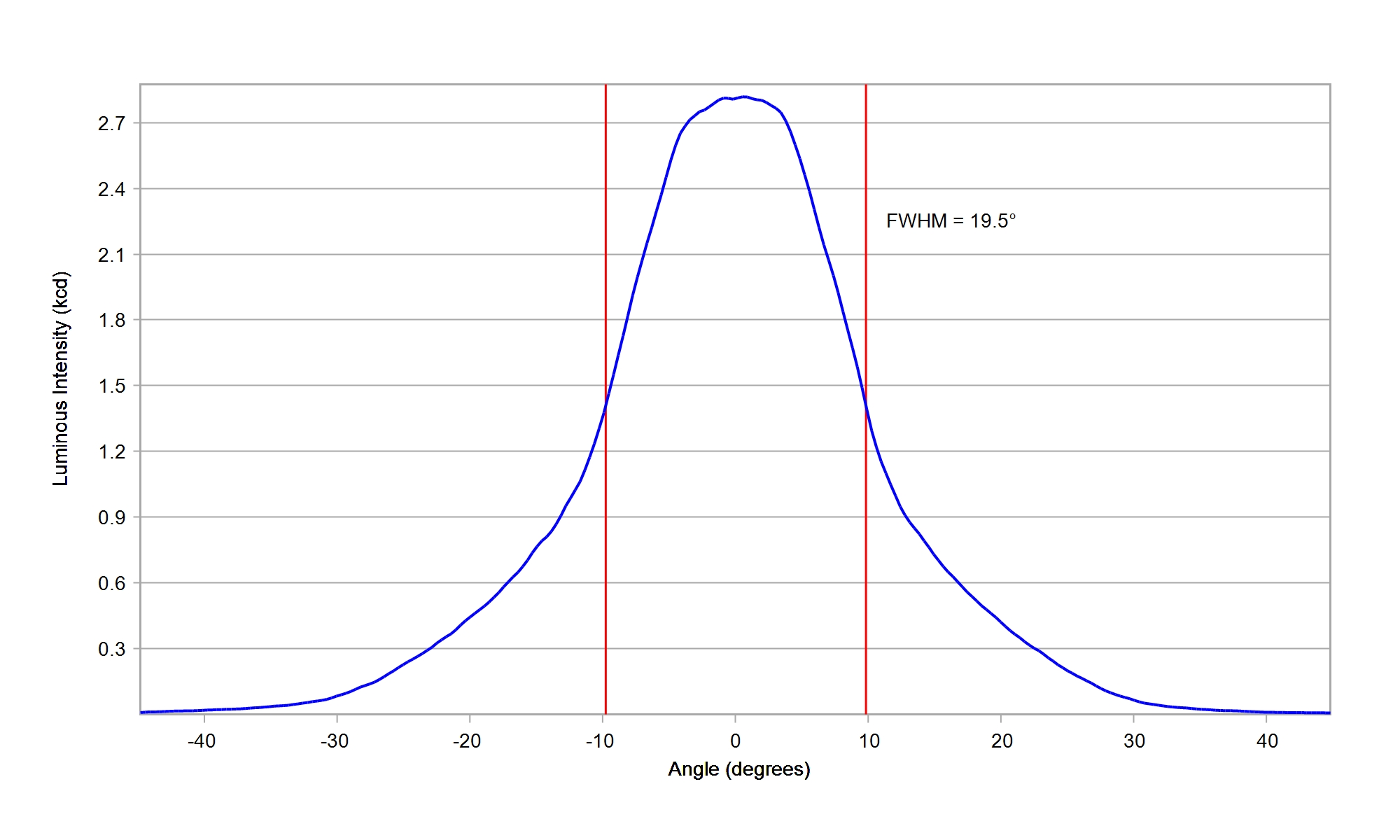

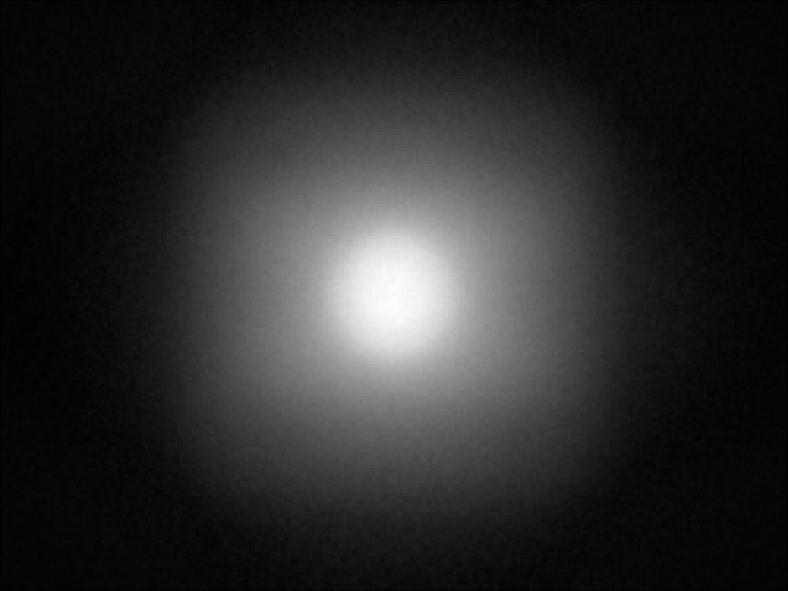

LUMILEDS LUXEON 5050 Square 6V White

Eff:

88.5%

FWHM:

19.5°

Cd/Im:

4.3


Download

LUMILEDS LUXEON C Lime

Eff:

84.0%

FWHM:

7.5°

Cd/Im:

27.8

Carclo Optics - Simulated Spot Image

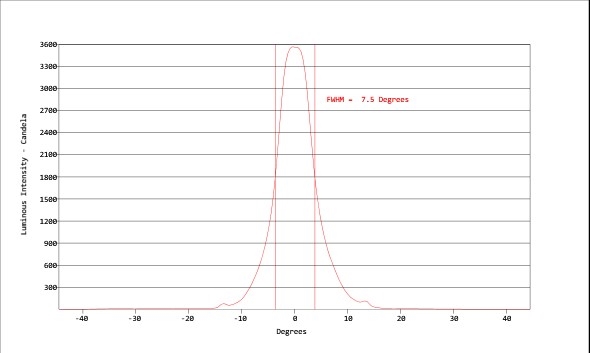

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Red

Eff:

82.0%

FWHM:

7.9°

Cd/Im:

23.9

Carclo Optics - Simulated Spot Image

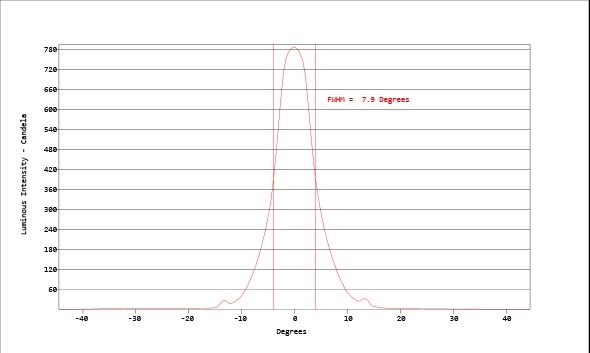

Carclo Optics - Simulated Cross Section

Download

IES

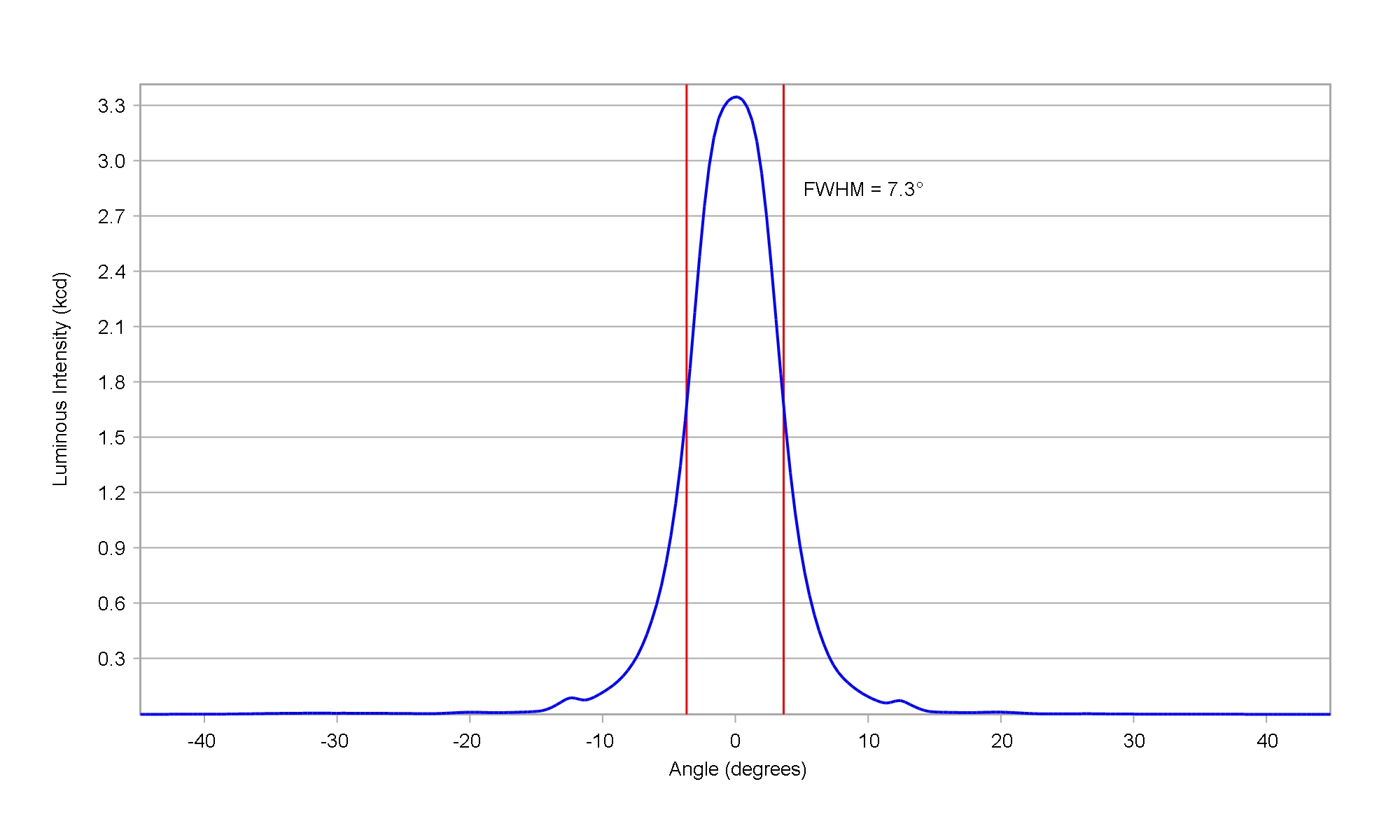

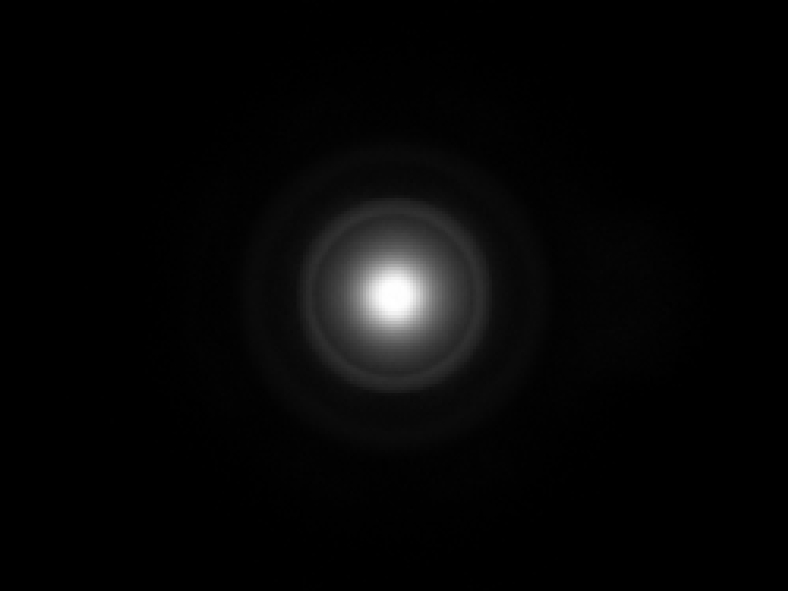

LUMILEDS LUXEON C White

Eff:

85.0%

FWHM:

7.3°

Cd/Im:

31.5

Download

LUMILEDS LUXEON CZ White

Eff:

88.5%

FWHM:

5.5°

Cd/Im:

62.0

Carclo Optics 10003 Spot Image Luxeon CZ 5M CW

Carclo Optics 10003 Cross Section Luxeon CZ 5M CW

Download

IES

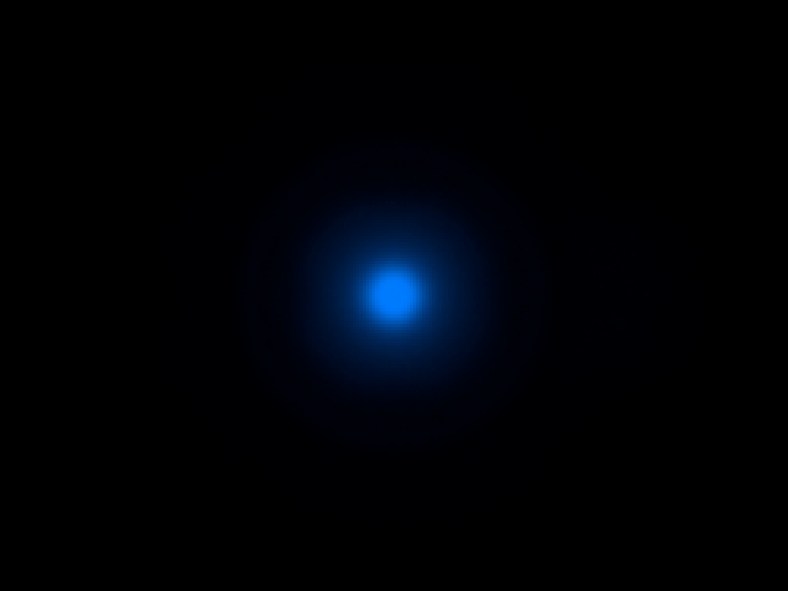

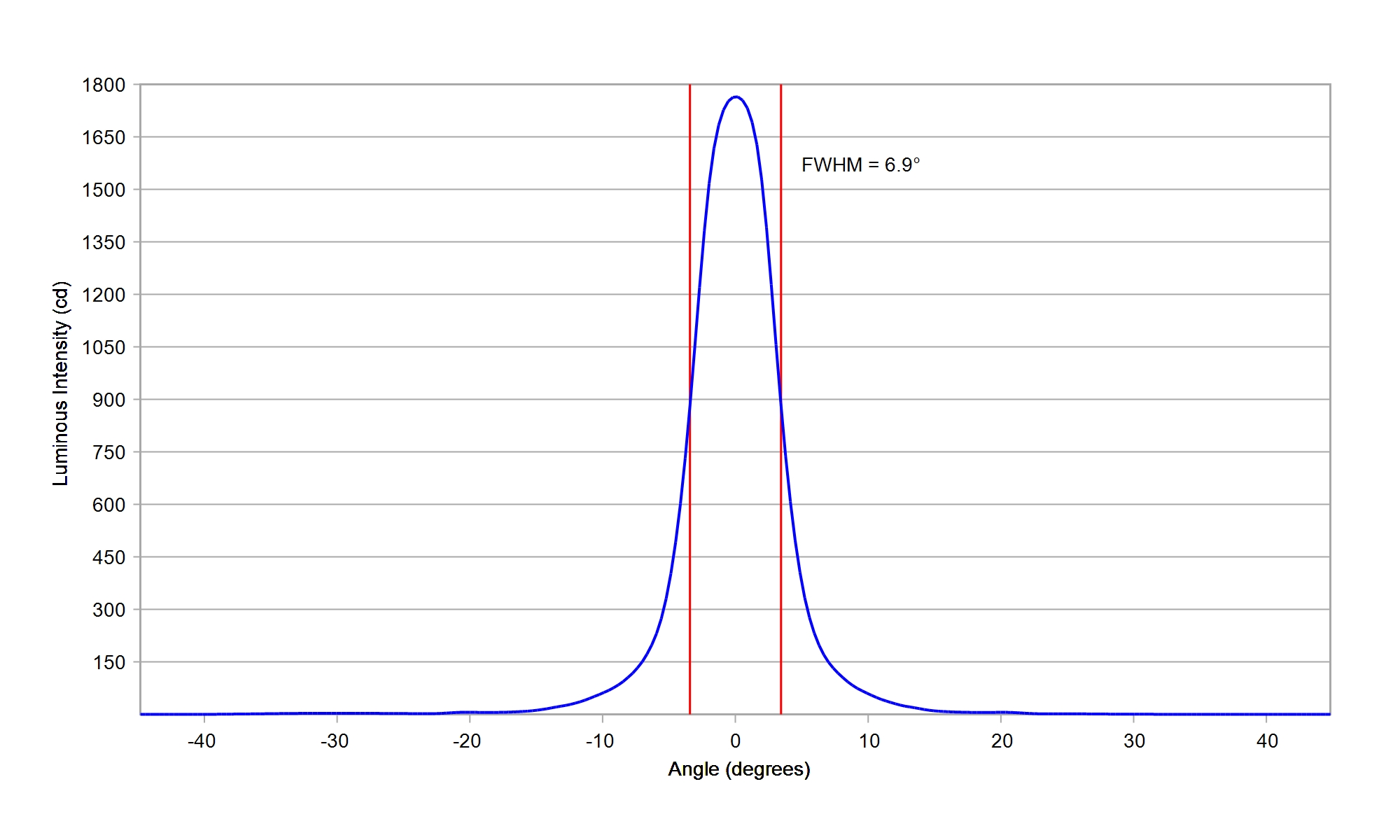

LUMILEDS LUXEON HL1Z Color Blue

Eff:

88.5%

FWHM:

6.9°

Cd/Im:

36.6

Download

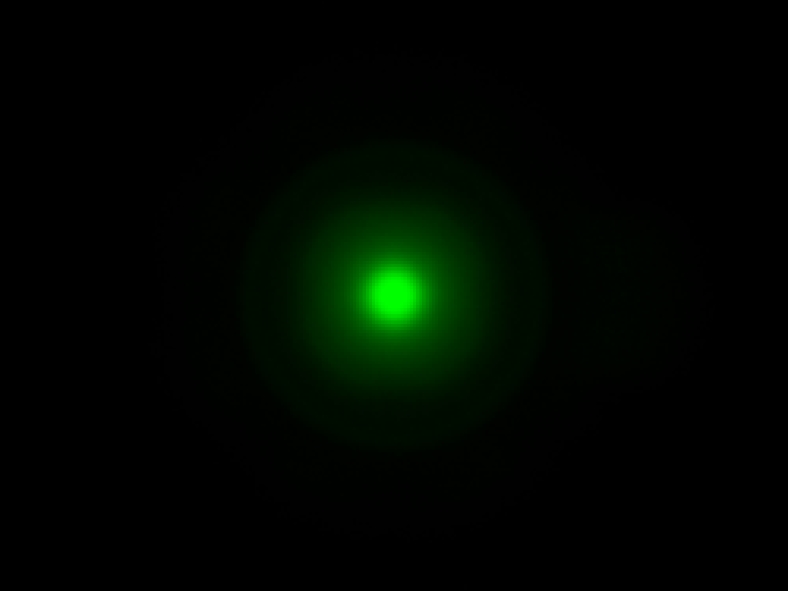

LUMILEDS LUXEON HL1Z Color Green

Eff:

88.5%

FWHM:

6.7°

Cd/Im:

37.6

Download

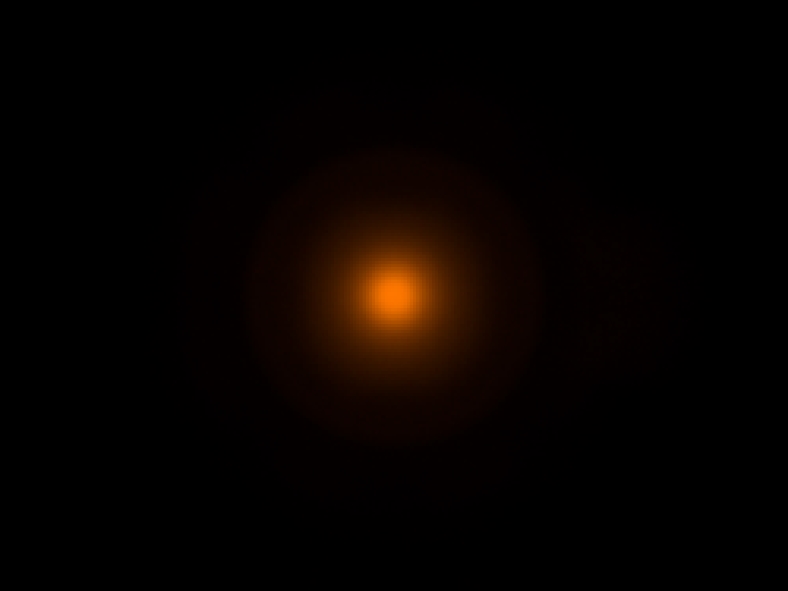

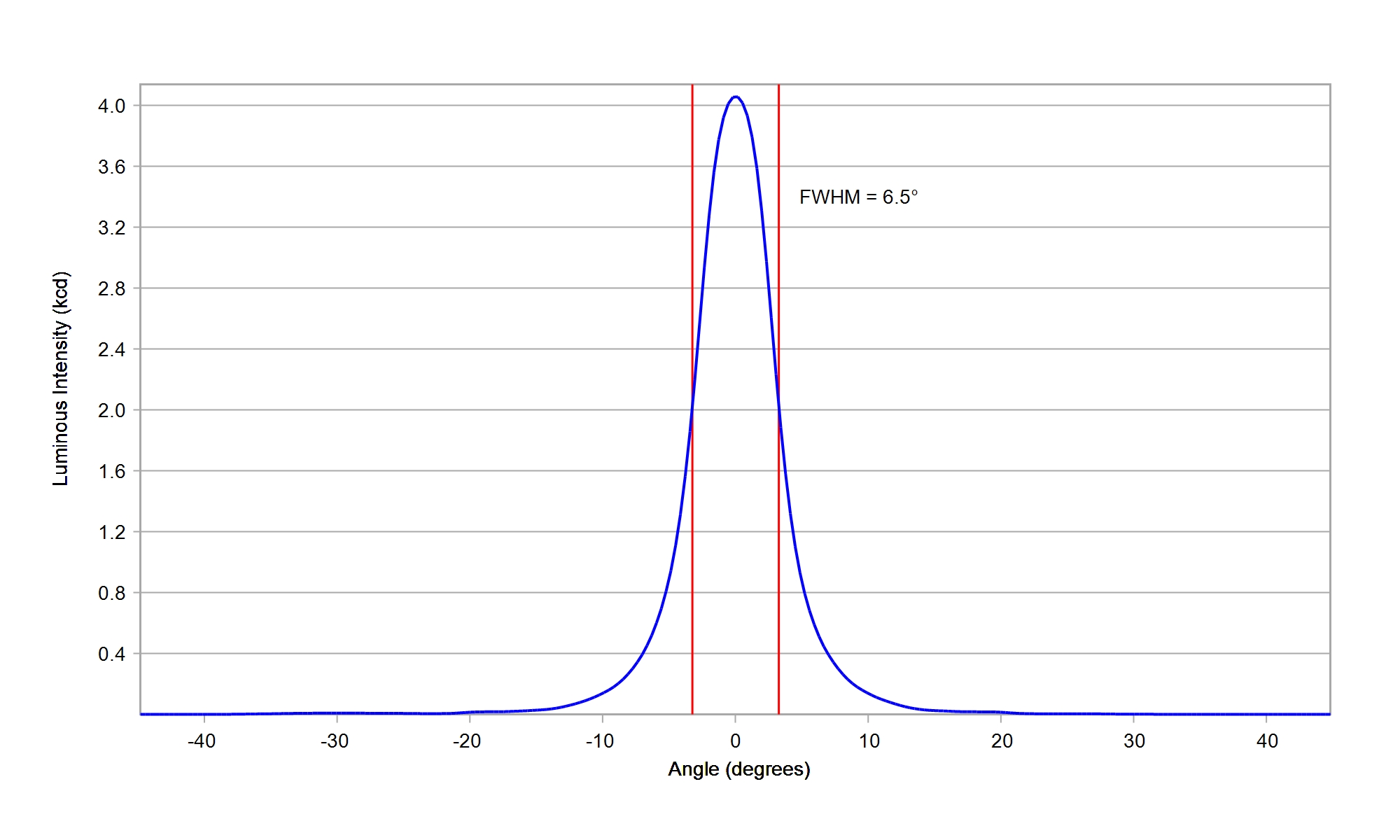

LUMILEDS LUXEON HL1Z Color PC Amber

Eff:

88.5%

FWHM:

6.5°

Cd/Im:

38.7


Download

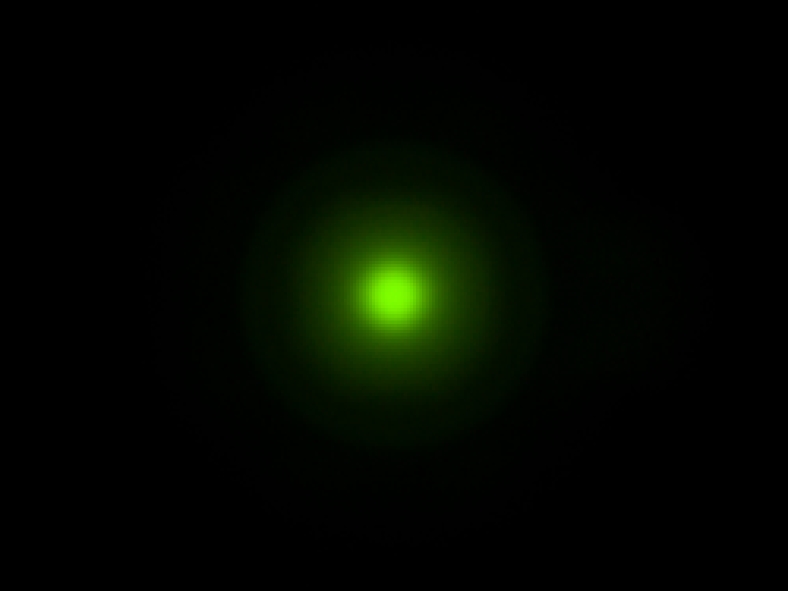

LUMILEDS LUXEON HL1Z Color PC Green

Eff:

88.0%

FWHM:

7.1°

Cd/Im:

34.1


Download

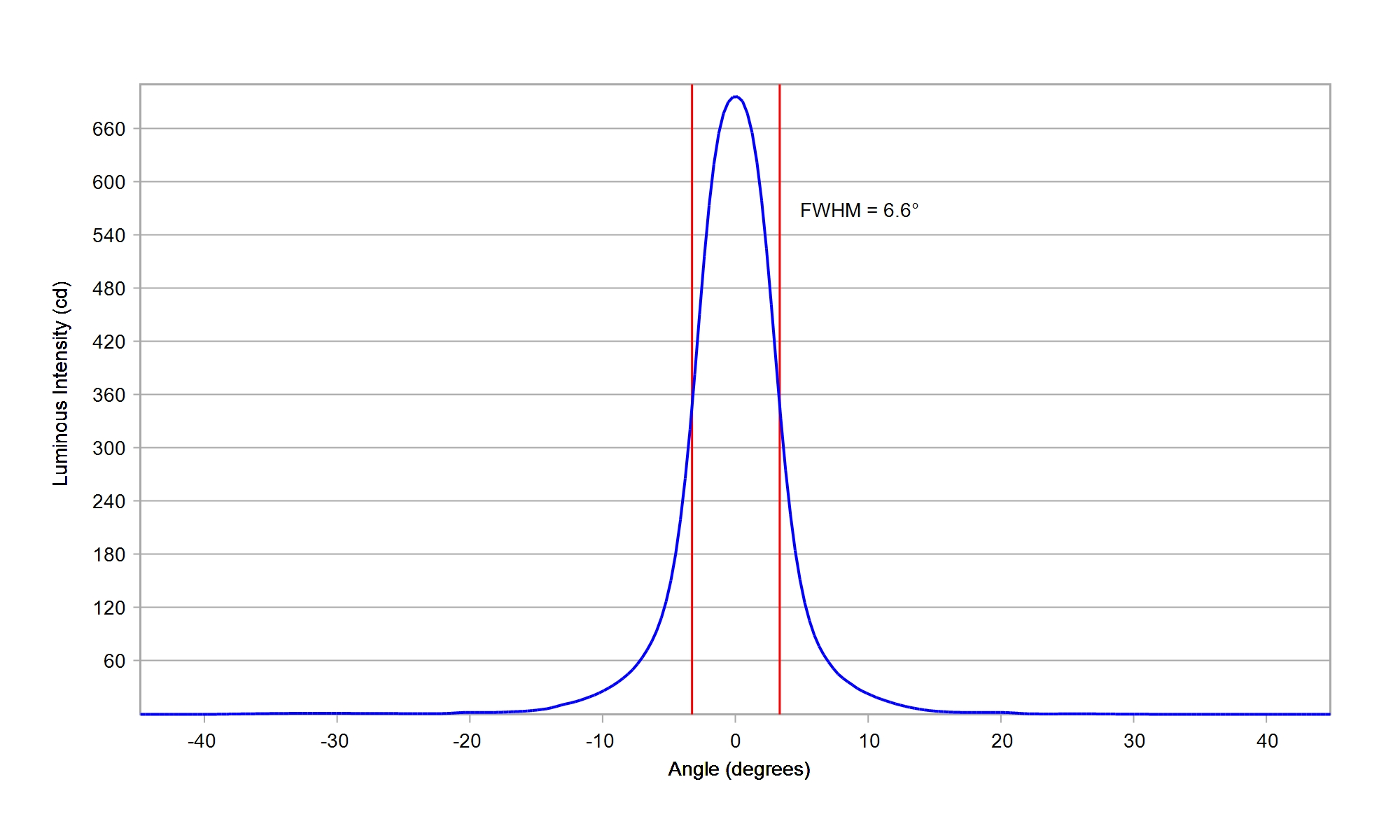

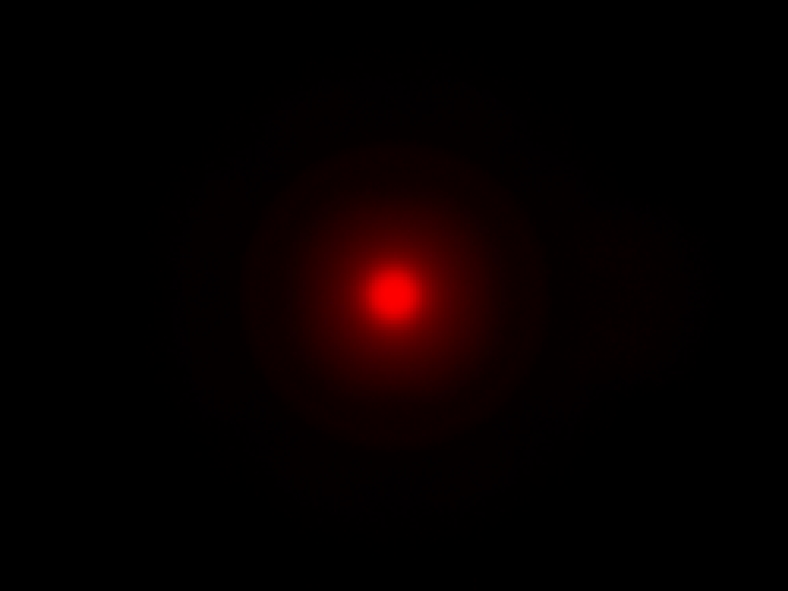

LUMILEDS LUXEON HL1Z Color PC Red

Eff:

89.0%

FWHM:

6.6°

Cd/Im:

38.9

Download

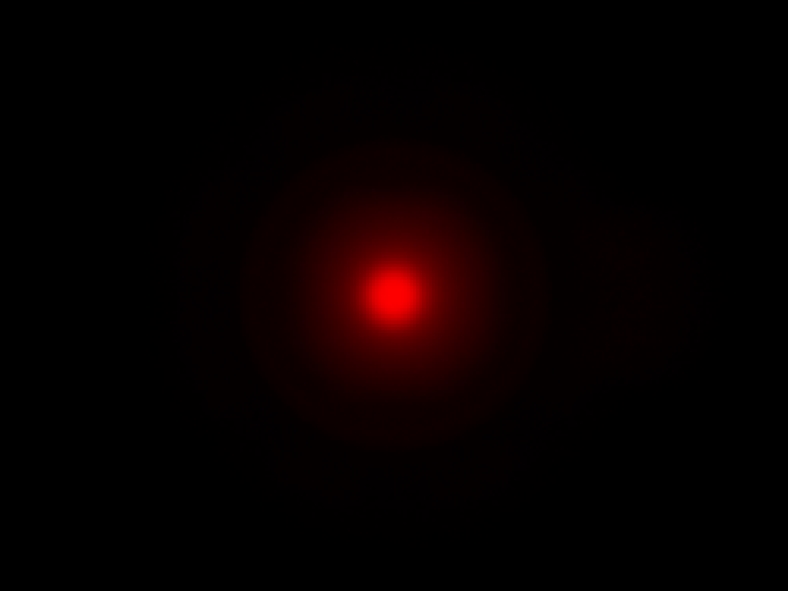

LUMILEDS LUXEON HL1Z Color PC Red Orange

Eff:

89.0%

FWHM:

6.8°

Cd/Im:

38.4


Download

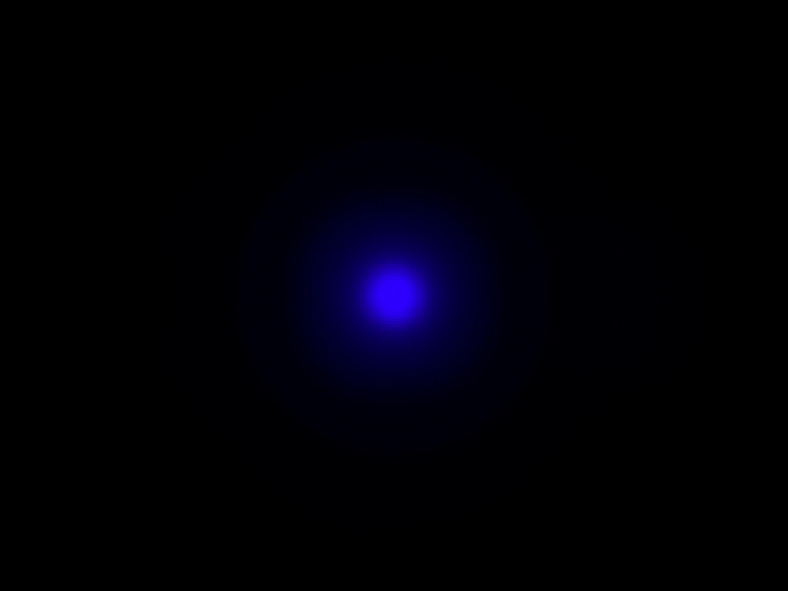

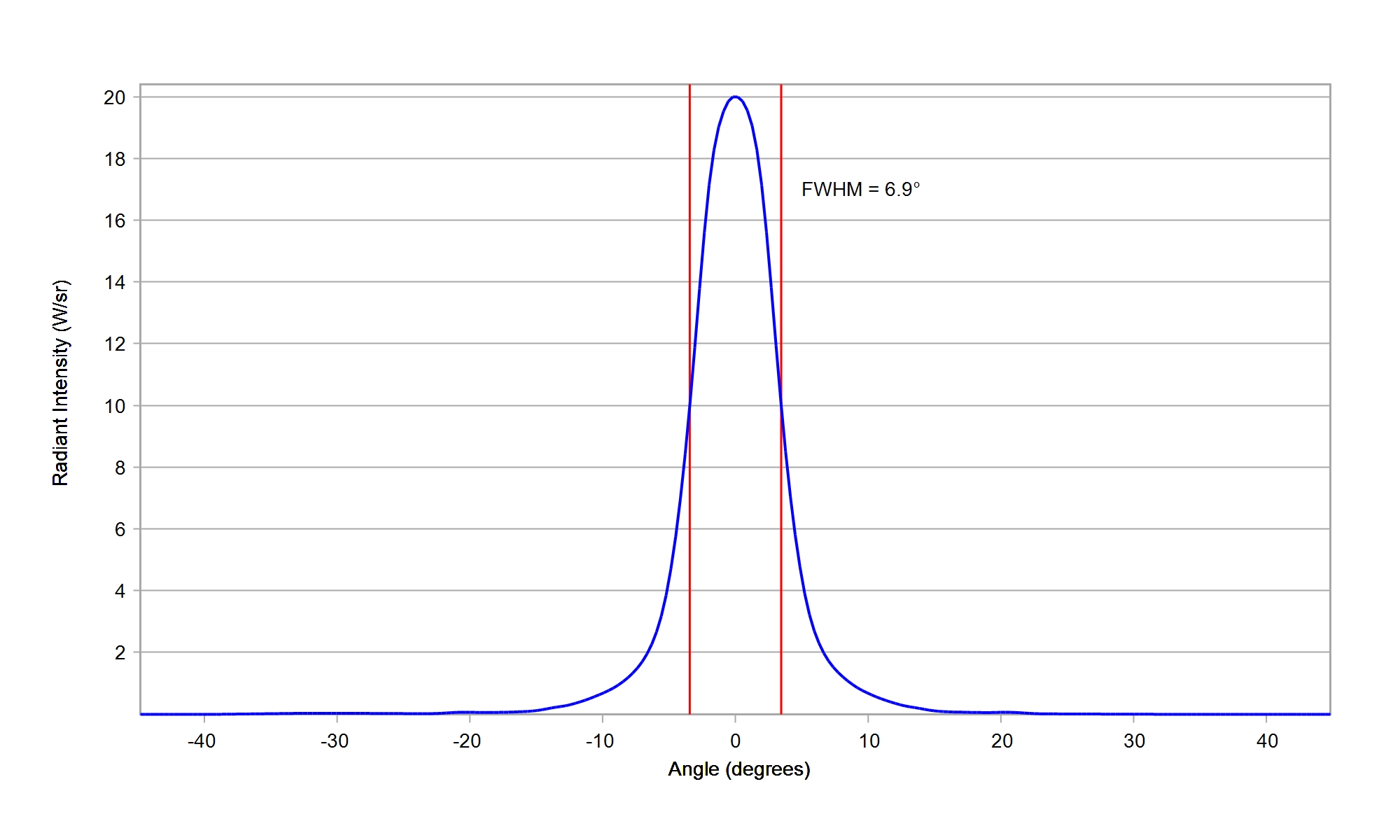

LUMILEDS LUXEON HL1Z Color Royal Blue

Eff:

87.5%

FWHM:

6.9°

Ipk/W:

36.3


Download

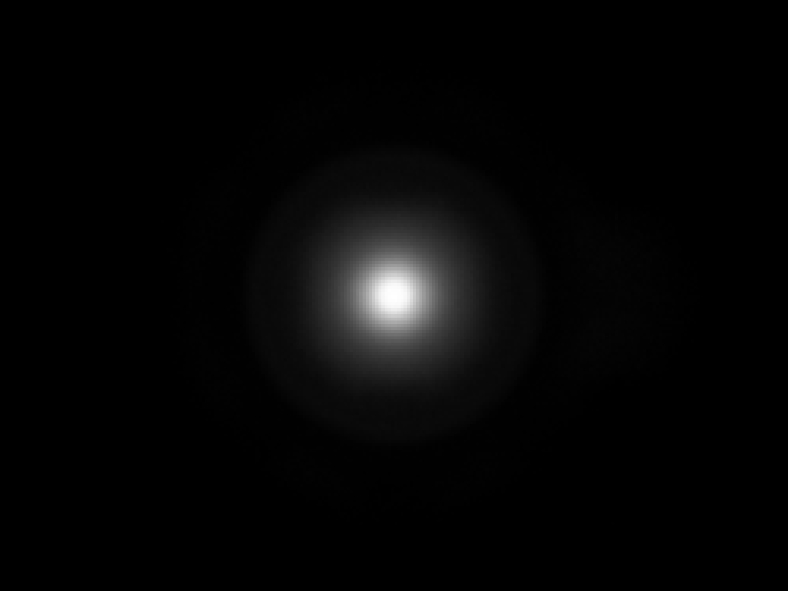

LUMILEDS LUXEON HL1Z CSP White

Eff:

88.5%

FWHM:

6.6°

Cd/Im:

40.0

Download

IES

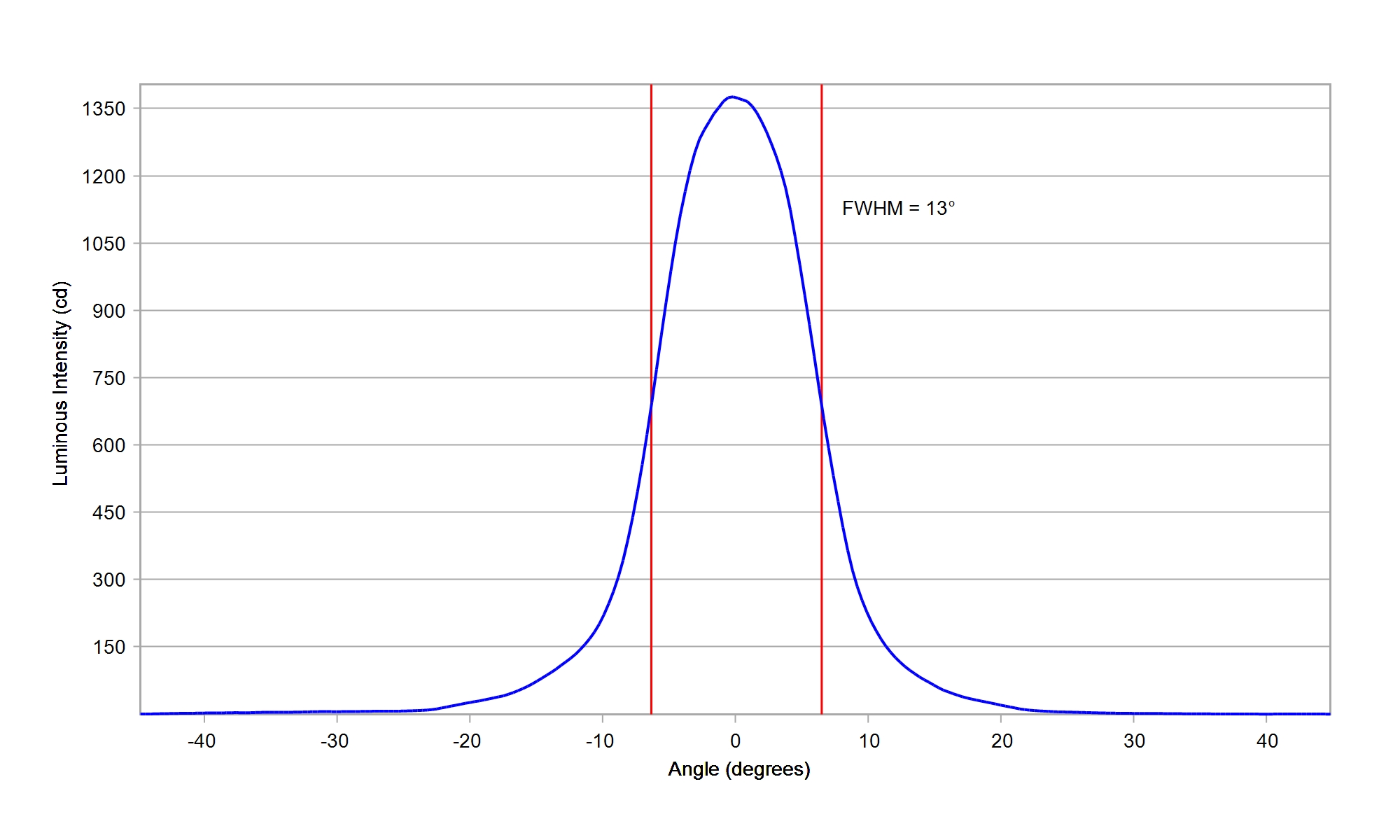

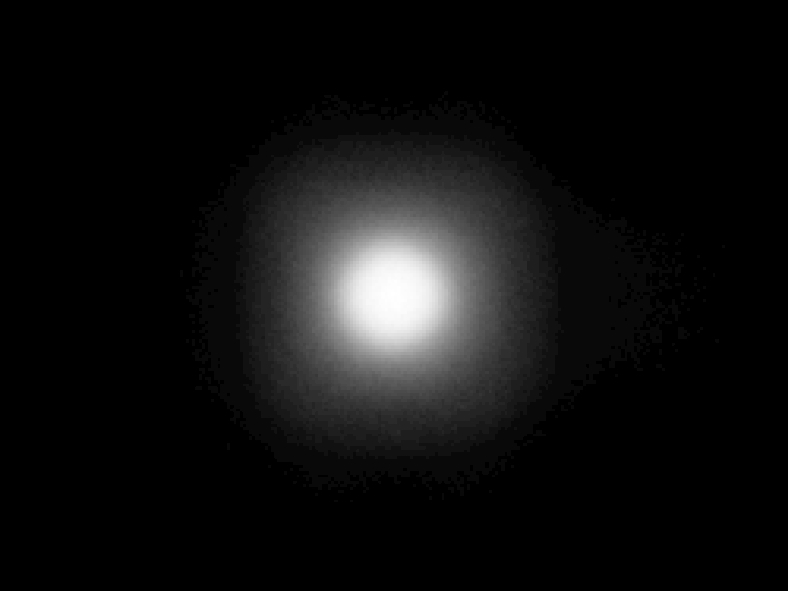

LUMILEDS LUXEON HL2X White

Eff:

88.0%

FWHM:

13.0°

Cd/Im:

12.2

Download

IES

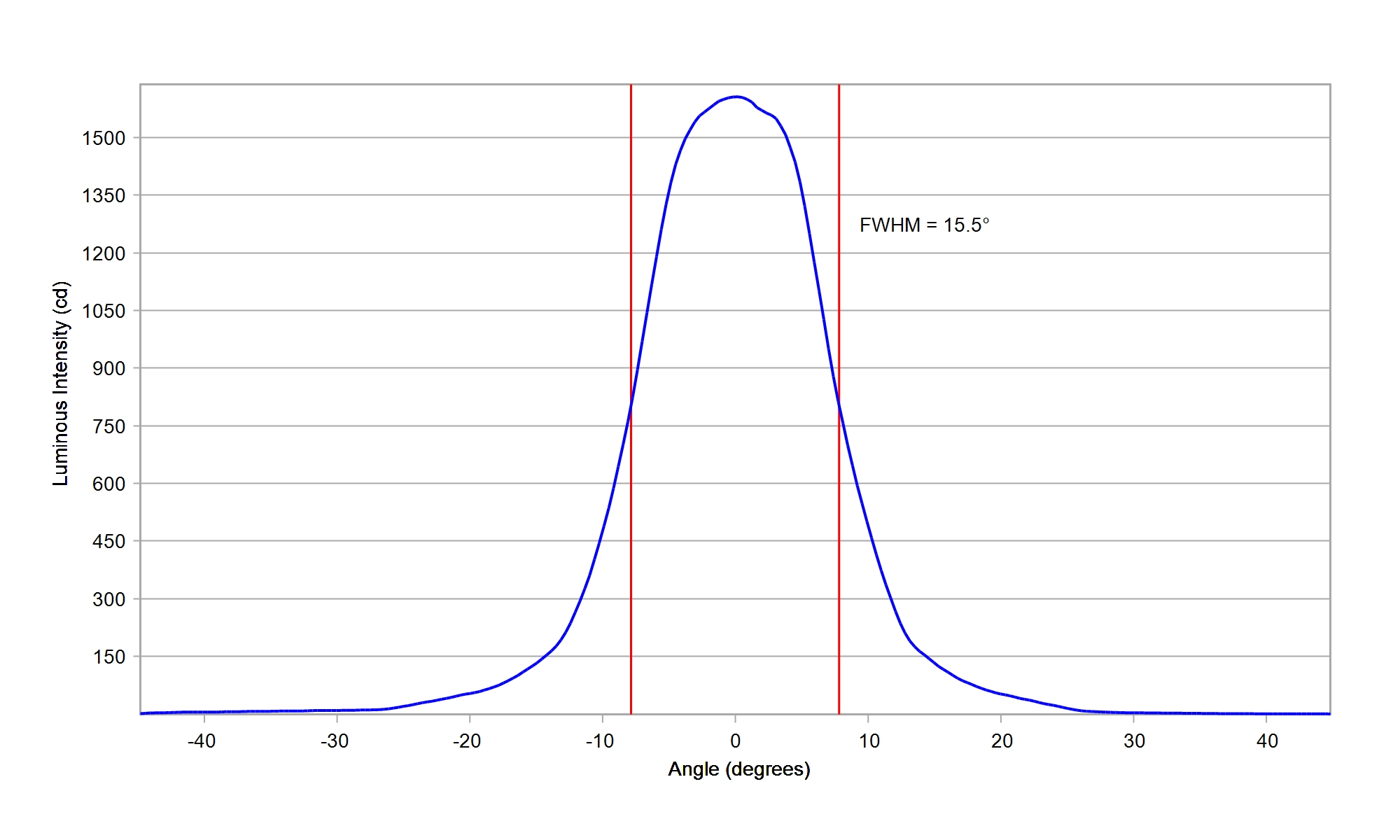

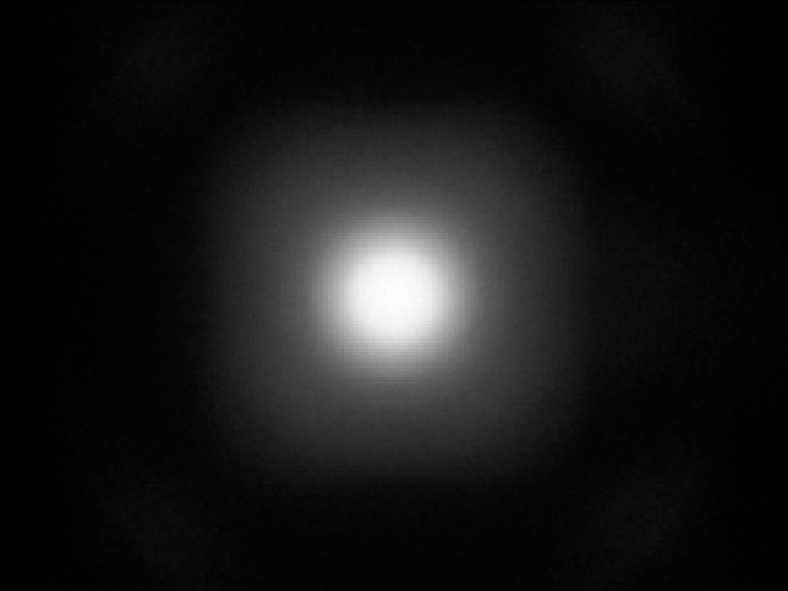

LUMILEDS LUXEON HL2X-D White

Eff:

88.5%

FWHM:

15.5°

Cd/Im:

8.5

Download

IES

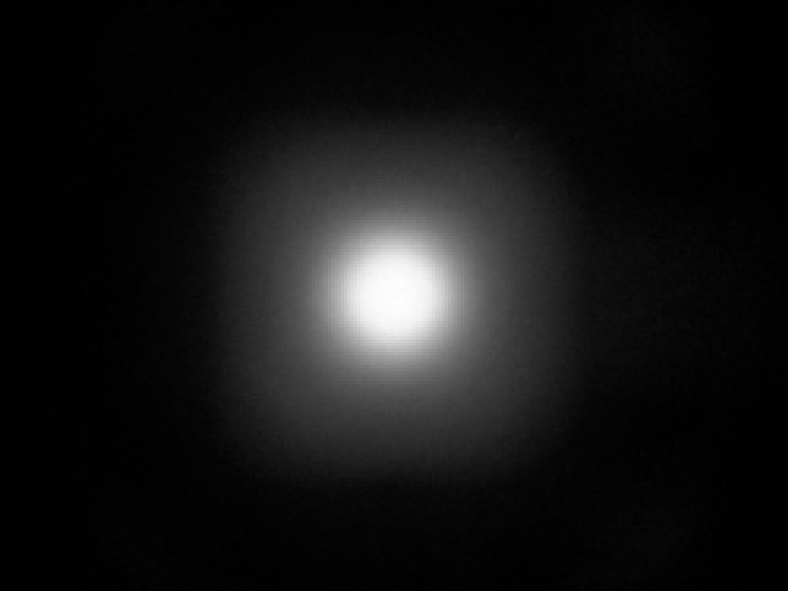

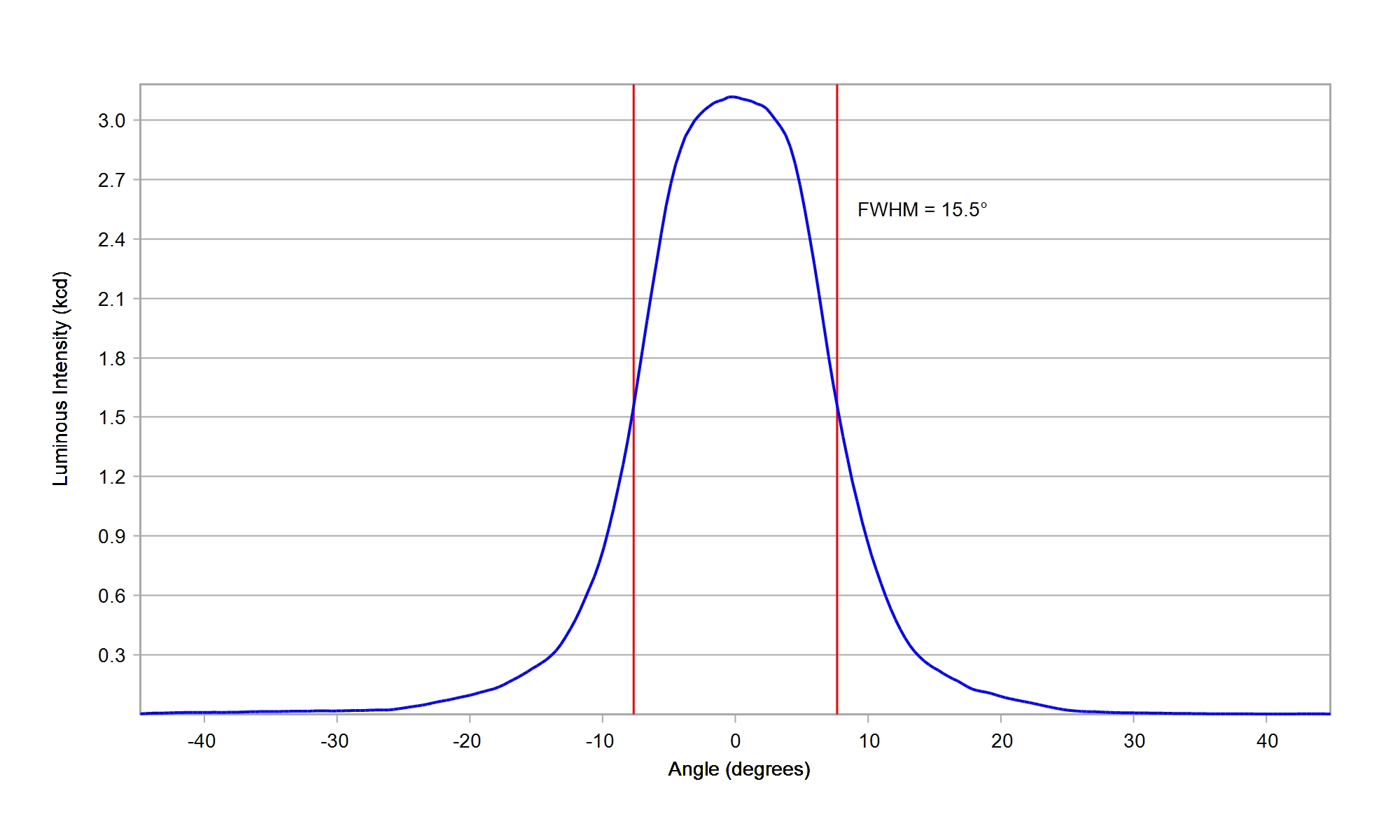

LUMILEDS LUXEON HL2X-E White

Eff:

88.0%

FWHM:

15.5°

Cd/Im:

9.0

Download

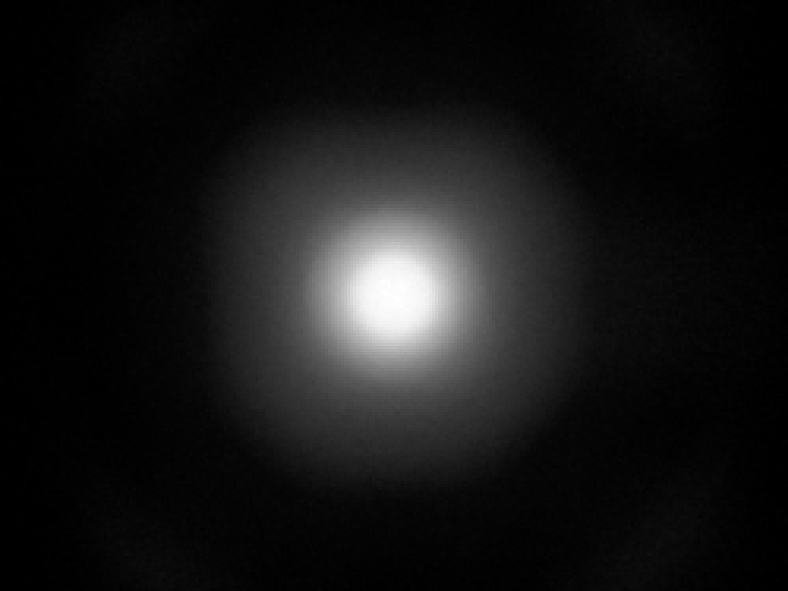

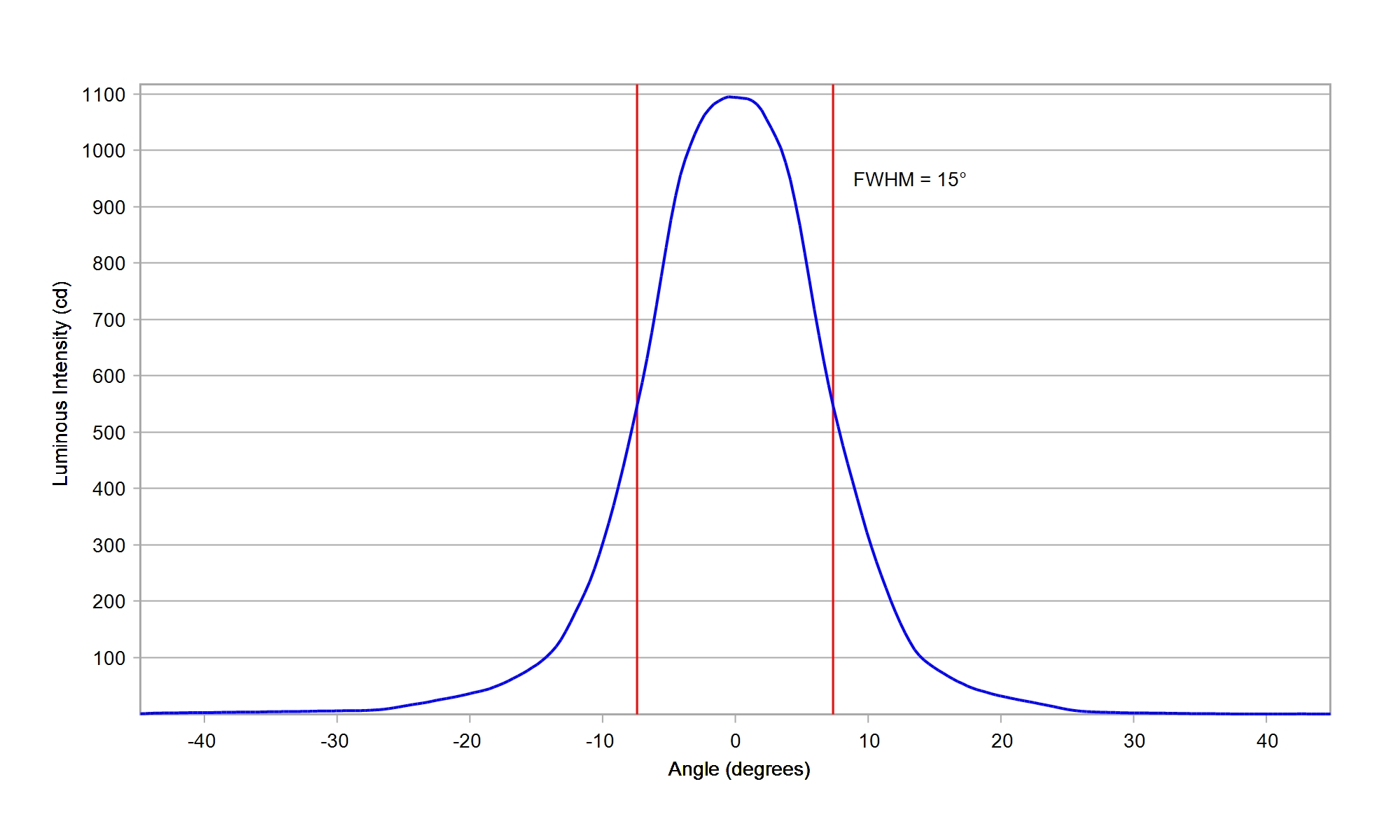

LUMILEDS LUXEON HL2X-P White

Eff:

88.0%

FWHM:

15°

Cd/Im:

9.0

Download

IES

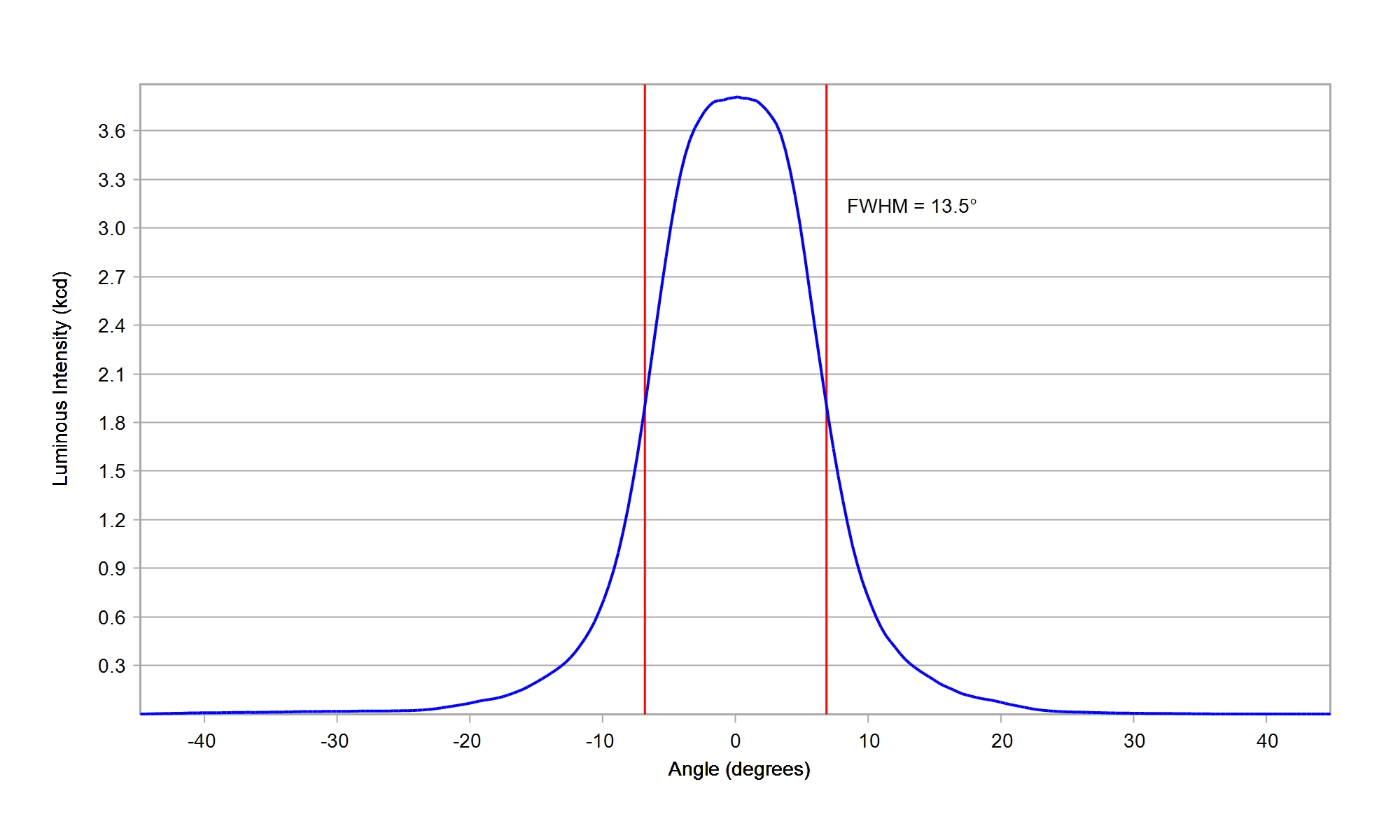

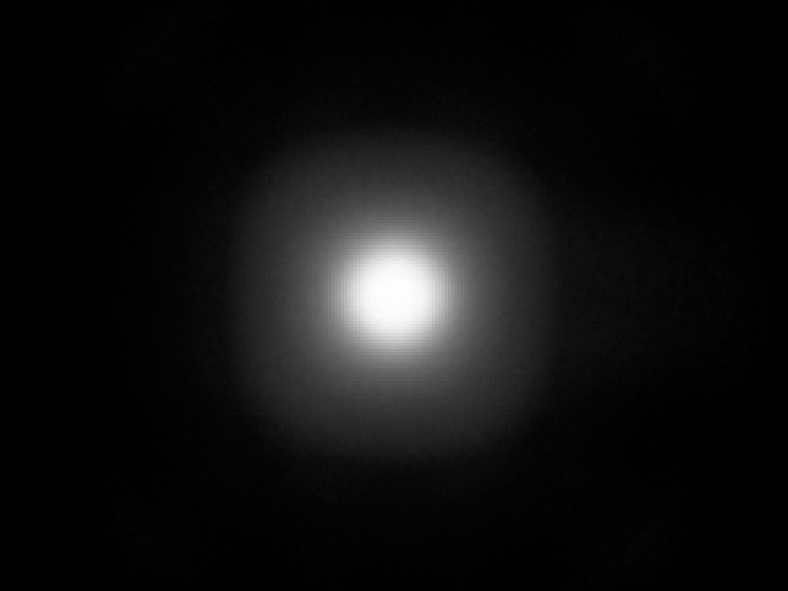

LUMILEDS LUXEON HL2X-V White

Eff:

88.5%

FWHM:

13.5°

Cd/Im:

11.4

Download

LUMILEDS LUXEON HL2Z White

Eff:

88.5%

FWHM:

9.9°

Cd/Im:

18.6

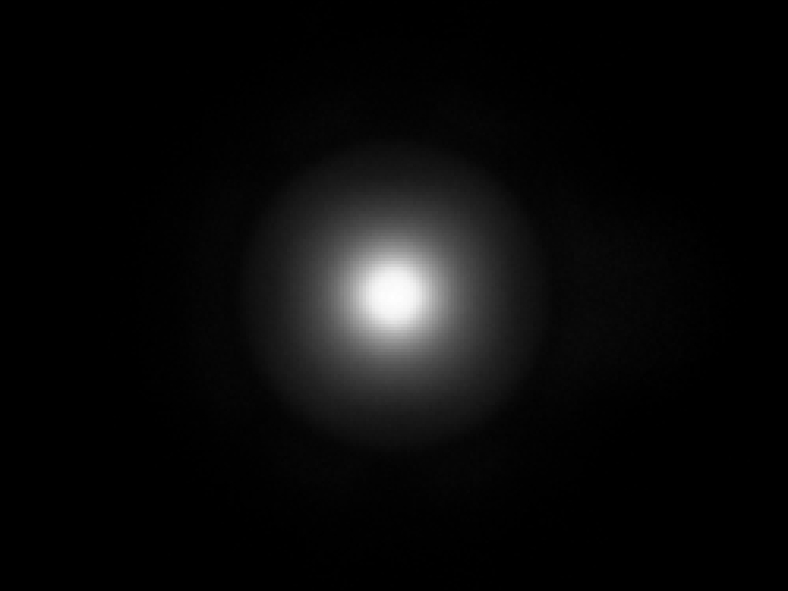

Carclo Optics – 10003 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 10003 Lumileds Luxeon HL2Z - Cross-Section

Download

IES

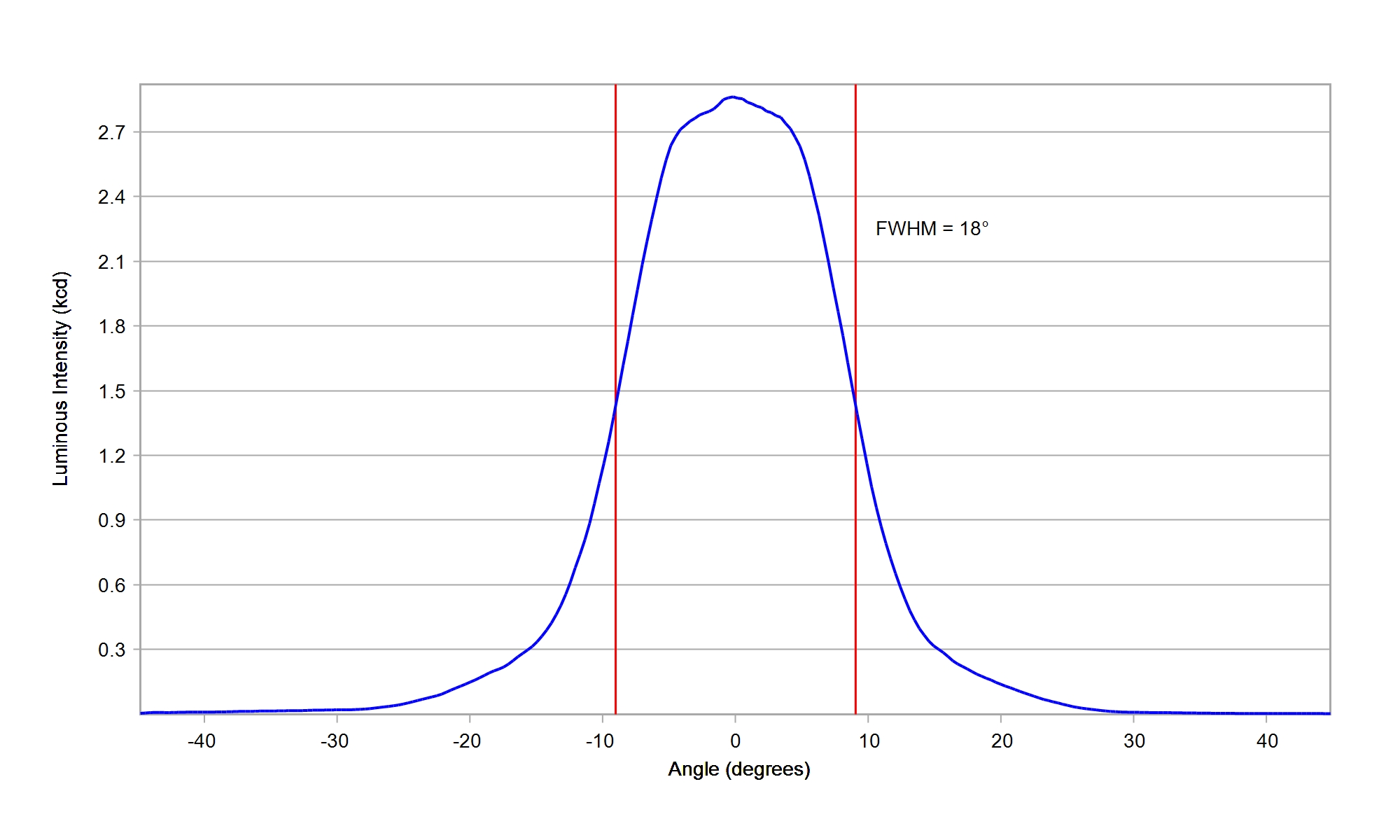

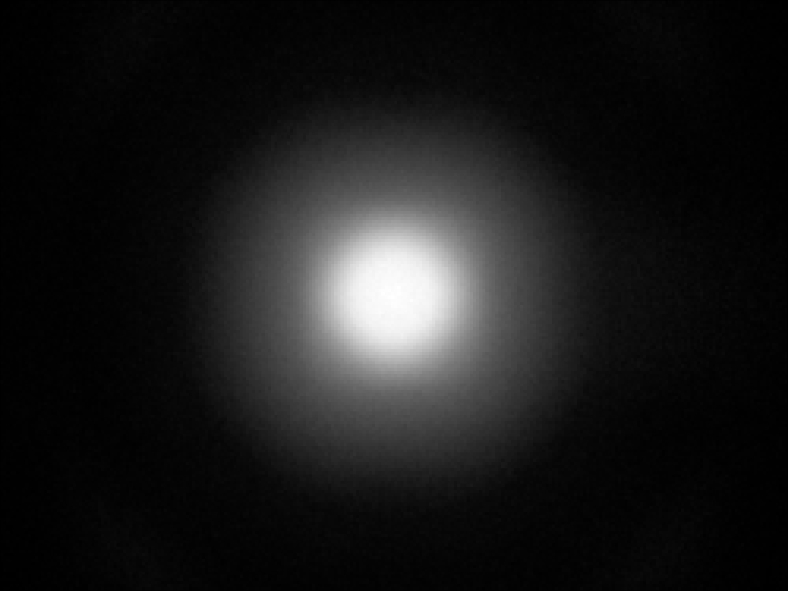

LUMILEDS LUXEON HL4X White

Eff:

87.5%

FWHM:

18°

Cd/Im:

6.9

Download

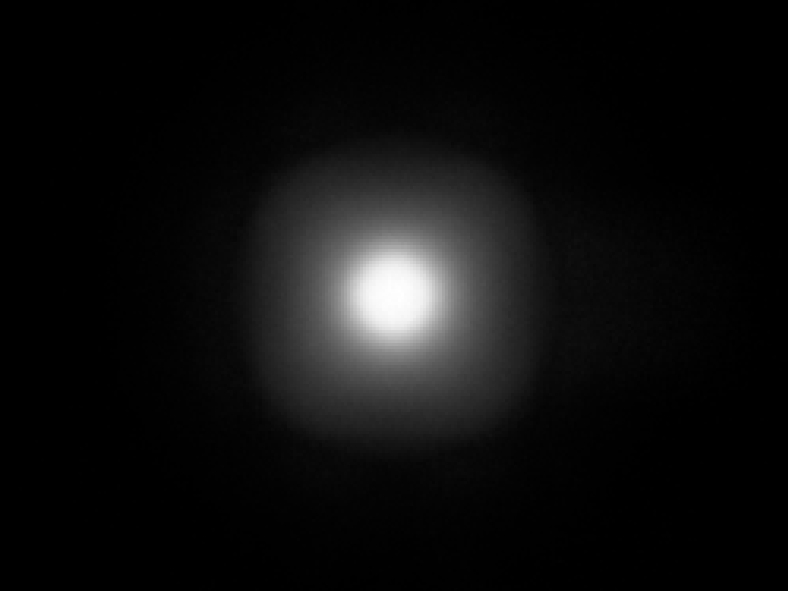

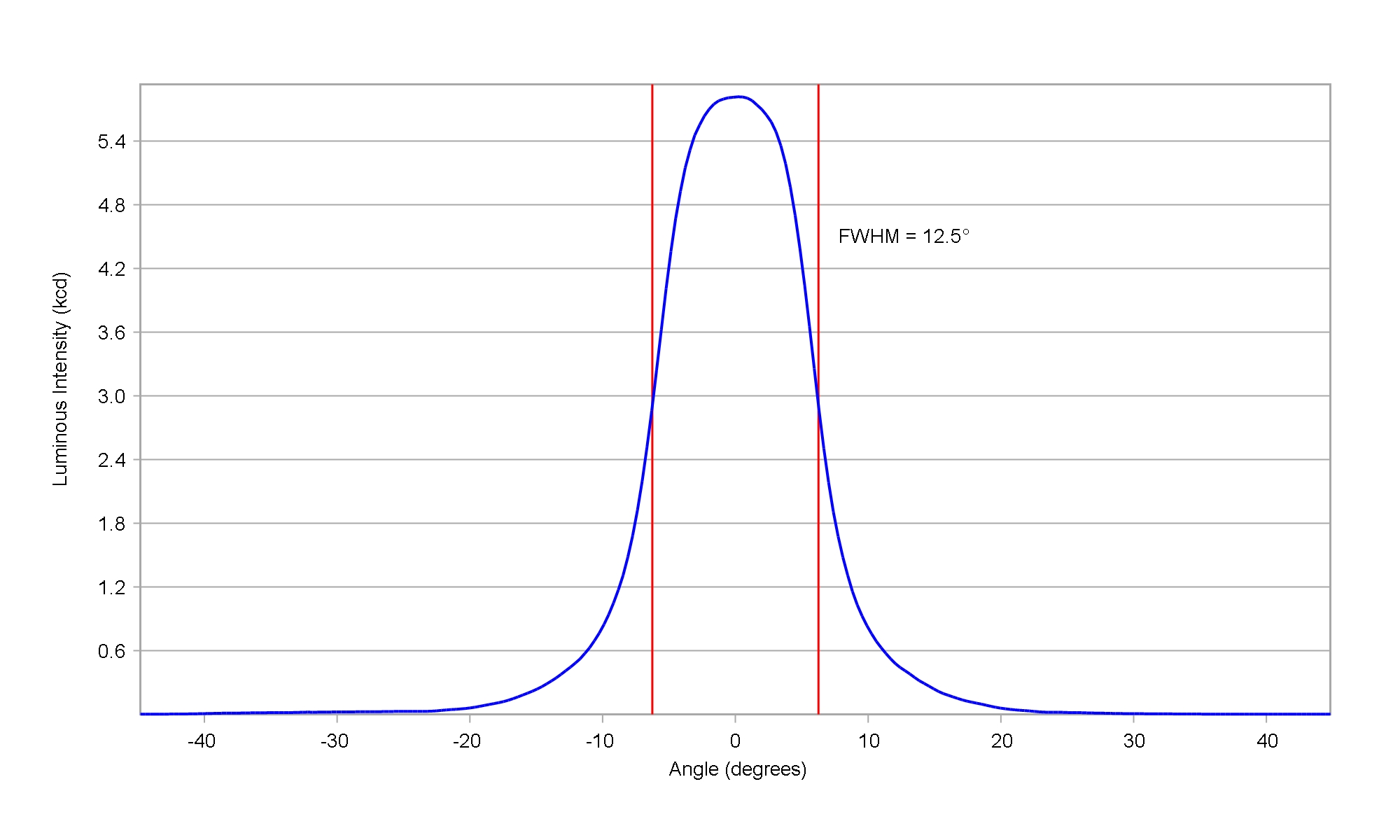

LUMILEDS LUXEON HL4Z White

Eff:

89.0%

FWHM:

12.5°

Cd/Im:

13.5

Download

LUMILEDS LUXEON IR 2720

Eff:

92.0%

FWHM:

6.8°

Ipk/W:

35.9

Carclo Optics 10003 Spot Image Luxeon IR 2720

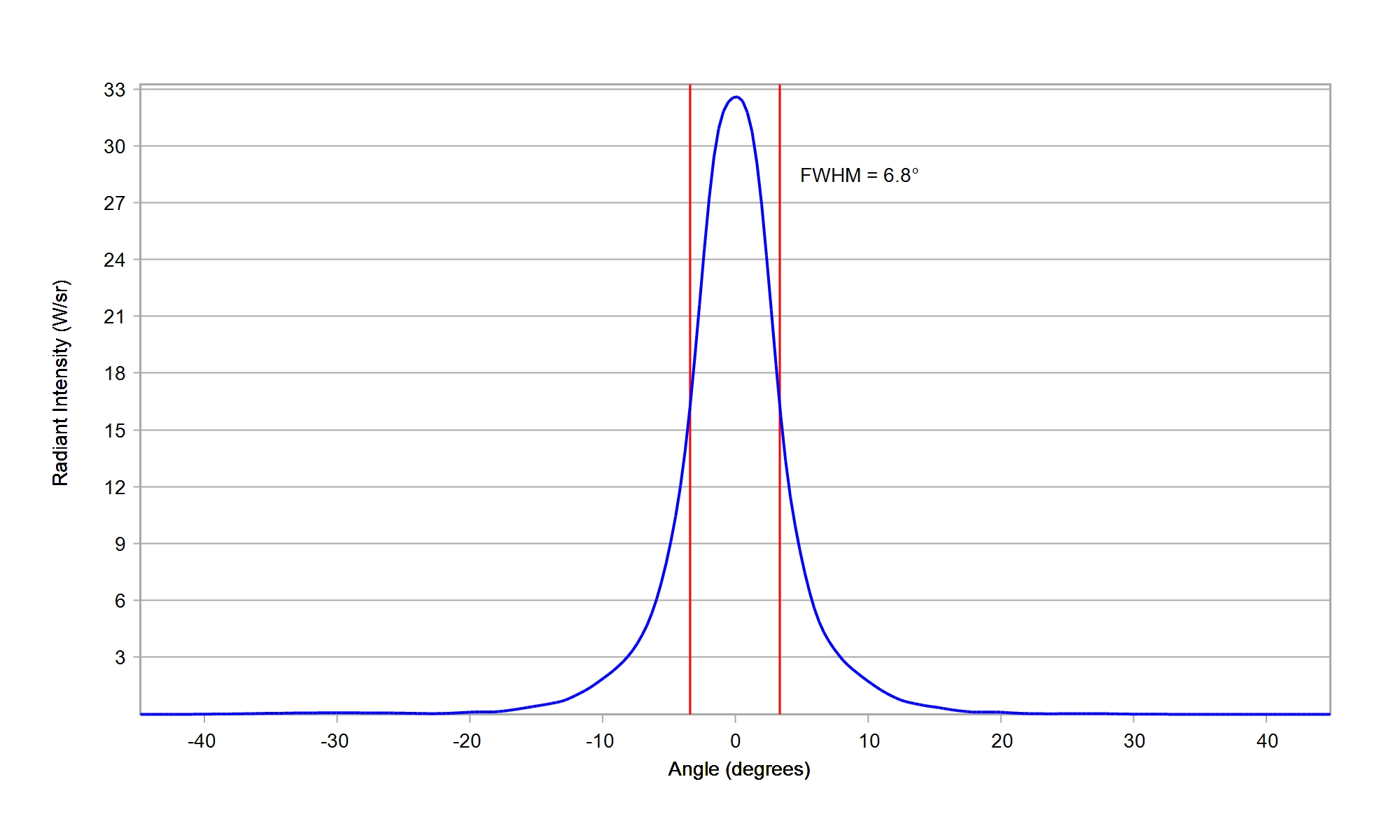

Carclo Optics 10003 Cross section image Luxeon IR 2720

Download

IES

LUMILEDS LUXEON IR Compact 850nm

Eff:

90.5%

FWHM:

6.9°

Ipk/W:

34.4

Carclo Optics - Simulated Spot Image

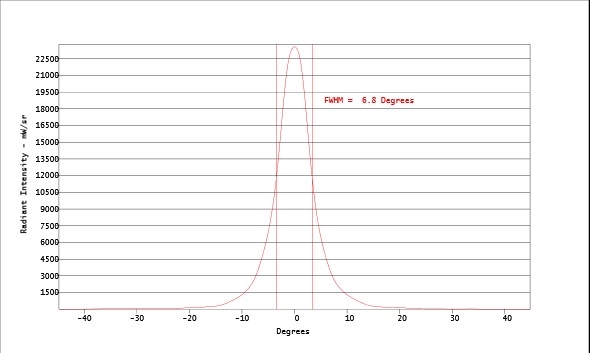

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 150 Degree

Eff:

91.0%

FWHM:

10.5°

Ipk/W:

19.4

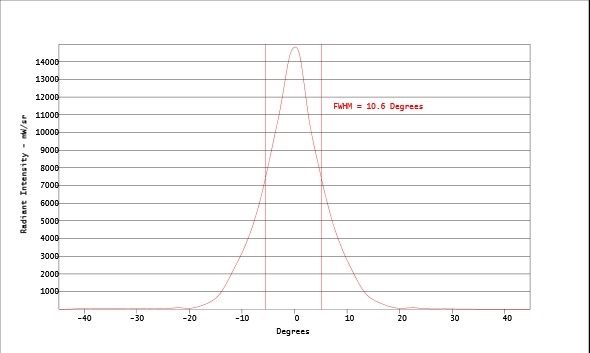

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 60 Degree

Eff:

89.5%

FWHM:

9.9°

Ipk/W:

19.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 90 Degree

Eff:

90.5%

FWHM:

9.4 °

Ipk/W:

24.0

Carclo Optics - Simulated Spot Image

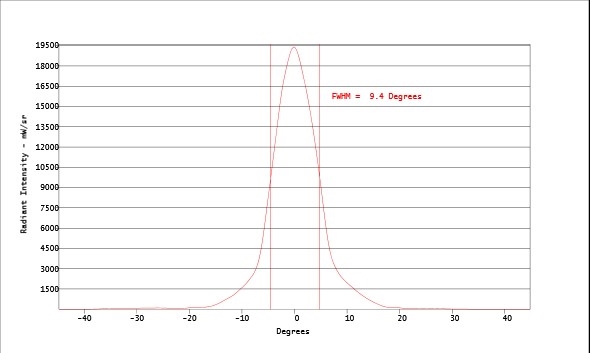

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON MZ White

Eff:

87.1%

FWHM:

13.2°

Cd/Im:

5.5

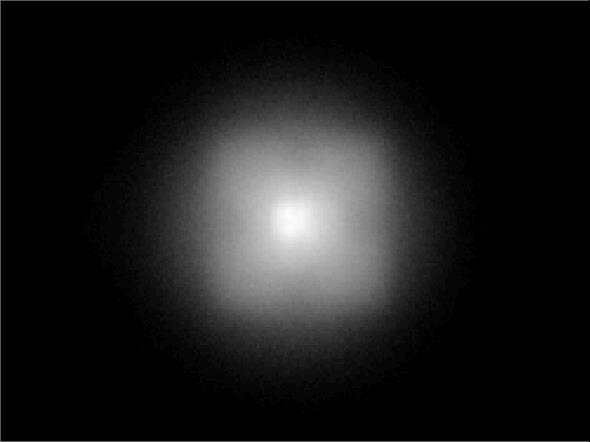

carclo optics - simulated spot image

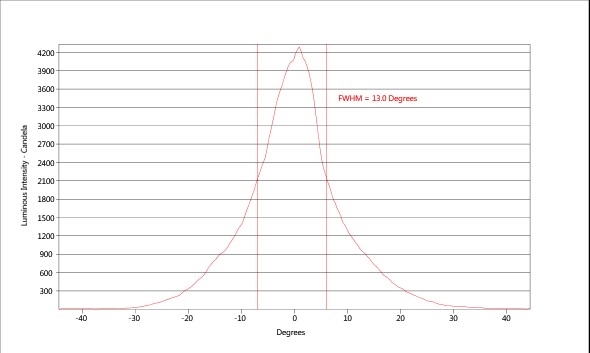

carclo optics - simulated cross section

Download

IES

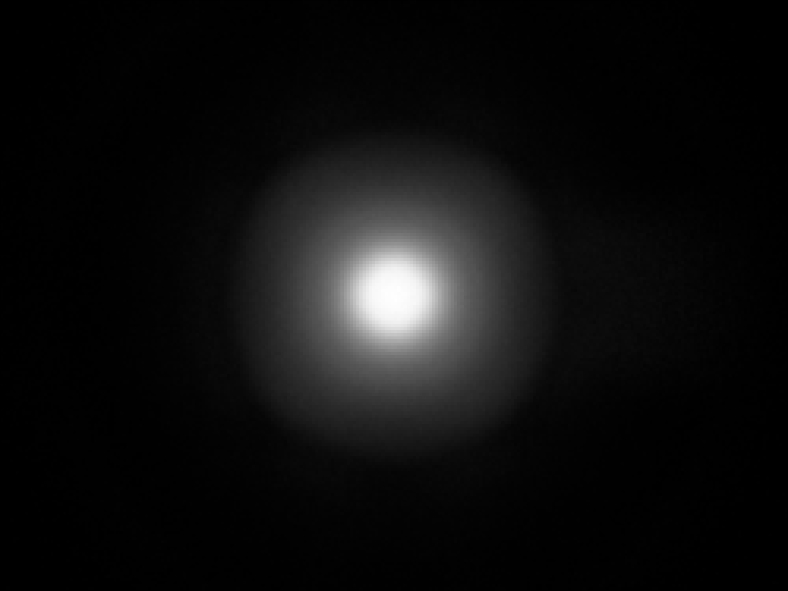

LUMILEDS LUXEON Rebel ES White

Eff:

87.5%

FWHM:

11.5°

Cd/Im:

14.2

Download

LUMILEDS LUXEON Rebel Plus White

Eff:

88.5%

FWHM:

8°

Cd/Im:

27.8

Download

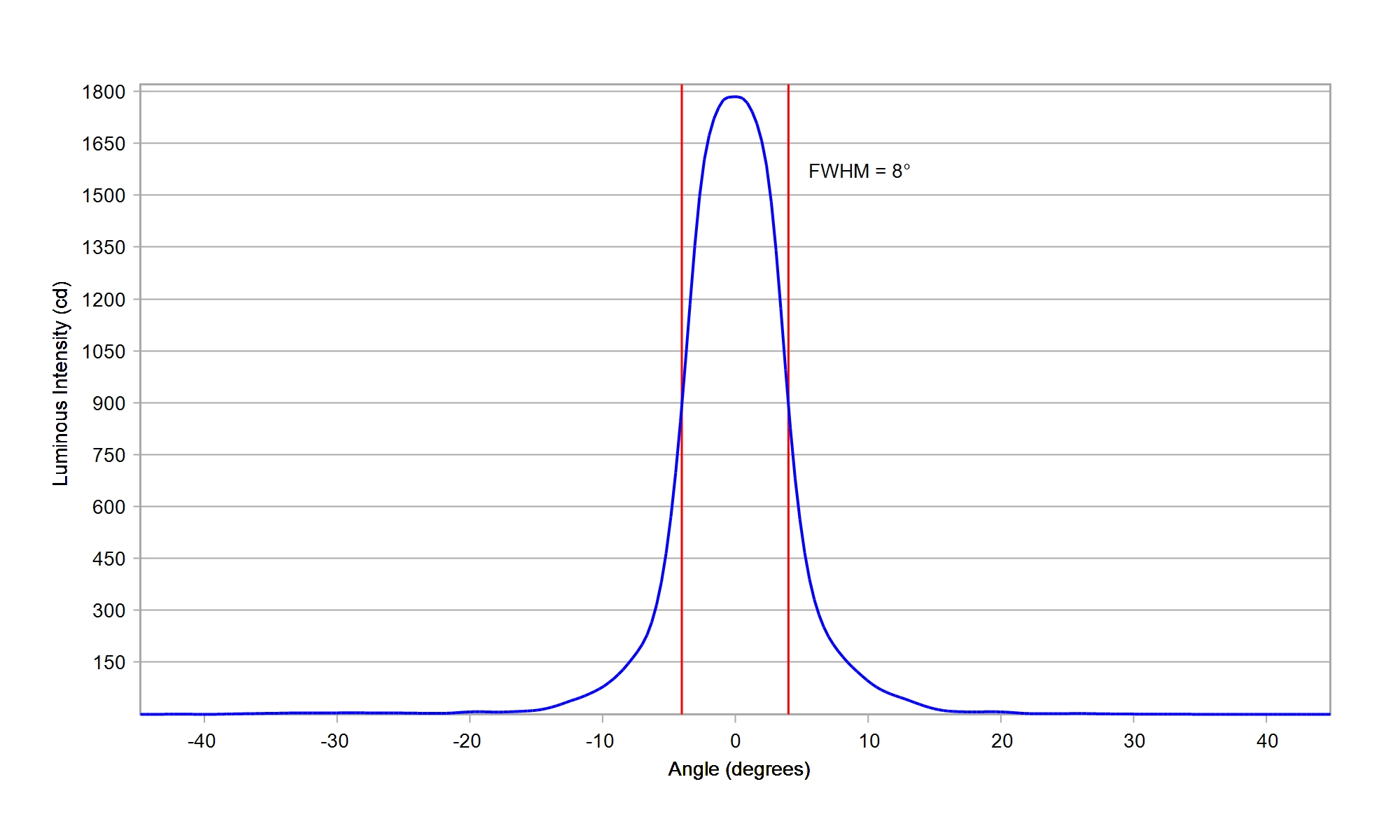

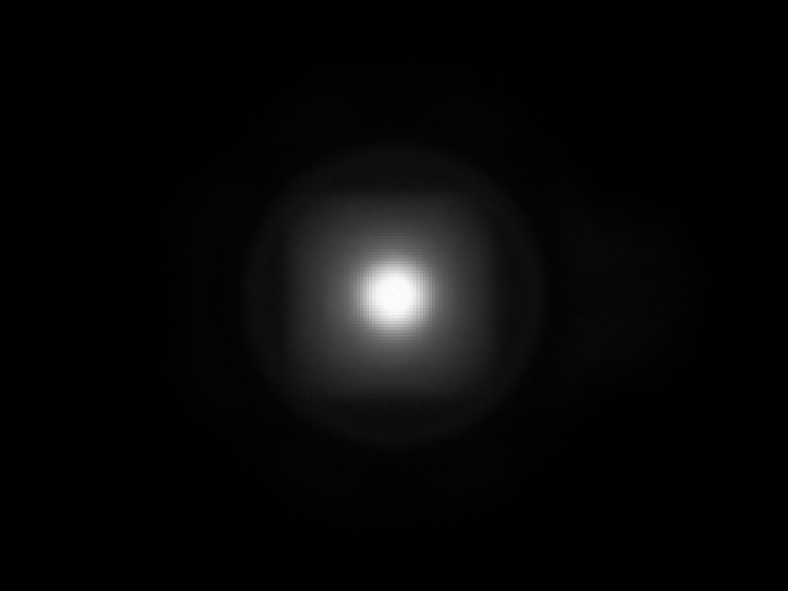

LUMILEDS LUXEON Rebel White

Eff:

88.0%

FWHM:

8°

Cd/Im:

27.7

Download

LUMILEDS LUXEON Rubix Blue

Eff:

89.0%

FWHM:

5.5°

Cd/Im:

58.6

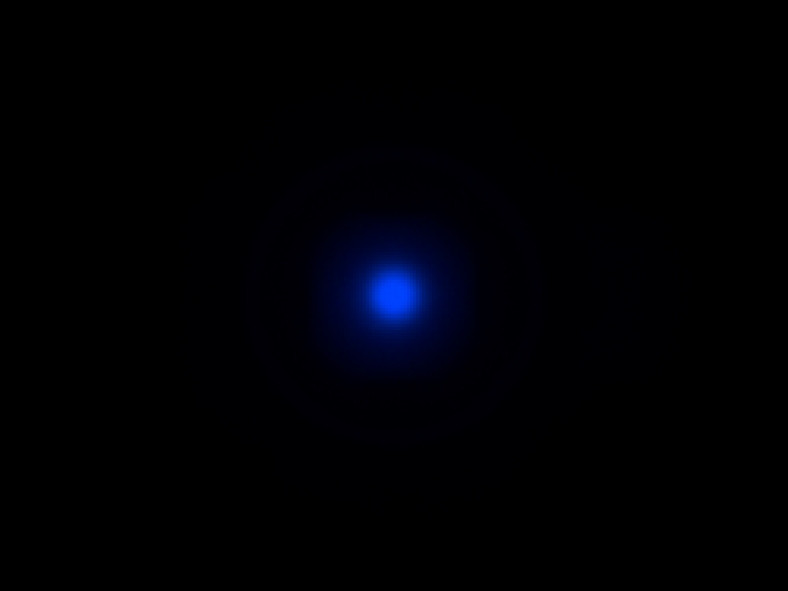

Carclo Optics - 10003 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics - 10003 Cross Section Lumileds Luxeon Rubix Blue

Download

IES

LUMILEDS LUXEON Rubix Green

Eff:

88.5%

FWHM:

5.6°

Cd/Im:

59.2

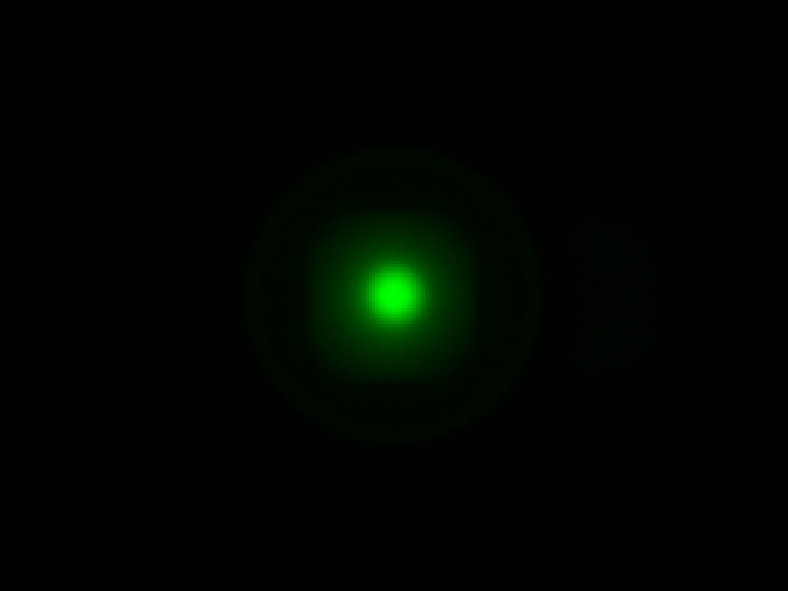

Carclo Optics – 10003 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 10003 Cross Section Lumileds Luxeon Rubix Green

Download

IES

LUMILEDS LUXEON Rubix Red

Eff:

90.0%

FWHM:

5.2°

Cd/Im:

66.9

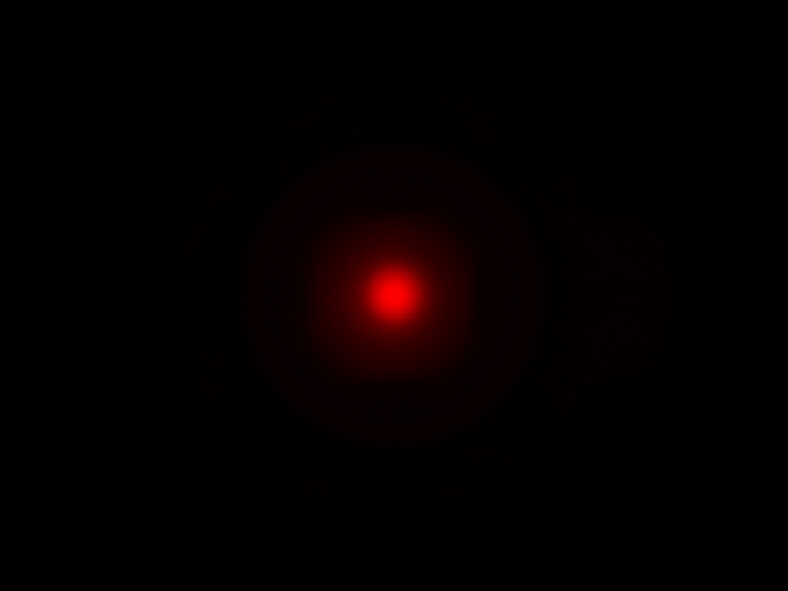

Carclo Optics – 10003 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 10003 Cross Section Lumileds Luxeon Rubix Red

Download

IES

LUMILEDS LUXEON Rubix Royal Blue

Eff:

88.0%

FWHM:

5.5°

Cd/Im:

59.7

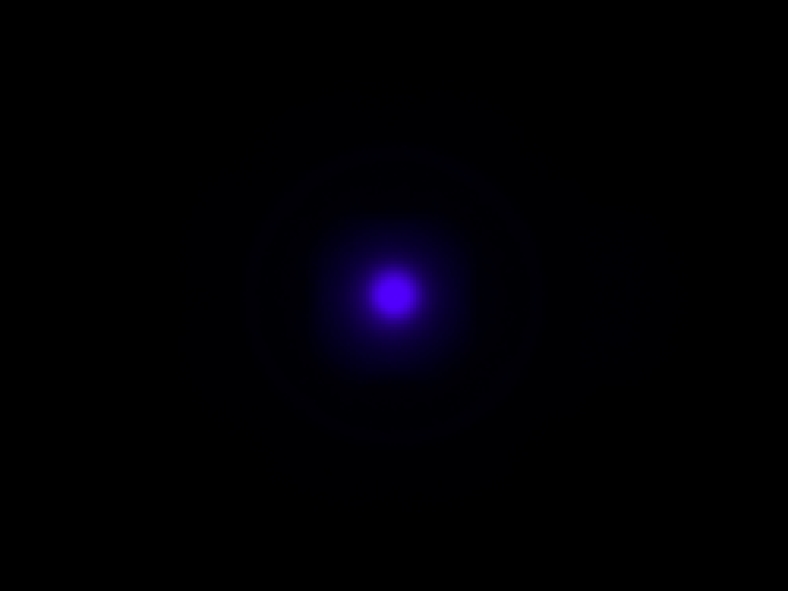

Carclo Optics – 10003 Spot Image Lumileds Luxeon Rubix Royal Blue

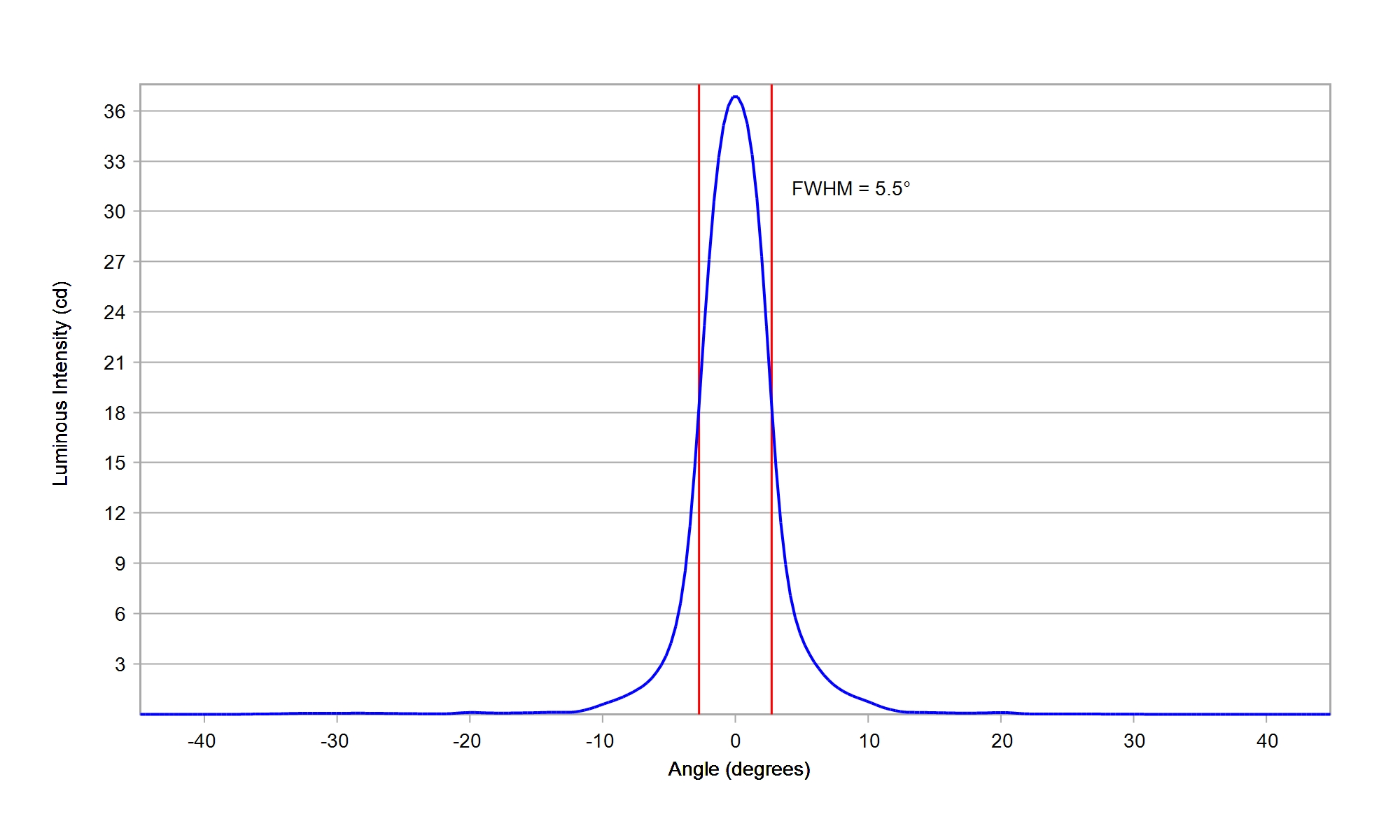

Carclo Optics – 10003 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

IES

LUMILEDS LUXEON Rubix White

Eff:

88.5%

FWHM:

5.7°

Cd/Im:

55.2

Carclo Optics - 10003 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 10003 Cross Section Lumileds Luxeon Rubix White

Download

IES

LUMILEDS LUXEON TX White

Eff:

84.9%

FWHM:

11.3°

Cd/Im:

15.7

carclo optics - simulated spot image

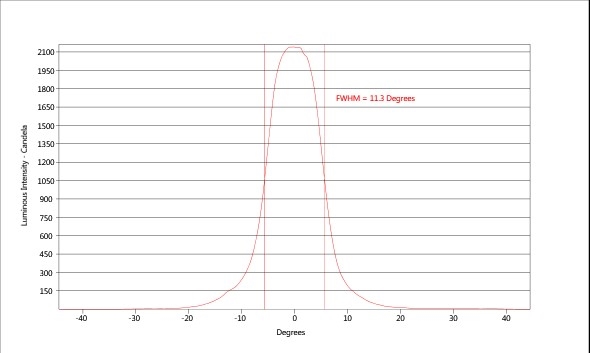

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON V White

Eff:

85.0%

FWHM:

17.5°

Cd/Im:

6.4

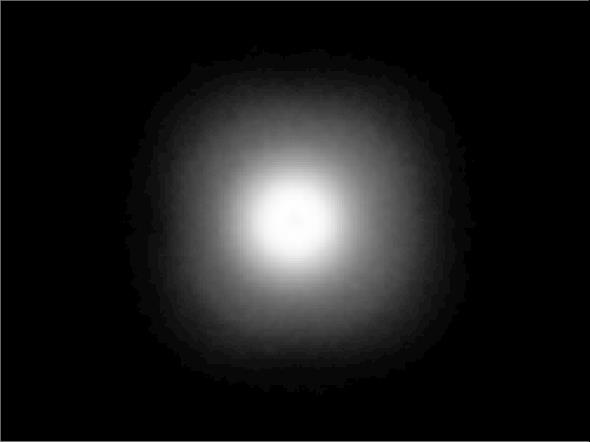

Carclo Optics - Simulated Spot Image

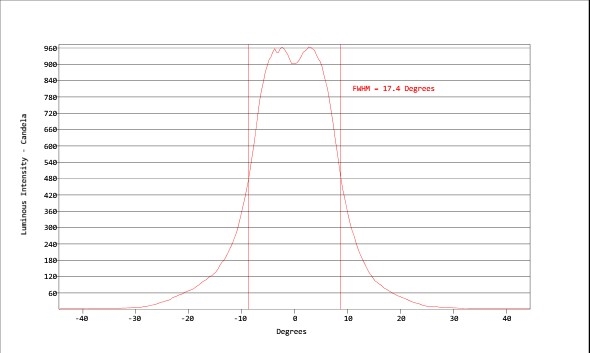

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON Z ES White

Eff:

86.8%

FWHM:

8.6°

Cd/Im:

30.4

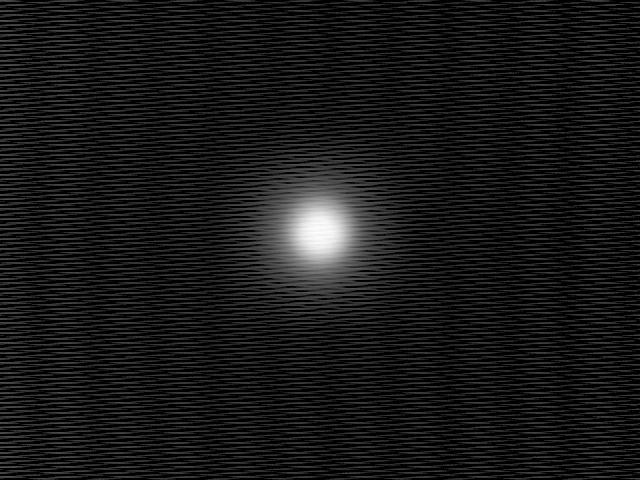

10003-Lumileds-ZES-White-Spot-Image

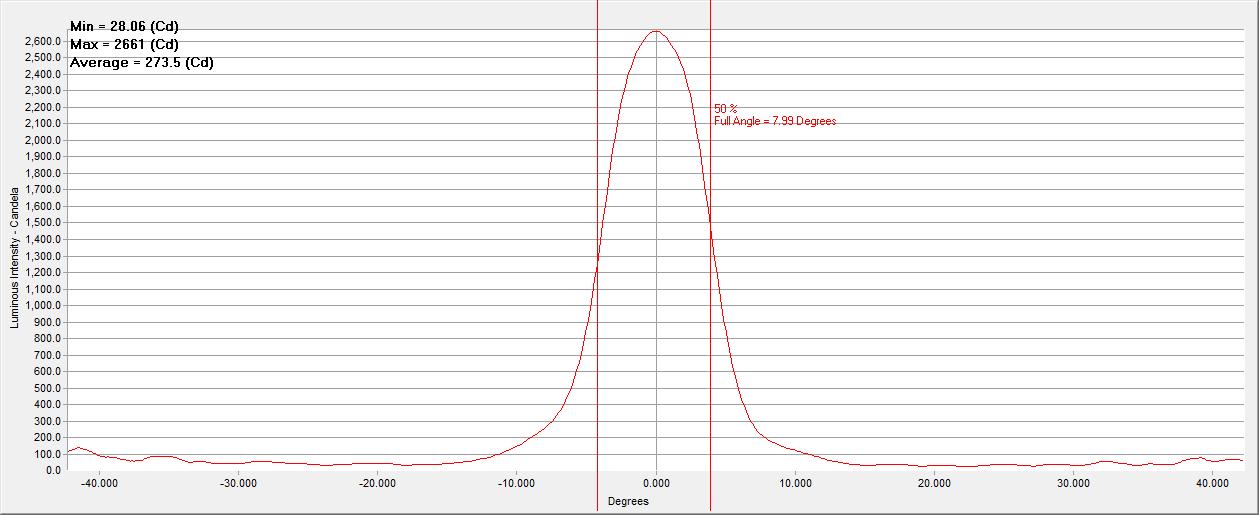

10003-Lumileds-ZES-White-Cross-Section

Download

ies

LUMILEDS LUXEON Z White

Eff:

84.7%

FWHM:

5.4°

Cd/Im:

50.3

carclo optics - simulated spot image

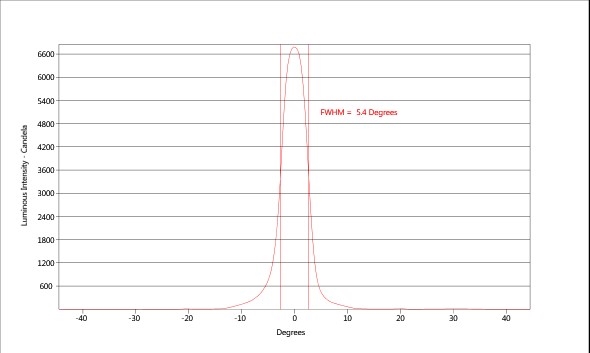

carclo optics - simulated cross section

Download

IES

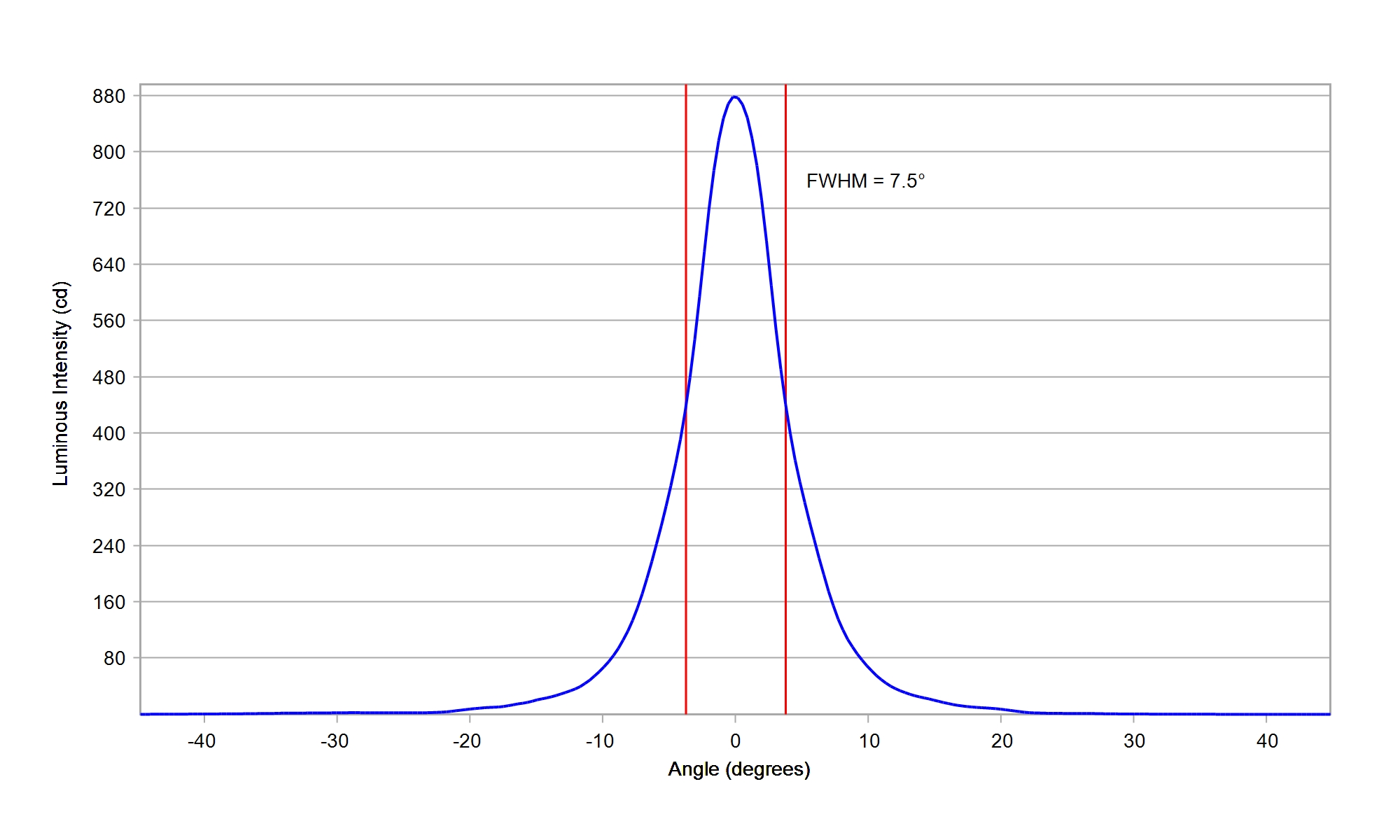

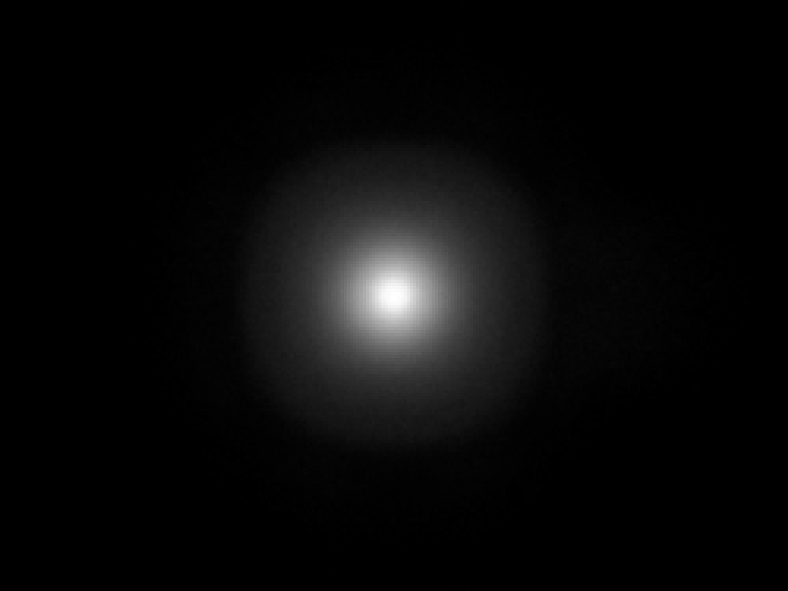

Luminus Devices MP-3030-11F2 White

Eff:

89.0%

FWHM:

7.5°

Cd/Im:

25.7


Download

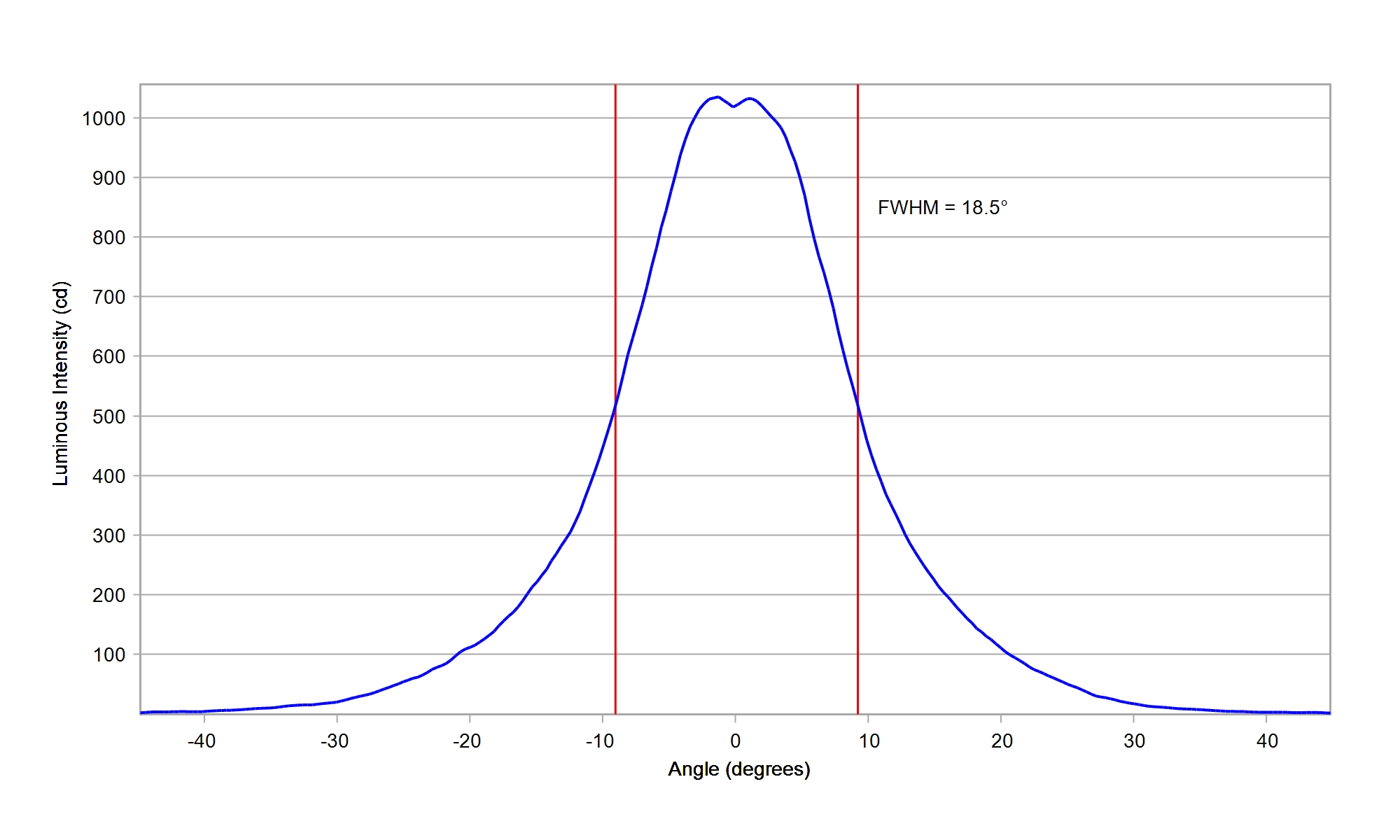

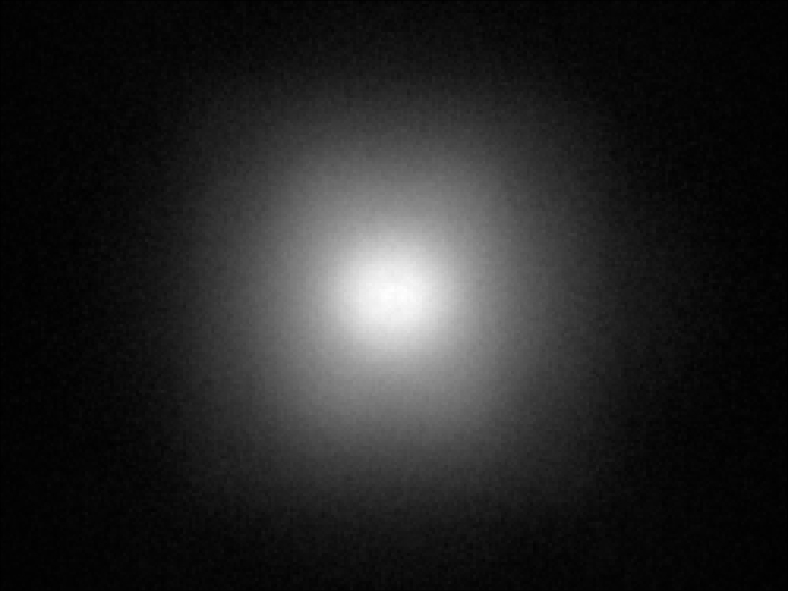

Luminus Devices MP-5050-240E White

Eff:

88.5%

FWHM:

18.5°

Cd/Im:

5.3


Download

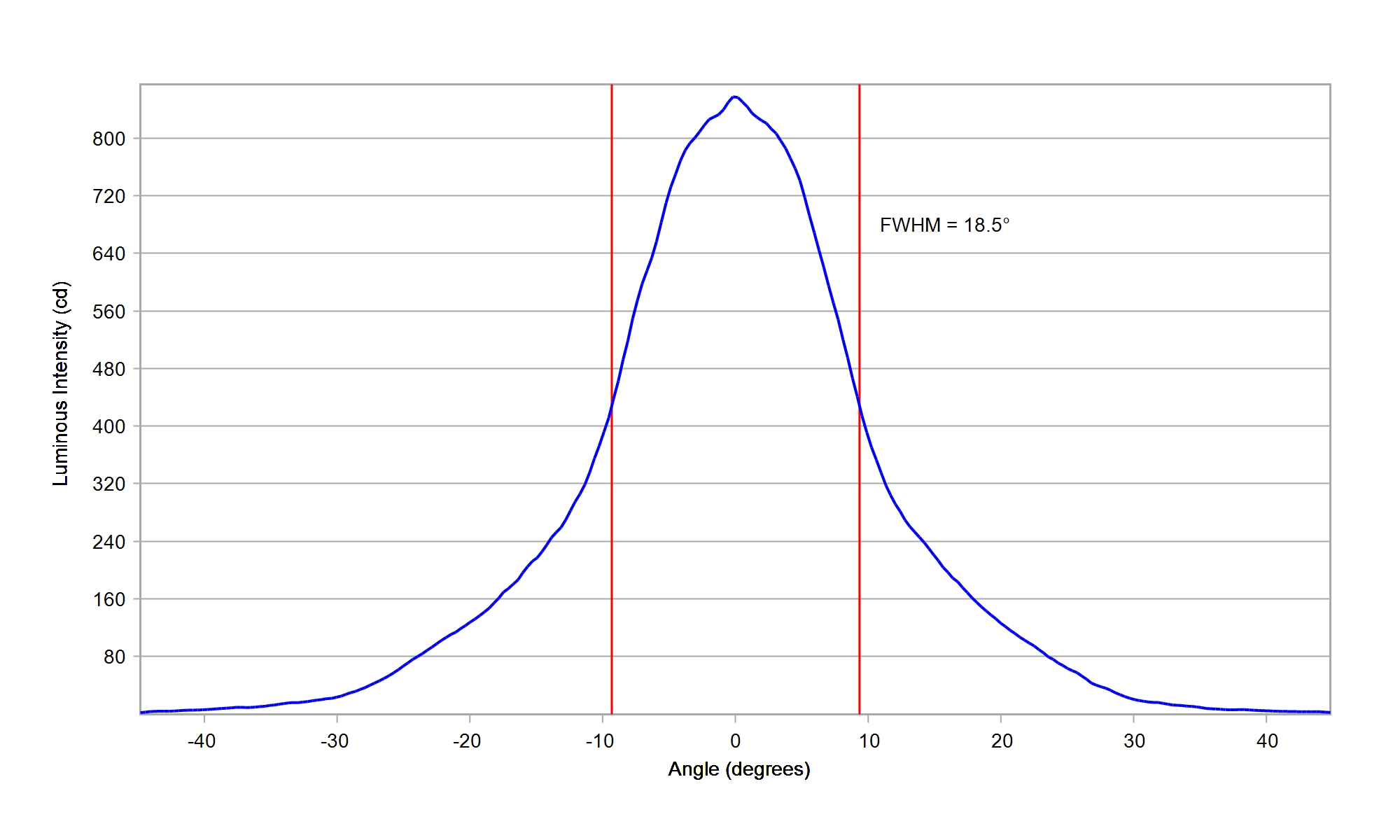

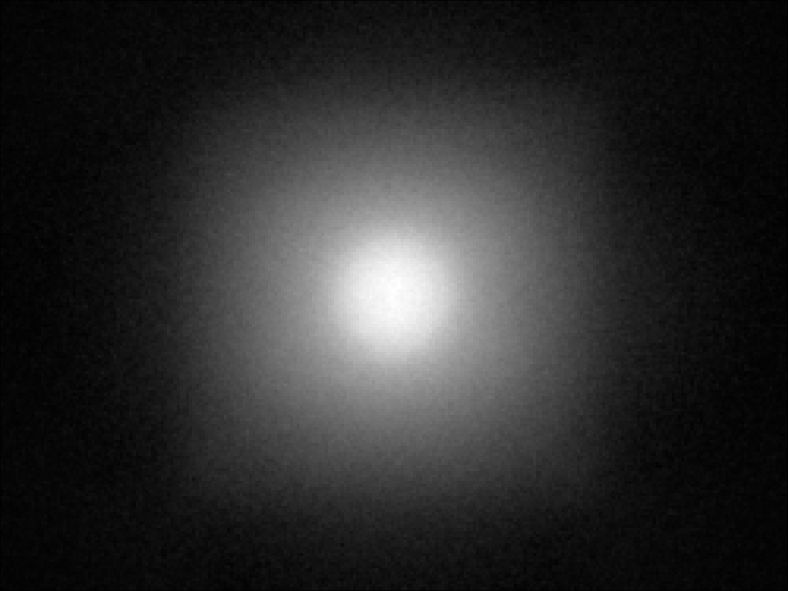

Luminus Devices MP-5050-810E White

Eff:

88.5%

FWHM:

18.5°

Cd/Im:

4.4


Download

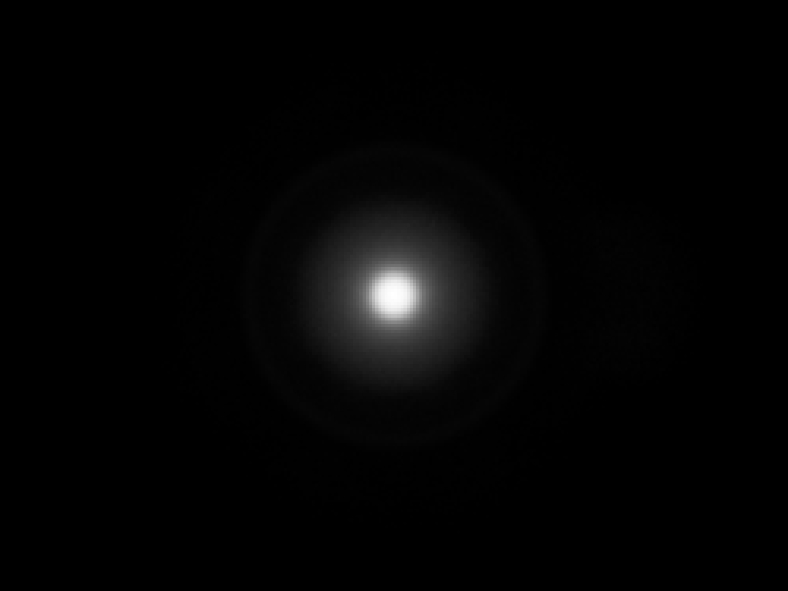

Luminus Devices SFT-12R-WES-A White

Eff:

88.5%

FWHM:

5.6°

Cd/Im:

56.5


Download

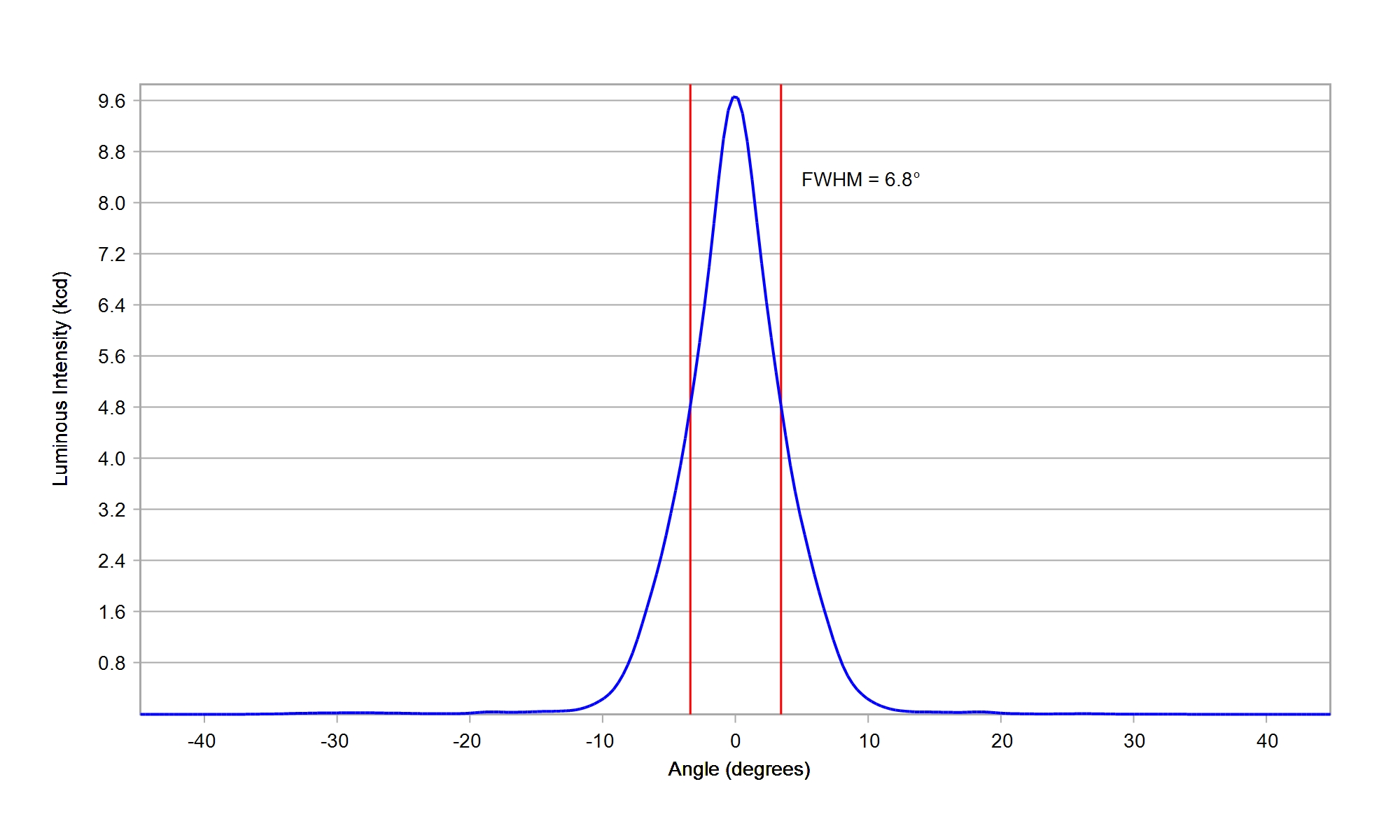

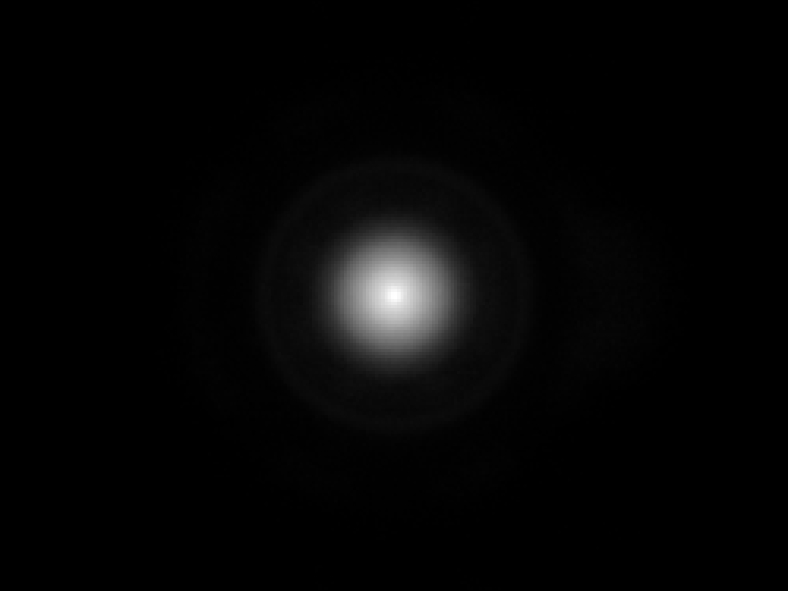

Luminus Devices SFT-12R-WES-F White

Eff:

88.5%

FWHM:

6.8°

Cd/Im:

41.7


Download

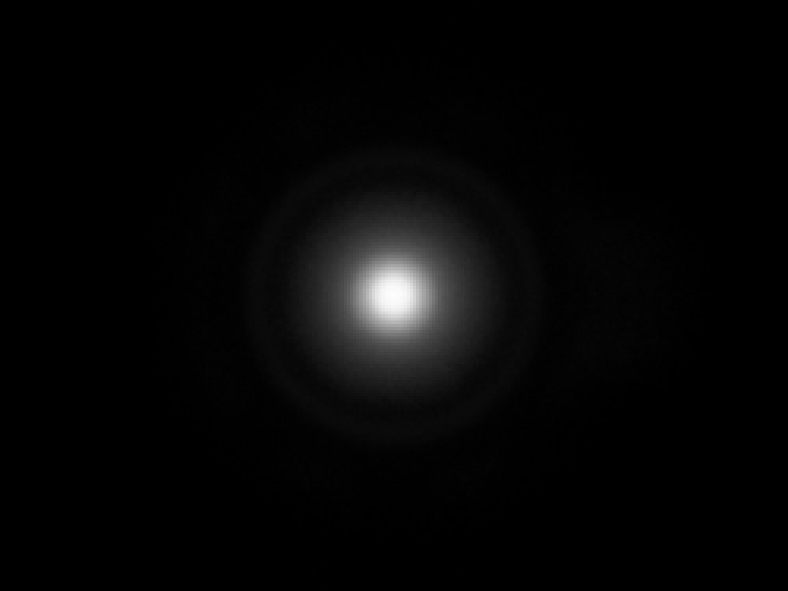

Luminus Devices SFT-25R-WES-A White

Eff:

88.5%

FWHM:

7.2°

Cd/Im:

36.3


Download

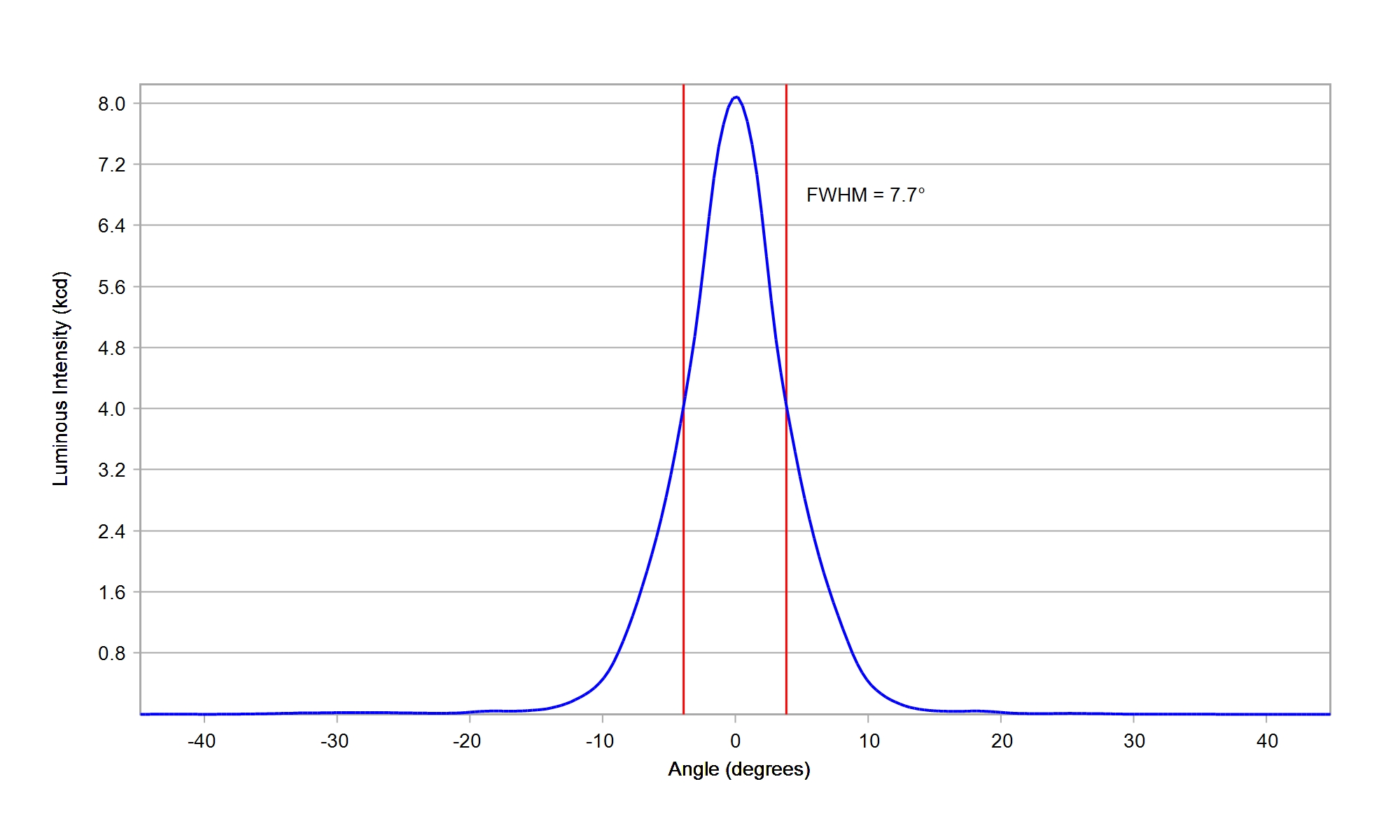

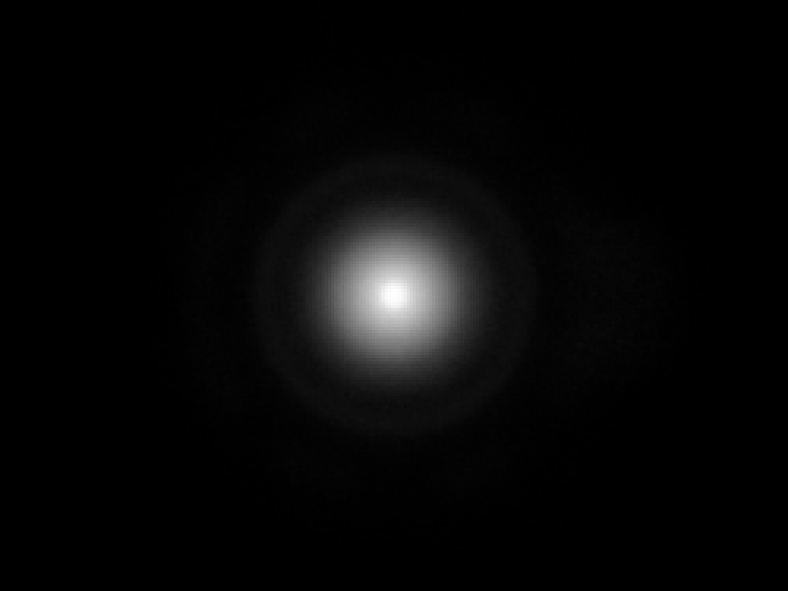

Luminus Devices SFT-25R-WES-F White

Eff:

88.5%

FWHM:

7.7°

Cd/Im:

29.2


Download

Luminus Devices SST 05-IR-B40 850nm

Eff:

90.5%

FWHM:

6.6°

Ipk/W:

30.6

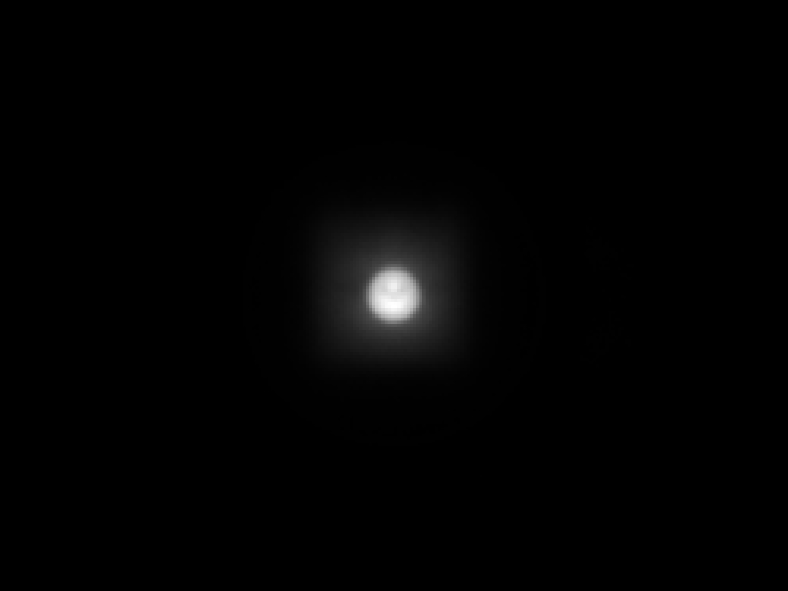

Carclo Optics - 10003 Spot Image Luminus SST-05-IR-B40

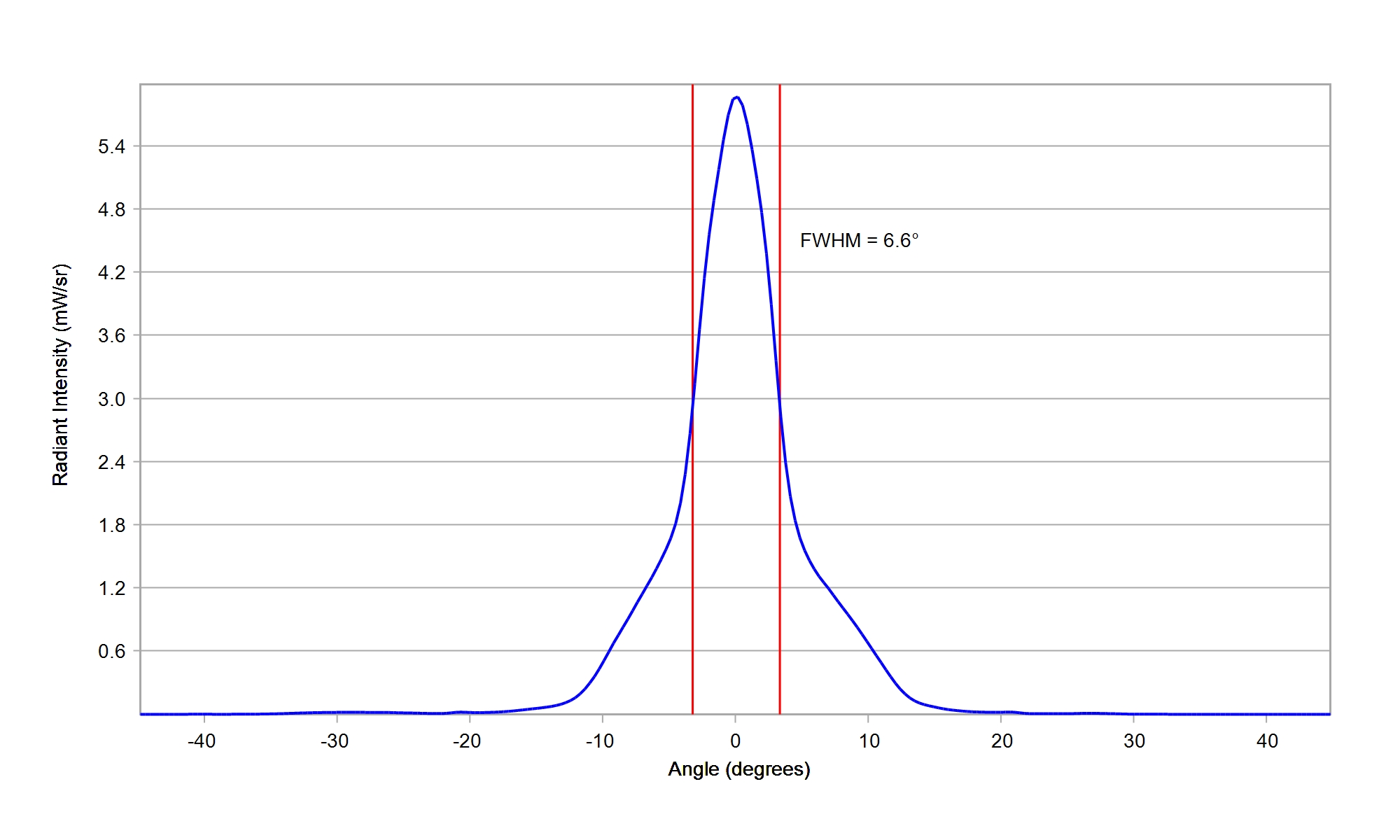

Carclo Optics - 10003 Cross Section Luminus SST-05-IR-B40

Download

IES

Luminus Devices SST 10-B-B130 Blue

Eff:

86.5%

FWHM:

7,9°

Cd/Im:

28.2

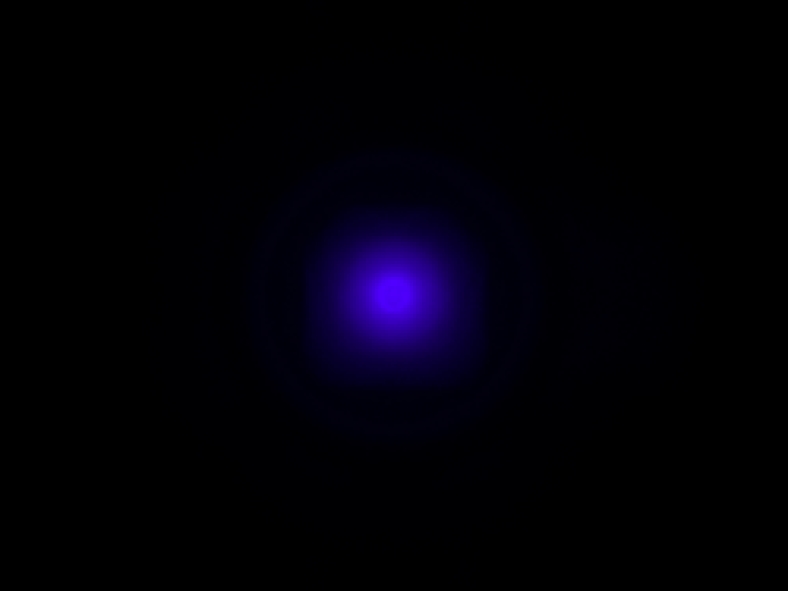

Carclo Optics - 10003 Luminus_SST-10_B_B130 - spot image

Carclo Optics - 10003 Luminus_SST-10_B_B130 - cross section image

Download

IES

Luminus Devices SST 10-B-B90 Blue

Eff:

86.0%

FWHM:

7.5°

Cd/Im:

26.8

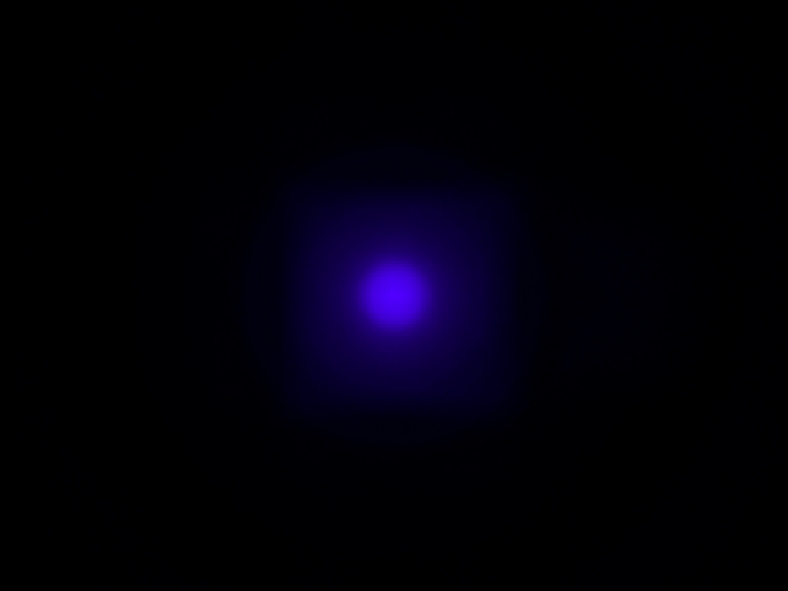

Carclo Optics - 10003 Luminus_SST-10_B_B90 - spot - image

Carclo Optics - 10003 Luminus_SST-10_B_B90 - cross-vertical image

Download

IES

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

90.0%

FWHM:

8.8°

Cd/Im:

24.3

Carclo Optics – 10003 Luminus_SST-10_DR_B130- Spot - image

Carclo Optics – 10003 Luminus_SST-10_DR_B130- Cross section – image

Download

IES

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

89.5%

FWHM:

8.1°

Cd/Im:

23.5

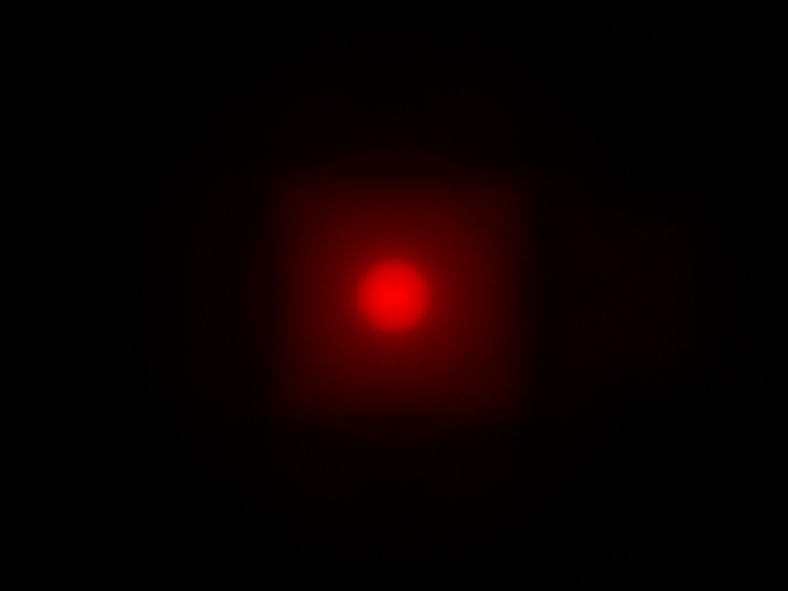

Carclo Optics - 10003 Luminus_SST-10_DR_B90 - Spot Image

Carclo Optics - 10003 Luminus_SST-10_DR_B90 - Cross section image

Download

IES

Luminus Devices SST 10-G-B130 Green

Eff:

88.5%

FWHM:

8.1°

Cd/Im:

27.7

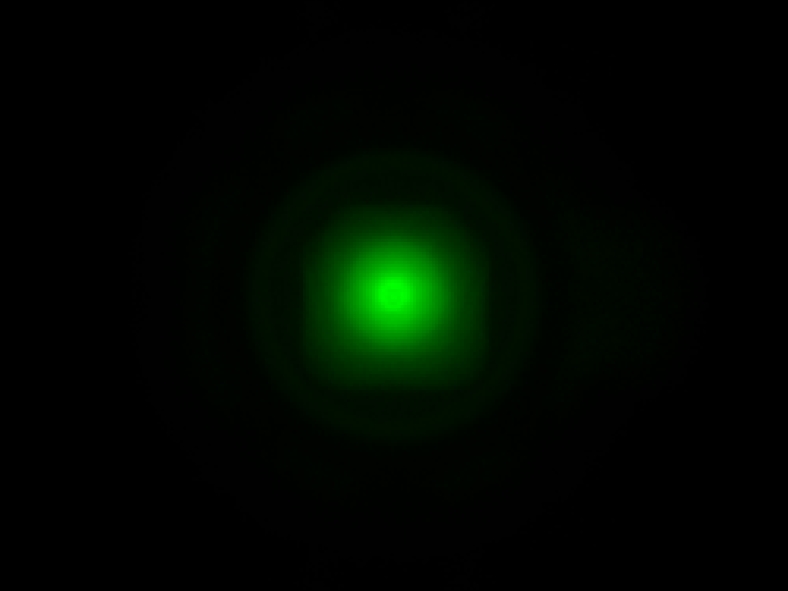

Carclo Optics - 10003 Luminus_SST-10_G_B130 - spot - image

Carclo Optics - 10003 Luminus_SST-10_G_B130 - cross -vertical- section- image

Download

IES

Luminus Devices SST 10-G-B90 Green

Eff:

88.0%

FWHM:

7.7°

Cd/Im:

27.2

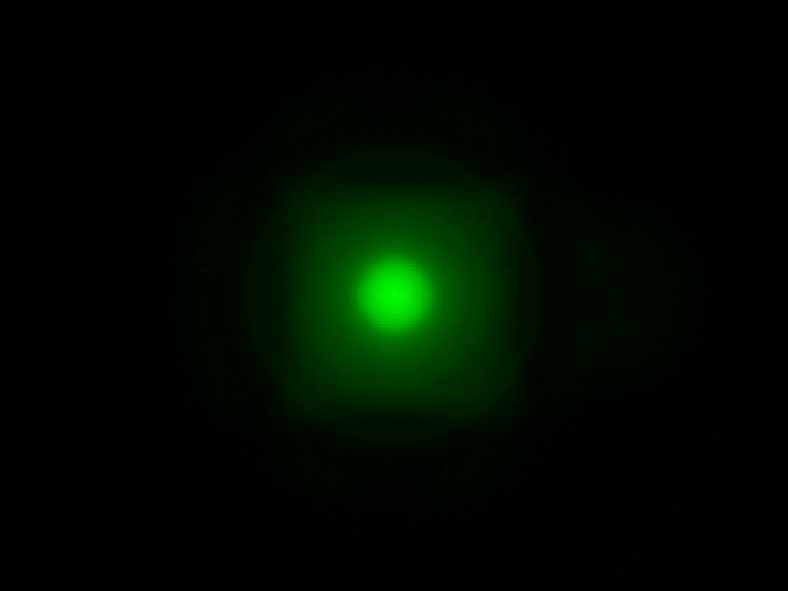

Carclo Optics - 10003 Luminus_SST-10_G_B90- Spot - image

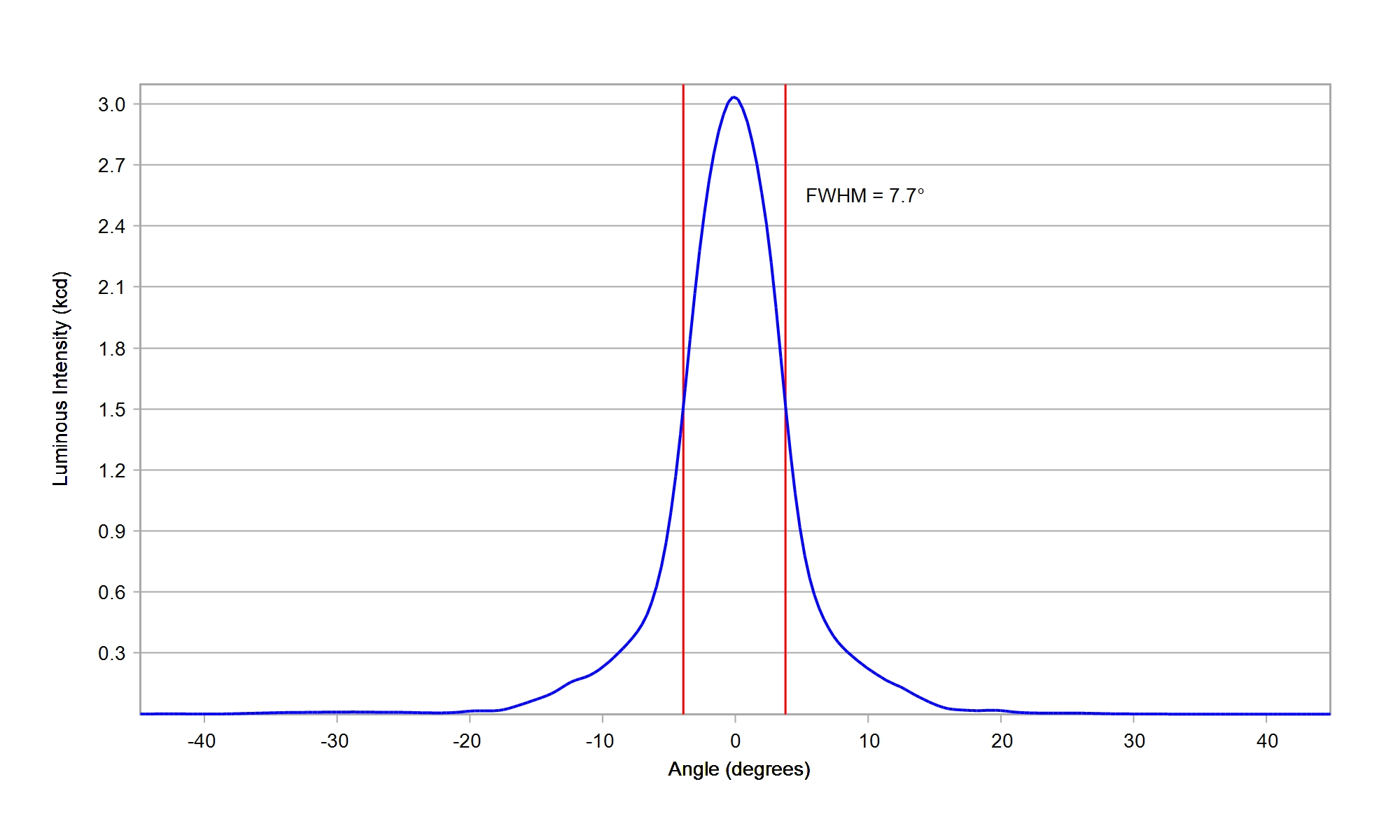

Carclo Optics - 10003 Luminus_SST-10_G_B90- Cross section - image

Download

IES

Luminus Devices SST 10-IR-B130 940nm

Eff:

93.0%

FWHM:

9.3°

Ipk/W:

23.3

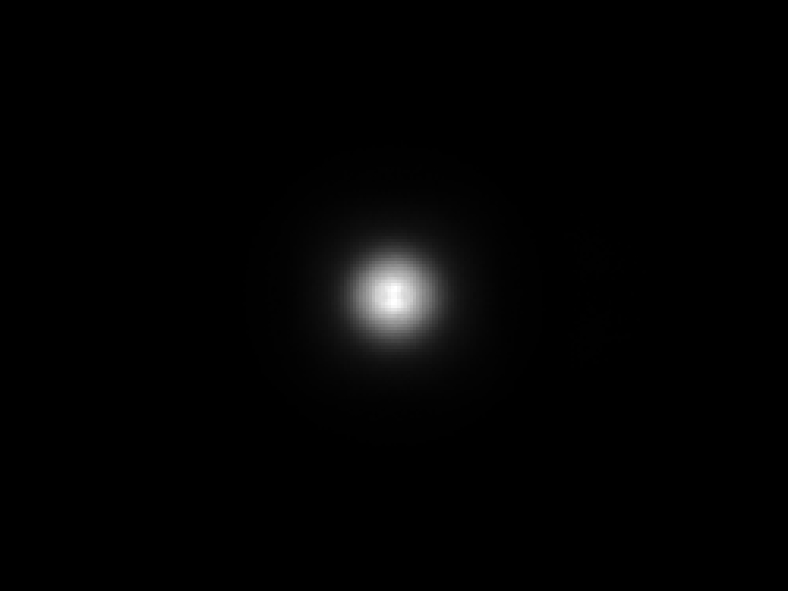

Carclo Optics - 10003 Spot Image Luminus SST-10-IR-B130

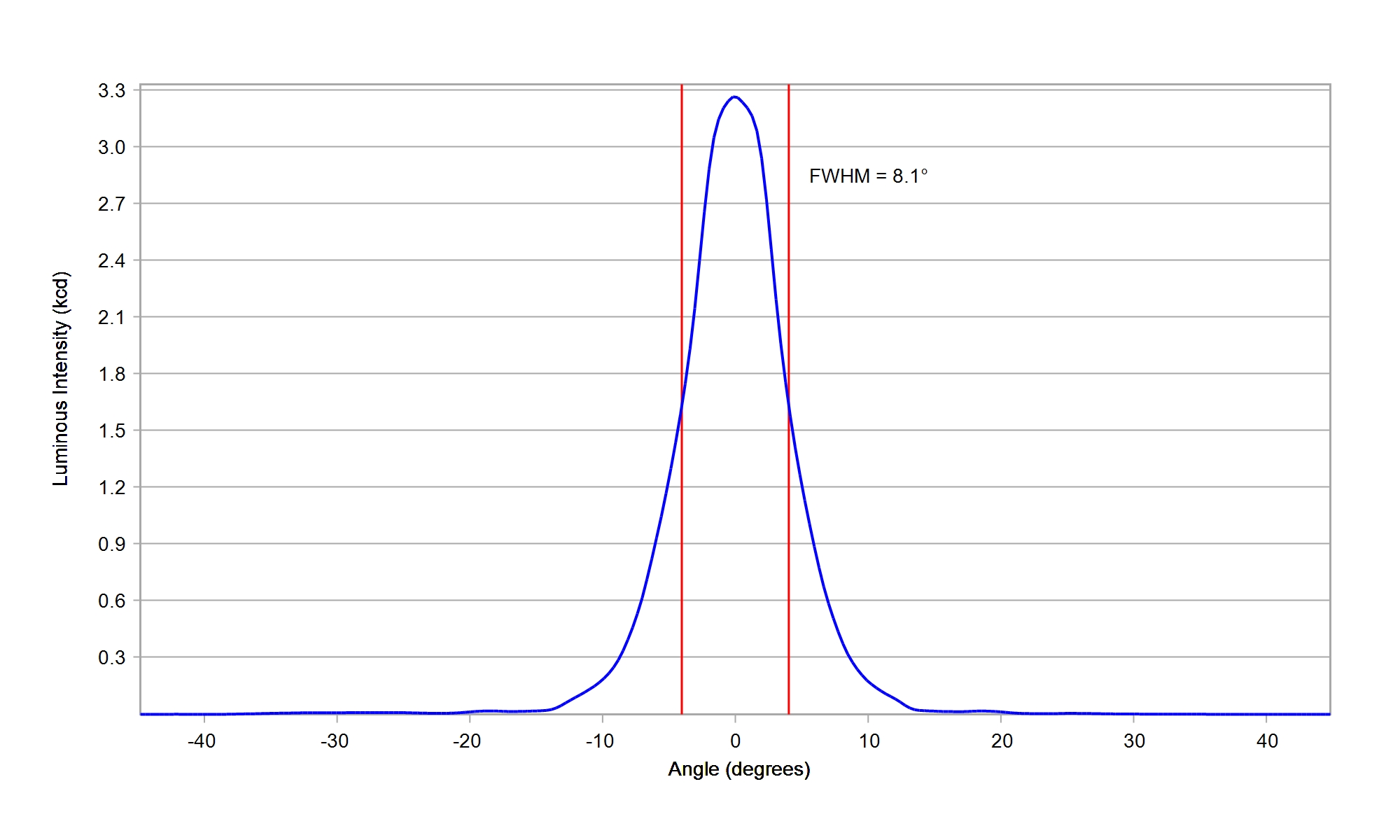

Carclo Optics - 10003 Cross Section Luminus SST-10-IR-B130

Download

IES

Luminus Devices SST 10-IR-B90 940nm

Eff:

91.5%

FWHM:

8.0°

Ipk/W:

22.5

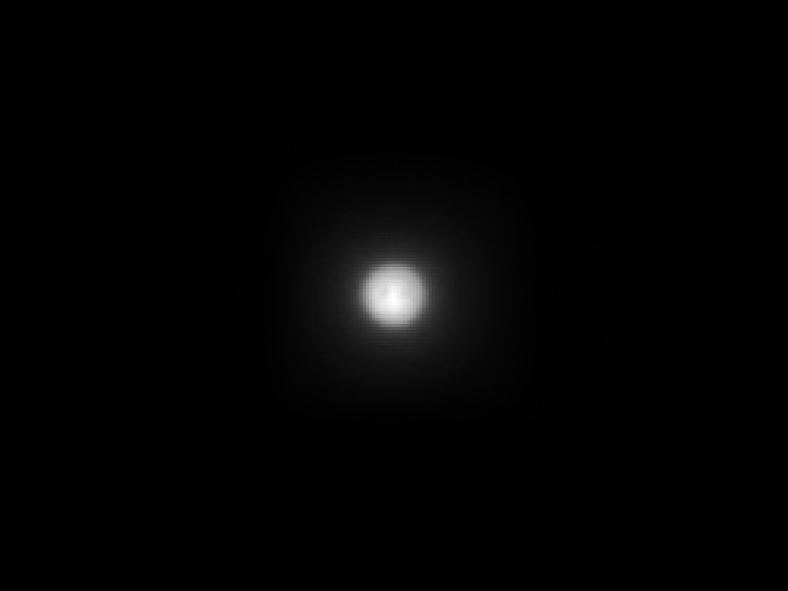

Carclo Optics - 10003 Spot Image Luminus SST-10-IR-B90

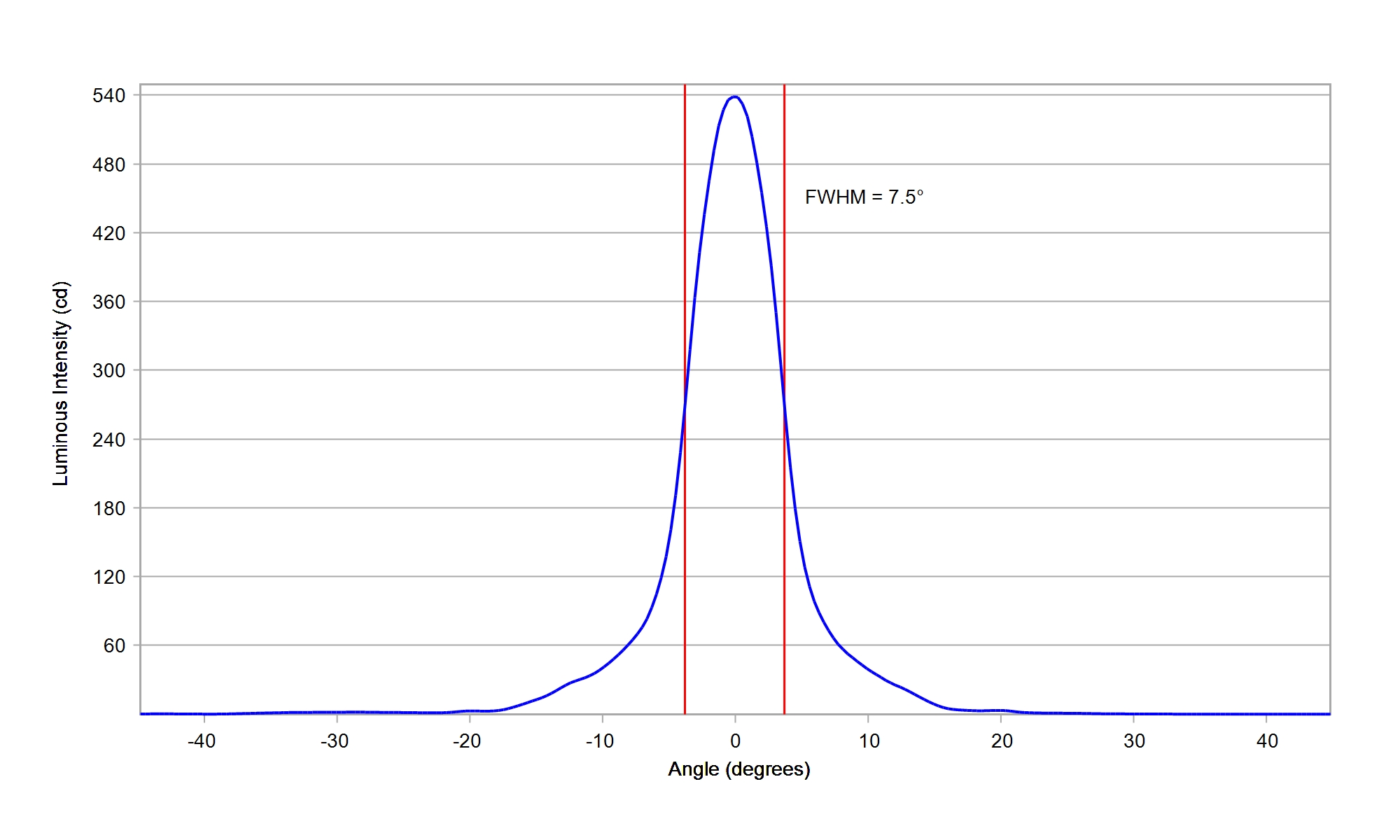

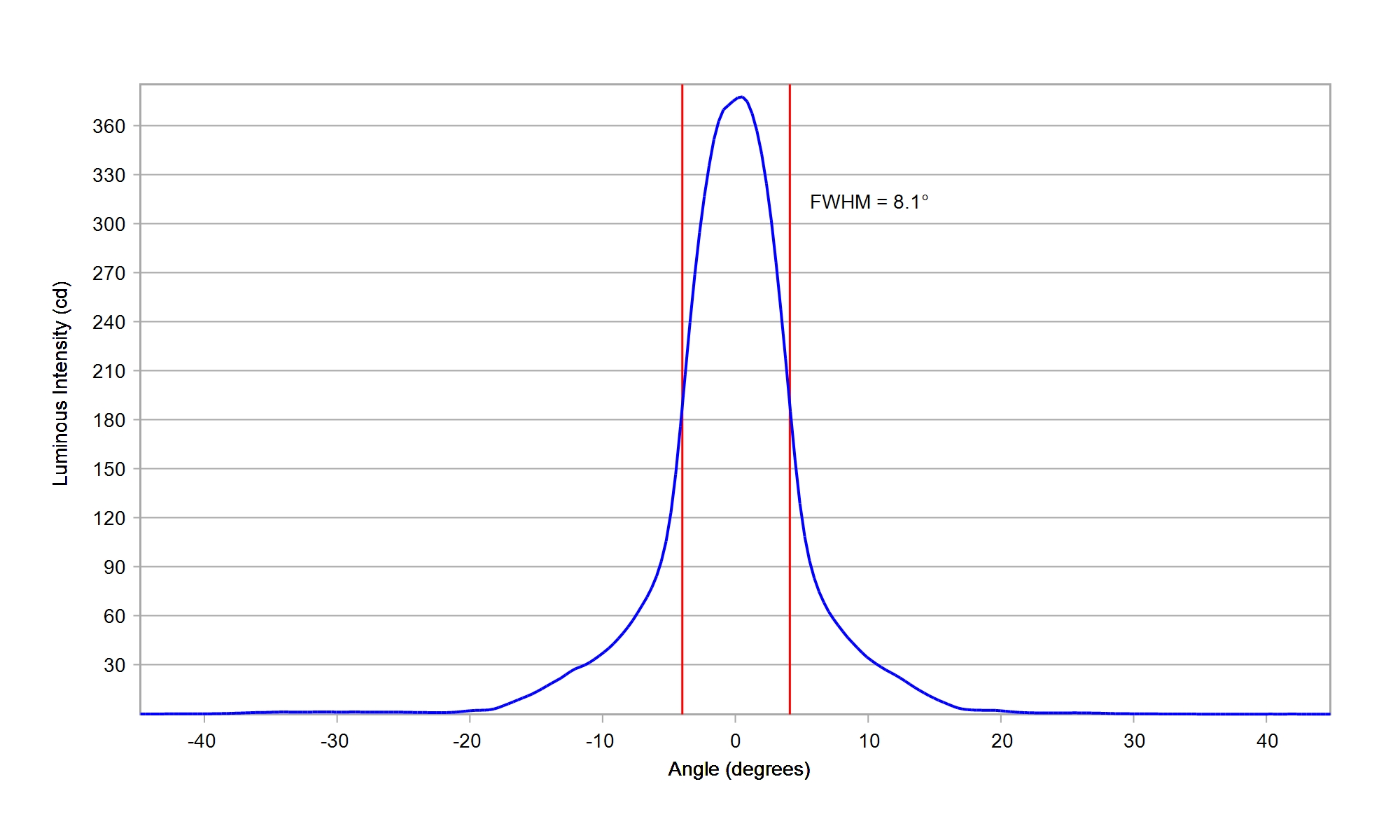

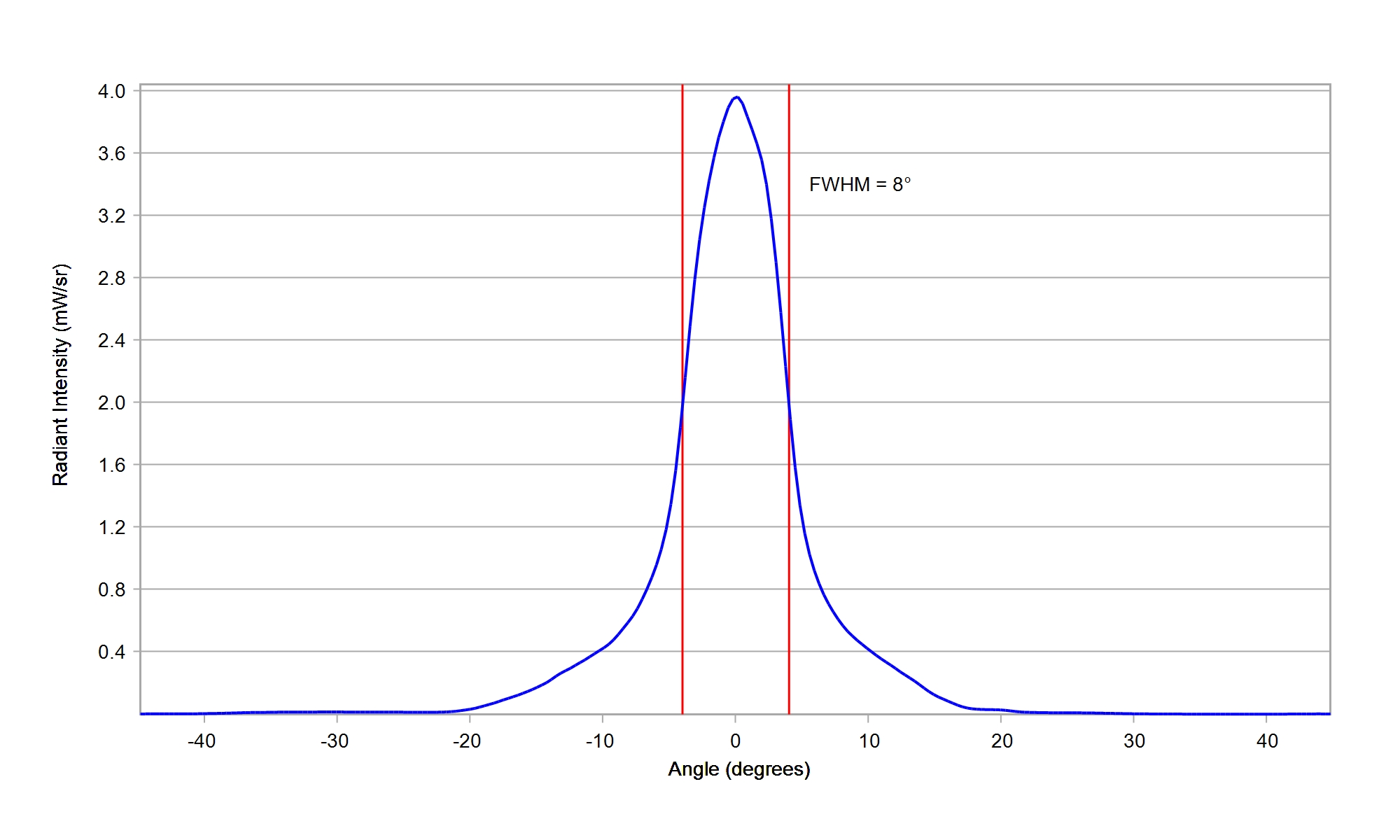

Carclo Optics - 10003 Cross Section Luminus SST-10-IR-B90

Download

IES

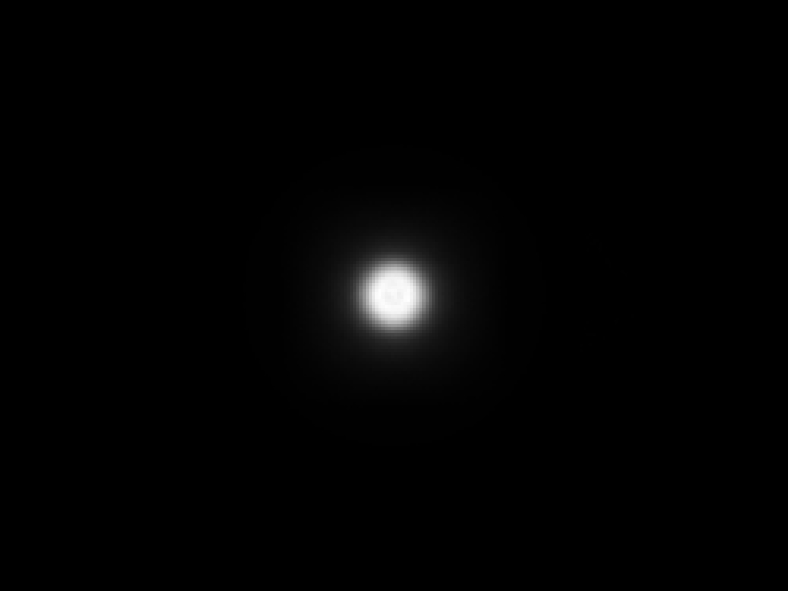

Luminus Devices SST 10-IRD-B130 810nm

Eff:

93.0%

FWHM:

8.3°

Ipk/W:

26.4

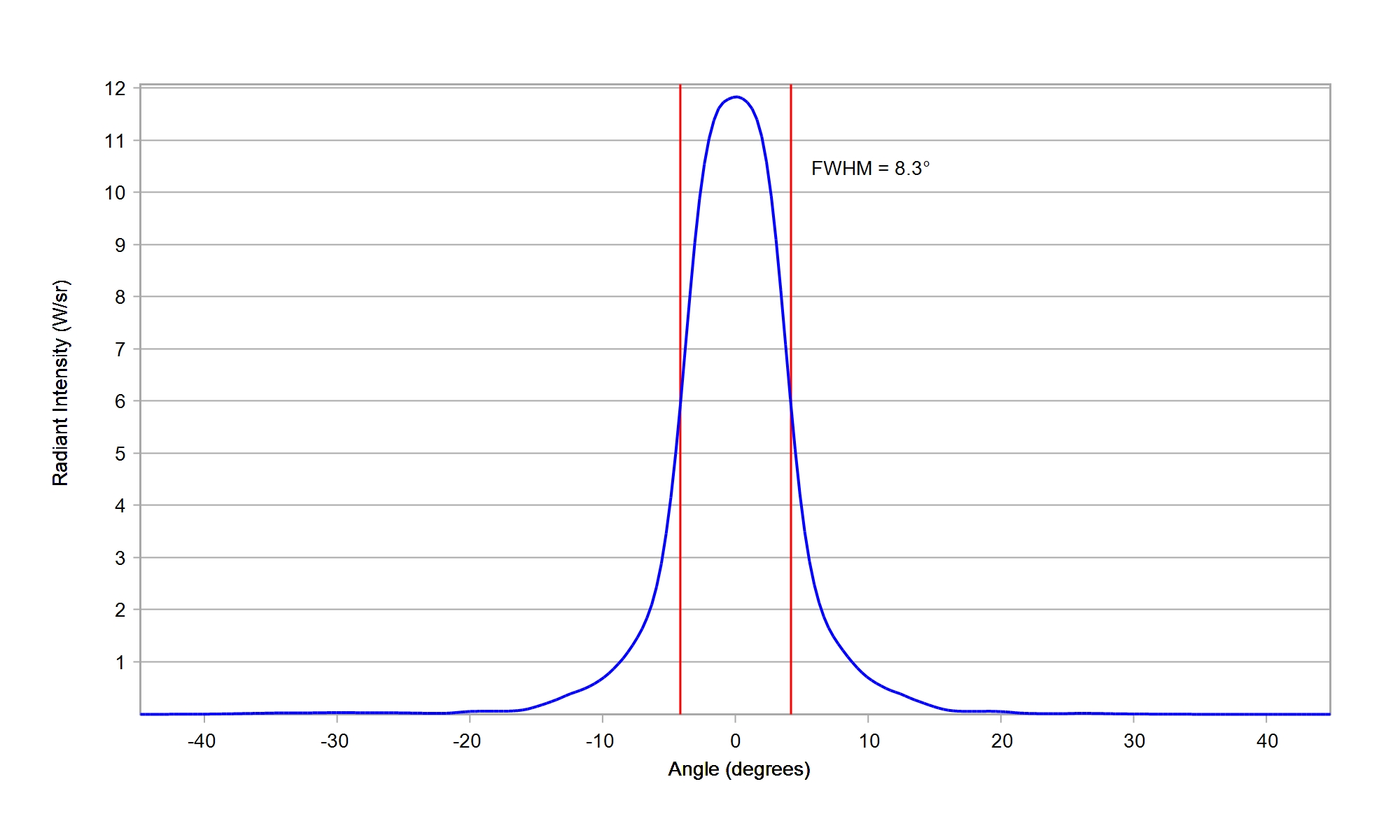

Download

IES

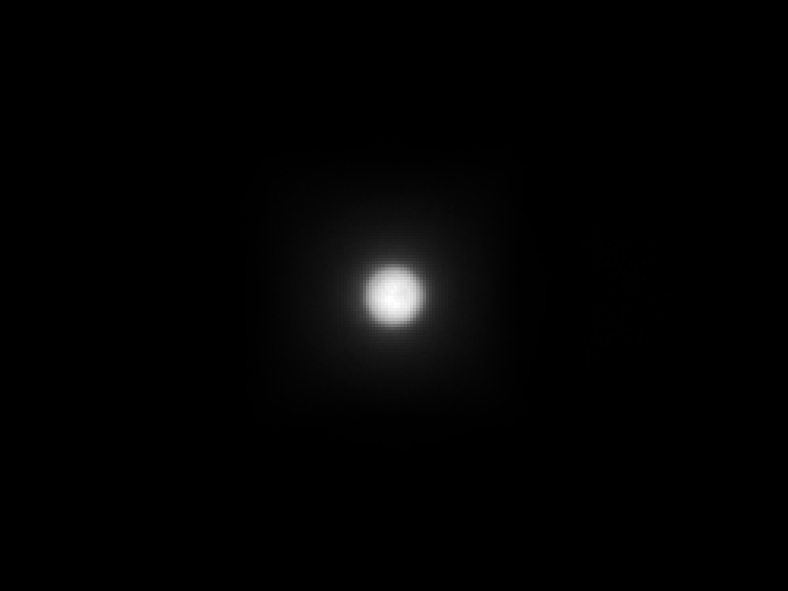

Luminus Devices SST 10-IRD-B90 810nm

Eff:

91.5%

FWHM:

7.6°

Ipk/W:

24.3


Download

IES

Luminus Devices SST 20-WxH White Hi CRI

Eff:

88.5%

FWHM:

9.1°

Cd/Im:

21.3

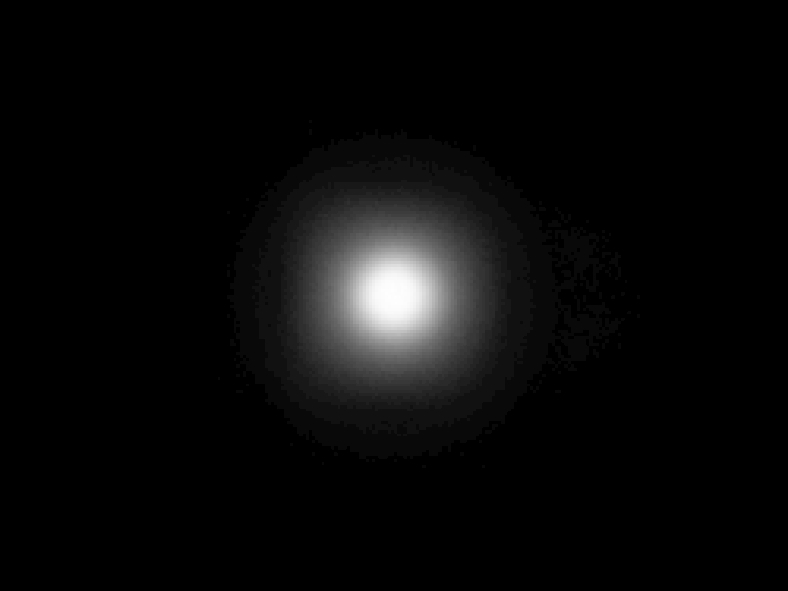

Carclo Optics – 10003 - Luxeon_SST_20_W_spot-image

Carclo Optics – 10003 - Luxeon_SST_20_W_cross vertical section

Download

IES

Luminus Devices SST 40-W White

Eff:

87.5%

FWHM:

16.5°

Cd/Im:

7.4

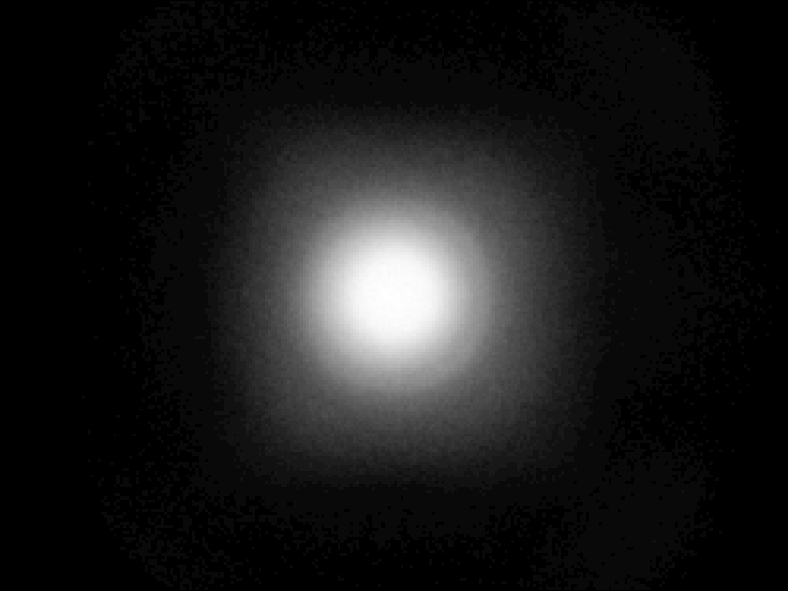

Carclo Optics - 10003 - Luxeon_SST_40_W_spot-image

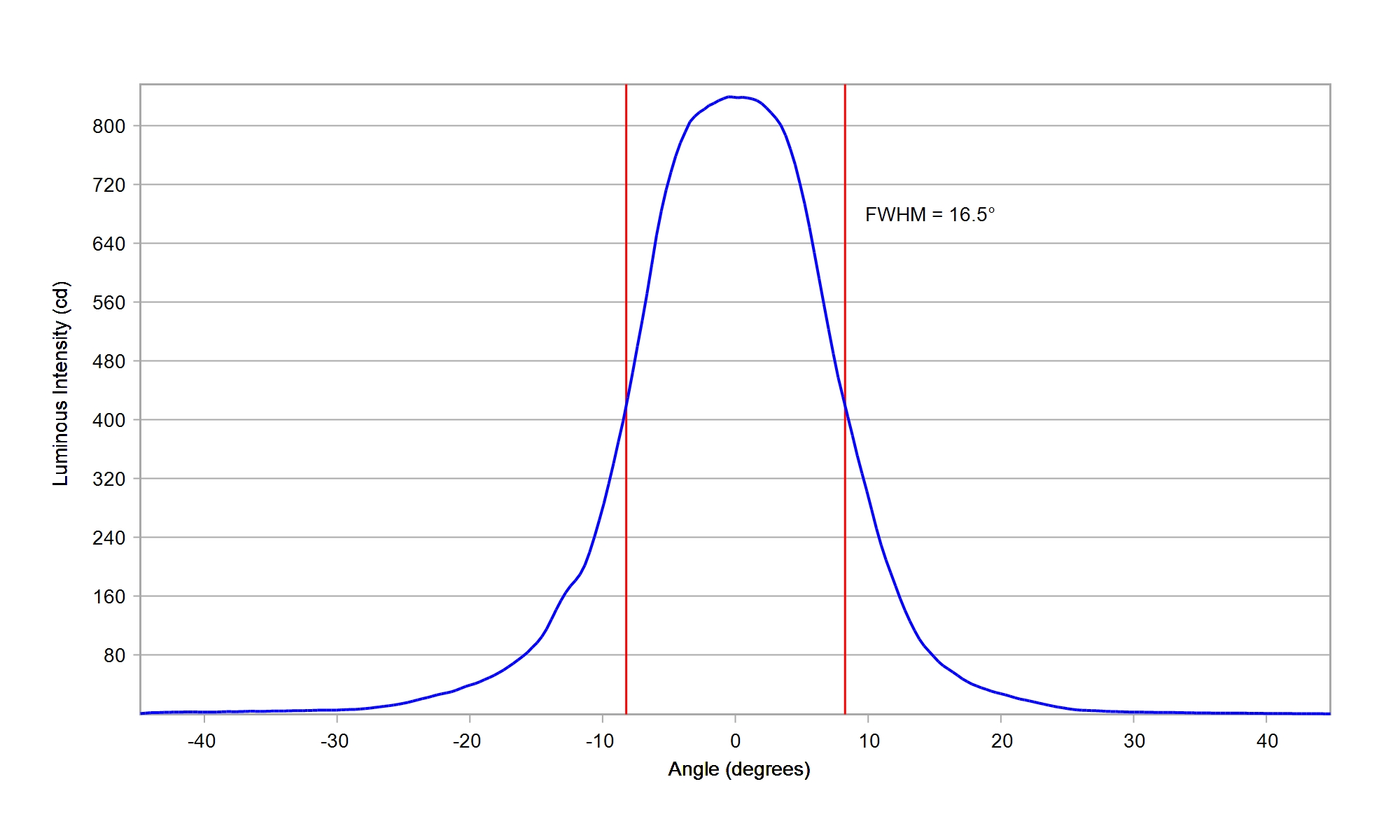

Carclo Optics - 10003 - Luxeon_SST_40_W_cross vertical section

Download

IES

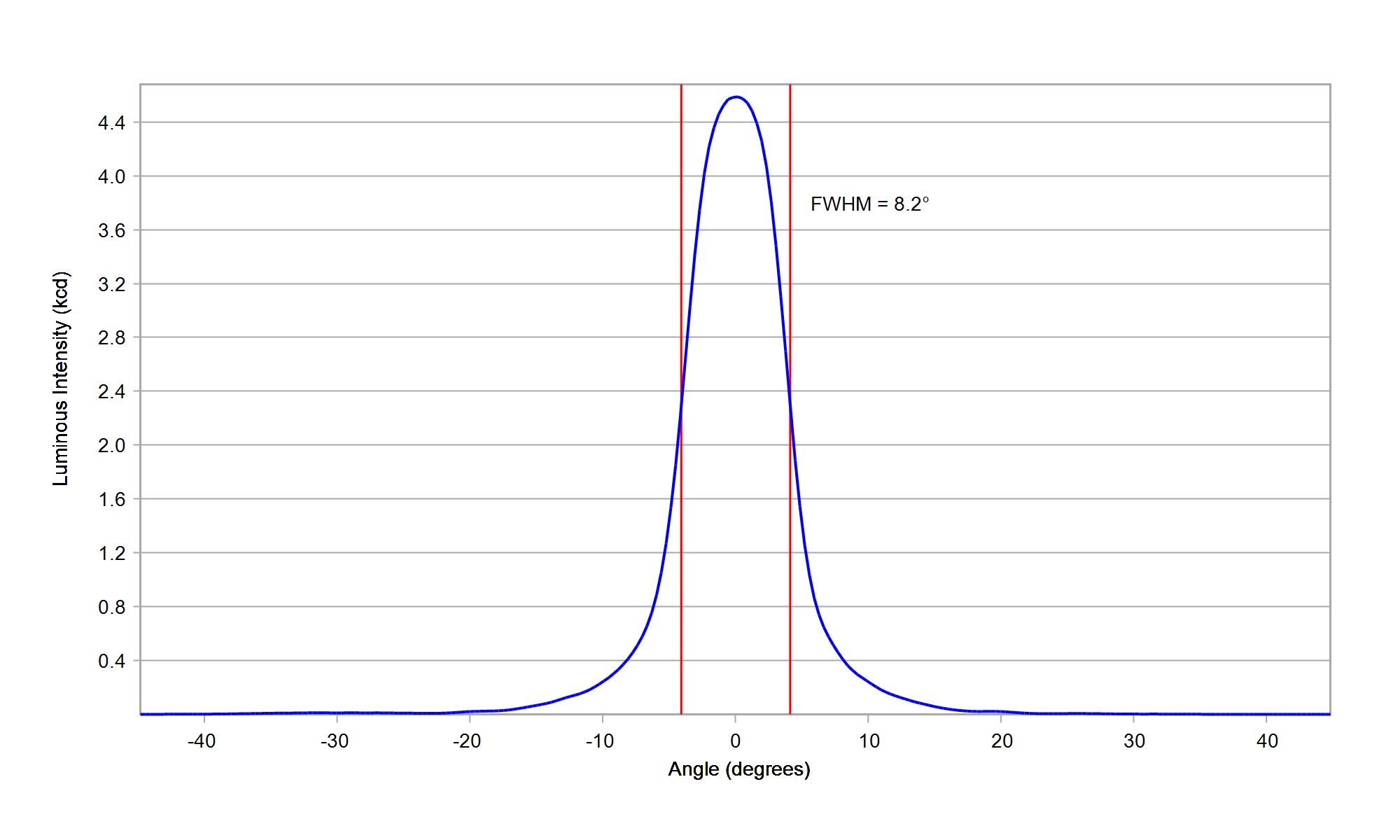

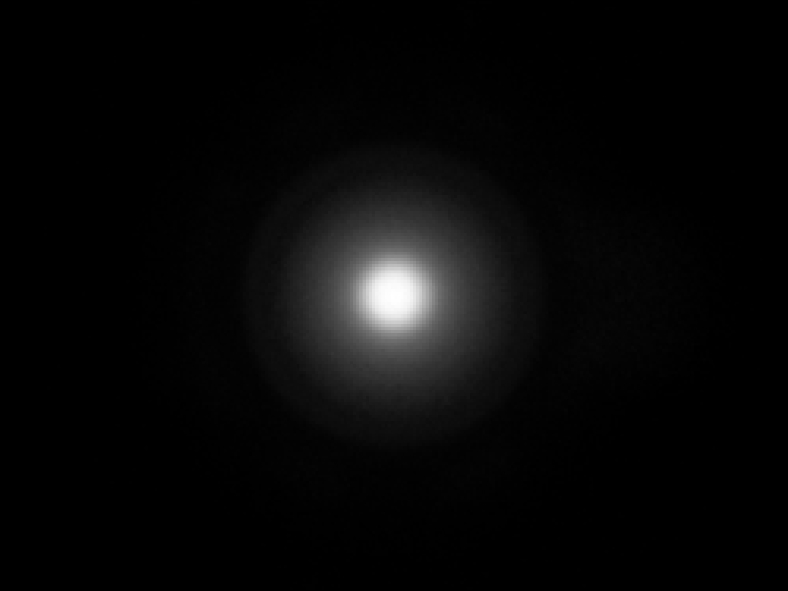

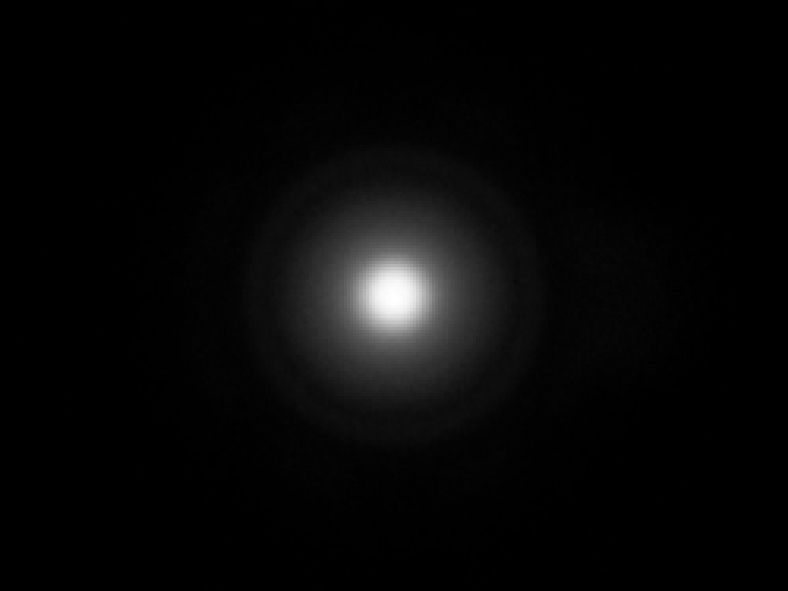

Luminus Devices SST-12-WS Gen2 White

Eff:

88.5%

FWHM:

8.2°

Cd/Im:

27.7


Download

Luminus Devices SST-12-WxS White

Eff:

88.5%

FWHM:

7.7°

Cd/Im:

29.8

Download

IES

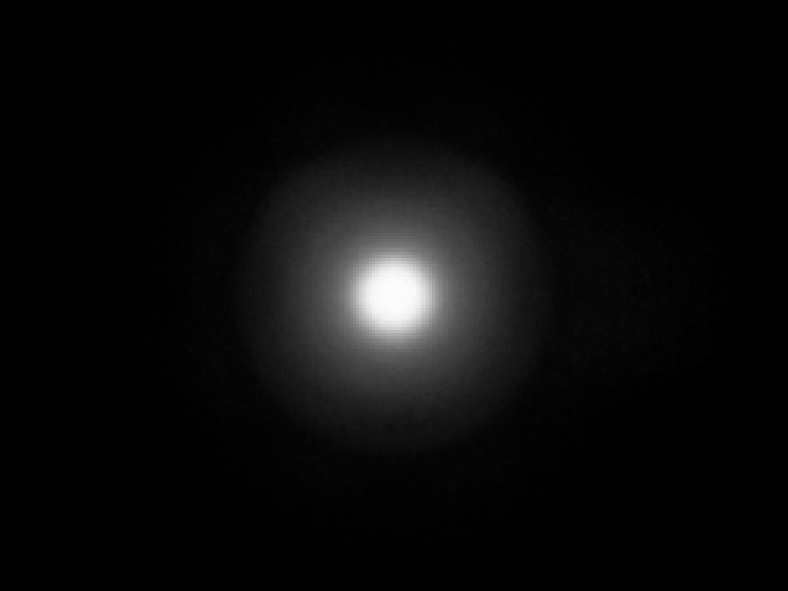

Luminus Devices SST-20-W Gen2 White

Eff:

88.5%

FWHM:

10°

Cd/Im:

18.9


Download

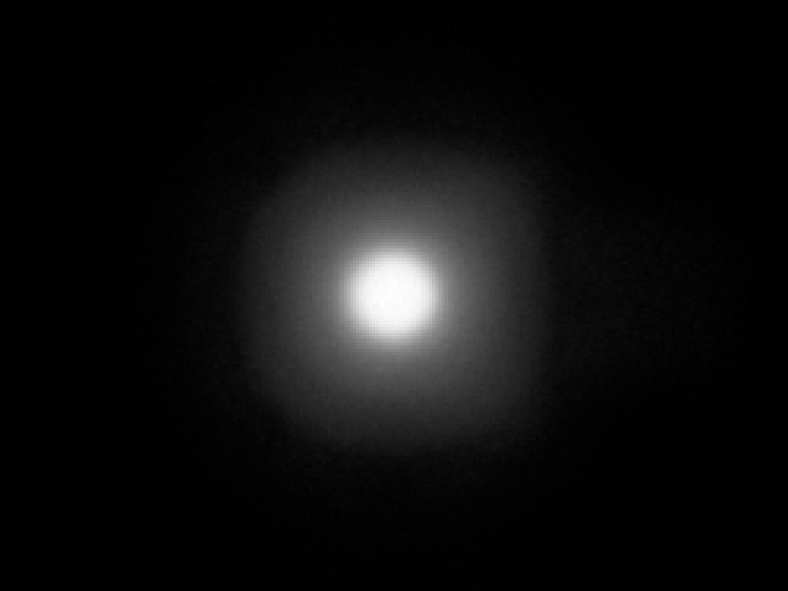

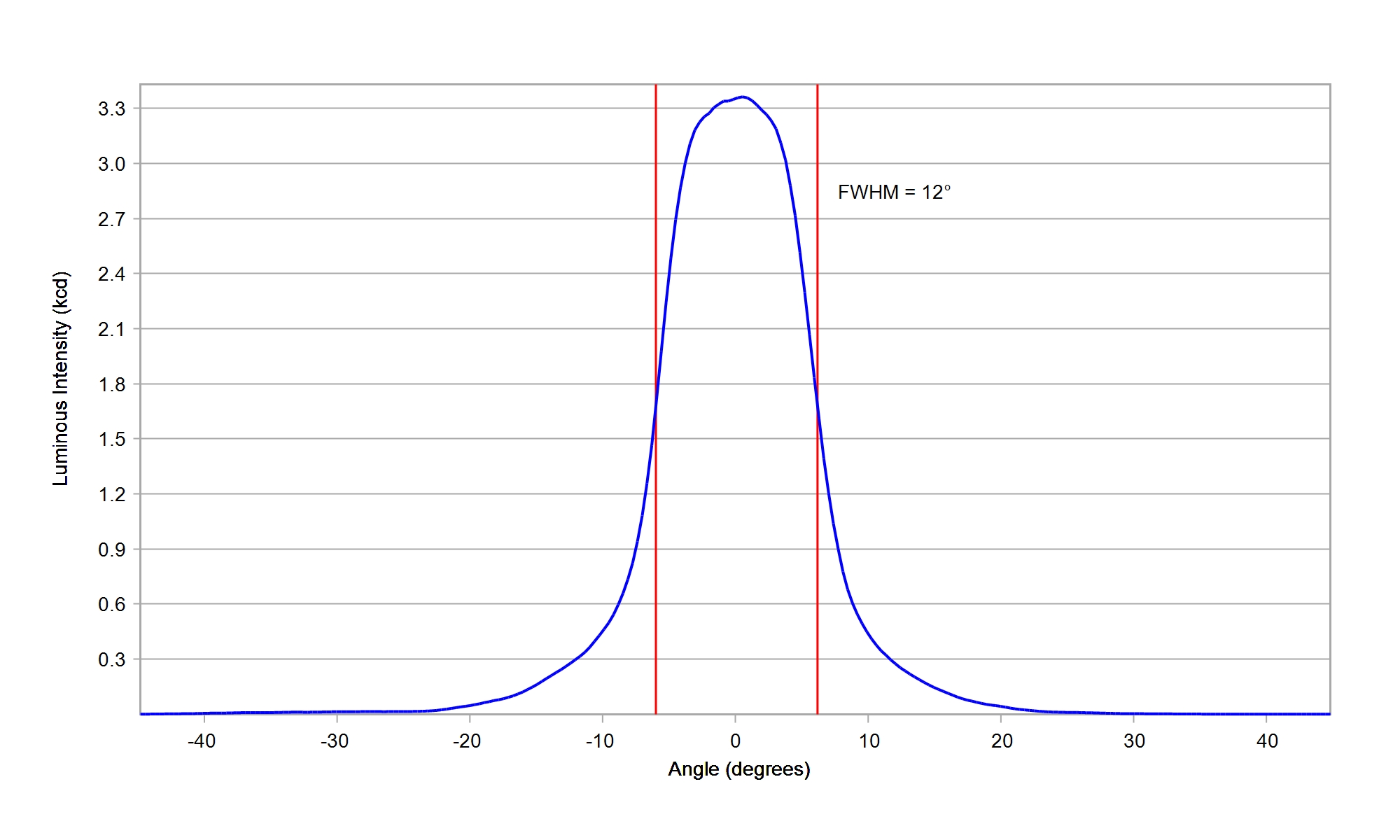

Luminus Devices SST-25-WES White

Eff:

88.5%

FWHM:

12°

Cd/Im:

13.6

Download

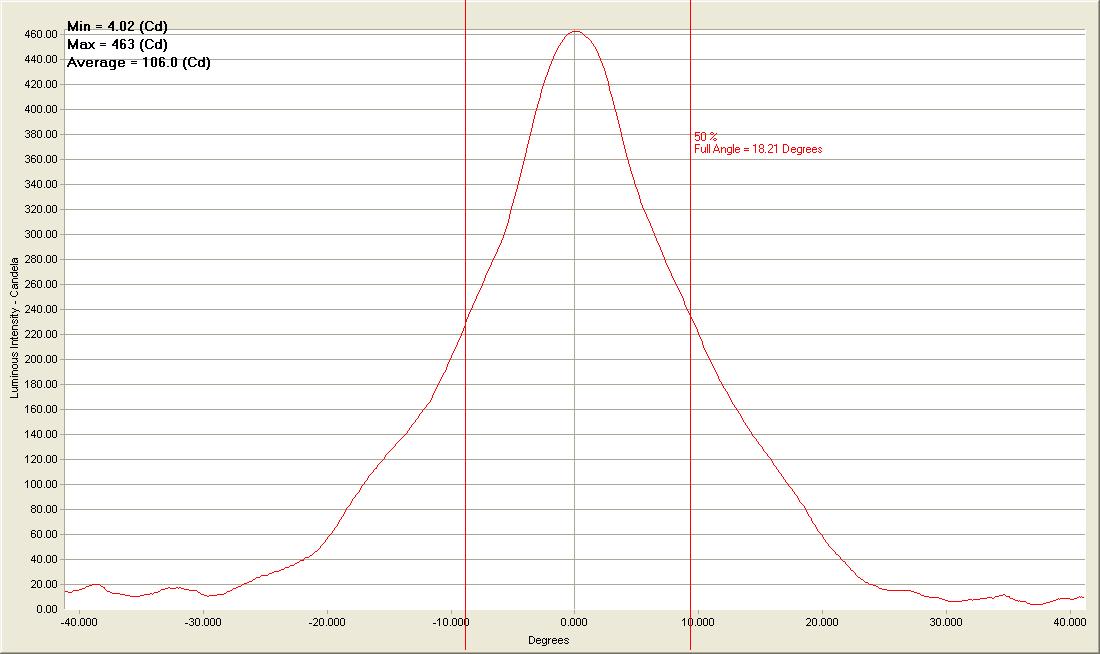

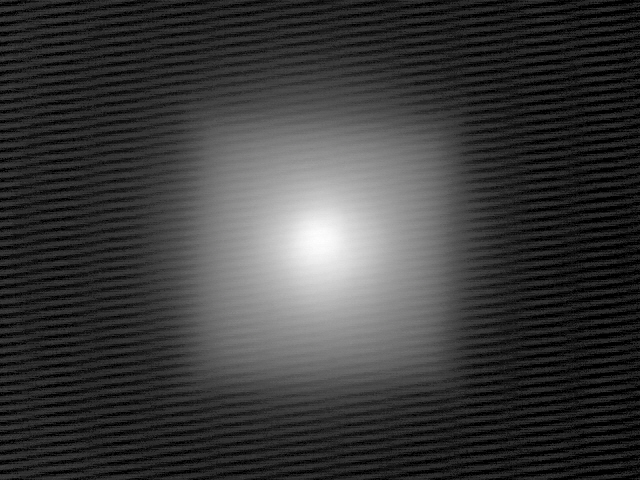

Luminus Devices SST-50 White

Eff:

86.0%

FWHM:

18°

Cd/Im:

5.5

Download

ies

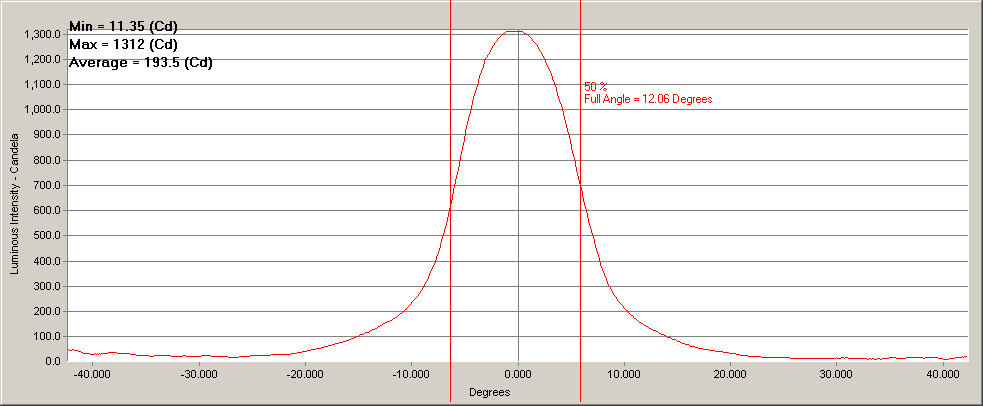

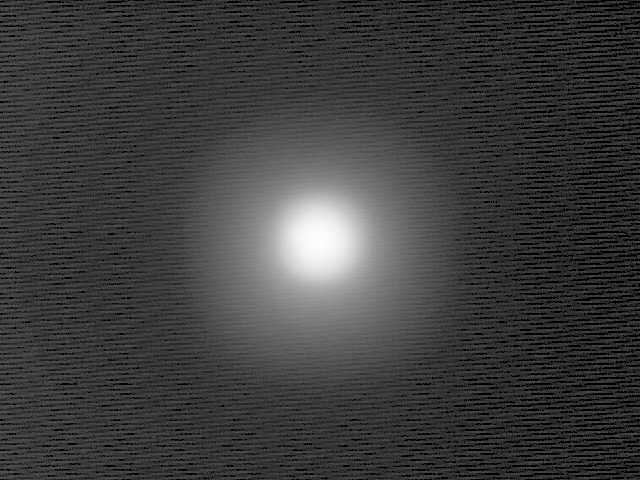

Nichia 219 White

FWHM:

12°

Cd/Im:

17.3

Download

ies

Nichia 229A White

Eff:

86.0%

FWHM:

19.5°

Cd/Im:

6.1

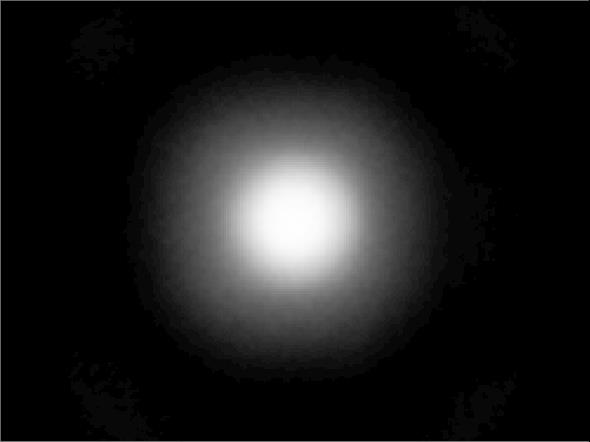

Carclo Optics - Simulated Spot Image

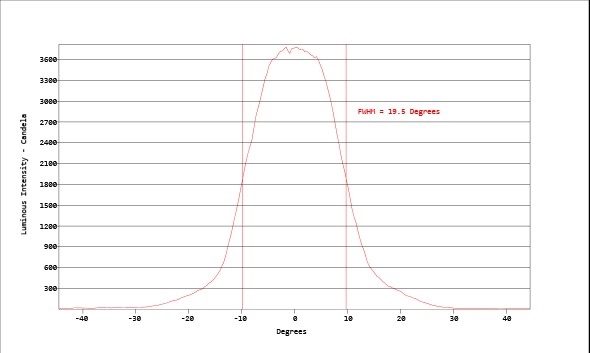

Carclo Optics - Simulated Cross Section

Download

IES

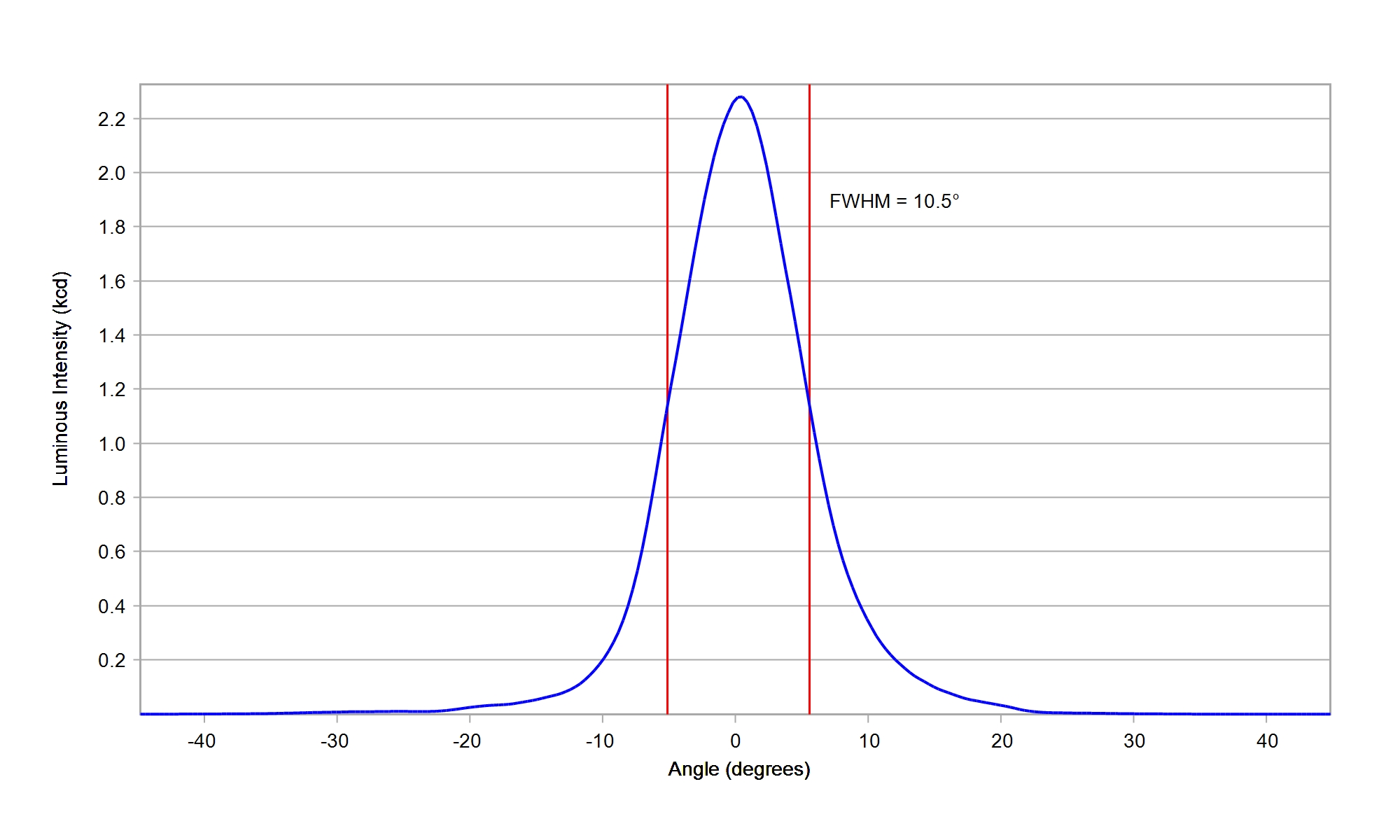

Nichia 757G White

Eff:

88.0%

FWHM:

11.5°

Cd/Im:

15.7

Carclo Optics - Simulated Spot Image

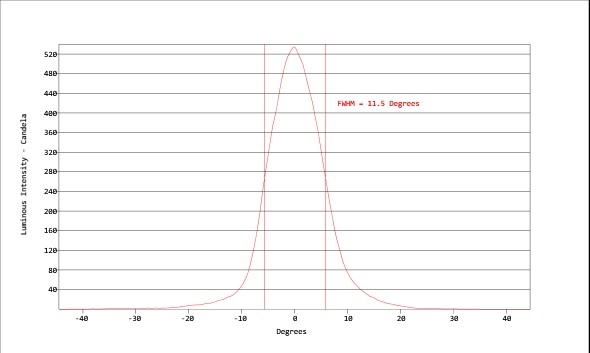

Carclo Optics - Simulated Cross Section

Download

IES

Nichia 757G White

Eff:

88.5%

FWHM:

12°

Cd/Im:

15.3

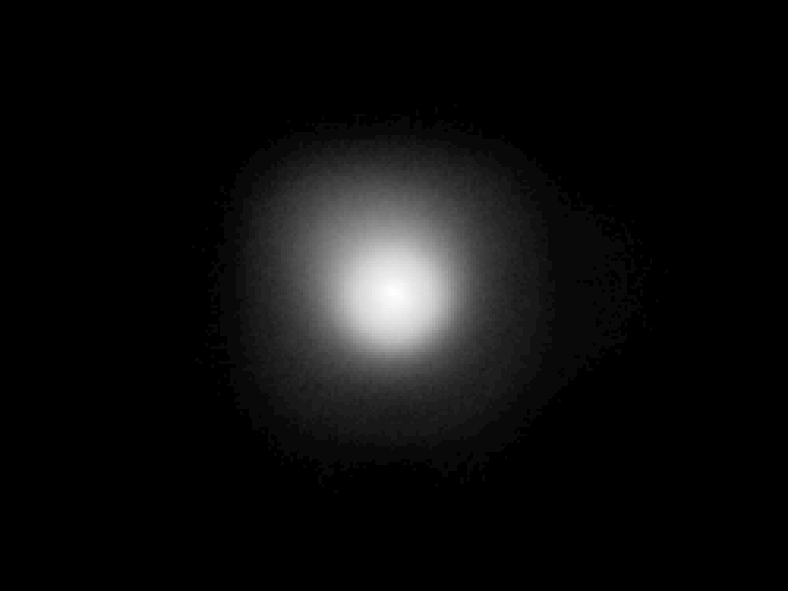

Carclo Optics 10003 20mm Simulated Spot Image Nichia 757G-MT

Carclo Optics 10003 20mm Cross Section Nichia 757G-MT

Download

IES

Nichia NCSW CSP E17A White

Eff:

87.5%

FWHM:

7.6°

Cd/Im:

33.8

Carclo Optics - Simulated Spot Image

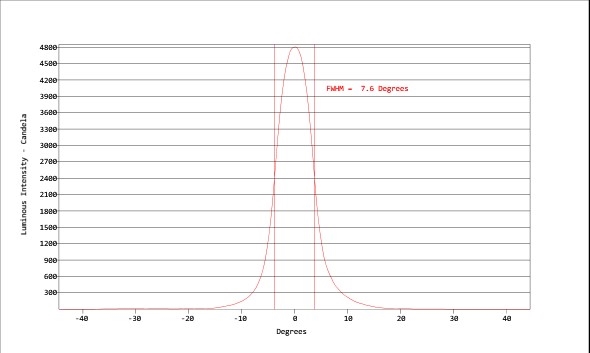

Carclo Optics - Simulated Cross Section

Download

IES

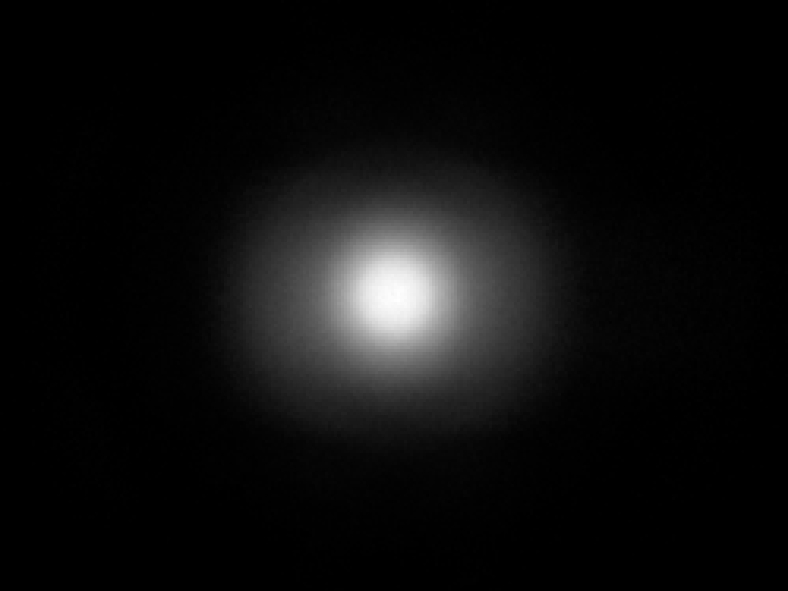

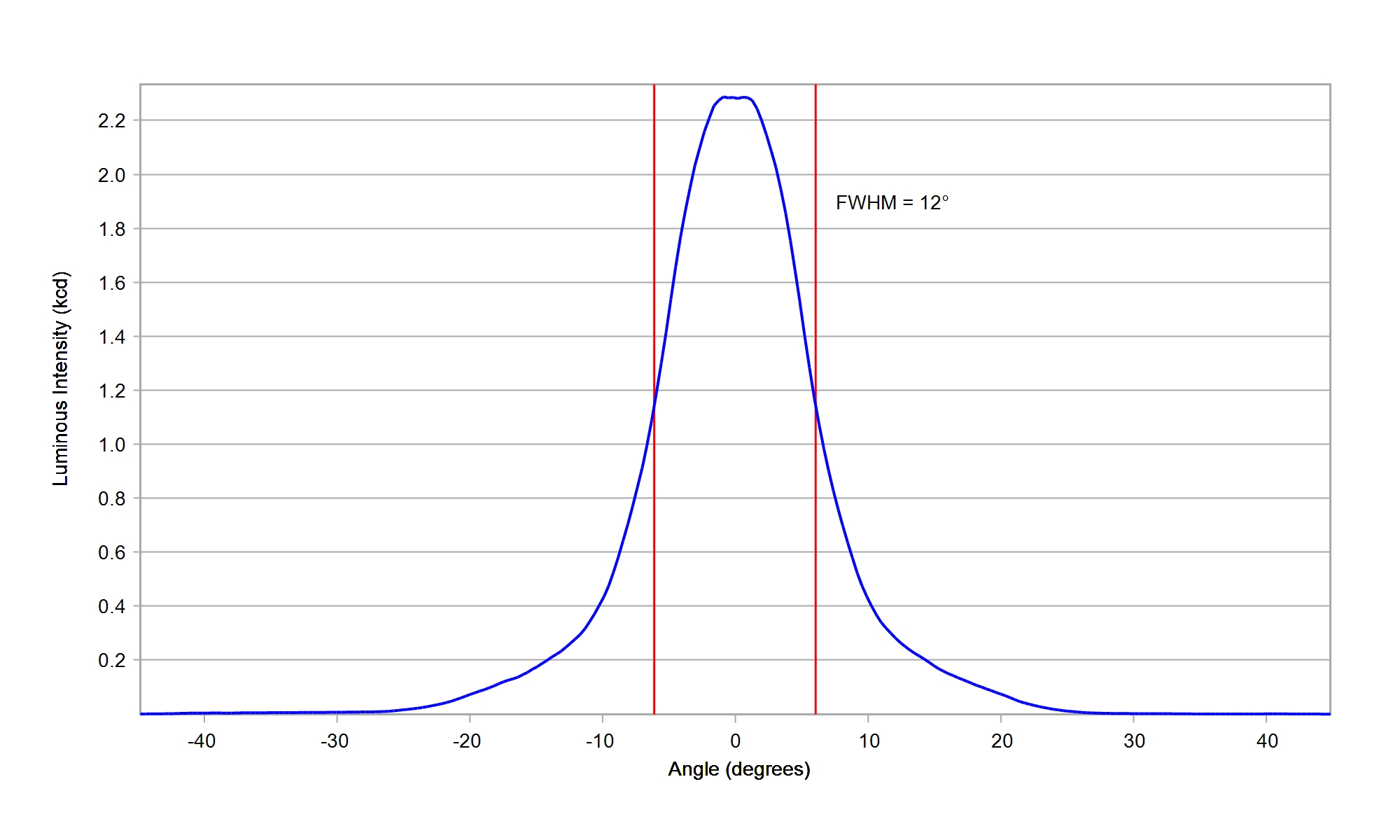

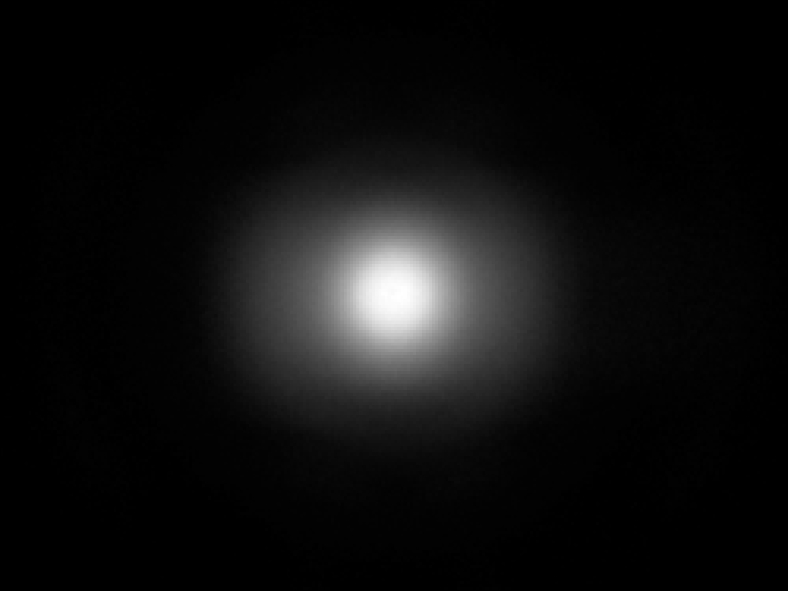

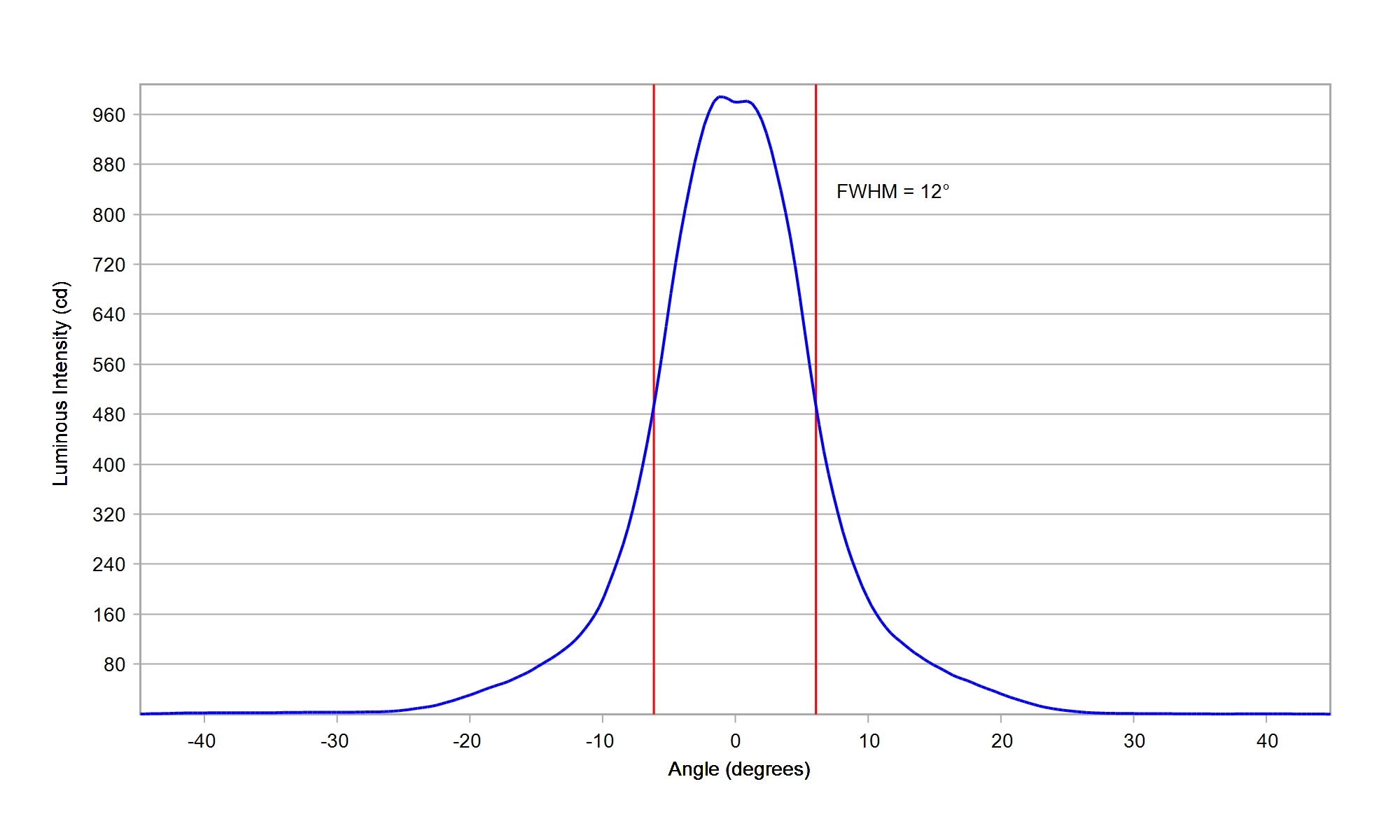

Nichia NF2W 385AR-V2 White

Eff:

88.5%

FWHM:

12°

Cd/Im:

13.0

Download

IES

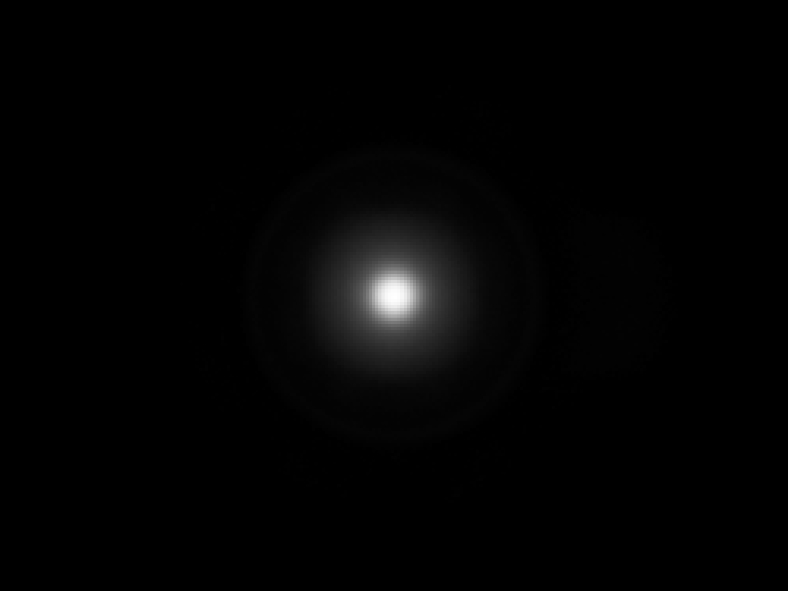

Nichia NFSW CSP E11A White

Eff:

88.0%

FWHM:

5°

Cd/Im:

69.1

Download

IES

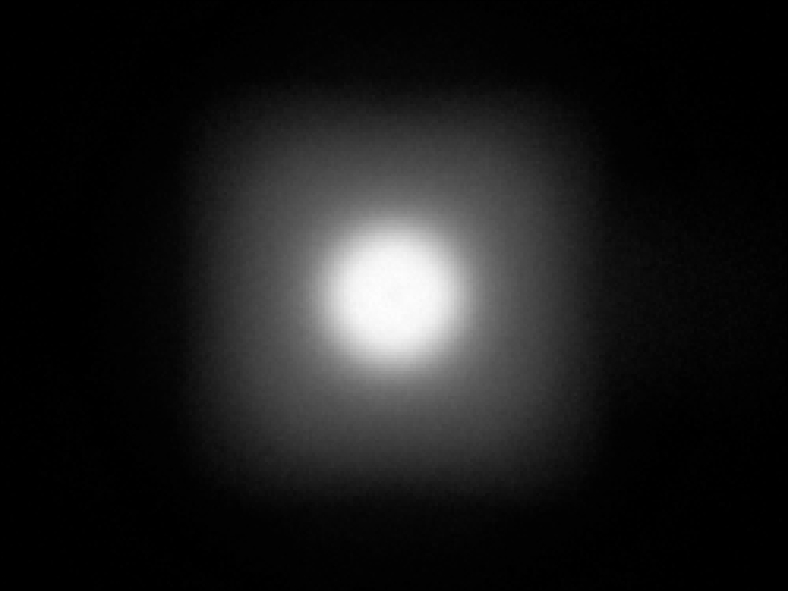

Nichia NV4W B35AM White

Eff:

88.5%

FWHM:

18°

Cd/Im:

6.5

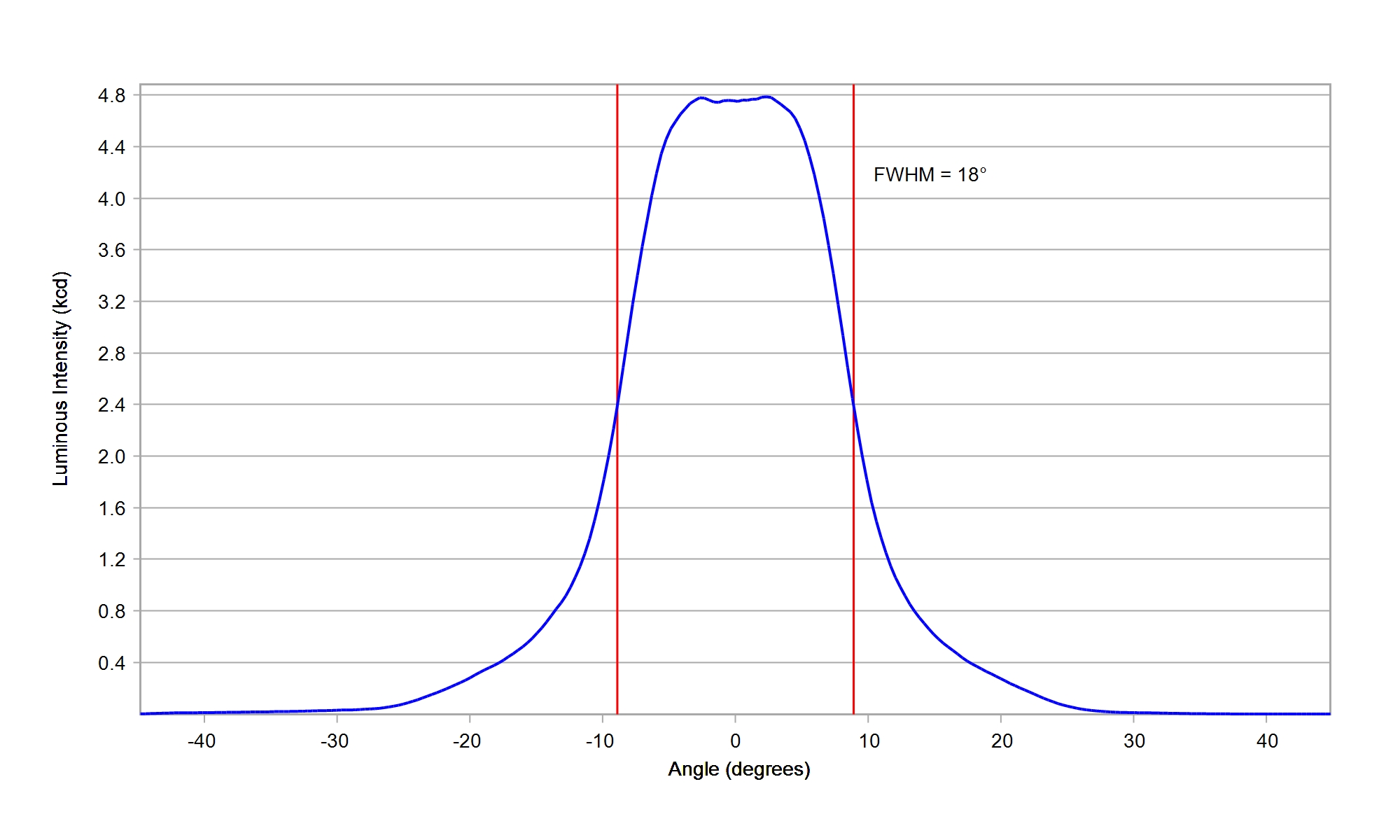

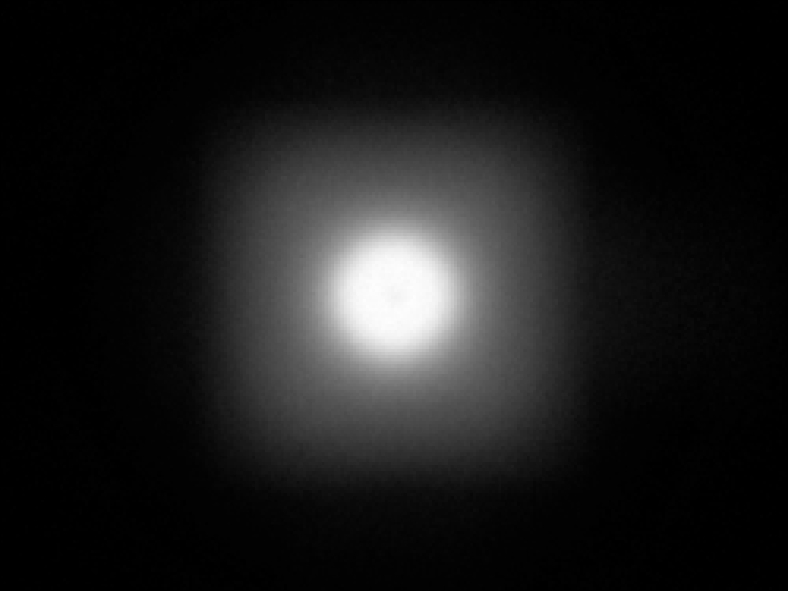

Carclo Optics – 10003 Nichia NV4WB35AM - Spot Image

Carclo Optics – 10003 Nichia NV4WB35AM - Cross-Section

Download

IES

Nichia NVSL 219B White

Eff:

86.5%

FWHM:

9.4°

Cd/Im:

22.2

Carclo Optics - Simulated Spot Image

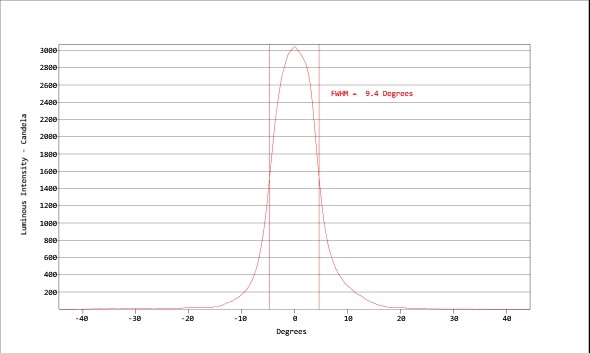

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW 219C White

Eff:

87.0%

FWHM:

13.0°

Cd/Im:

11.5

Carclo Optics - Simulated Spot Image

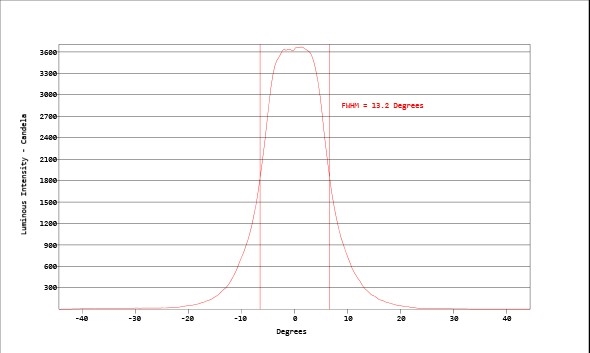

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW 219F White

Eff:

87.5%

FWHM:

13°

Cd/Im:

12.1

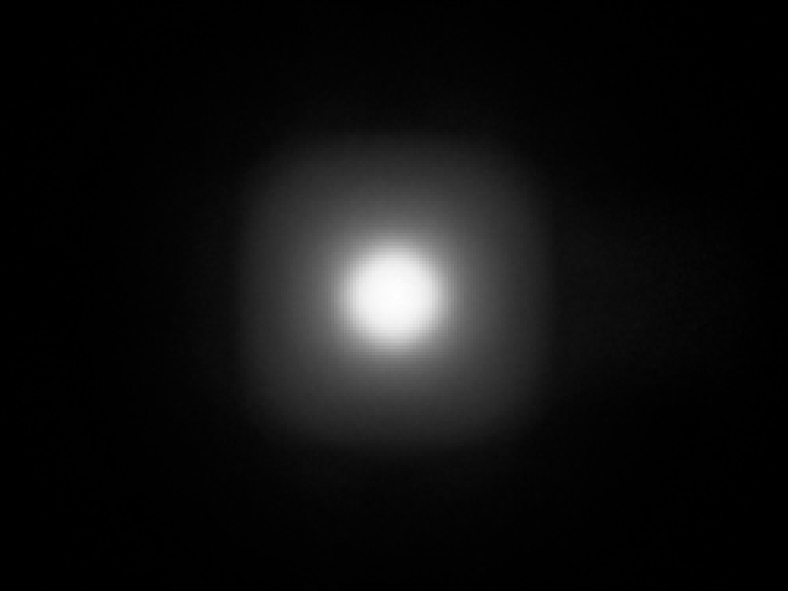

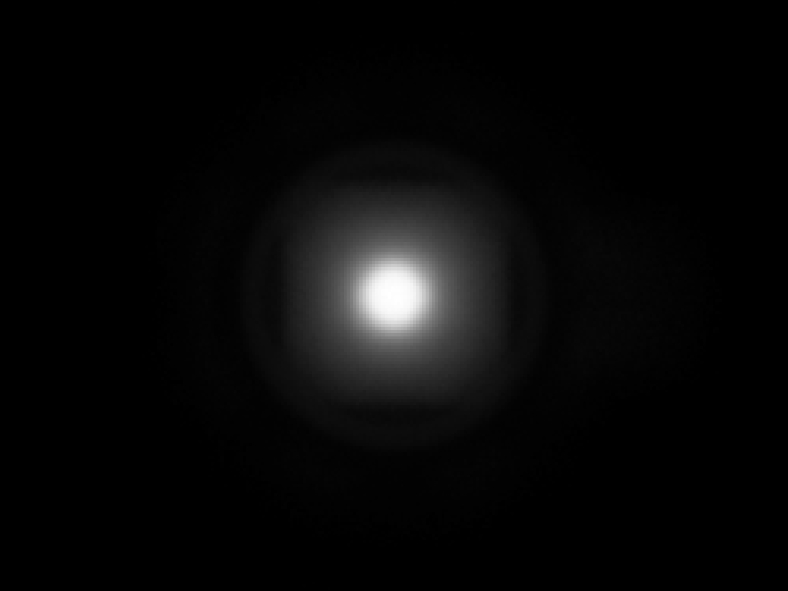

Carclo Optics – 10003 Nichia NVSW 219F White - Spot Image

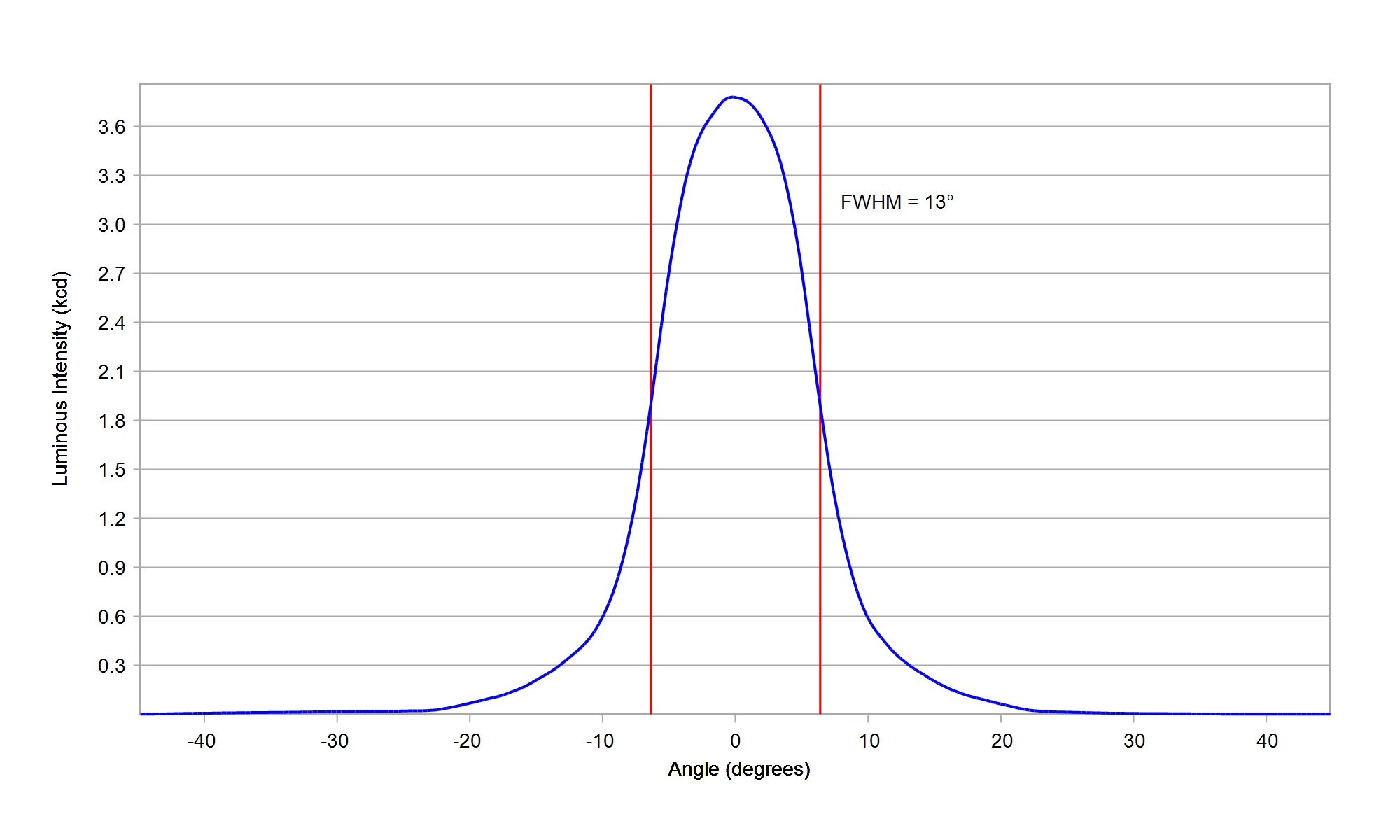

Carclo Optics – 10003 Nichia NVSW 219F White - Cross-Section

Download

IES

Nichia NVSW 319A White

Eff:

86.5%

FWHM:

16.0°

Cd/Im:

8.9

Carclo Optics - Simulated Spot Image

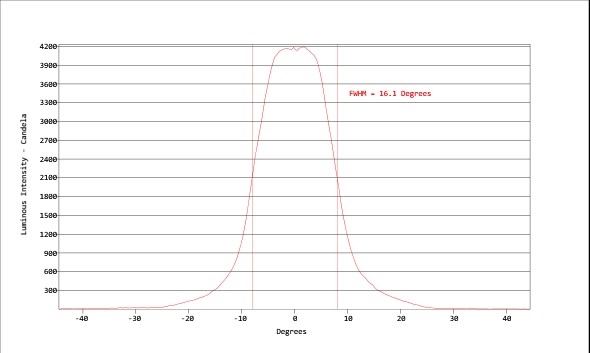

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW CSP E21A White

Eff:

84.0%

FWHM:

9.7°

Cd/Im:

19.9

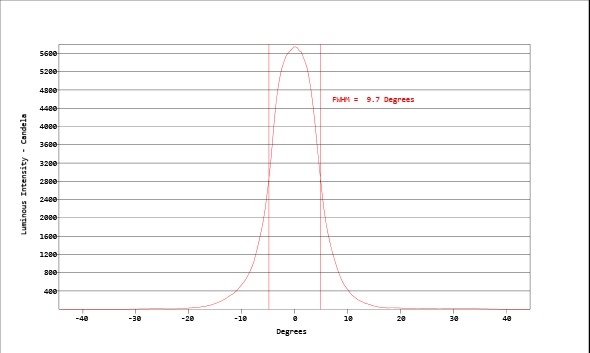

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

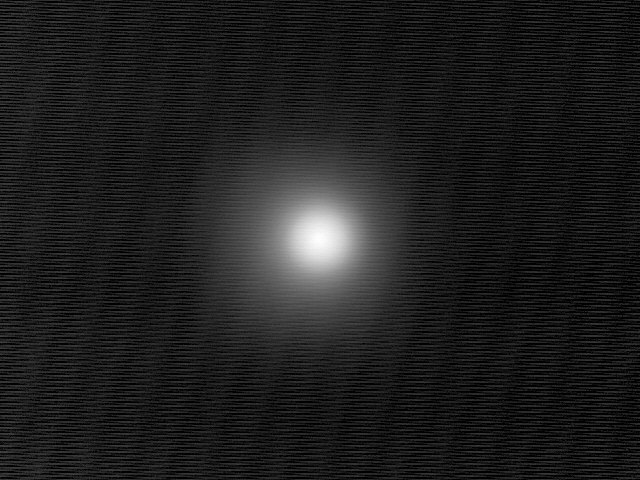

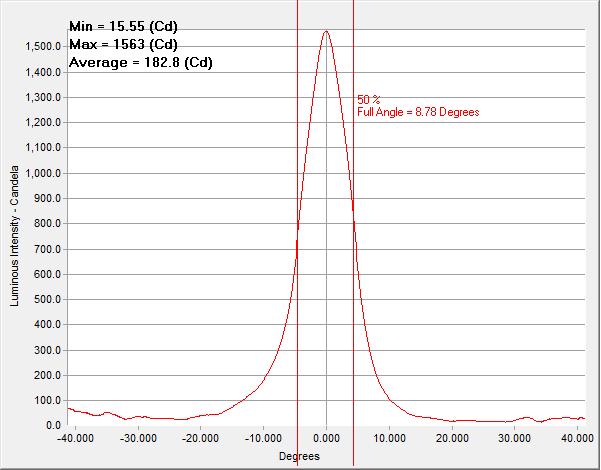

Nichia Top Emitting NCSL 119-H3 White

Eff:

88.8%

FWHM:

8.6°

Cd/Im:

27.3

Download

ies

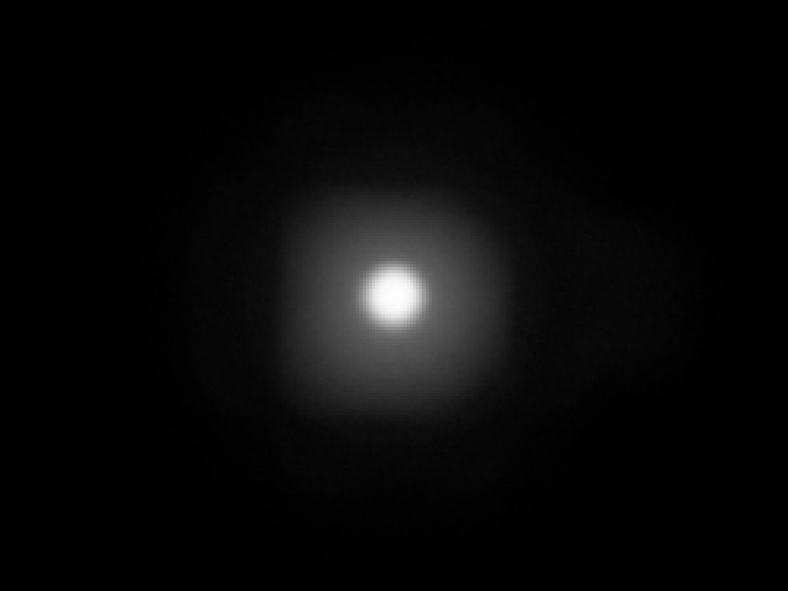

Osram LED ENGIN LuxiGen LZ1 00CW02 White

Eff:

88.5%

FWHM:

7°

Cd/Im:

30.3

Download

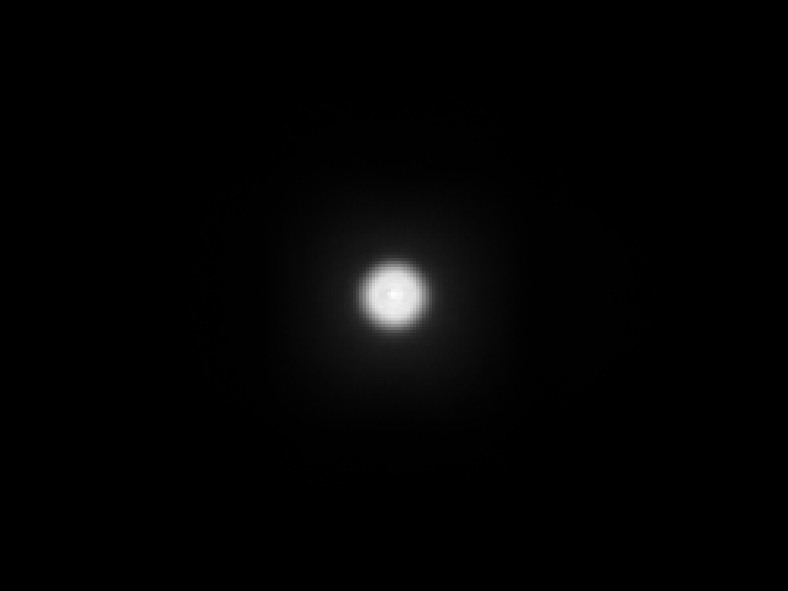

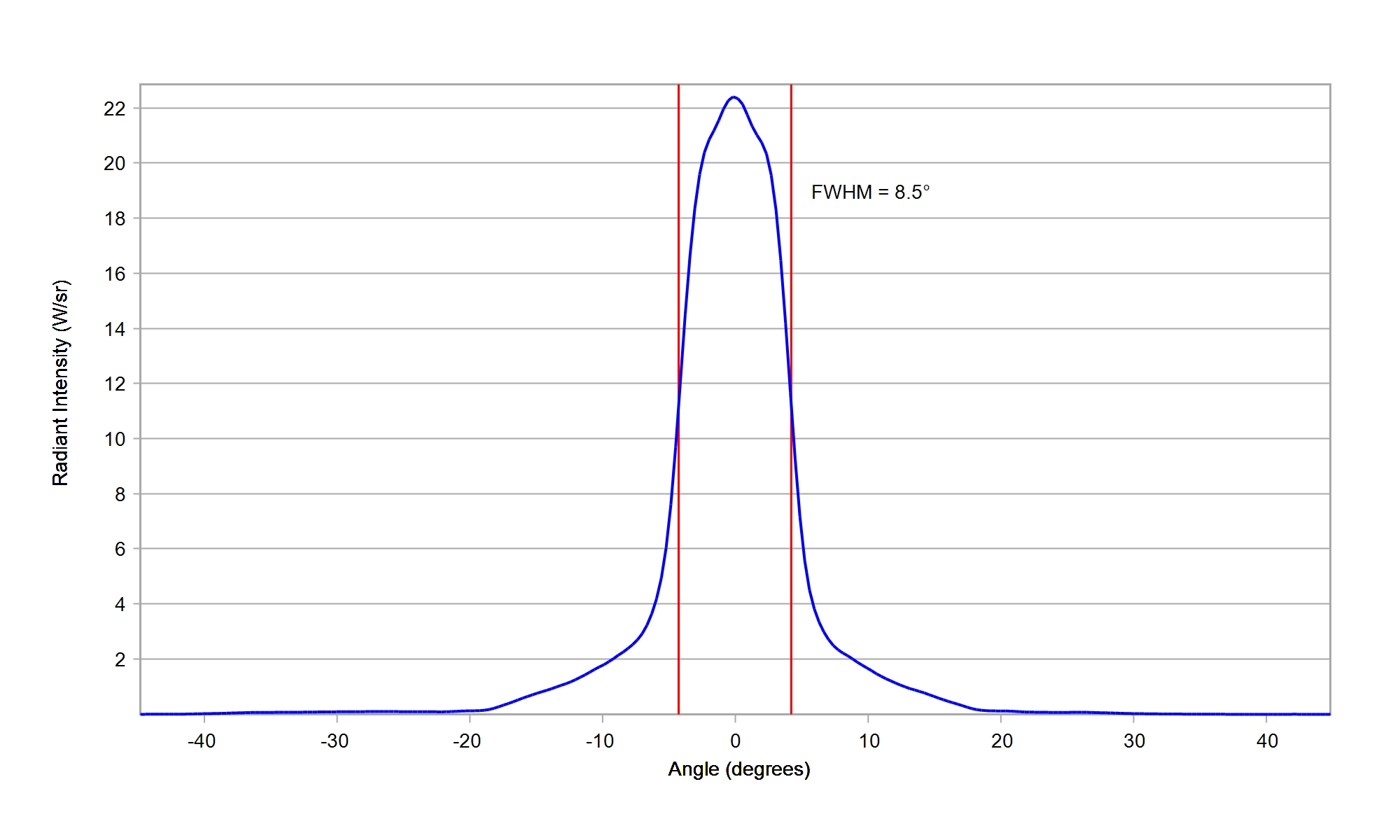

Osram LED ENGIN LuxiGen LZ1 00R702 IR940nm

Eff:

92.0%

FWHM:

8.5°

Ipk/W:

23.4

Download

IES

Osram DURIS E 2835 Gen2

Eff:

89.0%

FWHM:

8.2°

Cd/Im:

26.8

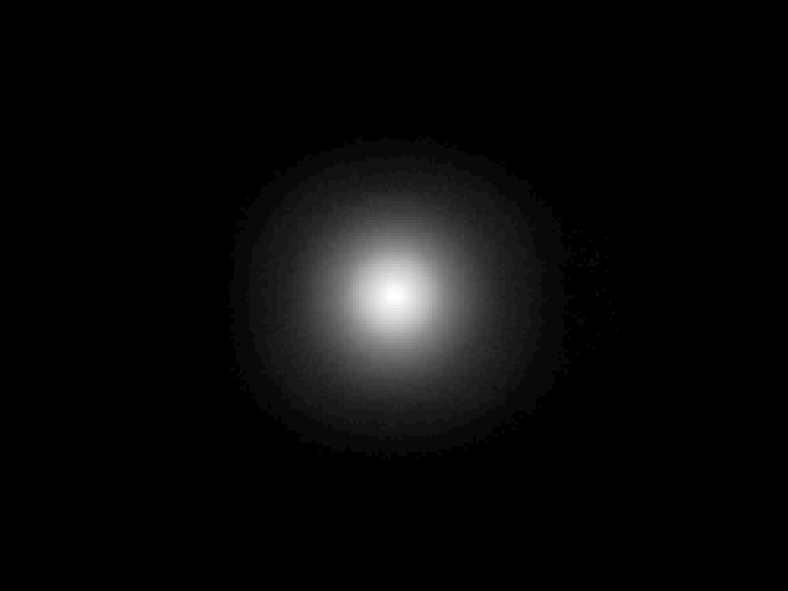

Carclo Optics - 10003 20mm Spot Image Osram DURIS E 2835 Gen2

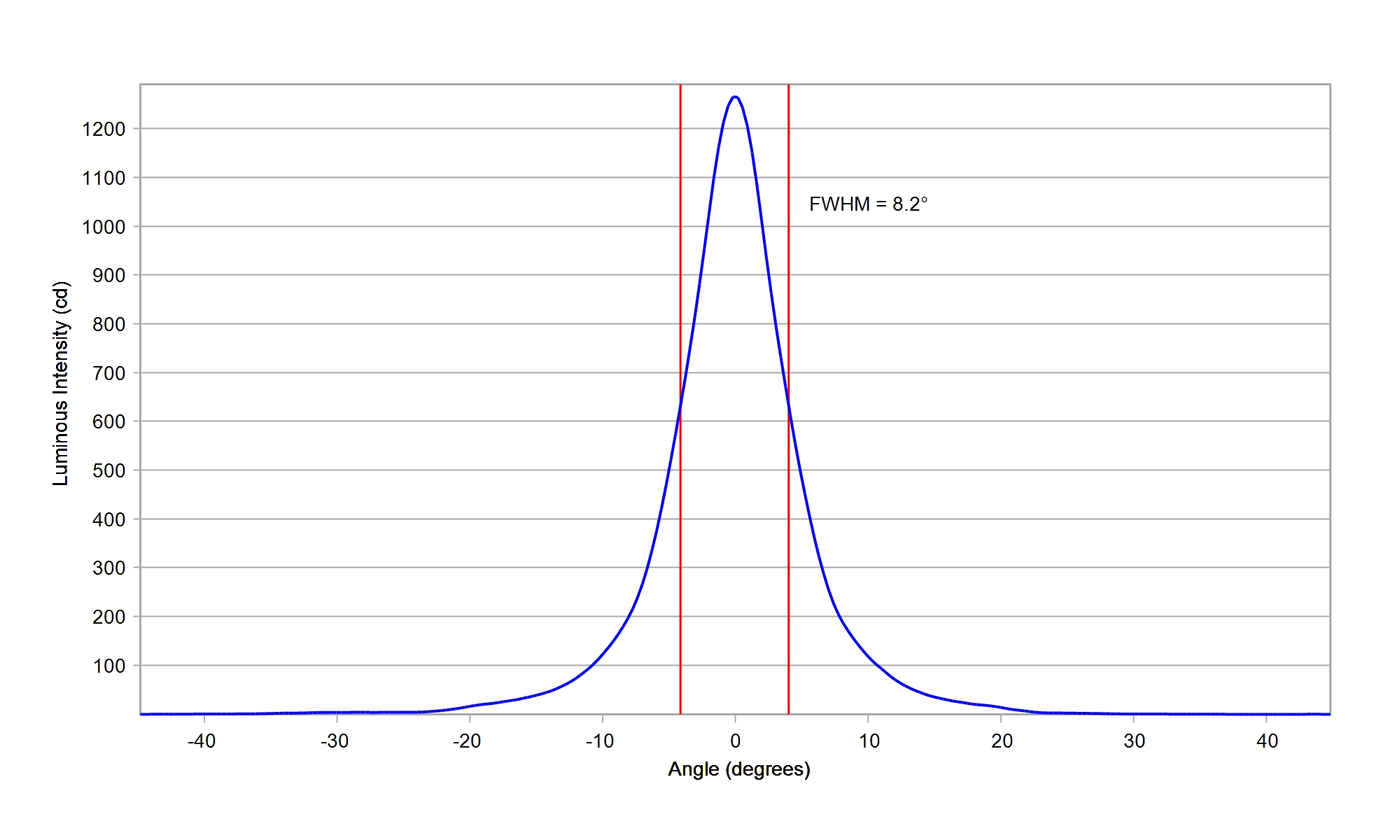

Carclo Optics - 10003 20mm Cross Section Osram DURIS E 2835 Gen2

Download

IES

Osram DURIS E 2835 White

Eff:

88.0%

FWHM:

8.0°

Cd/Im:

22.7

Carclo Optics - Simulated Spot Image

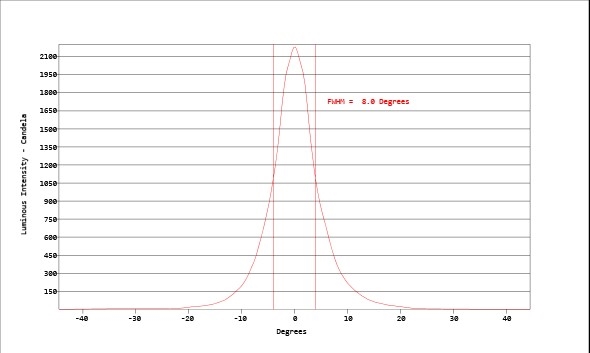

Carclo Optics - Simulated Cross Section

Download

IES

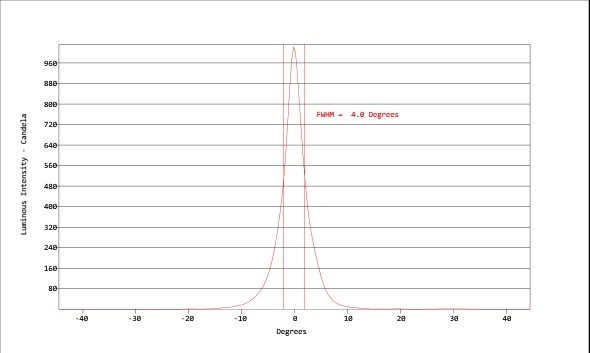

Osram DURIS E2 White

Eff:

85.0%

FWHM:

4.0°

Cd/Im:

42.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS E3 White

Eff:

88.6%

FWHM:

4.3°

Cd/Im:

36.2

Carclo Optics - Simulated Spot Image

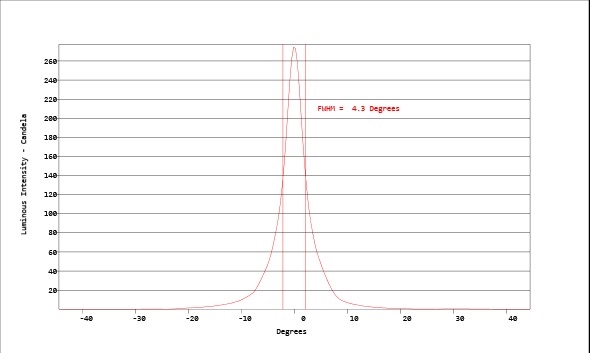

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS P8 White

Eff:

85.3%

FWHM:

10.6°

Cd/Im:

17.0

Carclo Optics - Simulated Spot Image

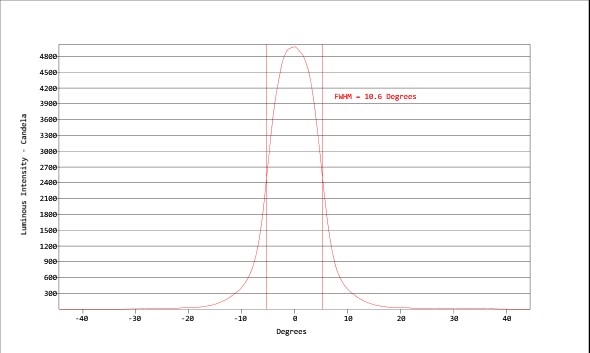

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S2 White

Eff:

90.0%

FWHM:

9.9°

Cd/Im:

19.5

Carclo Optics - Simulated Spot Image

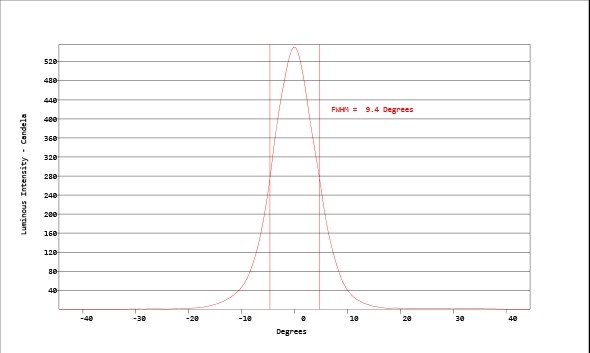

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S5 Deep Blue

Eff:

87.0%

FWHM:

10.0°

Cd/Im:

21.1

Carclo Optics - Simulated Spot Image

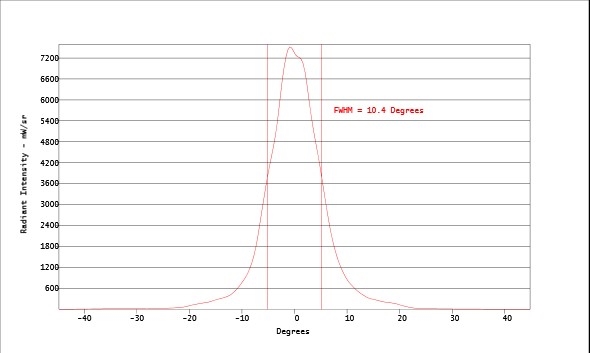

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S5 Green

Eff:

88.5%

FWHM:

9.2°

Cd/Im:

22.0

Carclo Optics - Simulated Spot Image

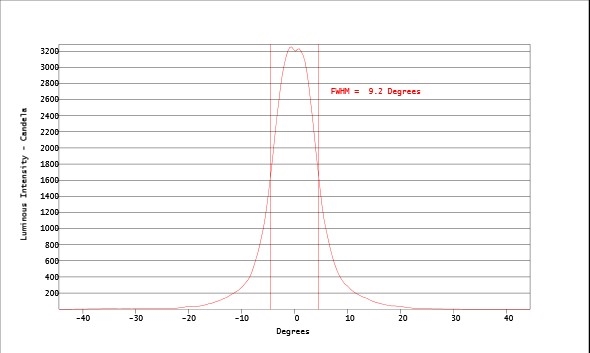

Carclo Optics - Simulated Cross Section

Download

IES

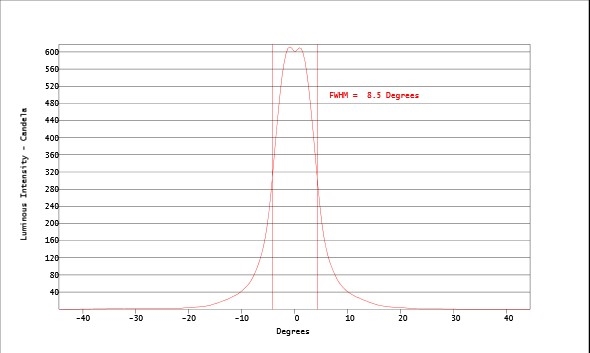

Osram DURIS S5 Red

Eff:

89.5%

FWHM:

8.5°

Cd/Im:

26.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S5 White

Eff:

85.0%

FWHM:

9.4°

Cd/Im:

18.5

Carclo Optics - Simulated Spot Image

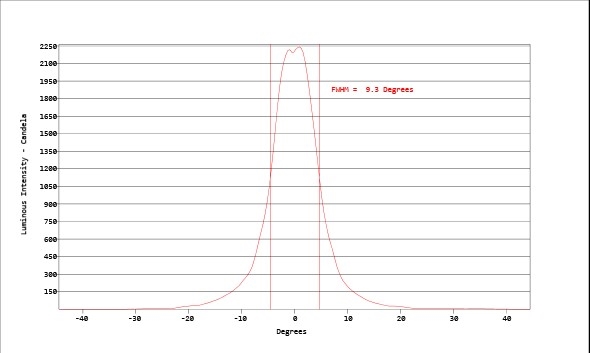

Carclo Optics - Simulated Cross Section

Download

IES

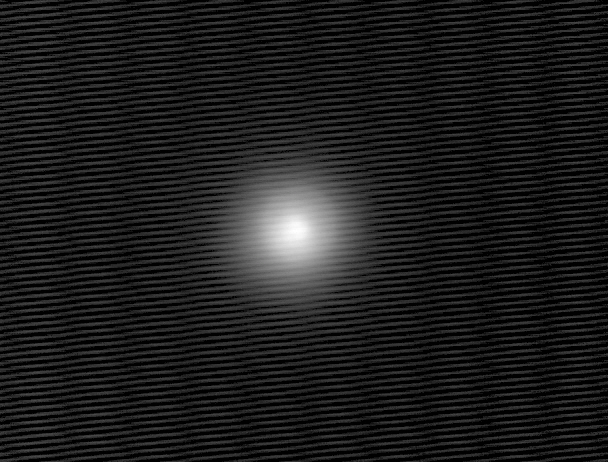

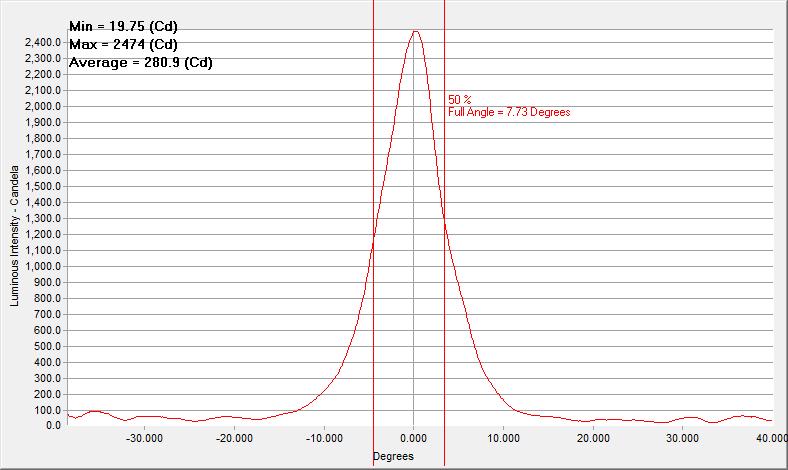

Osram Golden DRAGON Plus W5AM White

Eff:

88.2%

FWHM:

7.75°

Cd/Im:

28.7

Download

ies

Osram OSCONIQ C 2424 White

Eff:

89.0%

FWHM:

8.6°

Cd/Im:

25.1

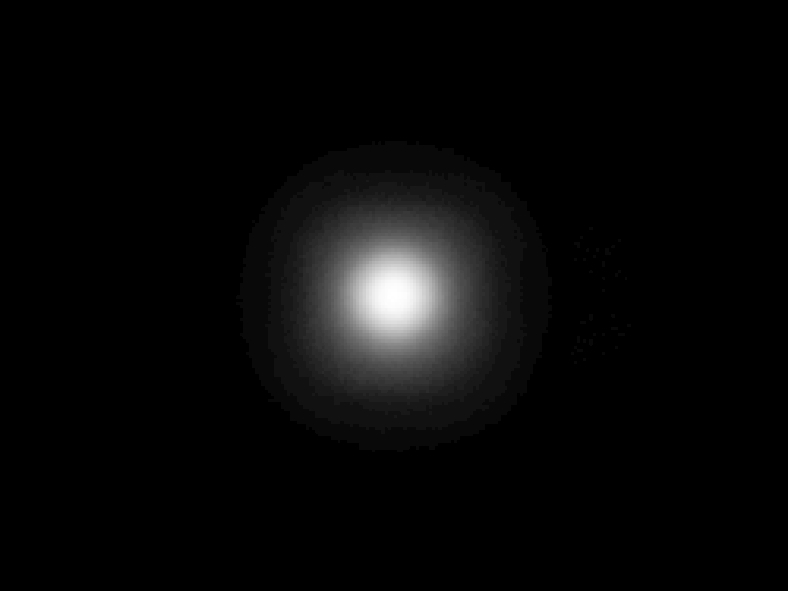

Carclo Optics - 10003 Spot Image OSCONIQ C2424

Carclo Optics - 10003 Cross Section OSCONIQ C2424

Download

IES

Osram OSCONIQ P3737 White

Eff:

86.5%

FWHM:

15.5°

Cd/Im:

8.1

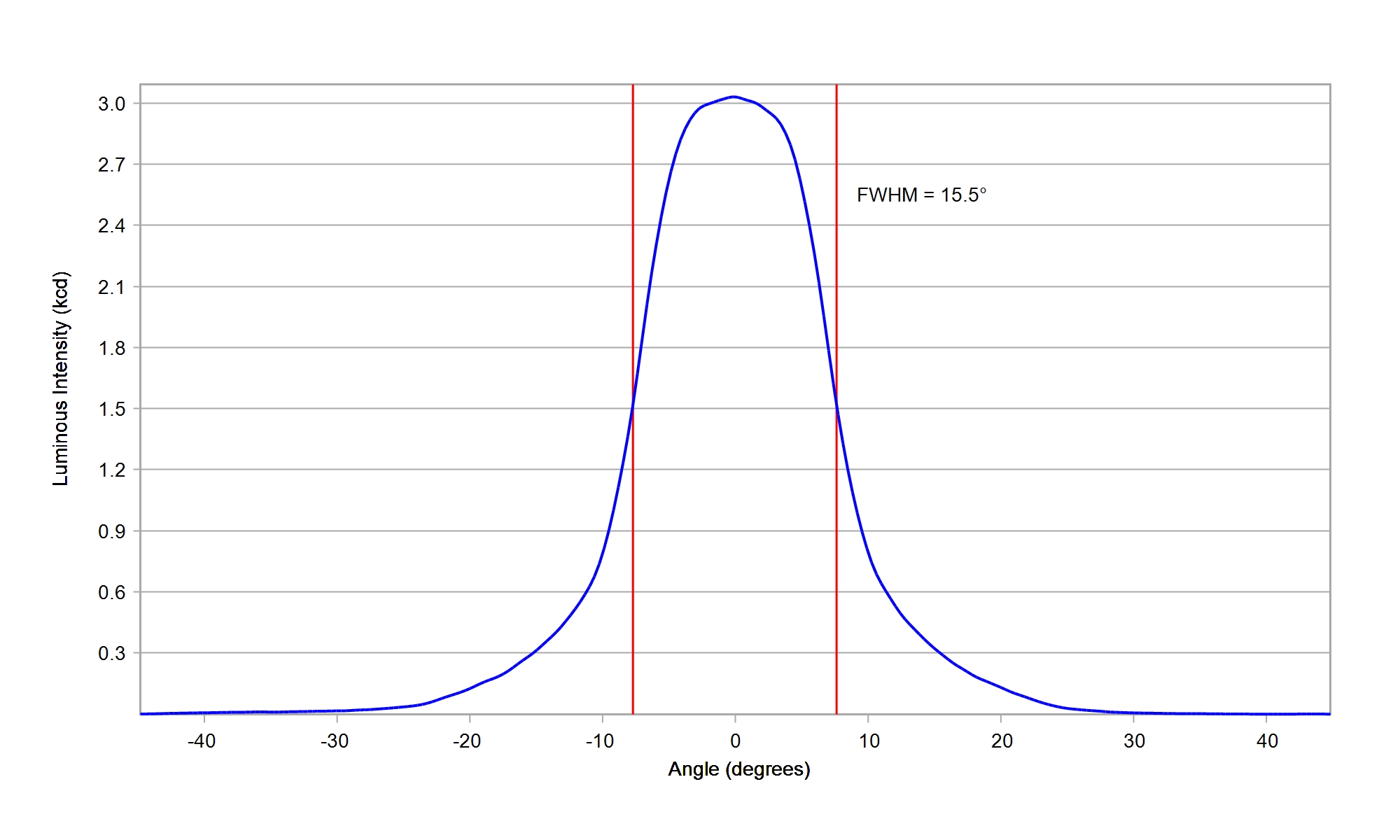

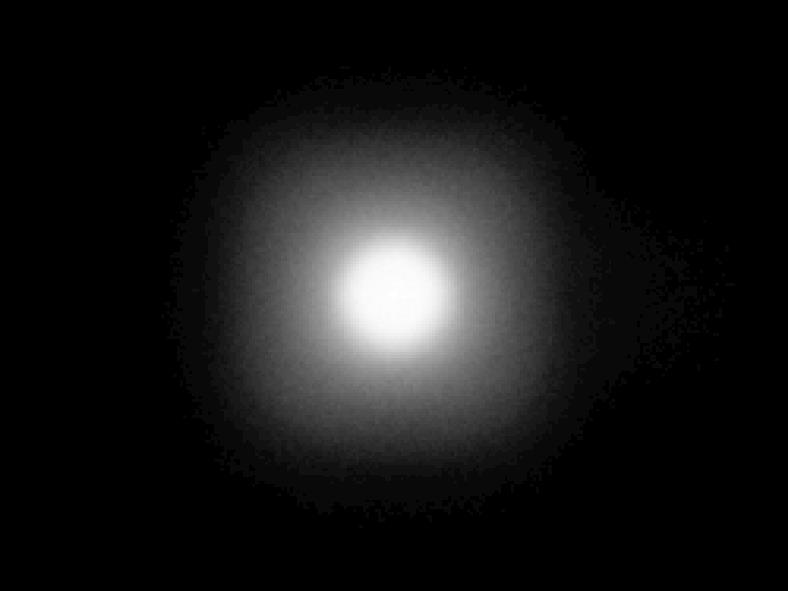

Carclo Optics 10003 Spot Image Osram Osconiq

Carclo Optics 10003 Cross Section Osram Osconiq P3737

Download

IES

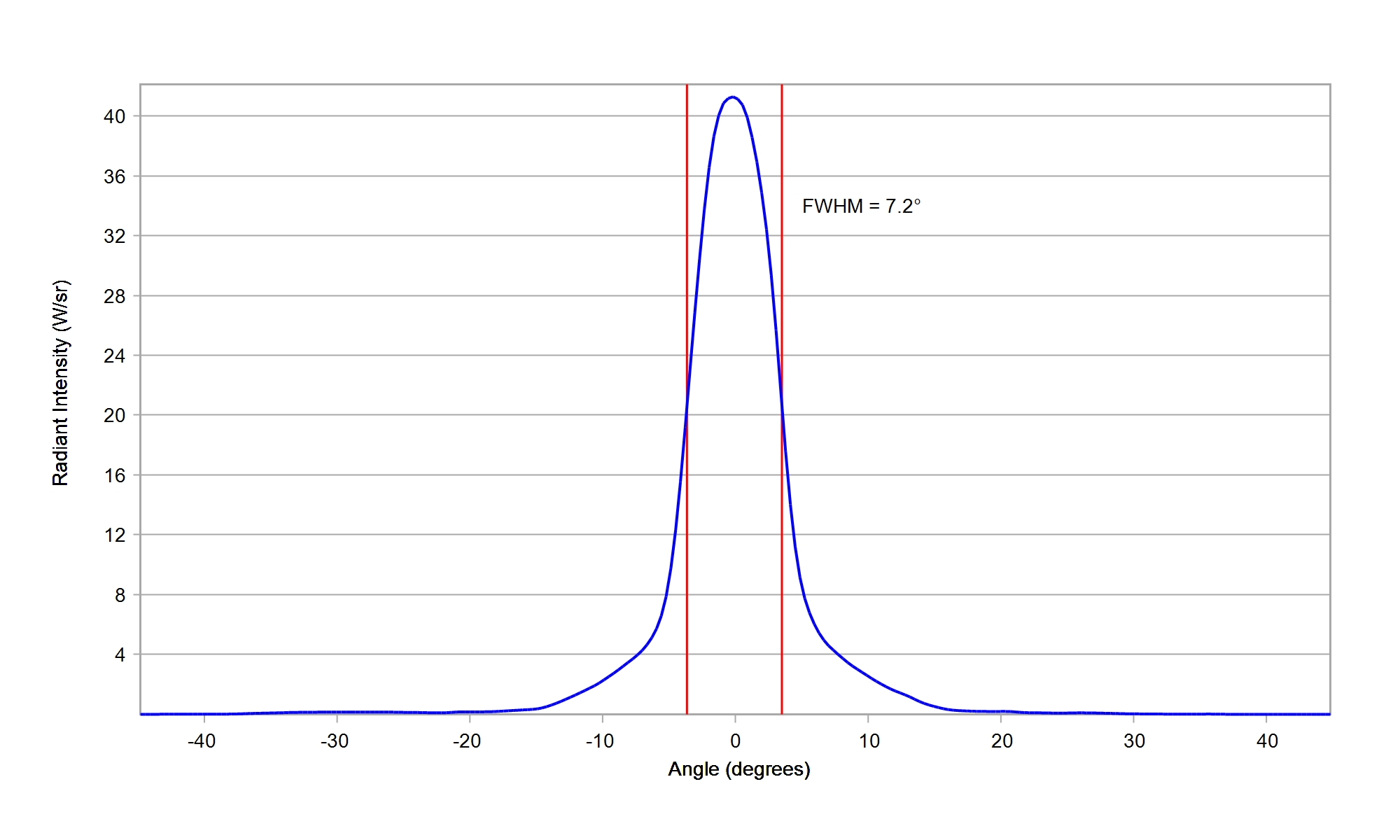

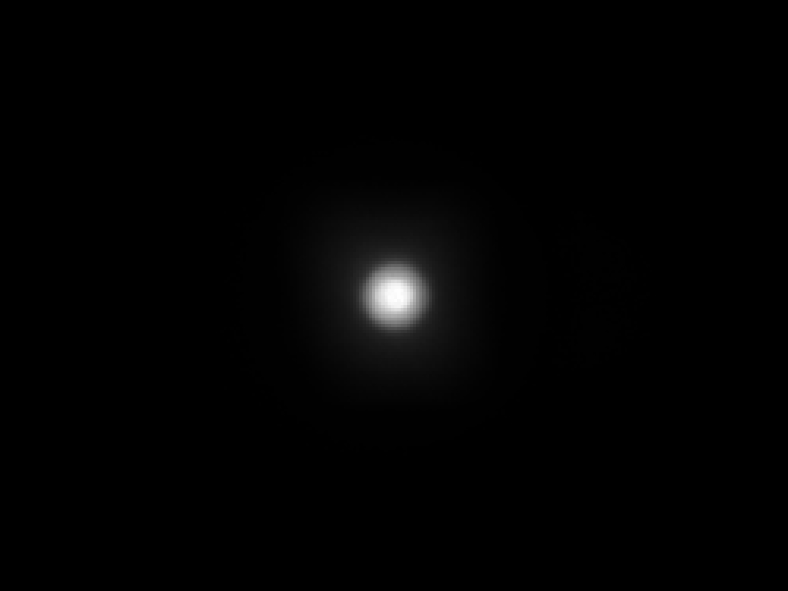

Osram OSLON Black SFH 4715AS IR

Eff:

91.0%

FWHM:

7.2°

Ipk/W:

29.9


Download

IES

Osram OSLON Black SFH 4716AS IR

Eff:

92.0%

FWHM:

7.4°

Ipk/W:

35.9

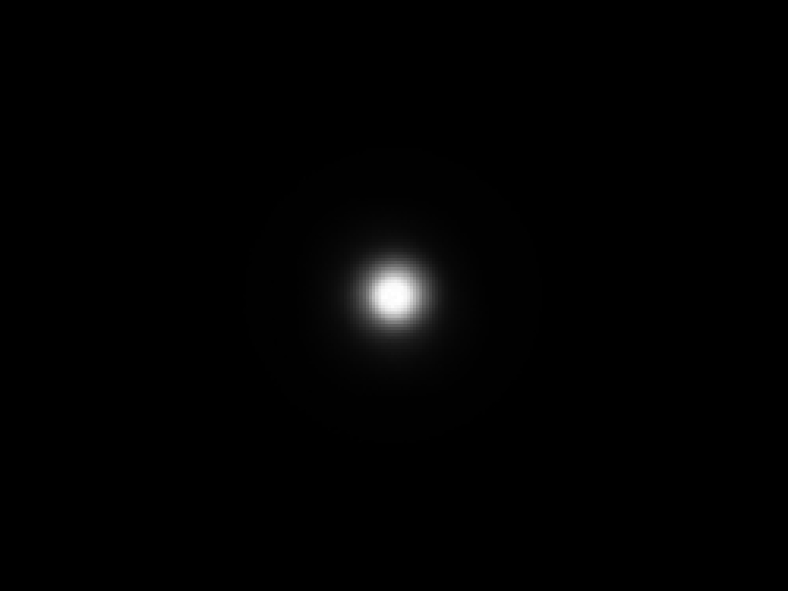

Carclo Optics – 10003 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

Carclo Optics – 10003 Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

IES

Osram OSLON Black SFH 4725S IR

Eff:

92.5%

FWHM:

8.8°

Ipk/W:

32.3

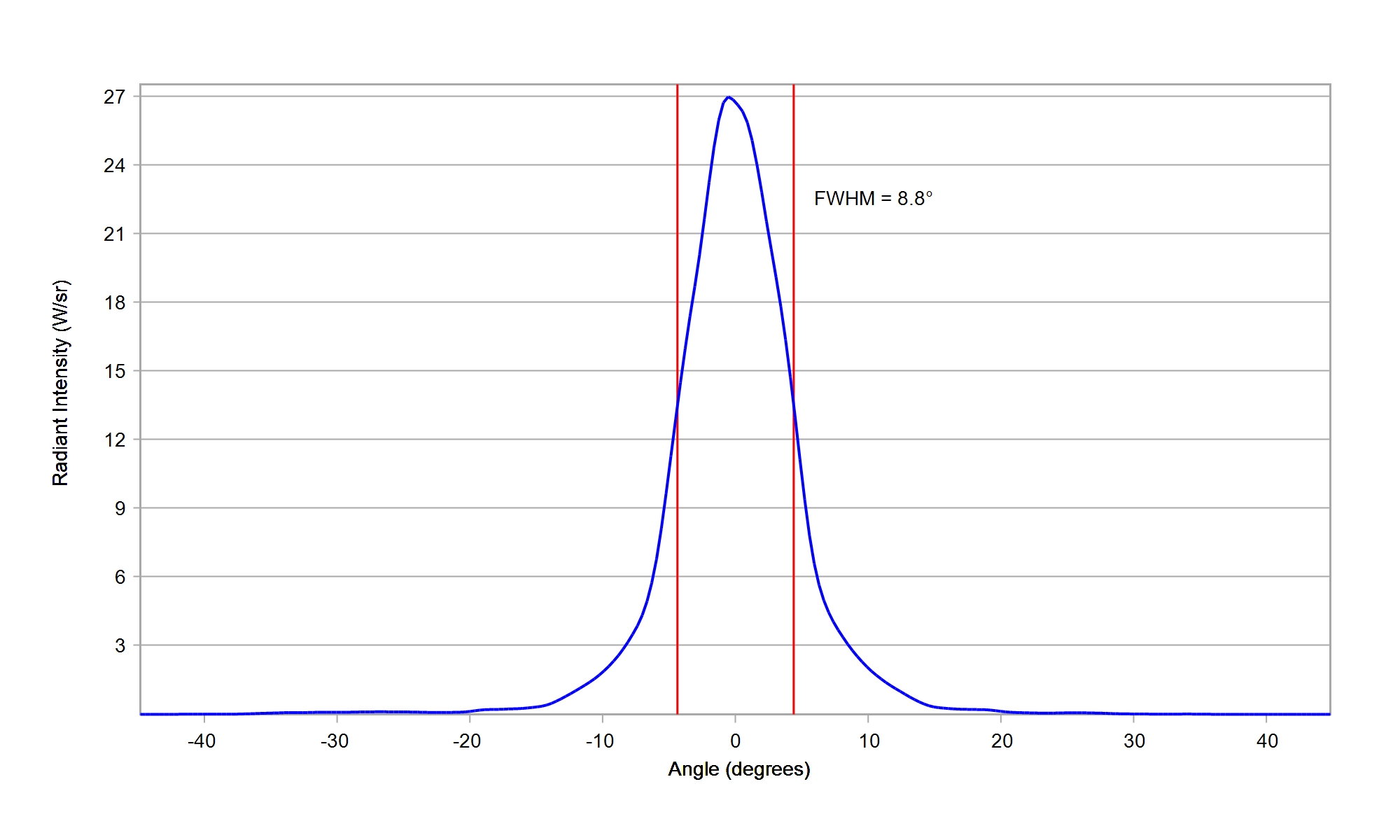

Carclo Optics 10003 Spot Image Osram Oslon Black_IR_SFH_4725S

Carclo Optics 10003 Cross Section Horizontal Image Osram Oslon Black_IR_SFH_4725S

Download

IES

Osram OSLON Boost HM KW CELMM1.TG

Eff:

88.5%

FWHM:

4.2°

Cd/Im:

98.9

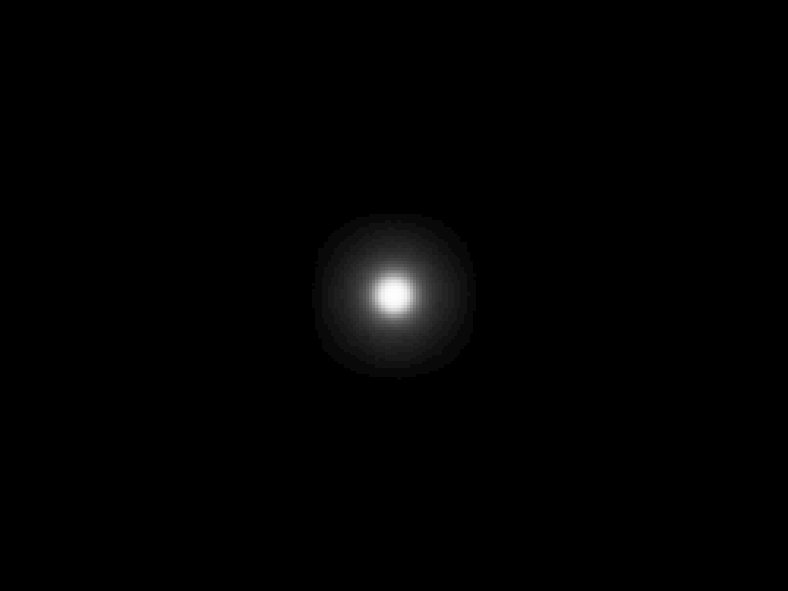

Carclo Optics – 10003 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 10003 – Osram_Oslon_Boost_KW_CELMM1_TG_cross vertical section

Download

IES

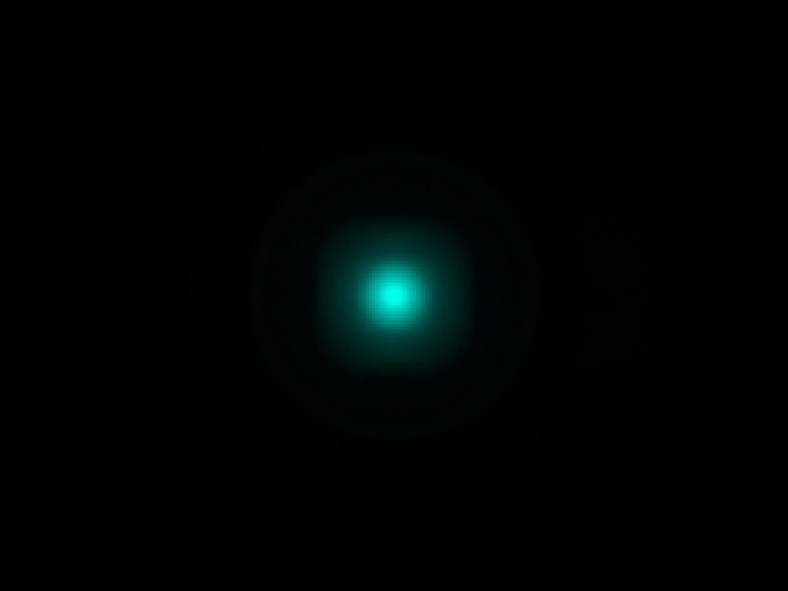

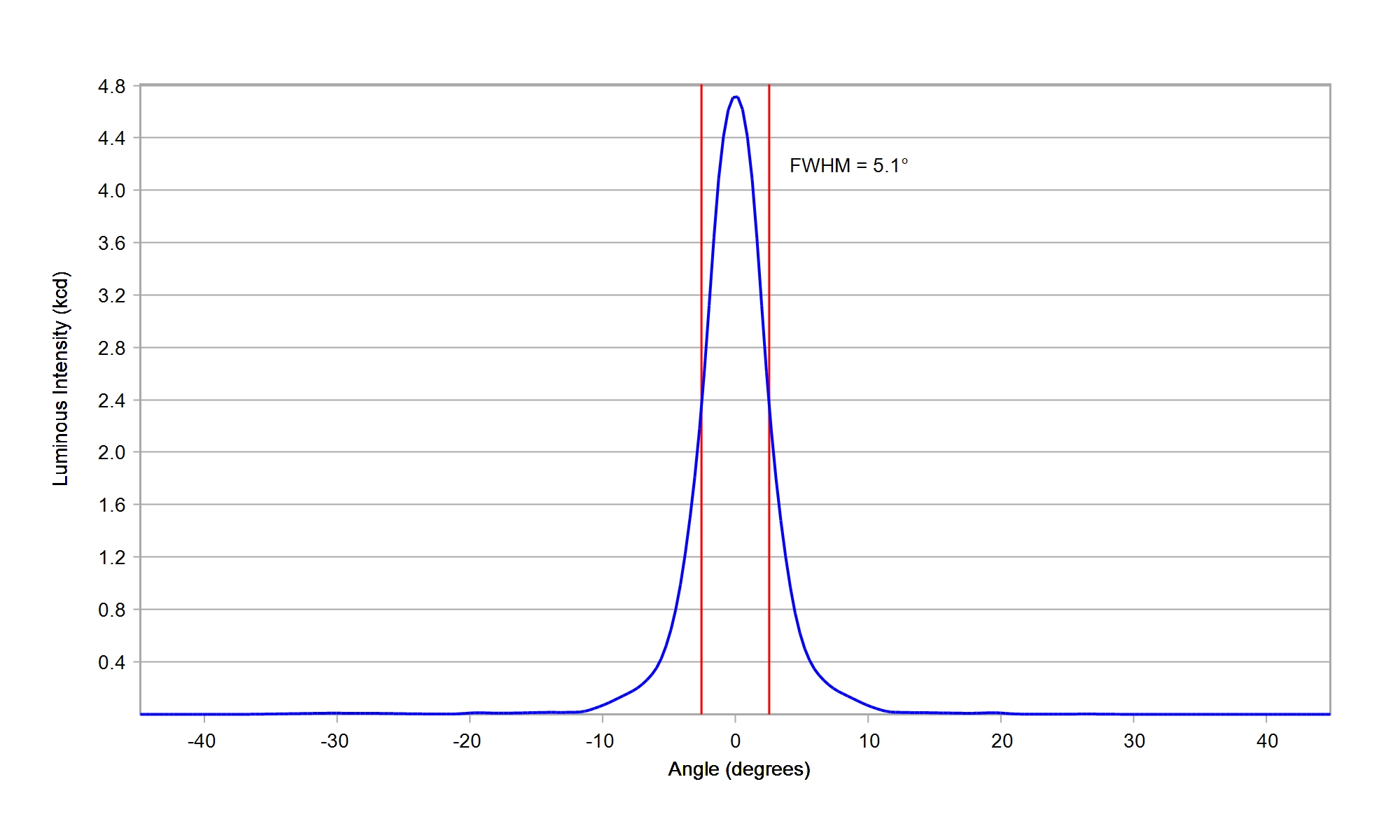

Osram OSLON Pure 1010 CSP GC VJLPE1.13 Cyan

Eff:

89.0%

FWHM:

5.1°

Cd/Im:

70.8


Download

IES

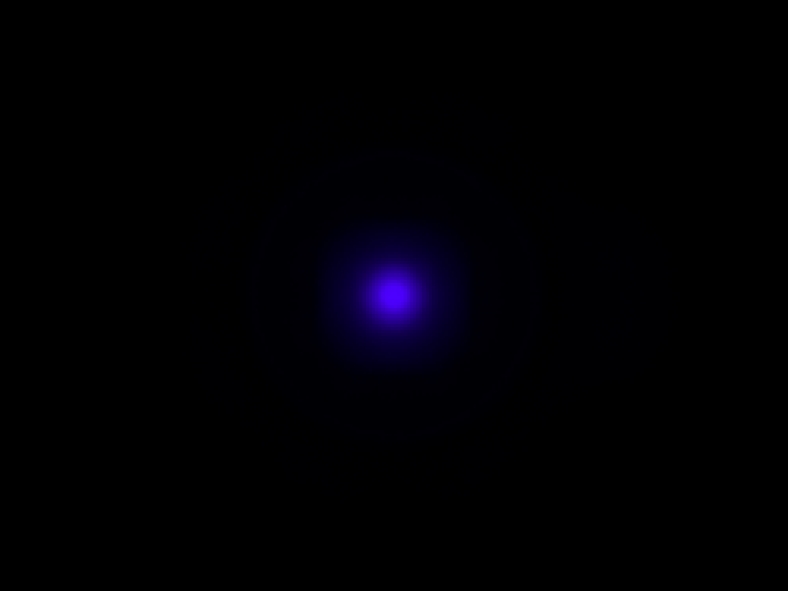

Osram OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue

Eff:

87.5%

FWHM:

5°

Ipk/W:

70.1


Download

IES

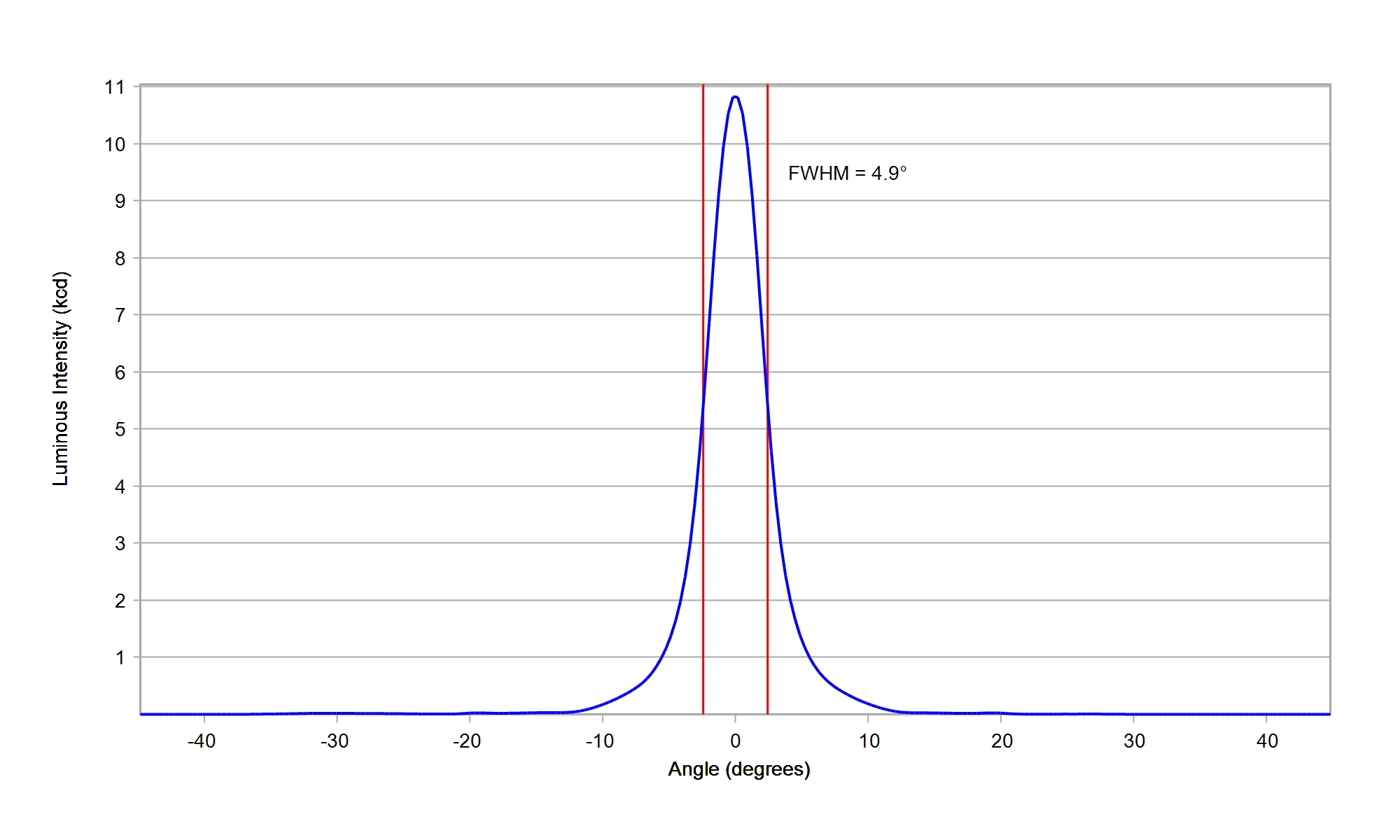

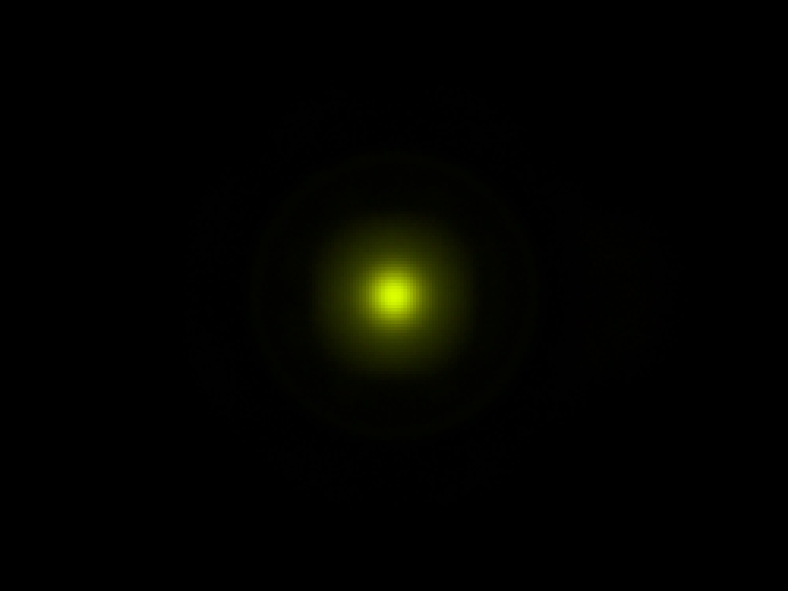

Osram OSLON Pure 1010 CSP GG VJLPE1.F3 Green

Eff:

88.5%

FWHM:

4.9°

Cd/Im:

77.7


Download

IES

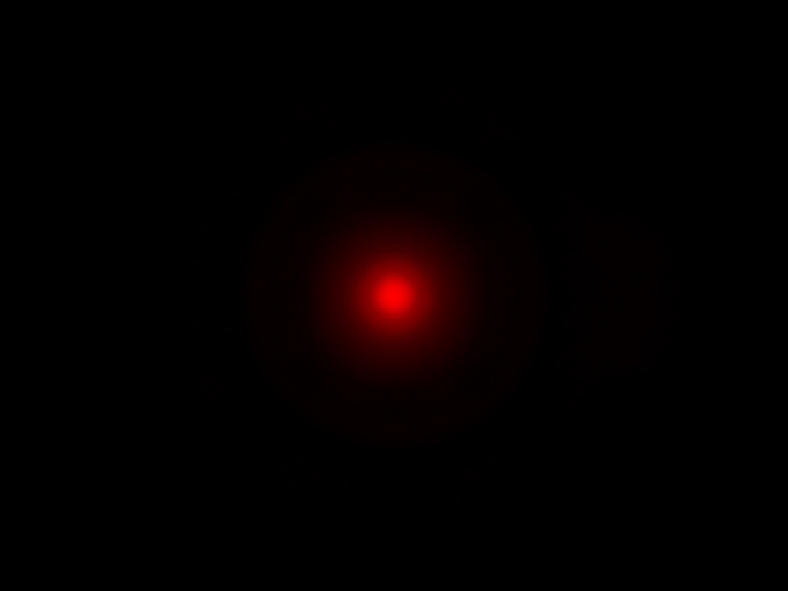

Osram OSLON Pure 1010 CSP GR VJLPE1.F3 Red

Eff:

89.0%

FWHM:

5.2°

Cd/Im:

66.4


Download

IES

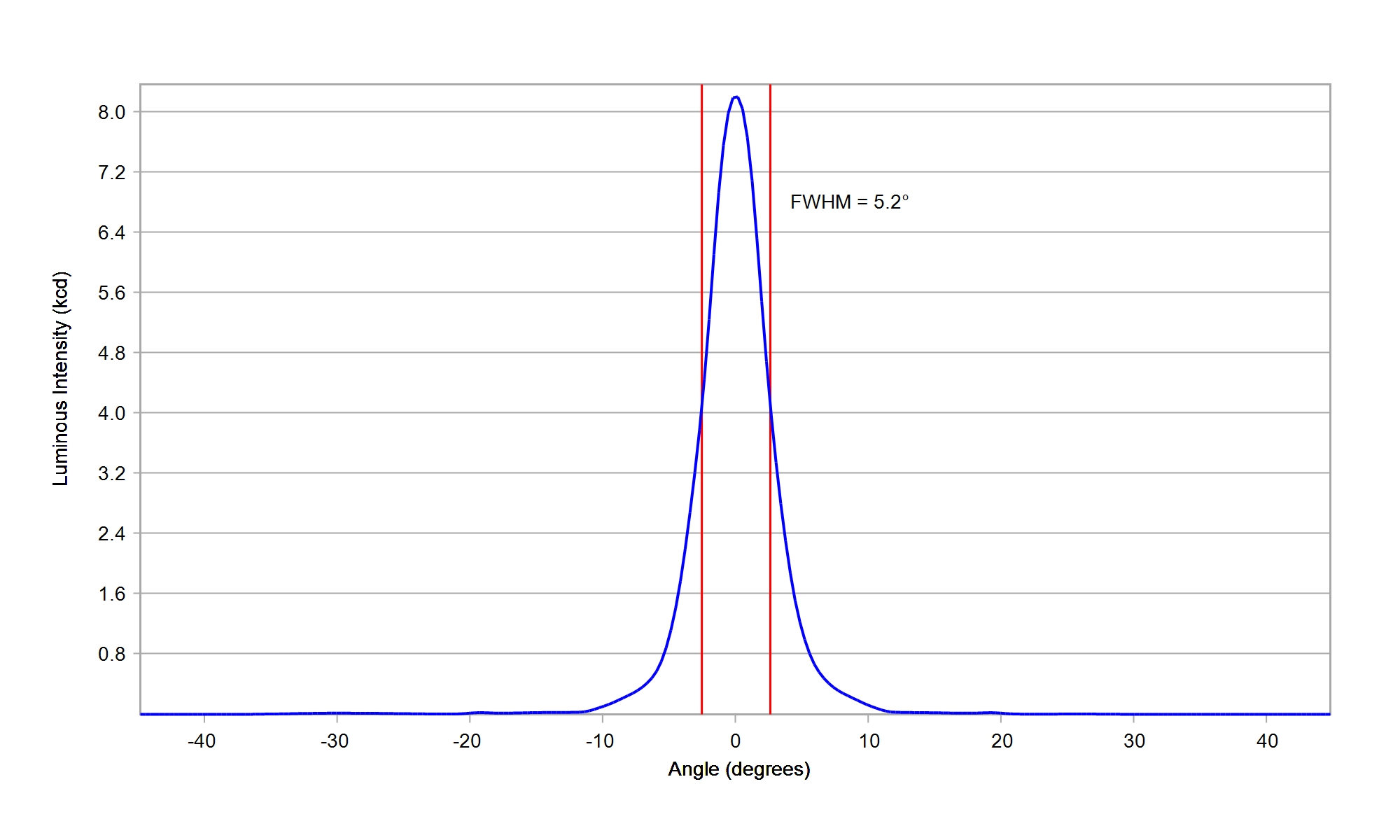

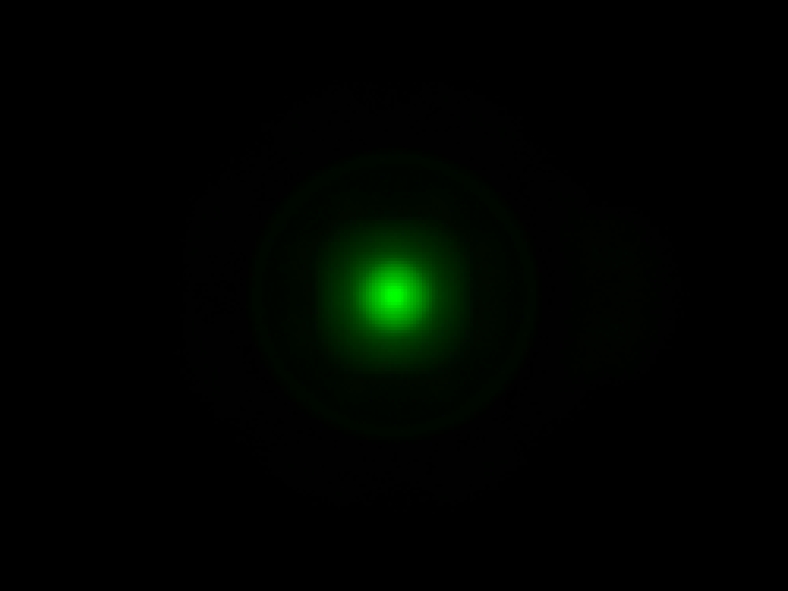

Osram OSLON Pure 1010 CSP GT VJLPE1.13 True Green

Eff:

89.0%

FWHM:

5.2°

Cd/Im:

71.8


Download

IES

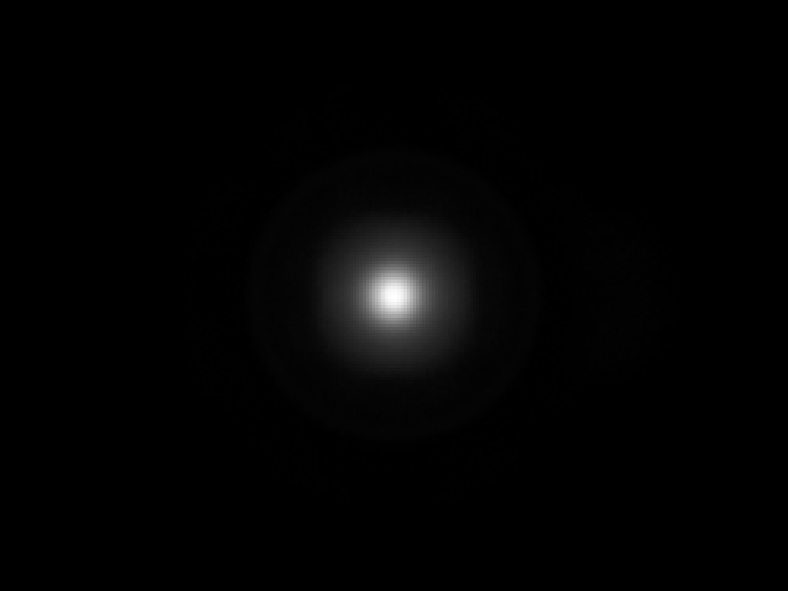

Osram OSLON Pure 1010 CSP GW VJLPE1.CM White

Eff:

88.0%

FWHM:

4.8°

Cd/Im:

75.7



Download

IES

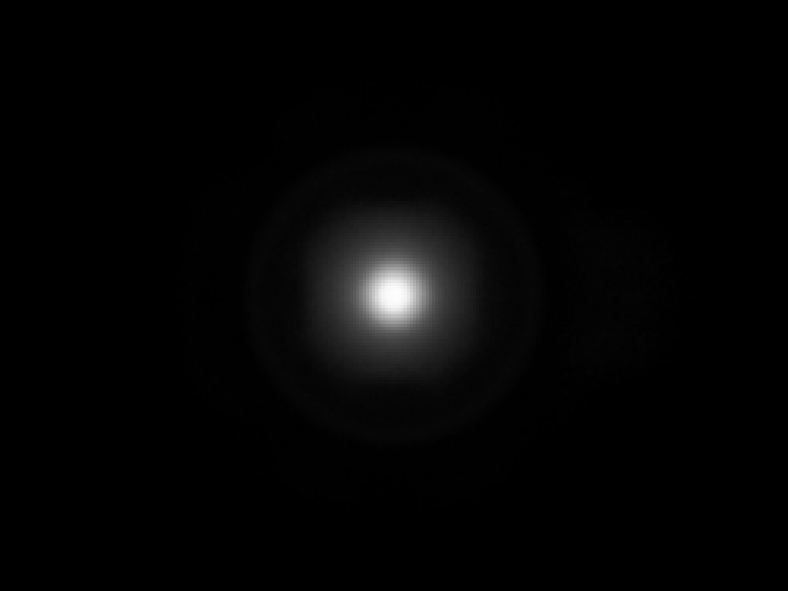

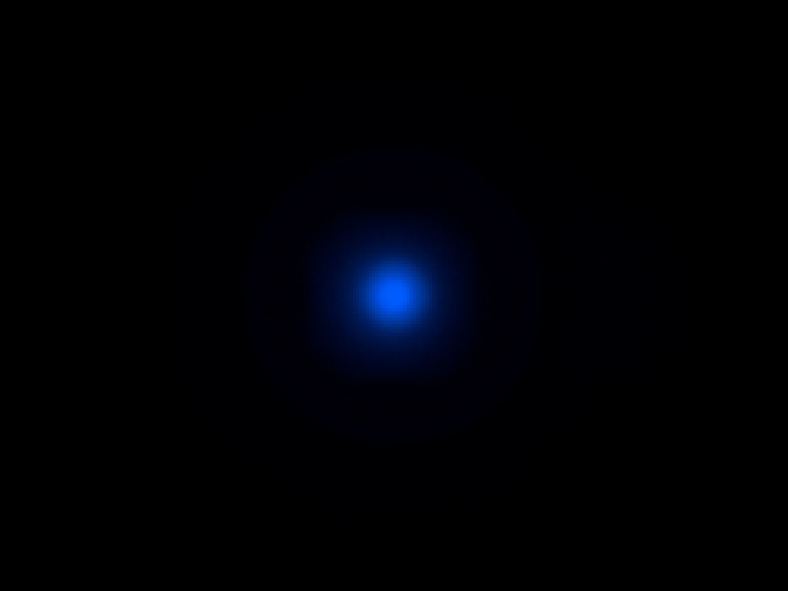

Osram OSLON Pure 1414 GB VJLPL1.F3 Blue

Eff:

88.5%

FWHM:

5.9°

Cd/Im:

51.0


Download

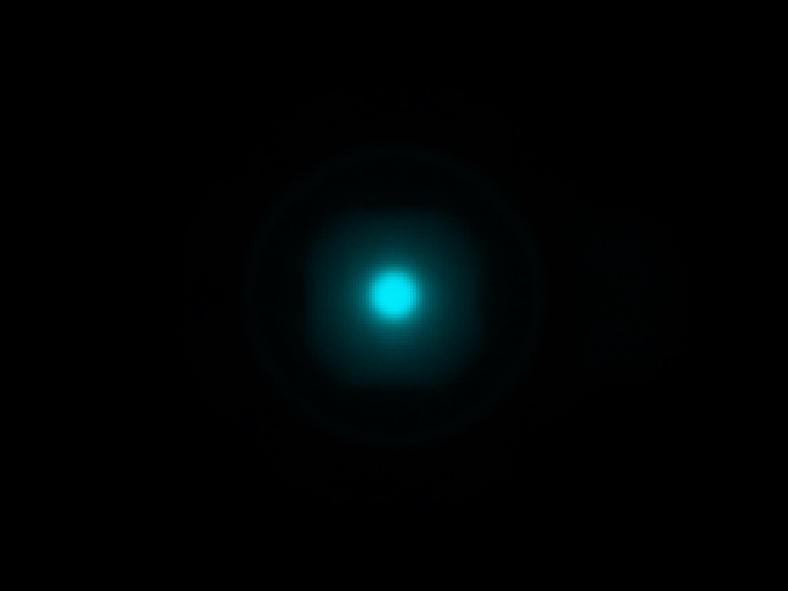

Osram OSLON Pure 1414 GC VJLPL1.13 Cyan

Eff:

89.0%

FWHM:

5.8°

Cd/Im:

52.9


Download

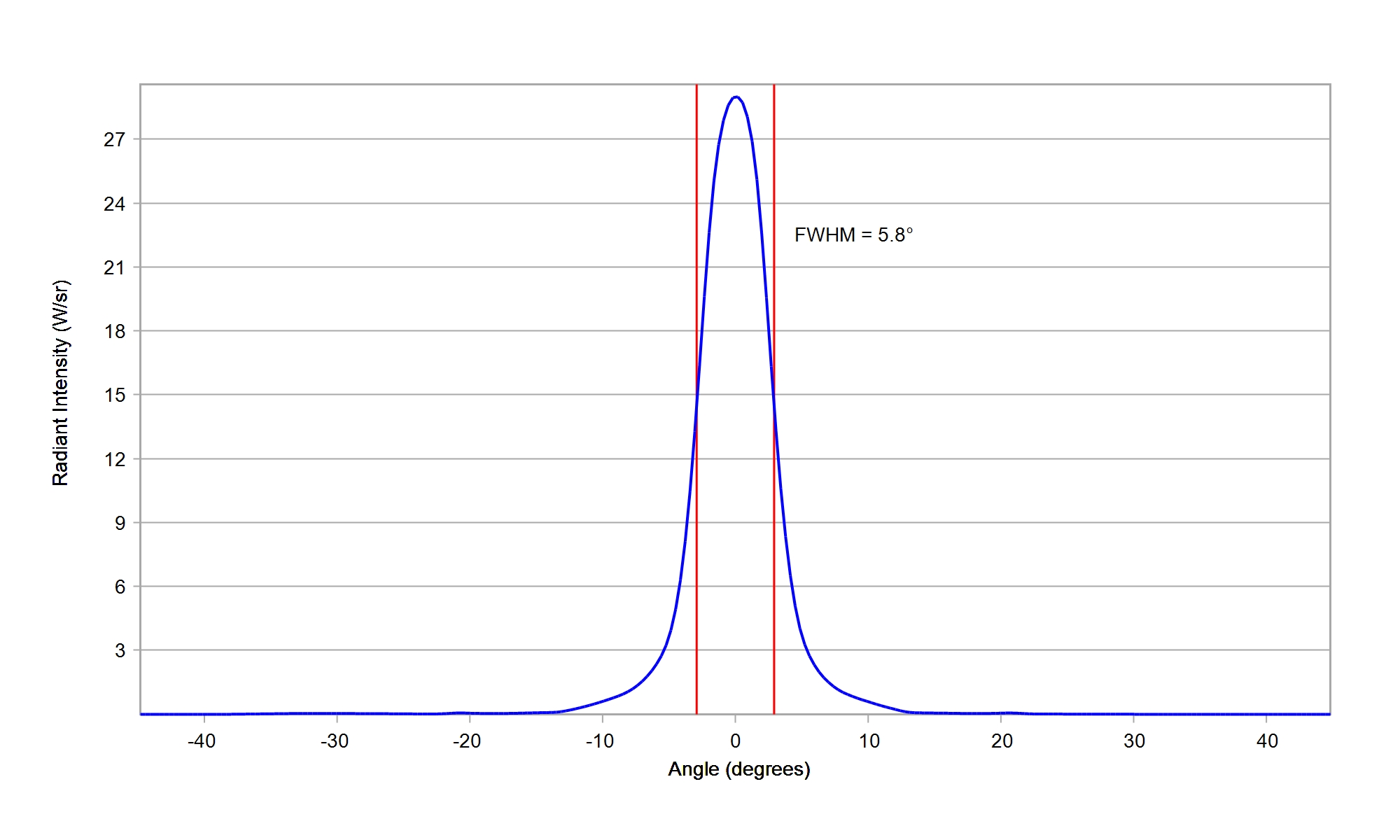

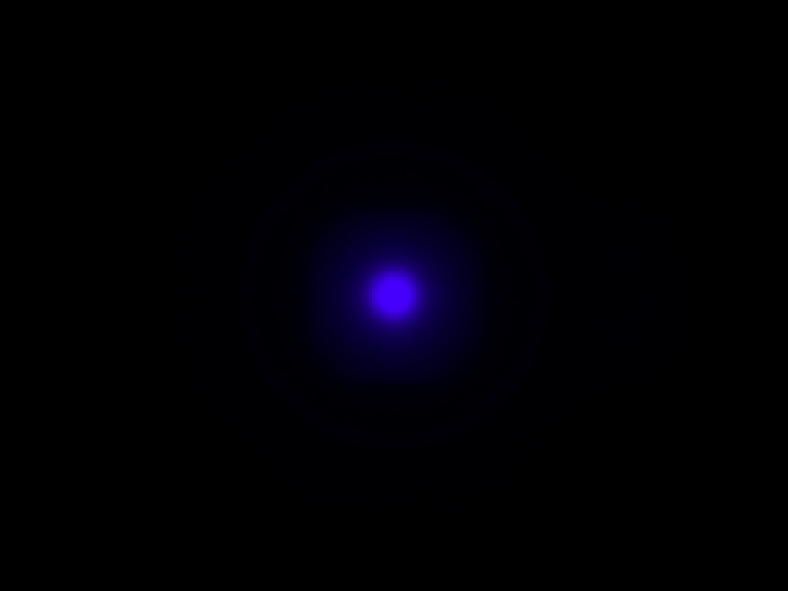

Osram OSLON Pure 1414 GD VJLPL1.14 Deep Blue

Eff:

87.5%

FWHM:

5.8°

Ipk/W:

51.4


Download

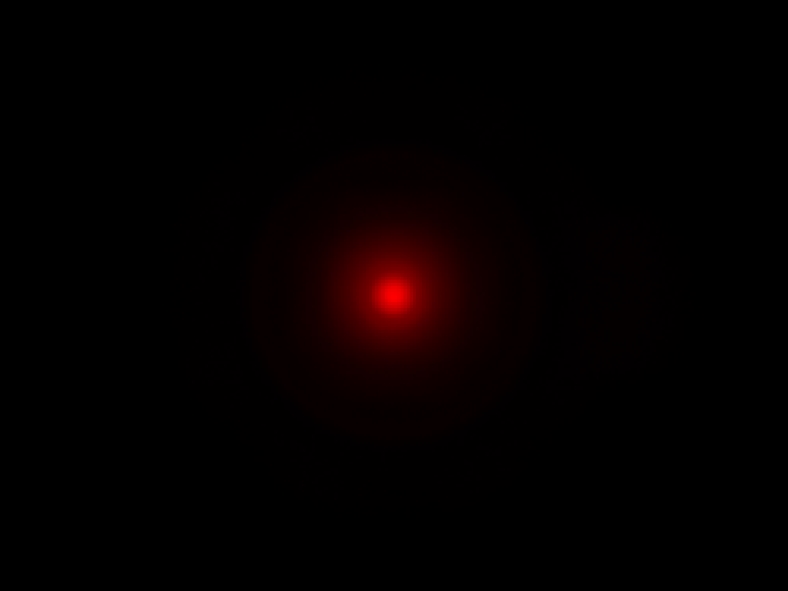

Osram OSLON Pure 1414 GR VJLPL1.23 Red

Eff:

90.0%

FWHM:

4.2°

Cd/Im:

80.9


Download

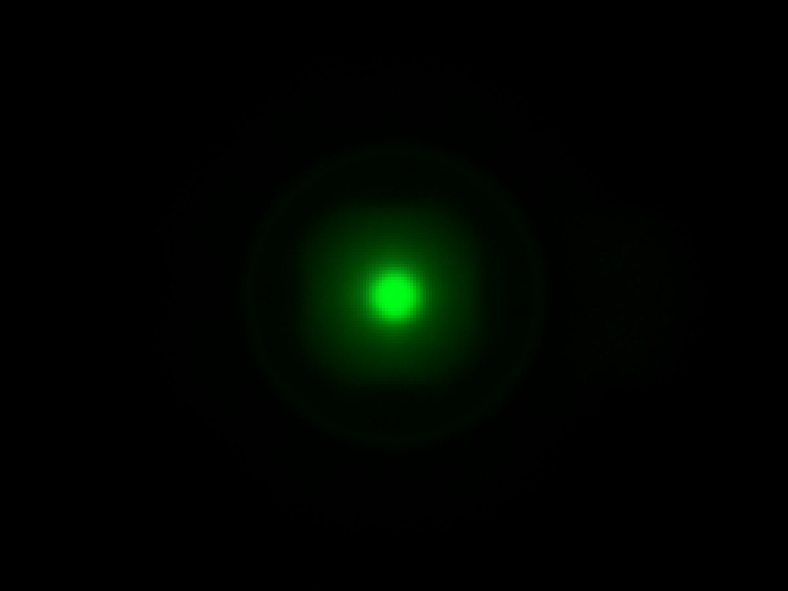

Osram OSLON Pure 1414 GT VJLPL1.13 True Green

Eff:

89.0%

FWHM:

5.9°

Cd/Im:

51.4


Download

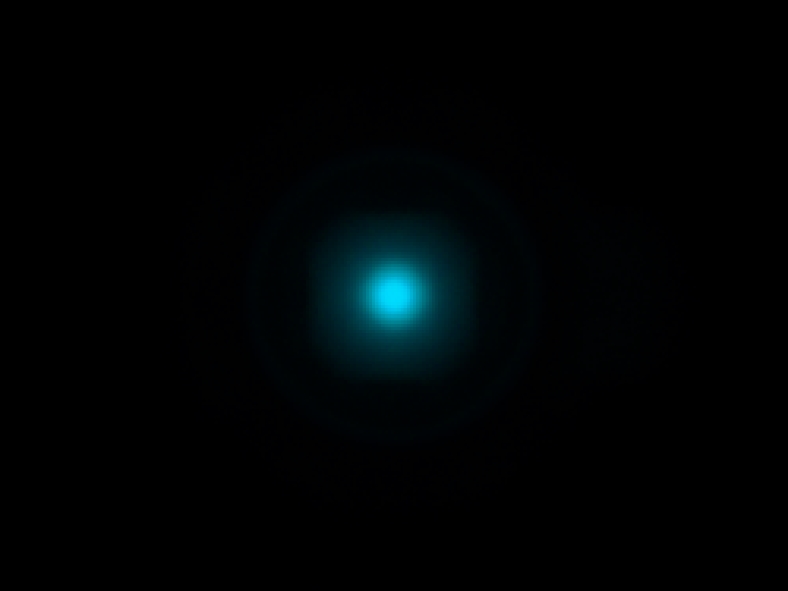

Osram OSLON Pure 1414 GV VJLPL1.F3 Verde

Eff:

88.5%

FWHM:

5.7°

Cd/Im:

54.6


Download

Osram OSLON Pure 1414 GW VJLPL1.CM White

Eff:

89.0%

FWHM:

6°

Cd/Im:

50.4

Download

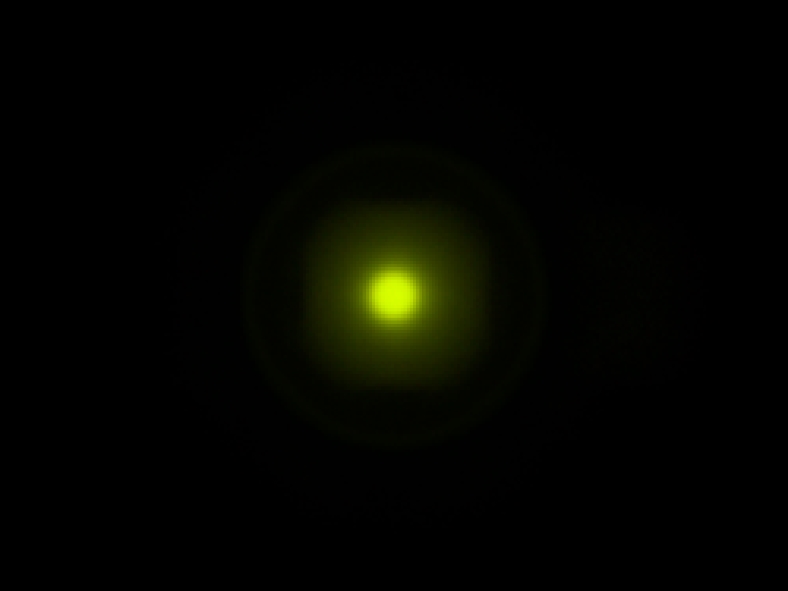

Osram OSLON Pure 1414 GW VJLPL1.UL Green

Eff:

88.5%

FWHM:

6°

Cd/Im:

50.1


Download

Osram OSLON Pure 1414 GY VJLPL1.F3 Yellow

Eff:

88.5%

FWHM:

6°

Cd/Im:

49.7


Download

Osram OSLON Square Flat White

Eff:

88.5%

FWHM:

7.4°

Cd/Im:

30.1

Carclo Optics - Simulated Spot Image

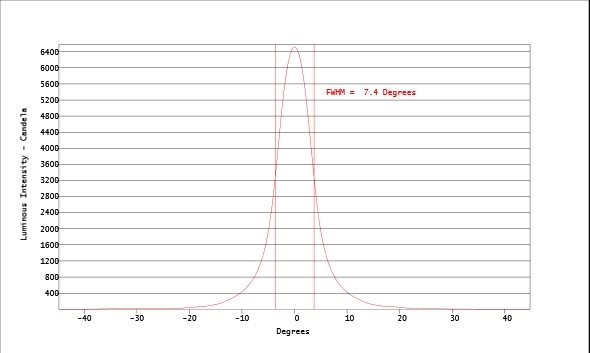

Carclo Optics - Simulated Cross Section

Download

IES

Osram OSLON Square Gen 3 White

Eff:

85.2%

FWHM:

10.4°

Cd/Im:

17.2

Carclo Optics - Simulated Spot Image

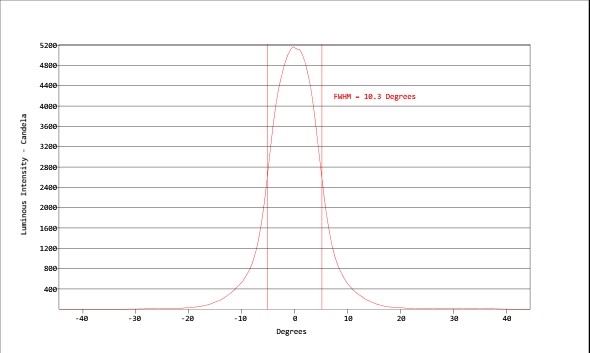

Carclo Optics - Simulated Cross Section

Download

IES

Osram OSLON Square Gen 5 GW CSSRM3

Eff:

88.5%

FWHM:

11°

Cd/Im:

15.1

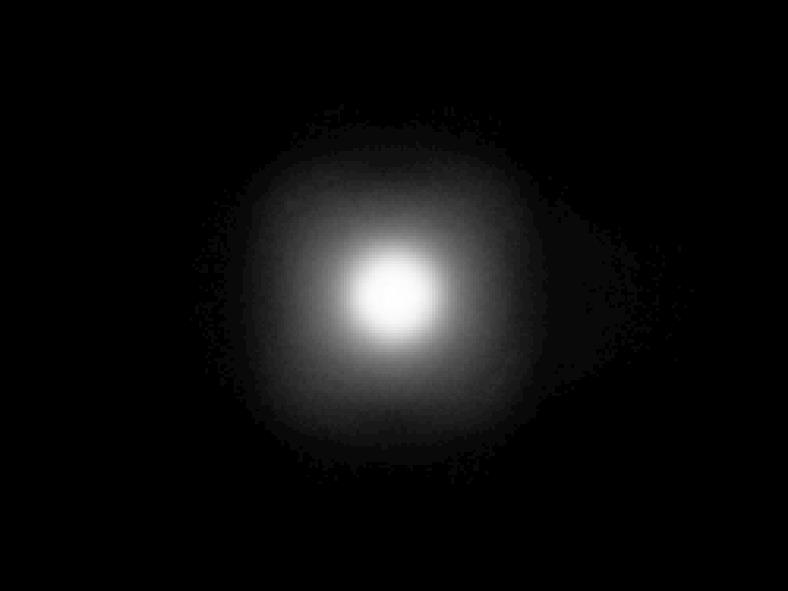

Carclo Optics - 10003 20mm Spot Image Oslon Square Gen 5

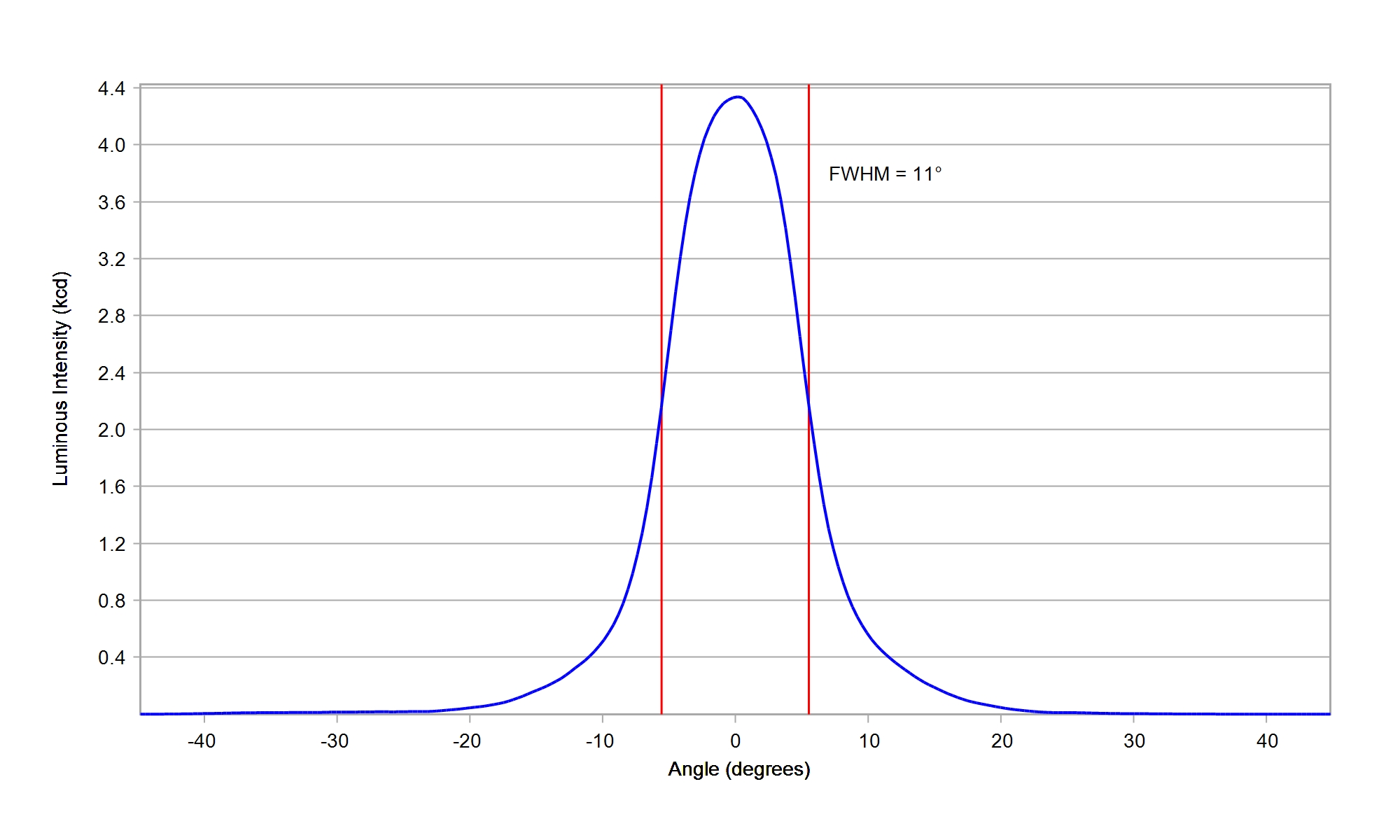

Carclo Optics - 10003 20mm Cross Section Oslon Square Gen 5

Download

IES

Osram OSLON Square White

Eff:

85.0%

FWHM:

10.7°

Cd/Im:

16.8

Carclo Optics - Simulated Spot Image

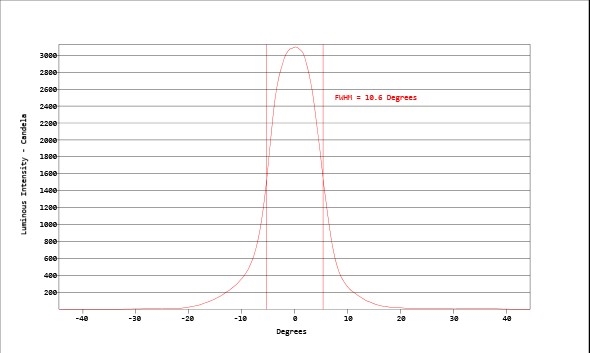

Carclo Optics - Simulated Cross Section

Download

IES

Osram OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

88.5%

FWHM:

7.3°

Cd/Im:

36.0

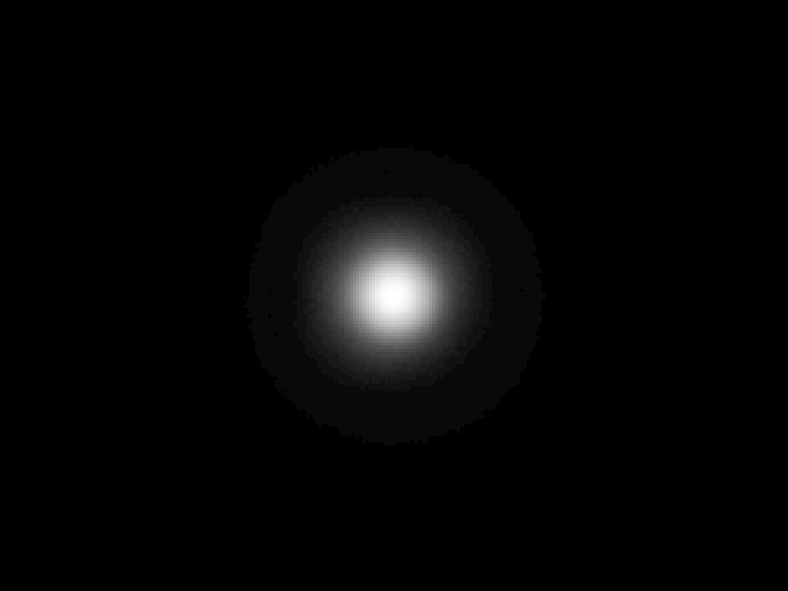

Carclo Optics – 10003 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Carclo Optics – 10003 Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Download

IES

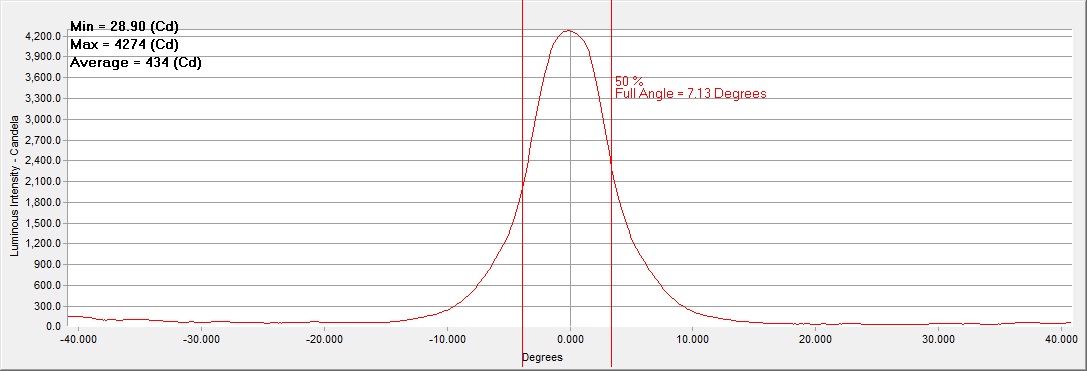

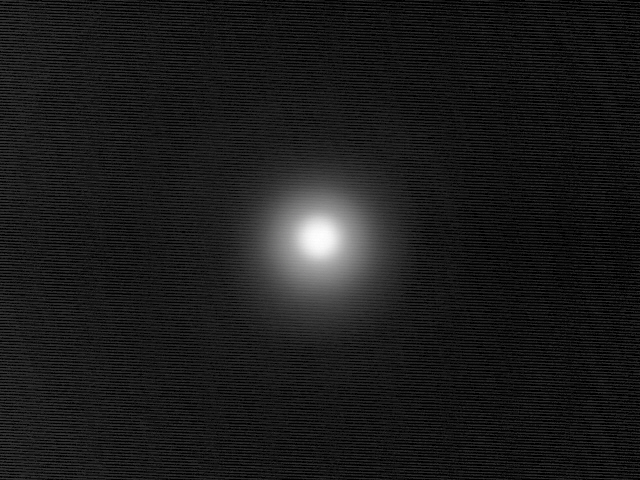

Osram OSLON SSL 150 degree White

Eff:

87.0%

FWHM:

7.1°

Cd/Im:

37.4

Download

ies

Osram OSLON SSL 80 White

Eff:

86.1%

FWHM:

7.2°

Cd/Im:

33.8

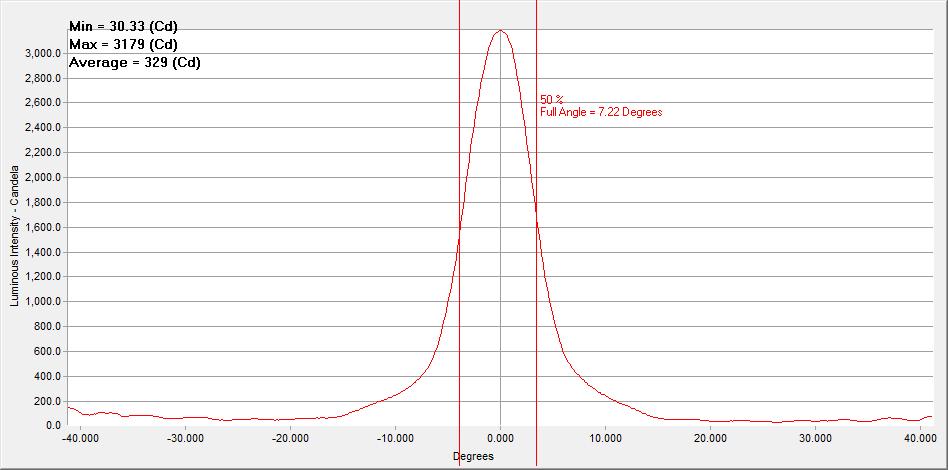

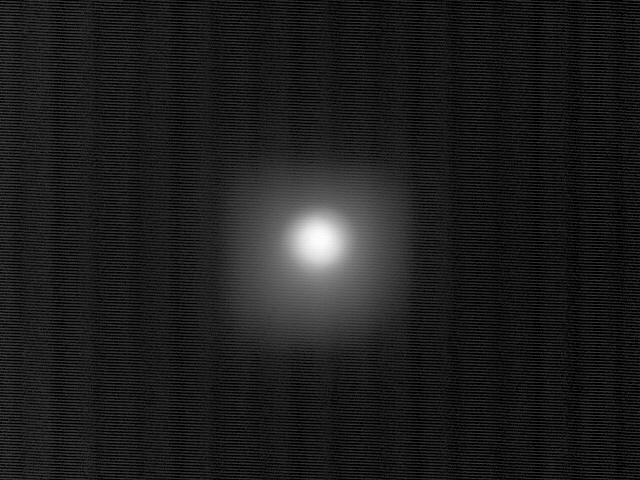

10003 Spot Osram SSL 80

10003 Cross section plot

Download

ies

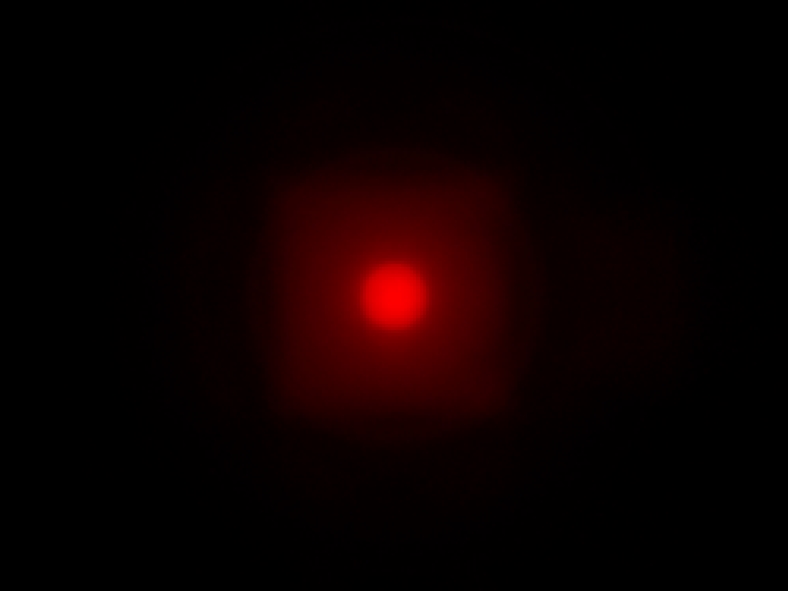

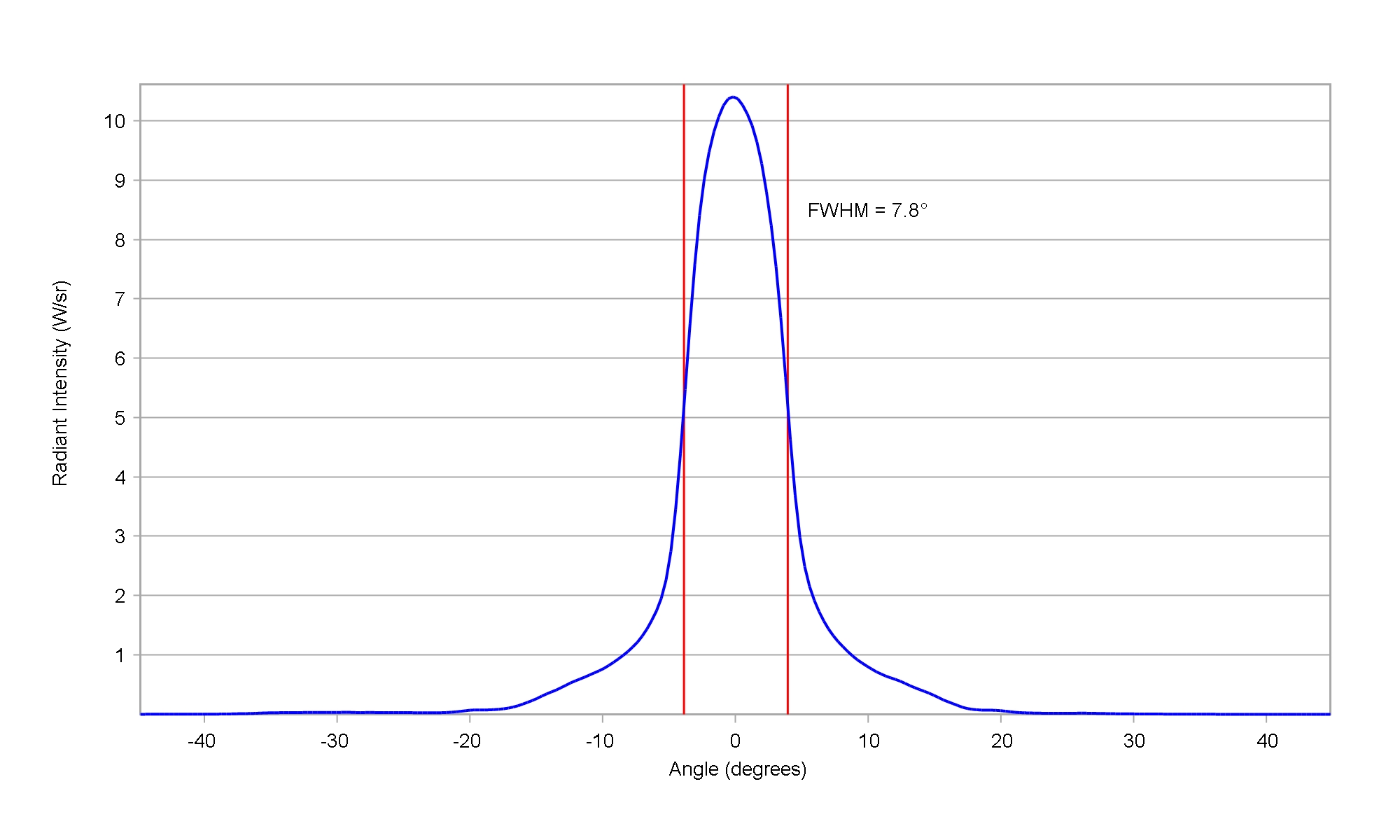

Osram OSLON SSL 80 GH CS8PM1.24 Hyper Red

Eff:

89.0%

FWHM:

7.8°

Ipk/W:

25.0


Download

IES

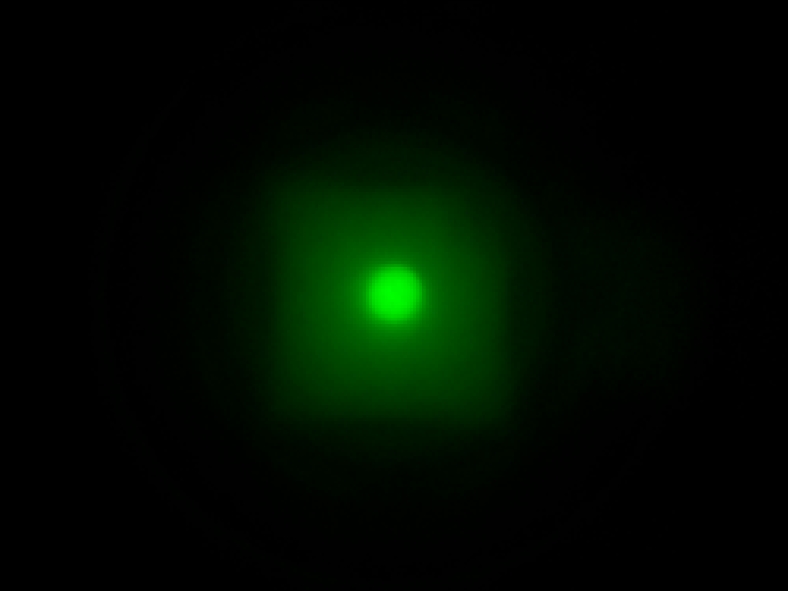

Osram OSLON SSL 80 GT CS8PM1.13 True Green

Eff:

89.0%

FWHM:

6.7°

Cd/Im:

26.6



Download

IES

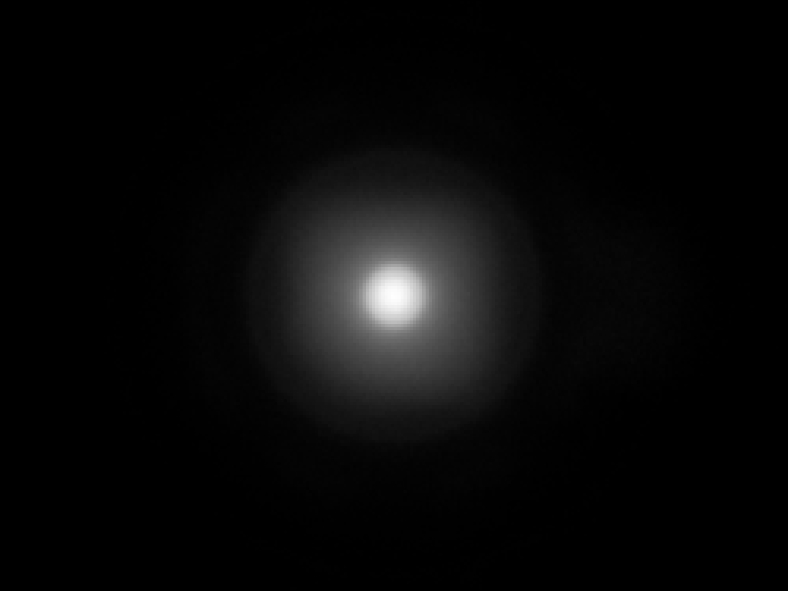

Osram OSLON SSL 80 GW CS8PM1.PM White

Eff:

89.0%

FWHM:

7.1°

Cd/Im:

30.3


Download

IES

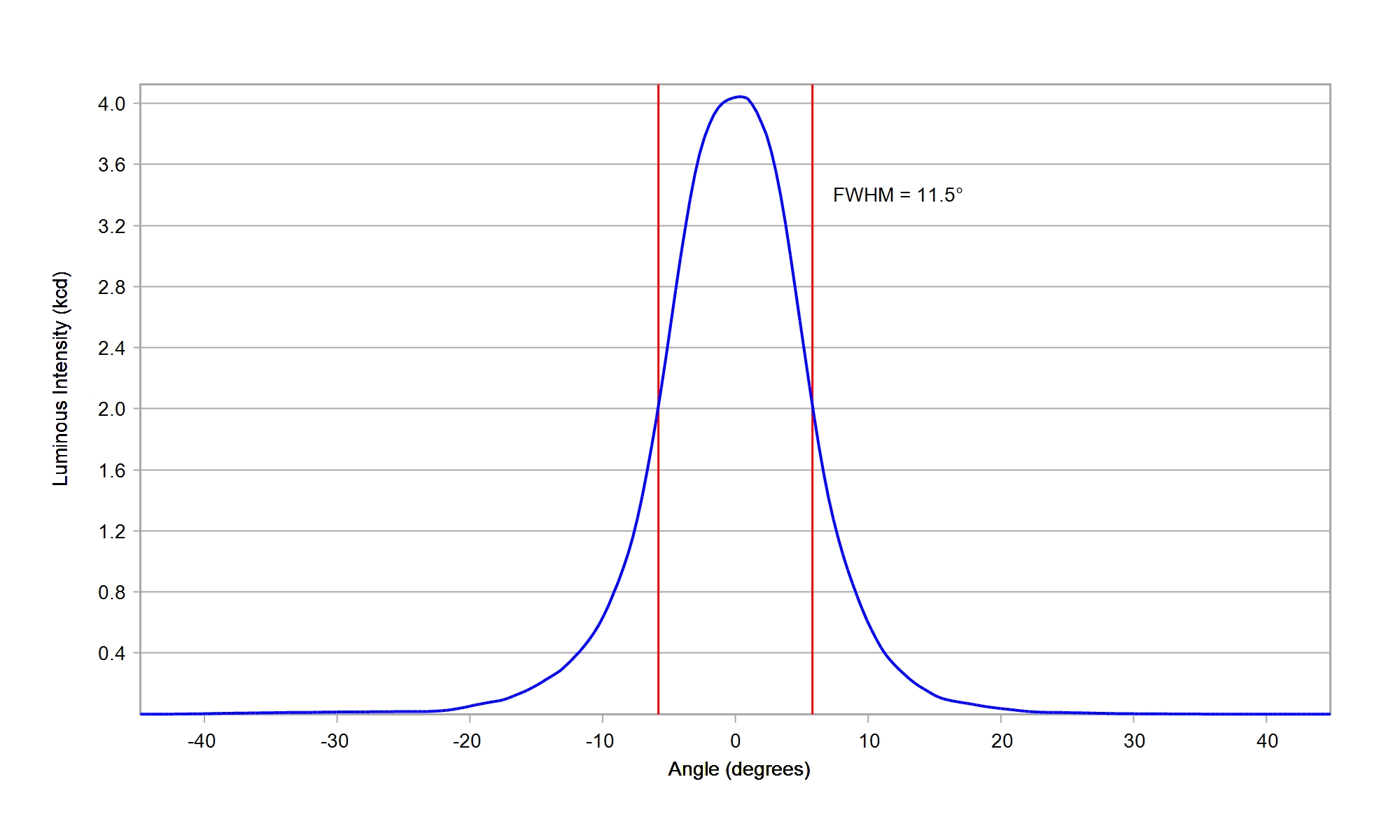

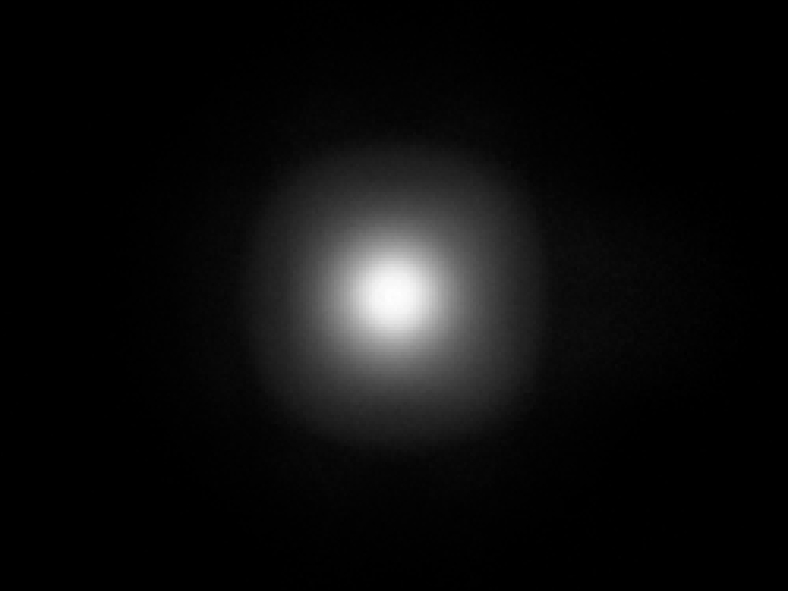

Osram OSCONIQ C 3030 GW PLTRA1.PM White

Eff:

89.0%

FWHM:

11.5°

Cd/Im:

14.4

Download

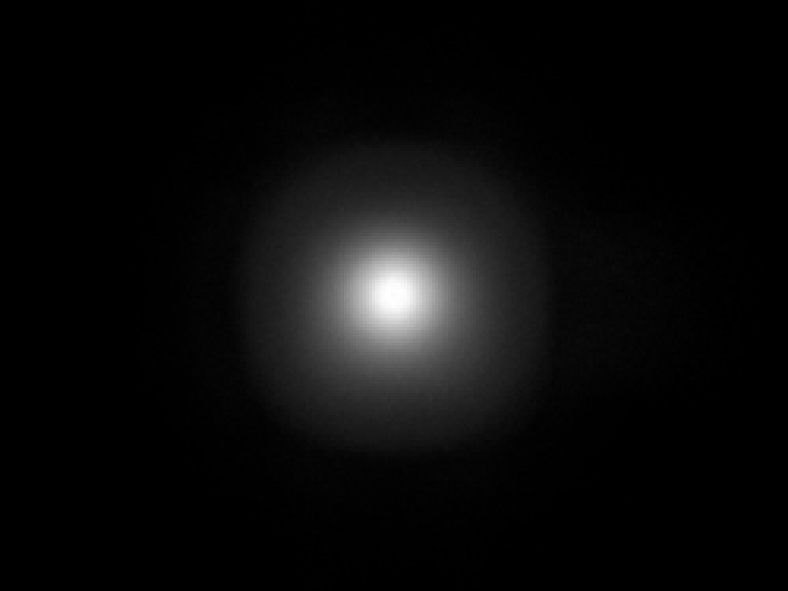

Osram OSCONIQ E 3030 GW QSLPS1.EM White

Eff:

89.0%

FWHM:

9.3°

Cd/Im:

19.5

Download

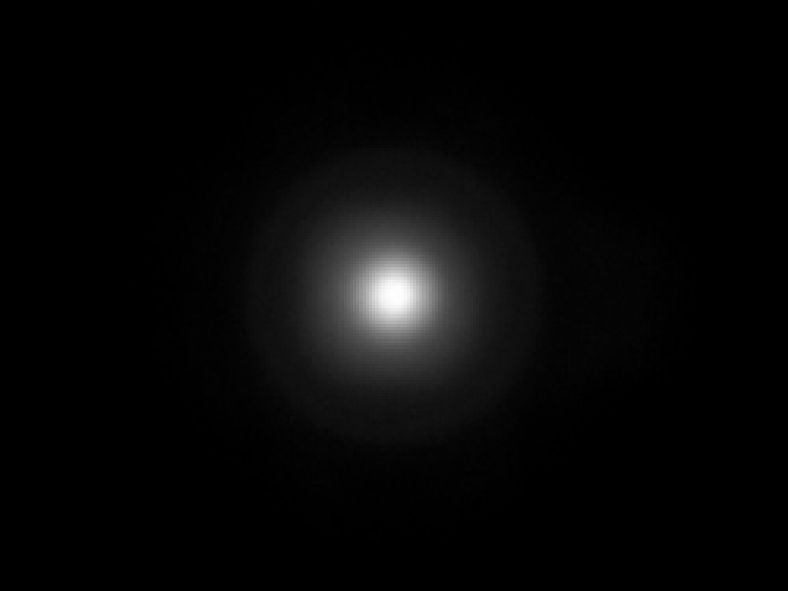

Osram OSCONIQ P 3030 GW QSSPA1.PM White

Eff:

89.0%

FWHM:

7°

Cd/Im:

33.2

Download

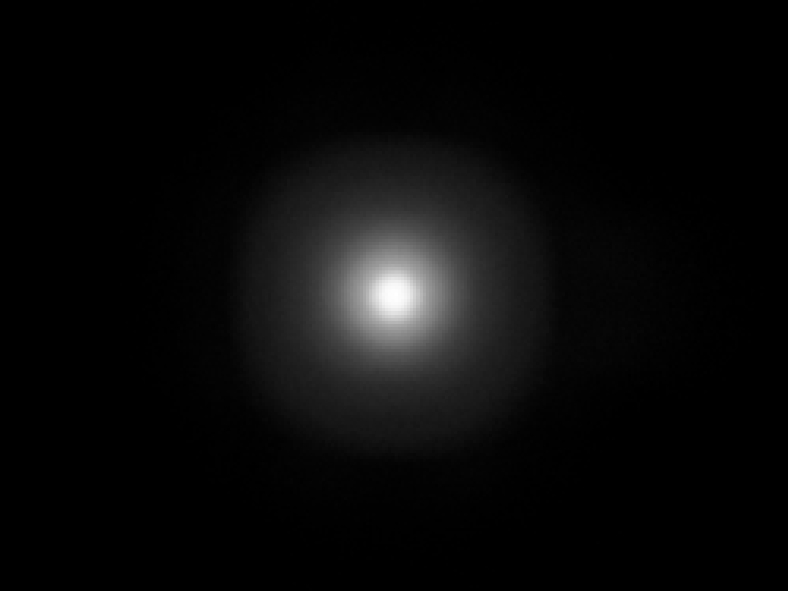

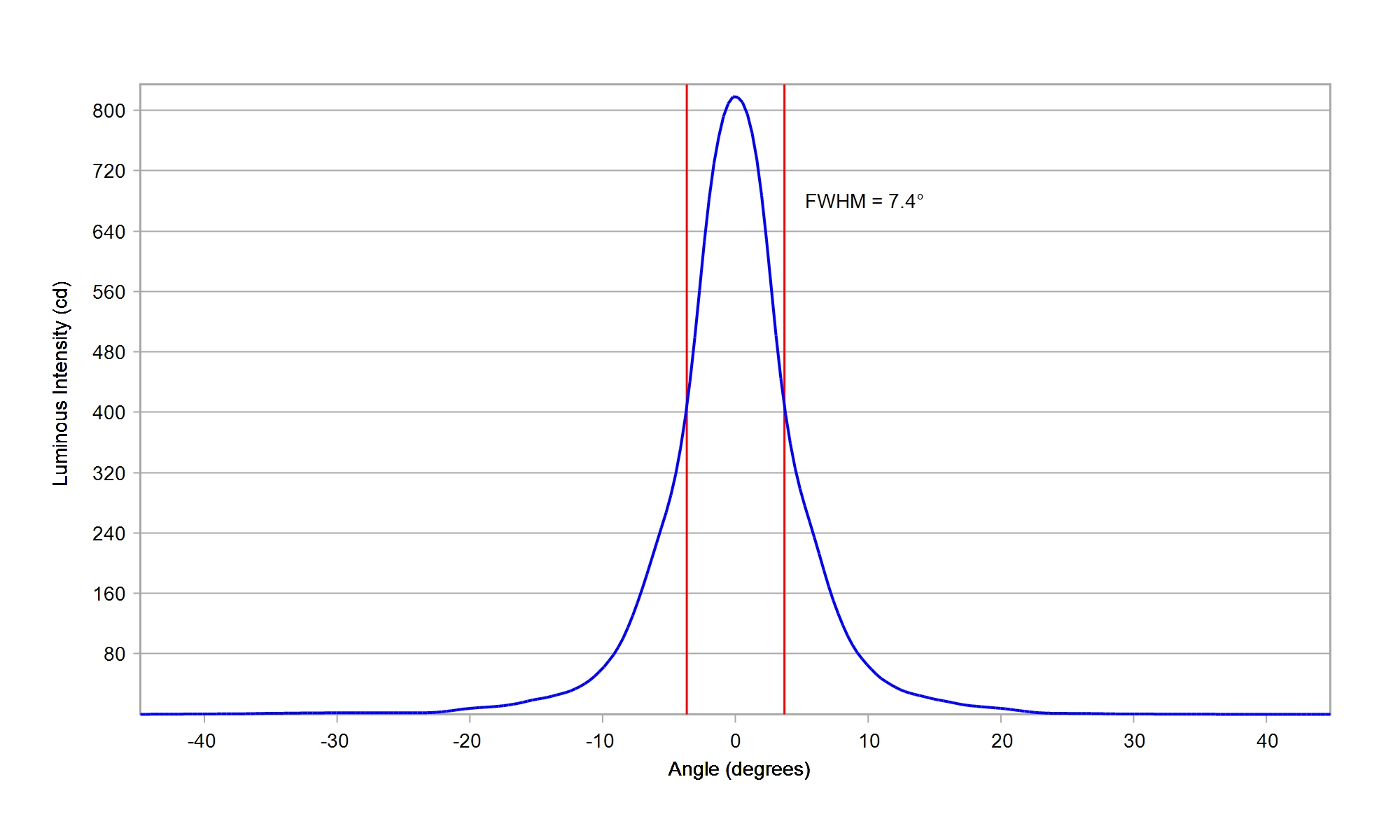

Osram OSCONIQ S 3030 GW QSLMS3.EM White

Eff:

89.0%

FWHM:

7.4°

Cd/Im:

24.9

Download

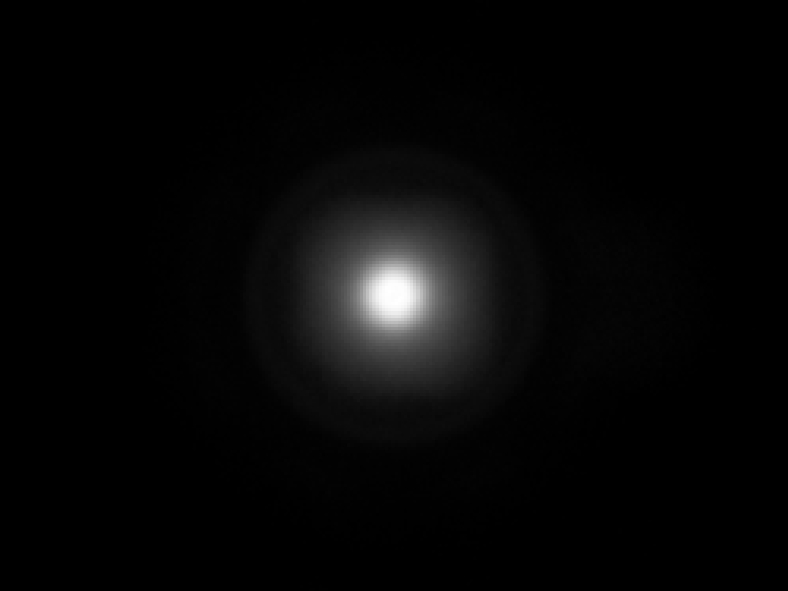

Osram OSLON Signal LUW CRBP.01 White

Eff:

88.5%

FWHM:

7.4°

Cd/Im:

32.9


Download

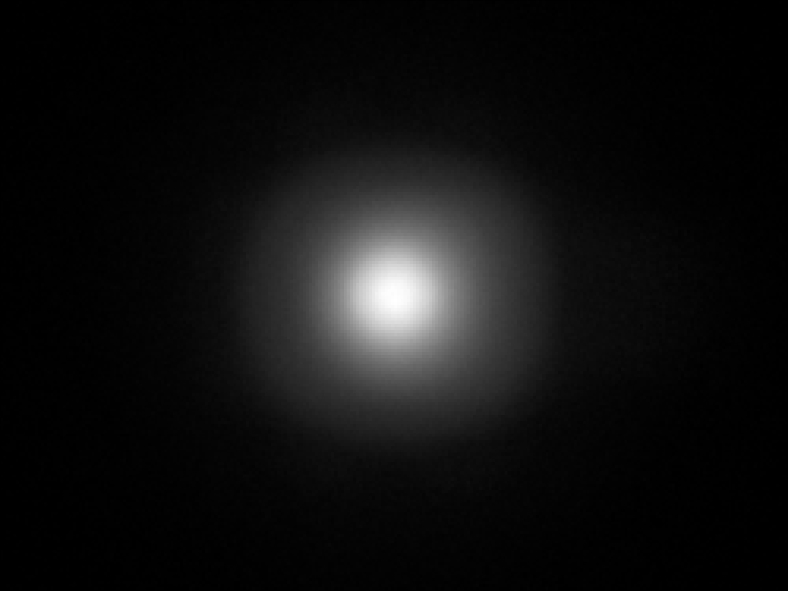

Samsung 2835 LM281B+ White

Eff:

88.0%

FWHM:

11.5°

Cd/Im:

14.1



Download

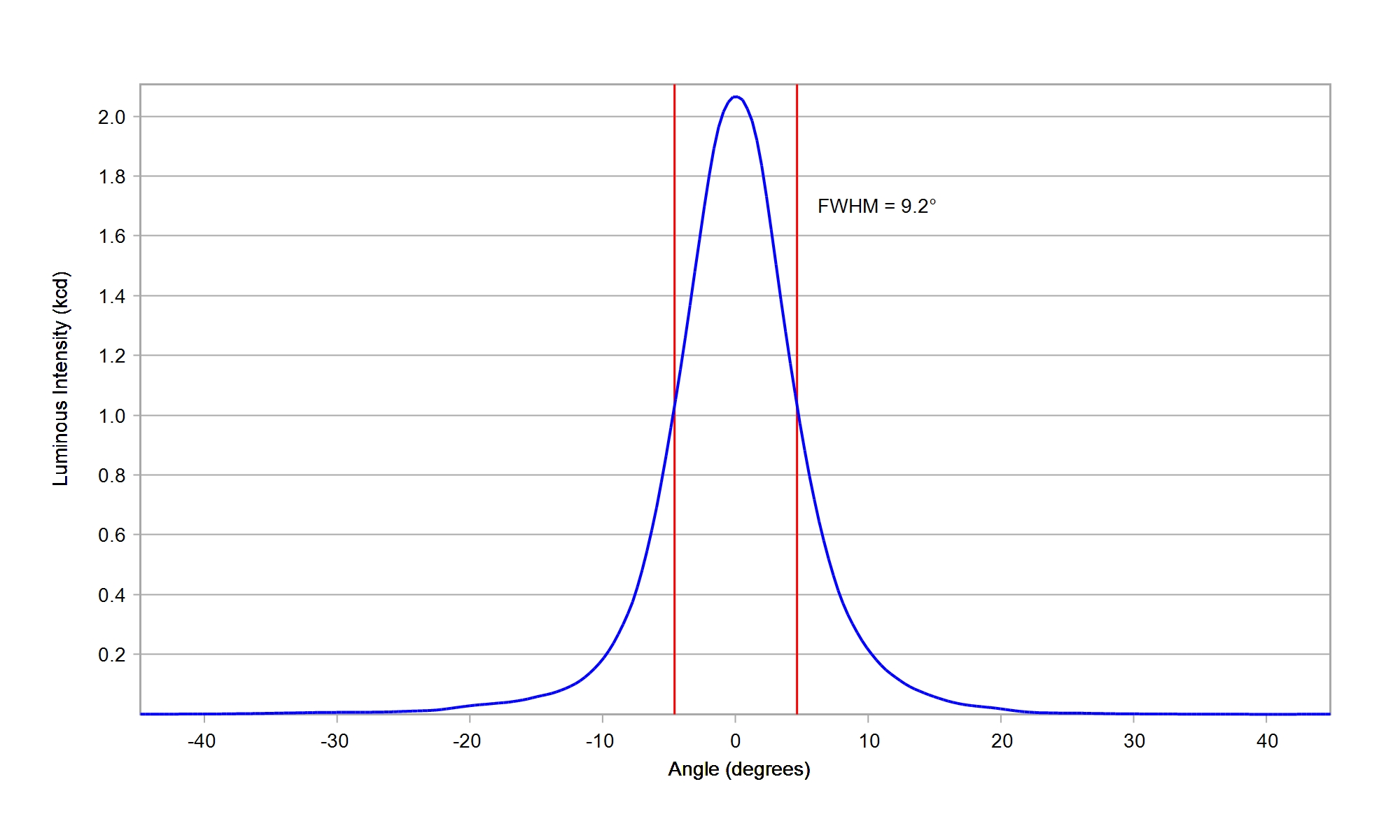

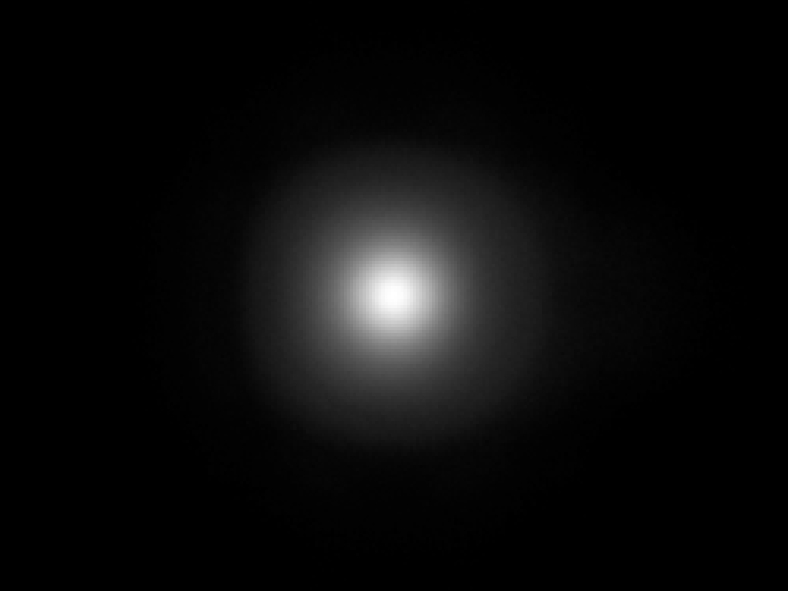

Samsung 2835 LM282B+ White

Eff:

89.0%

FWHM:

9.2°

Cd/Im:

19.9



Download

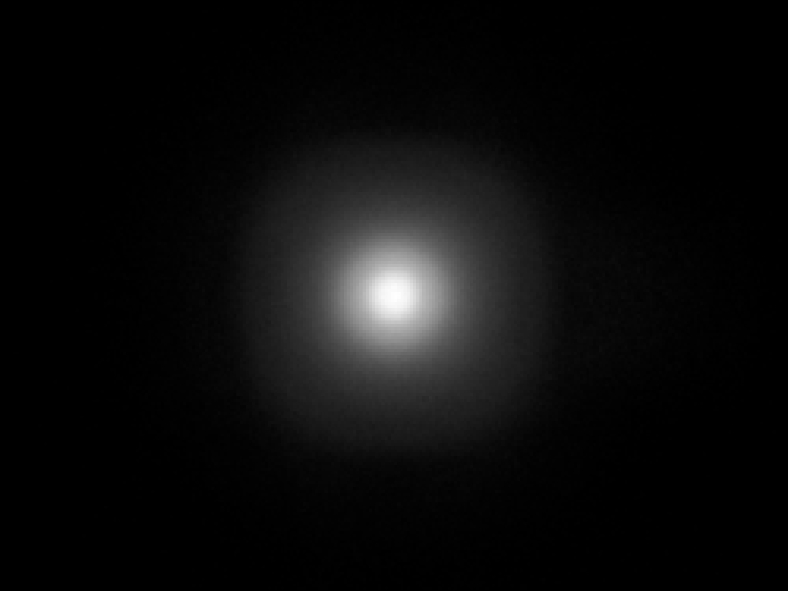

Samsung 3030 LM301B White

Eff:

88.5%

FWHM:

9.3°

Cd/Im:

20.1

Download

IES

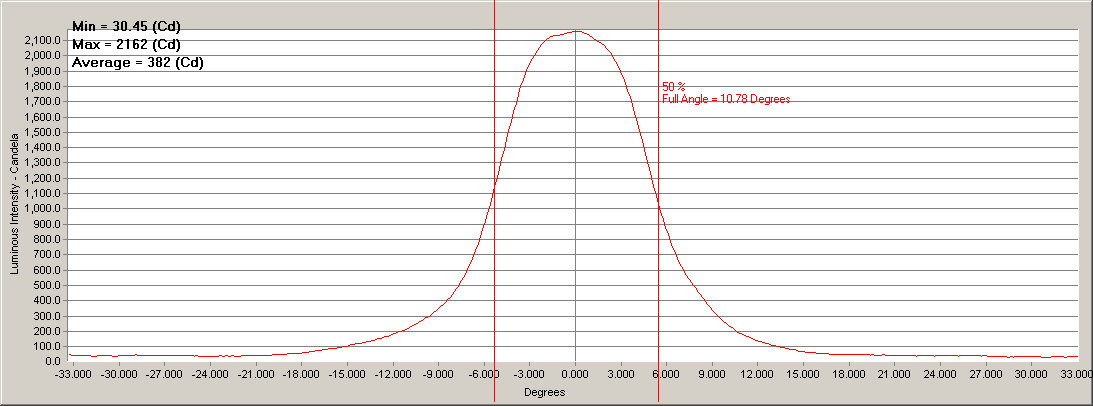

Samsung 3535 LH351A White

Eff:

86.9%

FWHM:

10.8°

Cd/Im:

21.4

Download

ies

Samsung 3535 LH351B White

Eff:

85.0%

FWHM:

13°

Cd/Im:

12.0

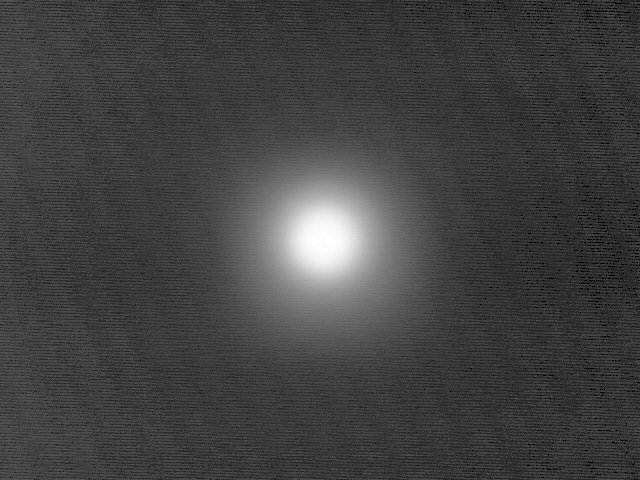

carclo simulated spot image

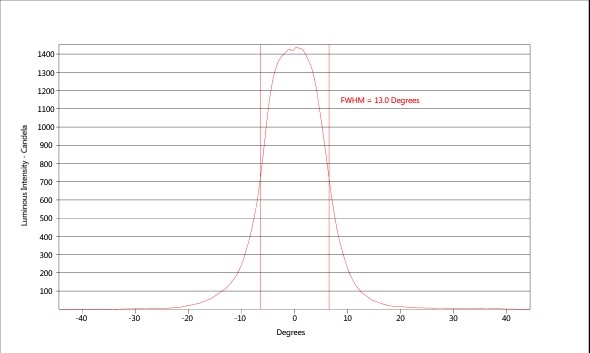

carclo simulated cross section

Download

IES

Samsung 3535 LH351D White

Eff:

87.0%

FWHM:

18.0°

Cd/Im:

6.5

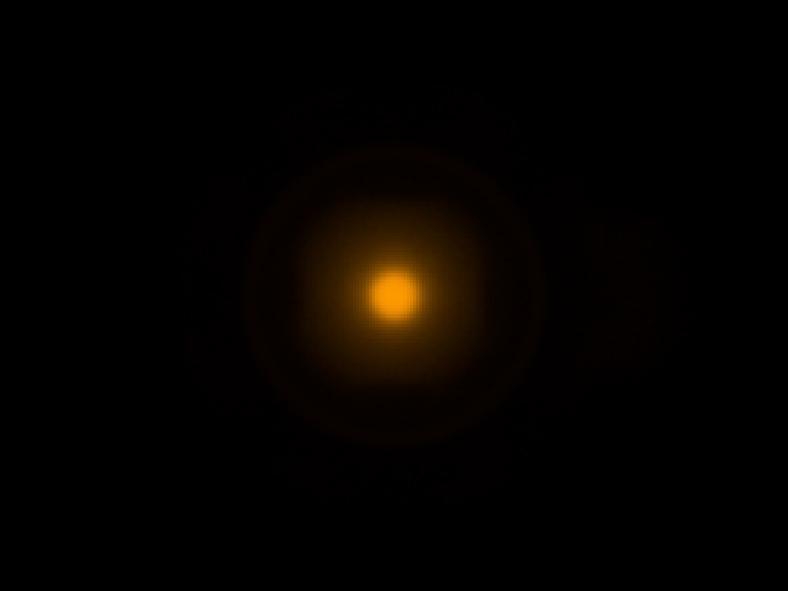

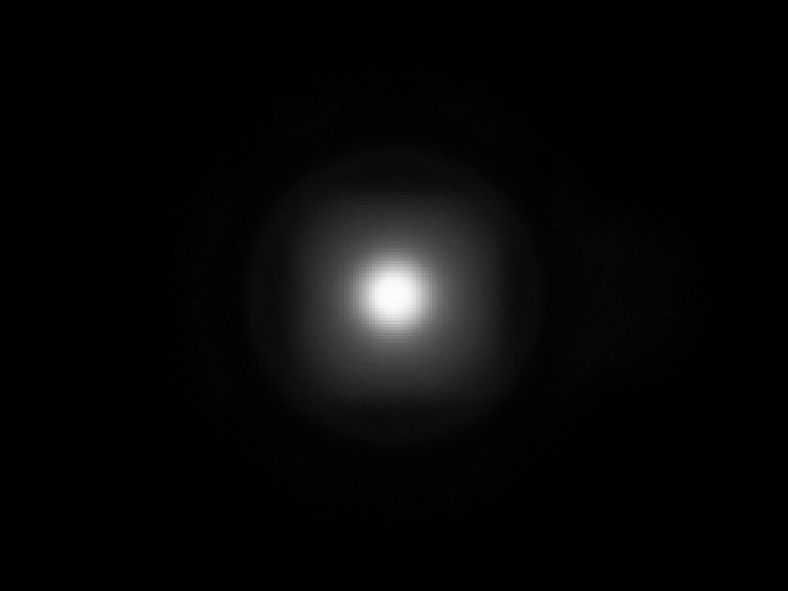

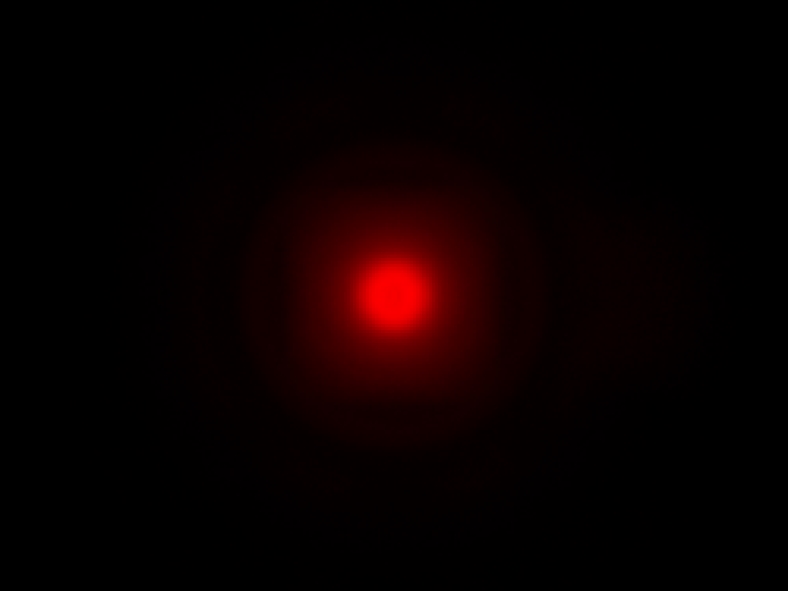

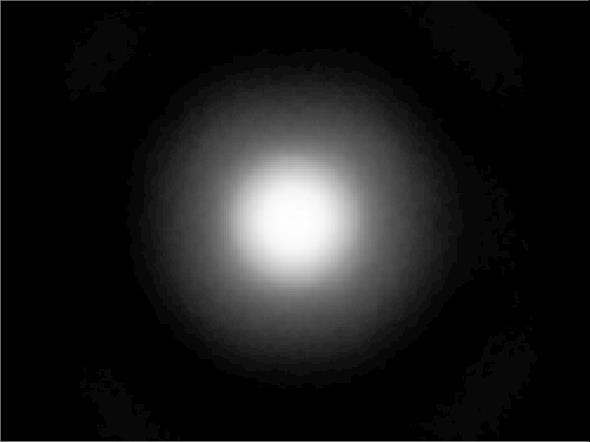

Carclo Optics - Simulated Spot Image

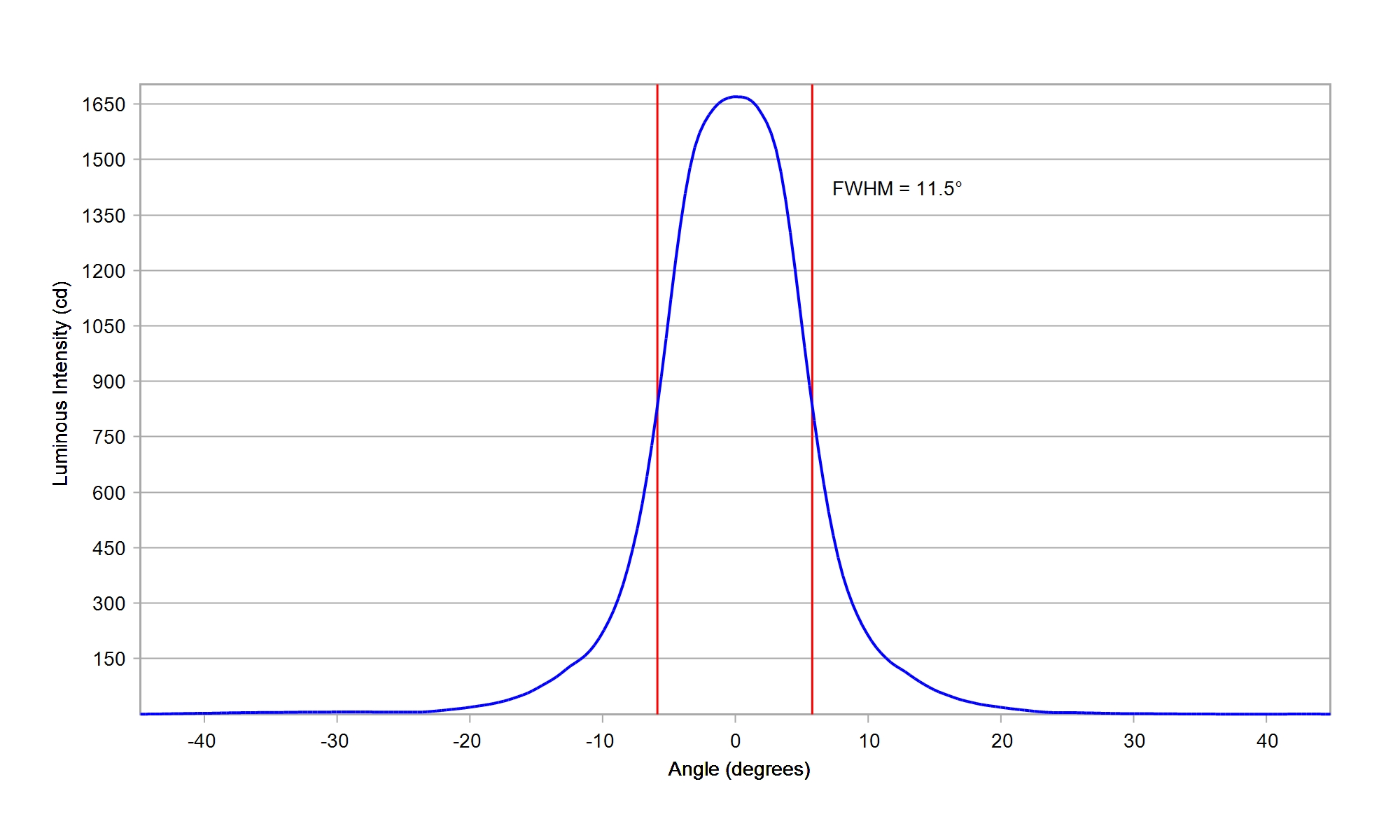

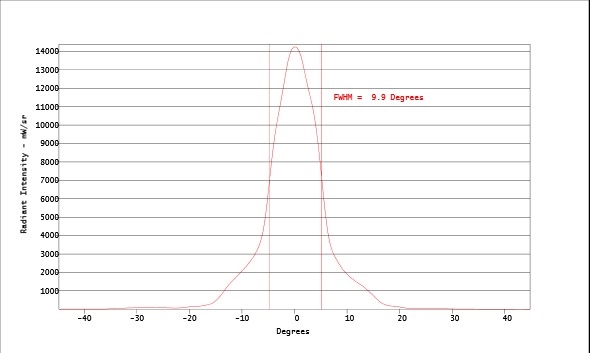

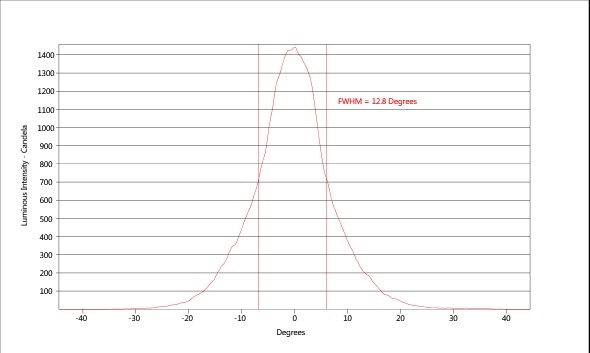

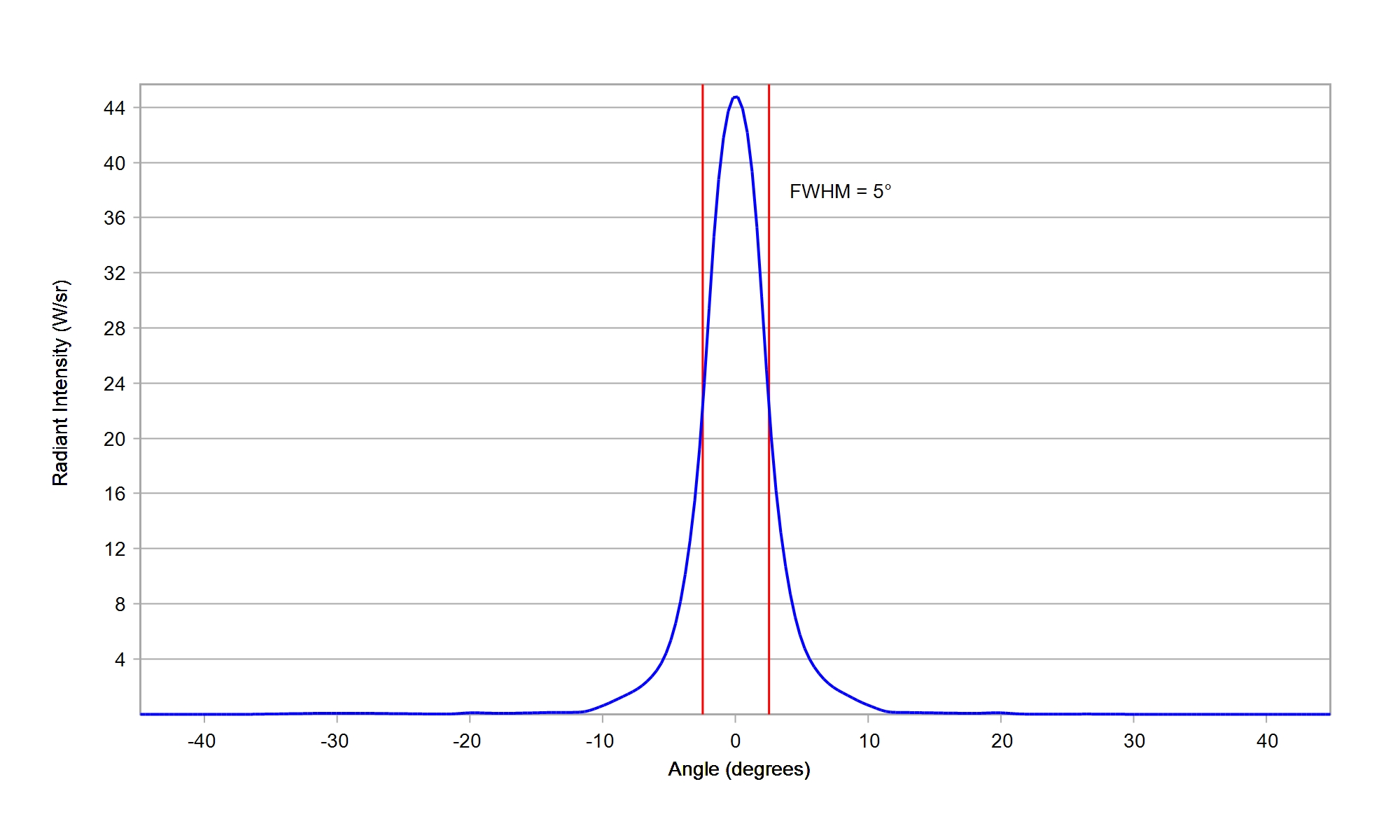

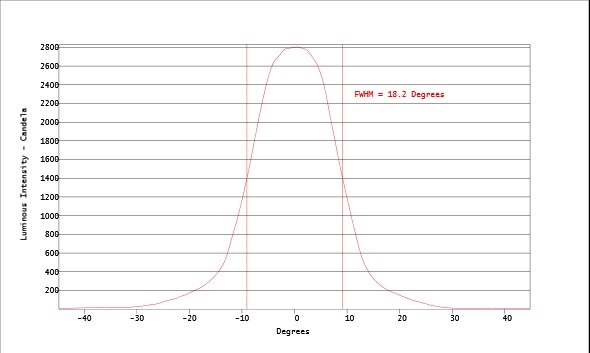

Carclo Optics - Simulated Cross Section

Download

IES

Samsung 3535 LH351Z White

Eff:

85.0%

FWHM:

10°

Cd/Im:

18.7

carclo optics - simulated spot image

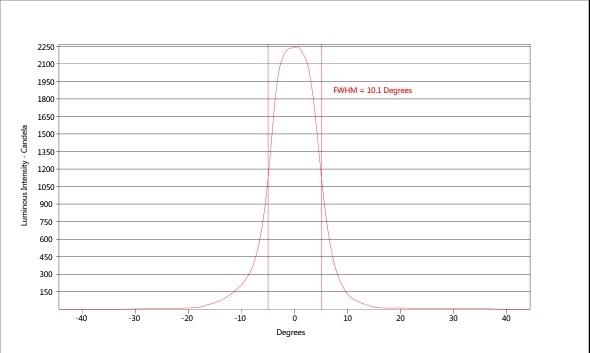

carclo optics - simulated cross section

Download

IES

Samsung CSP LH151B White

Eff:

88.5%

FWHM:

6.7°

Cd/Im:

40.0

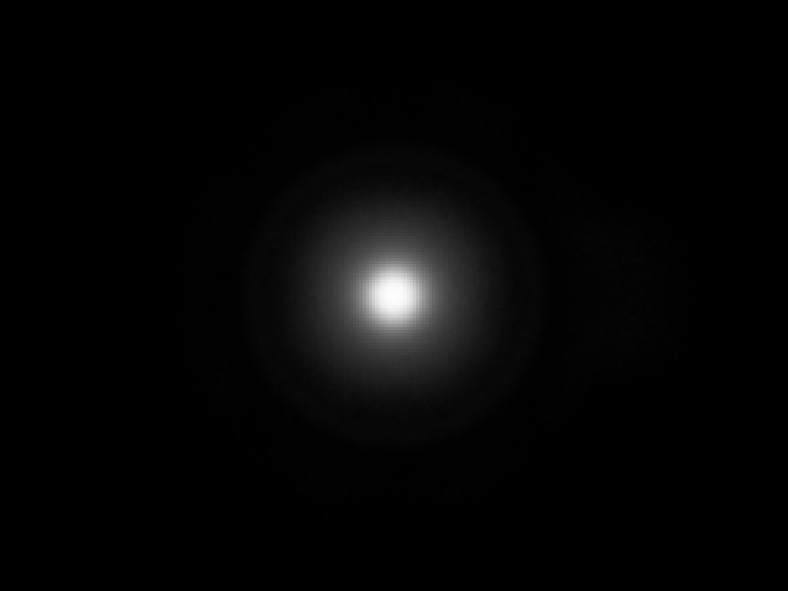

Carclo Optics – 10003 – Samsung_LH151B_spot-image

Carclo Optics – 10003 – Samsung_LH151B_cross section

Download

IES

Samsung CSP LH181B White

Eff:

89.0%

FWHM:

11°

Cd/Im:

15.8

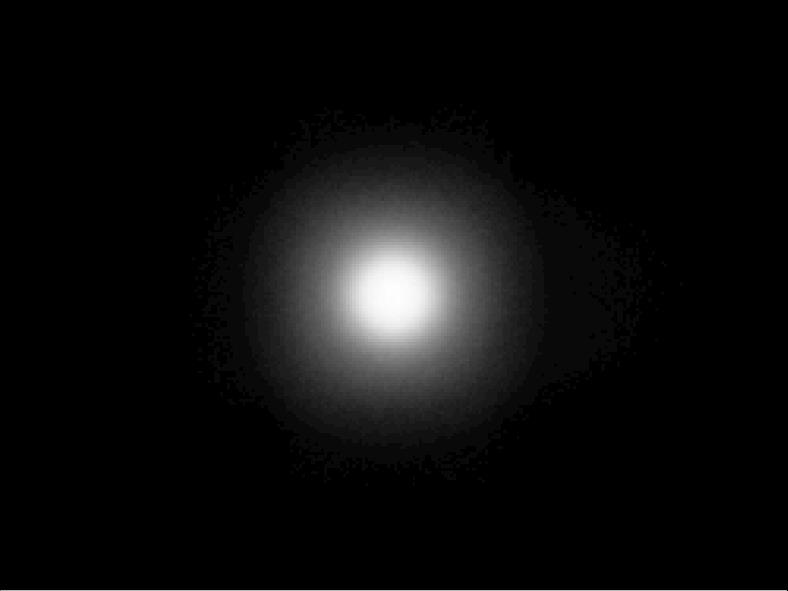

Carclo Optics -10003 Sport Image - Samsung LH181B 4000K

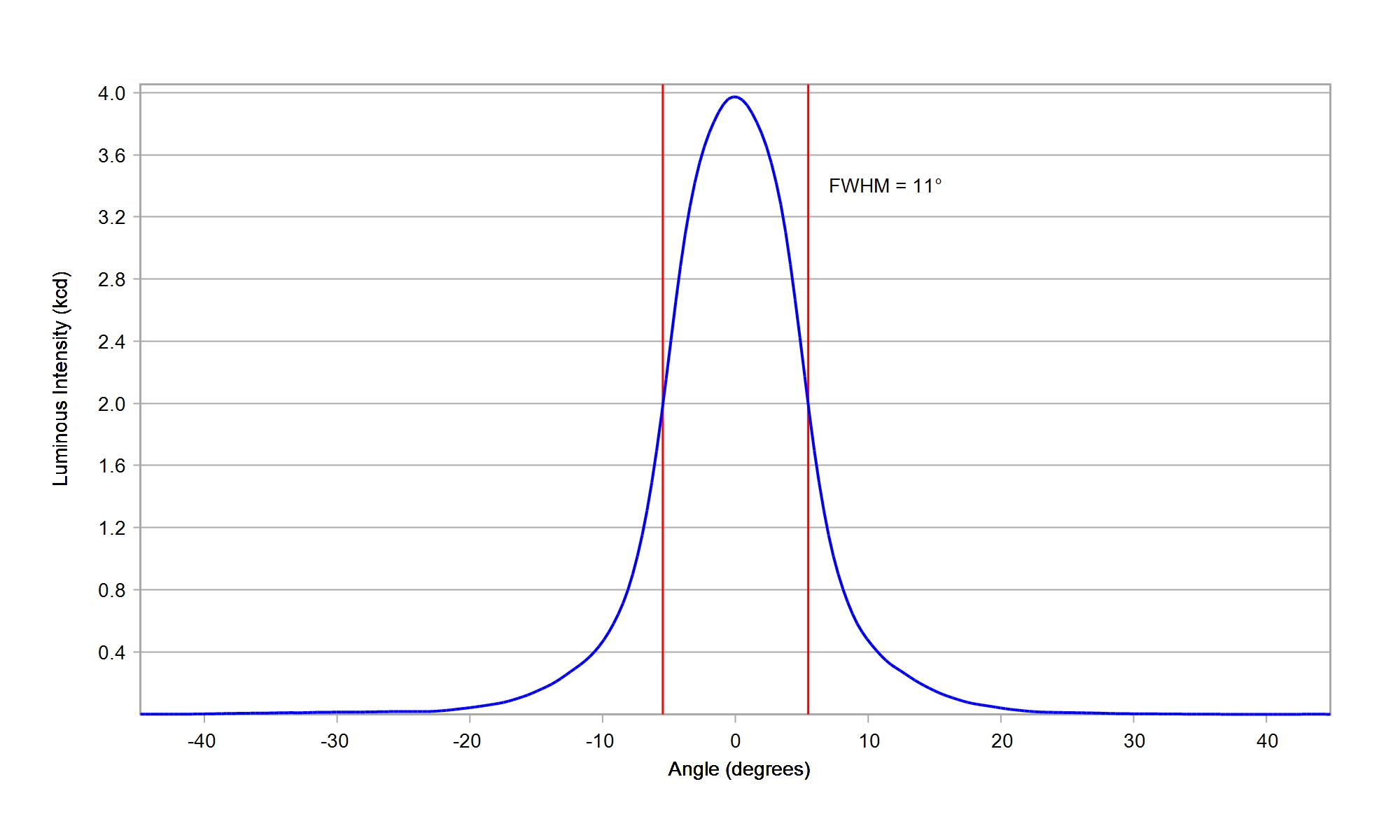

Carclo Optics -10003 Cross Section - Samsung LH181B 4000K

Download

IES

Samsung CSP LH231B White

Eff:

89.0%

FWHM:

13.5°

Cd/Im:

11.2

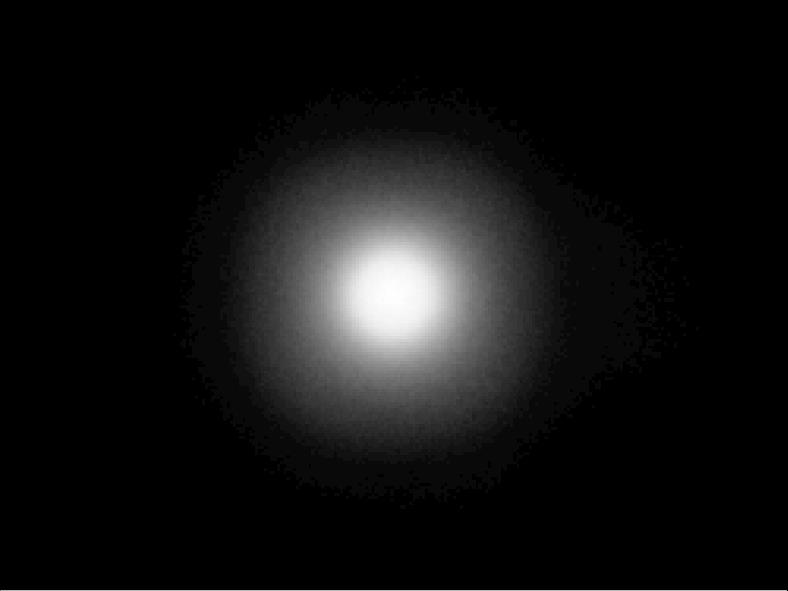

Carclo Optics -10003 Spot Image - Samsung LH231B 5000K

Carclo Optics -10003 Cross Section Horizontal - Samsung LH231B 5000K

Download

IES

Samsung CSP LM101B White

Eff:

89.0%

FWHM:

6.9°

Cd/Im:

36.4

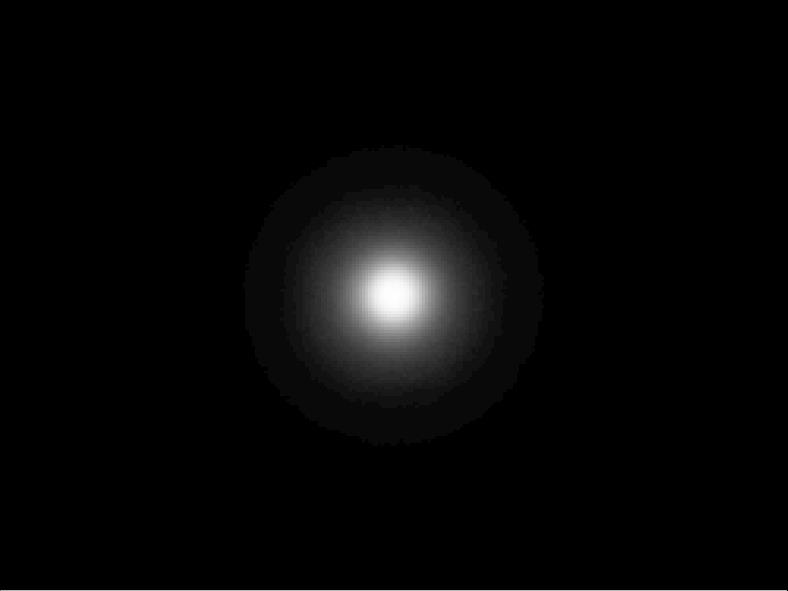

Carclo Optics - 10003 Simulated Sport Image - Samsung LM101B 5000K

Carclo Optics - 10003 Simulated Cross Image - Samsung LM101B 5000K

Download

IES

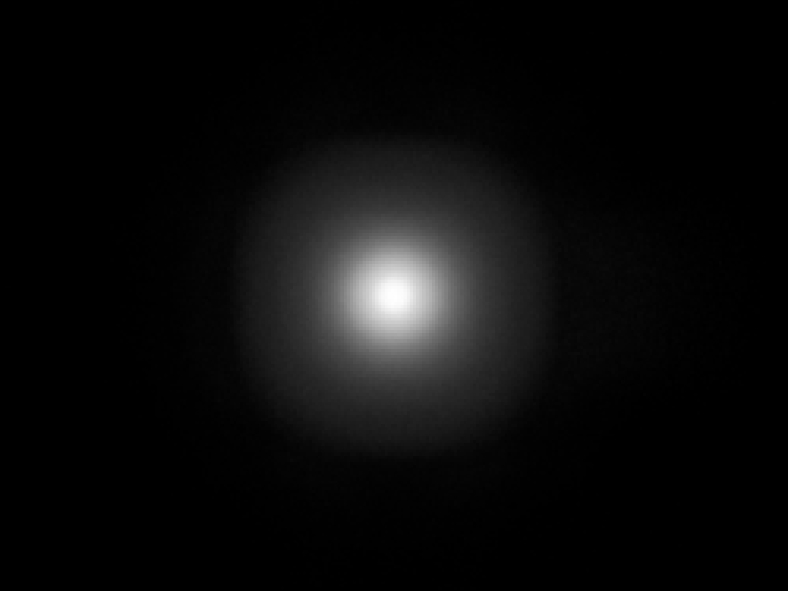

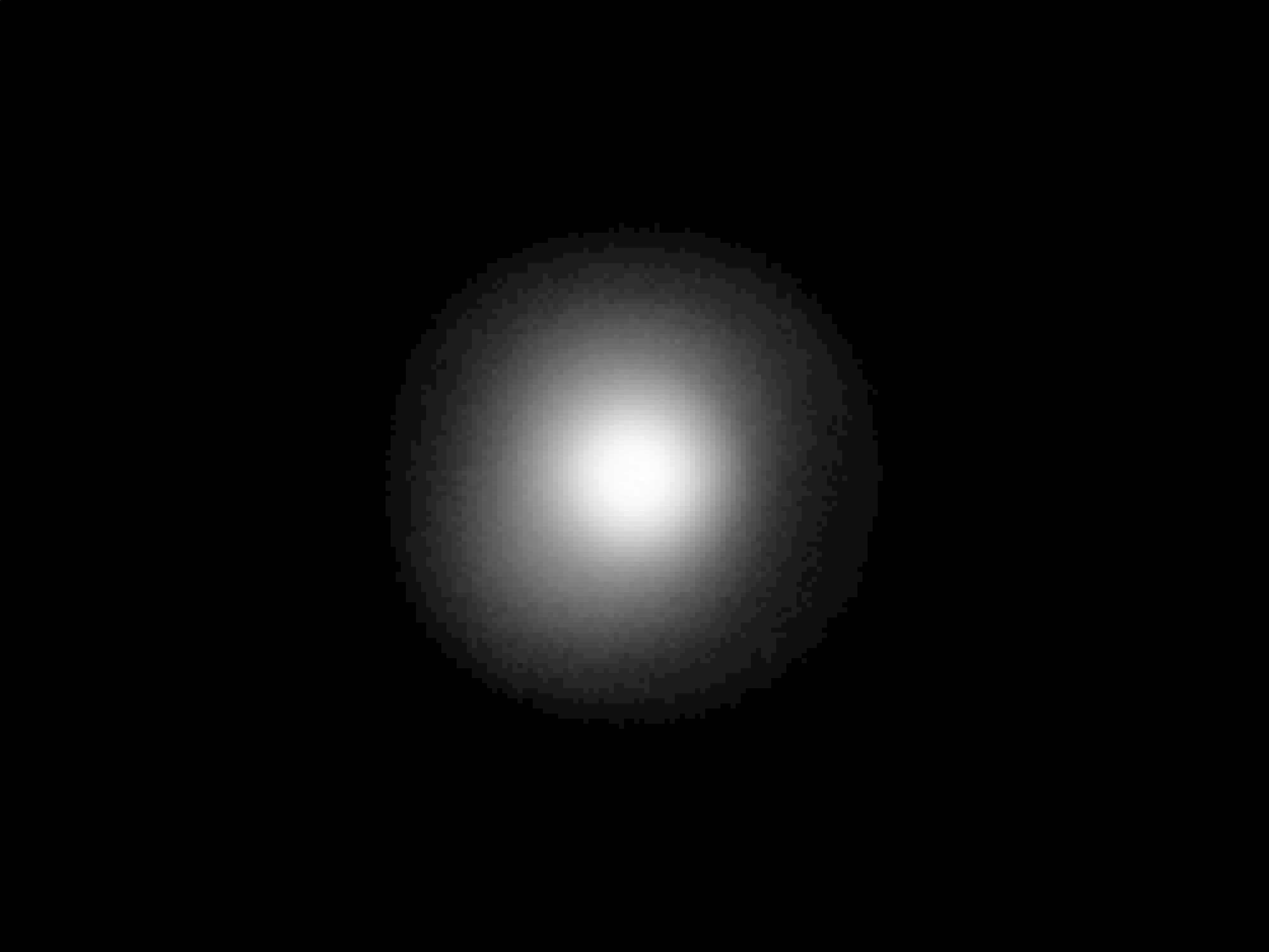

Seoul 3030 STW8C12E-E0 White

Eff:

89.0%

FWHM:

9.5°

Cd/Im:

19.7

Download

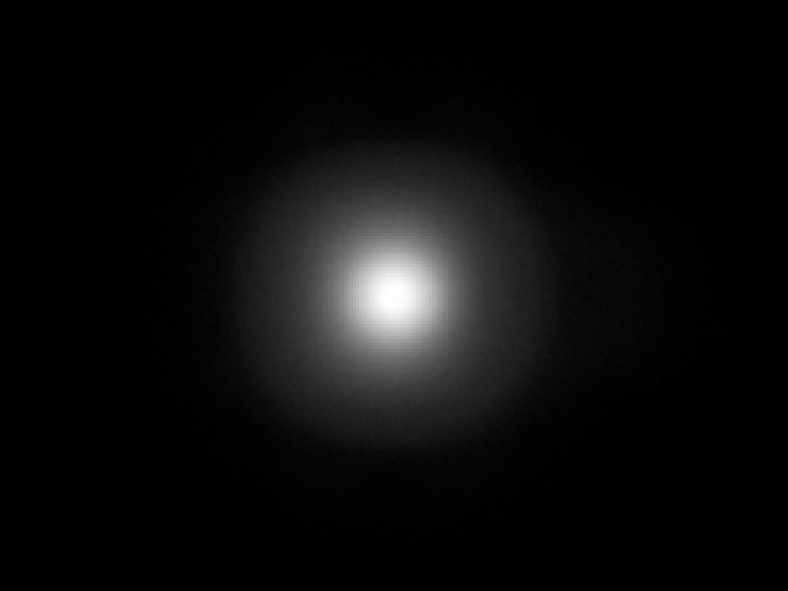

Seoul 3528 G STW8A2PD-G700 White

Eff:

89.0%

FWHM:

11°

Cd/Im:

16.1

Download

Seoul CSP SZ8Y11 White

Eff:

88.0%

FWHM:

7.8°

Cd/Im:

31.3

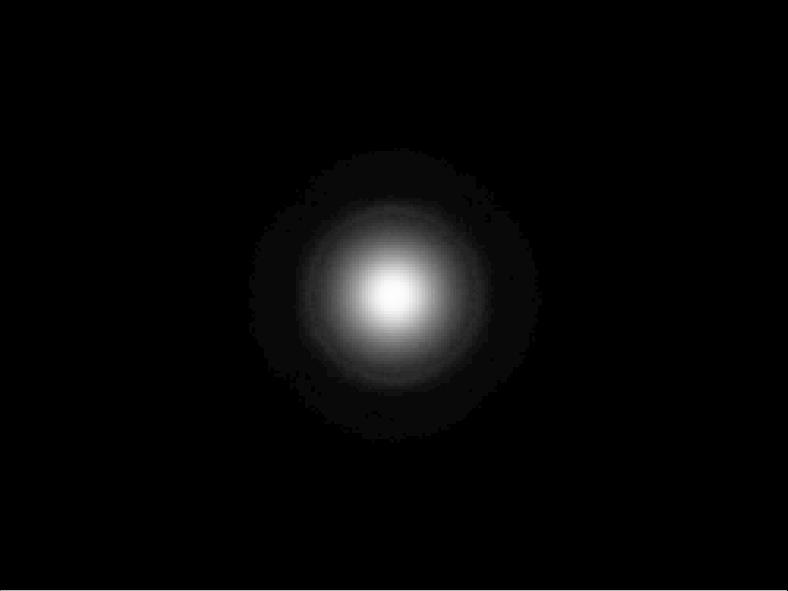

Carclo Optics -10003 Spot Image - Seoul Z8Y11

Carclo Optics - 10003 Cross Section image - Seoul Z8Y11

Download

IES

Seoul CSP SZ8Y15 White

Eff:

88.0%

FWHM:

6.5°

Cd/Im:

45.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

Download

IES

Seoul CSP SZ8Y19 White

Eff:

86.0%

FWHM:

10.8°

Cd/Im:

12.6

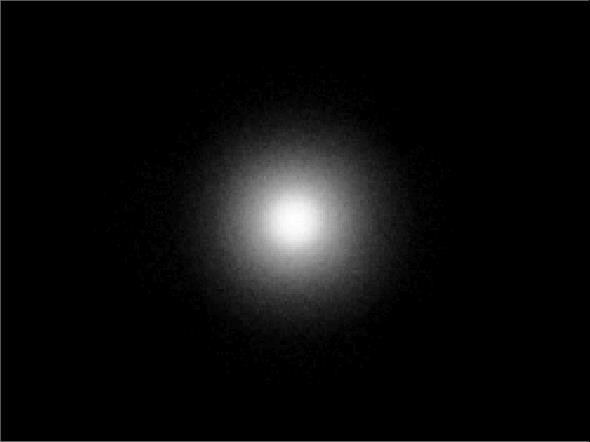

Carclo Optics - Simulated Spot Image

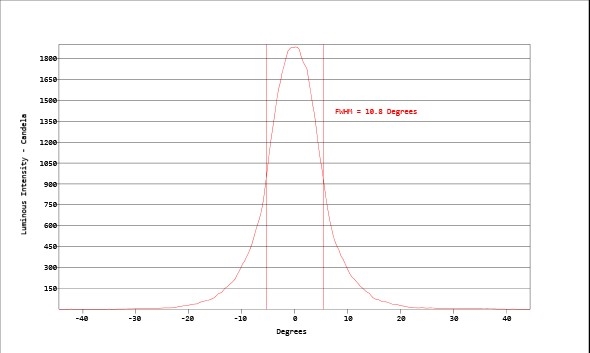

Carclo Optics - Simulated Cross Section

Download

IES

Seoul CSP SZ8Y22 White

Eff:

88.5%

FWHM:

13°

Cd/Im:

11.3

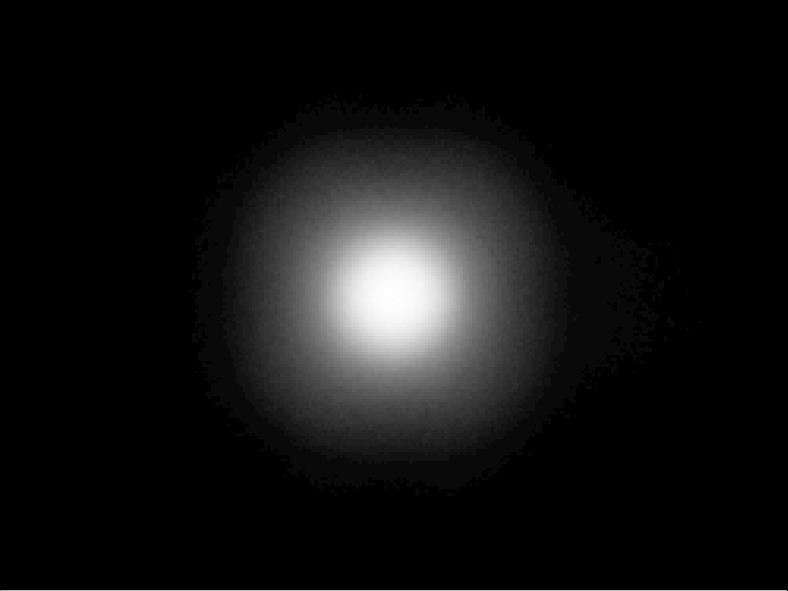

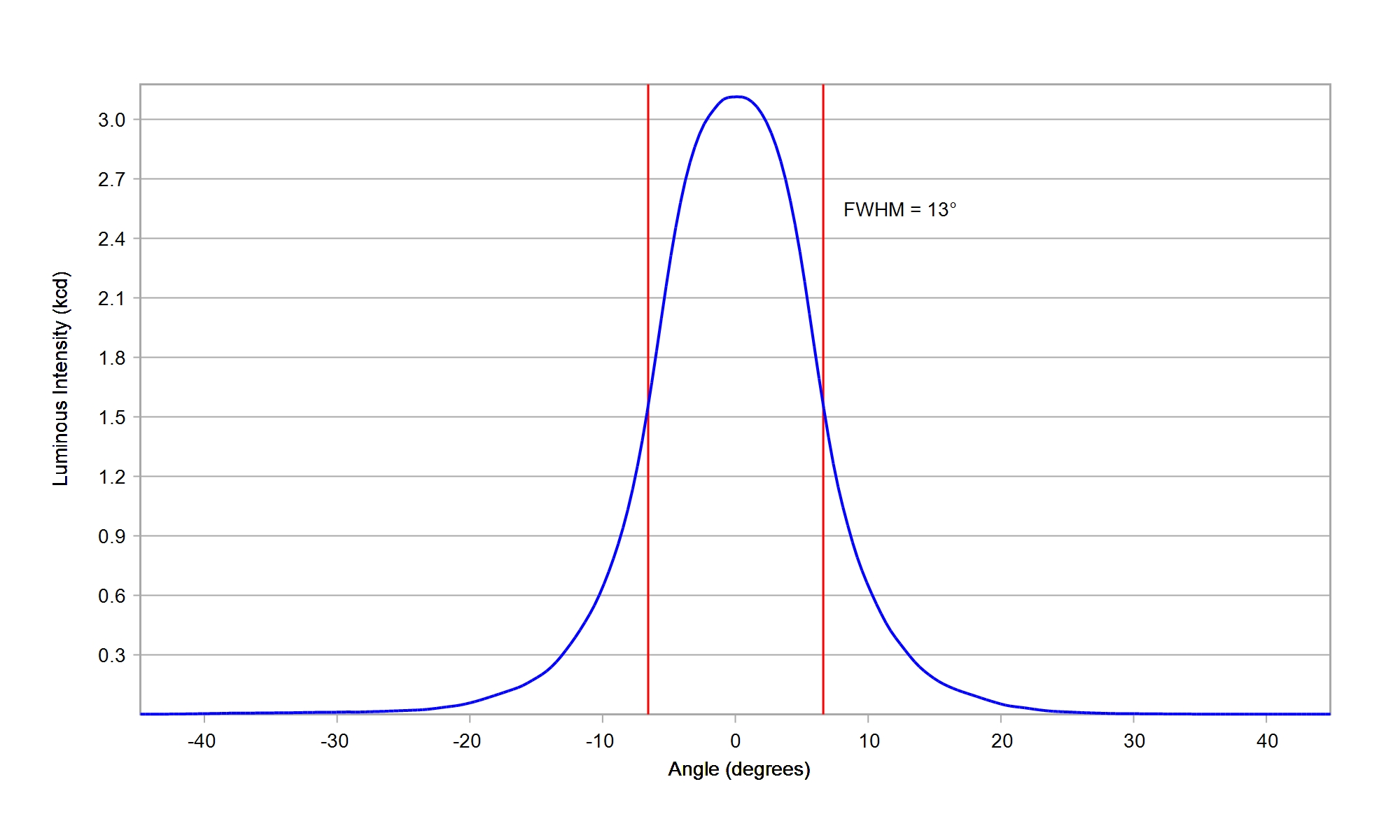

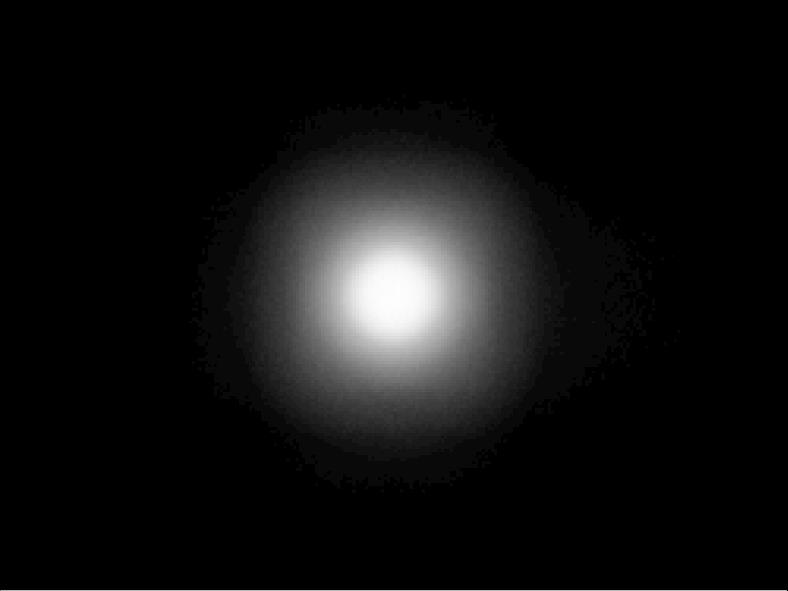

Carclo Optics -10003 Spot Image - Seoul SZ8Y22

Carclo Optics -10003 Cross Section Image - Seoul SZ8Y22

Download

IES

Seoul CSP SZ8Y22P White

Eff:

88.5%

FWHM:

14°

Cd/Im:

10.5

Carclo Optics -10003 Spot Image - Seoul SZ8Y22P

Carclo Optics -10003 Cross Image section - Seoul SZ8Y22P

Download

IES

Seoul MidPower MJT3030 White

Eff:

85.3%

FWHM:

10.3°

Cd/Im:

17.0

carclo optics - simulated spot image

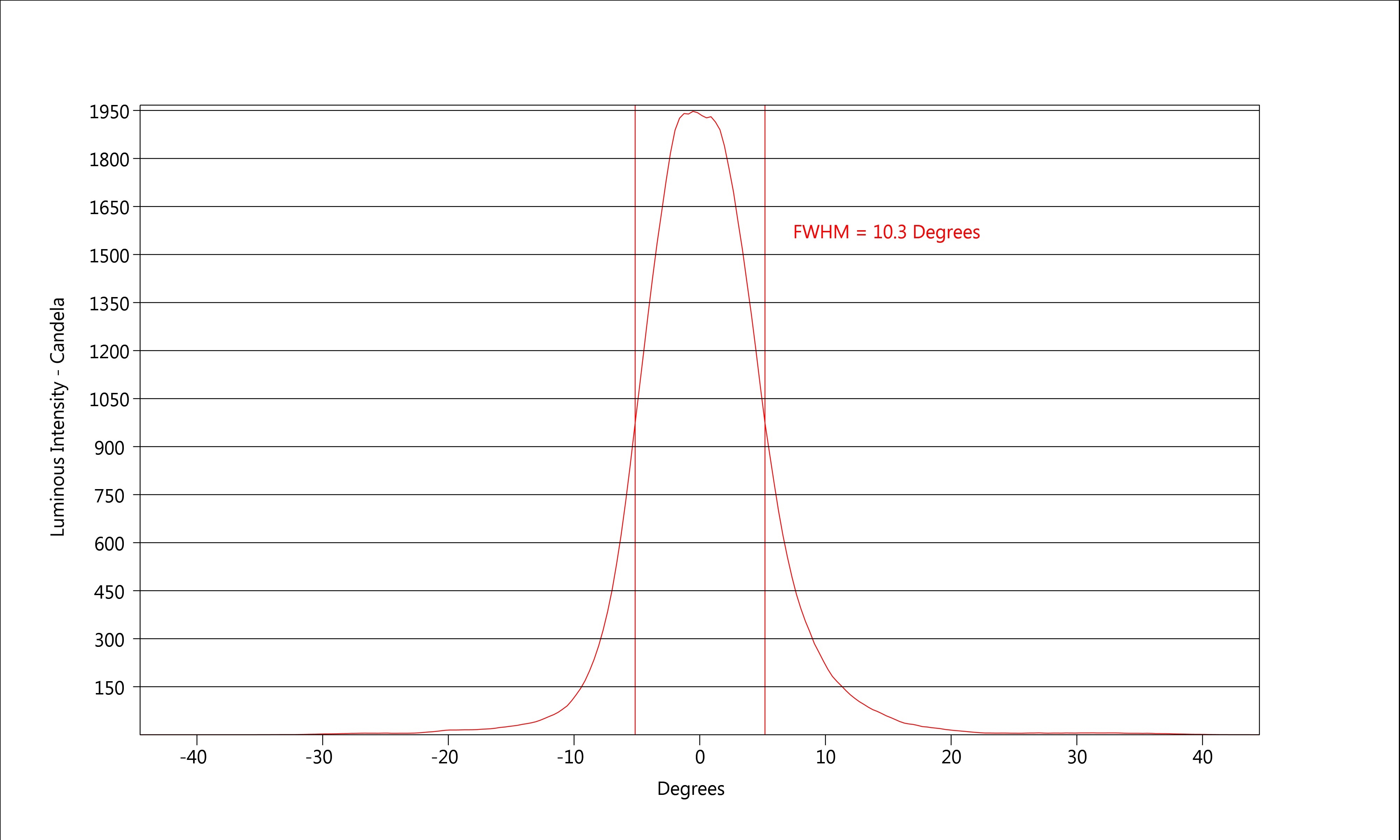

carclo optics - simulated cross section

Download

IES

Seoul MidPower MJT4040 White

Eff:

86.0%

FWHM:

13°

Cd/Im:

8.8

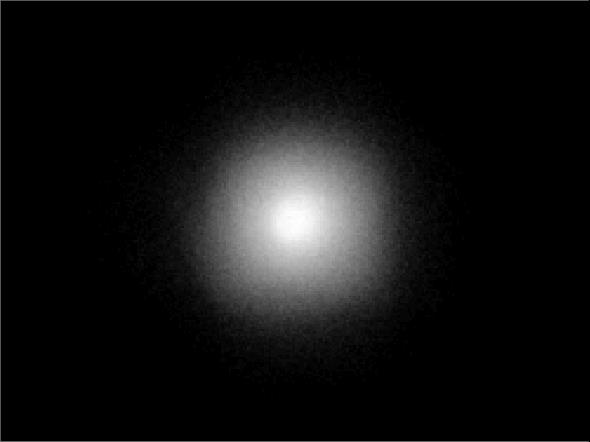

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Seoul P4 White

Eff:

84.4%

FWHM:

9.2°

Cd/Im:

16.6

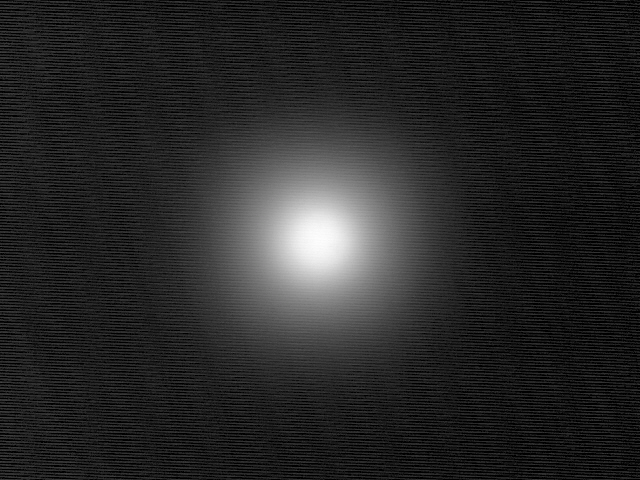

Carclo Optics - Simulated Spot Image

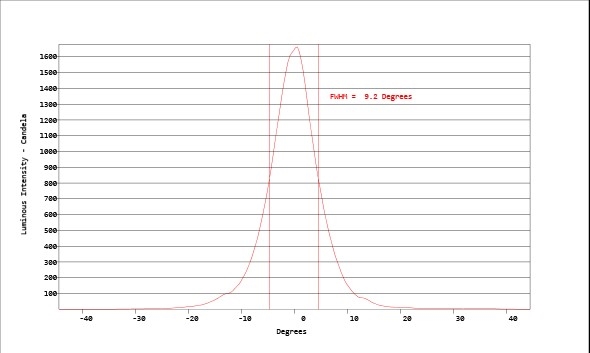

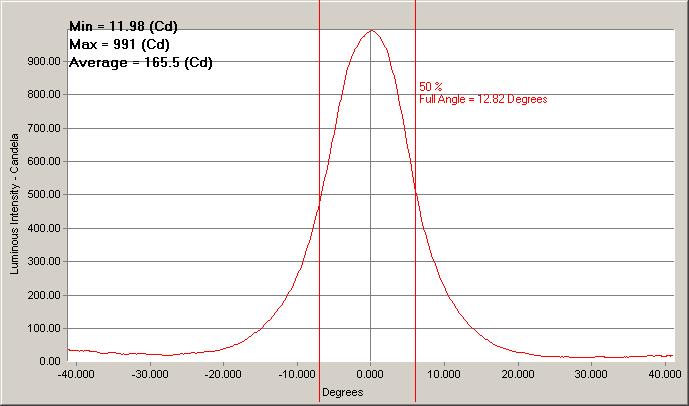

Carclo Optics - Simulated Cross Section Image

Download

IES

Seoul P4 White

Eff:

87.7%

FWHM:

9.5°

Cd/Im:

12.5

Download

ies

Seoul 3030 STW8C2SB-NT White

Eff:

89.0%

FWHM:

10.5°

Cd/Im:

16.7

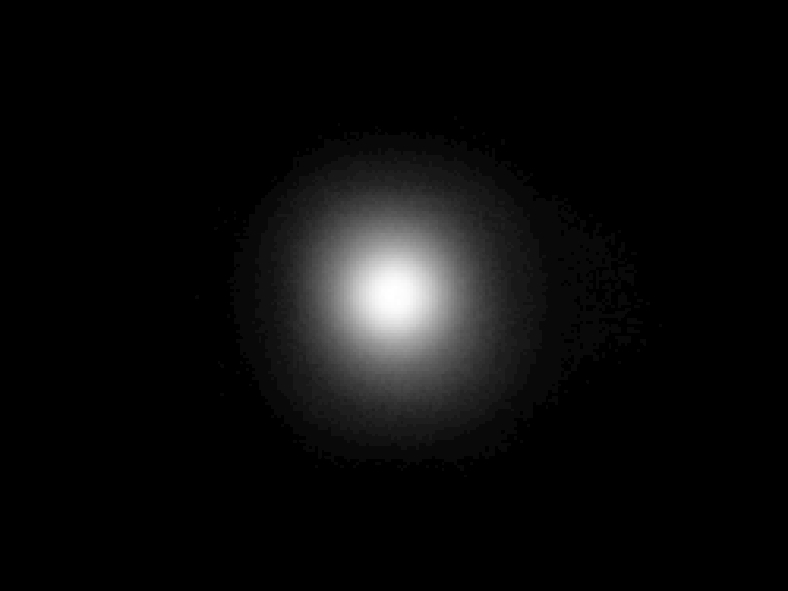

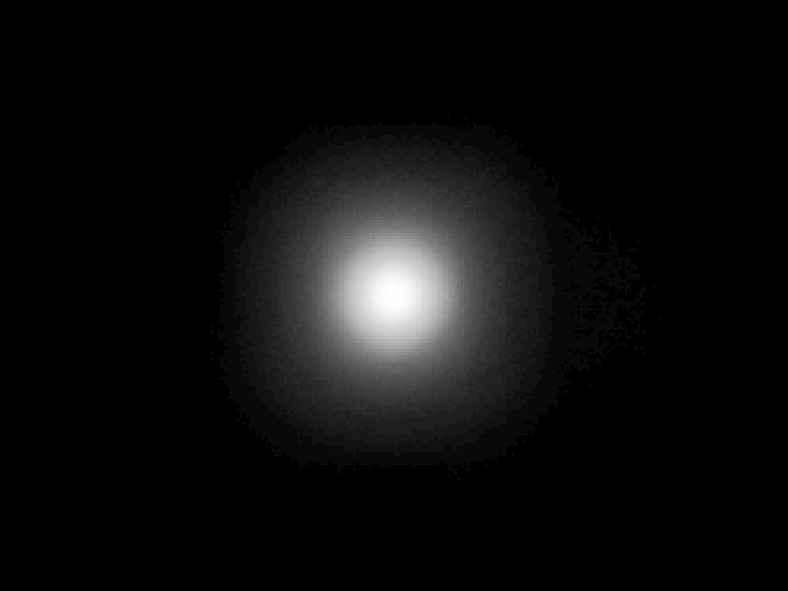

Carclo Optics - 10003 Spot Image Seoul STW8 C2SB-NT

Carclo Optics - 10003 Cross Section Seoul STW8 C2SB-NT

Download

IES

Seoul SunLike 3030 STWSC2PB-E0 White

Eff:

89.0%

FWHM:

11.0°

Cd/Im:

15.9

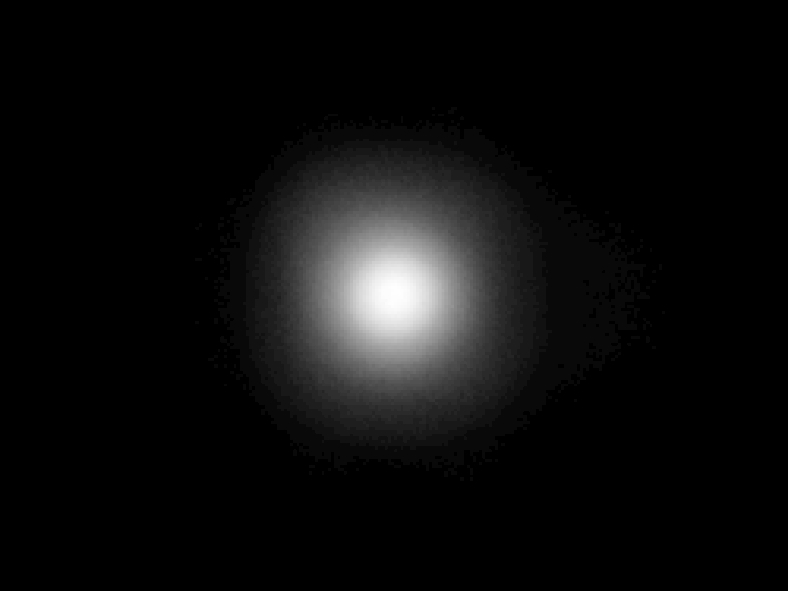

Carclo Optics - 10003 Spot Image STWS C2PB-E0

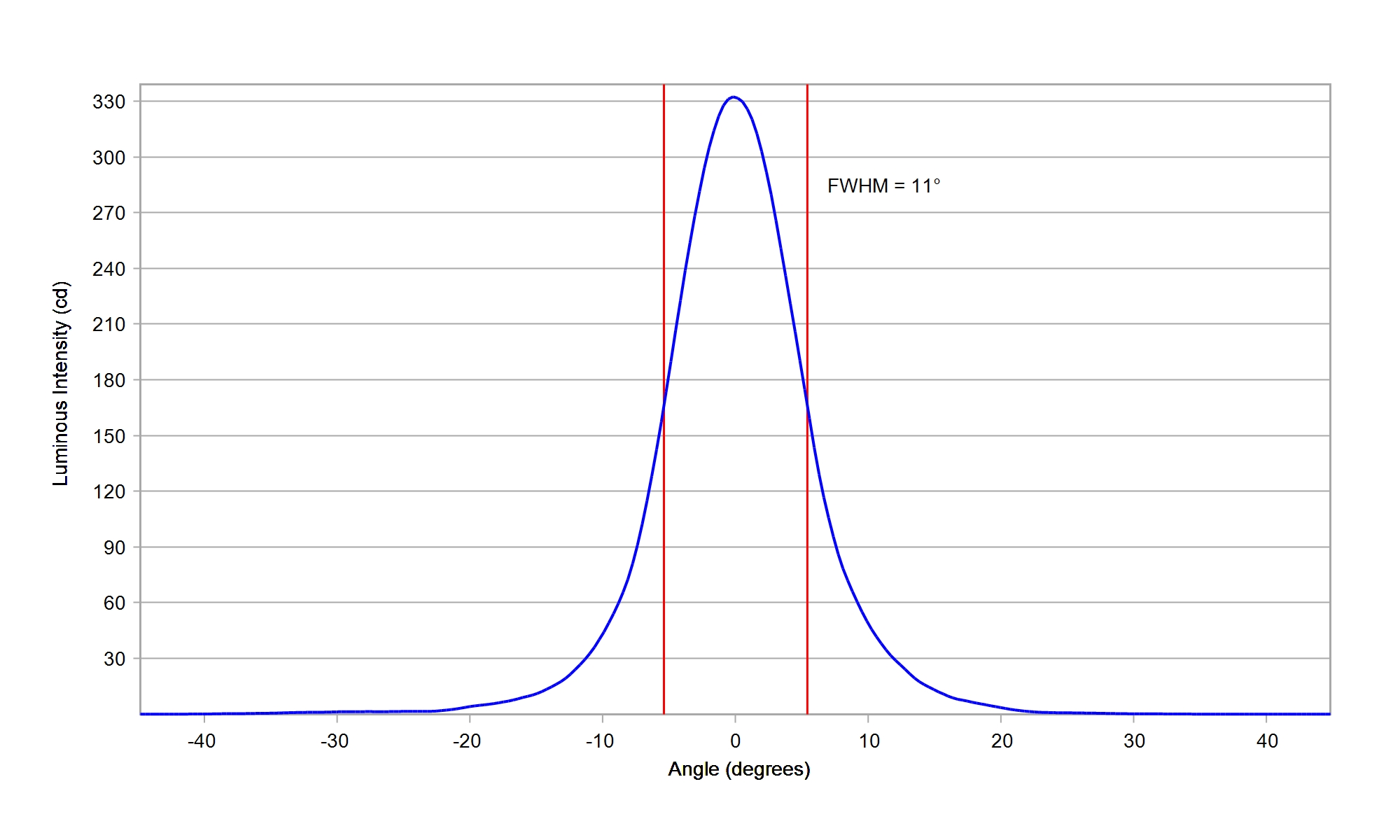

Carclo Optics - 10003 Cross Section STWS C2PB-E0

Download

IES

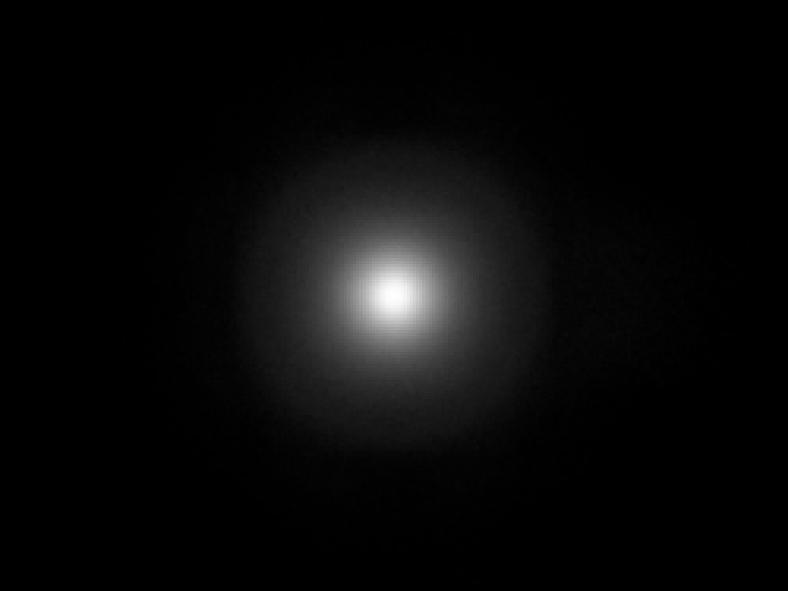

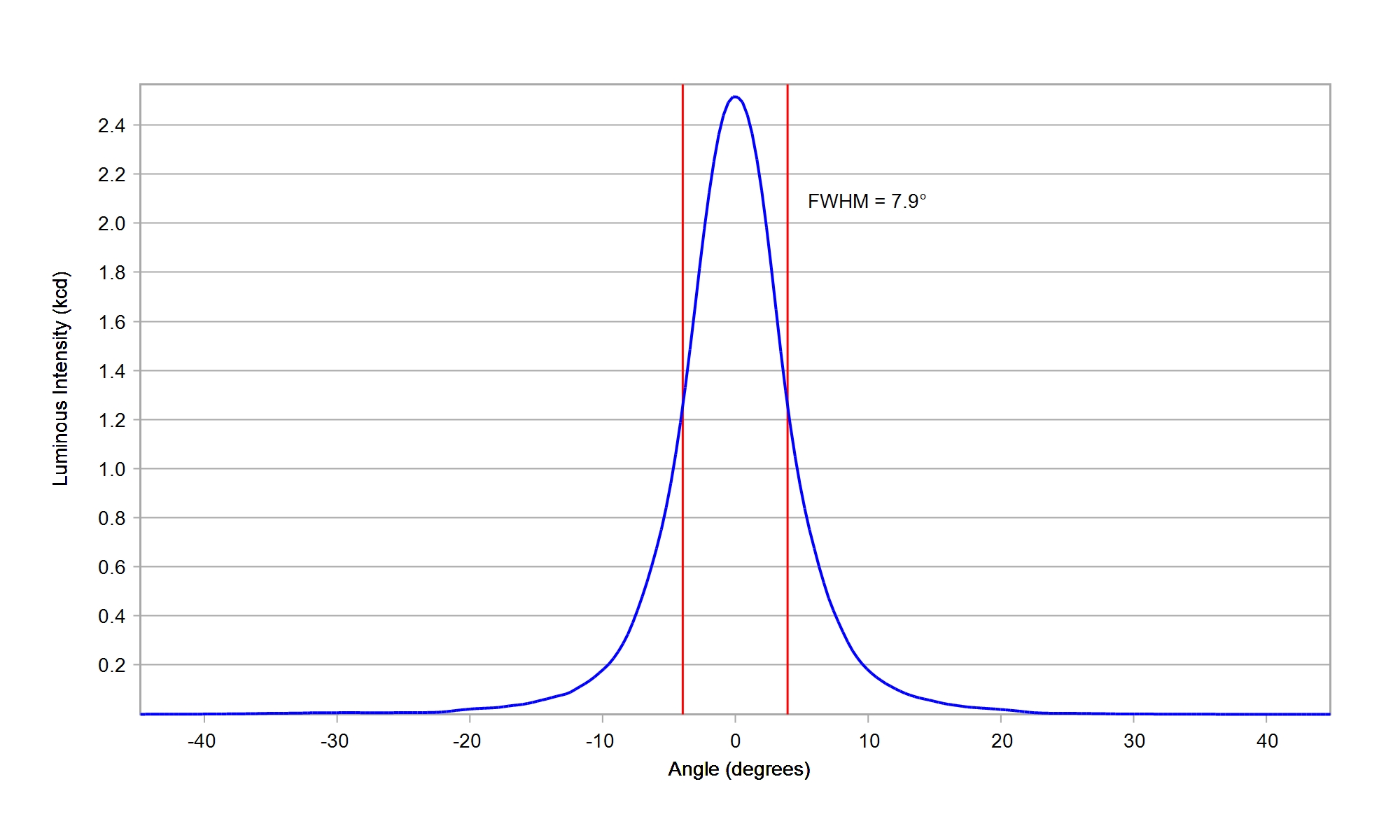

Seoul SunLike 3030 STWSC12S-E1 White

Eff:

89.0%

FWHM:

7.9°

Cd/Im:

25.7

Download

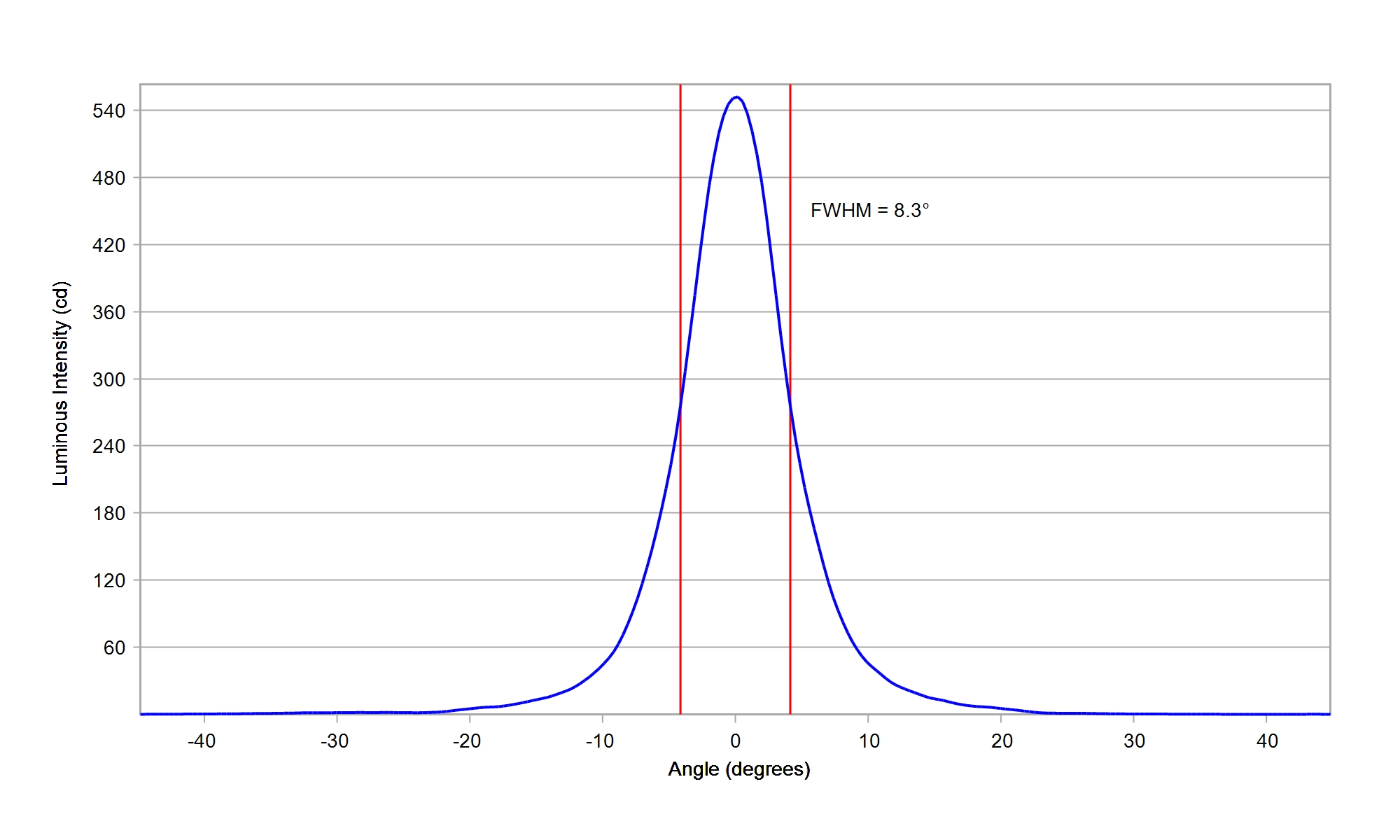

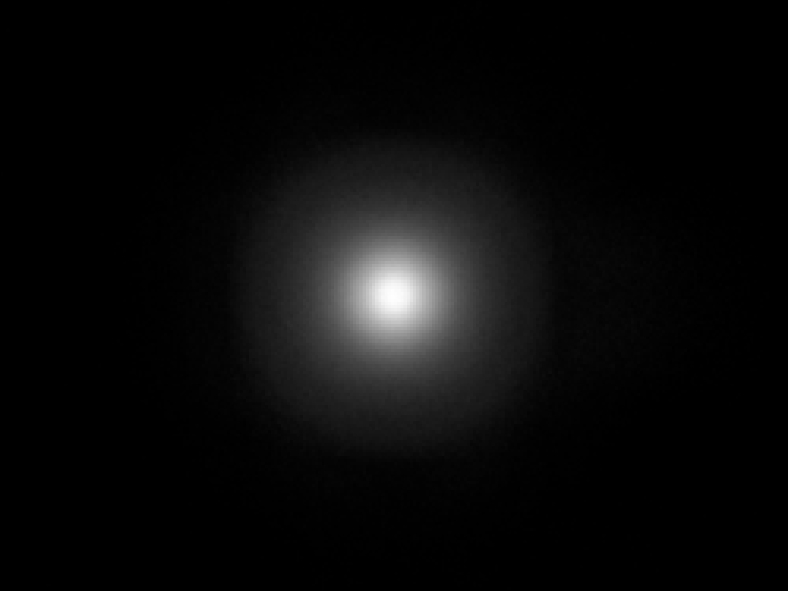

Seoul SunLike 3030 STWSC12S-E2 White

Eff:

89.0%

FWHM:

8.3°

Cd/Im:

23.2

Download

Seoul SunLike 3030 STW9C2SB-S White

Eff:

89.0%

FWHM:

9.7°

Cd/Im:

18.6

Carclo Optics - 10003 20mm Spot Image Seoul Sunlike 3030

Carclo Optics - 10003 20mm Cross Section Seoul Sunlike 3030

Download

IES

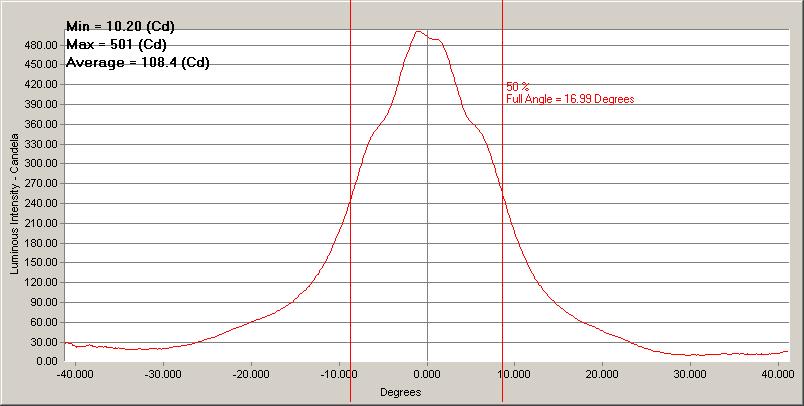

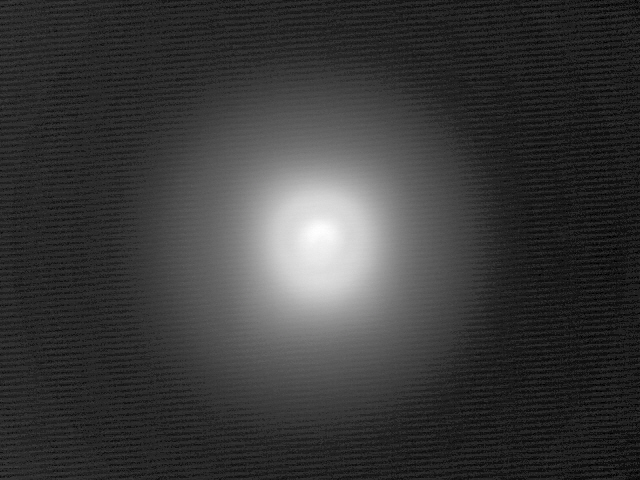

Seoul Z - Power Z1 White

Eff:

87.1%

FWHM:

17.6°

Cd/Im:

6.4

Download

ies

Seoul Z - Power Z5-M0 White

Eff:

84.9%

FWHM:

11.6°

Cd/Im:

14.4

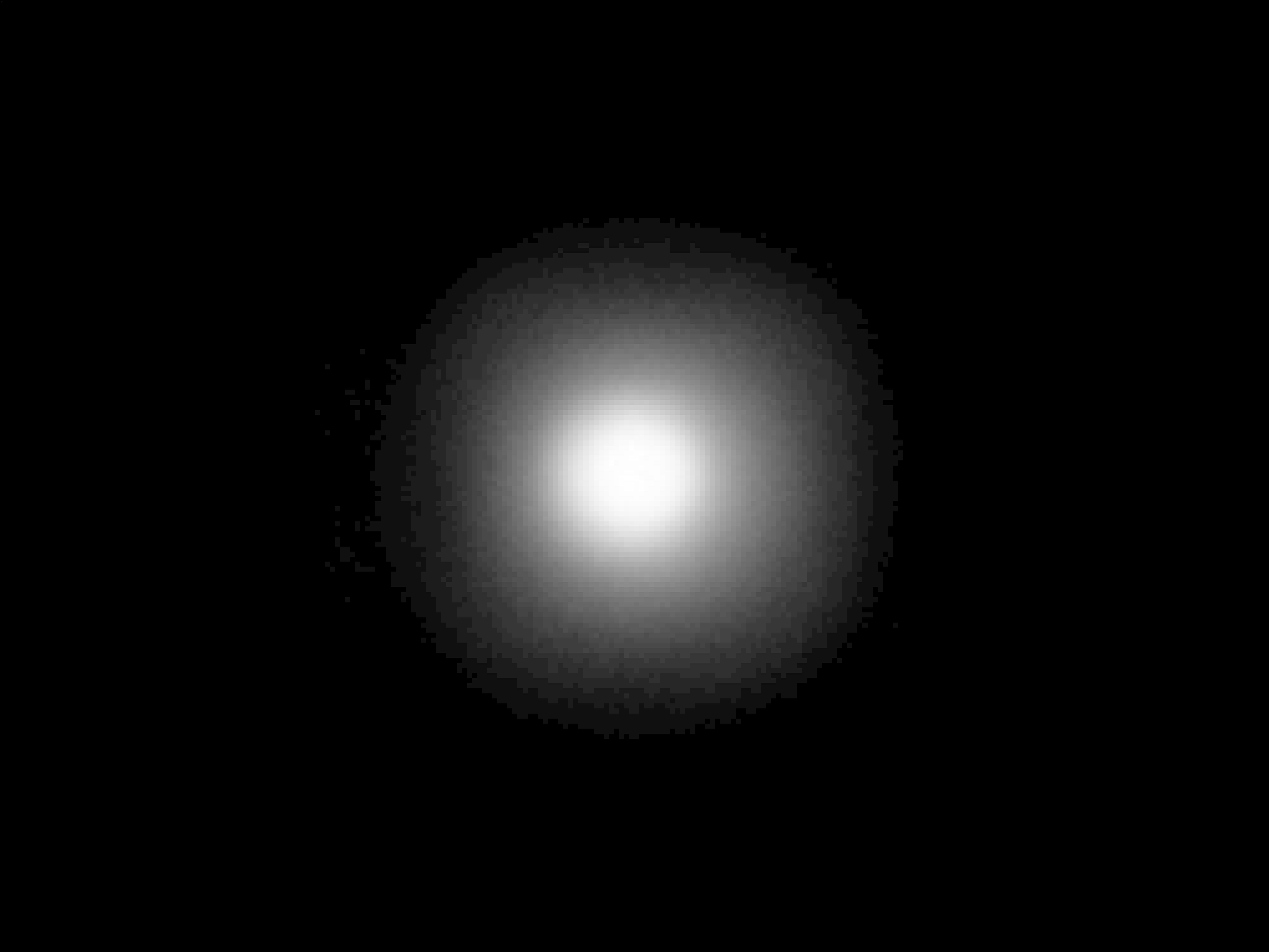

carclo optics - simulated spot image

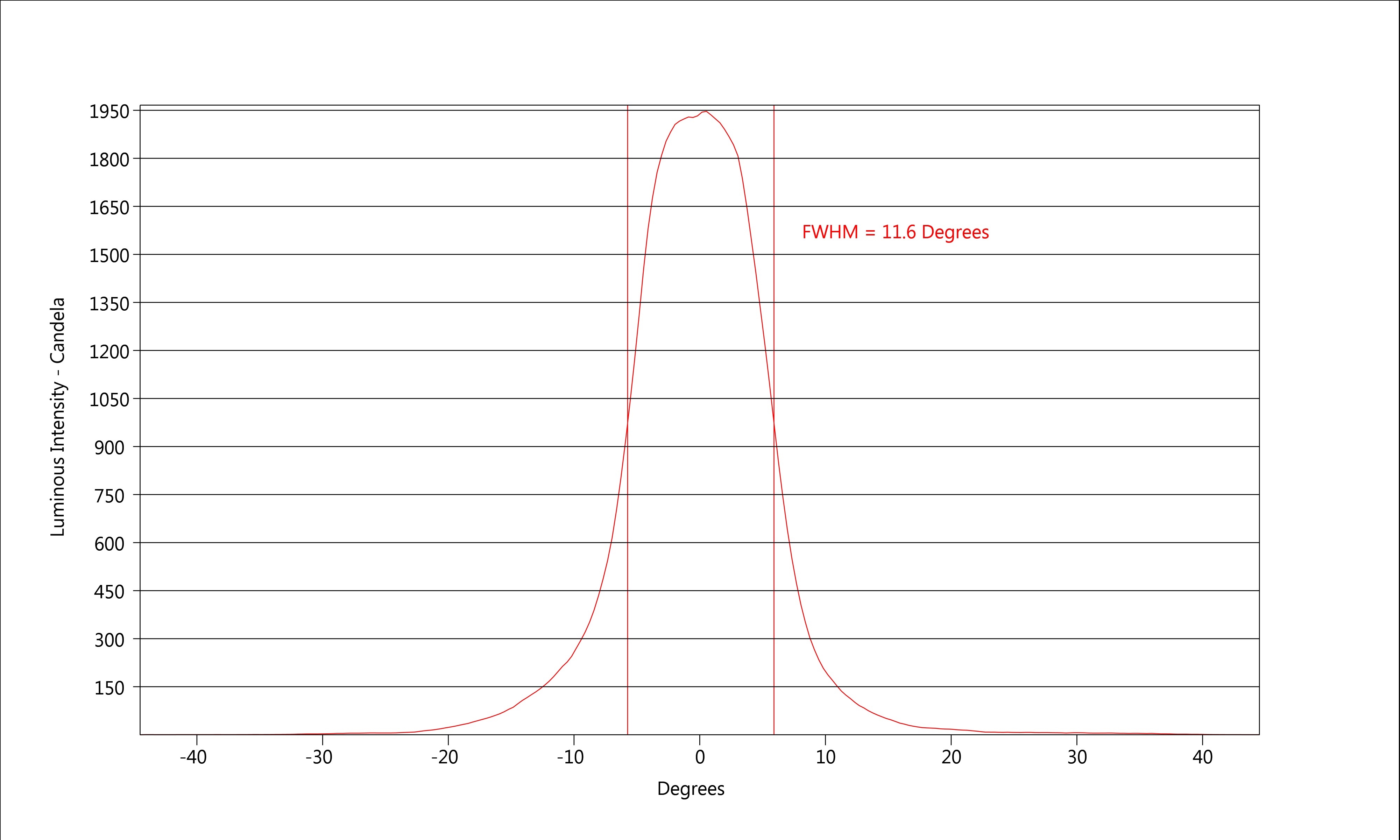

carclo optics - simulated cross section

Download

IES

Seoul Z - Power Z5-M1 White

Eff:

85.4%

FWHM:

10.7°

Cd/Im:

14.4

carclo optics - simulated spot image

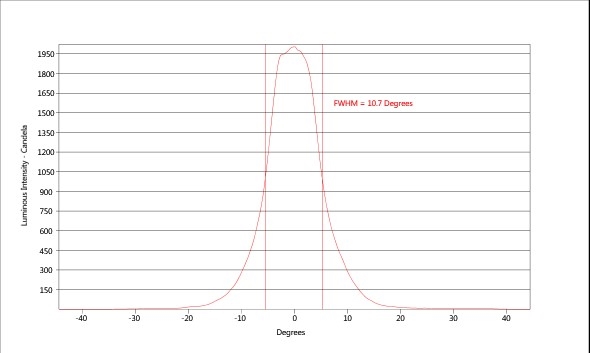

carclo optics - simulated cross section

Download

IES

Seoul Z - Power Z5-M4 White

Eff:

88.0%

FWHM:

13°

Cd/Im:

11.4

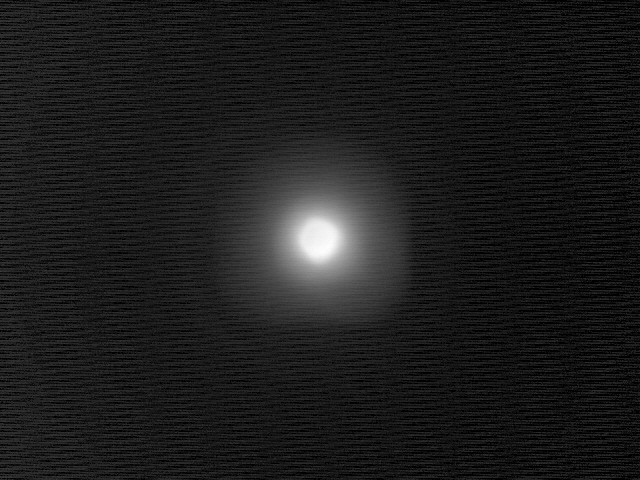

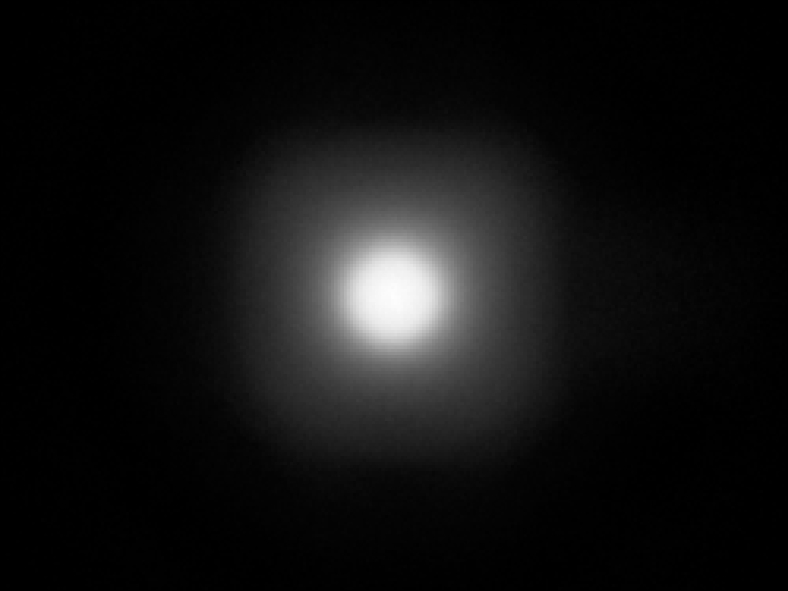

Carclo Optics – 10003 Seoul Z-Power Z5 - Spot Image

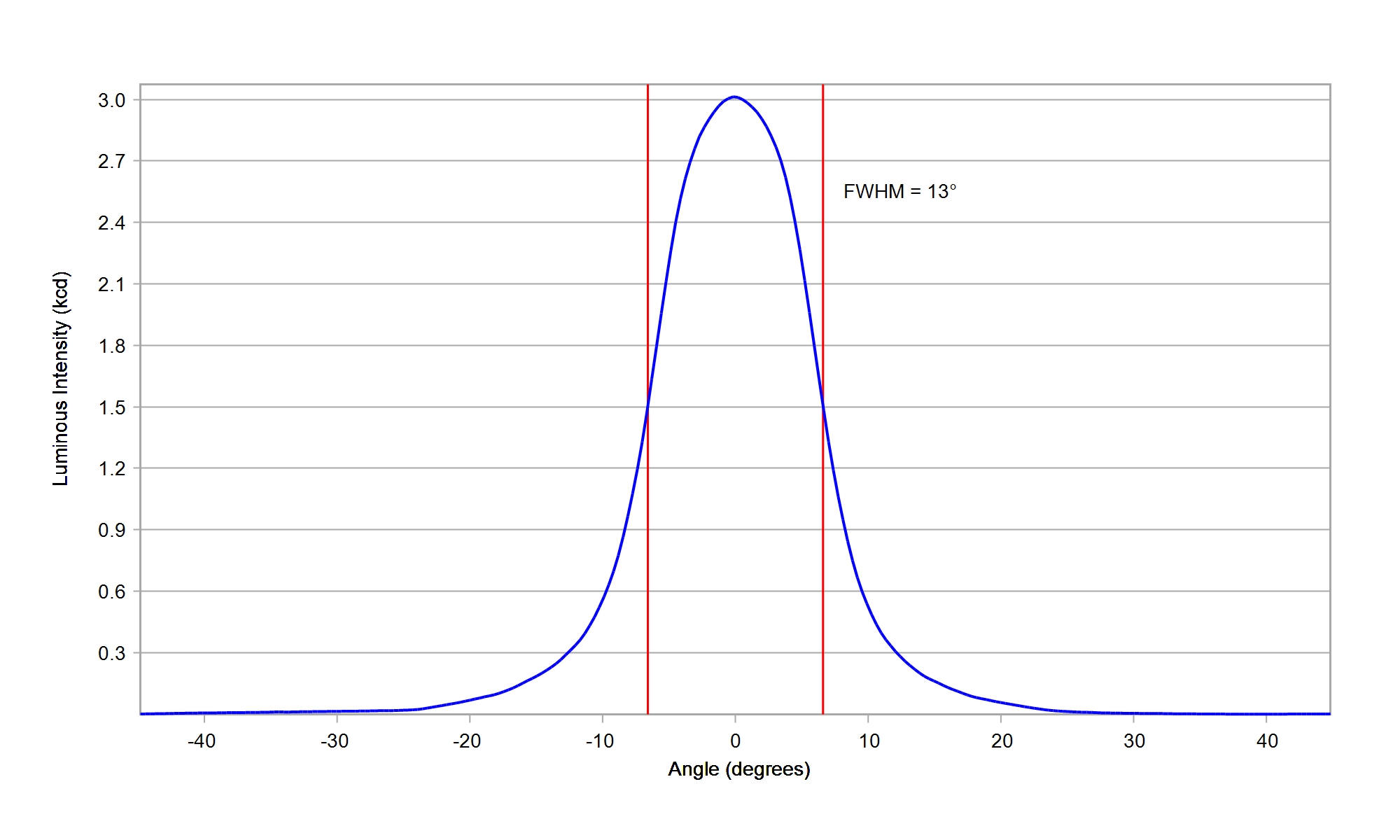

Carclo Optics – 10003 Seoul Z-Power Z5 - Cross-Section

Download

IES

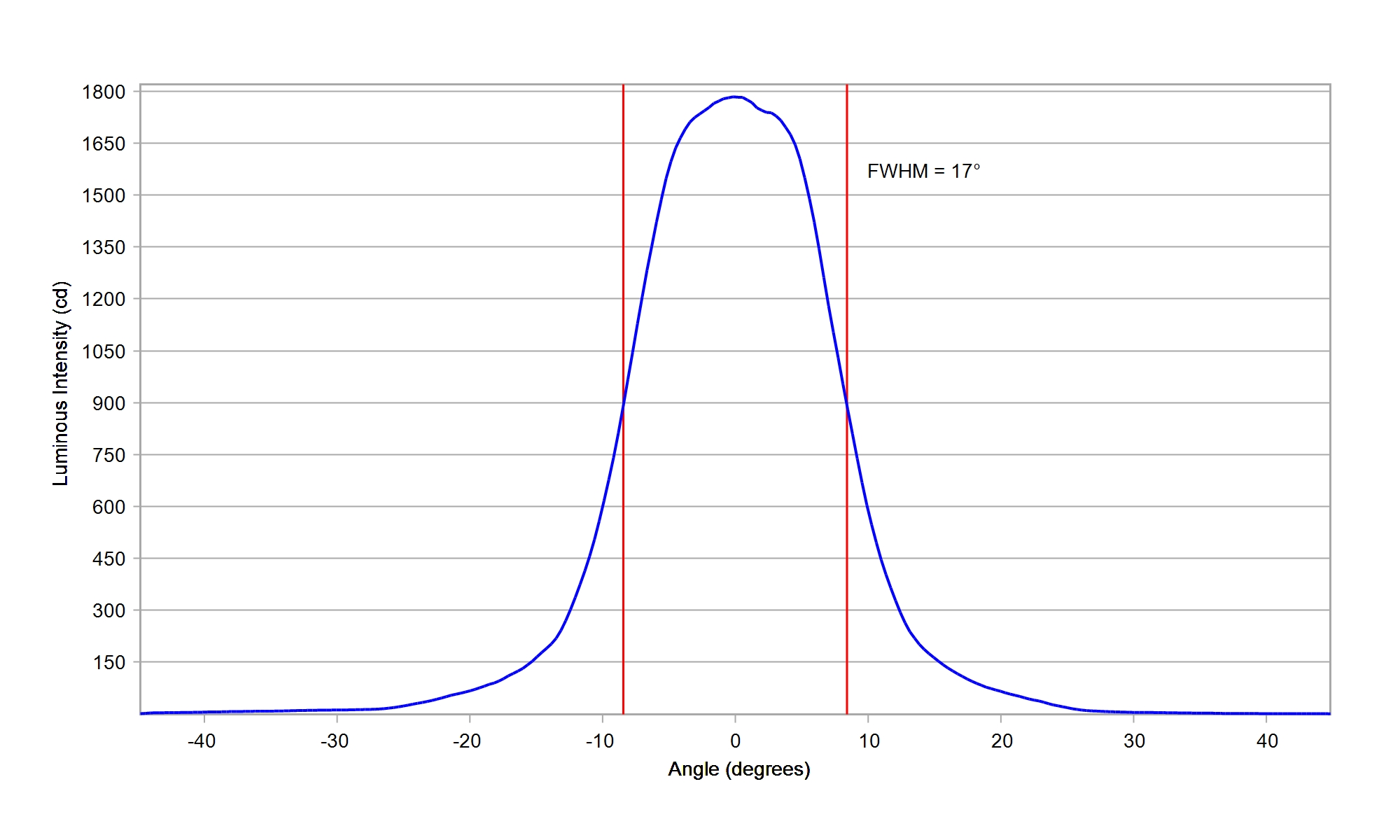

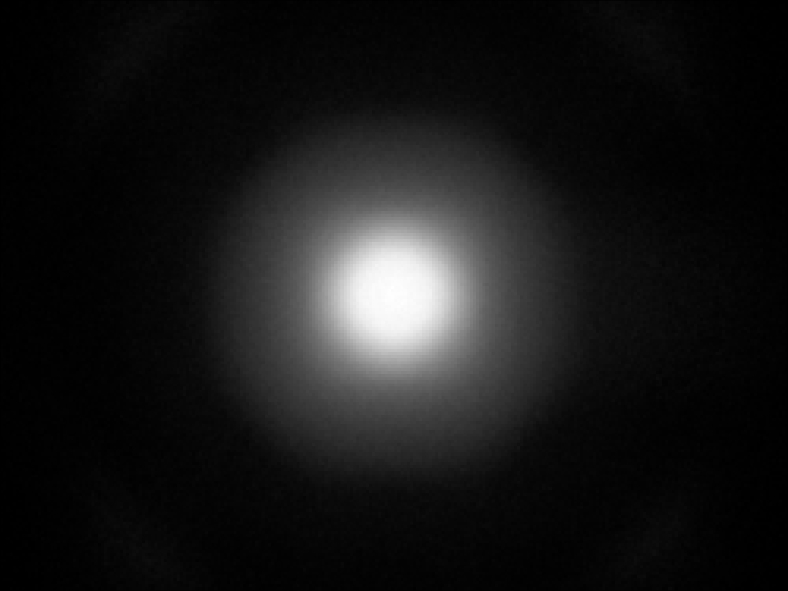

Seoul Z - Power Z5-M5 White

Eff:

87.5%

FWHM:

17°

Cd/Im:

7.9

Download

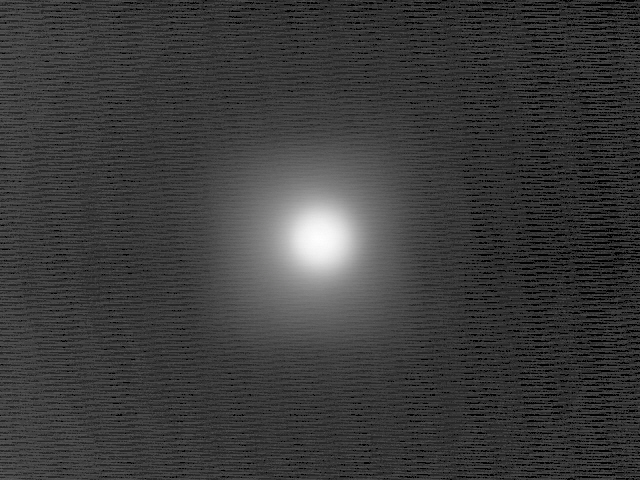

Seoul Z - Power Z5-P0 White

Eff:

85.8%

FWHM:

9.3°

Cd/Im:

27.0

Download

ies

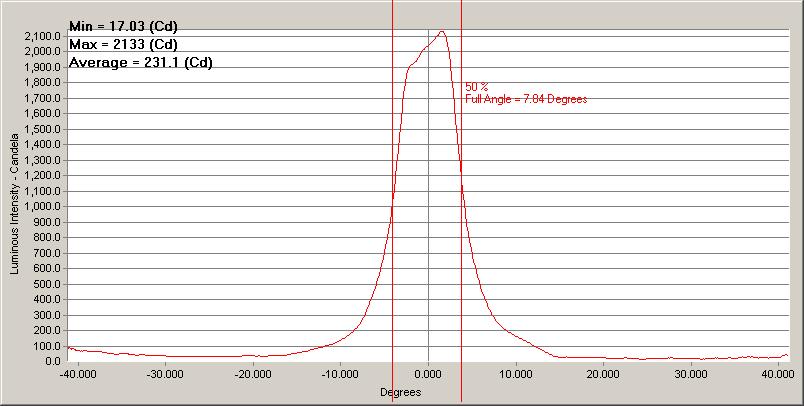

Seoul Z - Power Z5-M White

Eff:

88.0%

FWHM:

7.8°

Cd/Im:

35.4

Download

ies

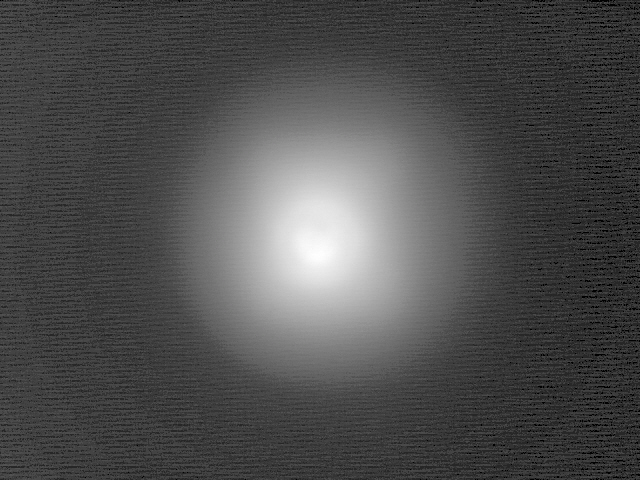

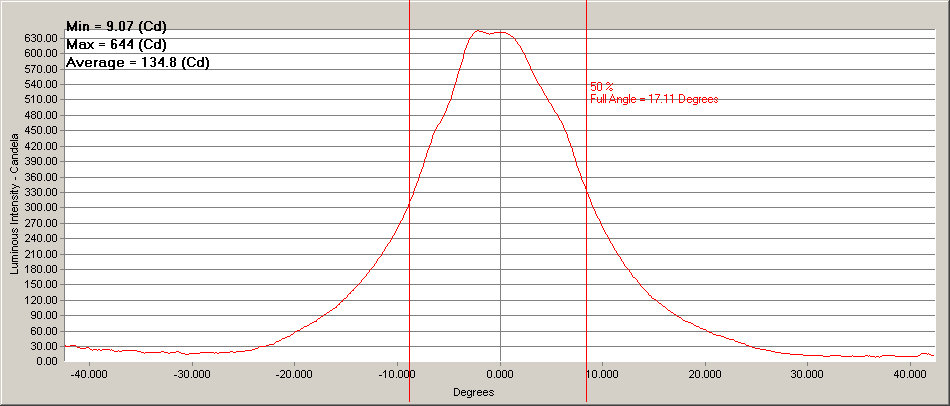

Stanley 1N White

FWHM:

17.1°

Cd/Im:

7.6

Download

ies

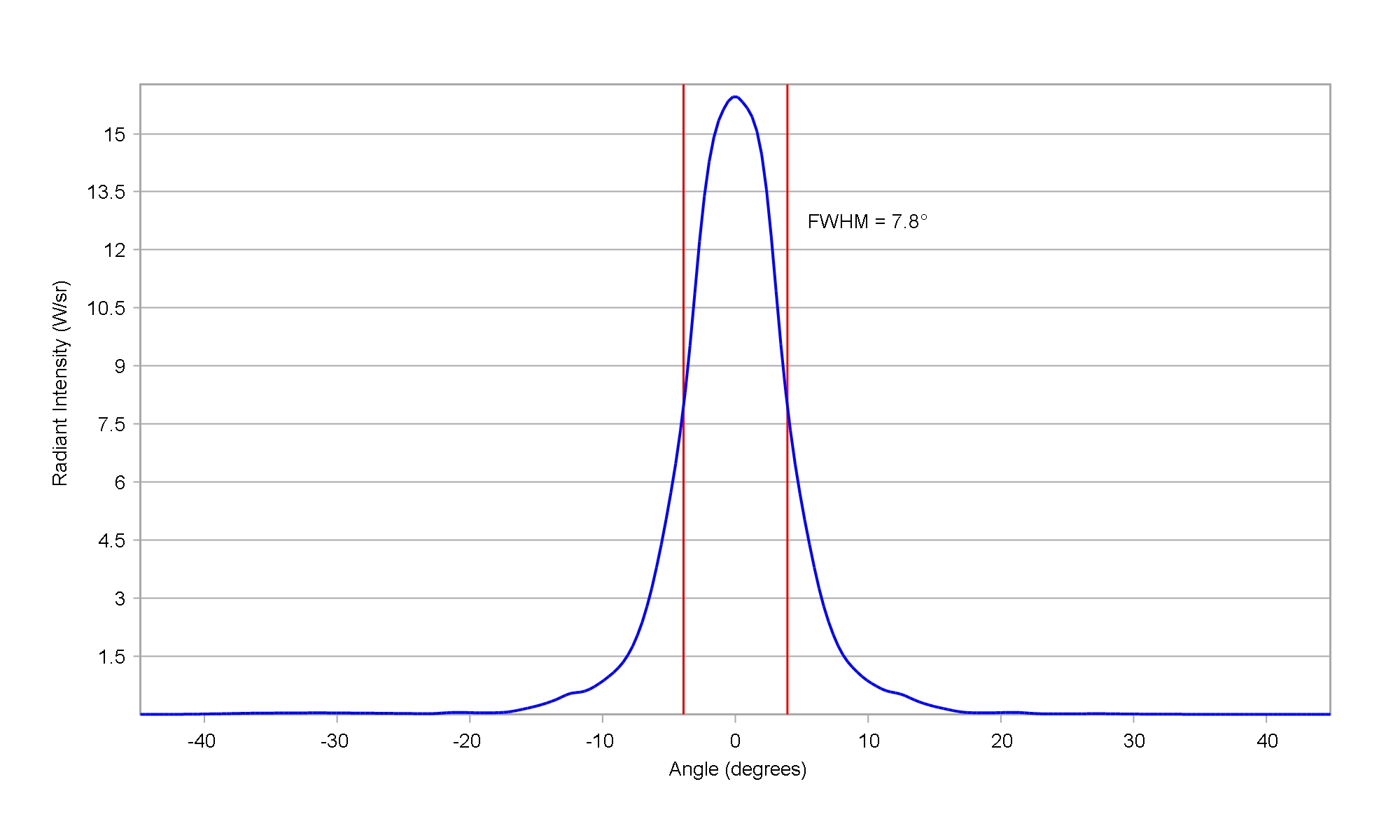

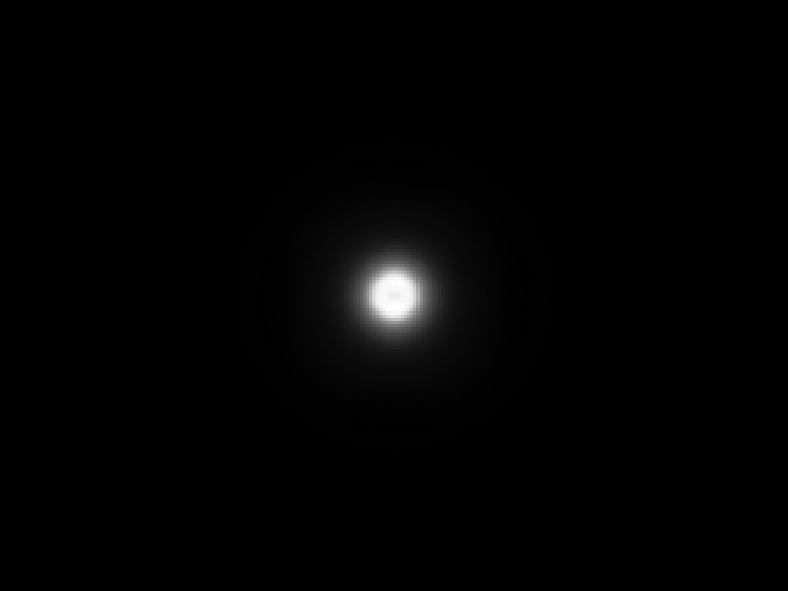

Stanley FWR1108MS IR 755nm

Eff:

92.5%

FWHM:

7.8°

Ipk/W:

27.8


Download

Toshiba TL 1L2 White

Eff:

85.0%

FWHM:

11.6°

Cd/Im:

14.4

Carclo Optics - Simulated Spot Image

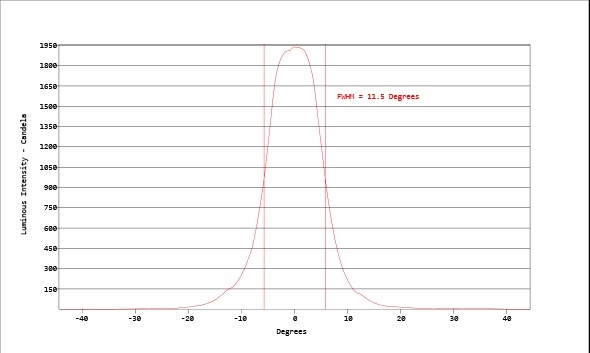

Carclo Optics - Simulated Cross Section

Download

IES

Toshiba TL 1L4 White

Eff:

85.0%

FWHM:

12.1°

Cd/Im:

13.5

Carclo Optics - Simulated Spot Image

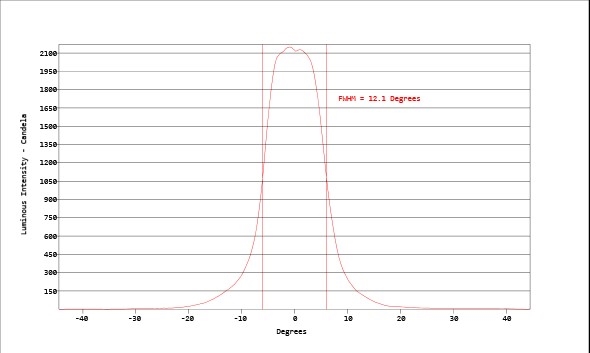

Carclo Optics - Simulated Cross Section

Download

IES
