20.0mm Wide Spot Frosted TIR LED Lenses

Part number

60148

Dimensions

20.0mm

Drawing Number

60148

Optic type

TIR LED Lenses

Finish

Frosted

Beam type

Wide Spot

Applications

Architectural

Landscape & Garden

Wide Area

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Cree JB2835B 3V G-Class White

Eff:

88.5%

FWHM:

61°

Cd/Im:

0.8


Download

Cree JB2835B 3V J-Class White

Eff:

88.5%

FWHM:

62°

Cd/Im:

0.8


Download

Cree JB3030C 3V E-Class White

Eff:

88.0%

FWHM:

62°

Cd/Im:

0.8


Download

Cree JB3030C 3V F-Class White

Eff:

88.5%

FWHM:

61°

Cd/Im:

0.8


Download

Cree JE2835 3V White

Eff:

88.5%

FWHM:

61°

Cd/Im:

0.8

Download

Cree JK2835 6V White

Eff:

88.0%

FWHM:

58°

Cd/Im:

0.8

Download

IES

Cree JR5050C 6V E-Class White

Eff:

88.0%

FWHM:

62°

Cd/Im:

0.7


Download

IES

Cree XLamp CSP XD16 Premium White

Eff:

88.0%

FWHM:

60°

Cd/Im:

0.8

Download

IES

Cree XLamp XE-G Blue

Eff:

88.0%

FWHM:

66°

Cd/Im:

0.7

Download

IES

Cree XLamp XE-G Green

Eff:

88.0%

FWHM:

67°

Cd/Im:

0.7

Download

IES

Cree XLamp XE-G Red

Eff:

87.0%

FWHM:

64°

Cd/Im:

0.7

Download

IES

Cree XLamp XE-G White

Eff:

87.5%

FWHM:

64°

Cd/Im:

0.7

Download

IES

Cree XLamp XHP-50 Gen 2 White

Eff:

86.0%

FWHM:

70°

Cd/Im:

0.6

Carclo Optics - 60148 Wide Spot Image

Carclo Optics - 60148 Wide Cross Section

Download

IES

Cree XLamp XHP35 HD White

Eff:

87.0%

FWHM:

69°

Cd/Im:

0.6

Download

IES

Cree XLamp XHP35 HI White

Eff:

87.5%

FWHM:

60°

Cd/Im:

0.8

Download

IES

Cree XLamp XHP35.2 HD White

Eff:

85.5%

FWHM:

65°

Cd/Im:

0.6

Download

IES

Cree XLamp XHP35.2 HI White

Eff:

87.0%

FWHM:

61°

Cd/Im:

0.7

Download

IES

Cree XLamp XHP50.3 HI White

Eff:

87.5%

FWHM:

62°

Cd/Im:

0.7

Download

Cree XLamp XHP50.3 White

Eff:

86.0%

FWHM:

65°

Cd/Im:

0.6

Download

3
3

Cree XLamp XP-E2 Amber

Eff:

87.5%

FWHM:

58°

Cd/Im:

0.8

Download

Cree XLamp XP-E2 Blue

Eff:

88.0%

FWHM:

59°

Cd/Im:

0.8

Download

Cree XLamp XP-E2 Far Red

Eff:

91.0%

FWHM:

61°

Ipk/W:

0.8

Download

Cree XLamp XP-E2 Green

Eff:

87.5%

FWHM:

58°

Cd/Im:

0.9

Download

Cree XLamp XP-E2 PC Amber

Eff:

87.5%

FWHM:

62°

Cd/Im:

0.8


Download

Cree XLamp XP-E2 Photo Red

Eff:

88.0%

FWHM:

60°

Ipk/W:

0.8


Download

Cree XLamp XP-E2 Red

Eff:

89.0%

FWHM:

60°

Cd/Im:

0.8

Download

Cree XLamp XP-E2 Red-Orange

Eff:

89.0%

FWHM:

59°

Cd/Im:

0.8


Download

Cree XLamp XP-E2 Royal Blue

Eff:

86.5%

FWHM:

60°

Ipk/W:

0.8


Download

Cree XLamp XP-E2 White

Eff:

88.0%

FWHM:

63°

Cd/Im:

0.8

Download

Cree XLamp XP-G2 White

Eff:

88.0%

FWHM:

61°

Cd/Im:

0.8

Carclo Optics - 60148 Spot Image Cree XLamp XP-G2

Carclo Optics - 60148 Cross Section Cree XLamp XP-G2

Download

IES

Cree XLamp XP-G3 White

Eff:

87.0%

FWHM:

62°

Cd/Im:

0.7

Carclo Optics - 60148 Spot Image Cree XLamp XP-G3

Carclo Optics - 60148 Cross Section Cree XLamp XP-G3

Download

IES

Cree XLamp XP-G4 HI White

Eff:

87.5%

FWHM:

62°

Cd/Im:

0.7

Download

Cree XLamp XP-G4 White

Eff:

88.0%

FWHM:

69°

Cd/Im:

0.6


Download

IES

Cree XLamp XP-GR White

Eff:

88.0%

FWHM:

61°

Cd/Im:

0.8

Download

Cree XLamp XP-L2 White

Eff:

86.5%

FWHM:

68°

Cd/Im:

0.6

Carclo Optics - 60148 Wide Spot Image

Carclo Optics - 60148 Wide Spot Cross Section

Download

IES

Cree XLamp XP-LR White

Eff:

88.5%

FWHM:

59°

Cd/Im:

0.8

Download

Cree XLamp XP-P White

Eff:

88.5%

FWHM:

64°

Cd/Im:

0.7

Carclo Optics – 60148 Cree Xlamp XP-P - Spot Image

Carclo Optics – 60148 Cree Xlamp XP-P - Cross-Section

Download

IES

Cree XLamp XQ-A Blue

Eff:

87.5%

FWHM:

60°

Cd/Im:

0.8

Download

Cree XLamp XQ-A Green

Eff:

88.0%

FWHM:

58°

Cd/Im:

0.8

Download

Cree XLamp XQ-A PC Amber

Eff:

87.5%

FWHM:

61°

Cd/Im:

0.8

Download

Cree XLamp XQ-A PC Blue

Eff:

87.5%

FWHM:

62°

Cd/Im:

0.8

Download

Cree XLamp XQ-A Red

Eff:

89.0%

FWHM:

59°

Cd/Im:

0.8

Download

Cree XLamp XQ-A Red-Orange

Eff:

88.5%

FWHM:

58°

Cd/Im:

0.8


Download

Cree XLamp XQ-A White

Eff:

87.5%

FWHM:

60°

Cd/Im:

0.8

Download

Cree XLamp XQ-E Plus HD Blue

Eff:

87.5%

FWHM:

61°

Cd/Im:

0.8


Download

Cree XLamp XQ-E Plus HD Green

Eff:

87.5%

FWHM:

61°

Cd/Im:

0.8


Download

Cree XLamp XQ-E Plus HD PC Amber

Eff:

87.0%

FWHM:

59°

Cd/Im:

0.8


Download

Cree XLamp XQ-E Plus HD Royal Blue

Eff:

86.0%

FWHM:

60°

Ipk/W:

0.8


Download

Cree XLamp XQ-E Plus HD White

Eff:

87.0%

FWHM:

60°

Cd/Im:

0.8


Download

Cree XLamp XQ-E Plus HI Blue

Eff:

87.5%

FWHM:

58°

Cd/Im:

0.8

optic-60148-Cree XLamp XQ-E Plus HI Blue-spot-image.jpg

optic-60148-Cree XLamp XQ-E Plus HI Blue-cross-section-image.jpg

Download

Cree XLamp XQ-E Plus HI Green

Eff:

87.5%

FWHM:

58°

Cd/Im:

0.8


Download

Cree XLamp XQ-E Plus HI PC Amber

Eff:

87.5%

FWHM:

58°

Cd/Im:

0.8


Download

Cree XLamp XQ-E Plus HI Royal Blue

Eff:

86.0%

FWHM:

55°

Ipk/W:

0.8


Download

Cree XLamp XQ-E Plus HI White

Eff:

87.5%

FWHM:

56°

Cd/Im:

0.8


Download

Cree XLamp XT-E White

Eff:

86.5%

FWHM:

58°

Cd/Im:

0.8

Carclo Optics - 60148 Spot Image Cree XT-E White

Carclo Optics - 60148 Cross Section Cree XT-E White

Download

IES

LUMILEDS LUXEON 2835C 6V White

Eff:

88.5%

FWHM:

61°

Cd/Im:

0.8

Download

LUMILEDS LUXEON 2835E 9V White

Eff:

88.5%

FWHM:

62°

Cd/Im:

0.8

Download

LUMILEDS LUXEON 2835N 3V White

Eff:

88.5%

FWHM:

61°

Cd/Im:

0.8

Download

LUMILEDS LUXEON 2835S 3V White

Eff:

88.5%

FWHM:

62°

Cd/Im:

0.8

Download

LUMILEDS LUXEON 2835S 6V White

Eff:

88.5%

FWHM:

62°

Cd/Im:

0.8

Download

LUMILEDS LUXEON 3014 White

Eff:

88.5%

FWHM:

62°

Cd/Im:

0.8

Download

IES

LUMILEDS LUXEON 3030 2D Plus Round White

Eff:

88.5%

FWHM:

63°

Cd/Im:

0.8


Download

LUMILEDS LUXEON 3030 2D Plus Square White

Eff:

88.0%

FWHM:

61°

Cd/Im:

0.8


Download

LUMILEDS LUXEON 3030 2D Square White

Eff:

88.5%

FWHM:

60°

Cd/Im:

0.8


Download

LUMILEDS LUXEON 3030 2D Round White

Eff:

88.5%

FWHM:

68°

Cd/Im:

0.7

Download

LUMILEDS LUXEON 3030 HE White

Eff:

88.5%

FWHM:

61°

Cd/Im:

0.8

Download

LUMILEDS LUXEON 5050 HE 24V White

Eff:

87.5%

FWHM:

60°

Cd/Im:

0.8

Download

LUMILEDS LUXEON 5050 HE 6V White

Eff:

87.5%

FWHM:

60°

Cd/Im:

0.8

Download

LUMILEDS LUXEON 5050 Round 24V White

Eff:

87.0%

FWHM:

58°

Cd/Im:

0.8


Download

LUMILEDS LUXEON 5050 Square 30V White

Eff:

87.5%

FWHM:

61°

Cd/Im:

0.7


Download

LUMILEDS LUXEON 5050 Square 6V White

Eff:

87.5%

FWHM:

61°

Cd/Im:

0.8


Download

LUMILEDS LUXEON C White

Eff:

84.0%

FWHM:

58°

Cd/Im:

0.8

Download

LUMILEDS LUXEON CZ White

Eff:

88.0%

FWHM:

60°

Cd/Im:

0.8

Carclo Optics - 60148 Spot Image Lumileds Luxeon CZ

Carclo Optics - 60148 Cross Section Lumileds Luxeon CZ

Download

IES

LUMILEDS LUXEON HL1Z Color Blue

Eff:

88.0%

FWHM:

60°

Cd/Im:

0.8

Download

LUMILEDS LUXEON HL1Z Color Green

Eff:

88.0%

FWHM:

60°

Cd/Im:

0.8

Download

LUMILEDS LUXEON HL1Z Color PC Amber

Eff:

88.0%

FWHM:

61°

Cd/Im:

0.8


Download

LUMILEDS LUXEON HL1Z Color PC Green

Eff:

87.5%

FWHM:

59°

Cd/Im:

0.8


Download

LUMILEDS LUXEON HL1Z Color PC Red

Eff:

88.5%

FWHM:

60°

Cd/Im:

0.8

Download

LUMILEDS LUXEON HL1Z Color PC Red Orange

Eff:

88.5%

FWHM:

61°

Cd/Im:

0.8


Download

LUMILEDS LUXEON HL1Z Color Royal Blue

Eff:

87.0%

FWHM:

60°

Ipk/W:

0.7


Download

LUMILEDS LUXEON HL1Z CSP White

Eff:

88.0%

FWHM:

66°

Cd/Im:

0.7

Download

IES

LUMILEDS LUXEON HL2X-D White

Eff:

88.0%

FWHM:

72°

Cd/Im:

0.6

Download

IES

LUMILEDS LUXEON HL2X-E White

Eff:

88.0%

FWHM:

63°

Cd/Im:

0.7

Download

LUMILEDS LUXEON HL2X-P White

Eff:

87.5%

FWHM:

71°

Cd/Im:

0.6

Download

IES

LUMILEDS LUXEON HL2X-V White

Eff:

88.0%

FWHM:

65°

Cd/Im:

0.7

Download

LUMILEDS LUXEON HL2Z White

Eff:

88.0%

FWHM:

63°

Cd/Im:

0.7

Carclo Optics – 60148 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 60148 Lumileds Luxeon HL2Z - Cross-Section

Download

IES

LUMILEDS LUXEON HL4X White

Eff:

86.5%

FWHM:

59°

Cd/Im:

0.8

Download

LUMILEDS LUXEON HL4Z White

Eff:

88.0%

FWHM:

58°

Cd/Im:

0.8

Download

LUMILEDS LUXEON Rebel ES White

Eff:

86.5%

FWHM:

62°

Cd/Im:

0.7

Download

LUMILEDS LUXEON Rebel Plus White

Eff:

88.0%

FWHM:

60°

Cd/Im:

0.8

Download

LUMILEDS LUXEON Rebel White

Eff:

87.5%

FWHM:

60°

Cd/Im:

0.8

Download

LUMILEDS LUXEON TX White

Eff:

87.0%

FWHM:

62°

Cd/Im:

0.7

Carclo Optics - 60148 Spot Image Luxeon TX

Carclo Optics - 60148 Cross Section Luxeon TX

Download

IES

LUMILEDS LUXEON Z ES White

Eff:

88.0%

FWHM:

57°

Cd/Im:

0.8

Carclo Optics - 60148, 60 degree wide 20mm TIR - spot image

Carclo Optics - 60148, 60 degree 20mm TIR - cross section

Download

IES

Luminus Devices MP-3030-11F2 White

Eff:

88.0%

FWHM:

57°

Cd/Im:

0.9


Download

Luminus Devices MP-5050-240E White

Eff:

87.5%

FWHM:

58°

Cd/Im:

0.8


Download

Luminus Devices MP-5050-810E White

Eff:

87.5%

FWHM:

60°

Cd/Im:

0.8


Download

Luminus Devices SFT-12R-WES-A White

Eff:

88.0%

FWHM:

58°

Cd/Im:

0.8


Download

Luminus Devices SFT-12R-WES-F White

Eff:

88.5%

FWHM:

62°

Cd/Im:

0.8


Download

Luminus Devices SFT-25R-WES-A White

Eff:

88.0%

FWHM:

59°

Cd/Im:

0.9


Download

Luminus Devices SFT-25R-WES-F White

Eff:

88.5%

FWHM:

63°

Cd/Im:

0.8


Download

Luminus Devices SST 10-IRD-B130 810nm

Eff:

92.0%

FWHM:

60°

Ipk/W:

0.8


Download

IES

Luminus Devices SST 10-IRD-B90 810nm

Eff:

91.5%

FWHM:

65°

Ipk/W:

0.7


Download

IES

Luminus Devices SST-12-WS Gen2 White

Eff:

88.0%

FWHM:

58°

Cd/Im:

0.8


Download

Luminus Devices SST-12-WxS White

Eff:

88.0%

FWHM:

64°

Cd/Im:

0.7

Download

IES

Luminus Devices SST-20-W Gen2 White

Eff:

87.5%

FWHM:

59°

Cd/Im:

0.8


Download

Luminus Devices SST-25-WES White

Eff:

87.5%

FWHM:

62°

Cd/Im:

0.8

Download

Nichia 757G White

Eff:

88.0%

FWHM:

57°

Cd/Im:

0.8

Carclo Optics - 60148 Spot Image Nichia 757G

Carclo Optics - 60148 Cross Section Nichia 757G

Download

IES

Nichia NCSW CSP E17A White

Eff:

87.5%

FWHM:

62°

Cd/Im:

0.7

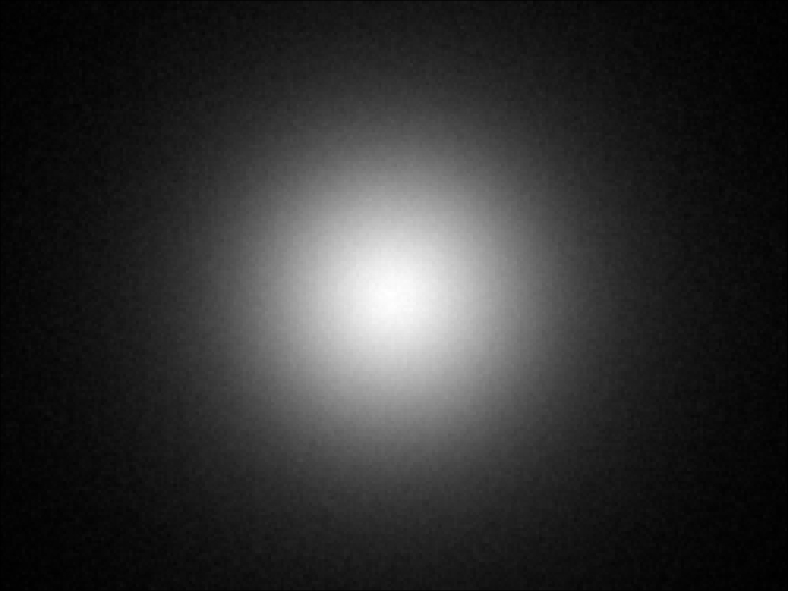

Carclo Optics - 60148 Spot Image Nichia NCSW E17A Wht

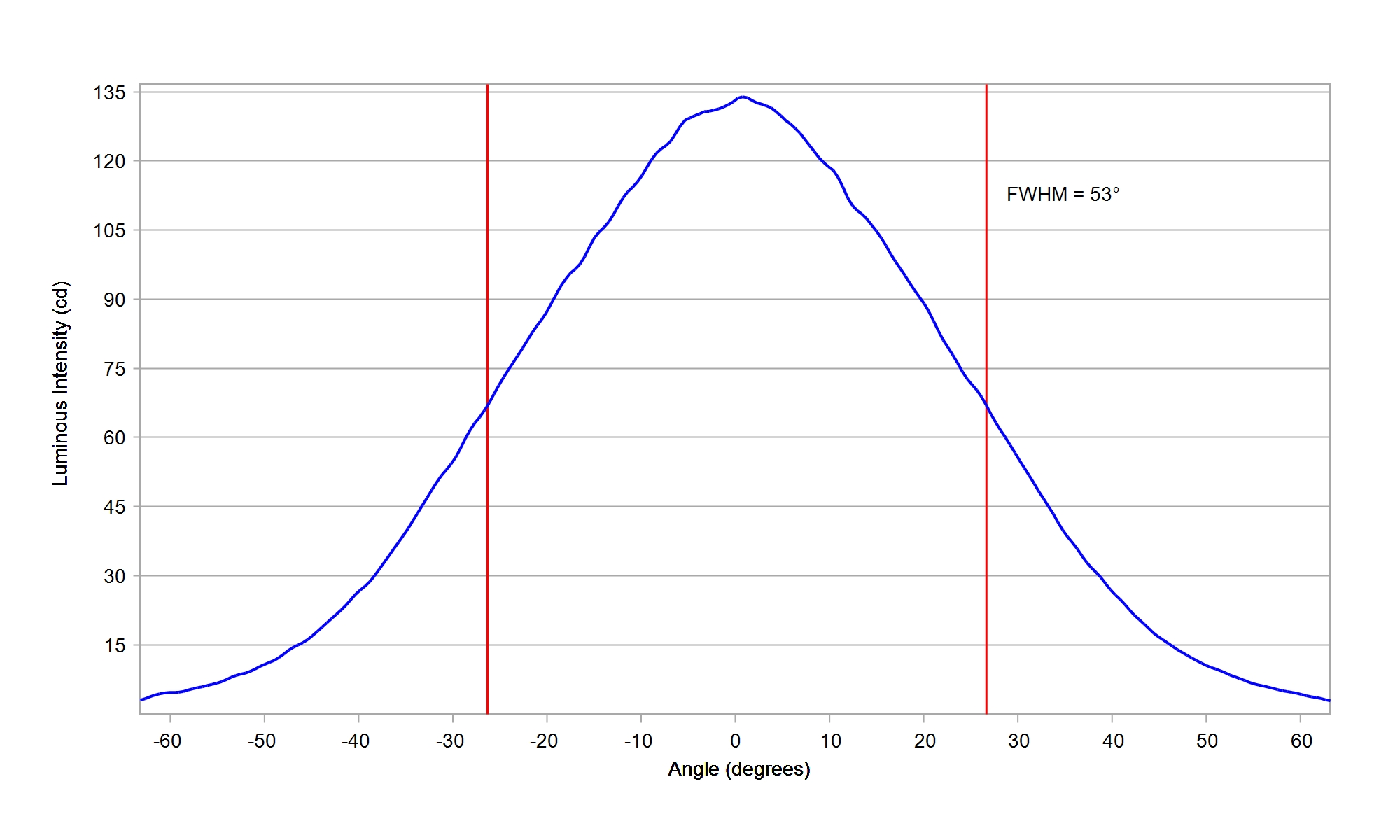

Carclo Optics - 60148 Cross Section Nichia NCSW E17A Wht

Download

IES

Nichia NFSW CSP E11A White

Eff:

87.0%

FWHM:

61°

Cd/Im:

0.7

Download

IES

Nichia NVSW 219F White

Eff:

87.0%

FWHM:

64°

Cd/Im:

0.7

Carclo Optics – 60148 Nichia NVSW 219F White - Spot Image

Carclo Optics – 60148 Nichia NVSW 219F White - Cross-Section

Download

IES

Nichia NVSW CSP E21A White

Eff:

87.5%

FWHM:

63°

Cd/Im:

0.7

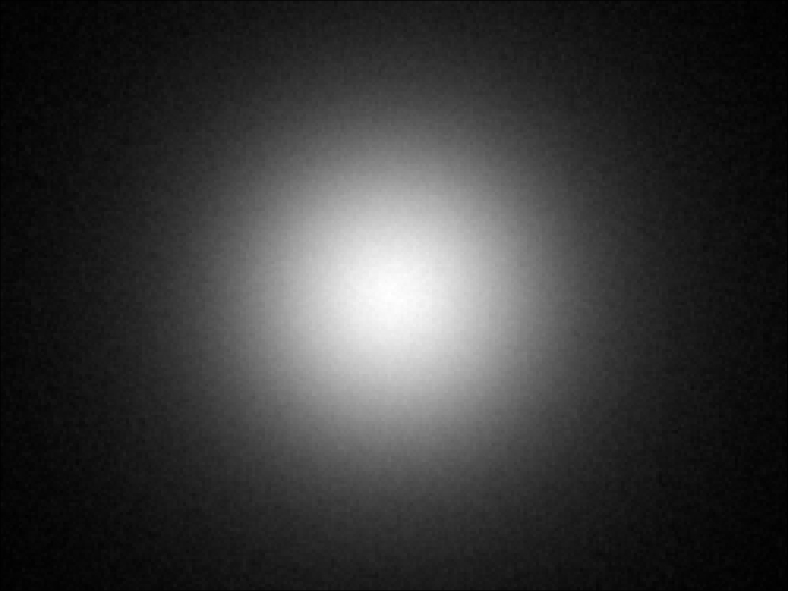

Carclo Optics - 60148 Spot Image Nichia CSP E21A

Carclo Optics - 60148 Cross Section Nichia CSP E21A

Download

IES

Osram LED ENGIN LuxiGen LZ1 00CW02 White

Eff:

89.0%

FWHM:

60°

Cd/Im:

0.8

Download

Osram LED ENGIN LuxiGen LZ1 00R702 IR940nm

Eff:

92.5%

FWHM:

61°

Ipk/W:

0.8

Download

IES

Osram DURIS E 2835 Gen2

Eff:

88.0%

FWHM:

57°

Cd/Im:

0.8

Carclo Optics - 60148 Spot Image Osram Duris E2835 G2

Carclo Optics - 60148 Cross Section Osram Duris E2835 G2

Download

IES

Osram DURIS E 5050 GW J9LHS1.4M RGBW

Eff:

88.0%

FWHM:

58°

Cd/Im:

0.8

Download

IES

Osram OSLON Black SFH 4715AS IR

Eff:

91.0%

FWHM:

60°

Ipk/W:

0.8


Download

IES

Osram OSLON Pure 1010 CSP GC VJLPE1.13 Cyan

Eff:

89.0%

FWHM:

59°

Cd/Im:

0.8


Download

IES

Osram OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue

Eff:

87.0%

FWHM:

59°

Ipk/W:

0.8


Download

IES

Osram OSLON Pure 1010 CSP GG VJLPE1.F3 Green

Eff:

88.5%

FWHM:

61°

Cd/Im:

0.8


Download

IES

Osram OSLON Pure 1010 CSP GR VJLPE1.F3 Red

Eff:

88.5%

FWHM:

62°

Cd/Im:

0.7


Download

IES

Osram OSLON Pure 1010 CSP GT VJLPE1.13 True Green

Eff:

88.5%

FWHM:

59°

Cd/Im:

0.8


Download

IES

Osram OSLON Pure 1010 CSP GW VJLPE1.CM White

Eff:

88.0%

FWHM:

60°

Cd/Im:

0.8



Download

IES

Osram OSLON Pure 1414 GB VJLPL1.F3 Blue

Eff:

88.5%

FWHM:

62°

Cd/Im:

0.8


Download

Osram OSLON Pure 1414 GC VJLPL1.13 Cyan

Eff:

89.0%

FWHM:

62°

Cd/Im:

0.8


Download

Osram OSLON Pure 1414 GD VJLPL1.14 Deep Blue

Eff:

87.0%

FWHM:

64°

Ipk/W:

0.7


Download

Osram OSLON Pure 1414 GR VJLPL1.23 Red

Eff:

89.0%

FWHM:

66°

Cd/Im:

0.7


Download

Osram OSLON Pure 1414 GT VJLPL1.13 True Green

Eff:

88.5%

FWHM:

57°

Cd/Im:

0.9


Download

Osram OSLON Pure 1414 GV VJLPL1.F3 Verde

Eff:

88.5%

FWHM:

64°

Cd/Im:

0.8


Download

Osram OSLON Pure 1414 GW VJLPL1.CM White

Eff:

88.5%

FWHM:

59°

Cd/Im:

0.8

Download

Osram OSLON Pure 1414 GW VJLPL1.UL Green

Eff:

88.0%

FWHM:

58°

Cd/Im:

0.8


Download

Osram OSLON Pure 1414 GY VJLPL1.F3 Yellow

Eff:

88.5%

FWHM:

62°

Cd/Im:

0.8


Download

Osram OSLON Square Gen 3 White

Eff:

87.0%

FWHM:

61°

Cd/Im:

0.7

Carclo Optics - 60148 Spot Image Osram Oslon Square G3

Carclo Optics - 60148 Cross Section Osram Oslon Square G3

Download

IES

Osram OSLON Square Gen 5 GW CSSRM3

Eff:

87.5%

FWHM:

61°

Cd/Im:

0.7

Carclo Optics - 60148 Spot Image Osram OSLON Square G5 GW CSSRM3

Carclo Optics - 60148 Cross Section Osram OSLON Square G5 GW CSSRM3

Download

IES

Osram OSLON SSL 150 degree White

Eff:

87.5%

FWHM:

66°

Cd/Im:

0.7

Carclo Optics - 60148 Spot Image Osram Oslon SSL 150

Carclo Optics - 60148 Cross Section Osram Oslon SSL 150

Download

IES

Osram OSLON SSL 80 White

Eff:

88.5%

FWHM:

57°

Cd/Im:

0.8

Carclo Optics - 60148 Spot Image Osram Oslon SSL 80

Carclo Optics - 60148 Cross Section Osram Oslon SSL 80

Download

IES

Osram OSLON SSL 80 GH CS8PM1.24 Hyper Red

Eff:

88.5%

FWHM:

61°

Ipk/W:

0.8


Download

IES

Osram OSLON SSL 80 GT CS8PM1.13 True Green

Eff:

88.5%

FWHM:

61°

Cd/Im:

0.8



Download

IES

Osram OSLON SSL 80 GW CS8PM1.PM White

Eff:

86.5%

FWHM:

71°

Cd/Im:

0.6


Download

IES

Osram OSCONIQ C 3030 GW PLTRA1.PM White

Eff:

88.0%

FWHM:

59°

Cd/Im:

0.8

Download

Osram OSCONIQ E 3030 GW QSLPS1.EM White

Eff:

88.0%

FWHM:

57°

Cd/Im:

0.9

Download

Osram OSCONIQ P 3030 GW QSSPA1.PM White

Eff:

87.5%

FWHM:

56°

Cd/Im:

0.9

Download

Osram OSCONIQ S 3030 GW QSLMS3.EM White

Eff:

88.0%

FWHM:

59°

Cd/Im:

0.8

Download

Osram OSLON Signal LUW CRBP.01 White

Eff:

87.5%

FWHM:

58°

Cd/Im:

0.8


Download

Samsung 2835 LM281B+ White

Eff:

88.0%

FWHM:

60°

Cd/Im:

0.8



Download

Samsung 2835 LM282B+ White

Eff:

88.5%

FWHM:

61°

Cd/Im:

0.8



Download

Samsung 3030 LM301B White

Eff:

88.5%

FWHM:

60°

Cd/Im:

0.8

Download

IES

Samsung 3535 LH351B White

Eff:

87.5%

FWHM:

61°

Cd/Im:

0.7

Carclo Optics - 60148 Spot Image Samsung 3535 LH351B

Carclo Optics - 60148 Cross Section Samsung 3535 LH351B

Download

IES

Samsung CSP LH181B White

Eff:

88.0%

FWHM:

62°

Cd/Im:

0.8

Carclo Optics - 60148 Spot Image Samsung CSP LH181B

Carclo Optics - 60148 Cross Section Samsung CSP LH181B

Download

IES

Samsung CSP LH231B White

Eff:

88.0%

FWHM:

62°

Cd/Im:

0.8

Carclo Optics - 60148 Spot Image Samsung LH231B 5000K

Carclo Optics - 60148 Cross Section Samsung LH231B 5000K

Download

IES

Seoul 3030 STW8C12E-E0 White

Eff:

88.0%

FWHM:

59°

Cd/Im:

0.8

Download

Seoul 3528 G STW8A2PD-G700 White

Eff:

88.0%

FWHM:

59°

Cd/Im:

0.8

Download

Seoul SunLike 3030 STWSC12S-E1 White

Eff:

88.0%

FWHM:

58°

Cd/Im:

0.9

Download

Seoul SunLike 3030 STWSC12S-E2 White

Eff:

88.0%

FWHM:

60°

Cd/Im:

0.8

Download

Seoul Z - Power Z5-M4 White

Eff:

87.5%

FWHM:

74°

Cd/Im:

0.6

Carclo Optics – 60148 Seoul Z-Power Z5 - Spot Image

Carclo Optics – 60148 Seoul Z-Power Z5 - Cross-Section

Download

IES

Seoul Z - Power Z5-M5 White

Eff:

87.5%

FWHM:

62°

Cd/Im:

0.7

Download

Stanley FWR1108MS IR 755nm

Eff:

92.0%

FWHM:

60°

Ipk/W:

0.8


Download
