10621

10.0mm Narrow Spot Top Lens TIR (10621)

Carclo Optics 10621
Part no. 10621
Drawing no.
60571
Family
10mm
Type
TIR
Diameter
10.0
Beam
Narrow Spot
Finish
Top Lens
http://www.carclo-optics.com/sites/default/files/images/optics/10621_iss1_140509.pdf
http://www.carclo-optics.com/sites/default/files/images/optics/10621_Iss1_140509.igs

LEDs & Performances

Select LED to view available holders

Performance Data Images IES/STP
Eff: 91.5
FWHM: 15 x 18
Cd/lm: 7.6
Carclo Optics - 10621 10mm Spot Image Bridgelux 3030 Gen2
Carclo Optics - 10621 10mm Cross Section Bridgelux 3030 Gen2
View
Eff: 91.5
FWHM: 21
Cd/lm: 4.5
Carclo Optics - 10621 Spot Image Cree JB3030 3V White
Carclo Optics - 10621 Cross Section Cree JB3030 3V White
View
Eff: 91
FWHM: 17
Cd/lm: 6.3
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 89.5
FWHM: 22
Cd/lm: 5.7
Carclo Optics - 10621 10mm Spot Image Cree XLamp XB-H
Carclo Optics - 10621 10mm Cross Section Cree XLamp XB-H
View
Eff: 87.4
FWHM: 10
Cd/lm: 22.7
Spot Image
Cross Section
View
Eff: 88.7
FWHM: 16
Cd/lm: 9.8
Spot Image
Cross Section
View
Eff: 87.3
FWHM: 24
Cd/lm: 4.9
Spot Image
Cross Section
View
Eff: 86
FWHM: 25
Cd/lm: 3.37
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 89
FWHM: 10
Cd/lm: 26.7
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 89.5
FWHM: 10
Cd/lm: 26
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 89.5
FWHM: 10
Cd/lm: 24.8
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 86
FWHM: 11
Cd/lm: 22.06
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 89.5
FWHM: 12
Cd/lm: 14.7
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 90
FWHM: 12
Cd/lm: 14.6
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 90.5
FWHM: 12
Cd/lm: 16.2
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 87
FWHM: 11
Cd/lm: 15.9
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 87
FWHM: 15
Cd/lm: 9.3
carclo optics - simulated spot image
carclo optics - simulated cross section
View
Eff: 85
FWHM: 21
Cd/lm: 5.2
Spot Image
Cross Section
View
Eff: 91
FWHM: 24
Cd/lm: 4.5
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 86
FWHM: 19 x 15
Cd/lm: 5.26
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section Carclo Optics - Simulated Vertical Cross Section
View
Eff: 91
FWHM: 20
Cd/lm: 5.7
Carclo Optics – 10621 – Luxeon_3030_HE_Plus_spot-image
Carclo Optics – 10621 – Luxeon_3030_HE_Plus_cross vertical section
View
Eff: 87.2
FWHM: 16
Cd/lm: 6.33
carclo optics - simulated spot image
carclo optics - simulated cross section
View
Eff: 87
FWHM: 16
Cd/lm: 6.41
carclo optics - simulated spot image
carclo optics - simulated cross section
View
Eff: 83
FWHM: 15
Cd/lm: 8.8
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 83.3
FWHM: 12
Cd/lm: 15.8
Spot Image
Cross Section
View
Eff: 88
FWHM: 16
Cd/lm: 3.67
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 90
FWHM: 11
Cd/lm: 19.3
Carclo Optics 10621 Spot Image Luxeon CZ CW
Carclo Optics 10621 Cross Section Luxeon CZ CW
View
Eff: 93
FWHM: 16
Cd/lm: 10
Carclo Optics - 10621 10mm Quad Narrow Spot Image Luxeon IR 2720
Carclo Optics - 10621 10mm Quad Narrow Cross Section Luxeon IR 2720
View
Eff: 91
FWHM: 14
Cd/lm: 11.1
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 89
FWHM: 17
Cd/lm: 7.9
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 88.5
FWHM: 31
Cd/lm: 1.72
carclo simulated spot image
carclo simulated cross section
View
Eff: 84.6
FWHM: 20
Cd/lm: 4.4
carclo optics - simulated spot image
carclo optics - simulated cross section
View
Eff: 86.2
FWHM: 25
Cd/lm: 4.9
Spot Image
Cross Section
View
Eff: 84.5
FWHM: 18
Cd/lm: 9.7
Spot Image
Cross Section
View
Eff: 89
FWHM: 12
Cd/lm: 18.3
Carclo Optics - 10621 Spot Image Lumileds Luxeon Rubix Blue
Carclo Optics - 10621 Cross Section Lumileds Luxeon Rubix Blue
View
Eff: 89.5
FWHM: 12
Cd/lm: 18.2
Carclo Optics – 10621 Spot Image Lumileds Luxeon Rubix Green
Carclo Optics – 10621 Cross Section Lumileds Luxeon Rubix Green
View
Eff: 90.5
FWHM: 11
Cd/lm: 20.6
Carclo Optics – 10621 Spot Image Lumileds Luxeon Rubix Red
Carclo Optics – 10621 Cross Section Lumileds Luxeon Rubix Red
View
Eff: 88.5
FWHM: 12
Cd/lm: 19.5
Carclo Optics – 10621 Spot Image Lumileds Luxeon Rubix Royal Blue
Carclo Optics – 10621 Cross Section Lumileds Luxeon Rubix Royal Blue
View
Eff: 89.5
FWHM: 12
Cd/lm: 17.1
Carclo Optics - 10621 Spot Image Lumileds Luxeon Rubix White
Carclo Optics - 10621 Cross Section Lumileds Luxeon Rubix White
View
Eff: 86.2
FWHM: 25
Cd/lm: 9.7
Spot Image
Cross Section
View
Eff: 86.2
FWHM: 22
Cd/lm: 4.7
carclo optics - simulated spot image
carclo optics - simulated cross section
View
Eff: 89
FWHM: 16
Cd/lm: 8.3
Spot Image
Cross Section
View
Eff: 87
FWHM: 12
Cd/lm: 14.47
carclo optics - simulated spot image
carclo optics - simulated cross section
View
Eff: 90
FWHM: 18
Cd/lm: 9.5
Carclo Optics - 10621 Luminus_SST-10_B_B130 - spot image
Carclo Optics - 10621 Luminus_SST-10_B_B130 - cross section image
View
Eff: 89
FWHM: 19
Cd/lm: 8.1
Carclo Optics - 10621 Luminus_SST-10_B_B90 - spot - image
Carclo Optics - 10621 Luminus_SST-10_B_B90 - cross- image
View
Eff: 90
FWHM: 19
Cd/lm: 7.3
Carclo Optics – 10621 Luminus_SST-10_DR_B130- Spot - image
Carclo Optics – 10621 Luminus_SST-10_DR_B130- Cross section – image
View
Eff: 90
FWHM: 21
Cd/lm: 7.7
Carclo Optics - 10621  Luminus_SST-10_DR_B90 - Spot Image
Carclo Optics - 10621  Luminus_SST-10_DR_B90 - Cross section  image
View
Eff: 91
FWHM: 18
Cd/lm: 9.7
Carclo Optics - 10621  Luminus_SST-10_G_B130 - spot - image
Carclo Optics - 10621 Luminus_SST-10_G_B130 - cross -section- image
View
Eff: 90
FWHM: 20
Cd/lm: 8
Carclo Optics - 10621 Luminus_SST-10_G_B90- Spot - image
Carclo Optics - 10621 Luminus_SST-10_G_B90- Cross section - image
View
Eff: 91
FWHM: 19
Cd/lm: 6.8
Carclo Optics – 10621 - Luxeon_SST_20_W_spot-image
Carclo Optics – 10621 - Luxeon_SST_20_W_cross vertical section
View
Eff: 92.5
FWHM: 20
Cd/lm: 7.1
Carclo Optics - 10621 Spot Image Luminus SST-10-IR-B130
Carclo Optics - 10621 Cross Section Luminus SST-10-IR-B130
View
Eff: 91.5
FWHM: 23
Cd/lm: 6.3
Carclo Optics - 10621 Spot Image Luminus SST-10-IR-B90
Carclo Optics - 10621 Cross Section Luminus SST-10-IR-B90
View
Eff: 88
FWHM: 18
Cd/lm: 4.11
carclo optics - simulated spot image
carclo optics - simulated cross section
View
Eff: 90.5
FWHM: 20
Cd/lm: 4.5
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 90.5
FWHM: 21
Cd/lm: 5.2
  Carclo Optics 10621 10mm Simulated Spot Image Nichia 757G-MT
Carclo Optics 10621 10mm Cross Horizontal Section Nichia 757G-MT
View
Eff: 87
FWHM: 21
Cd/lm: 4.16

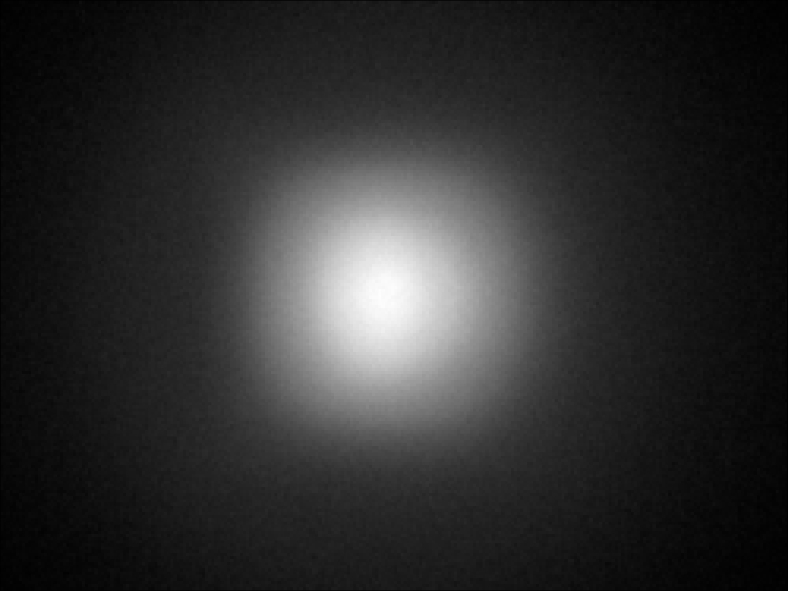

Carclo Optics - Simulated Spot Image

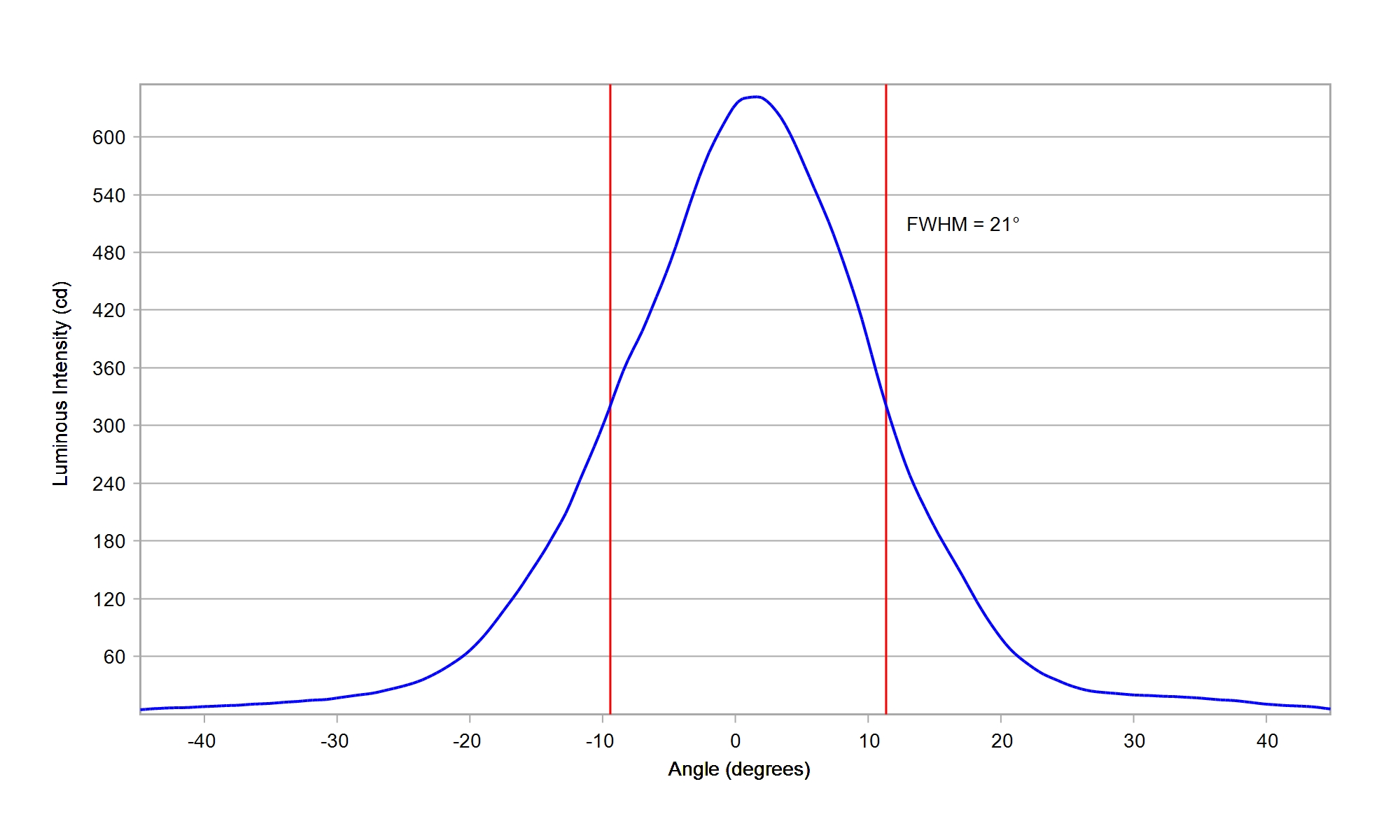

Carclo Optics - Simulated Cross Section
View
Eff: 90
FWHM: 25
Cd/lm: 3.8

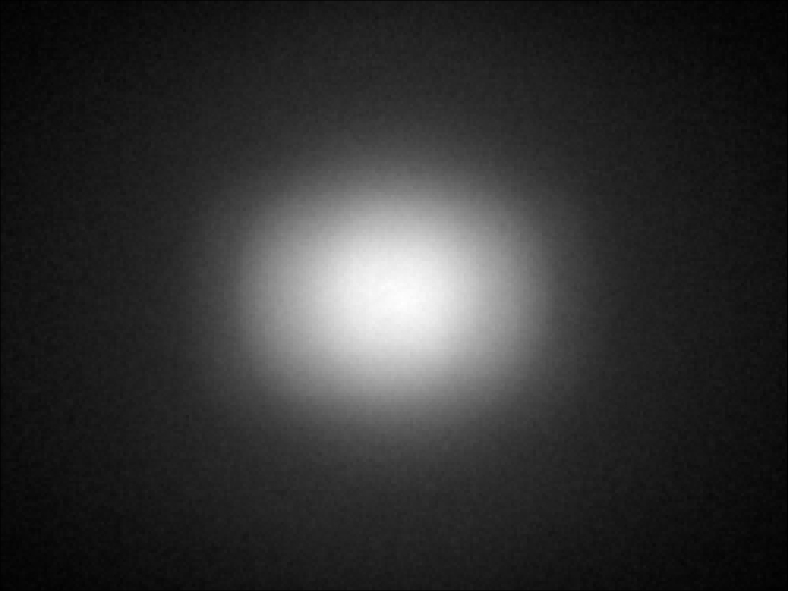

Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 88.5
FWHM: 18
Cd/lm: 6.4

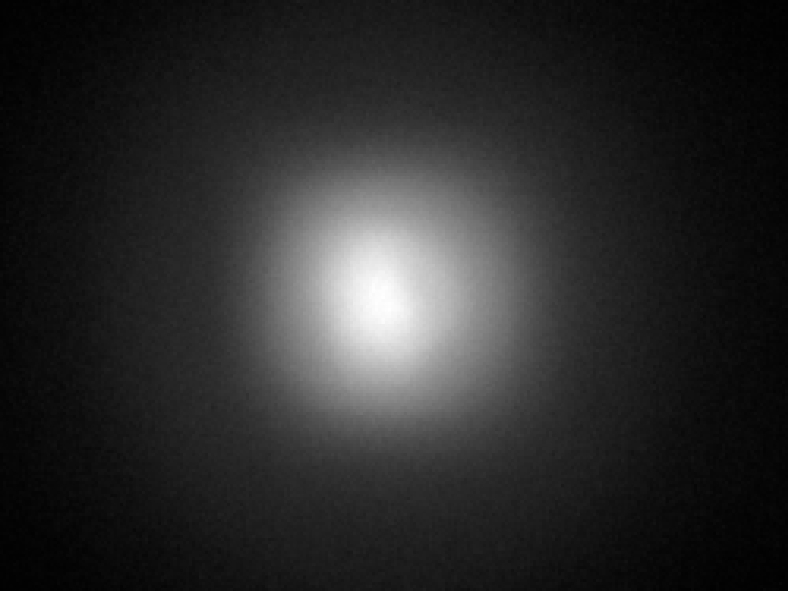

Carclo Optics - Simulated Spot Image

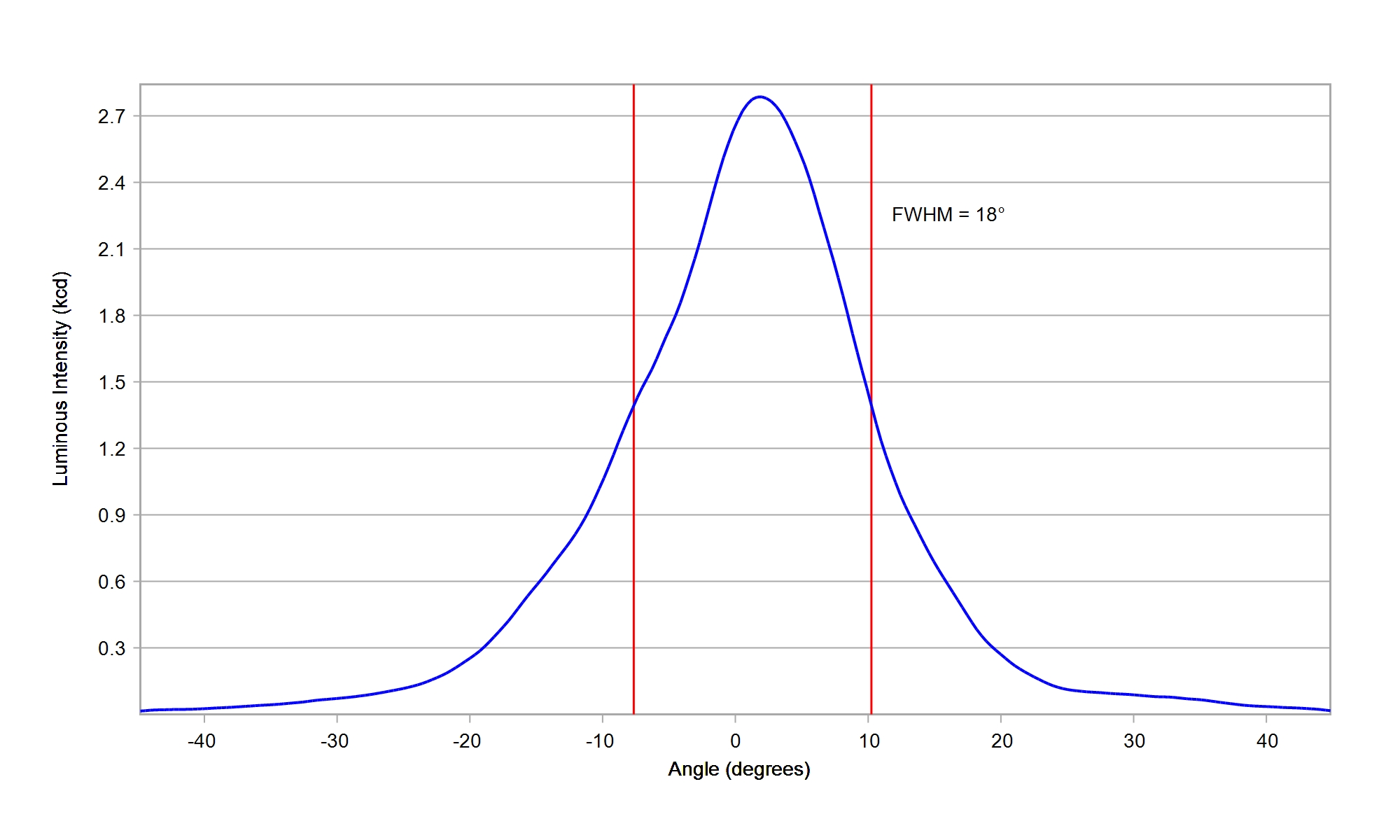

Carclo Optics - Simulated Cross Section
View
Eff: 89
FWHM: 26
Cd/lm: 3.5

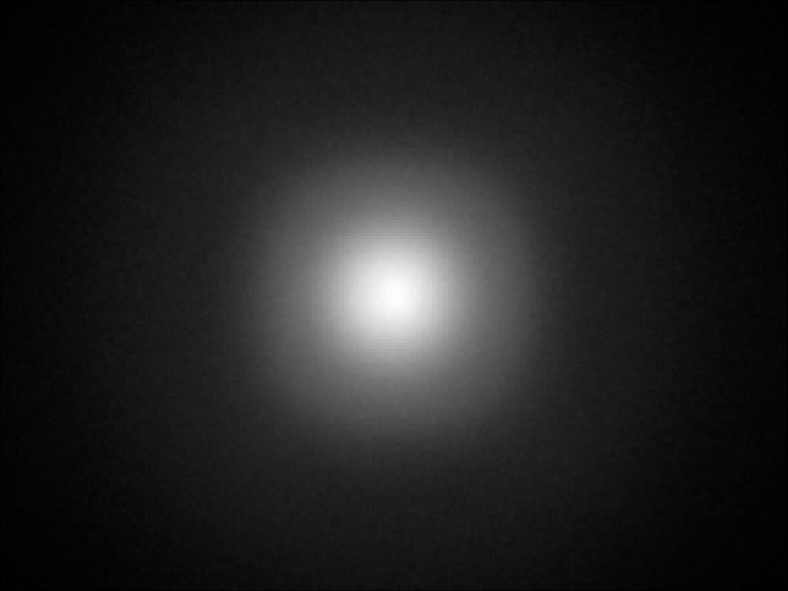

Carclo Optics - Simulated Spot Image

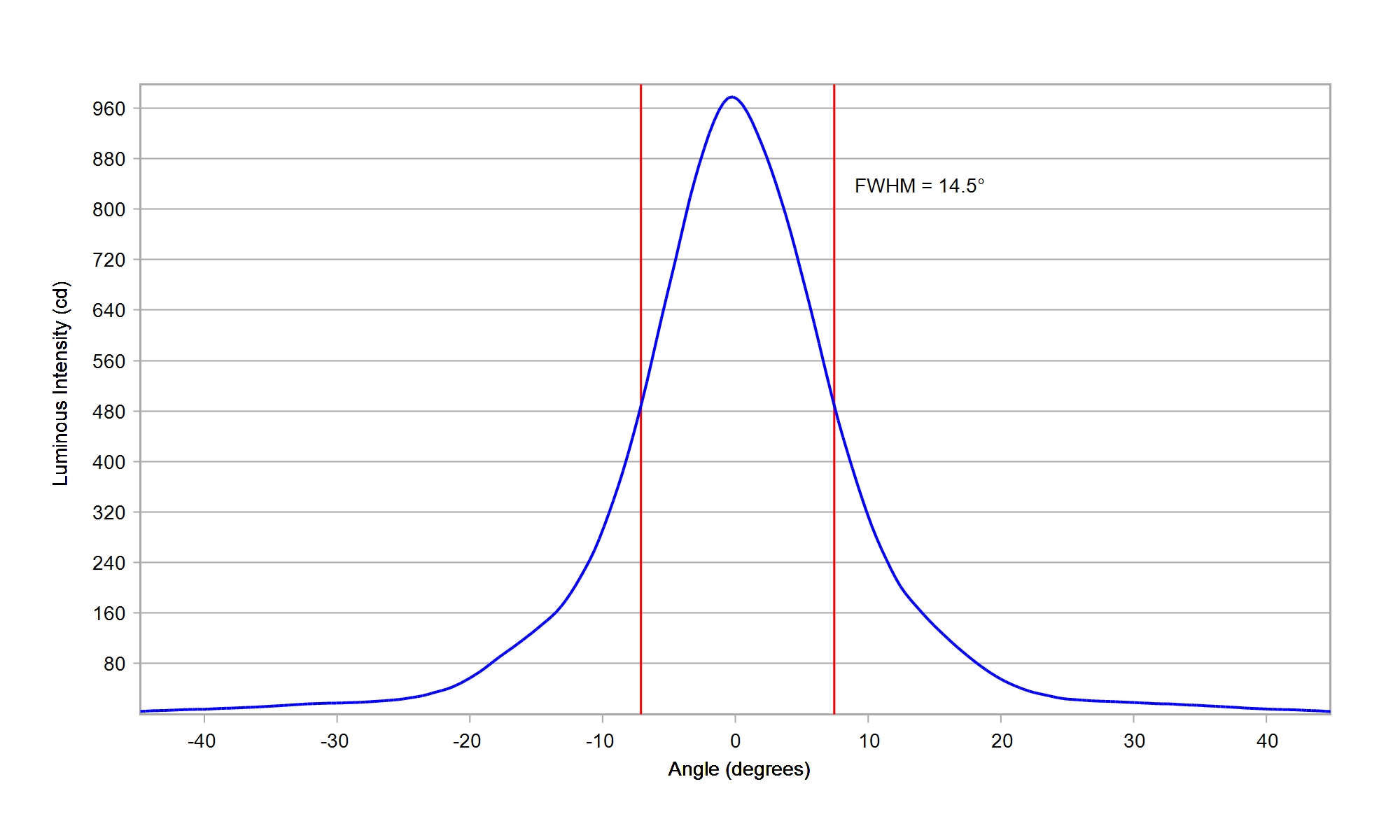

Carclo Optics - Simulated Cross Section
View
Eff: 89
FWHM: 26
Cd/lm: 4.1
Carclo Optics – 10621 Nichia NVSW 219F White - Spot Image
Carclo Optics – 10621 Nichia NVSW 219F White - Cross-Section
View
Eff: 88
FWHM: 29
Cd/lm: 2.7

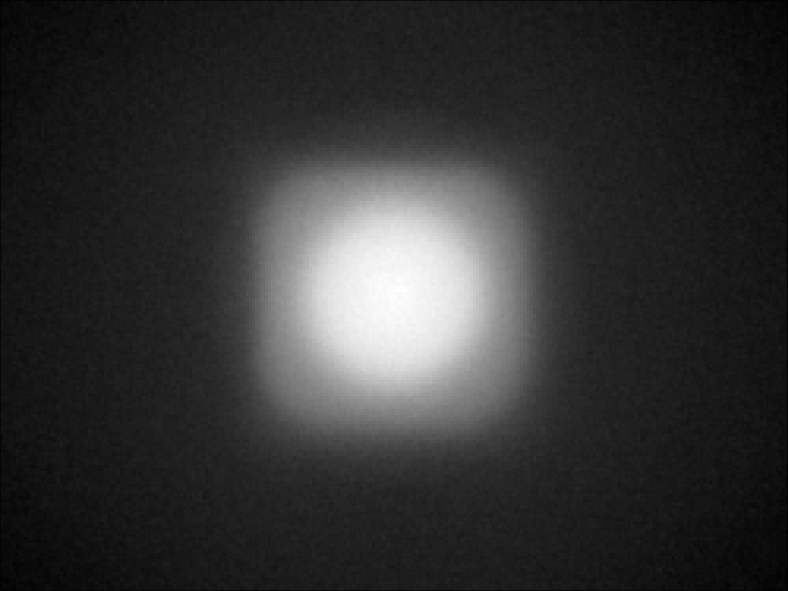

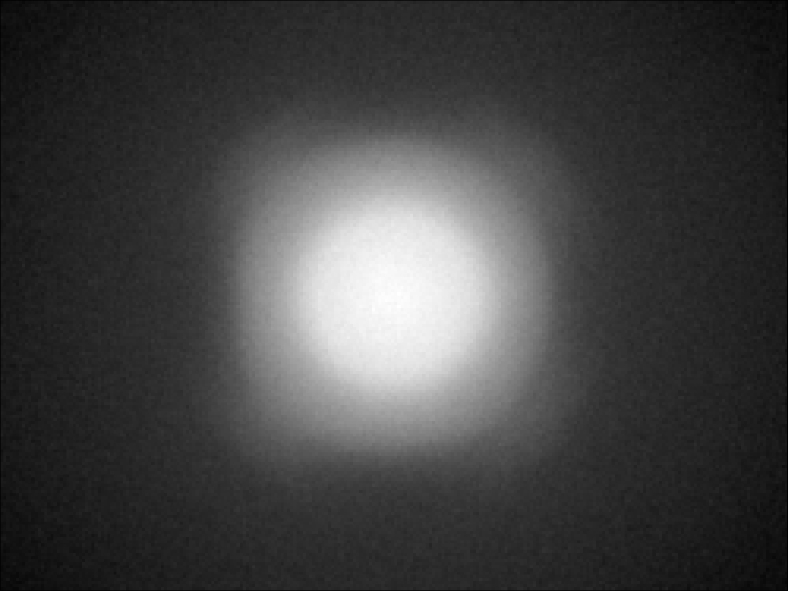

Carclo Optics - Simulated Spot Image

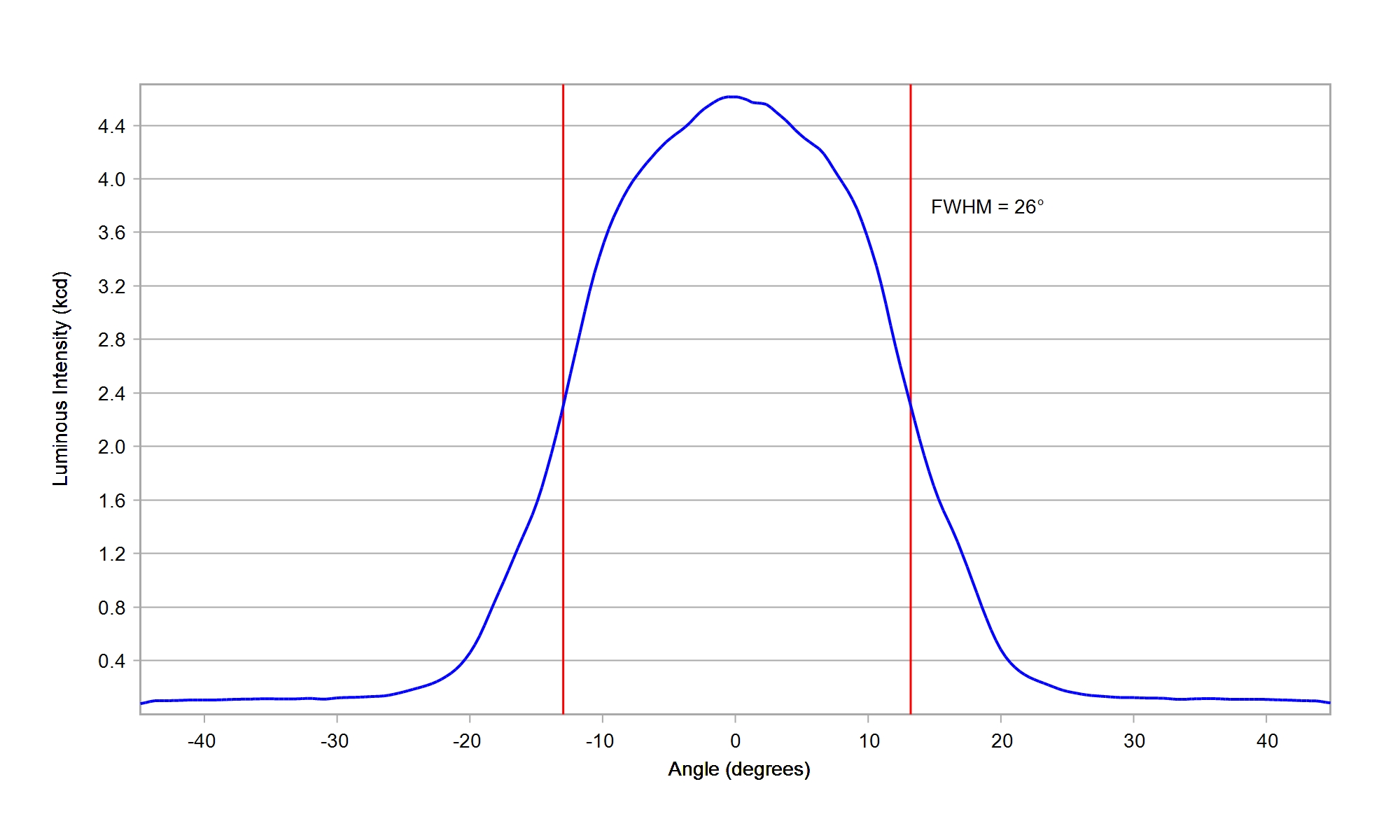

Carclo Optics - Simulated Cross Section
View
Eff: 87
FWHM: 20
Cd/lm: 4.16
Carclo Optics - Simulated Spot Image

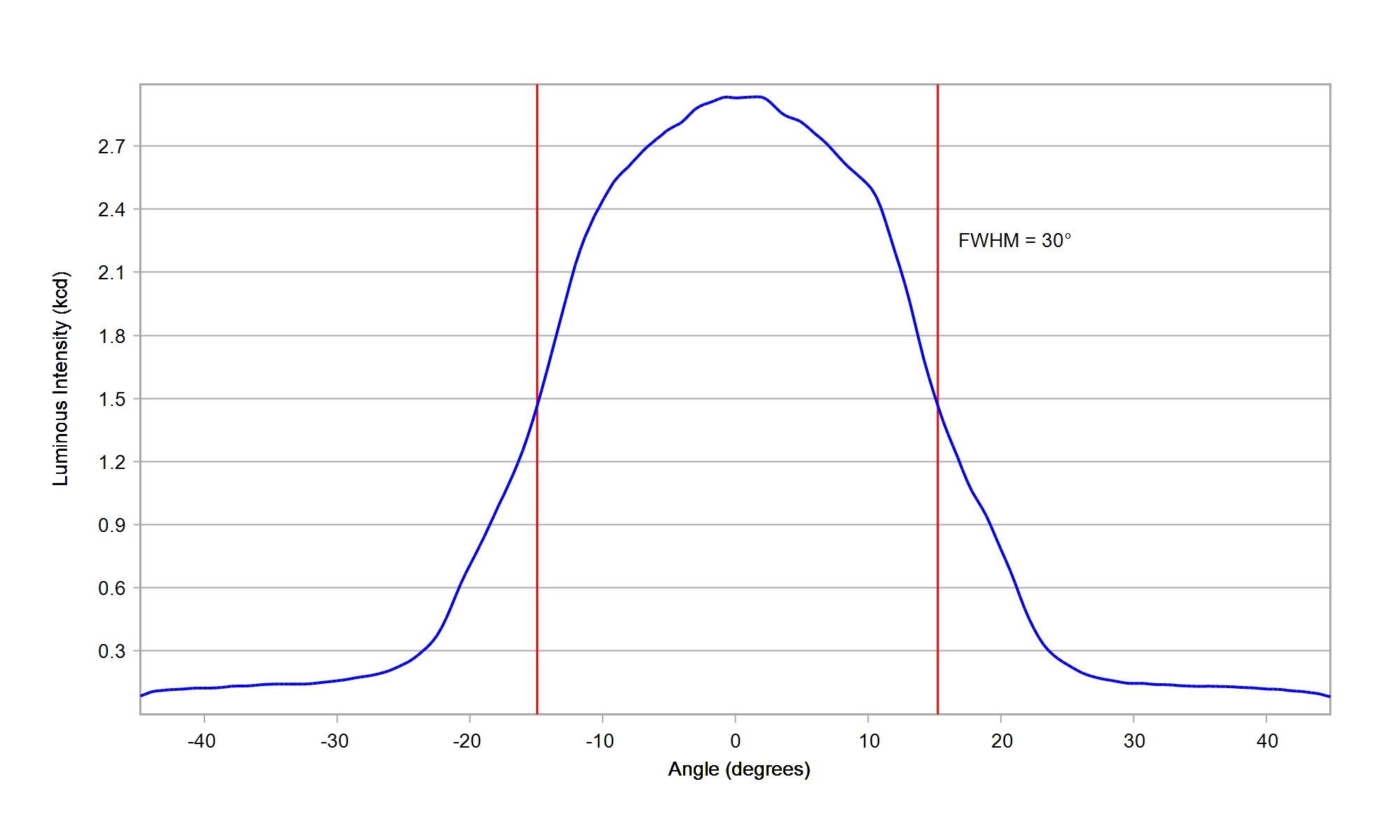

Carclo Optics - Simulated Cross Section
View
Eff: 82.6
FWHM: 17
Cd/lm: 7.7
Spot Image
Cross Section
View
Eff: 91.5
FWHM: 16
Cd/lm: 7.2
Carclo Optics - 10621 10mm Spot Image Osram DURIS E 2835 Gen2
Carclo Optics - 10621 10mm Cross Section Osram DURIS E 2835 Gen2
View
Eff: 90
FWHM: 19
Cd/lm: 6
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 88
FWHM: 15 x 12
Cd/lm: 10.73
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section Carclo Optics - Simulated Vertical Cross Section
View
Eff: 89.1
FWHM: 9
Cd/lm: 14.86
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section Image
View
Eff: 92.7
FWHM: 14
Cd/lm: 7.4
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 89.5
FWHM: 18
Cd/lm: 6.1
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 90.5
FWHM: 17
Cd/lm: 6.5
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 91
FWHM: 16
Cd/lm: 7.8
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 88
FWHM: 19
Cd/lm: 4.73
carclo optics - simulated spot image
Carclo Optics - Simulated Cross Section
View
Eff: 91.5
FWHM: 17
Cd/lm: 7.6
Carclo Optics - 10621 Spot Image OSCONIQ C2424
Carclo Optics - 10621 Cross Section OSCONIQ C2424
View
Eff: 93
FWHM: 14
Cd/lm: 11.4
Carclo Optics – 10621 Spot Image OSRAM OS Oslon Black IR SFH 4716AS
Carclo Optics – 10621 Cross Section OSRAM OS Oslon Black IR SFH 4716AS
View
Eff: 92.5
FWHM: 22
Cd/lm: 6
Carclo Optics 10621 Spot Image Osram Oslon Black_IR_SFH_4725S
Carclo Optics 10621 Cross Section image Osram Oslon Black_IR_SFH_4725S
View
Eff: 90.5
FWHM: 9
Cd/lm: 31.4
Carclo Optics – 10621 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image
Carclo Optics – 10621 – Osram_Oslon_Boost_KW_CELMM1_TG_cross vertical section
View
Eff: 90
FWHM: 15
Cd/lm: 9
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 83.8
FWHM: 20
Cd/lm: 5.2
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 90
FWHM: 23 x 22
Cd/lm: 5.1
Carclo Optics - 106121 10mm Spot Image Oslon Square Gen 5
Carclo Optics - 10621 10mm Cross Section Oslon Square Gen 5
View
Eff: 88
FWHM: 20
Cd/lm: 5.28
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 85.7
FWHM: 14
Cd/lm: 12.7
Spot Image
Cross Section
View
Eff: 85.5
FWHM: 19
Cd/lm: 8.6
Spot Image
Cross Section
View
Eff: 86.7
FWHM: 25
Cd/lm: 3.73
carclo simulated spot image
carclo simulated cross section
View
Eff: 86.5
FWHM: 21
Cd/lm: 5.91
carclo simulated spot image
carclo simulated cross section
View
Eff: 92
FWHM: 18
Cd/lm: 6.7
Carclo Optics – 10621 – Samsung_LH151B_spot-image
Carclo Optics – 10621 – Samsung_LH151B_cross section
View
Eff: 92
FWHM: 20.5
Cd/lm: 4.9
Carclo Optics - 10621 Spot Image - Samsung LH181B_4000K
Carclo Optics - 10621 Cross Section  - Samsung LH181B_4000K
View
Eff: 92
FWHM: 18
Cd/lm: 6.7
Carclo Optics -10621 Spot Image - Samsung LM101B 5000K
Carclo Optics -10621 Cross Section Image - Samsung LM101B 5000K
View
Eff: 87
FWHM: 16
Cd/lm: 6
carclo optics - simulated spot image
carclo optics - simulated cross section
View
Eff: 91
FWHM: 19
Cd/lm: 5.4
Carclo Optics - 10621 Spot Image Seoul STW8 C2SB-NT
Carclo Optics - 10621 Cross Section Seoul STW8 C2SB-NT
View
Eff: 91.5
FWHM: 19
Cd/lm: 5.3
Carclo Optics - 10621 Spot Image STWS C2PB-E0
Carclo Optics - 10621 Cross Section STWS C2PB-E0
View
Eff: 91.5
FWHM: 18
Cd/lm: 6.4
Carclo Optics - 10621 10mm Spot Image Seoul Sunlike 3030
Carclo Optics - 10621 10mm Cross Section Seoul Sunlike 3030
View
Eff: 87
FWHM: 22
Cd/lm: 4.6
carclo optics - simulated spot image
carclo optics - simulated cross section
View
Eff: 90
FWHM: 26
Cd/lm: 3.9
Carclo Optics – 10621 Seoul Z-Power Z5 - Spot Image
Carclo Optics – 10621 Seoul Z-Power Z5 - Cross-Section
View
Eff: 85.4
FWHM: 16
Cd/lm: 11.9

View
Eff: 85
FWHM: 23
Cd/lm: 4.35
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 86
FWHM: 22
Cd/lm: 4.2
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
