10.0mm Narrow Spot Top Lens Array | Carclo Optics

Carclo Optics 10507

10.0mm Narrow Spot Top Lens Array

Part number

10507

Dimensions

10.0mm

Drawing Number

60522

Finish

Top Lens

Beam type

Narrow Spot

Applications

Architectural

Landscape & Garden

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

93.0%

FWHM:

16 x 17.5°

Cd/Im:

7.2

Carclo Optics - 10507 10mm Spot Image Bridgelux 3030 Gen2

Carclo Optics - 10507 10mm Cross Section Bridgelux 3030 Gen2

Download

ies

Cree JB2835B 3V G-Class White

Eff:

91.0%

FWHM:

19.5°

Cd/Im:

5.5


Download

Cree JB2835B 3V J-Class White

Eff:

91.0%

FWHM:

19°

Cd/Im:

5.9


Download

Cree JB3030 3V P-Class White

Eff:

91.5%

FWHM:

21.0°

Cd/Im:

4.5

Carclo Optics - 10507 Spot Image Cree JB3030 3V White

Carclo Optics - 10507 Cross Section Cree JB3030 3V White

Download

ies

Cree JB3030C 3V E-Class White

Eff:

91.0%

FWHM:

20.5°

Cd/Im:

5.1


Download

Cree JB3030C 3V F-Class White

Eff:

91.0%

FWHM:

20°

Cd/Im:

5.2


Download

Cree JE2835 3V White

Eff:

91.0%

FWHM:

15°

Cd/Im:

7.3

Download

Cree JK2835 6V White

Eff:

91.5%

FWHM:

20°

Cd/Im:

5.4

Download

ies

Cree XLamp CSP XD16 Cool White

Eff:

92.5%

FWHM:

17.0°

Cd/Im:

5.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp CSP XD16 Premium White

Eff:

91.0%

FWHM:

16°

Cd/Im:

9.6

Download

IES

Cree XLamp XB-D White

Eff:

89.7%

FWHM:

19.5°

Cd/Im:

7.1

Spot Image

Cross Section

Download

ies

Cree XLamp XB-H White

Eff:

92.0%

FWHM:

21.5°

Cd/Im:

5.3

Carclo Optics - 10507 10mm Spot Image Cree XLamp XB-H

Carclo Optics - 10507 10mm Cross Section Cree XLamp XB-H

Download

ies

Cree XLamp XE-G Blue

Eff:

89.0%

FWHM:

14°

Cd/Im:

11.9

Download

ies

Cree XLamp XE-G Green

Eff:

89.0%

FWHM:

14°

Cd/Im:

11.3

Download

ies

Cree XLamp XE-G Red

Eff:

87.0%

FWHM:

13.5°

Cd/Im:

12.0

Download

ies

Cree XLamp XE-G White

Eff:

89.0%

FWHM:

14°

Cd/Im:

11.3

Download

ies

Cree XLamp XP-C White

Eff:

91.7%

FWHM:

10.7°

Cd/Im:

21.0

Spot Image

Cross Section

Download

ies

Cree XLamp XP-E White

Eff:

88.7%

FWHM:

16.4°

Cd/Im:

9.8

Download

ies

Cree XLamp XP-E2 Amber

Eff:

88.5%

FWHM:

17.5°

Cd/Im:

8.4

Download

Cree XLamp XP-E2 Blue

Eff:

89.5%

FWHM:

15.5°

Cd/Im:

10.9

Download

Cree XLamp XP-E2 Far Red

Eff:

90.5%

FWHM:

17°

Ipk/W:

8.4

Download

Cree XLamp XP-E2 Green

Eff:

90.0%

FWHM:

15.5°

Cd/Im:

11.0

Download

Cree XLamp XP-E2 Photo Red

Eff:

89.0%

FWHM:

17.5°

Ipk/W:

7.9


Download

Cree XLamp XP-E2 Red

Eff:

89.0%

FWHM:

17°

Cd/Im:

8.4

Download

Cree XLamp XP-E2 Red-Orange

Eff:

89.0%

FWHM:

17°

Cd/Im:

8.3


Download

Cree XLamp XP-E2 Royal Blue

Eff:

87.5%

FWHM:

14°

Ipk/W:

11.6


Download

Cree XLamp XP-E2 White

Eff:

89.5%

FWHM:

15°

Cd/Im:

10.7

Download

Cree XLamp XP-G White

Eff:

91.0%

FWHM:

23.0°

Cd/Im:

4.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XP-G2 White

Eff:

91.5%

FWHM:

21.5°

Cd/Im:

4.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XP-G3 White

Eff:

91.0%

FWHM:

26.0°

Cd/Im:

3.1

Carclo Optics - Simulated spot image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XP-G4 White

Eff:

90.5%

FWHM:

24°

Cd/Im:

4.9

Download

IES

Cree XLamp XP-GR White

Eff:

89.0%

FWHM:

13°

Cd/Im:

15.2

Download

Cree XLamp XP-LR White

Eff:

90.5%

FWHM:

16.5°

Cd/Im:

9.8

Download

Cree XLamp XQ-A Blue

Eff:

91.0%

FWHM:

10.5°

Cd/Im:

24.2

Download

Cree XLamp XQ-A Green

Eff:

91.0%

FWHM:

10.5°

Cd/Im:

23.2

Download

Cree XLamp XQ-A PC Amber

Eff:

90.0%

FWHM:

12.5°

Cd/Im:

15.2

Download

Cree XLamp XQ-A PC Blue

Eff:

90.5%

FWHM:

10.5°

Cd/Im:

22.6

Download

Cree XLamp XQ-A Red

Eff:

91.0%

FWHM:

9.7°

Cd/Im:

27.1

Download

Cree XLamp XQ-A Red-Orange

Eff:

91.0%

FWHM:

9.6°

Cd/Im:

27.9


Download

Cree XLamp XQ-A White

Eff:

90.5%

FWHM:

10.5°

Cd/Im:

19.8

Download

Cree XLamp XQ-E HI Blue

Eff:

91.5%

FWHM:

12.0°

Cd/Im:

13.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-E HI Green

Eff:

92.0%

FWHM:

12.0°

Cd/Im:

13.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-E HI Red

Eff:

92.0%

FWHM:

11.5°

Cd/Im:

15.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-E HI White

Eff:

91.5%

FWHM:

11°

Cd/Im:

17.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-E Plus HD Blue

Eff:

90.5%

FWHM:

16°

Cd/Im:

10.3


Download

Cree XLamp XQ-E Plus HD Green

Eff:

90.5%

FWHM:

16.5°

Cd/Im:

9.8


Download

Cree XLamp XQ-E Plus HD PC Amber

Eff:

89.5%

FWHM:

17°

Cd/Im:

8.5


Download

Cree XLamp XQ-E Plus HD Royal Blue

Eff:

90.0%

FWHM:

16°

Ipk/W:

10.2


Download

Cree XLamp XQ-E Plus HD White

Eff:

90.0%

FWHM:

17.5°

Cd/Im:

8.4


Download

Cree XLamp XQ-E Plus HI Blue

Eff:

90.5%

FWHM:

12.5°

Cd/Im:

13.3


Download

Cree XLamp XQ-E Plus HI Green

Eff:

90.5%

FWHM:

13°

Cd/Im:

12.4


Download

Cree XLamp XQ-E Plus HI PC Amber

Eff:

89.5%

FWHM:

13.5°

Cd/Im:

11.4


Download

Cree XLamp XQ-E Plus HI Royal Blue

Eff:

89.5%

FWHM:

12.5°

Ipk/W:

12.5


Download

Cree XLamp XQ-E Plus HI White

Eff:

90.5%

FWHM:

12.5°

Cd/Im:

13.8


Download

Cree XLamp XQ-E HD White

Eff:

90.5%

FWHM:

14.5°

Cd/Im:

10.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XT-E White

Eff:

90.5%

FWHM:

21.5°

Cd/Im:

4.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Everlight Shuen White

Eff:

86.2%

FWHM:

20.9°

Cd/Im:

4.6

Spot Image

Cross Section

Download

ies

Lite-On R38386AS - S R38 IR

Eff:

93.0%

FWHM:

26.5°

Ipk/W:

4.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON 2835C 6V White

Eff:

91.0%

FWHM:

19°

Cd/Im:

6.2

Download

LUMILEDS LUXEON 2835E 9V White

Eff:

91.0%

FWHM:

18.5°

Cd/Im:

6.5

Download

LUMILEDS LUXEON 2835N 3V White

Eff:

91.0%

FWHM:

18°

Cd/Im:

5.7

Download

LUMILEDS LUXEON 2835S 3V White

Eff:

91.0%

FWHM:

19.5°

Cd/Im:

5.0

Download

LUMILEDS LUXEON 2835S 6V White

Eff:

91.0%

FWHM:

19.5°

Cd/Im:

5.0

Download

LUMILEDS LUXEON 3014 White

Eff:

91.0%

FWHM:

11.5°

Cd/Im:

15.2

Download

IES

LUMILEDS LUXEON 3030 2D Plus Round White

Eff:

90.5%

FWHM:

22°

Cd/Im:

5.3


Download

LUMILEDS LUXEON 3030 2D Plus Square White

Eff:

91.0%

FWHM:

31°

Cd/Im:

2.6


Download

LUMILEDS LUXEON 3030 2D Square White

Eff:

91.0%

FWHM:

19.5°

Cd/Im:

6.3


Download

LUMILEDS LUXEON 3030 2D Round White

Eff:

91.5%

FWHM:

19 x 15.5°

Cd/Im:

6.7


,


Download

LUMILEDS LUXEON 3030 HE Plus White

Eff:

93.0%

FWHM:

20°

Cd/Im:

5.4

Carclo Optics – 10507 – Luxeon_3030_HE_Plus_spot-image

Carclo Optics – 10507 – Luxeon_3030_HE_Plus_cross vertical section

Download

ies

LUMILEDS LUXEON 3030 HE White

Eff:

91.0%

FWHM:

15°

Cd/Im:

8.0

Download

LUMILEDS LUXEON 3535 HV White

Eff:

88.5%

FWHM:

17°

Cd/Im:

5.9

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

ies

LUMILEDS LUXEON 3535 L White

Eff:

91.5%

FWHM:

17.0°

Cd/Im:

6.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON C Blue

Eff:

85.5%

FWHM:

15.5°

Cd/Im:

7.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON C Lime

Eff:

87.5%

FWHM:

16.0°

Cd/Im:

8.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON C Red

Eff:

84.5%

FWHM:

16.5°

Cd/Im:

6.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON C White

Eff:

83.5%

FWHM:

14.5°

Cd/Im:

9.7

Download

LUMILEDS LUXEON CZ White

Eff:

92.5%

FWHM:

11.5°

Cd/Im:

18.2

Carclo Optics 10507 Spot Image Luxeon CZ 5M CW

Carclo Optics 10507 Cross Section Luxeon CZ 5M CW

Download

ies

LUMILEDS LUXEON HL1Z Color Blue

Eff:

92.5%

FWHM:

15.5°

Cd/Im:

8.0

Download

LUMILEDS LUXEON HL1Z Color Green

Eff:

92.5%

FWHM:

15.5°

Cd/Im:

8.0

Download

LUMILEDS LUXEON HL1Z Color PC Amber

Eff:

92.5%

FWHM:

15.5°

Cd/Im:

8.9


Download

LUMILEDS LUXEON HL1Z Color PC Green

Eff:

92.5%

FWHM:

15.5°

Cd/Im:

7.5


Download

LUMILEDS LUXEON HL1Z Color PC Red

Eff:

92.5%

FWHM:

16°

Cd/Im:

8.3

Download

LUMILEDS LUXEON HL1Z Color PC Red Orange

Eff:

92.5%

FWHM:

15.5°

Cd/Im:

8.7


Download

LUMILEDS LUXEON HL1Z Color Royal Blue

Eff:

92.0%

FWHM:

15°

Ipk/W:

8.4


Download

LUMILEDS LUXEON HL1Z CSP White

Eff:

92.5%

FWHM:

16°

Cd/Im:

9.2

Download

ies

LUMILEDS LUXEON HL1Z Fusion Tunable White 1800-6500K

Eff:

89.0%

FWHM:

17.5°

Cd/Im:

6.5

optic-10507-Luxeon-HL1Z-Fusion-Colour-Spots


Download

LUMILEDS LUXEON HL2X White

Eff:

91.5%

FWHM:

25.5°

Cd/Im:

4.0

Download

ies

LUMILEDS LUXEON HL2X-V White

Eff:

90.5%

FWHM:

26.5°

Cd/Im:

3.8

Download

LUMILEDS LUXEON HL2Z White

Eff:

91.5%

FWHM:

19°

Cd/Im:

5.7

Carclo Optics – 10507 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 10507 Lumileds Luxeon HL2Z - Cross-Section

Download

ies

LUMILEDS LUXEON IR 2720

Eff:

94.5%

FWHM:

17.0°

Ipk/W:

8.9

Carclo Optics - 10507 10mm Triple Spot Image LuxeonIR 2720

Carclo Optics - 10507 10mm Triple Cross Section LuxeonIR 2720

Download

ies

LUMILEDS LUXEON IR Compact 850nm

Eff:

94.0%

FWHM:

14.5°

Ipk/W:

10.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON IR Domed 150 Degree

Eff:

93.0%

FWHM:

17.5°

Cd/Im:

7.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON MZ White

Eff:

92.0%

FWHM:

32.5°

Cd/Im:

1.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON Rebel ES White

Eff:

88.5%

FWHM:

23°

Cd/Im:

4.7

Download

LUMILEDS LUXEON Rebel Plus White

Eff:

90.5%

FWHM:

17°

Cd/Im:

9.0

Download

LUMILEDS LUXEON Rebel White

Eff:

90.5%

FWHM:

17°

Cd/Im:

9.1

Download

LUMILEDS LUXEON Rubix Blue

Eff:

89.0%

FWHM:

11.5°

Cd/Im:

18.3

Carclo Optics - 10507 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics - 10507 Cross Section Lumileds Luxeon Rubix Blue

Download

ies

LUMILEDS LUXEON Rubix Green

Eff:

89.5%

FWHM:

11.5°

Cd/Im:

18.2

Carclo Optics – 10507 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 10507 Cross Section Lumileds Luxeon Rubix Green

Download

ies

LUMILEDS LUXEON Rubix Red

Eff:

90.5%

FWHM:

11°

Cd/Im:

20.6

Carclo Optics – 10507 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 10507 Cross Section Lumileds Luxeon Rubix Red

Download

ies

LUMILEDS LUXEON Rubix Royal Blue

Eff:

88.5%

FWHM:

11.5°

Cd/Im:

19.5

Carclo Optics – 10507 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 10507 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

ies

LUMILEDS LUXEON Rubix White

Eff:

89.5%

FWHM:

12.0°

Cd/Im:

17.1

Carclo Optics - 10507 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 10507 Cross Section Lumileds Luxeon Rubix White

Download

ies

LUMILEDS LUXEON TX White

Eff:

91.0%

FWHM:

22.5°

Cd/Im:

4.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON Z ES White

Eff:

89.0%

FWHM:

16°

Cd/Im:

8.7

Spot Image

Cross Section

Download

ies

LUMILEDS LUXEON Z White

Eff:

91.0%

FWHM:

11°

Cd/Im:

18.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Luminus Devices MP-3030-11F2 White

Eff:

91.0%

FWHM:

15.5°

Cd/Im:

8.2


Download

Luminus Devices SST 10-B-B130 Blue

Eff:

91.5%

FWHM:

17.5°

Cd/Im:

0.9

Carclo Optics - 10507 Luminus_SST-10_B_B130 - spot image

Carclo Optics - 10507 Luminus_SST-10_B_B130 - cross section image

Download

ies

Luminus Devices SST 10-B-B90 Blue

Eff:

90.5%

FWHM:

18°

Cd/Im:

7.8

Carclo Optics - 10507 Luminus_SST-10_B_B90 - spot - image

Carclo Optics - 10507 Luminus_SST-10_G_B130 - cross -vertical- section- image

Download

ies

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

93.0%

FWHM:

18.5°

Cd/Im:

6.9

Carclo Optics – 10507 Luminus_SST-10_DR_B130- Spot - image

Carclo Optics – 10507 Luminus_SST-10_DR_B130- Cross section – image

Download

ies

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

92.5%

FWHM:

19.5°

Cd/Im:

7.1

Carclo Optics - 10507 Luminus_SST-10_DR_B90 - Spot Image

Carclo Optics - 10507 Luminus_SST-10_DR_B90 - Cross section image

Download

ies

Luminus Devices SST 10-G-B130 Green

Eff:

92.5%

FWHM:

18°

Cd/Im:

9.2

Carclo Optics - 10507-Luminus_SST-10_G_B130 - Spot - image

Carclo Optics - 10507-Luminus_SST-10_G_B130 - cross - section - image

Download

ies

Luminus Devices SST 10-G-B90 Green

Eff:

91.5%

FWHM:

19.0°

Cd/Im:

7.6

Carclo Optics - 10507 Luminus_SST-10_G_B90- Spot - image

Carclo Optics - 10507 Luminus_SST-10_G_B90- Cross - image

Download

ies

Luminus Devices SST 10-IR-B130 940nm

Eff:

92.5%

FWHM:

20.0°

Ipk/W:

7.1

Carclo Optics - 10507 Spot Image Luminus SST-10-IR-B130

Carclo Optics - 10507 Cross Section Luminus SST-10-IR-B130

Download

ies

Luminus Devices SST 10-IR-B90 940nm

Eff:

91.5%

FWHM:

22.5°

Ipk/W:

6.3

Carclo Optics - 10507 Spot Image Luminus SST-10-IR-B90

Carclo Optics - 10507 Cross Section Luminus SST-10-IR-B90

Download

ies

Luminus Devices SST 10-IRD-B130 810nm

Eff:

93.0%

FWHM:

18°

Ipk/W:

8.4


Download

ies

Luminus Devices SST 10-IRD-B90 810nm

Eff:

91.5%

FWHM:

20°

Ipk/W:

7.9


Download

ies

Luminus Devices SST 20-WxH White Hi CRI

Eff:

92.5%

FWHM:

18.5°

Cd/Im:

6.5

Carclo Optics – 10507 - Luxeon_SST_20_W_spot-image

Carclo Optics – 10507 - Luxeon_SST_20_W_cross vertical section

Download

ies

Luminus Devices SST-12-WS Gen2 White

Eff:

89.0%

FWHM:

17.5°

Cd/Im:

9.0


Download

Luminus Devices SST-20-W Gen2 White

Eff:

90.0%

FWHM:

20.5°

Cd/Im:

6.5


Download

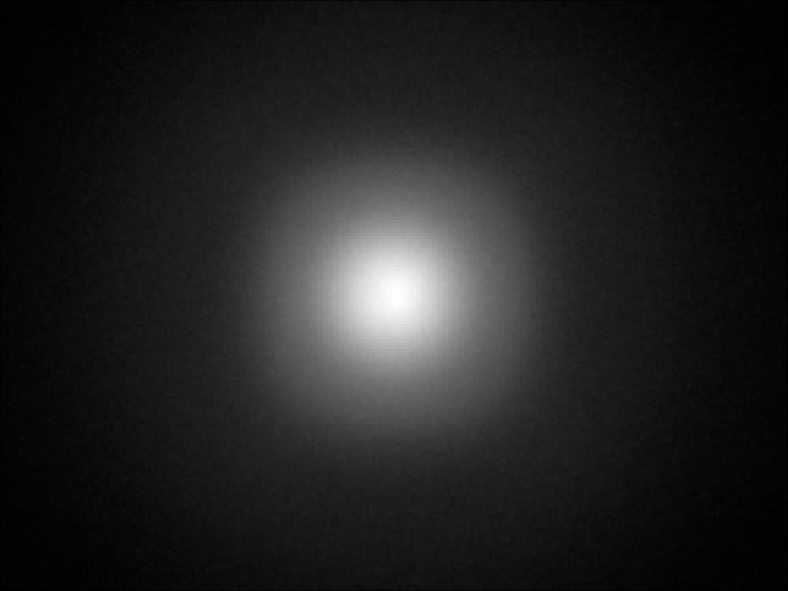

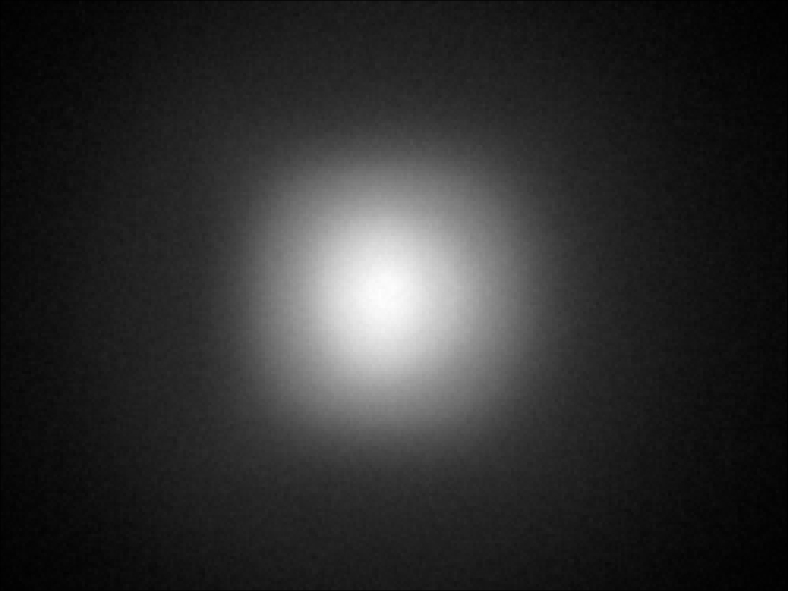

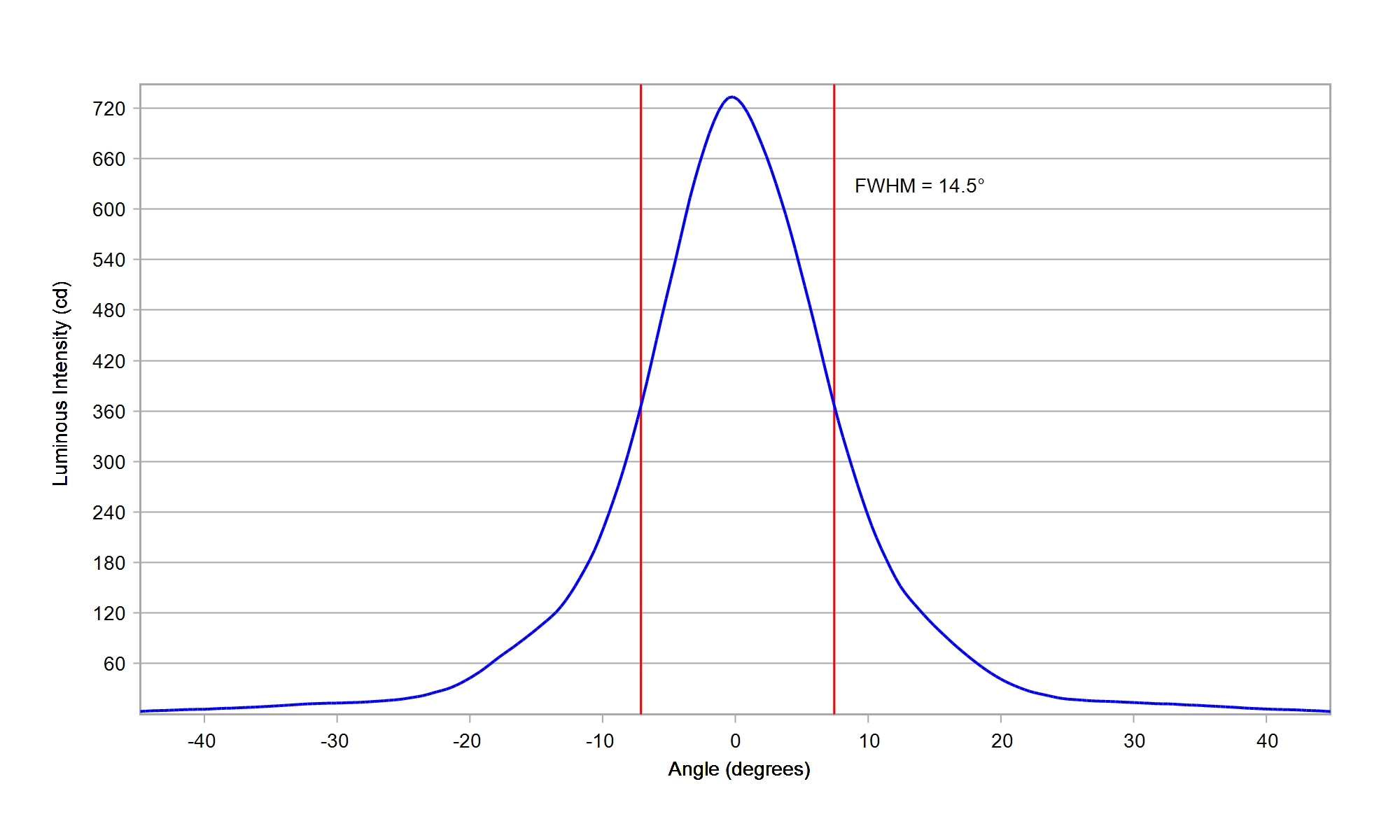

Nichia 757 White

Eff:

90.0%

FWHM:

19.5°

Cd/Im:

4.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia 757G White

Eff:

92.5%

FWHM:

21°

Cd/Im:

4.9

Carclo Optics 10507 10mm Simulated Spot Image Nichia 757G-MT

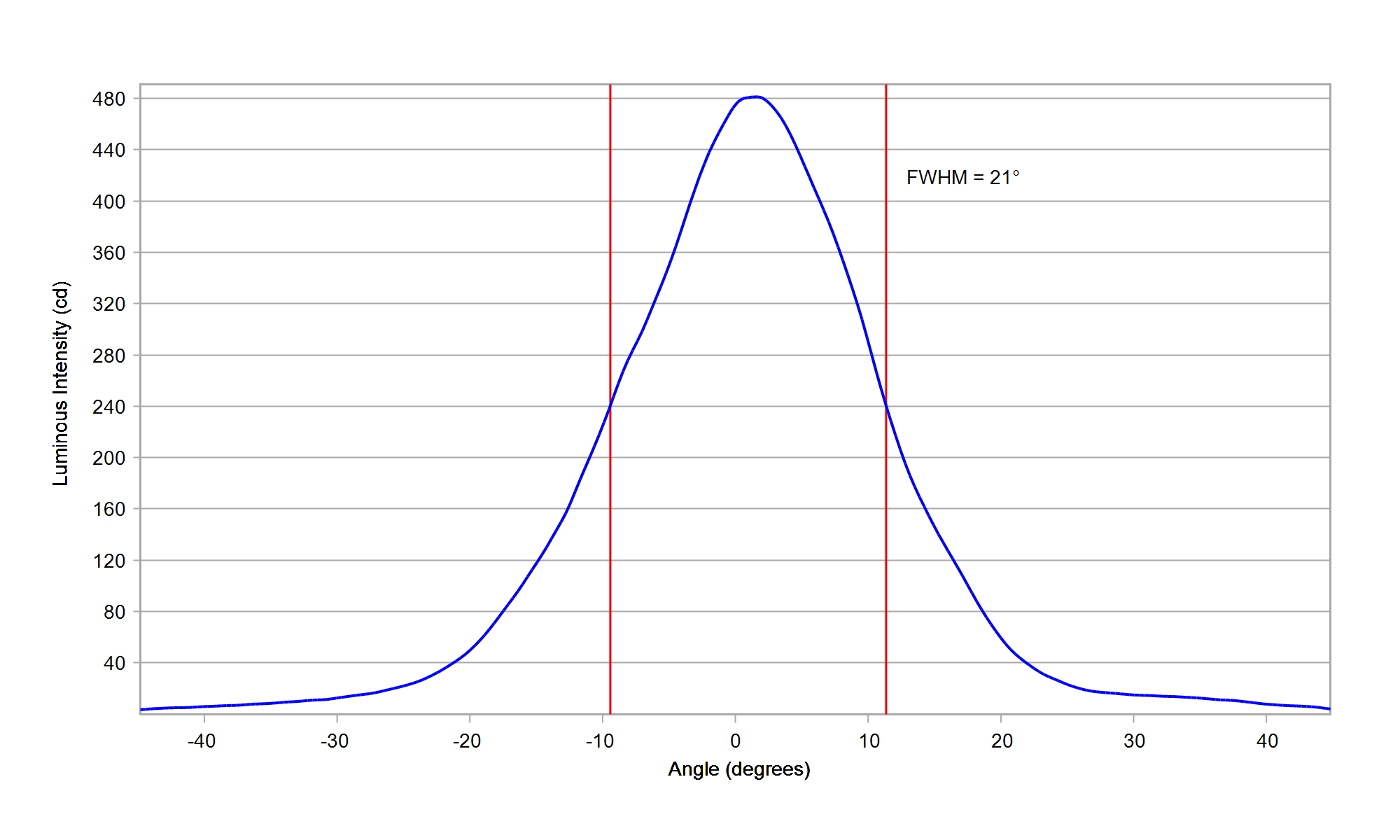

Carclo Optics 10507 10mm Horizontal Cross Section Nichia 757G-MT

Download

ies

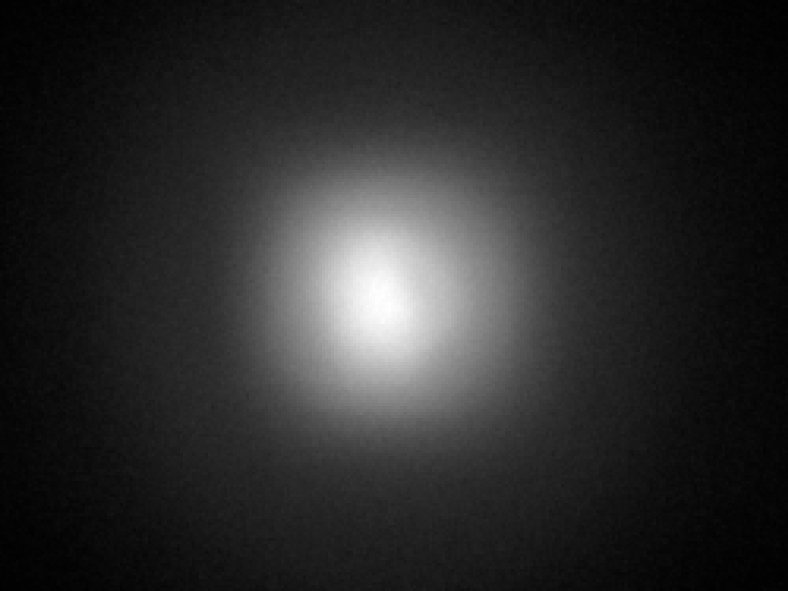

Nichia 757G White

Eff:

92.0%

FWHM:

20.0°

Cd/Im:

4.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

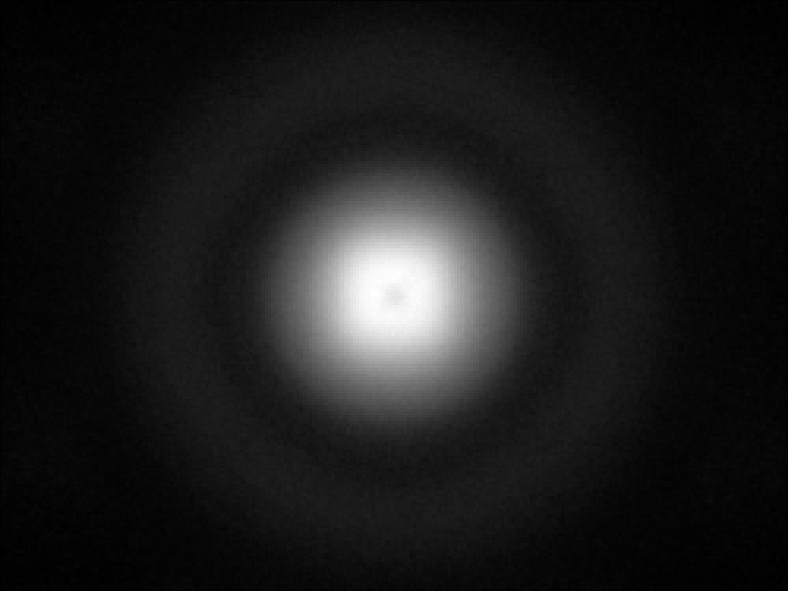

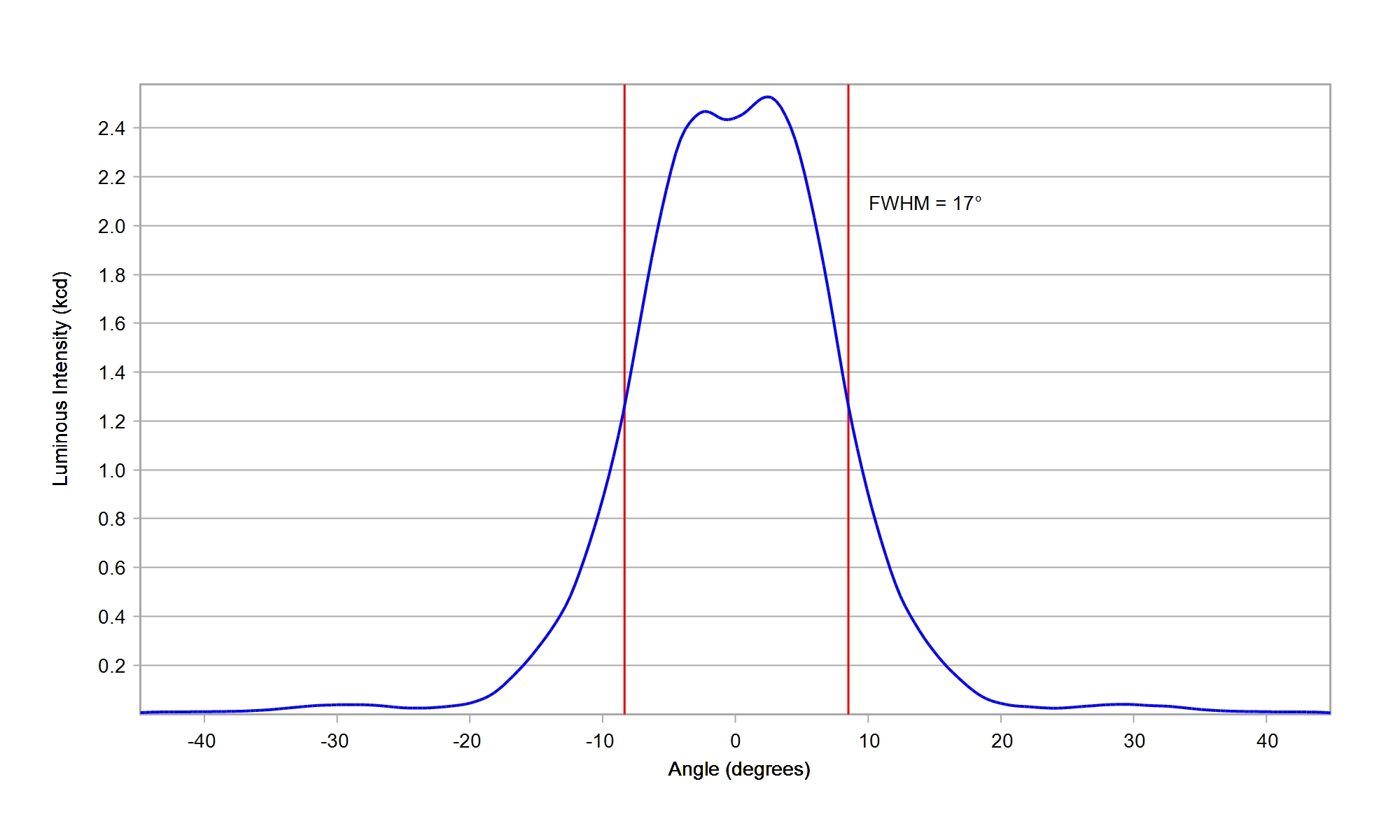

Nichia NCSW CSP E17A White

Eff:

92.0%

FWHM:

21.0°

Cd/Im:

4.9

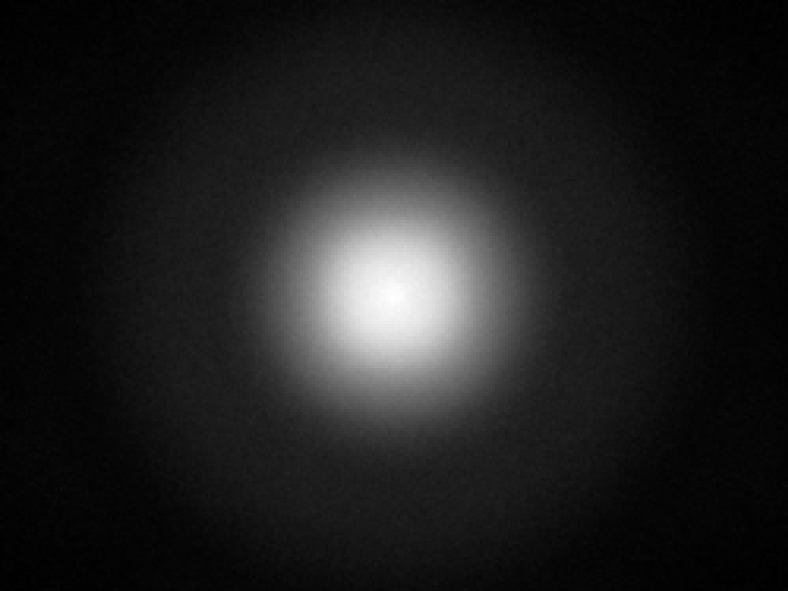

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

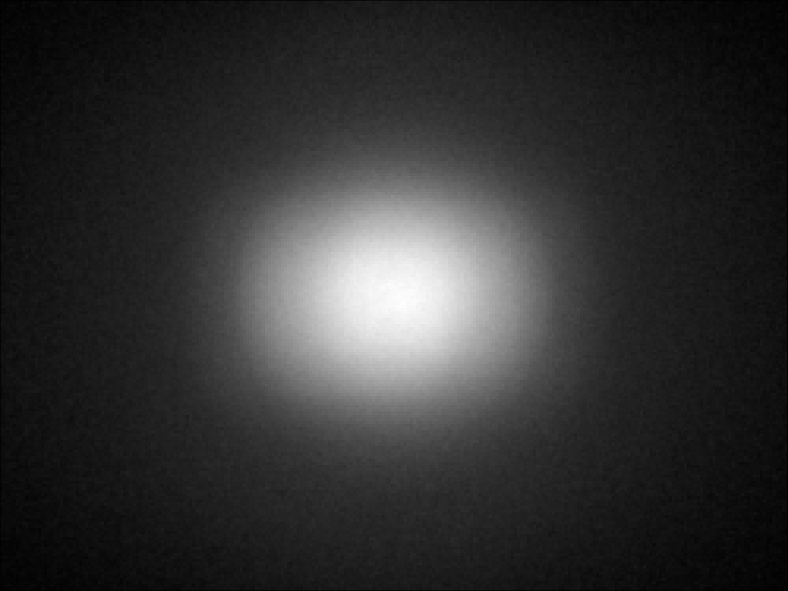

Nichia NF2W 385AR-V2 White

Eff:

92.0%

FWHM:

25°

Cd/Im:

3.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

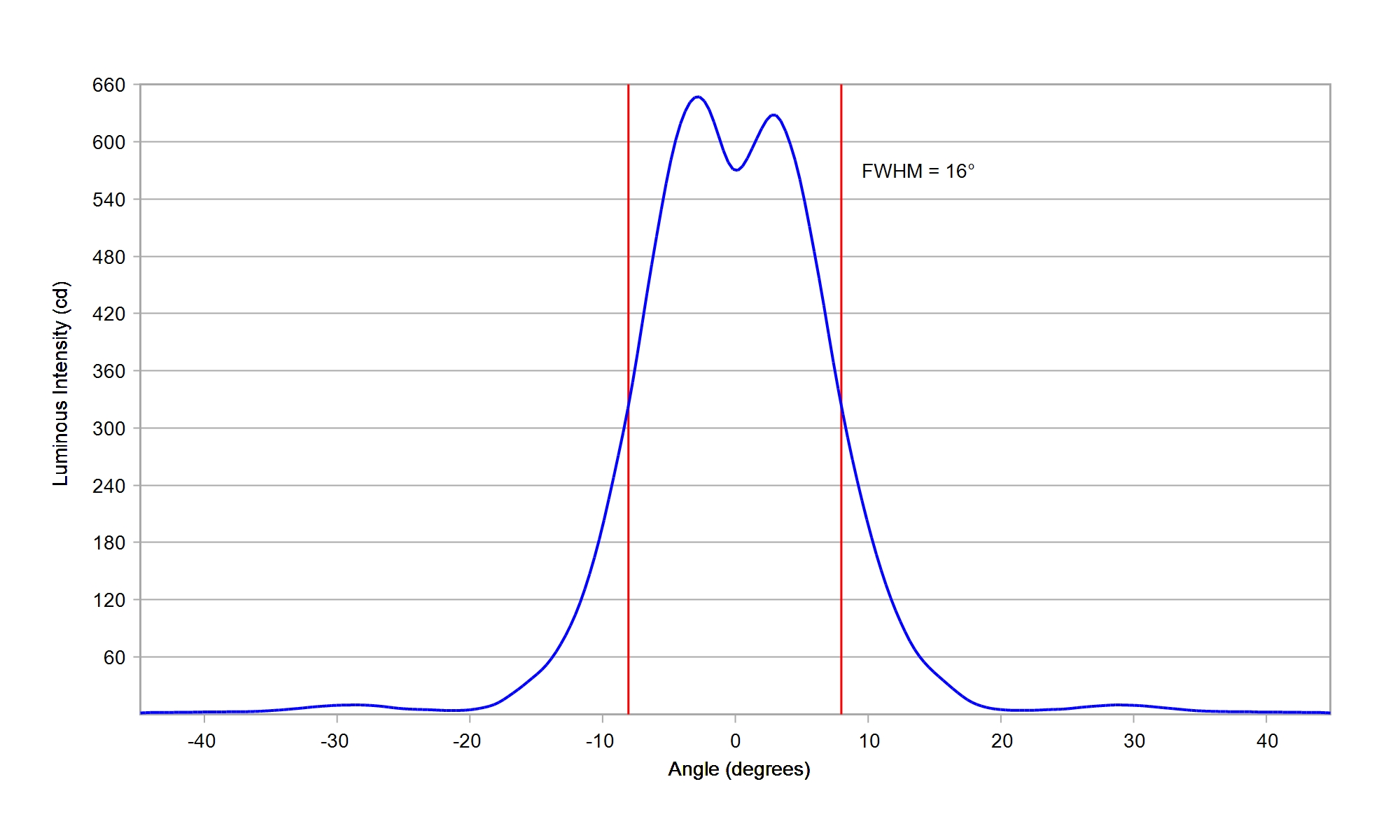

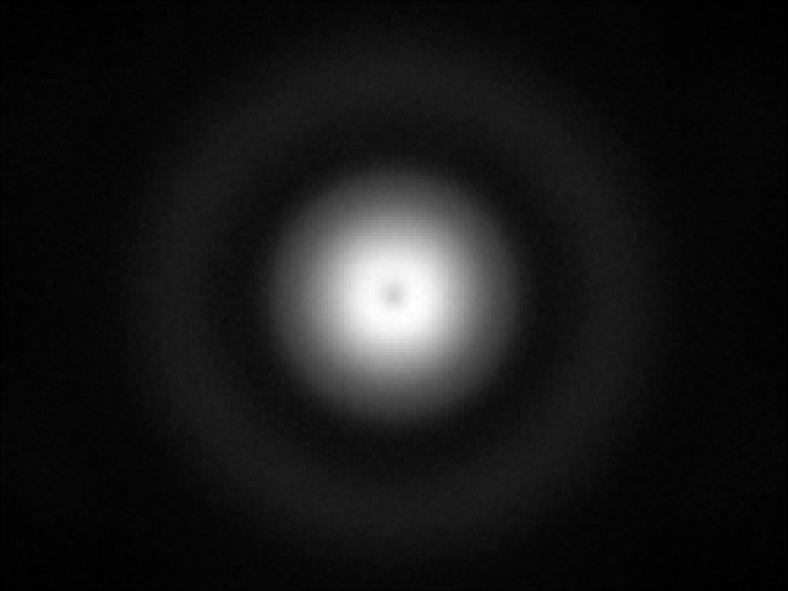

Nichia NVSL 219B White

Eff:

90.5%

FWHM:

18.0°

Cd/Im:

6.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

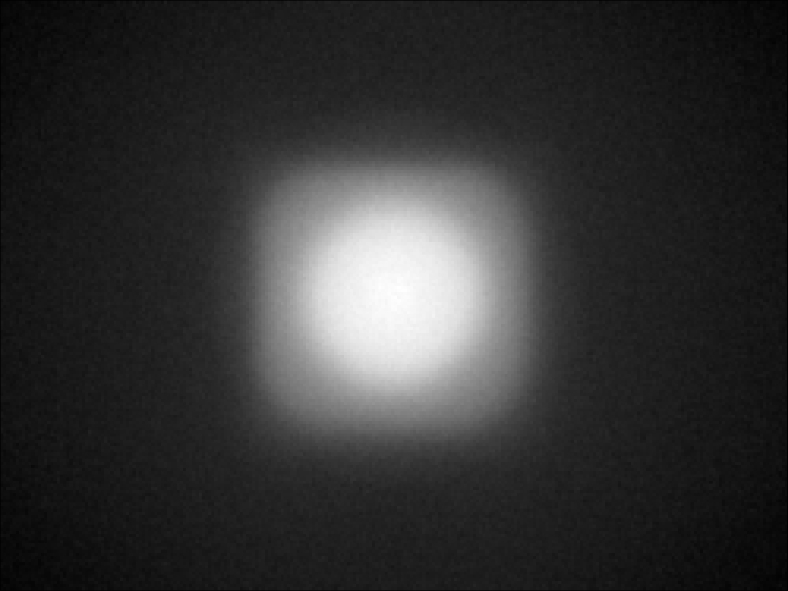

Nichia NVSW 219C White

Eff:

90.5%

FWHM:

25.5°

Cd/Im:

3.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NVSW 219F White

Eff:

89.0%

FWHM:

26°

Cd/Im:

4.1

Carclo Optics – 10507 Nichia NVSW 219F White - Spot Image

Carclo Optics – 10507 Nichia NVSW 219F White - Cross-Section

Download

ies

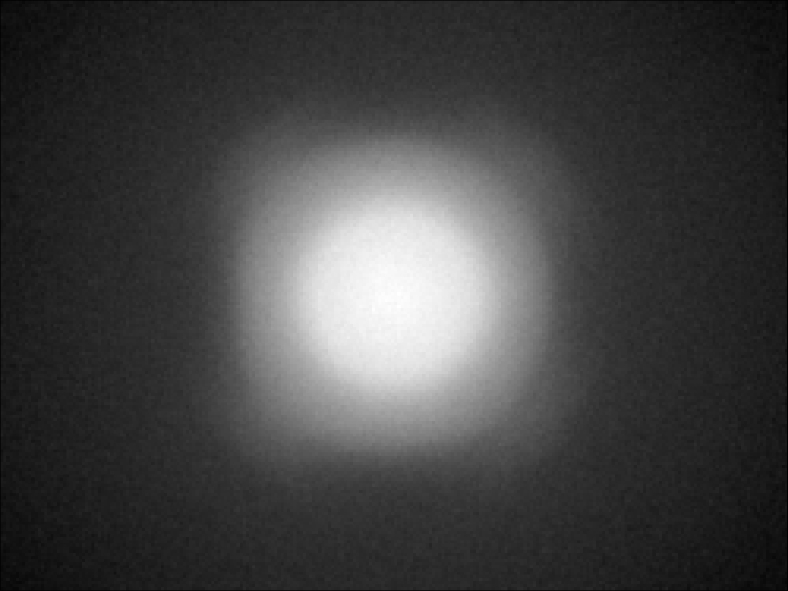

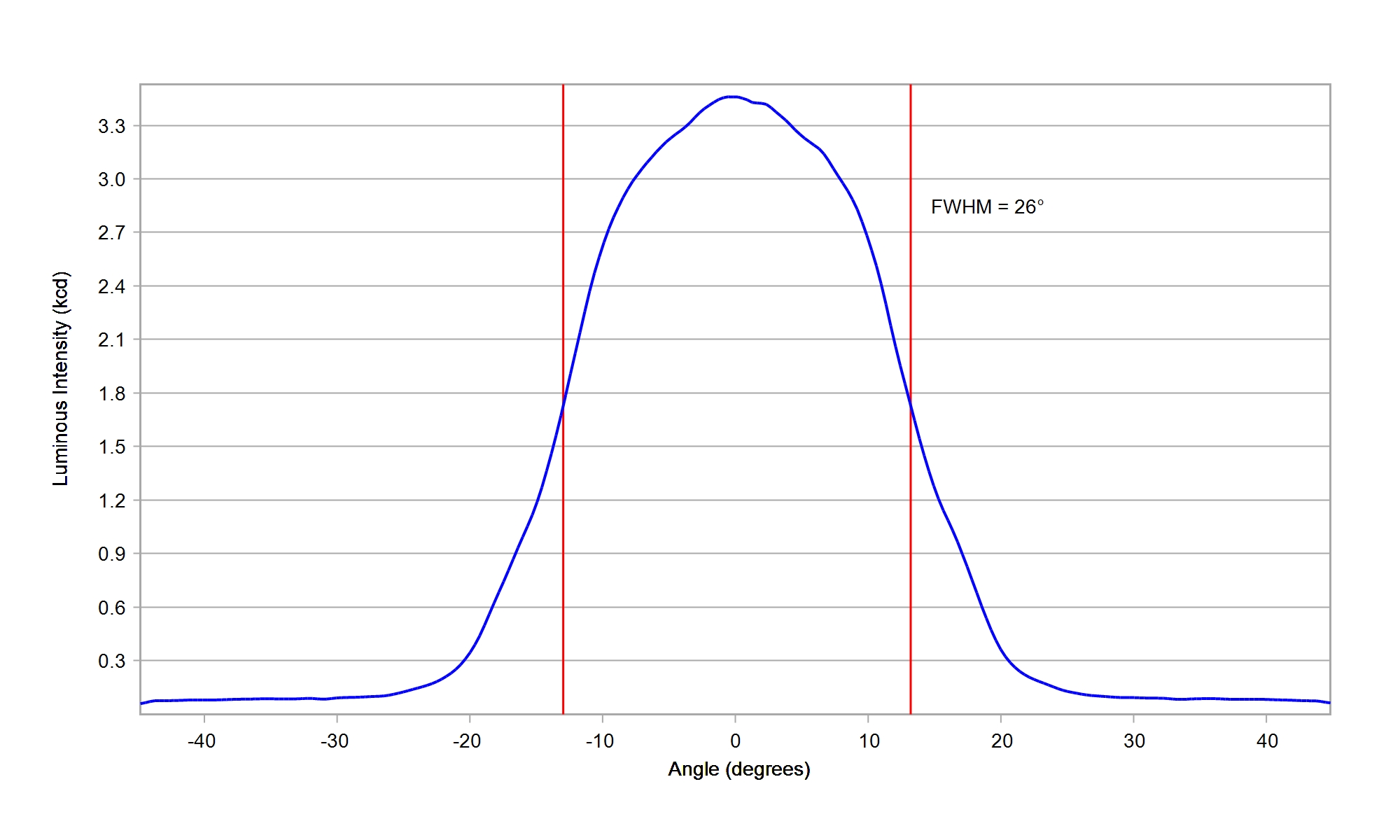

Nichia NVSW 319A White

Eff:

90.0%

FWHM:

29.0°

Cd/Im:

2.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

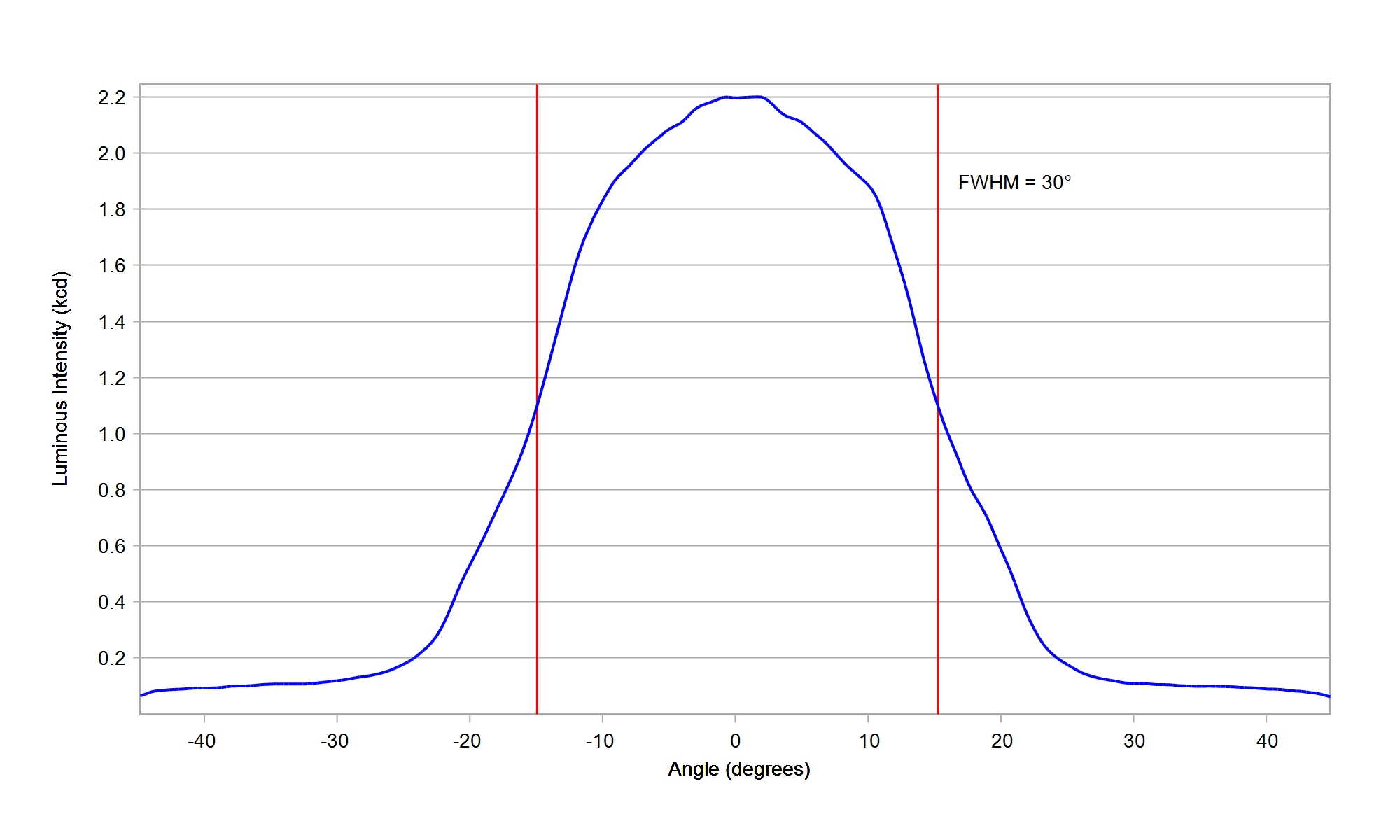

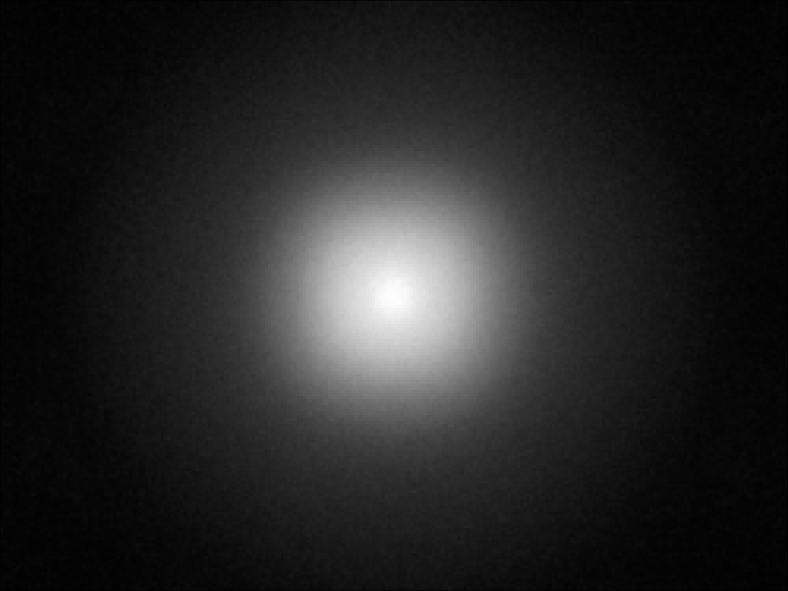

Nichia Top Emitting NCSL 119-H3 White

Eff:

84.6%

FWHM:

16.2°

Cd/Im:

7.5

Spot Image

Cross Section

Download

ies

Osram LED ENGIN LuxiGen LZ1 00CW02 White

Eff:

90.0%

FWHM:

20°

Cd/Im:

5.8

Download

Osram LED ENGIN LuxiGen LZ1 00R702 IR940nm

Eff:

92.0%

FWHM:

21.5°

Ipk/W:

5.4

Download

IES

Osram DURIS E 2835 Gen2

Eff:

93.0%

FWHM:

17°

Cd/Im:

6.7

Carclo Optics - 10507 10mm Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 10507 10mm Cross Section Osram DURIS E 2835 Gen2

Download

ies

Osram DURIS E 2835 White

Eff:

91.5%

FWHM:

18.5°

Cd/Im:

5.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS E2 White

Eff:

91.5%

FWHM:

13.0°

Cd/Im:

14.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS E3 White

Eff:

91.0%

FWHM:

8.6°

Cd/Im:

13.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS S2 White

Eff:

91.5%

FWHM:

14.5°

Cd/Im:

7.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS S5 Deep Blue

Eff:

91.5%

FWHM:

21.0 x 17.5°

Cd/Im:

5.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

ies

Osram DURIS S5 Green

Eff:

92.0%

FWHM:

17°

Cd/Im:

6.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS S5 Red

Eff:

92.5%

FWHM:

16.0°

Cd/Im:

7.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS S5 White

Eff:

92.0%

FWHM:

18.75°

Cd/Im:

4.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OSCONIQ C 2424 White

Eff:

93.0%

FWHM:

17.5°

Cd/Im:

7.3

Carclo Optics - 10507 SPOT IMAGE OSCONIQ C2424

Carclo Optics - 10507 CROSS SECTION OSCONIQ C2424

Download

ies

Osram OSLON Black SFH 4716AS IR

Eff:

93.0%

FWHM:

14°

Ipk/W:

11.4

Carclo Optics – 10507 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

Carclo Optics – 10507 Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

ies

Osram OSLON Boost HM KW CELMM1.TG

Eff:

90.5%

FWHM:

9°

Cd/Im:

31.4

Carclo Optics – 10507 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 10507 – Osram_Oslon_Boost_KW_CELMM1_TG_cross vertical section

Download

ies

Osram OSLON Pure 1414 GB VJLPL1.F3 Blue

Eff:

90.5%

FWHM:

12.5°

Cd/Im:

17.1


Download

Osram OSLON Pure 1414 GC VJLPL1.13 Cyan

Eff:

91.0%

FWHM:

12.5°

Cd/Im:

17.1


Download

Osram OSLON Pure 1414 GD VJLPL1.14 Deep Blue

Eff:

89.5%

FWHM:

12.5°

Ipk/W:

16.9


Download

Osram OSLON Pure 1414 GR VJLPL1.23 Red

Eff:

91.5%

FWHM:

10°

Cd/Im:

20.8


Download

Osram OSLON Pure 1414 GT VJLPL1.13 True Green

Eff:

90.5%

FWHM:

12.5°

Cd/Im:

16.7


Download

Osram OSLON Pure 1414 GV VJLPL1.F3 Verde

Eff:

90.0%

FWHM:

12.5°

Cd/Im:

17.6


Download

Osram OSLON Pure 1414 GW VJLPL1.CM White

Eff:

91.5%

FWHM:

13°

Cd/Im:

15.5

Download

Osram OSLON Pure 1414 GW VJLPL1.UL Green

Eff:

90.0%

FWHM:

12.5°

Cd/Im:

16.5


Download

Osram OSLON Pure 1414 GY VJLPL1.F3 Yellow

Eff:

90.5%

FWHM:

12.5°

Cd/Im:

16.3


Download

Osram OSLON Square Flat White

Eff:

91.5%

FWHM:

15.5°

Cd/Im:

8.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OSLON Square Gen 3 White

Eff:

86.8%

FWHM:

20.4°

Cd/Im:

5.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OSLON Square Gen 5 GW CSSRM3

Eff:

92.0%

FWHM:

22.5°

Cd/Im:

4.8

Carclo Optics - 10507 10mm Spot Image Oslon Square Gen 5

Carclo Optics - 10507 10mm Cross Section Oslon Square Gen 5

Download

ies

Osram OSLON Square White

Eff:

91.0%

FWHM:

21°

Cd/Im:

5.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

90.0%

FWHM:

14°

Cd/Im:

11.6

Carclo Optics – 10507 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Carclo Optics – 10507 Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Download

ies

Osram OSLON SSL 150 degree White

Eff:

90.0%

FWHM:

15.1°

Cd/Im:

12.0

Spot Image

Cross Section

Download

ies

Osram OSLON SSL 80 White

Eff:

88.0%

FWHM:

19.5°

Cd/Im:

8.5

Download

ies

Osram OSLON SSL 80 GH CS8PM1.24 Hyper Red

Eff:

90.0%

FWHM:

19.5°

Ipk/W:

7.4


Download

IES

Osram OSLON SSL 80 GT CS8PM1.13 True Green

Eff:

90.0%

FWHM:

21.5°

Cd/Im:

6.1



Download

IES

Osram OSLON SSL 80 GW CS8PM1.PM White

Eff:

90.0%

FWHM:

17.5°

Cd/Im:

8.6


Download

IES

Osram OSCONIQ C 3030 GW PLTRA1.PM White

Eff:

91.5%

FWHM:

21.5°

Cd/Im:

4.9

Download

Osram OSCONIQ E 3030 GW QSLPS1.EM White

Eff:

91.5%

FWHM:

19°

Cd/Im:

5.8

Download

Osram OSCONIQ P 3030 GW QSSPA1.PM White

Eff:

90.5%

FWHM:

15°

Cd/Im:

10.4

Download

Osram OSCONIQ S 3030 GW QSLMS3.EM White

Eff:

90.5%

FWHM:

15.5°

Cd/Im:

7.9

Download

Osram OSLON Signal LUW CRBP.01 White

Eff:

89.0%

FWHM:

15.5°

Cd/Im:

10.7


Download

Samsung 2835 LM281B+ White

Eff:

91.0%

FWHM:

20°

Cd/Im:

4.5



Download

Samsung 2835 LM282B+ White

Eff:

91.0%

FWHM:

17.5°

Cd/Im:

6.2



Download

Samsung 3030 LM301B White

Eff:

91.0%

FWHM:

18°

Cd/Im:

6.8

Download

ies

Samsung 3535 LH351B White

Eff:

92.5%

FWHM:

25.5°

Cd/Im:

3.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Samsung 3535 LH351Z White

Eff:

86.7%

FWHM:

20.5°

Cd/Im:

5.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Samsung CSP LH151B White

Eff:

92.0%

FWHM:

18°

Cd/Im:

6.7

Carclo Optics – 10507 – Samsung_LH151B_spot-image

Carclo Optics – 10507 – Samsung_LH151B_cross section

Download

ies

Samsung CSP LH181B White

Eff:

93.5%

FWHM:

20.5°

Cd/Im:

4.5

Carclo Optics -10507 Spot Image - Samsung LH181B_4000K

Carclo Optics -10507 Cross Section - Samsung LH181B_4000K

Download

ies

Samsung CSP LM101B White

Eff:

93.0%

FWHM:

20°

Cd/Im:

5.9

Carclo Optics -10507 Spot Image - Samsung LM101B 5000K

Carclo Optics -10507 Cross Section Image - Samsung LM101B 5000K

Download

ies

Seoul 3030 STW8C12E-E0 White

Eff:

91.0%

FWHM:

18.5°

Cd/Im:

6.2

Download

Seoul 3528 G STW8A2PD-G700 White

Eff:

91.0%

FWHM:

19.5°

Cd/Im:

5.3

Download

Seoul MidPower MJT3030 White

Eff:

88.6%

FWHM:

16.8°

Cd/Im:

5.6

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

ies

Seoul 3030 STW8C2SB-NT White

Eff:

91.0%

FWHM:

19.0°

Cd/Im:

5.4

Carclo Optics - 10507 Spot Image Seoul STW8 C2SB-NT

Carclo Optics - 10507 Cross Section Seoul STW8 C2SB-NT

Download

ies

Seoul SunLike 3030 STWSC2PB-E0 White

Eff:

91.5%

FWHM:

19.0°

Cd/Im:

5.3

Carclo Optics - 10507 Spot Image STWS C2PB-E0

Carclo Optics - 10507 Cross Section STWS C2PB-E0

Download

ies

Seoul SunLike 3030 STWSC12S-E1 White

Eff:

91.0%

FWHM:

16°

Cd/Im:

8.4

Download

Seoul SunLike 3030 STWSC12S-E2 White

Eff:

91.0%

FWHM:

17°

Cd/Im:

7.4

Download

Seoul SunLike 3030 STW9C2SB-S White

Eff:

93.0%

FWHM:

18°

Cd/Im:

6.0

Carclo Optics - 10507 10mm Spot Image Seoul Sunlike 3030

Carclo Optics - 10507 10mm Cross Section Seoul Sunlike 3030

Download

ies

Seoul Z - Power Z5-M1 White

Eff:

87.0%

FWHM:

21.9°

Cd/Im:

4.6

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

ies

Seoul Z - Power Z5-M4 White

Eff:

90.0%

FWHM:

26°

Cd/Im:

3.9

Carclo Optics – 10507 Seoul Z-Power Z5 - Spot Image

Carclo Optics – 10507 Seoul Z-Power Z5 - Cross-Section

Download

ies

Seoul Z - Power Z5-M5 White

Eff:

90.5%

FWHM:

31°

Cd/Im:

2.9

Download

Seoul Z - Power Z5-P0 White

Eff:

86.7%

FWHM:

17.7°

Cd/Im:

6.6

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

ies

Seoul Z - Power Z5-M White

Eff:

84.4%

FWHM:

15.1°

Cd/Im:

12.6

Download

ies

Stanley FWR1108MS IR 755nm

Eff:

92.5%

FWHM:

17°

Ipk/W:

9.3


Download

Toshiba TL 1L2 White

Eff:

85.0%

FWHM:

22.7°

Cd/Im:

4.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Toshiba TL 1L4 White

Eff:

86.0%

FWHM:

21.8°

Cd/Im:

4.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies
