Optic 10224 Led Osram OS OSLON Black SFH 4716AS IR

Carclo Optics 26.5mm 10224

26.5mm Elliptical Orthog Ripple Linear TIR LED Lenses

Part number

10224

Dimensions

26.5mm

Drawing Number

60476

Optic type

TIR LED Lenses

Finish

Ripple Linear

Beam type

Elliptical Orthog

Applications

Architectural

Landscape & Garden

Downloads

Eff

89.0%

FWHM

6.2 x 47°

Ipk/W

8.5

These results were obtained using Holder 10462

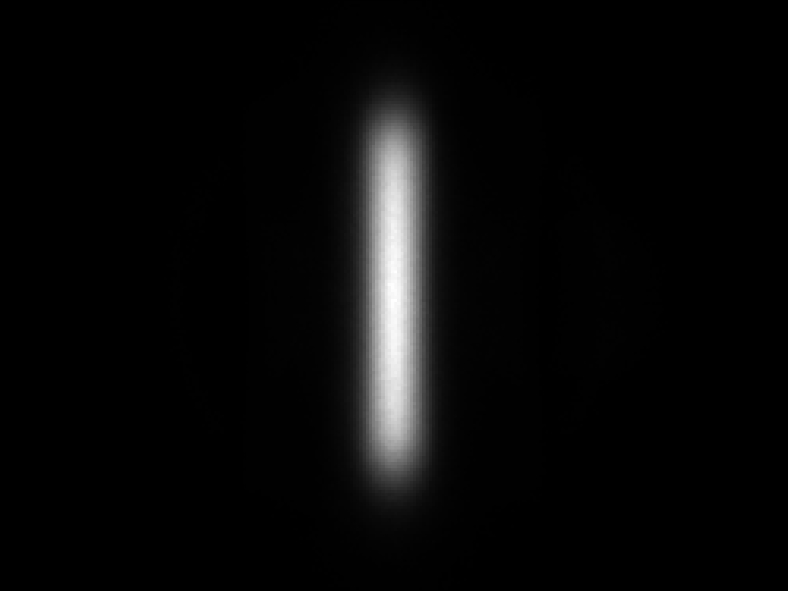

Carclo Optics – 10224 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

Carclo Optics – 10224 Horizontal Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Carclo Optics – 10224 Vertical Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

IES
