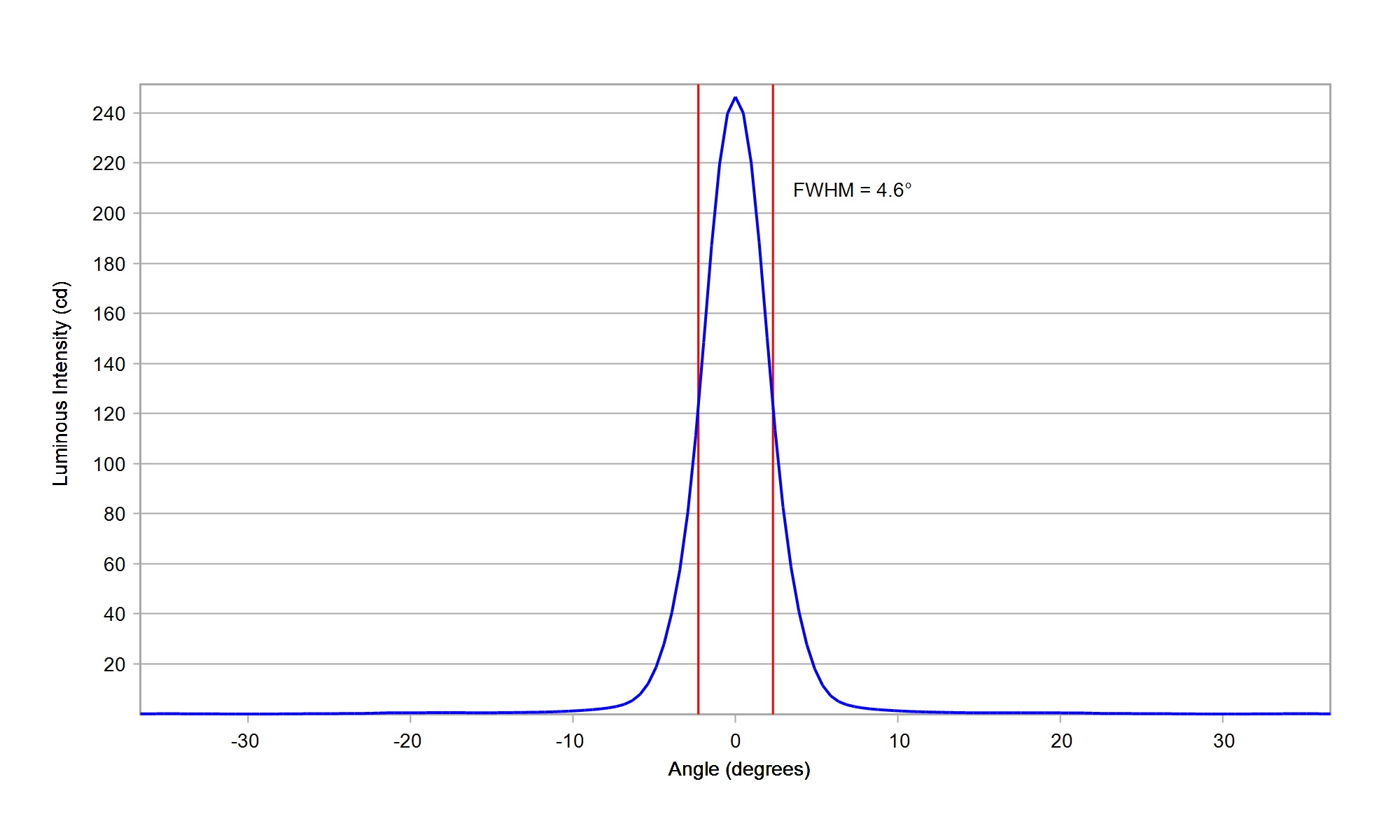

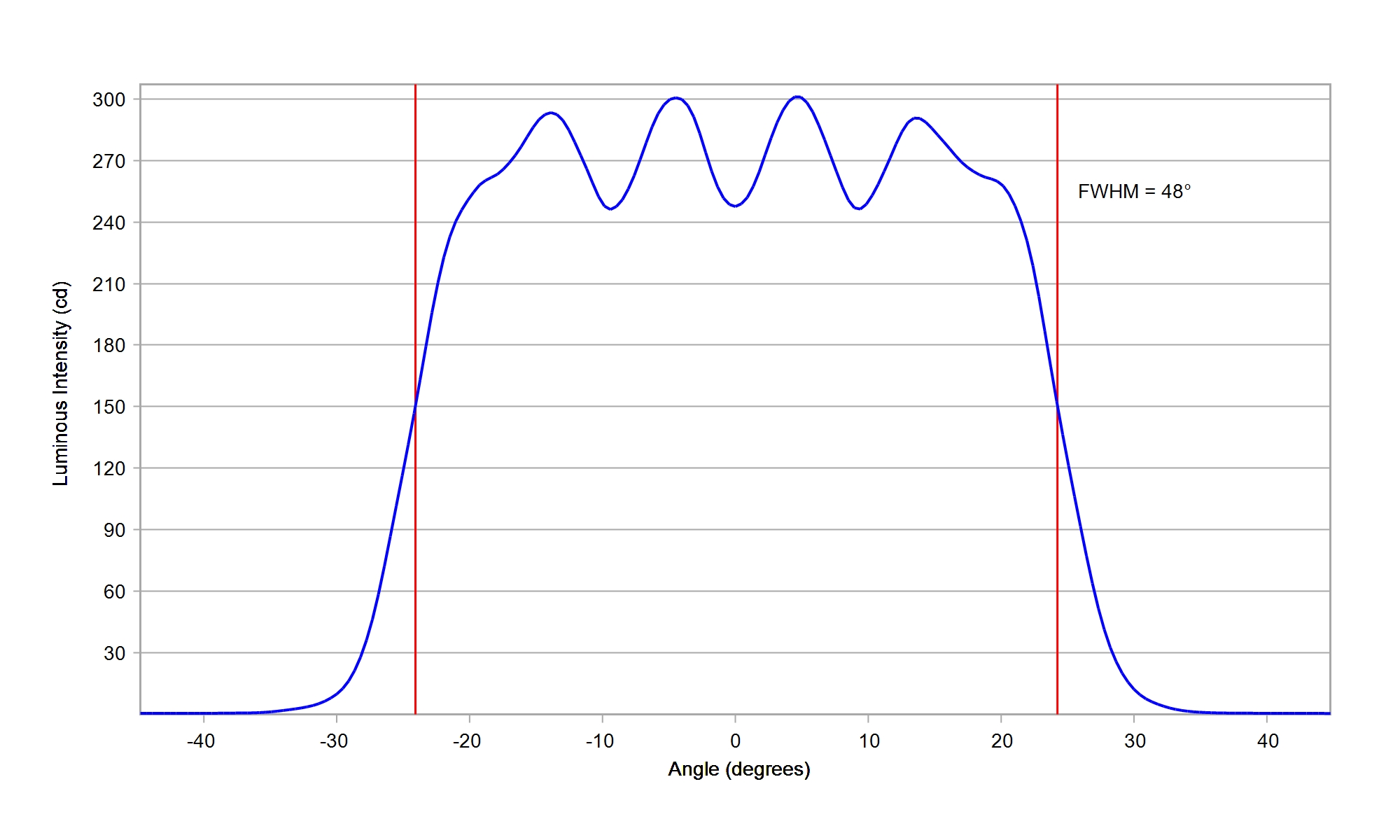

Image 20.0mm Elliptical Ripple Linear TIR LED Lenses Part number 10197 Dimensions 20.0mm Drawing Number 60432 Optic type TIR LED Lenses Finish Ripple Linear Beam type Elliptical Applications Architectural Landscape & Garden Wide Area Downloads PDF IGS Eff 88.0% FWHM 48 x 4.6° Cd/lm 11.7 These results were obtained using holder 10737 Download LDT IES Holder number: 10737 Holder range Universal Fixing type Glue Image Downloads PDF STP
Image 20.0mm Elliptical Ripple Linear TIR LED Lenses Part number 10197 Dimensions 20.0mm Drawing Number 60432 Optic type TIR LED Lenses Finish Ripple Linear Beam type Elliptical Applications Architectural Landscape & Garden Wide Area Downloads PDF IGS
