Optic 10197 Led Cree XLamp XP-G3 White

20.0mm Elliptical Ripple Linear TIR (10197)

Carclo Optics 10197
Part no. 10197
Drawing no.
60432
Family
20mm
Type
TIR
Diameter
20.0
Beam
Elliptical
Finish
Ripple Linear

LEDs & Performances

These results were obtained using Holder 10738
LEDsort descending Performance Data Images IES/STP

Cree XLamp XP-G3 White
Eff: 86
FWHM: 45.9 x 12.7
Cd/lm: 3.6
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Horizontal Cross Section Carclo Optics - Simulated Vertical Cross Section
View

Holders

Holder type Part no. Fixing type Image File(s)

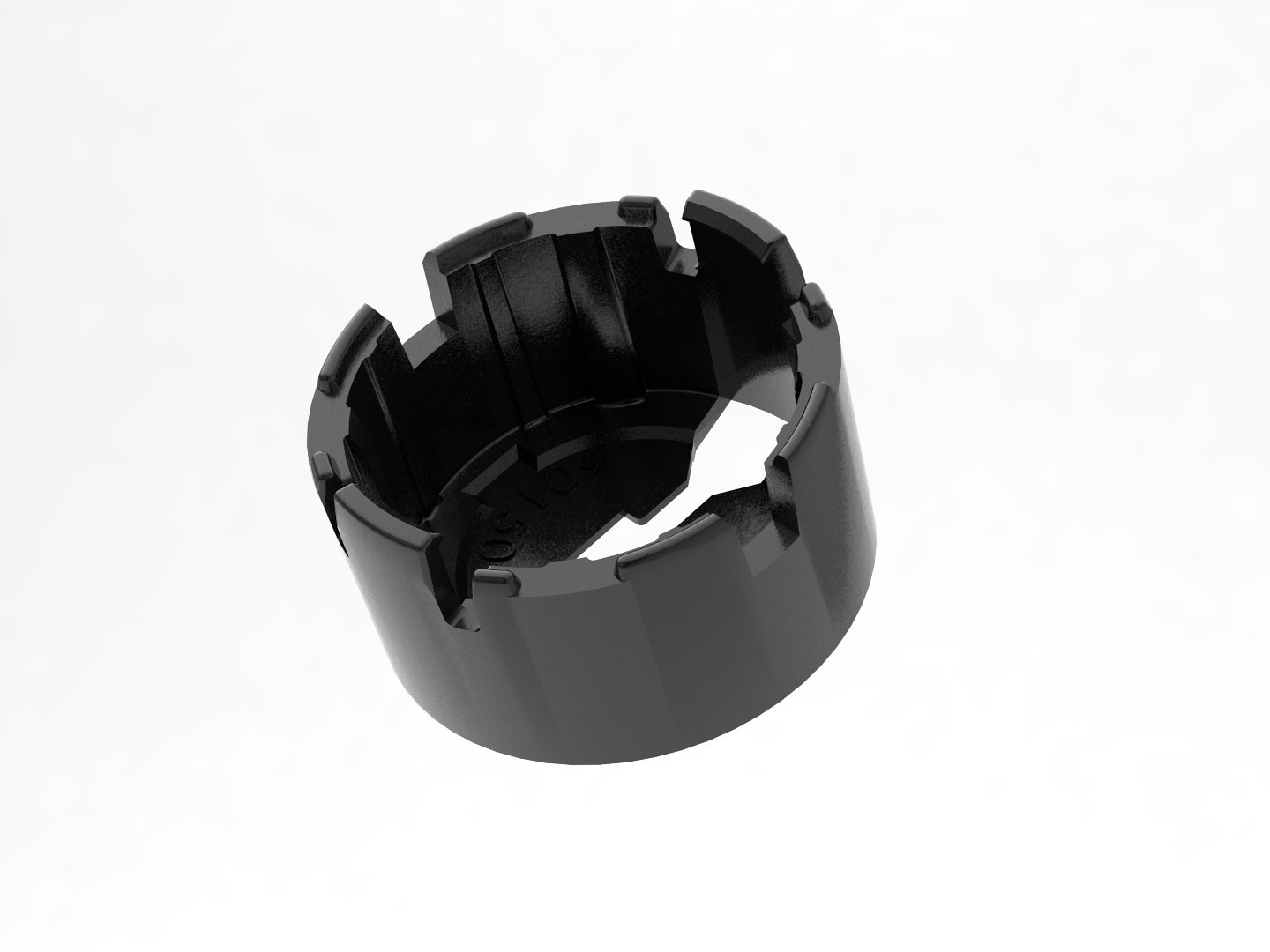

Universal 10734 Glue Carclo Optics Universal Holder
Universal 10738 Glue Carclo Optics Universal Holder
