10193

20.0mm Narrow Spot Plain TIR (10193)

Carclo Optics 10193
Part no. 10193
Drawing no.
60431
Family
20mm
Type
TIR
Diameter
20.0
Beam
Narrow Spot
Finish
Plain
http://www.carclo-optics.com/sites/default/files/images/optics/10193_iss2_150107.igs
http://www.carclo-optics.com/sites/default/files/images/optics/10193-10195_iss3_090109_1.pdf

LEDs & Performances

Select LED to view available holders

Performance Data Images IES/STP
Eff: 88.5
FWHM: 8 x 8
Cd/lm: 28.4 		Carclo Optics - 10193 20mm Spot Image Bridgelux 3030 Gen2
Carclo Optics - 10193 20mm Cross Section Bridgelux 3030 Gen2 		View
Eff: 86.5
FWHM: 9
Cd/lm: 22.9 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 84.5
FWHM: 20
Cd/lm: 5.8 		View
Eff: 86
FWHM: 24
Cd/lm: 3.7 		carclo optics - simulated spot image
carclo optics - simulated cross section 		View
Eff: 88.5
FWHM: 11
Cd/lm: 17.8 		Carclo Optics - 10193 20mm Spot Image Cree XLamp XB-H
Carclo Optics - 10193 20mm Cross Section Cree XLamp XB-H 		View
Eff: 87
FWHM: 26
Cd/lm: 3.4 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 85.9
FWHM: 13
Cd/lm: 12.6 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 85.8
FWHM: 19
Cd/lm: 6.2 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
FWHM: 16
Cd/lm: 10.1
View
Eff: 87.3
FWHM: 8
Cd/lm: 36.3
View
Eff: 87
FWHM: 13
Cd/lm: 11.95 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 86.2
FWHM: 10
Cd/lm: 17.5 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 85.9
FWHM: 16
Cd/lm: 8.4 		carclo optics - simulated spot image
carclo optics - simulated cross section 		View
Eff: 86.5
FWHM: 18
Cd/lm: 6.8 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 87.5
FWHM: 3
Cd/lm: 162 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 87.5
FWHM: 3
Cd/lm: 157.3 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 87.5
FWHM: 4
Cd/lm: 105.3 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 86
FWHM: 3
Cd/lm: 137 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 86
FWHM: 6
Cd/lm: 52.9 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 86
FWHM: 5
Cd/lm: 54.3 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 86.5
FWHM: 5
Cd/lm: 63.1 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 86
FWHM: 5
Cd/lm: 71.9 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 87.5
FWHM: 12
Cd/lm: 15.2 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
FWHM: 11
Cd/lm: 21.1
View
Eff: 91
FWHM: 9
Cd/lm: 27.9 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 84
FWHM: 9
Cd/lm: 22.35 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 85
FWHM: 7
Cd/lm: 25.7 		carclo optics - simulated spot image
carclo optics - simulated cross section 		View
Eff: 86
FWHM: 8
Cd/lm: 21.96 		carclo optics - simulated spot image
carclo optics - simulated cross section 		View
Eff: 88
FWHM: 5
Cd/lm: 42.2 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 88
FWHM: 3 x 3
Cd/lm: 59.1 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 88
FWHM: 3
Cd/lm: 110.2 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 87.5
FWHM: 21
Cd/lm: 5.3 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 83
FWHM: 8
Cd/lm: 25.8 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 85
FWHM: 8
Cd/lm: 27.1 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 82.5
FWHM: 9
Cd/lm: 22.4 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 82.5
FWHM: 14
Cd/lm: 10.3 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 85
FWHM: 7
Cd/lm: 27.8 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 85
FWHM: 10
Cd/lm: 15.92 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 87.5
FWHM: 6
Cd/lm: 67.5 		Carclo Optics 10193 Spot Image Luxeon CZ 5M CW
Carclo Optics 10193 Cross Section Luxeon CZ 5M CW 		View
Eff: 91
FWHM: 7
Cd/lm: 38.5 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 91.5
FWHM: 10
Cd/lm: 26.5 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 89.5
FWHM: 9
Cd/lm: 23.5 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 90.5
FWHM: 9
Cd/lm: 25.5 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 85.7
FWHM: 19
Cd/lm: 6.1 		carclo optics - simulated spot image
carclo optics - simulated cross section 		View
Eff: 84
FWHM: 11
Cd/lm: 14.9 		carclo optics - simulated spot image
carclo optics - simulated cross section 		View
Eff: 85.6
FWHM: 12
Cd/lm: 18.2
View
Eff: 85.6
FWHM: 12
Cd/lm: 18.2
View
Eff: 87.1
FWHM: 9
Cd/lm: 32.5
10193 Cross Section Image 		View
Eff: 85.6
FWHM: 12
Cd/lm: 18.2
View
Eff: 85.8
FWHM: 11
Cd/lm: 16.5 		carclo optics - simulated spot image
carclo optics - simulated cross section 		View
Eff: 85
FWHM: 18
Cd/lm: 6.7 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 87.5
FWHM: 12
Cd/lm: 13.9 		Carclo Optics 10193 Spot Image Luxeon V2
Carclo Optics 10193 Cross Section Image Luxeon V2 		View
Eff: 86
FWHM: 8 		carclo optics - simulated spot image
carclo optics - simulated cross section 		View
Eff: 85.9
FWHM: 5
Cd/lm: 54.2 		carclo optics - simulated spot image
carclo optics - simulated cross section 		View
Eff: 86.5
FWHM: 9
Cd/lm: 30 		Carclo Optics - 10193 Luminus_SST-10_B_B130 - spot image
Carclo Optics - 10193 Luminus_SST-10_B_B130 - cross section image 		View
Eff: 86.5
FWHM: 8
Cd/lm: 28.4 		Carclo Optics - 10193 Luminus_SST-10_B_B90 - spot - image
Carclo Optics - 10193 Luminus_SST-10_B_B90 - cross section image 		View
Eff: 88
FWHM: 9
Cd/lm: 30.8 		Carclo Optics - 10193 Luminus_SST-10_G_B130 - spot - image
Carclo Optics - 10193 Luminus_SST-10_G_B130 - cross - section- image 		View
Eff: 85.5
FWHM: 19
Cd/lm: 6.6 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 87.5
FWHM: 11
Cd/lm: 18.2 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 87.5
FWHM: 11
Cd/lm: 18.2 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 88
FWHM: 12
Cd/lm: 16.8 		Carclo Optics 10193 20mm Simulated Spot Image Nichia 757G-MT
Carclo Optics 10193 20mm Simulated cross section Nichia 757G-MT 		View
Eff: 87
FWHM: 8
Cd/lm: 34 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 87.5
FWHM: 12
Cd/lm: 14.3 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 85.5
FWHM: 9
Cd/lm: 23.1 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 86
FWHM: 13
Cd/lm: 12.5 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 86
FWHM: 16
Cd/lm: 9.5 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 84
FWHM: 10
Cd/lm: 20.66 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View

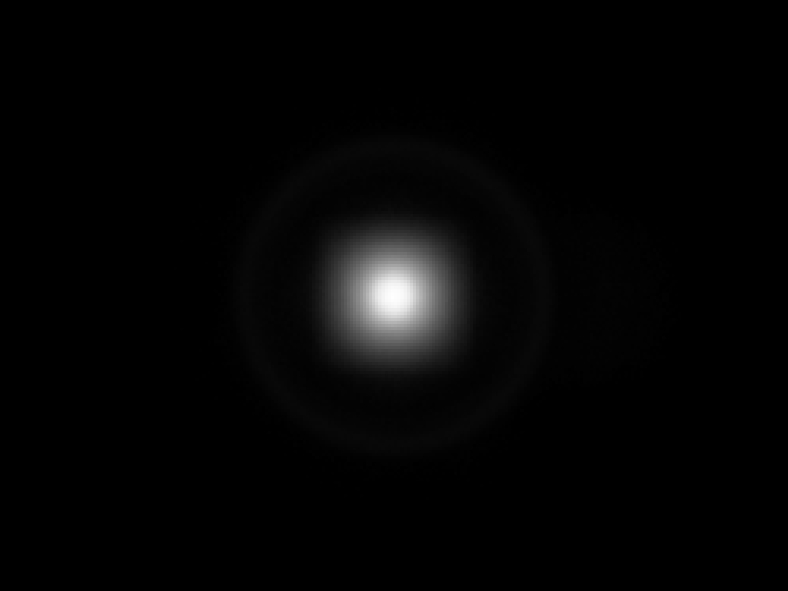

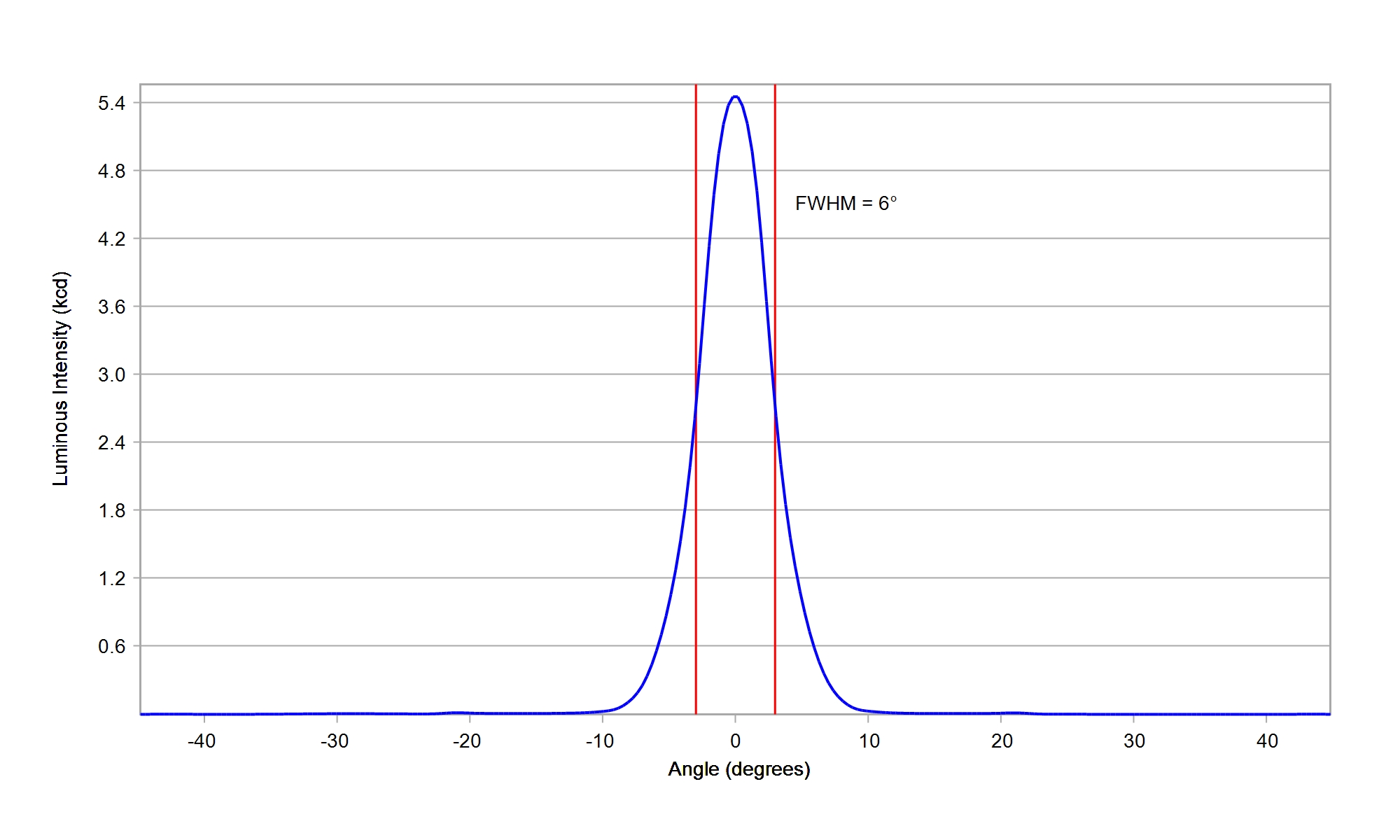

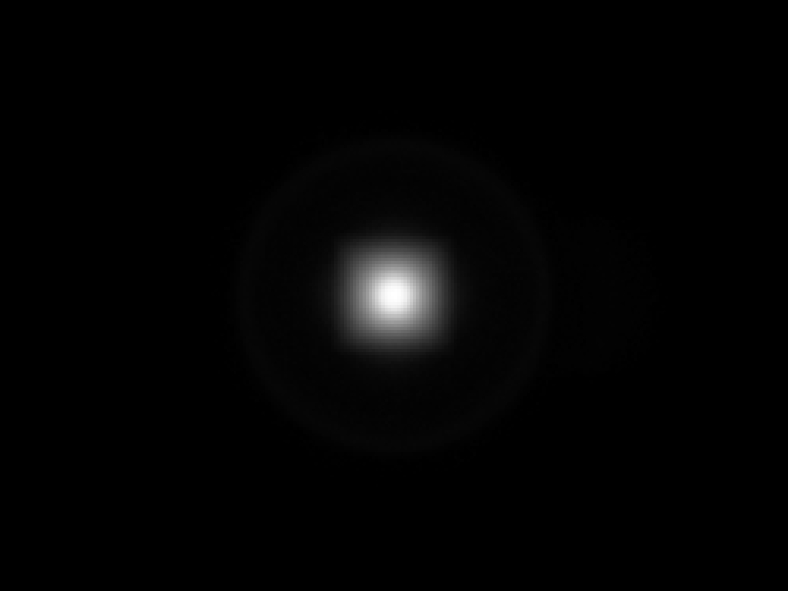

Eff: 86.9
FWHM: 10
Cd/lm: 12.1
View

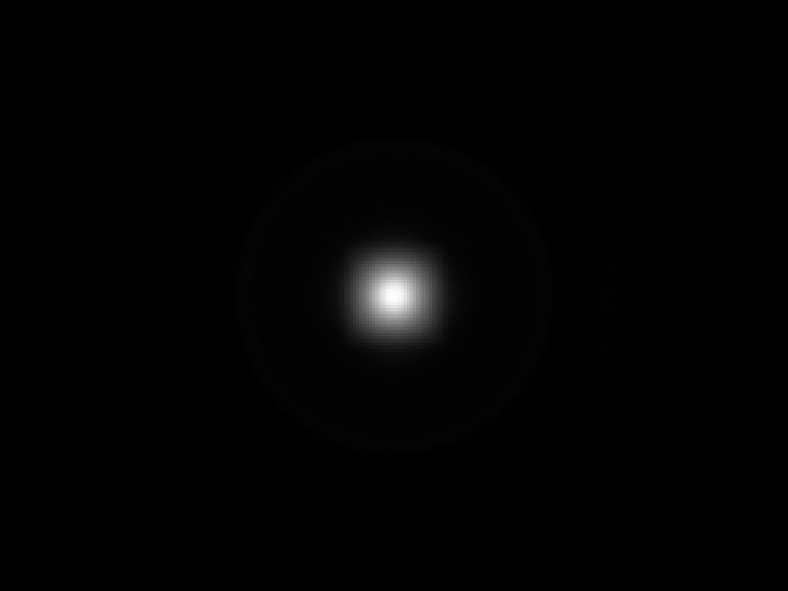

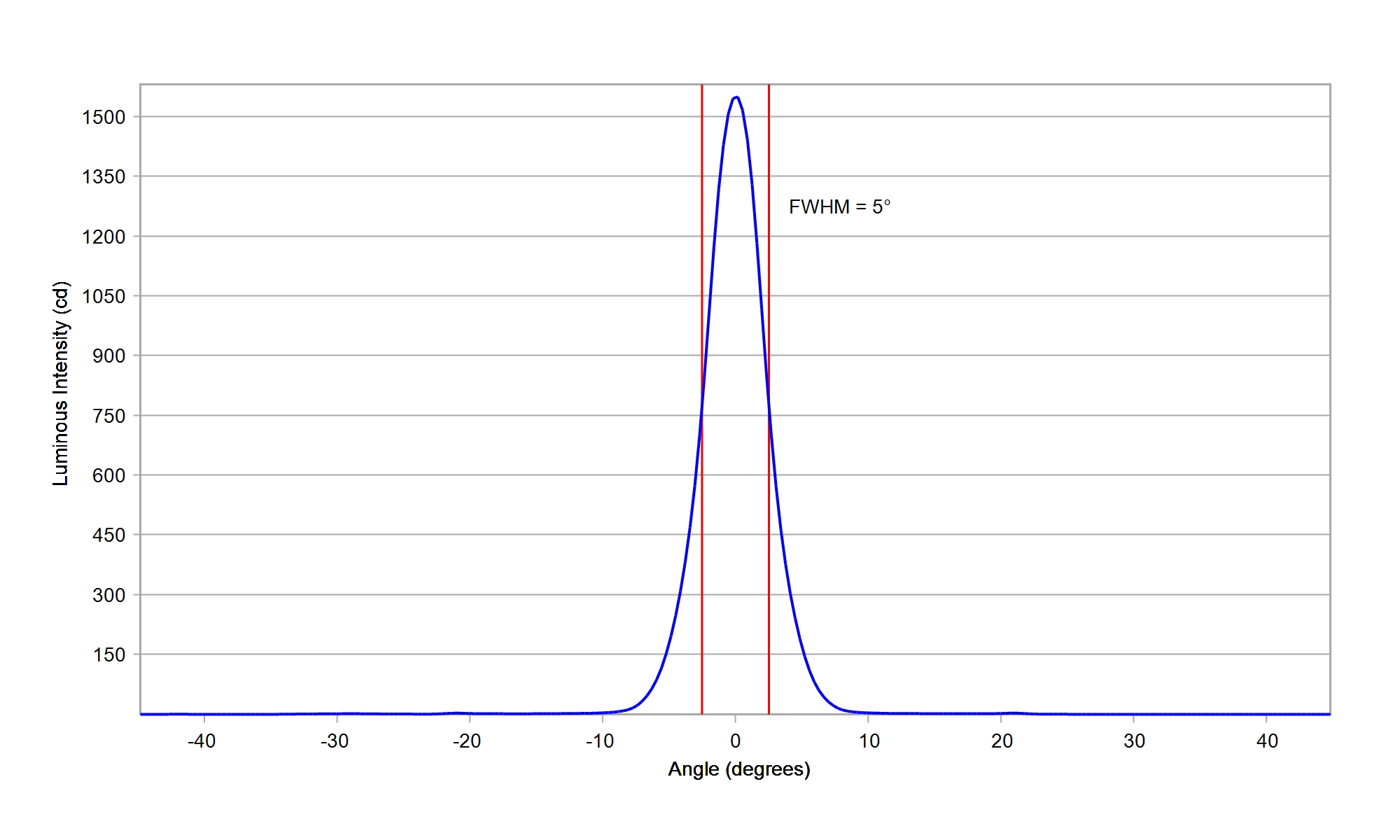

Eff: 88.6
FWHM: 5
Cd/lm: 41.4
View

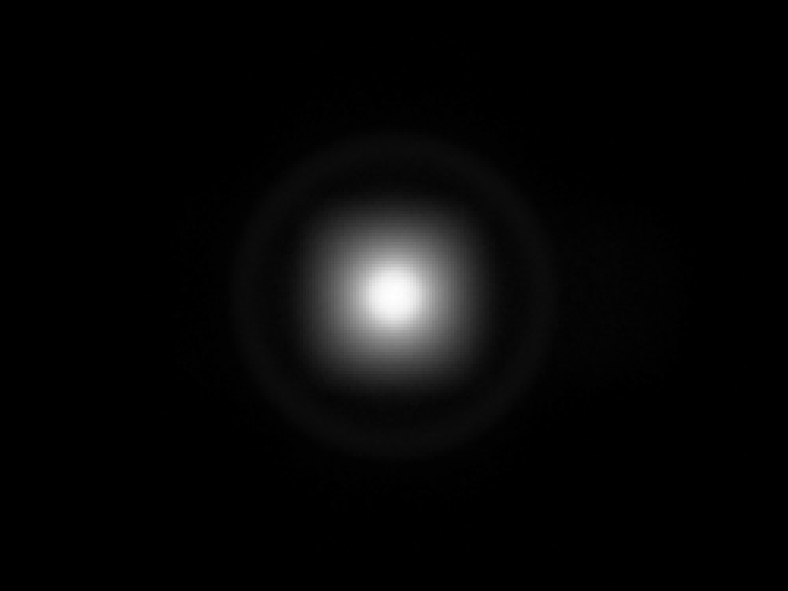

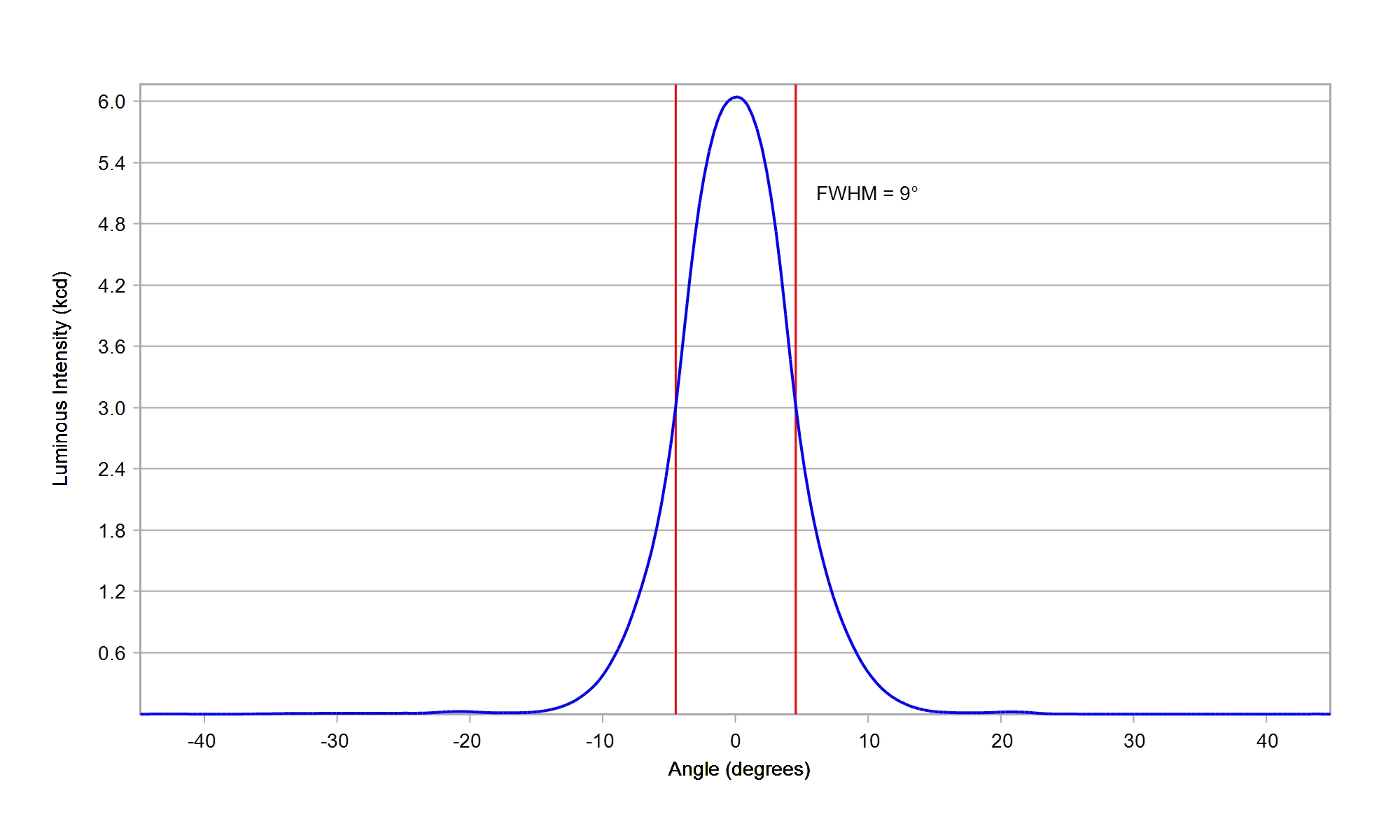

Eff: 89.3
FWHM: 9
Cd/lm: 23.1
View
Eff: 87.5
FWHM: 8
Cd/lm: 30.6 		Carclo Optics - 10193 20mm Spot Image Osram DURIS E 2835 Gen2
Carclo Optics - 10193 20mm Vertical Cross Section Osram DURIS E 2835 Gen2 		View
Eff: 87.5
FWHM: 8
Cd/lm: 25.6 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 86
FWHM: 4
Cd/lm: 51.67 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 84
FWHM: 18
Cd/lm: 4.16 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 89.2
FWHM: 4
Cd/lm: 41.7 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 85.9
FWHM: 10
Cd/lm: 18 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 90.7
FWHM: 8
Cd/lm: 23.1 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 88
FWHM: 9
Cd/lm: 24.4 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 88.5
FWHM: 8
Cd/lm: 29.5 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 86
FWHM: 9
Cd/lm: 20.34 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 90
FWHM: 5
Cd/lm: 30
View
Eff: 85.5
FWHM: 15
Cd/lm: 8.8 		Carclo Optics 10193 Spot Image Osram Osconiq
Carclo Optics 10193 Cross Section Osram Osconiq P3737 		View
Eff: 92.5
FWHM: 10 x 9
Cd/lm: 23.4 		Carclo Optics 10193 Spot Image Osram Oslon Black_IR_SFH_4725S
Carclo Optics 10193 Cross Section Horizontal Image Osram Oslon Black_IR_SFH_4725S 		View
Eff: 87.5
FWHM: 5 x 5
Cd/lm: 82.6 		Carclo Optics - 10193 Spot Image Oslon Pure GW VJLPE1
Carclo Optics - 10193 Cross Section Image Oslon Pure GW VJLPE1 		View
Eff: 87.5
FWHM: 8
Cd/lm: 31.3 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 85.9
FWHM: 10
Cd/lm: 18.3 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 87.5
FWHM: 11
Cd/lm: 16.4 		Carclo Optics - 101932 20mm Spot Image Oslon Square Gen 5
Carclo Optics - 10193 20mm Vertical Cross Section Oslon Square Gen 5 		View
Eff: 85
FWHM: 10
Cd/lm: 18.27 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 86
FWHM: 6
Cd/lm: 36
View
Eff: 86
FWHM: 13
Cd/lm: 13.45 		carclo optics - simulated spot image
carclo optics - simulated cross section 		View
Eff: 88
FWHM: 18
Cd/lm: 7.5 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 85.5
FWHM: 10
Cd/lm: 20.31 		carclo optics - simulated spot image
carclo optics - simulated cross section 		View
Eff: 88.5
FWHM: 11 x 11
Cd/lm: 16.4 		Carclo Optics -10193 Sport Image - Samsung LH181B 4000K
Carclo Optics -10193 Cross Section - Samsung LH 81B 4000K 		View
Eff: 87.5
FWHM: 13
Cd/lm: 11.7 		Carclo Optics -10193 Spot Image - Samsung LH231B 5000KL
Carclo Optics -10193 Cross Section - Samsung LH231B 5000K 		View
Eff: 87.5
FWHM: 7
Cd/lm: 38.8 		Carclo Optics -10193 Sport Image - Samsung LM101B 5000K
Carclo Optics -10193 Cross Section - Samsung LM101B 5000K 		View
Eff: 88.3
FWHM: 12
Cd/lm: 9.9
View
Eff: 87
FWHM: 14
Cd/lm: 11.7 		Carclo Optics -10193 Spot Image - Seoul SZ8Y22
Carclo Optics -10193 Cross Section Image - Seoul SZ8Y22 		View
Eff: 86
FWHM: 13
Cd/lm: 11.4 		Carclo Optics - 10193 Spot Image - Seoul SZ8Y22P
Carclo Optics -10193 Cross Section Image - Seoul SZ8Y22P 		View
Eff: 86
FWHM: 8
Cd/lm: 20.7 		carclo optics - simulated spot image
carclo optics - simulated cross section 		View
Eff: 87
FWHM: 12
Cd/lm: 9.8 		carclo optics - simulated spot image
carclo optics - simulated cross section 		View
Eff: 85.19
FWHM: 18
Cd/lm: 6.65 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section Image 		View
Eff: 88
FWHM: 9
Cd/lm: 20 		Carclo Optics - 10193 20mm Spot Image Seoul Sunlike 3030
Carclo Optics - 10193 20mm Cross Section Seoul Sunlike 3030 		View
Eff: 87
FWHM: 12
Cd/lm: 12.9 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 85
FWHM: 11
Cd/lm: 15.77 		carclo optics - simulated spot image
carclo optics - simulated cross section 		View
Eff: 87.5
FWHM: 21
Cd/lm: 5.9
View
Eff: 86
FWHM: 11
Cd/lm: 15.3 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
Eff: 86
FWHM: 12
Cd/lm: 14.7 		Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section 		View
