Carclo Optics 12752
15.0mm Linear Plain Side Emitter Strip
Part number
12752 (300mm)
Dimensions
15.0mm
Drawing Number
70239
Optic type
Side Emitter Strip
Finish
Plain
Beam type
Linear
Applications
Architectural
Industrial
Landscape & Garden
Horticultural
Retail
Downloads

LEDs and Performances

Select and filter based on manufacturer(s)
Bridgelux SMD 3030 Gen2 White
Eff:
77.0%
FWHM:
161°
Cd/Im:
0.8
Download
Cree JB3030 3V White
Eff:
76.5%
FWHM:
165 x 99°
Cd/Im:
0.5
Download
Cree JK2835 6V White
Eff:
75.5%
FWHM:
166 x 87°
Cd/Im:
0.6
Download
Cree XLamp XB-H White
Eff:
72.5%
FWHM:
177°
Cd/Im:
0.5
Download
Cree XLamp XE-G White
Eff:
73.0%
FWHM:
172 x 88°
Cd/Im:
0.7
Download
Cree XLamp XH-B White
Eff:
64.0%
FWHM:
176°
Cd/Im:
0.4
Download
Cree XLamp XP-E2 White
Eff:
73.5%
FWHM:
175 x 88°
Cd/Im:
0.7
Download
Cree XLamp XP-P White
Eff:
76.0%
FWHM:
167 x 88°
Cd/Im:
0.9
Download
LUMILEDS LUXEON 3030 HE Plus White
Eff:
75.5%
FWHM:
168 x 82°
Cd/Im:
0.5
Download
LUMILEDS LUXEON 3030 LUXEON White
Eff:
68.0%
FWHM:
164°
Cd/Im:
0.5
Download
LUMILEDS LUXEON 3535 L White
Eff:
69.4%
FWHM:
166°
Cd/Im:
0.6
Download
LUMILEDS LUXEON 3535L Blue
Eff:
73.0%
FWHM:
169°
Cd/Im:
0.6
Download
LUMILEDS LUXEON 3535L Green
Eff:
73.5%
FWHM:
167°
Cd/Im:
0.7
Download
LUMILEDS LUXEON 3535L Red
Eff:
75.0%
FWHM:
163°
Cd/Im:
0.8
Download
LUMILEDS LUXEON 5630 White
Eff:
68.7%
FWHM:
166°
Cd/Im:
0.5
Download
LUMILEDS LUXEON CSP 05 White
Eff:
71.0%
FWHM:
156°
Cd/Im:
0.5
Download
LUMILEDS LUXEON CZ White
Eff:
77.0%
FWHM:
165°
Cd/Im:
0.9
Download
LUMILEDS LUXEON HL1Z CSP White
Eff:
77.5%
FWHM:
158 x 107°
Cd/Im:
0.8
Download
LUMILEDS LUXEON HL2X White
Eff:
70.5%
FWHM:
178 x 96°
Cd/Im:
0.4
Download
LUMILEDS LUXEON HL2X-P White
Eff:
70.5%
FWHM:
178 x 98°
Cd/Im:
0.4
Download
LUMILEDS LUXEON HL2Z White
Eff:
76.0%
FWHM:
163 x 87°
Cd/Im:
0.6
Download
LUMILEDS LUXEON IR 2720
Eff:
79.5%
FWHM:
161°
Ipk/W:
0.8
Download
LUMILEDS LUXEON Rubix Blue
Eff:
75.5%
FWHM:
167 x 89°
Cd/Im:
0.9
Download

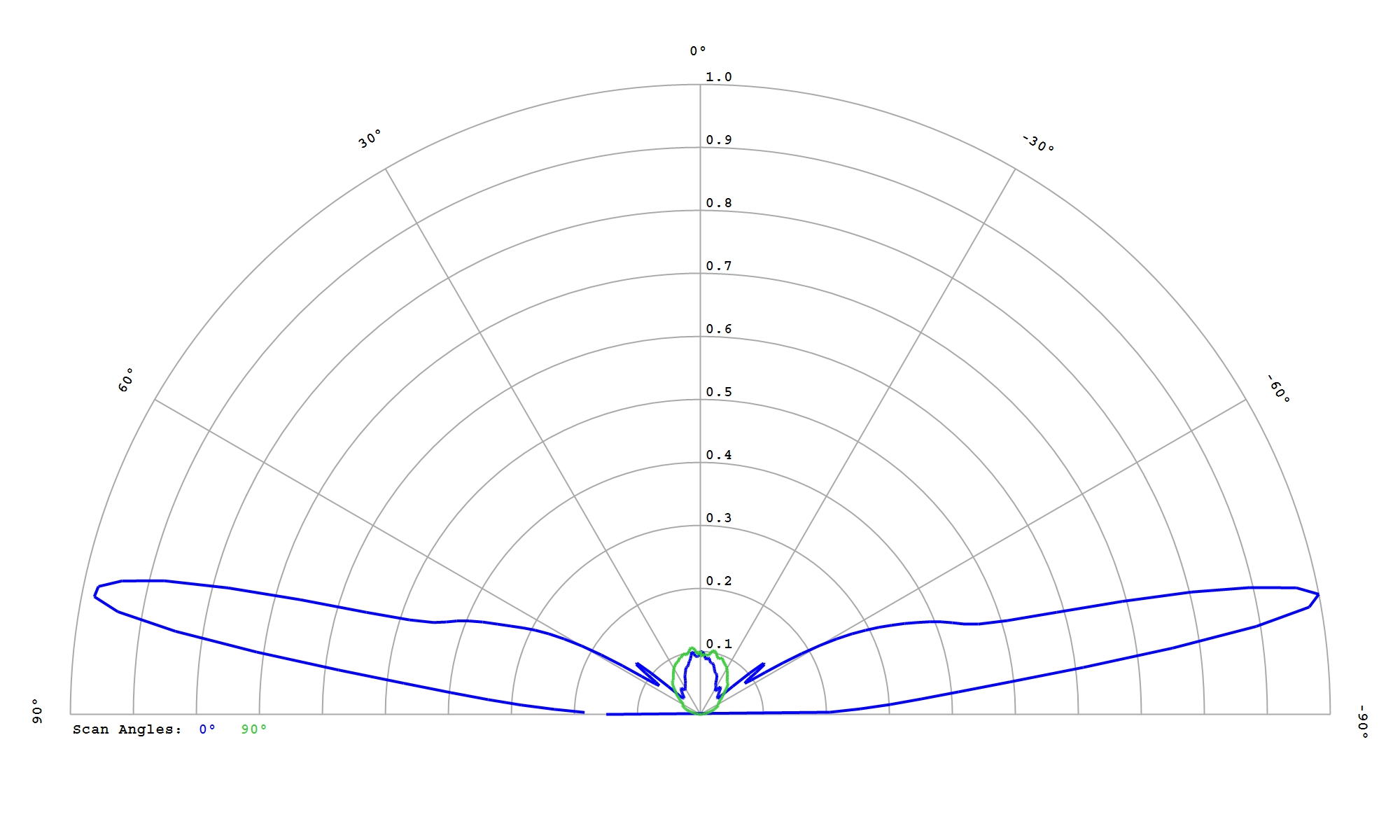

LUMILEDS LUXEON Rubix Green
Eff:
76.0%
FWHM:
167 x 92°
Cd/Im:
0.9
Download
LUMILEDS LUXEON Rubix Red
Eff:
77.5%
FWHM:
167 x 89°
Cd/Im:
0.9
Download
LUMILEDS LUXEON Rubix Royal Blue
Eff:
75.0%
FWHM:
167 x 80°
Cd/Im:
0.9
Download
LUMILEDS LUXEON Rubix White
Eff:
76.0%
FWHM:
167 x 95°
Cd/Im:
0.8
Download
LUMILEDS LUXEON Z White
Eff:
71.5%
FWHM:
157°
Cd/Im:
0.9
Download
Luminus Devices SST 10-B-B130 Blue
Eff:
74.0%
FWHM:
165 x 81°
Cd/Im:
0.8
Download
Luminus Devices SST 10-B-B90 Blue
Eff:
73.5%
FWHM:
164 x 75°
Cd/Im:
0.8
Download
Luminus Devices SST 10-DR-B90 Deep Red
Eff:
76.0%
FWHM:
168 x 74°
Cd/Im:
0.7
Download
Luminus Devices SST 10-G-B130 Green
Eff:
76.0%
FWHM:
165 x 80°
Cd/Im:
0.8
Download
Luminus Devices SST 10-G-B90 Green
Eff:
75.5%
FWHM:
162 x 70°
Cd/Im:
0.8
Download
Luminus Devices SST 10-IR-B130 940nm
Eff:
78.5%
FWHM:
169 x 93°
Ipk/W:
0.6
Download
Luminus Devices SST 10-IR-B90 940nm
Eff:
78.0%
FWHM:
164 x 76°
Ipk/W:
0.7
Download
Luminus Devices SST 10-IRD-B130 810nm
Eff:
79.0%
FWHM:
167 x 92°
Ipk/W:
0.7
Download
Luminus Devices SST 10-IRD-B90 810nm
Eff:
78.5%
FWHM:
164 x 76°
Ipk/W:
0.7
Download
Luminus Devices SST 20-WxH White Hi CRI
Eff:
75.5%
FWHM:
168 x 84°
Cd/Im:
0.6
Download
Luminus Devices SST-12-WxS White
Eff:
74.0%
FWHM:
170 x 90°
Cd/Im:
0.7
Download
Nichia 757G White
Eff:
76.0%
FWHM:
163°
Cd/Im:
0.6
Download
Nichia NCSW CSP E17A White
Eff:
77.0%
FWHM:
157°
Cd/Im:
0.7
Download
Nichia NF2W 757G-MT Tunable
Eff:
75.0%
FWHM:
168 x 86°
Cd/Im:
0.6
Download
Nichia NFSW CSP E11A White
Eff:
77.0%
FWHM:
154 x 109°
Cd/Im:
0.9
Download
Nichia NVSW 219F White
Eff:
70.5%
FWHM:
177 x 95°
Cd/Im:
0.4
Download
Nichia NVSW CSP E21A White
Eff:
68.0%
FWHM:
159°
Cd/Im:
0.6
Download
Osram OS DURIS E 2835 Gen2
Eff:
76.5%
FWHM:
163 x 94°
Cd/Im:
0.7
Download
Osram OS DURIS E 2835 White
Eff:
75.0%
FWHM:
169°
Cd/Im:
0.6
Download
Osram OS DURIS E2 White
Eff:
71.0%
FWHM:
157°
Cd/Im:
0.8
Download
Osram OS DURIS S2 White
Eff:
74.2%
FWHM:
128°
Cd/Im:
0.6
Download
Osram OS OSCONIQ C 2424 White
Eff:
76.5%
FWHM:
164 x 90°
Cd/Im:
0.7
Download
Osram OS OSLON Black SFH 4716AS IR
Eff:
78.0%
FWHM:
162 x 110°
Ipk/W:
0.7
Download
Osram OS OSLON Black SFH 4725S IR
Eff:
79.5%
FWHM:
161°
Cd/Im:
0.7
Download
Osram OS OSLON Boost HM KW CELMM1.TG
Eff:
77.5%
FWHM:
164 x 85°
Cd/Im:
1.0
Download

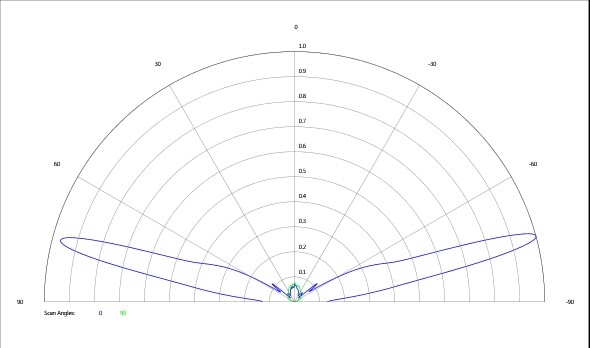

Osram OS OSLON Ceramos CSP Gen 5 White
Eff:
71.8%
FWHM:
159°
Cd/Im:
0.9
Download
Osram OS OSLON Pure 1010 CSP GC VJLPE1.13 Cyan
Eff:
78.0%
FWHM:
153 x 105°
Cd/Im:
0.9
Download
Osram OS OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue
Eff:
76.5%
FWHM:
154 x 102°
Ipk/W:
0.9
Download
Osram OS OSLON Pure 1010 CSP GG VJLPE1.F3 Green
Eff:
78.0%
FWHM:
153 x 70°
Cd/Im:
0.9
Download
Osram OS OSLON Pure 1010 CSP GR VJLPE1.F3 Red
Eff:
77.5%
FWHM:
154 x 120°
Cd/Im:
0.8
Download
Osram OS OSLON Pure 1010 CSP GT VJLPE1.13 True Green
Eff:
78.0%
FWHM:
152 x 105°
Cd/Im:
0.9
Download
Osram OS OSLON Pure 1010 CSP GW VJLPE1.CM White
Eff:
77.5%
FWHM:
153 x 109°
Cd/Im:
0.9
Download
Osram OS OSLON Square Gen 5 GW CSSRM3
Eff:
72.5%
FWHM:
174°
Cd/Im:
0.5
Download

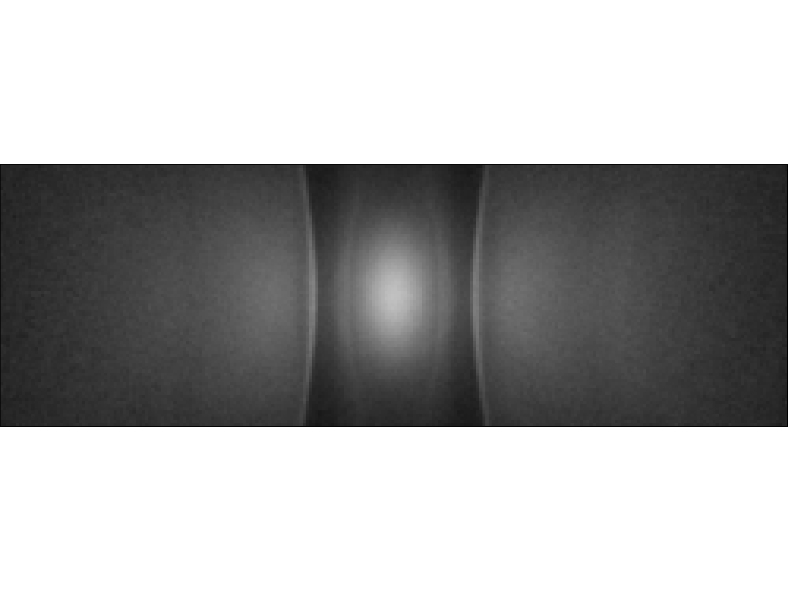

Osram OS OSLON SSL 150 degree GW CSHPM1.PM White
Eff:
74.0%
FWHM:
172 x 95°
Cd/Im:
0.7
Download
Samsung 3030 LM301B White
Eff:
75.5%
FWHM:
167 x 89°
Cd/Im:
0.6
Download
Samsung CSP LH151B White
Eff:
77.5%
FWHM:
157 x 67°
Cd/Im:
0.8
Download
Samsung CSP LH181B White
Eff:
77.0%
FWHM:
163°
Cd/Im:
0.6
Download
Samsung CSP LH231B White
Eff:
77.0%
FWHM:
165°
Cd/Im:
0.5
Download
Samsung CSP LM101B White
Eff:
77.5%
FWHM:
157°
Cd/Im:
0.7
Download
Seoul CSP SZ8Y11 White
Eff:
75.5%
FWHM:
158°
Cd/Im:
0.6
Download
Seoul CSP SZ8Y15 White
Eff:
67.0%
FWHM:
159°
Cd/Im:
0.4
Download
Seoul CSP SZ8Y22 White
Eff:
76.0%
FWHM:
165°
Cd/Im:
0.4
Download
Seoul CSP SZ8Y22P White
Eff:
73.0%
FWHM:
173°
Cd/Im:
0.4
Download
Seoul MidPower 5630 STW8Q14C White
Eff:
69.8%
FWHM:
164°
Cd/Im:
0.6
Download

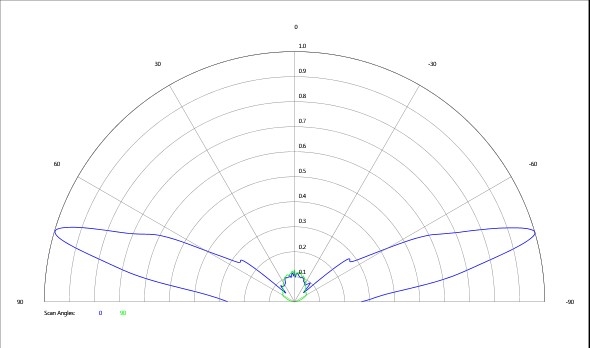

Seoul STW8 C2SB-NT White
Eff:
75.5%
FWHM:
167 x 92°
Cd/Im:
0.6
Download
Seoul STWS C2PB-E0 White
Eff:
76.0%
FWHM:
166 x 86°
Cd/Im:
0.6
Download
Seoul SunLike STW9 C2SB-S
Eff:
76.0%
FWHM:
165 x 82°
Cd/Im:
0.7
Download
Stanley 6J White
Eff:
64.0%
FWHM:
180°
Cd/Im:
0.3
Download
