36.0mm Wide Spot Diffuse Reflector
Part number
12526
Dimensions
36.0mm
Drawing Number
70025
Optic type
Reflector
Finish
Diffuse
Beam type
Wide Spot
Applications
Retail
UV-C Lighting
Special order only. Please contact us for further information.
Downloads
PDF
STP

LEDs and Performances

Select and filter based on manufacturer(s)
Cree XLamp XM-L White
FWHM:
78°
Cd/Im:
0.8
Download
Details
LUMILEDS LUXEON M White
FWHM:
75.6°
Cd/Im:
0.8
Download
Details
Luminus Devices XBT 1313 UV Gen2
Eff:
82.2%
FWHM:
67°
Ipk/W:
0.9
Download
Details
Luminus Devices XBT 3535 UV
Eff:
84.3%
FWHM:
69°
Ipk/W:
0.8
Download
Details
Osram OS OSLON UV 3636 SU CULBN1.VC
Eff:
84.6%
FWHM:
72°
Ipk/W:
0.7
Download
Details
Osram OS OSLON UV 3636 SU CULCN1.VC
Eff:
85.3%
FWHM:
74°
Ipk/W:
0.6
Download
Details

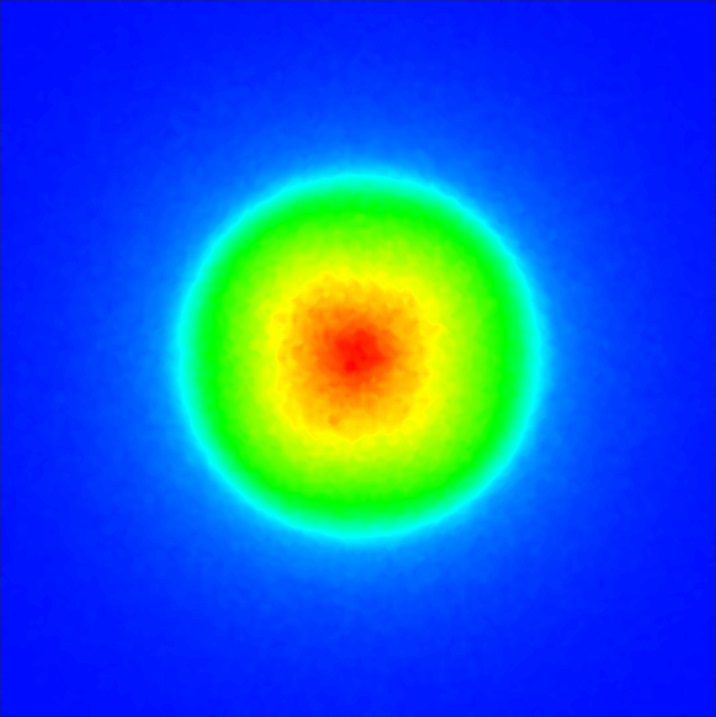

Osram OS OSLON UV 3636 SU CULDN1.VC
Eff:
85.1%
FWHM:
74°
Ipk/W:
0.7
Download
Details
Samsung UV 351A
Eff:
85.8%
FWHM:
74°
Ipk/W:
0.7
Download
Details
Samsung UV 352B
Eff:
85.5%
FWHM:
74°
Ipk/W:
0.7
Download
Details
Samsung UV 353B
Eff:
86.1%
FWHM:
75°
Ipk/W:
0.7
Download
Details
Seoul UV CA3535 CUD7GF1B
Eff:
84.7%
FWHM:
71°
Ipk/W:
0.8
Download
Details
