30.0mm Elliptical Ripple Linear TIR LED Lenses

Part number

10759

Dimensions

30.0mm

Drawing Number

60580

Optic type

TIR LED Lenses

Finish

Ripple Linear

Beam type

Elliptical

Applications

Architectural

Landscape & Garden

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux Micro SM4 White

FWHM:

46.8 X 18.6°

Cd/Im:

3.1

Download

ies

Bridgelux SMD 3030 Gen2 White

Eff:

85.0%

FWHM:

49 x 6.4°

Cd/Im:

7.4

Carclo Optics - 10759 30mm Spot Image Bridgelux 3030 Gen2

Carclo Optics - 10759 30mm Horizontal Cross Section Bridgelux 3030 Gen2

,

Carclo Optics - 10759 30mm Vertical Cross Section Bridgelux 3030 Gen2

Download

IES

Citizen CITILED CL-L020 White

Eff:

80.0%

FWHM:

42.9x23.5°

Cd/Im:

1.7

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

Citizen CITILED CL-L022 White

Eff:

80.1%

FWHM:

42.8x24.3°

Cd/Im:

1.6

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

Citizen CITILED COB CLU7A2 White

Eff:

78.0%

FWHM:

45 X 14°

Cd/Im:

3.2

Interconnect: 6120.50 BJB 47.319.

optic-10759-Citizen_CITILED COB_CLU7A2-spot-image.jpg

optic-10759-Citizen_CITILED COB_CLU7A2-cross-section-image-horizontal.jpg

,

optic-10759-Citizen_CITILED COB_CLU7A2-cross-section-image-vertical.jpg

Download

IES

Citizen CITILED COB CLU7A2 White

Eff:

80.0%

FWHM:

45 x 14°

Cd/Im:

3.2


,


Download

IES

Citizen CITILED COB CLU7B2 White

Eff:

79.5%

FWHM:

46 x 11.5°

Cd/Im:

4.0

Carclo Optics – 10759 – Citizen_Citiled COB_CLU7B2_spot-image

Carclo Optics – 10759 Horizontal – Citizen_Citiled COB_CLU7B2_cross section

,

Carclo Optics – 10759 Vertical – Citizen_Citiled COB_CLU7B2_cross section

Download

IES

Cree JB3030 3V White

Eff:

84.5%

FWHM:

48 x 7.9°

Cd/Im:

5.9

Carclo Optics - 10759 Spot Image Cree JB3030 3V White

Carclo Optics - 10759 Horizontal Cross Section Cree JB3030 3V White

,

Carclo Optics - 10759 Vertical Cross Section Cree JB3030 3V White

Download

IES

Cree JK2835 6V White

Eff:

84.5%

FWHM:

48 x 7.5°

Cd/Im:

6.4


,


Download

IES

Cree JQ5050 9V White

Eff:

85.0%

FWHM:

45 x 14.5°

Cd/Im:

3.5

Carclo Optics - 10759 Spot Image Cree JQ5050 9V White

Carclo Optics - 10759 Horizontal Cross Section Cree JQ5050 9V White

,

Carclo Optics - 10759 Vertical Cross Section Cree JQ5050 9V White

Download

IES

Cree JR5050 24V White

Eff:

85.0%

FWHM:

45 x 14°

Cd/Im:

3.6

Carclo Optics - 10759 Spot Image Cree JR5050 24V White

Carclo Optics - 10759 Horizontal Cross Section Cree JR5050 24V White

,

Carclo Optics - 10759 Vertical Cross Section Cree JR5050 24V White

Download

IES

Cree JR5050 36V White

Eff:

84.5%

FWHM:

46 x 12.5°

Cd/Im:

3.9

Carclo Optics - 10759 Spot Image Cree JR5050 36V White

Carclo Optics - 10759 Horizontal Cross Section Cree JR5050 36V White

,

Carclo Optics - 10759 Vertical Cross Section Cree JR5050 36V White

Download

IES

Cree JR5050 6V White

Eff:

84.5%

FWHM:

45 x 14°

Cd/Im:

3.6

Carclo Optics - 10759 Vertical Cross Section Cree JR5050 6V White

Carclo Optics - 10759 Horizontal Cross Section Cree JR5050 6V White

,

Carclo Optics - 10759 Vertical Cross Section Cree JR5050 6V White

Download

IES

Cree JR5050C 6V E-Class White

Eff:

84.5%

FWHM:

46 x 13.5°

Cd/Im:

3.7


,


Download

IES

Cree XLamp CHA0304 White

Eff:

82.5%

FWHM:

47 x 11°

Cd/Im:

4.5


,


Download

IES

Cree XLamp CHA0410 White

Eff:

82.0%

FWHM:

45 x 14.5°

Cd/Im:

3.5


,


Download

IES

Cree XLamp CHA0612 White

Eff:

80.5%

FWHM:

43 x 19°

Cd/Im:

2.6


,


Download

IES

Cree XLamp CMA1303 White

Eff:

81.5%

FWHM:

45 x 14°

Cd/Im:

3.5

Carclo Optics – 10759 – Cree_Xlamp_CMA 1303_spot-image

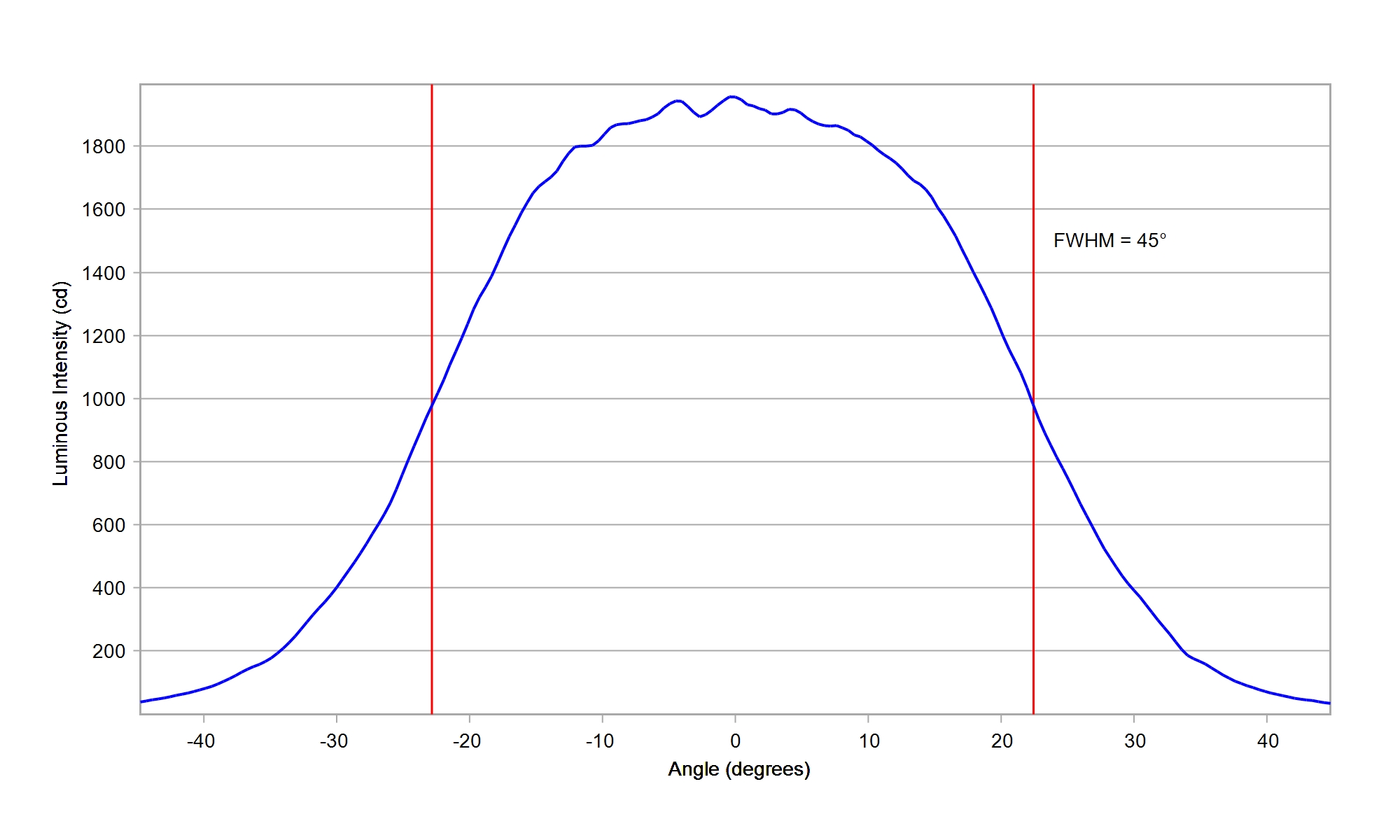

Carclo Optics – 10759 Horizontal – Cree_Xlamp_CMA 1303_cross vertical section

,

Carclo Optics – 10759 Vertical – Cree_Xlamp_CMA 1303_cross vertical section

Download

IES

Cree XLamp CMB1304 White

Eff:

79.0%

FWHM:

43 x 18.5°

Cd/Im:

2.6


,


Download

IES

Cree XLamp CMB1306 White

Eff:

79.0%

FWHM:

43 x 19°

Cd/Im:

2.5


,


Download

IES

Cree XLamp CMU1003 White

Eff:

74.0%

FWHM:

43 x 25.5°

Cd/Im:

1.5


,


Download

IES

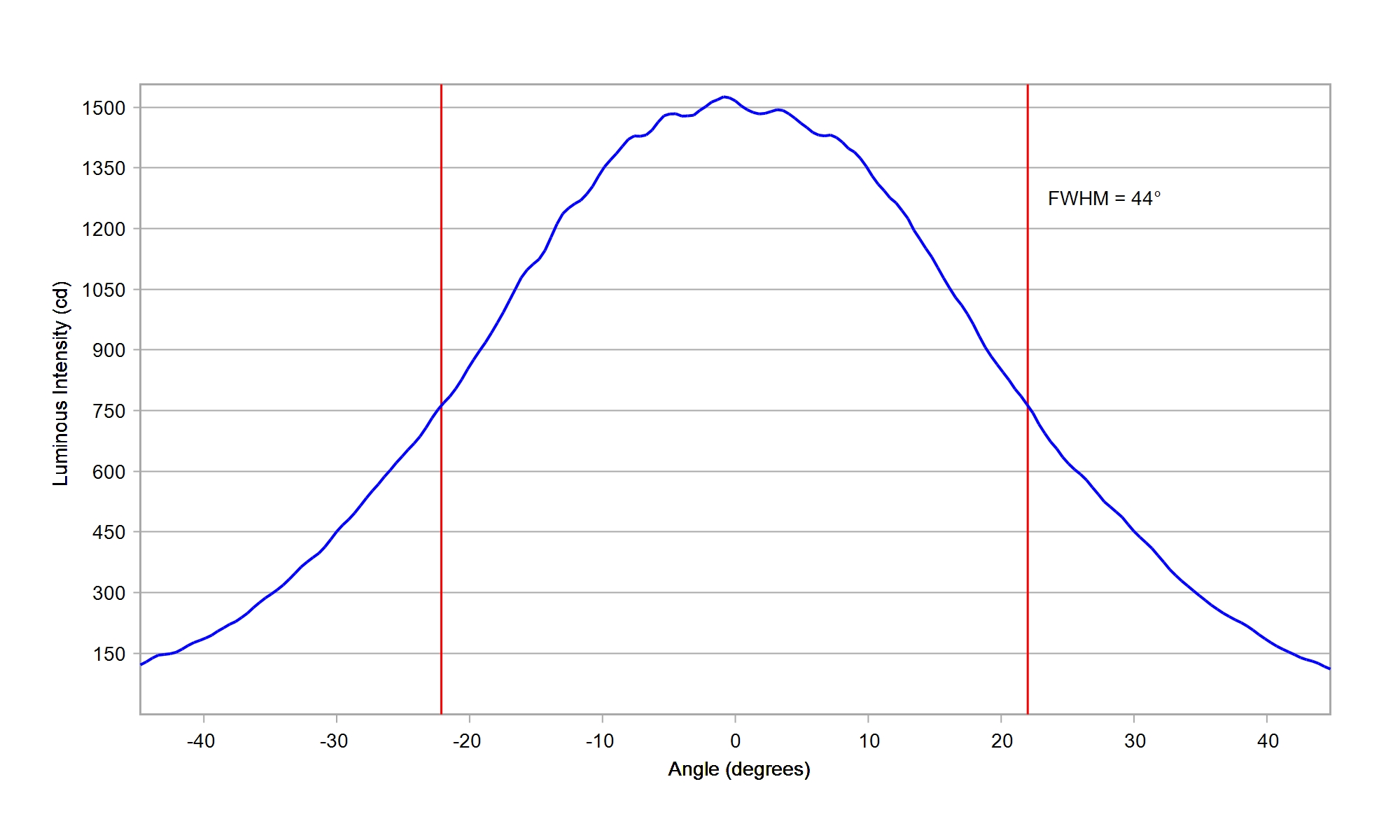

Cree XLamp CMU1006 White

Eff:

73.5%

FWHM:

44 x 27°

Cd/Im:

1.4


,


Download

IES

Cree XLamp CMU1010 White

Eff:

73.5%

FWHM:

44 x 27.5°

Cd/Im:

1.4


,


Download

IES

Cree XLamp CMU1013 White

Eff:

74.0%

FWHM:

44 x 26°

Cd/Im:

1.5


,


Download

IES

Cree XLamp CSP XD16 Cool White

Eff:

83.5%

FWHM:

48.5 X 6.1°

Cd/Im:

6.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp CSP XD16 Premium White

Eff:

84.5%

FWHM:

49 x 5.5°

Cd/Im:

8.6


,


Download

IES

Cree XLamp CXA 1304 White

Eff:

81.9%

FWHM:

43.0x17.1°

Cd/Im:

2.8

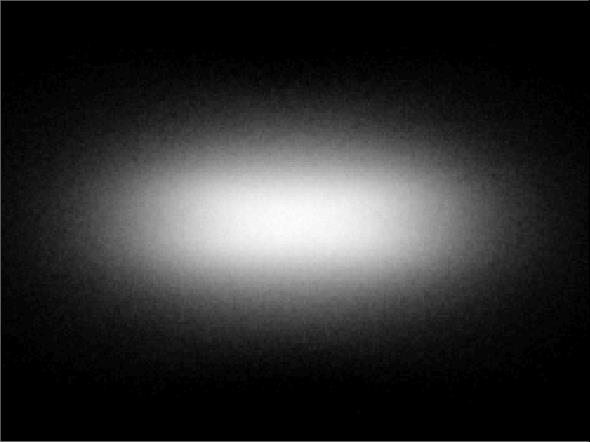

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

Cree XLamp CXA 1310 White

Eff:

81.9%

FWHM:

42.7x17.9°

Cd/Im:

2.6

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

Cree XLamp CXA 1507 White

Eff:

79.7%

FWHM:

41.7x24.8°

Cd/Im:

1.7

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

txt

Cree XLamp CXA 1512 White

Eff:

79.8%

FWHM:

41.7x23.7°

Cd/Im:

1.8

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

Cree XLamp CXA 1520 White

Eff:

79.9%

FWHM:

42.1x24.8°

Cd/Im:

1.6

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

Cree XLamp CXB1310 White

Eff:

79.5%

FWHM:

43 x 18°

Cd/Im:

2.6


,


Download

IES

Cree XLamp MH-B White

Eff:

82.3%

FWHM:

44.1x15.5°

Cd/Im:

3.1

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

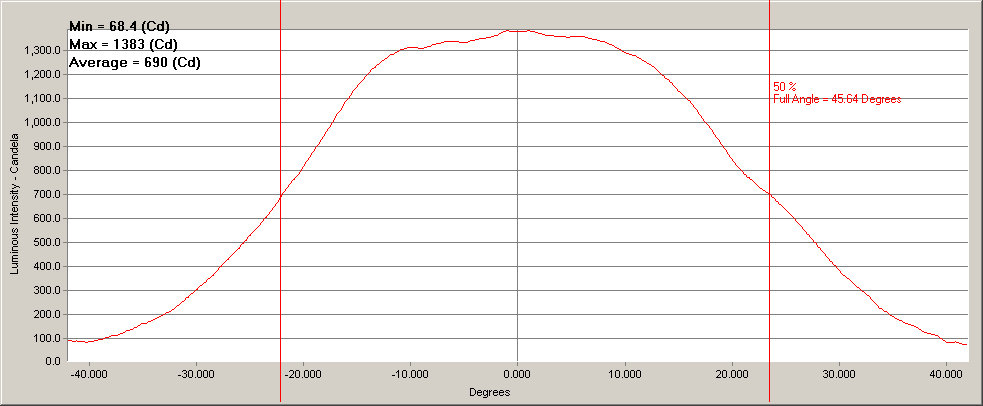

Cree XLamp MK-R White

FWHM:

45.7 X 19.9°

Cd/Im:

3.7

Download

ies

Cree XLamp MT-G White

Eff:

85.5%

FWHM:

43.9 x 25.2°

Cd/Im:

2.7

Download

ies

Cree XLamp MT-G2 White

FWHM:

45.6 X 22.7°

Cd/Im:

2.9

Download

ies

Cree XLamp XB-D White

Eff:

81.0%

FWHM:

47.4 x 6.4°

Cd/Im:

3.2

Download

ies

Cree XLamp XB-H White

Eff:

85.0%

FWHM:

48 x 7.2°

Cd/Im:

6.7

Carclo Optics - 10759 30mm Spot Image Cree XLamp XB-H

Carclo Optics - 10759 30mm Horizontal Cross Section Cree XLamp XB-H

,

Carclo Optics - 10759 26.5mm Vertical Cross Section Cree XLamp XB-H

Download

IES

Cree XLamp XE-G Blue

Eff:

84.5%

FWHM:

50 x 5.4°

Cd/Im:

8.8


,


Download

IES

Cree XLamp XE-G Green

Eff:

85.0%

FWHM:

50 x 5.4°

Cd/Im:

9.0


,


Download

IES

Cree XLamp XE-G Red

Eff:

84.5%

FWHM:

49 x 5°

Cd/Im:

9.4


,


Download

IES

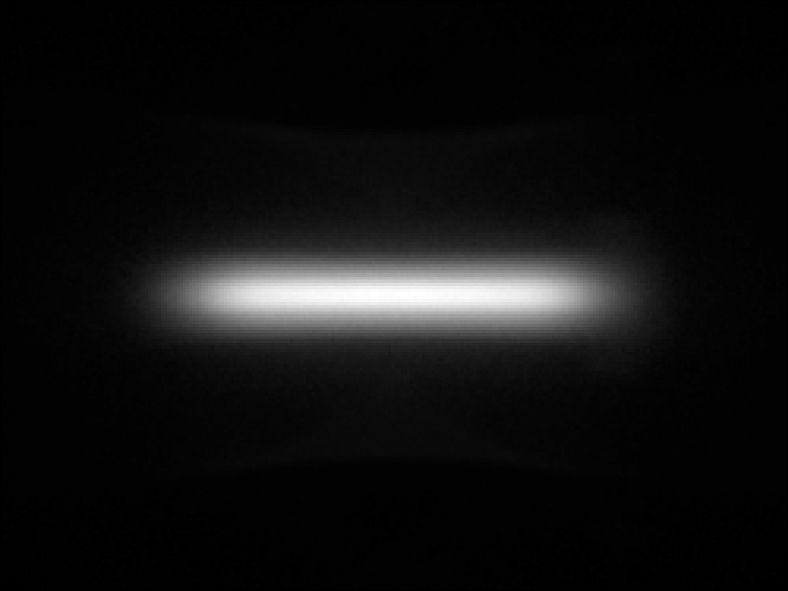

Cree XLamp XE-G White

Eff:

84.0%

FWHM:

49 x 5.3°

Cd/Im:

8.8


,


Download

IES

Cree XLamp XHP-50 Gen 2 White

Eff:

82.5%

FWHM:

43.0 x 16.5°

Cd/Im:

3.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XHP-50 White

Eff:

82.0%

FWHM:

43 x 19°

Cd/Im:

2.7

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XHP-70 White

Eff:

82.5%

FWHM:

42 x 22°

Cd/Im:

2.3

Carclo Optics - 10759 Spot Image Cree XHP70

Carclo Optics - 10759 Horizontal Cross Section Cree XHP70

,

Carclo Optics - 10759 Vertical Cross Section Cree XHP70

Download

IES

Cree XLamp XHP35 HI White

Eff:

83.3%

FWHM:

47.8x8.4°

Cd/Im:

5.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XHP35 HD White

Eff:

83.0%

FWHM:

46 x 11.9°

Cd/Im:

3.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XHP35.2 HI White

Eff:

84.0%

FWHM:

48 x 9.6°

Cd/Im:

4.8

Carclo Optics – 10759 Spot Image Cree XLamp XHP35.2 HI White

Carclo Optics – 10759 Horizontal Cross Section Cree XLamp XHP35.2 HI White

,

Carclo Optics – 10759 Vertical Cross Section Cree XLamp XHP35.2 HI White

Download

2-HI-WW

Cree XLamp XHP35.2 HD White

Eff:

83.5%

FWHM:

45 x 13.5°

Cd/Im:

3.6

Carclo Optics - 10759 Spot Image Cree XHP35.2

Carclo Optics - 10759 Horizontal Cross Section Cree XHP35.2

,

Carclo Optics - 10759 Vertical Cross Section Cree XHP35.2

Download

2

Cree XLamp XHP50.3 HI White

Eff:

82.5%

FWHM:

46 x 12°

Cd/Im:

4.0

optic-10759-Cree_XHP50.3 HI-spot-image.jpg

optic-10759-Cree_XHP50.3 HI-cross-section-image-horizontal.jpg

,

optic-10759-Cree_XHP50.3 HI-cross-section-image-vertical.jpg

Download

IES

Cree XLamp XHP50.3 White

Eff:

818.5%

FWHM:

44 x 15°

Cd/Im:

3.2



,


Download

IES

Cree XLamp XHP70.2 White

Eff:

81.0%

FWHM:

41 x 22°

Cd/Im:

2.3

Carclo Optics – 10759 Cree Xlamp XHP70.2 - Spot Image

Carclo Optics – 10759 Horizontal Cree Xlamp XHP70.2 - Cross-Section

,

Carclo Optics – 10759 Vertical Cree Xlamp XHP70.2 - Cross-Section

Download

IES

Cree XLamp XM-L White

Eff:

87.2%

FWHM:

47.7 x 12.2°

Cd/Im:

5.1

Download

ies

Cree XLamp XM-L2 White

FWHM:

48.7 x 10.9°

Cd/Im:

4.3

optic-10759-narrow-frost-cree-XM-L2-white-spot-image

optic-10759-elliptical-cree-XM-L2-white-Hcross-section-image

,

optic-10759-elliptical-cree-XM-L2-white-Vcross-section-image

Download

ies

Cree XLamp XM-L3 White

Eff:

83.0%

FWHM:

47 x 11°

Cd/Im:

4.3

Carclo Optics - 10759 Spot Image Cree XM-L3

Carclo Optics - 10759 Horizontal Cross Section Cree XM-L3

,

Carclo Optics - 10759 Vertical Cross Section Cree XM-L3

Download

IES

Cree XLamp XP-C White

Eff:

85.5%

FWHM:

48.3 x 3.8°

Cd/Im:

14.9

Download

ies

Cree XLamp XP-E White

Eff:

85.5%

FWHM:

48.1 X 6.0 °

Cd/Im:

10.1

Download

ies

Cree XLamp XP-E2 White

Eff:

85.0%

FWHM:

49 x 5.3°

Cd/Im:

9.2


,


Download

IES

Cree XLamp XP-G White

Eff:

86.3%

FWHM:

48.5 x 8.2°

Cd/Im:

7.1

Download

ies

Cree XLamp XP-G2 White

FWHM:

47.7 x 7.2°

Cd/Im:

8.5

10759 Spot

10759 Cross section plot

Download

ies

Cree XLamp XP-G3 White

Eff:

83.0%

FWHM:

47.4 x 8.9°

Cd/Im:

5.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XP-L HI White

Eff:

83.4%

FWHM:

84.4x7.0°

Cd/Im:

6.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XP-L White

Eff:

83.2%

FWHM:

46.8x10.3°

Cd/Im:

4.5

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

Cree XLamp XP-L2 White

Eff:

82.5%

FWHM:

46.0 x 11.5°

Cd/Im:

4.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XP-P White

Eff:

83.5%

FWHM:

49 x 4.2°

Cd/Im:

11.7

Carclo Optics – 10759 Cree Xlamp XP-P - Spot Image

Carclo Optics – 10759 Horizontal Cree Xlamp XP-P - Cross-Section

,

Carclo Optics – 10759 Vertical Cree Xlamp XP-P - Cross-Section

Download

IES

Cree XLamp XQ-A Blue

Eff:

83.5%

FWHM:

51.0 x 2.4°

Cd/Im:

16.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-A Green

Eff:

83.5%

FWHM:

50.0 x 2.5°

Cd/Im:

15.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-A Red

Eff:

48.0%

FWHM:

49.0 x 3.0°

Cd/Im:

14.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-A White

Eff:

84.0%

FWHM:

49.8 x 2.7°

Cd/Im:

15.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-E HI Blue

Eff:

82.5%

FWHM:

51.0 X 4.0°

Cd/Im:

9.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-E HI Green

Eff:

82.5%

FWHM:

49.5 x 3.8°

Cd/Im:

9.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-E HI Red

Eff:

83.0%

FWHM:

49.0 X 3.7°

Cd/Im:

10.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-E HI White

Eff:

84.0%

FWHM:

49.6 x 3.6°

Cd/Im:

9.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XT-E HE White

Eff:

83.5%

FWHM:

48.5 x 7.7°

Cd/Im:

5.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XT-E White

FWHM:

47.6 x 7.6°

Cd/Im:

7.8

Download

ies

Lextar Nimbus 500 White

Eff:

81.2%

FWHM:

43.2x21.6°

Cd/Im:

1.7

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

LG Innotek 3535LG White

FWHM:

48.9 x 8.2°

Cd/Im:

7.5

Download

ies

Lite-On R38386AS - S R38 IR

Eff:

89.5%

FWHM:

47.5 x 5.7°

Cd/Im:

8.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS CX Plus (Gen 2) S01 White

Eff:

78.5%

FWHM:

43 x 17°

Cd/Im:

2.7

Carclo Optics -10759 - Luxeon_CX_Plus_CoB_S01_WW - spot -image

Carclo Optics -10759 - Luxeon_CX_Plus_CoB_S01_WW - cross horizontal image

,

Carclo Optics -10759 - Luxeon_CX_Plus_CoB_S01_WW - cross vertical image

Download

IES

LUMILEDS LUXEON 3014 White

Eff:

85.0%

FWHM:

49 x 4°

Cd/Im:

11.6


,


Download

IES

LUMILEDS LUXEON 3030 HE Plus White

Eff:

84.5%

FWHM:

48 x 7.4°

Cd/Im:

6.4

Carclo Optics – 10759 – Luxeon_3030_HE_Plus_spot-image

Carclo Optics – 10759 Horizontal – Luxeon_3030_HE_Plus_cross vertical section

,

Carclo Optics – 10759 Vertical – Luxeon_3030_HE_Plus_cross vertical section

Download

IES

LUMILEDS LUXEON 3030 LUXEON White

Eff:

82.0%

FWHM:

48.5 x 6.0°

Cd/Im:

7.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON 3535 HV White

Eff:

83.4%

FWHM:

49 x 6°

Cd/Im:

7.1

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

LUMILEDS LUXEON 3535L Blue

Eff:

86.5%

FWHM:

50 x 4.5°

Cd/Im:

7.9

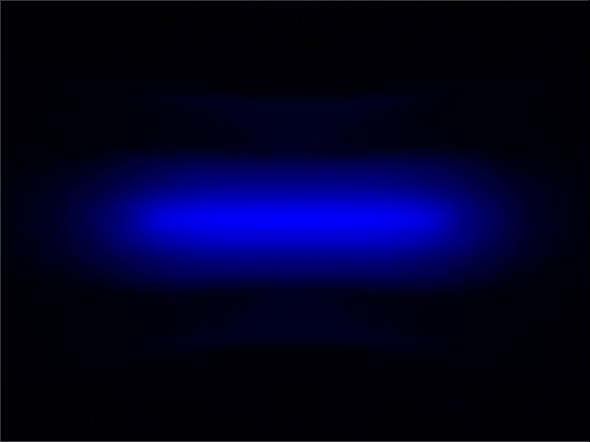

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON 3535L Green

Eff:

82.4%

FWHM:

49.5 x 4.2°

Cd/Im:

8.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON 3535L Red

Eff:

83.5%

FWHM:

49 x 7.0°

Cd/Im:

11.9

Carclo Optics - Simulated Spot Image

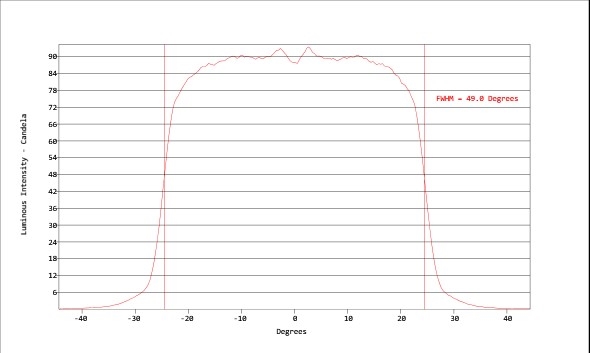

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON 5050 Round White

Eff:

83.5%

FWHM:

44.5 X 13.5°

Cd/Im:

3.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON 5258 White

Eff:

82.5%

FWHM:

45x14.2°

Cd/Im:

3.4

Carclo Optics - Simulated Spot Image

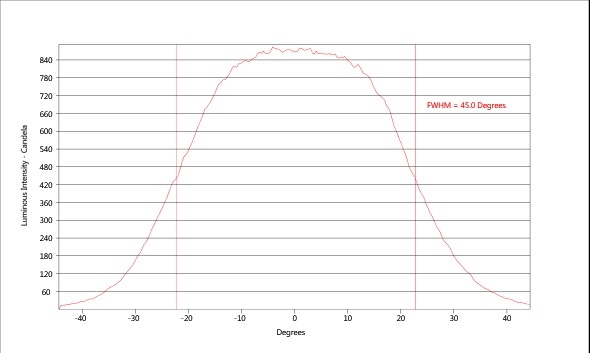

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON 7070 White

Eff:

81.5%

FWHM:

42 x 20.5°

Cd/Im:

2.4

Carclo Optics – 10759 Lumileds Luxeon 7070 - Spot Image

Carclo Optics – 10759 Horizontal Lumileds Luxeon 7070 - Cross-Section

,

Carclo Optics – 10759 Vertical Lumileds Luxeon 7070 - Cross-Section

Download

IES

LUMILEDS LUXEON C Blue

Eff:

79.5%

FWHM:

48.5 x 8.2°

Cd/Im:

5.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON C Lime

Eff:

81.0%

FWHM:

48.5°

Cd/Im:

7.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON C Red

Eff:

79.5%

FWHM:

47.0 X 8.1°

Cd/Im:

5.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON COB 105 White

Eff:

81.4%

FWHM:

42.0x19.8°

Cd/Im:

2.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON COB 107 White

Eff:

81.3%

FWHM:

41.9x19.9°

Cd/Im:

2.4

Carclo Optics - Simulated Spot Image

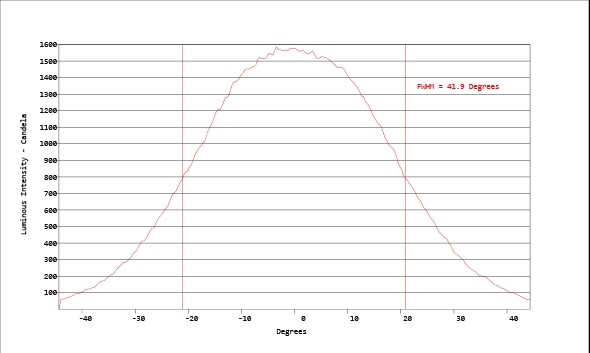

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON COB 109 White

Eff:

81.5%

FWHM:

41.9x19.3°

Cd/Im:

2.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON CSP 05 White

Eff:

81.0%

FWHM:

49.2 x 4.9°

Cd/Im:

6.2

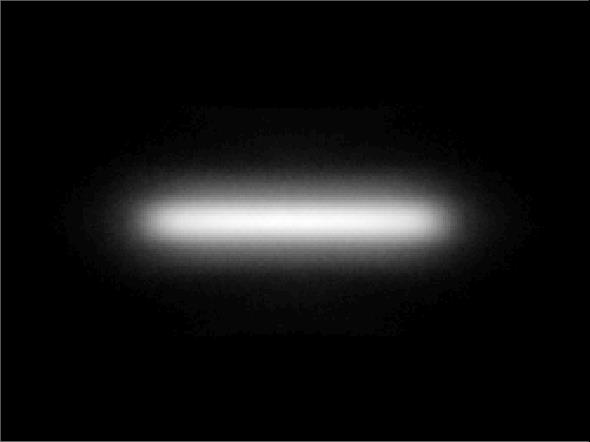

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON CSP 10 White

Eff:

81.0%

FWHM:

48.7 x 6.4°

Cd/Im:

4.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON CZ White

Eff:

84.5%

FWHM:

50 x 3.9°

Cd/Im:

12.3

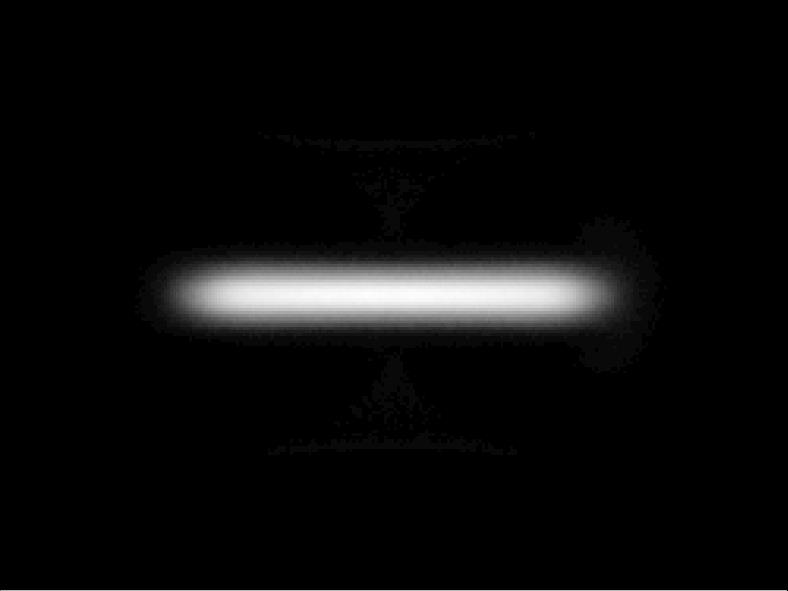

Carclo Optics 10759 Spot Image Luxeon CZ 5M

Carclo Optics 10759 Cross Section Horizontal Luxeon CZ 5M

,

Carclo Optics 10759 Cross Section Vertical Luxeon CZ 5M

Download

IES

LUMILEDS LUXEON HL1Z CSP White

Eff:

84.0%

FWHM:

49 x 5.2°

Cd/Im:

8.8


,


Download

IES

LUMILEDS LUXEON HL2X White

Eff:

84.5%

FWHM:

48 x 8.7°

Cd/Im:

5.6

Carclo Optics - 10759 Spot Image Luxeon HL2X

Carclo Optics - 10759 Horizontal Cross Section Luxeon HL2X

,

Carclo Optics - 10759 Vertical Cross Section Luxeon HL2X

Download

IES

LUMILEDS LUXEON HL2X-D White

Eff:

84.5%

FWHM:

47 x 10°

Cd/Im:

4.8


,


Download

IES

LUMILEDS LUXEON HL2X-P White

Eff:

85.0%

FWHM:

47 x 9.9°

Cd/Im:

5.0


,


Download

IES

LUMILEDS LUXEON HL2Z White

Eff:

82.5%

FWHM:

48 x 7.2°

Cd/Im:

6.4

Carclo Optics – 10759 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 10759 Horizontal Lumileds Luxeon HL2Z - Cross-Section

,

Carclo Optics – 10759 Vertical Lumileds Luxeon HL2Z - Cross-Section

Download

IES

LUMILEDS LUXEON IR 2720

Eff:

89.5%

FWHM:

47.5 x 5.5°

Ipk/W:

9.1

Carclo Optics 10759 Spot Image Luxeon IR 2720

Carclo Optics 10759 Cross Section Horizontal image Luxeon IR 2720

,

Carclo Optics 10759 Cross Section Vertical image Luxeon IR 2720

Download

IES

LUMILEDS LUXEON IR Compact 850nm

Eff:

88.5%

FWHM:

48.0 x 4.8°

Ipk/W:

10.1

Carclo Optics - Simulated Spot Image

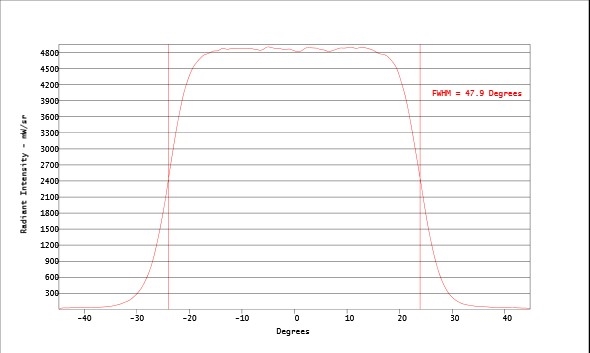

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 60 Degree

Eff:

87.5%

FWHM:

47.5 x 6.8°

Cd/Im:

7.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 90 Degree

Eff:

88.5%

FWHM:

47.0°

Cd/Im:

7.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON M White

Eff:

83.5%

FWHM:

44 x 19.5°

Cd/Im:

2.7


,

Download

IES

LUMILEDS LUXEON MX White

Eff:

82.5%

FWHM:

42.5 x 18.0°

Cd/Im:

2.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON MZ White

Eff:

82.9%

FWHM:

46.3 x 12.6°

Cd/Im:

3.9

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

LUMILEDS LUXEON Q White

Eff:

81.2%

FWHM:

48.4x7.4°

Cd/Im:

5.5

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

LUMILEDS LUXEON R White

Eff:

86.2%

FWHM:

48.1 x 8.9°

Cd/Im:

7.0

Download

ies

LUMILEDS LUXEON Rebel ES White

Eff:

86.2%

FWHM:

48.1 x 8.9°

Cd/Im:

7.0

Download

ies

LUMILEDS LUXEON Rebel White

Eff:

87.1%

FWHM:

48.5 x 6.8°

Cd/Im:

9.2

Download

ies

LUMILEDS LUXEON Rubix Blue

Eff:

85.0%

FWHM:

51 x 4.3°

Cd/Im:

11.6

Carclo Optics – 10759 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics – 10759 Horizontal Cross Section Lumileds Luxeon Rubix Blue

,

Carclo Optics – 10759 Vertical Cross Section Lumileds Luxeon Rubix Blue

Download

IES

LUMILEDS LUXEON Rubix Green

Eff:

85.0%

FWHM:

50 x 4.2°

Cd/Im:

11.9

Carclo Optics – 10759 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 10759 Horizontal Cross Section Lumileds Luxeon Rubix Green

,

Carclo Optics – 10759 Vertical Cross Section Lumileds Luxeon Rubix Green

Download

IES

LUMILEDS LUXEON Rubix Red

Eff:

87.0%

FWHM:

49 x 3.9°

Cd/Im:

12.9

Carclo Optics – 10759 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 10759 Horizontal Cross Section Lumileds Luxeon Rubix Red

,

Carclo Optics – 10759 Vertical Cross Section Lumileds Luxeon Rubix Red

Download

IES

LUMILEDS LUXEON Rubix Royal Blue

Eff:

84.0%

FWHM:

51 x 4.2°

Cd/Im:

11.4

Carclo Optics – 10759 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 10759 Horizontal Cross Section Lumileds Luxeon Rubix Royal Blue

,

Carclo Optics – 10759 Vertical Cross Section Lumileds Luxeon Rubix Royal Blue

Download

IES

LUMILEDS LUXEON Rubix White

Eff:

84.5%

FWHM:

50 x 4.3°

Cd/Im:

11.6

Carclo Optics - 10759 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 10759 Horizontal Cross Section Lumileds Luxeon Rubix White

,

Carclo Optics - 10759 Vertical Cross Section Lumileds Luxeon Rubix White

Download

IES

LUMILEDS LUXEON S1000 White

Eff:

83.5%

FWHM:

48.4 x 22.3°

Cd/Im:

2.9

Download

ies

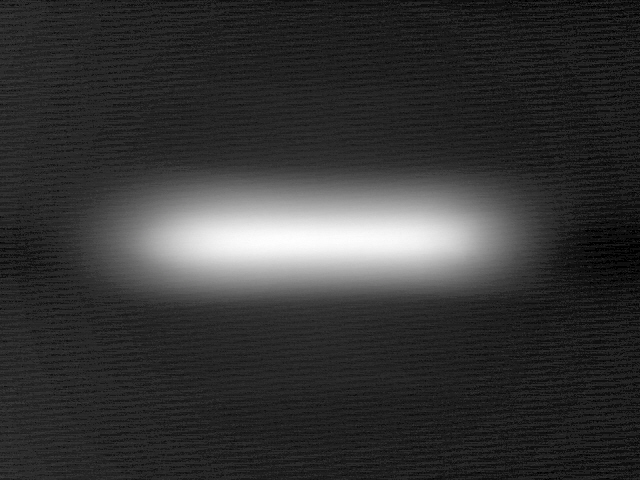

LUMILEDS LUXEON T White

Eff:

86.2%

FWHM:

48.1 x 8.9°

Cd/Im:

7.0

Download

ies

LUMILEDS LUXEON TX White

Eff:

83.2%

FWHM:

48.4 x 7.3°

Cd/Im:

6.1

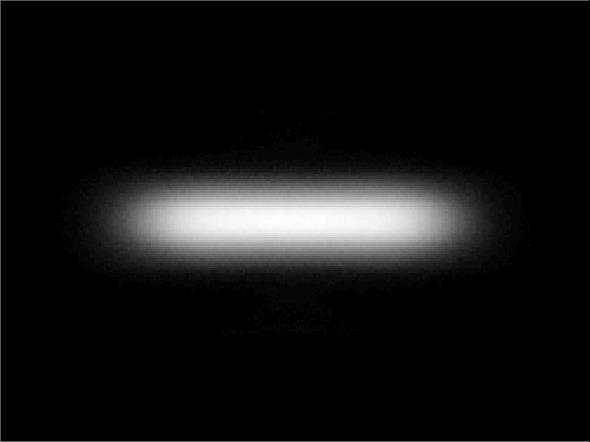

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

LUMILEDS LUXEON V White

Eff:

81.5%

FWHM:

45.5 x 11.5°

Cd/Im:

4.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON V2 White

Eff:

84.0%

FWHM:

48 x 8.1°

Cd/Im:

5.8

Carclo Optics 10759 Spot Image Luxeon V2

Carclo Optics 10759 Cross Section Horizontal Image Luxeon V2

,

Carclo Optics 10759 Cross Section Vertical Image Luxeon V2

Download

IES

LUMILEDS LUXEON Z ES White

Eff:

84.5%

FWHM:

48.2 x 8.6°

Cd/Im:

4.4

carclo optics - simulated spot image

carclo optics - horizontal simulated cross section

,

carclo optics - simulated vertical cross section

Download

IES

LUMILEDS LUXEON Z White

Eff:

83.3%

FWHM:

49.5 x 3.7°

Cd/Im:

10.1

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

Luminus Devices MP 7070-T200 White

Eff:

84.0%

FWHM:

43 x 19°

Cd/Im:

2.8


,


Download

IES

Luminus Devices SFT-40-WxS White

Eff:

85.0%

FWHM:

49 x 6.7°

Cd/Im:

7.3


,


Download

IES

Luminus Devices SFT-70X-WxS White

Eff:

85.0%

FWHM:

48 x 9.1°

Cd/Im:

5.4


,


Download

IES

Luminus Devices SST 05-IR-B40 850nm

Eff:

89.0%

FWHM:

47 x 5.5°

Ipk/W:

8.6

Carclo Optics - 10759 Spot Image Luminus SST-05-IR-B40

Carclo Optics - 10759 Horizontal Cross Section Luminus SST-05-IR-B40

,

Carclo Optics - 10759 Vertical Cross Section Luminus SST-05-IR-B40

Download

IES

Luminus Devices SST 10-B-B130 Blue

Eff:

82.0%

FWHM:

51 x 5.7°

Cd/Im:

8.2

Carclo Optics - 10759 Luminus_SST-10_B_B130 - Spot Image

Carclo Optics - 10759 Luminus_SST-10_B_B130 - Cross section horizontal image

,

Carclo Optics - 10759 Luminus_SST-10_B_B130 - Cross section vertical image

Download

IES

Luminus Devices SST 10-B-B90 Blue

Eff:

82.0%

FWHM:

51 x 5.7°

Cd/Im:

7.5

Carclo Optics - 10759 Luminus_SST-10_B_B90 - spot - image

Carclo Optics - 10759 Luminus_SST-10_B_B90 - cross section horizontal image

,

Carclo Optics - 10759 Luminus_SST-10_B_B90 - cross section vertical image

Download

IES

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

86.5%

FWHM:

48 x 6.4°

Cd/Im:

7.9

Carclo Optics – 10759 Luminus_SST-10_DR_B130- Spot - image

Carclo Optics – 10759 Horizontal Luminus_SST-10_DR_B130- Cross section – image

,

Carclo Optics – 10759 Vertical Luminus_SST-10_DR_B130- Cross section – image

Download

IES

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

87.0%

FWHM:

48 x 5.9°

Cd/Im:

7.8

Carclo Optics - 10759 Luminus_SST-10_DR_B90 - Spot Image

Carclo Optics - 10759 Horizontal Luminus_SST-10_DR_B90 - Cross section image

,

Carclo Optics - 10759 Vertical Luminus_SST-10_DR_B90 - Cross section image

Download

IES

Luminus Devices SST 10-G-B130 Green

Eff:

84.5%

FWHM:

50 X 5.6°

Cd/Im:

8.7

Carclo Optics - 10759 Luminus_SST-10_G_B130 - spot - image

Carclo Optics - 10759 Luminus_SST-10_G_B130 - cross section horizontal - image

,

Carclo Optics - 10759 Luminus_SST-10_G_B130 - cross section vertical - image

Download

IES

Luminus Devices SST 10-G-B90 Green

Eff:

84.5%

FWHM:

49 x 5.8°

Cd/Im:

7.8

Carclo Optics – 10759 Luminus_SST-10_G_B90- Spot - image

Carclo Optics – 10759 Horizontal Luminus_SST-10_G_B90- Cross section – image

,

Carclo Optics – 10759 Vertical Luminus_SST-10_G_B90- Cross section – image

Download

IES

Luminus Devices SST 10-IR-B130 940nm

Eff:

91.0%

FWHM:

47 x 6.8°

Ipk/W:

7.9

Carclo Optics - 10759 Spot Image Luminus SST-10-IR-B130

Carclo Optics - 10759 Horizontal Cross Section Luminus SST-10-IR-B130

,

Carclo Optics - 10759 Vertical Cross Section Luminus SST-10-IR-B130

Download

IES

Luminus Devices SST 10-IR-B90 940nm

Eff:

90.5%

FWHM:

47 x 6.4°

Ipk/W:

7.7

Carclo Optics - 10759 Spot Image Luminus SST-10-IR-B90

Carclo Optics - 10759 Horizontal Cross Section Luminus SST-10-IR-B90

,

Carclo Optics - 10759 Vertical Cross Section Luminus SST-10-IR-B90

Download

IES

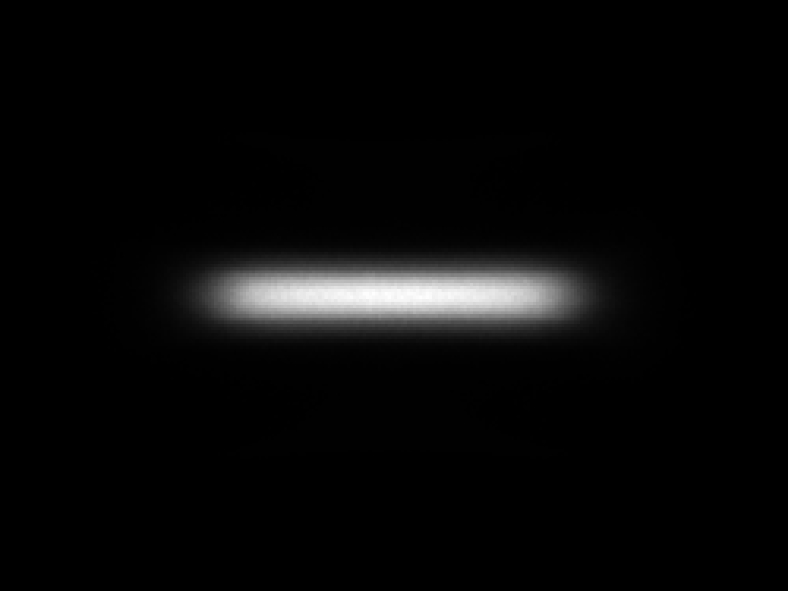

Luminus Devices SST 10-IRD-B130 810nm

Eff:

90.0%

FWHM:

47 x 6.1°

Ipk/W:

8.7


,


Download

IES

Luminus Devices SST 10-IRD-B90 810nm

Eff:

90.0%

FWHM:

47 x 6.2°

Ipk/W:

7.9


,


Download

IES

Luminus Devices SST 20-WxH White Hi CRI

Eff:

84.0%

FWHM:

49 x 6.5°

Cd/Im:

7.2

Carclo Optics – 10759 - Luxeon_SST_20_W_spot-image

Carclo Optics – 10759 Horizontal - Luxeon_SST_20_W_cross vertical section

,

Carclo Optics – 10759 Vertical - Luxeon_SST_20_W_cross vertical section

Download

IES

Luminus Devices SST 40-W White

Eff:

84.5%

FWHM:

47 x 11°

Cd/Im:

4.4

Carclo Optics – 10759 - Luxeon_SST_40_W_spot-image

Carclo Optics – 10759 Horizontal - Luxeon_SST_40_W_cross vertical section

,

Carclo Optics – 10759 Vertical - Luxeon_SST_40_W_cross vertical section

Download

IES

Luminus Devices SST-12-WxS White

Eff:

84.5%

FWHM:

49 x 5.5°

Cd/Im:

8.6


,


Download

IES

Luminus Devices SST-70X-W White

Eff:

84.5%

FWHM:

46 x 13°

Cd/Im:

3.8


,


Download

IES

Nichia 219 White

FWHM:

48.4 X 8°

Cd/Im:

7.9

Download

ies

Nichia 229A White

Eff:

82.0%

FWHM:

46.0 x 12°

Cd/Im:

4.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia 757G White

Eff:

84.0%

FWHM:

48.5 x 7.6°

Cd/Im:

6.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia 757G White

Eff:

85.0%

FWHM:

48 x 8.3°

Cd/Im:

5.8

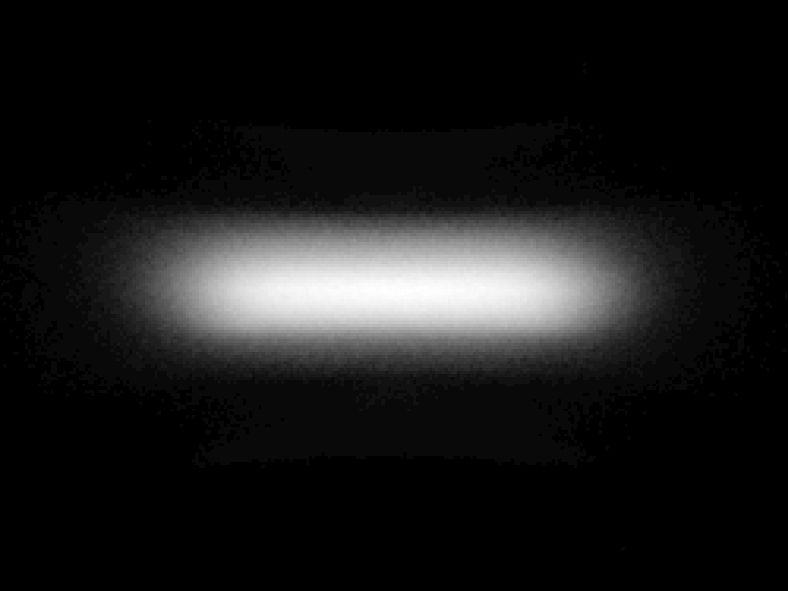

Carclo Optics 10759 Simulated Spot Image Nichia 757G-MT

Carclo Optics 10759 Simulated cross section horizontal Nichia 757G-MT

,

Carclo Optics 10759 Simulated cross section vertical Nichia 757G-MT

Download

IES

Nichia NCSW CSP E17A White

Eff:

83.0%

FWHM:

49.0 x 5.2°

Cd/Im:

8.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NF2W 385AR-V2 White

Eff:

83.5%

FWHM:

48 x 8.2°

Cd/Im:

5.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NFMW 484AR White

Eff:

83.5%

FWHM:

44.0 x 14.5°

Cd/Im:

3.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NFMW 486AR White

Eff:

83.5%

FWHM:

44.5 x 13.5°

Cd/Im:

3.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NFMW 488AR White

Eff:

83.5%

FWHM:

44.5 x 14.5°

Cd/Im:

3.5

Carclo Optics - Simulated Spot Image

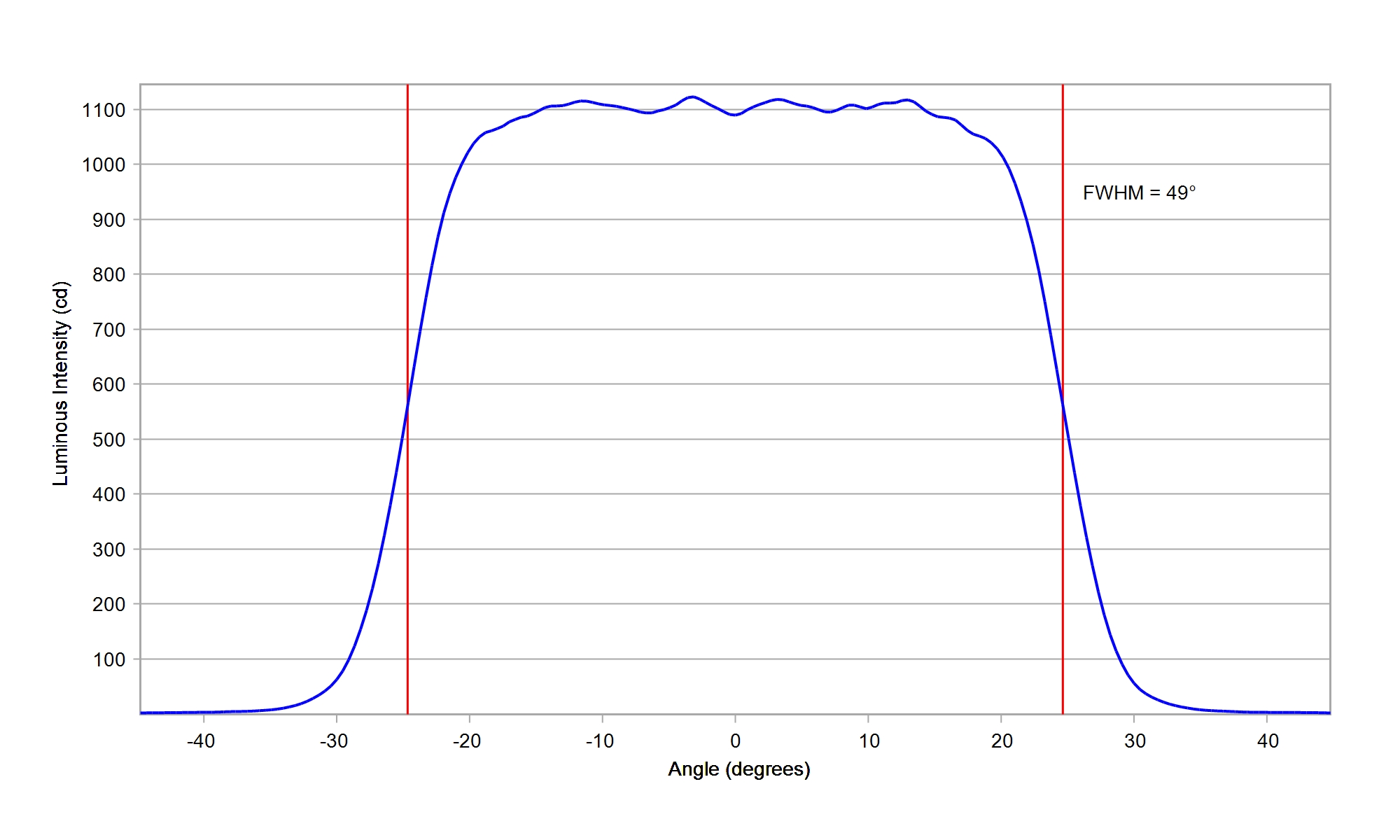

Carclo Optics - Simulated Horizontal Cross Section

,

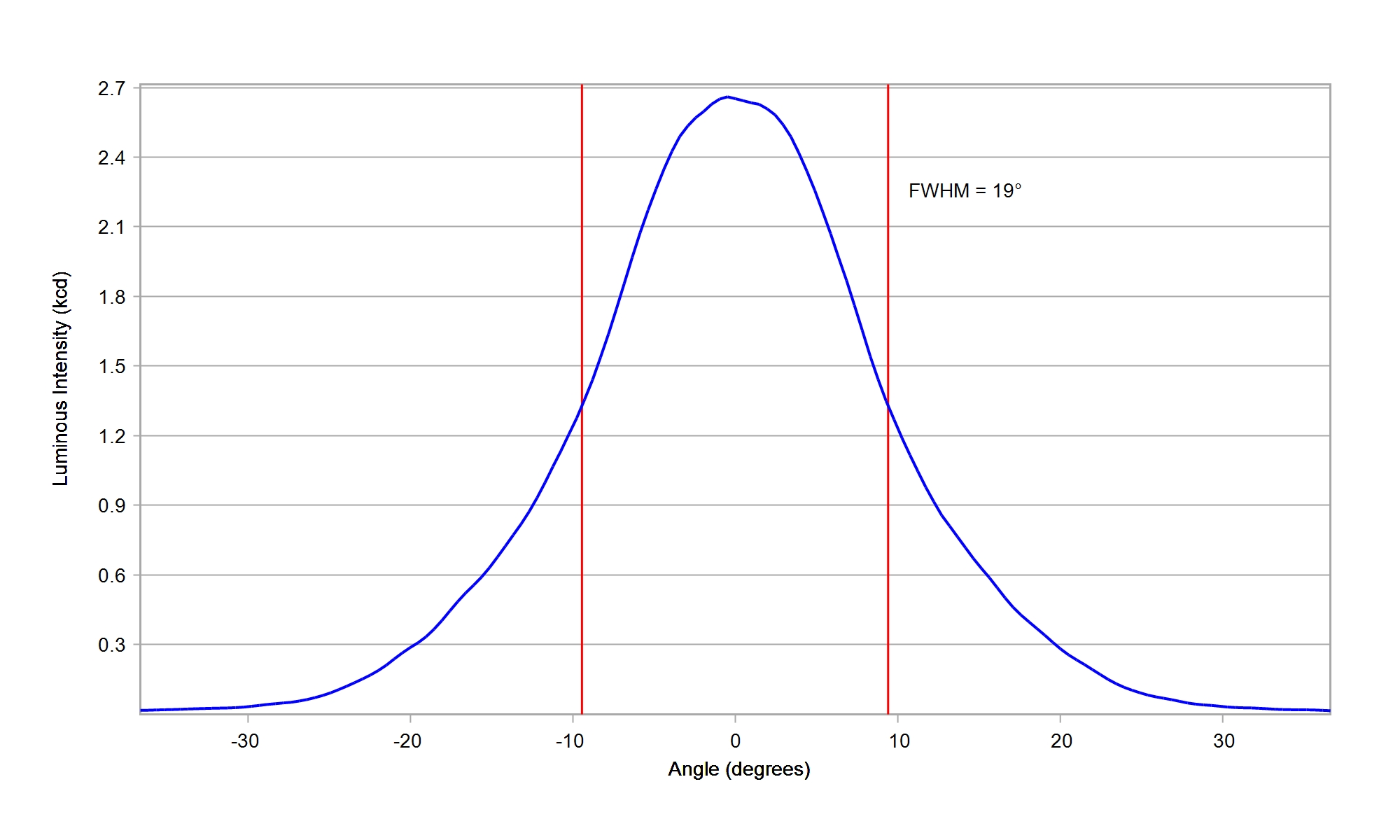

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NFSW CSP E11A White

Eff:

82.0%

FWHM:

48 x 3.8°

Cd/Im:

12.4
