30.0mm Medium Spot Frosted TIR LED Lenses

Part number

10757

Dimensions

30.0mm

Drawing Number

60578

Optic type

TIR LED Lenses

Finish

Frosted

Beam type

Medium Spot

Applications

Architectural

Landscape & Garden

Humancentric

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux Micro SM4 White

FWHM:

29.6°

Cd/Im:

3.2

Download

ies

Bridgelux SMD 3030 Gen2 White

Eff:

86.0%

FWHM:

21.5°

Cd/Im:

4.4

Carclo Optics - 10757 30mm Spot Image Bridgelux 3030 Gen2

Carclo Optics - 10757 30mm Cross Section Bridgelux 3030 Gen2

Download

IES

Bridgelux Vesta BXRV DR 1830H

Eff:

84.0%

FWHM:

34°

Cd/Im:

1.7


Download

IES

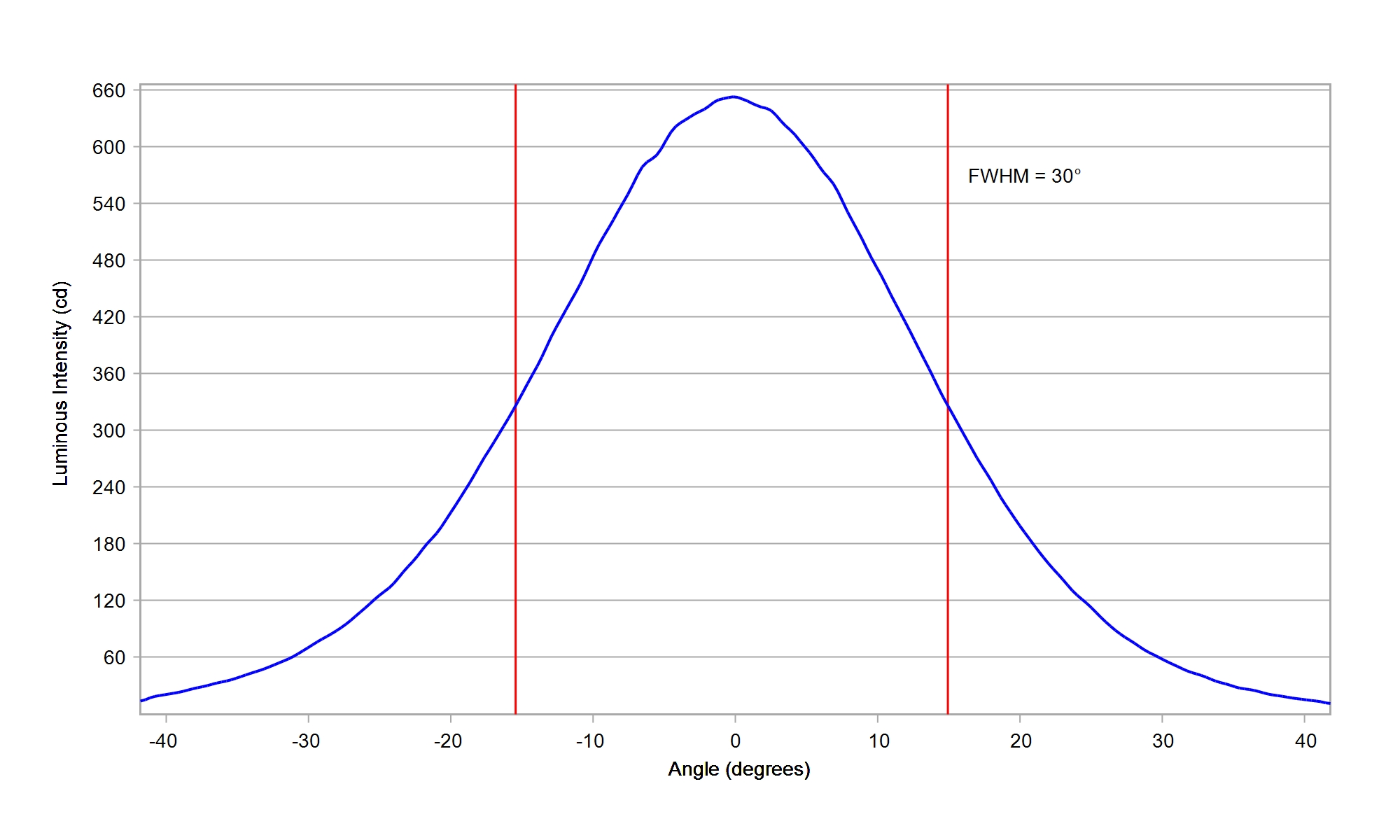

Bridgelux Vesta BXRV TR 2765G

Eff:

85.5%

FWHM:

30°

Cd/Im:

2.3


Download

IES

Citizen CITILED CL-L020 White

Eff:

84.0%

FWHM:

33.9°

Cd/Im:

1.4

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Citizen CITILED CL-L022 White

Eff:

84.2%

FWHM:

34.2°

Cd/Im:

1.4

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Citizen CITILED COB CLU7A2 White

Eff:

81.0%

FWHM:

26°

Cd/Im:

2.9

Interconnect: 6120.50 BJB 47.319.

optic-10757-Citizen_CITILED COB_CLU7A2-spot-image.jpg

optic-10757-Citizen_CITILED COB_CLU7A2-cross-section-image.jpg

Download

IES

Citizen CITILED COB CLU7A2 White

Eff:

81.5%

FWHM:

26°

Cd/Im:

2.9

Download

IES

Citizen CITILED COB CLU7B2 White

Eff:

81.5%

FWHM:

24.5°

Cd/Im:

3.3

Carclo Optics – 10757 – Citizen_Citiled COB_CLU7B2_spot-image

Carclo Optics – 10757 – Citizen_Citiled COB_CLU7B2_cross section

Download

IES

Cree JB3030 3V White

Eff:

85.5%

FWHM:

22.5°

Cd/Im:

4.0

Carclo Optics - 10757 Spot Image Cree JB3030 3V White

Carclo Optics - 10757 Cross Section Cree JB3030 3V White

Download

IES

Cree JK2835 6V White

Eff:

85.5%

FWHM:

22°

Cd/Im:

4.0

Download

IES

Cree JQ5050 9V White

Eff:

86.0%

FWHM:

26.0°

Cd/Im:

3.2

Carclo Optics - 10757 Spot Image Cree JQ5050 9V White

Carclo Optics - 10757 Cross Section Cree JQ5050 9V White

Download

IES

Cree JR5050 24V White

Eff:

86.0%

FWHM:

25.5°

Cd/Im:

3.2

Carclo Optics - 10757 Spot Image Cree JR5050 24V White

Carclo Optics - 10757 Cross Section Cree JR5050 24V White

Download

IES

Cree JR5050 36V White

Eff:

86.0%

FWHM:

24.5°

Cd/Im:

3.4

Carclo Optics - 10757 Spot Image Cree JR5050 36V White

Carclo Optics - 10757 Cross Section Cree JR5050 36V White

Download

IES

Cree JR5050 6V White

Eff:

86.0%

FWHM:

25.0°

Cd/Im:

3.3

Carclo Optics - 10757 Spot Image Cree JR5050 6V White

Carclo Optics - 10757 Cross Section Cree JR5050 6V White

Download

IES

Cree JR5050C 6V E-Class White

Eff:

85.5%

FWHM:

25.5°

Cd/Im:

3.3


Download

IES

Cree XLamp CHA0304 White

Eff:

83.5%

FWHM:

24°

Cd/Im:

3.6

Download

IES

Cree XLamp CHA0410 White

Eff:

83.5%

FWHM:

26°

Cd/Im:

3.1

Download

IES

Cree XLamp CHA0612 White

Eff:

82.5%

FWHM:

29.5°

Cd/Im:

2.4

Download

IES

Cree XLamp CMA1303 White

Eff:

83.0%

FWHM:

25.5°

Cd/Im:

3.1

Carclo Optics – 10757 – Cree_Xlamp_CMA 1303_spot-image

Carclo Optics – 10757 – Cree_Xlamp_CMA 1303_cross vertical section

Download

IES

Cree XLamp CMB1304 White

Eff:

81.5%

FWHM:

29°

Cd/Im:

2.4

Download

IES

Cree XLamp CMB1306 White

Eff:

81.5%

FWHM:

29.5°

Cd/Im:

2.3

Download

IES

Cree XLamp CMU1003 White

Eff:

77.5%

FWHM:

35°

Cd/Im:

1.4

Download

IES

Cree XLamp CMU1006 White

Eff:

77.0%

FWHM:

36°

Cd/Im:

1.4

Download

IES

Cree XLamp CMU1010 White

Eff:

77.0%

FWHM:

36°

Cd/Im:

1.4

Download

IES

Cree XLamp CMU1013 White

Eff:

77.5%

FWHM:

35°

Cd/Im:

1.4

Download

IES

Cree XLamp CSP XD16 Cool White

Eff:

84.5%

FWHM:

22.0°

Cd/Im:

3.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp CSP XD16 Premium White

Eff:

85.5%

FWHM:

21.5°

Cd/Im:

4.3

Download

IES

Cree XLamp CXA 1304 White

Eff:

83.4%

FWHM:

27.8°

Cd/Im:

2.3

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp CXA 1310 White

Eff:

83.6%

FWHM:

28.4°

Cd/Im:

2.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp CXA 1507 White

Eff:

83.7%

FWHM:

34.2°

Cd/Im:

1.4

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp CXA 1512 White

Eff:

83.5%

FWHM:

33.2°

Cd/Im:

1.5

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp CXA 1520 White

Eff:

84.0%

FWHM:

34.7°

Cd/Im:

1.4

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp CXB1310 White

Eff:

81.5%

FWHM:

28.5°

Cd/Im:

2.4

Download

IES

Cree XLamp MH-B White

Eff:

83.4%

FWHM:

26.9°

Cd/Im:

2.4

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp MK-R White

FWHM:

27.3°

Cd/Im:

3.7

Download

ies

Cree XLamp MT-G White

Eff:

82.6%

FWHM:

33.3°

Cd/Im:

2.6

Download

ies

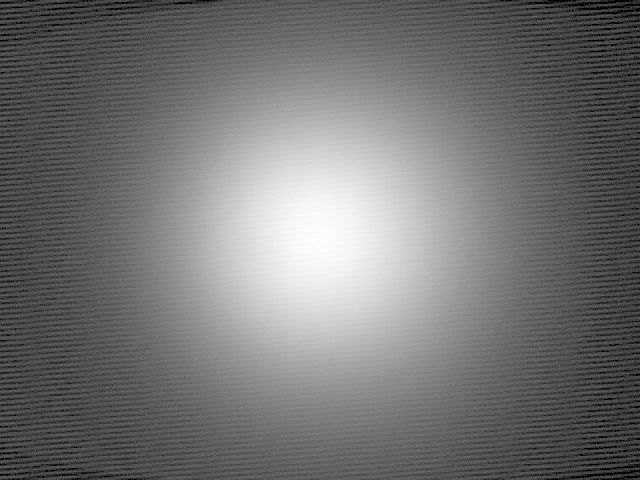

Cree XLamp MT-G2 White

FWHM:

31°

Cd/Im:

2.8

Download

ies

Cree XLamp XB-D White

Eff:

80.0%

FWHM:

18.9°

Cd/Im:

5.8

Download

ies

Cree XLamp XB-H White

Eff:

85.5%

FWHM:

22.5 x 22.0°

Cd/Im:

4.1

Carclo Optics - 10757 30mm Spot Image Cree XLamp XB-H

Carclo Optics - 10757 30mm Cross Section Cree XLamp XB-H

Download

IES

Cree XLamp XE-G Blue

Eff:

85.5%

FWHM:

21.5°

Cd/Im:

4.2

Download

IES

Cree XLamp XE-G Green

Eff:

85.5%

FWHM:

21.5°

Cd/Im:

4.3

Download

IES

Cree XLamp XE-G Red

Eff:

85.0%

FWHM:

21.5°

Cd/Im:

4.4

Download

IES

Cree XLamp XE-G White

Eff:

85.0%

FWHM:

21.5°

Cd/Im:

4.2

Download

IES

Cree XLamp XHP-50 Gen 2 White

Eff:

83.5%

FWHM:

27.0°

Cd/Im:

2.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP-50 White

Eff:

83.0%

FWHM:

28°

Cd/Im:

2.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XHP-70 White

Eff:

83.2%

FWHM:

30.7°

Cd/Im:

1.9

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XHP-70 White

Eff:

84.5%

FWHM:

31.0°

Cd/Im:

2.2

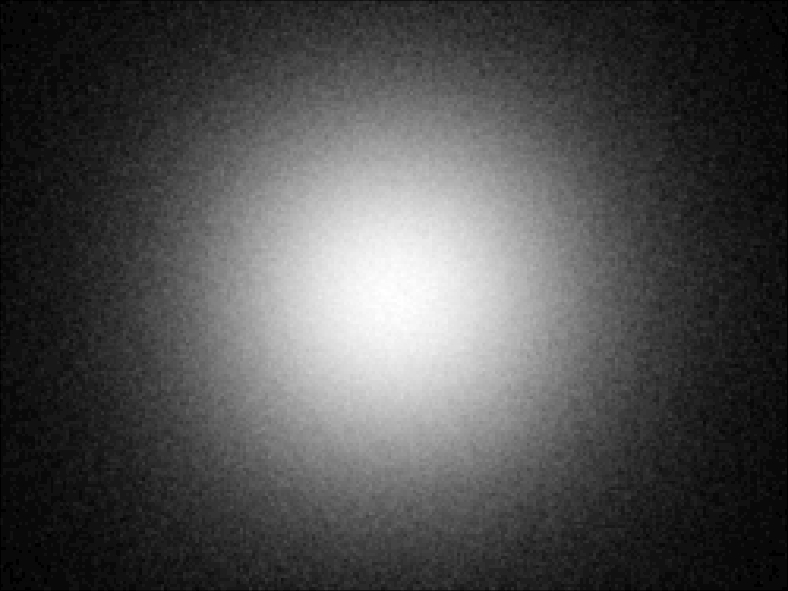

Carclo Optics - 10757 Spot Image Cree XHP70

Carclo Optics - 10757 Cross Section Cree XHP70

Download

IES

Cree XLamp XHP35 HI White

Eff:

83.3%

FWHM:

23.2°

Cd/Im:

3.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP35 HD White

Eff:

83.0%

FWHM:

24.9°

Cd/Im:

2.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP35.2 HI White

Eff:

85.0%

FWHM:

23°

Cd/Im:

3.6

Carclo Optics – 10757 Spot Image Cree XLamp XHP35.2 HI White

Carclo Optics – 10757 Cross Section Cree XLamp XHP35.2 HI White

Download

2-HI-WW

Cree XLamp XHP35.2 HD White

Eff:

84.5%

FWHM:

25.5°

Cd/Im:

3.1

Carclo Optics - 10757 Spot Image Cree XHP35.2

Carclo Optics - 10757 Cross Section Cree XHP35.2

Download

2

Cree XLamp XHP50.3 HI White

Eff:

85.0%

FWHM:

24.5°

Cd/Im:

3.3

optic-10757-Cree_XHP50.3 HI-spot-image.jpg

optic-10757-Cree_XHP50.3 HI-cross-section-image.jpg

Download

IES

Cree XLamp XHP50.3 White

Eff:

84.5%

FWHM:

26°

Cd/Im:

3.0



Download

IES

Cree XLamp XHP70.2 White

Eff:

84.5%

FWHM:

31°

Cd/Im:

2.2

Carclo Optics – 10757 Cree Xlamp XHP70.2 - Spot Image

Carclo Optics – 10757 Cree Xlamp XHP70.2 - Cross-Section

Download

IES

Cree XLamp XM-L Color G2 HD RGBW

Eff:

86.0%

FWHM:

24.5°

Cd/Im:

3.4

Download

IES

Cree XLamp XM-L Color G2 HI RGBW

Eff:

85.5%

FWHM:

23.5°

Cd/Im:

3.6

Download

IES

Cree XLamp XM-L White

Eff:

84.0%

FWHM:

23.8°

Cd/Im:

4.1

Download

ies

Cree XLamp XM-L2 White

FWHM:

20.7°

Cd/Im:

3.9

optic-10757-medium-frost-cree-XM-L2-white-spot-image

optic-10757-medium-frost-cree-XM-L2-white-cross-section-image

Download

ies

Cree XLamp XM-L3 White

Eff:

84.0%

FWHM:

24.0°

Cd/Im:

3.4

Carclo Optics - 10757 Spot Image Cree XM-L3

Carclo Optics - 10757 Cross Section Cree XM-L3

Download

IES

Cree XLamp XP-C White

Eff:

82.7%

FWHM:

18.1°

Cd/Im:

5.7

Download

ies

Cree XLamp XP-E White

Eff:

82.8%

FWHM:

19.6°

Cd/Im:

5.3

Download

ies

Cree XLamp XP-E2 White

Eff:

86.0%

FWHM:

21.5°

Cd/Im:

4.4

Download

IES

Cree XLamp XP-G White

Eff:

82.8%

FWHM:

21°

Cd/Im:

4.7

Download

ies

Cree XLamp XP-G2 White

FWHM:

18.9°

Cd/Im:

6.2

10757 Spot

10757 Cross section plot

Download

ies

Cree XLamp XP-G3 White

Eff:

83.0%

FWHM:

23.7°

Cd/Im:

3.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XP-L HI White

Eff:

83.4%

FWHM:

22.6°

Cd/Im:

3.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XP-L White

Eff:

83.3%

FWHM:

24°

Cd/Im:

3.0

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XP-L2 White

Eff:

83.5%

FWHM:

24.0°

Cd/Im:

3.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XP-P White

Eff:

86.0%

FWHM:

21°

Cd/Im:

4.6

Carclo Optics – 10757 Cree Xlamp XP-P - Spot Image

Carclo Optics – 10757 Cree Xlamp XP-P - Cross-Section

Download

IES

Cree XLamp XQ-A Blue

Eff:

84.5%

FWHM:

20.5°

Cd/Im:

4.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-A Green

Eff:

84.5%

FWHM:

20.5°

Cd/Im:

4.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-A Red

Eff:

84.5%

FWHM:

20.5°

Cd/Im:

4.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-A White

Eff:

84.0%

FWHM:

18.7°

Cd/Im:

4.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Blue

Eff:

83.5%

FWHM:

21.5°

Cd/Im:

4.0

Carclo Optics - Simulated Spot Image

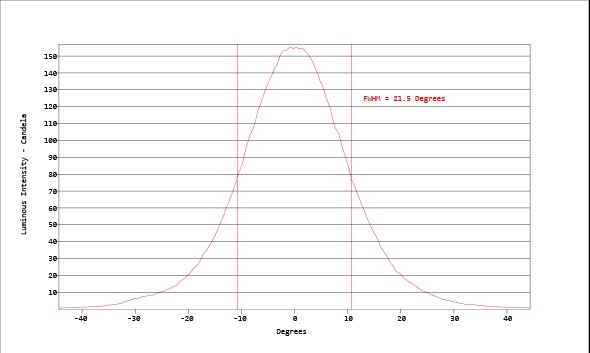

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Green

Eff:

83.5%

FWHM:

21.0°

Cd/Im:

4.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Red

Eff:

84.0%

FWHM:

21.0°

Cd/Im:

4.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI White

Eff:

84.0%

FWHM:

20.1°

Cd/Im:

3.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XT-E HE White

Eff:

84.5%

FWHM:

22.5°

Cd/Im:

3.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XT-E White

FWHM:

20°

Cd/Im:

5.5

Download

ies

Lextar Nimbus 500 White

Eff:

84.7%

FWHM:

31.8°

Cd/Im:

1.5

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LG Innotek 3535LG White

FWHM:

21.6°

Cd/Im:

4.7

Download

ies

Lite-On R38386AS - S R38 IR

Eff:

90.0%

FWHM:

21.5°

Cd/Im:

4.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS CX Plus (Gen 2) M03 White

Eff:

77.0%

FWHM:

35°

Cd/Im:

1.5

Carclo Optics -10757 -Luxeon_CX_Plus_CoB_M03_WW-spot-image

Carclo Optics -10757 -Luxeon_CX_Plus_CoB_M03_WW- cross section

Download

IES

LUMILEDS CX Plus (Gen 2) S01 White

Eff:

81.0%

FWHM:

28.5°

Cd/Im:

2.4

Carclo Optics -10757 - Luxeon_CX_Plus_CoB_S01_WW - spot -image

Carclo Optics -10757 - Luxeon_CX_Plus_CoB_S01_WW - cross image

Download

IES

LUMILEDS LUXEON 3014 White

Eff:

86.0%

FWHM:

21.5°

Cd/Im:

4.4

Download

IES

LUMILEDS LUXEON 3030 HE Plus White

Eff:

85.5%

FWHM:

22°

Cd/Im:

4.1

Carclo Optics – 10757 – Luxeon_3030_HE_Plus_spot-image

Carclo Optics – 10757 – Luxeon_3030_HE_Plus_cross vertical section

Download

IES

LUMILEDS LUXEON 3030 LUXEON White

Eff:

82.0%

FWHM:

21.8°

Cd/Im:

3.4

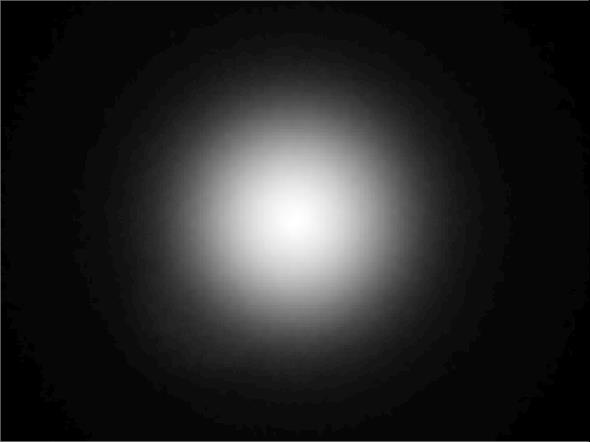

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 3535 HV White

Eff:

83.5%

FWHM:

22°

Cd/Im:

3.5

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON 3535L Blue

Eff:

84.5%

FWHM:

22.0°

Cd/Im:

4.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 3535L Green

Eff:

84.5%

FWHM:

22.0°

Cd/Im:

4.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 3535L Red

Eff:

84.5%

FWHM:

21.0°

Cd/Im:

4.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 5050 Round White

Eff:

25.0%

FWHM:

24.5°

Cd/Im:

3.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 5052 RGBW

Eff:

83.5%

FWHM:

24.5°

Cd/Im:

3.4

Download

IES

LUMILEDS LUXEON 5258 White

Eff:

83.3%

FWHM:

25.9°

Cd/Im:

2.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 7070 White

Eff:

85.0%

FWHM:

29.5°

Cd/Im:

2.3

Carclo Optics – 10757 Lumileds Luxeon 7070 - Spot Image

Carclo Optics – 10757 Lumileds Luxeon 7070 - Cross-Section

Download

IES

LUMILEDS LUXEON C Blue

Eff:

80.5%

FWHM:

23.0°

Cd/Im:

3.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Lime

Eff:

82.0%

FWHM:

21.5°

Cd/Im:

4.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Red

Eff:

80.5%

FWHM:

21.5°

Cd/Im:

3.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON COB 105 White

Eff:

83.6%

FWHM:

29.9°

Cd/Im:

2.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON COB 107 White

Eff:

83.6%

FWHM:

29.8°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON COB 109 White

Eff:

83.7%

FWHM:

29.7°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON CSP 05 White

Eff:

82.0%

FWHM:

21.5°

Cd/Im:

3.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON CZ White

Eff:

85.5%

FWHM:

21°

Cd/Im:

4.6

Carclo Optics 10757 Spot Image Luxeon CZ 5M

Carclo Optics 10757 Cross Section Luxeon CZ 5M

Download

IES

LUMILEDS LUXEON HL1Z CSP White

Eff:

84.5%

FWHM:

21.5°

Cd/Im:

4.2

Download

IES

LUMILEDS LUXEON HL2X White

Eff:

85.5%

FWHM:

23.0°

Cd/Im:

3.9

Carclo Optics - 10757 Spot Image Luxeon HL2X

Carclo Optics - 10757 Cross Section Luxeon HL2X

Download

IES

LUMILEDS LUXEON HL2X-D White

Eff:

85.5%

FWHM:

23°

Cd/Im:

3.8

Download

IES

LUMILEDS LUXEON HL2X-P White

Eff:

85.5%

FWHM:

23.5°

Cd/Im:

3.8

Download

IES

LUMILEDS LUXEON HL2Z White

Eff:

85.0%

FWHM:

22°

Cd/Im:

4.1

Carclo Optics – 10757 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 10757 Lumileds Luxeon HL2Z - Cross-Section

Download

IES

LUMILEDS LUXEON IR 2720

Eff:

90.5%

FWHM:

21.5°

Cd/Im:

4.7

Carclo Optics 10757 Spot Image Luxeon IR 2720

Carclo Optics 10757 Cross Section image Luxeon IR 2720

Download

IES

LUMILEDS LUXEON IR Compact 850nm

Eff:

89.5%

FWHM:

21.5°

Ipk/W:

4.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 60 Degree

Eff:

88.5%

FWHM:

22.0°

Cd/Im:

4.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 90 Degree

Eff:

89.5%

FWHM:

21.5°

Cd/Im:

4.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON M White

Eff:

85.6%

FWHM:

27.6°

Cd/Im:

3.5

spot image Luxeon M 10757

cross section Luxeon M 10757

Download

ies

LUMILEDS LUXEON MX White

Eff:

84.0%

FWHM:

28.0°

Cd/Im:

2.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON MZ White

Eff:

83.1%

FWHM:

24.9°

Cd/Im:

2.9

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON Q White

Eff:

81.3%

FWHM:

22.7°

Cd/Im:

3.1

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON R White

Eff:

82.0%

FWHM:

22.2°

Cd/Im:

4.5

Download

ies

LUMILEDS LUXEON Rebel ES White

Eff:

82.0%

FWHM:

22.2°

Cd/Im:

4.5

Download

ies

LUMILEDS LUXEON Rebel White

Eff:

82.9%

FWHM:

20.6°

Cd/Im:

5.1

Download

ies

LUMILEDS LUXEON Rubix Blue

Eff:

86.0%

FWHM:

21°

Cd/Im:

4.5

Carclo Optics – 10757 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics – 10757 Cross Section Lumileds Luxeon Rubix Blue

Download

IES

LUMILEDS LUXEON Rubix Green

Eff:

85.5%

FWHM:

21°

Cd/Im:

4.5

Carclo Optics – 10757 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 10757 Cross Section Lumileds Luxeon Rubix Green

Download

IES

LUMILEDS LUXEON Rubix Red

Eff:

87.5%

FWHM:

21°

Cd/Im:

4.7

Carclo Optics – 10757 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 10757 Cross Section Lumileds Luxeon Rubix Red

Download

IES

LUMILEDS LUXEON Rubix Royal Blue

Eff:

84.5%

FWHM:

21.5°

Cd/Im:

4.4

Carclo Optics – 10757 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 10757 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

IES

LUMILEDS LUXEON Rubix White

Eff:

85.5%

FWHM:

21.0°

Cd/Im:

4.6

Carclo Optics - 10757 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 10757 Cross Section Lumileds Luxeon Rubix White

Download

IES

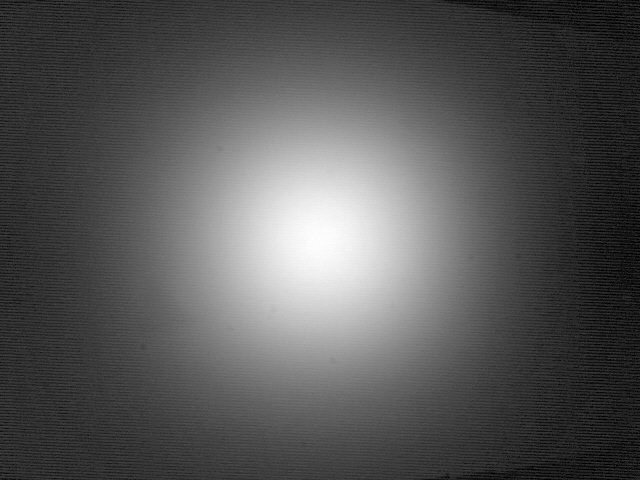

LUMILEDS LUXEON S1000 White

Eff:

80.7%

FWHM:

31.6°

Cd/Im:

2.7

Download

ies

LUMILEDS LUXEON T White

Eff:

82.0%

FWHM:

22.3°

Cd/Im:

4.5

Download

ies

LUMILEDS LUXEON TX White

Eff:

83.2%

FWHM:

22.5°

Cd/Im:

3.3

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON V White

Eff:

82.5%

FWHM:

24.0°

Cd/Im:

3.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON V2 White

Eff:

85.0%

FWHM:

22.5°

Cd/Im:

3.9

Carclo Optics 10757 Spot Image Luxeon V2

Carclo Optics 10757 Cross Section Image Luxeon V2

Download

IES

LUMILEDS LUXEON Z ES White

Eff:

85.3%

FWHM:

23°

Cd/Im:

2.9

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON Z RGBW

Eff:

80.0%

FWHM:

23.4°

Cd/Im:

4.6

10757 Led LUMILEDS LUXEON Z RGBW Spot Image

10757 Led LUMILEDS LUXEON Z RGBW Cross Section

Download

LUMILEDS LUXEON Z White

Eff:

83.2%

FWHM:

20°

Cd/Im:

3.8

carclo optics - simulated spot image

Download

IES

Luminus Devices MP 7070-T200 White

Eff:

86.0%

FWHM:

28.5°

Cd/Im:

2.6


Download

IES

Luminus Devices SFT-40-WxS White

Eff:

86.0%

FWHM:

21.5°

Cd/Im:

4.3

Download

IES

Luminus Devices SFT-70X-WxS White

Eff:

86.0%

FWHM:

22.5°

Cd/Im:

4.0

Download

IES

Luminus Devices SST 05-IR-B40 850nm

Eff:

90.0%

FWHM:

21.5°

Ipk/W:

4.5

Carclo Optics - 10757 Spot Image Luminus SST-05-IR-B40

Carclo Optics - 10757 Cross Section Luminus SST-05-IR-B40

Download

IES

Luminus Devices SST 10-B-B130 Blue

Eff:

83.0%

FWHM:

21.5°

Cd/Im:

4.1

Carclo Optics - 10757 Luminus_SST-10_B_B130 - Spot Image

Carclo Optics - 10757 Luminus_SST-10_B_B130 - Cross section image

Download

IES

Luminus Devices SST 10-B-B90 Blue

Eff:

83.0%

FWHM:

22°

Cd/Im:

4.0

Carclo Optics - 10757 Luminus_SST-10_B_B90 - spot - image

Carclo Optics - 10757 Luminus_SST-10_B_B90 - cross section image

Download

IES

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

87.5%

FWHM:

21.5°

Cd/Im:

4.4

Carclo Optics – 10757 Luminus_SST-10_DR_B130- Spot - image

Carclo Optic – 10757 Luminus_SST-10_DR_B130- Cross section – image

Download

IES

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

87.5%

FWHM:

22°

Cd/Im:

4.4

Carclo Optics - 10757 Luminus_SST-10_DR_B90 - Spot Image

Carclo Optics - 10757 Luminus_SST-10_DR_B90 - Cross section image

Download

IES

Luminus Devices SST 10-G-B130 Green

Eff:

85.5%

FWHM:

21.5°

Cd/Im:

4.4

Carclo Optics - 10757 Luminus_SST-10_G_B130 - spot - image

Carclo Optics - 10757 Luminus_SST-10_G_B130 - cross section - image

Download

IES

Luminus Devices SST 10-G-B90 Green

Eff:

85.5%

FWHM:

22°

Cd/Im:

4.2

Carclo Optics – 10757 Luminus_SST-10_G_B90- Spot - image

Carclo Optics – 10757 Luminus_SST-10_G_B90- Cross section – image

Download

IES

Luminus Devices SST 10-IR-B130 940nm

Eff:

92.0%

FWHM:

22.0°

Ipk/W:

4.6

Carclo Optics - 10757 Spot Image Luminus SST-10-IR-B130

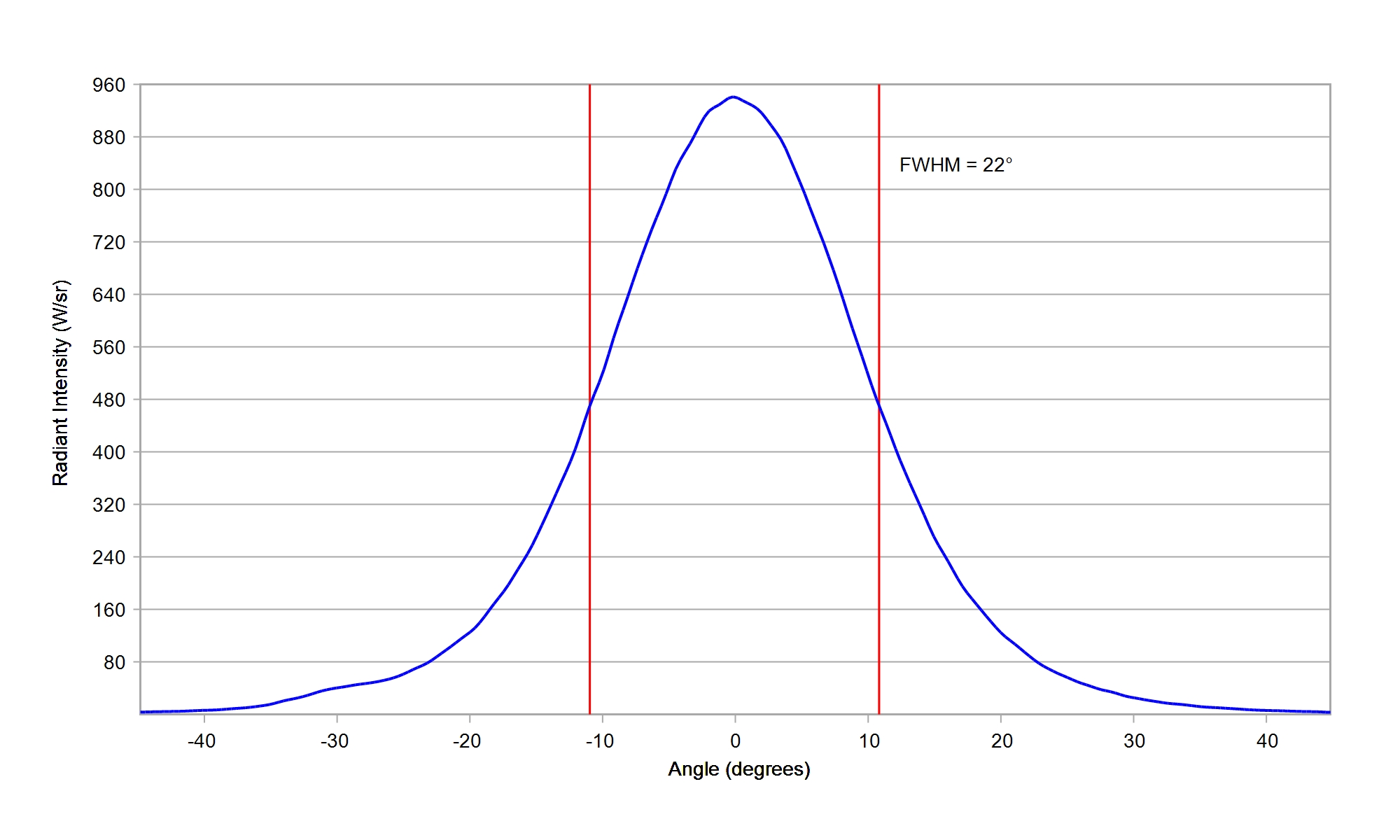

Carclo Optics - 10757 Cross Section Luminus SST-10-IR-B130

Download

IES

Luminus Devices SST 10-IR-B90 940nm

Eff:

91.5%

FWHM:

22.0°

Ipk/W:

4.5

Carclo Optics - 10757 Spot Image Luminus SST-10-IR-B90

Carclo Optics - 10757 Cross Section Luminus SST-10-IR-B90

Download

IES

Luminus Devices SST 10-IRD-B130 810nm

Eff:

91.0%

FWHM:

21°

Ipk/W:

4.7


Download

IES

Luminus Devices SST 10-IRD-B90 810nm

Eff:

91.0%

FWHM:

21.5°

Ipk/W:

4.5


Download

IES

Luminus Devices SST 20-WxH White Hi CRI

Eff:

85.0%

FWHM:

22°

Cd/Im:

4.2

Carclo Optics – 10757 - Luxeon_SST_20_W_spot-image

Carclo Optics – 10757 - Luxeon_SST_20_W_cross vertical section

Download

IES

Luminus Devices SST 40-W White

Eff:

85.5%

FWHM:

24.5°

Cd/Im:

3.5

Carclo Optics – 10757 - Luxeon_SST_40_W_spot-image

Carclo Optics – 10757 - Luxeon_SST_40_W_cross vertical section

Download

IES

Luminus Devices SST-12-WxS White

Eff:

85.5%

FWHM:

21.5°

Cd/Im:

4.3

Download

IES

Luminus Devices SST-70X-W White

Eff:

85.5%

FWHM:

25°

Cd/Im:

3.4

Download

IES

Nichia 219 White

FWHM:

18.8°

Cd/Im:

6.2

Download

ies

Nichia 229A White

Eff:

83.0%

FWHM:

24.5°

Cd/Im:

3.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia 757G White

Eff:

85.5%

FWHM:

22.5°

Cd/Im:

4.0

Carclo Optics 10757 Simulated Spot Image Nichia 757G-MT

Carclo Optics 10757 Simulated cross section horizontal Nichia 757G-MT

Download

IES

Nichia 757G White

Eff:

84.5%

FWHM:

22.0°

Cd/Im:

4.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NCSW CSP E17A White

Eff:

84.0%

FWHM:

21.0°

Cd/Im:

4.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NF2W 385AR-V2 White

Eff:

84.5%

FWHM:

22°

Cd/Im:

4.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NF2W 757G-MT Tunable

Eff:

85.5%

FWHM:

22.5°

Cd/Im:

4.0


Download

IES

Nichia NFMW 481AR White

Eff:

76.5%

FWHM:

27.0°

Cd/Im:

2.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFMW 484AR White

Eff:

85.0%

FWHM:

26.0°

Cd/Im:

3.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFMW 486AR White

Eff:

85.0%

FWHM:

25.0°

Cd/Im:

3.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFMW 488AR White

Eff:

85.0%

FWHM:

25.5°

Cd/Im:

3.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

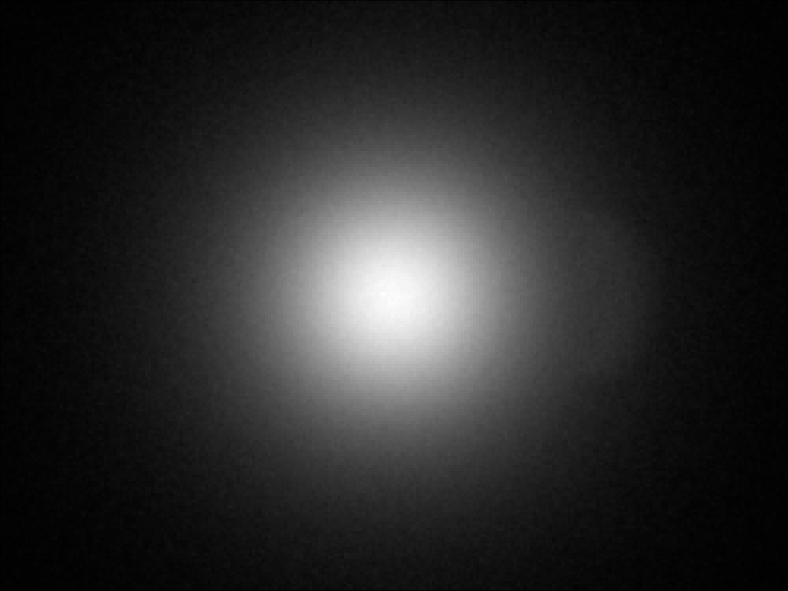

Nichia NFSW CSP E11A White

Eff:

84.0%

FWHM:

21°

Cd/Im:

4.4

Download

IES

Nichia NJCW L024Z V1MT

Eff:

85.5%

FWHM:

32°

Cd/Im:

2.2


Download

IES

Nichia NJCW S024Z White

Eff:

81.0%

FWHM:

30.0°

Cd/Im:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NV4W 144AR White

Eff:

82.5%

FWHM:

26.5°

Cd/Im:

2.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NV4W B35AM White

Eff:

85.5%

FWHM:

24°

Cd/Im:

3.6

Carclo Optics – 10757 Nichia NV4WB35AM - Spot Image

Carclo Optics – 10757 Nichia NV4WB35AM - Cross-Section

Download

IES

Nichia NVSL 219B White

Eff:

83.5%

FWHM:

21.5°

Cd/Im:

4.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW 219C White

Eff:

83.5%

FWHM:

22.0°

Cd/Im:

3.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW 219F White

Eff:

85.0%

FWHM:

23°

Cd/Im:

3.9

Carclo Optics – 10757 Nichia NVSW 219F White - Spot Image

Carclo Optics – 10757 Nichia NVSW 219F White - Cross-Section

Download

IES

Nichia NVSW 319A White

Eff:

23.0%

FWHM:

13°

Cd/Im:

3.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW CSP E21A White

Eff:

82.0%

FWHM:

21.5°

Cd/Im:

3.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram Led Engin LuxiGen LZ4 00G108 Green

Eff:

85.0%

FWHM:

26.5°

Cd/Im:

2.9

Carclo Optics – 10757 Spot Image OSRAM Led Engin LuxiGen LZ4 - 00G108 Green

Carclo Optics – 10757 Cross Section OSRAM Led Engin LuxiGen LZ4 - 00G108 Green

Download

IES

Osram Led Engin LuxiGen LZ4 00MD09 RGBCW

Eff:

85.0%

FWHM:

26.5°

Cd/Im:

2.9

Carclo Optics – 10757 Spot Image OSRAM Led Engin LuxiGen LZ4 - 00MD09 RGBCW

Carclo Optics – 10757 Cross Section OSRAM Led Engin LuxiGen LZ4 - 00MD09 RGBCW

Download

IES

Osram Led Engin LuxiGen LZ4 00W408 White

Eff:

86.0%

FWHM:

26.5°

Cd/Im:

3.1

Carclo Optics – 10757 Spot Image OSRAM Led Engin LuxiGen LZ4 - 00W408 White

Carclo Optics – 10757 Cross Section OSRAM Led Engin LuxiGen LZ4 - 00W408 White

Download

IES

Osram Led Engin LuxiGen LZ4 01MWCA RGBW

Eff:

86.0%

FWHM:

23.5°

Cd/Im:

3.6

Carclo Optics – 10757 Spot Image OSRAM Led Engin LuxiGen LZ4 - 01MWCA RGBW

Carclo Optics – 10757 Cross Section OSRAM Led Engin LuxiGen LZ4 - 01MWCA RGBW

Download

IES

Osram OS DURIS E 2835 Gen2

Eff:

86.0%

FWHM:

10.5°

Cd/Im:

16.9

Carclo Optics - 10757 30mm Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 10757 30mm Cross Section Osram DURIS E 2835 Gen2

Download

IES

Osram OS DURIS E 2835 White

Eff:

84.5%

FWHM:

22.0°

Cd/Im:

4.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS E 5050 GW J9LHS1.4M RGBW

Eff:

86.5%

FWHM:

25°

Cd/Im:

3.2

Download

IES

Osram OS DURIS E2 White

Eff:

84.0%

FWHM:

20.3°

Cd/Im:

3.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS E3 White

Eff:

86.7%

FWHM:

22.0°

Cd/Im:

3.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS P10 White

Eff:

83.2%

FWHM:

27.2°

Cd/Im:

2.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS P8 White

Eff:

83.1%

FWHM:

22.5°

Cd/Im:

3.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S10 White

Eff:

84.5%

FWHM:

28.0°

Cd/Im:

2.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

em_

Osram OS DURIS S2 White

Eff:

88.3%

FWHM:

21.9°

Cd/Im:

3.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 Deep Blue

Eff:

83.5%

FWHM:

22.5°

Cd/Im:

4.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 Green

Eff:

86.0%

FWHM:

11.0°

Cd/Im:

17.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 Red

Eff:

87.0%

FWHM:

21.5°

Cd/Im:

4.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 White

Eff:

83.0%

FWHM:

22.4°

Cd/Im:

3.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S8 Gen2 White

Eff:

88.0%

FWHM:

25.8°

Cd/Im:

2.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S8 Gen3 White

Eff:

86.0%

FWHM:

27.0 x 26.5°

Cd/Im:

3.0

Carclo Optics - 10757 30mm Spot Image Oslon DURIS S8 Gen3

Carclo Optics - 10757 26.5mm Cross Section Oslon DURIS S8 Gen3

Download

IES

Osram OS DURIS S8 White

Eff:

87.6%

FWHM:

26.3°

Cd/Im:

2.8

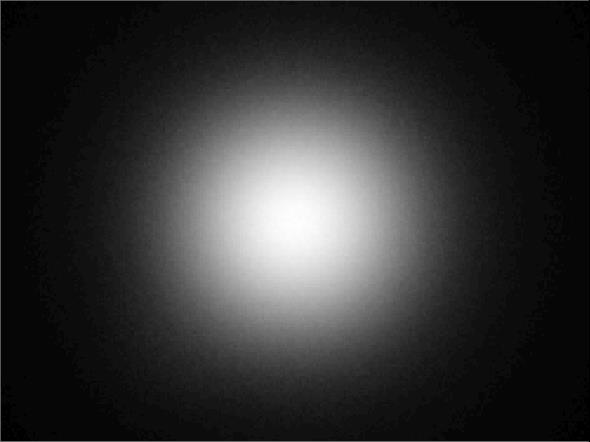

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS OSCONIQ C 2424 White

Eff:

86.0%

FWHM:

21.5°

Cd/Im:

4.3

Carclo Optics - 10757 Spot Image OSCONIQ C2424

Carclo Optics - 10757 Cross Section OSCONIQ C2424

Download

IES

Osram OS OSCONIQ P3737 White

Eff:

82.5%

FWHM:

23.5°

Cd/Im:

3.7
