30.0mm Narrow Spot Frosted TIR LED Lenses | Carclo Optics

Carclo Optics 10756

30.0mm Narrow Spot Frosted TIR LED Lenses

Part number

10756

Dimensions

30.0mm

Drawing Number

60578

Optic type

TIR LED Lenses

Finish

Frosted

Beam type

Narrow Spot

Applications

Architectural

Landscape & Garden

Humancentric

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux Micro SM4 White

Eff:

86.3%

FWHM:

20°

Cd/Im:

6.2

Download

ies

Bridgelux SMD 3030 Gen2 White

Eff:

86.0%

FWHM:

10.5°

Cd/Im:

18.1

Carclo Optics - 10756 30mm Spot Image Bridgelux 3030 Gen2

Carclo Optics - 10756 30mm Cross Section Bridgelux 3030 Gen2

Download

IES

Bridgelux Vesta BXRV DR 1830H

Eff:

85.0%

FWHM:

27.5°

Cd/Im:

2.4


Download

IES

Bridgelux Vesta BXRV TR 2765G

Eff:

86.0%

FWHM:

23.5°

Cd/Im:

4.0


Download

IES

Citizen CITILED CL-L020 White

Eff:

83.8%

FWHM:

24.6°

Cd/Im:

2.5

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Citizen CITILED CL-L022 White

Eff:

84.0%

FWHM:

25.3°

Cd/Im:

2.4

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Citizen CITILED COB CLU7A2 White

Eff:

81.5%

FWHM:

16.5°

Cd/Im:

6.9

Interconnect: 6120.50 BJB 47.319.

optic-10756-Citizen_CITILED COB_CLU7A2-spot-image.jpg

optic-10756-Citizen_CITILED COB_CLU7A2-cross-section-image.jpg

Download

IES

Citizen CITILED COB CLU7A2 White

Eff:

81.5%

FWHM:

16.5°

Cd/Im:

6.8

Download

IES

Citizen CITILED COB CLU7B2 White

Eff:

82.0%

FWHM:

14°

Cd/Im:

9.5

Carclo Optics – 10756 – Citizen_Citiled COB_CLU7B2_spot-image

Carclo Optics – 10756 – Citizen_Citiled COB_CLU7B2_cross section

Download

IES

Cree JB3030 3V White

Eff:

86.0%

FWHM:

12.0°

Cd/Im:

14.1

Carclo Optics - 10756 Spot Image Cree JB3030 3V White

Carclo Optics - 10756 Cross Section Cree JB3030 3V White

Download

IES

Cree JK2835 6V White

Eff:

86.0%

FWHM:

11.5°

Cd/Im:

15.6

Download

IES

Cree JQ5050 9V White

Eff:

86.5%

FWHM:

17.0°

Cd/Im:

7.5

Carclo Optics - 10756 Spot Image Cree JQ5050 9V White

Carclo Optics - 10756 Cross Section Cree JQ5050 9V White

Download

IES

Cree JR5050 24V White

Eff:

86.5%

FWHM:

16.5°

Cd/Im:

7.9

Carclo Optics - 10756 Spot Image Cree JR5050 24V White

Carclo Optics - 10756 Cross Section Cree JR5050 24V White

Download

IES

Cree JR5050 36V White

Eff:

86.0%

FWHM:

15.5°

Cd/Im:

8.7

Carclo Optics - 10756 Spot Image Cree JR5050 36V White

Carclo Optics - 10756 Cross Section Cree JR5050 36V White

Download

IES

Cree JR5050 6V White

Eff:

86.0%

FWHM:

16.0°

Cd/Im:

8.1

Carclo Optics - 10756 Spot Image Cree JR5050 6V White

Carclo Optics - 10756 Cross Section Cree JR5050 6V White

Download

IES

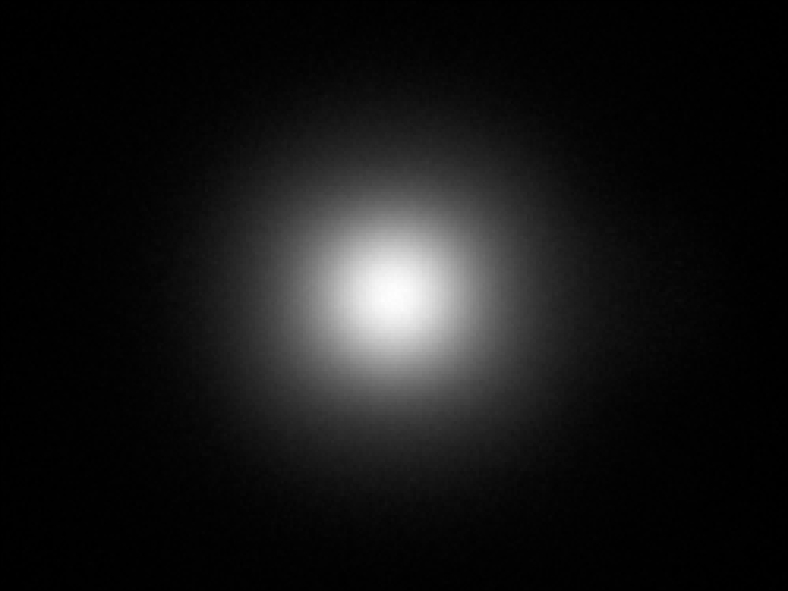

Cree JR5050C 6V E-Class White

Eff:

86.0%

FWHM:

16°

Cd/Im:

8.2


Download

IES

Cree XLamp CHA0304 White

Eff:

83.5%

FWHM:

14°

Cd/Im:

10.6

Download

IES

Cree XLamp CHA0410 White

Eff:

83.5%

FWHM:

17°

Cd/Im:

7.3

Download

IES

Cree XLamp CHA0612 White

Eff:

83.0%

FWHM:

21.5°

Cd/Im:

4.5

Download

IES

Cree XLamp CMA1303 White

Eff:

83.5%

FWHM:

16.5°

Cd/Im:

7.3

Carclo Optics – 10756 – Cree_Xlamp_CMA 1303_spot-image

Carclo Optics – 10756 – Cree_Xlamp_CMA 1303_cross vertical section

Download

IES

Cree XLamp CMB1304 White

Eff:

81.5%

FWHM:

20.5°

Cd/Im:

4.4

Download

IES

Cree XLamp CMB1306 White

Eff:

82.0%

FWHM:

20.5°

Cd/Im:

4.4

Download

IES

Cree XLamp CMU1003 White

Eff:

78.5%

FWHM:

29°

Cd/Im:

2.1

Download

IES

Cree XLamp CMU1006 White

Eff:

78.0%

FWHM:

28.5°

Cd/Im:

2.0

Download

IES

Cree XLamp CMU1010 White

Eff:

78.0%

FWHM:

28.5°

Cd/Im:

2.0

Download

IES

Cree XLamp CMU1013 White

Eff:

78.5%

FWHM:

27.5°

Cd/Im:

2.2

Download

IES

Cree XLamp CSP XD16 Cool White

Eff:

85.0%

FWHM:

10.5°

Cd/Im:

16.2

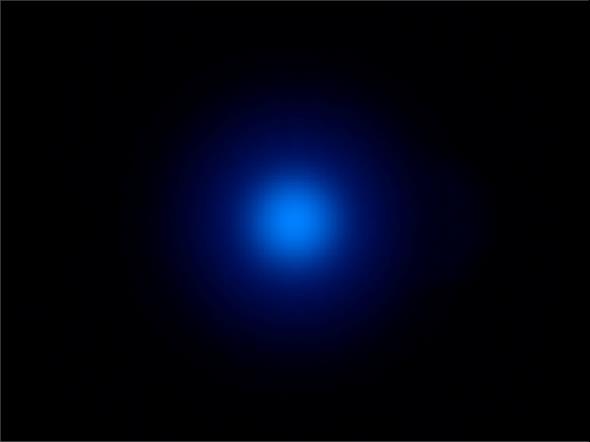

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp CSP XD16 Premium White

Eff:

85.5%

FWHM:

9.8°

Cd/Im:

20.1

Download

IES

Cree XLamp CXA 1304 White

Eff:

82.9%

FWHM:

18.5°

Cd/Im:

5.5

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp CXA 1310 White

Eff:

83.2%

FWHM:

19.4°

Cd/Im:

4.9

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp CXA 1507 White

Eff:

83.5%

FWHM:

26.2°

Cd/Im:

2.5

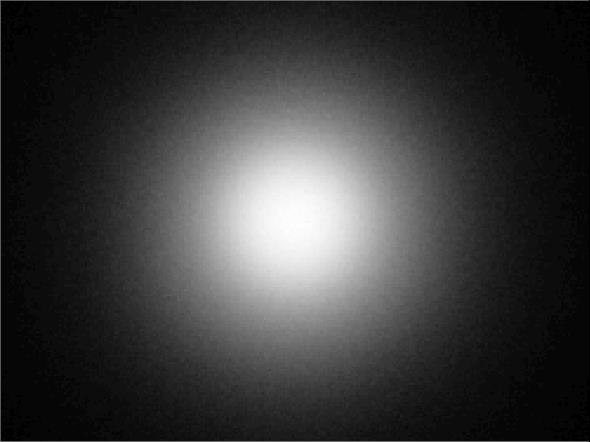

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp CXA 1512 White

Eff:

83.3%

FWHM:

25.1°

Cd/Im:

2.8

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp CXA 1520 White

Eff:

83.8%

FWHM:

26.3°

Cd/Im:

2.3

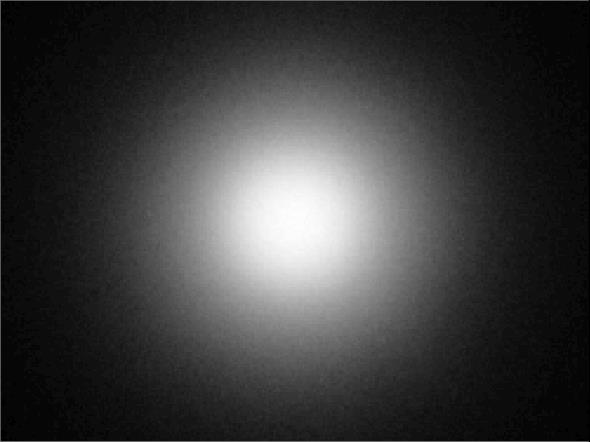

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp CXB1310 White

Eff:

82.0%

FWHM:

20°

Cd/Im:

4.7

Download

IES

Cree XLamp MH-B White

Eff:

82.9%

FWHM:

17.1°

Cd/Im:

6.3

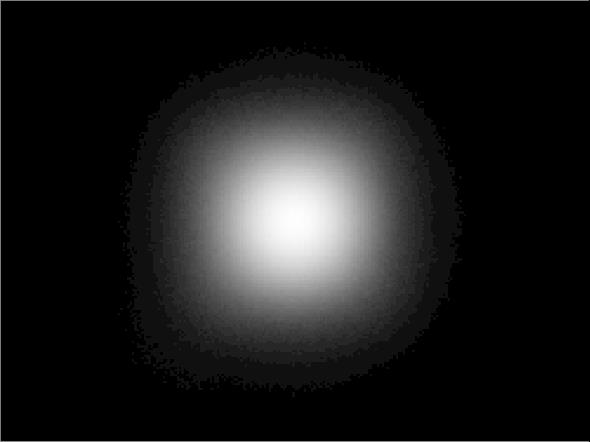

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp MK-R White

Eff:

90.0%

FWHM:

21.6°

Cd/Im:

6.5

Download

ies

Cree XLamp MT-G White

Eff:

87.3%

FWHM:

26.5°

Cd/Im:

4.2

Download

ies

Cree XLamp MT-G2 White

Eff:

86.5%

FWHM:

24.7°

Cd/Im:

4.6

Download

ies

Cree XLamp XB-D White

Eff:

82.0%

FWHM:

9.9°

Cd/Im:

23.9

Download

ies

Cree XLamp XB-H White

Eff:

86.0%

FWHM:

11.5°

Cd/Im:

15.3

Carclo Optics - 10756 30mm Spot Image Cree XLamp XB-H

Carclo Optics - 10756 30mm Cross Section Cree XLamp XB-H

Download

IES

Cree XLamp XE-G Blue

Eff:

86.0%

FWHM:

10.5°

Cd/Im:

18.6

Download

IES

Cree XLamp XE-G Green

Eff:

86.0%

FWHM:

10.5°

Cd/Im:

18.7

Download

IES

Cree XLamp XE-G Red

Eff:

85.5%

FWHM:

10°

Cd/Im:

19.7

Download

IES

Cree XLamp XE-G White

Eff:

85.5%

FWHM:

10°

Cd/Im:

18.7

Download

IES

Cree XLamp XHP-50 Gen 2 White

Eff:

84.0%

FWHM:

18.5°

Cd/Im:

5.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP-50 White

Eff:

82.6%

FWHM:

19.4°

Cd/Im:

5.1

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XHP-70 White

Eff:

85.0%

FWHM:

24.0°

Cd/Im:

3.7

Carclo Optics - 10756 Spot Image Cree XHP70

Carclo Optics - 10756 Cross Section Cree XHP70

Download

IES

Cree XLamp XHP-70 White

Eff:

82.8%

FWHM:

25.1°

Cd/Im:

3.3

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XHP35 HI White

Eff:

82.8%

FWHM:

11.4°

Cd/Im:

14.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP35 HD White

Eff:

82.0%

FWHM:

13.9°

Cd/Im:

9.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP35.2 HI White

Eff:

85.5%

FWHM:

13°

Cd/Im:

11.5

Carclo Optics – 10756 Spot Image Cree XLamp XHP35.2 HI White

Carclo Optics – 10756 Cross Section Cree XLamp XHP35.2 HI White

Download

2-HI-WW

Cree XLamp XHP35.2 HD White

Eff:

85.0%

FWHM:

16.5°

Cd/Im:

7.6

Carclo Optics - 10756 Spot Image Cree XHP35.2

Carclo Optics - 10756 Cross Section Cree XHP35.2

Download

2

Cree XLamp XHP50.3 HI White

Eff:

85.5%

FWHM:

14.5°

Cd/Im:

9.2

optic-10756-Cree_XHP50.3 HI-spot-image.jpg

optic-10756-Cree_XHP50.3 HI-cross-section-image.jpg

Download

IES

Cree XLamp XHP50.3 White

Eff:

85.0%

FWHM:

17.5°

Cd/Im:

6.7



Download

IES

Cree XLamp XHP70.2 White

Eff:

85.0%

FWHM:

24°

Cd/Im:

3.7

Carclo Optics – 10756 Cree Xlamp XHP70.2 - Spot Image

Carclo Optics – 10756 Cree Xlamp XHP70.2 - Cross-Section

Download

IES

Cree XLamp XM-L Color G2 HD RGBW

Eff:

86.5%

FWHM:

15.5°

Cd/Im:

8.8

Download

IES

Cree XLamp XM-L Color G2 HI RGBW

Eff:

86.0%

FWHM:

13°

Cd/Im:

11.7

Download

IES

Cree XLamp XM-L White

Eff:

87.3%

FWHM:

15°

Cd/Im:

11.6

Download

ies

Cree XLamp XM-L2 White

FWHM:

13.5°

Cd/Im:

10.2

optic-10756-narrow-frost-cree-XM-L2-white-spot-image

optic-10756-narrow-frost-cree-XM-L2-white-cross-section-image

Download

ies

Cree XLamp XM-L3 White

Eff:

84.5%

FWHM:

14.0°

Cd/Im:

9.8

Carclo Optics - 10756 Spot Image Cree XM-L3

Carclo Optics - 10756 Cross Section Cree XM-L3

Download

IES

Cree XLamp XP-C White

Eff:

86.6%

FWHM:

8.3°

Cd/Im:

30.5

Download

ies

Cree XLamp XP-E White

Eff:

86.9%

FWHM:

10.5°

Cd/Im:

22.4

Download

ies

Cree XLamp XP-E2 White

Eff:

86.0%

FWHM:

10°

Cd/Im:

19.5

Download

IES

Cree XLamp XP-G White

Eff:

86.3%

FWHM:

12.2°

Cd/Im:

16.7

Download

ies

Cree XLamp XP-G2 White

Eff:

84.7%

FWHM:

11.3°

Cd/Im:

19.8

10756 Spot

10756 Cross section plot

Download

ies

Cree XLamp XP-G3 White

Eff:

83.0%

FWHM:

12.1°

Cd/Im:

12.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XP-L HI White

Eff:

82.9%

FWHM:

10.6°

Cd/Im:

15.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XP-L White

Eff:

82.8%

FWHM:

12.9°

Cd/Im:

11.1

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XP-L2 White

Eff:

84.0%

FWHM:

14.5°

Cd/Im:

9.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XP-P White

Eff:

86.0%

FWHM:

9.4°

Cd/Im:

22.8

Carclo Optics – 10756 Cree Xlamp XP-P - Spot Image

Carclo Optics – 10756 Cree Xlamp XP-P - Cross-Section

Download

IES

Cree XLamp XQ-A Blue

Eff:

84.5%

FWHM:

8.6°

Cd/Im:

25.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-A Green

Eff:

84.5%

FWHM:

8.5°

Cd/Im:

25.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-A Red

Eff:

85.0%

FWHM:

8.7°

Cd/Im:

25.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-A White

Eff:

83.0%

FWHM:

7.9°

Cd/Im:

31.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Blue

Eff:

84.0%

FWHM:

9.5°

Cd/Im:

19.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

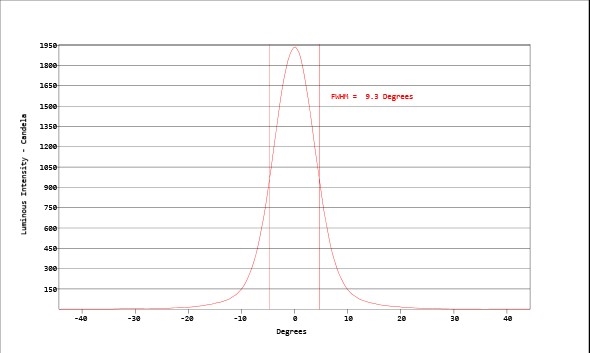

Cree XLamp XQ-E HI Green

Eff:

84.0%

FWHM:

9.3°

Cd/Im:

19.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Red

Eff:

84.0%

FWHM:

9.1°

Cd/Im:

20.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI White

Eff:

83.0%

FWHM:

8.4°

Cd/Im:

23.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

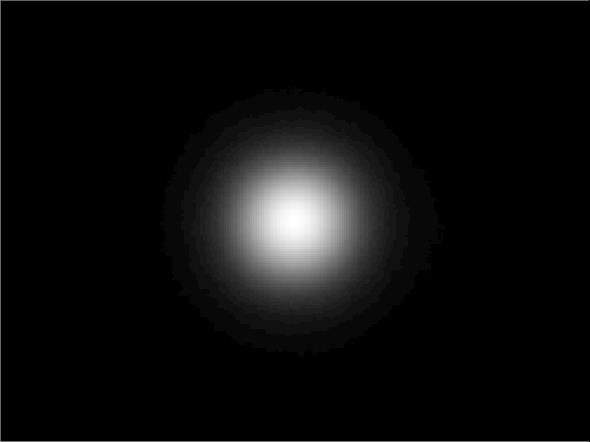

Cree XLamp XT-E HE White

Eff:

84.5%

FWHM:

11.5°

Cd/Im:

13.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XT-E White

FWHM:

10.9°

Cd/Im:

20.2

Download

ies

Lextar Nimbus 500 White

Eff:

84.4%

FWHM:

21.6°

Cd/Im:

2.9

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LG Innotek 3535LG White

Eff:

82.5%

FWHM:

11.8°

Cd/Im:

17.2

Download

ies

Lite-On R38386AS - S R38 IR

Eff:

90.5%

FWHM:

10.5°

Cd/Im:

19.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS CX Plus (Gen 2) M03 White

Eff:

78.0%

FWHM:

27°

Cd/Im:

2.3

Carclo Optics -10756 -Luxeon_CX_Plus_CoB_M03_WW-spot-image

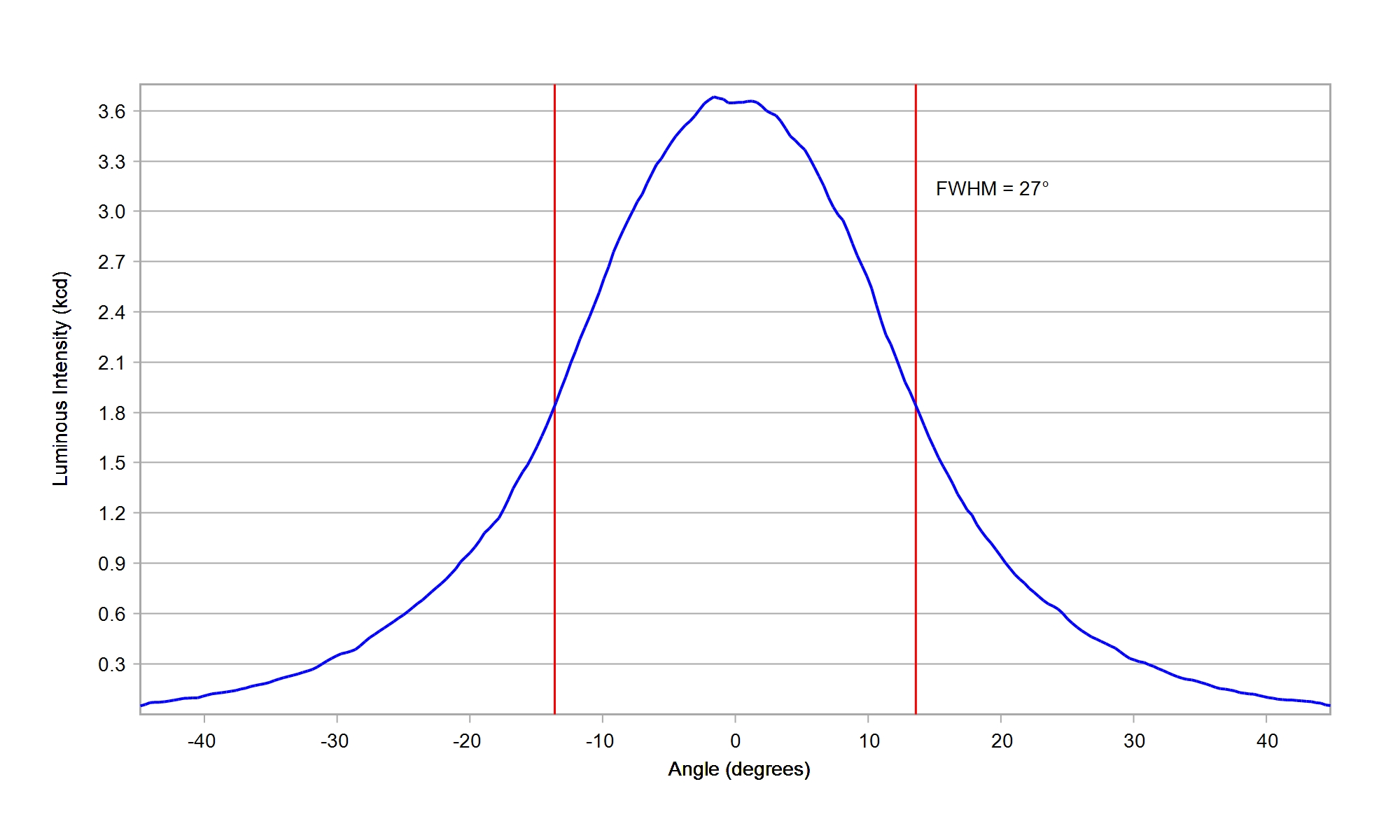

Carclo Optics -10756 -Luxeon_CX_Plus_CoB_M03_WW- cross section

Download

IES

LUMILEDS CX Plus (Gen 2) S01 White

Eff:

81.5%

FWHM:

19.5°

Cd/Im:

4.8

Carclo Optics -10756 - Luxeon_CX_Plus_CoB_S01_WW - spot -image

Carclo Optics -10756 - Luxeon_CX_Plus_CoB_S01_WW - cross image

Download

IES

LUMILEDS LUXEON 3014 White

Eff:

86.0%

FWHM:

9.6°

Cd/Im:

21.5

Download

IES

LUMILEDS LUXEON 3030 HE Plus White

Eff:

86.0%

FWHM:

11.5°

Cd/Im:

15.5

Carclo Optics – 10756 – Luxeon_3030_HE_Plus_spot-image

Carclo Optics – 10756 – Luxeon_3030_HE_Plus_cross vertical section

Download

IES

LUMILEDS LUXEON 3030 LUXEON White

Eff:

81.0%

FWHM:

10.0°

Cd/Im:

17.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 3535 HV White

Eff:

83.0%

FWHM:

9.8°

Cd/Im:

18.1

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON 3535L Blue

Eff:

84.5%

FWHM:

10.5°

Cd/Im:

16.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 3535L Green

Eff:

84.5%

FWHM:

10.5°

Cd/Im:

16.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 3535L Red

Eff:

85.0%

FWHM:

9.2°

Cd/Im:

20.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 5050 Round White

Eff:

85.0%

FWHM:

16.0°

Cd/Im:

8.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 5052 RGBW

Eff:

83.5%

FWHM:

12.5°

Cd/Im:

11.4

Download

IES

LUMILEDS LUXEON 5258 White

Eff:

82.8%

FWHM:

15.5°

Cd/Im:

7.8

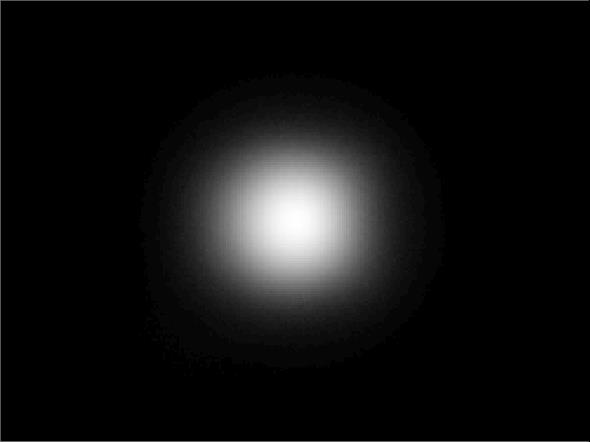

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 7070 White

Eff:

85.5%

FWHM:

22°

Cd/Im:

4.2

Carclo Optics – 10756 Lumileds Luxeon 7070 - Spot Image

Carclo Optics – 10756 Lumileds Luxeon 7070 - Cross-Section

Download

IES

LUMILEDS LUXEON C Blue

Eff:

81.0%

FWHM:

13.0°

Cd/Im:

11.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Lime

Eff:

82.0%

FWHM:

11.5°

Cd/Im:

15.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Red

Eff:

80.5%

FWHM:

11.5°

Cd/Im:

13.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON COB 105 White

Eff:

83.2%

FWHM:

21.2°

Cd/Im:

4.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON COB 107 White

Eff:

83.2%

FWHM:

21.8°

Cd/Im:

3.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON COB 109 White

Eff:

83.3%

FWHM:

21.0°

Cd/Im:

4.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON CSP 05 White

Eff:

82.0%

FWHM:

9.1°

Cd/Im:

15.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON CSP 10 White

Eff:

81.0%

FWHM:

10.0°

Cd/Im:

12.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON CZ White

Eff:

86.0%

FWHM:

9.2°

Cd/Im:

23.8

Carclo Optics 10756 Spot Image Luxeon CZ 5M

Carclo Optics 10756 Cross Section Luxeon CZ 5M

Download

IES

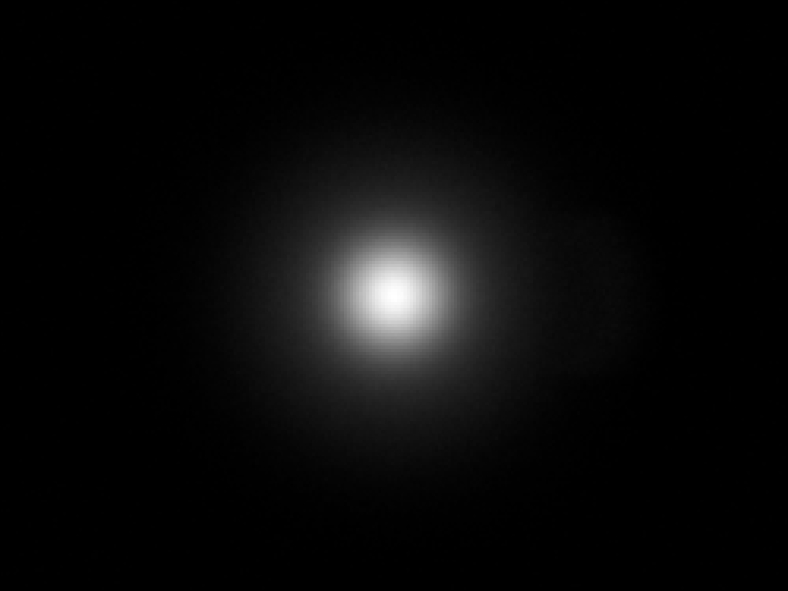

LUMILEDS LUXEON HL1Z CSP White

Eff:

85.0%

FWHM:

9.6°

Cd/Im:

20.4

Download

IES

LUMILEDS LUXEON HL2X White

Eff:

85.5%

FWHM:

12.5°

Cd/Im:

12.9

Carclo Optics - 10765 Spot Image Luxeon HL2X

Carclo Optics - 10765 Cross Section Luxeon HL2X

Download

IES

LUMILEDS LUXEON HL2X-D White

Eff:

86.0%

FWHM:

13°

Cd/Im:

12.0

Download

IES

LUMILEDS LUXEON HL2X-P White

Eff:

86.0%

FWHM:

13.5°

Cd/Im:

11.3

Download

IES

LUMILEDS LUXEON HL2Z White

Eff:

85.5%

FWHM:

11°

Cd/Im:

16.6

Carclo Optics – 10756 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 10756 Lumileds Luxeon HL2Z - Cross-Section

Download

IES

LUMILEDS LUXEON IR 2720

Eff:

90.5%

FWHM:

9.8°

Cd/Im:

21.5

Carclo Optics 10756 Spot Image Luxeon IR 2720

Carclo Optics 10756 Cross Section image Luxeon IR 2720

Download

IES

LUMILEDS LUXEON IR Compact 850nm

Eff:

90.0%

FWHM:

9.6°

Ipk/W:

21.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 60 Degree

Eff:

89.0%

FWHM:

11.0°

Cd/Im:

17.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 90 Degree

Eff:

89.5%

FWHM:

10.5°

Cd/Im:

19.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON M White

FWHM:

21.52°

Cd/Im:

6.6

Download

ies

LUMILEDS LUXEON MX White

Eff:

84.5%

FWHM:

19.5°

Cd/Im:

5.4

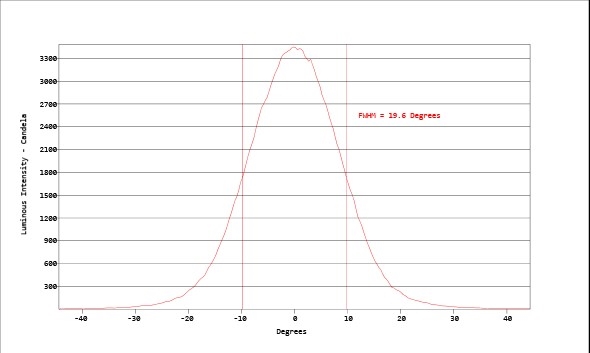

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON MZ White

Eff:

82.6%

FWHM:

14.5°

Cd/Im:

9.1

carclo optics - simulated spot image

Download

IES

LUMILEDS LUXEON Q White

Eff:

80.8%

FWHM:

10.7°

Cd/Im:

14.5

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON R White

Eff:

86.4%

FWHM:

12.66°

Cd/Im:

16.1

Download

ies

LUMILEDS LUXEON Rebel ES White

Eff:

86.4%

FWHM:

12.66°

Cd/Im:

16.1

Download

ies

LUMILEDS LUXEON Rebel White

Eff:

87.0%

FWHM:

10.3°

Cd/Im:

24.0

Download

ies

LUMILEDS LUXEON Rubix Blue

Eff:

86.0%

FWHM:

9.5°

Cd/Im:

22.4

Carclo Optics – 10756 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics – 10756 Cross Section Lumileds Luxeon Rubix Blue

Download

IES

LUMILEDS LUXEON Rubix Green

Eff:

86.0%

FWHM:

9.3°

Cd/Im:

23.1

Carclo Optics – 10756 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 10756 Cross Section Lumileds Luxeon Rubix Green

Download

IES

LUMILEDS LUXEON Rubix Red

Eff:

88.0%

FWHM:

9.1°

Cd/Im:

24.6

Carclo Optics – 10756 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 10756 Cross Section Lumileds Luxeon Rubix Red

Download

IES

LUMILEDS LUXEON Rubix Royal Blue

Eff:

85.0%

FWHM:

9.5°

Cd/Im:

21.9

Carclo Optics – 10756 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 10756 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

IES

LUMILEDS LUXEON Rubix White

Eff:

86.0%

FWHM:

9.4°

Cd/Im:

22.7

Carclo Optics - 10756 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 10756 Cross Section Lumileds Luxeon Rubix White

Download

IES

LUMILEDS LUXEON S1000 White

Eff:

84.5%

FWHM:

21.3°

Cd/Im:

5.5

Download

ies

LUMILEDS LUXEON T White

Eff:

86.4%

FWHM:

12.7°

Cd/Im:

16.1

Download

ies

LUMILEDS LUXEON TX White

Eff:

82.6%

FWHM:

10.5°

Cd/Im:

15.9

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON V White

Eff:

82.5%

FWHM:

14°

Cd/Im:

9.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON V2 White

Eff:

85.0%

FWHM:

12°

Cd/Im:

14.1

Carclo Optics 10756 Spot Image Luxeon V2

Carclo Optics 10756 Cross Section Image Luxeon V2

Download

IES

LUMILEDS LUXEON Z ES White

Eff:

85.0%

FWHM:

10°

Cd/Im:

13.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON Z White

Eff:

82.7%

FWHM:

8.2°

Cd/Im:

24.3

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Luminus Devices MP 7070-T200 White

Eff:

86.5%

FWHM:

21.5°

Cd/Im:

4.8


Download

IES

Luminus Devices SFT-40-WxS White

Eff:

86.0%

FWHM:

11°

Cd/Im:

17.8

Download

IES

Luminus Devices SFT-70X-WxS White

Eff:

86.0%

FWHM:

12.5°

Cd/Im:

13.8

Download

IES

Luminus Devices SST 05-IR-B40 850nm

Eff:

90.5%

FWHM:

9.9°

Ipk/W:

20.3

Carclo Optics - 10756 Spot Image Luminus SST-05-IR-B40

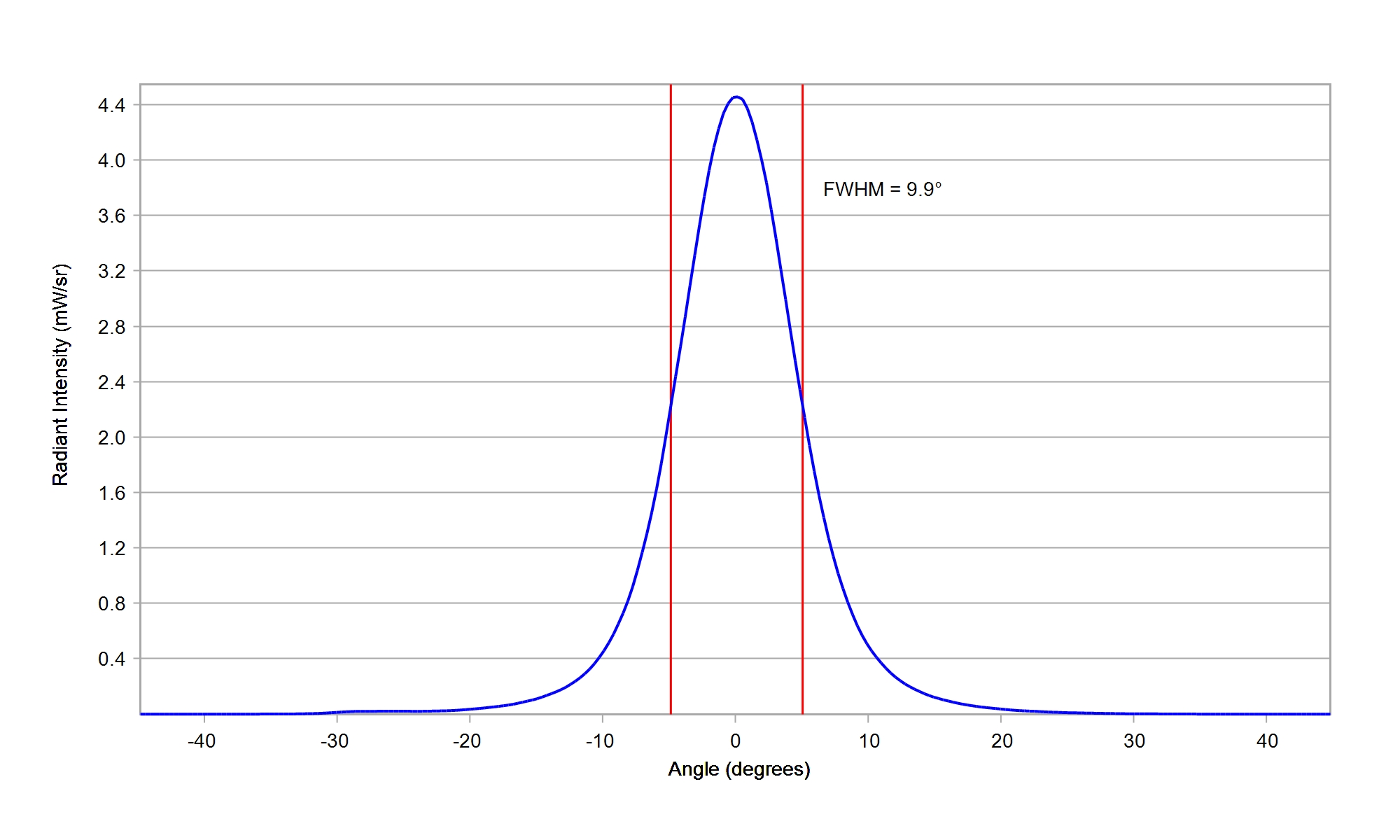

Carclo Optics - 10756 Cross Section Luminus SST-05-IR-B40

Download

IES

Luminus Devices SST 10-B-B130 Blue

Eff:

83.0%

FWHM:

10.5°

Cd/Im:

18.4

Carclo Optics - 10756 Luminus_SST-10_B_B130 - Spot Image

Carclo Optics - 10756 Luminus_SST-10_B_B130 - Cross section image

Download

IES

Luminus Devices SST 10-B-B90 Blue

Eff:

83.0%

FWHM:

10.5°

Cd/Im:

17.3

Carclo Optics - 10756 Luminus_SST-10_B_B90 - spot - image

Download

IES

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

87.5%

FWHM:

10.5°

Cd/Im:

18.4

Carclo Optics – 10756 Luminus_SST-10_DR_B130- Spot - image

Carclo Optics – 10756 Luminus_SST-10_DR_B130- Cross section – image

Download

IES

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

88.0%

FWHM:

10.5°

Cd/Im:

17.8

Carclo Optics - 10756 Luminus_SST-10_DR_B90 - Spot Image

Carclo Optics - 10756 Luminus_SST-10_DR_B90 - Cross section image

Download

IES

Luminus Devices SST 10-G-B130 Green

Eff:

86.0%

FWHM:

10°

Cd/Im:

19.6

Carclo Optics - 10756 Luminus_SST-10_G_B130 - spot - image

Carclo Optics - 10756 Luminus_SST-10_G_B130 - cross section - image

Download

IES

Luminus Devices SST 10-G-B90 Green

Eff:

85.5%

FWHM:

10.5°

Cd/Im:

18.2

Carclo Optics – 10756 Luminus_SST-10_G_B90- Spot - image

Carclo Optics – 10756 Luminus_SST-10_G_B90- Cross section – image

Download

IES

Luminus Devices SST 10-IR-B130 940nm

Eff:

92.5%

FWHM:

11.5°

Ipk/W:

17.3

Carclo Optics - 10756 Spot Image Luminus SST-10-IR-B130

Carclo Optics - 10756 Cross Section Luminus SST-10-IR-B130

Download

IES

Luminus Devices SST 10-IR-B90 940nm

Eff:

91.5%

FWHM:

10.5°

Ipk/W:

18.3

Carclo Optics - 10756 Spot Image Luminus SST-10-IR-B90

Carclo Optics - 10756 Cross Section Luminus SST-10-IR-B90

Download

IES

Luminus Devices SST 10-IRD-B130 810nm

Eff:

91.5%

FWHM:

10°

Ipk/W:

21.0


Download

IES

Luminus Devices SST 10-IRD-B90 810nm

Eff:

91.5%

FWHM:

10.5°

Ipk/W:

19.1


Download

IES

Luminus Devices SST 20-WxH White Hi CRI

Eff:

85.0%

FWHM:

10.5°

Cd/Im:

17.7

Carclo Optics – 10756 - Luxeon_SST_20_W_spot-image

Carclo Optics – 10756 - Luxeon_SST_20_W_cross vertical section

Download

IES

Luminus Devices SST 40-W White

Eff:

85.5%

FWHM:

15°

Cd/Im:

9.5

Carclo Optics – 10756 - Luxeon_SST_40_W_spot-image

Carclo Optics – 10756 - Luxeon_SST_40_W_cross vertical section

Download

IES

Luminus Devices SST-12-WxS White

Eff:

85.5%

FWHM:

10.5°

Cd/Im:

18.9

Download

IES

Luminus Devices SST-70X-W White

Eff:

86.0%

FWHM:

16°

Cd/Im:

8.5

Download

IES

Nichia 219 White

Eff:

82.0%

FWHM:

11.1°

Cd/Im:

20.1

Download

ies

Nichia 229A White

Eff:

83.5%

FWHM:

15°

Cd/Im:

8.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia 757G White

Eff:

85.0%

FWHM:

11.0°

Cd/Im:

15.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia 757G White

Eff:

86.0%

FWHM:

11.5°

Cd/Im:

14.5

Carclo Optics 10756 Simulated Spot Image Nichia 757G-MT

Carclo Optics 10756 Simulated cross section horizontal Nichia 757G-MT

Download

IES

Nichia NCSW CSP E17A White

Eff:

84.5%

FWHM:

10.0°

Cd/Im:

19.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NF2W 385AR-V2 White

Eff:

85.0%

FWHM:

12°

Cd/Im:

13.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NF2W 757G-MT Tunable

Eff:

86.0%

FWHM:

11.5°

Cd/Im:

14.5


Download

IES

Nichia NFMW 481AR White

Eff:

77.0%

FWHM:

20.0°

Cd/Im:

5.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFMW 484AR White

Eff:

85.0%

FWHM:

17.5°

Cd/Im:

7.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFMW 486AR White

Eff:

85.0%

FWHM:

16.5°

Cd/Im:

7.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFMW 488AR White

Eff:

85.0%

FWHM:

17.0°

Cd/Im:

7.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFSW CSP E11A White

Eff:

84.5%

FWHM:

9°

Cd/Im:

23.4

Download

IES

Nichia NJCW L024Z V1MT

Eff:

86.0%

FWHM:

24.5°

Cd/Im:

3.6


Download

IES

Nichia NJCW S024Z White

Eff:

81.5%

FWHM:

22.5°

Cd/Im:

3.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NV4W 144AR White

Eff:

82.5%

FWHM:

19.0°

Cd/Im:

5.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NV4W B35AM White

Eff:

86.0%

FWHM:

14°

Cd/Im:

10.4

Carclo Optics – 10756 Nichia NV4WB35AM - Spot Image

Carclo Optics – 10756 Nichia NV4WB35AM - Cross-Section

Download

IES

Nichia NVSL 219B White

Eff:

83.5%

FWHM:

10.5°

Cd/Im:

16.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW 219C White

Eff:

84.0%

FWHM:

12.0°

Cd/Im:

13.3

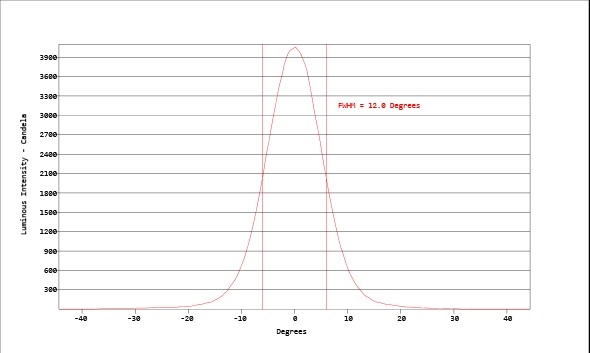

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW 219F White

Eff:

85.0%

FWHM:

12.5°

Cd/Im:

13.1

Carclo Optics – 10756 Nichia NVSW 219F White - Spot Image

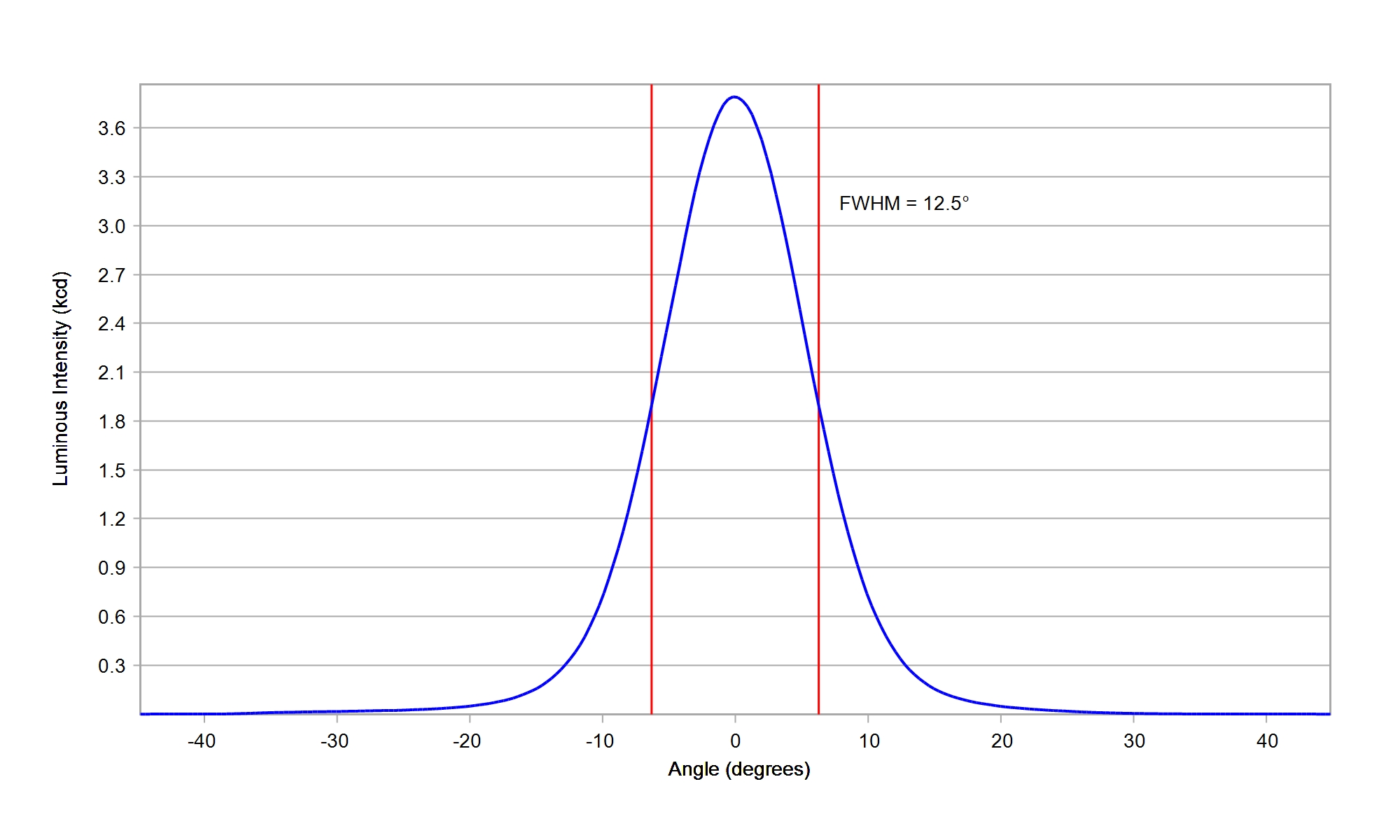

Carclo Optics – 10756 Nichia NVSW 219F White - Cross-Section

Download

IES

Nichia NVSW 319A White

Eff:

83.5%

FWHM:

13°

Cd/Im:

11.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW CSP E21A White

Eff:

81.0%

FWHM:

9.9°

Cd/Im:

19.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram Led Engin LuxiGen LZ4 00G108 Green

Eff:

85.5%

FWHM:

17.5°

Cd/Im:

6.3

Carclo Optics – 10756 Spot Image OSRAM Led Engin LuxiGen LZ4 - 00G108 Green

Carclo Optics – 10756 Cross Section OSRAM Led Engin LuxiGen LZ4 - 00G108 Green

Download

IES

Osram Led Engin LuxiGen LZ4 00W408 White

Eff:

86.0%

FWHM:

19°

Cd/Im:

6.1

Carclo Optics – 10756 Spot Image OSRAM Led Engin LuxiGen LZ4 - 00W408 White

Carclo Optics – 10756 Cross Section OSRAM Led Engin LuxiGen LZ4 - 00W408 White

Download

IES

Osram OS DURIS E 2835 Gen2

Eff:

86.0%

FWHM:

10.5°

Cd/Im:

16.9

Carclo Optics - 10756 30mm Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 10756 30mm Cross Section Osram DURIS E 2835 Gen2

Download

IES

Osram OS DURIS E2 White

Eff:

83.0%

FWHM:

8.6°

Cd/Im:

22.1

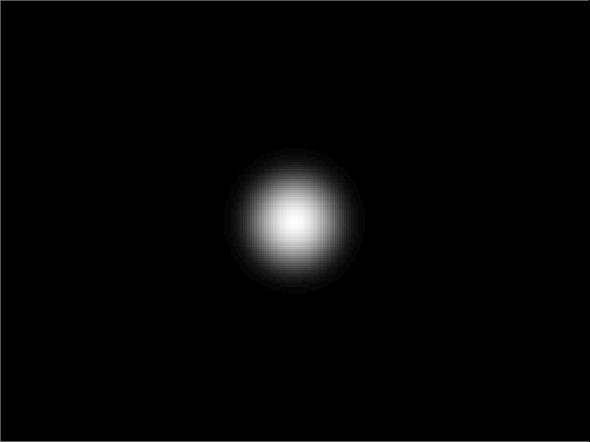

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS E3 White

Eff:

86.1%

FWHM:

10.0°

Cd/Im:

18.9

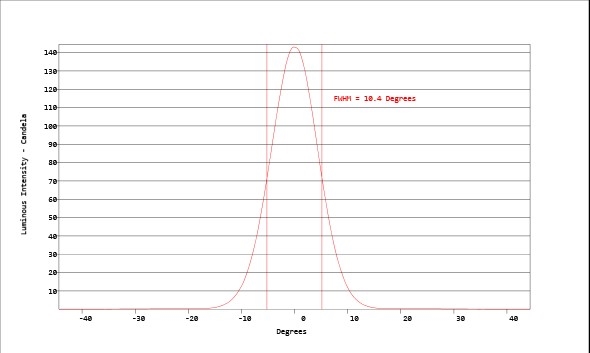

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS P10 White

Eff:

82.8%

FWHM:

18.7°

Cd/Im:

5.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS P8 White

Eff:

82.5%

FWHM:

10.3°

Cd/Im:

16.6

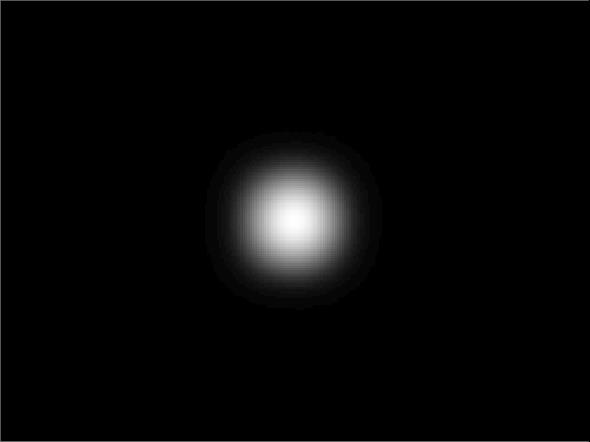

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S10 White

Eff:

85.0%

FWHM:

20.5°

Cd/Im:

5.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

em_

Osram OS DURIS S2 White

Eff:

87.7%

FWHM:

9.5°

Cd/Im:

17.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 Deep Blue

Eff:

83.5%

FWHM:

11.5°

Cd/Im:

15.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 Green

Eff:

86.0%

FWHM:

11.0°

Cd/Im:

17.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 Red

Eff:

87.0%

FWHM:

10.5°

Cd/Im:

19.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 White

Eff:

82.0%

FWHM:

10.2°

Cd/Im:

16.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S8 Gen2 White

Eff:

87.0%

FWHM:

16.0°

Cd/Im:

8.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S8 Gen3 White

Eff:

86.5%

FWHM:

19.5 x 18.5°

Cd/Im:

6.2

Carclo Optics - 10756 30mm Spot Image Oslon DURIS S8 Gen3

Carclo Optics - 10756 26.5mm Cross Section Oslon DURIS S8 Gen3

Download

IES

Osram OS DURIS S8 White

Eff:

87.1%

FWHM:

17.4°

Cd/Im:

7.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS OSCONIQ C 2424 White

Eff:

86.0%

FWHM:

10.5°

Cd/Im:

18.5

Carclo Optics - 10756 Spot Image OSCONIQ C2424

Carclo Optics - 10756 Cross Section OSCONIQ C2424

Download

IES

Osram OS OSCONIQ P3737 White

Eff:

83.0%

FWHM:

13°

Cd/Im:

11.3

Carclo Optics 10756 Spot Image Osram Osconiq P3737

Carclo Optics 10756 Cross Section Osram Osconiq P3737

Download

IES

Osram OS OSCONIQ S 5050 GW Q9LR32.PM

Eff:

86.5%

FWHM:

18°

Cd/Im:

6.7



Download

IES

Osram OS OSLON Black SFH 4715AS IR

Eff:

90.0%

FWHM:

9.6°

Ipk/W:

21.1


Download

IES

Osram OS OSLON Black SFH 4716AS IR

Eff:

89.0%

FWHM:

9.5°

Ipk/W:

21.9

Carclo Optics – 10756 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

Carclo Optics – 10756 Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

IES

Osram OS OSLON Black SFH 4725S IR

Eff:

92.0%

FWHM:

11°

Cd/Im:

18.7

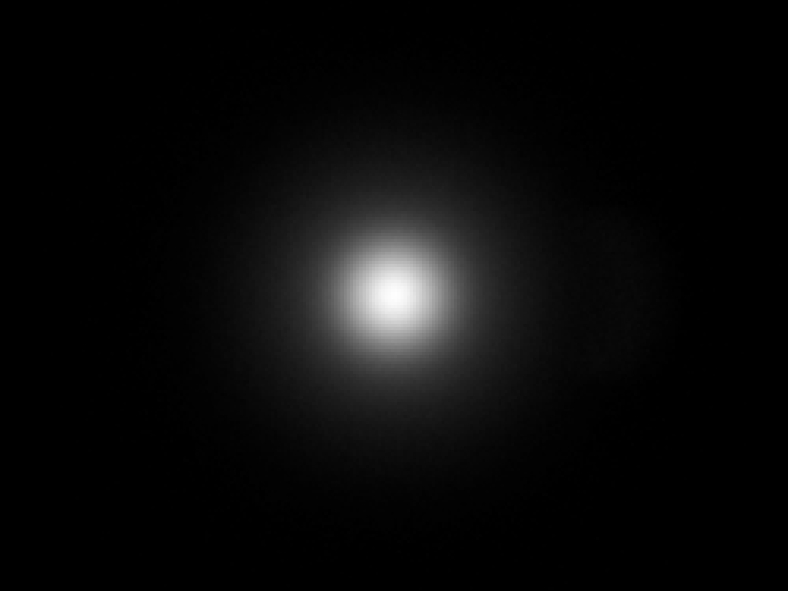

Carclo Optics 10756 Spot Image Osram Oslon Black_IR_SFH_4725S

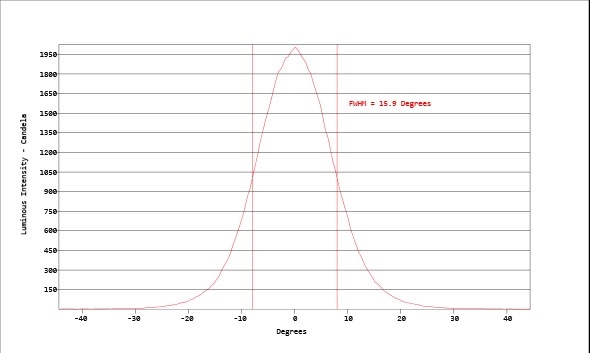

Carclo Optics 10756 Cross Section Horizontal Osram Oslon Black_IR_SFH_4725S

Download

IES
