26.5mm Elliptical Ripple Linear TIR LED Lenses | Carclo Optics

Carclo Optics 10395

26.5mm Elliptical Ripple Linear TIR LED Lenses

Part number

10395

Dimensions

26.5mm

Drawing Number

60538

Optic type

TIR LED Lenses

Finish

Ripple Linear

Beam type

Elliptical

Applications

Architectural

Landscape & Garden

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

86.5%

FWHM:

48 x 8.4°

Cd/Im:

5.7

Carclo Optics - 10395 26.5mm Spot Image Bridgelux 3030 Gen2

Carclo Optics - 10395 26.5mm Horizontal Cross Section Bridgelux 3030 Gen2

,

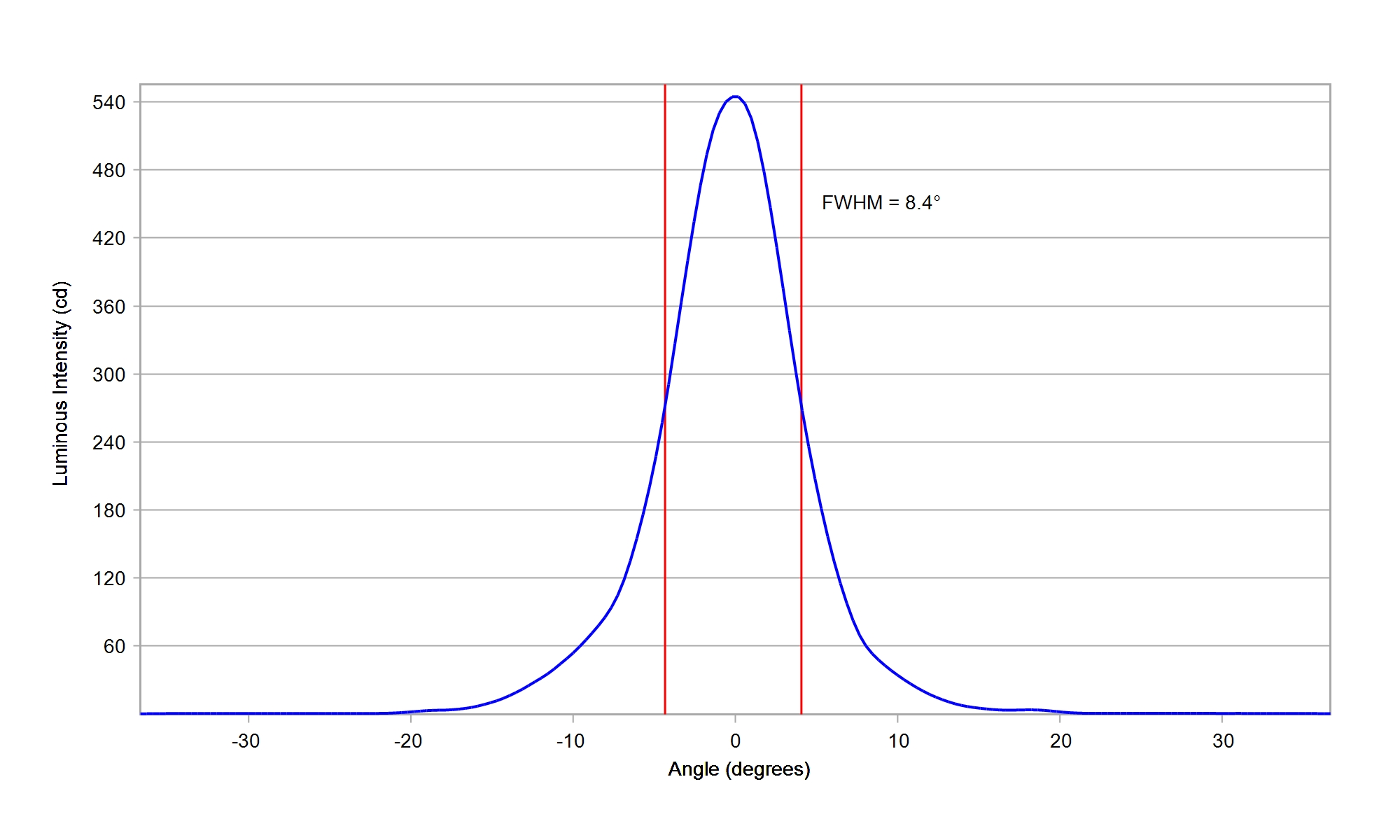

Carclo Optics - 10395 26.5mm Vertical Cross Section Bridgelux 3030 Gen2

Download

IES

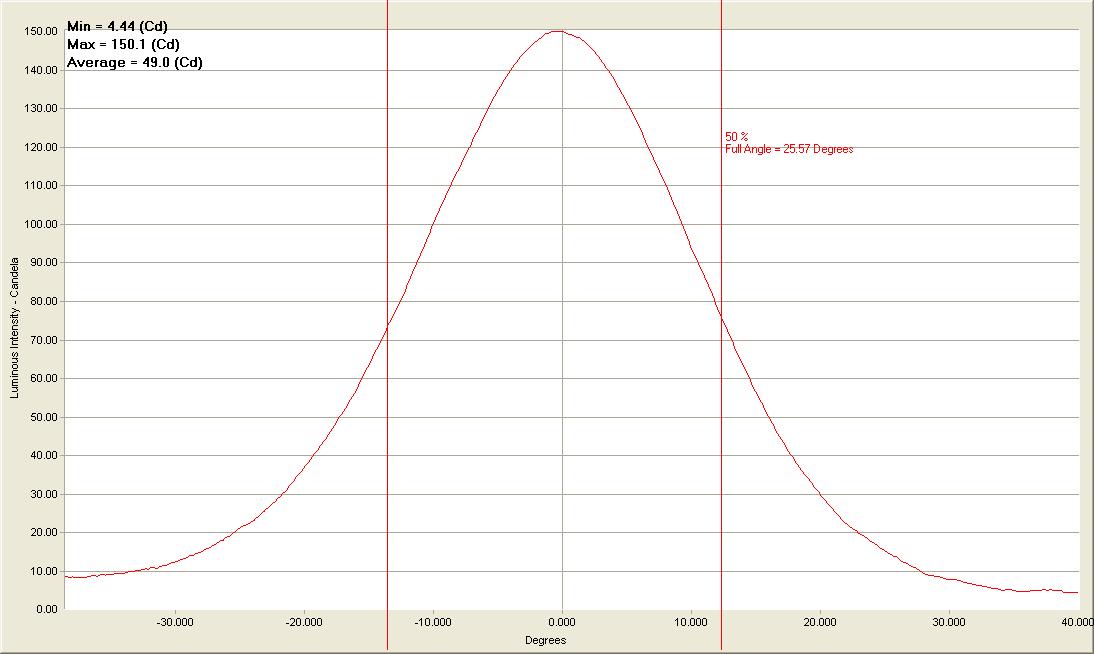

Broadcom Moonstone White

Eff:

83.1%

FWHM:

44 x 16°

Cd/Im:

3.0

Download

ies

Cree JB3030 3V White

Eff:

86.0%

FWHM:

48 x 10.5°

Cd/Im:

4.7

Carclo Optics - 10395 Spot Image Cree JB3030 3V White

Carclo Optics - 10395 Horizontal Cross Section Cree JB3030 3V White

,

Carclo Optics - 10395 Vertical Cross Section Cree JB3030 3V White

Download

IES

Cree JK2835 6V White

Eff:

86.0%

FWHM:

48 x 9.8°

Cd/Im:

5.0


,


Download

IES

Cree JQ5050 9V White

Eff:

85.0%

FWHM:

44 x 17.5°

Cd/Im:

3.0

Carclo Optics - 10395 Spot Image Cree JQ5050 9V White

Carclo Optics - 10395 Horizontal Cross Section Cree JQ5050 9V White

,

Carclo Optics - 10395 Vertical Cross Section Cree JQ5050 9V White

Download

IES

Cree JR5050 24V White

Eff:

86.0%

FWHM:

45 x 16.5°

Cd/Im:

3.1

Carclo Optics - 10395 Spot Image Cree JR5050 24V White

Carclo Optics - 10395 Horizontal Cross Section Cree JR5050 24V White

,

Carclo Optics - 10395 Vertical Cross Section Cree JR5050 24V White

Download

IES

Cree JR5050 36V White

Eff:

86.0%

FWHM:

45 x 15.5°

Cd/Im:

3.3

Carclo Optics - 10395 Spot Image Cree JR5050 36V White

Carclo Optics - 10395 Horizontal Cross Section Cree JR5050 36V White

,

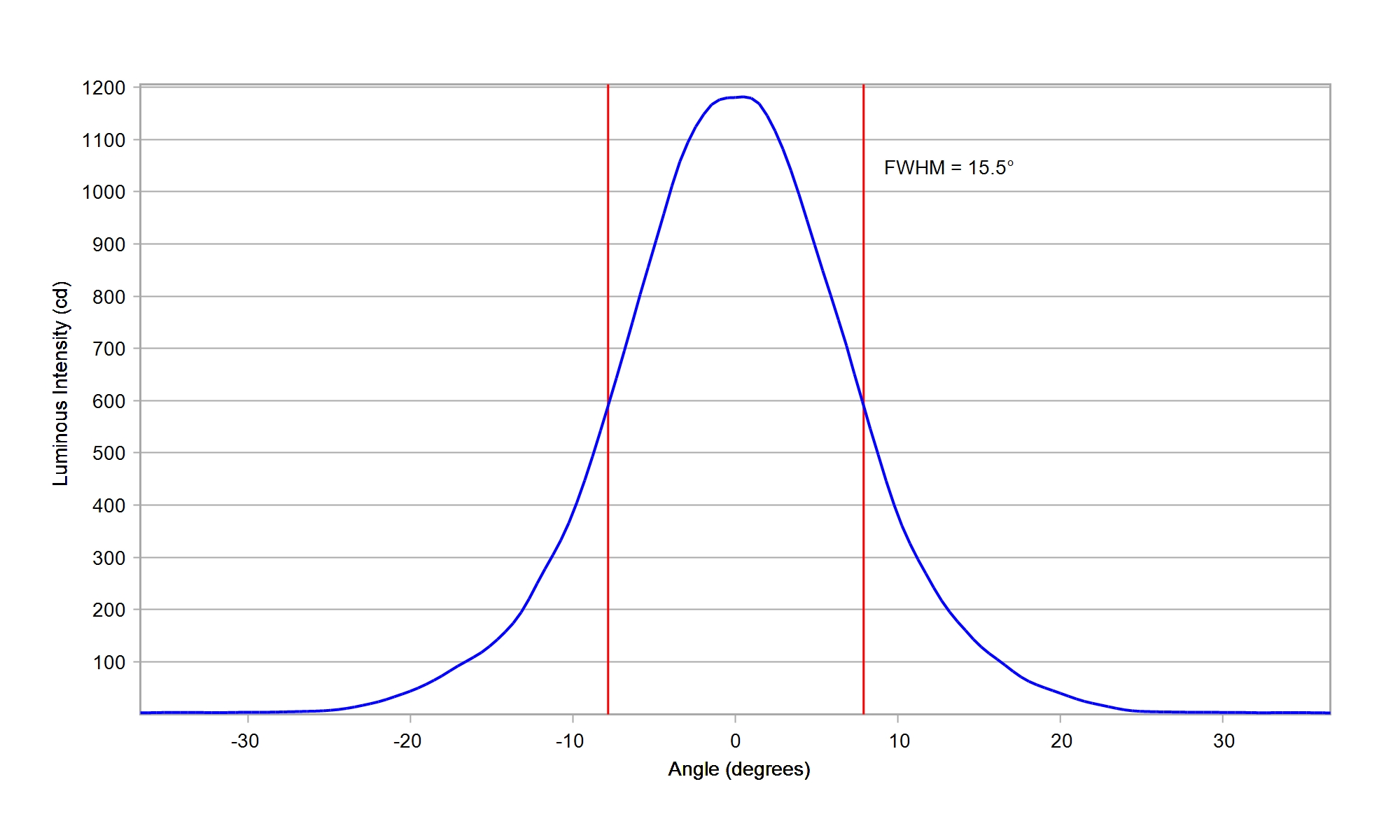

Carclo Optics - 10395 Vertical Cross Section Cree JR5050 36V White

Download

IES

Cree JR5050 6V White

Eff:

85.0%

FWHM:

44 x 17.5°

Cd/Im:

3.1

Carclo Optics - 10395 Spot Image Cree JR5050 6V White

Carclo Optics - 10395 Horizontal Cross Section Cree JR5050 6V White

,

Carclo Optics - 10395 Vertical Cross Section Cree JR5050 6V White

Download

IES

Cree JR5050C 6V E-Class White

Eff:

85.5%

FWHM:

44 x 16°

Cd/Im:

3.3


,


Download

IES

Cree XLamp CSP XD16 Cool White

Eff:

84.5%

FWHM:

48.0 x 8.3°

Cd/Im:

5.4

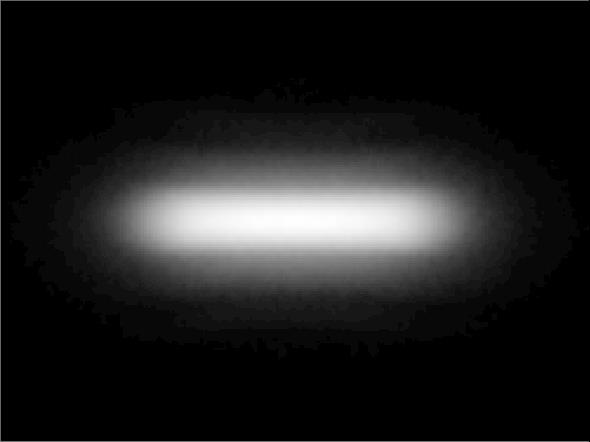

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp CSP XD16 Premium White

Eff:

85.5%

FWHM:

48 x 7.9°

Cd/Im:

6.3


,


Download

IES

Cree XLamp MH-B White

Eff:

83.0%

FWHM:

43x18.5°

Cd/Im:

2.6

carclo optics - simulated spot image

carclo optics - simulated cross section

,

carclo optics - simulated cross section

Download

IES

Cree XLamp XB-H White

Eff:

86.0%

FWHM:

48 x 8.7°

Cd/Im:

5.4

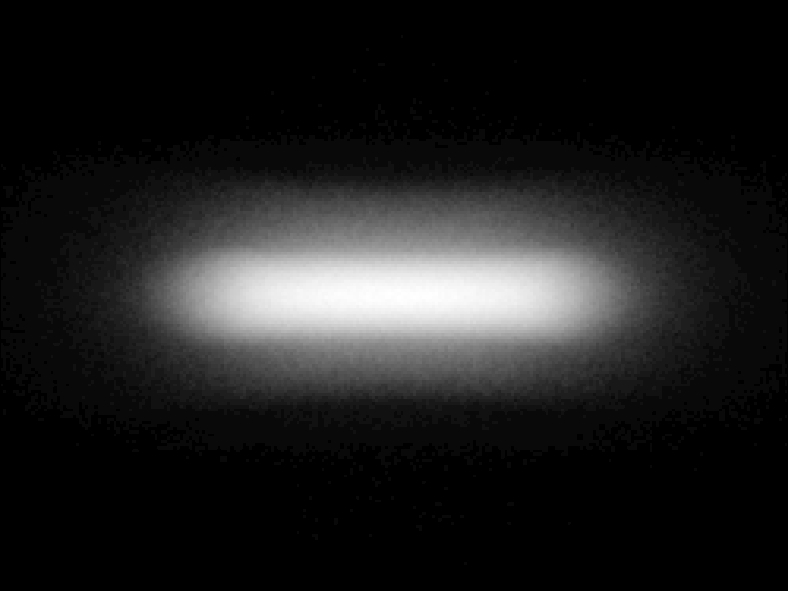

Carclo Optics - 10395 26.5mm Spot Image Cree XLamp XB-H

Carclo Optics - 10395 26.5mm Horizontal Cross Section Cree XLamp XB-H

,

Carclo Optics - 10395 26.5mm Vertical Cross Section Cree XLamp XB-H

Download

IES

Cree XLamp XE-G Blue

Eff:

85.5%

FWHM:

50 x 6.6°

Cd/Im:

6.9


,


Download

IES

Cree XLamp XE-G Green

Eff:

85.5%

FWHM:

49 x 6.8°

Cd/Im:

6.8


,


Download

IES

Cree XLamp XE-G Red

Eff:

85.0%

FWHM:

48 x 7.2°

Cd/Im:

6.6


,


Download

IES

Cree XLamp XE-G White

Eff:

85.0%

FWHM:

49 x 7.3°

Cd/Im:

6.3


,


Download

IES

Cree XLamp XHP-50 Gen 2 White

Eff:

82.5%

FWHM:

42.5 x 18.5°

Cd/Im:

2.6

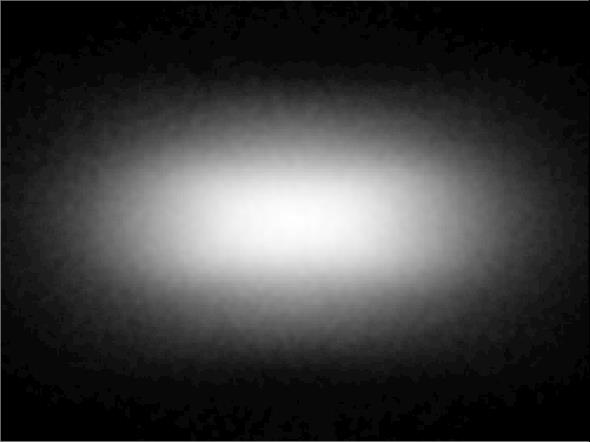

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XHP-50 White

Eff:

83.4%

FWHM:

42.5 x 21°

Cd/Im:

2.4

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

Cree XLamp XHP-70 White

Eff:

82.0%

FWHM:

42 x 25.5°

Cd/Im:

1.9

Carclo Optics - 10395 Spot Image Cree XHP70

Carclo Optics - 10395 Horizontal Cross Section Cree XHP70

,

Carclo Optics - 10395 Vertical Cross Section Cree XHP70

Download

IES

Cree XLamp XHP35 HI White

Eff:

84.1%

FWHM:

47x10°

Cd/Im:

4.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XHP35 HD White

Eff:

83.0%

FWHM:

45 x 14°

Cd/Im:

3.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XHP35.2 HI White

Eff:

85.0%

FWHM:

47 x 11.5°

Cd/Im:

4.1

Carclo Optics – 10395 Spot Image Cree XLamp XHP35.2 HI White

Carclo Optics – 10395 Horizontal Cross Section Cree XLamp XHP35.2 HI White

,

Carclo Optics – 10395 Vertical Cross Section Cree XLamp XHP35.2 HI White

Download

2-HI-WW

Cree XLamp XHP35.2 HD White

Eff:

83.0%

FWHM:

45 x 16°

Cd/Im:

3.0

Carclo Optics - 10395 Spot Image Cree XLamp XHP35.2 White

Carclo Optics - 10395 Horizontal Cross Section Cree XLamp XHP35.2 White

,

Carclo Optics - 10395 Vertical Cross Section Cree XLamp XHP35.2 White

Download

IES

Cree XLamp XHP50.3 HI White

Eff:

83.0%

FWHM:

45 x 14.5°

Cd/Im:

3.4

optic-10395-Cree_XHP50.3 HI-spot-image.jpg

optic-10395-Cree_XHP50.3 HI-cross-section-image-horizontal.jpg

,

optic-10395-Cree_XHP50.3 HI-cross-section-image-vertical.jpg

Download

IES

Cree XLamp XHP50.3 White

Eff:

82.0%

FWHM:

43 x 18°

Cd/Im:

2.8



,


Download

IES

Cree XLamp XHP70.2 White

Eff:

80.0%

FWHM:

41 x 25.5°

Cd/Im:

1.9

Carclo Optics – 10395 Cree Xlamp XHP70.2 - Spot Image

Carclo Optics – 10395 Horizontal Cree Xlamp XHP70.2 - Cross-Section

,

Carclo Optics – 10395 Vertical Cree Xlamp XHP70.2 - Cross-Section

Download

IES

Cree XLamp XM-L3 White

Eff:

84.0%

FWHM:

46 x 12.5°

Cd/Im:

3.8

Carclo Optics - 10395 Spot Image Cree XM-L3

Carclo Optics - 10395 Horizontal Cross Section Cree XM-L3

,

Carclo Optics - 10395 Vertical Cross Section Cree XM-L3

Download

IES

Cree XLamp XP-E2 White

Eff:

86.0%

FWHM:

49 x 7°

Cd/Im:

6.8


,


Download

IES

Cree XLamp XP-G3 White

Eff:

84.0%

FWHM:

46.6 x 10.7°

Cd/Im:

4.5

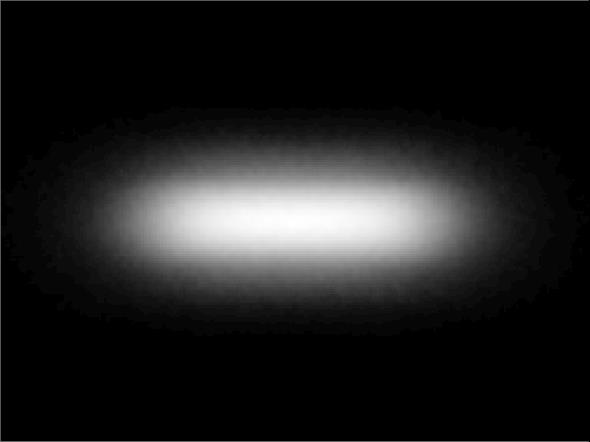

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XP-L HI White

Eff:

84.1%

FWHM:

47.7x8.9°

Cd/Im:

5.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XP-L White

Eff:

84.3%

FWHM:

46.1x13.4°

Cd/Im:

3.6

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

Cree XLamp XP-L2 White

Eff:

83.5%

FWHM:

44.5 x 13.5°

Cd/Im:

3.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XP-P White

Eff:

84.5%

FWHM:

48 x 5.8°

Cd/Im:

7.9

Carclo Optics – 10395 Cree Xlamp XP-P - Spot Image

Carclo Optics – 10395 Horizontal Cree Xlamp XP-P - Cross-Section

,

Carclo Optics – 10395 Vertical Cree Xlamp XP-P - Cross-Section

Download

IES

Cree XLamp XQ-A Blue

Eff:

85.0%

FWHM:

51 x 4.4°

Cd/Im:

8.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-A Green

Eff:

85.0%

FWHM:

50.0 x 4.7°

Cd/Im:

9.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-A Red

Eff:

85.0%

FWHM:

48.5 x 4.8°

Cd/Im:

8.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-A White

Eff:

84.0%

FWHM:

49.4 x 4.5°

Cd/Im:

8.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-E HI Blue

Eff:

83.5%

FWHM:

50.0 X 6.1°

Cd/Im:

6.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-E HI Green

Eff:

83.5%

FWHM:

49.0 x 6.5°

Cd/Im:

6.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-E HI Red

Eff:

84.0%

FWHM:

48.0 X 7.0°

Cd/Im:

6.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-E HI White

Eff:

84.0%

FWHM:

49.2 x 5.5°

Cd/Im:

7.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XT-E HE White

Eff:

84.5%

FWHM:

47.5 x 9.7°

Cd/Im:

4.8

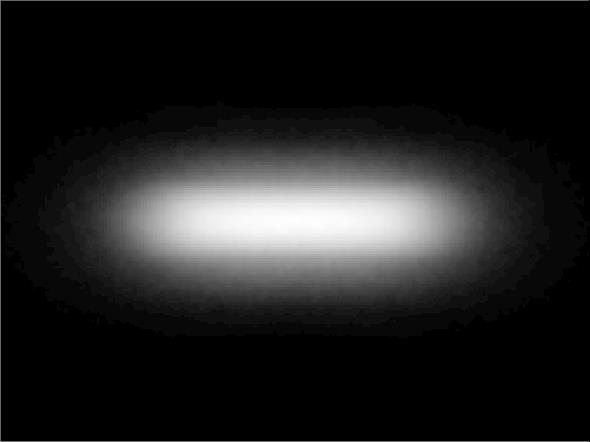

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LEDEngin 10W White

Eff:

87.2%

FWHM:

46 x 21°

Cd/Im:

3.0

Download

ies

Lite-On R38386AS - S R38 IR

Eff:

90.0%

FWHM:

46.5 x 8.1°

Cd/Im:

6.4

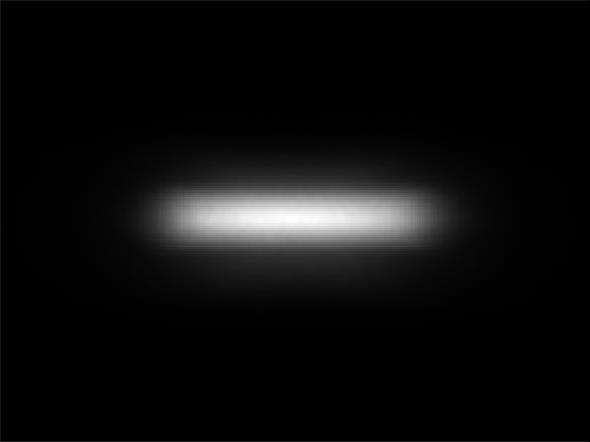

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 3014 White

Eff:

86.5%

FWHM:

49 x 6.4°

Cd/Im:

7.2


,


Download

IES

LUMILEDS LUXEON 3030 HE Plus White

Eff:

86.0%

FWHM:

48 x 9.7°

Cd/Im:

5.1

Carclo Optics – 10395– Luxeon_3030_HE_Plus_spot-image

Carclo Optics – 10395 Horizontal – Luxeon_3030_HE_Plus_cross vertical section

,

Carclo Optics – 10395 Vertical – Luxeon_3030_HE_Plus_cross vertical section

Download

IES

LUMILEDS LUXEON 3030 LUXEON White

Eff:

82.0%

FWHM:

47.7 x 9.2°

Cd/Im:

5.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON 3535 HV White

Eff:

84.0%

FWHM:

48 x 8°

Cd/Im:

5.5

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

LUMILEDS LUXEON 3535 L White

Eff:

84.0%

FWHM:

48 x 8.5°

Cd/Im:

5.4

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

LUMILEDS LUXEON 3535L Blue

Eff:

85.0%

FWHM:

48.5 x 8.3°

Cd/Im:

5.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON 3535L Green

Eff:

85.5%

FWHM:

49.0 x 7.1°

Cd/Im:

5.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON 3535L Red

Eff:

85.5%

FWHM:

48.5 x 4.8°

Cd/Im:

7.8

Carclo Optics - Simulated Spot Image

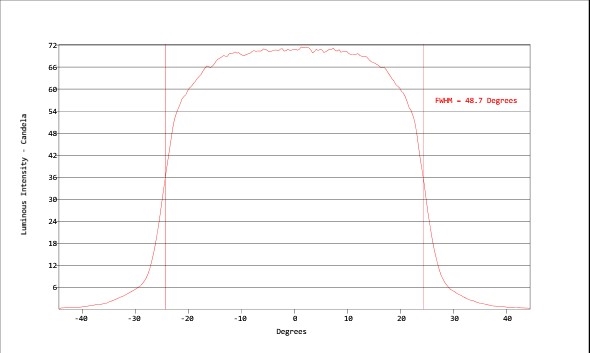

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON 5050 Round White

Eff:

84.5%

FWHM:

43.5 X 16.0°

Cd/Im:

3.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON 5258 White

Eff:

83.2%

FWHM:

43.4x16.6°

Cd/Im:

3.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON C Blue

Eff:

79.0%

FWHM:

49.5 x 6.7°

Cd/Im:

6.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON C Lime

Eff:

80.5%

FWHM:

48.5 x 8.5`°

Cd/Im:

5.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON C Red

Eff:

79.0%

FWHM:

47.5 x 7.3°

Cd/Im:

5.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON CSP 05 White

Eff:

81.0%

FWHM:

48.6 x 7.3°

Cd/Im:

5.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON CSP 10 White

Eff:

81.0%

FWHM:

47.5 x 10°

Cd/Im:

3.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON CZ White

Eff:

86.0%

FWHM:

49.5 x 5.9°

Cd/Im:

8.0

Carclo Optics 10395 Spot Image Luxeon CZ 5M

Carclo Optics 10395 Cross Section Horizontal Luxeon CZ 5M

,

Carclo Optics 10395 Cross Section Vertical Luxeon CZ 5M

Download

IES

LUMILEDS LUXEON HL1Z CSP White

Eff:

85.5%

FWHM:

48 x 8.3°

Cd/Im:

6.0


,


Download

IES

LUMILEDS LUXEON HL2X White

Eff:

85.5%

FWHM:

47 x 10.5°

Cd/Im:

4.7

Carclo Optics - 10395 Spot Image Luxeon HL2X

Carclo Optics - 10395 Horizontal Cross Section Luxeon HL2X

,

Carclo Optics - 10395 Vertical Cross Section Luxeon HL2X

Download

IES

LUMILEDS LUXEON HL2X-D White

Eff:

86.0%

FWHM:

46 x 12°

Cd/Im:

4.2


,


Download

IES

LUMILEDS LUXEON HL2X-P White

Eff:

85.5%

FWHM:

47 x 12°

Cd/Im:

4.2


,


Download

IES

LUMILEDS LUXEON HL2Z White

Eff:

84.5%

FWHM:

47 x 9°

Cd/Im:

5.5

Carclo Optics – 10395 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 10395 Horizontal Lumileds Luxeon HL2Z - Cross-Section

,

Carclo Optics – 10395 Vertical Lumileds Luxeon HL2Z - Cross-Section

Download

IES

LUMILEDS LUXEON IR 2720

Eff:

90.5%

FWHM:

47 x 7.9°

Cd/Im:

6.5

Carclo Optics 10395 Spot Image Luxeon IR 2720

Carclo Optics 10395 Cross Section Horizontal image Luxeon IR 2720

,

Carclo Optics 10395 Cross Section Vertical image Luxeon IR 2720

Download

IES

LUMILEDS LUXEON IR Compact 850nm

Eff:

89.5%

FWHM:

47.0 x 7.1°

Ipk/W:

7.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 60 Degree

Eff:

87.5%

FWHM:

46.0 x 10°

Cd/Im:

4.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 90 Degree

Eff:

89.0%

FWHM:

46.5 x 8.7°

Cd/Im:

6.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON MX White

Eff:

82.0%

FWHM:

43 x 20.5°

Cd/Im:

2.5

Carclo Optics - Simulated Spot Image

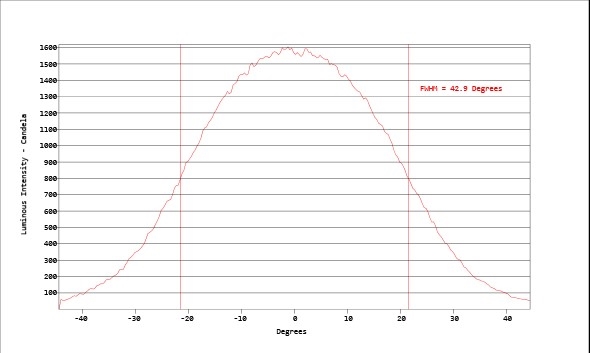

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON MZ White

Eff:

84.2%

FWHM:

45.6 x 15.6°

Cd/Im:

3.3

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

LUMILEDS LUXEON Q White

Eff:

82.2%

FWHM:

47.6x10.4°

Cd/Im:

4.2

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

LUMILEDS LUXEON Rubix Blue

Eff:

86.0%

FWHM:

50 x 6.7°

Cd/Im:

7.3

Carclo Optics – 10395 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics – 10395 Horizontal Cross Section Lumileds Luxeon Rubix Blue

,

Carclo Optics – 10395 Vertical Cross Section Lumileds Luxeon Rubix Blue

Download

IES

LUMILEDS LUXEON Rubix Green

Eff:

86.0%

FWHM:

49 x 7.1°

Cd/Im:

7.0

Carclo Optics – 10395 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 10395 Horizontal Cross Section Lumileds Luxeon Rubix Green

,

Carclo Optics – 10395 Vertical Cross Section Lumileds Luxeon Rubix Green

Download

IES

LUMILEDS LUXEON Rubix Red

Eff:

87.5%

FWHM:

48 x 7.3°

Cd/Im:

7.0

Carclo Optics – 10395 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 10395 Horizontal Cross Section Lumileds Luxeon Rubix Red

,

Carclo Optics – 10395 Vertical Cross Section Lumileds Luxeon Rubix Red

Download

IES

LUMILEDS LUXEON Rubix Royal Blue

Eff:

85.0%

FWHM:

51 x 6.5°

Cd/Im:

7.3

Carclo Optics – 10395 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 10395 Horizontal Cross Section Lumileds Luxeon Rubix Royal Blue

,

Carclo Optics – 10395 Vertical Cross Section Lumileds Luxeon Rubix Royal Blue

Download

IES

LUMILEDS LUXEON Rubix White

Eff:

85.5%

FWHM:

49 x 7.3°

Cd/Im:

6.9

Carclo Optics - 10395 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 10395 Horizontal Cross Section Lumileds Luxeon Rubix White

,

Carclo Optics - 10395 Vertical Cross Section Lumileds Luxeon Rubix White

Download

IES

LUMILEDS LUXEON TX White

Eff:

84.1%

FWHM:

47.7 x 10.2°

Cd/Im:

4.6

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

LUMILEDS LUXEON V White

Eff:

81.5%

FWHM:

45.5 x 14°

Cd/Im:

3.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON V2 White

Eff:

84.5%

FWHM:

47 x 11°

Cd/Im:

4.6

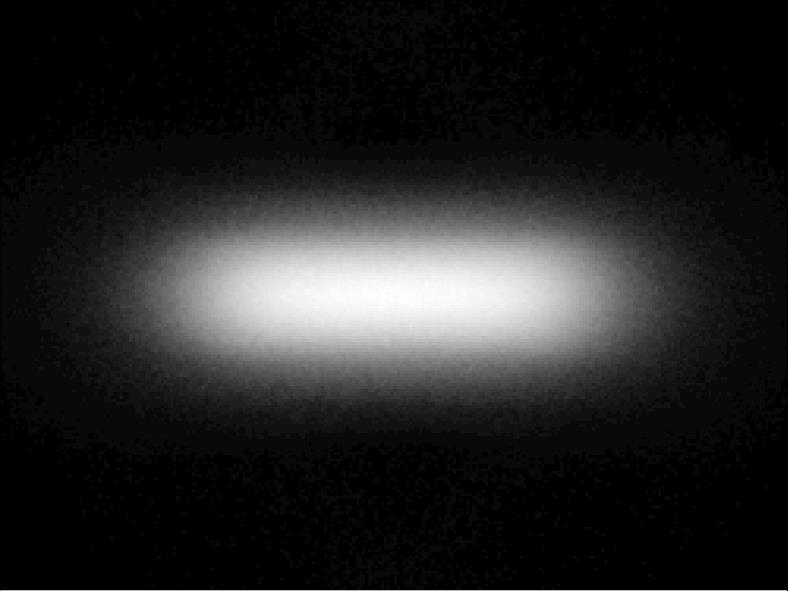

Carclo Optics 10395 Spot Image Luxeon V2

Carclo Optics 10395 Cross Section Horizontal Image Luxeon V2

,

Carclo Optics 10395 Cross Section Vertical Image Luxeon V2

Download

IES

LUMILEDS LUXEON Z ES White

Eff:

84.0%

FWHM:

48 x 7°

Cd/Im:

6.4

carclo optics - simulated spot image

carclo optics - horizontal simulated cross section

,

carclo optics - simulated vertical cross section

Download

IES

LUMILEDS LUXEON Z White

Eff:

84.0%

FWHM:

49 x 6°

Cd/Im:

7.3

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

Luminus Devices MP 7070-T200 White

Eff:

84.0%

FWHM:

42 x 22.5°

Cd/Im:

2.3


,


Download

IES

Luminus Devices SFT-40-WxS White

Eff:

86.5%

FWHM:

48 x 8.6°

Cd/Im:

5.9


,


Download

IES

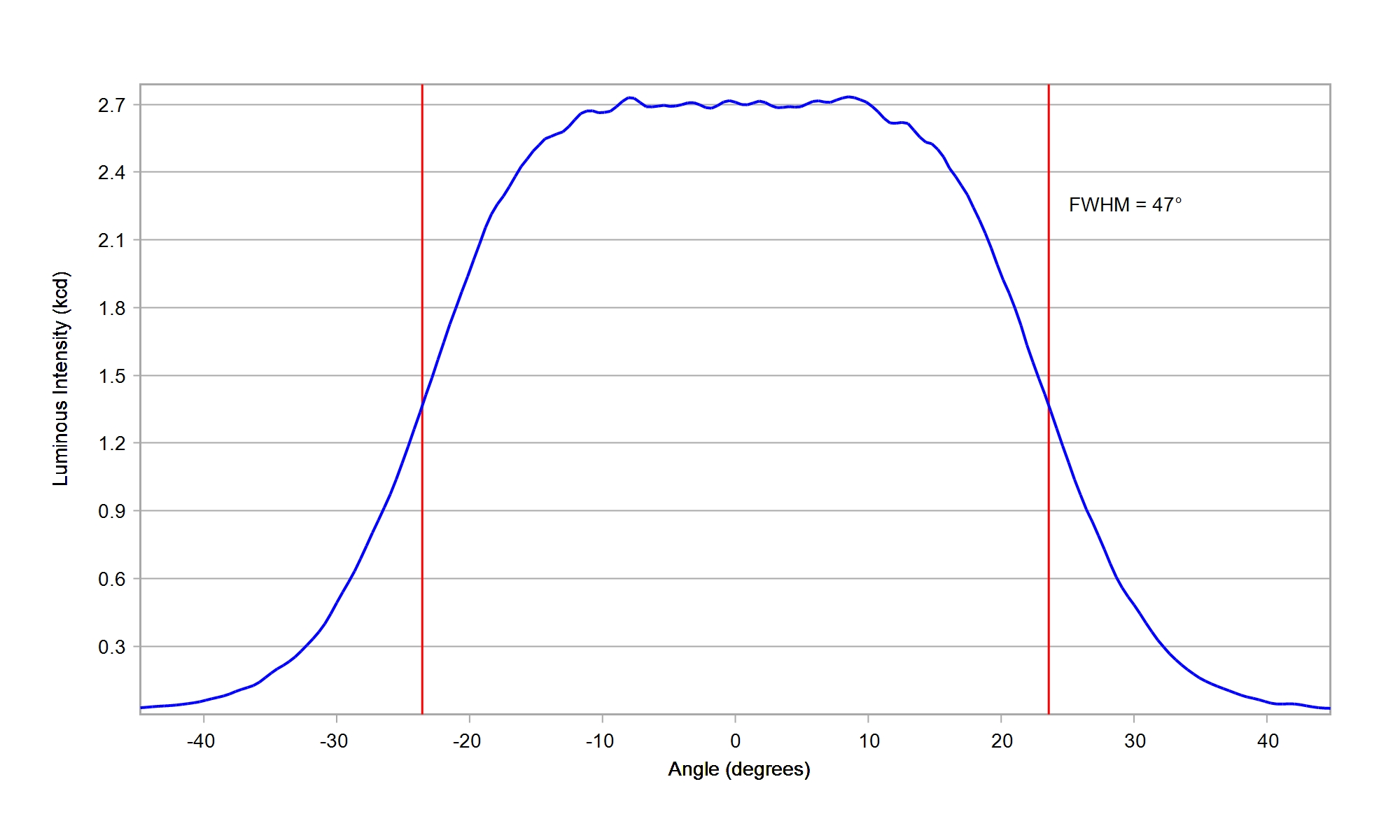

Luminus Devices SFT-70X-WxS White

Eff:

86.0%

FWHM:

47 x 11.5°

Cd/Im:

4.6


,


Download

IES

Luminus Devices SST 05-IR-B40 850nm

Eff:

89.5%

FWHM:

46 x 10°

Ipk/W:

5.1

Carclo Optics - 10395 Spot Image Luminus SST-05-IR-B40

Carclo Optics - 10395 Horizontal Cross Section Luminus SST-05-IR-B40

,

Carclo Optics - 10395 Vertical Cross Section Luminus SST-05-IR-B40

Download

IES

Luminus Devices SST 10-B-B130 Blue

Eff:

83.0%

FWHM:

50 x 9°

Cd/Im:

5.5

Carclo Optics - 10395 Luminus_SST-10_B_B130 - Spot Image

Carclo Optics - 10395 Luminus_SST-10_B_B130 - Cross section horizontal image

,

Carclo Optics - 10395 Luminus_SST-10_B_B130 - Cross section vertical image

Download

IES

Luminus Devices SST 10-B-B90 Blue

Eff:

83.0%

FWHM:

50 x 8.6°

Cd/Im:

5.2

Carclo Optics - 10395 Luminus_SST-10_B_B90 - spot - image

Carclo Optics - 10395 Luminus_SST-10_B_B90 - cross section horizontal image

,

Carclo Optics - 10395 Luminus_SST-10_B_B90 - cross section vertical image

Download

IES

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

87.5%

FWHM:

48 x 8.6°

Cd/Im:

6.0

Carclo Optics – 10395 Luminus_SST-10_DR_B130- Spot - image

Carclo Optics – 10395 Horizontal Luminus_SST-10_DR_B130- Cross section – image

,

Carclo Optics – 10395 Vertical Luminus_SST-10_DR_B130- Cross section – image

Download

IES

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

87.5%

FWHM:

47 x 9.2°

Cd/Im:

5.4

Carclo Optics - 10395 Luminus_SST-10_DR_B90 - Spot image

Carclo Optics - 10395 Luminus_SST-10_DR_B90 - Cross section horizontal image

,

Carclo Optics - 10395 Luminus_SST-10_DR_B90 - Cross section vertical image

Download

IES

Luminus Devices SST 10-G-B130 Green

Eff:

85.0%

FWHM:

49 x 9.6°

Cd/Im:

5.5

Carclo Optics - 10395 Luminus_SST-10_G_B130 - spot - image

Carclo Optics - 10395 Luminus_SST-10_G_B130 - cross section horizontal- image

,

Carclo Optics - 10395 Luminus_SST-10_G_B130 - cross section vertical- image

Download

IES

Luminus Devices SST 10-G-B90 Green

Eff:

85.5%

FWHM:

48 x 9.4°

Cd/Im:

5.0

Carclo Optics – 10395 Luminus_SST-10_G_B90- Spot - image

Carclo Optics – 10395 Horizontal Luminus_SST-10_G_B90- Cross section – image

,

Carclo Optics – 10395 Vertical Luminus_SST-10_G_B90- Cross section – image

Download

IES

Luminus Devices SST 10-IR-B130 940nm

Eff:

91.5%

FWHM:

46 x 8.3°

Ipk/W:

6.3

Carclo Optics - 10395 Spot Image Luminus SST-10-IR-B130

Carclo Optics - 10395 Horizontal Cross Section Luminus SST-10-IR-B130

,

Carclo Optics - 10395 Vertical Cross Section Luminus SST-10-IR-B130

Download

IES

Luminus Devices SST 10-IR-B90 940nm

Eff:

90.0%

FWHM:

46 x 9°

Ipk/W:

5.7

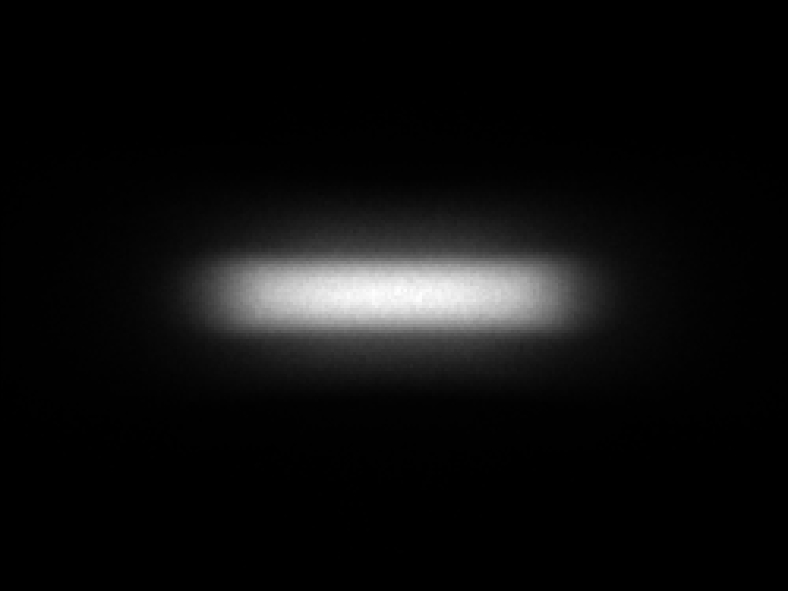

Carclo Optics - 10395 Spot Image Luminus SST-10-IR-B90

Carclo Optics - 10395 Horizontal Cross Section Luminus SST-10-IR-B90

,

Carclo Optics - 10395 Vertical Cross Section Luminus SST-10-IR-B90

Download

IES

Luminus Devices SST 10-IRD-B130 810nm

Eff:

91.5%

FWHM:

47 x 7.9°

Ipk/W:

6.6


,


Download

IES

Luminus Devices SST 10-IRD-B90 810nm

Eff:

90.0%

FWHM:

47 x 8.4°

Ipk/W:

5.8


,


Download

IES

Luminus Devices SST 20-WxH White Hi CRI

Eff:

85.5%

FWHM:

48 x 9.2°

Cd/Im:

5.4

Carclo Optics – 10395 - Luxeon_SST_20_W_spot-image

Carclo Optics – 10395 Horizontal - Luxeon_SST_20_W_cross vertical section

,

Carclo Optics – 10395 Vertical - Luxeon_SST_20_W_cross vertical section

Download

IES

Luminus Devices SST 40-W White

Eff:

85.0%

FWHM:

46 x 13°

Cd/Im:

4.0

Carclo Optics – 10395 - Luxeon_SST_40_W_spot-image

Carclo Optics – 10395 Horizontal - Luxeon_SST_40_W_cross vertical section

,

Carclo Optics – 10395 Vertical - Luxeon_SST_40_W_cross vertical section

Download

IES

Luminus Devices SST-12-WxS White

Eff:

85.5%

FWHM:

48 x 8.4°

Cd/Im:

6.0


,


Download

IES

Luminus Devices SST-50 White

Eff:

81.7%

FWHM:

46.5 x 19.3°

Cd/Im:

3.4

Download

ies

Luminus Devices SST-70X-W White

Eff:

85.0%

FWHM:

45 x 15°

Cd/Im:

3.4


,


Download

IES

Luminus Devices SST-90 White

Eff:

84.2%

FWHM:

45.7 x 25.3°

Cd/Im:

2.4

Download

ies

Nichia 229A White

Eff:

82.5%

FWHM:

45 x 14°

Cd/Im:

3.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia 757G White

Eff:

85.0%

FWHM:

47.0 x 9.9°

Cd/Im:

4.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia 757G White

Eff:

86.0%

FWHM:

47 x 10.5°

Cd/Im:

4.9

Carclo Optics 10395 Simulated Spot Image Nichia 757G-MT

Carclo Optics 10395 Simulated cross section horizontal Nichia 757G-MT

,

Carclo Optics 10395 Simulated cross section vertical Nichia 757G-MT

Download

IES

Nichia NCSW CSP E17A White

Eff:

84.0%

FWHM:

48.5 x 8.0°

Cd/Im:

6.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NF2W 385AR-V2 White

Eff:

84.5%

FWHM:

47.0 x11°

Cd/Im:

4.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NFMW 481AR White

Eff:

76.0%

FWHM:

43.0 X 16.5°

Cd/Im:

2.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NFMW 484AR White

Eff:

84.5%

FWHM:

42.5 x 17.0°

Cd/Im:

3.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NFMW 486AR White

Eff:

84.5%

FWHM:

43.5 x 16.5°

Cd/Im:

3.2

Carclo Optics - Simulated Spot Image

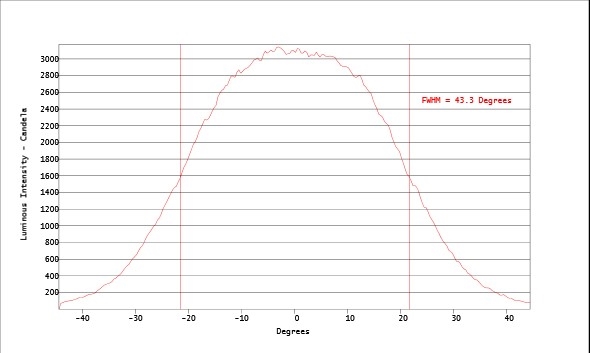

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NFMW 488AR White

Eff:

84.5%

FWHM:

31.5°

Cd/Im:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NFSW CSP E11A White

Eff:

83.0%

FWHM:

48 x 6.6°

Cd/Im:

7.1


,


Download

IES

Nichia NSBWL 121A White

Eff:

82.0%

FWHM:

48 x 8.9°

Cd/Im:

5.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NV4W 144AR White

Eff:

81.5%

FWHM:

42 x 19°

Cd/Im:

2.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NV4W B35AM White

Eff:

84.0%

FWHM:

45 x 14°

Cd/Im:

3.7

Carclo Optics – 10395 Nichia NV4WB35AM - Spot Image

Carclo Optics – 10395 Horizontal Nichia NV4WB35AM - Cross-Section

,

Carclo Optics – 10395 Vertical Nichia NV4WB35AM - Cross-Section

Download

IES

Nichia NVSL 219B White

Eff:

82.5%

FWHM:

48.0 x 9.9°

Cd/Im:

4.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NVSW 219C White

Eff:

83.5%

FWHM:

47.0 x 11.0°

Cd/Im:

4.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NVSW 219F White

Eff:

83.5%

FWHM:

46 x 10.5°

Cd/Im:

4.7

Carclo Optics – 10395 Nichia NVSW 219F White - Spot Image

Carclo Optics – 10395 Horizontal Nichia NVSW 219F White - Cross-Section

,

Carclo Optics – 10395 Vertical Nichia NVSW 219F White - Cross-Section

Download

IES

Nichia NVSW 319A White

Eff:

83.0%

FWHM:

47.0 x 11.5°

Cd/Im:

4.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NVSW CSP E21A White

Eff:

83.0%

FWHM:

47.4 x 11.2°

Cd/Im:

4.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia Top Emitting 083 White

Eff:

85.1%

FWHM:

46*14°

Cd/Im:

4.0

Download

ies

Osram OS DURIS E 2835 Gen2

Eff:

86.0%

FWHM:

48 x 10.5°

Cd/Im:

4.8

Carclo Optics - 10395 26.5mm Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 10395 26.5mm Horizontal Cross Section Osram DURIS E 2835 Gen2

,

Carclo Optics - 10395 26.5mm Vertical Cross Section Osram DURIS E 2835 Gen2

Download

IES

Osram OS DURIS E 2835 White

Eff:

85.0%

FWHM:

47.5 x 9.5°

Cd/Im:

5.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS E2 White

Eff:

84.0%

FWHM:

49.1 x 5.7°

Cd/Im:

7.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS E3 White

Eff:

87.7%

FWHM:

48.5x6.6°

Cd/Im:

6.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS P10 White

Eff:

83.2%

FWHM:

43.0 x 19.5°

Cd/Im:

2.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

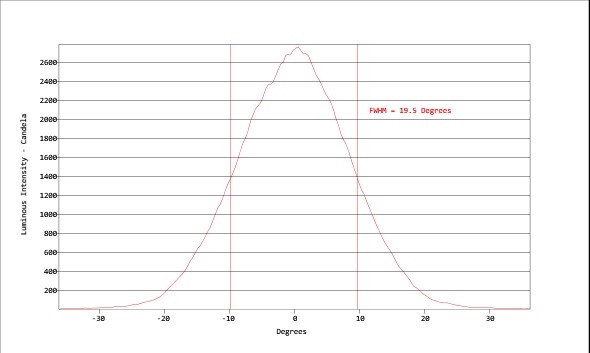

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS P8 White

Eff:

83.8%

FWHM:

47.5 x 9.0°

Cd/Im:

5.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulation Vertical Cross Section

Download

IES

Osram OS DURIS S10 White

Eff:

82.5%

FWHM:

42.5 x 21.5°

Cd/Im:

2.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

em_

Osram OS DURIS S2 White

Eff:

88.2%

FWHM:

47.8x8.6°

Cd/Im:

5.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS S5 Deep Blue

Eff:

83.5%

FWHM:

49.0 x 9.6°

Cd/Im:

5.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS S5 Green

Eff:

86.0%

FWHM:

48.5 x 8.6°

Cd/Im:

5.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS S5 Red

Eff:

87.0%

FWHM:

47.5 x 8.3°

Cd/Im:

6.2

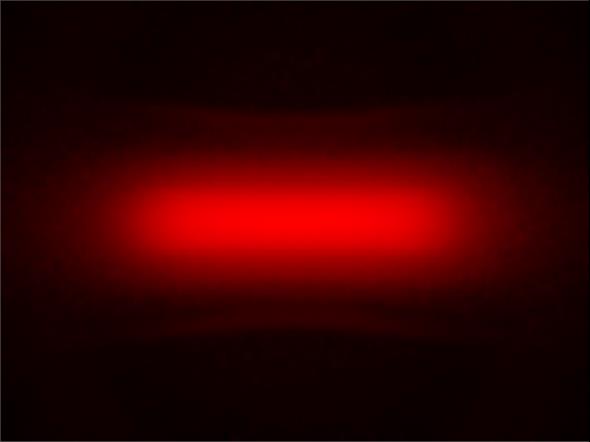

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

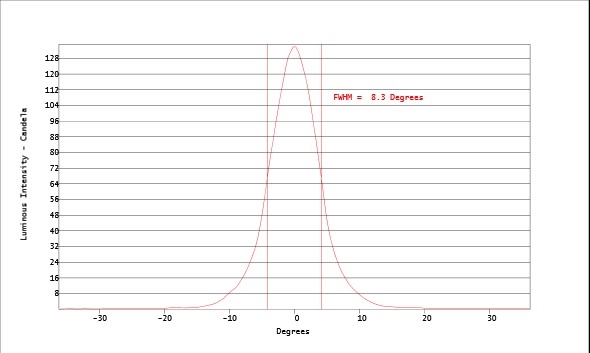

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS S5 White

Eff:

84.0%

FWHM:

47.6 X 8.7°

Cd/Im:

5.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

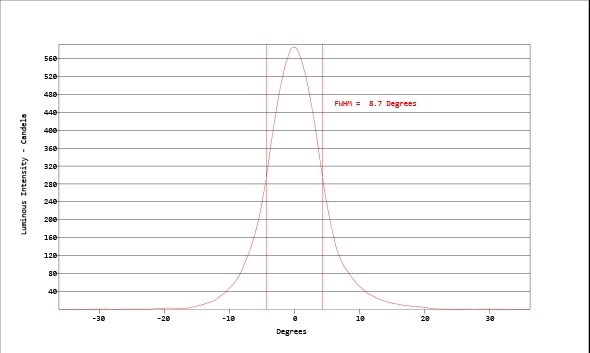

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS S8 Gen2 White

Eff:

88.0%

FWHM:

42.7 x 17.0°

Cd/Im:

3.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS S8 Gen3 White

Eff:

84.5%

FWHM:

42.5 x 19.5°

Cd/Im:

2.6

Carclo Optics - 10395 26.5mm Spot Image Oslon DURIS S8 Gen3

Carclo Optics - 10395 26.5mm Horizontal Cross Section Oslon DURIS S8 Gen3

,

Carclo Optics - 10395 26.5mm Vertical Cross Section Oslon DURIS S8 Gen3

Download

IES

Osram OS DURIS S8 White

Eff:

87.8%

FWHM:

43x19°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section Image

,

Carclo Optics - Simulated Vertical Cross Section Image

Download

IES

Osram OS Golden DRAGON Plus W5AM White

Eff:

85.0%

FWHM:

47x8°

Cd/Im:

6.4

Download

Osram OS GOLDEN DRAGON W5SM White

Eff:

85.4%

FWHM:

48x8°

Cd/Im:

5.9

Download

ies

Osram OS OSCONIQ C 2424 White

Eff:

86.5%

FWHM:

48 x 8.5°

Cd/Im:

5.8

Carclo Optics -10395 Spot Image OSCONIQ C2424

Carclo Optics -10395 Horizontal Cross Section OSCONIQ C2424

,

Carclo Optics -10395 Vertical Cross Section OSCONIQ C2424

Download

IES

Osram OS OSCONIQ P3737 White

Eff:

82.5%

FWHM:

46 x 13°

Cd/Im:

3.9

Carclo Optics 10395 Spot Image Osram Osconiq P3737

Carclo Optics 10395 Cross Section Horizontal Osram Osconiq P3737

,

Carclo Optics 10395 Cross Section Vertucal Osram Osconiq P3737

Download

IES

Osram OS OSCONIQ S 5050 GW Q9LR32.PM

Eff:

84.5%

FWHM:

45 x 18.5°

Cd/Im:

2.8



,


Download

IES

Osram OS OSLON Black SFH 4715AS IR

Eff:

90.0%

FWHM:

47 x 9.1°

Ipk/W:

5.5


,


Download

IES

Osram OS OSLON Black SFH 4716AS IR

Eff:

89.5%

FWHM:

47 x 7°

Ipk/W:

7.3

Carclo Optics – 10395 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

Carclo Optics – 10395 Horizontal Cross Section OSRAM OS Oslon Black IR SFH 4716AS

,

Carclo Optics – 10395 Vertical Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

IES

Osram OS OSLON Black SFH 4725S IR

Eff:

91.5%

FWHM:

46.5 x 8.2°

Cd/Im:

6.4

Carclo Optics 10395 Spot Image Osram Oslon Black_IR_SFH_4725S

Carclo Optics 10395 Cross Section Horizontal Osram Oslon Black_IR_SFH_4725S

,

Carclo Optics 10395 Cross Section Vertical Osram Oslon Black_IR_SFH_4725S

Download

IES

Osram OS OSLON Boost HM KW CELMM1.TG

Eff:

85.5%

FWHM:

49 x 7.3°

Cd/Im:

6.7

Carclo Optics – 10395 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 10395 Horizontal – Osram_Oslon_Boost_KW_CELMM1_TG_cross section

,

Carclo Optics – 10395 Vertical – Osram_Oslon_Boost_KW_CELMM1_TG_cross section

Download

IES

Osram OS OSLON Pure 1010 CSP GC VJLPE1.13 Cyan

Eff:

85.0%

FWHM:

49 x 5.6°

Cd/Im:

8.3


,


Download

IES

Osram OS OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue

Eff:

82.5%

FWHM:

50 x 7.2°

Ipk/W:

6.6


,


Download

IES

Osram OS OSLON Pure 1010 CSP GG VJLPE1.F3 Green

Eff:

84.5%

FWHM:

48 x 5.6°

Cd/Im:

8.3


,


Download

IES

Osram OS OSLON Pure 1010 CSP GR VJLPE1.F3 Red

Eff:

84.5%

FWHM:

47 x 5.9°

Cd/Im:

7.9
