Carclo Optics 26.5mm 10224
26.5mm Elliptical Orthog Ripple Linear TIR LED Lenses
Part number
10224
Dimensions
26.5mm
Drawing Number
60476
Optic type
TIR LED Lenses
Finish
Ripple Linear
Beam type
Elliptical Orthog
Applications
Architectural
Landscape & Garden
Downloads

LEDs and Performances

Select and filter based on manufacturer(s)
Bridgelux SMD 3030 Gen2 White
Eff:
86.5%
FWHM:
11°
Cd/Im:
16.0
Download
Broadcom Jade White
Eff:
85.1%
FWHM:
11.3 x 47.2°
Cd/Im:
4.6
Download
Cree JB3030 3V White
Eff:
85.0%
FWHM:
9.6 x 48°
Cd/Im:
4.9
Download
Cree JK2835 6V White
Eff:
85.0%
FWHM:
8.6 x 48°
Cd/Im:
5.5
Download
Cree JQ5050 9V White
Eff:
84.0%
FWHM:
17.5 x 44°
Cd/Im:
3.0
Download

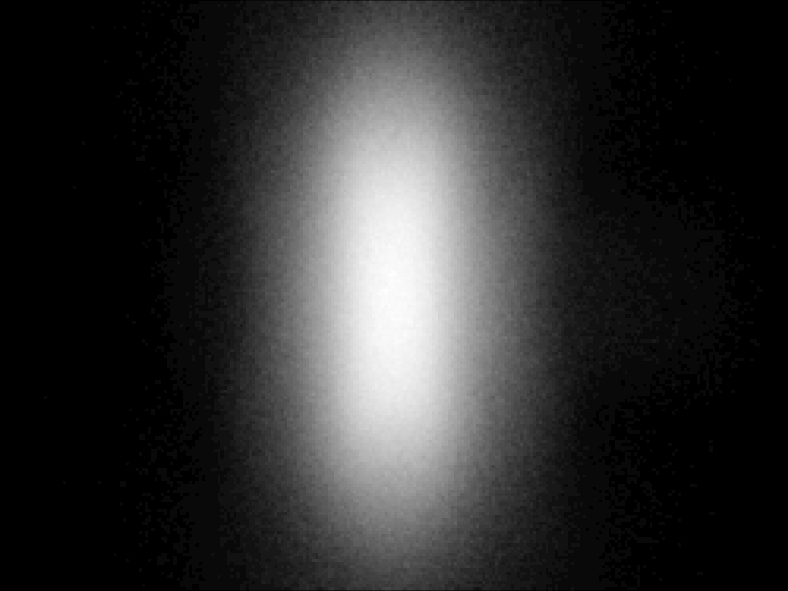

Cree JR5050 24V White
Eff:
84.5%
FWHM:
15.5 x 44°
Cd/Im:
3.2
Download
Cree JR5050 36V White
Eff:
84.5%
FWHM:
14.5 x 45°
Cd/Im:
3.5
Download

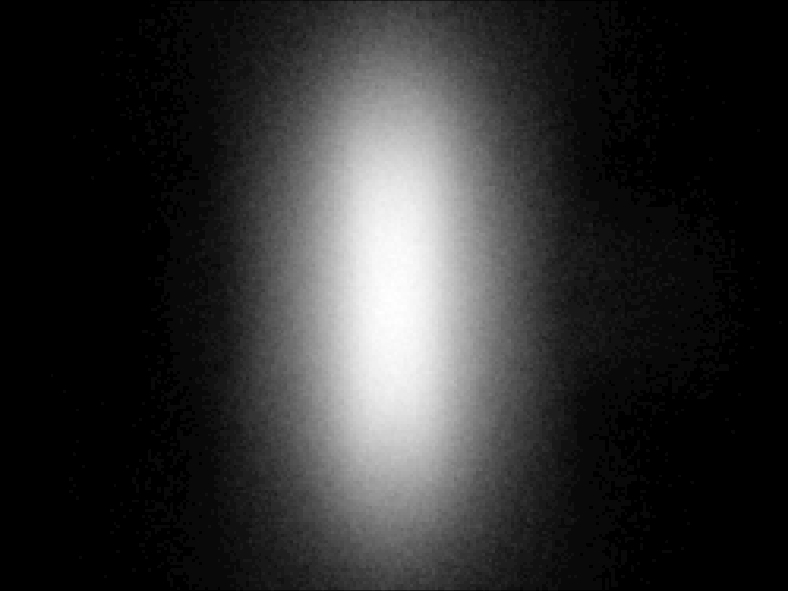

Cree JR5050 6V White
Eff:
84.5%
FWHM:
15 x 45°
Cd/Im:
3.3
Download
Cree JR5050C 6V E-Class White
Eff:
84.5%
FWHM:
15 x 45°
Cd/Im:
3.2
Download
Cree XLamp CSP XD16 Cool White
Eff:
83.0%
FWHM:
7.0 x 48.0°
Cd/Im:
6.0
Download
Cree XLamp CSP XD16 Premium White
Eff:
85.5%
FWHM:
6.3 x 49°
Cd/Im:
7.4
Download
Cree XLamp MH-B White
Eff:
81.5%
FWHM:
17.6x42.9°
Cd/Im:
2.6
Download
Cree XLamp MK-R White
FWHM:
24.3 X 44.9°
Cd/Im:
2.9
Download
Cree XLamp MX-6 White
Eff:
82.1%
FWHM:
46.9 x 15.3°
Cd/Im:
3.8
Download
Cree XLamp XB-H White
Eff:
84.5%
FWHM:
8 x 48°
Cd/Im:
5.8
Download
Cree XLamp XE-G Blue
Eff:
85.0%
FWHM:
5.4 x 50°
Cd/Im:
8.3
Download
Cree XLamp XE-G Green
Eff:
85.0%
FWHM:
5.5 x 49°
Cd/Im:
8.3
Download
Cree XLamp XE-G Red
Eff:
85.0%
FWHM:
5.6 x 49°
Cd/Im:
8.2
Download
Cree XLamp XE-G White
Eff:
84.5%
FWHM:
5.7 x 49°
Cd/Im:
7.9
Download
Cree XLamp XHP-50 Gen 2 White
Eff:
79.5%
FWHM:
18 x 42°
Cd/Im:
2.6
Download
Cree XLamp XHP-50 White
Eff:
81.5%
FWHM:
20 x 43°
Cd/Im:
2.4
Download
Cree XLamp XHP-70 White
Eff:
80.5%
FWHM:
23 x 42°
Cd/Im:
1.9
Download
Cree XLamp XHP35 HI White
Eff:
83.0%
FWHM:
9.5x47.3°
Cd/Im:
4.8
Download
Cree XLamp XHP35 HD White
Eff:
82.0%
FWHM:
13.1 x 45.2°
Cd/Im:
3.5
Download

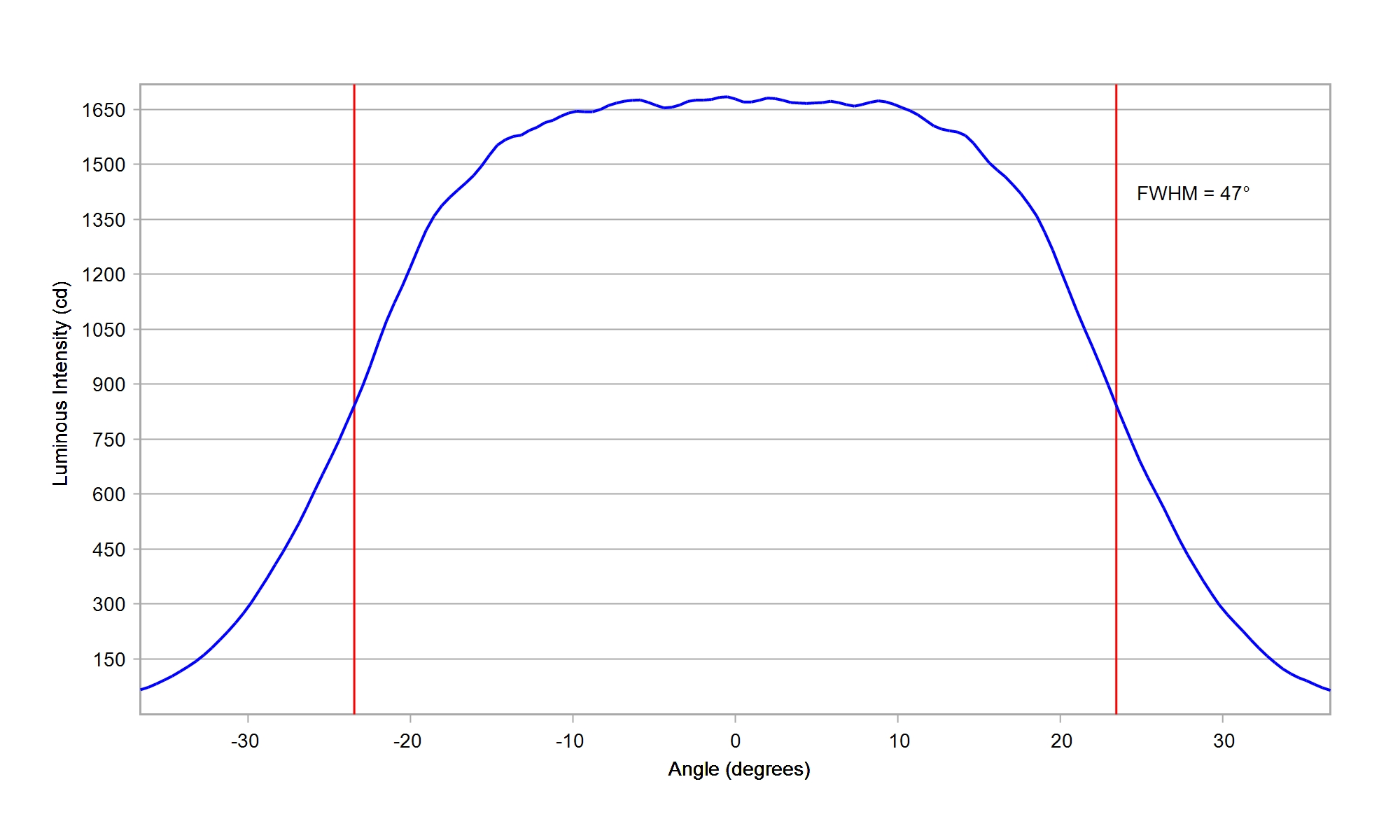

Cree XLamp XHP35.2 HI White
Eff:
84.0%
FWHM:
11 x 47°
Cd/Im:
4.1
Download
Cree XLamp XHP35.2 HD White
Eff:
82.0%
FWHM:
15 x 45°
Cd/Im:
3.2
Download
Cree XLamp XHP50.3 HI White
Eff:
82.0%
FWHM:
13.5 x 45°
Cd/Im:
3.5
Download
Cree XLamp XHP50.3 White
Eff:
80.0%
FWHM:
16.5 x 43°
Cd/Im:
2.8
Download
Cree XLamp XHP70.2 White
Eff:
79.0%
FWHM:
23 x 42°
Cd/Im:
1.9
Download
Cree XLamp XM-L White
Eff:
82.4%
FWHM:
13.2 x 47.1°
Cd/Im:
4.4
Download
Cree XLamp XM-L3 White
Eff:
83.5%
FWHM:
12 x 46°
Cd/Im:
3.9
Download

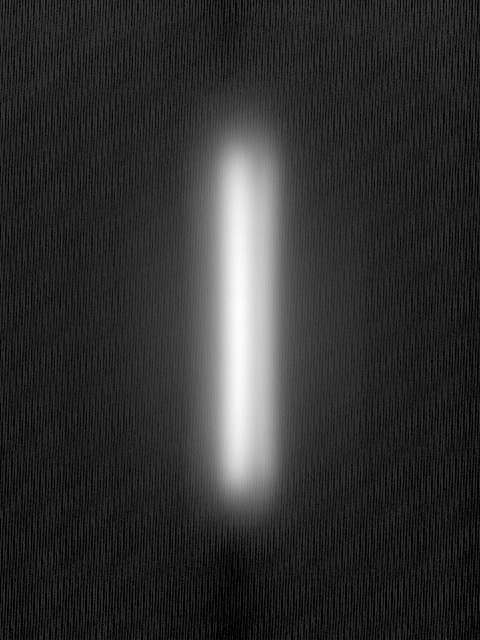

Cree XLamp XP-C White
Eff:
84.7%
FWHM:
7 x 49.4°
Cd/Im:
8.1
Download
Cree XLamp XP-E White
Eff:
83.3%
FWHM:
6.8 x 47.8°
Cd/Im:
6.6
Download
Cree XLamp XP-E2 White
Eff:
85.5%
FWHM:
5.6 x 49°
Cd/Im:
8.4
Download
Cree XLamp XP-G White
Eff:
81.8%
FWHM:
47.9 x 9.4°
Cd/Im:
5.6
Download
Cree XLamp XP-G2 White
FWHM:
8.8 x 46.7°
Cd/Im:
7.0
Download
Cree XLamp XP-G3 White
Eff:
83.0%
FWHM:
9.9 x 46.9°
Cd/Im:
4.7
Download
Cree XLamp XP-G4 HI White
Eff:
84.5%
FWHM:
6.5 x 49°
Cd/Im:
6.6
Download
Cree XLamp XP-G4 White
Eff:
85.0%
FWHM:
8.8 x 48°
Cd/Im:
5.4
Download

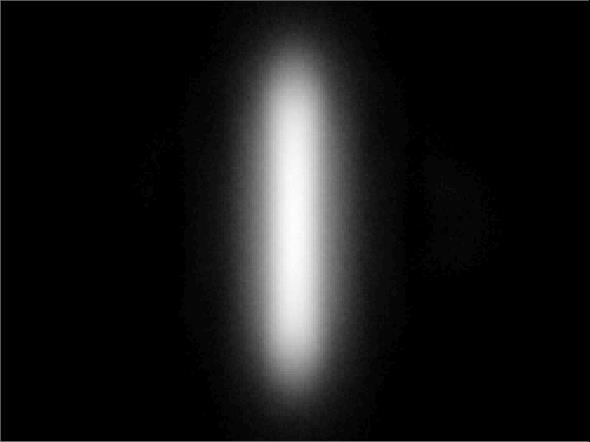

Cree XLamp XP-L HI White
Eff:
83.1%
FWHM:
8.0x48.1°
Cd/Im:
5.4
Download
Cree XLamp XP-L White
Eff:
82.8%
FWHM:
11.5x46.1°
Cd/Im:
4.1
Download

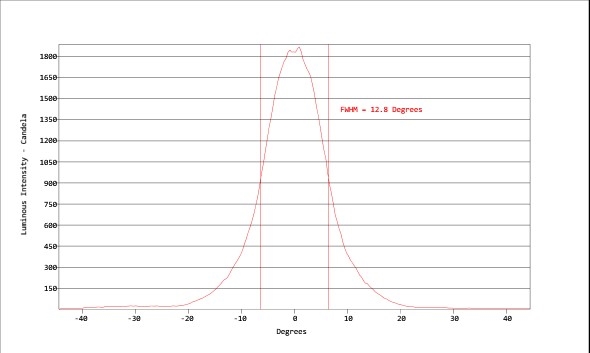

Cree XLamp XP-L2 White
Eff:
82.5%
FWHM:
13 x 45°
Cd/Im:
3.7
Download
Cree XLamp XP-P White
Eff:
84.0%
FWHM:
4.7 x 49°
Cd/Im:
9.9
Download
Cree XLamp XQ-A Blue
Eff:
84.0%
FWHM:
4.1 x 51.0°
Cd/Im:
11.0
Download

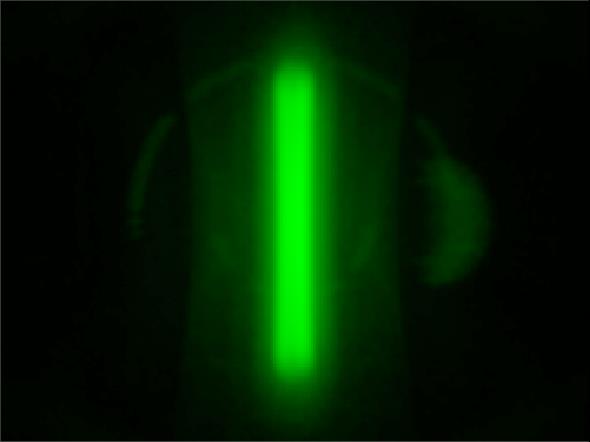

Cree XLamp XQ-A Green
Eff:
84.0%
FWHM:
4.5 x 50°
Cd/Im:
10.5
Download
Cree XLamp XQ-A Red
Eff:
84.0%
FWHM:
4.5 x 48.5°
Cd/Im:
10.3
Download
Cree XLamp XQ-A White
Eff:
83.0%
FWHM:
3.5 x 49.7°
Cd/Im:
11.7
Download
Cree XLamp XQ-E HI Blue
Eff:
83.0%
FWHM:
4.7 X 50°
Cd/Im:
8.4
Download
Cree XLamp XQ-E HI Green
Eff:
83.0%
FWHM:
5.0 x 49.5°
Cd/Im:
8.2
Download
Cree XLamp XQ-E HI Red
Eff:
83.0%
FWHM:
4.4 X 48.5°
Cd/Im:
9.0
Download

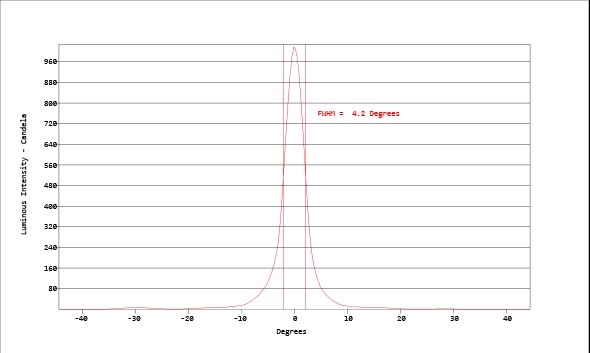

Cree XLamp XQ-E HI White
Eff:
83.0%
FWHM:
4.2 x 49.4°
Cd/Im:
8.8
Download
Cree XLamp XR White
Eff:
85.9%
FWHM:
13.7°
Cd/Im:
3.7
Download
Cree XLamp XR-C White
Eff:
84.6%
FWHM:
9.3 x 48°
Cd/Im:
5.4
Download
Cree XLamp XR-E White
Eff:
85.0%
FWHM:
9 x 48°
Cd/Im:
5.1
Download
Cree XLamp XT-E HE White
Eff:
83.5%
FWHM:
8.7 x 47.5°
Cd/Im:
5.2
Download
Everlight Shuen White
Eff:
85.1%
FWHM:
47.1°
Cd/Im:
5.0
Download
LEDEngin 3W White
Eff:
81.4%
FWHM:
14 x 47.3°
Cd/Im:
3.9
Download
LEDEngin 5W White
Eff:
81.4%
FWHM:
13.3 x 47.5°
Cd/Im:
4.0
Download
LG Innotek 3535LG White
FWHM:
9.7 x 48°
Cd/Im:
6.3
Download

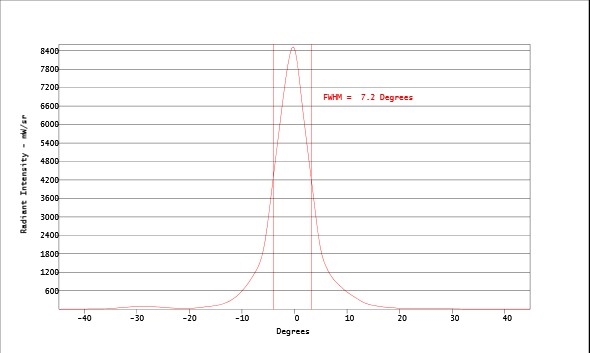

Lite-On R38386AS - S R38 IR
Eff:
84.0%
FWHM:
7.2 x 47.0°
Cd/Im:
6.8
Download
LUMILEDS LUXEON 2835C 6V White
Eff:
85.5%
FWHM:
8.4 x 48°
Cd/Im:
5.6
Download
LUMILEDS LUXEON 2835E 9V White
Eff:
85.5%
FWHM:
7.9 x 48°
Cd/Im:
5.9
Download
LUMILEDS LUXEON 2835N 3V White
Eff:
85.5%
FWHM:
8.4 x 48°
Cd/Im:
5.6
Download
LUMILEDS LUXEON 2835S 3V White
Eff:
85.5%
FWHM:
8.8 x 48°
Cd/Im:
5.4
Download
LUMILEDS LUXEON 2835S 6V White
Eff:
85.5%
FWHM:
8.8 x 48°
Cd/Im:
5.4
Download
LUMILEDS LUXEON 3014 White
Eff:
85.5%
FWHM:
4.8 x 49°
Cd/Im:
8.8
Download
LUMILEDS LUXEON 3030 2D White
Eff:
85.5%
FWHM:
7.1 x 49°
Cd/Im:
6.4
Download
LUMILEDS LUXEON 3030 HE Plus White
Eff:
85.0%
FWHM:
8.6 x 48°
Cd/Im:
5.5
Download
LUMILEDS LUXEON 3535 HV White
Eff:
83.0%
FWHM:
7 x 48°
Cd/Im:
6.0
Download
LUMILEDS LUXEON 3535 L White
Eff:
83.0%
FWHM:
7.5 x 48°
Cd/Im:
5.6
Download
LUMILEDS LUXEON 3535L Blue
Eff:
84.0%
FWHM:
5.9 x 50°
Cd/Im:
83.1
Download
LUMILEDS LUXEON 3535L Green
Eff:
84.0%
FWHM:
5.7 49.0°
Cd/Im:
6.9
Download
LUMILEDS LUXEON 3535L Red
Eff:
84.5%
FWHM:
3.9 x 49.0°
Cd/Im:
9.8
Download
LUMILEDS LUXEON 5050 HE 24V White
Eff:
84.0%
FWHM:
16 x 45°
Cd/Im:
3.1
Download
LUMILEDS LUXEON 5050 HE 6V White
Eff:
84.0%
FWHM:
16 x 45°
Cd/Im:
3.1
Download
LUMILEDS LUXEON 5050 Round 24V White
Eff:
84.5%
FWHM:
15.5 x 44°
Cd/Im:
3.2
Download
LUMILEDS LUXEON 5050 Square 30V White
Eff:
84.0%
FWHM:
18 x 43°
Cd/Im:
2.9
Download
LUMILEDS LUXEON 5050 Square 6V White
Eff:
84.5%
FWHM:
15.5 x 44°
Cd/Im:
3.1
Download
LUMILEDS LUXEON 5050 Round 6V White
Eff:
83.5%
FWHM:
15.0 X 43.5°
Cd/Im:
3.4
Download
LUMILEDS LUXEON C Blue
Eff:
79.0%
FWHM:
6.1 x 50°
Cd/Im:
6.9
Download
LUMILEDS LUXEON C Lime
Eff:
80.5%
FWHM:
5.9 x 49.0°
Cd/Im:
7.2
Download
LUMILEDS LUXEON C Red
Eff:
78.5%
FWHM:
6.2 x 48.0°
Cd/Im:
6.2
Download
LUMILEDS LUXEON C White
Eff:
81.5%
FWHM:
6.7 x 49°
Cd/Im:
6.8
Download
LUMILEDS LUXEON CZ White
Eff:
84.5%
FWHM:
4.6 x 49.5°
Cd/Im:
10.3
Download
LUMILEDS LUXEON HL1Z CSP White
Eff:
85.0%
FWHM:
5.5 x 49°
Cd/Im:
8.4
Download
LUMILEDS LUXEON HL2X White
Eff:
84.5%
FWHM:
9.7 x 47°
Cd/Im:
5.0
Download
LUMILEDS LUXEON HL2X-D White
Eff:
85.0%
FWHM:
11.5 x 47°
Cd/Im:
4.3
Download

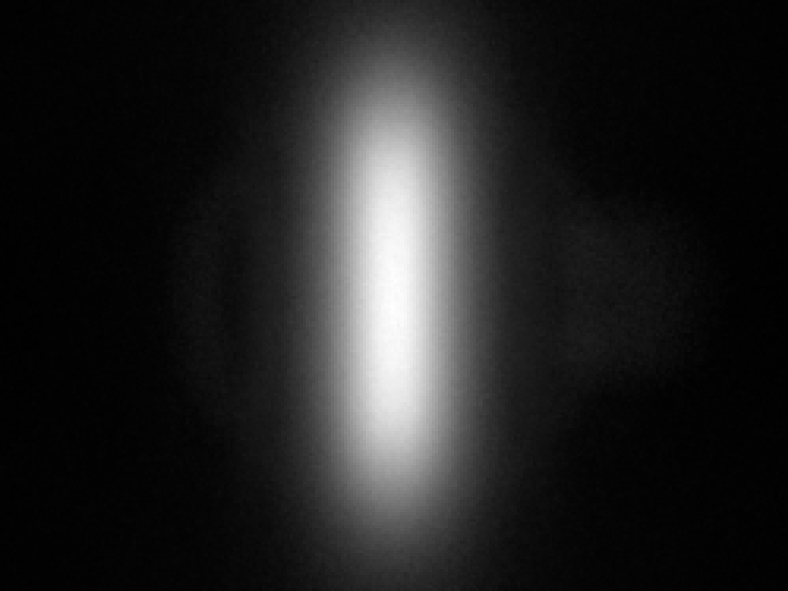

LUMILEDS LUXEON HL2X-P White
Eff:
85.0%
FWHM:
11 x 47°
Cd/Im:
4.5
Download
LUMILEDS LUXEON HL2Z White
Eff:
83.5%
FWHM:
7.9 x 47°
Cd/Im:
6.0
Download
LUMILEDS LUXEON IR 2720
Eff:
84.5%
FWHM:
6.4 x 47.5°
Cd/Im:
7.6
Download

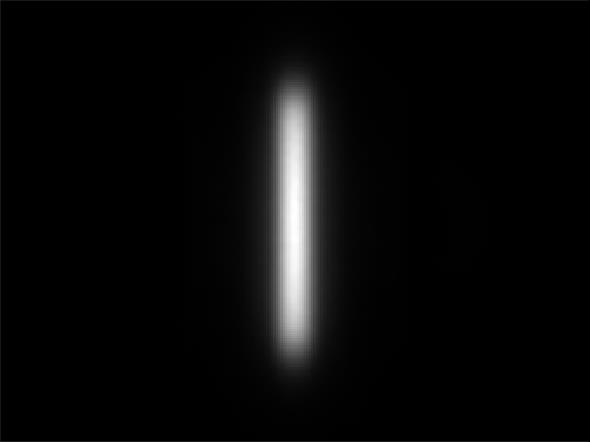

LUMILEDS LUXEON IR Compact 850nm
Eff:
83.0%
FWHM:
47.5 x 5.7°
Ipk/W:
7.9
Download

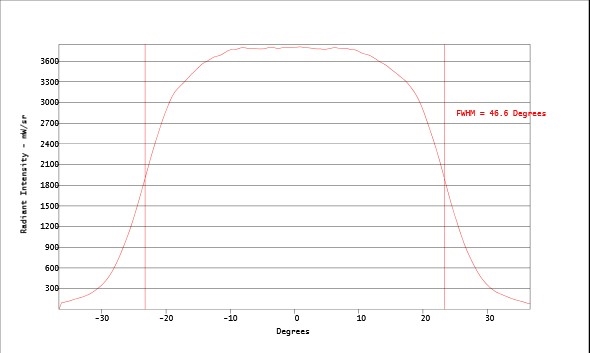

LUMILEDS LUXEON IR Domed 60 Degree
Eff:
82.0%
FWHM:
8.7 x 46.5°
Cd/Im:
5.3
Download
LUMILEDS LUXEON IR Domed 90 Degree
Eff:
83.0%
FWHM:
7.7 x 47.0°
Cd/Im:
6.5
Download
LUMILEDS LUXEON MX White
Eff:
81.0%
FWHM:
21 x 43°
Cd/Im:
2.4
Download
LUMILEDS LUXEON MZ White
Eff:
82.6%
FWHM:
16.3 x 45.9°
Cd/Im:
3.1
Download
LUMILEDS LUXEON Rebel ES White
Eff:
81.3%
FWHM:
10.5 x 48.8°
Cd/Im:
5.4
Download
LUMILEDS LUXEON Rebel White
Eff:
82.7%
FWHM:
7.9x47.66°
Cd/Im:
7.2
Download
LUMILEDS LUXEON Rubix Blue
Eff:
85.5%
FWHM:
4.6 x 50°
Cd/Im:
10.3
Download
LUMILEDS LUXEON Rubix Green
Eff:
85.5%
FWHM:
4.6 x 50°
Cd/Im:
10.3
Download
LUMILEDS LUXEON Rubix Red
Eff:
87.5%
FWHM:
4.5 x 49°
Cd/Im:
10.8
Download
LUMILEDS LUXEON Rubix Royal Blue
Eff:
84.5%
FWHM:
4.5 x 51°
Cd/Im:
10.2
Download
LUMILEDS LUXEON Rubix White
Eff:
85.5%
FWHM:
4.8 x 49°
Cd/Im:
9.9
Download

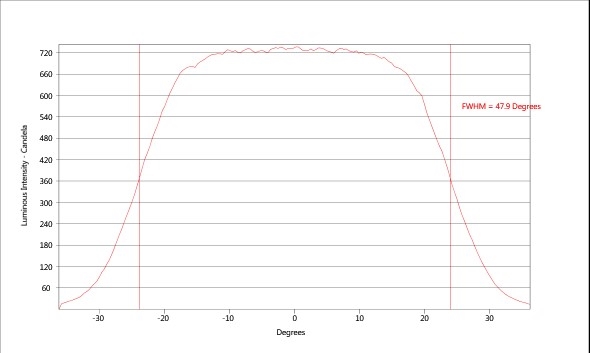

LUMILEDS LUXEON TX White
Eff:
82.7%
FWHM:
8.3 x 47.9°
Cd/Im:
5.4
Download
LUMILEDS LUXEON V White
Eff:
81.0%
FWHM:
13 x 44.5°
Cd/Im:
3.6
Download
LUMILEDS LUXEON Z ES White
Eff:
83.0%
FWHM:
6 x 48°
Cd/Im:
7.1
Download
LUMILEDS LUXEON Z White
Eff:
83.0%
FWHM:
4.5 x 49°
Cd/Im:
9.0
Download
Luminus Devices MP 7070-T200 White
Eff:
82.5%
FWHM:
21.5 x 43°
Cd/Im:
2.1
Download
Luminus Devices SFT-40-WxS White
Eff:
85.5%
FWHM:
7.6 x 48°
Cd/Im:
6.4
Download

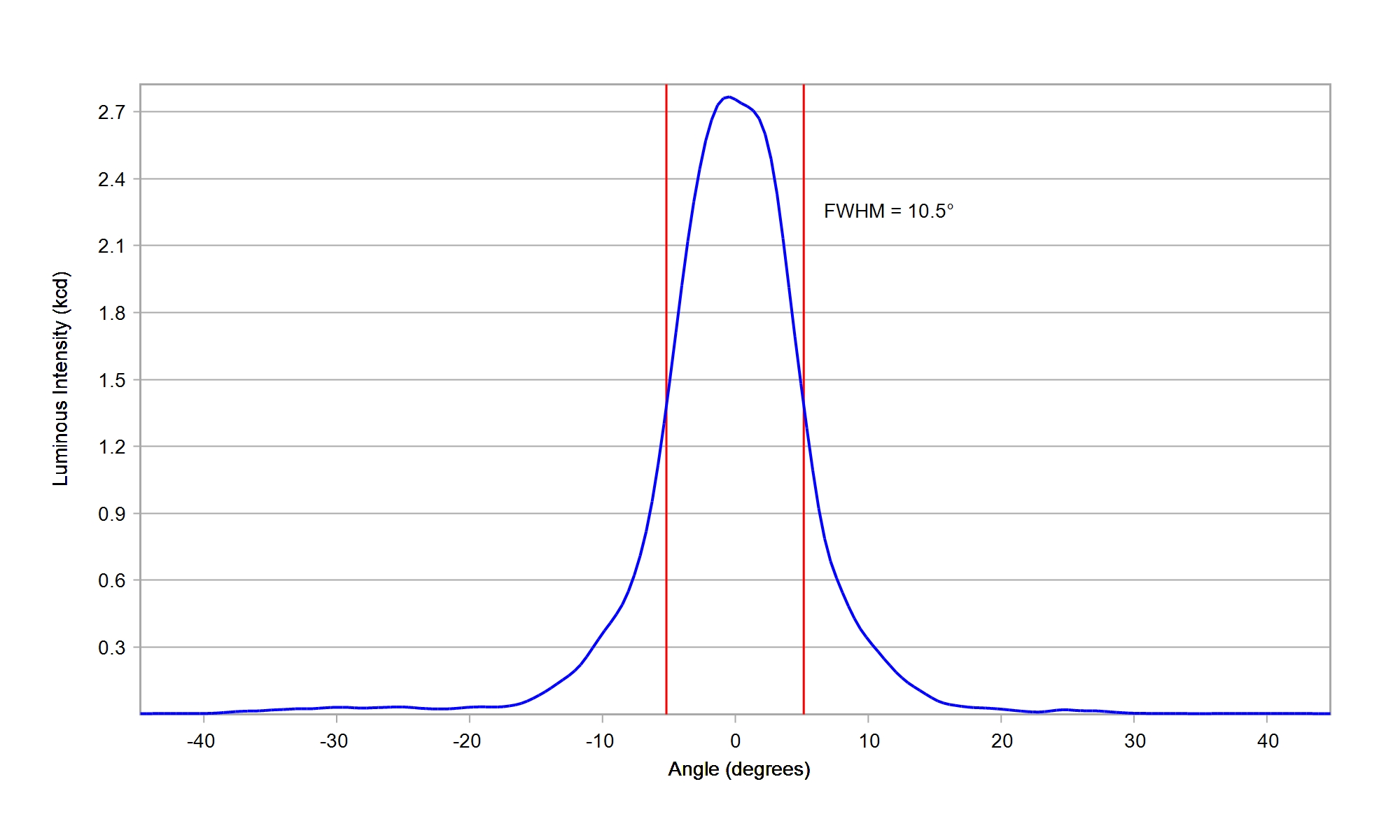

Luminus Devices SFT-70X-WxS White
Eff:
85.0%
FWHM:
10.5 x 47°
Cd/Im:
4.7
Download
Luminus Devices SST 05-IR-B40 850nm
Eff:
88.0%
FWHM:
6.9 x 47°
Ipk/W:
6.5
Download

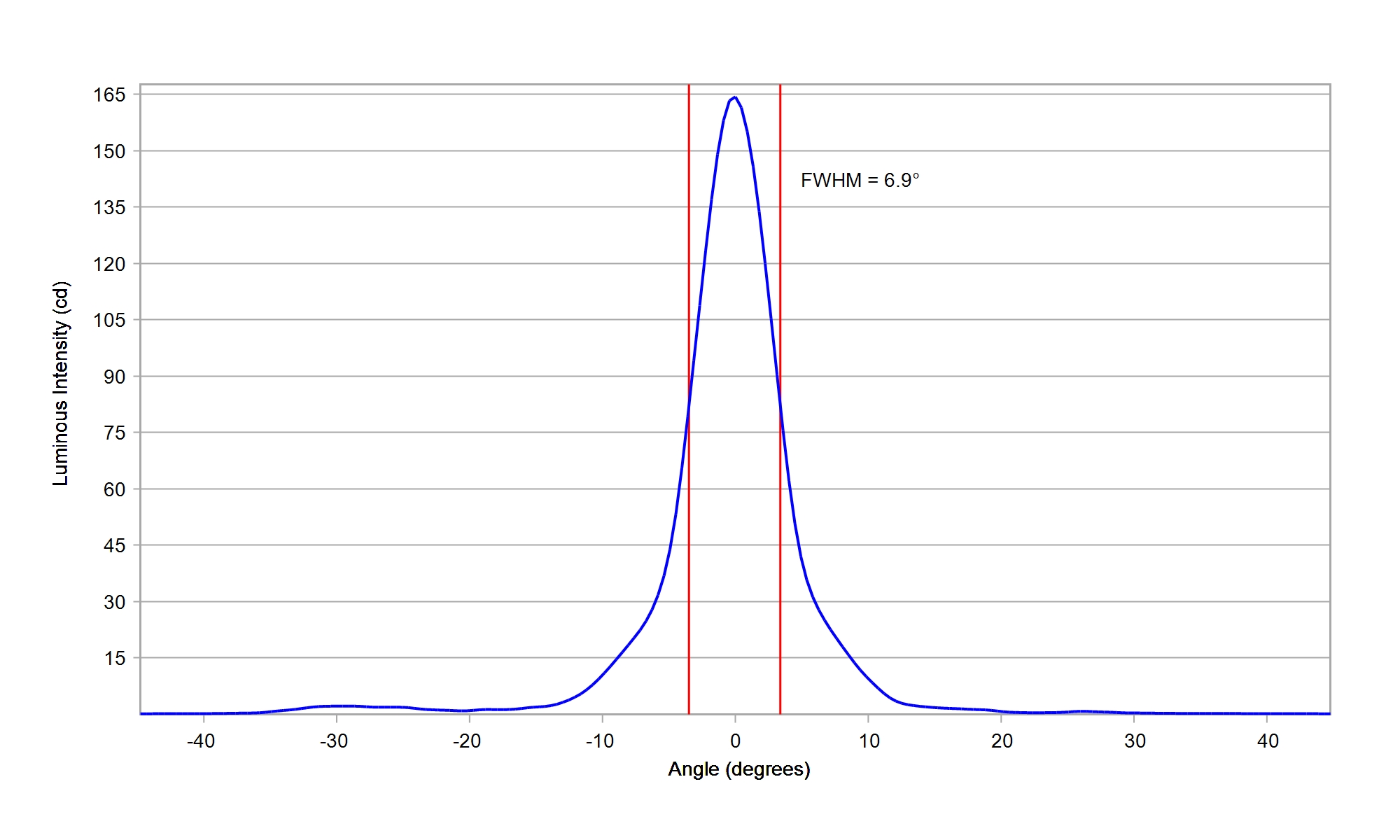

Luminus Devices SST 10-B-B130 Blue
Eff:
82.5%
FWHM:
6.2 x 50°
Cd/Im:
7.2
Download

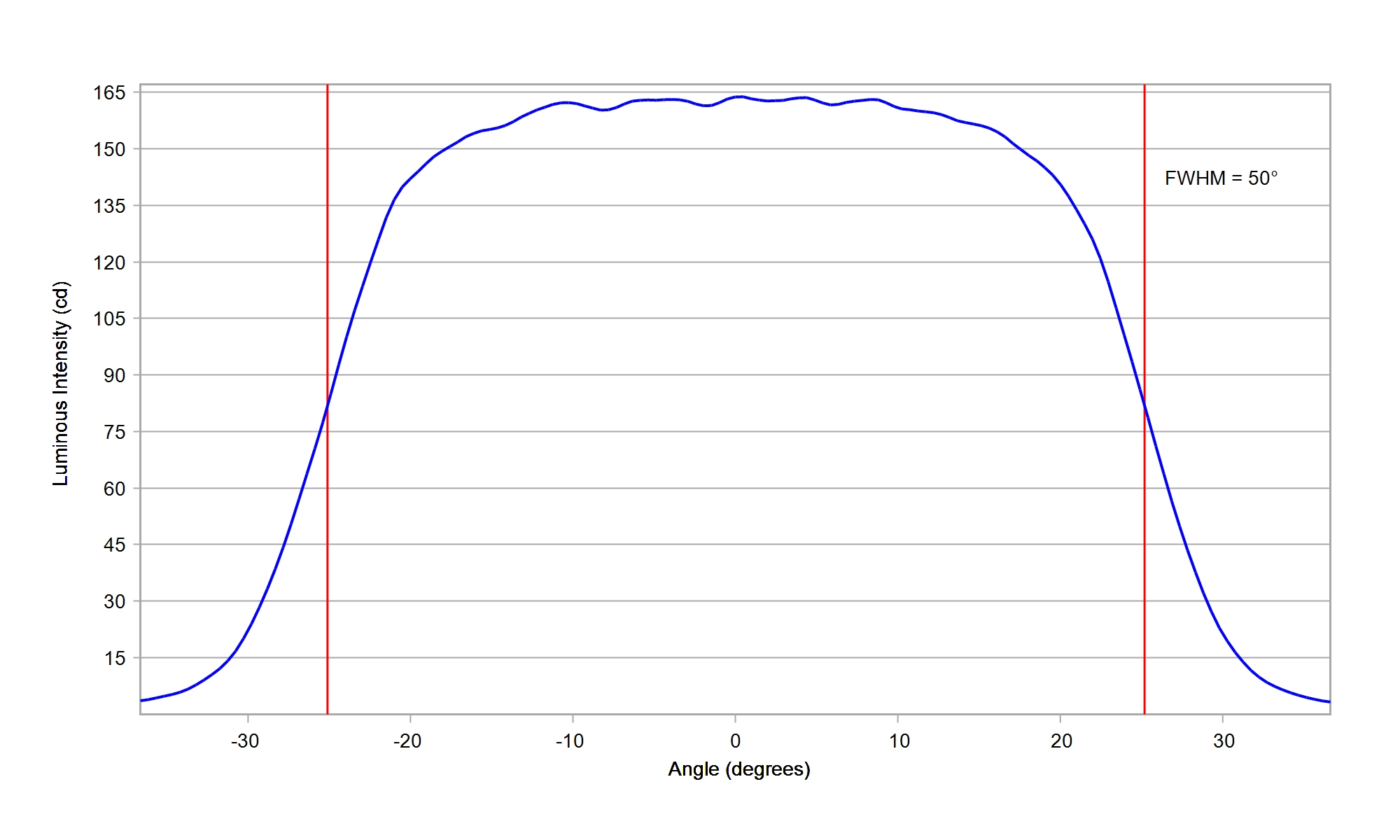

Luminus Devices SST 10-B-B90 Blue
Eff:
82.0%
FWHM:
6.9 x 50°
Cd/Im:
6.1
Download
Luminus Devices SST 10-DR-B130 Deep Red
Eff:
87.0%
FWHM:
6.9 x 48°
Cd/Im:
7.1
Download

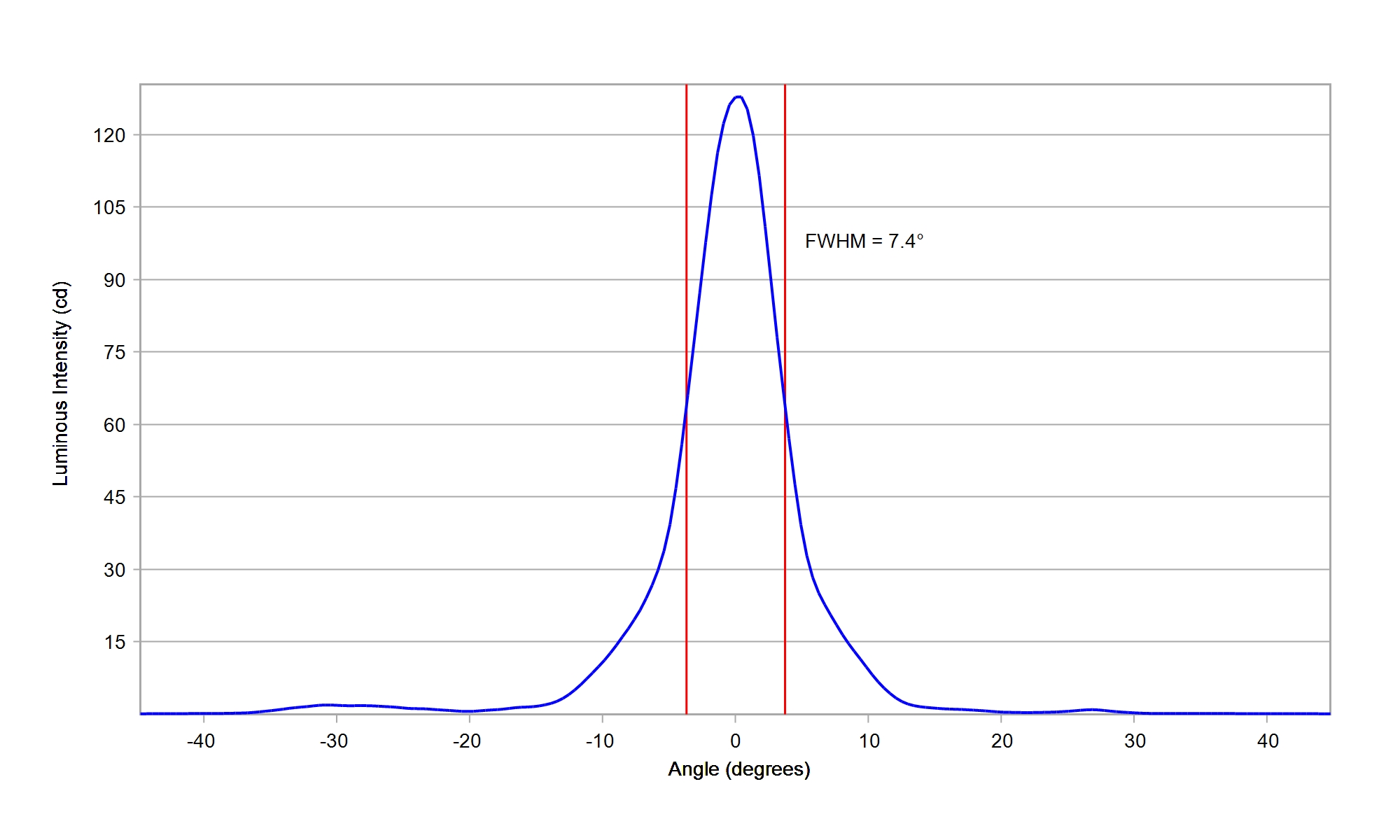

Luminus Devices SST 10-DR-B90 Deep Red
Eff:
86.5%
FWHM:
7.4 x 48°
Cd/Im:
6.2
Download
Luminus Devices SST 10-G-B130 Green
Eff:
85.0%
FWHM:
6.4 x 49°
Cd/Im:
7.5
Download
Luminus Devices SST 10-G-B90 Green
Eff:
84.5%
FWHM:
7.4 x 49°
Cd/Im:
6.2
Download

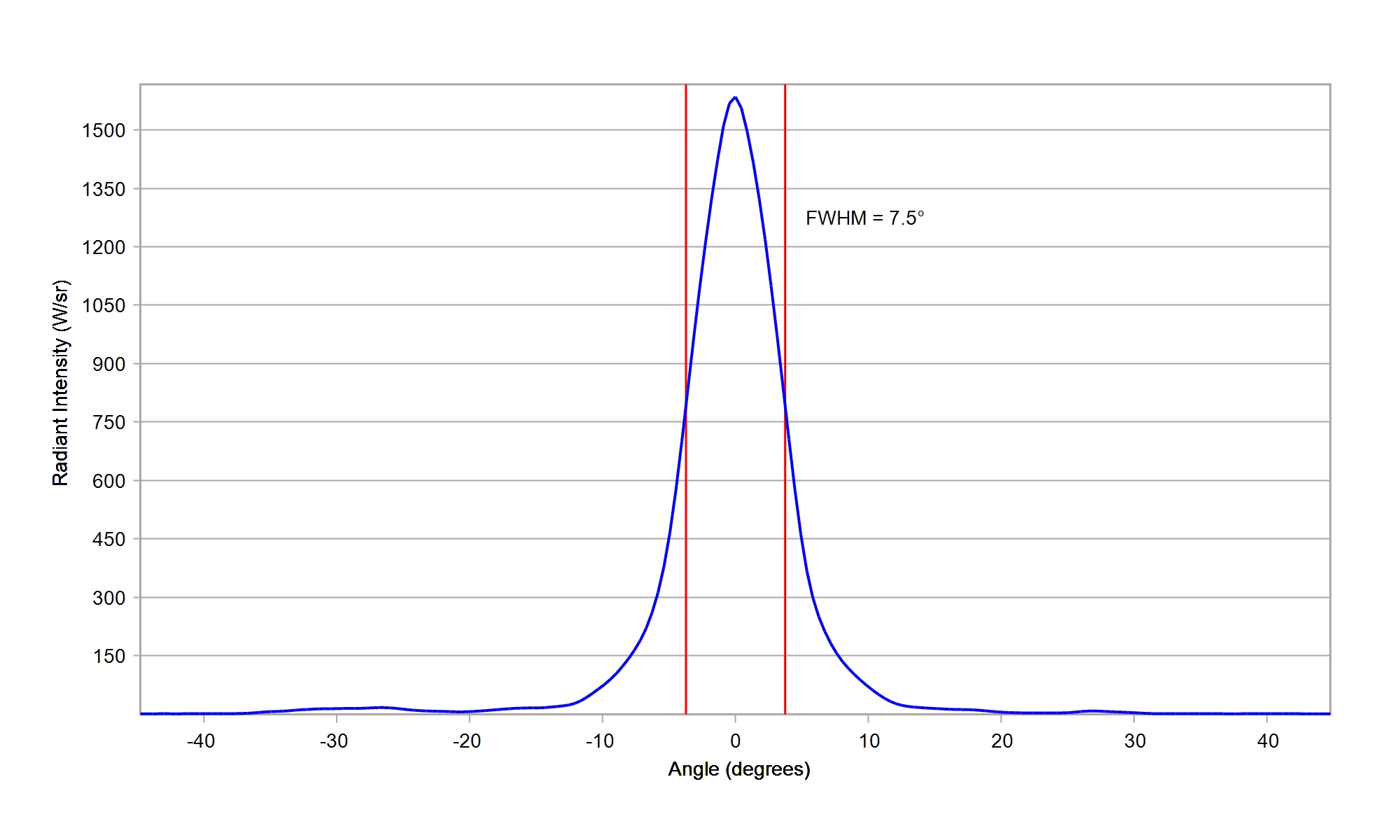

Luminus Devices SST 10-IR-B130 940nm
Eff:
91.0%
FWHM:
7.5 x 47°
Ipk/W:
7.1
Download
Luminus Devices SST 10-IR-B90 940nm
Eff:
89.5%
FWHM:
7.3 x 47°
Ipk/W:
6.6
Download
Luminus Devices SST 10-IRD-B130 810nm
Eff:
91.0%
FWHM:
6.7 x 47°
Ipk/W:
7.7
Download
Luminus Devices SST 10-IRD-B90 810nm
Eff:
89.5%
FWHM:
6.6 x 47°
Ipk/W:
7.1
Download
Luminus Devices SST 20-WxH White Hi CRI
Eff:
85.0%
FWHM:
7.2 x 49°
Cd/Im:
6.4
Download
Luminus Devices SST 40-W White
Eff:
82.5%
FWHM:
15.5 x 45°
Cd/Im:
3.4
Download
Luminus Devices SST-12-WxS White
Eff:
85.0%
FWHM:
6.3 x 49°
Cd/Im:
7.4
Download
Luminus Devices SST-70X-W White
Eff:
84.5%
FWHM:
14.5 x 45°
Cd/Im:
3.4
Download
Nichia 219 White
FWHM:
10.2 X 47.5°
Cd/Im:
5.7
Download
Nichia 229A White
Eff:
82.0%
FWHM:
13.5 x 44.5°
Cd/Im:
3.6
Download

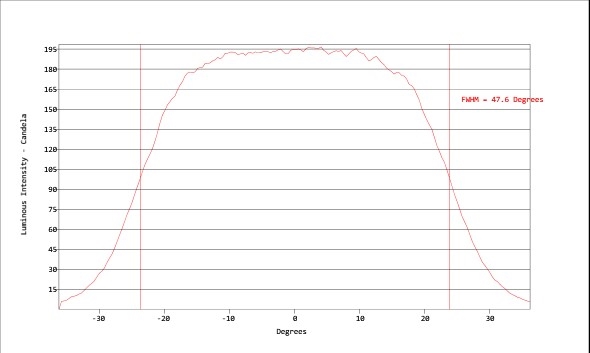

Nichia 757G White
Eff:
85.0%
FWHM:
9.4 x 48°
Cd/Im:
5.3
Download
Nichia 757G White
Eff:
84.0%
FWHM:
8.6 x 47.5°
Cd/Im:
5.5
Download
Nichia NCSW CSP E17A White
Eff:
83.5%
FWHM:
6.0 x 49.0°
Cd/Im:
7.7
Download
Nichia NF2W 385AR-V2 White
Eff:
84.0%
FWHM:
9.8 x 47.0°
Cd/Im:
4.8
Download
Nichia NFMW 484AR White
Eff:
83.0%
FWHM:
16.5 x 43.0°
Cd/Im:
3.0
Download
Nichia NFMW 486AR White
Eff:
83.0%
FWHM:
15.5 x 43.5°
Cd/Im:
3.1
Download
Nichia NFMW 488AR White
Eff:
83.0%
FWHM:
16.5 x 43°
Cd/Im:
3.0
Download

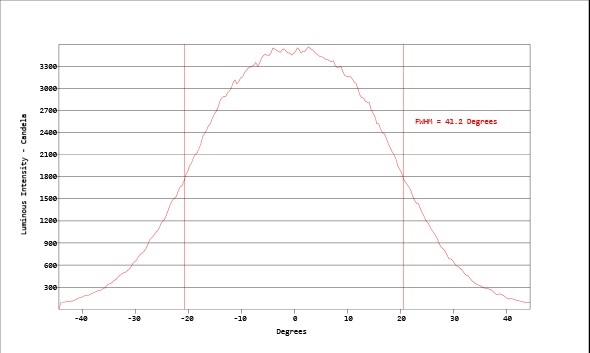

Nichia NFMW 488AR White
Eff:
83.5%
FWHM:
41.0 x 16.5°
Cd/Im:
3.1
Download
Nichia NFSW CSP E11A White
Eff:
83.0%
FWHM:
4.9 x 48°
Cd/Im:
9.6
Download
Nichia NV4W 144AR White
Eff:
78.0%
FWHM:
18 x 42°
Cd/Im:
2.5
Download
Nichia NV4W B35AM White
Eff:
83.5%
FWHM:
13 x 45°
Cd/Im:
3.8
Download
Nichia NVSL 219B White
Eff:
83.0%
FWHM:
7.2 x 48°
Cd/Im:
6.2
Download
Nichia NVSW 219C White
Eff:
83.0%
FWHM:
9.7 x 47°
Cd/Im:
81.6
Download
Nichia NVSW 219F White
Eff:
83.0%
FWHM:
9.7 x 47°
Cd/Im:
4.9
Download
Nichia NVSW 319A White
Eff:
82.5%
FWHM:
11.0 x 46.5°
Cd/Im:
44.4
Download
Nichia NVSW CSP E21A White
Eff:
81.0%
FWHM:
7.6 x 48.1°
Cd/Im:
6.1
Download
Nichia Top Emitting NCSL 119-H3 White
Eff:
82.5%
FWHM:
8.9x47.9°
Cd/Im:
6.3
Download
Nichia Top Emitting NFSW 036 White
Eff:
84.5%
FWHM:
8X47.4°
Cd/Im:
5.9
Download
Nichia Top Emitting NS3W 183T White
Eff:
81.1%
FWHM:
13.6x47.3°
Cd/Im:
3.7
Download
Osram Led Engin LuxiGen LZ1 00R702 IR940nm
Eff:
90.5%
FWHM:
7 x 47°
Ipk/W:
6.9
Download
Osram OS DURIS E 2835 Gen2
Eff:
85.5%
FWHM:
7.1 x 49°
Cd/Im:
6.4
Download
Osram OS DURIS E 2835 White
Eff:
84.0%
FWHM:
7.5 x 48°
Cd/Im:
5.9
Download
Osram OS DURIS E2 White
Eff:
83.0%
FWHM:
4.4 x 49.3°
Cd/Im:
8.3
