26.5mm Elliptical Ripple Linear TIR LED Lenses

Part number

10049

Dimensions

26.5mm

Drawing Number

60368

Optic type

TIR LED Lenses

Finish

Ripple Linear

Beam type

Elliptical

Applications

Architectural

Landscape & Garden

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

85.5%

FWHM:

49 x 6.7°

Cd/Im:

6.8

Carclo Optics - 10049 26.5mm Spot Image Bridgelux 3030 Gen2

Carclo Optics - 10049 26.5mm Horizontal Cross Section Bridgelux 3030 Gen2

,

Carclo Optics - 10049 26.5mm Vertical Cross Section Bridgelux 3030 Gen2

Download

IES

Broadcom Jade White

Eff:

85.5%

FWHM:

43.9 x 11.0°

Cd/Im:

5.4

Download

ies

Cree JB3030 3V White

Eff:

85.0%

FWHM:

48 x 9°

Cd/Im:

5.2

Carclo Optics - 10049 Spot Image Cree JB3030 3V White

Carclo Optics - 10049 Horizontal Cross Section Cree JB3030 3V White

,

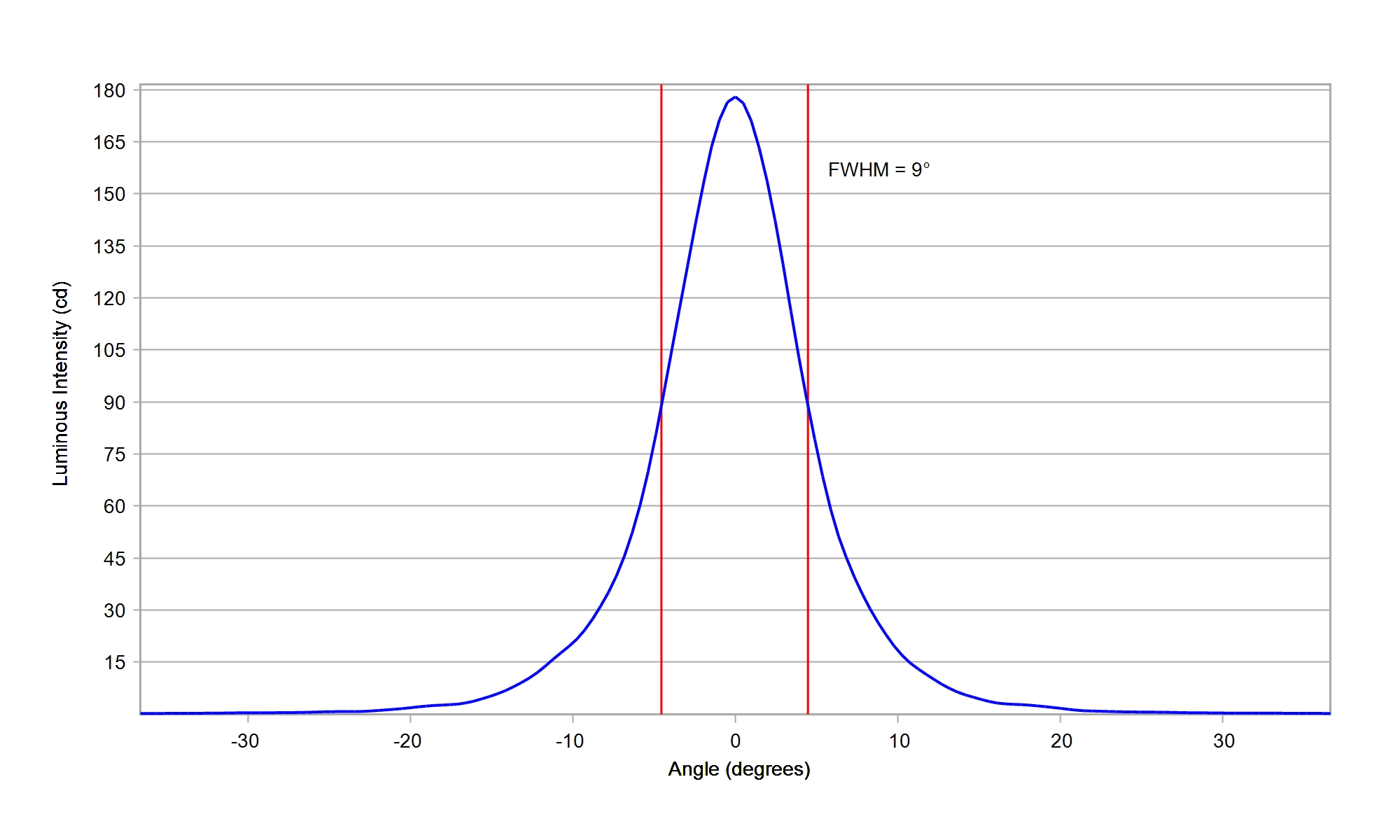

Carclo Optics - 10049 Vertical Cross Section Cree JB3030 3V White

Download

IES

Cree JK2835 6V White

Eff:

85.5%

FWHM:

48 x 8.2°

Cd/Im:

5.7


,


Download

IES

Cree JQ5050 9V White

Eff:

84.5%

FWHM:

44 x 17°

Cd/Im:

3.0

Carclo Optics - 10049 Spot Image Cree JQ5050 9V White

Carclo Optics - 10049 Horizontal Cross Section Cree JQ5050 9V White

,

Carclo Optics - 10049 Vertical Cross Section Cree JQ5050 9V White

Download

IES

Cree JR5050 24V White

Eff:

85.0%

FWHM:

45 x 16°

Cd/Im:

3.2

Carclo Optics - 10049 Spot Image Cree JR5050 24V White

Carclo Optics - 10049 Horizontal Cross Section Cree JR5050 24V White

,

Carclo Optics - 10049 Vertical Cross Section Cree JR5050 24V White

Download

IES

Cree JR5050 36V White

Eff:

85.0%

FWHM:

45 x 14.5°

Cd/Im:

3.4

Carclo Optics - 10049 Spot Image Cree JR5050 36V White

Carclo Optics - 10049 Horizontal Cross Section Cree JR5050 36V White

,

Carclo Optics - 10049 Vertical Cross Section Cree JR5050 36V White

Download

IES

Cree JR5050 6V White

Eff:

85.0%

FWHM:

44 x 15.5°

Cd/Im:

3.2

Carclo Optics - 10049 Spot Image Cree JR5050 6V White

Carclo Optics - 10049 Horizontal Cross Section Cree JR5050 6V White

,

Carclo Optics - 10049 Vertical Cross Section Cree JR5050 6V White

Download

IES

Cree JR5050C 6V E-Class White

Eff:

84.5%

FWHM:

45 x 15.5°

Cd/Im:

3.3


,


Download

IES

Cree XLamp CSP XD16 Cool White

Eff:

83.0%

FWHM:

48.0 x 7.4°

Cd/Im:

5.8

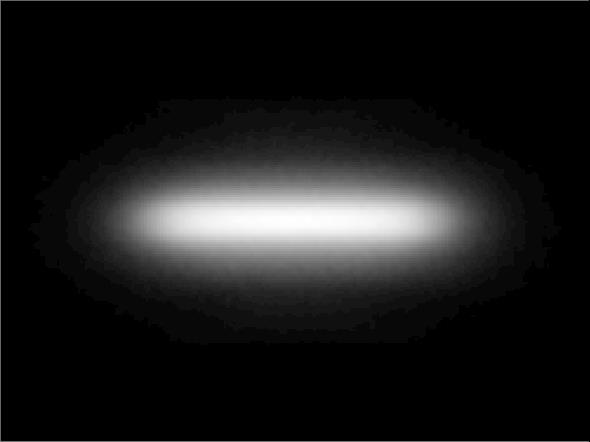

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp CSP XD16 Premium White

Eff:

85.5%

FWHM:

49 x 6°

Cd/Im:

7.9


,


Download

IES

Cree XLamp MH-B White

Eff:

81.3%

FWHM:

42.9x17.0°

Cd/Im:

2.7

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

Cree XLamp MK-R White

Eff:

82.5%

FWHM:

44.8 X 23.3°

Cd/Im:

3.1

Download

ies

Cree XLamp MX-6 White

Eff:

81.0%

FWHM:

42.2 x 13.6°

Cd/Im:

4.7

Download

ies

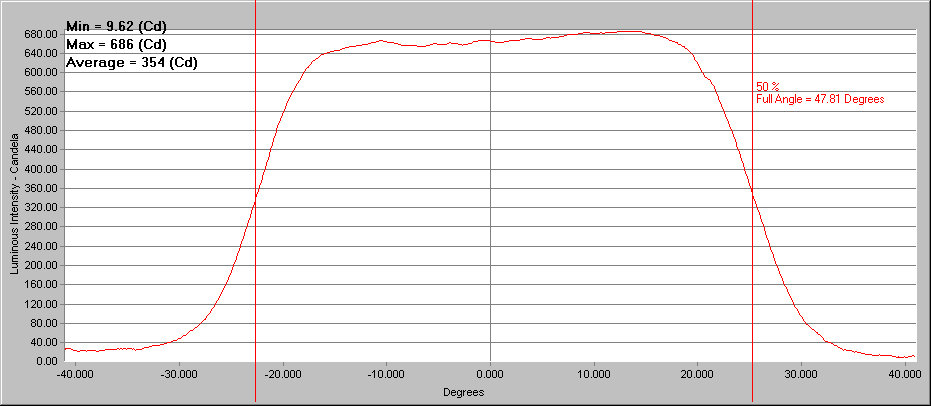

Cree XLamp XB-D White

Eff:

82.0%

FWHM:

47.8 x 7.3°

Cd/Im:

8.1

Download

ies

Cree XLamp XB-H White

Eff:

85.0%

FWHM:

48 x 7.9°

Cd/Im:

5.8

Carclo Optics - 10049 26.5mm Spot Image Cree XLamp XB-H

Carclo Optics - 10049 26.5mm Cross Section Cree XLamp XB-H

,

Carclo Optics - 10049 26.5mm Vertical Cross Section Cree XLamp XB-H

Download

IES

Cree XLamp XE-G Blue

Eff:

85.0%

FWHM:

51 x 5.2°

Cd/Im:

8.5


,


Download

IES

Cree XLamp XE-G Green

Eff:

85.0%

FWHM:

50 x 5.3°

Cd/Im:

8.5


,


Download

IES

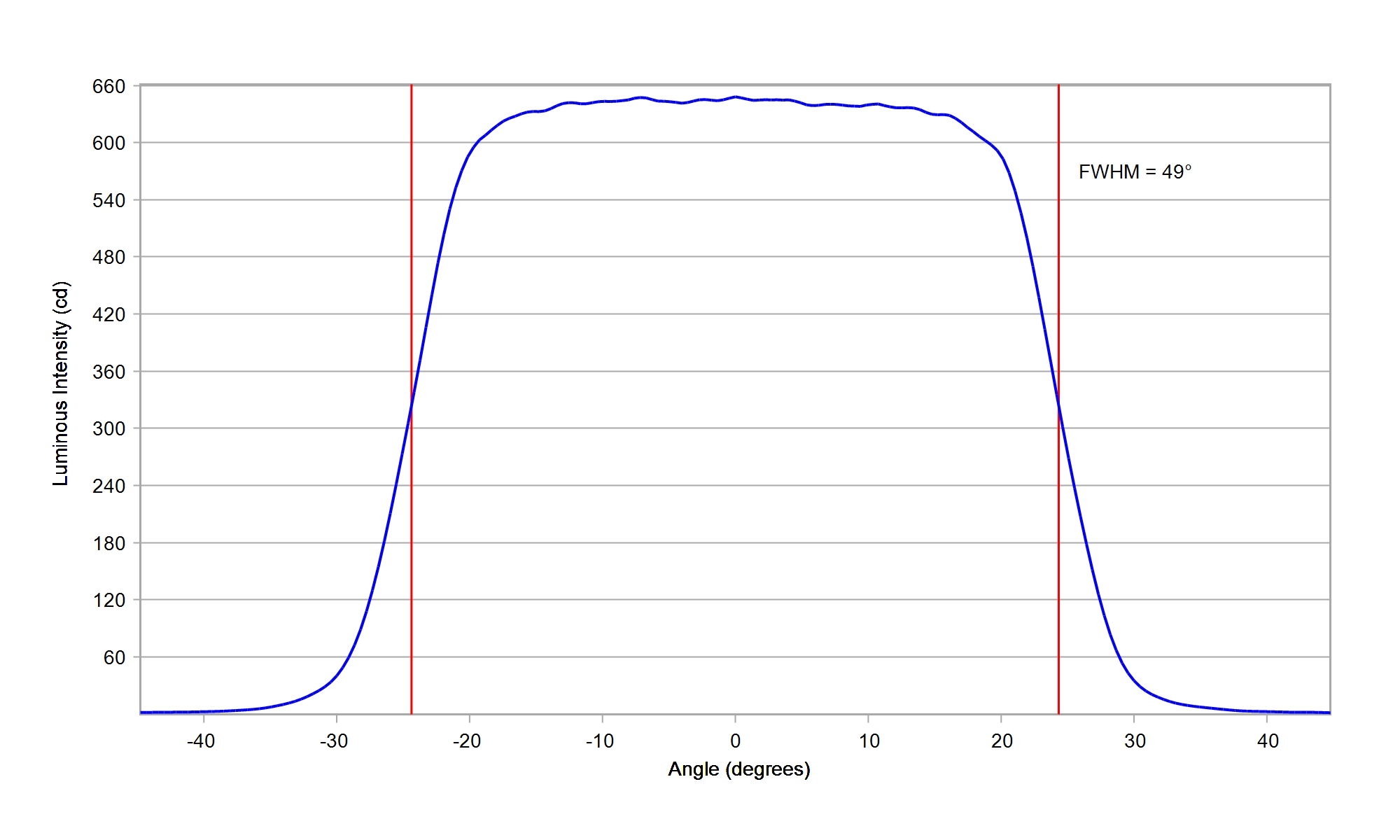

Cree XLamp XE-G Red

Eff:

85.0%

FWHM:

49 x 5.2°

Cd/Im:

8.7


,


Download

IES

Cree XLamp XE-G White

Eff:

85.0%

FWHM:

49 x 5.3°

Cd/Im:

8.2


,


Download

IES

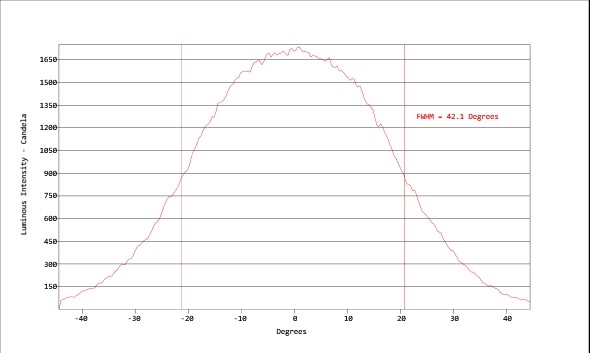

Cree XLamp XHP-50 Gen 2 White

Eff:

80.0%

FWHM:

42 x 18°

Cd/Im:

2.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

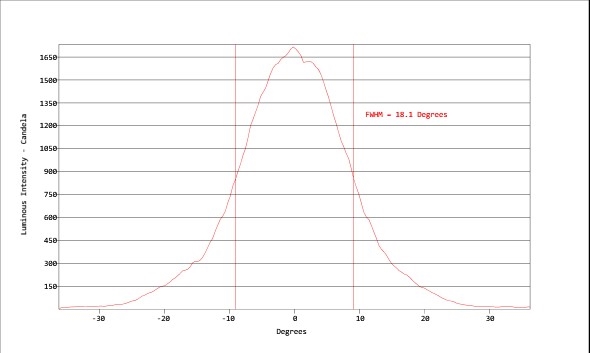

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XHP-50 White

Eff:

81.4%

FWHM:

42.5 x 20°

Cd/Im:

2.4

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

Cree XLamp XHP-70 White

Eff:

81.0%

FWHM:

43 x 23°

Cd/Im:

1.9

Carclo Optics - 10049 Spot Image Cree XHP70

Carclo Optics - 10049 Horizontal Cross Section Cree XHP70

,

Carclo Optics - 10049 Vertical Cross Section Cree XHP70

Download

IES

Cree XLamp XHP35 HI White

Eff:

82.7%

FWHM:

47x9.4°

Cd/Im:

4.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XHP35 HD White

Eff:

81.0%

FWHM:

44.7 x 13.2°

Cd/Im:

3.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XHP35.2 HI White

Eff:

84.0%

FWHM:

47 x 10.5°

Cd/Im:

4.2

Carclo Optics – 10049 Spot Image Cree XLamp XHP35.2 HI White

Carclo Optics – 10049 Horizontal Cross Section Cree XLamp XHP35.2 HI White

,

Carclo Optics – 10049 Vertical Cross Section Cree XLamp XHP35.2 HI White

Download

2-HI-WW

Cree XLamp XHP35.2 HD White

Eff:

82.0%

FWHM:

45 x 15.5°

Cd/Im:

3.1

Carclo Optics - 10049 Spot Image Cree XLamp XHP35.2 White

Carclo Optics - 10049 Horizontal Cross Section Cree XLamp XHP35.2 White

,

Carclo Optics - 10049 Vertical Cross Section Cree XLamp XHP35.2 White

Download

IES

Cree XLamp XHP50.3 HI White

Eff:

83.5%

FWHM:

45 x 13.5°

Cd/Im:

3.5

IES-10049-Cree_XHP50D_HI.IES

optic-10049-Cree_XHP50.3 HI-cross-section-image-horizontal.jpg

,

optic-10049-Cree_XHP50.3 HI-cross-section-image-vertical.jpg

Download

IES

Cree XLamp XHP50.3 White

Eff:

81.5%

FWHM:

44 x 17°

Cd/Im:

2.8



,


Download

IES

Cree XLamp XHP70.2 White

Eff:

80.5%

FWHM:

43 x 23°

Cd/Im:

1.9

Carclo Optics – 10049 Cree Xlamp XHP70.2 - Spot Image

Carclo Optics – 10049 Horizontal Cree Xlamp XHP70.2 - Cross-Section

,

Carclo Optics – 10049 Vertical Cree Xlamp XHP70.2 - Cross-Section

Download

IES

Cree XLamp XM-L White

Eff:

81.7%

FWHM:

42.1 x 13.2°

Cd/Im:

5.0

Download

ies

Cree XLamp XM-L2 White

FWHM:

47.0 x 12.3°

Cd/Im:

5.2

optic-10049-standard-elliptical-cree-XM-L2-white-spot-image

optic-10049-standard-elliptical-cree-XM-L2-white-Hcross-section-image

,

optic-10049-standard-elliptical-cree-XM-L2-white-Vcross-section-image

Download

ies

Cree XLamp XM-L3 White

Eff:

83.5%

FWHM:

46 x 12.5°

Cd/Im:

3.9

Carclo Optics - 10049 Spot Image Cree XM-L3

Carclo Optics - 10049 Horizontal Cross Section Cree XM-L3

,

Carclo Optics - 10049 Vertical Cross Section Cree XM-L3

Download

IES

Cree XLamp XP-C White

Eff:

85.2%

FWHM:

44.2 x 5.2°

Cd/Im:

11.6

Download

ies

Cree XLamp XP-E White

Eff:

82.9%

FWHM:

43.8 x 6.3°

Cd/Im:

8.3

Download

ies

Cree XLamp XP-E2 White

Eff:

85.5%

FWHM:

49 x 5.4°

Cd/Im:

8.6


,


Download

IES

Cree XLamp XP-G White

Eff:

81.5%

FWHM:

43.8 x 9.1°

Cd/Im:

6.6

Download

ies

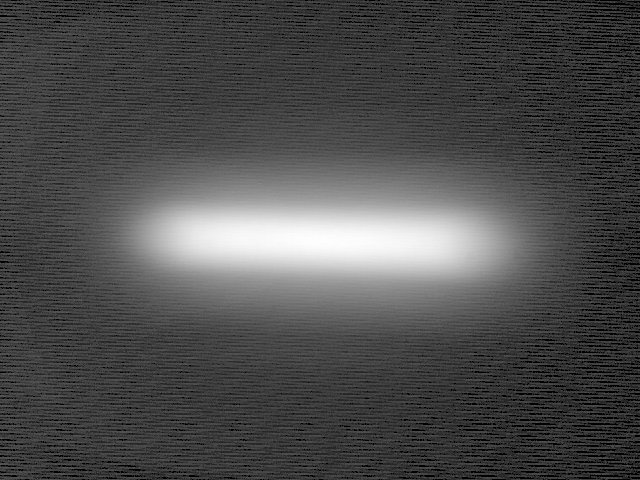

Cree XLamp XP-G2 White

FWHM:

47.5 x 8.2°

Cd/Im:

7.4

10049 Spot

10049 Cross section plot

Download

ies

Cree XLamp XP-G3 White

Eff:

82.0%

FWHM:

47 x 9.7°

Cd/Im:

4.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XP-L HI White

Eff:

82.8%

FWHM:

48.2x7.9°

Cd/Im:

5.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XP-L White

Eff:

82.6%

FWHM:

46.1x11.4°

Cd/Im:

4.1

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

Cree XLamp XP-L2 White

Eff:

82.5%

FWHM:

45 x 13°

Cd/Im:

80.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XP-P White

Eff:

85.5%

FWHM:

50 x 4.5°

Cd/Im:

10.2

Carclo Optics – 10049 Cree Xlamp XP-P - Spot Image

Carclo Optics – 10049 Horizontal Cree Xlamp XP-P - Cross-Section

,

Carclo Optics – 10049 Vertical Cree Xlamp XP-P - Cross-Section

Download

IES

Cree XLamp XQ-A Blue

Eff:

84.0%

FWHM:

51 x 2.8°

Cd/Im:

13.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-A Green

Eff:

84.0%

FWHM:

50 x 2.9°

Cd/Im:

13.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-A Red

Eff:

84.0%

FWHM:

49.0 x 3.4°

Cd/Im:

152.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

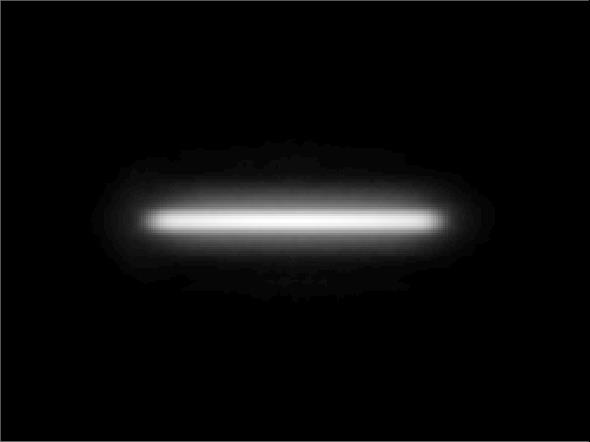

Cree XLamp XQ-A White

Eff:

83.0%

FWHM:

50 x 2.7°

Cd/Im:

13.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-E HI Blue

Eff:

83.0%

FWHM:

51 X 4.3°

Cd/Im:

8.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-E HI Green

Eff:

83.0%

FWHM:

50. x 4.2°

Cd/Im:

8.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-E HI Red

Eff:

83.5%

FWHM:

49.0 X 4.1°

Cd/Im:

9.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-E HI White

Eff:

83.0%

FWHM:

49.7 x 4.1°

Cd/Im:

8.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XR White

Eff:

85.5%

FWHM:

44.5°

Cd/Im:

3.7

Download

ies

Cree XLamp XR-C White

Eff:

86.5%

FWHM:

43.5 x 7.7°

Cd/Im:

7.4

Download

ies

Cree XLamp XR-E White

Eff:

87.3%

FWHM:

43.7 x 9°

Cd/Im:

6.0

Download

ies

Cree XLamp XT-E HE White

Eff:

83.5%

FWHM:

47.5 x 8.5°

Cd/Im:

5.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XT-E White

FWHM:

47.4 x 8.9°

Cd/Im:

6.9

Download

ies

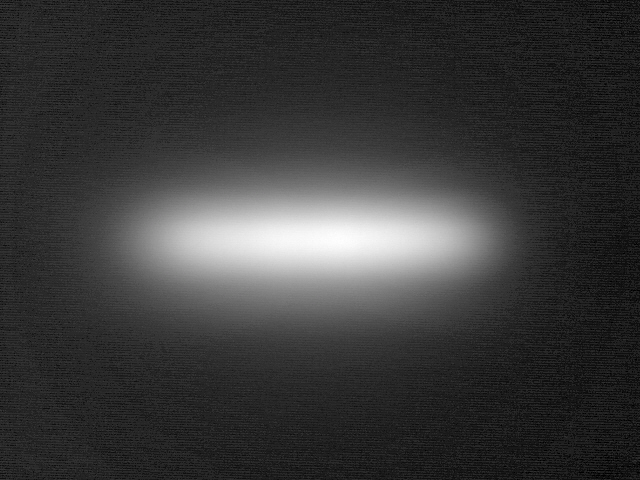

Everlight Shuen White

Eff:

84.7%

FWHM:

43.2°

Cd/Im:

6.7

Download

ies

LEDEngin 3W White

Eff:

81.5%

FWHM:

43.5 x 12.8°

Cd/Im:

4.5

Download

ies

LEDEngin 5W White

Eff:

80.0%

FWHM:

44 x 11.9°

Cd/Im:

4.9

Download

ies

LG Innotek 3535LG White

FWHM:

49.4 x 9.4°

Cd/Im:

6.4

Download

ies

Lite-On R38386AS - S R38 IR

Eff:

84.0%

FWHM:

47.0 x 6.3°

Cd/Im:

7.3

Carclo Optics - Simulated Spot Image

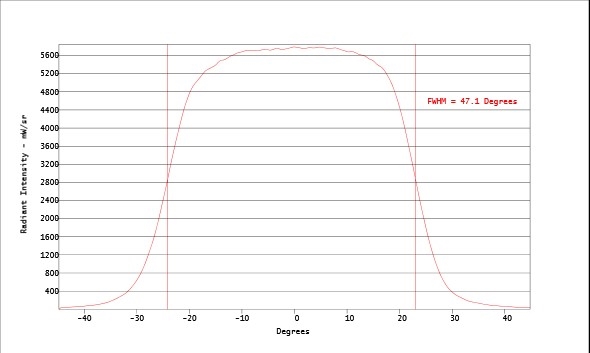

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

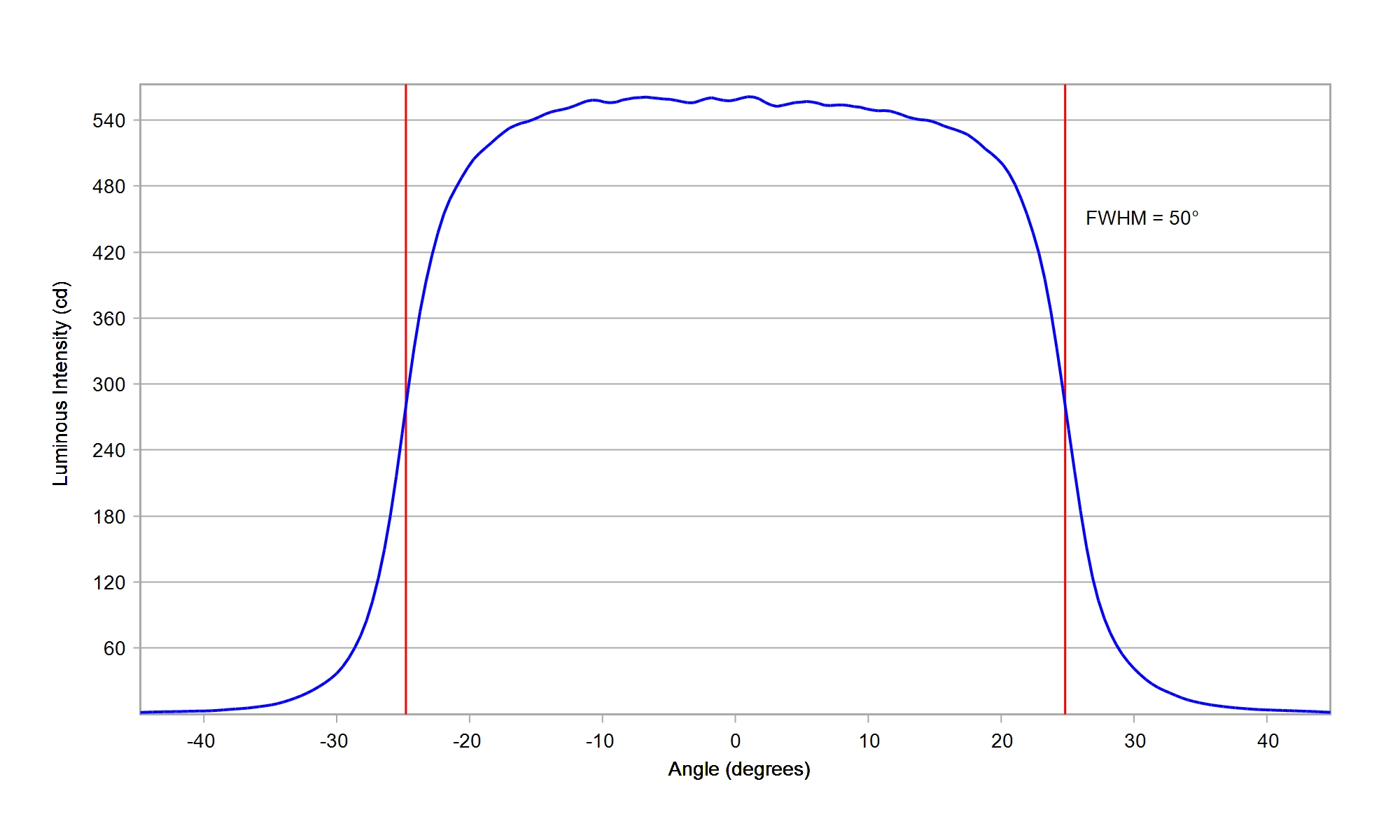

LUMILEDS LUXEON 3014 White

Eff:

85.5%

FWHM:

50 x 4.6°

Cd/Im:

9.7


,


Download

IES

LUMILEDS LUXEON 3030 HE Plus White

Eff:

85.5%

FWHM:

48 x 8.3°

Cd/Im:

5.7

Carclo Optics – 10049 – Luxeon_3030_HE_Plus_spot-image

Carclo Optics – 10049 Horizontal – Luxeon_3030_HE_Plus_cross vertical section

,

Carclo Optics – 10049 Vertical – Luxeon_3030_HE_Plus_cross vertical section

Download

IES

LUMILEDS LUXEON 3030 LUXEON White

Eff:

81.0%

FWHM:

48.1 x 6.9°

Cd/Im:

6.2

Carclo Optics - Simulated Spot Image

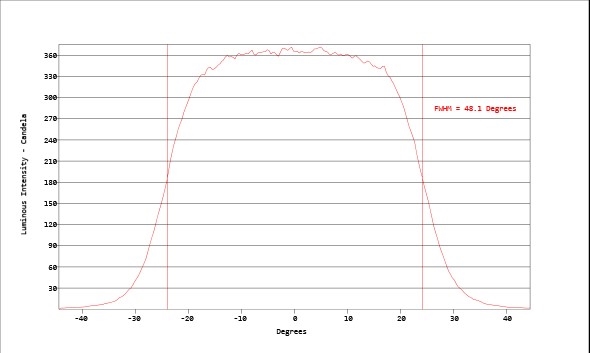

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON 3535 HV White

Eff:

82.8%

FWHM:

48.8 x 6.4°

Cd/Im:

6.4

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

LUMILEDS LUXEON 3535 L White

Eff:

82.8%

FWHM:

48 x 7°

Cd/Im:

6.1

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

LUMILEDS LUXEON 3535L Blue

Eff:

84.0%

FWHM:

50 x 5°

Cd/Im:

6.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON 3535L Green

Eff:

84.5%

FWHM:

50 x 3.9°

Cd/Im:

7.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON 3535L Red

Eff:

84.5%

FWHM:

49.0 x 2.6°

Cd/Im:

10.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON 5050 Round White

Eff:

83.5%

FWHM:

43.5 X 15.0°

Cd/Im:

3.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON C Blue

Eff:

79.5%

FWHM:

50 x 5.8°

Cd/Im:

7.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON C High-Power

Eff:

78.5%

FWHM:

49 x 5.8°

Cd/Im:

6.9

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

LUMILEDS LUXEON C Lime

Eff:

80.5%

FWHM:

49.0 x 5.7°

Cd/Im:

7.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON C Red

Eff:

78.5%

FWHM:

48.0 x 7.0°

Cd/Im:

5.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON C White

Eff:

80.5%

FWHM:

44.4 x 6.1°

Cd/Im:

9.2

Download

ies

LUMILEDS LUXEON CSP 05 White

Eff:

79.0%

FWHM:

49 x 5.7°

Cd/Im:

6.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

LUMILEDS LUXEON CSP 10 White

Eff:

80.0%

FWHM:

48.1 x 8.1°

Cd/Im:

4.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON CZ White

Eff:

84.5%

FWHM:

49.5 x 4.2°

Cd/Im:

10.7

Carclo Optics 10049 Spot Image Luxeon CZ 5M

Carclo Optics 10049 Cross Section Horizontal Luxeon CZ 5M

,

Carclo Optics 10049 Cross Section Vertical Luxeon CZ 5M

Download

IES

LUMILEDS LUXEON HL1Z CSP White

Eff:

85.5%

FWHM:

49 x 5.3°

Cd/Im:

8.7


,


Download

IES

LUMILEDS LUXEON HL2X White

Eff:

84.5%

FWHM:

47 x 9.5°

Cd/Im:

5.0

Carclo Optics - 10049 Spot Image Luxeon HL2X

Carclo Optics - 10049 Horizontal Cross Section Luxeon HL2X

,

Carclo Optics - 10049 Vertical Cross Section Luxeon HL2X

Download

IES

LUMILEDS LUXEON HL2X-D White

Eff:

85.0%

FWHM:

47 x 11.5°

Cd/Im:

4.3


,


Download

IES

LUMILEDS LUXEON HL2X-P White

Eff:

85.0%

FWHM:

47 x 11°

Cd/Im:

4.5


,


Download

IES

LUMILEDS LUXEON HL2Z White

Eff:

85.0%

FWHM:

48 x 7.8°

Cd/Im:

6.1

Carclo Optics – 10049 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 10049 Horizontal Lumileds Luxeon HL2Z - Cross-Section

,

Carclo Optics – 10049 Vertical Lumileds Luxeon HL2Z - Cross-Section

Download

IES

LUMILEDS LUXEON IR 2720

Eff:

84.5%

FWHM:

47.5 x 5.5°

Cd/Im:

8.1

Carclo Optics 10049 Spot Image Luxeon IR 2720

Carclo Optics 10049 Cross Section Horizontal image Luxeon IR 2720

,

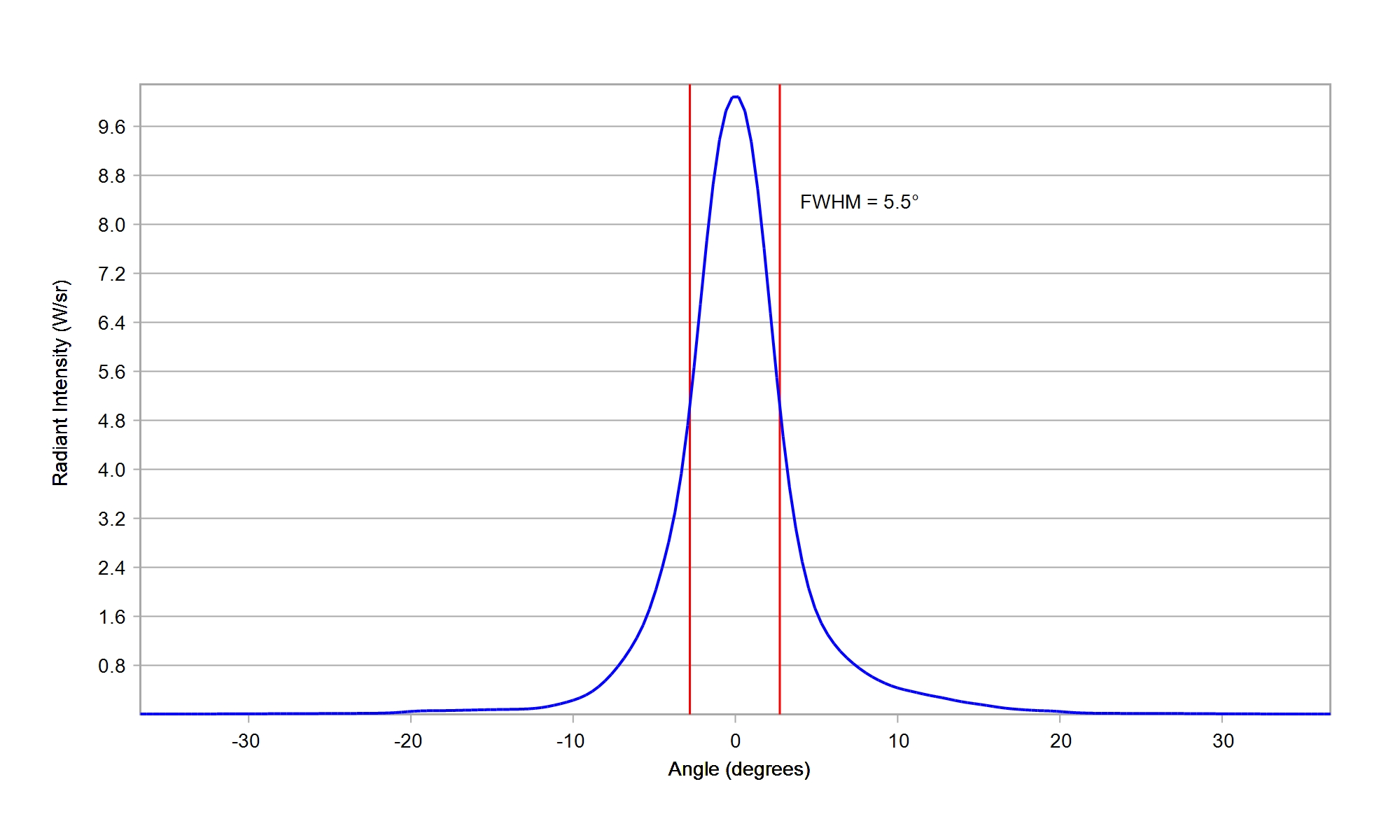

Carclo Optics 10049 Cross Section Vertical image Luxeon IR 2720

Download

IES

LUMILEDS LUXEON IR Compact 850nm

Eff:

83.0%

FWHM:

47.5 x 5.5°

Ipk/W:

8.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 60 Degree

Eff:

82.0%

FWHM:

46.5 x 7.1°

Cd/Im:

6.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 90 Degree

Eff:

83.0%

FWHM:

47.0 x 6.9°

Cd/Im:

6.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON M White

Eff:

80.8%

FWHM:

42.8 x 19.4°

Cd/Im:

2.3

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

LUMILEDS LUXEON MX White

Eff:

81.0%

FWHM:

42.5°

Cd/Im:

2.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON MZ White

Eff:

82.3%

FWHM:

45.8 x 15.2°

Cd/Im:

3.2

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

LUMILEDS LUXEON Q White

Eff:

80.8%

FWHM:

47.9x8.4°

Cd/Im:

5.1

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

LUMILEDS LUXEON R White

Eff:

81.8%

FWHM:

43.9 x 9.4°

Cd/Im:

6.8

Download

ies

LUMILEDS LUXEON Rebel ES White

Eff:

81.8%

FWHM:

43.9 x 9.4°

Cd/Im:

6.8

Download

ies

LUMILEDS LUXEON Rebel White

Eff:

82.1%

FWHM:

47.3 x 10°

Cd/Im:

7.3

Download

ies

LUMILEDS LUXEON Rubix Blue

Eff:

86.0%

FWHM:

51 x 4.5°

Cd/Im:

10.2

Carclo Optics – 10049 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics – 10049 Horizontal Cross Section Lumileds Luxeon Rubix Blue

,

Carclo Optics – 10049 Vertical Cross Section Lumileds Luxeon Rubix Blue

Download

IES

LUMILEDS LUXEON Rubix Green

Eff:

85.5%

FWHM:

50 x 4.5°

Cd/Im:

10.4

Carclo Optics – 10049 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 10049 Horizontal Cross Section Lumileds Luxeon Rubix Green

,

Carclo Optics – 10049 Vertical Cross Section Lumileds Luxeon Rubix Green

Download

IES

LUMILEDS LUXEON Rubix Red

Eff:

87.5%

FWHM:

49 x 4.2°

Cd/Im:

11.4

Carclo Optics – 10049 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 10049 Horizontal Cross Section Lumileds Luxeon Rubix Red

,

Carclo Optics – 10049 Vertical Cross Section Lumileds Luxeon Rubix Red

Download

IES

LUMILEDS LUXEON Rubix Royal Blue

Eff:

84.5%

FWHM:

51 x 4.5°

Cd/Im:

10.2

Carclo Optics – 10049 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 10049 Horizontal Cross Section Lumileds Luxeon Rubix Royal Blue

,

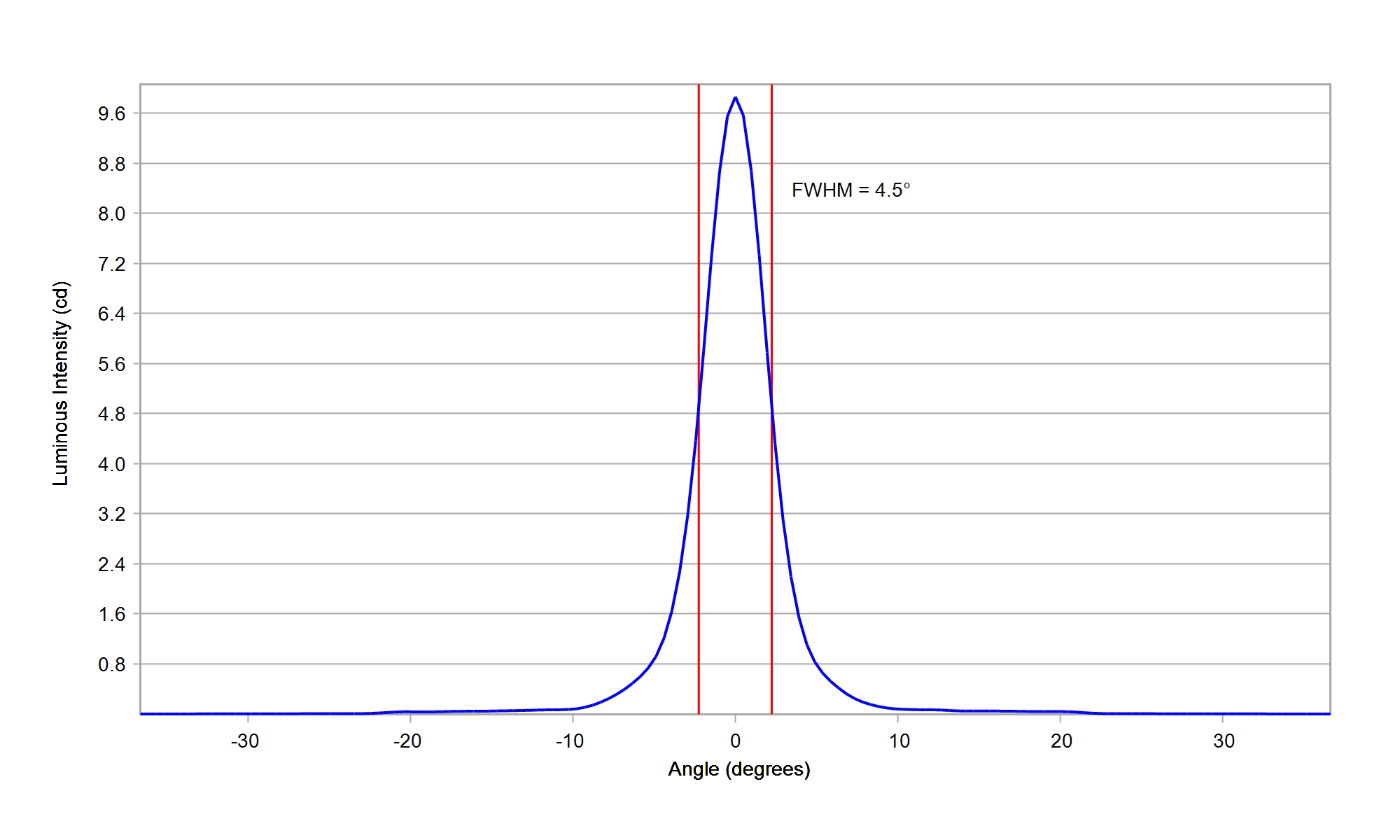

Carclo Optics – 10049 Vertical Cross Section Lumileds Luxeon Rubix Royal Blue

Download

IES

LUMILEDS LUXEON Rubix White

Eff:

85.5%

FWHM:

49 x 4.6°

Cd/Im:

10.1

Carclo Optics - 10049 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 10049 Horizontal Cross Section Lumileds Luxeon Rubix White

,

Carclo Optics - 10049 Vertical Cross Section Lumileds Luxeon Rubix White

Download

IES

LUMILEDS LUXEON T White

Eff:

81.8%

FWHM:

43.9x9.4°

Cd/Im:

6.6

Download

ies

LUMILEDS LUXEON TX White

Eff:

82.4%

FWHM:

48.0 x 8.0°

Cd/Im:

5.5

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

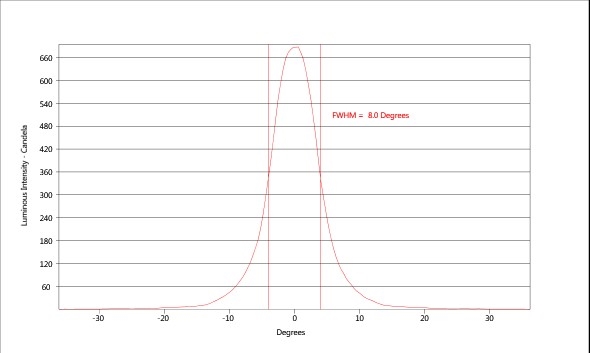

carclo optics - simulated vertical cross section

Download

IES

LUMILEDS LUXEON V White

Eff:

81.5%

FWHM:

45.0 x 13.0°

Cd/Im:

3.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON V2 White

Eff:

83.5%

FWHM:

47.5 x 9.4°

Cd/Im:

5.0

Carclo Optics 10049 Spot Image Luxeon V2

Carclo Optics 10049 Cross Section Horizontal Image Luxeon V2

,

Carclo Optics 10049 Cross Section Vertical Image Luxeon V2

Download

IES

LUMILEDS LUXEON Z ES White

Eff:

83.0%

FWHM:

49 x 5.6°

Cd/Im:

7.5

carclo optics - simulated spot image

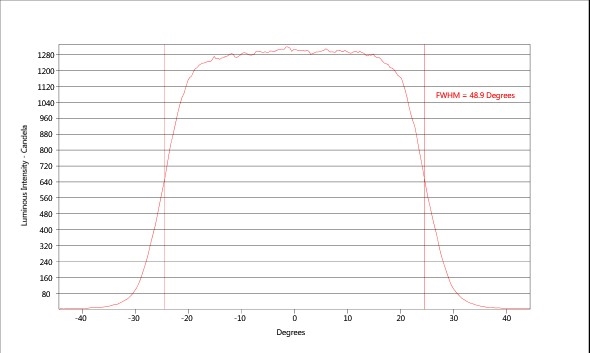

carclo optics - horizontal simulated cross section

,

carclo optics - simulated vertical cross section

Download

IES

LUMILEDS LUXEON Z White

Eff:

82.7%

FWHM:

49.7x3.9°

Cd/Im:

9.8

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

Luminus Devices MP 7070-T200 White

Eff:

82.5%

FWHM:

44 x 21°

Cd/Im:

2.2


,


Download

IES

Luminus Devices SFT-40-WxS White

Eff:

85.5%

FWHM:

48 x 7.4°

Cd/Im:

6.4


,


Download

IES

Luminus Devices SFT-70X-WxS White

Eff:

85.5%

FWHM:

47 x 10.5°

Cd/Im:

4.8


,


Download

IES

Luminus Devices SST 05-IR-B40 850nm

Eff:

88.5%

FWHM:

47 x 6.2°

Ipk/W:

7.0

Carclo Optics - 10049 Spot Image Luminus SST-05-IR-B40

Carclo Optics - 10049 Horizontal Cross Section Luminus SST-05-IR-B40

,

Carclo Optics - 10049 Vertical Cross Section Luminus SST-05-IR-B40

Download

IES

Luminus Devices SST 10-B-B130 Blue

Eff:

83.0%

FWHM:

50 x 6°

Cd/Im:

7.3

Carclo Optics - 10049 Luminus_SST-10_B_B130 - Spot Image

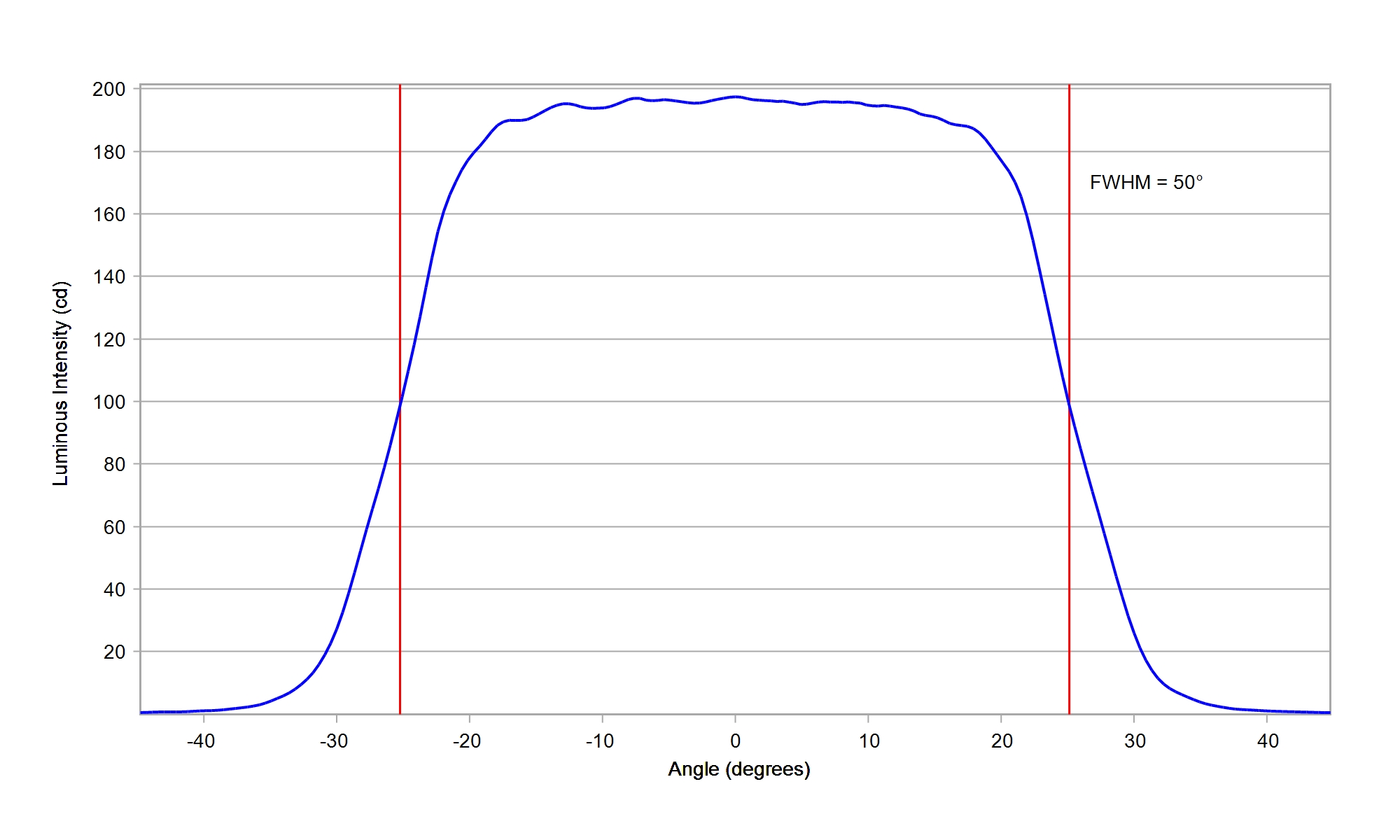

Carclo Optics - 10049 Luminus_SST-10_B_B130 - Cross section horizontal image

,

Carclo Optics - 10049 Luminus_SST-10_B_B130 - Cross section vertical image

Download

IES

Luminus Devices SST 10-B-B90 Blue

Eff:

82.5%

FWHM:

50 x 6.2°

Cd/Im:

6.6

Carclo Optics - 10049 Luminus_SST-10_B_B90 - spot - image

Carclo Optics - 10049 Luminus_SST-10_B_B90 - cross section horizontal image

,

Carclo Optics - 10049 Luminus_SST-10_B_B90 - cross section vertical image

Download

IES

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

87.5%

FWHM:

48 x 6.8°

Cd/Im:

7.0

Carclo Optics – 10049 Luminus_SST-10_DR_B130- Spot - image

Carclo Optics – 10049 Horizontal Luminus_SST-10_DR_B130- Cross section – image

,

Carclo Optics – 10049 Vertical Luminus_SST-10_DR_B130- Cross section – image

Download

IES

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

86.5%

FWHM:

48 X 6.6°

Cd/Im:

6.8

Carclo Optics - 10049 Luminus_SST-10_DR_B90 - Spot image

Carclo Optics - 10049 Luminus_SST-10_DR_B90 - Cross vertical image

,

Carclo Optics - 10049 Luminus_SST-10_DR_B90 - Cross vertical image

Download

IES

Luminus Devices SST 10-G-B130 Green

Eff:

85.5%

FWHM:

49 x 6°

Cd/Im:

7.8

arclo Optics - 10049 Luminus_SST-10_G_B130 - spot - image

Carclo Optics - 10049 Luminus_SST-10_G_B130 - cross - section horizontal- image

,

Carclo Optics - 10049 Luminus_SST-10_G_B130 - cross - section vertical- image

Download

IES

Luminus Devices SST 10-G-B90 Green

Eff:

85.0%

FWHM:

49 x 6.4°

Cd/Im:

6.8

Carclo Optics – 10049 Luminus_SST-10_G_B90- Spot - image

Carclo Optics – 10049 Horizontal Luminus_SST-10_G_B90- Cross section – image

,

Carclo Optics – 10049 Vertical Luminus_SST-10_G_B90- Cross section – image

Download

IES

Luminus Devices SST 10-IR-B130 940nm

Eff:

91.0%

FWHM:

47 x 7°

Ipk/W:

7.3

Carclo Optics - 10049 Spot Image Luminus SST-10-IR-B130

Carclo Optics - 10049 Horizontal Cross Section Luminus SST-10-IR-B130

,

Carclo Optics - 10049 Vertical Cross Section Luminus SST-10-IR-B130

Download

IES

Luminus Devices SST 10-IR-B90 940nm

Eff:

89.5%

FWHM:

47 x 6.7°

Ipk/W:

6.9

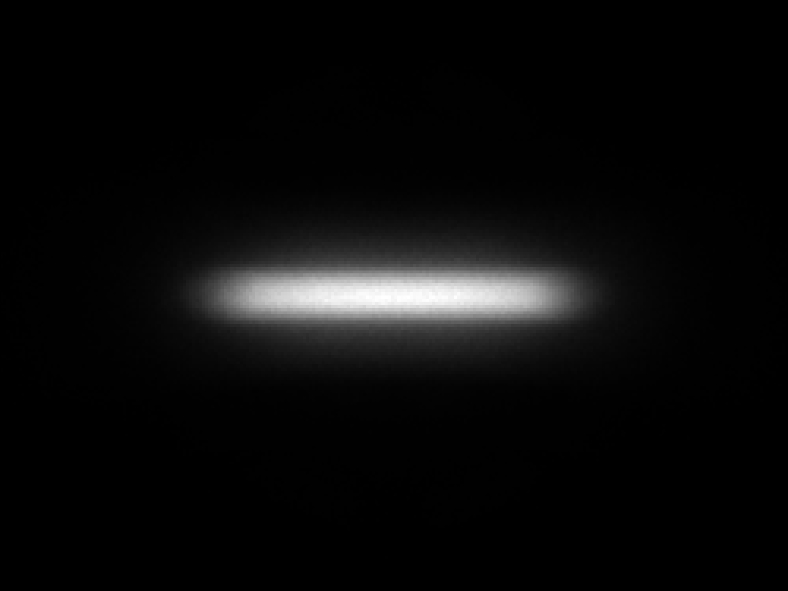

Carclo Optics - 10049 Spot Image Luminus SST-10-IR-B90

Carclo Optics - 10049 Horizontal Cross Section Luminus SST-10-IR-B90

,

Carclo Optics - 10049 Vertical Cross Section Luminus SST-10-IR-B90

Download

IES

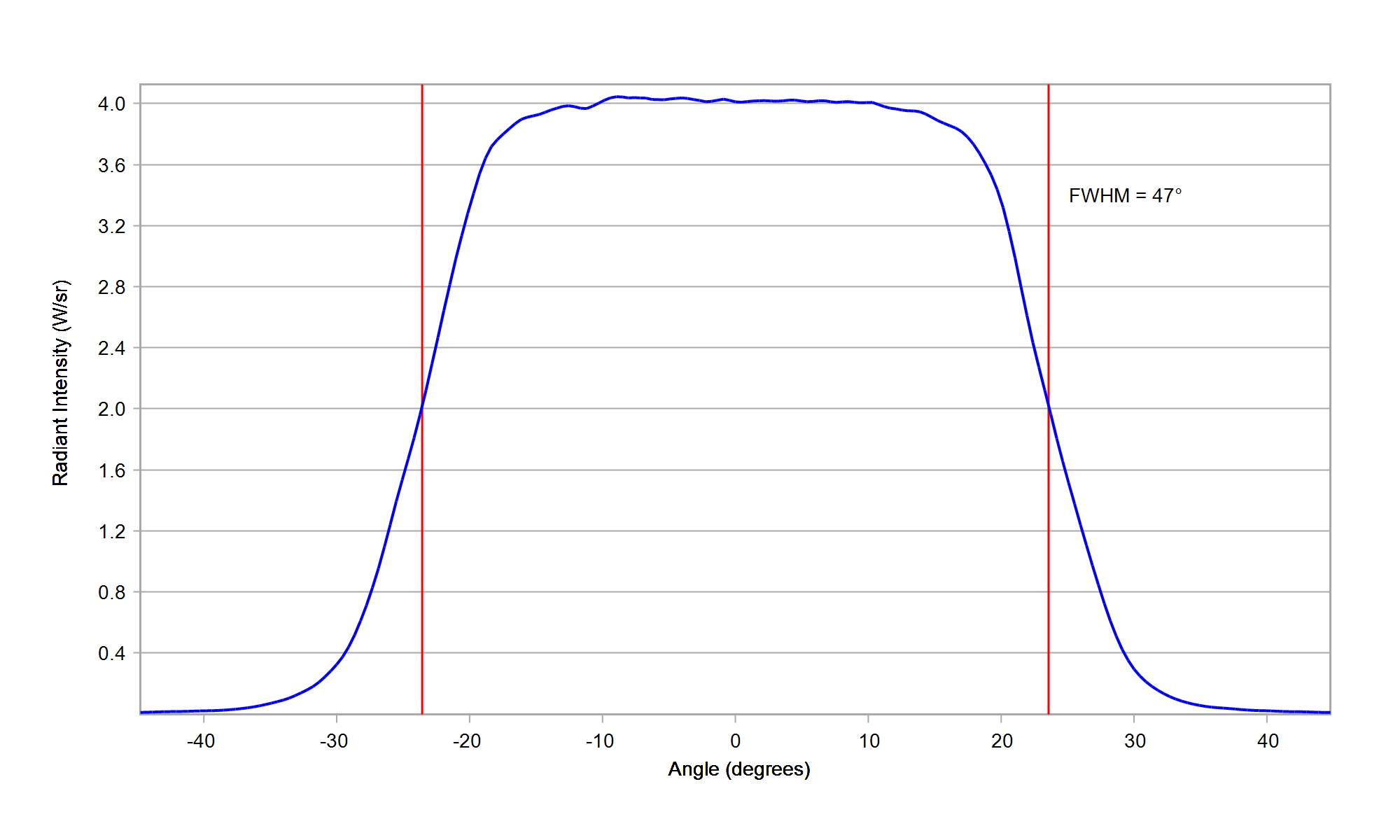

Luminus Devices SST 10-IRD-B130 810nm

Eff:

91.0%

FWHM:

47 x 6.6°

Ipk/W:

7.6


,


Download

IES

Luminus Devices SST 10-IRD-B90 810nm

Eff:

89.5%

FWHM:

47 x 6.3°

Ipk/W:

7.2


,


Download

IES

Luminus Devices SST 20-WxH White Hi CRI

Eff:

85.0%

FWHM:

49 x 7.2°

Cd/Im:

6.5

Carclo Optics – 10049 - Luxeon_SST_20_W_spot-image

Carclo Optics – 10049 Horizontal - Luxeon_SST_20_W_cross vertical section

,

Carclo Optics – 10049 Vertical - Luxeon_SST_20_W_cross vertical section

Download

IES

Luminus Devices SST 40-W White

Eff:

85.0%

FWHM:

46 x 12°

Cd/Im:

4.1

Carclo Optics – 10049 - Luxeon_SST_40_W_spot-image

Carclo Optics – 10049 Horizontal - Luxeon_SST_40_W_cross vertical section

,

Carclo Optics – 10049 Vertical - Luxeon_SST_40_W_cross vertical section

Download

IES

Luminus Devices SST-12-WxS White

Eff:

85.0%

FWHM:

49 x 6.1°

Cd/Im:

7.5


,


Download

IES

Luminus Devices SST-70X-W White

Eff:

85.0%

FWHM:

45 x 14.5°

Cd/Im:

3.4


,


Download

IES

Nichia 219 White

FWHM:

48.5 X 9.4°

Cd/Im:

6.7

Download

ies

Nichia 229A White

Eff:

82.0%

FWHM:

45.5 x 13.5°

Cd/Im:

3.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia 757G White

Eff:

84.0%

FWHM:

47.5 x 8.6°

Cd/Im:

5.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia 757G White

Eff:

85.5%

FWHM:

48 x 9.5°

Cd/Im:

5.1

Carclo Optics 10049 Simulated Spot Image Nichia 757G-MT

Carclo Optics 10049 Simulated cross vertical section Nichia 757G-MT

Download

IES

Nichia NCSW CSP E17A White

Eff:

84.0%

FWHM:

49.0 x 5.9°

Cd/Im:

7.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NF2W 385AR-V2 White

Eff:

84.0%

FWHM:

47.0 x 9.3°

Cd/Im:

5.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NFMW 484AR White

Eff:

83.0%

FWHM:

43.0 x 16°

Cd/Im:

3.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NFMW 486AR White

Eff:

83.0%

FWHM:

43.5 x 15.5°

Cd/Im:

3.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NFMW 488AR White

Eff:

83.0%

FWHM:

43.5 x 16°

Cd/Im:

3.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NFSW CSP E11A White

Eff:

84.5%

FWHM:

50 x 4.1°

Cd/Im:

10.9


,


Download

IES

Nichia NV4W 144AR White

Eff:

78.5%

FWHM:

42.5 x 18.5°

Cd/Im:

2.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NV4W B35AM White

Eff:

85.0%

FWHM:

46 x 13°

Cd/Im:

3.8

Carclo Optics – 10049 Nichia NV4WB35AM - Spot Image

Carclo Optics – 10049 Horizontal Nichia NV4WB35AM - Cross-Section

,

Carclo Optics – 10049 Vertical Nichia NV4WB35AM - Cross-Section

Download

IES

Nichia NVSL 219B White

Eff:

83.0%

FWHM:

48.5 x 6.9°

Cd/Im:

6.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NVSW 219C White

Eff:

83.0%

FWHM:

47 x 9.7°

Cd/Im:

4.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NVSW 219F White

Eff:

84.5%

FWHM:

48 x 9.6°

Cd/Im:

4.9

Carclo Optics – 10049 Nichia NVSW 219F White - Spot Image

Carclo Optics – 10049 Horizontal Nichia NVSW 219F White - Cross-Section

,

Carclo Optics – 10049 Vertical Nichia NVSW 219F White - Cross-Section

Download

IES

Nichia NVSW 319A White

Eff:

82.5%

FWHM:

46.5 x 11.0°

Cd/Im:

4.4

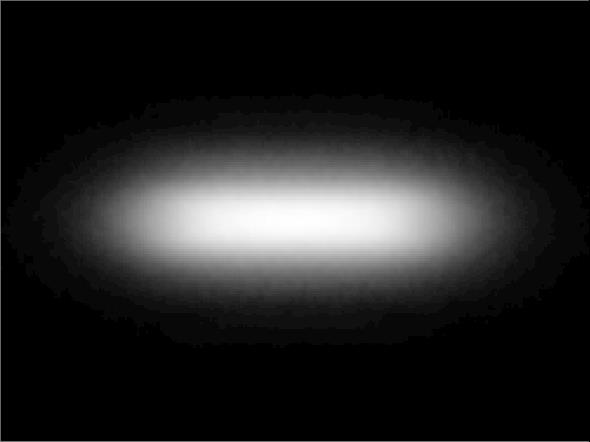

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NVSW CSP E21A White

Eff:

81.0%

FWHM:

48.4 x 7.3°

Cd/Im:

6.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia Top Emitting NCSL 119-H3 White

Eff:

81.3%

FWHM:

43.5x7.9°

Cd/Im:

8.0

Download

ies

Nichia Top Emitting NFSW 036 White

Eff:

86.5%

FWHM:

43X8°

Cd/Im:

6.5

Download

ies

Nichia Top Emitting NS3W 183T White

Eff:

80.4%

FWHM:

42.3x15.9°

Cd/Im:

3.9

Download

ies

Osram OS DURIS E 2835 Gen2

Eff:

85.5%

FWHM:

49 x 6.5°

Cd/Im:

6.8

Carclo Optics - 10049 26.5mm Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 10049 26.5mm Horizontal Cross Section Osram DURIS E 2835 Gen2

,

Carclo Optics - 10049 20mm Vertical Cross Section Osram DURIS E 2835 Gen2

Download

IES

Osram OS DURIS E 2835 White

Eff:

84.0%

FWHM:

48.5 x 7.1°

Cd/Im:

6.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS E2 White

Eff:

83.0%

FWHM:

49.7 x 3.8°

Cd/Im:

8.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

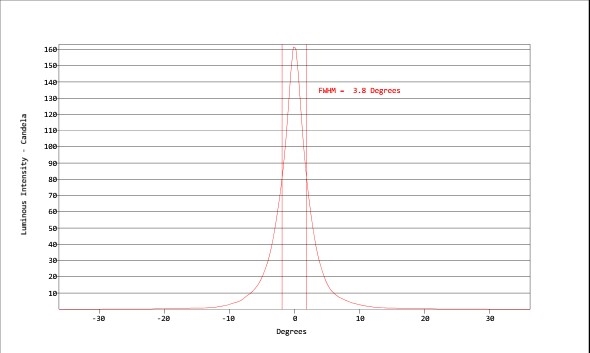

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS E3 White

Eff:

86.4%

FWHM:

49.0x4.4°

Cd/Im:

8.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS P10 White

Eff:

81.3%

FWHM:

43.4 x 19.0°

Cd/Im:

2.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS P8 White

Eff:

82.7%

FWHM:

48.0 x 7.7°

Cd/Im:

5.6

Carclo Optics - Simulated Spot Image

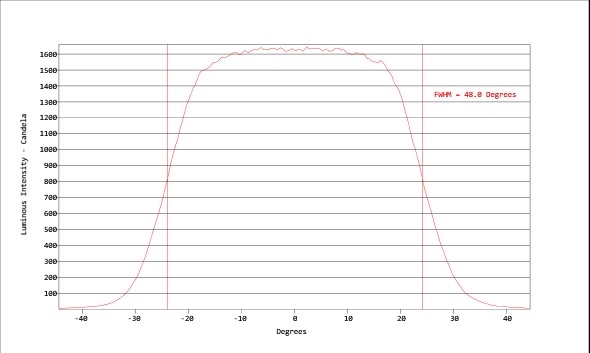

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulation Vertical Cross Section

Download

IES

Osram OS DURIS S10 White

Eff:

82.0%

FWHM:

42.0 x 19.5°

Cd/Im:

2.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

em_

Osram OS DURIS S2 White

Eff:

86.8%

FWHM:

48.5x6.8°

Cd/Im:

6.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS S5 Deep Blue

Eff:

84.0%

FWHM:

50 x 7.3°

Cd/Im:

6.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS S5 Green

Eff:

84.0%

FWHM:

48.5 x 7.1°

Cd/Im:

6.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS S5 Red

Eff:

84.5%

FWHM:

48 x 6.2°

Cd/Im:

7.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS S5 White

Eff:

83.0%

FWHM:

47.9 X 7.3°

Cd/Im:

6.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS S8 Gen2 White

Eff:

86.0%

FWHM:

41.3 x 15.8°

Cd/Im:

3.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,
