20.0mm Elliptical Ripple Linear TIR LED Lenses

Part number

10003/L25

Dimensions

20.0mm

Drawing Number

60348

Optic type

TIR LED Lenses

Finish

Ripple Linear

Beam type

Elliptical

Applications

Architectural

Landscape & Garden

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

87.5%

FWHM:

47 x 9.3°

Cd/Im:

5.0

Carclo Optics - 10003/L25 20mm Spot Image Bridgelux 3030 Gen2

Carclo Optics - 1003/L25 20mm Horizontal Cross Section Bridgelux 3030 Gen2

,

Carclo Optics - 1003/L25 20mm Vertical Cross Section Bridgelux 3030 Gen2

Download

IES

Broadcom Jade White

Eff:

89.3%

FWHM:

44.0 x 14.8°

Cd/Im:

4.0

10003/L25 Led Broadcom Jade White Spot Image

10003/L25 Led Broadcom Jade White Cross Section

Download

ies

Cree JB3030 3V White

Eff:

86.5%

FWHM:

47 x 12.5°

Cd/Im:

3.9

Carclo Optics - 10005/L25 Spot Image Cree JB3030 3V White

Carclo Optics - 10005/L25 Horizontal Cross Section Cree JB3030 3V White

,

Carclo Optics - 10005/L25 Vertical Cross Section Cree JB3030 3V White

Download

IES

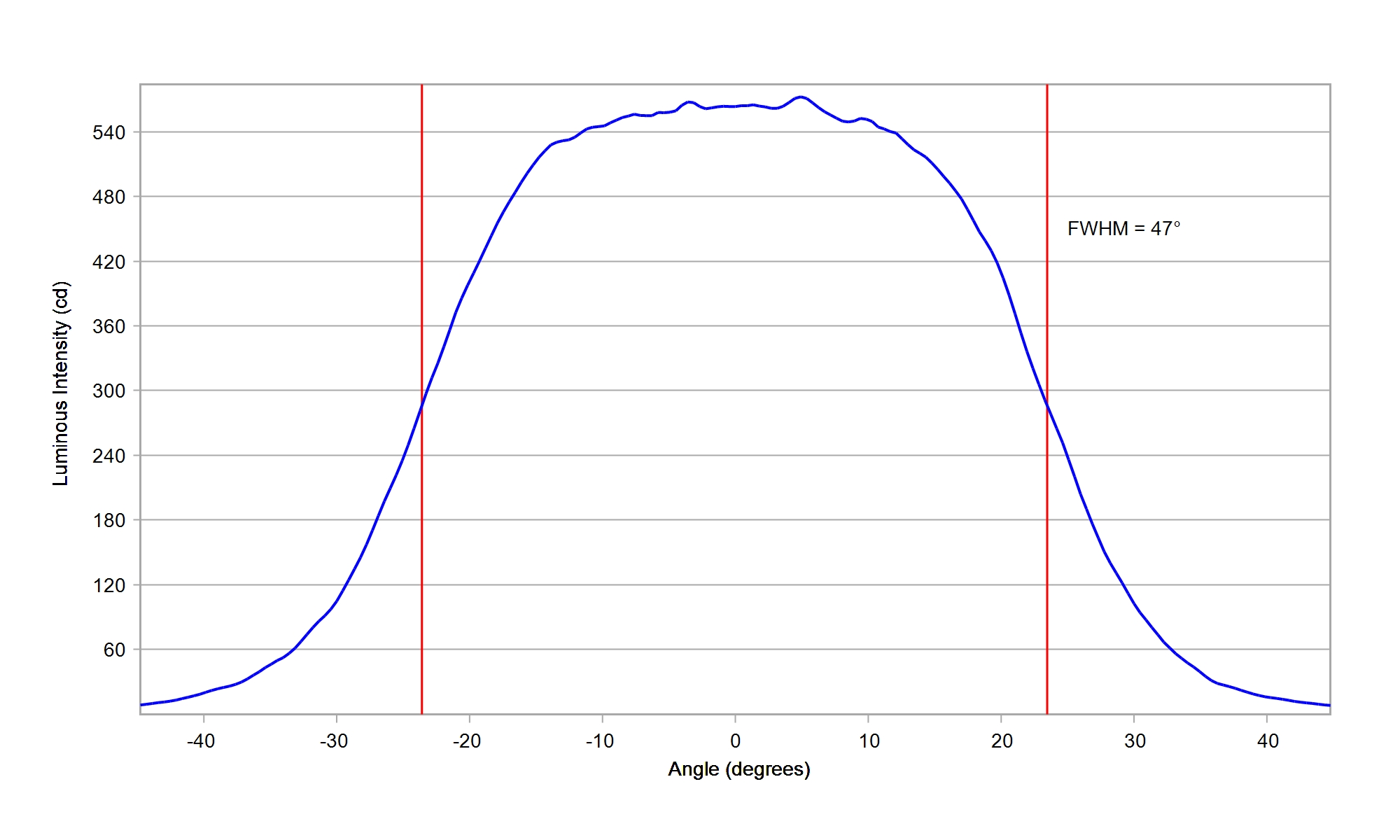

Cree JK2835 6V White

Eff:

87.0%

FWHM:

47 x 11°

Cd/Im:

4.2


,


Download

IES

Cree JQ5050 9V White

Eff:

85.5%

FWHM:

42 x 23.5°

Cd/Im:

2.2

Carclo Optics - 10003/L25 Spot Image Cree JQ5050 9V White

Carclo Optics - 10003/L25 Horizontal Cross Section Cree JQ5050 9V White

,

Carclo Optics - 10003/25 Vertical Cross Section Cree JQ5050 9V White

Download

IES

Cree JR5050 24V White

Eff:

85.5%

FWHM:

43 x 22.5°

Cd/Im:

2.2

Carclo Optics - 10003/L25 Spot Image Cree JR5050-24V White

Carclo Optics - 10003/L25 Horizontal Cross Section Cree JR5050-24V White

,

Carclo Optics - 10003/L25 Vertical Cross Section Cree JR5050-24V White

Download

IES

Cree JR5050 36V White

Eff:

86.0%

FWHM:

44 x 20°

Cd/Im:

2.4

Carclo Optics - 10003/L25 Spot Image Cree JR5050 36V White

Carclo Optics - 10003/L25 Horizontal Cross Section Cree JR5050 36V White

,

Carclo Optics - 10003/L25 Vertical Cross Section Cree JR5050 36V White

Download

IES

Cree JR5050 6V White

Eff:

85.5%

FWHM:

43 x 21.5°

Cd/Im:

2.3

Carclo Optics - 10003/L25 Spot Image Cree JR50506V White

Carclo Optics - 10003/L25 Horizontal Cross Section Cree JR50506V White

,

Carclo Optics - 10003/L25 Vertical Cross Section Cree JR50506V White

Download

IES

Cree JR5050C 6V E-Class White

Eff:

85.5%

FWHM:

44 x 21.5°

Cd/Im:

2.3


,


Download

IES

Cree XLamp CSP XD16 Cool White

Eff:

86.0%

FWHM:

47.5 X 9.4°

Cd/Im:

4.6

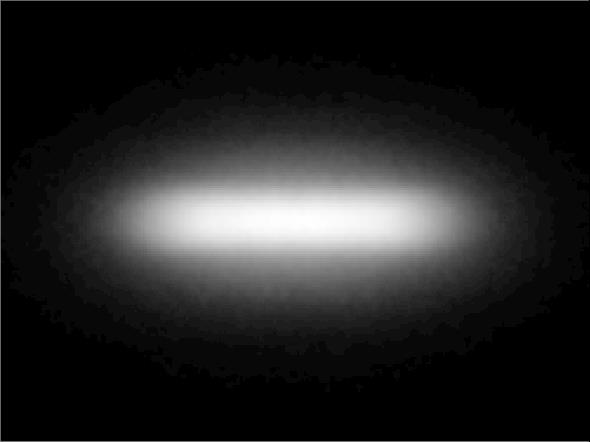

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp CSP XD16 Premium White

Eff:

87.5%

FWHM:

48 x 8.1°

Cd/Im:

5.8


,


Download

IES

Cree XLamp MH-B White

Eff:

82.5%

FWHM:

43 x 24°

Cd/Im:

1.7

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

Cree XLamp MX-6 White

Eff:

88.2%

FWHM:

43.6 x 18.5°

Cd/Im:

3.4

Download

ies

Cree XLamp XB-H White

Eff:

86.5%

FWHM:

47 x 10.5°

Cd/Im:

4.3

Carclo Optics - 10003/L25 20mm Spot Image Cree XLamp XB-H

Carclo Optics - 10003/L25 20mm Horizontal Cross Section Cree XLamp XB-H

,

Carclo Optics - 10003/L25 20mm Vertical Cross Section Cree XLamp XB-H

Download

IES

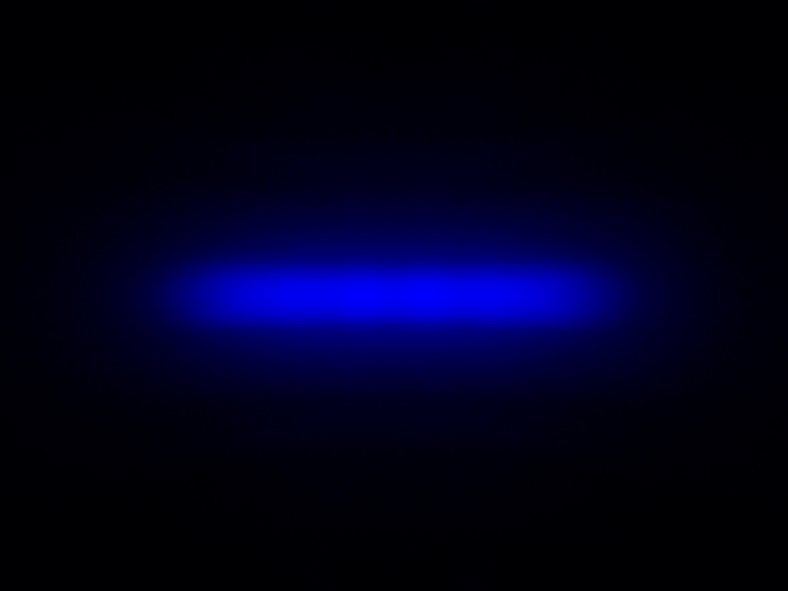

Cree XLamp XE-G Blue

Eff:

87.0%

FWHM:

49 x 7°

Cd/Im:

6.6


,


Download

IES

Cree XLamp XE-G Green

Eff:

87.5%

FWHM:

49 x 7.1°

Cd/Im:

6.5


,


Download

IES

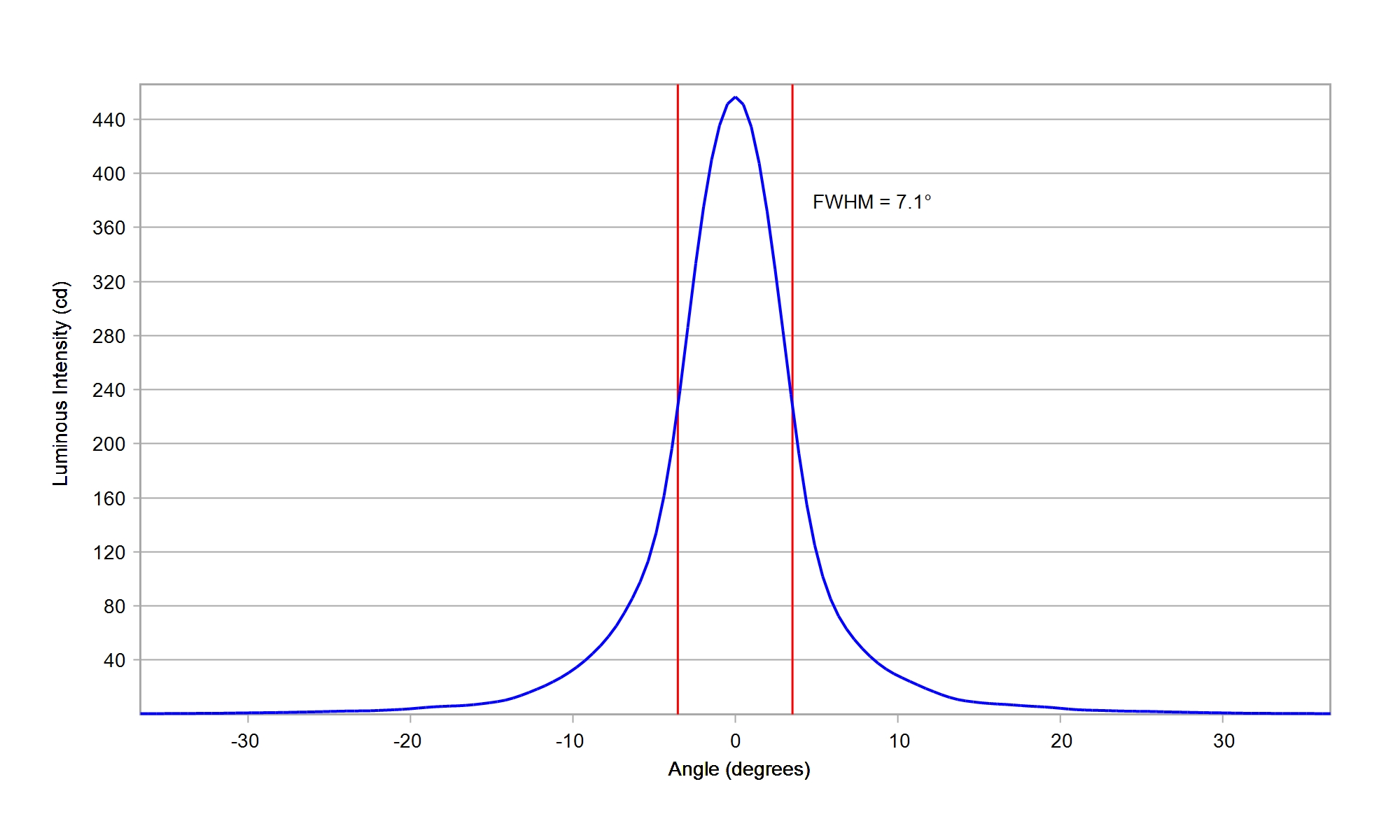

Cree XLamp XE-G Red

Eff:

86.5%

FWHM:

48 x 7.1°

Cd/Im:

6.6


,


Download

IES

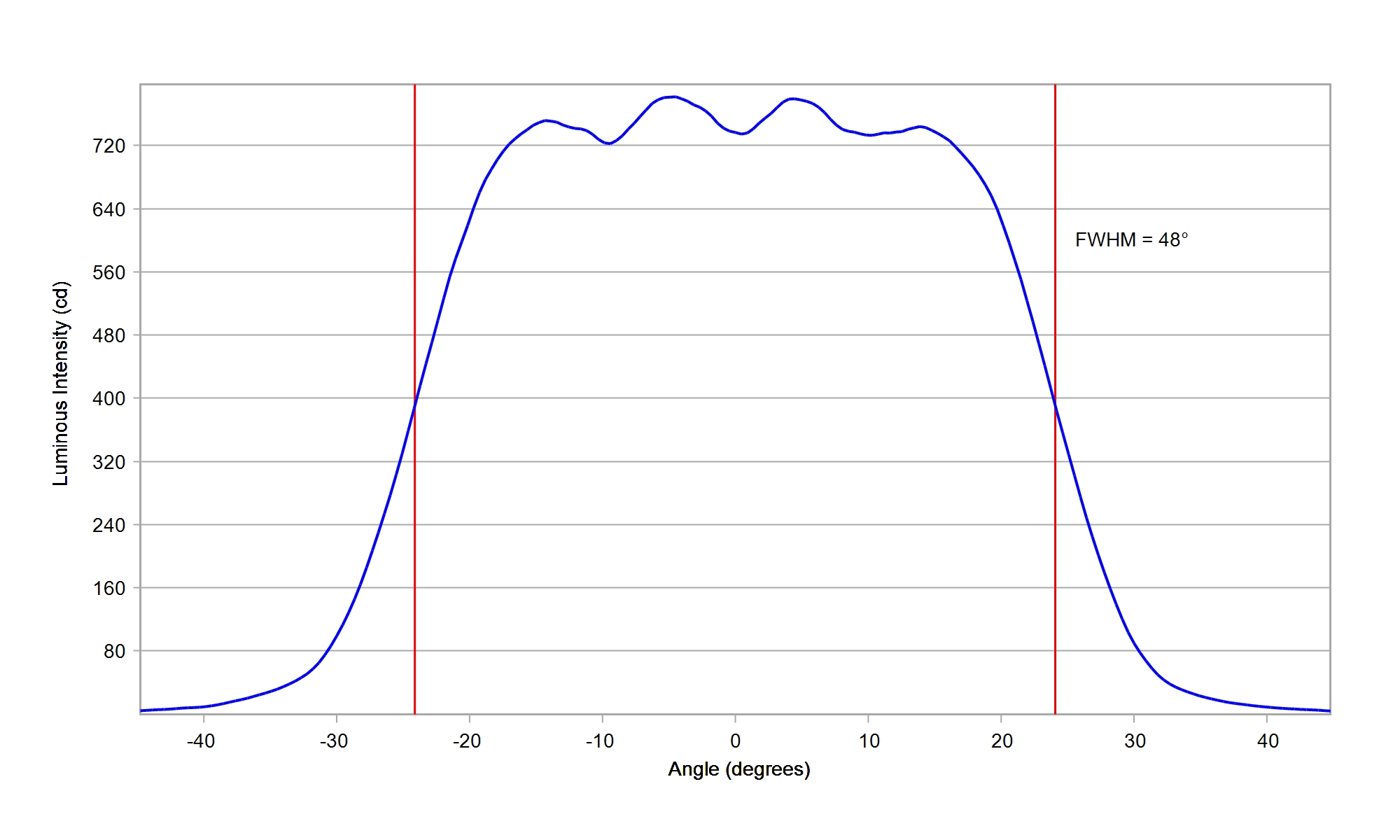

Cree XLamp XE-G White

Eff:

87.0%

FWHM:

48 x 7.2°

Cd/Im:

6.2


,


Download

IES

Cree XLamp XHP-50 White

Eff:

82.0%

FWHM:

41 x 28°

Cd/Im:

1.7

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

Cree XLamp XHP35 HI White

Eff:

84.6%

FWHM:

45.5x12.6°

Cd/Im:

3.7

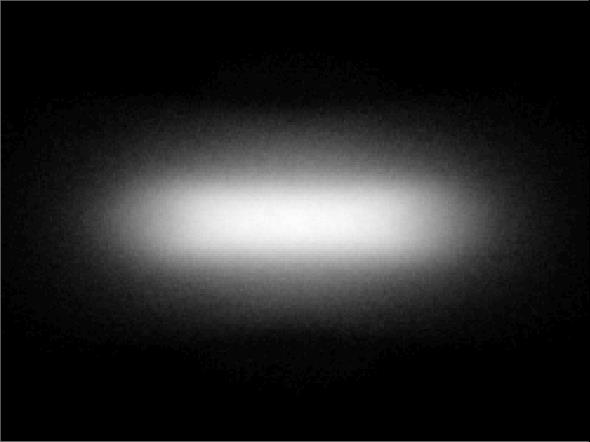

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XHP35 HD White

Eff:

82.0%

FWHM:

43 x 17.6°

Cd/Im:

2.6

Carclo Optics - Simulated Spot Image

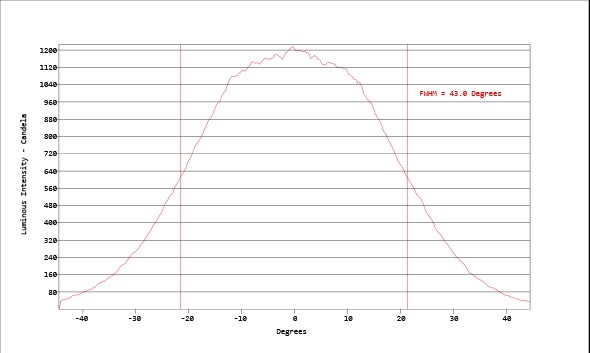

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XHP35.2 HI White

Eff:

85.0%

FWHM:

46 x 14.5°

Cd/Im:

3.1

Carclo Optics – 10003/L25 Spot Image Cree XLamp XHP35.2 HI White

Carclo Optics – 10003/L25 Horizontal Cross Section Cree XLamp XHP35.2 HI White

,

Carclo Optics – 10003/L25 Vertcal Cross Section Cree XLamp XHP35.2 HI White

Download

txt

Cree XLamp XHP35.2 HD White

Eff:

84.0%

FWHM:

43 x 20°

Cd/Im:

2.3

Carclo Optics - 10003/L25 Spot Image Cree XHP35.2 White

Carclo Optics - 10003/L25 Horizontal Cross Section Cree XHP35.2 White

,

Carclo Optics - 10003/L25 Vertical Cross Section Cree XHP35.2 White

Download

IES

Cree XLamp XHP50.3 HI White

Eff:

84.0%

FWHM:

44 x 18.5°

Cd/Im:

2.5


,


Download

Cree XLamp XHP50.3 White

Eff:

84.0%

FWHM:

43 x 22.5°

Cd/Im:

2.0


,


Download

3
3

Cree XLamp XM-L White

Eff:

83.2%

FWHM:

42.5 x 17.5°

Cd/Im:

3.7

Download

ies

Cree XLamp XM-L2 White

FWHM:

45.3 x 16.6°

Cd/Im:

3.8

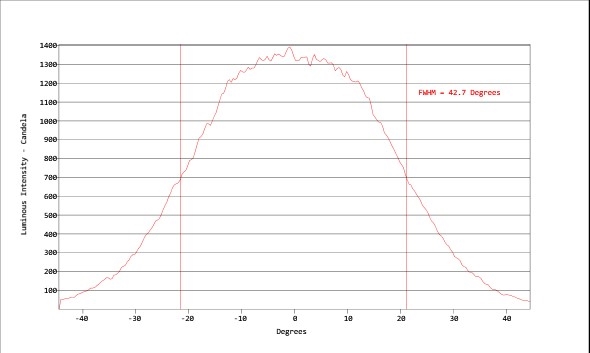

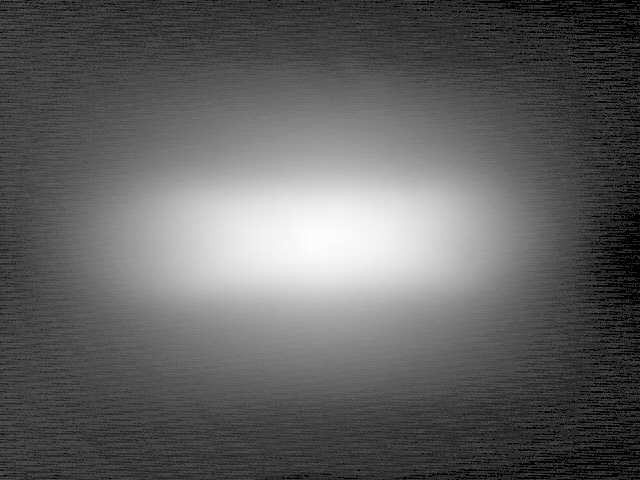

Optic 10003-L25 LED Cree XLamp XM-L2 White

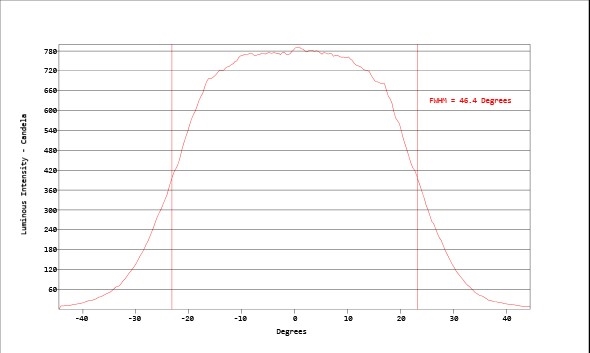

Optic 10003-L25 LED Cree XLamp XM-L2 White Horz

,

Optic 10003-L25 LED Cree XLamp XM-L2 White Vert

Download

ies

Cree XLamp XM-L3 White

Eff:

85.0%

FWHM:

44 x 16°

Cd/Im:

3.0

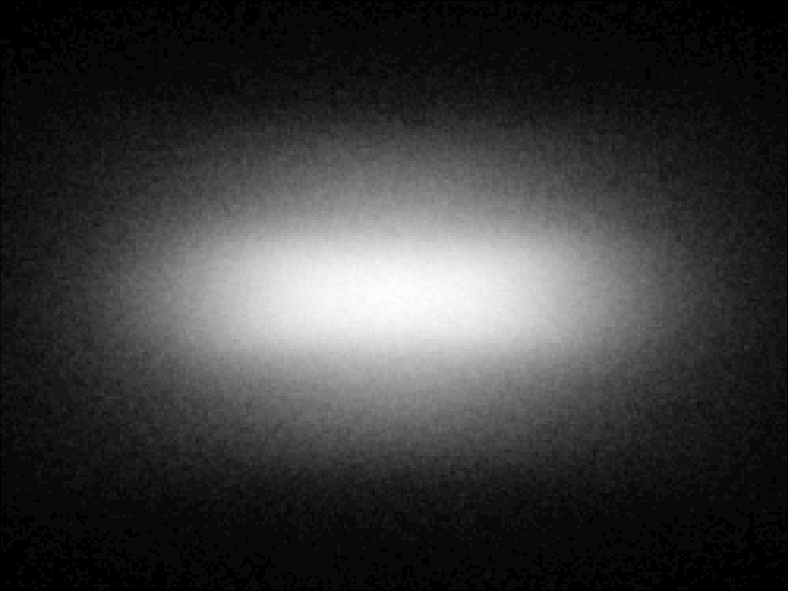

Carclo Optics - 10003/L25 Spot Image Cree XM-L3

Carclo Optics - 10003/L25 Horizontal Cross Section Cree XM-L3

,

Carclo Optics - 10003/L25 Vertical Cross Section Cree XM-L3

Download

IES

Cree XLamp XP-C White

Eff:

85.5%

FWHM:

46.6 x 6.8°

Cd/Im:

9.1

Download

ies

Cree XLamp XP-E2 White

Eff:

87.5%

FWHM:

48 x 7.3°

Cd/Im:

6.4


,


Download

IES

Cree XLamp XP-G White

Eff:

84.7%

FWHM:

44.4 x 12.7°

Cd/Im:

5.3

Download

ies

Cree XLamp XP-G2 White

FWHM:

41.8 x 11.7°

Cd/Im:

6.2

10003/L25 Spot

10003/L25 Cross section plot

Download

ies

Cree XLamp XP-G3 White

Eff:

84.0%

FWHM:

45.6 x 13.4°

Cd/Im:

3.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XP-G4 White

Eff:

87.0%

FWHM:

46 x 11.5°

Cd/Im:

4.1


,


Download

IES

Cree XLamp XP-L HI White

Eff:

84.8%

FWHM:

46.6x10.7°

Cd/Im:

4.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XP-L White

Eff:

84.1%

FWHM:

44.2x15.7°

Cd/Im:

3.1

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

Cree XLamp XP-L2 White

Eff:

83.5%

FWHM:

42.5 x 17.5°

Cd/Im:

2.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XP-P White

Eff:

86.0%

FWHM:

48 x 6.3°

Cd/Im:

8.0

Carclo Optics – 10003/L25 Cree Xlamp XP-P - Spot Image

Carclo Optics – 10003/L25 Horizontal Cree Xlamp XP-P - Cross-Section

,

Carclo Optics – 10003/L25 Vertical Cree Xlamp XP-P - Cross-Section

Download

IES

Cree XLamp XQ-A Blue

Eff:

86.0%

FWHM:

50 X 4.4°

Cd/Im:

10.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-A Green

Eff:

86.5%

FWHM:

49.0 x 4.7°

Cd/Im:

10.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-A Red

Eff:

86.5%

FWHM:

48.0 x 4.9°

Cd/Im:

9.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-A White

Eff:

85.0%

FWHM:

48.7 x 4.0°

Cd/Im:

9.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-E HI Blue

Eff:

85.5%

FWHM:

49.5 X 5.9°

Cd/Im:

6.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-E HI Green

Eff:

85.5%

FWHM:

48.5 x 6.0°

Cd/Im:

6.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-E HI Red

Eff:

85.5%

FWHM:

48.0 x 5.9°

Cd/Im:

7.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-E HI White

Eff:

85.0%

FWHM:

48.6 x 5.8°

Cd/Im:

7.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-E HD White

Eff:

85.0%

FWHM:

48x7°

Cd/Im:

5.9

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

Cree XLamp XT-E HE White

Eff:

86.0%

FWHM:

46 x 12°

Cd/Im:

3.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XT-E White

FWHM:

43.8 x 13.0°

Cd/Im:

5.8

Download

ies

Everlight Shuen White

Eff:

84.2%

FWHM:

44.4°

Cd/Im:

4.6

Download

ies

LEDEngin 3W White

Eff:

82.9%

FWHM:

46 x 18°

Cd/Im:

2.8

Download

ies

LEDEngin 5W White

Eff:

82.2%

FWHM:

44.7 x 16.3°

Cd/Im:

3.3

Download

ies

LUMILEDS LUXEON 2835C 6V White

Eff:

87.5%

FWHM:

47 x 10.5°

Cd/Im:

4.5


,


Download

LUMILEDS LUXEON 2835E 9V White

Eff:

87.5%

FWHM:

47 x 10.5°

Cd/Im:

4.6


,


Download

LUMILEDS LUXEON 2835N 3V White

Eff:

87.5%

FWHM:

47 x 11.5°

Cd/Im:

4.1


,


Download

LUMILEDS LUXEON 2835S 3V White

Eff:

87.5%

FWHM:

47 x 12°

Cd/Im:

4.0


,


Download

LUMILEDS LUXEON 2835S 6V White

Eff:

87.5%

FWHM:

47 x 12°

Cd/Im:

4.0


,


Download

LUMILEDS LUXEON 3014 White

Eff:

87.5%

FWHM:

49 x 6.4°

Cd/Im:

7.6


,


Download

IES

LUMILEDS LUXEON 3030 2D White

Eff:

87.5%

FWHM:

48 x 9.6°

Cd/Im:

5.1


,


Download

LUMILEDS LUXEON 3030 HE Plus White

Eff:

87.5%

FWHM:

47 X 11.5°

Cd/Im:

4.2

Carclo Optics – 10003/L25 – Luxeon_3030_HE_Plus_spot-image

Carclo Optics – 10003/L25 Horizontal – Luxeon_3030_HE_Plus_cross vertical section

,

Carclo Optics – 10003/L25 Vertical – Luxeon_3030_HE_Plus_cross vertical section

Download

IES

LUMILEDS LUXEON 3535 HV White

Eff:

84.8%

FWHM:

47 x 9°

Cd/Im:

4.9

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

LUMILEDS LUXEON 3535 L White

Eff:

84.8%

FWHM:

47 x 10°

Cd/Im:

4.6

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

LUMILEDS LUXEON 3535L Blue

Eff:

86.5%

FWHM:

49 x 9.3°

Cd/Im:

5.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON 3535L Green

Eff:

86.5%

FWHM:

48.0 x 9.0°

Cd/Im:

5.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON 3535L Red

Eff:

86.5%

FWHM:

47.5 x 5.4°

Cd/Im:

7.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

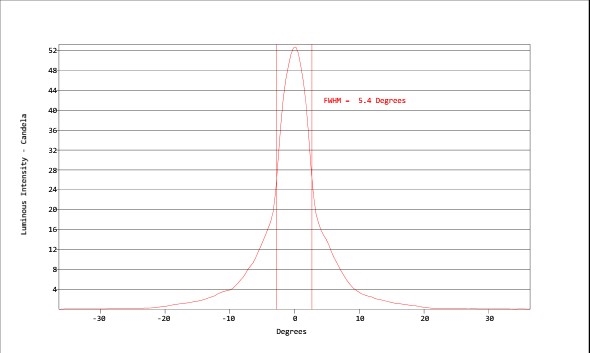

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON 5050 HE 24V White

Eff:

85.0%

FWHM:

44 x 21.5°

Cd/Im:

2.2

Download

LUMILEDS LUXEON 5050 HE 6V White

Eff:

85.0%

FWHM:

44 x 21°

Cd/Im:

2.3


,


Download

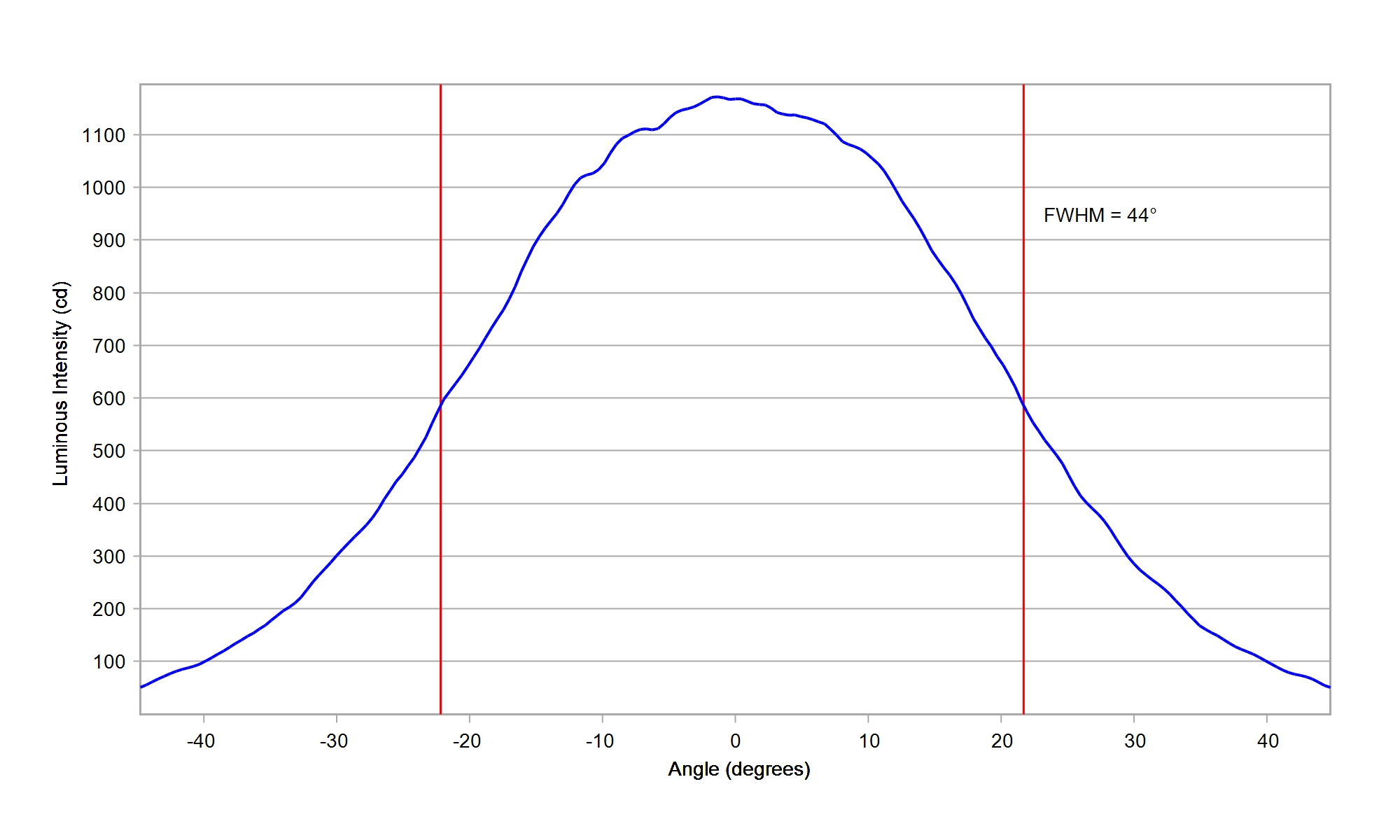

LUMILEDS LUXEON 5050 Round 24V White

Eff:

85.5%

FWHM:

44 x 22.5°

Cd/Im:

2.2


,


Download

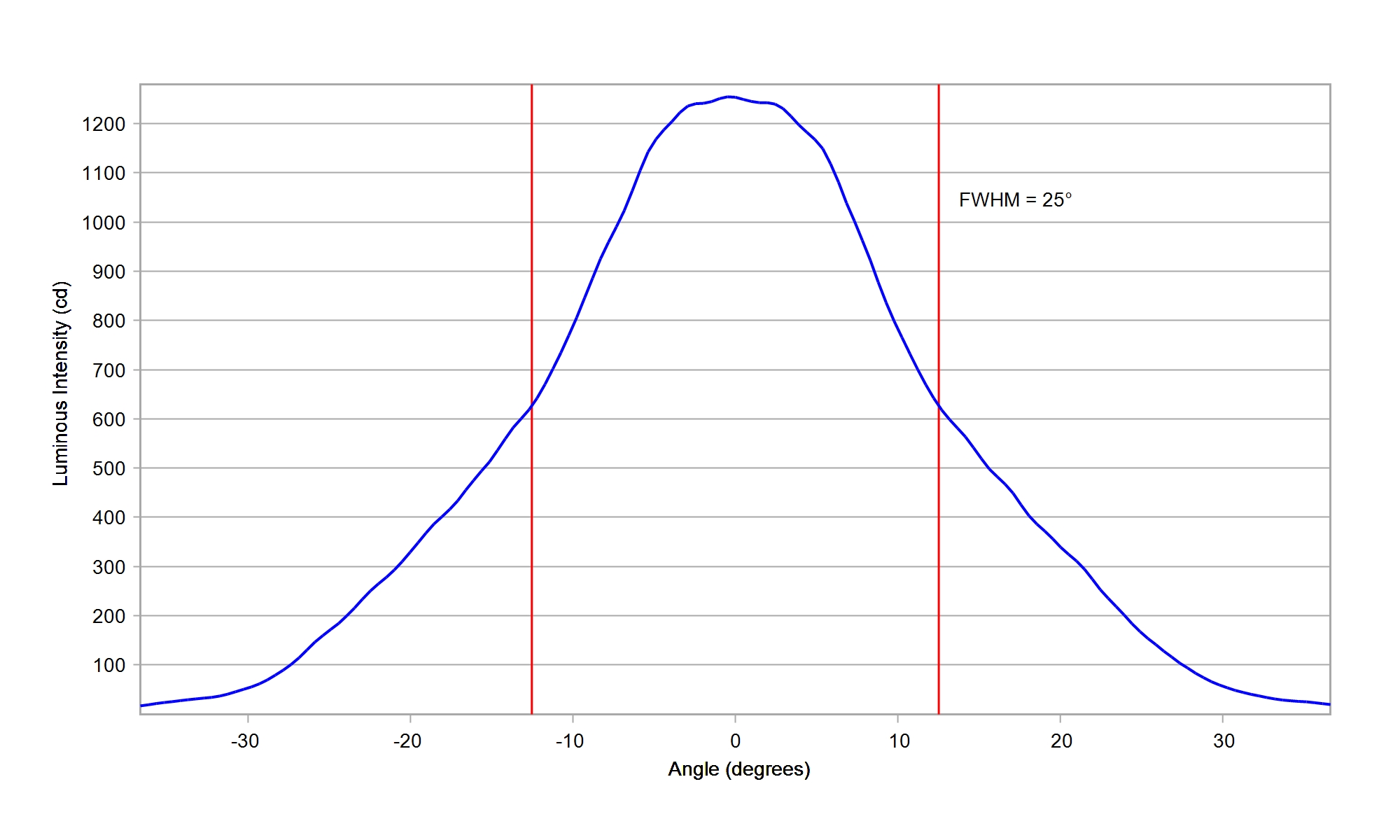

LUMILEDS LUXEON 5050 Square 30V White

Eff:

85.0%

FWHM:

44 x 25°

Cd/Im:

1.9


,


Download

LUMILEDS LUXEON 5050 Square 6V White

Eff:

85.0%

FWHM:

44 x 23.5°

Cd/Im:

2.1


,


Download

LUMILEDS LUXEON C Blue

Eff:

81.5%

FWHM:

48.5 x 7.7°

Cd/Im:

5.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON C Lime

Eff:

83.0%

FWHM:

47.5 x 7.8°

Cd/Im:

5.5

Carclo Optics - Simulated Spot Image

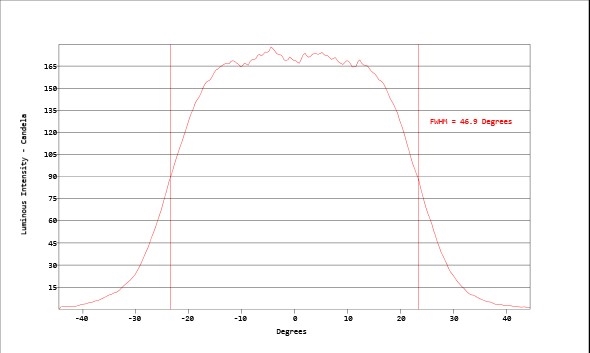

Carclo Optics - Simulated Horizontal Cross Section

,

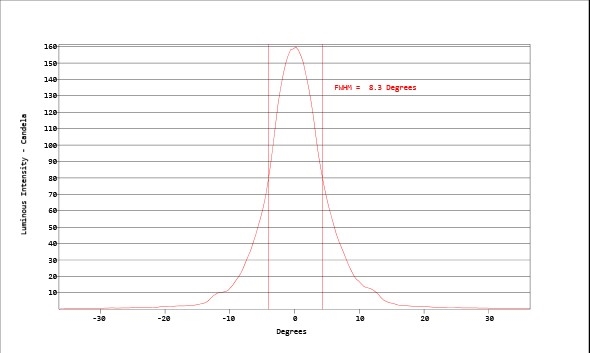

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON C Red

Eff:

80.5%

FWHM:

47.0 x 8.3°

Cd/Im:

5.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON C White

Eff:

84.0%

FWHM:

48 x 7.8°

Cd/Im:

5.8


,


Download

LUMILEDS LUXEON CZ White

Eff:

87.5%

FWHM:

48.5 x 6.4°

Cd/Im:

8.0

Carclo Optics 10003/L25 Spot Image Luxeon CZ 5M CW

Carclo Optics 10003/L25 Cross Section Luxeon CZ 5M CW

,

Carclo Optics 10003/L25 Simulated Vertical Cross Section Luxeon CZ CW

Download

IES

LUMILEDS LUXEON HL1Z CSP White

Eff:

87.5%

FWHM:

48 x 7.6°

Cd/Im:

6.5


,


Download

IES

LUMILEDS LUXEON HL2X White

Eff:

86.5%

FWHM:

46 x 13°

Cd/Im:

3.8

Carclo Optics - 10003/L25 Horizontal Cross Section HL2X

,

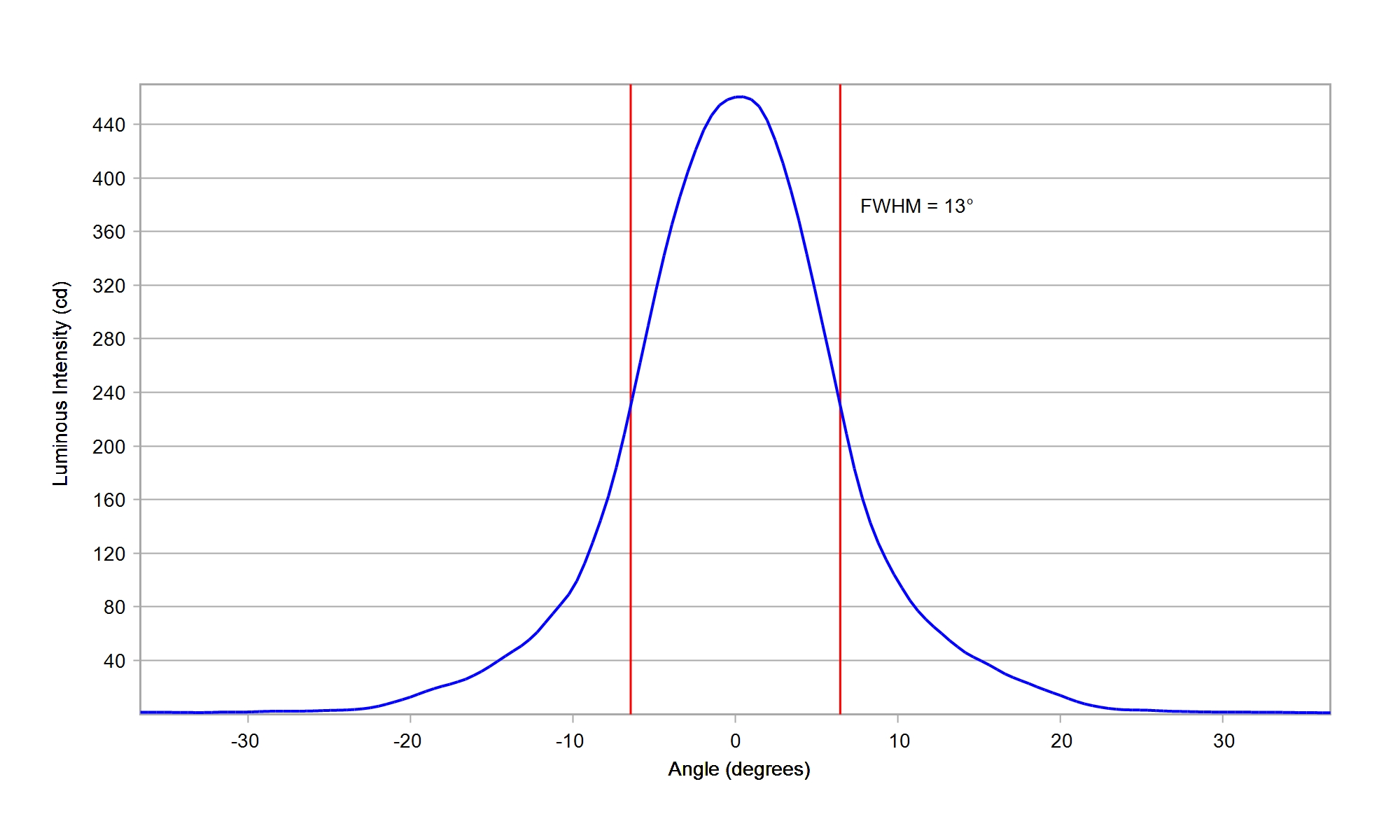

Carclo Optics - 10003/L25 Vertical Cross Section HL2X

Download

IES

LUMILEDS LUXEON HL2X-D White

Eff:

86.5%

FWHM:

45 x 15.5°

Cd/Im:

3.2


,


Download

IES

LUMILEDS LUXEON HL2X-P White

Eff:

86.0%

FWHM:

45 x 15°

Cd/Im:

3.2


,


Download

IES

LUMILEDS LUXEON HL2Z White

Eff:

85.5%

FWHM:

47 x 11°

Cd/Im:

4.5

Carclo Optics – 10003/L25 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 10003/L25 Horizontal Lumileds Luxeon HL2Z - Cross-Section

,

Carclo Optics – 10003/L25 Vertical Lumileds Luxeon HL2Z - Cross-Section

Download

IES

LUMILEDS LUXEON IR 2720

Eff:

91.0%

FWHM:

46.5 x 7.6°

Cd/Im:

6.4

Carclo Optics 10003/L25 Spot Image Luxeon IR 2720

Carclo Optics 10003/L25 Cross section horizontal image Luxeon IR 2720

,

Carclo Optics 10003/L25 Cross section vertical image Luxeon IR 2720

Download

IES

LUMILEDS LUXEON IR Compact 850nm

Eff:

89.0%

FWHM:

46.5 x 7.5°

Ipk/W:

6.3

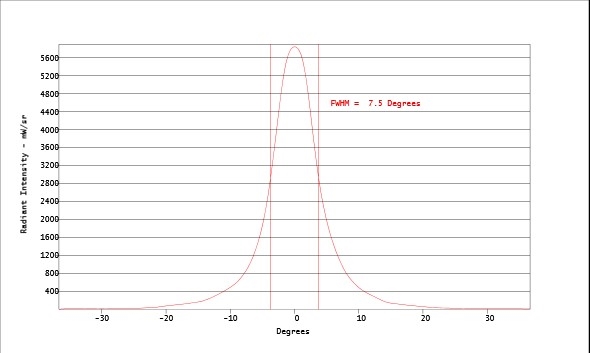

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 150 Degree

Eff:

90.0%

FWHM:

45.5 x 9.4°

Cd/Im:

5.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 60 Degree

Eff:

87.5%

FWHM:

45.0 x 12.0°

Cd/Im:

4.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 90 Degree

Eff:

89.0%

FWHM:

45.5 x 11°

Cd/Im:

4.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON MZ White

Eff:

84.0%

FWHM:

44.7x24.3°

Cd/Im:

2.2

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

LUMILEDS LUXEON Rubix Blue

Eff:

88.0%

FWHM:

49 x 6°

Cd/Im:

8.3

Carclo Optics – 10003/L25 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics – 10003/L25 Horizontal Cross Section Lumileds Luxeon Rubix Blue

,

Carclo Optics – 10003/L25 Vertical Cross Section Lumileds Luxeon Rubix Blue

Download

IES

LUMILEDS LUXEON Rubix Green

Eff:

88.0%

FWHM:

49 x 6.2°

Cd/Im:

8.2

Carclo Optics – 10003/L25 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 10003/L25 Horizontal Cross Section Lumileds Luxeon Rubix Green

,

Carclo Optics – 10003/L25 Vertical Cross Section Lumileds Luxeon Rubix Green

Download

IES

LUMILEDS LUXEON Rubix Red

Eff:

89.0%

FWHM:

48 x 6°

Cd/Im:

8.8

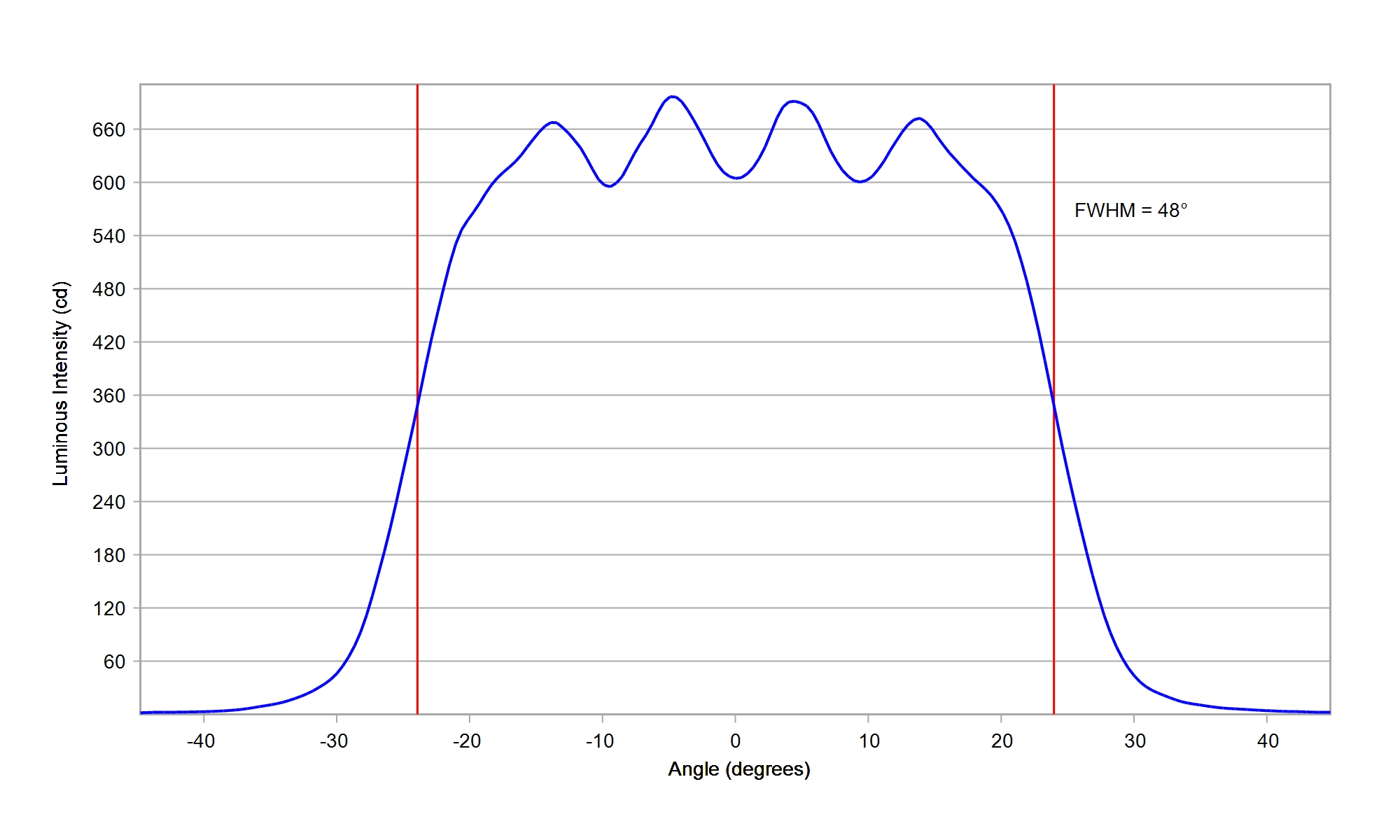

Carclo Optics – 10003/L25 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 10003/L25 Horizontal Cross Section Lumileds Luxeon Rubix Red

,

Carclo Optics – 10003/L25 Vertical Cross Section Lumileds Luxeon Rubix Red

Download

IES

LUMILEDS LUXEON Rubix Royal Blue

Eff:

87.0%

FWHM:

50 x 6°

Cd/Im:

8.2

Carclo Optics – 10003/L25 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 10003/L25 Horizontal Cross Section Lumileds Luxeon Rubix Royal Blue

,

Carclo Optics – 10003/L25 Vertical Cross Section Lumileds Luxeon Rubix Royal Blue

Download

IES

LUMILEDS LUXEON Rubix White

Eff:

87.5%

FWHM:

48 x 6.3°

Cd/Im:

8.0

Carclo Optics - 10003/L25 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 10003/L25 Horizontal Cross Section Lumileds Luxeon Rubix White

,

Carclo Optics - 10003/L25 Vertical Cross Section Lumileds Luxeon Rubix White

Download

IES

LUMILEDS LUXEON TX White

Eff:

84.4%

FWHM:

46.4 x 10.9°

Cd/Im:

4.2

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

LUMILEDS LUXEON V White

Eff:

83.0%

FWHM:

43.0 x 17.0°

Cd/Im:

2.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON Z White

Eff:

85.0%

FWHM:

48.5 x 5.5°

Cd/Im:

7.9

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

IES

Luminus Devices SST 05-IR-B40 850nm

Eff:

89.5%

FWHM:

46 x 9.4°

Ipk/W:

5.1

Carclo Optics - 10003/L25 Spot Image Luminus SST-05-IR-B40

Carclo Optics - 10003/L25 Horizontal Cross Section Luminus SST-05-IR-B40

,

Carclo Optics - 10003/L25 Vertical Cross Section Luminus SST-05-IR-B40

Download

IES

Luminus Devices SST 10-B-B130 Blue

Eff:

85.5%

FWHM:

50 x9°

Cd/Im:

5.3

Carclo Optics - 10003/L25 Luminus_SST-10_B_B130 - spot image

Carclo Optics - 10003/L25 Luminus_SST-10_B_B130 - cross horizontal section image

,

Carclo Optics - 10003/L25 Luminus_SST-10_B_B130 - cross vertical section image

Download

IES

Luminus Devices SST 10-B-B90 Blue

Eff:

84.5%

FWHM:

49 x 8.7°

Cd/Im:

4.9

Carclo Optics - 10003/l25 Luminus_SST-10_B_B90 - spot - image

Carclo Optics - 10003/L25 Luminus_SST-10_B_B90 - cross horizintal image

,

Carclo Optics - 10003/L25 Luminus_SST-10_B_B90 - cross vertical image

Download

IES

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

89.0%

FWHM:

47 x 9.2°

Cd/Im:

5.4

Carclo Optics – 10003/L25 Luminus_SST-10_DR_B130- Spot - image

Carclo Optics – 10003/L25 Horizontal Luminus_SST-10_DR_B130- Cross section – image

,

Carclo Optics – 10003/L25 Vertical Luminus_SST-10_DR_B130- Cross section – image

Download

IES

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

88.0%

FWHM:

47 x 9.2°

Cd/Im:

5.0

Carclo Optics - 10003/L25 Luminus_SST-10_DR_B90 - Spot Image

Carclo Optics - 10003/L25 Luminus_SST-10_DR_B90 - Cross section horizontal image

,

Carclo Optics - 10003/L25 Luminus_SST-10_DR_B90 - Cross section vertical image

Download

IES

Luminus Devices SST 10-G-B130 Green

Eff:

87.5%

FWHM:

48 x 9.2°

Cd/Im:

5.5

Carclo Optics - 10003/L25 Luminus_SST-10_G_B130 - spot - image

Carclo Optics - 10003/L25 Luminus_SST-10_G_B130 - cross -horizontal- section- image

,

Carclo Optics - 10003/L25 Luminus_SST-10_G_B130 vertical - cross -v- section- image

Download

IES

Luminus Devices SST 10-G-B90 Green

Eff:

86.5%

FWHM:

48 x 9.1°

Cd/Im:

5.0

Carclo Optics – 10003/L25 Luminus_SST-10_G_B90- Spot - image

Carclo Optics – 10003/L25 Horizontal Luminus_SST-10_G_B90- Cross section – image

,

Carclo Optics – 10003/L25 Vertical Luminus_SST-10_G_B90- Cross section – image

Download

IES

Luminus Devices SST 10-IR-B130 940nm

Eff:

91.5%

FWHM:

46 x 10.5°

Ipk/W:

5.1

Carclo Optics - 10003/L25 Spot Image Luminus SST-10-IR-B130

Carclo Optics - 10003/L25 Horizontal Cross Section Luminus SST-10-IR-B130

,

Carclo Optics - 10003/L25 Vertical Cross Section Luminus SST-10-IR-B130

Download

IES

Luminus Devices SST 10-IR-B90 940nm

Eff:

90.0%

FWHM:

46 x 9.2°

Ipk/W:

4.9

Carclo Optics - 10003/L25 Spot Image Luminus SST-10-IR-B90

Carclo Optics - 10003/L25 Horizontal Cross Section Luminus SST-10-IR-B90

,

Carclo Optics - 10003/L25 Vertical Cross Section Luminus SST-10-IR-B90

Download

IES

Luminus Devices SST 10-IRD-B130 810nm

Eff:

91.5%

FWHM:

46 x 8.9°

Ipk/W:

5.7


,


Download

IES

Luminus Devices SST 10-IRD-B90 810nm

Eff:

90.0%

FWHM:

46 x 8.7°

Ipk/W:

5.1


,


Download

IES

Luminus Devices SST 20-WxH White Hi CRI

Eff:

87.0%

FWHM:

48 x 9.9°

Cd/Im:

4.8

Carclo Optics – 10003/L25 - Luxeon_SST_20_W_spot-image

Carclo Optics – 10003/L25 Horizontal - Luxeon_SST_20_W_cross vertical section

,

Carclo Optics – 10003/L25 Vertical - Luxeon_SST_20_W_cross vertical section

Download

IES

Luminus Devices SST 40-W White

Eff:

85.5%

FWHM:

44 x 16°

Cd/Im:

3.0

Carclo Optics – 10003/L25 - Luxeon_SST_40_W_spot-image

Carclo Optics – 10003/L25 Horizontal - Luxeon_SST_40_W_cross vertical section

,

Carclo Optics – 10003/L25 Vertical - Luxeon_SST_40_W_cross vertical section

Download

IES

Luminus Devices SST-12-WxS White

Eff:

87.5%

FWHM:

48 x 8.4°

Cd/Im:

5.7


,


Download

IES

Luminus Devices SST-50 White

Eff:

82.7%

FWHM:

41.9 x 25.2°

Cd/Im:

2.6

Download

ies

Nichia 219 White

FWHM:

42.7 X 12.9°

Cd/Im:

5.7

Download

ies

Nichia 229A White

Eff:

83.5%

FWHM:

42.5 x 18.5°

Cd/Im:

2.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia 757G White

Eff:

87.0%

FWHM:

47 x 13°

Cd/Im:

3.9

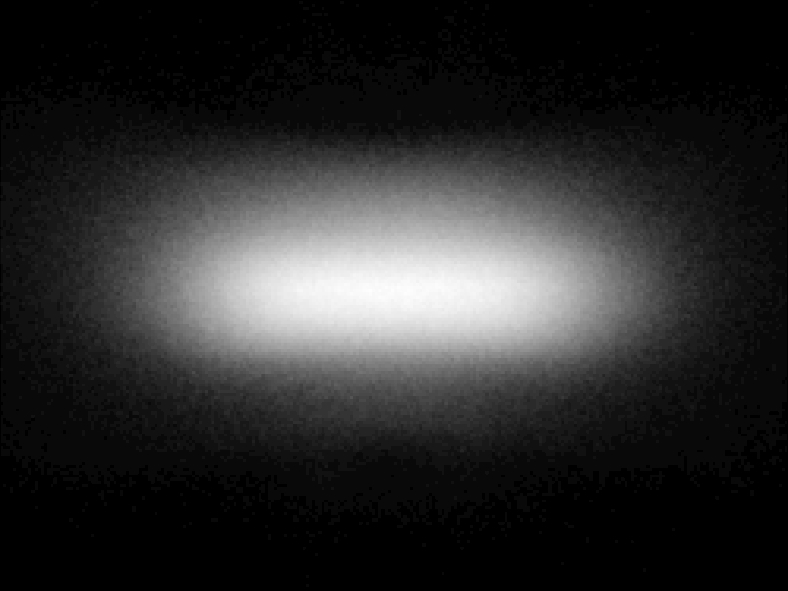

Carclo Optics 10003/L25 20mm Simulated Spot Image Nichia 757G-MT

Carclo Optics 10003/l25 20mm Cross Section Horizontal Nichia 757G-MT

,

Carclo Optics 10003/l25 20mm Cross Section Vertical Nichia 757G-MT

Download

IES

Nichia 757G White

Eff:

86.5%

FWHM:

47 x 12°

Cd/Im:

4.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NCSW CSP E17A White

Eff:

86.0%

FWHM:

48.0 x 7.9°

Cd/Im:

6.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NF2W 385AR-V2 White

Eff:

87.0%

FWHM:

46 x 13°

Cd/Im:

4.0


,


Download

IES

Nichia NFSW CSP E11A White

Eff:

85.5%

FWHM:

48 x 5.7°

Cd/Im:

8.6


,


Download

IES

Nichia NV4W B35AM White

Eff:

85.0%

FWHM:

43 x 17.5°

Cd/Im:

2.9

Carclo Optics – 10003-L25 Nichia NV4WB35AM - Spot Image

Carclo Optics – 10003-L25 Horizontal Nichia NV4WB35AM - Cross-Section

,

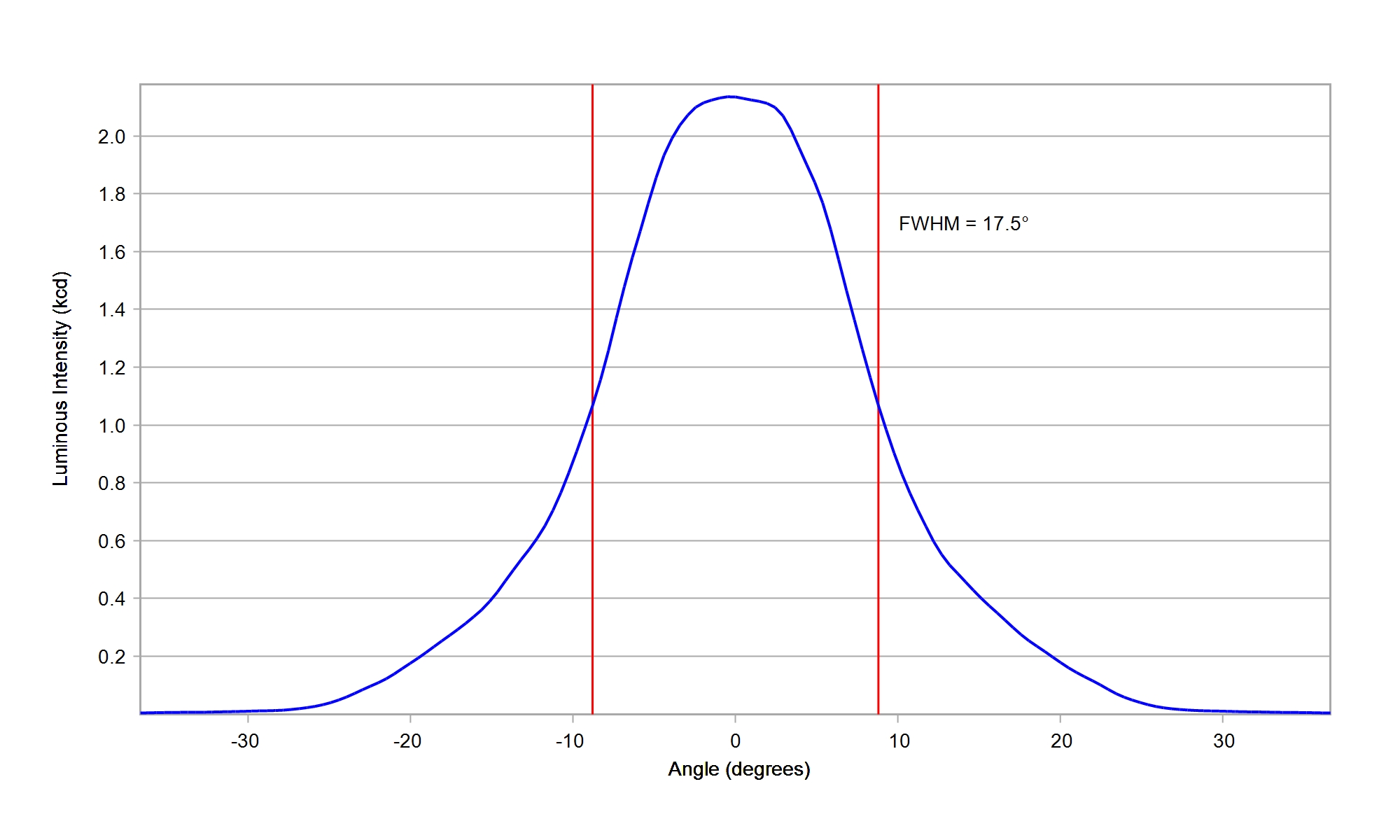

Carclo Optics – 10003-L25 Vertical Nichia NV4WB35AM - Cross-Section

Download

IES

Nichia NVSL 219B White

Eff:

85.5%

FWHM:

47.5 x 9.5°

Cd/Im:

4.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NVSW 219C White

Eff:

85.0%

FWHM:

46.0 x 13.5°

Cd/Im:

3.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NVSW 219F White

Eff:

85.0%

FWHM:

46 x 13°

Cd/Im:

3.7

Carclo Optics – 10003/L25 Nichia NVSW 219F White - Spot Image

Carclo Optics – 10003/L25 Horizontal Nichia NVSW 219F White - Cross-Section

,

Carclo Optics – 10003/L25 Vertical Nichia NVSW 219F White - Cross-Section

Download

IES

Nichia NVSW 319A White

Eff:

84.5%

FWHM:

43.5 x 14.5°

Cd/Im:

3.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NVSW CSP E21A White

Eff:

83.0%

FWHM:

46.7 x 10.2°

Cd/Im:

4.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia Top Emitting NCSL 119-H3 White

Eff:

85.0%

FWHM:

44.5x10.3°

Cd/Im:

6.2

Download

ies

Osram Led Engin LuxiGen LZ1 00R702 IR940nm

Eff:

91.0%

FWHM:

46 x 8.9°

Ipk/W:

5.0


,


Download

IES

Osram OS DURIS E 2835 Gen2

Eff:

87.5%

FWHM:

480 x 10.5°

Cd/Im:

4.7

Carclo Optics - 10003/L25 20mm Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 10003/L25 20mm Horizontal Cross Section Osram DURIS E 2835 Gen2

,

Carclo Optics - 10003/L25 20mm Vertical Cross Section Osram DURIS E 2835 Gen2

Download

IES

Osram OS DURIS E 2835 White

Eff:

86.5%

FWHM:

47.0 x 10.5°

Cd/Im:

4.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS E2 White

Eff:

85.0%

FWHM:

48.3 x 6.4°

Cd/Im:

6.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS E3 White

Eff:

88.6%

FWHM:

48x6.5°

Cd/Im:

6.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS P8 White

Eff:

84.7%

FWHM:

46.5 x 10.6°

Cd/Im:

4.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulation Vertical Cross Section

Download

IES

Osram OS DURIS S2 White

Eff:

89.7%

FWHM:

47x10.4°

Cd/Im:

4.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS S5 Deep Blue

Eff:

85.0%

FWHM:

48.5 x 10.5°

Cd/Im:

4.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

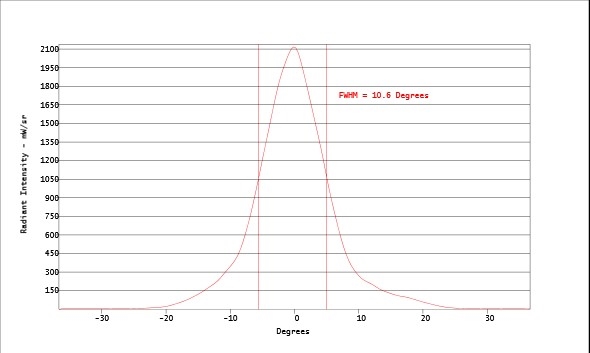

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS S5 Green

Eff:

87.0%

FWHM:

47.5 x 9.6°

Cd/Im:

4.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS S5 Red

Eff:

88.0%

FWHM:

47.0 x 8.8°

Cd/Im:

5.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS S5 White

Eff:

85.0%

FWHM:

46.8 x 10°

Cd/Im:

4.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS Golden DRAGON Plus W5AM White

Eff:

85.6%

FWHM:

46.6x10.8°

Cd/Im:

4.9

Download

ies

Osram OS OSCONIQ C 2424 White

Eff:

87.5%

FWHM:

48 x 9.3°

Cd/Im:

5.1

Carclo Optics - 10003/L25 Spot Image OSCONIQ C2424

Carclo Optics - 10003/L25 Horizontal Cross Section OSCONIQ C2424

,

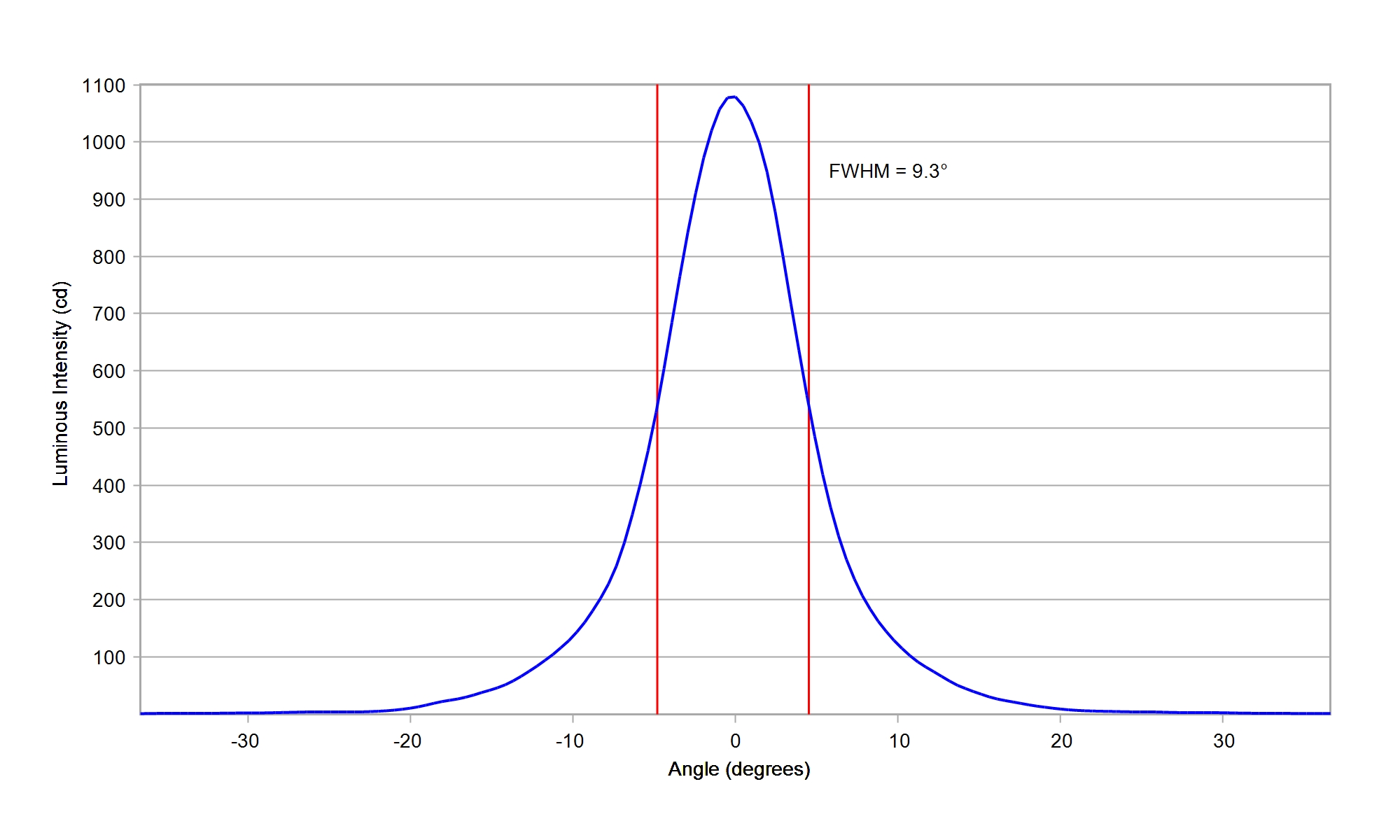

Carclo Optics - 10003/L25 Vertical Cross Section OSCONIQ C2424

Download

IES

Osram OS OSCONIQ P3737 White

Eff:

84.5%

FWHM:

44.5 X 15.5°

Cd/Im:

3.1

Carclo Optics 10003/l25 Spot Image Osram Osconiq

Carclo Optics 10003/L25 Cross Section Horizontal Osram Osconiq P3737

,

Carclo Optics 10003/L25 Cross Section Vertical Osram Osconiq P3737

Download

IES

Osram OS OSLON Black SFH 4715AS IR

Eff:

90.0%

FWHM:

47 x 8.4°

Ipk/W:

5.5


,


Download

IES

Osram OS OSLON Black SFH 4716AS IR

Eff:

90.5%

FWHM:

47 x 7.8°

Ipk/W:

6.7

Carclo Optics – 10003/L25 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

Carclo Optics – 10003/L25 Horizontal Cross Section OSRAM OS Oslon Black IR SFH 4716AS

,

Carclo Optics – 10003/L25 Vertical Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

IES

Osram OS OSLON Black SFH 4725S IR

Eff:

91.0%

FWHM:

46 x 10°

Ipk/W:

5.6

Carclo Optics 10003/L25 Spot Image Osram Oslon Black_IR_SFH_4725S

Carclo Optics 10003/L25 Cross Section Horizontal Image Osram Oslon Black_IR_SFH_4725S

,

Carclo Optics 10003/L25 Cross Section Vertical Image Osram Oslon Black_IR_SFH_4725S

Download

IES

Osram OS OSLON Boost HM KW CELMM1.TG

Eff:

88.0%

FWHM:

46°

Cd/Im:

2.3

Carclo Optics – 10003/L25 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 10003/L25 – Osram_Oslon_Boost_KW_CELMM1_TG_cross section

Download

IES

Osram OS OSLON Pure 1010 CSP GC VJLPE1.13 Cyan

Eff:

86.5%

FWHM:

48 x 6.3°

Cd/Im:

8.3


,


Download

IES

Osram OS OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue

Eff:

85.0%

FWHM:

49 x 5.9°

Ipk/W:

8.4



,


Download

IES

Osram OS OSLON Pure 1010 CSP GG VJLPE1.F3 Green

Eff:

86.0%

FWHM:

48 x 5.9°

Cd/Im:

8.7



,


Download

IES

Osram OS OSLON Pure 1010 CSP GR VJLPE1.F3 Red

Eff:

87.0%

FWHM:

47 x 5.9°

Cd/Im:

8.5


,


Download

IES

Osram OS OSLON Pure 1010 CSP GT VJLPE1.13 True Green

Eff:

86.5%

FWHM:

48 x 6.6°

Cd/Im:

8.1



,


Download

IES

Osram OS OSLON Pure 1010 CSP GW VJLPE1.CM White

Eff:

85.5%

FWHM:

48 x 5.9°

Cd/Im:

8.6


optic-10003-L25-Oslon_Pure_1010_White_GW_VJLPE1_CM-cross-section-image-horizontal.jpg

,


Download

IES

Osram OS OSLON Square Flat White

Eff:

86.5%

FWHM:

47.5 x 8.3°

Cd/Im:

5.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS OSLON Square Gen 3 White

Eff:

84.7%

FWHM:

46.6 x 10.6°

Cd/Im:

4.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulation Vertical Cross Section

Download

IES

Osram OS OSLON Square White

Eff:

84.0%

FWHM:

46.4 x 10.8°

Cd/Im:

4.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

87.5%

FWHM:

48 x 8°

Cd/Im:

6.2

Carclo Optics – 10003/L25 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Carclo Optics – 10003/L25 Horizontal Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

,
