12927-WHT

292 x 61mm Medium Spot Plain Freeform (12927-WHT)

12927-WHT
Part no. 12927-WHT
Drawing no.
12927-COMBO
Family
33Up Array
Type
Freeform
Diameter
292 x 61
Beam
Medium Spot
Finish
Plain
http://www.carclo-optics.com/sites/default/files/images/optics/12927-COMBO%20Rev1%20Customer.STEP
http://www.carclo-optics.com/sites/default/files/images/optics/12927-COMBO%20Rev1%20Customer.PDF
http://www.carclo-optics.com/sites/default/files/images/optics/60147%20Rev2%20Baffle%20Customer_1.STEP

LEDs & Performances

Select LED to view available holders

Performance Data Images IES/STP
Eff: 80.5
FWHM: 57
Cd/lm: 1.4
Carclo Optics – 12927-WHT 33Up COMBO Spot Image Cree JB3030

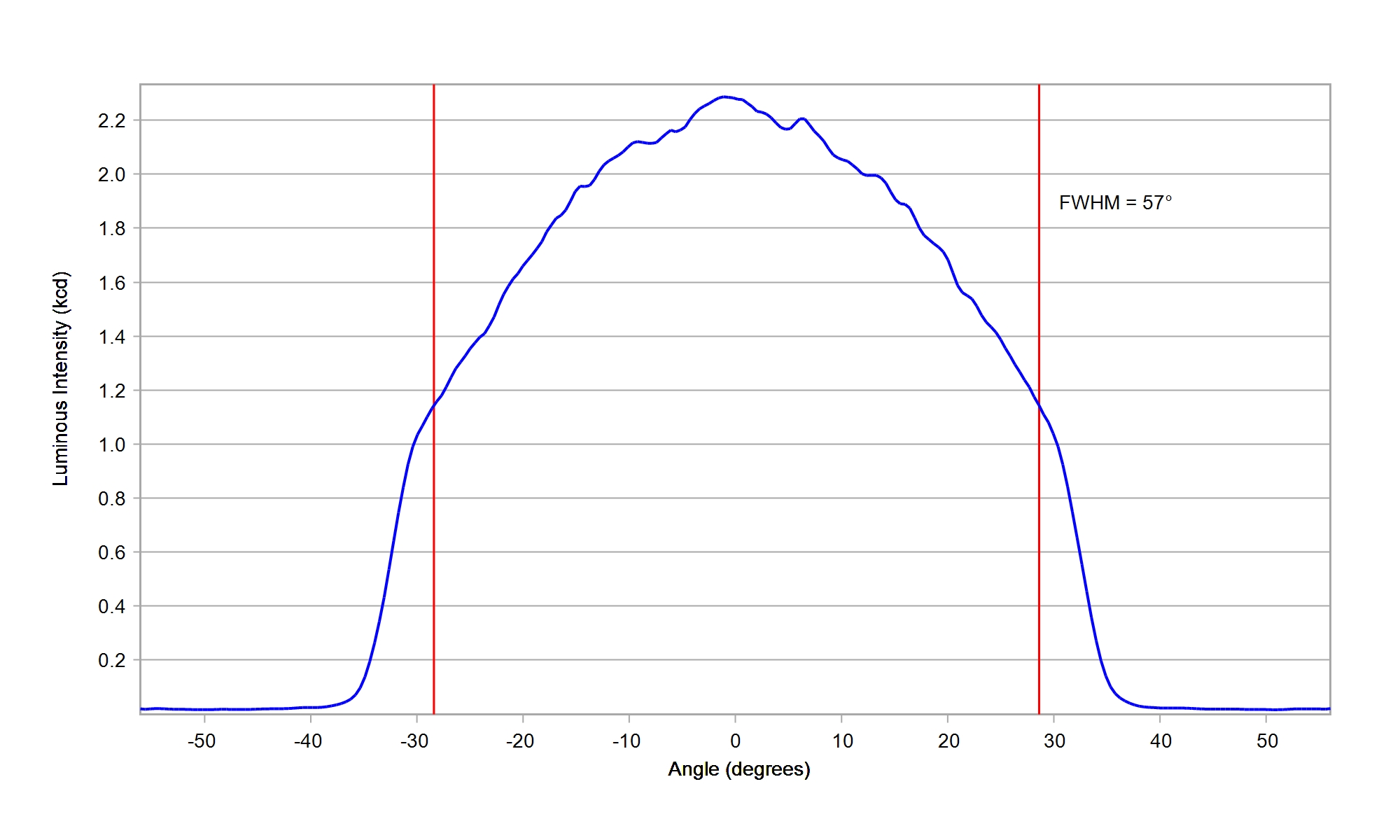

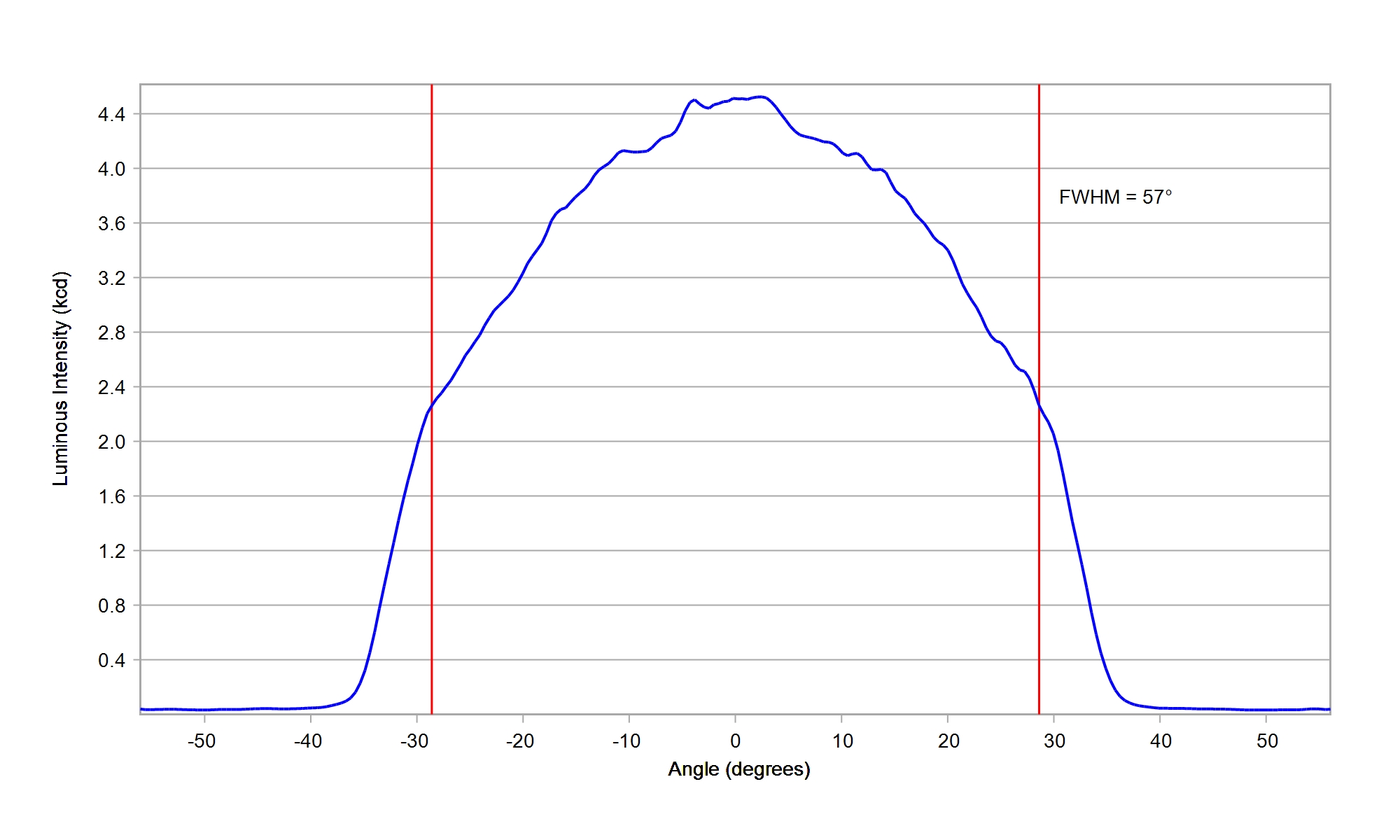

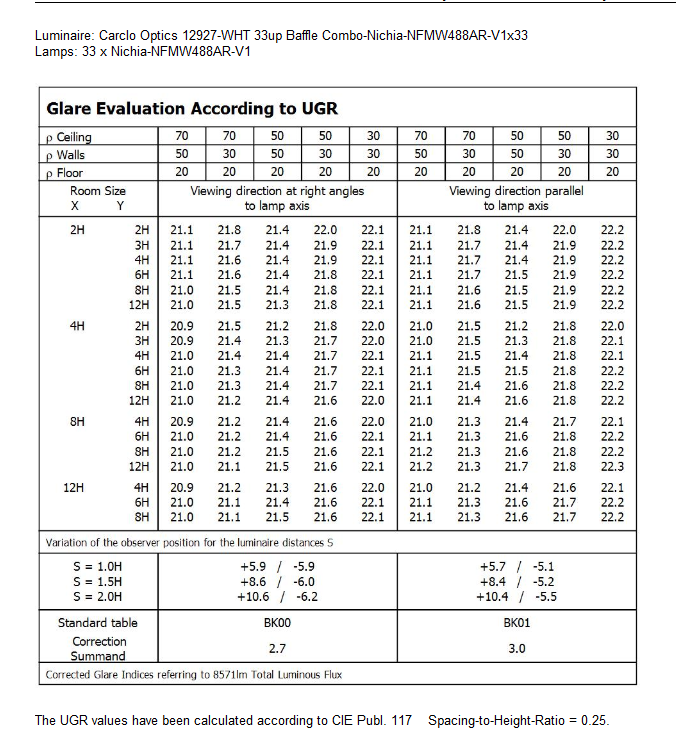

Carclo Optics - 12927-WHT 33Up COMBO Cross Section Cree JB3030 Carclo Optics - 12927-WHT 33Up COMBO UGR Table Cree JB3030
View
Eff: 81
FWHM: 59
Cd/lm: 1.3
Carclo Optics – 12927-WHT 33Up COMBO Spot Image Lumileds Luxeon 3030HE
Carclo Optics - 12927-WHT 33Up COMBO Cross Section Lumileds Luxeon 3030HE Carclo Optics - 12927-WHT 33Up COMBO UGR Table Lumileds Luxeon 3030HE
View
Eff: 82.5
FWHM: 59
Cd/lm: 1.3

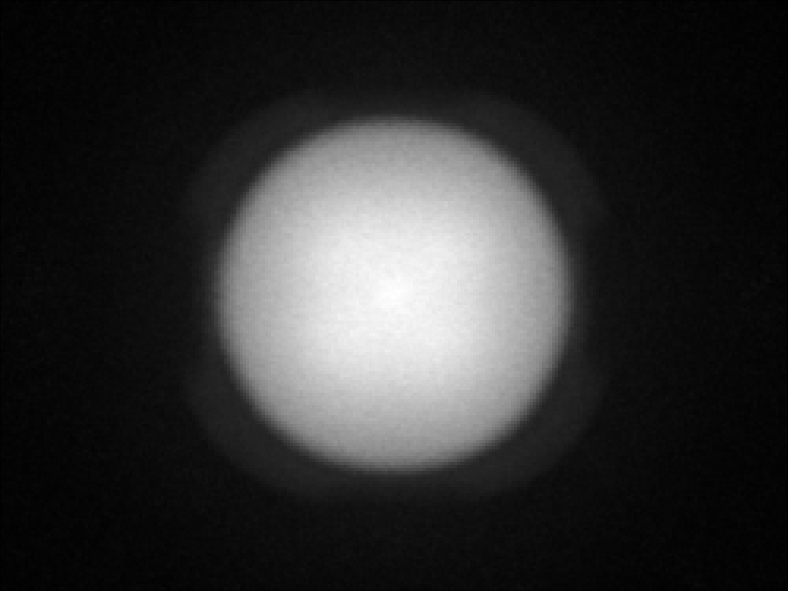

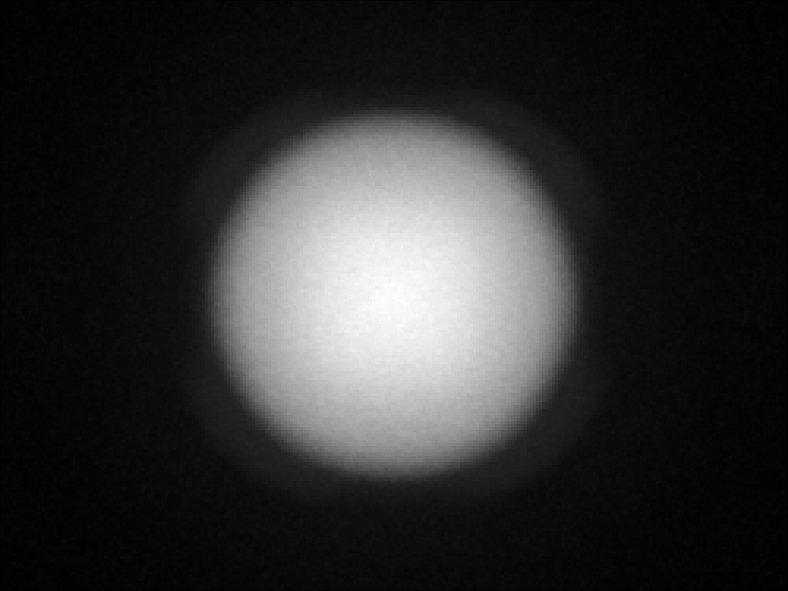

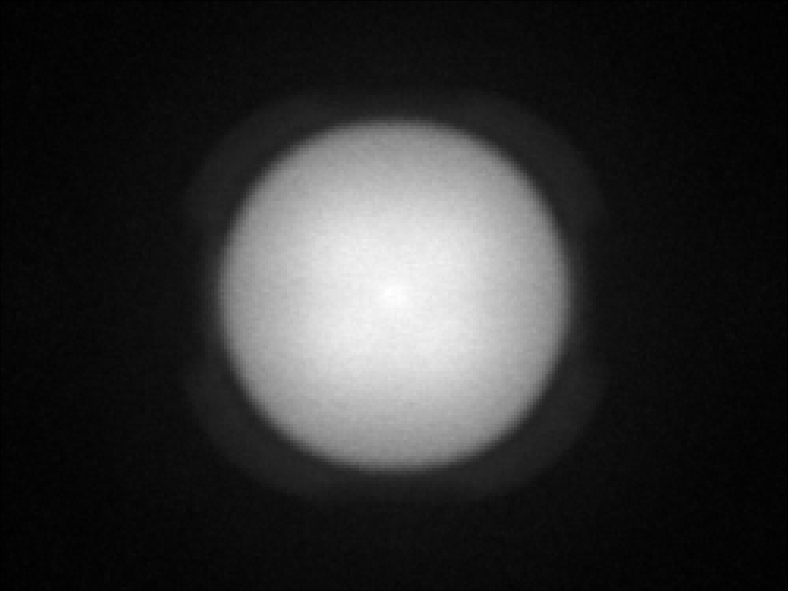

Carclo Optics – 12927-WHT 33Up COMBO Spot Image Nichia 757G-MT

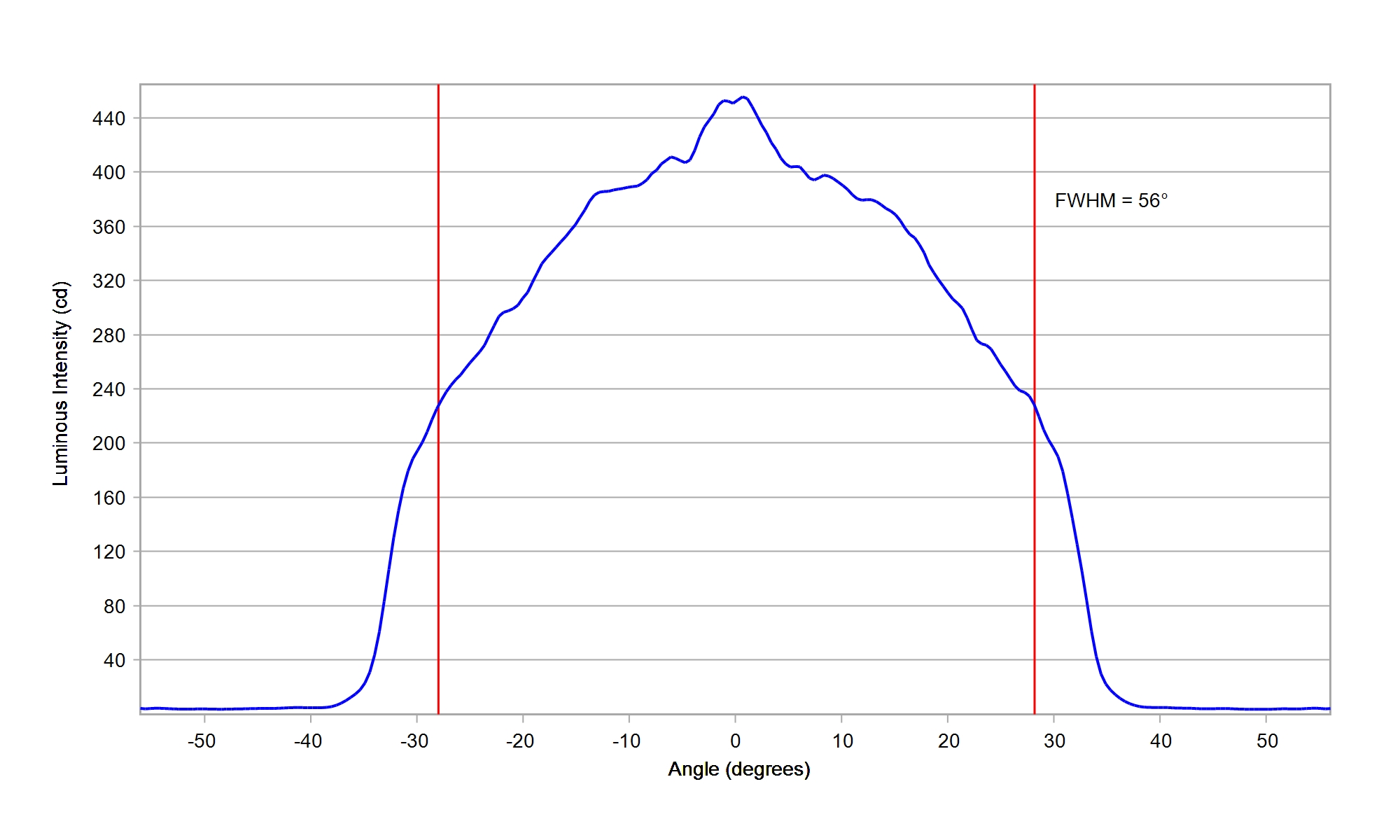

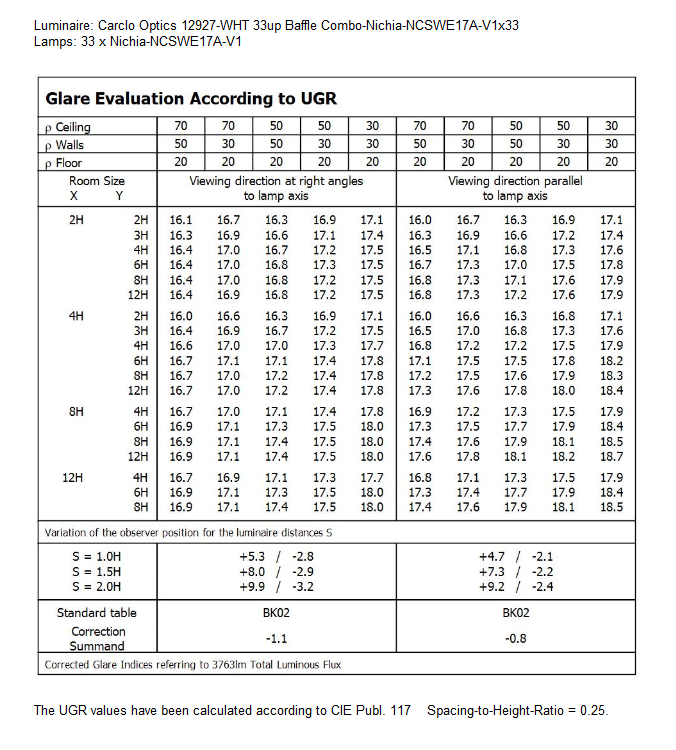

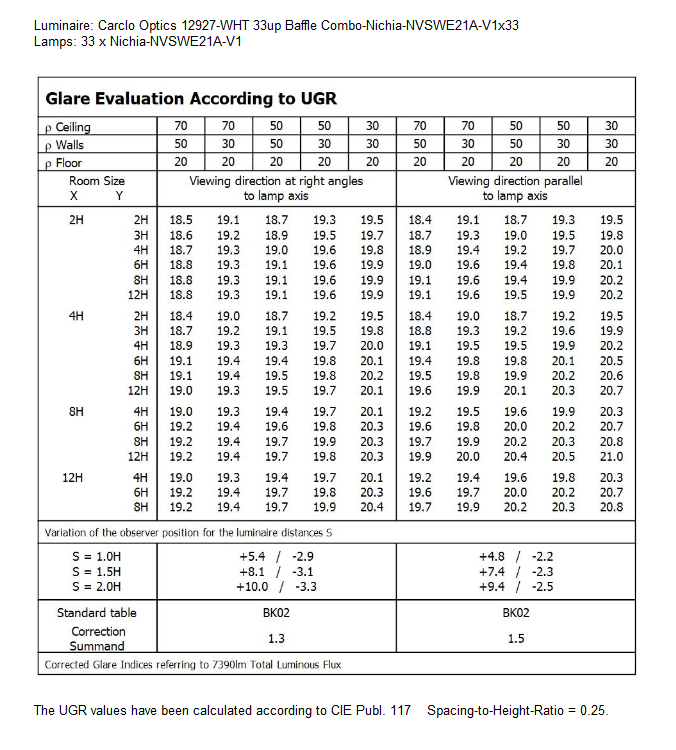

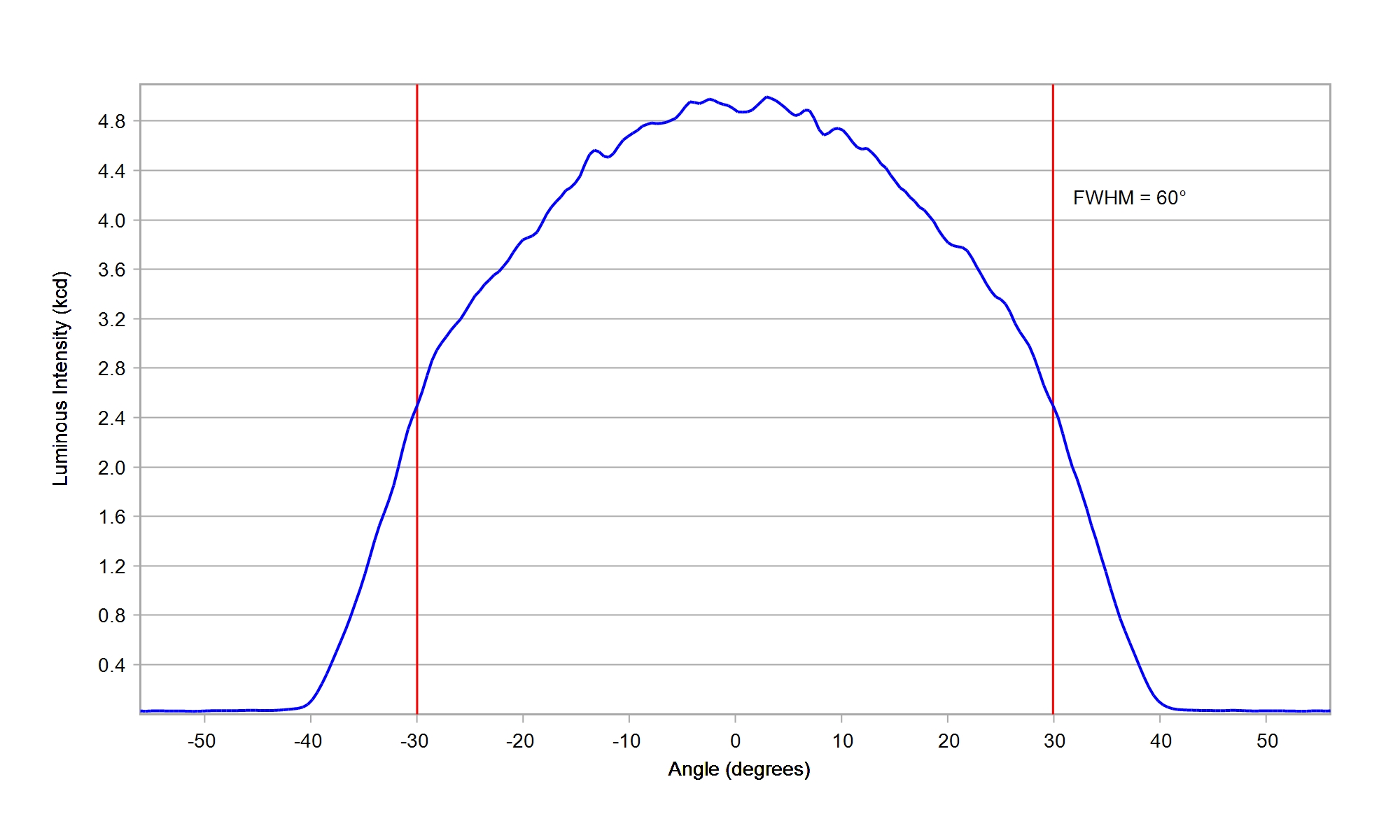

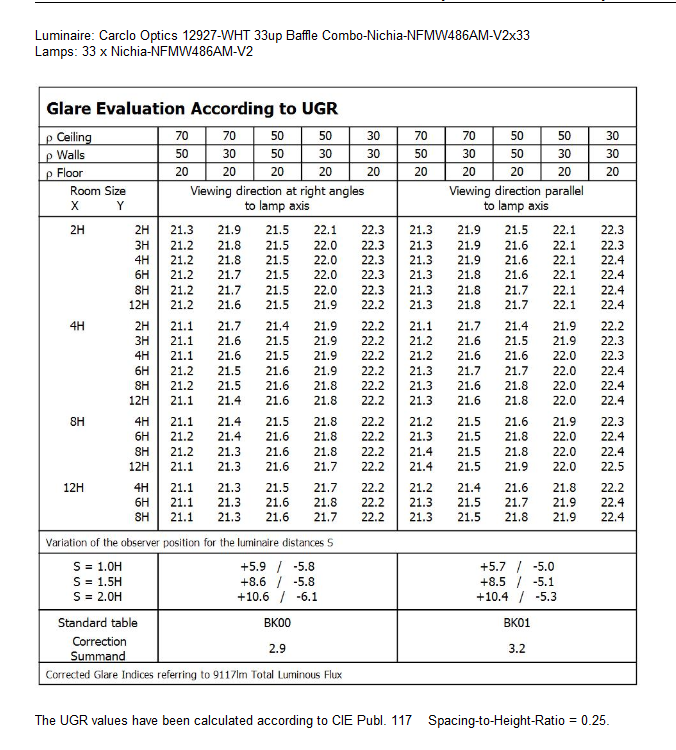

Carclo Optics - 12927-WHT 33Up COMBO Cross Section Nichia 757G-MT Carclo Optics - 12927-WHT 33Up COMBO UGR Table Nichia 757G-MT
View
Eff: 80.5
FWHM: 58
Cd/lm: 1.4
Carclo Optics – 12927-WHT 33Up COMBO Spot Image Osram PrevaLED Bar G4
Carclo Optics - 12927-WHT 33Up COMBO Cross Section Osram PrevaLED Bar G4 Carclo Optics - 12927-WHT 33Up COMBO UGR Table Osram PrevaLED Bar G4
View
Eff: 79
FWHM: 59
Cd/lm: 1.3
Carclo Optics – 12927-WHT 33Up COMBO Spot Image Fortimo HV4 Gen 4 1100lm
Carclo Optics - 12927-WHT 33Up COMBO Cross Section Fortimo HV4 Gen 4 1100lm Carclo Optics - 12927-WHT 33Up COMBO UGR Table Fortimo HV4 Gen 4 1100lm
View
Eff: 81
FWHM: 61
Cd/lm: 1
Carclo Optics – 12927-WHT 33Up COMBO Spot Image Fortimo 3R HV4
Carclo Optics - 12927-WHT 33Up COMBO Cross Section Fortimo 3R HV4 Carclo Optics - 12927-WHT 33Up COMBO UGR Table Fortimo 3R HV4
View
Eff: 79
FWHM: 59
Cd/lm: 1.4
Carclo Optics – 12927-WHT 33Up COMBO Spot Image Fortimo 3R LV4
Carclo Optics - 12927-WHT 33Up COMBO Cross Section Fortimo 3R LV4 Carclo Optics - 12927-WHT 33Up COMBO UGR Table Fortimo 3R LV4
View
