12917

292 x 61mm Wide Spot Plain Freeform (12917)

Carclo Optics - 12917 - 33Up Array
Part no. 12917
Drawing no.
12917_Rev-2_WB_SBoard_Customer
Family
33Up Array
Type
Freeform
Diameter
292 x 61
Beam
Wide Spot
Finish
Plain
http://www.carclo-optics.com/sites/default/files/images/optics/12917_Rev-1_WB_SBoard_Customer.STEP
http://www.carclo-optics.com/sites/default/files/images/optics/12917_Rev-2_WB_SBoard_Customer.PDF
Material: PMMA

LEDs & Performances

Select LED to view available holders

Performance Data Images IES/STP
Eff: 96
FWHM: 87 x 81
Cd/lm: 0.9
Carclo Optics - 12917 33Up Spot Image Bridgelux 3030 Gen2
Carclo Optics - 12917 33Up Cross Section Bridgelux 3030 Gen2
View
Eff: 96
FWHM: 86
Cd/lm: 0.9
Carclo Optics - 12917 Spot Image Cree JB3030 3V White
Carclo Optics - 12917 Cross Section Cree JB3030 3V White
View
Eff: 96
FWHM: 85
Cd/lm: 1.1
Carclo Optics - 12917 Spot Image Cree JQ5050 9V White
Carclo Optics - 12917 Cross Section Cree JQ5050 9V White
View
Eff: 96
FWHM: 84
Cd/lm: 1
Carclo Optics - 12917 Spot Image Cree JR5050 24V White
Carclo Optics - 12917 Cross Section Cree JR5050 24V White
View
Eff: 96
FWHM: 84
Cd/lm: 1.1
Carclo Optics - 12917 Spot Image Cree JR5050 36V White
Carclo Optics - 12917 Cross Section Cree JR5050 36V White
View
Eff: 96
FWHM: 84
Cd/lm: 1.1
Carclo Optics - 12917 Spot Image Cree JR5050 6V White
Carclo Optics - 12917 Cross Section Cree JR5050 6V White
View
Eff: 93.5
FWHM: 95
Cd/lm: 0.5
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 94.5
FWHM: 88
Cd/lm: 0.9
Carclo Optics – 12917 Spot Image Cree XLamp XHP35.2 HI White
Carclo Optics – 12917 Cross Section Cree XLamp XHP35.2 HI White
View
Eff: 96
FWHM: 96
Cd/lm: 2
Carclo Optics – 12917 Cree Xlamp XP-E2 Far Red - Spot Image
Carclo Optics – 12917 Cree Xlamp XP-E2 Far Red - Cross-Section
View
Eff: 96.5
FWHM: 93
Cd/lm: 0.7
Carclo Optics – 12917 Cree Xlamp XP-G3 Photo Red - Spot Image
Carclo Optics – 12917 Cree Xlamp XP-G3 Photo Red - Cross-Section
View
Eff: 94
FWHM: 91
Cd/lm: 0.8
Carclo Optics – 12917 Cree Xlamp XP-G3 Royal Blue - Spot Image
Carclo Optics – 12917 Cree Xlamp XP-G3 Royal Blue - Cross-Section
View
Eff: 96
FWHM: 90
Cd/lm: 0.8
Carclo Optics – 12917 Cree Xlamp XP-P - Spot Image
Carclo Optics – 12917 Cree Xlamp XP-P - Cross-Section
View
Eff: 95.5
FWHM: 72
Cd/lm: 0.7
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 95
FWHM: 90
Cd/lm: 0.6
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 96
FWHM: 81
Cd/lm: 0.7
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 96
FWHM: 88
Cd/lm: 0.7
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 96
FWHM: 87
Cd/lm: 0.6
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section Carclo Optics - Simulated UGR Table
View
Eff: 91
FWHM: 90
Cd/lm: 0.54
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section Image Carclo Optics - UGR Table
View
Eff: 96
FWHM: 88
Cd/lm: 0.7
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 95.5
FWHM: 88
Cd/lm: 0.6
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 96
FWHM: 88
Cd/lm: 0.8
Carclo Optics – 12917 – Luxeon_3030_HE_Plus_spot-image
Carclo Optics – 12917 – Luxeon_3030_HE_Plus_cross vertical section
View
Eff: 96
FWHM: 89
Cd/lm: 0.6
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 96
FWHM: 83
Cd/lm: 0.7
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 91
FWHM: 91
Cd/lm: 0.5
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section Image Carclo Optics - UGR Table
View
Eff: 95.5
FWHM: 82
Cd/lm: 1
Carclo Optics – 12917 Lumileds Luxeon 7070 - Spot Image
Carclo Optics – 12917 Lumileds Luxeon 7070 - Cross-Section
View
Eff: 93
FWHM: 99
Cd/lm: 0.5
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 96
FWHM: 91 x 87
Cd/lm: 0.9
Carclo Optics 12917 Spot Image Luxeon CZ_5M
Carclo Optics 12917 Cross Section Luxeon CZ_5M
View
Eff: 97.5
FWHM: 89/86
Cd/lm: 0.8
Carclo Optics - 12917 33Up Spot Image Luxeon IR 2720
Carclo Optics - 12917 33Up Cross Section Luxeon IR 2720
View
Eff: 96.5
FWHM: 93
Cd/lm: 0.8
Carclo Optics – 12917 Spot Image Lumileds Luxeon Rubix Blue
Carclo Optics – 12917 Cross Section Lumileds Luxeon Rubix Blue
View
Eff: 96
FWHM: 92
Cd/lm: 0.7
Carclo Optics – 12917 Spot Image Lumileds Luxeon Rubix Green
Carclo Optics – 12917 Cross Section Lumileds Luxeon Rubix Green
View
Eff: 96.5
FWHM: 92
Cd/lm: 0.8
Carclo Optics – 12917 Spot Image Lumileds Luxeon Rubix Red
Carclo Optics – 12917 Cross Section Lumileds Luxeon Rubix Red
View
Eff: 97
FWHM: 92
Cd/lm: 1.1
Carclo Optics – 12917 Spot Image Lumileds Luxeon Rubix Royal Blue
Carclo Optics – 12917 Cross Section Lumileds Luxeon Rubix Royal Blue
View
Eff: 96
FWHM: 93
Cd/lm: 0.9
Carclo Optics - 12917 Spot Image Lumileds Luxeon Rubix White
Carclo Optics - 12917 Cross Section Lumileds Luxeon Rubix White
View
Eff: 93.5
FWHM: 98
Cd/lm: 0.8
Carclo Optics – 12917 Lumileds Luxeon SunPlus 20 Line – Cool White - Spot Image
Carclo Optics – 12917 Lumileds Luxeon SunPlus 20 Line – Cool White - Cross-Section
View
Eff: 90.5
FWHM: 100
Cd/lm: 0.7
Carclo Optics – 12917 Lumileds Luxeon SunPlus 20 Line – Deep Red - Spot Image
Carclo Optics – 12917 Lumileds Luxeon SunPlus 20 Line – Deep Red - Cross-Section
View
Eff: 91
FWHM: 100
Cd/lm: 1.7
Carclo Optics – 12917 Lumileds Luxeon SunPlus 20 Line – Far Red - Spot Image
Carclo Optics – 12917 Lumileds Luxeon SunPlus 20 Line – Far Red - Cross-Section
View
Eff: 91.5
FWHM: 98
Cd/lm: 0.7
Carclo Optics – 12917 Lumileds Luxeon SunPlus 20 Line - Lime - Spot Image
Carclo Optics – 12917 Lumileds Luxeon SunPlus 20 Line - Lime - Cross-Section
View
Eff: 92
FWHM: 97
Cd/lm: 0.6
Carclo Optics – 12917 Lumileds Luxeon SunPlus 20 Line – Royal Blue - Spot Image
Carclo Optics – 12917 Lumileds Luxeon SunPlus 20 Line – Royal Blue - Cross-Section
View
Eff: 97
FWHM: 90
Cd/lm: 0.8
Carclo Optics - 12917  Luminus_SST-10_B_B130 - Spot Image
Carclo Optics - 12917 Luminus_SST-10_B_B130 - cross Image
View
Eff: 96
FWHM: 95
Cd/lm: 0.6
Carclo Optics – 12917 Luminus_SST-10_DR_B130- Spot - image
Carclo Optics – 12917 Luminus_SST-10_DR_B130- Cross section – image
View
Eff: 95.5
FWHM: 91
Cd/lm: 0.8
Carclo Optics - 12917 Luminus_SST-10_G_B130 - spot - image
Carclo Optics - 12917 Luminus_SST-10_G_B130 - cross section - image
View
Eff: 95.5
FWHM: 89
Cd/lm: 0.8
Carclo Optics – 12917 - Luxeon_SST_20_W_spot-image
Carclo Optics – 12917 - Luxeon_SST_20_W_cross vertical section
View
Eff: 97
FWHM: 90
Cd/lm: 0.9
Carclo Optics - 12917 Spot Image Luminus SST-10-IR-B130
Carclo Optics - 12917 Cross Section Luminus SST-10-IR-B130
View
Eff: 95.5
FWHM: 87
Cd/lm: 0.6

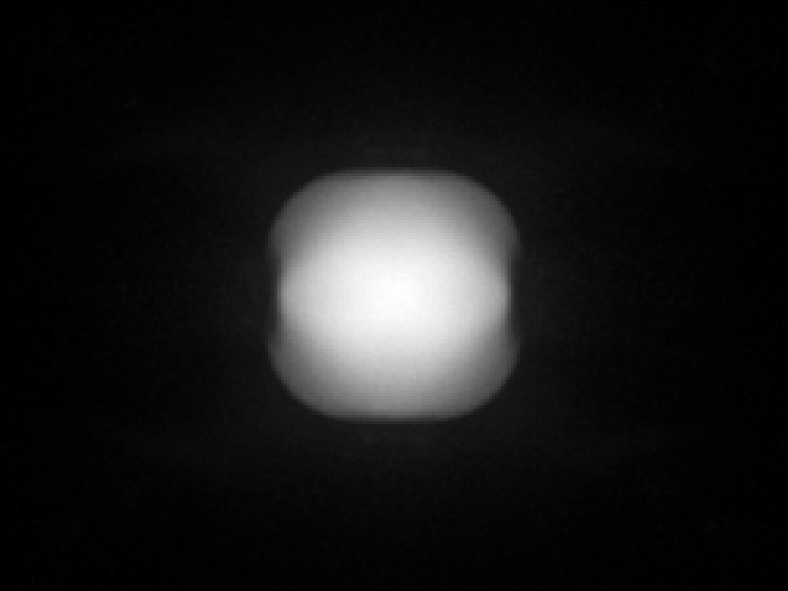

Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 95
FWHM: 87
Cd/lm: 0.7

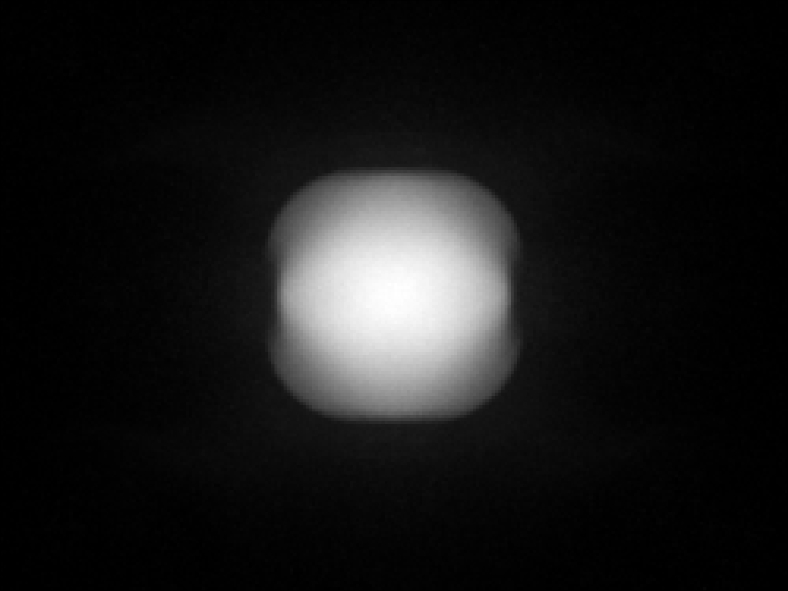

Carclo Optics - Simulated Spot Image

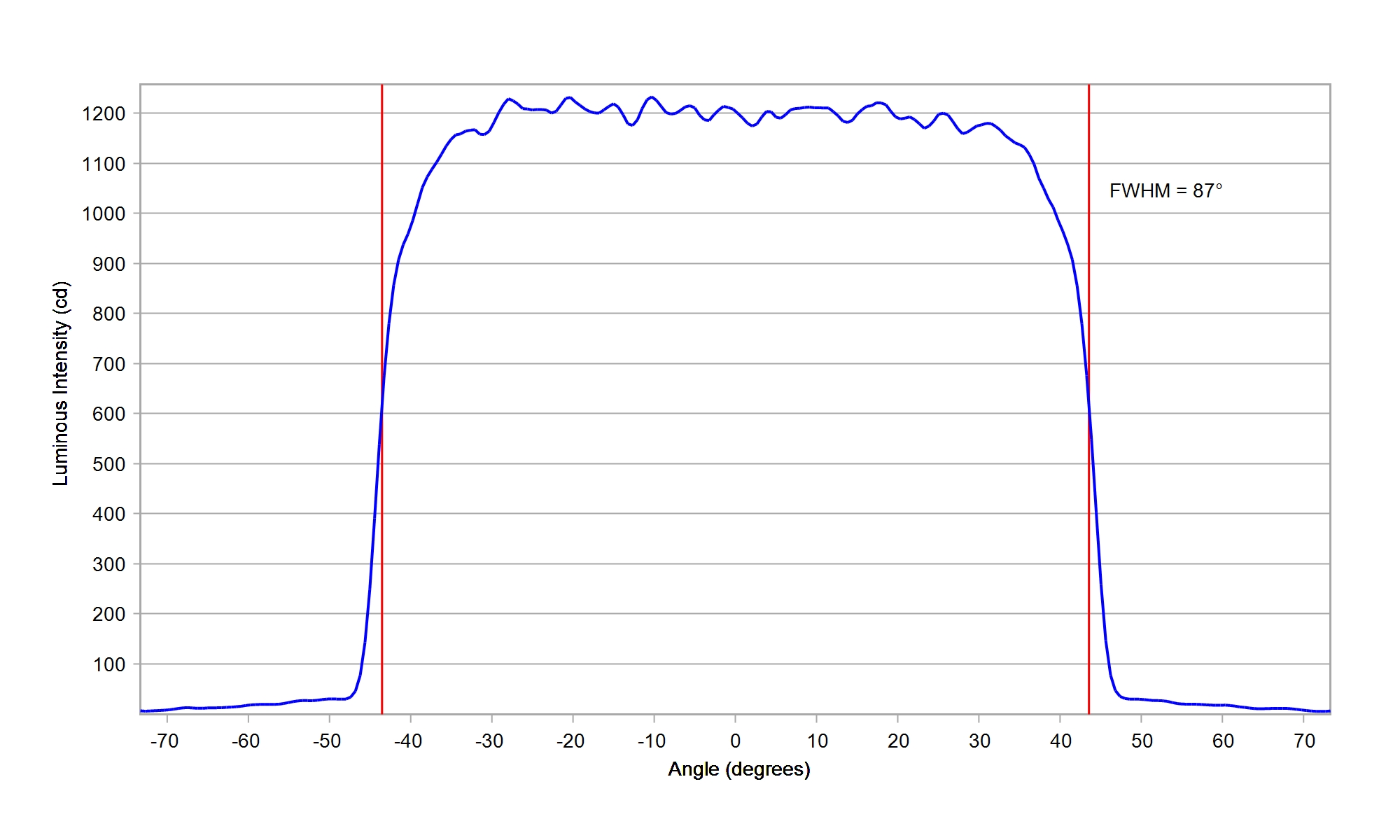

Carclo Optics - Simulated Cross Section
View
Eff: 95.5
FWHM: 87
Cd/lm: 0.8
  Carclo Optics 12917 Simulated Spot Image Nichia 757G-MT
  Carclo Optics 12917 Simulated cross section Image Nichia 757G-MT
View
Eff: 95
FWHM: 87
Cd/lm: 0.7

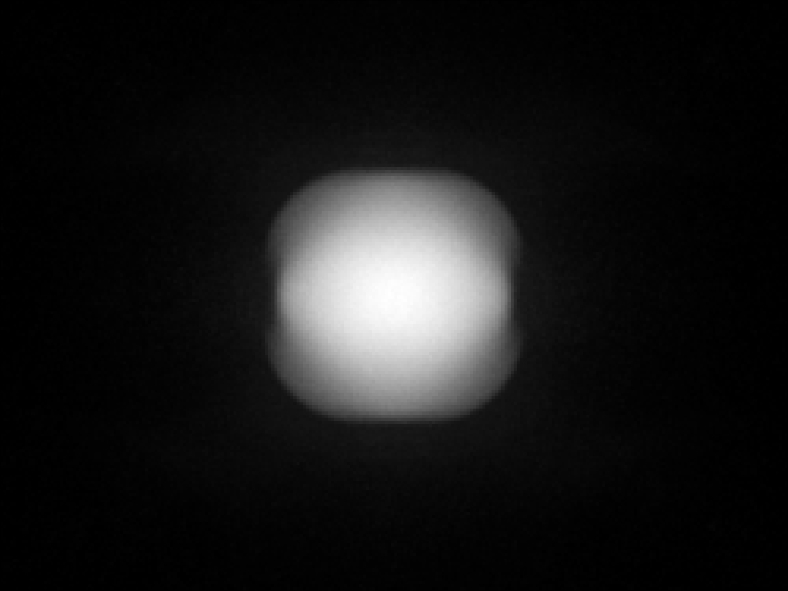

Carclo Optics - Simulated Spot Image

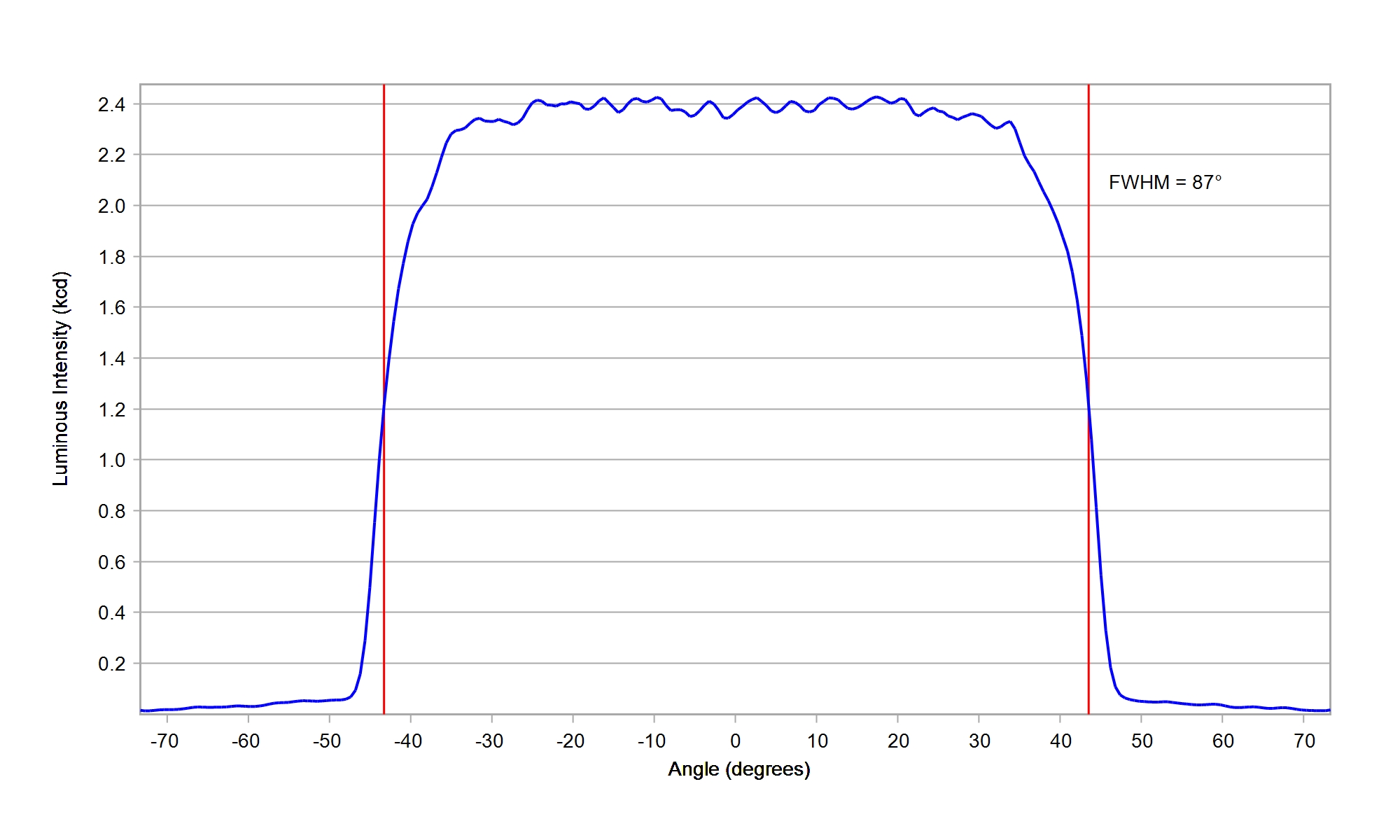

Carclo Optics - Simulated Cross Section
View
Eff: 96
FWHM: 88
Cd/lm: 0.9
Carclo Optics - 12917 33Up Spot Image Osram DURIS E 2835 Gen2
Carclo Optics - 12917 33Up Cross Section Osram DURIS E 2835 Gen2
View
Eff: 95.5
FWHM: 83
Cd/lm: 0.7
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 96.5
FWHM: 88
Cd/lm: 0.7

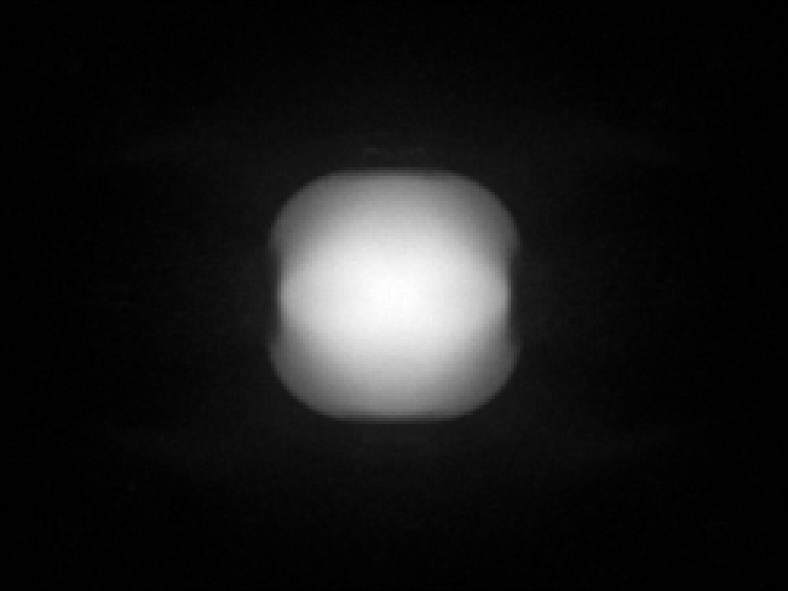

Carclo Optics - Simulated Spot Image

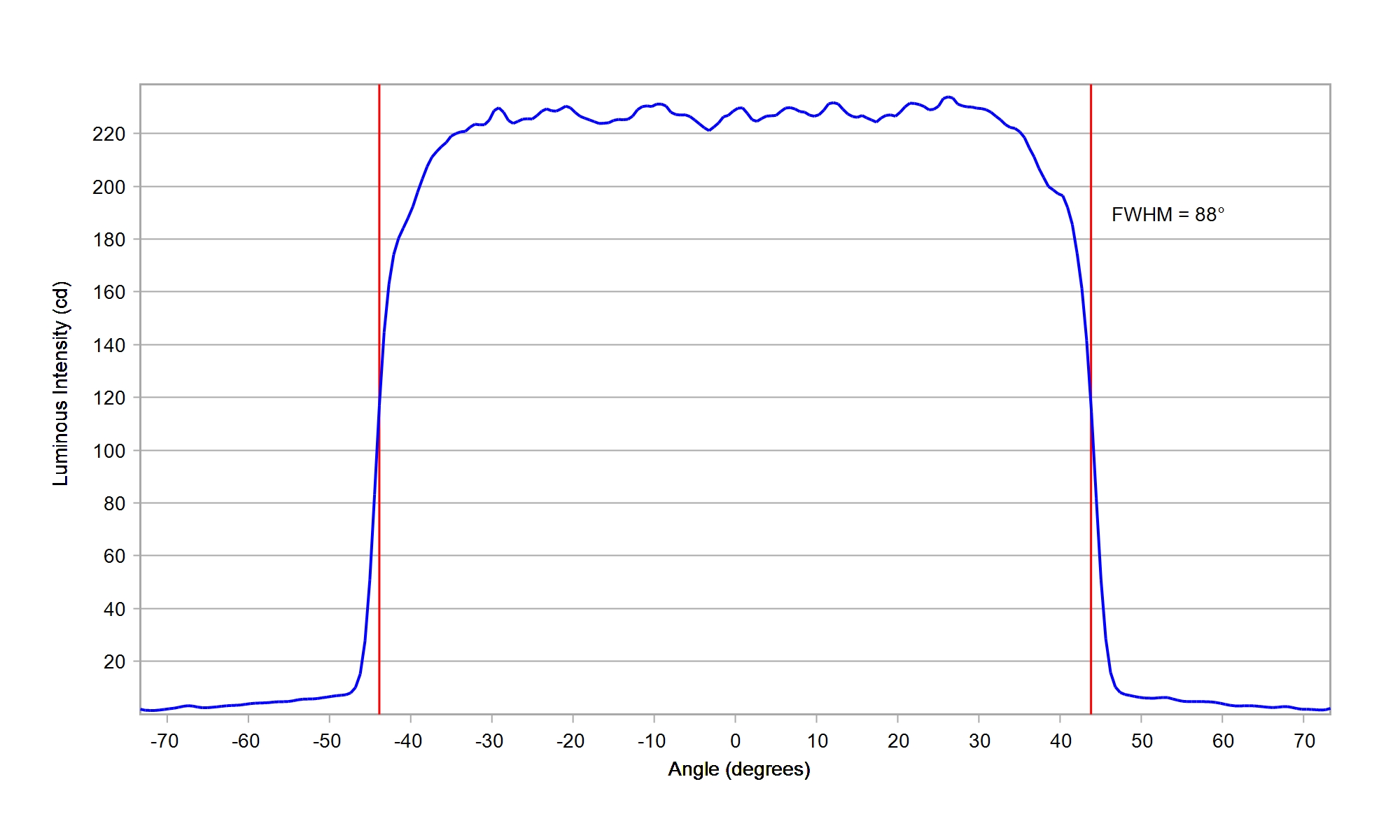

Carclo Optics - Simulated Cross Section
View
Eff: 96
FWHM: 88
Cd/lm: 0.9
Carclo Optics - 12917 33Up Spot Image Oslon DURIS S8 Gen3
Carclo Optics - 12917 33Up Cross Section Oslon DURIS S8 Gen3
View
Eff: 96
FWHM: 88
Cd/lm: 0.9
Carclo Optics - 12917 Spot Image OSCONIQ C2424
Carclo Optics - 12917 Cross Section OSCONIQ C2424
View
Eff: 95
FWHM: 91
Cd/lm: 0.7
Carclo Optics – 12917 Spot Image OSRAM OS Oslon Black IR SFH 4716AS
Carclo Optics – 12917 Cross Section OSRAM OS Oslon Black IR SFH 4716AS
View
Eff: 96
FWHM: 91
Cd/lm: 0.7
Carclo Optics – 12917 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image
Carclo Optics – 12917 – Osram_Oslon_Boost_KW_CELMM1_TG_cross section
View
Eff: 95
FWHM: 85
Cd/lm: 0.9
Carclo Optics - 12917 Spot Image Oslon Pure GW VJLPE1
Carclo Optics - 12917 Cross Section  Image Oslon Pure GW VJLPE1
View
Eff: 95.5
FWHM: 89 x 84
Cd/lm: 0.9
Carclo Optics - 12917 33Up  Spot Image Oslon Square Gen 5
Carclo Optics - 12917 33Up Cross Section Oslon Square Gen 5
View
Eff: 96
FWHM: 94
Cd/lm: 0.7
Carclo Optics – 12917 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White
Carclo Optics – 12917 Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White
View
Eff: 96
FWHM: 84
Cd/lm: 1
Carclo Optics – 12917 Osram Oslon SSL-120 GD CSSPM1.14 Deep Blue - Spot Image
Carclo Optics – 12917 Osram Oslon SSL-120 GD CSSPM1.14 Deep Blue - Cross-Section
View
Eff: 96.5
FWHM: 83
Cd/lm: 2
Carclo Optics – 12917 Osram Oslon SSL-120 GF CSSPM1.24 Far Red - Spot Image
Carclo Optics – 12917 Osram Oslon SSL-120 GF CSSPM1.24 Far Red - Cross-Section
View
Eff: 96.5
FWHM: 85
Cd/lm: 0.8
Carclo Optics – 12917 Osram Oslon SSL-120 GH CSSPM1.24 Hyper Red - Spot Image
Carclo Optics – 12917 Osram Oslon SSL-120 GH CSSPM1.24 Hyper Red - Cross-Section
View
Eff: 96
FWHM: 88
Cd/lm: 0.8
Carclo Optics – 12917 – Osram_Prevaled_Bar_G4_spot-image
Carclo Optics – 12917 – Osram_Prevaled_Bar_G4_cross vertical section
View
FWHM: 90

View
Eff: 93.5
FWHM: 86
Cd/lm: 0.9
Carclo Optics - 12917 33Up Spot Image Fortimo 3R HV4
Carclo Optics - 12917 33Up Cross Section Fortimo HR LV4
View
FWHM: 90

View
Eff: 93.5
FWHM: 87
Cd/lm: 0.8
Carclo Optics - 12917 33Up Spot Image Fortimo 3R LV4
Carclo Optics - 12917 33Up Cross Section Fortimo 3R LV4
View
Eff: 93.5
FWHM: 87
Cd/lm: 0.8
Carclo Optics - 12913 33Up Spot Image Fortimo 3R LV4
Carclo Optics - 12913 33Up Cross Section Fortimo 3R LV4
View
Eff: 95.5
FWHM: 86
Cd/lm: 0.9
Carclo Optics – 12917 – Samsung_LH151B_spot-image
Carclo Optics – 12917 – Samsung_LH151B_cross section
View
Eff: 86
FWHM: 86 x 84
Cd/lm: 0.9
Carclo Optics -12917 Sport Image - Samsung LH181B 4000K
Carclo Optics -12917 Cross Section - Samsung LH181B 4000K
View
Eff: 96
FWHM: 86 x 84
Cd/lm: 0.9
Carclo Optics -12917 Sport Image - Samsung LH181B 4000K
Carclo Optics -12917 Cross Section - Samsung LH181B 4000K
View
Eff: 95.5
FWHM: 85 x 84
Cd/lm: 0.9
Carclo Optics - 12917 Spot Image Samsung LH231B 5000K
Carclo Optics -12917 Cross Section  - Samsung LH231B 5000K
View
Eff: 95.5
FWHM: 86 x 85
Cd/lm: 0.8
Carclo Optics -12917  Sport Image - Samsung LM101B 5000K
Carclo Optics -12917  Cross Section Image - Samsung LM101B 5000K
View
Eff: 91
FWHM: 90
Cd/lm: 0.57
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section Image Carclo Optics - UGR Table
View
Eff: 94
FWHM: 87 x 88
Cd/lm: 0.7
Carclo Optics -12917 Spot Image - Seoul SZ8Y22
Carclo Optics -12917 Cross Section Horizontal image - Seoul SZ8Y22
View
Eff: 94.5
FWHM: 93 X 92
Cd/lm: 0.7
Carclo Optics -12917 Spot Image - Seoul SZ8Y22P
Carclo Optics -12917 Cross Section Image - Seoul SZ8Y22P
View
Eff: 91
FWHM: 9035
Cd/lm: 0.5
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section Image Carclo Optics - UGR Table
View
Eff: 93.5
FWHM: 88
Cd/lm: 0.6
Carclo Optics - Simulated Spot Image
Carclo Optics - Simulated Cross Section
View
Eff: 96
FWHM: 88
Cd/lm: 0.9
Carclo Optics - 12917 Spot Image Seoul STW8 C2SB-NT
Carclo Optics - 12917 Cross Section Seoul STW8 C2SB-NT
View
Eff: 96
FWHM: 88
Cd/lm: 0.9
Carclo Optics - 12917 Spot Image STWS C2PB-E0
Carclo Optics - 12917 Cross Section STWS C2PB-E0
View
Eff: 96
FWHM: 88
Cd/lm: 0.9
Carclo Optics - 12917 33Up Spot Image Seoul Sunlike 3030
Carclo Optics - 12917 33Up Cross Section Seoul Sunlike 3030
View
Eff: 92
FWHM: 88 X 91
Cd/lm: 0.7
Carclo Optics -12917 Spot Image - Seoul Z8Y11
Carclo Optics -12917 Cross Section Image - Seoul Z8Y11
View
