10397 (1200mm)

11.0mm Linear Plain Strip (10397 (1200mm))

Carclo Optics - 10397 - Strip Optic
Part no. 10397 (1200mm)
Drawing no.
60547
Family
Strip Optic
Type
Strip
Diameter
11.0
Beam
Linear
Finish
Plain
http://www.carclo-optics.com/sites/default/files/images/optics/CSO%20mounting%20heights_0.pdf
http://www.carclo-optics.com/sites/default/files/images/optics/10397-10398_iss3_260609_0.pdf
http://www.carclo-optics.com/sites/default/files/images/optics/10397-10398_iss3_260609_0.igs

LEDs & Performances

Select LED to view available holders

Performance Data Images IES/STP
Eff: 84.7
FWHM: 27
Cd/lm: 1.2

View
Eff: 79.2
FWHM: 34 x 95
Cd/lm: 1.2
Carclo Optics – 10397 Cree Xlamp XP-E2 Far Red - Spot Image
Carclo Optics – 10397 Cree Xlamp XP-E2 Far Red - Cross-Section
View
Eff: 80.7
FWHM: 39 x 95
Cd/lm: 1
Carclo Optics – 10397 Cree Xlamp XP-G3 Photo Red - Spot Image
Carclo Optics – 10397 Cree Xlamp XP-G3 Photo Red - Cross-Section
View
Eff: 72.5
FWHM: 43 x 98
Cd/lm: 0.8
Carclo Optics – 10397 Cree Xlamp XP-G3 Royal Blue - Spot Image
Carclo Optics – 10397 Cree Xlamp XP-G3 Royal Blue - Cross-Section
View
Eff: 84.3
FWHM: 32
Cd/lm: 1.1

View
Eff: 82.6
FWHM: 24 x 103
Cd/lm: 1.5
Carclo Optics – 10397 Lumileds Luxeon SunPlus 20 Line – Cool White - Spot Image
Carclo Optics – 10397 Lumileds Luxeon SunPlus 20 Line – Cool White - Cross-Section
View
Eff: 78.3
FWHM: 19 x 107
Cd/lm: 1.5
Carclo Optics – 10397 Lumileds Luxeon SunPlus 20 Line – Deep Red - Spot Image
Carclo Optics – 10397 Lumileds Luxeon SunPlus 20 Line – Deep Red - Cross-Section
View
Eff: 78.3
FWHM: 19 x 107
Cd/lm: 1.5
Carclo Optics – 10397 Lumileds Luxeon SunPlus 20 Line – Far Red - Spot Image
Carclo Optics – 10397 Lumileds Luxeon SunPlus 20 Line – Far Red - Cross-Section
View
Eff: 79.5
FWHM: 24 x 104
Cd/lm: 1.5
Carclo Optics – 10397 Lumileds Luxeon SunPlus 20 Line – Lime - Spot Image
Carclo Optics – 10397 Lumileds Luxeon SunPlus 20 Line – Lime - Cross-Section
View
Eff: 75.8
FWHM: 25 x 113
Cd/lm: 1.4
Carclo Optics – 10397 Lumileds Luxeon SunPlus 20 Line – Royal Blue - Spot Image
Carclo Optics – 10397 Lumileds Luxeon SunPlus 20 Line – Royal Blue - Cross-Section
View
Eff: 91.5
FWHM: 92 x 31
Cd/lm: 1.4
Carclo Optics – 10397 Luminus_SST-10_B_B130- Spot – image
Carclo Optics – 10397 Luminus_SST-10_B_B130- Cross section – image
View
Eff: 91.5
FWHM: 81 x 33
Cd/lm: 1.4
Carclo Optics – 10397 Luminus_SST-10_B_B90- Spot – image
Carclo Optics – 10397 Luminus_SST-10_B_B90- Cross section – image
View
Eff: 93
FWHM: 88 x 28
Cd/lm: 1.5
Carclo Optics – 10397 Luminus_SST-10_DR_B130- Spot – image
Carclo Optics – 10397 Luminus_SST-10_DR_B130- Cross section – image
View
Eff: 93.5
FWHM: 83 x 35
Cd/lm: 1.3
Carclo Optics – 10397 Luminus_SST-10_DR_B90- Spot – image
Carclo Optics – 10397 Luminus_SST-10_DR_B90- Cross section – image
View
Eff: 92.5
FWHM: 86 x 23
Cd/lm: 2.8
Carclo Optics – 10397 Luminus_SST-10_FR_B130- Spot – image
Carclo Optics – 10397 Luminus_SST-10_FR_B130- Cross section – image
View
Eff: 93
FWHM: 71 x 36
Cd/lm: 2.2
Carclo Optics – 10397 Luminus_SST-10_FR_B90- Spot – image
Carclo Optics – 10397 Luminus_SST-10_FR_B90- Cross section – image
View
Eff: 92.5
FWHM: 93 x 31
Cd/lm: 1.3
Carclo Optics – 10397 Luminus_SST-10_G_B130- Spot – image
Carclo Optics – 10397 Luminus_SST-10_G_B130- Cross section – image
View
Eff: 92.5
FWHM: 80 x 33
Cd/lm: 1.3
Carclo Optics – 10397 Luminus_SST-10_G_B90- Spot – image
Carclo Optics – 10397 Luminus_SST-10_G_B90- Cross section – image
View
Eff: 92.5
FWHM: 88 x 28
Cd/lm: 1.4
Carclo Optics – 10397 Luminus_SST-10_R_B130- Spot – image
Carclo Optics – 10397 Luminus_SST-10_R_B130- Cross section – image
View
Eff: 93
FWHM: 83 x 34
Cd/lm: 1.3
Carclo Optics – 10397 Luminus_SST-10_R_B90- Spot – image
Carclo Optics – 10397 Luminus_SST-10_R_B90- Cross section – image
View
Eff: 92
FWHM: 93 x 25
Cd/lm: 1.7
Carclo Optics – 10397 Luminus_SST-10_SB_B130- Spot – image
Carclo Optics – 10397 Luminus_SST-10_SB_B130- Cross section – image
View
Eff: 92
FWHM: 80 x 33
Cd/lm: 1.4
Carclo Optics – 10397 Luminus_SST-10_SB_B90- Spot – image
Carclo Optics – 10397 Luminus_SST-10_SB_B90- Cross section – image
View
Eff: 82
FWHM: 21 x 84
Cd/lm: 1.27

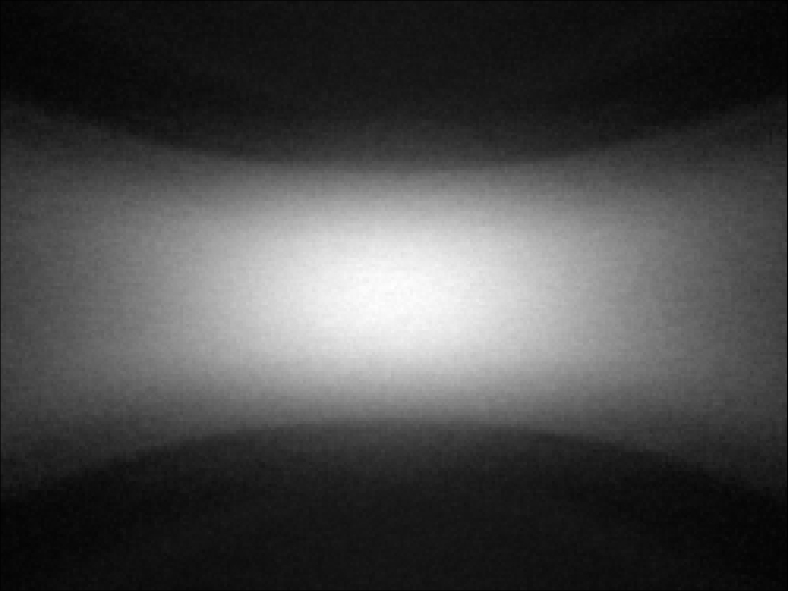

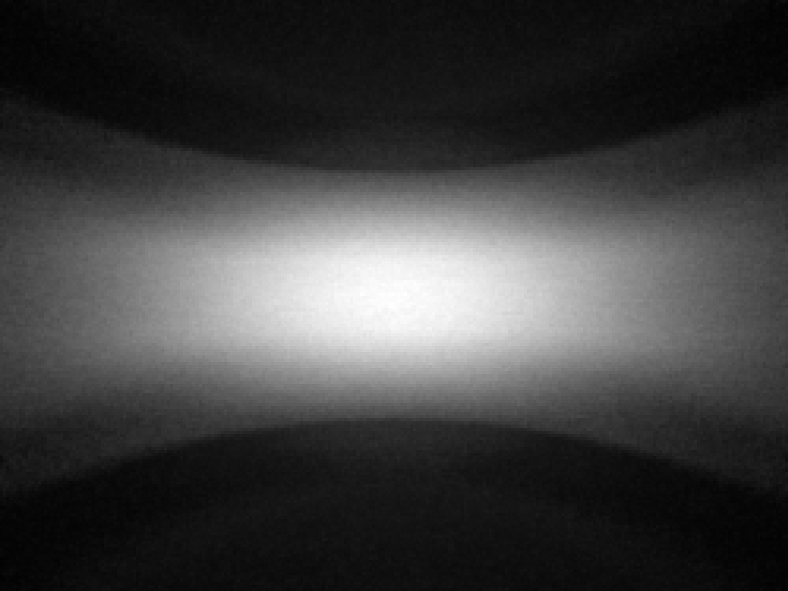

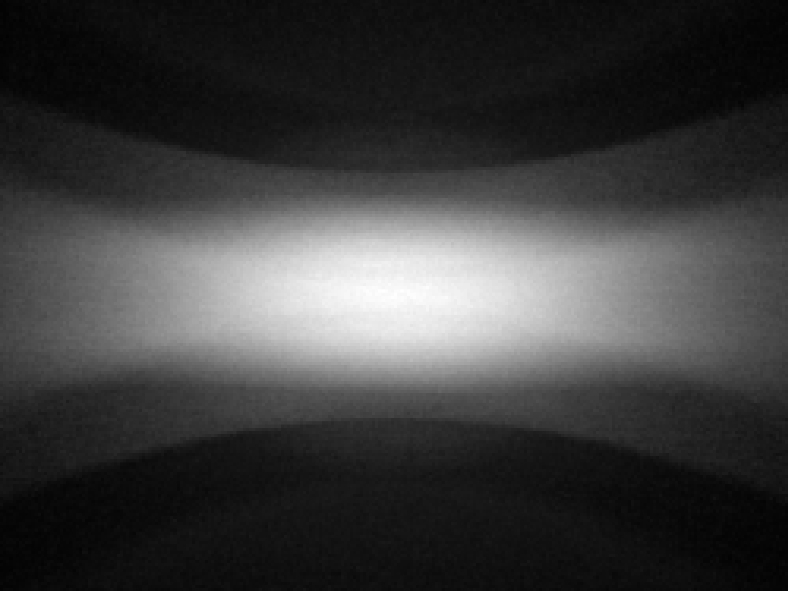

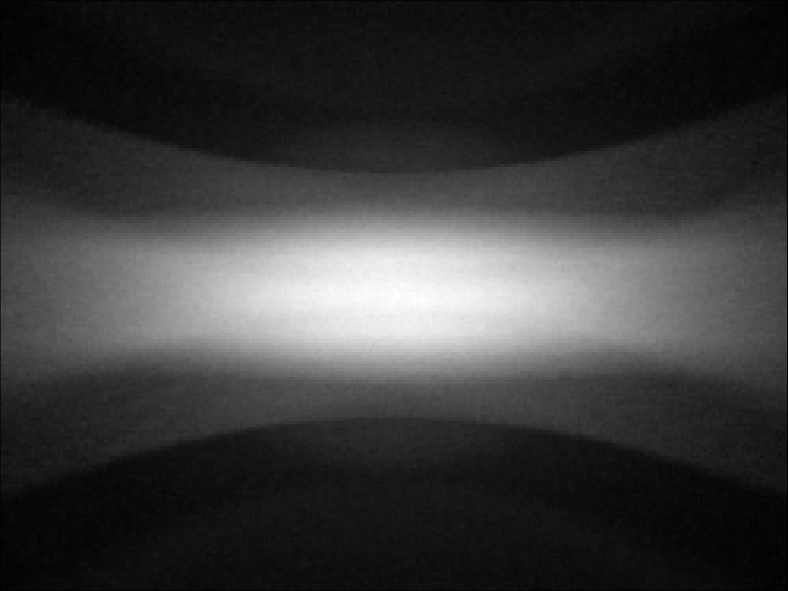

10397 Spot image With Nichia E21A

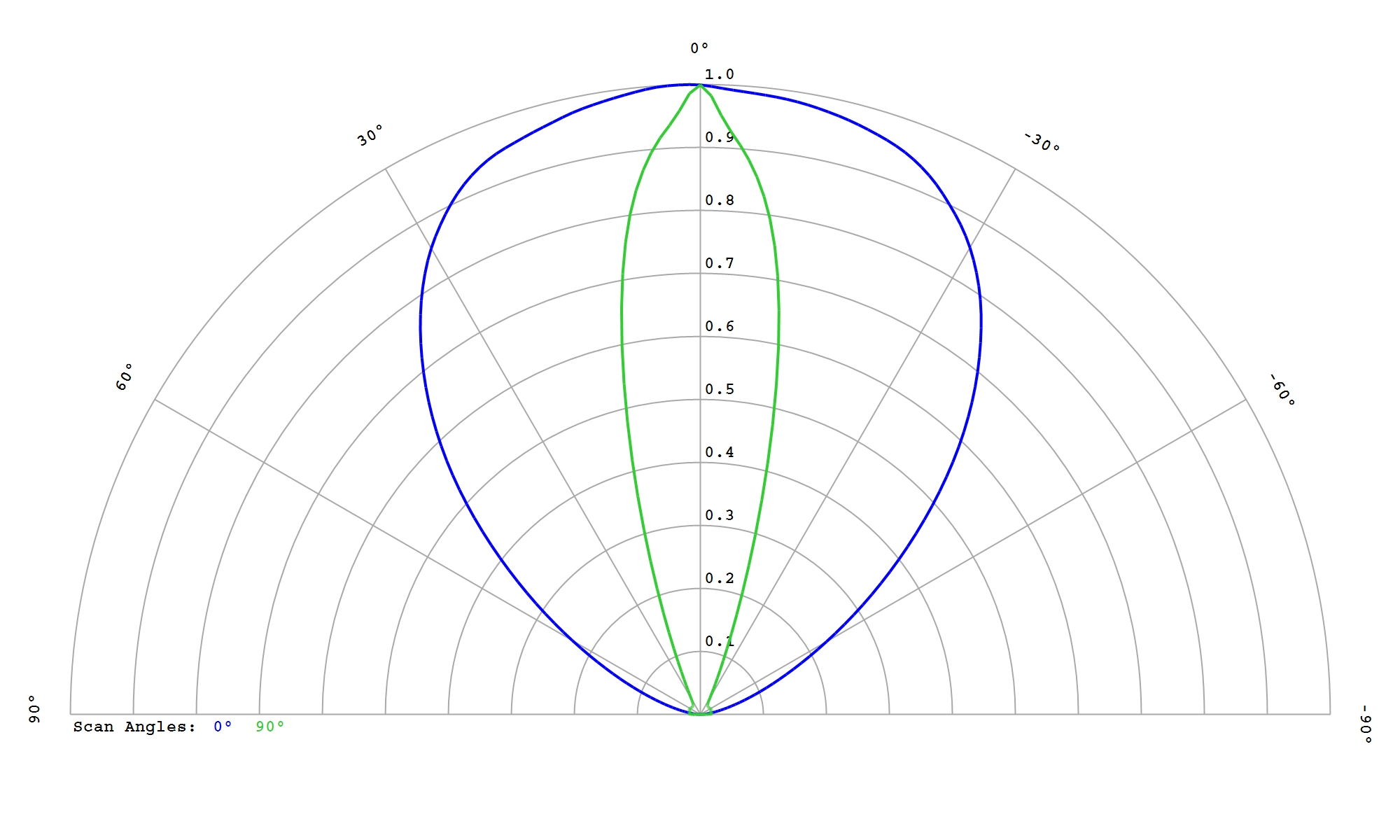

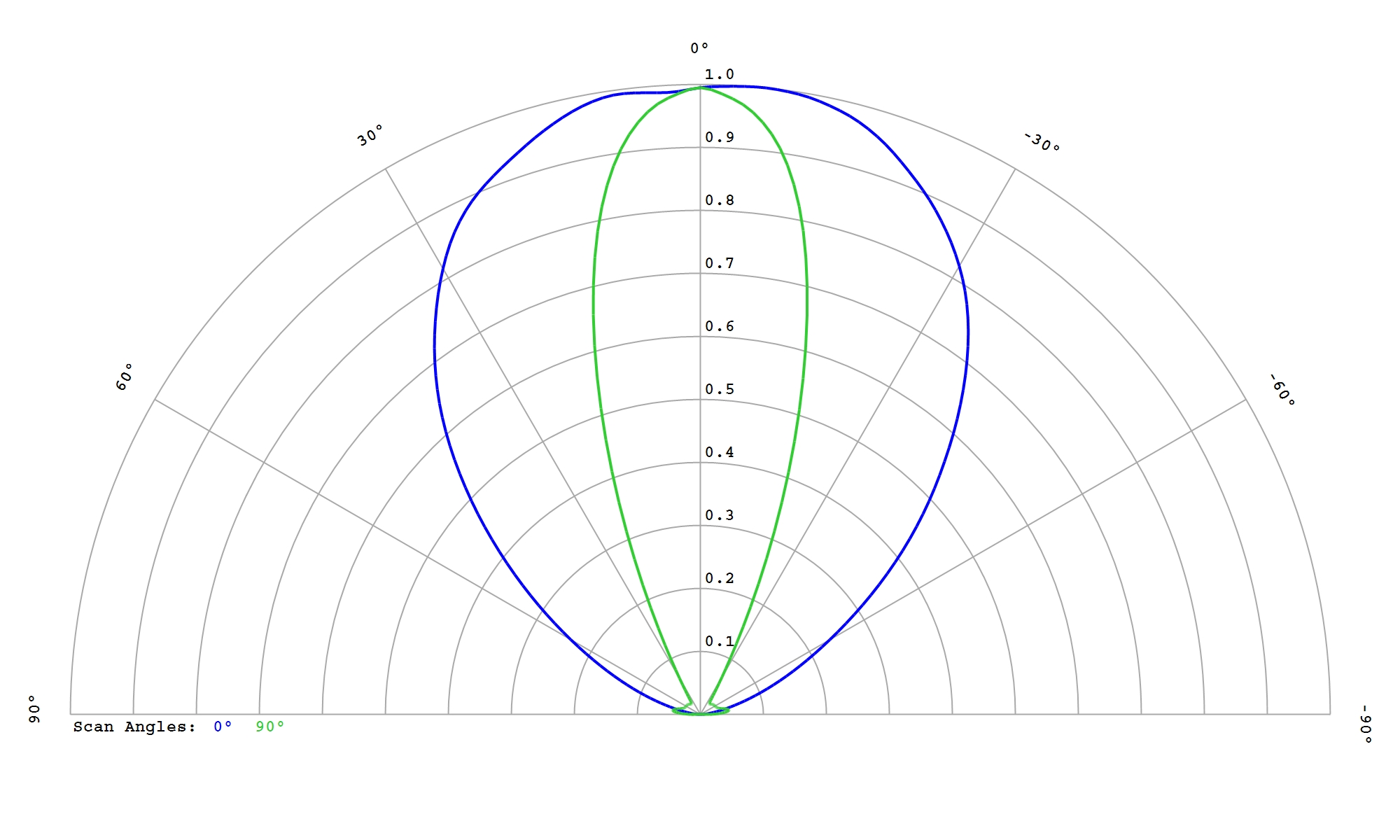

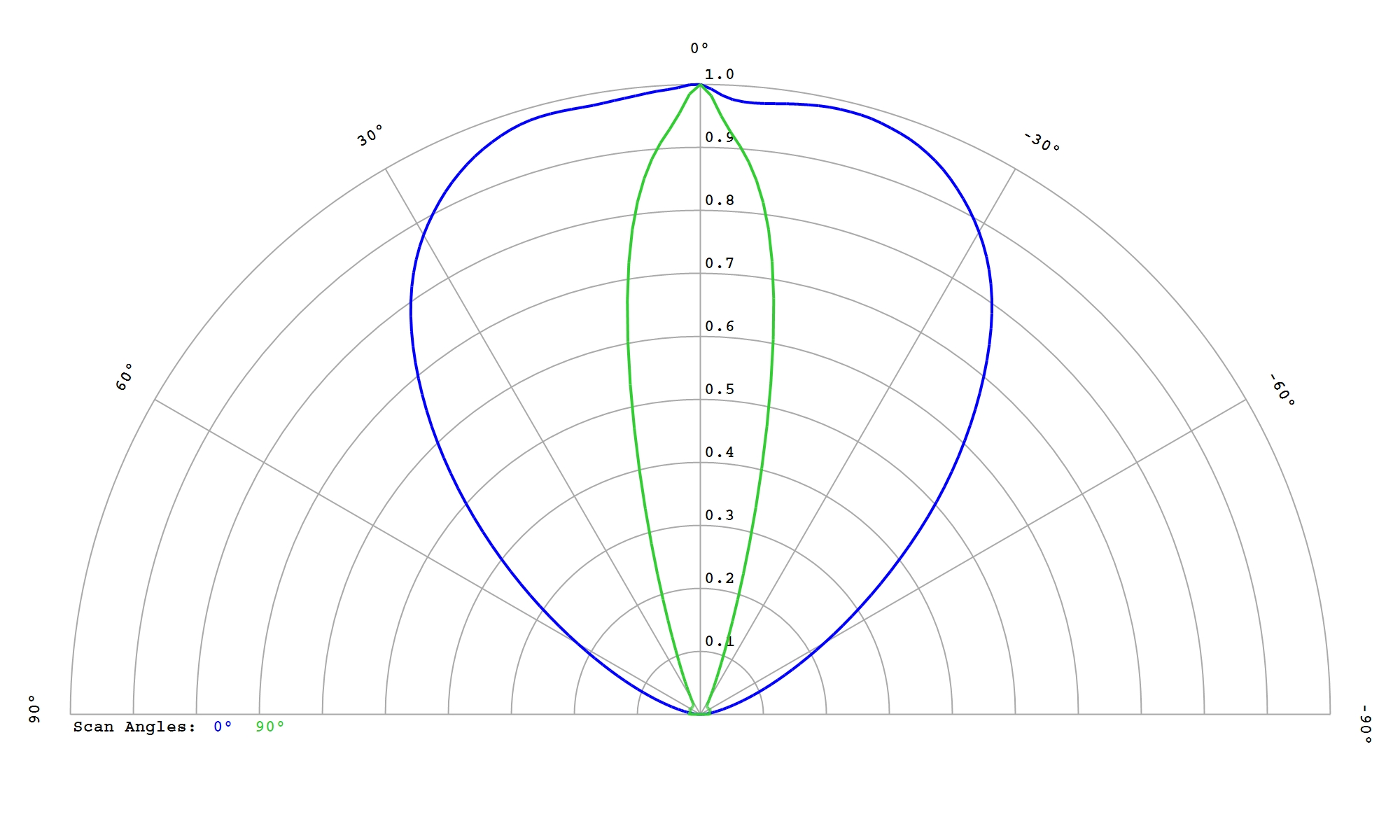

10397 Intensity Cross Section With Nichia E21A
View
Eff: 81.1
FWHM: 24 x 87
Cd/lm: 1.4
Carclo Optics – 10397 Osram Oslon SSL-120 GD CSSPM1.14 Deep Blue - Spot Image
Carclo Optics – 10397 Osram Oslon SSL-120 GD CSSPM1.14 Deep Blue - Cross-Section
View
Eff: 82.8
FWHM: 30 x 88
Cd/lm: 1.3
Carclo Optics – 10397 Osram Oslon SSL-120 GF CSSPM1.24 Far Red - Spot Image
Carclo Optics – 10397 Osram Oslon SSL-120 GF CSSPM1.24 Far Red - Cross-Section
View
Eff: 82.6
FWHM: 24 x 91
Cd/lm: 1.4
Carclo Optics – 10397 Osram Oslon SSL-120 GH CSSPM1.24 Hyper Red - Spot Image
Carclo Optics – 10397 Osram Oslon SSL-120 GH CSSPM1.24 Hyper Red - Cross-Section
View
Eff: 91.5
FWHM: 94 x 33
Cd/lm: 1.1
Carclo Optics – 10397 Samsung_3535_LH351H_B - Spot – image
Carclo Optics – 10397 Samsung_3535_LH351H_B - Cross section – image
View
Eff: 93
FWHM: 97 x 28
Cd/lm: 1.3
Carclo Optics – 10397 Samsung_3535_LH351H_DR - Spot – image
Carclo Optics – 10397 Samsung_3535_LH351H_DR - Cross section – image
View
Eff: 94
FWHM: 86 x 31
Cd/lm: 1.4
Carclo Optics – 10397 Samsung_3535_LH351H_R - Spot – image
Carclo Optics – 10397 Samsung_3535_LH351H_R - Cross section – image
View
Eff: 92.5
FWHM: 89 x 39
Cd/lm: 1.1
Carclo Optics – 10397 Samsung_3535_LH351H-B_White - Spot – image
Carclo Optics – 10397 Samsung_3535_LH351H-B_White - Cross section – image
View
Eff: 92.5
FWHM: 84 x 39
Cd/lm: 1.1
Carclo Optics – 10397 Samsung_3535_LH351H-C_White - Spot – image
Carclo Optics – 10397 Samsung_3535_LH351H-C_White - Cross section – image
View
Eff: 92
FWHM: 80 x 39
Cd/lm: 1
Carclo Optics – 10397 SSC (Seoul)_MidPower_3030_STB0C2PB Blue - Spot – image
Carclo Optics – 10397 SSC (Seoul)_MidPower_3030_STB0C2PB Blue - Cross section – image
View
Eff: 93
FWHM: 96 x 24
Cd/lm: 1.3
Carclo Optics – 10397 SSC (Seoul)_MidPower_3030_ STDRC12B Deep Red - Spot – image
Carclo Optics – 10397 SSC (Seoul)_MidPower_3030_ STDRC12B Deep Red - Cross section – image
View
Eff: 93
FWHM: 103 x 25
Cd/lm: 2.1
Carclo Optics – 10397 SSC (Seoul)_MidPower_3030_STFRC12B Far Red - Spot – image
Carclo Optics – 10397 SSC (Seoul)_MidPower_3030_STFRC12B Far Red - Cross section – image
View
FWHM: 31
View
Eff: 92.5
FWHM: 87 x 41
Cd/lm: 1
Carclo Optics – 10397 SSC (Seoul)_Z-Power_Z5 - Spot – image
Carclo Optics – 10397 SSC (Seoul)_Z-Power_Z5 - Cross section – image
View
